Product Data Document
225DS-26J / D301301X012
June 2013
Remote Automation Solutions

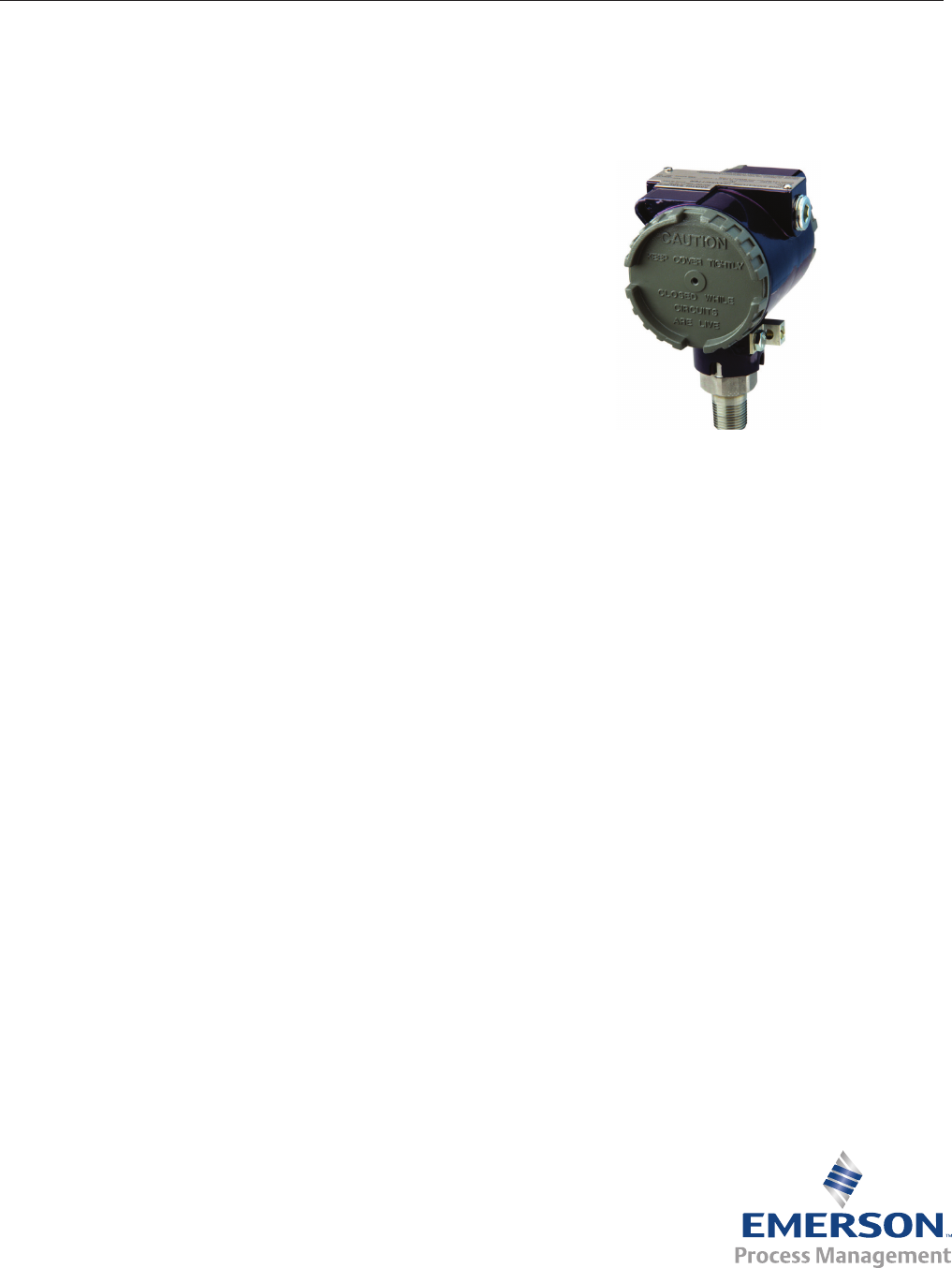

3808 MVT Multivariable Transmitter
Model 3808-10A With P/T Variables
The 3808 MVT Multivariable
Transmitter features accurate measurement
of gauge pressure and temperature.
Featuring:
• Excellentmeasurementperformanceover
thefullrangeofoperatingpressureand
temperatureconditions
• Extremelylowpowerconsumption—perfect
forremotesiteswithbatteryandsolarpower
systems
• “Bilingual”NetworkingviaBSAPandModbus
protocolswithRS485interface—operatesas
anRTUnodeonSCADAnetworks
• Intrinsicallysafeandexplosionprooffor
operationinClassI,Division1hazardousareas
• “Wetend”sensorassemblyisindependent
ofthe“topend”assembly
• Twoversions:RS485withRS232portfor
congurationorAnalogOutputwithFSKsignal.
Introduction
The3808MVTisEmersonProcess
Management’sanswertoindustrydemandsfora
transmitterwithhighreliability,highperformance
overrealworldremotepressureandtemperature
conditions,easeinuse,“networkability”andvery
lowpowerconsumption.The3808MVThasbeen
designedtoprovidethehighestvalueinterms
ofalluserconsiderations,includingpurchasing,
installation,operationandmaintenance.
Tomaximizemeasurementaccuracy,the3808
combinesawetendwithalowreference
uncertaintyof0.075%URL,withadesignthat
minimizeseffectsofpressureandtemperatureover
thefullrangeofoperatingconditions.
Forremotesitessuchasthoseintheenergy
andwaterindustries,powerconsumptionhas
beenakeyconsideration.Costsofbatteriesand
solarpanelsareproportionaltocurrentdrawand
manyusersaresurprisedatthecapitalexpenses
associatedwithelectronics,whichhavenotbeen
designedtoconservepower.Thesophisticated
designemployedbythe3808MVTkeepscurrent
drawwellbelow2mAandwithapowersourceas
lowas5Vdc.
Forremotesites,powerbudgetingisoftenvery
tight.Sincethepowerconsumptionissolow,
the3808MVTcanevenbeaddedtoexisting
sites,whichweredesignedwithnoextracapacity
forpower.
WhiletheBSAP(BristolSynchronousand
Asynchronous)protocolensurescompatibilitywith
Emerson’smeasurementandSCADAsystems,
Modbusprovidescompatibilitywithawidevariety
ofcontrollers,owcomputers,RTUdevicesand
SCADAsystemsfromnumeroussuppliers.
Functionality Overview
Emerson’s3808MVTprovidesthefollowingbasic
operations
• Conversionofsensorreadingsfromthe“wet
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
2www.EmersonProcess.com/Remote
end”pressuresensorassemblyintoaccurate
oatingpointpressurevalues.Conversion
calculationsutilizecorrectioncoefcients
containedinthesensorassemblyandare
performedoncepersecondforeachprocess
variable
• Conversionofrawreadingsfromanon-board
A/DintoanaccurateoatingpointRTDvalue.
RTDconversionsareperformedonceper
second
• Upto19200baud,2-wireRS-485serial
communicationsinterface,ora1200baud,
FSKmodeminterfaceviathe4-20macurrent
loopforNetworkcommunication
• LocalRS-232serialcommunicationsinterface
xedat19200baud.(ConnectingtotheRS-232
communicationsinterfacedisablestheRS-485
communications.)
• AsubsetoftheEmersonBSAPRDBand
Peer-to-Peercommunicationsinterface:
CompletesetofUser/HostInterface
functionsforConguration,Calibration,
andDataCollection
Floatingpointvaluesreturnedindividually,
orinpre-denedLists
FloatingpointvaluesavailableforGP,T,
SensorTemperature,andErrorStatus
Floatingpoint,Logical,orStringvalues
alsoavailableforotheruserconguration
parameters
• Optional,4-to-20mAAnalogOutput:
LinearorSquareRootMode
ReversibleOutputAction
Maybecontrolledexternally
toprovidearemoteAO
• Optional,on-boardLCDdisplaywithP
andTinformation
Physical Overview
Service:Level,pressure,temperature
measurementsforliquidsandgases.
DiaphragmMaterial:316SSorHastelloyC
ConnectionMaterial:316SSorHastelloyC
FillMedia:DC200SiliconeOil
ProcessConnections:½”-14NPTmalepipe
tapand⅛”-27NPTfemalepipethreadonsingle
connection
ElectricalConnections:½”NPTConduitConnection
Housing:LowCopperAluminumwithepoxypaint
NEMA4Xexplosionproof.
Localindication:4-½-DigitLCDdisplaylinearor
squarerootinengineeringunits.

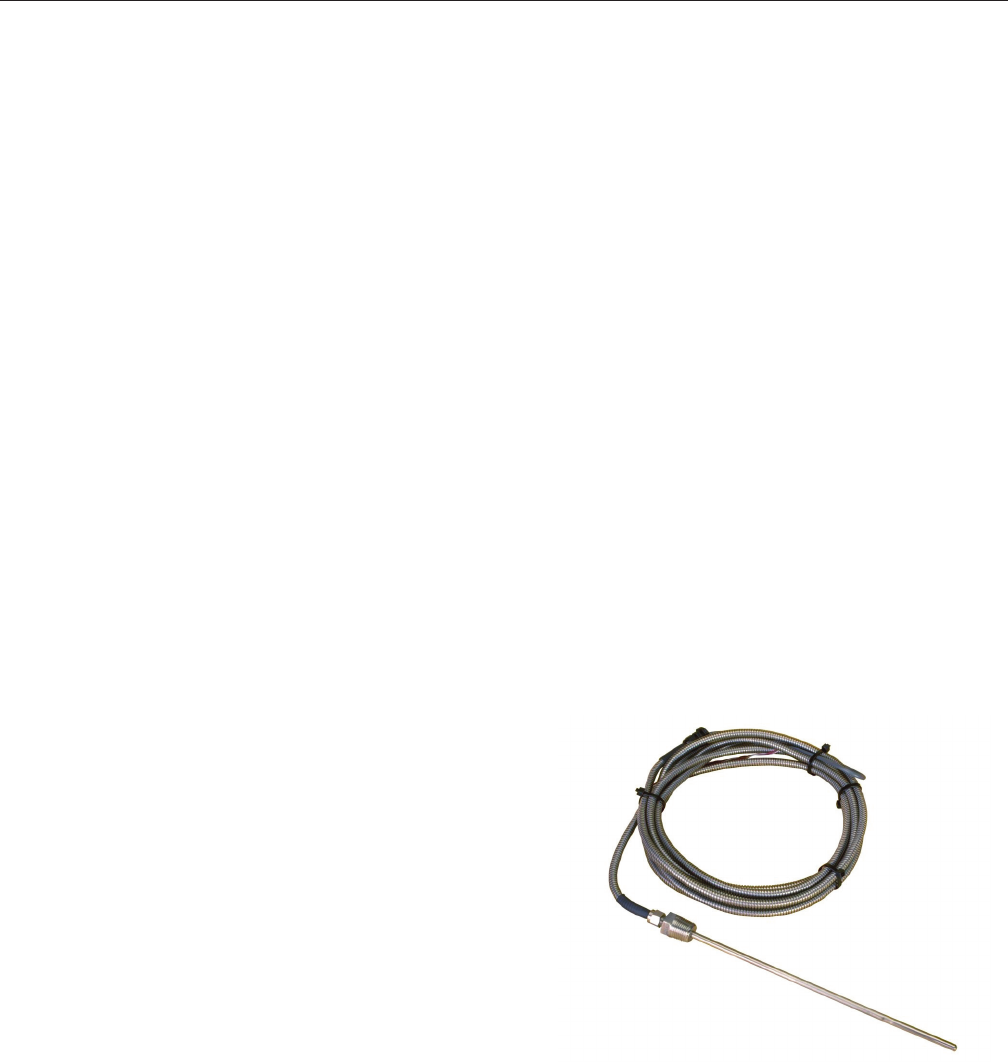

RTDsensor:3-wireplatinum100-ohmperDIN
4376025feetmax.

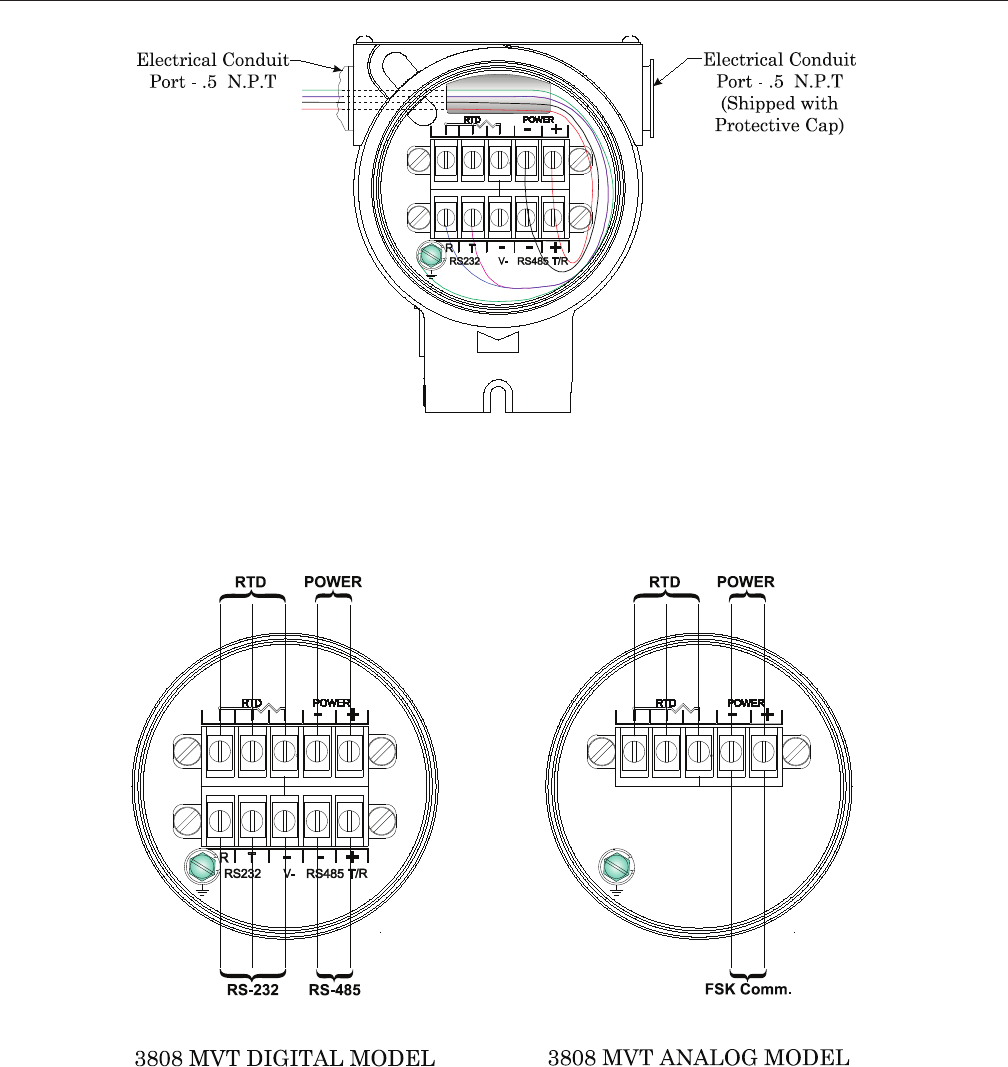

Userconnections:10-terminal(2-rows)tri-barrier
stripfor+power,-power,RTD+,RTD-,RTD-,TXD,
andRXD.
Power Supply Information
OperatingVoltageRange:5–42Vdc
Current Draw:
WithRS485:Lessthan2mA
WithFSK,butwith4–20mAoutputdisabled:
Lessthan3.2mA
Turn-on time:
Measuredinputvariableswillbewithin
specicationslessthantwosecondsafter
powerisappliedtothe3808MVT.
3www.EmersonProcess.com/Remote
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
Accuracy and Performance
Specications
Allspecicationsareforthedigital,oating-point
signal.
Gauge Pressure
Combinedeffectsofnonlinearity,nonrepeatability
andhysteresisatreferencepressureandoverthe
operatingtemperaturerange:
GPlinearmode:±0.075%ofCalibratedSpanor
0.015%ofURL,whicheverisgreater.
Temperatureeffectongaugepressure:
±0.21%URLmaximumcombinedshiftofzero
andspanwithanambienttemperaturechange
of60ºC(108ºF)
LongTermStabilityatConstantConditions:
±0.1%URL/Yeartypical
Rippleandnoise:PerISA50.1Section4.6
Process Temperature - RTD Interface
Athree-wireplatinumRTDperDIN43760is
supported.Thetemperature,T,indegreesCelsius
iscalculatedusingtheResistancevs.Temperature
TablesaccordingtotheDINEN60751standardfor
ClassA&BRTDs.TheDINEN60751equationis:
R(t)=R0*(1+At+Bt2)
Where:
A=3.9083*10-3oC-1
B=-5.775*10-7oC-2
Ro=100ohms
Inaddition,theusermayentertheR0,A,andB
coefcientsofacustomcalibratedRTD,another
platinumstandardoradifferentmaterial(Nickel,
BalcoorCopper).DuringtheRTDcalibration,the
UserwillbeabletosettheR0,A,andBcoefcients,
restorethefactorydefaultforthesecoefcients,and
calibratetheinternalReferenceresistor.
Process Temperature Input Specications
(fortheinterface,only,notincludingtheRTD
probeorwiring)
RTDConversionAccuracy:±0.1°C,or±0.1%of
reading,whicheverisgreater
AmbienttemperatureeffectonRTDmeasurement:
±0.01°C/ºCmax
LongTermStabilityatConstantConditions:
±0.25ºC/monthmax
Analog Output Specications
Non-linearity:0.1%max
Temperatureeffects:+/-0.25%FullScaleover60
degreesC.
Environmental Specications
OverPressureLimit:Equaltothegaugepressure
upperrangelimit(URL).
Temperaturelimits:
WetEnd:-40to+85ºC
Electronics:-40to+85°C
WithDisplay:-30to+70ºC
StorageTemperature:-40to+100°C
Humiditylimits:Whencoversareproperly
installed,unitwillwithstand0to100%RH
(NEMA4Xenclosure)
Vibration:±0.1%URL/gmax10-500Hzinany
axisperSAMAPMC-33-1C
Electromagneticcompatibility:
Conditions:Currentoutput(only)twistedpairwires
includesRTD.Coversinstalledandwiringrunin
groundedconduit.10V/M,20-500MHZperSAMA
PMC-33-1C:
GP:±0.25%URL
RTDTemperature:±1°C
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
4www.EmersonProcess.com/Remote
Liquid Crystal Display (LCD)
TheLCDdisplaysthemeasuredvariablesforP
andT.Thedisplaywillcontinuallycyclethough
allmeasuredvariables.ThevalueandEngineer-
ingUnitsforaparticularvariablewillbedisplayed
forthreeseconds.Anannunciatorindicateswhich
pressurevariableisbeingdisplayed.
TheLCDprovides41/2digitsofdisplayprecision
withadecimalpoint.ThefollowingEngineering
Unitsareincluded:
• °C
• °F
• BAR
• psi
• inH2O@60°F
• kg/cm2
• kPa
User Interface for the 3808 MVT
Usingalap-toppersonalcomputer,eldpersonnel
canquicklycalibrateandcongurea3808MVT
transmitter.Thepersonalcomputerinterfacesto
theRS232port.Meanwhile,theRS485portwiring
neednotbedisconnected.RS485communication
isdisabledonlywhilethePCcableisconnectedto
theRS232terminals.
Emerson’sLocalViewCalibration
Toolincludesallcalibrationandconguration
operations.Thistoolwillbefamiliarwithusers
ofSmartkitaswellasallotherEmersonow
computersandprovidesusersofallEmerson
measurementproductsaconsistentand
compatibleHuman-MachineInterface(HMI).
AvarietyofUserInterfacefeaturesareprovided
bythe3808MVT.Theseinclude:
• SetCommunicationsBaudRate
• SetBSAPLocalAddress
• SetBSAPGroupNumber
• SetModbusNodeAddress
• SetModbusMode(ASCII/RTU)
• Enable/DisableStaticPressureReading
• Enable/DisableRTDTemperatureReading
• ReadcurrentDP/GP,SP,T,Sensor
Temperature,andStatusvalues
• ReadDP/GPandSPUpperRangeLimits
• CalibrateZero/SpanforDP/GPandSP
• CalibrateZeroforRTD
• CongureRTDCoefcients
• Congure4-20maAnalogOutput
Enable/Disable
SelectForward/ReverseActing
SelectOutputVariable(DP/GP,SP,User
Dened,orNone)
CalibrateZero/Span
• SelectEngineeringUnitsforDP/GP,SP,T
• SetFloatingPointDampingFactor
• DisplayTransmitterInformation(Traceability
information,RangeCodes,FirmwareRevision)
Communication Interface
BSAP Interface
The3808MVTwillactasanimmediateresponse
BSAPSlavedevice.The3808MVTwillfunction
asaterminalnodeonlyinaBSAPNetwork.BSAP
Globalmessagesreceivedwiththe3808MVT’s
LocalAddresswillbeprocessedbythe3808MVT.
Notethatpassthrough,orrouting,ofBSAPGlobal
messages,ExpandedBSAPmessages,andTime-
Sync/NodeRoutingTablemessagesarenotsup-
ported.
AsubsetoftheRDBandPeer-to-peermessages
aresupported.ThiswillprovidetheuserbothRDB
andPeer-to-PeerListaccesstothe3808MVTPro-
cessvariablesandparameters.
5www.EmersonProcess.com/Remote
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
MODBUS Interface
The3808MVTwillactasaModbuscompatible,
slavedevice.The3808MVTprovidessupportfor
bothModbusASCIIandModbusRemoteTerminal
Unit(RTU)transmissionmodes,utilizingasubsetof
theRead/WritecommandsavailableviaModbus.
ToprovidesupportforavarietyofModbuscompat-
iblehostcontrollers,the3808MVTdataavailable
viaModbusaremappedintoModbusCoils/Regis-
ters.ToaccommodatethedifferenttypesofModbus
hostsavailable(i.e.standardModbus,ENRON
Modbus)oatingpointdataitemsaremappedto
severaldifferentModbusRegisteraddressranges.
Thisprovidesboth16-bitand32-bitregisteraccess
usingtheappropriateregisteraddressandfunction
code.
Accessories
Emerson’sOpenBSI/LocalView–
CalibrationandcongurationsoftwareforaPC
CDpartnumber:395575-02-8
PC-to-3808-MVTCable–ConnectstotheRS
232portonthe3808MVT,10foot,partnumber:
396596-01-0
TransmitterInterfaceUnit(TIU)–Forcompatibility
withthe3508,thismoduleisusedtoconnectaPC
totheFSKsignalonthe3808MVT.
PartNumber389959-01-4
FortheTIU,pleasespecifythemodemcablelength:
6foot–partnumber390929-01-8
12foot–partnumber390929-02-6
25foot–partnumber390929-03-4
Bendable RTD
TheusercanselectabendableRTDthatattaches
tothetransmitterviaanarmoredcableof6-foot,
15-footor25-footlength.Theindividualwires
connecttoterminationsontheterminationplate.
TheRTDassemblyalsoincludesatting,which
isinstalledintheconduitport.
Iforderedalongwiththetransmitter,thebendable
RTDassemblywillbeshippedinthesameboxas
thetransmitter.
ThebendableRTDisa“onesizetsall”solution
thatisperfectformostapplicationsandexcellentfor
depot-levelinventorysituationsinwhichtheultimate
installation(and,therefore,thermowelldepth)isnot
necessarilyknown.
The12”probecanquicklybeinsertedina
thermowell,whereupontheusercantighten
theincludedttingtolockitinplaceandbend
theexcesslengthoutoftheway.
Notethatathermowellisrequiredforthisbendable
RTD!
NotealsothatthebendableRTDassemblyisapproved
onlyforuseinClassI,Division2hazardousareasand
isnotexplosionproof.
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
6www.EmersonProcess.com/Remote
Model Number: 3808-10A - A - B - C - D - E - F - G - H - J - J1 - K
3808-10A
DESCRIPTION CODE
A B
Input Range (Gauge Pressure)
PSI 3808MVT A B
10 0-15"H20to300"H20 14
0-1.25to0-25PSI 20
0-5to0-100PSI 22
0-15to0-300PSI 23
0-50to0-1000PSI 25
0-150to0-3000PSI 26
0-250to0-5000PSI(withindicationto10,000PSI) 27
0-100to0-2000PSI 28
0-200to0-4000PSI 29
C Diaphragm Material X3508DIAPH C
20 316StainlessSteel 1
 HastelloyC 2
D Filling Media D
30 DC200Silicone 1
E Comm / Output Options E
40 4-20mAcurrentoutput/FSKNote:LocalcalibrationrequiresTIU. 1
RS485Note:LocalcalibrationrequiresRS232cable. 2
F Local Indication X3808LIND F
50 None 0
41/2DigitLCD 1
G Mounting Bracket XTRANMTBKT G
60 None 0
WithMountingBracket 1
HCertication H
70 UL/CULClassI,Division1,GroupsC&D;ClassI,Division2,GroupsA,B,C,D 1
7www.EmersonProcess.com/Remote
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
J Warning Plate J
80 None 0
 Russian 1
J1 RTD / Cable Assembly J1
None Please refer to the notes, below, concerning 0
WithRTDand6-footCable the RTD Cable Assemblies. 1
85 WithRTDand15-footCable 2
WithRTDand25-footCable 3
DESCRIPTION CODE
Ifselectedin"J1"above,theRTD/Cableassemblywillbeshippedinthesameboxasthe
transmitter.DuetoULrestrictions,theycannotbeshipped"pre-connected."
IMPORTANT: TheseparticularRTDassembliesarenotexplosion-proofbutareapproved
forClassI,Division2hazardousareas.Forexplosion-proofRTDcomponents,please
referto"RTDSensorsandRelatedAccessories"inthepricebook.
KFactory Conguration Options K
88 UsetheStandard,Defaults-Please DO NOT ll-in attachment 3800-A010 0
SpecifyOtherCongurationSettings-Please proceed to attachment 3800-
A010. 1
Tospecifya3808MVTthatisapprovedbyIndustryCanadaforcustodytransferinstallations
whenusedinconjunctionwithaControlWaveEFMorControlWaveXFC,pleaseusethe
followingmodelnumberandattachmentnumber:
3808-10A-28-112-001-000
3808-B-1
Model Number: 3808-10A - A - B - C - D - E - F - G - H - J - J1 - K
3808-10A ModelSpecicationContinued
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
8www.EmersonProcess.com/Remote
Attachment Number: 3800-A - AB - CD - E - F - GH - J - KL - M - N - P - R - T - U
3800-A
DESCRIPTION CODE
A B DP Units for 3808-30A or GP units for 3808-10A A B
InH2O(Default) Special Note for 25 PSI DP range: If you use 00
PSI this attachment, "In H2O" become the default 01
mmH2O units. If you want "PSI," you must specify 02
ftH20 that, here. 03
inHg 04
mmHg 05
90/160 KPa 06
MPa 07
BAR 08
mBAR 09
g/cm2 10
kg/cm2 11
C D SP Units for 3808-30A - Please note that this eld is N/A for the 3808-10A CD
InH2O 00
PSI(Default) 01
mmH2O 02
ftH20 03
inHg 04
mmHg 05
92/170 KPa 06
MPa 07
BAR 08
mBAR 09
g/cm2 10
 kg/cm2 11
E Temperature Units for RTD Input E
DegreesC(Default) 0
94/200 DegreesF 1
F Communications Baud Rate F
9600(Default) 0
1200 1
96/205 2400 2
4800 3
19,200 4
9www.EmersonProcess.com/Remote
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
Attachment Number: 3800-A - AB - CD - E - F - GH - J - KL - M - N - P - R - T - U
3800-A
DESCRIPTION CODE
G H BSAP Local Address GH
Usingtwodigits,includingaleadingzerofor1-9,pleasespecifytheaddressin
98/210 'GH,'ie."01"through"32."Forreference,thedefaultaddressis1.
J BSAP Group Number J
100/300 Pleasell-inasingle-digitbetween1and8in'J.'Group1isthedefault.
K L MODBUS Node Address KL
Usingtwodigits,includingaleadingzerofor1-9,pleasespecifytheaddressin
102/310 'GH,'e.g."01"through"32."Forreference,thedefaultaddressis1.
M MODBUS Mode M
ASCII(Default) 0
104/320 RTU 1
N ENABLE / DISABLE 4 - 20 mA Output N
ENABLE(Default) 0
106/330 DISABLE 1
P 4 - 20 mA LINEAR or SQUARE ROOT P
LINEAR(Default) 0
108/340 SQUAREROOT 1
R 4 - 20 mA FORWARD or REVERSE ACTING R
FORWARD(Default) 0
110/350 REVERSE 1
T 4 - 20 mA OUTPUT VARIABLE T
DP(in3808-30A)orGP(in3808-10A)(Default) 0
112/360 SP(3808-30Aonly) 1
TEMPERATURE 2
U RTS DELAY U
10msDefault 0
115/365
50msthatisknowntowork
bestforChesapeakeCWLP
usingModbus
1
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
10 www.EmersonProcess.com/Remote

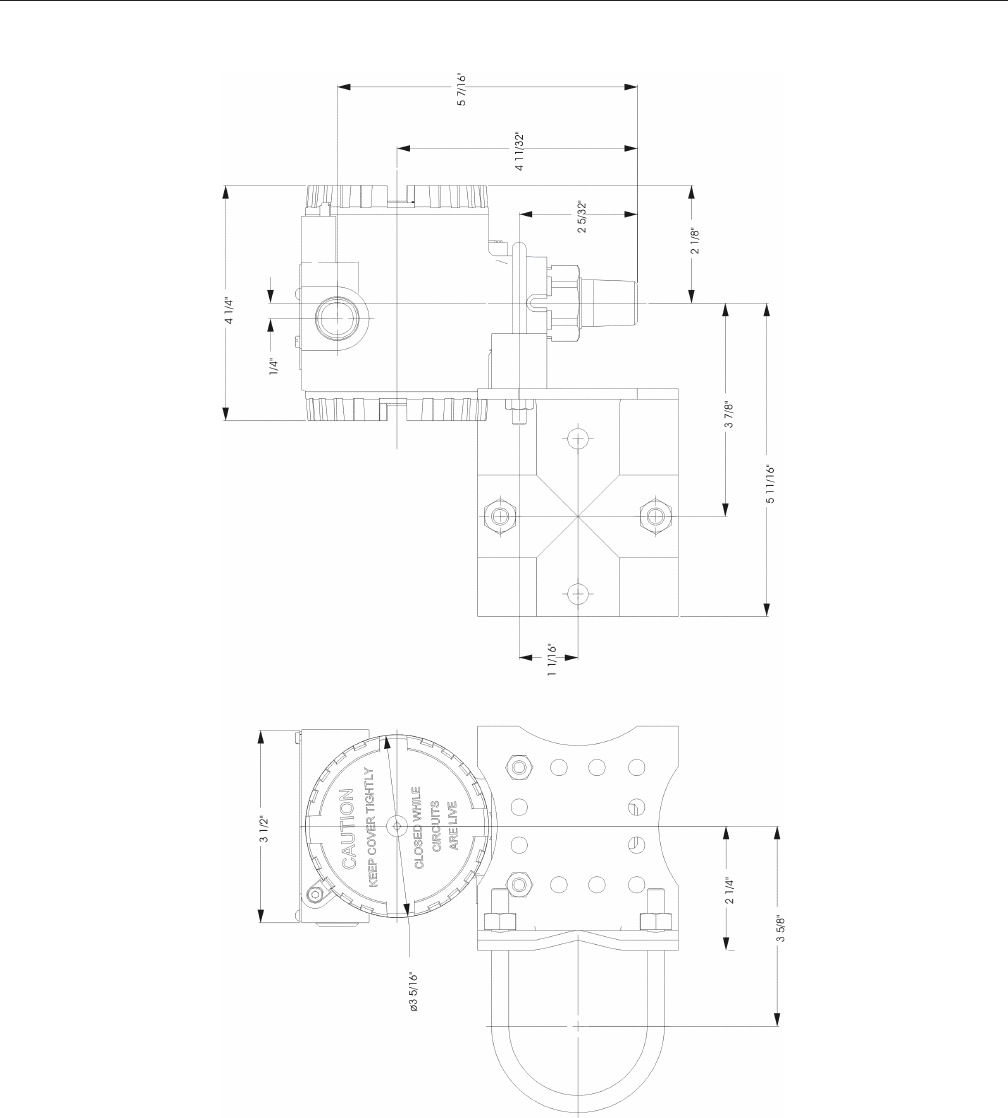

3808-10A with Mounting Bracket Shown
DIMENSIONED DRAWING
11www.EmersonProcess.com/Remote
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013

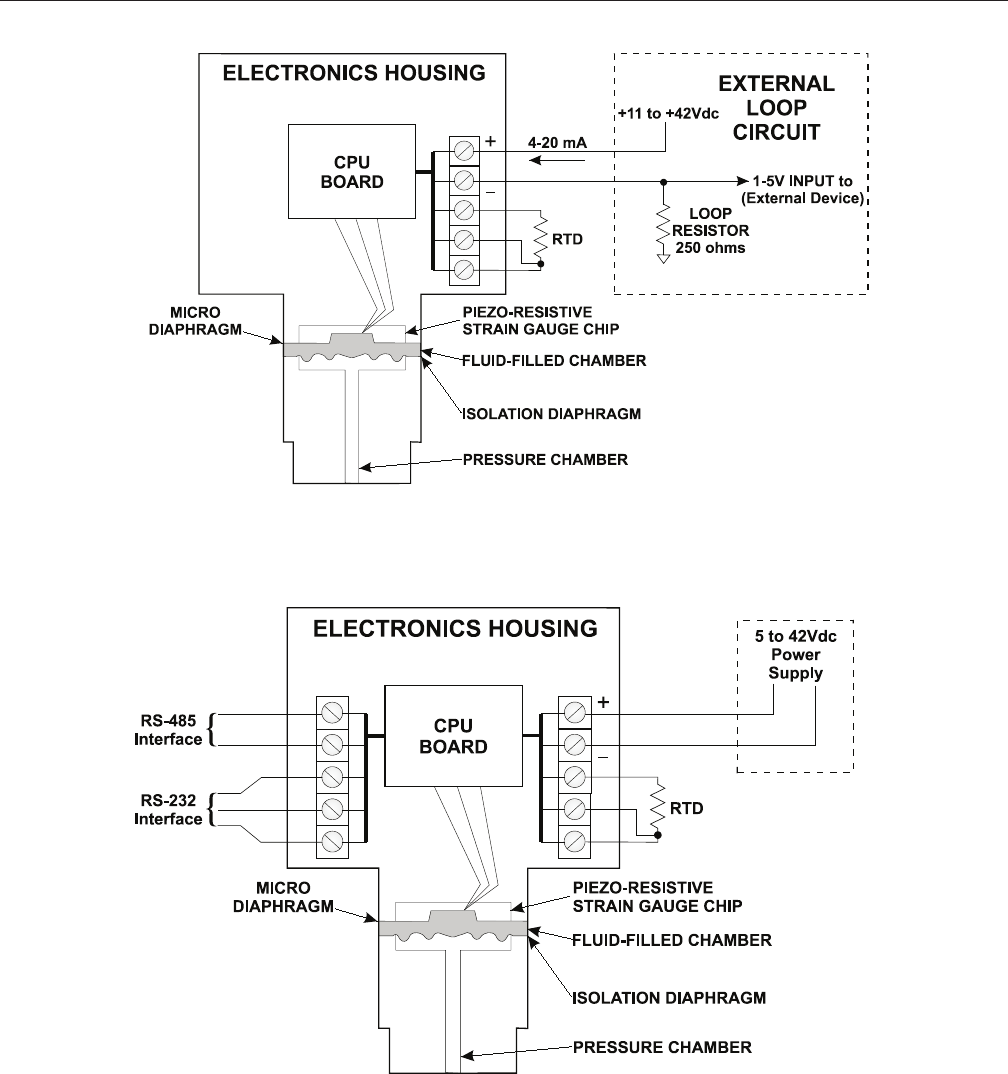

Simplied Diagram of 3808 MVT with 4 – 20 mA Signal
Simplied Diagram of 3808 MVT with RS 232 and RS 485 Interface
3808 Multivariable Transmitter
Product Data Document
225DS-26J / D301301X012
June 2013
12 www.EmersonProcess.com/Remote
3808 MVT Terminal Block Assignments
3808 MVT Wire Routing
Headquarters:
Emerson Process Management
Remote Automation Solutions
6005 Rogerdale Road
Houston, TX 77072 U.S.A.
T +1 281 879 2699 | F +1 281 988 4445
www.EmersonProcess.com/Remote
Europe:
Emerson Process Management
Remote Automation Solutions
Unit 8, Waterfront Business Park
Dudley Road, Brierly Hill
Dudley UK DY5 1LX
T +44 1384 487200 | F +44 1384 487258
www.EmersonProcess.com/Remote
North American/Latin America:
Emerson Process Management
Remote Automation Solutions
6005 Rogerdale Road
Houston TX USA 77072
T +1 281 879 2699 | F +1 281 988 4445
www.EmersonProcess.com/Remote
Middle East/Africa:
Emerson Process Management
Remote Automation Solutions
Emerson FZE
P.O. Box 17033
Jebel Ali Free Zone – South 2
Dubai U.A.E.
T +971 4 8118100 | F +971 4 8865465
www.EmersonProcess.com/Remote
Asia-Pacic:
Emerson Process Management
Remote Automation Solutions
1 Pandan Crescent
Singapore 128461
T +65 6777 8211| F +65 6777 0947
www.EmersonProcess.com/Remote
Remote Automation Solutions
© 2008-2013 Remote Automation Solutions, a business unit of
Emerson Process Management. All rights reserved.
Bristol, Inc., Bristol Canada, BBI SA de CV and Emerson Process Management Ltd, Remote
Automation Solutions division (UK), are wholly owned subsidiaries of Emerson Electric Co. doing
business as Remote Automation Solutions, a business unit of Emerson Process Management.
FloBoss, ROCLINK, Bristol, Bristol Babcock, ControlWave, TeleFlow, Helicoid, OpenEnterprise,
and METCO are trademarks of Remote Automation Solutions. AMS, PlantWeb and the
PlantWeb logo are marks of Emerson Electric Co. The Emerson logo is a trademark and service
mark of the Emerson Electric Co. All other marks are property of their respective owners.
The contents of this publication are presented for informational purposes only. While every
effort has been made to ensure informational accuracy, they are not to be construed as war-
ranties or guarantees, express or implied, regarding the products or services described herein
or their use or applicability. Remote Automation Solutions reserves the right to modify or
improve the designs or specications of such products at any time without notice. All sales are
governed by Remote Automation Solutions’ terms and conditions which are available upon
request. Remote Automation Solutions does not assume responsibility for the selection, use
or maintenance of any product. Responsibility for proper selection, use and maintenance of
any Remote Automation Solutions product remains solely with the purchaser and end-user.
MultivariableTransmitter
Product Data Document
225DS-26J/D301301X012
June2013

Navigation menu
