Red Hat Connect for Technology Partners
Getting Started Guide - Red Hat OpenShift & Container
Prepared for: Product Managers and Technical Staff
Draft Version: 20180912 (preliminary release)
Table of Contents
Introduction 3
Register for RHC4TP & Request Technology Partnership 4
Request Zone Access 6
Add a Product 7
Add a New User to the RHC4TP Account 8
Request Software Access 9
Access granted software entitlements 10
Create a Certification Project 10
Primed & Container Certification 11
Primed 11
Container Certification Checklist 13
Red Hat Partner Logo 13

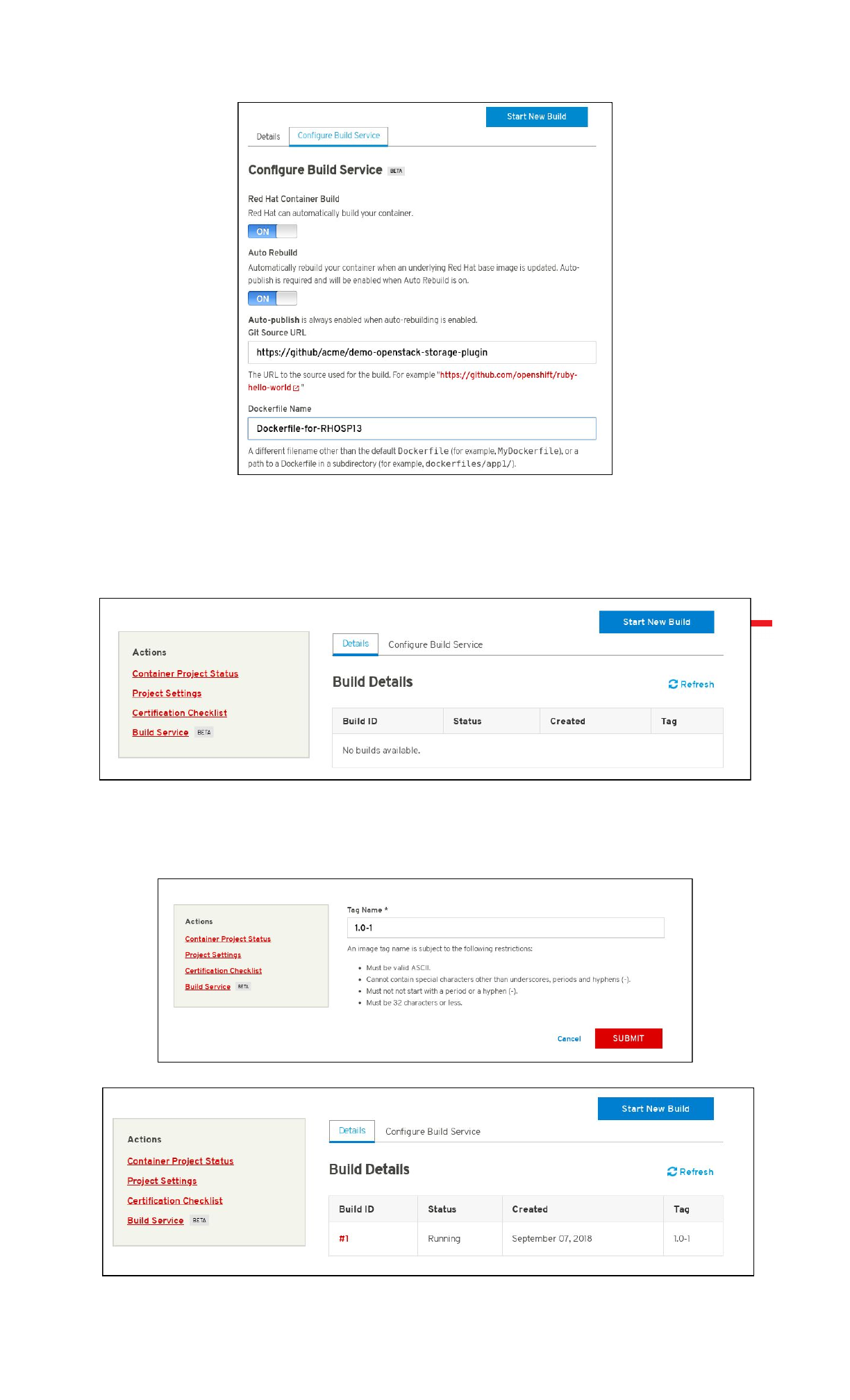

Build Service 16
Manually Upload Your Image 18

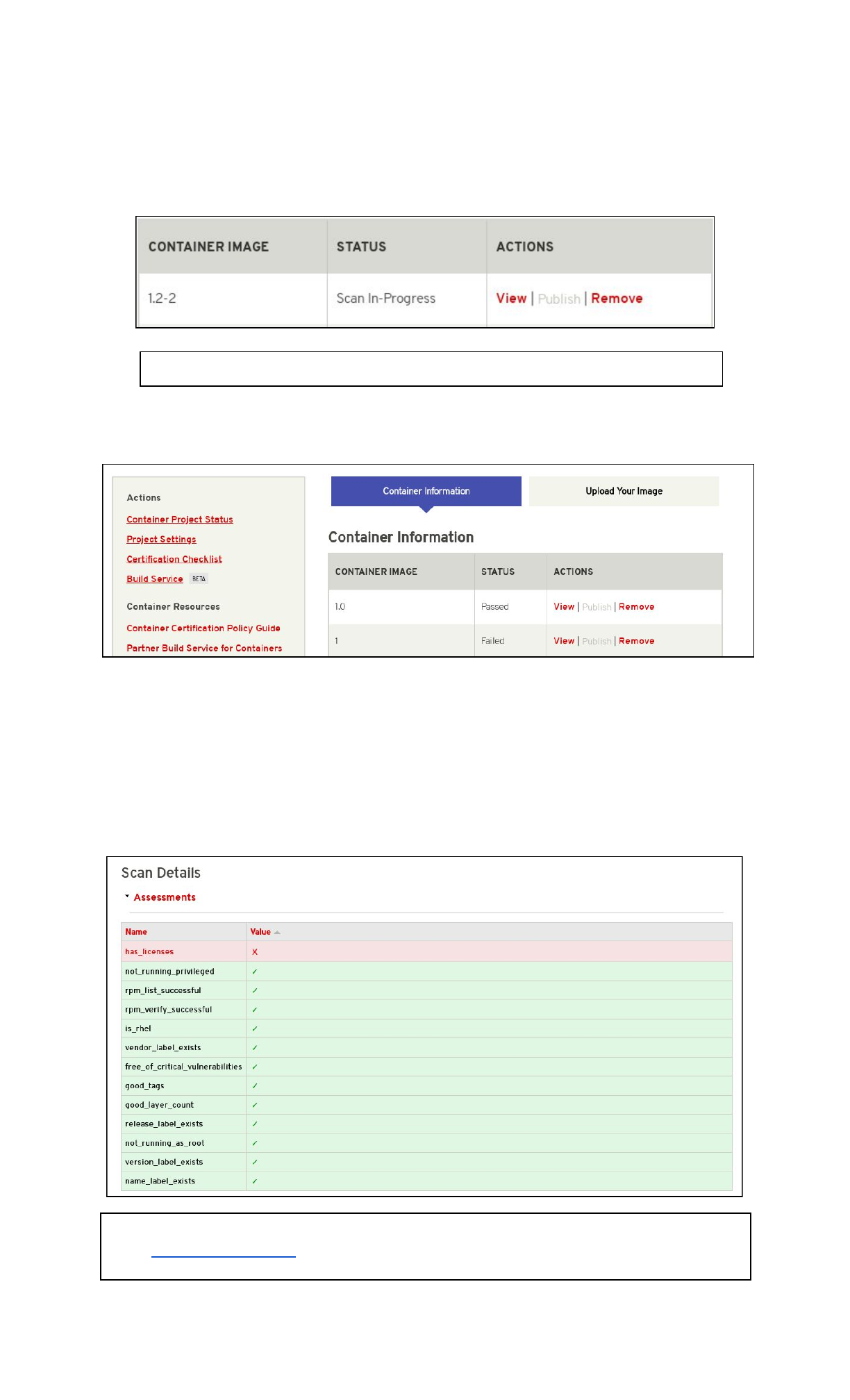

Image Scan 19

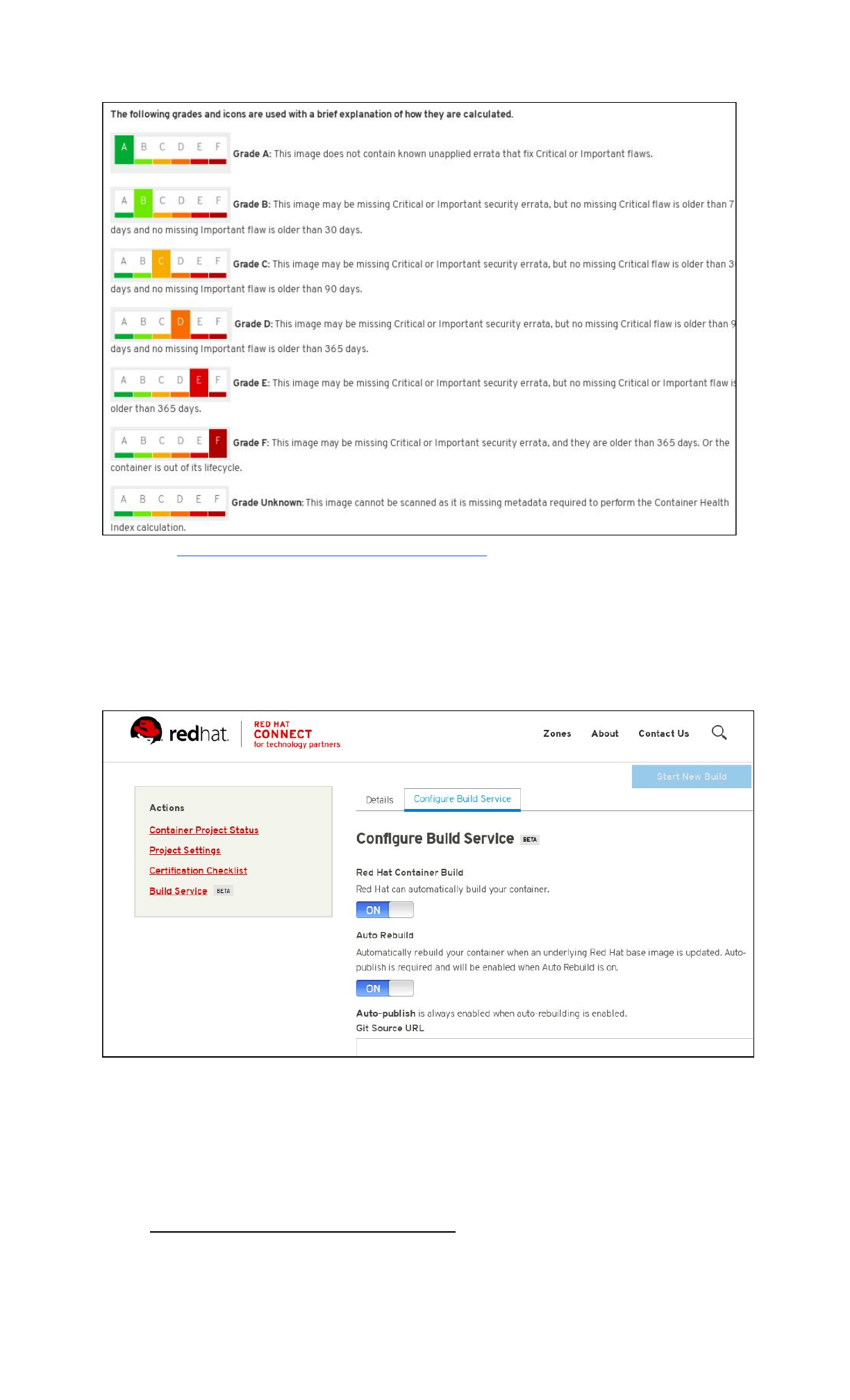

Image Results 19
Export Compliance Questionnaire 20
Maintaining Certified Images 21
Top FAQs 23
Online Resources 23
2
Introduction
Welcome to Red Hat Connect for Technology Partners. This guide provides instructions on
how to register for the Red Hat Connect for Technology Partner program.
This document will also guide you through the process of obtaining a “Red Hat Certified”
designation for an application that you have made deployable via a Linux container using
Red Hat technology.
The process involves preparing your containerized application so that it meets certain criteria
as specified in the Red Hat Certification Policy Guide, submitting it to Red Hat for review and
certification, and publishing it so that the containerized application is available for
consumption.
It should be noted that the ability to maintain the certification requires a commitment to
maintaining the trustworthiness of the container, i.e., updating it as needed for security or
other reasons.
3

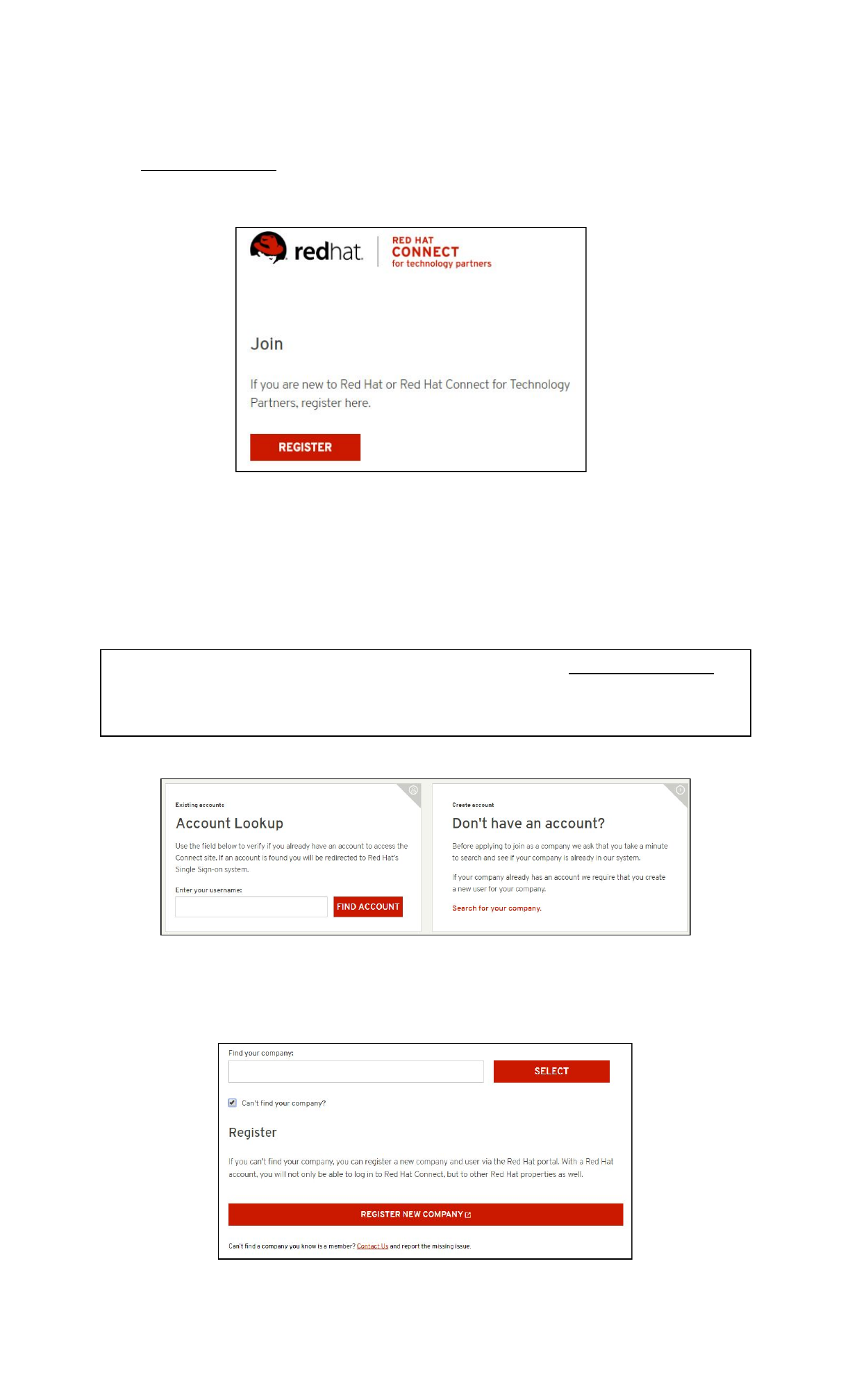

Register for RHC4TP & Request Technology Partnership
Go to connect.redhat.com and click LOG IN
at the upper right of the page.
Click REGISTER
.
Check to see if you have an existing account by searching your Red Hat account login
Username.
If you do not have an existing User Account, check if your Company has an existing account by
clicking SEARCH FOR YOUR COMPANY
.
NOTE: If you find your company in the search field, please email connect@redhat.com to
find out who the Org Admin is for your company, so they can add you to the existing
account.
If your company does not have an existing account, click CAN’T FIND YOUR COMPANY
and then
click REGISTER NEW COMPANY
.
4
Fill in all required fields and SUBMIT
.
A confirmation Email will be sent (example email)
Once your Email has been confirmed, log in to your RHC4TP account at connect.redhat.com.
You will be redirected to the Getting Started
page.
NOTE: If you are not redirected, please click MANAGE COMPANY
and then click BECOME A
PARTNER
You will now be required to complete the following sections (clicking Next
after filling in the
required information):
Company Details
Connect Details
My Profile
5

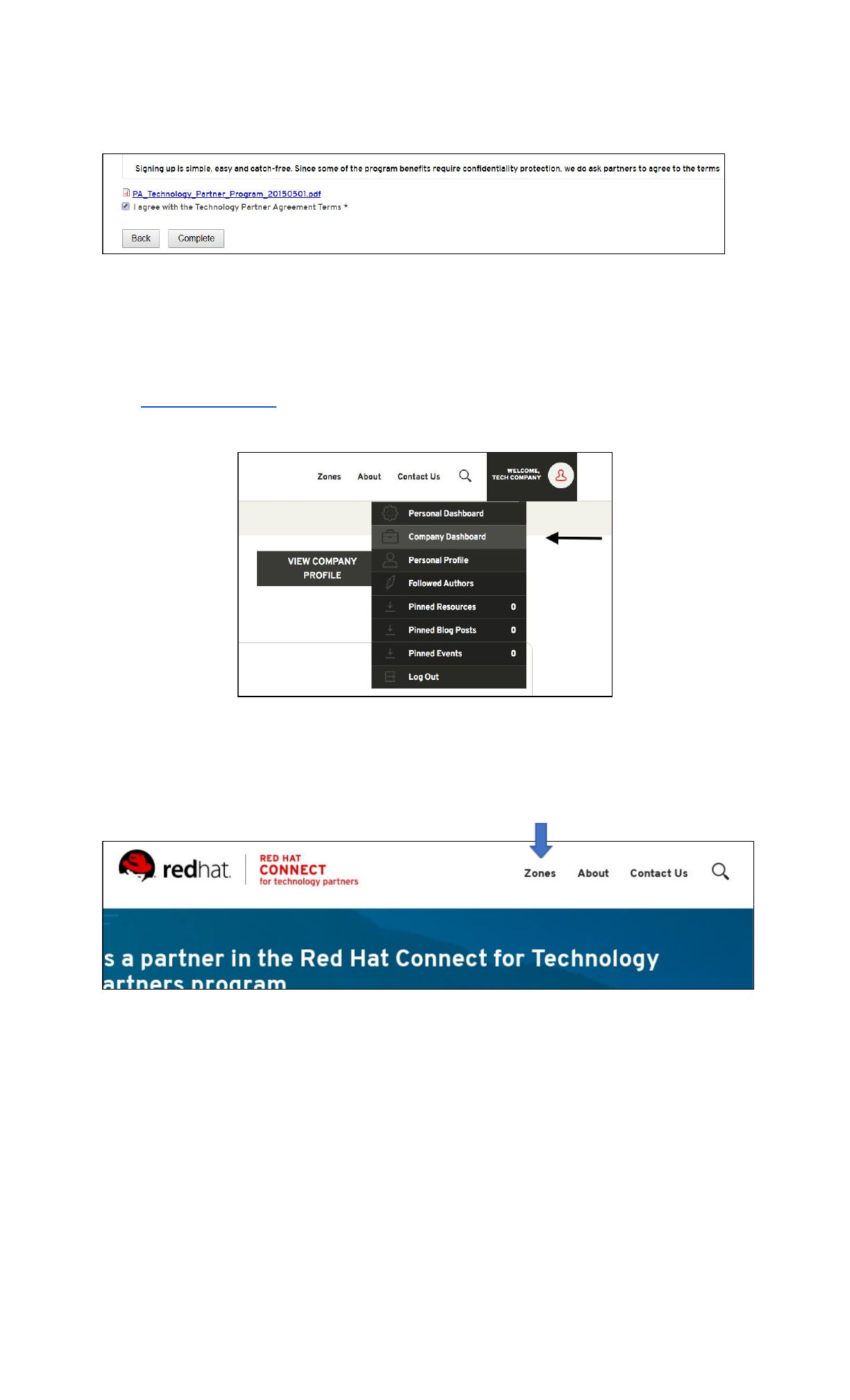

Once the Profile section is complete, you will need to review and accept the Technology
Partner Program Agreement..
Request Zone Access
When you’re ready to certify your product on Red Hat Software, you will need to request Zone
access and then create a Certification Project.
Go to connect.redhat.com and click LOG IN
at the upper right of the page.
Click on COMPANY DASHBOARD
Then select EDIT COMPANY PROFILE
Complete all mandatory fields marked with an * and then click SUBMIT
at the end of the page
Click on ZONES
at the top of the page.
Scroll down to Join a Zone section.
Under the RED HAT OPENSHIFT & CONTAINER ZONE, click APPLY FOR ZONE ACCESS
.
6
You will be notified via Email upon approval of your Zone Request.
Add a Product
Log in to your RHC4TP account at connect.redhat.com.
Select the Human
icon at the top right of the screen and select Company Dashboard
from the
dropdown menu.
Scroll down to Products
section.
Click ADD A PRODUCT
.
Fill in all required information,
including adding your LOGO
and click SUBMIT
.
7
If your Product requires more than one container, add the container names separately under
Product Version. Example:
Note: The product information you enter will be used to feed the certified product catalog
after certification is complete and approved by Red Hat, therefore verify all information is
correct.
Add a New User to the RHC4TP Account
Login to your RHC4TP account at connect.redhat.com
Click on the Human
icon at the top right of the page and select Company Dashboard
from the
drop-down menu
Scroll down to Users
section
and click MANAGE USERS
.
8
Click ADD NEW USER
Fill in required information, then click SAVE
.
NOTE: For a User to access software and certification tools, you must check the Organization
Administrator (Org Admin) box. Multiple users can be Organization Administrators.
Request Software Access
Log in to your RHC4TP account at connect.redhat.com.
Scroll down to the As a program member you receive section
and click LEARN MORE
under
Software access.
On the Red Hat Software Access Page, scroll down to PLATFORMS
and click REQUEST
SUBSCRIPTION
under the software you need
You will receive an email once software access has been granted.
9
Access granted software entitlements
Go to access.redhat.com
Click DOWNLOADS
under Quick links at the bottom of the page
Choose the product family
Then follow the instructions to download
Create a Certification Project
Log in to your RHC4TP account at connect.redhat.com.
Select ZONES
at the top of the page.
Scroll down to the Zone you wish to create the Project under and click CREATE A PROJECT
.
Complete the required fields and click SUBMIT
.
10
Primed & Container Certification
To find the Checklist for Primed and Container Certification go to your Project Page and select
Certification Checklist located on the left menu under Actions.
Primed
Primed is a technical readiness designation for applications that interoperate with OpenShift.
Through Primed, partners indicate that they have verified their product’s functionality on
OpenShift, taking the first step towards the ongoing commitment of container certification.
Primed is also the suggested path for products that integrate with OpenShift but are not
packaged as containers.
To achieve the Primed designation, complete the Primed section of the Container Checklist
Primed Listing
To find the Checklist for Primed Listing go to your Project Page and select Certification
Checklist located on the left menu under Actions.
11
Submitting Primed Evidence
Evidence must be submitted for review. To submit your evidence click on the START
button for
the item located on the Checklist.
This will now take you to the Settings Page of your Project. Fill out all mandatory fields.
Scroll all the way to the section: Supporting Documentation for Primed and add all evidence
links.
Click SUBMIT
at the end of the page.
Now you will have completed that item on the checklist. The check marked box only indicates
that the evidence has been submitted, NOT approved. Once the evidence is submitted, you will
need to click GET LISTED
button on the Certification Checklist Page.
12
Fill out the Contact form for your evidence to be reviewed. Make sure to include evidence and
copy the URL of your project.
Your evidence will reviewed and if your application successfully demonstrates running on the
latest release of OpenShift, it will be listed in in the OpenShift Primed page found here.
https://access.redhat.com/openshift-primed/
NOTE: It will take around 2 weeks after approval for you Company Listing to show.
Container Certification Checklist
Certified containers are applications that meet Red Hat’s best practices for packaging,
distribution and maintenance. Certified containers imply a commitment from partners to
maintain their images up to date and represent the highest level of trust and supportability for
Red Hat customers container-capable platforms, including OpenShift
For Container Certification, complete the Certified
section of the checklist and publish the
image. The certified container will be published in the Red Hat Container Catalog (RHCC)
Example of Container Checklist in progress:
13
Container Checklist
The certified container will be published in the Red Hat Container Catalog (RHCC) along with
containers published by Red Hat and those published by other software companies. The RHCC
is the public-facing website that showcases the containerized applications suitable for
enterprise consumption. RHCC pages will allow for publishing information about the partner
company, and company’s products, as well as technical information about the containerized
application. There will also be a way to link in assets from the partner company (by URL) that
provide additional information about the product, for example a datasheet, a solution brief, a
pre-recorded webinar, a case study, etc. The data populating the RHCC is sourced from the
Connect site. Therefore, it is important to review the company and product entries on Connect
prior to publishing the container to RHCC.
Before your image gets published you must complete the Certification Checklist. Once all items
are completed and your image has passed the scan, you will be able to publish to the Red Hat
Container Catalog.
Each item on the Checklist has more information, you can select the drop down arrow located
to the left of each item to Learn More.
Certification Checklist Section Descriptions
●Update your company profile
○ This page is to ensure that your company profile is up to date. Edit if necessary.
●Update your product profile
○This page relates to the product’s profile such as product type, description,
repository URL, version, contact distribution list, etc.
●Accept the OpenStack Appendix
○Site Agreement to the Container Terms.
●Update project profile
○This section relates more to the image/container settings such as Auto Publish
feature, registry namespace, release category, supported platforms.
●Package and test your application as a container
○Follow the instructions on this page to configure the build service. The build
service will be dependent on the complete of the previous steps.
●Upload documentation and marketing materials
○This will bring you to the product page. Scroll to the bottom and click on Add
new Collateral
to upload your product information.
NOTE: A minimum of 3 materials are required, with 1 being a mandatory “document” type.
This is where you add your product information to your product page.
●Provide a container registry namespace
○This is the same as the project page profile page.
●Provide sales contact information
14
○Again, this information is the same as the company profile.
●Obtain distribution approval from Red Hat
○Red Hat will take care of this step.

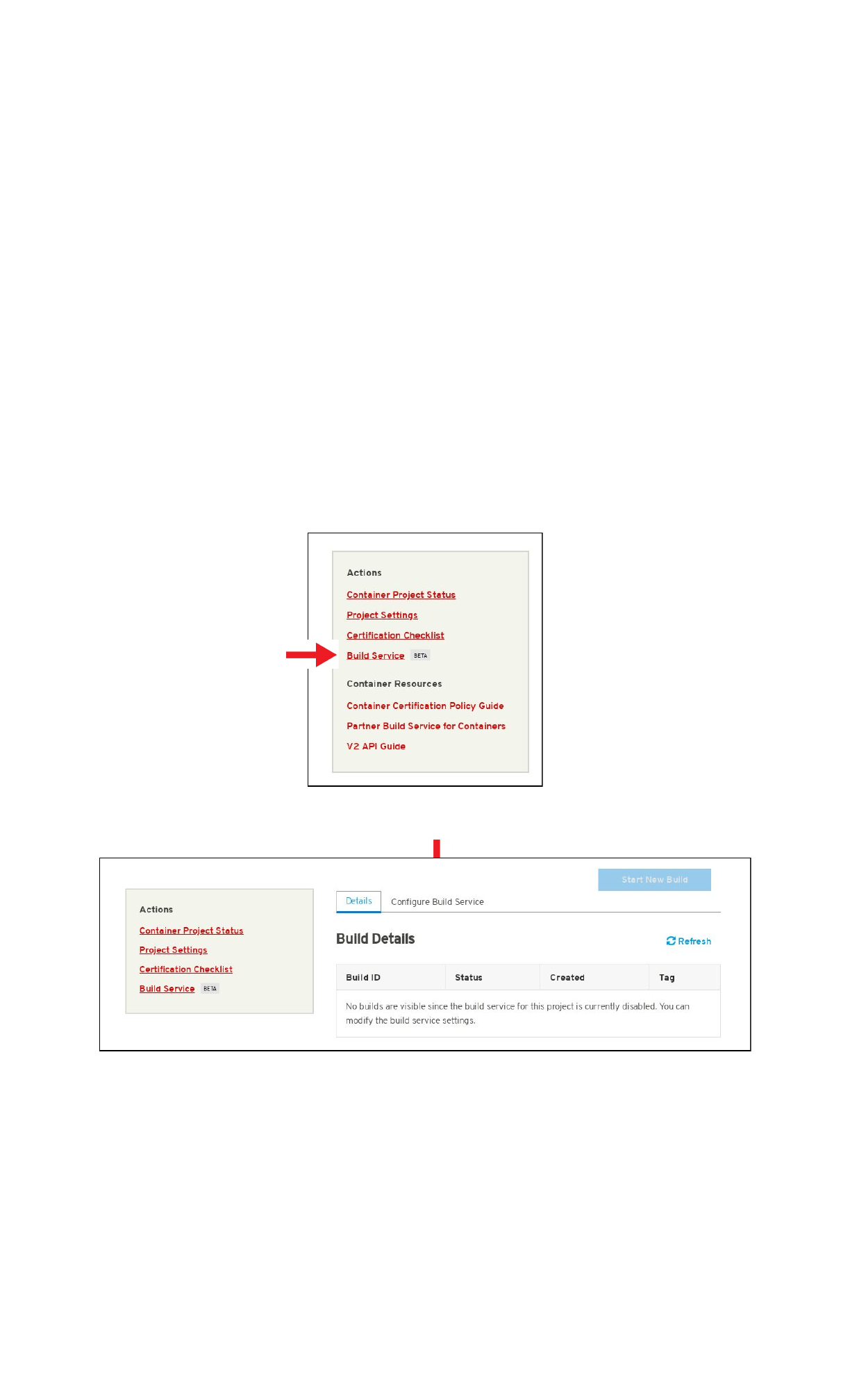

●Configure Automated Build Service
○The build service is where Red Hat will automatically build your container/image
by utilizing the Dockerfile provided in your repository. The advantage of setting
up the automated build service is that your image will update whenever the
underlying base image/OS is updated, to ensure up-to-date security. Part of the
agreement of using Red Hat’s services requires that your container meets a high
security standard. See section “Build Service” to get started with this.
Red Hat Partner Logo
To download the Red Hat Technology Partner logo
, please go to
https://connect.redhat.com/benefits/marketing
If you have a product certified on Red Hat Technology, please contact us at
connect@redhat.com so that we can send you the Certified Product
logo.
Please contact connect@redhat.com for any questions or concerns.

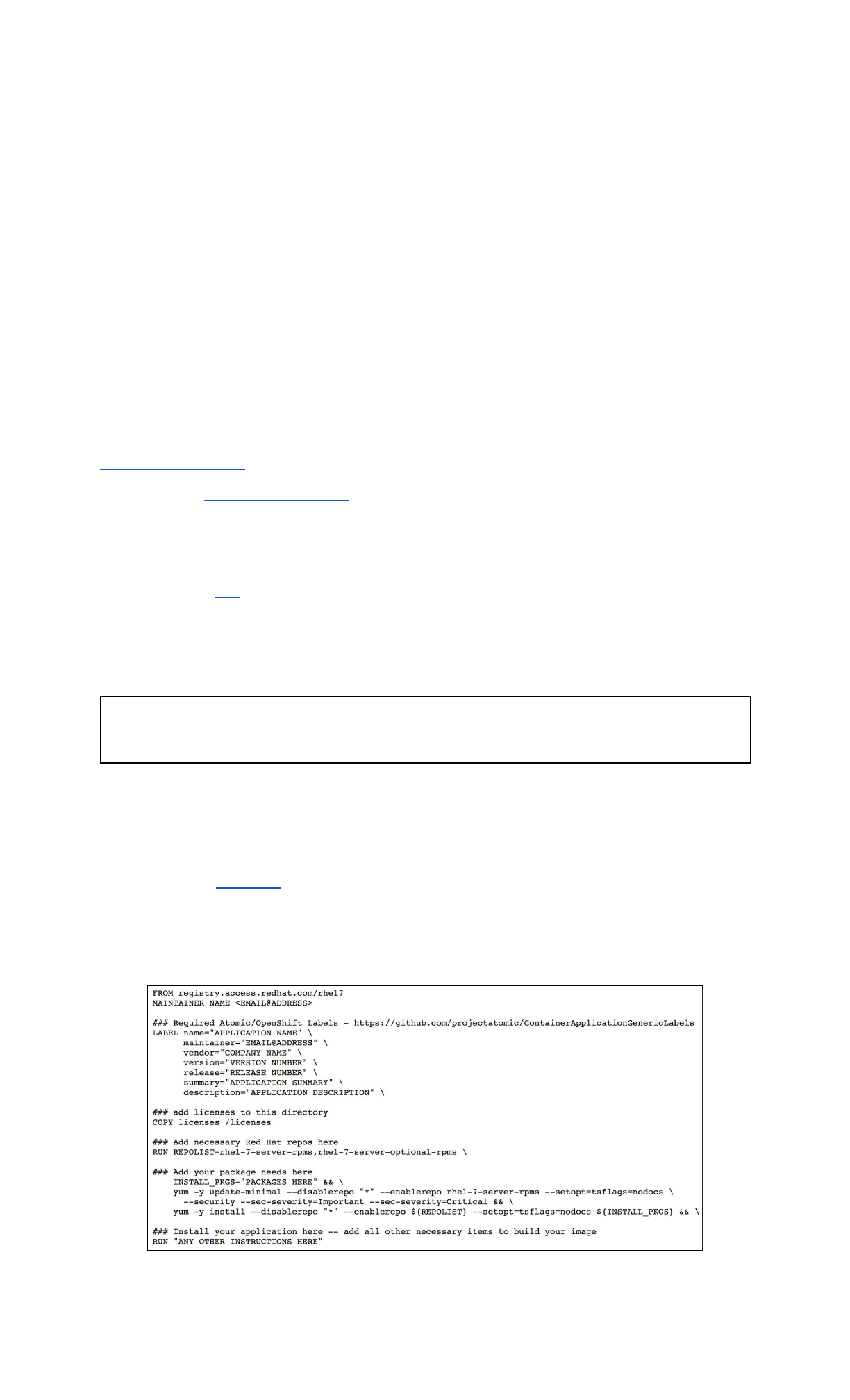

Dockerfile Requirements
You can use this link as a reference to how the Dockerfile needs to be configured to have your
image build and pass the scan successfully. Depending on your zone, navigate to the
appropriate directory. Here’s an example of a Dockerfile for a service you may want to build on
RHEL 7.
Note: Although labels and licenses are not required to successfully build a running container,
they are required for the Red Hat build service and scanner.
1. Base image must be Red Hat. Any images using Ubuntu, Debian, CentOS, etc as a base
will not pass the scanner.
2. You must configure the required labels (name, maintainer, vendor, version, release,
summary)
3. Software license(s) must be included within the image.
4. You must configure a user other than root.
Below is a snippet of a Dockerfile which includes the aforementioned requirements:
Dockerfile Example:
15
The Build Service
What does it do?
This service automates the rebuilding of your image whenever an updated Red Hat package is
available. It also scans your image (after a successful build) for any security vulnerabilities that
may be present prior to publishing your image to the Container Catalog.
How does it work?
The build service clones your Github/Gitlab repository onto a build server, and uses the
Dockerfile to build your image.
Why is this recommended?
It is a requirement from Red Hat to properly maintain your image by keeping up to date with
the latest security updates. By not using the automated build service, you are opting into
manually maintaining and rebuilding your image every time an update is released.
Configuration
Configuration is very easy and straightforward. Follow the steps below:
In the left hand box, click on Build Service
:
Click on the Configure Build Service
tab.
Fill in the git repo and the Dockerfile name if it has a name other than “Dockerfile”.
If your repository is public, then all that is needed is the git source URL (HTTPS link). If your
repository is private,
then you must configure the build service with the SSH link and a private
ssh key. The git repository needs the public ssh key associated with the private key in order to
successfully clone. It is recommended to create a new public and private ssh key just for the
project. Never use your own personal private key.
16
Click Submit
at the end of the page.
Click Start New Build
button at the top of the page.
Enter a tag number (the version number of the plugin) and click SUBMIT
to begin the build and
scan process.
17
NOTE: The Build Service must first be completed before it can begin the scanning process for
certification. If your Build Service fails or does not complete, make sure the details you
entered under the Configure Build Service tab is correct and confirm that your Dockerfile
conforms to the examples provided in this link.
Once the image has completed the scan in Red Hat Connect repository, the image will show the
results of the scan. Scans normally take about 10-15 minutes to complete.
The “View” button will expand on the scan results. The “Publish” button will publish the image
to the Red Hat Container Catalog. It will change to “Unpublish” once and image has been
published. The “Remove” button allows you to remove an image that you do not want to use or
need anymore.
NOTE: The Build Service must first be completed before it can begin the scanning process for
certification. If your Build Service fails or does not complete, make sure the details you
entered under the Configure Build Service tab is correct
Manually Upload Your Image
This information can be located in the UPLOAD YOUR IMAGE tab on the Projects page.
Cut and paste the following line to your terminal.
# docker login -u unused -e none scan.connect.redhat.com
When prompted for the password copy and paste the Registry Key
located on the Upload Your
tab in the project. This Registry Key is unique per project, please make sure you are
using the correct password for the project you are working on.
18
Image Scan
After the image has completed being uploaded, the image will display “Scan In-Progress” in the
“Status” column.
NOTE: It may be necessary to refresh the browser page to see the current status.
Once the image has completed the scan in Red Hat Connect repository, the image will show the
results of the scan. Scans normally take about 10-15 minutes to complete.
The “View” button will expand on the scan results. The “Publish” button will publish the image
to the Red Hat Container Catalog. It will change to “Unpublish” once and image has been
published. The “Remove” button allows you to remove an image that you do not want to use or
need anymore.
Image Results
If the image returns a “Failed” scan status, the results will automatically be displayed. Click on
the name of the failed item (in this example, “has_licenses”) for reference to the policy guide.
*NOTE: If you receive an “Access Denied” link when accessing the Policy Guide, please reach
out to connect@redhat.com
19
Export Compliance Questionnaire
Red Hat Export Questionnaire and Resource Links
This section references a set of questions provided by the Red Hat legal team for evaluation of
export compliance by third party software vendors.
The resource links and questions should be reviewed and answered by a legal representative of
the partner.
Completion and returning this document does not guarantee export compliance approval, but
begins the evaluation process by Red Hat.
Depending on the answers provided, a set of follow-up questions may be necessary.
In the event that you have insufficient information to complete the questionnaire, some
additional resources are provided in Part 2 below.
The evaluation process is outlined below:
Step 1: Red Hat provides questionnaire to partner to complete
Step 2: Partner engages their legal team to review and respond to questionnaire
Step 3: Partner returns completed questionnaire to Red Hat
Step 4: Within approximately 5 business days, Red Hat legal evaluates responses and
a. Approves partner
b. Defers decision
c. Requests more information
d. Declines partner
Part I: Red Hat Questionnaire
Please access and complete this export questionnaire.
At this time, Red Hat is NOT able to accept applications that are authorized for export as
encryption items under License Exception ENC §740.17(b)(2) and/or License Exception ENC
§740.17(a) of the U.S. Export Administration Regulations.
Part II: Resources
In the event that your company has not previously gone through the process of obtaining an
export classification, or if you have not gone through this process for the product that you
intend to publish in the Red Hat Container Catalog, the U.S. Department of Commerce’s Bureau
of Industry and Security provides these resources.
Unfortunately Red Hat cannot provide any guidance or help with our partners’ export control
compliance.
EAR/Encryption
Overview
https://bis.doc.gov/index.php/1-encrypti
on-items-not-subject-to-the-ear/15-polic
y-guidance/encryption
Guidance for determining
whether your item is
subject to the EAR.
Encryption items not
subject to the EAR
https://bis.doc.gov/index.php/1-encrypti
on-items-not-subject-to-the-ear
Flowchart 1
https://bis.doc.gov/index.php/document
s/new-encryption/1654-flowchart1/file
Item designed to use
encryption NOT controlled
under Category 5, Part 2
Flowchart 2
https://bis.doc.gov/index.php/document
s/new-encryption/1655-flowchart-2-1/fil
Item classified under an
ECCN in Category 5, Part
20
e
2
License Exception
ENC §740.17/ Mass
Market Chart
https://bis.doc.gov/index.php/document
s/new-encryption/1651-740-17-enc-table
/file
Chambers & Global -
US Export Control
Lawyers
http://www.chambersandpartners.com/1
2788/525/editorial/5/1
Red Hat Export
Control Product
Matrix (for example
purposes)
https://www.redhat.com/en/about/expor
t-control-product-matrix
Maintaining Certified Images
Image Maintenance Requirements
As software package vulnerabilities are discovered it is important to rebuild container images
to keep them up-to-date. Without automation this process quickly becomes onerous and
reflects poorly on the catalog listing. Organizations frequently run vulnerable software but few
want to download vulnerable software. It is a requirement of Red Hat Connect Partner Program
that the partner maintain the image certification. Red Hat publishes a “Container Health Index”
(or CHI) as described here to inform partners about those situations where an image might
need to be updated.
21
Reference: https://access.redhat.com/articles/2803031
If a container image falls below an "A" grade, a periodic email from connect@redhat.com will be
sent out to the partner contact list.
In order to keep the image up to date, it is recommended that the partner use the Red Hat
Connect Build Service located in the Project section of Red Hat Connect. The option
Auto-Rebuild will automatically rebuild your container and automatically publish it.
The only requirement to use this service is that the image bits be accessible via github/gitlab. If
the github is internal, ssh access to the bits is required. This service automates the rebuilding of
the image whenever an updated Red Hat package is available.
Top FAQs
1. Who can upload images through the Portal?
22
A. The administrator account created for your organization may upload images.
However, this account may grant permissions to other user accounts so that those
accounts may also upload images.
2. Can I change the Product Version after I created a Project?
A. No you cannot; therefore make sure you set it up correctly before starting any
project with that product version. Keep in mind that the product version should be
considered as the name of the image, the version can be specified later on when you
Tag your image during the project.
3. Can a container be built on another version of Linux other than Red Hat?
A. No, the Red Hat certification is a validation that the container, which is a
combination of application software and Linux, is made of genuine Red Hat parts.
Currently, Red Hat has just a little over one million paying customers today. Our
customers do not use other versions of Linux and pay us for the services and
support we provide to them. Therefore, your container needs to be built on a version
of Red Hat Linux.
4. Will the catalog support an ISO or virtual machine image as the container image?
A. No, this certification process is specifically for containers. Therefore, your image
needs to be in Dockerfile format. You can find an example provided by Red Hat
Engineering: Dockerfile Examples
5. What path should my licenses be on?
A. Should be on / (the root or home directory of where the application resides). You
can find an example provided by RH Engineer:Dockerfile Example
6. How do I change the namespace and repository name of my project?
A. First, unpublish all containers. Then change the namespace/repo in the project
settings. Finally, re-publish your containers.
For a full list of FAQs please visit: http://people.redhat.com/~pchriste/.faq/
Online Resources
Learn Kubernetes by Example
http://kubernetesbyexample.com/
OpenShift Interactive Learning Portal
https://learn.openshift.com/
Partner Openshift Onboarding Guide
https://www.openshift.com/partners/get-started/
index.html
OpenShift Documentation
https://docs.openshift.com/container-platform/
Red Hat Atomic Recommended Practices for
Container Development
https://access.redhat.com/articles/1483053
Continuous integration Examples
https://rhsyseng.github.io/containerzone-pipeline
-library/#_example_jenkins_pipeline_using_docke
r
Examples of scan ready Dockerfiles
https://github.com/RHC4TP/starter.git
Docker tagging
https://docs.docker.com/engine/reference/com
mandline/tag/
23
