Huawei HiAI DDK User Manual
Issue: V100.150.10
Date: 2018-03-09
Huawei Technologies Co., Ltd.
2018-03-19
Huawei confidential. No spreading without permission.
Page 2 of 16
Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior written consent
of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective holders.
Notice
The information in this document is subject to change without notice. Every effort has been made in the preparation of
this document to ensure accuracy of the contents, but all statements, information, and recommendations in this
document do not constitute a warranty of any kind, express or implied.
The method of applying for HiAI is described as follows:
1. Send an application email to developer@huawei.com.
2. The format of the email subject is HUAWEI HiAI+Company name+Product name.
3. The format of the email body is Cooperation company+Contact person+Contact information+Contact
email address.
4. We will send you feedback within five workdays after receiving your email.
Official website: http://developer.huawei.com/consumer/cn/devunion/ui/server/HiAI.html
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 3 of 16
Contents
1 Overview ......................................................................................................................................... 4
2 Integration Description ................................................................................................................ 4
2.1 Function Introduction ....................................................................................................................................... 4
2.2 Execution Mode ............................................................................................................................................... 4
2.2.1 Offline Model Generation ....................................................................................................................... 4
2.2.2 Offline Model Computation .................................................................................................................... 5
2.3 Supported Operators ......................................................................................................................................... 5
2.4 Restrictions ....................................................................................................................................................... 5
2.5 Supported Interfaces ......................................................................................................................................... 5
2.5.1 Obtaining the DDK Version Number ...................................................................................................... 5
2.5.2 Creating a Model Manager ..................................................................................................................... 6
2.5.3 Loading a Model ..................................................................................................................................... 7
2.5.4 Obtaining the Input and Output Shape Information of a Model.............................................................. 9
2.5.5 Running the Model (1) .......................................................................................................................... 10
2.5.6 Running the Model (2) .......................................................................................................................... 12
2.5.7 Unloading a Model ............................................................................................................................... 13
2.5.8 Destroying a Model Manager................................................................................................................ 14
3 Integration .................................................................................................................................... 14
4 Appendix ...................................................................................................................................... 14
4.1 Definition of Error Codes ............................................................................................................................... 14
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 4 of 16
Huawei HiAI DDK User Manual
1 Overview
HiAI is an artificial intelligence (AI) computing platform oriented to mobile terminals. The computing
library of the mobile computing platform, which is formed by the HiAI application programming interfaces
(APIs), is designed for developers to conveniently and efficiently write AI applications running on mobile
devices.
Released in a unified binary file, the HiAI APIs are used to accelerate the computing of neural networks
using the HiAI heterogeneous computing platform. Currently, these APIs can run only on the Kirin system
on chip (SoC) and are integrated to the Android system that uses the Kirin SoC, allowing developers to run
the neural network model in the integrated environment and invoke the HiAI APIs to accelerate
computation. The HiAI device development kit (DDK) is the HiAI resource package available to
third-party developers.
2 Integration Description
2.1 Function Introduction
The HiAI DDK provides the AI model manager for AI application developers. It is a model management
interface that provide functions such as model loading, model computation, and model unloading.
2.2 Execution Mode
The HiAI DDK computing library runs in offline mode. It uses the compiled and optimized offline model
to perform neural network computation. This reduces memory usage while improving computing
performance. You can convert a Caffe or TensorFlow model to an offline model using a dedicated
conversion tool.

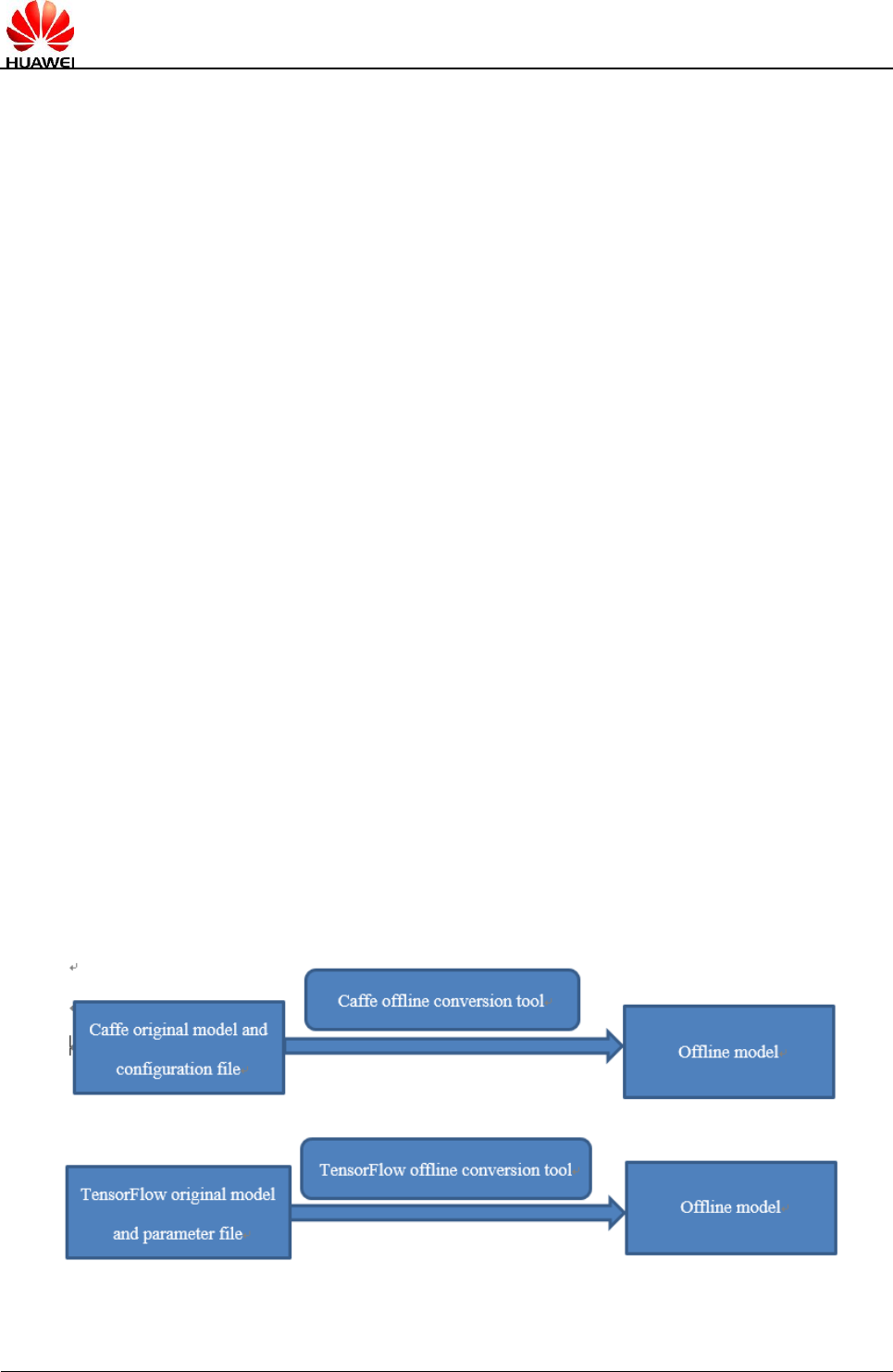

2.2.1 Offline Model Generation
The HiAI DDK provides a model conversion tool to convert the Caffe or TensorFlow models to an NPU
model. For details about how to use the conversion tool, see Chapter 5"Model Conversion" in the Huawei
HiAI DDK Integration Manual.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 5 of 16
2.2.2 Offline Model Computation
When the user APK uses the DDK, the interfaces for loading, running, and unloading the offline model
needs to be invoked to calculate the user-input data on the HiAI heterogeneous acceleration system. For
details, see section 6.2 "Interface Integration" in the Huawei HiAI DDK Integration Manual.
2.3 Supported Operators
For details, see the Huawei HiAI DDK Operator Specification Document.
2.4 Restrictions
The ROM and RAM space on a mobile phone chip is limited. Therefore, the sizes of the model and the
running memory must be restricted as follows:
- The model size is less than or equal to 100 MB.
- The size of the peak memory is less than or equal to 200 MB.
2.5 Supported Interfaces
2.5.1 Obtaining the DDK Version Number
The HIAI_GetVersion interface is used to obtain the DDK version number. The function maintains a static
version number and invokes the Android system interface __system_property_get to obtain the value of the
system attribute ro.config.HiAIversion, that is, the DDK version number.
Table 2-1 Description of the HiAI_GetVersion interface
Function
Description
Obtaining the DDK version number in the system.
Interface
Prototype
char* HiAI_GetVersion()
Parameter
Description
None
Return Value
If the execution succeeds, the corresponding DDK version number is returned.
The version number is described in the format of
<major>.<middle>.<minor>.<point>.
<major>: Indicates a product form.
● XX: mobile phone,
● XX: edge computing.
● XX: Cloud
<middle>: Indicates the V version of a product form, expressed in three digits
(XXX), for example, HiAI V100 and HiAI V200 for a mobile phone.
<minor>: Indicates the incremental C version with new features. The value is
expressed in three digits (XXX).
< point >: Indicates the B version or patch version. The value is expressed in
three digits (XXX). If the last digit is not 0, it indicates a patch version.
For example, the version number of the Kirin 970 system is 100.150.010.010. If
000.000.000.000 is returned, the current HIAI version does not support NPU
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 6 of 16
acceleration.
If the execution fails, an error code is returned.
2.5.2 Creating a Model Manager
2.5.2.1 Synchronization Interface
A model interface can be used only after model management object instances are created. Currently, a
process supports three model management instances. Table 2-2 describes the synchronization interface
prototype.
Table 2-2 Description of the HiAI_ModelManager synchronization interface
Function
Description
Creating a model management instance
Interface
Prototype
HiAI_ModelManager* HiAI_ModelManager_create(void);
Parameter
Description
None
Return Value
Pointer to the model management object instance. This pointer needs to be destroyed
by calling HIAI_ModelManager_destroy.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 7 of 16
2.5.2.2 Asynchronization Interface
Table 2-3 Description of the HiAI_ModelManager asynchronization interface
Function
Description
Creating a interface class for the model management engine
Interface
Prototype
HiAI_ModelManager* HiAI_ModelManager_create(HiAI_ModelManagerListener*
listener);
Parameter
Description
HiAI_ModelManagerListener: Indicates the structure of an asynchronous callback
function pointer, including the callback function pointer to the model loading
completion, model running completion, model unloading completion, timeout, error
handling, and monitoring of the service status of the peer end through the
onServiceDied interface.
HiAI_ModelManagerListener is defined as follows:
typedef struct HiAI_ModelManagerListener_struct
{
void (*onLoadDone)(void* userdata, int taskStamp);
void (*onRunDone)(void* userdata, int taskStamp);
void (*onUnloadDone)(void* userdata, int taskStamp);
void (*onTimeout)(void* userdata, int taskStamp);
void (*onError)(void* userdata, int taskStamp, int errCode);
void (*onServiceDied)(void* userdata);
void* userdata;
} HiAI_ModelManagerListener;
void (*onLoadDone)(void* userdata, int taskStamp): Indicates the callback
function pointer to successful model loading.
void (*onRunDone)(void* userdata, int taskStamp): Indicates the callback
function pointer to successful model running.
void (*onUnloadDone)(void* userdata, int taskStamp): Indicates the callback
function pointer to successful model unloading.
void (*onTimeout)(void* userdata, int taskStamp): Indicates the pointer to the
timeout callback function.
void (*onError)(void* userdata, int taskStamp, int errCode): Indicates the
callback function pointer to error handling.
void (*onServiceDied)(void* userdata): Indicates the callback function pointer to
monitoring the service status of the peer end through the onServiceDied interface.
void* userdata: Indicates user data.
Return Value
Object interface of the model management engine
2.5.3 Loading a Model
A model can be loaded from the application layer in either of the following method.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 8 of 16
- Load the memory from the assets directory of the app. The app manages the model and implements
model reading.
- Load a file from an SD card.
Specifically, perform the following steps:
Step 1 Create the HIAI_ModelBuffer interface.
Step 2 Invoke the model loading interface to load the model.
Step 3 Destroy the HIAI_ModelBuffer interface.
----End
2.5.3.1 Creating the HIAI_ModelBuffer
Table 2-4 Description of creating the HIAI_ModelBuffer interface from a file
Function
Description
Loading the model from a path to create the HIAI_ModelBuffer interface (used to
load the model from an SD card at the application layer)
Interface
Prototype
HiAI_ModelBuffer* HiAI_ModelBuffer_create_from_file(const char* name, const
char* path, HiAI_DevPerf perf)
Parameter
Description
name: Specifies the name of the model to be loaded.
path: Specifies the path of the model to be loaded.
perf: Specifies the NPU frequency, which includes the high, medium, and low
levels.
Return Value
HIAI_ModelBuffer
Table 2-5 Description of creating the HIAI_ModelBuffer interface using the model data address
Function Description
Reading model data to load the model and create the HIAI_ModelBuffer
interface (used to load the model from the assets directory at the application
layer)
Interface Prototype
HiAI_ModelBuffer* HiAI_ModelBuffer_create_from_buffer(const char*
name, void* modelBuf, int size, HiAI_DevPerf perf);
Parameter Description
name: Specifies the name of the model to be loaded.
modelBuf: Specifies the model data address.
size: Specifies the model data length.
perf: Specifies the NPU frequency, which corresponds to the high, medium,
or low level.
Return Value
HIAI_ModelBuffer
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 9 of 16
2.5.3.2 Model Loading
Table 2-6 Description of the HiAI_ModelManager_loadFromModelBuffers interface
Function Description
Loading the model
Interface Prototype
int HiAI_ModelManager_loadFromModelBuffers(HiAI_ModelManager*
manager, HiAI_ModelBuffer* bufferArray[], int nBuffers);
Parameter Description
manager: Specifies the object interface of the model management engine.
bufferArray[]: HiAI_ModelBuffer. Single- and multi-model are both
supported.
nBuffers: Specifies the number of models to be loaded.
Return Value
If the execution succeeds, 0 is returned. If the execution fails, an error code
is returned.
2.5.3.3 Destroying the HIAI_ModelBuffer Interface
Table 2-7 Description of the HiAI_ModelBuffer_destroy interface
Function Description
Destroying the HIAI_ModelBuffer interface
Interface Prototype
void HiAI_ModelBuffer_destroy(HiAI_ModelBuffer* b);
Parameter Description
b: Specifies the HIAI_ModelBuffer to be destroyed.
Return Value
None
2.5.4 Obtaining the Input and Output Shape Information of a Model
After the model is loaded successfully, the input shape and output shape information of the specified model
can be read. After the model is read, the input and output shape information is saved in the memory, and
then the HIAI_ModelTensorInfo memory is released.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 10 of 16
2.5.4.1 Obtaining the Input and Output Shape Information of a Model
Table 2-8 Description of the HIAI_ModelManager_getModelTensorInfo interface
Function Description
Obtaining the input and output shape information of a model
Interface Prototype
HIAI_ModelTensorInfo*
HIAI_ModelManager_getModelTensorInfo(HIAI_ModelManager*
manager, const char* modelName);
Parameter Description
manager: Specifies a model manager instance.
modelName: Specifies a model name.
Return Value
If the execution succeeds, the pointer to the input and output shape
information of a mode is returned. If the execution fails, null is returned.
2.5.4.2 Releasing the Memory That Stores the Input and Output Shape
Information of a Model
Table 2-9 Description of the HIAI_ModelManager_getModelTensorInfo interface
Function Description
Releasing the memory that stores the input and output shape information of
a model
Interface Prototype
void
HIAI_ModelManager_releaseModelTensorInfo(HIAI_ModelTensorInfo*
modelTensor);
Parameter Description
modelTensor: Specifies the pointer to the input and output shape
information of a model.
Return Value
None
2.5.5 Running the Model (1)
When the model is running, the interfaces for inputting feature data, running the model, and obtaining data
after model running are available.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 11 of 16
2.5.5.1 Creating the HIAI_TensorBuffer Interface
Table 2-10 Description of the HiAI_TensorBuffer_create interface
Function Description
Creating the HIAI_TensorBuffer interface
Interface Prototype
HiAI_TensorBuffer* HiAI_TensorBuffer_create(int n, int c, int h, int w);
Parameter Description
nchw of model input or output
n: batch of the tensor
c: channel of the tensor
h: height of the tensor
w: width of the tensor
Return Value
HIAI_TensorBuffer
2.5.5.2 Obtaining the Input or Output Data Address of a Model
Table 2-11 Description of the HiAI_TensorBuffer_getRawBuffer interface
Function Description
Obtaining the data address of model input or output
Interface Prototype
void* HiAI_TensorBuffer_getRawBuffer(HiAI_TensorBuffer* b);
Parameter Description
b: Specifies the HIAI_TensorBuffer if the model input or output.
Return Value
Data address of the model input or output
2.5.5.3 Obtaining the Data Length of Model Input or Output
Table 2-12 Description of the HiAI_TensorBuffer_getBufferSize interface
Function Description
Obtaining the data length of model input or output
Interface Prototype
int HiAI_TensorBuffer_getBufferSize(HiAI_TensorBuffer* b);
Parameter Description
b: Specifies the HIAI_TensorBuffer of the model input or output.
Return Value
Data length of model input or output
2.5.5.4 Running a Model
Table 2-13 Description of the HiAI_ModelManager_runModel interface
Function Description
Running a model
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 12 of 16
Interface Prototype
int HiAI_ModelManager_runModel(
HiAI_ModelManager* manager,
HiAI_TensorBuffer* input[],
int nInput,
HiAI_TensorBuffer* output[],
int nOutput,
int ulTimeout,
const char* modelName);
Parameter Description
manager: Specifies the object interface of the model management engine.
input[]: Specifies the model input. Multiple inputs are supported.
nInput: Specifies the number of inputs by a model.
output[]: Specifies the model output. Multiple outputs are supported.
nOutput: Specifies the number of outputs by a model.
ulTimeout: Specifies the timeout, which does not take effect during
synchronous invoking.
modelName: Specifies a model name.
Return Value
If the execution succeeds, 0 is returned. If the execution fails, an error
code is returned.
2.5.5.5 Destroying the HIAI_TensorBuffer Interface
Table 2-14 Description of the HiAI_TensorBuffer_destroy interface
Function Description
Destroying the HIAI_TensorBuffer interface
Interface Prototype
void HiAI_TensorBuffer_destroy(HiAI_TensorBuffer* b);
Parameter Description
b: Specifies the HIAI_TensorBuffer to be destroyed.
Return Value
None
2.5.6 Running the Model (2)
Besides the HIAI_ModelManager_runModel interface described in section 2.6.4zz, the interfaces described
in section 2.6.5zz can also be used for running models. Section 2.6.5zz describes only synchronization
interfaces.
2.5.6.1 Setting the Model Input and Output
Table 2-15 Description of the HiAI_ModelManager_setInputsAndOutputs interface
Function
Description
Setting the model input and output
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 13 of 16
Interface
Prototype
int HiAI_ModelManager_setInputsAndOutputs(
HiAI_ModelManager* manager,
const char* modelname,
HiAI_TensorBuffer* input[],
int nInput,
HiAI_TensorBuffer* output[],
int nOutput);
Parameter
Description
manager: Specifies the object interface of the model management engine.
modelName: Specifies a model name.
input[]: Specifies the model input. Multiple inputs are supported.
nInput: Specifies the number of inputs by a model.
output[]: Specifies the model output. Multiple outputs are supported.
nOutput: Specifies the number of outputs by a model.
Return Value
If the execution succeeds, 0 is returned. If the execution fails, an error code is
returned.
2.5.6.2 Starting Computing
Table 2-16 Description of the HiAI_ModelManager_startCompute interface
Function
Description
Starting computing
Interface
Prototype
int HiAI_ModelManager_startCompute(HiAI_ModelManager* manager, const
char* modelname);
Parameter
Description
manager: Specifies the object interface of the model management engine.
modelName: Specifies a model name.
Return Value
If the execution succeeds, 0 is returned. If the execution fails, an error code is
returned.
2.5.7 Unloading a Model
After all data is processed, this interface is called to unload a model.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 14 of 16
Table 2-17 Description of the HiAI_ModelManager_unloadModel interface
Function
Description
Unloading a model
Interface
Prototype
int HiAI_ModelManager_unloadModel(HiAI_ModelManager* manager);
Parameter
Description
manager: Specifies the object interface of the model management engine.
Return Value
If the execution succeeds, 0 is returned. If the execution fails, an error code is
returned.
2.5.8 Destroying a Model Manager
After the model is uninstalled, you can destroy the model manager.
Table 2-18 Description of the HiAI_ModelManager_destroy interface
Function
Description
Destroying the model manager.
Interface
Prototype
void HiAI_ModelManager_destroy(HiAI_ModelManager* manager);
Parameter
Description
manager: Specifies the object interface of the model management engine.
Return Value
None
3 Integration
For details, see the Huawei HiAI DDK Integration Manual.
4 Appendix
4.1 Definition of Error Codes
Error Code
Error Type
Prototype
Triggering Condition
1
The length of a model
name is incorrect.
MODEL_NAME_LEN_ERROR
The model length ranges
from 1 to 128.
2
The model file path is
empty.
MODEL_DIR_ERROR
The model file path is
empty.
3
The length of the
decryption key of a
model file is incorrect.
MODEL_SECRET_KEY_ERROR
The length of the
decryption key is not 0 or
64.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 15 of 16
Error Code
Error Type
Prototype
Triggering Condition
4
The length of the
decryption key of a
model parameter file
is incorrect.
MODEL_PARA_SECRET_KEY_
ERROR
The length of the
decryption key is not 0 or
64.
5
The selected model
framework type is
incorrect.
FRAMEWORK_TYPE_ERROR
The selected framework
type is not TensorFlow,
Caffe, or Kaldi.
6
The selected model
type is incorrect.
MODEL_TYPE_ERROR
Th selected model type is
not online or offline.
7
The IPU frequency is
incorrectly set.
IPU_FREQUENCY_ERROR
The frequency is not low,
normal, or high.
8
The number of loaded
models is incorrect.
MODEL_NUM_ERROR
The number of models is
0 or greater than 20.
9
The model size is
incorrect.
MODEL_SIZE_ERROR
The model size is 0.
10
The configured
timeout is incorrect.
TIMEOUT_ERROR
The configured timeout is
greater than 60000 ms.
11
The shape of the input
data is incorrect.
INPUT_DATA_SHAPE_ERROR
The value of n x c x h x
w is 0.
12
The shape of output
data is incorrect.
OUTPUT_DATA_SHAPE_ERRO
R
The value of n x c x h x
w is 0.
13
The number of input
data segments is
incorrect.
INPUT_DATA_NUM_ERROR
The number of input data
segments is 0 or greater
than 20.
14
The number of output
data segments is
incorrect.
OUTPUT_DATA_NUM_ERROR
The number of output
data segments is 0 or
greater than 20.
15
The number of created
model manager
instances exceeds the
upper limit.
MODEL_MANAGER_TOO_MAN
Y_ERROR
More than three clients
are created for a single
process.
18
The model name is
repeated.
MODEL_NAME_DUPLICATE_E
RROR
Multiple models have the
same name.
19
The HiAIserver
connection fails.
HiAI_SERVER_CONNECT_ERR
OR
The HiAIserver service is
not started.
20
The HiAIserver
connection is tore
down.
HiAI_SERVER_CONNECT_IRPT
The HiAIserver
connection is tore down.
500
The input or output
nchw value does not
match the model n x c
x h x w.
MODEL_TENSOR_SHAPE_NO_
MATCH
The input or output nchw
value does not match the
model n x c x h x w.
Huawei HiAI DDK User Manual
INTERNAL
2018-03-19
Huawei confidential. No spreading without permission.
Page 16 of 16
Error Code
Error Type
Prototype
Triggering Condition
999
The interface lifecycle
expires.
EXPIRATION_FUCNTION
The compilation model
interface is invoked.
1000
An internal error
occurs.
INTERNAL_ERROR
An internal error occurs.

Navigation menu
