Huawei Enterprise IP Product Portfolio

Huawei Enterprise

IP Product Portfolio

CONTENTS

2

6

1Data Center Switch

CloudEngine Series Products

P-01

7Enterprise Security Products

P-89

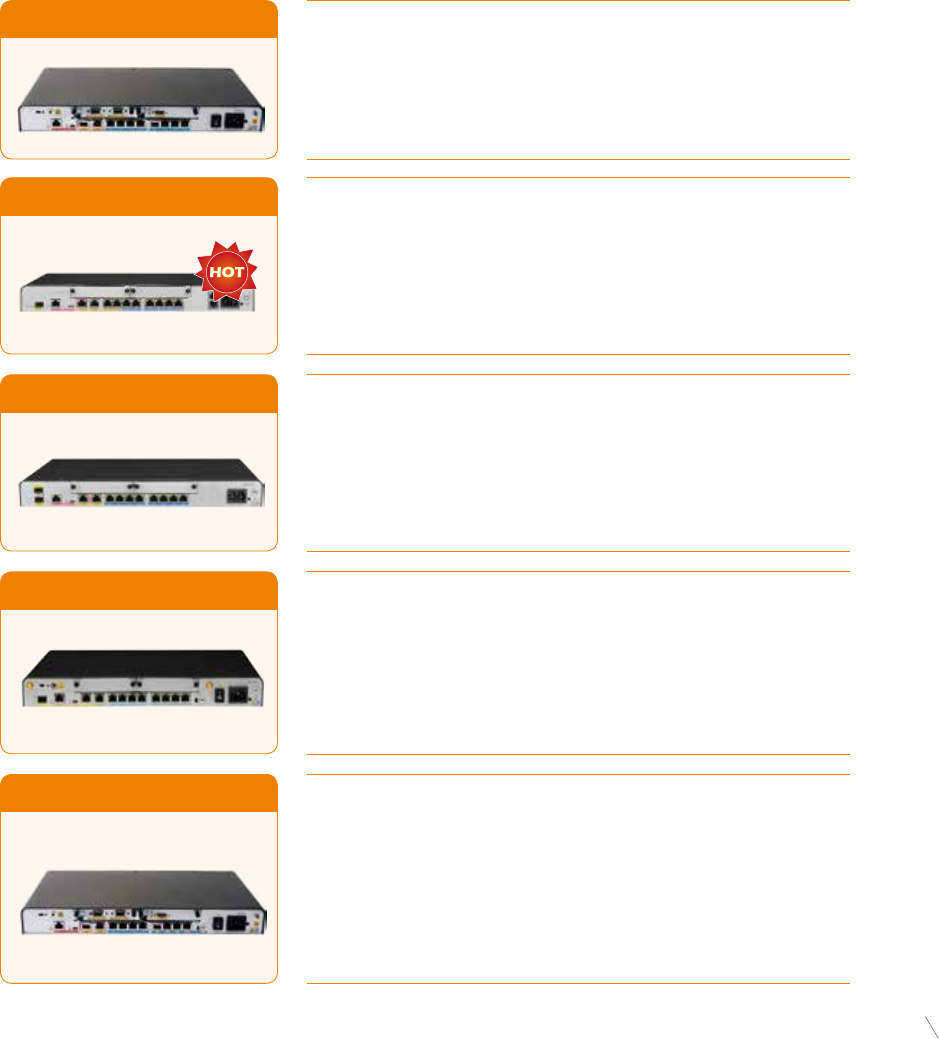

5Enterprise Router

AR Series Products

P-60

8

9SDN Controller

P-110

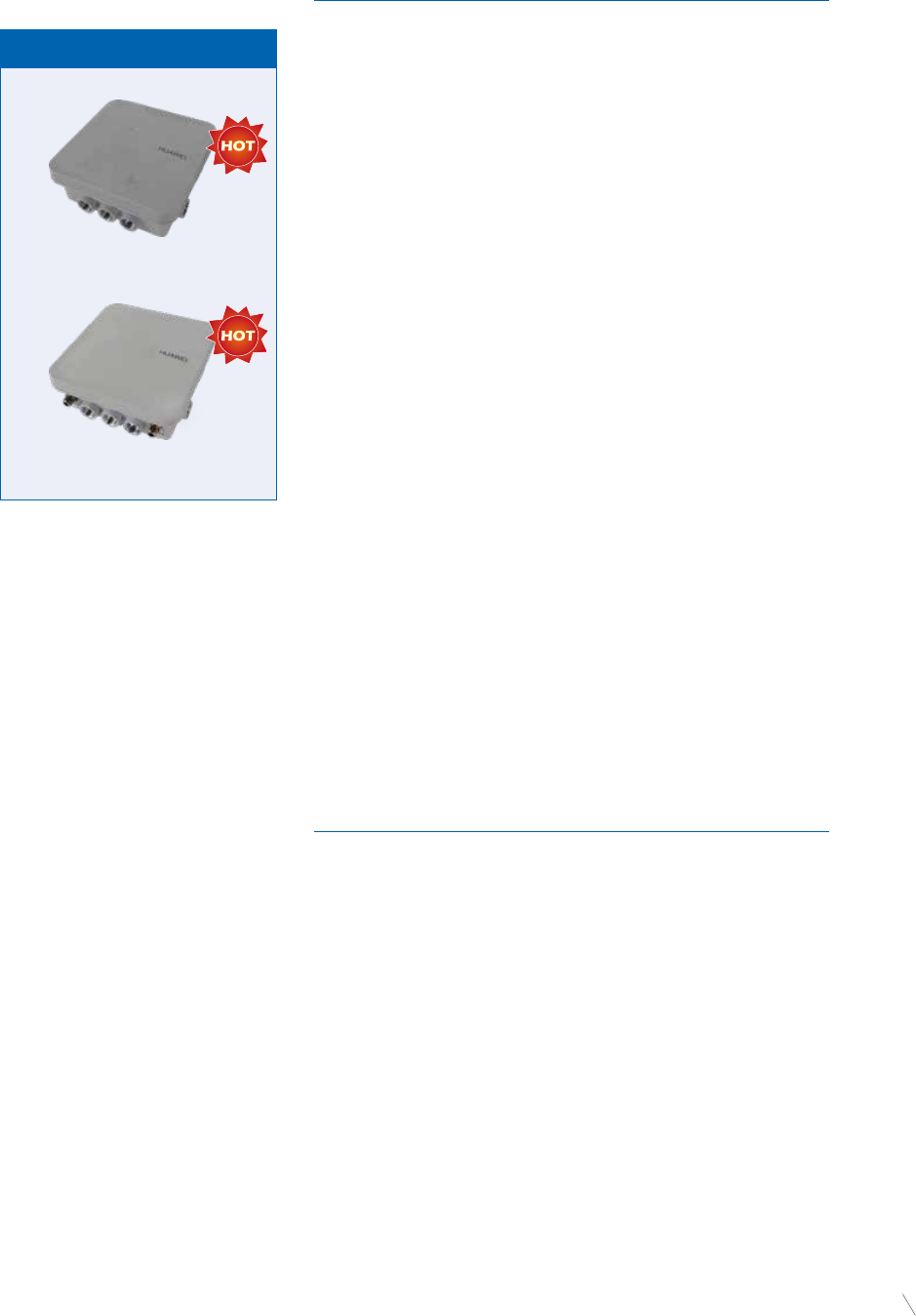

3WLAN 802.11ac Series AP Products

P-39

4

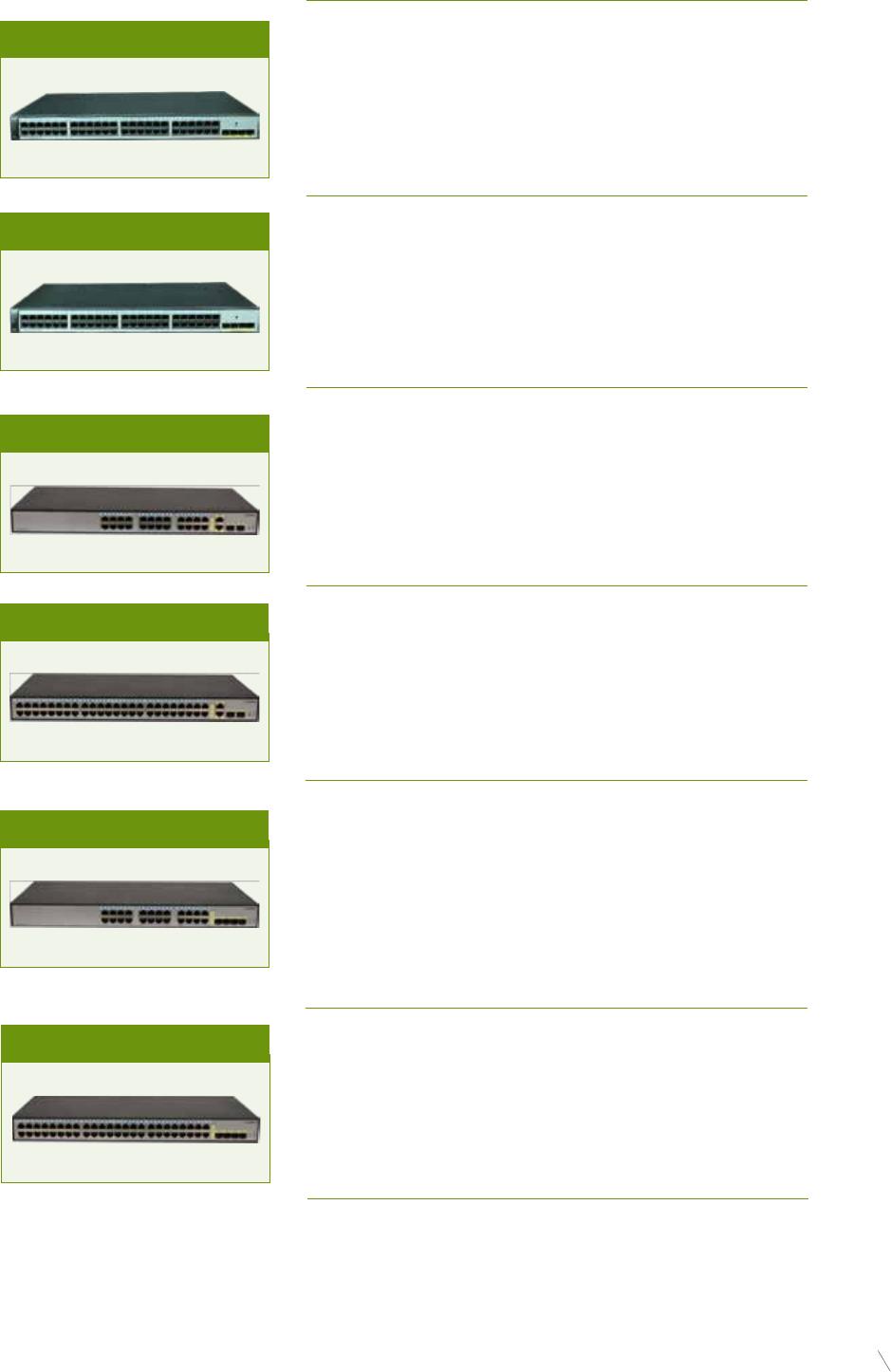

Campus Switch

SX700 Series Products

P-09

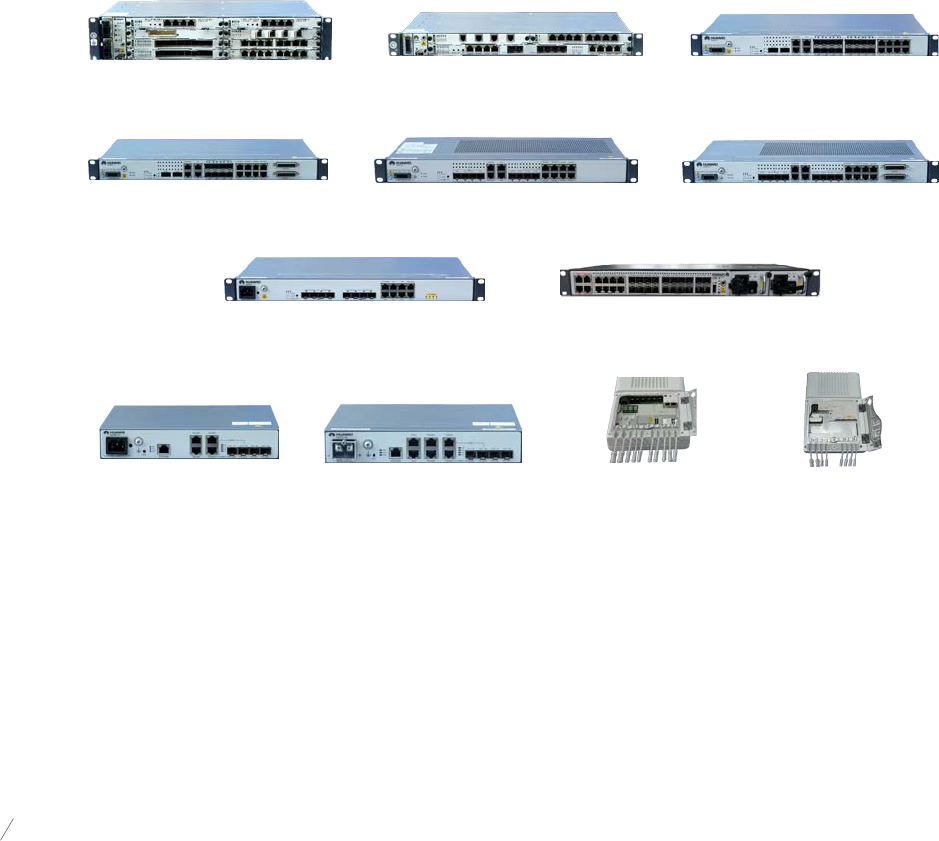

Enterprise Core Router

NE/ME Series products

P-50

eSight Network

P-107

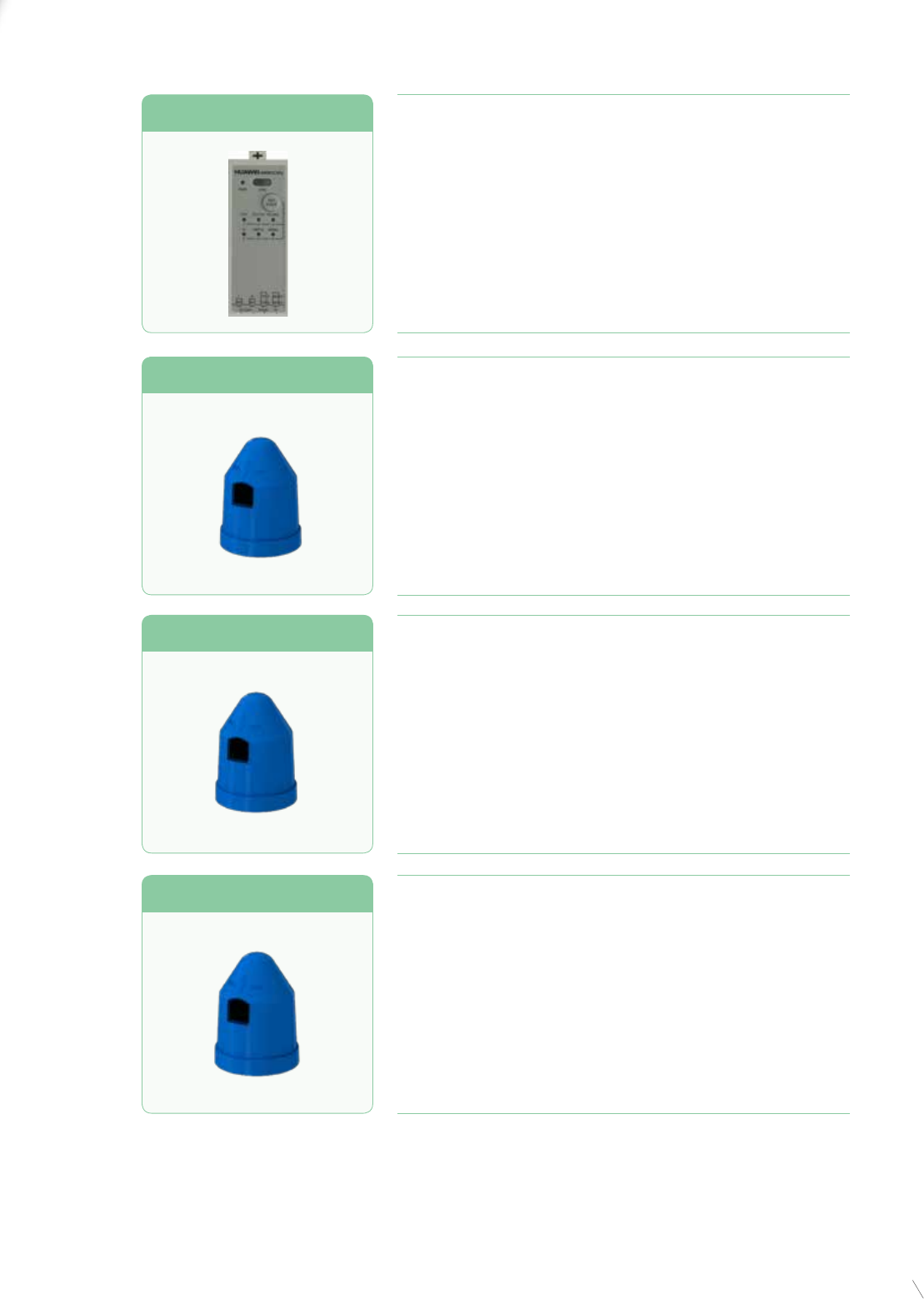

IoT Gateways

AR Series Products

P-78

2Data Center Switch CloudEngine Series Products

1Data Center Switch

CloudEngine Series

Products

Product and Solution Overview ........................................................................... 02

CE12800 Series..................................................................................................... 02

CE8800 Series ....................................................................................................... 03

CE7800 Series ....................................................................................................... 04

CE6800 Series ....................................................................................................... 05

CE5800 Series ....................................................................................................... 07

CloudEngine 1800V .............................................................................................. 08

02

Data Center Switch CloudEngine Series Products

CE12800 Series

CE12800 switches are high-performance core switches designed for data center networks and high-end

campus networks.

Product and Solution Overview

Huawei CloudEngine (CE) series switches are high-performance cloud switches designed for next-

generation data centers and high-end campus networks. This series includes Huawei's flagship

CE12800 core switches with the world's highest performance, CE8800/7800/6800/5800 high-

performance aggregation and access switches, and CE1800V distributed virtual switch. The CloudEngine

series uses Huawei's next-generation VRP8 software platform and supports extensive data center and

campus network service features.

The CloudFabric solution is based on Huawei's flagship CloudEngine 12800 series data center core

switches, CloudEngine 8800/7800/6800/5800 series high-performance ﬁxed switches, and CloudEngine

1800V virtual switch. These switches are used with the Huawei Agile Controller to provide customers

with an all-cloud data center network. The solution also integrates transmission, routing, security, and

network management products, which can be combined with the data center switches to deliver a one-

stop data center network solution.

03 Data Center Switch CloudEngine Series Products

CE8800 Series

The CE8800 series switch is a high-performance 100GE TOR switch released for data centers and

high-end campus networks. It can act as an access node to support high-density 25GE/10GE server

Their advanced hardware architecture offers the highest performance of any currently available core

switches, with as much as 178 Tbit/s per chassis switching capacity and up to 576*100GE, 576*40GE,

2,304*25GE, or 2,304*10GE line rate ports.

The CE12800 switches use an industry-leading Clos architecture and a front-to-back airﬂow design to

provide industrial-grade reliability. The switches also provide comprehensive virtualization capabilities

and data center service features. Moreover, their energy-saving designs greatly reduce power

consumption.

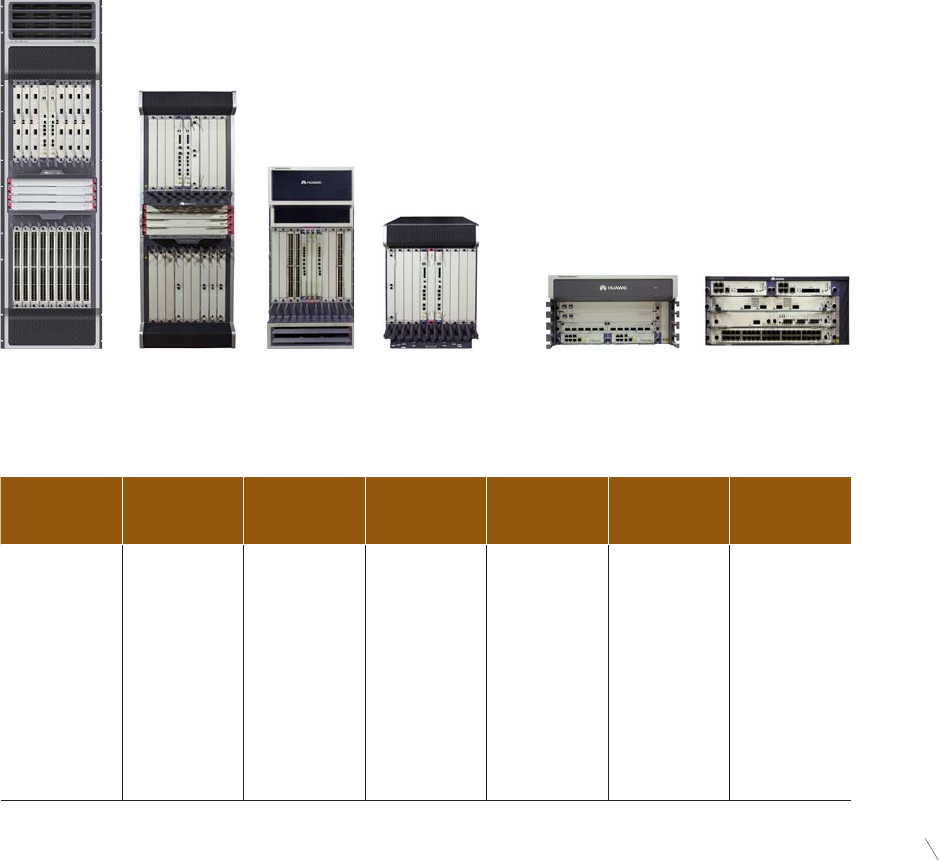

The CE12800 series is available in six models: CE12816, CE12812, CE12808, CE12804, CE12808S, and

CE12804S. They all use interchangeable modules to reduce costs of spare parts. This design ensures

device scalability and provides investment protection.

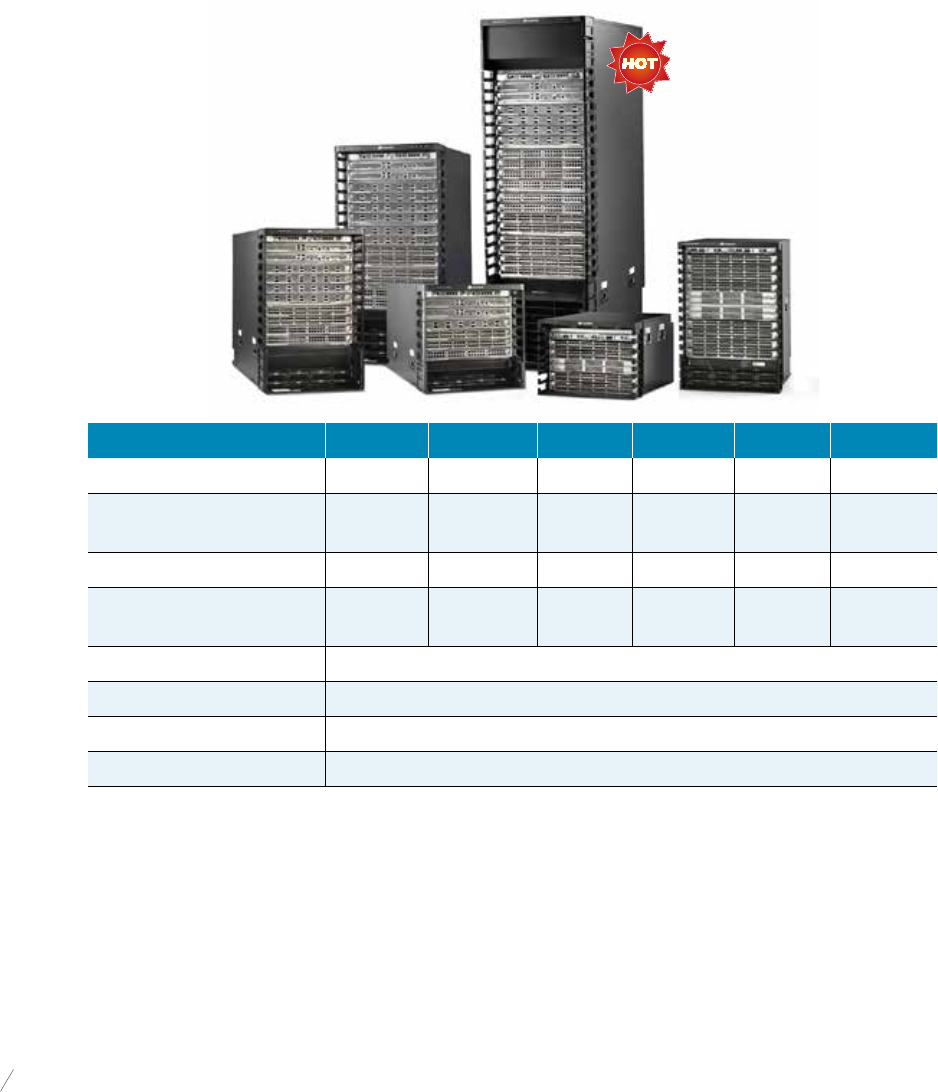

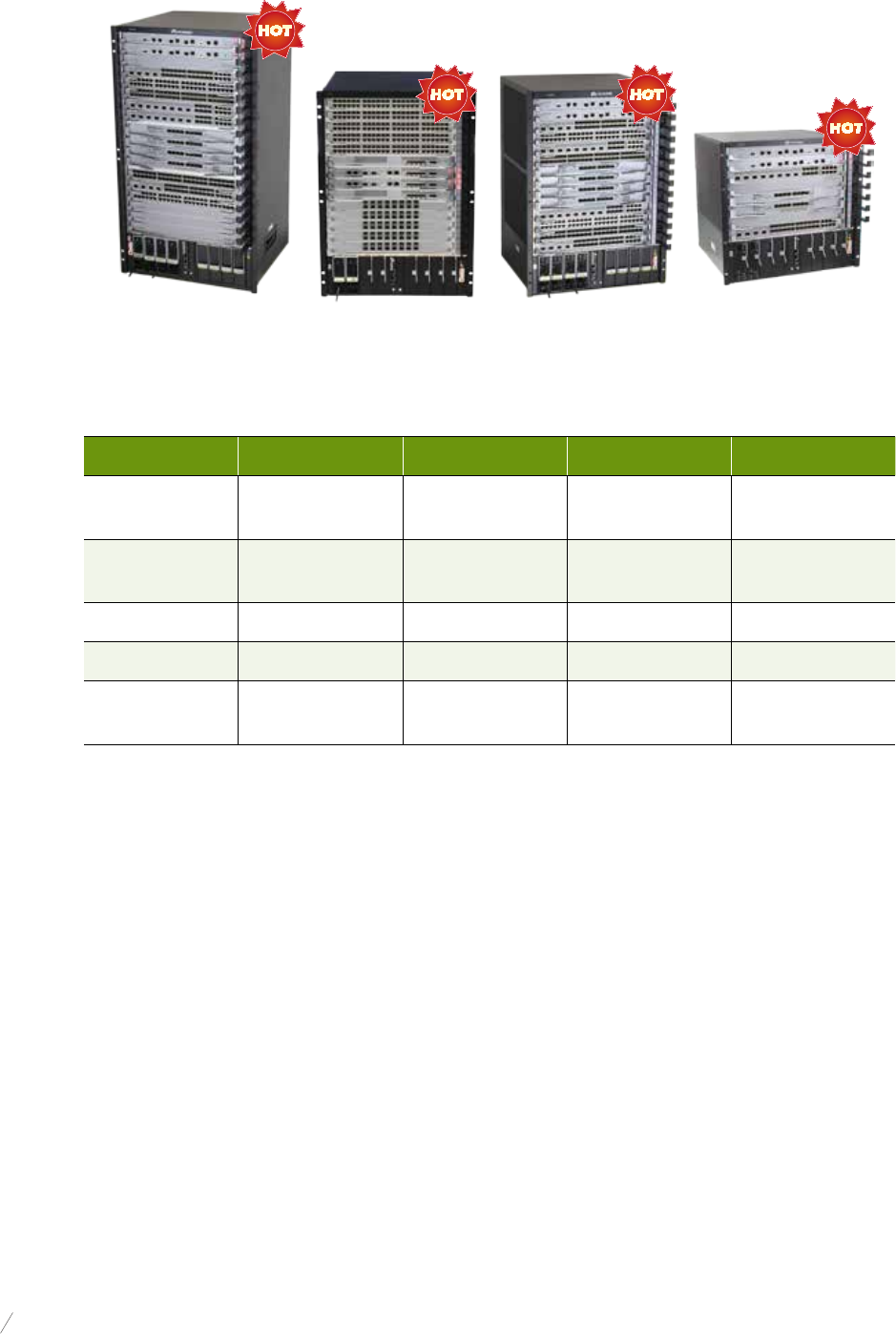

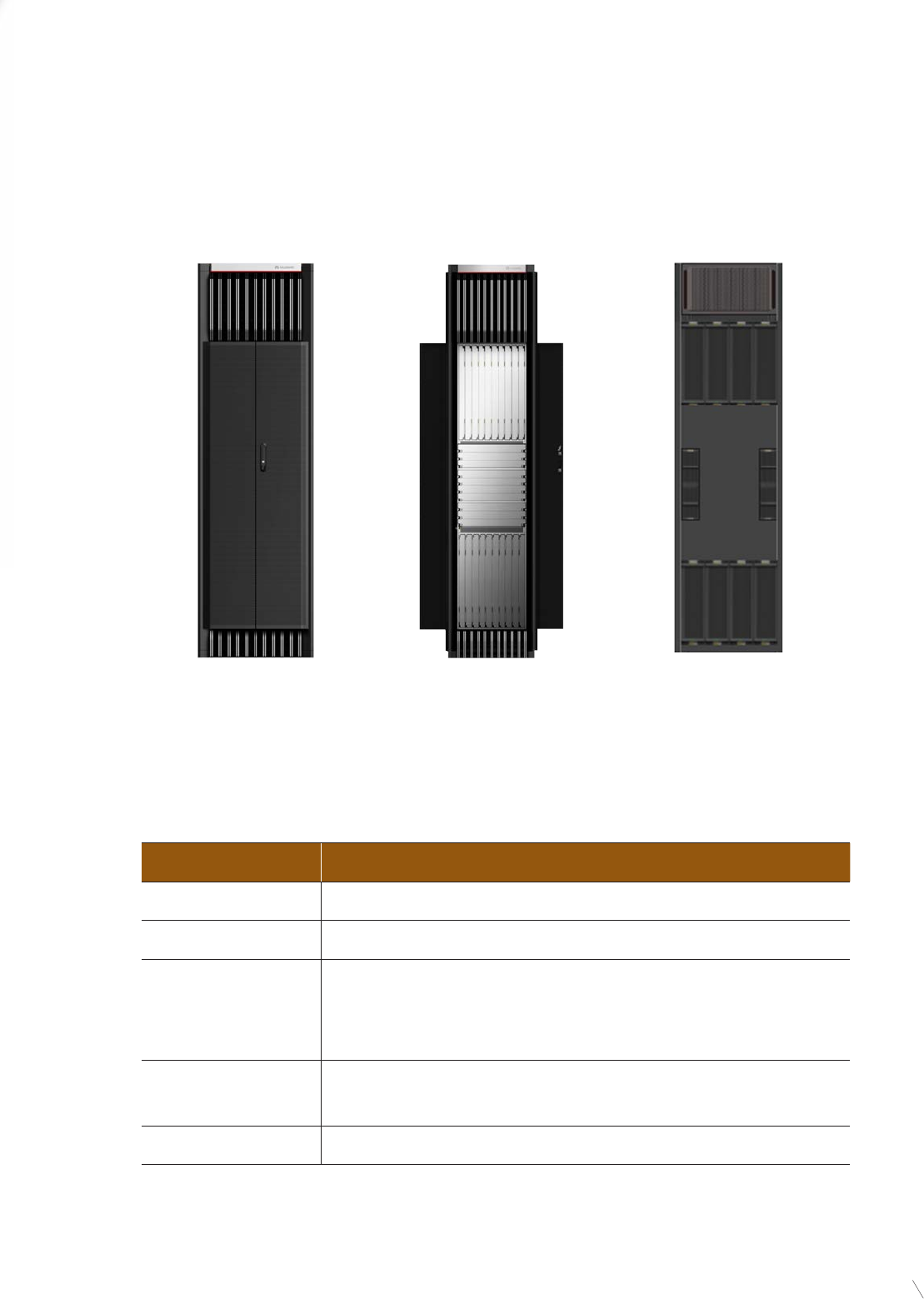

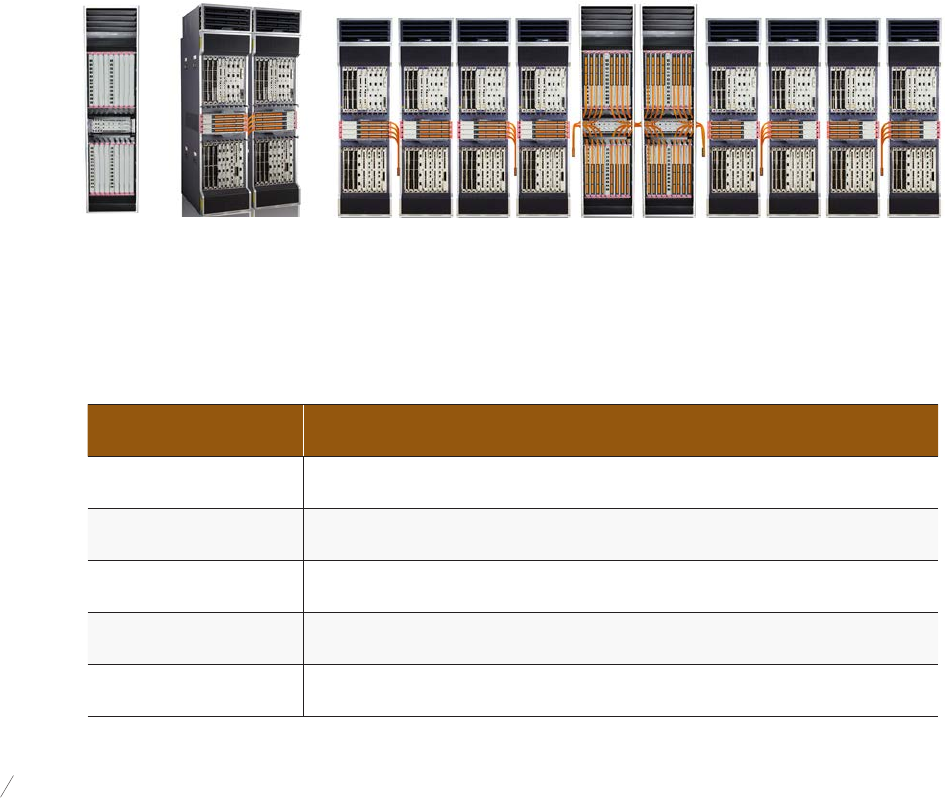

Figure 1 CE12800 series

Item CE12804S CE12808S CE12804 CE12808 CE12812 CE12816

Switching capacity (Tbit/s) 45/2581 89/516145/258189/5161134/7741178/10321

Forwarding performance

(Mpps) 17,280 34,560 17,280 34,560 51,840 69,120

Service slots 4 8 4 8 12 16

Switching fabric module

slots 2 4 6 6 6 6

Fabric architecture Clos architecture, cell switching, VoQ, and distributed large buffer

Airﬂow design Strict front-to-back

Device virtualization VS, CSS, SVF, M-LAG

Network virtualization VxLAN, BGP-EVPN, TRILL

04

Data Center Switch CloudEngine Series Products

Model and Appearance Description

• Supports four half-width interface cards:

»24-port 10GE SFP+ or 25GE SFP28 and 2-port 100GE QSFP28 interface card

»24-port 10GE BASE-T and 2-port 100GE QSFP28 interface card

»8-port 100GE QSFP28 interface card

»16-port 40GE QSFP+ interface card

• 6.4 Tbit/s switching capacity, forwarding performance 3200Mpps

• Rich data center features: M-LAG, VxLAN, BGP-EVPN, TRILL, iStack, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 32*100GE QSFP28 ports, 2*10GE SFP+ ports

• 6.4 Tbit/s switching capacity, forwarding performance 3200Mpps

• Rich data center features: M-LAG, VxLAN, BGP-EVPN, iStack, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 32*40GE QSFP+ ports

• 2.56Tbit/s switching capacity, forwarding performance 1440Mpps

• Rich data center features: M-LAG, VxLAN, BGP-EVPN, TRILL, iStack, SVF, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 32*40GE QSFP+ ports

• 2.56Tbit/s switching capacity, forwarding performance 1440Mpps

• Rich data center features: M-LAG, VxLAN, VxLAN RIOT, BGP-EVPN, TRILL,

iStack, SVF, FCoE

• Flexible front-to-back or back-to-front airﬂow

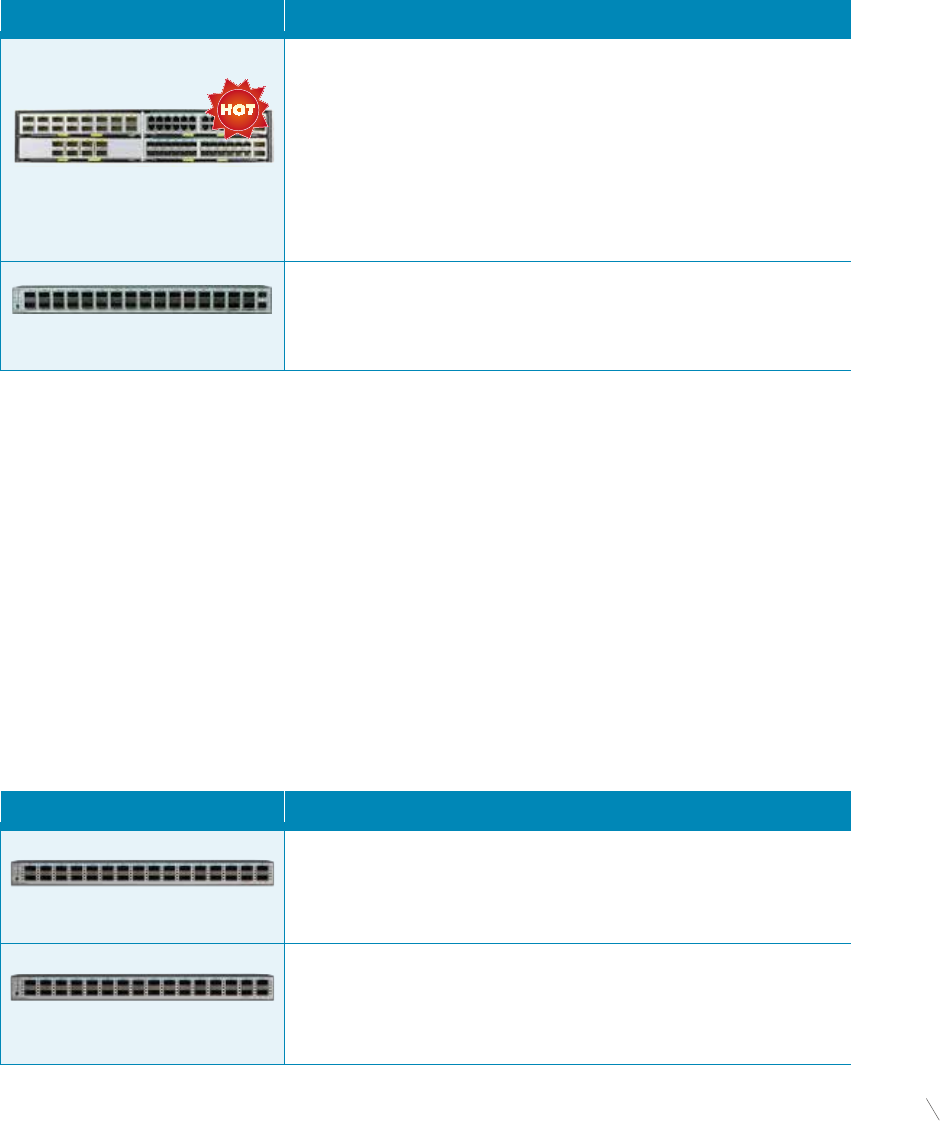

CE7850-32Q-EI

CE7855-32Q-EI

CE7800 Series

The CE7800 switches can be used as core or aggregation switches on data centers and campus

networks.

Using an advanced hardware design, the CE7800 series provides high-density 40GE QSFP+ ports (each

can be split into four 10GE SFP+ ports), L2/L3 line-rate forwarding, extensive data center features, high-

performance stacking capability. CE7800 switches support front-to-back and back-to-front airﬂows for

you to choose based on the airﬂow direction in your equipment room.

The CE7800 series comes in two models.

access, a compact core or aggregation node on a small-sized network, or connect to High-Performance

Computing (HPC) servers.

The CE8860 is the industry’s first 25GE access TOR switch and provides high-density 100GE/40GE

uplink ports for connection with core switches. It provides up to 32*100GE, 64*40GE, or 128*25GE/10GE

ports, which can be used in combinations through cards, delivering flexible, high-density access and

aggregation capabilities.

The CE8850 provides high-density 100GE QSFP28 ports, L2/L3 line-rate forwarding, extensive data

center features, high-performance stacking capability.

The CE8800 comes in two models.

CE8860-4C-EI

CE8850-32CQ-EI

Model and Appearance Description

05 Data Center Switch CloudEngine Series Products

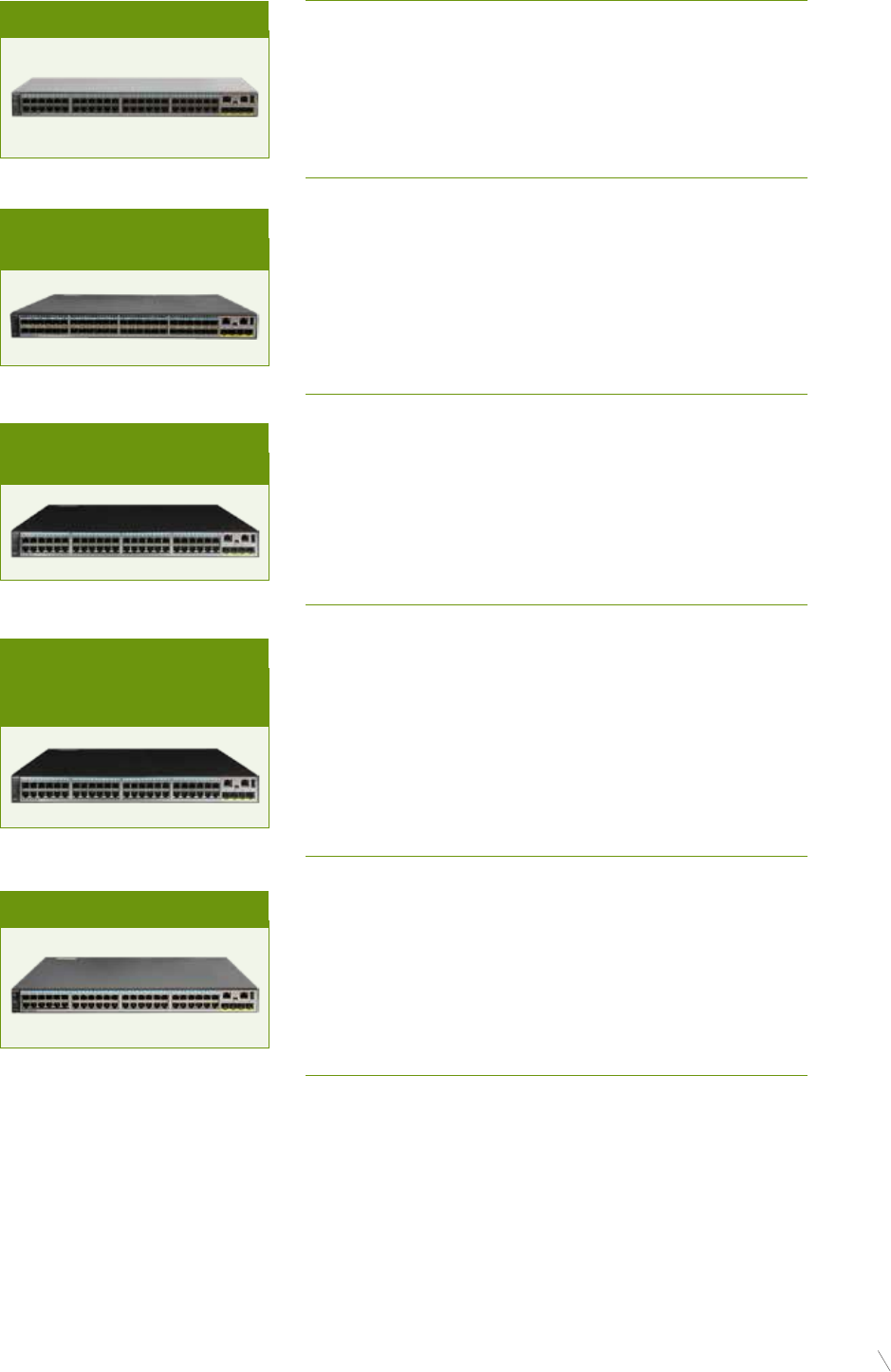

CE6800 Series

The CE6800 switches provide high-density 10GE/25GE access in data centers and can also be used as

core or aggregation switches on campus networks.

The CE6800 series has an advanced hardware design, which provides the industry's highest density of

10GE/25GE downlink ports as well as 100GE QSFP28 or 40GE QSFP+ uplink ports. (A 100GE QSFP28

port can be split into four 25GE SFP28 ports or work as a 40GE QSFP+ port. A 40GE QSFP+ port can

be split into four 10GE SFP+ ports). The CE6800 switches provide L2/L3 line-rate forwarding on these

interfaces and support extensive data center features, high-performance stacking capability. They

support front-to-back and back-to-front airﬂows for you to choose based on the airﬂow direction in your

equipment room.

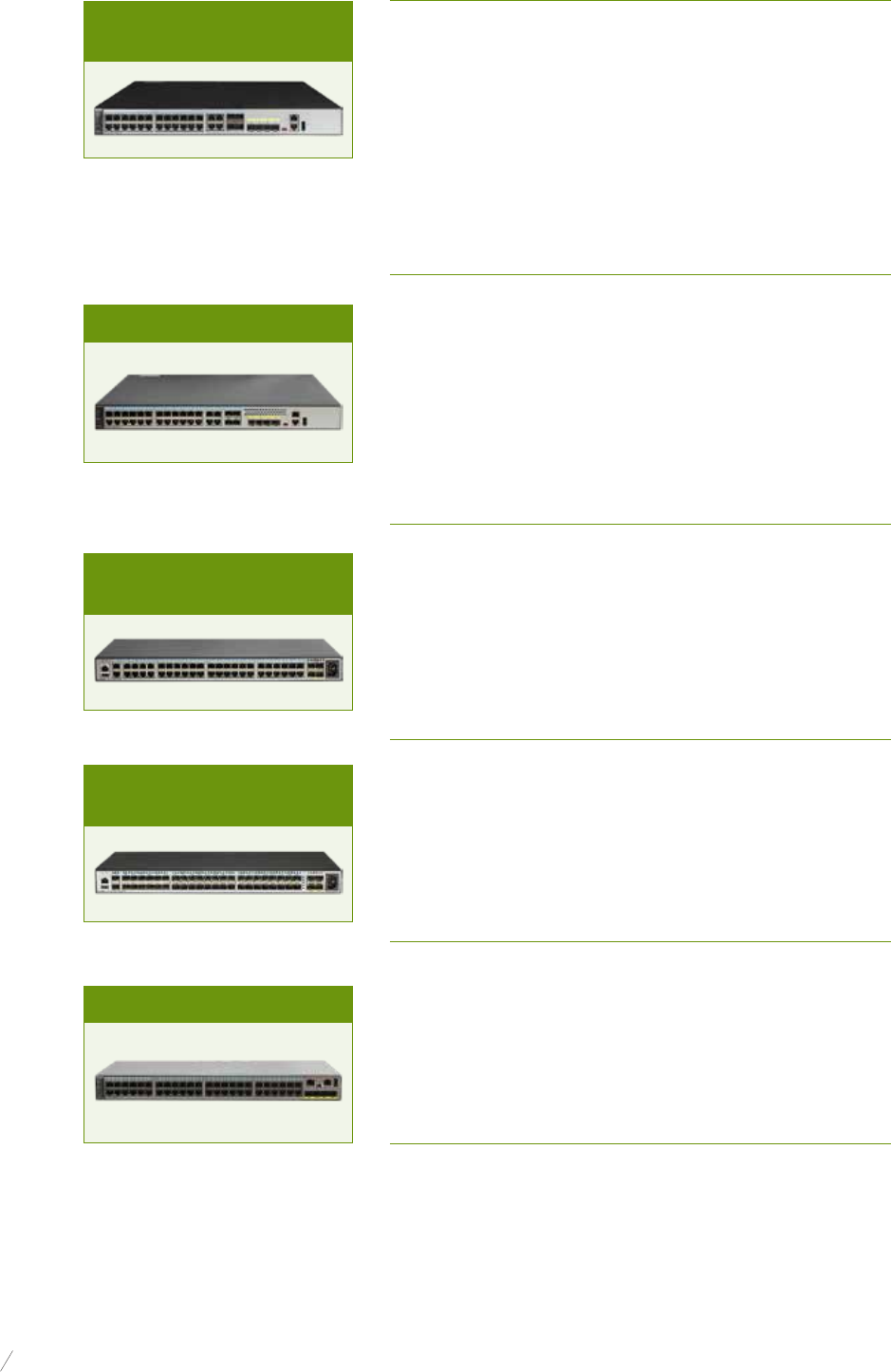

The CE6800 series comes in twelve models.

• 48*10GE SFP+ ports, or 2/4/8G FC ports,6*40GE QSFP+ ports

• 1.44Tbit/s switching capacity, forwarding performance 1080Mpps

• Rich data center features: M-LAG, VxLAN, TRILL, EVPN, iStack, SVF, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 48-port 10GE BASE-T , and 6-port 100GE QSFP28,

• 4GB deep buffer, 2.16Tbit/s switching capacity, forwarding performance

720Mpps

• Rich data center features: M-LAG, VxLAN, VxLAN RIOT, BGP-EVPN, TRILL,

iStack, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 48*10GE SFP+ ports, 6*100GE QSFP28 ports

• 4GB deep buffer, 2.16Tbit/s switching capacity, forwarding performance

720Mpps

• Rich data center features: M-LAG, VxLAN, VxLAN RIOT, BGP-EVPN, TRILL,

iStack, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 24*10GE SFP+ ports, 6*100GE QSFP28 ports

• 4GB deep buffer, 1.68Tbit/s switching capacity, forwarding performance

720Mpps

• Rich data center features: M-LAG, VxLAN, VxLAN RIOT, BGP-EVPN, TRILL,

iStack, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 48*25GE SFP28 ports, 8*100GE QSFP28 ports

• 4Tbit/s switching capacity, forwarding performance 3000Mpps

• Rich data center features: M-LAG, VxLAN, BGP-EVPN, iStack, FCoE

• Flexible front-to-back or back-to-front airﬂow

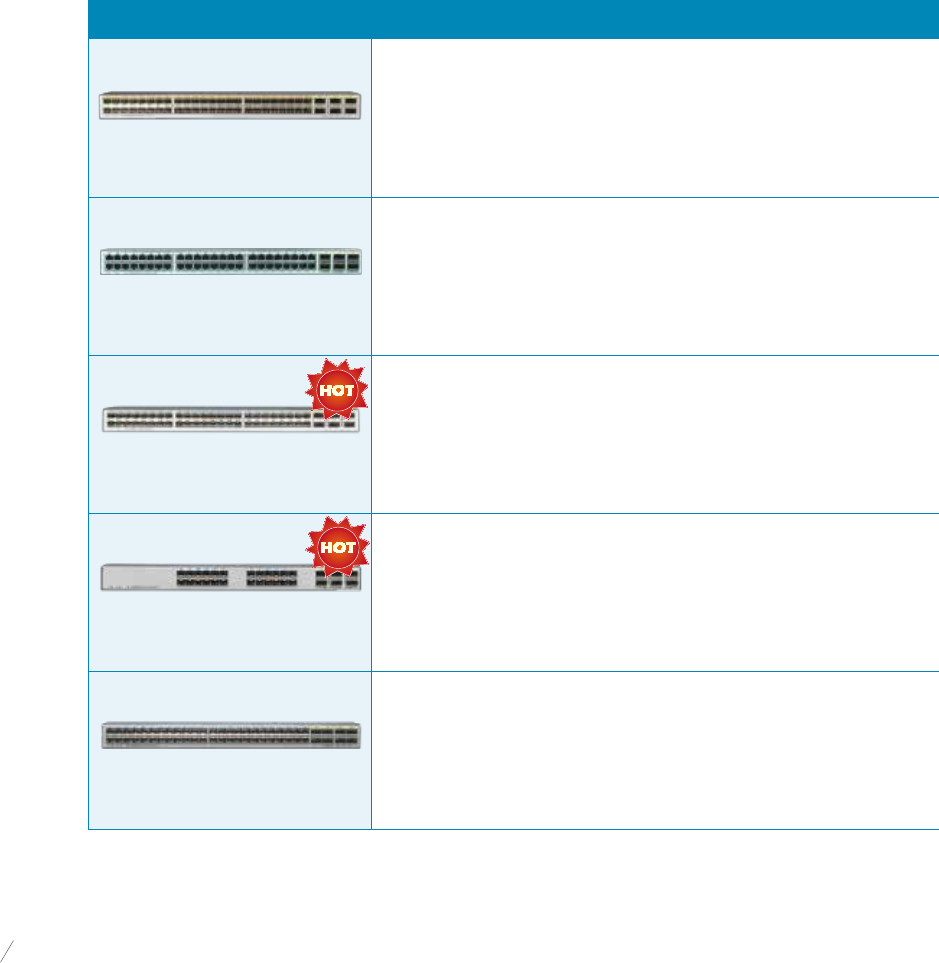

CE6850U-48S6Q-HI

CE6870-48T6CQ-EI

CE6870-48S6CQ-EI

CE6870-24S6CQ-EI

CE6860-48S8CQ-EI

Model and Appearance Description

06

Data Center Switch CloudEngine Series Products

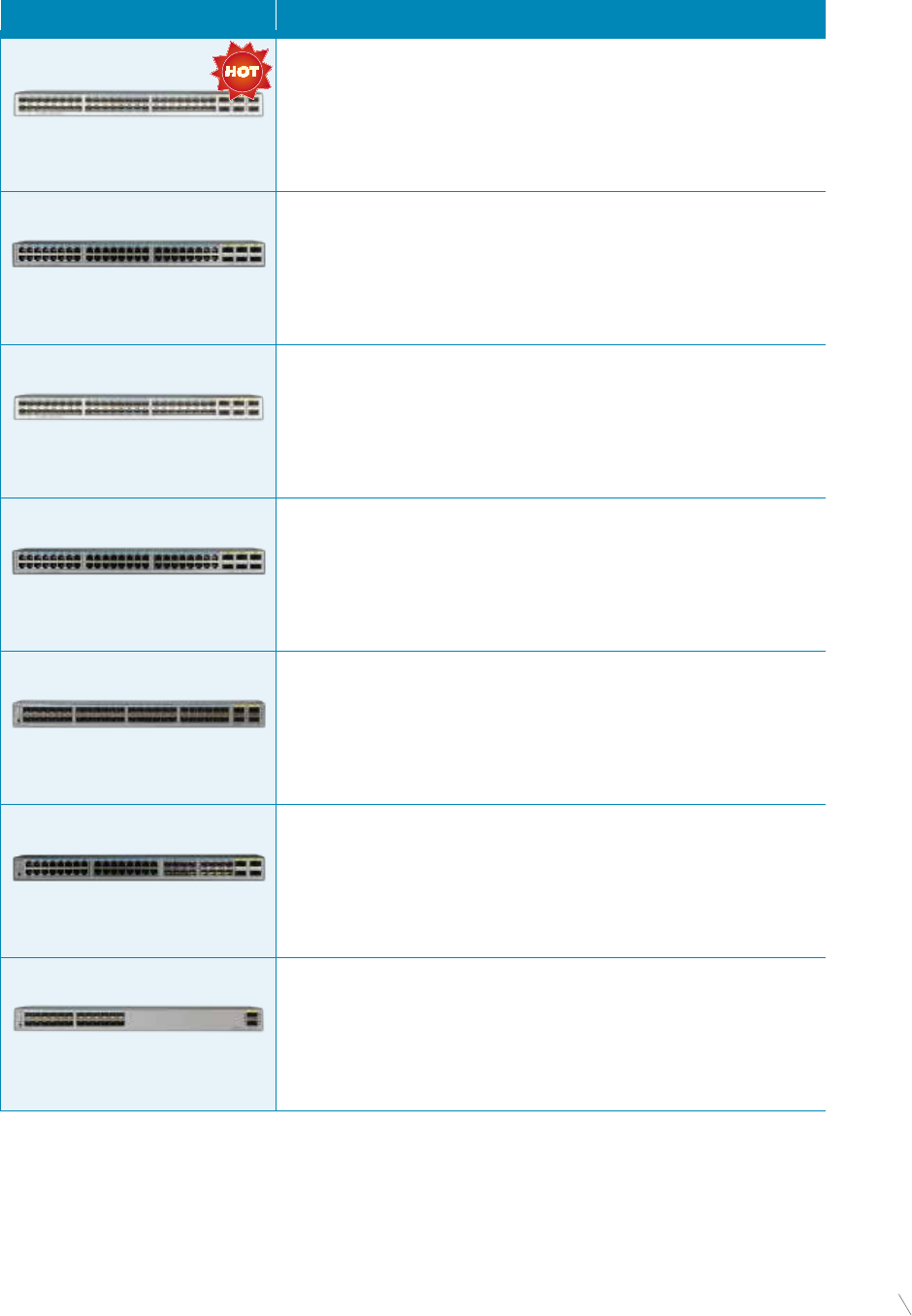

• 48*10GE SFP+ ports, 6*40GE QSFP+ ports

• 1.44Tbit/s switching capacity, forwarding performance 1080Mpps

• Rich data center features: M-LAG, VxLAN, VxLAN RIOT, BGP-EVPN, TRILL,

iStack, SVF, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 48*10GE Base-T ports, 6*40GE QSFP+ ports

• 1.44Tbit/s switching capacity, forwarding performance 1080Mpps

• Rich data center features: M-LAG, VxLAN, TRILL, BGP-EVPN, iStack, SVF,

FCoE

• Flexible front-to-back or back-to-front airﬂow

• 48*10GE SFP+ ports,6*40GE QSFP+ ports

• 1.44Tbit/s switching capacity, forwarding performance 1080Mpps

• Rich data center features: M-LAG, VxLAN, BGP-EVPN, TRILL, iStack, SVF,

FCoE

• Flexible front-to-back or back-to-front airﬂow

• 48*10GE BASE-T ports, 6*40GE QSFP+ ports

• 1.44Tbit/s switching capacity, forwarding performance 1080Mpps

• Rich data center features: M-LAG, VxLAN, BGP-EVPN, TRILL, iStack, SVF,

FCoE

• Flexible front-to-back or back-to-front airﬂow

• 48*10GE SFP+ ports, 4*40GE QSFP+ ports

• 1.28Tbit/s switching capacity, forwarding performance 960Mpps

• Rich data center features: M-LAG, iStack, SVF, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 32*10GE BASE-T ports, 16*10GE SFP+ ports, 4*40GE QSFP+ ports

• 1.28Tbit/s switching capacity, forwarding performance 960Mpps

• Rich data center features: M-LAG, iStack, SVF, FCoE

• Flexible front-to-back or back-to-front airﬂow

• 24*10GE SFP+ ports, 2*40GE QSFP+ ports

• 640Gbit/s switching capacity, forwarding performance 480Mpps

• Rich data center features: M-LAG, iStack, SVF, FCoE

• Flexible front-to-back or back-to-front airﬂow

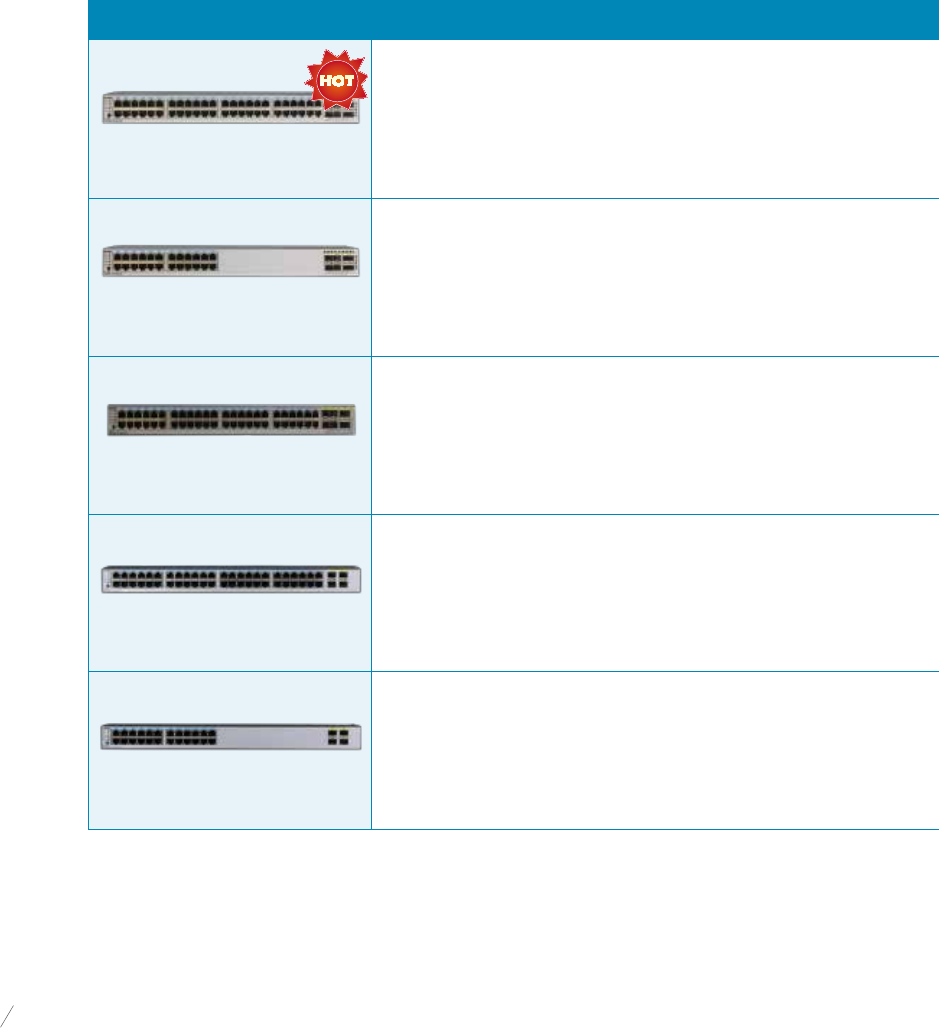

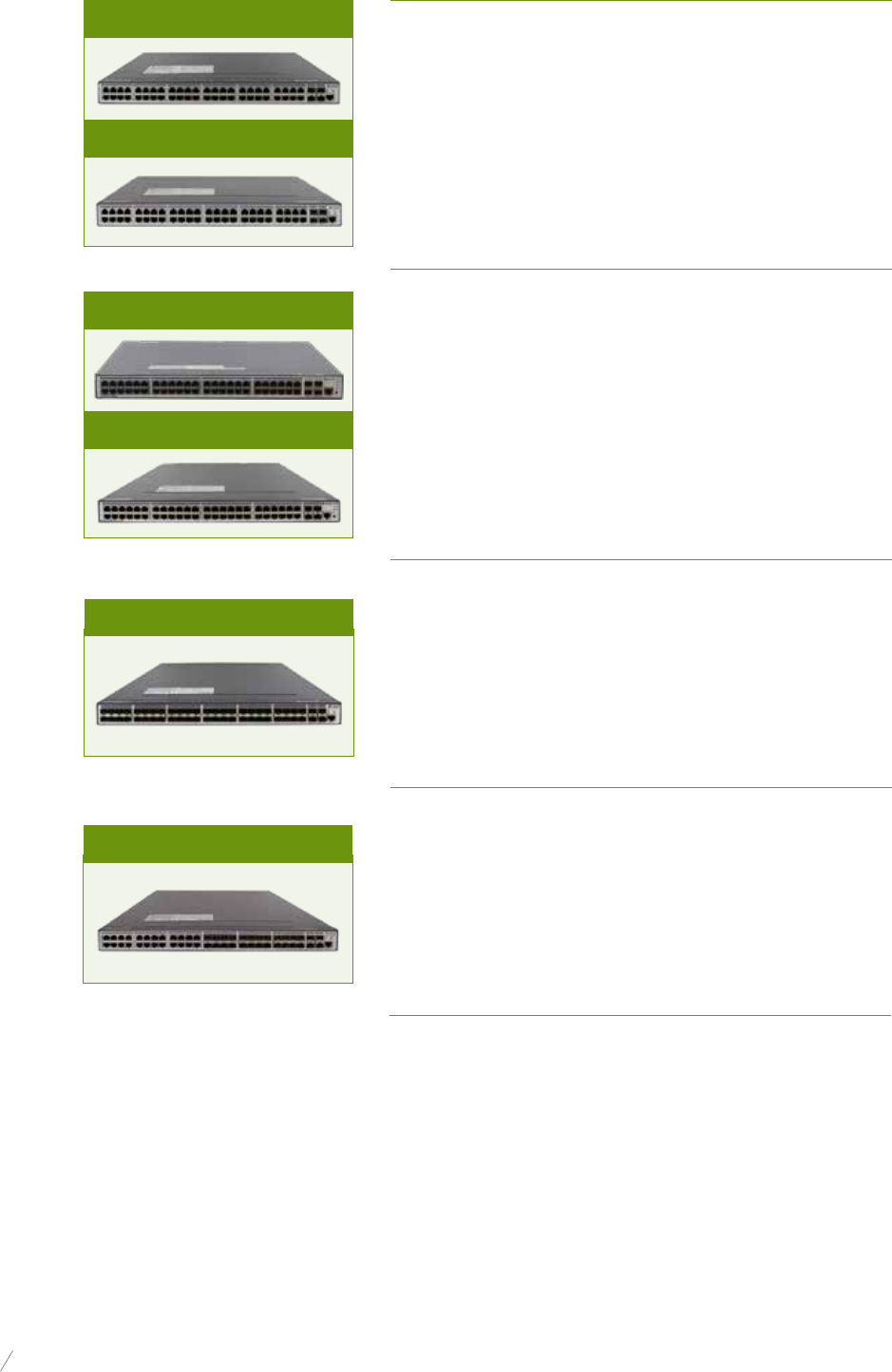

CE6855-48S6Q-HI

CE6855-48T6Q-HI

CE6851-48S6Q-HI

CE6850-48T6Q-HI

CE6810-48S4Q-LI

CE6810-32T16S4Q-LI

CE6810-24S2Q-LI

Model and Appearance Description

07 Data Center Switch CloudEngine Series Products

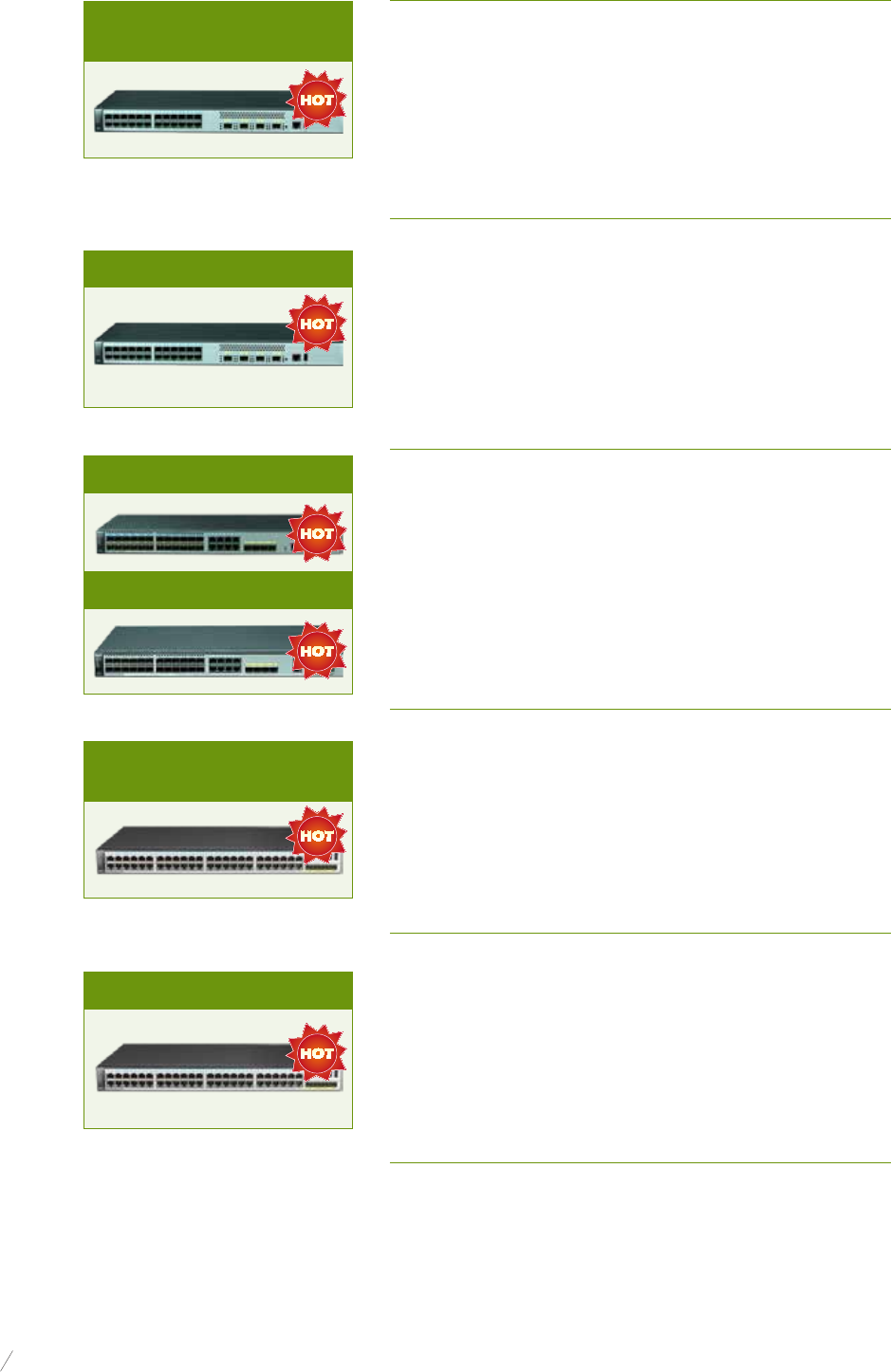

CE5800 Series

The CE5800 switches provide high-density GE access in data centers and can also be used as

aggregation or access switches on campus networks.

The CE5800 series is the ﬁrst in the industry to provide 40GE uplink ports, and the advanced hardware

design supports the industry's highest density of GE access ports. The CE5800 switches provide L2/L3

line-speed forwarding, extensive data center features, and high-performance stacking capability. They

support front-to-back and back-to-front airﬂows for you to choose based on the airﬂow direction in your

equipment room.

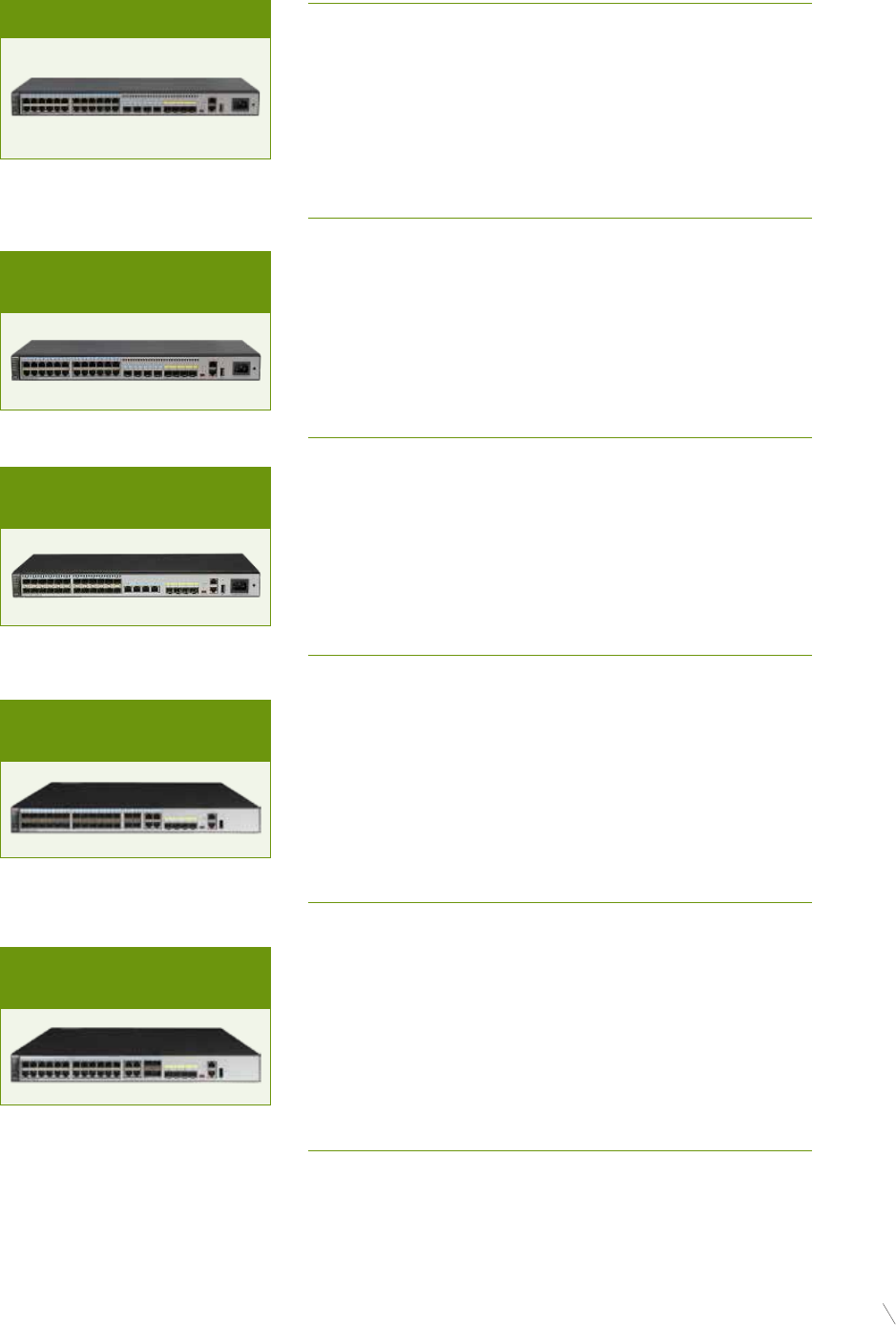

The CE5800 series comes in ﬁve models.

• 48*GE BASE-T ports, 4*10GE SFP+ ports, 2*40GE QSFP+ ports

• 336Gbit/s switching capacity, forwarding performance 252Mpps

• Rich data center features: M-LAG, TRILL, iStack, SVF

• Flexible front-to-back or back-to-front airﬂow

• 24*GE BASE-T ports, 4*10GE SFP+ ports, 2*40GE QSFP+ ports

• 288Gbit/s switching capacity, forwarding performance 215Mpps

• Rich data center features: M-LAG, TRILL, iStack, SVF

• Flexible front-to-back or back-to-front airﬂow

• 48*GE BASE-T ports, 4*10GE SFP+ ports, 2*40GE QSFP+ ports

• 336Gbit/s switching capacity, forwarding performance 252Mpps

• Rich data center features: M-LAG, TRILL, iStack, SVF

• Flexible front-to-back or back-to-front airﬂow

• 48*GE BASE-T ports, 4*10GE SFP+ ports

• 176Gbit/s switching capacity, forwarding performance 132Mpps

• Rich data center features: M-LAG, iStack, SVF

• Flexible front-to-back or back-to-front airﬂow

• 24*GE BASE-T ports, 4*10GE SFP+ ports

• 128Gbit/s switching capacity, forwarding performance 96Mpps

• Rich data center features: M-LAG, iStack, SVF

• Flexible front-to-back or back-to-front airﬂow

CE5855-48T4S2Q-EI

CE5855-24T4S2Q-EI

CE5850-48T4S2Q-HI

CE5810-48T4S-EI

CE5810-24T4S-EI

Model and Appearance Description

08

Data Center Switch CloudEngine Series Products

CloudEngine 1800V

CE1800V is a distributed virtual switch used in a virtualized data center environment.

The CE1800V provides extensive functions, good interoperability, and is easy to manage. It can run on

VMware, Software, and open-source virtualization platforms to provide high-speed distributed switching

for VMs. Huawei CE1800V software switch, CloudEngine series hardware switches, and Agile Controller

jointly build an integrated network virtualization solution.

2Campus Switch SX700 Series Products

2Campus Switch

SX700 Series Products

S12700 Series Agile Switches ............................................................................. 10

S9700 Series Switches ........................................................................................ 11

S7700 Series Switches ......................................................................................... 12

S6720 Series Switches ......................................................................................... 13

S5720-HI Series Switches ................................................................................... 14

S5720-EI Series Switches .................................................................................... 15

S5720-SI Series Switches .................................................................................... 19

S5720-LI Series Switches .................................................................................... 21

S5720S-LI Series Switches ................................................................................. 25

S3700 Series Switches ......................................................................................... 27

S2700 Series Switches ......................................................................................... 30

S1700 Series Switches ......................................................................................... 33

10

Campus Switch SX700 Series Products

S12700 Series Agile Switches

HUAWEI S12700 series agile switches are designed for next-generation campus networks. Using a fully

programmable switching architecture, the S12700 series allows fast, flexible function customization

and supports a smooth evolution to Software-Defined Networking (SDN). The S12700 series uses a

Huawei Ethernet Network Processor (ENP) and provides a native Wireless Access Controller (AC) to

help build a wired and wireless converged network. Its Uniﬁed User Management capabilities deliver

uniﬁed user and service management, and Huawei's Packet Conservation Algorithm for Internet (iPCA)

supports hop-by-hop monitoring of any service ﬂows, helping manage services in a more reﬁned way.

The S12700 series runs the Huawei Versatile Routing Platform (VRP), which provides high-performance

L2/L3 switching services and rich network services, such as Multiprotocol Label Switching (MPLS) VPN,

hardware IPv6, desktop cloud, and video conferencing. In addition, the S12700 series offers a variety

of reliability technologies, including non-stop forwarding, Cluster Switch System Generation2(CSS2),

a switch fabric hardware clustering system that allows 1+N backup of Main Processing Units (MPUs),

hardware Eth-OAM/BFD, and ring network protection. These technologies help improve productivity and

maximize network operation time, reducing Total Cost of Ownership (TCO).

11 Campus Switch SX700 Series Products

S12712 S12708 S12710 S12704

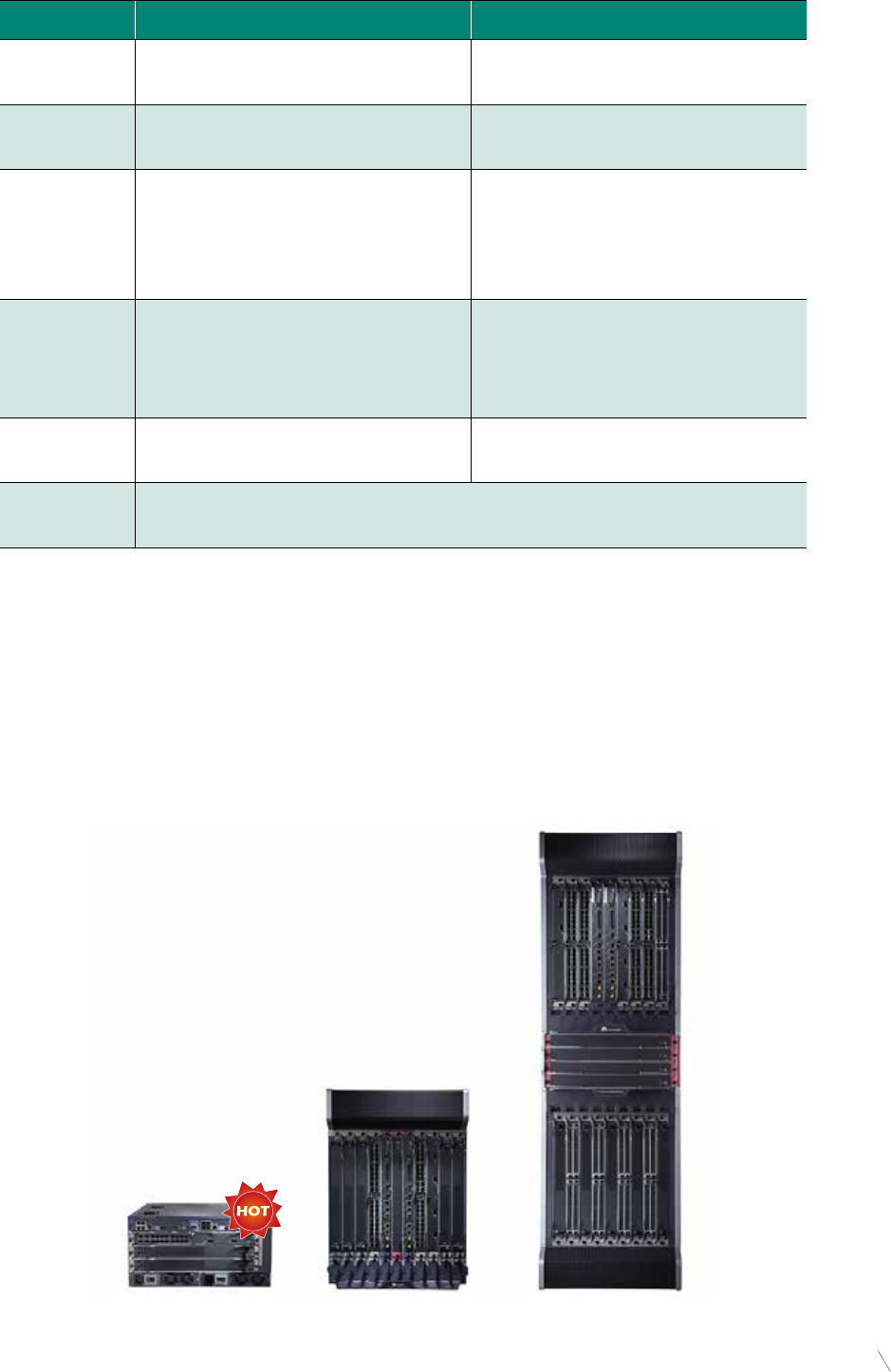

The S12700 series is available in four models: S12704, S12708, S12710 and S12712.

Product Speciﬁcations

Item S12704 S12708 S12710 S12712

Switching

capacity

4.88Tbps/

16.08Tbps

12.32Tbps/

32.16Tbps

13.12Tbps/

38.56Tbps

17.44Tbps/

44.96Tbps

Packet

forwarding rate

3120Mpps/

4560Mpps

6240Mpps/

9120Mpps

7440Mpps/

11040Mpps

9120Mpps/

12960Mpps

MPU slots 2222

SFU slots 2444

Service card

slots 4 8 10 12

S9700 Series Switches

The S9700 series terabit routing switches (S9700 for short) are high-end switches designed for next-

generation campus networks and data centers to implement service aggregation.

Based on Huawei Versatile Routing Platform (VRP), the S9700 provides high L2/L3 switching capabilities

and integrates diversiﬁed services such as MPLS VPN, hardware IPv6, desktop cloud, video conferencing,

and wireless access. In addition, the S9700 also provides a variety of reliability technologies including

non-stop forwarding, hardware OAM/BFD, and ring network protection. These technologies improve

customers' network operation efﬁciency, maximize the device running time, and reduce customers' total

cost of ownership (TCO).

An S9700 can be upgraded to an agile switch when it is equipped with X2S/X2E/X2H/X1E cards, the line

cards with Huawei-developed Ethernet Network Processor (ENP) chips inside . Agile switches allow

customers to make innovations on their networks.

12

Campus Switch SX700 Series Products

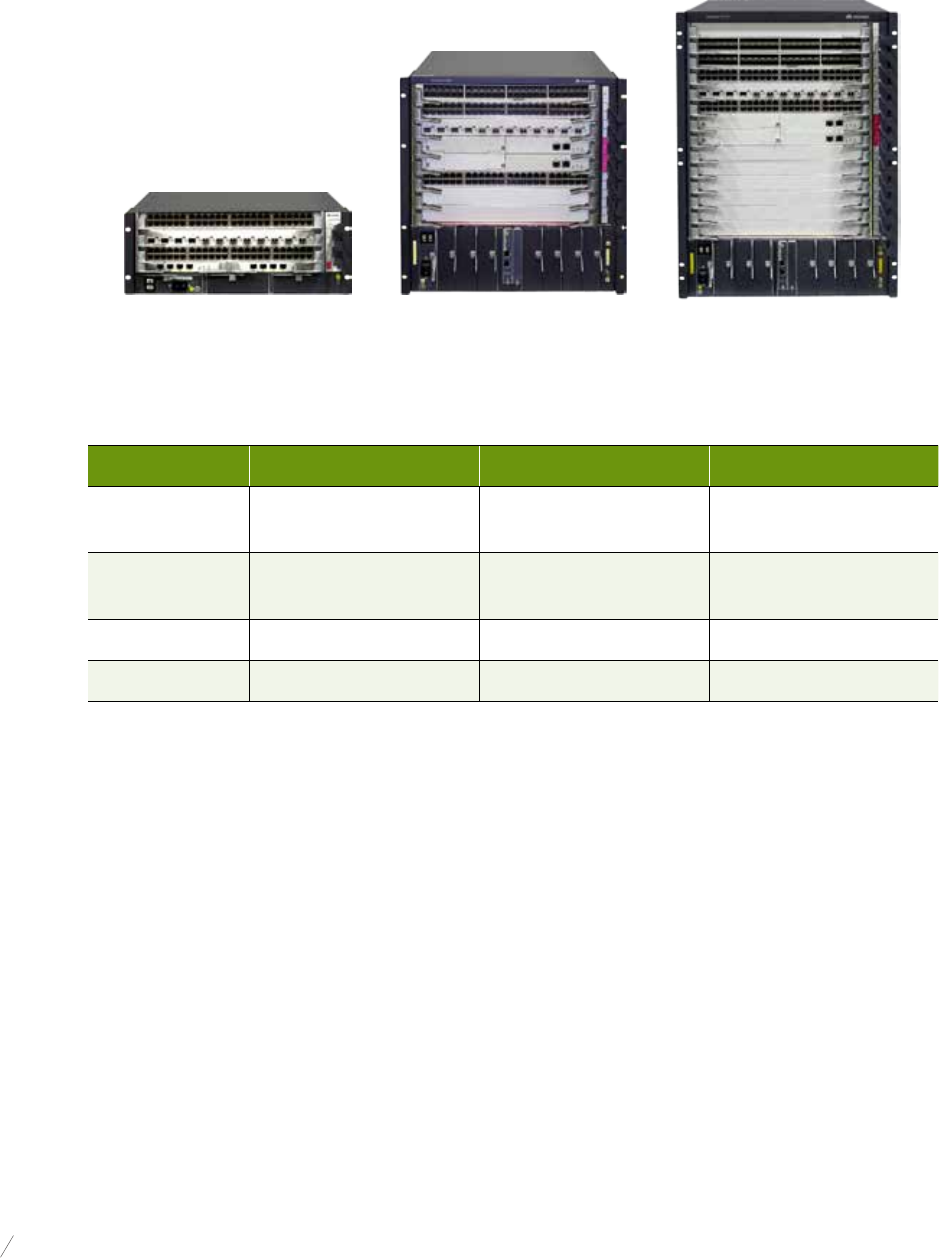

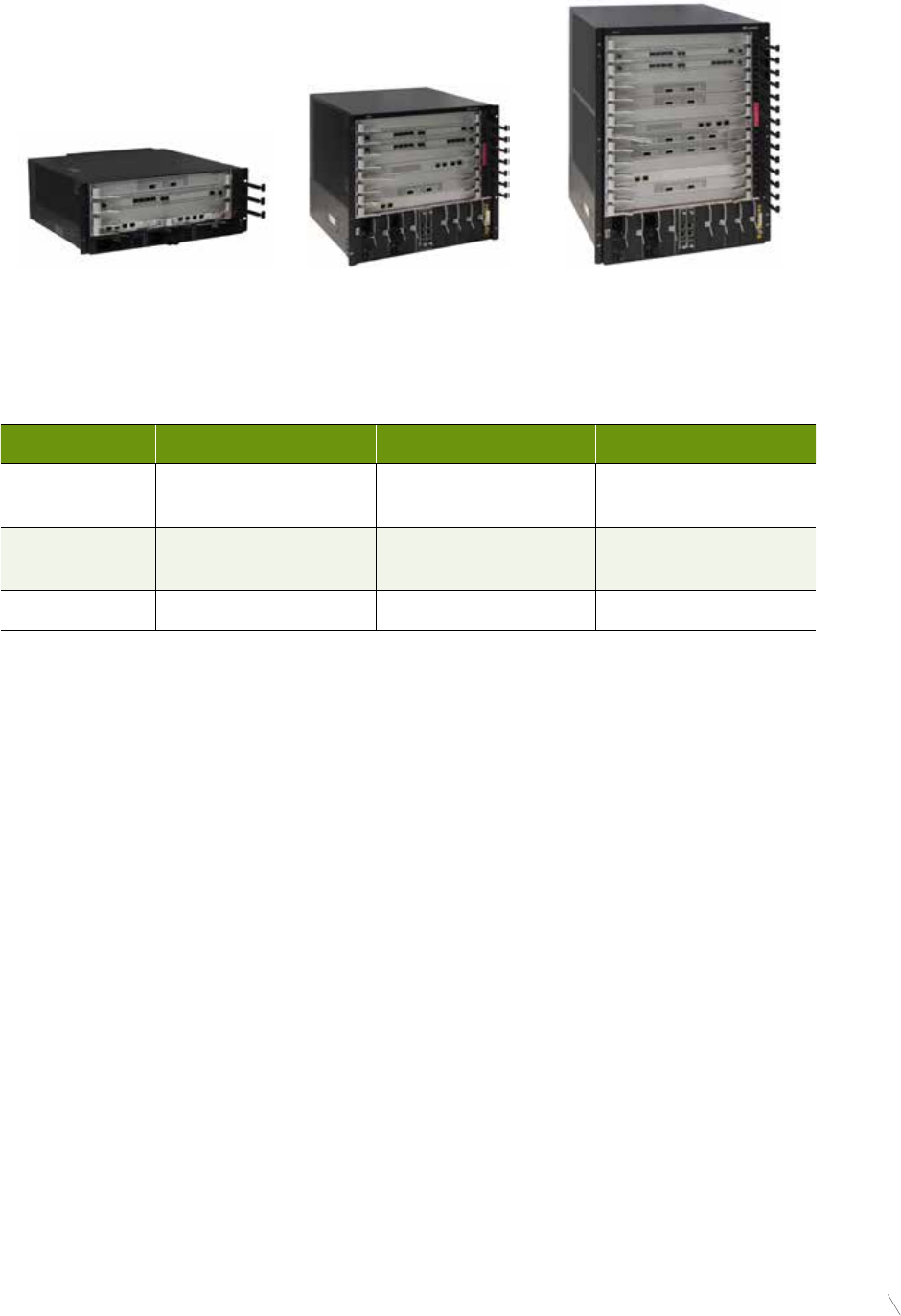

The S9700 series is available in three models: S9703, S9706, and S9712.

S9703 S9712S9706

Product Speciﬁcations

Item S9703 S9706 S9712

Switching

capacity 2.88/5.76 Tbit/s 6.72/14.72 Tbit/s 8.64/18.56 Tbit/s

Packet

forwarding rate 2160 Mpps 2880/5040 Mpps 3840/6480 Mpps

Service slots 3 6 12

S7700 Series Switches

Product Overview

The S7700 series switches (S7700 for short) are high-end smart routing switches designed for next-

generation enterprise networks. The S7700 design is based on Huawei's intelligent multi-layer switching

technology to provide intelligent service optimization methods, such as MPLS VPN, traffic analysis,

comprehensive HQoS policies, controllable multicast, load balancing, and security, in addition to high-

performance Layer 2 to Layer 4 switching services. The S7700 also features super scalability and

reliability.

The S7700 can function either as an aggregation or core node on a campus network or in a data center

to provide integrated wireless access. The S7700 also offers voice, video, and data services, helping

enterprises build routing and switching integrated end-to-end networks.

An S7700 running the V2R5C00 or later system software can be upgraded to an agile switch by using an

agile card, which is equipped with Huawei-developed Ethernet Network Processor (ENP) chips inside .

Customers can beneﬁt from the agile switch.

13 Campus Switch SX700 Series Products

The S7700 series is available in three models: S7703, S7706, and S7712. The switching capacity and port

density of all three models is expandable. The S7700 is developed based on a new hardware platform

and adopts a left-to-rear ventilation channel to achieve better energy efﬁciency. Key components work

in redundancy mode to minimize risks of system breakdown and service interruption. Using innovative

energy-saving chips, the S7700 provides an industry-leading solution for a sustainable energy-saving

network.·

S7703 S7712S7706

Product Speciﬁcations

Item S7703 S7706 S7712

Switching

capacity 1.92 Tbps 3.84 Tbps 3.84Tbps

Forwarding

performance 1440 Mpps 2880 Mpps 2880 Mpps

MPU slot 222

Service slot 3 6 12

S6720 Series Switches

Product Overview

The S6720 series switches are next-generation 10GE box switches. The S6720 can function as an access

switch in an Internet data center (IDC) or a core/aggregation switch on a campus network.

The S6720 has industry-leading performance, provides line-speed 10GE access ports and line-speed

40GE uplink ports. It can be used in a data center to provide 10 Gbit/s access to servers or function

as a core switch on a campus network to provide 10 Gbit/s trafﬁc aggregation. In addition, the S6720

provides a wide variety of services, comprehensive security policies, and various QoS features to help

customers build scalable, manageable, reliable, and secure data centers.

S6720S-26Q-EI-24S is a compact switch with 220mm depth , perfectly suitable in a 300 mm deep

cabinet, saving installation space for customers.

14

Campus Switch SX700 Series Products

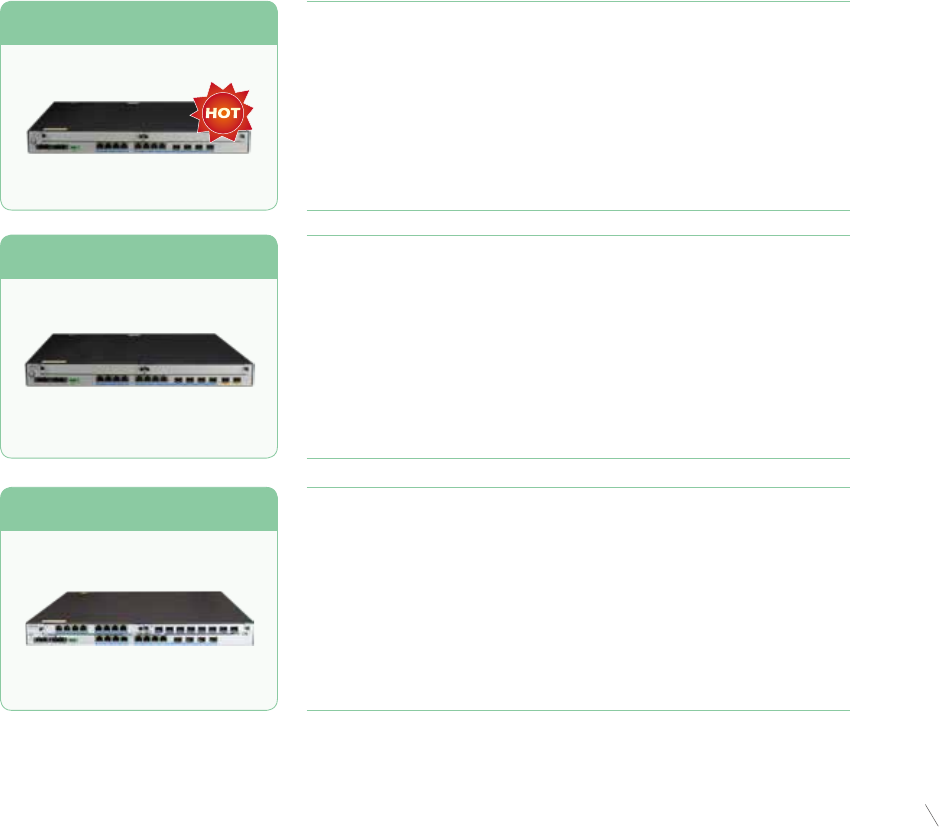

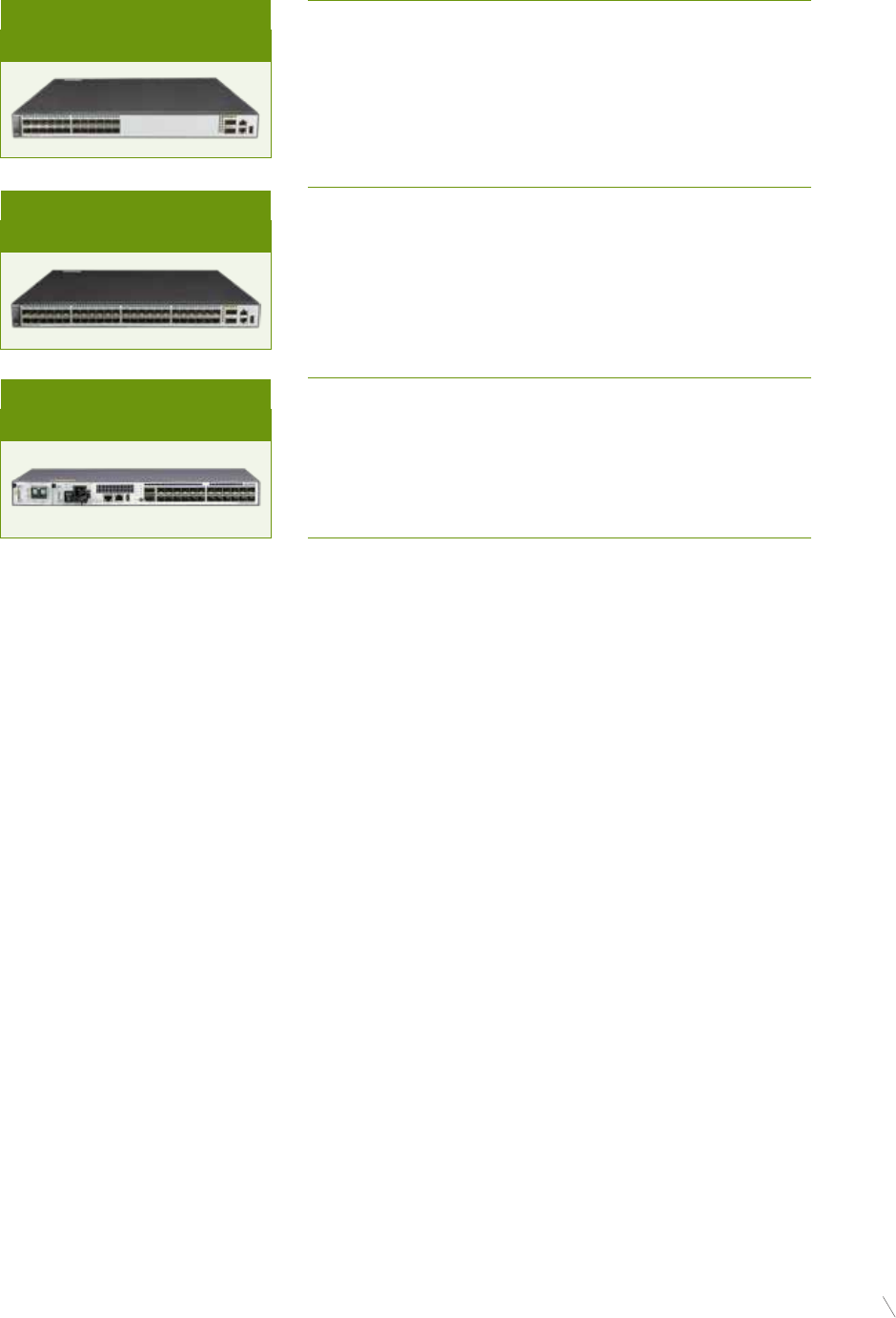

Product Appearance

S6720-30C-EI-24S-AC

S6720-30C-EI-24S-DC

S6720-54C-EI-48S-AC

S6720-54C-EI-48S-DC

S6720S-26Q-EI-24S-AC

S6720S-26Q-EI-24S-DC

• 24×10GE SFP+, 2×40GE QSFP+ ports

• One extended slot for 4×40GE QSFP+ interface card

• Double hot swappable AC/DC power supplies

• Forwarding performance: 720 Mpps

• Switching capacity: 2.56 Tbps

• 48×10GE SFP+, 2×40GE QSFP+ ports

• One extended slot for 4×40GE QSFP+ interface card

• Double hot swappable AC/DC power supplies

• Forwarding performance: 1080 Mpps

• Switching capacity: 2.56 Tbps

• 24×10GE SFP+, 2×40GE QSFP+ ports

• Double hot swappable AC/DC power supplies

• Forwarding performance: 480 Mpps

• Switching capacity: 2.56 Tbps

S5720-HI Series Switches

Product Overview

Huawei S5720-HI series switches are advanced gigabit Ethernet switches that provide various agile

features. The switches are developed based on Huawei Versatile Routing Platform (VRP), and use

the fully programmable structure to implement software definition and service change on demand.

With services and network convergence as the core, the switches provide the free mobility function to

ensure consistent user experience. Besides, it provides wireless AC functions .The Super Virtual Fabric

(SVF) function virtualizes the entire network into one device. In addition, the switches support ﬂexible

Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent

deployment, and simple operations & maintenance (O&M). The S5720-HI series switches are the best

choices for the branches of high-quality large- and middle-sized campus networks, the core layer of

small-sized campus networks, and the access layer of data center networks.

15 Campus Switch SX700 Series Products

• 16 Gig SFP ports, 8 × Combo Gig ports, 4 ×10 Gig SFP+

• One extended slot

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• Forwarding performance: 168 Mpps

• Switching capacity: 598 Gbit/s

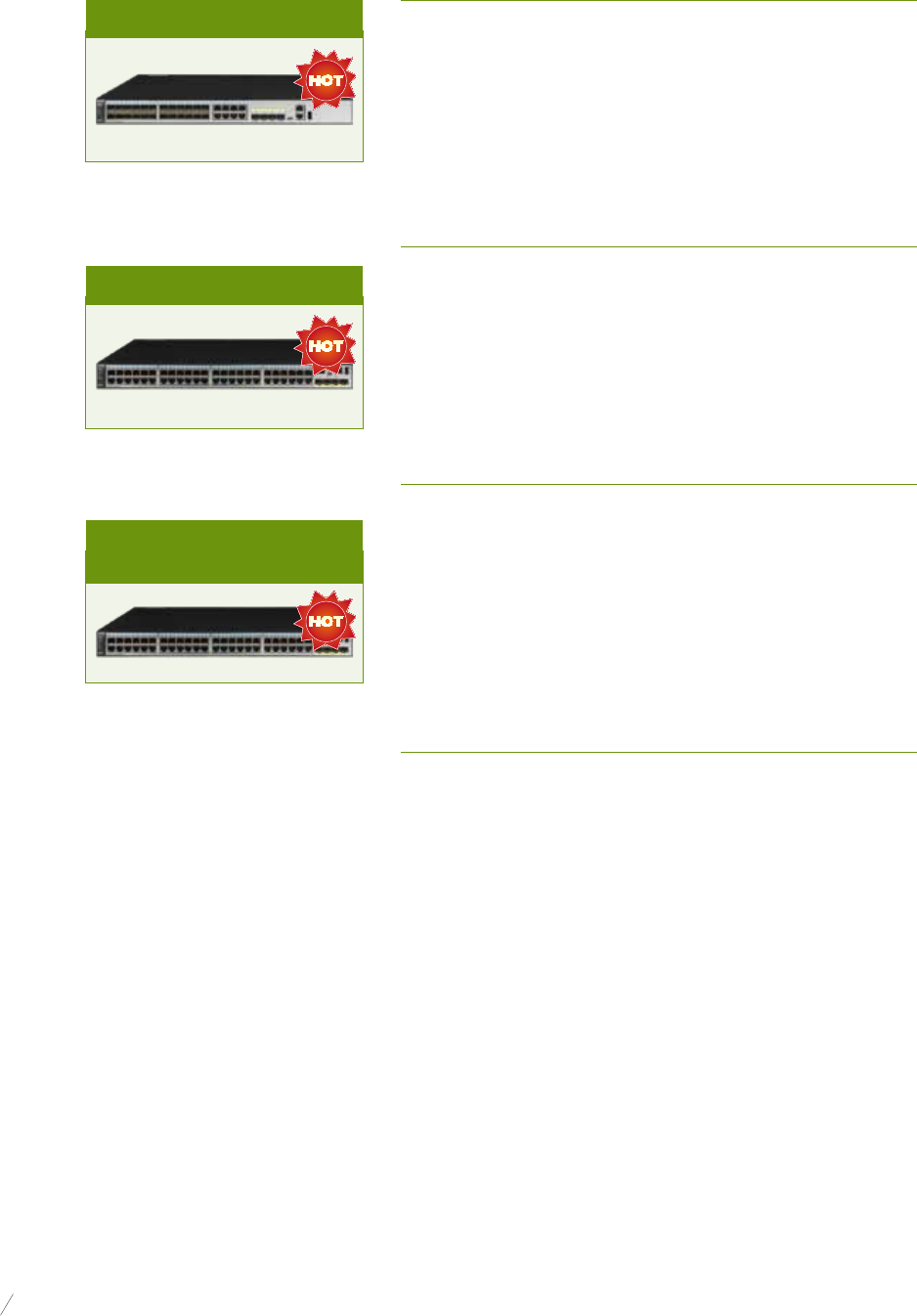

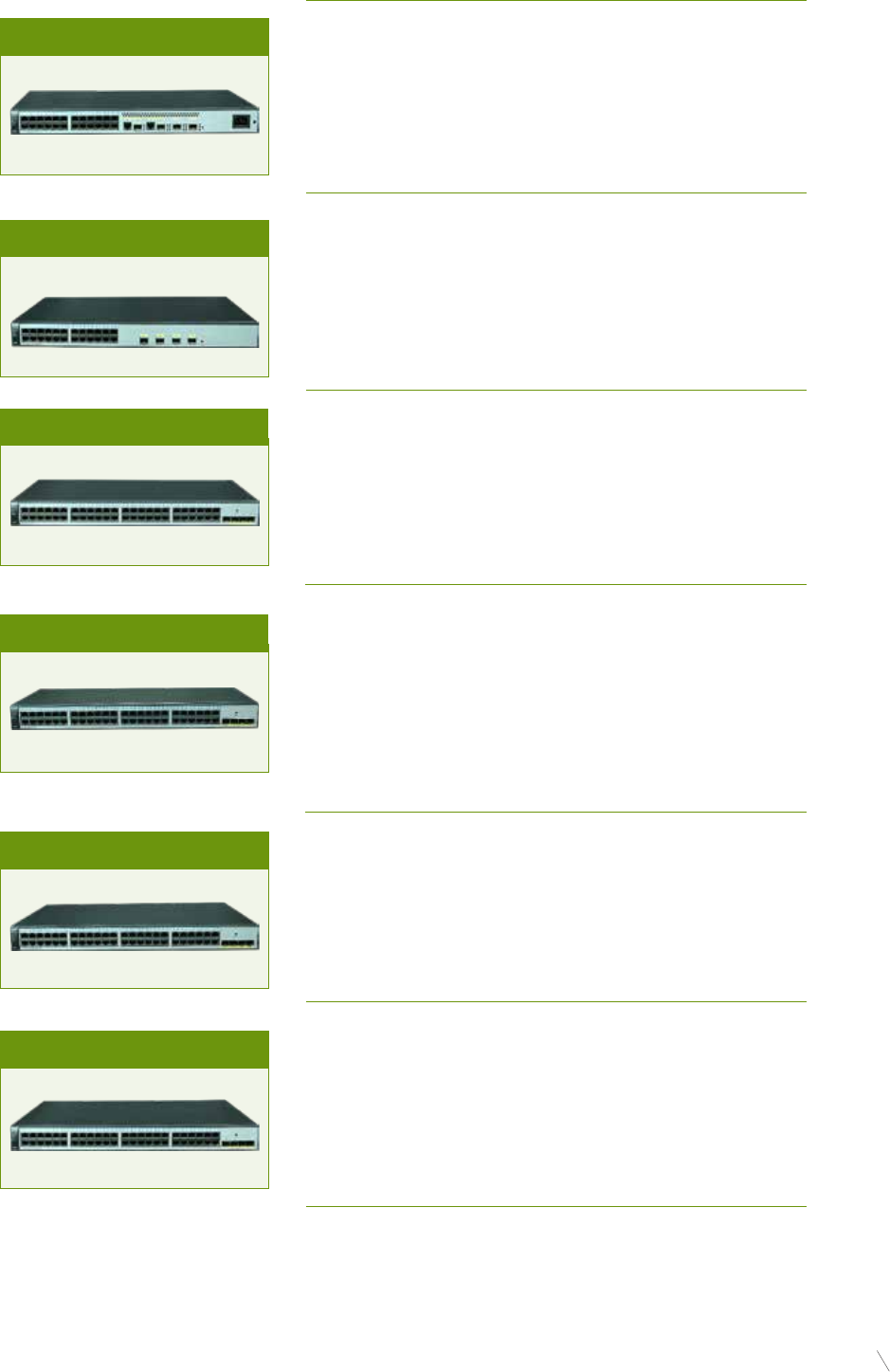

Models and Appearances

The following models are available in the S5720-HI series.

S5720-32C-HI-24S-AC

S5720-56C-HI-AC

S5720-56C-PWR-HI-AC

S5720-56C-PWR-HI-AC1

• 48 Ethernet 10/100/1000Base-T ports, 4×10 Gig SFP+

• One extended slot

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• Forwarding performance: 192 Mpps

• Switching Capacity: 598 Gbit/s

• 48 Ethernet 10/100/1000Base-T ports, 4×10 Gig SFP+

• One extended slot

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• 580W/1150W AC power supply

• PoE+, PoE

• Forwarding performance: 192 Mpps

• Switching Capacity: 598 Gbit/s

S5720-EI Series Switches

Product Overview

The S5720-EI series enhanced gigabit Ethernet switches (S5720-EI for short) are next-generation

switches that provide ﬂexible GE access ports (including optical, electrical, and combo ports) and 10GE

uplink ports. Built on next-generation high-performing processors and the Huawei Versatile Routing

Platform (VRP), the S5720-EI provides larger table sizes and higher hardware processing capabilities

than equivalent switches. comprehensive service processing capabilities, enhanced security control,

and mature IPv6 features, and supports MACsec, intelligent stack (iStack), ﬂexible Ethernet networking,

and easy operations and maintenance (O&M). With all these advantages, the S5720-EI is widely used for

access/aggregation in enterprise campus networks or gigabit access in data center networks.

16

Campus Switch SX700 Series Products

• 24 Gig SFP, 4×Combo Gig ports , 4×10 Gig SFP+

• One extended slot

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 132 Mpps

• Switching capacity: 598 Gbit/s

• 24 Ethernet 10/100/1000 ports, 4 ×Combo Gig ports，4 ×10

Gig SFP+

• One extended slot

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 132 Mpps

• Switching capacity: 598 Gbit/s

• 24 Ethernet 10/100/1000 ports, 4 100/1000 SFP, 4 Gig SFP, 2

QSFP+

• Fixed AC power supply, RPS supported

• Forwarding performance: 48 Mpps

• Switching capacity: 598 Gbit/s

S5720-32P-EI-AC

S5720-32X-EI-AC

S5720-32X-EI-DC

S5720-32X-EI-24S-AC

S5720-32X-EI-24S-DC

S5720-36C-EI-28S-AC

S5720-36C-EI-28S-DC

S5720-36C-EI-AC

S5720-36C-EI-DC

• 24 Ethernet 10/100/1000 ports, 4 100/1000 SFP, 4×10 Gig

SFP+, 2 QSFP+

• Fixed AC/DC power supply, RPS supported

• Forwarding performance: 102 Mpps

• Switching capacity: 598 Gbit/s

• 24 Gig SFP, 4 Ethernet 10/100/1000 ports, 4×10 Gig SFP+, 2

QSFP+

• Fixed AC/DC power supply, RPS supported

• Forwarding performance: 102 Mpps

• Switching capacity: 598 Gbit/s

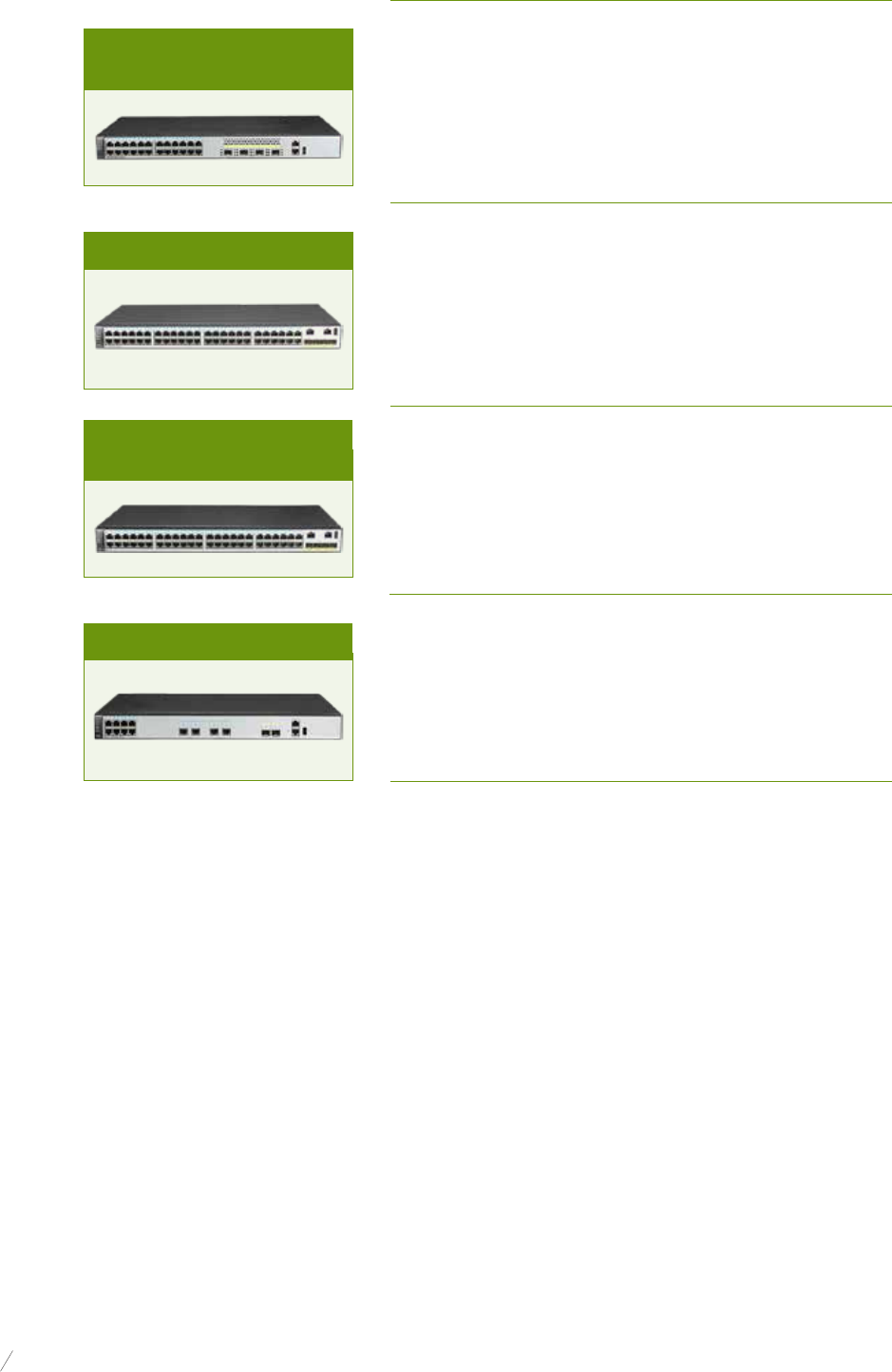

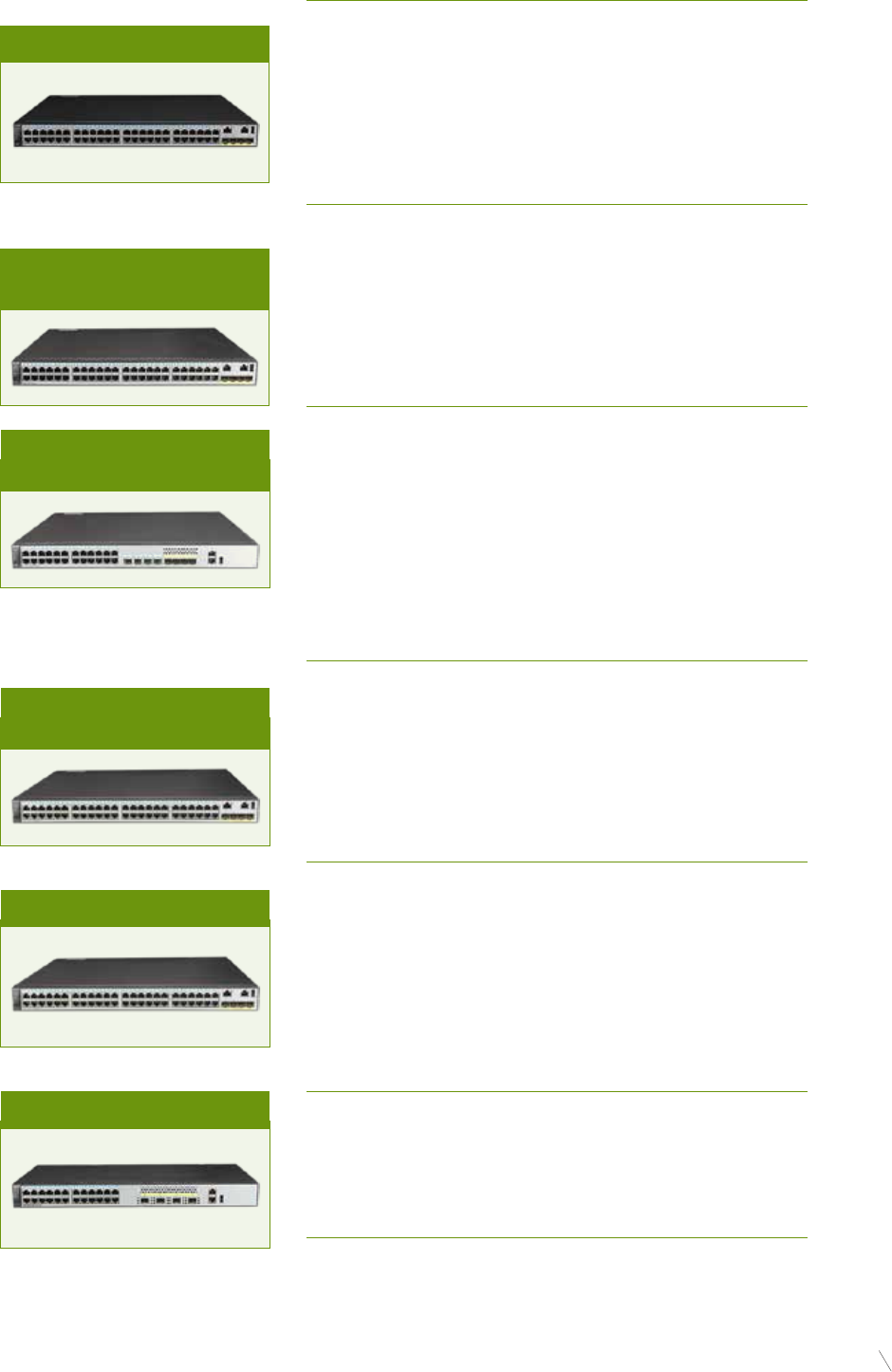

Models and Appearances

17 Campus Switch SX700 Series Products

• 46 Gig SFP, 4×10 Gig SFP+, 2 QSFP+

• Fixed AC/DC power supply, RPS supported

• Forwarding performance: 129 Mpps

• Switching capacity: 598 Gbit/s

• 48 Ethernet 10/100/1000 ports, 4×10 Gig SFP+, 2 QSFP+

• Fixed AC power supply, RPS supported

• Forwarding performance: 132 Mpps

• Switching capacity: 598 Gbit/s

• 24 Ethernet 10/100/1000 PoE+ ports, 4 × Combo Gig ports , 4

×10 Gig SFP+

• One extended slot

• PoE+

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 132 Mpps

• Switching capacity: 598 Gbit/s

S5720-36C-PWR-EI-AC

S5720-36C-PWR-EI-DC

S5720-36PC-EI-AC

S5720-50X-EI-AC

S5720-50X-EI-DC

S5720-50X-EI-46S-AC

S5720-50X-EI-46S-DC

S5720-52X-EI-AC

• 24 Ethernet 10/100/1000 ports, 4 × Combo Gig ports, 4 Gig

SFP

• One extended slot

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• Forwarding performance: 78 Mpps

• Switching capacity: 598 Gbit/s

• 46 Ethernet 10/100/1000 ports, 4×10 Gig SFP+, 2 QSFP+

• Fixed AC/DC power supply, RPS supported

• Forwarding performance: 129 Mpps

• Switching capacity: 598 Gbit/s

18

Campus Switch SX700 Series Products

• 48 Ethernet 10/100/1000 PoE+ ports, 4 ×10 Gig SFP+

• One extended slot

• PoE+

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• 500W/1100W AC power supply

• Forwarding performance: 162 Mpps

• Switching capacity: 598 Gbit/s

• 48 Ethernet 10/100/1000 ports, 4 Gig SFP

• One extended slot

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• Forwarding performance: 108 Mpps

• Switching capacity: 598 Gbit/s

• 48 Ethernet 10/100/1000 ports, 4 Gig SFP, 2 QSFP+

• Fixed AC power supply, RPS supported

• Forwarding performance: 78 Mpps

• Switching capacity: 598 Gbit/s

S5720-52P-EI-AC

S5720-56C-EI-48S-AC

S5720-56C-EI-48S-DC

S5720-56C-EI-AC

S5720-56C-EI-DC

S5720-56C-PWR-EI-AC

S5720-56C-PWR-EI-AC1

S5720-56C-PWR-EI-DC

S5720-56PC-EI-AC

• 48 Gig SFP, 4 ×10 Gig SFP+

• One extended slot

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 162 Mpps

• Switching capacity: 598 Gbit/s

• 48 Ethernet 10/100/1000 ports, 4 ×10 Gig SFP+

• One extended slot

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 162 Mpps

• Switching capacity: 598 Gbit/s

19 Campus Switch SX700 Series Products

S5720-SI Series Switches

Product Overview

The S5720-SI series switches (S5720-SI for short) are next-generation standard gigabit Layer 3

Ethernet switches that provide ﬂexible full gigabit access and cost-effective ﬁxed GE ports and 10GE

uplink ports. The S5720-SI was developed based on next-generation high-performing hardware and the

Huawei Versatile Routing Platform (VRP). The S5720-SI supports simpliﬁed operations and maintenance

(O&M), intelligent stack (iStack), ﬂexible Ethernet networking, and MACsec. It also provides enhanced

Layer 3 features and mature IPv6 features. The S5720-SI can be used in various scenarios. For example,

it can be used as an access or aggregation switch on a campus network or as an access switch in a data

center.

The S5720-SI can work in cloud-based management mode or traditional management based on

requirements. In cloud-based management mode, the S5720-SI can be monitored, managed, and

conﬁgured on the Huawei cloud management platform (Agile Controller-Campus). A mobile O&M App is

also supported.

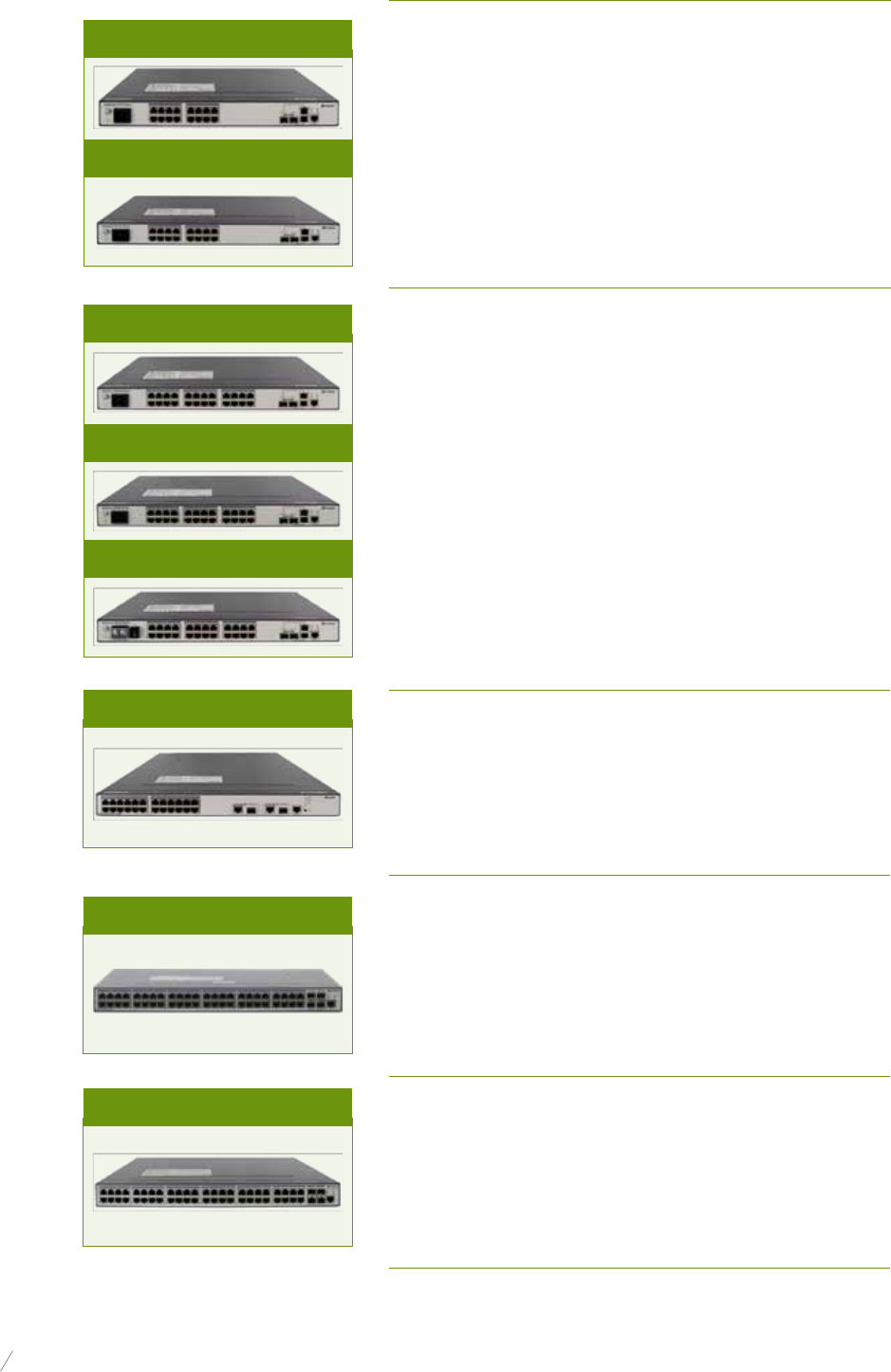

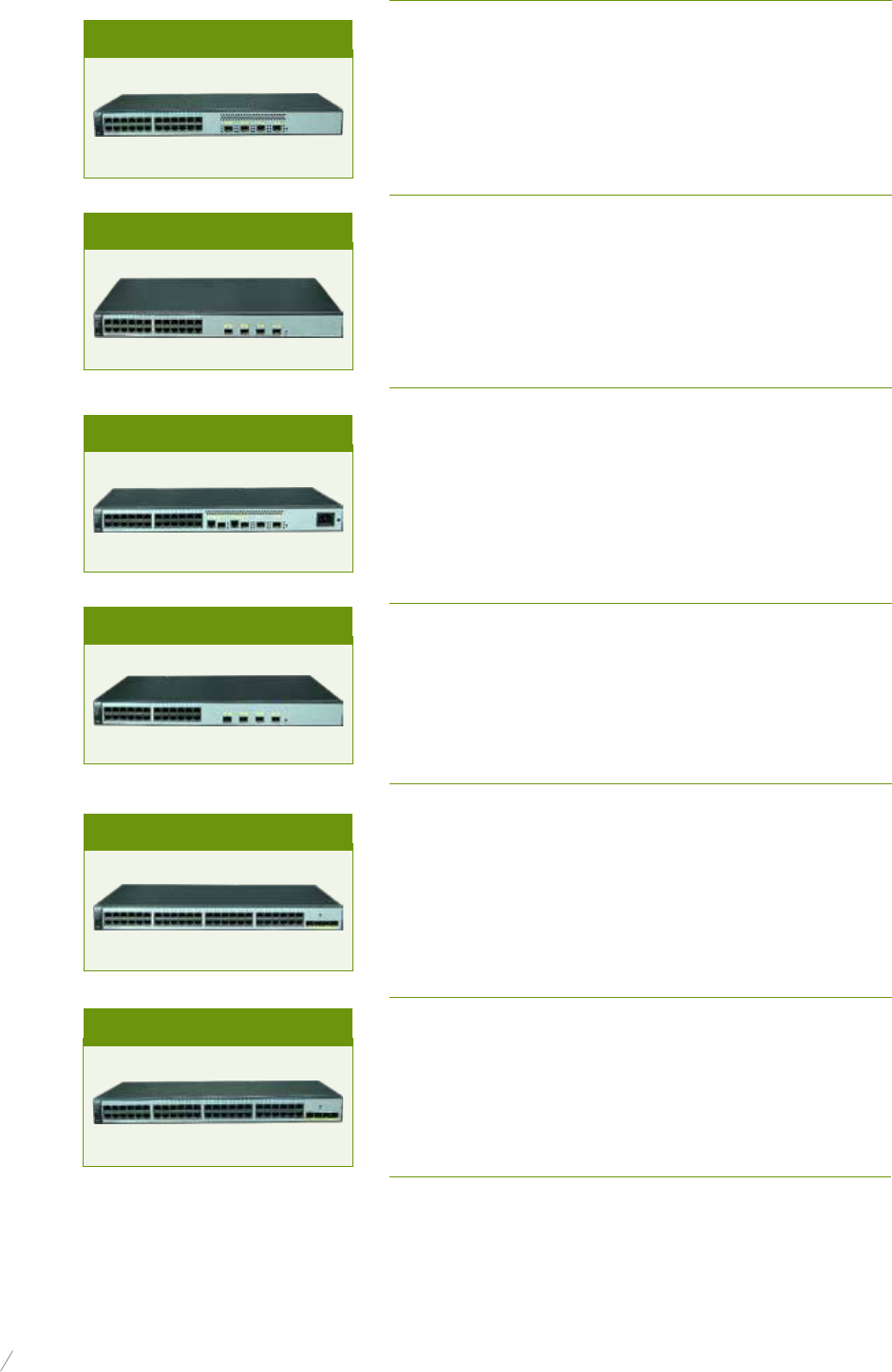

Models and Appearances

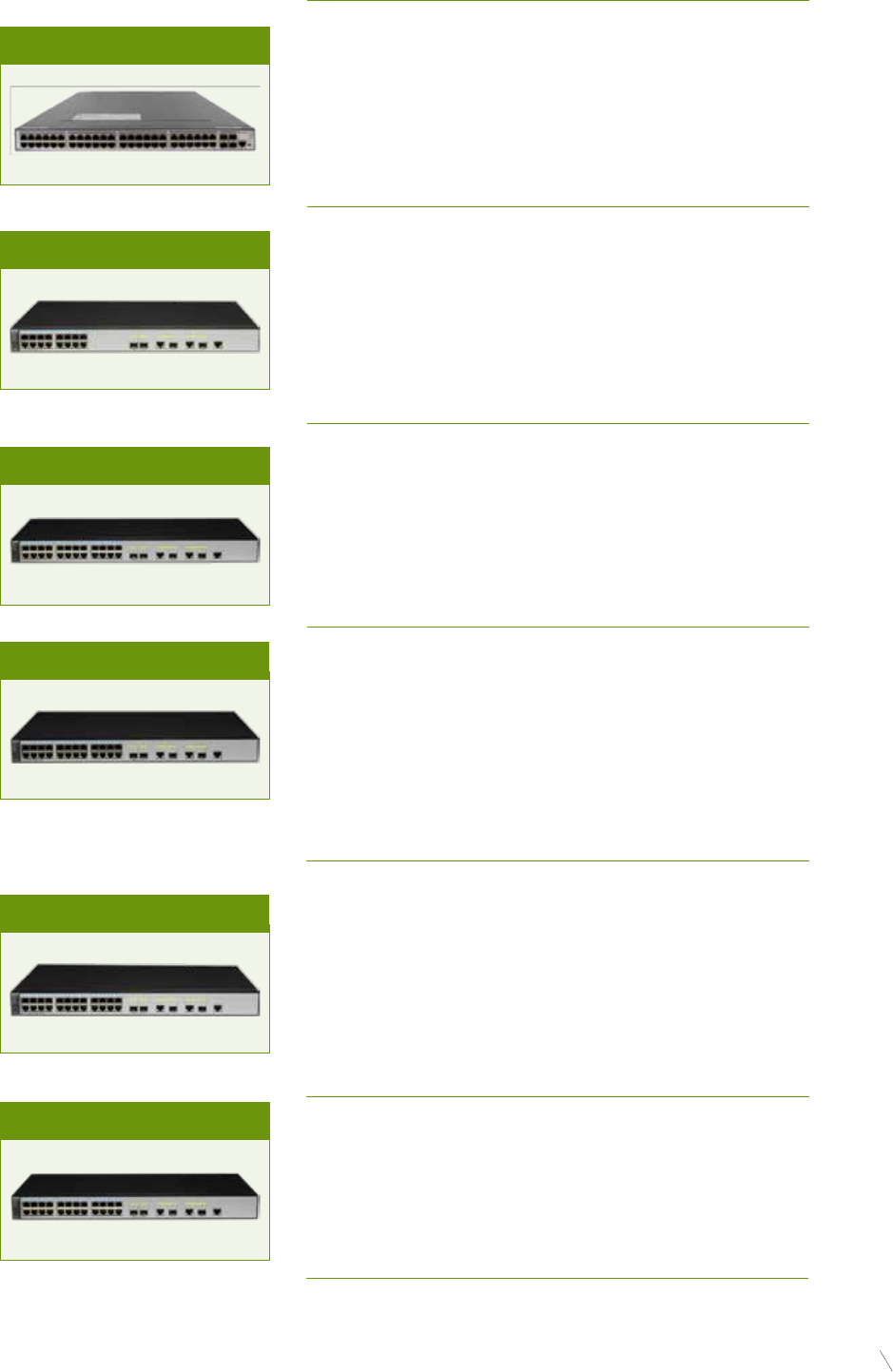

The following models are available in the S5720-SI series.

• 24 Ethernet 10/100/1000 ports, 4× Combo Gig ports , 4 Gig

SFP

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• Forwarding performance: 42 Mpps

• Switching capacity: 336 Gbit/s

S5720-28P-SI-AC

S5720-28X-SI-AC

S5720-28X-SI-DC

• 20 Ethernet 10/100/1000 ports, 4 × Combo Gig ports, 4 ×10

Gig SFP+

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 96 Mpps

• Switching capacity: 336 Gbit/s

S5720-28X-SI-24S-AC

S5720-28X-SI-24S-DC

• 16 /100/1000 SFP, 8× Combo Gig ports, 4 × 10 Gig SFP+

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 96 Mpps

• Switching capacity: 336 Gbit/s

20

Campus Switch SX700 Series Products

• 48 Ethernet 10/100/1000 ports, 4 Gig SFP

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• Forwarding performance: 78 Mpps

• Switching capacity: 336 Gbit/s

• 48 Ethernet 10/100/1000 ports, 4×10 Gig SFP+

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• Forwarding performance: 132 Mpps

• Switching capacity: 336 Gbit/s

S5720-52P-SI-AC

S5720-52X-SI-AC

S5720-52X-SI-DC

• 20 Ethernet 10/100/1000 PoE+ ports, 4× Combo Gig ports , 4

×10 Gig SFP+

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• PoE+

• Forwarding performance: 96 Mpps

• Switching capacity: 336 Gbit/s

• 48 Ethernet 10/100/1000 PoE+ ports, 4 ×10 Gig SFP+

• Hot-swappable dual AC/DC power supplies, one AC/DC power

supply equipped by default

• PoE+

• Forwarding performance: 132 Mpps

• Switching capacity: 336 Gbit/s

• 48 Ethernet 10/100/1000 PoE+ ports, 4 ×10 Gig SFP+

• Hot-swappable dual AC power supplies, one AC power supply

equipped by default

• 1150W AC power supply

• PoE+

• Forwarding performance: 132 Mpps

• Switching capacity: 336 Gbit/s

• 24 Ethernet 10/100/1000 ports, 4 Gig SFP

• Fixed AC power supply, RPS supported

• Forwarding performance: 42 Mpps

• Switching capacity: 336 Gbit/s

S5720-28X-PWR-SI-AC

S5720-28X-PWR-SI-DC

S5720-52X-PWR-SI-AC

S5720-52X-PWR-SI-DC

S5720-52X-PWR-SI-ACF

S5720S-28P-SI-AC

21 Campus Switch SX700 Series Products

• 48 Ethernet 10/100/1000 ports, 4 Gig SFP

• Fixed AC power supply, RPS supported

• Forwarding performance: 78 Mpps

• Switching capacity: 336 Gbit/s

• 24 Ethernet 10/100/1000 ports, 4 ×10 Gig SFP+

• Fixed AC power supply, RPS supported

• Forwarding performance: 96 Mpps

• Switching capacity: 336 Gbit/s

S5720S-52P-SI-AC

S5720S-28X-SI-AC

S5720S-28X-SI-DC

• 8 Ethernet 10/100/1000 ports, 4 Ethernet 2.5GE/GE ports,

2×10 Gig SFP+

• AC power supply

• Forwarding performance: 57 Mpps

• Switching capacity: 336 Gbit/s

• 48 Ethernet 10/100/1000 ports, 4×10 Gig SFP+

• Fixed AC power supply, RPS supported

• Forwarding performance: 132 Mpps

• Switching capacity: 336 Gbit/s

S5720-14X-PWH-SI-AC

S5720S-52X-SI-AC

S5720S-52X-SI-DC

S5720-LI Series Switches

Product Overview

The S5720-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE

access ports and 10GE uplink ports. Building on next-generation, high-performance hardware and

the Huawei Versatile Routing Platform (VRP), the S5720-LI supports intelligent stack (iStack), ﬂexible

Ethernet networking, and diversified security control. It provides customers with a green, easy-to-

manage, easy-to-expand, and cost-effective gigabit to the desktop solution.

The S5720-LI can work in cloud-based management mode or traditional management based on

requirements. In cloud-based management mode, the S5720-LI can be monitored, managed, and

conﬁgured on the Huawei cloud management platform (Agile Controller-Campus). A mobile O&M App is

also supported.

22

Campus Switch SX700 Series Products

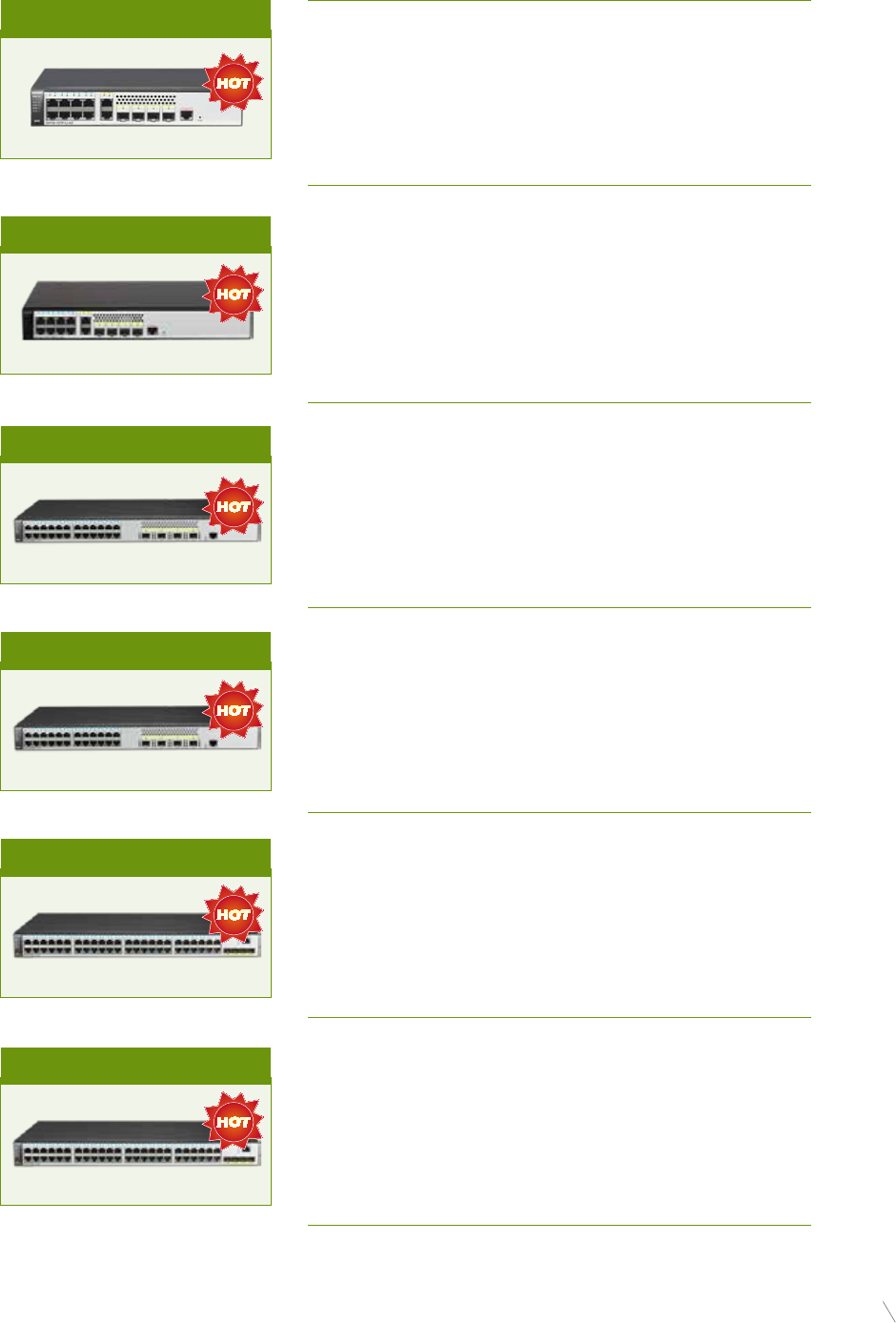

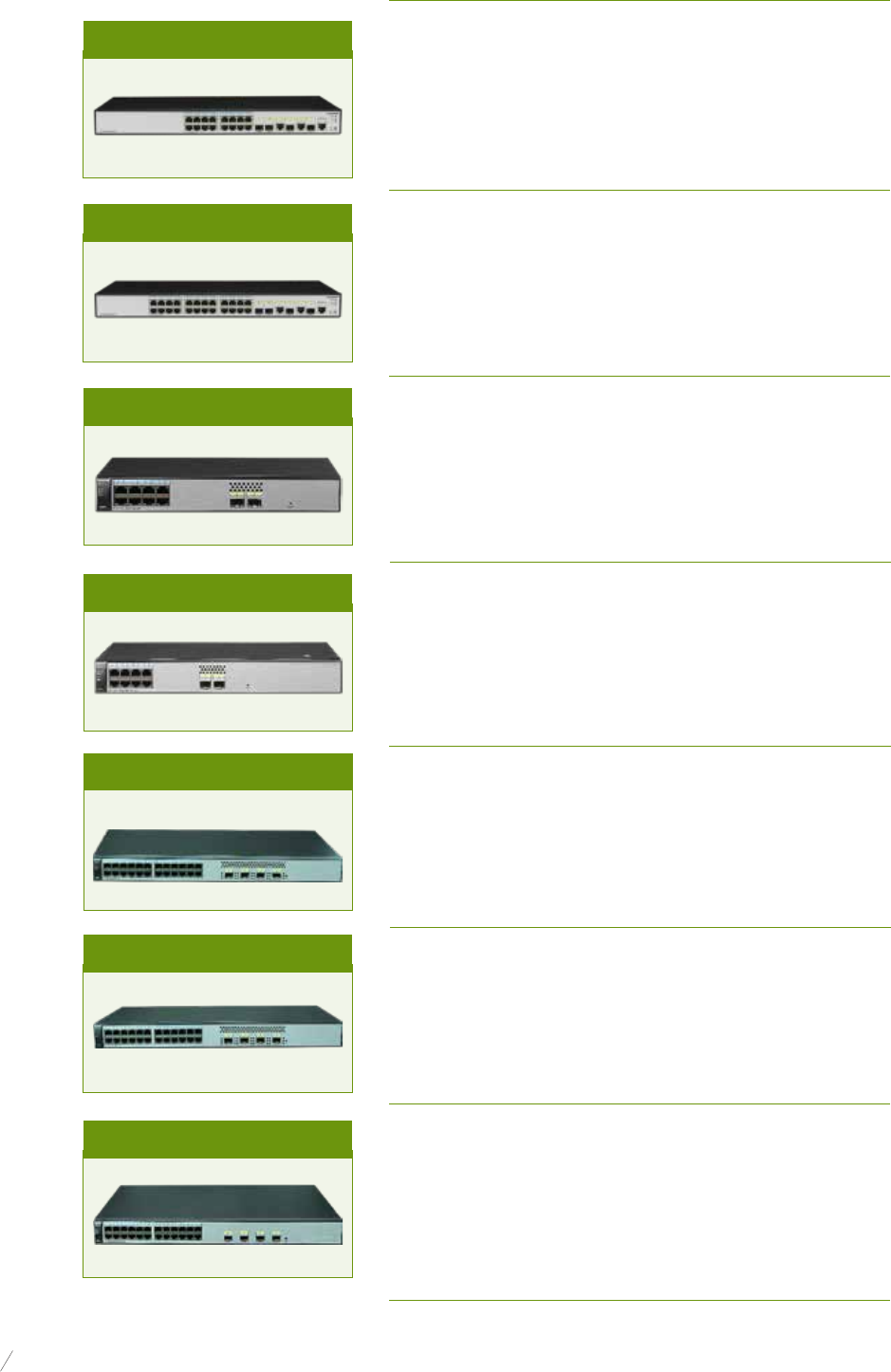

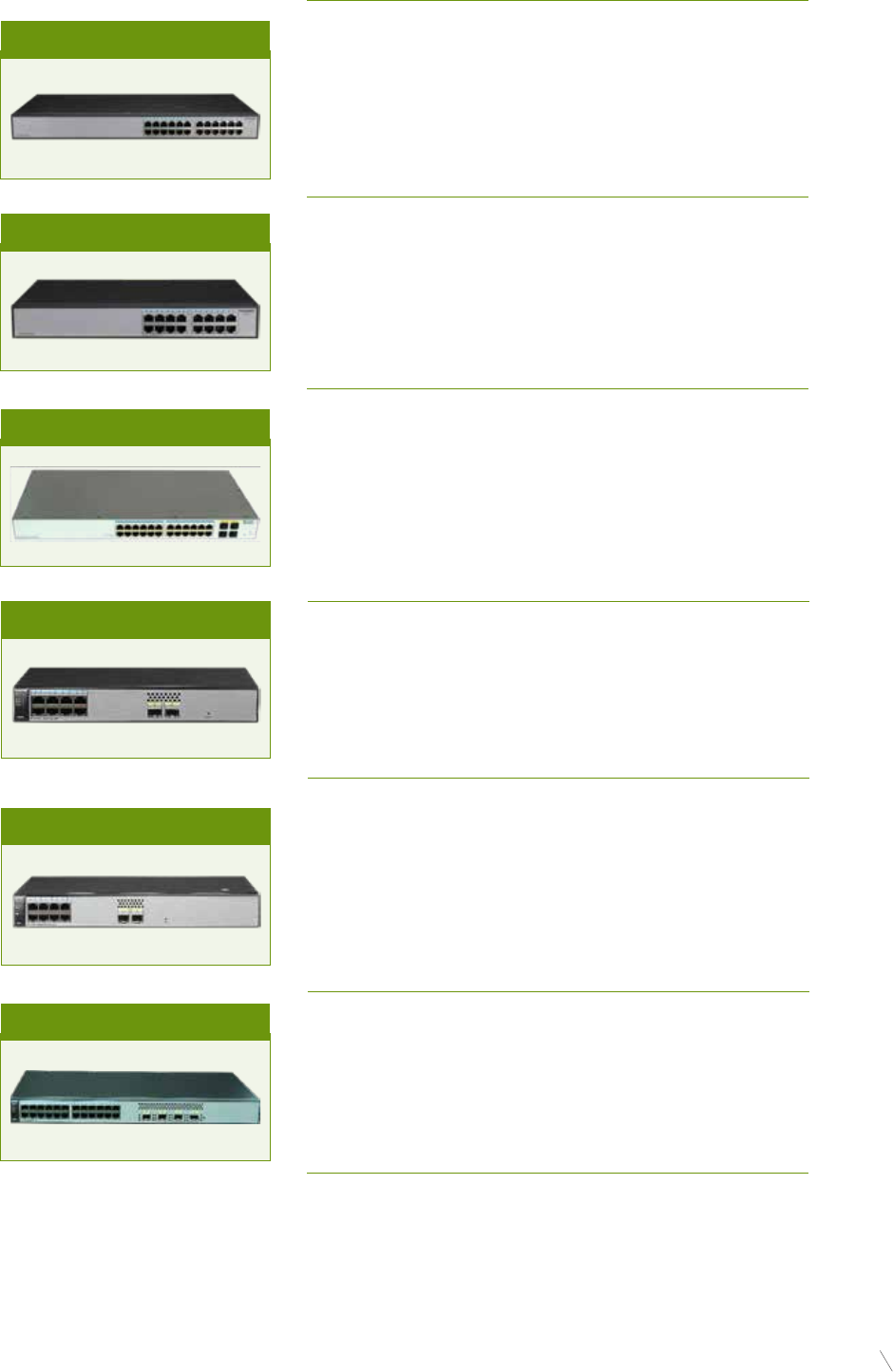

Product Appearance

• 24 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFP ports

• AC power supply

• PoE+

• Forwarding performance: 51 Mpps

• Switching capacity: 336 Gbit/s

• 48 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFP ports

• AC power supply

• Forwarding performance: 87 Mpps

• Switching capacity: 336 Gbit/s

• 48 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFP ports

• AC power supply

• PoE+

• Forwarding performance: 87 Mpps

• Switching capacity: 336 Gbit/s

• 8 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports,

2× Combo Gig ports

• AC power supply

• Forwarding performance: 27 Mpps

• Switching capacity: 336 Gbit/s

S5720-12TP-LI-AC

S5720-12TP-PWR-LI-AC

S5720-28P-LI-AC

S5720-28P-PWR-LI-AC

S5720-52P-LI-AC

S5720-52P-PWR-LI-AC

• 8 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports, 2

× Combo Gig ports

• AC power supply

• PoE+

• Forwarding performance: 27 Mpps

• Switching capacity: 336 Gbit/s

• 24 × Ethernet 10/100/1000 Base-T ports, 4 × Gig SFP ports

• AC power supply

• Forwarding performance: 51 Mpps

• Switching capacity: 336 Gbit/s

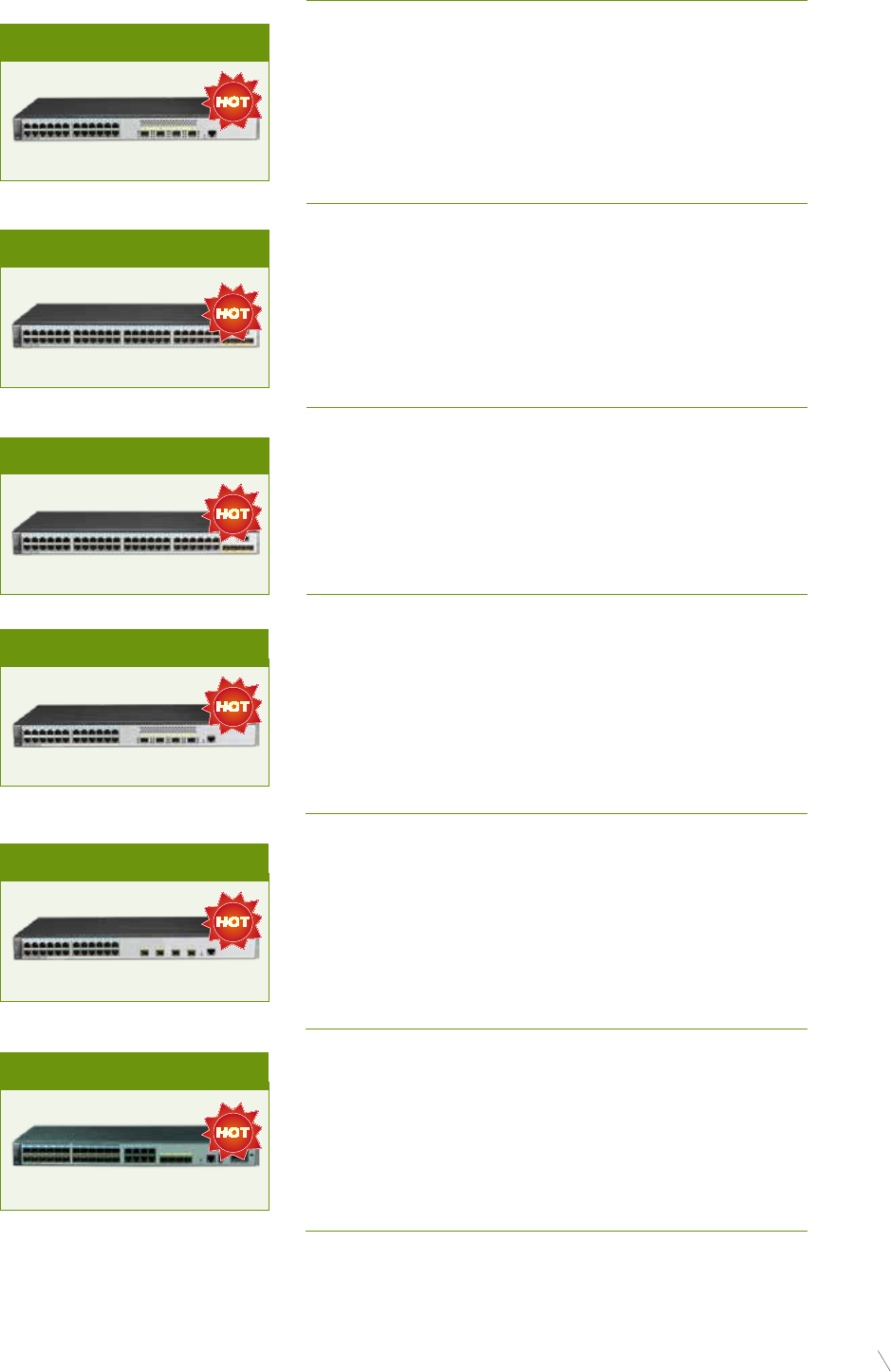

23 Campus Switch SX700 Series Products

• 16 × Gig SFP ports, 8 ×Combo Gig ports , 4 × 10 Gig SFP+

ports

• Fixed AC/DC power supply, RPS supported

• Forwarding performance: 108 Mpps

• Switching capacity: 336 Gbit/s

• 48 × Ethernet 10/100/1000 Base-T ports, 4 × 10 Gig SFP+

ports

• Fixed AC/DC power supply, RPS supported

• Forwarding performance: 144 Mpps

• Switching capacity: 336 Gbit/s

• 48 × Ethernet 10/100/1000 Base-T ports, 4 × 10 Gig SFP+

ports

• Fixed AC power supply, RPS supported

• PoE+

• Forwarding performance: 144 Mpps

• Switching capacity: 336 Gbit/s

• 24 × Ethernet 10/100/1000 Base-T ports, 4 × 10 Gig SFP+

ports

• Fixed AC/DC power supply, RPS supported

• Forwarding performance: 108 Mpps

• Switching capacity: 336 Gbit/s

S5720-28X-LI-AC

S5720-28X-LI-DC

S5720-28X-PWR-LI-AC

S5720-52X-LI-AC

S5720-52X-LI-DC

S5720-52X-PWR-LI-AC

• 24 × Ethernet 10/100/1000 Base-T ports, 4 × 10 Gig SFP+

ports

• Fixed AC power supply, RPS supported

• PoE+

• Forwarding performance: 108 Mpps

• Switching capacity: 336 Gbit/s

S5720-28X-LI-24S-AC

S5720-28X-LI-24S-DC

24

Campus Switch SX700 Series Products

• 24 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports,

2 × Combo Gig ports

• AC power supply

• Forwarding performance: 51 Mpps

• Switching capacity: 336 Gbit/s

• 24 × Ethernet 10/100/1000 Base-T ports, 2 × Gig SFP ports,

2× Combo Gig ports

• AC power supply

• PoE+

• Forwarding performance: 51 Mpps

• Switching capacity: 336 Gbit/s

• 12 × Ethernet 10/100/1000 PoE++ ports, 2 × Ethernet

10/100/1000 Base-T ports, 2 × 10 Gig SFP+ ports

• AC power supply

• PoE++

• Forwarding performance: 51 Mpps

• Switching capacity: 336 Gbit/s

• 8 × Ethernet 10/100/1000 PoE+ ports, 16 × Ethernet

10/100/1000 Base-T ports, 2 × Gig SFP ports, 2 × Combo Gig

ports

• AC power supply

• PoE+

• Forwarding performance: 51 Mpps

• Switching capacity: 336 Gbit/s

• 16 × Ethernet 10/100/1000 Base-T ports, 8 × 100M/1G/2.5G

Base-T ports, 4 × 10 Gig SFP+ ports

• Fixed AC power supply, RPS supported

• PoE++

• Forwarding performance: 126 Mpps

• Switching capacity: 336 Gbit/s

S5720-28TP-LI-AC

S5720-28TP-PWR-LI-AC

S5720-16X-PWH-LI-AC

S5720-28TP-PWR-LI-ACL

S5720-28X-PWH-LI-AC

25 Campus Switch SX700 Series Products

S5720S-LI Series Switches

Product Overview

The S5720S-LI is a next-generation energy-saving gigabit Ethernet switch that provides flexible GE

access ports and 10GE uplink ports. Building on next-generation, high-performance hardware and the

Huawei Versatile Routing Platform (VRP), the S5720S-LI supports intelligent stack (iStack), flexible

Ethernet networking, and diversified security control. It provides customers with a green, easy-to-

manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei

customizes specialized models to meet customer requirements to suit special scenarios.

The models with front power sockets can be installed in the 300 mm deep cabinet. They can be

maintained through the front panel, saving space in small equipment rooms.

The models that use a fan-free design reduce power consumption and noise.

The S5720S-LI can work in cloud-based management mode or traditional management based on

requirements. In cloud-based management mode, the S5720S-LI can be monitored, managed, and

conﬁgured on the Huawei cloud management platform (Agile Controller-Campus). A mobile O&M App is

also supported.

As part of Huawei’s channel distribution products, the S5720S-LI is only sold in Russia, Switzerland,

Hong Kong, Dubai, Turkey, Malaysia, Saudi Arabia, Singapore, Qatar, and New Zealand.

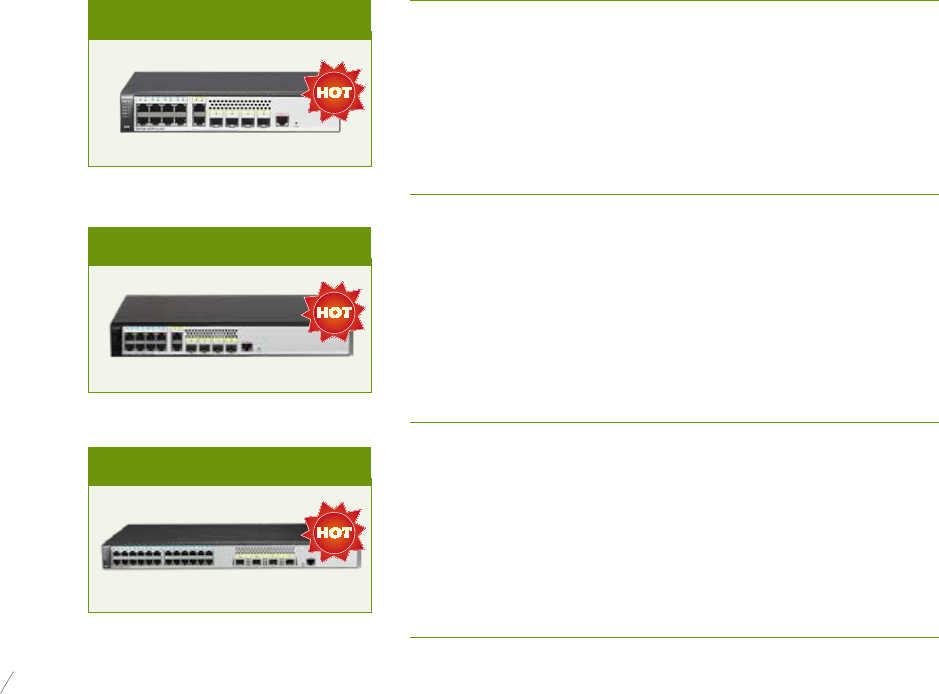

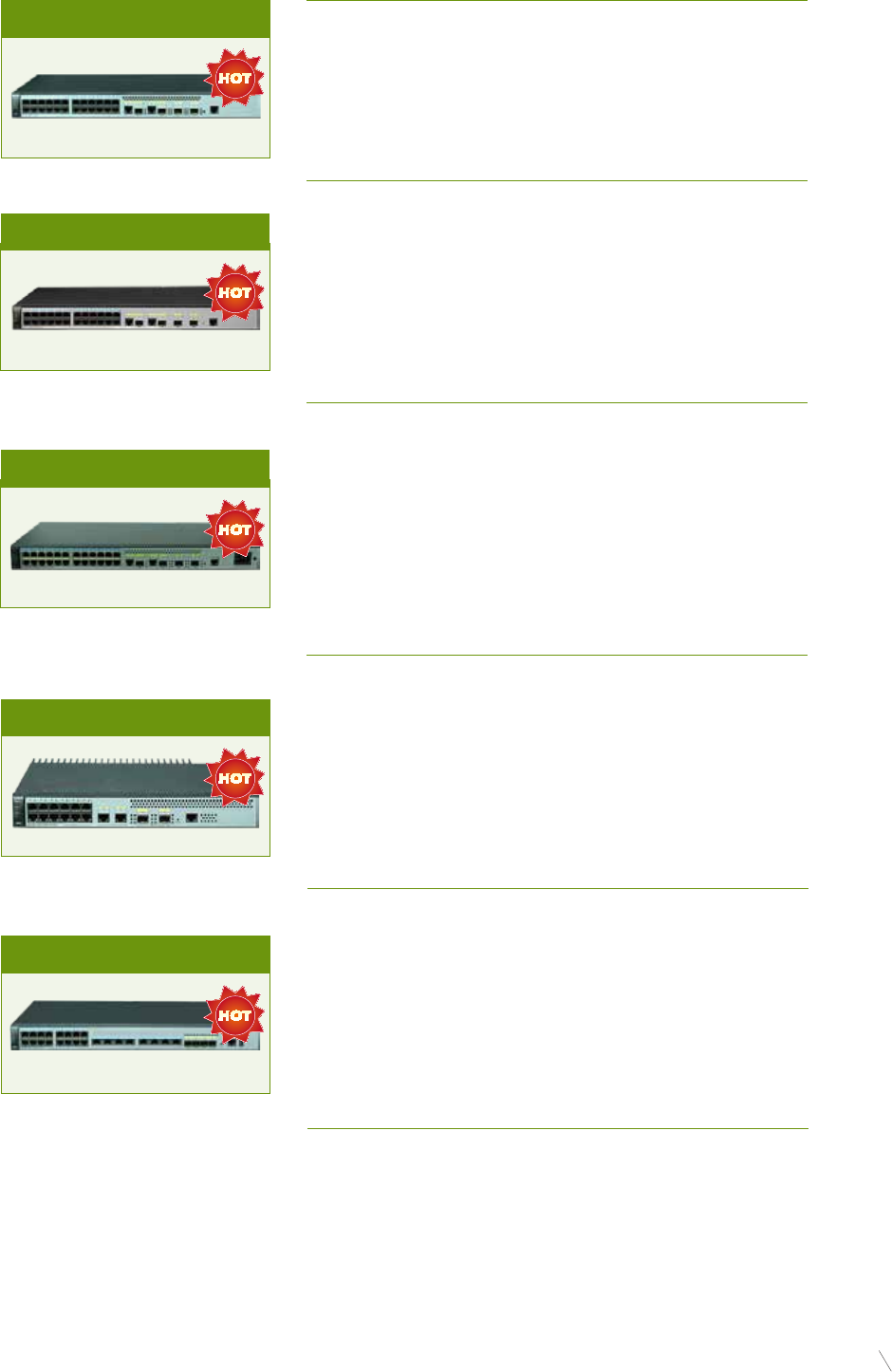

Product Appearance

• 8 × Ethernet 10/100/1000Base-T ports, 2 × Gig SFP ports,

2× Combo Gig ports

• AC power supply

• Forwarding performance: 27Mpps

• Switching Capacity: 336Gbit/s

S5720S-12TP-LI-AC

S5720S-12TP-PWR-LI-AC

S5720S-28P-LI-AC

• 8 × Ethernet 10/100/1000Base-T ports, 2 × Gig SFP ports,

2× Combo Gig ports

• AC power supply

• PoE+

• Forwarding performance: 27Mpps

• Switching Capacity: 336Gbit/s

• 24 × Ethernet 10/100/1000Base-T ports, 4 × Gig SFP ports

• AC power supply

• Forwarding performance: 51Mpps

• Switching Capacity: 336Gbit/s

26

Campus Switch SX700 Series Products

• 24 × Ethernet 10/100/1000Base-T ports, 4 × Gig SFP ports

• AC power supply

• PoE+

• Forwarding performance: 51Mpps

• Switching Capacity: 336Gbit/s

• 48 × Ethernet 10/100/1000Base-T ports, 4 × Gig SFP ports

• AC power supply

• Forwarding performance: 87Mpps

• Switching Capacity: 336Gbit/s

• 48 × Ethernet 10/100/1000Base-T ports, 4 × Gig SFP ports

• AC power supply

• PoE+

• Forwarding performance: 87Mpps

• Switching Capacity: 336Gbit/s

S5720S-28P-PWR-LI-AC

S5720S-52P-LI-AC

S5720S-52P-PWR-LI-AC

• 24 × Ethernet 10/100/1000Base-T ports, 4 × 10 Gig SFP+

ports

• AC power supply

• Forwarding performance: 108Mpps

• Switching Capacity: 336Gbit/s

S5720S-28X-LI-AC

S5720S-28X-PWR-LI-AC

S5720S-28X-LI-24S-AC

• 24 × Ethernet 10/100/1000Base-T ports, 4 × 10 Gig SFP+

ports

• AC power supply

• PoE+

• Forwarding performance: 108Mpps

• Switching Capacity: 336Gbit/s

• 16 × Gig SFP ports, 8× Combo Gig ports ,4 × 10 Gig SFP+

ports

• Fixed AC power supply, RPS supported

• Forwarding performance: 108Mpps

• Switching Capacity: 336Gbit/s

27 Campus Switch SX700 Series Products

• 48 × Ethernet 10/100/1000Base-T ports, 4 × 10 Gig SFP+

ports

• AC power supply

• Forwarding performance: 144Mpps

• Switching Capacity: 336Gbit/s

• 48 × Ethernet 10/100/1000Base-T ports, 4 × 10 Gig SFP+

ports

• AC power supply

• PoE+

• Forwarding performance: 144Mpps

• Switching Capacity: 336Gbit/s

• 8 × Ethernet 10/100/1000 PoE+ ports, 16 × Ethernet

10/100/1000Base-T ports, 2 × Gig SFP ports,2 × Combo Gig

ports

• AC power supply

• PoE+

• Forwarding performance: 51Mpps

• Switching Capacity: 336Gbit/s

S5720S-52X-LI-AC

S5720S-52X-PWR-LI-AC

S5720S-28TP-PWR-LI-ACL

S3700 Series Switches

Product Overview

The S3700 series enterprise switches (S3700s) are next-generation energy-saving Layer 3 switches. The

S3700 utilizes cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software to provide

high-performance access and aggregation to an enterprise campus network. The S3700 is easy to install

and maintain. With its ﬂexible VLAN deployment, PoE capabilities, comprehensive routing functions, and

capability to migrate to an IPv6 network, the S3700 helps enterprise customers build next-generation

IT networks. In addition, the S3700 uses advanced reliability technologies such as stacking, VRRP, and

RRPP, enhancing network reliability and diversity.

The S3700 is a box device that is 1 U high. It is available in a standard version (SI), an enhanced version (EI).

The SI version provides Layer 2 functions and basic Layer 3 functions. The EI version supports complex

routing protocols and provides more functions than the SI version offers.

28

Campus Switch SX700 Series Products

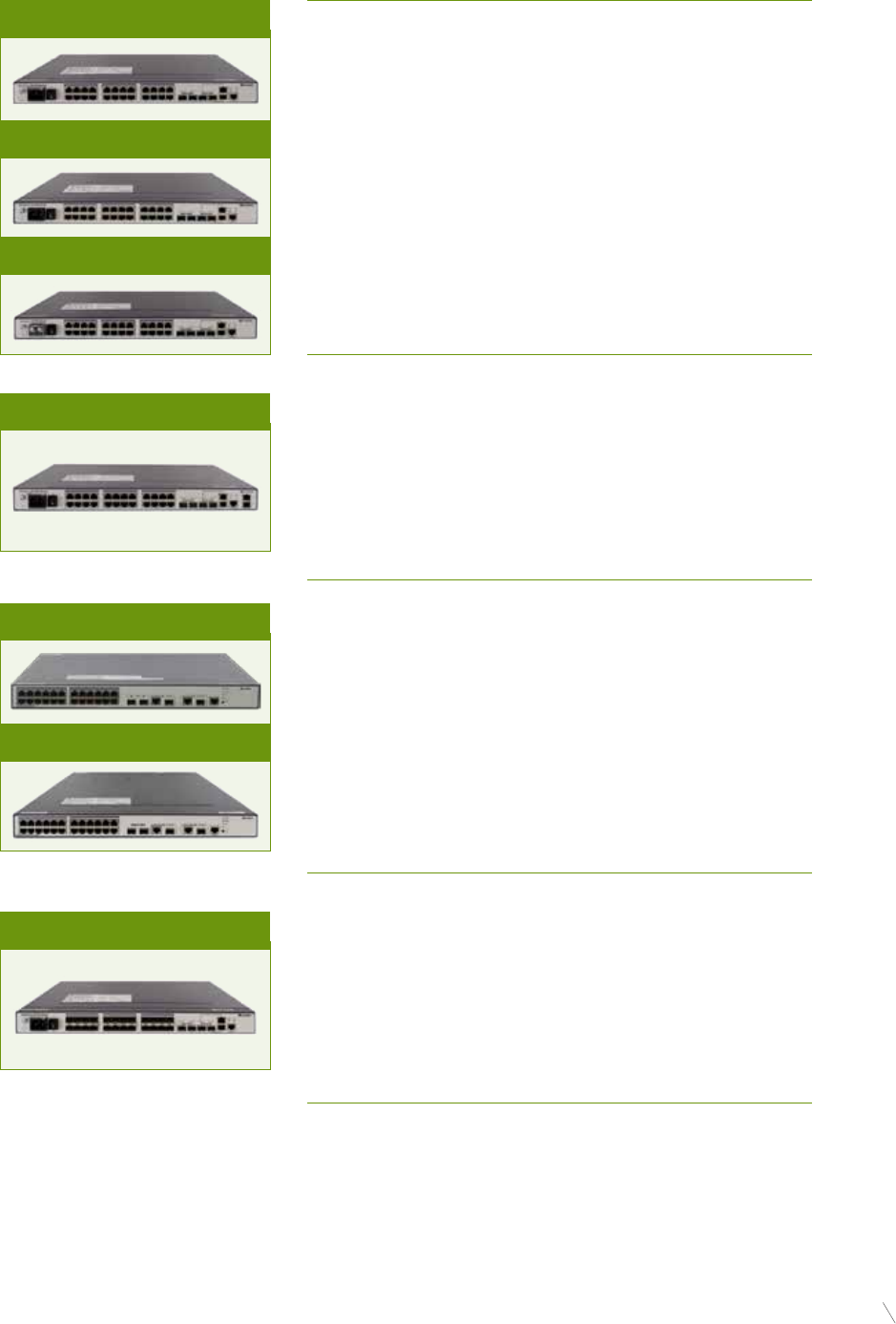

Product Appearance

• Twenty-four 10/100Base-TX ports, two 1000Base-X SFP

ports, and two gigabit combo ports (10/100/1000Base-T or

100/1000Base-X)

• AC and DC power supply for the EI version; AC power supply for

the SI version

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 64Gbps

S3700-28TP-SI-AC

S3700-28TP-EI-AC

S3700-28TP-EI-DC

S3700-28TP-EI-MC-AC

• Twenty-four 10/100Base-TX ports, two 1000Base-X SFP

ports, two monitor ports, and two gigabit combo ports

(10/100/1000Base-T or 100/1000Base-X)

• AC power supply

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 64Gbps

• Twenty-four 10/100Base-TX ports, two 1000Base-X SFP

ports, and two gigabit combo ports (10/100/1000Base-T or

100/1000Base-X)

• AC power supply

• PoE+

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 64Gbps

• Twenty-four 100Base-FX SFP ports, two 1000Base-X SFP

ports, and two gigabit combo ports (10/100/1000Base-T or

100/1000Base-X)

• AC power supply

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 64Gbps

S3700-28TP-PWR-SI

S3700-28TP-PWR-EI

S3700-28TP-EI-24S-AC

29 Campus Switch SX700 Series Products

• Forty-eight 10/100Base-TX ports, two 100/1000Base-X SFP

ports, and two 1000Base-X SFP ports

• AC power supply

• Forwarding performance: 13.2 Mpps

• Switching Capacity: 64Gbps

• Forty-eight 10/100Base-TX ports, two 100/1000Base-X SFP

ports, and two 1000Base-X SFP ports

• AC power supply

• PoE+

• Forwarding performance: 13.2 Mpps

• Switching Capacity: 64Gbps

S3700-52P-SI-AC

S3700-52P-PWR-SI

S3700-52P-EI-AC

S3700-52P-PWR-EI

• Forty-eight 100Base-FX SFP ports, two 100/1000Base-X SFP

ports, and two 1000Base-X SFP ports

• AC power supply

• Forwarding performance: 13.2 Mpps

• Switching Capacity: 64Gbps

S3700-52P-EI-48S-AC

• Twenty-four 10/100Base-TX ports, twenty-four 100Base-

FX SFP ports, two 100/1000Base-X SFP ports, and two

1000Base-X SFP ports

• AC power supply

• Forwarding performance: 13.2 Mpps

• Switching Capacity: 64Gbps

S3700-52P-EI-24S-AC

30

Campus Switch SX700 Series Products

S2700 Series Switches

Product Overview

The S2700 series enterprise switches (S2700 for short), including S2710, S2720,S2750, and S2751

series, are next-generation energy-saving intelligent 100M Ethernet switches developed by Huawei.

The S2700 utilizes cutting-edge switching technologies and Huawei Versatile Routing Platform (VRP)

software to meet the demand for multi-service provisioning and access on Ethernet networks. It is

easy to install and maintain. With its ﬂexible network deployment, comprehensive security and quality

of service (QoS) policies, and energy-saving technologies, the S2700 helps enterprise customers build

next-generation IT networks.

The S2700 is a box device that is 1 U (44.45 mm or 1.75 in.) high. It is available in a standard version (SI)

or an enhanced version (EI).

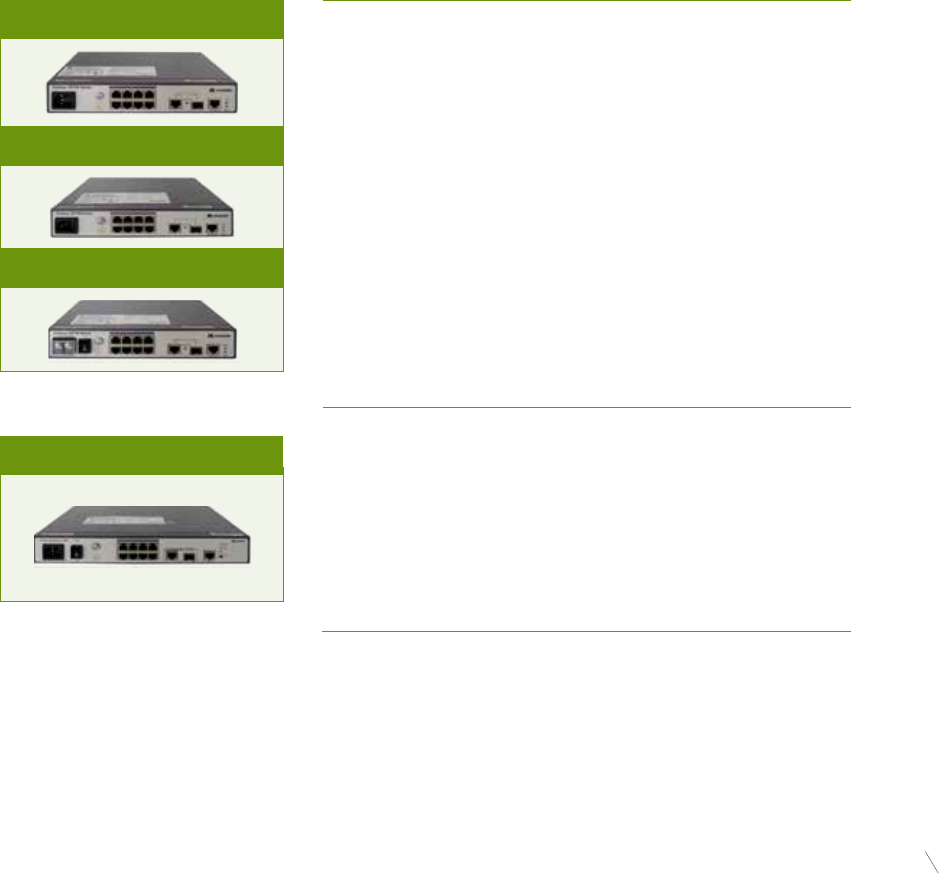

Product Appearance

• 8 Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP

• AC and DC power supply for the EI version; AC power supply for

the SI version

• Forwarding performance: 2.7 Mpps

• Switching Capacity: 32Gbps

S2700-9TP-SI-AC

S2700-9TP-EI-AC

S2700-9TP-EI-DC

S2700-9TP-PWR-EI • 8 Ethernet 10/100 ports, 1 dual-purpose 10/100/1000 or SFP

• AC power supply

• PoE+

• Forwarding performance: 2.7 Mpps

• Switching Capacity: 32Gbps

31 Campus Switch SX700 Series Products

• 16 Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP

• AC power supply

• Forwarding performance: 5.4 Mpps

• Switching Capacity: 32Gbps

• 24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP

• AC and DC power supply for the EI version; AC power supply for

the SI version

• Forwarding performance: 6.6 Mpps

• Switching Capacity: 32Gbps

S2700-26TP-SI-AC

S2700-26TP-EI-AC

S2700-26TP-EI-DC

S2700-18TP-SI-AC

S2700-18TP-EI-AC

S2700-26TP-PWR-EI

S2710-52P-SI-AC

• 24 Ethernet 10/100 ports, 2 dual-purpose 10/100/1000 or SFP

• AC power supply

• PoE+

• Forwarding performance: 6.6 Mpps

• Switching Capacity: 32Gbps

• 48 Ethernet 10/100 ports, 4 Gig SFP

• AC power supply

• Forwarding performance: 13.2 Mpps

• Switching Capacity: 32Gbps

S2700-52P-EI-AC • 48 Ethernet 10/100 ports, 4 Gig SFP

• AC and DC power supply

• Forwarding performance: 13.2 Mpps

• Switching Capacity: 32Gbps

32

Campus Switch SX700 Series Products

S2700-52P-PWR-EI

S2750-20TP-PWR-EI-AC

S2750-28TP-EI-AC

• 48 Ethernet 10/100 ports, 4 Gig SFP

• AC power supply

• PoE+

• Forwarding performance: 13.2 Mpps

• Switching Capacity: 32Gbps

• 16 Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose

10/100/1000 or SFP

• AC power supply

• PoE+

• Forwarding performance: 8.4 Mpps

• Switching Capacity: 64Gbps

• 24 Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose

10/100/1000 or SFP

• AC power supply

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 64Gbps

S2750-28TP-PWR-EI-AC

S2751-28TP-PWR-EI-AC

• 24 Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose

10/100/1000 or SFP

• AC power supply

• PoE+

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 64Gbps

• 24 Ethernet 10/100 ports, 2 Gig SFP and 2 dual-purpose

10/100/1000 or SFP

• AC power supply

• PoE+

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 64Gbps

S2720-28TP-EI-AC • 24 Ethernet 10/100 ports,2 Gig SFP and 2 dual-purpose

• 10/100/1000 or SFP

• AC power supply

• Forwarding performance: 9.6 Mpps

• Switching Capacity: 12.8Gbps

33 Campus Switch SX700 Series Products

S1700 Series Switches

Product Overview

The S1700 series enterprise switches (S1700s) are next-generation energy-saving Ethernet access

switches. The S1700 uses high-performance hardware, which offers a wide array of features to help

customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain,

and is ideal for small-size and medium-size enterprises, Internet cafes, hotels, and schools.

The S1700 consists of unmanaged switches, Web/SNMP-based switches, and a web-managed switch:

• Unmanaged switches include the S1700-24-AC, S1700-52R-2T2P-AC, S1724G, S1700-24GR and

S1700-16G.

• The web-managed switches include the S1728GWR-4P, S 1720-10GW-2P, S 1720-10GW-PWR-2P, S 1720-

28GWR-4P, S 1720-28GWR-4X, S1720-28GWR-PWR-4P, S 1720-28GWR-PWR-4X, S1720-52GWR-4P,

S1720-52GWR-4X, S1720-52GWR-PWR-4P, S 1720-52GWR-PWR-4X, S1720-28GWR-PWR-4T P.

• Web/SNMP-based switches include the S1700-28FR-2T2P-AC, S1700-28GFR-4P-AC, S1700-52FR-2T2P-

AC, S1700-52GFR-4P-AC, S1720-20GFR-4TP and S1720-28GFR-4T P, S 1720-10GW-2P-E, S1720-10GW-

PWR-2P-E,S1720-28GWR-4P-E, S1720-28GWR-4X-E, S1720-28GWR-PWR-4P-E,S1720-28GWR-PWR-

4TP-E,S1720-28GWR-PWR-4X-E, S1720-52GWR-4P-E,S1720-52GWR-4X-E,S1720-52GWR-PWR-4P-

E,S1720-52GWR-PWR-4X-E.

Product Appearance

• 24 Ethernet 10/100 ports

• AC power supply

• Forwarding performance: 3.6Mpps

• Switching Capacity: 4.8Gbps

S1700-52R-2T2P-AC

S1700-24-AC

• 48 Ethernet 10/100 ports, 2 Ethernet 10/100/1000 ports and

2 Gig SFP

• AC power supply

• Forwarding performance: 13.2Mpps

• Switching Capacity: 17.6Gbps

• 24 Ethernet 10/100/1000 ports

• AC power supply

• Forwarding performance: 36Mpps

• Switching Capacity: 48Gbps

S1724G

34

Campus Switch SX700 Series Products

• 24 Ethernet 10/100/1000 ports

• AC power supply

• Forwarding performance: 36Mpps

• Switching Capacity: 48Gbps

• 16 Ethernet 10/100/1000 ports

• AC power supply

• Forwarding performance: 24Mpps

• Switching Capacity: 32Gbps

• 24 Ethernet 10/100/1000 ports,4 Gig SFP

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 56Gbps

S1700-24GR

S1700-16G

S1728GWR-4P

• 8 Ethernet 10/100/1000 ports,2 Gig SFP

• AC power supply

• Forwarding performance: 18Mpps

• Switching Capacity: 68Gbps

S1720-10GW-PWR-2P

S1720-10GW-2P

• 8 Ethernet 10/100/1000 ports,2 Gig SFP

• PoE+

• AC power supply

• Forwarding performance: 18Mpps

• Switching Capacity: 68Gbps

• 24 Ethernet 10/100/1000 ports,4 Gig SFP

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 68Gbps

S1720-28GWR-4P

35 Campus Switch SX700 Series Products

• 24 Ethernet 10/100/1000 ports,4×10 Gig SFP+

• AC power supply

• Forwarding performance: 96Mpps

• Switching Capacity: 168Gbps

• 24 Ethernet 10/100/1000 ports,4 Gig SFP

• PoE+

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 68Gbps

• 24 Ethernet 10/100/1000,2 Gig SFP and 2× Combo Gig ports

• PoE+

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 68Gbps

S1720-28GWR-4X

S1720-28GWR-PWR-4P

S1720-28GWR-PWR-4TP

• 24 Ethernet 10/100/1000 ports,4 ×10 Gig SFP+

• PoE+

• AC power supply

• Forwarding performance: 96Mpps

• Switching Capacity: 168Gbps

S1720-52GWR-4P

S1720-28GWR-PWR-4X

• 48 Ethernet 10/100/1000 ports,4 Gig SFP

• AC power supply

• Forwarding performance: 78Mpps

• Switching Capacity: 336Gbps

• 48 Ethernet 10/100/1000 ports,4 ×10 Gig SFP+

• AC power supply

• Forwarding performance: 132Mpps

• Switching Capacity: 336Gbps

S1720-52GWR-4X

36

Campus Switch SX700 Series Products

• 48 Ethernet 10/100/1000 ports,4 Gig SFP

• PoE+

• AC power supply

• Forwarding performance: 78Mpps

• Switching Capacity: 336Gbps

• 48 Ethernet 10/100/1000 ports,4×10 Gig SFP+

• PoE+

• AC power supply

• Forwarding performance: 132Mpps

• Switching Capacity: 336Gbps

• 24 Ethernet 10/100 ports, 2 Ethernet 10/100/1000 ports and 2

Gig SFP

• AC power supply

• Forwarding performance: 9.6Mpps

• Switching Capacity: 12.8Gbps

S1720-52GWR-PWR-4P

S1720-52GWR-PWR-4X

S1700-28FR-2T2P-AC

• 48 Ethernet 10/100 ports, 2 Ethernet 10/100/1000 ports and 2

Gig SFP

• AC power supply

• Forwarding performance: 13.2Mpps

• Switching Capacity: 17.6Gbps

S1700-28GFR-4P-AC

S1700-52FR-2T2P-AC

• 24 Ethernet 10/100/1000 ports, 4 Gig SFP

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 56Gbps

• 48 Ethernet 10/100/1000 ports,4 Gig SFP

• AC power supply

• Forwarding performance: 78Mpps

• Switching Capacity: 104Gbps

S1700-52GFR-4P-AC

37 Campus Switch SX700 Series Products

• 16 Ethernet 10/100/1000 ports,2 Gig SFP ports, 2× Combo

Gig ports

• AC power supply

• Forwarding performance: 30Mpps

• Switching Capacity: 128Gbps

• 24 Ethernet 10/100/1000 ports,2 Gig SFP ports, 2× Combo

Gig ports

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 128Gbps

• 8 Ethernet 10/100/1000 ports,2 Gig SFP

• PoE+

• AC power supply

• Forwarding performance: 15Mpps

• Switching Capacity: 68Gbps

• 8 Ethernet 10/100/1000 ports,2 Gig SFP

• AC power supply

• Forwarding performance: 15Mpps

• Switching Capacity: 68Gbps

• 24 Ethernet 10/100/1000 ports,4 Gig SFP

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 68Gbps

S1720-20GFR-4TP

S1720-28GFR-4TP

S1720-10GW-PWR-2P-E

S1720-10GW-2P-E

S1720-28GWR-4P-E

• 24 Ethernet 10/100/1000 ports,4×10 Gig SFP+

• AC power supply

• Forwarding performance: 96Mpps

• Switching Capacity: 168Gbps

• 24 Ethernet 10/100/1000 ports,4 Gig SFP

• PoE+

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 68Gbps

S1720-28GWR-4X-E

S1720-28GWR-PWR-4P-E

38

Campus Switch SX700 Series Products

• 24 Ethernet 10/100/1000,2 Gig SFP and 2 × Combo Gig ports

• 8-port PoE+

• AC power supply

• Forwarding performance: 42Mpps

• Switching Capacity: 68Gbps

• 24 Ethernet 10/100/1000 ports,4×10 Gig SFP+

• PoE+

• AC power supply

• Forwarding performance: 96Mpps

• Switching Capacity: 168Gbps

S1720-28GWR-PWR-4TP-E

S1720-28GWR-PWR-4X-E

• 48 Ethernet 10/100/1000 ports,4 Gig SFP

• AC power supply

• Forwarding performance: 78Mpps

• Switching Capacity: 336Gbps

S1720-52GWR-4X-E

S1720-52GWR-4P-E

• 48 Ethernet 10/100/1000 ports,4×10 Gig SFP+

• AC power supply

• Forwarding performance: 132Mpps

• Switching Capacity: 336Gbps

• 48 Ethernet 10/100/1000 ports,4 Gig SFP

• PoE+

• AC power supply

• Forwarding performance: 78Mpps

• Switching Capacity: 336Gbps

• 48 Ethernet 10/100/1000 ports,4×10 Gig SFP+

• PoE+

• AC power supply

• Forwarding performance: 132Mpps

• Switching Capacity: 336Gbps

S1720-52GWR-PWR-4P-E

S1720-52GWR-PWR-4X-E

3WLAN 802.11ac Series

AP Products

Overview ................................................................................................................ 40

Indoor Settled AP .................................................................................................. 41

Indoor Wall Plate AP ............................................................................................. 44

Agile Distributed AP .............................................................................................. 45

Rail Transportation AP ......................................................................................... 47

Outdoor AP ............................................................................................................ 48

Overview

As the IEEE 802.11ac Wave 1 and Wave 2 standards have been released, Wi-Fi is declared to embrace

the gigabit era, providing choices for customers who require better performance, higher-bandwidth

wireless access networks.

After in-depth survey and analysis on customer requirements, Huawei conducted scenario segmentation

based on customers' coverage targets and STA service types, and launched 20+ AP products falling into

ﬁve categories: indoor settled, indoor wall plate, agile distributed, rail transportation, and outdoor. Such

a wide assortment of AP products will support wireless network deployment and coverage in various

service scenarios.

40

WLAN 802.11ac Series AP Products

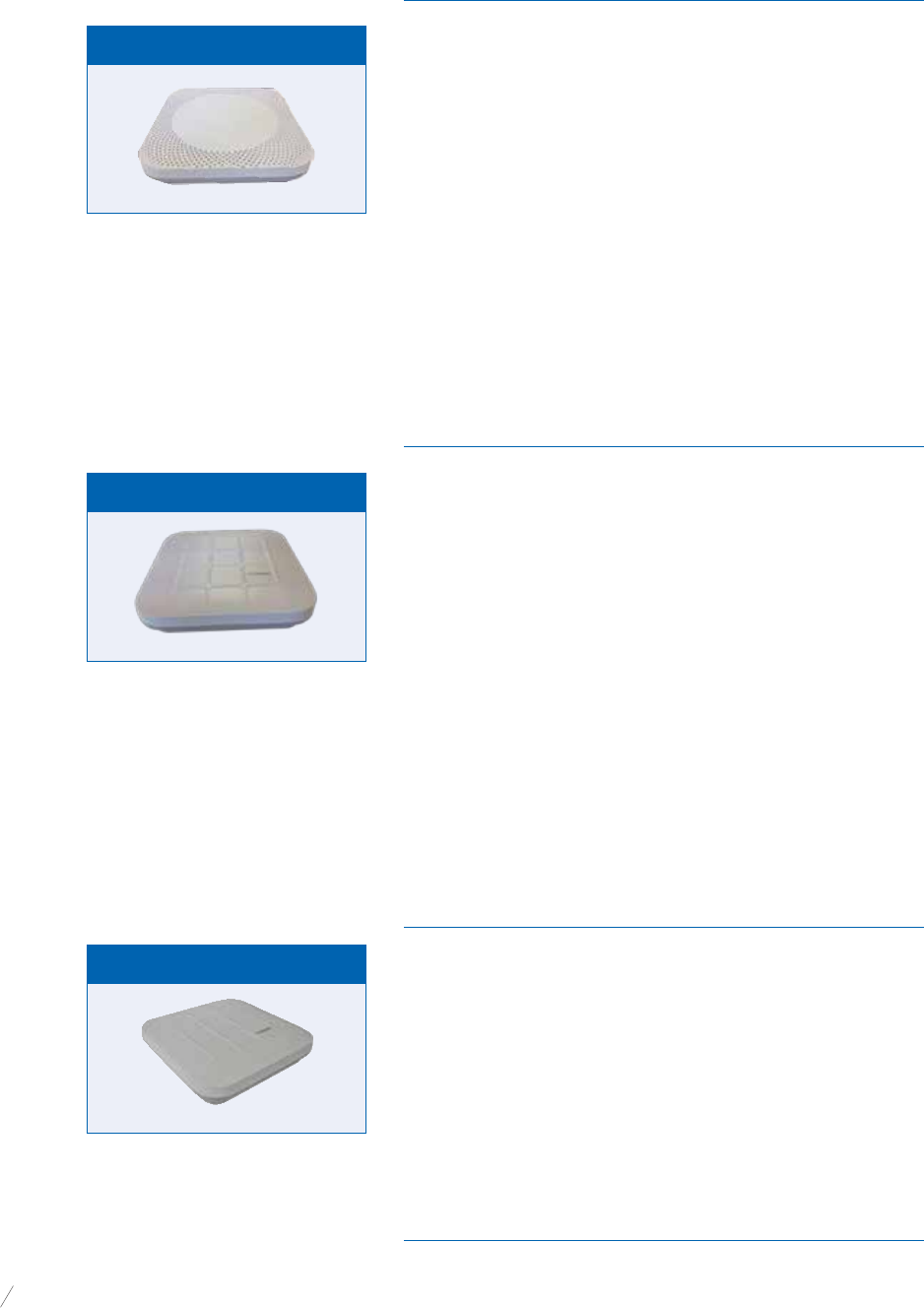

Indoor Settled AP

• Applicable to indoor coverage scenarios such as universities

and large-scale campuses, supporting convergence with LTE

Pico base stations.

• 802.11ac Wave 2 and MU-MIMO (4SU-4MU) technology,

delivering services simultaneously on 2.4G and 5G radios; 800

Mbit/s at 2.4 GHz; 1.73 Gbit/s at 5 GHz; and 2.53 Gbit/s for the

device.

• 2.5GE Ethernet uplink interfaces to improve the service load

capability.

• UPoE and 48 V DC power supply; PoE out to supply power to

other devices (such as Pico base stations).

• 3G/LTE co-site ﬁltering.

• Cloud-managed

• Applicable to mobile ofﬁce, high-density coverage, elementary

education, and higher education scenarios.

• 802.11ac Wave 2 and MU-MIMO (4SU-4MU) technology,

delivering services simultaneously on 2.4G and 5G radios; 800

Mbit/s at 2.4 GHz; 1.73 Gbit/s at 5 GHz; and 2.53 Gbit/s for the

device.

• Smart antenna array technology enables targeted signal

coverage for mobile terminals, reduces interferences,

and improves signal quality. Additionally, it implements

millisecond-level switchover as terminals move.

• Built-in Bluetooth, which collaborates with eSight Network to

accurately locate Bluetooth terminals.

• Dual GE ports, supporting data backup.

• Cloud-managed

Wave 2 AP: AP7050DN-E

Wave 2 AP: AP7050DE

• Applicable to medium- to large-scale scenarios such as

mobile office, high-density coverage, elementary education,

and higher education.

• 802.11ac Wave 2 and MU-MIMO (4SU-3MU) technology,

delivering services simultaneously on 2.4G and 5G radios; 800

Mbit/s at 2.4 GHz; 1.73 Gbit/s at 5 GHz; and 2.53 Gbit/s for the

device.

• Dual GE ports, supporting data backup.

• Cloud-managed

Wave 2 AP: AP6050DN&AP6150DN

41 WLAN 802.11ac Series AP Products

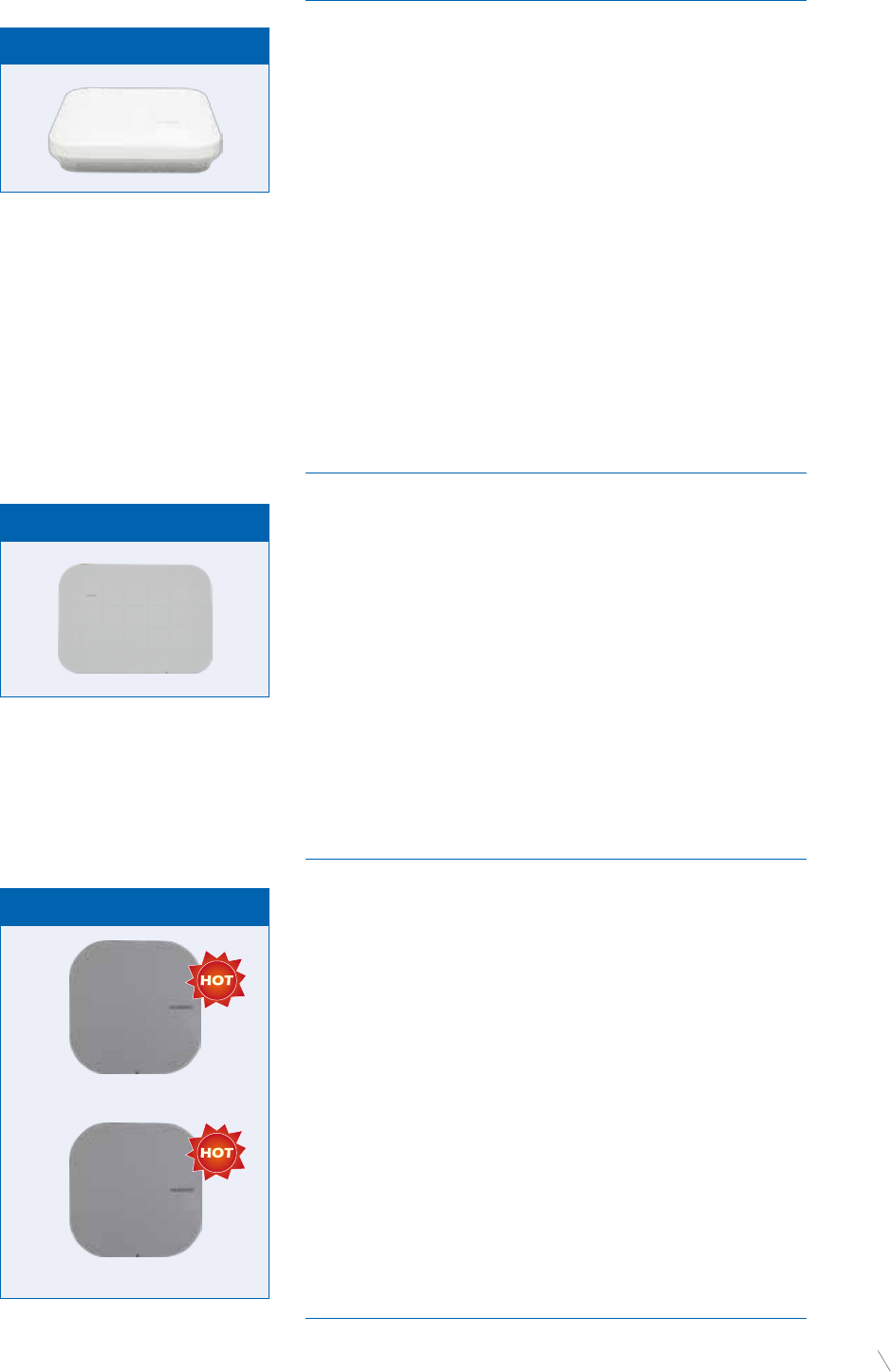

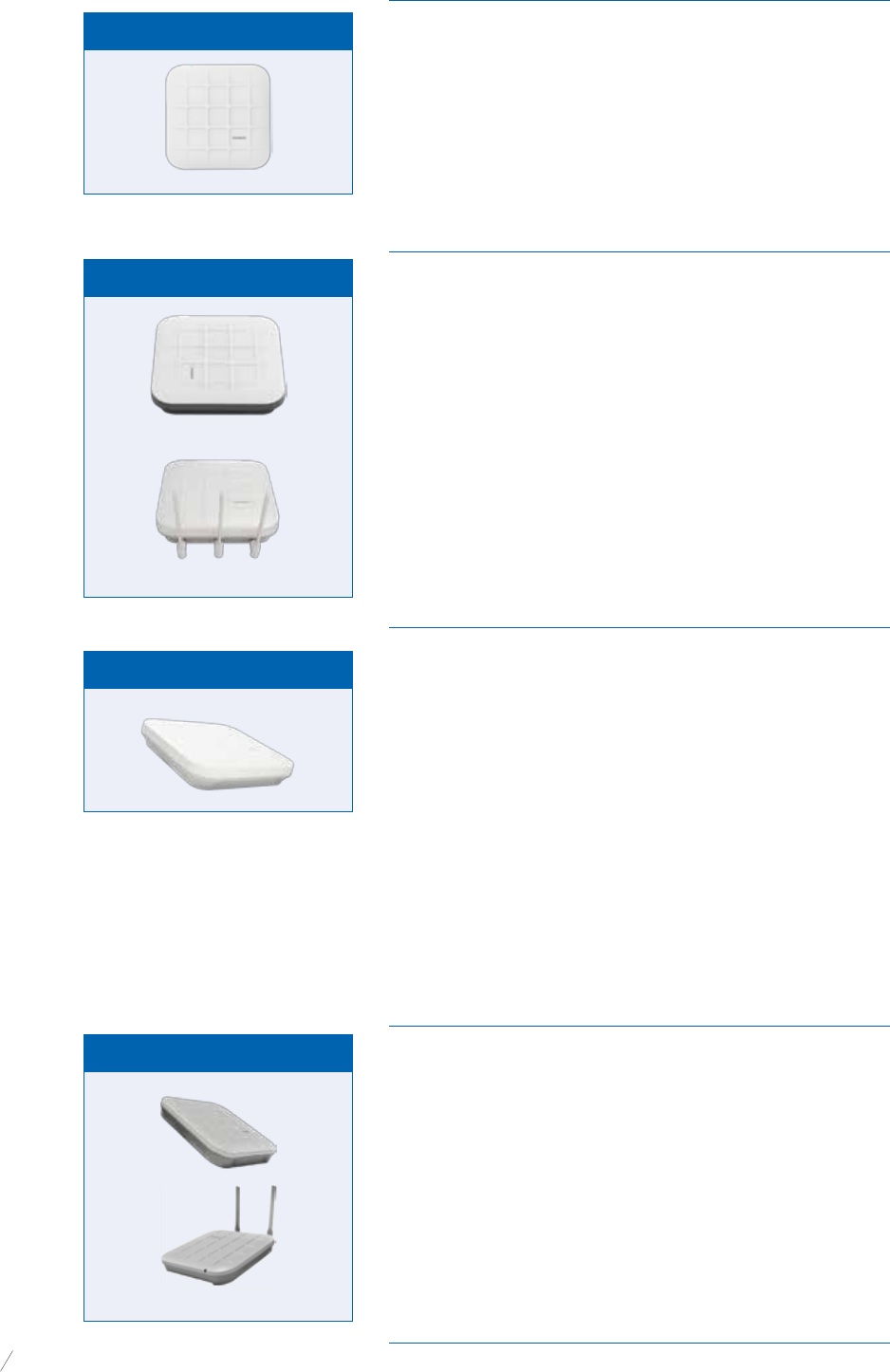

Wave 2 AP: AP4050DN-E

Wave 2 AP: AP4050DN-HD

• Applicable to scenarios including shopping malls,

supermarkets, healthcare, warehousing, manufacturing, and

logistics.

• 802.11ac Wave 2 and MU-MIMO (2SU-2MU) technology,

delivering services simultaneously on 2.4G and 5G radios; 400

Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267 Gbit/s for

the device.

• Built-in Bluetooth, which collaborates with eSight Network to

accurately locate Bluetooth terminals.

• 3 IoT module slots, allowing for flexible IoT application

extension.

• PoE out function, supplying power to other APs or devices.

• Dual GE ports, supporting data backup.

• Cloud-managed

• Applicable to high-density scenarios such as indoor stadiums,

auditoriums, shopping malls, and supermarkets.

• 802.11ac Wave 2 and MU-MIMO (2SU-2MU) technology,

delivering services simultaneously on 2.4G and 5G radios; 400

Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267 Gbit/s for

the device.

• Built-in smart directional high-density antennas, reducing

inter-AP interference and saving construction costs.

• PoE out function, supplying power to other APs or devices.

• Dual GE ports, supporting data backup.

• Cloud-managed

• Applicable to commercial chains, medical, warehousing,

manufacturing, and logistics environments

• 802.11ac Wave 2 standards compliance, MU-MIMO (2SU-

2MU), delivering services simultaneously on 2.4G and 5G

radios; 400 Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267

Gbit/s for the device.

• AP40501DN：Dual GE ports, supporting data backup

• USB interface used for external power supply and storage.

Wave2 AP: AP4050DN&AP4051DN

AP4050DN

AP4051DN

42

WLAN 802.11ac Series AP Products

Wave 1 AP: AP7030DE

Wave 1 AP: AP4030TN

Wave 1 AP: AP5030DN&AP5130DN

• Recommended for use in high-density scenarios, including

business and exhibition centers, stadiums, and other large

venues.

• 3 x 3 MIMO with three spatial streams; 600 Mbit/s at 2.4 GHz;

1.3 Gbit/s at 5 GHz; and 1.9 Gbit/s for the device.

• Smart antenna arrays, which can adjust the radiation direction

and power accordingly as wireless terminals move.

• Recommended for use in enterprise offices, airports and

stations, digital trains, and stadiums.

• 3 x 3 MIMO with three spatial streams; 450 Mbit/s at 2.4 GHz;

1.3 Gbit/s at 5 GHz; and 1.75 Gbit/s for the device.

• Applicable to scenarios including elementary education

electronic classrooms, high-density scenarios, shopping malls,

and supermarkets.

• 1 x 5G + 2 x 2.4G/5G radios, which can support wireless access

at a rate of 867 Mbit/s + 300 Mbit/s + 300 Mbit/s or 867 Mbit/

s + 867 Mbit/s + 300 Mbit/s. The maximum rate of the AP

reaches up to 2 Gbit/s.

• Software-defined radio function, implementing flexible

working frequency switchover from 2.4 GHz to 5 GHz and

service adjustment (such as wireless coverage, positioning,

security, and bridge) adjustment.

• Dual GE ports, supporting data backup.

AP5030DN

AP5130DN

• Applicable to scenarios where buildings have simple

structures, small areas, and dense users, such as small- and

medium-sized enterprises, intelligent buildings, healthcare,

and shopping malls.

• 2 x 2 MIMO with two spatial streams; 300 Mbit/s at 2.4 GHz;

867 Mbit/s at 5 GHz; and 1.167 Gbit/s for the device.

Wave 1 AP: AP4030DN&AP4130DN

AP4130DN

43 WLAN 802.11ac Series AP Products

• Recommended for environments with densely distributed

small rooms, such as hotels, dormitories, hospitals, and

ofﬁces.

• Compliance with 802.11ac Wave 2, MU-MIMO (2SU-2MU);400

Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267 Gbit/s for

the device.

• One GE uplink port, four GE downlink ports for Ethernet

connections or wired terminal connections, and two RJ45

pass-through phone ports (compatible with RJ11).

• Various installation modes for easy deployment, including

plate-mounting, and desk-mounting modes.

• USB port for storage and external power supply.

• Cloud-managed

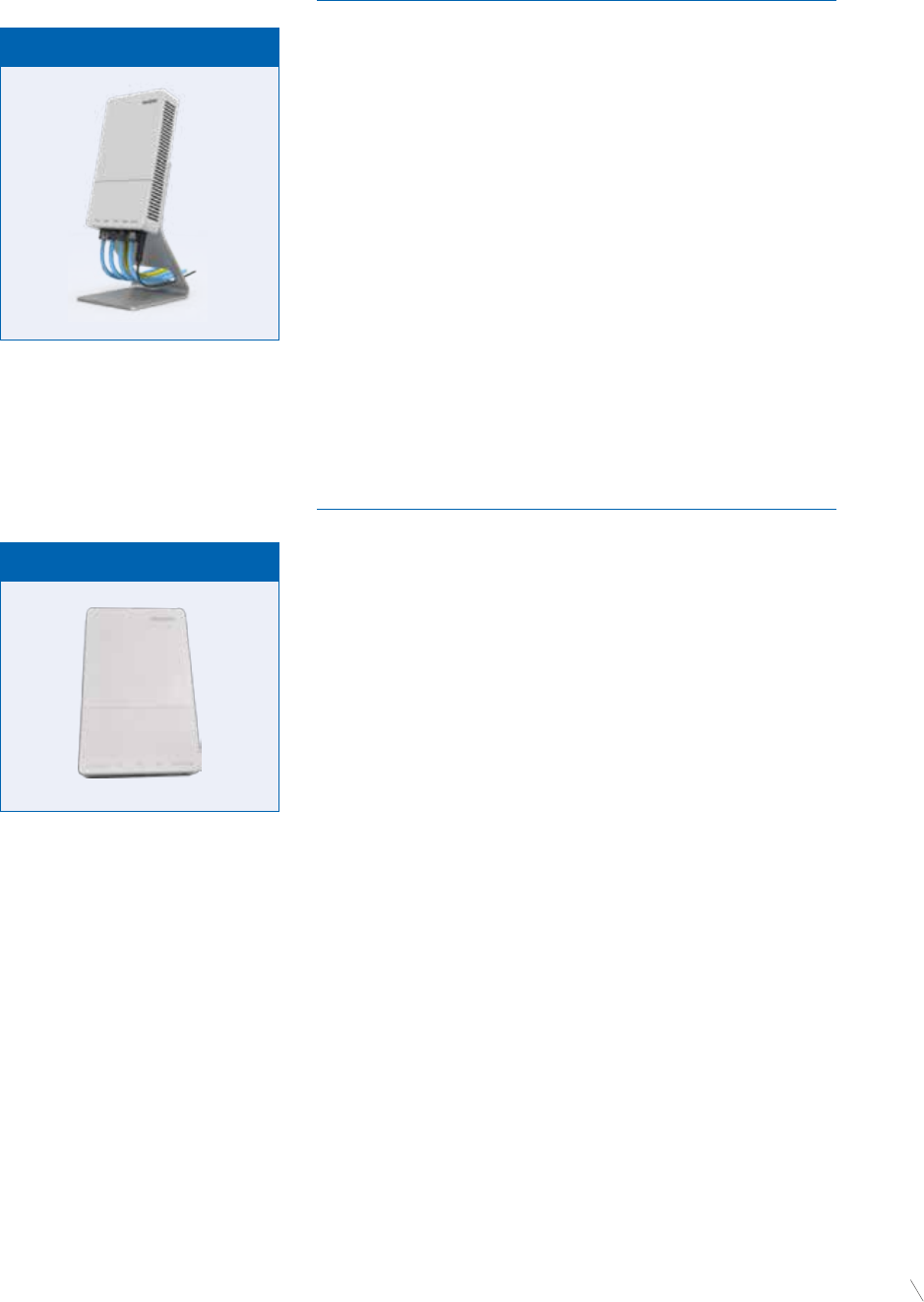

Indoor Wall Plate AP

Wave2 AP: AP2050DN

• Recommended for environments with densely distributed

small rooms, such as hotels, dormitories, hospitals, and

ofﬁces.

• Compliance with 802.11ac Wave 2, MU-MIMO (2SU-2MU);400

Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267 Gbit/s for

the device.

• One GE uplink port, four GE downlink ports for Ethernet

connections or wired terminal connections, and two RJ45

pass-through phone ports (compatible with RJ11).

• Built-in Bluetooth, working with eSight Network to implement

Bluetooth device location.

• PoE OUT, supplying power for STAs such as IP phones.

• Various installation modes for easy deployment, including

plate-mounting, and desk-mounting modes.

• Cloud-managed

Wave2 AP: AP2050DN-E

44

WLAN 802.11ac Series AP Products

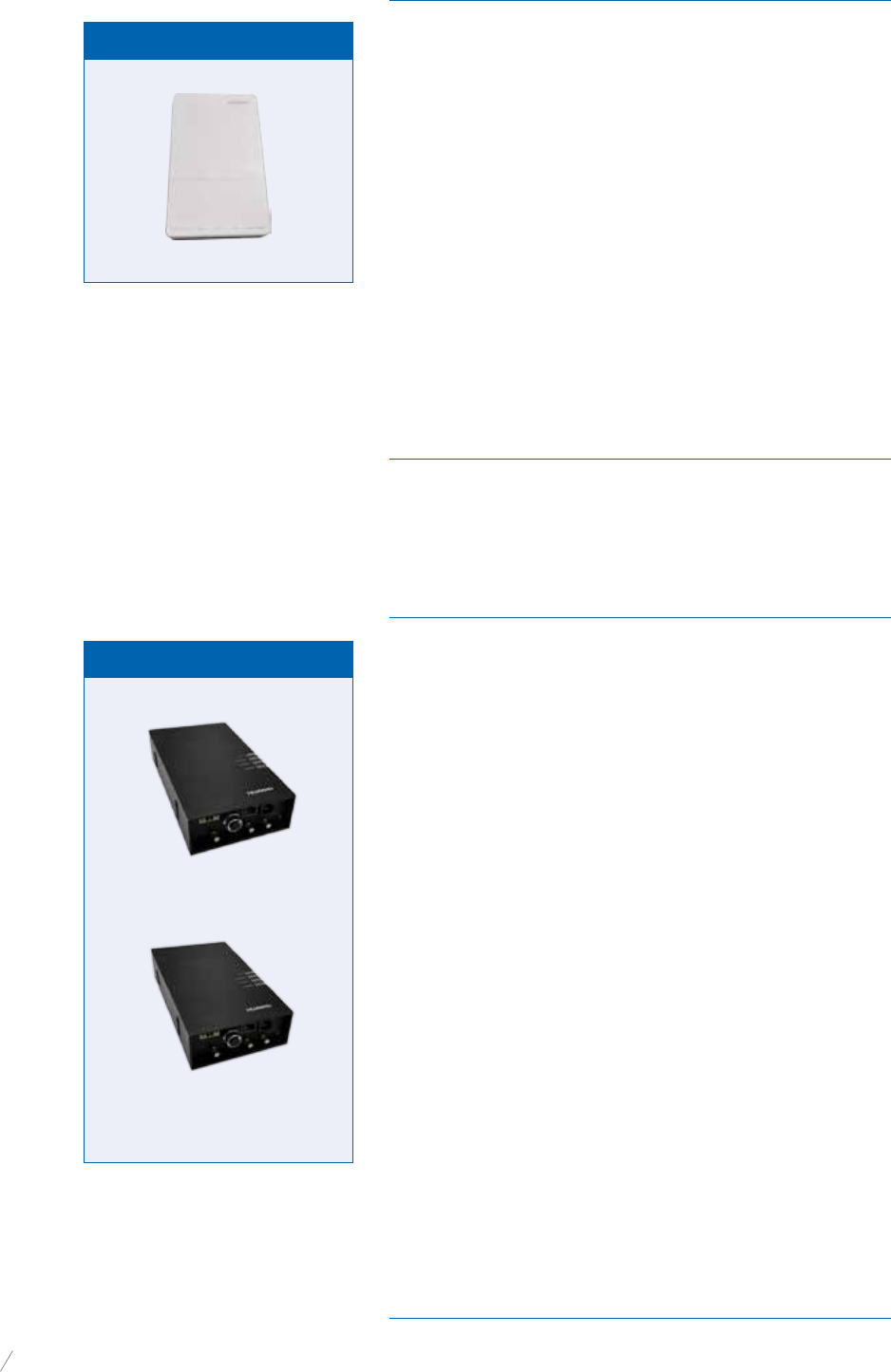

• Recommended for environments with densely distributed

small rooms, such as hotels, dormitories, hospitals, and

ofﬁces.

• 2 x 2 MIMO with two spatial streams; 300 Mbit/s at 2.4 GHz;

867 Mbit/s at 5 GHz; and 1.167 Gbit/s for the device.

• Provides one GE port and four 100M ports for Ethernet

connections or wired terminal connections, and two phone

ports for phone connections.

• Has a compact design, with built-in antenna, hidden indicator,

and sliding panel. The AP can be installed in an 86 mm junction

box which makes the AP well blend into surroundings.

Wave 1 AP: AP2030DN

Central AP: AD9430DN-24&

AD9430DN-12

Agile Distributed Central AP and RU

• Manages and configures remote units. The AD9430DN-

24&AD9430DN-12 can be ﬂexibly deployed in the equipment

rooms, weak-current wells, and corridors, to cover scenarios

with a high density of rooms and complex wall structure, such

as schools, hotels, hospitals, and ofﬁce conference rooms.

• An AD9430DN-24 central AP provides 4 uplink combo

interfaces and 24 downlink GE ports supporting standard

PoE power supply, and supports direct management over 24

remote units, which can be extended through the switch to a

maximum of 48 remote units. The AD9430DN-24 supports a

maximum of 1000 concurrent users and association from a

maximum of 4000 users.

• An AD9430DN-12 central AP provides 2 uplink GE ports and

12 downlink GE ports, and supports direct management over

12 remote units, which can be extended through the switch to

a maximum of 24 remote units. The AD9430DN-12 supports

a maximum of 512 concurrent users and association from a

maximum of 2000 users.

• Cloud-managed

AD9430DN-24

AD9430DN-12

45 WLAN 802.11ac Series AP Products

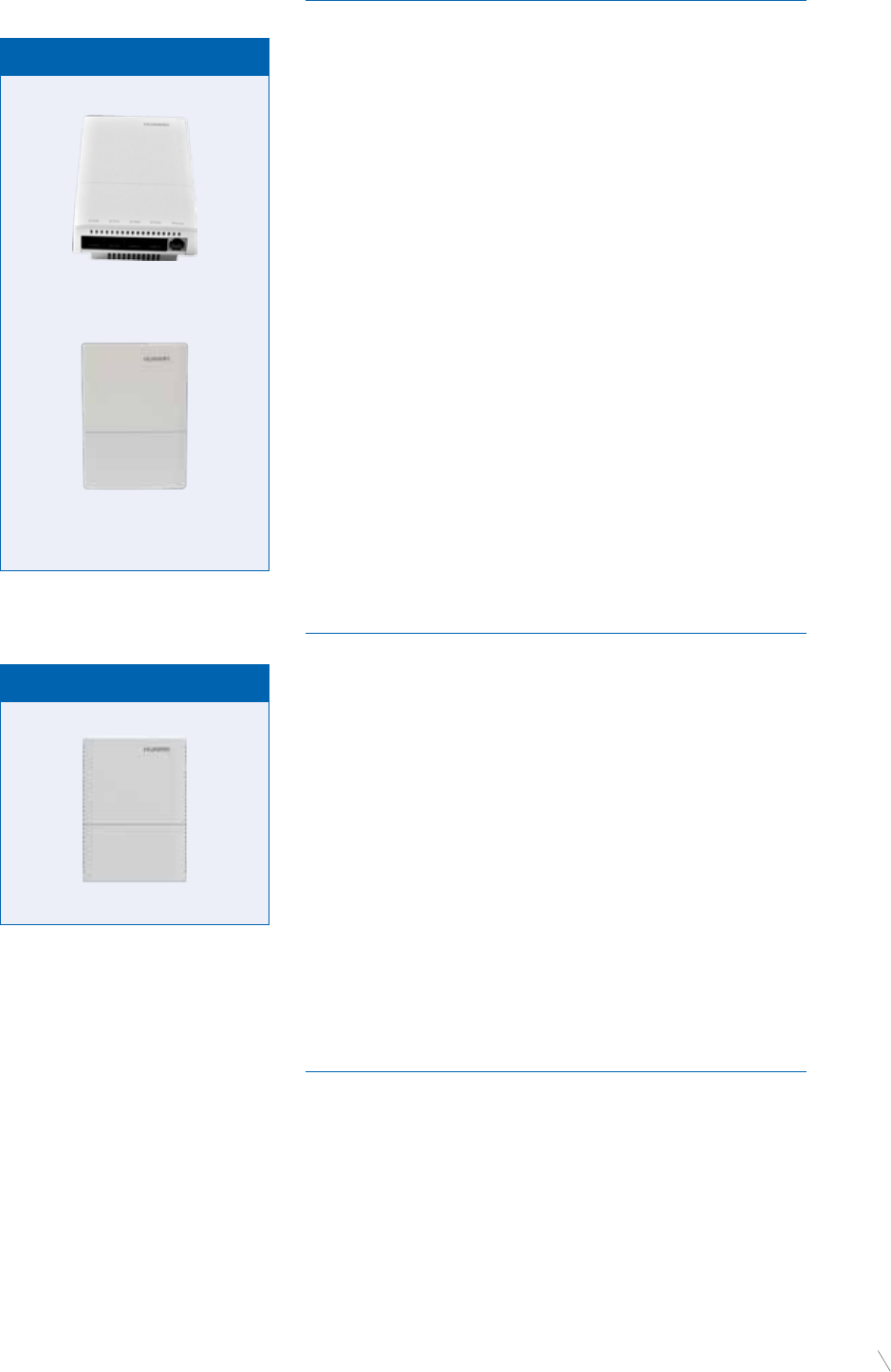

Remote Unit: R240D&R230D

• Managed by the central AP, remote units can be directly

installed in rooms to cover scenarios with a high density of

rooms and complex wall structure, such as schools, hotels,

hospitals, and ofﬁce conference rooms.

• 2 x 2 MIMO with two spatial streams; 300 Mbit/s at 2.4 GHz;

867 Mbit/s at 5 GHz; and 1.167 Gbit/s for the device.

• An R240D remote unit provides one GE port and four 100M

ports for Ethernet connections or wired terminal connections,

and one phone port for phone connections, and supports

ceiling mounting, wall mounting, and wall plate mounting.

• An R230D remote unit provides one 100M port, and supports

ceiling mounting, wall mounting, and wall plate mounting.

R240D

R230D

Remote Unit: R250D• Managed by the central AP, remote units can be directly

installed in rooms to cover scenarios with a high density of

rooms and complex wall structure, such as schools, hotels,

hospitals, and ofﬁce conference rooms.

• Compliance with 802.11ac Wave 2, MU-MIMO (2SU-2MU);400

Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267 Gbit/s for

the device.

• One GE uplink port, one GE downlink ports for Ethernet

connections or wired terminal connections.

• Supports PoE power supply in compliance with IEEE 802.3af/at.

• Various installation modes for easy deployment, including

ceiling-mounting, wall-mounting, plate-mounting modes.

46

WLAN 802.11ac Series AP Products

Remote Unit: R250D-E • Managed by the central AP, remote units can be directly

installed in rooms to cover scenarios with a high density of

rooms and complex wall structure, such as schools, hotels,

hospitals, and ofﬁce conference rooms.

• Compliance with 802.11ac Wave 2, MU-MIMO (2SU-2MU);400

Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267 Gbit/s for

the device.

• One GE uplink port, four GE downlink ports for Ethernet

connections or wired terminal connections.

• Built-in Bluetooth, working with eSight Network to implement

Bluetooth device location.

• Supports PoE power supply in compliance with IEEE 802.3af/

at and power supply of –48 V DC.

• PoE OUT, supplying power for STAs such as IP phones.

• Various installation modes for easy deployment, including

plate-mounting, and desk-mounting modes.

Wave 1 AP: AP9132DN&AP9131DN

Rail Transportation AP

• Serves as the vehicle-mounted AP, trackside AP, or

compartment AP and applies to transportation industry

train-ground backhaul and compartment coverage

scenarios.

• 802.11ac Wave 1, delivering services simultaneously on 2.4G

and 5G radios; 450 Mbit/s at 2.4 GHz; 1.3 Gbit/s at 5 GHz;

and 1.75 Gbit/s for the device.

• External dual-band antenna (2.4 GHz and 5 GHz), which can

adjust the radiation direction to ensure the coverage.

• Soft switchover technology that establishes the link and

then conducts the switchover, implementing fast link

switching in train-to-ground communication and minimizing

packet loss during the switchover.

• High-level material, overall heat dissipation design, –40 ℃

to +65 ℃ wide operating temperature range, and industrial

M12 shockproof connectors for power supply Ethernet

ports that meet shockproof, waterproof, and fireproof

requirements, supporting vehicle-mounted deployment

required by the rail transportation industry.

• Fast link switching in train-to-ground communication,

controlling the switchover time within 50 ms and providing a

stable and high-speed train-ground backhaul network.

• AP9132DN: supports the splitting function, that is,

compartments are covered at 2.4 GHz and bridged at 5 GHz,

which are flexible and easy to deploy.

AP9132DN

AP9131DN

47 WLAN 802.11ac Series AP Products

• recommended for use in coverage scenarios (for example,

high-density stadiums, squares, pedestrian streets, and

amusement parks) and bridging scenarios (for example,

wireless harbors, data backhaul, video surveillance, and train-

to-ground backhaul).

• 802.11ac wave 2 standards compliance, MU-MIMO (2SU-2MU),

delivering services simultaneously on 2.4G and 5G radios; 400

Mbit/s at 2.4 GHz; 867 Mbit/s at 5 GHz; and 1.267 Gbit/s for

the device

• PoE power supply in compliance with IEEE 802.3at, making

APs easy to install.

• Uplink optical port and dual GE Ethernet ports, supporting

data backup and PoE power supply.

• The AP8150DN can switch from the 2.4 GHz frequency band

to the 5 GHz frequency band. When working at dual 5 GHz

frequency bands simultaneously, the AP provides a system

rate of 1.73 Gbit/s and can function as a relay AP to implement

wireless bridging functions, which reduces costs and improves

device installation efﬁciency.

• Built-in 5 kA surge protectors; no additional surge protection

device required. This design simpliﬁes installation and saves

costs.

• Use a metal shell and heat dissipation design, adapt to a wide

temperature range from -40°C to +65°C, provide 6 kA or 6 kV

surge protection capability on an Ethernet interface, and IP67

protection level, meeting industry-level use requirements.

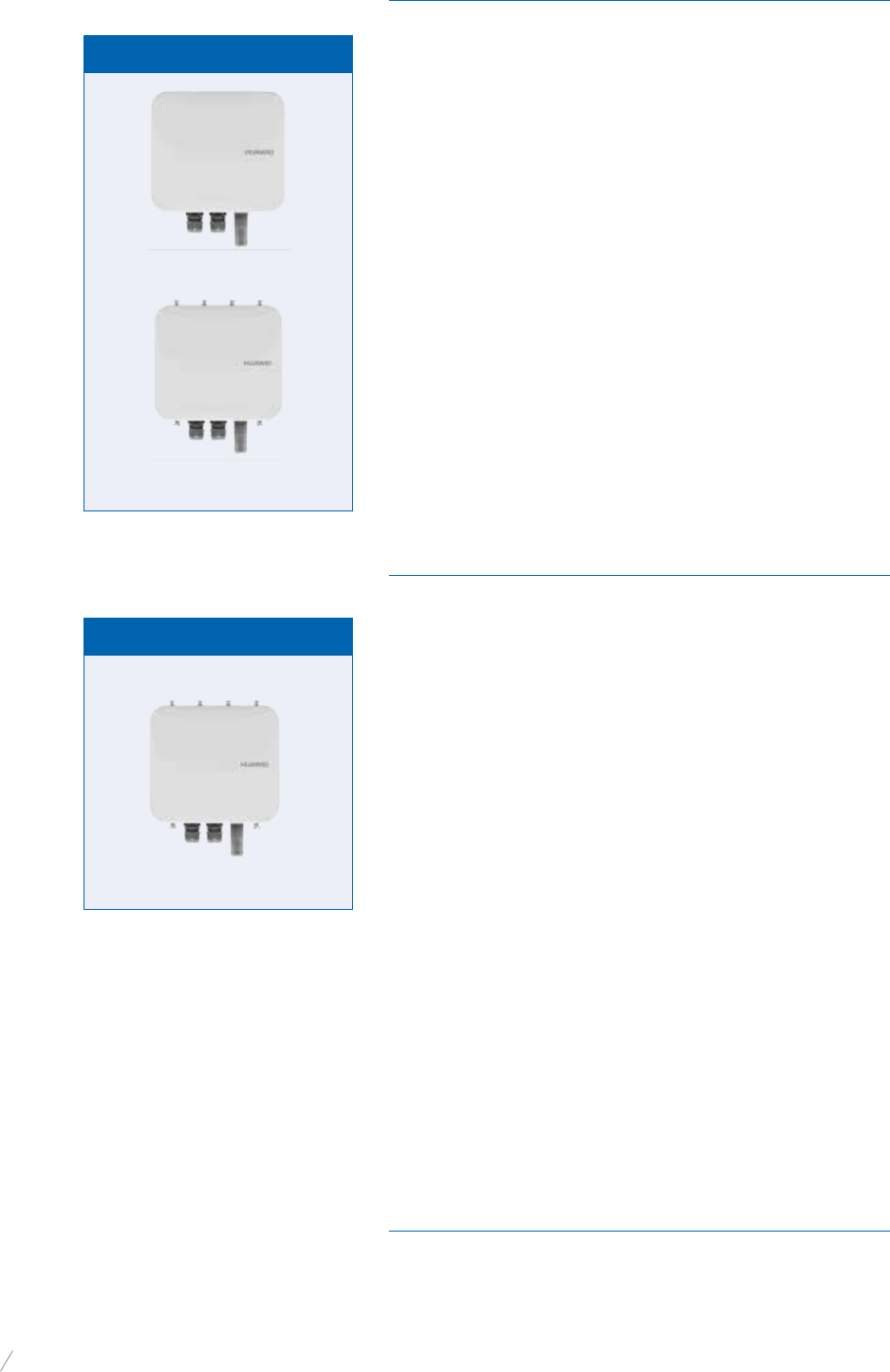

Wave2 AP：AP8050DN/8150DN

AP8050DN

AP8150DN

Outdoor AP

48

WLAN 802.11ac Series AP Products

Wave 1 AP: AP8130DN-W • Recommended for use in coverage scenarios (for example,

high-density stadiums, squares, pedestrian streets, and

amusement parks) and bridging scenarios (for example,

wireless harbors, data backhaul, video surveillance, and

vehicle-ground backhaul).

• 3 x 3 MIMO with three spatial streams, delivers services

simultaneously on two radios (one radio: 2.4 GHz/4.9 GHz/5

GHz; the other radio: 4.9 GHz/5 GHz) with a rate of 450 Mbit/s

at 2.4 GHz, 1.3 Gbit/s at 5 GHz, and 1.75 Gbit/s for the device.

• Supports wireless bridge and backhaul at 4.9 GHz.

• Supports 2.4 GHz, 4.9 GHz, or 5 GHz on one radio and 4.9 GHz

or 5 GHz on the other. When working at dual 5 GHz frequency

bands simultaneously, the AP provides a system rate of 2.6

Gbit/s and can function as a relay AP to implement wireless

bridging functions, which reduces costs and improves device

installation efﬁciency.

• Uplink optical port and dual GE Ethernet ports, supporting

data backup and PoE power supply.

• Has built-in 5 kA surge protectors, requiring no external surge

protective devices. This design simplifies installation and

saves costs.

Wave 1 AP: AP8030DN&AP8130DN • Recommended for use in coverage scenarios (for example,

high-density stadiums, squares, pedestrian streets, and

amusement parks) and bridging scenarios (for example,

wireless harbors, data backhaul, video surveillance, and

vehicle-ground backhaul).

• 3 x 3 MIMO with three spatial streams; 450 Mbit/s at 2.4 GHz;

1.3 Gbit/s at 5 GHz; and 1.75 Gbit/s for the device.

• PoE power supply in compliance with IEEE 802.3at, making

APs easy to install.

• Uplink optical port and dual GE Ethernet ports, supporting

data backup and PoE power supply.

• AP8130DN: uses external antennas. Antennas can be

configured, and deployment locations are determined based

on networking requirements.

• AP8030DN: uses built-in antennas with 10 dBi gain at 2.4 GHz

and 10 dBi gain at 5 GHz (horizontal: 60 degrees; vertical: 30

degrees).

• Cloud-managed

AP8030DN

AP8130DN

49 WLAN 802.11ac Series AP Products

Huawei Core Router NetEngine9000 Series Product..........................................51

NE5000E Cluster Router Product.........................................................................53

NE40E Universal Service Router Product............................................................54

NE20E-S Universal Service Router Product........................................................55

Huawei NE08E & NE05E series Mid Service Router Product.............................57

Enterprise Huawei ME60 Product........................................................................58

4Enterprise Core Router

NE/ME Series Products

51 Enterprise Core Router NE/ME Series Products

Huawei Core Router NetEngine9000

Series Product

Product Overview

As the Internet enters the Cloud Era, cloud business diversiﬁcation will make data trafﬁc unpredictable,

and as Over the Top (OTT) and 4K video services consume a lot of bandwidths, IP backbone networks will

need greater bandwidths, more ﬂexibility, and continuous expanding capability. Huawei's NetEngine9000

series core router (NE9000) is Huawei's flagship core router created for the Cloud Internet Era. With

features that include high capacity, high stability and a green design, the NE9000 is positioned for large-

scale Data Center Interconnect (DCI), super core nodes on the carrier backbone network, metro core, and

core nodes on large-scale enterprise networks.

As the industry's largest Pbit core router, the NE9000 adopts Huawei's self-developed Solar series NP

chips for excellent line rate forwarding performance. The NE9000 is based on the CLOS distributed

multi-stage architecture with non-blocking switching technology. The NE9000 supports SDN technology

and can work in SDN solutions such as SDN RR+/PCE+, SDN IP+Optical and SDN VXLAN. The NE9000

continues to innovate based on an industry-leading platform for improved QoS mechanism and carrier-

class reliability to swiftly deal with the new challenges that backbone networks face in the Cloud

52

Enterprise Core Router NE/ME Series Products

Product Appearance

NE9000-20 Product Specifications

NE9000-20 with

front doors closed

NE9000-20 with

front doors open NE9000-20 back

Item Description

Stand-Alone Capacity 20 Tbps, single slot 1T, expansion up to 8T

Number of Slots 30, with 20 service board slots, 2 MPU slots, and 8 SFU slots

Dimensions (H×W×D) 2200 mm x 600 mm x 800 mm (49.5 U)

The NE9000 presents a single-cabinet design for a cabinet-free

installation

Typical Power

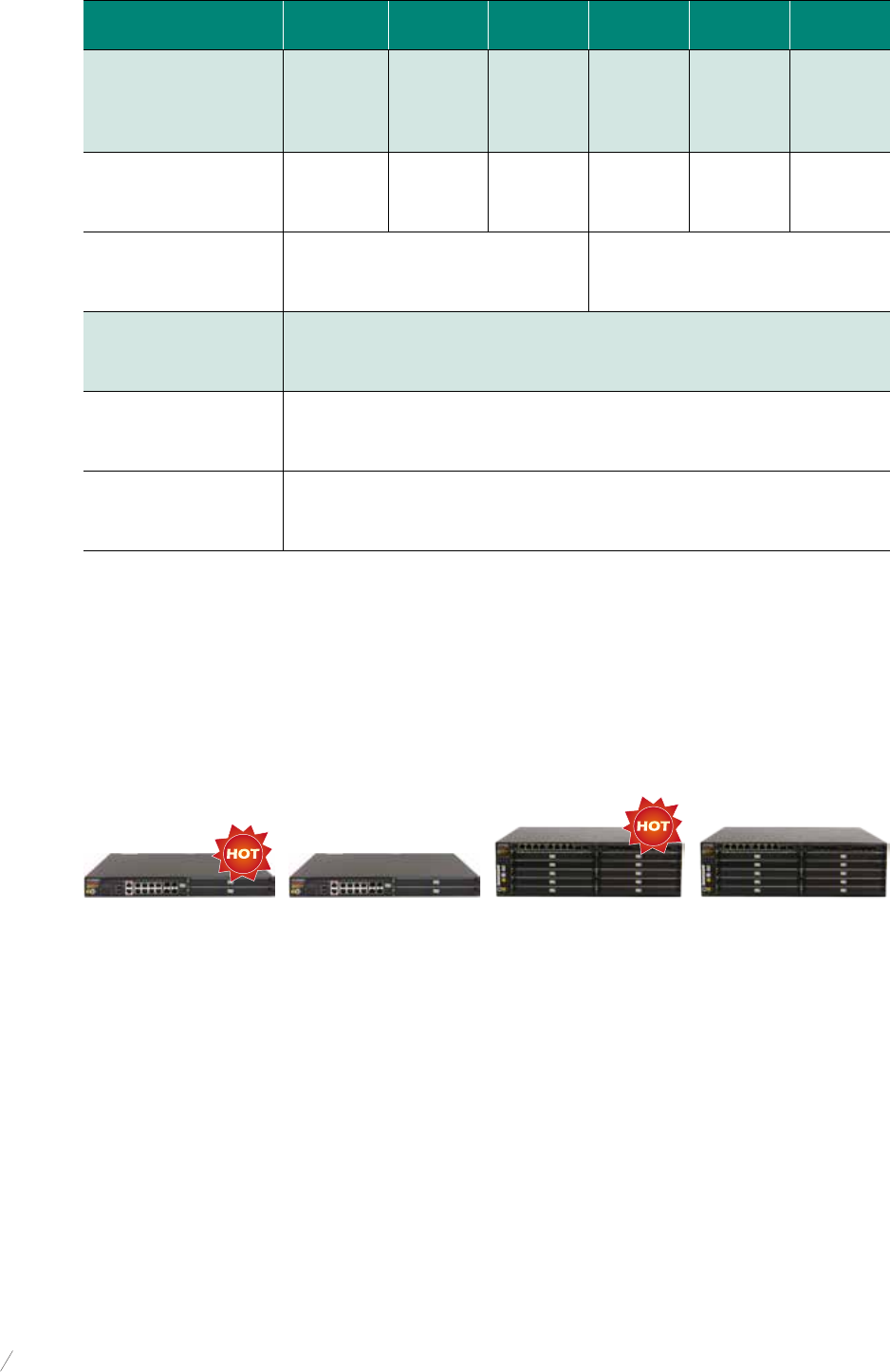

Consumption 0.8 W/G

Interface Type 40GE, 100GE, 10GE

53 Enterprise Core Router NE/ME Series Products

NE5000E Cluster Router Product

Product Overview

NetEngine5000E cluster router (NE5000E) delivers industry-leading huge capacity, carrier-level

availability and green design，which fully guarantees the network robustness, service ﬂexibility and TCO

saving for service providers. Powered advanced backplane connection design, distributed and highly

scalable Versatile Routing Platform (VRP) operating system, NE5000E, a super-core routing platform,

service steadily and high-efﬁciency at internet backbone, metro core, internet data center and Internet

bearer network.

Offering the innovative and advanced solutions such as the industry-largest capacity board, back-to-

back cluster system and hybrid-chassis cluster system, the NE5000E makes network configured on

demand and helps customer improve earnings, as well as save TCO.

The NE5000E has two parts in hardware: Cluster Central Chassis (CCC) and Cluster Line Chassis (CLC).

CLC is used to forward service ﬂow and CCC is used to connect CLC’s control plane and data plane in

cluster system.

Product Appearance

Product Specifications

Single

Chassis

Back-to-Back

Cluster System 2+8 Cluster System

Attribute Description

Throughput capability Non-block switch fabric, support multi Chassis 2048Tbps/64 Chassis (1T)

Swithing Capability 81.92Tbps/single Chassis

Slots/CLC 16 slots/single Chassis

Interface Types GE, 10GE, 10G POS, 40GE, 40G POS, 100GE, 100G OTN, etc.

Routing protocol IPv4 static route, OSPF, IS-IS, BGP, PIM, MSDP, MBGP

54

Enterprise Core Router NE/ME Series Products

NE40E Universal Service Router

Product

Product Overview

The NE40E series universal service router (USR), a high-end network product, features line-rate

forwarding capability, a well designed Quality of Service (QoS) mechanism, strong service-processing

capability, and excellent expansibility and are usually deployed at the edges of Internet Protocol (IP)

backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Centers (IDCs) networks

and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises,

residential as universal edge device.

Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E

provides maximum 480G line cards to satisfy the increased demand for bandwidth.

Product Appearance

Product Specifications

NE40E X16A NE40E-X16 NE40E-X8A NE40E-X8NE40E-X3A NE40E-X3

Attribute NE40E-

X16ANE40E-X16 NE40E-X8A NE40E-X8NE40E-X3A NE40E-X3

Number of

slots

22 slots,

including

2 MPUs (1:1

backup), 4

SFUs

(3+1

backup),

and 16

LPUs

22 slots,

including

2 MPUs (1:1

backup), 4

SFUs

(3+1

backup),

and 16

LPUs

12 slots,

including

2 SRUs (1:1

backup), 2

SFUs

(3+1

backup),

and 8 LPUs

11 slots,

including

2 SRUs (1:1

backup), 1

SFUs

(2+1

backup),

and 8 LPUs

5 slots (for

3 LPUs and

2 MPUs)

5 slots (for

3 LPUs and

2 MPUs)

55 Enterprise Core Router NE/ME Series Products

Attribute NE40E-

X16ANE40E-X16 NE40E-X8A NE40E-X8NE40E-X3A NE40E-X3

Interface

type

100GE/40GE 10GE- LAN /WAN

GE/FE OC-192c/STM-64c POS

OC-48c/STM-16c POS OC-12c/STM-4c POS

OC-3c/STM-1c POS Channelized STM-4

Channelized OC-3/STM-1 OC-3c/STM-1c ATM

OC-12c/STM-4c ATM E3/CT3

CE1/CT1 E1/T1

NE20E-S Universal Service Router

Product

Product Overview

NetEngine20E-S Universal Service Router (NE20E-S) series are high-end network products developed

by Huawei for transportation, finance, electricity, government, education, and enterprise networks.

They mainly serve as aggregation nodes on IP backbone networks, core nodes on small and medium

enterprise networks, edge nodes on campus networks, and access nodes on small and medium

education networks.

The NE20E-S runs on the Versatile Routing Platform (VRP) operating system and uses Huawei-

developed NP chips and hardware-based forwarding and non-blocking switching technologies. The

NE20E-S has the following features:

• Line-rate forwarding capabilities, carrier-class reliability, excellent scalability, a well-designed quality

of service (QoS) mechanism, and strong service processing capabilities

• Powerful service access and aggregation capabilities and various features, such as Layer 2 virtual

private network (L2VPN), L3VPN, multicast, multicast VPN (MVPN), Multiprotocol Label Switching

(MPLS) Trafﬁc Engineering (TE), and QoS, to ensure carrier-class service transmission reliability

• Various service features, such as Generic Routing Encapsulation (GRE), IP Security (IPSec), Network

Address Translation (NAT), and NetStream

• Support for IPv6 and smooth transition from IPv4 to IPv6

The NE20E-S can be flexibly deployed at the access and aggregation layer of IP/MPLS networks and

work with other NE routers to provide an all-around network solution for enterprise users, satisfying

diversiﬁed service requirements in the future.

56

Enterprise Core Router NE/ME Series Products

Product Appearance

Product Specifications

NE20E-S2E NE20E-S2F

NE20E-S4NE20E-S8NE20E-S16

NE20E-S8A NE20E-S16A

Item NE20E-S2E NE20E-S2F NE20E-S4NE20E-S8NE20E-S16 NE20E-S8ANE20E-

S16A

Switching

capacity 160 Gbps 320 Gbps 480 Gbps 480 Gbps 480 Gbps 480 Gbps 480 Gbps

Forwarding

performance 70 Mpps 150 Mpps 180 Mpps 360 Mpps 360 Mpps 360 Mpps 360 Mpps

Number of

slots

2PICs

2*10GE

(SFP+) and

24*GE

(SFP)

2PICs

4*10GE

(SFP+) and

38*GE

(SFP)

2 MPUs

1 NSP

4 PICs

2 MPUs

2 NSPs

8 PICs

2 MPUs

2 NSPs

16 PICs

2 MPUs

2 NSPs

8 PICs

2 MPUs

2 NSPs

16 PICs

Interface

type

100GE/40GE/10GE/GE/FE

OC-3c/STM-1c POS

OC-12c/STM-4c POS

Channelized OC-3/STM-1 POS

OC-3c/STM-1c ATM

E1/CE1

57 Enterprise Core Router NE/ME Series Products

Huawei NE08E & NE05E series Mid

Service Router Product

Product Overview

Huawei NetEngine08E / NetEngine05E series is the cloud era ENP Based Mid Services Router which is

to help transportation, ﬁnance, power, government, education, enterprise to build agile networks, can

be ﬂexibly applied to IP / MPLS network edge access scenarios, to meet the diverse needs of users for

future business development.

NetEngine08E / NetEngine05E series is cloud service architecture design oriented, large cache

to ensure the best service experience; IP pipeline firmness and flexibility, support IP soft pipes for

statistical multiplexing to improve resource efﬁciency and IP hard pipe exclusive resources to ensure the

best customer experience .

Product Appearance

NE08E-S6/6E NE05E-SE

NE05E-SG

NE05E-SQNE05E-SI

NE05E-S2

NE05E-SF NE05E-SH

NE05E-SJ NE05E-SK NE05E-SL NE05E-SM

58

Enterprise Core Router NE/ME Series Products

Product Specifications

Attribute NE08E-S6E/S6NE05E-SQ NE05E-S2NE05E-SN/G/H NE05E-SM

Forwarding

performance 102Mpps/37Mpps 102Mpps 18Mpps 18Mpps 6Mpps

Switching

capacity 360Gbps/112Gbps 272Gbps 24Gbps 24Gbps 8Gbps

Typical power

consumption 164W/181W91.4W68W30W20W

Slots

redundant MPUs

6 FICs

10GE/GE/FE/

STM-1/E1/PCM

Fixbox

4*10GE+16GE

(O)+8GE(E)

1 CXP with

6GE(O)+4GE(E)

and 2 FICs

Fixbox

4*GE/

FE(O)+4*GE/

FE(E)+ 4*GE/

FE Combo +

（2*8E1）

1*GE(O)+

2*GE/FE(E)+

1*FE/GE Combo

Dimension

(W×D×H)

442mm×

220mm×

88.9mm(2U)

442mm×

220mm×

44.45mm（1U）

442mm×

220mm×

44.45mm（1U）

442mm×

220mm×

44.45mm（1U）

250mm×

180mm×52mm

Operating

Temperature -40oC to +65oC -40oC to +65oC -20oC to +60oC -40oC to +65oC -40oC to +55oC

Huawei ME60 Series Multi-Services

Control Gateway

Product Overview

Huawei ME60 series Multiservice Control Gateway is perfect as service point of presence (SPOP) of IP/

MPLS network, BRAS node of broadband service access, or core node of campus networks, by delivering

industry-leading performance, monetization capabilities and excellent service evolution to boost

customers' service development.

As a service management and offering platform with high performance, the ME60 meets various

requirements for service operation mechanisms. ME60 ensures smooth and reliable running of various

services. Based on the solutions with ME60, customers are able to construct a future-oriented and

intelligent broadband IP network, which can greatly reduces the TCO of the network.

59 Enterprise Core Router NE/ME Series Products

The ME60 series includes the ME60-X16, ME60-X8 and ME60-X3:

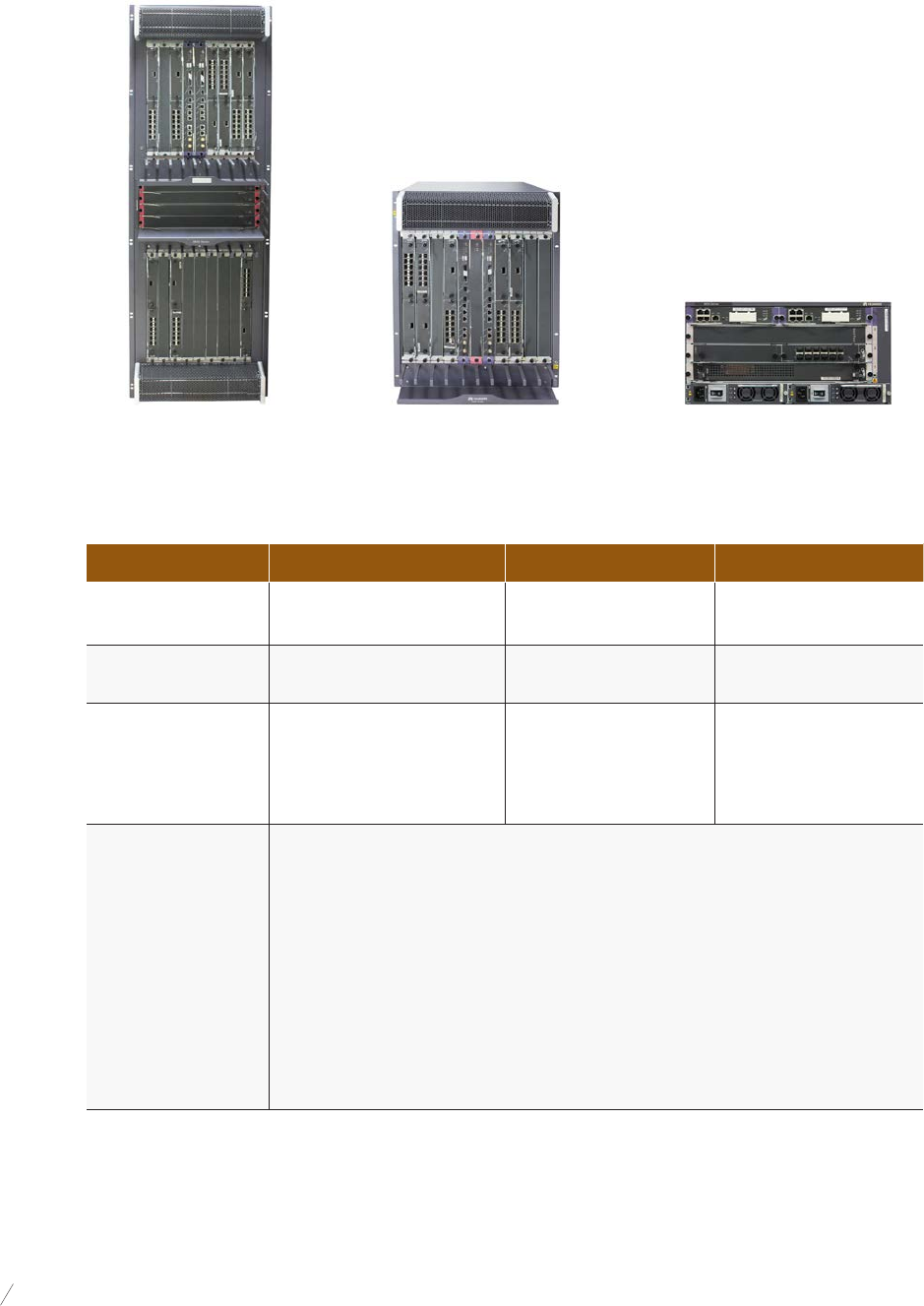

Product Appearance

Product Specifications

Attribute ME60-X16 ME60 -X8ME60 -X3

Switching Capacity 25.2 Tbps /12.58 Tbps 12.58 Tbps /7.08Tbps 1.08 Tbps

Slots 22 slots, including 2 MPUs, 4

SFUs and 16 LPUs

11 slots, including 2 SRUs,

1 SFUs and 8 LPUs

5 slots, including 2 MPUs

and 3 LPUs

Dimension

(W×D×H) 442mm×650mm×

1420mm (32U)

442mm×650mm× 620

mm (14U)

442mm×650mm×175

mm (DC 4U)

442mm×650mm×220

mm (AC 5U)

Interface

type

OC-192c/STM-64c POS

OC-48c/STM-16c POS

OC-3c/STM-1c POS

OC-12c/STM-4c ATM

OC-3c/STM-1c ATM

100GE-WAN/LAN

10GE-WAN/LAN

GE/FE

E3/CT3

CE1/CT1

ME60-X16 ME60-X8ME60-X3

60

Enterprise Router AR Series Products

AR100,AR120,AR150,AR160 and AR200 Series Enterprise Routers................61

AR1200 Series Enterprise Routers.......................................................................69

AR2200 Series Enterprise Routers.......................................................................72

AR3200 Series Enterprise Routers.......................................................................74

AR160-M Series Enterprise Routers....................................................................76

AR3600 Series Enterprise Routers.......................................................................77

5Enterprise Router

AR Series Products

61 Enterprise Router AR Series Products

AR100, AR120, AR150, AR160 and

AR200 Series Enterprise Routers

Product Overview

The AR100, AR120, AR150, AR160 and AR 200 series are fixed interface routers that provide a

comprehensive platform for a variety of network topologies, including IMS, NGN, WAN and PSTN. The

AR100, AR120, AR 150, AR160 and AR200 also employ embedded hardware encryption for security as

well as a voice Digital Signal Processor (DSP) for voice services.

The AR100, AR120, AR150, AR160 and AR200 series are mature, stable and quiet routers that offer high

performance functionality for small networks, enabling small businesses to greatly increase productivity

at a lower cost.

AR100s, AR120s, AR150s, AR160s and AR 200s are easy to deploy, configure and customize, greatly

reducing cost of deployment and maintenance, while offering maximum value to customers. These

models allow network administrators to expand their networks easily and quickly, saving time and costs.

Huawei's next-generation routers, the AR100, AR120, AR150, AR160 and AR200 series are designed for

enterprise branch ofﬁces and small businesses, delivering a comprehensive set of services, including

routing, switching, voice, security, and wireless access.

62

Enterprise Router AR Series Products

Product Features

Table1: AR100 Models

Table2: AR120 Models

AR109

AR109W

• WAN speed with services (IMIX): 40 Mbps

• Fixed ports: 4 x GE LAN, 1 x VDSL2/ADSL, 1 x GE WAN

• Dimensions (H x W x D): 30 mm x 230mm x 130 mm(1.18 in. x 9.1

in. x 5.1 in.)

• WAN speed with services (IMIX): 40 Mbps

• Fixed ports: 4 x GE LAN, 1 x VDSL2/ADSL, 1 x GE WAN

• WLAN: 802.11b/g/n

• Dimensions (H x W x D): 30 mm x 230mm x 130 mm(1.18 in. x 9.1

in. x 5.1 in.)

AR109GW-L • WAN speed with services (IMIX): 40 Mbps

• Fixed ports: 4 x GE LAN, 1 x VDSL2/ADSL, 1 x GE WAN

• LTE: LTE FDD

• WLAN: 802.11b/g/n

• Dimensions (H x W x D): 30 mm x 230mm x 130 mm(1.18 in. x 9.1

in. x 5.1 in.)

AR129CVW • WAN speed with services (IMIX): 50 Mbps

• Fixed ports: 4 x GE LAN, 1 x VDSL2, 1 x GE WAN

• Voice ports: 2 x FXS

• WLAN: 802.11ac, 802.11b/g/n

• Dimensions (H x W x D): 30 mm x 230mm x 130 mm(1.18 in. x 9.1

in. x 5.1 in.)

Both models support ﬁrewalls, call processing, and application program functionalities.

The AR100, AR120, AR150, AR160 and AR200 series includes the following models:

• AR109, AR109W, AR109GW-L

• AR129CVW, AR129CGVW-L, AR121, AR121W, AR129, AR129W

• AR151, AR151G-HSPA+7, AR157, AR157G-HSPA+7, AR157VW, AR157W, AR158E, AR158EVW

• AR161, AR161F, A R 161F-DGP, AR161FG-L, AR161FGW-L, AR161FW, AR161G-L, AR161W, AR161FV-1P,

AR162F, A R 168F, A R 169, AR169F, A R 169FVW,AR169FVW-8S, AR169FGW-L, AR169FGVW-L, AR169G-L,

AR169W, AR169CVW, AR169CVW-4B4S, AR161EW, AR169EW, AR169EGW-L, AR161EW-LM1

• AR201, AR207,AR207G-HSPA+7 and AR208E

The speciﬁcations for these models are shown in the following table.

63 Enterprise Router AR Series Products

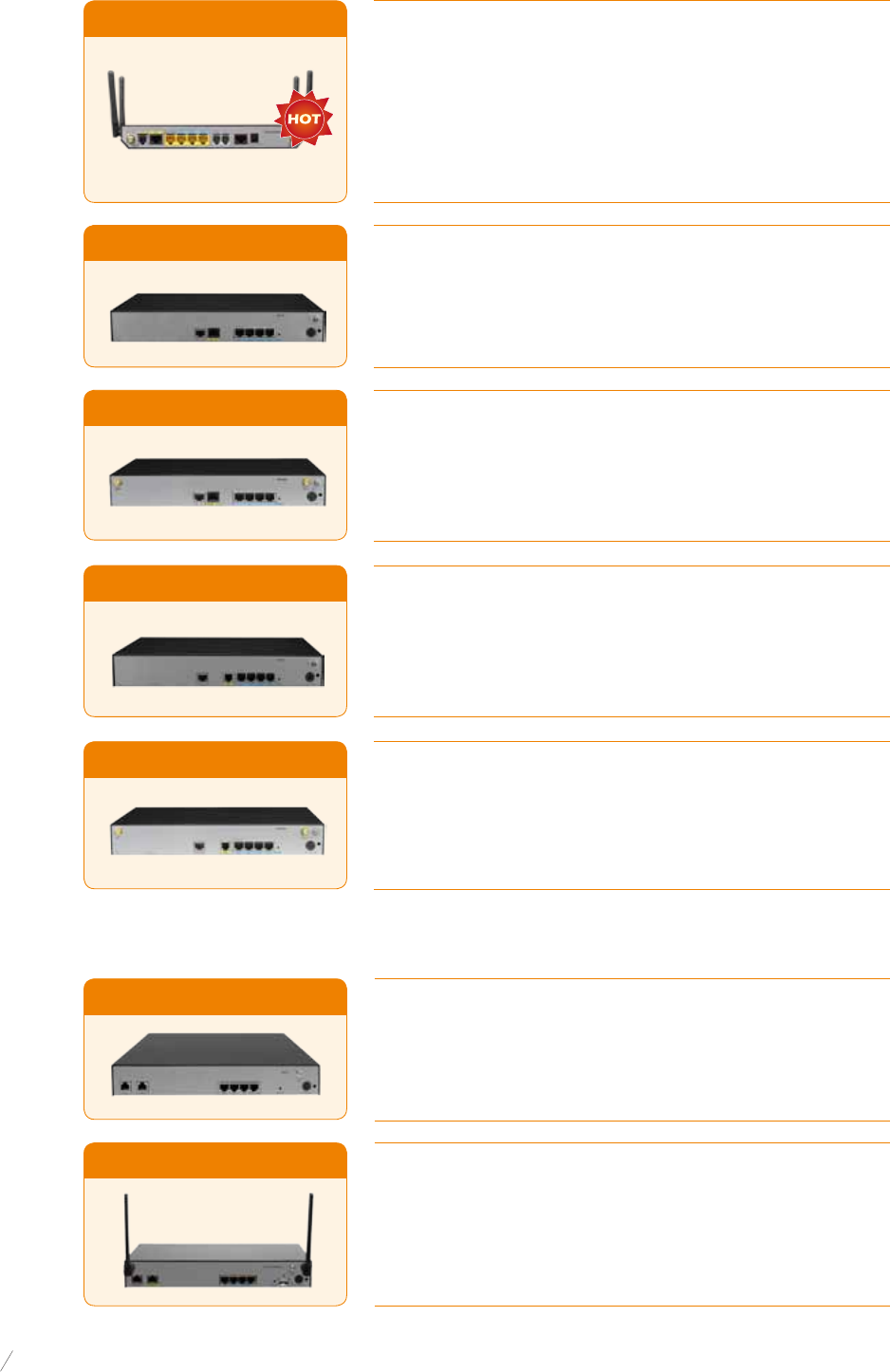

AR129CGVW-L • WAN speed with services (IMIX): 50 Mbps

• Fixed ports: 4 x GE LAN, 1 x VDSL, 1 x GE WAN

• Voice ports: 2 x FXS

• LTE: LTE FDD

• WLAN: 802.11ac, 802.11b/g/n

• Dimensions (H x W x D): 30 mm x 230mm x 130 mm(1.18 in. x 9.1

in. x 5.1 in.)

AR121 • WAN speed with services (IMIX): 50 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x FE WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR129W• WAN speed with services (IMIX): 50 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x VDSL2 WAN, 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

• WAN speed with services (IMIX): 50 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x VDSL2 WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR129

AR121W• WAN speed with services (IMIX): 50 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x FE WAN, 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

Table3: AR150 Models

AR151 • WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x FE WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

• WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x FE WAN, WCDMA HSPA+7

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR151G-HSPA+7

64

Enterprise Router AR Series Products

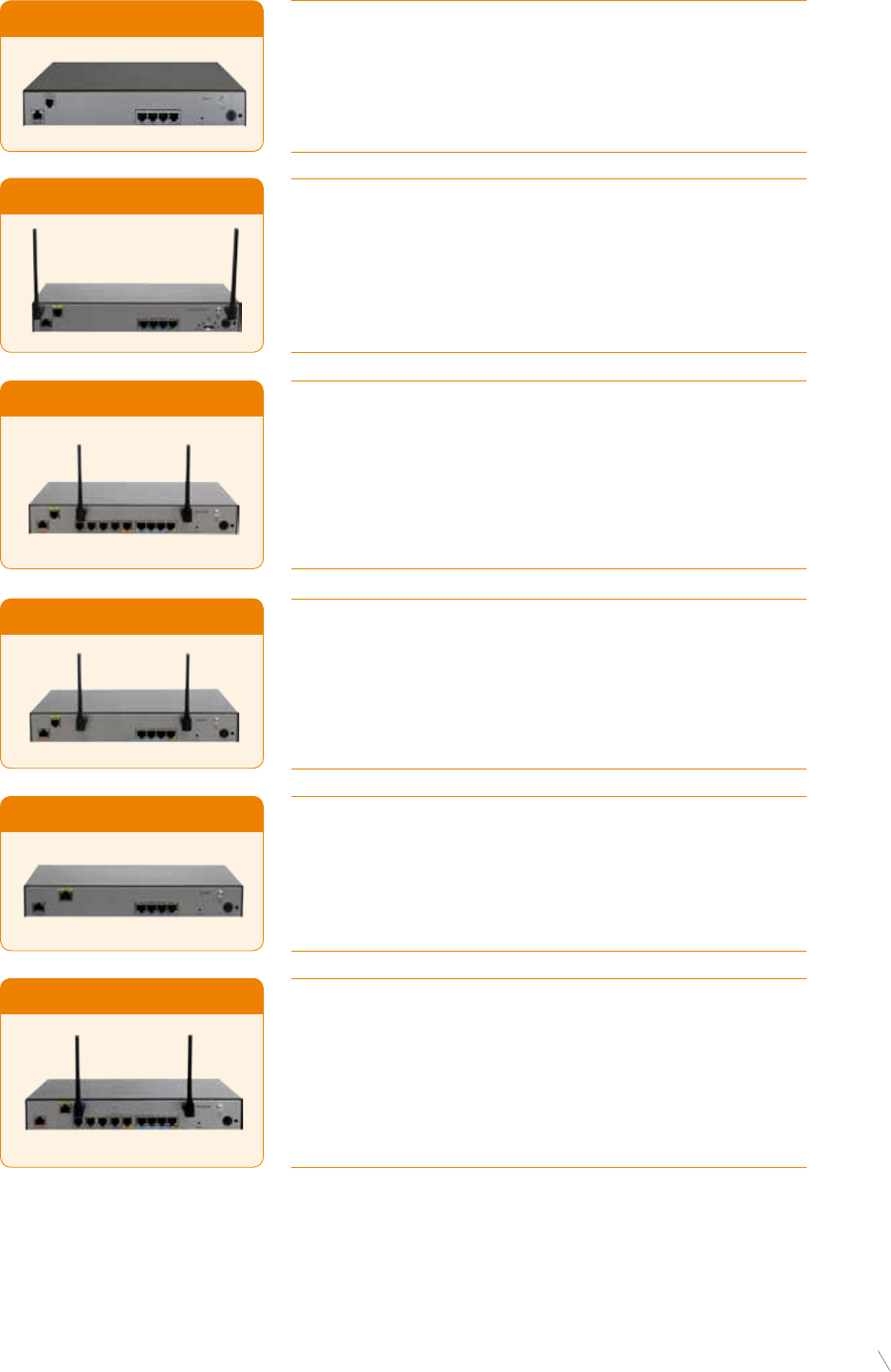

AR157 • WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x ADSL2+ Annex A/M

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR157G-HSPA+7• WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x ADSL2+ Annex A/M, WCDMA HSPA+7

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR158E• WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x G.SHDSL 4-pair

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR157W• WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x ADSL2+ Annex A/M, 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR158EVW • WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x G.SHDSL 4-pair, 802.11 b/g/n

• Fixed Voice ports: 4 x FXS, 1 x FXO

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR157VW • WAN speed with services (IMIX): 100 Mbps

• Fixed ports: 4 x FE LAN(can be conﬁgured as WAN interfaces), 1

x ADSL2+ Annex A/M, 802.11 b/g/n

• Fixed Voice ports: 4 x FXS, 1 x FXO

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

65 Enterprise Router AR Series Products

Table4: AR160 Models

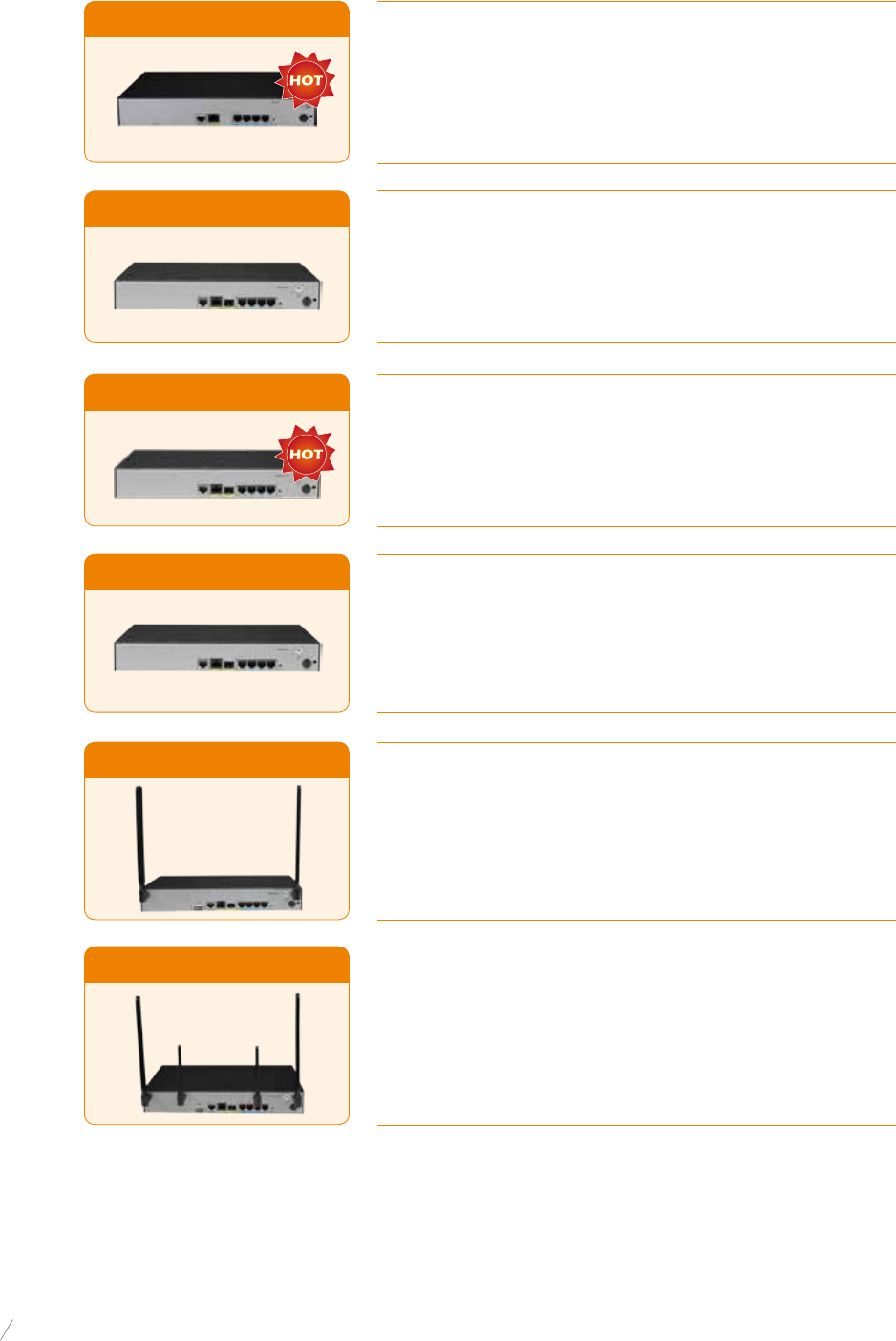

AR161 • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR161F

AR161F-DGP

• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR161FGW-L • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN, FDD LTE, 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR161FG-L

• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN, FDD LTE

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR161FW • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN, 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

66

Enterprise Router AR Series Products

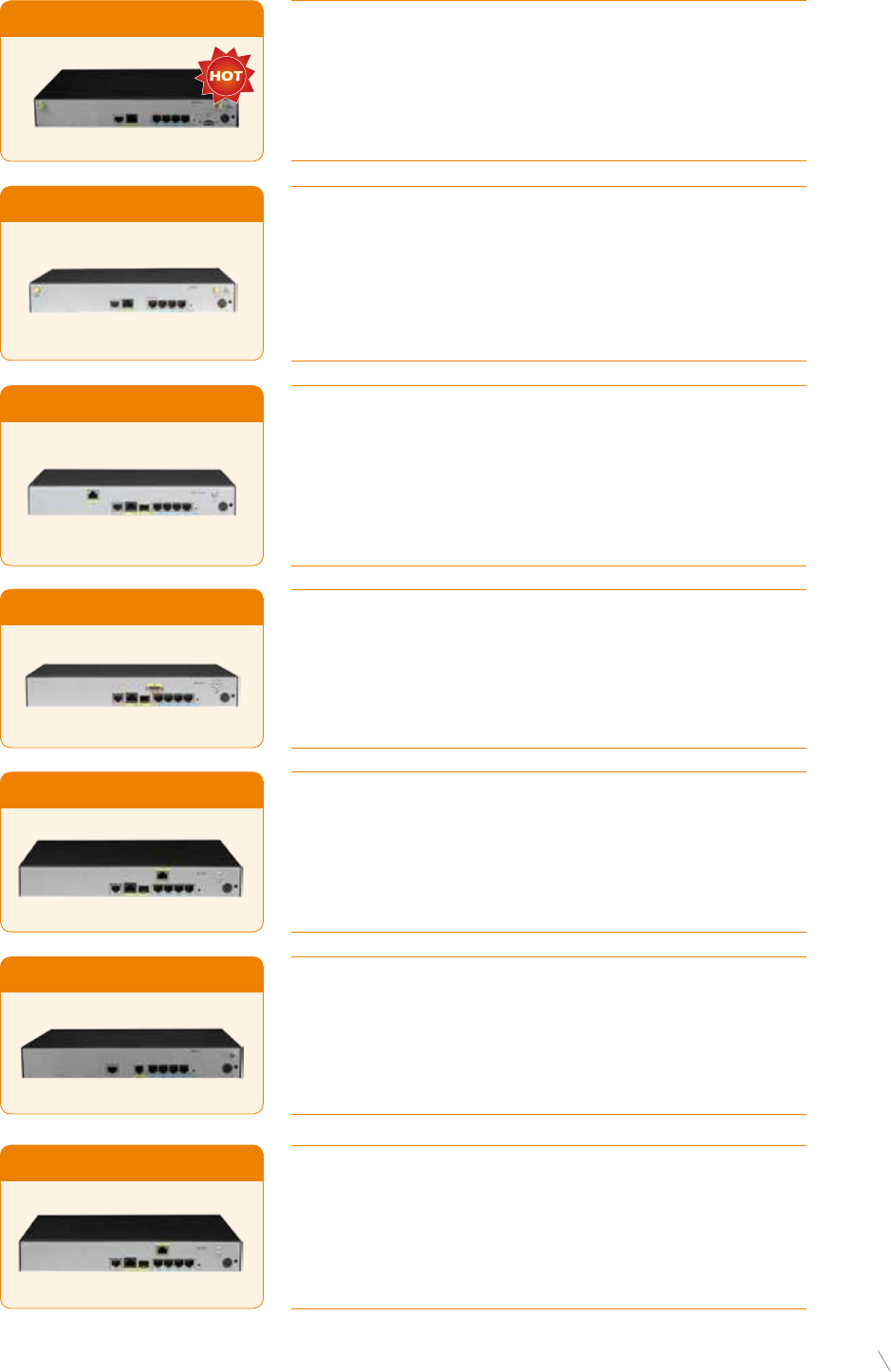

AR161W• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE WAN, 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

• Cloud-managed

AR161FV-1P• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN

• Fixed Voice ports: 1 x VE1

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR162F• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN, 1 x SA

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR168F• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x G.SHDSL 4-pair, 1 x GE Combo WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR169F• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x VDSL2 with bonding, 1 x GE Combo WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR169 • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x VDSL2

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR161G-L • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE WAN, FDD LTE

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

67 Enterprise Router AR Series Products

AR169FGVW-L • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces),

1 x GE Combo WAN, 1 x VDSL2 with bonding, LTE FDD, 802.11

b/g/n

• Fixed Voice ports: 4 x FXS, 1 x FXO

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR169W• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x VDSL2, 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR169G-L • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x VDSL2, FDD LTE

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR169FVW • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN, 1 x VDSL2 with bonding, 802.11 b/g/n

• Fixed Voice ports: 4 x FXS, 1 x FXO

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR169FGW-L

AR169FVW-8S

• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces),

1 x GE Combo WAN, 1 x VDSL2 with bonding, LTE FDD, 802.11

b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE Combo WAN, 1 x VDSL2 with bonding, 802.11 b/g/n

• Fixed Voice ports: 8 x FXS, 1 x FXO

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

68

Enterprise Router AR Series Products

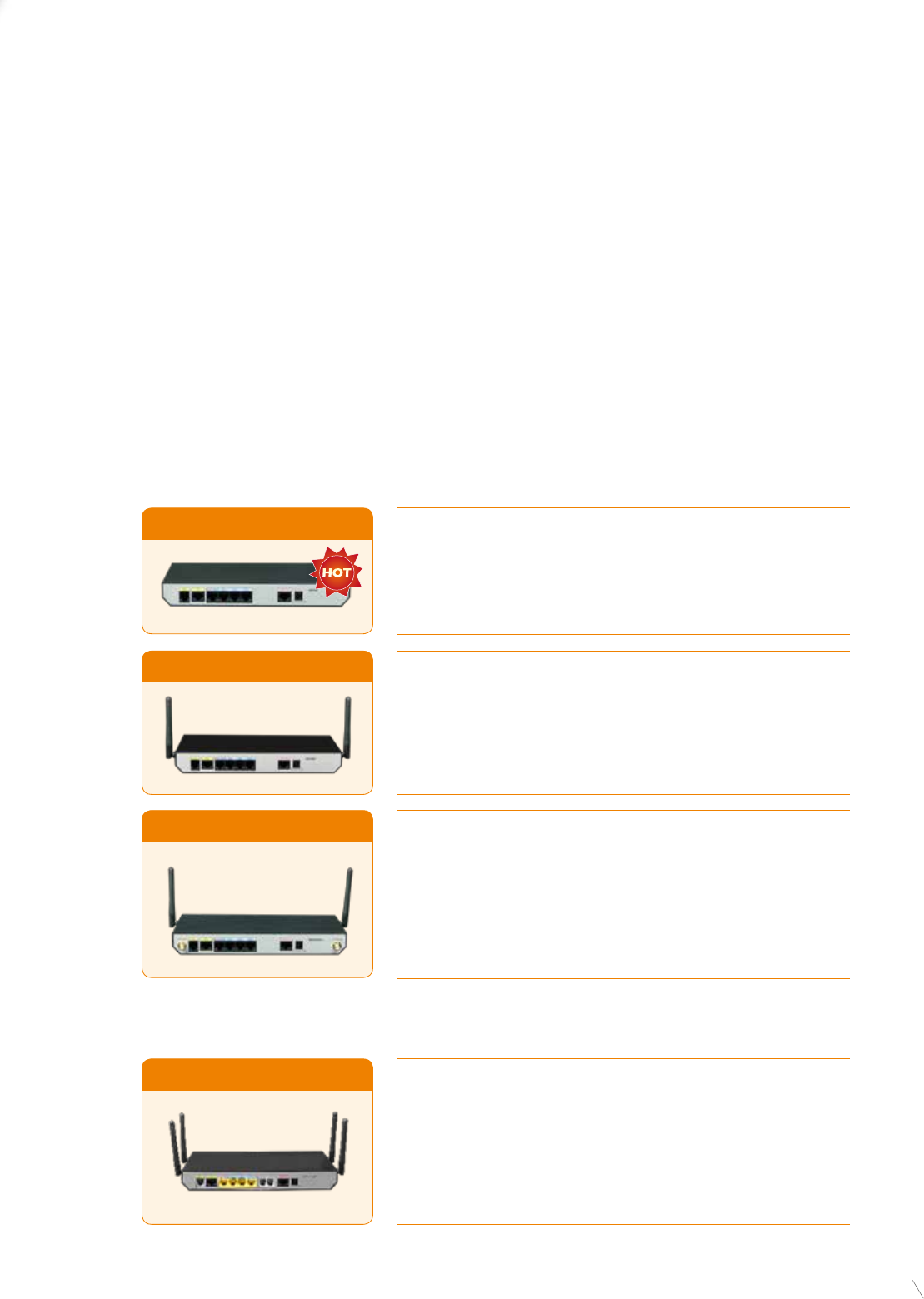

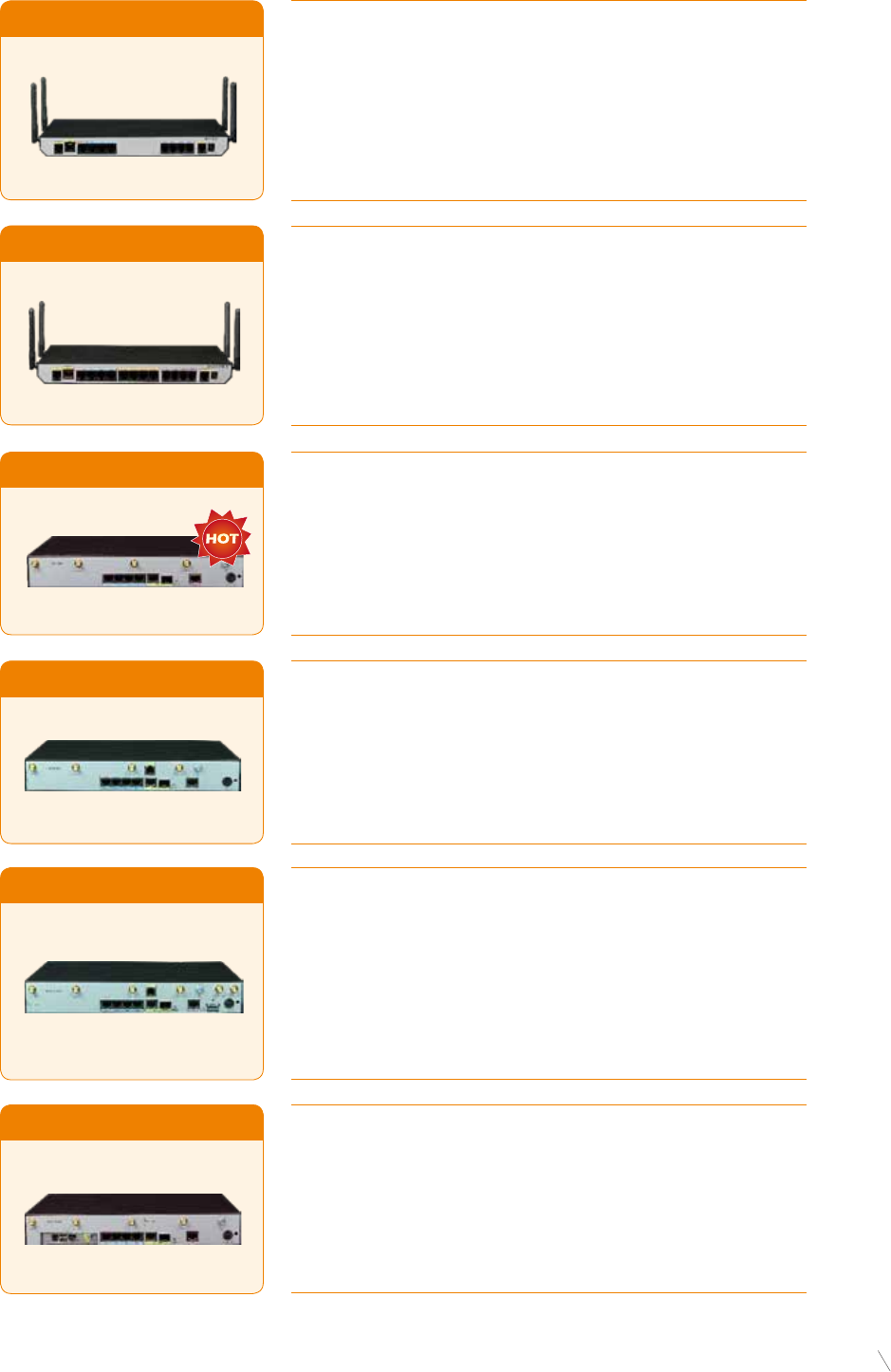

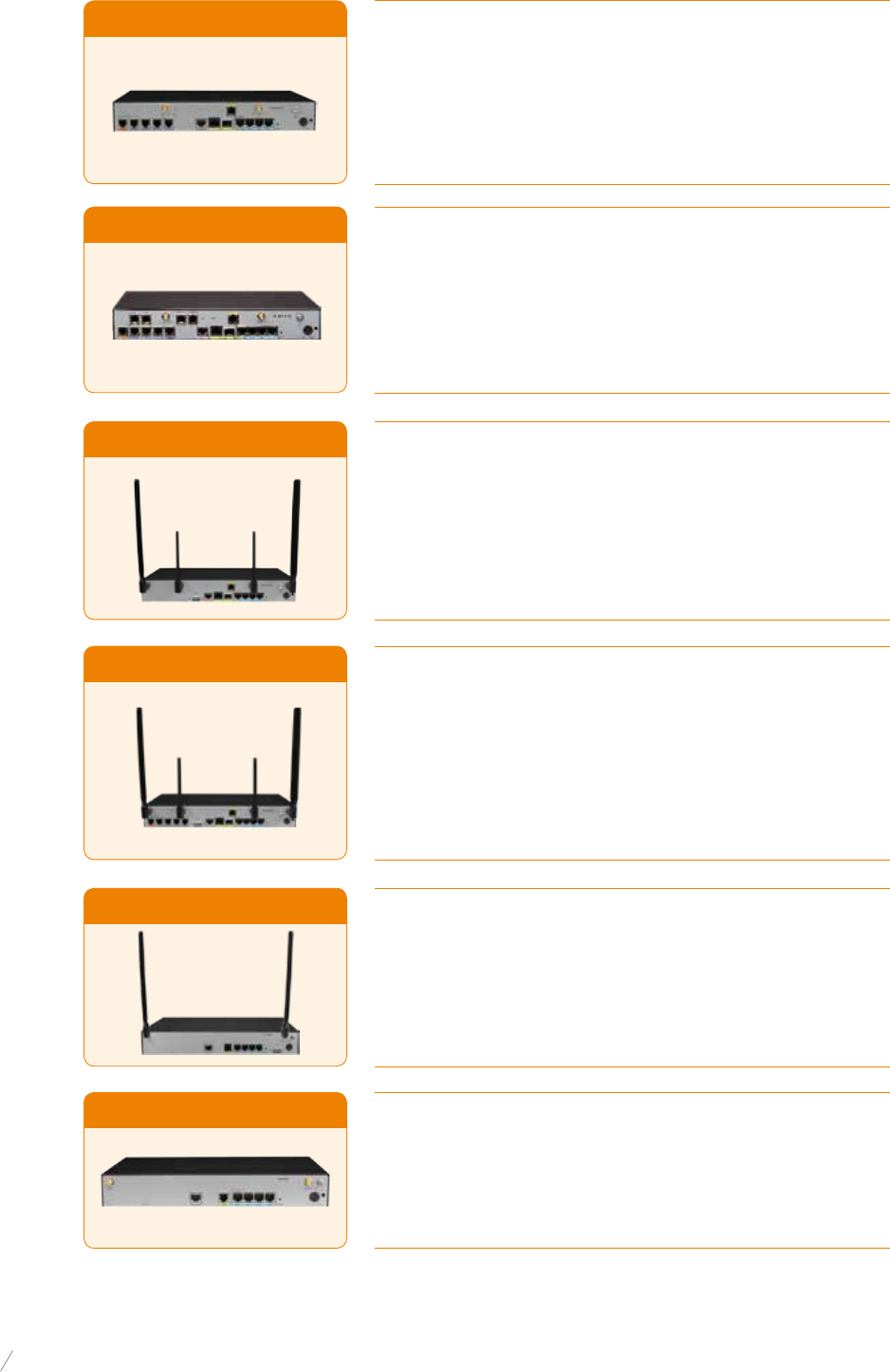

AR169CVW

AR169CVW-4B4S

AR161EW

AR169EW

AR169EGW-L

AR161EW-M1

• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE SFP, 1 x VDSL2, 802.11 ac/b/g/n

• Fixed Voice ports: 4 x FXS, 1 x FXO

• Dimensions (H x W x D): 30 mm x 270 mm x 155 mm (1.18 in. x

11.4 in. x 6.1 in.)

• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(can be conﬁgured as WAN interfaces), 1

x GE SFP, 1 x VDSL2, 802.11 ac/b/g/n

• Fixed Voice ports: 4 x ISDN BRI, 4 x FXS, 1 x FXO

• Dimensions (H x W x D): 30 mm x 270 mm x 155 mm (1.18 in. x

11.4 in. x 6.1 in.)

• WAN speed with services (IMIX): 600 Mbps

• Fixed ports: 4 x GE RJ45 LAN, 1 x GE Combo WAN

• WLAN: 802.11a/b/g/n/ac/ac wave2, 4x4:4 MU-MIMO

• Dimensions (H x W x D): 44.0 mm x 300.0 mm x 216.4 mm (1.73

in. x 11.8 in. x 8.5 in.)

• WAN speed with services (IMIX): 600 Mbps

• Fixed ports: 4 x GE RJ45 LAN, 1 x VDSL2 with Bonding, 1 x GE

Combo WAN

• WLAN: 802.11a/b/g/n/ac/ac wave2, 4x4:4 MU-MIMO

• Dimensions (H x W x D): 44.0 mm x 300.0 mm x 216.4 mm (1.73

in. x 11.8 in. x 8.5 in.)

• WAN speed with services (IMIX): 600 Mbps

• Fixed ports: 4 x GE RJ45 LAN, 1 x VDSL2 with Bonding, 1 x GE

Combo WAN

• WWAN: LTE FDD

• WLAN: 802.11a/b/g/n/ac/ac wave2, 4x4:4 MU-MIMO

• Dimensions (H x W x D): 44.0 mm x 300.0 mm x 216.4 mm (1.73

in. x 11.8 in. x 8.5 in.)

• WAN speed with services (IMIX): 600 Mbps

• Fixed ports: 4 x GE RJ45 LAN, 1 x GE Combo WAN

• WLAN: 802.11a/b/g/n/ac/ac wave2, 4x4:4 MU-MIMO

• Hard disk: 2.5-inch hard disk (optional)

• Dimensions (H x W x D): 44.0 mm x 300.0 mm x 216.4 mm (1.73

in. x 11.8 in. x 8.5 in.)

69 Enterprise Router AR Series Products

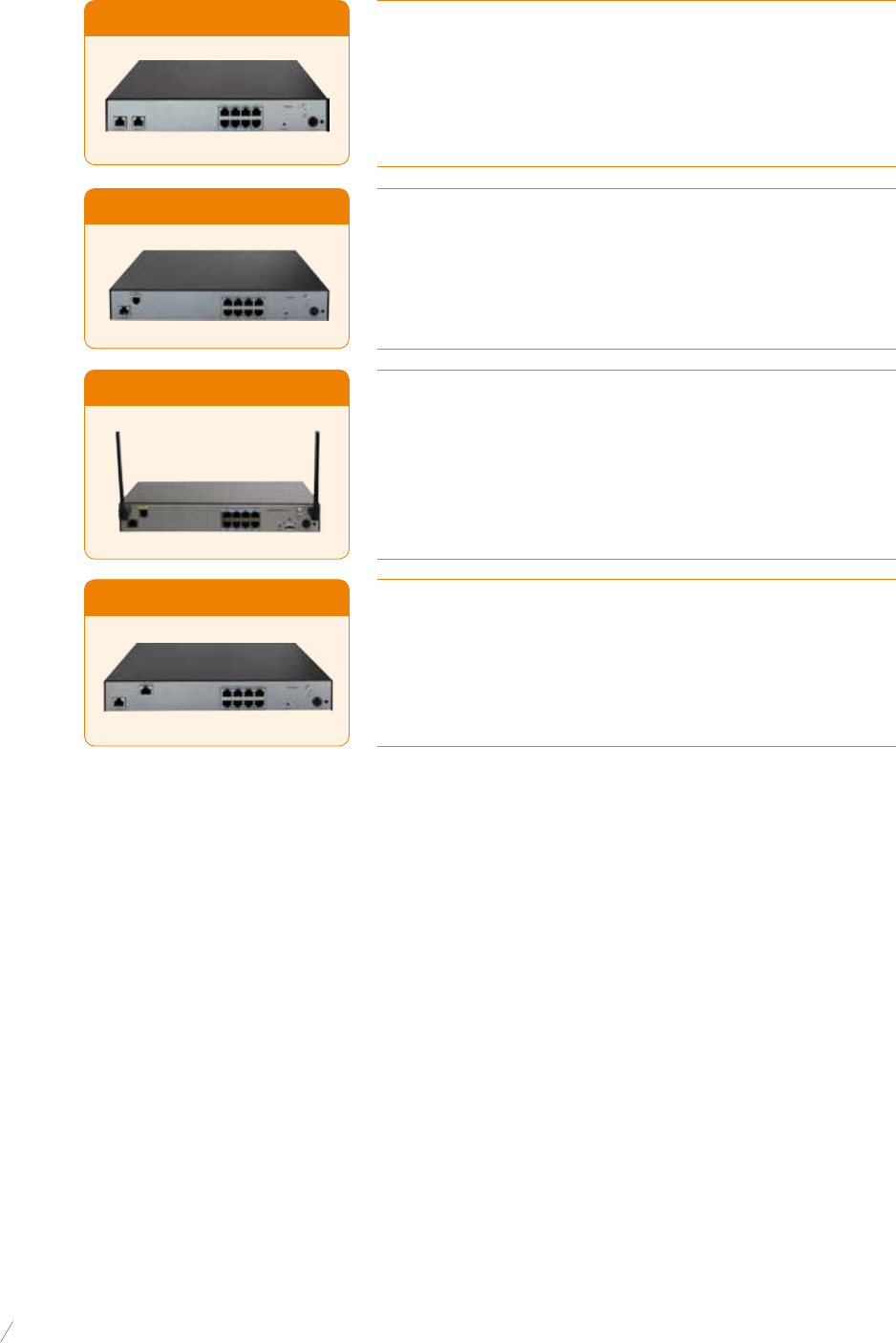

AR201 • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 8 x FE LAN(can be conﬁgured as WAN interfaces), 1

x FE WAN

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

Table4: AR200 Models

AR208E• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 8 x FE LAN(can be conﬁgured as WAN interfaces), 1

x G.SHDSL 4-pair

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR207 • WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 8 x FE LAN(can be conﬁgured as WAN interfaces), 1

x ADSL2+ Annex A/M

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR207G-HSPA+7• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 8 x FE LAN(can be conﬁgured as WAN interfaces),

WCDMA HSPA+7,

• 1 x ADSL2+ Annex A/M

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR1200 Series Enterprise Routers

Product Overview

Huawei AR1200 series enterprise routers are next-generation enterprise-class routers based on the

Huawei proprietary Versatile Routing Platform (VRP). They build on Huawei’s record of leadership in

data communication and networking to provide industry-leading system performance and scalability to

meet current and future business needs.

Huawei AR1200 Series routers are designed to provide secure and scalable unified voice and data

communications for small enterprises or large enterprise branch ofﬁces.

70

Enterprise Router AR Series Products

Product Features

Table 1: AR1200 Models

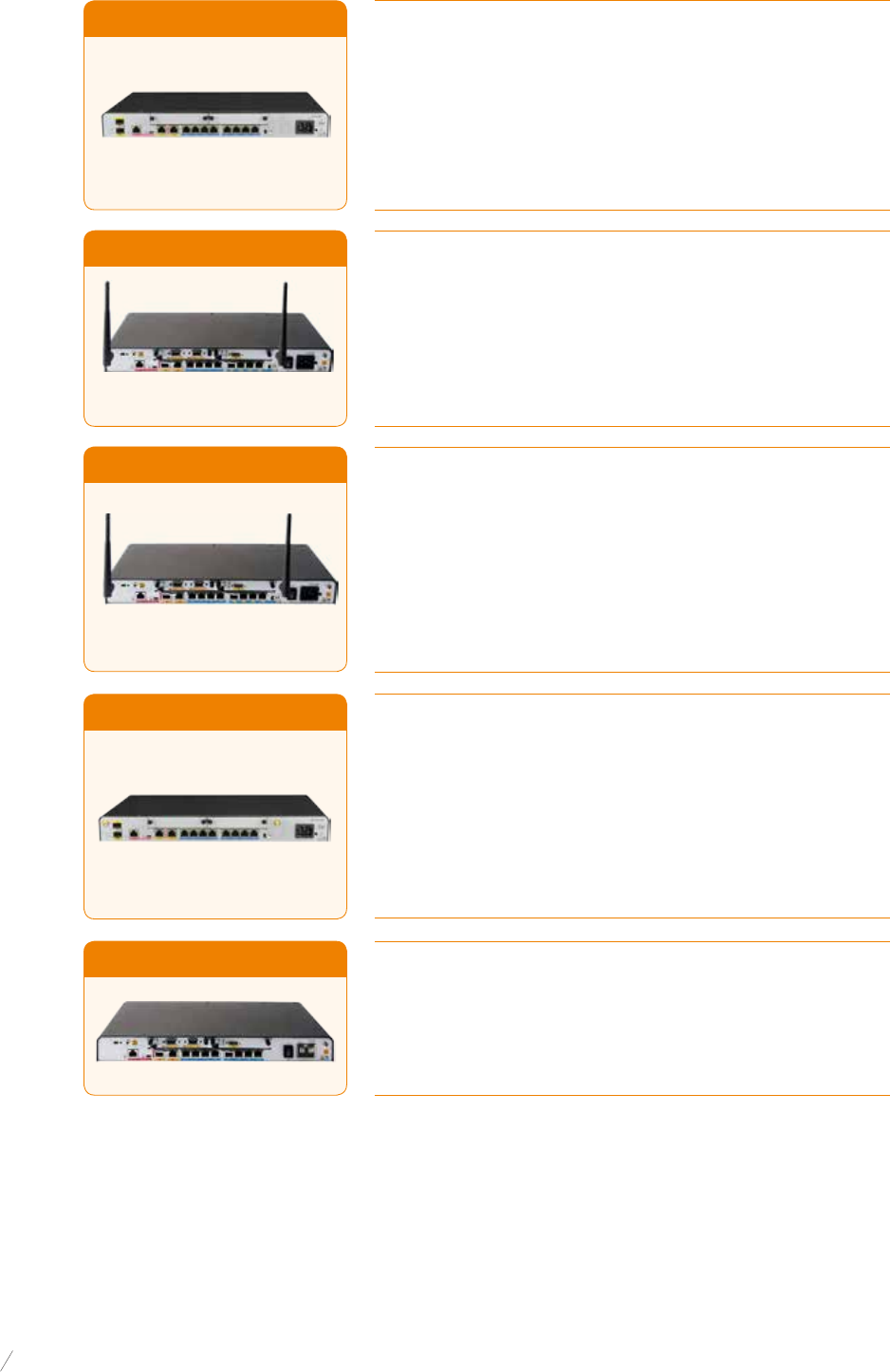

AR1220 • WAN speed with services(IMIX): 200Mbps

• Fixed port: 8xFE(can be conﬁgured as WAN interfaces), 2xGE

• Slot: 2xSIC

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220C • WAN speed with services(IMIX): 200Mbps

• Fixed port: 8xGE(can be conﬁgured as WAN interfaces), 4xGE +

1xGE SFP

• Slot: 2xSIC

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220E • WAN speed with services(IMIX): 400Mbps

• Fixed port: 8xGE(can be conﬁgured as WAN interfaces), 2xGE

Combo

• Slot: 2xSIC

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220V • WAN speed with services(IMIX): 200Mbps

• Fixed port: 8xFE(four FE ports support PoE) (can be conﬁgured

as WAN interfaces), 2xGE

• PoE: compliance with IEEE 802.3af and 802.3at

• DSP: 32 channels supported

• Slot: 2xSIC

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220F • WAN speed with services(IMIX): 400Mbps

• Fixed port：8*FE(can be conﬁgured as WAN interfaces)，

2*GE(1*Combo)

• Slot：2*SIC

• Dimensions (H x W x D):44.5mm x 390mm x 220mm

The AR1200 series integrates routing, switching, 3G service, Wireless LAN (WLAN), voice, and security

functions. The AR1200 uses an embedded hardware encryption technique and supports a voice-

optimized Digital Signal Processor (DSP). The router supports firewall security, call processing, voice

mail, and other applications. It supports wired and wireless access modes, including E1/T1, xDSL, xPON,

WiFi, 3G, and more. The AR1220V, AR1220W, AR1220VW, AR1220EV and AR1220EVW models provide

Power over Ethernet (PoE) on ﬁxed 100M Ethernet interfaces.

The AR1220 series has been qualiﬁed with Microsoft Lync server, and can be seamlessly integrated into

Microsoft uniﬁed communications solutions.

71 Enterprise Router AR Series Products

AR1220EV • WAN speed with services(IMIX): 400Mbps

• Fixed port: 8xGE(four GE ports support PoE) (can be conﬁgured

as WAN interfaces), 2XGE combo

• PoE: compliance with IEEE 802.3af and 802.3at

• DSP: 32 channels supported

• Slot: 2xSIC

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220VW • WAN speed with services(IMIX): 200Mbps

• Fixed port: 8xFE (four FE ports support PoE) (can be conﬁgured

as WAN interfaces), 2xGE

• PoE: compliance with IEEE 802.3af and 802.3at

• DSP: 32 channels supported

• Slot: 2xSIC

• WiFi: compliance with 802.11b/g/n

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220EVW • WAN speed with services(IMIX): 400Mbps

• Fixed port: 8xGE(four GE ports support PoE) (can be conﬁgured

as WAN interfaces), 2XGE combo

• PoE: compliance with IEEE 802.3af and 802.3at

• DSP: 32 channels supported

• Slot: 2xSIC

• WiFi: compliance with 802.11b/g/n

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220W • WAN speed with services(IMIX): 200Mbps

• Fixed port: 8xFE (four FE ports support PoE) (can be conﬁgured

as WAN interfaces), 2xGE

• PoE: compliance with IEEE 802.3af and 802.3at

• Slot: 2xSIC

• WiFi: compliance with 802.11b/g/n

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

AR1220-D • WAN speed with services(IMIX): 200Mbps

• Fixed port: 8xFE(can be conﬁgured as WAN interfaces), 2xGE

• Slot: 2xSIC

• Embedded DC power supply

• Dimensions (H x W x D): 44.5mm x 390 mm x 220 mm

The AR1200 supports optional interface cards, including; Ethernet, E1/T1/PRI/VE, synchronous/

asynchronous, ADSL2+, G.SHDSL, and VDSL, FXS and FXO, ISDN, EPON and GPON, 3G, LTE and E&M

interface cards. These cards are classiﬁed into SIC (Smart Interface Card) cards and WSIC (Double-Width

SIC) cards depending on slot type. The primary interface cards are shown and described in the table

below.

Note: For more information about interface cards, please refer to Ordering Guide.

72

Enterprise Router AR Series Products

AR2200 Series Enterprise Routers

Product Overview

The AR2200 routers are next-generation enterprise-class routers based on the Huawei proprietary

Versatile Routing Platform (VRP). These modular-chassis routers integrate routing, switching, 3G service,

LTE service, voice, and security functions. Users customize the routers by selecting the interface cards

that meet their requirements.

The AR2200 use the embedded hardware encryption technique and support a voice-optimized Digital

Signal Processor (DSP). They provide ﬁrewall security, call processing, voice mail, and other application

programs.

The AR2200 routers support wired and wireless access modes, including E1/T1, xDSL, xPON, CPOS

and 3G. Building on Huawei’s leading data communication and networking technologies, they provide

industry-leading system performance and scalability to meet current and future business needs.

With industry-leading performance, Huawei AR2200 series enterprise routers provide secure and

scalable uniﬁed voice and data communications for enterprise headquarters or branch ofﬁces.

Product Features

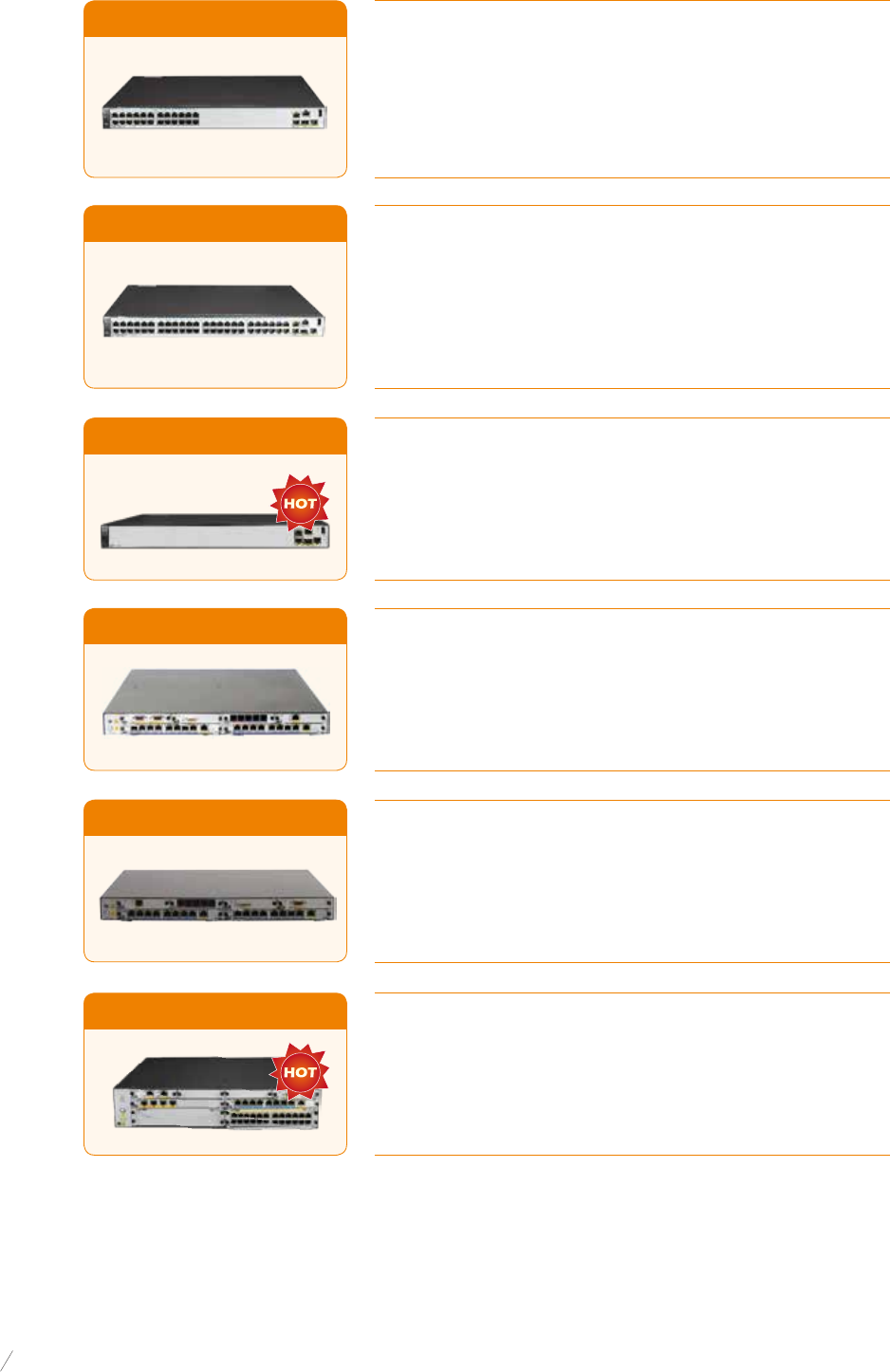

Table 1: AR2200 Models

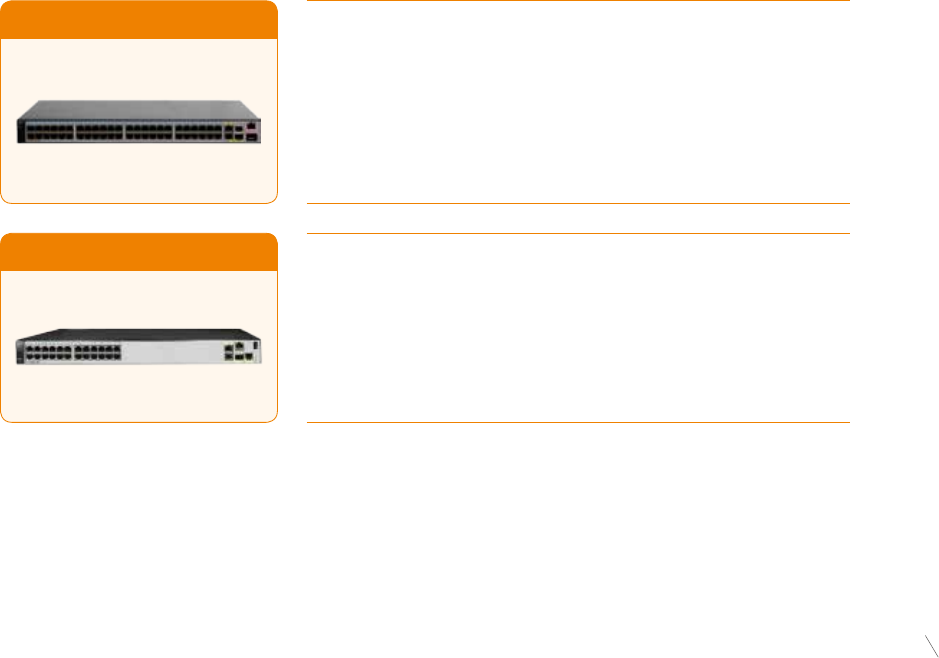

AR2201-48FE

AR2204-27GE

• WAN speed with services(IMIX): 200Mbps

• Fixed port: 2xGE (one combo port), 48xFE(FE0、FE47 can be

conﬁgured as WAN interfaces)

• Slot: 1xExpansion slot

• Dimensions (H x W x D): 44.5mm x 442mm x 310mm

• WAN speed with services(IMIX): 200Mbps

• Fixed port: 3xGE (one combo port), 24xGE

• Slot: 4xSIC

• Dimensions (H x W x D): 44.5mm x 442mm x 420mm

73 Enterprise Router AR Series Products

AR2204-27GE-P • WAN speed with services(IMIX): 200Mbps

• Fixed port: 3xGE (one combo port), 24xGE(8 GE ports support

PoE)

• PoE: compliance with IEEE 802.3af and 802.3at

• Slot: 4xSIC

• Dimensions (H x W x D): 44.5mm x 442mm x 420mm

AR2204-51GE-P • WAN speed with services(IMIX): 200Mbps

• Fixed port: 3xGE (one combo port), 48xGE(8 GE ports support

PoE)

• PoE: compliance with IEEE 802.3af and 802.3at

• Slot: 4xSIC

• Dimensions (H x W x D): 44.5mm x 442mm x 420mm

AR2220

AR2204E

• WAN speed with services(IMIX): 400 Mbps

• Fixed port: 3xGE (one combo port)

• Slot: 4xSIC + 2xWSIC

• Dimensions (H x W x D): 44.5 mm x 442 mm x 420mm

• WAN speed with services(IMIX): 200Mbps

• Fixed port: 3xGE (one combo port)

• Slot: 4xSIC

• Dimensions (H x W x D): 44.5mm x 442mm x 420mm

AR2220E

AR2240C

• WAN speed with services(IMIX): 800 Mbps

• Fixed port: 3xGE (one combo port)

• Slot: 4xSIC + 2xWSIC

• Dimensions (H x W x D): 44.5 mm x 442 mm x 420mm

• WAN speed with services(IMIX): 1Gbps

• Fixed port: 4 xGE + 4xGE SFP + 2 x GE Combo

• Slot: 4xSIC + 2xWSIC + 2xXSIC

• Dimensions (H x W x D): 88.1 mm x 442 mm x 470 mm

74

Enterprise Router AR Series Products

* Main control board model number

The AR2200 supports optional interface cards, including Ethernet, E1/T1/PRI/VE1, synchronous/

asynchronous, ADSL2+/G.SHDSL, FXS/FXO, ISDN, CPOS, EPON/GPON, 3G, LTE and E&M interface cards.

These cards are designated SIC (Smart Interface Card) cards, WSIC (Double-Width SIC) cards, or XSIC

(Double-Height WSIC) cards, depending on the number of slots they occupy.

Note: For more information about interface cards, please refer to Ordering Guide.

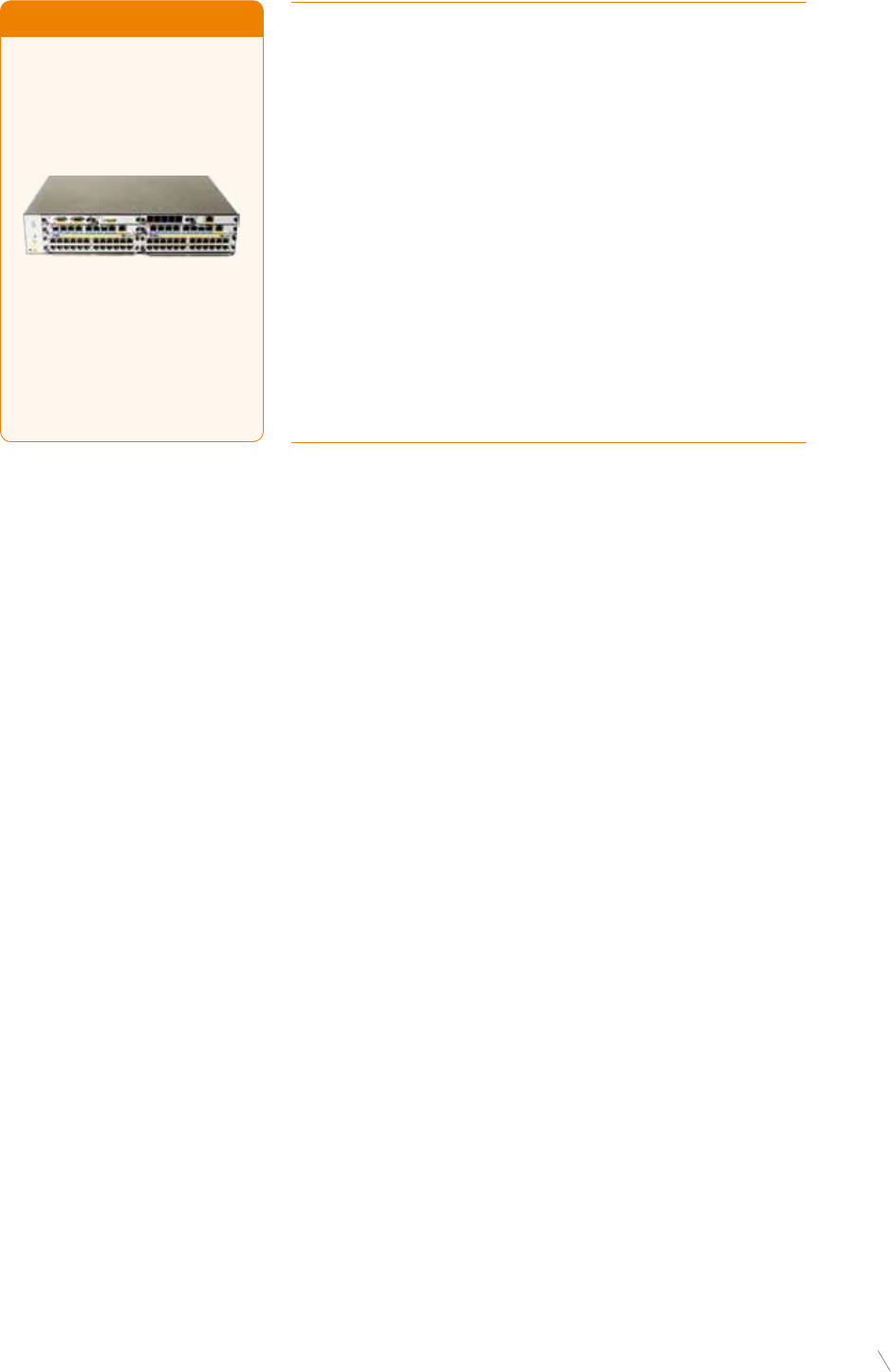

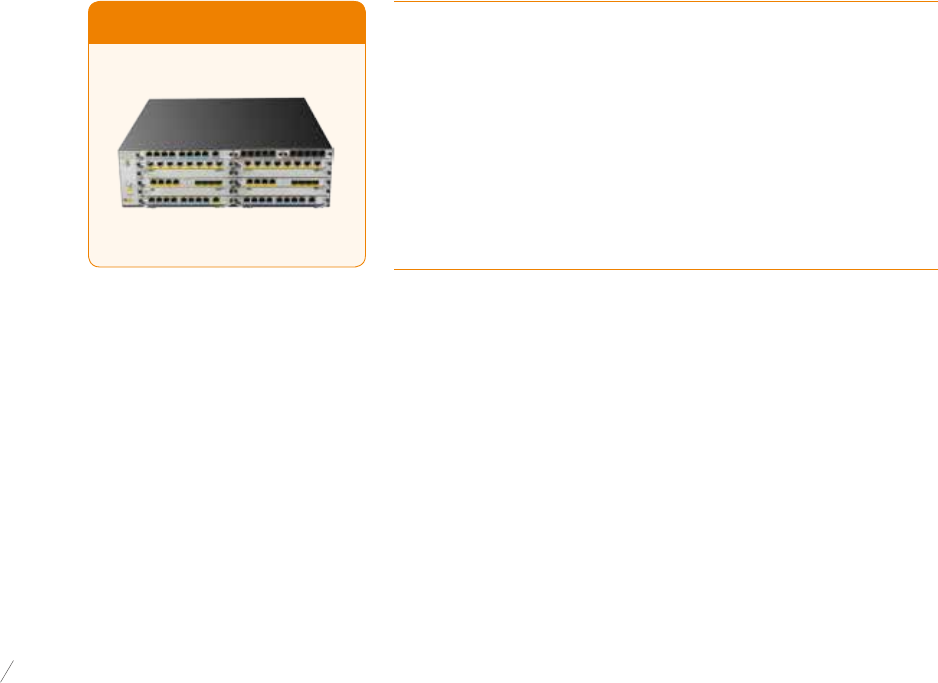

AR2240

• WAN speed with services(IMIX):

»o 1Gbps (with SRU40*)

»o 2Gbps (with SRU80*)

»o 1Gbps (with SRU100E*)

»o 4.5Gbps(with SRU200*)

• Hardware-based Trafﬁc Management (with SRU80*)

• Hardware-based HQoS (with SRU80*)

• Fixed port:

»o SRU40: 3 x GE(2 x Combo)

»o SRU80: 3 x GE(2 x Combo)

»o SRU100E: 4 x GE Combo+ 2 x GE SFP

»o SRU200: 4 x GE Combo+ 2 x 10GE SFP+

• Slot: 4xSIC + 2xWSIC + 2xXSIC

• Dimensions (H x W x D): 88.1 mm x 442 mm x 470 mm

AR3200 Series Enterprise Routers

Product Overview

The Huawei AR3200 enterprise routers are next-generation enterprise-class routers based on the

Huawei proprietary Versatile Routing Platform (VRP), which takes advantage of Huawei's leadership in

data communication, wireless, access network, and core network technologies.

The AR3200 routers integrate routing, switching, 3G,LTE, voice, and security functions. It utilizes a multi-

core CPU and non-blocking switching structure providing industry-leading system performance and

extensibility, supporting evolving service development requirements. The AR3200 routers provide an

With its ﬂexible modular design, the Huawei AR3200 series enterprise routers are designed to provide

secure uniﬁed voice and data communication with exceptional performance and scalability to meet the

demands of today's enterprise requirements.

* The 3200 series routers only has one model AR3260 now, but we will add more new models in future.

75 Enterprise Router AR Series Products

integrated solution for enterprise networks, speed up multi-service provisioning and protect customers'

investments. The modular chassis allows customers to customize the router with interchangeable

interface cards.

The AR3200 routers use embedded hardware encryption techniques and support a voice-optimized

Digital Signal Processor (DSP). It supports firewall functions, call processing, voice mail, and other

applications. The AR3200 routers support wired and wireless access modes, including E1/T1, xDSL,

xPON, CPOS, 3G, and LTE.

* Main control board model number

The AR3200 routers support optional interface cards, including Ethernet, E1/T1/PRI/VE1, synchronous/

asynchronous, ADSL2+/G.SHDSL, ISDN, CPOS, EPON/GPON 、 FXS/FXO voice cards, 3G, LTE and E&M

interface cards. They are available in the following formats: SIC (Smart Interface Card), WSIC (Double-

Width SIC), and XSIC (Double-Height WSIC), depending on the number of slots available. The supported

interface cards are described below.

Note: For more information about interface cards, please refer to Ordering Guide.

• WAN speed with services(IMIX):

»1Gbps (with SRU40*)

»2Gbps (with SRU80*)

»1Gbps (with SRU100E*)

»4.5 Gbps(SRU200*)

»5.5 Gbps (SRU400*)

• Hardware-based Trafﬁc Management (with SRU80, SRU200*

and SRU400*)

• Hardware-based HQoS (with SRU80, SRU200* and SRU400*)

• Fixed port:

»SRU40: 3 x GE(2 x Combo)

»SRU80: 3 x GE(2 x Combo)

»SRU100E: 4 x GE Combo+ 2 x GE SFP

»SRU200: 4 x GE Combo+ 2 x 10GE SFP+

»SRU400: 4 x GE Combo+ 2 x 10GE SFP+

• Slots: 4*SIC + 2*WSIC + 4*XSIC

• Dimensions (H x W x D): 130.5 mm x 442 mm x 470 mmv

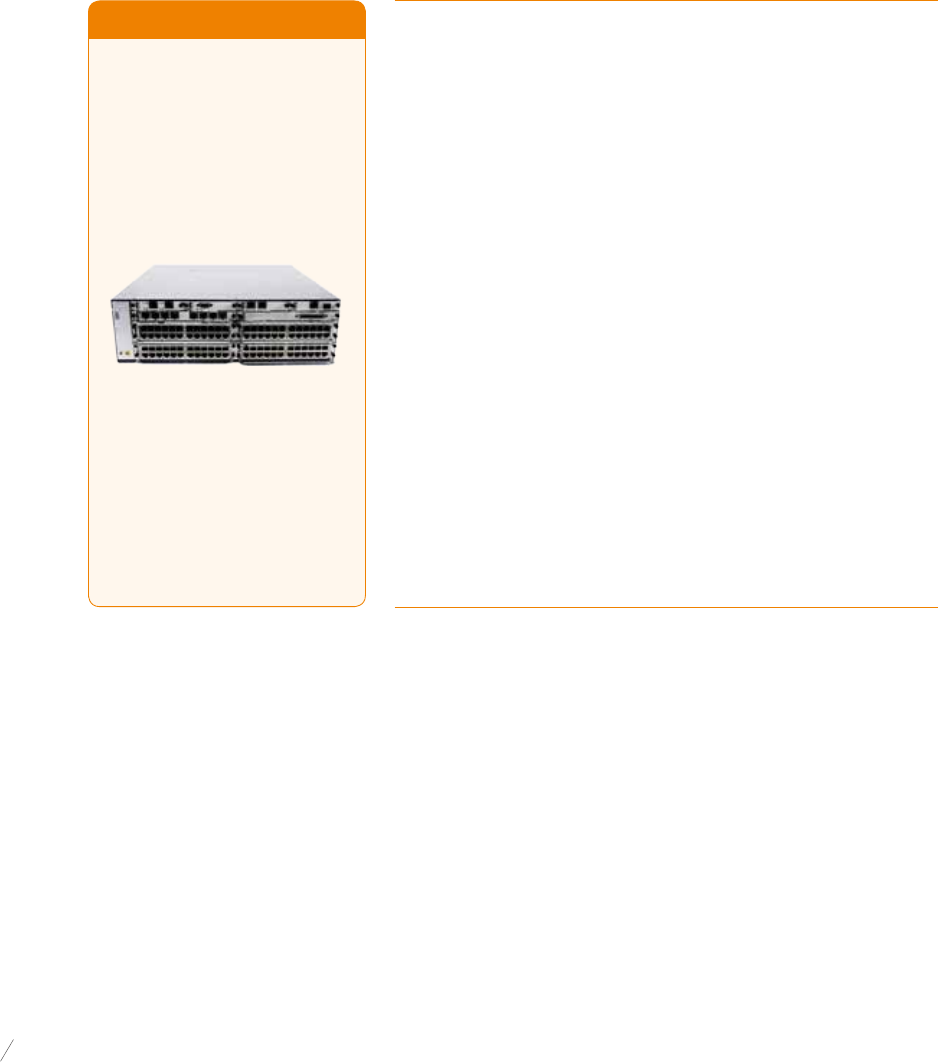

AR3260

Product Features

Table 1: AR3200 Models

76

Enterprise Router AR Series Products

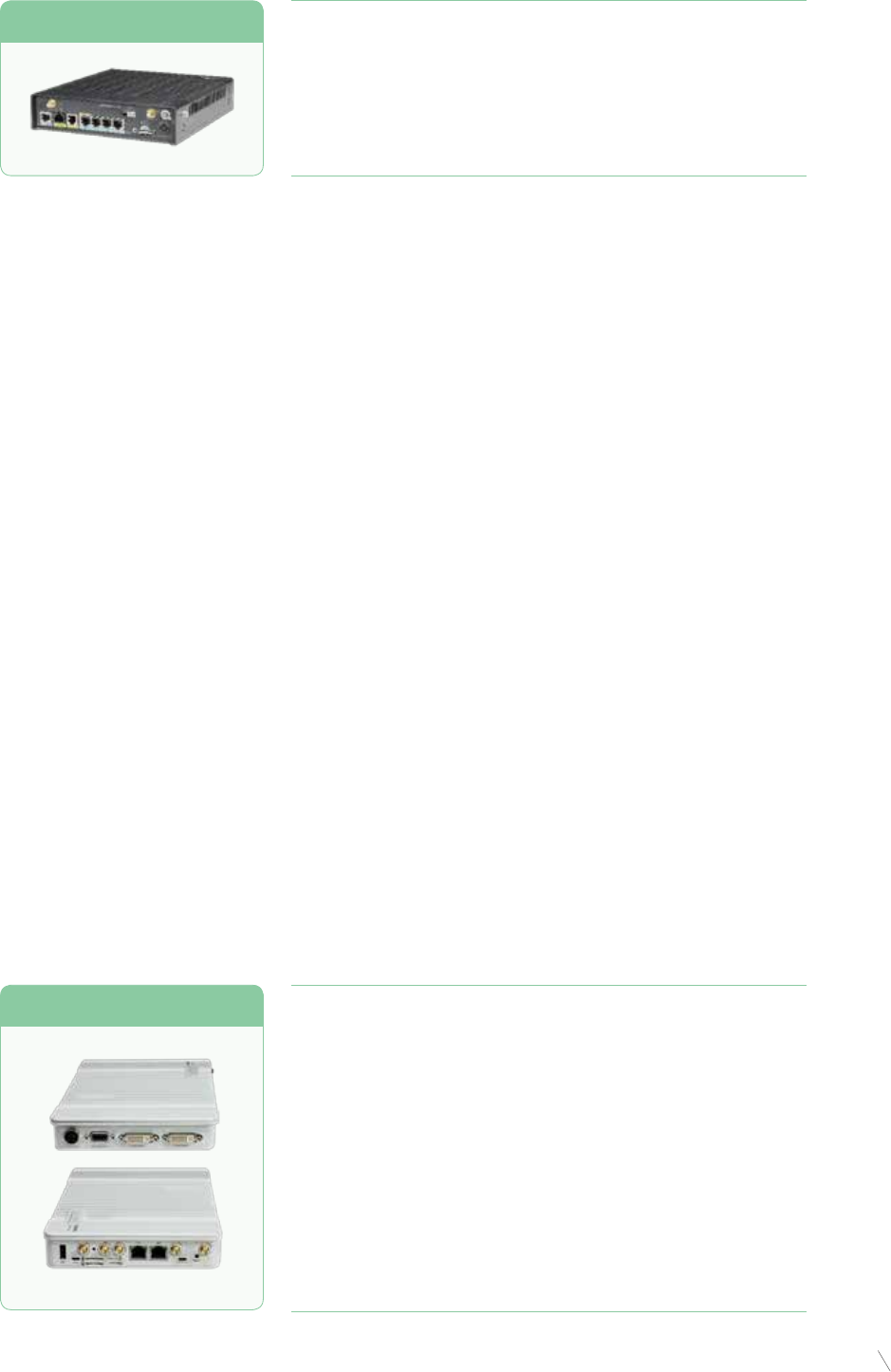

AR3670

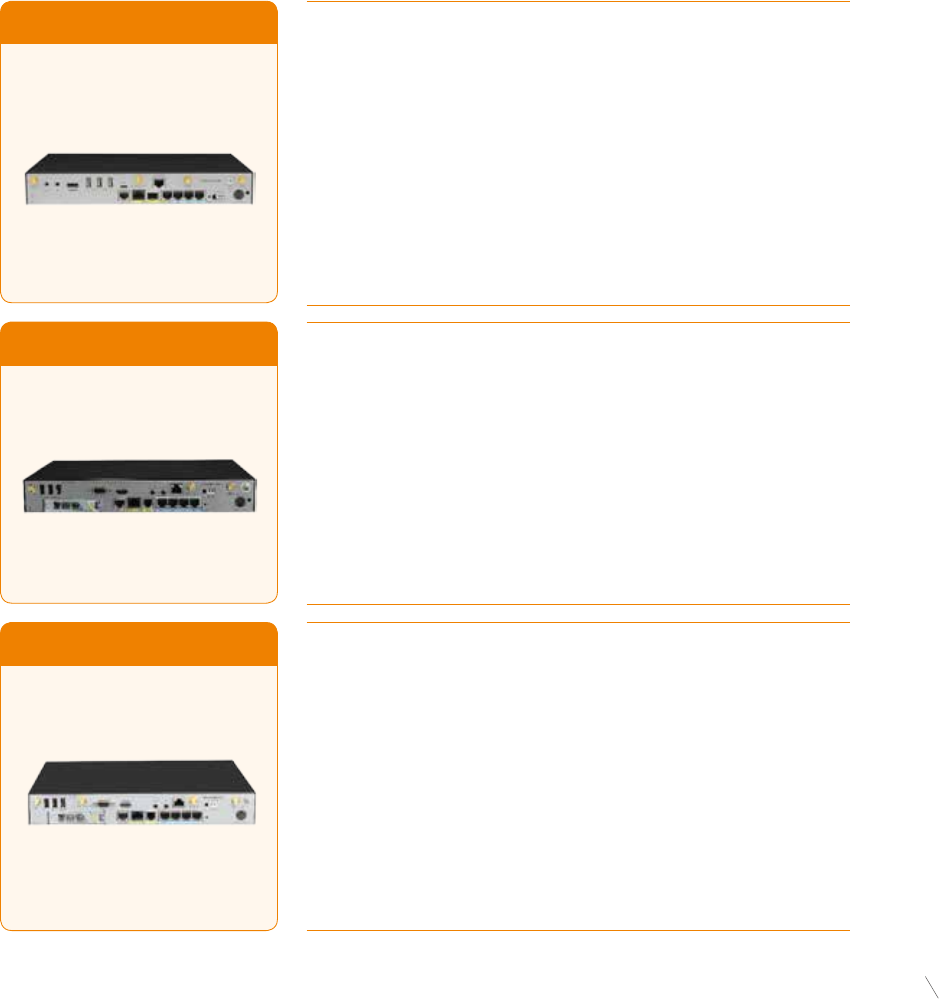

AR160-M Series Enterprise Routers

Product Overview

The AR160-M has three models: AR161FW-P-M5, AR169W-P-M9 and AR169RW-P-M9. The speciﬁcations

for these models are shown in the following table.

The Huawei AR160-M series Agile Enterprise Gateway integrates a comprehensive set of services,

including routing, switching, security, and wireless access. With an open service platform, the AR160-M

can provide computing, storage and network connection functions in one device. The AR160-M is

designed to provide ICT solutions for enterprise branch offices and small businesses, which enables

customers to launch new applications and solutions quickly.

AR161FW-P-M5• WAN speed with services (IMIX): 150 Mbps

• Fixed ports: 4 x GE LAN(PoE),

»1 x GE Combo WAN

»1 x RS485/RS232/RS422

»4 x USB

»1 x HDMI

»1 x 3.5mm Audio Output (Earphone)

»1 x 3.5mm Audio input(MIC)

»1 x Bluetooth

»1 x Zigbee

• 802.11 b/g/n

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

Product Features

AR169W-P-M9• WAN speed with services (IMIX): 150Mbps

• Fixed ports：4 x GE LAN(PoE)

»1 x GE WAN,1 x VDSL2

»1 x RS485/RS232/RS422

»4 x USB

»1 x HDMI, 1 x VGA

»1 x 3.5mm Audio Output (Earphone)

»1 x 3.5mm Audio input(MIC)

»1 x Bluetooth

• 802.11 b/g/n + 802.11ac

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

AR169RW-P-M9• WAN speed with services (IMIX): 150Mbps

• Fixed ports：4 x GE LAN(PoE)

»1 x GE WAN,1 x VDSL2

»1 x RS485/RS232/RS422

»4 x USB

»1 x HDMI, 1 x VGA

»1 x 3.5mm Audio Output (Earphone)

»1 x 3.5mm Audio input(MIC)

»1 x Bluetooth

»1 x Zigbee

• 802.11 b/g/n + 802.11ac

• Dimensions (H x W x D): 44.5 mm x 300 mm x 220 mm (1.75 in. x

11.8 in. x 8.66 in.)

77 Enterprise Router AR Series Products

AR3600 Series Enterprise Routers

Product Overview

The AR3600 series agile enterprise gateway uses the multi-core processor, fully meets customer

requirements on the performance, delay, reliability, and security, and guarantees continuous

performance improvement and software application extension. With the built-in X86 platform, the

AR3600 has great flexibility and is able to support virtualization. By integrating third-party network

applications, the AR3600 provides more diversiﬁed services.

The following describes the AR3670 appearance and speciﬁcations.

Enterprises require better services in addition to simple connections. As there are increasing

requirements of customization services, enterprises require a more agile service gateway to provide high

performance and multiple functions as well as develop new services. This poses higher requirements for

traditional gateway products.

As the core product in Huawei Agile Branch Solution, the AR3600 uses virtualization technology for the

ﬁrst time to implement deep IT and CT integration and achieve convergence and sharing of network and

IT resources. The AR3600 helps enterprises quickly launch new applications and solutions and provides

enterprises with better services.

The AR3600 series agile enterprise gateway uses the modular design, and can be equipped with cards

of AR G3 series routers, protecting investments. Using various universal network interface cards, the

AR3600 can simplify the branch configuration and allow easy expansion of large-scale enterprise

networks.

Note: For the detailed card information, see order information

• Forwarding performance: 4.5Gbit/s

• Slot: 2*SIC + 7*WSIC

• Processor: 6*2.2 GHz Intel processor

• Built-in hard disk: 1TB

• Memory: 24 GB (max.)

• 1+1 redundancy of power modules

• Dimensions (H x W x D): 130.5 mm x 442 mm x 470 mm

Product Features

AR501 Series Agile Gateway..................................................................................79

AR502 Series Agile Gateways...............................................................................81

AR503 Series Agile Gateways...............................................................................82

AR509 Series Agile Gateway.................................................................................83

AR510 Series Agile Gateways...............................................................................84

AR530 Series Agile Gateways...............................................................................85

AR550 Series Agile Gateways...............................................................................87

AR2500 Series Agile Gateways.............................................................................88

6IoT Gateways

AR Series Products

79 IoT Gateways AR Series Products

AR501 Series Agile Gateway

Product Overview

The AR501 series agile gateway is designed for industrial environments and supports communication in

harsh environments such as extreme temperature, high humidity, and electromagnetic interference. The

built-in industrial-grade communication module can support various local interfaces (PLC-IoT, RS485/

RS422, RS232, Gigabit Ethernet and RF 6LoWPAN) for connecting serial interface devices, Ethernet

devices. It can support AR530s or AR532 to complete the data communication channel switching,

suitable for the applications where the space is limited and requires only transparent data transmission.

The AR501 Series comes in four models: AR501C1Pa, AR501L1Rc, and AR501Rz.

80

IoT Gateways AR Series Products

AR501C1Pa

AR501L1Rz

AR501L1Rc

AR501L1Rb*

• Fixed interfaces: RS485*1, DI*1, IRDA*1

• Support Huawei Broadband PLC

• IP51, dustproof, waterproof

• works at temperatures from -25°C to +70°C

• Communication mode:

• IEEE802.15.4 (ZigBee, 2400 MHz to 2483.5 MHz)

• Operating temperature: –40°C to +65°C

• Encryption mode: AES-128

• Compliance with ANSI C136.41-2013

• IP66 except for bottom side

• D= 83.5, H = 119, Cylinder-shaped (D: diameter, H: height)

• Communication mode:

• IEEE802.15.4 (RF 6LoWPAN, 433.8Mhz/433.05Mhz-434.79Mhz)

• Operating temperature: –40°C to +65°C

• Encryption mode: AES-128

• Compliance with ANSI C136.41-2013

• IP66 except for bottom side

• D= 83.5, H = 119, Cylinder-shaped (D: diameter, H: height)

• Communication mode:

• IEEE802.15.4 (RF 6LoWPAN, 868MHz/915MHz)

• Operating temperature: –40°C to +65°C

• Encryption mode: AES-128

• Compliance with ANSI C136.41-2013

• IP66 except for bottom side

• D= 83.5, H = 119, Cylinder-shaped (D: diameter, H: height)

* AR501L1Rb will be supported in a future release.

81 IoT Gateways AR Series Products

AR502 Series Agile Gateways

Product Overview

The AR502 series agile gateway is designed for industrial environments and supports communication in

harsh environments such as extreme temperature, high humidity, and electromagnetic interference. The

built-in industrial-grade LTE module supports high bandwidth, low-latency wireless access, and various

local interfaces (RS485/RS422, RS232, Gigabit Ethernet and radio-frequency ) for connecting serial

interface devices, Ethernet devices. The AR502 applies to multiple IoT fields, such as smart grid and

smart transportation.

The AR502 Series comes in four models: AR502EG-L, AR502EGW-L, AR502EGRb-L and AR502CG-L.

AR502EG-L

AR502EGW-L

AR502EGRb-L

• Fixed interfaces: 2 x GE RJ45, 1 x RS485/422, 1 x RS232, and 6 x

digital input/output (DI/DO), 1 x USB2.0

• LTE: LTE FDD

• Operating temperature: –25oC to +70oC

• Dimensions (W x D x H): 150 mm x 100 mm x 44 mm

• Power supplies: DC: 8 V to 36 V

• Fixed interfaces: 2 x GE RJ45, 1 x RS485/422, 1 x RS232, and 6 x

digital input/output (DI/DO), 1 x USB2.0

• LTE: LTE FDD

• WLAN: 802.11b/g/n

• Operating temperature: –25oC to +70oC

• Dimensions (W x D x H): 150 mm x 100 mm x 44 mm

• Power supplies: DC: 8 V to 36 V

• Fixed interfaces: 2 x GE RJ45, 1 x RS485/422, 1 x RS232, and 6 x

digital input/output (DI/DO), 1 x USB2.0

• LTE: LTE FDD

• Radio-frequency (RF): 915MHz/868MHz*

• Operating temperature: –25oC to +70oC

• Dimensions (W x D x H): 150 mm x 100 mm x 44 mm

• Power supplies: DC: 8 V to 36 V

Product Features

82

IoT Gateways AR Series Products

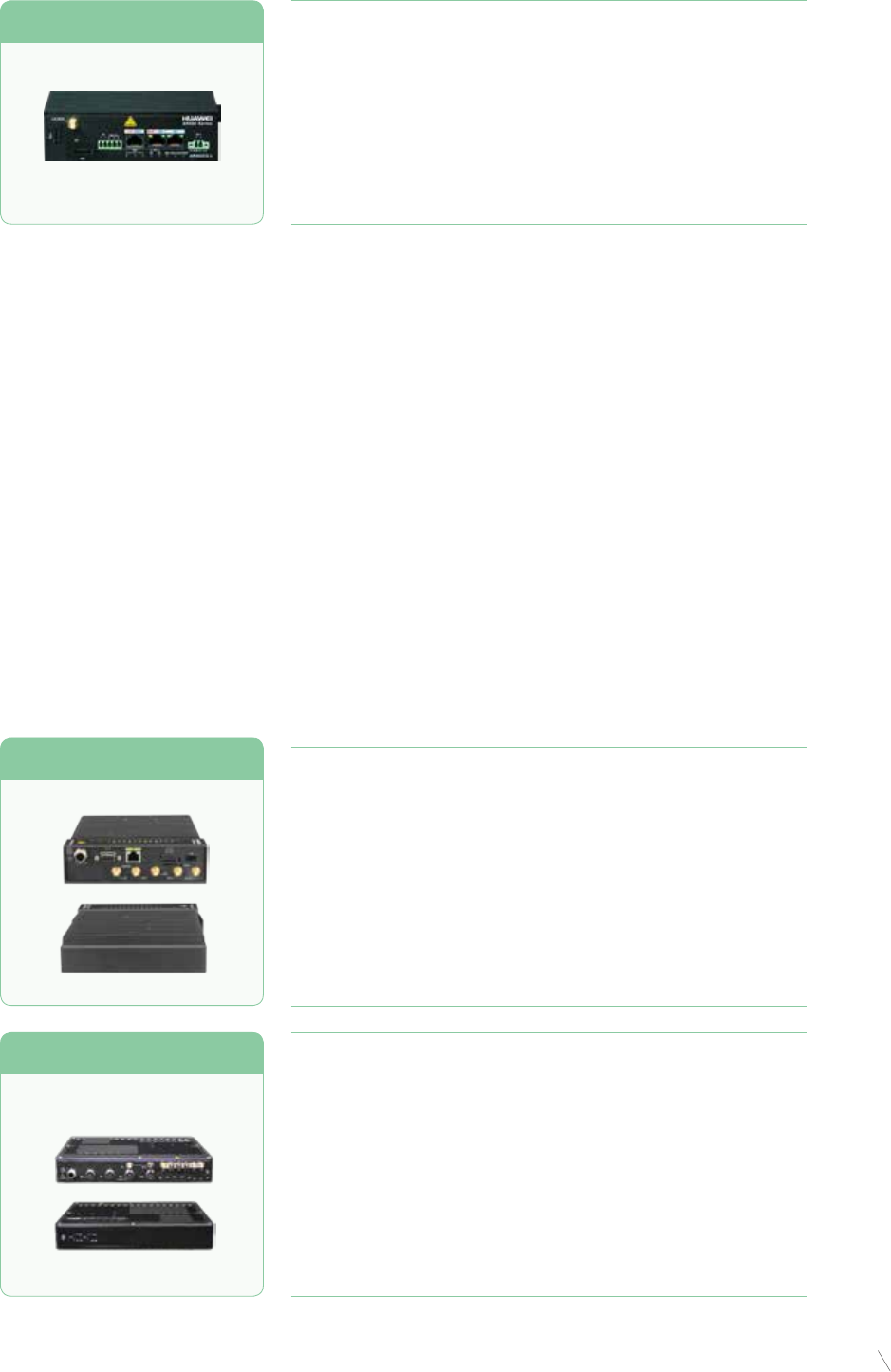

AR502CG-L

• Fixed interfaces: 2 x GE RJ45, 1 x RS232, 1 x DI, 1 x DO, 1 x USB2.0

• LTE: LTE FDD

• Operating temperature: –25oC to +60oC

• Dimensions (W x D x H): 150 mm x 100 mm x 44 mm

• Power supplies: DC: 8 V to 36 V

AR503 Series Agile Gateways

Product Overview

HUAWEI AR503 series agile gateway, is designed to work in harsh environments. It provides a rapidly

deployable, highly available, reliable, and secure solution into the Internet of Things (IoT) applications for

vehicles (bus, train, police car, and ambulance) scenarios.

The AR503 series is available in four models: AR503GW-LM7, AR503EDGW-Lc, AR503EQGW-L and

AR503EW.

* 868MHz RF is hardware-ready. Software supported in a future release.

AR503GW-LM7

AR503EDGW-Lc

• Fixed interfaces: 1 x GE, 1 USB HOST

• FDD/TDD LTE (1*LTE module, 2*SIM slots)

• Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO, 802.11a/

b/g/n

• GPS

• IP41, Waterproof and dustproof

• Dimensions (W x D x H): 200 mm x 160 mm x 44 mm

• Fixed interfaces: 4 x GE(M12), 1 USB HOST

• FDD/TDD LTE (2*LTE module, 4*SIM slots)

• Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 3x3 MIMO, 802.11b/g/n

+ 802.11ac

• GPS

• IP54, Waterproof and dustproof

• Dimensions (W x D x H): 280 mm x 200 mm x 44 mm

Product Features

83 IoT Gateways AR Series Products

AR509 Series Agile Gateway

Product Overview

HUAWEI AR509 series agile gateway, is designed to work in harsh environments. It provides a rapidly

deployable, highly available, reliable, and secure solution into the Internet of Things (IoT) applications

for finance, energy, and electric power industries, telemetry, retail, and other industrial automation

scenarios.

The AR509 series is available in the models: AR509G-L-D-H and AR509GW-L-D-H.

AR509G-L-D-H

• Fixed interface: 1xGE WAN , 4xGE LAN, 1xVDSL2

• FDD LTE (dual SIM slots)

• IP41, Waterproof and dustproof

• Dimensions (W x D x H): 190 x 220 x 44 mm

Product Features

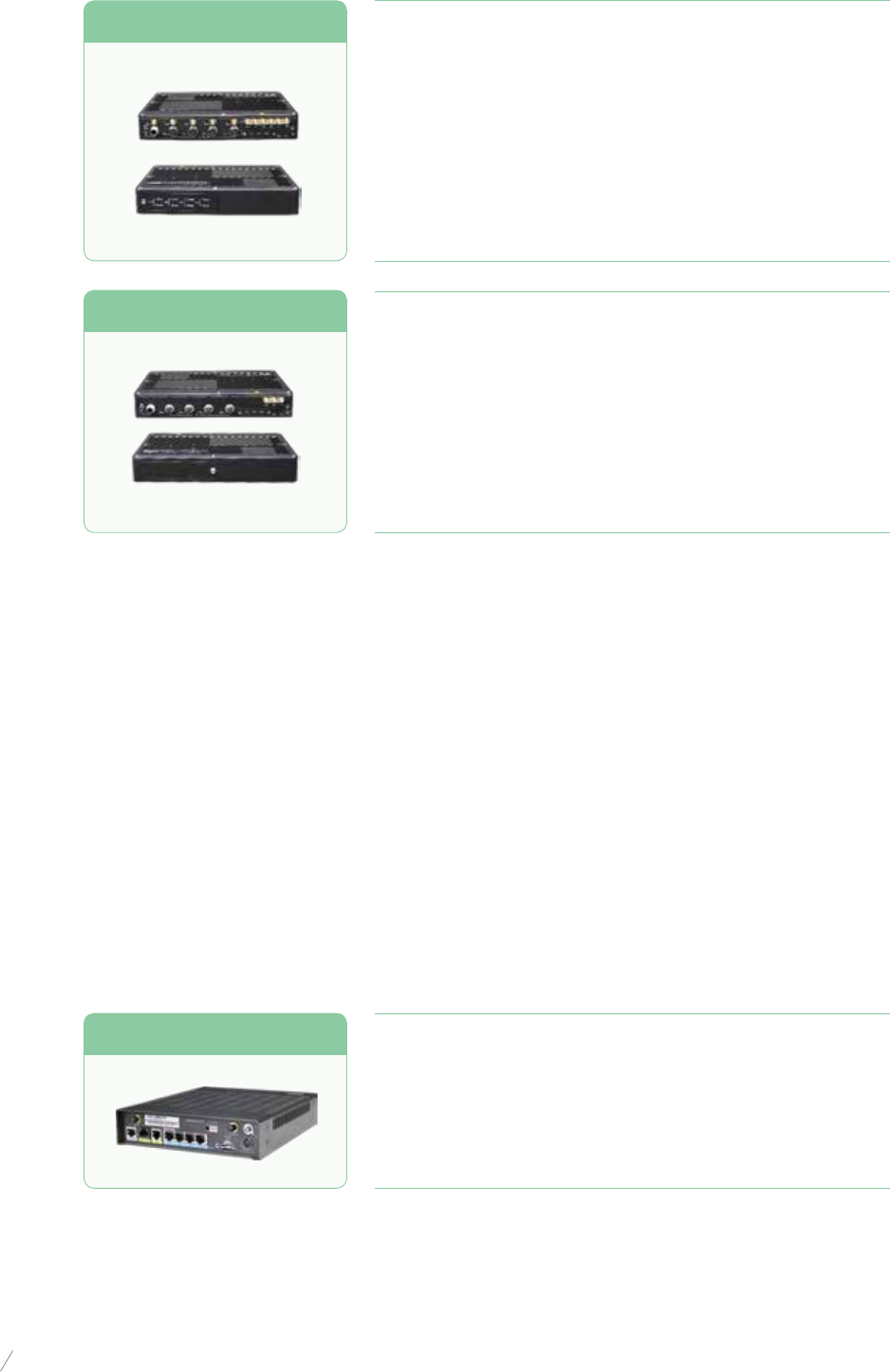

AR503EQGW-L

AR503EW

• Fixed interfaces: 4 x GE(M12), 1 USB HOST

• FDD LTE (4*LTE module, 8*SIM slots)

• Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO, 802.11b/g/n

+ 802.11ac

• GPS

• IP54, Waterproof and dustproof

• Dimensions (W x D x H): 280 mm x 200 mm x 44 mm

• Fixed interfaces: 4 x GE(M12), 1 USB HOST

• Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 3x3 MIMO, 802.11b/g/n

+ 802.11ac

• IP54, Waterproof and dustproof

• Dimensions (W x D x H): 280 mm x 200 mm x 44 mm

84

IoT Gateways AR Series Products

AR509GW-L-D-H • Fixed interface: 1xGE WAN , 4xGE LAN, 1xVDSL2

• FDD LTE (dual SIM slots)

• 802.11a/b/g/n, dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO

• IP41, Waterproof and dustproof

• Dimensions (W x D x H): 190 x 220 x 44 mm

AR510 Series Agile Gateways

AR510 Series Agile Gateways are gateways tailored for mobile Internet applications. They can be

installed on vehicles (bus, train, police car, and school bus), bus stops, advertising boards, restaurants,

and exhibition displays. AR510 integrates routing gateway and multimedia functions, provide network

access, video programs, and ad broadcasting functions. They provide mobile information services for

consumers and create an intelligent routing system.

Product Overview

The AR510 has a small size and is easy to install. It can directly receive power from the vehicle-mounted

power supply. The AR510 complies with industry standards and is dustproof, waterproof, shockproof,

and high-temperature resistant. It can run stably and reliably even in harsh environments.

Dedicated for vehicle wireless access and vehicle-mounted video transmission, the AR510 supports 2.4

GHz and 5 GHz and connect many users for simultaneous access. It uses a 4G FDD LTE network for the

data network but is compatible with a 3G network. With the wireless network, it provides long-distance

data transmission and GPS.

The AR510 supports firewall technology and multiple VPN technologies to establish reliable, secure

links, and ensure data security.

The following describes the speciﬁcations of the AR510 model: AR511GW-LAV2M3, AR513W-V3M8 and

AR515GW-LM9-D.

Product Features

AR511GW-LAV2M3• Fixed interfaces: 2 x GE, 1 USB HOST, 1 USB OTG

• Two video interfaces (HDMI, CVBS, or YPbPr)

• Two stereo outputs (one output with audio power ampliﬁer),

one stereo input

• FDD LTE, compatible with 3G

• Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO, 802.11a/

b/g/n

• GPS

• IP40 or IP54(Mount bracket) , Waterproof and dustproof

• Dimensions (W x D x H): 275 mm x 160 mm x 30 mm

85 IoT Gateways AR Series Products

AR530 Series Agile Gateways

Product Overview

Compared with Enterprise routers, industrial routers are more adaptable to harsh industrial

environments because their components are more strictly selected. The AR530 handles a wider

The AR530 series industrial IoT gateways, named industrial switching routers, are designed to work in

harsh environments of Internet of Things (IoT) applications. They integrate routing, switching, security,

and Advanced Metering Infrastructure (AMI) functions and provide various capabilities.

Note: DB37 interface is reserved

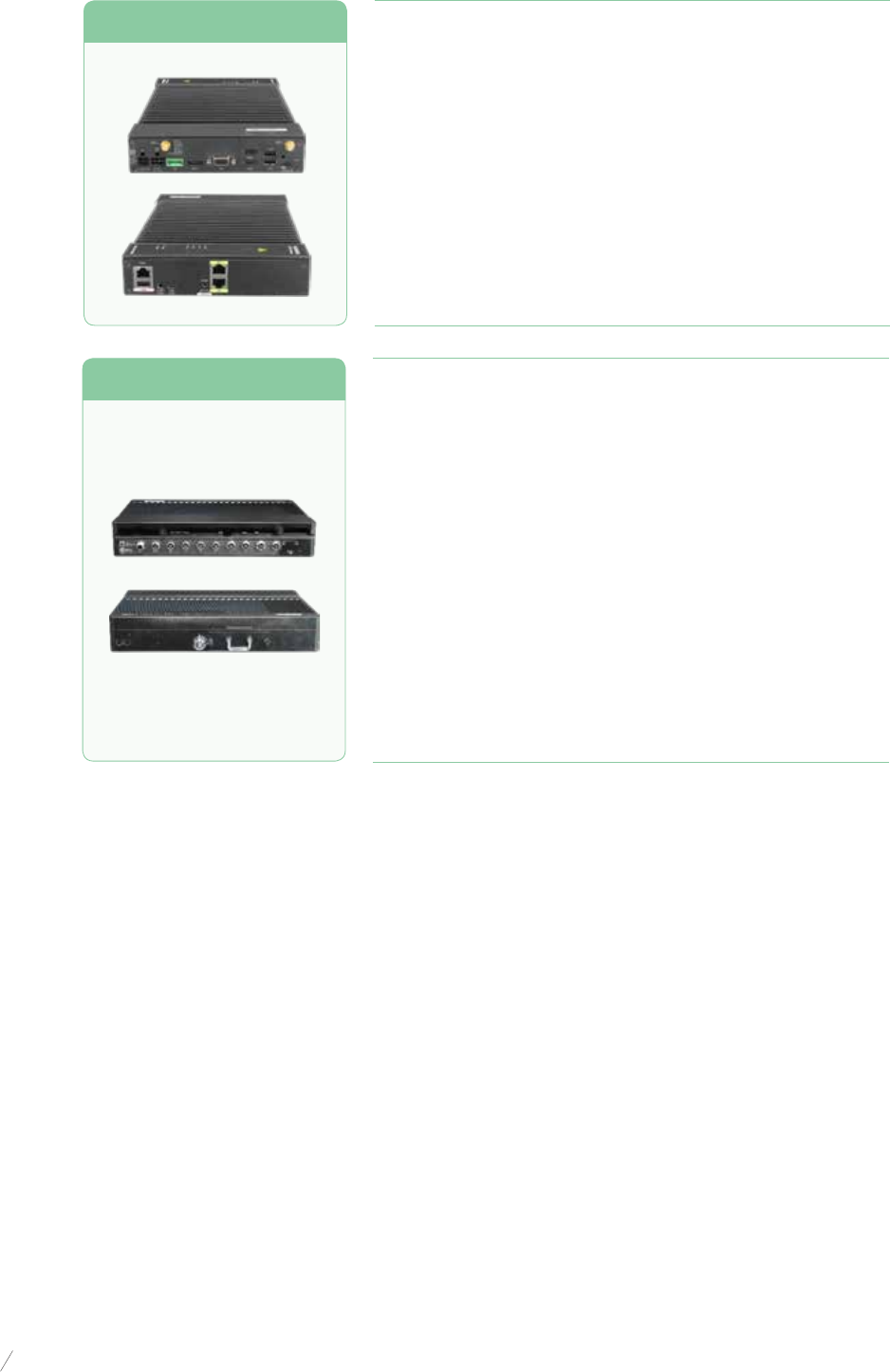

AR513W-V3M8

AR515GW-LM9-D

• Fixed interfaces: 2*GE，1*eSATA，3*USB HOST，1*USB OTG

• 2*HDMI，1*VGA

• Two stereo outputs (L/R), 3.5mm headset jack

• 2*DI+1*DO

• Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO, 802.11a/

b/g/n

• Dimensions (W x D x H): 275 mm x 160 mm x 30 mm

• Fixed interfaces:

» 8*GE(M12)

» 1*VGA, 1*HDMI (OSP System)

» 1*audio outputs, 1*audio input (OSP System)

» 1*RS485/232 (OSP System)

» 1*DB37 (OSP System)1

• FDD LTE, compatible with 3G

• Wi-Fi: dual-band AP, 2.4 GHz and 5 GHz, 2x2 MIMO, 802.11b/g/n/

ac

• GPS

• IP51, Waterproof and dustproof

• Dimensions (W x D x H): 406 mm x 270 mm x 68 mm

86

IoT Gateways AR Series Products

Product Features

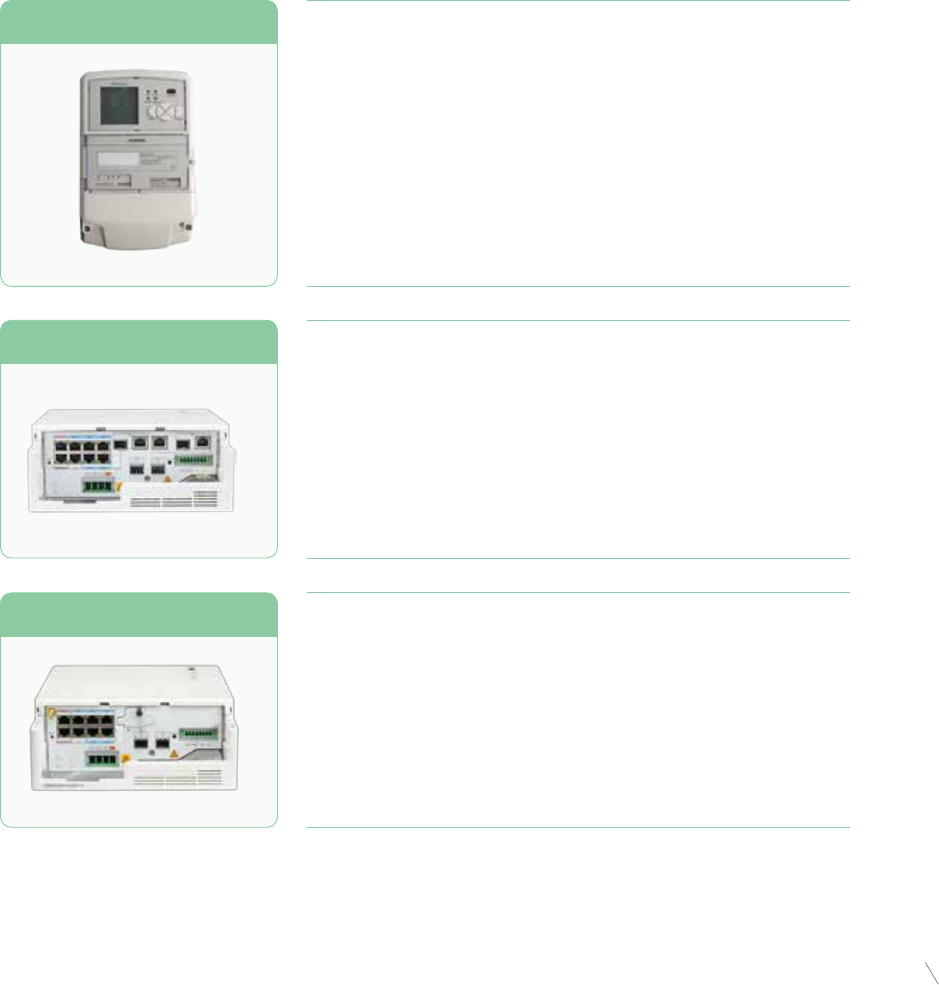

AR531-2C-H

AR532

AR531GPe-U-H

• Fixed interfaces: 6 x FE, 2 x FE combo, 2 x GE (SFP), 2 x RS485, 2

x DI

• IP51, dustproof, waterproof

• Fanless design, works at temperatures from -40oC to +70oC

• Fixed interfaces: 1 GE,1 GE Combo,2 DI,2 DO,2 RS485,1

RS232,1 USB2.0, 1 Pulse out,1 Infrared, 6 Operation Keys

• Plastic, Float Equipment, Battery internal, AC 110/220V Power

• Support 1 SIM card for 3G/GPRS uplink

• Support Huawei PLC-IoT, Support 433M/915M RF(Optional)

• IP51, dustproof, waterproof

• Works at temperatures from -25oo to +70ot

• Fixed interfaces: 6 x FE, 2 x GE (SFP), WCDMA, PLC (Hi-PLC/

S-FSK), 2 x RS485, 2 x DI

• IP51, dustproof, waterproof

• Fanless design, works at temperatures from -40oC to +60oC

temperature range, a fanless design and provides Ingress Protection 51 (IP51). With these key

technologies, the AR530 is high- and low-temperature resistant, dustproof, waterproof, and can

resist electro-magnetic interference. The AR530 uses a modular design and integrates various types

of interfaces, such as FE, GE, 3rd Generation (3G), Power Line Communication (PLC), ZigBee, Radio

Frequency (RF) and RS485.

The AR530 provides AMI centralized meter reading services. It can automatically collect meter and

status data, analyze and store data in a centralized manner, and send data to the management system.

The AR530 provides uplink, downlink, and local networking, to meet the requirements for the Internet of

Things (IoT) in the energy industry.

The AR530 is available in the following models: AR531-2C-H, AR531GPe-U-H and AR532.

87 IoT Gateways AR Series Products

AR550 Series Agile Gateways

Product Overview

AR550 series industrial agile gateway are specially designed for network communication in challenging

environments such as extreme temperature, high humidity, and electromagnetic interference. The AR550

series integrates routing, switching, IPSec VPN, and other functions, provides powerful application

scalability, and widely applies to various industrial automation ﬁelds, such as electric power automation

and transportation automation.

The AR550 series is available in four models: AR550C-4GE, AR550C-2C6GE, AR550-8FE-D-H and AR550-

24FE-D-H.

Product Features

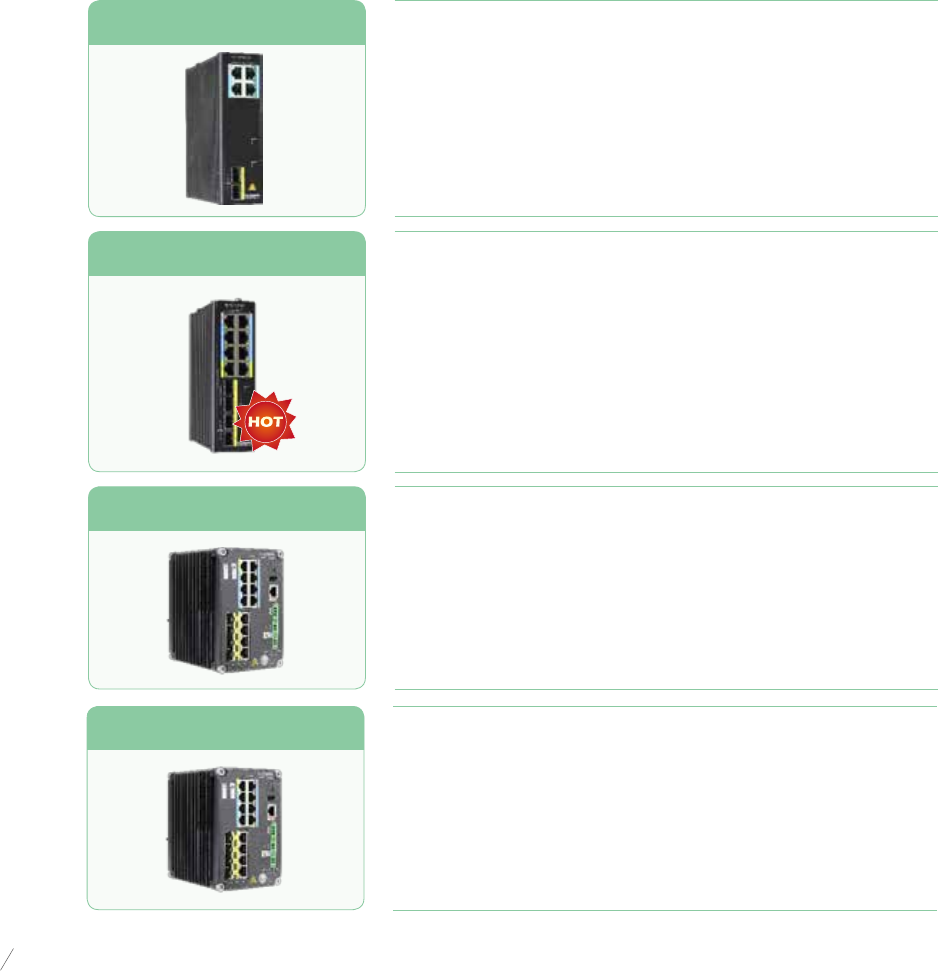

AR550C-4GE

AR550C-2C6GE

AR550-8FE-D-H

• Fixed interfaces: 2 x 2.5G SFP(compatible with GE), 4 x GE RJ45,

1 x USB2.0, 1 x DI, 1 x DO

• Working temperature: –40oC to +70oC

• Dimensions (W x D x H): 44 mm x 133 mm x 150 mm

• Redundant power supplies: 9.6V to 60V DC

• Fixed interfaces: 2 x 2.5G SFP(compatible with GE), 2 x GE

combo, 6 x GE RJ45, 1 x RS485, 1 x USB2.0, 1 x DI, 1 x DO

• Working temperature: –40oC to +70oC

• Dimensions (W x D x H): 44 mm x 133 mm x 150 mm

• Redundant power supplies: 9.6V to 60V DC

• Fixed interfaces: 4 x GE combo, 8 x FE RJ45, 1 x USB2.0, and 1 x

digital output (DO)

• Working temperature: –40oC to +70oC

• Dimensions (W x D x H): 97 mm x 133 mm x 150 mm

• Redundant power supplies: 9.6 V to 60 V DC

AR550-24FE-D-H • Fixed interfaces: 4 x GE combo, 24 x FE RJ45, 1 x USB2.0, and 1 x

DO

• Working temperature: –40oC to +70oC

• Dimensions (W x D x H): 133 mm x 133 mm x 150 mm

• Redundant power supplies: 9.6 V to 60 V DC

88

IoT Gateways AR Series Products

AR2500 Series Agile Gateways

Product Overview

The AR2500 series agile gateway is designed to work in challenging environments such as extreme

temperatures, high humidity, and electromagnetic interference. The AR2500 uses the modular design

and supports various types of communication interfaces such as Ethernet and serial interfaces to

provide ﬂexible networking modes.

The AR2500 provides the following functions:

• Line-rate switching at Layer 2 and Layer 3.

• Layer 2 functions such as VLAN, STP/MSTP, and SEP, and Layer 3 functions such as static and dynamic

unicast routing, and multicast routing.

• Integration of firewall, NAT, and IPSec VPN to meet increasingly complex service requirements of

industrial networks.

The AR2500 can be used in a wide range of industries, such as smart grid and intelligent transportation.

The AR2500 is available in three models: AR2504-H, AR2504E-H and AR2504-D-H.

Product Features

AR2504-H

AR2504E-H

• Fixed interfaces: 4*GE combo, 4*GE RJ45, 1*USB2.0, and 1*DO

• Slots: 2*WSIC

• Operating temperatures: –40oC to +70oC

• Dimensions (W x D x H): 442 mm x 420 mm x 44 mm

• Redundant power module: 220 V AC

• Fixed interfaces: 2*10GE, 4*GE combo, 4*GE RJ45, 1*USB2.0,

and 1*DO

• Slots: 2*WSIC

• Operating temperatures: –40oC to +70oC

• Dimensions (W x D x H): 442 mm x 420 mm x 44 mm

• Redundant power module: 220 V AC

AR2504-D-H

• Fixed interfaces: 4*GE combo, 4*GE RJ45, 1*USB2.0, and 1*DO

• Slots: 2*WSIC

• Operating temperatures: –40oC to +60oC

• Dimensions (W x D x H): 442 mm x 420 mm x 44 mm

• Redundant power module: 24V DC～48V DC

2Enterprise Security Products

USG6305&6310S&6320 Series Desktop

Next-Generation Firewall...................................................................................90

USG6300 Series Next-Generation Firewall.......................................................92

USG6600 Series Next-Generation Firewall.......................................................93

USG9500 Series Terabit-level Next-Generation Firewall.................................95

USG6000V Virtual Integrated Service Gateway.................................................96

NIP6300&6600 Series Next-Generation Intrusion Prevention Systems.........97

SVN5800 Series Secure Access Gateway..........................................................99

FireHunter6000 Series Sandbox........................................................................100

AntiDDoS1600 Series DDoS Protection System.........................................101

AntiDDoS8000 Series DDoS Protection System................................................102

LogCenter Security Event Management Center................................................104

Enterprise Mobile Security Solution..................................................................105

7Enterprise Security

Products

90

Enterprise Security Products

USG6305&6310S&6320 Series Desktop

Next-Generation Firewall

USG6305 USG6310S

USG6310S-WL-OVS

USG6305-W

USG6310S-W USG6320

Overview

Huawei USG6305/6310S/6320 series desktop next-generation ﬁrewalls are security gateway products

designed for small enterprises, branches, and chain businesses. This series of products integrate

various security functions and support multiple IPv4/IPv6 routing protocols, applicable to all kinds of

small network access scenarios. The USG6305/6310S/6320 series provides GE and WI-FI interfaces in

the down link to directly provide WI-FI access services and provides GE uplink interfaces and 3G/4G LTE

backup links for emergency Internet access services.

91 Enterprise Security Products

The USG6305/6310S/6320 series desktop next-generation firewalls can be deployed with the Agile

Controller to form enterprise branch security access solutions, providing uniﬁed authentication of wired

and wireless users, and portal customization services. Centralized service management can reduce

branch management pressures and can also provide ﬂexible service customization platforms for precise

marketing in business shops.

It supports cloud-based management and enables Huawei Agile Controller-Campus to manage and

conﬁgure the ﬁrewalls.

Speciﬁcations

Model USG6305 USG6305

-W USG6310SUSG6310S

-W

USG6310S-

WL-OVS USG6320

Fixed port 4 x

GE(RJ45)

4 x

GE(RJ45)

8 x

GE(RJ45)

8 x

GE(RJ45)

8 x

GE(RJ45)

8 x

GE(RJ45)

USB2.0 port Supported Supported Supported Supported Supported Supported

WIFI -

Supports

2.4G+5G

dual-

frequency.

Supports

802.11a/b/

g/n/ac .

-

Supports

2.4G+5G

dual-

frequency.

Supports

802.11a/b/

g/n/ac

Supports

2.4G+5G

dual-

frequency.

Supports

802.11a/b/

g/n/ac.

-

4G LTE The USB port can house a 4G LTE data card.

The slot

supports

such

standards

as 4G LTE,

3G UMTS,

and 2G

GSM.

The USB

port can

house a 4G

LTE data

card.

Product model Desktop Desktop

Local storage Optional, can house expandable 64 GB micro SD cards -

92

Enterprise Security Products

USG6300 Series

Next-Generation Firewall(Box-shaped)

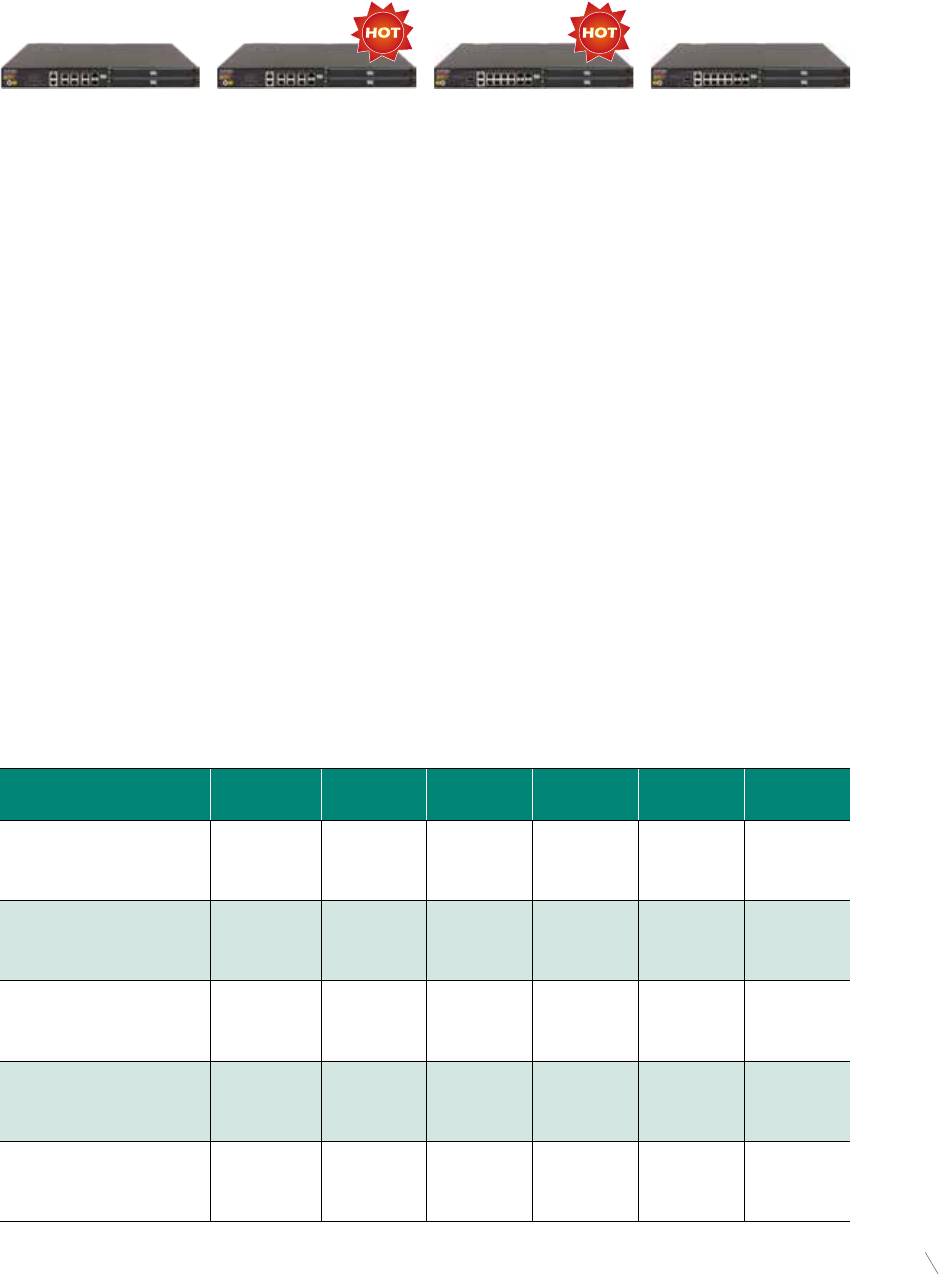

USG6350USG6330/6360 USG6380/6390

Product Overview

Enterprise networks are evolving into next-generation networks that feature mobile broadband, big

data, social networking, and cloud services. Yet, mobile applications, Web2.0, and social networks

expose enterprise networks to the risks on the open Internet. Cybercriminals can easily penetrate a

traditional ﬁrewall by spooﬁng or using Trojan horses, malware, or botnets.

HUAWEI Secospace USG6300 series is designed to address these challenges, and providing a reliable

and secure network for small and medium-sized enterprises. It analyzes intranet service trafﬁc from

six dimensions, including application , content, time, user, attack, and location and then automatically

generates security policies as suggestions to optimize the security management and provide high-

performance application-layer protection for enterprise networks.

It supports cloud-based management and enables Huawei Agile Controller-Campus to manage and

conﬁgure the ﬁrewalls.

Note: USG6300 is next-generation ﬁrewall products series in USG (Uniﬁed Security Gateway) product

family.

Speciﬁcations

Model USG6330 USG6350 USG6360 USG6370 USG6380 USG6390

Firewall throughput1

(1518byte, UDP) 1 Gbit/s 2 Gbit/s 3 Gbit/s 4 Gbit/s 6 Gbit/s 8 Gbit/s

FW + SA + IPS

Throughput2500 Mbit/s 950 Mbit/s 1.1 Gbit/s 2 Gbit/s 2 Gbit/s 2 Gbit/s

FW + SA + Antivirus

Throughput2500 Mbit/s 950 Mbit/s 1.1 Gbit/s 2 Gbit/s 2 Gbit/s 2 Gbit/s

Concurrent sessions

(HTTP1.1)11,500,000 2,000,000 3,000,000 4,000,000 4,000,000 4,000,000

New sessions per

second (HTTP1.1)130,000 30,000 30,000 60,000 70,000 80,000

USG6370

93 Enterprise Security Products

Model USG6330 USG6350 USG6360 USG6370 USG6380 USG6390

IPsec VPN Throughput1

(AES-128 + SHA1,

1420-byte)

400Mbit/s 800Mbit/s 900Mbit/s 3Gbit/s 3Gbit/s 3Gbit/s

Virtual ﬁrewalls 50 50 50 100 100 100

Fixed port 4×GE(RJ45)+2×GE(Combo) 8×GE(RJ45)+4×GE(SFP)

Expansion Slots 2 x WSIC

Interface module 2 x 10GE (SFP+)+8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP), 4 x GE (RJ45)

BYPASS

HDD Optional supports 300 GB or 600 GB or 1200 GB hard disks.

USG6600 Series

Next-Generation Firewall

USG6620 USG6630 USG6650 USG6660/6670/6680

Overview

Enterprise networks are evolving into next-generation networks that feature mobile broadband, big

data, social networking, and cloud services. Yet, mobile applications, Web2.0, and social networks

expose enterprise networks to the risks on the open Internet. Cybercriminals can easily penetrate a

traditional ﬁrewall by spooﬁng or using Trojan horses, malware, or botnets.

HUAWEI Secospace USG6600 series is designed to address these challenges of Carrier, large- and

medium-sized enterprises and next-generation data centers. It analyzes intranet service trafﬁc from

six dimensions, including application , content, time, user, attack, and location and then automatically

generates security policies as suggestions to optimize the security management and provide high-

performance application-layer protection for enterprise networks.

Note: USG6600 is next-generation ﬁrewall products series in USG (Uniﬁed Security Gateway) product family.

94

Enterprise Security Products

Speciﬁcations

Model USG6620 USG6630 USG6650 USG6660 USG6670 USG6680

Firewall throughput1

(1518byte, UDP) 12 Gbit/s 16 Gbit/s 20 Gbit/s 25 Gbit/s 35 Gbit/s 40 Gbit/s

FW + SA + IPS

Throughput25.8 Gbit/s 5.8 Gbit/s 8.8 Gbit/s 8.8 Gbit/s 8.8 Gbit/s 15 Gbit/s

FW + SA + Antivirus

Throughput25 Gbit/s 5 Gbit/s 8 Gbit/s 8 Gbit/s 8 Gbit/s 13 Gbit/s

Concurrent sessions

(HTTP1.1)16,000,000 6,000,000 8,000,000 10,000,000 10,000,000 12,000,000

New sessions per

second (HTTP1.1)1200,000 250,000 300,000 350,000 400,000 400,000

IPsec VPN Throughput1

(AES-128 + SHA1,

1420-byte)

9 Gbit/s 12 Gbit/s 15 Gbit/s 18 Gbit/s 18Gbit/s 18 Gbit/s

Virtual ﬁrewalls 200 200 500 500 500 1,000

Fixed port 8 x GE(RJ45)+4 x GE

(SFP)

2 x 10GE (SFP+)+8 x

GE(RJ45)+8 x GE (SFP)

4 x 10GE (SFP+)+16 x

GE(RJ45)+8 x GE (SFP)

Expansion Slots 2 x WSIC 6 x WSIC 5 x WSIC 5 x WSIC

Interface module WSIC: 2 x 10GE (SFP+)+8 x GE (RJ45), 8 x GE (RJ45), 8 x GE (SFP) ,4 x GE

(RJ45) BYPASS

HDD Optional supports 300 GB or 600 GB or 1200 GB hard disks (RAID1 and hot

swappable).

1. Performance is tested under ideal conditions based on RFC2544, 3511. The actual result may vary

with deployment environments.

2. Antivirus, IPS, and SA performances are measured using 100 KB HTTP ﬁles.

3. USG6680-DC doesn't support 600 GB and 1200 GB hard disk.

95 Enterprise Security Products

USG9500 Series Terabit-level

Next-Generation Firewall

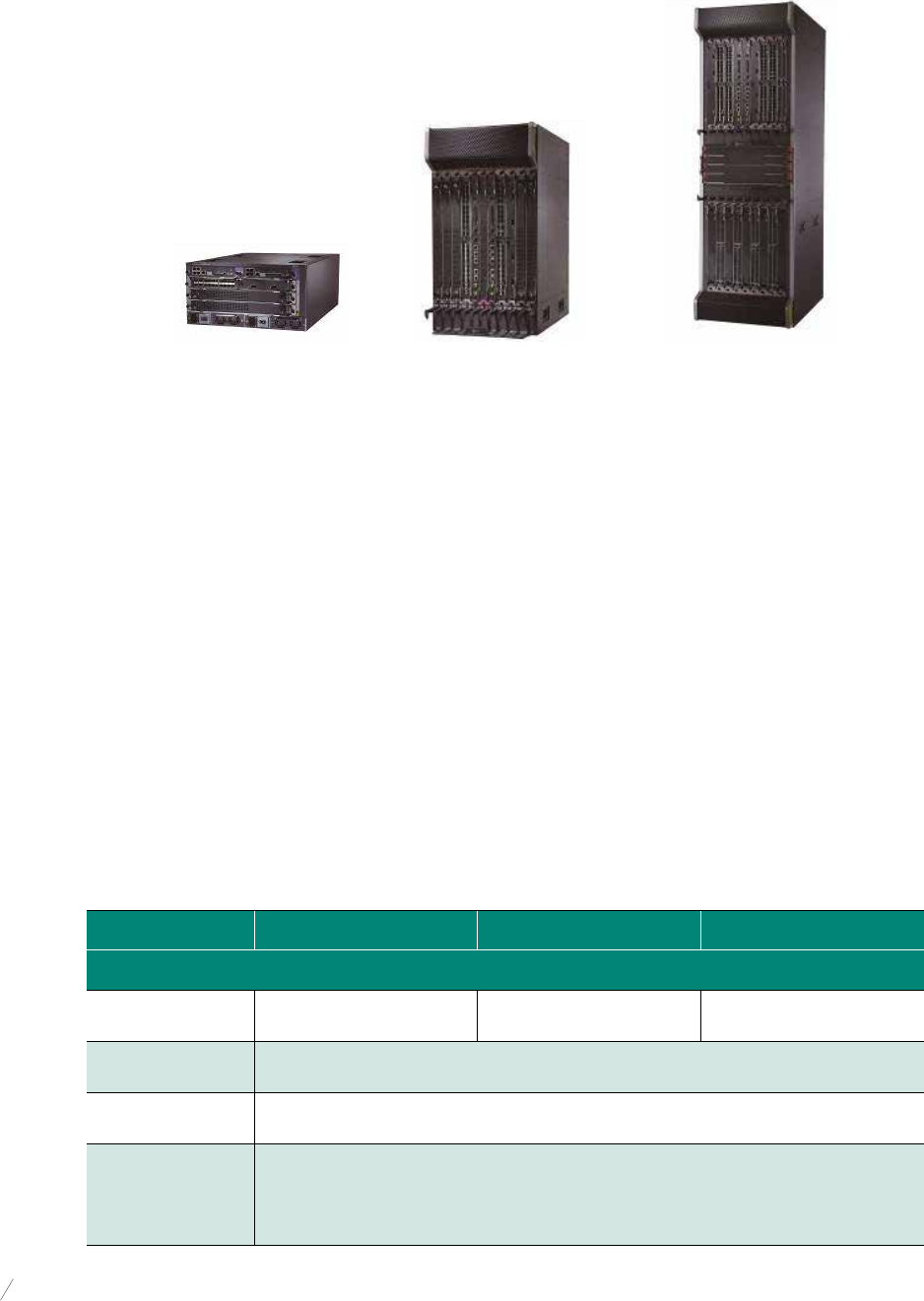

USG9520 USG9560 USG9580

In the dawn of cloud computing age, the cloud computing based on virtualization and high-speed

network is considered as a revolution of the Internet. However, challenges arise to network security in

the implementation of cloud computing and cause concerns.

• How can we control mass access in the cloud computing age?

• How can we ensure border security for cloud data centers?

• How can we ensure the security of dynamic virtualization in the cloud?

USG9500 is a security gateway developed for organizations deploying Cloud Data Centers such as cloud

service providers, enterprises data centers, and organizations with large-scale core data networks.

USG9500 delivers the impressive performance, dedicated security and dynamic policies required for a

dynamic Cloud IT environment. Organizations with large-scale data centers can enjoy the benefits of

increased capacity, high reliability and ﬂexibility made possible by Cloud and have peace of mind with

the Cloud security enabled by the Huawei USG9500.

Speciﬁcations

Model USG9520 USG9560 USG9580

Hardware

Expansion slot 3 (SPU + LPU) 8 (SPU + LPU) 16 (SPU + LPU)

MPU 2, HA mode

SPU Firewall SPU, IPS SPU

Port type

12×GE (SFP/RJ45), 20×GE (SFP), 24×GE (SFP), 1×10 GE (XFP), 2×10 GE

(XFP), 5×10GE (SFP+), 6×10GE (SFP+), 12×10GE (SFP+), 1×40GE(CFP) ,

3×40GE(QSFP+), 1×100GE(CFP)

96

Enterprise Security Products

USG6000V Virtual Integrated Service

Gateway

Product Overview

With the wide application of cloud computing technology, IT and CT are rapidly converged. Consequently,

requirements increase sharply for public and private cloud deployment, quick service provisioning, on-

demand service migration, and tailored attack defense. Conventional service gateways with dedicated

hardware can hardly meet the deployment requirements of the cloud network architecture.

The USG6000V virtual integrated service gateway provides various gateway service capabilities, such

as vFW, vIPsec, vLB, vIPS, vAV, and vURL ﬁltering. All security functions are virtualized. Multiple tenants

can share virtual resources. Therefore, you can deploy USG6000Vs ﬂexibly based on tenants' demands,

meeting the security compliance requirements.

Model USG6000V1USG6000V2USG6000V4USG6000V8

Virtual Machine Resource Requirements1

Hypervisor

Xen 4.4

VMware ESXi 5.5 and later

Linux KVM, kernel 2.6.32 and later

Huawei FusionSphere, kernel 2.6.32 and later

vCPU21248

Memory (GB) 2 GB 4 GB 8 GB 12 GB

Storage (min/

max) 2 GB/2 TB 2 GB/2 TB 2 GB/2 TB 2 GB/2 TB

Interface

number of

vNICs (min/

max)

2/16 2/16 2/16 2/16

Product Speciﬁcations

1: Virtual Machine Resource Requirements refer to the requirements for resources provided for deployed

VMs. The requirements cover vCPU, memory, disk, and virtual interface resources.

2: vCPU refers to a logical CPU virtualized from an Intel x86 64-bit CPU that supports VT technology. One

core corresponds to two vCPUs.

97 Enterprise Security Products

NIP6300&6600 Series Next-Generation

Intrusion Prevention Systems

Product Overview

HUAWEI NIP6300/6600 series is an advanced, new generation intrusion prevention system (NGIPS)

designed to provide application and service security for enterprises, IDCs, campus networks, and

carriers.

The NIP6000 provides context, application, and content awareness capabilities and defends against

unknown threats to better protect network infrastructures, bandwidth performance, servers, and clients.

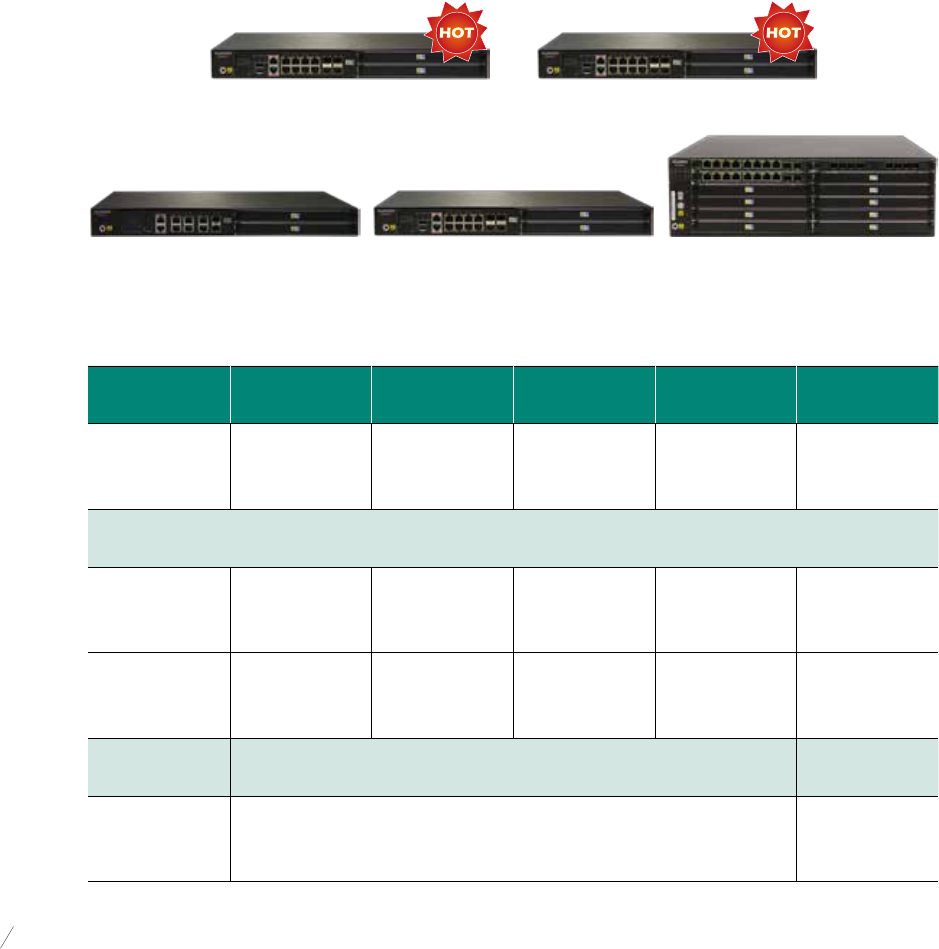

Appearance

NIP6610

NIP6330 NIP6650

NIP6620 NIP6680

Model NIP6610 NIP6330 NIP6620 NIP6650 NIP6680

Performance Mid-range FE Low-end

Gigabit

Mid-range

Gigabit

High-end

Gigabit

Mid-range

10Gigabit

Scalability

IPS

throughput 500Mbit/s 1.0Gbit/s 2.0Gbit/s 6.0Gbit/s 15.0Gbit/s

Fixed ports 4GE+2Combo 8GE+4SFP 8GE+4SFP 8GE+4SFP 4 x 10GE

+16GE+8SFP

Height 1U3U

Dimensions

(mm) 442 x 421 x 43.6442 x 415 x

130.5

Speciﬁcations

98

Enterprise Security Products

Model NIP6610 NIP6330 NIP6620 NIP6650 NIP6680

Weight 10 KG 24 KG

Hard disk Optional. Supports one 300 GB hard disk (hot swappable).

Optional.

Supports one

300 GB hard

disk (RAID1

and hot

swappable).

Redundant

power supply Optional Standard

AC power

supply 100 V to 240 V

DC power

supply - -48 V to -60 V

Power

consumption 170 W 350 W

Operating

environment

• Temperature

»0oC to 45oC (without optional hard disk)

»5oC to 40oC (with optional hard disk)

• Humidity

»10% to 90%

99 Enterprise Security Products

Product Overview

The SVN5800 is the newest security access gateway of Huawei. Built on years of R&D and design

experience in communications and networking, the SVN uses a carrier-grade high-availability hardware

platform and embedded secure real-time operating system and meets the demanding international

certification standards. The SVN series provides secure solutions, such as remote access, mobile

working, branch office interconnection, and access through multimedia tunnels for enterprises,

governments, and carriers.

Speciﬁcations

Model SVN5830 SVN5850 SVN5860 SVN5880

Maximum number of

concurrent SSL VPN users 6000 12,000 40,000 50,000

Maximum number of

concurrent SSL VPN

connections

15,000 30,000 150,000 150,000

IPSec VPN throughput 3Gbit/s 3Gbit/s 18Gbit/s 18Gbit/s

Concurrent IPSec VPN

connections 4000 4,000 15,000 15,000

Maximum number of virtual

gateways 256 256 512 512

I/O

Fixed ports 8GE+4SFP 4*10GE+16GE+8SFP

Expansion slot 2WSIC 5WSIC

Expansion card type WSIC: 2×10GE（SFP+）+8×GE（RJ45)，8×GE（RJ45）

8×GE（SFP），4×GE（RJ45）BYPASS

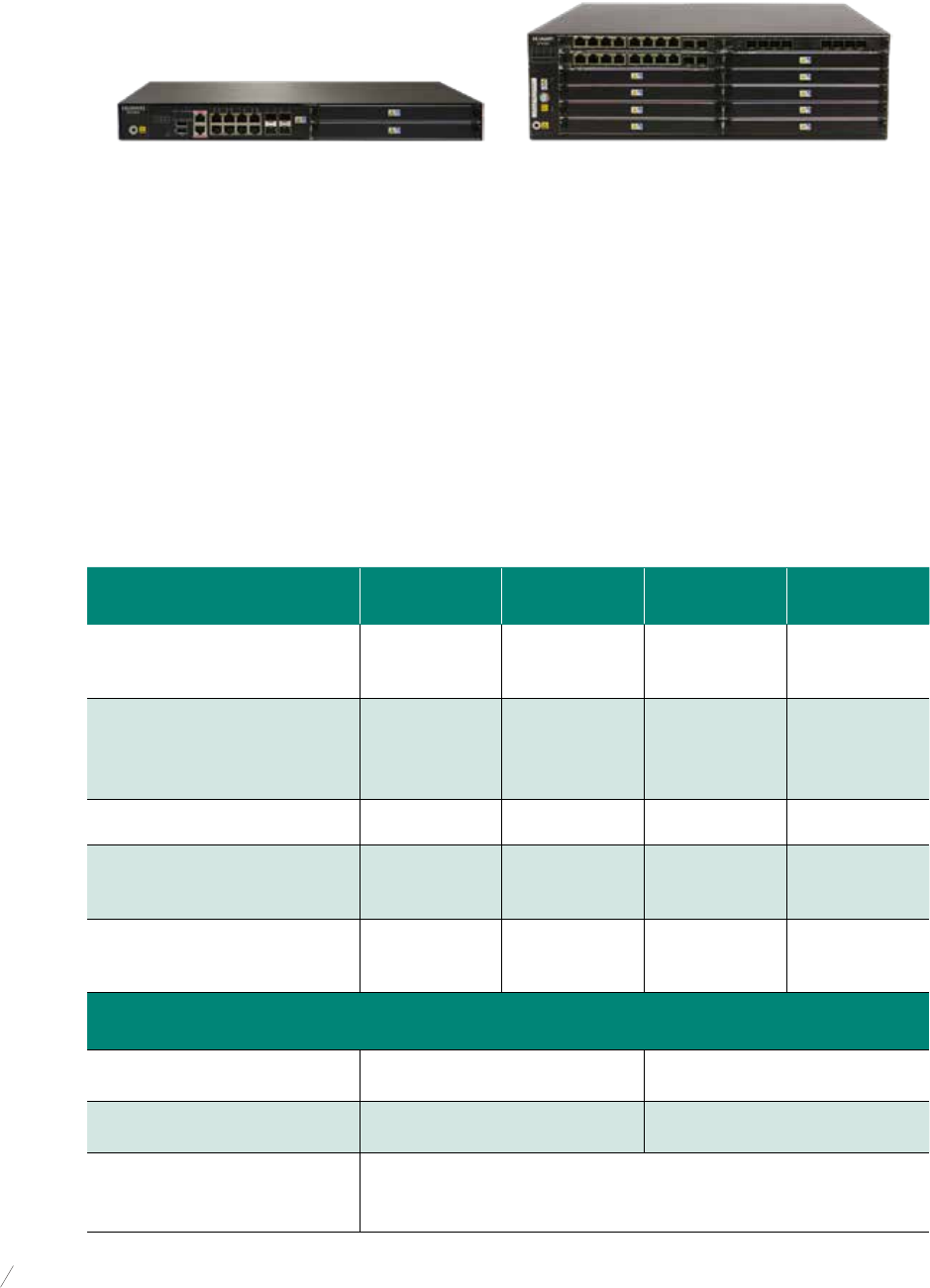

SVN5800 Series Secure Access

Gateway

SVN5850 / SVN5830 Secure Access Gateway SVN5880 / SVN5860 Secure Access Gateway

100

Enterprise Security Products

FireHunter6000 Series Sandbox

Product Overview

Advanced Persistent Threats (APTs) often use social engineering to obtain contact information and send

phishing emails to unsuspecting people. They exploit security vulnerabilities in Internet of Things (IoT)

devices, and hide, without being detected, in high-value business assets to steal or compromise target

information. Attacks are commonly seen in compromised infrastructure, such as the finance sector,

resource suppliers, and government agencies, affecting people's livelihoods. Before launching attacks,

perpetrators are usually well-prepared and wait patiently for their opportunity. Once attacks are

launched, perpetrators usually use technologies, such as advanced evasion techniques in combination,

to exploit known vulnerabilities. This makes the security devices that detect attack trafﬁc ineffective.

Huawei FireHunter 6000 series sandbox products (hereinafter referred to as Huawei FireHunter)

are a family of APT detection systems. They reassemble network traffic mirrored by switches or

traditional security devices, and detect ﬁles transferred over networks in virtualized environments to

detect unknown malicious ﬁles. Through credit scanning, real-time behavior analysis, big data-based

correlation analysis, and cloud-end technologies, Huawei FireHunter collects and analyzes the static

and dynamic behavior of target software programs to provide accurate detection results with the help of

a unique behavior model library. Based on the results, Huawei FireHunter detects, blocks, and visualizes

suspicious traffic streams, effectively preventing the spread of unknown threats and protecting

business's core information assets. Huawei FireHunter is especially useful to ﬁnance and government

agencies, resource providers, and high-tech enterprises.

Appearance

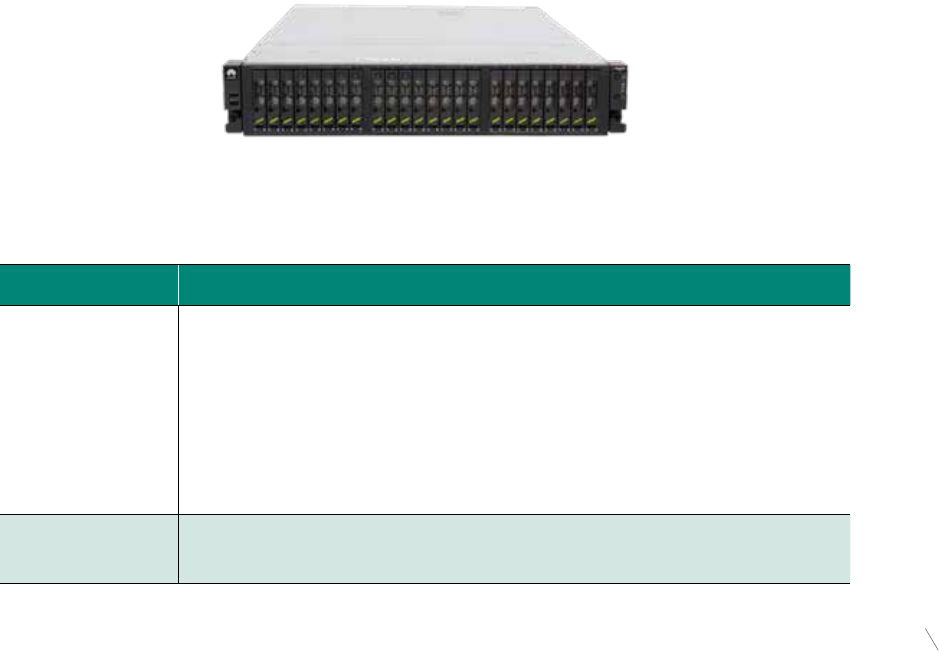

Huawei FireHunter 6000 series sandbox product

Speciﬁcations

Model FireHunter 6000

Hardware

conﬁguration

• x86 server in a 2-U rack

• Memory of no less than 128 GB

• Two power modules for redundancy

• Hard drive with a capacity of no less than 2 TB

• SSD drive with a capacity of no less than 128 GB

• 8 x GE electrical ports

• 2 x 10GE optical ports

Performance • 70,000 ﬁles (non-web pages) per day or 36,000 web pages per hour

• Average detection response time of less than 30 seconds

101 Enterprise Security Products

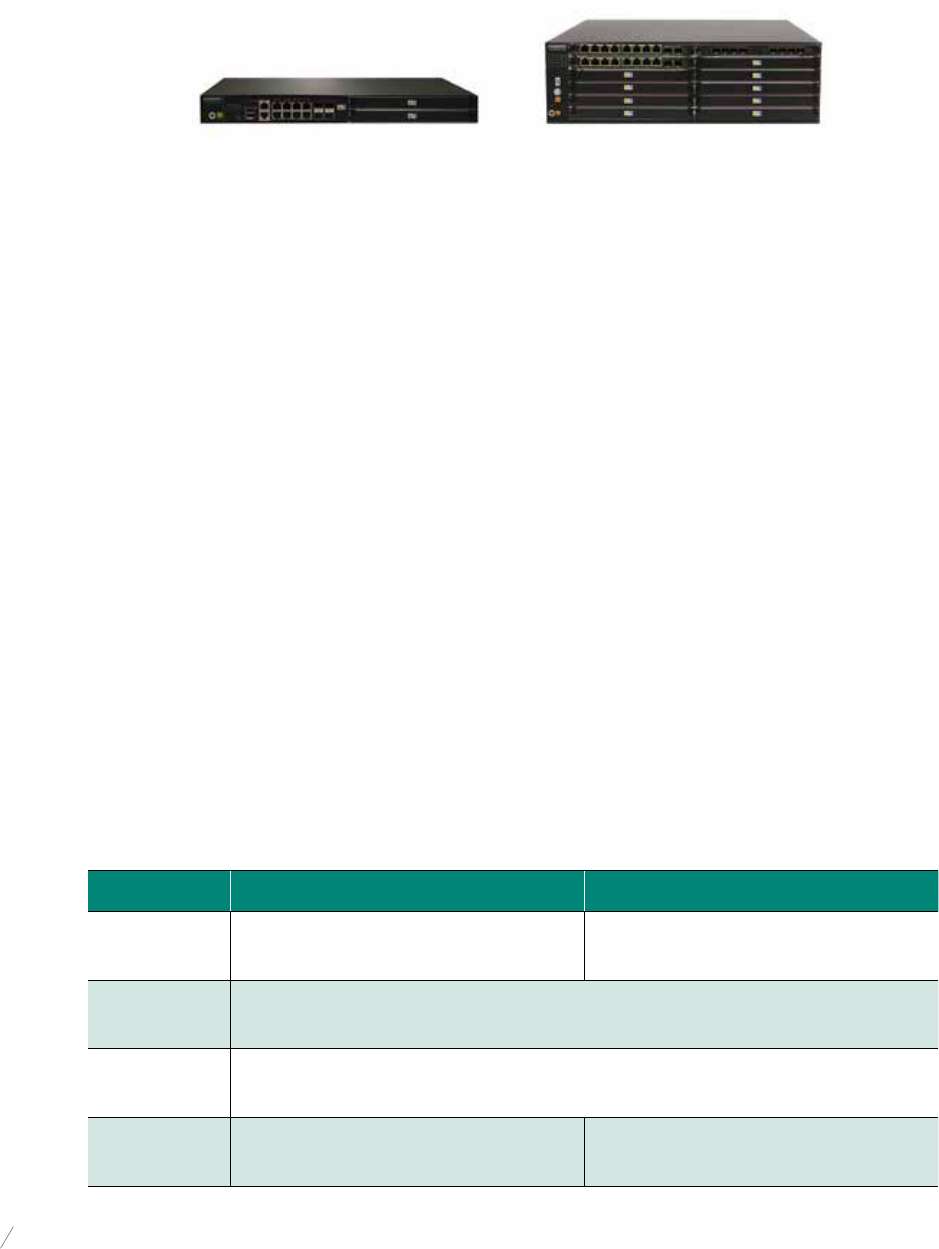

AntiDDoS1600 Series DDoS

Protection System

Precise Protection, Second-Level Response, In-Line Deployment, Layered

Defense

Solution Overview

As the Internet and IoT thrive, DDoS attacks are developing new characteristics:

• Attacks increase in frequency and trafﬁc volume.

• An era of reﬂection attacks emerges, and reﬂection ampliﬁcation attacks, such as NTP, SSDP, and DNS

attacks are devouring limited enterprise and data center bandwidths.

• IoT devices can be used to construct Botnets for initiating large-scale attacks.

• Targets of DDoS attacks are developed from large enterprises to various industries.

• Attacks become more diversiﬁed, with volumetric and application attacks mixed to invalidate defense

at a single layer.

In response to these characteristics, Huawei rolls out the AntiDDoS1600 DDoS protection system, which

employs the big data analytics technology and supports modeling for 60+ types of network traffic to

offer second-level attack response and comprehensive defense against 100+ types of attacks. The

AntiDDoS1600 can be deployed on a user network in in-line mode to defend against volumetric and

application attacks in real time.

When attack traffic exceeds the bandwidth or defense capability of a local scrubbing device, the

AntiDDoS1600 associates with the AntiDDoS device of the upstream carrier or ISP to defend against

ﬂood attacks and guarantee service continuity.

Interface and Hardware Parameters

Model AntiDDoS1650 AntiDDoS1680

Protection

performWance Up to 5Gbps，3Mpps Up to 8Gbps，7Mpps

Deploy mode In-line; Out-of-path(static defense); Out-of-patch(Dynamic defense)

Function Options for detecting or cleaning

Dimensions

(H×W×D) 442×421×44.4 (1U) 442×470×130.5 (3U)

AntiDDoS1650 AntiDDoS1680

102

Enterprise Security Products

Model AntiDDoS1650 AntiDDoS1680

Standard

interface 8×GE(RJ45)+4×GE(SFP) 16×GE(RJ45)+8×GE(SFP)+4×10GE(S

FP)

Expansion

slot 2×WSIC 5×WSIC

Expansion

interface

subcard type

• 8×GE(RJ45)

• 8×GE(RJ45)+2×10GE(SFP+)

• 8×GE(SFP)

• 4×GE(RJ45) Bypass card

• 8×GE(RJ45)

• 8×GE(RJ45)+2×10GE(SFP+)

• 8×GE(SFP)

• 4×GE(RJ45) Bypass card

Power supply

Single AC power supply. Options for

2×AC redundant, hot swap power

supplies.

2 × AC redundant, hot swap power

supplies

2 × DC redundant, hot swap power

supplies

Power

Consumption 170W350W

External

Bypass

• Multi mode or single mode GE link

• Multi mode or single mode 10GE link

AntiDDoS8000 Series DDoS

Protection System

Terabit-Level Capacity, Second-Level Response, Precise Protection, Value-

added Operation

AntiDDoS8030 AntiDDoS8080 AntiDDoS8160

103 Enterprise Security Products

Solution Overview

As the Internet and IoT thrive, DDoS attacks are developing new characteristics:

• Attacks increase in frequency and trafﬁc volume, and the peak attack trafﬁc is up to 600 Gbps in 2015.

• Reﬂection ampliﬁcation attacks spread across the world, congesting links.

• Low-rate application-layer attacks target precisely at service systems like e-ﬁnance or gaming.

Reflection amplification and low-rate application-layer attacks are gaining momentum, and layered

defense becomes the first choice in anti-DDoS. Huawei AntiDDoS8000 employs big data analysis to

conduct modeling for 60+ types of trafﬁc, offering Terabit-level protection, second-level response, and

comprehensive defense against 100+ types of attacks. It works with Huawei cloud cleaning center to

deliver layered cleaning, providing full-fledged protection that covers network link bandwidths and

online services.

Interface and Hardware Parameters

Model AntiDDoS8030 AntiDDoS8080 AntiDDoS8160

Protection

performance Up to 120 Gbps Up to 720 Gbps Up to 1440 Gbps

Protection

performance

of each slot

Up to 80 Gbps，60 Mpps Up to 160 Gbps，60 Mpps Up to 160 Gbps，60 Mpps

Expansion

slot 3 8 16

Dimensions

(H x W x D)

175 mm x 442 mm × 650

mm (DC, 4 U)

220 mm x 442 mm x 650

mm (AC, 5 U)

620 mm x 442 mm x 650

mm (14 U)

1420 mm x 442 mm x 650

mm (32 U)

Expansion

LPU type

LPUF-120, 2 sub-slots

LPUF-240, 2 sub-slots

Expansion

interface

subcard type

24 x GE (SFP or RJ45); 5 x 10GE (SFP+); 6 x 10GE (SFP+); 12 x 10GE (SFP+); 1 x 40GE

(CFP); 1 x 100GE (CFP)

Power supply DC: –48 V

AC: 175 V to 264 V; 50/60 Hz

Availability Dual-MPU; 99.999% carrier-class high availability

104

Enterprise Security Products

LogCenter Security Event

Management Center

Product Overview

Massive application systems and network devices are deployed in an enterprise, including hosts,

databases, other application systems, switches, and ﬁrewalls. Due to varying device log formats, poor

intelligibility, and difﬁculties in storing massive logs, major security risks cannot be promptly detected

from logs.

Government agencies and industrial organizations provide guidance and use internal control laws and

standards to impose higher requirements on the completeness, accuracy, and effectiveness of run logs

and user logs.

LogCenter:

• Provides a platform for collecting, storing, and auditing multiple types of large-scale logs in a uniﬁed

manner.

• Supports log management of Huawei and other vendors.

• Provides industry-leading NAT tracing function and security event analysis.

Performance

Maximum log

recording speed

(standalone mode)

250,000 EPS

Maximum number

of NEs supported

by the LogCenter

2000

Recommended

Server Model LogCenter All-In-One LogCenter Analyzer LogCenter Collector

Height 2 U

Dimensions (H x W

x D) mm 86.1 mm (2 U) x 447 mm x 748 mm

Weight (full

conﬁguration) 30 kg 27 kg 30 kg

Fixed ports 4 x USB, 1 x VGA, 1 x Console, 1 x MGT, 8 x GE

Memory 32 GB

Product Speciﬁcations

105 Enterprise Security Products

Enterprise Mobile Security Solution

Trend and Challenge

In 2015, 1.3 billion employees around the world have brought to work their own mobile devices, such as

the iPhone, iPad, or Android devices. Bring Your Own Device (BYOD) is gradually becoming the new norm,

and people start to enjoy the freedom of any device. However, the open and smart mobile devices also

bring security and management challenges, such as malicious code infection, co-existence of personal

and enterprise applications, data leak risks, and heterogeneous operating systems.

Architecture and Key Components

Mobile security and management essentially resolve three issues: identity, privacy, and compliance.

Focusing on these key issues, Huawei provides enterprises with the most secure and user-friendly

management solution in the industry.

Recommended

Server Model LogCenter All-In-One LogCenter Analyzer LogCenter Collector

Storage space 2 x 300 GB SAS, 12 x

6-TB SATA

2 x 300 GB SAS, 6 x 2-TB

SATA

2 x 300 GB SAS, 10 x

6-TB SATA

RAID RAID 1 & RAID 6

Redundant power

modules Standard

AC power supply 100 V to 240 V; 50/60 Hz; 9 A to 4.5 A

DC power supply –48 V to –60 V; 26 A

Maximum power 750 W AC/800 W DC

Operating

environment

Operating temperature: 5oC to 45oC (41oF to 113oF)

Operating humidity: 8% RH to 90% RH non-condensing

Non-operating

environment

(storage

environment)

Storage temperature: –40oC to +65oC (–40oF to 149oF)

Storage humidity: 5% RH to 95% RH non-condensing

Authentication CCC, RCM, CE, VCCI, FCC, IC, UL, BIS

106

Enterprise Security Products

Secure email Enterprise apps

Secure web

Provided by Huawei

Provided by partners

Enterprise IT

personnel

MAM MCM

EMM platform

Enterprise IT resources

MDM

Device users

AnyOffice cloud

services

Cloud integration

Cloud customization

Cloud configuration

Cloud connection

BYOD devices

MDM App VPN Security SDK

Industry-specific security devices provided by Huawei

Multiple Domain Security Desktop App

Components

Component Product

Mobile client AnyOfﬁce Agent

Mobile security access gateway AnyOfﬁce Access Entry

Service manager Service Manager

Service controller Service Controller

Database server EMM Database

Smart mobile device Huawei Media Pad

Operating Systems Supported by AnyOfﬁce Agent

Device Required Version

iPad/iPhone iOS 9.0 or later

Android mobile phone (Huawei, Samsung, or others) Android 5.0 or later

Android tablet (Huawei, Samsung, or others) Android 5.0 or later

1eSight Network

8eSight Network

108

eSight Network

eSight Network

Product Overview

With the development of enterprise network applications and the expansion of network scale, a large

number of routers, gateways, and wireless local area network (WLAN) devices are used on enterprise

campus and branch networks. Enterprises must provide multiple mobile offices, rather than a fixed

location, for their employees, and support diversiﬁed services, complicating network management. They

urgently need a uniﬁed network management system to improve efﬁciency and ensure normal operation

of enterprise services.

Huawei eSight Network is based on the following concepts: topology-centric, simpliﬁed management,

and improved operation and maintenance (O&M) efﬁciency. eSight Network provides an all-round, open,

and uniﬁed management platform, and various service components, to implement uniﬁed management

of devices, services, and applications.

Product Features

1. Protecting enterprise investments

• eSight Network uniformly manages devices of various types from multiple vendors, bringing high-level

ease of use for network administrators.

• eSight Network is composed of a unified platform and optional components that can be selected

based on enterprise characteristics, facilitating fast expansion.

109 eSight Network

2. Improving O&M efﬁciency

• Fast network deployment

»Network administrators do not need to memorize commands but use the smart conﬁguration tool

instead to complete device conﬁgurations in batches. The conﬁguration efﬁciency is improved.

»The group-based performance monitoring solution classiﬁes devices with the same characteristics

into the one group to monitor the same performance indicators. After a device is added to a group,

eSight Network automatically applies matching monitoring policies to the device.

»eSight Network provides uniﬁed conﬁguration templates and pages for wired and wireless users to

improve conﬁguration efﬁciency.

• Visualized routine maintenance

»Topology-centric all-round monitoring clearly displays key fault and performance information.

»Visualized service, trafﬁc, and security trend allow users to obtain network status and quality.

• Efﬁcient troubleshooting

»eSight Network quickly diagnoses users' network faults and provides troubleshooting suggestions

based on Huawei best practices to help network administrators efﬁciently rectify the faults.

»eSight Network supports drill-down fault analysis to locate the root causes step by step.

»eSight Network uses the Packet Conservation Algorithm for Internet (iPCA) technology to timely

measure network quality and accurately locate faults.

3. Improving network security

• Visualized network security

»eSight Network provides redundancy policy analysis, matching analysis, risk analysis, and

comprehensive analysis to refine security policies, improving network security and firewall

efﬁciency.

• System security hardening

»eSight Network improves system security by guaranteeing the access side, server side, and device

communication security.

»eSight Network supports dual-node hot standby to ensure high availability.

4. Full lifecycle WLAN management

»Supports full lifecycle WLAN management including visible planning, three-step service

provisioning, 360-degree WLAN monitoring, and search-centric one-click fault diagnosis, helping

administrators effectively deploy and manage WLANs.

»eSight Mobile uses the universal mobile information platform to manage and control WLANs

anytime, anywhere. It can also interconnect with a third-party system to build a win-win ecosystem.

»eSight Network provides terminal location and passenger traffic analysis functions and displays

terminal positions in the heat map. It also supports the Bluetooth location software development kit

(SDK) to provide an open precise location interface, helping shopping malls, supermarkets, and the

educational industry to provide value-added services.

1

SDN Controller

9SDN Controller

111 SDN Controller

SDN Controller

Agile Controller 3.0 is a Huawei software-deﬁned networking (SDN) controller for the business scenarios

of data center network, campus network, wide area network (WAN), and Internet of Things (IoT). Based

on a uniﬁed software platform, Agile Controller 3.0 consists of the following products:

• Agile Controller-DCN for data centers

• Agile Controller-Campus for campus networks and branch interconnection

• Agile Controller-WAN for WAN IP networks

• Agile Controller-Transport for WAN and optical transport networks

APP

VAS SLA FW LB IPS Anti-DDoS …

WAN

DCN Campus IoT

Agile Controller-DCN

Agile Controller-Campus Agile Controller-WAN

Agile Controller-Transport

112

SDN Controller

Product Overview

Agile Controller-DCN

Mainly used in data centers, it is an enabler for data center network architecture evolution.

• Open architecture, ﬂexible integration.

Support standard OpenStack cloud platform

Support mainstream computing platform vCenter / SystemCenter

Support independent interface to achieve virtual network deployment and service orchestration

• Reﬁned O&M

Overlay network visualization: application, logic, physical three-tier management; Overlay path,

connectivity, quality monitoring

• Fully optional fabric

Network overlay, hybrid overlay, host overlay, three options to meet different demands

Agile Controller-Campus

Mainly used in campus networks and branch interconnection, it provides the user access management,

the network cloud-based management and value-added service capabilities.

In the campus scenario, Agile Controller-Campus supports the following features:

• Self-operation

The industry’s ﬁrst SP self operated, enabling SaaS, selling boxes -> selling services

• Full Lifecycle Automation

Automated planning, deployment & optimization & inspection; reduce OPEX 87%

• Large Capacity Management

Uniﬁed management of multi-tenants, manage up to 1 million devices and 10 million terminals

• Open and Value-added

Open API, connect to third-party applications, and enhance business innovation

In the branch interconnection scenario, Agile Controller-Campus supports the following features:

• Any Network Access

Any combination of 3G/LTE, MPLS, Internet, Serial etc.

Support rich UNI/NNI interface: GE/ISDN/FXS/FXO/...，EPON/GPON/10GE/LTE/...

Leveraging the internet and links to reduce interconnection costs by over 50%

• Application-based intelligent route selection: enhance the application experience

• Simple, efﬁcient and secure lease line service

E2E cloud management lease line service, improve efﬁciency, saving TCO

Security virtualization VAS with full functions that can be ﬂexibly combined

113 SDN Controller

Agile Controller-WAN

Mainly used in WAN (IP core), DCI scenarios, it quickly provisions VPN services over the WAN and

optimizes intra-AS trafﬁc transmission.

• Monetize IPRAN by agile MPLS VPN

Service automation: service-driven tunnel automatically calculated and minute-level services

provisioning.

Guaranteed SLA: visible & optimizable SLA, proactive to guarantee end-user experience; ﬂexEthernet

slicing ensures the SLA and 50μs low latency.

• Centralized control

Minute-level service provisioning, network load balancing

• Visible & optimizable SLA

Real-time monitoring service SLA: bandwidth, status, latency, packet loss, jitter, and connectivity.

Support re-optimization to actively improve end-user experience on detection of SLA degradation.

Agile Controller-Transport

Mainly used on transport networks, it is an enabler for transport network architecture evolution.

• MS-OTN + TSDN build high-quality cloud leased line

• Service automation: achieve minute-level service provisioning

• Optimal latency routing: provide promissory and guaranteed latency

114

SDN Controller

Navigation menu
