T7E Terminal
T7E Terminal
T7E POINT-OF-SALE TERMINAL
The Future of Transaction Technology
2851 W. Kathleen Road, Phoenix, AZ 85023
Tel: (602) 504-5000 • Fax: (602) 504-4578
1-800-578-2436

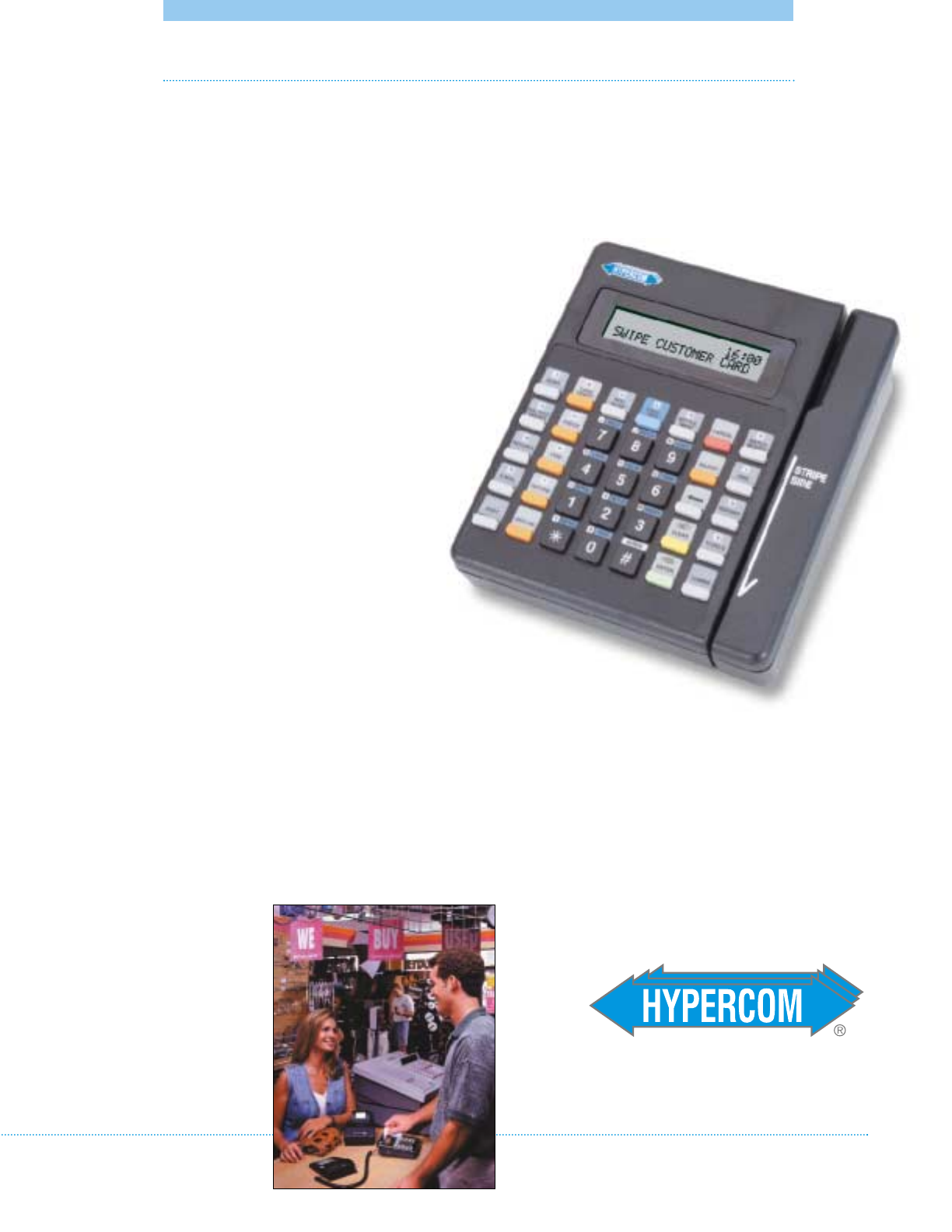

T7E shown in retail situation with P8 Printer
The Standard for Credit and Debit Card Terminals
Hypercom’s
®
T7E Terminals create the industry standard with a sensible user
interface and high performance communications.
Product Highlights:
✔35 key keyboard for single stroke function activation.
✔256K to store more than 1000 transactions.
✔Under 10 second dial access response time.
✔SDLC multi-protocol support.
✔High contrast 2 x 20 backlit LCD display.
✔Full track 1 and 2 simultaneous card reader.
✔Multi-host applications.
✔Dial, LAN or leased line operation.
✔5-year warranty.
As POS applications become more complex, more
transaction types are added, and less time and money
is available for training, it is important to simplify terminal operation. Hypercom’s
T7E – with its sensible user interface and high performance
communications – is the answer. Its 35 pre-programmed keys allow for single
stroke “Hot Key” function activation for a wide range of draft capture, debit and
check verification transactions. The T7E also enables entry of alpha data with
single keystrokes.
With faster dial access response times and reduced communications costs, the T7E
ensures lower operating expenses.
No matter how sophisticated your POS transaction application, the T7E sets the
standard in terminal functionali-
ty, reliability and ease-of-use.
Its sensible user interface and
high performance
communications ensure
reduced operating costs and
improved service quality.
T7E
T7E
9/97 © Copyright 1996, Hypercom Corporation. All rights reserved. Hypercom and the Hypercom logo are registered trademarks of Hypercom Corporation. All other products or services mentioned in this document
are trademarks, service marks, registered trademarks, or registered service marks of their respective owners.
Specifications
Protocol SDLC (Synchronous) and Asynchronous (VISA 1 and 2)
Display 2 x 20 back lit LCD
Keyboard 35 keys
Memory
EPROM 32K
RAM 256K
Optional 1 MB
Card Reader Tracks 1 and 2 simultaneous read (Track 3 optional)
Communications Modem Bell 212A/103, CCITT V.22/V.21,
1200/300bps (2400bps modem optional)
LAN, RS485, 2 wire
Power +24Vdc, 200mA
Auxiliary Ports
ECR RS232
PIN Pad RS422
Parallel Printer TTL
Peripheral Compatibility S7C, S7SC, S8, CS7GC,
P8S, P8F, P7E, S7GCB, ICR1
Dimensions 6" W x 6.75" D x 2.25" H
Weight 1.3 lbs.
Memory/Clock Backup Lithium battery (5 years)
Operating Temperature 0ÞC to +45ÞC (+32ÞF to +113ÞF)
Clock/Calendar Host controlled
Relative Humidity 15-85 percent, noncondensing
ESD Resistance 12,000V
Options Memory upgrades to 1MB
2400 baud modem
Track 3 reader
Graphics display (T7GE)
QWERTY keyboard (T7Q)
Reliability
MTBF 95,000 hours
Key Life 350,000 operations
Card Reader 400,000 reads
Corporate Office
2851 West Kathleen Rd.• Phoenix, Arizona 85023
Tel: (602) 504-5000 • Fax: (602) 504-4578
International Offices
Hypercom Latino America
Miami, Florida
Tel: (305) 477-0315
Fax: (305) 477-4172
Hypercom Asia
Kowloon Bay, Hong Kong
Tel: 852-2561-6800
Fax: 852-2561-5890
Hypercom Japan
Tokyo, Japan
Tel: 81-3-3355-2733
Fax: 81-3-3355-2704
Hypercom, EMEA
Surrey, England
Tel: 44-1372-468000
Fax: 44-1372-464444
Regional Sales Offices
Atlanta, GA
Tel: (770) 641-7117
Fax: (770) 645-4490
Chicago, IL
Tel: (708) 301-6820
Fax: (708) 301-6841
Los Angeles, CA
Tel: (310) 455-0708
Fax: (310) 455-2969
New York, NY
Tel: (516) 676-5779
Fax: (516) 676-5806
940077-001
