0 | P a g e
NATIONAL INFORMATION CENTER
IAM Authentication and
Federation Service
Integration Guide
Version 2.6
Table of Contents
This document describes IAM Authentication and Federation Service, along with the integration plan
and requirements.
IAM Authentication and Federation Service Integration Guide
1 | P a g e
1. INTRODUCTION .............................................................................................................. 3
2. AUTHENTICATION AND FEDERATION SERVICE ................................................................. 3
2.1 IAM LOGIN SCENARIO ........................................................................................................... 5
2.2 IAM LOGOUT SCENARIO ....................................................................................................... 15
2.3 AUTHENTICATION PROTOCOL CONSIDERATION .......................................................................... 22
3. INTEGRATION PLAN ...................................................................................................... 24
3.1 REQUEST IAM SERVICES STEP ................................................................................................ 24
3.2 APPROVALS & AGREEMENT STEP ............................................................................................ 27
3.3 TECHNICAL INTEGRATION STEP ............................................................................................... 30
3.4 PRODUCTION INTEGRATION FINALIZED ..................................................................................... 35
4. IAM CONTACT INFORMATION ....................................................................................... 35
ANNEX A: SAMPLE AUTHENTICATION MESSAGES ................................................................. 36
ANNEX B: SAMPLE ENTITY DESCRIPTOR MESSAGE USED DURING IAM CONFIGURATION ...... 39
ANNEX C: FREQUENTLY ASKED QUESTIONS .......................................................................... 40
ANNEX D: NATIONALITY CODES ........................................................................................... 41
ANNEX E: SERVICE PROVIDER INTEGRATION THROUGH PARTNER GUIDELINES ..................... 49
IAM Authentication and Federation Service Integration Guide
2 | P a g e
List of Figures
Figure 1: Different Actor involved in IAM Authentication Service ............................................................... 4
Figure 2: IAM & SP communication. ............................................................................................................. 6
Figure 3: IAM / Service Provider Interactions from User Perspective (Example MoI Portal) ....................... 7
Figure 4: Login Scenario Sequence Diagram ................................................................................................. 8
Figure 5: Single Logout Options .................................................................................................................. 15
Figure 6: User Logout from Service Provider Using SAML2 ........................................................................ 16
Figure 7: User Logout from Service Provider Using Simplified Logout URI ................................................ 17
Figure 8: User Logout Initiated from IAM ................................................................................................... 19

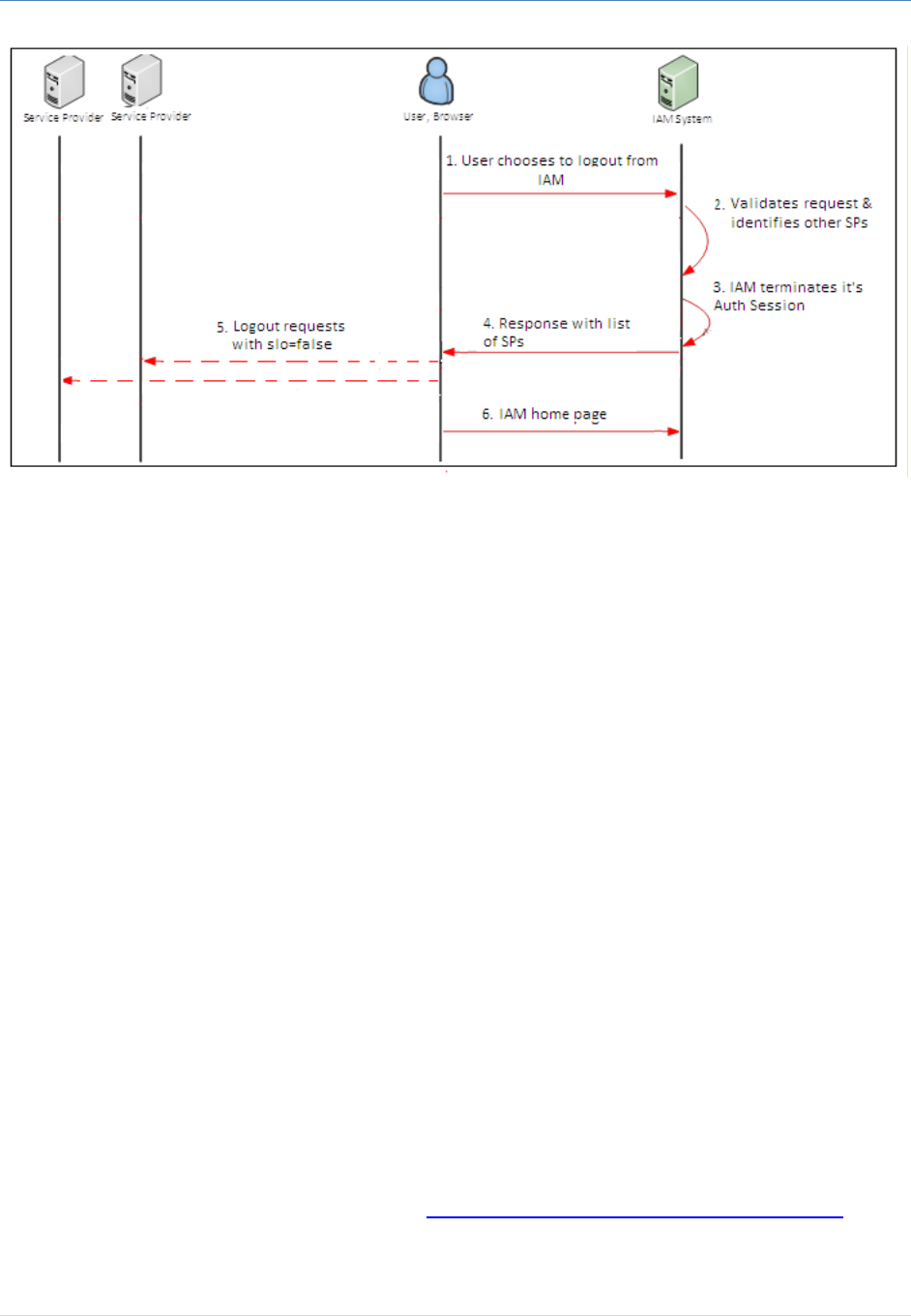

Figure 9: High Level Interaction between SP & IAM - Delegation .............................................................. 23
Figure 10: IAM/SP Staging Integration ........................................................................................................ 33
Figure 11: Sample Authentication Request ................................................................................................ 36
Figure 12: Sample Authentication Response .............................................................................................. 37
IAM Authentication and Federation Service Integration Guide
3 | P a g e
1. Introduction
Service providers are launching their services online, manual paper based transactions are substituted
with the digital services. This approach is more economical, and very flexible for the end-users. However,
these benefits come with the difficulty of managing and authenticating users online. User Registration
and validation is a long and tedious phase, which consumes money and effort.
IAM comes to the picture to take away the burden of managing citizen and residents’ digital identity. It is
the Saudi National Identity Provider with solid way of identifying people online with unique digital identity.
IAM has the ability to provide assurance to electronic service providers the identity of the individual
seeking to obtain their services.
This document governs the process of integrating and using IAM services; it is categorized into two
sections for the document purpose:
Describe the IAM Authentication and Federation Service.
Describe the integration process business and technical level.
2. Authentication and Federation Service
The authentication and federation allows authenticating end-users online based on service providers
requests. This service does not deal with Authorization. The three actors involved within this service are
illustrated in the diagram below:
IAM Authentication and Federation Service Integration Guide
4 | P a g e

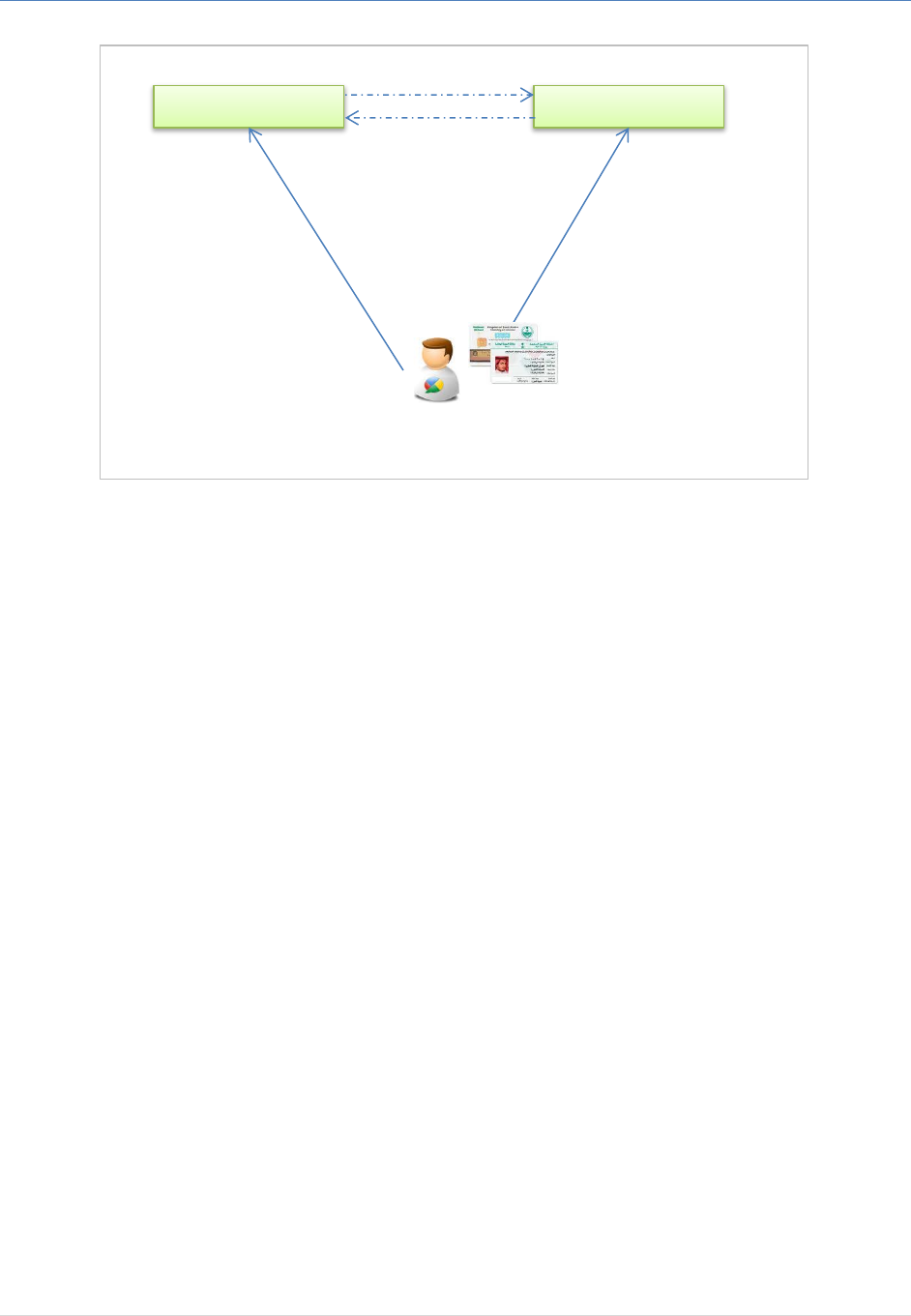

Figure 1: Different Actor involved in IAM Authentication Service

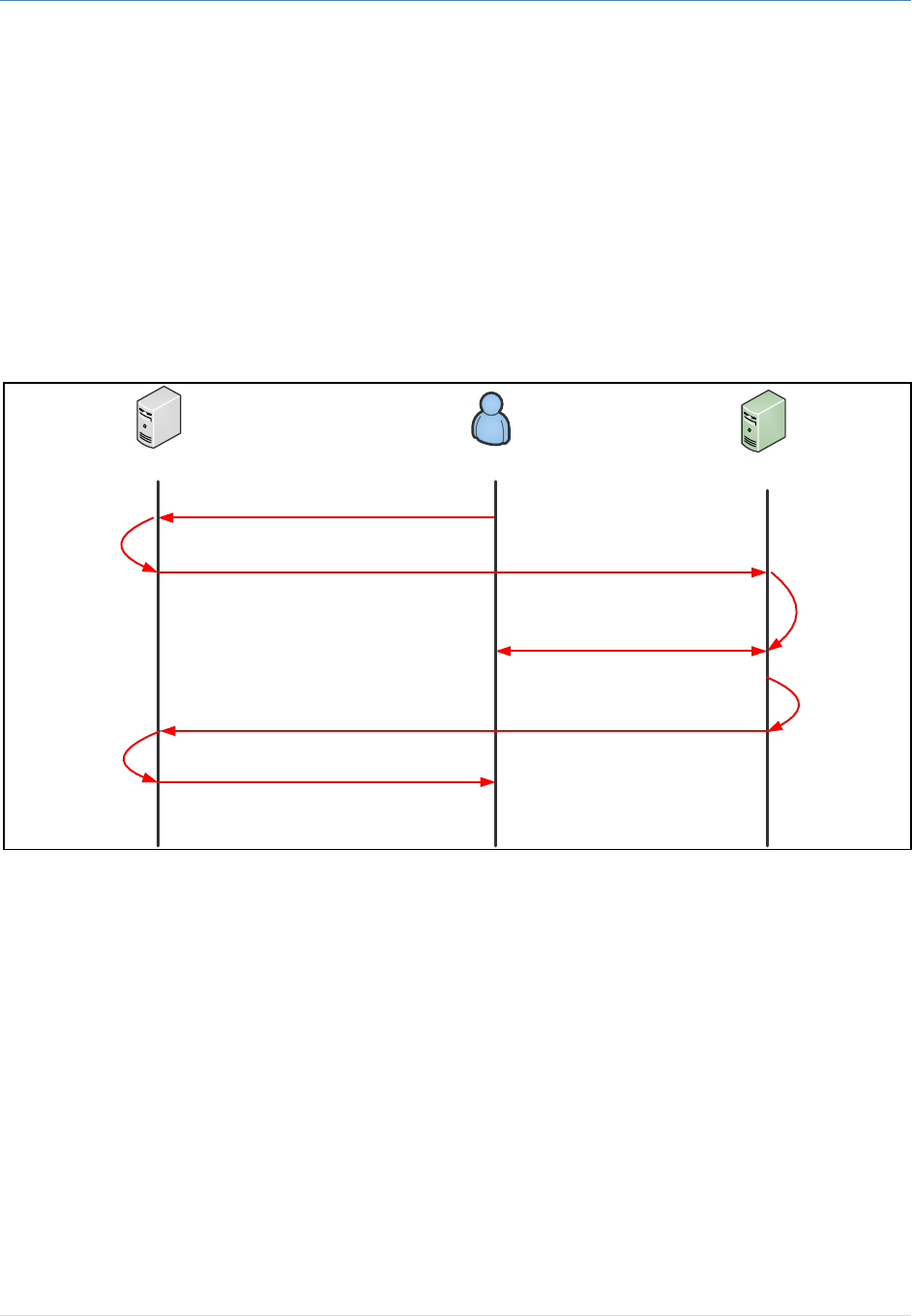

The communication between IAM and the Service Provider is not back-2-back and does not need any extra
infrastructure requirements. “Delegate Login/Logout” is just a simple representation of the indirect
communication between IAM & SP; practically the two entities exchange their data through the user
browser.
This service deals the following functionalities:
User Login:
o Default Service Provider Authentication Sequence or Explicit Authentication
Sequence
o Force Authentication: Re-Authenticate the user again even if he was authenticated
before.
o Authentication Methods
Username Password Authentication
Mobile Authentication
Fingerprint Authentication
Email Authentication
IDCard Validation.
Service Provider
IAM Service
(3) Identification,
Authentication &
Validation
(5) Access Resource
(2) Delegate Login
Citizen/Residents
(1) Request Protected Resource
(4) Respond with User Attributes
IAM Authentication and Federation Service Integration Guide
5 | P a g e
IDCard PIN Authentication.
Any combination of the above Authentication Methods.
User Federation
o Log once into IAM, Access All Service Providers
o Step Up Authentication
User Logout
o Single Logout (SLO): where the user will perform the logout from the one service
provider, and IAM takes care to dispatch the logout request to all service providers
Manage Multiple Service Provider Resources
o Different Authentication Policy
o Force Authentication
o Step Up Authentication (authentication upgrade)
2.1 IAM Login Scenario
In this scenario, the user is authenticated with his credentials (preconfigured in IAM such as IDCard and
PIN number). The policy of the user authentication is defined as part of the integration process.
The user will have two options to Log In:
Direct Login: through the Service Provider Login Process
IAM Login: the user is authenticated and redirected to the Service Provider.
There is no direct communication between the IAM Service Servers and the Service Provider Servers as
depicted below:
IAM Authentication and Federation Service Integration Guide
6 | P a g e
Internet
IAM Service Data Center Service Provider Data Center

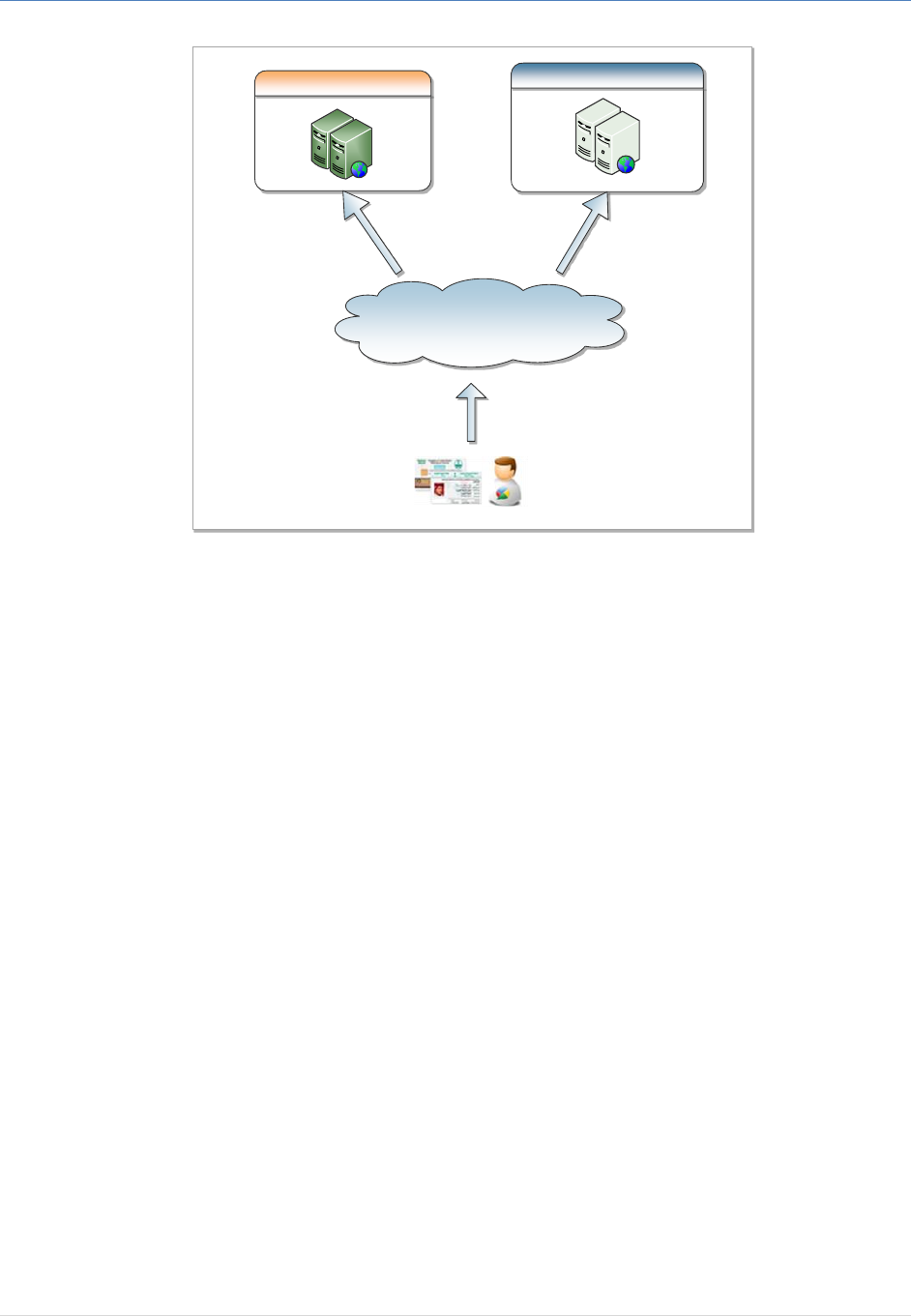

Figure 2: IAM & SP communication.
The communication between IAM Service to Service Provider is performed through the browser using
standard redirects. No direct communication is required. This will make this solution much easier and
practical since there is no impact on the infrastructure on both sides such as leased line, Firewalls rules
changes, … etc.
2.1.1 User-Centric View after Integration
Based on the scenarios described earlier, below illustration of the final view that the user will see (MoI
Portal is stated for the sake of clarity).
IAM Authentication and Federation Service Integration Guide
7 | P a g e
Figure 3: IAM / Service Provider Interactions from User Perspective (Example MoI Portal)
As part of the user experience, the language in which the page has been displayed must be consistent,
which means that if the portal is displayed in English, IAM Service Login Screen must be in English. This
point will be detailed more in the following section (integration Plan and Requirements).
The user clicks on the
“Login” link on the top of
the SP, Two options are
displayed.
The user clicks on
“IAM SSO” link to
Go to the list of SPs
The user chose to
Login with IAM
The user clicks on
Another service provider …
IAM SSO
Login
Welcome <fullname>
User Authenticated
& Redirected
to MoI Portal
IAM Authentication and Federation Service Integration Guide
8 | P a g e
The user is able to navigate between the service providers by clicking the link “IAM SSO” which will
redirect him to “IAM Service Providers List”.
2.1.2 Technical Interaction Description
The following diagram depicts the interaction between a Service Provider, IAM system and the user; this
is the technical details of the user-centric interaction illustrated above. The following sequence diagram
illustrates IAM Authentication model:
Service Provider IAM System
1- User attempts to access Service Provider Resource
3- Requesting Authentication SAML
User, Browser
2- Checking
local session
5- End-2End Authentication
7- Post the SAML Response to the Service Provider through the Browser
9- Presenting the resource to the user
6- Build
AuthResponse
4- Validate Request
& Checking IAM
session
8- Validate
AuthResponse &
Extract User Info
Figure 4: Login Scenario Sequence Diagram
The diagram is described below:
1. The user attempts to access a resource (on the main portal) on the service provider.
2. The service provider checks if the user is authenticated and possess valid local session:
a. If the session exist and valid, the service provider checks if the user is authorized to access
the resource.
b. If the session doesn’t exist, the user is not authenticated and the service provider (if the
default login of the service provider is kept as an option for the user, then the service
provider displays the login page first with two options (direct login to the service provider
and delegate login through IAM); once the user select the IAM Login Option,).
IAM Authentication and Federation Service Integration Guide
9 | P a g e
3. The service provider build a new authentication request, sign it and forwards the user
authentication request to IAM by redirecting to the IAM system for authentication (HTTP
Redirection).
4. IAM system checks if a global session (IAM session) exist:
a. If the session exists go the step 6.
b. If the session doesn’t exist, go the next step.
5. IAM system do End-2-End authentication of the user (the authentication handshake can go
through a lot of steps depending the authentication method to be in place). Once authenticated,
a new IAM AuthSession is created for the user.
6. IAM system build a signed SAML authentication response containing user information
7. IAM system post the response to the service provider through the browser.
8. The service provider validates the authentication response and extracts all user attributes.
a. It is important to store the signed SAML2 response coming from IAM in log files or
database. In addition, it is recommended to log the SAML2 request as well.
b. It is necessary to automatically check that the user has an account within the service
provider repository; if not, the service provider has to treat this as auto-provisioning
request and to do on-the-fly-registration of the user.
9. The service provider will serve the user and displays the requested resource.
User Validation
Implicitly the service validates the user against these controls:
1. Person Death: checks if the person is already dead. So somebody else is trying to use his
card.
2. Person Suspended: the person is suspended.
3. Person Nationality Suspended (residents only): the nationality of the user is blacklisted.
4. Person Iqama Expired (residents only): the iqama has expired.
5. Person Final Exit (residents only): if the resident Iqama has been terminated.
IAM Authentication and Federation Service Integration Guide
10 | P a g e
Specific requirements of validation are subject to discussion and agreement. IAM is able to adapt to the
service provider’s needs (either it is less or more validations needed).
2.1.3 Federated Identity
Federated Identity (sometimes referred to NameID, NameIdentifier or AccountLinking) creates a
persistent association between the IAM account and the service provider account. IAM is meant to be
used on national scale and thus the National ID (Iqama ID) is the federated Id.
In some cases, when the returned NameId returned is random value that should be used for another NIC
service integrated with IAM in back-2-back channel. The NameId in this case is considered as temporary
token for the operation. The validation of the token can be found in the document describing the
service/operation.
2.1.4 Authentication Request Details
The following describe the authentication request of the Service Provider containing the following main
attributes:
a. Identity of the Requester (Service Provider Entity ID)
b. Validation data such as digital signature, timestamp
c. Required Authentication: explicit or implicit, force authentication.
The SAML2 authentication request sent from the service provider to IAM should be similar to:
IAM Authentication and Federation Service Integration Guide
11 | P a g e
The important information that composes an authentication request and the service provider should be
aware of are:
Destination: A URI reference indicating the IAM address to which this request has been
sent. The default value: https://www.iam.gov.sa/samlsso
ProtocolBinding: A URI reference that identifies a SAML protocol binding to be used when
IAM returns the SAML <Response> message
Issuer: The service provider name issuing the authentication request.
NameIDPolicy: IAM will use the National ID as persistent identifier of the user.
AuthnContextClassRef: A URI reference identifying the authentication context class that
describe the authentication context by using the following mapping:
Authentication Methods
(AuthnContextClassRef)
URI
Unspecified
urn:oasis:names:tc:SAML:2.0:ac:classes:unspecified
use the pre-configured authentication scheme
Username/Password
urn:oasis:names:tc:SAML:2.0:ac:classes:Password
or urn:oasis:names:tc:SAML:2.0:ac:classes:ProtectedPassword
Username/Password
with One Time Password
urn:oasis:names:tc:SAML:2.0:ac:classes:MobileTwoFactorContract
IDCard
urn:oasis:names:tc:SAML:2.0:ac:classes:SmartcardPKI
<samlp:AuthnRequest xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"
xmlns:ds="http://www.w3.org/2000/09/xmldsig#"
xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"
xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-
instance" Destination="https://www.iam.gov.sa/samlsso"
ID="RB87E7DE8DE0DFA12B1FABC17B92F13401326CC6D" IssueInstant="2011-11-30T06:29:59Z"
ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Version="2.0">
<saml:Issuer>nicsp</saml:Issuer>
<samlp:NameIDPolicy AllowCreate="true" Format="urn:oasis:names:tc:SAML:2.0:nameid-
format:persistent"/>
<samlp:RequestedAuthnContext>
<saml:AuthnContextClassRef xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">
urn:oasis:names:tc:SAML:2.0:ac:classes:PasswordProtectedTransport
</saml:AuthnContextClassRef>
</samlp:RequestedAuthnContext>
</samlp:AuthnRequest>
IAM Authentication and Federation Service Integration Guide
12 | P a g e
2.1.5 Authentication Response Details
The following describe the authentication response of IAM along with their main attributes.
1. IAM Identity: Identity of the IAM Authentication Service
2. Message Validity: validation data such as digital signature, timestamp, single use.
3. User Identity: users attributes are listed in the table below:
#
Attribute Name
Type
Description
1
nationalId
String
This is the user identifier represented by the National Id (Resident
Id)
SAML2 NameID or http://iam.gov.sa/claims/userid
2
lang
Enum
For Language Consistency/Preferred Language of the user
(AR/EN) http://iam.gov.sa/claims/lang
3
arabicName
String
Arabic Full Name
http://iam.gov.sa/claims/arabicName
4
englishName
String
English Full Name
http://iam.gov.sa/claims/englishName
5
dobHijri
Date
Date Of Birth Hijri
Example: 1487/06/12
http://iam.gov.sa/claims/dobHijri
6
dob
Date
Date Of Birth Gregorian
Example: Tue Feb 30 03:00:00 AST 1987
http://iam.gov.sa/claims/dob
7
arabicNationality
String
Arabic Nationality
http://iam.gov.sa/claims/arabicNationality
8
nationality
String
English Nationality
http://iam.gov.sa/claims/nationality
9
nationalityCode
String
Nationality code, list of codes are in the Annex D.
http://iam.gov.sa/claims/nationalityCode
10
gender
Enum
Male/Female
http://iam.gov.sa/claims/gender
11
arabicFirstName
String
Arabic First Name
http://iam.gov.sa/claims/arabicFirstName
12
englishFirstName
String
English First Name
http://iam.gov.sa/claims/englishFirstName
13
arabicFamilyName
String
Arabic Family Name http://iam.gov.sa/claims/arabicFamilyName
14
englishFamilyName
String
English Family Name
http://iam.gov.sa/claims/englishFamilyName
15
arabicFatherName
String
Arabic Father Name http://iam.gov.sa/claims/arabicFatherName
16
englishFatherName
String
English Father Name
http://iam.gov.sa/claims/englishFatherName
17
arabicGrandFatherName
String
Arabic Grand Father Name
http://iam.gov.sa/claims/arabicGrandFatherName
18
englishGrandFatherName
String
English Grand Father Name
http://iam.gov.sa/claims/englishGrandFatherName
IAM Authentication and Federation Service Integration Guide
13 | P a g e
19
assuranceLevel
String
(Optional)
Level of Assurance according to the authentication sequence and
the status of the user registration
http://iam.gov.sa/claims/assuranceLevel
20
cardIssueDateGregorian
Date
Gregorian Saudi Identity Card Issue Date or Iqama Issue Date
Example: Tue Jan 20 03:00:00 AST 2015
http://iam.gov.sa/claims/cardIssueDateGregorian
21
cardIssueDateHijri
Date
Hijri Saudi Identity Card Issue Date or Iqama Issue Date
Example: 1436/09/29
http://iam.gov.sa/claims/cardIssueDateHijri
22
IssueLocationAr
String
Card Issue Location,
Example: Riyadh
http://iam.gov.sa/claims/issueLocationAr
23
IssueLocationEn
String
Card Issue Location,
Example:
http://iam.gov.sa/claims/IssueLocationEn
24
iqamaExpirationDateH
Date
Hijri Iqama Iqama Expiration Date
Example: 1436/09/29
http://iam.gov.sa/claims/iqamaExpirationDateH
25
iqamaExpirationDateG
Date
Gregorian Iqama Expiration Date
Example: 2017/09/29
http://iam.gov.sa/claims/iqamaExpirationDateH
Note that the Service will provide extra user attributes upon request by Service Provider Team, compliant
to NIC privacy policy. The users credentials are never sent to the Service Provider in direct or indirect way
(proxy for instance), this includes the username, password, PIN, fingerprints, iris … etc.
The Service Provider (SP) must handle the authentication response messages from IAM using the HTTP-
POST. The message returned by the IAM will look like:
IAM Authentication and Federation Service Integration Guide
14 | P a g e
The service provider verifies the response based on the following:
Destination: A URI reference indicating the SP address to which this response has been sent.
Issuer: The identity provider name issuing the authentication response.
StatusCode: Specifies if the authentication succeed or failed.
Subject: Specifies the user authenticated in IAM.
<samlp:Response Destination="https://www.sp.com" ID="s2c2fe9d1393901b1ca3f5cd0d044082341a86ac43"
InResponseTo="RB87E7DE8DE0DFA12B1FABC17B92F13401326CC6D" IssueInstant="2011-11-30T06:30:04Z"
Version="2.0">
<saml:Issuer>https://www.iam.gov.sa/samlsso</saml:Issuer>
<samlp:Status>
<samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success“></samlp:StatusCode>
</samlp:Status>
<saml:Assertion ID="s2f0949aa62f4125340f337ec7d09d0fdc928c1512" IssueInstant="2011-11-
30T06:30:04Z" Version="2.0">
<saml:Issuer>https://www.iam.gov.sa/samlsso</saml:Issuer>
<saml:Subject>
<saml:NameID Format="urn:oasis:names:tc:SAML:2.0:nameid-format:persistent"
NameQualifier="IAM" SPNameQualifier="SPName "
SPProvidedID="SPName">1155512312</saml:NameID>
<saml:SubjectConfirmation Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
<saml:SubjectConfirmationData
InResponseTo="RB87E7DE8DE0DFA12B1FABC17B92F13401326CC6D" NotOnOrAfter="2011-11-
30T06:40:04Z" Recipient="https://www.sp.com/Post"/></saml:SubjectConfirmation>
</saml:Subject>
<saml:Conditions NotBefore="2011-11-30T06:25:04Z" NotOnOrAfter="2011-11-30T06:35:04Z">
</saml:Conditions>
<saml:AuthnStatement AuthnInstant="2011-11-30T06:30:04Z"
SessionIndex="s2f0949aa62f4125340f337ec7d09d0fdc928c1512">
<saml:AuthnContext>
<saml:AuthnContextClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:Password
</saml:AuthnContextClassRef>
</saml:AuthnContext>
</saml:AuthnStatement>
</saml:Assertion>
</samlp:Response>
IAM Authentication and Federation Service Integration Guide
15 | P a g e
AuthnContextClassRef: A URI reference identifying the authentication context class that
describes the authentication context by using the precedent mapping.
IssueInstant & Conditions (NotBefore and NotAfter)
Digital Signature: XML Signature of the response using the IAM certificate.
SessionIndex: linked between the authentication request and response.
In addition, it extracts the user’s attributes included in the authentication response message
(saml:AttributeStatement element). There is no need for extra messages are exchanged for attribute
release; the service provider does not explicitly ask for attributes during the login process.
2.2 IAM Logout Scenario
In this scenario, the user has been authenticated to the first service provider, and has been federated into
another one (or others ones) upon the user’s access request.
The users can logout in two ways:
By clicking logout from the service provider page.
By clicking logout on IAM directly.
IAM Authentication
Service
Service
Provider 1
Service
Provider 2
IAM Authentication
Service
Service
Provider 1
Service
Provider 2
Click Logout
Single Logout Triggered From the Service Provider Single Logout Triggered From the IAM Authentication Service

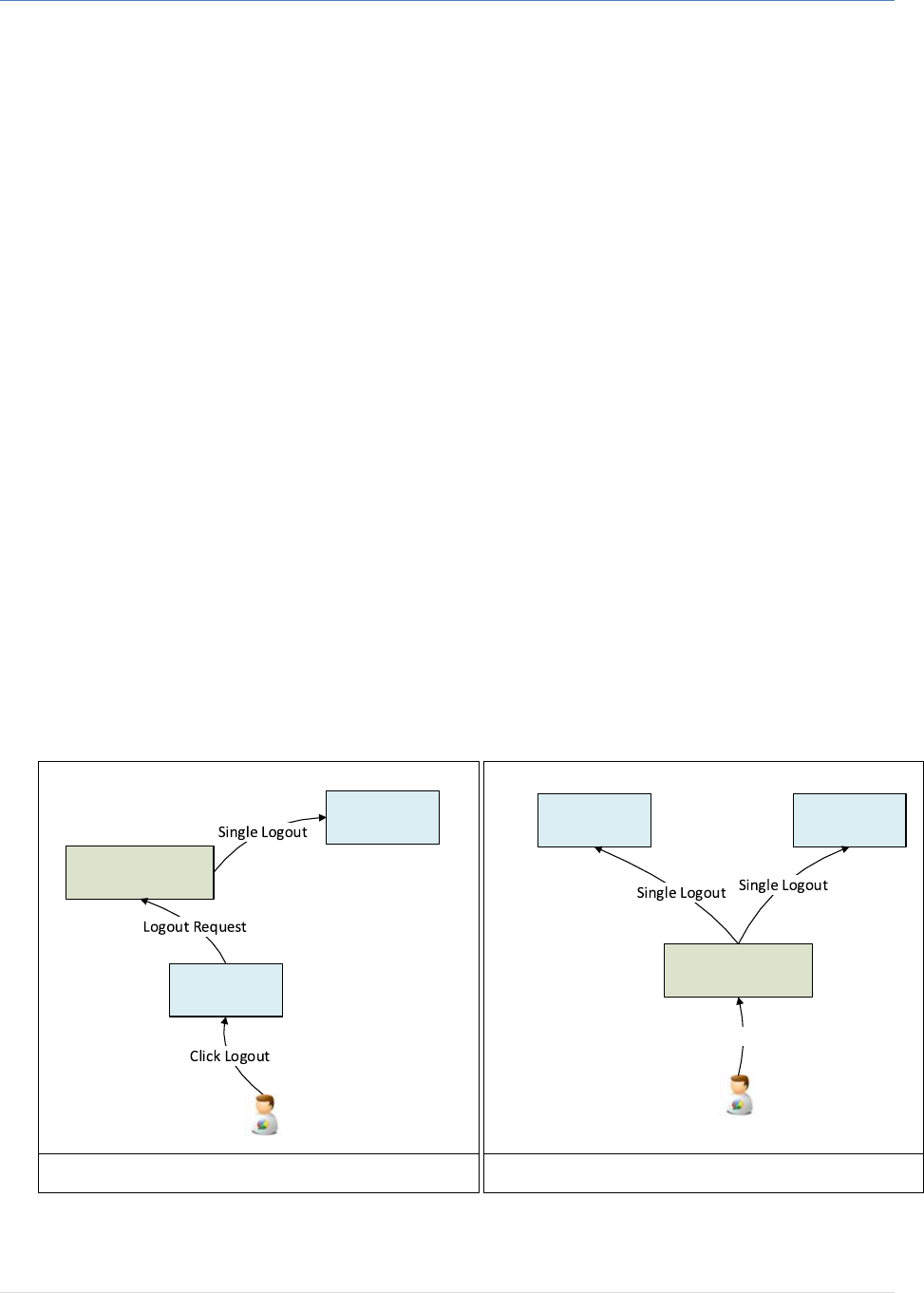

Figure 5: Single Logout Options
IAM Authentication and Federation Service Integration Guide
16 | P a g e
The requests and responses are very similar to the Login Scenario. In addition, IAM has implemented an
easier way to handle the logout using direct URLs.
2.2.1 Technical Interaction Description
The logout process can be initiated based on two ways:
User Logout from Service Provider Using SAML2
User Logout from Service Provider Using Simplified Logout URI
Following detailed description of both forms of logout:
User Logout from Service Provider Using SAML2
The following is the process flow of logout from the service provider based on SAML 2 standard:

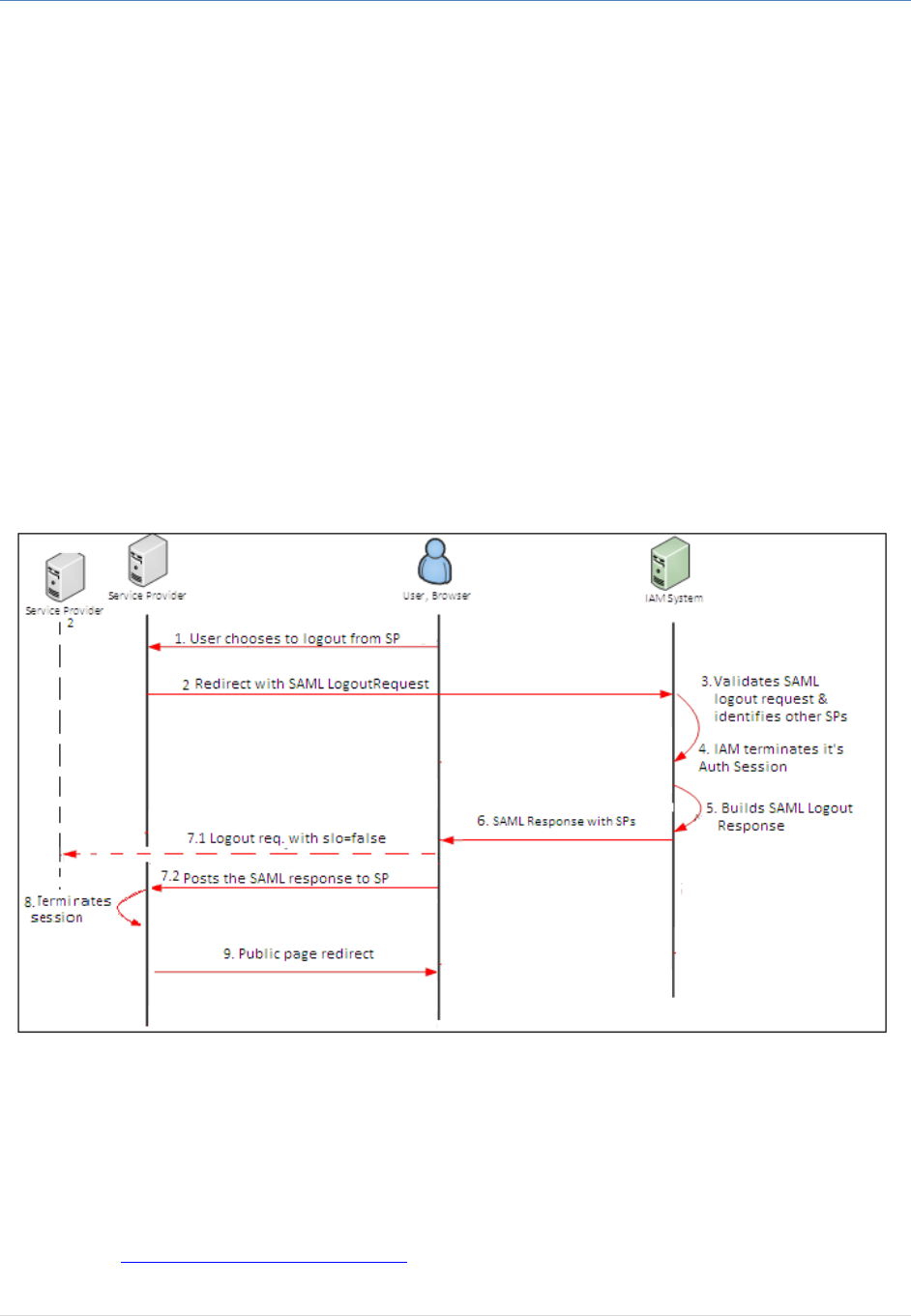

Figure 6: User Logout from Service Provider Using SAML2
1. The user chooses to logout from the service provider.
2. Service Provider generates a digitally signed SAML2 Logout Request and redirects to IAM logout
URL “https://www.iam.gov.sa/samlsso”.
IAM Authentication and Federation Service Integration Guide
17 | P a g e
3. IAM validates the SAML Logout Request; then determines, from the current user session, all the
service providers that the user has logged on.
4. IAM terminates its Authentication session.
5. IAM builds a digitally signed SAML Logout Response message;
6. IAM sends back the signed response to the browser along with the list of service providers that
are part of the logout operations.
7. The browser will do the following:
7.1 First, the browser will send logout request to the listed SPs with request parameter
‘slo=false’; each of these SPs terminates its own logon session for the current end user.
7.2 Then, it forwards the Logout Response to the initiating SP.
8. The SP validates IAM SAML2 Logout Response and terminates its local session.
9. The originating SP redirects the user to the public page.
User Logout from Service Provider Using Simplified Logout URI
The following is the process flow of logout from the service provider using simple logout link:
Figure 7: User Logout from Service Provider Using Simplified Logout URI
IAM Authentication and Federation Service Integration Guide
18 | P a g e
1. The user clicks on logout link from the service provider.
2. Service Provider logout the user locally by killing its session then redirects the user to IAM logout
URL for e.g., “https://www.iam.gov.sa/samlsso?slo=true”.
3. IAM validates the current Authentication Session; then determines, from the current user session,
all the service providers that the user has logged on.
4. IAM terminates its Authentication session.
5. IAM sends back the response to the browser along with the list of Service Providers part of the
logout operations.
6. The browser will do the following:
6.1. The browser sends logout request to the listed service providers with request parameter
‘slo=false’; each of these service providers terminates their logon session for the current
end user.
6.2. Then, it forwards the response to the initiating Service Provider.
7. The Service Provider terminates its local session.
8. The originating Service Provider redirects the user to the public page.
User Logout Initiated from IAM
The following is the process flow of logout from IAM (IDP logout):
IAM Authentication and Federation Service Integration Guide
19 | P a g e
Figure 8: User Logout Initiated from IAM
1. The user clicks on the logout link on the IAM.
2. IAM validates the current Authentication Session; then determines, from the current user
session, all the service providers that the user has logged on.
3. IAM terminates its Authentication session.
4. IAM sends back the response to the browser along with the list of Service Providers part of the
logout operations.
5. The browser sends logout request to the listed service providers with request parameter
‘slo=false’; each of these service providers terminates their logon session for the current end
user.
6. Once the user is logged out from all the service providers, the user is taken to the IAM home
page.
2.2.2 Logout Request/Response Details
- Direct Logout
o INPUT: the URL is https://www.iam.gov.sa/samlsso?slo=true
o OUTPUT: the URL issued to SP is https://serviceprovider.com.sa/logout?slo=false
- SAML2 Logout Request
IAM Authentication and Federation Service Integration Guide
20 | P a g e
o INPUT
The logout request sent from the service provider to IAM should be similar to:
The important information that composes logout request and the service provider
should be aware of are:
Destination: A URI reference indicating the IAM address to which this
request has been sent. The default value “https://www.iam.gov.sa/samlsso”
Issuer: The service provider name issuing the logout request.
NameID: IAM will use the National ID as persistent identifier of the user.
SessionIndex: Session identifier that is sent with authentication response
when SLO is enabled for the service provider.
o OUTPUT
The Service Provider (SP) must handle the logout response messages IAM using the
HTTP-POST. The message returned by the IAM will look like:
<saml2p:LogoutRequest xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol"
Destination="https://www.iam.gov.sa/samlsso" ID="_cb32bak45d0sdg87d0gdf08fgd"
IssueInstant="2017-03-12T07:34:40.058Z" Reason="Single Logout" Version="2.0">
<saml2:Issuer xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"
NameQualifier="nameQualifier">
https://www.serviceprovider.com.sa/secure/Login</saml2:Issuer>
<saml2:NameID xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"
Format="urn:oasis:names:tc:SAML:2.0:nameid-
format:entity">1132077577</saml2:NameID>
<saml2p:SessionIndex>s255bf14slkdfj324sg9087dfgd309458xlkdgjd03487
</saml2p:SessionIndex>
</saml2p:LogoutRequest>
IAM Authentication and Federation Service Integration Guide
21 | P a g e
<saml2p:LogoutResponse xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol"
Destination="https://www.serviceprovider.com.sa/secure/Login"
ID="_cb32ba31418f1585dfbf3bbd6a5c8145" InResponseTo="_f05972ea60db4abac380567b0a758b46"
IssueInstant="2017-03-12T07:31:14.573Z" Version="2.0">
<saml2:Issuer xmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion"
Format="urn:oasis:names:tc:SAML:2.0:nameid-
format:entity">https://www.iam.gov.sa/samlsso</saml2:Issuer>
<ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
<ds:SignedInfo>
<ds:CanonicalizationMethod Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" />
<ds:SignatureMethod Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1" />
<ds:Reference URI="#_cb32ba31418f1585dfbf3bbd6a5c8145">
<ds:Transforms>
<ds:Transform Algorithm="http://www.w3.org/2000/09/xmldsig#enveloped-signature" />
<ds:Transform Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#" />
</ds:Transforms>
<ds:DigestMethod Algorithm="http://www.w3.org/2000/09/xmldsig#sha1" />
<ds:DigestValue>qsBu2J6Jx6bPB/DeJCj6Z3V0siY=</ds:DigestValue>
</ds:Reference>
</ds:SignedInfo>
<ds:SignatureValue>eJGYy5pz70hlPaMKka7fKMMh+h36hI+qthKkUsYy777B67Hv/dhAr4hXIrYjQ=</ds:
SignatureValue>
<ds:KeyInfo>
<ds:X509Data>
<ds:X509Certificate>MIICNTCCAZ6gAwIBAgIES343gjANBgkqhkiG9w0BAQUFADBVMQswCQY
Dc/E/Wq8uHSCo=</ds:X509Certificate>
</ds:X509Data>
</ds:KeyInfo>
</ds:Signature>
<saml2p:Status>
<saml2p:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success" />
</saml2p:Status>
</saml2p:LogoutResponse>
IAM Authentication and Federation Service Integration Guide
22 | P a g e
The service provider verifies the response based on the following:
Destination: A URI reference indicating the SP address to which this response has been sent
to.
Issuer: The identity provider name issuing the logout response.
StatusCode: Specifies if the logout is succeed or failed.
IssueInstant: The timestamp of the response.
Digital Signature: XML Signature of the response using the IAM certificate.
2.3 Authentication Protocol Consideration
For reasons of security and interoperability, «SAML 2.0 Web Browser SSO Deployment Profile» is the only
protocol to be used.
The messages exchanged are signed as a must (encryption is optional). Any non-signed request/response
should be rejected (from IAM/Service Provider). The certificate used by the Service Provider is issued by
IAM Team during Integration. In addition, IAM requires that the service provider uses HTTPS, and will only
send authentication responses to HTTPS-enabled endpoints. The certificate used by the service provider
for signing the authentication requests is issued during the Integration.
IAM will sign the SAML responses or assertion. The service provider must check the signature of incoming
authentication responses to ensure that it is sent from IAM and must handle validation of the message
(Response Signature Valid, Response Issuer Valid, Response Timeframe Valid, Single Use of Response,
Request-Response IDs Matching). These kinds of checks are automatically handled by built-in SAML

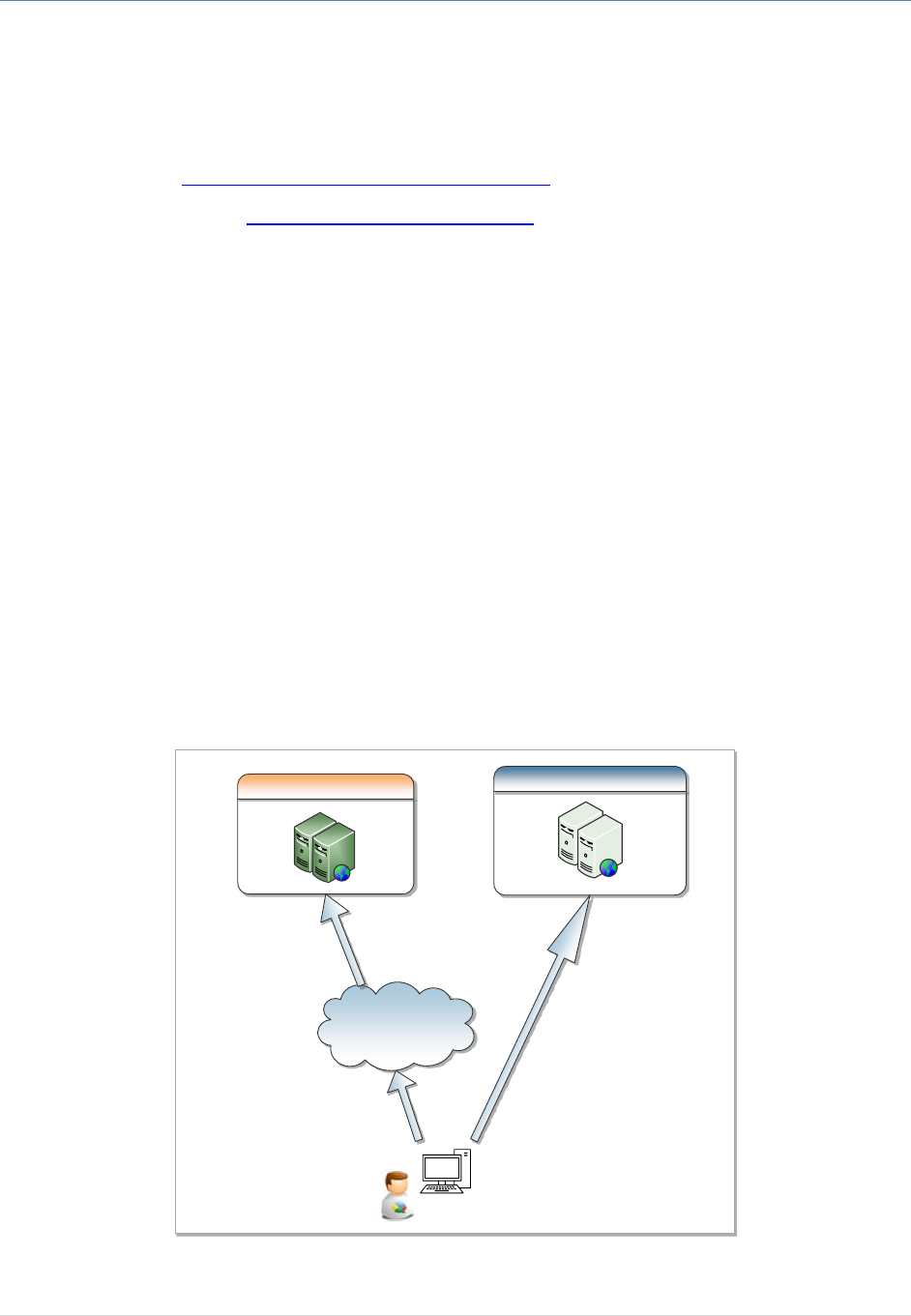

Service Provider Platform. Below diagram, illustrate the messages (along with signing/validation) between
service providers and IAM Authentication Service.
IAM Authentication and Federation Service Integration Guide
23 | P a g e
Figure 9: High Level Interaction between SP & IAM - Delegation
Service
Provider
IAM
AuthService
(1) Auth Request
Signed by SP
(4) Validate Response
(Trust INFRA CA)
(2) Validate Signature
(Trust INFRA CA)
(3) Auth Response
Signed by IAM Service
IAM Authentication and Federation Service Integration Guide
24 | P a g e
3. Integration Plan
The following diagram illustrates the integration plan. It is divided into the following steps:
Note: At the end of each step, the integration teams will meet and report the status to IAM/Service
Provider management.
At the end of the integration effort, a report should be submitted to top management, this will make an
end to previous step and launch the next one.
3.1 Request IAM Services Step
The IAM services can be requested in two ways:
Direct communication with IAM management: this is applied especially for government
organization. Nevertheless, an owner has to be selected from the organization to be the point
of contact and coordinator of the integration effort. He has to issue a formal request.
•Request IAM service through the SP Onboarding Business Process
or by having direct contact with IAM Management
Request IAM Services Step
•Meeting between IAM Service Team and SP Team
•Agree on all integration points raised within this document
•Define clearly requirements and develop scheduled action plan
Approval & Agreement Step
•Integrate IAM INT Env. with SP INT Env.
•Testing Integration and Fixing issues
Technical Integration
INT Env. (if possible)
•Integrate IAM Service QA Env. with SP QA Env.
•Testing Integration and Fixing issues
Technical Integration
Staging Env. (if possible)
•Integrate IAM Prod with SP Prod (Keep it Hidden from public)
•Testing Integration and Fixing issues
•Testing on Internet
Technical Integration
PROD Env. Hidden
•Enable IAM Login to public
Production Integration
Finalized
IAM Authentication and Federation Service Integration Guide
25 | P a g e
The owner (or eligible person) of the company (or business entity) can request IAM services
through https://www.iam.gov.sa/idpinit/ar/sp_onboarding.jsp. This screen will identify the
requester and send his demand to IAM management.
In both cases, the requester has to provide the following Info, the first line is provided as sample:
26 | P a g e
#
Resource
Alias
Description
Resource URL
User
Target
Resource Policy
Technology /
Platform
Current
Authentication
Scheme
Estimated
Number of
Transactio
ns
User Attributes
User
Validation
Auth. Policy
1
Sample
Resource
This Sample
Resource will
allow the user
to …
https://www.comp
any.com/resource/s
ample
ALL
Registered
or Activated,
Alive or NA,
Inside or
Outside the
country or
NA,
IDCard + PIN
OR
Username
Password +
OTP
.Net /
WebApp on
IIS
Custom Login
Page Relying on
LDAP
220/400
Per
Minutes
ALL
Where the:
Resource URL: Service Provider URI, usually it is the main portal page.
User Target: Citizen, Residents (Visitor are not yet handled)
User Policy: Part of users validation Registered or Activated or NA, Alive or NA, Inside or Outside the country or NA,
Authentication Policy (Sequences): Specify Options of any combination of the following IDCard, PIN, UP, Mobile, Email, Fingerprint
Technology: .Net, Java, Python, PHP …
Resource Platform: WebApp on IIS, WebApp IBM WebSphere AppServer, Oracle Portal, IBM Portal, SharePoint, …
Current Authentication Scheme: Windows Integrated Logon, Custom Authentication Front, Custom Backend, Custom Membership
Provider, Third Party SSO Solution, Users Repository
Estimated Number of Transactions should be given in (Average/ Peak) Per Second or Minutes or Daily … Also, Peak Time
User Attributes: the user attributes required by the service provider for each listed resource. The list of available attributes is defined
in the service description in section 2.4.
The request goes through IAM Service Provider Onboarding Business Process Approval. The requester will be contacted and the next step can be
carried on.
27 | P a g e
3.2 Approvals & Agreement Step
Once the request has been validated and got first approval, a more detailed discussion can take place.
The main topics of this discussion is to finalize an agreement about all the details, management, business
and technical level.
3.2.1 Management Discussions and Agreement
At the management level, discussions will cover the following points:
Workshops and Meeting between IAM Service Team and Service Provider Team.
Agree on all integration points raised within this document.
Define extra requirements and develop scheduled action plan.
Agree on the Process of raising Issues/Problems, new requirements or a change request.
Define roles and responsibilities.
Agree and Sign a contract by both parties including SLA.
3.2.2 Business & Technical Discussion and Agreement
At the technical level, the discussion will cover the following:
Service Provider Existent Architecture:
The service provider team will explain the technical architecture and issue, this will serve for better
understanding and planning.
Service Provider Requirements:
The input here is the table filled by the service provider filled in the previous step:
• Discuss the resources to protect.
• Discuss Service Provider user attributes requirements.
• Discuss the required users’ validation.
• Discuss the logout processes and requirements.
• Define Service Provider Policy:
IAM Authentication and Federation Service Integration Guide
28 | P a g e
• Default Authentication Method Required (Authentication Sequences Allowed)
for desktop and mobile clients,
• Possibility to specify Authentication Method during the request,
• Federation Policy,
• Force Authentication,
Service Provider Integration
• Discuss the possibility to do the integration on Integration and Pre-production,
• Discuss the SAMl2 authentication protocol enablement.
• Discuss Authentication Request/Response Validations :
• Digital Signature Validation
• Timestamp Validation,
• Login Options and how it will be presented to the User,
• Discuss the language consistency,
• Discuss the need for implement the auto-registration (on the fly registration),
• After authentication in IAM, the user may not exist in the Service Provider
repository. In this case, the service provider has to auto-register the user.
• The Service Provider should not prompt the user for any information provided as
part of SAML2 request.
• The service provider should not request the user for any credentials (especially
the password).
• If the auto-registration of the user needs a password (because of platform or SDK
limitation), the service provider needs to generate the password randomly just
for the purpose of creating the profile and not for authentication purpose. That
password should be random enough to not be used even by system
administrator.
• Service Provider Identity (Certificate) requirements (usage and storage),
• Statistics of the SP Portal related to Login
• Number of daily logins,
• Number of login peak.
IAM Authentication and Federation Service Integration Guide
29 | P a g e
Service Provider Portal Platform Readiness,
Based on these discussions and walkthrough the integration guide, IAM and service provider
teams will assess the technical readiness to start the integration especially:
• Service Providers resources architecture relevant to integration,
• SAML2 authentication protocol support.
• Auto-Registration Support.
• User Identifiers.
3.2.3 Establish Technical Integration Timeline
Once all of these points are agreed, the step ends by establishing the integration timeline and defining
the actions required with clear estimates as preparation to the next step.
#
Owner
Actions
Estimate
(Days)
Description
1
SP/IAM
Complete the Technical
Readiness of the Service
Provider and IAM
TBD
Implement the identified technical gaps on IAM and the
service provider and follow up to fulfill all pre-requisites.
These gaps were identified during the discussion of
requirements and technical integration requirements.
2
IAM
Register the Service Provider
in IAM with agreed policy
1
IAM Team will issue a certificate for the service provider
and then create a profile for it within IAM
More information about the service provider is collected
at this step.
3
SP
Register IAM in Service
Provider as Identity Provider
2-3
The configuration needed is SAML2 Web SSO Post Binding,
All configuration details are listed below.
4
IAM/SP
Testing the Integration
5-10
End-2End-Testing & Fixing Issues.
5
IAM/SP
Get approval to move to
next environment
TBD
finalize the integration if it is in production
IAM Authentication and Federation Service Integration Guide
30 | P a g e
3.3 Technical Integration Step
Applies to INT (if possible),to STAGING (if possible) and Production.
At this step, IAM and the service provider went through the integration guide and several workshops have
taken place covering management, business and technical topics. In addition, IAM and the service
provider have established the timeline to be executed which is the purpose of this phase. The timeline
five items are more explained hereafter:
Complete the Technical Readiness of the Service Provider and IAM.
Register the service provider in IAM with agreed policy.
Service Provider to register IAM as Identity Provider.
Testing the Integration.
Get approval to move to next environment.
3.3.1 Complete the Technical Readiness of the Service Provider and IAM
This step will make sure that the Service Provider has implemented the defined gaps and is technically
ready to use IAM authentication service. This may need a development effort on the Service Provider
side. Even though, it is difficult to cover all gaps but usually the following are highly recurrent:
• Enable SAML2 authentication protocol in the service provider platform. This depends on the
technology and platform used by the SP. Annex C contains some platform guidelines on how to
enable SAML2.
• Service Provider default user Identifiers: the SP has to do some changes on the user repository
in case the service provider is not using the national Id (Iqama Id) as an identifier.
• Implement “On the fly registration application” process: Several use cases need to properly
handled:
o Authenticated user not registered. Prompt user to complete his info.
o Authenticated user already registered. Information Correct: No action.
o Information Incorrect: Update the user entry.
• Customize the Service Provider login page:
o Customize the Service Provider Login Page to handle Local Login and IAM Login
(Federated Login).
IAM Authentication and Federation Service Integration Guide
31 | P a g e
• Implement the Service Provider Logout interceptor: for single logout purpose. The link should
contain slo parameter similar to https://www.sp.gov.sa/logout?slo=[true|false].
o When the slo is false, the service provider will just logout locally.
o When the slo is true, the service provider will issue slo request (using either the simplified
way or SAML2 based).
3.3.2 Register the Service Provider in IAM with agreed Policy
IAM team will have all the information required to configure the service provider with the details.
Resource URL: this is the link to the resource to be protected (ex. login page), usually it is the
portal link.
For Arabic, Example: https://www.sp.gov.sa/resource or https://www.sp.gov.sa
For English, Example: https://www.sp.gov.sa/en/resource or https://www.sp.gov.sa/en
Service Provider Entity Id: This URL is the name of the Service Provider,
Example: https://www.sp.gov.sa/resource or https://www.sp.gov.sa
Service Provider Assertion Consumer Service URL: ACS URL if the link to the process that is
initiating the SAML2 Request and Receive the Authentication Response.
Example: https://www.sp.gov.sa/resource/acs or https://www.sp.gov.sa/acs
Service Provider Logout URL:
Example: https://www.sp.gov.sa/resource/logout or https://www.sp.gov.sa/logout.
Authentication Methods Options:
Example: username and password with IDCard or username password with one time
password.
Signing Certificate:
Every Service Provider will have a dedicated certificate used to digitally sign the
authentication requests. IAM will provide a new certificate for the Service Provider based on
the CSR (Certificate Signing Request) coming from the Service Provider. The creation of the
associated RSA keypair should be done at the service provider side. IAM team will guide the
service provider during the certificate issuance process.
IAM Authentication and Federation Service Integration Guide
32 | P a g e
Other information related to the UI is required to finish the configuration:
Service Provider Name (Alias).
Login Service Provider Image Arabic and English.
Login Label Arabic and English.
Login Description Arabic and English.
The images, labels and descriptions will be displayed to the user to let him know that he is
authenticating for Service Provider.
During non-production integration such as Staging, the Service Provider configuration will be isolated
but can still use IAM default URL.
3.3.3 Register IAM as Identity Provider in Service Provider
The IAM team will provide the IAM Entity Descriptor. For some platforms, this will facilitate the
configuration by just importing this file when configuring the Identity Provider (sample is
provided on Annex B). The Service provider has to register IAM as a default Identity Provider
using the following information:
Entity ID: https://www.iam.gov.sa/samlsso
Destination URL: https://www.iam.gov.sa/samlsso
Protocol: SAML 2 Web SSO Profile: with the following bindings:
• Request: urn:oasis:names:tc:SAML:2.0:bindings:HTTP-REDIRECT or
urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST.
• Response: urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST
Service Provider Signing Certificate:
This certificate has been provided in the previous step based on the SP CSR. It will be used to
sign SP authentication requests.
IAM Certificate: Provided by IAM Support , it is used to validate responses signature coming
from IAM.
IAM Authentication and Federation Service Integration Guide
33 | P a g e
Certificates Chain: the INFRA CA and the ROOT CA certificate. These two certificates must be
imported into the service provider application keystore and must be trusted. They serve to
validate the SP signing certificate and the IAM certificate.
Logout URL: https://www.iam.gov.sa/samlsso?slo=true
SAML2 Logout URL: https://www.iam.gov.sa/samlsso
Attributes mapping should be configured to map the user attributes coming from IAM to the
repository attribute.
Note that the configuration of SAML2 is platform specific and is out of the scope of this document.
3.3.4 Testing the integration
During staging integration, an isolated SP configuration is created on IAM. The only constraint is that the
user accessing SP staging environment has connection to IAM over internet. IAM Support Team will
provide appropriate configuration. Note that there is no need for direct connectivity to perform the
integration on the Staging environment (neither for production). Following diagram shows the
user/developer/tester accessing both environments (IAM and SP).
Internet
IAM Service Data Center
SP Staging Env.
SP Machine
Figure 10: IAM/SP Staging Integration
IAM Authentication and Federation Service Integration Guide
34 | P a g e
The testing scenario is straightforward by applying the following test cases:
Normal Login of an SP existent User on the Service Provider through SP Local Login.
Expected Result: Successful Logged-In User to SP without soliciting IAM.
Normal Login of an IAM registered user having an account in the SP repository.
Expected Result: Successful Login (redirection to IAM and back to the SP), and update of the
existing user profile or create a new one according to the SP policy (to separate IAM profiles
and SP profiles).
Normal Login of an IAM registered user NOT having an account in the SP repository.
Expected Result: Successful Login on IAM and SP Auto-Registration Screen with user
attributes populated and locked.
A number of negative tests will be done according to IAM Test Plan.
A complete description of the test scenarios is included in the IAM Integration Checklist.
Important Notes
The Arabic/English Switch should be consistent for the user. This means that if the user is on the
Arabic page on the portal and wants to login. The Service Provider redirects him to the Arabic
version of IAM Service and vice-versa. The possible values are EN, AR.
The language consistency will be maintained during the authentication. “lang” HTTP attribute will
be sent from the service provider to IAM as part of the Authentication Request (as additional
parameter). The SAML2 response is sent from IAM back to the service provider including the
“lang” as SAML2 attribute.
Time Synchronization: the requests and responses are subject to number of validation. One of the
validations is “TimeStamping”. The service provider will send the IssueInstant of the request; and
the IAM Service will reply by the NotOnOrAfter timestamp of the response.
If the both sides are NOT IN TIME Sync, there is a risk to reject the requests or the responses.
Although the permissible time span (defaulted to 5 minutes) as difference between request and
response, it is necessary to synchronize the two sides’ servers (servers where the requests are
issued and consumed). Synchronizing with NTP server is recommended.
IAM Authentication and Federation Service Integration Guide
35 | P a g e
3.4 Production Integration Finalized
Once the integration is finalized, a report should be written summarizing all integration efforts and lessons
learned. This document is presented to top management along with the recommendations for the next
integration.
After receiving the integration report, IAM and Service Provider coordinators will agree on the right time
to enable the Login through IAM. The IAM SLA contract will be signed by both parties.
4. IAM Contact Information
For any questions regarding IAM, contact:
Saudi National Digital Identity Operations Manager: Mazen Alqarni (mhqarni@nic.gov.sa).
Saudi National Digital Identity Applications PM: Nawaf AlMutairi (nmmutairi@nic.gov.sa).
Saudi National Digital Identity Program Manager: Naji Algahtani (ngahtani@nic.gov.sa).
The IAM home page is: http://www.iam.gov.sa.
IAM Authentication and Federation Service Integration Guide
36 | P a g e
Annex A: Sample Authentication Messages
The authentication request sent from the service provider to IAM should be similar to:
The important information that composes an authentication request and the service provider
should be aware of are:
Destination: A URI reference indicating the IAM address to which this request has been
sent. The default value: http://www.iam.gov.sa/samlsso.
ProtocolBinding: A URI reference that identifies a SAML protocol binding to be used when
IAM returns the SAML <Response> message.
Issuer: The service provider name issuing the authentication request.
NameIDPolicy: Specifies the name identifier to be used to represent the requested subject.
If omitted, then IAM will use the National ID of the user.
IssueInstant: Authentication Request Issue Timestamp, used for validating the request by
the IAM Service.
<samlp:AuthnRequest xmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"
xmlns:ds="http://www.w3.org/2000/09/xmldsig#"
xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"
xmlns:xs="http://www.w3.org/2001/XMLSchema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-
instance" Destination="https://www.iam.gov.sa/samlsso"
ID="RB87E7DE8DE0DFA12B1FABC17B92F13401326CC6D" IssueInstant="2011-11-30T06:29:59Z"
ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Version="2.0">
<saml:Issuer>https://www.iam.gov.sa/samlsso</saml:Issuer>
<samlp:NameIDPolicy AllowCreate="true" Format="urn:oasis:names:tc:SAML:2.0:nameid-
format:persistent"/>
</samlp:AuthnRequest>
Figure 11: Sample Authentication Request
IAM Authentication and Federation Service Integration Guide
37 | P a g e
The authentication response sent from the service provider to IAM should be similar to:
The important information that compose an authentication request and the service provider
should be aware of are:
<samlp:Response Destination="http://www.moi.gov.sa"
ID="s2c2fe9d1393901b1ca3f5cd0d044082341a86ac43"
InResponseTo="RB87E7DE8DE0DFA12B1FABC17B92F13401326CC6D" IssueInstant="2011-11-30T06:30:04Z"
Version="2.0"><saml:Issuer>nicidp</saml:Issuer><samlp:Status>
<samlp:StatusCode Value="urn:oasis:names:tc:SAML:2.0:status:Success“>
</samlp:StatusCode>
</samlp:Status><saml:Assertion ID="s2f0949aa62f4125340f337ec7d09d0fdc928c1512" IssueInstant="2011-
11-30T06:30:04Z" Version="2.0">
<saml:Issuer>nicidp</saml:Issuer><saml:Subject>
<saml:NameID Format="urn:oasis:names:tc:SAML:2.0:nameid-format:persistent" NameQualifier="nicidp"
SPNameQualifier="moiportal" SPProvidedID=" moiportal
">1234567890</saml:NameID><saml:SubjectConfirmation
Method="urn:oasis:names:tc:SAML:2.0:cm:bearer">
<saml:SubjectConfirmationData InResponseTo="RB87E7DE8DE0DFA12B1FABC17B92F13401326CC6D"
NotOnOrAfter="2011-11-30T06:40:04Z"
Recipient="http://www.sp.sa/acs/saml2/Post"/></saml:SubjectConfirmation>
</saml:Subject><saml:Conditions NotBefore="2011-11-30T06:20:04Z" NotOnOrAfter="2011-11-
30T06:40:04Z">
</saml:Conditions>
<saml:AuthnStatement AuthnInstant="2011-11-30T06:30:04Z"
SessionIndex="s2f0949aa62f4125340f337ec7d09d0fdc928c1512"><saml:AuthnContext><saml:AuthnContext
ClassRef>urn:oasis:names:tc:SAML:2.0:ac:classes:SmartcardPKI</saml:AuthnContextClassRef></saml:AuthnC
ontext></saml:AuthnStatement>
<saml:AttributeStatement>
<saml:Attribute Name=”NationalId” NameFormat=” urn:oasis:names:tc:SAML:2.0:attrname-format:basic”>
<saml:AttrubiteValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type=”xs:string”>
1234567890</saml:AttrubuteValue>
</saml:Attribute>
<saml:Attribute Name=”FullName” NameFormat=” urn:oasis:names:tc:SAML:2.0:attrname-format:basic”>
<saml:AttrubiteValue xmlns:xs="http://www.w3.org/2001/XMLSchema"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type=”xs:string”> full
name</saml:AttrubuteValue>
</saml:Attribute>
</saml:AttributeStatement>
</saml:Assertion>
</samlp:Response>
Figure 12: Sample Authentication Response
IAM Authentication and Federation Service Integration Guide
38 | P a g e
Destination: A URI reference indicating the SP address to which this response has been sent.
Issuer: The identity provider name issuing the authentication response.
StatusCode: Specifies if the authentication succeed or failed.
Subject: Specifies the user authenticated in IAM.
NotOnOrAfter: Authentication Response Timestamp used to validate the response by the
service provider.
Attributes: containing the information about the user authenticated.
IAM Authentication and Federation Service Integration Guide
39 | P a g e
Annex B: Sample Entity Descriptor Message Used During IAM Configuration
The authentication request sent from the service provider to IAM should be similar to:
<md:entitydescriptor entityid="https://www.iam.gov.sa/samlsso" validuntil="2023-09-23T06:57:15.396Z"
xmlns:ds="http://www.w3.org/2000/09/xmldsig#" xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata"
xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion">
<md:idpssodescriptor protocolsupportenumeration="urn:oasis:names:tc:SAML:2.0:protocol">
<md:keydescriptor use="signing">
<ds:keyinfo>
<ds:x509data>
<ds:x509certificate>BASE 64 IAM Certificate</ds:x509certificate>
</ds:x509data>
</ds:keyinfo>
</md:keydescriptor>
<md:singlesignonservice binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"
location=”https://www.iam.gov.sa/samlsso” />
<md:singlesignonservice binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" location="
https://www.iam.gov.sa/samlsso" />
<md:singlelogoutservice binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect"
location="https://www.iam.gov.sa/samlsso" responselocation="https:// www.iam.gov.sa/samlsso"/>
</md:idpssodescriptor>
</md:entitydescriptor>
IAM Authentication and Federation Service Integration Guide
40 | P a g e
Annex C: Frequently Asked Questions
#
What
Description
1
Enable SAML2 as
Authentication Protocol
on the Service Provider
On how enable SAML SSO, check the following:
For IBM Websphere App. Server, version 7:
http://publib.boulder.ibm.com/infocenter/ieduasst/v1r1m0/topic/com.i
bm.iea.was_v7/was/7.0.0.23/Security/SAML_Web_SSO.pdf
http://publib.boulder.ibm.com/infocenter/ieduasst/v1r1m0/index.jsp?t
opic=/com.ibm.iea.was_v7/was/7.0.0.7/SAML.html
http://www-
01.ibm.com/support/knowledgecenter/api/content/SSEQTP_7.0.0/com.i
bm.websphere.base.doc/info/aes/ae/twbs_addsamltaisso.html?locale=e
n
For IBM Websphere App. Server, version 8:
http://www-
01.ibm.com/support/knowledgecenter/#!/SSD28V_8.5.5/com.ibm.webs
phere.nd.doc/ae/twbs_enablesamlsso.html
For ASP.Net Web Applications, the following framework can be used:
https://github.com/KentorIT/authservices
Note that IAM team has an updated version of the KentorIT framework
2
Service Provider
Certificate
Issue “Service Provider AuthRequest Signing Certificate” with the alias
(CN=SP_DI) under InfraCA (from NIC PKI system). The resulting certificate
must be in the Service Provider keystore (stored and used securely).
Note: this certificate will be used to digitally sign the authentication
requests.
3
On The Fly Registration
“On The Fly Registration” is the auto-registration of authenticated IAM
users that are not on the SP repository.
IAM Authentication and Federation Service Integration Guide
41 | P a g e
Annex D: Nationality Codes
Following list of nationality codes:
CODE
Nationality Name Arabic
Nationality Name English
101
Arab Emirates
102
Jordan
103
Bahrain
104
Syria
105
Iraq
106
Oman
107
Palestine
108
Country
109
Kuwait
110
Lebanon
111
Yemen
112
Southern Yemen
113
Saudi Arabia
114
Yemeni the sultans
115
Bani Harith
116
Kuwait - without
117
Member of the tribes
118
Residents of Bahrain
119
Tribes adj to Ataf
120
Alien KSA Passprt
121
Palestinian Egyptian
122
Palestinian Lebanese
123
Palestinian Jordan
124
Palestinian Iraqi
125
Palestinian Syria
126
document Syria
127
The document Omani
128
The document EMIRIAN
129
Document Industry
130
Arabs 48
131
Tribe/AlHal
132
Yemen - pilgrimage
133
Tribes / Kuwait
134
Unknown
135
Unknown
136
Unknown
137
Unknown
138
Unknown
139
IAM Authentication and Federation Service Integration Guide
42 | P a g e
140
141
142
143
144
145
ALSAYAR
146
ALMNAHIL AND ALMAHRH
201
Tunisia
202
Algeria
203
Djibouti
204
Sudan
205
Somalia
206
Libya
207
Egypt
208
Morocco
209
Mauritania
301
Afghanistan
302
Indonesia
303
Iran
304
Pakistan
305
Bangladesh
306
Brunei
307
Myanmar
308
Thailand
309
Turkey
310
Maldives
311
Russia
312
Singapore
313
Sri Lanka
314
China National
315
Philippines
316
Vietnam
317
Cambodia
318
South Korea
319
Malaysia
320
Nepal
321
India
322
HONG KONG
323
Japan
324
Bhutan
325
China
326
Cyprus
328
North Korea
329
Laos
330
Mongolia
IAM Authentication and Federation Service Integration Guide
43 | P a g e
331
Macao
332
Turkistan
333
NULL
334
Bucharest
335
Tribes emigrated
336
Kazakhstan
337
Uzbekistan
338
Turkmenistan
339
Tajikistan
340
kyrgyzstan
341
Socotra
342
Muhrah
343
Azerbaijan
344
Chechnya
345
Dagestan
346
Anquosh
347
Tatarstan
348
Kyrgyzstan not used
349
East Timor
350
Resident
351
NULL
352
-
353
-
401
Ethiopia
402
Uganda
403
Botswana
404
Burundi
405
Chad
406
Tanzania
407
Togo
408
Answer
409
Gambia
410
Comoros
411
South Africa
412
Namibia
413
Benin
414
Rwanda
415
Zimbabwe
416
Zaire
417
Zambia
418
Ivory Coast
419
Senegal
420
Sierra Leone
421
Ghana
IAM Authentication and Federation Service Integration Guide
44 | P a g e
422
Guinea
423
Guinea Bissau
424
Burkina Faso
425
Cameroon
426
Congo
427
Kenya
428
Lesotho
429
Liberia
430
Mali
432
Malawi
433
Mauritius
434
Mozambique
435
Nigeria
436
Niger
437
Central Africa
438
Angola
439
Cape Verde
440
Equatorial Guinea
441
Mlajasi
442
Sao Tome/FranceBank
443
Seychelles Islands
444
Swaziland
445
Bovthatswana
446
Reunion
447
Transkei
448
Venda
449
Eritrea
450
Other African States
451
Saint Helena
452
Comorian island
453
Republic of South
454
CAPE VERDE
501
Spain
502
Albania
503
Germany
504
Ireland
505
Italy
506
United Kingdom
507
Portugal
508
Bulgaria
509
Belgium
510
Poland
511
old to Czechoslovak
512
Denmark
IAM Authentication and Federation Service Integration Guide
45 | P a g e
513
Romania
514
Sweden
515
Switzerland
516
France
517
Finland
518
SERBIA
519
Netherlands
520
Yugoslavia
521
Greece
522
Andorra
523
Austria
524
MONTENEGRO
525
Hungary
526
Iceland
527
Liechtenstein
528
Luxembourg
529
Malta
530
Monaco
531
Norway
532
San Moreno
533
Vatican City
534
Gibraltar
536
Ukraine
537
Byelorussia
539
Armenia
540
Moldova
541
Georgia
542
Lithuania
543
Estonia
544
Latvia
545
Bosnia / Herzegovina
546
Croatia
547
Slovenia
548
Serbia / Montenegro
549
Macedonia
550
Kosovo
551
code to Montenegro
552
CZECH REPUBLIC
553
Slovakia
554
Faroe Islands
555
FRANCE METROPOLITAN
601
United States
602
Argentina
603
Barbados
IAM Authentication and Federation Service Integration Guide
46 | P a g e
604
Brazil
605
Panama
606
Trinidad and Tobago
607
Jamaica
608
Joanna
609
Venezuela
610
Canada
611
Columbia
612
Bahamas
613
Costa Rica
614
Cuba
615
Dominica
616
Republic Dominica
617
El Salvador
618
Granada
619
Guatemala
620
Haiti
621
Honduras
622
Mexico
623
Nicaragua
624
Saint Lucia
625
Saintt Vincent
626
Bolivia
627
Chile
628
Ecuador
629
Paraguay
630
Peru
631
Suriname
632
Orajoa
633
Saint Pierre Miquel
634
Greenland
635
Belize
636
Bermda
637
Turk/Caucasus Island
638
San Cristovernivz
639
Anguilla
640
Antiques
641
British Virgin
642
Cayman Islands
643
Monte Sirat
644
Gyude Lube
645
Martinico
646
Arabism
647
Bonaire
IAM Authentication and Federation Service Integration Guide
47 | P a g e
648
Curako
649
San Astatios
650
Saba
651
San Martin
652
Puerto Rico
653
Virgin Islands of US
654
Falkland Islands
655
French Guyana
656
United Nations
657
Cook Islands
659
Barbuda
660
NETHERLANDS ANTILLES
661
COCOS ISLAND
662
BRITISH INDIAN OCEAN
663
SAINT KITTS & NEVIS
664
SOUTH GEORGIA
701
Australia
702
New Zealand
703
Papua yoga
704
New
705
Antarctica
706
Norfolk Island
707
Tokelau
708
Christmas Island
709
koko Island- Kellenj
710
FRENCH SOUTH
711
HEARD DONALD ISLANDS
712
PITCAIRN ISLANDS
801
Fiji Islands
802
Kiribati
803
Nauru
804
Solomon Islands
805
Tonga
806
Tuvalu
807
Vanuoto
808
Western Samoa
809
American Samoa
810
Guam
811
Mariana Islands
812
Micronesia
813
Marechal Islands
814
Belo
815
French Polynesia
816
Islands Wallis
IAM Authentication and Federation Service Integration Guide
48 | P a g e
817
New Caledonia
818
Madagascar
819
Balobid
820
NULL
821
TRIBES ADJACENT
822
NULL
823
NULL
824
US MINOR ISLANDS
825
NULL
826
NULL
900
Unknown
901
OTHER
IAM Authentication and Federation Service Integration Guide
49 | P a g e
Annex E: Service Provider Integration through Partner Guidelines
Regular Audit on the partner system will be conducted by IAM Team.
The partner should send the service provider URL (issuer or entityId) within the Audience
attribute as part of the authentication request.
The partner should comply with the integration guide.
Service Providers Integrated with the partner should use a certificate issued from NIC PKI.
The partner must digitally sign the response coming from IAM before send it to service provider.
The certificate used for signing the response is the same certificate used for signing the request,
and it should be issued from NIC PKI.
The partner should store request/response coming/going to service provider for at least one
year.
Any integration with a new service provider should be in coordination of IAM.
Authentication responses are sent to specific service provider (identified by audience) through
the partner and cannot be re-used for another one.
The federation/SSO should be handled by IAM and not by the partner. This is to make sure that
the federation policy within is not compromised.
The partner is responsible for validation using the IAM Service Provider Checklist of the
integration and regular audits with service providers. IAM Team may participate in this activity.
