S-14401XZ-C1

Sep. 2007

VHF AIR BAND TRANSCEVER

This service manual describes the latest service information

for the IC-A210 VHF AIR BAND TRANSCEVER at the time

of publication.

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than specifed. This will ruin

the transceiver.

DO NOT expose the transceiver to rain, snow or any liquids.

DO NOT reverse the polarities of the power supply when

connecting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100 mW) to

the antenna connector. This could damage the transceiver’s

front-end.

To upgrade quality, any electrical or mechanical parts and

internal circuits are subject to change without notice or

obligation.

MODEL VERSION CHANNEL

SPACING

CARRIER

POWER

IC-A210

USA-01

25.0 kHz 8 WEXP-01

CHN-01

Be sure to include the following four points when ordering

replacement parts:

1. 10-digit Icom parts numbers

2. Component name

3. Equipment model name and unit name

4. Quantity required

1110003491 S.IC TA31136FNG IC-A210 MAIN UNIT 5 pieces

8820001210 Screw 2438 screw IC-A210 Top cover 10 pieces

Addresses are provided on the inside back cover for your

convenience.

Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United

Kingdom, Germany, France, Spain, Russia and/or other countries.

ORDERING PARTS

1. Make sure the problem is internal before disassembling

the transceiver.

2. DO NOT open the transceiver until the transceiver is

disconnected from its power source.

3. DO NOT force any of the variable components. Turn

them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An

insulated tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the

transceiver is defective.

6. DO NOT transmit power into a Standard Signal

Generator or a Sweep Generator.

7. ALWAYS connect a 50 dB to 60 dB attenuator between

the transceiver and a Deviation Meter or Spectrum

Analyzer when using such test equipment.

8. READ the instructions of test equipment throughly

before connecting a test equipment to the transceiver.

REPAIR NOTES

INTRODUCTION CAUTION

(IC-A210)

UNIT ABBREVIATIONS:

F=FRONT UNIT

M=MAIN UNIT

CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 CIRCUIT DESCRIPITON

3-1 RECEIVER CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

3-2 TRANSMITTER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

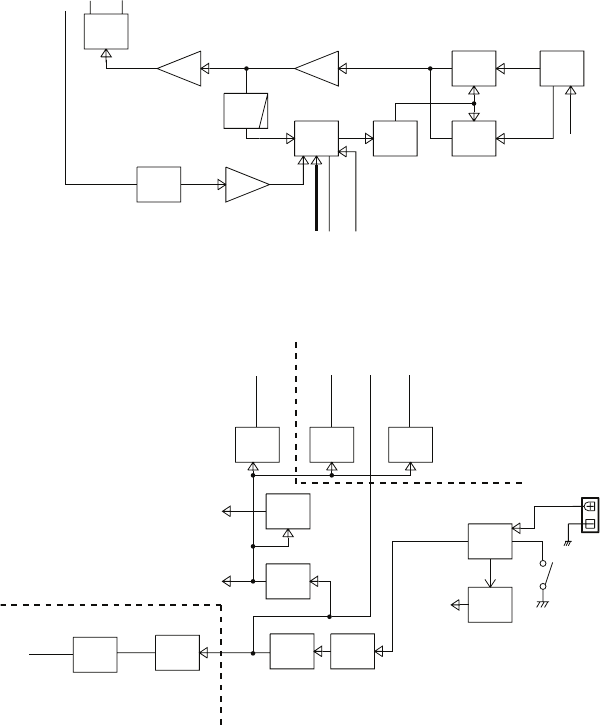

3-3 FREQUENCY SYNTHESIZER CIRCUITS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3-4 VOLTAGE DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

3-5 PORT ALLOCATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

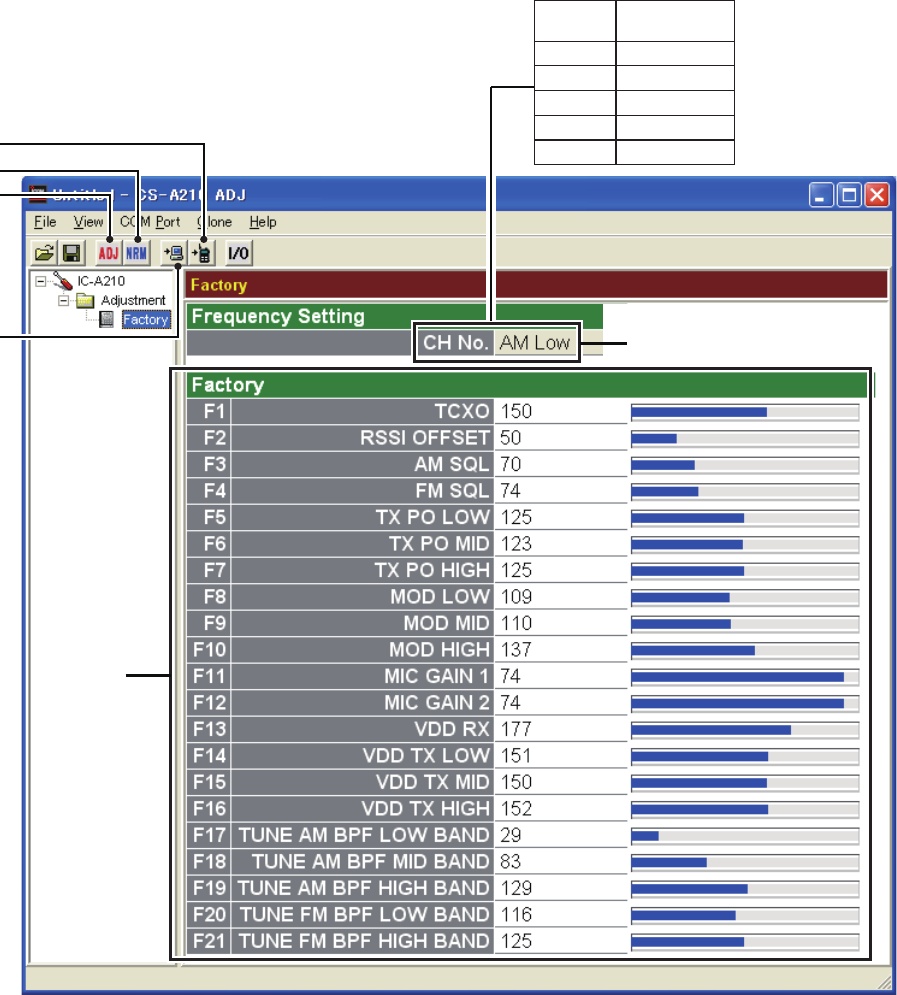

SECTION 4 ADJUSTMENT PROCEDURES

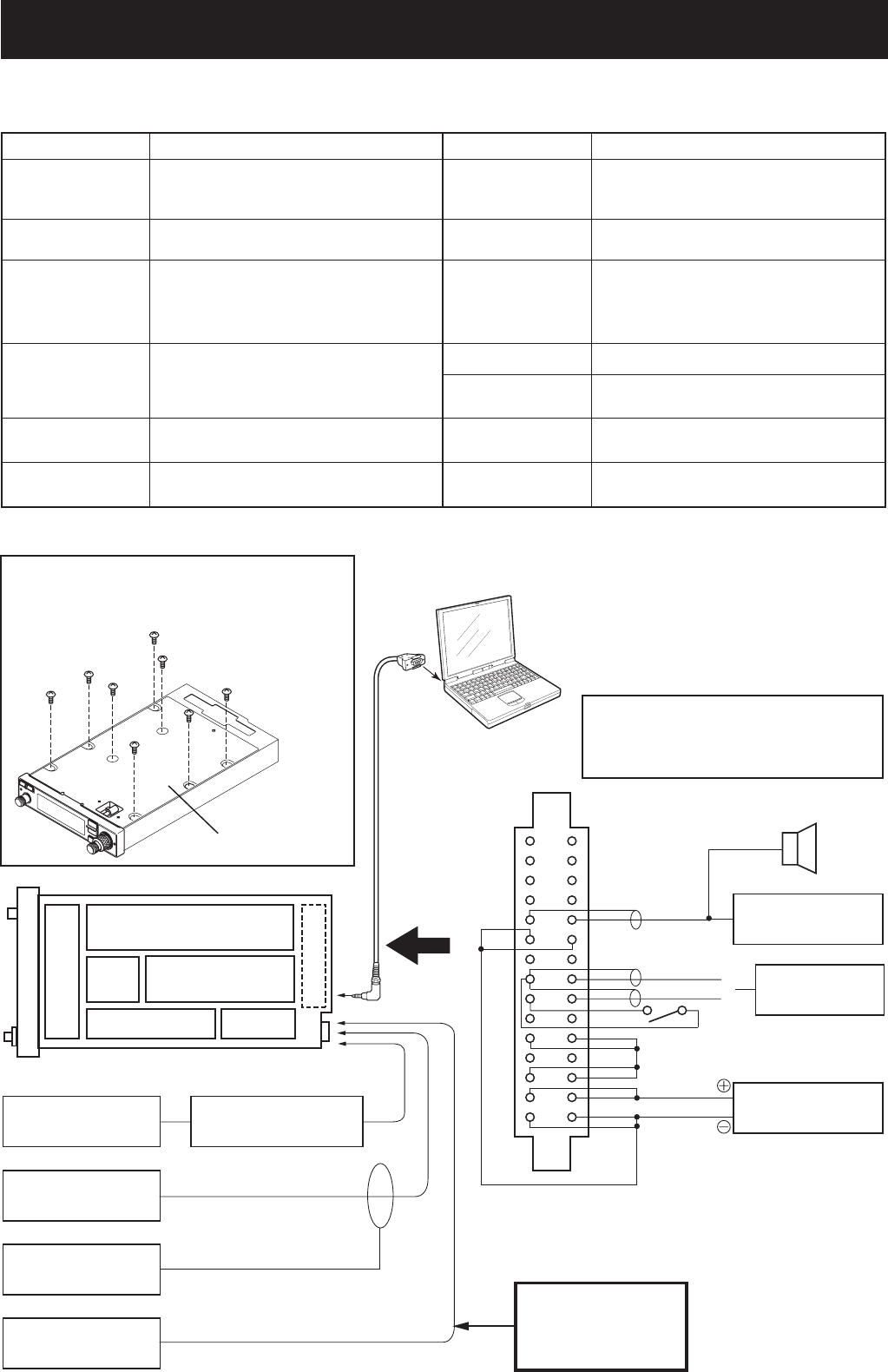

4-1 PREPARATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

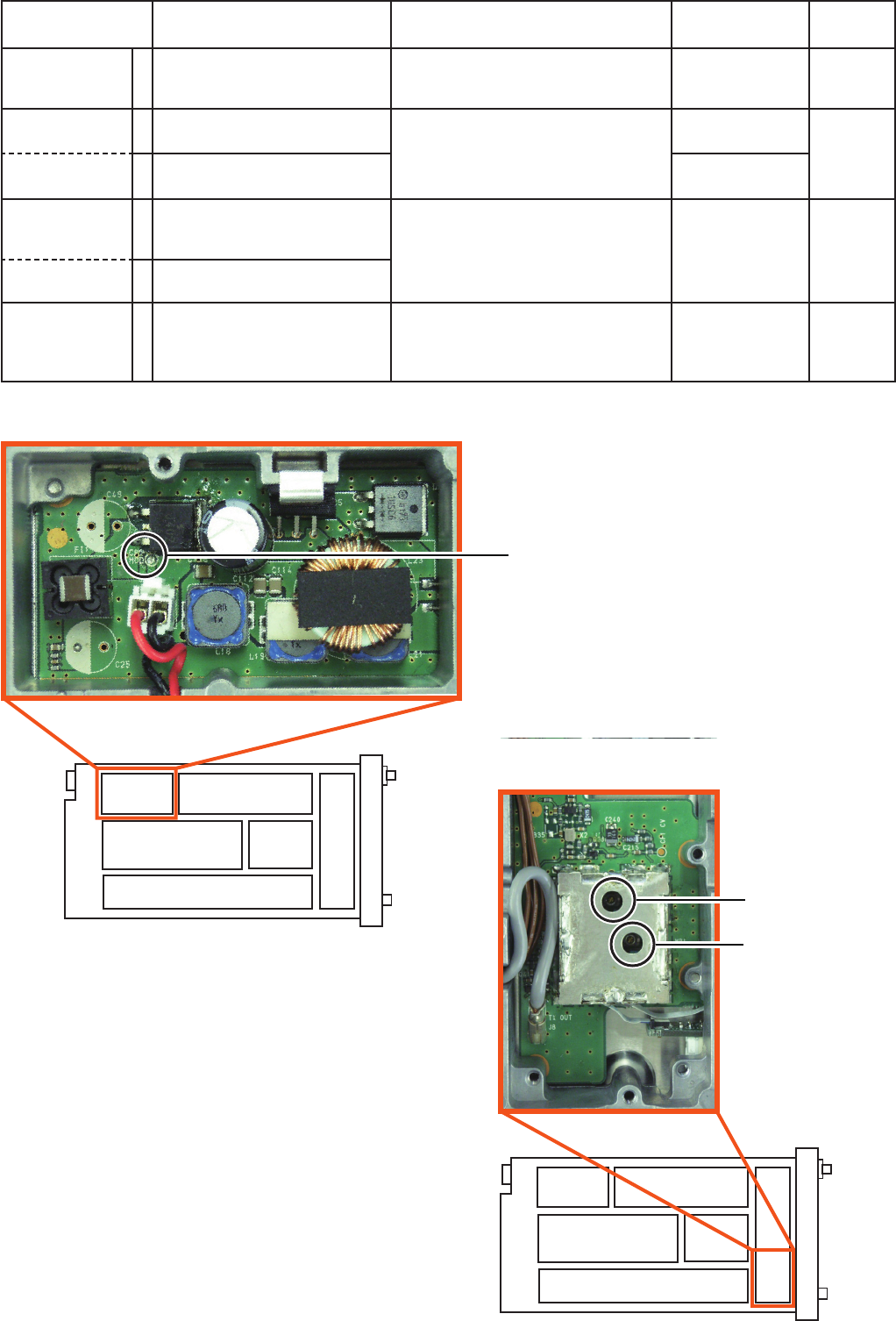

4-2 FREQUENCY ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

4-3 TRANSMIT ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4-4 RECEIVE ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

SECTION 5 PARTS LIST

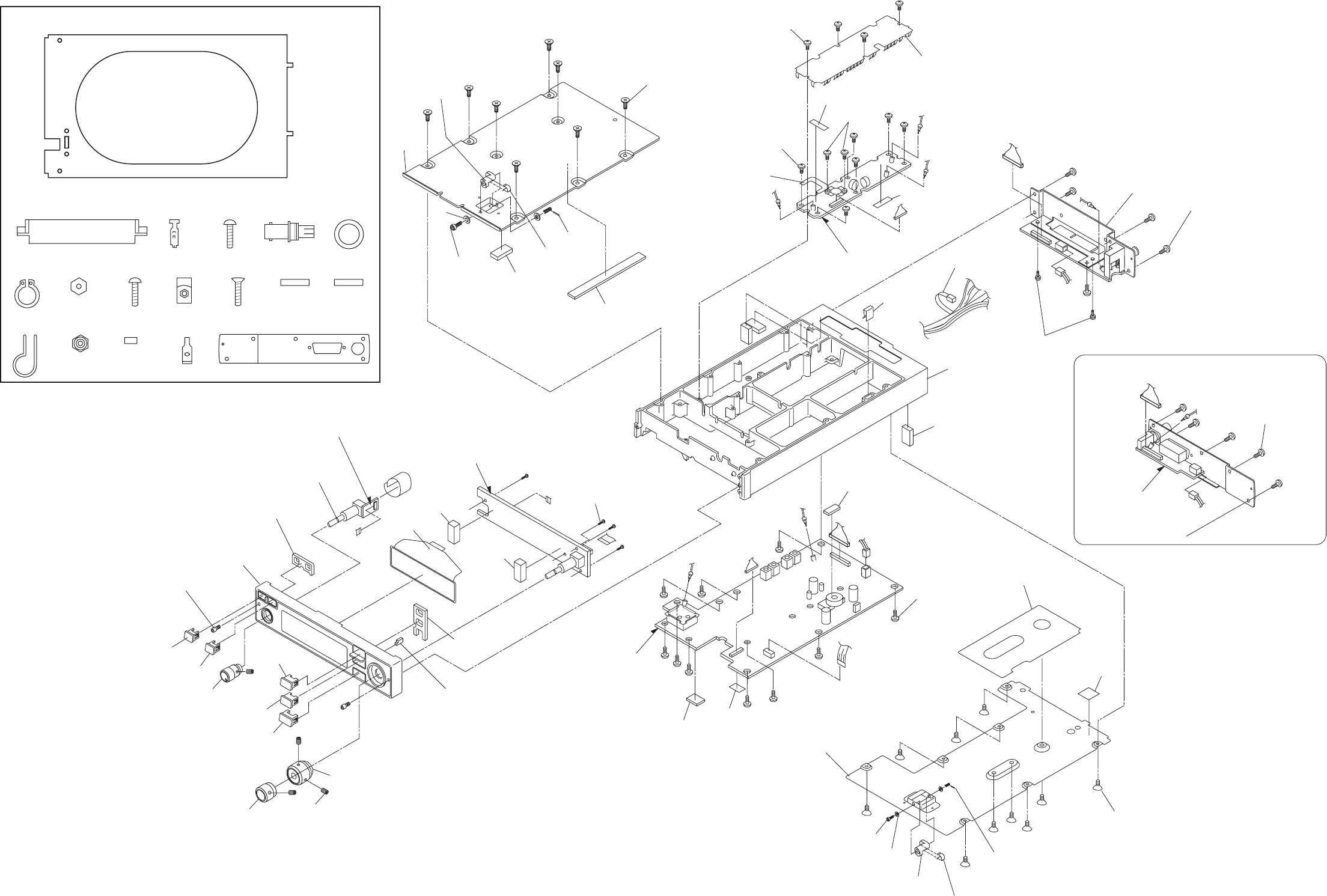

SECTION 6 MECHANICAL PARTS

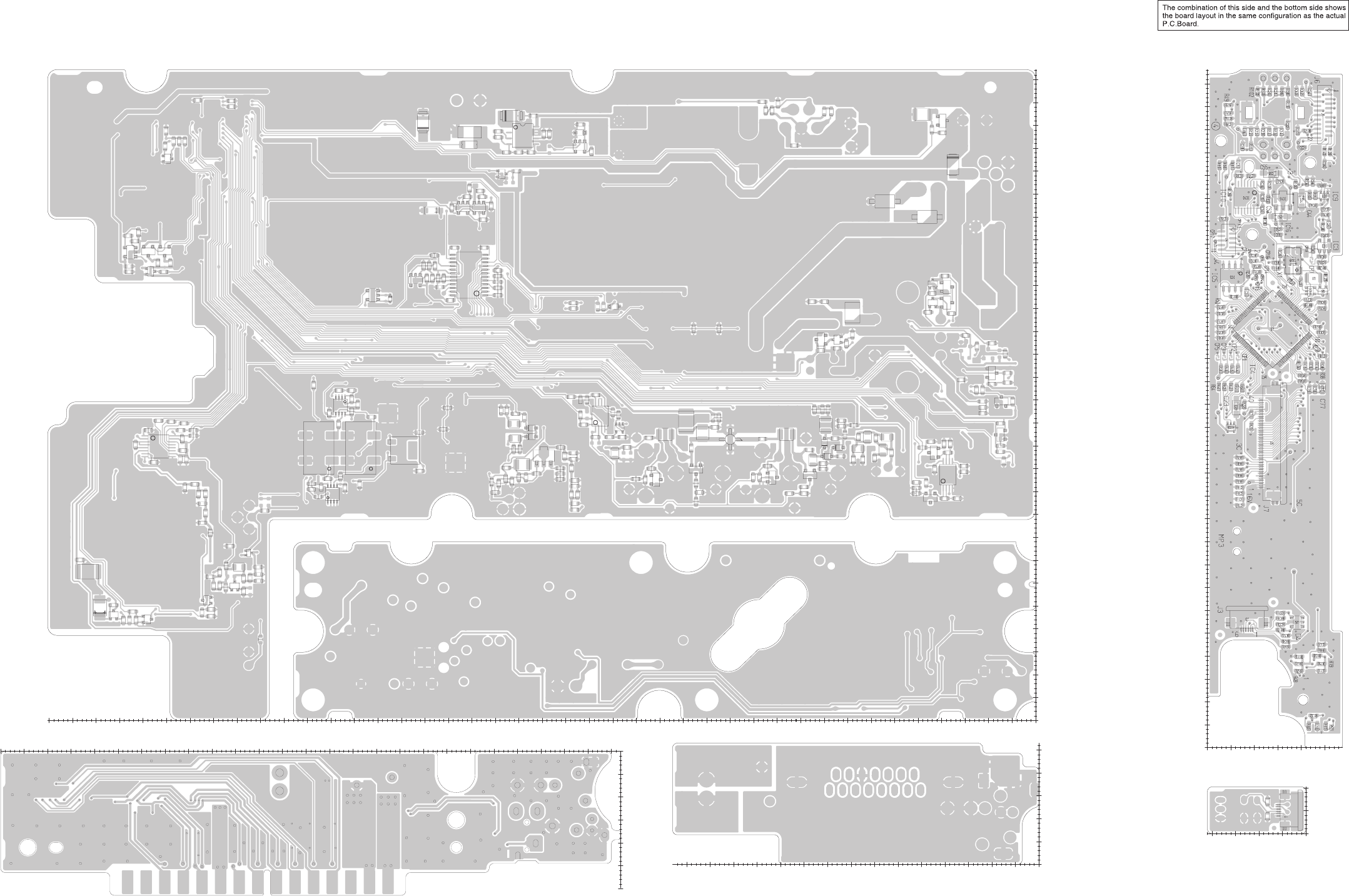

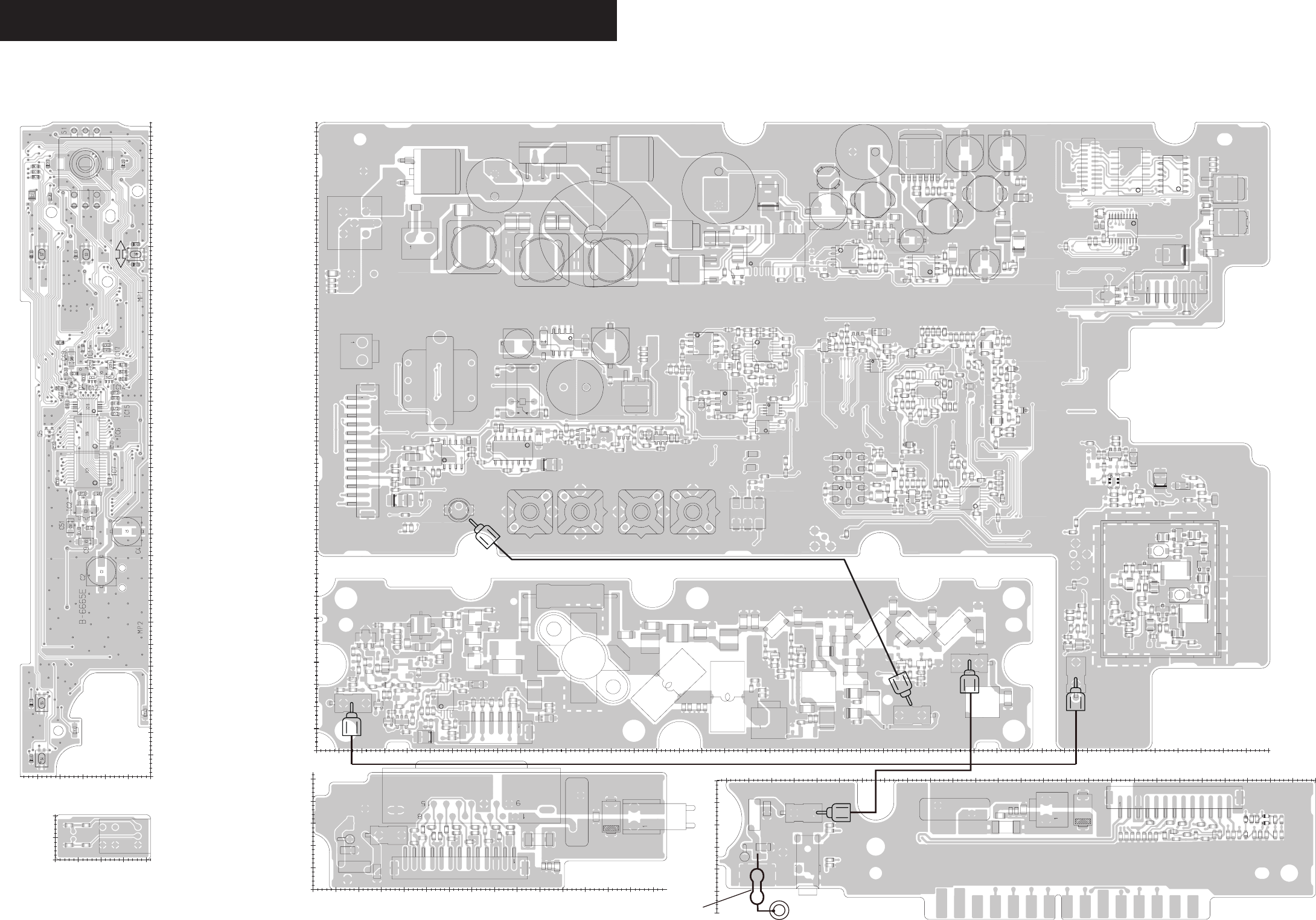

SECTION 7 BOARD LAYOUTS

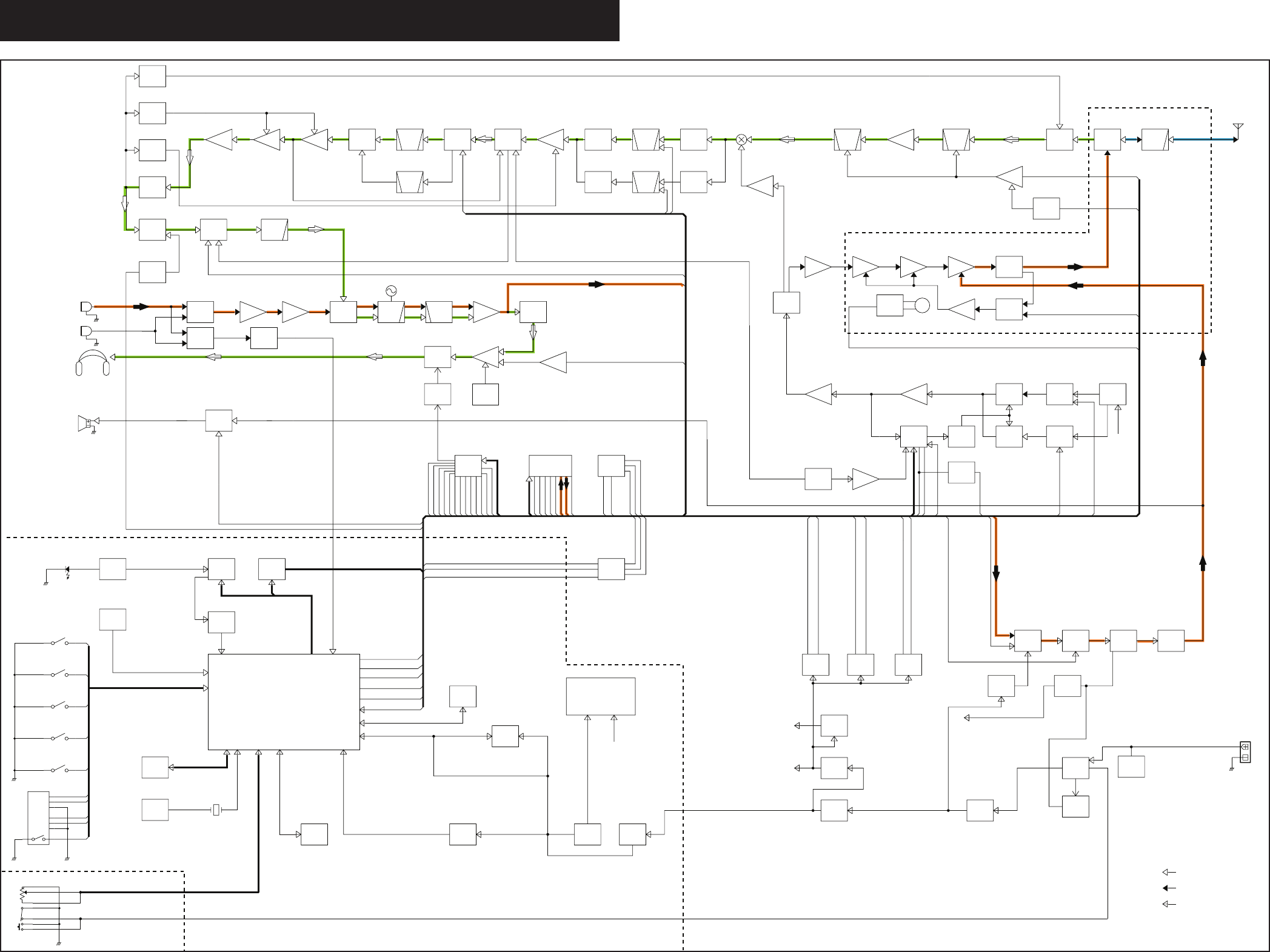

SECTION 8 BLOCK DIAGRAM

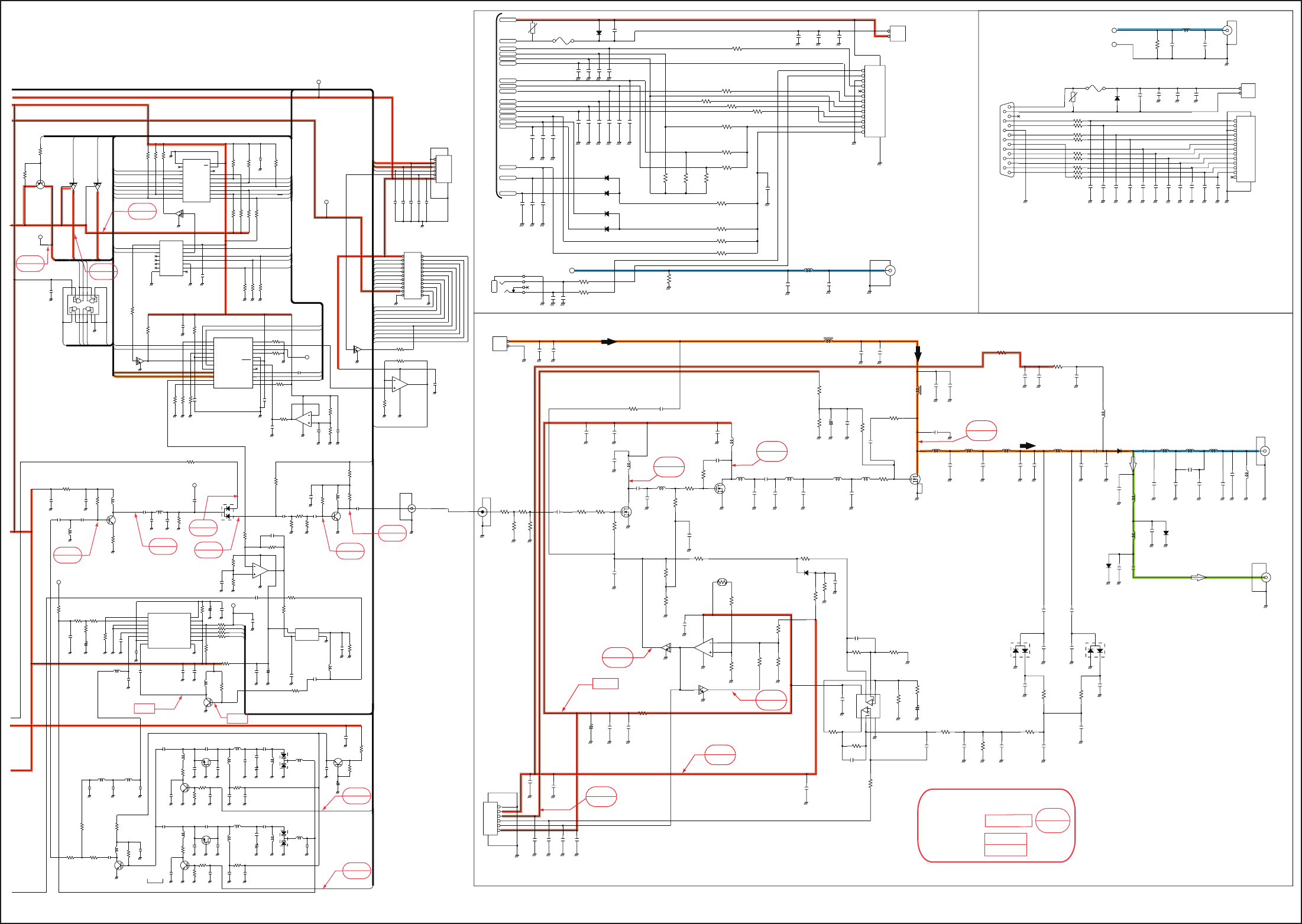

SECTION 9 VOLTAGE DIAGRAM

FRONT UNIT (incl. VOLUME UNIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

MAIN UNIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

MAIN, PA AND K-CONNECT UNITS, MB-113 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

1 - 1

SECTION 1 SPECIFICATIONS

¤General

• Frequency range : 118.000 to 136.975 MHz

161.650 to 163.275 MHz*

• Channel spacing : 25 kHz

• Frequency stability : ±5 ppm

• Operating temperature : –20˚C to +55˚C

–4˚F to +131˚F

• Antenna impedance : 50 Ω

• Number of memory channels : 10 memory channels

200 group channels

10 history channels

10 GPS channels

10 weather channels*

• Mode : AM (A3E)

• Power supply requirement : 13.80 V / 27.50 V DC

(negative ground)

• Dimensions : 160 (W) 34 (H) 271 (D) mm

(projections not incl.)

(W) 1

(H) 10

(D)

• Weight : approx 1.0 kg; 2.2 lb

*U.S.A. version only, receiving only.

¤Transmitter

• Mode : A3E

• Output power : 8 W

(Carrier power)

• Spurious emissions : –60 dBc

• Microphone impedance : 600 Ω

• Modulation limiting : 70% (Max 98%)

¤Receiver

• Receive system : Double conversion

superheterodyne

• Intermediate frequencies : 1st 38.85 MHz

2nd 450 kHz

•Sensitivity : (AM) Less than 2 µV (pd)

at 6 dB S/N

(FM) Less than 1.4 µV

at 12 dB SINAD*

• Selectivity : 6 dB ±3 kHz

60 dB ±22 kHz

• Spurious response rejc. : More than 74 dBµ

• Audio output power : 5 W with a 4 Ωload (External

speaker)

60 mW with a 500 Ωload

(Headphone)

Measurements made in accordance with RTCA DO-186B for U.S.A. version.

All stated speciﬁcations are subject to change without notice or obligation.

2 - 1

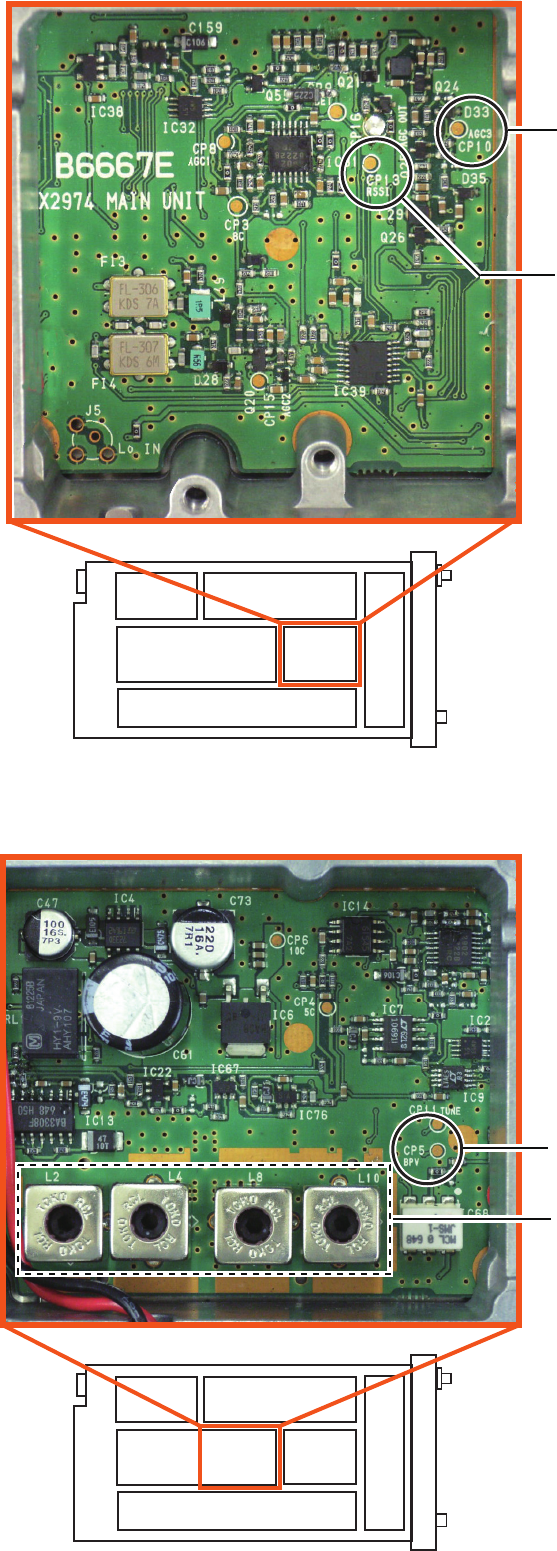

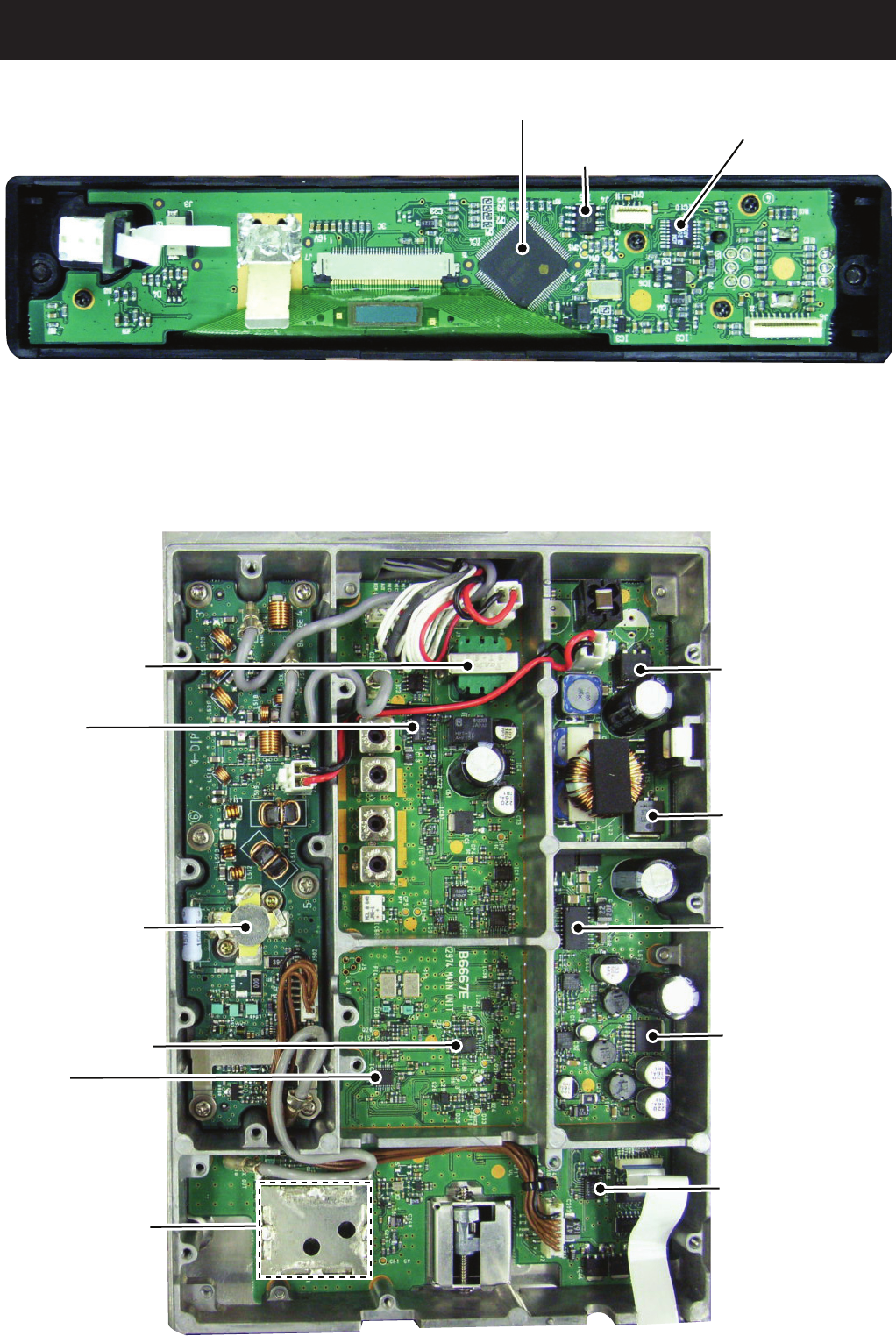

SECTION 2 INSIDE VIEWS

CPU

(IC4: HD64F38347WV)

EEPROM

(IC5: 24LC64T-I/SN)

RS232 DRIVER

(IC10: ADM202EARUZ)

TX POWER AMP

(Q504: MRF137)

ALC IC

(IC13: BA3308F)

TRANSFORMER

(T4: ST-82)

• FRONT UNIT

• MAIN AND PA UNITS

FET DRIVER

(IC17: HIP4081AIBZ-T)

DC-DC CONVERTOR

(IC5: LM2587(T))

POWER SWITCH

(Q11: 2SJ402)

IF IC

(IC39: TA31136FNG)

TX and RX VCOs

AGC AMP

(IC81: NJM2902V)

EXPANDER

(IC48: U2099FV)

10V REGULATOR

(IC31: BD9781HFP)

3 - 1

SECTION 3 CIRCUIT DESCRIPTION

While transmitting, serial-connected PIN diodes are ON,

thus the TX line is connected to the antenna, and the RX

line is connected to the GND simultaneously to prevent

transmit signal entering.

The attenuator functions as a part of the AGC circuit. The

AGC volatge which is applied to the PIN diodes controlls RX

signal level to enter the RX circuits.

The tuned-BPF is adjusted so that it responds to receiving

frequency and rejects all others, by the variable capacitor

whose capacitance is varied by applied voltage "T1" and

"T2."

The RF AMP ampliﬁ es RX signals to a level suited to the 1st

mixer.

3-1 RECEIVER CIRCUITS

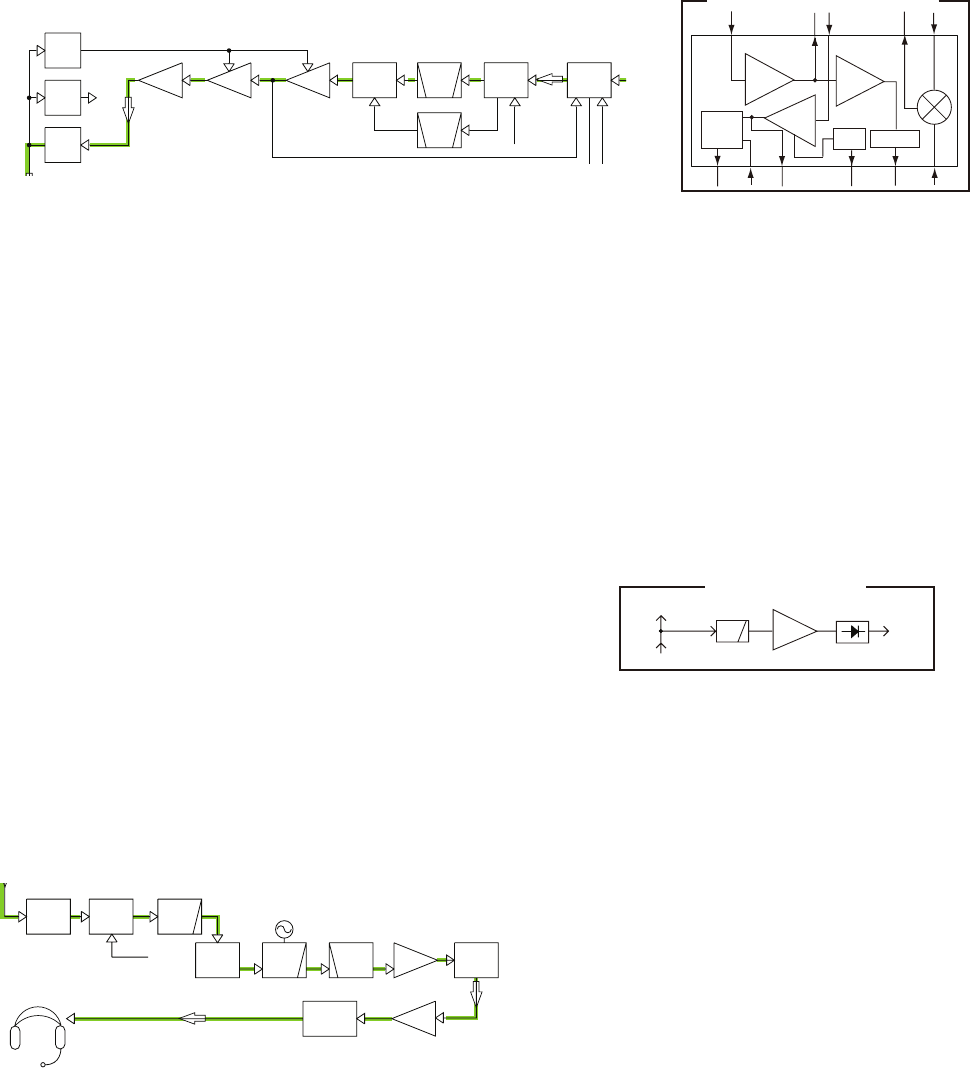

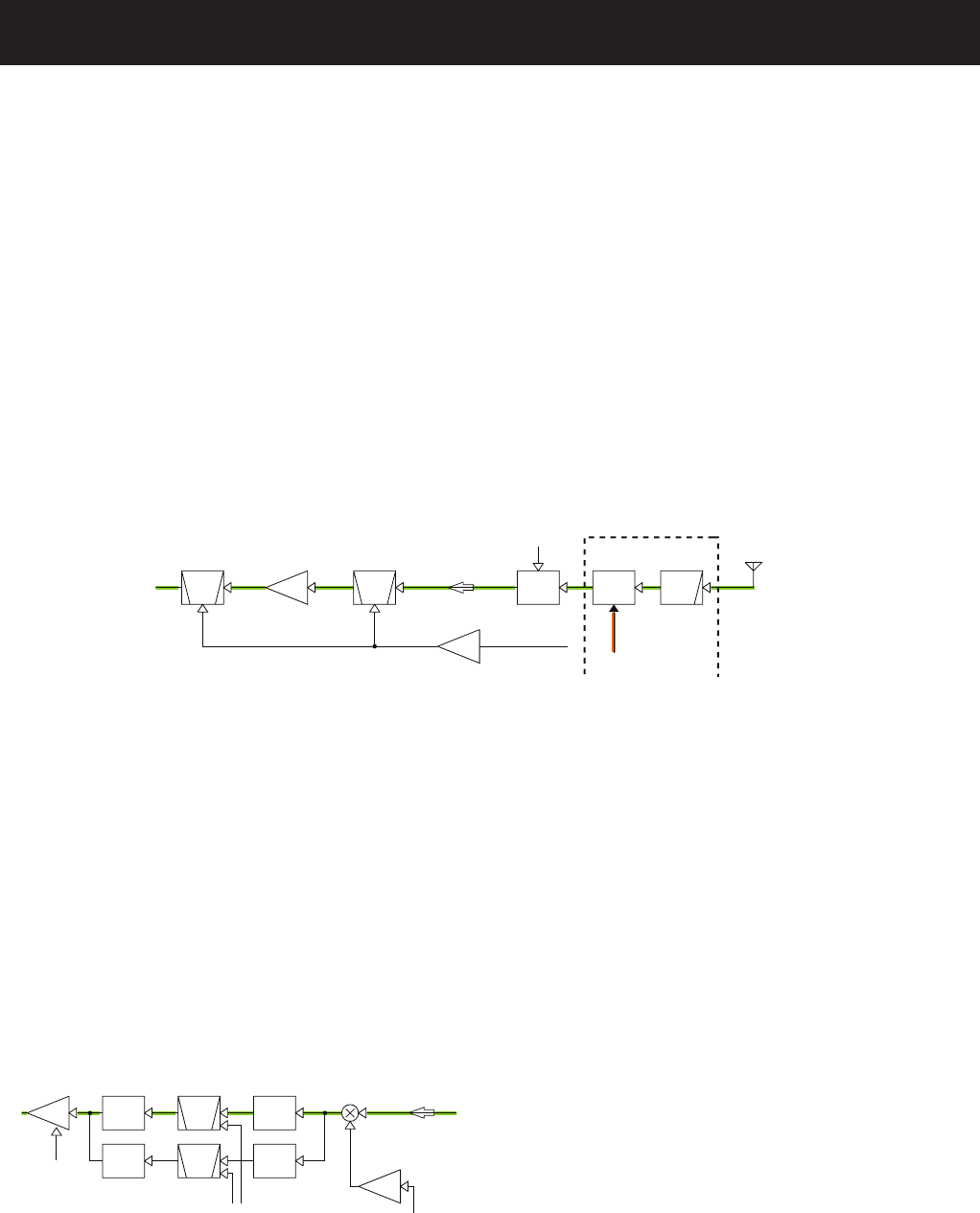

RF CIRCUITS

RF circuits consist of RF ﬁ lters, antenna switch (ANT SW),

RF AMPliﬁ er (RF AMP), etc., and extracts and ampliﬁ es the

signals of frequency which desired to receive.

The received signals (RX signals) from the antenna are

passed through the LPF, ANT SW (as an LPF in RX),

attenuator, and the two-staged tuned BPF.

The filtered RX signals are amplified by the RF AMP, and

passed through another two-staged tuned BPF. The ﬁ ltered

RX signals are then applied to the 1st IF circuits.

The ANT SW toggles RX line and TX line. While receiving,

the TX line and the antenna is disconnected to prevent RX

signals entering. The RX line is disconnected from the GND

simultaneously, and an LPF which guides received signals

to the RX circuits is composed.

LPF

ANT

ATTBPF

AMP

BPF

ANT

BUFF

D1,D2,D3

D502, D503, D504

L521–L523,

C572,575,577,578,582

D10,D11,

L2,L4

IC69

D13,D14

L8,L10

PA UNIT

MAIN UNIT

TUNE1

IC52

RF_AGC

1ST IF CIRCUITS

The 1st IF circuits consist of 1st mixer, 1st IF ﬁ lter and 1st

IF amplifier. And it converts the RX signals into the 1st IF

signal, then ﬁ lters to remove unwanted signals and ampliﬁ es.

The filtered RX signals are applied to the 1st mixer to be

converted into the 1st IF signal, by being mixed with the 1st

Local Oscillator (LO) signals from the RX VCO via buffer.

The converted 1st IF signal is passed through the 1st IF

ﬁ lter (FI4 for AM RX, FI3 for WX RX) via ﬁ lter switches, to

be removed unwanted signals. The filtered 1st IF signal is

amplified by the 1st IF AMP. The amplified 1st IF signal is

then applied to the 2nd IF circuits.

2ND IF AND DEMODULATOR CIRCUITS

The 2nd IF circuits consist of 2nd mixer, 2nd IF filter, 2nd

IF amplifier. And it converts the 1st IF signal into the 2nd

IF signal, then filters to extract 2nd IF signal only and

ampliﬁ es. And the demodulator circuit converts the 2nd IF

signal to AF signals.

• AM signals

The amplified 1st IF signal is applied to the FM IF IC, and

converted into the 2nd IF signal, by being mixed with the

2nd LO from the X2, at internal 2nd mixer. The converted

2nd IF signal is filtered by external 2nd IF filter (FI5), and

amplified by three external 2nd IF AMPs. The amplified

2nd IF signal is AM-demodulated by Q21. A PN junction

construction inside Q21 is used for AM detection to obtain

low output impedance. The demodulated AF signals are

applied to the RX AF circuits via the ANL (Automatic Noise

Limiter) circuit which reduces pulse-type noises, when the

ANL function is activated.

BPF

XTALIF

AMP

Filter

SWBPF

XTAL

BUFF

IC68

1st MIXER

D19

FI3 BW= 20 kHz

BW= 9 kHz

FI4

D2 7

D2 8

Q20

<1st IF=38.85 MHz>

FIL1

FIL2

D20

AGC_2

Q45

• RF CIRCUITS

• 1ST IF CIRCUITS

3 - 2

RX AF CIRCUITS

The RX AF circuits consist of AF filters, AF amplifier, AF

power amplifier, etc., and amplify, filter the AF signals

demodulated by the demodulator circuits.

The demodulated AF signals are passed through the AM/

AF SW and LPF. The filtered AF signals are passed through

the MOD/AF SW and the switched capacitor filter (IC7)

which removes unwanted signals. The filtered AF signals

are passed through the HPF, and amplified by buffer, then

applied to the electric volume IC for audio level adjustment.

The level-adjusted AF signals are power-amplified by AF

power AMP to obtain AF output level. The power-amplified

AF signals are converted its impedance into 500 ohms by

the AF transformer, then applied to the connected headset

via the K-CONNECT UNIT or MB-113.

The ANL circuit is a limiter which reduces pulse-type noises

by cutting off the AF line temporarily. When the ANL function

is activated (ANL SW; IC70 is OFF), demodulated AF

signals are applied to the cathode of D29 (switching diode)

only. If a pulse-type noise is inclued in the demodulated

AF signals, the cathode voltage of D29 becomes higher

than anode voltage, and D29 turns OFF to cut-off the AF

line. Thus, if the RX signals contains pulse-type noise,

the demodulated AF signals are not applied to the RX AF

circuits.

AMP

AMP BPF

CERAMIC FilterFilter

BPF

CERAMIC

DET

AGC_3

FM IF IC

169

1413

910

59 2

IC39IC43FI5

FI6

IC45

Q26

Q25

Q24

Q21

IC81

FIL1

2nd LO

WX_DET

<2nd IF=450 kHz>

2ndIF for WX

IC81

AGC_2 AGC_2

AGC voltage

BW= 20 kHz

BW= 9 kHz

HPFLPF

LPF

BUFF

ANL

MOD/AF Electric

volume

Impedance

conversion

Headset

AM/FM

71 4

14859

12 11

D29 IC32 IC38

IC26

IC8 IC14

IC4

TRANS

POWER

AMP

WX_DET

IC7

IC 9

IC8

• 2ND IF CIRCUITS

SQUELCH CIRCUIT

The squelch circuit cuts off the AF output signals when

no RF signals are received. Extracting noise components

(approx. 30 kHz signals) in the demodulated AF signals, the

squelch circuit sets attenation level to infinity.

A portion of FM-demodulated AF signal from the FM IF

IC is passed through the noise filter to extract the noise

components (approx. 30 kHz signals) only. The noise

components are rectified to be converted into the pulse-

type signal by noise detector to produce DC voltage

corresponding to the noise level "NOISE" signal. The

"NOISE" signal is applied to the CPU (F; IC4, pin 90) and

compared with the reference level preset in the CPU.

If the CPU interprets that the noise level is higher than

preset one, the CPU sends the serial data "SDA_VOL2" to

the electric volume IC (IC14), via the expander (IC49) and

dual gate logic IC (IC46). The serial data sets the attenation

level to infinity to close the squelch.

Noise

AMP

Fc=30 kHz

Active filter

From IF IC (Pin16)

To RX AF circuits

Noise detector

Rectify

“NOISE”

NOISE SQUELCH DIAGRAM

• RX AF CIRCUITS

2nd

Mixer

Detector

Noise Det.

Noise

AMP

RSSI

1110

Noise

Filter

2nd IF

AMP

IF IC (TA31136FNG) BLOCK DIAGRAM

91412

8735

• Weather Alert (WX) signals

FM IF demodulator IC “TA31136FNG” contains whole of the

2nd IF circuits and FM demodulator circuit too.

The amplified 1st IF signal is applied to the FM IF IC, and

converted into the 2nd IF signal, by being mixed with the

2nd LO from the X2, at internal 2nd mixer. The converted

2nd IF signal is filtered by external 2nd IF filter (FI6), and

amplified by external 2nd IF AMP. The amplified 2nd

IF signal is applied to the FM IF IC again (pin 5), and

saturation-amplified by internal 2nd IF AMP. The amplified

2nd IF signal is FM-demodulated by the quadrature

detector.

The demodulated AF signals are applied to the RX AF

circuits.

AGC (Automatic Gain Control) CIRCUIT

The AGC circuit effectively reduces the RX signal level if

the signal is strong, and raises it when it is weaker. The

AGC circuit detects the overall strength of the signal and

automatically adjusting the gain of the 2nd IF AMPs to

maintain an approximately constant average level of the

received signals.

A portion of 2nd IF signal is converted into DC voltage (AGC

voltage) which is in proportion to the RX signal level, at the

AM detector (Q21). The AGC voltages “AGC_2” and “AGC_3”

are applied to the emitter terminals of 2nd IF AMPs, to

control the gain of these AMPs for stable 2nd IF signal level.

3 - 3

3-2 TRANSMITTER CIRCUITS

TX AF CIRCUITS

The TX AF circuit consists of microphone amplifier (MIC

AMP), ALC and AF ﬁ lters. ALC (Automatic Level Control) is

an ampliﬁ er which reduces its gain automatically to prevent

over deviation.

The audio signals from the connected headset's microphone

(MIC signals) are passed through the electric volume to be

adjusted MIC gain, and ampliﬁ ed by ALC (Automatic Level

Control) AMP and MIC AMP. The ampliﬁ ed MIC signals are

passed through the MOD/AF SW and the switched capacitor

filter (IC7) which removes unwanted signals. The filtered AF

signals are passed through the HPF, and amplified by buffer,

then applied to the AM modulation cicuits as the modulation

signals, via the DAC for deviation adjustment.

AMP HPFLPF

MC1/2

ALC

AMP BUFF

MOD/AF

IC26

IC2 IC13 IC22 IC8

DAC

IC78

IC7

IC9

AM_DEPTH

IC8

Electric

volume

684 59 109

12 1

TX AMPLIFIERS

The TX amplifers consist several RF amplifier (predriver,

driver, power, etc.), and amplify the VCO output to the

transmit output level.

The TX VCO output is applied to the RF ampliﬁ er via buffers

(Q33 and Q35) and TX/RX switch (D36), and amplified to

the level need for PA UNIT. The TX signal is amplified by

pre-drive and drive AMPs. The amplified TX signal is then

power-amplified by power AMP where the AM modulation is

accomplished.

The power-amplified TX signal is passed through the TX

power detector, ANT SW and LPF (as a harmonic filter),

then applied to the antenna via the K-CONNECT UNIT or

MB-113.

AM MODULATION CIRCUITS

The AM modulation circuits mudulate the carrier with the

MIC signals (=modulation signals).

The level-adjusted modulation signals are applied to the

PWM modulation circuit via the AF SW (IC71, pins 1, 2),

then converted into the triangle wave form by being mixed

with the triangle wave which is generated by the IC16, at

IC25.

The triangle wave form modulation signals applied to the

FET driver to drive the AF power AMP (FETs; Q15, Q16).

The power-amplified modulation signals are applied to the

drain terminal of the TX power AMP, then the currector

current of the TX amplifier changes corresponding to the

amplitude of the modulation signals. Thus the gain of the

TX amplifier changes corresponding to the amplitude of the

modulation signals, and it causes change of the TX output

power to obtain an Amplitude Modulation.

PWR

AMP

DRIVE

PRE DRIVE

PREPRE

AMP

PWR

DET

APC

AMP

APC

CTRL

TX/RX

LINE

FILTER

POWER

AMP

FET

DRIVER

PWM

MOD

TRIANGLE

OSC

Q500 Q501 Q504

I C500I C500

D36 D500, D501Q41

IC25

IC17 Q15,Q16

IC16

WAVE

PCON

LP F

ANT

D502, D503, D504

PA UNIT

MAIN UNIT

IC71

IC80

AM_DEPTH 5

L521-L523,

C572,575,577,578,582

APC CIRCUIT

The APC (Automatic Power Control) circuit stabilizes

transmit output power to prevent transmit output power level

change, which is caused by load mismatching or heat effect,

etc.

The power detector rectiﬁ es a portion of the TX signal and

converts it into DC voltage which is in proportion to the

transmit output power level. The detected voltage is applied

to the input terminal (pin 3) of dual operational AMP (IC500;

as a comparator). The TX power setting is applied to another

input terminal as the reference voltage.

The comparator compares the detected voltage and refer-

ence voltage, and the difference of voltage is output from

output terminal.

The output voltage is amplified by APC AMP, and controls

the bias of the pre-driver and driver amplifiers to reduce/

increase the gain of these amplifiers for stable TX output

power.

• TX AF CIRCUITS

• AM MODULATION AND TX AMPLIFIER CIRCUITS

3 - 4

3-3 FREQUENCY SYNTHESIZER CIRCUITS

VCO

A VCO is an oscillator whose oscillating frequency is

determined by the applied volatge. This transceiver has two

VCOs; RX VCO and TX VCO. The RX VCO generates the

1st LO signals for the 1st IF signal produce, and TX VCO

generates TX signal.

The voltage applied to each VCO is passed through the

ripple filter which removes ripples on the VCC line.

• RX VCO

The RX VCO oscillates 79.150 to 98.125 MHz LO signals

for normal RX and WX channels. The generated 1st LO

signals are applied to the 1st mixer (IC68, pin 6) via the

buffer AMPs (Q33, Q35, Q45), TX/RX SW (D36) and the

LPF (harmonic filter).

• TX VCO

The TX VCO oscillates 118.000 to 136.975 MHz transmit

signals. The generated TX signal is applied to the RF

amplifier (Q41) via the buffer AMPs (Q33, Q35), TX/RX SW

(D36).

A portion of the VCO output is applied to the PLL IC via the

buffer and harmonic filter.

PLL (Phase Locked Loop) CIRCUIT

The PLL circuit provides stable oscillation for both of the TX

and 1st LO frequencies (for RX). By comparing feedbacked

VCO output and reference frequency signals, the PLL

corrects the difference of the frequencies.

A portion of RX/TX VCO output is applied to the PLL IC via

buffer (Q33) and harmonic filter. The applied VCO output

is divided according to the serial data including divide ratio

from the CPU, at the prescaler and programmable divider.

In the same way, the reference frequency signal from the

TCXO is applied to the PLL IC and divided so that these

two applied signals are the same frequency.

The divided and frequency-matched signals (VCO output

and the reference frequency signals) are applied to the

phase comparator and phase-compared. The resulted

phase difference is detected as a phase-type signal, and

level-adjusted at the charge pump then output. The output

pulse type signal is passed through the loop filter to be

converted into the DC voltage (=Lock Voltage).

Applying the lock voltage to the variable capacitor which

composes a part of the resonator of RX/TX VCO, the

capasitance of variable capacitor changes corresponding

to the appled lock voltage. This causes the change of

resonation frequency that determine the VCO oscilating

frequency to keep the VCO frequency constant.

When the oscillation frequency drifts, its phase changes

from that of the reference frequency, causing a lock voltage

change to compensate for the drift in the VCO oscillating

frequency.

BUFF BUFF TX VCO

RX VCO

PLL

IC FILTER

LOOP

FIL

RIPPLE

BUFFTCXO

Q35 Q33

IC47

D21

X2 Q38

Q42

DATA, CLK

2nd LO

Q6, D22

R216–218,

C214,215

LPF

(harmonic

filter)

L51,56,57,

C218,219,225,312

TX/RX

D36

1stLO TX

• FREQUENCY SYNTHESIZER CIRCUITS

REG

POWER

LINE

FILTER

8T1 8T2

10C

10 V

REG

Q11

IC31

8T2

8T1

Q32

Q30Q29

MAIN UNIT

PA UNIT

FRONT UNIT

+16

REG

16V

IC75

PWR

IC42

IC44

IC2 IC16

3-4 VOLTAGE DIAGRAMS

Voltage from the power supply is routed to the whole of the transceiver via regulators and switches.

3 - 5

No.

Line

name Description I/O

1 EC [EC] key. (pulled up) I

2 DIAL [DIAL] key. (pulled up) I

3 BEEP Beep audio. O

4 MONI [VOL] switch. (push) I

7 PTT1_0 External [PTT1/2] keys. I

15 RESET Reset signal from the reset IC (F: IC3). I

19 REG_C2

Regulator control signal to the +16V

regulator (M: IC75).

"Low"=ON

24 INCOM_0 External intercom switch (pulled up). I

25 SFT Clock frequency shift signal to system

clock oscillator (F: Q6). O

34–

37 V3–V0 Power supply for EL display (F: DS11). O

40 SCK Serial clock to the EEPROM (F:IC5). O

43 SDN1 Phase-A signal from rotary encoder (S1;

innner). I

44 SUP1 Phase-B signal from rotary encoder (S1;

innner). I

45 SDN2 Phase-A signal from rotary encoder (S1;

outer). I

46 SUP2 Phase-B signal from rotary encoder (S1;

outer). I

52 DATA_IC11 Serial data to the LED driver (F: IC15). O

53 CLK_IC12 Serial clock to the LED driver (F: IC15). O

54–

56 A–C I/O setting signals to the logic IC (M: IC49). O

57 CDC Common serial clock/data output to MAIN

UNIT control siganal. O

67–

82 D0–D15 EL display driver (F: IC6, IC7) control data

bus. I/O

88 REM_0 External [REMOTE] key. (pulled up) I

89 RSSI RSSI signal from the FM IF IC (M: IC39). I

90 NOISE Noise signal from the FM IF IC (M: IC39). I

91 VOX1 VOX (pilot side) signal from the VOX

detector (M: IC3, D16). I

92 VOX2 VOX (co-pilot side) signal from the VOX

detector (M: IC3, D17). I

93 VR Volume level from the VR (VR UNIT; R1). I

94 PHOTO Luminescence level from light sensor (F:

IC9, D2). I

95 UL Unlock signal from PLL IC (M: IC47).

"Low"=PLL unlocked. I

96 SWAP [ ] key. (pulled up) I

97 RCL [RCL] key. (pulled up) I

98 MEM [MEM] key. (pulled up) I

99 DUAL [DUAL] key. (pulled -up) I

No.

Line

name Description

8 SEND

TX voltage line control signal to the 8T2 switch

(M: Q32).

"Low"=While transmitting.

9 VCO1

TX VCO control signal to the VCO switch (M: Q2).

"High"=TX VCO is selected.

10 VCO2

RX VCO control signal to the VCO switch (M: Q3).

"High"=RX VCO is selected.

11 AM/FM

RX mode toggling signal to the AM/FM switch

(M: Q48).

"Low"=AM mode is selected.

12 FIL1 1st IF ﬁ lter (M: FI3, BW=20 kHz) select signal.

"Low"=FI3 (BW=20 kHz) is selected.

13 FIL2 1st IF ﬁ lter (M: FI4, BW=9 kHz) select signal.

"Low"=FI4 (BW=9 kHz) is selected.

14 MM

AF mute signal to the MUTE SW (M: Q58,

Q59).

"High"=AF line is muted.

16 ANL

ANL circuit control signal to the ANL switch (M: IC70).

"Low"=ANL function is activated.

3-5 PORT ALLOCATIONS

• CPU (F: IC4)

• EXPANDER (M: IC48)

4 - 1

SECTION 4 ADJUSTMENT PROCEDURE

4-1 PREPARATION

¤ REQUIRED EQUIPMENTS

EQUIPMENT SPECIFICATION EQUIPMENT SPECIFICATION

Adjustment software "CS-A210 ADJ"

(Revision 1.0 or later)

JIG cable

(Modiﬁ ed molex®

cable)

(See the illust below)

Power supply Output voltage : 13.8 V DC

Current capacity : More than 5 A Digital voltmeter Input impedance : 50 kΩ

Measuring range : 0.1–10V

RF power meter

(terminated type)

Measuring range : 0.1–20 W

Frequency range : 100–300 MHz

Impedance : 50 Ω

SWR : Less than 1.2 : 1

Standard signal

generator (SSG)

Frequency range : 0.1–300 MHz

Output level : 0.1 mV to 32 mV

(–127 to –17 dBm)

Frequency counter

Frequency range : 0.1–300 MHz

Frequency accuracy : ±1 ppm or better

Input level : Less than 1 mW

AC millivoltmeter Measuring range : 10 mV to 10 V

Oscilloscope Frequency range : DC–20 MHz

Measuring range : 0.01–20 V

Modulation

Analyzer

Frequency range : 30–300 MHz

Measuring range : 0 to ±10 kHz External speaker Input impedance : 4 Ω

Capacity : More than 10 W

Audio generator Frequency range : 300–3000 Hz

Output level : 1–500 mV Attenuator Power attenuation : 30 dB

Capacity : More than 50 W

to the antennna connector

To K-CONNECT UNIT

To [DATA] jack

Power supply

(13.8 V/ 5 A)

Audio generator

(AG)

AC milivoltmeter

USE K-CONNECT UNIT for adjustment.

If MB-113 is atattached to the transceiver,

attach the original rear unit ‘K-CONNECT

UNIT.’ MB-113 has no [DATA] jack.

REMOVE THE TOP COVER before adjustment.

Before starting adjustment, remove the top cover

from the chassis to expose the MAIN UNIT.

(DO NOT remove the bottom cover)

External

Speaker

(4 Ω)

PTT

MIC1

MIC2 or

AttenuatorModulation analyzer

RF Power meter

Frequency counter

CAUTION:

Do not connect the

SSG while transmitting

Standard signal

generator (SSG)

OPC-1529R

SYSTEM REQUIREMENTS

• Microsoft® Windows® Me/2000/XP and Windows Vista™

• RS-232C serial port (D-sub 9 pin)

IC-A210 (TOP VIEW)

Top cover

¤ CONNECTION

Microsoft, Windows and Windows Vista are either registered

trademarks or trademarks of Microsoft Corporation in the

United States and/or other countries.

4 - 2

¤ WHOLE PROCEDURE OF ADJUSTMENT

q Connect the transceiver and PC with OPC-1529R.

w Turn the transceiver power ON.

e Boot up Windows, and click the program group ‘CS-A210 ADJ’ in the ‘Programs’ folder of the [Start] menu,

then CS-A210 ADJ’s window appears.

r Click [ADJ] icon to enter the adjustment mode.

t Click [READ] icon to load the initial data from the transceiver.

y Set or modify adjustment data as speciﬁ ed in the guidances (pages 4-3 to 4-6).

u When the adjustment is ﬁ nished, click [WRITE] icon.

i Click [NRM] icon to quit the adjustment mode, and return to the normal mode.

¤ ADJUSTMENT SOFTWARE INSTALLATION

q Quit all applications if Windows is running.

w Insert the CD into the appropriate CD drive.

e Double-click the “Setup.exe” contained in the ‘CS-A210 ADJ’ folder in the CD drive.

r The “Welcome to the InstallShield Wizard for CS-A210 ADJ” will appear. Click [Next>].

t The “Choose Destination Location” will appear. Then click [Next>] to install the software to the destination folder. (e.g. C:\Pro-

gram Files\Icom\CS-A210 ADJ)

After the installation is completed, the “InstallShield Wizard Complete” will appear. Then click [Finish].

u Eject the CD.

i Program group ‘CS-A210 ADJ’ appears in the ‘Programs’ folder of the start menu, and ‘CS-A210 ADJ’ icon appears on the

desk top screen.

[ADJ]

[NRM]

[LOAD]

Adjustment

items

[WRITE]

Select the adjustment channel

for each adjustment item.

• ADJUSMENT SOFTWARE SCREEN

* This screen is an example only. Each transceiver has its own specific values for each setting.

CH No. Frequency

(MHz)

AM LOW 118.000

AM MID 127.500

AM HIGH 136.975

FM LOW 161.650

FM HIGH 163.275

4 - 3

4-2 FREQUENCY ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the speciﬁ ed value using [←] / [→] keys on the connected PC’s keyboard.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION ADJUSTMENT

ITEM/POINT VALUE

VDD

Voltage

(RX)

1 • CH No. : [AM MID]

• Receiving

Connect a Digital voltmeter to the CP2

on the MAIN UNIT. [F13]

(CS-A210 ADJ)

13.4–13.6

Lock Voltage

(RX)

1 • CH No. : [AM HIGH]

• Receiving

Connect a Digital voltmeter to the CP1

on the MAIN UNIT.

C136

(MAIN UNIT) 3.4–3.6 V

(TX) 2 • CH No. : [AM HIGH]

• Transmitting

C127

(MAIN UNIT)

Lock Voltage

Verify

(RX)

1 • CH No. : [AM LOW]

• Receiving

Connect a Digital voltmeter to the CP1

on the MAIN UNIT.

(Verify) More than

0.5 V

(TX) 2 • CH No. : [AM LOW]

• Transmitting

Reference

Frequency

1 • CH No. : [AM HIGH]

• Connect an RF Power Meter to

the antenna connector.

• Transmitting

Loose couple an Frequency Counter

to the antenna connector. [F1]

(CS-A210 ADJ)

136.975 MHz

IC-A210 (TOP VIEW)

• VDD volatage (RX and TX) adjustments

VDD voltage (RX and TX) check point

CP2

IC-A210 (TOP VIEW)

• Lock volatge adjustment

Lock voltage (TX)

adjust point

C127

Lock voltage (RX)

adjust point

C136

4 - 4

4-3 TRANSMIT ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the speciﬁ ed value using [←] / [→] keys on the connected PC’s keyboard.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION ADJUSTMENT

ITEM/POINT VALUE

Output Power

-Preset-

(Low)

1 • CH No. : [AM MID]

• No audio signals applied to the

MIC line.

• Receiving

Set the adjustment value on the

CS-A210 ADJ. [F5]

(CS-A210 ADJ)

"200"

(adjust

value)

(Mid) [F6]

(CS-A210 ADJ)

(High) [F7]

(CS-A210 ADJ)

Output Power

-VDD voltage-

(Low)

2 • CH No. : [AM LOW]

• No audio signals applied to the

MIC line.

• Transmitting

Connect a Digital voltmeter to the CP2

on the MAIN UNIT. [F14]

(CS-A210 ADJ)

14.3–14.7 V

(Mid) • CH No. : [AM MID]

• No audio signals applied to the

MIC line.

• Transmitting

[F15]

(CS-A210 ADJ)

(High) • CH No. : [AM HIGH]

• No audio signals applied to the

MIC line.

• Transmitting

[F16]

(CS-A210 ADJ)

Output Power

-Adjust-

(Low)

3 • CH No. : [AM LOW]

• No audio signals applied to the

MIC line.

• Transmitting

Adjust the adjustment value on the

CS-A210 ADJ. [F5]

(CS-A210 ADJ)

7.8–8.2 W

[A210]

(Mid) • CH No. : [AM MID]

• No audio signals applied to the

MIC line.

• Transmitting

[F6]

(CS-A210 ADJ)

(High) • CH No. : [AM HIGH]

• No audio signals applied to the

MIC line.

• Transmitting

[F7]

(CS-A210 ADJ)

Deviation

-Preparation-

1• Connect a Modulation Analyzer

to the antenna connector

through an attenuator.

Set the Modulation Analyzer as;

HPF : OFF

LPF : OFF

De-emphasis : OFF

Detector : (P-P)/2

––

• Connect an Audio Generator to

the MIC1 line.

Set the Audio Generator as;

Modulation : 1 kHz

Level : 300 mV rms

Wave form : Sine wave

––

Deviation

-MIC gain preset-

(MIC1)

2 • CH No. : [AM MID]

• Receiving

Set the adjustment value on the

CS-A210 ADJ. [F11]

(CS-A210 ADJ) 75

(MIC2) [F12]

(CS-A210 ADJ)

Deviation

-Adjust-

(Low)

3 • CH No. : [AM MID]

• Transmitting

Adjust the adjustment value on the

CS-A210 ADJ. [F8]

(CS-A210 ADJ)

86–90%

(Mid) • CH No. : [AM MID]

• Transmitting

[F9]

(CS-A210 ADJ)

(High) • CH No. : [AM HIGH]

• Transmitting

[F10]

(CS-A210 ADJ)

Deviation

-MIC gain adjust-

(MIC1)

4 • CH No. : [AM MID]

• Set the Audio Generator as;

Level : 80 mV rms

• Transmitting

Adjust the adjustment value on the

CS-A210 ADJ. [F11]

(CS-A210 ADJ) 70–80%

(MIC2) [F12]

(CS-A210 ADJ)

4 - 5

4-4 RECEIVE ADJUSTMENT

Select an adjustment item using [↑] / [↓] keys, then set to the speciﬁ ed value using [←] / [→] keys on the connected PC’s keyboard.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION ADJUSTMENT

ITEM/POINT VALUE

RX Tuning

Voltage

1 • CH No. : [AM LOW]

• Receiving

Connect a Digital voltmeter to the CP5

on the MAIN UNIT.

[F17]

(CS-A210 ADJ) 4.9–5.1 V

RX BPF

(AM)

1• Connect a Standard Signal

Generator (SSG) to the

antenna connector.

Set the SSG as;

Frequency : 118.000 MHz

Level : 0 dB μV

(1 kHz, 30% Dev.)

––

2 • CH No. : [AM LOW]

• Receiving

Connect a Digital voltmeter to the

CP10 on the MAIN UNIT.

L2, L4, L8, L10

(MAIN UNIT)

Minimum

voltage

3 • CH No. : [AM LOW]

• Set the SSG as;

Frequency : 127.500 MHz

• Receiving

[F18]

(CS-A210 ADJ)

4 • CH No. : [AM LOW]

• Set the SSG as;

Frequency : 136.975 MHz

• Receiving

[F19]

(CS-A210 ADJ)

RX BPF

(FM)

1• Connect a Standard Signal

Generator (SSG) to the

antenna connector.

Set the SSG as;

Frequency : 161.650 MHz

Level : 0 dB μV

(1 kHz, 3.5 kHz Dev.)

––

2 • CH No. : [FM LOW]

• Receiving

Connect a Digital voltmeter to the

CP13 on the MAIN UNIT.

[F20]

(CS-A210 ADJ) Maximum

voltage

3 • CH No. : [FM HIGH]

• Receiving

[F21]

(CS-A210 ADJ)

SQUELCH

(AM)

1• Connect a Standard Signal

Generator (SSG) to the

antenna connector.

Set the SSG as;

Frequency : 127.500 MHz

Level : 0 dB μV

(1 kHz, 30% Dev.)

––

2 • CH No. : [AM MID]

• Receiving

Decrease the adjustment value [F3] to

close the squelch once, then increase

the value to open the squelch.

[F3] Squelch

open

SQUELCH

(FM)

1• Connect a Standard Signal

Generator (SSG) to the

antenna connector.

Set the SSG as;

Frequency : 163.275 MHz

Level : 0 dB μV

(1 kHz, 3.5 kHz Dev.)

––

2 • CH No. : [FM HIGH]

• Receiving

Decrease the adjustment value [F4] to

close the squelch once, then increase

the value to open the squelch.

[F4] Squelch

open

4 - 6

IC-A210 (TOP VIEW)

• Receive

adjustments

Tuning voltage check point

CP5

RX BPF adjust points

L2, L4, L8 and L10

RX BPF (AM) check point

CP10

RX BPF (FM) check point

CP13

5 - 1

SECTION 5 PARTS LIST

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[FRONT UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC2 1180002151 S.IC NJM2370U1-32-TE1 T 60.2/14.2

IC3 1110006260 S.IC BD5242G-TR B 109.5/24.9

IC4 1140014362 S.IC HD64F38347WV B 91.5/13.9

IC5 1130011581 S.IC 24LC64T-I/SN G B 102.7/5.3

IC6 1130013540 S.IC TC74LVX4245FS (EL,F) T 77.6/14.1

IC7 1130013540 S.IC TC74LVX4245FS (EL,F) T 69.3/14.1

IC9 1130013990 S.IC NJU7008F3-TE1 B 120.4/24.9

IC10 1120003050 S.IC ADM202EARUZ-REEL7 B 120/8.2

IC11 1130006551 S.IC TC7S08FU (TE85R,F) T 93.2/13.4

IC12 1130006551 S.IC TC7S08FU (TE85R,F) T 90.3/12.9

IC14 1130006891 S.IC TC7S04FU (TE85R,F) T 90.3/9.2

IC15 1130013460 S.IC NJU6060V-TE1 T 83.7/13.9

IC16 1180000421 S.IC TA78L05F (TE12R,F) B 119.6/16.1

IC17 1130013770 S.IC TC7S00FU (TE85L,F) T 93.2/8.9

IC18 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 99.7/21.9

Q4 1590001040 S.TR DTA113ZU T106 T 89.1/17.6

Q5 1590001040 S.TR DTA113ZU T106 T 77.9/22.4

Q6 1530002381 S.TR 2SC4215-Y (TE85L,F) B 99.6/24.6

Q7 1590001040 S.TR DTA113ZU T106 T 86.6/17.6

D2 1790001820 S.VSR BCS2015G1 T 131.5/26.2

D4 1730002531 S.ZEN NNCD6.2G-T1-A B 27.3/19.1

X1 6050012010 S.XTL CR-789 (9.8304 MHz) B 106.3/18.2

L1 6200003181 S.COL NLV32T-390J B 102.4/22.6

R5 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 64/11.7

R6 7030003320 S.RES ERJ3GEYJ 101 V (100) B 134.5/7.9

R7 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 93/2.9

R8 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 91.8/2.9

R9 7030006550 S.RES ERJ3GEYJ 914V (910 k) T 84.2/18.4

R10 7030003740 S.RES ERJ3GEYJ 334 V (330 k) T 85.7/7.8

R11 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 131.3/9.3

R12 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 134.5/9.3

R13 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 134.5/14.5

R14 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 134.5/13.2

R19 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 140.5/17.2

R20 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 94.7/2.9

R21 7030003390 S.RES ERJ3GEYJ 391 V (390) B 138.5/4.5

R22 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 74.8/7.9

R23 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 70/9.4

R26 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 107.2/24.3

R31 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 82.6/2.9

R34 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 118.4/22.5

R35 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 95.9/24.4

R36 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 97.2/24.4

R37 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 90.6/2.9

R38 7030003840 S.RES ERJ3GEYJ 225 V (2.2 M) B 83.3/24.5

R40 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 91.8/23.4

R43 7030003800 S.RES ERJ3GEYJ 105 V (1 M) B 101.6/19.9

R44 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 82.6/6.5

R45 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 82.6/5.3

R46 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 82.6/4.1

R47 7030003390 S.RES ERJ3GEYJ 391 V (390) B 18.2/19.5

R48 7030003390 S.RES ERJ3GEYJ 391 V (390) B 16.7/19.5

R49 7030003390 S.RES ERJ3GEYJ 391 V (390) B 140.3/4.5

R50 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 101.8/17.8

R51 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 104.7/14.7

R52 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 105.9/14.7

R57 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 96.2/2.9

R58 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 80/20.2

R59 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 81.2/20.1

R60 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 78.5/7.4

R61 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 78.5/6.2

R62 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 78.8/5

R63 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 78.8/3.6

R64 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 78.8/2.4

R65 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 58.1/6.9

R66 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 59.4/6.9

R67 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 60.7/6.9

R68 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 62/6.9

R69 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 63.3/6.9

R70 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 106.2/9.8

R71 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 103.8/10.5

R72 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 107.4/9.8

R73 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 105/10.5

R74 7030003840 S.RES ERJ3GEYJ 225 V (2.2 M) B 83.3/23.3

R75 7030003760 S.RES ERJ3GEYJ 474 V (470 k) B 83.3/20.8

R76 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 83.3/22

R77 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 24.4/16.7

R78 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 116.3/25.1

R79 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 18.2/24.3

R80 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 4.6/21.6

R81 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 127.1/5.4

R82 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 112/15

R83 7030003220 S.RES ERJ3GEYJ 150 V (15) B 119.7/12.9

R85 7030003380 S.RES ERJ3GEYJ 331 V (330) B 122.8/24.3

R86 7030003380 S.RES ERJ3GEYJ 331 V (330) B 21.2/24.3

R88 7030003390 S.RES ERJ3GEYJ 391 V (390) B 127.1/3.8

R89 7030003390 S.RES ERJ3GEYJ 391 V (390) B 127.1/2.6

R90 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 89.4/2.9

S.=Surface mount

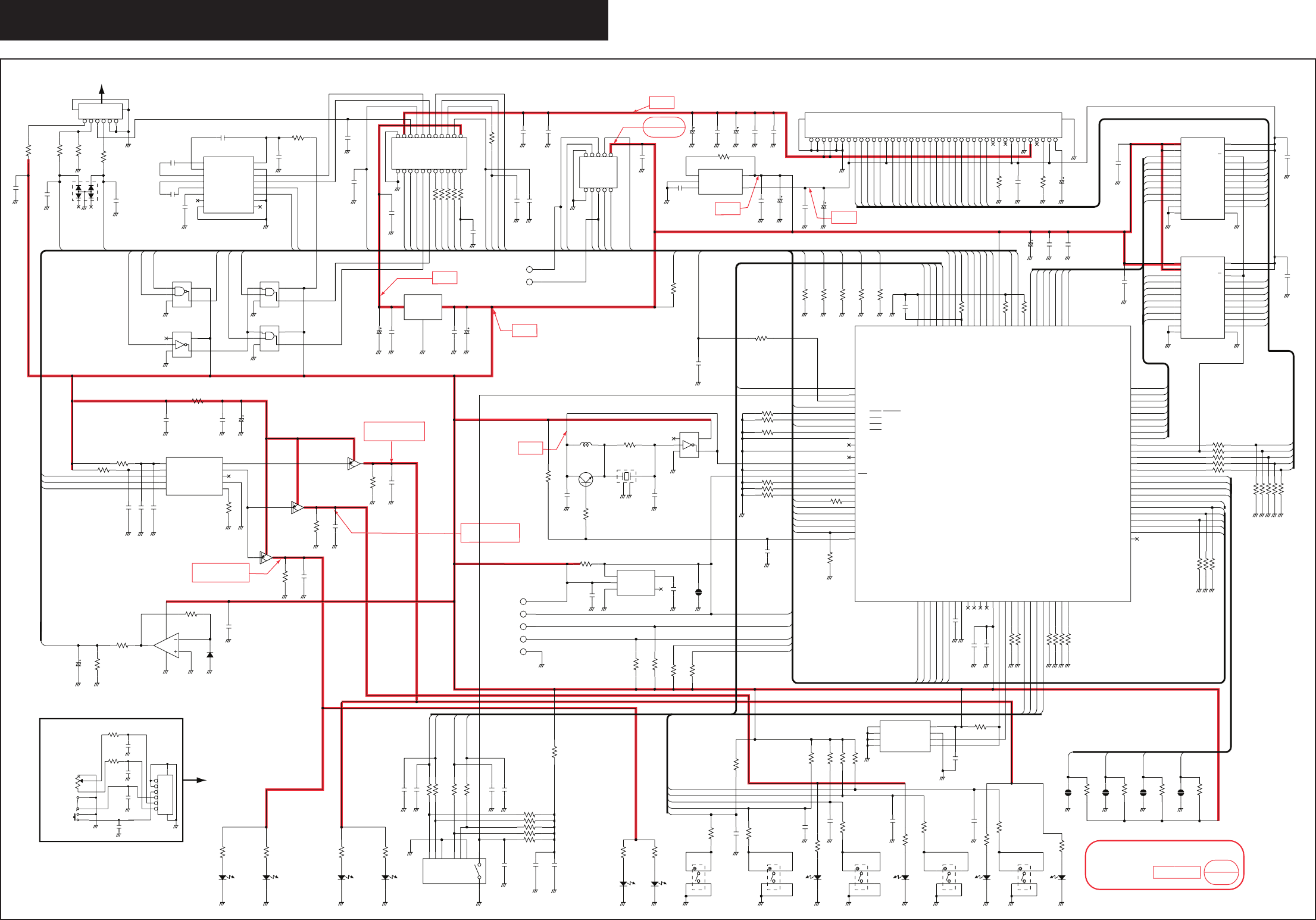

[FRONT UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R91 7030009920 S.RES ERJ3GEYJ 335 V (3.3 M) B 120.6/23

R93 7030003320 S.RES ERJ3GEYJ 101 V (100) B 120.6/21.8

R97 7030003380 S.RES ERJ3GEYJ 331 V (330) B 4.6/25.2

R98 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 143.2/17.2

R99 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 143.2/15.9

R100 7030003380 S.RES ERJ3GEYJ 331 V (330) B 122.9/18.8

R101 7030003280 S.RES ERJ3GEYJ 470 V (47) T 84.5/7.8

R102 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 143.2/10.7

R103 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 143.2/12

R104 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 83.5/19.4

R113 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 98.4/5.6

R114 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 137.3/4.5

R115 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.8/19.5

R116 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 96.9/15

R117 7030003320 S.RES ERJ3GEYJ 101 V (100) B 25.6/15.6

R118 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 87.2/23.3

R119 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 96.5/21.4

R120 7030003200 S.RES ERJ3GEYJ 100 V (10) B 23.1/16.7

R121 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 28.2/15.6

R122 7030003860 S.RES ERJ3GE JPW V T 91.2/16.8

R123 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 93.2/6.1

R124 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 90/6.1

R125 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 91.6/6.1

R126 7030003840 S.RES ERJ3GEYJ 225 V (2.2 M) T 87.9/20.2

R127 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 102.6/25.2

R128 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 104.7/24.3

R129 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 121.3/4.7

R130 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 113.7/24.6

R131 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 114.9/12.3

R132 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 6.9/22.6

R133 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 20/23.3

R134 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 123.5/21.2

R135 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 98.2/20

R136 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 138.1/25.4

R137 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 136.9/25.4

R138 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 135.7/25.4

R139 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 130.1/26.1

R140 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 130.1/24.9

R141 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 134.7/21.2

C1 4030006900 S.CER C1608 JB 1H 103K-T B 54.2/6.9

C2 4510009570 S.ELE 20SVPB15M T 46.4/10.9

C3 4030006900 S.CER C1608 JB 1H 103K-T B 99.4/8.3

C4 4510009570 S.ELE 20SVPB15M T 55.5/5.3

C7 4030006900 S.CER C1608 JB 1H 103K-T B 127.4/6.6

C8 4030006900 S.CER C1608 JB 1H 103K-T B 114.2/25.8

C9 4550007080 S.TAN TEESVA 1C 106M8R T 53.2/14.2

C10 4030006900 S.CER C1608 JB 1H 103K-T B 4.6/23.4

C11 4030006900 S.CER C1608 JB 1H 103K-T B 16.7/24.3

C12 4030011600 S.CER C1608 JB 1E 104K-T T 82.1/7.8

C13 4030011600 S.CER C1608 JB 1E 104K-T T 90.4/14.8

C14 4030006900 S.CER C1608 JB 1H 103K-T B 134.5/15.8

C15 4030006900 S.CER C1608 JB 1H 103K-T B 134.5/10.6

C16 4030018980 S.CER C1608 JB 1H 104K-T B 56.8/6.9

C17 4030006900 S.CER C1608 JB 1H 103K-T T 56.3/13.4

C18 4030006900 S.CER C1608 JB 1H 103K-T B 131.3/7.5

C19 4030006900 S.CER C1608 JB 1H 103K-T B 134.5/11.9

C20 4030006900 S.CER C1608 JB 1H 103K-T B 143.2/13.3

C21 4030006900 S.CER C1608 JB 1H 103K-T B 143.2/14.6

C22 4030006900 S.CER C1608 JB 1H 103K-T B 135.9/17.1

C23 4550006840 S.TAN TEESVA 1E 225M8R B 74.3/6.1

C27 4030007020 S.CER C1608 CH 1H 120J-T B 97.8/21.5

C28 4030007020 S.CER C1608 CH 1H 120J-T B 107.9/15.5

C30 4030008890 S.CER C1608 JB 1H 273K-T B 108.8/22.5

C31 4030006900 S.CER C1608 JB 1H 103K-T B 55.5/6.9

C32 4030006860 S.CER C1608 JB 1H 102K-T B 131/20.1

C33 4030011600 S.CER C1608 JB 1E 104K-T B 26.8/15.6

C34 4030011600 S.CER C1608 JB 1E 104K-T B 117.5/11.7

C35 4030011600 S.CER C1608 JB 1E 104K-T B 120.2/11.7

C36 4030011600 S.CER C1608 JB 1E 104K-T B 122.8/11.7

C37 4030011600 S.CER C1608 JB 1E 104K-T B 124.8/9.3

C38 4030011600 S.CER C1608 JB 1E 104K-T B 124.8/6.7

C39 4030006900 S.CER C1608 JB 1H 103K-T B 136.1/4.5

C40 4030006900 S.CER C1608 JB 1H 103K-T T 86.9/7.8

C41 4030006900 S.CER C1608 JB 1H 103K-T T 55.5/15.8

C42 4030006900 S.CER C1608 JB 1H 103K-T B 22.4/24.3

C43 4030006900 S.CER C1608 JB 1H 103K-T T 91.6/18.7

C44 4550003080 S.TAN TEESVA 1A 335M8R B 119.5/20.1

C45 4030006900 S.CER C1608 JB 1H 103K-T B 117.5/25.1

C46 4030011600 S.CER C1608 JB 1E 104K-T T 64.1/15.1

C47 4030006900 S.CER C1608 JB 1H 103K-T T 83.3/7.8

C49 4550006250 S.TAN TEESVA 1A 106M8R T 94.5/17.4

C50 4030006900 S.CER C1608 JB 1H 103K-T B 113.2/15

C51 4550007080 S.TAN TEESVA 1C 106M8R T 56.8/17.7

C52 4550006250 S.TAN TEESVA 1A 106M8R B 115.9/15.4

C53 4030006900 S.CER C1608 JB 1H 103K-T B 122.8/13.2

C54 4030006900 S.CER C1608 JB 1H 103K-T B 123.6/15.5

C55 4550007080 S.TAN TEESVA 1C 106M8R B 125.4/13.5

C58 4030006860 S.CER C1608 JB 1H 102K-T B 85.5/24.5

C59 4030006900 S.CER C1608 JB 1H 103K-T B 103.4/8.7

C60 4030006900 S.CER C1608 JB 1H 103K-T B 21.9/16.7

C61 4030006860 S.CER C1608 JB 1H 102K-T B 29.4/15.6

C62 4030006860 S.CER C1608 JB 1H 102K-T B 143.2/20.2

C63 4030006860 S.CER C1608 JB 1H 102K-T B 143.2/19

C64 4030006860 S.CER C1608 JB 1H 102K-T B 143.3/21.8

C66 4030006860 S.CER C1608 JB 1H 102K-T B 127.4/24.9

C67 4030006860 S.CER C1608 JB 1H 102K-T B 134.6/19.2

5 - 2

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[FRONT UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C68 4030006860 S.CER C1608 JB 1H 102K-T T 131.2/22.2

C70 4030006860 S.CER C1608 JB 1H 102K-T B 52.9/6.9

C71 4030006860 S.CER C1608 JB 1H 102K-T B 72.7/9.4

C72 4030006860 S.CER C1608 JB 1H 102K-T T 66.7/9.1

C73 4030006860 S.CER C1608 JB 1H 102K-T T 66.8/20.6

C74 4030006860 S.CER C1608 JB 1H 102K-T T 75/8.6

C75 4030006860 S.CER C1608 JB 1H 102K-T T 74.9/21.3

C76 4030006900 S.CER C1608 JB 1H 103K-T B 115.4/3.4

C77 4550007690 S.TAN TEESVP 1C 105M8R B 78.5/24.5

C78 4030006900 S.CER C1608 JB 1H 103K-T B 78.2/22.9

C79 4030006860 S.CER C1608 JB 1H 102K-T B 78.2/21.7

C80 4030006860 S.CER C1608 JB 1H 102K-T B 111.8/25.1

C81 4030006900 S.CER C1608 JB 1H 103K-T T 96.5/9.7

C82 4030011600 S.CER C1608 JB 1E 104K-T T 97.7/9.7

C83 4030006860 S.CER C1608 JB 1H 102K-T B 90.6/24.2

C85 4030006900 S.CER C1608 JB 1H 103K-T B 105.9/24.3

C86 4030006900 S.CER C1608 JB 1H 103K-T B 123.5/22.4

J3 6510026160 S.CNR 06FLZ-SM2-TB (LF) (SN) B 28.3/8.4

J4 6510025141 S.CNR 10FLT-SM2-TB (LF) (SN) B 110.8/4.2

J5 6510022201 S.CNR 40FLZ-SM2-R-TB (LF) (SN) B 66.5/14

J6 6510026100 S.CNR 22FLT-SM2-TB (LF) (SN) B 138.3/24.6

DS1 5040002930 S.LED SML-512MW T86 T 138.7/22.7

DS2 5040002930 S.LED SML-512MW T86 T 138.7/6.1

DS3 5040002960 S.LED SML-A12MT T86 T 10.5/16.8

DS4 5040002960 S.LED SML-A12MT T86 T 14.5/1.2

DS5 5040002930 S.LED SML-512MW T86 T 120.5/3.3

DS6 5040002930 S.LED SML-512MW T86 T 115.9/3.3

DS7 5040002930 S.LED SML-512MW T86 T 16.7/26.3

DS8 5040002930 S.LED SML-512MW T86 T 4.1/26.3

DS9 5040002930 S.LED SML-512MW T86 T 118.2/16.5

DS10 5040002930 S.LED SML-512MW T86 T 118.2/26.3

DS11 5060000020 EL UEL127

S1 2250000580 ECR EC11EAB24C

S2 2230001200 S.SW LS35J2-T T 118.2/24

S3 2230001200 S.SW LS35J2-T T 118.2/14.2

S4 2230001200 S.SW LS35J2-T T 4.1/24

S5 2230001200 S.SW LS35J2-T T 16.7/24

S6 2230001200 S.SW LS35J2-T T 118.2/3.3

S.=Surface mount

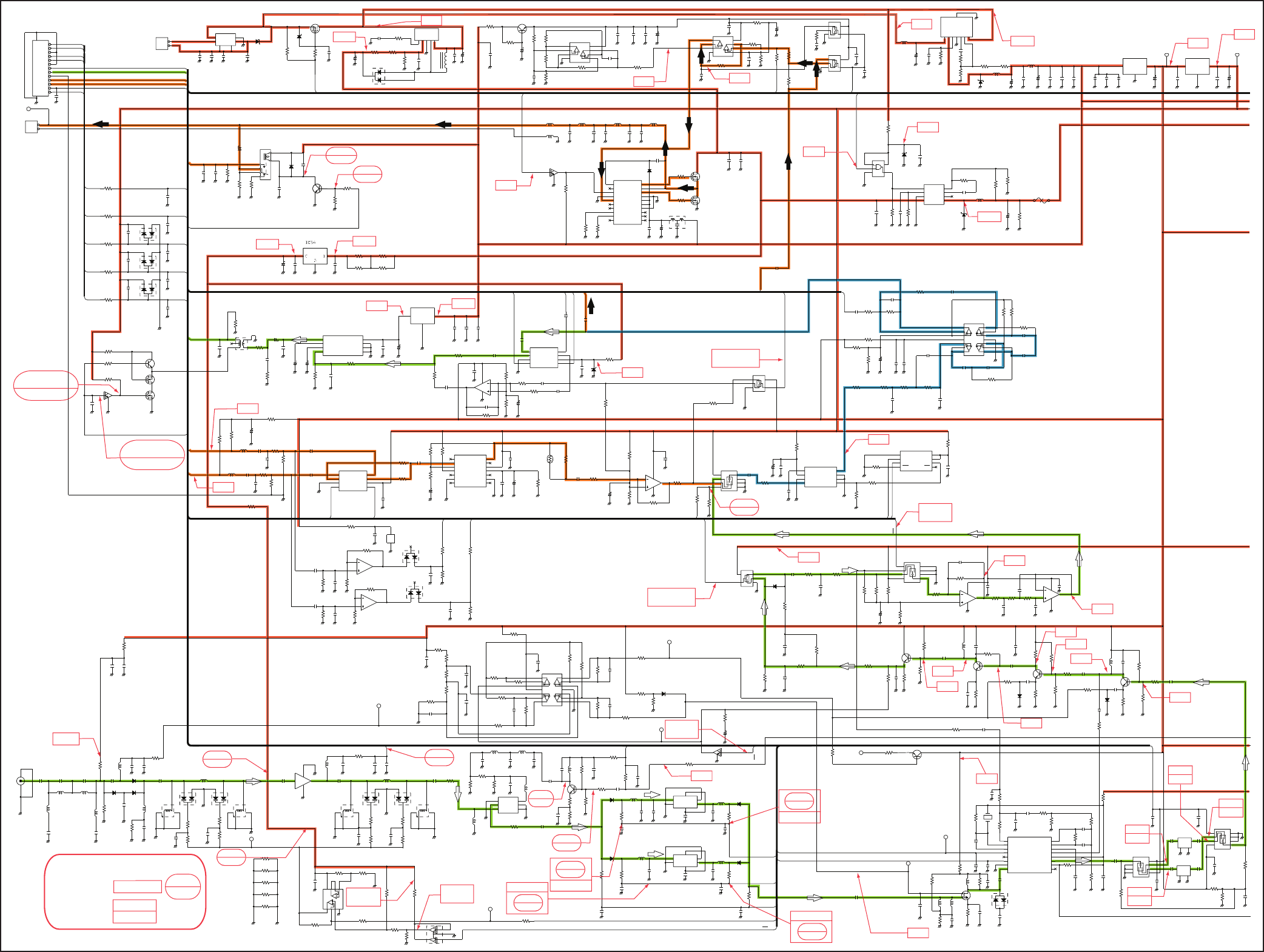

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC2 1110007200 S.IC M61545AFP#DF0R T 30.1/67

IC3 1110003800 S.IC NJM2904V-TE1-#FMZB B 18.7/53.7

IC4 1110003250 S.IC TDA7233D (TDA7233D013TR) T 54.2/92.4

IC5 1180003000 REG LM2587T-ADJ/NOPB

IC6 1180002010 S.REG BA08FP-E2 T 70.5/82

IC7 6910019020 S.IC LTC1069-1IS8#TRPBF T 91/79

IC8 1110003780 S.IC NJM2902V-TE1 T 98.4/90.6

IC9 6910019030 S.IC LTC6904IMS8#TRPBF T 98.3/73.2

IC13 1110003670 S.IC BA3308F-E2 T 43.3/67.9

IC14 1110007200 S.IC M61545AFP#DF0R T 85.3/92.1

IC16 1110007230 S.IC NJM2137M-TE1 T 133.9/109.7

IC17 1190001211 S.IC HIP4081AIBZ-T T 101.3/113.2

IC22 1110002751 S.IC TA75S01F (TE85R,F) T 58.7/71.4

IC25 1110007230 S.IC NJM2137M-TE1 T 117/111.8

IC26 1130006221 S.IC TC4W53FU (TE12L,F) T 100.6/77.2

IC31 1180002990 S.REG BD9781HFP-TR T 133.2/134.2

IC32 1130006221 S.IC TC4W53FU (TE12L,F) T 123.5/87.1

IC36 1110002751 S.IC TA75S01F (TE85R,F) T 176.1/67

IC37 1110002751 S.IC TA75S01F (TE85R,F) T 119.4/93.2

IC38 1110002751 S.IC TA75S01F (TE85R,F) T 112/91.7

IC39 1110003201 S.IC TA31136FNG (EL) T 144.1/57.1

IC42 1180002010 S.REG BA08FP-E2 T 199.2/127.1

IC43 1130006221 S.IC TC4W53FU (TE12L,F) B 149.7/49.5

IC44 1180001861 S.IC TA78M05F (TE16L,Q) T 200.6/119.5

IC45 1130006221 S.IC TC4W53FU (TE12L,F) B 148/68.8

IC46 1130011180 S.IC BU4081BF-E2 T 188.9/130.3

IC47 1130012970 S.IC ADF4110BRUZ-RL7 B 186.7/59.9

IC48 1130011510 S.IC BU2099FV-E2 T 177.8/118.1

IC49 1130008751 S.IC TC4028BF (EL,N,F) T 179.5/131

IC52 1110003800 S.IC NJM2904V-TE1-#FMZB B 92.7/66.5

IC54 1180003140 S.REG TA78L24F (TE12L,F) T 125.3/117.1

IC67 1130004201 S.IC TC4S66F (TE85R,F) T 67.7/71.9

IC68 1190002610 S.IC JMS-1+ <MRF> T 95.1/53.6

IC69 1110007270 S.IC ERA-50SM+ <MRF> B 65/61.4

IC70 1130004201 S.IC TC4S66F (TE85R,F) B 141.1/92.9

IC71 1130004201 S.IC TC4S66F (TE85R,F) B 121.9/112

IC74 1130006441 S.IC TC7S08F (TE85R,F) B 97/125.4

IC75 6910019050 S.DCC BD9001F-E2 B 109.2/127.8

IC76 1110002751 S.IC TA75S01F (TE85R,F) T 75.9/70.7

IC78 1190001350 S.IC M62364FP 600D B 120.6/97.3

IC79 1110002751 S.IC TA75S01F (TE85R,F) B 132/96.2

IC80 1130004201 S.IC TC4S66F (TE85R,F) B 118.5/112

IC81 1110003780 S.IC NJM2902V-TE1 T 135/81.8

IC82 1110002751 S.IC TA75S01F (TE85R,F) B 192.7/102.3

Q2 1530002381 S.TR 2SC4215-Y (TE85L,F) B 176.4/26.2

Q3 1530002381 S.TR 2SC4215-Y (TE85L,F) B 189.1/22.1

Q5 1560001281 S.FET 2SK508-T1B-A K53 T 182.6/41.3

Q6 1560001281 S.FET 2SK508-T1B-A K53 T 186.6/31.8

Q9 1540000690 S.TR 2SD2351 T106 B 42.3/83.2

Q11 1590003860 S.TR 2SJ402 (TE24L,Q) T 26.1/131

Q12 1590000430 S.TR DTC144EUA T106 B 113.6/119.4

Q15 1560001121 S.FET 2SK2414-Z-E1-AZ T 81.9/116.6

Q16 1560001121 S.FET 2SK2414-Z-E1-AZ T 81/108.8

Q20 1580000780 S.FET 3SK195 (TE85L,F) T 131.4/57.5

Q21 1530003281 S.TR 2SC4211-6-TL-E T 144.2/90.6

Q24 1530002381 S.TR 2SC4215-Y (TE85L,F) T 150.1/89.8

Q25 1530002381 S.TR 2SC4215-Y (TE85L,F) T 150.2/82

Q26 1530002381 S.TR 2SC4215-Y (TE85L,F) T 150.1/72

Q29 1520000860 S.TR 2SB1302S/T-TD-E T 175/102.9

Q30 1590001010 S.TR DTB113ZK T146 B 185.4/102.5

Q32 1590001010 S.TR DTB113ZK T146 B 188.9/102.5

Q33 1530002920 S.TR 2SC4226-T1 R25 T 179/30.5

Q35 1530002381 S.TR 2SC4215-Y (TE85L,F) B 170.5/29.4

Q38 1530002381 S.TR 2SC4215-Y (TE85L,F) T 181.5/56.5

Q41 1530002920 S.TR 2SC4226-T1 R25 T 165.7/23.5

Q42 1540000690 S.TR 2SD2351 T106 B 196.3/23.1

Q45 1530002680 S.TR 2SC3357-T1 B 104.7/57.8

Q46 1590000430 S.TR DTC144EUA T106 T 172.9/121.5

Q48 1590001400 S.TR XP1214 (TX) B 88.6/63.9

Q50 1530002841 S.TR 2SC4116-Y (TE85R,F) T 146/87.3

Q51 1540000690 S.TR 2SD2351 T106 T 153.6/109.8

Q53 1590000430 S.TR DTC144EUA T106 B 188.4/98.1

Q54 1590000430 S.TR DTC144EUA T106 B 184.8/122.7

Q55 1590000430 S.TR DTC144EUA T106 T 131.3/89.9

Q58 1530002841 S.TR 2SC4116-Y (TE85R,F) B 21.9/91.3

Q59 1560001330 S.FET RSR025N03 B 18.9/91.2

Q60 1560001330 S.FET RSR025N03 B 18.9/94.7

Q61 1590000430 S.TR DTC144EUA T106 B 21.9/95.4

D1 1750000531 S.DIO 1SV271 (TPH3,F) B 42/59.6

D2 1750000531 S.DIO 1SV271 (TPH3,F) B 44.9/60.6

D3 1750000531 S.DIO 1SV271 (TPH3,F) B 44.4/57.7

D4 1750000590 S.DIO DAN217T146 B 7.3/69.7

D5 1750000590 S.DIO DAN217T146 B 7.5/62.4

D6 1750000590 S.DIO DAN217T146 B 9.3/75.9

D10 1720000850 S.VCP 1SV242 (TPH2,F) B 48/53.6

D11 1720000850 S.VCP 1SV242 (TPH2,F) B 56/53.1

D12 1750001390 S.ZEN DAM1MA33 B 17.6/121.4

D13 1720000850 S.VCP 1SV242 (TPH2,F) B 72.3/54.8

D14 1720000850 S.VCP 1SV242 (TPH2,F) B 80.8/52.6

D15 1730001011 S.ZEN RD16M-T2B-A B3 B 19.8/131

D16 1750000590 S.DIO DAN217T146 B 21.7/58.5

D17 1750000590 S.DIO DAN217T146 B 22.4/48.6

D18 1750000051 S.DIO 1SS193 (TE85R,F) B 45.7/83.2

D19 1710000871 S.DIO HVU131TRF-E B 107.4/63.9

D20 1710000871 S.DIO HVU131TRF-E B 107.4/62

D21 1720000831 S.VCP KV1770STL-G T 190.2/48.7

D22 1720000831 S.VCP KV1770STL-G T 195.7/42.1

D23 1750000051 S.DIO 1SS193 (TE85R,F) T 92.9/108.2

D26 1750001530 S.DIO DF10SC6-7072 T 69.3/133.8

D27 1710000871 S.DIO HVU131TRF-E T 127.5/62.6

5 - 3

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

D28 1710000871 S.DIO HVU131TRF-E T 126.7/56.7

D29 1790001240 S.DIO MA2S728-(TX) B 137.4/92.2

D32 1750001500 S.DIO CMS15 (TE12L,Q) B 130.4/130.7

D33 1750000531 S.DIO 1SV271 (TPH3,F) T 153.3/86.4

D35 1750000531 S.DIO 1SV271 (TPH3,F) T 155.4/77

D36 1750001070 S.DIO DAN235ETL B 167.5/36.6

D50 1750001500 S.DIO CMS15 (TE12L,Q) B 111.6/132.1

D51 1790000990 S.ZEN MA8051-H (TX) B 97/128.4

D52 1790001790 S.DIO RB876W TL T 134.4/55.5

D53 1750000550 S.DIO 1SS355 TE-17 T 130.7/69.2

D54 1790001520 S.ZEN MA8075-L (TX) B 89.7/90.4

FI1 2040000500 LC BNX-002-01

FI2 4580000110 S.FIL ACF321825-223-T T 103.9/121

FI3 2010002400 S.MLH FL-306 (38.850 MHz) T 117.3/65

FI4 2010002410 S.MLH FL-307 (38.850 MHz) T 117.3/58.2

FI5 2020002320 S.CER CFWKA450KEFA B 152.6/59.5

FI6 2020002180 S.CER CFWKA450KHFA-R0 B 143.7/59.5

X1 6070000191 S.DCR CDBKB450KCAY24-R0 B 134.4/59

X2 6050012650 S.XTL CR-860 (38.4 MHz) T 175.8/61

L1 6200010780 S.COL C2520C-1R0G-A B 44.7/64.5

L2 6190001591 COL #E526HNA-100312

L3 6200010950 S.COL C2520C-1R5G-A (1.5U) B 53/62.5

L4 6190001591 COL #E526HNA-100312

L5 6200004480 S.COL MLF1608D R82K-T T 17.4/64.4

L6 6200004480 S.COL MLF1608D R82K-T T 17.4/60.2

L7 6200011450 S.COL C2520C-R39G-A B 70.9/62.8

L8 6190001591 COL #E526HNA-100312

L9 6200010950 S.COL C2520C-1R5G-A (1.5U) B 78.8/62.5

L10 6190001591 COL #E526HNA-100312

L11 6200010590 S.COL C2520C-22NG-A B 109.2/55.9

L12 6200011210 S.COL C2012C-1R0J-A B 111/64.8

L13 6200013240 S.COL C2012C-R68J-A B 110.8/61.6

L15 6200005011 S.COL NLV25T-100J T 179.3/37.6

L16 6190001690 S.COL ZBFS5105-PT-01 B 23.1/110

L17 6190001690 S.COL ZBFS5105-PT-01 B 32.1/113.4

L18 6190001790 S.COL 7B12HA-680M T 34.7/113.9

L19 6190001790 S.COL 7B12HA-680M T 49.7/111

L20 6200005011 S.COL NLV25T-100J T 183.9/28.4

L21 6190001790 S.COL 7B12HA-680M T 64.9/111

L22 6200005011 S.COL NLV25T-100J T 184.8/36.9

L23 6190001760 COL HK-10S080-1210H

L24 6190001780 S.COL 7E08N-330M T 122.7/124.6

L25 6190001780 S.COL 7E08N-330M T 147.4/126

L26 6190001780 S.COL 7E08N-330M T 137.5/120.9

L28 6200002041 S.COL NLV25T-101J T 147.8/91.7

L29 6200002041 S.COL NLV25T-101J T 150/74.6

L31 6200007001 S.COL ELJRE 82NGFA T 177/29.3

L32 6200011050 S.COL C2012C-R12G-A B 169.6/33.5

L33 6200005011 S.COL NLV25T-100J T 189.9/26.5

L34 6200013220 S.COL C6342A-R13G-A T 189.5/40.7

L35 6200013200 S.COL C1608CB-47NG B 167.2/31.1

L36 6200013270 S.COL C6342A-R11G-A T 193.4/31

L37 6200005011 S.COL NLV25T-100J T 186.7/48.2

L38 6200005011 S.COL NLV25T-100J T 195.6/39

L39 6200005011 S.COL NLV25T-100J T 193.6/48.8

L40 6200005011 S.COL NLV25T-100J T 195.7/45.8

L42 6200011050 S.COL C2012C-R12G-A B 89.5/58.3

L45 6200003960 S.COL MLF1608A 1R0K-T T 181.5/58.6

L47 6200011050 S.COL C2012C-R12G-A T 168.2/23.9

L48 6200013200 S.COL C1608CB-47NG B 98.1/46

L49 6200010950 S.COL C2520C-1R5G-A (1.5U) T 124.5/63.9

L50 6200011090 S.COL C2012C-R56J-A T 124.1/57.6

L51 6200013160 S.COL C1608CB-R22G B 179/51.6

L52 6200013200 S.COL C1608CB-47NG B 98.8/55.1

L53 6200013200 S.COL C1608CB-47NG B 100.3/57.8

L56 6200013200 S.COL C1608CB-47NG B 176.7/45.3

L57 6200013260 S.COL C1608CB-56NG B 176.7/49.5

L58 6200004780 S.COL MLF1608A 1R5K-T T 175.9/56.7

L59 6200011210 S.COL C2012C-1R0J-A B 47.4/56.9

L60 6200004780 S.COL MLF1608A 1R5K-T T 133.9/57.8

L61 6200004730 S.COL MLF1608A 1R2K-T T 130.3/60.4

L62 6200004730 S.COL MLF1608A 1R2K-T T 129/60.4

L63 6200009930 S.COL C2012C-68NG-A B 31.7/61.9

L64 6200009930 S.COL C2012C-68NG-A B 35.8/61.9

L65 6200010350 S.COL C2012C-R27G-A B 32.5/59.1

L66 6200010350 S.COL C2012C-R27G-A B 37.8/59.4

L67 6190001810 S.COL 7E05NA-820M T 112.9/129.6

L68 6200011430 S.COL C1608CB-22NG B 175.7/31.4

R1 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 12.5/81.7

R2 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 6.5/80.1

R3 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 12.6/72.2

R4 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 7.5/58.7

R5 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 6/75.9

R6 7030003860 S.RES ERJ3GE JPW V T 146.8/84.8

R7 7030003860 S.RES ERJ3GE JPW V T 135.4/87.1

R8 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 40.6/62.4

R9 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 81.4/69.9

R10 7030003320 S.RES ERJ3GEYJ 101 V (100) B 38.7/64.5

R11 7030003410 S.RES ERJ3GEYJ 561 V (560) T 17.4/61.4

R12 7030003320 S.RES ERJ3GEYJ 101 V (100) T 17.4/59

R13 7030003410 S.RES ERJ3GEYJ 561 V (560) T 17.4/63.2

R14 7030003400 S.RES ERJ3GEYJ 471 V (470) B 45.2/54.9

R15 7030006060 S.RES ERJ12YJ100U (10) B 39/89.1

R16 7030003860 S.RES ERJ3GE JPW V B 47.1/67.9

R17 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 49.3/51

R18 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 52.4/49.6

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R19 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) B 47.6/91.5

R20 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 23/68.4

R21 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 23.1/63.8

R22 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 57/55.6

R23 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 60.1/53.1

R24 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 90.7/61.9

R25 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 93.7/61.9

R26 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 25.5/68.3

R27 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 25.7/62.8

R28 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 178.5/104.1

R29 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 38.8/57

R31 7030003630 S.RES ERJ3GEYJ 393 V (39 k) B 22.1/129.1

R32 7030003860 S.RES ERJ3GE JPW V B 58.2/135.1

R33 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 25.4/52

R34 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 16.7/48.5

R35 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 18.2/60.4

R36 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 39.9/85.7

R37 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 24.1/59.6

R39 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 39.9/76.4

R40 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 23.1/57.4

R41 7030003740 S.RES ERJ3GEYJ 334 V (330 k) T 19.5/50.3

R42 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 19.8/128.4

R43 7030003740 S.RES ERJ3GEYJ 334 V (330 k) B 15.3/55.6

R44 7030006220 S.RES ERJ12YJ470U (47) B 74.4/65.3

R45 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 72.3/51.8

R46 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 72.3/47.8

R47 7030003790 S.RES ERJ3GEYJ 824 V (820 k) B 18.7/58.5

R48 7030003790 S.RES ERJ3GEYJ 824 V (820 k) B 19.4/48.5

R49 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 81.8/55

R50 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 85.1/52.7

R51 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 118.9/118.4

R53 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 50.6/76.4

R54 7030003860 S.RES ERJ3GE JPW V B 87/59.7

R55 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 34.2/66.9

R56 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 34.2/68.2

R58 7030003380 S.RES ERJ3GEYJ 331 V (330) B 97.5/49.3

R59 7030003230 S.RES ERJ3GEYJ 180 V (18) B 98.8/49.3

R61 7030003860 S.RES ERJ3GE JPW V T 96.2/60.7

R62 7030003240 S.RES ERJ3GEYJ 220 V (22) B 112.7/55.2

R63 7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) T 38/68.8

R64 7030003270 S.RES ERJ3GEYJ 390 V (39) T 45.9/63.5

R65 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 42/63.4

R66 7030003380 S.RES ERJ3GEYJ 331 V (330) B 98.1/51.2

R68 7030003800 S.RES ERJ3GEYJ 105 V (1 M) B 19.5/60.4

R69 7030003800 S.RES ERJ3GEYJ 105 V (1 M) B 25.4/49.6

R70 7030003860 S.RES ERJ3GE JPW V T 116.9/49

R71 7030003660 S.RES ERJ3GEYJ 683 V (68 k) B 57.4/133.2

R72 7030003310 S.RES ERJ3GEYJ 820 V (82) B 115.8/52.1

R73 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 103.5/62.8

R74 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 108.8/66.2

R75 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 56.1/133.2

R76 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) B 43.5/133

R77 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 109.8/59.3

R78 7030003860 S.RES ERJ3GE JPW V T 102.8/74.4

R79 7030003860 S.RES ERJ3GE JPW V B 164.1/45.8

R82 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 139.8/108.3

R84 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 52.6/71.5

R85 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 136.1/106.3

R86 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 138.6/109.1

R87 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 138.6/111.9

R88 7030003380 S.RES ERJ3GEYJ 331 V (330) T 177.3/38.2

R89 7510001571 S.TMR NTCG16 4LH 104JT T 39.5/73

R90 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 40.7/73

R91 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 129.1/110.2

R92 7030003370 S.RES ERJ3GEYJ 271 V (270) T 184.6/25.8

R93 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 110.5/120

R94 7030003240 S.RES ERJ3GEYJ 220 V (22) T 93.8/70.8

R95 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 98.1/83.7

R97 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 55.6/69.7

R98 7030003730 S.RES ERJ3GEYJ 274 V (270 k) T 102.5/106.5

R99 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 175.5/24.2

R100 7030003730 S.RES ERJ3GEYJ 274 V (270 k) T 106.6/106.5

R101 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 191.5/21.9

R102 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 92/90.4

R103 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 177.4/23.5

R104 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 192.2/23.8

R105 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 118.4/108.3

R106 7030003420 S.RES ERJ3GEYJ 681 V (680) T 182/34.4

R107 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 55.1/72.9

R108 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 56.3/71.7

R109 7030003360 S.RES ERJ3GEYJ 221 V (220) T 189.6/24.5

R112 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 58.7/68.8

R113 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 96.1/84.5

R114 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 95.2/85.7

R118 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 165.3/114.1

R120 7030003860 S.RES ERJ3GE JPW V T 61.4/68.8

R129 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 95.4/77.9

R130 7030003240 S.RES ERJ3GEYJ 220 V (22) T 82.6/79.6

R131 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 88.5/75.5

R137 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 103.4/79.6

R138 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 100.8/79.6

R141 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 97.9/94

R144 7030003320 S.RES ERJ3GEYJ 101 V (100) T 94.6/75.2

R148 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 124.5/67.4

R149 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 126/59.3

R151 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 127.5/54.7

R152 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 132.4/126

R155 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 139.4/125.8

R156 7030003860 S.RES ERJ3GE JPW V T 133.6/91.6

R157 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 138.8/128.1

R158 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 126.6/89.1

R159 7030003670 S.RES ERJ3GEYJ 823 V (82 k) T 137.3/126.6

R160 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 134.4/90.3

R161 7030003700 S.RES ERJ3GEYJ 154 V (150 k) T 136/126.6

5 - 4

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R163 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 125.8/90.3

R164 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 129.1/63

R165 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 131/63.5

R167 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 136/94.7

R168 7030003280 S.RES ERJ3GEYJ 470 V (47) T 129.1/65.8

R169 7030003340 S.RES ERJ3GEYJ 151 V (150) T 131.5/60.4

R170 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 123.9/90

R171 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 125.8/91.5

R173 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 139.9/93.5

R174 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 138.5/94.7

R175 7030003860 S.RES ERJ3GE JPW V T 141.1/93.5

R177 7030003860 S.RES ERJ3GE JPW V T 140.4/69

R178 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 120.5/90.5

R179 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 140.7/91.6

R181 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 137.7/60.4

R183 7030003750 S.RES ERJ3GEYJ 394 V (390 k) T 147/94.7

R184 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 144.8/93.5

R185 7030003400 S.RES ERJ3GEYJ 471 V (470) T 142.9/62

R186 7030003660 S.RES ERJ3GEYJ 683 V (68 k) T 117.8/89.6

R187 7030003320 S.RES ERJ3GEYJ 101 V (100) T 152.6/92.6

R188 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 146.6/61.2

R189 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 150/87.9

R191 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 117/92.8

R192 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 150.5/62.9

R193 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 151/85.9

R194 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 145.6/53.6

R196 7030003630 S.RES ERJ3GEYJ 393 V (39 k) T 115.8/94.1

R197 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 148.6/60

R198 7030003630 S.RES ERJ3GEYJ 393 V (39 k) T 115.8/91.4

R199 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 150/83.9

R200 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 153/82.6

R201 7030003670 S.RES ERJ3GEYJ 823 V (82 k) T 150.5/61.7

R202 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 151.2/57.1

R203 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 150.4/80.1

R204 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 150.4/78.9

R205 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 153/81.3

R206 7030003240 S.RES ERJ3GEYJ 220 V (22) T 136.5/60.4

R207 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 153/78.2

R208 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 152.7/48.9

R209 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 152.9/72.7

R210 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 149.8/69.2

R211 7030003320 S.RES ERJ3GEYJ 101 V (100) B 148.3/72.1

R212 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 152.9/71.4

R213 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 154.1/51.7

R214 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 154.1/50.5

R215 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) B 145.6/70.2

R216 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 195.3/58.3

R217 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 193.4/61.7

R218 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 195/59.9

R219 7030003220 S.RES ERJ3GEYJ 150 V (15) B 175.7/41

R220 7030003220 S.RES ERJ3GEYJ 150 V (15) T 176/33.4

R222 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 188.9/63.4

R223 7030003220 S.RES ERJ3GEYJ 150 V (15) T 176.2/31.4

R227 7030003400 S.RES ERJ3GEYJ 471 V (470) T 179.2/26.1

R230 7030003660 S.RES ERJ3GEYJ 683 V (68 k) T 179.2/27.3

R232 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 173.7/29.4

R233 7030003320 S.RES ERJ3GEYJ 101 V (100) B 172.3/33.8

R237 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 182/63.4

R238 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 181.5/59

R245 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 178.7/112.5

R246 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 173.6/115.9

R247 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 165.5/33.5

R248 7030003320 S.RES ERJ3GEYJ 101 V (100) T 178.5/64.9

R252 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 169.5/30.4

R253 7030003310 S.RES ERJ3GEYJ 820 V (82) T 166.2/31.4

R254 7030003670 S.RES ERJ3GEYJ 823 V (82 k) T 179.5/57.5

R256 7030003320 S.RES ERJ3GEYJ 101 V (100) T 168.1/30.7

R257 7030003310 S.RES ERJ3GEYJ 820 V (82) T 166.2/29.9

R258 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 178.7/55.5

R259 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 167.9/27.6

R262 7030003360 S.RES ERJ3GEYJ 221 V (220) T 169.3/27.6

R263 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 196.3/25.2

R264 7030003380 S.RES ERJ3GEYJ 331 V (330) T 170.1/24

R267 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 78.1/86.2

R269 7030003200 S.RES ERJ3GEYJ 100 V (10) T 93.3/118.3

R270 7030003200 S.RES ERJ3GEYJ 100 V (10) T 90/108.2

R277 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 171.8/115.2

R278 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 170.5/115.2

R279 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 135.1/92.8

R280 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 142.3/93.5

R282 7030003860 S.RES ERJ3GE JPW V T 80.7/86.2

R283 7030003610 S.RES ERJ3GEYJ 273 V (27 k) B 117.8/114.4

R288 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 112.7/124.1

R289 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 121.9/112.1

R290 7030003720 S.RES ERJ3GEYJ 224 V (220 k) T 124.5/112.1

R291 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 119.1/115.2

R292 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 70.1/72.8

R293 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 65.9/69.3

R294 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 80.7/89

R295 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 82/86.2

R297 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) B 108.5/53.1

R298 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 111.5/52.2

R299 7030003200 S.RES ERJ3GEYJ 100 V (10) B 101.2/55.1

R300 7030003280 S.RES ERJ3GEYJ 470 V (47) B 101.2/52.7

R301 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 173.4/118.9

R302 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 118.9/119.6

R303 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 121.7/119.6

R304 7030003450 S.RES ERJ3GEYJ 122 V (1.2 k) T 121.7/118.4

R305 7030003860 S.RES ERJ3GE JPW V B 96.9/66.7

R312 7030003860 S.RES ERJ3GE JPW V B 98.9/70.7

R313 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 171.2/135.3

R314 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 178.4/135.5

R315 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 171.2/134.1

R316 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 181.3/64.9

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R317 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 184/65.3

R318 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 186.7/65.5

R319 7030003860 S.RES ERJ3GE JPW V B 181.7/61.5

R320 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 195.3/56.7

R322 7030003860 S.RES ERJ3GE JPW V T 96.1/81.5

R323 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 181.1/126.5

R324 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 182.3/126.5

R327 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 178.1/58.7

R328 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 179.2/102.2

R329 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 125.6/109.2

R330 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 122/109.2

R331 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 97.9/95.2

R332 7030003630 S.RES ERJ3GEYJ 393 V (39 k) B 121/114.4

R336 7030003860 S.RES ERJ3GE JPW V B 168.6/28.2

R340 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 88/61.9

R341 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 93.6/71.1

R342 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 90/67.3

R343 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 123.2/112.1

R344 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) T 142.9/64.7

R350 7030001290 S.RES MCR50JZHJ 2.2 k B 120.5/128.5

R351 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 94.5/124.2

R352 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 107.4/124.1

R353 7030003710 S.RES ERJ3GEYJ 184 V (180 k) B 103.5/128.1

R354 7030003700 S.RES ERJ3GEYJ 154 V (150 k) B 114.4/127.4

R355 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 110/124.1

R356 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 143.8/87.3

R357 7030006060 S.RES ERJ12YJ100U (10) T 151.4/117.5

R358 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 151.7/109.6

R359 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 75.9/68.3

R360 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 78.3/70.7

R361 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 71.7/71.4

R363 7030003860 S.RES ERJ3GE JPW V B 126.1/63.6

R364 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 15.8/74.4

R367 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 72.8/69

R368 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 95.1/94

R369 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 92.5/91.4

R370 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 92.4/85.1

R371 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 66.9/68

R372 7030003430 S.RES ERJ3GEYJ 821 V (820) T 135.1/57.8

R374 7030003860 S.RES ERJ3GE JPW V B 67.4/85.6

R375 7030003860 S.RES ERJ3GE JPW V B 72.8/85.6

R376 7030003860 S.RES ERJ3GE JPW V B 125.2/68.3

R377 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 185.6/98

R378 7030006060 S.RES ERJ12YJ100U (10) B 201.7/32.5

R379 7030003860 S.RES ERJ3GE JPW V B 114.5/94.5

R380 7030003860 S.RES ERJ3GE JPW V B 114.5/92.9

R381 7030003860 S.RES ERJ3GE JPW V B 117.4/103.3

R382 7030003860 S.RES ERJ3GE JPW V B 123.7/103.3

R383 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 183.5/126.5

R384 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 128.4/96.6

R385 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 129.1/99.3

R386 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) B 114.5/97.1

R387 7030003860 S.RES ERJ3GE JPW V B 124.6/91.8

R388 7030003860 S.RES ERJ3GE JPW V B 126.8/94.7

R389 7030003280 S.RES ERJ3GEYJ 470 V (47) B 127.9/99.3

R390 7030003860 S.RES ERJ3GE JPW V B 131.2/62.9

R393 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 95.5/70

R394 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 96.2/64.6

R397 7030003760 S.RES ERJ3GEYJ 474 V (470 k) B 17.9/88.9

R398 7030003760 S.RES ERJ3GEYJ 474 V (470 k) B 22.9/89.2

R399 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 19.3/97.1

R400 7030003860 S.RES ERJ3GE JPW V B 185.3/125.4

R401 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k) T 167.5/51.5

R402 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 88.8/66.7

R403 7030003860 S.RES ERJ3GE JPW V T 138.5/83.2

R404 7030003860 S.RES ERJ3GE JPW V T 139.7/82.9

R405 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 130.4/82.3

R406 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 130.4/85

R407 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 138.5/80.5

R408 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 139.7/77.8

R409 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 131.6/80.9

R410 7030003760 S.RES ERJ3GEYJ 474 V (470 k) T 130.4/78.2

R411 7030003610 S.RES ERJ3GEYJ 273 V (27 k) T 131/75.5

R414 7030003860 S.RES ERJ3GE JPW V T 140.9/77.8

R415 7030003320 S.RES ERJ3GEYJ 101 V (100) T 128.5/84.5

R416 7030003860 S.RES ERJ3GE JPW V T 127.8/79.4

R417 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 128.5/81.5

R418 7030003350 S.RES ERJ3GEYJ 181 V (180) T 129.2/78.2

R419 7030003310 S.RES ERJ3GEYJ 820 V (82) T 133/76.4

R420 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 136.3/75.7

R421 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 129.8/67.6

R422 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 132.5/67.6

R423 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 153.7/73.2

R424 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 80.7/74.7

R425 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 40.3/82.3

R426 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 39/84.3

R427 7030003610 S.RES ERJ3GEYJ 273 V (27 k) T 103.5/87.2

R428 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 98.4/90

R429 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 103.6/93.2

R430 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 98.4/91.2

R431 7030003860 S.RES ERJ3GE JPW V T 93.2/87

R432 7030003860 S.RES ERJ3GE JPW V T 173.7/64.2

R433 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 170.6/69.5

R434 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 173.7/66.9

R435 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 178.5/67.5

R436 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 176.3/70.7

R437 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 191.7/104.7

R438 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 193.2/105.9

R439 7030003410 S.RES ERJ3GEYJ 561 V (560) T 141.8/84.9

R440 7030003340 S.RES ERJ3GEYJ 151 V (150) B 114.3/51.8

C1 4030006860 S.CER C1608 JB 1H 102K-T B 6.8/56.6

C2 4030006860 S.CER C1608 JB 1H 102K-T B 30.7/58.5

5 - 5

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C3 4030006860 S.CER C1608 JB 1H 102K-T B 42.7/61.6

C4 4030006860 S.CER C1608 JB 1H 102K-T B 41.3/65.5

C5 4030006860 S.CER C1608 JB 1H 102K-T B 4.9/69.7

C6 4030006860 S.CER C1608 JB 1H 102K-T B 7.5/64.9

C7 4030006860 S.CER C1608 JB 1H 102K-T B 9.3/73.5

C10 4030018980 S.CER C1608 JB 1H 104K-T B 41.3/64.3

C11 4030006860 S.CER C1608 JB 1H 102K-T B 14.9/84.1

C12 4030006860 S.CER C1608 JB 1H 102K-T B 9.3/82.4

C13 4030006860 S.CER C1608 JB 1H 102K-T B 11.3/72.2

C14 4030006860 S.CER C1608 JB 1H 102K-T B 7.5/60

C15 4030006860 S.CER C1608 JB 1H 102K-T B 6/73.8

C17 4030006860 S.CER C1608 JB 1H 102K-T B 44.2/67.9

C18 4030006860 S.CER C1608 JB 1H 102K-T B 41.5/57.7

C19 4030018980 S.CER C1608 JB 1H 104K-T B 45.4/67.9

C20 4030006960 S.CER C1608 CH 1H 050C-T B 48.2/59.1

C22 4030007090 S.CER C1608 CH 1H 470J-T B 11.3/68.4

C23 4030006860 S.CER C1608 JB 1H 102K-T B 11.3/67.1

C24 4030006860 S.CER C1608 JB 1H 102K-T B 11.3/69.7

C26 4030011340 S.CER C1608 CH 1H 471J-T T 3.4/104

C27 4030006860 S.CER C1608 JB 1H 102K-T B 49.3/49.6

C28 4030006860 S.CER C1608 JB 1H 102K-T T 3.4/105.2

C29 4550007770 S.TAN TEESVB2 1C 336M8R T 18.3/56.6

C30 4030006860 S.CER C1608 JB 1H 102K-T B 58.7/53.1

C31 4030006960 S.CER C1608 CH 1H 050C-T B 58.2/61.5

C32 4510009400 S.ELE UUL1V100MCL1GS T 131.3/115.4

C33 4030007070 S.CER C1608 CH 1H 330J-T T 3.4/106.4

C34 4030010210 S.CER C3216 JB 1C 105M-T T 21.2/66.4

C35 4030010210 S.CER C3216 JB 1C 105M-T T 21.2/60.9

C36 4030006860 S.CER C1608 JB 1H 102K-T B 68.3/64

C37 4030004750 S.CER C2012 JB 1H 103K-T T 127.6/120.7

C38 4030006960 S.CER C1608 CH 1H 050C-T B 73.3/59.5

C39 4030006860 S.CER C1608 JB 1H 102K-T B 68.7/66.1

C40 4030004750 S.CER C2012 JB 1H 103K-T T 3.5/107.9

C41 4030018980 S.CER C1608 JB 1H 104K-T B 44.9/91.5

C42 4030006860 S.CER C1608 JB 1H 102K-T T 20.1/68.4

C43 4030006860 S.CER C1608 JB 1H 102K-T T 20.1/63.8

C44 4030006860 S.CER C1608 JB 1H 102K-T B 71.5/49.8

C45 4030018980 S.CER C1608 JB 1H 104K-T T 122.1/116.4

C46 4030006900 S.CER C1608 JB 1H 103K-T B 67.4/66.1

C47 4510008500 S.ELE EEE1CA101WP T 44.5/92.1

C48 4030006860 S.CER C1608 JB 1H 102K-T T 50.1/89.2

C51 4550003220 S.TAN TEESVA 1E 105M8R T 50.1/93.4

C53 4030006860 S.CER C1608 JB 1H 102K-T B 83.1/52.6

C54 4030017490 S.CER C1608 JB 1A 105K-T T 26.9/62.8

C55 4030017490 S.CER C1608 JB 1A 105K-T T 26.2/70.3

C56 4550007260 S.TAN F931C475MAABMA T 59.3/91.6

C57 4030006960 S.CER C1608 CH 1H 050C-T B 82.3/61.7

C58 4030006900 S.CER C1608 JB 1H 103K-T T 19.6/53.3

C59 4030006900 S.CER C1608 JB 1H 103K-T B 23.3/51.9

C60 4030019260 S.CER C3225 JB 1H 335MT T 92.9/112.3

C61 4510007320 ELE 50 YXG 470M

C62 4030006860 S.CER C1608 JB 1H 102K-T B 101.2/53.9

C63 4030011340 S.CER C1608 CH 1H 471J-T T 20.9/50.3

C64 4030007070 S.CER C1608 CH 1H 330J-T B 101.1/59.6

C65 4030006860 S.CER C1608 JB 1H 102K-T B 110/53.1

C66 4510007320 ELE 50 YXG 470M

C67 4030018980 S.CER C1608 JB 1H 104K-T T 64.8/83.8

C68 4030006860 S.CER C1608 JB 1H 102K-T B 115/49.8

C69 4030006860 S.CER C1608 JB 1H 102K-T B 112.8/52.8

C72 4030017490 S.CER C1608 JB 1A 105K-T B 45/133

C73 4510008830 S.ELE EEE1CA221P T 64.8/91.5

C74 4030006860 S.CER C1608 JB 1H 102K-T T 98.8/62

C75 4030006900 S.CER C1608 JB 1H 103K-T T 103.5/65.5

C76 4030006900 S.CER C1608 JB 1H 103K-T B 110.7/67

C77 4030006900 S.CER C1608 JB 1H 103K-T B 111.1/59.3

C78 4030017490 S.CER C1608 JB 1A 105K-T T 36.3/65.2

C79 4550007710 S.TAN TEESVB2 1A 476M8R T 51.3/64.7

C80 4030007030 S.CER C1608 CH 1H 150J-T B 113.8/67.7

C81 4030007170 S.CER C1608 CH 1H 221J-T T 117.8/90.8

C82 4030017490 S.CER C1608 JB 1A 105K-T B 22.3/60.9

C83 4030018980 S.CER C1608 JB 1H 104K-T T 72.2/88.4

C84 4030007060 S.CER C1608 CH 1H 270J-T T 112.2/58.6

C85 4510009690 ELE 50 WA 1000M (16X20)

C86 4030017490 S.CER C1608 JB 1A 105K-T B 25.4/50.8

C87 4030006910 S.CER C1608 CH 1H 0R5C-T T 181.4/36.9

C88 4030006910 S.CER C1608 CH 1H 0R5C-T T 182/31

C89 4030006860 S.CER C1608 JB 1H 102K-T T 178.5/41.1

C90 4030006860 S.CER C1608 JB 1H 102K-T T 186/27.7

C91 4030007040 S.CER C1608 CH 1H 180J-T T 180/41.1

C92 4030007030 S.CER C1608 CH 1H 150J-T T 184.2/31.8

C93 4030017480 S.CER C1608 JB 1A 474K-T T 80.7/91.9

C94 4030007010 S.CER C1608 CH 1H 100D-T T 182.6/39.1

C95 4030006860 S.CER C1608 JB 1H 102K-T T 46.6/72.3

C96 4030006900 S.CER C1608 JB 1H 103K-T B 175.5/22.7

C97 4030006920 S.CER C1608 CH 1H 010C-T B 112.6/67.7

C98 4030006960 S.CER C1608 CH 1H 050C-T T 186.6/29.6

C99 4030006900 S.CER C1608 JB 1H 103K-T B 192.9/21.9

C100 4550007610 S.TAN F931E474MAABMA T 49/70.7

C101 4030006900 S.CER C1608 JB 1H 103K-T T 151.2/121.6

C102 4030007040 S.CER C1608 CH 1H 180J-T T 185.1/41.1

C103 4030018980 S.CER C1608 JB 1H 104K-T T 96.5/70.8

C104 4030010210 S.CER C3216 JB 1C 105M-T T 140.3/112.3

C105 4030007020 S.CER C1608 CH 1H 120J-T T 189/31.7

C106 4030017070 S.CER GRM32MR11H474KA01L T 32.1/122.3

C107 4030017490 S.CER C1608 JB 1A 105K-T T 53.9/71.5

C108 4030006860 S.CER C1608 JB 1H 102K-T T 182.8/36.9

C109 4030006860 S.CER C1608 JB 1H 102K-T T 187.4/27.7

C110 4030011340 S.CER C1608 CH 1H 471J-T B 15.3/54.3

C111 4030010760 S.CER C1608 CH 1H 331J-T T 133.1/106.3

C112 4030017070 S.CER GRM32MR11H474KA01L T 42.8/119.5

C113 4030006900 S.CER C1608 JB 1H 103K-T T 141.4/108.3

C114 4030017070 S.CER GRM32MR11H474KA01L T 45.8/119.5

C115 4030006930 S.CER C1608 CH 1H 020C-T T 189.9/43.7

C116 4030018980 S.CER C1608 JB 1H 104K-T T 143/108.3

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C117 4030006900 S.CER C1608 JB 1H 103K-T T 182/33.1

C118 4510008500 S.ELE EEE1CA101WP T 147.4/110

C119 4030017070 S.CER GRM32MR11H474KA01L T 51.6/119.5

C120 4030017070 S.CER GRM32MR11H474KA01L T 54.6/119.5

C121 4030006900 S.CER C1608 JB 1H 103K-T T 92.9/105.9

C124 4030006900 S.CER C1608 JB 1H 103K-T T 193/24.5

C125 4030007050 S.CER C1608 CH 1H 220J-T T 189.9/45.1

C126 4550003210 S.TAN TEESVD21D226M12R T 99.6/125.2

C127 4540000100 S.TRI TC03C100A-TP02 T 185.7/45.1

C128 4030007130 S.CER C1608 CH 1H 101J-T B 115.9/112.4

C130 4030007020 S.CER C1608 CH 1H 120J-T T 194.4/34.8

C131 4030017490 S.CER C1608 JB 1A 105K-T B 120.5/116.3

C132 4030007170 S.CER C1608 CH 1H 221J-T T 95.1/95.2

C134 4030018980 S.CER C1608 JB 1H 104K-T T 86.5/78.9

C136 4540000100 S.TRI TC03C100A-TP02 T 190.3/35.2

C137 4030007080 S.CER C1608 CH 1H 390J-T T 189.9/46.3

C138 4030017070 S.CER GRM32MR11H474KA01L T 86.8/115.9

C139 4030007040 S.CER C1608 CH 1H 180J-T T 196.2/36.3

C140 4030017480 S.CER C1608 JB 1A 474K-T T 85.8/81

C141 4030018780 S.CER C3225 JB 2J 473K-T T 89.9/115.9

C142 4030006940 S.CER C1608 CH 1H 030C-T T 119.2/61.6

C143 4030007020 S.CER C1608 CH 1H 120J-T T 115.3/61.6

C144 4030018980 S.CER C1608 JB 1H 104K-T T 132.4/127.3

C147 4030007010 S.CER C1608 CH 1H 100D-T T 122.2/64.1

C148 4030007060 S.CER C1608 CH 1H 270J-T T 122.3/57.6

C150 4550007700 S.TAN TEESVP 1C 225M8R T 143.9/82.4

C151 4550007700 S.TAN TEESVP 1C 225M8R T 84.9/78.6

C153 4030006900 S.CER C1608 JB 1H 103K-T T 140.1/128.1

C155 4030007040 S.CER C1608 CH 1H 180J-T T 128.4/58.5

C156 4030006860 S.CER C1608 JB 1H 102K-T T 134.8/94.7

C157 4030018980 S.CER C1608 JB 1H 104K-T T 136.6/91.6

C158 4030011810 S.CER C1608 JB 1A 224K-T T 133.6/94.7

C159 4550007080 S.TAN TEESVA 1C 106M8R T 124.1/94.7

C160 4030006900 S.CER C1608 JB 1H 103K-T T 133.4/53.9

C161 4030006900 S.CER C1608 JB 1H 103K-T T 136.8/55

C162 4030017490 S.CER C1608 JB 1A 105K-T T 91.2/75.5

C163 4030006860 S.CER C1608 JB 1H 102K-T T 137.2/94.7

C165 4030006880 S.CER C1608 JB 1H 472K-T T 100.1/84.5

C166 4030006900 S.CER C1608 JB 1H 103K-T T 132.7/60.4

C167 4030006900 S.CER C1608 JB 1H 103K-T T 192.7/46.8

C168 4030018980 S.CER C1608 JB 1H 104K-T T 138.1/57.5

C169 4030017490 S.CER C1608 JB 1A 105K-T T 140.8/66.6

C170 4030007130 S.CER C1608 CH 1H 101J-T T 138.9/60.4

C171 4030018980 S.CER C1608 JB 1H 104K-T T 138.2/56.2

C172 4030006900 S.CER C1608 JB 1H 103K-T T 143.6/93.5

C174 4030006860 S.CER C1608 JB 1H 102K-T T 141.6/64.7

C175 4030006900 S.CER C1608 JB 1H 103K-T T 150.2/92.6

C177 4030009970 S.CER C1608 JB 1H 182K-T T 97.1/86.5

C178 4030010020 S.CER C1608 JB 1H 122K-T T 147.4/89.8

C179 4030006880 S.CER C1608 JB 1H 472K-T T 144.5/62

C180 4030006880 S.CER C1608 JB 1H 472K-T T 134.7/126.6

C181 4030017800 S.CER C1608 CH 1H 561J-T T 95.2/87.2

C182 4030006860 S.CER C1608 JB 1H 102K-T T 156/128.6

C183 4030018980 S.CER C1608 JB 1H 104K-T T 154.6/128.6

C184 4030006880 S.CER C1608 JB 1H 472K-T T 117/95.5

C186 4030006900 S.CER C1608 JB 1H 103K-T T 149.6/85.9

C187 4030010210 S.CER C3216 JB 1C 105M-T T 155.4/125.1

C189 4030018600 S.CER C1608 CH 1H 152J-T T 113.9/94.1

C190 4510007320 ELE 50 YXG 470M

C191 4030018980 S.CER C1608 JB 1H 104K-T T 149.4/58

C193 4030007140 S.CER C1608 CH 1H 121J-T T 150.5/60.5

C194 4030007140 S.CER C1608 CH 1H 121J-T T 150.5/59.3

C195 4030011340 S.CER C1608 CH 1H 471J-T T 114.6/91.4

C196 4030018980 S.CER C1608 JB 1H 104K-T T 152.2/84.5

C197 4030018980 S.CER C1608 JB 1H 104K-T T 197.7/131.4

C198 4030018980 S.CER C1608 JB 1H 104K-T B 143.9/51.5

C201 4030018980 S.CER C1608 JB 1H 104K-T T 150.4/77.7

C202 4030006900 S.CER C1608 JB 1H 103K-T T 150.3/52.7

C203 4550006770 S.TAN TEESVD2 1C 476M-12R T 189.5/112.1

C204 4030006900 S.CER C1608 JB 1H 103K-T T 152.7/75.4

C205 4030018980 S.CER C1608 JB 1H 104K-T T 196.3/123.3

C206 4030018980 S.CER C1608 JB 1H 104K-T T 154.7/74.9

C207 4030010020 S.CER C1608 JB 1H 122K-T T 150.4/76.5

C208 4030006900 S.CER C1608 JB 1H 103K-T B 147/50.8

C209 4030006900 S.CER C1608 JB 1H 103K-T B 152.1/50.9

C210 4030018980 S.CER C1608 JB 1H 104K-T T 196.3/115.7

C211 4550007080 S.TAN TEESVA 1C 106M8R T 197.2/112.6

C212 4030006900 S.CER C1608 JB 1H 103K-T B 145.6/72.1

C213 4030006900 S.CER C1608 JB 1H 103K-T B 144.3/69

C214 4030018980 S.CER C1608 JB 1H 104K-T T 192.3/56.7

C215 4550007610 S.TAN F931E474MAABMA T 191.1/59.9

C216 4030007130 S.CER C1608 CH 1H 101J-T B 175/29.4

C218 4030007080 S.CER C1608 CH 1H 390J-T B 177.4/43.2

C219 4030007100 S.CER C1608 CH 1H 560J-T B 177.4/47.4

C220 4030007130 S.CER C1608 CH 1H 101J-T B 191.6/60.2

C222 4030007070 S.CER C1608 CH 1H 330J-T T 175.3/29.5

C224 4030006860 S.CER C1608 JB 1H 102K-T T 185.9/55.9

C225 4030007080 S.CER C1608 CH 1H 390J-T B 178.2/49.5

C227 4030006860 S.CER C1608 JB 1H 102K-T T 179.3/28.6

C228 4030006900 S.CER C1608 JB 1H 103K-T B 187.7/56.4

C229 4030006900 S.CER C1608 JB 1H 103K-T B 150.4/67.1

C230 4030006900 S.CER C1608 JB 1H 103K-T B 179.3/62.2

C231 4030006900 S.CER C1608 JB 1H 103K-T B 145.6/67.5

C232 4030006900 S.CER C1608 JB 1H 103K-T T 133.9/60.4

C233 4030006860 S.CER C1608 JB 1H 102K-T B 182.1/57.1

C234 4030006900 S.CER C1608 JB 1H 103K-T T 123/67.4

C235 4030006900 S.CER C1608 JB 1H 103K-T T 123.6/60.1

C236 4030006860 S.CER C1608 JB 1H 102K-T B 172.4/29.1

C237 4030006900 S.CER C1608 JB 1H 103K-T T 128.9/54.7

C238 4030017490 S.CER C1608 JB 1A 105K-T T 100.3/87

C239 4030006980 S.CER C1608 CH 1H 070D-T B 168.6/31

C240 4550007770 S.TAN TEESVB2 1C 336M8R T 186.1/61

C241 4030007060 S.CER C1608 CH 1H 270J-T B 165.4/30.5

C244 4030007060 S.CER C1608 CH 1H 270J-T B 165.4/31.9

5 - 6

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C245 4030006900 S.CER C1608 JB 1H 103K-T B 179.3/63.4

C252 4030006860 S.CER C1608 JB 1H 102K-T T 166.8/49.4

C253 4030006860 S.CER C1608 JB 1H 102K-T T 178.6/62.5

C254 4550007260 S.TAN F931C475MAABMA T 180.2/65.9

C255 4030017490 S.CER C1608 JB 1A 105K-T T 83.6/71.4

C258 4030007040 S.CER C1608 CH 1H 180J-T B 98.1/47.4

C261 4030006860 S.CER C1608 JB 1H 102K-T T 168.8/32.8

C265 4030006860 S.CER C1608 JB 1H 102K-T T 165.7/25.7

C266 4030006860 S.CER C1608 JB 1H 102K-T T 166.4/27.6

C268 4030006860 S.CER C1608 JB 1H 102K-T B 194.2/21.9

C269 4550007770 S.TAN TEESVB2 1C 336M8R B 199.2/24.6

C273 4030006860 S.CER C1608 JB 1H 102K-T B 203.4/35.1

C274 4030007030 S.CER C1608 CH 1H 150J-T B 165/17.7

C275 4030006860 S.CER C1608 JB 1H 102K-T T 79.4/86.2

C280 4030017490 S.CER C1608 JB 1A 105K-T T 150/94.6

C282 4030006860 S.CER C1608 JB 1H 102K-T B 191/106.6

C283 4030006900 S.CER C1608 JB 1H 103K-T B 42.3/81.3

C284 4030006900 S.CER C1608 JB 1H 103K-T B 45.7/80.8

C287 4510008830 S.ELE EEE1CA221P T 143/135.1

C288 4510008830 S.ELE EEE1CA221P T 152.3/135.1

C289 4030006900 S.CER C1608 JB 1H 103K-T B 150.7/52.8

C290 4030006900 S.CER C1608 JB 1H 103K-T B 148.4/64.7

C291 4030006900 S.CER C1608 JB 1H 103K-T B 148/53.3

C292 4030006900 S.CER C1608 JB 1H 103K-T B 141.4/66.3

C293 4030017480 S.CER C1608 JB 1A 474K-T T 81.1/84.2

C295 4030017490 S.CER C1608 JB 1A 105K-T B 118.3/115.7

C296 4030006900 S.CER C1608 JB 1H 103K-T T 112/107.5

C297 4030006900 S.CER C1608 JB 1H 103K-T T 130.2/106.3

C298 4030006900 S.CER C1608 JB 1H 103K-T T 172/118.9

C299 4030006900 S.CER C1608 JB 1H 103K-T T 180.2/113.7

C300 4030006900 S.CER C1608 JB 1H 103K-T B 114.5/98.3

C302 4030006900 S.CER C1608 JB 1H 103K-T B 185.1/128.8

C303 4030006900 S.CER C1608 JB 1H 103K-T B 96.9/70

C304 4030006900 S.CER C1608 JB 1H 103K-T B 21.5/54.9

C305 4030006860 S.CER C1608 JB 1H 102K-T T 61.1/72.1

C306 4030006900 S.CER C1608 JB 1H 103K-T T 121.8/92.4

C307 4030006900 S.CER C1608 JB 1H 103K-T T 112.5/88.2

C308 4030018980 S.CER C1608 JB 1H 104K-T B 93.2/90.4

C309 4030006900 S.CER C1608 JB 1H 103K-T T 43.3/72.3

C310 4030006900 S.CER C1608 JB 1H 103K-T T 33.6/70.2

C312 4030006940 S.CER C1608 CH 1H 030C-T B 181.1/50.9

C313 4030007010 S.CER C1608 CH 1H 100D-T T 175.9/57.9

C315 4030006860 S.CER C1608 JB 1H 102K-T B 186.8/99.9

C316 4030006860 S.CER C1608 JB 1H 102K-T B 184.2/99.9

C317 4030006860 S.CER C1608 JB 1H 102K-T B 193/99.2

C318 4030007100 S.CER C1608 CH 1H 560J-T B 98.4/57.1

C319 4030007070 S.CER C1608 CH 1H 330J-T B 98.4/58.4

C320 4030007070 S.CER C1608 CH 1H 330J-T B 98.1/52.4

C325 4030006860 S.CER C1608 JB 1H 102K-T B 45.2/56.1

C326 4030018980 S.CER C1608 JB 1H 104K-T T 123.4/109.2

C327 4030018980 S.CER C1608 JB 1H 104K-T T 90.9/95.2

C328 4030018980 S.CER C1608 JB 1H 104K-T T 93/94.7

C330 4030006900 S.CER C1608 JB 1H 103K-T T 131/62.3

C331 4030006900 S.CER C1608 JB 1H 103K-T B 131.1/54.5

C332 4550007080 S.TAN TEESVA 1C 106M8R B 128.5/111.4

C333 4030006900 S.CER C1608 JB 1H 103K-T B 117.6/109.4

C334 4030006860 S.CER C1608 JB 1H 102K-T B 124.3/112

C335 4030018980 S.CER C1608 JB 1H 104K-T T 140/64.7

C342 4510008740 S.ELE EEE1HA330P T 112.9/122

C343 4030006880 S.CER C1608 JB 1H 472K-T B 114.4/128.7

C345 4030018980 S.CER C1608 JB 1H 104K-T B 104.7/128.1

C346 4030006900 S.CER C1608 JB 1H 103K-T B 96.9/130.2

C347 4030006860 S.CER C1608 JB 1H 102K-T T 167.1/37.5

C349 4030006860 S.CER C1608 JB 1H 102K-T T 92.5/90.1

C350 4550007770 S.TAN TEESVB2 1C 336M8R T 154.9/114.6

C351 4030018980 S.CER C1608 JB 1H 104K-T B 106.9/132.1

C352 4030006990 S.CER C1608 CH 1H 080D-T B 36.8/57

C353 4030007000 S.CER C1608 CH 1H 090D-T B 34.3/57.3

C354 4030007120 S.CER C1608 CH 1H 820J-T B 34/61.7

C355 4030007120 S.CER C1608 CH 1H 820J-T B 37.7/61.9

C356 4030007130 S.CER C1608 CH 1H 101J-T T 79.5/70.7

C357 4030006860 S.CER C1608 JB 1H 102K-T T 75.5/73

C359 4030017490 S.CER C1608 JB 1A 105K-T T 90.3/89.6

C360 4030018980 S.CER C1608 JB 1H 104K-T T 100.7/95.2

C362 4030017490 S.CER C1608 JB 1A 105K-T T 70.1/70

C363 4550007700 S.TAN TEESVP 1C 225M8R T 73.3/71.3

C364 4550007080 S.TAN TEESVA 1C 106M8R T 90.1/87

C365 4550007700 S.TAN TEESVP 1C 225M8R T 63.5/72.7

C366 4030018980 S.CER C1608 JB 1H 104K-T T 151.4/92.6

C367 4030018980 S.CER C1608 JB 1H 104K-T T 197.7/132.6

C368 4030018980 S.CER C1608 JB 1H 104K-T T 197.7/133.8

C369 4030018980 S.CER C1608 JB 1H 104K-T T 72.2/89.7

C370 4030018980 S.CER C1608 JB 1H 104K-T T 72.2/90.9

C371 4030018980 S.CER C1608 JB 1H 104K-T B 51.4/125.6

C373 4030018980 S.CER C1608 JB 1H 104K-T B 114.5/95.8

C374 4030018980 S.CER C1608 JB 1H 104K-T B 126/96.6

C375 4030017490 S.CER C1608 JB 1A 105K-T B 130.3/99.3

C376 4030006900 S.CER C1608 JB 1H 103K-T B 129.6/96.6

C377 4030007070 S.CER C1608 CH 1H 330J-T B 173.7/32.3

C378 4030006900 S.CER C1608 JB 1H 103K-T B 180.8/57.1

C379 4030017490 S.CER C1608 JB 1A 105K-T B 127.2/96.6

C380 4030006860 S.CER C1608 JB 1H 102K-T B 171.5/38.1

C381 4030006860 S.CER C1608 JB 1H 102K-T T 191.9/99

C382 4030006860 S.CER C1608 JB 1H 102K-T B 22/93.3

C383 4030018980 S.CER C1608 JB 1H 104K-T B 128/101.6

C384 4030006860 S.CER C1608 JB 1H 102K-T T 175.9/55.5

C385 4030018980 S.CER C1608 JB 1H 104K-T T 127.1/77.4

C386 4030018980 S.CER C1608 JB 1H 104K-T T 137.9/85.9

C387 4030018980 S.CER C1608 JB 1H 104K-T T 131.7/85

C388 4030008860 S.CER C1608 JB 1H 153K-T T 138.5/77.8

C389 4030008900 S.CER C1608 JB 1H 333K-T T 131.6/78.2

C390 4030018980 S.CER C1608 JB 1H 104K-T T 129.7/80.3

C391 4030018980 S.CER C1608 JB 1H 104K-T T 134.3/76.4

C392 4030018980 S.CER C1608 JB 1H 104K-T T 136.3/76.9

S.=Surface mount

[MAIN UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C393 4030006900 S.CER C1608 JB 1H 103K-T T 102.2/86.9

C394 4030006900 S.CER C1608 JB 1H 103K-T T 103.6/89.7

C395 4030018980 S.CER C1608 JB 1H 104K-T T 92.5/88.9

C396 4030006900 S.CER C1608 JB 1H 103K-T T 103.6/91.5

C397 4030018980 S.CER C1608 JB 1H 104K-T T 100.7/94

C398 4030018980 S.CER C1608 JB 1H 104K-T T 173.7/61.4

C399 4030018980 S.CER C1608 JB 1H 104K-T T 172.5/66.9

C400 4030018980 S.CER C1608 JB 1H 104K-T T 176.3/69.4

C401 4030006900 S.CER C1608 JB 1H 103K-T B 193/98

C402 4030007060 S.CER C1608 CH 1H 270J-T B 106.2/53.9

C403 4030018780 S.CER C3225 JB 2J 473K-T B 24.1/132.4

C404 4030006860 S.CER C1608 JB 1H 102K-T B 54.8/134.7

RL1 6330001730 RLY AHY107

CP1 6910009670 S.CHK HK3-S-T T 198.1/56.7

CP2 6910009670 S.CHK HK3-S-T T 21.9/122.9

CP5 6910009670 S.CHK HK3-S-T T 95.8/64

CP11 6910009670 S.CHK HK3-S-T T 96.2/67.1

J1 6510011591 CNR B2P-VH (LF) (SN)

J2 6510023261 S.CNR B6B-PH-SM4-TB (LF) (SN) T 188.4/105.9

J3 6510007020 CNR TMP-J01X-V6

J7 6510026100 S.CNR 22FLT-SM2-TB (LF) (SN) T 170.5/132.1

J8 6510017150 CNR TMP-S01X-C1

J9 6510018941 S.CNR B13B-PH-SM4-TB (LF) (SN) T 11.3/67.8

J10 6510011591 CNR B2P-VH (LF) (SN)

S1 2260003060 S.SW NANOSMDC016F-2 B 120.5/125.8

T4 5920000751 TSM ST-82 (P) FL

5 - 7

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[PA UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

IC500 1110003800 S.IC NJM2904V-TE1-#FMZB T 28.5/11.4

IC501 1110002751 S.IC TA75S01F (TE85R,F) T 18.8/6.5

Q500 1560001101 S.FET 2SK3074 (TE12L,F) T 10.8/25.3

Q501 1560001061 S.FET 2SK3075 (TE12L,Q) T 23/28.4

Q502 1590000430 S.TR DTC144EUA T106 T 15.8/6.7

Q503 1590000430 S.TR DTC144EUA T106 T 13.7/10.5

Q504 1590002841 FET MRF137 (M/A COM) T 58.9/21

D500 1790001670 S.DIO RB706F-40T106 T 101.1/21.5

D501 1790001670 S.DIO RB706F-40T106 T 106.9/22.6

D502 1750000760 S.DIO MA4PH224 (MA4P1250-1072T) T 112.3/22.5

D503 1750000760 S.DIO MA4PH224 (MA4P1250-1072T) T 118.5/8.5

D504 1750000760 S.DIO MA4PH224 (MA4P1250-1072T) T 118.5/13

D505 1790001670 S.DIO RB706F-40T106 T 133.4/19.7

D506 1790001670 S.DIO RB706F-40T106 T 129/19.7

D507 1750000550 S.DIO 1SS355 TE-17 T 15.8/14.9

L502 6200002380 S.COL LQW31HN56NJ03L T 15.2/19.2

L503 6200013260 S.COL C1608CB-56NG T 15.2/27

L504 6200013030 S.COL 0.35-1.6-6TL 31.0N <COMO> T 28.6/23.7

L505 6200012780 S.COL 0.30-1.4-6TL 27.2N <COMO> T 28.9/28.9

L506 6200009320 S.COL C3328A-12NG-A T 35/30.2

L507 6200009390 S.COL C3328A-8N0J-A T 34.5/25.4

L508 6200009390 S.COL C3328A-8N0J-A T 34.8/20.3

L509 6140000670 COL LR-89

L511 6140000670 COL LR-89

L512 6200010040 S.COL AS100340-10N T 73.6/24.2

L513 6200010040 S.COL AS100340-10N T 79.7/26.6

L514 6200010040 S.COL AS100340-10N T 91/25.1

L516 6110001610 COL LA-244

L517 6110001720 COL LA-258

L518 6110001610 COL LA-244

L519 6110001610 COL LA-244

L521 6110001740 COL LA-263

L522 6110001670 COL LA-253

L523 6110001740 COL LA-263

L524 6110001720 COL LA-258

R500 7030003860 S.RES ERJ3GE JPW V T 8/13.7

R501 7030003380 S.RES ERJ3GEYJ 331 V (330) T 5.3/13.7

R502 7030003230 S.RES ERJ3GEYJ 180 V (18) T 8/14.9

R503 7030003380 S.RES ERJ3GEYJ 331 V (330) T 8/16.1

R504 7030003360 S.RES ERJ3GEYJ 221 V (220) T 10.7/20

R505 7030003320 S.RES ERJ3GEYJ 101 V (100) T 17.8/27

R506 7030004040 S.RES ERJ3GEYJ 4R7 V (4.7) T 17.9/28.5

R507 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) T 17.8/23.4

R508 7030000410 S.RES MCR10EZHJ 1.8 k T 20/24.3

R509 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 12.4/14.5

R511 7030003670 S.RES ERJ3GEYJ 823 V (82 k) T 32.3/13.5

R512 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 30.7/15.9

R513 7030003650 S.RES ERJ3GEYJ 563 V (56 k) T 28.1/15.9

R514 7030003320 S.RES ERJ3GEYJ 101 V (100) T 23.2/9

R515 7030003630 S.RES ERJ3GEYJ 393 V (39 k) T 43/13.9

R516 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 51.3/10.3

R517 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 24.5/11.6

R518 7030010250 S.RES ERJ1TYJ 0R00U T 42/19

R520 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 25.8/9

R521 7030011250 S.RES ERJ1TY 390U (39) T 48.1/12.7

R522 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 32.4/10.8

R524 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 28.6/5.2

R525 7030003540 S.RES ERJ3GEYJ 682 V (6.8 k) T 30.6/6

R526 7030003320 S.RES ERJ3GEYJ 101 V (100) T 105/17.2

R527 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 102.5/18

R528 7030006070 S.RES ERJ12YJ101U (100) T 112.6/7.4

R529 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 106.8/19.1

R534 7030003410 S.RES ERJ3GEYJ 561 V (560) T 31.3/14.7

R535 7510001571 S.TMR NTCG16 4LH 104JT T 23.4/20.8

R536 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 21.2/6.8

R536 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 21.2/6.8

R537 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 18.1/13.6

R537 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 18.1/13.6

R538 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 18.3/10

R538 7030003630 S.RES ERJ3GEYJ 393 V (39 k) T 18.3/10

R539 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 16.6/8.8

R539 7030003790 S.RES ERJ3GEYJ 824 V (820 k) T 16.6/8.8

R541 7030003730 S.RES ERJ3GEYJ 274 V (270 k) T 96.7/15.9

R542 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) T 22/14.8

R543 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 17.8/25.8

R545 7030003860 S.RES ERJ3GE JPW V T 106.9/6.4

R546 7070001160 RES ERG3SJ 151 (150)

R546 7070001250 RES ERG3SJ 151P (150)

R548 7030003240 S.RES ERJ3GEYJ 220 V (22) T 8.1/22.4

R549 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 133.3/16.4

R550 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 130.9/17.1

R553 7030003860 S.RES ERJ3GE JPW V T 9.3/20.9

R554 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 16.1/12.6

R554 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 16.1/12.6

R555 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 18.8/14.8

R555 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) T 18.8/14.8

R557 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 21.2/9.5

R557 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 21.2/9.5

C500 4030007130 S.CER C1608 CH 1H 101J-T T 98.3/12.5

C501 4030006900 S.CER C1608 JB 1H 103K-T T 43.3/10.2

C502 4030006860 S.CER C1608 JB 1H 102K-T T 38.6/10.8

C503 4030006860 S.CER C1608 JB 1H 102K-T T 98.3/13.7

C504 4030006860 S.CER C1608 JB 1H 102K-T T 43.3/11.4

C505 4030006860 S.CER C1608 JB 1H 102K-T T 40.6/10.8

S.=Surface mount

[PA UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

C506 4030006860 S.CER C1608 JB 1H 102K-T T 34.6/10.8

C507 4030007130 S.CER C1608 CH 1H 101J-T T 9.3/18.2

C509 4030018980 S.CER C1608 JB 1H 104K-T T 27.2/21.3

C510 4030006860 S.CER C1608 JB 1H 102K-T T 22.5/17.8

C511 4030006860 S.CER C1608 JB 1H 102K-T T 13.4/18.6

C512 4030006860 S.CER C1608 JB 1H 102K-T T 11.6/17.9

C513 4030007030 S.CER C1608 CH 1H 150J-T T 14.4/24.3

C515 4030007070 S.CER C1608 CH 1H 330J-T T 13.7/28.4

C516 4030006860 S.CER C1608 JB 1H 102K-T T 17.8/24.6

C517 4030017190 S.CER GRM31AR32J471KW01D T 23.4/23.4

C518 4030006860 S.CER C1608 JB 1H 102K-T T 27.2/20.1

C520 4030007100 S.CER C1608 CH 1H 560J-T T 29.2/30.9

C521 4030007130 S.CER C1608 CH 1H 101J-T T 31.4/30.4

C522 4030007050 S.CER C1608 CH 1H 220J-T T 38/31.8

C523 4550006470 S.TAN TEESVB2 1D 106M8R T 24.1/3.1

C524 4030007110 S.CER C1608 CH 1H 680J-T T 38.7/27.4

C525 4030006860 S.CER C1608 JB 1H 102K-T T 19.8/4.2

C527 4030006900 S.CER C1608 JB 1H 103K-T T 24/6.1

C528 4030006860 S.CER C1608 JB 1H 102K-T T 25.2/6.1

C529 4030007060 S.CER C1608 CH 1H 270J-T T 35.3/23.1

C531 4030006860 S.CER C1608 JB 1H 102K-T T 25.8/12.9

C534 4030006900 S.CER C1608 JB 1H 103K-T T 21.9/13.6

C535 4550007540 S.TAN F931C155MAABMA T 50.6/7.3

C536 4030007130 S.CER C1608 CH 1H 101J-T T 28.1/17.1

C537 4030006860 S.CER C1608 JB 1H 102K-T T 51.3/9.1

C538 4030006860 S.CER C1608 JB 1H 102K-T T 85.7/9.9

C539 4030006880 S.CER C1608 JB 1H 472K-T T 84.3/9.9

C540 4030017190 S.CER GRM31AR32J471KW01D T 45.9/28.5

C541 4030006860 S.CER C1608 JB 1H 102K-T T 28.6/6.4

C542 4030007140 S.CER C1608 CH 1H 121J-T T 81/9.9

C543 4030006860 S.CER C1608 JB 1H 102K-T T 82.3/9.9

C544 4030011550 S.CER GRM31M2C2H680JV01L T 74/28.3

C545 4030006900 S.CER C1608 JB 1H 103K-T T 29.9/4

C547 4030018050 S.CER ERF22X 6C2H 270J D01L T 84.6/26.7

C548 4030006860 S.CER C1608 JB 1H 102K-T T 29.9/2.8

C549 4030011160 S.CER GRM31M2C2H150JV01L T 94.2/29.2

C549 4030011180 S.CER GRM31M2C2H220JV01L T 94.2/29.2

C550 4030006860 S.CER C1608 JB 1H 102K-T T 101/19.3

C551 4030011180 S.CER GRM31M2C2H220JV01L T 96.7/29.2

C552 4030006860 S.CER C1608 JB 1H 102K-T T 110.1/7.2

C553 4030010780 S.CER C1608 CH 1H 1R5C-T T 99/24.4

C554 4030007020 S.CER C1608 CH 1H 120J-T T 99/21.7

C555 4030006860 S.CER C1608 JB 1H 102K-T T 102.5/16.8

C556 4030010780 S.CER C1608 CH 1H 1R5C-T T 104.7/25.6

C557 4030007020 S.CER C1608 CH 1H 120J-T T 104.7/22.7

C558 4030006860 S.CER C1608 JB 1H 102K-T T 104.7/19.9

C559 4030006900 S.CER C1608 JB 1H 103K-T T 108.9/7.2

C560 4030011180 S.CER GRM31M2C2H220JV01L T 106.2/30.1

C561 4030017200 S.CER GRM31BR32J102KY01L T 108.2/9.4

C562 4030017200 S.CER GRM31BR32J102KY01L T 110.8/27

C563 4030006860 S.CER C1608 JB 1H 102K-T T 106.8/20.4

C565 4030011170 S.CER GRM31M2C2H180JV01L T 118.2/20

C566 4030007030 S.CER C1608 CH 1H 150J-T T 119.2/6.5

C567 4030006860 S.CER C1608 JB 1H 102K-T T 125.8/5.4

C568 4030007130 S.CER C1608 CH 1H 101J-T T 14.9/12.6

C569 4030017200 S.CER GRM31BR32J102KY01L T 115.4/25.2

C570 4030007070 S.CER C1608 CH 1H 330J-T T 119.2/11

C572 4030011180 S.CER GRM31M2C2H220JV01L T 117.4/29.1

C575 4030011220 S.CER GRM31M2C2H360JV01L T 127.2/32.5

C577 4030011100 S.CER GRM31M2C2H8R0DV01L T 129.4/25.4

C578 4030011210 S.CER GRM31M2C2H330JV01L T 135.8/30.2

C582 4030011170 S.CER GRM31M2C2H180JV01L T 146.3/25.8

C583 4550003220 S.TAN TEESVA 1E 105M8R T 35.2/15

C585 4030011230 S.CER GRM31M2C2H390JV01L T 68.1/26.2

C587 4030011090 S.CER GRM31M2C2H7R0DV01L T 110.8/19.5

C588 4030018980 S.CER C1608 JB 1H 104K-T T 95.9/14

C591 4030011600 S.CER C1608 JB 1E 104K-T T 24.5/9

C592 4030017810 S.CER C1608 CH 1H 102J-T T 36.6/10.8

C595 4030007020 S.CER C1608 CH 1H 120J-T T 135.3/19.8

C596 4030007020 S.CER C1608 CH 1H 120J-T T 130.9/19.8

C597 4030006860 S.CER C1608 JB 1H 102K-T T 133.3/17.6

C598 4030006860 S.CER C1608 JB 1H 102K-T T 128.9/17.7

C599 4030006860 S.CER C1608 JB 1H 102K-T T 133.3/15.1

C600 4030011070 S.CER GRM31M2C2H5R0CY21L T 152.5/11.8

J500 6510011591 CNR B2P-VH (LF) (SN)

J501 6510017150 CNR TMP-S01X-C1

J502 6510023261 S.CNR B6B-PH-SM4-TB (LF) (SN) T 39.6/4.1

J503 6510017150 CNR TMP-S01X-C1

J504 6510017150 CNR TMP-S01X-C1

5 - 8

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[VR UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

R1 7210003270 VAR TP76N00NA-26F-10KB-2974

R2 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 6.8/7.8

R3 7030003320 S.RES ERJ3GEYJ 101 V (100) T 6.8/3.3

C1 4030006900 S.CER C1608 JB 1H 103K-T T 3/3.3

C2 4030006900 S.CER C1608 JB 1H 103K-T T 3/7.8

C3 4030006860 S.CER C1608 JB 1H 102K-T B 8.2/7

C4 4030006860 S.CER C1608 JB 1H 102K-T B 8.2/3.8

J1 6510026160 S.CNR 06FLZ-SM2-TB (LF) (SN) B 3.3/5.1

S.=Surface mount

[K-CONNECT UNIT]

REF ORDER DESCRIPTION M. H/V

NO. NO.

LOCATION

D1 1790001250 S.DIO MA2S111-(TX) T 10.9/9.7

D2 1790001250 S.DIO MA2S111-(TX) T 10.9/8.1

D3 1790001250 S.DIO MA2S111-(TX) T 15.4/12.3

D4 1790001250 S.DIO MA2S111-(TX) T 15.4/8.8

D5 1790001750 S.DIO DSM3MA4 T 51.3/6.7

L1 6110001660 COL LA-252

R1 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 26.4/12.5

R2 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 21.1/12.3

R3 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 28.3/12.3

R4 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 33.3/12.5

R5 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 30.7/13.3

R6 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 31.3/11.6

R7 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 7.5/8.9

R8 7030003580 S.RES ERJ3GEYJ 153 V (15 k) T 8.9/8.9

R9 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 16.8/12.3

R10 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 8.9/12.3

R11 7540000250 ABS SA05C 401N

R12 7030003320 S.RES ERJ3GEYJ 101 V (100) T 107.1/18

R13 7030003320 S.RES ERJ3GEYJ 101 V (100) T 107.1/11.4

R14 7030003860 S.RES ERJ3GE JPW V T 25.2/10

R15 7030003860 S.RES ERJ3GE JPW V T 22.6/10.4

R16 7030003860 S.RES ERJ3GE JPW V T 29.4/9.8

R17 7030003860 S.RES ERJ3GE JPW V T 32.1/9.6

R18 7030003860 S.RES ERJ3GE JPW V T 36.5/9.6

R19 7540000410 ABS ERZV14D470

C1 4030006900 S.CER C1608 JB 1H 103K-T T 18.1/12.3

C2 4030004750 S.CER C2012 JB 1H 103K-T T 69.5/8

C3 4030004750 S.CER C2012 JB 1H 103K-T T 64.4/6.6

C4 4030006860 S.CER C1608 JB 1H 102K-T T 39.1/12.7

C5 4030006860 S.CER C1608 JB 1H 102K-T T 22.3/12.3

C6 4030006860 S.CER C1608 JB 1H 102K-T T 41.7/12.7

C7 4030006860 S.CER C1608 JB 1H 102K-T T 37.8/12.7

C8 4030006860 S.CER C1608 JB 1H 102K-T T 24.3/13.2

C9 4030006860 S.CER C1608 JB 1H 102K-T T 35.2/12.7

C10 4030006860 S.CER C1608 JB 1H 102K-T T 36.5/12.7

C11 4030006860 S.CER C1608 JB 1H 102K-T T 43/12.7

C12 4030006860 S.CER C1608 JB 1H 102K-T T 40.4/12.7

C13 4030006860 S.CER C1608 JB 1H 102K-T T 19.3/12.3

C14 4030006860 S.CER C1608 JB 1H 102K-T T 10.8/12.3

C15 4030006860 S.CER C1608 JB 1H 102K-T T 13.5/12.3

C16 4030006860 S.CER C1608 JB 1H 102K-T T 14.1/8.8

C17 4030006860 S.CER C1608 JB 1H 102K-T T 7.5/12.3

C18 4030006860 S.CER C1608 JB 1H 102K-T T 12.2/12.3

C19 4030006860 S.CER C1608 JB 1H 102K-T T 12.9/8.8

C20 4030006860 S.CER C1608 JB 1H 102K-T T 107.1/19.2

C21 4030006860 S.CER C1608 JB 1H 102K-T T 107.1/10.2

C22 4030011070 S.CER GRM31M2C2H5R0CY21L T 121.8/15.1

C23 4030011070 S.CER GRM31M2C2H5R0CY21L T 121/6.4

C24 4030006860 S.CER C1608 JB 1H 102K-T T 67.2/6.9

C25 4030018980 S.CER C1608 JB 1H 104K-T T 65.9/6.9

J1 6510014210 CNR BNC-BJ

J3 6510011591 CNR B2P-VH (LF) (SN)

J4 6510018941 S.CNR B13B-PH-SM4-TB (LF) (SN) T 31.1/3.9

J6 6510017150 CNR TMP-S01X-C1

J7 6510026480 CNR HSJ1650-010020

F1 5210001070 S.FUS 0451008.MRL T 68.2/10.6

W1 7120000490 JMP ERD25T0

Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

6 - 1

SECTION 6 MECHANICAL PARTS

[CHASSIS PARTS]

REF ORDER DESCRIPTION QTY.

NO. NO.

W1 8900016940 OPC-1820 1

W2 8900016950 OPC-1737 1

W3 8900016960 OPC-1738 1

W4 8900016970 OPC-1739 1

W5 8900016980 OPC-1740 1

W6 8900016990 OPC-1741 1

W7 8900017000 OPC-1743 1

W8 8900017010 OPC-1744 1

W9 8900017021 OPC-1745A 1

MP1 8010020770 2974 CHASSIS 1

MP2 8110009140 2974 T-COVER 1

MP3 8930072790 2974 STOPPER PLATE 2

MP4 8110009150 2974 B-COVER 1

MP5 8510018420 2974 SHIELD COVER 1

MP6 8210023930 2974 FRONT PANEL (Incl. MP7, MP8) 1

MP7 8930072770 2974 V-LENS 1

MP8 8930072780 2974 E-LENS 1

MP9 8310069720 2974 WINDOW PLATE [USA-01] 1

8310069720 2974 WINDOW PLATE [EXP-01] 1

MP10 8930072860 2974 WINDOW SHEET 1

MP11 8610013150 Knob K-264 1

MP12 8610013160 Knob K-265 1

MP13 8610013170 Knob K-265 (A) 1

MP14 8610013180 Knob K-266 1

MP15 8610013190 Knob K-266 (A) 1

MP16 8610013200 Knob N-356 1

MP17 8610013210 Knob N-357 1

MP18 8610013220 Knob N-358 1

MP19 8930072830 2974 A-SPONGE 1

MP20 8930072840 2974 B-SPONGE 1

MP21 8930073160 2974 S-LENS 1

MP22 8820001450 2974 CAP SCREW 2

MP23 8930073260 Shield sponge (CD) 1

MP24 8930073270 2974 INSULATION SHEET 1

MP25 8930073480 2974 CLIP 1

MP26 8930022572 867 STOPPER-2 2

MP27 8820000691 867 CUP SCREW-1 2

MP28 8930024080 867 SPRING 2

MP29 8860000740 Spring pin M1.2X6 SUS 2

MP30 8850000690 Flat washer M3 SUS 3X7X0.5 4

MP31 8810002950 Screw BiH M3X6 SUS 27

MP32 8810003131 Setscrew (A) 2.6X6 ZC3 2

MP33 8810010151 Screw BT B0 2X10 SUS SSBC 4

MP34 8830001470 VR nut (N) 1

MP35 8810006300 Setscrew (C) 3X8 SUS 16

MP36 8810003520 Hex stop screw M3X3 ZK 4

MP37 8930069430 Insulation sheet (LM) 1

MP38 8930027730 Sponge (DC) 1

MP39 8930057730 Shield sponge (J) 3

MP43 8950000180 Cable tie -80 4

[MAIN UNIT]

[ACCESSORIES]

[FRONT UNIT]

REF ORDER DESCRIPTION QTY.

NO. NO.

RL1* 6330001730 AHY107 1

CP1* 6910009670 HK3-S-T 1

J1 6510011591 B2P-VH (LF) (SN) 1

J3 6510007020 TMP-J01X-V6 1

J7* 6510026100 22FLT-SM2-TB (LF) (SN) 1

J8 6510018450 TMP-S01X-B1 1

J9* 6510018941 B13B-PH-SM4-TB (LF) (SN) 1

J10 6510021071 S2P-VH (LF) (SN) 1

J11* 6510022311 B5B-PH-SM4-TB (LF) (SN) 1

S1* 2260003060 NANOSMDC016F 1

T4 5920000751 ST-82 (P)FL 1

MP1* 8510018070 2979 VCO case 1

MP2* 8510017600 OG-363050 1

MP3* 8510017600 OG-363050 1

MP5* 8510017600 OG-363050 1

MP6* 8510017600 OG-363050 1

MP7* 8510017600 OG-363050 1

REF ORDER DESCRIPTION QTY.

NO. NO.

DS11 5060000020 UEL127 1

S1 2250000580 EC11EAB24C 1

S2* 2230001200 LS35J2-T 1

S3* 2230001200 LS35J2-T 1

S4* 2230001200 LS35J2-T 1

S5* 2230001200 LS35J2-T 1

S6* 2230001200 LS35J2-T 1

[K-CONNECT UNIT]

REF ORDER DESCRIPTION QTY.

NO. NO.

J4* 6510018941 B13B-PH-SM4-TB (LF) (SN) 1

J6 6510017150 TMP-S01X-C1 1

J7* 6510024680 HSJ1636-011020 1

F1* 5210001070 0451008.MRL 1

REF ORDER DESCRIPTION QTY.

NO. NO.

J8001 6510026350 2974BNC-LP 1

P8001 6510013840 4338-15 1

P8002 6510014430 DS-6532 1

EP8001 6510013850 4366-GL 30

EP8002 0880002520 MB-113 1

MP8001 8010011621 867 BRACKET-1 1

MP8002 8310023870 867 O.P. LABEL 1

MP8003 8310023880 867 O.P. LABEL (A) 1

MP8004 8830000730 Self-clinching nylon Nut TPLC-440 2

MP8005 8850001210 ICOM washer (V) 1

MP8006 8860000720 C-ring S 11 SUS 1

MP8007 8810007080 Screw BiH UNC NO.6X12.7 SUS 1

MP8008 8830000740 Nut UNC NO.6 SUS 1

MP8009 8950002550 Nylon clip SL-9N 1

MP8010 8830000750 Nylon Nut UNC NO.6 SUS 1

MP8011 8810007070 Screw BiH UNC NO.4X12.7 SUS 2

MP8012 8810007060 Screw UNC NO.6X12.7 SUS 6

MP8013 8830000761 Clip nut UNC NO.6-1 6

MP8014 8830000771 Speed nut U-TYPE UNC NO.6 ZC3 4

MP8015 8930022970 867 pin 2

*: Refer to SECTION 9 “BOARD LAYOUTS.”

[PA UNIT]

REF ORDER DESCRIPTION QTY.

NO. NO.

J500* 6510011591 B2P-VH (LF) (SN) 1

J501 6510017150 TMP-S01X-C1 1

J502* 6510022311 B5B-PH-SM4-TB (LF) (SN) 1

J503 6510017150 TMP-S01X-C1 1

J504 6510017150 TMP-S01X-C1 1

MP1 8510012910 2270 RUG 1

MP3* 6910014760 OG-503040 1

[VOLUME UNIT]

REF ORDER DESCRIPTION QTY.

NO. NO.

R1 7210003270 TP76N00NA-26F-10KB-2974 1

J1* 6510026160 06FLZ-SM2-TB (LF) (SN) 1

6 - 2

MP2(CH)

MP31(CH)×8

MP38(CH)

MP23(CH)

MP27(CH)

MP26(CH)

MP28(CH)

MP29(CH)

MP30(CH)×2

PA UNIT

MP2(PA)

MP31(CH)×4

MP5(CH)

MP35(CH)×6

MP4(PA)

MP3(PA)

MP32(CH)

DIAL UNIT

MAIN UNIT

MB-113

FRONT UNIT

MP1(F) MP33(CH)×4

MP8(M)

MP4(CH)

MP27(CH)

MP26(CH)

MP28(CH)

MP35(CH)×10

MP29(CH)

MP30(CH)×2

MP37(CH)

MP24(CH)

MP11(M)

MP10(M)

MP39(CH)×3

MP1(CH)

MP25(CH)

MP43(CH)×4

DS11(F)

MP6(CH)

MP22(CH)×2

MP21(CH)

MP20(CH)

MP34(CH)

MP19(CH)

MP11(CH)

MP17(CH)

MP16(CH)

MP36(CH)×4

MP18(CH)

MP13(CH)

MP15(CH)

MP14(CH)

MP12(CH)

MP2(F)

MP4(KC)

MP31(CH)×5

MP5(KC)

MP31(CH)×10

Unit abberaviations

(F) : FRONT UNIT

(M) : MAIN UNIT

(CH) : CHASSIS PARTS

(PA) : PA UNIT

(KC) : K-CONNECT UNIT

MP8001

P8001 EP8001 MP8011 J1 MP8005

MP8006

MP8009 MP8004

MP8008 MP8007 MP8013 MP8012 MP8002 MP8003

MP8015 MP8014 EP8002

• ACCESSORIES

7 - 1

SECTION 7 BOARD LAYOUTS

C500

C501

C502

C503

C504

C505

C506

C507

C509

C510

C511

C512

C513

C515

C516

C517

C518

C520

C521

C522

C523

C524

C525

C527

C528

C529

C531

C534

C535

C536

C537

C538

C539

C540

C541

C542

C543

C544

C545

C547

C548

C549

C550

C551

C552

C553C554

C555

C556C557C558

C559

C560

C561

C562

C563 C565

C566

C567

C568

C569

C570

C572

C575

C577

C578

C582

C583

C585

C587

C588

C591

C592

C595

C596

C597

C598

C599

C600

D500

D501 D502

D503

D504

D505D506

D507

IC500

IC501

J500

J501

J502

J503

J504

L502

L503

L504

L505

L506

L507

L508

L509

L511

L512

L513

L514

L516

L517

L518

L519

L521

L522 L523

Q500

Q501

Q502

Q503

Q504

R500R501

R502

R503

R504

R505

R506

R507

R508

R509

R511

R512R513

R514

R515

R516

R517

R518

R520

R521

R522

R524

R525

R526

R527

R528

R529

R534

R535

R536

R537

R538

R539

R541

R542

R543

R545

R548

R549

R550

R553

R554

R555

R557

B-6666F

L512

L508

L507

L506

L504

Q501

Q500

R518

Q504

R546

L524

ANT

MP3

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H150H155

V0 V5 V10 V15 V20 V25 V30 V35

• FRONT UNIT (TOP VIEW)

RCL

MEM

DUAL EC

• MAIN UNIT (TOP VIEW)

• PA UNIT (TOP VIEW)

• MB-113

(TOP VIEW)

• K-CONNECT UNIT

(TOP VIEW)

• VOLUME UNIT (TOP VIEW)

ANTENNA CONNECTOR

(J1; CHASSIS)

W1 (CHASSIS)

DC IN

–

W5 (CHASSIS)

(CHASSIS)

W6 (CHASSIS)

DC IN

–

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H145

V0 V5 V10 V15 V20 V25

C26

C28

C29

C32

C33

C34

C35

C37

C40

C42

C43

C45

C47

C48C51

C54

C55

C56

C58

C60

C63

C66

37C76C

C74

C75

C78 C79

C81

C83

C84

C85

C87

C88

C89

C90

C91

C92

C93

C94

C95

C98

C100

C101

C102

C103

C104

C105

C106

C107

C108

C109

C111

C112

C113

C114

C115

C116

C117

C118

C119

C120

C121

C124

C125

C126

C127

C130

C132

C134

C136

C137

C138

C139

C140

C141

C142C143

C144

C147

C148

C150

C151

C153

C155

C156

C157

C158

C159

C160

C161

C162

C163

C165

C166

C167

C168

C169

C170

C171

C172

C174

C175

C177

C178

C179

C180

C181

C182

C183

C184

C186

C187

C189

C191

C193

C194

C195

C196

C197

C201

C202

C203

C204

C205

C206

C207

C210

C211

C214

C215

C222

C224

C227

C232

C234

C235

C237

C238

C240

C252

C253

C254

C255

C261

C265

C266

C275

C280

C287

C288

C293

C296

C297

C298

C299

C305

C306

C307

C309

C310

C313

C326

C327

C328

C330

C335

C342

C347

C349

C350

C356

C357

C359

C360

C362

C363

C364

C365

C366

C367

C368

C369

C370

C381

C384

C385

C386

C387

C388

C389

C390

C391

C392

C393

C394

C395

C396

C397

C398

C399

C400

CP1

CP2

CP5

CP11

D21

D22

D23

D26

D27

D28

D33

D35

D52

D53

FI2

FI3

FI4

IC2

IC4

IC5

IC6

IC7

IC8

IC9

IC13

IC14

IC16

IC17

IC22

IC25

IC26

IC31

IC32

IC36

IC37

IC38

IC39

IC42

IC44

IC46

IC48

IC49

IC54

IC67

IC68

IC76

IC81

L15

L18

L19

L20

L21

L22

L24

L25

L26

L28

L29

L31

L33

L34

L36

L37

L38

L39

L40

L45

L47

L49

L50

L58

L60

L61

L62

L67

Q11

Q15

Q16

Q20

Q21

Q24

Q25

Q26

Q29

Q33

Q38

Q41

Q46

Q50

Q51

Q55

R11

R12

R13

R20

R21

R26

R27

R28

R36R39

R40

R41

R51

R53

R55

R56

R61

R63

R64

R65

R70

R73

R78

R82

R84

R85

R86 R87

R88

R89

R90

R91

R92

R94

R95

R97

R98 R100

R105

R106

R107

R108

R109

R112

R113

R114

R118

R120

R129

R130

R131

R137R138

R141

R144

R148

R149

R151

R152 R155

R156

R157

R158

R159

R160

R161

R163

R164

R165

R167

R168

R169

R170

R171

R173

R174

R175

R177

R178

R179

R181

R183

R184

R185

R186

R187

R188

R189

R191

R192

R193

R194

R196

R197

R198

R199

R200

R201

R202

R203

R204

R205

R206

R207

R209

R210

R212

R216

R217

R218

R220

R223

R227

R230

R245

R246

R248

R252

R253

R254

R256

R257

R258

R259

R262

R264

R267

R269

R270

R277

R278

R279

R280

R282

R289

R290

R291

R292

R293

R294

R295

R301

R302 R303

R304

R320

R322

R327

R328

R329

R330

R331

R343

R344

R356

R357

R358

R359

R360

R361

R367

R368

R369

R370

R371

R372

R401

R403

R404

R405R406

R407

R408

R409

R410

R411

R414

R415

R416

R417

R418

R419

R420

R421 R422

R424

R427

R429

R431

R432

R433

R434

R435

R436

R439

C25

C61

FI1

RL1

C190

RX IN

Lo IN

B6667F

CP1 CV

TX OUT

FI4

FI3

IC39

Q26

Q24

D35

D33

Q21

C159

IC32

IC38

IC7

IC9

IC6

C73

IC4

IC22

IC13

IC2

IC68

L10

L2 X2 Q38

Q41

C211

IC44

C203

Q29

IC49

IC46

IC48

Q46

IC42

L24

L26

L25

C288

C287

IC31

C118

IC16

IC25

IC54

Q15

Q16

L21

L19

L18

IC5

C66

C49

C106

C112

C114 C119C120

L29

L49

40V

10V

L36

C240

L34

CP3

CP5

CP4

CP7

IC17

FI2

Q20

C127

C136

Q33

R335

CP10

CP9

CP8

CP12

CP11

C342

C85

CP13

CP6

CP14

CP15

D28

D23

J10

IC14

IC76

IC67

IC8

IC26

C47

REMI

AUXIN

INCOMI

MICGND

MIC1

MIC2

PTT1I

GND

TXDI

RXDI

GND

MOD

10C

REG

PTT1

REM

ICOM

RXD

TXD

BPOUT

PON

16V

CLK

8T1

8T2

PCON

PROTECT

GND

TUNE

BPV

AGC1

AGCOUT

CP16

RSSI

DET

VCOOUT

AGC2

10C

AGC3

C32

C215

MP1

L23

L67

Q25

IC81

CP17

C29

Q55

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H145H150H155H160H165H170H175H180H185H190H195H200H205H210

V0 V5 V10 V15 V20 V25 V30 V35 V40 V45 V50

V55 V60 V65 V70 V75 V80

V85 V90 V95 V100 V105 V110 V115 V120 V125 V130 V135 V140

B6664B

H0H5H10H15H20

V0 V5 V10

C10

C11

C12

C13

C14

C15

C16

C17

C18

CP1

R2R3

R5R6

R10

R11

B6668F

ANT

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75

V0 V5 V10 V15 V20 V25

C10

C11

C12

C13

C14

C15

C16

C17

C18

C19

C20

C21

C22

C23

C24

C25

CP2

D3D4

R10

R11

R12

R13

R14

R15 R16 R17 R18

R19

B-6663H

GND

ANT

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130

EMI

AUXIN

INCOMI

MICGND

MIC1

MIC2

PTT1I

GND

AGND

TXDI

RXDI

V0 V5 V10 V15 V20 V25 V30

8T1

8T2

PCON

10C

GND

PROTECT

7 - 2

15 1

‡A2

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130

V5V10V15V20V25V30

MP1

MP2

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155

V0V5V10V15V20V25V30V35

S-14401XH-P2

Printed in Japan

• FRONTUNIT (BOTTOM VIEW)

• MAIN UNIT (BOTTOM VIEW)

• PA UNIT (BOTTOM VIEW)

• MB-113 (BOTTOM VIEW)

• K-CONNECT UNIT (BOTTOM VIEW)

• VOLUME UNIT

(BOTTOM VIEW)

C10

C11

C12

C13

C14

C15

C17

C18

C19

C20

C22

C23

C24

C27

C30

C31

C36

C38

C39

C41

C44

C46

C53

C57

C59

C62

C64

C65

C68

C69

C72

C76

C77

C80

C82

C86

C96

C97

C99

C110

C128

C131

C198

C208

C209

C212

C213

C216

C218

C219

C220

C225

C228

C229

C230

C231

C233

C236

C239

C241

C244

C245

C258

C268

C269

C273

C274

C282

C283

C284

C289

C290 C291

C292

C295

C300

C302

C303

C304

C308

C312

C315

C316

C317

C318

C319

C320

C325

C331

C332

C333

C334

C343

C345

C346

C351

C352

C353

C354

C355

C371

C373

C374

C375 C376

C377

C378

C379

C380

C382

C383

C401

C402

C403

C404

D10

D11

D12

D13

D14

D15

D16

D17

D18

D19

D20

D29

D32

D36

D50

D51

D54

FI5

FI6

IC3

IC43

IC45

IC47

IC52

IC69

IC70

IC71

IC74

IC75

IC78

IC79

IC80

IC82

L11

L12

L13

L16

L17

L32

L35

L42

L48

L51

L52

L53

L56L57

L59

L63

L64

L65

L66

L68

Q12

Q30Q32

Q35

Q42

Q45

Q48

Q53

Q54

Q58

Q59Q60

Q61

R10

R14

R15

R16

R17

R18

R19

R22

R23

R24R25

R29

R31

R32

R33

R34

R35

R37

R42

R43

R44

R45 R46

R47

R48

R49

R50

R54

R58

R59

R62

R66

R68

R69

R71

R72

R74

R75

R76

R77

R79

R93

R99

R101

R102

R103

R104

R208

R211

R213

R214

R215

R219

R222

R232

R233

R237

R238

R247

R263

R283

R288

R297

R298

R299

R300

R305

R312

R313

R314

R315

R316

R317

R318

R319

R323

R324

R332

R336

R340

R341

R342

R350

R351

R352

R353

R354

R355

R363

R364

R374

R375

R376

R377

R378

R379

R380

R381

R382

R383

R384

R385

R386

R387

R388

R389

R390

R393

R394

R397

R398

R399

R400

R402

R423

R425

R426

R428

R430

R437

R438

R440

D15

FI5

FI6

IC45

IC43

IC52

L11

Q45

D14

D13

IC69

L7 L3

D11 D10

IC47

Q35

Q42

Q48

Q30

IC70

L12

L13

IC71

Q52

C332

IC75

Q47

Q50

IC74

D50

D51

L63

L64

D25

D24

D18

Q12

D16

D17

IC80

IC3

Q32

Q82

L16

L17

D12

D32

IC78

IC79

MP8

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155 H160 H165 H170 H175 H180 H185 H190 H195 H200 H205 H210

V0V5V10V15V20V25V30V35V40V45V50V55V60V65V70V75V80V85V90V95V100V105V110V115V120V125V130V135V140

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145

V0V5V10V15V20V25

POWER+

ANTGND

RESERVRD

TXD

TXKEY

MIC1

MICGND

AUDIO

INTERCOM

SERIAL

RXD

POWER

GND

MIC2

GND AUX IN

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75

V0V5V10V15V20V25

C3 C4

H0 H5 H10 H15 H20

V0V5V10

8 - 1

SECTION 8 BLOCK DIAGRAM

LP F

ANT

ATTBPF

AM P

BPF

XTALIF

AMP

AM P

AMP BPF

CERAMI C

ANT

BPF

CERAMI C

BPF

XTAL

DET

PWR

AMP

DRIVE

PRE DRIVE

PREPRE

AM P

PWR

DET

APC

AM P

APC

CTRL

TX/RX

BUFF BUFF TX_VCO

RX VCO

PLL

IC FIL

LOOP

VCO

SW FIL

RIPPLE

REVERSE

CONNEC T

PROTECT

REG

AM P HPFLPF

MC 1

LPF

MC 2

ALC

AM P

REG

VCO

2SENSOR_1SW

COM

TP76N00NA

GATE

CTRL

LEVEL

CONV

RESET

REG

SML-512DW

BUFF

HEAT

SENS

SEND

BUFF

LIN E

FILTER

POWER

AM P

FET

DRIVER

PWM

MOD

POWER

TRIANGLE

OS C

LINE

FILTER

ANL

MOD/AF

TCXO

E-VOL

IMP

CONV

Head Phone

CPU

AGC_3

AGC

ANL

IC48

AM/FM

2ndI F

E-VOL

VOX

AMP

DET

D1,D2,D3

1SV271

D502.D503.D504

MA4PH224 x3

D10,D11

1SV242

IC69

ERA-50SM1SV242

D13,D14

IC68

JSM-1

1st MIX

D19

HVU131

FI3

FL-306

FI4

FL-307

D27

D28

Q20

3SK195

IC39

TA31136F

1stIF=38.85 MHz

IC43

TC4W53FU

FI5

CFWKA450KEFA

FI6

CFWKA450KHFA

IC45

TC4W53FU

Q26

2SC42152SC4215

Q25

2SC4215

Q24

2SC4211

Q21

IC81

NJM2902V

IC81

NJM2902V

D29

MA2S728

IC70

TC4S66F

IC32

TC4W53FU

IC38

TA75S01F

IC26

TC4W53FU

IC2

M61545AFP

IC13

BA3308F TA75S01F

IC22 IC8

NJM2902V M61545AFP

IC14

IC4

TDA7233D

ST-82

IC6

BA08FP

IC3

NJN2904V DAN217

D16,D17

PA UNIT

Q500

2SK3074

Q501

2SK3075

Q504

MRF137

NJM2904V

IC 5 0 0

NJM2904V

IC500

DAN235E

D36

R7806FX 2

D500,D501

SP OUT

CTRL

D18 1SS193

Q9 2SD2351

Q41

2SC4226

2SC4215

Q35 Q33

2SC4226

ADF4110BRUZ

IC47

D21 KV1770S

Q5 2SK508

2SC4215

CR-860

AMP

RX LINE

TX LIN E

COMMON LINE

IC25 NJM2137M

H IP4081AIBZ

IC17 Q15,Q16

2SK2414

Q38

2SC4215

Q42

2SD2351

DATA-CLK

BCD/Deci

DECODER

Seri /

Para

DRIVER

10V

REG

DAAM1MA33

D12

2SJ402

Q11

IC31

BD9781HFP

NJM2137M

IC16

DUAL

MEM

RCL

SWAP

BU2099FV

WAVE

AUX

D/A

CONV

M62364FP

IC78

8T2

8T1

DATA-CLK

PCON

TUNE1

SEND

VCO2

VCO1

FIL2

FIL1

AUX

BPF1

BPF2

DATA-CLK

PCON

AM/FM

FIL1

FIL2

AM/FMAM/FM

VCO2

VCO1

TUNE1

ANL

SP_CTRL

IC49

TC4028BF

Q1A

AM/FM

SEND

DTB113ZK

Q32

Q30

DTB113ZK

Q29

2SB1302S

+16

TEMP

SENSOR

EEPROPM

SHIFT

CLK

LIGHT

SENSOR

LED

DRIVE

CTRL

LED

DRIVER

BEEP

LEVEL

AD J

DATA

CTRL

CLK

DATA-CLK

TC74LVX4245FS

IC6.IC7

IC8 TC7S04FU

BD52452G

IC3

NTCG16

R29

IC11,IC12

IC8 TC7S04FU

TC7S08FU

DTA113ZU

Q4,Q5

IC15 NJU6060V

1SV271

IC9 TA75S01F

D2 BCS2015G1

IC17

TC7S08FU

RS232

DRIVER

ADM202EARUZ

IC10

2SC421 5

9.8304MHZ

24LC64T

IC5

D S1-10

MAIN UNIT

FRONT UNIT

HD64F38347W

IC4

VOLUME UNIT

DATA-CL K

IC48

BU2099FV

TX&RX=118.0-136.975 MHz

2ndIF=450 kHz

IC52

NJM2902V

AM/FM

HVU131

D20

HVU131

NJM2902V

IC81

AGC_2

LTC1069

IC7

2SC4215

Q6 2SK508

D22 KV1770S

REG_C2

+16

REG

16V

IC71 TC4S66 F

IC80 TC4S66 F

REG_C2

IC75

BD9001F

RL1 AHY107

IC76

TA75S01F

LTC6904IMS8

IC9

BEEP

AM_MOD

AM_DEPTH

NJM2902V

IC8

Q58

2SC4116

Q59 Q60

RSR025N03

BPOUT

VDD_ADJ

BPOUT

IC42

BA08FP

IC44

TA78N05F

REG

IC5

LM2587

IC2

NJM23070U1

IC16

TA78L05F

R535

NTCG16

IC501

TA75S01F

Q502/Q503 DTC144EU

PROTEC T

Q53

DTC144EU

Q45

2SC3357

9 - 1

SECTION 9 VOLTAGE DIAGRAM

*; Refer to “PARTS LIST.”

4.90V

0.06V

15.93V

4.92V

3.16V

10.33V

4.92V

LED ON : 4.88V

LED OFF: 0.00V

LED ON : 4.88V

LED OFF: 0.00V

LED ON : 4.83V

LED OFF: 0.00V

1.94V

VCC : 13.80 V

Freq. : 127.05 MHz

Description :

COMMON

R120

390

R47

47KR31

47KR3 5

CP06SCP19

0.1C82

R83

100K

R77

0.001

C73

0.01C20

0.01C21

0.01C18

R122

33K

R69

1KR138

47K R81

0.001

C80

10KR99

0.01

C85

0.001

C75

TC7S08FU

IC11

0.001

C32

47K

R115

10 MSVA

C49

0.001

C63

TC7S08FU

IC12

0.01C22

0.1

C37

DTA113ZU

TC7SHU04FU

IC18

47KR37

40FLZ-SM2-R-TB

41 42

0.1

C33

TC7S04FU

IC14

0.001C67

0.001

C79

3.3 MSVA

C44

0.01

C14

SML-A12M T

DS3

0.001

C72

47KR8

0.01C54

0.001

C61

0.027

C30

10FLT-SM2-T B

1 2

3 4

5 6

7 8

9 10

SML-512MW

DS10

47KR45

390

R88

0.001

C74

CP10SCP15

TXD32

0.01C19

LS35J2

TA78L05F

IC16

I O

0.001C68

0.01

C15

47K

R104

390

R21

SML-512MW

DS 5

0.1

C13

TC74LVX4245FS

IC6

1VCCA

2DIR

3A1

4A2

5A3

6A4

7A5

8A6

9A7

10 A8

11 GND

12 GND 13

GND

VCCB

0.01

C42

47K

R73

CP10SCP14

330

R85

1KR131

22K R61

0.1

C34

100

R117

47KR59

2.2M

R126

330

R100

0.01

C41

22K R64

10K

R26

0.01

C76

0.1

C46

0.1

C35

10KR14

LS35J2

0.01

C45

47KR3 6

100

390

R49

1KR140

NJU6060V

IC15

1VDD

2RSTb

3CSb

4CLK

5DATA 6

OSC

VSS

LED1

LED2

LED3

470K

R75

SML-A12M T

DS4

ADM202EARUZ

IC10

1C1+

2V+

3C1-

4C2+

5C2-

6V-

7T2OUT

8R2IN 9

R2OUT

T2IN

T1IN

R1OUT

R1IN

T1OUT

GND

VCC

100KR13

47KR90

DTA113ZU

47K

R78

12P

C28

TC7S00FU

IC17

SML-512MW

DS 8

R118

24LC64 T

IC5

1A0

2A1

3A2

4VSS 5

SDA

SCL

VCC

910K

0.01

C78

22K R60

47K

R82

SML-512MW

DS 6

2.2 MSVA

C23

100KR98

47K R79

LS35J2

1KR139

22FLT-SM2-TB

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

LS35J2

47KR46

0.01

C43

SHORTLAND

CP7

0.001

C71

1KR136

0.01

C50

330K

R10 9.8304MHZ

X1 CR-789

330

R86

0.01

C39

06FLZ-SM2-TB

7 8

47KR5 0

SML-512MW

DS 9

2.2M

R38

47K

R76

100KR124

0.01

CP06SCP18

33KR66

2.2K

R40

47KR5 1

390

R48

SHORTLAND

CP3

0.001

C70

47K

R71

39U

47KR58

47KR57

DTA113ZU

47R101

0.1C12

330

R97

0.001

C83

0.01

C17

47K

R114

10 MSVA

C52

BD5242G

IC3

1OUT

2VDD

3VSS 4

47K

R116

47KR119

100

R93

SHORTLAND

CP2

47K

R23

CP06S

CP17

RXD32

47KR5 2

0.01C40

10KR103

0.01

C60

0.01

TC74LVX4245FS

IC7

1VCCA

2DIR

3A1

4A2

5A3

6A4

7A5

8A6

9A7

10 A8

11 GND

12 GND 13

GND

VCCB

2SC4215

SHORTLAND

CP1

1KR141

47K

R70

1KR130

0.01C47

C77

33KR65

100KR123

22K R63

BCS2015G 1

SML-512MW

DS 7

12P

C27

R135

0.01

C86

33KR67

NJM2370U1

IC2

1CTRL

2GND

3NB 4

VOUT

VIN

4.7K

R128

100K

0.001

C58

0.01

C59

0.01

4.7K

R127

10K

R113

SML-512MW

DS2

CP10SCP16

0.01C81

10C55

0.1

C16

NNCD6.2G

0.01

C11

C51

0.1

C36

47K

R134

100KR19

CP06SCP4

NJU7008F3

IC9

R121

SHORTLAND

CP5

3.3M

R91

0.01

0.001

C62

100KR102

47K

R72

0.001

C64

HD64F38347WV

IC4

1P10/TMOW

2P11/TMOFL

3P12/TMOFH

4P13/TMIG

5P14/IRQ4/ADTRG

6P15/IRQ1/TMIC

7P16/IRQ2

8P17/IRQ3/TMIF

9X1

10 X2

11 VSS

12 OCS2

13 OSC1

14 TEST

15 RES

16 P20/SCK1

17 P21/SI1

18 P22/SO 1

19 P23

20 P24

21 P25

22 P26

23 P27

24 P30/PWM

25 P31/UD

26 P32/RESO

27 P33/SCK31

28 P34/RXD31

29 P35/TXD31

30 P36/AEVH

31 P37/AEVL

32 CVCC

33 VSS

34 V3

35 V2

36 V1

37 V0

38 VCC

39 PA3/COM 4

40 PA2/COM 3

41 PA1/COM 2

42 PA0/COM 1

43 P50/WKP0/SEG1

44 P51/WKP1/SEG2

45 P52/WKP2/SEG3

46 P53/WKP3/SEG4

47 P54/WKP4/SEG5

48 P55/WKP5/SEG6

49 P56/WKP6/SEG7

50 P57/WKP7/SEG8

P60/SEG 9

P61/SEG10

P62/SEG11

P63/SEG12

P64/SEG13

P65/SEG14

P66/SEG15

P67/SEG16

P70/SEG17

P71/SEG18

P72/SEG19

P73/SEG20

P74/SEG21

P75/SEG22

P76/SEG23

P77/SEG24

P80/SEG25

P81/SEG26

P82/SEG27

P83/SEG28

P84/SEG29

P85/SEG30

P86/SEG31

P87/SEG32

P90/SEG33

P91/SEG34

P92/SEG35

P93/SEG36

P94/SEG37/M

P95/SEG38/DO

P96/SEG39/CL2

P97/SEG40/CL1

P40/SCK32

P41/RXD32

P42/TXD32

P43/IRQ0

AVCC

PB0/AN0

PB1/AN1

PB2/AN2

PB3/AN3

PB4/AN4

PB5/AN5

PB6/AN6

PB7/AN7

PC0/AN8

PC1/AN9

PC2/AN10

PC3/AN11

100

AVS S

EC11EAB24C

COM

78 0.001

C66

0.1

C38

390

R89

47K

R34

0.01

C10

SML-512MW

DS1

100KR125

47KR20

2.2M

R74

100KR12

10KR11

R129

1KR133

R132

47K R80

22K R62

33KR68

R43

1KR137

LS35J 2

47KR44

15K

R22

47KR7

0.01C53

0.01

C31

DO1

DO2

DO3

DO4

DO5

DO6

DO7

DO8

DO9

DO10

DO11

DO12

DO13

DO14

DO15

RSTB

WR B

RDB

CSB

SELB

SELC

SELA

MEM

RCL

SWAP

NOISE

VOX1

VOX2

SELA

SELB

SELC

CLK_IC12

DATA_IC11

SELDSELD

SELD

D15

D14

D13

D12

D11

D10

D11

D12

D13

D14

D15

SIGN339

SIGN341

SIGN343

CSB

RDB

WR B

RSTB

PTT1_ O

RXD31

TXD31

DO15

DO14

DO13

DO12

DO11

DO10

DO9

DO8

DO7

DO6

DO5

DO4

DO3

DO2

DO1

DO0

INCOM_O

REM_O

RSSI

VOX1

VOX2

NOISE

25KA

25KB

1M A

1MB


FW1/JTG3

JTG1

FW2/JTG2

JTG4

MONI

CLK_IC12

DATA_IC11

EXGP1

EXGP3

EXGP2

EXGP1

EXGP2

EXGP3

SIGN342

SIGN340

JTG1

JTG4

RXD3 1

TXD31

EXGP0

INCOM_ O

DUAL

TXD32

RXD32

REM_O

RSSI

CDC

REM_ O

PRT/UL

RESET

SWAP

RCL

MEM

DUAL

REG_C 2

RSSI

VOX2

VOX1

PRT/UL

NOISE

MONI

BPOUT

CSDM

REG_C2

PTT1_O

TXD32

RXD3 2

CSDM

CLK_IC12

DATA_IC11

FW1/JTG3

FW2/JTG2

RESE T

BPOUT

PHOT O

DO0

1M A

1MB

25KB

DIAL

25KA

TO EL DISPLAY

JTAG3

JTAG2

GND

TO ONCHIP

EMULATOR

SEL CSEL BSEL A SEL D

< --> EC

DAIAL BL VR BL

CLK

DATA

16V 16V

RESET

PONPON

10C

SDA

SCL

100

VOLUME

UNIT

To FRONT UNIT J3

0.01

0.001

06FLZ-SM2-TB

TP76N00NA

7MONI

PON

To VOLUME UNIT J1 FRONT UNIT

9 - 2

*; Refer to “PARTS LIST.”

150K

R161

82K

R159

10K

R157

0.001

C182

0.1

C183

C187

470 YXG

C190

0.1

C144

0.01

C153

12K

R155

100K

R152

270K

R100

270K

R98

0.01

C121

100K

R93

22 MSVD2

C126

ACF321825

FI2

0.47

C138

0.47

C120

0.47

C119

0.47

C114

BNX-002

FI1

2CB

PSG 4

470P

C26

0.001

C28

33P

C33

68K

R71

2.2K

R75

0.01

C101

56K

R86

15K

R85

15K

R91

10K

R105

330P

C111

100P

C128

0.1

C116

0.01

C113

R64

100K

R65

100K

R90

R84

0.001

C95

560

R11

0.82U

0.001

C42

R26

0.82U

R27

0.001

C43

4.7K

R149

4.7K

R148

FL-306

FI3

1IN 2

OUT

3GND

GND

FL-307

FI4

1IN 2

OUT

3GND

GND

10P

C147

C142

27P

C148

12P

C143

18P

C155

C161

0.01

0.1

C191

0.1

C198

R194

1.2K

R181

220K

R197

82K

R201

2.2K

R202

100P

C170

120P

C194

120P

C193

0.0047

C179

0.1

C171

0.01

C208

0.01

C209

1.8K

R215

0.01

C213

10K

R213

10K

R214

100K

R208

22K

R212

22K

R205

1.5K

R209

1.5K

R200

2.2K

R204

3.3K

R199

10K

R193

10K

R207

56K

R210

56K

R203

100

R2110.1

C201

0.1

C206

0.1

C196

0.0012

C178

0.0012

C207

0.01

C204

0.01

C186

56K

R189

0.01

C175

56K

R184

390K

R183

56KR179

0.01C172

10K

R108

100K

R112

15K

R107

2.2K

R151

R56

R55

NJM2904V

IC 3

V+

GND

330K

R41

C82

C86

470P

C63

R68

R69

0.01

C58

MAIN UNIT

0.01

C59

0.1

C168

5.6K

R188

R192

470

R185

100K

R163

0.001

C174

C169

0.01

C212

0.1

C157

15K

R173

10K

R167

100K

R158

0.001C163

BA08FP

IC42

I O

TA78M05F

IC44

I O

0.1

C205

0.1

C210

470 YXG

C61

2.2K

R36

2.2K

R39

0.47

C112

0.47

C106

TDA7233D

IC4

GND 2

MUTE 3

GND 4

+VS

5OUTPUT

6SVR

7-INPUT

8+INPUT

0.1

C41

0.001

C48

R15

4.7

R19

0.001

C24

470P

C195

0.0015

C189

0.0047

C184

39K

R198

39K

R196

3.3K

R191

68K

R186

10K

R178

15K

R170

10K

R171

BA08FP

IC6

0.1

C67

0.001

C23

47P

C22

100

R12

DAN217

0.001

C11

0.001

C12

0.001

C13

0.001

C14

0.001

R32

33K

R42

39K

R31

RD16 M

D15

1SV271

D33

1SV271

D35

TC4W53FU

IC43

TC4W53FU

IC45

2SC4211

Q21

NTCG16

R89

TC4W53FU

IC32

2SK2414

Q15

2SK2414

Q16

CFWKA450KHFA

FI6

I O

C255

18P

C258

C2012C-R12G

L42

IC18

IC19

IC20

D12

DAM1MA33

R206

0.01

C202

ZBFS5105

L16

ZBFS5105

L17

B2P-VH

HIP4081AIBZ

IC17

1BHB

2BHI

3DIS

4VSS

5BLI

6ALI

7AHI

8HDEL

9LDEL

10 AHB 11

AHO

AHS

ALO

ALS

VCC

VDD

BLS

BLO

BHS

BHO

1 MSVA

C51

1/25V

100

C118

220

C73

100

C47

100U

L28

100U

L29

56K

R87

0.047

C141

1SS193

D23

10K

R267

0.001

C275

560

R13

R177

3.3KR280

R175

AHY107

RL1

2.2K

R53

1SS193

D18

0.01

C283

0.01

C284

100K

R164

R168

100K

R291

4.7

C56

M 61545AFP

IC2

1VIN1

2VOUT1

3GND

4DATA 5

CLOCK

VCC

VOUT2

VIN2

M 61545AFP

IC14

1VIN1

2VOUT1

3GND

4DATA 5

CLOCK

VCC

VOUT2

VIN2

220

C287

220

C288

2.2KR20

2.2KR21

3.9K

R63

47 MSVD2

C203

CFWKA450KEFA

FI5

I O

4.7K

R293

2.2K

R294

33K

R295

100R187

HVU131

D20

0.1

C19

0.001

C27

0.001

C39

1.5U

0.01

C75

0.001

C17 100

R10

1SV271

C31

0.001

C69

0.001

C65

0.01

C46

0.01

C76

HVU131

D19

0.39U

4.7K

R77

0.001

C68

C38

0.1

C10

2.2K

R73

1.5U

0.001

C57

0.001

C18

4.7K

R46

0.001

C74

0.001

C62

1SV271

100K

R22

0.01

C77

100K

R45

0.001

C44

0.001

C30

100K

R49

C20

0.001

C53

1.5K

R297

0.001

C36

0.001

4.7K

R74

1SV271

15P

C80

4.7K

R50

330

R58

0.1

C45

0.01

C37

TA31136FNG

IC39

OSCIN 2

OSCOUT 3

MIXOUT 4

VCC 5

IFIN 6

DEC 7

FILOUT 8

FILIN

9AFOUT

10 QUAD

11 IFOUT

12 RSSI

13 N-DET

14 N-REC

15 GND

16 MIXIN

BD9781HFP

IC31

1VIN

2SW

3RT

4GND

5FB

6INV

7EN/SYNC

GND

0.0047

C180

LM2587

IC5

1COMP

2FB

3GND

4SW

5VIN

470 YXG

C66

2SC3357

Q45

R298

R299

R300

R62

TA78L24F

IC54

G1.2K

R51

1.2K

R302

1.2K

R303

1.2K

R304

C32

/35V

R305

7E08N-330M

L24

7E08N-330M

L26

7E08N-330M

L25

0.01

C297

0.01

C303

0.01

C304

0.01

C306

0.1

C308

0.01

C309

0.01

C310

LTC6904IMS8

IC9

1GND

2SDI

3SCK

4SEN/ADR*5

CLK

V+

R131

C162 0

R78

0.1

C103

R94

3.3K

R95

33K

R113

33K

R114

0.0047

C165

560P

C181

C238

0.01

C229

0.01

C231

0.01

C232

0.01

C234

0.01

C235

0.01

C237

100K

R17

4.7K

R23

4.7K

R18

4.7K

R29

BA3308F

IC13

OUT1 2

GND 3

NC 4

ALC 5

VCC 6

NC 7

OUT2

8NC

9IN2

10 NF2

11 NF1

12 NC

13 INI

14 NC

R70

NJM2137M

IC16

R44

NJM2904V

IC52

33P

C319

56P

C318

R59

330

R66

33P

C320

R25

100K

33P

C64

R72

56K

R82

R322

CDBKB450KCAY24

TA75S01F

IC22

JMS-1+

IC68

1GND

2IF

3RF 4

GND

C2012C

L13

680N

27PC84

R16

470

R14

C2012C

L59

0.1

C327

0.1

C328

100K

R331

100K

R368

5.6K

R343

C131

#E526HNA

L10

#E526HNA

3.3

C60

R54

R61

3SK195

Q20

1.5U

L60

150

R169

0.01

C166

1.2U

L61

1.2U

L62

56K

R165

0.01

C330

0.01

C331

2.2K

R340

4.7K

R24

R341

100K

R342

100K

CP15S

CP3

CP15S

CP4

C2012C

L12

1U 1.5U

L49

L53

47N

L52

47N

NANOSMDC016F

C332

0.001

C334

6.8K

R344

0.1

C335

CP15S

CP9

CP15S

CP10

NJM2137M

IC25

8100K

R289

39K

R332

TC4S66F

IC71

2.2K

R350

0.0047

C343

150K

R354

15K

R288

180K

R353 0.1

C34510K

R352

R351

22K

MA8051

D51

C342

0.01

C346

TC7S08F

IC74

CP15S

CP13

0.01

C296

0.1

C326

0.01

C333

R355

0.001C349

LTC1069

IC7

1AGND

2V+

3NC

4VIN5

CLK

V-

VOUT

0.47

C140

2.2

C151

0.1

C134

100

R144

10K

R129

R130

100K

R356

CP15

HVU131

D27

HVU131

D28

R312

BD9001F

IC75

SW 2

NC 3

FB 4

INV

5EN

6RT

7GND

8VIN

DTC144EU

Q12

220P

C81

0.001

C325

0.001

C305

2SC4215

Q25

(Y)

2SC4215

Q26

(Y)

2SC4215

Q24

(Y)

C35

C34

C104

C280

220P

C132

C78

0.47

C93

0.47

C293

C211

/16V

C159

/16V

C54

C55

R282

R156

0.001

C156

4.7K

R279

TC4S66F

IC70

22K

R160

10K

R174

0.22C158

MA2S728

D29

2SJ402

Q11

C2012C

L50

560N

C79

/10V

0.01

C40

C107

CMS15

D50

CMS15

D32

2SD2351

Q51

3.3K

R358

R269

R270

C97

27K

R283

C295

RB876W

D52

C160

0.01

0.1

C351

C350

0.001

TMP-J01X-V6

B2P-VH

J10

CP15S

CP16

B13B-PH-SM4-TB

1415

C352

C353

82P

C354

82P

C355

C2012C

L64

C2012 68N

C2012C-R27G

C2012C

L65

C2012C-R27

C2012C

L66

TC4W53FU

IC26

15K

R138

10K

R137

100K

R141

TA75S01F

IC76

100KR360

100PC356

0.001

C357

TC4S66F

IC67

R363

C359

ST-82

ERA-50SM

IC69

0.1

C360

10K

R369

15K

R370

C2012C

L63

C2012 68N

R120

C362

10K

R361

15KR367

100K

R371

C364

/16V

2.2

C363

2.2

C365

470P

C110

330K

R43

R40

820K

R47

820K

R48

10K

R37

10K

R33

1SV242

D10

1SV242

D11

1SV242

D13

1SV242

D14

820

R372

DAN217

D16

DAN217

D17

0.1C366

R374

R375

R376

0.001

C15

0.47

C100

/25V

0.1

C197

0.1

C367

0.1

C368

C29

0.1

C83

0.1

C369

0.1

C370

NJM2904V

IC 3

NJM2904V

IC 3

R357

0.1

C371

7E05NA

L67

HK-10S080

L23

R390

33K

R393

33K

R394

DTC144EU

Q55

TC4S66F

IC80

100K

R399

470K

R398

470K

R397

RSR025N03

Q59

RSR025N03

Q60

DTC144EU

Q61

0.001

C382

0.01

C289

0.01

C290

0.01

C291

0.01

C292

XP1214

Q48

10K

R402

NJM2902V

IC81

R403

R404

4.7KR405

470K

R406

4.7K

R407

4.7K

R409

470K

R408

470K

R410

27K

R411

R414

100

R415

R416

56K

R417

180

R418

R419

10K

R420

0.1

C385

4.7K

R421

R422

1SS355

D53

0.1

C386

0.015

C388

0.1

C387

0.033

C389

0.1

C390

0.1

C391

0.1

C392

15K

R423

2SC4116

Q50

0R7

2.2K

R102

4.7K

R364

L48 47N

2SD2351

10K

R425

10K

R426

NJM2902V

IC8

27K

R427

100KR428

0.1

C397

0.01

C393

0.01

C396

33K

R429

100KR430

0.1C395

R431

0.01

C394

TA75S01F

IC37

TA75S01F

IC38

0.01

C307

2SC4116

Q58

22N

L11

27PC402

560

R439

0.0018

C177

150

R440

2.2

C150

100K

R97

10K

R329

8.2K

R330

220K

R290

4.7K

R34 4.7K

R35

33K

R359

47K

0.047

C403

HK3-S-T

CP2

HK3-S-T

CP5

HK3-S-T

CP11

CP15S

CP8

3.3K

R76

C72

0.001

C404

1000

C85

DF10SC6

D26

7B12HA-680 M

L18

7B12HA-680M

L19

7B12HA-680M

L21

MA8075

D54

SDA_VOL2

RXD_I

TXD_I

INCOM_I

SDA_VOL1

REM_I

PTT1_I

VDD_ADJ

REG_C2

PON

AM/FM

SCL_VOL1

CLK

DATA

FIL1

FIL2

FIL1

ANL

NOISE

MIC1

RXD_I

TXD_I

PTT1_I

REM_ I

MIC2

AUX_IN

INCOM_I

8T1

SCL_VOL2

ICNTL

AUX_IN

VOX1

VOX2

PTT1_O

RXD_O

REM_O

XD_O

INCOM_O

MIC1

MIC2

RSSI

AM_DEPTH

AM_MOD

TUNE1

AM/FM

SP_CNTL

BEEP

REG_C2

MODV

To PA UNIT

MOD V

2nd_Lo

AGC3

F M_DET_OUT

AM_DET_OUT

TO REAR

(20K)

(9K)

85nH

RX IN

RF_AGC

1st_Lo

85nH 85nH

85nH

5C5C

10C 5C

10C

40C

10C

AGC_oUT

DET

AGC1

MODV

8C 5C

RSSI

AGC2

BPV

TUNE

00V

2.73V

00V

4.4

0.00

06V

.00

AM:0.00V

M:1.23

M:11.16V

: 0.03

.00

.73

.00

09V

8.06V

.10V

06V

08V

.06

5.05V

0.03V

5.08

.10

AM:0.87V

M:0.00V

2.77V

.72

00V

0.00

.00V

09V

.08

.00

2.1

.08

2.1

.3K

7.92

56K

0.91

2.02V

36V

5.04

N :0.07V

FF:

PEN :0.07V

E:4.55V

100

SQL OPEN :4.96V

SQL CLOSE:0.00V

00V

8.08

.09

8.14V 1

075

.67

0.00

4.80

CS ON :0.04V

CS OFF:5.03V

2.4

6.01

4.23

.80V

69V

00V

23.28V

09V

4.80

.91V 4.

4.43

03V

FIL

AM FIL2

VCC : 13.80 V

Freq. : 127.05 MHz

Description :

COMMON

9 - 3

*; Refer to “PARTS LIST.”

BU2099FV

IC48

1VSS

2NC

3DATA

4CLOCK

5LCK

6Q0

7Q1

8Q2

9Q3

10 Q4 11

Q10

Q11

VDD

4.7K

R245

BU4081BF

IC46

7 8

220

R262

0.001

C261

330

R264

2SC4215

Q38

10K

R247

1KR237

0.01

C230

27P

C244

R252

0.001

C253

100

R248

R253

2SC4226

Q41

100P

C220

0.001

C236

100P

C216

10K

R238

R217

33K

R259

0.001

C224

0.01

C228

0.001

C266

0.001

C384

0.001

C233

82K

R254

1.5K

R258

0.001

C265

100

R233

27P

C241

2SC4215

Q35

0.01

C245

R257

0.001

C252

12K

R218

15P

C274

C239

10K

R216

100

R256

DAN235E

D36

DTB113ZK

Q30

DTB113ZK

Q32

47KR277

4.7KR278

0.001C282

0.1

C214

4.7

C254

22FLT-SM2-TB

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

2SC4226

Q33

68K

R230

0.001

C273

0.01

C117

4.7K

R104

0.01

C96

0.001

C108

12P

C105

2.2K

R263

22P

C125

2SD2351

Q42

2SK508

R219

0.001

C109

33P

C222

0.5P

C87

C115

0.01

C167

0.01

C124

KV1770S

D22

4.7K

R103

2SK508

2SC4215

0.001

C268

0.001

C89

18P

C139

0.001

C90

0.001

C227

0.01

C99

470

R227

10K

R101

C269

2SC4215

12P

C130

15P

C92

18P

C91

0.5P

C88

KV1770S

D21

82N

L31

18P

C102

10K

R99

ADF4110BRUZ

IC47

1RSET

2CP

3CPGND

4AGND

5RFINB

6RFINA

7AVDD

8REFIN 9

DGND

CLK

DATA

MUXOUT

DVDD

110N

L36

47KR301

DTC144EU

Q46

0.01

C298

0.01

C299

0.01

C300

0.01

C302

100K

R313

100K

R314

100K

R315

1KR316

1KR318

1KR317

R319

L51

220N

C312

10PC313

R79

0.001C316

0.001C315

0.001C317

R320

TC03C100A

C127

TC03C100A

C136

2SB1302S

Q29

10K

R28

39P

C218

270

R92

330

R88

10P

C94

5PC98

680

R106

39P

C137

220

R109

22K

R222

10KR327

R328

C2012C

L47 120N

CR-860

1VCONT 2

GND

OUT

4VCC

0.47

C215

/25V

R336 L32

C2012C

120N

100K

R232

CP15S

CP7

CP15S

CP6

56N

L57

135N

L34

L35

47N

L56

47N

CP15S

CP14

0.001

C347

10K

R292

4.7KR323

4.7KR324

4.7KR246

TC4028BF

IC49

1Q4

2Q2

3Q0

4Q7

5Q9

6Q5

7Q6

8VSS 9

VDD

R220

R223

39P

C225

56P

C219

C240

TMP-S01X-C1

2979

MP1

DTC144EU

Q53

R377

100KR118

R378

M62364FP

IC78

1VIN1

2VOUT1

3VOUT2

4VIN2

5VDD

6LD

7CLK

8DI

9VIN3

10 VOUT3

11 VOUT4

12 VIN4 13

VIN5

VOUT5

VOUT6

VIN6

VDAREF

RESET

GND

VIN7

VOUT7

VOUT8

VIN8

0R379

0R380

0R381

DTC144EU

Q54

47KR383

10K

R384

10K

R385

4.7

R386

0.1C373

0.1C374

0.01

C376

C375

R387

0R388

33P

C377

L68

22N

0.01

C378

TA75S01F

IC79

R389

C379

0.001

C380

B6B-PH-SM4-TB

0.001C381

0R400

2.7K

R401

0.1

C383

4.7K

R424

CP15S

CP17

CP10S

CP18

R432

0.1

C398

TA75S01F

IC36

33K

R433

100K

R434

33K

R435

15K

R436

0.1

C400

0.1

C399

TA75S01F

IC82

47K

R437

100K

R438

0.01

C401

R382

L45

1.5U

L58

10U

L15

10U

L20

10U

L22

10U

L33

10U

L37

10U

L38

10U

L39

10U

L40

HK3-S-T

CP1

CP15 S

CP12

SEND

CLK

DATA

SCL_VOL1

SDA_VOL1

REG_C2

PTT1_O

INCOM_O

REM_O

RXD_O

TXD_O

BPOUT

PON

DATA

CLK

VOX1

VOX2

RSSI

NOISE

SEND

FIL1

FIL2

VCO2

VCO1

DATA

CLK

SDA_VOL2

SCL_VOL2

ICNTL

8T1

VCO1

VCO2

8T2

8T1

CLK

DATA

8T1

PCON

AM/FM

ANL

TUNE1

VDD_ADJ

BEEP

DATA

CLK

AM_DEPTH

8T2

BPOU T

AM_MOD

SP_CNTL

PCON

10C

TX_OUT

16V

TX_VCO

RX_VCO

1st_Lo

8CL

To FRONT UNIT

To ANTENNA CONNECTOR

(J1; CHASSIS)

To MAIN UNIT

10C

16V

VCO_OUT

TMP-S01X-C1

J501

56N

L502

0.001

C504

15P

C566

100P

C507

330R501

27P

C547

0.001

C502

L507

C3328A

LA-253

L522

1.5P

C556

150

R546

100

R505

0.01

C545

8.2KR542

0.001

C541

R500

0.001

C548

0.001

C503

1.5K

R555

12P

C557

15K

R516

100K

R520

AS100340

L514

10N

56K

R513

R548

0.0047

C539

AS100340

L513

10N

C3328A

L506

12N

4.7K

R522

TA75S01F

IC501

22PC572

0.001

C505

NJM2904V

IC500

18PC582

1.5K

R554

560

R534

0.01

C534

B2P-VH

J500

0.1

C588

3.3K

R527

0.1

C509

10 0

R526

C600

6.8K

R525

68P

C524

270K

R541

820K

R539

MA4PH224

D504

15K

R537

LA-258

L524

100P

C500

10K

R512

18K

R536

R553

0.001

C562

TMP-S01X-C1

J504

TMP-S01X-C1

J503

100P

C536

470P

C517

0.001

C558

0.001

C555

10 MSVB2

C523

LA-258

L517

LA-244

L516

0.001

C561

1.8K

R508

10K

R509

R545

M RF137

Q50 4

R518

0.001

C512

L508

C3328A

100P

C521

D TC144EU

Q502

12P

C554

220

R504

0.001

C511

0.001

C592

0.001

C538

0.01

C559

LA-263

L523

2SK3075

Q501

LR-89

L511

0.001

C569

C587

0.001

C531

R521

1 MSVA

C583

D TC144EU

Q503

56P

C520

22P

C560

33PC578

470P

C540

1.5

C535

/16V

5.6K

R543

330R503

2.2K

R529

0.001

C518

22P

C551

36PC575

4.7

R506

33P

C570

0.001

C510

RB706F

D501

0.01

C527

0.001

C537

22P

C522

27P

C529

0.001

C506

18PC565

22P

C549

LA-263

L521

0.001

C552

MA4PH224D503

0.1

C591

B6B-PH-SM4-TB

J502

56N

L503

N TCG16

R535

100K

1.8K

R507

0.01

C501

68P

C544

39K

R515

31.0N

L504

0.001C567

MA4PH224

D502

82K

R511

LR-89

L509

1SS355

D507

39K

R538

10K

R557

2SK3074

Q500

0.001

C543

0.001

C528

100

R514

39P

C585

15P

C513

120P

C542

100P

C568

1.5P

C553

AS100340

L512

10N

33P

C515

0.001

C550

LA-244

L518

0.001

C563

22K

R517

RB706F

D500

R502

0.001

C516

LA-244

L519

0.001

C525

C577

33K

R524

27.2N

L505

100

R528

8T2

PCON

10C

8T1

TXOUT

MOD

GND

8T1

PCON

GND

PROTECT

8T2

8T1

10C

MAIN UNIT

PA UNIT

K-CONNECT UNIT

MB-113

From MAIN UNIT

To PA UNIT

DATA JACK

0.01

3.3K

B13B-PH-SM4-TB

1415

0.01

HK3(HOLE)

CP2

100

R13 100

R12

0451008.MRL

1 2

0.001

0.001C8

0.001C9

0.001C10

0.001C11

0.001C12

0.001C13

0.001C14

0.001C15

0.001C16

0.001C17

0.001C18

0.001C19

0.001

C20

0.001

C21

DSM3MA4

TMP-S01X-C1

LA-252

0R14

0R15

0R16

0R17

0R18

0.1

C25

0.001

C24

B2P-VH

C23

C22

SA05C

R11

ERZV14D470

R19

MA2S111

47K

15K

100K

R10

HSJ1650-010020

XMIT INT LOCK

REM SWAP

MEM

MONI

SGND

AGND

MGND

RXD

MIC1

INCOM

PTT

MIC2

A UX IN

TXD

REM

ANT

GND

DC IN

Card edge connector

D-sub 15-pin

B13B-PH-SM4-TB

1415

0.01

SA05C

0451008.MRL

0.001

C10

0.001

C11

0.001

C12

0.001

C13

DSM3MA4

HK3(HOLE)

CP1

CP2

0.001

C16

0.1

C17

TMP-S01X-C 1

LA-252

0R4

0R5

0R6

0R7

0R8

0R9

C14

C15

S2P-VH

0.001

C18

1KR11

ERZV14D470

R10

DALC-J15PAF-11L9-E

1KR3

R2 1K

100P

SHIELD

POWER+

TXD

TXKEY

SPEAKER

MIC GROUND

MIC 1

POWER GROUND

RXD

GROUND

INTERCOM SELECT

AUDIO GROUND

HEADPHONE

MIC 2MIC1

AGND

AUX IN

REM

MIC2

TXD

RXD

PTT

MGND

INCOM

SGND

DC IN

GND

ANT GND

ANT

AUX IN

To ANTENNA CONNECTOR

(J1; CHASSIS)

From PA UNIT

(J503)

From PA UNIT

(J503)

8

8

8

8

8

8

8

8

8

8

8

8

8

8

8

90V

.91

0.07

5.03

0.74

66V

69V

.15

0.00

00V

7.47V

00V

0.75V

0.00

7.24V

0.00

.02

VOL1

0.00

8.02

.07

0.00

AM FIL1

FIL2

VCC : 13.80 V

Freq. : 127.05 MHz

Description :

COMMON

6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.

Phone : +886 (02) 2559 1899 Fax : +886 (02) 2559 1874

URL : http://www.asia-icom.com

E-mail : sales@asia-icom.com

Zac de la Plaine

1 Rue Brindejonc des Moulinais BP 5804

31505 Toulouse Cedex, France

Phone : +33 (5) 61 36 03 03 Fax : +33 (5) 61 36 03 00

URL : http://www.icom-france.com

E-mail : icom@icom-france.com

Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.

Phone : +44 (01227) 741741 Fax : +44 (01227) 741742

URL : http://www.icomuk.co.uk

E-mail : info@icomuk.co.uk

Ctra. Rubi, 88, 08190, Sant Cugat del Valles, Barcelona, SPAIN

Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46

URL : http://www.icomspain.com

E-mail : icom@icomspain.com

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.

Phone : +1 (425) 454-8155 Fax : +1 (425) 454-1509

URL : http://www.icomamerica.com

E-mail : sales@icomamerica.com

Phone : +1 (425) 454-7619

Glenwood Centre #150-6165

Highway 17 Delta, B.C., V4K 5B8, Canada

Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090

URL : http://www.icomcanada.com

E-mail : info@icomcanada.com

Unit 1 / 103 Garden Road, Clayton VIC 3168 Australia

Phone : +61 (03) 9549-7500 Fax : +61 (03) 9549-7505

URL : http://www.icom.net.au

E-mail : sales@icom.net.au

146A Harris Road, East Tamaki,

Auckland, New Zealand

Phone : +64 (09) 274 4062 Fax : +64 (09) 274 4708

URL : http://www.icom.co.nz

E-mail : inquiries@icom.co.nz

10C07, Long silver Mansion, No.88, Yong Ding

Road, Haidian District, Beijing, 100039, China

Phone : +86 (010) 5889 5391/5392/5393

Fax : +86 (010) 5889 5395

URL : http://www.bjicom.com

E-mail : bjicom@bjicom.com

Sopot, 3 Maja 54 Poland

Phone : +48 (58) 550 7135 Fax : +48 (58) 551 0484

E-mail : icompolska@icompolska.com.pl

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan

Phone : +81 (06) 6793 5302

Fax : +81 (06) 6793 0013

URL : http://www.icom.co.jp/world/index.html

Communication Equipment

Himmelgeister Str. 100, D-40225 Dusseldorf, Germany

Phone : +49 (0211) 346047 Fax : +49 (0211) 333639

URL : http://www.icomeurope.com

E-mail : info@icomeurope.com

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan S-14401XZ-C1

IC A210 SERVICE MANUAL ICA210

Navigation menu

Versions of this User Manual:

Views

Navigation
