S-14919XZ-C1

April 2013

VHF MARINE TRANSCEIVER

This service manual describes the latest technical information

for the IC-M73, IC-M73EURO VHF MARINE TRANSCEiVER,

at the time of publication.

NEVER connect the transceiver to an AC outlet or to a DC

power supply that uses more than the speciﬁ ed voltage. This

will ruin the transceiver.

DO NOT reverse the polarities of the power supply when con-

necting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100 mW) to

the antenna connector. This could damage the transceiver’s

front-end.

To upgrade quality, any electrical or mechanical parts

and internal circuits are subject to change without notice

or obligation.

MODEL VERSION AC ADAPTER FLEXIBLE

ANTENNA

IC-M73

USA BC-123SA

FA-S64V

EXP BC-123SE

USA-10 BC-123SA

EXP-10

BC-123SE

IC-M73EURO

EUR-01 FA-S59V

EUR

FA-S64V

UK –

FRG BC-123SE

HOL

AUS BC-123SV

EUR-11 BC-123SE FA-S59V

EUR-10

FA-S64V

UK-10 –

FRG-10 BC-123SE

HOL-10

AUS-10 BC-123SV

Be sure to include the following four points when ordering

replacement parts:

1. 10-digit Icom part number

2. Component name

3. Equipment model name and unit name

4. Quantity required

1110003491 S.IC TA31136FNG IC-M73 MAIN UNIT 5 pieces

8820001210 Screw 2438 screw IC-M73 Top cover 10 pieces

Addresses are provided on the inside back cover for your

convenience.

ORDERING PARTS

1. Make sure that the problem is internal before dis-assem-

bling the transceiver.

2. DO NOT open the transceiver until the transceiver is dis-

connected from its power source.

3. DO NOT force any of the variable components. Turn them

slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated

tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the trans-

ceiver is defective.

6. DO NOT transmit power into a Standard Signal Generator

or a Sweep Generator.

7. ALWAYS connect a 30 dB to 40 dB attenuator between the

transceiver and a Deviation Meter or Spectrum Analyzer,

when using such test equipment.

8. READ the instructions of the test equipment thoroughly

before connecting it to the transceiver.

REPAIR NOTES

INTRODUCTION CAUTION

(IC-M73EURO)

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the

United Kingdom, Germany, France, Spain, Russia and/or other countries.

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTION

SECTION 4 CIRCUIT DESCRIPITON

4-1 RECEIVER CIRCUITS ...................................................................................... 4-1

4-2 TRANSMITTER CIRCUITS ............................................................................... 4-2

4-3 FREQUENCY SYNTHESIZER CIRCUITS ....................................................... 4-3

4-4 POWER SUPPLY CIRCUITS ............................................................................ 4-4

4-5 PORT ALLOCATIONS ...................................................................................... 4-4

SECTION 5 ADJUSTMENT PROCEDURES

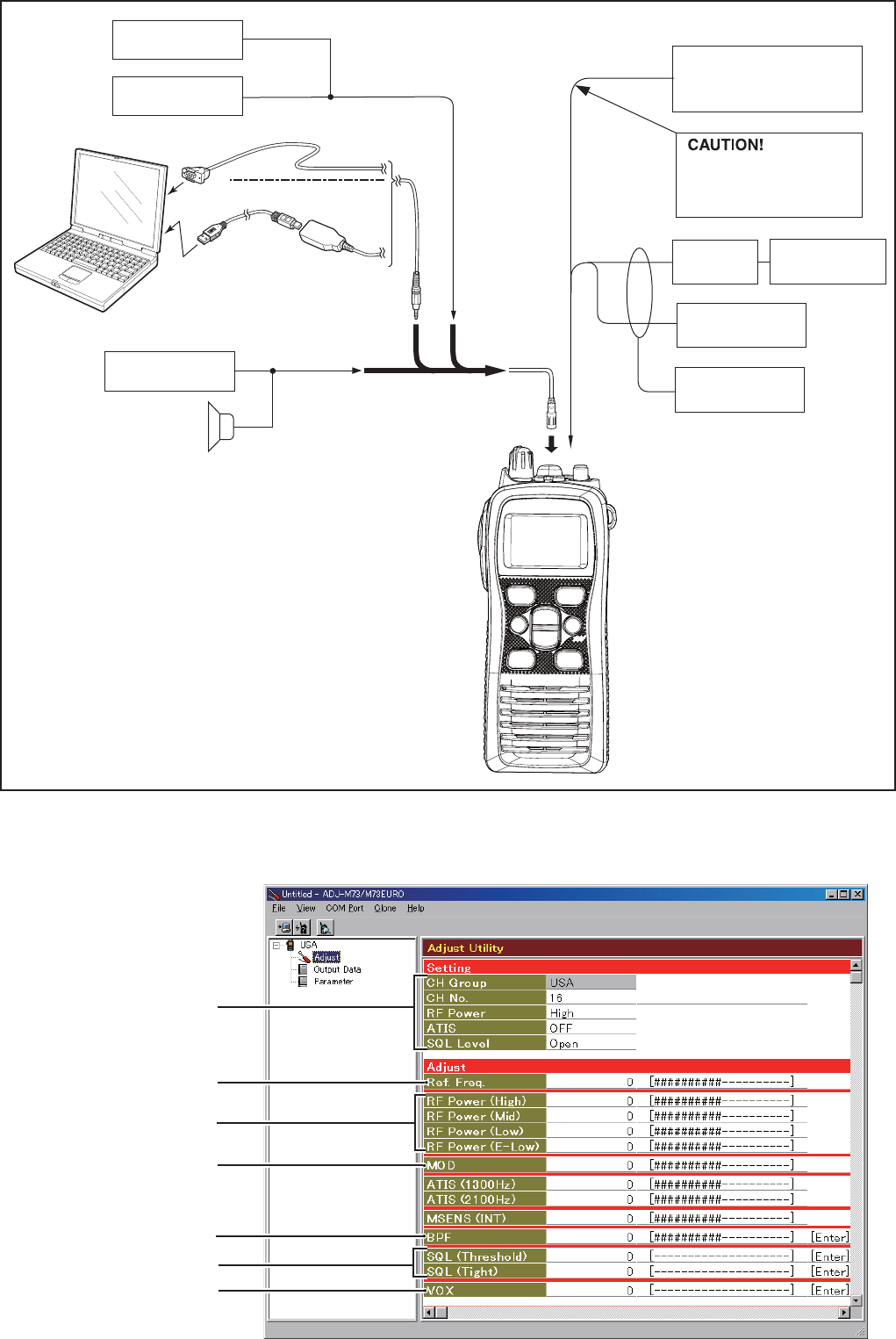

5-1 PREPARATION ................................................................................................. 5-1

5-2 FREQUENCY ADJUSTMENT .......................................................................... 5-3

5-3 RECEIVE AND TRANSMIT ADJUSTMENT ..................................................... 5-4

SECTION 6 PARTS LIST

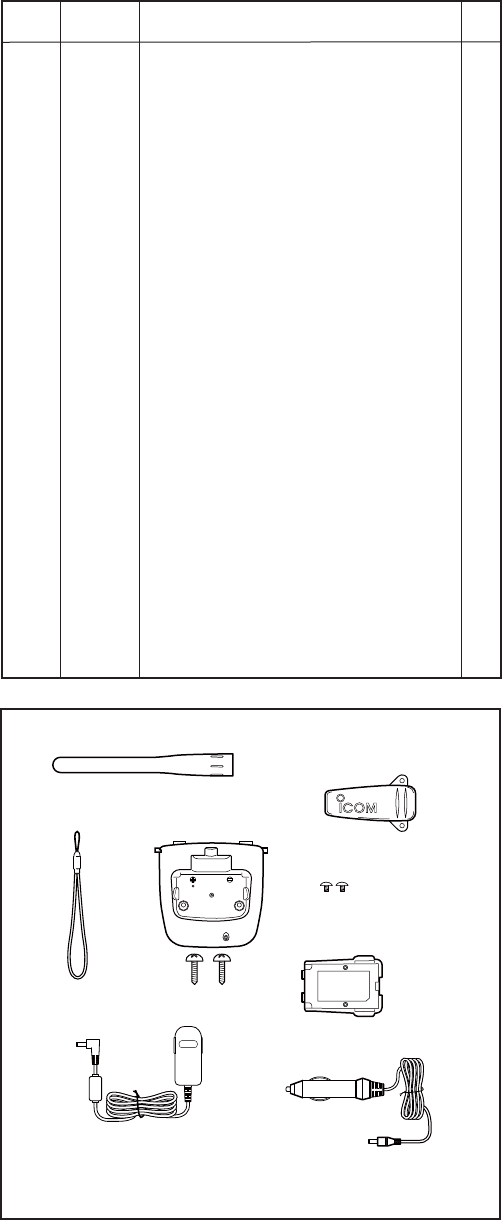

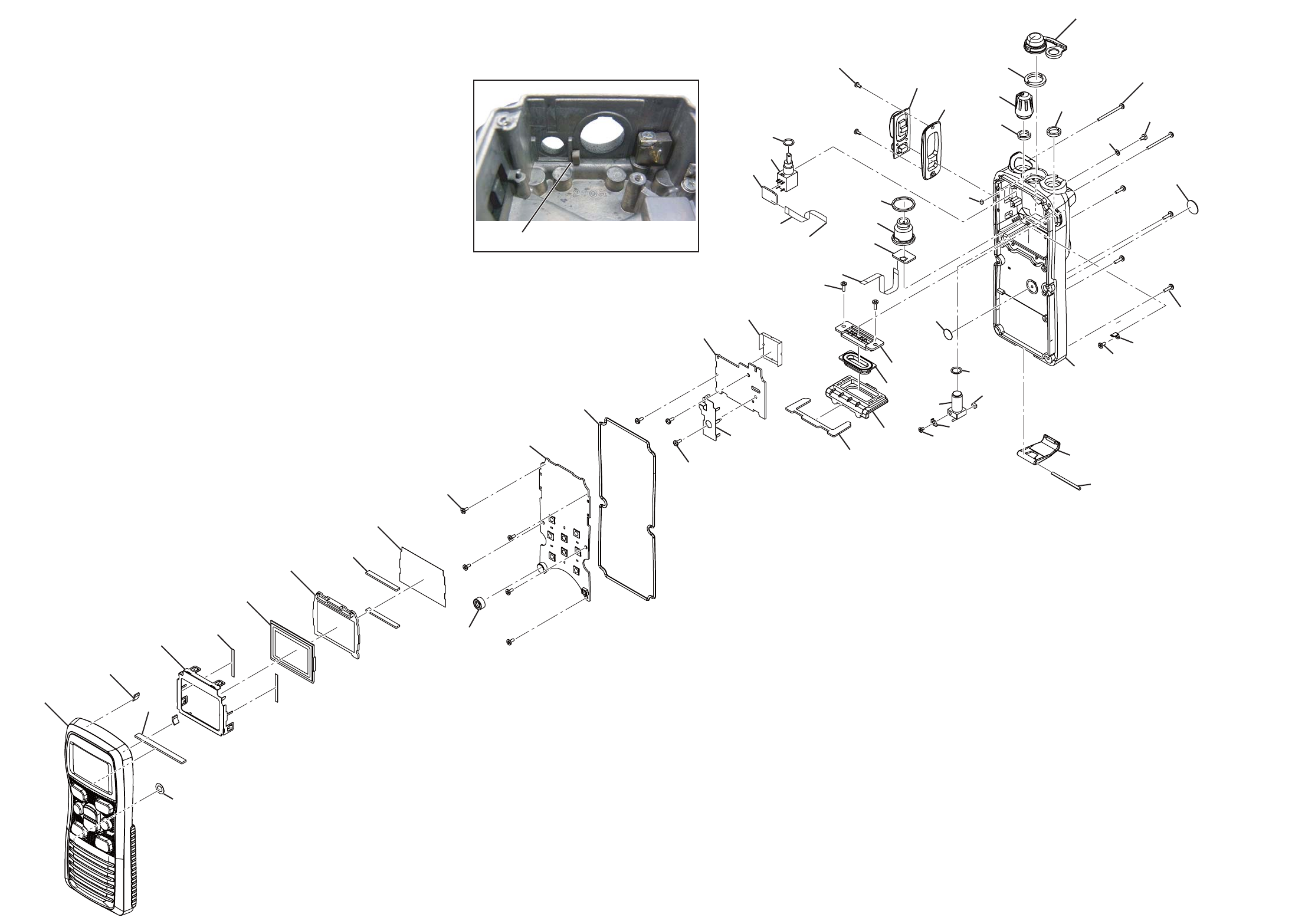

SECTION 7 MECHANICAL PARTS

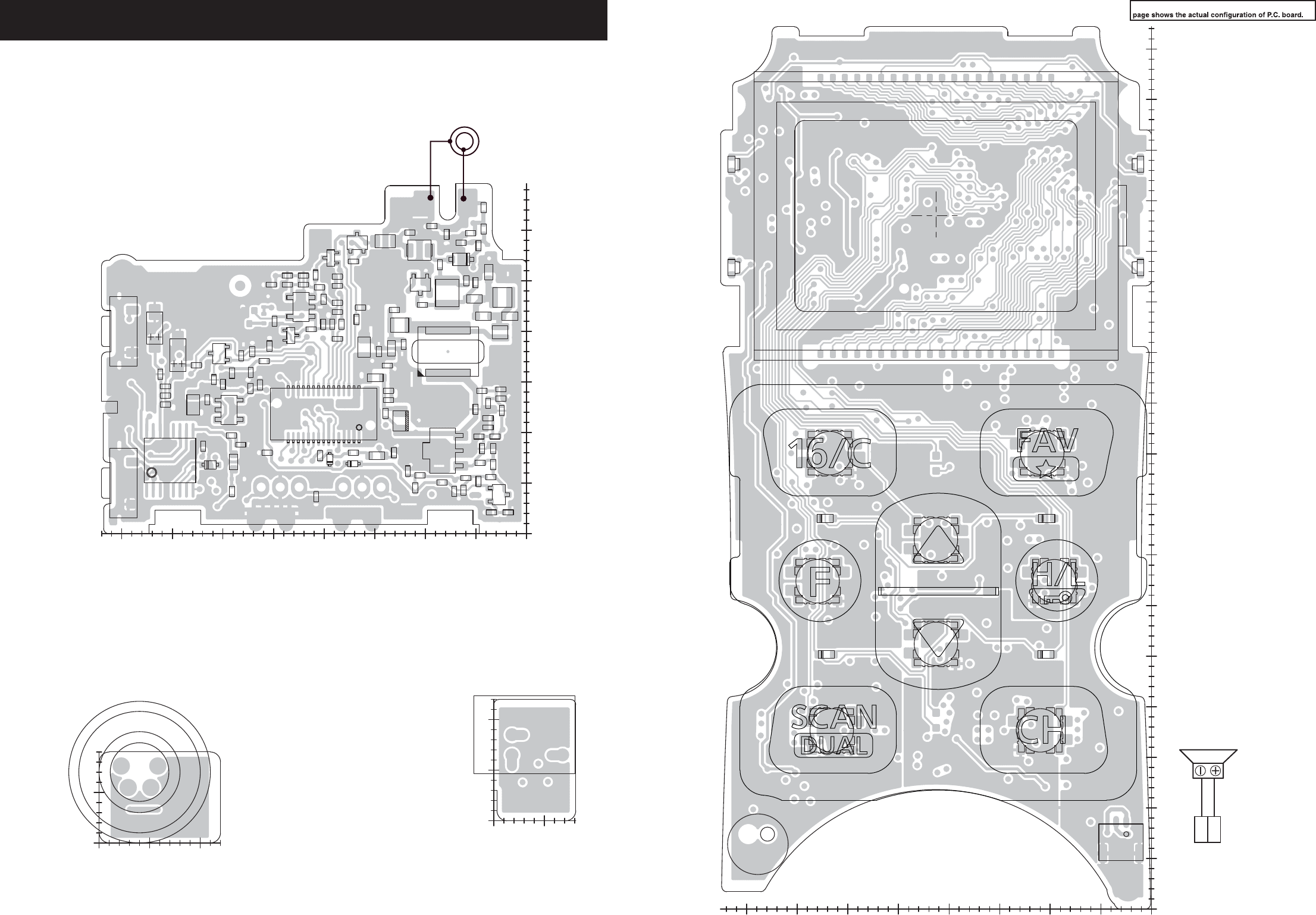

SECTION 8 BOARD LAYOUTS

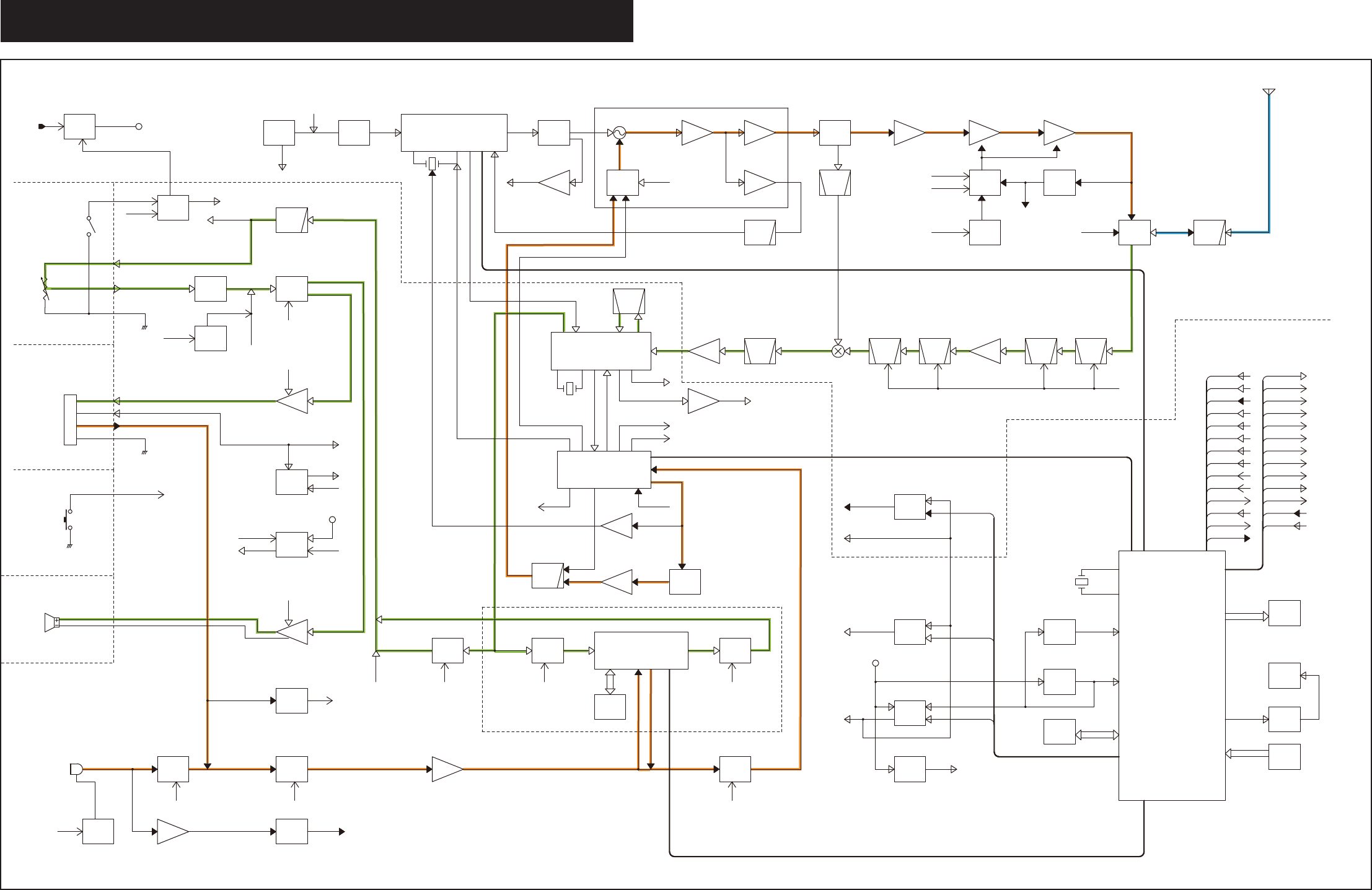

SECTION 9 BLOCK DIAGRAM

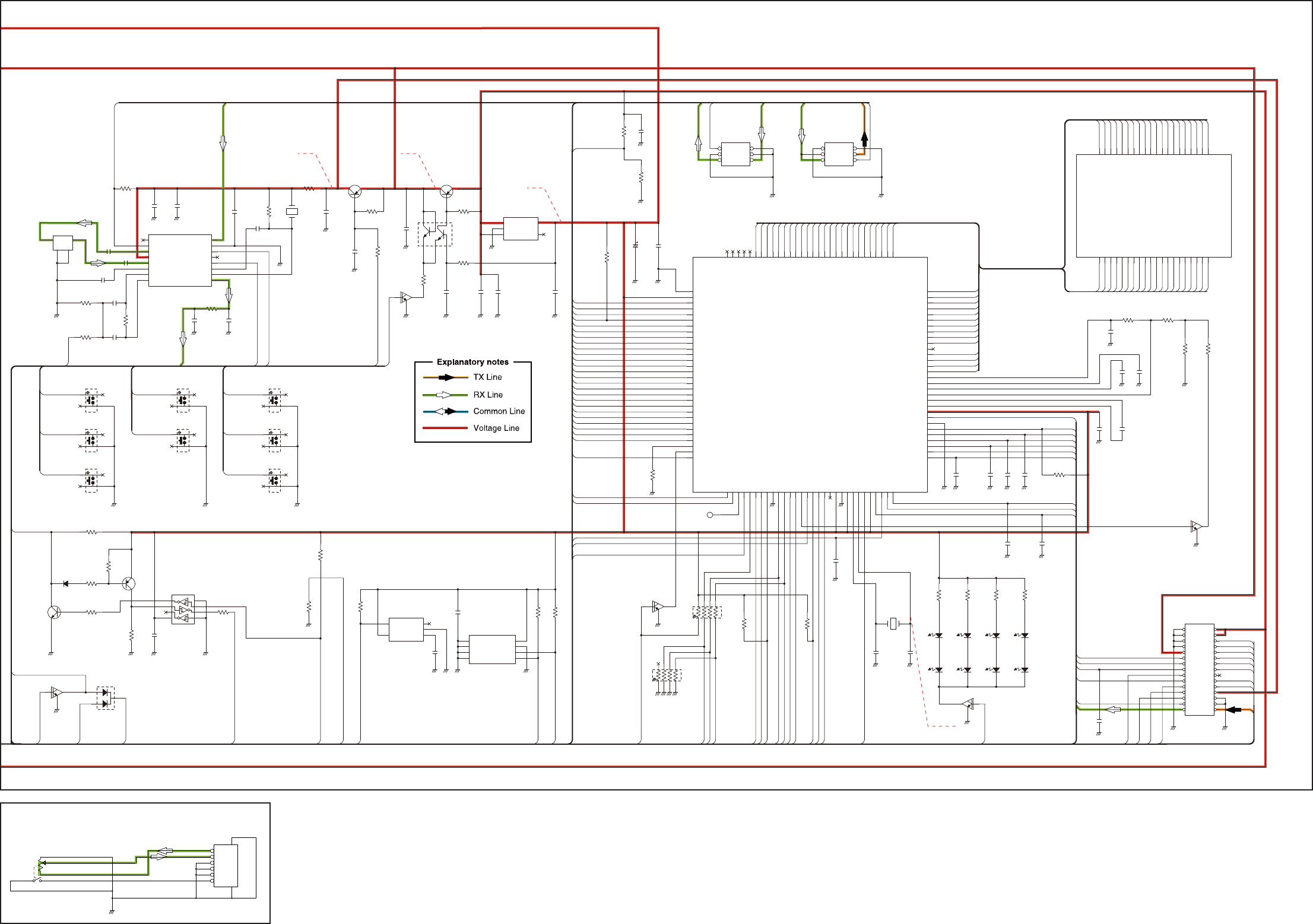

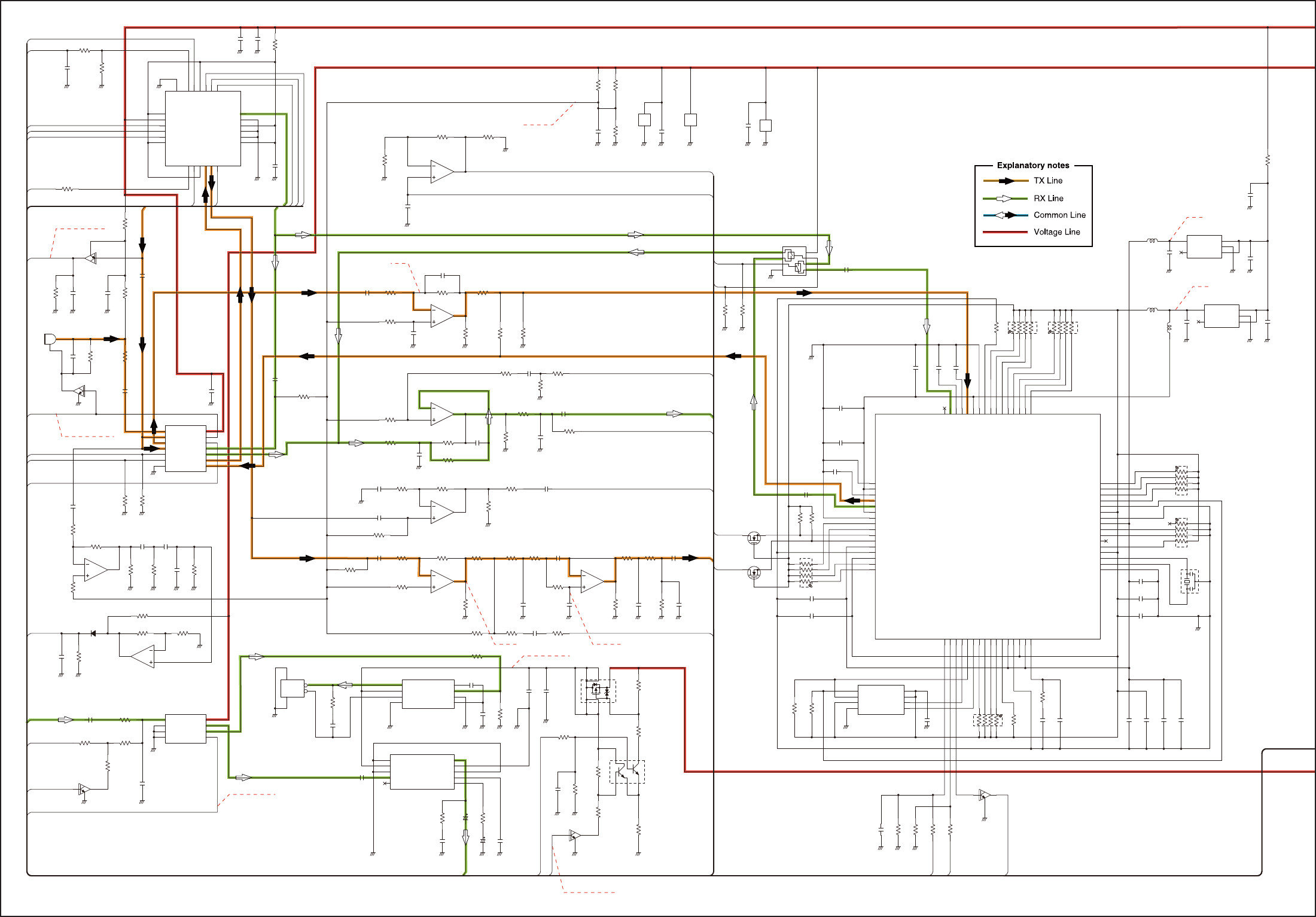

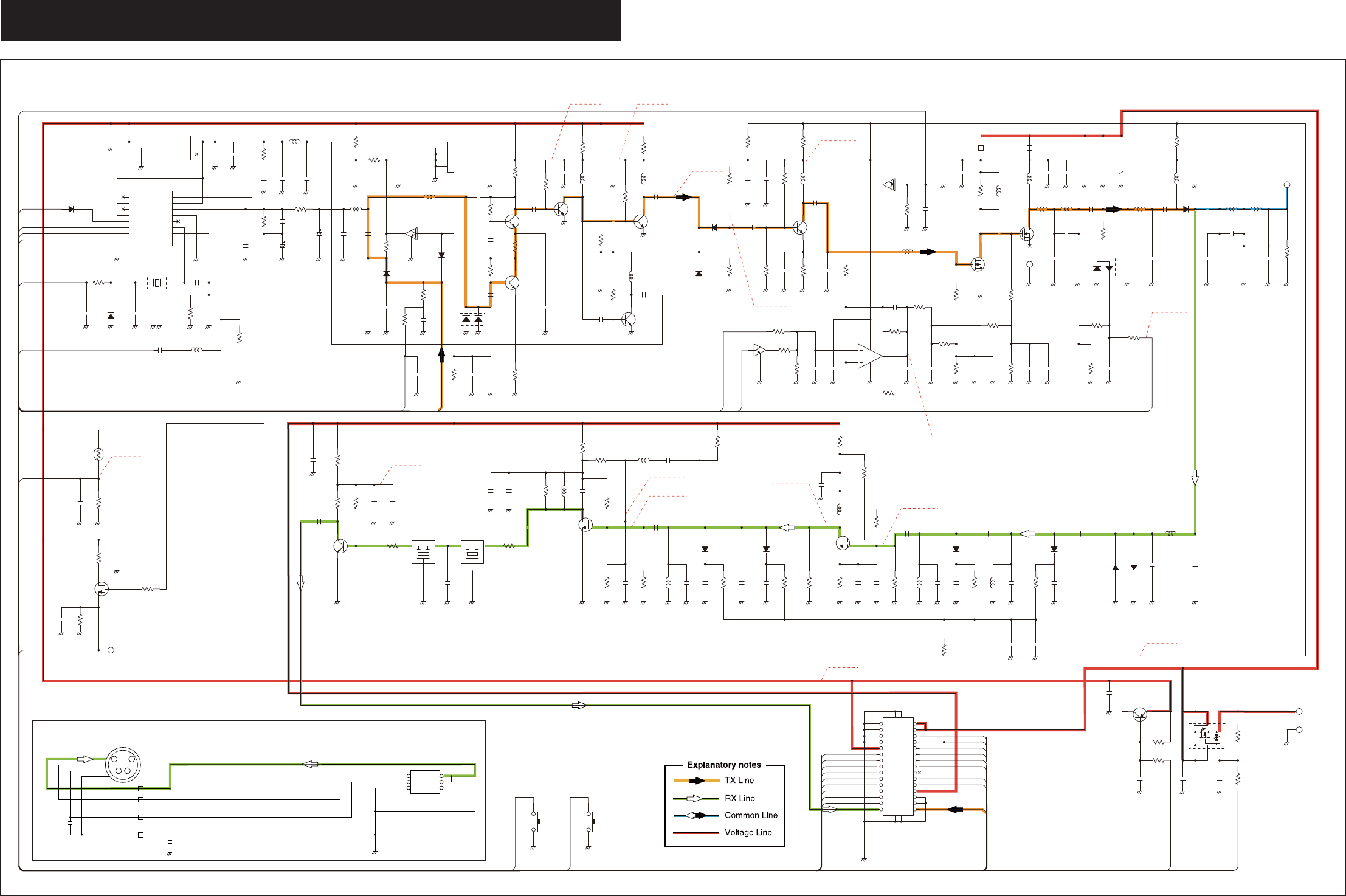

SECTION 10 VOLTAGE DIAGRAM

1 - 1

SECTION 1

SPECIFICATIONS

GENERAL

IC-M73 IC-M73EURO IC-M73EURO

(AUS version)

• Frequency coverage TX 156.025–157.425 MHz 156.000–161.450 MHz 156.025–157.425 MHz

RX 156.050–163.275 MHz 156.000–163.425 MHz 156.300–162.025 MHz

• Type of emission 16K0G3E

• Antenna impedance 50 Ω (nominal)

• Operating temperature range –20°C to +60°C

(–4°F to +140°F) –15°C to +55°C –10°C to +55°C

• Power supply requirement 7.4 V DC nominal (negative ground)

• Current drain

(approximately) RX 0.25 A (at maximum audio, using external 8 Ω speaker)

0.45 A (at maximum audio, using internal speaker)

6.0 W 1.5 A –

5.0 W – 1.4 A

3.0 W 1.2 A

1.0 W 0.7 A

0.5 W – 0.6 A –

• Dimensions (projections not included) 52.5(W) × 125(H) × 30(D) mm; 2.0(W) × 4.9(H) × 1.2(D) inches

• Weight (approximately) 280 g; 9.9 oz (Including only BP-245N)

320 g; 11.3 oz (Including BP-245N, FA-S64V and MB-103)

TRANSMITTER

• Output power High 6 W 6 W (1 W for [FRG]) 5 W

Middle 3 W

Low 1 W 1 W (0.5 W for [FRG]) 1 W

• Modulation Variable reactance frequency modulation

• Maximum frequency deviation ±5 kHz

• Frequency error ±10 ppm ±1.5 kHz ±10 ppm

• Spurious emissions –68 dBc (typical) 0.25 µW

• Adjacent channel power 70 dB

• Audio harmonic distortion 10% (at 60% deviation)

• FM hum and noise 40 dB

• Audio frequency response +1 dB to –3 dB of 6 dB octave from 300 Hz to 3000 Hz

• Microphone impedance 2 kΩ

RECEIVER

• Intermediate frequency 1st 21.7 MHz 2nd 450 kHz

• Sensitivity –13 dBµ (0.22 µV)

(at 12 dB SINAD) typical

–4 dBµ emf (at 20 dB SINAD)

typical

–5 dBµ emf (at 20 dB

SINAD) typical

• Squelch sensitivity (at threshold) –9 dBµ (0.35 µV) typical –5 dBµ emf typical –6 dBµ emf typical

• Adjacent channel selectivity 70 dB typical 70 dB 65 dB

• Spurious response 70 dB typical 70 dB 65 dB

• Intermodulation rejection ratio 70 dB typical 68 dB 65 dB

• Hum and Noise 40 dB

• Audio frequency response +1 dB to –3 dB of –6 dB octave from 300 Hz to 3000 Hz

• Audio output power

(at 10% distortion with an 8 Ω load)

0.35 W typical (External) 0.2 W (External)

0.7 W typical (Internal) 0.7 W typical (Internal) at 1 kHz

• Output impedance (audio) 8 Ω

All stated specifications are subject to change without notice or obligation.

2 - 1

SECTION 2

INSIDE VIEWS

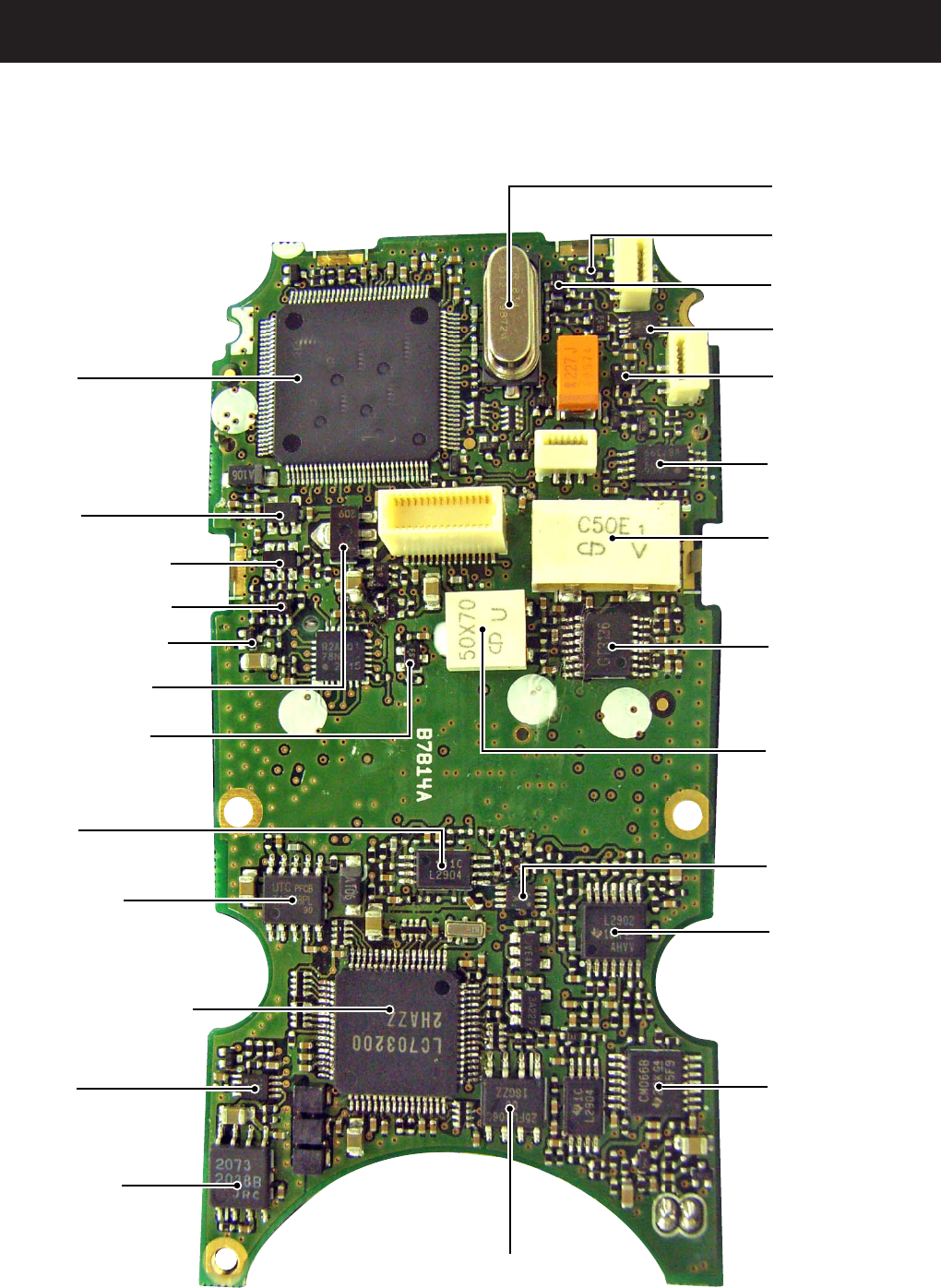

• MAIN UNIT

IF IC

(IC170)

2ND IF FILTER

(FI170)

EEPROM

(IC340)

RESET IC

(IC341)

BUFFER

(IC364)

BUFFER

(Q350)

AF MUTE

(IC430)

MIC AMP

(IC200)

FLASH ROM

(IC501)

AFV LINE CONTROL

(Q231)

AFV LINE CONTROL

(Q401)

AF PWR AMP

(IC280)

AF SW

(IC260)

AF PWR AMP

(IC401)

NOISE CANCELLER

PLAYBACK/RECORD IC

(IC500)

AFV LINE CONTROL

(Q230)

CPU 5V

(IC220)

CPU

(IC360)

BACKLIT LED DRIVER

(Q240)

CPU CLOCK

(X480)

AF MUTE

(IC504)

DISCRIMINATOR

(X170)

LPF

(IC432)

+5 V REGULATOR

(Q221)

+5 V REGULATOR

(Q225)

2 - 2

VCO

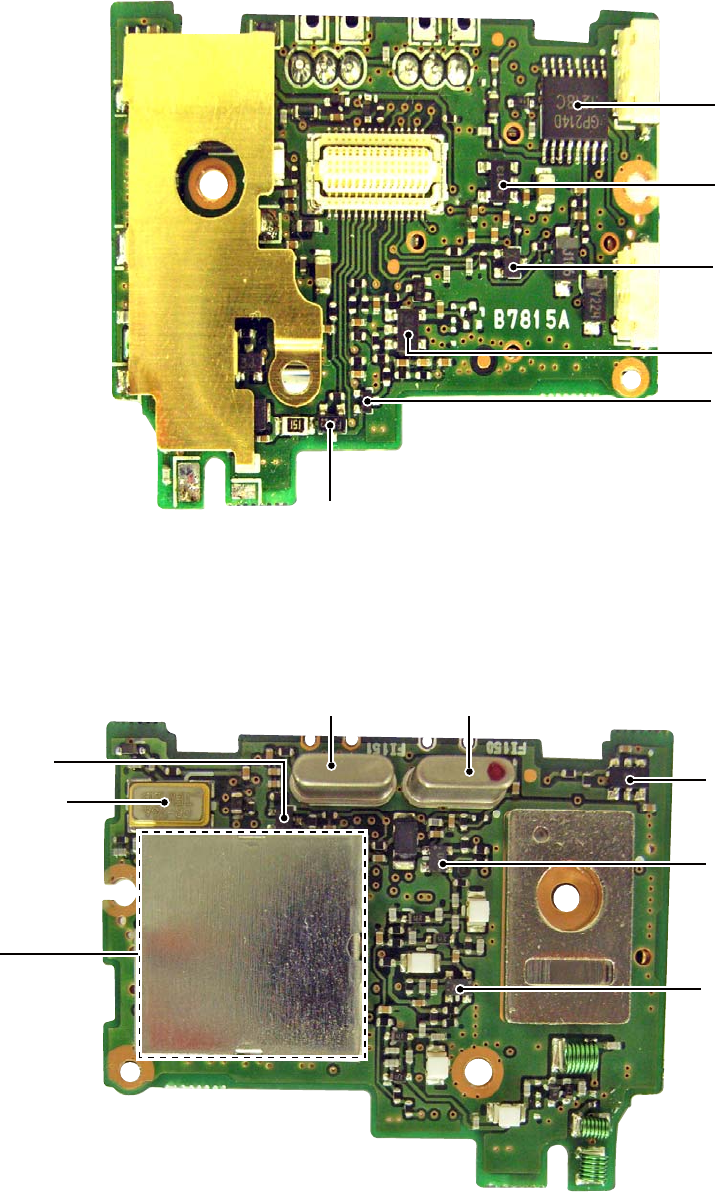

• RF UNIT

(TOP VIEW)

• RF UNIT

(BOTTOM VIEW)

TX MUTE SW

(Q351)

RF AMP

(Q90)

VCC LINE

CONTROLLER

(Q480)

1st MIXER

(Q150)

PLL IC

(IC1)

+3.3 V REGULATOR

(IC2)

BUFFER

(Q3)

+5 V REGULATOR

(Q222)

REFERENCE

FREQUENCY

OSCILLATOR

(X1)

APC AMP

(IC50)

1ST IF AMP

(Q151)

BPF

(FI150)

BPF

(FI151)

3 - 1

SECTION 3

DISASSEMBLY INSTRUCTION

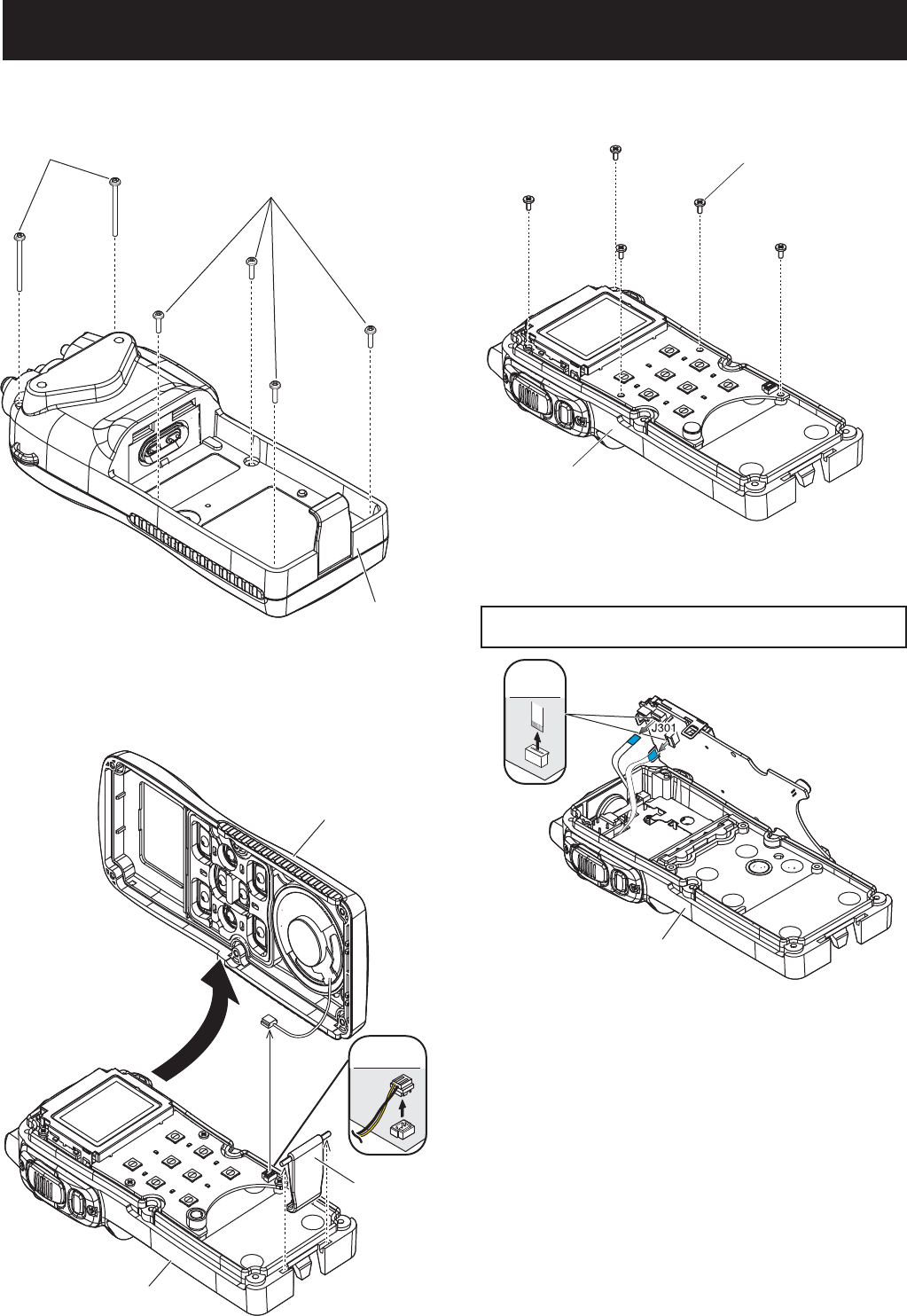

1. Removing the Front panel

1) Remove 6 screws from the rear panel.

2) Disconnect the speaker cable from the MAIN UNIT

and remove the front pannel form rear. (The lock

plate is simultaneously come off.)

J251

MAIN UNIT

REAR PANEL

Screw×4

Screw×2

J251

MAIN UNIT

CHASSIS

Screw×5

J251

MAIN UNIT

SPEAKER

CABLE

LOCK PLATE

FRONT PANEL

CHASSIS

J251

MAIN UNIT

UNIT

J300

FLAT

CABLE

CHASSIS

2. Removing the MAIN UNIT

1) Remove 5 screws from the MAIN UNIT.

2) Disconnect 2 ﬂ at cables from the MAIN UNIT.

3) Remove the MAIN UNIT from the CHASSIS.

BE CAREFUL about the ﬂ at cable and connector when

separating the MAIN UNIT from the CHASSIS.

4 - 1

J251

MAIN UNIT

RF UNIT

UNSOLDER

Solder

remover

CHASSIS

J251

MAIN UNIT

CHASSIS

Screw×3

RF UNIT

3. Removing the RF UNIT

1) Unsolder total of 7 points.

2) Remove 3 screws from the RF UNIT.

3) Remove the RF UNIT from the CHASSIS.

4 - 1

SECTION 4

CIRCUIT DESCRIPTION

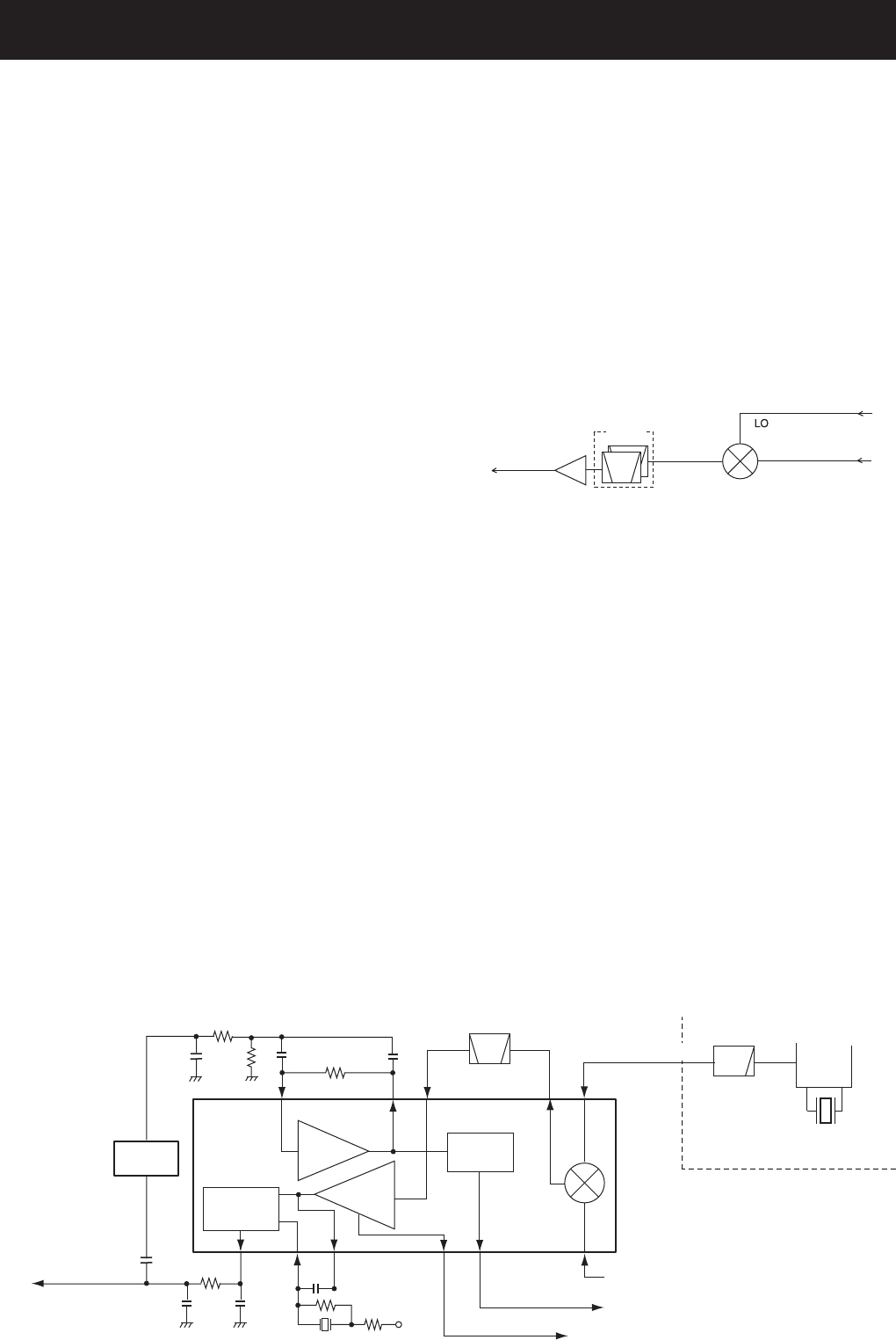

1st IF signal

to the FM IF IC

(MAIN UNIT; IC170, pin 16)

(Q151) 21.7 MHz

1st IF signal

Received signals

from the RF circuits

1st IF amp

1st mixer

(Q150)

signals from the VCO

• 1st IF CIRCUITS

FI150, FI151

LPF

BPF

2 BPF’s

Mixer

Quadrature

detector

1st IF signal from the IF amplifier (RF UNIT: Q151)

Noise

detector

R5V

X170

11 10

IF IC

(IC170)

Filter

amp.

Limiter

amp.

Demodulated signal

to the AF circuits

• 2ND IF AND DEMODULATOR CIRCUITS

(IC190)

“NOISV” signal to the CPU (IC360, pin 32)

“RSSIV” signal to the CPU (IC360, pin 33)

14 12

21.25 MHz

8 7 3 5

FI170 LPF

BPF PLL IC

(IC1)

RF UNIT

SQLO

SQLI

2NDLO

D/A

converter

4-1 RECEIVE CIRCUIT

• ANTENNA SWITCH (RF UNIT)

The received signal from the antenna connector are passed

through the low-pass filter (LPF; L81, L82, C83−C86 and

C89) and the antenna switch (D90), which toggles the re-

ceive (RX) line and transmit (TX) line.

While transmitting, the voltage on the T5V line is applied to

D52 and D90, and these are ON. Thus the TX line is con-

nected to the antenna, and RX line is connected to the

ground to prevent transmit signal entering.

While receiving, no voltage is applied to D52 and D90, and

these are OFF. Thus the TX line is disconnected from the

antenna to prevent received signal entering, and RX line is

disconnected from the ground and L90, C90 and C91 com-

pose a two-staged LPF, which guides received signal to the

RX circuits.

The received signal is applied to the RF circuits.

• RF CIRCUITS (RF UNIT)

The RF circuit ampliﬁ es received signal within the frequency

coverage. The received signal is ﬁ ltered at the bandpass ﬁ l-

ter (BPF) and ampliﬁ ed at the RF ampliﬁ er.

The received signal from the antenna switch is passed

through the two-staged tunable BPFs (D92, L92, C95, C97

and D93, L93, C99, C100) to ﬁ lter out unwanted signal. The

ﬁ ltered signal is applied to the RF ampliﬁ er (Q90). The am-

pliﬁ ed signal is then applied to the 1st mixer (Q150), through

another two-staged tunable BPF (D130, L96, C110, C112

and D131, L97, C114, C115).

• 1st IF CIRCUITS (RF UNIT)

The received signal is converted into the 1st IF signal, and

ampliﬁ ed at the 1st IF circuits.

The amplified received signal from the RF circuits are ap-

plied to the 1st mixer (Q150), and mixed with the 1st local

oscillator (LO) signal from the VCO (Q21, Q22, D20−D22),

resulting in the 21.7 MHz 1st IF signal.

The converted 1st IF signal is passed through two 1st IF

filters (FI150 and FI151) to filter out unwanted signal, and

then applied to the 1st IF ampliﬁ er (Q151). The ampliﬁ ed 1st

IF signal is applied to the IF IC (MAIN UNIT: IC170, pin 16).

• 2nd IF AND DEMODULATOR CIRCUITS

(MAIN UNIT)

The 1st IF signal is converted into the 2nd IF signal, and de-

modulated.

The 1st IF signal from the 1st IF circuits is applied to the 2nd

IF mixer in the IF IC (IC170) and mixed with the 21.25 MHz

2nd LO signal from the reference oscillator (RF UNIT: IC1,

X1), resulting in the 450 kHz 2nd IF signal.

The converted 2nd IF signal is output from pin 3, and passed

through the 2nd IF ﬁ lter (FI170) to suppress sideband noise.

The ﬁ ltered signal is ampliﬁ ed by the limiter ampliﬁ er (IC170,

pin 5) and FM-demodulated by the quadrature detector with

the discriminator (X170), and then output from pin 9. The de-

modulated AF signal is applied to the AF circuits.

4 - 2

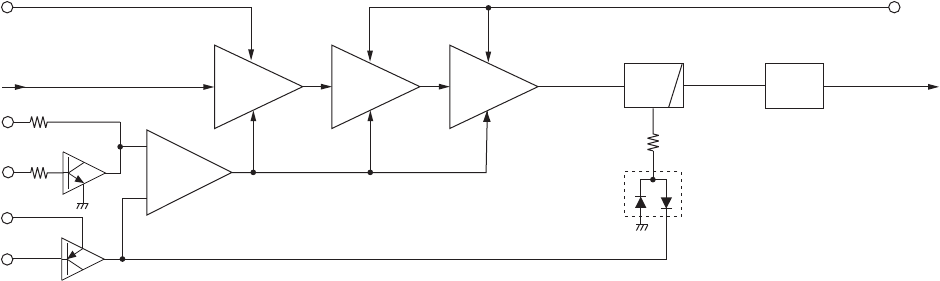

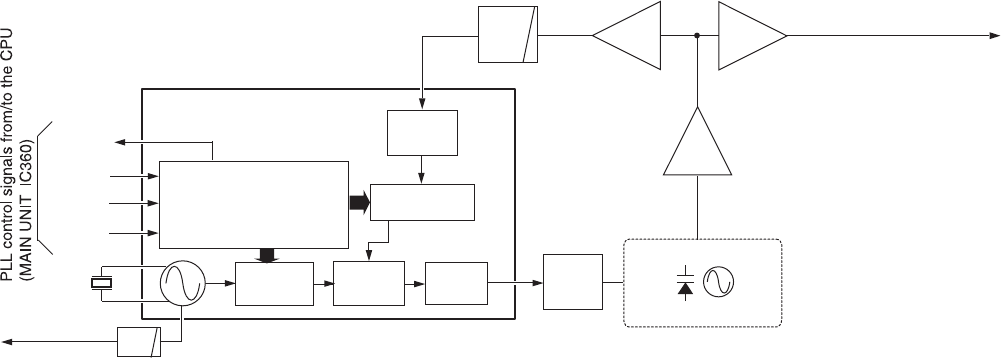

Power

amp.

APC

amp.

Buffer

amp.

–

VCC

• APC CIRCUIT

To the anntena

T5V

PCON

LOW

TXMS

from the TX/RX switch (D50)

Q53

Pre-drive

amp.

Q50

IC50

Q351

Q54

LPF

ANT

Q100

D91

D52

T5V

• AF CIRCUITS (MAIN UNIT)

The demodulated AF signal from the demodulator circuits is

ampliﬁ ed and ﬁ ltered in AF ampliﬁ er circuits.

The demodulated AF signal from the IF IC (IC170, pin 9) is

passed through the AF mute switch (IC430, pins 10, 11),

LPF (IC432) and variable register (VR UNIT: R801) which

adjusts the AF signal in level.

The level-adjusted AF signal is passed through the de-em-

phasis circuit (R286, C280 and C285) to obtain −6 dB of au-

dio characteristic, and passed through the AF switch (IC260,

pins 1, 6), and then applied to the AF power ampliﬁ er (IC401,

pin 7) to obtain 0.6 W of output power. The power-ampliﬁ ed

AF signal is then output from pin 1, and applied to the inter-

nal speaker, through J251.

When an external speaker-microphone or headset is at-

tached to the [SP MIC] connector (MIC UNIT: J416), the

de-emphasized AF signal is passed through the AF switch

(IC260, pins 1, 7) and applied to the AF power amplifier

(IC280, pin 4) to obtain 0.2 W of output power. The power-

ampliﬁ ed AF signal is output from pin 10, and then applied

to the external speaker, through the [SP MIC] connector (MIC

UNIT: J416).

• SQUELCH CIRCUIT (MAIN UNIT)

The squelch mutes the AF output signal when no RF signal

is received. By detecting noise components in the demodu-

lated AF signal, the squelch circuit toggles the AF power

ampliﬁ er ON and OFF.

A portion of the demodulated AF signal from the IF IC

(IC170, pin 9) is applied to the D/A converter (MAIN UNIT:

IC190, pin 18) for level adjustment (squelch threshold ad-

justment). The level-adjusted AF signal is output from pin 19,

and passed through the noise ﬁ lter (R174−R176, C179 and

C180). The only ﬁ ltered noise signal is applied to the noise

ampliﬁ er in the IF IC (IC170, pins 7, 8).

The amplified noise components are converted into the

pulse-type signal at the noise detector section, and output

from pin 19 as the “NOISV1” signal. The signal is ampliﬁ ed

by the Ampliﬁ er (IC432) and then applied to the CPU (IC360,

pin 32), and the CPU outputs “AFVS” signal from pin 100,

depending on the “NOISV1” signal level, to the AF power

regulator (Q230, Q231 and Q401), which turns the AF power

ampliﬁ ers (IC280 and IC401) ON or OFF.

4-2 TRANSMIT CIRCUITS

• MICROPHONE AMPLIFIER CIRCUITS

(MAIN UNIT)

The AF signal from the microphone (MIC signal) is ﬁ ltered

and level-adjusted at microphone ampliﬁ er circuits.

The AF signal from the microphone is passed through the

MIC mute switch (IC430A, pins 1, 2).

While an external microphone is connected to the [SP MIC]

connector (MIC UNIT: J416), the MIC mute switch shuts out

the MIC signal from the internal microphone (MC1).

The AF signal from the MIC mute switch (IC430A, pins 1, 2)

is passed through another AF mute switch (IC430B,

pins 3, 4), and applied to the microphone ampliﬁ er (IC200B,

pins 6, 7). The amplified MIC signal is passed through AF

mute switch (IC430, pins 8, 9), and is applied to the D/A con-

verter (IC190) and adjusted in level (=deviation adjustment).

The level-adjusted MIC (MOD) signal is passed through the

pre-emphasis circuit (R201 and C450) to obtain +3 dB of

characteristic. The pre-emphasized signal is then applied to

the limiter ampliﬁ er (IC200D, pins 13, 14), which limits the

amplitude of the MIC signal to prevent over deviation.

The amplitude-limited MIC signal is then passed through

the splatter ﬁ lter (IC200A, pins 1, 3), which suppresses the

3 kHz and higher audio components, and then applied to the

modulation circuit (RF UNIT: D20).

• MODULATION CIRCUIT (RF UNIT)

The modulation circuit modulates the VCO oscillating signal

using the AF signal from the microphone.

The MIC signal from the microphone ampliﬁ er circuits is ap-

plied to the D20, and modulate the VCO oscillating signal by

changing the reactance of D20. The modulated VCO output

signal is buffer-ampliﬁ ed by Q23 and Q24, and then applied

to transmit ampliﬁ er circuits, through the TX/RX switch (D50).

• TRANSMIT AMPLIFIERS (RF UNIT)

The VCO output signal is amplified to the transmit output

power level by the transmit ampliﬁ ers.

The transmit signal from the TX/RX switch (D50) is ampli-

ﬁ ed by the buffer ampliﬁ er (Q50), and then further ampliﬁ ed

by the pre-driver (Q53) and power amplifier (Q54) to the

transmit output level. The power-ampliﬁ ed transmit signal is

passed through the TX power detector of APC circuit (D91),

antenna switch (D52) and LPF (as a harmonic filter; L81,

L82, C83−C86 and C89), before being applied to the an-

tenna connector (CHASSIS: J1).

4 - 3

DATA interface

Prescaler

Phase

detector

Loop

filter

Reference

counter

Programmable

counter

Charge

pump

Buffer

Q23

Buffer

Q24

Buffer

Q25 to the TX/RX switch (D50, D51)

Q21, Q22, D20–D22

VCO

LPF

To the FM IF IC

(MAIN UNIT: IC170, pin 2)

“PLST”

“UNLK”

• PLL CIRCUITS

“SCK”

“SDATA”

PLL IC (RF UNIT; IC1)

LPF

• APC CIRCUIT (RF UNIT)

The APC (Automatic Power Control) circuit stabilizes trans-

mit output power to prevent transmit output power level

change which is caused by load mismatching or heat effect,

etc. The APC circuit also selects transmit output power from

high, middle and low power.

The power detector circuits (D91) detects the transmit output

and converts it into DC voltage, which is in proportion to the

transmit output power level. The detected voltage is applied

to the differential ampliﬁ er (IC50, pin 3). The transmit power

setting voltage “PCON” is also applied to another input ter-

minal (pin 1) as the reference voltage.

The differential ampliﬁ er compares the detected voltage and

reference voltage, and the voltage difference is output from

pin 4. The output voltage controls the bias of the pre-drive

(Q53) and power AMP (Q54) to adjust the gain of them for

stable transmit output power.

The transmit power is set by the changing reference voltage

"PCON" and "TCON/LOW."

4-3 FREQUENCY SYNTHESIZER

• VCO CIRCUIT (RF UNIT)

The VCO (Q21, Q22, D20−D22) generates the both of trans-

mit signal and LO signal for the 1st IF conversion. The VCO

output signal is buffer-ampliﬁ ed by Q23 and Q24.

While transmitting, the VCO output signal is applied to the

transmit ampliﬁ er circuit, through the TX/RX switch (D50).

While receiving, the VCO output signal is applied to the 1st

mixer (Q150), through the TX/RX switch (D51) and the BPF

(L26 and C122), to be mixed with the received signal to pro-

duce the 21.7 MHz 1st IF signal.

A portion of the VCO output is applied to the PLL IC (IC1,

pin 19), through the buffer amplifier (Q25) and LPF (L20,

C21 and C22).

• PLL CIRCUIT (RF UNIT)

The PLL circuit provides stable oscillation of the transmit

frequency and receive 1st LO frequency. The PLL output

frequency is controlled by the divided ratio (N-data) from the

CPU.

The buffer-ampliﬁ ed signal from the LPF (L20, C21 and C22)

is applied to the PLL IC (IC1, pin 16). The applied signal is

divided by the prescaler and programmable counter, accord-

ing to the “SDATA (SDATAO)” signal from the CPU (MAIN

UNIT: IC360, pin 10). The divided signal is phase-compared

with the reference frequency signal, which is divided by ref-

erence counter, at the phase detector.

The phase difference is output from pin 13 as a pulse type

signal after being passed through the charge pump. The

output signal is converted into the DC voltage (lock voltage)

by passed through the loop ﬁ lter (R10, R22, C11, C13 and

C24). The lock voltage is applied to the variable capacitors

(D22) of the VCO (Q21, Q22, D20−D22) and locked to keep

the VCO frequency constant.

If the oscillated signal drifts, its phase changes from that of

the reference frequency, causing a lock voltage change to

compensate for the drift in the VCO oscillating frequency.

4 - 4

4-4 POWER SUPPLY CIRCUITS

Line

name Description

VCC The same voltage as attached battery pack.

CPU5V

Common 5 V converted from VCC line by the

CPU5V regulator (IC220).

The voltage is applied to the CPU (IC360), Reset

IC (IC341), EEPROM (IC340), etc.

Common 5 V converted from VCC line by the 5V

regulator (Q223−Q225) controlled by "M5VS" sig-

nal from the CPU (IC360, pin 101).

The voltage is applied to the backlight LED'S

(DS240−DS243, DS250−DS253), D/A converter

(RF UNIT: IC190), PLL IC (RF UNIT: IC1), etc.

V5V

Common 5 V converted from VCC line by the V5V

regulator (RF UNIT: Q220).

The voltage is applied to the VCO (RF UNIT:

Q21, Q22, D20−D22)

R5V

Receive 5 V controlled by the R5V regulator (Q221)

using "R5VS" signal from the CPU (IC360, pin 95).

The voltage is applied to the receive circuits (RF

UNIT: 1st mixer (Q150), 1st IF amplifier (Q151),

RF ampliﬁ er (Q90), etc.).

T5V

Transmit 5 V controlled by the T5V regulator (RF

UNIT: Q222) using "T5VS" signal from the CPU

(IC360, pin 13).

The controlled voltage is applied to the transmit

circuits (RF UNIT: differential ampliﬁ er (IC50), pre-

driver (Q53), power amplifier (Q54), microphone

ampliﬁ er (IC8), etc.).

No.

Port

Name Description I/O

1 BEEP Beep sound to the AF circuits. O

4DAST

(DAST)

Strobe signal to the D/A converter (IC190,

pin 3). O

5PLSTB

(PLST)

PLL strobe signal to the PLL IC (RF UNIT:

IC1, pin 8). O

11 SCLK

(SCK)

Serial clock signal to the PLL IC (RF UNIT:

IC1, pin 6) and D/A converter (IC190,

pin 4).

12 V5VS

V5V regulator (Q220) control signal.

"High"= While in the power save mode (The

VCO (Q21, Q22, D21−D23) is

not activated).

13 T5VS

T5V regulator (RF UNIT: Q222) control

signal.

"Low"= While transmitting.

"High"= While receiving or in the power

save mode.

14 LCDS

LCD contrast select signal.

"Low"= While "Bright" is selected.

"High"= While "Dark" is selected.

15 LEDS

Backlight LED (DS240−DS243,

DS250−DS253) control signal to the LED

driver (Q240).

"High"= While the backlight is ON.

25 RES Reset signal from the reset IC (IC341,

pin 4). I

27†WDECV Demodulated weather alart (WX) signal

from the AF circuit. I

28 EXDET External connection detect. I

29 VOXT

Voice input detection from the VOX

amplifier (IC431, pin 7) for the VOX

operation.

30 BATTV Remaining battery voltage. I

31 TDETV TX power level sensing voltage from the

transmit power detector (RF UNIT: D91). I

32 NOISV Noise level from the IF IC (IC170, pin 14). I

33 RSSIV RSSI signal from the IF IC (IC170, pin 12). I

34 LOINV Lock voltage. I

35 TEMPV Temperture sensing voltage. I

36 WET Water leaking detection. I

93 ESCK Serial clock to the EEPROM (IC501, pin 6). O

94 ESDA Serial data to the EEPROM (IC501, pin 5). O

95 R5VS R5V line regulator (Q221) control.

"High"= While receiving. O

96 EXPTT External PTT.

"High"= The external PTT is pushed. I

97 TXMS Transmit mute switch (Q351) control.

"Low"= While receiving. (Mute) O

98 DETMS AF mute switch (IC430, pin 12) control.

"High"= While the squelch is open. O

100 AFVS

AF power amplifier power supply switch

control.

"High"= While the ampliﬁ er is activated.

102 PTTIN Input port for [PTT]. (RF UNIT: S250)

"High": Pushed. I

104 BTYPE Battery type detection. I

105 PTTM

AF mute switch (IC430, pin 13) control.

"High": While transmitting.

"Low": While transmitting with VOX

function.

4-5 PORT ALLOCATIONS

• CPU (MAIN UNIT: IC360)

4 - 5

No.

Port

Name Description I/O

106 MIC1/

SPCTRL

• While transmitting:

MIC gain controller (Q450 and Q451)

control.

( The microphone sensitivity is

determinded by the combination of

output voltage of "MIC1−MIC3.")

• While receiving:

Analog switch (IC430, pins 6, 12) control.

107 MIC2/

AFVCTRL

• While transmitting:

MIC gain controller (Q450 and Q451)

control.

• While receiving:

AF ampliﬁ er power supply circuit (Q230,

Q231, Q401 and Q540) control.

108 MIC3/

BPCTRL

• While transmitting:

MIC gain controller (Q450 and Q451)

control.

• While recseiving:

AquaQuake function control.

"Low": AquaQuake function is activated.

109 SQL

Input port for the [SQL] key (RF UNIT:

S250).

"Low": While the [SQL] key is pushed.

110 UP

Input port for the [ ] key (MAIN UNIT:

S321).

"Low": When the [ ] key is pushed.

111 DOWN

Input port for the [ ] key (MAIN UNIT:

S322).

"Low": When the [ ] key is pushed.

112 CH/WX

Input port for the [CH/WX] key (MAIN

UNIT: S324).

"Low": When the [CH/WX] key is pushed.

113 16

Input port for the [16/C] key (MAIN UNIT:

S320).

"Low": When the [16/C] key is pushed.

114 SCAN

Input port for the [SCAN] key (MAIN UNIT:

S324).

"Low": When the [SCAN] key is pushed.

115 H/L

Input port for the [H/L] key (MAIN UNIT:

S329).

"Low": When the [H/L] key is pushed.

117 VOXM AF mute switch (IC430, pin 5) control.

"High": While transmitting. O

119 UNLK

PLL unlock signal from the PLL IC (IC1,

pin 5).

"High": While the PLL is unlocked.

• D/A CONVERTER (RF UNIT: IC190)

No.

Port

Name Description

2 MODC Deviation adjustment.

3 FCON Reference frequency adjustment.

10 PCON Transmit power setting voltage.

11 ATTS

Attenuator (RF UNIT: D94) switching signal.

"High"= The attenuator (RF UNIT: D94) is acti-

vated.

15 LOW

Transmit power setting signal.

"High"=TX power [High] or [Mid] is selected.

"Low"=TX power [LOW] is selected.

22 TCON/

LOW

• While receiving:

BPFs (RF UNIT: D130, L96, C110, C112 and

D131, L97, C114, C115) tuning voltage.

• While transmitting:

Transmit power setting voltage.

• CPU (MAIN UNIT: IC360) (continued)

5 - 1

SECTION 5

ADJUSTMENT PROCEDURE

¤ JIG CABLE

EQUIPMENT GRADE AND RANGE EQUIPMENT GRADE AND RANGE

Cloning software ADJ-M73 ADJUSTMENT SOFTWARE

(Revision 1.0 or later) JIG cable Modiﬁ ed OPC-478UC and OPC-922

(See the illust below)

RF power meter

(50 Ω terminated)

Measuring range : 0.1–10 W

Frequency range : 100–300 MHz

SWR : Less than 1.2 : 1

Frequency counter

Range : 0.1–300 MHz

Accuracy : ±1 ppm or better

Input level : Less than 1 mW

Modulation

Analyzer

Frequency range : 30–300 MHz

Measuring range : 0 to ±10 kHz Standard signal

generator (SSG)

Frequency range : 0.1–300 MHz

Output level : –20 dBµ to 90 dBµ

(–127 to –17 dBm)

AC millivoltmeter Measuring range : 10 mV to 10 V

Oscilloscope Frequency range : DC–20 MHz

Measuring range : 0.01–20 V Attenuator Attenuation : 30 dB

Capacity : More than 10 W

Audio generator

(AG)

Frequency range : 300–3000 Hz

Output level : 1–500 mV External speaker Input impedance : 8 Ω

Capacity : More than 1 W

¤ REQUIRED EQUIPMENTS

5-1 PREPARATION

OPC-478UC WHITE (MIC)

(MIC line)

(SP line)

BLUE (CLONE)

SHIELD (GND)

(CLONE line)

OPC-922 To the transceiver

RED (AFOUT)

To audio generator/AC millivoltmeter

To SINAD meter/speaker

33 k

PTT

5 - 2

¤ CONNECTION

Standard signal generator

–20 to 90 dBµ

(–127 dBm to –17 dBm)

deviation meter

SINAD meter

Speaker (8 Ω)

Audio generator

AC millivoltmeter

to the antenna connector

Attenuator

30 dB or more

RF power meter

0.1–10 W/50 Ω

Frequency

counter

DO NOT transmit while

an SSG is connected to

the antenna connector.

To CLONE line

(BLACK)

To MIC line

(WHITE)

To SP line

(RED)

JIG cable

to USB port

to RS-232C port

OPC-478 (RS-232C type)

OPC-478UC (USB type)

OPC-922

¤ ADJUSTMENT UTILITY

ADJUSTMENT CONDITION

REFERENCE FREQUENCY

TX OUTPUT POWER

FM MODULATION

RX SENSITIVITY

SQUELCH

VOX

5 - 3

5-2 SOFTWARE ADJUSTMENT (FREQUENCY ADJUSTMENTS)

1) Select an adjustment item using [↑]/[↓] on the PC's keyboard.

2) Set or modify the adjustment value as speciﬁ ed using [←]/[→] on the PC's keyboard, and then push [ENTER].

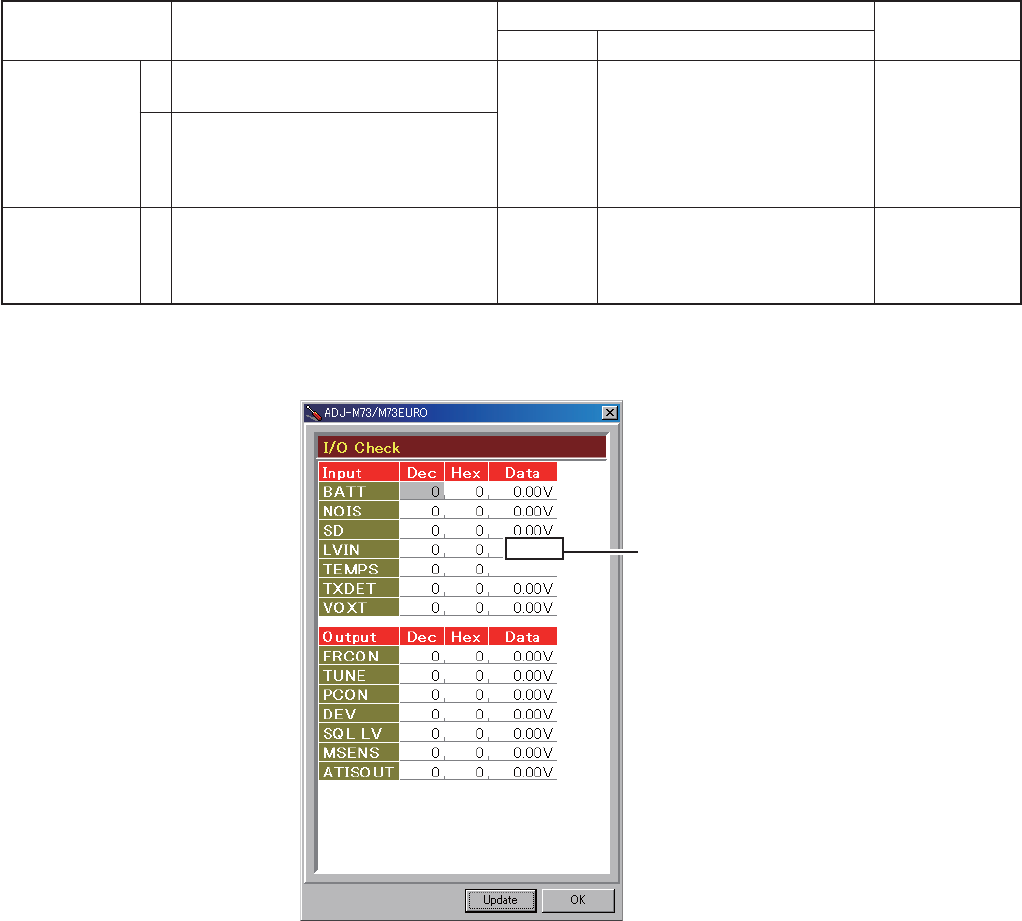

• I/O Check window

(The values shown above are exsample only.

Each transceiver has own values.)

Lock voltage

appears here

* * *

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

UNIT OPERATION

PLL LOCK

VOLTAGE

(Verify)

1 • Operating CH. : 16

• Receiving

screen

Click the "I/O check button"

on the ADJ-M73's screen (see

page 5-3) to open the I/O check

window as below.

1.55–2.65 V

(Verify)

2 • Operating CH. : 16

• Connect a dummy load or RF power

meter to the antenna connector.

• Transmitting

REFERENCE

FREQUENCY

[Ref Freq]

1 • Operating CH. : 16

• Connect the RF power meter or a 50 Ω

dummy load to the antenna connector.

• Transmitting

Top

Panel

Loosely couple the frequency

counter to the antenna conector.

156.8000 MHz

5 - 4

ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE

UNIT OPERATION

RECEIVE

SENSITIVITY

[BPF T1]

[BPF T2]

1 • Operating CH. : 16

• Connect the SSG to the antenna

connector, and then set it as;

Frequency : 156.8000 MHz

Level : +30 dBu* (–77 dBm)

Modulation : 1 kHz

Deviation : ±3.0 kHz

• Receiving

Top

pannel

Put the cursor on the [BPF

ALL Sweep] on the ADJ-

M73's screen, and push the

[ENTER] key.

Automatic

adjustment

SQUELCH

LEVEL

[SQL Threshold]

“RECEIVE SENSITIVITY” must be adjusted before "SQUELCH LEVEL" is adjusted. Otherwise,

"SQUELCH LEVEL" will not be properly adjusted.

1 • Operating CH. : 16

• Connect the SSG to the antenna

connector, and then set it as;

Frequency : 156.8000 MHz

Level* : –12dBu (–119 dBm)*¹

–11 dBu (–118 dBm)*²

Modulation : 1 kHz

Deviation

: ±3.0 kHz

• Receiving

Top

panel

Push the [ENTER] key on the

keyboad of the connected PC.

Automatic

adjustment

[SQL Tight] 2• Set the SSG as;

Frequency : 156.8000 MHz

Level* : –4 dBu (–111 dBm)*¹

–3 dBu (–110 dBm)*²

TRANSMIT

OUTPUT POWER

[RF Power (High)]

1 • Operating CH. : 16

• RF power : High

• Transmitting

Top

panel

Connect the RF power meter

to the antenna connector.

5.6 W

(Except [AUS], [AUS-1])

4.7 W

([AUS], [AUS-1])

[RF Power (Mid-

dle)]

2 • Operating CH. : 16

• RF power : Middle

• Transmitting

3.0 W

[RF Power (Low)] 3 • Operating CH. : 16

• RF power : Low

• Transmitting

0.75 W

[RF Power (E-Low)]

4 • Operating CH. : 16

• RF power : Low

• Transmitting

0.45 W

FM DEVIATION

[MOD]

1 • Operating CH. : 16

• Set the FM deviation meter as;

HPF : OFF

LPF : 20 kHz

De-emphasis : OFF

Detector : (P–P)/2

• Connect the audio generator to

the [SP/MIC] jack, through OPC-

922, and then set it as;

Frequency : 1 kHz

Waveform : Sin

Level : 25 mV rms

• Transmitting

Top

panel

Connect the FM deviation me-

ter to the antenna con-nector,

through the attenuator.

±4.30–4.40 kHz

5-3 SOFTWARE ADJUSTMENT (RECEIVE AND TRANSMIT)

1) Select an adjustment item using [↑]/[↓] on the PC’s keyboard.

2) Set or modify the adjustment value as speciﬁ ed using [←]/[→] on the PC’s keyboard, and then push [ENTER].

*The output level of the standard signal generator (SSG) is indicated as the SSG's open circuit.

*¹; For [USA], [EXP] and [AUS] versions.

*²; Except [USA], [EXP] and [AUS] versions.

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

6-1

SECTION 6

PARTS LIST

IC170 1110008140 S.IC GT3136 <SEI> B 51.2/33.0

IC190 1110007550 S.IC R2A20178NP B 51.4/11.6

IC200 1110006350 S.IC LM2902PWR B 29.7/33.6

IC220 1180003830 S.REG NJU7772F05-TE1-#ZZZB B 63.3/6.6

IC260 1130009981 S.IC TC7W53FK(TE85LF) B 16.6/4.9

IC280 1110007850 S.IC TA7368PL-R10-R <SLVJ> B 31.8/8.0

IC340 1130015560 S.IC S-24C64CI-T8T1U3 B 66.7/37.8

IC341 1110007620 S.IC NJU7704F3-42A-TE1-#ZZZB B 73.9/34.8

IC360 1140016550 S.IC UPD780338GC-519-9EB-A B 74.3/12.7

IC364 1130016110 S.IC TC7WH14FK(TE85LF) B 78.4/36.5

IC401 1110002420 S.IC NJM2073M-TE1-#ZZZB B 9.5/3.8

IC430 1130011770 S.IC CD4066BPWR B 17.8/36.9

IC431 1110006380 S.IC LM2904PWR B 15.9/31.3

IC432 1110006380 S.IC LM2904PWR B 34.3/20.1

IC500 1190003590 S.IC LC703200AW-8C01-H [USA-10] B 21.4/16.4

1190003590 S.IC LC703200AW-8C01-H [EXP-10]

1190003590 S.IC LC703200AW-8C01-H [EUR-11]

1190003590 S.IC LC703200AW-8C01-H [EUR-10]

1190003590 S.IC LC703200AW-8C01-H [UK-10]

1190003590 S.IC LC703200AW-8C01-H [FRG-10]

1190003590 S.IC LC703200AW-8C01-H [HOL-10]

1190003590 S.IC LC703200AW-8C01-H [AUS-10]

IC501 1130016740 S.IC LE25U40CMC-AH [USA-10] B 16.3/25.7

1130016740 S.IC LE25U40CMC-AH [EXP-10]

1130016740 S.IC LE25U40CMC-AH [EUR-11]

1130016740 S.IC LE25U40CMC-AH [EUR-10]

1130016740 S.IC LE25U40CMC-AH [UK-10]

1130016740 S.IC LE25U40CMC-AH [FRG-10]

1130016740 S.IC LE25U40CMC-AH [HOL-10]

1130016740 S.IC LE25U40CMC-AH [AUS-10]

IC502 1180003980 S.REG XC6221A332MR-G [USA-10] B 23.5/27.0

1180003980 S.REG XC6221A332MR-G [EXP-10]

1180003980 S.REG XC6221A332MR-G [EUR-11]

1180003980 S.REG XC6221A332MR-G [EUR-10]

1180003980 S.REG XC6221A332MR-G [UK-10]

1180003980 S.REG XC6221A332MR-G [FRG-10]

1180003980 S.REG XC6221A332MR-G [HOL-10]

1180003980 S.REG XC6221A332MR-G [AUS-10]

IC503 1180004200 S.REG XC6221A152MR-G [USA-10] B 27.9/27.0

1180004200 S.REG XC6221A152MR-G [EXP-10]

1180004200 S.REG XC6221A152MR-G [EUR-11]

1180004200 S.REG XC6221A152MR-G [EUR-10]

1180004200 S.REG XC6221A152MR-G [UK-10]

1180004200 S.REG XC6221A152MR-G [FRG-10]

1180004200 S.REG XC6221A152MR-G [HOL-10]

1180004200 S.REG XC6221A152MR-G [AUS-10]

IC504 1130011741 S.IC TC7W66FK(TE85LF) [USA-10] B 32.2/26.2

1130011741 S.IC TC7W66FK(TE85LF) [EXP-10]

1130011741 S.IC TC7W66FK(TE85LF) [EUR-11]

1130011741 S.IC TC7W66FK(TE85LF) [EUR-10]

1130011741 S.IC TC7W66FK(TE85LF) [UK-10]

1130011741 S.IC TC7W66FK(TE85LF) [FRG-10]

1130011741 S.IC TC7W66FK(TE85LF) [HOL-10]

1130011741 S.IC TC7W66FK(TE85LF) [AUS-10]

Q221 1510001151 S.TRA L2SA1576AST1G <SLVJ> B 51.2/17.4

Q223 1590004070 S.TRA LDTC144EET1G <SLVJ> B 55.3/15.7

Q224 1590003800 S.TRA KTC811U-GR-RTK/P B 58.0/14.9

Q225 1520000840 S.TRA KTA1664Y-RTF/P B 61.4/11.9

Q230 1550000090 S.FET RSQ035P03TR B 59.4/6.4

Q231 1590003800 S.TRA KTC811U-GR-RTK/P B 55.4/6.4

Q240 1590004070 S.TRA LDTC144EET1G <SLVJ> B 83.6/32.2

Q250 1590004070 S.TRA LDTC144EET1G <SLVJ> B 10.7/40.7

Q350 1530004140 S.TRA L2SC4081RT1G <SLVJ> B 82.2/29.6

Q361 1510001151 S.TRA L2SA1576AST1G <SLVJ> B 78.5/32.8

Q401 1590004070 S.TRA LDTC144EET1G <SLVJ> B 52.9/3.9

Q430 1590004310 S.TRA LDTA114EET1G <SLVJ> B 11.6/36.1

Q470 1590004070 S.TRA LDTC144EET1G <SLVJ> B 18.7/2.7

Q500 1590004070 S.TRA LDTC144EET1G <SLVJ> B 84.2/7.2

Q542 1590004070 S.TRA LDTC144EET1G <SLVJ> B 68.5/23.6

Q550 1590004070 S.TRA LDTC144EET1G <SLVJ>

[USA-10]

B 67.1/20.8

1590004070 S.TRA LDTC144EET1G <SLVJ>

[EXP-10]

1590004070 S.TRA LDTC144EET1G <SLVJ>

[EUR-11]

1590004070 S.TRA LDTC144EET1G <SLVJ>

[EUR-10]

1590004070 S.TRA LDTC144EET1G <SLVJ> [UK-10]

1590004070 S.TRA LDTC144EET1G <SLVJ>

[FRG-10]

1590004070 S.TRA LDTC144EET1G <SLVJ>

[HOL-10]

1590004070 S.TRA LDTC144EET1G <SLVJ>

[AUS-10]

Q551 1590004070 S.TRA LDTC144EET1G <SLVJ> B 69.9/36.3

Q552 1560001360 S.FET 2SK3019 TL [USA-10] B 72.1/28.1

1560001360 S.FET 2SK3019 TL [EXP-10]

1560001360 S.FET 2SK3019 TL [EUR-11]

1560001360 S.FET 2SK3019 TL [EUR-10]

1560001360 S.FET 2SK3019 TL [UK-10]

1560001360 S.FET 2SK3019 TL [FRG-10]

1560001360 S.FET 2SK3019 TL [HOL-10]

1560001360 S.FET 2SK3019 TL [AUS-10]

Q553 1560001360 S.FET 2SK3019 TL [USA-10] B 68.4/26.1

1560001360 S.FET 2SK3019 TL [EXP-10]

1560001360 S.FET 2SK3019 TL [EUR-11]

1560001360 S.FET 2SK3019 TL [EUR-10]

1560001360 S.FET 2SK3019 TL [UK-10]

1560001360 S.FET 2SK3019 TL [FRG-10]

1560001360 S.FET 2SK3019 TL [HOL-10]

1560001360 S.FET 2SK3019 TL [AUS-10]

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

D350 1750001810 S.DIO L1SS400T1G <SLVJ> B 80.3/29.4

D430 1750002020 S.DIO DA2S10100L B 21.3/30.4

D431 1750001850 S.DIO LDAN222T1G <SLVJ> B 70.6/34.0

X170 6070000310 S.DIS JTBM450CX70 <JJE> B 53.3/23.5

X480 6050012460 S.XTA CR-834(SMD-49/7.9872 MHz)

<JJE> B 79.2/25.6

X481 6060000880 S.CER CSTCE8M19G55 [USA-10] B 29.5/21.8

6060000880 S.CER CSTCE8M19G55 [EXP-10]

6060000880 S.CER CSTCE8M19G55 [EUR-11]

6060000880 S.CER CSTCE8M19G55 [EUR-10]

6060000880 S.CER CSTCE8M19G55 [UK-10]

6060000880 S.CER CSTCE8M19G55 [FRG-10]

6060000880 S.CER CSTCE8M19G55 [HOL-10]

6060000880 S.CER CSTCE8M19G55 [AUS-10]

L10 6200002861 S.COI NLV25T-4R7J [USA-10] B 13.5/9.5

6200002861 S.COI NLV25T-4R7J [EXP-10]

6200002861 S.COI NLV25T-4R7J [EUR-11]

6200002861 S.COI NLV25T-4R7J [EUR-10]

6200002861 S.COI NLV25T-4R7J [UK-10]

6200002861 S.COI NLV25T-4R7J [FRG-10]

6200002861 S.COI NLV25T-4R7J [HOL-10]

6200002861 S.COI NLV25T-4R7J [AUS-10]

L11 6200002861 S.COI NLV25T-4R7J [USA-10] B 11.0/9.5

6200002861 S.COI NLV25T-4R7J [EXP-10]

6200002861 S.COI NLV25T-4R7J [EUR-11]

6200002861 S.COI NLV25T-4R7J [EUR-10]

6200002861 S.COI NLV25T-4R7J [UK-10]

6200002861 S.COI NLV25T-4R7J [FRG-10]

6200002861 S.COI NLV25T-4R7J [HOL-10]

6200002861 S.COI NLV25T-4R7J [AUS-10]

L12 6200002861 S.COI NLV25T-4R7J [USA-10] B 16.0/9.5

6200002861 S.COI NLV25T-4R7J [EXP-10]

6200002861 S.COI NLV25T-4R7J [EUR-11]

6200002861 S.COI NLV25T-4R7J [EUR-10]

6200002861 S.COI NLV25T-4R7J [UK-10]

6200002861 S.COI NLV25T-4R7J [FRG-10]

6200002861 S.COI NLV25T-4R7J [HOL-10]

6200002861 S.COI NLV25T-4R7J [AUS-10]

R160 7030005050 S.RES ERJ2GEJ 103 X (10K) B 49.7/15.0

R170 7030009280 S.RES ERJ2GEJ 391 X B 51.3/28.0

R171 7030007300 S.RES ERJ2GEJ 332 X (3.3K) B 52.9/28.0

R172 7030005000 S.RES ERJ2GEJ 471 X (470) B 54.1/28.5

R173 7030005050 S.RES ERJ2GEJ 103 X (10K) B 50.4/37.0

R174 7030005230 S.RES ERJ2GEJ 334 X (330K) B 53.7/37.0

R175 7030008290 S.RES ERJ2GEJ 183 X (18K) B 54.5/38.8

R176 7030005120 S.RES ERJ2GEJ 102 X (1K) B 55.8/38.0

R192 7030009280 S.RES ERJ2GEJ 391 X B 51.2/7.2

R193 7030005000 S.RES ERJ2GEJ 471 X (470) B 54.8/12.9

R194 7030005090 S.RES ERJ2GEJ 104 X (100K) B 50.3/7.2

R201 7030007290 S.RES ERJ2GEJ 222 X (2.2K) B 34.4/31.9

R202 7030005090 S.RES ERJ2GEJ 104 X (100K) B 34.5/33.7

R203 7030006610 S.RES ERJ2GEJ 394 X (390K) B 34.4/31.0

R204 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 31.0/30.3

R206 7030008290 S.RES ERJ2GEJ 183 X (18K) B 32.6/29.3

R207 7030005600 S.RES ERJ2GEJ 273 X (27K) B 32.6/30.5

R212 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 25.0/32.6

R213 7030005310 S.RES ERJ2GEJ 124 X (120K) B 23.8/31.8

R214 7030007340 S.RES ERJ2GEJ 153 X (15K) B 22.6/31.3

R222 7030005240 S.RES ERJ2GEJ 473 X (47K) B 49.4/17.5

R223 7030005050 S.RES ERJ2GEJ 103 X (10K) B 52.9/16.7

R226 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 56.2/14.4

R227 7030005050 S.RES ERJ2GEJ 103 X (10K) B 62.5/14.9

R228 7030005220 S.RES ERJ2GEJ 223 X (22K) B 57.8/16.7

R230 7030005720 S.RES ERJ2GEJ 563 X (56K) B 57.1/4.4

R231 7030005160 S.RES ERJ2GEJ 105 X (1M) B 56.2/4.4

R232 7030005120 S.RES ERJ2GEJ 102 X (1K) B 54.4/4.4

R233 7030005220 S.RES ERJ2GEJ 223 X (22K) B 56.0/8.2

R234 7030005060 S.RES ERJ2GEJ 333 X (33K) B 53.4/5.9

R235 7030010010 S.RES ERJ2RKF 334 X (330K) B 59.3/9.5

R236 7030010020 S.RES ERJ2RKF 1503X (150K) B 58.2/10.4

R240 7030008280 S.RES ERJ2GEJ 271 X (270) B 64.8/3.8

R241 7030005010 S.RES ERJ2GEJ 681 X (680) B 71.0/38.7

R243 7030008280 S.RES ERJ2GEJ 271 X (270) B 64.4/39.2

R244 7030005010 S.RES ERJ2GEJ 681 X (680) B 69.8/39.1

R250 7030005050 S.RES ERJ2GEJ 103 X (10K) B 12.7/38.0

R251 7030005000 S.RES ERJ2GEJ 471 X (470) B 14.5/38.7

R252 7030005060 S.RES ERJ2GEJ 333 X (33K) B 9.6/38.1

R253 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 24.2/34.6

R255 7030005170 S.RES ERJ2GEJ 474 X (470K) B 25.4/35.3

R256 7030008290 S.RES ERJ2GEJ 183 X (18K) B 22.6/33.7

R257 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 24.5/36.0

R258 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 23.3/35.5

R260 7030006610 S.RES ERJ2GEJ 394 X (390K) B 11.1/34.6

R261 7030005240 S.RES ERJ2GEJ 473 X (47K) B 11.7/33.7

R262 7030005600 S.RES ERJ2GEJ 273 X (27K) B 9.5/33.7

R263 7030005090 S.RES ERJ2GEJ 104 X (100K) B 35.5/27.7

R264 7030005090 S.RES ERJ2GEJ 104 X (100K) B 21.1/38.3

R265 7030005090 S.RES ERJ2GEJ 104 X (100K) B 14.3/34.6

R271 7030005090 S.RES ERJ2GEJ 104 X (100K) B 35.4/14.2

R272 7030005310 S.RES ERJ2GEJ 124 X (120K) B 35.7/15.1

R273 7030005240 S.RES ERJ2GEJ 473 X (47K) B 34.5/15.4

R274 7030005700 S.RES ERJ2GEJ 274 X (270K) B 32.5/14.2

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

6-2

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R275 7030005050 S.RES ERJ2GEJ 103 X (10K) B 32.7/15.4

R276 7030006610 S.RES ERJ2GEJ 394 X (390K) B 31.9/17.6

R277 7030005090 S.RES ERJ2GEJ 104 X (100K) B 31.9/19.2

R278 7030005120 S.RES ERJ2GEJ 102 X (1K) B 36.9/17.8

R279 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 36.9/16.9

R280 7030005290 S.RES ERJ2GEJ 682 X (6.8K) B 14.8/6.0

R283 7030007260 S.RES ERJ2GEJ 330 X (33) B 34.7/11.1

R284 7030005530 S.RES ERJ2GEJ 100 X (10) B 36.4/5.7

R286 7030005050 S.RES ERJ2GEJ 103 X (10K) B 18.3/4.6

R288 7030005100 S.RES ERJ2GEJ 154 X (150K) B 19.6/6.0

R289 7030005090 S.RES ERJ2GEJ 104 X (100K) B 19.6/5.1

R290 7030005050 S.RES ERJ2GEJ 103 X (10K) B 19.6/4.2

R300 7030005290 S.RES ERJ2GEJ 682 X (6.8K) B 35.4/28.9

R340 7030005050 S.RES ERJ2GEJ 103 X (10K) B 64.4/37.6

R341 7030005050 S.RES ERJ2GEJ 103 X (10K) B 65.8/33.2

R343 7030005050 S.RES ERJ2GEJ 103 X (10K) B 72.0/34.8

R346 7030005090 S.RES ERJ2GEJ 104 X (100K) B 79.3/28.9

R351 7030005060 S.RES ERJ2GEJ 333 X (33K) B 80.3/31.6

R352 7030005290 S.RES ERJ2GEJ 682 X (6.8K) B 79.1/30.6

R353 7030005240 S.RES ERJ2GEJ 473 X (47K) B 76.6/34.1

R376 7030005090 S.RES ERJ2GEJ 104 X (100K) B 34.1/30.1

R377 7030005080 S.RES ERJ2GEJ 823 X (82K) B 31.0/29.4

R378 7030005080 S.RES ERJ2GEJ 823 X (82K) B 28.6/29.4

R379 7030005080 S.RES ERJ2GEJ 823 X (82K) B 27.0/30.3

R396 7030005090 S.RES ERJ2GEJ 104 X (100K) B 74.4/36.9

R397 7030010040 S.RES ERJ2GEJ-JPW B 82.1/32.8

R399 7030005240 S.RES ERJ2GEJ 473 X (47K) B 25.0/31.7

R401 7030005050 S.RES ERJ2GEJ 103 X (10K) B 13.9/6.0

R402 7030005530 S.RES ERJ2GEJ 100 X (10) B 5.0/2.5

R430 7030005090 S.RES ERJ2GEJ 104 X (100K) B 9.8/35.9

R431 7030005090 S.RES ERJ2GEJ 104 X (100K) B 21.4/37.1

R433 7030007340 S.RES ERJ2GEJ 153 X (15K) B 11.7/28.6

R434 7030005230 S.RES ERJ2GEJ 334 X (330K) B 17.4/29.0

R435 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 21.2/32.5

R436 7030007350 S.RES ERJ2GEJ 393 X (39K) B 20.2/31.6

R437 7030005220 S.RES ERJ2GEJ 223 X (22K) B 20.2/30.0

R438 7030007310 S.RES ERJ2GEJ 155 X (1.5M) B 21.0/27.9

R439 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 11.3/32.4

R440 7030007350 S.RES ERJ2GEJ 393 X (39K) B 11.6/30.7

R441 7030005090 S.RES ERJ2GEJ 104 X (100K) B 10.4/32.4

R442 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 11.7/29.5

R449 7030008290 S.RES ERJ2GEJ 183 X (18K) B 81.2/31.8

R454 7030005170 S.RES ERJ2GEJ 474 X (470K) B 35.6/35.2

R456 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 77.7/39.1

R495 7410001220 S.ARR EXB28V103JX B 71.3/22.7

R496 7410001320 S.ARR EXB28V183JX B 70.9/25.6

R498 7030009150 S.RES ERJ2GEJ 824 X (820K) B 83.8/12.2

R499 7030007310 S.RES ERJ2GEJ 155 X (1.5M) B 83.8/10.3

R500 7030007060 S.RES ERJ2GEJ 684X (680K) B 84.2/9.1

R501 7030008300 S.RES ERJ2GEJ 184 X (180K) B 83.3/9.1

R502 7030010040 S.RES ERJ2GEJ-JPW [USA-10] B 65.9/19.2

7030010040 S.RES ERJ2GEJ-JPW [EXP-10]

7030010040 S.RES ERJ2GEJ-JPW [EUR-11]

7030010040 S.RES ERJ2GEJ-JPW [EUR-10]

7030010040 S.RES ERJ2GEJ-JPW [UK-10]

7030010040 S.RES ERJ2GEJ-JPW [FRG-10]

7030010040 S.RES ERJ2GEJ-JPW [HOL-10]

7030010040 S.RES ERJ2GEJ-JPW [AUS-10]

R521 7030005120 S.RES ERJ2GEJ 102 X (1K) B 11.4/38.1

R540 7030005700 S.RES ERJ2GEJ 274 X (270K) B 60.1/8.6

R541 7030005050 S.RES ERJ2GEJ 103 X (10K) B 57.2/6.8

R542 7030010040 S.RES ERJ2GEJ-JPW B 36.9/20.5

R545 7030005050 S.RES ERJ2GEJ 103 X (10K) B 34.4/34.7

R546 7030005050 S.RES ERJ2GEJ 103 X (10K) B 31.7/36.8

R547 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 33.3/36.5

R548 7030005240 S.RES ERJ2GEJ 473 X (47K) B 32.6/38.6

R549 7030010040 S.RES ERJ2GEJ-JPW B 33.3/37.4

R550 7410001220 S.ARR EXB28V103JX [USA-10] B 29.4/17.7

7410001220 S.ARR EXB28V103JX [EXP-10]

7410001220 S.ARR EXB28V103JX [EUR-11]

7410001220 S.ARR EXB28V103JX [EUR-10]

7410001220 S.ARR EXB28V103JX [UK-10]

7410001220 S.ARR EXB28V103JX [FRG-10]

7410001220 S.ARR EXB28V103JX [HOL-10]

7410001220 S.ARR EXB28V103JX [AUS-10]

R551 7410001220 S.ARR EXB28V103JX [USA-10] B 29.2/11.8

7410001220 S.ARR EXB28V103JX [EXP-10]

7410001220 S.ARR EXB28V103JX [EUR-11]

7410001220 S.ARR EXB28V103JX [EUR-10]

7410001220 S.ARR EXB28V103JX [UK-10]

7410001220 S.ARR EXB28V103JX [FRG-10]

7410001220 S.ARR EXB28V103JX [HOL-10]

7410001220 S.ARR EXB28V103JX [AUS-10]

R552 7410001220 S.ARR EXB28V103JX [USA-10] B 25.0/8.5

7410001220 S.ARR EXB28V103JX [EXP-10]

7410001220 S.ARR EXB28V103JX [EUR-11]

7410001220 S.ARR EXB28V103JX [EUR-10]

7410001220 S.ARR EXB28V103JX [UK-10]

7410001220 S.ARR EXB28V103JX [FRG-10]

7410001220 S.ARR EXB28V103JX [HOL-10]

7410001220 S.ARR EXB28V103JX [AUS-10]

R553 7410001220 S.ARR EXB28V103JX [USA-10] B 22.5/8.5

7410001220 S.ARR EXB28V103JX [EXP-10]

7410001220 S.ARR EXB28V103JX [EUR-11]

7410001220 S.ARR EXB28V103JX [EUR-10]

7410001220 S.ARR EXB28V103JX [UK-10]

7410001220 S.ARR EXB28V103JX [FRG-10]

7410001220 S.ARR EXB28V103JX [HOL-10]

7410001220 S.ARR EXB28V103JX [AUS-10]

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R554 7410001220 S.ARR EXB28V103JX [USA-10] B 14.9/21.8

7410001220 S.ARR EXB28V103JX [EXP-10]

7410001220 S.ARR EXB28V103JX [EUR-11]

7410001220 S.ARR EXB28V103JX [EUR-10]

7410001220 S.ARR EXB28V103JX [UK-10]

7410001220 S.ARR EXB28V103JX [FRG-10]

7410001220 S.ARR EXB28V103JX [HOL-10]

7410001220 S.ARR EXB28V103JX [AUS-10]

R555 7410001220 S.ARR EXB28V103JX [USA-10] B 21.2/24.3

7410001220 S.ARR EXB28V103JX [EXP-10]

7410001220 S.ARR EXB28V103JX [EUR-11]

7410001220 S.ARR EXB28V103JX [EUR-10]

7410001220 S.ARR EXB28V103JX [UK-10]

7410001220 S.ARR EXB28V103JX [FRG-10]

7410001220 S.ARR EXB28V103JX [HOL-10]

7410001220 S.ARR EXB28V103JX [AUS-10]

R556 7030005050 S.RES ERJ2GEJ 103 X (10K) [USA-10] B 20.5/7.8

7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-11]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [UK-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [FRG-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [HOL-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-10]

R557 7030005120 S.RES ERJ2GEJ 102 X (1K) [USA-10] B 13.9/16.7

7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-11]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [UK-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [FRG-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [HOL-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [AUS-10]

R558 7030005120 S.RES ERJ2GEJ 102 X (1K) [USA-10] B 13.9/17.6

7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-11]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [UK-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [FRG-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [HOL-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [AUS-10]

R559 7030005050 S.RES ERJ2GEJ 103 X (10K) [USA-10] B 22.9/24.1

7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-11]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [UK-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [FRG-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [HOL-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-10]

R560 7030005010 S.RES ERJ2GEJ 681 X (680) [USA-10] B 25.9/22.5

7030005010 S.RES ERJ2GEJ 681 X (680) [EXP-10]

7030005010 S.RES ERJ2GEJ 681 X (680) [EUR-11]

7030005010 S.RES ERJ2GEJ 681 X (680) [EUR-10]

7030005010 S.RES ERJ2GEJ 681 X (680) [UK-10]

7030005010 S.RES ERJ2GEJ 681 X (680) [FRG-10]

7030005010 S.RES ERJ2GEJ 681 X (680) [HOL-10]

7030005010 S.RES ERJ2GEJ 681 X (680) [AUS-10]

R561 7030010040 S.RES ERJ2GEJ-JPW [USA] B 21.1/35.4

7030010040 S.RES ERJ2GEJ-JPW [EXP]

7030010040 S.RES ERJ2GEJ-JPW [EUR-01]

7030010040 S.RES ERJ2GEJ-JPW [EUR]

7030010040 S.RES ERJ2GEJ-JPW [UK]

7030010040 S.RES ERJ2GEJ-JPW [FRG]

7030010040 S.RES ERJ2GEJ-JPW [HOL]

7030010040 S.RES ERJ2GEJ-JPW [AUS]

R562 7030005050 S.RES ERJ2GEJ 103 X (10K) B 34.5/24.3

R563 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 35.7/24.8

R564 7030005050 S.RES ERJ2GEJ 103 X (10K) B 34.5/25.2

R570 7030005050 S.RES ERJ2GEJ 103 X (10K) [USA-10] B 64.8/26.1

7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-11]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [UK-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [FRG-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [HOL-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-10]

R571 7030005050 S.RES ERJ2GEJ 103 X (10K) [USA-10] B 65.4/20.4

7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-11]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [UK-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [FRG-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [HOL-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-10]

R572 7030008290 S.RES ERJ2GEJ 183 X (18K) [USA-10] B 66.4/22.8

7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR-11]

7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [UK-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [FRG-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [HOL-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [AUS-10]

R573 7030008290 S.RES ERJ2GEJ 183 X (18K) [USA-10] B 63.6/26.3

7030008290 S.RES ERJ2GEJ 183 X (18K) [EXP-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR-11]

7030008290 S.RES ERJ2GEJ 183 X (18K) [EUR-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [UK-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [FRG-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [HOL-10]

7030008290 S.RES ERJ2GEJ 183 X (18K) [AUS-10]

6-3

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C286 4550007520 S.TAN F931A106MAABMA B 32.9/12.7

C287 4030017700 S.CER C1005 CH 1H 151J-T B 35.9/7.8

C288 4030016950 S.CER C1005 JB 1A 473K-T B 36.4/6.6

C289 4520000020 S.NIO NOJC227M006RWJV B 74.0/31.0

C340 4030016790 S.CER C1005 JB 1E 103K-T B 64.6/33.6

C341 4030017920 S.CER C1005 JB 1A 683K-T B 75.8/35.3

C351 4030016790 S.CER C1005 JB 1E 103K-T B 76.7/35.3

C377 4030017740 S.CER C1005 JB 1H 821K-T B 29.8/29.9

C378 4030017780 S.CER C1005 JB 1H 472K-T B 25.8/30.5

C379 4030017500 S.CER C1005 CH 1H 560J-T B 28.6/30.3

C401 4030018860 S.CER C1005 JB 0J 105K-T B 27.8/9.3

C403 4030019560 S.CER GRM21BB31C106KE15L B 14.3/3.2

C404 4030016790 S.CER C1005 JB 1E 103K-T B 12.7/6.9

C405 4030016930 S.CER C1005 JB 1A 104K-T B 5.0/4.1

C430 4030018860 S.CER C1005 JB 0J 105K-T B 13.7/36.8

C431 4030018860 S.CER C1005 JB 0J 105K-T B 14.8/39.9

C432 4030016930 S.CER C1005 JB 1A 104K-T B 9.8/36.8

C433 4030017460 S.CER C1005 JB 1H 102K-T B 14.8/33.7

C434 4030016960 S.CER C1005 JB 1E 183K-T B 12.9/29.1

C435 4030016960 S.CER C1005 JB 1E 183K-T B 14.1/29.0

C436 4030017730 S.CER C1005 JB 1H 471K-T B 15.8/29.0

C437 4030017460 S.CER C1005 JB 1H 102K-T B 21.0/28.8

C438 4030016930 S.CER C1005 JB 1A 104K-T B 14.6/36.8

C439 4030016930 S.CER C1005 JB 1A 104K-T B 19.3/29.2

C440 4030018910 S.CER C1608 JB 0J 475K-T B 34.4/38.5

C450 4030016790 S.CER C1005 JB 1E 103K-T B 34.5/32.8

C482 4030018070 S.CER C1005 CH 1H 300J-T B 76.7/22.5

C483 4030017400 S.CER C1005 CH 1H 220J-T B 80.0/22.5

C488 4550007520 S.TAN F931A106MAABMA B 66.4/3.6

C489 4030016790 S.CER C1005 JB 1E 103K-T B 64.2/2.3

C491 4030016950 S.CER C1005 JB 1A 473K-T B 84.8/20.9

C492 4030017460 S.CER C1005 JB 1H 102K-T B 83.0/20.9

C493 4030016950 S.CER C1005 JB 1A 473K-T B 81.7/21.0

C494 4030016950 S.CER C1005 JB 1A 473K-T B 83.1/19.4

C496 4030016950 S.CER C1005 JB 1A 473K-T B 84.3/18.6

C497 4030016950 S.CER C1005 JB 1A 473K-T B 84.6/17.4

C498 4030016950 S.CER C1005 JB 1A 473K-T B 83.8/16.5

C500 4030016930 S.CER C1005 JB 1A 104K-T B 63.3/2.3

C502 4030018900 S.CER C1005 JB 0J 474K-T B 84.1/14.0

C503 4030018900 S.CER C1005 JB 0J 474K-T B 83.9/13.1

C504 4030018900 S.CER C1005 JB 0J 474K-T B 83.8/11.2

C505 4030018900 S.CER C1005 JB 0J 474K-T B 84.2/15.4

C510 4030016930 S.CER C1005 JB 1A 104K-T B 34.4/35.6

C511 4030016930 S.CER C1005 JB 1A 104K-T B 31.7/38.0

C520 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 29.5/19.4

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C521 4030017770 S.CER C1005 JB 1H 332K-T [USA-10] B 26.9/21.9

4030017770 S.CER C1005 JB 1H 332K-T [EXP-10]

4030017770 S.CER C1005 JB 1H 332K-T [EUR-11]

4030017770 S.CER C1005 JB 1H 332K-T [EUR-10]

4030017770 S.CER C1005 JB 1H 332K-T [UK-10]

4030017770 S.CER C1005 JB 1H 332K-T [FRG-10]

4030017770 S.CER C1005 JB 1H 332K-T [HOL-10]

4030017770 S.CER C1005 JB 1H 332K-T [AUS-10]

C522 4030017040 S.CER C1005 JB 1A 333K-T [USA-10] B 27.1/23.1

4030017040 S.CER C1005 JB 1A 333K-T [EXP-10]

4030017040 S.CER C1005 JB 1A 333K-T [EUR-11]

4030017040 S.CER C1005 JB 1A 333K-T [EUR-10]

4030017040 S.CER C1005 JB 1A 333K-T [UK-10]

4030017040 S.CER C1005 JB 1A 333K-T [FRG-10]

4030017040 S.CER C1005 JB 1A 333K-T [HOL-10]

4030017040 S.CER C1005 JB 1A 333K-T [AUS-10]

C523 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 23.8/24.2

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C524 4030019560 S.CER GRM21BB31C106KE15L

[USA-10] B 30.0/14.5

4030019560 S.CER GRM21BB31C106KE15L

[EXP-10]

4030019560 S.CER GRM21BB31C106KE15L

[EUR-11]

4030019560 S.CER GRM21BB31C106KE15L

[EUR-10]

4030019560 S.CER GRM21BB31C106KE15L [UK-10]

4030019560 S.CER GRM21BB31C106KE15L

[FRG-10]

4030019560 S.CER GRM21BB31C106KE15L

[HOL-10]

4030019560 S.CER GRM21BB31C106KE15L

[AUS-10]

C525 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 25.6/24.2

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

R575 7030005120 S.RES ERJ2GEJ 102 X (1K) [USA-10] B 73.4/22.5

7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-11]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [UK-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [FRG-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [HOL-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [AUS-10]

R576 7030005050 S.RES ERJ2GEJ 103 X (10K) [USA-10] B 20.8/27.0

7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-11]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [UK-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [FRG-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [HOL-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-10]

R577 7030005050 S.RES ERJ2GEJ 103 X (10K) [USA-10] B 20.8/26.1

7030005050 S.RES ERJ2GEJ 103 X (10K) [EXP-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-11]

7030005050 S.RES ERJ2GEJ 103 X (10K) [EUR-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [UK-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [FRG-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [HOL-10]

7030005050 S.RES ERJ2GEJ 103 X (10K) [AUS-10]

R578 7030005090 S.RES ERJ2GEJ 104 X (100K) B 71.6/36.0

R579 7030005090 S.RES ERJ2GEJ 104 X (100K) [USA-10] B 31.9/22.9

7030005090 S.RES ERJ2GEJ 104 X (100K) [EXP-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [EUR-11]

7030005090 S.RES ERJ2GEJ 104 X (100K) [EUR-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [UK-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [FRG-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [HOL-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [AUS-10]

R580 7030005090 S.RES ERJ2GEJ 104 X (100K) [USA-10] B 34.3/27.7

7030005090 S.RES ERJ2GEJ 104 X (100K) [EXP-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [EUR-11]

7030005090 S.RES ERJ2GEJ 104 X (100K) [EUR-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [UK-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [FRG-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [HOL-10]

7030005090 S.RES ERJ2GEJ 104 X (100K) [AUS-10]

R581 7030005040 S.RES ERJ2GEJ 472 X (4.7K) B 23.3/36.4

R582 7030009530 S.RES ERJ2GEJ 270 X (27) [USA-10] B 55.3/17.3

7030009530 S.RES ERJ2GEJ 270 X (27) [EXP-10]

7030009530 S.RES ERJ2GEJ 270 X (27) [EUR-11]

7030009530 S.RES ERJ2GEJ 270 X (27) [EUR-10]

7030009530 S.RES ERJ2GEJ 270 X (27) [UK-10]

7030009530 S.RES ERJ2GEJ 270 X (27) [FRG-10]

7030009530 S.RES ERJ2GEJ 270 X (27) [HOL-10]

7030009530 S.RES ERJ2GEJ 270 X (27) [AUS-10]

R583 7030005120 S.RES ERJ2GEJ 102 X (1K) [USA-10] B 75.0/22.5

7030005120 S.RES ERJ2GEJ 102 X (1K) [EXP-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-11]

7030005120 S.RES ERJ2GEJ 102 X (1K) [EUR-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [UK-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [FRG-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [HOL-10]

7030005120 S.RES ERJ2GEJ 102 X (1K) [AUS-10]

C160 4030017780 S.CER C1005 JB 1H 472K-T B 50.1/28.4

C170 4030017460 S.CER C1005 JB 1H 102K-T B 51.6/38.3

C171 4030017420 S.CER C1005 CH 1H 470J-T B 52.9/28.9

C174 4030017460 S.CER C1005 JB 1H 102K-T B 55.1/29.2

C176 4030017460 S.CER C1005 JB 1H 102K-T B 55.5/28.0

C177 4030016930 S.CER C1005 JB 1A 104K-T B 50.4/38.8

C178 4030018890 S.CER C1005 JB 0J 224K-T B 50.4/37.9

C179 4030017450 S.CER C1005 JB 1H 271K-T B 53.7/37.9

C180 4030017450 S.CER C1005 JB 1H 271K-T B 54.9/37.5

C181 4030016930 S.CER C1005 JB 1A 104K-T B 52.5/37.5

C190 4030016930 S.CER C1005 JB 1A 104K-T B 55.5/31.8

C191 4030016930 S.CER C1005 JB 1A 104K-T B 55.8/33.8

C192 4030019560 S.CER GRM21BB31C106KE15L B 51.0/4.6

C193 4030016790 S.CER C1005 JB 1E 103K-T B 49.4/7.2

C194 4030016790 S.CER C1005 JB 1E 103K-T B 54.8/11.3

C195 4030016790 S.CER C1005 JB 1E 103K-T B 57.2/11.3

C200 4030016790 S.CER C1005 JB 1E 103K-T B 25.0/33.5

C202 4030016930 S.CER C1005 JB 1A 104K-T B 34.2/29.2

C205 4030016960 S.CER C1005 JB 1E 183K-T B 22.6/32.2

C206 4030017460 S.CER C1005 JB 1H 102K-T B 22.6/30.4

C207 4030016930 S.CER C1005 JB 1A 104K-T B 23.8/30.2

C222 4030016790 S.CER C1005 JB 1E 103K-T B 52.9/18.3

C224 4030019560 S.CER GRM21BB31C106KE15L B 57.2/12.7

C225 4030018860 S.CER C1005 JB 0J 105K-T B 57.9/17.6

C228 4030017460 S.CER C1005 JB 1H 102K-T B 63.6/4.4

C229 4030017460 S.CER C1005 JB 1H 102K-T B 63.3/8.8

C230 4030019990 S.CER C1005 JB 1C 104K-T B 61.6/4.4

C231 4030018860 S.CER C1005 JB 0J 105K-T B 55.3/4.4

C240 4030017460 S.CER C1005 JB 1H 102K-T B 58.3/8.6

C251 4030019560 S.CER GRM21BB31C106KE15L B 13.1/40.0

C252 4030017460 S.CER C1005 JB 1H 102K-T B 10.5/38.1

C254 4030018890 S.CER C1005 JB 0J 224K-T B 22.6/34.6

C257 4030016930 S.CER C1005 JB 1A 104K-T B 23.8/33.4

C258 4030017510 S.CER C1005 CH 1H 680J-T B 29.6/36.8

C260 4030018910 S.CER C1608 JB 0J 475K-T B 9.0/34.8

C261 4030018860 S.CER C1005 JB 0J 105K-T B 35.9/26.8

C263 4030016790 S.CER C1005 JB 1E 103K-T B 31.8/16.0

C264 4030018920 S.CER C1005 JB 1H 392K-T B 33.6/15.4

C265 4030017680 S.CER C1005 CH 1H 820J-T B 36.2/16.0

C266 4030016950 S.CER C1005 JB 1A 473K-T B 36.9/18.7

C267 4030018890 S.CER C1005 JB 0J 224K-T B 36.9/19.6

C280 4030018860 S.CER C1005 JB 0J 105K-T B 18.3/6.3

C282 4030019560 S.CER GRM21BB31C106KE15L B 32.6/4.1

C283 4030016930 S.CER C1005 JB 1A 104K-T B 8.2/7.0

C285 4030016930 S.CER C1005 JB 1A 104K-T B 17.3/1.9

6-4

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C539 4030018860 S.CER C1005 JB 0J 105K-T [USA-10] B 25.7/27.4

4030018860 S.CER C1005 JB 0J 105K-T [EXP-10]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-11]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-10]

4030018860 S.CER C1005 JB 0J 105K-T [UK-10]

4030018860 S.CER C1005 JB 0J 105K-T [FRG-10]

4030018860 S.CER C1005 JB 0J 105K-T [HOL-10]

4030018860 S.CER C1005 JB 0J 105K-T [AUS-10]

C540 4030018860 S.CER C1005 JB 0J 105K-T [USA-10] B 30.1/26.3

4030018860 S.CER C1005 JB 0J 105K-T [EXP-10]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-11]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-10]

4030018860 S.CER C1005 JB 0J 105K-T [UK-10]

4030018860 S.CER C1005 JB 0J 105K-T [FRG-10]

4030018860 S.CER C1005 JB 0J 105K-T [HOL-10]

4030018860 S.CER C1005 JB 0J 105K-T [AUS-10]

C541 4030018860 S.CER C1005 JB 0J 105K-T [USA-10] B 30.1/27.9

4030018860 S.CER C1005 JB 0J 105K-T [EXP-10]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-11]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-10]

4030018860 S.CER C1005 JB 0J 105K-T [UK-10]

4030018860 S.CER C1005 JB 0J 105K-T [FRG-10]

4030018860 S.CER C1005 JB 0J 105K-T [HOL-10]

4030018860 S.CER C1005 JB 0J 105K-T [AUS-10]

C552 4030016930 S.CER C1005 JB 1A 104K-T B 31.9/21.3

C554 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 13.0/22.8

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C556 4030017420 S.CER C1005 CH 1H 470J-T B 57.5/21.0

C557 4030019560 S.CER GRM21BB31C106KE15L [USA-10] B 56.6/19.0

4030019560 S.CER GRM21BB31C106KE15L [EXP-10]

4030019560 S.CER GRM21BB31C106KE15L [EUR-11]

4030019560 S.CER GRM21BB31C106KE15L [EUR-10]

4030019560 S.CER GRM21BB31C106KE15L [UK-10]

4030019560 S.CER GRM21BB31C106KE15L [FRG-10]

4030019560 S.CER GRM21BB31C106KE15L [HOL-10]

4030019560 S.CER GRM21BB31C106KE15L [AUS-10]

C558 4030018860 S.CER C1005 JB 0J 105K-T [USA-10] B 34.3/26.5

4030018860 S.CER C1005 JB 0J 105K-T [EXP-10]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-11]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-10]

4030018860 S.CER C1005 JB 0J 105K-T [UK-10]

4030018860 S.CER C1005 JB 0J 105K-T [FRG-10]

4030018860 S.CER C1005 JB 0J 105K-T [HOL-10]

4030018860 S.CER C1005 JB 0J 105K-T [AUS-10]

C560 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 64.5/28.2

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

J100 6510025130 S.CON 30P9.0-JMCS-G-B-TF(N) B 61.3/20.4

J251 6510021901 S.CON BM02B-ASRS-TF(LF)(SN) T 6.6/3.0

J300 6510022692 S.CON 06FLT-SM2-TB(LF)(SN)(M) B 67.3/29.9

J301 6510022692 S.CON 06FLT-SM2-TB(LF)(SN)(M) B 74.2/39.5

DS240 5040003011 S.LED SML-A12WT T86J T 63.4/1.1

DS241 5040003011 S.LED SML-A12WT T86J T 73.6/1.1

DS242 5040003510 S.LED LNJ426W83RA T 38.6/10.4

DS243 5040003510 S.LED LNJ426W83RA T 38.6/32.3

DS250 5040003011 S.LED SML-A12WT T86J T 63.4/41.5

DS251 5040003011 S.LED SML-A12WT T86J T 73.6/41.5

DS252 5040003510 S.LED LNJ426W83RA T 25.2/10.5

DS253 5040003510 S.LED LNJ426W83RA T 25.2/32.2

DS480 5030003670 LCD L2-1365TVF <TES>

MC250 7700002990 MIC EM6027P-46C10&33-G <HOR>

S1 2260003300 S.SWI EVQPQHB55 T 45.1/31.8

S2 2260003300 S.SWI EVQPQHB55 T 32.4/33.0

S3 2260003300 S.SWI EVQPQHB55 T 17.7/31.6

S4 2260003300 S.SWI EVQPQHB55 T 36.5/21.3

S5 2260003300 S.SWI EVQPQHB55 T 26.2/21.3

S6 2260003300 S.SWI EVQPQHB55 T 45.1/10.8

S7 2260003300 S.SWI EVQPQHB55 T 32.4/9.6

S8 2260003300 S.SWI EVQPQHB55 T 17.7/11.0

EP360 8930087800 LCD SRCN-3495-SP-N-W (SHJ)

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MAIN UNIT]

C526 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 24.7/24.2

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C527 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 13.9/19.4

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C528 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 13.9/18.5

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C529 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 29.3/15.9

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C530 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 27.4/11.6

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C531 4030019560 S.CER GRM21BB31C106KE15L [USA-10] B 12.8/13.1

4030019560 S.CER GRM21BB31C106KE15L [EXP-10]

4030019560 S.CER GRM21BB31C106KE15L [EUR-11]

4030019560 S.CER GRM21BB31C106KE15L [EUR-10]

4030019560 S.CER GRM21BB31C106KE15L [UK-10]

4030019560 S.CER GRM21BB31C106KE15L [FRG-10]

4030019560 S.CER GRM21BB31C106KE15L [HOL-10]

4030019560 S.CER GRM21BB31C106KE15L [AUS-10]

C532 4030018900 S.CER C1005 JB 0J 474K-T [USA-10] B 19.1/9.0

4030018900 S.CER C1005 JB 0J 474K-T [EXP-10]

4030018900 S.CER C1005 JB 0J 474K-T [EUR-11]

4030018900 S.CER C1005 JB 0J 474K-T [EUR-10]

4030018900 S.CER C1005 JB 0J 474K-T [UK-10]

4030018900 S.CER C1005 JB 0J 474K-T [FRG-10]

4030018900 S.CER C1005 JB 0J 474K-T [HOL-10]

4030018900 S.CER C1005 JB 0J 474K-T [AUS-10]

C533 4030018900 S.CER C1005 JB 0J 474K-T [USA-10] B 18.2/9.0

4030018900 S.CER C1005 JB 0J 474K-T [EXP-10]

4030018900 S.CER C1005 JB 0J 474K-T [EUR-11]

4030018900 S.CER C1005 JB 0J 474K-T [EUR-10]

4030018900 S.CER C1005 JB 0J 474K-T [UK-10]

4030018900 S.CER C1005 JB 0J 474K-T [FRG-10]

4030018900 S.CER C1005 JB 0J 474K-T [HOL-10]

4030018900 S.CER C1005 JB 0J 474K-T [AUS-10]

C534 4030018860 S.CER C1005 JB 0J 105K-T [USA-10] B 13.9/14.5

4030018860 S.CER C1005 JB 0J 105K-T [EXP-10]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-11]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-10]

4030018860 S.CER C1005 JB 0J 105K-T [UK-10]

4030018860 S.CER C1005 JB 0J 105K-T [FRG-10]

4030018860 S.CER C1005 JB 0J 105K-T [HOL-10]

4030018860 S.CER C1005 JB 0J 105K-T [AUS-10]

C535 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 20.0/9.0

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C536 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 13.7/15.4

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C537 4030016930 S.CER C1005 JB 1A 104K-T [USA-10] B 13.6/11.7

4030016930 S.CER C1005 JB 1A 104K-T [EXP-10]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-11]

4030016930 S.CER C1005 JB 1A 104K-T [EUR-10]

4030016930 S.CER C1005 JB 1A 104K-T [UK-10]

4030016930 S.CER C1005 JB 1A 104K-T [FRG-10]

4030016930 S.CER C1005 JB 1A 104K-T [HOL-10]

4030016930 S.CER C1005 JB 1A 104K-T [AUS-10]

C538 4030018860 S.CER C1005 JB 0J 105K-T [USA-10] B 25.7/25.8

4030018860 S.CER C1005 JB 0J 105K-T [EXP-10]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-11]

4030018860 S.CER C1005 JB 0J 105K-T [EUR-10]

4030018860 S.CER C1005 JB 0J 105K-T [UK-10]

4030018860 S.CER C1005 JB 0J 105K-T [FRG-10]

4030018860 S.CER C1005 JB 0J 105K-T [HOL-10]

4030018860 S.CER C1005 JB 0J 105K-T [AUS-10]

6-5

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[RF UNIT]

R53 7030004980 S.RES ERJ2GEJ 101 X (100) T 5.8/10.6

R54 7030005530 S.RES ERJ2GEJ 100 X (10) T 5.5/6.0

R55 7030007300 S.RES ERJ2GEJ 332 X (3.3K) T 5.2/4.8

R56 7030007570 S.RES ERJ2GEJ 122 X (1.2K) T 4.2/7.2

R57 7030005570 S.RES ERJ2GEJ 820 X (82) T 2.1/1.8

R65 7030005100 S.RES ERJ2GEJ 154 X (150K) T 19.3/18.7

R66 7030005240 S.RES ERJ2GEJ 473 X (47K) T 20.7/19.2

R67 7030005090 S.RES ERJ2GEJ 104 X (100K) T 25.5/22.1

R68 7030004980 S.RES ERJ2GEJ 101 X (100) T 25.5/23.7

R69 7030007340 S.RES ERJ2GEJ 153 X (15K) T 9.6/3.1

R70 7030005050 S.RES ERJ2GEJ 103 X (10K) T 9.6/4.7

R71 7030004980 S.RES ERJ2GEJ 101 X (100) T 8.4/4.4

R72 7030004970 S.RES ERJ2GEJ 470 X (47) T 11.9/14.0

R73 7030005120 S.RES ERJ2GEJ 102 X (1K) T 12.2/2.5

R74 7030005050 S.RES ERJ2GEJ 103 X (10K) T 13.4/2.6

R75 7030004980 S.RES ERJ2GEJ 101 X (100) T 14.1/4.4

R76 7030000280 S.RES MCR10EZHJ 150 (151) T 28.9/14.0

R80 7030005080 S.RES ERJ2GEJ 823 X (82K) T 29.6/7.9

R81 7030005090 S.RES ERJ2GEJ 104 X (100K) T 20.7/18.3

R91 7030005110 S.RES ERJ2GEJ 224 X (220K) B 27.4/20.1

R93 7030005050 S.RES ERJ2GEJ 103 X (10K) B 28.3/19.2

R94 7030005110 S.RES ERJ2GEJ 224 X (220K) B 21.9/21.1

R95 7030005090 S.RES ERJ2GEJ 104 X (100K) B 21.5/17.4

R96 7030005700 S.RES ERJ2GEJ 274 X (270K) B 21.9/16.2

R97 7030004990 S.RES ERJ2GEJ 221 X (220) B 19.3/19.3

R103 7030005050 S.RES ERJ2GEJ 103 X (10K) B 21.0/16.2

R104 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 16.2/15.0

R105 7030005110 S.RES ERJ2GEJ 224 X (220K) B 16.1/20.3

R107 7030005110 S.RES ERJ2GEJ 224 X (220K) B 15.2/20.3

R109 7030005530 S.RES ERJ2GEJ 100 X (10) B 9.1/21.7

R110 7030008400 S.RES ERJ2GEJ 182 X (1.8K) B 7.2/15.5

R111 7030005090 S.RES ERJ2GEJ 104 X (100K) B 11.7/15.6

R113 7030004980 S.RES ERJ2GEJ 101 X (100) B 17.6/21.0

R115 7030005240 S.RES ERJ2GEJ 473 X (47K) B 8.8/15.4

R120 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 7.7/20.4

R121 7030007350 S.RES ERJ2GEJ 393 X (39K) B 9.2/14.2

R122 7030005230 S.RES ERJ2GEJ 334 X (330K) B 10.1/14.2

R152 7030009270 S.RES ERJ2GEJ 821 X (820) B 2.7/12.2

R153 7030005120 S.RES ERJ2GEJ 102 X (1K) B 2.3/28.5

R154 7030005090 S.RES ERJ2GEJ 104 X (100K) B 5.5/29.1

R155 7030005030 S.RES ERJ2GEJ 152 X (1.5K) B 6.9/25.3

R156 7030005000 S.RES ERJ2GEJ 471 X (470) B 7.4/26.5

R224 7030005240 S.RES ERJ2GEJ 473 X (47K) T 26.9/17.1

R225 7030005050 S.RES ERJ2GEJ 103 X (10K) T 21.2/16.8

R230 7030005060 S.RES ERJ2GEJ 333 X (33K) T 20.2/21.3

R380 7030008010 S.RES ERJ2GEJ 123 X (12K) T 22.6/10.3

R381 7030005050 S.RES ERJ2GEJ 103 X (10K) T 24.4/20.5

R382 7030009140 S.RES ERJ2GEJ 272 X (2.7K) T 22.8/18.7

R383 7030008010 S.RES ERJ2GEJ 123 X (12K) T 23.2/20.1

R384 7030007290 S.RES ERJ2GEJ 222 X (2.2K) T 25.6/20.9

R386 7030005050 S.RES ERJ2GEJ 103 X (10K) T 24.5/18.7

R510 7030005700 S.RES ERJ2GEJ 274 X (270K) B 3.8/6.5

R511 7030005050 S.RES ERJ2GEJ 103 X (10K) B 3.4/7.8

C2 4030017460 S.CER C1005 JB 1H 102K-T B 3.8/31.4

C3 4030017690 S.CER C1005 CH 1H 121J-T B 3.2/38.2

C4 4030017390 S.CER C1005 CH 1H 180J-T B 3.2/39.4

C5 4030017670 S.CER C1005 CH 1H 390J-T B 9.7/40.5

C6 4030017460 S.CER C1005 JB 1H 102K-T B 18.4/36.4

C7 4030016790 S.CER C1005 JB 1E 103K-T T 13.3/31.6

C9 4030017630 S.CER C1005 CH 1H 120J-T T 8.8/28.3

C11 4550007480 S.TAN F930J106MAABMA T 17.7/34.5

C12 4030018860 S.CER C1005 JB 0J 105K-T T 4.2/29.1

C13 4030016930 S.CER C1005 JB 1A 104K-T T 14.6/35.7

C15 4030017460 S.CER C1005 JB 1H 102K-T T 14.8/30.0

C18 4030016930 S.CER C1005 JB 1A 104K-T T 12.8/35.7

C19 4030017650 S.CER C1005 CH 1H 270J-T B 9.2/39.3

C20 4030017460 S.CER C1005 JB 1H 102K-T B 13.5/36.6

C21 4030017610 S.CER C1005 CH 1H 090C-T B 12.6/36.6

C22 4030017610 S.CER C1005 CH 1H 090C-T B 10.2/36.8

C24 4550008150 S.TAN F921V224MAA T 20.3/36.8

C25 4030017460 S.CER C1005 JB 1H 102K-T B 20.2/36.7

C26 4030018010 S.CER C1005 CH 1H 360J-T B 21.6/33.7

C27 4030017670 S.CER C1005 CH 1H 390J-T B 19.3/36.4

C28 4030017460 S.CER C1005 JB 1H 102K-T B 15.3/36.6

C29 4030017460 S.CER C1005 JB 1H 102K-T B 17.5/32.8

C30 4030017460 S.CER C1005 JB 1H 102K-T B 15.3/35.7

C31 4030017460 S.CER C1005 JB 1H 102K-T B 14.6/26.5

C32 4030017350 S.CER C1005 CH 1H 020B-T B 18.1/29.9

C33 4030017440 S.CER C1005 CH 1H 221J-T B 18.9/28.3

C34 4030017550 S.CER C1005 CH 1H 1R5B-T B 21.2/27.0

C35 4030017460 S.CER C1005 JB 1H 102K-T B 17.7/24.6

C36 4030017460 S.CER C1005 JB 1H 102K-T B 14.7/30.4

C37 4030017340 S.CER C1005 CH 1H 010B-T B 16.0/29.0

C38 4030017460 S.CER C1005 JB 1H 102K-T B 10.7/27.0

C39 4030017580 S.CER C1005 CH 1H 060C-T B 10.7/28.8

C40 4030017640 S.CER C1005 CH 1H 150J-T B 12.7/26.6

C41 4030017460 S.CER C1005 JB 1H 102K-T B 10.7/31.2

C42 4030017360 S.CER C1005 CH 1H 030B-T B 10.8/30.0

C43 4030017400 S.CER C1005 CH 1H 220J-T B 10.7/35.6

C44 4030017460 S.CER C1005 JB 1H 102K-T T 15.9/29.1

C46 4030018890 S.CER C1005 JB 0J 224K-T T 16.0/27.3

C50 4030017460 S.CER C1005 JB 1H 102K-T T 6.2/11.8

C51 4030017400 S.CER C1005 CH 1H 220J-T T 5.1/8.4

C52 4030017460 S.CER C1005 JB 1H 102K-T T 4.3/6.3

C53 4030017460 S.CER C1005 JB 1H 102K-T T 2.1/3.5

C54 4030017640 S.CER C1005 CH 1H 150J-T T 6.8/3.3

C55 4030017410 S.CER C1005 CH 1H 240J-T T 8.4/3.3

C56 4030016790 S.CER C1005 JB 1E 103K-T T 20.7/20.1

C57 4030016930 S.CER C1005 JB 1A 104K-T T 21.0/24.9

C58 4030016930 S.CER C1005 JB 1A 104K-T T 24.6/22.1

C59 4030017730 S.CER C1005 JB 1H 471K-T T 24.6/23.7

C60 4030017460 S.CER C1005 JB 1H 102K-T T 24.6/25.3

C61 4030019560 S.CER GRM21BB31C106KE15L T 18.5/16.1

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[RF UNIT]

IC1 1130016080 S.IC GP214D <SEI> T 7.3/35.3

IC2 1180003980 S.REG XC6221A332MR-G T 12.3/29.4

IC50 1120002830 S.IC NJM2125F-TE1-#FZZB T 22.4/22.3

Q3 1560000541 S.FET 2SK880-Y(T5RICOMF) T 17.8/30.4

Q20 1590004070 S.TRA LDTC144EET1G <SLVJ> B 17.4/31.4

Q21 1530002921 S.TRA 2SC4226-T1 Y25 (R25) B 16.9/27.3

Q22 1530002921 S.TRA 2SC4226-T1 Y25 (R25) B 20.5/25.2

Q23 1530002381 S.TRA 2SC4215-Y(TE85LF) B 12.8/30.0

Q24 1530002381 S.TRA 2SC4215-Y(TE85LF) B 11.0/25.3

Q25 1530002381 S.TRA 2SC4215-Y(TE85LF) B 11.2/33.9

Q50 1530004011 S.TRA KTC3770U-C-RTK/P T 3.9/2.8

Q53 1560001550 S.FET RD01MUS2-T113 T 8.2/8.3

Q54 1560001700 S.FET RD07MUS2B-T112 T 18.0/7.8

Q90 1580000751 S.FET 3SK294(TE85LF) B 19.2/15.7

Q100 1590004070 S.TRA LDTC144EET1G <SLVJ> T 19.6/23.3

Q150 1580000731 S.FET 3SK293(TE85LF) B 9.9/17.4

Q151 1530002601 S.TRA 2SC4215-O(TE85RF) B 7.3/28.5

Q222 1510001151 S.TRA L2SA1576AST1G <SLVJ> T 28.8/16.8

Q351 1590004050 S.TRA LDTA144EET1G <SLVJ> T 27.3/19.4

Q480 1550000090 S.FET RSQ035P03TR B 3.6/3.4

D1 1750000771 S.VAR HVC376BTRF-E B 2.2/39.8

D3 1750001810 S.DIO L1SS400T1G <SLVJ> T 6.8/31.3

D20 1750001700 S.DIO HSC277TRF-E B 18.5/35.0

D21 1750001700 S.DIO HSC277TRF-E B 16.6/34.5

D22 1750001780 S.VAR HVB350BYPTL-E B 21.4/28.7

D50 1750002780 S.DIO RN142GT2R T 6.9/17.2

D51 1750002780 S.DIO RN142GT2R T 7.4/19.5

D52 1750000581 S.DIO 1SV307(TPH3F) T 27.1/6.5

D90 1750002780 S.DIO RN142GT2R B 26.9/7.3

D91 1790001670 S.DIO RB706F-40T106 T 24.6/10.5

D92 1750002300 S.VAR KDV214EA-RTK/P B 26.0/20.1

D93 1750002300 S.VAR KDV214EA-RTK/P B 23.0/20.0

D130 1750002300 S.VAR KDV214EA-RTK/P B 15.8/17.1

D131 1750002300 S.VAR KDV214EA-RTK/P B 14.3/18.9

D353 1750002170 S.DIO DB2S31400L B 27.0/8.4

D354 1790001860 S.VAR EZJZ0V80010 T 18.0/14.6

FI150 2030000350 MON 21R15AB (FL-368)

FI151 2030000270 MON MCF21R15AB 21.7 MHz (FL-363)

X1 6050011740 S.XTA CR-766 TSS-6035B 21.250 MHz B 6.2/36.9

L1 6200008070 S.COI MLF1608E 6R8K 6.8U T 7.1/29.0

L20 6200011021 S.COI ELJRF 82NJFB B 11.4/36.5

L21 6200003711 S.COI NLV25T-2R7J B 21.9/35.8

L22 6200011410 S.COI C2520C-82NG-A B 20.7/31.6

L23 6200011031 S.COI ELJRF R10JFB B 12.8/31.7

L24 6200011031 S.COI ELJRF R10JFB B 11.9/27.8

L25 6200011031 S.COI ELJRF R10JFB B 13.1/33.8

L26 6200009151 S.COI ELJRE 82NJFA T 7.7/14.8

L50 6200011031 S.COI ELJRF R10JFB T 5.6/3.6

L51 6200011021 S.COI ELJRF 82NJFB T 7.0/4.6

L53 6200007690 S.COI LQW2BHN18NJ03L T 11.2/12.5

L55 6200012750 S.COI 0.20-1.0-7TL 25N <COMO> T 20.6/12.6

L56 6200012570 S.COI 0.26-1.0-3TL 6.8N <COMO> T 19.9/2.6

L57 6200012680 S.COI 0.30-1.3-5TL 20N <COMO> T 23.4/2.4

L58 6200003711 S.COI NLV25T-2R7J T 28.0/10.6

L80 6200012470 S.COI 0.30-1.7-7TL 45.3N <COMO> T 23.8/7.9

L81 6200012770 S.COI 0.26-1.1-7TR 24N <COMO> B 29.4/5.4

L82 6200012780 S.COI 0.30-1.4-6TL 27.2N <COMO> B 32.6/5.3

L90 6200012470 S.COI 0.30-1.7-7TL 45.3N <COMO> B 24.2/6.8

L92 6200007750 S.COI LQW2BHN56NJ03L B 28.6/11.8

L93 6200007750 S.COI LQW2BHN56NJ03L B 25.1/17.3

L96 6200007750 S.COI LQW2BHN56NJ03L B 17.5/18.5

L97 6200007750 S.COI LQW2BHN56NJ03L B 13.7/14.5

L98 6200003680 S.COI LQH31MNR82M03L B 8.6/19.9

R1 7510001661 S.THR NTCG16 4LH 473JT B 6.1/32.0

R2 7030012480 S.RES ERJ2RKF 1003X (100K) B 6.4/30.9

R4 7030005240 S.RES ERJ2GEJ 473 X (47K) B 3.7/36.7

R5 7030005050 S.RES ERJ2GEJ 103 X (10K) B 8.8/40.5

R6 7030005120 S.RES ERJ2GEJ 102 X (1K) B 17.2/36.7

R7 7030005240 S.RES ERJ2GEJ 473 X (47K) B 18.9/33.9

R8 7030004980 S.RES ERJ2GEJ 101 X (100) T 9.7/29.2

R10 7030008370 S.RES ERJ2GEJ 561 X (560) T 13.7/35.7

R11 7030005120 S.RES ERJ2GEJ 102 X (1K) T 15.2/30.9

R12 7030005050 S.RES ERJ2GEJ 103 X (10K) T 16.7/32.7

R13 7030005210 S.RES ERJ2GEJ 822 X (8.2K) T 17.6/28.2

R20 7030004980 S.RES ERJ2GEJ 101 X (100) B 12.7/35.4

R22 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 15.8/36.2

R23 7030005120 S.RES ERJ2GEJ 102 X (1K) B 20.2/34.1

R24 7030005090 S.RES ERJ2GEJ 104 X (100K) B 15.3/33.9

R25 7030005090 S.RES ERJ2GEJ 104 X (100K) B 15.2/34.8

R26 7030005050 S.RES ERJ2GEJ 103 X (10K) B 17.7/29.0

R27 7030008010 S.RES ERJ2GEJ 123 X (12K) B 19.3/27.0

R28 7030004990 S.RES ERJ2GEJ 221 X (220) B 17.7/25.5

R29 7030005000 S.RES ERJ2GEJ 471 X (470) B 14.6/27.4

R30 7030005070 S.RES ERJ2GEJ 683 X (68K) B 15.6/30.4

R31 7030005010 S.RES ERJ2GEJ 681 X (680) B 14.0/31.9

R32 7030008280 S.RES ERJ2GEJ 271 X (270) B 13.1/28.2

R33 7030007350 S.RES ERJ2GEJ 393 X (39K) B 10.7/27.9

R34 7030007280 S.RES ERJ2GEJ 331 X (330) B 12.8/32.6

R35 7030005070 S.RES ERJ2GEJ 683 X (68K) B 10.9/32.1

R36 7030005120 S.RES ERJ2GEJ 102 X (1K) T 17.1/26.0

R40 7030010040 S.RES ERJ2GEJ-JPW B 22.5/26.3

R50 7030005120 S.RES ERJ2GEJ 102 X (1K) T 8.0/25.7

R52 7030005040 S.RES ERJ2GEJ 472 X (4.7K) T 4.6/11.0

6-6

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[RF UNIT]

EP2 6910014690 S.BEA MPZ1608S221A-T T 15.4/15.0

EP3 6910014690 S.BEA MPZ1608S221A-T T 18.3/13.4

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[RF UNIT]

C62 4030017460 S.CER C1005 JB 1H 102K-T T 16.6/13.8

C63 4030016790 S.CER C1005 JB 1E 103K-T T 14.1/13.7

C64 4030017460 S.CER C1005 JB 1H 102K-T T 11.4/3.8

C65 4030017430 S.CER C1005 CH 1H 101J-T T 12.3/5.1

C66 4030017460 S.CER C1005 JB 1H 102K-T T 14.3/2.6

C67 4030017730 S.CER C1005 JB 1H 471K-T T 18.7/12.2

C68 4030017420 S.CER C1005 CH 1H 470J-T T 22.1/13.1

C69 4030017460 S.CER C1005 JB 1H 102K-T T 13.2/13.7

C70 4030007100 S.CER C1608 CH 1H 560J-T T 21.5/1.7

C71 4030007060 S.CER C1608 CH 1H 270J-T T 25.9/3.8

C72 4030006860 S.CER C1608 JB 1H 102K-T T 23.2/5.2

C73 4030017460 S.CER C1005 JB 1H 102K-T T 29.8/11.6

C74 4030017460 S.CER C1005 JB 1H 102K-T T 26.6/8.6

C77 4030016930 S.CER C1005 JB 1A 104K-T T 10.5/3.8

C78 4030016930 S.CER C1005 JB 1A 104K-T T 12.9/3.8

C80 4030017460 S.CER C1005 JB 1H 102K-T T 28.5/4.8

C81 4030017390 S.CER C1005 CH 1H 180J-T T 24.8/5.1

C82 4030017390 S.CER C1005 CH 1H 180J-T T 25.0/6.0

C83 4030017400 S.CER C1005 CH 1H 220J-T T 28.8/6.5

C84 4030018120 S.CER C1005 CH 1H 110J-T T 30.1/4.3

C85 4030017410 S.CER C1005 CH 1H 240J-T T 29.7/5.6

C86 4030017610 S.CER C1005 CH 1H 090C-T T 30.4/9.4

C89 4030017590 S.CER C1005 CH 1H 070C-T T 32.2/4.3

C90 4030017610 S.CER C1005 CH 1H 090C-T B 23.4/4.0

C91 4030017620 S.CER C1005 CH 1H 100C-T B 26.6/6.2

C94 4030017380 S.CER C1005 CH 1H 050B-T B 26.7/10.4

C95 4030017640 S.CER C1005 CH 1H 150J-T B 24.9/20.5

C96 4030017460 S.CER C1005 JB 1H 102K-T B 21.0/21.1

C97 4030017550 S.CER C1005 CH 1H 1R5B-T B 29.3/14.2

C98 4030017550 S.CER C1005 CH 1H 1R5B-T [USA] B 24.4/19.2

4030017550 S.CER C1005 CH 1H 1R5B-T [EXP]

4030017340 S.CER C1005 CH 1H 010B-T [EUR-01]

4030017340 S.CER C1005 CH 1H 010B-T [EUR]

4030017340 S.CER C1005 CH 1H 010B-T [UK]

4030017340 S.CER C1005 CH 1H 010B-T [FRG]

4030017340 S.CER C1005 CH 1H 010B-T [HOL]

4030017550 S.CER C1005 CH 1H 1R5B-T [AUS]

4030017550 S.CER C1005 CH 1H 1R5B-T [USA-10]

4030017550 S.CER C1005 CH 1H 1R5B-T [EXP-10]

4030017340 S.CER C1005 CH 1H 010B-T [EUR-11]

4030017340 S.CER C1005 CH 1H 010B-T [EUR-10]

4030017340 S.CER C1005 CH 1H 010B-T [UK-10]

4030017340 S.CER C1005 CH 1H 010B-T [FRG-10]

4030017340 S.CER C1005 CH 1H 010B-T [HOL-10]

4030017550 S.CER C1005 CH 1H 1R5B-T [AUS-10]

C99 4030017660 S.CER C1005 CH 1H 330J-T B 24.0/20.5

C100 4030017560 S.CER C1005 CH 1H 2R5B-T B 23.0/17.1

C101 4030017640 S.CER C1005 CH 1H 150J-T [USA] B 22.4/18.3

4030017640 S.CER C1005 CH 1H 150J-T [EXP]

4030017620 S.CER C1005 CH 1H 100C-T [EUR-01]

4030017620 S.CER C1005 CH 1H 100C-T [EUR]

4030017620 S.CER C1005 CH 1H 100C-T [UK]

4030017620 S.CER C1005 CH 1H 100C-T [FRG]

4030017620 S.CER C1005 CH 1H 100C-T [HOL]

4030017640 S.CER C1005 CH 1H 150J-T [AUS]

4030017640 S.CER C1005 CH 1H 150J-T [USA-10]

4030017640 S.CER C1005 CH 1H 150J-T [EXP-10]

4030017620 S.CER C1005 CH 1H 100C-T [EUR-11]

4030017620 S.CER C1005 CH 1H 100C-T [EUR-10]

4030017620 S.CER C1005 CH 1H 100C-T [UK-10]

4030017620 S.CER C1005 CH 1H 100C-T [FRG-10]

4030017620 S.CER C1005 CH 1H 100C-T [HOL-10]

4030017640 S.CER C1005 CH 1H 150J-T [AUS-10]

C102 4030016790 S.CER C1005 JB 1E 103K-T B 19.3/17.5

C103 4030017420 S.CER C1005 CH 1H 470J-T B 19.3/18.4

C104 4030016790 S.CER C1005 JB 1E 103K-T B 20.5/18.6

C109 4030017460 S.CER C1005 JB 1H 102K-T B 17.0/15.9

C110 4030017670 S.CER C1005 CH 1H 390J-T B 15.7/19.1

C111 4030017460 S.CER C1005 JB 1H 102K-T B 15.7/21.5

C112 4030017560 S.CER C1005 CH 1H 2R5B-T B 16.2/14.1

C113 4030017540 S.CER C1005 CH 1H R75B-T B 14.5/16.0

C114 4030017650 S.CER C1005 CH 1H 270J-T B 14.0/20.6

C115 4030017380 S.CER C1005 CH 1H 050B-T B 14.0/17.2

C116 4030017350 S.CER C1005 CH 1H 020B-T B 12.9/16.0

C119 4030017500 S.CER C1005 CH 1H 560J-T B 7.3/17.6

C120 4030016970 S.CER C1005 JB 1E 223K-T B 8.2/17.5

C121 4030017460 S.CER C1005 JB 1H 102K-T B 7.2/16.4

C122 4030016790 S.CER C1005 JB 1E 103K-T T 8.0/17.1

C125 4030016930 S.CER C1005 JB 1A 104K-T T 14.4/27.3

C126 4030018860 S.CER C1005 JB 0J 105K-T T 14.7/26.4

C131 4030017630 S.CER C1005 CH 1H 120J-T T 8.0/13.1

C154 4030017460 S.CER C1005 JB 1H 102K-T B 4.6/11.7

C155 4030017360 S.CER C1005 CH 1H 030B-T T 3.7/20.8

C156 4030017460 S.CER C1005 JB 1H 102K-T B 2.5/29.7

C157 4030016970 S.CER C1005 JB 1E 223K-T B 4.6/29.3

C158 4030017460 S.CER C1005 JB 1H 102K-T B 3.7/29.3

C159 4030016790 S.CER C1005 JB 1E 103K-T B 7.9/25.3

C160 4030016780 S.CER C1005 JB 1E 153K-T B 10.0/21.7

C220 4030019560 S.CER GRM21BB31C106KE15L T 12.8/33.0

C223 4030016790 S.CER C1005 JB 1E 103K-T T 22.4/16.4

C225 4030011770 S.CER C1608 CH 1H 060B-T T 21.5/4.3

C380 4030017460 S.CER C1005 JB 1H 102K-T T 21.9/18.7

C381 4030017460 S.CER C1005 JB 1H 102K-T T 25.4/18.7

C400 4030017420 S.CER C1005 CH 1H 470J-T T 18.0/27.1

C401 4030017420 S.CER C1005 CH 1H 470J-T T 18.6/25.4

C402 4030017420 S.CER C1005 CH 1H 470J-T T 8.7/32.0

C510 4030017460 S.CER C1005 JB 1H 102K-T B 1.5/3.7

C512 4030017460 S.CER C1005 JB 1H 102K-T B 5.8/1.8

J101 6510025121 S.CON 30RF-JMCS-G-1B-TF(N)(LF)(SN) T 11.8/20.1

S250 2260002800 S.SWI SW-167 (SKQTLAE010) T 20.0/39.9

S328 2260002800 S.SWI SW-167 (SKQTLAE010) T 5.0/39.9

6-7

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[MIC UNIT]

C700 4030017420 S.CER C1005 CH 1H 470J-T B 9.3/5.1

C703 4030017620 S.CER C1005 CH 1H 100C-T B 8.0/6.6

J415 6510022692 S.CON 06FLT-SM2-TB(LF)(SN)(M) B 8.2/2.5

J416 6510021941 CON 246S-550-4P-68(JIS8)

W470 8910000070 FFC FFC-1008 (P0.5N6L50) <TJM>

EP451 6910018460 S.BEA MMZ1005Y102C-T B 2.6/2.6

EP452 6910018460 S.BEA MMZ1005Y102C-T B 4.5/1.4

EP454 6910018460 S.BEA MMZ1005Y102C-T B 4.9/2.7

EP458 6910018460 S.BEA MMZ1005Y102C-T B 8.4/7.8

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

REF PARTS DESCRIPTION M. H/V

NO. NO.

LOCATION

[VR UNIT]

R801 7210003650 VAR F081-0028A <SLVJ>

J416 6510029480 S.CON 06FH-SM1-TB(LF)(SN) B 4.1/2.0

W801 8910000070 FFC FFC-1008 (P0.5N6L50) <TJM>

Eqv.= This component is equivalent to the REF No. component listed above, and

may be substituted on parts orders and repairs.

7 - 1

[CHASSIS PARTS]

REF ORDER DESCRIPTION QTY.

NO. NO.

J1 6910017840 2905 ANT CONNECTOR <EIK> 1

J3 6510025340 2905 CONTACT SPRING <CCP> 1

MP1 8210029010 3495 FRONT PANEL ASS.Y<ITM> [USA] 1

8210029010 3495 FRONT PANEL ASS.Y<ITM> [EXP] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [EUR-01] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [EUR] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [UK] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [FRG] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [HOL] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [AUS] 1

8210029010 3495 FRONT PANEL ASS.Y<ITM> [USA-10] 1

8210029010 3495 FRONT PANEL ASS.Y<ITM> [EXP-10] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [EUR-11] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [EUR-10] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [UK-10] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [FRG-10] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [HOL-10] 1

8210029020 3495 FRONT PANEL (A) ASS.Y<ITM> [AUS-10] 1

MP5 8930068980 2905 VENT SHEET 1

MP6 8930069940 2905 A-MAIN SEAL (TOP) 1

MP7 8010022660 2905 A-REAR PANEL 1

MP8 8310065560 2905 T-PLATE 1

MP9 8930068501 2905 T-RUBBER-1 (TOP) 1

MP10 8930088090 3495 T-SHEET 1

MP11 8810010450 PH M2X3 SUS SSBC 2

MP12 8930068470 2905 PTT BUTTON (TOP) 1

MP13 8210022480 2905 PTT PANEL 1

MP14 8810010630 PH3 M2X3 SUS SSBC 1

MP15 8310065550 2905 LOCK PLATE 1

MP17 8930069350 2905 MIC SEAL (TOP) 1

MP18 8930051390 2304 SHAFT 1

MP19 8610012900 KNOB N344 1

MP20 8930057690 O-RING (AQ) (TOP) 1

MP21 8830002770 VR NUT (W) 1

MP22 8930053590 O-RING (AG) (TOT) 1

MP23 8830001160 VR NUT (K) 1

MP24 8850002770 PLAIN WASHER (AM) 1

MP26 8830002780 VR NUT (X) 1

MP27 8930050660 2320 CONNECTOR CAP 1

MP28 8810009181 BT M2X5 NI-ZC3 2

MP29 8810010480 PHB0 M2X6 SUS SSBC 4

MP30 8810008971 BT M2X3.5 NI-ZC3 6

MP31 8810009511 PHBT M2X4 NI-ZC3 (3.6-4.0) 3

MP32 8810009161 PHB0 M2X20 SUS SSBC 2

MP37 8930084870 3384 REAR SHEET 1

MP39 8930069620 2905 ANT PLATE Y846 1

MP40 8810006571 PH M2X2 ZC3 1

MP42 8930088220 SPONGE (MJ) 1

MP43 8930070630 O-RING (BK) (TOP) 1

MP44 8930087790 3495 WHITE SHEET 1

MP45 8930088230 SPONGE (MK) 2

MP46 8930088590 SHIELD SPONGE (DC) 1

[MAIN UNIT]

[RF UNIT]

REF ORDER DESCRIPTION QTY.

NO. NO.

J100* 6510025130 30P9.0-JMCS-G-B-TF (N) 1

J251* 6510021901 BM02B-ASRS-TF (LF) (SN) 1

J300* 6510022692 06FLT-SM2-TB (LF) (SN) (M) 1

J301* 6510022692 06FLT-SM2-TB (LF) (SN) (M) 1

DS480 5030003670 L2-1365TVF <TES> 1

MC250* 7700002990 EM6027P-46C10&33-G <HOR> 1

S1* 2260003300 EVQPQHB55 1

S2* 2260003300 EVQPQHB55 1

S3* 2260003300 EVQPQHB55 1

S4* 2260003300 EVQPQHB55 1

S5* 2260003300 EVQPQHB55 1

S6* 2260003300 EVQPQHB55 1

S7* 2260003300 EVQPQHB55 1

S8* 2260003300 EVQPQHB55 1

EP360 8930087800 SRCN-3495-SP-N-W (SHJ) 2

MP360 8210028870 3495 REFLECTOR 1

MP361 8930087780 3495 LCD HOLDER Y1288 1

MP362 8950004430 DOUBLE SIDE TAPE (O) 2

REF ORDER DESCRIPTION QTY.

NO. NO.

J101* 6510025121 30RF-JMCS-G-1B-TF (N) (LF) (SN) 1

S250* 2260002800 SW-167 (SKQTLAE010) 1

S328* 2260002800 SW-167 (SKQTLAE010) 1

MP20* 8510016471 2775 VCO CASE-1 1

MP21 8510017521 2905 VCO COVER-1 Y834A 1

MP50* 8410002620 2905 PA HEATSINK Y832 1

MP51 8510017590 2905 SHIELD PLATE 1

MP52 8860001400 2905 EARTH PLATE Y844 1

[MIC UNIT]

REF ORDER DESCRIPTION QTY.

NO. NO.

J415* 6510022692 06FLT-SM2-TB (LF) (SN) (M) 1

J416 6510021941 246S-550-4P-68 (JIS8) 1

W470 8910000070 FFC-1008 (P0.5N6L50) 1

MP1 8930087990 SHIELD SPONGE (DB) 1

[VR UNIT]

REF ORDER DESCRIPTION QTY.

NO. NO.

J416* 6510029480 06FH-SM1-TB (LF) (SN) 1

W801 8910000070 FFC-1008 (P0.5N6L50) 1

SECTION 7

MECHANICAL PARTS

*: Refer to “BOARD LAYOUTS” for the location.

Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

7 - 2

[ACCESSORIES]

REF ORDER DESCRIPTION QTY.

NO. NO.

EP1 (Optional) FA-S64V [USA] 1

(Optional) FA-S64V [EXP] 1

(Optional) FA-S59V [EUR-01] 1

(Optional) FA-S64V [EUR] 1

(Optional) FA-S64V [UK] 1

(Optional) FA-S64V [FRG] 1

(Optional) FA-S64V [HOL] 1

(Optional) FA-S64V [AUS] 1

(Optional) FA-S64V [USA-10] 1

(Optional) FA-S64V [EXP-10] 1

(Optional) FA-S59V [EUR-11] 1

(Optional) FA-S64V [EUR-10] 1

(Optional) FA-S64V [UK-10] 1

(Optional) FA-S64V [FRG-10] 1

(Optional) FA-S64V [HOL-10] 1

(Optional) FA-S64V [AUS-10] 1

EP2 (Optional) BC-123SA [USA] 1

(Optional) BC-123SE [EXP] 1

(Optional) BC-123SE [EUR-01] 1

(Optional) BC-123SE [EUR] 1

(Optional) BC-123SE [FRG] 1

(Optional) BC-123SE [HOL] 1

(Optional) BC-123SV [AUS] 1

(Optional) BC-123SA [USA-10] 1

(Optional) BC-123SE [EXP-10] 1

(Optional) BC-123SE [EUR-11] 1

(Optional) BC-123SE [EUR-10] 1

(Optional) BC-123SE [FRG-10] 1

(Optional) BC-123SE [HOL-10] 1

(Optional) BC-123SV [AUS-10] 1

EP3 (Optional) BP-245H 1

EP4 (Optional) BC-210 1

EP5 6910018620 BLACK HANDY STRAP 1

EP6 (Optional) CP-25H [USA] 1

(Optional) CP-25H [EXP] 1

(Optional) CP-25H [HOL] 1

(Optional) CP-25H [USA-10] 1

(Optional) CP-25H [EXP-10] 1

(Optional) CP-25H [HOL-10] 1

MP2 (Optional) MB-103 1

MP3 8810001470 PHA M3.5X30 SUS 2

*: Refer to “BOARD LAYOUTS” for the location.

Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

EP1

EP6

EP5

(Not supplied or different type

may be supplied depending

on the version)

(May not be supplied,

depending on the version)

EP4

(with two screws)

MP3

MP2

EP3

EP2

7 - 2

MP44(C)

MP360(C)

MP361(C)

DS480(C)

MP27(C)

MP37(C)

MP24(C)

MP14(C)

MP29(C)×4

MP28(C)×2

MP5(C)

MP10(C)

MP8(C)

MP9(C)

J3(C)

MP31(C)×3

MP21(R)

MP51(R)

RF UNIT

VR UNIT

R801(V)

MIC UNIT

MP15(C)

MP52(R)

MP30(C)

MP7(C)

MP18(C)

MP11(C)×2

MP12(C)

MP13(C)

MP30(C)×5

MP45(C)×2

MP1(C)

MP5(C)

MP42(C)

MP6(C)

MP19(C)

MP21(C)

MP23(C)

MP43(C) MP1(MI)*

W470(MI)

To J300

(MAIN UNIT)

To J301

(MAIN UNIT)

W801(V) J416(MI)

MP22(C)

MP39(C)

MP46(C)

MP40(C)

J1(C)

MP20(C)

MP26(C)

MP17(C)

EP360(C)×2

MP362(C)×2

MAIN UNIT

MP32(C)

Abbreviations;

(C): Chassis parts

(M): MAIN UNIT

(R): RF UNIT

(MI): MIC UNIT

(V): VR UNIT

*; Location

MP1(MI)

8 - 1

SECTION 8

BOARD LAYOUTS

The combination of top side and bottom side of this

• RF UNIT

(TOP VIEW)

• MAIN UNIT

(TOP VIEW)

• VR UNIT

(TOP VIEW)

• MIC UNIT

(TOP VIEW)

J1 (CHASSIS)

SP+ 1

SP− 2

SP1 (CHASSIS)

PCON

T5VS

TEMPV

PLST

UNLK

SDATA

SQL

POW

2NDLO

PTTIN

SCK

MOD

GND

FCON

VCC

TXMS

TDETV

MODCO

R5V

LOINV

TCON/LOW

142SD042SD

DS242 DS243

152SD052SD

DS252 DS253

J251

MC250

S4S5

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85

V0 V5 V10 V15 V20 V25 V30 V35 V40

C11

C12

C13

C15

C18

C24

C44

C46

C50

C51

C52

C53

C54 C55

C56

C57

C58 C59 C60

C61

C62

C63

C64

C65

C66

C67

C68

C69

C70

C71

C72

C73

C74

C77

C78

C80

C81

C82

C83

C84

C85

C86

C89

C122

C125

C126

C131

C155

C220

C223

C225

C380

C381

C400

C401

C402

D50

D51

D52

D91

D354

EP2

EP3

IC1

IC2

IC50

J101

L26

L50

L51

L53

L55

L56

L57

L58

L80

Q50

Q53

Q54

Q100

Q222

Q351

R10

R11

R12

R13

R22

R36

R50

R52

R53

R54

R55

R56

R57

R65

R66

R67 R68

R69 R70

R71

R72

R73

R74

R75

R76

R80

R81

R120

R224

R225

R230

R380

R381

R382

R383

R384

R386

S250S328

B7815B

H0H5H10H15H20H25H30

V0 V5 V10 V15 V20 V25 V30 V35 V40

J416

B7817A

H0H5H10

V0 V5

R801

H0H5

V0 V5 V10

8 - 2

The combination of top side and bottom side of this

• RF UNIT

(BOTTOM VIEW)

• MAIN UNIT

(BOTTOM VIEW)

• VR UNIT

(BOTTOM VIEW)

• MIC UNIT

(BOTTOM VIEW)

MC1

PCON

T5VS

TEMPV

PLST

UNLK

SDATA

SQL

POW

2NDLO

PTTIN

SCK

MOD

GND

FCON

VCC

TXMS

TDETV

MODCO

R5V

LOINV

TCON/LOW

J415

GND

EXTMIC

EXDET

AFOUT

J416

GND

VOLO

VOLIN

GND

PWON

C160

C170

C171

C174

C176

C177

C178C179

C180

C181

C190

C191

C192

C193

C194

C195

C200

C202

C205

C206

C207

C222

C224

C225

C228

C229

C230

C231

C240

C251

C252

C254

C257

C258

C260

C261

C263

C264

C265

C266

C267

C280

C282

C283

C285

C286

C287

C288

C289

C340

C341

C351

C377

C378

C379

C401

C403

C404

C405

C430

C431

C432

C433

C434

C435C436

C437

C438

C439

C440

C450

C482C483

C488

C489

C491

C492

C493

C494

C496

C497

C498

C500

C502

C503

C504

C505

C510

C511

C520

C521

C522

C523

C524

C525

C526

C527

C528

C529

C530

C531

C532

C533

C534

C535

C536

C537

C538

C539

C540C541

C552

C554

C556

C557

C558

C560

D350

D430

D431

FI170

IC170

IC190

IC200

IC220

IC260

IC280

IC340

IC341

IC360

IC364

IC401

IC430

IC431

IC432

IC500

IC501

IC502

IC503

IC504

J100

J300

J301

L10

L11

L12

Q221

Q223

Q224

Q225

Q230

Q231

Q240

Q250

Q350

Q361

Q401

Q430

Q470

Q500

Q542

Q550

Q551

Q552

Q553

R160

R170R171

R172

R173R174

R175

R176

R192

R193

R194

R201

R202

R203

R204

R206

R207

R212

R213

R214

R222

R223

R226

R227

R228

R230

R231

R232

R233

R234

R235

R236

R240

R241

R243

R244

R250

R251

R252

R253

R255

R256

R257

R258

R260

R261 R262

R263

R264

R265

R271

R272

R273

R274

R275

R276

R277

R278

R279

R280

R283

R284

R286

R288

R289

R290

R300

R340

R341

R343

R346

R351

R352

R353

R376

R377 R378

R379

R396

R397

R399

R401

R402

R430

R431

R433

R434

R435

R436 R437

R438

R439 R440

R441

R442

R449

R454

R456

R495

R496

R498

R499

R500

R501

R502

R521

R540

R541

R542

R545

R546

R547

R548

R549

R550

R551

R552 R553

R554

R555

R556

R557

R558

R559

R560

R561

R562

R563

R564

R570

R571

R572

R573

R575

R576

R577

R578

R579

R580

R581

R582

R583

X170

X480

X481

B7814C

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85

V0V5V10V15V20V25V30V35V40

C19

C20

C21

C22

C25

C26

C27

C28

C29

C30

C31

C32

C33

C34

C35

C36

C37

C38

C39

C40

C41

C42

C43

C90

C91

C94

C95

C96

C97

C98

C99

C100

C101

C102

C103

C104

C109

C110

C111

C112

C113

C114

C115

C116

C119

C120

C121

C154

C156

C157

C158

C159

C160

C510

C512

D20

D21

D22

D90

D92

D93

D130

D131

D353

L20

L21

L22

L23

L24

L25

L81

L82

L90

L92

L93

L96

L97

L98

MP20

MP50

Q20 Q21

Q22

Q23

Q24

Q25

Q90

Q150

Q151

Q480

R20

R23

R24

R25

R26

R27

R28

R29

R30

R31

R32 R33

R34

R35

R40

R91

R93

R94

R95

R96

R97

R103

R104

R105

R107

R109

R110

R111

R113

R115

R121

R122

R152

R153

R154

R155

R156

R510

R511

FI150 FI151

H0 H5 H10 H15 H20 H25 H30

V0V5V10V15

V20

V25

V30V35V40

C700

C703

EP451

EP452

EP454

EP458

J415

H0 H5 H10

V0V5

J416

B7816A

H0 H5

V0V5V10

9 - 1

SECTION 9

BLOCK DIAGRAM

FIL

LOOP BUFF BUFF

BUFF

AMP

DRIVE

PRE PWR

AMP

APC

CTRL

TX/RX

ANT

BPFBPFBPF

LPF

ANTENNA

LCD

DRIVER

LIMIT

AMP

LPF

PWR

AMP

PWR

CTRL

POWER SW

PUSH1

CP1

MUTE

MC1

BPF

CERAMIC

LPF

BPFBPF

MUTE

BPF

PWR

CTRL

BATT

PWR

AMP

BUFF

MUTE

AMP

PWR

CTRL

CR-834

AMP

M5VS

EXDET

WDECV

RSSIV

NOISV

TEMPV

BATTV

PTTIN

EXPTT

BEEP

SPCTRL

AFVS

DETMS1

MICMS

T5VS

ETXDO

R5VS

VOXT

TXMS

ERXDI

TDETV

AFVCTRL

LOINV

PLAYMS

DETMS

BPCTRL

ATIS

PWSW

PTTM

REG

R5V

T5V

CPU

RESET

7.9872 MHz

EEPROM

BACK

LIGHT

KEY

CPU5V

CPU

VCO

RSSIV

PLL DATA BUS

Vcc

DE-

ENPHA

VCC

VOLOUT

VOLIN

AFOUT

EXDET

SPG

PTT

MIC UNIT

Vcc

DET

SQLO

21.7MHz

PRE-

ENPHA

TXMS

PCON

MUTE SW

TCON/LOW

FCON

MODCO

D/A control BUS

MOD

AFVS

EXTMIC

MIC

BEEP IF DET IC

RF UNIT

REG

T5V

Q230:RSQ035P03TR

Q231:KTC811U

IC280

TA7368PL

CONT

PTT

AMP

MIC

Q430:

LDTA144EE

IC431B:LM2904PWR

IC200B:

MICMS

IC200D:

LM2902PWR

IC200A:

ANALOG

IC260:

LPF

IC432A:

DETMS

IC430D:

Q222:L2SA1576AS

IC220:

NJU7772F05

REG

R5V

D92:

KDV214EA

D93:D130:D131: Q90:

3SK294

3SK293

Q150:

FI150:FL-368

FI151:FL-363

FI170:

LTWC450E1

X1:CR-766

Q21:2SC4226

R5V

D22:HVB350BYPTL

Q23:2SC4215 Q24:2SC4215

Q25:2SC4215

Q151:

2SC4215

D50:HVD144A

D51:HVD144A

Q50:

KTC3770U

Q53: Q54:

Q351:

LDTA144EE

D52:1SV307

D90:HVD144A

D353:DB2S31400

X480:

IC341:NJU7704F3

Q225:KIA1664

Q224:KTC811U

Q223:LDTC144EE

IC340:S-24C64CI

IC360:

UPC78F0338GC

DS480:

L2-1365TVF

DS240,DS241,

LNJ426W83RA

LDTC144EE

RD01MUS2 RD07MUS2B

X170:

JTBM450CX70

IC170:

GT3136

NOISV

ETXDO

ERXDI

BUFF

EXDET

Q350:L2SC4081

D350:L1SS400

VOX VOXT

EXPTT

PTTIN

PTTM VOXM

IC430A: IC430B:

WDECV

AMP

VOX

IC431A:

DS242,DS243,

TCON/LOW

Q22:2SC4226

MOD

MUTE

D20,D21:HSC277TRF

Q20:LDTC144EE

2ndLo

CD4066BPWR

Q221:L2SA1576AS

LM2902PWR

LM2904PWR

SPCTRL

Q401:LDTC144EE

AFVCTRL

RSQ035P03TR

Q480:

MAIN UNIT

DS250,DS251:

SML-A12WT

Q240:

RF UNIT

CD4066BPWR CD4066BPWR

TC7W53FK

PCON

TCON/LOW

Q3:2SK880

LOINV

BEEP

CTRL

BPCTRL

Q470:

VR UNIT

NJM2073M

INTSP

CHASSIS

IC401

DS252,DS253,

D91:

RB706F

DET

TDETV

PWR

T5V

MOD

MODCO

PLL IC

IC1:GP214D

21.25MHz

PLLO

FCON

REG

3.3V

IC2:XC6221A332MR

KDV214EAKDV214EAKDV214EA

D/A IC

DET

Q250:

CONT

LDTC144EE

MICPTTM

CD4066BPWR

IC430C:

LM2902PWR

Q361:L2A1576AS

IC364:TC7WH14FK

POW

PWON

AFV

LDTC144EE

MSENSE

NOISE CANCEL

PLAY/REC IC

TC7W66FK

IC504B: IC504A:

TC7W66FK

MICO

IC200C:

LM2902PWR

BEEP DETMS1 PLAYMS

Noisecancel control BUS

GND

FLASH

ROM

IC500:LC703200AW

IC501:

VOXM

PWSW

ATISO

ATIS

BATTV

DET BATTV

D430 :DA2S10100L

LE25U40CMC

TEMP

DET

TEMPV

LDTC144EE

Q551:

D431:

LDAN222

LM2904PWR

IC432B:

Q100:LDTC144EE

IC50:NJM2125F

10 - 1

SECTION 10

VOLTAGE DIAGRAM

*: Refer to the PARTS LIST for the value and name of component.

• RF UNIT

CP80

CP1

CP241

CP240

2.7U

L58

MP50

2905

Q20

LDTC144EE

Q100

LDTA144EE

Q351

Q222

L2SA1576AS

Q50

KTC3770U

RD07MUS2B

Q54

D20

HSC277TRF

D21

HSC277TRF

HVB350BYPTL

D22

D50

HVD144A

D51

HVD144A

D90

HVD144A

L50

0.1U

82N

L51

L57

20N

100k

R26

10k

R28

220

R31

680

R56

1.2k

R57

R71

100

R70

10k

R74

10k

R75

100

R80

82k

R81

100k

100

R113

R225

10k

R224

47k

33k

R230

12k

R380

0.001

C15

0.001

C25

0.001

C28

0.001

C29

0.001

C30

0.001

C31

0.001

C35

0.001

C36

0.001

C38

0.001

C41

0.001

C44

0.001

C50

0.001

C52

0.001

C53

0.001

C60

0.001

C64

0.001

C66

0.001

C62

0.01

56P

C119

C115

0.75P

C113

0.01

C104

47P

C103

2.5P

C100

56P

C70

27P

C71

0.001

C72

C225

C220

C61

0.001

C20

C21

C22

C32

1.5P

C34

220P

C33

36P

C26

39P

C27

C37 15P

C40

22P

C43

22P

C51

24P

C55

15P

C54

0.01

C56

0.1

C57

0.1

C58

470P

C59

0.01

C63

100P

C65

470P

C67

47P

C68

0.001

C69

0.001

C73

0.001

C74

0.1

C77

0.1

C78

0.001

C80

18P

C81

18P

C82

22P

C83

11P

C84

C86

C89

C90

10P

C91

0.001

C96

0.01

C102

0.001

C109

0.001

C111

0.022

C120

0.001

C121

0.01

C122

0.001

C154

0.001

C156

0.022

C157

0.001

C158

0.01

C159

0.01

C223

0.001

C380

0.001

C381

0.001

C510

0.001

C512

GP214D

IC1

1Fin1

2Vcc

3CP1

4GND

5LD

6CLK

7DATA

8EN 9

OSCO

OSCI

GND

CP2

Vcc

Fin2

L1SS400

0.22

C24

C11

0.1

C18

0.1

C13

0.1

C125

C12

39P

Q21

2SC4226

Q22

2SC4226

Q23

2SC4215 Q24

2SC4215

Q25

2SC4215

2SK880

NJM2125F

IC50

3SK294

Q90

3SK293

Q150

RSQ035P03TR

Q480

HVC376B

1SV307

D52

RB706F

D91

EZJZ0V80010

D354

DB2S31400

D353

KDV214EA

D92

KDV214EA

D93

KDV214EA

D130

KDV214EA

D131

1.5P

C97

39P

C110

2.5P

C112

27P

C114

L92

56N

L96

56N

L93

56N

L97

56N

L23

0.1U

L24

0.1U

L25

0.1U

L20

82N

6.8U

L21

2.7U

L22

82N

18N

L53

82N

L26

FI150

FL-368

FI151

FL-363

L55

25N

L56

6.8N

L80

45.3N

L81

24N

L82

27.2N

L90

45.3N

L98

0.82U

47k

R22

4.7k

47k

R24

100k

R25

100k

R23

R20

100

R11

10k

R12

8.2k

R13

R27

12k

R29

470

R30

68k

R33

39k

R35

68k

10k

R53

100

R54

R52

4.7k

R55

3.3k

R50

2.2k

R384

10k

R386

R68

100

R69

15k

R67

100k

R65

150k

R66

47k

10k

R381

R73

R91

220k

R94

220k

R105

220k

R107

1.5k

R104

R96

270k

R95

100k

R93

10k

R103

R109

R110

1.8k

R111

100k

R115

47k

39k

R121

330k

R122

R36

R120

2.2k

R154

100k

R155

1.5k

R156

470

2.7k

R382

12k

R383

270k

R510

10k

R511

NTCG16

150

R76

J101

910

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

SW-167

S250

SW-167

S328

MPZ1608S221A

EP2 MPZ1608S221A

EP3

Q151

2SC4215

0.22

C46

120P

18P

CR-766

2775

MP20

R40

RD01MUS2

Q53

XC6221A332MR

IC2

1VIN

2VSS

3CE 4

VOUT

R10

560

R152

820

R153

R32

270

R34

330

R72

100

12P

27P

C19

C94

15P

C95

33P

C99

C155

0.015

C160

220

R97

C116

12P

C131

C39

C42

47P

C400

47P

C401

47P

C402

24P

C85

0.001

*C98*C101

C126

2NDLO

T5VS

POW

PTTIN

SQL

PCON

T5VS

TEMPV

PLST

UNLK

SDATA

SQL

POW

2NDLO

PTTIN

SCK

TXMS

PCON

MOD

FCON

VCC

UNLK

SCK

SDATA

PLST

FCON

TDETV

TXMS

TDETV

MODCO

T5V

R5V

LOINV

TCON/LOW

LOINV

MODCO

TEMPV

1st Lo

ANT

1W:1.16V

5W:1.70V

RX:3.00V

TX:0.00V

RX:4.12V

TX:0.00V

RX:2.63V

TX:0.00V

RX:1.12V

TX:0.00V

RX:2.45V

3.84V

5.00V

4.66V

1W:0.17V

5W:0.98V

RX:0.00V

TX:1.44V

TX:4.60V

RX:0.00V

RX:1.29V

TX:0.69V

TX:3.27V

RX:3.33V

TX:2.72V

RX:2.80V

• MIC UNIT

47P

C700

10P

C703

MMZ1005Y102CT

EP451

MMZ1005Y102CT

EP452

MMZ1005Y102CT

EP454

MMZ1005Y102CT

EP458

J416

J415

EXDETO

EXMICO

GNDO

EXTMIC

EXDET

AFOUT

10 - 2

• MAIN UNIT (1/2)

*: Refer to the PARTS LIST for the value and name of component.

R251

470

R263

100K

15K

R433

4.7K

R442

330K

R434

22K

R437

4.7K

R439

100K

R441

1.8K

R435

R231

1.5M

R438

10K

R541

270K

R540

4.7

C260

KTC811U

Q231

LDTC144EE

Q401

LDTC144EE

Q470

R232

R233

22k

R234

33k

R402

6.8k

R280

10k

R401

0.01

C404

0.1

C405

0.1

C283

C282

C403

220

C289

150P

C287

0.047

C288

C401

56P

C379

R379

82k

R378

82k

R377

82k

0.0047

C378

47k

R399

R212

1.5k

R214

15k

0.018

C205

0.001

C206

0.1

C207

R207

27k

R376

100k

R204

4.7k

R202

100k

R201

2.2k

R206

18k R300

6.8k

0.1

C202

0.01

C263

R275

10k

R288

150k

R289

100k

R290

10k

NJM2073M

IC401

1OUT_A

2VCC

3OUT_B

4GND 5

-IN_B

+IN_B

+IN_A

-IN_A

TA7368PL

IC280

1NC

2VCC

3NC

4VIN

5RIPPLE 6

PHASE

PREGND

PWGND

POUT

R255

470k

R257

4.7k

R258

4.7k

R279

1.5k

R278

R273

47k

R277

100k

82P

C265

0.047

C266

0.22

C267

LM2902PWR

IC200

V+

GND

LM2902PWR

IC200

10 8

LM2902PWR

IC200

LM2902PWR

IC200

12 14

LM2902PWR

IC200

R252

33k

0.001

C252

C431

C430

0.1

C432

R250

10k

Q250

LDTC144EE

R286

10k

C280

0.1

C285

0.001

C433

TC7W53FK

IC260

1COM

2INH

3VEE

4GND 5

CH1

CH0

VCC

R261

47k

R262

27k

0.01

C200

C251

0.01

C450

820P

C377

470k

R454

100k

R430

R264

100k

R283

R284

R2A20178

IC190

1VIN2

2VDD

3LD

4CLK

5DI

6VIN3

7VOUT3

8VOUT4

9VIN4

10 VIN5

11 VOUT5

12 VOUT6

VIN6

VDAREF1

VDAREF2

RESET

GND

VIN7

VOUT7

VOUT8

VIN8

VIN1

VOUT1

VOUT2

390

R192

470

R193

100k

R194

0.01

C193

0.01

C194

0.01

C195

C192

CD4066BPWR

IC430

1I/O1

2O/I1

3O/I2

4I/O2

5CONT2

6CONT3

7VSS 8

I/O3

O/I3

O/I4

I/O4

CONT4

CONT1

VDD

RSQ035P03TR

Q230

0.018

C434 0.018

C435

470P

C436

0.1

C438

0.1

C439

0.001

C437

C286

J251

DA2S10100L

D430

R542

39k

R436

39k

R440

R260

390k

C261

LM2904PWR

IC432

0.1

C510

0.1

C511

10k

R545

10k

R546

47k

R548

LM2904PWR

IC432

V+

GND

4.7

C440

10k

R160

*C520

*C523

*C524

*C525

*C526

*C527

*C528

*C529

*C530

*C531

*C532

*C533

*C534

*C535

*C536

*C537

*C538

*C539

*C540

*C541

*R550

*R554

*R556

*R557

*R558

*L10

*L11

*L12

*X481

*R560

*IC5021

VIN 2

VSS 3

4NC

5VOUT

*IC504

*R561

LM2904PWR

IC432

LM2904PWR

IC431

LM2904PWR

IC431 6

LM2904PWR

IC431

V+

GND

100k

R431

*R570

*R571

*R572

*R573

*Q550

*R553 *R552

*R551

*R555

*R559

*R576

*R577

*C554

*R579

*R580

*IC5031

VIN 2

VSS 3

4NC

5VOUT

*IC501

1CS

2SO(SOI)

3WP

4GND 5

SI(SIO)

SCK

HOLD

VCC

*IC500

XVSS 2

XIN 3

XOUT 4

XVDD 5

JTAG_TMS 6

JTAG_TDO 7

MODE1 8

MODE0 9

DVDD15 10

DVSS 11

DVDD33 12

GPIO17/TCLKA 13

GPIO7/TMAIO0/PWM0 14

GPIO8/TMBIO0/INTB2 15

GPIO9/TMAIO1/PWM1 16

GPIO10/TMBIO1/INTB3

GPIO11/TMAIO2/PWM2 18

GPIO12/TMBIO2/INTB4 19

GPIO13/TMAIO3/PWM3 20

GPIO14/TMBIO3/INTB5 21

GPIO15/TMAIO4/PWM4 22

GPIO16/TMBIO4/INTB6 23

GPIO5/SI1/TMAIO5/PWM5 24

GPIO6/SO1/TMBIO5 25

TEST 26

AVSS 27

AVDD 28

MIC0IN 29

MIC0COM 30

MIC1COM 31

MIC1IN 32

MICBIAS

33 AVSS

34 AVDD

35 VREF

36 DAOUT0

37 DAOUT1

38 AVDD

39 AVSS

40 JTAG_TDI

41 JTAG_TCK

42 SCL

43 SDA/SIO0_BUSY

44 DVDD15

45 DVSS

46 DVDD33

47 INT0

48 INTB1

49 RESETB

50 PDNB

51 SYSRDY

52 GPIO18/SIO0_SCK

53 GPIO19/SIO0_SI

54 GPIO20/SIO0_SO

55 GPIO0/LRCK0/SIO1_BUSY

56 GPIO1/BCK0/SIO1_SCK

57 GPIO2/SI0/SIO1_SI

58 GPIO3/SO0/SIO1_SO

59 GPIO4/ACLK

60 DVDD15

61 DVSS

62 DVDD33

63 PLLAVDD

64 PDO

*C521

*C522

R213

120k

R256

18k

R253

4.7k

R230

56k

R271

100k

R272

120k

R274

270k

R521

C231

0.0039

C264

4.7k

R581

68P

C258

Q430

LDTA114EE

*C557

R549

4.7k

R547

*R582

*Q552

*C558

R203

390k

0.1

C257

*Q553

MC250

EM6027P

0.22

C254

*C560

0.1

C552

4.7k

R563

10k

R564

10k

R562

R276

390k

AFVCTRL

AFVS

AFOUT

PCON

MODCO

EXPTT

PTTM

MICMS

DETMS

VOLOUT

BEEP

BPCTRL

MICO

DET

ATIS

ATISO

MOD

ATISO

BEEP

VOLIN

WDECV

EXTMIC

FCON

DAST

SCLK

SDATAO

MSENSE

VOXM

AFV

SPCTRL

VOXT

RESETB

PDNB

SYSRDY

SQLO

VOXM

TCON/LOW

PLAYMS

DETMS1

NCSDATA

NCSCK

DET

NOISV1

NOISV

1.45V

3.28V

EXT SP : 7.40V

INT SP : 5.17V

V28.1V68.1

1.86V

INT SP : 0.00V

EXT SP : 4.99V

RX :0.00V

TX INT :0.00V

TX EXT :4.91V

TX INT :4.99V

RX :0.00V

TX EXT :0.00V

INT SP : 4.99V

EXT SP : 0.00V

10 - 3

• MAIN UNIT (2/2)

*: Refer to the PARTS LIST for the value and name of component.

*R502

CP360

CP10S

KTC811U

Q224

Q223

LDTC144EE

L2SA1576AS

Q221

LDTC144EE

Q500

LDTC144EE

Q240

NJU7772F05

IC220

1VIN

2GND

3CTRL 4

VOUT

0.001

C229

0.1

C230

C225

C224

0.001

C240

47k

R222

10k

R223

R235

330k

R236

150k

R170

390

R172

470

0.1

C190

0.1

C191

0.1

C181

270P

C179

270P

C180

0.1

C177

0.22

C178

0.001

C170

0.001

C176

0.001

C174

0.047

C494

0.047

C496

0.047

C497

0.047

C498

0.047

C491

0.047

C493

0.47

C502

0.47

C503

0.47

C504

0.47

C505

0.1

C500

0.001

C492

22P

C483

0.01

C489

0.01

C340

0.001

C228

0.01

C222

R498

820k

R499

1.5M

680k

R500

180k

R501

R176

R227

10k

R228

22k

R240

270

R243

680

R244

R241

680

R340

10k

R341

10k

R343

10k

100k R346

L1SS400

D350

L2SC4081

Q350

33k

R351

6.8k

R352

47k

R353

18k

R449

L2SA1576AS

Q361

4.7k

R456

100k

R396

0.01

C351

GT3136

IC170

1OSCIN

2OSCOUT

3MIXOUT

4VCC

5IFIN

6DEC

7FILOUT

8FILIN 9

AFOUT

QUAD

IFOUT

RSSI

N-DET

N-REC

GND

MIXIN

S-24C64CI

IC340

1A0

2A1

3A2

4VSS 5

SDA

SCL

VCC

Q225

KTA1664

LTWC450E1

FI170

C488

DS242

LNJ426W83RA

DS243

LNJ426W83RA

DS252

LNJ426W83RA

DS253

DS240

SML-A12WT

DS241

SML-A12WT

DS250

SML-A12WT

DS251

J100

910

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

NJU7704F3

IC341 1

CD 2

VSS 3

4VOUT

5VDD

10k

R495

LDTC144EE

Q542

J301

EVQPQHB55

LDTC144EE

Q551

LDAN222

D431

100k

R578

18k

R496

J300

TC7WH14FK

IC364 1

R265

100k

0.068

C341

X480

CR-834

L2-1365TVF

DS480

SEG1 2

SEG2 3

SEG3 4

SEG4 5

COM1 6

COM2 7

COM3 8

COM4 9

SEG5 10

SEG6 11

SEG7 12

SEG8 13

SEG9 14

SEG10 15

COM2 16

SEG11 17

SEG12 18

SEG13 19

SEG14 20

SEG15

21 SEG35

22 SGE34

23 SEG33

24 SEG32

25 SEG31

26 SEG30

27 SEG29

28 SEG28

29 SEG27

30 SEG26

31 SEG25

32 SEG24

33 SEG23

34 SEG22

35 SEG21

36 SEG20

37 SEG19

38 SEG18

39 SEG17

40 SEG16

R173

10k

R174

330k

R171

3.3k

30P

C482

0.0047

C160

47P

C171

47P

C556

*R583

X170

JTBM450CX70

*R575

R175

18k

R397

UPD780338GC

IC360

1P30/TO0

2P31/TI00

3P32/TI01

4P33/TO50/TI50

5P34/TO51/TI51

6P20/RXD0/SI3

7P21/TXD0/SO3

8P22/SCK3

9P23/SI1

10 P24/SO1

11 P25/SCK1

12 P00/INTP0

13 P01/INTP1

14 P02/INTP2

15 P03/INTP3/ADTRG

16 P04/INTP4

17 P05/INTP5/BUZ/PCL

18 VPP

19 XT2

20 XT1

21 VSS1

22 VDD1

23 X2

24 X1

25 RESET

26 AVREF0

27 P10/ANI0

28 P11/ANI1

29 P12/ANI2

30 P13/ANI3

P14/ANI4

P15/ANI5

P16/ANI6

P17/ANI7

ANI8

ANI9

AVSS0

P120/AO0

AVREF1

CAPH

CAPL

VLCDC

VLC0

VLC1

VLC2

COM0

COM1

COM2

COM3

SCOM0

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

S22

S23

P90/S24

P91/S25

P92/S26

P93/S27

P94/S28

P95/S29

P96/S30

P97/S31

P80/S32

P81/S33

P82/S34

P83/S35

P84/S26

P85/S37

P86/S38

P87/S39

91 VSS0

92 VDD0

93 P60

94 P61

95 P62

96 P63

97 P64

98 P65

99 P66

100 P67

101 P40

102 P41

103 P42

104 P43

105 P44

106 P45

107 P46

108 P47

109 P50

110 P51

111 P52

112 P53

113 P54

114 P55

115 P56

116 P57

117 P70/TO4

118 P71/TI4

119 P72/TO52

120 P73/TI52

R226

4.7k

SEG11

SEG19

SEG7

SEG12

SEG24

SEG13

SEG6

SEG8

COM1

SEG5

SEG3

SEG1

NCSW

SEG9

SEG17

COM2

SEG23

SEG4

COM3

SEG20

SEG16

SEG10

SEG15

SEG14

SEG22

SEG2

SEG21

SEG18

COM4

SEG25

SEG26

SEG27

SEG28

SEG29

SEG30

SEG31

SEG32

SEG35

SEG34

SEG33

TDEC

T5VS

PCON

MOD

UNLK

SEG16

SEG17

SEG18

SEG19

SEG20

SEG21

SEG22

SEG23

SEG24

SEG25

SEG26

SEG27

SEG28

SEG29

SEG30

SEG31

SEG32

SEG33

SEG34

SEG35

SEG15

SEG14

SEG13

SEG12

COM1

COM2

COM3

COM4

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG11

SEG10

SEG9

SEG8

FCON

SDATA

PLST

SCK

TEMPV

LOINV

RSSIV

NOISV

TDETV

ATIS

BATTV

VOXT

WDECV

2NDLO

TEMPV

LEDS

H/L

SCAN

CH/WX

DOWN

BPCTRL

SQL

SPCTRL

RES

PTTM

MICMS

AFVS

TXMS

R5VS

ESDA

ESCK

ESDA

ESCK

EXDET

VPP

ETXDO

ERXDI

VPP

BEEP

LCDS

LEDS

BATTV

2NDLO

RES

PLSTB

PLST

UNLKI

UNLK

SDATA

SCK

SCLK

SDATAO

DAST

AFVCTRL

VOLIN

PWON

VOLOUT

VCC

ERXDI

EXDET

DET

RSSIV

NOISV1

R5VS

M5VS

PDNB

RESETB

SYSRDY

FAV

FUNC

TXMS

TDETV

MODCO

R5V

LOINV

FUNC

SCAN

DOWN

FAV

H/L

CH/WX

OSC1

SQLO

PWON

PWSW

TCON/LOW

POW

EXDET

AFOUT

EXTMIC

COM2

ETXDO

M5VS

EXPTT

PTTIN

PLAYMS

DETMS1

DETMS

SQL

PTTIN

NCSDATA

NCSCK

5V 5V

CPU5V

7.9869MHz

4.20Vp-p

V00.V78.4

5.00V

• VR UNIT

J416

F081-0028A

R801

PWON

VOLIN

VOLO

6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.

Phone : +886 (02) 2559 1899 Fax : +886 (02) 2559 1874

URL : http://www.asia-icom.com

E-mail : sales@asia-icom.com

Zac de la Plaine

1 Rue Brindejonc des Moulinais BP 5804

31505 Toulouse Cedex, France

Phone : +33 (5) 61 36 03 03 Fax : +33 (5) 61 36 03 00

URL : http://www.icom-france.com

E-mail : icom@icom-france.com

Blacksole House, Altira Park, Herne Bay, Kent CT6 6GZ, UK

Phone : +44 (0) 1227 741741 Fax : +44 (0) 1227 741742

URL : http://www.icomuk.co.uk

E-mail : info@icomuk.co.uk

Ctra. Rubi, No. 88 Bajos A 08174, Sant Cugat del Valles, Barcelona, Spain

Phone : +34 (93) 590 26 70 Fax : +34 (93) 589 04 46

URL : http://www.icomspain.com

E-mail : icom@icomspain.com

2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.

Phone : +1 (425) 454-8155 Fax : +1 (425) 454-1509

URL : http://www.icomamerica.com

E-mail : sales@icomamerica.com

Phone : +1 (425) 454-7619

Glenwood Centre #150-6165

Highway 17 Delta, B.C., V4K 5B8, Canada

Phone : +1 (604) 952-4266 Fax : +1 (604) 952-0090

URL : http://www.icomcanada.com

E-mail : info@icomcanada.com

Unit 1 / 103 Garden Road, Clayton VIC 3168 Australia

Phone : +61 (03) 9549-7500 Fax : +61 (03) 9549-7505

URL : http://www.icom.net.au

E-mail : sales@icom.net.au

146A Harris Road, East Tamaki,

Auckland, New Zealand

Phone : +64 (09) 274 4062 Fax : +64 (09) 274 4708

URL : http://www.icom.co.nz

E-mail : inquiries@icom.co.nz

10C07, Long silver Mansion, No.88, Yong Ding

Road, Haidian District, Beijing, 100039, China

Phone : +86 (010) 5889 5391/5392/5393

Fax : +86 (010) 5889 5395

URL : http://www.bjicom.com

E-mail : bjicom@bjicom.com

Rua Pernambuco, 353 - Sala 901, Belo Horizonte, M.G.

30130-150, Brazil

Phone : +55 (31) 3582 8847 Fax : +55 (31) 3582 8987

E-mail

: sales@icombrazil.com

81-850 Sopot, ul. 3 Maja 54, Poland

Phone : +48 (58) 550 7135 Fax : +48 (58) 551 0484

E-mail : icompolska@icompolska.com.pl

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan

Phone : +81 (06) 6793 5302

Fax : +81 (06) 6793 0013

URL : http://www.icom.co.jp/world/index.html

Communication Equipment

Auf der Krautweide 24

65812 Bad Soden am Taunus, Germany

Phone : +49 (6196) 76685-0

Fax : +49 (6196) 76685-50

URL

: http://www.icomeurope.com

E-mail

: info@icomeurope.com

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan S-14919XZ-C1

IC M73 M73EURO SERVICE MANUAL M73_SM_0 SM 0

IC-M73_SM_0 IC-M73_SM_0

Navigation menu

Versions of this User Manual:

Views

Navigation
