A-5570MI-S
© 1999 by Icom Inc.
6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
Count on us!
DUAL BAND FM TRANSCEIVER
iC-2800h
iC-2800h
INTRODUCTION
This service manual describes the latest service information for
the IC-2800H FM TRANSCEIVER at the time of publication.
To upgrade quality, all electrical or mechanical parts and inter-
nal circuits are subject to change without notice or obligation.
DANGER
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 16 V. Such a connection
could cause a fire hazard and/or electric shock.
DO NOT expose the transceiver to rain, snow or any liq-
uids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100
mW) to the antenna connector. This could damage the
transceiver’s front end.
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110002750 S.IC TA75S01F IC-2800H MAIN UNIT 1 piece
8810008450 Screw M4 × 8 ZK IC-2800H CHASSIS 6 pieces
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTES
1. Make sure a problem is internal before disassembling the
transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components.
Turn them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insu-
lated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 50 dB or 60 dB attenuator between
the transceiver and a deviation meter or spectrum
analyser when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
MODEL VERSION SYMBOL
Europe
Italy
U.S.A.
S. E. Asia
IC-2800H USA
SEA
EUR
ITA
CSAC. S. America
6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
Phone : 06 6793 5302
Fax : 06 6793 0013
Communication Equipment
Himmelgeister Str. 100, D-40225 Düsseldorf, Germany
Phone : 0211 346047 Fax : 0211 333639
URL : http://www.icomeurope.com
Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
Phone : 01227 741741 Fax : 01227 741742
URL : http://www.icomuk.co.uk
Zac de la Plaine, Rue Brindejonc des Moulinais
BP 5804, 31505 Toulouse Cedex, France
Phone : 561 36 03 03 Fax : 561 36 03 00
URL : http://www.icom-france.com
<
Corporate Headquarters
>
2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone : (425) 454-8155 Fax : (425) 454-1509
URL : http://www.icomamerica.com
<
Customer Service
>
Phone : (425) 454-7619
A.C.N. 006 092 575
290-294 Albert Street, Brunswick, Victoria, 3056, Australia
Phone : 03 9387 0666 Fax : 03 9387 0022
URL : http://www.icom.net.au
6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan R.O.C.
Phone : (02) 2559 1899 Fax : (02) 2559 1874
A Division of Icom America Inc.
3071 #5 Road, Unit 9, Richmond, B.C., V6X 2T4, Canada
Phone : (604) 273-7400 Fax : (604) 273-1900
Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, SPAIN
Phone : (93) 590 26 70 Fax : (93) 589 04 46
URL : http://www.icomspain.com
TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 CIRCUIT DESCRIPTION
4 - 1 RECEIVER CIRCUITS ................................................................................................... 4 – 1

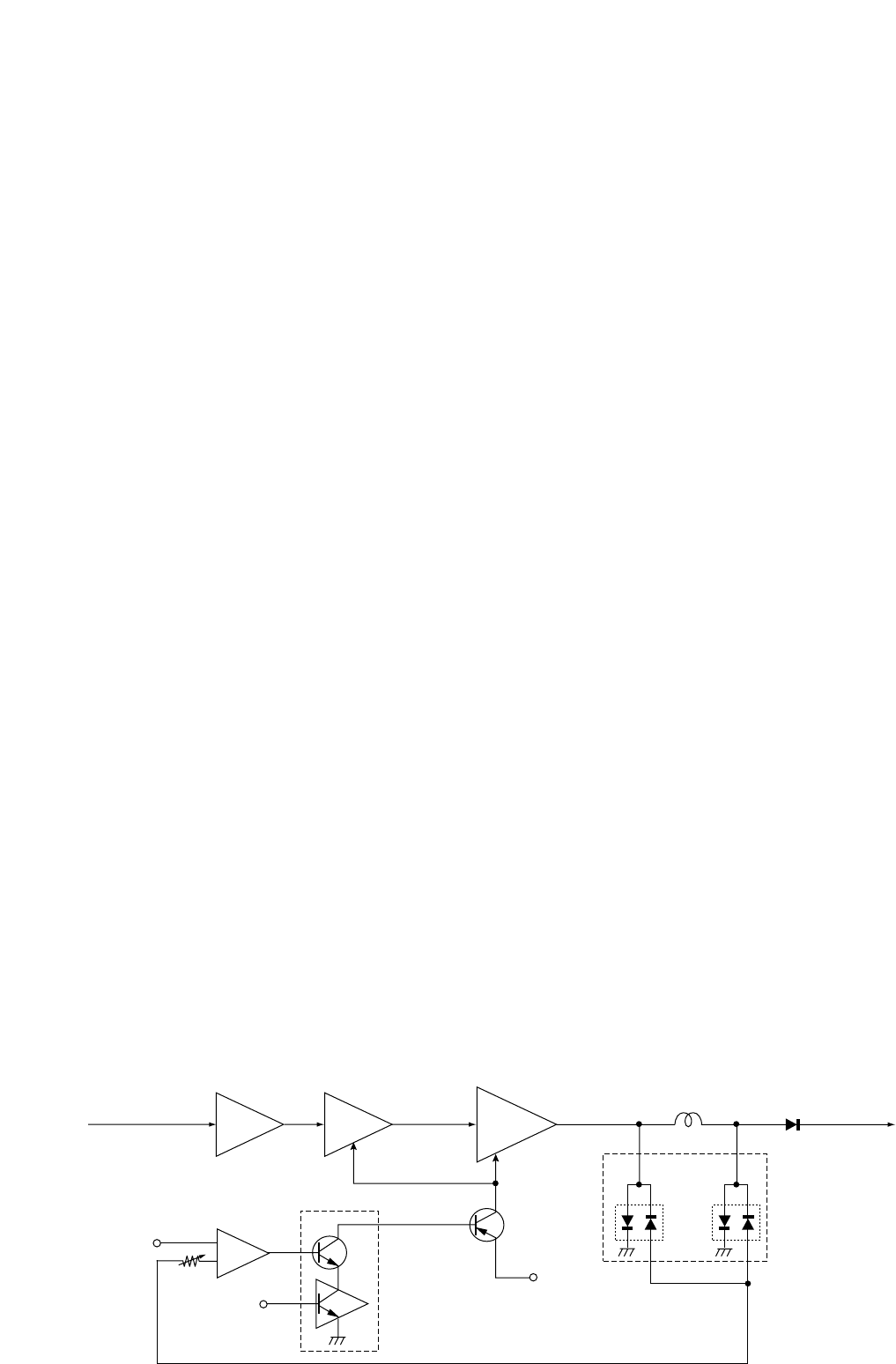

4 - 2 TRANSMITTER CIRCUITS ........................................................................................... 4 – 3

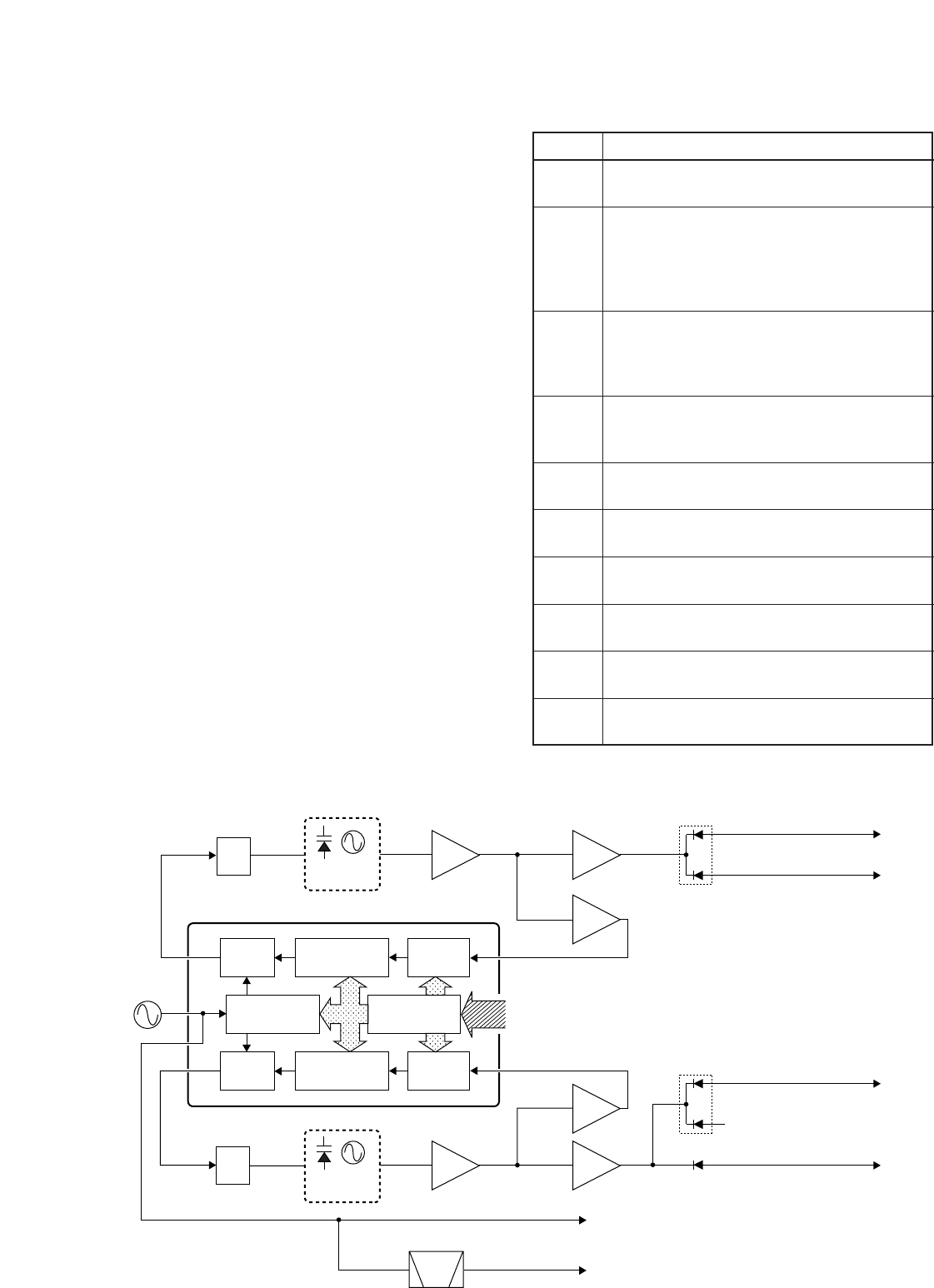

4 - 3 PLL CIRCUIT .................................................................................................................. 4 – 4
4 - 4 POWER SUPPLY CIRCUITS ........................................................................................ 4 – 5
4 - 5 CPU PORT ALLOCATIONS ........................................................................................... 4 – 5

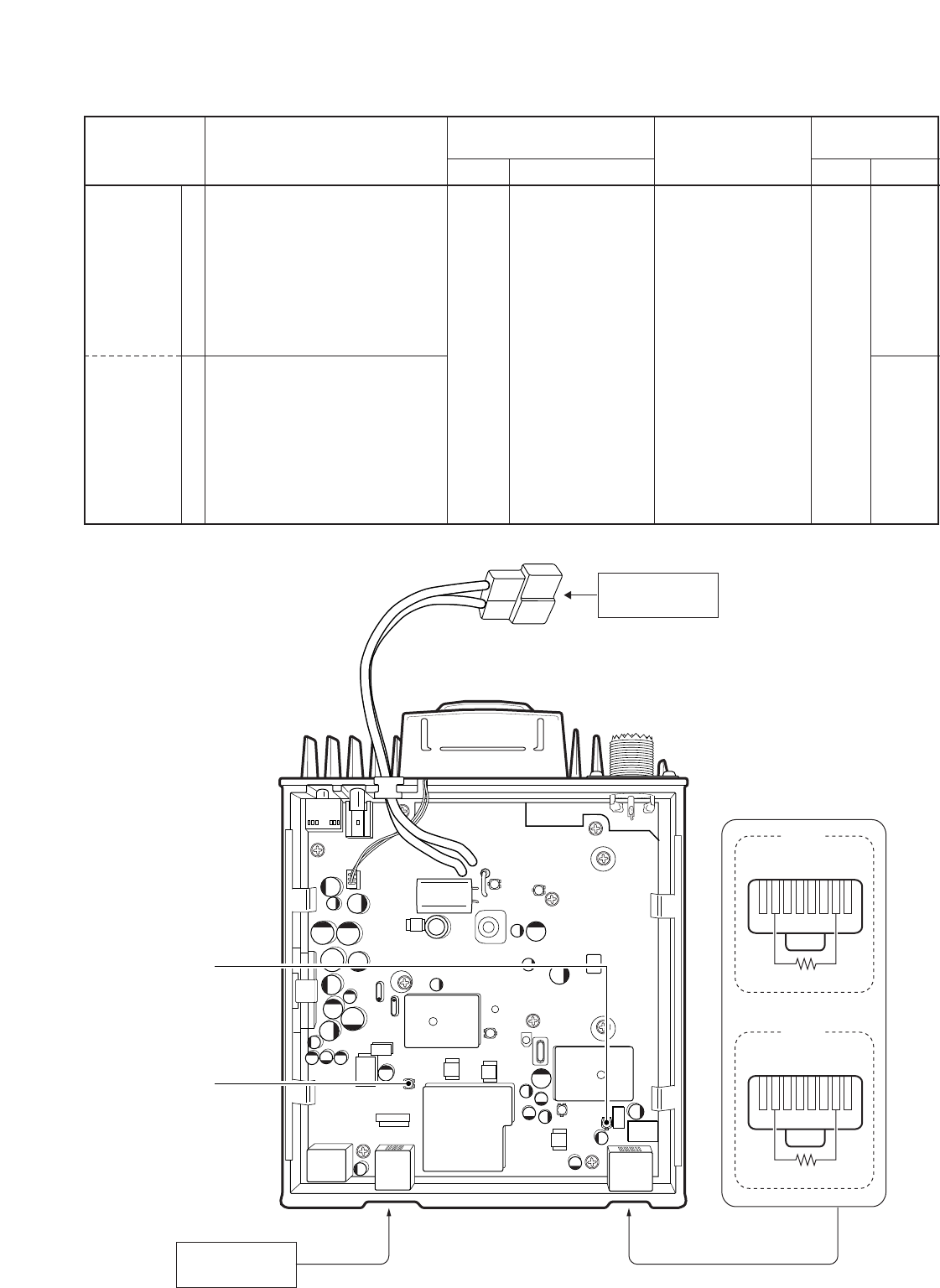

SECTION 5 ADJUSTMENT PROCEDURES
5 - 1 PREPARATION............................................................................................................... 5 – 1
5 - 2 PLL AND TRANSMITTER ADJUSTMENTS ................................................................... 5 – 2
5 - 3 RECEIVER ADJUSTMENT ............................................................................................ 5 – 4
SECTION 6 PARTS LIST

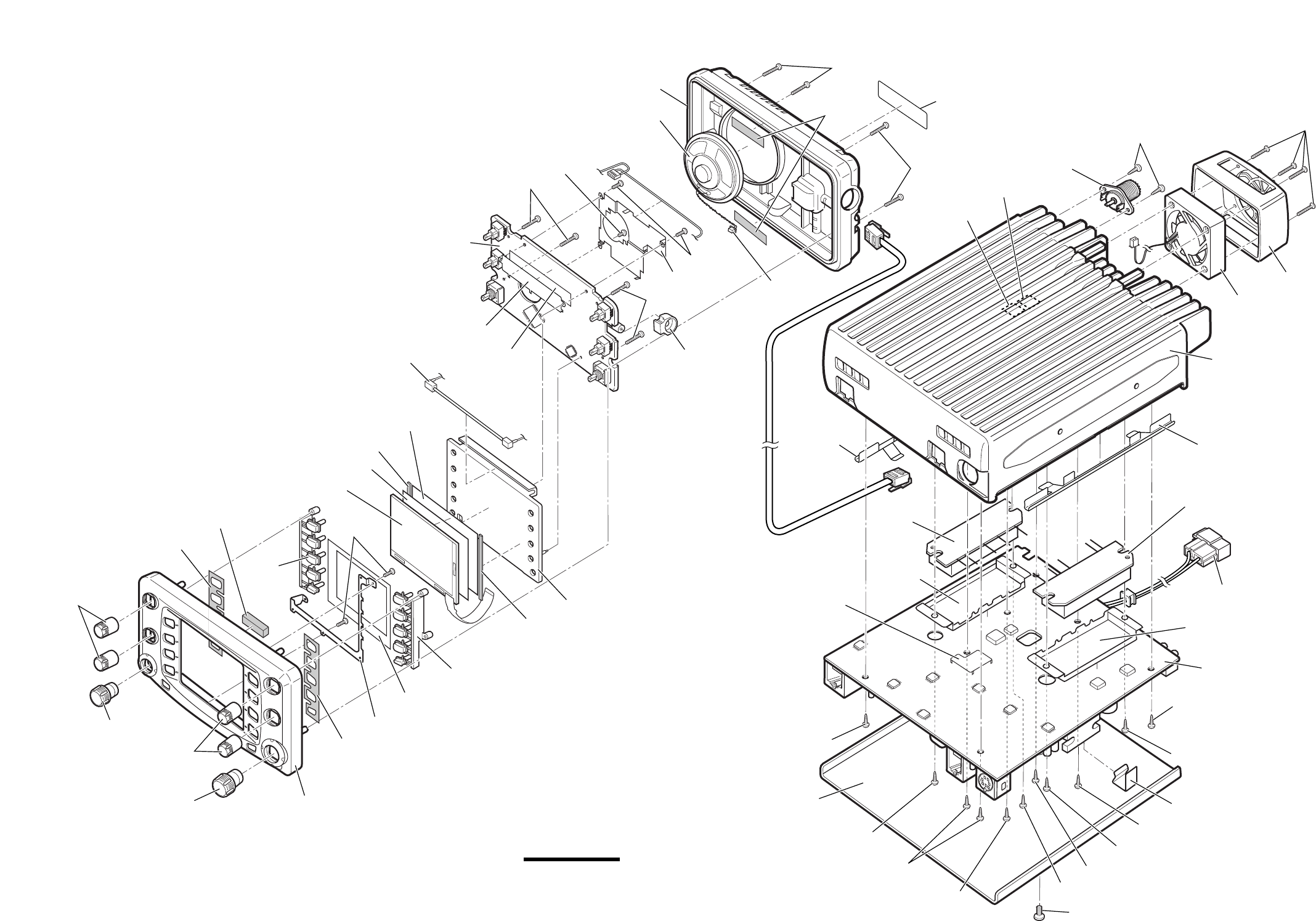

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
SECTION 8 SEMI-CONDUCTOR INFORMATION

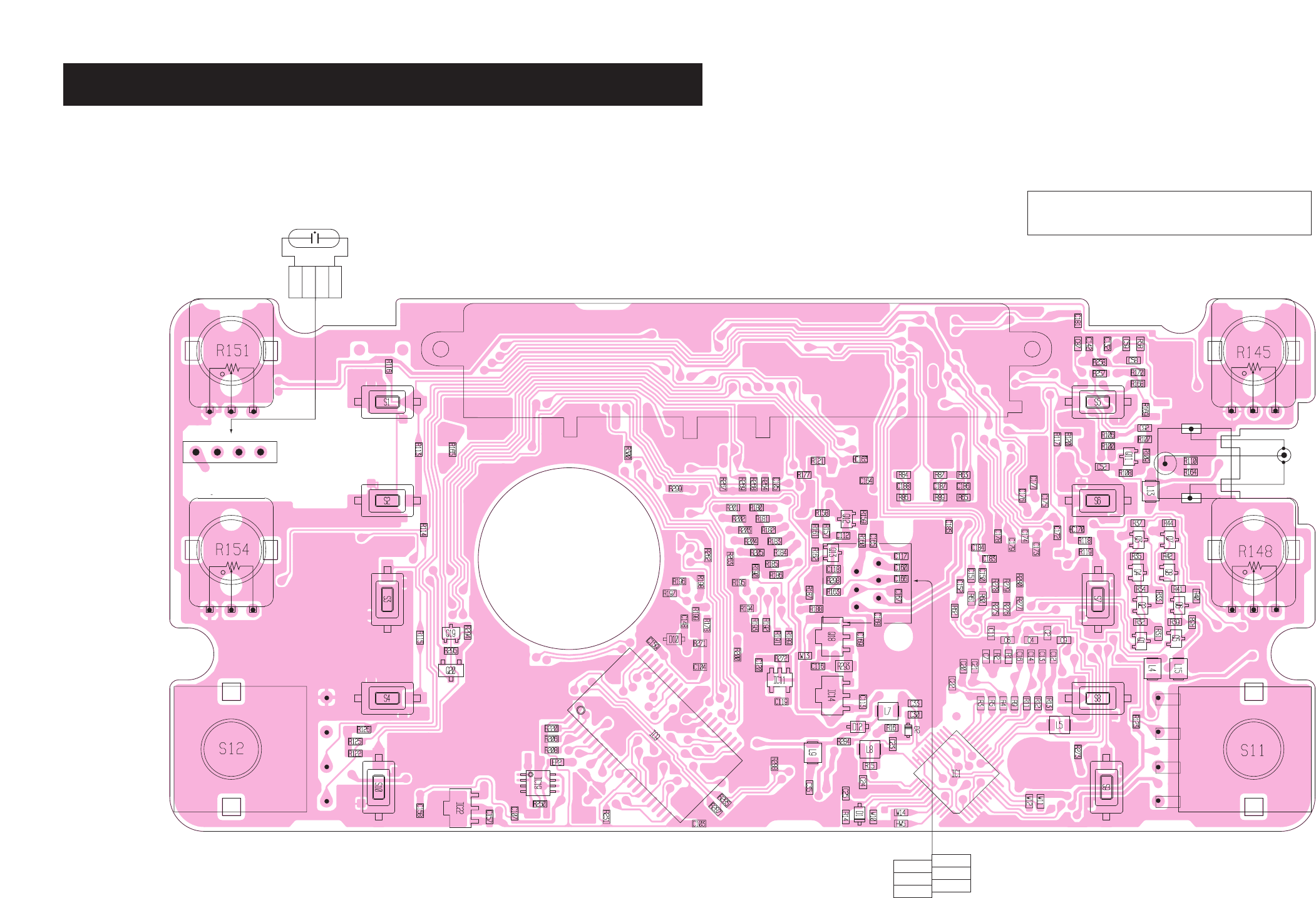

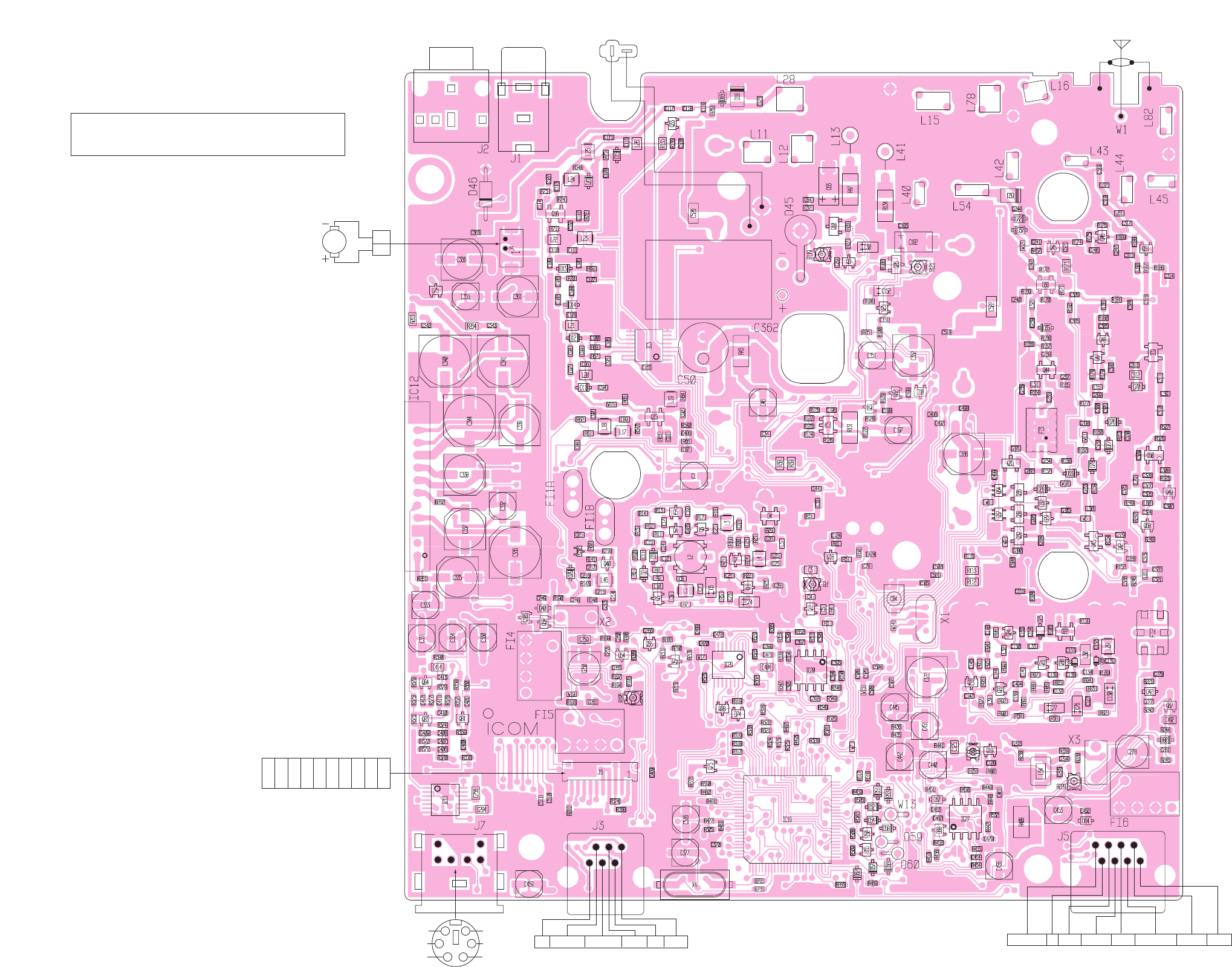

SECTION 9 BOARD LAYOUTS

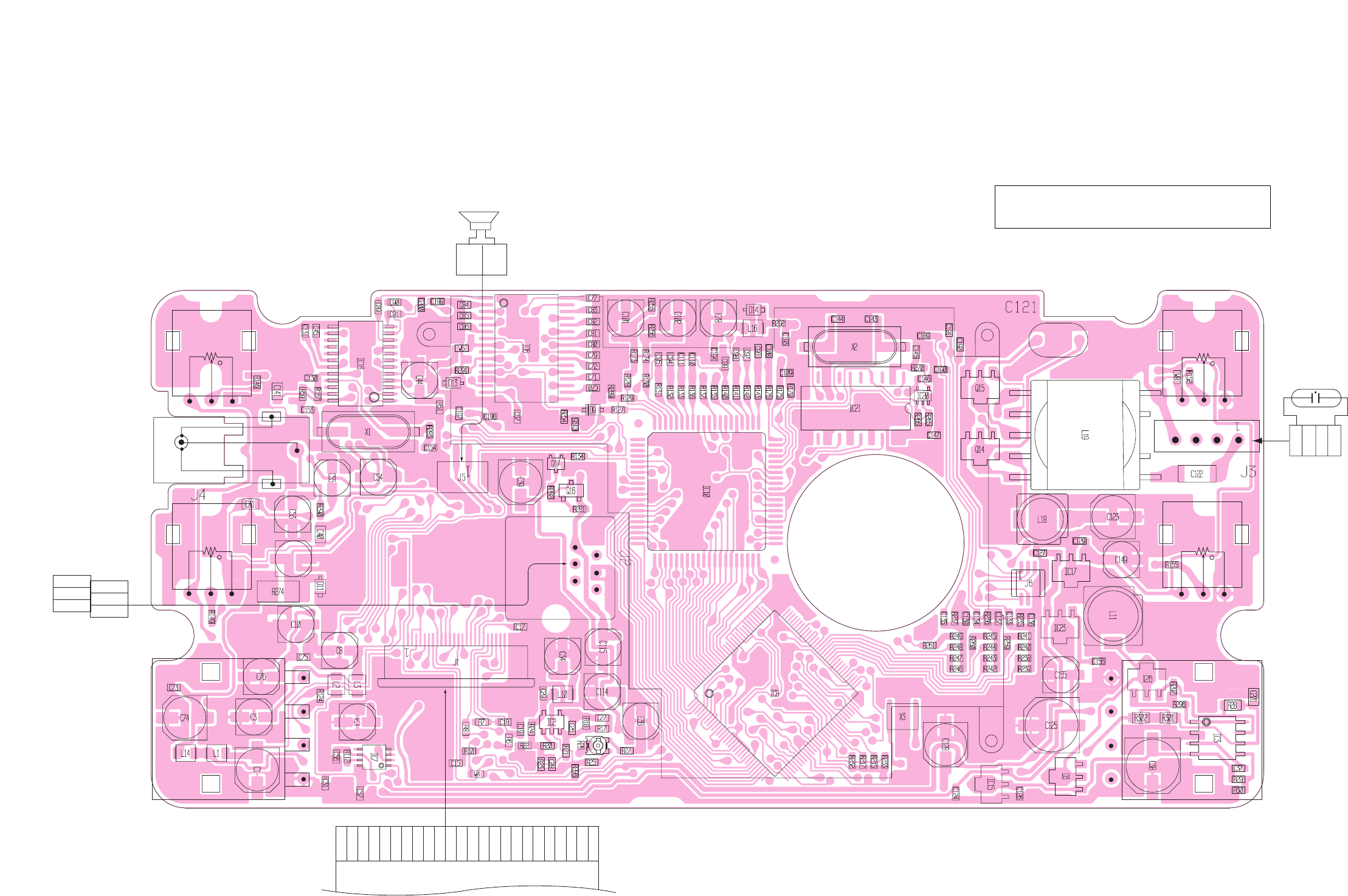

9 - 1 CONTROL UNIT ............................................................................................................. 9 – 1

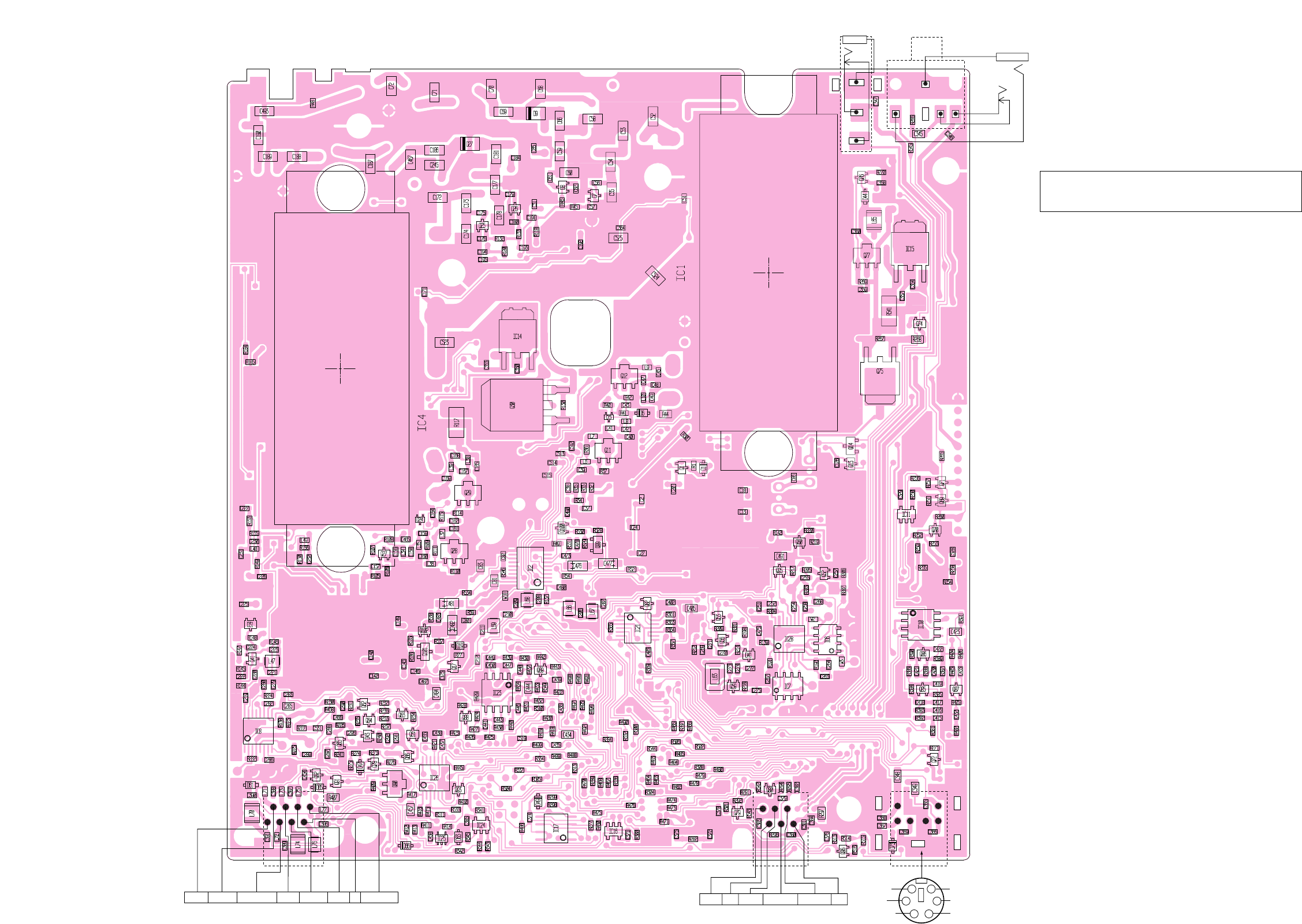

9 - 2 MAIN UNIT...................................................................................................................... 9 – 3

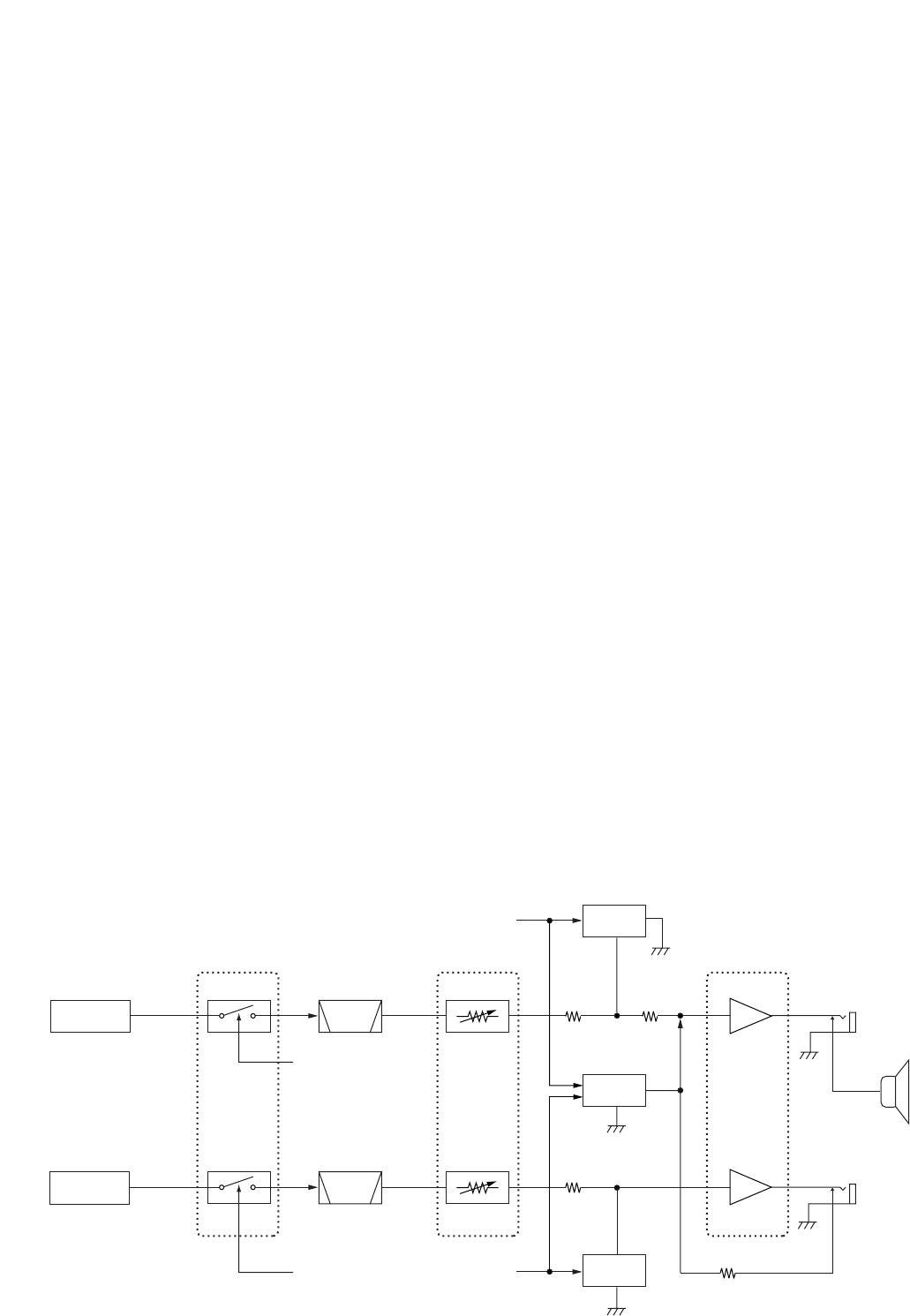

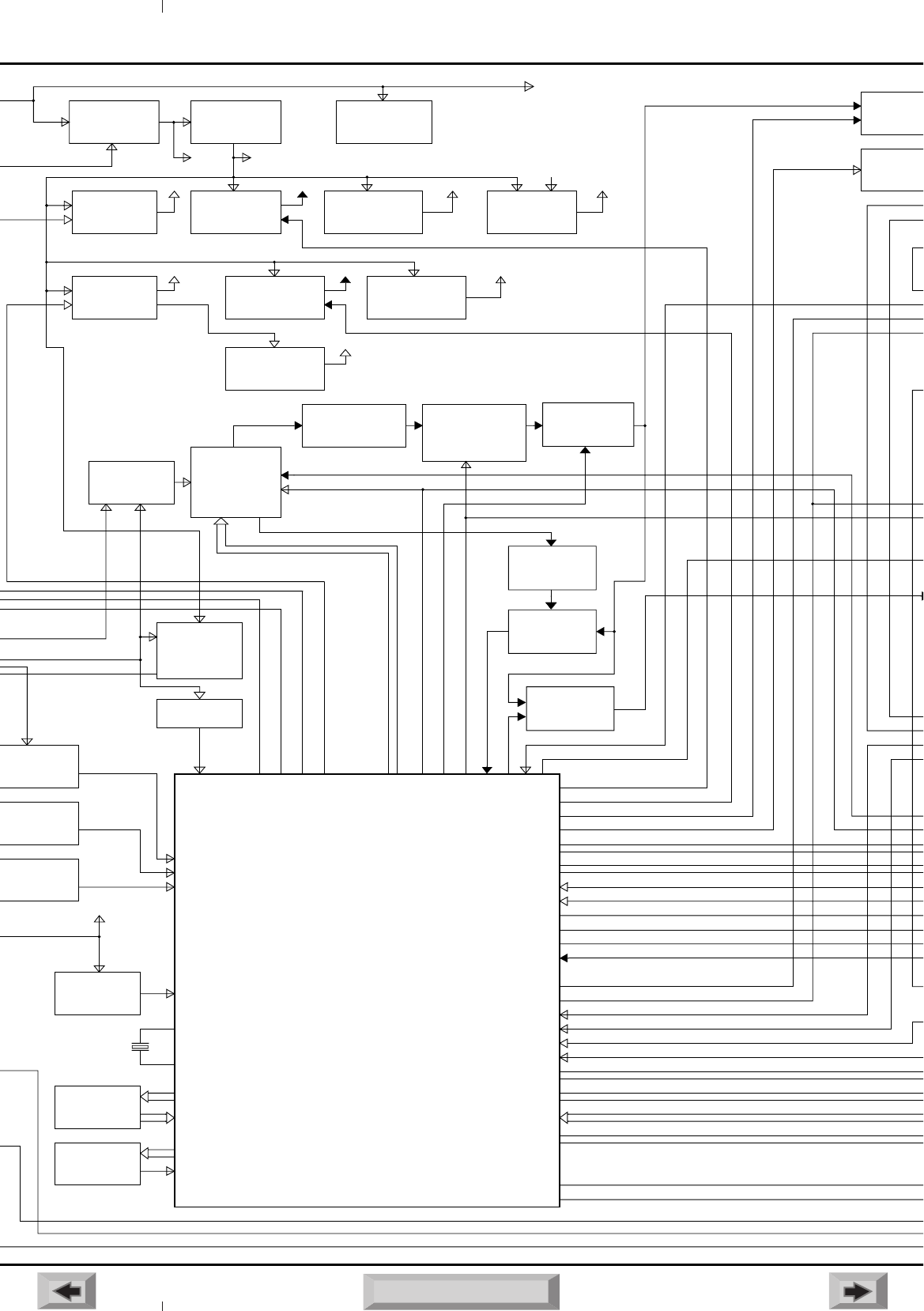

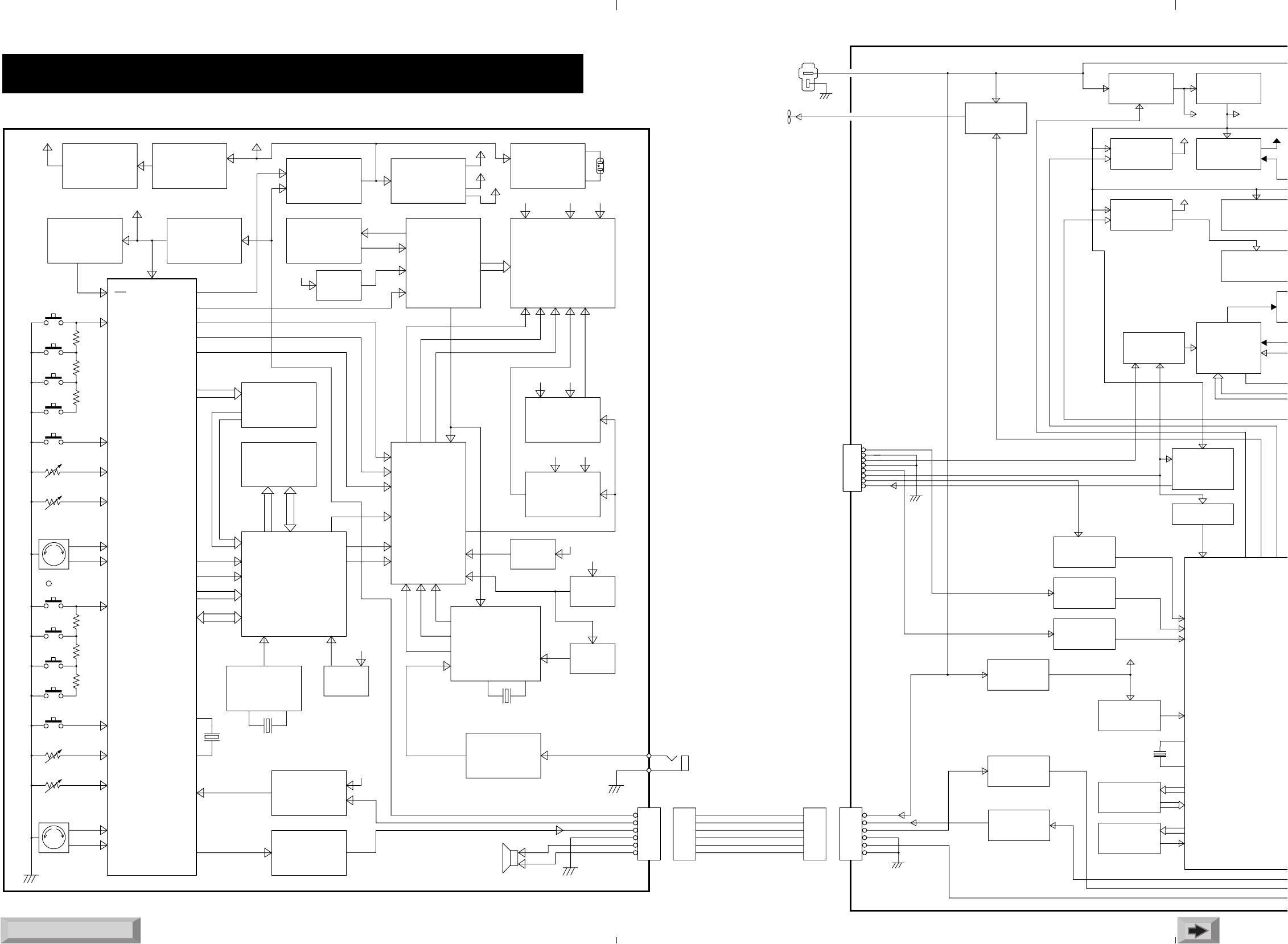

SECTION 10 BLOCK DIAGRAM

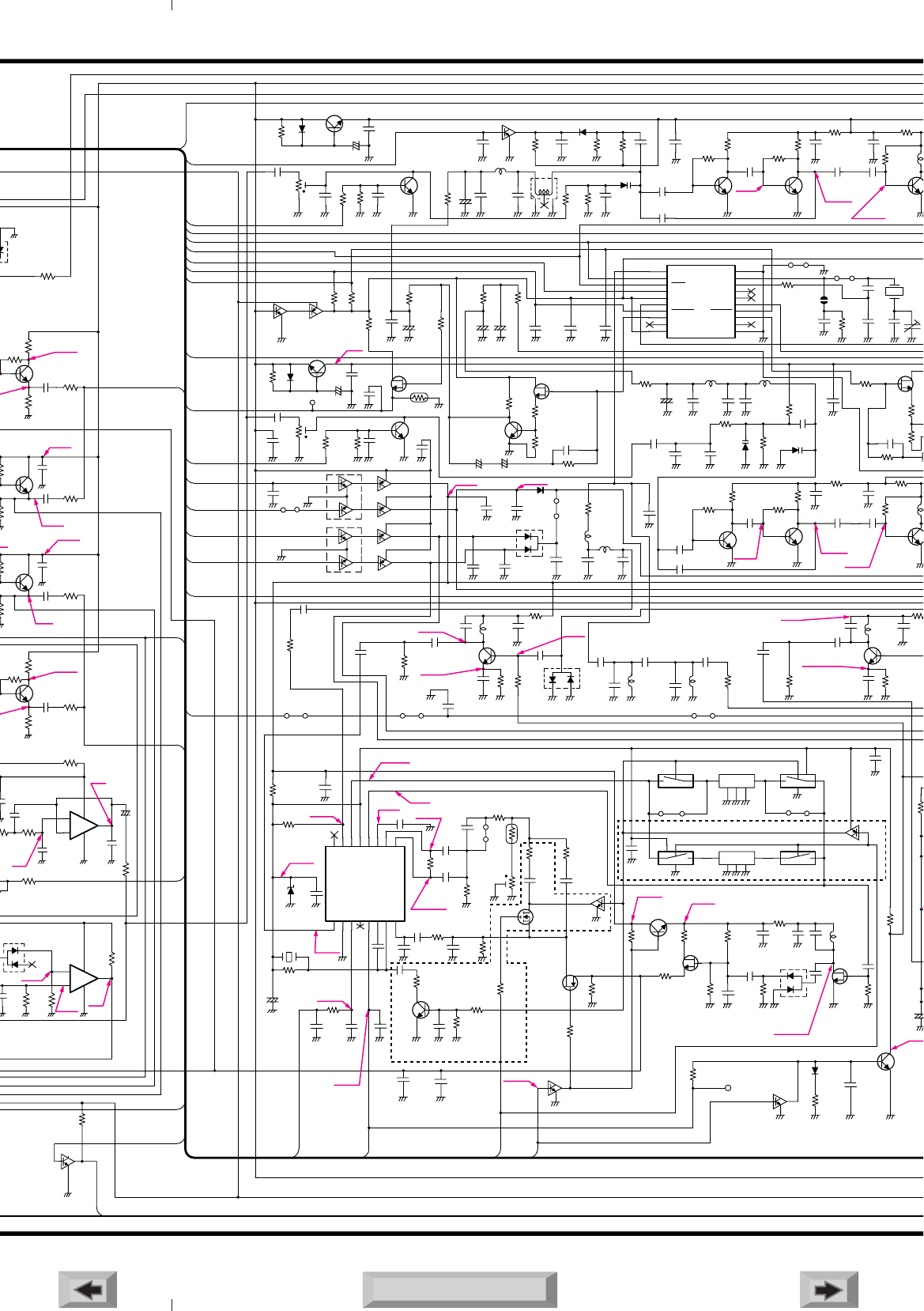

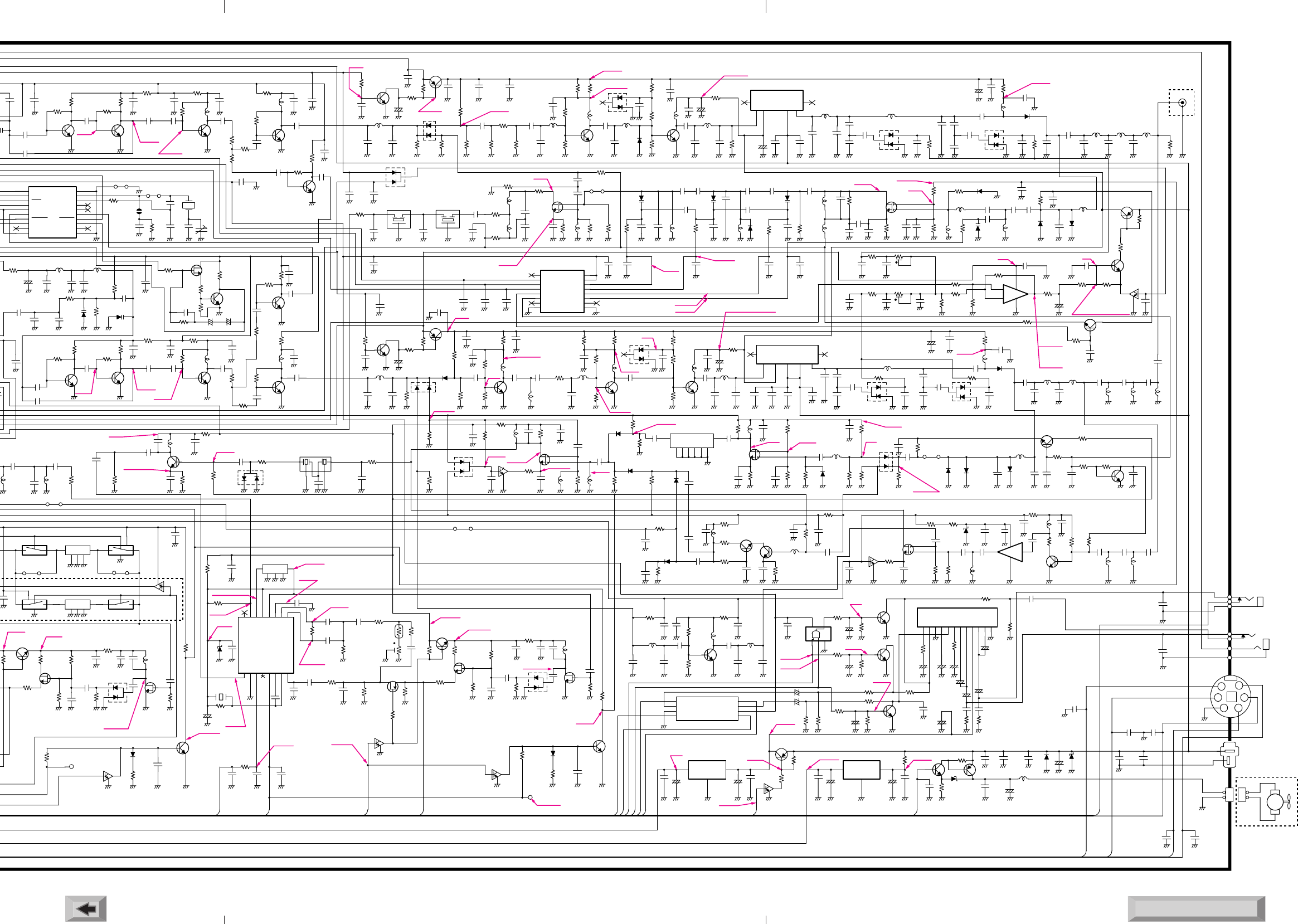

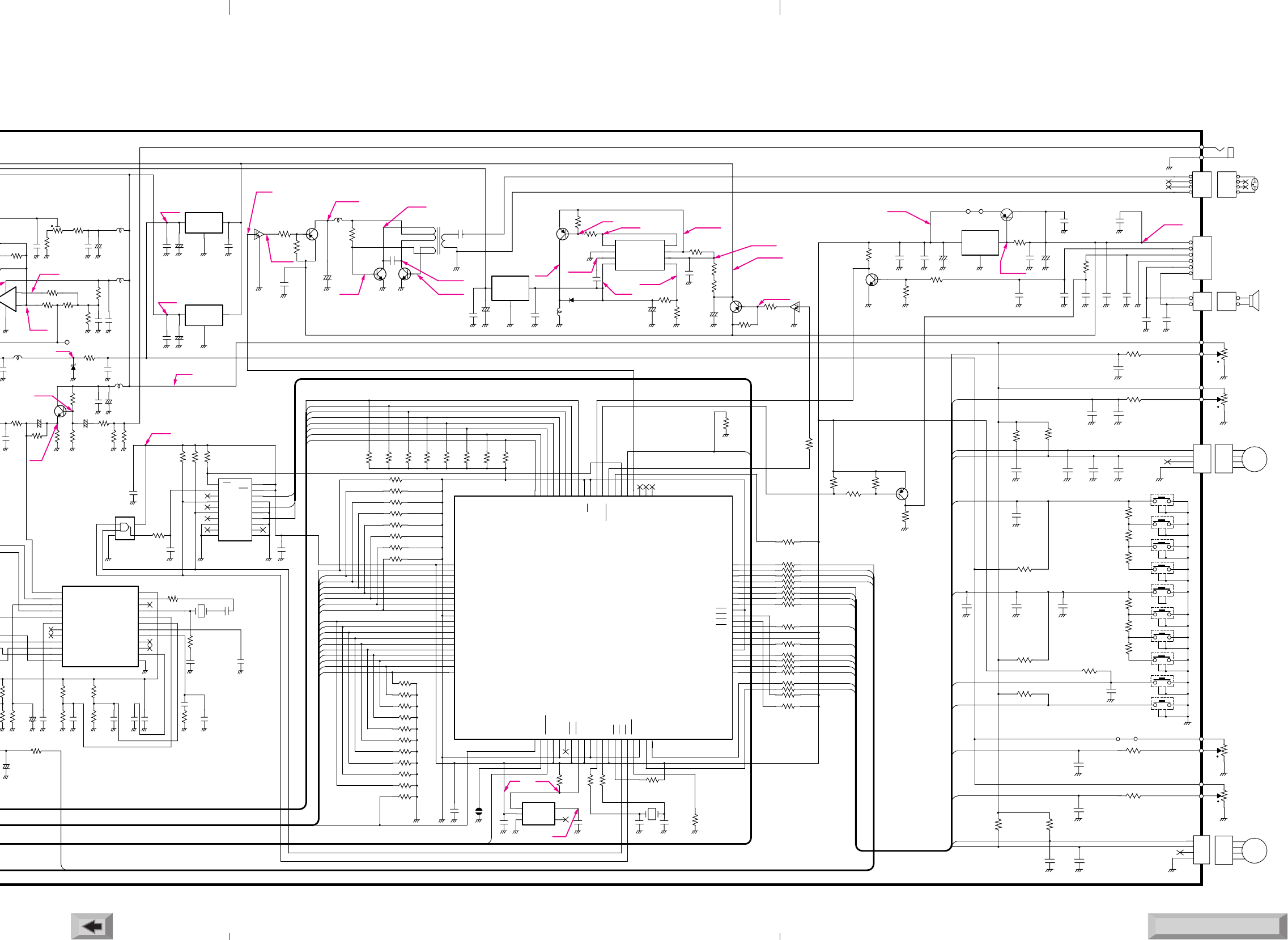

SECTION 11 VOLTAGE DIAGRAM

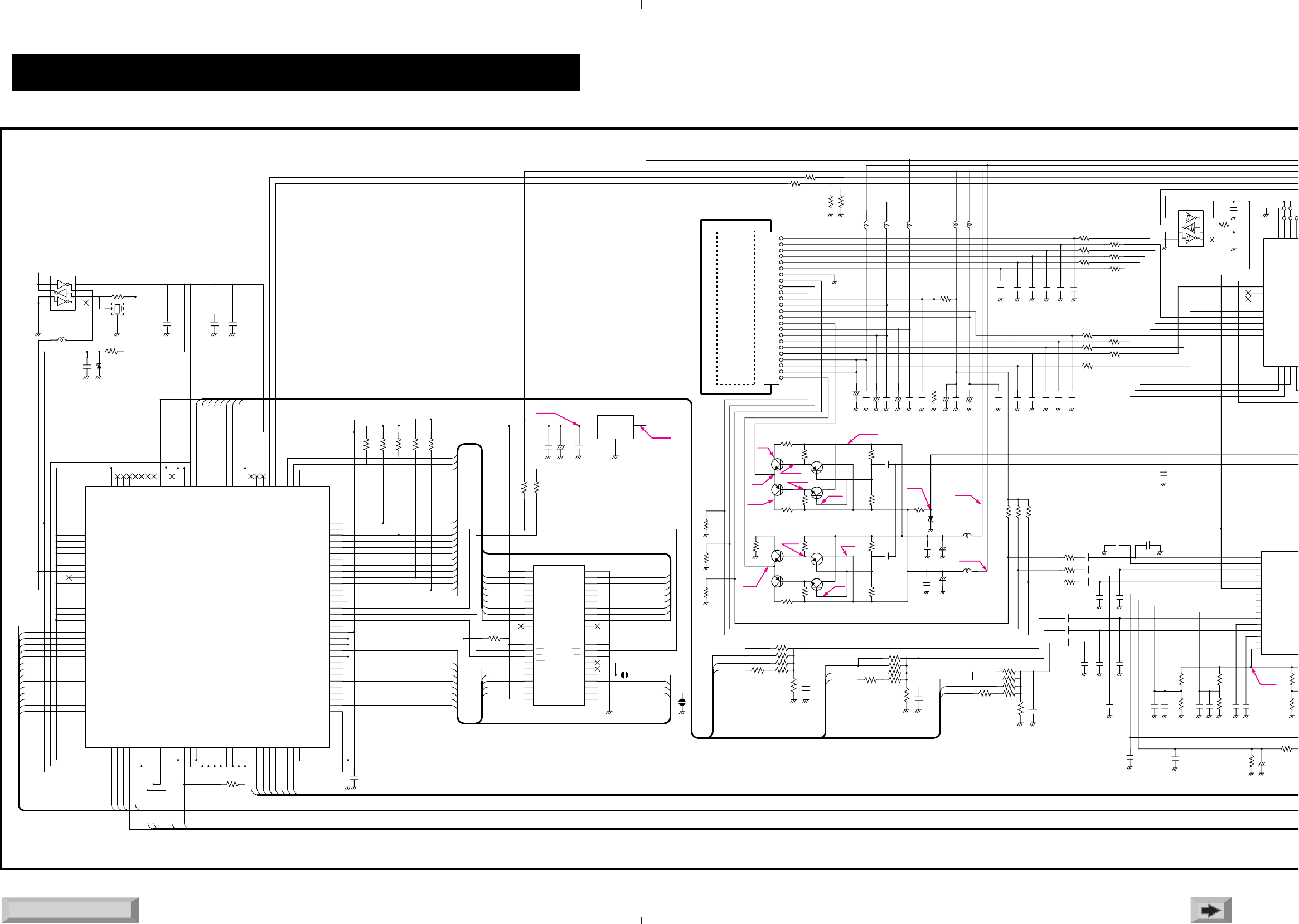

11 - 1 CONTROL UNIT.............................................................................................................11 – 1
11 - 2 MAIN UNIT.....................................................................................................................11 – 2
MGENERAL
• Frequency range :
*1Guaranteed 144.000 – 148.000 MHz only
*2Guaranteed 430.000 – 440.000 MHz only; *3Guaranteed 440.000 – 450.000 MHz only
• Mode : FM, AM (118.0 – 135.995; Rx only)
• Nomber of memory channel : 232 (incl. 6 pairs of scan edges, 10 log, 10 repeater and 2 call channels)
• Usable temperature range : –10˚C to +60˚C; +14˚F to +140˚F
• Frequency resolution : 5, 10, 12.5, 15, 20, 25, 30 and 50 kHz
• Frequency stability : ±10 ppm (–10˚C to +60˚C; +14˚F to +140˚F)
• Power supply requirement : 13.8 V DC ±15 % (negative ground)
• Current drain (at 13.8 V DC) : Receive Standby (squelched) 1.2 A
Max. audio 1.5 A
Transmit at VHF 50 W/UHF 35 W 12.0 A/11.0 A
at 25 W/25 W (TPE version)8.0 A
• Antenna connector : SO-239 (50 Ω)
• DATA connector : Mini DIN 6 pin
• External VIDEO input : PHONO [RCA (75 Ω)]
• Dimensions : Controller 140(W)×70(H)×34(D) mm; 51⁄2(W)×23⁄4(H)×111⁄32(D) inch
(projections not included) Main unit 140(W)×40(H)×165.8(D) mm; 51⁄2(W)×19⁄16(H)×617⁄32(D) inch
• Weight : Controller 290 g; 10.2 oz
Main unit 1.15 kg; 2 lb 9 oz
MTRANSMITTER
• Output power : High VHF 50 W/UHF 35 W
Mid-H approx. 20 W
Mid-L approx. 10 W
Low approx. 5 W
• Modulation system : Variable reactance frequency
• Maximum frequency deviation : ±5.0/±2.5* kHz *[EUR] and [ITA] versions only
• Spurious emissions : Less than –60 dB
• Microphone connector : 8-pin modular (600 Ω)
MRECEIVER
• Receive system : Double-conversion superheterodyne
• Intermediate frequency : VHF 1st IF 15.65 MHz 2nd IF 450 kHz
UHF 1st IF 46.05 MHz 2nd IF 450 kHz
• Sensitivity (at 12 dB SINAD) : Less than 0.18 µV
• Squelch sensitivity (threshold) : Less than 0.13 µV
• Selectivity (wide/narrow) : More than 12/6* kHz at –6 dB
Less than 28/18* kHz at –60 dB
*[EUR] and [ITA] versions only
• Spurious and image rejection : More than 60 dB
• Intermodulation rejection ratio : More than 60 dB
• Audio output power (at 13.8 V) : More than 2.4 W at 10% distortion with an 8Ωload
• External SP1 connector : 2-conductor 3.5(d) mm (1⁄8")/8 Ω
• External SP2 connector : 3-conductor 3.5(d) mm (1⁄8")/8 Ω
1 - 1
SECTION 1 SPECIFICATIONS
144 MHz band 440 MHz band
144.000 – 146.000 430.000 – 440.000
Rx: 136.000 – 174.000*1Rx: 400.000 – 530.000*2
Tx: 144.000 – 148.000*1Tx: 430.000 – 440.000*2
Rx: 118.000 – 174.000*1430.000 – 450.000*3
Tx: 144.000 – 148.000*1
Rx: 136.000 – 174.000*1430.000 – 440.000
Tx: 144.000 – 148.000*1
Rx: 118.000 – 174.000*1Rx: 400.000 – 530.000*2
Tx: 144.000 – 148.000*1Tx: 430.000 – 440.000*2
All stated specifications are subject to change without notice or obligation.
Version
EUR
ITA
USA
SEA
CSA
2 - 1

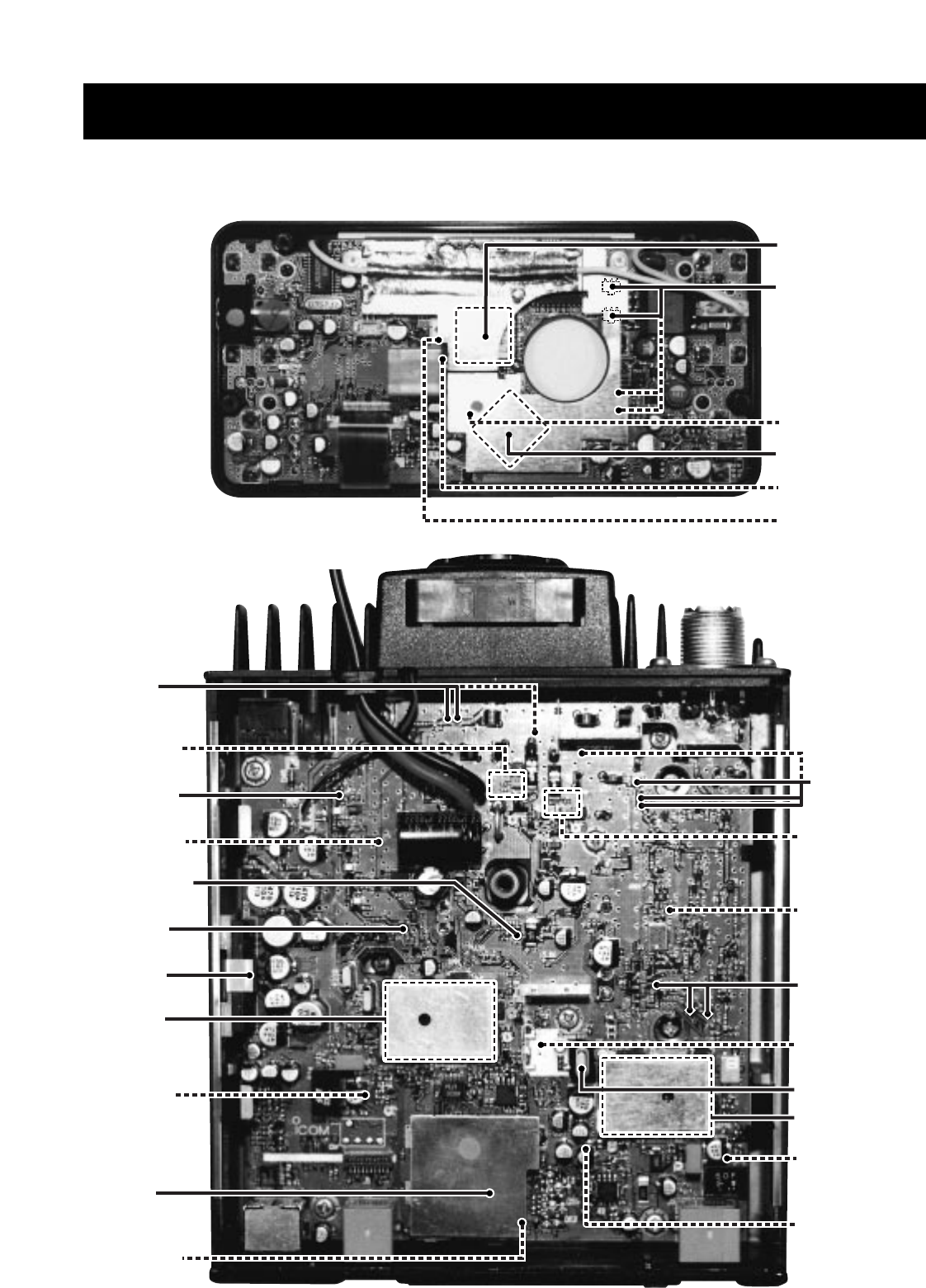

SECTION 2 INSIDE VIEWS
• CONTROL UNIT

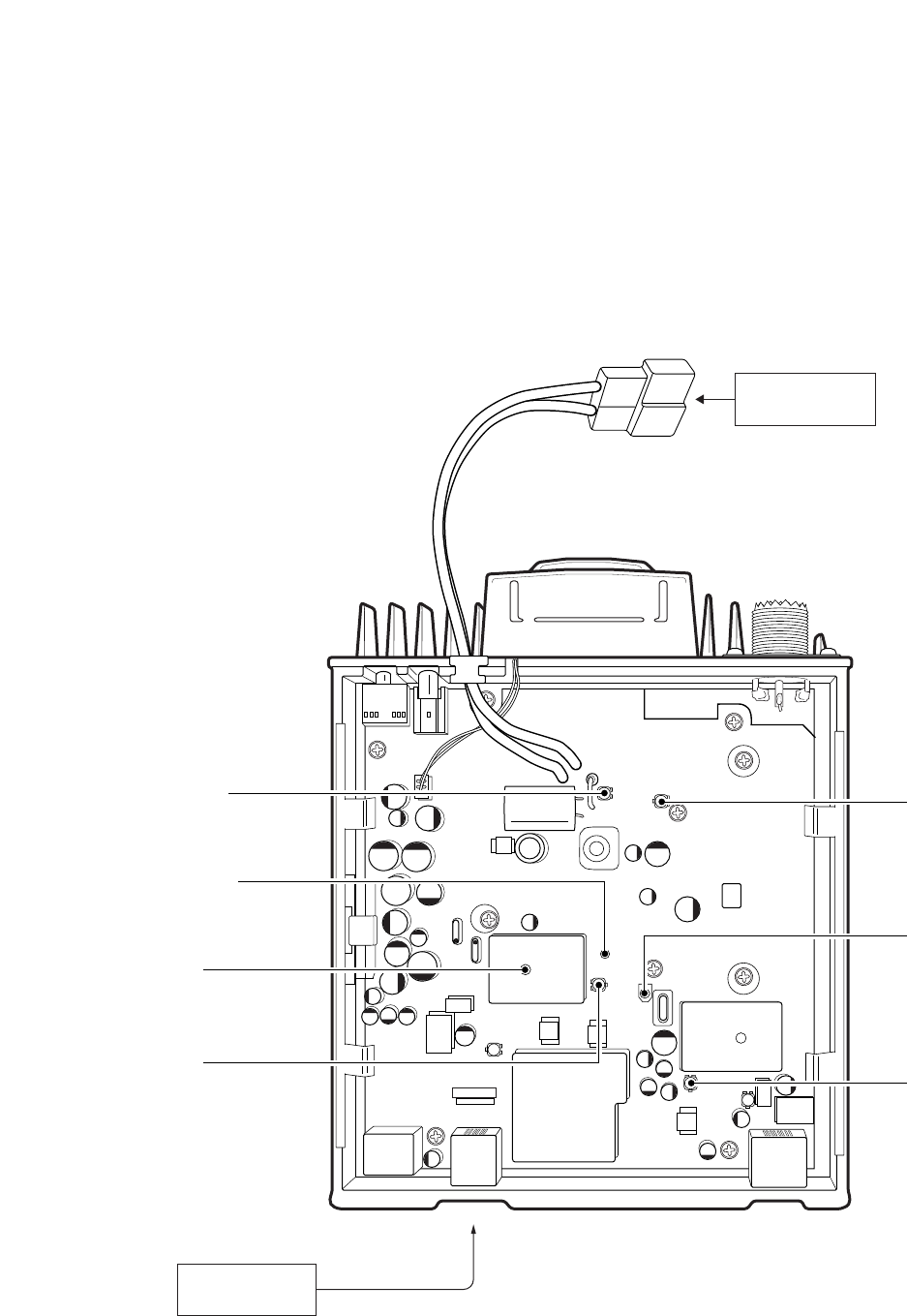

• MAIN UNIT
* : Located underside of this point
* : Located underside of this point
Q15
Q19
Q20
Q14
V-VCO circuit
Main CPU
(IC19: HD6433876N)
EEPROM*
(IC17: X25320SI)
PLL IC*
IC2 M64076AGP
U-VCO circuit
UHF FM IF IC*
(IC8: TA31136FN)
MIC amplifier*
(Q88: 2SC4081)
PLL reference oscillator
(X1: CR-549 15.2 MHz)
UHF antenna
switch
(D27*, D37,
D39, D72)
UHF 1st mixer
(Q42, Q43, D32)
VHF antenna
switching
(D9*, D16, D18)
VHF power module*
(IC1: M67746)
VHF APC DET*
(D7, D8: RB706F)
VHF RF amplifier
(Q16: 3SK166)
High/Low control IC
(IC5: TA75S01F)
VHF 1st mixer
(Q15: 3SK166)
AF amplifier
(IC12: LA4445)
VHF FM IF IC*
(IC28: TA31136FN)
UHF power module*
(IC4: SC-1318)
UHF APC DET*
(D25, D26: RB706F)
SUB CPU
(IC10: HD6433032SK)
T-data buffer amplifier*
(Q12: 2SC4081)
R-data buffer amplifier*
(Q13: 2SA1576)
CPU reset IC*
(IC11: S-80945ANMP-DD9)
LCD controller
(IC8: SED1354F0A)
CFL drive
(Q14, Q15, Q19*, Q20*)
3 - 1
SECTION 3 DISASSEMBLY INSTRUCTIONS
• Removing the MAIN unit
qUnscrew 1 screw, A, and remove the cover.
wUnplug J4 to separate the fan motor from the MAIN unit.
eRemove 2 main shield, B, and TR-A clip, Cin the direc-
tion of the arrow.
• Removing the CONTROL unit
qUnscrew 4 screws, A, and remove the cover.
wUnplug J5 to separate the speaker and front panel.
eRemove rear panel in the deirection of the arrow.
rRemove 6 knobs, B.
tUnscrew 5 screws, C, and remove the CONTROL unit in
the direction of the arrow.
yUnscrew 2 screws, D, when remove the LCD.
rUnsolder 3 points, D, and unscrew 11 nut, E.
tRemove the MAIN unit in the direction of the arrow.
A
B
B
C
Cover
J4
E
E
E
E
MAIN UNIT
Chassis
D
A
Rear panel
J5
Front panel
A
CONTROL
UNIT
D
D
B
B
LCD
C
C
4 - 1

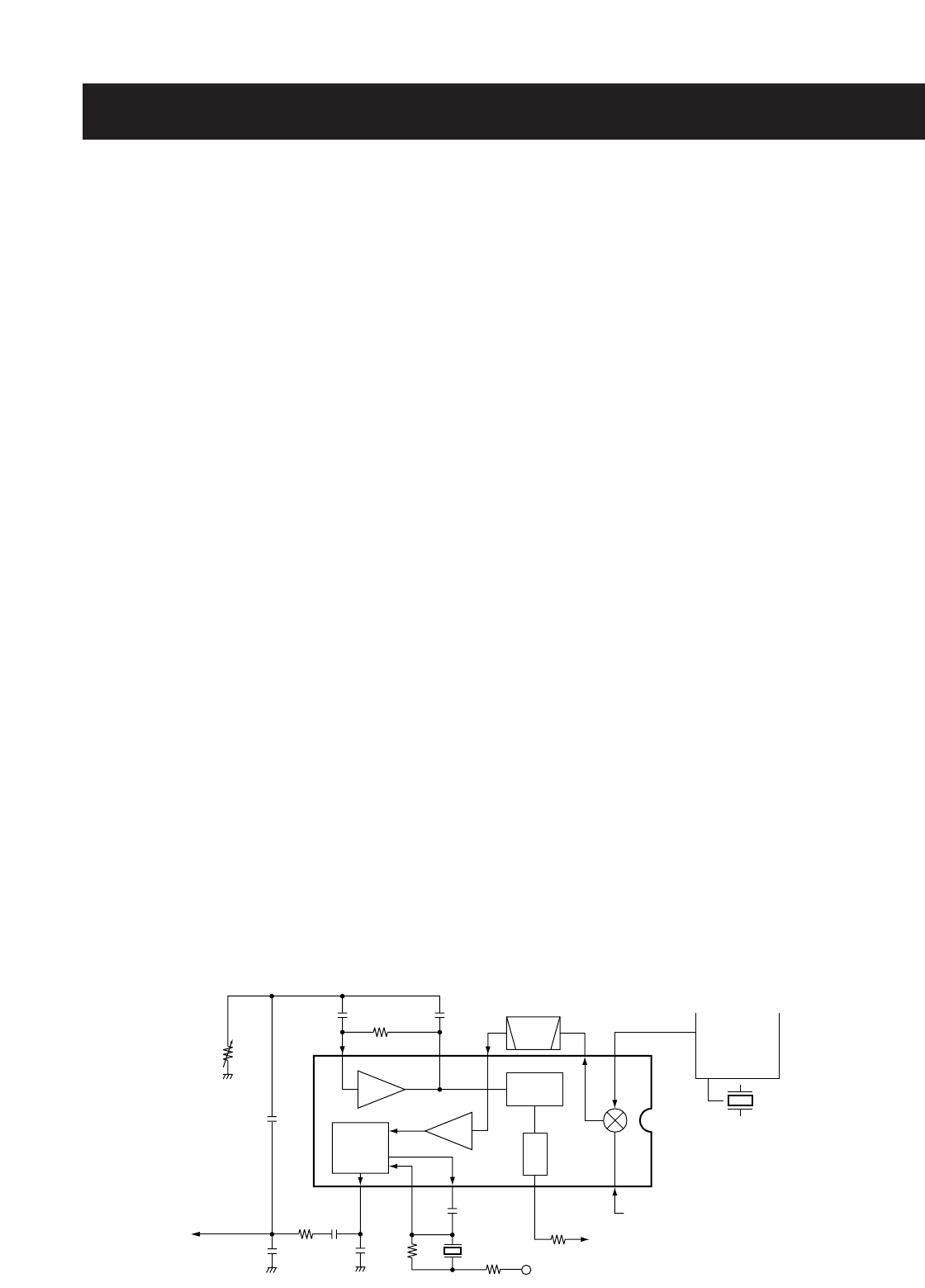

SECTION 4 CIRCUIT DESCRIPTION
4-1 RECEIVER CIRCUITS
4-1-1 DUPLEXER CIRCUIT
The transceiver has a duplexer (low-pass and high-pass fil-
ters) on the first stage from the antenna connector to sepa-
rate the signals into VHF and UHF signals. The low-pass fil-
ter (L15, L16, L78, C70–C72) is for VHF signals and the high-
pass filter (L44, L45, L82, C189, C190, C493) is for UHF sig-
nals. The separated signals are applied to each RF circuit.
4-1-2 VHF ANTENNA SWITCHING CIRCUIT
The antenna switching circuit functions as a low-pass filter
while receiving. However, its impedance becomes very high
while transmitting by turning ON diode (D18). Thus transmit
signals are blocked from entering the receiver circuits. The
antenna switching circuit employs a 1/4λtype diode switch-
ing system. The passed signals are then applied to the VHF
RF amplifier circuit.
4-1-3 VHF SQUELCH ATTENUATOR CIRCUIT
The attenuator circuit attenuates the signal strength to a
maximum of 10 dB to protect the RF amplifier from distortion
when excessively strong signals are received.
The current flow of the antenna switching circuit (D18) is con-
trolled by the [SQL] control via Q33. When the [SQL] control
is rotated clockwise deeper than 12 o’clock, the current of
D18 is increased. In this case, D18 acts as an attenuator.
4-1-4 VHF RF CIRCUIT
The RF circuit amplifies signals within the range of frequen-
cy coverage and filters out-of-band signals.
The signals from the antenna switching circuit pass through
the tunable bandpass filter (D15, L25, L26, C115–C117). The
filtered signals are amplified at the VHF RF amplifier (Q16)
and are then enter another 3-stage tunable bandpass filter
(D11–D14, L20–L21, C94, C96–C105) to suppress unwant-
ed signals. and improve the selectivity. The filtered signals
are applied to the VHF 1st mixer circuit (Q15).
The tunable bandpass filters (D11–D13, D15) employ varac-
tor diodes to tune the center frequency of the RF passband
for wide bandwidth receiving and good image response
rejection. The PLL lock voltage is used for control voltage of
these varactor diodes. The PLL lock voltage is amplified at
the DC-amplifier (Q18) and then applied to the CPU (IC19,
pin 99). The CPU outputs the control signal to the varactor
diodes via the D/A converter (IC3).
4-1-5 VHF 1ST MIXER CIRCUIT
The 1st mixer circuit converts the received signal to a fixed
frequency of the 1st IF signal with a 1st LO (V-VCO output)
frequency.
The signals from the VHF RF circuit are mixed with the 1st
LO signal at the 1st mixer circuit (Q15) to produce a 15.65
MHz 1st IF signal.
4-1-6 VHF 1ST IF CIRCUIT
By changing the PLL frequency, only the desired frequency
will pass through a pair of crystal filters at the next stage of
the mixer.
The 1st IF signal from the VHF 1st mixer circuit is applied to
a pair of crystal filters (FI1) to suppress out-of-band signals
via a matching circuit (R61, C88). The filtered signal is ampli-
fied at the IF amplifier (Q40) and is then applied to the VHF
2nd mixer circuit (IC28).
4-1-7 VHF 2ND IF AND DEMODULATOR CIRCUITS
The 2nd mixer circuit converts the 1st IF signal to a 2nd IF
signal. A double superheterodyne system (which converts
receive signals twice) improves the image rejection ratio and
obtains stable receiver gain.
The FM IF IC (IC28) contains the 2nd local oscillator, 2nd
mixer, limiter amplifier, quadrature detector, and noise detec-
tor circuits, etc.
4 - 2
The 1st IF signal from the 2nd IF amplifier is applied to the
2nd mixer section of IC28 (pin 16), and is mixed with a 15.2
MHz 2nd LO signal generated by the reference oscillator cir-
cuit (X1, IC2) to produce a 450 kHz VHF 2nd IF signal.
The 2nd IF signal from the 2nd mixer passes through the 2nd
IF filter (FI4) (during wide channel spacing selection, or pass-
es through FI5 during narrow channel spacing selection;
[EUR], [ITA] versions only), where unwanted signals are
suppressed. It is then amplified at the limiter amplifier section
(IC28, pin 5) and applied to the FM detector section (X2,
IC28, pins 10, 11) for demodulation the 2nd IF signal into AF
signals.
The FM detector circuit employs a quadrature detection
method (liner phase detection), which uses a ceramic dis-
criminator (X2) for phase delay to obtain a non-adjusting cir-
cuit. The detected signal from IC28 (pin 9) is applied to the
AF circuit.
4-1-8 VHF AF AMPLIFIER CIRCUIT
The AF amplifier circuit amplifies the detected signals to drive
a speaker. The AF circuit includes an AF mute circuit for the
squelch.
AF signals from FM IF IC (IC28, pin 9) pass through the AF
selector (IC21, pins 9, 8), and are then applied to the low-
pass (Q83, R370–R373, C406–C409) and high-pass (Q84,
R375–R379, C415–C418) filters. The filtered signals are
level adjusted at the volume control IC (IC10), and are ampli-
fied at the AF power amplifier (IC12, pin 2) passing through
the V-AF mute switch (Q70).
The output signal from IC12 (pin 11) drives the external or
internal speaker.
4-1-9 VHF SQUELCH CIRCUIT
• NOISE SQUELCH
A noise squelch circuit cuts out AF signals when no RF sig-
nals are received. By detecting noise components in the AF
signals, the squelch circuit switches the AF mute switch.
Some of the noise components in the AF signals from the FM
IF IC (IC28, pin 9) are passed through the active filter section
(IC28, pin 8, 7), and then applied to the noise detector sec-
tion (IC28). The variable resister (R196) adjusts the input
level of the active filter, and the level is used for squelch
threshold reference. The detected noise signals are applied
to the CPU (IC19 pin 97) via the “VSQL” line.
The [SQL] (CONTROL unit; R154) controls the input level of
the sub-CPU (CONTROL unit; IC10, pin 59) in DC voltage.
The sub-CPU reads the angle of the [SQL] rotation, then
send the squelch data to the CPU incorporated in the RDATA
line. Then the CPU controls V-AF mute switch (Q70) via the
“VAMUTE” line.
Even when the squelch is closed, the V-AF mute switch
(Q70) opens at the moment of emitting beep tone.
• TONE SQUELCH
The tone squelch circuit detects AF signals and opens the
squelch only when receiving a signal containing a matching
subaudible tone (CTCSS). When tone squelch is in use, and
a signal with a mismatched or no subaudible tone is
received, the tone squelch circuit mutes the AF signals even
when noise squelch is open.
A portion of the AF signals from the FM IF IC (IC28, pin 9)
passes through the active filter (IC20) to remove AF (voice)
signals via the AF selector (IC29, pins 5, 4), and is then
applied to the CTCSS decoder inside the CPU (IC19, pin 1)
via the “TONEIN” line to control the AF mute switch.
4 - 3
4-1-10 UHF RF CIRCUIT
The UHF RF signals are passed through part of a duplexer
(high-pass filter; L44, L45, L82, C189, C190, C493). The sig-
nals are then passed through the low-pass filter (L42, L43,
C187, C463), antenna switching circuit (D37, D39, D72), and
then amplified at the RF amplifier (Q44). A bandpass filter
(FI3) is used at the next stage of the RF amplifier. The RF
switch (D35, D33) turns on the UHF RF circuit when UHF sig-
nals are received.
4-1-11 UHF 1ST MIXER AND 1ST IF CIRCUITS
The filtered signals from the bandpass filter (FI3) are applied
to the 1st mixer circuit (Q43). The applied signals are mixed
with a 1st LO signal which comes from the U-VCO circuit
(Q20, Q21) to produce a 46.05 MHz 1st IF signal.
The 1st IF signal passes through the 1st IF filter (FI2) to sup-
press out-of-band signals via a matching circuit (R149,
C226). The filtered signal is amplified at the 1st IF amplifier
(Q41) and is then applied to the 2nd mixer circuit (IC8).
4-1-12 UHF 2ND IF AND DEMODULATOR CIRCUITS
The 1st IF signal from the IF amplifier is applied to the 2nd
mixer section of the FM IF IC (IC8, pin 16). The signal is
mixed for producing a 450 kHz 2nd IF signal with a 45.6 MHz
2nd LO signal whitch generated by the tripler circuit (L68,
L69, C208–C212) using the PLL reference frequency.
The 2nd IF signal from IC8 (pin 3) is passed through the 2nd
IF filter (FI6), and is then applied to the limiter amplifier sec-
tion in IC8 (pin 5). The signal is applied to the FM detector
section in IC8 to demodulate into AF signals.
4-1-13 UHF AF AMPLIFIER CIRCUIT
AF signals from IC8 (pin 9) pass through the AF selector
(IC21, pins 3, 4), low-pass filter (Q85, R381–R384,
C415–C418) and high-pass filter (Q86, R386–R390,
C419–C421).
The filtered signals pass through the volume control IC
(IC10). And the level adjusted signals are applied to the AF
power amplifier (IC12, pin 5) via the U-AF mute switch (Q71).
The output signal from IC12 (pin 7) drives the external speak-
er (connected at J2), or it is fed back to the input line of the
AF power amplifier (IC12, pin 2: VHF AF line).
4-1-14 UHF SQUELCH CIRCUIT
A portion of the AF signals from the FM IF IC (IC8, pin 9) are
applied to the active filter section (IC8, pin 8, 7). The active
filter section amplifies and filters noise components. The fil-
ered signals are applied to the noise detector section. The
variable resister (R229) adjusts the input level of the active
filter, and the level is used for squelch threshold reference.
The detected noise signals are output from pin 14 as the
“USQL” signal, and are then applied to the CPU (IC19, pin
95).
The [SQL] (CONTROL unit; R148) controls the input level of
the sub-CPU (CONTROL unit; IC10, pin 61) in DC voltage.
The sub-CPU reads the angle of the [SQL] rotation, then
send the squelch data to the CPU incorporated in the RDATA
line. Then the CPU controls U-AF mute switch (Q71) via the
“UAMUTE” line.
4-2 TRANSMITTER CIRCUITS
4-2-1 MICROPHONE AMPLIFIER CIRCUIT
The microphone amplifier circuit amplifies audio signals from
the microphone to a level needed at the modulation circuit.
The microphone amplifier circuit is commonly used for both
the VHF and UHF bands.
The AF signals from the microphone pass through the MIC
sensitivity control circuit (IC25, D66) and MIC mute switch
(IC26), and are then amplified at the microphone amplifier
(Q88). The amplified signals are applied to the IDC limiter
amplifier (IC23b, pin 6). The output signals from the IDC lim-
iter amplifier (IC23b, pin 7) are passed through the splatter
filter (IC23a, pin 3, 1) and then applied to each VCO circuit
via the deviation adjustment pot.
4-2-2 VHF MODULATION CIRCUIT
The modulation circuit modulates the VCO oscillating signal
(RF signal) using the microphone audio signals.
The audio signals (MOD) from the splatter filter (IC23a)
change the reactance of D3 to modulate the oscillated signal
at the V-VCO circuit (Q4, Q5) after passing through the fre-
quency deviation control (R2). The modulated signals are
amplified at the buffer amplifiers (Q6, Q7), and are then
applied to the drive amplifier circuit via the T/R switching cir-
cuit (D4).
4-2-3 VHF DRIVE AMPLIFIER CIRCUIT
The drive amplifier circuit amplifies the VCO oscillating signal
to a level needed at the power amplifier.
The RF signals from the buffer amplifier (Q7) pass through
the low-pass filter (L5, C35, C36), T/R switch (D4) and atten-
uator (R33–R35). The Tx signal from the attenuator is ampli-
fied at the pre-drive (Q11) and drive (Q12, D5, D6) amplifiers
to obtain an approximate 400 mW signal level. The amplified
signal is then applied to the RF power amplifier (IC1).
4-2-4 VHF POWER AMPLIFIER CIRCUIT
The power amplifier circuit amplifies the driver signal to an
output power level.
IC1 is a power module which has amplification output capa-
bilities of about 70 W. The RF signal from the drive amplifier
(Q12) is applied to IC1 (pin 1).
The amplified signals from the power amplifier (IC1, pin 4)
pass through the APC detector (D7, D8), antenna switching
circuit (D9) and low-pass filter (L15, L16, L78, C70–C72),
and is then applied to the antenna connector.
Collector voltage for the driver (Q12) and control voltage for
the power amplifier (IC1, pin 2) are controlled by the APC cir-
cuit to protect the power module from a mismatched condi-
tion as well as to stabilize the output power.
4 - 4
4-2-5 VHF APC CIRCUIT
The APC circuit protects the power amplifier from a mis-
matched output load and stabilizes transmit output power.
The APC detector circuit (L12, D7, D8) detects forward sig-
nals and refrection signals at D7 and D8 respectively. The
combined voltage is at a minimum level when the antenna
impedance is matched at 50 Ωand is increased when it is
mismatched.
The detected voltage is applied to the APC amplifier (IC5, pin
3) and compared with a reference voltage which is supplied
from the CPU (IC19, pin 68–pin 75) as a D/A control signal.
When antenna impedance is mismatched, the detected volt-
age exceeds the reference voltage. The output voltage of the
APC amplifier (IC5, pin 4) controls the bias voltage of the
power module (IC1) and drive amplifeir (Q12) to reduce the
output power via the APC controller (Q30, Q31).
4-2-6 UHF MODULATION CIRCUIT
Audio signals from the splatter filter (IC23a) pass through the
frequency deviation control (R78), and are then applied to
the modulation circuit (D20) to change the reactance of D20
and modulate the oscillated signal at the U-VCO circuit (Q20,
Q21). The VCO output is amplified at the buffer amplifiers
(Q22, Q24), and is then applied to the T/R switching circuit
(D23) via the low-pass filter (L33, C153, C154).
4-2-7 UHF DRIVE AMPLIFIER CIRCUIT
The VCO signals from the T/R switch (D23) are amplified at
the buffer-amplifier (Q27), pre-drive amplifier (Q28) and drive
(Q29, D24) amplifier to obtain an approximate 400 mW sig-
nal level. The amplified signal is then applied to the RF power
amplifier (IC4).
4-2-8 UHF POWER AMPLIFIER CIRCUIT
IC4 is a power module which has amplification output capa-
bilities of about 50 W.
The RF signal from the drive amplifier (Q29) is applied to IC4
(pin 5). The amplified signal from the power amplifier (IC4,
pin 1) is passed through the antenna switching circuit (D27)
and is then applied to the antenna connector via a bandpass
filter (L42–L45, L82, C186–C190, C467, C493).
4-2-9 UHF APC CIRCUIT
The APC detector circuit (D25 and D26) detects forward sig-
nals and refrection signals respectively. The combined volt-
age is at a minimum level when the antenna is matched at 50
Ωand increases when it is mismatched.
The combined voltage is applied to the APC amplifier (IC5,
pin 3), and the power setting voltage from the CPU (IC19, pin
68–pin 75) as a D/A control signal is applied to the other input
(IC5, pin 1) for the reference.
The output voltage from IC5 (pin 4) is applied to the APC
control circuit (Q30, Q31) to control the bias voltage of the PA
module (IC4) and drive amplifier (Q29).
4-3 PLL CIRCUITS
4-3-1 GENERAL
A PLL circuit provides stable oscillation of the transmit fre-
quency and the receive local frequency. The PLL circuit com-
pares the phase of the divided VCO frequency to the refer-
ence frequency. The PLL output frequency is controlled by a
crystal oscillator and the divided ratio of the programmable
divider. IC2 is a dual PLL IC which controls both VCO circuits
for VHF and UHF.
4-3-2 VHF LOOP
The generated signal at the V-VCO (Q4, Q5, D3) enters the
PLL IC (IC2, pin 6) via buffer-amplifiers (Q6, Q8) and is divid-
ed at the programmable divider section and is then applied to
the phase detector section.
The phase detector compares the input signal with a refer-
ence frequency, and then outputs the out-of-phase signal
(pulse-type signal) from pin 8.
The pulse-type signal is converted into DC voltage (lock volt-
age) at the loop filter (Q99, Q100, R531, C476–C478), and
then applied to the V-VCO to stabilize the oscillated frequen-
cy.
4 - 5
4-3-3 UHF LOOP
The generated signal at the U-VCO (Q20, Q21, D20, D21)
enters the PLL IC (IC2, pin 15) via buffer-amplifiers (Q22,
Q23) and is divided at the programmable divider section and
is then applied to the phase detector section.
The phase detector compares the input signal with a refer-
ence frequency, and then outputs the out-of-phase signal
(pulse-type signal) from pin 13.
The pulse-type signal is converted into DC voltage (lock volt-
age) at the loop filter (Q101, Q102, R538, C481, C483), and
then applied to the U-VCO to stabilize the oscillated frequen-
cy.
4-4 POWER SUPPLY CIRCUITS
• VOLTAGE LINE
Description
The 13.8V external DC power from the power
connector.
The same voltage as the HV line which is con-
trolled by the power switching circuit (Q74, Q75).
When the [POWER] switch is pushed, the CPU
outputs the “PCTRL” control signal to the power
switching circuit to turn the circuit ON.
Common 5 V for the CPU converted from the HV
line by the C5V regulator circuit (IC15). The cir-
cuit outputs the voltage regardless of the power
ON/OFF condition.
Common 5 V produced from the C5V at the
PLL5V regulator circuit (Q13, Q14) using control
signal from 8V line.
Common 8 V converted from the 13.8V line by
the 8V regulator circuit (IC14).
VHF transmit 8 V converted from the 8V line at
the VT8V regulator circuit (Q9, Q10).
UHF transmit 8V converted from the 8V line at
the UT8V regulator circuit (Q25, Q26).
Receive VR8V produced from the 8V line at the
V-BIAS selector (Q34, Q35).
Receive 4R8V produced from the 8V line at the
U-BIAS selector (Q34, Q36).
Receive UR8V produced from the 4R8V line at
the UR8V switching circuit (D28, D29).
Line
HV
13.8V
C5V
PLL5V
8V
VT8V
UT8V
VR8V
4R8V
UR8V
4-5 PORT ALLOCATIONS
4-5-1 CPU (MAIN UNIT; IC19)
4-5-2 SUB-CPU (CONTROL UNIT; IC10)
Outputs reset signal for the LCD con-
troller (IC8).
Input port for serial signal from the
main-CPU (MAIN unit; IC19)
Output port for serial signal to the
main-CPU (MAIN unit; IC19)
Squelch/volume setting level input
ports for VHF band.
Squelch/volume setting level input
ports for UHF band.
Input ports for the up/down signals
from the VHF main dial.
Input ports for the up/down signals
from the VHF main dial.
Outputs brightness control signal for
the display backlight.
Outputs control signal for the contrast
of display.
5
10
11
59, 60
61, 62
73, 74
75, 76
77
79
LRES
TXD
RXD
VSQLV,
VVOLV
USQLV,
UVOLV
VDLA,
VDLB
VDLA,
VDLB
BRITV
CONTV
4 - 6
Input port for the decoded CTCSS sig-
nals.
Input ports for the CPU system clock
oscillator (X4: 10.000 MHz).
Input port for the reset signal.
I/O port for the cloning signal.
Outputs strobe signals for the PLL IC
(IC2).
Outputs strobe signals for the D/A con-
vertor (IC3).
Outputs serial clock signal for the PLL
IC (IC2) and D/A convertor (IC3).
Outputs serial data signals for the PLL
IC (IC2) and D/A convertor (IC3).
Input port for serial signal from the
sub-CPU (CONTROL unit; IC10)
Output port for serial signal to the sub-
CPU (CONTROL unit; IC10)
Outputs clock signal for the EEPROM
IC (IC17).
Input port for serial signal from the
EEPROM IC (IC17).
Outputs data signal for the EEPROM
IC (IC17).
Outputs chip select signal for the EEP-
ROM IC (IC17).
Input port for microphone serial signal
via the MDATA controller (IC24).
Input port to detect remote microphon
connection.
Low : HM-90/98 is connected.
Outputs 1750 Hz Europe tone signal.
Outputs power switching circuit (Q74,
Q75) control signal.
High : While turning power ON.
Outputs serial clock signal for the elec-
tronic volume IC (IC10).
Outputs data signal for the electronic
volume IC (IC10).
Input port for packet PTT signal.
High : Packet PTT switch is ON.
Input port for the PTT switch.
High : While PTT switch is pushed.
PLL unlock signal input port for VHF
band.
High : PLL unlock on VHF band.
PLL unlock signal input port for UHF
band.
High : PLL unlock on UHF band.
Outputs control signal for the V-BIAS
selector (Q34, Q35).
High : While receiving on VHF band.
Output control signal for the U-BIAS
selector (Q34, Q36).
High : While receiving on UHF band.
Outputs Rx/Tx pass-bandwidth control
signal.
High : While narrow bandwidth is
selected. ([EUR], [ITA] only)
1
7, 8
9
11
12
13
14
15
16
17
19
20
21
22
23
24
25
26
34
35
44
45
46
47
52
54
59
TONEIN
OSC1,
OSC2
RES
CLONEC
PLSTB
STB
CK
DATA
RXD
TXD
ESCK
ESI
ESO
ECS
MICIN
EXTMIC
ETONE
PCTRL
VCK
VDATA
PTTP1
PTTM1
VUNLK
UUNLK
1RX
4RX
W/N
Pin Port Description
number name
Outputs transmit signal for VHF band.
High : While transmitting on VHF
band.
Outputs transmit signal for UHF band.
High : While transmitting on UHF
band.
Outputs MIC mute control signal.
Low : While DTMF signals are out-
put, etc.
Output ports for output power control
signal.
Outputs cooling fan control signal.
High : While transmitting or after
transmission for 2 minute.
Outputs mute control signal for UHF
AF signals.
High : While UHF squelch is activate.
Outputs mute control signal for VHF
AF signals.
High : While VHF squelch is activate.
Outputs mute control signal for UHF
demodulated signals.
High : While UHF demodulated sig-
nals are muted.
Outputs mute control signal for VHF
demodulated signals.
High : While VHF demodulated sig-
nals are muted.
Input port for detection signal from the
DTMF unit.
Low : While DTMF unit is connected.
Input ports for the decoded DTMF sig-
nal from the DTMF unit.
Outputs CTCSS signals.
Outputs DTMF signals.
60
61
64
68–75
78
79
80
81
82
83
85–85
90
91
VTX
UTX
MMUTE
POWC0–
POWC7
FUNK
UAMUTE
VAMUTE
UDMUTE
VDMUTE
OPD
Q1–Q4
CTCSS
DTMF
Pin Port Description
number name
Pin Port Description
number name
5 - 1
SECTION 5 ADJUSTMENT PROCEDURES
5-1 PREPARATION
All adjustments in this section must be performed on wide bandwidth condition unless specified otherwise.
(Narrow bandwidth is selectable for Europe and Italy vertions only.)

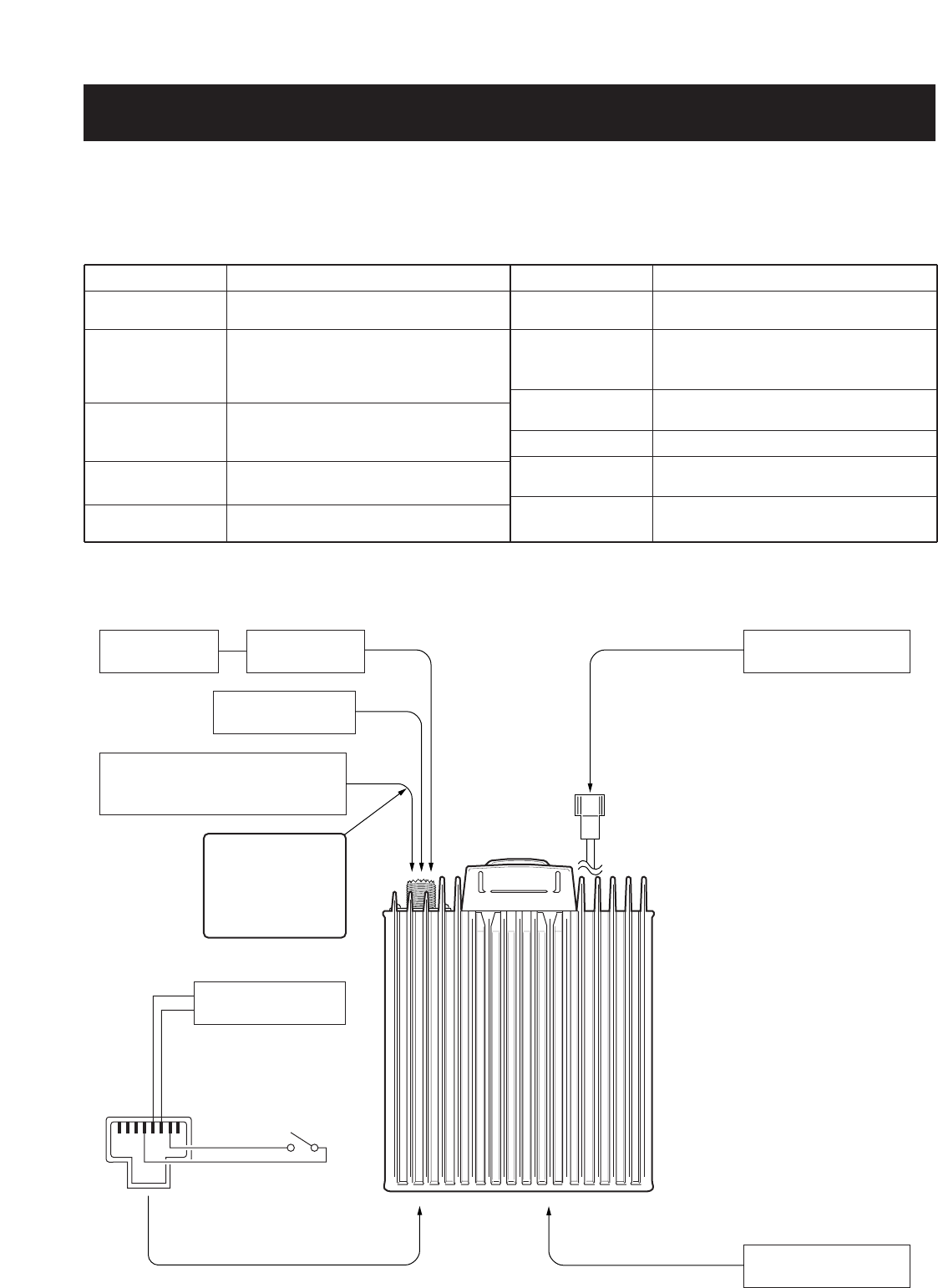

‘‘REQUIRED TEST EQUIPMENT
‘‘CONNECTION
EQUIPMENT
DC power supply
RF power meter
(terminated type)
Frequency counter
FM deviation meter
DC voltmeter
GRADE AND RANGE
Output voltage : 13.8 V DC
Current capacity : 20 A or more
Measuring range : 1–80 W
Frequency range : 100–600 MHz
Impedance : 50 Ω
SWR : Less than 1.2 : 1
Frequency range : 0.1–600 MHz
Frequency accuracy : ±1 ppm or better
Sensitivity : 100 mV or better
Frequency range : 30–600 MHz
Measuring range : 0 to ±10 kHz
Input impedance : 50 kΩ/V DC or better
EQUIPMENT
Audio generator
Standard signal
generator (SSG)
Oscilloscope
AC millivoltmeter
External speaker
Attenuator
GRADE AND RANGE
Frequency range : 300–3000 Hz
Measuring range : 1–500 mV
Frequency range : 0.1–600 MHz
Output level : 0.1 µV–32 mV
(–127 to –17 dBm)
Frequency range : DC–20 MHz
Measuring range : 0.01–20 V
Measuring range : 10 mV–10 V
Input impedance : 8 Ω
Capacity : 4 W or more
Power attenuation : 50 or 60 dB
Capacity : 100 W or more
5 - 2
5-2 PLL AND TRANSMITTER ADJUSTMENTS
PLL LOCK
VOLTAGE
PLL
REFERENCE
FREQUENCY
UHF
OUTPUT
POWER
VHF
OUTPUT
POWER
FREQUENCY
DEVIATION
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE POINT
UNIT LOCATION UNIT ADJUST
1
1
1
2
3
4
1
2
3
4
1
2
3
• VHF displayed freq. :
145.000 MHz
• Receiving
• UHF displayed freq. :
450.000 MHz [USA]
440.000 MHz other
• Output power : Low
• Transmitting
• UHF displayed freq. :
445.000 MHz [USA]
435.000 MHz other
• Output power : High
• Transmitting
• Output power : Low
• Transmitting
• Output power : Mid-L
• Transmitting
• Output power : Mid-H
• Transmitting
• VHF displayed freq. :
145.000 MHz [EUR]
146.000 MHz other
• Output power : High
• Transmitting
• Output power : Low
• Transmitting
• Output power : Mid-L
• Transmitting
• Output power : Mid-H
• Transmitting
• UHF displayed freq. :
445.000 MHz [USA]
435.000 MHz other
• Output power : Low
• Connect an audio generator to
the [MIC] connector and set as:
1 kHz/ 80 mV [USA]
1 kHz/ 20 mV other
• TONE : OFF
• Set an FM deviation meter as:
HPF : 50 Hz
LPF : 20 kHz
De-emphasis: OFF
Detector : (P–P)/2
• Transmitting
• VHF displayed freq. :
145.000 MHz [EUR]
146.000 MHz other
• Output power : Low
• Transmitting
• IF bandwidth : Narrow
[EUR, ITA] only
• Transmitting
MAIN
Rear
panel
Rear
panel
Rear
panel
Rear
panel
Connect a digital
multi-meter or oscil-
loscope to the
check point CP-LV.
Loosely couple the
frequency counter
to the antenna con-
nector.
Connect an RF
power meter to the
antenna connector.
Connect an RF
power meter to the
antenna connector.
Connect an FM
deviation meter to
the antenna con-
nector through an
attenuator.
1.65 V
450.0000 MHz [USA]
440.0000 MHz other
35 W
2–7 W
8–15 W
16–24 W
50 W
2–7 W
8–15 W
16–24 W
±4.8 kHz
±4.8 kHz
±2.0–±2.8 kHz
MAIN
MAIN
MAIN
MAIN
MAIN
L2
C84
R121
Verify
R119
Verify
R78
R2
Verify
5 - 3
*This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.
5-3 RECEIVER ADJUSTMENTS
The receiver adjustments must be performed after PLL ADJUSTMENTS.
5 - 4
SENSITIVITY
S-METER
1
2
3
1
2
3
4
5
6
7
• Turn into sensitivity setting mode.
• Select an adjustment channel by pushing 1st or 2nd
switch from the top on the left side.
• Connect an SSG to the antenna connector and set as:
Frequency : Same as displayed
Level : 3.2 µV* (–97 dBm)
Deviation : ±3.5 kHz
Modulation : 1 kHz
• Receiving
• Same adjustments as step 2 for another 4 channels.
• Turn into S-meter setting mode.
• Select an adjustment channel by pushing 1st or 2nd
switch from the top on the left side.
• Displayed frequency : 127.200 MHz
• Mode : AM
• Connect an SSG to the antenna connector and set as:
Level : 1.6 µV* (–103 dBm)
Modulation : 1 kHz / 30 %
• Receiving
• Displayed frequency : 145.200 MHz
• Mode : FM
• Set an SSG as:
Level : 1.0 µV* (–107 dBm)
Deviation : ±3.5 kHz
Modulation : 1 kHz
• Receiving
• Displayed frequency : 360.200 MHz
• Mode : AM
• Set an SSG as:
Level : 1.6 µV* (–103 dBm)
Modulation : 1 kHz / 30 %
• Receiving
• Displayed frequency : 360.200 MHz
• Mode : FM
• Set an SSG as:
Level : 1.0 µV* (–107 dBm)
Deviation : ±3.5 kHz
Modulation : 1 kHz
• Receiving
• Displayed frequency : 445.200 MHz [USA]
435.200 MHz other
• Mode : FM
• Receiving
• Displayed frequency : 900.200 MHz
• Set an SSG as:
Level : 6.3 µV* (–91 dBm)
Deviation : ±3.5 kHz
Modulation : 1 kHz
• Mode : FM
• Receiving
• Connect a JIG1 to the [MIC] connector, then turn
power ON.
• Push upper switch on the right side to store sam-
pling data into memory.
• Push upper switch on the right side to store sam-
pling data into memory at each adjustment.
• Verify the display color will change after adjust-
ment the last channel, then turn power OFF and
disconnect a JIG1 from the [MIC] connector.
• Connect a JIG2 to the [MIC] connector, then turn
power ON.
• Verify that S-meter shows S3 (2 dots), then push
upper switch on the right side to store sampling
data into memory.
• Verify that S-meter shows S3 (2 dots), then push
upper switch on the right side to store sampling
data into memory.
• Verify the display color will change after adjust-
ment the last channel, then turn power OFF and
disconnect a JIG2 from the [MIC] connector.
ADJUSTMENT ADJUSTMENT CONDITION OPERATION
5 - 5
RECEIVER ADJUSTMENTS (continued)
SQUELCH
(UHF)
(VHF)
ADJUSTMENT
ADJUSTMENT ADJUSTMENT CONDITION MEASUREMENT VALUE POINT
UNIT LOCATION UNIT ADJUST
1
2
• UHF displayed freq. :
445.000 MHz [USA]
435.000 MHz other
• Set the squelch level to 22 %
using the HM-98 microphone.
• R229 : Max clockwise
• set an SSG as:
Level :
14 µV* (–85 dBm)
• Receiving
• VHF displayed freq. :
145.000 MHz [EUR]
146.000 MHz other
• Set the squelch level to 22 %
using the HM-98 microphone.
• R196 : Max clockwise
• set an SSG as:
Level :
14 µV* (–85 dBm)
• Receiving
Speaker
At the point where the
signal just appears. MAIN R229
R196
*This output level of the standard signal generator (SSG) is indicated as SSG’s open circuit.
IC1 1130009250 S.IC MN83951
IC2 1130008560 S.IC TC75S51F (TE85L)
IC3 1180001830 S.IC M5291FP
IC6 1120002580 S.IC M52338FP
IC7 1130007420 S.IC TC7W14FU (TE12L)
IC8 1190000950 S.IC SED1354F0A (QFP15-128PIN)
IC9 1130009360 S.IC LH61665AS-60A
IC10 1140007930 S.IC HD6433032SK21F
IC11 1110004910 S.IC S-80945ANMP-DD9-T2
IC14 1180000420 S.IC TA78L05F (TE12R)
IC15 1180001850 S.IC TA79L15F (TE12L)
IC16 1120002600 S.IC M52045FP [EUR], [ITA]
1120002590 S.IC M52042FP other
IC17 1180000420 S.IC TA78L05F (TE12R)
IC19 1130007110 S.IC TC7W04FU (TE12L)
IC20 1130006550 S.IC TC7S08FU (TE85R)
IC21 1120002610 S.IC TC74AC244F (EL)
IC22 1180000420 S.IC TA78L05F (TE12R)
IC23 1180000420 S.IC TA78L05F (TE12R)
Q1 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q2 1510000510 S.TRANSISTOR 2SA1576A T106R
Q3 1510000510 S.TRANSISTOR 2SA1576A T106R
Q4 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q5 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q6 1510000510 S.TRANSISTOR 2SA1576A T106R
Q7 1510000510 S.TRANSISTOR 2SA1576A T106R
Q8 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q11 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q12 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q13 1510000510 S.TRANSISTOR 2SA1576A T106R
Q14 1530003300 S.TRANSISTOR 2SC3647S-TD
Q15 1530003300 S.TRANSISTOR 2SC3647S-TD
Q16 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q17 1590000430 S.TRANSISTOR DTC144EUA T106
Q18 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q19 1590000430 S.TRANSISTOR DTC144EUA T106
Q20 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q21 1520000200 S.TRANSISTOR 2SB798-T2 DK
D1 1750000550 S.DIODE 1SS355 TE-17
D2 1720000690 S.VARICAP 1SV282 (TPH2)
D3 1790001470 S.DIODE SB10-05PCP-TD
D9 1750000550 S.DIODE 1SS355 TE-17
D10 1730002260 S.ZENER MA8030-H (TX)
D11 1730002260 S.ZENER MA8030-H (TX)
D12 1790001040 S.ZENER MA8033-L (TX)
D13 1790001010 S.ZENER MA8043-L (TX)
D14 1730002340 S.ZENER MA8047-M (TX)
X1 6050010610 S.XTAL CR-641 (4.433619 MHz)
[EUR], [ITA]
6050010620 S.XTAL CR-640 (3.579545 MHz) other
X2 6050009860 S.XTAL CR-566 (12.288 MHz)
X3 6060000730 S.CERAMIC CSTCV26.25MXJ040
L1 6200005010 S.COIL NL 252018T-100J
L2 6200005010 S.COIL NL 252018T-100J
L3 6200005010 S.COIL NL 252018T-100J
L4 6200005010 S.COIL NL 252018T-100J
L5 6200005010 S.COIL NL 252018T-100J
L7 6200005010 S.COIL NL 252018T-100J
L8 6200003710 S.COIL NL 252018T-2R7J
L9 6200005010 S.COIL NL 252018T-100J
L10 6200005010 S.COIL NL 252018T-100J
L11 6200008880 S.COIL SLF7032T-681MR16-2
L13 6200005010 S.COIL NL 252018T-100J
L14 6200005010 S.COIL NL 252018T-100J
L15 6200005010 S.COIL NL 252018T-100J
L16 6200005010 S.COIL NL 252018T-100J
L18 6200008810 S.COIL SLF6028T-101MR42
L19 6190001360 S.COIL 678XN-1369
R1 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R2 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R3 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R4 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R5 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R6 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R7 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R8 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R9 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R10 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R11 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R12 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R13 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R14 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R15 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R16 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R17 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R18 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R20 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R21 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R22 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R23 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R24 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R25 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R26 7310003600 S.TRIMMER EVM-1XSX50 B54 (503)
R27 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R28 7030000020 S.RESISTOR MCR10EZHJ 1 Ω(010)
R29 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R30 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R31 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R32 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R33 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R34 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R35 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R37 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R38 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R39 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R40 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R41 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R42 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R44 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R51 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R58 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R59 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
[EUR], [ITA]
7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) other
R60 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R61 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R62 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R63 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R65 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R84 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R86 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R87 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R89 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R100 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R106 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R107 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R108 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)
R109 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R110 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R112 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R113 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R114 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R115 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R116 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R117 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R118 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R119 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R120 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R121 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R122 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R123 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R124 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R125 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R126 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
S.=Surface mount
6 - 1
SECTION 6 PARTS LIST
REF ORDER DESCRIPTION
NO. NO.
[CONTROL UNIT]
REF ORDER DESCRIPTION
NO. NO.
[CONTROL UNIT]
R240 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R241 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R242 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R243 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R244 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R245 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R246 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R247 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R248 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R249 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R250 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R254 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R255 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R256 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R257 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R258 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R259 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R260 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R261 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R262 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R263 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R264 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R265 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R266 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R267 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R268 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R269 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R270 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R271 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
R272 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R273 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R274 7030001200 S.RESISTOR MCR50JZHJ 390 Ω(391)
R275 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R276 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R277 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R278 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R279 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R280 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R281 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R282 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R283 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
[EUR], [ITA]
7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) other
R284 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R285 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R286 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R287 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R288 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R289 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R290 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R291 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω)
R292 7030005430 S.RESISTOR ERJ3GEYJ 3R3 V (3.3 Ω)
R293 7030000100 S.RESISTOR MCR10EZHJ 4.7 Ω(4R7)
R294 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R295 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R296 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R297 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R298 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R299 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R300 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R301 7030000130 S.RESISTOR MCR10EZHJ 8.2 Ω(8R2)
R302 7030000130 S.RESISTOR MCR10EZHJ 8.2 Ω(8R2)
C1 4510006650 S.ELECTROLYTIC ECEV 1EA 100SR
C2 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C3 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C4 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C5 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C6 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C7 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C8 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C9 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C10 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C11 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C12 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C13 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C14 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C15 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C16 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C17 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C18 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
[CONTROL UNIT]
R127 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R128 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R129 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R130 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R131 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R132 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R133 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R134 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R135 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R136 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R137 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R140 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R141 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R142 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R143 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R145 7210003020 VARIABLE EVU-F2KFK1 B14 (10KB)
R146 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R148 7210003020 VARIABLE EVU-F2KFK1 B14 (10KB)
R149 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R151 7210003020 VARIABLE EVU-F2KFK1 B14 (10KB)
R152 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R154 7210003020 VARIABLE EVU-F2KFK1 B14 (10KB)
R155 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R157 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R158 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R159 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R160 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R161 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R162 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R163 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R164 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R165 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ)
R167 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R168 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R169 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R170 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R173 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R174 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R175 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R176 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R177 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R178 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R179 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R180 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R181 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R182 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R183 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R184 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R185 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R186 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R187 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R188 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R189 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R190 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R191 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R192 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R193 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R194 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R195 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R196 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R197 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R198 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R199 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R200 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R201 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R202 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R203 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R204 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R205 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R206 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R208 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R215 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R217 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R220 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R231 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R232 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R233 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R235 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R236 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R237 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R238 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R239 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
6 - 2
S.=Surface mount
REF ORDER DESCRIPTION
NO. NO.
[CONTROL UNIT]
REF ORDER DESCRIPTION
NO. NO.
REF ORDER DESCRIPTION
NO. NO.
C121 4310001070 MYLAR 100 SMC 333K
C122 4030014540 S.CERAMIC GHM1038 SL 330J 3KV
C123 4510006970 S.ELECTROLYTIC ECEV1CA330WR
C124 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C125 4510006230 S.ELECTROLYTIC ECEV1EA470UP
C126 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C127 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C128 4510006970 S.ELECTROLYTIC ECEV1CA330WR
C129 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C130 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C131 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C132 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C133 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C134 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C135 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C136 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A
C137 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A
C138 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A
C141 4030012600 S.CERAMIC C2012 JB 1A 105M-T-A
C142 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C143 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C144 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C145 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A
C146 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C147 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C148 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C149 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C150 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C151 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C152 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C153 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
[EUR], [ITA]
4030007040 S.CERAMIC C1608 CH 1H 180J-T-A other
C154 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
[EUR], [ITA]
4030007160 S.CERAMIC C1608 CH 1H 181J-T-A other
C155 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C156 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C157 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A
C158 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C159 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C160 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C164 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C165 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C166 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C167 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C168 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C169 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C172 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C173 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C174 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C175 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C176 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C177 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C178 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C179 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C181 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C183 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C184 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C185 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C186 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C187 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C188 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C189 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C190 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C191 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C192 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C193 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C194 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C195 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C196 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C197 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C199 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C200 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C201 4030009590 S.CERAMIC C2012 JF 1C 225Z-T-A
J1 6510017980 S.CONNECTOR IL-FPR-24S-HF-E3000
J2 6510021420 CONNECTOR 52018-6645
J3 6510003400 CONNECTOR B04B-EH-S
J4 6450001990 CONNECTOR JPJ2545-01-540
J5 6510014960 S.CONNECTOR B2B-ZR-SM3-TF
S.=Surface mount
C19 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C20 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C21 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C22 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C23 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C24 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A
C25 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C26 4030010040 S.CERAMIC C1608 JB 1H 561K-T-A
C27 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C28 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C29 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C30 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C31 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C33 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C34 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C35 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C36 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C37 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C38 4510006230 S.ELECTROLYTIC ECEV1EA470UP
C39 4510006970 S.ELECTROLYTIC ECEV1CA330WR
C40 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C41 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C44 4510004650 S.ELECTROLYTIC ECEV1EA4R7SR
C45 4030012660 S.CERAMIC C1608 JB 1C 683K-T-N
[EUR], [ITA]
4030006900 S.CERAMIC C1608 JB 1E 103K-T-A other
C52 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C53 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C54 4510004650 S.ELECTROLYTIC ECEV1EA4R7SR
C55 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C56 4030011280 S.CERAMIC C1608 CH 1H 271J-T-A
C57 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C58 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C59 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C67 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C70 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C71 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C72 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C73 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C74 4510006650 S.ELECTROLYTIC ECEV 1EA 100SR
C75 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C76 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C77 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C78 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C79 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A
C80 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C81 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C82 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C83 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C84 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C85 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C86 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C87 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C89 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C90 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C91 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C92 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C94 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C95 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C96 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C97 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C98 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C99 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C101 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C102 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C103 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C104 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C105 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C107 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C108 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C109 4030006880 S.CERAMIC C1608 JB 1H 472K-T-A
C110 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C111 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C112 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C113 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C114 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C115 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C116 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C117 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C118 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C119 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C120 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
6 - 3
REF ORDER DESCRIPTION
NO. NO.
[CONTROL UNIT] [CONTROL UNIT]
IC1 1150001970 IC M67746-01
IC2 1130009180 S.IC M64076AGP 600C
IC3 1110003690 S.IC M62354GP 75EC
IC4 1150001620 IC M57788MR/SC-1318
IC5 1110002750 S.IC TA75S01F (TE85R)
IC6 1140003830 S.IC TC4W66F (TE12L)
[EUR], [ITA] only
IC7 1140003830 S.IC TC4W66F (TE12L)
[EUR], [ITA] only
IC8 1110003490 S.IC TA31136FN (D,EL)
IC9 1110001971 S.IC µPC1676G-T1
IC10 1110004490 S.IC M62429FP 700C
IC11 1130003760 S.IC TC4S81F (TE85R)
IC12 1110002540 IC LA4445
IC13 1130008090 S.IC BU4066BCFV-E1
IC14 1180001250 S.IC TA7808F (TE16L)
IC15 1180001070 S.IC TA7805F (TE16L)
IC16 1110004750 S.IC S-80945ALMP-DA9-T2
IC17 1140005880 S.IC X25320S8I-2.7T6
IC19 1140007950 S.IC HD6433876NB10H [USA]
1140007960 S.IC HD6433876NB11H other
IC20 1110000960 S.IC NJM4558M-T1
IC21 1130008090 S.IC BU4066BCFV-E1
IC23 1110000960 S.IC NJM4558M-T1
IC24 1130008560 S.IC TA75S51F (TE85R)
IC25 1130007020 S.IC TC7S66FU (TE85R)
IC26 1130008090 S.IC BU4066BCFV-E1
IC27 1110000960 S.IC NJM4558M-T1
IC28 1110003490 S.IC TA31136FN (D,EL)
IC29 1130008230 S.IC BU4053BCFV-E2
Q1 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q2 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q3 1590000430 S.TRANSISTOR DTC144EUA T106
Q4 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q5 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q6 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q7 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q8 1530003550 S.TRANSISTOR 2SC5193-T1
Q9 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q10 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q11 1530002680 S.TRANSISTOR 2SC3357-T2
Q12 1530002340 S.TRANSISTOR 2SC2954-T2B
Q13 1590000430 S.TRANSISTOR DTC144EUA T106
Q14 1590000980 S.TRANSISTOR DTB123EK T147
Q15 1580000490 S.FET 3SK166A-2-T7
Q16 1580000490 S.FET 3SK166A-2-T7
Q17 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q18 1560000530 S.FET 2SK880-GR (TE85R)
Q19 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q20 1530002930 S.TRANSISTOR 2SC4228 (M) -T1 R45
Q21 1530002930 S.TRANSISTOR 2SC4228 (M) -T1 R45
Q22 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q23 1530003550 S.TRANSISTOR 2SC5193-T1
Q24 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q25 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q26 1510000580 S.TRANSISTOR 2SA1362-GR (TE85R)
Q27 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q28 1530002680 S.TRANSISTOR 2SC3357-T2
Q29 1530002340 S.TRANSISTOR 2SC2954-T2B
Q30 1520000730 S.TRANSISTOR 2SB934P (DS) -(TX)
Q31 1530002280 S.TRANSISTOR 2SC4081 T107 S
Q32 1590001320 S.TRANSISTOR DTC143ZUA T106
Q33 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q34 1590002270 S.TRANSISTOR UMG9N TL
Q35 1590000980 S.TRANSISTOR DTB123EK T147
Q36 1590000980 S.TRANSISTOR DTB123EK T147
Q37 1590002270 S.TRANSISTOR UMG9N TL
Q38 1590000980 S.TRANSISTOR DTB123EK T147
Q39 1590000980 S.TRANSISTOR DTB123EK T147
Q40 1530002600 S.TRANSISTOR 2SC4215-O (TE85R)
Q41 1530003550 S.TRANSISTOR 2SC5193-T1
Q42 1590000430 S.TRANSISTOR DTC144EUA T106
Q43 1580000480 S.FET 3SK184-S (TX)
Q44 1580000490 S.FET 3SK166A-2-T7
Q45 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q46 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q47 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q48 1530002920 S.TRANSISTOR 2SC4226-T2 R25
Q49 1590000430 S.TRANSISTOR DTC144EUA T106
Q50 1580000480 S.FET 3SK184-S (TX)
DS1 5030001660 LCD EDTCA22QB0
DS2 5080000430 CFL HMB S 3 AIW 83N/AZ ASSY
S1 2260002560 S.SWITCH EVQ-PPX A25
S2 2260002560 S.SWITCH EVQ-PPX A25
S3 2260002560 S.SWITCH EVQ-PPX A25
S4 2260002560 S.SWITCH EVQ-PPX A25
S5 2260002560 S.SWITCH EVQ-PPX A25
S6 2260002560 S.SWITCH EVQ-PPX A25
S7 2260002560 S.SWITCH EVQ-PPX A25
S8 2260002560 S.SWITCH EVQ-PPX A25
S9 2260002560 S.SWITCH EVQ-PPX A25
S10 2260002560 S.SWITCH EVQ-PPX A25
S11 2250000370 ENCODER EVQ-VENF0124B
S12 2250000370 ENCODER EVQ-VENF0124B
SP1 2510000820 SPEAKER VS-57-0814
W4 7030003860 S.JUMPER ERJ3GE JPW V [EUR], [ITA] only
W6 7030003860 S.JUMPER ERJ3GE JPW V
W8 7030003860 S.JUMPER ERJ3GE JPW V
W10 7030003860 S.JUMPER ERJ3GE JPW V
W11 7030003860 S.JUMPER ERJ3GE JPW V
W12 7030003860 S.JUMPER ERJ3GE JPW V
W13 7030003860 S.JUMPER ERJ3GE JPW V
W14 7030003860 S.JUMPER ERJ3GE JPW V
WS1 8600036480 M.OTHER FX2047 P01CO
EP1 0910050843 PCB B 5254C
EP2 6910012350 S.BEAD MMZ1608Y 102BT
6 - 4
S.=Surface mount
REF ORDER DESCRIPTION
NO. NO.
[CONTROL UNIT]
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
D26 1790001670 S.DIODE RB706F-40T106
D27 1750000510 S.DIODE UM9401F
D28 1750000550 S.DIODE 1SS355 TE-17
D29 1160000060 S.DIODE DAN202U T107
D30 1790000860 S.DIODE MA133 (TX)
D31 1790001670 S.DIODE RB706F-40T106
D32 1160000060 S.DIODE DAN202U T107
D33 1790000620 S.DIODE MA77 (TX)
D35 1750000550 S.DIODE 1SS355 TE-17
D36 1790000450 S.DIODE MA862 (TX)
D37 1750000550 S.DIODE 1SS355 TE-17
D39 1750000510 S.DIODE UM9401F
D40 1730002340 S.ZENER MA8047-M (TX)
D41 1790001670 S.DIODE RB706F-40T106
D42 1730002340 S.ZENER MA8047-M (TX)
D43 1790001670 S.DIODE RB706F-40T106
D44 1790001520 S.ZENER MA8075-L (TX)
D45 1790000700 DIODE DSA3A1
D46 1730000520 ZENER RD20E B2
D47 1750000550 S.DIODE 1SS355 TE-17
D49 1750000550 S.DIODE 1SS355 TE-17 except [USA]
D50 1750000170 S.DIODE DA115 T107 [EUR], [ITA]
1160000060 S.DIODE DAN202U T107 [CSA]
D52 1750000550 S.DIODE 1SS355 TE-17 [USA], [SEA]
D53 1750000550 S.DIODE 1SS355 TE-17except [ITA], [CSA]
D54 1750000550 S.DIODE 1SS355 TE-17except [ITA], [CSA]
D55 1750000170 S.DIODE DA115 T107 [EUR], [ITA]
1160000060 S.DIODE DAN202U T107 [SEA]
D56 1750000550 S.DIODE 1SS355 TE-17 [ITA], [SEA]
D57 1750000550 S.DIODE 1SS355 TE-17 except [EUR]
D59 1710000600 DIODE 1SS254 [EUR]
D60 1710000600 DIODE 1SS254 except [USA]
D61 1790001000 S.ZENER MA8062-L (TX)
D62 1750000550 S.DIODE 1SS355 TE-17
D63 1730002280 S.ZENER MA8091-M (TX)
D64 1730002280 S.ZENER MA8091-M (TX)
D65 1750000550 S.DIODE 1SS355 TE-17
D66 1750000550 S.DIODE 1SS355 TE-17
D67 1790000660 S.DIODE MA728 (TX)
D68 1790001670 S.DIODE RB706F-40T106
D70 1790001010 S.ZENER MA8043-L (TX)
D71 1750000550 S.DIODE 1SS355 TE-17
D72 1710000870 S.DIODE HVU131TRF
D73 1750000550 S.DIODE 1SS355 TE-17
D74 1750000130 S.DIODE DA204U T107
D75 1750000130 S.DIODE DA204U T107
D76 1790000620 S.DIODE MA77 (TX)
D77 1790000620 S.DIODE MA77 (TX)
D78 1790000620 S.DIODE MA77 (TX)
D79 1750000550 S.DIODE 1SS355 TE-17
D80 1750000550 S.DIODE 1SS355 TE-17
FI1 2010002240 MONOLITHIC FL-288 (15.650 MHz)
FI2 2010002360 S.MONOLITHIC FL-300 (46.05 MHz)
FI3 2040001020 S.SAW EFCH445MWNP1 [USA], [CSA]
2040001000 S.SAW EFCH435MWNP1 other
FI4 2020001590 CERAMIC ALFY450F=K
FI5 2020001460 CERAMIC CFWS450HT [EUR], [ITA] only
FI6 2020001520 CERAMIC CFWS450F
X1 6050009820 XTAL CR-549 (15.2 MHz)
X2 6070000200 DISCRIMINATOR CDB450C24
X3 6070000200 DISCRIMINATOR CDB450C24
X4 6050010580 S.XTAL SMD-49 (10.000 MHz)
L1 6200002850 S.COIL NL 252018T-R82J
L2 6130002420 S.COIL LB-270
L3 6200002840 S.COIL NL 252018T-R22J
L4 6200002840 S.COIL NL 252018T-R22J
L5 6200005740 S.COIL ELJRE 47NG-F
L6 6200005690 S.COIL ELJRE 18NG-F
L7 6200006670 S.COIL ELJRE 68NG-F
L8 6200005710 S.COIL ELJRE 27NG-F
L9 6200006670 S.COIL ELJRE 68NG-F
L10 6200005740 S.COIL ELJRE 47NG-F
L11 6110001550 COIL LA-235
L12 6110001550 COIL LA-235
Q51 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q52 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
[EUR], [ITA] only
Q53 1590000430 S.TRANSISTOR DTC144EUA T106
Q54 1560000840 S.FET 2SK1829 (TE85R)
[EUR], [ITA] only
Q55 1590001450 S.FET 2SJ144-GR (TE85R)
Q56 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q57 1560000530 S.FET 2SK880-GR (TE85R)
Q58 1590000720 S.TRANSISTOR DTA144EUA T106
[EUR], [ITA] only
Q59 1560000530 S.FET 2SK880-GR (TE85R)
Q60 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q61 1590000430 S.TRANSISTOR DTC144EUA T106
Q62 1590001450 S.FET 2SJ144-GR (TE85R)
Q63 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q64 1560000530 S.FET 2SK880-GR (TE85R)
Q65 1560000530 S.FET 2SK880-GR (TE85R)
Q66 1590000430 S.TRANSISTOR DTC144EUA T106
Q67 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q68 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R)
Q69 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q70 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q71 1530003090 S.TRANSISTOR 2SC4213-B (TE85R)
Q72 1590000430 S.TRANSISTOR DTC144EUA T106
Q73 1590000430 S.TRANSISTOR DTC144EUA T106
Q74 1590002110 S.TRANSISTOR DTC143XU T107
Q75 1520000650 S.TRANSISTOR 2SB1201-S-TL
Q76 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q77 1520000460 S.TRANSISTOR 2SB1132 T100 R
Q78 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q79 1510000510 S.TRANSISTOR 2SA1576A T106R
Q80 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q81 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q82 1590000430 S.TRANSISTOR DTC144EUA T106
Q83 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q84 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q85 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q86 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q87 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q88 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q89 1530002850 S.TRANSISTOR 2SC4116-BL (TE85R)
[EUR], [ITA] only
Q90 1540000250 S.TRANSISTOR 2SD999-T2 CK
Q91 1590000720 S.TRANSISTOR DTA144EUA T106
Q92 1590000680 S.TRANSISTOR DTC114EUA T106
Q93 1590000430 S.TRANSISTOR DTC144EUA T106
Q95 1590000430 S.TRANSISTOR DTC144EUA T106
Q96 1530002060 S.TRANSISTOR 2SC4081 T107 R
Q98 1590000660 S.TRANSISTOR DTC144TU T107
Q99 1530002490 S.TRANSISTOR 2SC3324-GR (TE85R)
Q100 1560000540 S.FET 2SK880-Y (TE85R)
Q101 1530002490 S.TRANSISTOR 2SC3324-GR (TE85R)
Q102 1560000540 S.FET 2SK880-Y (TE85R)
Q103 1590000430 S.TRANSISTOR DTC144EUA T106
[EUR], [ITA] only
D1 1750000550 S.DIODE 1SS355 TE-17
D2 1790000620 S.DIODE MA77 (TX)
D3 1720000370 S.VARICAP HVU350TRF
D4 1790000450 S.DIODE MA862 (TX)
D5 1750000370 S.DIODE DA221 TL
D6 1750000550 S.DIODE 1SS355 TE-17
D7 1790001670 S.DIODE RB706F-40T106
D8 1790001670 S.DIODE RB706F-40T106
D9 1750000510 S.DIODE UM9401F
D10 1160000060 S.DIODE DAN202U T107
D11 1720000370 S.VARICAP HVU350TRF
D12 1720000370 S.VARICAP HVU350TRF
D13 1720000370 S.VARICAP HVU350TRF
D14 1750000550 S.DIODE 1SS355 TE-17
D15 1720000370 S.VARICAP HVU350TRF
D16 1750000550 S.DIODE 1SS355 TE-17
D18 1750000510 S.DIODE UM9401F
D19 1750000550 S.DIODE 1SS355 TE-17
D20 1720000640 S.VARICAP 1SV284 (TPH3)
D21 1720000640 S.VARICAP 1SV284 (TPH3)
D22 1790000450 S.DIODE MA862 (TX)
D23 1790000620 S.DIODE MA77 (TX)
D24 1750000370 S.DIODE DA221 TL
D25 1790001670 S.DIODE RB706F-40T106
S.=Surface mount
6 - 5
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
6 - 6
S.=Surface mount
L13 6170000230 COIL LW-25
L15 6110001610 COIL LA-244
L16 6110002150 COIL LA-385
L17 6200002840 S.COIL NL 252018T-R22J
L18 6200002850 S.COIL NL 252018T-R82J
L19 6200002640 S.COIL NL 252018T-R15J
L20 6200007760 S.COIL LQN21A 82NJ04
L21 6200007760 S.COIL LQN21A 82NJ04
L22 6200008090 S.COIL LQN21A 68NJ04
L23 6200003270 S.COIL NL 252018T-R56J
L24 6200003280 S.COIL NL 252018T-2R2J
L25 6200002180 S.COIL NL 252018T-R12J
L26 6200008090 S.COIL LQN21A 68NJ04
L28 6110001560 COIL LA-236
L29 6200002850 S.COIL NL 252018T-R82J
L30 6200002320 S.COIL LQN 1A 8N8J04
L31 6200005710 S.COIL ELJRE 27NG-F
L32 6200005720 S.COIL ELJRE 33NG-F
L33 6200005690 S.COIL ELJRE 18NG-F
L34 6200005720 S.COIL ELJRE 33NG-F
L35 6200005690 S.COIL ELJRE 18NG-F
L36 6200005660 S.COIL ELJRE 10NG-F
L37 6200005700 S.COIL ELJRE 22NG-F
L38 6200005700 S.COIL ELJRE 22NG-F
L39 6200005680 S.COIL ELJRE 15NG-F
L40 6110002110 COIL LA-382
L41 6170000230 COIL LW-25
L42 6110001520 COIL LA-232
L43 6110002110 COIL LA-382
L44 6110001520 COIL LA-232
L45 6110001520 COIL LA-232
L46 6200004740 S.COIL NL 252018T-1R2J
L47 6200003270 S.COIL NL 252018T-R56J
L48 6200003960 S.COIL MLF1608A 1R0K-T
L49 6200005740 S.COIL ELJRE 47NG-F
L50 6200005720 S.COIL ELJRE 33NG-F
L51 6200005740 S.COIL ELJRE 47NG-F
L52 6200005740 S.COIL ELJRE 47NG-F
L54 6110001590 COIL LA-242
L55 6200005700 S.COIL ELJRE 22NG-F
L56 6200005700 S.COIL ELJRE 22NG-F
L59 6200005650 S.COIL ELJRE 8N2Z-F
L60 6200005680 S.COIL ELJRE 15NG-F
L61 6200005650 S.COIL ELJRE 8N2Z-F
L62 6200005650 S.COIL ELJRE 8N2Z-F
L63 6200002090 S.COIL ELJFB 681K-F
L64 6200002090 S.COIL ELJFB 681K-F
L65 6200000050 S.COIL LQH 3N R39M 04
L66 6200007380 S.COIL ELJFC 8R2K-F
L67 6200007380 S.COIL ELJFC 8R2K-F
L68 6200004950 S.COIL NL 252018T-1R8J
L69 6200004950 S.COIL NL 252018T-1R8J
L70 6200005950 S.COIL LQH 3N 2R2M04 (Q20)
L71 6200004920 S.COIL MLF1608A 2R2K-T
L72 6200004920 S.COIL MLF1608A 2R2K-T
L73 6200004920 S.COIL MLF1608A 2R2K-T
L74 6200005950 S.COIL LQH 3N 2R2M04 (Q20)
L75 6200004920 S.COIL MLF1608A 2R2K-T
L76 6200002850 S.COIL NL 252018T-R82J
L77 6200004920 S.COIL MLF1608A 2R2K-T
L78 6110001550 COIL LA-235
L79 6200005670 S.COIL ELJRE 12NG-F
L80 6200005660 S.COIL ELJRE 10NG-F
L81 6200005660 S.COIL ELJRE 10NG-F
L82 6110001520 COIL LA-232
R1 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R2 7310003580 S.TRIMMER EVM-1XSX50 B15 (104)
R3 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R4 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R5 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R6 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R7 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R8 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R9 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R10 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R11 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R12 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R13 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R14 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R15 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
R17 7030009550 S.RESISTOR ERJ3EKF 1203 V (120 kΩ)
R18 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R19 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R20 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R21 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R22 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R23 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R24 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R25 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R26 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R27 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R28 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R29 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R30 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R31 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R32 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R33 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R34 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω)
R35 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω)
R36 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R37 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R38 7030000180 S.RESISTOR MCR10EZHJ 22 Ω(220)
R39 7030000180 S.RESISTOR MCR10EZHJ 22 Ω(220)
R40 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R41 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω)
R42 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R43 7030001050 S.RESISTOR MCR50JZHJ 22 Ω(220)
R44 7030000280 S.RESISTOR MCR10EZHJ 150 Ω(151)
R45 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R46 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R47 7030001130 S.RESISTOR MCR50JZHJ 100 Ω(101)
R48 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R49 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R50 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R51 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R52 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R54 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ)
R56 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R58 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R59 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R60 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ)
R61 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω)
R62 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R63 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R64 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω)
R65 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R66 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R67 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R68 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R69 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R70 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R71 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R72 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R73 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R74 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R75 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R76 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R77 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R78 7310003580 S.TRIMMER EVM-1XSX50 B15 (104)
R79 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R80 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R81 7510001100 S.THERMISTOR NTCCM1608 4LH 104KC
R82 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R83 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R84 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R85 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R86 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R87 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R88 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R89 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R90 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R92 7030009550 S.RESISTOR ERJ3EKF 1203 V (120 kΩ)
R93 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω)
R94 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R95 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R96 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R97 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R98 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R99 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R100 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R101 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R102 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
S.=Surface mount
R103 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R104 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R105 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R106 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R107 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R108 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R109 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω)
R110 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R111 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R112 7030000180 S.RESISTOR MCR10EZHJ 22 Ω(220)
R113 7030000180 S.RESISTOR MCR10EZHJ 22 Ω(220)
R114 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R115 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω)
R116 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R117 7030001050 S.RESISTOR MCR50JZHJ 22 Ω(220)
R118 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R119 7310003580 S.TRIMMER EVM-1XSX50 B15 (104)
R120 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R121 7310003580 S.TRIMMER EVM-1XSX50 B15 (104)
R122 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R123 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R124 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R125 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R126 7030003790 S.RESISTOR ERJ3GEYJ 824 V (820 kΩ)
R127 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R128 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R129 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ)
R130 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R131 7030001190 S.RESISTOR MCR50JZHJ 330 Ω(331)
R132 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R133 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R134 7030001130 S.RESISTOR MCR50JZHJ 100 Ω(101)
R135 7030000280 S.RESISTOR MCR10EZHJ 150 Ω(151)
R136 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R137 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω)
R138 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R139 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R140 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R141 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R142 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R143 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R144 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R145 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R146 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R147 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R148 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R149 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R150 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R151 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R152 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R153 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R154 7030003370 S.RESISTOR ERJ3GEYJ 271 V (270 Ω)
R155 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R156 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R157 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R158 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R159 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R160 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R162 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R163 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R164 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R165 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R166 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R167 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R168 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R169 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R170 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R171 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R172 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R173 7030000280 S.RESISTOR MCR10EZHJ 150 Ω(151)
R174 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R175 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)
R176 7030003820 S.RESISTOR ERJ3GEYJ 155 V (1.5 MΩ)
R177 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R178 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω)
R179 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R180 7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Ω)
R181 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R182 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R183 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R184 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
R185 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω)
6 - 7
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
R186 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R187 7030003220 S.RESISTOR ERJ3GEYJ 150 V (15 Ω)
R188 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R189 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R190 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R191 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R192 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R193 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R194 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
[EUR], [ITA]
7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) other
R195 7510001180 S.THERMISTOR NTCCM1608 3NH 221KC
R196 7310003610 S.TRIMMER EVM-1XSX50 B14 (103)
R197 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
[EUR], [ITA] only
R198 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
[EUR], [ITA]
7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) other
R199 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R200 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R201 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R202 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R203 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
[EUR], [ITA]
7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) other
R204 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R205 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
[EUR], [ITA] only
R206 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
[EUR], [ITA] only
R207 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
[EUR], [ITA] only
R208 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
[EUR], [ITA] only
R209 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R210 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R211 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R212 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R213 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R214 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R215 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R216 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R217 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R219 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ)
R220 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R221 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R222 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R223 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R224 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R225 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R226 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)
R227 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R228 7510001250 S.THERMISTOR NTCCM1608 3NH 471KC
R229 7310003610 S.TRIMMER EVM-1XSX50 B14 (103)
R230 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)
R231 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R232 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R233 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R234 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R235 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R236 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R237 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R238 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R239 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R240 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R241 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R242 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R244 7030009550 S.RESISTOR ERJ3EKF 1203 V (120 kΩ)
R245 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R246 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R247 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R248 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R249 7030003270 S.RESISTOR ERJ3GEYJ 390 V (39 Ω)
R250 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R251 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R252 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R253 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R254 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R255 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R256 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ)
R257 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R258 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
6 - 8
S.=Surface mount
R259 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R260 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R261 7030003350 S.RESISTOR ERJ3GEYJ 181 V (180 Ω)
R262 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R263 7030000100 S.RESISTOR MCR10EZHJ 4.7 Ω(4R7)
R264 7030000100 S.RESISTOR MCR10EZHJ 4.7 Ω(4R7)
R265 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)
R266 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R267 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R268 7030000340 S.RESISTOR MCR10EZHJ 470 Ω(471)
R269 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R270 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R271 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R272 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R273 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R274 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R275 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R276 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R277 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R281 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R282 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R283 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R284 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R287 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R289 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R291 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R292 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R294 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R295 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R296 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R297 7030000020 S.RESISTOR MCR10EZHJ 1 Ω(010)
R298 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R299 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R300 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R301 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R304 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R305 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R308 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R310 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R313 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R316 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R317 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R318 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R319 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R320 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R321 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R322 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ)
R323 7030003810 S.RESISTOR ERJ3GEYJ 125 V (1.2 MΩ)
R324 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ)
R325 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R328 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R332 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R334 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R336 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R337 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R341 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R342 7030005560 S.RESISTOR ERJ3EKF 3903 V (390 kΩ)
R343 7030005500 S.RESISTOR RR0816R-124-D (120 kΩ)
R344 7030005690 S.RESISTOR RR0816P-123-D (12 kΩ)
R345 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R346 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R347 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R348 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R349 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R350 7030009550 S.RESISTOR ERJ3EKF 1203 V (120 kΩ)
R351 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R352 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R353 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R354 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R355 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R356 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R357 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R358 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R359 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R360 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R361 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R362 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R363 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R364 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R365 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R366 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R367 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
R368 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R369 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R370 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R371 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R372 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R373 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R374 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R375 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R376 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R377 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R378 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R379 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R380 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R381 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ)
R382 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R383 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ)
R384 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R385 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R386 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R387 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R388 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R389 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R390 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R391 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R402 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R403 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ)
R404 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R405 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R406 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R407 7030000020 S.RESISTOR MCR10EZHJ 1 Ω(010)
R408 7030001040 S.RESISTOR MCR50JZHJ 18 Ω(180)
R409 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R410 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R411 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R412 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R413 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R414 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R415 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R416 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) [USA]
7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ) other
R417 7030003510 S.RESISTOR ERJ3GEYJ 392 V (3.9 kΩ)
R418 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
R419 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R420 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R421 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω)
R422 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R423 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R424 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R425 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R426 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω)
R427 7030003390 S.RESISTOR ERJ3GEYJ 391 V (390 Ω)
R428 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R429 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ)
R430 7030003790 S.RESISTOR ERJ3GEYJ 824 V (820 kΩ)
R431 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R432 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ)
R433 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
[EUR], [ITA] only
R434 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R435 7030003770 S.RESISTOR ERJ3GEYJ 564 V (560 kΩ)
R436 7030003790 S.RESISTOR ERJ3GEYJ 824 V (820 kΩ)
R437 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R438 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R439 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ)
R440 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)
R441 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R442 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
[EUR], [ITA] only
R443 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
[EUR], [ITA] only
R445 7030003540 S.RESISTOR ERJ3GEYJ 682 V (6.8 kΩ)
R447 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ)
R448 7030003740 S.RESISTOR ERJ3GEYJ 334 V (330 kΩ)
R449 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ)
R450 7030003840 S.RESISTOR ERJ3GEYJ 225 V (2.2 MΩ)
R451 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)
R452 7030009550 S.RESISTOR ERJ3EKF 1203 V (120 kΩ)
R453 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R454 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R455 7030009540 S.RESISTOR ERJ3EKF 8202 V (82 kΩ)
R456 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
R457 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
S.=Surface mount
R458 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ)
R459 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R460 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R461 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R462 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R463 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R464 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R465 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R466 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R467 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R468 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R469 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R470 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R471 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R473 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R474 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R475 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R476 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R477 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R478 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R479 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R480 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R481 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R482 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R483 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R484 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R485 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R486 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R487 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R488 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R489 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R490 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R491 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R492 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
[EUR], [ITA] only
R493 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R494 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R495 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R496 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R497 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R498 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R499 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R500 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R501 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R502 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R503 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R504 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R505 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R506 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R507 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R508 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R509 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R510 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ)
R511 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)
R513 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R514 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R515 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ)
R516 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R517 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R518 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R519 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)
R521 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R522 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)
R523 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R524 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R525 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)
R526 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R527 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R528 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R529 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω)
R530 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R531 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ)
R532 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ)
R533 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) [USA]
7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) other
R534 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ)
R535 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ)
R536 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω)
R537 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ)
R538 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ)
R539 7030003770 S.RESISTOR ERJ3GEYJ 564 V (560 kΩ)
R540 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
6 - 9
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
R541 7030001080 S.RESISTOR MCR50JZHJ 39 Ω(390)
R542 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R543 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)
R544 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R545 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)
R546 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω)
R547 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω)
R548 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω)
R549 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ)
[EUR], [ITA] only
C1 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C2 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C3 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C4 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C5 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C6 4550000530 S.TANTALUM TESVA 1V 104M1-8L
C7 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C8 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C9 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C10 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C11 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C12 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C13 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C14 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A
C15 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A
C17 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C18 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C19 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C20 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C21 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C22 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A
C23 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A
C24 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C25 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C26 4030010780 S.CERAMIC C1608 CH 1H 1R5C-T-A
C27 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C28 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C29 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C30 4550002980 S.TANTALUM TEMSVA 1C 225M-8L
C31 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C32 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C33 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C34 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C35 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C36 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C37 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C38 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C39 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C40 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C41 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C42 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C43 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C44 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C45 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C46 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C47 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C48 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C49 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C50 4510006920 ELECTROLYTIC 25 MV 220 CG
C51 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C52 4030011290 S.CERAMIC GRM42-6 CH 240J 500PT
C53 4030011200 S.CERAMIC GRM42-6 CH 300J 500PT
C54 4030011020 S.CERAMIC GRM42-6 CK 010C 500PT
C55 4030011140 S.CERAMIC GRM42-6 CH 120J 500PT
C56 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C57 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C58 4030011020 S.CERAMIC GRM42-6 CK 010C 500PT
C59 4030011020 S.CERAMIC GRM42-6 CK 010C 500PT
C60 4030011120 S.CERAMIC GRM42-6 CH 100D 500PT
C61 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C62 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C63 4550006660 S.TANTALUM ECST1CC226R
C64 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C65 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C66 4030011250 S.CERAMIC GRM42-6 W5R 471K 500PT
C68 4030011160 S.CERAMIC GRM42-6 CH 150J 500PT
C69 4030011260 S.CERAMIC GRM42-6 W5R 102K 500PT
C70 4030011170 S.CERAMIC GRM42-6 CH 180J 500PT
C71 4030011200 S.CERAMIC GRM42-6 CH 300J 500PT
C72 4030011190 S.CERAMIC GRM42-6 CH 270J 500PT
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
6 - 10
S.=Surface mount
C73 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C74 4550000530 S.TANTALUM TESVA 1V 104M1-8L
C76 4550000510 S.TANTALUM TESVA 1V 473M1-8L
C77 4550000550 S.TANTALUM TESVA 1V 224M1-8L
C78 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C80 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C81 4030001830 S.CERAMIC GRM40 RH 330J 50PT
C82 4030009990 S.CERAMIC C1608 CH 1H 200J-T-A
C83 4030001820 S.CERAMIC GRM40 RH 220J 50PT
C84 4610002160 S.TRIMMER CTZ3S-30C-W1-AF
C85 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C86 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C87 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C88 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C89 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C90 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C91 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C92 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
C94 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C95 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C96 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C97 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C98 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C99 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C100 4030007080 S.CERAMIC C1608 CH 1H 390J-T-A
C101 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C102 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C103 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C104 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C105 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C106 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C107 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C108 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C109 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C110 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A
C111 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C112 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C113 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C114 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C115 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A
C116 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C117 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C118 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C119 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C121 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A
C122 4510006220 S.ELECTROLYTIC ECEV1CA101UP
C123 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C124 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C125 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C126 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C127 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C128 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C130 4550000510 S.TANTALUM TESVA 1V 473M1-8L
C131 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C132 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C133 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C134 4030009560 S.CERAMIC C1608 CH 1H R75B-T-A
C135 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C136 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C137 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C139 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C140 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C141 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A
C142 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C143 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C144 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A
C145 4030010780 S.CERAMIC C1608 CH 1H 1R5C-T-A
C146 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C147 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C148 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A
C149 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C150 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C151 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C152 4550002980 S.TANTALUM TEMSVA 1C 225M-8L
C153 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C154 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C155 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C156 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C157 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A
C158 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A
C159 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A
C160 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
C161 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C162 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A
C163 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C164 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C165 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C166 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C167 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C168 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C169 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C171 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C172 4030011080 S.CERAMIC GRM42-6 CH 060D 500PT
C173 4030011020 S.CERAMIC GRM42-6 CK 010C 500PT
C174 4030011150 S.CERAMIC GRM42-6 CH 130J 500PT
C175 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C176 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C177 4030011020 S.CERAMIC GRM42-6 CK 010C 500PT
C178 4030011130 S.CERAMIC GRM42-6 CH 110J 500PT
C179 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C180 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C181 4030011250 S.CERAMIC GRM42-6 W5R 471K 500PT
C182 4550006660 S.TANTALUM ECST1CC226R
C183 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C184 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C186 4030011250 S.CERAMIC GRM42-6 W5R 471K 500PT
C187 4030011100 S.CERAMIC GRM42-6 CH 080D 500PT
C188 4030011080 S.CERAMIC GRM42-6 CH 060D 500PT
C189 4030011060 S.CERAMIC GRM42-6 CH 040C 500PT
C190 4030011060 S.CERAMIC GRM42-6 CH 040C 500PT
C191 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C192 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C193 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C194 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C195 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C196 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C197 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C198 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C199 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C200 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C201 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C202 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C203 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C204 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C205 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C206 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C207 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C208 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A
C209 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C210 4030006910 S.CERAMIC C1608 CH 1H 0R5C-T-A
C211 4030006950 S.CERAMIC C1608 CH 1H 040C-T-A
C212 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C213 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C214 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C215 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A
C216 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C217 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C218 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C219 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C220 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C221 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A
C222 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C223 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C224 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C225 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C226 4030006910 S.CERAMIC C1608 CH 1H 0R5C-T-A
C227 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C228 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C229 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C230 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C231 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C232 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C233 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A
C234 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C235 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C236 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C237 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C238 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C239 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C240 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C241 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C242 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C244 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A
C245 4030011080 S.CERAMIC GRM42-6 CH 060D 500PT
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
S.=Surface mount
C246 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C247 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C248 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C249 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C250 4510004540 S.ELECTROLYTIC ECEV0JA470SR
C251 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A
C252 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C253 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C254 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C255 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
[EUR], [ITA] only
C256 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C257 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
[EUR], [ITA] only
C258 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C259 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C260 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C261 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C263 4030011330 S.CERAMIC C1608 CH 1H 391J-T-A
C264 4030011330 S.CERAMIC C1608 CH 1H 391J-T-A
C265 4030010760 S.CERAMIC C1608 CH 1H 331J-T-A
[EUR], [ITA] only
C266 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A
[EUR], [ITA]
4030007130 S.CERAMIC C1608 CH 1H 101J-T-A other
C267 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
[EUR], [ITA] only
C268 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
[EUR], [ITA] only
C269 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C270 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C271 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C272 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C273 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A
C274 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C275 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C276 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C277 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C278 4510004540 S.ELECTROLYTIC ECEV0JA470SR
C279 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C280 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C281 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C282 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A
C283 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C284 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C285 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C286 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C288 4030011330 S.CERAMIC C1608 CH 1H 391J-T-A
C289 4030011330 S.CERAMIC C1608 CH 1H 391J-T-A
C290 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C291 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C292 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C293 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C294 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C295 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A
C296 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C297 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C298 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C299 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C300 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C301 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A
C302 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C303 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C304 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C305 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C306 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A
C307 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C308 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C309 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C310 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C311 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C312 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C313 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C314 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C315 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C316 4030006940 S.CERAMIC C1608 CH 1H 030C-T-A
C317 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C318 4030010780 S.CERAMIC C1608 CH 1H 1R5C-T-A
C319 4030010780 S.CERAMIC C1608 CH 1H 1R5C-T-A
C320 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C321 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C322 4030006990 S.CERAMIC C1608 CH 1H 080D-T-A
6 - 11
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
C323 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C324 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C325 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C326 4030006930 S.CERAMIC C1608 CH 1H 020C-T-A
C327 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C328 4030006960 S.CERAMIC C1608 CH 1H 050C-T-A
C329 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C330 4510004440 S.ELECTROLYTIC ECEV1HA010SR
C331 4510004440 S.ELECTROLYTIC ECEV1HA010SR
C332 4510005810 S.ELECTROLYTIC ECEV1HAR47R
C333 4510005810 S.ELECTROLYTIC ECEV1HAR47R
C334 4510005810 S.ELECTROLYTIC ECEV1HAR47R
C335 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C336 4510006240 S.ELECTROLYTIC ECEV1CA221P
C337 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C338 4510006220 S.ELECTROLYTIC ECEV1CA101UP
C339 4510006220 S.ELECTROLYTIC ECEV1CA101UP
C340 4510006260 S.ELECTROLYTIC ECEV1AA471UP
C341 4510006260 S.ELECTROLYTIC ECEV1AA471UP
C342 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C343 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C344 4510006240 S.ELECTROLYTIC ECEV1CA221P
C345 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C346 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C347 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C348 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C349 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C350 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C351 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C352 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C353 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C354 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C355 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C356 4510006220 S.ELECTROLYTIC ECEV1CA101UP
C357 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C358 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C359 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C360 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C361 4510004640 S.ELECTROLYTIC ECEV1CA470SP
C362 4510006020 ELECTROLYTIC 16 MV 2200 HC
C363 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C364 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C365 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C366 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C367 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C368 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C369 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C370 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A
C371 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A
C372 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C373 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C374 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C376 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C377 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C378 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C379 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C380 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C381 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C382 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C383 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C384 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C385 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C386 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C387 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C388 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C389 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C390 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C391 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A
C392 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C393 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C394 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C395 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C396 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C397 4030009980 S.CERAMIC C1608 JB 1H 152K-T-A
C398 4030008910 S.CERAMIC C1608 JB 1C 393K-T-A
C399 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C400 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C401 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C402 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C403 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C404 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C405 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
6 - 12
S.=Surface mount
C406 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C407 4030008860 S.CERAMIC C1608 JB 1C 153K-T-A
C408 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C409 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C410 4030008860 S.CERAMIC C1608 JB 1C 153K-T-A
C411 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A
C412 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A
C413 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C414 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C415 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C416 4030008860 S.CERAMIC C1608 JB 1C 153K-T-A
C417 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C418 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C419 4030008860 S.CERAMIC C1608 JB 1C 153K-T-A
C420 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A
C421 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A
C422 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C423 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C432 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C433 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C434 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C435 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C436 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C437 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C438 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C439 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C440 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C441 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A
C442 4510004440 S.ELECTROLYTIC ECEV1HA010SR
C443 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A
C444 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C445 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C446 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A
C447 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A
C448 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A
C449 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A
C450 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C451 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C452 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C453 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C454 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C455 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C456 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C457 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C458 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C459 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C461 4030011810 S.CERAMIC C1608 JB 1A 224K-T-N
C462 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C463 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C464 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C465 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C466 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C467 4030011100 S.CERAMIC GRM42-6 CH 080D 500PT
C470 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A
C471 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C472 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C473 4030011810 S.CERAMIC C1608 JB 1A 224K-T-N
C474 4030011810 S.CERAMIC C1608 JB 1A 224K-T-N
C475 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C476 4550006250 S.TANTALUM TEMSVA 1A 106M-8L
C477 4550006250 S.TANTALUM TEMSVA 1A 106M-8L
C478 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C479 4030011810 S.CERAMIC C1608 JB 1A 224K-T-N
C480 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A
C481 4550006390 S.TANTALUM TEMSVA 1C 335M-8L
C482 4550006390 S.TANTALUM TEMSVA 1C 335M-8L
C483 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A
C484 4030012600 S.CERAMIC C2012 JB 1A 105M-T-A
C485 4030006920 S.CERAMIC C1608 CH 1H 010C-T-A
C486 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C487 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C488 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C489 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C490 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C491 4030012600 S.CERAMIC C2012 JB 1A 105M-T-A
C492 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A
C493 4030011100 S.CERAMIC GRM42-6 CH 080D 500PT
C494 4030009570 S.CERAMIC C1608 CH 1H 0R3B-T-A
C496 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C497 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C498 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C499 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]
C500 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C501 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C502 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C503 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C504 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C505 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C506 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C507 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C508 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C510 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C511 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C512 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C513 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C514 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C515 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C516 4510004630 S.ELECTROLYTIC ECEV1CA100SR
C517 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
[EUR], [ITA] only
C518 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A
C519 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A
C520 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C521 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C522 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A
C523 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A
C524 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A
C525 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A
C526 4030005140 S.CERAMIC C3216 JB 1E 104K-T-A
C527 4030011600 S.CERAMIC C1608 JB 1C 104KT-N
C528 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
C529 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A
C530 4030006970 S.CERAMIC C1608 CH 1H 060D-T-A
C531 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A
C532 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A
J1 6450001440 CONNECTOR HSJ1403-01-010
J2 6450001900 CONNECTOR HSJ0912-01-020
J3 6510021420 CONNECTOR 52018-6645
J4 6510014960 S.CONNECTOR B2B-ZR-SM3-TF
J5 6510016480 CONNECTOR 52018-8845
J6 6510013610 S.CONNECTOR 10FM-1.0BP
J7 6450001840 CONNECTOR TCS7568-43-201
W1 7120000470 JUMPER ERDS2T0
W2 7030003860 S.JUMPER ERJ3GE JPW V
except [EUR], [ITA]
W3 7030003860 S.JUMPER ERJ3GE JPW V
except [EUR], [ITA]
W4 8900004880 CABLE OPC-465
W5 7030003860 S.JUMPER ERJ3GE JPW V
W7 7030003860 S.JUMPER ERJ3GE JPW V
W8 7030003860 S.JUMPER ERJ3GE JPW V
W9 7030003860 S.JUMPER ERJ3GE JPW V
W10 7030003860 S.JUMPER ERJ3GE JPW V
W11 7030003860 S.JUMPER ERJ3GE JPW V
W12 7030003860 S.JUMPER ERJ3GE JPW V
W13 7120000470 JUMPER ERDS2T0 except [EUR]
W14 7030003860 S.JUMPER ERJ3GE JPW V
W15 7030003860 S.JUMPER ERJ3GE JPW V
W16 7030003860 S.JUMPER ERJ3GE JPW V
W17 7030003860 S.JUMPER ERJ3GE JPW V
W18 7030003860 S.JUMPER ERJ3GE JPW V
W19 7030003860 S.JUMPER ERJ3GE JPW V
except [EUR], [ITA]
EP1 0910050835 PCB B 5253E
EP2 6910012350 S.BEAD MMZ1608Y 102BT
EP3 6910012350 S.BEAD MMZ1608Y 102BT
REF ORDER DESCRIPTION
NO. NO.
[MAIN UNIT]

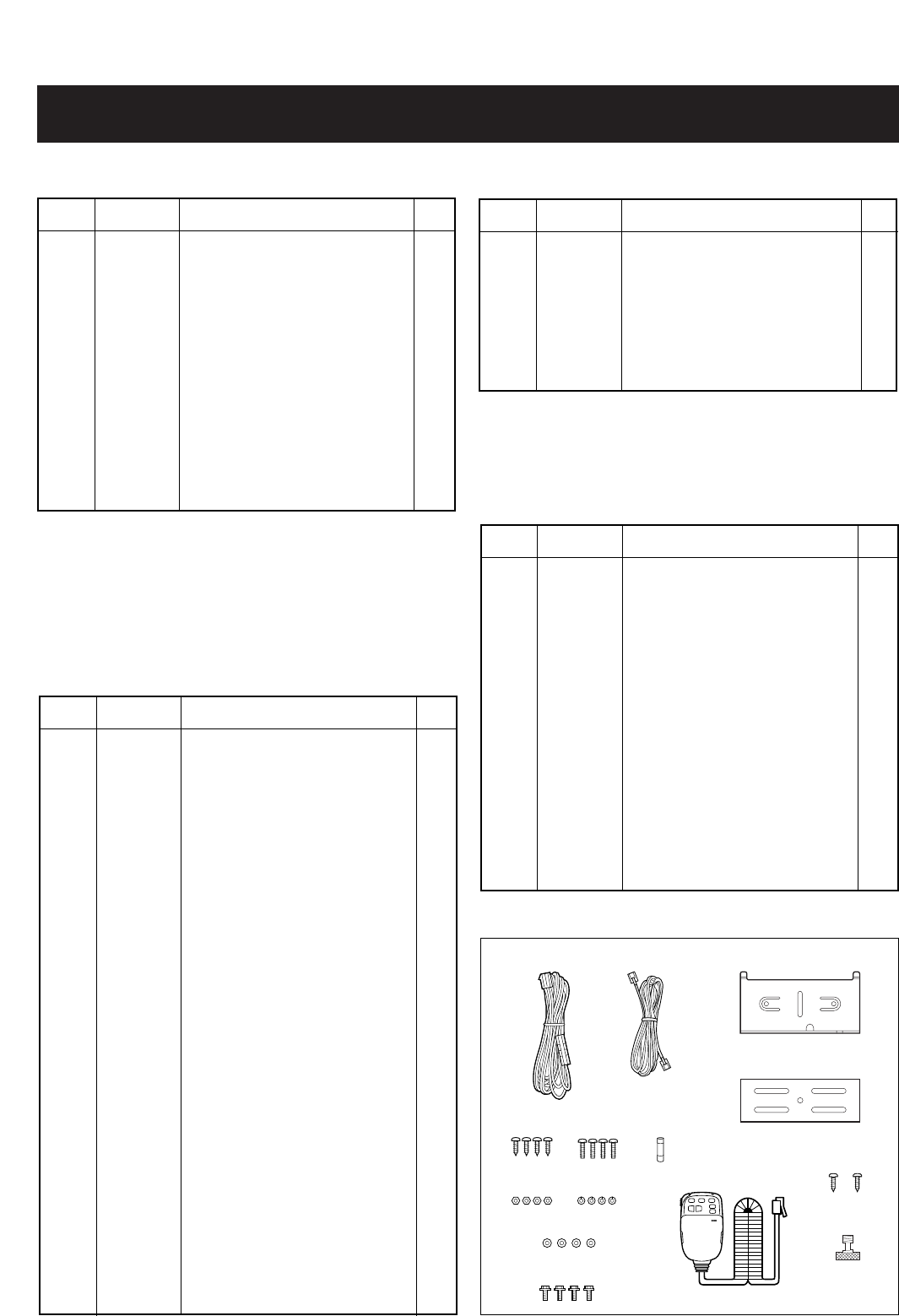

W 4 8900004880 Cable OPC-465 1
MP1 8510010880 1642 VCO case 2
MP2 8930037120 1647 M-holder 2
MP3 8930045960 2088 Spacer 1
MP4 8510012160 2047 RF plate 1
MP5 8510012220 2047 IC plate 1
MP6 8510012280 2047 MAIN-A shield 1
MP7 8510012270 2047 MAIN-B shield 1
F 1 5210000080 Fuse FGB 20 A 1
W1
Optional product
Cable OPC-346 1
W 2 Cable *OPC-837 ACC 1
MC1
Optional product
Micropone HM-98 1
MP1 8010016380 1542 Mobil bracket (B) 1
MP3 8820000530 Frange bolt M4 ×8 NI 4
MP4 8810000470 Screw PH M5 ×12 (+/–) 4
MP5 8810000950 Screw PH A0 M5 × 16 4
MP6 8850000150 Flat washer M5 NI BS 4
MP7 8850000390 Spring washer M5 4
MP8 8830000120 Nut M5 4
MP9 8930007300 Mic-hanger except [CSA] 1
MP10 8010017730 2047 Bracket 1
MP11 8820001080 2047 Screw 1
MP12 8810004350 Screw PH A0 M4 ×16 2
MP13 8930049260 Non-woven sheet 2
DS 1 5030001660 LCD EDTCA22QB0 1
DS 2 5080000430 CFL HMB S 3 AIW 83N/AZ ASSY 1
MP1 8210016000 2047 Front panel 1
MP2 8930048580 2047 L-front key 1
MP3 8930048590 2047 R-front key 1
MP4 8930048600 2047 Key cap 1
MP5 8610010690 Knob N-269 4
MP6 8610010700 Knob N-270 2
MP7 8210016010 2047 Rear panel 1
MP8 8830001440 2047 Nut 1
MP9 8930048820 2047 SP net 1
MP11 8930048770 2047 LCD plate 1
MP12 8210016070 2047 Reflector 1
MP13 8930048810 Sponge (GA) 2
MP14 8930048800 2047 A-sheet 1
MP15 8930048790 2047 B-sheet 1
MP16 8930048780 2047 Jack cover 1
MP17 8810008990 Screw PH BT M2 × 10 ZK 4
MP18 8810008640 Screw FH BT No.0 M2 × 4 NI-ZU 2
MP19 8810008990 Screw PH BT M2 × 10 ZK 4
MP20 8810009180 Screw PH BT No. 0 M2 × 5 NI-ZU 2
MP21 8810000100 Screw PH M2 × 4 ZK 1
MP22 8930049160 2047 C-sheet 1
MP23 8510012370 2048 CPU plate 1
MP24 8510012240 2047 LCD shield 1
MP25 8930049070 Isolating plate (FR) 1
MP27 8930049280 Sponge (GE) 1
MP28 8930049250 2047S.W. sheet 2
MP30 8930049270 Non-woven sheet 2
SP 1 2510000820 Speaker VS-57-0814 1
WS1 8600036480 M. OTHER FX2047 P01CO 1
7 - 1
Screw abbreviations: PH: Pan head FH: Flat head
BT, A0: Self-tapping ZK: Black
NI-ZU: Nickel-Zinc
*OPC-837 ACC:
OPC-872 (incl. female-female plug) is supplied as option.
SECTION 7 MECHANICAL PARTS AND DISASSEMBLY
[CHASSIS PARTS]
[CONTROL UNIT]
MP10
MP5 MP4
MP8
MP6
MP7
MP3
MC1
MP1
F1
W2W1
MP12
MP11
REF NO. ORDER
NO. DESCRIPTION QTY.
QTY.
J 1 6510004880 Antenna connector MR-DS-E 01 1
MF1 2710000590 Fan motor MF40D-12H-001 1
MP1 8010017670 2047 Chassis 1
MP2 8810008660 Screw PH BT M3 ×8 NI-ZU 2
MP3 8810008660 Screw PH BT M3 × 8 NI-ZU 4
MP4 8810008660 Screw PH BT M3 ×8 NI-ZU 7
MP5 8110006640 2047 Cover 1
MP6 8810008450 Bind screw M4 × 8 ZK 1
MP9 8110005750 1729 Fan cover 1
MP10 8810009110 Screw PH No.0 M2.6 × 16 ZK 4
MP11 8930049650 Thermally sheet (C) 1
MP12 8930049650 Thermally sheet (C) 1
MP13 8930027480 1126 TR-A clip 1
REF NO. ORDER
NO. DESCRIPTION QTY.
[MAIN UNIT]
[ACCESSORIES]
REF NO. ORDER
NO. DESCRIPTION QTY.
REF NO. ORDER
NO. DESCRIPTION
7 - 2
MP6 (CO) MP1 (CO)
MP28 (CO)
MP28 (CO)
MP27 (CO)
MP11 (CO)
MP3 (CO)
MP2 (CO)
MP22 (CO)
MP5 (CO)
MP6 (CO)
MP5 (CO)
Note
(M) : MAIN unit
(CO) : CONTROL unit
(C) : CHASSIS
MP12 (CO)
MP4 (C)
MP4 (C)
MP3 (C)
MP4 (C)
MP6 (C)
MP4 (C)
MP3 (C)
MP4 (C)
MP3 (C)
MP5 (C)
MP4 (C)
MP13 (CO)
MP18 (CO)
DS1 (CO)
MP14 (CO)
MP15 (CO)
MP13 (CO)
DS2 (CO)
MP24 (CO)
MP25 (CO)
MP17 (CO)
MP21 (CO)
MP7 (CO)
MP23 (CO)
MP20 (CO)
WS1 (CO)
MP30 (CO)
MP19 (CO)
MP19 (CO)
MP10 (CO)
MP17 (CO)
MP16 (CO)
MP3 (C)
MP13 (C)
W4 (M)
MP2 (M)
IC1 (M)
MP14 (C)
MP11 (C)
MP12 (C)
MP1 (C)
J1 (C)
MF1 (C)
MP2 (C) MP10 (C)
MP14 (C)
IC4 (M)
MP2 (M)
MP7 (M)
MP9 (C)
MAIN unit
CONTROL unit
SP1 (CO)
SECTION PARTS LISTSECTION 8 SEMI-CONDUCTOR INFORMATION
8 - 1 TRANSISTORS
NAME
SYMBOL
INSIDE VIEW NAME
SYMBOL
INSIDE VIEW
2SB1201-S 2M
2SB934P- B934
B
C
E
BC
C
E
2SC3324-GR CBG
2SC4081 R BR
2SC4116-BL LBL
2SC4213-B AB
2SC4215-O OY
2SC4226 R25
2SC4228 R45
2SC5085-Y MCY
2SC5193-T1 T88
BE
C
2SA1362-GR AEG
2SA1576A R FA
C
BE
DTA144EUA 16
DTB123EK F12
BE
C
DTC114EUA 24
DTC143-XU 43
DTC143-ZUA 123
BE
C
2SC2954-T2B QK
2SC3357-T2 RK
2SC3647S-TD CC
2SD999-T2 CK CK
CE
C
B
2SB1132 T100 R BAR
2SB798-T2 DK DK
BE
C
C
2SJ144-GR VG
SD
G
3SK166A-2-T7 K
SD
G1G2
2SK880-GR XG
2SK880-Y XY
G
SD
3SK184-S 3R
G2
S
G1
D
2SK1829 KI
D
SG
UMG9N TL G9
C1 C2
EB1 B2
8 - 1
8 - 2 DIODES
NAME
SYMBOL
INSIDE VIEW NAME
SYMBOL
INSIDE VIEW
DA114 AV
A
C
DA115 AU
A
C
DAN202U N
A1
C1, C2
A2
CA
DA204U K
DA221 TL K
MA133 MP
RB706F-40 3J
A1 C2
C1, A2
MA862 M1I
A2
C2
A1
C1
1SV282 TD
1SV284 TL
HVU350TRF 4
AC
RD20E B2 202
A
C
1SS355 A
MA728 2A
MA8030-H 3^0
MA8033-L 3_3
MA8043-L 4_3
MA8047-M 4_7
MA8062-L 6_2
MA8075-L 7_5
MA8091-M 9–1
AC
MA77 4B
AC
HVU131TRF P1
AC
UM9401F –
AC
C
SB10-05PCP SA
AC
1SS254 yellow
AC
9 - 1
9 - 1 CONTROL UNIT
• TOP VIEW
MP24
HV
TDATA RDATA
GND SP
SPE
CFL+
NC
NC
CFL–
J3
CFL+ NC NC CFL–
J3
from CFL BACK LIGHT
EXT. VIDEO IN
UVOL
USQL
UDIAL
VVOL
VSQL
VDIAL
12
34
56
12
34
56
J2
to MAIN UNIT J3
J2
1
2
3
4
A
B
NC
COM
4
3
2
1
COM
NC
B
A
The combination of this page and the next page shows
the unit layout in the same configuration as the actual
P.C. Board.
SECTION 9 BOARD LAYOUTS
9 - 2
The combination of this page and the previous page
shows the unit layout in the same configuration as the
actual P.C. Board.
• BOTTOM VIEW
CONTROL UNIT
HV TDATA
RDATA GND
SP SPE
CFL+
NC
NC
CFL–
J3
CFL+NCNC
CFL–
J3
from CFL BACK LIGHT
(DS2)
EXT.
VIDEO IN
J4
UVOL
R145
USQL
R148
UDIAL
S11
VVOL
R151
VSQL
R154
VDIAL
S12
1
23
45
6
1
23
45
6
J2
to MAIN UNIT J3
J2
1
2
3
4
A
B
NC
COM
4
3
2
1
COM
NC
B
A
14
R151
R154
R145
J4
R148
S11
VGL
VSS
STV1
U/D
CPV
OEV
STV2
VDD
VGH
VCOM
VEE
STH2
RL
VB
R
G
B
GND
CPH3
CPH2
CPH1
O2H
OEH
STH1
1 5 10 15 20
24
J1
from LCD DISPLAY DS1
SP
SPE 12
J5
from SPEAKER (SP1)
MP23
9 - 3
• TOP VIEW
MAIN UNIT
4213
5
6
J7 DATA I/O
4
21
3
5
6
PSQL AFOUT
DATAOUT
DATAIN
PTTP
GND
HV RDATA SPTDATA GND SPE
6
5
4
3
2
1
J3 to CONTROL UNIT J2
6
75
4
3
2
1
8
EXT MIC INPUT
STD
Q4
Q3
Q2
Q1
TOE
C5V
DETO
GND
OPD
110
E
FV 1
2
J4
MDATA E MIC MICE PTT EXTMIC MU/D M8V
M
from FAN MOTOR
MF1
ANTENNA
EXT SP
CLONE I/O
W4
HV IN
J6 to OPTIONAL UNIT
J5
The combination of this page and the next page shows
the unit layout in the same configuration as the actual
P.C. Board.
9 - 4
4
2
1
3
56
J7 DATA I/O
4
2
1
3
56PSQL
AFOUT
DATAOUT
DATAIN
PTTP
GND
HVRDATASP TDATAGNDSPE
6
5
4
3
2
1
from CONTROL UNIT
6
7
5
4
3
2
1
8
EXT MIC INPUT
M8V MU/D EXTMIC PTT MICE MIC E MDATA
from EXT SP
J1 CLONE I/O
J2
MAIN UNIT
• BOTTOM VIEW
The combination of this page and the previous page
shows the unit layout in the same configuration as the
actual P.C. Board.
2SC4081
MA8075
X4
SMD-49
V BIAS SEL
Q34 UMG9N 1/2
Q35 DTB123EK
INITIAL MATRIX
OSC1
OSC2
EEPROM
IC17 X25320SI ESO
POWER SW CTRL
Q74 DTC143XU
Q75 2SB1201
MICIN
C
P
IC
1
H
D
H
D
MU/D
PROTECTER
D61 MA8062
MIC
MDATA
MICE
EXTMIC
MIC SENS. CTRL
IC25 TC7S66FU
D66 1SS355
D44
Q76
Q77
8V REG
IC14 TA7808F
2SB1132
U BIAS SEL
Q34 UMG9N 1/2
Q36 DTB123EK
RES
ESI,ECS,
ESCK
1RX
4RX
PCTRL
FANC
IS0, IS1, IS2
II0, II1, II2, II3
MIC MUTE
9600 bps SW
IC26 BU4066BCFV
Q93 DTC144EU
PTTM
RDATA
GND
SP
SPE
MU/D
EXTMIC
VT8V REG
Q9 2SC4081
Q10 2SA1362
U8V SW
D28 1SS355
D29 DAN202U
E
MU/D
M8V
PTT
+
—
10.000 MHz
C5V
4R8V
VR8V VT8V
MF1 (CHASSIS)
13.8V 8V
J3
J5
1
2
3
4
5
6
7
8
W4
FAN CONTROL
MIC
INPUT
MIC8V SW
Q90 2SD999
Q91 DTA144EU
Q92 DTC114EU
D64 MA8091
D65 1SS355
MIC SEL
D62 1SS355
MDATA CONT
IC24 TA75S01F
D63 MA8091
PTTM CTRL
Q78 2SC4081
D47 1SS355
HV
TDATA
UT8V REG
Q25 2SC4081
Q26 2SA1362
C5V REG
IC15 TA7805F
RESET
IC16
S-80945ALMP-DA9
R DATA
BUFFER AMP
Q80 2SC4081
T DATA
BUFFER AMP
Q79 2SA1576
INPUT POWER
DC 13.8 V
1
2
3
4
5
6
CPU
IC10
HD6433032SK
X2
CR-566
12.288 MHz
VDLA
VDLB
VVOLV
VSQLV
VDIAL
VVOL
VSQL
UDLA
UDLB
UDIAL
UVOL
USQL
USQLV
UVOLV
F-1
F-5
CHGK
PWRK
K1V
K2V
CTRL5V REG
Q18 2SB1132
IC14 TA78L05F
CTRL HV SW
Q16 2SA1362
Q17 DTC144EU
—15V REG
IC15 TA79L15F
D-RAM
IC9 LH61665AS-60A
TFT LCD INTERFACE
IC6 M52338FP
D9 1SS355
DC-DC
CONVERTER
IC3 M5291FP
Q21 2SB798
D3 SB10-05PCP
X3
CSTC26.25MXJ040
CLKI
GB
VIDEO AMP
Q11 2SC4081
PD AMP
IC2 TC75S51F
D2 1SV282
RGB
M/ESW
SP
MA0 — MA8 MD0 — MD15
XTAL
EXTAL
NTSC/PAL VIDEO CHROMA
IC16 M52045FP [EUR], [ITA]
M52042FP Other
INVERTER
IC19
TC7W04FU
EXTV
CHG/L
RES
F-2
F-3
F-4
F-6
F-7
F-8 X1
CR-641 (4.433619 MHz) [EUR], [ITA]
CR-640 (3.579545 MHz) Other
+5V REG A/B/C
IC17, IC22, IC23
TA78L05F × 3
R
G
B
CTRL5V
—15V
—15V
—15V
J2
1
2
3
4
5
6
J4
13.8V —15V
13.8V
+3V REG
D10
MA8030
CFL
BACK LIGHT
+5VA
+5VB
+5VC
—3V REG
D11 MA8030
+5VC
+5VC
+5VB
+5VC
+4V REG
D14 MA8047
+3V REG
D12
MA8033
+5VC
—15V
+5VA
+4V REG
D13 MA8043
CTRL5V
1
2
3
4
5
6
1
2
3
4
5
6
RESET
IC11 S-80945ANMP-DD9
CFL DRIVE
Q14, Q15 2SC3647 × 2
Q19 DTC144EU
Q20 2SA1362
TFT COLOR LCD
DS1 EDTCA22QB0
STH1, DEH, Q2H,
CPH1, CPH2, CPH3,
CPV, STV1
R
TFT CONTROLLER
IC1 MN83951
IC7 TCW14FU
D1 1SS355
VCOM DIAMOND AMP
Q1, Q4 2SC4081 × 2
Q2, Q3 2SA1576 × 2
VGL DIAMOND AMP
Q5, Q8 2SC4081 × 2
Q6, Q7 2SA1576 × 2
TDATA BUFFER AMP
Q12 2SC4081
RDATA BUFFER AMP
Q13 2SA1576
TXD
RXD
POWER
D0 — D7
A0 — A18
WAIT
LRES
COLOR GRAPHICS
LCD CONTROLLER
IC8 SED1354F0A
OCTAL BUS BUFFER
IC20 TC7S08FU
IC21 TC74AC244F
WR, RD, FAI
PWRS
IN/EXT
CONTV
BRITV
RDATA
GND
SP
SPE
HV
TDATA
CONTROL UNIT
CS, WR, RD, FAI
10 - 1
SECTION 10 BLOCK DIAGRAM
COMPLETE VIEW
X4
SMD-49
V BIAS SEL
Q34 UMG9N 1/2
Q35 DTB123EK
INITIAL MATRIX
OSC1
OSC2
EEPROM
IC17 X25320SI ESO
POWER SW CTRL
Q74 DTC143XU
Q75 2SB1201
PROTECTER
D45 DSA3A1
D46 RD20E
UUNLK
MICIN
VAMUTE
UAMUTE
CPU
IC19
HD6433876NB 10H
[USA]
HD6433876NB 11H
PLL5V
Q13 DTC144EU
Q14 DTB123EK
MU/D
PROTECTER
D61 MA8062
9600 bps AMP
IC27B NJM4558M 1/2
LPF
IC23A NJM4558M 1/2
MIC SENS. CTRL
IC25 TC7S66FU
D66 1SS355
V_SHIFT
Q3 DTC144E
U
D2 MA77
8V REG
IC14 TA7808F
U BIAS SEL
Q34 UMG9N 1/2
Q36 DTB123EK
RES
ESI,ECS,
ESCK
VSOUT
USOUT
1RX
4RX
PCTRL
FANC
IS0, IS1, IS2
II0, II1, II2, II3
IDC AMP
IC23B NJM4558M 1/2
Q89 2SC4116
[EUR], [ITA] only
MIC AMP
Q88 2SC4081
MIC MUTE
9600 bps SW
IC26 BU4066BCFV
Q93 DTC144EU
9600 bps LIMIT
IC27A NJM4558M 1/2
D67 MA728
D68 RB706F
MMUTE, DTMUTE, MRIPT
DTMF, ETONE
W/N
CTCSS
PTTM
V_VCOS REG
Q1 2SC4081
D1 1SS355
U_VCOS REG
Q17 2SC4081
D19 1SS355
DATA, CK, PLSTB, STB
MU/D
EXTMIC
PSEL
PSQL
LIMIT
VTX
UTX
VUNLK
UMMUTE
VAM
LV
UAM
VMMUTE
VSHIFT
TONEIN
VSQL
VT8V REG
Q9 2SC4081
Q10 2SA1362
U8V SW
D28 1SS355
D29 DAN202U
10.000 MHz
C5V
UR8V
4R8V
VR8V VT8V
UT8V
13.8V 8V
PLL5V
VVCO8V
UVCO8V
C5V
PO CTRL (8 Bit)
USQL
PTTP
RXDF
CLONEC, TMAIN, TXDF
VDMUTE, UDMUTE, DMAIN
STD, Q1, Q2, Q3, Q4, OPD
VDATA, VCK
MIC8V SW
Q90 2SD999
Q91 DTA144EU
Q92 DTC114EU
D64 MA8091
D65 1SS355
MIC SEL
D62 1SS355
MDATA CONT
IC24 TA75S01F
D63 MA8091
PTTM CTRL
Q78 2SC4081
D47 1SS355
HV
UT8V REG
Q25 2SC4081
Q26 2SA1362
U_MOD MUTE
Q19 2SC4213
RESET
IC16
S-80945ALMP-DA9
V_MOD MUT
Q2 2SC421
3
COMPLETE VIEW
CRYSTAL FIL
FI1 FL-288
V_APC DET
D7, D8 RB706F × 2
U_APC DET
D25, D26
RB706F × 2
U_LOOP FIL
Q101 2SC3324
Q102 2SK880
HI/LOW CTRL
IC5 TA75S01F
AF AMP
IC12 LA4445
U_AF FIL
Q85, Q86
2SC4081 × 2
COM_MUTE
IC11 TC4S81F
Q69 2SC4213
U_MUTE
Q71 2SC4213
DTMF DEC UNIT
(UT-49)
OPTION
X1
CR-549
15.2 MHz
UATT
VATT
V_PA
IC1 M67746
NOISE
FIL
V_IF5V
D40 MA8047
X2
CDB450C24
SW
IC6B
IC7A
TC4W66F
1/2
15.65 MHz
V_MIX
Q15 3SK166
PLL
IC2
M64076AGP
V_SHIFT
Q3 DTC144EU
D2 MA77
LVO1
LVO2
LVO3
LVO4
NOISE FIL
CERAMIC FIL
FI6 CFWS450F U_IF5V REG
D42 MA8047
X3
CDB450C24
46.05 MHz
U_CRYSTAL FIL
FI2 FL-300
U_BPF
FI3 EFCH435
MWNP1
DATAIN
PTTP
AFOUT
DATAOUT
VOL CTRL
IC10 M62429FP
RX
RX/TX
TX
DATA BUS
V_MON AMP
Q81 2SC4081
U_MON AMP
Q87 2SC4081
V_AF FIL
Q83, Q84
2SC4081 × 2
U_VCO
Q20,Q21 2SC4228 × 2
D20,D21 1SV284 × 2
[SEA]
RX 136—174 MHz
TX 140—150 MHz
RX/TX 430—440 MHz
[CSA]
RX 118—174 MHz
TX 140—150 MHz
RX/TX 430—450 MHz
TX/RX FREQ.
[EUR]
RX/TX 144—146 MHz
RX/TX 430—440 MHz
V_VCO FREQ.
[EUR]
RX 128.35—130.35 MHz
TX 144—146 MHz
[EUR]
128.35—130.35 MHz
[ITA], [USA], [SEA], [CSA]
120.35—158.35 MHz
U_VCO FREQ.
[EUR], [SEA]
RX 383.95—393.95 MHz TX 430—440 MHz
[ITA]
RX 353.95—483.95 MHz TX 400—479 MHz
[USA], [CSA]
RX 383.95—403.95 MHz TX 430—450 MHz
V_VCO
Q4, Q5 2SC5085 × 2
D3 HVU350
D/A CTRL
IC3 M62354GP
PSQL
PSQL SW
Q73 DTC144EU
V_DC-AMP
Q18 2SK880
TONE FIL
IC20
NJM4558M CLONE BUFF
Q98 DTC144TU
D74,D75 DA204U × 2
V_MUTE
Q70 2SC4213
V_DRIVE
Q12 2SC2954
D5 DA221
D6 1SS355
EFCH445MWNP1
[USA], [CSA] only
VSQL
VSOUT
USQL
USOUT
DATA, CK, STB
V_LOOP FIL.
Q99 2SC3324
Q100 2SK880
LPFLPF LPF
HPF
LPF
LPF
DETO
ATT
HPF LPF
LPF
HV
HV
HV
13.8V
VR8V
UR8V
UR8V UAGC 4R8V
UR8V
UAGC
VAGC
VAGC
VR8V
VR8V
BPF
J2
J7 DATA
I/O
3
56
1
2
J1
EXT SP
ANT
VR8V
VAGC
UTXVTX
V_MOD MUTE
Q2 2SC4213 BUFF AMP
Q6 2SC5085
BUFF AMP
Q8 2SC5193
V_DET SW
Q53 DTC144EU
Q55 2SJ144
Q56 2SC4081
BUFF AMP
Q7 2SC5085
V_ LO SW
D4 MA862
V_IF AMP
Q40 2SC4215
D30 MA133
[SEA], [CSA]
RX 120.35 —158.35 MHz
TX 140—150 MHz
V_PRI DRIVE
Q11 2SC3357
V-1st Lo
BPF
D11, D12, D13
HVU350 × 3
D14 1SS355
V_RF AMP
Q16 3SK166
BPF
D15 HVU350
D71 1SS355
V_ANT SW
D9 UM9401F
D16 1SS355
D18 UM9401F
V_ATT CTRL
Q33 2SC4081
APC CTRL
Q30 2SB934P
Q31 2SC4081
D10 DAN202U
U_ATT CTRL
Q45 2SC4081
POW CTRL D/A
Q74 DTC143XU
U—1st Lo
U—1st Lo
[EUR], [SEA]
383.95—393.95 MHz
[ITA] 353.95—483.95 MHz
U_PRI DRIVE
Q28 2SC3357
U_DRIVE
Q29 2SC2954
D24 DA221
U_PA
IC4 SC-1318
U_IF AMP
Q41 2SC5193
D31 RB706F
U_MIX
Q42 DTC144EU
Q43 3SK184
D32 DAN202U
U_RF SW
D33, D76, D77, D78
MA77 × 4
U_ANT SW
D27 UM9401F
D37 1SS355
D39 UM9401F
D72 HVU131TRF
U_RF AMP
Q44 3SK166
D35 1SS355
BUFF AMP
Q24 2SC5085
U_LO BUFF
Q27 2SC5085
U_LO SW
D22 MA862
D23 MA77
U_AGC
Q66 DTC144EU
Q67 2SC4081
D80 1SS355
U_DET SW
Q61 DTC144EU
Q62 2SJ144
Q63 2SC4081
U_MIX, OSC, IFAMP, FMDET,
SDET, NOISE AMP, SQLSW, AFFIL
IC8 TA31136FN
U_RF SW
D36 MA862
U_AM DET
Q64, Q65 2SK880 × 2
D43 RB706F
CERAMIC FIL
FI4
ALFY450F-K
CERAMIC FIL
FI5
CFWS450HT
SW
IC6A
IC7B
TC4W66F
W/N CHENGER
Q54 2SK1829
[EUR], [ITA] only
V—2nd Lo : 15.2 MHz
V_MIX, OSC, IFAMP, FMDET,
SDET, NOISEAMP, SQLSW, AFFIL
IC28 TA31136FN
V_AM DET
Q57, Q59
2SK880 × 2
D41 RB706F
V_AGC
Q95 DTC144EU
Q60 2SC4081
D79 1SS355
BUFF AMP
Q22 2SC5085
BUFF AMP
Q23 2SC5193
TONE, DATA
SELECTOR
IC29
BU4053BCFV
[EUR], [ITA] only
DET SELECTOR
IC21 BU40668CFV
Q82 DTC144EU
PACKET DET
SELECTOR
IC13 BU40668CFV
Q72 DTC144EU
PTTP CTRL
Q96 2SC4081
D73 1SS355
CLONE I/O
4
W/N CHANGER
Q52 2SC4116
W/N CTRL
Q58 DTA144EU
PO CTRL (8 BIT)
[USA]
RX 120.35—158.35 MHz
TX 144—148 MHz
V-1st Lo
[ITA]
RX/TX 136—174 MHz
RX 400—530 MHz
TX 400—479 MHz
[USA]
RX 118—174 MHz
TX 144—148 MHz
RX/TX 430—450 MHz
[ ITA]
RX 120.35—158.35 MHz
TX 136—174 MHz
MAIN UNIT
COMPLETE VIEW
CRYSTAL FIL
FI1 FL-288
V_APC DET
D7, D8 RB706F × 2
U_APC DET
D25, D26
RB706F × 2
U_LOOP FIL
Q101 2SC3324
Q102 2SK880
2SC4081
MA8075
X4
SMD-49
V BIAS SEL
Q34 UMG9N 1/2
Q35 DTB123EK
HI/LOW CTRL
IC5 TA75S01F
INITIAL MATRIX
OSC1
OSC2
EEPROM
IC17 X25320SI ESO
POWER SW CTRL
Q74 DTC143XU
Q75 2SB1201
AF AMP
IC12 LA4445
U_AF FIL
Q85, Q86
2SC4081 × 2
COM_MUTE
IC11 TC4S81F
Q69 2SC4213
U_MUTE
Q71 2SC4213
DTMF DEC UNIT
(UT-49)
OPTION
PROTECTER
D45 DSA3A1
D46 RD20E
X1
CR-549
15.2 MHz
UUNLK
MICIN
VAMUTE
UAMUTE
UATT
VATT
CPU
IC19
HD6433876NB 10H
[USA]
HD6433876NB 11H
PLL5V
Q13 DTC144EU
Q14 DTB123EK
V_PA
IC1 M67746
MU/D
PROTECTER
D61 MA8062
9600 bps AMP
IC27B NJM4558M 1/2
NOISE
FIL
V_IF5V
D40 MA8047
X2
CDB450C24
SW
IC6B
IC7A
TC4W66F
LPF
IC23A NJM4558M 1/2
MIC
MDATA
MICE
EXTMIC
MIC SENS. CTRL
IC25 TC7S66FU
D66 1SS355
15.65 MHz
V_MIX
Q15 3SK166
PLL
IC2
M64076AGP
V_SHIFT
Q3 DTC144EU
D2 MA77
LVO1
LVO2
LVO3
LVO4
NOISE FIL
CERAMIC FIL
FI6 CFWS450F U_IF5V REG
D42 MA8047
X3
CDB450C24
46.05 MHz
U_CRYSTAL FIL
FI2 FL-300
U_BPF
FI3 EFCH435
MWNP1
DATAIN
PTTP
AFOUT
DATAOUT
VOL CTRL
IC10 M62429FP
D44
Q76
Q77
RX
RX/TX
TX
DATA BUS
V_MON AMP
Q81 2SC4081
U_MON AMP
Q87 2SC4081
V_AF FIL
Q83, Q84
2SC4081 × 2
U_VCO
Q20,Q21 2SC4228 × 2
D20,D21 1SV284 × 2
[SEA]
RX 136—174 MHz
TX 140—150 MHz
RX/TX 430—440 MHz
[CSA]
RX 118—174 MHz
TX 140—150 MHz
RX/TX 430—450 MHz
TX/RX FREQ.
[EUR]
RX/TX 144—146 MHz
RX/TX 430—440 MHz
V_VCO FREQ.
[EUR]
RX 128.35—130.35 MHz
TX 144—146 MHz
[EUR]
128.35—130.35 MHz
[ITA], [USA], [SEA], [CSA]
120.35—158.35 MHz
U_VCO FREQ.
[EUR], [SEA]
RX 383.95—393.95 MHz TX 430—440 MHz
[ITA]
RX 353.95—483.95 MHz TX 400—479 MHz
[USA], [CSA]
RX 383.95—403.95 MHz TX 430—450 MHz
V_VCO
Q4, Q5 2SC5085 × 2
D3 HVU350
D/A CTRL
IC3 M62354GP
8V REG
IC14 TA7808F
2SB1132
U BIAS SEL
Q34 UMG9N 1/2
Q36 DTB123EK
RES
ESI,ECS,
ESCK
VSOUT
USOUT
1RX
4RX
PCTRL
FANC
IS0, IS1, IS2
II0, II1, II2, II3
IDC AMP
IC23B NJM4558M 1/2
Q89 2SC4116
[EUR], [ITA] only
MIC AMP
Q88 2SC4081
MIC MUTE
9600 bps SW
IC26 BU4066BCFV
Q93 DTC144EU
9600 bps LIMIT
IC27A NJM4558M 1/2
D67 MA728
D68 RB706F
MMUTE, DTMUTE, MRIPT
DTMF, ETONE
W/N
CTCSS
PTTM
PSQL
PSQL SW
Q73 DTC144EU
V_VCOS REG
Q1 2SC4081
D1 1SS355
U_VCOS REG
Q17 2SC4081
D19 1SS355
V_DC-AMP
Q18 2SK880
TONE FIL
IC20
NJM4558M CLONE BUFF
Q98 DTC144TU
D74,D75 DA204U × 2
DATA, CK, PLSTB, STB
RDATA
GND
SP
SPE
MU/D
EXTMIC
PSEL
PSQL
LIMIT
VTX
UTX
VUNLK
UMMUTE
VAM
LV
UAM
VMMUTE
VSHIFT
TONEIN
VSQL
V_MUTE
Q70 2SC4213
VT8V REG
Q9 2SC4081
Q10 2SA1362
U8V SW
D28 1SS355
D29 DAN202U
V_DRIVE
Q12 2SC2954
D5 DA221
D6 1SS355
EFCH445MWNP1
[USA], [CSA] only
E
MU/D
M8V
PTT
+
—
VSQL
VSOUT
USQL
USOUT
DATA, CK, STB
V_LOOP FIL.
Q99 2SC3324
Q100 2SK880
10.000 MHz
LPFLPF LPF
HPF
LPF
LPF
DETO
ATT
HPF LPF
LPF
C5V
UR8V
4R8V
VR8V VT8V
UT8V
MF1 (CHASSIS)
13.8V 8V
HV
HV
HV
PLL5V
VVCO8V
UVCO8V
13.8V
J3
VR8V
UR8V
UR8V UAGC 4R8V
UR8V
UAGC
VAGC
VAGC
VR8V
VR8V
BPF
J5
1
2
3
4
5
6
7
8
C5V
J2
J7 DATA
I/O
3
56
1
2
J1
EXT SP
ANT
VR8V
W4
VAGC
UTXVTX
FAN CONTROL
MIC
INPUT
PO CTRL (8 Bit)
USQL
PTTP
RXDF
CLONEC, TMAIN, TXDF
VDMUTE, UDMUTE, DMAIN
STD, Q1, Q2, Q3, Q4, OPD
VDATA, VCK
MIC8V SW
Q90 2SD999
Q91 DTA144EU
Q92 DTC114EU
D64 MA8091
D65 1SS355
MIC SEL
D62 1SS355
MDATA CONT
IC24 TA75S01F
D63 MA8091
PTTM CTRL
Q78 2SC4081
D47 1SS355
HV
TDATA
HV
UT8V REG
Q25 2SC4081
Q26 2SA1362
U_MOD MUTE
Q19 2SC4213
C5V REG
IC15 TA7805F
RESET
IC16
S-80945ALMP-DA9
R DATA
BUFFER AMP
Q80 2SC4081
T DATA
BUFFER AMP
Q79 2SA1576
V_MOD MUTE
Q2 2SC4213 BUFF AMP
Q6 2SC5085
BUFF AMP
Q8 2SC5193
V_DET SW
Q53 DTC144EU
Q55 2SJ144
Q56 2SC4081
BUFF AMP
Q7 2SC5085
V_ LO SW
D4 MA862
V_IF AMP
Q40 2SC4215
D30 MA133
[SEA], [CSA]
RX 120.35 —158.35 MHz
TX 140—150 MHz
V_PRI DRIVE
Q11 2SC3357
V-1st Lo
BPF
D11, D12, D13
HVU350 × 3
D14 1SS355
V_RF AMP
Q16 3SK166
BPF
D15 HVU350
D71 1SS355
V_ANT SW
D9 UM9401F
D16 1SS355
D18 UM9401F
V_ATT CTRL
Q33 2SC4081
APC CTRL
Q30 2SB934P
Q31 2SC4081
D10 DAN202U
U_ATT CTRL
Q45 2SC4081
POW CTRL D/A
Q74 DTC143XU
U—1st Lo
U—1st Lo
[EUR], [SEA]
383.95—393.95 MHz
[ITA] 353.95—483.95 MHz
U_PRI DRIVE
Q28 2SC3357
U_DRIVE
Q29 2SC2954
D24 DA221
U_PA
IC4 SC-1318
U_IF AMP
Q41 2SC5193
D31 RB706F
U_MIX
Q42 DTC144EU
Q43 3SK184
D32 DAN202U
U_RF SW
D33, D76, D77, D78
MA77 × 4
U_ANT SW
D27 UM9401F
D37 1SS355
D39 UM9401F
D72 HVU131TRF
U_RF AMP
Q44 3SK166
D35 1SS355
BUFF AMP
Q24 2SC5085
U_LO BUFF
Q27 2SC5085
U_LO SW
D22 MA862
D23 MA77
U_AGC
Q66 DTC144EU
Q67 2SC4081
D80 1SS355
U_DET SW
Q61 DTC144EU
Q62 2SJ144
Q63 2SC4081
U_MIX, OSC, IFAMP, FMDET,
SDET, NOISE AMP, SQLSW, AFFIL
IC8 TA31136FN
U_RF SW
D36 MA862
U_AM DET
Q64, Q65 2SK880 × 2
D43 RB706F
CERAMIC FIL
FI4
ALFY450F-K
CERAMIC FIL
FI5
CFWS450HT
SW
IC6A
IC7B
TC4W66F
W/N CHENGER
Q54 2SK1829
[EUR], [ITA] only
V—2nd Lo : 15.2 MHz
V_MIX, OSC, IFAMP, FMDET,
SDET, NOISEAMP, SQLSW, AFFIL
IC28 TA31136FN
V_AM DET
Q57, Q59
2SK880 × 2
D41 RB706F
V_AGC
Q95 DTC144EU
Q60 2SC4081
D79 1SS355
BUFF AMP
Q22 2SC5085
BUFF AMP
Q23 2SC5193
TONE, DATA
SELECTOR
IC29
BU4053BCFV
INPUT POWER
DC 13.8 V
[EUR], [ITA] only
DET SELECTOR
IC21 BU40668CFV
Q82 DTC144EU
PACKET DET
SELECTOR
IC13 BU40668CFV
Q72 DTC144EU
PTTP CTRL
Q96 2SC4081
D73 1SS355
CLONE I/O
4
W/N CHANGER
Q52 2SC4116
W/N CTRL
Q58 DTA144EU
PO CTRL (8 BIT)
1
2
3
4
5
6
[USA]
RX 120.35—158.35 MHz
TX 144—148 MHz
V-1st Lo
[ITA]
RX/TX 136—174 MHz
RX 400—530 MHz
TX 400—479 MHz
[USA]
RX 118—174 MHz
TX 144—148 MHz
RX/TX 430—450 MHz
[ ITA]
RX 120.35—158.35 MHz
TX 136—174 MHz
CPU
IC10
HD6433032SK
X2
CR-566
12.288 MHz
VDLA
VDLB
VVOLV
VSQLV
VDIAL
VVOL
VSQL
UDLA
UDLB
UDIAL
UVOL
USQL
USQLV
UVOLV
F-1
F-5
CHGK
PWRK
K1V
K2V
CTRL5V REG
Q18 2SB1132
IC14 TA78L05F
CTRL HV SW
Q16 2SA1362
Q17 DTC144EU
—15V REG
IC15 TA79L15F
D-RAM
IC9 LH61665AS-60A
TFT LCD INTERFACE
IC6 M52338FP
D9 1SS355
DC-DC
CONVERTER
IC3 M5291FP
Q21 2SB798
D3 SB10-05PCP
X3
CSTC26.25MXJ040
CLKI
GB
VIDEO AMP
Q11 2SC4081
PD AMP
IC2 TC75S51F
D2 1SV282
RGB
M/ESW
SP
MA0 — MA8 MD0 — MD15
XTAL
EXTAL
NTSC/PAL VIDEO CHROMA
IC16 M52045FP [EUR], [ITA]
M52042FP Other
INVERTER
IC19
TC7W04FU
EXTV
CHG/L
RES
F-2
F-3
F-4
F-6
F-7
F-8 X1
CR-641 (4.433619 MHz) [EUR], [ITA]
CR-640 (3.579545 MHz) Other
+5V REG A/B/C
IC17, IC22, IC23
TA78L05F × 3
R
G
B
CTRL5V
—15V
—15V
—15V
J2
1
2
3
4
5
6
J4
13.8V —15V
13.8V
+3V REG
D10
MA8030
CFL
BACK LIGHT
+5VA
+5VB
+5VC
—3V REG
D11 MA8030
+5VC
+5VC
+5VB
+5VC
+4V REG
D14 MA8047
+3V REG
D12
MA8033
+5VC
—15V
+5VA
+4V REG
D13 MA8043
CTRL5V
1
2
3
4
5
6
1
2
3
4
5
6
RESET
IC11 S-80945ANMP-DD9
CFL DRIVE
Q14, Q15 2SC3647 × 2
Q19 DTC144EU
Q20 2SA1362
TFT COLOR LCD
DS1 EDTCA22QB0
STH1, DEH, Q2H,
CPH1, CPH2, CPH3,
CPV, STV1
R
TFT CONTROLLER
IC1 MN83951
IC7 TCW14FU
D1 1SS355
VCOM DIAMOND AMP
Q1, Q4 2SC4081 × 2
Q2, Q3 2SA1576 × 2
VGL DIAMOND AMP
Q5, Q8 2SC4081 × 2
Q6, Q7 2SA1576 × 2
TDATA BUFFER AMP
Q12 2SC4081
RDATA BUFFER AMP
Q13 2SA1576
TXD
RXD
POWER
D0 — D7
A0 — A18
WAIT
LRES
COLOR GRAPHICS
LCD CONTROLLER
IC8 SED1354F0A
OCTAL BUS BUFFER
IC20 TC7S08FU
IC21 TC74AC244F
WR, RD, FAI
PWRS
IN/EXT
CONTV
BRITV
RDATA
GND
SP
SPE
HV
TDATA
CONTROL UNIT MAIN UNIT
CS, WR, RD, FAI
10 - 1
SECTION 10 BLOCK DIAGRAM
LEFT SIDE RIGHT SIDECENTER

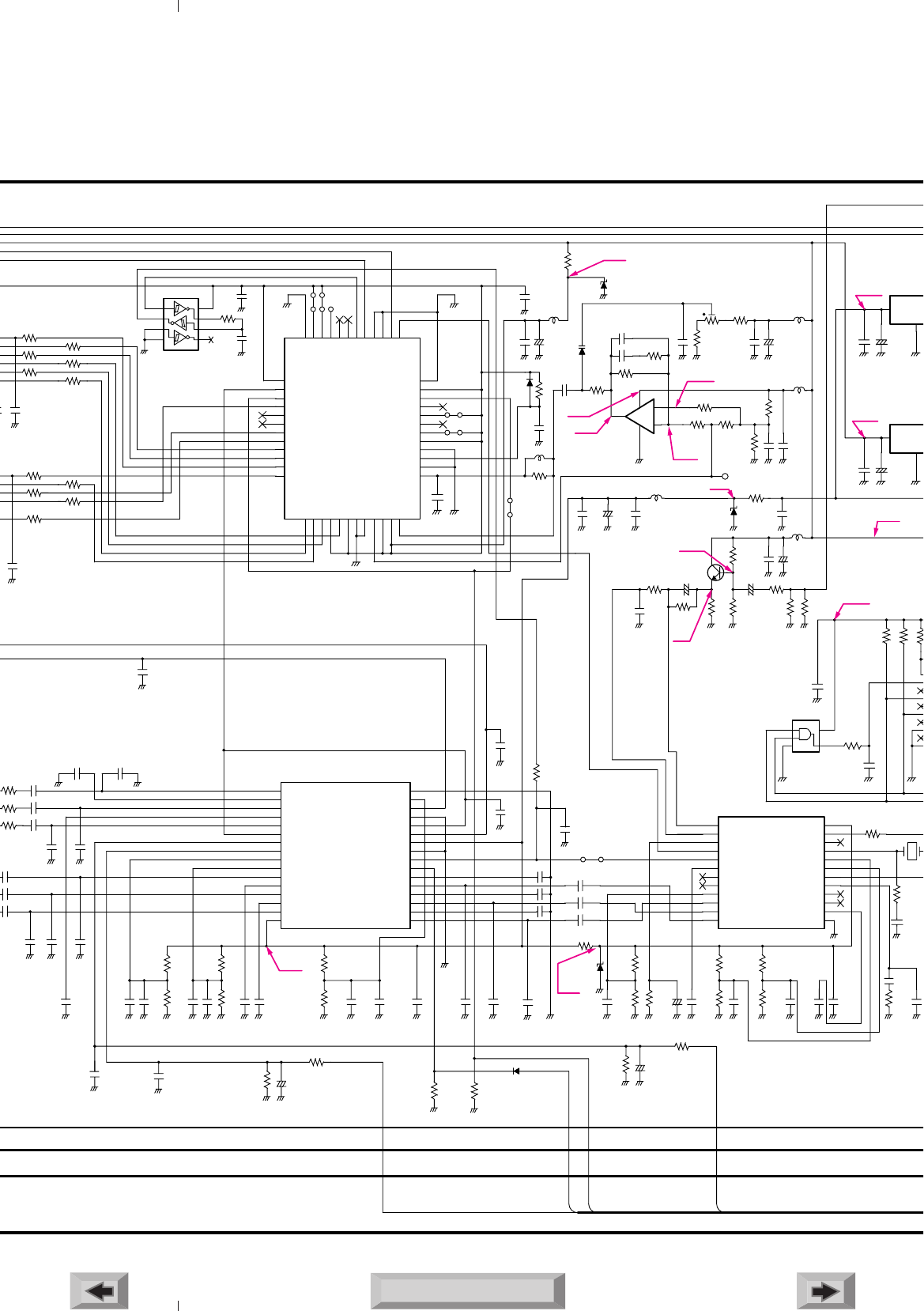

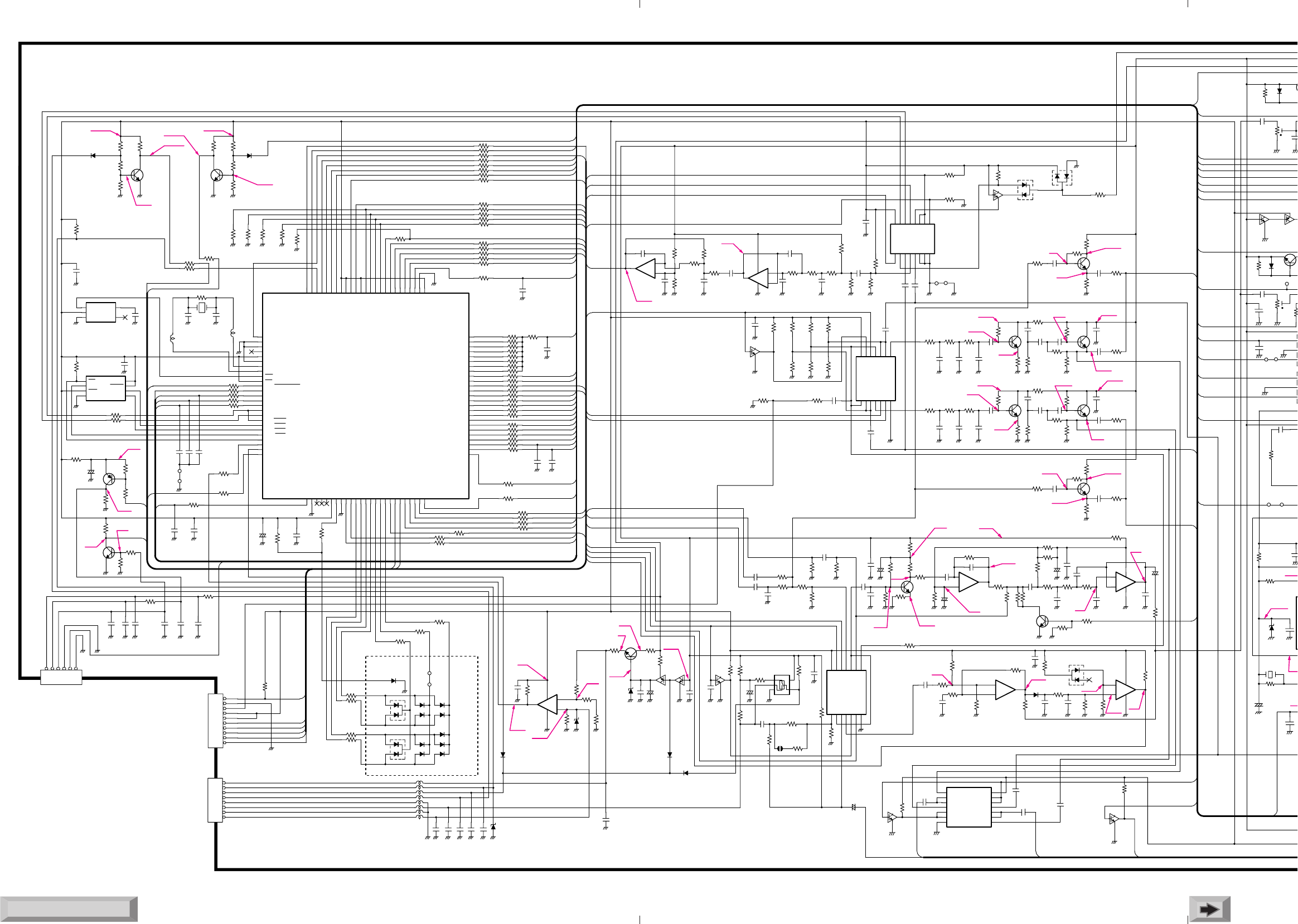

SECTION 11 VOLTAGE DIAGRAM
CONTROL UNIT
IC7 TC7W14FU
1
2
3
45
6
7
8
R3 100
R4 100
R5 100
R6 100
R7 100
R8 100
R9 100 R10 100
R11 100
R13 100 R12 100
C57
0.1
R112
10k
R287
10k R288
15k
R285 10k
R286
15k
C56
270p
W11
W12
8
VPOS 3 9
VPOS 2 10
VPOS 1 11
ZOOM 12
U/D
13
POL
14
INT/EXT
15
CPV
16
OEV3
17
OEV2
18
OEV1
19
STV
20
OEH
21
OH
22
STH
23
CPH4
24
CPH3
25
CPH6
26
CPH2
27
CPH5
28
29
STH1
OEH
Q2H
CPH1
CPH2
CPH3
GND
B
G
R
VB
RL
STH2
VEE
VCOM
VGH
VDD
STV2
OEV
CPV
STV1
VSS
U/D
VGL
LCD
DS1 EDTCA22QB0
C3
10
+
C2
0.1
C1
10
+
C4
0.1 C5
10
+
C6
0.1 C7
0.1 R2
4.7k C8
10
+
C9
0.1 C10
10
+
C11
0.1 C12
47p C13
47p C14
47p C15
47p
C16
47p
R1
4.7k
L1
10 H L2
10 H
L3
10 H
L5
10 H
C17
47p C18
47p C19
47p C20
47p C21
47p C22
47p
J1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
R278
47k
R280
47k
R279
47k
R31
100 R32
22k
Q4 2SC4081 R
R38
100
Q5 2SC4081 R
Q6
2SA1576 R Q8
2SC4081 R
R41
22k
R42
100k
R35
82k
C75
0.1
C73
0.1 C74
10
+
R37
330k
R44
47k
Q3
2SA1576 R
Q7 2SA1576 R
C40
1
C41
1
R274
390
Q1
2SC4081 R
R40
100
D11
MA8030 H
L15
10 H
L14
10 H
C76
10
+
Q2 2SA1576 R
R39
22k
R275
47k R277
47k
R276
47k
R
G
B
FPDAT0
FPDAT1
FPDAT2 FPDAT3
FPDAT4
FPDAT5 FPDAT6
FPDAT7
FPDAT8
C133
0.1
C134
0.1
C135
0.1
R241 10k
R238 10k
R239 10k
R240 10k
R259
10k R235
390 C136
150p
R242 10k
R243 10k
R244 10k
R245
10k
R260
10k
R236
390
R246 10k
R247 10k
R248 10k
R261
10k
C189
220p
R60
100
R62
100
C152
0.1
R61
100
C151
0.1
C150
0.1
L4
10 H
R249
10k
R237
390
C138
150p
C137
150p
R33
100
R34
22k
CONTV
BRITV
IC6 M
5
17
18
19
20
21
22
BRIGHT
23
CONTRAST
24
GAM1
25
GAM2
26
EXT IN R
27
28
EXT IN G
29
30
EXT IN B
31
VCC1
32
R84
2.7k
C81
0.01
R87
33k
R89
68k
C82
0.01
R65
33k
C
0
C83
0.01
C187
220p
R86
82k
C79
220p
C72
220p
C188
220p
C80
0.01
C191
220p
C71
0.01
C190
220p
C184
220p
C183
220p
C177
220p
C70
0.01
R173
470
R255
15k C101
10
+
B OUT
SUB BIAS B
G OUT
SUB BIAS R
R OUT
FRP1 IN
SUB CONT R
SUB CONT B
C185
220p
R63
220
MD15
MD0
MD14
MD1
MD13
MD2
MD12
MD3
MD11
MD4
MD10
MD5
MD9 MD0 MD15
MD6 MD1 MD14
MD8 MD2 MD13
MD7 MD3 MD12
MD4 MD11
MD5 MD10
MD6 MD9
MD7 MD8
A17
A16
A15
A14
A13 MA8
A12
A11 MA7
A10 MA0 MA0
A9 MA6 MA1 MA8
A8 MA1 MA2 MA7
A7 MA5 MA3 MA6
A6 MA2 MA4 MA5
A5 MA4
A4 MA3
A3
A2
A1
A0
CS
A18
RD
WR
FPDAT8
LRES
WAIT
FPDAT7
FPDAT6
FPDAT5
FPDAT4
FPDAT3
FPDAT2
FPDAT1
FPDAT0
D7
D6
D5
D4
D3
D2
D1
D0
C107
0.01
IC8
SED1354F0A
AB2
1
AB1
2
AB0
3
CS#
4
M/R#
5
BS#
6
RD#
7
WE0#
8
WE1#
9
RD/WR#
10
RESET#
11
GPIO0
12
WAIT#
13
IOVDD
14
VS S
15
DB15
16
DB14
17
DB13
18
DB12
19
DB11
20
DB10
21
DB9
22
DB8
23
DB7
24
DB6
25
DB5
26
DB4
27
DB3
28
DB2
29
DB1
30
DB0
31
VSS
32
COREVDD 33
MA3 34
MA4 35
MA2 36
MA5 37
MA1 38
MA6 39
MA0 40
MA7 41
MA10 42
MA8 43
MA11 44
MA9 45
IOVDD 46
RAS# 47
WE# 48
UCAS# 49
LCAS# 50
VSS 51
MD7 52
MD8 53
MD6 54
MD9 55
MD5 56
MD10 57
MD4 58
MD11 59
MD3 60
MD12 61
MD2 62
MD13 63
MD1 64
MD14 65
MD0 66
MD15 67
VSS 68
FPFRAME 69
FPLINE 70
LCDPWR 71
DRDY 72
FPSHIFT 73
VSS 74
FPDAT0 75
FPDAT1 76
FPDAT2 77
FPDAT3 78
FPDAT4 79
FPDAT5 80
FPDAT6 81
FPDAT7 82
IOVDD 83
DACRD # 84
BLANK # 85
DACCLK 86
VSS 87
FPDAT8 88
FPDAT9 89
FPDAT10 90
FPDAT11 91
FPDAT12 92
FPDAT13 93
FPDAT14 94
FPDAT15 95
VSS 96
COREVDD
97
DACP0
98
DACWR#
99
DACRS0
100
DACRS1
101
HRTC
102
VRTC
103
VSS
104
CLKI
105
SUSPEND#
106
TESTEN
107
BUSCLK
108
VSS
109
IOVDD
110
AB20
111
AB19
112
AB18
113
AB17
114
AB16
115
AB15
116
AB14
117
AB13
118
AB12
119
AB11
120
AB10
121
AB9
122
AB8
123
AB7
124
AB6
125
AB5
126
AB4
127
AB3
128
R231
100k
JP1
C148
0.01
R271
56
D10
MA8030 H
IC19
TC7W04FU
1
2
3
45
6
7
8
IC9 LH61665AS-60A
VCC
1
I/O1
2
I/O2
3
I/O3
4
I/O4
5
I/O5
6
I/O6
7
I/O7
8
I/O8
9
NC
10
VCC
13
UW
14
LW
15
RAS
16
A0
17
A1
18
A2
19
A3
20
A4
21
VCC
22 VSS 23
A5 24
A6 25
A7 26
NC 27
NC 28
NC 29
OE 30
CAS 31
VSS 32
NC 35
I/O9 36
I/O10 37
I/O11 38
I/O12 39
I/O13 40
I/O14 41
I/O15 42
I/O16 43
VSS 44
IC22 TA78L05F
G
IO
R233
100k
R232
100k
R217
15k
C103
0.01 C128
33
+
EP2
MMZ1608Y102BT
C157
0.22
C158
0.01 C159
0.01
R250 1M
X3
CSTCV26.25MXJ040
R178 100k
C104
0.01
R208
15k R215
15k
R206
15k
R220
15k
VSYNC
HSYNC
JP2
—3.1
0.86
—14.5
5.05
1.4
0.34
0.9
5.13
5.21
13.0
4.67
—8
—8
—14.5
—7.5
—14.7

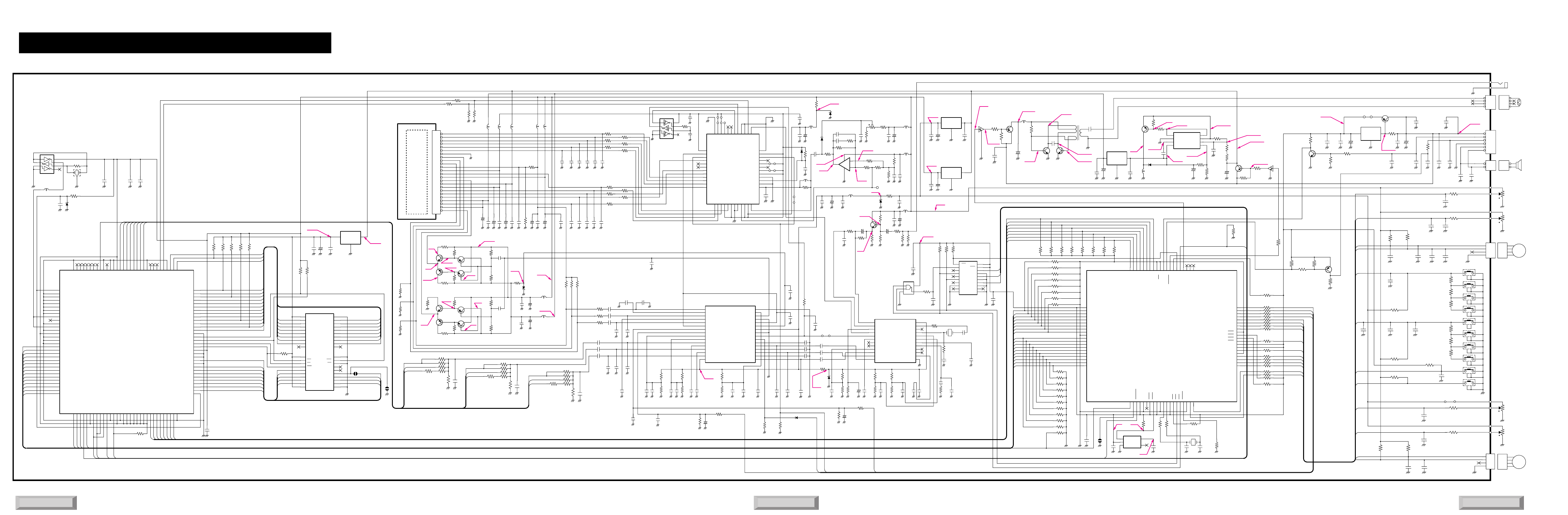

COMPLETE VIEW
C36
10
+
L9
10 H
IC7 TC7W14FU
1
2
3
45
6
7
8
C55
10
+
R3 100
R4 100
R5 100
R6 100
R7 100
R8 100
R9 100 R10 100
R11 100
R13 100 R12 100
C57
0.1 C31
0.1 L7
10 H
C33
0.1 C34
10
+
C25
0.1
L8
2.7 H
R15
470k
C23
0.001
R16
10k
L16
10 H
IC2
TC75S51F
+
—
1
3
4
5
2
C26
560p
C27
0.1
R18
1M
R17
68k
C30
39p R25
27k
R26
50k R27
1k
C35
0.1
R20
68k
R21
22k R22
47k
R24
4.7k
R23
2.2k
C28
0.1
C29
0.1
L10
10 H
C92
470p
R106
560
R100
150k
R107
680 R109
10k
L13
10 H
C52
0.1
C53
10
+
D1
1SS355
R14
27k
C24
120p
R290
1.5k
R110
150
R164
150
CP1
R292
3.3
D2
1SV282
R284
100
D12
MA8033 L
R112
10k
C56
270p
W11
W12
HPOS4
HPOS3
IC1
MN83951
SYNCIN 1
HDBIN 2
SIDE2 3
SIDE1 4
VDBIN 5
HOUT 6
VDO 7
BLK 8
VPOS 3 9
VPOS 2 10
VPOS 1 11
ZOOM 12
U/D
13
POL
14
INT/EXT
15
CPV
16
OEV3
17
OEV2
18
OEV1
19
STV
20
OEH
21
OH
22
STH
23
CPH4
24
CPH3
25
CPH6
26
CPH2
27
CPH5
28
CPH1
29
HALFSHIFT
30
CPHSEL
31
QHSEL
32
PD
33
6/3
34
VDD
35
VCOI
36
VCOO 37
VSS 38
RESET 39
HDOT1 40
UONS 41
42
43
44
45
PN1 46
VDD 47
VSS 48
C193
220p
C77
0.1 C78
10
+C194
220p
C54
4.7
Q11
2SC4081 R
D14
MA8047 M
HPOS2
HPOS1
W4
R108
5.6k
C16
47p
1
C22
47p
C133
0.1
C134
0.1
C135
0.1
C189
220p
0
0
2
0
C152
0.1
1
0
C151
0.1
C150
0.1
W14
W10
+
CONTV
BRITV
IC6 M52338FP
1
2
3
4
5
6
SW 7
8
9
VCC2 10
VEE 11
12
13
14
15
GND 1617
18
19
20
21
22
BRIGHT
23
CONTRAST
24
GAM1
25
GAM2
26
EXT IN R
27
28
EXT IN G
29
30
EXT IN B
31
VCC1
32
IC16
M52042FP: Other
M52045FP: [EUR, ITA]
1
2
3
SYNC OUT
4
HD
5
6
7
8
CONT
9
10
11
12 GND 13
14
15
S.W. 16
17
18
TINT 19
COLOR 20
21
22
23
VCC 24
R84
2.7k
C81
0.01
R87
33k
R89
68k
C82
0.01
R65
33k
C86
0.1
C85
0.1
C84
0.1
C90
0.1
C87
0.01
R168
47k
R167
56k
R169
68k
C130
0.01 R170
39k
C58
0.1
R58
15k
R59
560 : Other
470 : [EUR], [ITA]
C141
1
C131
0.01
R51
1M
R258
47k
C44
4.7
+
R257
39k
D13
MA8043 L
C142
0.01
C132
0.01
C89
0.1
C91
0.1
R291 22
W6
C67
0.01
R273
2.7k
C83
0.01
C187
220p
R86
82k
C79
220p
C72
220p
C188
220p
C80
0.01
C191
220p
C71
0.01
C190
220p
C184
220p
C200
220p
C179
220p
C178
220p
C176
220p
C183
220p
C177
220p
C70
0.01
C199
220p
C196
220p
C186
220p
C181
220p
PA5PA7
PA6 PA4
R173
470
R174
3.3k
R255
15k
R256
100k
D9
1SS355
R289
15k
R254
100k
C101
10
+
C102
10
+
R283
8.2k :
O
3.9k : [
E
C154
180p :
O
100p :
X1
CR-
6
CR-
6
BIAS COUNT
COM OUT
COM GAIN
FRP2 IN
CP CONT
HD IN
CLAMP B
MAIN IN B
CLAMP G
MAIN IN G
CLAMP R
MAIN IN R
B OUT
SUB BIAS B
G OUT
SUB BIAS R
R OUT
FRP1 IN
SUB CONT R
SUB CONT B
C185
220p
R63
220
ACC FIL
SYNC IN
V IN
PED CAP
C TRAP
Y OUT
R OUT
G OUT
B OUT
KILLER FIL
VCXO OUT
VCXO MON
VCXO IN
APC FIL
KILLER OUT
PIX CONT
R266
220k
R265
220k
R270
1k
C145
3p
C146
0.01
IC20
TC7S08FU
1
2
34
5
IC17 TA7
G
O
C155
10
+
C129
0.001
IC23 TA7
8
C156
0.1
C149
10
+
G
O
5.13
5.16
—14.7
5.22
1.81
3.15
1.72
1.71
5.11
4.88
3.26
2.62
4.67
4.26
COMPLETE VIEW
C36
10
+
L9
10 H
C55
10
+
L16
10 H
F
+
—
1
3
5
2
2
6
6
0p
27
.
1
R17
68k
C30
39p R25
27k
R26
50k R27
1k
C35
0.1
R20
68k
R21
22k R22
47k
R24
4.7k
R23
2.2k
C28
0.1
C29
0.1
L10
10 H
R106
560
R100
150k
R107
680 R109
10k
L13
10 H
C52
0.1
C53
10
+
R290
1.5k
R110
150
R164
150
CP1
R292
3.3
3 L
C193
220p
C194
220p
C54
4.7
Q11
2SC4081 R
D14
MA8047 M
R108
5.6k
+
IC16
M52042FP: Other
M52045FP: [EUR, ITA]
1
2
3
SYNC OUT
4
HD
5
6
7
8
CONT
9
10
11
12 GND 13
14
15
S.W. 16
17
18
TINT 19
COLOR 20
21
22
23
VCC 24
C87
0.01
R168
47k
R167
56k
R169
68k
C130
0.01 R170
39k
C58
0.1
R58
15k
R59
560 : Other
470 : [EUR], [ITA]
C59
470p
C141
1
C131
0.01
R51
1M
C44
4.7
+
C45
0.01 : Other
0.068 : [EUR],
[ITA]
C132
0.01
PA4
R174
3.3k
C102
10
+
R283
8.2k : Other
3.9k : [EUR], [ITA]
C154
180p : Other
100p : [EUR], [ITA]
X1
CR-640 : Other
CR-641: [EUR], [ITA]
C153
18p : Other
12p :[EUR], [ITA]
ACC FIL
SYNC IN
V IN
PED CAP
C TRAP
Y OUT
R OUT
G OUT
B OUT
KILLER FIL
VCXO OUT
VCXO MON
VCXO IN
APC FIL
KILLER OUT
PIX CONT
D0
D1
D2
D3
D4
D5
D6
D7
LRES
CS
WR
RD
PB7
PA7
A0 PA6
A1 PA5
A2 PA4
A3 PA3
A4 PA2
A5 PA1
A6 PA0
A7
A8
A9 P80
A10
A11
A12 P77
A13
A14 P75
A15 P74
A16 P73
A17 P72
P71
P70
A18
WAIT
R131 1k
R127 1k
R128 470
R130 1k
R129 10k
R132 1k
R133 1k
R136 1k
R179
47k
R180
220k R181
220k R182
220k R183
220k R184
220k R185
220k R186
220k R187
220k
R196
220k
R197
220k
R198
220k
R199
220k
R200
220k
R201
220k
R202
220k
R203
220k
R204
220k
R205
220k
IC11 S-80945ANMP-DD9
OUT
1
VDD
2
VSS
3NC 4
CD 5
C143
12p
C105
0.01
R262
220k
R263
47k
R266
220k
R265
220k
R264
100k
R135 1k
R137 1k
R270
1k
C145
3p
C146
0.01
C147
0.01
X2
CR-566
C144
12p
C120
0.01
C119
0.01
JP3
IC21 TC74AC244F
ENA
1
A1
2
YB4
3
A2
4
YB3
5
A3
6
YB2
7
A4
8
YB1
9
VSS
10
VDD 20
ENB 19
YA1 18
B4 17
YA2 16
B3 15
YA3 14
B2 13
YA4 12
B1 11
IC20
TC7S08FU
1
2
34
5
IC10
HD6433032SK21F
PB0/TP8/TIOCA3 1
PA7/TP7/TIOCB2 80
P37/D7 20
VCC
21
P51/A17
40
P52/A18
41
P71/AN1
60
P72/AN2 61
PB1/TP9/TIOCB3 2
PB2/TP10/TIOCA4 3
PB3/TP11/TIOCB4 4
PB4/TP12/TOCXA4 5
PB5/TP13/TOCX B4 6
PB6/TP14 7
PB7/TP15/ADTRG 8
P90/TXD 9
P92/RXD 10
P94/SCK/IRQ4 11
VSS 12
P30/D0 13
P31/D1 14
P32/D2 15
P33/D3 16
P34/D4 17
P35/D5 18
P36/D6 19
P10/A0
22
P11/A1
23
P12/A2
24
P13/A3
25
P14/A4
26
P15/A5
27
P16/A6
28
P17/A7
29
VSS
30
P20/A8
31
P21/A9
32
P22/A10
33
P23/A11
34
P24/A12
35
P25/A13
36
P26/A14
37
P27/A15
38
P50/A16
39
P53/A19
42
P60/WAIT
43
MD0
44
MD1
45
FAI
46
STBY
47
RES
48
NMI
49
VSS
50
EX TAL
51
52
VCC
53
P63/AS
54
P64/RD
55
P65/WR
56
RESO
57
AVSS
58
P70/AN0
59
P73/AN3 62
P74/AN4 63
P75/AN5 64
P76/AN6 65
P77/AN7 66
VREF 67
AVCC 68
P80/IRQ0 69
P81/IRQ1 70
P82/IRQ2 71
P83/IRQ3 72
PA0/TP0/TCLKA 73
PA1/TP1/TCLKB 74
PA2/TP2/TIOCA0 75
PA3/TP3/TIOCB0 76
PA4/TP4/TIOCA1 77
PA5/TP5/TIOCB1 78
PA6/TP6/TIOCA2 79
R140 1k
R141 1k
R142 1k
R143 1k
R175 1k
R176 1k
R268 47k
R269 47k
R267
220k
R299
1k
R300
1.5k
R134
1k
R177 47k
R272
10k
XT AL
R188 220k
R189 220k
R190 220k
R191 220k
R192 220k
R193 220k
R194 220k
R195 220k
HV
TDATA
RDATA
GND
SP
SPE
SP
SPE
IC14 TA78L05F
G
IO
C114
10
+
R163
10k
C117
47p
C118
47p
J2
1
2
3
4
5
6
Q18
2SB1132 R
W13
R293
4.7
C113
0.001
J5
1
2
C112
0.001
R158
10k
Q12
2SC4081 R
R159
4.7k
R160
4.7k
C169
220p
C115
10
+
C164
220p
C165
220p
C168
220p
C166
220p
C160
0.1
C116
0.001
TO
MAIN UNIT
J3
1
2
SP1
VS-57-0814
C167
220p
UDIAL
ENCODER
UVOL
USQL
VVOL
VSQL
POWER
F-1
F-2
F-3
F-4
F-5
F-6
F-7
F-8
CHANGE
PA2
P73
P72
PA3
P74
P75
P80
P77
P71
P70
PA0
PA1
R152
47k
R155
47k
C109
0.0047
C110
47p
R113
2.2k
R114
4.7k
R115
15k
R117
2.2k
C98
0.0047
R126
47k
R124
47k
R125
47k
W8
R120
6.8k
R116
6.8k
S12
A
1
B
2
NC
3
COM
4
S11
A1
B2
NC 3
COM 4
R145
10k
R148
10k
R151
10k
R154
10k
R157
100k R162
4.7k
R161
15k
R298
10k
Q13
2SA1576 R
C108
0.0047
R122
47k
C111
47p
C97
0.0047
R146
47k
R149
47k
C95
47p C174
220p
R119
15k
R118
4.7k
R121
47k
C94
47p
C96
0.0047
C175
220p
R123
47k
C172
220p
C197
220p
C99
0.0047
C195
220p
C173
220p
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
EXT V
E
CFL+
CFL—
NC
NC
J3
1
2
3
4
J4
VIDEO
IN
1
2
3
4
CFL
DS2 HMBS 3 A1W 83N/AZ Assy
S11
EVQ-VENF01
VDIAL
ENCODER
S12
EVQ-VENF01
C123
33
+
IC17 TA78L05F
GI
O
R165
8.2k C122
33P
C155
10
+
C121
0.033
L18
SLF6028T-101MR42
C129
0.001
IC23 TA78L05F
C156
0.1
C127
0.001
C149
10
+
R294
2.7k
Q20
2SA1362 GR L19
678XN-1369
C192
220p
Q14
2SC3647 S Q15
2SC3647 S
Q19
DTC144EU
G
I
O
R295
4.7k
IC3 M5291FP
CS
1
ES
2
CT
3
GND
4INVIN 5
V+ 6
SI 7
CD 8
C125
47
+
IC15
TA79L15F
G
I
O
C126
0.001 L11
SLF7032T-681MR16-2
D3
SB10-05PCP C38
47
+R30
470k
R29
33k
C39
8.2
+
Q16
2SA1362 GR
R282
2.7k
R281 4.7k
C124
0.001
R296
2.2k
R297
680
Q17
DTC144EU
Q21
2SB798 DK
C201
2.2
C37
0.001
R302
8.2
R28
1
R301
8.2
5.11
12.94
5.22
6.56 12.46
12.34
—15.8
—16.9
—16.0
13.01
12.08
0.6
12.5
12.6
12.6
—0.36—0.36
13.06
12.39
5.2
5.13
5.16
—14.7
5.22
1.72
1.71
4.88
3.26
2.62
5.22 5.21
0.15
COMPLETE VIEW
SECTION 11 VOLTAGE DIAGRAM
CONTROL UNIT
C36
10
+
L9
10µH
IC7 TC7W14FU
1
2
3
45
6
7
8
C55
10
+
R3 100
R4 100
R5 100
R6 100
R7 100
R8 100
R9 100 R10 100
R11 100
R13 100 R12 100
C57
0.1 C31
0.1 L7
10µH
C33
0.1 C34
10
+
C25
0.1
L8
2.7µH
R15
470k
C23
0.001
R16
10k
L16
10µH
IC2
TC75S51F
+
–
1
3
4
5
2
C26
560p
C27
0.1
R18
1M
R17
68k
C30
39p R25
27k
R26
50k R27
1k
C35
0.1
R20
68k
R21
22k R22
47k
R24
4.7k
R23
2.2k
C28
0.1
C29
0.1
L10
10µH
C92
470p
R106
560
R100
150k
R107
680 R109
10k
L13
10µH
C52
0.1
C53
10
+
D1
1SS355
R14
27k
C24
120p
R290
1.5k
R110
150
R164
150
CP1
R292
3.3
D2
1SV282
R284
100
D12
MA8033 L
R112
10k
R287
10k R288
15k
R285 10k
R286
15k
C56
270p
W11
W12
HPOS4
HPOS3
IC1
MN83951
SYNCIN 1
HDBIN 2
SIDE2 3
SIDE1 4
VDBIN 5
HOUT 6
VDO 7
BLK 8
VPOS 3 9
VPOS 2 10
VPOS 1 11
ZOOM 12
U/D
13
POL
14
INT/EXT
15
CPV
16
OEV3
17
OEV2
18
OEV1
19
STV
20
OEH
21
OH
22
STH
23
CPH4
24
CPH3
25
CPH6
26
CPH2
27
CPH5
28
CPH1
29
HALFSHIFT
30
CPHSEL
31
QHSEL
32
PD
33
6/3
34
VDD
35
VCOI
36
VCOO 37
VSS 38
RESET 39
HDOT1 40
UONS 41
42
43
44
45
PN1 46
VDD 47
VSS 48
C193
220p
C77
0.1 C78
10
+C194
220p
C54
4.7
Q11
2SC4081 R
D14
MA8047 M
HPOS2
HPOS1
W4
R108
5.6k
STH1
OEH
Q2H
CPH1
CPH2
CPH3
GND
B
G
R
VB
RL
STH2
VEE
VCOM
VGH
VDD
STV2
OEV
CPV
STV1
VSS
U/D
VGL
LCD
DS1 EDTCA22QB0
C3
10
+
C2
0.1
C1
10
+
C4
0.1 C5
10
+
C6
0.1 C7
0.1 R2
4.7k C8
10
+
C9
0.1 C10
10
+
C11
0.1 C12
47p C13
47p C14
47p C15
47p
C16
47p
R1
4.7k
L1
10µHL2
10µH
L3
10µH
L5
10µH
C17
47p C18
47p C19
47p C20
47p C21
47p C22
47p
J1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
R278
47k
R280
47k
R279
47k
R31
100 R32
22k
Q4 2SC4081 R
R38
100
Q5 2SC4081 R
Q6
2SA1576 R Q8
2SC4081 R
R41
22k
R42
100k
R35
82k
C75
0.1
C73
0.1 C74
10
+
R37
330k
R44
47k
Q3
2SA1576 R
Q7 2SA1576 R
C40
1
C41
1
R274
390
Q1
2SC4081 R
R40
100
D11
MA8030 H
L15
10µH
L14
10µH
C76
10
+
Q2 2SA1576 R
R39
22k
R275
47k R277
47k
R276
47k
R
G
B
FPDAT0
FPDAT1
FPDAT2 FPDAT3
FPDAT4
FPDAT5 FPDAT6
FPDAT7
FPDAT8
C133
0.1
C134
0.1
C135
0.1
R241 10k
R238 10k
R239 10k
R240 10k
R259
10k R235
390 C136
150p
R242 10k
R243 10k
R244 10k
R245
10k
R260
10k
R236
390
R246 10k
R247 10k
R248 10k
R261
10k
C189
220p
R60
100
R62
100
C152
0.1
R61
100
C151
0.1
C150
0.1
L4
10µH
W14
W10
R249
10k
R237
390
C138
150p
C137
150p
+
R33
100
R34
22k
CONTV
BRITV
IC6 M52338FP
1
2
3
4
5
6
SW 7
8
9
VCC2 10
VEE 11
12
13
14
15
GND 1617
18
19
20
21
22
BRIGHT
23
CONTRAST
24
GAM1
25
GAM2
26
EXT IN R
27
28
EXT IN G
29
30
EXT IN B
31
VCC1
32
IC16
M52042FP: Other
M52045FP: [EUR, ITA]
1
2
3
SYNC OUT
4
HD
5
6
7
8
CONT
9
10
11
12 GND 13
14
15
S.W. 16
17
18
TINT 19
COLOR 20
21
22
23
VCC 24
R84
2.7k
C81
0.01
R87
33k
R89
68k
C82
0.01
R65
33k
C86
0.1
C85
0.1
C84
0.1
C90
0.1
C87
0.01
R168
47k
R167
56k
R169
68k
C130
0.01 R170
39k
C58
0.1
R58
15k
R59
560 : Other
470 : [EUR], [ITA]
C59
470p
C141
1
C131
0.01
R51
1M
R258
47k
C44
4.7
+
R257
39k
D13
MA8043 L
C142
0.01
C45
0.01 : Other
0.068 : [EUR],
[ITA]
C132
0.01
C89
0.1
C91
0.1
R291 22
W6
C67
0.01
R273
2.7k
C83
0.01
C187
220p
R86
82k
C79
220p
C72
220p
C188
220p
C80
0.01
C191
220p
C71
0.01
C190
220p
C184
220p
C200
220p
C179
220p
C178
220p
C176
220p
C183
220p
C177
220p
C70
0.01
C199
220p
C196
220p
C186
220p
C181
220p
PA5PA7
PA6 PA 4
R173
470
R174
3.3k
R255
15k
R256
100k
D9
1SS355
R289
15k
R254
100k
C101
10
+
C102
10
+
R283
8.2k : Other
3.9k : [EUR], [ITA]
C154
180p : Other
100p : [EUR], [ITA]
X1
CR-640 : Other
CR-641: [EUR], [ITA]
C153
18p : Other
12p :[EUR], [ITA]
BIAS COUNT
COM OUT
COM GAIN
FRP2 IN
CP CONT
HD IN
CLAMP B
MAIN IN B
CLAMP G
MAIN IN G
CLAMP R
MAIN IN R
B OUT
SUB BIAS B
G OUT
SUB BIAS R
R OUT
FRP1 IN
SUB CONT R
SUB CONT B
C185
220p
R63
220
ACC FIL
SYNC IN
V IN
PED CAP
C TRAP
Y OUT
R OUT
G OUT
B OUT
KILLER FIL
VCXO OUT
VCXO MON
VCXO IN
APC FIL
KILLER OUT
PIX CONT
MD15
MD0
MD14
MD1
MD13
MD2
MD12
MD3
MD11
MD4
MD10
MD5
MD9 MD0 MD15
MD6 MD1 MD14
MD8 MD2 MD13
MD7 MD3 MD12
MD4 MD11
MD5 MD10
MD6 MD9
MD7 MD8
A17
A16
A15
A14
A13 MA8
A12
A11 MA7
A10 MA0 MA0
A9 MA6 MA1 MA8
A8 MA1 MA2 MA7
A7 MA5 MA3 MA6
A6 MA2 MA4 MA5
A5 MA4
A4 MA3
A3
A2
A1
A0
CS
A18
RD
WR
FPDAT8
LRES
WAIT
FPDAT7
FPDAT6
FPDAT5
FPDAT4
FPDAT3
FPDAT2
FPDAT1
FPDAT0
D7
D6
D5
D4
D3
D2
D1
D0
C107
0.01
IC8
SED1354F0A
AB2
1
AB1
2
AB0
3
CS#
4
M/R#
5
BS#
6
RD#
7
WE0#
8
WE1#
9
RD/WR#
10
RESET#
11
GPIO0
12
WAIT#
13
IOVDD
14
VS S
15
DB15
16
DB14
17
DB13
18
DB12
19
DB11
20
DB10
21
DB9
22
DB8
23
DB7
24
DB6
25
DB5
26
DB4
27
DB3
28
DB2
29
DB1
30
DB0
31
VSS
32
COREVDD 33
MA3 34
MA4 35
MA2 36
MA5 37
MA1 38
MA6 39
MA0 40
MA7 41
MA10 42
MA8 43
MA11 44
MA9 45
IOVDD 46
RAS# 47
WE# 48
UCAS# 49
LCAS# 50
VSS 51
MD7 52
MD8 53
MD6 54
MD9 55
MD5 56
MD10 57
MD4 58
MD11 59
MD3 60
MD12 61
MD2 62
MD13 63
MD1 64
MD14 65
MD0 66
MD15 67
VSS 68
FPFRAME 69
FPLINE 70
LCDPWR 71
DRDY 72
FPSHIFT 73
VSS 74
FPDAT0 75
FPDAT1 76
FPDAT2 77
FPDAT3 78
FPDAT4 79
FPDAT5 80
FPDAT6 81
FPDAT7 82
IOVDD 83
DACRD # 84
BLANK # 85
DACCLK 86
VSS 87
FPDAT8 88
FPDAT9 89
FPDAT10 90
FPDAT11 91
FPDAT12 92
FPDAT13 93
FPDAT14 94
FPDAT15 95
VSS 96
COREVDD
97
DACP0
98
DACWR#
99
DACRS0
100
DACRS1
101
HRTC
102
VRTC
103
VSS
104
CLKI
105
SUSPEND#
106
TESTEN
107
BUSCLK
108
VSS
109
IOVDD
110
AB20
111
AB19
112
AB18
113
AB17
114
AB16
115
AB15
116
AB14
117
AB13
118
AB12
119
AB11
120
AB10
121
AB9
122
AB8
123
AB7
124
AB6
125
AB5
126
AB4
127
AB3
128
R231
100k
JP1
C148
0.01
R271
56
D10
MA8030 H
IC19
TC7W04FU
1
2
3
45
6
7
8
IC9 LH61665AS-60A
VCC
1
I/O1
2
I/O2
3
I/O3
4
I/O4
5
I/O5
6
I/O6
7
I/O7
8
I/O8
9
NC
10
VCC
13
UW
14
LW
15
RAS
16
A0
17
A1
18
A2
19
A3
20
A4
21
VCC
22 VSS 23
A5 24
A6 25
A7 26
NC 27
NC 28
NC 29
OE 30
CAS 31
VSS 32
NC 35
I/O9 36
I/O10 37
I/O11 38
I/O12 39
I/O13 40
I/O14 41
I/O15 42
I/O16 43
VSS 44
IC22 TA78L05F
G
IO
R233
100k
R232
100k
R217
15k
C103
0.01 C128
33
+
EP2
MMZ1608Y102BT
C157
0.22
C158
0.01 C159
0.01
R250 1M
X3
CSTCV26.25MXJ040
R178 100k
C104
0.01
R208
15k R215
15k
R206
15k
R220
15k
VSYNC
HSYNC
JP2
D0
D1
D2
D3
D4
D5
D6
D7
LRES
CS
WR
RD
PB7
PA7
A0 PA6
A1 PA5
A2 PA4
A3 PA3
A4 PA2
A5 PA1
A6 PA0
A7
A8
A9 P80
A10
A11
A12 P77
A13
A14 P75
A15 P74
A16 P73
A17 P72
P71
P70
A18
WAIT
R131 1k
R127 1k
R128 470
R130 1k
R129 10k
R132 1k
R133 1k
R136 1k
R179
47k
R180
220k R181
220k R182
220k R183
220k R184
220k R185
220k R186
220k R187
220k
R196
220k
R197
220k
R198
220k
R199
220k
R200
220k
R201
220k
R202
220k
R203
220k
R204
220k
R205
220k
IC11 S-80945ANMP-DD9
OUT
1
VDD
2
VSS
3NC 4
CD 5
C143
12p
C105
0.01
R262
220k
R263
47k
R266
220k
R265
220k
R264
100k
R135 1k
R137 1k
R270
1k
C145
3p
C146
0.01
C147
0.01
X2
CR-566
C144
12p
C120
0.01
C119
0.01
JP3
IC21 TC74AC244F
ENA
1
A1
2
YB4
3
A2
4
YB3
5
A3
6
YB2
7
A4
8
YB1
9
VSS
10
VDD 20
ENB 19
YA1 18
B4 17
YA2 16
B3 15
YA3 14
B2 13
YA4 12
B1 11
IC20
TC7S08FU
1
2
34
5
IC10
HD6433032SK21F
PB0/TP8/TIOCA3 1
PA7/TP7/TIOCB2 80
P37/D7 20
VCC
21
P51/A17
40
P52/A18
41
P71/AN1
60
P72/AN2 61
PB1/TP9/TIOCB3 2
PB2/TP10/TIOCA4 3
PB3/TP11/TIOCB4 4
PB4/TP12/TOCXA4 5
PB5/TP13/TOCX B4 6
PB6/TP14 7
PB7/TP15/ADTRG 8
P90/TXD 9
P92/RXD 10
P94/SCK/IRQ4 11
VSS 12
P30/D0 13
P31/D1 14
P32/D2 15
P33/D3 16
P34/D4 17
P35/D5 18
P36/D6 19
P10/A0
22
P11/A1
23
P12/A2
24
P13/A3
25
P14/A4
26
P15/A5
27
P16/A6
28
P17/A7
29
VSS
30
P20/A8
31
P21/A9
32
P22/A10
33
P23/A11
34
P24/A12
35
P25/A13
36
P26/A14
37
P27/A15
38
P50/A16
39
P53/A19
42
P60/WAIT
43
MD0
44
MD1
45
FAI
46
STBY
47
RES
48
NMI
49
VSS
50
EX TAL
51
52
VCC
53
P63/AS
54
P64/RD
55
P65/WR
56
RESO
57
AVSS
58
P70/AN0
59
P73/AN3 62
P74/AN4 63
P75/AN5 64
P76/AN6 65
P77/AN7 66
VREF 67
AVCC 68
P80/IRQ0 69
P81/IRQ1 70
P82/IRQ2 71
P83/IRQ3 72
PA0/TP0/TCLKA 73
PA1/TP1/TCLKB 74
PA2/TP2/TIOCA0 75
PA3/TP3/TIOCB0 76
PA4/TP4/TIOCA1 77
PA5/TP5/TIOCB1 78
PA6/TP6/TIOCA2 79
R140 1k
R141 1k
R142 1k
R143 1k
R175 1k
R176 1k
R268 47k
R269 47k
R267
220k
R299
1k
R300
1.5k
R134
1k
R177 47k
R272
10k
XT AL
R188 220k
R189 220k
R190 220k
R191 220k
R192 220k
R193 220k
R194 220k
R195 220k
HV
TDATA
RDATA
GND
SP
SPE
SP
SPE
IC14 TA78L05F
G
IO
C114
10
+
R163
10k
C117
47p
C118
47p
J2
1
2
3
4
5
6
Q18
2SB1132 R
W13
R293
4.7
C113
0.001
J5
1
2
C112
0.001
R158
10k
Q12
2SC4081 R
R159
4.7k
R160
4.7k
C169
220p
C115
10
+
C164
220p
C165
220p
C168
220p
C166
220p
C160
0.1
C116
0.001
TO
MAIN UNIT
J3
1
2
SP1
VS-57-0814
C167
220p
UDIAL
ENCODER
UVOL
USQL
VVOL
VSQL
POWER
F-1
F-2
F-3
F-4
F-5
F-6
F-7
F-8
CHANGE
PA2
P73
P72
PA3
P74
P75
P80
P77
P71
P70
PA0
PA1
R152
47k
R155
47k
C109
0.0047
C110
47p
R113
2.2k
R114
4.7k
R115
15k
R117
2.2k
C98
0.0047
R126
47k
R124
47k
R125
47k
W8
R120
6.8k
R116
6.8k
S12
A
1
B
2
NC
3
COM
4
S11
A1
B2
NC 3
COM 4
R145
10k
R148
10k
R151
10k
R154
10k
R157
100k R162
4.7k
R161
15k
R298
10k
Q13
2SA1576 R
C108
0.0047
R122
47k
C111
47p
C97
0.0047
R146
47k
R149
47k
C95
47p C174
220p
R119
15k
R118
4.7k
R121
47k
C94
47p
C96
0.0047
C175
220p
R123
47k
C172
220p
C197
220p
C99
0.0047
C195
220p
C173
220p
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
EXT V
E
CFL+
CFL–
NC
NC
J3
1
2
3
4
J4
VIDEO
IN
1
2
3
4
CFL
DS2 HMBS 3 A1W 83N/AZ Assy
S11
EVQ-VENF01
VDIAL
ENCODER
S12
EVQ-VENF01
C123
33
+
IC17 TA78L05F
GI
O
R165
8.2k C122
33P
C155
10
+
C121
0.033
L18
SLF6028T-101MR42
C129
0.001
IC23 TA78L05F
C156
0.1
C127
0.001
C149
10
+
R294
2.7k
Q20
2SA1362 GR L19
678XN-1369
C192
220p
Q14
2SC3647 S Q15
2SC3647 S
Q19
DTC144EU
G
I
O
R295
4.7k
IC3 M5291FP
CS
1
ES
2
CT
3
GND
4INVIN 5
V+ 6
SI 7
CD 8
C125
47
+
IC15
TA79L15F
G
I
O
C126
0.001 L11
SLF7032T-681MR16-2
D3
SB10-05PCP C38
47
+R30
470k
R29
33k
C39
8.2
+
Q16
2SA1362 GR
R282
2.7k
R281 4.7k
C124
0.001
R296
2.2k
R297
680
Q17
DTC144EU
Q21
2SB798 DK
C201
2.2
C37
0.001
R302
8.2
R28
1
R301
8.2
5.11
12.94
5.22
6.56 12.46
12.34
–15.8
–16.9
–16.0
13.01
12.08
0.6
12.5
12.6
12.6
–0.36–0.36
13.06
12.39
5.2
5.13
5.16
–14.7
5.22
1.81
3.15
1.72
1.71
5.11
4.88
3.26
2.62
–3.1
0.86
–14.5
5.05
1.4
0.34
0.9
5.13
5.21
13.0
4.67
–8
–8
–14.5
–7.5
–14.7
4.26
5.22 5.21
0.15
LEFT SIDE RIGHT SIDECENTER 11 - 1
R417
3.9k
MU/D
M8V
PTT
MICE
MIC
E
MDATA
TDATA
RDATA
GND
HV
IS2
IS1
IS0
II3
II2
II1
II0
EXTMIC
E8
SPE
MICUD
EXTMIC
SP
PTTP
LIMIT
LV
TONEIN
VSQL
VSOUT
USQL
USOUT CLONEC
DTMF TXDF
RXDF
CTCSS
Q4
Q3
Q2
Q1 TMAIN
STD
OPD
VDMUTE
UDMUTE
VAMUTE
UAMUTE TONEIN
FANC
PTTM1
PTTP1
DMAIN
POWC
RESET UMMUTE
VMMUTE
CLONEC DTMUTE
PLSTB MMUTE
STB PSEL
CK PSQL
DATA UTX
VTX
RXD W/N UDMUTE
TXD MW/N VDMUTE
VSHIFT
3LB
4RX
1RX
UAM
ETONE
VAM
TXDF PCTRL
DMAIN
TMAIN CTCSS
UUNLK
ETONE
VUNLK DTMF
RXDF MRIPT
VCK
VDATA DTMUTE
MMUTE
PTTP1
MRIPT
PTTM1
LIMIT
MW/N
SP
MICIN
R277
4.7k
R296 10k
R358
2.2k
R368
47k
R422
100k
R425
100
R426
680
R455
82k
R456
47k
C396
0.1
D49
[USA]
[Other]
PB0/AN0
1
PB1/AN1 100
VCC 76
PD0/SEG41 77
P97/SEG40 75
PD1/SEG42 78
AVSS
2
TEST
3
X2
4
X1
5
VSS
6
OSC1
7
OSC2
8
RES
9
NMI
10
P20/IRQ4/ADTRG
11
P21/SCK1
12
P22/SI1
13
P23/SO1
14
P24/SCK3
15
P25/RXD
16
P26/TXD
17
P27/IRQ0
18
P17/IRQ3/TMIF
19
P16/IRQ2
20
P15/IRQ1
21
P14
22
P13/TMIG
23
P12/TMOFH
24
P11/TMOFL
25
P10/TMOW
26
VSS
27
V3
28
V2
29
V1
30
VCC
31
PA3/COM4
32
PA2/COM3
33
PA1/COM2
34
PA0/COM1
35
P50/WKP0/SEG1
36
P51/WKP1/SEG2
37
P52/WKP2/SEG3
38
P53/WKP3/SEG4
39
P54/WKP4/SEG5
40
P55/WKP5/SEG6
41
P56/WKP6/SEG7
42
P57/WKP7/SEG8
43
P60/SEG9
44
P61/SEG10
45
P62/SEG11
46
P63/SEG12
47
P64/SEG13
48
P65/SEG14
49
P66/SEG15
50
P67/SEG16 51
P70/SEG17 52
P71/SEG18 53
P72/SEG19 54
P73/SEG20 55
P74/SEG21 56
P75/SEG22 57
P76/SEG23 58
P77/SEG24 59
P80/SEG25 60
P81/SEG26 61
P82/SEG27 62
P83/SEG28 63
P84/SEG29 64
P85/SEG30 65
P86/SEG31 66
P87/SEG32 67
P90/SEG33 68
P91/SEG34 69
P92/SEG35 70
P93/SEG36 71
P94/SEG37 72
P95/SEG38 73
P96/SEG39 74
PD2/SEG43 79
PD3/SEG44 80
PD4/SEG45 81
PD5/SEG46 82
PD6/SEG47 83
PD7/SEG48 84
PE0/SEG49/M 85
PE1/SEG50/DO 86
PE2/SEG51/CL2 87
PE3/SEG52/CL1 88
AVCC 89
TONEM 90
TONED 91
VTREF 92
AVREF 93
PB7/AN7 94
PB6/AN6 95
PB5/AN5 96
PB4/AN4 97
PB3/AN3 98
PB2/AN2 99
J5
1
2
3
4
5
6
7
8
R273
2.2k
R276
100k
D47
1SS355
R274
22k
R275
10k
C370
0.022
R459
1k
R460
1k
R461
100k
R281
100k
C371
0.022
C372
22p C373
22p
X4
SMD-49
10.000 MHz
R465
1k
R466
1k
R469
1k
R470
1k
R299
1k
R297
1
C384
0.1
C383
47p
C382
47p
C381
47p
C380
47p
C379
47p
R308 1k
R481 1k
R316
1k
R318 22k
R319 39k
R495 1k
R499 1k
R332 1k
R334 1k
R502 1k
R503 1k
R507 1k
R506 1k
R508 1k
R509 1k
D56
D57
D58
D60
W13
C385
0.1 R341
470k
+
—
3
1
2
4
5
R342
390k R343
120k
R344
12k
D63
MA8091
R407
1R408
18
R409
390
C452
0.01
D64
MA8091
C453
10
+
C454
0.001
D65
1SS355
D66
1SS355
C391
47p
C455
0.001
R410
100k R411
100
R412
10k
C456
10
+
R413
1.2k 1
2
3
5
4
C459
10
+
R445 6.8k
R447 220k
C461
0.22
R449
270k
R450
2.2M
R451
68k
R453
82k
C464
0.1
C463
0.1
R454
82k
R441
10k
C451
10
+
C450
100p
+
—
3
21
4
8
R440
100
R439
82k
C447
0.0027
C446
0.1
R436 820k
R435
560k
R434
220k
C445
10 +
R438
82k
R443
47k
[EUR], [ITA] only
R442
470k
[EUR], [ITA] only
R437
68k
R431
330k
R430 820k
C443 12p
C441
0.033
C442
1
+
R427
390
R428
47
R424
100k
C440
10
+
R429
390k
R423
22k
C439
0.001
C438
0.001
C437
0.1
C436
0.033
R421
330
R420
470k
R418
270k
R419
47k
C434
1
C435
0.1
R402
10k C432
0.1
R403
1M
R404
2.2k
R405
10k
C433
0.1
R406
22k
R391
1k
C422
0.001
C423 1
R390
470k
R389
2.2k
R388
47k
R386 4.7k
C421
0.0056
C419
0.015
R387
22k
R384
470k
R385
330
C416
0.015
C415
0.01 C417
0.001
R383
39k
C418
0.033
R382
22k
R381
12k
R380
1k
C413
0.001
C414 1
R378
2.2k
R379
470k
C412
0.0056
R377
47k
R375
4.7k
C410
0.015
R376
22k
C420
0.0056
C411
0.0056
R374
330
R373
470k
C409
0.033
C408
0.001
C407
0.015
C406
0.01
R372
39k
R371
22k
R370
12k
D62
1SS355
C388
47p
C390
47p
C386
47p
L70 2.2 H
L71 2.2 H
L74 2.2 H
L75 2.2 H
L76 0.82 H
L77 2.2 H
L72 2.2 H
L73 2.2 H
C399
0.1
R354
1M
R353
82k
C398
0.039
R352
82k
R351
82k
C397
0.0015
C395
0.1
R349
470k
R350
120k
C394
0.1
R348
100k
R346
1M
R347
470k
C393
0.01
C392
100p
C404
1
R364
470k
R363
470k
R362
470k
R361
100k
C403
0.1
R369
22k
R366
470k
R365
470k
R367
470k
C402
0.1
D61
MA8062
C389
47p
C387
47p
R359
10k
C401
0.1 R360
22k
R357
1M
C400
0.1
R356
10k
R510
27k
C457
1
R415
4.7k
R416
3.9k Other
22k [USA]
J3
123456
R282 1M
R513
100k R514
2.2k
R515
22k
R516
10k
D73
1SS355
R500 1k
R501 1k
R518 1k
OUT
1
VDD
2
VSS
3NC 4
CD 5
D74
DA202U
R519
15k
C470
0.01
R521
470k
R522
470k
R355
470k
+3
2
1
8
C471
0.1
C472
0.1
R517 1k
Y1
1
Y0
2
Z1
3
Z
4
Z0
5
INH
6
VEE
7
VSS
8C9
B10
A11
X0 12
X1 13
X14
Y15
VDD 16
+
—
5
67
C374
0.001
R486
1k
CS
1
SO
2
WP
3
VSS
4SI 5
SCK 6
HOLD 7
VCC 8
R523 100k
R525 100k
CP4
R511 5.6k
+
—
5
67
R532
390k
D67
MA728
C479
0.22
R414
100k
C458
0.001
R533
22k other
47k [USA]
only
I/O
1
O/I
2
O/I
3
I/O
4
CONT.B
5
CONT.C
6
VEE
7I/O 8
O/I 9
O/I 10
I/O 11
CONT.D 12
CONT.A 13
VDD 14
D68
RB706F-40
W17
R294
4.7k
R542
10k
R543
10k
R295
4.7k
R291
15k
D75
DA202U
R489 1k
R320 82k
R322 150k
R488 1k
R317
10k
R337
1k
R504
1k
R505
1k
R464
100k
R462
100k
R467 1k
R468 1k
R289 1k
R287 1k
R336 1k
R491 1k
R496 1k
R494 1k
R497 1k
R498 1k
C511
0.001
R292
4.7k
C516
10 +
R321 330k
C377
10
+C378
0.001
R298
470k
R463
100k
R482 1k
R483 1k
R485 1k
R477 1k
R478 1k
R305 1M
R479 1k
R480 1k
R476 1k
R304 1k
R474 1k
R284 1k
R471 1k
R300 1k
R475 1k
R473 1k
R310 1k
R484 1k
R487 1k
R323 1.2M
R324 680k
R313 1k
C405
1
R448
330k
C462
0.001 R452
120k
+
—
3
2
1
4
8
I/O
1
O/I
2
O/I
I/O
CONT.B
5
CONT.C
6
VEE
7I/O 8
O/I 9
O/I 10
I/O 11
CONT.D 12
CONT.A 13
VDD 14
+
—
5
6
7
R328 1k
R492 1k [EUR], [ITA] only
R545
1k
R544
1k
R301
1k
EP2
MMZ1608Y102BT
W15
C505
470p
R490 1k
R3251k
R493 1k
C507
0.001 C508
0.001
C504
470p
C376
0.1
C510
0.001
C515
0.001
C519
0.001
C506
470p
EP3
MMZ1608Y102BT
R283
22k
[EUR], [ITA] only
R432
18k
C444
1
R433
47k [EUR],
[ITA] only
R549
47k
[EUR], [ITA]
only
C448
820p
C449
82p
R345
10k
VDET
VAF
UAF
VAFO
UAFO
UDET
—
3
4
CONTROL UNIT J2
MIC
INPUT
D50
D55
D52 D54
D51 D53
D59
DTMF UNIT
(OPTION)
4
PSQL
PSEL
R271
100k
C348
1I/O
1
O/I
2
O/I
3
I/O
4
CONT.B
5
CONT.C
6
VEE
7I/O 8
O/I 9
O/I 10
I/O 11
CONT.D 12
CONT.A 13
VDD 14
C349
1
R272
10k
C256
1
C284
1
PSQL
VSQL
MOD
1RX
4RX
DATA
CK
PLSTB
VUNLK
UUNLK
8V
HV
VTX
VSHIFT
UMMUTE
VMMUTE
UTX
C5V
LV
STB
VDET
POWC
3LB
CLONE
R203
1.5k Other
3.3k [EUR], [ITA ]
D1
1SS355
C3
1R2
100k C4
0.001
R4
9
470
D19
1SS355
R77
4.7k
C125
1
C126
0.001
R78
100k
3
2
1
R191
560
D40
MA8047
C249
0.1
X2
CDB450C24
R
1
C251
0.022
3
2
1
W7
C475
0.001
C1
2
10
0
R139
270
C250
47
+
R190
220
C2
4
0.0
0
1
C499
0.001
W8
R1
4.7k
DATAOUTAFOUTDATAIN
C5V
MAIN UNIT
OPD
Q1
Q2
Q3
Q4
STD
J6
1
2
3
4
5
6
7
8
9
10
R524
100k
OPD
GND
DETO
C5V
TOE
Q1
Q2
Q3
Q4
STD
IC19
HD6433876NB10H
HD6433876NB11H
Q78
2SC4081
IC24
TC75S51F
Q87
2SC4081
Q86
2SC4081
Q85
2SC4081
Q84
2SC4081
Q83
2SC4081
Q82
DTC144EU
Q81
2SC4081
Q96
2SC4081
IC16
S-80945ALMP-DA9-T2
IC20A
NJM4558M
IC29
BU4053BCFV
IC17
X25320SI-2.7
Q80
2SC4081
Q98
DTC144EU
Q79
2SA1576
IC21
BU4066BCFV
IC20B
NJM4558M
Q90
2SD999
Q91
DTA144EU Q92
DTC
114EU
Q93
DTC144EU
IC25
TC7S66FU
IC23A
NJM4558M
Q88
2SC4081
IC23B
NJM4558M
IC27B
NJM4558M
IC26
BU4066BCFV
IC27A
NJM4558M
Q89
2SC4116
Q73
DTC144EU
Q72
DTC144EU
IC13 BU4066BCFV
Q14
DTB1
Q17
2SC40
8
Q34
Q35
,
Q37
Q34, 37: UMG9N
Q13
DTC144EU
Q
7.87
4.66
2.83
1.00
4.17
1.00
0.39
4.2
4.71
2.80 7.87
0.39
6.88
4.90
4.62
2.63
2.52
4.96
2.22
3.78
2.5
4.96
0.63
0.042
0.647
4.96
0.042
4.96
4.96
4.93
0.045
9.41
7.87
13.36
8.8
7.88
0.97
2.97
7.25
4.00
4.04
0.35
2.67 2.66
1.94
4.92
1.27
4.08
3.88
4.61
6.88
4.9
VR
0
VR
VR 4.
6
VR 4.74
COMPLETE VIEW
MW/N
R358
2.2k
R455
82k
R456
47k
R454
82k
R441
10k
C451
10
+
C450
100p
+
—
3
21
4
8
R440
100
R439
82k
C447
0.0027
C446
0.1
4
38
2
k
R443
47k
[EUR], [ITA] only
2
R
], [ITA] only
R403
1M
R404
2.2k
R405
10k
C433
0.1
R406
22k
R391
1k
C422
0.001
C423 1
R390
470k
R389
2.2k
R380
1k
C413
0.001
C414 1
R378
2.2k
R379
470k
R359
10k
C401
0.1 R360
22k
R357
1M
D68
RB706F-40
D75
DA202U
+
—
3
2
1
4
8
R545
1k
4
8
0
p
C449
82p
VDET
VAF
UAF
VAFO
UAFO
UDET
PSQL
PSEL
R272
10k
C
284
1
PSQL
CP-SMV
VSQL
MOD
US
Q
1RX
4RX
DATA
CK
PLSTB
VUNLK
UUNLK
8V
HV
VTX
VSHIFT
UMMUTE
VMMUTE
UTX
C5V
LV
STB
VAM
VDET
POWC
3LB
CLONE
R11
33k
R12
470 R13
33k
R85
39k
R203
1.5k Other
3.3k [EUR], [ITA ]
C10
0.001
C13
0.001
C19 1p
C83
22p
C8
4
30p
C139
47p
C218
0.001
C263
390p
C264
390p
C273
180p
SI
2
CPS
3
RST
4
VCC
5
FIN1
6
LOCK1
7
PD1
8
VT1
9
VF
10 GND 11
VT2 12
PD2 13
LOCK2 14
FIN2 15
OP1 16
OP2 17
XOUT 18
XIN 19
GND 20
XBO
1
56
3
L29
0.82 H
L63
680 H
C1
10
+C2
0.001
D1
1SS355
C3
1R2
100k C5
0.001
C4
0.001
R4
10k
L1
0.82 H
R5
2.7k
C6
0.1 +C7
0.001
C9
0.001
C8
0.001
L2 LB-270
R7
68k
R6
10k R9
10k
C11
8p
D2 MA77
R10
10k
C12
0.001
R8
220 C15 0.3p
C14
0.3p
D3
HVU350
C17
100p
R15
100
R14
470 C18
0.001
R18 100
C20
0.001
R17
120k
L3
0.22 H
C77
0.22
+
R50
470k
R51
100
R49
470k
D19
1SS355
C124
0.001
C74
0.1
+
C73
0.001
C123
0.001
R92
120k
C140
0.001
R87
18k
R86
330
C136
0.5p
L30
8.8nH R84
330k
C133
0.001
C132
0.001
R83
220k
R82
1k
R77
4.7k
C125
1
C126
0.001
R78
100k C128
0.001
3
2
15
4C203
0.001
L66
8.2 H
C206
22p
L69
1.8 H
R138
270 R145
270
L47
0.56 H C22
3
0.001
R1
4
C220
0.001
C222
0.001
R144
100k
C221
7p
C216
0.001
R142
33k
C213
0.001 R140
100k
R191
560
D40
MA8047
C249
0.1
X2
CDB450C24
R204
10k
C251
0.022
C252
0.047
C259
1
C258
0.001
C257
0.1
R206
47k
R207
47k
R192
220k
R193
560
R199
470
C260
0.001
R208
1M R202
47k
R201
1M
R198
8.2k Other
1.5k
[EUR], [ITA]
R210
10k R213
100k
C271
0.1
12
78 FI5 CF4WS450HT
12
345
C268
0.1
[EUR], [ITA]
only
R215
100
C274
0.01 C275
0.01
D41
RB706F-40
R214
47k
C269
0.001
R219
120k
C278
47
FI4 ALFY450F=K
1
2
3
4
5
[EUR], [ITA] only
5
6
3
1
78
R59
22k
W5
R54
2.2M
R58
2.7k
3
2
15
4
W7 R141
270 D30 MA133
C205
0.001
R143 100
L46
1.2 H
L67
8.2 H
C209
2p
R89
47
C142
0.001
R137
820
R538 2.7k
R
3
R530
1.2k
R531 1.5k
C478
0.1
C215
82p
R56
3.9k
R52
2.7k
C76
0.047
+
R529
820
R528
1k
C137 0.5p
R535
1.2k
D21
1SV284
C134
0.75p
R88
330
C135
0.001
X1
CR-54
9
C210
0.5p
C212
1p
C208
3p
L68
1.8 H
C211
4p
C475
0.001
W10
C219
0.001
W2 W3
R200
47k
C272
0.01
C485
1p
R539
560k
R212
100k
R211
22k
R217
470k
R216
10k
R220
39k
C494
0.3p
C141
0.3p
R534
2.2k
C122
100
+
C270
0.1
C488
0.001
C489
0.001
C484
1D20
1SV284
C204
0.001
C201
0.001
R79
82k R80
10k
C207
12p
D28
1SS355
W9
C217
0.001
R139
270
C267
0.1
C254
100p
C477 10
+
C250
47
+
R190
220
C248
0.001
C265
330p
C266
100p Other
150p
[EUR,ITA]
R197
12k
R209
10k
C261 0.1
OSCIN 1
OSCOUT 2
MIXOUT 3
VDD 4
IFIN 5
BIAS 6
FILOUT 7
FILIN 8
AFOUT
9QUADIN
10 IFOUT
11 SOUT
12 NDET
13 NOUT
14 VSS
15 MIXIN
16
C476 10
+C481
+
R536
820
C483
0.047
R90 47
C499
0.001
W8
C500
0.001
C480
22p
C491
1
C255
0.001
R205
3.3k
C253
0.033
C200
0.001
W14
W18
C81
33p
C80
5p
C517
100p
[EUR], [ITA] only
R196
10k
R194
39k Other
22k [EUR], [ITA]
W19
except
[EUR], [ITA]
R195
NTCCM16083NH221KC
R546
220 CP5
C82
20p
C127
47p C487
0.001
C131
0.001
C130
0.047
+
R3
82k
R1
4.7k
C473
0.22
C474
0.22
C490
0.001
D79
1SS355
C214
0.001
C202
0.001
D29
DAN202U
4
VSOUT W/N
C5V
R81
NTCCM16084LH
[EUR], [ITA] only
[EUR], [ITA] only
except [EUR], [ITA] except [EUR], [ITA]
[EUR], [ITA]
only
Q87
2SC4081
Q86
2SC4081
Q84
2SC4081
8
1
S
C4081
IC23A
NJM4558M
IC27A
NJM4558M
Q73
DTC144EU
Q60
2SC4
0
IC7B TC4W66F
Q41
2SC5193
Q52
2SC4116
Q54
2SK1829
Q56
2SC4081
IC7A TC4W66F
Q58
DTA144
EU
Q95
DTC144EU
IC6B TC4W66F IC6A
TC4W66F
Q59
2SK880
Q57
2SK880
Q55
2SJ144
Q103
DTC144EU
IC28
TA31136FN
Q40
2SC4215
Q21
2SC4228
Q36
Q38
Q39
IC2 M64076AGP
Q2
2SC4213
Q14
DTB123EK
Q22
2SC5085
Q20
2SC4228
Q17
2SC4081
Q19 2SC4213
Q35
Q34
Q99
2SC3324
Q100
2SK880
Q102
2SK880
Q35, 36, 38, 39: DTB123EK
Q37
Q34, 37: UMG9N
Q13
DTC144EU
Q5
2SC5085
Q4
2SC5085
Q6
2SC5085
Q18
2SK880
Q1 2SC4081
Q3 DTC144EU
Q53
DTC144EU
7.87
4.17
4.2
7.87
6.88
1.94
4.92
1.27
4.08
3.88
6.88 7.91
VR 7.87
VR 7.51
VR 1.02
VR 3.50
VR 0.98
VR 0.97
VR 0.75
VR 4.66 VR 0.67
VR 4.74
VR 4.37
VR 0.65
VR 4.37
UR 7.87
VR 1.74
VFM 4.74
VAM 6.59
VR 7.86 VAM 7.08
UV 0.9
VV 0.6
VV 2.2
VV 0.7
UR 0.96
UR 6.8
UV 2.5
UV 0.7
VR
COMPLETE VIEW
E
CHASSIS
UNIT
6
5
FV
CP-SMU
8V C5V
AFOUT
HV
PSQL
CP-SMV
VATTC
UATTC
LV04
LV03
LV02
LV01
FANC
PCTRL
USQL USOUT
VAMUTE
UAMUTE
UDETUAM
VDATA
VCK
SP
R11
33k
R12
470 R13
33k
R29
4.7k
R30
100k
R41
820
R42
1k
R43 22
R47
100
R62 100
R67
100k
R85
39k
R120 18k R121 100k
R122
10k
R123
47k
R124 22k
R125
100k
R126 820k
R127
27k
R162
33k
R244
120k
R270
1k
C13
0.001
C19 1p
C30
2.2
+
C36
22p
C40
0.001
C42
12p
C44
0.001 C45
0.001
C48
18p
C51
0.001
C55
12p
C64
0.001
C83
22p
C84
30p
C86
5p
C88
0.001
C94
100p
C95
0.001
C97
1p
C98
1p
C102
1p C103
2p
C105
100p
C106
0.001
C108
0.001
C115
4p
C118
0.001
C139
47p
C145
1.5p
C162
7p
C164
0.001
C191
0.001 C192
0.001
C196
0.001
C197
10
+
C199
0.001
C232
2p
C240
0.001
C273
180p
C279
0.001
C290
0.001
C297
0.01
C358
0.001
D4 MA862
D6
1SS355
D9
UM9401F
D12
HVU350
D15
HVU350
D18
UM9401F
D33
MA77
SI
2
CPS
3
RST
4
VCC
5
FIN1
6
LOCK1
7
PD1
8
VT1
9
VF
10 GND 11
VT2 12
PD2 13
LOCK2 14
FIN2 15
OP1 16
OP2 17
XOUT 18
XIN 19
GND 20
XBO
1
DO
1
LD
2
CLK
3
DI
4
AO1
5
AO2
6
NC
7
GND
8VSS 9
NC 10
AO3 11
AO4 12
AO5 13
AO6 14
VDD 15
VCC 16
56
3
L8
27nH
L9
68nH L10
47nH
L12
LA-235
L18
0.82 H
L22
68nH
L23
0.56 H
L28
LA-236
L29
0.82 H
L34
33nH
L63
680 H
J8
1
2
C11
8p
R10
10k
1
C15 0.3p
C14
0.3p
U
350
C17
100p
R15
100
R14
470 C18
0.001
R18 100
C20
0.001
C21
0.001
R17
120k
L3
0.22 H C22 27p
C26
1.5p
R23
330
C23
6p
R19
560
R24
47k
R25
47 L4
0.22 H
C24
0.001
C25
5p C35
15p
L5
47nH
R26
47k
C31
0.001
R27 2.2k C32
0.001
C34
0.001
C33
0.001
R31
4.7k
R32
100k R33
150
R35
150
C38
0.001
C37
0.001
R34
39
L6
18nH
C39
2p R37
1k
R36
4.7k
C41
10p
L7
68nH
R38
22
R39
22
D5
DA221
C43
0.001
C47
22p
C46
10
+
C49
18p
R44
150
L11
LA-235
C52
24p
C53
30p
C54
1p C56
0.001
C57
0.001
R45
100
C58
1p C59
1p
C61
0.001
C60
10p
C63
22 +
C66 470p
C65
0.001
L13
LW-25
R46
100
C68
15p
C62
0.001
C69
0.001
C70
18p C71
30p
C72
27p
L15
LA-244 L78
LA-235 L16
LA-385 R48
82k
C87
0.001
R66
4.7k
R65
10k
L19
0.15 H
R64
180
R63
220
C90
0.001
C91 0.01
C163
0.001
L20
82nH
C99
5p
D11
HVU350
C96
2p
D14
1SS355
C101
2p
R68
100k
C100
39p
R69
100k
C104
5p
L21
82nH
D13
HVU350
C109
0.001
C110
4p
R70
47k
R74
100k
R119
100k
R118
39k
R75
100k
L24
2.2 H
C107
0.001
R71
1k
R73
47k
R72
100 L26
68nH D16
1SS355 R130
10k
R131
330
R129
56k
R128
27k
C198
0.001
+
—
1
3
4
5
2
R135
150
R136
220k
C189
4p
L43
LA-382
C180
0.001
C182
22 +C183
0.001 R134
100 C184
0.001
D27
UM9401F
L41
LW-25
C181
470p
R133 22k
C179
0.001
C177
1p
C178
11p
C176
0.001
L40 LA-382
R132 22k
C173
1p C175
0.001
C172
6p
C174
13p
C171
0.001
IN
5
VCC1
4
VCC2
3
VCC3
2
OUT
1
.
6
7
C166
47
+
C165
0.001
L39
15nH
C167
5p
R114
680 C169
2p
C168
2p
R116
4.7k
D24
DA221
R112
22
R110
680
C160
2p
L36
10nH
C161
0.001
R109
22
C159
3p
C158
3p L35
18nH
R113
22
R111
4.7k
L37
22nH L38
22nH
R115
820
C465
0.001
R108
47
C157
10p
C156
0.001
R106
680
R105
100k
D22
MA862
D23
MA77
R104
1k
R102
10k
R101 2.2k
C152
2.2
+
R100
47k
C153
10p C154
10p
R103
270
R153 100
L33
18nH
R107
4.7k
C150
5p
L32
33nH
R98
47k
R99
47
R96
33k
R97
330
L31
27nH
R92
120k
C140
0.001
R87
18k
R86
330
C136
0.5p
L30
8.8nH R84
330k
C133
0.001
C132
0.001
R83
220k
R82
1k
L69
1.8 H
R138
270
R173
150
C247
0.001
R176 1.5M
R175
680k
R174
220k
C246
0.001
L54
LA-242
D39
UM9401F
W12
D37
1SS355
C242
0.001
R457
3.3k
C241
0.001
D36
MA862
R172
4.7k
R169
4.7k
R171
100k
R170
100k
D35
1SS355
C239
18p
L52
47nH
R168
47k
R166
100k
R167
39k
C238
0.001
R165
100
C237
0.001
R164
100k C236
0.001
L51
47nH
C235
2p
C234
0.001
FI3 EFCH435MWNP1
12
345678
R157
4.7k
R158
100k
R159
4.7k
L50
33nH
C233
3p
L49
47nH
R156
330
R154 270
C229
0.001
C228
0.001
D32 DAN202U
R150
100k
R151
100k
R152
4.7k
C230
12p
L48
1H
R149
270
C226
0.5p
R148
390
D31
RB706F-40
C224
0.001
R147
33k
R145
270
L47
0.56 H C223
0.001
R146 100
C220
0.001
C222
0.001
R144
100k
C221
7p
R210
10k R213
100k
C271
0.1
12
78 FI5 CF4WS450HT
12
345
C268
0.1
[EUR], [ITA]
only
R215
100
C274
0.01 C275
0.01
D41
RB706F-40
R214
47k
C269
0.001
R219
120k
C278
47
+
R221
220 C276
0.001
FI6 CFWS450F
12
345
R222 560
C277
0.1
D42
MA8047
OSCIN 1
OSCOUT 2
MIXOUT 3
VDD 4
IFIN 5
BIAS 6
FILOUT 7
FILIN 8
AFOUT
9QUADIN
10 IFOUT
11 SOUT
12 NDET
13 NOUT
14 VSS
15 MIXIN
16
C288
390p
R225
220k
R226
560
C289
390p
R229
10k
R230
470
C285
1
C283
0.001
C282
120p
R458
4.7k
R235
10k R238
100k
R237
100k
R236
22k
R231
47k
R233
22k
R232
10k
C291
0.001
C281
0.033
R240
47k
D43
RB706F-40
C296
0.01
R239
100
C292
0.1
C293
0.1
C294
0.01
C295
180p
L64
680 H
R241
10k
R242
39k
C365
0.001
C366
0.001 C367
0.001
C350
0.001
C351
10
+GI
O
R267
10k
R268
470
C354
0.001
C355
10
+GI
O
C356
100
+
C357
0.001
R269 100k
D44
MA8075 L65
0.39 H
C362
2200
+
D46
RD20E
1
2
MF1
+
—
M
C363
0.001
C369
0.001
C360
0.001
C361
47
+
C352
47
+C353
0.001
C280
0.047
R224 10k
R155
470
C231
0.001
C467
8p
C187
8p
R223 1.5k
L25
0.12 H
C244
6p
D72
HVU131TRF
C368
0.001
J7
C346
0.001
R40
4.7k W1
R28
2.2k
FI4 ALFY450F=K
1
2
3
4
5
[EUR], [ITA] only
5
6
3
1
78
J1
J2
FI2
FL-300
R21
470
R59
22k
C148
6p
R93
15
C144
6p
R95
47
R94
47
R89
47
C143
0.001
C142
0.001
R538 2.7k
R537
3.3k
C117
5p
C116
100p
C137 0.5p
C149
0.001
C147
22p
R535
1.2k
D21
1SV284
C134
0.75p
R88
330
C135
0.001
C28
22p
X1
CR-549
C146
0.001
FI1B FL-288
D7
RB706F-40
D26
RB706F-40
D25
RB706F-40
C210
0.5p
C212
1p
L68
1.8 H
C211
4p
W10
C219
0.001
C225
12p
C227
0.001
W2 W3
C272
0.01
C347
0.001
W4
D8
RB706F-40
C485
1p R20
47
R22
33k
W16
C78 0.1
C85
1p
C486
0.01
C92
8p
R540
220
L17
0.22 H
R61
820
R539
560k
R212
100k
R211
22k
R217
470k
R216
10k
R220
39k
C188
6p C190
4p
C493
8p
L42
LA-232
C492
1
C494
0.3p
C141
0.3p
R534
2.2k
C270
0.1
R541
39
C484
1D20
1SV284
C267
0.1
FI1A FL-288
R209
10k
C481 3.3
+
R536
820
C483
0.047
R90 47
C482 3.3
+
C286 0.1
D10
DAN202U
C480
22p
C245
6p
L44
LA-232
L45
LA-232
C521
0.1
C50
220 +
C491
1
C503
0.001
C29
0.001
W14
W18
C81
33p
R76
3.3k
C80
5p
C522
0.1
C524
0.1
C186
470p
L82
LA-232
C194
0.001 C195
0.001
C193
0.001
C523
0.1
C359
0.1
D45
DSA3A1
C364
47p
C526
0.1
J4
1
2
C121
15p
C113
0.001 C527
0.1
R228
NTCCM16083NH
R227
68k
C151
0.001
C27
0.001
R546
220 CP5
C82
20p
C127
47p C487
0.001
C131
0.001
C130
0.047
+
C155
0.001
C525
0.1
C520
0.1
C518
0.022
C498
0.001
C513
470p
C514
470p C512
470p
C501
0.001
C496
0.001 C497
0.001
C502
0.001
C89
100p
R547
22
R60
1.8k
D78
MA77
C529
0.5p
D77
MA77
R234
10k
C466
100p
C119
0.001
R548 47 C114
0.001
D71 1SS355
C531
100p
C112
0.001
C532
470p
C111
0.001
D79
1SS355
R245
470k
D80
1SS355
X3
CDB450C24
4
PTTP
DATAOUT DATAIN
PTT P
6
4 3
12
5
UAF
VAF
3421
IN
VCC1
VCC2
OUT
R117
22
EXT. SP
CLONE I/O
DATA I/O
DC 13.8 V
CHASSIS
UNIT
[EUR], [ITA] only
except [EUR], [ITA] except [EUR], [ITA]
[EUR], [ITA]
only
C324
0.001
C343
0.1
VIN1
1
VOUT1
2
GND
3
DATA
4CLK 5
VCC 6
VOUT2 7
VIN2 8
123456789
10 11 12
R266
12k
C339
100
+
C338
100
+
C336
220 +
C340
470
+C341
470
+
C335
47 +
R262
220
R264
4.7
R263
4.7
C344
220
+
C337
47 +
R253
10k
R251
10K
C332
0.47
+
123
45
R250
33k
R252
33k
C333
0.47
+
R261
180
R257
10k
R255
47k
R254
47k
R256 33k
R258 10k
R259 1k
C330 1
+
C331
1
+
C325
0.001
R249
39
L79
12nH
C328
5p
C327
5p
R248
1.5k
C326
2p
L80
10nH
R247
10k
C320
0.001
R246
1k
C322
8p
C321
2p
L81
10nH C323
0.001
C345
1
C334
0.47 +
R265
680k
R260 10k
C342
0.1
C329
0.001
C528
470p
R179
4.7k R183
220
C306
18p C310
22p
C311
2p
L56 22nH L61
8.2nH
L62
8.2nH
C300
0.5p
C299
0.001
R177 100
L55
22nH
R178
22
C304
0.001
C302
0.001
C303
0.001
R180
120
R182
4.7k
C305
0.001
R181
15k
C307
0.001
C308
0.001 L59
8.2nH
R184 56 R185 56
D70
MA8043
C309
2p
C312
1
C313
0.001
C314
0.001
4
1
2
3
R186
100
C316
3p
R187
15
R188
39k R189
3.3k
C317
2p
C318
1.5p
C319
1.5p
R526
1k R527
1k
L60
15nH C315
0.001
R160
4.7k
C301
7p
C298
0.001
R163
10k
D76
MA77
C530
6P
W11
Q60
2SC4081
IC7B TC4W66F
Q41
2SC5193
Q56
2SC4081
IC7A TC4W66F
Q58
DTA144
EU
Q95
DTC144EU
IC8 TA31136FN
IC6B TC4W66F IC6A
TC4W66F
Q59
2SK880
Q57
2SK880
Q21
2SC4228
IC2 M64076AGP
Q24
2SC5085
Q23
2SC5193
Q22
2SC5085
Q20
2SC4228
Q101
2SC3324
Q102
2SK880
Q5
2SC5085
Q4
2SC5085
Q6
2SC5085 Q7
2SC5085
Q8
2SC5193
IC1 M67746-01
Q11
2SC3357
Q16
3SK166
IC3 M62354GP
Q10
2SA1362 Q12
2SC2954
Q25
2SC4081
Q15
3SK166
Q9
2SC4081
Q28
2SC3357
IC4 SC-1318
Q29
2SC2954
Q27
2SC5085
Q26
2SA1362
Q44
3SK166
Q42
DTC144EU
Q48
2SC4226
Q49
DTC144EU
Q47
2SC4226 Q50
3SK184
Q43
3SK184
Q61
DTC144EU
Q63
2SC4081
Q62
2SJ144 Q64
2SK880
Q66
DTC144EU
Q67
2SC4081
IC14
TA7808F
Q75
2SB1201
Q71
2SC4213
IC10 M62429FP
Q69
2SC4213
Q70
2SC4213
IC11
TC4S81F
Q65
2SK880
Q74
DTC143XU
IC15 TA7805F
Q76
2SC4081 Q77
2SB1132
IC12 LA4445
Q68
2SC5085
Q30
2SB934P
Q32
DTC143ZU
Q31
2SC4081
IC5
TA75S01F
Q33
2SC4081
Q45
2SC4081
Q46
2SC4081
IC9
PC1676G
Q51
2SC5085
VAM 6.59
VR 7.86 VAM 7.08
UV 0.9
VV 0.6
VV 2.2
VV 0.7
UR 1.69
UR 0.96
UR 6.8
UV 2.5
UV 0.7
UR 0.71
UR 0.97
VR 2.81
UR 4.37
UR 4.37
UR 3.56
UR 4.66
UR 4.77
UR 0.67
UR 0.65
UFM 4.74
VT 7.5
VT 0.9
VT 4.46
VR 7.3
VR 1.3
UT 0.7
UT 8.1
UR 1.13
UT 6.4
UR 6.77
UR 7.28
UR 1.3
UR 7.11
UAM 5.63
UAM 6.28
UFM 0.65
12.96
UR 2.35
4.1
7.87
UR 0
UT 6.8
VR 1.65
UT 1.2
VR 1.65
UR 4.23
UT 0.5
UH 9.0 UHL 6.07
UMH 7.05 UL 5.43
UR 7.8 UR 2.2
VR 1.65
VR 1.65
VT 8.2
VT 6.9
VH 9.4
VMH 6.21
VHL 6.11
VL 4.3
VR 7.85
VR 1.9
VR 2.81
UR 7.88
UR 4.2
UR 3.46
0.63
4.81
4.81
0.63
0.63
13.8
11.65
4.96
UT 1.93
8.3
VT 2.1
U = 430 MHz Band
V = 144 MHz Band
None = COMMON
UH 2.15
UMH 1.82
UHL 1.65
UL 1.55
VH 2.18
VMH 1.77
VHL 1.62
VL 1.52
UH 1.27 UHL 0.92
UMH 1.05 UL 0.83
VH 1.5
VMH 1.1 VHL 0.94
VL 0.84
COMPLETE VIEW
R417
3.9k
MU/D
M8V
PTT
MICE
MIC
E
MDATA
TDATA
RDATA
GND
HV
IS2
IS1
IS0
II3
II2
II1
II0
EXTMIC
E8
SPE
MICUD
EXTMIC
SP
PTTP
LIMIT
LV
TONEIN
VSQL
VSOUT
USQL
USOUT CLONEC
DTMF TXDF
RXDF
CTCSS
Q4
Q3
Q2
Q1 TMAIN
STD
OPD
VDMUTE
UDMUTE
VAMUTE
UAMUTE TONEIN
FANC
PTTM1
PTTP1
DMAIN
POWC
RESET UMMUTE
VMMUTE
CLONEC DTMUTE
PLSTB MMUTE
STB PSEL
CK PSQL
DATA UTX
VTX
RXD W/N UDMUTE
TXD MW/N VDMUTE
VSHIFT
3LB
4RX
1RX
UAM
ETONE
VAM
TXDF PCTRL
DMAIN
TMAIN CTCSS
UUNLK
ETONE
VUNLK DTMF
RXDF MRIPT
VCK
VDATA DTMUTE
MMUTE
PTTP1
MRIPT
PTTM1
LIMIT
MW/N
SP
MICIN
R277
4.7k
R296 10k
R358
2.2k
R368
47k
R422
100k
R425
100
R426
680
R455
82k
R456
47k
C396
0.1
D49
[USA]
[Other]
PB0/AN0
1
PB1/AN1 100
VCC 76
PD0/SEG41 77
P97/SEG40 75
PD1/SEG42 78
AVSS
2
TEST
3
X2
4
X1
5
VSS
6
OSC1
7
OSC2
8
RES
9
NMI
10
P20/IRQ4/ADTRG
11
P21/SCK1
12
P22/SI1
13
P23/SO1
14
P24/SCK3
15
P25/RXD
16
P26/TXD
17
P27/IRQ0
18
P17/IRQ3/TMIF
19
P16/IRQ2
20
P15/IRQ1
21
P14
22
P13/TMIG
23
P12/TMOFH
24
P11/TMOFL
25
P10/TMOW
26
VSS
27
V3
28
V2
29
V1
30
VCC
31
PA3/COM4
32
PA2/COM3
33
PA1/COM2
34
PA0/COM1
35
P50/WKP0/SEG1
36
P51/WKP1/SEG2
37
P52/WKP2/SEG3
38
P53/WKP3/SEG4
39
P54/WKP4/SEG5
40
P55/WKP5/SEG6
41
P56/WKP6/SEG7
42
P57/WKP7/SEG8
43
P60/SEG9
44
P61/SEG10
45
P62/SEG11
46
P63/SEG12
47
P64/SEG13
48
P65/SEG14
49
P66/SEG15
50
P67/SEG16 51
P70/SEG17 52
P71/SEG18 53
P72/SEG19 54
P73/SEG20 55
P74/SEG21 56
P75/SEG22 57
P76/SEG23 58
P77/SEG24 59
P80/SEG25 60
P81/SEG26 61
P82/SEG27 62
P83/SEG28 63
P84/SEG29 64
P85/SEG30 65
P86/SEG31 66
P87/SEG32 67
P90/SEG33 68
P91/SEG34 69
P92/SEG35 70
P93/SEG36 71
P94/SEG37 72
P95/SEG38 73
P96/SEG39 74
PD2/SEG43 79
PD3/SEG44 80
PD4/SEG45 81
PD5/SEG46 82
PD6/SEG47 83
PD7/SEG48 84
PE0/SEG49/M 85
PE1/SEG50/DO 86
PE2/SEG51/CL2 87
PE3/SEG52/CL1 88
AVCC 89
TONEM 90
TONED 91
VTREF 92
AVREF 93
PB7/AN7 94
PB6/AN6 95
PB5/AN5 96
PB4/AN4 97
PB3/AN3 98
PB2/AN2 99
J5
1
2
3
4
5
6
7
8
R273
2.2k
R276
100k
D47
1SS355
R274
22k
R275
10k
C370
0.022
R459
1k
R460
1k
R461
100k
R281
100k
C371
0.022
C372
22p C373
22p
X4
SMD-49
10.000 MHz
R465
1k
R466
1k
R469
1k
R470
1k
R299
1k
R297
1
C384
0.1
C383
47p
C382
47p
C381
47p
C380
47p
C379
47p
R308 1k
R481 1k
R316
1k
R318 22k
R319 39k
R495 1k
R499 1k
R332 1k
R334 1k
R502 1k
R503 1k
R507 1k
R506 1k
R508 1k
R509 1k
D56
D57
D58
D60
W13
C385
0.1 R341
470k
+
—
3
1
2
4
5
R342
390k R343
120k
R344
12k
D63
MA8091
R407
1R408
18
R409
390
C452
0.01
D64
MA8091
C453
10
+
C454
0.001
D65
1SS355
D66
1SS355
C391
47p
C455
0.001
R410
100k R411
100
R412
10k
C456
10
+
R413
1.2k 1
2
3
5
4
C459
10
+
R445 6.8k
R447 220k
C461
0.22
R449
270k
R450
2.2M
R451
68k
R453
82k
C464
0.1
C463
0.1
R454
82k
R441
10k
C451
10
+
C450
100p
+
—
3
21
4
8
R440
100
R439
82k
C447
0.0027
C446
0.1
R436 820k
R435
560k
R434
220k
C445
10 +
R438
82k
R443
47k
[EUR], [ITA] only
R442
470k
[EUR], [ITA] only
R437
68k
R431
330k
R430 820k
C443 12p
C441
0.033
C442
1
+
R427
390
R428
47
R424
100k
C440
10
+
R429
390k
R423
22k
C439
0.001
C438
0.001
C437
0.1
C436
0.033
R421
330
R420
470k
R418
270k
R419
47k
C434
1
C435
0.1
R402
10k C432
0.1
R403
1M
R404
2.2k
R405
10k
C433
0.1
R406
22k
R391
1k
C422
0.001
C423 1
R390
470k
R389
2.2k
R388
47k
R386 4.7k
C421
0.0056
C419
0.015
R387
22k
R384
470k
R385
330
C416
0.015
C415
0.01 C417
0.001
R383
39k
C418
0.033
R382
22k
R381
12k
R380
1k
C413
0.001
C414 1
R378
2.2k
R379
470k
C412
0.0056
R377
47k
R375
4.7k
C410
0.015
R376
22k
C420
0.0056
C411
0.0056
R374
330
R373
470k
C409
0.033
C408
0.001
C407
0.015
C406
0.01
R372
39k
R371
22k
R370
12k
D62
1SS355
C388
47p
C390
47p
C386
47p
L70 2.2 H
L71 2.2 H
L74 2.2 H
L75 2.2 H
L76 0.82 H
L77 2.2 H
L72 2.2 H
L73 2.2 H
C399
0.1
R354
1M
R353
82k
C398
0.039
R352
82k
R351
82k
C397
0.0015
C395
0.1
R349
470k
R350
120k
C394
0.1
R348
100k
R346
1M
R347
470k
C393
0.01
C392
100p
C404
1
R364
470k
R363
470k
R362
470k
R361
100k
C403
0.1
R369
22k
R366
470k
R365
470k
R367
470k
C402
0.1
D61
MA8062
C389
47p
C387
47p
R359
10k
C401
0.1 R360
22k
R357
1M
C400
0.1
R356
10k
R510
27k
C457
1
R415
4.7k
R416
3.9k Other
22k [USA]
J3
123456
R282 1M
R513
100k R514
2.2k
R515
22k
R516
10k
D73
1SS355
R500 1k
R501 1k
R518 1k
OUT
1
VDD
2
VSS
3NC 4
CD 5
D74
DA202U
R519
15k
C470
0.01
R521
470k
R522
470k
R355
470k
+3
2
1
8
C471
0.1
C472
0.1
R517 1k
Y1
1
Y0
2
Z1
3
Z
4
Z0
5
INH
6
VEE
7
VSS
8C9
B10
A11
X0 12
X1 13
X14
Y15
VDD 16
+
—
5
67
C374
0.001
R486
1k
CS
1
SO
2
WP
3
VSS
4SI 5
SCK 6
HOLD 7
VCC 8
R523 100k
R525 100k
CP4
R511 5.6k
+
—
5
67
R532
390k
D67
MA728
C479
0.22
R414
100k
C458
0.001
R533
22k other
47k [USA]
only
I/O
1
O/I
2
O/I
3
I/O
4
CONT.B
5
CONT.C
6
VEE
7I/O 8
O/I 9
O/I 10
I/O 11
CONT.D 12
CONT.A 13
VDD 14
D68
RB706F-40
W17
R294
4.7k
R542
10k
R543
10k
R295
4.7k
R291
15k
D75
DA202U
R489 1k
R320 82k
R322 150k
R488 1k
R317
10k
R337
1k
R504
1k
R505
1k
R464
100k
R462
100k
R467 1k
R468 1k
R289 1k
R287 1k
R336 1k
R491 1k
R496 1k
R494 1k
R497 1k
R498 1k
C511
0.001
R292
4.7k
C516
10 +
R321 330k
C377
10
+C378
0.001
R298
470k
R463
100k
R482 1k
R483 1k
R485 1k
R477 1k
R478 1k
R305 1M
R479 1k
R480 1k
R476 1k
R304 1k
R474 1k
R284 1k
R471 1k
R300 1k
R475 1k
R473 1k
R310 1k
R484 1k
R487 1k
R323 1.2M
R324 680k
R313 1k
C405
1
R448
330k
C462
0.001 R452
120k
+
—
3
2
1
4
8
I/O
1
O/I
2
O/I
I/O
CONT.B
5
CONT.C
6
VEE
7I/O 8
O/I 9
O/I 10
I/O 11
CONT.D 12
CONT.A 13
VDD 14
+
—
5
6
7
R328 1k
R492 1k [EUR], [ITA] only
R545
1k
R544
1k
R301
1k
EP2
MMZ1608Y102BT
W15
C505
470p
R490 1k
R3251k
R493 1k
C507
0.001 C508
0.001
C504
470p
C376
0.1
C510
0.001
C515
0.001
C519
0.001
C506
470p
EP3
MMZ1608Y102BT
R283
22k
[EUR], [ITA] only
R432
18k
C444
1
R433
47k [EUR],
[ITA] only
R549
47k
[EUR], [ITA]
only
C448
820p
C449
82p
R345
10k
VDET
VAF
UAF
VAFO
UAFO
UDET
—
3
4
CONTROL UNIT J2
MIC
INPUT
D50
D55
D52 D54
D51 D53
D59
DTMF UNIT
(OPTION)
4
PSQL
PSEL
R271
100k
C348
1I/O
1
O/I
2
O/I
3
I/O
4
CONT.B
5
CONT.C
6
VEE
7I/O 8
O/I 9
O/I 10
I/O 11
CONT.D 12
CONT.A 13
VDD 14
C349
1
R272
10k
C256
1
C284
1
PSQL
E
CHASSIS
UNIT
6
5
FV
CP-SMU
8V C5V
AFOUT
HV
PSQL
CP-SMV
VATTC
UATTC
LV04
LV03
LV02
LV01
FANC
PCTRL
VSQL
MOD
USQL USOUT
1RX
4RX
DATA
CK
PLSTB
VUNLK
UUNLK
8V
HV
VTX
VSHIFT
UMMUTE
VMMUTE
UTX
C5V
LV
STB
VAMUTE
UAMUTE
VAM
VDET
UDETUAM
POWC
VDATA
VCK
3LB
SP
CLONE
R11
33k
R12
470 R13
33k
R29
4.7k
R30
100k
R41
820
R42
1k
R43 22
R47
100
R62 100
R67
100k
R85
39k
R120 18k R121 100k
R122
10k
R123
47k
R124 22k
R125
100k
R126 820k
R127
27k
R162
33k
R203
1.5k Other
3.3k [EUR], [ITA ]
R244
120k
R270
1k
C10
0.001
C13
0.001
C19 1p
C30
2.2
+
C36
22p
C40
0.001
C42
12p
C44
0.001 C45
0.001
C48
18p
C51
0.001
C55
12p
C64
0.001
C83
22p
C84
30p
C86
5p
C88
0.001
C94
100p
C95
0.001
C97
1p
C98
1p
C102
1p C103
2p
C105
100p
C106
0.001
C108
0.001
C115
4p
C118
0.001
C139
47p
C145
1.5p
C162
7p
C164
0.001
C191
0.001 C192
0.001
C196
0.001
C197
10
+
C199
0.001
C218
0.001
C232
2p
C240
0.001
C263
390p
C264
390p
C273
180p
C279
0.001
C290
0.001
C297
0.01
C358
0.001
D4 MA862
D6
1SS355
D9
UM9401F
D12
HVU350
D15
HVU350
D18
UM9401F
D33
MA77
SI
2
CPS
3
RST
4
VCC
5
FIN1
6
LOCK1
7
PD1
8
VT1
9
VF
10 GND 11
VT2 12
PD2 13
LOCK2 14
FIN2 15
OP1 16
OP2 17
XOUT 18
XIN 19
GND 20
XBO
1
DO
1
LD
2
CLK
3
DI
4
AO1
5
AO2
6
NC
7
GND
8VSS 9
NC 10
AO3 11
AO4 12
AO5 13
AO6 14
VDD 15
VCC 16
56
3
L8
27nH
L9
68nH L10
47nH
L12
LA-235
L18
0.82 H
L22
68nH
L23
0.56 H
L28
LA-236
L29
0.82 H
L34
33nH
L63
680 H
J8
1
2
C1
10
+C2
0.001
D1
1SS355
C3
1R2
100k C5
0.001
C4
0.001
R4
10k
L1
0.82 H
R5
2.7k
C6
0.1 +C7
0.001
C9
0.001
C8
0.001
L2 LB-270
R7
68k
R6
10k R9
10k
C11
8p
D2 MA77
R10
10k
C12
0.001
R8
220 C15 0.3p
C14
0.3p
D3
HVU350
C17
100p
R15
100
R14
470 C18
0.001
R18 100
C20
0.001
C21
0.001
R17
120k
L3
0.22 H C22 27p
C26
1.5p
R23
330
C23
6p
R19
560
R24
47k
R25
47 L4
0.22 H
C24
0.001
C25
5p C35
15p
L5
47nH
R26
47k
C31
0.001
R27 2.2k C32
0.001
C34
0.001
C33
0.001
R31
4.7k
R32
100k R33
150
R35
150
C38
0.001
C37
0.001
R34
39
L6
18nH
C39
2p R37
1k
R36
4.7k
C41
10p
L7
68nH
R38
22
R39
22
D5
DA221
C43
0.001
C47
22p
C46
10
+
C49
18p
R44
150
L11
LA-235
C52
24p
C53
30p
C54
1p C56
0.001
C57
0.001
R45
100
C58
1p C59
1p
C61
0.001
C60
10p
C63
22 +
C66 470p
C65
0.001
L13
LW-25
R46
100
C68
15p
C62
0.001
C69
0.001
C70
18p C71
30p
C72
27p
L15
LA-244 L78
LA-235 L16
LA-385
C77
0.22
+
R48
82k
R50
470k
R51
100
R49
470k
D19
1SS355
C124
0.001
C74
0.1
+
C73
0.001
C123
0.001
C87
0.001
R66
4.7k
R65
10k
L19
0.15 H
R64
180
R63
220
C90
0.001
C91 0.01
C163
0.001
L20
82nH
C99
5p
D11
HVU350
C96
2p
D14
1SS355
C101
2p
R68
100k
C100
39p
R69
100k
C104
5p
L21
82nH
D13
HVU350
C109
0.001
C110
4p
R70
47k
R74
100k
R119
100k
R118
39k
R75
100k
L24
2.2 H
C107
0.001
R71
1k
R73
47k
R72
100 L26
68nH D16
1SS355 R130
10k
R131
330
R129
56k
R128
27k
C198
0.001
+
—
1
3
4
5
2
R135
150
R136
220k
C189
4p
L43
LA-382
C180
0.001
C182
22 +C183
0.001 R134
100 C184
0.001
D27
UM9401F
L41
LW-25
C181
470p
R133 22k
C179
0.001
C177
1p
C178
11p
C176
0.001
L40 LA-382
R132 22k
C173
1p C175
0.001
C172
6p
C174
13p
C171
0.001
IN
5
VCC1
4
VCC2
3
VCC3
2
OUT
1
.
6
7
C166
47
+
C165
0.001
L39
15nH
C167
5p
R114
680 C169
2p
C168
2p
R116
4.7k
D24
DA221
R112
22
R110
680
C160
2p
L36
10nH
C161
0.001
R109
22
C159
3p
C158
3p L35
18nH
R113
22
R111
4.7k
L37
22nH L38
22nH
R115
820
C465
0.001
R108
47
C157
10p
C156
0.001
R106
680
R105
100k
D22
MA862
D23
MA77
R104
1k
R102
10k
R101 2.2k
C152
2.2
+
R100
47k
C153
10p C154
10p
R103
270
R153 100
L33
18nH
R107
4.7k
C150
5p
L32
33nH
R98
47k
R99
47
R96
33k
R97
330
L31
27nH
R92
120k
C140
0.001
R87
18k
R86
330
C136
0.5p
L30
8.8nH R84
330k
C133
0.001
C132
0.001
R83
220k
R82
1k
R77
4.7k
C125
1
C126
0.001
R78
100k C128
0.001
3
2
15
4C203
0.001
L66
8.2 H
C206
22p
L69
1.8 H
R138
270
R173
150
C247
0.001
R176 1.5M
R175
680k
R174
220k
C246
0.001
L54
LA-242
D39
UM9401F
W12
D37
1SS355
C242
0.001
R457
3.3k
C241
0.001
D36
MA862
R172
4.7k
R169
4.7k
R171
100k
R170
100k
D35
1SS355
C239
18p
L52
47nH
R168
47k
R166
100k
R167
39k
C238
0.001
R165
100
C237
0.001
R164
100k C236
0.001
L51
47nH
C235
2p
C234
0.001
FI3 EFCH435MWNP1
12
345678
R157
4.7k
R158
100k
R159
4.7k
L50
33nH
C233
3p
L49
47nH
R156
330
R154 270
C229
0.001
C228
0.001
D32 DAN202U
R150
100k
R151
100k
R152
4.7k
C230
12p
L48
1H
R149
270
C226
0.5p
R148
390
D31
RB706F-40
C224
0.001
R147
33k
R145
270
L47
0.56 H C223
0.001
R146 100
C220
0.001
C222
0.001
R144
100k
C221
7p
C216
0.001
R142
33k
C213
0.001 R140
100k
R191
560
D40
MA8047
C249
0.1
X2
CDB450C24
R204
10k
C251
0.022
C252
0.047
C259
1
C258
0.001
C257
0.1
R206
47k
R207
47k
R192
220k
R193
560
R199
470
C260
0.001
R208
1M R202
47k
R201
1M
R198
8.2k Other
1.5k
[EUR], [ITA]
R210
10k R213
100k
C271
0.1
12
78 FI5 CF4WS450HT
12
345
C268
0.1
[EUR], [ITA]
only
R215
100
C274
0.01 C275
0.01
D41
RB706F-40
R214
47k
C269
0.001
R219
120k
C278
47
+
R221
220 C276
0.001
FI6 CFWS450F
12
345
R222 560
C277
0.1
D42
MA8047
OSCIN 1
OSCOUT 2
MIXOUT 3
VDD 4
IFIN 5
BIAS 6
FILOUT 7
FILIN 8
AFOUT
9QUADIN
10 IFOUT
11 SOUT
12 NDET
13 NOUT
14 VSS
15 MIXIN
16
C288
390p
R225
220k
R226
560
C289
390p
R229
10k
R230
470
C285
1
C283
0.001
C282
120p
R458
4.7k
R235
10k R238
100k
R237
100k
R236
22k
R231
47k
R233
22k
R232
10k
C291
0.001
C281
0.033
R240
47k
D43
RB706F-40
C296
0.01
R239
100
C292
0.1
C293
0.1
C294
0.01
C295
180p
L64
680 H
R241
10k
R242
39k
C365
0.001
C366
0.001 C367
0.001
C350
0.001
C351
10
+GI
O
R267
10k
R268
470
C354
0.001
C355
10
+GI
O
C356
100
+
C357
0.001
R269 100k
D44
MA8075 L65
0.39 H
C362
2200
+
D46
RD20E
1
2
MF1
+
—
M
C363
0.001
C369
0.001
C360
0.001
C361
47
+
C352
47
+C353
0.001
C280
0.047
R224 10k
R155
470
C231
0.001
C467
8p
C187
8p
R223 1.5k
L25
0.12 H
C244
6p
D72
HVU131TRF
C368
0.001
J7
C346
0.001
R40
4.7k W1
R28
2.2k
FI4 ALFY450F=K
1
2
3
4
5
[EUR], [ITA] only
5
6
3
1
78
J1
J2
FI2
FL-300
R21
470
R59
22k
W5
R54
2.2M
R58
2.7k
3
2
15
4
W7 R141
270 D30 MA133
C205
0.001
R143 100
L46
1.2 H
L67
8.2 H
C209
2p
C148
6p
R93
15
C144
6p
R95
47
R94
47
R89
47
C143
0.001
C142
0.001
R137
820
R538 2.7k
R537
3.3k
R530
1.2k
R531 1.5k
C478
0.1
C215
82p
C117
5p
C116
100p
R56
3.9k
R52
2.7k
C76
0.047
+
R529
820
R528
1k
C137 0.5p
C149
0.001
C147
22p
R535
1.2k
D21
1SV284
C134
0.75p
R88
330
C135
0.001
C28
22p
X1
CR-549
C146
0.001
FI1B FL-288
D7
RB706F-40
D26
RB706F-40
D25
RB706F-40
C210
0.5p
C212
1p
C208
3p
L68
1.8 H
C211
4p
C475
0.001
W10
C219
0.001
C225
12p
C227
0.001
W2 W3
R200
47k
C272
0.01
C347
0.001
W4
D8
RB706F-40
C485
1p R20
47
R22
33k
W16
C78 0.1
C85
1p
C486
0.01
C92
8p
R540
220
L17
0.22 H
R61
820
R539
560k
R212
100k
R211
22k
R217
470k
R216
10k
R220
39k
C188
6p C190
4p
C493
8p
L42
LA-232
C492
1
C494
0.3p
C141
0.3p
R534
2.2k
C122
100
+
C270
0.1
C488
0.001
C489
0.001
R541
39
C484
1D20
1SV284
C204
0.001
C201
0.001
R79
82k R80
10k
C207
12p
D28
1SS355
W9
C217
0.001
R139
270
C267
0.1
C254
100p
FI1A FL-288
C477 10
+
C250
47
+
R190
220
C248
0.001
C265
330p
C266
100p Other
150p
[EUR,ITA]
R197
12k
R209
10k
C261 0.1
OSCIN 1
OSCOUT 2
MIXOUT 3
VDD 4
IFIN 5
BIAS 6
FILOUT 7
FILIN 8
AFOUT
9QUADIN
10 IFOUT
11 SOUT
12 NDET
13 NOUT
14 VSS
15 MIXIN
16
C476 10
+C481 3.3
+
R536
820
C483
0.047
R90 47
C482 3.3
+
C286 0.1
D10
DAN202U
C499
0.001
W8
C500
0.001
C480
22p
C245
6p
L44
LA-232
L45
LA-232
C521
0.1
C50
220 +
C491
1
C503
0.001
C29
0.001
C255
0.001
R205
3.3k
C253
0.033
C200
0.001
W14
W18
C81
33p
R76
3.3k
C80
5p
C522
0.1
C524
0.1
C186
470p
L82
LA-232
C194
0.001 C195
0.001
C193
0.001
C523
0.1
C359
0.1
D45
DSA3A1
C364
47p
C526
0.1
J4
1
2
C121
15p
C113
0.001 C527
0.1
C517
100p
[EUR], [ITA] only
R196
10k
R194
39k Other
22k [EUR], [ITA]
W19
except
[EUR], [ITA]
R195
NTCCM16083NH221KC
R228
NTCCM16083NH
R227
68k
C151
0.001
C27
0.001
R546
220 CP5
C82
20p
C127
47p C487
0.001
C131
0.001
C130
0.047
+
R3
82k
R1
4.7k
C155
0.001
C525
0.1
C520
0.1
C518
0.022
C498
0.001
C513
470p
C514
470p C512
470p
C473
0.22
C474
0.22
C490
0.001
C501
0.001
C496
0.001 C497
0.001
C502
0.001
C89
100p
R547
22
R60
1.8k
D78
MA77
C529
0.5p
D77
MA77
R234
10k
C466
100p
C119
0.001
R548 47 C114
0.001
D71 1SS355
C531
100p
C112
0.001
C532
470p
C111
0.001
D79
1SS355
R245
470k
D80
1SS355
C214
0.001
C202
0.001
D29
DAN202U
X3
CDB450C24
4
VSOUT W/N
PTTP
DATAOUT DATAINDATAOUTAFOUTDATAIN
PTT P
6
4 3
12
5
C5V
UAF
VAF
3421
IN
VCC1
VCC2
OUT
R117
22
EXT. SP
CLONE I/O
DATA I/O
DC 13.8 V
CHASSIS
UNIT
R81
NTCCM16084LH
[EUR], [ITA] only
[EUR], [ITA] only
MAIN UNIT
except [EUR], [ITA] except [EUR], [ITA]
[EUR], [ITA]
only
OPD
Q1
Q2
Q3
Q4
STD
J6
1
2
3
4
5
6
7
8
9
10
R524
100k
OPD
GND
DETO
C5V
TOE
Q1
Q2
Q3
Q4
STD
C324
0.001
C343
0.1
VIN1
1
VOUT1
2
GND
3
DATA
4CLK 5
VCC 6
VOUT2 7
VIN2 8
123456789
10 11 12
R266
12k
C339
100
+
C338
100
+
C336
220 +
C340
470
+C341
470
+
C335
47 +
R262
220
R264
4.7
R263
4.7
C344
220
+
C337
47 +
R253
10k
R251
10K
C332
0.47
+
123
45
R250
33k
R252
33k
C333
0.47
+
R261
180
R257
10k
R255
47k
R254
47k
R256 33k
R258 10k
R259 1k
C330 1
+
C331
1
+
C325
0.001
R249
39
L79
12nH
C328
5p
C327
5p
R248
1.5k
C326
2p
L80
10nH
R247
10k
C320
0.001
R246
1k
C322
8p
C321
2p
L81
10nH C323
0.001
C345
1
C334
0.47 +
R265
680k
R260 10k
C342
0.1
C329
0.001
C528
470p
R179
4.7k R183
220
C306
18p C310
22p
C311
2p
L56 22nH L61
8.2nH
L62
8.2nH
C300
0.5p
C299
0.001
R177 100
L55
22nH
R178
22
C304
0.001
C302
0.001
C303
0.001
R180
120
R182
4.7k
C305
0.001
R181
15k
C307
0.001
C308
0.001 L59
8.2nH
R184 56 R185 56
D70
MA8043
C309
2p
C312
1
C313
0.001
C314
0.001
4
1
2
3
R186
100
C316
3p
R187
15
R188
39k R189
3.3k
C317
2p
C318
1.5p
C319
1.5p
R526
1k R527
1k
L60
15nH C315
0.001
R160
4.7k
C301
7p
C298
0.001
R163
10k
D76
MA77
C530
6P
W11
IC19
HD6433876NB10H
HD6433876NB11H
Q78
2SC4081
IC24
TC75S51F
Q87
2SC4081
Q86
2SC4081
Q85
2SC4081
Q84
2SC4081
Q83
2SC4081
Q82
DTC144EU
Q81
2SC4081
Q96
2SC4081
IC16
S-80945ALMP-DA9-T2
IC20A
NJM4558M
IC29
BU4053BCFV
IC17
X25320SI-2.7
Q80
2SC4081
Q98
DTC144EU
Q79
2SA1576
IC21
BU4066BCFV
IC20B
NJM4558M
Q90
2SD999
Q91
DTA144EU Q92
DTC
114EU
Q93
DTC144EU
IC25
TC7S66FU
IC23A
NJM4558M
Q88
2SC4081
IC23B
NJM4558M
IC27B
NJM4558M
IC26
BU4066BCFV
IC27A
NJM4558M
Q89
2SC4116
Q73
DTC144EU
Q72
DTC144EU
IC13 BU4066BCFV
Q60
2SC4081
IC7B TC4W66F
Q41
2SC5193
Q52
2SC4116
Q54
2SK1829
Q56
2SC4081
IC7A TC4W66F
Q58
DTA144
EU
Q95
DTC144EU
IC8 TA31136FN
IC6B TC4W66F IC6A
TC4W66F
Q59
2SK880
Q57
2SK880
Q55
2SJ144
Q103
DTC144EU
IC28
TA31136FN
Q40
2SC4215
Q21
2SC4228
Q36
Q38
Q39
IC2 M64076AGP
Q2
2SC4213
Q14
DTB123EK
Q24
2SC5085
Q23
2SC5193
Q22
2SC5085
Q20
2SC4228
Q17
2SC4081
Q19 2SC4213
Q35
Q34
Q99
2SC3324
Q100
2SK880
Q101
2SC3324
Q102
2SK880
Q35, 36, 38, 39: DTB123EK
Q37
Q34, 37: UMG9N
Q13
DTC144EU
Q5
2SC5085
Q4
2SC5085
Q6
2SC5085 Q7
2SC5085
Q18
2SK880
Q8
2SC5193
Q1 2SC4081
Q3 DTC144EU IC1 M67746-01
Q11
2SC3357
Q16
3SK166
IC3 M62354GP
Q10
2SA1362 Q12
2SC2954
Q25
2SC4081
Q15
3SK166
Q9
2SC4081
Q28
2SC3357
IC4 SC-1318
Q29
2SC2954
Q27
2SC5085
Q26
2SA1362
Q44
3SK166
Q42
DTC144EU
Q48
2SC4226
Q49
DTC144EU
Q47
2SC4226 Q50
3SK184
Q43
3SK184
Q61
DTC144EU
Q63
2SC4081
Q62
2SJ144 Q64
2SK880
Q66
DTC144EU
Q67
2SC4081
IC14
TA7808F
Q75
2SB1201
Q71
2SC4213
IC10 M62429FP
Q69
2SC4213
Q70
2SC4213
IC11
TC4S81F
Q65
2SK880
Q74
DTC143XU
IC15 TA7805F
Q76
2SC4081 Q77
2SB1132
IC12 LA4445
Q68
2SC5085
Q30
2SB934P
Q32
DTC143ZU
Q31
2SC4081
IC5
TA75S01F
Q33
2SC4081
Q45
2SC4081
Q46
2SC4081
IC9
PC1676G
Q51
2SC5085
Q53
DTC144EU
7.87
4.66
2.83
1.00
4.17
1.00
0.39
4.2
4.71
2.80 7.87
0.39
6.88
4.90
4.62
2.63
2.52
4.96
2.22
3.78
2.5
4.96
0.63
0.042
0.647
4.96
0.042
4.96
4.96
4.93
0.045
9.41
7.87
13.36
8.8
7.88
0.97
2.97
7.25
4.00
4.04
0.35
2.67 2.66
1.94
4.92
1.27
4.08
3.88
4.61
6.88
4.9
7.91
VR 7.87
VR 7.51
VR 1.02
VR 3.50
VR 0.98
VR 0.97
VR 0.75
VR 4.66 VR 0.67
VR 4.74
VR 4.37
VR 0.65
VR 4.37
UR 7.87
VR 1.74
VFM 4.74
VAM 6.59
VR 7.86 VAM 7.08
UV 0.9
VV 0.6
VV 2.2
VV 0.7
UR 1.69
UR 0.96
UR 6.8
UV 2.5
UV 0.7
UR 0.71
UR 0.97
VR 2.81
UR 4.37
UR 4.37
UR 3.56
UR 4.66
UR 4.77
UR 0.67
UR 0.65
UFM 4.74
VT 7.5
VT 0.9
VT 4.46
VR 7.3
VR 1.3
UT 0.7
UT 8.1
UR 1.13
UT 6.4
UR 6.77
UR 7.28
UR 1.3
UR 7.11
UAM 5.63
UAM 6.28
UFM 0.65
12.96
UR 2.35
4.1
7.87
UR 0
UT 6.8
VR 1.65
UT 1.2
VR 1.65
UR 4.23
UT 0.5
UH 9.0 UHL 6.07
UMH 7.05 UL 5.43
UR 7.8 UR 2.2
VR 1.65
VR 1.65
VT 8.2
VT 6.9
VH 9.4
VMH 6.21
VHL 6.11
VL 4.3
VR 7.85
VR 1.9
VR 2.81
UR 7.88
UR 4.2
UR 3.46
0.63
4.81
4.81
0.63
0.63
13.8
11.65
4.96
UT 1.93
8.3
VT 2.1
U = 430 MHz Band
V = 144 MHz Band
None = COMMON
UH 2.15
UMH 1.82
UHL 1.65
UL 1.55
VH 2.18
VMH 1.77
VHL 1.62
VL 1.52
UH 1.27 UHL 0.92
UMH 1.05 UL 0.83
VH 1.5
VMH 1.1 VHL 0.94
VL 0.84
LEFT SIDE RIGHT SIDECENTER
11 - 2
INTRODUCTION
This service manual describes the latest service information for
the IC-2800H FM TRANSCEIVER at the time of publication.
To upgrade quality, all electrical or mechanical parts and inter-
nal circuits are subject to change without notice or obligation.
DANGER
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 16 V. Such a connection
could cause a fire hazard and/or electric shock.
DO NOT expose the transceiver to rain, snow or any liq-
uids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100
mW) to the antenna connector. This could damage the
transceiver’s front end.
ORDERING PARTS
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110002750 S.IC TA75S01F IC-2800H MAIN UNIT 1 piece
8810008450 Screw M4 × 8 ZK IC-2800H CHASSIS 6 pieces
Addresses are provided on the inside back cover for your
convenience.
REPAIR NOTES
1. Make sure a problem is internal before disassembling the
transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components.
Turn them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An insu-
lated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 50 dB or 60 dB attenuator between
the transceiver and a deviation meter or spectrum
analyser when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
MODEL VERSION SYMBOL
Europe
Italy
U.S.A.
S. E. Asia
IC-2800H USA
SEA
EUR
ITA
CSAC. S. America
6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
Phone : 06 6793 5302
Fax : 06 6793 0013
Communication Equipment
Himmelgeister Str. 100, D-40225 Düsseldorf, Germany
Phone : 0211 346047 Fax : 0211 333639
URL : http://www.icomeurope.com
Unit 9, Sea St., Herne Bay, Kent, CT6 8LD, U.K.
Phone : 01227 741741 Fax : 01227 741742
URL : http://www.icomuk.co.uk
Zac de la Plaine, Rue Brindejonc des Moulinais
BP 5804, 31505 Toulouse Cedex, France
Phone : 561 36 03 03 Fax : 561 36 03 00
URL : http://www.icom-france.com
<
Corporate Headquarters
>
2380 116th Avenue N.E., Bellevue, WA 98004, U.S.A.
Phone : (425) 454-8155 Fax : (425) 454-1509
URL : http://www.icomamerica.com
<
Customer Service
>
Phone : (425) 454-7619
A.C.N. 006 092 575
290-294 Albert Street, Brunswick, Victoria, 3056, Australia
Phone : 03 9387 0666 Fax : 03 9387 0022
URL : http://www.icom.net.au
6F No. 68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan R.O.C.
Phone : (02) 2559 1899 Fax : (02) 2559 1874
A Division of Icom America Inc.
3071 #5 Road, Unit 9, Richmond, B.C., V6X 2T4, Canada
Phone : (604) 273-7400 Fax : (604) 273-1900
Crta. de Gracia a Manresa Km. 14,750
08190 Sant Cugat del Valles Barcelona, SPAIN
Phone : (93) 590 26 70 Fax : (93) 589 04 46
URL : http://www.icomspain.com
A-5570MI-S
© 1999 by Icom Inc.
6-9-16, Kamihigashi, Hirano-ku, Osaka 547-0002, Japan
DUAL BAND FM TRANSCEIVER
iC-2800h
iC-2800h

Navigation menu
