Compatibility

The IDP-Monitor-2 is compatible with the

following FACPs:

• IFP-2000 / RPS-2000 Intelligent Fire Panel

• IFP-2000ECS Emergency Communication

System with Fire Panel

• IFP-1000 / ECS Intelligent Fire Panel

• IFP-100 / ECS Intelligent Fire Panel

• IFP-50 Intelligent Fire Panel

P/N 350289 Rev F

Copyright © 2015 Honeywell International Inc

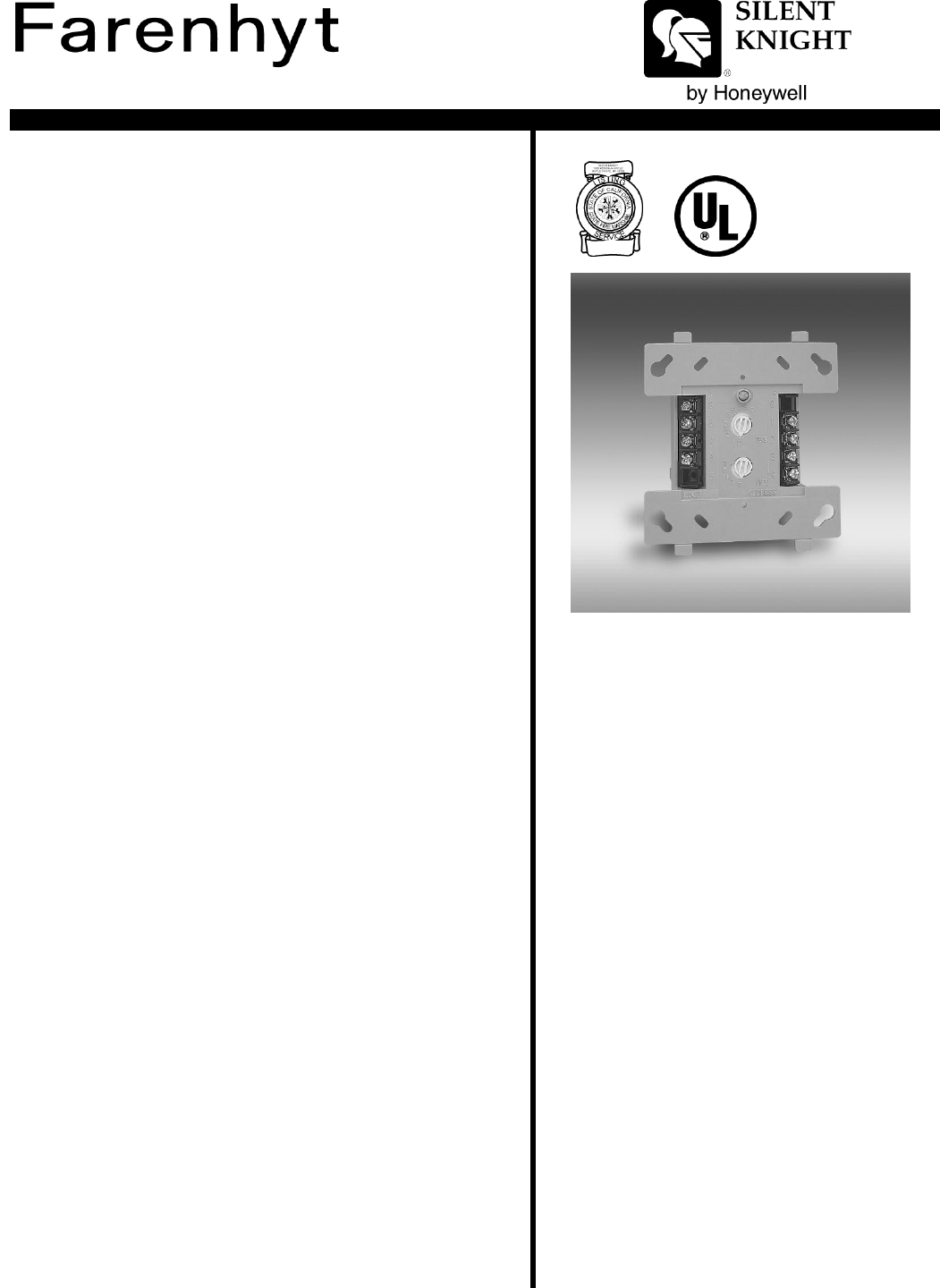

Addressable Monitor Module

IDP-Monitor-2

The IDP-Monitor-2 is an addressable monitor module with two

initiating circuits for use with Silent Knight IFP-series fire alarm

control panels (FACPs). The IDP-Monitor-2 acts as an

interface to contact devices, such as waterflow switches and

pull stations.

The IDP-Monitor-2 supports Class B supervised wiring to the

load device. Conventional 4-wire smoke detectors can be

monitored for alarm and trouble conditions.

Because the IDP-Monitor-2 is capable of monitoring two

separate Class B circuits, it is ideal for waterflow tamper switch

and flow switch monitoring.

Features

• Monitor two circuits, with unique addresses, simultaneously

• Support for Class B wiring

• Fully supervised

• Panel controlled status LED that flashes green in normal

state and is solid red in alarm

• Attractive ivory cover plate

• Rotary address switches for fast installation

• SEMS screws for easy wiring

• UL Listed

Installation

The IDP-Monitor-2 mounts directly into a 4” square electrical

box. The box must have a minimum depth of 2-1/8”. A surface

mount electrical box (System Sensor®PN SMB500) is

available from Silent Knight.

IDP-Monitor-2

MEA

457-99-E Vol. V

Agency Listings

Specifications

Physical

Height: 4.5” (11.4 cm)

Width: 4” (10.2 cm)

Depth: 1.3” (3.2 cm)

Shipping Weight: 6.3 oz (196 g)

Electrical

Operating Voltage: 15 – 32 VDC

Standby and Alarm Current:

750 µA max @ 24 VDC (one communication every 5

sec with 47K EOL)

End-of-Line Resistance: 47K W

Environmental

Operating Temperature: 32ºF – 120ºF (0ºC – 49ºC)

Humidity: 10% – 93% non-condensing

Ordering Information

IDP-Monitor-2 Dual Monitoring Module

Accessories

SMB500 4” Square Surface Mount Electrical

Box

This document is not intended to be used for installation purposes. We try to keep our product

information up-to-date and accurate. We cannot cover all specific applications or anticipate all

requirements. All specifications are subject to change without notice. For more information, contact Silent

Knight 12 Clintonville Road, Northford, CT 06472-1610 Phone: (800) 328-0103, Fax: (203) 484-7118.

For Technical Support, Please call 800-446-6444. www.farenhyt.com
