CONFIDENTIAL
Instruction
Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00
Document No.:
INS11095
Version:
18
Description:
Guideline for developing ZW0201 and ZW0301 based applications using the
application programming interface (API) based on Developer‟s Kit v4.5x
Written By:
JFR;JSI;PSH;DDA;JBU;AES;ABR
Date:
2013-04-16
Reviewed By:
JFR;JSI;PSH;JKA;BBR
Restrictions:
Partners Only
Approved by:
Date CET Initials Name Justification
2013-04-16 15:44:43 NTJ Niels Thybo Johansen
This document is the property of Sigma Designs Inc. The data contained herein, in whole
or in part, may not be duplicated, used or disclosed outside the recipient for any purpose.
This restriction does not limit the recipient's right to use information contained in the data if
it is obtained from another source without restriction.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page ii of ix
CONFIDENTIAL
REVISION RECORD
Doc. Rev
Date
By
Pages affected
Brief description of changes
1
20080315
JFR
All
Initial draft
1
20080315
JFR
4.4.3.1
Added missing description of hop failures in TxStatus in ZW_SendData API
call
1
20080519
JBU
4.10.1
Names of ZW_RequestNewRouteDestinations() callback function parameters
corrected
1
20080519
JBU
4.5.1
4.5.18
Clarified ZW_AddNodeToNetwork() and ZW_RemoveNodeFromNetwork ()
should use NULL callback when *_NODE_STOP commands are given.
1
20080519
JBU
7.1
7.2
Updated figures and sample code to use recommended
ZW_AddNodeToNetwork()/ZW_RemoveNodeFromNetwork () _STOP
commands.
1
20080624
JSI
4.5.1
Added description of ADD_NODE_OPTION_NETWORK_WIDE option bit
1
20080825
JSI
5.3.3
Added ZW_SendData_Generic, ZW_SendData_Bridge,
ZW_SendDataMeta_Generic and ZW_SendDataMeta_Bridge descriptions
1
20080925
JBU
4.2.1.2
4.2.1.3
Static controller libraries without repeater functionality cannot provide help to
or forward Lost requests.
1
20080929
JBU
4.4.1.5
Added promiscuous mode and destNode description to function syntax and
SerialAPI description.
1
20080929
JBU
4.4.2.11
Added reference to sec 4.4.1.5.
1
20081201
JSI
4.4.1.5
4.4.1.9
Bridge Controller do not use the ApplicationCommandHandler
The ApplicationSlaveCommandHandler and the ApplicationCommandHandler
in the Bridge Controller has been unified in the
ApplicationCommandHandler_Bridge with full Multicast support
1
20081201
PSH
4.5.24
4.9.1
Changed mode parameter for ZW_SetLearnMode()
1
20081204
JSI
4.4.3
4.4.3.7
4.7
Updated parameter descriptions and SerialAPI definitions.
Added ZW_SendDataMulti_Bridge descriptions.
Removed ZW_SendSlaveData descriptions.
2
20081216
JFR
4.4.3.1
Clarified transmit options behavior
2
20090114
JFR
4.4.2.18
Watchdog disabled by default
2
20090114
PSH
4.4.1
4.4.2.1
Limitations regarding application execution
ZW_Poll description updated
2
20090130
JSI
4.4.2.9
Updated serialapi flow description
2
20090201
JFR
4.5.27
4.10.3
4.5.27 & Error!
Reference
source not
found.
Do not recommend to call ZW_SetSUCNodeID using low RF power
A non-SUC primary static controller does not respond to a rediscovery needed
when there is no SUC present in the network
ZW_SetRoutingMAX and ZW_GetRoutingMAX added
2
20090219
JFR
4.4.4.1 & 4.4.4.2
4.4.6
TRIAC_Init and TRIAC_SetDimLevel description updated.
PWM API updated.
2
20090223
JBU
4.4.3.1
Discouraged sending to a virtual node from the hosting bridge library.
2
20090225
JSI
4.5.23
Added ZW_SetRoutingInfo description.
2
20090304
JSI
4.4.2.1, 4.4.2.4,
4.4.2.8, 4.9.3,
4.10.1 & 4.10.4
Added SerialAPI descriptions.
2
20090305
JFR
4.4.2.8
Using normal power minus 6dB when doing neighbor search
3
20090310
JFR
4.4.3
Payload length must be minimum one byte.
4
20090928
JFR
JSI
4.5.27 & Error!
Reference
source not
found.
4.5.17
4
3
4.5.11
Serial API impl. of ZW_SetRoutingMAX/ZW_GetRoutingMAX.
Added normal/low RF transmission parm. to ZW_ReplaceFailedNode.
TRANSMIT_OPTION_RETURN_ROUTE replaced with
TRANSMIT_OPTION_AUTO_ROUTE.
Details about routing algorithm added to library descriptions.
Sensor capabilities documented in Node Information Frame when calling
ZW_GetProtocolInfo
5
20100104
JFR
4.10.1
Missing routing slave supported API call ZW_GetSUCNodeID added
6
20100817
JFR
4.4.1
ApplicationRfNotify discontinued
7
20100819
PSH
4.5.1
Added ADD_NODE_STATUS_NOT_PRIMARY status to
ZW_AddNodeToNetwork() call
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page iii of ix
CONFIDENTIAL
REVISION RECORD
Doc. Rev
Date
By
Pages affected
Brief description of changes
8
20111004
JFR
3.8
Warning against USING 0 attribute in ISR‟s
9
20111205
JFR
All
Added RU frequency
10
20111215
JFR
4.4.1.9
Clarified Bridge library based serial API application interface
11
20120326
JFR
4.1
4.4.7
4.5.18
Added API using guidelines
200/300 Series onboard flash write cycles
Callback description updated for
ZW_RemoveNodeFromNetwork/REMOVE_NODE_STOP
13
20120509
JFR
4.4.1.11
4.4.2.14
Added ApplicationRFNotify to support to external power amplifier (PA)
Updated ZW_SetSleepMode description wrt. beamCount and POR
13
20120524
JBU
JSI
4.5.3
4.4.2.1
4.5.10
Documented TRANSMIT_COMPLETE_NOROUTE callback.
Added ZW_ExploreRequestInclusion serial API description.
Added ZW_GetLastWorkingRoute description.
14
20120712
JFR
4.5.1, 4.4.2.9,
4.5.25 & 4.9.2
Updated description of ZW_AddNodeToNetwork(), ZW_SetLearnMode() and
ZW_SendNodeInformation() to clarify what mode parameters to use.
14
20120822
JBU
4.5.25, 4.9.2
NWI mode not supported for exclusion.
14
20121031
JFR
3.4
4.4.2
Details about routing principles in the Z-Wave protocol added.
ZW_Poll removed.
15
20121102
AES
4.4.3.1, 4.5.1,
4.5.18

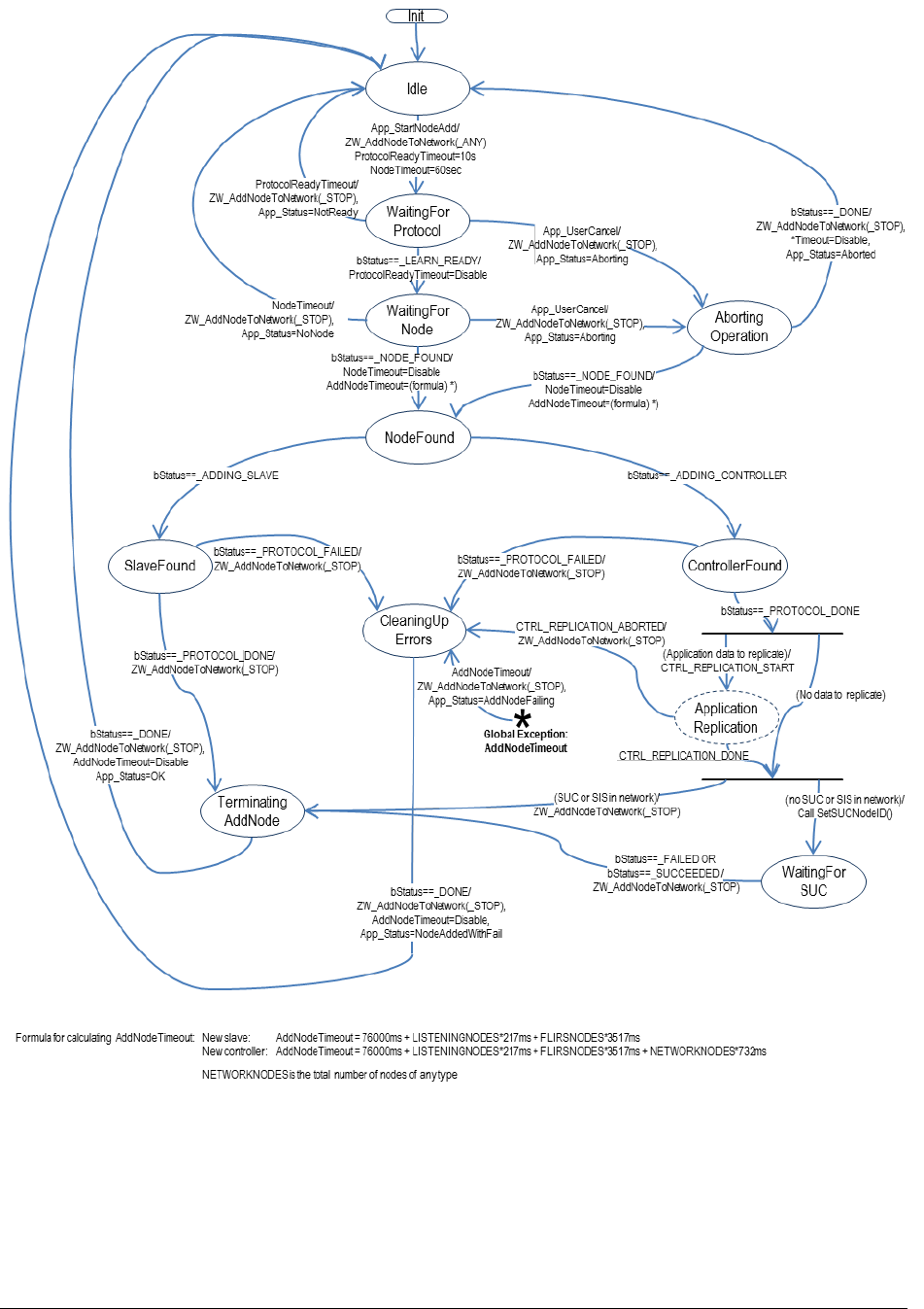

State diagrams and timeout comments added.
16
20121109
AES
ABR
PSH
4.5.1
Add node to/from network revised.
17
20121112
AES
4.5.18
Remove node to/from network revised.
18
20130415
JFR
4.5
4.5.27
4.12
4.5.24
Discontinued ZW_GetRoutingMAX
Generalize routing attempts in ZW_SetRoutingMAX
Added IL frequency
Home ID handling by ZW_SetDefault
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page iv of ix
CONFIDENTIAL
Table of Contents
1 ABBREVIATIONS ................................................................................................................................. 1
2 INTRODUCTION ................................................................................................................................... 2
2.1 Purpose .............................................................................................................................................. 2
2.2 Audience and Prerequisites ............................................................................................................... 2
2.1 Terms used in this document ............................................................................................................. 2
3 Z-WAVE SOFTWARE ARCHITECTURE ............................................................................................. 3
3.1 Z-Wave System Startup Code ............................................................................................................ 4
3.2 Z-Wave Main Loop ............................................................................................................................. 4
3.3 Z-Wave Protocol Layers ..................................................................................................................... 4
3.4 Z-Wave Routing Principles ................................................................................................................. 4
3.5 Z-Wave Application Layer .................................................................................................................. 5
3.6 Z-Wave Software Timers .................................................................................................................... 7
3.7 Z-Wave Hardware Timers .................................................................................................................. 8
3.8 Z-Wave Hardware Interrupts .............................................................................................................. 8
3.9 Z-Wave Nodes.................................................................................................................................... 9
3.9.1 Z-Wave Portable Controller Node ............................................................................................ 9
3.9.2 Z-Wave Static Controller Node ..............................................................................................11
3.9.3 Z-Wave Installer Controller Node ...........................................................................................12
3.9.4 Z-Wave Bridge Controller Node .............................................................................................12
3.9.5 Z-Wave Routing Slave Node..................................................................................................14
3.9.6 Z-Wave Enhanced Slave Node ..............................................................................................16
3.9.7 Z-Wave Enhanced 232 Slave Node .......................................................................................17
3.9.8 Adding and Removing Nodes to/from the network ................................................................18
3.9.9 The Automatic Network Update .............................................................................................20
4 Z-WAVE APPLICATION INTERFACES .............................................................................................21
4.1 API usage guidelines ........................................................................................................................21
4.1.1 Buffer protection .....................................................................................................................21
4.1.2 Overlapping API calls .............................................................................................................21
4.1.3 Error handling. ........................................................................................................................21
4.2 Z-Wave Libraries ..............................................................................................................................22
4.2.1 Library Functionality ...............................................................................................................22
4.2.1.1 Library Functionality without a SUC/SIS ........................................................................23
4.2.1.2 Library Functionality with a SUC ....................................................................................24
4.2.1.3 Library Functionality with a SIS ......................................................................................25
4.2.1.4 Library Memory Usage ...................................................................................................26
4.3 Z-Wave Header Files .......................................................................................................................27
4.4 Z-Wave Common API ......................................................................................................................29
4.4.1 Required Application Functions .............................................................................................29
4.4.1.1 ApplicationInitHW ...........................................................................................................29
4.4.1.2 ApplicationInitSW ...........................................................................................................30
4.4.1.3 ApplicationTestPoll .........................................................................................................30
4.4.1.4 ApplicationPoll ................................................................................................................31
4.4.1.5 ApplicationCommandHandler (Not Bridge Controller library) ........................................32
4.4.1.6 ApplicationNodeInformation ...........................................................................................34
4.4.1.7 ApplicationSlaveUpdate (All slave libraries) ...................................................................37
4.4.1.8 ApplicationControllerUpdate (All controller libraries) ......................................................38
4.4.1.9 ApplicationCommandHandler_Bridge (Bridge Controller library only) ...........................40
4.4.1.10 ApplicationSlaveNodeInformation (Bridge Controller library only) .................................42
4.4.1.11 ApplicationRfNotify (ZW0301 only) ................................................................................43
4.4.2 Z-Wave Basis API ..................................................................................................................44
4.4.2.1 ZW_ExploreRequestInclusion ........................................................................................44
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page v of ix
CONFIDENTIAL
4.4.2.2 ZW_GetProtocolStatus ...................................................................................................45
4.4.2.3 ZW_GetRandomWord ....................................................................................................45
4.4.2.4 ZW_Random ..................................................................................................................47
4.4.2.5 ZW_RFPowerLevelSet ...................................................................................................48
4.4.2.6 ZW_RFPowerLevelGet ..................................................................................................49
4.4.2.7 ZW_RequestNetWorkUpdate .........................................................................................50
4.4.2.8 ZW_RFPowerlevelRediscoverySet ................................................................................52
4.4.2.9 ZW_SendNodeInformation .............................................................................................53
4.4.2.10 ZW_SendTestFrame ......................................................................................................55
4.4.2.11 ZW_SetExtIntLevel .........................................................................................................57
4.4.2.12 ZW_SetPromiscuousMode (Not Bridge Controller library).............................................58
4.4.2.13 ZW_SetRFReceiveMode ................................................................................................59
4.4.2.14 ZW_SetSleepMode ........................................................................................................60
4.4.2.15 ZW_Type_Library ...........................................................................................................63
4.4.2.16 ZW_Version ....................................................................................................................64
4.4.2.17 ZW_VERSION_MAJOR / ZW_VERSION_MINOR / ZW_VERSION_BETA ..................65
4.4.2.18 ZW_WatchDogEnable ....................................................................................................66
4.4.2.19 ZW_WatchDogDisable ...................................................................................................66
4.4.2.20 ZW_WatchDogKick ........................................................................................................67
4.4.3 Z-Wave Transport API ...........................................................................................................68
4.4.3.1 ZW_SendData ................................................................................................................68
4.4.3.2 ZW_SendData_Generic .................................................................................................76
4.4.3.3 ZW_SendData_Bridge ...................................................................................................81
4.4.3.4 ZW_SendDataMeta_Generic .........................................................................................84
4.4.3.5 ZW_SendDataMeta_Bridge ...........................................................................................86
4.4.3.6 ZW_SendDataMulti ........................................................................................................89
4.4.3.7 ZW_SendDataMulti_Bridge ............................................................................................91
4.4.3.8 ZW_SendDataAbort .......................................................................................................93
4.4.3.9 ZW_SendConst ..............................................................................................................93
4.4.4 Z-Wave TRIAC API ................................................................................................................94
4.4.4.1 TRIAC_Init ......................................................................................................................94
4.4.4.2 TRIAC_SetDimLevel ......................................................................................................96
4.4.4.3 TRIAC_Off ......................................................................................................................96
4.4.5 Z-Wave Timer API ..................................................................................................................97
4.4.5.1 TimerStart .......................................................................................................................97
4.4.5.2 TimerRestart ...................................................................................................................98
4.4.5.3 TimerCancel ...................................................................................................................98
4.4.6 Z-Wave PWM API ..................................................................................................................99
4.4.6.1 ZW_PWMSetup ..............................................................................................................99
4.4.6.2 ZW_PWMPrescale .......................................................................................................100
4.4.6.3 ZW_PWMClearInterrupt ...............................................................................................101
4.4.6.4 ZW_PWMEnable ..........................................................................................................101
4.4.7 Z-Wave Memory API ............................................................................................................102
4.4.7.1 MemoryGetID ...............................................................................................................102
4.4.7.2 MemoryGetByte............................................................................................................103
4.4.7.3 MemoryPutByte ............................................................................................................104
4.4.7.4 MemoryGetBuffer .........................................................................................................105
4.4.7.5 MemoryPutBuffer..........................................................................................................106
4.4.7.6 ZW_EepromInit.............................................................................................................108
4.4.7.7 ZW_MemoryFlush ........................................................................................................108
4.4.8 Z-Wave ADC API .................................................................................................................109
4.4.8.1 ADC_Off .......................................................................................................................109
4.4.8.2 ADC_Start ....................................................................................................................109
4.4.8.3 ADC_Stop .....................................................................................................................109
4.4.8.4 ADC_Init .......................................................................................................................110
4.4.8.5 ADC_SelectPin .............................................................................................................112
4.4.8.6 ADC_Buf .......................................................................................................................113
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page vi of ix
CONFIDENTIAL
4.4.8.7 ADC_SetAZPL..............................................................................................................114
4.4.8.8 ADC_SetResolution .....................................................................................................114
4.4.8.9 ADC_SetThresMode ....................................................................................................115
4.4.8.10 ADC_SetThres .............................................................................................................116
4.4.8.11 ADC_Int ........................................................................................................................116
4.4.8.12 ADC_IntFlagClr ............................................................................................................117
4.4.8.13 ADC_GetRes ................................................................................................................117
4.4.9 Z-Wave Power API ...............................................................................................................118
4.4.9.1 ZW_SetWutTimeout .....................................................................................................118
4.4.10 UART interface API ..............................................................................................................119
4.4.10.1 UART_Init .....................................................................................................................119
4.4.10.2 UART_RecStatus .........................................................................................................119
4.4.10.3 UART_RecByte ............................................................................................................120
4.4.10.4 UART_SendStatus .......................................................................................................120
4.4.10.5 UART_SendByte ..........................................................................................................121
4.4.10.6 UART_SendNum ..........................................................................................................121
4.4.10.7 UART_SendStr .............................................................................................................122
4.4.10.8 UART_SendNL .............................................................................................................122
4.4.10.9 UART_Enable...............................................................................................................122
4.4.10.10 UART_Disable ..............................................................................................................123
4.4.10.11 UART_ClearTx .............................................................................................................123
4.4.10.12 UART_ClearRx .............................................................................................................123
4.4.10.13 UART_Write .................................................................................................................124
4.4.10.14 UART_Read .................................................................................................................124
4.4.10.15 Serial debug output. .....................................................................................................125
4.4.11 Z-Wave Node Mask API .......................................................................................................126
4.4.11.1 ZW_NodeMaskSetBit ...................................................................................................126
4.4.11.2 ZW_NodeMaskClearBit ................................................................................................126
4.4.11.3 ZW_NodeMaskClear ....................................................................................................127
4.4.11.4 ZW_NodeMaskBitsIn ....................................................................................................127
4.4.11.5 ZW_NodeMaskNodeIn .................................................................................................128
4.5 Z-Wave Controller API ...................................................................................................................128
4.5.1 ZW_AddNodeToNetwork .....................................................................................................128
4.5.1.1 bMode parameter .........................................................................................................129
4.5.1.2 completedFunc parameter ...........................................................................................131
4.5.1.3 completedFunc callback timeouts ................................................................................134
4.5.2 ZW_AreNodesNeighbours ...................................................................................................139
4.5.3 ZW_AssignReturnRoute ......................................................................................................141
4.5.4 ZW_AssignSUCReturnRoute ...............................................................................................142
4.5.5 ZW_ControllerChange .........................................................................................................143
4.5.6 ZW_DeleteReturnRoute .......................................................................................................145
4.5.7 ZW_DeleteSUCReturnRoute ...............................................................................................146
4.5.8 ZW_GetControllerCapabilities..............................................................................................148
4.5.9 ZW_GetNeighborCount ........................................................................................................149
4.5.10 ZW_GetLastWorkingRoute ..................................................................................................150
4.5.11 ZW_GetNodeProtocolInfo ....................................................................................................151
4.5.12 ZW_GetRoutingInfo .............................................................................................................152
4.5.13 ZW_GetSUCNodeID ............................................................................................................153
4.5.14 ZW_isFailedNode .................................................................................................................153
4.5.15 ZW_IsPrimaryCtrl .................................................................................................................154
4.5.16 ZW_RemoveFailedNodeID ..................................................................................................155
4.5.17 ZW_ReplaceFailedNode ......................................................................................................157
4.5.18 ZW_RemoveNodeFromNetwork ..........................................................................................159
4.5.18.1 bMode parameter .........................................................................................................160
4.5.18.2 completedFunc parameter ...........................................................................................160
4.5.18.3 completedFunc callback timeouts ................................................................................163
4.5.19 ZW_ReplicationReceiveComplete .......................................................................................167
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page vii of ix
CONFIDENTIAL
4.5.20 ZW_ReplicationSend ...........................................................................................................167
4.5.21 ZW_RequestNodeInfo ..........................................................................................................169
4.5.22 ZW_RequestNodeNeighborUpdate .....................................................................................170
4.5.23 ZW_SendSUCID ..................................................................................................................172
4.5.24 ZW_SetDefault .....................................................................................................................173
4.5.25 ZW_SetLearnMode ..............................................................................................................174
4.5.26 ZW_SetRoutingInfo ..............................................................................................................178
4.5.27 ZW_SetRoutingMAX ............................................................................................................179
4.5.28 ZW_SetSUCNodeID ............................................................................................................179
4.6 Z-Wave Static Controller API .........................................................................................................181
4.6.1 ZW_CreateNewPrimaryCtrl ..................................................................................................181
4.6.2 ZW_EnableSUC ...................................................................................................................183
4.7 Z-Wave Bridge Controller API ........................................................................................................184
4.7.1 ZW_GetVirtualNodes ...........................................................................................................184
4.7.2 ZW_IsVirtualNode ................................................................................................................185
4.7.3 ZW_SendSlaveNodeInformation .........................................................................................186
4.7.4 ZW_SetSlaveLearnMode .....................................................................................................187
4.8 Z-Wave Installer Controller API ......................................................................................................190
4.8.1 zwTransmitCount .................................................................................................................190
4.8.2 ZW_StoreHomeID ................................................................................................................191
4.8.3 ZW_StoreNodeInfo ..............................................................................................................192
4.9 Z-Wave Slave API ..........................................................................................................................193
4.9.1 ZW_SetDefault .....................................................................................................................193
4.9.2 ZW_SetLearnMode ..............................................................................................................194
4.9.3 ZW_Support9600Only ..........................................................................................................196
4.10 Z-Wave Routing and Enhanced Slave API ....................................................................................197
4.10.1 ZW_GetSUCNodeID ............................................................................................................197
4.10.2 ZW_IsNodeWithinDirectRange ............................................................................................197
4.10.3 ZW_RediscoveryNeeded .....................................................................................................198
4.10.4 ZW_RequestNewRouteDestinations ...................................................................................200
4.10.5 ZW_RequestNodeInfo ..........................................................................................................202
4.11 Serial Command Line Debugger ....................................................................................................203
4.11.1 ZW_DebugInit ......................................................................................................................205
4.11.2 ZW_DebugPoll .....................................................................................................................205
4.12 RF Settings in App_RFSetup.a51 file ............................................................................................206
4.12.1 ZW0201/ZW0301 RF parameters ........................................................................................206
5 HARDWARE SUPPORT DRIVERS..................................................................................................208
5.1 Hardware Pin Definitions ................................................................................................................208
6 APPLICATION NOTE: SUC/SIS IMPLEMENTATION .....................................................................211
6.1 Implementing SUC support In All Nodes ........................................................................................211
6.2 Static Controllers ............................................................................................................................211
6.2.1 Request For Becoming SUC ................................................................................................211
6.2.1.1 Request For Becoming a SUC Node ID Server (SIS) ..................................................211
6.2.2 Updates From The Primary Controller .................................................................................212
6.2.3 Assigning SUC Routes To Routing Slaves ..........................................................................212
6.2.4 Receiving Requests for Network Updates ...........................................................................212
6.2.5 Receiving Requests for new Node ID (SIS only) .................................................................212
6.3 The Primary Controller ...................................................................................................................212
6.4 Secondary Controllers ....................................................................................................................213
6.4.1 Knowing The SUC ................................................................................................................213
6.4.2 Asking For And Receiving Updates .....................................................................................213
6.5 Inclusion Controllers .......................................................................................................................214
6.6 Routing Slaves ...............................................................................................................................214
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page viii of ix
CONFIDENTIAL
7 APPLICATION NOTE: INCLUSION/EXCLUSION IMPLEMENTATION .........................................216
7.1 Including new nodes to the network ...............................................................................................216
7.2 Excluding nodes from the network .................................................................................................221
8 APPLICATION NOTE: CONTROLLER SHIFT IMPLEMENTATION ...............................................224
9 REFERENCES ..................................................................................................................................225
INDEX .......................................................................................................................................................226
List of Figures
Figure 1. Software architecture ................................................................................................................... 3
Figure 2. Multiple copies of the same Set frame ......................................................................................... 6
Figure 3. Multiple copies of the same Get/Report frame ............................................................................. 6
Figure 4. Simultaneous communication to a number of nodes ................................................................... 7
Figure 5. Portable controller node architecture ......................................................................................... 10
Figure 6. Routing slave node architecture ................................................................................................. 14
Figure 7. Enhanced slave node architecture ............................................................................................. 16
Figure 8. Node Information frame structure on application level ............................................................... 36
Figure 9. Application state machine for ZW_SendData ............................................................................ 74
Figure 10. PWM waveform ...................................................................................................................... 100
Figure 11. Adding a node to the network................................................................................................. 136
Figure 12. Node Information frame structure without command classes ................................................ 151
Figure 13. Replacing a failed node .......................................................................................................... 159
Figure 14. Removing a node from the network ....................................................................................... 164
Figure 15. Application state machine for ZW_RequestNodeNeighborUpdate ........................................ 171
Figure 16. Statechart of Controller learnmode. ....................................................................................... 177
Figure 17. Inclusion of a node having a SUC in the network .................................................................. 212
Figure 18. Requesting network updates from a SUC in the network ...................................................... 213
Figure 19. Inclusion of a node having a SIS in the network .................................................................... 214
Figure 20. Lost routing slave frame flow.................................................................................................. 215
Figure 21. Node inclusion frame flow ...................................................................................................... 217
Figure 22. Node exclusion frame flow ..................................................................................................... 222
Figure 23. Controller shift frame flow ....................................................................................................... 224
List of Tables
Table 1. ZW0102/ZW0201/ZW0301 hardware timer allocation .................................................................. 8
Table 2. ZW0102/ZW0201/ZW0301 Application ISR avialability ................................................................ 8
Table 3. Controller functionality ................................................................................................................. 19
Table 4. Library functionality ...................................................................................................................... 22
Table 5. Library functionality without a SUC/SIS ....................................................................................... 23
Table 6. Library functionality with a SUC .................................................................................................. 24
Table 7. Library functionality with a SIS .................................................................................................... 25
Table 8. ApplicationPoll frequency ............................................................................................................ 31
Table 9. SendData :: txOptions ................................................................................................................. 69
Table 10. Use of transmit options for controller libraries ........................................................................... 70
Table 11. txStatus values .......................................................................................................................... 71
Table 12. Maximum payload size .............................................................................................................. 72
Table 13. ZW_SendData : State/Event processing ................................................................................... 75
Table 14. AddNode :: bMode ................................................................................................................... 129
Table 15. AddNode :: completedFunc :: learnNodeInfo .......................................................................... 131
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Revision Record and Tables of Contents
Page ix of ix
CONFIDENTIAL
Table 16. AddNode :: completedFunc :: learnNodeInfo.bStatus ............................................................. 132
Table 17. AddNode : State/Event processing – 1 ................................................................................... 137
Table 18. AddNode : State/Event processing – 2 ................................................................................... 138
Table 19. AddNode : State/Event processing – 3 ................................................................................... 139
Table 20. RemoveNode :: bMode ............................................................................................................ 160
Table 21. RemoveNode :: completedFunc :: learnNodeInfo ................................................................... 161
Table 22. RemoveNode :: completedFunc :: learnNodeInfo.bStatus ...................................................... 161
Table 23. RemoveNode : State/Event processing - 1 ............................................................................. 165
Table 24. RemoveNode : State/Event processing - 2 ............................................................................. 166
Table 25. App_RFSetup.a51 module definitions for ZW0201/ZW0301 .................................................. 206
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Abbreviations
Page 1 of 232
CONFIDENTIAL
1 ABBREVIATIONS
Abbreviation
Explanation
ACK
Acknowledge
AES
The Advanced Encryption Standard is a symmetric block cipher algorithm. The
AES is a NIST-standard cryptographic cipher that uses a block length of 128 bits
and key lengths of 128, 192 or 256 bits. Officially replacing the Triple DES method
in 2001, AES uses the Rijndael algorithm developed by Joan Daemen and Vincent
Rijmen of Belgium.
ANZ
Australia/New Zealand
AODV
Ad hoc On-Demand Distance Vector (AODV) Routing
API
Application Programming Interface
ASIC
Application Specific Integrated Circuit
DLL
Dynamic Link Library
DUT
Device Under Test
ERTT
Enhanced Reliability Test tool
EU
Europe
GNU
An organization devoted to the creation and support of Open Source software
HK
Hong Kong
HW
Hardware
IN
India
IL
Israel
ISR
Interrupt Service Routines
LRC
Longitudinal Redundancy Check
LWR
Last Working Route
MY
Malaysia
NAK
Not Acknowledged
NVM
Non-Volatile Memory
NWI
Network Wide Inclusion
PA
Power Amplifier
POR
Power On Reset
PRNG
Pseudo-Random Number Generator
PWM
Pulse Width Modulator
RF
Radio Frequency
RU
Russian Federation
SDK
Software Develooper‟s Kit
SFR
Special Function Registers
SIS
SUC ID Server
SOF
Start Of Frame
SPI
Serial Peripheral Interface
SUC
Static Update Controller
UPnP
Universal Plug and Play
US
United States
WUT
Wake Up Timer
XML
eXtensible Markup Language
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Introduction
Page 2 of 232
CONFIDENTIAL
2 INTRODUCTION
2.1 Purpose
The purpose of this document is to guide the Z-Wave application programmer through the very first
Z-Wave software system build. This programming guide describes the software components, how to
build a complete program and load it on a ZW0201/ZW0301 Z-Wave module. The document is also API
reference guide for programmers.
2.2 Audience and Prerequisites
The audience is Z-Wave Partners. The application programmer should be familiar with the Keil
Development Tool Kit for 8051 micro controllers and the GNU make utility.
2.1 Terms used in this document
The guidelines outlined in IETF RFC 2119 [37] with respect to key words used to indicate requirement
levels are followed. Essentially, the key words "MUST", "MUST NOT", "REQUIRED", "SHALL", "SHALL
NOT", "SHOULD", "SHOULD NOT", "RECOMMENDED", "MAY", and "OPTIONAL" in this document are
to be interpreted as described in RFC 2119.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 3 of 232
CONFIDENTIAL
3 Z-WAVE SOFTWARE ARCHITECTURE
Z-Wave software design relies on polling of functions, command complete callback function calls, and
delayed function calls.
The software contains two program modules, the Z-Wave basis software and the Application software.
The Z-Wave basis software includes system startup code, low-level poll function, main poll loop, Z-Wave
protocol layers, and memory and timer service functions. From the Z-Wave basis point of view the
Application software include application hardware and software initialization functions, application state
machine (called from the Z-Wave main poll loop), command complete callback functions, and a received
command handler function. In addition to that, the application software can include hardware drivers.
Completed
callback
function
Completed
callback
function
Z-Wave protocol layers
RF Hardware
Z-Wave Application layer
Z-Wav e application Interface
Z-Wave modules
Timer
Mainloop
HW Init
Low-level poll
Application modules
Received
command
handler
Application state
machine Completed
callback
function
SW Init
Figure 1. Software architecture
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 4 of 232
CONFIDENTIAL
3.1 Z-Wave System Startup Code
The Z-Wave modules include the system startup function (main). The Z-Wave system startup function
first initializes the Z-Wave hardware and then calls the application hardware initialization function
ApplicationInitHW. Then the Z-Wave software is initialized (including the software timer used by the
timer module) and finally the application software initialization function ApplicationInitSW is called.
Execution then proceeds in the Z-Wave main loop.
On ZW0201 and ZW0301 are there reserved a small memory area in SRAM that are not initalized by the
startup code. These bytes can be used by an application to store information, which should not be
cleared by a software reset (or a WUT wakeup). The area is defined by NON_ZERO_START_ADDR
and and NON_ZERO_SIZE in the header file ZW_non_zero.h.
3.2 Z-Wave Main Loop
The Z-Wave main loop will call the list of Z-Wave protocol functions, including the ApplicationPoll
function and the ApplicationCommandHandler function (if a frame was received) in round robin order.
The functions must therefore be designed to return to the caller as fast as possible to allow the CPU to
do other tasks. Busy loops are not allowed. This will make it possible to receive Z-Wave data, transfer
data via the UART and check user-activated buttons, etc. “simultaneously”. In order not to disrupt the
radio communication and the protocol, no application function must execute code for more than 5ms
without returning.
For production testing the application can be forced into the ApplicationTestPoll function instead of the
ApplicationPoll function.
3.3 Z-Wave Protocol Layers
When the System layer requests a transmission of data to another node, the Z-Wave protocol layer adds
a frame header and a checksum to the data before transmission. The protocol layer also handles frame
retransmissions, as well as routing of frames through “repeater” nodes to Z-Wave nodes that are not
within direct RF communication reach. When the frame transmission is completed, an application-
specified transmit complete callback function is called. The transmission complete callback function
includes a parameter that indicates the transmission result. The transmission complete callback function
indicate also when the next frame can be send to avoid overwriting the transmit queue.
The Z-Wave frame receiver module (within the MAC layer) can include more than one frame receive
buffer, so the upper layers can interpret one frame while the next frame is received.
3.4 Z-Wave Routing Principles
The Z-Wave protocol use source routing, which is a technique whereby the sender of a frame specifies
the exact route the frame must take to reach the destination node. Source routing assumes that the
sender knows the topology of the network, and can therefore determine a route having a minimum
number of hops. The Z-Wave protocol supports up to four repeaters between sender and destination
node. Routing can also be used to reach FLiRS destination nodes. Source routing allows implementation
of a leightweight protocol by avoiding distributed topologies in all repeaters. Nodes containing the
topology can also assign routes to a topology-less node enabling it to communicate with a number of
destination nodes using routes.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 5 of 232
CONFIDENTIAL
In case sender fails to reach destination node using routes an explorer mechanism can be launched on
demand to discover a working route to the destination node in question. The explorer mechanism builds
on AODV routing with adjustments for source routing and memory footprint. Explorer frames implement
managed multi-hop broadcast forwarding and returns a working route to sender as result. The application
payload piggybacks on explorer frame to reduce latency.
The routing algorithm store information about successful attempts to reach a destination node avoiding
repetition of previously failed attempts. The last successful route used between sender and destination
node are stored in NVM and is called Last Working Route (LWR). The LWR list comprises of 232
destination nodes having up to one route/direct each. The LWR can also contain direct attempts.
Updating LWR happens in the following situations:
When receiving a successful explorer frame route.
When receiving a successful routed/direct request from another node.
When receiving a successful acknowledge for a transmitted explorer frame.
When receiving a successful acknowledge for a transmitted routed/direct frame.
The LWR is removed from the LWR list in case it fails.
The routing attempts depend on the Z-Wave library and transmit options used in the node, for details
refer to section 3.9.
The source routing algorithm does not alter the topology due to failed attempts or store any statistics
regarding link quality. Only controller-based nodes can return Last Working Route (LWR) via the API call
ZW_GetLastWorkingRoute enabling application to detect changes in last successful route used.
3.5 Z-Wave Application Layer
The application layer provides the interface to the communications environment which is used by the
application process. The application software is located in the hardware initialization function
ApplicationInitHW, software initialization function ApplicationInitSW, application state machine (called
from the Z-Wave main poll loop) ApplicationPoll, command complete callback functions, and a receive
command handler function ApplicationCommandHandler.
The application implements communication on application level with other nodes in the network. On
application level is a framework defined of Device and Command Classes [1] to obtain interoperability
between Z-Wave enabled products from different vendors. The basic structure of these commands
provides the capability to set parameters in a node and to request parameters from a node responding
with a report containing the requested parameters. The Device and Command Classes are defined in the
header file ZW_classcmd.h.
Wireless communication is by nature unreliable because a well defined coverage area simply does not
exist since propagation characteristics are dynamic and unpredictable. The Z-Wave protocol minimizes
these "noise and distortion" problems by using a transmission mechanisms of the frame there include
two re-transmissions to ensure reliable communication. In addition are single casts acknowledged by the
receiving node so the application is notified about how the transmission went. All these precautions can
unfortunately not prevent that multiple copies of the same frame are passed to the application. Therefore
is it very important to implement a robust state machine on application level there can handle multiple
copies of the same frame. Below are shown a couple of examples how this can happen:
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 6 of 232
CONFIDENTIAL
Figure 2. Multiple copies of the same Set frame
Figure 3. Multiple copies of the same Get/Report frame
A Z-Wave protocol is designed to have low latency on the expense of handling simultaneously
communication to a number of nodes in the Z-Wave network. To obtain this is the number of random
Ack
Node A
Node B
Ack
Set Cmd
Set Cmd (Retry)
Time
Random
backoff
Report
Node A
Node B
Ack
Ack
Get Cmd
Get Cmd (Retry)
Time
Ack
Report
Ack
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 7 of 232
CONFIDENTIAL
backoff values limited to 4 (0, 1 , 2 and 3). The figure below shows how simultaneous communication to
even a small number of nodes easily can block the communication completely.
Figure 4. Simultaneous communication to a number of nodes
Avoid simultaneous request to a number of nodes in a Z-Wave network in case the nodes in question
respond on the application level.
3.6 Z-Wave Software Timers
The Z-Wave timer module is designed to handle a limited number of simultaneous active software timers.
The Z-Wave basis software reserves some of these timers for protocol timeouts.
A delayed function call is initiated by a TimerStart API call to the timer module, which saves the function
address, sets up the timeout value and returns a timer-handle. The timer-handle can be used to cancel
the timeout action e.g. an action completed before the time run out.
The timer can also be used for frequent inspection of special hardware e.g. a keypad. Specifying the time
settings to 50 msec and repeating forever will call the timer call back function every 50 msec.
100% of the nodes responds
Node A
Nodes within direct range
Get Cmd as Broadcast
Time
25% of the nodes responds (RB=0)
25% of the nodes responds (RB=1)
25% of the nodes responds (RB=2)
25% of the nodes responds (RB=3)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 8 of 232
CONFIDENTIAL
3.7 Z-Wave Hardware Timers
The ZW0102/ZW0201 has a number of hardware timers/counters. Some are reserved by the protocol
and others are free to be used by the application as shown in the table below:
Table 1. ZW0102/ZW0201/ZW0301 hardware timer allocation
ZW0102
ZW0201
ZW0301
TIMER0
Available for the application
Protocol system clock
Protocol system clock
TIMER1
Available for the application
in case the UART API is not
used
Available for the application
Available for the application
TIMER2
PWM/Timer API
PWM/Timer API
PWM/Timer API
TIMER3
Protocol system clock
Not available
Not available
The TIMER0 and TIMER1 are standard 8051 timers/counters.
3.8 Z-Wave Hardware Interrupts
Application interrupt service routines (ISR) must use 8051 register bank 0. However, do not use USING 0
attribute when declaring ISR‟s. The Z-Wave protocol uses 8051 register bank 1 for protocol ISR‟s, see
table below regarding application ISR availability:
Table 2. ZW0102/ZW0201/ZW0301 Application ISR avialability
ZW0102
ZW0201
ZW0301
INUM_INT0
INUM_TIMER0
INUM_TIMER1
INUM_TIMER2
INUM_SERIAL0
INUM_ADC
INUM_INT0
INUM_INT1
INUM_TIMER1
INUM_SERIAL
INUM_SPI
INUM_TRIAC
INUM_GP_TIMER
INUM_ADC
INUM_INT0
INUM_INT1
INUM_TIMER1
INUM_SERIAL
INUM_SPI
INUM_TRIAC
INUM_GP_TIMER
INUM_ADC
It is not allowed to disable interrupt more than it takes to received 8 bits, which is around 0.8ms at
9.6kbps.
Refer to ZW010x.h ZW020x, and ZW030x.h header files with respect to ISR definitions. For an example,
refer to UART ISR in serial API sample application.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 9 of 232
CONFIDENTIAL
3.9 Z-Wave Nodes
From a protocol point of view there are seven types of Z-Wave nodes: Portable Controller nodes, Static
Controller nodes, Installer Controller nodes, Bridge Controller nodes, Routing Slave nodes and
Enhanced Slave nodes. All controller based nodes stores information about other nodes in the Z-Wave
network. The node information includes the nodes each of the nodes can communicate with (routing
information). The Installation node will present itself as a Controller node, which includes extra
functionality to help a professional installer setup, configure and troubleshoot a Z-Wave network. The
bridge controller node stores information about the nodes in the Z-Wave network and in addition is it
possible to generate up to 128 Virtual Slave nodes.
3.9.1 Z-Wave Portable Controller Node
The software components of a Z-Wave portable controller are split into the controller application and the
Z-Wave-Controller basis software, which includes the Z-Wave protocol layers and control of the various
data stored into the NVM.
Portable controller nodes include an external EEPROM in which the non-volatile application data area
can be placed. The Z-Wave basis software has reserved the first area of the external EEPROM. The
physical application memory offset is defined in the header file “ZW_eep_addr.h”.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 10 of 232
CONFIDENTIAL
Controller
Application
Z-Wave protocol
Transport API
RF Hardware
Z-Wave
Controller
EEPROM/Flash
External
EEPROM
Controller API
Z-Wave Controller
Timer
Mainloop
HW Init
Z-Wave data
Appl. data
RTC
Memory API
RTC APITimer API
Basis API
Figure 5. Portable controller node architecture
The Portable Controller node has a unique home ID number assigned, which is stored in the Z-Wave
basis area of the external EEPROM. Care must be taken, when reprogramming the external EEPROM,
that different controller nodes do not get the same home ID number. Refer to [38] regarding a description
of external EEPROM programming.
When new Slave nodes are registered to the Z-Wave network, the Controller node assigns the home ID
and a unique node ID to the Slave node. The Slave node stores the home ID and node ID.
When a controller is primary, it will send any networks changes to the SUC node in the network.
Controllers can request network topology updates from the SUC node.
The routing attempts done by a portable controller to reach the destination node are as follows:
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 11 of 232
CONFIDENTIAL
If LWR do not exist and TRANSMIT_OPTION_ACK set. Try direct with retries.
If LWR exist and TRANSMIT_OPTION_ACK set. Try direct without retries. In case it fails, try the
LWR. In case the LWR also fails, purge it.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then calculate
up to two routing attempts per entry/repeater node. Defaut maximum number is five to limit
number of tries (see ZW_SetRoutingMAX).
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set, then direct with
retries.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_EXPLORE are set then issue an
explore frame as last resort.
When developing application software the header file “ZW_controller_api.h” also include the other
Z-Wave API header files e.g. ZW_timer_api.h.
The following define must be set when compiling the application: ZW_CONTROLLER.
The application must be linked with ZW_CONTROLLER_PORTABLE_ZWS.LIB
( = 030X for ZW0301 modules, etc).
3.9.2 Z-Wave Static Controller Node
The software components of a Z-Wave static controller node are split into a Static Controller application
and the Z-Wave Static Controller basis software, which includes the Z-Wave protocol layers and control
of the various data stored into the NVM.
The difference between the static controller and the controller described in chapter 3.9.1 is that the static
controller cannot be powered down, that is it cannot be used for battery-operated devices. The static
controller has the ability to look for neighbors when requested by a controller. This ability makes it
possible for a primary controller to assign static routes from a routing slave to a static controller.
The Static Controller can be set as a SUC node, so it can sends network topology updates to any
requesting secondary controller. A secondary static controller not functioning as SUC can also request
network Topology updates.
The routing attempts done by a static controller to reach the destination node are as follows:
If LWR do not exist and TRANSMIT_OPTION_ACK set. Try direct when neighbors.
If LWR exist and TRANSMIT_OPTION_ACK set. Try the LWR. In case the LWR fails, purge it
and try direct if neighbor.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then calculate
up to two routing attempts per entry/repeater node. Defaut maximum number is five to limit
number of tries (see ZW_SetRoutingMAX).
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set, then direct with
retries.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_EXPLORE are set then issue an
explore frame as last resort.
When developing application software the header file “ZW_controller_static_api.h” also include the other
Z-Wave API header files e.g. ZW_timer_api.h.
The following define is being included compiling the application: ZW_CONTROLLER_STATIC.
The application must be linked with ZW_CONTROLLER_STATIC_ZWS.LIB
( = 030X for ZW0301 modules, etc).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 12 of 232
CONFIDENTIAL
3.9.3 Z-Wave Installer Controller Node
The software components of a Z-Wave Installer Controller are split into an Installer Controller application
and the Z-Wave Installer Controller basis software, which includes the Z-Wave protocol layer.
The Installer Controller is essentially a Z-Wave Controller node, which incorporates extra functionality
that can be used to implement controllers especially targeted towards professional installers who support
and setup a large number of networks.
The routing attempts done by an installer controller to reach the destination node are as follows:
If LWR do not exist and TRANSMIT_OPTION_ACK set. Try direct with retries.
If LWR exist and TRANSMIT_OPTION_ACK set. Try direct without retries. In case it fails, try the
LWR. In case the LWR also fails, purge it.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then calculate
up to two routing attempts per entry/repeater node. Defaut maximum number is five to limit
number of tries (see ZW_SetRoutingMAX).
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set, then direct with
retries.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_EXPLORE are set then issue an
explore frame as last resort.
The following define must be set when compiling the application: ZW_INSTALLER
The application must be linked with ZW_CONTROLLER_INSTALLER_ZWS.LIB
( = 030X for ZW0301 modules, etc).
3.9.4 Z-Wave Bridge Controller Node
The software components of a Z-Wave Bridge Controller node are split into a Bridge Controller
application and the Z-Wave Bridge Controller basis software, which includes the Z-Wave protocol layer.
The Bridge Controller is essential a Z-Wave Static Controller node, which incorporates extra functionality
that can be used to implement controllers, targeted for bridging between the Z-Wave network and others
network (ex. UPnP).
The Bridge application interface is an extended Static Controller application interface, which besides the
Static Controller application interface functionality gives the application the possibility to manage Virtual
Slave nodes. Virtual Slave nodes is a routing slave node without repeater and assign return route
functionality, which physically resides in the Bridge Controller. This makes it possible for other Z-Wave
nodes to address up to 128 Slave nodes that can be bridged to some functionality or to devices, which
resides on a foreign Network type.
The routing attempts done by a bridge controller to reach the destination node are as follows:
If LWR do not exist and TRANSMIT_OPTION_ACK set. Try direct when neighbors.
If LWR exist and TRANSMIT_OPTION_ACK set. Try the LWR. In case the LWR fails, purge it
and try direct if neighbor.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then calculate
up to two routing attempts per entry/repeater node. Defaut maximum number is five to limit
number of tries (see ZW_SetRoutingMAX).
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set, then direct with
retries.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_EXPLORE are set then issue an
explore frame as last resort.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 13 of 232
CONFIDENTIAL
When developing application software the header file “ZW_controller_bridge_api.h” also include the other
Z-Wave API header files.
The following define is being included compiling the application: ZW_CONTROLLER_BRIDGE.
The application must be linked with ZW_CONTROLLER_BRIDGE_ZWS.LIB
( = 030X for ZW0301 modules, etc).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 14 of 232
CONFIDENTIAL
3.9.5 Z-Wave Routing Slave Node
The software components of a Z-Wave routing slave node are split into a Slave application and the
Z-Wave-Slave basis software, which includes the Z-Wave protocol layers.
Slave
Application
Z-Wave protocol
Transport API
RF Hardware
Z-Wave
Slave
Data Flash Area
Slave API
Z-Wave Slave
Timer
Mainloop
HW Init
Z-Wave data
Appl. data
Memory API
Timer API
Basis API
Figure 6. Routing slave node architecture
The routing slave is capable of initiating communication. Examples of a routing slave could be a wall
control or temperature sensor. If a user activates the wall control, the routing slave sends an “on”
command to a lamp (slave).
The routing slave does not have a complete routing table. Frames are sent to destinations configured
during association. The association is performed via a controller. If routing is needed for reaching the
destinations, it is also up to the controller to calculate the routes.
Routing slave nodes have an area of 4352 bytes in the flash reserved for storing data, but only 125 bytes
can be used directly.
The home ID and node ID of a new node is zero. When registering a slave node to a Z-Wave network
the slave node receive home and node ID from the networks primary controller node. These ID‟s are
stored in the Z-Wave basis data area in the flash.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 15 of 232
CONFIDENTIAL
The routing slave can send unsolicited and non-routed broadcasts, singlecasts and multicasts.
Singlecasts can also be routed. Further it can respond with a routed singlecast (response route) in case
another node has requested this by sending a routed singlecast to it. A received multicast or broadcast
results in a response route without routing.
A temperature sensor based on a routing slave may be battery operated. To improve battery lifetime, the
application may bring the node into sleep mode most of the time. Using the wake-up timer (WUT), the
application may wake up once per second, measure the temperature and go back to sleep. In case the
measurement exceeded some threshold, a command (e.g. “start heating”) may be sent to a heating
device before going back to sleep.
The routing attempts done by a routing slave to reach the destination node are as follows:
If TRANSMIT_OPTION_ACK is set and destination is available in response routes, try response
route.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then try return
routes.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then try direct.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_EXPLORE are set, issue an explore
frame as last resort.
The return route comprises of five destinations having up to four routes each. Return routes can also
contain direct attempts.
The FIFO contains up to two routes. New routes/direct are qualified for return route insertion by checking
if the destination exist and route/direct do not exist. In that event the new route/direct entry will be placed
either in a free route or the one having lowest priority. The protocol will update response routes in slaves
in the following situations:
When receiving a successful explorer frame route.
When receiving a successful routed/direct request from another node.
When receiving a successful acknowledge for a transmitted explorer frame.
When receiving a successful acknowledge for a transmitted routed/direct frame.
When developing application software the header file “ZW_slave_routing_api.h” also include the other
Z-Wave API header files e.g. ZW_timer_api.h.
The following define will be generated by the headerfile, if it does not already exist when when compiling
the application: ZW_SLAVE.
The application must be linked with ZW_SLAVE_ROUTING_ZWS.LIB
( = 030X for ZW0301 modules, etc).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 16 of 232
CONFIDENTIAL
3.9.6 Z-Wave Enhanced Slave Node
The Z-Wave enhanced slave has the same basic functionality as a Z-Wave routing slave node, but offers
more memory that is non-volatile.
Slave
Application
Z-Wave protocol
Transport API
RF Hardware
Z-Wave
Slave
Slave API
Z-Wave Slave
Timer
Mainloop
HW Init
Memory API
Timer API
Basis API
RTC
RTC API
EEPROM
External
EEPROM
Z-Wave
data
Appl. data
Figure 7. Enhanced slave node architecture
Enhanced slave nodes have an external EEPROM and an WUT. The external EEPROM is used as non
volatile memory instead of FLASH. The Z-Wave basis software reserves the first area of the external
EEPROM, and the last area of the EEPROM are reserved for the application data. The physical
application memory offset is defined in the header file “ZW_eep_addr.h”.
The routing attempts done by an enhanced slave to reach the destination node are as follows:
If TRANSMIT_OPTION_ACK is set and destination is available in response routes, try response
route.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then try return
routes.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then try direct.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_EXPLORE are set, issue an explore
frame as last resort.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 17 of 232
CONFIDENTIAL
The return route comprises of five destinations having up to four routes each. Return routes can also
contain direct attempts.
The FIFO contains up to two routes. New routes/direct are qualified for return route insertion by checking
if the destination exist and route/direct do not exist. In that event the new route/direct entry will be placed
either in a free route or the one having lowest priority. The protocol will update response routes in slaves
in the following situations:
When receiving a successful explorer frame route.
When receiving a successful routed/direct request from another node.
When receiving a successful acknowledge for a transmitted explorer frame.
When receiving a successful acknowledge for a transmitted routed/direct frame.
When developing application software the header file “ZW_slave_32_api.h” also include the other
Z-Wave API header files e.g. ZW_timer_api.h.
The following define will be generated by the headerfile, if it does not already exist when compiling the
application: ZW_SLAVE and ZW_SLAVE_32.
The application must be linked with ZW_SLAVE_ENHANCED_ZWS.LIB
( = 030X for ZW0301 modules, etc).
3.9.7 Z-Wave Enhanced 232 Slave Node
The Z-Wave enhanced 232 slave has the same basic functionality as a Z-Wave enhanced slave node,
but offers return route assignment of up to 232 destination nodes instead of 5.
The routing attempts done by an enhanced 232 slave to reach the destination node are as follows:
If TRANSMIT_OPTION_ACK is set and destination is available in response routes, try response
route.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then try return
routes.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_AUTO_ROUTE are set then try direct.
If TRANSMIT_OPTION_ACK and TRANSMIT_OPTION_EXPLORE are set, issue an explore
frame as last resort.
The return route comprises of 232 destinations having up to four routes each. Return routes can also
contain direct attempts. Return routes can also contain direct attempts.
The FIFO contains up to one route. New routes/direct are qualified for return route insertion by checking
if the destination exist and route/direct do not exist. In that event the new route/direct entry will be placed
either in a free route or the one having lowest priority. The protocol will update response routes in slaves
in the following situations:
When receiving a successful explorer frame route.
When receiving a successful routed/direct request from another node.
When receiving a successful acknowledge for a transmitted explorer frame.
When receiving a successful acknowledge for a transmitted routed/direct frame.
When developing application software the header file “ZW_slave_32_api.h” also include the other
Z-Wave API header files e.g. ZW_timer_api.h.
The following define will be generated by the headerfile, if it does not already exist when compiling the
application: ZW_SLAVE and ZW_SLAVE_32.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 18 of 232
CONFIDENTIAL
The application must be linked with ZW_SLAVE_ENHANCED_232_ZWS.LIB
( = 030X for ZW0301 modules, etc).
3.9.8 Adding and Removing Nodes to/from the network
Its only controllers that can add new nodes to the Z-Wave network, and reset them again is the primary
or inclusion controller. The home ID of the Primary Z-Wave Controller identifies a Z-Wave network.
Information about the result of a learn process is passed to the callback function in a variable with the
following structure:
typedef struct _LEARN_INFO_
{
BYTE bStatus; /* Status of learn mode */
BYTE bSource; /* Node id of the node that send node info */
BYTE *pCmd; /* Pointer to Application Node information */
BYTE bLen; /* Node info length */
} LEARN_INFO;
When adding nodes to the network the controller have a number of choices of how to add and what
nodes to add to the network.
Adding a node normally.
The normal way to add a node to the network is to use ZW_AddNodeToNetwork() function on the
primary controller, and use the function ZW_SetLearnMode() on the node that should be included into
the network.
Adding a new controller and make it the primary controller
A primary controller can add a controller to the network and in the same process give the role as primary
controller to the new controller. This is done by using the ZW_ControllerChange() on the primary
controller, and use the function ZW_SetLearnMode() on the controller that should be included into the
network.. Note that the original primary controller will become a secondary controller when the inclusion
is finished.
Create a new primary controller
When there is a Static Update Controller (SUC) in the network then it is possible to create a new primary
controller if the original primary controller is lost or broken. This is done by using the
ZW_CreateNewPrimary() function on the SUC, and use the function ZW_SetLearnMode() on the
controller that should become the new primary controller in the network.
NOTE: A new primary controller will when adding new nodes use the first free node ID starting from 1.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 19 of 232
CONFIDENTIAL
The table below lists the options valid on the different types of Controller libraries.
Table 3. Controller functionality
Library
used
Node management
ZW_AddNodeToNetwork
ZW_RemoveNodeFromNetwork
ZW_ControllerChange
ZW_CreateNewPrimary
Static
Controller
Primary
Primary
Primary
When Secondary
and only when
configured as SUC
(Portable)
Controller
Primary
Primary
Primary
Not allowed
Installer
Controller
Primary
Primary
Primary
Not allowed
Bridge
Controller
Possible but should
not be used
Possible but should not be
used
Possible but
should not be
used
Possible but should
not be used
Careful considerations should be made as to how the application should implement the process of
adding a new controller. Generally speaking the ZW_CreateNewPrimary() option should never be readily
available to end-users, since it can be devastating to a network because the user might end up having
multiple primary controllers in the network. Another thing to note is that having a Static controller, as a
primary controller is only optimal when no portable Controllers exist in the network. A portable Controller
offers more flexibility in terms of adding and removing nodes to/from the network since it can be moved
around and will report any changes to a Static Controller configured to be a SUC. With these thoughts in
mind it is recommended that a network always have one portable controller and if that is not possible, the
Primary Static controller should change to secondary when the user wants to include a portable
Controller of some sorts.
The most optimal controller setup for networks with several controllers consists of a Static Controller
acting as SUC, a portable Primary controller for adding and removing nodes to the network. Controllers
besides these two should act as secondary controllers, which from time to time checks with the SUC to
get any network updates.
This way the network can be reconfigured and enhanced by using the portable primary controller and all
controllers in the network will be able to get the changes from the SUC without user intervention.
SUC ID Server
A SUC with enabled node ID server functionality is called a SUC ID Server (SIS). The SIS becomes the
primary controller in the network because it now has the latest update of the network topology and
capability to include/exclude nodes in the network. When including a controller to the network it becomes
an inclusion controller because it has the capability to include/exclude nodes in the network via the SIS.
The inclusion controllers network topology is dated from last time a node was included or it requested a
network update from the SIS.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave software Architecture
Page 20 of 232
CONFIDENTIAL
3.9.9 The Automatic Network Update
A Z-Wave network consists of slaves, a primary controller and secondary controllers. New nodes can
only be added and removed to/from the network by using the primary controller. This could cause
secondary controllers and routing slaves to misbehave, if for instance a preferred repeater node is
removed. Without automatic network updating a new replication has to be made from the primary
controller to all secondary controllers and routing slaves should also be manually updated with the
changes. In networks with several controller and routing slave nodes, this process will be cumbersome.
To automate this process, an automatic network update scheme has been introduced to the Z-Wave
protocol. To use this scheme a static controller should be available in the network. This static controller
should be dedicated to hold a copy of the network topology and the latest changes that have occurred to
the network. The static controller used in the Automatic update scheme is called the Static Update
Controller (SUC).
Each time a node is added, deleted or a routing change occurs, the primary controller will send the node
information to the SUC. Secondary controllers can then ask the SUC if any updates are pending. The
SUC will then in turn respond with any changes since last time this controller asked for updates. On the
controller requesting an update, ApplicationControllerUpdate will be called to notify the application that
a new node has been added or removed in the network.
The SUC holds up to 64 changes of the network. If a node requests an update after more than 64
changes occurred, then it will get a complete copy (see ZW_RequestNetWorkUpdate).
Routing slaves have the ability to request updates for its known destination nodes. If any changes have
occurred to the network, the SUC will send updated route information for the destination nodes to the
Routing slave that requested the update. The Routing slave application will be notified when the process
is done, but will not get information about any changes to its routes.
If the primary controller sends a new node‟s node information and its routes to the SUC while it is
updating a secondary controller, the updating process will be aborted to process the new nodes
information.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 21 of 232
CONFIDENTIAL
4 Z-WAVE APPLICATION INTERFACES
The Z-Wave basis software consists of a number of different modules. Time critical functions are written
in assembler while the other Z-Wave modules are written in C. The Z-Wave API consists of a number of
C functions which give the application programmer direct access to the Z-Wave functionality.
4.1 API usage guidelines
The following guidelines should be followed when making a Z-Wave application.
4.1.1 Buffer protection
Some API calls has one parameter that is a pointer to a buffer in the application SRAM area and another
parameter that is a pointer to a callback function. When using these API functions in Z-Wave, it is
important that the application does not change the contents of the buffer before the last callback from the
API function has been issued. If the content of the buffer is changed before that callback, the Z-Wave
protocol might perform the function on invalid data.
4.1.2 Overlapping API calls
In general, it should be avoided to call an API function before the previously started API function is
finished and has called the callback function for the last time. Due to the limited resources available for
the API not all combinations of API calls will work, some API calls will use the same state machine or the
same buffers so if multiple functions is started one or both of the functions might fail.
4.1.3 Error handling.
For purpose of robustness, an application implementation may choose to guard callback API calls whith
a timer. In this guide, a timeout value for each API call, which uses a callback, is given. In some functions
it is necessarry to to execute some commands in order to recover from a timeout exception. Recovery
handling is described for each operation.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 22 of 232
CONFIDENTIAL
4.2 Z-Wave Libraries
4.2.1 Library Functionality
Each of the API‟s provided in the Developer‟s Kit contains a subset of the full Z-Wave functionality; the
table below shows what kind of functionality the API‟s support independent of the network configuration:
Table 4. Library functionality
Routing
Slave
Enhanced
Slave
Portable
Controller
Static
Controller
Installer
Controller
Bridge
Controller
Basic Functionality
Singlecast
X
X
X
X
X
X
Multicast
X
X
X
X
X
X
Broadcast
X
X
X
X
X
X
UART support
X
X
X
X
X
X
SPI support
-
-
-
-
-
-
ADC support
X
X
X
X
X
X
TRIAC control
X
X
X
X
X
X
PWM/HW timer support
X
X
X
X
X
X
Power management
X
X
X
-
X
-
SW timer support
X
X
X
X
X
X
Controller replication
-
-
X
X
X
X
Promiscuous mode
-
-
X
-
X
-
Random number generator
X
X
X
X
X
X
Able to act as NWI center
-
-
X
X
X
X
Able to be included via the NWI mechanism
X
X
X
X
X
X
Able to issue an explorer frame
X
X
X
X
X
X
Able to forward an explorer frame
X
X
-
X
-
-
Memory Location
Non-volatile RAM in flash
X
-
-
-
-
-
Non-volatile RAM in EEPROM
-
X
X
X
X
X
Network Management
Network router (repeater)
X
X
-
X
-
-
Assign routes to routing slave
-
-
X
X
X
X
Routing slave functionality
X
X
-
-
-
-
Access to routing table
-
-
X
-
X
-
Maintain virtual slave nodes
-
-
-
-
-
X†
Able to be a FLiRS node
X
X
-
-
-
-
Able to beam when repeater
X
X
-
-
-
-
Able to create route containing beam
X‡
X2
X
X
X
-
†
Only when secondary controller
‡
Only when return routes are assigned by a controller capable of creating routes containing beam
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 23 of 232
CONFIDENTIAL
4.2.1.1 Library Functionality without a SUC/SIS
Some of the API‟s functionality provided on the Developer‟s Kit depends on the network configuration.
The table below shows what kind of functionality the API‟s support without a SUC/SIS in the Z-Wave
network:
Table 5. Library functionality without a SUC/SIS
Routing
Slave
Enhanced
Slave
Portable
Controller
Static
Controller
Installer
Controller
Bridge
Controller
Network Management
Controller replication
-
-
X
X
X
X
Controller shift
-
-
X§
X1
X1
X1
Create new primary controller
-
-
-
-
-
-
Request network updates
-
-
-
-
-
-
Request rediscovery of a node
-
-
X1
X1
X1
X1
Remove failing nodes
-
-
X1
X1
X1
X1
Replace failing nodes
-
-
X1
X1
X1
X1
“I‟m lost“ – cry for help
X
X
-
-
-
-
“I‟m lost“ – provide help
-
-
-
-
-
-
Provide routing table info
-
-
X
X
X
X
§
Only when primary controller
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 24 of 232
CONFIDENTIAL
4.2.1.2 Library Functionality with a SUC
Some of the API‟s functionality provided on the Developer‟s Kit depends on the network configuration.
The table below shows what kind of functionality the API‟s support with a Static Update Controller (SUC)
in the Z-Wave network:
Table 6. Library functionality with a SUC
Routing
Slave
Enhanced
Slave
Portable
Controller
Static
Controller
Installer
Controller
Bridge
Controller
Network Management
Controller replication
-
-
X
X
X
X
Controller shift
-
-
X1
X**
X1
X2
Create new primary controller
-
-
-
X††
-
X3
Request network updates
X
X
X
X
X
X
Request rediscovery of a node
-
-
X1
X1
X1
X1
Remove failing nodes
-
-
X1
X1
X1
X1
Replace failing nodes
-
-
X1
X1
X1
X1
Set static ctrl. to SUC
-
-
X1
X1
X1
X1
Work as SUC
-
-
-
X
-
X
Work as primary controller
X
X
X
X
“I‟m lost“ – cry for help
X
X
-
-
-
-
“I‟m lost“ – provide help
X‡‡
X3
X3
X§§
X3
X
Provide routing table info
-
-
X
X
X
X
**
Only when primary controller and not SUC
††
Only when SUC and not primary controller
‡‡
Only if “always listening”
§§
The library without repeater functionality cannot provide help or forward help requests.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 25 of 232
CONFIDENTIAL
4.2.1.3 Library Functionality with a SIS
Some of the API‟s functionality provided on the Developer‟s Kit depends on the network configuration.
The table below shows what kind of functionality the API‟s support with a SUC ID Server (SIS) in the
Z-Wave network:
Table 7. Library functionality with a SIS
Routing
Slave
Enhanced
Slave
Portable
Controller
Static
Controller
Installer
Controller
Bridge
Controller
Network Management
Controller replication
-
-
X
X
X
X
Controller shift
-
-
-
-
-
-
Create new primary controller
-
-
-
-
-
-
Request network updates
X
X
X
X
X
X
Request rediscovery of a node
-
-
X1
X1
X1
X1
Remove failing nodes
-
-
X1
X1
X1
X1
Replace failing nodes
-
-
X1
X1
X1
X1
Set static ctrl. to SIS
-
-
X2
X2
X2
X2
Work as SIS
-
-
-
X
-
X
Work as inclusion controller
X
X
X
X
“I‟m lost“ – cry for help
X
X
-
-
-
-
“I‟m lost“ – provide help
X3
X3
X3
X4
X3
X
Provide routing table info
-
-
X
X
X
X
Note that the ability to provide help for “I‟m lost” requests is limited to forwarding the request to the SIS.
Only the portable controller configured as SIS can actually do the updating of the device.
1 Only when primary/inclusion controller
2 Only when primary controller
3 Only if “always listening”
4 The library without repeater functionality cannot provide help or forward help requests.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 26 of 232
CONFIDENTIAL
4.2.1.4 Library Memory Usage
Each API library uses some of the 32KB flash and 2KB RAM available in the ZW0201/ZW0301. Refer to
the software release note [20] regarding the minimum amount of flash and RAM that is available for an
application build on the library in question. Using the debug functionality of the API will use up to 4K of
additional flash and 60 bytes of RAM.
In case an application doesn‟t have enough flash memory available the following flash usage
optimization tips can be used:
1. Use BOOL instead of BYTE for TRUE/FALSE type variables.
2. Try to force the compiler to use registers for local BYTE variables in functions.
3. Avoid using floats because the entire floating point library is linked to the application.
4. Loops are often smallest if they can be done with a do while followed by a decrease of the counter
variable.
5. The Keil compiler does not always recognize duplicated code that is used in several different places,
so try to move the code to a function and call that instead.
6. Avoid having functions with many parameters, use globals instead.
7. Changing the order of parameters in a function definition will sometimes save code space because
the compiler optimization depends on the parameter order.
8. Be aware when using functions from the standard C libraries because the entire library is linked to
the application.
9. The dead code elimination in the Keil compiler doesn't always work, so remove all unused code
manually.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 27 of 232
CONFIDENTIAL
4.3 Z-Wave Header Files
The C prototypes for the functions in the API‟s are defined in header files, grouped by functionality:
Protocol releated header
files
Description
ZW_controller_api.h
Portable Controller interface. This header should be
used together with the Controller Library.
Macro defines.
Include all necessary header files.
ZW_controller_bridge_api.h
Bridge controller interface. This header should be
used together with the Bridge Controller Library.
Macro defines.
Includes all necessary header files.
ZW_controller_installer_api.h
Installer interface. This header file should be used
together with the Installer Controller library.
Macro defines.
Includes all other necessary header files.
ZW_controller_static_api.h
Static Controller interface. This header should be used
together with the Static Controller Library.
Macro defines.
Includes all necessary header files.
ZW_sensor_api.h
Sensor interface.
Macro defines.
Includes all other necessary header files.
ZW_slave_32_api.h
Slave interface for ZMXXXX-RE Z-Wave module.
Macro defines.
Include all header files.
ZW_slave_api.h
Slave interface.
Macro defines.
Includes all other necessary header files.
ZW_slave_routing_api.h
Routing and Enhanced slave node interface.
Macro definitions.
Includes all other necessary header files.
ZW_basis_api.h
Z-Wave Application general software interface.
Interface to common Z-Wave functions.
ZW_transport_api.h
Transfer of data via Z-Wave protocol.
ZW_classcmd.h
Defines for device and command classes used to
obtain interoperability between Z-Wave enabled
products from different vendors, for a detailed
description refer to [1].
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 28 of 232
CONFIDENTIAL
Various header files
Description
ZW020x.h
Inventra m8051w SFR and ISR defines for the Z-Wave
ZW020x RF transceiver.
ZW030x.h
Inventra m8051w SFR and ISR defines for the Z-Wave
ZW030x RF transceiver.
ZW_adcdriv_api.h
ADC functionality.
ZW_appltimer.h
PWM/Timer function
ZW_debug_api.h
Debugging functionality via serial port.
ZW_eep_addr.h
Define EEPROM_APPL_OFFSET, which is the offset
address to store application data in NVM. Addresses
between 0x0 and EEPROM_APPL_OFFSET is used by
the protocol.
ZW_mem_api.h
EEPROM interface.
ZW_nodemask_api.h
Routines for manipulation of node ID lists organized as
bit masks.
ZW_non_zero.h
Define none zero area of the SRAM (ZW0201/ZW0301
only). See also section 3.1
ZW_power_api.h
ASIC power management functionality.
ZW_RF020x.h
Flash ROM RF table offset for the Z-Wave ZW020x
ZW_RF030x.h
Flash ROM RF table offset for the Z-Wave ZW030x
ZW_SerialAPI.h
Serial API interface with function ID defines etc.
ZW_sysdefs.h
CPU and clock defines.
ZW_timer_api.h
Timer functionality.
ZW_triac_api.h
TRIAC controller functionality.
ZW_typedefs.h
Common used defines (BYTE, WORD…).
ZW_uart_api.h
UART functionality.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 29 of 232
CONFIDENTIAL
4.4 Z-Wave Common API
This section describes interface functions that are implemented within all Z-Wave nodes. The first
subsection defines functions that must be implemented within the application modules, while the second
subsection defines the functions that are implemented within the Z-Wave basis library.
Functions that do not complete the requested action before returning to the application (e.g.
ZW_SEND_DATA) have a callback function pointer as one of the entry parameters. Unless explicitly
specified this function pointer can be set to NULL (no action to take on completion).
4.4.1 Required Application Functions
The Z-Wave library requires the functions mentioned here implemented within the Application layer.
4.4.1.1 ApplicationInitHW
BYTE ApplicationInitHW( BYTE bWakeupReason )
ApplicationInitHW should initialize application used hardware. The Z-Wave hardware initialization
function set all application IO pins to input mode. The ApplicationInitHW function is called by the
Z-Wave main function during system startup. At this point of time the Z-Wave timer system is not started
so waiting on hardware to get ready may be done by CPU busy loops.
Defined in: ZW_basis_api.h
Return value:
BYTE
TRUE
Application hardware initialized
FALSE
Application hardware initialization failed. Protocol
enters test mode and Calls ApplicationTestPoll
Parameters:
bWakeupReason IN
Wakeup flags:
ZW_WAKEUP_RESET
Woken up by reset or external interrupt
ZW_WAKEUP_WUT
Woken up by the WUT timer
ZW_WAKEUP_SENSOR
Woken up by a wakeup beam
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 30 of 232
CONFIDENTIAL
4.4.1.2 ApplicationInitSW
BYTE ApplicationInitSW( void )
ApplicationInitSW should initialize application used memory and driver software. ApplicationInitSW is
called from the Z-Wave main function during system startup. At this point of time the Z-Wave timer
system is not started, therefore e.g. ZW_MEM_PUT functions cannot be used.
Defined in: ZW_basis_api.h
Return value:
BYTE
TRUE
Application software initialized
FALSE
Application software initialization failed.
(No Z-Wave basis action implemented
yet)
Serial API (Not supported)
4.4.1.3 ApplicationTestPoll
void ApplicationTestPoll( void )
The ApplicationTestPoll function is the entry point from the Z-Wave basis software to the application
software when the production test mode is enabled in the protocol. This will happen when
ApplicationInitHW returns FALSE. The ApplicationTestPoll function will be called indefinitely until the
device is reset. The device must be reset and ApplicationInitHW must return TRUE in order to exit this
mode. When ApplicationTestPoll is called the protocol will acknowledge frames sent to home ID 0 and
node ID as follows:
Device
Node ID
Slave
0x00
Controllers before Dev. Kit v3.40
0xEF
Controllers from Dev. Kit v3.40 or later
0x01
The following API calls are only available in production test mode:
1. ZW_EepromInit is used to initialize the external EEPROM. Remember to initialize controllers
with a unique home ID that typically can be transferred via the UART on the production line.
2. ZW_SendConst is used to validate RF communication. Remember to enable RF communication
when testing products based on a portable controller, routing slave or enhanced slave.
Defined in: ZW_basis_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 31 of 232
CONFIDENTIAL
4.4.1.4 ApplicationPoll
void ApplicationPoll( void )
The ApplicationPoll function is the entry point from the Z-Wave basis software to the application
software modules. The ApplicationPoll function is called from the Z-Wave main loop when no low-level
time critical actions are active. In order not to disrupt the radio communication and the protocol, no
application function must execute code for more than 5ms without returning.
To determine the ApplicationPoll frequency (see table below) is a LED Dimmer application modified to be
able to measure how often ApplicationPoll is called via an output pin. The minimum value is measured
when the module is idle, i.e. no RF communication, no push button activation etc. The maximum value is
measured when the ERTT application at the same time sends Basic Set Commands (value equal 0) as
fast as possible to the LED Dimmer (DUT).
Table 8. ApplicationPoll frequency
ZW0102 LED Dimmer
ZW0201 LED Dimmer
ZW0301 LED Dimmer
Minimum
58 us
7.2 us
7.2 us
Maximum
3.8 ms
2.4 ms
2.4 ms
Defined in: ZW_basis_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 32 of 232
CONFIDENTIAL
4.4.1.5 ApplicationCommandHandler (Not Bridge Controller library)
In libraries not supporting promiscuous mode (see Table 4):
void ApplicationCommandHandler( BYTE rxStatus,
BYTE sourceNode,
ZW_APPLICATION_TX_BUFFER *pCmd,
BYTE cmdLength)
In libraries supporting promiscuous mode:
void ApplicationCommandHandler( BYTE rxStatus,
BYTE destNode,
BYTE sourceNode,
ZW_APPLICATION_TX_BUFFER *pCmd,
BYTE cmdLength)
The Z-Wave protocol will call the ApplicationCommandHandler function when an application command
or request has been received from another node. The receive buffer is released when returning from this
function. The type of frame used by the request can be determined (single cast, mulitcast or broadcast
frame). This is used to avoid flooding the network by responding on a multicast or broadcast. In order not
to disrupt the radio communication and the protocol, no application function must execute code for more
than 5ms without returning.
All controller libraries (except the Bridge Controller library), requires this function implemented within the
Application layer.
Defined in: ZW_basis_api.h
Parameters:
rxStatus IN
Received frame status flags
Refer to ZW_transport_API.h header file
RECEIVE_STATUS_ROUTED_BUSY
xxxxxxx1
A response route is locked by the
application
RECEIVE_STATUS_LOW_POWER
xxxxxx1x
Received at low output power level
RECEIVE_STATUS_TYPE_SINGLE
xxxx00xx
Received a single cast frame
RECEIVE_STATUS_TYPE_BROAD
xxxx01xx
Received a broadcast frame
RECEIVE_STATUS_TYPE_MULTI
xxxx10xx
Received a multicast frame
RECEIVE_STATUS_FOREIGN_FRAME
The received frame is not addressed to
this node (Only valid in promiscuous
mode)
destNode IN
Command destination Node ID
Only valid in promiscuous mode and for
singlecast frames.
sourceNode IN
Command sender Node ID
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 33 of 232
CONFIDENTIAL
pCmd IN
Payload from the received frame.
The command class is the very first byte.
cmdLength IN
Number of Command class bytes.
Serial API:
ZW->HOST: REQ | 0x04 | rxStatus | sourceNode | cmdLength | pCmd[ ]
When a foreign frame is received in promiscuous mode:
ZW->HOST: REQ | 0xD1 | rxStatus | sourceNode | cmdLength | pCmd[ ] | destNode
The destNode parameter is only valid for singlecast frames.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 34 of 232
CONFIDENTIAL
4.4.1.6 ApplicationNodeInformation
void ApplicationNodeInformation(BYTE *deviceOptionsMask,
APPL_NODE_TYPE *nodeType,
BYTE **nodeParm,
BYTE *parmLength )
The Z-Wave application layer use ApplicationNodeInformation to generate the Node Information frame
and to save information about node capabilities. Initialize all the Z-Wave application related fields of the
Node Information structure in this function. For a description of the Generic Device Classes, Specific
Device Classes, and Command Classes refer to [1] and [33]. The deviceOptionsMask is a Bit mask
where Listening and Optional functionality flags must be set or cleared accordingly to the nodes
capabilities.
The listening option in the deviceOptionsMask (APPLICATION_NODEINFO_LISTENING) indicates a
continuously powered node ready to receive frames. A listening node assists as repeater in the network.
The non-listening option in the deviceOptionsMask (APPLICATION_NODEINFO_NOT_LISTENING)
indicates a battery-operated node that power off RF reception when idle (prolongs battery lifetime)..
The optional functionality option in the deviceOptionsMask
(APPLICATION_NODEINFO_OPTIONAL_FUNCTIONALITY) indicates that this node supports other
command classes than the mandatory classes for the selected generic and specific device class.
Examples:
To set a device as Listening with Optional Functionality:
*deviceOptionsMask = APPLICATION_NODEINFO_LISTENING |
APPLICATION_NODEINFO_OPTIONAL_FUNCTIONALITY;
To set a device as not listening and with no Optional functionality support:
*deviceOptionsMask = APPLICATION_NODEINFO_NOT_LISTENING;
Note for Controllers: Because controller libraries store some basic information about themselves from
ApplicationNodeInformation in nonvolatile memory. ApplicationNodeInformation should be set to the
correct values before Application return from ApplicationInitHW(), for applications where this cannot be
done. The Application must call ZW_SET_DEFAULT() after updating ApplicationNodeInformation in
order to force the Z-Wave library to store the correct values.
A way to verify if ApplicationNodeInformation is stored by the protocol is to call
ZW_GetNodeProtocolInfo to verify that Generic and specific nodetype are correct. If they differ from
what is expected, the Application should Set the ApplicationNodeInformation to the correct values and
call ZW_SET_DEFAULT() to force the protocol to update its information.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 35 of 232
CONFIDENTIAL
Defined in: ZW_basis_api.h
Parameters:
deviceOptionsMask
OUT
Bitmask with options
APPLICATION_NODEINFO_LISTENING
In case this node is
always listening (typically
AC powered nodes) and
stationary.
APPLICATION_NODEINFO_NOT_LISTENING
In case this node is non-
listening (typically battery
powered nodes).
APPLICATION_NODEINFO_
OPTIONAL_FUNCTIONALITY
If the node supports other
command classes than
the ones mandatory for
this nodes Generic and
Specific Device Class
APPLICATION_FREQ_LISTENING_MODE_250ms
This option bit should be
set if the node should act
as a Frequently Listening
Routing Slave with a
wakeup interval of 250ms.
This option is only
avalaibe on Routing
Slaves.
APPLICATION_FREQ_LISTENING_MODE_1000ms
This option bit should be
set if the node should act
as a Frequently Listening
Routing Slave with a
wakeup interval of 250ms.
This option is only
avalaibe on Routing
Slaves.
nodeType OUT
Pointer to structure with the Device Class:
(*nodeType).generic
The Generic Device Class
[1]. Do not enter zero in
this field.
(*nodeType).specific
The Specific Device Class
[1].
nodeParm OUT
Command Class buffer pointer.
Command Classes [1]
supported by the device
itself and optional
Command Classes the
device can control in
other devices.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 36 of 232
CONFIDENTIAL
parmLength OUT
Number of Command Class bytes.
Serial API:
The ApplicationNodeInformation is replaced by SerialAPI_ApplicationNodeInformation. Used to
set information that will be used in subsequent calls to ZW_SendNodeInformation. Replaces the
functionality provided by the ApplicationNodeInformation() callback function.
void SerialAPI_ApplicationNodeInformation(BYTE deviceOptionsMask,
APPL_NODE_TYPE *nodeType,
BYTE *nodeParm,
BYTE parmLength)
Information is stored in NVM application area. The define APPL_NODEPARM_MAX in serialappl.h
must be modified accordingly to the number of command classes to be notified.
HOST->ZW: REQ | 0x03 | deviceOptionsMask | generic | specific | parmLength | nodeParm[ ]
The figure below lists the Node Information Frame structure on application level. The Z-Wave Protocol
creates this frame via ApplicationNodeInformation. The Node Information Frame structure when
transmitted by RF does not include the Basic byte descriptor field. The Basic byte descriptor field on
application level is deducted from the Capability and Security byte descriptor fields.
Byte descriptor \ bit number
7
6
5
4
3
2
1
0
Capability
Liste-
ning
Z-Wave Protocol Specific Part
Security
Opt.
Func.
Z-Wave Protocol Specific Part
Reserved
Z-Wave Protocol Specific Part
Basic
Basic Device Class (Z-Wave Protocol Specific Part)
Generic
Generic Device Class
Specific
Specific Device Class
NodeInfo[0]
Command Class 1
…
…
NodeInfo[n-1]
Command Class n
Figure 8. Node Information frame structure on application level
WARNING: Must use deviceOptionsMask parameter and associated defines to initialize Node
Information Frame with respect to listening, non-listening and optional functionality options.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 37 of 232
CONFIDENTIAL
4.4.1.7 ApplicationSlaveUpdate (All slave libraries)
void ApplicationSlaveUpdate ( BYTE bStatus,
BYTE bNodeID,
BYTE *pCmd,
BYTE bLen)
The Z-Wave protocol also calls ApplicationSlaveUpdate when receiving a Node Information Frame and
the protocol is not in a state where it needs the node information.
All slave libraries require this function implemented within the Application layer.
Defined in: ZW_slave_api.h
Parameters:
bStatus IN
The status, value could be one of the following:
UPDATE_STATE_NODE_INFO_RECEIVED
A node has sent its node info but the
protocol are not in a state where it is
needed
bNodeID IN
The updated node‟s node ID (1..232).
pCmd IN
Pointer of the updated node‟s node info.
bLen IN
The length of the pCmd parameter.
Serial API:
ZW->HOST: REQ | 0x49 | bStatus | bNodeID | bLen | basic | generic | specific | commandclasses[ ]
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 38 of 232
CONFIDENTIAL
4.4.1.8 ApplicationControllerUpdate (All controller libraries)
void ApplicationControllerUpdate (BYTE bStatus,
BYTE bNodeID,
BYTE *pCmd,
BYTE bLen)
The Z-Wave protocol in a controller calls ApplicationControllerUpdate when a new node has been
added or deleted from the controller through the network management features. The Z-Wave protocol
calls ApplicationControllerUpdate as a result of using the API call ZW_RequestNodeInfo. The
application can use this functionality to add/delete the node information from any structures used in the
Application layer. The Z-Wave protocol also calls ApplicationControllerUpdate when a Node
Information Frame has been received and the protocol is not in a state where it needs the node
information.
ApplicationControllerUpdate is called on the SUC each time a node is added/deleted by the primary
controller. ApplicationControllerUpdate is called on the SIS each time a node is added/deleted by the
inclusion controller. When a node request ZW_RequestNetWorkUpdate from the SUC/SIS then the
ApplicationControllerUpdate is called for each node change (add/delete) on the requesting node.
ApplicationControllerUpdate is not called on a primary or inclusion controller when a node is
added/deleted.
All controller libraries, requires this function implemented within the Application layer.
Defined in: ZW_controller_api.h
Parameters:
bStatus IN
The status of the update process, value could
be one of the following:
UPDATE_STATE_ADD_DONE
A new node has been been given a
node ID by the primary or an
inclusion controller.
NOTE: At this point, it is not
necessarily possible to route to the
node because the range information
from the node has not been received
yet.
UPDATE_STATE_DELETE_DONE
A node has been deleted from the
network
UPDATE_STATE_NODE_INFO_RECEIVED
A node has sent its node info either
unsolicited or as a response to a
ZW_RequestNodeInfo call
UPDATE_STATE_SUC_ID
The SUC node Id was updated
bNodeID IN
The updated node‟s node ID (1..232).
pCmd IN
Pointer of the updated node‟s node info.
bLen IN
The length of the pCmd parameter.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 39 of 232
CONFIDENTIAL
Serial API:
ZW->HOST: REQ | 0x49 | bStatus | bNodeID | bLen | basic | generic | specific | commandclasses[ ]
ApplicationControllerUpdate via the Serial API also have the possibility for receiving the status
UPDATE_STATE_NODE_INFO_REQ_FAILED, which means that a node did not acknowledge a
ZW_RequestNodeInfo call.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 40 of 232
CONFIDENTIAL
4.4.1.9 ApplicationCommandHandler_Bridge (Bridge Controller library only)
void ApplicationCommandHandler_Bridge(BYTE rxStatus,
BYTE destNode,
BYTE sourceNode,
ZW_MULTI_DEST multi,
ZW_APPLICATION_TX_BUFFER *pCmd,
BYTE cmdLength)
The Z-Wave protocol will call the ApplicationCommandHandler_Bridge function when an application
command or request has been received from another node to the Bridge Controller or an existing virtual
slave node. The receive buffer is released when returning from this function.
The Z-Wave Bridge Controller library requires this function implemented within the Application layer.
Defined in: ZW_controller_bridge_api.h
Parameters:
rxStatus IN
Frame header info:
RECEIVE_STATUS_ROUTED_BUSY
xxxxxxx1
A response route is
locked by the application
RECEIVE_STATUS_LOW_POWER
xxxxxx1x
Received at low output
power level
RECEIVE_STATUS_TYPE_SINGLE
xxxx00xx
Received a single cast
frame
RECEIVE_STATUS_TYPE_BROAD
xxxx01xx
Received a broadcast
frame
RECEIVE_STATUS_TYPE_MULTI
xxxx10xx
Received a multicast
frame
destNode IN
Command receiving Node ID. Either Bridge
Controller Node ID or virtual slave Node ID.
If received frame is a multicast frame then
destNode is not valid and multi points to a
multicast structure containing the destination
nodes.
sourceNode IN
Command sender Node ID.
Multi IN
If received frame is, a multicast frame then multi
points at the multicast Structure containing the
destination Node IDs.
pCmd IN
Payload from the received frame. The command
class is the very first byte.
cmdLength IN
Number of Command class bytes.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 41 of 232
CONFIDENTIAL
Serial API:
Bridge library based serial API application supporting manual routing (MR) using
FUNC_ID_APPLICATION_COMMAND_HANDLER_BRIDGE for both virtual nodes and the bridge
node itself:
ZW->HOST: REQ | 0xA8 | rxStatus | destNodeID | srcNodeID | cmdLength | pCmd[ ] |
multiDestsOffset_NodeMaskLen | multiDestsNodeMask
Bridge library based serial API application not supporting manual routing using
FUNC_ID_APPLICATION_SLAVE_COMMAND_HANDLER for virtual nodes:
ZW->HOST: REQ | 0xA1 | rxStatus | destNode | sourceNode | cmdLength | pCmd[ ]
Bridge library based serial API application not supporting manual routing using
FUNC_ID_APPLICATION_COMMAND_HANDLER refer to 4.4.1.5 for the bridge node itself:
ZW->HOST: REQ | 0x04 | rxStatus | sourceNode | cmdLength | pCmd[ ]
This target is using old function IDs for backward compatibility with older host implementations,
whereas FUNC_ID_APPLICATION_COMMAND_HANDLER_BRIDGE is the new and improved
interface. The MR target is new, and hence does not have legacy concerns to address.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 42 of 232
CONFIDENTIAL
4.4.1.10 ApplicationSlaveNodeInformation (Bridge Controller library only)
void ApplicationSlaveNodeInformation(BYTE destNode,
BYTE *listening,
APPL_NODE_TYPE *nodeType,
BYTE **nodeParm,
BYTE *parmLength)
Request Application Virtual Slave Node information. The Z-Wave protocol layer calls
ApplicationSlaveNodeInformation just before transmitting a "Node Information" frame.
The Z-Wave Bridge Controller library requires this function implemented within the Application layer.
Defined in: ZW_controller_bridge_api.h
Parameters:
destNode IN
Which Virtual Node do we want the node
information from.
listening OUT
TRUE if this node is always listening and
not moving.
nodeType OUT
Pointer to structure with the Device Class:
(*nodeType).generic
The Generic Device Class [1].
Do not enter zero in this field.
(*nodeType).specific
The Specific Device Class [1].
nodeParm OUT
Command Class buffer pointer.
Command Classes [1]
supported by the device itself
and optional Command
Classes the device can control
in other devices.
parmLength OUT
Number of Command Class bytes.
Serial API:
The ApplicationSlaveNodeInformation is replaced by
SerialAPI_ApplicationSlaveNodeInformation. Used to set node information for the Virtual Slave
Node in the embedded module this node information will then be used in subsequent calls to
ZW_SendSlaveNodeInformation. Replaces the functionality provided by the
ApplicationSlaveNodeInformation() callback function.
void SerialAPI_ApplicationSlaveNodeInformation(BYTE destNode,
BYTE listening,
APPL_NODE_TYPE * nodeType,
BYTE *nodeParm,
BYTE parmLength)
HOST->ZW:
REQ | 0xA0 | destNode | listening | genericType | specificType | parmLength | nodeParm[ ]
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 43 of 232
CONFIDENTIAL
4.4.1.11 ApplicationRfNotify (ZW0301 only)
void ApplicationRfNotify (BYTE rfState)
This function is used to inform the application about the current state of the radio enabling control of an
external power amplifier (PA). The Z-Wave protocol will call the ApplicationRfNotify function when the
radio changes state as follows:
From Tx to Rx
From Rx to Tx
From powere down to Rx
From power down to Tx
When PA is powered up
When PA is powered down
This enables the application to control an external PA using the appropriate number of I/O pins. For
details, refer to [35].
When using an external PA, remember to set the field at FLASH_APPL_PLL_STEPUP_OFFS in
App_RFSetup.a51 to 0 (zero) for adjustment of the signal quality. This is necessary to be able to pass a
FCC compliance test.
Defined in: ZW_basis_api.h
Parameters:
rfState IN
The current state of the radio.
Refer to ZW_transport_API.h header file
ZW_RF_TX_MODE
The radio is in Tx state. Previous state is
either Rx or power down
ZW_RF_RX_MODE
The radio in Rx or power down state.
Previous state is ether Tx or power down
ZW_RF_PA_ON
The radio in Tx moode and the PA is
powered on
ZW_RF_PA_OFF
The radio in Tx mode and the PA is
powered off
Serial API:
Not implemented
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 44 of 232
CONFIDENTIAL
4.4.2 Z-Wave Basis API
This section defines functions that are implemented in all Z-Wave nodes.
4.4.2.1 ZW_ExploreRequestInclusion
BYTE ZW_ExploreRequestInclusion()
This function sends out an explorer frame requesting inclusion into a network. If the inclusion request is
accepted by a controller in network wide inclusion mode then the application on this node will get notified
through the callback from the ZW_SetLearnMode() function. Once a callback is received from
ZW_SetLearnMode() saying that the inclusion process has started the application should not make
further calls to this function.
NOTE: Recommend not to call this function more than once every 4 seconds.
Defined in: ZW_basis_api.h
Return value:
BYTE
TRUE
Inclusion request queued for transmission
FALSE
Node is not in learn mode
Serial API
HOST->ZW: REQ | 0x5E
ZW->HOST: RES | 0x5E | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 45 of 232
CONFIDENTIAL
4.4.2.2 ZW_GetProtocolStatus
BYTE ZW_GetProtocolStatus(void)
Macro: ZW_GET_PROTOCOL_STATUS()
Report the status of the protocol.
The function return a mask telling which protocol function is currently running
Defined in: ZW_basis_api.h
Return value:
BYTE
Returns the protocol status as one of the
following:
Zero
Protocol is idle.
ZW_PROTOCOL_STATUS_ROUTING
Protocol is analyzing the routing table.
ZW_PROTOCOL_STATUS_SUC
SUC sends pending updates.
Serial API
HOST->ZW: REQ | 0xBF
ZW->HOST: RES | 0xBF | retVal
4.4.2.3 ZW_GetRandomWord
BYTE ZW_GetRandomWord(BYTE *randomWord,
BOOL bResetRadio)
Macro: ZW_GET_RANDOM_WORD(randomWord, bResetRadio)
The API call generates a random word using the ZW0201/ZW0301 builtin random number generator
(RNG). If RF needs to be in Receive then ZW_SetRFReceiveMode should be called afterwards.
NOTE: The ZW0201/ZW0301 RNG is based on the RF transceiver, which must be in powerdown state
(see ZW_SetRFReceiveMode) to assure proper operation of the RNG. Remember to call
ZW_GetRandomWord with bResetRadio = TRUE when the last random word is to be generated. This is
needed for the RF to be reinitialized, so that it can be used to transmit and receive again.
Defined in: ZW_basis_api.h
Return value:
BOOL
TRUE
If possible to generate random number.
FALSE
If not possible e.g. RF not powered down.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 46 of 232
CONFIDENTIAL
Parameters:
randomWord OUT
Pointer to word variable, which
should receive the random word.
bResetRadio IN
If TRUE the RF radio is reinitialized
after generating the random word.
Serial API
The Serial API function 0x1C makes use of the ZW_GetRandomWord to generate a specified number
of random bytes and takes care of the handling of the RF:
Set the RF in powerdown prior to calling the ZW_GetRandomWord the first time, if not
possible then return result to HOST.
Call ZW_GetRandomWord until enough random bytes generated or ZW_GetRandomWord
returns FALSE.
Call ZW_GetRandomWord with bResetRadio = TRUE to reinitialize the radio.
Call ZW_SetRFReceiveMode with TRUE if the serialAPI hardware is a listening device or with
FALSE if it is a non-listening device.
Return result to HOST.
HOST -> ZW: REQ | 0x1C | [noRandomBytes]
noRandomBytes
Number of random bytes needed. Optional if not
present or equal ZERO then 2 random bytes are
returned Range 1...32 random bytes are
supported.
ZW -> HOST: RES | 0x1C | randomGenerationSuccess | noRandomBytesGenerated |
noRandomGenerated[noRandomBytesGenerated]
randomGenerationSuccess
TRUE if random bytes could be generated
FALSE if no random bytes could be generated
noRandomBytesGenerated
Number of random numbers generated
noRandomBytesGenerated[]
Array of generated random bytes
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 47 of 232
CONFIDENTIAL
4.4.2.4 ZW_Random
BYTE ZW_Random( void )
Macro: ZW_RANDOM()
A pseudo-random number generator that generates a sequence of numbers, the elements of which are
approximately independent of each other. The same sequence of pseudo-random numbers will be
repeated in case the module is power cycled. The Z-Wave protocol uses also this function in the random
backoff algorithm etc.
Defined in: ZW_basis_api.h
Return value:
BYTE
Random number (0 – 0xFF)
HOST->ZW: REQ | 0x1D
ZW->HOST: RES | 0x1D | rndNo
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 48 of 232
CONFIDENTIAL
4.4.2.5 ZW_RFPowerLevelSet
BYTE ZW_RFPowerLevelSet(BYTE powerLevel )
Macro: ZW_RF_POWERLEVEL_SET(POWERLEVEL)
Set the power level used in RF transmitting. The actual RF power is dependent on the settings for
transmit power level in App_RFSetup.a51. If this value is changed from using the default library value the
resulting power levels might differ from the intended values. The returned value is however always the
actual one used.
NOTE: This function should only be used in an install/test link situation and the power level
should always be set back to normalPower when the testing is done.
Defined in: ZW_basis_api.h
Parameters:
powerLevel IN
Powerlevel to use in RF
transmission, valid values:
normalPower
Max power possible
minus1dB
Normal power - 1dB (mapped to minus2dB)
minus2dB
Normal power - 2dB
minus3dB
Normal power - 3dB (mapped to minus4dB)
minus4dB
Normal power - 4dB
minus5dB
Normal power - 5dB (mapped to minus6dB)
minus6dB
Normal power - 6dB
minus7dB
Normal power - 7dB (mapped to minus8dB)
minus8dB
Normal power - 8dB
minus9dB
Normal power - 9dB (mapped to minus10dB)
Return value:
BYTE
The powerlevel set.
Serial API (Serial API protocol version 4):
HOST->ZW: REQ | 0x17 | powerLevel
ZW->HOST: RES | 0x17 | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 49 of 232
CONFIDENTIAL
4.4.2.6 ZW_RFPowerLevelGet
BYTE ZW_RFPowerLevelGet(void )
Macro: ZW_RF_POWERLEVEL_GET()
Get the current power level used in RF transmitting.
NOTE: This function should only be used in an install/test link situation.
Defined in: ZW_basis_api.h
Return value:
BYTE
The power level currently in effect during
RF transmissions.
Serial API
HOST->ZW: REQ | 0xBA
ZW->HOST: RES | 0xBA | powerlevel
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 50 of 232
CONFIDENTIAL
4.4.2.7 ZW_RequestNetWorkUpdate
BYTE ZW_RequestNetWorkUpdate ( VOID_CALLBACKFUNC (completedFunc)(BYTE txStatus))
Macro: ZW_REQUEST_NETWORK_UPDATE (func)
Used to request network topology updates from the SUC/SIS node. The update is done on protocol level
and any changes are notified to the application by calling the ApplicationControllerUpdate).
Secondary controllers can only use this call when a SUC is present in the network. All controllers can
use this call in case a SUC ID Server (SIS) is available.
Routing Slaves can only use this call, when a SUC is present in the network. In case the Routing Slave
has called ZW_RequestNewRouteDestinations prior to ZW_RequestNetWorkUpdate, then Return
Routes for the destinations specified by the application in ZW_RequestNewRouteDestinations will be
updated along with the SUC Return Route.
NOTE: The SUC can only handle one network update at a time, so care should be taken not to have all
the controllers in the network ask for updates at the same time.
WARNING: This API call will generate a lot of network activity that will use bandwidth and stress the
SUC in the network. Therefore, network updates should be requested as seldom as possible and never
more often that once every hour from a controller.
Defined in: ZW_controller_api.h and ZW_slave_routing_api.h
Return value:
BYTE
TRUE
If the updating process is started.
FALSE
If the requesting controller is the SUC
node or the SUC node is unknown.
Parameters:
completedFunc
IN
Transmit complete call back.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 51 of 232
CONFIDENTIAL
Callback function Parameters:
txStatus IN
Status of command:
ZW_SUC_UPDATE_DONE
The update process succeeded.
ZW_SUC_UPDATE_ABORT
The update process aborted because of
an error.
ZW_SUC_UPDATE_WAIT
The SUC node is busy.
ZW_SUC_UPDATE_DISABLED
The SUC functionality is disabled.
ZW_SUC_UPDATE_OVERFLOW
The controller requested an update after
more than 64 changes have occurred in
the network. The update information is
then out of date in respect to that
controller. In this situation the controller
have to make a replication before trying
to request any new network updates.
Timeout: 65s
Exption recovery: Resume normal operation, no recovery needed
Serial API:
HOST->ZW: REQ | 0x53 | funcID
ZW->HOST: RES | 0x53 | retVal
ZW->HOST: REQ | 0x53 | funcID | txStatus
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 52 of 232
CONFIDENTIAL
4.4.2.8 ZW_RFPowerlevelRediscoverySet
void ZW_RFPowerlevelRediscoverySet(BYTE bNewPower)
Macro: ZW_RF_POWERLEVEL_REDISCOVERY_SET(bNewPower)
Set the power level locally in the node when finding neighbors. The default power level is normal power
minus 6dB. It is only necessary to call ZW_RFPowerlevelRediscoverySet in case a value different from
the default power level is needed. Furthermore is it only necessary to set a new power level once then
the new level will be used every time a neighbour discovery is performed. The API call can be called
from ApplicationInit or during runtime from ApplicationPoll or ApplicationCommandHandler.
NOTE: Be aware of that weak RF links can be included in the routing table in case the reduce
power level is set to 0dB (normalPower). Weak RF links can increase latency in the network due
to retries to get through. Finally, will a large reduction in power level result in a reduced range
between the nodes in the network, which results in an increased latency due to an increase in the
necessary hops to reach the destination.
Defined in: ZW_basis_api.h
Parameters:
bNewPower IN
Powerlevel to use when doing
neighbor discovery, valid values:
normalPower
Max power possible
minus1dB
Normal power - 1dB (mapped to minus2dB)
minus2dB
Normal power - 2dB
minus3dB
Normal power - 3dB (mapped to minus4dB)
minus4dB
Normal power - 4dB
minus5dB
Normal power - 5dB (mapped to minus6dB)
minus6dB
Normal power - 6dB
minus7dB
Normal power - 7dB (mapped to minus8dB)
minus8dB
Normal power - 8dB
minus9dB
Normal power - 9dB (mapped to minus10dB)
Serial API:
HOST->ZW: REQ | 0x1E | powerLevel
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 53 of 232
CONFIDENTIAL
4.4.2.9 ZW_SendNodeInformation
BYTE ZW_SendNodeInformation(BYTE destNode,
BYTE txOptions,
VOID_CALLBACKFUNC(completedFunc)(BYTE txStatus))
Macro: ZW_SEND_NODE_INFO(node,option,func)
Create and transmit a “Node Information” frame. The Z-Wave transport layer builds a frame, request
application node information (see ApplicationNodeInformation) and queue the “Node Information”
frame for transmission. The completed call back function (completedFunc) is called when the
transmission is complete.
The Node Information Frame is a protocol frame and will therefore not be directly available to the
application on the receiver. The API call ZW_SetLearnMode() can be used to instruct the protocol to
pass the Node Information Frame to the application.
When ZW_SendNodeInformation() is used in learn mode for adding or removing the node from the
network the transmit option TRANSMIT_OPTION_LOW_POWER should NOT be used.
NOTE: ZW_SendNodeInformation uses the transmit queue in the API, so using other transmit functions
before the complete callback has been called by the API is not recommended.
Defined in: ZW_basis_api.h
Return value:
BYTE
TRUE
If frame was put in the transmit queue
FALSE
If it was not (callback will not be called)
Parameters:
destNode IN
Destination Node ID
(NODE_BROADCAST == all nodes)
txOptions IN
Transmit option flags.
(see ZW_SendData)
completedFunc
IN
Transmit completed call back function
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Timeout: 65s
Exception recovery: Resume normal operation, no recovery needed
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 54 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x12 | destNode | txOptions | funcID
ZW->HOST: RES | 0x12 | retVal
ZW->HOST: REQ | 0x12 | funcID | txStatus
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 55 of 232
CONFIDENTIAL
4.4.2.10 ZW_SendTestFrame
BYTE ZW_SendTestFrame(BYTE nodeID,
BYTE powerlevel,
VOID_CALLBACKFUNC(func)(BYTE txStatus))
Macro: ZW_SEND_TEST_FRAME(nodeID, power, func)
Send a test frame directly to nodeID without any routing, RF transmission power is previously set to
powerlevel by calling ZW_RF_POWERLEVEL_SET. The test frame is acknowledged at the RF
transmission powerlevel indicated by the parameter powerlevel by nodeID (if the test frame got through).
This test will be done using 9600 kbit/s transmission rate.
NOTE: This function should only be used in an install/test link situation.
Defined in: ZW_basis_api.h
Parameters:
nodeID IN
Node ID on the node ID (1..232)
the test frame should be
transmitted to.
powerLevel IN
Powerlevel to use in RF
transmission, valid values:
normalPower
Max power possible
minus1dB
Normal power - 1dB (mapped to minus2dB***)
minus2dB
Normal power - 2dB
minus3dB
Normal power - 3dB (mapped to minus4dB)
minus4dB
Normal power - 4dB
minus5dB
Normal power - 5dB (mapped to minus6dB)
minus6dB
Normal power - 6dB
minus7dB
Normal power - 7dB (mapped to minus8dB)
minus8dB
Normal power - 8dB
minus9dB
Normal power - 9dB (mapped to minus10dB)
func IN
Call back function called when
done.
Callback function Parameters:
***
200/300 Series support only -2dB power level steps
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 56 of 232
CONFIDENTIAL
txStatus IN
(see ZW_SendData)
Return value:
BYTE
FALSE
If transmit queue overflow.
Timeout: 200ms
Exception recovery: Resume normal operation, no recovery needed
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 57 of 232
CONFIDENTIAL
Serial API
HOST->ZW: REQ | 0xBE | nodeID| powerlevel | funcID
ZW->HOST: REQ | 0xBE | retVal
ZW->HOST: REQ | 0xBE | funcID | txStatus
4.4.2.11 ZW_SetExtIntLevel
void ZW_SetExtIntLevel(BYTE intSrc, BOOL triggerLevel)
Macro: ZW_SET_EXT_INT_LEVEL(SRC, TRIGGER_LEVEL)
Set the trigger level for external interrupt 0 or 1. Level or edge triggered is selected as follows:
Level Triggered
Edge Triggered
External interrupt 0
IT0 = 0;
IT0 = 1;
External interrupt 1
IT1 = 0;
IT1 = 1;
Defined in: ZW_basis_api.h
Parameters:
intSrc IN
The external interrupt valid values:
ZW_INT0
External interrupt 0 (PIN P1_6)
ZW_INT1
External interrupt 1 (PIN P1_7)
triggerLevel IN
The external interrupt trigger level:
TRUE
Set the interrupt trigger to high level
/Rising edge
FALSE
Set the the interrupt trigger to low level
/Faling edge
Serial API
HOST->ZW: REQ | 0xB9 | intSrc | triggerLevel
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 58 of 232
CONFIDENTIAL
4.4.2.12 ZW_SetPromiscuousMode (Not Bridge Controller library)
void ZW_SetPromiscuousMode(BOOL state)
Macro: ZW_SET_PROMISCUOUS_MODE(state)
ZW_SetPromiscuousMode Enable / disable the promiscuous mode.
When promiscuous mode is enabled, all application layer frames will be passed to the application layer
regardless if the frames are addressed to another node. When promiscuous mode is disabled, only the
frames addressed to the node will be passed to the application layer.
Promiscuously received frames are delivered to the application via the ApplicationCommandHandler
callback function (see section 4.4.1.5).
Defined in: ZW_basis_api.h
Parameters:
state IN
TRUE to enable the promiscuous mode,
FALSE to disable it.
Serial API:
HOST->ZW: REQ | 0xD0 | state
See section 4.4.1.5 for callback syntax when a frame has been promiscuously received.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 59 of 232
CONFIDENTIAL
4.4.2.13 ZW_SetRFReceiveMode
BYTE ZW_SetRFReceiveMode( BYTE mode )
Macro: ZW_SET_RX_MODE(mode)
ZW_SetRFReceiveMode is used to power down the RF when not in use e.g. expects nothing to be
received. ZW_SetRFReceiveMode can also be used to set the RF into receive mode. This functionality
is useful in battery powered Z-Wave nodes e.g. the Z-Wave Remote Controller. The RF is automatic
powered up when transmitting data.
Defined in: ZW_basis_api.h
Return value:
BYTE
TRUE
If operation was successful
FALSE
If operation was none successful
Parameters:
mode IN
TRUE
On: Set the RF in receive mode and
starts the receive data sampling
FALSE
Off: Set the RF in power down mode (for
battery power save).
Serial API
HOST->ZW: REQ | 0x10 | mode
ZW->HOST: RES | 0x10 | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 60 of 232
CONFIDENTIAL
4.4.2.14 ZW_SetSleepMode
BOOL ZW_SetSleepMode( BYTE mode,
BYTE intEnable,
BYTE beamCount )
Macro: ZW_SET_SLEEP_MODE(MODE,MASK_INT)
Set the CPU in a specified power down mode. Everything shut down except RAM (IDATA and XDATA),
brown-out detection and an optional low power timer (WUT).
Battery-operated devices use this function in order to save power when idle. Notice that
ZW_SetSleepMode() doesn‟t go into sleep mode immediately, it sets a sleep state flag and return. Then
at a later point when the protocol is idle (stopped RF transmission etc.) the CPU will power down.
The RF transceiver is turned off so nothing can be received while in WUT or STOP mode. The ADC is
also disabled when in STOP or WUT mode. The Z-Wave main poll loop is stopped until the CPU is
awake again. Refer to the mode parameter description regarding how the CPU can be wakened up from
sleep mode. In STOP and WUT modes can the interrupt(s) be masked out so they cannot wake up the
ASIC.
Any external hardware controlled by the application should be turned off before returning from the
application poll function.
For more information on the best way to use this API call see section 4.4.9.
The Z-Wave main poll loop is stopped until the CPU is wakened.
Defined in: ZW_power_api.h
Return values
BOOL
TRUE
The chip will power down when the
protocol is ready
FALSE
The protocol can not power down
because a wakeup beam is being
received, try again later.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 61 of 232
CONFIDENTIAL
Parameters:
mode IN
Specify the type of power save mode:
ZW_STOP_MODE
The whole ASIC is turned down. The
ASIC can be wakened up again by
Hardware reset or by the external
interrupt INT1.
ZW_WUT_MODE
The ASIC is powered down, and it can
only be waked by the timer timeout or by
the external interrupt INT1. The time out
value of the WUT can be set by the API
call ZW_SetWutTimeout. When the
ASIC is waked from the WUT_MODE,
the API call ZW_IsWutFired can be used
to test if the ASIC is waked up by timeout
or INT1. The ASIC wake up from WUT
mode from the reset state. The timer
resolution in this mode is one second.
The maximum timeout value is 256 secs.
ZW_WUT_FAST_MODE
This mode has the same functionality as
ZW_WUT_MODE, except that the timer
resolution is 1/128 sec. The maximum
timeout value is 2 secs. This mode is only
available in ZW0301.
ZW_FREQUENTLY_LISTENING_MODE
This mode make the module enter a
Frequently Listening mode where the
module will wakeup for a few
milliseconds every 1000ms or 250ms and
check for radio transmissions to the
module (See 4.4.1.6 for details about
selecting wakeup speed). The application
will only wakeup if there is incoming RF
traffic or if the intEnable or beamCount
parameters are used.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 62 of 232
CONFIDENTIAL
intEnable IN
Interrupt enable bit mask. If a bit mask is
1, the corresponding interrupt is enabled
and this interrupt will wakeup the ASIC
from power down. Valid bit masks are:
ZW_INT_MASK_EXT1
External interrupt 1 (PIN P1_7) is
enabled as interrupt source
0x00
No external Interrupts will wakeup.
Usefull in WUT mode
beamCount IN
Frequently listening WUT wakeups
0x00
No WUT wakeups in Frequently listening
mode. Both macro and serial API call use
this value when called.
0x01-0xFF
Number of frequently listening wakeup
interval between the module does a
normal WUT wakeup. This parameter is
only used if mode is set to
ZW_FREQUENTLY_LISTENING_MODE.
Serial API
HOST->ZW: REQ | 0x11 | mode | intEnable
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 63 of 232
CONFIDENTIAL
4.4.2.15 ZW_Type_Library
BYTE ZW_Type_Library( void )
Macro: ZW_TYPE_LIBRARY()
Get the Z-Wave library type.
Defined in: ZW_basis_api.h
Return value:
BYTE
Returns the library type as one of the
following:
ZW_LIB_CONTROLLER_STATIC
Static controller library
ZW_LIB_CONTROLLER_BRIDGE
Bridge controller library
ZW_LIB_CONTROLLER
Portable controller library
ZW_LIB_SLAVE_ENHANCED
Enhanced slave library
ZW_LIB_SLAVE_ROUTING
Routing slave library
ZW_LIB_SLAVE
Slave library
ZW_LIB_INSTALLER
Installer library
Serial API
HOST->ZW: REQ | 0xBD
ZW->HOST: RES | 0xBD | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 64 of 232
CONFIDENTIAL
4.4.2.16 ZW_Version
BYTE ZW_Version( BYTE *buffer )
Macro: ZW_VERSION(buffer)
Get the Z-Wave basis API library version.
Defined in: ZW_basis_api.h
Parameters:
buffer OUT
Returns the API library version in text
using the format:
Z-Wave x.yy
where x.yy is the library version.
Return value:
BYTE
Returns the library type as one of the
following:
ZW_LIB_CONTROLLER_STATIC
Static controller library
ZW_LIB_CONTROLLER_BRIDGE
Bridge controller library
ZW_LIB_CONTROLLER
Portable controller library
ZW_LIB_SLAVE_ENHANCED
Enhanced slave library
ZW_LIB_SLAVE_ROUTING
Routing slave library
ZW_LIB_SLAVE
Slave library
ZW_LIB_INSTALLER
Installer library
Serial API:
HOST->ZW: REQ | 0x15
ZW->HOST: RES | 0x15 | buffer (12 bytes) | library type
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 65 of 232
CONFIDENTIAL
An additional call is offered capable of returning Serial API version number, Serial API capabilities, nodes
currently stored in the EEPROM (only controllers) and chip used.
HOST->ZW: REQ | 0x02
(Controller) ZW->HOST: RES | 0x02 | ver | capabilities | 29 | nodes[29] | chip_type | chip_version
(Slave) ZW->HOST: RES | 0x02 | ver | capabilities | 0 | chip_type | chip_version
Nodes[29] is a node bitmask.
Capabilities flag:
Bit 0: 0 = Controller API; 1 = Slave API
Bit 1: 0 = Timer functions not supported; 1 = Timer functions supported.
Bit 2: 0 = Primary Controller; 1 = Secondary Controller
Bit 3-7: reserved
The chip used can be determined as follows:
Z-Wave Chip
Chip_type
Chip_version
ZW0102
0x01
0x02
ZW0201
0x02
0x01
ZW0301
0x03
0x01
Timer functions are: TimerStart, TimerRestart and TimerCancel.
4.4.2.17 ZW_VERSION_MAJOR / ZW_VERSION_MINOR / ZW_VERSION_BETA
Macro: ZW_VERSION_MAJOR/ZW_VERSION_MINOR/ ZW_VERSION_BETA
These #defines can be used to get a decimal value of the used Z-Wave library. ZW_VERSION_MINOR
should be 0 padded when displayed to users EG: ZW_VERSION_MAJOR = 1 ZW_VERSION_MINOR
=2 should be shown as: 1.02 to the user where as ZW_VERSION_MAJOR = 1 ZW_VERSION_MINOR
=20 should be shown as 1.20.
ZW_VERSION_BETA is only defined for beta releases of the Z-Wave Library. In which case it is defined
as a single char for instance: 'b'
Defined in: ZW_basis_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 66 of 232
CONFIDENTIAL
4.4.2.18 ZW_WatchDogEnable
void ZW_WatchDogEnable(void)
Macro: ZW_WATCHDOG_ENABLE()
Enables the ASIC‟s built in watchdog , which by default is disabled.
The watchdog timeout interval depends on the hardware platform.
Z-Wave Chip
Watchdog interval
ZW0102
0.56 s
ZW0201
1.05 s
ZW0301
1.05 s
The watchdog must be kicked at least one time per interval. Failing to do so will cause the ASIC to be
reset.
To avoid unintentional reset of the application during initialization, the watchdog may be kicked one or
more times in the function ApplicationInitSW.
Some software defects can be difficult to diagnose when the watchdog is enabled because the
application will reboot when the watchdog resets the ASIC. Therefore, it is recommended to also test the
device with the watchdog disabled.
Defined in: ZW_basis_api.h
Serial API
HOST->ZW: REQ | 0xB6
4.4.2.19 ZW_WatchDogDisable
void ZW_WatchDogDisable(void)
Macro: ZW_WATCHDOG_DISABLE ()
Disable the ASIC‟s built in watchdog.
Defined in: ZW_basis_api.h
Serial API
HOST->ZW: REQ | 0xB7
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 67 of 232
CONFIDENTIAL
4.4.2.20 ZW_WatchDogKick
void ZW_WatchDogKick(void)
Macro: ZW_WATCHDOG_KICK ()
To keep the watchdog timer from resetting the ASIC, you've got to kick it regularly. The
ZW_WatchDogKick API call must be called in the function ApplicationPoll to assure correct detection of
any software anomalies etc.
Defined in: ZW_basis_api.h
Serial API
HOST->ZW: REQ | 0xB8
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 68 of 232
CONFIDENTIAL
4.4.3 Z-Wave Transport API
The Z-Wave transport layer controls transfer of data between Z-Wave nodes including retransmission,
frame check and acknowledgement. The Z-Wave transport interface includes functions for transfer of
data to other Z-Wave nodes. Application data received from other nodes is handed over to the
application via the ApplicationCommandHandler function. The ZW_MAX_NODES define defines the
maximum of nodes possible in a Z-Wave network.
4.4.3.1 ZW_SendData
BYTE ZW_SendData(BYTE nodeID,
BYTE *pData,
BYTE dataLength,
BYTE txOptions,
Void (*completedFunc)(BYTE txStatus))
NOTE: Only libraries without manual routing functionality support ZW_SendData.
Macro: ZW_SEND_DATA(node,data,length,options,func)
The SendData function is used to transmit contents of a data buffer to a single Z-Wave Node or all
Z-Wave Nodes (broadcast). The data buffer contents are encapsulated in a Z-Wave transport frame by
adding a protocol header and a checksum trailer. The frame is appended to the end of the transmit
queue (first in; first out) and transmitted whenever possible.
When communicating to a Frequently Listening Routing Slave (FLiRS) the API call automatically
generates a wakeup beam to awake the FLiRS.
A bridge controller library MUST NOT send to a virtual node belonging to the bridge itself.
The following parameters MUST be specified for the SendData function.
4.4.3.1.1 nodeID parameter
The nodeID parameter MUST specify the destination nodeID.
The nodeID parameter MAY specify the broadcast nodeID (0xFF).
4.4.3.1.2 *pData parameter
The *pData parameter MUST specify a pointer to a data buffer containing a valid Z-Wave command.
The data buffer referenced by the *pData parameter MUST contain the number of bytes indicated by the
dataLength parameter.
4.4.3.1.3 dataLength parameter
The data buffer referenced by the *pData parameter is used to hold a valid Z-Wave command.
The dataLength parameter MUST specify the length of the Z-Wave command.
4.4.3.1.4 txOptions parameter
The calling application MUST compose the txOptions parameter value by combining relevant options
chosen from the table below.
One or more callbacks to the completedFunc pointer indicate the status of the operation.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 69 of 232
CONFIDENTIAL
Table 9. SendData :: txOptions
TRANSMIT_OPTION_
Description
Priority
ACK
Request acknowledged transmission.
If ACK is disabled (0), all other
options are ignored by the
SendData function
NO_ROUTE
Request acknowledged transmission and
explicitly disable routing.
ACK MUST be enabled (1)
AUTO_ROUTE
Request acknowledged transmission and
allow routing.
If TRANSMIT_OPTION_AUTO_ROUTE ==
0, only the Last Working Route is used
for routing if direct range transmission
fails.
If TRANSMIT_OPTION_AUTO_ROUTE ==
1, routed transmission uses the Last
Working Route and routing table if direct
range transmission fails
ACK MUST be enabled (1)
NO_ROUTE MUST be
disabled (0)
EXPLORER
Request acknowledged transmission and
allow routing. Allow reactive route
recovery if Last Working Route, routing
table and direct range transmission fails.
ACK MUST be enabled (1)
NO_ROUTE MUST be
disabled (0)
AUTO_ROUTE SHOULD be
enabled (1)
If the broadcast nodeID (0xFF) is specified, the txOptions parameter SHOULD carry the following option
values
TRANSMIT_OPTION_ACK = 0
TRANSMIT_OPTION_NO_ROUTE = 1
TRANSMIT_OPTION_AUTO_ROUTE = 0
TRANSMIT_OPTION_EXPLORER = 0
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 70 of 232
CONFIDENTIAL
Table 10. Use of transmit options for controller libraries
TRANSMIT_OPTION_
Protocol behaviour
NO_ROUTE
ACK
AUTO_ROUTE
1
0
(ignore)
Transmit frame with no routing, nor retransmission;
just as if it was a broadcast frame.
1
1
(ignore)
Frame will be transmitted with direct communication
i.e. no routing regardless whether a LWR exist or not.
0
1
0
In case direct transmission fails, the frame will be
transmitted using LWR if one exists to the destination
in question.
0
1
1
If direct communication fails, then attempt with LWR.
If LWR also fails or simply do not exist to the
destination, then routes from the routing table will be
used.
4.4.3.1.4.1 TRANSMIT_OPTION_ACK
The transmit option TRANSMIT_OPTION_ACK MAY be used to request the destination node to return a
transfer acknowledgement. The Z-Wave protocol layer will retry the transmission if no acknowledgement
is received.
The transmit option TRANSMIT_OPTION_ACK SHOULD be specified for all normal application
communication.
If the nodeID parameter specifies the broadcast nodeID (0xFF), the Z-Wave protocol layer ignores the
transmit option TRANSMIT_OPTION_ACK.
4.4.3.1.4.2 TRANSMIT_OPTION_NO_ROUTE
The transmit option TRANSMIT_OPTION_NO_ROUTE MAY be used to force the protocol to send the
frame without routing. All available routing information is ignored.
The transmit option TRANSMIT_OPTION_NO_ROUTE SHOULD NOT be specified for normal
application communication.
If the nodeID parameter specifies the broadcast nodeID (0xFF), the Z-Wave protocol layer ignores the
transmit option TRANSMIT_OPTION_NO_ROUTE.
4.4.3.1.4.3 TRANSMIT_OPTION_AUTO_ROUTE
The transmit option TRANSMIT_OPTION_AUTO_ROUTE MAY be used to enable routing.
The Z-Wave protocol layer will then try transmitting the frame via repeater nodes in case destination
node is out of direct range.
Controller nodes MAY use the TRANSMIT_OPTION_AUTO_ROUTE to enable routing via Last Working
Routes, calculated routes and routes discovered via explorer route recovery. See Error! Reference
source not found. For details.
Routing Slave and Enhanced Slave nodes MAY use the TRANSMIT_OPTION_AUTO_ROUTE to enable
routing via return routes for the actual destination nodeID (if any exist).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 71 of 232
CONFIDENTIAL
If the nodeID parameter specifies the broadcast nodeID (0xFF), the Z-Wave protocol layer ignores the
transmit option TRANSMIT_OPTION_AUTO_ROUTE.
4.4.3.1.4.4 TRANSMIT_OPTION_EXPLORER
The transmit option TRANSMIT_OPTION_EXPLORER MAY be used to enable reactive route recovery.
Reactive route recovery allows a node to discover new routes if all known routes are failing.
An explorer frame cannot wake up FLiRS nodes.
An explorer frame uses normal RF power level minus 6dB. This is also the power level used by a node
finding its neighbors.
The API function ZW_SetRoutingMAX MAY be used to specify the maximum number of routing attempts
based on routing table lookups to use before the Z-Wave protocol layer resorts to reactive route
recovery.
A default value of five routing attempts SHOULD be used.
For backwards compatibility reasons will SDK 4.5x nodes communicating with nodes, which do not
support on-demand route resolution ignore transmit option flag TRANSMIT_OPTION_EXPLORE.
4.4.3.1.4.5 TRANSMIT_OPTION_LOW_POWER
The TRANSMIT_OPTION_LOW_POWER option should only be used when the two nodes that are
communicating are close to each other (<2 meter). In all other cases, this option SHOULD NOT be used.
4.4.3.1.4.6 completedFunc
The completedFunc parameter MUST specify the calling address of a function that can be called when
the SendData frame transmission completes. Completion includes a range of possible situations:
Direct range frame was successfully transmitted (as requested) without acknowledgement
Direct range frame was successfully acknowledged
Routed frame was successfully acknowledged
The transmit status txStatus indicates how the transmission operation was completed.
Table 11. txStatus values
txStatus
Description
TRANSMIT_COMPLETE_OK
The operation was successful.
TRANSMIT_COMPLETE_NO_ACK
No acknowledgement was received from the destination
node.
TRANSMIT_COMPLETE_FAIL
Indicates that the network is busy (jammed).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 72 of 232
CONFIDENTIAL
WARNING: Allways use the completeFunc callback to determine when the next frame can be send.
Calling the ZW_SendData or ZW_SendDataMulti in a loop without checking the completeFunc callback
will overflow the transmit queue and eventually fail. The data buffer in the application must not be
changed before completeFunc callback is received because it is only the pointer there is passed to the
transmit queue.
4.4.3.1.5 Payload size
The maximum size of a frame is 64 bytes. The protocol header and checksum takes 10 bytes in a single
cast or broadcast frame leaving 54 bytes for the payload. A S0 security enabled single cast takes 20
bytes as overhead. The maximum dataLength field depends on the transmit options and whether a non-
secure/secure frame is used.
Table 12. Maximum payload size
Transmit option
Maximum dataLength
Notice: Always use lowest maximum dataLength
depending on options used.
Non-secure
Secure
TRANSMIT_OPTION_EXPLORE
46 bytes
26 bytes
TRANSMIT_OPTION_AUTO_ROUTE
48 bytes
28 bytes
TRANSMIT_OPTION_NO_ROUTE
54 bytes
34 bytes
4.4.3.1.6 Embedded API function prototypes
Defined in: ZW_transport_api.h
Return value:
BYTE
FALSE
If transmit queue overflow
Parameters:
nodeID IN
Destination node ID
(NODE_BROADCAST == all nodes)
The frame will also be transmitted in case
the source node ID is equal destination
node ID
pData IN
Data buffer pointer
dataLength IN
Data buffer length
The maximum dataLength field depends
on the transmit options and whether a
non-secure/secure frame is used. For
details, see section 3.4. The payload
must be minimum one byte.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 73 of 232
CONFIDENTIAL
txOptions IN
Transmit option flags:
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3 of
normal RF range).
TRANSMIT_OPTION_NO_ROUTE
Only send this frame directly, even if a
response route exist
TRANSMIT_OPTION_ACK
Request acknowledge from destination
node.
TRANSMIT_OPTION_AUTO_ROUTE
Controllers:
Request retransmission via repeater
nodes (at normal output power level).
Number of max routes can be set using
ZW_SetRoutingMax
Routing and Enhanced Slaves:
Send the frame to nodeID using the
return routes assigned for nodeID to the
routing/enhanced slave, if no routes are
valid then transmit directly to nodeID (if
nodeID = NODE_BROADCAST then the
frame will be a BROADCAST).
If return routes exists and the nodeID =
NODE_BROADCAST then the frame will
be transmitted to all assigned return route
destinations. If nodeID !=
NODE_BROADCAST then the frame will
be transmitted via the assigned return
routes for nodeID.
TRANSMIT_OPTION_EXPLORE
Transmit frame as an explore frame if
everything else fails.
completedFunc
Transmit completed call back function
Callback function Parameters:
txStatus
Transmit completion status:
TRANSMIT_COMPLETE_OK
Successfully
TRANSMIT_COMPLETE_NO_ACK
No acknowledge is received before timeout
from the destination node. Acknowledge is
discarded in case it is received after the
timeout.
TRANSMIT_COMPLETE_FAIL
Not possible to transmit data because the
Z-Wave network is busy (jammed).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 74 of 232
CONFIDENTIAL
Timeout: 65s
Exception recovery: If a timeout occurs, it is important to call ZW_SendDataAbort to stop the sending of
the frame.

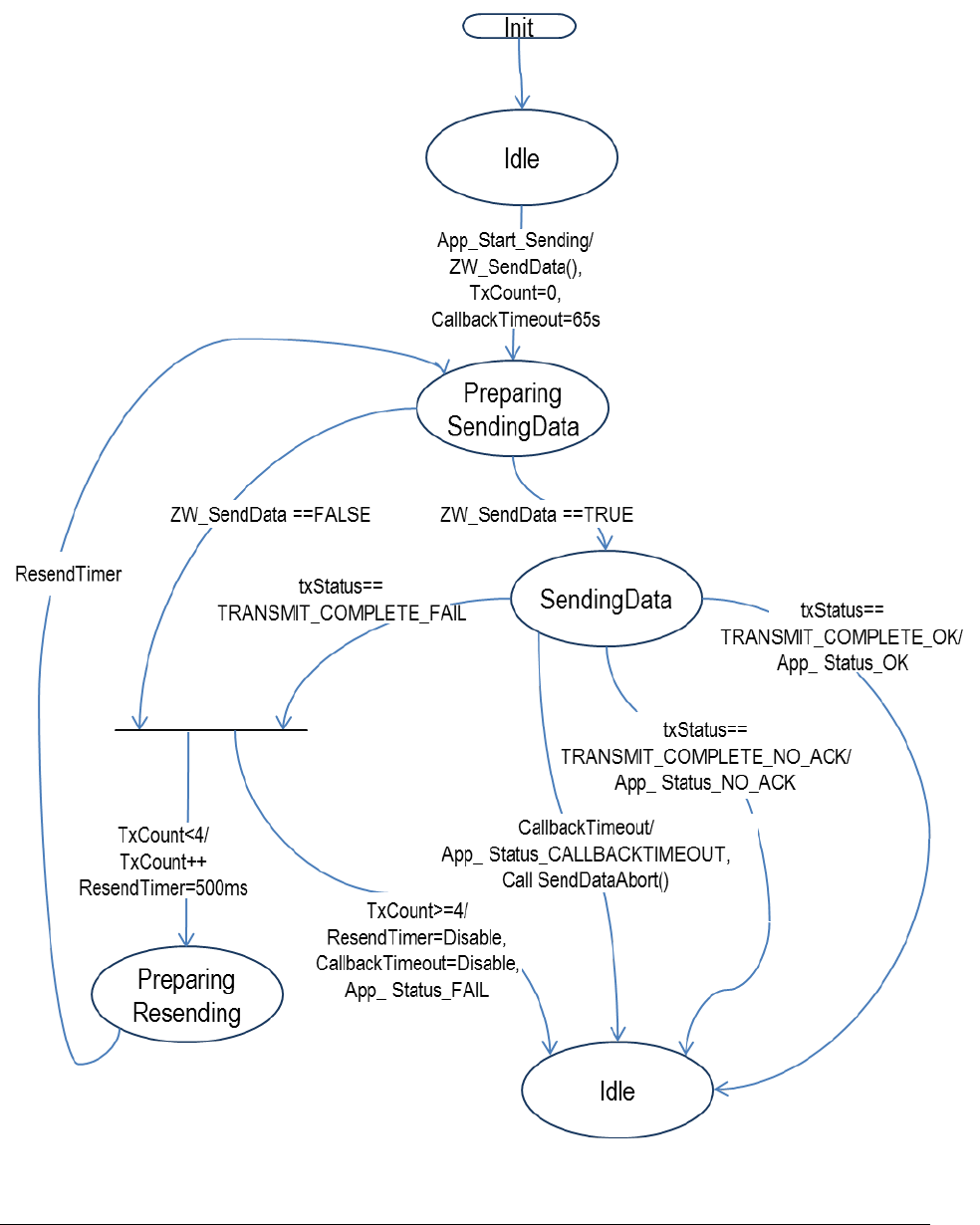

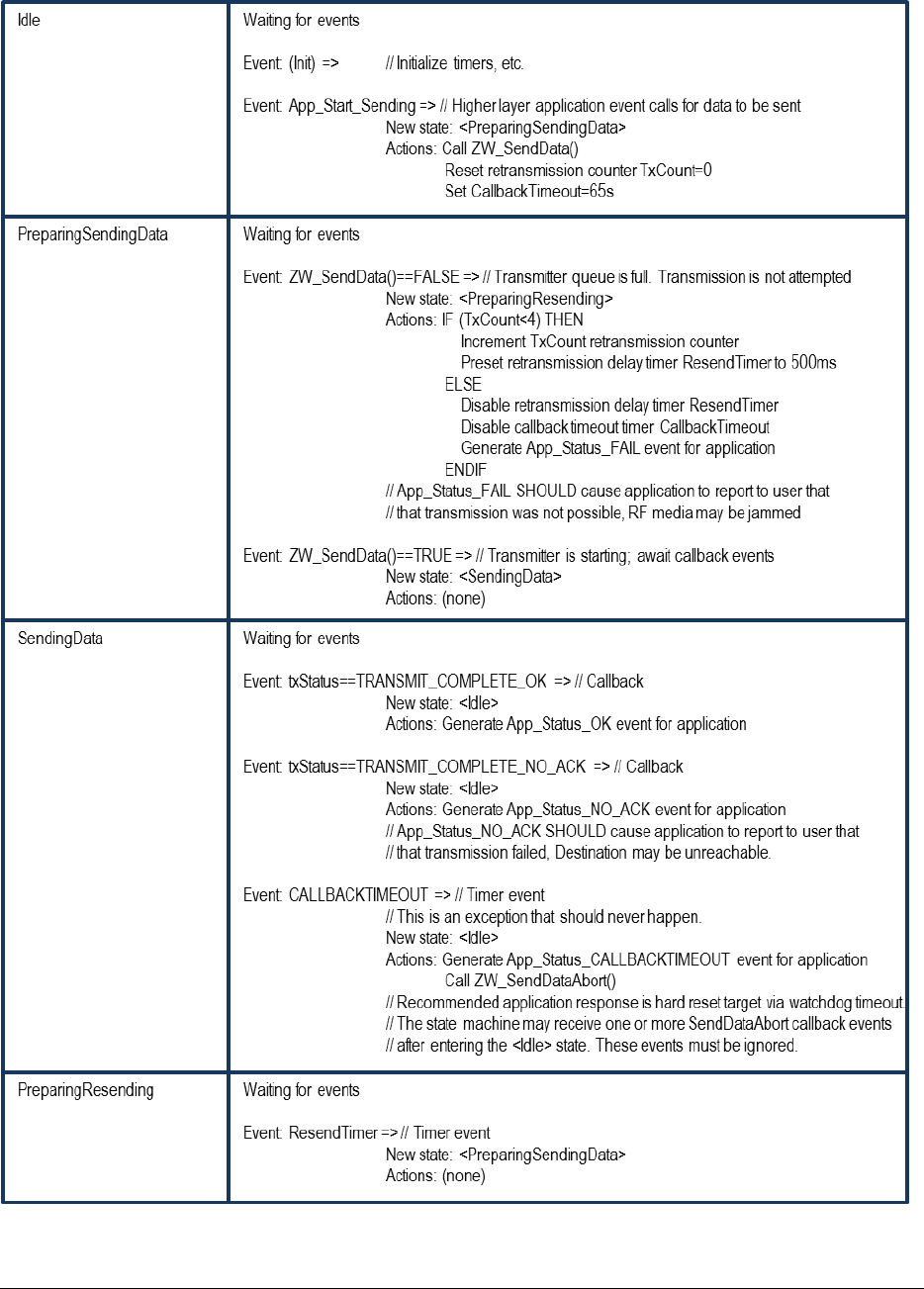

Figure 9. Application state machine for ZW_SendData
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 75 of 232
CONFIDENTIAL
Table 13. ZW_SendData : State/Event processing
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 76 of 232
CONFIDENTIAL
4.4.3.1.7 Serial API function prototypes
HOST->ZW: REQ | 0x13 | nodeID | dataLength | pData[ ] | txOptions | funcID
ZW->HOST: RES | 0x13 | RetVal
ZW->HOST: REQ | 0x13 | funcID | txStatus
4.4.3.2 ZW_SendData_Generic
BYTE ZW_SendData_Generic(BYTE nodeID,
BYTE *pData,
BYTE dataLength,
BYTE txOptions,
BYTE_P pRoute,
Void (*completedFunc)(BYTE txStatus))
NOTE: Not supported by the Bridge Controller library (See ZW_SendData_Bridge). For backward
compatibility macros for the supporting libraries has been made for
ZW_SendData(node,data,length,options,func) and
ZW_SEND_DATA(node,data,length,options,func)
Macro: ZW_SEND_DATA_GENERIC(node,data,length,options,pRoute,func)
Transmit the data buffer to a single Z-Wave Node or all Z-Wave Nodes (broadcast). The data buffer is
queued to the end of the transmit queue (first in; first out) and when ready for transmission the Z-Wave
protocol layer frames the data with a protocol header in front and a checksum at the end.
The transmit option TRANSMIT_OPTION_ACK requests the destination node to return a transfer
acknowledge to ensure proper transmission. The transmitting node will retry the transmission if no
acknowledge received. The Controller nodes can add the TRANSMIT_OPTION_AUTO_ROUTE flag to
the transmit option parameter. The Controller will then try transmitting the frame via repeater nodes if the
direct transmission failed.
The transmit option TRANSMIT_OPTION_NO_ROUTE force the protocol to send the frame without
routing, even if a response route exist.
The Routing Slave and Enhanced Slave nodes can add the TRANSMIT_OPTION_AUTO_ROUTE flag to
the transmit option parameter. This flag informs the Enhanced/Routing Slave protocol that the frame
about to be transmitted should use the assigned return routes for the concerned nodeID (if any). The
node will then try to use one of the return routes assigned (if a route is unsuccessful the next route is
used and so on), if no routes are valid then transmission will try direct (no route) to nodeID. If the nodeID
= NODE_BROADCAST then the frame will be transmitted to all assigned return route destinations. If
nodeID != NODE_BROADCAST then the frame will be transmitted to nodeID using the assigned return
routes for nodeID.
To enable on-demand route resolution a new transmit option TRANSMIT_OPTION_EXPLORE must be
appended to the well known send API calls. This instruct the protocol to transmit the frame as an explore
frame to the destination node if source routing fails. An explore frame uses normal RF power level minus
6dB similar to a node finding neighbors. It is also possible to specify the maximum number of source
routing attempts before the explorer frame kicks in using the API call ZW_SetRoutingMAX. Default value
is five with respect to maximum number of source routing attempts. A SDK 4.5 controller uses the routing
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 77 of 232
CONFIDENTIAL
algorithm from 5.02 to address nodes from SDK‟s not supporting explorer frame. When communicating
with nodes, which do not support on-demand route resolution the transmit option flag
TRANSMIT_OPTION_EXPLORE is ignored. Notice that an explorer frame cannot wake up FLiRS nodes.
The completedFunc is called when the frame transmission completes, that is when transmitted if ACK is
not requested; when acknowledge received from the destination node, or when routed acknowledge
completed if the frame was transmitted via one or more repeater nodes. The transmit status
TRANSMIT_COMPLETE_NO_ACK indicate that no acknowledge is received from the destination node.
The transmit status TRANSMIT_COMPLETE_FAIL indicate that the Z-Wave network is busy (jammed).
The TRANSMIT_OPTION_LOW_POWER option should only be used when the two nodes that are
communicating are close to each other (<2 meter). In all other cases this option should not be used.
NOTE: Allways use the completeFunc callback to determine when the transmit is done. The
completeFunc should flag the application state machine that the transmit has been done and next
state/action can be started. A frame transmit should always be started through the application state
machine in order to be sure that the transmit buffer is ready for sending next frame. Calling the
ZW_SendData_Generic in a loop without using the completeFunc callback will overflow the transmit
queue and eventually fail. The payload data buffer in the application must not be changed before
completeFunc callback is received because it is only the pointer that is passed to the transmit queue.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 78 of 232
CONFIDENTIAL
Defined in: ZW_transport_api.h
Return value:
BYTE
FALSE
If transmit queue overflow
Parameters:
nodeID IN
Destination node ID
(NODE_BROADCAST == all nodes)
The frame will also be transmitted in
case the source node ID is equal
destination node ID
pData IN
Data buffer pointer
dataLength IN
Data buffer length
The maximum dataLength field
depends on the transmit options and
whether a non-secure/secure frame is
used. For details, see section 3.4. The
payload must be minimum one byte.
txOptions IN
Transmit option flags:
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3
of normal RF range).
TRANSMIT_OPTION_NO_ROUTE
Only send this frame directly, even if a
response route exist
TRANSMIT_OPTION_EXPLORE
Transmit frame as an Explore frame if
all else fails.
TRANSMIT_OPTION_ACK
Request acknowledge from destination
node.
TRANSMIT_OPTION_AUTO_ROUTE
Controllers:
Request retransmission via repeater
nodes (at normal output power level).
Number of max routes can be set using
ZW_SetRoutingMax
Routing and Enhanced Slaves:
Send the frame to nodeID using the
return routes assigned for nodeID to the
routing/enhanced slave, if no routes are
valid then transmit directly to nodeID (if
nodeID = NODE_BROADCAST then
the frame will be a BROADCAST).
If return routes exists and the nodeID =
NODE_BROADCAST then the frame
will be transmitted to all assigned return
route destinations. If nodeID !=
NODE_BROADCAST then the frame
will be transmitted via the assigned
return routes for nodeID.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 79 of 232
CONFIDENTIAL
pRoute IN
Pointer to byte array (4 bytes) containing
up to 4 hop node IDs. Zero indicates end
of source route if the route is shorter than
4 hops. NULL indicates that the internal
source routing mechanism is used.
Format of data:
Repeater 1
Repeater 2
Repeater 3
Repeater 4
The call will only try the proposed
source route when pRoute is different
from NULL. Ignores the transmit options
TRANSMIT_OPTION_AUTO_ROUTE if
pRoute is different from NULL.
NOTE: On controllers the protocol will
calculate the speed used for the route
and in routing/enhanced slaves the
route will always use 9.6kbps
completedFunc
Transmit completed call back function
Callback function Parameters:
txStatus
Transmit completion status:
TRANSMIT_COMPLETE_OK
Successfully
TRANSMIT_COMPLETE_NO_ACK
No acknowledge is received before
timeout from the destination node.
Acknowledge is discarded in case it is
received after the timeout. Also used when
transmission of a routed frame fails
between Source node and hop 1.
TRANSMIT_COMPLETE_FAIL
Not possible to transmit data because the
Z-Wave network is busy (jammed).
TRANSMIT_COMPLETE_HOP_1_FAIL
Transmission between hop 1 and hop 2
failed. Only detected in case a Routed
Error is returned to source node.
TRANSMIT_COMPLETE_HOP_2_FAIL
Transmission between hop 2 and hop 3
failed. Only detected in case a Routed
Error is returned to source node.
TRANSMIT_COMPLETE_HOP_3_FAIL
Transmission between hop 3 and hop 4
failed. Only detected in case a Routed
Error is returned to source node.
TRANSMIT_COMPLETE_HOP_4_FAIL
Transmission between hop 4 and
destination node failed. Only detected in
case a Routed Error is returned to source
node.
Timeout: 65s
Exception recovery: If a timeout occurs, it is important to call ZW_SendDataAbort to stop the seding of
the frame.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 80 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x19 | nodeID | dataLength | pData[ ] | txOptions | pRoute[4] | funcID
ZW->HOST: RES | 0x19 | RetVal
ZW->HOST: REQ | 0x19 | funcID | txStatus
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 81 of 232
CONFIDENTIAL
4.4.3.3 ZW_SendData_Bridge
BYTE ZW_SendData_Bridge( BYTE srcNodeID,
BYTE destNodeID,
BYTE *pData,
BYTE dataLength,
BYTE txOptions,
BYTE_P pRoute,
Void (*completedFunc)(BYTE txStatus))
NOTE: Only supported by the Bridge Controller library. For backward compatibility macros for
the Bridge Controller library has been made for ZW_SendData(node,data,length,options,func) and
ZW_SEND_DATA(node,data,length,options,func)
Macro: ZW_SEND_DATA_BRIDGE(srcnodeid,destnodeid,data,length,options,pRoute,func)
Transmit the data buffer to a single Z-Wave Node or all Z-Wave Nodes (broadcast). The data buffer is
queued to the end of the transmit queue (first in; first out) and when ready for transmission the Z-Wave
protocol layer frames the data with a protocol header in front and a checksum at the end.
The transmit option TRANSMIT_OPTION_ACK requests the destination node to return a transfer
acknowledge to ensure proper transmission. The transmitting node will retry the transmission if no
acknowledge received. The Controller nodes can add the TRANSMIT_OPTION_AUTO_ROUTE flag to
the transmit option parameter. The Controller will then try transmitting the frame via repeater nodes if the
direct transmission failed.
The transmit option TRANSMIT_OPTION_NO_ROUTE force the protocol to send the frame without
routing, even if a response route exist.
To enable on-demand route resolution a new transmit option TRANSMIT_OPTION_EXPLORE must be
appended to the well known send API calls. This instruct the protocol to transmit the frame as an explore
frame to the destination node if source routing fails. An explore frame uses normal RF power level minus
6dB similar to a node finding neighbors. It is also possible to specify the maximum number of source
routing attempts before the explorer frame kicks in using the API call ZW_SetRoutingMAX. Default value
is five with respect to maximum number of source routing attempts. A SDK 4.5 controller uses the routing
algorithm from 5.02 to address nodes from SDK‟s not supporting explorer frame. When communicating
with nodes, which do not support on-demand route resolution the transmit option flag
TRANSMIT_OPTION_EXPLORE is ignored. Notice that an explorer frame cannot wake up FLiRS nodes.
The completedFunc is called when the frame transmission completes, that is when transmitted if ACK is
not requested; when acknowledge received from the destination node, or when routed acknowledge
completed if the frame was transmitted via one or more repeater nodes. The transmit status
TRANSMIT_COMPLETE_NO_ACK indicate that no acknowledge is received from the destination node.
The transmit status TRANSMIT_COMPLETE_FAIL indicate that the Z-Wave network is busy (jammed).
The TRANSMIT_OPTION_LOW_POWER option should only be used when the two nodes that are
communicating are close to each other (<2 meter). In all other cases this option should not be used.
NOTE: Allways use the completeFunc callback to determine when the transmit is done. The
completeFunc should flag the application state machine that the transmit has been done and next
state/action can be started. A frame transmit should always be started through the application state
machine in order to be sure that the transmit buffer is ready for sending next frame. Calling the
ZW_SendData_Bridge in a loop without using the completeFunc callback will overflow the transmit
queue and eventually fail. The payload data buffer in the application must not be changed before
completeFunc callback is received because it is only the pointer that is passed to the transmit queue.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 82 of 232
CONFIDENTIAL
Defined in: ZW_transport_api.h
Return value:
BYTE
FALSE
If transmit queue overflow
Parameters:
srcNodeID IN
Source node ID. Valid values:
NODE_BROADCAST = Bridge
Controller NodeID.
Bridge Controller NodeID.
Virtual Slave NodeID (only existing
Virtual Slave NodeIDs).
destNodeID IN
Destination node ID
(NODE_BROADCAST == all nodes)
The frame will also be transmitted in case
the source node ID is equal destination
node ID
pData IN
Data buffer pointer
dataLength IN
Data buffer length
The maximum dataLength field depends
on the transmit options and whether a
non-secure/secure frame is used. For
details, see section 3.4. The payload
must be minimum one byte.
txOptions IN
Transmit option flags:
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3 of
normal RF range).
TRANSMIT_OPTION_NO_ROUTE
Only send this frame directly, even if a
response route exist
TRANSMIT_OPTION_EXPLORE
Transmit frame as an Explore frame if all
else fails
TRANSMIT_OPTION_ACK
Request acknowledge from destination
node.
TRANSMIT_OPTION_AUTO_ROUTE
Request retransmission via repeater
nodes (at normal output power level).
pRoute IN
Pointer to byte array (4 bytes) containing
up to 4 hop node IDs. Zero indicates end
of source route. NULL indicates that the
internal source routing mechanism is
used.
The call will only try the proposed source
route when pRoute is different from
NULL. Ignores the transmit options
TRANSMIT_OPTION_AUTO_ROUTE if
pRoute is different form NULL.
completedFunc
Transmit completed call back function
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 83 of 232
CONFIDENTIAL
Callback function Parameters:
txStatus
Transmit completion status:
TRANSMIT_COMPLETE_OK
Successfully
TRANSMIT_COMPLETE_NO_ACK
No acknowledge is received before timeout
from the destination node. Acknowledge is
discarded in case it is received after the
timeout.
TRANSMIT_COMPLETE_FAIL
Not possible to transmit data because the
Z-Wave network is busy (jammed).
TRANSMIT_COMPLETE_HOP_0_FAIL
Transmission between Source node and
hop 1 failed.
TRANSMIT_COMPLETE_HOP_1_FAIL
Transmission between hop 1 and hop 2
failed. Only detected in case a Routed
Error is returned to source node.
TRANSMIT_COMPLETE_HOP_2_FAIL
Transmission between hop 2 and hop 3
failed. Only detected in case a Routed
Error is returned to source node.
TRANSMIT_COMPLETE_HOP_3_FAIL
Transmission between hop 3 and hop 4
failed. Only detected in case a Routed
Error is returned to source node.
TRANSMIT_COMPLETE_HOP_4_FAIL
Transmission between hop 4 and
destination node failed. Only detected in
case a Routed Error is returned to source
node.
Timeout: 65s
Exception recovery: If a timeout occur, it is important to call ZW_SendDataAbort to stop the seding of
the frame.
Serial API:
HOST->ZW: REQ | 0xA9 | srcNodeID | destNodeID | dataLength | pData[ ] | txOptions | pRoute[4] |
funcID
ZW->HOST: RES | 0xA9 | RetVal
ZW->HOST: REQ | 0xA9 | funcID | txStatus
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 84 of 232
CONFIDENTIAL
4.4.3.4 ZW_SendDataMeta_Generic
BYTE ZW_SendDataMeta_Generic(BYTE destNodeID,
BYTE *pData,
BYTE dataLength,
BYTE txOptions,
BYTE *pRoute,
Void (*completedFunc)(BYTE txStatus))
Macro: ZW_SEND_DATA_META_GENERIC(destnodeid,data,length,options,proute,func)
NOTE: This function is not available in the Bridge Controller libraries.
Transmit streaming or bulk data in the Z-Wave network. The application must implement a delay of
minimum 35ms after each ZW_SendDataMeta_Generic call to ensure that streaming data traffic do not
prevent control data from getting through in the network. Both slaves and controllers supporting 40kbps
can use the API call ZW_SendDataMeta_Generic. The call also checks that the destination supports
40kbps except if it is a source based on a slave. Routing can use both 40kbps and 9.6kbps hops.
NOTE: The completedFunc is called when the frame transmission completes in the case that ACK is
not requested; When TRANSMIT_OPTION_ACK is requested the callback function is called when frame
has been acknowledged or all transmission attempts are exausted.
The transmit status TRANSMIT_COMPLETE_NO_ACK indicate that no acknowledge is received from
the destination node. The transmit status TRANSMIT_COMPLETE_FAIL indicate that the Z-Wave
network is busy (jammed).
The Routing Slave and Enhanced Slave nodes can add the TRANSMIT_OPTION_AUTO_ROUTE flag to
the transmit option parameter. This flag informs the Enhanced/Routing Slave protocol that the frame
about to be transmitted should use the assigned return routes for the concerned nodeID (if any). The
node will then try to use one of the return routes assigned (if a route is unsuccessful the next route is
used and so on), if no routes are valid then transmission will try direct (no route) to nodeID. If the
nodeID = NODE_BROADCAST then the frame will be transmitted to all assigned return route
destinations. If nodeID != NODE_BROADCAST then the frame will be transmitted to nodeID using the
assigned return routes for nodeID.
NOTE: Allways use the completeFunc callback to determine when the transmit is done. The
completeFunc should flag the application state machine that the transmit has been done and next
state/action can be started. A frame transmit should always be started through the application state
machine in order to be sure that the transmit buffer is ready for sending next frame. Calling the
ZW_SendDataMeta_Generic in a loop without using the completeFunc callback will overflow the transmit
queue and eventually fail. The payload data buffer in the application must not be changed before
completeFunc callback is received because it is only the pointer that is passed to the transmit queue.
Defined in: ZW_transport_api.h
Return value:
BYTE
FALSE
If transmit queue overflow or if
destination node is not 40kbit/s
compatible
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 85 of 232
CONFIDENTIAL
Parameters:
destNodeID
IN Destination node ID
Node to send Meta data to. Should be
40kbit/s capable
pData
IN Data buffer pointer
Pointer to data buffer.
dataLength
IN Data buffer length
Length of buffer
txOptions
IN Transmit option flags:
The maximum dataLength field depends
on the transmit options and whether a
non-secure/secure frame is used. For
details, see section 3.4. The payload
must be minimum one byte.
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3 of
normal RF range).
TRANSMIT_OPTION_EXPLORE
Transmit frame as an Explore frame if all
else fails
TRANSMIT_OPTION_ACK
Request the destination node to
acknowledge the frame
TRANSMIT_OPTION_AUTO_ROUTE
Controllers:
Request retransmission via repeater
nodes (at normal output power level).
Number of max routes can be set using
ZW_SetRoutingMax
Routing and Enhanced Slaves:
Send the frame to nodeID using the
return routes assigned for nodeID to the
routing/enhanced slave, if no routes are
valid then transmit directly to nodeID (if
nodeID = NODE_BROADCAST then the
frame will be a BROADCAST).
If return routes exists and the nodeID =
NODE_BROADCAST then the frame will
be transmitted to all assigned return route
destinations. If nodeID !=
NODE_BROADCAST then the frame will
be transmitted via the assigned return
routes for nodeID.
pRoute IN
Pointer to byte array (4 bytes) containing
up to 4 hop node IDs. Zero indicates end
of source route. NULL indicates that the
internal source routing mechanism is
used.
The call will only try the proposed source
route when pRoute is different from
NULL. Ignores the transmit options
TRANSMIT_OPTION_AUTO_ROUTE if
pRoute is different form NULL.
completedFunc
Transmit completed call back function
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 86 of 232
CONFIDENTIAL
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Timeout: 65s
Exception recovery: If a timeout occurs, it is important to call ZW_SendDataAbort to stop the seding of
the frame.
Serial API (Serial API protocol version 4):
HOST->ZW: REQ | 0x1A | destNodeID | dataLength | pData[ ] | txOptions | pRoute[4] | funcID
ZW->HOST: RES | 0x1A | RetVal
ZW->HOST: REQ | 0x1A | funcID | txStatus
4.4.3.5 ZW_SendDataMeta_Bridge
BYTE ZW_SendDataMeta_Bridge(BYTE srcNodeID,
BYTE destNodeID,
BYTE *pData,
BYTE dataLength,
BYTE txOptions,
BYTE *pRoute,
Void (*completedFunc)(BYTE txStatus))
Macro: ZW_SEND_DATA_META_BRIDGE(srcnodeid, nodeid, data, length, options, proute, func)
NOTE: This function is only available in the Bridge Controller library.
Transmit streaming or bulk data in the Z-Wave network. The application must implement a delay of
minimum 35ms after each ZW_SendDataMeta_Bridge call to ensure that streaming data traffic do not
prevent control data from getting through in the network. Both virtual slaves and the bridge controller id
can use the API call ZW_SendDataMeta_Bridge. The call checks that the destination supports 40kbps
and denies transmission if destination is 9.6kbps only. Both 40kbps and 9.6kbps hops are allowed in
case routing is necessary.
NOTE: The completedFunc is called when the frame transmission completes in the case that ACK is
not requested; When TRANSMIT_OPTION_ACK is requested the callback function is called when frame
has been acknowledged or all transmission attempts are exausted.
The transmit status TRANSMIT_COMPLETE_NO_ACK indicate that no acknowledge is received from
the destination node. The transmit status TRANSMIT_COMPLETE_FAIL indicate that the Z-Wave
network is busy (jammed).
NOTE: Allways use the completeFunc callback to determine when the transmit is done. The
completeFunc should flag the application state machine that the transmit has been done and next
state/action can be started. A frame transmit should always be started through the application state
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 87 of 232
CONFIDENTIAL
machine in order to be sure that the transmit buffer is ready for sending next frame. Calling the
ZW_SendDataMeta_Bridge in a loop without using the completeFunc callback will overflow the transmit
queue and eventually fail. The payload data buffer in the application must not be changed before
completeFunc callback is received because it is only the pointer that is passed to the transmit queue.
Defined in: ZW_transport_api.h
Return value:
BYTE
FALSE
If transmit queue overflow or if
destination node is not 40kbit/s
compatible
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 88 of 232
CONFIDENTIAL
Parameters:
srcNodeID IN
Source node ID. Valid values:
NODE_BROADCAST = Bridge
Controller NodeID.
Bridge Controller NodeID.
Virtual Slave NodeID (only existing
Virtual Slave NodeIDs).
destNodeID
IN Destination node ID
Node to send Meta data to. Should be
40kbit/s capable
pData
IN Data buffer pointer
Pointer to data buffer.
dataLength
IN Data buffer length
Length of buffer
txOptions
IN Transmit option flags:
The maximum dataLength field depends
on the transmit options and whether a
non-secure/secure frame is used. For
details, see section 3.4. The payload
must be minimum one byte.
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3
of normal RF range).
TRANSMIT_OPTION_EXPLORE
Transmit frame as an Explore frame if all
else fails
TRANSMIT_OPTION_ACK
Request the destination node to
acknowledge the frame
TRANSMIT_OPTION_AUTO_ROUTE
Request retransmission on single cast
frames via repeater nodes (at normal
output power level)
pRoute IN
Pointer to byte array (4 bytes) containing
up to 4 hop node IDs. Zero indicates end
of source route. NULL indicates that the
internal source routing mechanism is
used.
The call will only try the proposed source
route when pRoute is different from
NULL. Ignores the transmit options
TRANSMIT_OPTION_AUTO_ROUTE if
pRoute is different form NULL.
completedFunc
Transmit completed call back function
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Timeout: 65s
Exception recovery: If a timeout occurs, it is important to call ZW_SendDataAbort to stop the seding of
the frame.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 89 of 232
CONFIDENTIAL
Serial API (Serial API protocol version 4):
HOST->ZW: REQ | 0xAA | srcNodeID | destNodeID | dataLength | pData[ ] | txOptions | pRoute[4] |
funcID
ZW->HOST: RES | 0xAA | RetVal
ZW->HOST: REQ | 0xAA | funcID | txStatus
4.4.3.6 ZW_SendDataMulti
BYTE ZW_SendDataMulti(BYTE *pNodeIDList,
BYTE *pData,
BYTE dataLength,
BYTE txOptions,
Void (*completedFunc)(BYTE txStatus))
Macro: ZW_SEND_DATA_MULTI(nodelist,data,length,options,func)
NOTE: This function is not available in the Bridge Controller library (See
ZW_SendDataMulti_Bridge).
Transmit the data buffer to a list of Z-Wave Nodes (multicast frame). If the transmit optionflag
TRANSMIT_OPTION_ACK is set the data buffer is also sent as a singlecast frame to each of the
Z-Wave Nodes in the node list.
The completedFunc is called when the frame transmission completes in the case that ACK is not
requested; When TRANSMIT_OPTION_ACK is requested the callback function is called when all single
casts have been transmitted and acknowledged.
The transmit status TRANSMIT_COMPLETE_NO_ACK indicate that no acknowledge is received from
the destination node. The transmit status TRANSMIT_COMPLETE_FAIL indicate that the Z-Wave
network is busy (jammed). The data pointed to by pNodeIDList should not be changed before the
callback is called.
NOTE: Allways use the completeFunc callback to determine when the next frame can be send. Calling
the ZW_SendData or ZW_SendDataMulti in a loop without checking the completeFunc callback will
overflow the transmit queue and eventually fail. The data buffer in the application must not be changed
before completeFunc callback is received because it is only the pointer there is passed to the transmit
queue.
Defined in: ZW_transport_api.h
Return value:
BYTE
FALSE
If transmit queue overflow
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 90 of 232
CONFIDENTIAL
Parameters:
pNodeIDList
IN List of destination node ID's
This is a fixed length bit-mask.
Pdata
IN Data buffer pointer
DataLength
IN Data buffer length
The maximum size of a packet is 64
bytes. The protocol header, multicast
addresses and checksum takes 39 bytes
in a multicast frame leaving 25 bytes for
the payload. In case routed single casts
follow multicast the source routing info
takes up to 6 bytes depending on the
number of hops leaving minimum 19
bytes for the payload. In case it is a
singlecast, which piggyback on an
explorer frame overhead is 8 bytes
leaving minimum 17 bytes for the
payload. The payload must be minimum
one byte.
TxOptions
IN Transmit option flags:
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3
of normal RF range).
TRANSMIT_OPTION_EXPLORE
If TRANSMIT_OPTION_ACK is set the
will make the node try sending as an
Explore frame if all else fails when doing
the single cast transmits
TRANSMIT_OPTION_ACK
The multicast frame will be followed by a
number of single cast frames to each of
the destination nodes and request
acknowledge from each destination
node.
TRANSMIT_OPTION_AUTO_ROUTE
(Controller API only)
Request retransmission on single cast
frames via repeater nodes (at normal
output power level)
completedFunc
Transmit completed call back function
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Timeout: 65s*numberOfDestinations
Exception recovery: If a timeout occurs, it is important to call ZW_SendDataAbort to stop the seding of
the frame.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 91 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x14 | numberNodes | pNodeIDList[ ] | dataLength | pData[ ] | txOptions | funcId
ZW->HOST: RES | 0x14 | RetVal
ZW->HOST: REQ | 0x14 | funcId | txStatus
4.4.3.7 ZW_SendDataMulti_Bridge
BYTE ZW_SendDataMulti_Bridge(BYTE srcNodeID,
BYTE *pNodeIDList,
BYTE *pData,
BYTE dataLength,
BYTE txOptions,
Void (*completedFunc)(BYTE txStatus))
Macro: ZW_SEND_DATA_MULTI_BRIDGE(srcnodid,nodelist,data,length,options,func)
NOTE: This function is only available in the Bridge Controller library.
Transmit the data buffer to a list of Z-Wave Nodes (multicast frame). If the transmit optionflag
TRANSMIT_OPTION_ACK is set the data buffer is also sent as a singlecast frame to each of the
Z-Wave Nodes in the node list.
The completedFunc is called when the frame transmission completes in the case that ACK is not
requested; When TRANSMIT_OPTION_ACK is requested the callback function is called when all single
casts have been transmitted and acknowledged.
The transmit status TRANSMIT_COMPLETE_NO_ACK indicate that no acknowledge is received from
the destination node. The transmit status TRANSMIT_COMPLETE_FAIL indicate that the Z-Wave
network is busy (jammed). The data pointed to by pNodeIDList should not be changed before the
callback is called.
NOTE: Allways use the completeFunc callback to determine when the next frame can be send. Calling
the ZW_SendData_Bridge or ZW_SendDataMulti_Bridge in a loop without checking the completeFunc
callback will overflow the transmit queue and eventually fail. The data buffer in the application must not
be changed before completeFunc callback is received because it‟s only the pointer there is passed to the
transmit queue.
Defined in: ZW_transport_api.h
Return value:
BYTE
FALSE
If transmit queue overflow
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 92 of 232
CONFIDENTIAL
Parameters:
srcNodeID IN
Source node ID. Valid values:
NODE_BROADCAST = Bridge
Controller NodeID.
Bridge Controller NodeID.
Virtual Slave NodeID (only existing
Virtual Slave NodeIDs).
pNodeIDList
IN List of destination node ID's
This is a fixed length bit-mask.
Pdata
IN Data buffer pointer
DataLength
IN Data buffer length
The maximum size of a packet is 64
bytes. The protocol header, multicast
addresses and checksum takes 39 bytes
in a multicast frame leaving 25 bytes for
the payload. In case routed single casts
follow multicast the source routing info
takes up to 6 bytes depending on the
number of hops leaving minimum 19
bytes for the payload. In case it is a
singlecast, which piggyback on an
explorer frame overhead is 8 bytes
leaving minimum 17 bytes for the
payload. The payload must be minimum
one byte.
TxOptions
IN Transmit option flags:
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3 of
normal RF range).
TRANSMIT_OPTION_EXPLORE
If TRANSMIT_OPTION_ACK is set the
will make the node try sending as an
Explore frame if all else fails when doing
the single cast transmits
TRANSMIT_OPTION_ACK
The multicast frame will be followed by a
number of single cast frames to each of
the destination nodes and request
acknowledge from each destination node.
TRANSMIT_OPTION_AUTO_ROUTE
Request retransmission on single cast
frames via repeater nodes (at normal
output power level)
completedFunc
Transmit completed call back function
Callback function Parameters:
txStatus IN
(see ZW_SendData)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 93 of 232
CONFIDENTIAL
Timeout: 65s
Exception recovery: If a timeout occurs, it is important to call ZW_SendDataAbort to stop the seding of
the frame.
Serial API:
HOST->ZW: REQ | 0xAB | srcNodeID | numberNodes | pNodeIDList[ ] | dataLength | pData[ ] |
txOptions | funcId
ZW->HOST: RES | 0xAB | RetVal
ZW->HOST: REQ | 0xAB | funcId | txStatus
4.4.3.8 ZW_SendDataAbort
void ZW_SendDataAbort( )
Macro: ZW_SEND_DATA_ABORT
Abort the ongoing transmit started with ZW_SendData() or ZW_SendDataMulti(). If an ongoing
transmission is aborted, the callback function from the send call will return with the status
TRANSMIT_COMPLETE_NO_ACK.
Defined in: ZW_transport_api.h
Serial API:
HOST->ZW: REQ | 0x16
4.4.3.9 ZW_SendConst
void ZW_SendConst( void )
Macro: ZW_SEND_CONST()
This function causes the transmitter to send out a constant signal on a fixed frequency until another RF
function is called.
This API call can only be called in production test mode from ApplicationTestPoll.
Defined in: ZW_transport_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 94 of 232
CONFIDENTIAL
4.4.4 Z-Wave TRIAC API
The built-in TRIAC Controller is targeted at TRIAC or FET controlled light / power dimming applications.
For a detailed description of the TRIAC refer to [25] or [26] depending on the single chip used. The
Application software can use the following TRIAC API calls to control the ZW0201/ZW0301 TRIAC
Controller.
4.4.4.1 TRIAC_Init
void TRIAC_Init(BYTE bridgeType,
BYTE mainsfreq,
BYTE voltageDrop,
BYTE minimumPulse)
Macros:
ZW_TRIAC_INIT
ZW_TRIAC_INIT_2_WIRE
TRIAC_Init initializes the ASIC's integrated TRIAC for mainsfreq AC mains frequency usage, bridge type,
voltageDrop is the voltage drop across the ZEROX input and the minimumPulse is the minimum pulse
time of the TRIAC output signal. Configures the ZEROX and TRIAC pins for triac control.
The purpose of the voltageDrop parameter is to adjust when to fire the TRIAC pulse in the negative half
period. This is due to the threshold level of the circuit connected to the the ZEROX pin generating a
difference between the negative and positive half periods with respect to time. The values for
voltageDrop are between 0mV - 2000mV in 100mV intervals.
In half bridge mode can the fire angle be different for the positive and the negative half period.
Sometimes it is not possible to see the fire pulse in the positive half period. This can be because the duty
cycle of the zero-cross is not 50%/50%. Adjust the voltageDrop parameter to obtain the same positive
and the negative half period.
The minimumPulse defines the minimum length of the TRIAC pulse. Refer to the datasheet of the
specific Triac to see how long time the Triac gate pulse must be to guarantee that the Triac starts to
conduct. The minimumPulse can have the value from 64µs to 512µs with 64µs intervals.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 95 of 232
CONFIDENTIAL
Defined in: ZW_triac_api.h
Parameters:
bridgeType IN
Bridge types:
TRIAC_FULLBRIDGE
The TRIAC signal is triggered ONLY on
the rising edge of the ZEROX signal
which is fed through a FULL diode bridge.
TRIAC_HALFBRIDGE
The TRIAC signal is triggered on the
rising AND the falling edge of the ZEROX
signal which is fed through a NON-FULL
diode bridge.
mainsfreq IN
AC Mains frequencies:
FREQUENCY_50HZ
Controlling a 50Hz AC mains supply
FREQUENCY_60HZ
Controlling a 60Hz AC mains supply
voltageDrop IN
Valid values for voltageDrop are from
0 to 2000mv with 100mv step.
The voltage drop values are defined as
constants and are listed in the
ZW_triac_api.h header file.
minimumPulse IN
Valid values for the triac minimum
pulse are from 64 us to 512 us with
64 us step.
The minimum pulse values are defined
as constants and are listed in the
ZW_triac_api.h.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 96 of 232
CONFIDENTIAL
4.4.4.2 TRIAC_SetDimLevel
void TRIAC_SetDimLevel(BYTE dimLevel)
Macros:
ZW_TRIAC_DIM_SET_LEVEL(dimLevel)
ZW_TRIAC_LIGHT_SET_LEVEL(lightLevel)
TRIAC_SetDimLevel turns the triac controller ON and sets it to dim at dimLevel (0-100) or sets the light
level to lightLevel (0-100) if the ZW_TRIAC_LIGHT_SET_LEVEL macro is used. This is done for the
mains frequency selected in the TRIAC_Init function call (50/60Hz).
Defined in: ZW_triac_api.h
Parameters:
dimLevel IN
Level (0…100)
Serial API (Not supported)
4.4.4.3 TRIAC_Off
void TRIAC_Off(void)
Macro:
ZW_TRIAC_OFF
TRIAC_Off turns the triac controller OFF.
Defined in: ZW_triac_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 97 of 232
CONFIDENTIAL
4.4.5 Z-Wave Timer API
The timer is based on a “tick-function” that is activated from the RF timer interrupt function every 10
msec. The “tick-function” will handle a global tick counter and a number of active timers. The global tick
counter is incremented and the active timers are decremented on each “tick”. When an active timer value
changes from 1 to 0, the registered timeout function is called. The timeout function is called from the
Z-Wave main loop (non-interrupt environment).
The timer implementation is targeted for shorter (second) timeout functionality. The global tick counter
and active timers are inaccurate because they stops while changing RF transmission direction and
during sleep mode. Therefore the global tick counter and active timers will pick up where they left off
when leaving sleep mode.
Global tick counter:
WORD tickTime
4.4.5.1 TimerStart
BYTE TimerStart( VOID_CALLBACKFUNC(func)(), BYTE timerTicks, BYTE repeats)
Macro: ZW_TIMER_START(func,ticks,repeats)
Register a function that is called when the specified time has elapsed. Remember to check if the timer is
allocated by testing the return value. The call back function is called "repeats" times before the timer is
stopped. It‟s possible to have up to 5 timers running simultaneously on a slave and 4 timers on a
controller. Additional software timers can be implemented by for example using the PWM API as “tick-
function”.
Defined in: ZW_timer_api.h
Return value:
BYTE
Timer handle (timer table index). 0xFF
is returned if the timer start operation
failed.
Parameters:
func IN
Timeout function address (not NULL).
timerTicks IN
Timeout value (value * 10 msec.).
Predefined values:
TIMER_ONE_SECOND
repeats IN
Number of function calls. Max value is
253. Predefined values:
TIMER_ONE_TIME
TIMER_FOREVER
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 98 of 232
CONFIDENTIAL
Serial API (Not supported)
4.4.5.2 TimerRestart
BYTE TimerRestart( BYTE timerHandle)
Macro: ZW_TIMER_RESTART(handle)
Set the specified timer‟s tick count to the initial value (extend timeout value).
NOTE: There is no protection in the API against calling this function with a wrong handler, so care should
be taken not to use a handler of a timer that has already expired or has been canceled.
Defined in: ZW_timer_api.h
Return value:
BYTE
TRUE
If timer restarted
Parameters:
timerHandle IN
Timer to restart
Serial API (Not supported)
4.4.5.3 TimerCancel
BYTE TimerCancel(BYTE timerHandle)
Macro: ZW_TIMER_CANCEL(handle)
Stop the specified timer.
NOTE: There is no protection in the API against calling this function with a wrong handler, so care should
be taken not to use a handler of a timer that has already expired.
Defined in: ZW_timer_api.h
Return value:
BYTE
TRUE
If timer cancelled
Parameters:
timerHandle IN
Timer number to stop
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 99 of 232
CONFIDENTIAL
4.4.6 Z-Wave PWM API
The Z-Wave PWM/GP Timer API is an API that grants the application programmer protected access to a
ZW0201/ZW0301 PWM or a timer interrupt. The timer, called General Purpose Timer or GP Timer, is a
16 bit reloadable timer. Both the PWM and the GP Timer runs on a clock from a prescaler that can be set
to either divide by 4 or divide by 512.
4.4.6.1 ZW_PWMSetup
BYTE ZW_PWMSetup (BYTE bValue)
Macro: ZW_PWM_SETUP(value)
Configures and enables/disables the PWM or the GP Timer. The PWM and the GP Timer functions are
mutual exclusive. That is, when the PWM is enabled, the GP Timer cannot be used at the same time and
vice versa. When enabled the PWM uses P1_6 as output pin.
Parameters:
bValue IN
TIMER_RUN_BIT (bit 0)
0
PWM/GP Timer is inactive and counters
are cleared.
1
PWM/GP Timer is active and counters
are enabled.
PWM_MODE_BIT (bit 1)
0
GP Timer mode
1
PWM mode
PRESCALER_BIT (bit 2)
0
PWM/GP Timer runs with
CPU_FREQ/4 speed.
1
PWM/GP Timer runs with
CPU_FREQ/512 speed.
RELOAD_BIT (bit 3)
0
The GP timer stops upon overflow. Not
applicable for the PWM
1
The GP timer reloads its counter
registers upon overflow. Not applicable
for the PWM
(bit 4–7) don‟t care.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 100 of 232
CONFIDENTIAL
4.4.6.2 ZW_PWMPrescale
BYTE ZW_PWMPrescale(BYTE bValueMSB, BYTE bValueLSB)
Macro ZW_PWM_PRESCALE(msb,lsb)
This function either sets up the PWM period (PWN mode) or reloads value of the GP timer (Timer mode).
Constant CPU_FREQ is defined in Z-Wave header file.
PWM mode:
High time of PWM signal: thPWM = (msb * prescaler) / CPU_FREQ
Low time of PWM signal tlPWM = (lsb * prescaler) / CPU_FREQ
Total period of PWM signal: TPWM = thPWM + tlPWM
tlPWM tlPWM
thPWM thPWM
TPWM
Figure 10. PWM waveform
Timer mode (Interrupt period):
The GP timer is loaded with the reload value when it is enabled, then it decrements the timer, until it
underruns, issues an interrupt, reloads the reload value, etc. The resulting interrupt interval is set by:
Tint = (msb * 256 + lsb + 1) * prescaler / CPU_FREQ
Defined in: ZW_appltimer_api.h
Parameters:
bValueMSB IN
Used to calculate PWM period and PWM
“High” time or interrupt timeout (See
above formular).
bValueLSB IN
Used to calculate PWM period and PWM
“Low” time or interrupt timeout (See
above formular).
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 101 of 232
CONFIDENTIAL
4.4.6.3 ZW_PWMClearInterrupt
BYTE ZW_PWMClearInterrupt(void)
Macro ZW _PWM_CLEAR_INTERRUPT()
Clears the GP Timer interrupt. Must be done by software when servicing interrupt.
Defined in: ZW_appltimer_api.h
Serial API (Not supported)
4.4.6.4 ZW_PWMEnable
BYTE ZW_PWMEnable(BOOL bValue)
Macro ZW_PWM_INT_ENABLE (value)
Enables or disables the GP Timer interrupt (ISR number: ZW_PWM).
Defined in: ZW_appltimer_api.h
Parameters:
bValue IN
TRUE
Interrupt enabled.
FALSE
Interrupt disabled.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 102 of 232
CONFIDENTIAL
4.4.7 Z-Wave Memory API
The memory application interface handles accesses to the application data area in NVM.
Routing slave nodes use flash on 200/300 Series chip for storing application data. The flash area
allocated for application data result in typically 320K write cycles for the 200/300 Series chip.
Enhanced slave and all controller nodes use an external EEPROM for storing application data. The Z-
Wave protocol uses the first part of the external EEPROM for home ID, node ID, routing table etc. The
SPI interface on the ZW0x0x access the external EEPROM. The SPI interface related pins CLK, MOSI,
and MISO are only free as GPIO for the application on a routing slave. The external EEPROM typically
supports 1000K write cycles.
The memory functions are internally offset by EEPROM_APPL_OFFSET because the addresses
between 0x0000 and EEPROM_APPL_OFFSET are used by the protocol. The offset parameter equal to
0x0000 is therefore the first byte of the reserved area for application data.
NOTE: The CPU halts while the API is writing to flash memory, so care should be taken not to write to
flash to often.
4.4.7.1 MemoryGetID
void MemoryGetID(BYTE *pHomeID, BYTE *pNodeID )
Macro: ZW_MEMORY_GET_ID(homeID, nodeID)
The MemoryGetID function copy the Home-ID and Node-ID from the NVM to the specified RAM
addresses.
NOTE: A NULL pointer can be given as the pHomeID parameter if the application is only intereste in
reading the Node ID.
Defined in: ZW_mem_api.h
Parameters:
pHomeID OUT
Home-ID pointer
pNodeID OUT
Node-ID pointer
Serial API:
HOST->ZW: REQ | 0x20
ZW->HOST: RES | 0x20 | HomeId(4 bytes) | NodeId
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 103 of 232
CONFIDENTIAL
4.4.7.2 MemoryGetByte
BYTE MemoryGetByte(WORD offset )
Macro: ZW_MEM_GET_BYTE(offset)
Read one byte from the NVM
If a write is in progress, the write queue will be checked for the actual data.
Defined in: ZW_mem_api.h
Return value:
BYTE
Data from the application area of the
EEPROM
Parameters:
offset IN
Application area offset from 0x0000.
Serial API:
HOST->ZW: REQ | 0x21 | offset (2 bytes)
ZW->HOST: RES | 0x21 | RetVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 104 of 232
CONFIDENTIAL
4.4.7.3 MemoryPutByte
BYTE MemoryPutByte(WORD offset, BYTE data )
Macro: ZW_MEM_PUT_BYTE(offset,data)
Write one byte to the application area of the NVM
On controllers and enhanced slaves this function works on EEPROM and it should be considered that
the write operation have a somewhat long write time (2-5 msec.).
The data to be written to FLASH are not written immediately to the FLASH. Instead it is saved in a RAM
buffer and then written when the RF is not active and when it is more than 200ms the buffer was
accessed.
On routing slaves this function works on flash RAM so writing one byte will cause a write to a whole flash
page of 128 and 256 bytes for the ZW0102 and ZW0201 consequently. While the write takes place the
CPU will be halted in 15-25 msec. and will therefore not be able to execute code or receive frames, so
care should be taken not to disrupt radio communication or other time critical functions when using this
function.
Defined in: ZW_mem_api.h
Return value:
BYTE
FALSE
If write buffer full.
Parameters:
offset IN
Application area offset from 0x0000.
data IN
Data to store
Serial API:
HOST->ZW: REQ | 0x22 | offset(2bytes) | data
ZW->HOST: RES | 0x22 | RetVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 105 of 232
CONFIDENTIAL
4.4.7.4 MemoryGetBuffer
void MemoryGetBuffer(WORD offset, BYTE *buffer, BYTE length )
Macro: ZW_MEM_GET_BUFFER(offset,buffer,length)
Read a number of bytes from the application area of the EEPROM to a RAM buffer.
If a write operation is in progress the write queue will be checked for the actual data.
Defined in: ZW_mem_api.h
Parameters:
offset IN
Application area offset from 0x0000.
buffer IN
Buffer pointer
length IN
Number of bytes to read
Serial API:
HOST->ZW: REQ | 0x23 | offset(2 bytes) | length
ZW->HOST: RES | 0x23 | buffer[ ]
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 106 of 232
CONFIDENTIAL
4.4.7.5 MemoryPutBuffer
BYTE MemoryPutBuffer(WORD offset, BYTE *buffer, WORD length,
VOID_CALLBACKFUNC(func)(void))
Macro: ZW_MEM_PUT_BUFFER(offset,buffer,length, func)
Copy number of bytes from a RAM buffer to the application area in the NVM.
The write operation requires some time to complete (2-5msec per byte); therefore the data buffer must
be in "static" memory. The data buffer can be reused when the completion callback function is called.
The data to be written to FLASH are not written immediately to the FLASH. Instead it is saved in a RAM
buffer and then written when the RF is not active and when it is more than 200ms the buffer was
accessed.
If an area is to be set to zero there is no need to specify a buffer, just specify a NULL pointer.
On routing slaves this function works on FLASH so writing will cause a write to a whole FLASH page of
128 and 256 bytes for the ZW0102 and ZW0201 consequently. While the write takes place the CPU will
be halted in 15-25 msec. and will therefore not be able to execute code or receive frames, so care should
be taken not to disrupt radio communication or other time critical functions when using this function.
Defined in: ZW_mem_api.h
Return value:
BYTE
FALSE
If the buffer put queue is full.
Parameters:
offset IN
Application area offset from 0x0000.
buffer IN
Buffer pointer
If NULL all of the area will be set to 0x00
length IN
Number of bytes to read
func IN
Buffer write completed function pointer
Timeout: 200ms
Exception recovery: Resume normal operation.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 107 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x24 | offset(2bytes) | length(2bytes) | buffer[ ] | funcID
ZW->HOST: RES | 0x24 | RetVal
ZW->HOST: REQ | 0x24 | funcID
SerialAPI Note:
The Serial API is implemented with buffers for queuing requests and responses. This restricts how
much data that can be transferred through MemoryGetBuffer() and MemoryPutBuffer() compared to
using them directly from the Z-Wave API.
The PC application should not try to get or put buffers larger than approx. 80 bytes.
If an application requests too much data through MemoryGetBuffer() the buffer will be truncated and
the application will not be notified.
If an application tries to store too much data with MemoryPutBuffer() the buffer will be truncated before
the data is sent to the Z-Wave module, again without the application being notified.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 108 of 232
CONFIDENTIAL
4.4.7.6 ZW_EepromInit
BOOL ZW_EepromInit(BYTE *homeID)
Macro: ZW_EEPROM_INIT(HOMEID)
NOTE: This function is only implemented in Z-Wave Controller and Enhanced Slave APIs.
Initialize the external EEPROM by writing zeros to the entire EEPROM. The API then writes the content
of homeID if not zero to the home ID address in the external EEPROM.
This API call can only be called in production test mode from ApplicationTestPoll.
NOTE: This API call is only meant for small-scale production where pre-programmed EEPROMs or a
production EEPROM programmer is not available.
Defined in: ZW_mem_api.h
Return value:
BOOL
TRUE
If the EEPROM initialized successfully
FALSE
Initialization failed
Parameters:
homeID IN
The home ID to be written to the external
EEPROM.
Serial API (Not supported)
4.4.7.7 ZW_MemoryFlush
void ZW_MemoryFlush(void)
Macro: ZW_MEM_FLUSH()
This call writes data immediately to the FLASH from the temporary SRAM buffer.
The data to be written to FLASH are not written immediately to the FLASH. Instead it is saved in a SRAM
buffer and then written when the RF is not active and when it is more than 200ms the buffer was
accessed. This function can be used to write data immediately to FLASH without waiting for the RF to be
idle.
NOTE: This function is only implemented in Routing Slave API libraries because they are the only
libaries that use a temporary SRAM buffer. The other libraries use an external EEPROM as NVM . Data
is written directly to the EEPROM.
Defined in: ZW_mem_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 109 of 232
CONFIDENTIAL
4.4.8 Z-Wave ADC API
The ADC API is both a slave and a controller application‟s interface to the ADC unit in the
ZW0201/ZW0301. For a detailed description of the ZW0201/ZW0301 ADC refer to [27].
4.4.8.1 ADC_Off
void ADC_Off( )
Macro: ZW_ADC_OFF
Call turns the power off to the ADC unit.
Units not depending on an operational ADC during sleep (e.g. for keyboard decoding) may save battery
lifetime by turning off the ADC before entering sleep mode.
Defined in: ZW_adcdriv_api.h
Serial API (Not supported)
4.4.8.2 ADC_Start
void ADC_Start( )
Macro: ZW_ADC_START
Start the conversion process.
Defined in: ZW_adcdriv_api.h
Serial API (Not supported)
4.4.8.3 ADC_Stop
void ADC_Stop( )
Macro: ZW_ADC_STOP
Stop the conversion process.
Defined in: ZW_adcdriv_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 110 of 232
CONFIDENTIAL
4.4.8.4 ADC_Init
Void ADC_Init(BYTE mode, BYTE upper_ref, BYTE lower_ref, BYTE pin_en)
Macro: ZW_ADC_INIT (MODE, UPPER_REF, LOWER_REF, INPUT)
Initialize the ADC unit to work in the wanted conversion mode etc. The ADC unit can work in one of two
different modes.
The ADC unit has 5 multiplexed inputs. The Upper reference voltage can be set to be VCC, internal
bandgab or external voltage on ADC_PIN_1. Lower reference voltage can be set to be either GND or
external voltage on pin ADC_PIN_2.
ADC_Init only enable one or more of the I/O pins (ADC_PIN_1, ADC_PIN_2, ADC_PIN_3, ADC_PIN_4
and ADC_BAT (internal “pin”)) as ADC inputs pins. No I/O pin that was enabled in the ADC_Init call will
be selected as the active ADC input. To select the active ADC input, ADC_SelectPin must be called.
Defined in: ZW_adcdriv_api.h
Parameters:
mode IN
The ADC mode to be used the mode
value can be on of the following:
ADC_SINGLE_MODE
Single conversion mode: The ADC will
always stop after one conversion. The
ADC should be started each time a
conversion is wanted.
ADC_MULTI_CON_MODE
Multi conversion continues mode: The
ADC will always sample the input until
the ADC is stopped.
upper_ref IN
The source of the upper reference
voltage used for the ADC:
ADC_REF_U_EXT
External voltage reference applied on pin
P0.0
ADC_REF_U_BGAB
Internal voltage reference is 1.21V
generated internally by a bandgap
reference.
ADC_REF_U_VDD
Internal voltage reference is VDD (supply
voltage).
lower_ref IN
The source of the upper reference
voltage used for the ADC:
ADC_REF_L_EXT
External voltage reference applied on pin
P0.1
ADC_REF_L_VSS
Internal ground.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 111 of 232
CONFIDENTIAL
pin_en IN
Enabling of the pins to be used by the
ADC. To enabled pin 1 and pin 3 the
value should be set to:
ADC_PIN_1 | ADC_PIN_3.
ADC_PIN_1 (I/O P0.0)
Equal to ADC0 in hardware
documentation.
ADC_PIN_2 (I/O P0.1)
Equal to ADC1 in hardware
documentation.
ADC_PIN_3 (I/O P1.0)
Equal to ADC2 in hardware
documentation.
ADC_PIN_4 (I/O P1.1)
Equal to ADC3 in hardware
documentation.
ADC_PIN_BATT
Using the ADC as battery monitor for
battery operated devices. Regarding
details refer to [21]
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 112 of 232
CONFIDENTIAL
4.4.8.5 ADC_SelectPin
ADC_SelectPin(BYTE adcPin);
Macro:
ZW_ADC_SELECT_AD1 -select pin 1 as the ADC input
ZW_ADC_SELECT_AD2 - select pin 2 as the ADC input
ZW_ADC_SELECT_AD3 - select pin 3 as the ADC input
ZW_ADC_SELECT_AD4 - select pin 4 as the ADC input
Select a pin to use as the active ADC input.
Defined in: ZW_adcdriv_api.h
Parameters:
adcPin IN
The pin to use as ADC input:
ADC_PIN_1
ADC_PIN_2
ADC_PIN_3
ADC_PIN_4
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 113 of 232
CONFIDENTIAL
4.4.8.6 ADC_Buf
ADC_Buf (BYTE enable);
Macro:
ZW_ADC_BUFFER_ENABLE - Enable the input buffer.
ZW_ADC_BUFFER_DISABLE - Disable the input buffer.
Enable / disable an input buffer between the analog input and the ADC converter. Default is the input
buffer disabled. If a high impedance driver is used on the input, this can lower the sample rate. The input
buffer can be enabled to achieve high sample rate when using high impedance driver.
Defined in: ZW_adcdriv_api.h
Parameters:
enable IN
Switch the input buffer on/off:
TRUE
Switch the input buffer on.
FALSE
Switch the input buffer off.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 114 of 232
CONFIDENTIAL
4.4.8.7 ADC_SetAZPL
ADC_SetAZPL (BYTE azpl);
Macro: ZW_ADC_SET_AZPL(PERIOD)
Set the length of the ADC sample period. The length of the period depends on the source impedance.
Default value is ADC_AZPL_128.
Defined in: ZW_adcdriv_api.h
Parameters:
apzl IN
Length of the ADC auto zero period:
ADC_AZPL_1024
Set the sample period to 1024 clocks,
valid for high impedance sources. Only
valid for 8 bit resolution.
ADC_AZPL_512
Set the sample period to 512 clocks, valid
for medium to high impedance sources.
Only valid for 8 bit resolution.
ADC_AZPL_256
Set the sample period to 256 clocks, valid
for medium to low impedance sources.
Only valid for 8 bit resolution.
ADC_AZPL_128
Set the sample period to 128 clocks, valid
for low impedance sources. Valid for both
8 bit and 12 bit resolution.
Serial API (Not supported)
4.4.8.8 ADC_SetResolution
ADC_SetResolution (BYTE reso);
Macro:
ZW_ADC_RESOLUTION_8 - Set the ADC resolution to 8 bit.
ZW_ADC_RESOLUTION_12 - Set the ADC resolution to 12 bit.
Set the resolution of the ADC. Note: ADC_12_BIT only work in single step mode.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 115 of 232
CONFIDENTIAL
Defined in: ZW_adcdriv_api.h
Parameters:
reso IN
The resolution of the ADC
ADC_8_BIT
Set the ADC resolution to 8 bit.
ADC_12_BIT
Set the ADC resolution to 12 bit.
Serial API (Not supported)
4.4.8.9 ADC_SetThresMode
ADC_SetThresMode (BYTE thresMode);
Macro:
ZW_ADC_THRESHOLD_UP
ADC fire when input above/equal to the threshold value.
ZW_ADC_THRESHOLD_LO
ADC fire when input below/equal to the threshold value.
Set the ADC threshold type.
Defined in: ZW_adcdriv_api.h
Parameters:
thresMode IN
The ADC threshold mode.
ADC_THRES_UPPER
The ADC fire when input is above/equal
to the threshold value.
ADC_THRES_LOWER
The ADC fire when input is below/equal
to the threshold value.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 116 of 232
CONFIDENTIAL
4.4.8.10 ADC_SetThres
void ADC_SetThres(WORD thresHold)
Macro: ZW_ADC_SET_THRESHOLD(THRES)
Set the ADC threshold value. Depending on the threshold mode, the threshold value is used to trigger an
event when the sampled value is above/equal or below/equal the threshold value. The event triggered
depend on the ADC mode:
Single conversion mode: The ADC interrupt will fire and the ADC will stop converting.
Multi conversion continues mode: The ADC interrupt will fire and the ADC will continue converting.
Defined in: ZW_adcdriv_api.h
Parameters:
thresHold IN
The ADC threshold value, it ranges from
0 to 4095.
Serial API (Not supported)
4.4.8.11 ADC_Int
void ADC_Int(BYTE enable)
Macro:
ZW_ADC_INT_ENABLE
ZW_ADC_INT_DISABLE
Call will enable or disable the ADC interrupt. If enabled an interrupt routine must be defined. Default is
the ADC interrupt disabled.
NOTE: If the ADC interrupt is used, then the ADC interrupt flag should be reset before exit of interrupt
routine by calling ZW_ADC_CLR_FLAG.
Defined in: ZW_adcdriv_api.h
Parameters:
enable IN
The start of the ADC interrupt routine.
TRUE
Enables ADC interrupt.
FALSE
Disables ADC interrupt.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 117 of 232
CONFIDENTIAL
4.4.8.12 ADC_IntFlagClr
void ADC_IntFlagClr()
Macro: ZW_ADC_CLR_FLAG
Clear the ADC interrupt flag.
Defined in: ZW_adcdriv_api.h
Serial API (Not supported)
4.4.8.13 ADC_GetRes
WORD ADC_GetRes()
Macro: ZW_ADC_GET_READING
The call returns the result of the ADC conversion. The return value is an 8-bit or 12-bit value depending
on if the ADC is in 8-bit or 12-bit resolution mode. The call will return the value ADC_NOT_FINISHED in
case conversion isn‟t finished yet.
Defined in: ZW_adcdriv_api.h
Return value:
WORD
Returns the unsigned 16-bit value
representing the result of the ADC
conversion.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 118 of 232
CONFIDENTIAL
4.4.9 Z-Wave Power API
The purpose of the Power API is to define functions that make it easy for the Z-Wave application
developer to use the power management capabilities of the ZW0201/ZW0301 ASIC. The API can be
used both for slave and controller applications.
4.4.9.1 ZW_SetWutTimeout
void ZW_SetWutTimeout (BYTE wutTimeout)
Macro: ZW_SET_WUT_TIMEOUT(TIME)
ZW_SetWutTimeout initializes the time out value of the wakeup timer used in WUT mode.
Defined in: ZW_power_api.h
Parameters:
wutTimeout IN
The Wakeup Timer timeout value in
seconds. 0 = 1 sec.:
Serial API
HOST->ZW: REQ | 0xB4 | wutTimeout
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 119 of 232
CONFIDENTIAL
4.4.10 UART interface API
The serial interface API handles transfer of data via the serial interface (UART – RS232). This serial API
support transmissions of either a single byte, or a data buffer. The received characters are read by the
application one-by-one.
4.4.10.1 UART_Init
void UART_Init(WORD baudRate)
Macro: ZW_UART_INIT(baud)
Initializes the MCU's integrated UART.
Enables UART transmit and receive, selects 8 data bits and sets the specified baud rate.
Defined in: ZW_uart_api.h
Parameters:
baudRate IN
Baud Rate / 100
ZW0201 support only 9600, 38400 and
115200 baud.
Serial API (Not supported)
4.4.10.2 UART_RecStatus
BYTE UART_RecStatus(void)
Macro: ZW_UART_REC_STATUS
Read the UART receive data status
Defined in: ZW_uart_api.h
Return value:
BYTE
TRUE
If data received.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 120 of 232
CONFIDENTIAL
4.4.10.3 UART_RecByte
BYTE UART_RecByte(void)
Macro: ZW_UART_REC_BYTE
Function receives a byte over the UART.
This function waits until data received. See also: UART_Read
Defined in: ZW_uart_api.h
Return value:
BYTE
Received data.
Serial API (Not supported)
4.4.10.4 UART_SendStatus
BYTE UART_SendStatus(void)
Macro: ZW_UART_SEND_STATUS
Read the UART send data status.
Defined in: ZW_uart_api.h
Return value:
BYTE
TRUE
If transmitter busy
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 121 of 232
CONFIDENTIAL
4.4.10.5 UART_SendByte
void UART_SendByte(BYTE data)
Macro: ZW_UART_SEND_BYTE(data)
Function transmits a byte over the UART.
This function waits to transmit data until data register is free.
Defined in: ZW_uart_api.h
Parameters:
data IN
Data to send.
Serial API (Not supported)
4.4.10.6 UART_SendNum
void UART_SendNum(BYTE data)
Macro: ZW_UART_SEND_NUM(data)
Converts a byte to a two-byte hexadecimal ASCII representation, and transmits it over the UART.
Defined in: ZW_uart_api.h
Parameters:
data IN
Data to convert and send.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 122 of 232
CONFIDENTIAL
4.4.10.7 UART_SendStr
void UART_SendStr(BYTE *str)
Macro: ZW_UART_SEND_STRING(str)
Transmit a null terminated string over the UART. The null data is not transmitted.
Defined in: ZW_uart_api.h
Parameters:
str IN
String pointer.
Serial API (Not supported)
4.4.10.8 UART_SendNL
void UART_SendNL(void)
Macro: ZW_UART_SEND_NL
Transmit “new line” sequence (CR + LF) over the UART.
Defined in: ZW_uart_api.h
Serial API (Not supported)
4.4.10.9 UART_Enable
void UART_Enable(void)
Macro: ZW_UART_ENABLE
Enable the UART and take control of the I/Os that are shared with the ADC.
Defined in: ZW_uart_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 123 of 232
CONFIDENTIAL
4.4.10.10 UART_Disable
void UART_Disable(void)
Macro: ZW_UART_DISABLE
Disable the UART and release the I/Os that are shared with the ADC.
Defined in: ZW_uart_api.h
Serial API (Not supported)
4.4.10.11 UART_ClearTx
void UART_ClearTx(void)
Macro: ZW_UART_CLEAR_TX
Clear the UART transmit done flag.
Defined in: ZW_uart_api.h
Serial API (Not supported)
4.4.10.12 UART_ClearRx
void UART_ClearRx(void)
Macro: ZW_UART_CLEAR_RX
Clear the UART receiver ready flag.
Defined in: ZW_uart_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 124 of 232
CONFIDENTIAL
4.4.10.13 UART_Write
void UART_Write(BYTE txByte)
Macro: ZW_UART_WRITE(TXBYTE)
Function writes a byte to the UART transmit register. UART_Write makes an immediate write to the
UART without checking the SEND_STATUS register. Function returns immediately.
See also: UART_SendByte
Defined in: ZW_uart_api.h
Parameters:
txByte IN
Data to send.
Serial API (Not supported)
4.4.10.14 UART_Read
BYTE UART_Read(void)
Macro: ZW_UART_READ
Function reads a byte from the UART receive register. UART_Read makes an immediate read and
returns without first checking the receive data status. Function returns immediately.
See also: UART_RecByte
Defined in: ZW_uart_api.h
Return value:
BYTE
The contents of the UART receive
register.
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 125 of 232
CONFIDENTIAL
4.4.10.15 Serial debug output.
The serial application interface includes a few macros that can be used for debugging the application
software. Defining the “ZW_DEBUG” compile flag enables the following macros. If the “ZW_DEBUG” flag
is not defined, the serial interface will not be initialized, and no debug information will be showed on the
debug terminal.
4.4.10.15.1 ZW_DEBUG_INIT(baud)
This macro initializes the serial interface. The macro can be placed within the application initialization
function (see function ApplicationInitSW).
Example:
ZW_DEBUG_INIT(96); /* setup debug output speed to 9600 bps. */
Defined in: ZW_uart_api.h
Serial API (Not supported)
4.4.10.15.2 ZW_DEBUG_SEND_BYTE(data)
This macro sends one byte via the serial interface. The macro can be placed anywhere in the application
programs (non interrupt functions).
Example:
ZW_DEBUG_SEND_BYTE(„Z‟); /* show “Z” on the debug terminal */
Defined in: ZW_uart_api.h
Serial API (Not supported)
4.4.10.15.3 ZW_DEBUG_SEND_NUM(data)
Example:
ZW_DEBUG_SEND_NUM(count); /* show the current value (hexadecimal) of */
/* the local variable “count” on the debug terminal */
Defined in: ZW_uart_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 126 of 232
CONFIDENTIAL
4.4.11 Z-Wave Node Mask API
The Node Mask API contains a set of functions to manipulate bit masks. This API is not necessary when
writing a Z-Wave application, but is provided as an easy way to work with node ID lists as bit masks.
4.4.11.1 ZW_NodeMaskSetBit
void ZW_NodeMaskSetBit( BYTE_P pMask, BYTE bNodeID)
Macro: ZW_NODE_MASK_SET_BIT(pMask, bNodeID)
Set the node bit in a node bit mask.
Defined in: ZW_nodemask_api.h
Parameters:
pMask IN
Pointer to node mask
bnodeID IN
Node id (1..232) to set in node mask
Serial API (Not supported)
4.4.11.2 ZW_NodeMaskClearBit
void ZW_NodeMaskClearBit( BYTE_P pMask, BYTE bNodeID)
Macro: ZW_NODE_MASK_CLEAR_BIT(pMask, bNodeID)
Clear the node bit in a node bit mask.
Defined in: ZW_nodemask_api.h
Parameters:
PMask
IN Pointer to node mask
bNodeID
IN Node ID (1..232) to clear in node
mask
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 127 of 232
CONFIDENTIAL
4.4.11.3 ZW_NodeMaskClear
void ZW_NodeMaskClear( BYTE_P pMask, BYTE bLength)
Macro: ZW_NODE_MASK_CLEAR(pMask, bLength)
Clear all bits in a node mask.
Defined in: ZW_nodemask_api.h
Parameters:
pMask
IN Pointer to node mask
bLength
IN Length of node mask
Serial API (Not supported)
4.4.11.4 ZW_NodeMaskBitsIn
BYTE ZW_NodeMaskBitsIn( BYTE_P pMask, BYTE bLength)
Macro: ZW_NODE_MASK_BITS_IN (pMask, bLength)
Number of bits set in node mask.
Defined in: ZW_nodemask_api.h
Return value:
BYTE
Number of bits set in node mask
Parameters:
pMask
IN Pointer to node mask
bLength
IN Length of node mask
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 128 of 232
CONFIDENTIAL
4.4.11.5 ZW_NodeMaskNodeIn
BYTE ZW_NodeMaskNodeIn ( BYTE_P pMask, BYTE bNode)
Macro: ZW_NODE_MASK_NODE_IN (pMask, bNode)
Check if a node is in a node mask.
Defined in: ZW_nodemask_api.h
Return value:
BYTE
ZERO
If not in node mask
NONEZERO
If in node mask
Parameters:
pMask
IN Pointer to node mask
bNode
IN Node to clear in node mask
Serial API (Not supported)
4.5 Z-Wave Controller API
The Z-Wave Controller API makes it possible for different controllers to control the Z-Wave nodes and
get information about each node‟s capabilities and current state. The node control commands can be
sent to a single node, all nodes or to a list of nodes (group, scene…).
4.5.1 ZW_AddNodeToNetwork
void ZW_AddNodeToNetwork(BYTE bMode,
VOID_CALLBACKFUNC(completedFunc)(LEARN_INFO *learnNodeInfo))
Macro: ZW_ADD_NODE_TO_NETWORK(bMode, func)
Defined in: ZW_controller_api.h
Serial API: Func_ID = 0x4A
HOST->ZW: REQ | 0x4A | mode | funcID
ZW->HOST: REQ | 0x4A | funcID | bStatus | bSource | bLen | basic | generic | specific | cmdclasses[ ]
ZW_AddNodeToNetwork is used to add a node to a Z-Wave network.
The AddNodeToNetwork function MAY be called by a primary controller application to invoke the
inclusion of new nodes in a Z-Wave network. Slave and secondary controller applications MUST NOT
call this function.
A controller application MUST implement support for the AddNodeToNetwork function. The controller
application MUST provide a user interface for activation of the AddNodeToNetwork function.
The bMode and completedFunc parameters MUST be specified for the AddNodeToNetwork function.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 129 of 232
CONFIDENTIAL
Refer to Figure 11 for a state diagram outlining the processing of status callbacks and timeouts.
4.5.1.1 bMode parameter
The bMode parameter MUST be composed of commands and flags found in Table 14. The bMode
parameter MUST NOT be assigned more than one command. The bMode parameter MAY be assigned
one or more option flags. One command and multiple options are combined by logically OR‟ing the
bMode flags of Table 14.
Table 14. AddNode :: bMode
bMode flag
Description
Usage
ADD_NODE_ANY
Command to initiate inclusion of
new node of any type.
MUST be included when initiating
inclusion.
ADD_NODE_SLAVE
-
DEPRECATED. Use ADD_NODE_ANY
ADD_NODE_CONTROLLER
-
DEPRECATED. Use ADD_NODE_ANY
ADD_NODE_EXISTING
-
DEPRECATED. Use ADD_NODE_ANY
ADD_NODE_STOP
Command to abort the inclusion
process. May only be used in
certain states.
MAY be used to abort an active
inclusion process.
MUST be used to terminate the
inclusion process when completed.
ADD_NODE_STOP_FAILED
Command to notify the remote end
when a controller replication is
aborted.
SHOULD be used if aborting a controller
replication.
ADD_NODE_OPTION_
HIGH_POWER
Option flag to enable normal
inclusion range.
SHOULD be included with ADD_NODE_
ANY to achieve normal inclusion range.
MAY be ommitted for ADD_NODE_ANY
to achieve reduced inclusion range.
ADD_NODE_OPTION_
NETWORK_WIDE
Option flag to enable Network-
Wide Inclusion (NWI).
MUST be used.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 130 of 232
CONFIDENTIAL
4.5.1.1.1 ADD_NODE_ANY command
To invoke inclusion of a new node, a primary controller MUST call the AddNodeToNetwork function with
a bMode value including the ADD_NODE_ANY command. Slave and secondary controller nodes MUST
NOT call the AddNodeToNetwork function.
The RECOMMENDED call of the AddNodeToNetwork function () when adding nodes is as follows:
ZW_ADD_NODE_TO_NETWORK((ADD_NODE_ANY |
ADD_NODE_OPTION_HIGH_POWER |
ADD_NODE_OPTION_NETWORK_WIDE),
completedFunc);
While defined in Z-Wave protocol libraries, it is NOT RECOMMENDED to use the ADD_NODE_SLAVE,
ADD_NODE_CONTROLLER or ADD_NODE_EXISTING command codes.
4.5.1.1.2 ADD_NODE_STOP command
A controller MAY use the ADD_NODE_STOP command to abort an ongoing inclusion process.
After receiving an ADD_NODE_STATUS_DONE status callback, the application MUST terminate the
inclusion process by calling the AddNodeToNetwork function one more time. This time, the
completedFunc parameter MUST be the NULL pointer.
Due to the inherent risk of creating ghost nodes with duplicate NodeIDs, a controller SHOULD NOT call
the AddNodeToNetwork function in the time window starting with the reception of an
ADD_NODE_STATUS_NODE_FOUND status callback and ending with the reception of an
ADD_NODE_STATUS_PROTOCOL_DONE status callback. An application may time out waiting for the
ADD_NODE_STATUS_PROTOCOL_DONE status callback or the application may receive an
ADD_NODE_STATUS_ FAILED status callback. In all three cases, the application MUST terminate the
inclusion process by calling AddNodeToNetwork(ADD_NODE_STOP) with a valid completedFunc
callback pointer. The API MUST return an ADD_NODE_STATUS_DONE status callback in response.
After receiving an ADD_NODE_STATUS_DONE status callback, the application MUST terminate the
inclusion process by calling the AddNodeToNetwork function one more time. This time, the
completedFunc parameter MUST be the NULL pointer.
4.5.1.1.3 ADD_NODE_STOP_FAILED command
When a new controller node is included in a Z-Wave network, the primary controller replicates protocol-
specific databases to the new controller. An optional application-specific phase may follow after protocol-
specific replication.
A primary controller SHOULD use the ADD_NODE_STOP_FAILED command during the application-
specific phase to notify the receiving end of the application replication that the process is being aborted.
4.5.1.1.4 ADD_NODE_OPTION_HIGH_POWER option
The default power level for Z-Wave communication is the high power level. Therefore, the high power
level is frequently referred to as the normal power level.
When including a new node, the ADD_NODE_OPTION_HIGH_POWER option SHOULD be added to
the bMode parameter.
If special application requirements dictate the need for low power transmission during inclusion of a new
node, a primary controller MAY omit the ADD_NODE_OPTION_HIGH_POWER option from the bMode
parameter. This is however NOT RECOMMENDED.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 131 of 232
CONFIDENTIAL
4.5.1.1.5 ADD_NODE_OPTION_NETWORK_WIDE option
Network-Wide Inclusion (NWI) allows a new node to be included across an existing Z-Wave network
without direct range connectivity between the primary controller and the new node. The
ADD_NODE_OPTION_NETWORK_WIDE option enables NWI. NWI inclusion is backwards compatible
with old nodes that do not implement NWI support.
When including a new node, the ADD_NODE_OPTION_NETWORK_WIDE option MUST be added to
the bMode parameter.
4.5.1.2 completedFunc parameter
Being the exception to the rule, an application calling AddNodeToNetwork(ADD_NODE_STOP) to
confirm the reception of a ADD_NODE_STATUS_DONE return code MUST specify the NULL pointer for
the completedFunc parameter.
In all other cases, an application calling the AddNodeToNetwork function with any command and option
combination MUST specify a valid pointer to a callback function provided by the application. The callback
function MUST accept a pointer parameter to a LEARN_INFO struct. The parameter provides access to
actual status as well as companion data presenting a new node. The LEARN_INFO struct only contains
a valid pointer to the Node Information Frame of the new node when the status of the callback is
ADD_NODE_STATUS_ADDING_SLAVE or ADD_NODE_STATUS_ADDING_CONTROLLER.
Table 15. AddNode :: completedFunc :: learnNodeInfo
LEARN_NODE struct member
Description
*learnNodeInfo.bStatus
Callback status code
*learnNodeInfo.bSource
NodeID of the new node
*learnNodeInfo.bLen
Length of pCmd element following the bLen element.
If bLen is zero, there is no valid pCmd element.
*learnNodeInfo.pCmd
Pointer to Application Node Information (see
ApplicationNodeInformation - nodeParm).
NULL if no information present.
Individual status codes are presented in the following sections.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 132 of 232
CONFIDENTIAL
Table 16. AddNode :: completedFunc :: learnNodeInfo.bStatus
LEARN_NODE.bStatus
Description
ADD_NODE_STATUS_LEARN_READY
Z-Wave protocol is ready to include new node.
ADD_NODE_STATUS_NODE_FOUND
Z-Wave protocol detected node.
ADD_NODE_STATUS_ADDING_SLAVE
Z-Wave protocol included a slave type node
ADD_NODE_STATUS_ADDING_CONTROLLER
Z-Wave protocol included a controller type node
ADD_NODE_STATUS_PROTOCOL_DONE
Z-Wave protocol completed operations related to
inclusion. If new node type is controller, the controller
application MAY invoke application replication.
ADD_NODE_STATUS_DONE
All operations completed. Protocol is ready to return to
idle state.
ADD_NODE_STATUS_FAILED
Z-Wave protocol reports that inclusion was not
successful. New node is not ready for operation
ADD_NODE_STATUS_NOT_PRIMARY
Z-Wave protocol reports that the requested operation
cannot be performed since it requires that the node is in
primary controller state.
Refer to Figure 11 for a state diagram outlining the processing of status callbacks and timeouts.
4.5.1.2.1 ADD_NODE_STATUS_LEARN_READY status
Z-Wave protocol is ready to include new node. An application MAY time out waiting for the
ADD_NODE_STATUS_LEARN_READY status if it does not receive the indication within 10 sec after
calling AddNodeToNetwork(ADD_NODE_ANY)
If the application times out waiting for the ADD_NODE_STATUS_LEARN_READY status, the application
MUST call AddNodeToNetwork(ADD_NODE_STOP, NULL).
4.5.1.2.2 ADD_NODE_STATUS_NODE_FOUND status
Z-Wave protocol detected node. An application MUST time out waiting for the
ADD_NODE_STATUS_NODE_FOUND status if it does not receive the indication after calling
AddNodeToNetwork(ADD_NODE_ANY). The RECOMMENDED interval is 60 sec.
If the application times out waiting for the ADD_NODE_STATUS_NODE_FOUND status, the application
MUST call AddNodeToNetwork(ADD_NODE_STOP, NULL).
The application MUST NOT call AddNodeToNetwork() before the timeout occurs. This may cause the
protocol to malfunction.
4.5.1.2.3 ADD_NODE_STATUS_ADDING_SLAVE status
Z-Wave protocol included a slave type node.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 133 of 232
CONFIDENTIAL
An application MUST time out waiting for the ADD_NODE_STATUS_ADDING_SLAVE status if it does
not receive the indication within a time period after receiving the ADD_NODE_STATUS_NODE_FOUND
status. The time period depends on the network size and the node types in the network. Refer to
4.5.1.3.3.
If the application times out waiting for the ADD_NODE_STATUS_ADDING_SLAVE status, the
application MUST call AddNodeToNetwork(ADD_NODE_STOP). The application MUST specify a valid
callback function. This allows the application to receive a ADD_NODE_STATUS_DONE once the
protocol has completed cleaning up its datastructures.
The application MUST NOT call AddNodeToNetwork() before the timeout occurs. This may cause the
protocol to malfunction.
4.5.1.2.4 ADD_NODE_STATUS_ADDING_CONTROLLER status
Z-Wave protocol included a controller type node.
An application MUST time out waiting for the ADD_NODE_STATUS_ADDING_CONTROLLER status if it
does not receive the indication within a time period after receiving the
ADD_NODE_STATUS_NODE_FOUND status. The time period depends on the network size and the
node types in the network. Refer to 4.5.1.3.3.
If the application times out waiting for the ADD_NODE_STATUS_ADDING_CONTROLLER status, the
application MUST call AddNodeToNetwork(ADD_NODE_STOP). The application MUST specify a valid
callback function. This allows the application to receive an ADD_NODE_STATUS_DONE once the
protocol has completed cleaning up its datastructures.
The application MUST NOT call AddNodeToNetwork() before the timeout occurs. This may cause the
protocol to malfunction.
4.5.1.2.5 ADD_NODE_STATUS_PROTOCOL_DONE status
Z Wave protocol completed operations related to inclusion. If new node type is controller, the controller
application MAY invoke application replication.
In response to the ADD_NODE_STATUS_PROTOCOL_DONE , the application MUST call
AddNodeToNetwork(ADD_NODE_STOP). The application MUST specify a valid callback function. This
allows the application to receive an ADD_NODE_STATUS_DONE once the protocol has completed
cleaning up its datastructures.
An application MUST time out waiting for the ADD_NODE_STATUS_PROTOCOL_DONE status if it
does not receive the indication within a time period after receiving the
ADD_NODE_STATUS_NODE_FOUND status. The time period depends on the network size and the
node types in the network. Refer to 4.5.1.3.3.
If the application times out waiting for the ADD_NODE_STATUS_PROTOCOL_DONE status, the
application MUST call AddNodeToNetwork(ADD_NODE_STOP). The application MUST specify a valid
callback function. This allows the application to receive a ADD_NODE_STATUS_DONE once the
protocol has completed cleaning up its datastructures.
The application MUST NOT call AddNodeToNetwork() before the timeout occurs. This may cause the
protocol to malfunction.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 134 of 232
CONFIDENTIAL
4.5.1.2.6 ADD_NODE_STATUS_DONE status
All operations completed. Protocol is ready to return to idle state.
In response to the ADD_NODE_STATUS_DONE status callback, the application MUST call
AddNodeToNetwork(ADD_NODE_STOP, NULL). The application MUST specify the NULL pointer for the
callback function.
4.5.1.2.7 ADD_NODE_STATUS_FAILED status
An application may time out waiting for the ADD_NODE_STATUS_PROTOCOL_DONE status callback
or the application may receive an ADD_NODE_STATUS_PROTOCOL_FAILED status callback. In either
case, the application MUST terminate the inclusion process by calling
AddNodeToNetwork(ADD_NODE_STOP). Refer to 4.5.1.1.2.
4.5.1.2.8 ADD_NODE_STATUS_NOT_PRIMARY status
An application MUST NOT call the AddNodeToNetwork function if the application is not running in a
primary controller. If the function is called by an application running in slave or a secondary controller, the
API MUST return the ADD_NODE_STATUS_NOT_PRIMARY status callback.
4.5.1.3 completedFunc callback timeouts
4.5.1.3.1 ProtocolReadyTimeout
The API MUST return an ADD_NODE_STATUS_LEARN_READY status callback within less than 10 sec
after receiving a call to AddNodeToNetwork(ADD_NODE_ANY).
If an application has not received an ADD_NODE_STATUS_LEARN_READY status callback 200 msec
after calling AddNodeToNetwork(ADD_NODE_ANY), the application MAY time out and return to its idle
state.
4.5.1.3.2 NodeTimeout
An application MUST implement a timeout for waiting for an ADD_NODE_STATUS_NODE_FOUND
status callback.
The application SHOULD NOT wait for an ADD_NODE_STATUS_NODE_FOUND status callback for
more than 60 sec after calling AddNodeToNetwork(ADD_NODE_ANY). If timing out, the application
SHOULD abort inclusion.
4.5.1.3.3 AddNodeTimeout
An application MUST implement a timeout for waiting for the protocol library to complete inclusion. The
timeout MUST be calculated according to the formulas presented in sections 4.5.1.3.3.1 and 4.5.1.3.3.2.
4.5.1.3.3.1 New slave
AddNodeTimeout.NewSlave = 76000ms +
LISTENINGNODES*217ms +
FLIRSNODES*3517ms
where LISTENINGNODES is the number of listening nodes in the network,
and FLIRSNODES is the number of nodes in the network that are reached via beaming.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 135 of 232
CONFIDENTIAL
4.5.1.3.3.2 New controller
AddNodeTimeout.NewController = 76000ms +
LISTENINGNODES*217ms +
FLIRSNODES*3517ms +
NETWORKNODES*732ms,
where LISTENINGNODES is the number of listening nodes in the network,
and FLIRSNODES is the number of nodes in the network that are reached via beaming.
NETWORKNODES is the total number of nodes in the network, i.e.
NONLISTENINGNODES + LISTENINGNODES + FLIRSNODES.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 136 of 232
CONFIDENTIAL

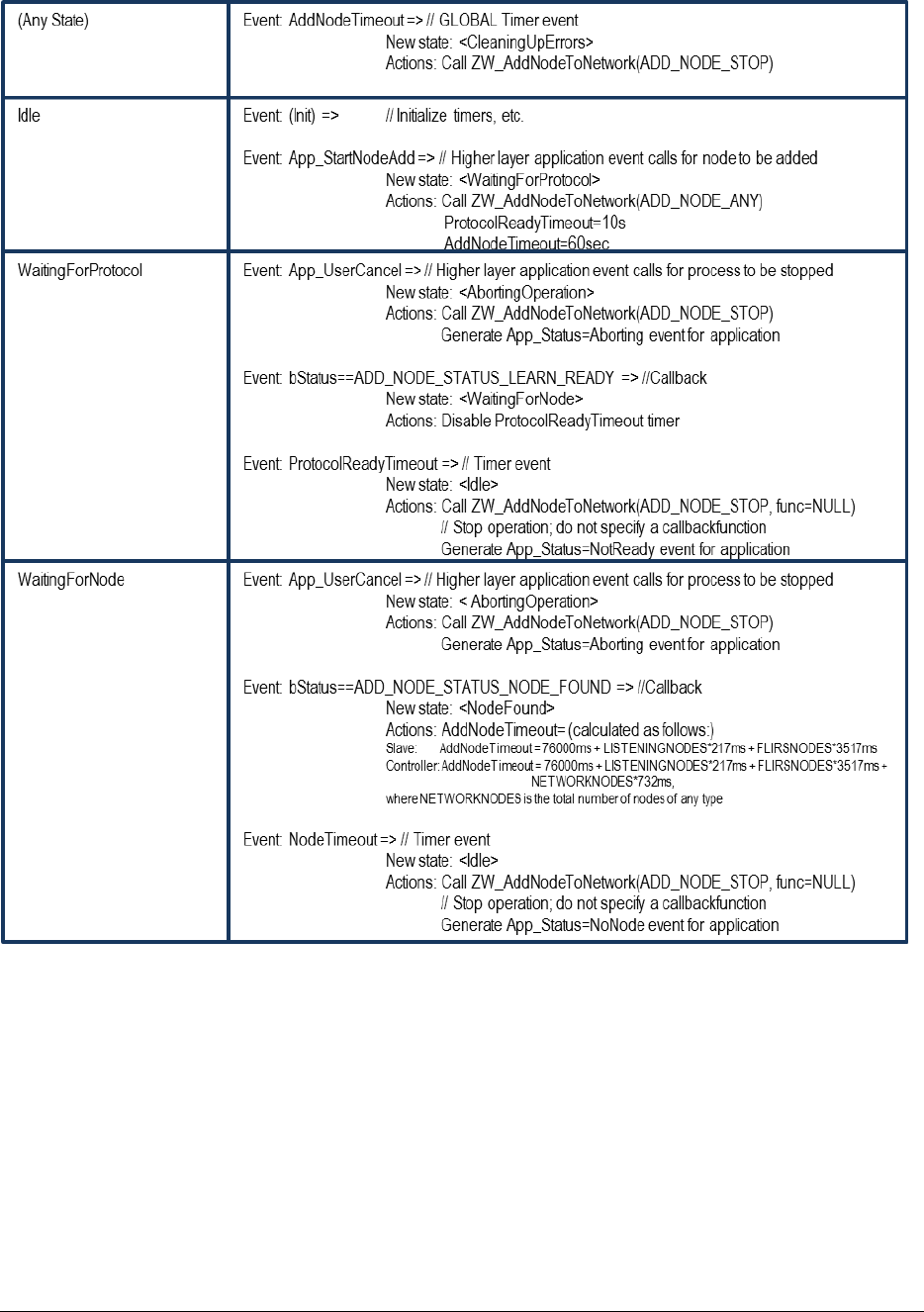

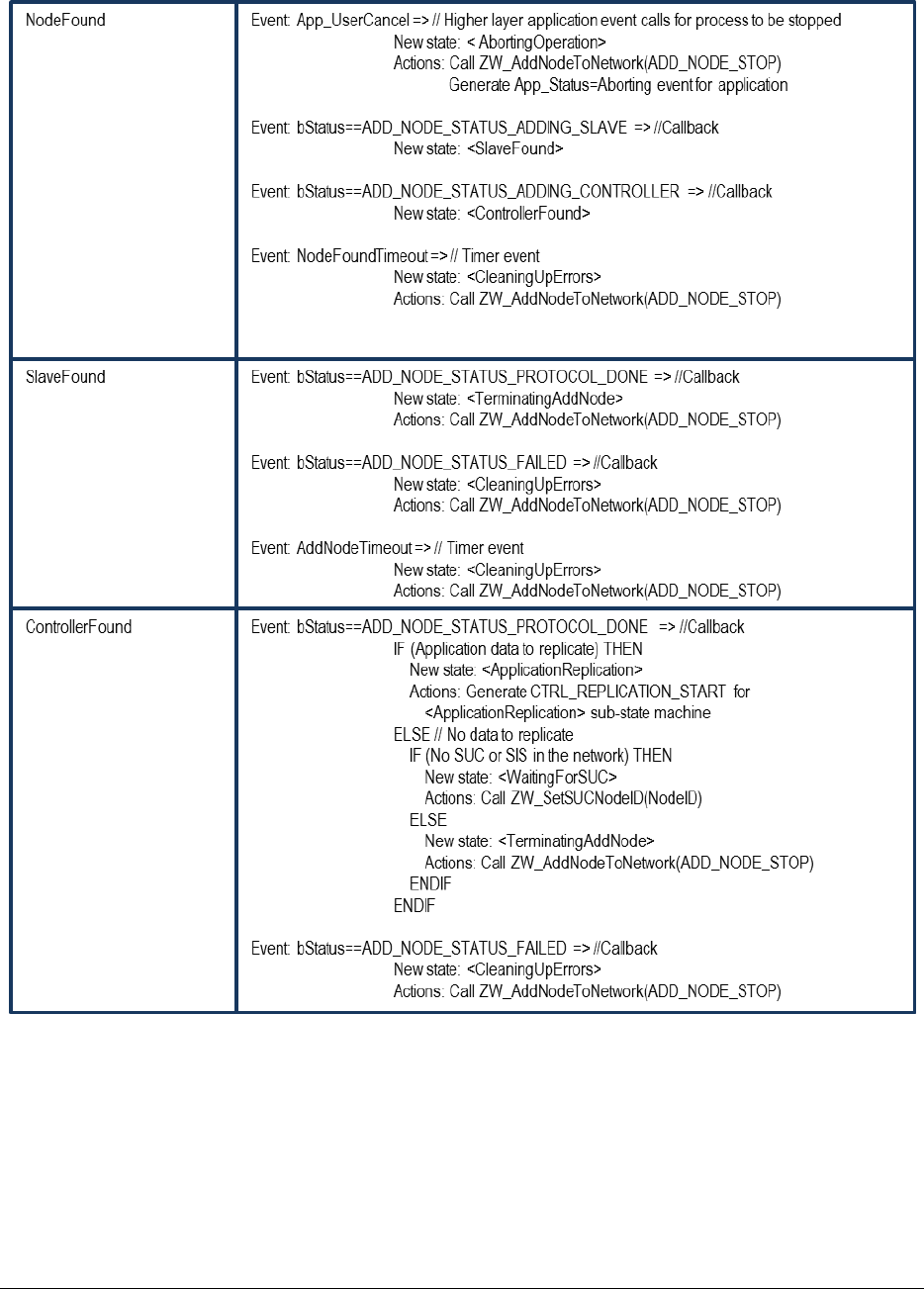

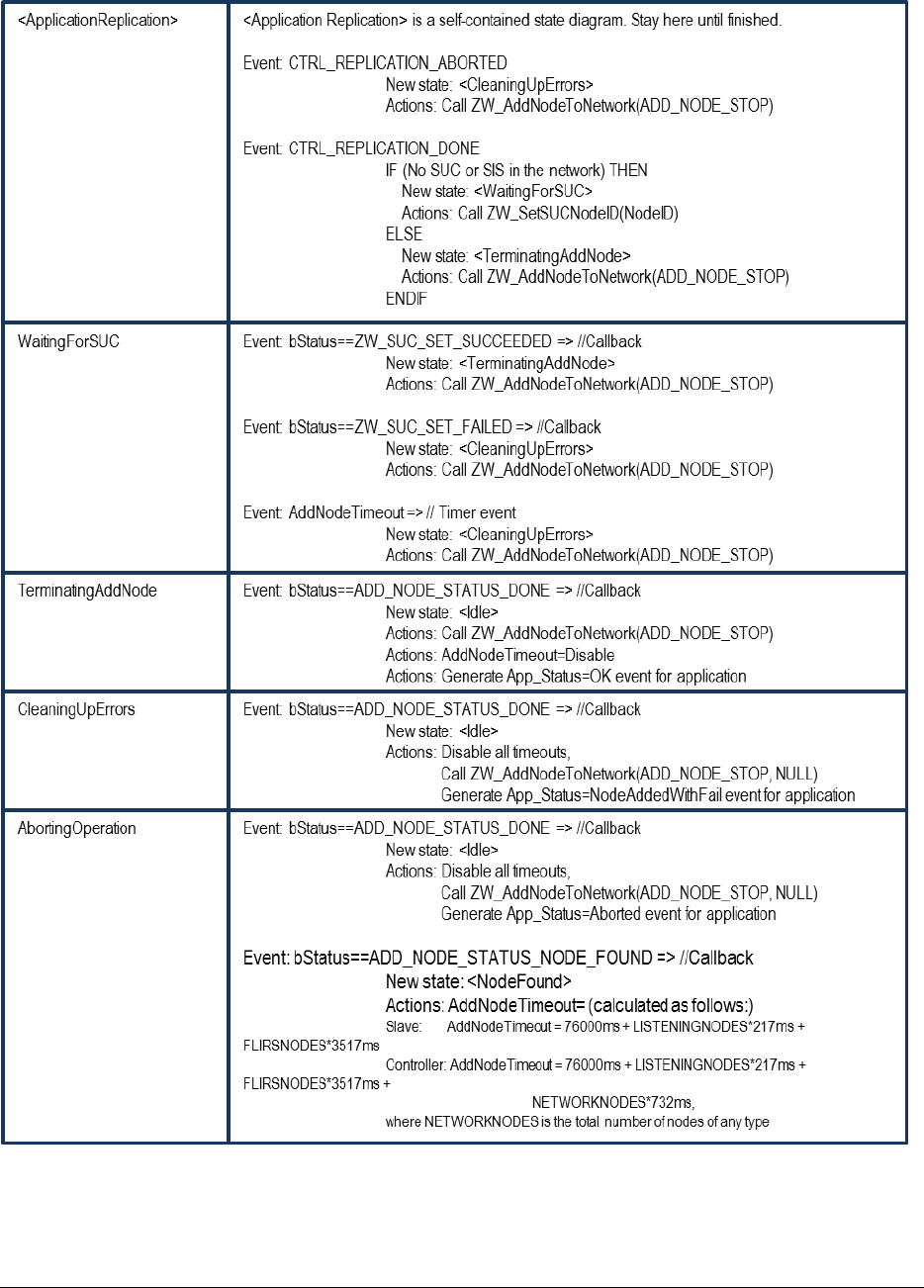

Figure 11. Adding a node to the network
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 137 of 232
CONFIDENTIAL
Table 17. AddNode : State/Event processing – 1
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 138 of 232
CONFIDENTIAL
Table 18. AddNode : State/Event processing – 2
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 139 of 232
CONFIDENTIAL
Table 19. AddNode : State/Event processing – 3
4.5.2 ZW_AreNodesNeighbours
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 140 of 232
CONFIDENTIAL
BYTE ZW_AreNodesNeighbours (BYTE bNodeA, BYTE bNodeB)
Macro: ZW_ARE_NODES_NEIGHBOURS (nodeA, nodeB)
Used check if two nodes are marked as being within direct range of each other
Defined in: ZW_controller_api.h
Return value:
BYTE
FALSE
Nodes are not neighbours.
TRUE
Nodes are neighbours.
Parameters:
bNodeA IN
Node ID A (1...232)
bNodeB IN
Node ID B (1...232)
Serial API
HOST->ZW: REQ | 0xBC | nodeID | nodeID
ZW->HOST: RES | 0xBC | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 141 of 232
CONFIDENTIAL
4.5.3 ZW_AssignReturnRoute
BOOL ZW_AssignReturnRoute(BYTE bSrcNodeID,
BYTE bDstNodeID,
VOID_CALLBACKFUNC(completedFunc)(BYTE txStatus))
Macro: ZW_ASSIGN_RETURN_ROUTE(routingNodeID,destNodeID,func)
Use to assign static return routes (up to 4) to a Routing Slave, Enhanced Slave or Enhanced 232 Slave
node. This allows the Routing Slave node to communicate directly with either controllers or other slave
nodes. The API call calculates the shortest routes from the Routing Slave node (bSrcNodeID) to the
destination node (bDestNodeID) and transmits the return routes to the Routing Slave node
(bSrcNodeID). The destination node is part of the return routes assigned to the slave. Up to 5 different
destinations can be allocated return routes in a Routing Slave and Enhanced Slave. Attempts to assign
new return routes when all 5 destinations already are allocated will be ignored. It is possible to allocate
up to 232 different destinations in an Enhanced 232 Slave. Call ZW_AssignReturnRoute repeatedly to
allocate more than 5 destinations in an Enhanced 232 Slave. Use the API call ZW_DeleteReturnRoute
to clear assigned return routes.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
If Assign return route operation started
FALSE
If an “assign/delete return route” operation
already is active.
Parameters:
bSrcNodeID IN
Node ID (1...232) of the routing slave
that should get the return routes.
bDstNodeID IN
Destination node ID (1...232)
completedFunc
IN
Transmit completed call back function
Callback function Parameters:
txStatus IN
Status of return route assignment
(all status codes from ZW_SendData)
See ZW_SendData, section 4.4.3.1
TRANSMIT_COMPLETE_NOROUTE
No routes assigned because a route
between source and destination node
could not be found.
Timeout: 74s
Exception Recovery: Resume nomal operation.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 142 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x46 | bSrcNodeID | bDstNodeID | funcID
ZW->HOST: RES | 0x46 | retVal
ZW->HOST: REQ | 0x46 | funcID | bStatus
4.5.4 ZW_AssignSUCReturnRoute
BOOL ZW_AssignSUCReturnRoute (BYTE bSrcNodeID,
VOID_CALLBACKFUNC (completedFunc)(BYTE bStatus))
Macro: ZW_ASSIGN_SUC_RETURN_ROUTE(srcnode,func)
Notify presence of a SUC/SIS to a Routing Slave or Enhanced Slave. Furthermore is static return routes
(up to 4) assigned to the Routing Slave or Enhanced Slave to enable communication with the SUC/SIS
node. The return routes can be used to get updated return routes from the SUC/SIS node by calling
ZW_RequestNetWorkUpdated in the Routing Slave or Enhanced Slave. The Routing Slave or Enhanced
Slave can call ZW_RediscoveryNeeded in case it detects that none of the return routes are usefull
anymore.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
If the assign SUC return route
operation is started.
FALSE
If an “assign/delete return route”
operation already is active.
Parameters:
bSrcNodeID IN
The node ID (1...232) of the routing slave that
should get the return route to the SUC node.
completedFunc
IN
Transmit complete call back.
Callback function Parameters:
bStatus IN
(see ZW_SendData)
Timeout: 74s
Exception Recovery: Resume nomal operation.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 143 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x51 | bSrcNodeID | funcID | funcID
The extra funcID is added to ensures backward compatible. This parameter has been removed starting
from dev. kit 4.1x. and onwards and has therefore no meaning anymore.
ZW->HOST: RES | 0x51 | retVal
ZW->HOST: REQ | 0x51 | funcID | bStatus
4.5.5 ZW_ControllerChange
void ZW_ControllerChange (BYTE mode,
VOID_CALLBACKFUNC(completedFunc)(LEARN_INFO *learnNodeInfo))
Macro: ZW_CONTROLLER_CHANGE(mode, func)
ZW_ControllerChange is used to add a controller to the Z-Wave network and transfer the role as
primary controller to it.
This function has the same functionality as ZW_AddNodeToNetwork(ADD_NODE_ANY,…) except that
the new controller will be a primary controller and the controller invoking the function will become
secondary.
Defined in: ZW_controller_api.h
Parameters:
mode IN
The learn node states are:
CONTROLLER_CHANGE_START
Start the process of adding a
controller to the network.
CONTROLLER_CHANGE_STOP
Stop the controller change
CONTROLLER_CHANGE_STOP_FAILED
Stop the controller change and
report a failure
completedFunc IN
Callback function pointer (Should only be
NULL if state is turned off).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 144 of 232
CONFIDENTIAL
Callback function Parameters (completedFunc):
*learnNodeInfo.bStatus
IN
Status of learn mode:
ADD_NODE_STATUS_LEARN_READY
The controller is now
ready to include a node
into the network.
ADD_NODE_STATUS_NODE_FOUND
A node that wants to be
included into the network
has been found
ADD_NODE_STATUS_ADDING_CONTROLLER
A new controller has
been added to the
network
ADD_NODE_STATUS_PROTOCOL_DONE
The protocol part of
adding a controller is
complete, the application
can now send data to the
new controller using
ZW_ReplicationSend()
ADD_NODE_STATUS_DONE
The new node has now
been included and the
controller is ready to
continue normal
operation again.
ADD_NODE_STATUS_FAILED
The learn process failed
*learnNodeInfo.bSource
IN
Node id of the new node
*learnNodeInfo.pCmd
IN
Pointer to Application Node information data (see
ApplicationNodeInformation - nodeParm).
NULL if no information present.
The pCmd only contain information when bLen is
not zero, so the information should be stored
when that is the case. Regardless of the bStatus.
*learnNodeInfo.bLen IN
Node info length.
Timeout: see ZW_AddNodeToNetwork
Exception Recovery: see ZW_AddNodeToNetwork
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 145 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x4D | mode | funcID
ZW->HOST: REQ | 0x4D | funcID | bStatus | bSource | bLen | basic | generic | specific | cmdclasses[ ]
4.5.6 ZW_DeleteReturnRoute
BOOL ZW_DeleteReturnRoute(BYTE nodeID,
VOID_CALLBACKFUNC(completedFunc)(BYTE txStatus))
Macro: ZW_DELETE_RETURN_ROUTE(nodeID, func)
Delete all static return routes from a Routing Slave, Enhanced Slave or Enhanced 232 Slave node.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
If Delete return route operation started
FALSE
If an “assign/delete return route” operation
already is active.
Parameters:
nodeID IN
Node ID (1...232) of the routing slave
node.
completedFunc
IN
Transmit completed call back function
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Serial API:
HOST->ZW: REQ | 0x47 | nodeID | funcID
ZW->HOST: RES | 0x47 | retVal
ZW->HOST: REQ | 0x47 | funcID | bStatus
Timeout: 40s
Exception Recovery: Resume normal operation
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 146 of 232
CONFIDENTIAL
4.5.7 ZW_DeleteSUCReturnRoute
BOOL ZW_DeleteSUCReturnRoute (BYTE bNodeID,
VOID_CALLBACKFUNC (completedFunc)(BYTE txStatus))
Macro: ZW_DELETE_SUC_RETURN_ROUTE (nodeID, func)
Delete the return routes of the SUC node from a Routing Slave node or Enhanced Slave node.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
If the delete SUC return route
operation is started.
FALSE
If an “assign/delete return route”
operation already is active.
Parameters:
bNodeID IN
Node ID (1..232) of the routing slave node.
completedFunc
IN
Transmit complete call back.
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Serial API:
HOST->ZW: REQ | 0x55 | nodeID | funcID
ZW->HOST: RES | 0x55 | retVal
ZW->HOST: REQ | 0x55 | funcID | bStatus
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 147 of 232
CONFIDENTIAL
The Serial API implementation do not return the callback function (no parameter in the Serial API frame
refers to the callback), this is done via the ApplicationControllerUpdate callback function:
If request nodeinfo transmission was unsuccessful (no ACK received) then the
ApplicationControllerUpdate is called with UPDATE_STATE_NODE_INFO_REQ_FAILED
(status only available in the Serial API implementation).
If request nodeinfo transmission was successful there is no indication that it went well apart from
the returned Nodeinfo frame which should be received via the ApplicationControllerUpdate
with status UPDATE_STATE_NODE_INFO_RECEIVED.
Timeout: 40s
Exception Recovery: Resume normal operation
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 148 of 232
CONFIDENTIAL
4.5.8 ZW_GetControllerCapabilities
BYTE ZW_GetControllerCapabilities (void)
Macro: ZW_GET_CONTROLLER_CAPABILITIES()
ZW_GetControllerCapabilities returns a bitmask containing the capabilities of the controller. It‟s an old
type of primary controller (node ID = 0xEF) in case zero is returned.
NOTE: Not all status bits are available on all controllers types
Defined in: ZW_controller_api.h
Return value:
BYTE
CONTROLLER_IS_SECONDARY
If bit is set then the controller is a
secondary controller
CONTROLLER_ON_OTHER_NETWORK
If this bit is set then this controller
is not using its build in home ID
CONTROLLER_IS_SUC
If this bit is set then this controller
is a SUC
CONTROLLER_NODEID_SERVER_PRESENT
If this bit is set then there is a
SUC ID server (SIS) in the
network and this controller can
therefore include/exclude nodes
in the network. This is called an
inclusion controller.
CONTROLLER_IS_REAL_PRIMARY
If this bit is set then this controller
was the original primary controller
in the network before the SIS was
added to the network
Serial API:
HOST->ZW: REQ | 0x05
ZW->HOST: RES | 0x05 | RetVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 149 of 232
CONFIDENTIAL
4.5.9 ZW_GetNeighborCount
BYTE ZW_GetNeighborCount(BYTE nodeID)
Macro: ZW_GET_NEIGHBOR_COUNT (nodeID)
Used to get the number of neighbors the specified node has registered.
Defined in: ZW_controller_api.h
Return value:
BYTE
0x00-0xE7
Number of neighbors registered.
NEIGHBORS_ID_INVALID
Specified node ID is invalid.
NEIGHBORS_COUNT_FAILED
Could not access routing information - try
again later.
Parameters:
nodeID IN
Node ID (1...232) on the node to count
neighbors on.
Serial API
HOST->ZW: REQ | 0xBB | nodeID
ZW->HOST: RES | 0xBB | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 150 of 232
CONFIDENTIAL
4.5.10 ZW_GetLastWorkingRoute
BOOL ZW_GetLastWorkingRoute(BYTE nodeID, XBYTE *pLastWorkingRoute)
Macro: ZW_GET_LAST_WORKING_ROUTE(bNodeID, pLastWorkingRoute)
Use this API call to get the Last Working Route (LWR) for a destination node if any exist. The LWR is the
last successful route used between sender and destination node. The LWR is stored in NVM.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
A LWR exists for bNodeID and the
found route placed in the 4-byte array
pointed out by pLastWorkingRoute.
FALSE
No LWR found for bNodeID.
Parameters:
nodeID IN
The Node ID (1...232) specifies the
destination node whom the LWR is
wanted from.
pLastWorkingRoute
OUT
The parameter returns the pointer to a
4-byte array containing the LWR. If
retVal = TRUE and first repeater = 0,
then the LWR for bNodeID is a direct
route.
Serial API
HOST->ZW: REQ | 0x92 | nodeID
ZW->HOST: RES | 0x92 | nodeID | retVal | repeater0 | repeater1 | repeater2 | repeater3
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 151 of 232
CONFIDENTIAL
4.5.11 ZW_GetNodeProtocolInfo
void ZW_GetNodeProtocolInfo(BYTE bNodeID,
NODEINFO, *nodeInfo)
Macro: ZW_GET_NODE_STATE(nodeID, nodeInfo)
Return the Node Information Frame without command classes from the NVM for a given node ID:
Byte descriptor \
Bit number
7
6
5
4
3
2
1
0
Capability
Liste-
ning
Z-Wave Protocol Specific Part
Security
Opt.
Func.
Sensor
1000ms
Sensor
250ms
Z-Wave Protocol Specific Part
Reserved
Z-Wave Protocol Specific Part
Basic
Basic Device Class (Z-Wave Protocol Specific Part)
Generic
Generic Device Class (Z-Wave Appl. Specific Part)
Specific
Specific Device Class (Z-Wave Appl. Specific Part)
Figure 12. Node Information frame structure without command classes
All the Z-Wave protocol specific fields are initialised by the protocol. The Listening flag, Generic and
Specific Device Class fields are initialized by the application. Regarding initialisation, refer to the function
ApplicationNodeInformation.
Defined in: ZW_controller_api.h
Parameters:
bNodeID IN
Node ID
1..232
nodeInfo OUT
Node info buffer (see Figure 12)
If (*nodeInfo).nodeType.generic is
0 then the node doesn‟t exist.
Serial API:
HOST->ZW: REQ | 0x41 | bNodeID
ZW->HOST: RES | 0x41 | nodeInfo (see Figure 12)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 152 of 232
CONFIDENTIAL
4.5.12 ZW_GetRoutingInfo
void ZW_GetRoutingInfo(BYTE bNodeID,
BYTE_P pMask,
BYTE bRemove)
Macro: ZW_GET_ROUTING_INFO(bNodeID, pMask, bRemove)
ZW_GetRoutingInfo is a function that can be used to read out neighbor information from the protocol.
This information can be used to ensure that all nodes have a sufficient number of neighbors and to
ensure that the network is in fact one network.
The format of the data returned in the buffer pointed to by pMask is as follows:
pMask[i] (0 i < (ZW_MAX_NODES/8)
Bit
0
1
2
3
4
5
6
7
NodeID
i*8+1
I*8+2
i*8+3
i*8+4
i*8+5
i*8+6
i*8+7
i*8+8
If a bit n in pMask[i] is 1 it indicates that the node bNodeID has node (i*8)+n+1 as a neighbour. If n in
pMask[i] is 0, bNodeID cannot reach node (i*8)+n+1 directly.
Defined in: ZW_controller_api.h
Parameters:
bNodeID IN
Node ID (1…232) specifies the node whom
routing info is needed from.
pMask OUT
Pointer to buffer where routing info should be
put. The buffer should be at least
ZW_MAX_NODES/8 bytes
bRemove IN
GET_ROUTING_INFO_REMOVE_BAD
Remove bad routes from the
routing info.
GET_ROUTING_INFO_REMOVE_NON_REPS
Remove non-repeaters from the
routing info.
GET_ROUTING_INFO_REMOVE_9600
Remove 9.6K nodes from the
routing info.
Serial API:
HOST->ZW: REQ | 0x80 | bNodeID | bRemoveBad | bRemoveNonReps | funcID
ZW->HOST: RES | 0x80 | NodeMask[29]
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 153 of 232
CONFIDENTIAL
4.5.13 ZW_GetSUCNodeID
BYTE ZW_GetSUCNodeID(void)
Macro: ZW_GET_SUC_NODE_ID()
API call used to get the currently registered SUC node ID.
Defined in: ZW_controller_api.h
Return value:
BYTE
The node ID (1..232) on the currently
registered SUC, if ZERO then no SUC
available.
Serial API:
HOST->ZW: REQ | 0x56
ZW->HOST: RES | 0x56 | SUCNodeID
4.5.14 ZW_isFailedNode
BYTE ZW_isFailedNode(BYTE nodeID)
Macro: ZW_IS_FAILED_NODE_ID(nodeID)
Used to test if a node ID is stored in the failed node ID list.
Defined in: ZW_controller_api.h
Return value:
BYTE
TRUE
If node ID (1..232) is in the list of failing
nodes.
Parameters:
nodeID IN
The node ID (1...232) to check.
Serial API:
HOST->ZW: REQ | 0x62 | nodeID
ZW->HOST: RES | 0x62 | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 154 of 232
CONFIDENTIAL
4.5.15 ZW_IsPrimaryCtrl
BOOL ZW_IsPrimaryCtrl (void)
Macro: ZW_PRIMARYCTRL()
This function is used to request whether the controller is a primary controller or a secondary controller in
the network.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
Returns TRUE when the controller is a
primary controller in the network.
FALSE
Return FALSE when the controller is a
secondary controller in the network.
Serial API
Not supported but used instead Serial API Node List Command having
FUNC_ID_SERIAL_API_GET_INIT_DATA.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 155 of 232
CONFIDENTIAL
4.5.16 ZW_RemoveFailedNodeID
BYTE ZW_RemoveFailedNodeID(BYTE NodeID,
BOOL bNormalPower,
VOID_CALLBACKFUNC(completedFunc)(BYTE txStatus))
Macro: ZW_REMOVE_FAILED_NODE_ID(node,func)
Used to remove a non-responding node from the routing table in the requesting controller. A non-
responding node is put onto the failed node ID list in the requesting controller. In case the node responds
again at a later stage then it is removed from the failed node ID list. A node must be on the failed node ID
list and as an extra precaution also fail to respond before it is removed. Responding nodes cannot be
removed. The call works on a primary controller and an inclusion controller.
A call back function should be provided otherwise the function would return without removing the node.
Defined in: ZW_controller_api.h
Return value (If the replacing process started successfully then the function will return):
BYTE
ZW_FAILED_NODE_REMOVE_STARTED
The removing process started
Return values (If the replacing process cannot be started then the API function will return one or more
of the following flags):
BYTE
ZW_NOT_PRIMARY_CONTROLLER
The removing process was aborted
because the controller is not the
primary one.
ZW_NO_CALLBACK_FUNCTION
The removing process was aborted
because no call back function is
used.
ZW_FAILED_NODE_NOT_FOUND
The requested process failed.
The nodeID was not found in the
controller list of failing nodes.
ZW_FAILED_NODE_REMOVE_PROCESS_BUSY
The removing process is busy.
ZW_FAILED_NODE_REMOVE_FAIL
The requested process failed.
Reasons include:
Controller is busy
The node responded to a NOP;
thus the node is no longer
failing.
Parameters:
nodeID IN
The node ID (1..232) of the failed node
to be deleted.
bNormalPower
IN
If TRUE then using Normal RF Power.
completedFunc
IN
Remove process completed call back
function
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 156 of 232
CONFIDENTIAL
Callback function Parameters:
txStatus IN
Status of removal of failed node:
ZW_NODE_OK
The node is working properly (removed from
the failed nodes list).
ZW_FAILED_NODE_REMOVED
The failed node was removed from the failed
nodes list.
ZW_FAILED_NODE_NOT_REMOVED
The failed node was not removed because
the removing process cannot be completed.
Serial API:
HOST->ZW: REQ | 0x61 | nodeID | funcID
ZW->HOST: RES | 0x61 | retVal
ZW->HOST: REQ | 0x61 | funcID | txStatus
Timeout: 65s
Exception Recovery: Resume normal operation
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 157 of 232
CONFIDENTIAL
4.5.17 ZW_ReplaceFailedNode
BYTE ZW_ReplaceFailedNode(BYTE NodeID,
BOOL bNormalPower,
VOID_CALLBACKFUNC(completedFunc)(BYTE txStatus))
Macro: ZW_REPLACE_FAILED_NODE(node,func)
This function replaces a non-responding node with a new one in the requesting controller. A non-
responding node is put onto the failed node ID list in the requesting controller. In case the node responds
again at a later stage then it is removed from the failed node ID list. A node must be on the failed node ID
list and as an extra precaution also fail to respond before it is removed. Responding nodes can‟t be
replace. The call works on a primary controller and an inclusion controller.
A call back function should be provided otherwise the function will return without replacing the node.
Defined in: ZW_controller_api.h
Return value (If the replacing process started successfully then the function will return):
BYTE
ZW_FAILED_NODE_REMOVE_STARTED
The replacing process has started.
Return values (If the replacing process cannot be started then the API function will return one or more
of the following flags:):
BYTE
ZW_NOT_PRIMARY_CONTROLLER
The replacing process was aborted
because the controller is not a
primary/inclusion/SIS controller.
ZW_NO_CALLBACK_FUNCTION
The replacing process was aborted
because no call back function is
used.
ZW_FAILED_NODE_NOT_FOUND
The requested process failed.
The nodeID was not found in the
controller list of failing nodes.
ZW_FAILED_NODE_REMOVE_PROCESS_BUSY
The removing process is busy.
ZW_FAILED_NODE_REMOVE_FAIL
The requested process failed.
Reasons include:
Controller is busy
The node responded to a NOP;
thus the node is no longer failing.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 158 of 232
CONFIDENTIAL
Parameters:
nodeID IN
The node ID (1…232) of the failed node
to be deleted.
bNormalPower
IN
If TRUE then using Normal RF Power.
completedFunc
IN
Replace process completed call back
function
Callback function Parameters:
txStatus IN
Status of replace of failed node:
ZW_NODE_OK
The node is working properly (removed
from the failed nodes list). Replace
process is stopped.
ZW_FAILED_NODE_REPLACE
The failed node is ready to be replaced
and controller is ready to add new node
with the nodeID of the failed node.
Meaning that the new node must now
emit a nodeinformation frame to be
included.
ZW_FAILED_NODE_REPLACE_DONE
The failed node has been replaced.
ZW_FAILED_NODE_REPLACE_FAILED
The failed node has not been replaced.
Serial API:
HOST->ZW: REQ | 0x63 | nodeID | funcID
ZW->HOST: RES | 0x63 | retVal
ZW->HOST: REQ | 0x63 | funcID | txStatus
Timeout: The same ass in AddNodeToNetwork, but for this function there is no “NODE_FOUND”
callback. This means that the time from ZW_FAILED_NODE_REPLACE to
ZW_FAILED_NODE_REPLACE_DONE includes the time it takes for the user to push the Z-Wave button
on the new device.
Exception Recovery: call ZW_AddNodeToNetwok(ADD_NODE_STOP)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 159 of 232
CONFIDENTIAL

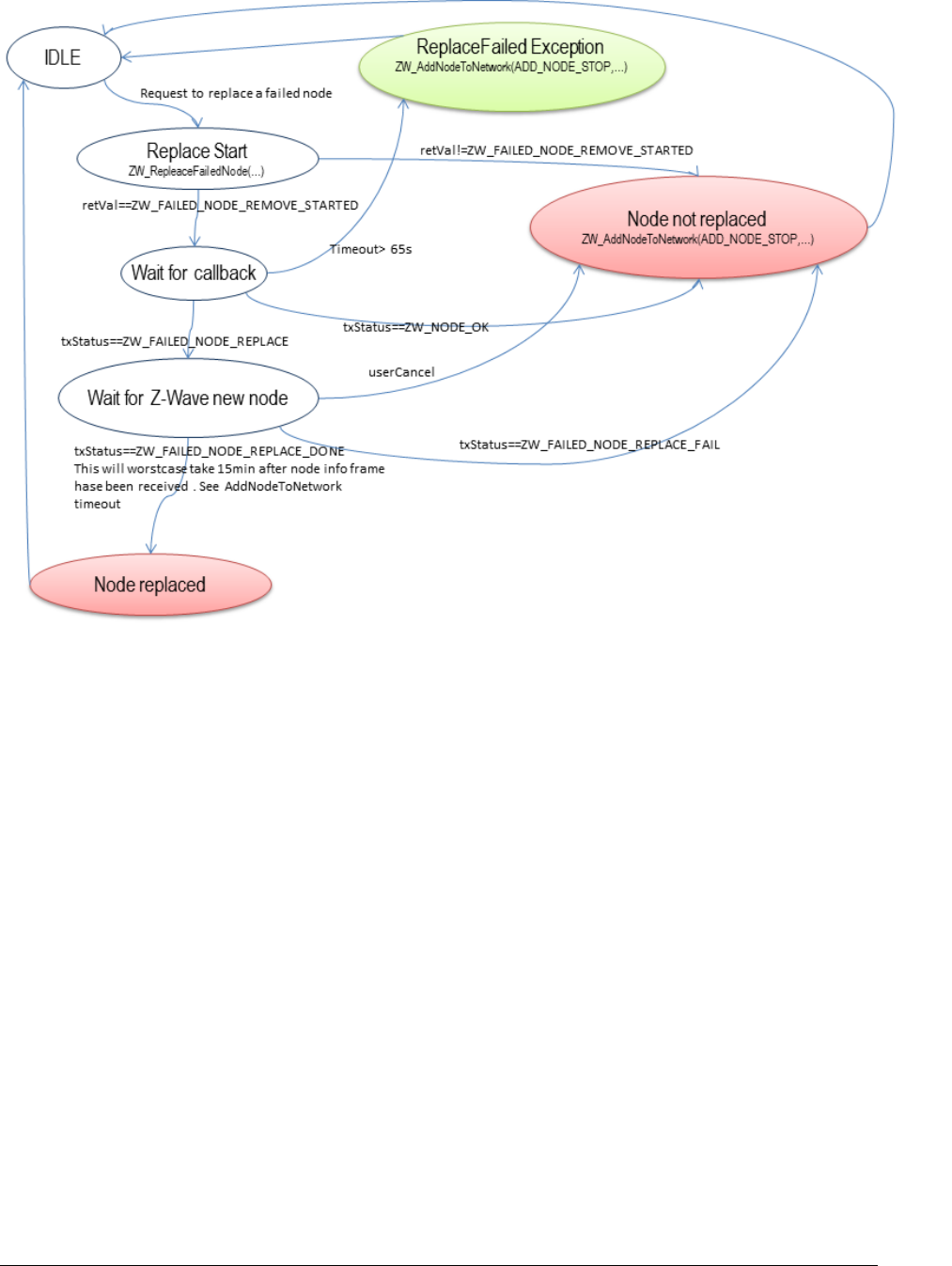

Figure 13. Replacing a failed node
4.5.18 ZW_RemoveNodeFromNetwork
void ZW_RemoveNodeFromNetwork(BYTE mode,
VOID_CALLBACKFUNC(completedFunc)(LEARN_INFO *learnNodeInfo))
Macro: ZW_REMOVE_NODE_FROM_NETWORK(mode, func)
Defined in: ZW_controller_api.h
Serial API: Func_ID = 0x4B
HOST->ZW: REQ | 0x4B | mode | funcID
ZW->HOST: REQ | 0x4B | funcID | bStatus | bSource | bLen | basic | generic | specific | cmdclasses[ ]
ZW_RemoveNodeFromNetwork is used to remove a node from a Z-Wave network.
The RemoveNodeFromNetwork function MAY be called by a primary controller application to invoke the
removal of nodes from a Z-Wave network. Slave and secondary controller applications MUST NOT call
this function.
A controller application MUST implement support for the RemoveNodeFromNetwork function. The
controller application MUST provide a user interface for activation of the RemoveNodeFromNetwork
function.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 160 of 232
CONFIDENTIAL
The bMode and completedFunc parameters MUST be specified for the RemoveNodeFromNetwork
function.
Refer to Figure 14 for a state diagram outlining the processing of status callbacks and timeouts.
4.5.18.1 bMode parameter
The bMode parameter MUST be carry one of the commands found in Table 20. The bMode parameter
MUST NOT be assigned more than one command. The bMode parameter MAY be assigned one or
more option flags. One command and multiple options are combined by logically OR‟ing the bMode flags
of Table 14.
Table 20. RemoveNode :: bMode
bMode flag
Description
Usage
REMOVE_NODE_ANY
Command to initiate removal of
node of any type.
MUST be included when initiating
removal.
REMOVE_NODE_SLAVE
-
DEPRECATED. Use REMOVE_NODE_ANY
REMOVE_NODE_CONTRO
LLER
-
DEPRECATED. Use REMOVE_NODE_ANY
REMOVE_NODE_STOP
Command to abort the removal
process. May only be used in
certain states.
MAY be used to abort an active removal
process.
MUST be used to terminate the
removal process when completed.
4.5.18.1.1 REMOVE_NODE_ANY command
To invoke removal of a node, a primary controller MUST call the RemoveNodeFromNetwork function with
a bMode value including the REMOVE_NODE_ANY command. Slave and secondary controller nodes
MUST NOT call the RemoveNodeFromNetwork function.
While defined in Z-Wave protocol libraries, it is NOT RECOMMENDED to use the
REMOVE_NODE_SLAVE or REMOVE_NODE_CONTROLLER command codes.
4.5.18.1.2 REMOVE_NODE_STOP command
A controller MAY use the REMOVE_NODE_STOP command to abort an ongoing removal process.
After receiving a REMOVE_NODE_STATUS_DONE status callback, the application MUST terminate the
removal process by calling the RemoveNodeFromNetwork function one more time. This time, the
completedFunc parameter MUST be the NULL pointer.
4.5.18.2 completedFunc parameter
Being the exception to the rule, an application calling RemoveNodeFromNetwork(
REMOVE_NODE_STOP) to confirm the reception of a REMOVE_NODE_STATUS_DONE return code
MUST specify the NULL pointer for the completedFunc parameter.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 161 of 232
CONFIDENTIAL
In all other cases, an application calling the RemoveNodeFromNetwork function MUST specify a valid
pointer to a callback function provided by the application. The callback function MUST accept a pointer
parameter to a LEARN_INFO struct. The parameter provides access to actual status as well as
companion data presenting the node being removed. The LEARN_INFO struct only contains a valid
pointer to the Node Information Frame of a node when the status of the callback is
REMOVE_NODE_STATUS_REMOVING_SLAVE or
REMOVE_NODE_STATUS_REMOVING_CONTROLLER.
Table 21. RemoveNode :: completedFunc :: learnNodeInfo
LEARN_NODE struct member
Description
*learnNodeInfo.bStatus
Callback status code
*learnNodeInfo.bSource
NodeID of the node that was removed
*learnNodeInfo.bLen
Length of pCmd element following the bLen element.
If bLen is zero, there is no valid pCmd element.
*learnNodeInfo.pCmd
Pointer to Application Node Information (see
ApplicationNodeInformation - nodeParm).
NULL if no information present.
Individual status codes are presented in the following sections.
Table 22. RemoveNode :: completedFunc :: learnNodeInfo.bStatus
LEARN_NODE.bStatus
Description
REMOVE_NODE_STATUS_LEARN_READY
Z-Wave protocol is ready to remove a node.
REMOVE_NODE_STATUS_NODE_FOUND
Z-Wave protocol detected node.
REMOVE_NODE_STATUS_REMOVING_
SLAVE
Z-Wave protocol removed a slave type node
REMOVE_NODE_STATUS_REMOVING_
CONTROLLER
Z-Wave protocol removed a controller type node
REMOVE_NODE_STATUS_DONE
All operations completed. Protocol is ready to return to idle
state.
REMOVE_NODE_STATUS_FAILED
Z-Wave protocol reports that removal was not successful.
Node may not have been removed.
ADD_NODE_STATUS_NOT_PRIMARY
Z Wave protocol reports that the requested operation
cannot be performed since it requires that the node is in
primary controller state.
Refer to Figure 14 for a state diagram outlining the processing of status callbacks and timeouts.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 162 of 232
CONFIDENTIAL
4.5.18.2.1 REMOVE_NODE_STATUS_LEARN_READY status
Z-Wave protocol is ready to remove a node. An application MAY time out waiting for the
REMOVE_NODE_STATUS_LEARN_READY status if it does not receive the indication within 200 msec
after calling RemoveNodeFromNetwork(REMOVE_NODE_ANY).
If the application times out waiting for the REMOVE_NODE_STATUS_LEARN_READY status, the
application MUST call RemoveNodeFromNetwork(REMOVE_NODE_STOP, NULL).
4.5.18.2.2 REMOVE_NODE_STATUS_NODE_FOUND status
Z-Wave protocol detected node. An application MUST time out waiting for the
REMOVE_NODE_STATUS_NODE_FOUND status if it does not receive the indication after calling
RemoveNodeFromNetwork(REMOVE_NODE_ANY). The RECOMMENDED interval is 60 sec.
If the application times out waiting for the REMOVE_NODE_STATUS_NODE_FOUND status, the
application MUST call RemoveNodeFromNetwork(REMOVE_NODE_STOP, NULL).
The application MUST NOT call RemoveNodeFromNetwork() before the timeout occurs. This may cause
the protocol to malfunction.
4.5.18.2.3 REMOVE_NODE_STATUS_REMOVING_SLAVE status
Z-Wave protocol is removing a slave type node. The NodeID of the node is included in the callback.
An application MUST time out waiting for the REMOVE_NODE_STATUS_REMOVING_SLAVE status if
it does not receive the indication within a 14 sec after receiving the
REMOVE_NODE_STATUS_NODE_FOUND status.
If the application times out waiting for the REMOVE_NODE_STATUS_REMOVNG_SLAVE status, the
application MUST call RemoveNodeFromNetwork(REMOVE_NODE_STOP). The application MUST
specify a valid callback function. This allows the application to receive a
REMOVE_NODE_STATUS_DONE once the protocol has completed cleaning up its datastructures.
The application MUST NOT call RemoveNodeFromNetwork() before the timeout occurs. This may cause
the protocol to malfunction.
4.5.18.2.4 REMOVE_NODE_STATUS_REMOVING_CONTROLLER status
Z-Wave protocol is removing a controller type node. The NodeID of the node is included in the callback.
An application MUST time out waiting for the REMOVE_NODE_STATUS_REMOVING_CONTROLLER
status if it does not receive the indication within a 14 sec after receiving the
REMOVE_NODE_STATUS_NODE_FOUND status.
If the application times out waiting for the REMOVE_NODE_STATUS_REMOVING_CONTROLLER
status, the application MUST call RemoveNodeFromNetwork(REMOVE_NODE_STOP). The application
MUST specify a valid callback function. This allows the application to receive an
REMOVE_NODE_STATUS_DONE once the protocol has completed cleaning up its datastructures.
The application MUST NOT call RemoveNodeFromNetwork() before the timeout occurs. This may cause
the protocol to malfunction.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 163 of 232
CONFIDENTIAL
4.5.18.2.5 REMOVE_NODE_STATUS_DONE status
All operations completed. Protocol is ready to return to idle state.
In response to the REMOVE_NODE_STATUS_DONE status callback, the application MUST call
RemoveNodeFromNetwork(REMOVE_NODE_STOP, NULL). The application MUST specify the NULL
pointer for the callback function.
4.5.18.2.6 REMOVE_NODE_STATUS_FAILED status
If an application receives a REMOVE_NODE_STATUS_PROTOCOL_FAILED status callback, the
application MUST terminate the removal process by calling
RemoveNodeFromNetwork(REMOVE_NODE_STOP). Refer to 4.5.18.1.2.
4.5.18.2.7 ADD_NODE_STATUS_NOT_PRIMARY status
An application MUST NOT call the RemoveNodeFromNetwork function if the application is not running in
a primary controller. If the function is called by an application running in slave or a secondary controller,
the API MUST return the ADD_NODE_STATUS_NOT_PRIMARY status callback.
4.5.18.3 completedFunc callback timeouts
4.5.18.3.1 ProtocolReadyTimeout
The API MUST return a REMOVE_NODE_STATUS_LEARN_READY status callback within less than
200 msec after receiving a call to RemoveNodeFromNetwork(REMOVE_NODE_ANY).
If an application has not received a REMOVE_NODE_STATUS_LEARN_READY status callback 200
msec after calling RemoveNodeFromNetwork(REMOVE_NODE_ANY), the application MAY time out and
return to its idle state.
4.5.18.3.2 NodeTimeout
An application MUST implement a timeout for waiting for an REMOVE_NODE_STATUS_NODE_FOUND
status callback.
The application SHOULD NOT wait for a REMOVE_NODE_STATUS_NODE_FOUND status callback for
more than 60 sec after calling RemoveNodeFromNetwork(REMOVE_NODE_ANY). If timing out, the
application SHOULD abort removal.
4.5.18.3.3 RemoveNodeTimeout
An application MUST time out if removal has not been completed within 14 sec after the reception of the
REMOVE_NODE_STATUS_NODE_FOUND status callback.
If timing out, the application MUST evaluate the controller node list to verify that the NodeID was
removed. The removal process SHOULD be repeated if the NodeID is still found in the node list.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 164 of 232
CONFIDENTIAL

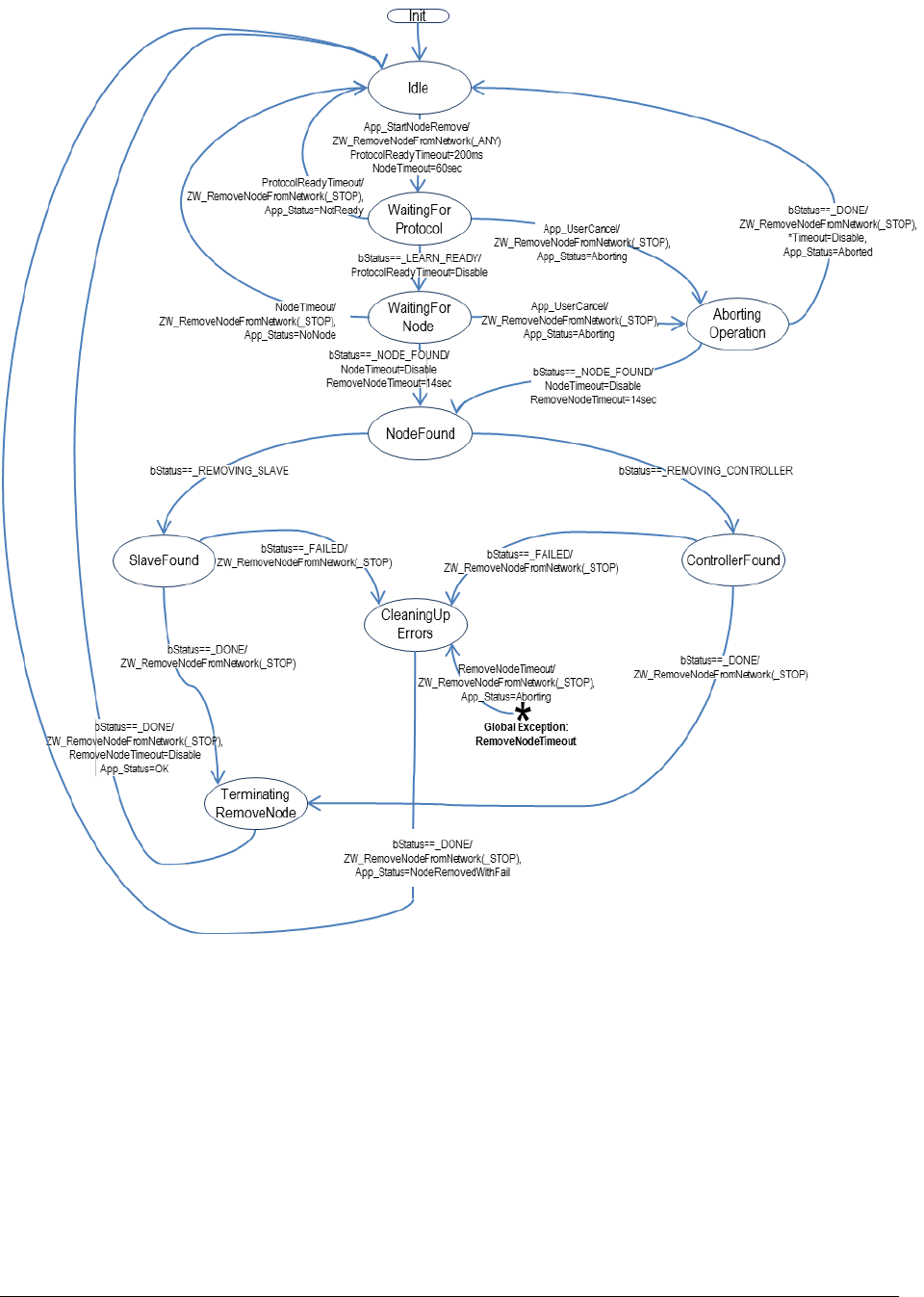

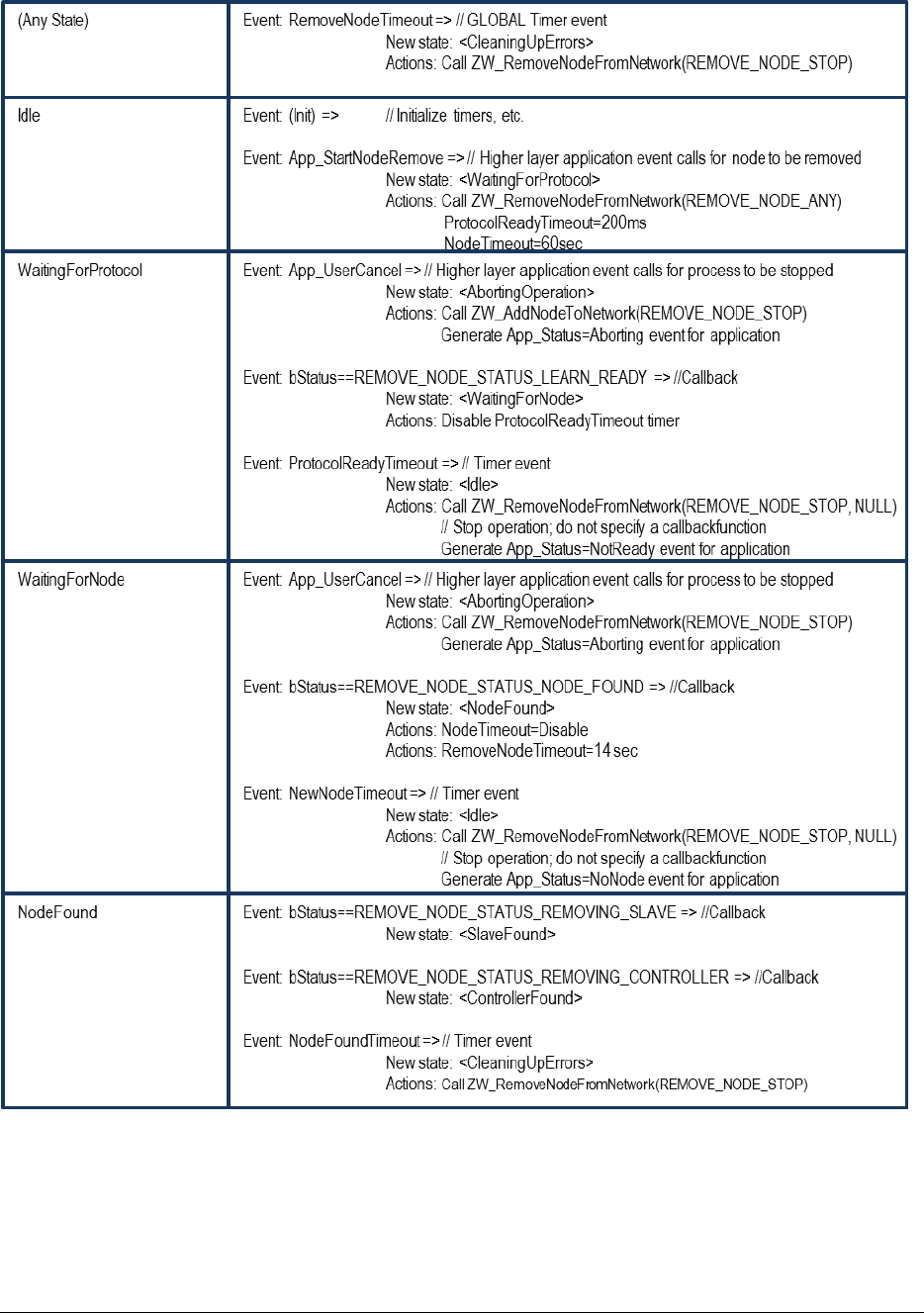

Figure 14. Removing a node from the network
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 165 of 232
CONFIDENTIAL
Table 23. RemoveNode : State/Event processing - 1
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 166 of 232
CONFIDENTIAL
Table 24. RemoveNode : State/Event processing - 2
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 167 of 232
CONFIDENTIAL
4.5.19 ZW_ReplicationReceiveComplete
void ZW_ReplicationReceiveComplete(void)
Macro: ZW_REPLICATION_COMMAND_COMPLETE
Sends command completed to sending controller. Called in conjunction with Controller Replication
Command Class when payload in ZW_ReplicationSend from the sender has been processed indicating
that the controller is ready for next packet.
WARNING: Use API call only in conjunction with Controller Replication Command Class [33].
Defined in: ZW_controller_api.h
Serial API:
HOST->ZW: REQ | 0x44
4.5.20 ZW_ReplicationSend
BYTE ZW_ReplicationSend(BYTE destNodeID, BYTE *pData, BYTE dataLength,
BYTE txOptions,
VOID_CALLBACKFUNC(completedFunc)(BYTE txStatus))
Macro: ZW_REPLICATION_SEND_DATA(node,data,length,options,func)
Used when the controller wants to make a controller replication to another controller using Controller
Replication Command Class. Controller sends the payload in ZW_ReplicationSend and expects the
receiver to respond with a command processed message ZW_ReplicationReceiveComplete.
WARNING: Use API call only in conjunction with Controller Replication Command Class [33].
Defined in: ZW_controller_api.h
Return value:
BYTE
FALSE
If transmit queue overflow.
Parameters:
destNode IN
Destination Node ID
(not equal NODE_BROADCAST).
pData IN
Data buffer pointer
dataLength IN
Data buffer length
txOptions IN
Transmit option flags. (see
ZW_SendData, but avoid using
routing!)
completedFunc
Transmit completed call back function
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 168 of 232
CONFIDENTIAL
IN
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Serial API:
HOST->ZW: REQ | 0x45 | destNodeID | dataLength | pData[ ] | txOptions | funcID
ZW->HOST: RES | 0x45 | RetVal
ZW->HOST: REQ | 0x45 | funcID | txStatus
Timeout: 4s
Exception recovery: Abort the ZW_AddNodeToNetwork Retry the inclustio of the controller
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 169 of 232
CONFIDENTIAL
4.5.21 ZW_RequestNodeInfo
BOOL ZW_RequestNodeInfo (BYTE nodeID,
VOID (*completedFunc)(BYTE txStatus))
Macro: ZW_REQUEST_NODE_INFO(NODEID)
This function is used to request the Node Information Frame from a controller based node in the network.
The Node info is retrieved using the ApplicationControllerUpdate callback function with the status
UPDATE_STATE_NODE_INFO_RECEIVED. This call is also available for routing slaves.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
If the request could be put in the transmit
queue successfully.
FALSE
If the request could not be put in the
transmit queue. Request failed.
Parameters:
nodeID IN
The node ID (1...232) of the node to
request the Node Information Frame
from.
completedFunc
IN
Transmit complete call back.
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Serial API:
HOST->ZW: REQ | 0x60 | NodeID
ZW->HOST: RES | 0x60 | retVal
SerialAPI Note:
The serial API implements no callback for this function. As a special serialAPI feature a transmit failure
will result in a call to the ApplicationControllerUpdate with the status code
UPDATE_STATE_NODE_INFO_REQ_FAILED. No call back I given on success, however the
application should receive a
ApplicationControllerUpdate(UPDATE_STATE_NODE_INFO_RECEIVED,…) when the node info
arrives.
Timeout: 65s
Exception Recovery: Resume normal operation, retry the command.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 170 of 232
CONFIDENTIAL
4.5.22 ZW_RequestNodeNeighborUpdate
BYTE ZW_RequestNodeNeighborUpdate(NODEID,
VOID_CALLBACKFUNC (completedFunc)(BYTE
bStatus))
Macro: ZW_REQUEST_NODE_NEIGHBOR_UPDATE(nodeid, func)
Get the neighbors from the specified node. This call can only be called by a primary/inclusion controller.
An inclusion controller should call ZW_RequestNetWorkUpdate in advance because the inclusion
controller may not have the latest network topology.
Defined in: ZW_controller_api.h
Return value:
BYTE
TRUE
The discovery process is started and
the function will be completed by the
callback
FALSE
The discovery was not started and
the callback will not be called. The
reason for the failure can be one of
the following:
This is not a primary/inclusion
controller
There is only one node in the
network, nothing to update.
The controller is busy doing
another update.
Parameters:
nodeID IN
Node ID (1...232) of the node that the
controller wants to get new neighbors from.
completedFunc
IN
Transmit complete call back.
Callback function Parameters:
bStatus IN
Status of command:
REQUEST_NEIGHBOR_UPDATE_STARTED
Requesting neighbor list from the
node is in progress.
REQUEST_NEIGHBOR_UPDATE_DONE
New neighbor list received
REQUEST_NEIGHBOR_UPDATE_FAIL
Getting new neighbor list failed
Serial API:
HOST->ZW: REQ | 0x48 | nodeID | funcID
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 171 of 232
CONFIDENTIAL
ZW->HOST: REQ | 0x48 | funcID | bStatus
Timeout: 3*1100ms*(num_of_nodes_in_network), worst case 12 minutes. This process is not cancable.
Exception Recovery: Resume normal operation
Figure 15. Application state machine for ZW_RequestNodeNeighborUpdate
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 172 of 232
CONFIDENTIAL
4.5.23 ZW_SendSUCID
BYTE ZW_SendSUCID (BYTE node,
BYTE txOption,
VOID_CALLBACKFUNC (completedFunc)(BYTE txStatus))
Macro: ZW_SEND_SUC_ID(nodeID, txOption, func)
Transmit SUC node ID from a primary controller or static controller to the controller node ID specified.
Routing slaves ignore this command, use instead ZW_AssignSUCReturnRoute.
Defined in: ZW_controller_api.h
Return value:
TRUE
In progress.
FALSE
Not a primary controller or static
controller.
Parameters:
node IN
The node ID (1...232) of the node to
receive the current SUC node ID.
txOption IN
Transmit option flags. (see
ZW_SendData)
completedFunc
IN
Transmit complete call back.
Callback function parameters:
txStatus IN
(see ZW_SendData)
Serial API:
HOST->ZW: REQ | 0x57 | node | txOption | funcID
ZW->HOST: RES | 0x57 | RetVal
ZW->HOST: REQ | 0x57 | funcID | txStatus
Timeout: 65s
Exception Recovery: Resume normal operation
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 173 of 232
CONFIDENTIAL
4.5.24 ZW_SetDefault
void ZW_SetDefault( VOID_CALLBACKFUNC(completedFunc)(void))
Macro: ZW_SET_DEFAULT(func)
This function set the Controller back to the factory default state. Erase all Nodes, routing information and
assigned homeID/nodeID from the NVM. In case the previous home ID was randomly generated then a
new random home ID written to the NVM (random range: 0xC0000000-0xFFFFFFFE). A home ID
outside random range reuses the initially configured home ID (configured during production).
Warning: Use this function with care as it could render a Z-Wave network unusable if the primary
controller in an existing network is set back to default.
Defined in: ZW_controller_api.h
Parameters:
completedFunc IN
Command completed call back function
Serial API:
HOST->ZW: REQ | 0x42 | funcID
ZW->HOST: REQ | 0x42 | funcID
Timeout: 1000ms
Exception Recovery: Resume normal operation, check nodelist to see if the controller has been reset. A
controller MUST have nodeID ==1 after a set default.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 174 of 232
CONFIDENTIAL
4.5.25 ZW_SetLearnMode
void ZW_SetLearnMode (BYTE mode,
VOID_CALLBACKFUNC(completedFunc)(LEARN_INFO *learnNodeInfo))
Macro: ZW_SET_LEARN_MODE(mode, func)
ZW_SetLearnMode is used to add or remove the controller to a Z-Wave network.
This function is used to instruct the controller to allow it to be added or removed from the network.
When a controller is added to the network the following things will happen:
1. If the current stored ID's are zero and the assigned ID‟s are nonzero, the received ID's will be
stored (node was added to the network).
2. If the received ID's are zero the stored ID's will be set to zero (node was removed from the
network).
3. The controller receives updates to the node list and the routing table but the ID‟s remain
unchanged.
This function will probably change the capabilities of the controller so it is recommended that the
application calls ZW_GetControllerCapabilities() after completion to check the controller status.
The learnFunc is called as the "Assign" process progresses. The returned nodeID is the nodes new
Node ID. If no "Assign" is received from the including controller the callback function will not be called. It
is then up to the application code to switch of Learn mode. Once the assignment process has been
started the Callback function may be called more than once. The learn process is not complete before
the callback function is called with LEARN_MODE_DONE.
Network wide inclusion should always be used as the default mode in inclusion to ensure compability
with all implementations of Z-Wave controllers.
Correct way to call ZW_SetLearn() in a slave node:
ZW_SetLearnMode(ZW_SET_LEARN_MODE_NWI,
learnFunc);
NOTE: Learn mode should only be enabled when necessary and disabled again as quickly as possible.
It is recommended that learn mode is not enabling for more than 2 second in
ZW_SET_LEARN_MODE_CLASSIC mode and 5 seconds in ZW_SET_LEARN_MODE_NWI mode.
NOTE: When the controller is already included into a network (secondary or inclusion controller) the
callback status LEARN_MODE_STARTED will not be made but the LEARN_MODE_DONE/FAILED
callback will be made as normal.
WARNING: The learn process should not be stopped with ZW_SetLearnMode(FALSE,..) between the
LEARN_MODE_STARTED and the LEARN_MODE_DONE status callback.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 175 of 232
CONFIDENTIAL
Defined in: ZW_controller_api.h
Parameters:
mode IN
The learn node states are:
ZW_SET_LEARN_MODE_CLASSIC
Start the learn mode on the
controller and only accept being
included and excluded in direct
range.
ZW_SET_LEARN_MODE_NWI
Start the learn mode on the
controller and accept routed
inclusion. NWI mode must not
be used for exclusion.
ZW_SET_LEARN_MODE_DISABLE
Stop learn mode on the
controller
completedFunc IN
Callback function pointer (Should only be
NULL if state is turned off).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 176 of 232
CONFIDENTIAL
Callback function Parameters (completedFunc):
*learnNodeInfo.bStatus
IN
Status of learn mode:
LEARN_MODE_STARTED
The learn process has
been started
LEARN_MODE_DONE
The learn process is
complete and the
controller is now included
into the network
LEARN_MODE_FAILED
The learn process failed.
*learnNodeInfo.bSource
IN
Node id of the new node
*learnNodeInfo.pCmd
IN
Pointer to Application Node information data
(see ApplicationNodeInformation -
nodeParm). NULL if no information present.
The pCmd only contain information when bLen is
not zero, so the information should be stored
when that is the case. Regardless of the
bStatus.
*learnNodeInfo.bLen IN
Node info length.
Serial API:
HOST->ZW: REQ | 0x50 | mode | funcID
ZW->HOST: REQ | 0x50 | funcID | bStatus | bSource | bLen | pCmd[ ]
Timeout: 15mins LEARN_MODE_STATED-> LEARN_MODE_DONE (See ZW_AddNodeToNetwork for
more details on timing.)
Exception Recovery: ZW_SetLearnMode(FALSE,0), retry operation
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 177 of 232
CONFIDENTIAL

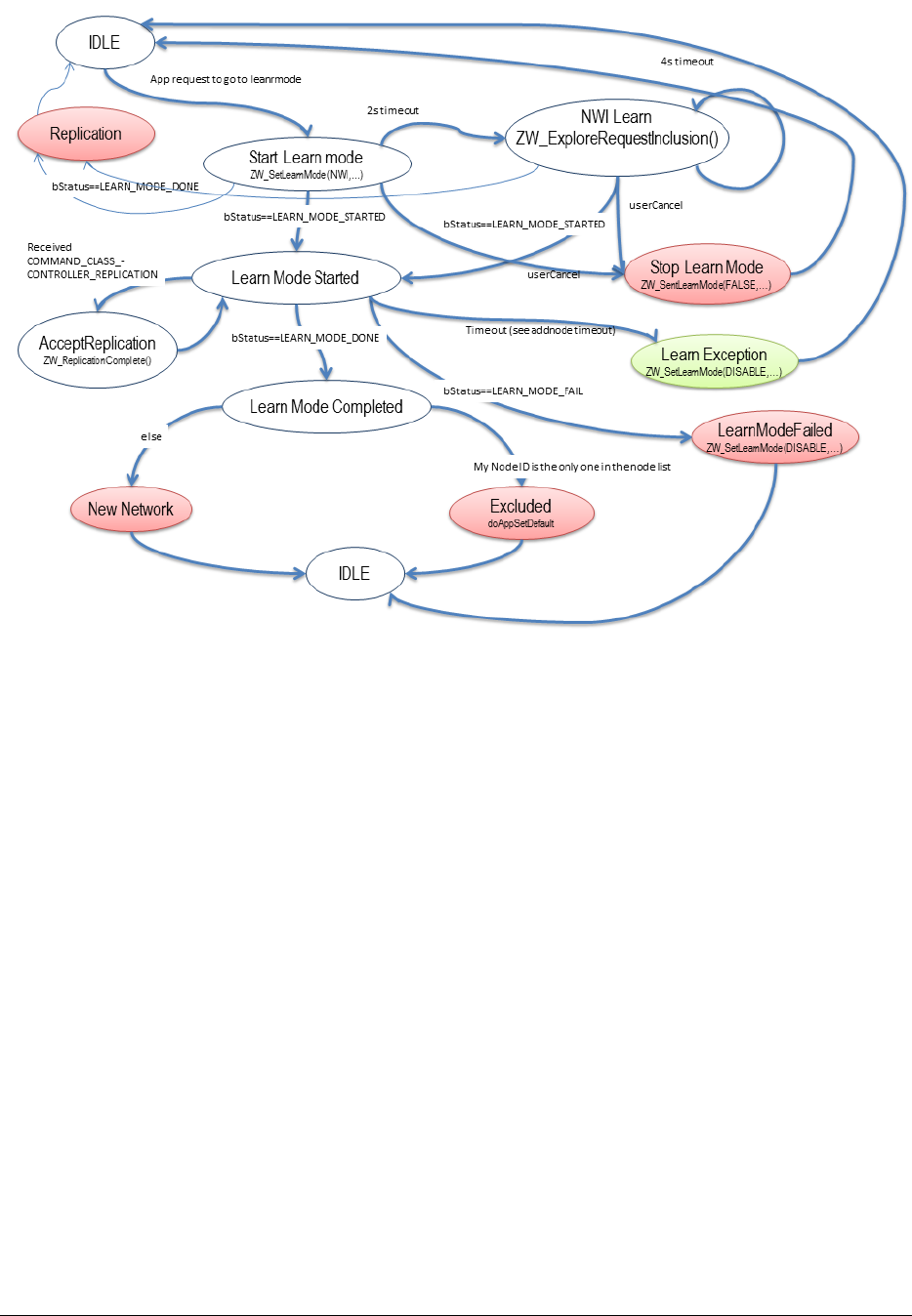

Figure 16. Statechart of Controller learnmode.
Note that is the controller isExcluded, it re-init its internal parameters like after a ZW_SetDefault
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 178 of 232
CONFIDENTIAL
4.5.26 ZW_SetRoutingInfo
void ZW_SetRoutingInfo(BYTE bNodeID,
BYTE bLength,
BYTE_P pMask )
Macro: ZW_SET_ROUTING_INFO(bNodeID, bLength, pMask)
NOTE: This function is not available in the Bridge Controller library and Static Controller library
without repeater and manual routing functionality.
ZW_SetRoutingInfo is a function that can be used to overwrite the current neighbor information for a
given node ID in the protocol locally.
The format of the routing info must be organised as follows:
pMask[i] (0 i < (ZW_MAX_NODES/8)
Bit
0
1
2
3
4
5
6
7
NodeID
i*8+1
i*8+2
i*8+3
i*8+4
i*8+5
i*8+6
i*8+7
i*8+8
If a bit n in pMask[i] is 1 it indicates that the node bNodeID has node (i*8)+n+1 as a neighbour. If n in
pMask[i] is 0, bNodeID cannot reach node (i*8)+n+1 directly.
Defined in: ZW_controller_api.h
Return value:
BOOL
TRUE
Neighbor information updated
successfully.
FALSE
Failed to update neighbor information.
Parameters:
bNodeID IN
Node ID (1…232) to be updated with
respect to neighbor information.
bLength IN
Routing info buffer length in bytes.
pMask IN
Pointer to buffer where routing info
should be taken from. The buffer should
be at least ZW_MAX_NODES/8 bytes
Serial API (Only Developer’s Kit v4.5x):
HOST->ZW: REQ | 0x1B | bNodeID | NodeMask[29]
ZW->HOST: RES | 0x1B | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 179 of 232
CONFIDENTIAL
4.5.27 ZW_SetRoutingMAX
BOOL ZW_SetRoutingMAX(BYTE maxRouteTries)
Use this function to set the maximum number of source routing attempts before the next mechanism
kicks-in. Default value with respect to maximum number of source routing attempts is five. The source
routing mechanism requires the transmit option flags TRANSMIT_OPTION_ACK and
TRANSMIT_OPTION_AUTO_ROUTE to be specified in send data API calls.
Defined in: ZW_controller_api.h
Parameters:
maxRouteTries IN
1...20
Maximum number of source routing attempts
Serial API:
Not implemented
4.5.28 ZW_SetSUCNodeID
BYTE ZW_SetSUCNodeID (BYTE nodeID,
BYTE SUCState,
BYTE bTxOption,
BYTE capabilities,
VOID_CALLBACKFUNC (completedFunc)(BYTE txStatus))
Macro: ZW_SET_SUC_NODE_ID(nodeID, SUCState, bTxOption, capabilities, func)
Used to configure a static/bridge controller to be a SUC/SIS node or not. The primary controller should
use this function to set a static/bridge controller to be the SUC/SIS node, or it could be used to stop
previously chosen static/bridge controller being a SUC/SIS node.
A controller can set itself to a SUC/SIS by calling ZW_EnableSUC and ZW_SetSUCNodeID with its own
node ID. It‟s recommended to do this when the Z-Wave network only comprise of the primary controller
to get the SUC/SIS role distributed when new nodes are included. It‟s possible to include a virgin primary
controller with SUC/SIS capabilities configured into another Z-Wave network.
Defined in: ZW_controller_api.h
Return value:
TRUE
If the process of configuring the
static/bridge controller is started.
FALSE
The process not started because the
calling controller is not the master or the
destination node is not a static/bridge
controller.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 180 of 232
CONFIDENTIAL
Parameters:
nodeID IN
The node ID (1...232) of the static
controller to configure.
SUCState IN
TRUE
Want the static controller to be a SUC
node.
FALSE
If the static/bridge controller should not
be a SUC node.
bTxOption IN
TRUE
Want to send the frame with low
transmission power
FALSE
Want to send the frame at normal
transmission power
capabilities IN
SUC capabilities that is enabled:
ZW_SUC_FUNC_BASIC_SUC
Only enables the basic SUC functionality.
ZW_SUC_FUNC_NODEID_SERVER
Enable the node ID server functionality to
become a SIS.
completedFunc
IN
Transmit complete call back.
Callback function Parameters:
txStatus IN
Status of command:
ZW_SUC_SET_SUCCEEDED
The process ended successfully.
ZW_SUC_SET_FAILED
The process failed.
Serial API:
HOST->ZW: REQ | 0x54 | nodeID | SUCState | bTxOption | capabilities | funcID
ZW->HOST: RES | 0x54 | RetVal
ZW->HOST: REQ | 0x54 | funcID | txStatus
In case ZW_SetSUCNodeID is called locally with the controllers own node ID then only the response is
returned. In case true is returned in the response then it can be interpreted as the command is now
executed successfully.
Timeout: 65s
Faliure Recovery: retry operation twice, resume nomal operation.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 181 of 232
CONFIDENTIAL
4.6 Z-Wave Static Controller API
The Static Controller application interface is an extended Controller application interface with added
functionality specific for the Static Controller.
4.6.1 ZW_CreateNewPrimaryCtrl
Void ZW_CreateNewPrimaryCtrl(BYTE mode,
VOID_CALLBACKFUNC(completedFunc)(LEARN_INFO *learnNodeInfo))
Macro: ZW_CREATE_NEW_PRIMARY_CTRL
ZW_CreateNewPrimaryCtrl is used to add a controller to the Z-Wave network as a replacement for the
old primary controller.
This function has the same functionality as ZW_AddNodeToNetwork(ADD_NODE_CONTROLLER,…)
except that the new controller will be a primary controller and it can only be called by a SUC. The
function is not available if the SUC is a node ID server (SIS).
WARNING: This function should only be used when it is 100% certain that the original primary controller
is lost or broken and will not return to the network.
Defined in: ZW_controller_static_api.h
Parameters:
mode IN
The learn node states are:
CREATE_PRIMARY_START
Start the process of adding a a
new primary controller to the
network.
CREATE_PRIMARY_STOP
Stop the process.
CREATE_PRIMARY_STOP_FAILED
Stop the inclusion and report a
failure to the other controller.
completedFunc IN
Callback function pointer (Should only be
NULL if state is turned off).
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 182 of 232
CONFIDENTIAL
Callback function Parameters:
*learnNodeInfo.bStatus
IN Status of learn mode:
ADD_NODE_STATUS_LEARN_READY
The controller is now
ready to include a
controller into the
network.
ADD_NODE_STATUS_NODE_FOUND
A controller that wants to
be included into the
network has been found
ADD_NODE_STATUS_ADDING_CONTROLLER
A new controller has
been added to the
network
ADD_NODE_STATUS_PROTOCOL_DONE
The protocol part of
adding a controller is
complete, the application
can now send data to the
new controller using
ZW_ReplicationSend()
ADD_NODE_STATUS_DONE
The new controller has
now been included and
the controller is ready to
continue normal
operation again.
ADD_NODE_STATUS_FAILED
The learn process failed
*learnNodeInfo.bSource
IN Node id of the new node
*learnNodeInfo.pCmd
IN Pointer to Application Node information data
(see ApplicationNodeInformation - nodeParm).
NULL if no information present.
The pCmd only contain information when bLen is
not zero, so the information should be stored
when that is the case. Regardless of the bStatus.
*learnNodeInfo.bLen
IN Node info length.
Timouts: see ZW_AddNodeToNetwork
Error recovery: see ZW_AddNodeToNetwork
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 183 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x4C | mode | funcID
ZW->HOST: REQ | 0x4C | funcID | bStatus | bSource | bLen | basic | generic | specific | cmdclasses[ ]
4.6.2 ZW_EnableSUC
BYTE ZW_EnableSUC (BYTE state, BYTE capabilities)
Macro: ZW_ENABLE_SUC (state, capabilities)
Used to enable/disable assignment of the SUC/SIS functionality in the controller. Assignment is default
enabled. Assignment is done by the API call ZW_SetSUCNodeID.
If SUC is enabled then the static controller can store network changes sent from the primary, send
network topology updates requested by controllers.
If SUC is disabled, then the static controller will ignore the frames sent from the primary controller after
calling ZW_SetSUCNodeID. If the primary controller called ZW_RequestNetWorkUpdate, then the call
back function will return with ZW_SUC_UPDATE_DISABLED.
Defined in: ZW_controller_static_api.h
Return value:
BYTE
TRUE
The SUC functionality was
enabled/disabled.
FALSE
Attempting to disable a running SUC, not
allowed.
Parameters:
State IN
TRUE
SUC functionality is enabled.
FALSE
SUC functionality is disabled.
capabilities IN
SUC capabilities that is enabled:
ZW_SUC_FUNC_BASIC_SUC
Only enables the basic SUC functionality.
ZW_SUC_FUNC_NODEID_SERVER
Enable the SUC node ID server
functionality to become a SIS.
Serial API:
HOST->ZW: REQ | 0x52 | state | capabilities
ZW->HOST: RES | 0x52 | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 184 of 232
CONFIDENTIAL
4.7 Z-Wave Bridge Controller API
The Bridge Controller application interface is an extended Controller application interface with added
functionality specific for the Bridge Controller.
4.7.1 ZW_GetVirtualNodes
VOID ZW_GetVirtualNodes(BYTE *pnodeMask)
Macro: ZW_GET_VIRTUAL_NODES (pnodemask)
Request a buffer containing available Virtual Slave nodes in the Z-Wave network.
The format of the data returned in the buffer pointed to by pnodeMask is as follows:
pnodeMask[i] (0 i < (ZW_MAX_NODES/8)
Bit
0
1
2
3
4
5
6
7
NodeID
i*8+1
i*8+2
i*8+3
i*8+4
i*8+5
i*8+6
i*8+7
i*8+8
If bit n in pnodeMask[i] is 1, it indicates that node (i*8)+n+1 is a Virtual Slave node. If bit n in
pnodeMask[i] is 0, it indicates that node (i*8)+n+1 is not a Virtual Slave node.
Defined in: ZW_controller_bridge_api.h
Parameters:
pNodeMask IN
Pointer to nodemask (29 byte size)
buffer where the Virtual Slave
nodeMask should be copied.
Serial API:
HOST->ZW: REQ | 0xA5
ZW->HOST: RES | 0xA5 | pnodeMask[29]
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 185 of 232
CONFIDENTIAL
4.7.2 ZW_IsVirtualNode
BYTE ZW_IsVirtualNode(BYTE nodeID)
Macro: ZW_IS_VIRTUAL_NODE (nodeid)
Checks if “nodeID” is a Virtual Slave node.
Defined in: ZW_controller_bridge_api.h
Return value:
BYTE
TRUE
If “nodeID” is a Virtual Slave node.
FALSE
If “nodeID” is not a Virtual Slave node.
Parameters:
nodeID IN
Node ID (1...232) on node to check if it is
a Virtual Slave node.
Serial API:
HOST->ZW: REQ | 0xA6 | nodeID
ZW->HOST: RES | 0xA6 | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 186 of 232
CONFIDENTIAL
4.7.3 ZW_SendSlaveNodeInformation
BYTE ZW_SendSlaveNodeInformation(BYTE srcNode,
BYTE destNode,
BYTE txOptions,
VOID_CALLBACKFUNC(completedFunc)(BYTE txStatus))
Macro: ZW_SEND_SLAVE_NODE_INFO(srcnode, destnode, option, func)
Create and transmit a Virtual Slave node “Node Information” frame from Virtual Slave node srcNode. The
Z-Wave transport layer builds a frame, request the application slave node information (see
ApplicationSlaveNodeInformation) and queue the “Node Information” frame for transmission. The
completed call back function (completedFunc) is called when the transmission is complete.
NOTE: ZW_SendSlaveNodeInformation uses the transmit queue in the API, so using other transmit
functions before the complete callback has been called by the API might fail.
Defined in: ZW_controller_bridge_api.h
Return value:
BYTE
TRUE
If frame was put in the transmit queue.
FALSE
If transmitter queue overflow or if bridge
controller is primary or srcNode is invalid
then completedFunc will NOT be called.
Parameters:
srcNode IN
Source Virtual Slave Node ID
destNode IN
Destination Node ID
(NODE_BROADCAST == all nodes)
txOptions
IN Transmit option flags:
TRANSMIT_OPTION_LOW_POWER
Transmit at low output power level (1/3 of
normal RF range). NOTE: The
TRANSMIT_OPTION_LOW_POWER
option should only be used when the two
nodes that are communicating are close
to each other (<2 meter). In all other
cases this option should not be used.
TRANSMIT_OPTION_ACK
Request acknowledge from destination
node.
completedFunc
IN
Transmit completed call back function
Callback function Parameters:
txStatus
(see ZW_SendData)
Serial API:
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 187 of 232
CONFIDENTIAL
HOST->ZW: REQ | 0xA2 | srcNode | destNode | txOptions | funcID
ZW->HOST: RES | 0xA2 | retVal
ZW->HOST; REQ | 0xA2 | funcID | txStatus
4.7.4 ZW_SetSlaveLearnMode
BYTE ZW_SetSlaveLearnMode(BYTE node,
BYTE mode,
VOID_CALLBACKFUNC(learnSlaveFunc)(BYTE state, BYTE orgID,
BYTE newID))
Macro: ZW_SET_SLAVE_LEARN_MODE (node, mode, func)
ZW_SetSlaveLearnMode enables the possibility for enabling or disabling “Slave Learn Mode”, which
when enabled makes it possible for other controllers (primary or inclusion controllers) to add or remove a
Virtual Slave Node to the Z-Wave network. Also is it possible for the bridge controller (only when primary
or inclusion controller) to add or remove a Virtual Slave Node without involving other controllers.
Available Slave Learn Modes are:
VIRTUAL_SLAVE_LEARN_MODE_DISABLE – Disables the Slave Learn Mode so that no Virtual
Slave Node can be added or removed.
VIRTUAL_SLAVE_LEARN_MODE_ENABLE – Enables the possibility for other Primary/Inclusion
controllers to add or remove a Virtual Slave Node. To add a new Virtual Slave node to the Z-Wave
Network the provided “node” ID must be ZERO and to make it possible to remove a specific
Virtual Slave Node the provided “node” ID must be the nodeID for this specific (locally present)
Virtual Slave Node. When the Slave Learn Mode has been enabled the Virtual Slave node must
identify itself to the external Primary/Inclusion Controller node by sending a “Node Information”
frame (see ZW_SendSlaveNodeInformation) to make the add/remove operation commence.
VIRTUAL_SLAVE_LEARN_MODE_ADD - Add Virtual Slave Node to the Z-Wave network
without involving any external controller. This Slave Learn Mode is only possible when bridge
controller is either a Primary controller or an Inclusion controller.
VIRTUAL_SLAVE_LEARN_MODE_REMOVE - Remove a locally present Virtual Slave Node from
the Z-Wave network without involving any external controller. This Slave Learn Mode is only
possible when bridge controller is either a Primary controller or an Inclusion controller.
The learnSlaveFunc is called as the "Assign" process progresses. The returned “orgID” is the Virtual
Slave node put into Slave Learn Mode, the “newID” is the new Node ID. If the Slave Learn Mode is
VIRTUAL_SLAVE_LEARN_MODE_ENABLE and nothing is received from the assigning controller the
callback function will not be called. It is then up to the main application code to switch of Slave Learn
mode by setting the VIRTUAL_SLAVE_LEARN_MODE_DISABLE Slave Learn Mode. Once the
assignment process has been started the Callback function may be called more than once.
NOTE: Slave Learn Mode should only be set to VIRTUAL_SLAVE_LEARN_MODE_ENABLE when
necessary, and it should always be set to VIRTUAL_SLAVE_LEARN_MODE_DISABLE again as quickly
as possible. It is recommended that Slave Learn Mode is never set to
VIRTUAL_SLAVE_LEARN_MODE_ENABLE for more than 1 second.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 188 of 232
CONFIDENTIAL
Defined in: ZW_controller_bridge_api.h
Return value:
BYTE
TRUE
If learnSlaveMode change was
succesful.
FALSE
If learnSlaveMode change could not
be done.
Parameters:
node IN
Node ID (1...232) on node to set in Slave
Learn Mode, ZERO if new node is to be
learned.
mode IN
Valid modes:
VIRTUAL_SLAVE_LEARN_MODE_DISABLE
Disable Slave Learn Mode
VIRTUAL_SLAVE_LEARN_MODE_ENABLE
Enable Slave Learn Mode
VIRTUAL_SLAVE_LEARN_MODE_ADD
ADD: Create locally a Virtual Slave
Node and add it to the Z-Wave
network (only possible if
Primary/Inclusion Controller).
VIRTUAL_SLAVE_LEARN_MODE_REMOVE
Remove locally present Virtual Slave
Node from the Z-Wave network (only
possible if Primary/Inclusion
Controller).
learnFunc IN
Slave Learn mode complete call back
function
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 189 of 232
CONFIDENTIAL
Callback function Parameters:
bStatus
Status of the assign process.
ASSIGN_COMPLETE
Is returned by the callback function when in
the
VIRTUAL_SLAVE_LEARN_MODE_ENABLE
Slave Learn Mode and assignment is done.
Now the Application can continue normal
operation.
ASSIGN_NODEID_DONE
Node ID have been assigned. The “orgID”
contains the node ID on the Virtual Slave
Node who was put into Slave Learn Mode.
The “newID” contains the new node ID for
“orgID”. If “newID” is ZERO then the “orgID”
Virtual Slave node has been deleted and the
assign operation is completed. When this
status is received the Slave Learn Mode is
complete for all Slave Learn Modes except
the
VIRTUAL_SLAVE_LEARN_MODE_ENABLE
mode.
ASSIGN_RANGE_INFO_UPDATE
Node is doing Neighbour discovery
Application should not attempt to send any
frames during this time, this is only applicable
when in
VIRTUAL_SLAVE_LEARN_MODE_ENABLE.
orgID
The original node ID that was put into
Slave Learn Mode.
newID
The new Node ID. Zero if “OrgID” was
deleted from the Z-Wave network.
Serial API:
HOST->ZW: REQ | 0xA4 | node | mode | funcID
ZW->HOST: RES | 0xA4 | retVal
ZW->HOST: REQ | 0xA4 | funcID | bStatus | OrgID | newID
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 190 of 232
CONFIDENTIAL
4.8 Z-Wave Installer Controller API
The Installer application interface is basically an extended Controller interface that gives the application
access to functions that can be used to create more advanced installation tools, which provide better
diagnostics and error locating capabilities.
4.8.1 zwTransmitCount
BYTE zwTransmitCount
Macro: ZW_TX_COUNTER
ZW_TX_COUNTER is a variable that returns the number of transmits that the protocol has done since
last reset of the variable. If the number returned is 255 then the number of transmits ≥ 255. The variable
should be reset by the application, when it is to be restarted.
Defined in: ZW_controller_installer_api.h
Serial API:
To read the transmit counter:
HOST->ZW: REQ | 0x81| (FUNC_ID_GET_TX_COUNTER)
ZW->HOST: RES | 0x81 | ZW_TX_COUNTER (1 byte)
To reset the transmit counter:
HOST->ZW: REQ | 0x82| (FUNC_ID_RESET_TX_COUNTER)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 191 of 232
CONFIDENTIAL
4.8.2 ZW_StoreHomeID
void ZW_StoreHomeID(BYTE_P pHomeID,
BYTE bNodeID)
Macro: ZW_STORE_HOME_ID(pHomeID, NodeID)
ZW_StoreHomeID is a function that can be used to restore HomeID and NodeID information from a
backup.
Defined in: ZW_controller_installer_api.h
Parameters:
pHomeID IN
Pointer to HomeID structure to store
bNodeID IN
NodeID to store.
Serial API:
HOST->ZW: REQ | 0x84 | pHomeID[0] | pHomeID[1] | pHomeID[2] | pHomeID[3] | bNodeID
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 192 of 232
CONFIDENTIAL
4.8.3 ZW_StoreNodeInfo
BOOL ZW_StoreNodeInfo(BYTE bNodeID,
BYTE_P pNodeInfo,
VOID_CALLBACKFUNC(func)())
Macro: ZW_STORE_NODE_INFO(NodeID,NodeInfo,function)
ZW_StoreNodeInfo is a function that can be used to restore protocol node information from a backup or
the like. The format of the node info frame should be identical with the format used by
ZW_GET_NODE_STATE.
Defined in: ZW_controller_installer_api.h
Return value:
BOOL
TRUE
If NodeInfo was Stored.
FALSE
If NodeInfo was not Stored. (Illegal NodeId or
MemoryWrite failed)
Parameters:
bNodeID IN
Node ID (1...232) to store information at.
pNodeInfo IN
Pointer to Node Information Frame.
func IN
Callback function. Called when data has
been stored.
Serial API:
HOST->ZW: REQ | 0x83 | bNodeID | nodeInfo (nodeInfo is a NODEINFO field) | funcID
ZW->HOST: RES | 0x83 | retVal
ZW->HOST: REQ| 0x83 | funcId
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 193 of 232
CONFIDENTIAL
4.9 Z-Wave Slave API
The Slave application interface is an extension to the Basis application interface enabling
inclusion/exclusion of Routing Slave, and Enhanced Slave nodes.
4.9.1 ZW_SetDefault
void ZW_SetDefault(void)
Macros: ZW_SET_DEFAULT
This function set the slave back to the factory default state. Erase routing information and assigned
homeID/nodeID from the EEPROM memory. Support of 9.6kbps communication only is also cleared and
ZW_Support9600Only must be called to set it again. Finally write a new random home ID to the
EEPROM memory.
Defined in: ZW_slave_api.h
Serial API:
HOST->ZW: REQ | 0x42 | funcID
ZW->HOST: REQ | 0x42 | funcID
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 194 of 232
CONFIDENTIAL
4.9.2 ZW_SetLearnMode
void ZW_SetLearnMode(BYTE mode,
VOID_CALLBACKFUNC(learnFunc)(BYTE bStatus, BYTE nodeID) )
Macro: ZW_SET_LEARN_MODE(mode, func)
ZW_SetLearnMode enable or disable home and node ID‟s learn mode. Use this function to add a new
Slave node to a Z-Wave network or to remove an already added node from the network again.
The Slave node must identify itself to the including controller node by sending a Node Information Frame
(see ZW_SendNodeInformation).
When learn mode is enabled, the follwong two actions can be performed by the protocol:
1. If the current stored ID's are zero and the assigned ID‟s are nonzero, the received ID's will be
stored (node was added to the network).
2. If the received ID's are zero the stored ID's will be set to zero (node was removed from the
network).
The learnFunc is called as the "Assign" process progresses. The returned nodeID is the nodes new
Node ID. If no "Assign" is received from the including controller the callback function will not be called. It
is then up to the application code to switch of Learn mode. Once the assignment process has been
started the Callback function may be called more than once. The learn process is not complete before
the callback function is called with ASSIGN_COMPLETE.
Network wide inclusion should always be used as the default mode in inclusion to ensure compability
with all implementations of Z-Wave controllers.
Correct way to call ZW_SetLearn() in a slave node:
ZW_SetLearnMode(ZW_SET_LEARN_MODE_NWI,
learnFunc);
NOTE: Learn mode should only be enabled when necessary and disabled again as quickly as possible.
It is recommended that learn mode is not enabled for more than 2 seconds in
ZW_SET_LEARN_MODE_CLASSIC mode and 5 seconds in ZW_SET_LEARN_MODE_NWI mode.
Defined in: ZW_slave_api.h
Parameters:
mode IN
ZW_SET_LEARN_MODE_CLASSIC
Start the learn mode on the slave and
only accept being included and excluded
in direct range.
ZW_SET_LEARN_MODE_NWI
Start the learn mode on the slave and
accept routed inclusion. NWI mode must
not be used for exclusion.
ZW_SET_LEARN_MODE_DISABLE
Stop learn mode on the slave
learnFunc IN
Node ID learn mode completed call back
function
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 195 of 232
CONFIDENTIAL
Callback function Parameters:
bStatus
Status of the assign process
ASSIGN_COMPLETE
Assignment is done and Application can
continue normal operation.
ASSIGN_NODEID_DONE
Node ID has been assigned. More
information may follow.
ASSIGN_RANGE_INFO_UPDATE
Node is doing Neighbor discovery
Application should not attempt to send
any frames during this time.
nodeID
The new (learned) Node ID (1...232)
Serial API:
HOST->ZW: REQ | 0x50 | mode | funcID
ZW->HOST: REQ | 0x50 | funcID | bstatus | nodeID
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 196 of 232
CONFIDENTIAL
4.9.3 ZW_Support9600Only
BOOL ZW_Support9600Only(BOOL bValue)
Macros: ZW_SUPPORT9600_ONLY(value)
The API call ZW_Support9600Only can select that non-listening ZW0201/ZW0301 slaves only want to
support 9.6kbps communication. Support 9.6kbps only is cleared on RESET (this also includes WUT)
and on calling ZW_SetDefault. Excluding the Node from the network will not clear support 9.6kbps only.
The protocol will before sending still check for any ongoing 9.6 and 40kbps communication.
Important: Place this call only in ApplicationInitSW
Defined in: ZW_slave_api.h
Return value:
BOOL
TRUE
The baudrate change was succesfull.
FALSE
Baudrate could not be changed because the node
was listening.
Parameters:
bValue
Select if this node should only support 9.6kbit/s
TRUE
This node will now act as a 9.6kbit/s
FALSE
This node will respond on all supported baudrates
Serial API:
HOST->ZW: REQ | 0x5B | bValue
ZW->HOST: RES | 0x5B | retVal
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 197 of 232
CONFIDENTIAL
4.10 Z-Wave Routing and Enhanced Slave API
The Routing and Enhanced Slave application interface is an extension of the Basis and Slave application
interface enabling control of other nodes in the Z-Wave network.
4.10.1 ZW_GetSUCNodeID
BYTE ZW_GetSUCNodeID(void)
Macro: ZW_GET_SUC_NODE_ID()
API call used to get the currently registered SUC node ID. A controller must have called
ZW_AssignSUCReturnRoute before a SUC node ID is registered in the routing or enhanced slave.
Defined in: ZW_slave_routing_api.h
Return value:
BYTE
The node ID (1..232) on the currently
registered SUC, if ZERO then no SUC
available.
Serial API:
HOST->ZW: REQ | 0x56
ZW->HOST: RES | 0x56 | SUCNodeID
4.10.2 ZW_IsNodeWithinDirectRange
BYTE ZW_IsNodeWithinDirectRange(BYTE bNodeID)
Macro: ZW_IS_NODE_WITHIN_DIRECT_RANGE (bNodeID)
Check if the supplied nodeID is marked as being within direct range in any of the existing return routes.
Defined in: ZW_slave_routing_api.h
Return value:
TRUE
If node is within direct range
FALSE
If the node is beyond direct range or if
status is unknown to the protocol
Parameters:
bNodeID IN
Node id to examine
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 198 of 232
CONFIDENTIAL
Serial API:
HOST->ZW: REQ | 0x5D | bNodeID
ZW->HOST: RES | 0x5D | retVal
4.10.3 ZW_RediscoveryNeeded
BYTE ZW_RediscoveryNeeded (BYTE bNodeID,
VOID_CALLBACKFUNC (completedFunc)(BYTE bStatus))
Macro: ZW_REDISCOVERY_NEEDED(nodeid, func)
This function can request a SUC/SIS controller to update the requesting nodes neighbors. The function
will try to request a neighbor rediscovery from a SUC/SIS controller in the network. In order to reach a
SUC/SIS controller it uses other nodes (bNodeID) in the network. The application must implement the
algorithm for scanning the bNodeID‟s to find a node which can help.
If bNodeID supports this functionality (routing slave and enhanced slave libraries), bNodeID will try to
contact a SUC/SIS controller on behalf of the node that requests the rediscovery. If the functionality is
unsupported by bNodeID ZW_ROUTE_LOST_FAILED will be returned in the callback function and the
next node can be tried.
The callback function is called when the request have been processed by the protocol.
Defined in: ZW_slave_routing_api.h
Return value:
FALSE
The node is busy doing another update.
TRUE
The help process is started; status will
come in the callback.
Parameters:
bNodeID IN
Node ID (1..232) to request help from
completedFunc
IN
Transmit completed call back function
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 199 of 232
CONFIDENTIAL
Callback function parameters:
ZW_ROUTE_LOST_ACCEPT
The node bNodeID accepts to forward
the help request. Wait for the next
callback to determine the outcome of the
rediscovery.
ZW_ROUTE_LOST_FAILED
The node bNodeID has responded it is
unable to help and the application can try
next node if it decides so.
ZW_ROUTE_UPDATE_ABORT
No reply was received before the protocol
has timed out. The application can try the
next node if it decides so.
ZW_ROUTE_UPDATE_DONE
The node bNodeID was able to contact a
controller and the routing information has
been updated.
Serial API:
HOST->ZW: REQ | 0x59 | bNodeID | funcID
ZW->HOST: RES | 0x59 | retVal
ZW->HOST: REQ | 0x59 | funcID | bStatus
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 200 of 232
CONFIDENTIAL
4.10.4 ZW_RequestNewRouteDestinations
BYTE ZW_RequestNewRouteDestinations(BYTE *pDestList,
BYTE bDestListLen ,
VOID_CALLBACKFUNC (completedFunc)(BYTE bStatus))
Macro: ZW_REQUEST_NEW_ROUTE_DESTINATIONS (pdestList, destListLen, func)
Used to request new return route destinations from the SUC/SIS node.
NOTE: No more than the first ZW_MAX_RETURN_ROUTE_DESTINATIONS will be requested
regardless of bDestListLen.
Defined in: ZW_slave_routing_api.h
Return value:
TRUE
If the updating process is started.
FALSE
If the requesting routing slave is
busy or no SUC node known to the
slave.
Parameters:
pDestList IN
Pointer to a list of new destinations for which
return routes is needed.
bDestListLen
Number of destinations contained in pDestList.
completedFunc
IN
Transmit completed call back function
Callback function parameters:
ZW_ROUTE_UPDATE_DONE
The update process is ended
successfully
ZW_ROUTE_UPDATE_ABORT
The update process aborted
because of error
ZW_ROUTE_UPDATE_WAIT
The SUC node is busy
ZW_ROUTE_UPDATE_DISABLED
The SUC functionality is disabled
Serial API:
HOST->ZW: REQ | 0x5C | destList[5] | funcID
ZW->HOST: RES | 0x5C | retVal
ZW->HOST: REQ | 0x5C | funcID | bStatus
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 201 of 232
CONFIDENTIAL
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 202 of 232
CONFIDENTIAL
4.10.5 ZW_RequestNodeInfo
BOOL ZW_RequestNodeInfo (BYTE nodeID,
VOID (*completedFunc)(BYTE txStatus))
Macro: ZW_REQUEST_NODE_INFO(NODEID)
This function is used to request the Node Information Frame from a slave based node in the network.
The Node info is retrieved using the ApplicationSlaveUpdate callback function with the status
UPDATE_STATE_NODE_INFO_RECEIVED. This call is also available for controllers.
Defined in: ZW_slave_routing_api.h
Return value:
BOOL
TRUE
If the request could be put in the transmit
queue successfully.
FALSE
If the request could not be put in the
transmit queue. Request failed.
Parameters:
nodeID IN
The node ID (1…232) of the node to
request the Node Information Frame
from.
completedFunc
IN
Transmit complete call back.
Callback function Parameters:
txStatus IN
(see ZW_SendData)
Serial API:
HOST->ZW: REQ | 0x60 | NodeID
ZW->HOST: RES | 0x60 | retVal
The Serial API implementation do not return the callback function (no parameter in the Serial API frame
refers to the callback), this is done via the ApplicationSlaveUpdate callback function:
If request nodeinfo transmission was unsuccessful (no ACK received) then the
ApplicationSlaveUpdate is called with UPDATE_STATE_NODE_INFO_REQ_FAILED (status
only available in the Serial API implementation).
If request nodeinfo transmission was successful there is no indication that it went well apart from
the returned Nodeinfo frame which should be received via the ApplicationSlaveUpdate with
status UPDATE_STATE_NODE_INFO_RECEIVED.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 203 of 232
CONFIDENTIAL
4.11 Serial Command Line Debugger
The debug driver is a simple single line command interpreter, operated via the serial interface (UART –
RS232). The command line debugger is used to dump and edit memory, including the memory mapped
registers.
For a controller/slave_enhanced node the debugger startup by displaying the following help text on the
debug terminal:
Z-Wave Commandline debugger Vx.nn
Keyes(VT100): BS; ^,<,> arrows; F1.
H Help
D[X|E|F] <addr> [<length>] Dump memory
E[X|E] <addr> Edit memory (Key: SP)
W[X|E|F] <addr> Watch memory location
is idata (80-FF is SFR)
X is xdata
E is External EEPROM
F is flash
>
For a slave node the debugger startup by displaying the following help text on the debug terminal:
Z-Wave Commandline debugger Vx.nn
Keyes(VT100): BS; ^,<,> arrows; F1.
H Help
D[X|I|F] <addr> [<length>] Dump memory
E[X|I] <addr> Edit memory (Key: SP)
W[X|I|F] <addr> Watch memory location
is idata (80-FF is SFR)
X is xdata
I is “Internal EEPROM” flash
F is flash
>
The command debugger is then ready to receive commands via the serial interface.
Special input keys:
F1 (function key 1) same as the help command line.
BS (backspace) delete the character left to the curser.
< (left arrow) move the cursor one character left.
> (right arrow) move the cursor one character right.
^ (up arrow) retrieve last command line.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 204 of 232
CONFIDENTIAL
Commands:
H[elp] Display the help text.
D[ump] <addr> [<length>] Dump idata (0-7F) or SFR memory (80-FF).
DX <addr> [<length>] Dump xdata (SRAM) memory.
DI <addr> [<length>] Dump “internal EEPROM” flash (slave only).
DE <addr> [<length>] Dump external EEPROM (controllers/slave_enhanced only).
DF <addr> [<length>] Dump FLASH memory.
E[dit] <addr> Edit idata (0-7F) or SFR memory (80-FF).
EX <addr> Edit xdata memory.
EI <addr> Edit “internal EEPROM” flash (slave only).
EE <addr> Edit external EEPROM (controllers/slave_enhanced only).
W[atch] <addr> Watch idata (0-7F) or SFR memory (80-FF).
WX <addr> Watch xdata memory.
WI <addr> Watch “internal EEPROM” flash (slave only).
WE <addr> Watch external EEPROM memory (controllers/slave_enhanced only).
WF <addr> Watch FLASH memory.
The Watch pointer gives the following log (when memory change):
idata SRAM memory Rnn
xdata SRAM memory Xnn
Internal EEPROM flash Inn (slave only)
External EEPROM Enn (controllers/slave_enhanced only)
Examples:
>dx 0 ; Edit offset 0x0000 and 0x0001 of xdata SRAM
0000 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
>ex 0 ; Edit offset 0x0000 and 0x0001 of xdata SRAM
0000 00-1 00-2
>dx 0 ; Dump offset 0x0000 to 0x000f of xdata SRAM
0000 01 02 00 00 00 00 00 00 00 00 00 00 00 00 00 00
>wx 1X02 ; Watch offset 0x0001 of xdata SRAM
>ex 1
0001 02-1X01
>
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 205 of 232
CONFIDENTIAL
4.11.1 ZW_DebugInit
void ZW_DebugInit(WORD baudRate)
Macro: ZW_DEBUG_CMD_INIT(baud)
Command line debugger initialization. The macro can be placed within the application initialization
function (see function ApplicationInitSW).
Example:
ZW_DEBUG_CMD_INIT(96); /* setup command line speed to 9600 bps. */
Defined in: ZW_debug_api.h
Parameters:
baudRate IN
Baud Rate / 100 (e.g. 96 = 9600 bps,
384 = 38400 bps, 1152 = 115200 bps)
Serial API (Not supported)
4.11.2 ZW_DebugPoll
void ZW_DebugPoll( void )
Macro: ZW_DEBUG_CMD_POLL
Command line debugger poll function. Collect characters from the debug terminal and execute the
commands.
Should be called via the main poll loop (see function ApplicationPoll).
By using the debug macros (ZW_DEBUG_CMD_INIT, ZW_DEBUG_CMD_POLL) the command line
debugger can be enabled by defining the compile flag “ZW_DEBUG_CMD” under CDEFINES in the
makefile as follows:
CDEFINES+= EU,\
ZW_DEBUG_CMD,\
SUC_SUPPORT,\
ASSOCIATION,\
LOW_FOR_ON,\
SIMPLELED
Both the debug output (ZW_DEBUG) and the command line debugger (ZW_DEBUG_CMD) can be
enabled at the same time.
Defined in: ZW_debug_api.h
Serial API (Not supported)
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 206 of 232
CONFIDENTIAL
4.12 RF Settings in App_RFSetup.a51 file
The Z-Wave libraries are capable of transmitting/receiving on either 921.42MHz (ANZ) or 868.42MHz
(EU) or 919.82MHz (HK) or 916.00MHz (IL) or 865.22MHz (IN) or 868.10MHz (MY) or 869.0MHz (RU) or
908.42MHz (US). The default frequency is set to US.
4.12.1 ZW0201/ZW0301 RF parameters
To allow for the selection of frequency, and transmit power levels (normal and low power) every
application must have the App_RFSetup.a51 module linked in to define the const block placed in Flash
memory. The ZW_RF020x.h / ZW_RF030x.h file contains various definitions such as default values:
Table 25. App_RFSetup.a51 module definitions for ZW0201/ZW0301
Offset to
table
start
Define name
Default
value
Valid
values
Description
0
FLASH_APPL_MAGIC_VALUE_OFFS
0xFF
0x42
If value is 0x42 then the
table contents is valid.
1
FLASH_APPL_FREQ_OFFS
0x01
0x00-
0x0A
0x00 = EU
0x01 = US
0x02 = ANZ
0x03 = HK
0x08 = MY
0x09 = IN
0x0A = RU
0x0B = IL
0xXX = use default.
2
FLASH_APPL_NORM_POWER_OFFS
0xFF
If 0xFF the default lib
value is used:
US = 0x2A
EU = 0x2A
ANZ = 0x2A
HK = 0x2A
IN = 0x2A
MY = 0x2A
RU = 0x2A
IL = 0x2A
4
FLASH_APPL_LOW_POWER_OFFS
0xFF
If 0xFF the default lib
value is used:0x14
5
FLASH_APPL_PLL_STEPUP_OFFS
0xFF
0x00
Only supported on
ZW0301
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Z-Wave Application Interfaces
Page 207 of 232
CONFIDENTIAL
An application programmer can select RF frequency (921.42MHz (ANZ) or 868.42MHz (EU) or
919.82MHz (HK) or 916.00MHz (IL) or 865.22MHz (IN) or 868.10MHz (MY) or 869.0MHz (RU) or
908.42MHz (US)), and the values for normal and low power transmissions by changing the const block
defined in the App_RFSetup.a51 module. The RF frequency to use can be set by defining either ANZ or
EU or HK or IL or IN or MY or RU or US in the application makefile. The TXnormal Power needs to be
adjusted when making the FCC compliance test. According to the FCC part 15, the output radiated
power shall not exceed 94dBuV/m. This radiated power is the result of the module output power and your
product antenna gain. As the antenna gain is different from product to product, the module output power
needs to be adjusted to comply with the FCC regulations.
When using an external PA, set the field at FLASH_APPL_PLL_STEPUP_OFFS to 0 (zero) for
adjustment of the signal quality. This is necessary to be able to pass a FCC compliance test.
The match and power values can be adjusted directly on the module by the Z-Wave Programmer [14].
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Hardware Support driverS
Page 208 of 232
CONFIDENTIAL
5 HARDWARE SUPPORT DRIVERS
While the previous sections describe the generic Z-Wave modules that handle the wireless
communication between the Z-Wave nodes, this section describe interfaces to common hardware
components.
5.1 Hardware Pin Definitions
The hardware specific directories in the \product directory contain a ZW_pindefs.h file that defines
macros for access to the I/O pins on the module.
Macros for accessing the I/O pins:
PIN_IN(pin, pullup)
Set I/O pin as input.
Parameters:
pin IN
Z-Wave pin name
pullup IN
If not zero activate the internal pull-up
resistor
Example:
PIN_IN(IO1,0) ; define pin IO1 as an input pin and disables the internal pull-up resistor.
NOTE: The pull-up feature is not available in the ZW010x ASIC
PIN_OUT(pin)
Set I/O pin as output.
Parameters:
pin IN
Z-Wave pin name
Example:
PIN_OUT(IO2) ; define pin IO2 as an output pin.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Hardware Support driverS
Page 209 of 232
CONFIDENTIAL
PIN_GET(pin)
Read pin value:
Parameters:
pin IN
Z-Wave pin name
Example:
if (PIN_GET(IO1))
/* action when pin IO1 is 1 */
PIN_ON(pin)
Set output pin to 1 (on).
Parameters:
pin IN
Z-Wave pin name
Example:
PIN_ON(IO2); /* set pin IO2 to 1 */
PIN_OFF(pin)
Set output pin to 0 (off).
Parameters:
pin IN
Z-Wave pin name
Example:
PIN_OFF(IO2); /* set pin IO2 to 0 */
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Hardware Support driverS
Page 210 of 232
CONFIDENTIAL
PIN_TOGGLE(pin)
Toggle output pin.
Parameters:
pin IN
Z-Wave pin name
Example:
PIN_TOGGLE(IO2); /* toggle pin IO2 */
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: SUC/SIS Implementation
Page 211 of 232
CONFIDENTIAL
6 APPLICATION NOTE: SUC/SIS IMPLEMENTATION
6.1 Implementing SUC support In All Nodes
Having Static Update Controller (SUC) support in Z-Wave products requires that several API calls must
be used in the right order. This chapter provides details about how SUC support can be implemented in
the different node types in the Z-Wave network.
6.2 Static Controllers
All static controllers has the functionality needed for acting as a SUC in the network, but it is up to the
application to decide if it will allow the SUC functionality to be activated.
A Static Controller will not act as a SUC until the primary controller in the network has requested it to do
so.
6.2.1 Request For Becoming SUC
The application in a static controller must enable for an assignment of the SUC capabilities by calling the
ZW_EnableSUC The static controller will now accept to become SUC if/when the primary controller
request it by calling ZW_SetSUCNodeID. In case assignment of the SUC capabilities is not enabled then
the static controller will decline a SUC request from the primary controller.
NOTE: There can only be one SUC in a network, but there can be many static controllers that are enable
for an assignment of the SUC capabilities in a network.
6.2.1.1 Request For Becoming a SUC Node ID Server (SIS)
Enabling assignment and requesting the SIS capabilities is done in a similar manner as for the SUC. The
capability parameter in ZW_EnableSUC and ZW_SetSUCNodeID is used to indicate that a SIS is
wanted and thereby accept becoming a SIS in the network.
NOTE: There can only be one SIS in a network, but there can be many static controllers that are enabled
for an assignment of the SIS capabilities in a network. Even if the SIS functionality is enabled for an
assignment in the static controller then the primary controller can still choose only to activate the basic
SUC functionality.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: SUC/SIS Implementation
Page 212 of 232
CONFIDENTIAL
6.2.2 Updates From The Primary Controller
1
Primary
Controller
Static controller
Assign homeID and NodeID
New node notification
Slave Node
Figure 17. Inclusion of a node having a SUC in the network
When a new node is added to the network or an existing node is removed from the network the primary
controller will send a network update to the SUC to notify the SUC about the changes in the network. The
application in the SUC will be notified about such a change through the callback function
ApplicationControllerUpdate). All update of node lists and routing tables is handled by the protocol so
the call is just to notify the application in the static controller that a node has been added or removed.
6.2.3 Assigning SUC Routes To Routing Slaves
When the SUC is present in a Z-Wave network routing slaves can ask it for updates, but the routing
slave must first be told that there is a SUC in the network and it must be told how to reach the SUC. That
is done from the SUC by assigning a set of return routes to the routing slave so it knows how to reach
the SUC. Assigning the routes to routing slaves is done by calling ZW_AssignSUCReturnRoute with the
nodeID of the routing slave that should be configured.
NOTE: Routing slaves are not notified by the presence of a SUC as a part of the inclusion so it is always
the Applications responsibility to tell a routing slave how it should reach the SUC.
6.2.4 Receiving Requests for Network Updates
When a SUC receives a request for sending network updates to a secondary controller or a routing
slave, the protocol will handle all the communication needed for sending the update, so the application
doesn't need to do anything and it will not get any notifications about the request.
6.2.5 Receiving Requests for new Node ID (SIS only)
When a SUC is configured to act as SIS in the system then it will receive requests for reserving node Ids
for use when other controllers add nodes to the network. The protocol will handle all that communication
without any involvement from the application.
6.3 The Primary Controller
The primary controller is responsible for choosing what static controller in the network that should act as
a SUC and it will also send notifications to the SUC about all changes in the network topology. The
application in a primary controller is responsible for choosing the static controller that should be the SUC.
There is no fixed strategy for how to choose the static controller, so it is entirely up to the application to
choose the controller that should become SUC. Once a static controller has been selected the
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: SUC/SIS Implementation
Page 213 of 232
CONFIDENTIAL
application must use the ZW_SetSUCNodeID to request that the static controller becomes SUC. The
capabilities parameter in the ZW_SetSUCNodeID call will determine if the primary controller enables the
ID Server functionality in the SUC.
Once a SUC has been selected the protocol in the primary controller will automatically send notifications
to the SUC about all changes in the network topology.
NOTE: A static controller can decline the role as SUC and in that case the callback function from
ZW_SetSUCNodeID will return with a FAILED status. The static controller can also refuse to become
SIS if that was what the primary controller requested, but accept to become a SUC.
6.4 Secondary Controllers
The secondary controllers in a network containing a SUC can ask the SUC for network topology changes
and receive the updates from the SUC. It is entirely up to the application if and when an update is
needed.
Secondary
controller
Static update
controller
Request update
Topology update
Update complete
Topology update
Figure 18. Requesting network updates from a SUC in the network
6.4.1 Knowing The SUC
The first thing the secondary controller should check is if it knows a SUC at all. Checking if a SUC is
known by the controller is done with the ZW_GetSUCNodeID call and until this call returns a valid node
ID the secondary controller can‟t use the SUC. The only time a secondary controller gets information
about the presence of a SUC is during controller replication, so it is only necessary to check after a
successful controller replication.
6.4.2 Asking For And Receiving Updates
If the secondary controller knows the SUC it can ask for updates from the SUC. Asking for updates is
done using the ZW_RequestNetWorkUpdate function. If the call was successful the update process will
start and the controller application will be notified about any changes in the network through calls to
ApplicationControllerUpdate). Once the update process is completed the callback function provided in
ZW_RequestNetWorkUpdate will be called.
If the callback functions returns with the status ZW_SUC_UPDATE_OVERFLOW then it means that
there has been more that 64 changes made to the network since the last update of this secondary
controller and it is therefore necessary to do a controller replication to get this secondary controller
updated.
NOTE: The SUC can refuse to update the secondary controller for several reasons, and if that happens
the callback function will return with a value explaining why the update request was refused.
WARNING: Consider carefully how often the topology of the network changes and how important it is for
the application that the secondary controller is updated with the latest.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: SUC/SIS Implementation
Page 214 of 232
CONFIDENTIAL
6.5 Inclusion Controllers
When a SIS is present in a Z-Wave network then all the controllers that knows the SIS will change state
to Inclusion Controllers, and the concept of primary and secondary controllers will no longer apply for the
controllers. The Inclusion controllers has the functionality of a Secondary Controller so the functionality
described in section 6.4 also applies for secondary controllers, but Inclusion Controllers are also able to
include/exclude nodes to the network on behalf of the SIS. The application in a controller can check if a
SIS is present in the network by using the ZW_GetControllerCapabilities function call. This allows the
application to adjust the user interface according to the capabilities. If a SIS is present in the network
then the CONTROLLER_NODEID_SERVER_PRESENT bit will be set and the
CONTROLLER_IS_SECONDARY bit will not be set.
Inclusion
Controlle SIS
1-Request Update
2-Topology update
5-Assign IDs
4-Reserved Node ID
3-Request Node ID
New node
Figure 19. Inclusion of a node having a SIS in the network
6.6 Routing Slaves
The routing slave can request a update of its stored return routes from a SUC by using the
ZW_RequestNetWorkUpdate API call. There is no API call in the routing slave to check if the SUC is
known by the slave so the application must just try ZW_RequestNetWorkUpdate and then determine
from the return value if the SUC is known or not. If the SUC was known and the update was a success
then the routing slave would get a callback with the status SUC_UPDATE_DONE, the slave will not get
any notifications about what was changed in the network.
A static update controller (SUC) can help a battery-operated routing slave to be re-discovered in case it
is moved to a new location. The lost slave initiates the re-discovery process because it will be the first to
recognize that it is unable to reach the configured destinations and therefore can the application call
ZW_RediscoveryNeeded to request help from other nodes in the network.
The lost battery operated routing slave start to send “I‟m lost” frames to each node beginning with node
ID = 1. It continue until it find a routing slave which can help it, i.e. the helping routing slave can obtain
contact with a SUC. Scanning through the node ID‟s is done on application level. Other strategies to
send the “I‟m lost” frame can be implemented on the application level.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: SUC/SIS Implementation
Page 215 of 232
CONFIDENTIAL
Lost
Routing
Slave
Maybe hops Static
controller
I'm lost
Controller Contacted
This slave is lost: NodeID
Accepted
Find Neighbors
Cmd Completed
Get Neighbors
Range information
NOPs
SUC routes
Transfer end
Helping
Routing
Slave
Lost
Routing
Slave
Maybe hops Static
controller
I'm lost
Controller Contacted
This slave is lost: NodeID
Accepted
Find Neighbors
Cmd Completed
Get Neighbors
Range information
NOPs
SUC routes
Transfer end
Helping
Routing
Slave
Figure 20. Lost routing slave frame flow
The helping routing slave must maximum use three hops to get to the controller, because it is the fourth
hop when the controller issues the re-discovery to the lost routing slave. All handling in the helping slave
is implemented on protocol level. In case a primary controller is found then it will check if a SUC exists in
the network. In case a SUC is available it will be asked to execute the re-discovery procedure. When the
controller receive the request “Re-discovery node ID x” it update the routing table with the new neighbor
information. This allows the controller to execute a normal re-discovery procedure.
In case the ZW_RediscoveryNeeded was successful then the lost routing slave would get a callback
with the status ZW_ROUTE_UPDATE_DONE and afterwards must the application call
ZW_RequestNetWorkUpdate to obtain updated return routes from the SUC. See the
Bin_Sensor_Battery sample code for an example of usage.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 216 of 232
CONFIDENTIAL
7 APPLICATION NOTE: INCLUSION/EXCLUSION IMPLEMENTATION
This note describes the API calls the application layer needs to use when including new nodes to the
network or excluding nodes from the network.
7.1 Including new nodes to the network
The API calls required by the including controller and the devices that is included are described. The
callbacks as well as the steps the protocol takes without any application level involvement is also
described. Finally it illustrates the frame flow between the two devices during the inclusion process.
The Z-Wave API calls ZW_AddNodeToNetwork and ZW_SetLearnMode are used to include nodes in a
Z-Wave network. The primary/inclusion controller use the API call ZW_AddNodeToNetwork when
including a node to the network and ZW_SetLearnMode is used by the controller or slave node that is to
be included.
For the primary/inclusion controller that is including a node the ZW_AddNodeToNetwork is called with
either:
ADD_NODE_ANY
Add any type of node to the network
ADD_NODE_SLAVE
Only add a node based on slave libraries
ADD_NODE_CONTROLLER
Only add a node based on controller libraries
ADD_NODE_EXISTING
Node is already in the network
To avoid the need to differentiate on the user interface whether it is a controller or slave the
ADD_NODE_ANY can be used. The application can decide which actions to take based on the callback
values.
ADD_NODE_SLAVE and ADD_NODE_CONTROLLER are available to support backward compatibility
in case they are used on devices with separate slave and controller inclusion procedures.
ADD_NODE_EXISTING is useful when the controller application want the Node Information Frame from
a node already included in the network.
The figure below illustrates the inclusion process between a primary/inclusion controller and a node that
the user wishes to include in the network.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 217 of 232
CONFIDENTIAL
Controller that
includes a node
Node To Be
included
Assign ID to node
Node Information Frame
ZW_REPLICATION_SEND
CMD_COMPLETE
Transfer end
Application calls:
ZW_AddNodeToNetwork(
ADD_NODE_ANY, LearnHandler)
Protocol calls LearnHandler with:
ADD_NODE_STATUS_LEARN_READY
(Signal to user that Ctrl is
ready to receive NodeInfo frame)
Application call:
ZW_SetLearnMode(TRUE,Callback)
Protcocol call Callback with:
LEARN_MODE_STARTED - For
controllers
ASSIGN_NODEID_DONE - For slaves
Protocol calls LearnHandler with
ADD_NODE_STATUS_NODE_FOUND
Protocol call
Callback with status
LEARN_MODE_DONE - For controllers
ASSIGN_COMPLETE
Protocol calls LearnHandler with
ADD_NODE_STATUS_ADDING_*
Protocol calls LearnHandler with
ADD_NODE_STATUS_PROTOCOL_DONE
Application calls:
ZW_AddNodeToNetwork(
ADD_NODE_STOP,LearnHandler)
Protocol calls LearnHandler with
ADD_NODE_STATUS_DONE
Other Protocol Data
Slave based Applications call:
ZW_SendNodeInformation(..)
Controller based just wait
Application calls:
ZW_ReplicationSend(..,Func)
Protocol calls Func with:
ZW_REPLICATION_COMMAND_COMPLETE
ONLY VALID FOR CONTROLLERS
Protocol calls
ApplicationCommandHandler with
Payload from ZW_REPL.._SEND
Application should handle data
and respond with:
ZW_ReplicationReceiveComplete
Application calls:
ZW_AddNodeToNetwork(
ADD_NODE_STOP,NULL)
Figure 21. Node inclusion frame flow
Legend:
1. Bold frames indicate that the Application initiates an action.
2. Dashed frames indicate optional steps and frame flows.
3. Italic indicates a callback function specified by the application.
To allow the primary/inclusion controller in a Z-Wave network to include all kind of nodes, it is necessary
to have a frame that describes the capabilities of a node. Some of the capabilities will be protocol related
and some will be application specific. All nodes will automatically send out their Node Information Frame
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 218 of 232
CONFIDENTIAL
when the action button on the node is pressed. Once a node is included into the network it can always at
a later stage get the node information from a node by requesting it with the API call
ZW_RequestNodeInfo).
All slave nodes will per default start with Home ID is 0x00000000 and Node ID 0x00. All controllers will
per default start with a unique Home ID and Node ID 0x01. Both have to be changed before the node
can be included into a network. Furthermore the node must enter a learn mode state in order to accept
assignment of new ID‟s. That state is communicated from the node by sending out a Node Information
Frame as described. The primary/inclusion controller can now assign a Home and Node ID to the node
to be included in the Z-Wave network. In case the node is already included to a network then the
primary/inclusion controller refuses to include it.
During “Other protocol data” the network topology is discovered and updated. The primary/inclusion
controller request the new node to check which of the current nodes in the network it can communicate
directly with. In case a SUC/SIS is present in the network then the new node is informed about its
presence and SUC return routes are transferred automatically. In case the SUC/SIS is created at a later
stage, then the API call ZW_AssignSUCReturnRoutes can be used to allow the node to communicate
with the SUC/SIS.
In case a controller is included then it‟s optional to transfer groups and scenes on application level using
the Controller Replication command class [1]. This option is very handy, as it will save the user a lot of
time reconfiguring the groups and scenes in the new controller. The Controller Replication command
class must only be used in conjunction with a controller shift or when including a new controller to the
network. The API call ZW_ReplicationSend must be used by the sending controller when transferring
the group and scene command classes to another controller. The API call
ZW_ReplicationReceiveComplete must be used by the receiving controller as acknowledge on
application level because the data must first be stored in NVM before it can receive the next group or
scene data.
A controller not supporting the Controller Replication Command Class must implement the acknowledge
on application level when receiving Controller Replication commands to avoid that the sending controller
is locked due to a missing acknowledge on application level. The receiving controller will then ignore the
content of the Controller Replication commands but acknowledge on application level using the API call
ZW_ReplicationReceiveComplete.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 219 of 232
CONFIDENTIAL
The following code sample shows how add node functionality is implemented on a controller capable of
adding nodes to the network:
/* Call to be performed when user/application wants to include a node to the network
*/
ZW_AddNodeToNetwork(ADD_NODE_ANY, LearnHandler);
/*=========================== LearnHandler ==============================
** Function description
** Callback function to ZW_ADD_NODE_TO_NETWORK
**------------------------------------------------------------------------*/
void LearnHandler(LEARN_INFO *learnNodeInfo)
{
if (learnNodeInfo->bStatus == ADD_NODE_STATUS_LEARN_READY)
{
/* Application should now signal to the user that we are ready to add a node.
User may still choose to abort */
}
else if (learnNodeInfo->bStatus == ADD_NODE_STATUS_NODE_FOUND)
{
/* Protocol is busy adding node. User interaction should be disabled */
}
else if (learnNodeInfo->bStatus == ADD_NODE_STATUS_ADDING_SLAVE)
{
/* Protocol is still busy, this is just an information that it is a slave based
unit that is being added */
}
else if (learnNodeInfo->bStatus == ADD_NODE_STATUS_ADDING_CONTROLLER)
{
/* Protocol is still busy, this is just an information that it is a controller
based unit that is being added */
}
else if (learnNodeInfo->bStatus == ADD_NODE_STATUS_PROTOCOL_DONE)
{
/* Protocol is done. If it was a controller that was added, the application can
now transfer information with ZW_ReplicationSend if any applications specific
data that needs to be transferred to the included controller at inclusion time
*/
/* When application is done it informs the protocol */
ZW_AddNodeToNetwork(ADD_NODE_STOP, LearnHandler);
}
else if (learnNodeInfo->bStatus == ADD_NODE_STATUS_FAILED)
{
/* Add node failed - Application should indicate this to user */
ZW_AddNodeToNetwork(ADD_NODE_STOP_FAILED, NULL);
}
else if (learnNodeInfo->bStatus == ADD_NODE_STATUS_DONE)
{
/* It is recommended to stop the process again here */
ZW_AddNodeToNetwork(ADD_NODE_STOP, NULL);
/* Add node is done. Application can move on Now is a good time to check if the
added node should be set as SUC or SIS */
}
}
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 220 of 232
CONFIDENTIAL
The following code samples show how an application typically implement the code needed in order to be
able to include itself in an existing network.
Sample code for controller based devices:
/* Call to be performed when a controller wants to be include in the network */
ZW_SetLearnMode (TRUE, InclusionHandler);
/*Controller based devices just wait for the learn process to start*/
/*============================ InclusionHandler ============================
** Callback function to ZW_SetLearnMode
**------------------------------------------------------------------------*/
void InclusionHandler(
LEARN_INFO *learnNodeInfo)
{
if ((*learnNodeInfo).bStatus == LEARN_MODE_STARTED)
{
/* The user should no longer be able to exit learn mode.
ApplicationCommandHandler should be ready to handle ZW_REPLICATION_SEND_DATA
frames if it supports transferring of Application specific data* /
}
else if ((*learnNodeInfo).bStatus == LEARN_MODE_FAILED)
{
/* Something went wrong - Signal to user */
}
else if ((*learnNodeInfo).bStatus == LEARN_MODE_DONE)
{
/* All data have been transmitted. Capabilities may have changed. Might be a
good idea to read ZW_GET_CONTROLLER_CAPABILITIES() and to check that
associations still are valid in order to check if the controller have been
included or excluded from network*/
}
}
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 221 of 232
CONFIDENTIAL
Sample code for slave based devices:
/* Call to be performed when a slave wants to be include in the network */
ZW_SetLearnMode(TRUE, InclusionHandler);
ZW_SendNodeInformation(NODE_BROADCAST, TRANSMIT_OPTION_LOW_POWER,....);
/*============================ InclusionHandler ============================
** Callback function to ZW_SetLearnMode
**------------------------------------------------------------------------*/
void InclusionHandler
BYTE bStatus /* IN Current status of Learnmode*/
BYTE nodeID) /* IN resulting nodeID - If 0x00 the node was removed from network*/
{
if(bStatus == ASSIGN_RANGE_INFO_UPDATE)
{
/* Application should make sure that it does not send out NodeInfo now that we
are updating range */
}
if(bStatus == ASSIGN_COMPLETE)
{
/* Assignment was complete. Check if it was inclusion or exclusion and maybe
tell user we are done */
if (nodeID != 0)
{
/* Node was included in a network*/
}
else
{
/* Node was excluded from a network. Reset any associations */
}
}
else if (bStatus == ASSIGN_NODEID_DONE)
{
/* ID is assigned. Protocol will call with bStatus=ASSIGN_COMPLETE when done */
}
}
7.2 Excluding nodes from the network
The API calls required by the controller that exclude and the device that is to be excluded is described.
The callbacks as well as the steps the protocol takes without any application level involvement is also
described. Finally it illustrates the frame flow between the two devices during the exclusion process.
The Z-Wave API calls ZW_RemoveNodeFromNetwork and ZW_SetLearnMode are used to exclude
nodes from a Z-Wave network. The primary/inclusion controller use the API call
ZW_RemoveNodeFromNetwork when removing a node from a network and ZW_SetLearnMode is used
by the controller or slave node that is to be removed.
For the primary/inclusion controller that is including a node the ZW_RemoveNodeFromNetwork is
called with either:
REMOVE_NODE_ANY - Remove any type of node from the network
REMOVE_NODE_SLAVE - Only remove a node based on slave libraries
REMOVE_NODE_CONTROLLER - Only remove a node based on controller libraries
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 222 of 232
CONFIDENTIAL
To avoid the need to differentiate on the user interface whether it is a controller or slave the
REMOVE_NODE_ANY can be used. The application can decide which actions to take based on the
callback values.
REMOVE_NODE_SLAVE and REMOVE_NODE_CONTROLLER are available to support backward
compatibility in case they are used on devices with separate slave and controller exclusion procedures.
The figure below illustrates the exclusion process between a primary/inclusion controller and a node that
the user wishes to exclude from the network.
Controller that
remove a node
Node To Be
removed
Remove ID from node
Node Information Frame
Application calls:
ZW_RemoveNodeFromNetwork(
REMOVE_NODE_ANY, LearnHandler)
Protocol calls LearnHandler with:
REMOVE_NODE_STATUS_LEARN_READY
(Signal to user that Ctrl is
ready to receive NodeInfo frame)
Application call:
ZW_SetLearnMode(TRUE,Callback)
Protocol calls LearnHandler with
REMOVE_NODE_STATUS_NODE_FOUND
Protocol call
Callback with status
LEARN_MODE_DONE - For controllers
ASSIGN_COMPLETE - For slaves
Protocol calls LearnHandler with
ADD_NODE_STATUS_REMOVING_*
Protocol calls LearnHandler with
REMOVE_NODE_STATUS_DONE
Application calls:
ZW_RemoveNodeFromNetwork(
REMOVE_NODE_STOP,LearnHandler)
Slave based Applications call:
ZW_SendNodeInformation(..)
Controller based just wait
Protocol call
Callback with status
LEARN_MODE_STARTED - For
controllers
ASSIGN_NODEID_DONE - For slaves
Figure 22. Node exclusion frame flow
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Application Note: Inclusion/EXCLUSION Implementation
Page 223 of 232
CONFIDENTIAL
The following code sample shows how remove node functionality is implemented on a controller capable
of removing nodes from the network:
/* Call to be performed when user/application wants to remove a node from the network
*/
ZW_RemoveNodeFromNetwork(REMOVE_NODE_ANY, LearnHandler);
/*=========================== LearnHandler ==============================
** Function description
** Callback function to ZW_RemoveNodeFromNetwork
**------------------------------------------------------------------------*/
void LearnHandler(LEARN_INFO *learnNodeInfo)
{
if (learnNodeInfo->bStatus == REMOVE_NODE_STATUS_LEARN_READY)
{
/* Application should now signal to the user that we are ready to remove a node.
User may still choose to abort */
}
else if (learnNodeInfo->bStatus == REMOVE_NODE_STATUS_NODE_FOUND)
{
/* Protocol is busy removing node. User interaction should be disabled */
}
else if (learnNodeInfo->bStatus == REMOVE_NODE_STATUS_REMOVING_SLAVE)
{
/* Protocol is still busy, this is just an information that it is a slave based
unit that is being removed*/
}
else if (learnNodeInfo->bStatus == REMOVE_NODE_STATUS_REMOVING_CONTROLLER)
{
/* Protocol is still busy, this is just an information that it is a controller
based unit that is being removed */
}
else if (learnNodeInfo->bStatus == REMOVE_NODE_STATUS_ DONE)
{
/* Node is no longer part of the network*/
/* When done - stop the process with */
ZW_RemoveNodeFromNetwork(REMOVE_NODE_STOP, NULL);
}
else if (learnNodeInfo->bStatus == ADD_NODE_STATUS_FAILED)
{
/* Remove node failed - Application should indicate this to user */
ZW_RemoveNodeFromNetwork(REMOVE_NODE_STOP, NULL);
}
}
For the device that is excluded, the process is no different from an inclusion See paragraph 7 for sample
code.
Applications based on Controller libraries should most likely check which capabilities the application
should enable once the learn process is over. This includes reading ZW_GetControllerCapabilities.
Applications based on slave libraries should check the node ID returned to the callback function during
the learn process if this node ID is zero the device is being excluded from the network and the
application should most likely remove its network specific settings, such as associations.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
APPLICATION NOTE: CONTROLLER SHIFT IMPLEMENTATION
Page 224 of 232
CONFIDENTIAL
8 APPLICATION NOTE: CONTROLLER SHIFT IMPLEMENTATION
This note describes how a controller is able to include a new controller that after the inclusion will
become the primary controller in the network. The controller that is taking over the primary functionality
should just enter learn mode like when it is to be included in a network. The existing primary controller
makes the controller change by calling ZW_ControllerChange(CONTROLLER_CHANGE_START,..). )
After a successfull change the controller that called ZW_ControllerChange will be secondary and no
longer able to include devices.
Controller that
initiate the
controller change
Controller that
is to become
primary
Assign ID to node
Node Information Frame
ZW_REPLICATION_SEND
CMD_COMPLETE
Transfer end
Application calls:
ZW_ControllerChange(
CONTROLLER_CHANGE_START,
LearnHandler)
Protocol calls LearnHandler with:
ADD_NODE_STATUS_LEARN_READY
(Signal to user that Ctrl is
ready to receive NodeInfo frame)
Application call:
ZW_SetLearnMode(TRUE,Callback)
Protcocol call Callback with:
LEARN_MODE_STARTED
Protocol calls LearnHandler with
ADD_NODE_STATUS_NODE_FOUND
Protocol call
Callback with status
LEARN_MODE_DONE
Protocol calls LearnHandler with
ADD_NODE_STATUS_ADDING_CONTROLLER
Protocol calls LearnHandler with
ADD_NODE_STATUS_PROTOCOL_DONE
Application calls:
ZW_ControllerChange(
CONTROLLER_CHANGE_STOP,LearnHandl
er)
Protocol calls LearnHandler with
ADD_NODE_STATUS_DONE
Other Protocol Data
Application calls:
ZW_ReplicationSend(..,Func)
Protocol calls Func with:
ZW_REPLICATION_COMMAND_COMPLETE
Protocol calls
ApplicationCommandHandler with
Payload from ZW_REPL.._SEND
Application should handle data
and respond with:
ZW_ReplicationReceiveComplete
Change Status
Transfer Presentation
Figure 23. Controller shift frame flow
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
References
Page 225 of 232
CONFIDENTIAL
9 REFERENCES
[1] SD, SDS10242, Software Design Specification, Z-Wave Device Class Specification.
[2] SD, DSH10086, Datasheet, ZW0x0x Z-Wave Interface Module.
[3] SD, DSH10087, Datasheet, ZW0x0x Z-Wave Development Module.
[4] SD, DSH10033, Datasheet, ZM1220 Z-Wave Module.
[5] SD, DSH10034, Datasheet, ZM1206 Z-Wave Module.
[6] SD, INS10240, Instruction, PC Based Controller User Guide.
[7] SD, INS10241, Instruction, PC Installer Tool Application User Guide.
[8] SD, INS10245, Instruction, Z-Wave Bridge User Guide.
[9] SD, INS10029, Instruction, ZW0102 Single Chip Implementation Guideline.
[10] SD, APL10312, Application Note, Programming the 200 and 300 Series Z-Wave Single Chip
Flash.
[11] SD, INS10336, Instruction, Z-Wave Reliability Test Guideline.
[12] SD, INS10249, Instruction, Z-Wave Zniffer User Guide.
[13] SD, INS10250, Instruction, Z-Wave DLL User‟s Manual.
[14] SD, INS10679, Instruction, Z-Wave Programmer User Guide.
[15] SD, INS10236, Instruction, Development Controller User Guide.
[16] SD, INS10579, Instruction, Programming the ZW0102 Flash and Lock Bits.
[17] SD, DSH10088, Datasheet ZMxx06 Converter Module.
[18] SD, DSH10230, Datasheet, ZM2106C Z-Wave Module.
[19] SD, INS10326, Instruction, ZW0201 Single Chip Implementation Guidelines.
[20] SD, SRN11886, Software Release Note, ZW0201/ZW0301 Developer‟s Kit v4.53.00.
[21] SD, APL10512, Application Note, Battery Operated Applications Using the ZW0201/ZW0301.
[22] SD, DSH10856, Datasheet, ZM3106C Z-Wave Module.
[23] SD, DSH10275, Datasheet, ZM2120C Z-Wave Module.
[24] SD, DSH10857, Datasheet, ZM3120C Z-Wave Module.
[25] SD, APL10292, Application Note, ZW0102 Triac Controller Guideline.
[26] SD, APL10370, Application Note, ZW0201/ZW0301 Triac Controller Guideline.
[27] SD, APL10514, Application Note, The ZW0201/ZW0301 ADC.
[28] SD, INS10680, Instruction, Z-Wave XML Editor.
[29] SD, INS11018, Instruction, Secure PC Based Controller User Guide (OBSOLETE, see INS10240).
[30] SD, INS10681, Instruction, Secure Development Controller (AVR) User Guide.
[31] SD, DSH10704, Datasheet, ZDP02A Z-Wave Development Platform.
[32] SD, DSH11243, Datasheet, ZDP03A Z-Wave Development Platform.
[33] SD, SDS11060, Software Design Specification, Z-Wave Command Class Specification.
[34] SD, INS11072, Instruction, Z-Wave Programmer Communication Protocol.
[35] SD, APL10742, Application Note, ZM3102N with External PA and Switch.
[36] SD, INS11552, Instruction, 400 Series Crystal Calibration User Guide.
[37] IETF RFC 2119, Key words for use in RFC‟s to Indicate Requirement Levels,
http://tools.ietf.org/pdf/rfc2119.pdf
[38] SD, INS12351, Instruction, Z-Wave ZW0201/ZW0301 Series Developer‟s Kit v4.54.01 Contents.
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Index
Page 226 of 232
CONFIDENTIAL
INDEX
A
ADC_Buf .................................................................................................................................................. 115
ADC_GetRes ........................................................................................................................................... 119
ADC_Init .................................................................................................................................................. 112
ADC_Int ................................................................................................................................................... 118
ADC_IntFlagClr ........................................................................................................................................ 119
ADC_Off .................................................................................................................................................. 111
ADC_SelectPin ........................................................................................................................................ 114
ADC_SetAZPL ......................................................................................................................................... 116
ADC_SetResolution ................................................................................................................................. 116
ADC_SetThres ......................................................................................................................................... 118
ADC_SetThresMode................................................................................................................................ 117
ADC_Start ................................................................................................................................................ 111
ADC_Stop ................................................................................................................................................ 111
App_RFSetup.a51 ................................................................................................................................... 208
Application area in non volatile memory .................................................................................................. 104
ApplicationCommandHandler (Not Bridge Controller library) .................................................................... 32
ApplicationCommandHandler_Bridge (Bridge Controller library only) ...................................................... 40
ApplicationControllerUpdate ........................................................................................ 20, 51, 171, 214, 215
ApplicationControllerUpdate (All controller libraries) ................................................................................. 38
ApplicationInitHW ...................................................................................................................................... 29
ApplicationInitSW ....................................................................................................................................... 30
ApplicationNodeInformation ...................................................................................................................... 34
ApplicationPoll ........................................................................................................................................... 31
ApplicationRfNotify (ZW0301 only) ............................................................................................................ 43
ApplicationSlaveNodeInformation (Bridge Controller library only) ............................................................ 42
ApplicationSlaveUpdate .......................................................................................................................... 204
ApplicationSlaveUpdate (All slave libraries) .............................................................................................. 37
ApplicationTestPoll .................................................................................................................................... 30
E
EEPROM ................................................................................................................................................. 104
EEPROM_APPL_OFFSET ................................................................................................................ 28, 104
Enhanced Slave ....................................................................................................................................... 144
External EEPROM ....................................................................................................................................... 9
F
FCC compliance test ............................................................................................................................... 209
Flash ........................................................................................................................................................ 104
FLASH_APPL_FREQ_OFFS .................................................................................................................. 208
FLASH_APPL_LOW_POWER_OFFS .................................................................................................... 208
FLASH_APPL_MAGIC_VALUE_OFFS................................................................................................... 208
FLASH_APPL_NORM_POWER_OFFS.................................................................................................. 208
FLASH_APPL_PLL_STEPUP_OFFS ............................................................................................... 43, 208
G
GP Timer ................................................................................................................................................. 101
GP Timer interrupt ................................................................................................................................... 103
I
I/O pins .................................................................................................................................................... 210
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Index
Page 227 of 232
CONFIDENTIAL
Inclusion controller ............................................................................................................................. 19, 216
Interrupt ....................................................................................................................................................... 8
Interrupt service routines ............................................................................................................................. 8
L
Last Working Route ............................................................................................................................. 5, 152
Listening flag ............................................................................................................................................... 34
M
Memory optimization.................................................................................................................................. 26
MemoryGetBuffer .................................................................................................................................... 107
MemoryGetByte ....................................................................................................................................... 105
MemoryGetID .......................................................................................................................................... 104
MemoryPutBuffer ..................................................................................................................................... 108
MemoryPutByte ....................................................................................................................................... 106
N
Node Information Frame ....................................................................................................................... 34, 153
NON_ZERO_SIZE ....................................................................................................................................... 4
NON_ZERO_START_ADDR ....................................................................................................................... 4
P
PIN_GET ................................................................................................................................................. 211
PIN_IN ..................................................................................................................................................... 210
PIN_OFF .................................................................................................................................................. 211
PIN_ON ................................................................................................................................................... 211
PIN_OUT ................................................................................................................................................. 210
PIN_TOGGLE .......................................................................................................................................... 212
Primary controller ................................................................................................................... 11, 19, 20, 213
Production test ........................................................................................................................................... 30
PWM mode .............................................................................................................................................. 102
PWM Timer .............................................................................................................................................. 101
R
Random number generator ....................................................................................................................... 46
Return route ................................................................................................................................... 71, 77, 86
RF frequency ........................................................................................................................................... 208
RF settings ............................................................................................................................................... 208
RF transmit power levels ......................................................................................................................... 208
Routing slave ........................................................................................................................................... 216
Routing Slave .......................................................................................................................................... 144
S
Serial API buffers ..................................................................................................................................... 109
SerialAPI_ApplicationNodeInformation ..................................................................................................... 36
SerialAPI_ApplicationSlaveNodeInformation ............................................................................................ 42
SIS ............................................................................................................................................... 25, 51, 216
Source routing ............................................................................................................................................. 4
Static update controller .......................................................................................................... 18, 20, 24, 213
Stop mode ................................................................................................................................................. 62
SUC ..................................................................................................................................................... 24, 51
SUC ID Server ..................................................................................................................................... 19, 25
SUC/SIS node ......................................................................................................................................... 144
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Index
Page 228 of 232
CONFIDENTIAL
T
Timer 0 ......................................................................................................................................................... 8
Timer 1 ......................................................................................................................................................... 8
Timer 2 ......................................................................................................................................................... 8
Timer 3 ......................................................................................................................................................... 8
Timer mode .............................................................................................................................................. 102
TimerCancel ............................................................................................................................................ 100
TimerRestart ............................................................................................................................................ 100
TimerStart .................................................................................................................................................. 99
TRANSMIT_OPTION_EXPLORE ....................................................................................................... 77, 82
TRIAC_Init ................................................................................................................................................. 96
TRIAC_Off ................................................................................................................................................. 98
TRIAC_SetDimLevel.................................................................................................................................. 98
TXnormal Power ...................................................................................................................................... 209
U
UART_ClearRx ........................................................................................................................................ 125
UART_ClearTx ........................................................................................................................................ 125
UART_Disable ......................................................................................................................................... 125
UART_Enable .......................................................................................................................................... 124
UART_Init ................................................................................................................................................ 121
UART_Read ............................................................................................................................................ 126
UART_RecByte ....................................................................................................................................... 122
UART_RecStatus .................................................................................................................................... 121
UART_SendByte ..................................................................................................................................... 123
UART_SendNL ........................................................................................................................................ 124
UART_SendNum ..................................................................................................................................... 123
UART_SendStatus .................................................................................................................................. 122
UART_SendStr ........................................................................................................................................ 124
UART_Write ............................................................................................................................................. 126
W
Wakeup beam ............................................................................................................................................ 69
Watchdog ................................................................................................................................................... 67
Write cycles ............................................................................................................................................. 104
Wut fast mode ............................................................................................................................................ 62
Wut mode .................................................................................................................................................. 62
Z
ZW_ADC_BUFFER_DISABLE (Macro) .................................................................................................. 115
ZW_ADC_BUFFER_ENABLE (Macro) ................................................................................................... 115
ZW_ADC_CLR_FLAG (Macro) ............................................................................................................... 119
ZW_ADC_GET_READING (Macro) ........................................................................................................ 119
ZW_ADC_INT_DISABLE (Macro) ........................................................................................................... 118
ZW_ADC_INT_ENABLE (Macro) ............................................................................................................ 118
ZW_ADC_OFF (Macro) ........................................................................................................................... 111
ZW_ADC_RESOLUTION_12 (Macro) ..................................................................................................... 116
ZW_ADC_RESOLUTION_8 (Macro) ....................................................................................................... 116
ZW_ADC_SELECT_AD1 (Macro) ........................................................................................................... 114
ZW_ADC_SELECT_AD2 (Macro) ........................................................................................................... 114
ZW_ADC_SELECT_AD3 (Macro) ........................................................................................................... 114
ZW_ADC_SELECT_AD4 (Macro) ........................................................................................................... 114
ZW_ADC_SET_AZPL (Macro) ................................................................................................................ 116
ZW_ADC_SET_THRESHOLD (Macro) ................................................................................................... 118
ZW_ADC_START (Macro) ...................................................................................................................... 111
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Index
Page 229 of 232
CONFIDENTIAL
ZW_ADC_STOP (Macro) ........................................................................................................................ 111
ZW_ADC_THRESHOLD_LO (Macro) ..................................................................................................... 117
ZW_ADC_THRESHOLD_UP (Macro) ..................................................................................................... 117
ZW_ADD_NODE_TO_NETWORK (Macro) ............................................................................................ 130
ZW_AddNodeToNetwork ................................................................................................................. 130, 218
ZW_ARE_NODES_NEIGHBOURS(Macro) ............................................................................................ 142
ZW_AreNodesNeighbours ....................................................................................................................... 141
ZW_ASSIGN_RETURN_ROUTE (Macro) .............................................................................................. 143
ZW_ASSIGN_SUC_RETURN_ROUTE (Macro) ..................................................................................... 144
ZW_AssignReturnRoute .......................................................................................................................... 143
ZW_AssignSUCReturnRoute .................................................................................................................. 144
ZW_CONTROLLER_CHANGE (Macro).................................................................................................. 145
ZW_ControllerChange ..................................................................................................................... 145, 226
ZW_CREATE_NEW_PRIMARY_CTRL (Macro) ..................................................................................... 183
ZW_CreateNewPrimaryCtrl ..................................................................................................................... 183
ZW_DEBUG_CMD_INIT (Macro) ............................................................................................................ 207
ZW_DEBUG_CMD_POLL (Macro) ......................................................................................................... 207
ZW_DEBUG_INIT .................................................................................................................................... 127
ZW_DEBUG_SEND_BYTE ..................................................................................................................... 127
ZW_DEBUG_SEND_NUM ...................................................................................................................... 127
ZW_DebugInit .......................................................................................................................................... 207
ZW_DebugPoll ......................................................................................................................................... 207
ZW_DELETE_RETURN_ROUTE (Macro) .............................................................................................. 147
ZW_DELETE_SUC_RETURN_ROUTE (Macro) .................................................................................... 148
ZW_DeleteReturnRoute .......................................................................................................................... 147
ZW_DeleteSUCReturnRoute ................................................................................................................... 148
ZW_EEPROM_INIT (Macro) ................................................................................................................... 110
ZW_EepromInit ........................................................................................................................................ 110
ZW_ENABLE_SUC (Macro) .................................................................................................................... 185
ZW_EnableSUC .............................................................................................................................. 181, 185
ZW_ExploreRequestInclusion ................................................................................................................... 44
ZW_GET_CONTROLLER_CAPABILITIES (Macro) ............................................................................... 150
ZW_GET_NEIGHBOR_COUNT (Macro) ................................................................................................ 151
ZW_GET_NODE_STATE (Macro) .......................................................................................................... 153
ZW_GET_PROTOCOL_STATUS (Macro) ................................................................................................ 45
ZW_GET_RANDOM_WORD (Macro) ....................................................................................................... 46
ZW_GET_ROUTING_INFO (Macro) ....................................................................................................... 154
ZW_GET_SUC_NODE_ID (Macro) ................................................................................................. 155, 199
ZW_GET_VIRTUAL_NODES (Macro) .................................................................................................... 186
ZW_GetControllerCapabilities ................................................................................................................. 150
ZW_GetLastWorkingRoute ...................................................................................................................... 152
ZW_GetNeighborCount ........................................................................................................................... 151
ZW_GetNodeProtocolInfo ....................................................................................................................... 153
ZW_GetProtocolStatus .............................................................................................................................. 45
ZW_GetRandomWord ............................................................................................................................... 46
ZW_GetRoutingInfo ................................................................................................................................. 154
ZW_GetSUCNodeID........................................................................................................................ 155, 199
ZW_GetVirtualNodes ............................................................................................................................... 186
ZW_IS_FAILED_NODE_ID (Macro) ........................................................................................................ 155
ZW_IS_NODE_WITHIN_DIRECT_RANGE (Macro) ............................................................................... 199
ZW_IS_VIRTUAL_NODE (Macro) ........................................................................................................... 187
ZW_isFailedNode .................................................................................................................................... 155
ZW_IsNodeWithinDirectRange ................................................................................................................ 199
ZW_IsPrimaryCtrl .................................................................................................................................... 156
ZW_IsVirtualNode .................................................................................................................................... 187
ZW_MEM_FLUSH (Macro) ..................................................................................................................... 110
ZW_MEM_GET_BUFFER (Macro) ......................................................................................................... 107
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Index
Page 230 of 232
CONFIDENTIAL
ZW_MEM_GET_BYTE (Macro) .............................................................................................................. 105
ZW_MEM_PUT_BUFFER (Macro) .......................................................................................................... 108
ZW_MEM_PUT_BYTE (Macro) ............................................................................................................... 106
ZW_MEMORY_GET_ID (Macro) ............................................................................................................ 104
ZW_MemoryFlush ................................................................................................................................... 110
ZW_NODE_MASK_BITS_IN (Macro) ..................................................................................................... 129
ZW_NODE_MASK_CLEAR (Macro) ....................................................................................................... 129
ZW_NODE_MASK_CLEAR_BIT (Macro) ............................................................................................... 128
ZW_NODE_MASK_NODE_IN (Macro) ................................................................................................... 130
ZW_NODE_MASK_SET_BIT (Macro) .................................................................................................... 128
ZW_NodeMaskBitsIn ............................................................................................................................... 129
ZW_NodeMaskClear ............................................................................................................................... 129
ZW_NodeMaskClearBit ........................................................................................................................... 128
ZW_NodeMaskNodeIn ............................................................................................................................ 130
ZW_NodeMaskSetBit .............................................................................................................................. 128
ZW_PRIMARYCTRL (Macro) .................................................................................................................. 156
ZW_PWM_CLEAR_INTERRUPT (Macro) .............................................................................................. 103
ZW_PWM_INT_ENABLE (Macro) ........................................................................................................... 103
ZW_PWM_PRESCALE (Macro) .............................................................................................................. 102
ZW_PWM_SETUP (Macro) ..................................................................................................................... 101
ZW_PWMClearInterrupt .......................................................................................................................... 103
ZW_PWMEnable ..................................................................................................................................... 103
ZW_PWMPrescale .................................................................................................................................. 102
ZW_PWMSetup ....................................................................................................................................... 101
ZW_Random .............................................................................................................................................. 48
ZW_RANDOM (Macro) .............................................................................................................................. 48
ZW_REDISCOVERY_NEEDED (Macro) ................................................................................................ 200
ZW_RediscoveryNeeded ......................................................................................................... 144, 200, 216
ZW_REMOVE_FAILED_NODE_ID (Macro) ........................................................................................... 157
ZW_REMOVE_NODE_FROM_NETWORK (Macro) .............................................................................. 161
ZW_RemoveFailedNodeID ...................................................................................................................... 157
ZW_RemoveNodeFromNetwork ..................................................................................................... 161, 223
ZW_REPLACE_FAILED_NODE (Macro) ................................................................................................ 159
ZW_ReplaceFailedNode ......................................................................................................................... 159
ZW_REPLICATION_COMMAND_COMPLETE (Macro) ......................................................................... 169
ZW_REPLICATION_SEND_DATA (Macro) ............................................................................................ 169
ZW_ReplicationReceiveComplete ........................................................................................................... 169
ZW_ReplicationSend ............................................................................................................................... 169
ZW_REQUEST_NETWORK_UPDATE (Macro) ....................................................................................... 51
ZW_REQUEST_NEW_ROUTE_DESTINATIONS (Macro) .................................................................... 202
ZW_REQUEST_NODE_INFO (Macro) ........................................................................................... 171, 204
ZW_REQUEST_NODE_NEIGHBOR_UPDATE (Macro) ........................................................................ 172
ZW_RequestNetWorkUpdate .............................................................................. 38, 51, 144, 185, 215, 216
ZW_RequestNewRouteDestinations ....................................................................................................... 202
ZW_RequestNodeInfo ............................................................................................................. 171, 204, 220
ZW_RequestNodeNeighborUpdate ......................................................................................................... 172
ZW_RF_POWERLEVEL_GET (Macro)..................................................................................................... 50
ZW_RF_POWERLEVEL_REDISCOVERY_SET (Macro) ......................................................................... 53
ZW_RF_POWERLEVEL_SET (Macro) ..................................................................................................... 49
ZW_RF020x.h .......................................................................................................................................... 208
ZW_RF030x.h .......................................................................................................................................... 208
ZW_RFPowerLevelGet .............................................................................................................................. 50
ZW_RFPowerlevelRediscoverySet ........................................................................................................... 53
ZW_RFPowerLevelSet .............................................................................................................................. 49
ZW_SEND_CONST (Macro) ..................................................................................................................... 95
ZW_SEND_DATA (Macro) ........................................................................................................................ 69
ZW_SEND_DATA_ABORT (Macro) .......................................................................................................... 95
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Index
Page 231 of 232
CONFIDENTIAL
ZW_SEND_DATA_BRIDGE (Macro) ........................................................................................................ 82
ZW_SEND_DATA_GENERIC (Macro)...................................................................................................... 77
ZW_SEND_DATA_META_BRIDGE (Macro) ............................................................................................ 88
ZW_SEND_DATA_META_GENERIC (Macro) ......................................................................................... 86
ZW_SEND_DATA_MULTI (Macro) ........................................................................................................... 91
ZW_SEND_DATA_MULTI_BRIDGE (Macro) ........................................................................................... 93
ZW_SEND_NODE_INFO (Macro) ............................................................................................................. 54
ZW_SEND_SLAVE_NODE_INFO (Macro) ............................................................................................. 188
ZW_SEND_SUC_ID (Macro) .................................................................................................................. 174
ZW_SEND_TEST_FRAME (Macro) .......................................................................................................... 56
ZW_SendConst ......................................................................................................................................... 95
ZW_SendData ........................................................................................................................................... 69
ZW_SendData_Bridge ............................................................................................................................... 82
ZW_SendData_Generic ............................................................................................................................ 77
ZW_SendDataAbort................................................................................................................................... 95
ZW_SendDataMeta_Bridge ....................................................................................................................... 88
ZW_SendDataMeta_Generic .................................................................................................................... 86
ZW_SendDataMulti.................................................................................................................................... 91
ZW_SendDataMulti_Bridge ....................................................................................................................... 93
ZW_SendNodeInformation ........................................................................................................................ 54
ZW_SendSlaveNodeInformation ............................................................................................................. 188
ZW_SendSUCID ...................................................................................................................................... 174
ZW_SendTestFrame ................................................................................................................................. 56
ZW_SET_DEFAULT (Macro) .......................................................................................................... 175, 195
ZW_SET_EXT_INT_LEVEL (Macro) ......................................................................................................... 58
ZW_SET_LEARN_MODE (Macro) .................................................................................................. 176, 196
ZW_SET_PROMISCUOUS_MODE (Macro) ............................................................................................ 59
ZW_SET_ROUTING_INFO (Macro) ....................................................................................................... 180
ZW_SET_RX_MODE (Macro) ................................................................................................................... 60
ZW_SET_SLAVE_LEARN_MODE (Macro) ............................................................................................ 189
ZW_SET_SLEEP_MODE (Macro) ............................................................................................................ 61
ZW_SET_SUC_NODE_ID (Macro) ......................................................................................................... 181
ZW_SET_WUT_TIMEOUT (Macro) ........................................................................................................ 120
ZW_SetDefault ................................................................................................................................ 175, 195
ZW_SetExtIntLevel .................................................................................................................................... 58
ZW_SetLearnMode.......................................................................................................... 176, 196, 218, 223
ZW_SetPromiscuousMode (Not Bridge Controller library) ........................................................................ 59
ZW_SetRFReceiveMode ........................................................................................................................... 60
ZW_SetRoutingInfo ................................................................................................................................. 180
ZW_SetRoutingMAX................................................................................................................................ 181
ZW_SetSlaveLearnMode ........................................................................................................................ 189
ZW_SetSleepMode.................................................................................................................................... 61
ZW_SetSUCNodeID ........................................................................................................................ 181, 185
ZW_SetWutTimeout ................................................................................................................................ 120
ZW_STORE_HOME_ID (Macro) ............................................................................................................. 193
ZW_STORE_NODE_INFO (Macro) ........................................................................................................ 194
ZW_StoreHomeID ................................................................................................................................... 193
ZW_StoreNodeInfo .................................................................................................................................. 194
ZW_SUPPORT9600_ONLY(Macro) ....................................................................................................... 198
ZW_Support9600Only ............................................................................................................................. 198
ZW_TIMER_CANCEL (Macro) ................................................................................................................ 100
ZW_TIMER_RESTART (Macro) .............................................................................................................. 100
ZW_TIMER_START (Macro) ..................................................................................................................... 99
ZW_TRIAC_DIM_SET_LEVEL (Macro) .................................................................................................... 98
ZW_TRIAC_INIT (Macro) .......................................................................................................................... 96
ZW_TRIAC_INIT_2_WIRE (Macro) ........................................................................................................... 96
ZW_TRIAC_LIGHT_SET_LEVEL (Macro) ................................................................................................ 98
INS11095-18 Z-Wave ZW0201/ZW0301 Appl. Prg. Guide v4.55.00 2013-04-16
Index
Page 232 of 232
CONFIDENTIAL
ZW_TRIAC_OFF (Macro) .......................................................................................................................... 98
ZW_TX_COUNTER (Macro) ................................................................................................................... 192
ZW_Type_Library ...................................................................................................................................... 64
ZW_TYPE_LIBRARY (Macro) ................................................................................................................... 64
ZW_UART_CLEAR_RX (Macro) ............................................................................................................. 125
ZW_UART_CLEAR_TX (Macro) ............................................................................................................. 125
ZW_UART_DISABLE (Macro) ................................................................................................................. 125
ZW_UART_ENABLE (Macro) .................................................................................................................. 124
ZW_UART_INIT (Macro) ......................................................................................................................... 121
ZW_UART_READ_RX (Macro) ............................................................................................................... 126
ZW_UART_REC_BYTE (Macro) ............................................................................................................. 122
ZW_UART_REC_STATUS (Macro) ........................................................................................................ 121
ZW_UART_SEND_BYTE (Macro) .......................................................................................................... 123
ZW_UART_SEND_NL (Macro) ............................................................................................................... 124
ZW_UART_SEND_NUM (Macro) ............................................................................................................ 123
ZW_UART_SEND_STATUS (Macro) ...................................................................................................... 122
ZW_UART_SEND_STRING (Macro) ...................................................................................................... 124
ZW_UART_WRITE_TX (Macro) .............................................................................................................. 126
ZW_Version ............................................................................................................................................... 65
ZW_VERSION (Macro).............................................................................................................................. 65
ZW_VERSION_BETA (Macro) .................................................................................................................. 66
ZW_VERSION_MAJOR (Macro) ............................................................................................................... 66
ZW_VERSION_MAJOR / ZW_VERSION_MINOR / ZW_VERSION_BETA ............................................. 66
ZW_VERSION_MINOR (Macro) ............................................................................................................... 66
ZW_WATCHDOG_DISABLE (Macro) ....................................................................................................... 67
ZW_WATCHDOG_ENABLE (Macro) ........................................................................................................ 67
ZW_WATCHDOG_KICK (Macro) .............................................................................................................. 68
ZW_WatchdogDisable ............................................................................................................................... 67
ZW_WatchdogEnable ................................................................................................................................ 67
ZW_WatchdogKick .................................................................................................................................... 68
zwTransmitCount ..................................................................................................................................... 192
