Powered by Solar
G83/G59 C10/11 TF3.2.1 PEA MEA VDE4105
iMars Series
Grid-tied Solar Inverter Catalog
INVT Solar Technology (Shenzhen) CO., LTD.
Sales E-mail: solar@invt.com.cn Service E-mail: solar-service@invt.com.cn Website: www.invt-solar.com
INVT Copyright.
Information may be subject to change without notice during product improving. Y7/1-01(V8.4)
PV business is the most important part of INVT
electric power products and service, which is
committed to provide the most stable solar inverters
to the world.
Based on the understanding of development and
the requirements of solar grid-tied power generation
system and following the stable, high efcient
and maintenance-free product design concept,
accumulated 14 years of R&D and application
experience in the eld of core inverter and control
technology, INVT is extending its PV business and
has launched the iMars series of grid-tied solar
inverters successfully.
Introduction
iMars series grid-tied solar inverters have a better
performance on the aspect of product stability,
efcient power transformation, low harmonics, safe
power grid access and so on. They can be widely
used in BIPV (house roof, ofce building roof and
factory roof), BAPV (integrated residential buildings),
commercial rooftop plants and on ground solar
power plants, to provide customers with stable, safe
and efcient renewable energy.
Up to now, INVT solar inverters have been widely
used by over 200,000 happy customers in more
than 60 countries.
Introduction ................................................ 2
How We Make the Differences ........................ 3
Product Family ............................................ 5
PV System Solution .................................... 6
Product Catalog ........................................ 7
Monitoring Solution ..................................... 35
Monitoring Modules ................................. 39
Applications & Service Network ............... 41
1 2
iMars Series Grid-tied Solar Inverter Catalog
• Experienced R&D team
• Professional Products R&D Process
• All components are verified by strict tests and key components
supplied by international top brands
• Heat dissipation performance is ensured by system level thermal
simulation for long service life
• 6 laboratory validations: device test, safety test, EMC test, functional
performance test, environmental test and reliability test
Reliable
Product
Design
• More than 14 years mature experience of
manufacturing processes
• Integrated supply chain, comprehensive quality
management system, efficient operation and lean
production
• 9 steps of inspections and
tests during production
process
• All solar products have CHUBB products liability
and product defects insurance
• 7×24 service
• 24 hours quick response
Strict
Product
Quality
Control Guaranteed
Usage
How We Make the
Differences
Product
Strategic Concept Business
Plan R&D
Test
&
Verify
Launched
Product
Product
Life Cycle
Product Platform & Technology Management
Partners
3 4
iMars Series Grid-tied Solar Inverter Catalog

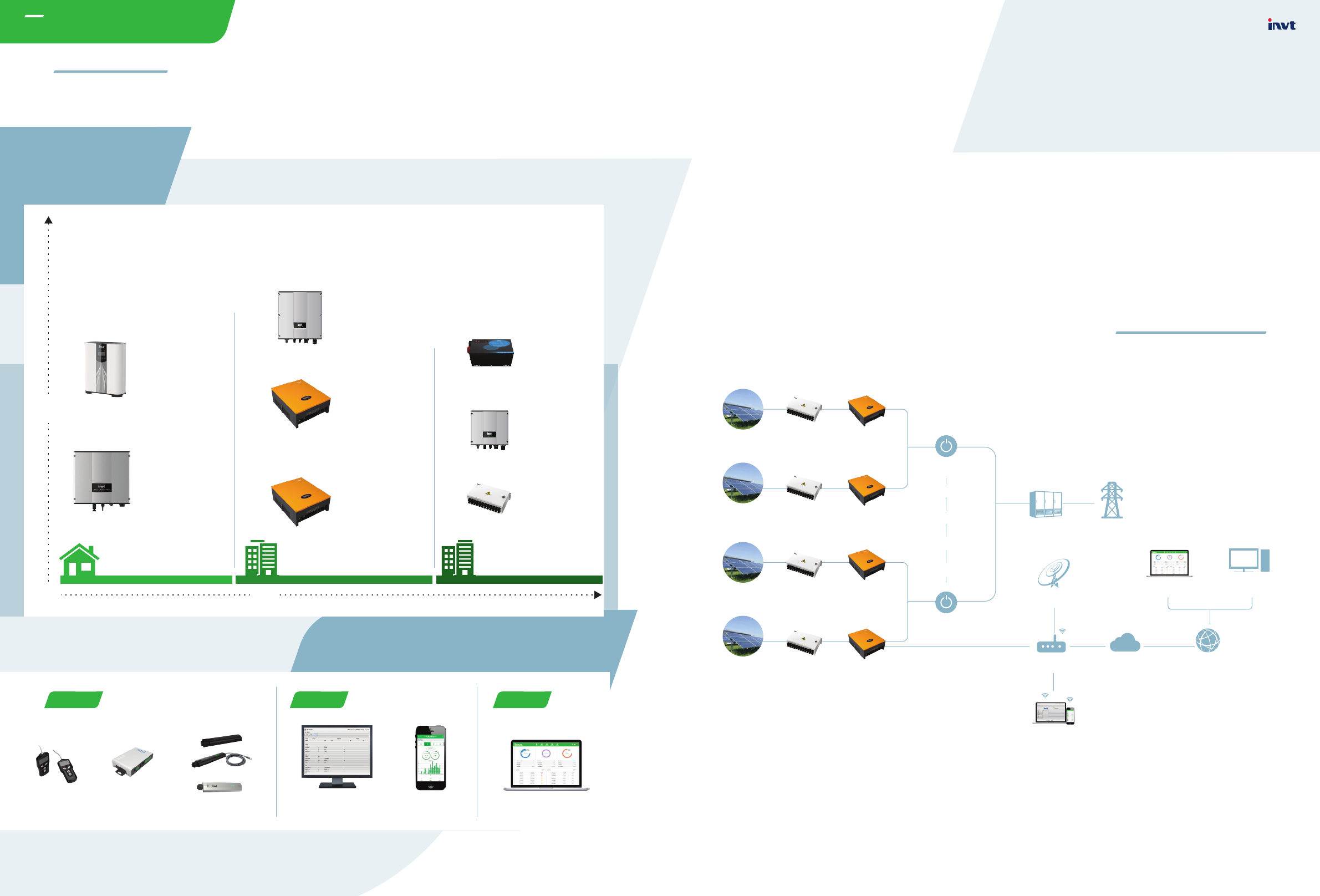

HMI Wi200 / ENET200 / GPRS200 WinExpert PhoneExpert InfoExpert
Time
MG750TL
MG1KTL
MG1K5TL
MG2KTL
MG3KTL
MG4KTL
MG4K6TL
MG5KTL
MG3KTL-2M
MG4KTL-2M
MG4K6TL-2M
MG5KTL-2M
BD3K6TL
BD5KTL
BD3K6TL-TD
BD5KTL-TD
Residential
0.75-5KW
Power
Other
iMars
Inverter
Monitoring
Products
Product Software Platform
JTPV-CB6
JTPV-CB8
JTPV-CB10
Data Server
PV String Smart PV Combiner
Low Voltage Distribution Box
Low Voltage Distribution Box
Mudium Voltage GridTransformer Cabinet
Environmental Monitor
Power Grid Dispatching Center
Local Monitor and Control Platform
NET
Date WebBox
WIFI
WIFI
WIFI
Remote Monitor
PV Inverter
PV String Smart PV Combiner PV Inverter
PV String Smart PV Combiner PV Inverter
PV String Smart PV Combiner PV Inverter
Run Alarm Fa ult
BPD0K7TN
BPD1K5TN
BPD2K2TN
BPD0K7TNAC
BPD1K5TNAC
BPD2K2TNAC
Data Webbox
BG20KTR
BG30KTR
BG33KTR
BG35KTR
BG40KTR
BG50KTR
BG60KTR
BG12KTR-US
BG15KTR-US
BG17KTR-US
BG25KTR
BG4KTR
BG5KTR
BG6KTR
BG10KTR
BG4KTR-US
BG5KTR-US
BG6KTR-US
BG8KTR
BG12KTR
BG17KTR
BG20KTR-M
BG7KTR-US
BG9KTR-US
BG10KTR-US
BG15KTR
Commercial/Plant
4-50KW
Run Alarm Faul t
BN1024E
BN1524E
BN2024E
BN3024E
Product Family
Solution for PV Plant
5 6

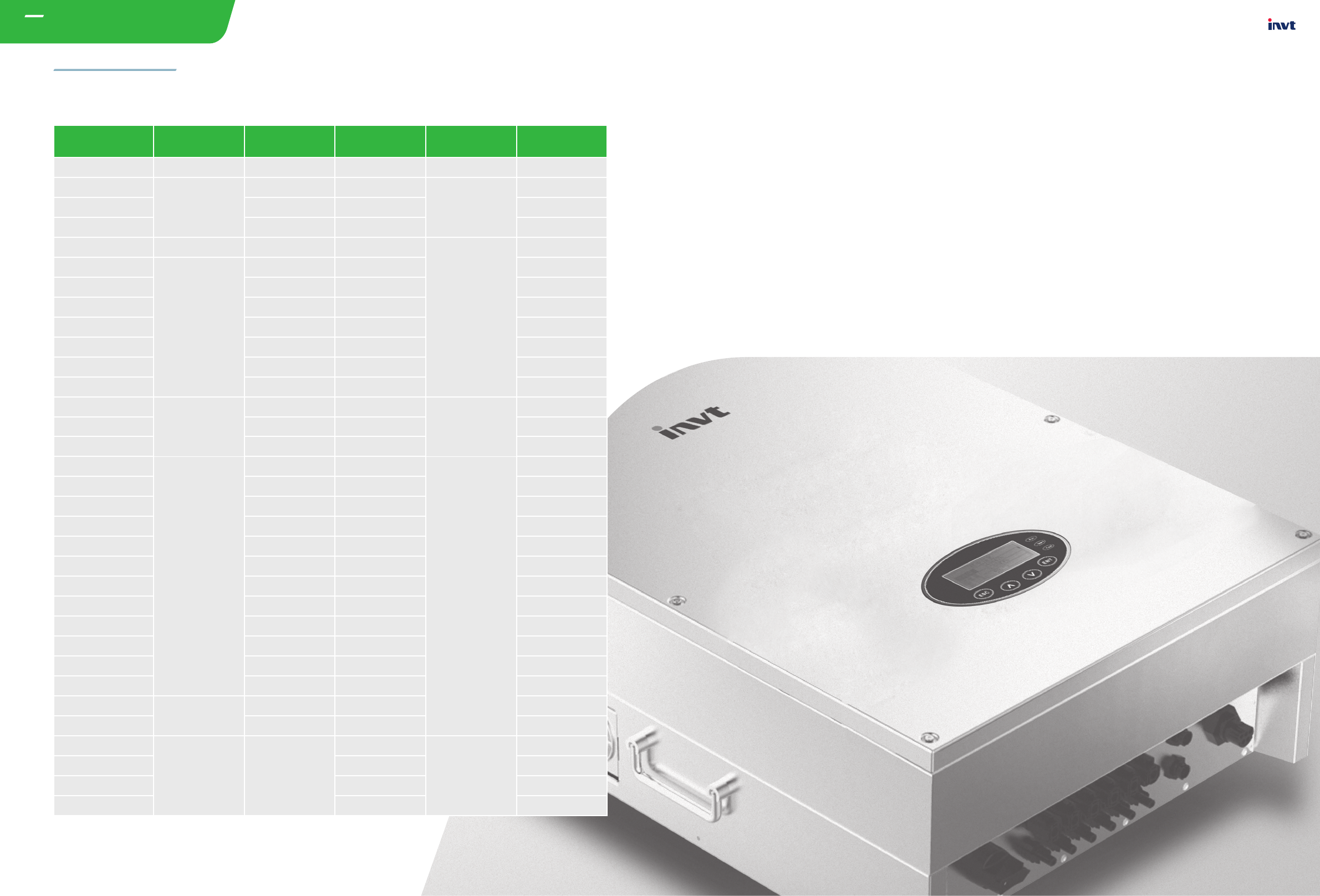

iMars Series Grid-tied Solar Inverter Catalog
Model Max. DC
Voltage (V)
Max Input
Current (A)
Max. DC
Input Power (W)
Rated DC
Voltage (V) MPPT
MG750TL 400 10x1 900 300 1
MG1KTL
450
10x1 1200
360
1
MG1K5TL 10x1 1700 1
MG2KTL 13x1 2200 1
MG3KTL 500 15x1 3200
360
1
MG4KTL
600
18x1 4600 2
MG4K6TL 18x1 5000 1
MG5KTL 20x1 5500 1
MG3KTL-2M 10x2 3300 1
MG4KTL-2M 10x2 4600 2
MG4K6TL-2M 11x2 5000 2
MG5KTL-2M 12x2 5500 2
BG4KTR
900
10x2 4200
580
2
BG5KTR 10x2 5200 2
BG6KTR 10x2 6300 2
BG8KTR
1000
14x2 8400
610
2
BG10KTR 19x2 10400 2
BG12KTR 19x2 12500 2
BG15KTR 21x2 15600 2
BG17KTR 23x2 17500 2
BG20KTR-M 25x2 20800 2
BG20KTR 25x2 20800 2
BG25KTR 30x2 26000 2
BG30KTR 33x2 31200 2
BG33KTR 33x2 36000 2
BG35KTR 33x2 38000 2
BG40KTR 33x2 42800 2
BG50KTR
1100
42x2 53400 2
BG60KTR 42x2 66000 2
BD3K6TL
500 16x2
5200
380
2
BD5KTL 6600 2
BD3K6TL-TD 5200 2
BD5KTL-TD 6600 2
Product Catalog
iMars MG Series Single Phase Grid-tied Solar Inverters
MG750TL, MG1KTL, MG1K5TL, MG2KTL, MG3KTL, MG3KT-2M........................................... 9
MG4KTL, MG4K6TL, MG5KTL, MG4KTL-2M, MG4K6TL-2M, MG5KTL-2M .......................... 11
iMars BG Series Three Phase Grid-tied Solar Inverters
BG4KTR, BG5KTR, BG6KTR, BG8KTR, BG10KTR................................................................... 13
BG12KTR, BG15KTR, BG17KTR, BG20KTR-M........................................................................... 15
BG20KTR, BG25KTR, BG30KTR, BG33KTR, BG35KTR ............................................................. 17
BG40KTR, BG50KTR, BG60KTR, ............................................................................................... 19
iMars BG Series Three phase Grid-tied Solar inverters for US
BG4KTR-US, BG5KTR-US, BG6KTR-US.................................................................................. 21
BG7KTR-US, BG9KTR-US, BG10KTR-US................................................................................ 23
BG12KTR-US, BG15KTR-US, BG17KTR-US............................................................................ 25

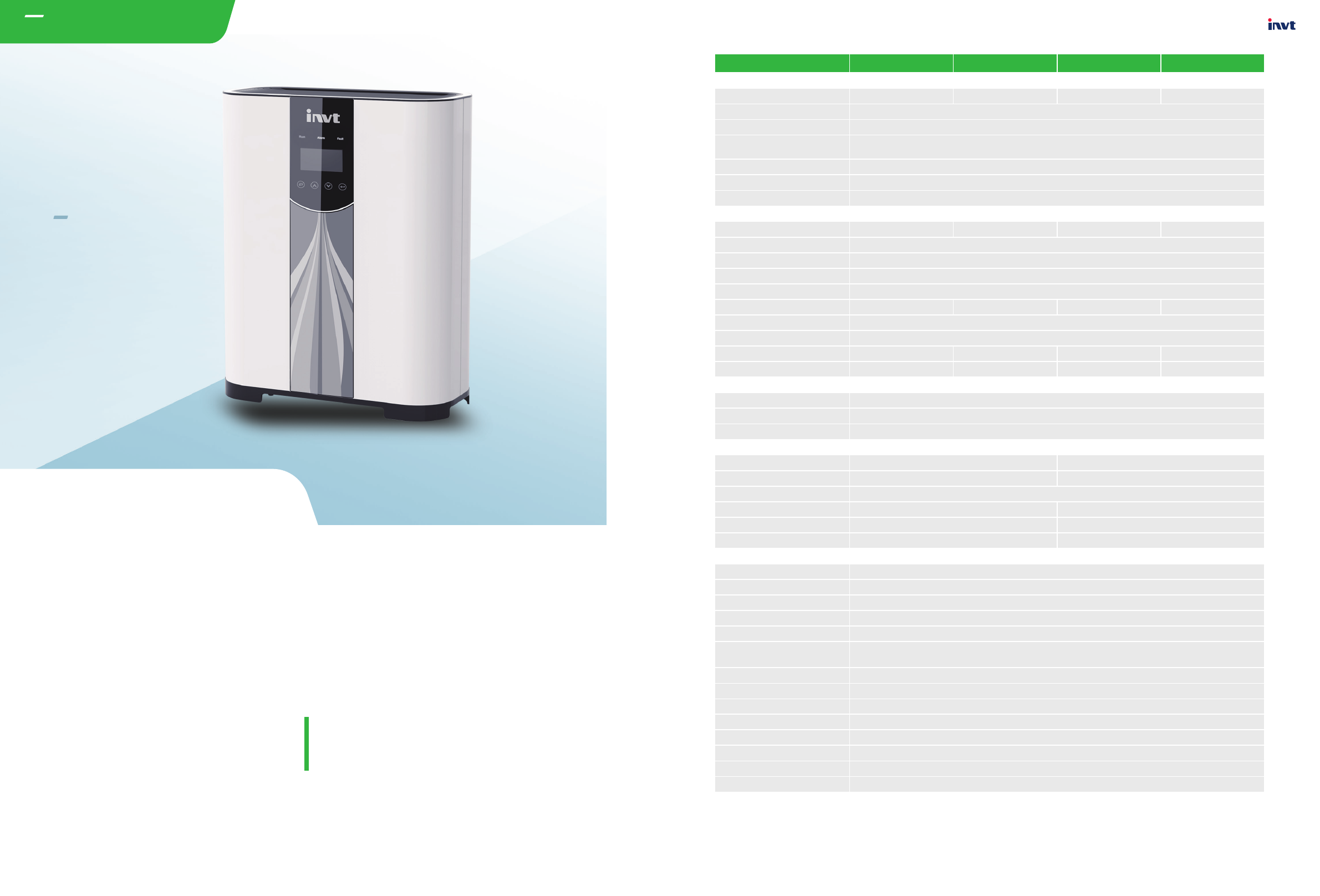

Hybrid inverter
BD3K6TL, BD5KTL, BD3K6TL-TD, BD5KTL-TD....................................................................... 27

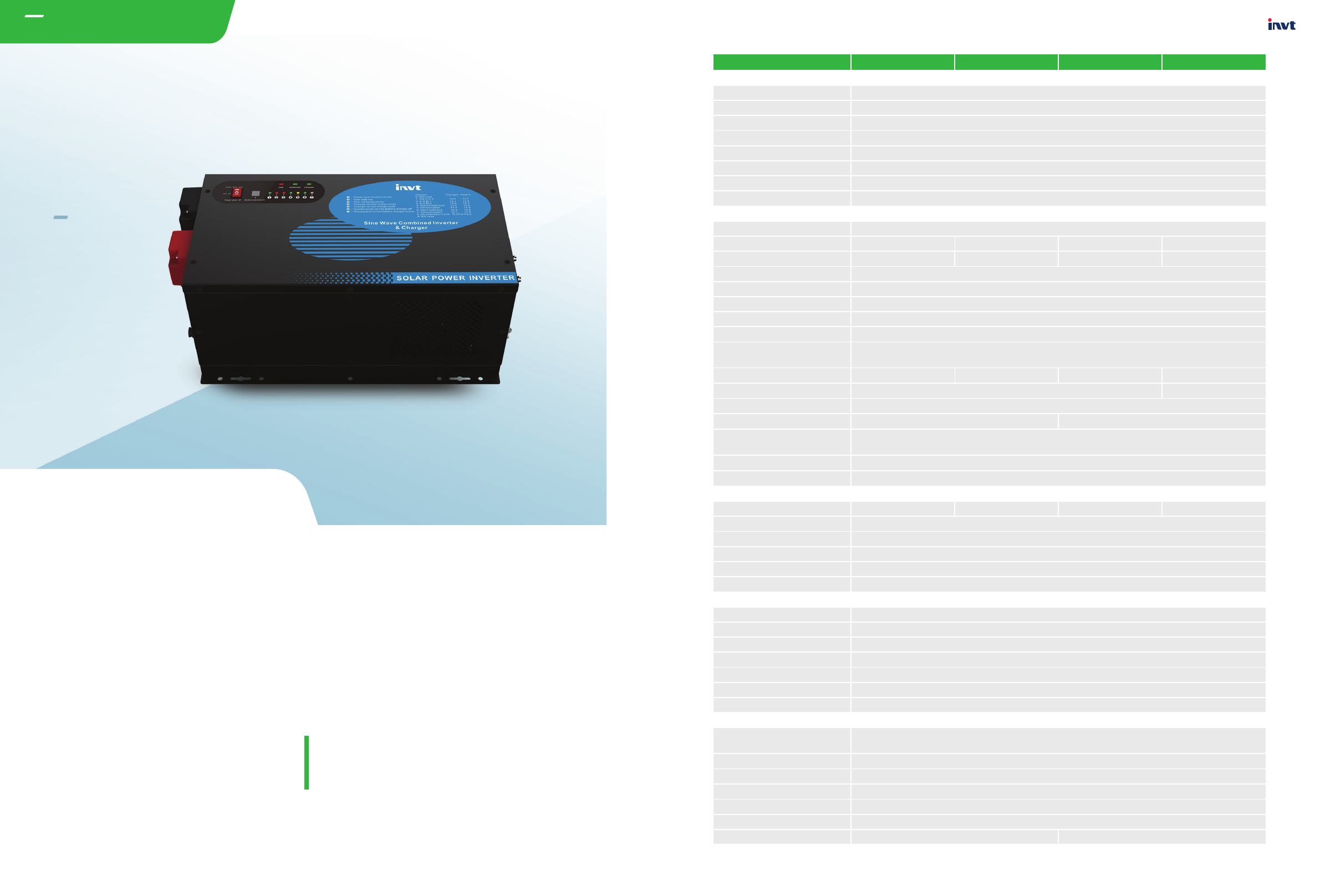

iMars BN Series
BN1024E, BN1524E, BN2024E, BN3024E................................................................................ 29

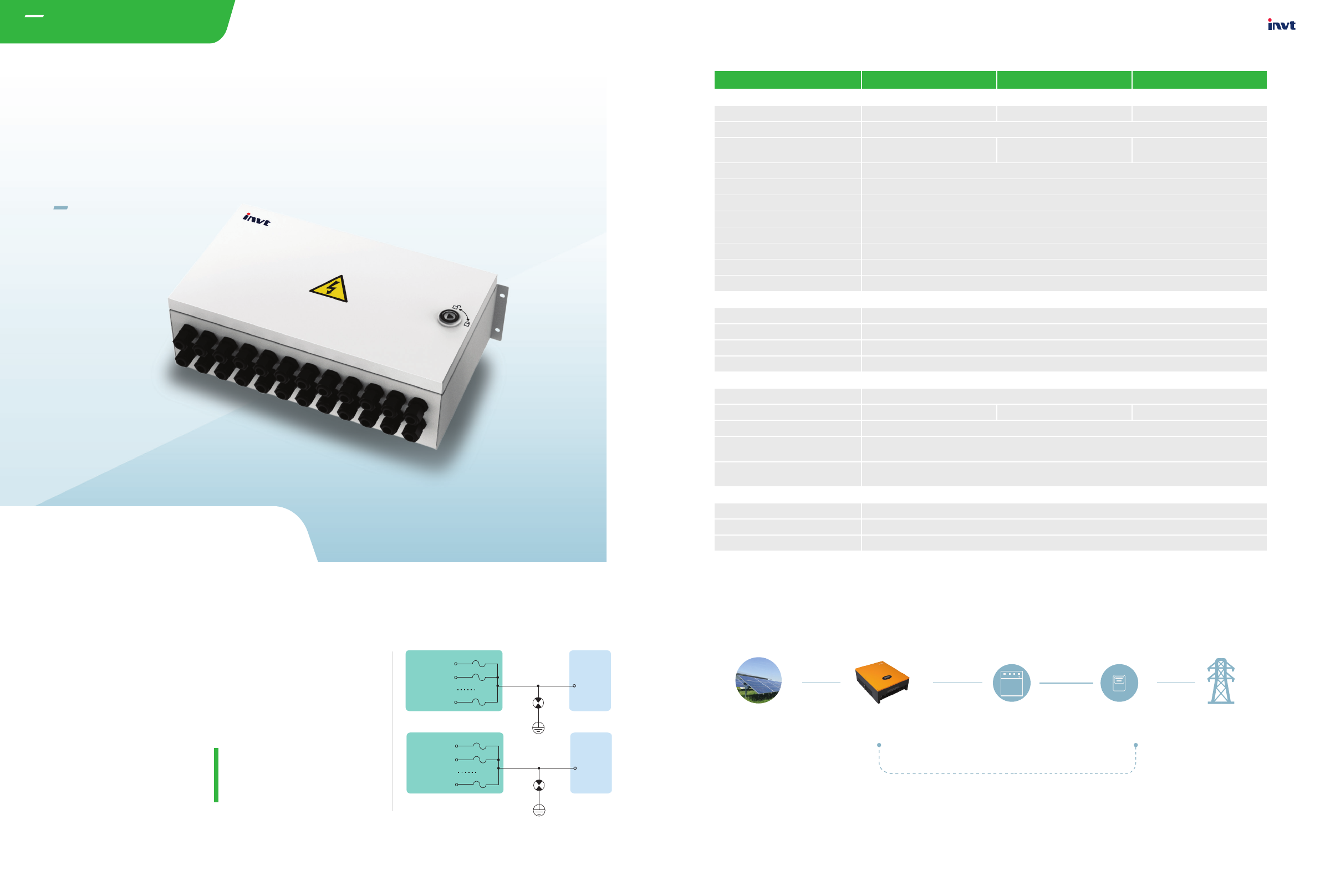

Smart PV Combiner
JTPV-CB6, JTPV-CB8, JTPV-CB10 ......................................................................................... 31

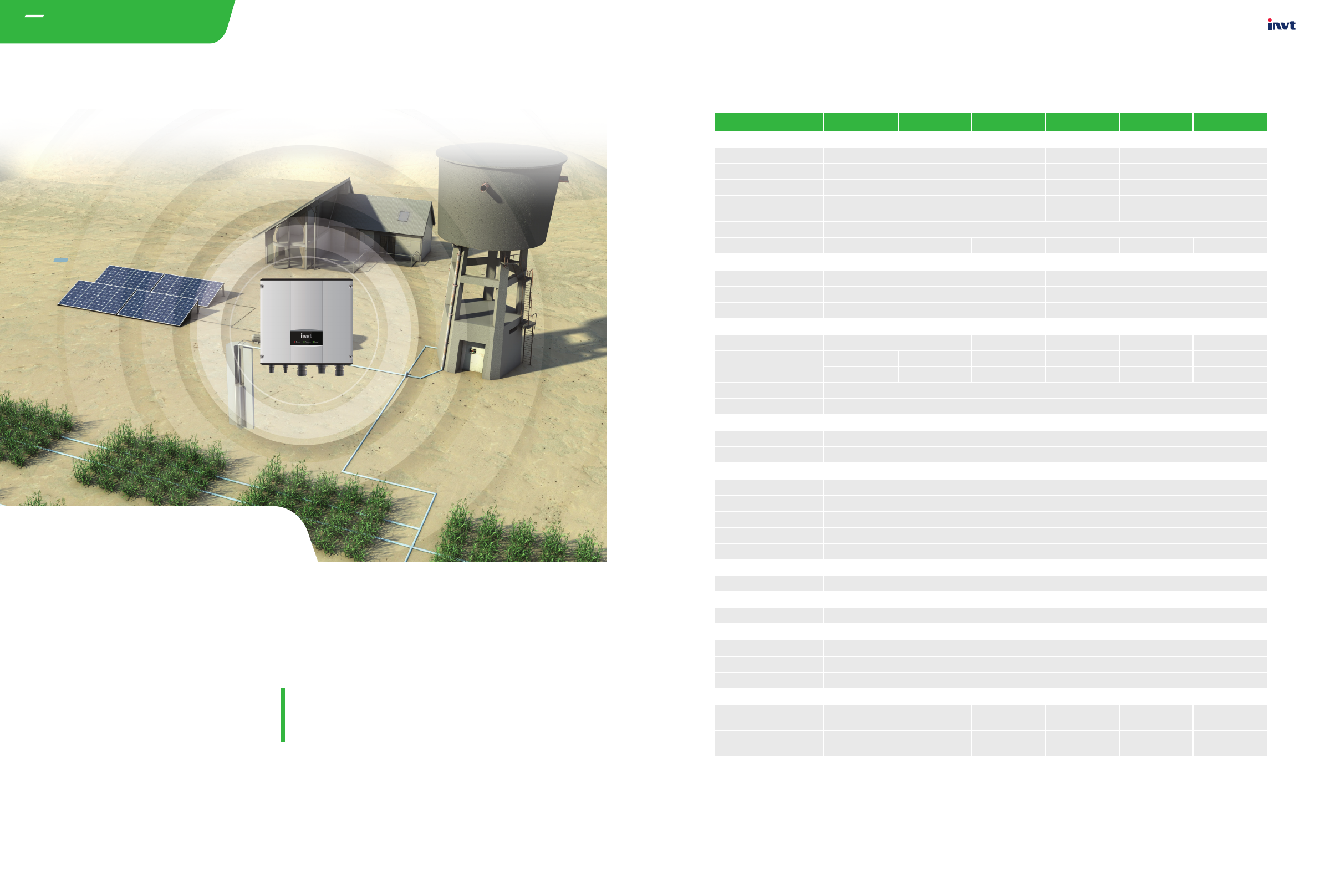

Solar Pumping Inverters
BPD0K7TN, BPD1K2TN, BPD2K2TN, BPD0K7TNAC, BPD1K2TNAC, BPD2K2TNAC ........... 33

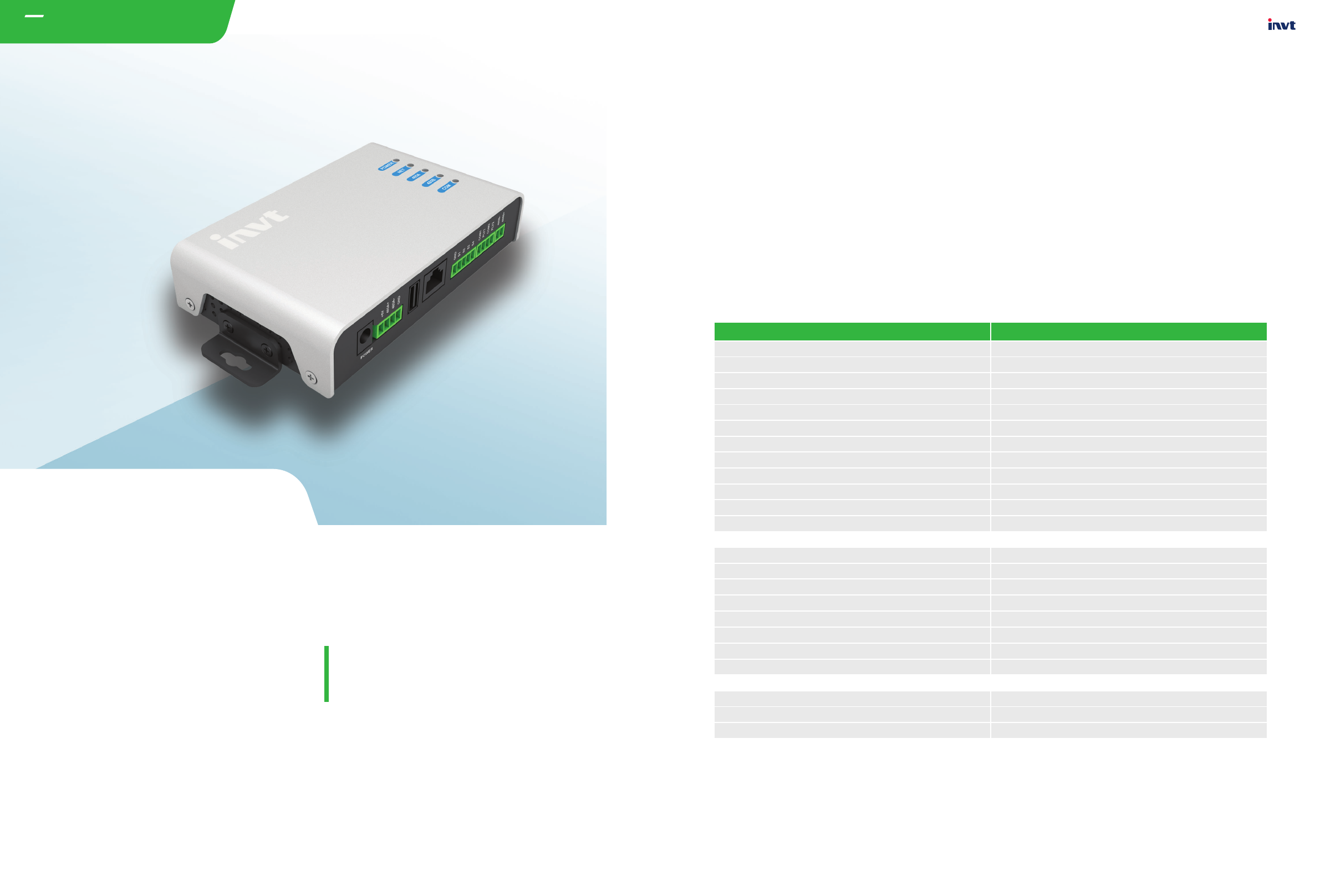

Data Webbox ......................................................................................................................... 37
7 8
iMars Series Grid-tied Solar Inverter Catalog

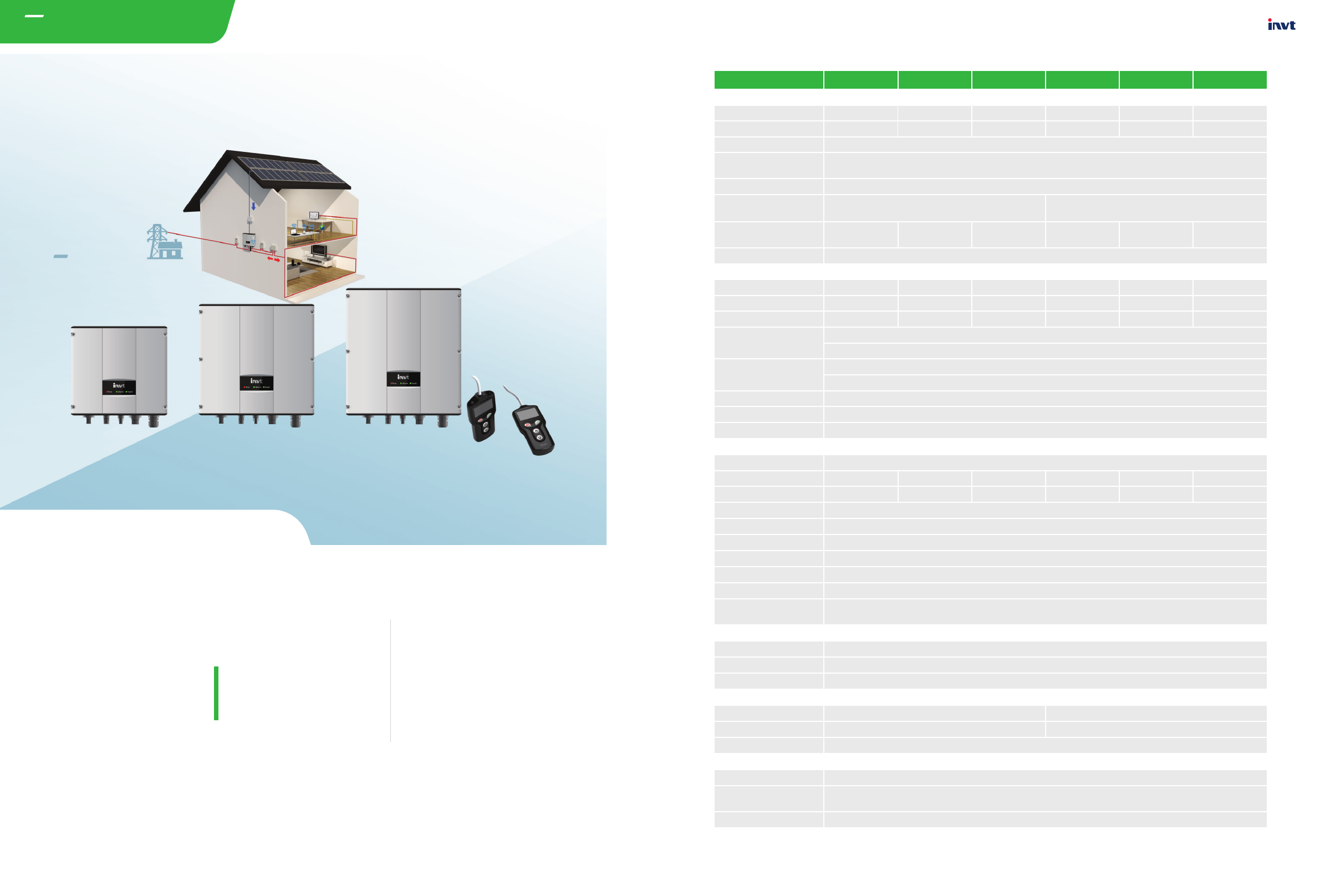

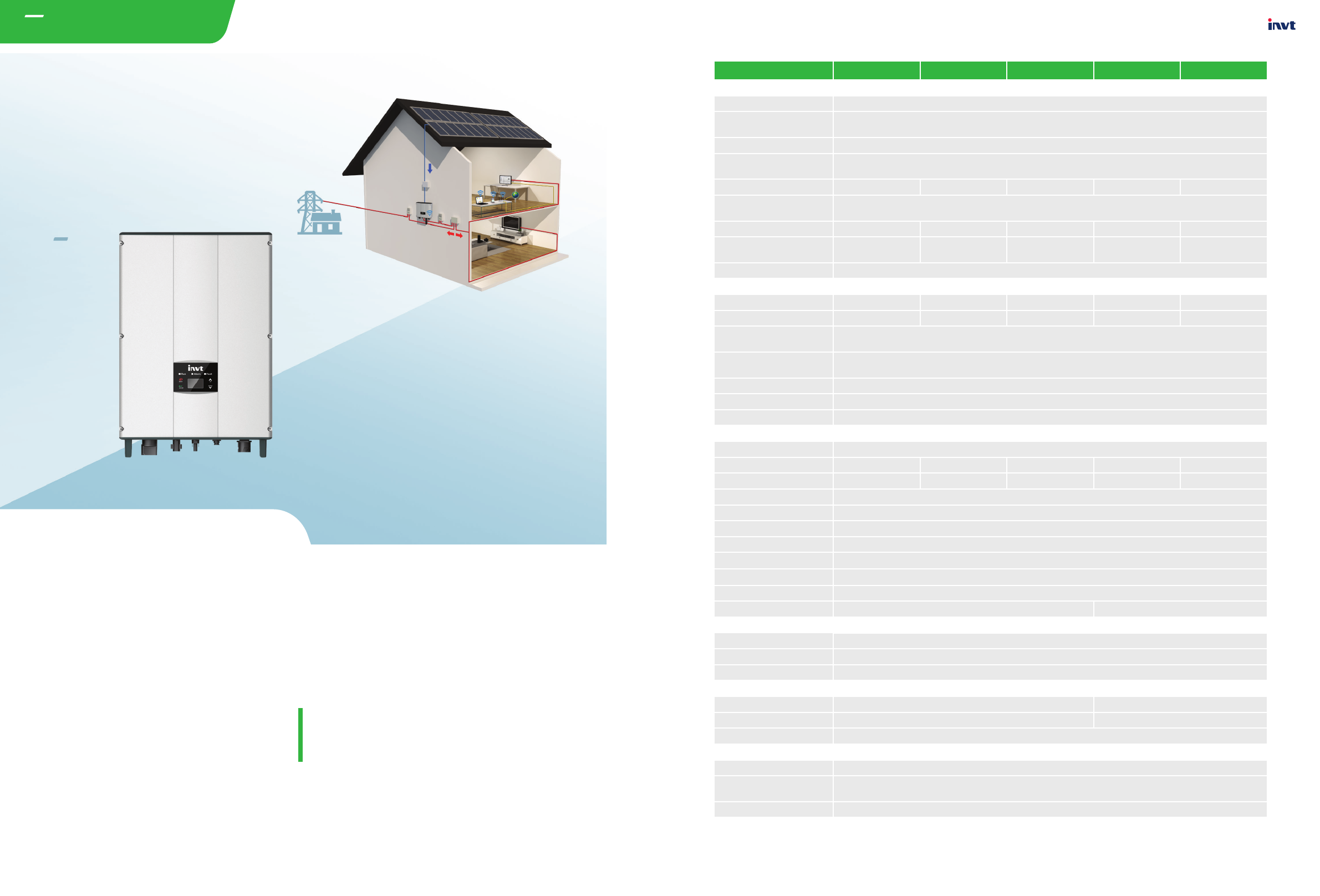

iMars MG Series
Single Phase Grid-tied Solar Inverter
MG750TL
MG1KTL
MG1K5TL
MG2KTL
MG3KTL
MG3KTL-2M
Specication
Description
MG series single phase inverter is a new generation of
PV string inverter which has been developed by INVT for
residential users. MG series inverters have the advantages
of compact size, light weight, easy installation and
maintenance, and are above all cost efcient.
Features
• The core technologies are from
Germany.
• Software optimization for the power
grid with much wider adaptability.
• Global integrated monitoring and
management, supporting all kinds
of portable mobile devices, HMI is
optional.
HMI Features
• Small and exquisite appearance.
• LCD display and easy to operate
keyboard with multiple functions.
• Plug & play.
• Minimum working voltage is 50V.
• Wider voltage range, lower starting
voltage, higher conversion efciency.
• Designed with latest thermal
simulation technology for longer
service life.
MG750TL MG1KTL MG1K5TL MG2KTL MG3KTL MG3KTL-2M
Input (DC)
Max. DC input power (W) 900 1200 1700 2200 3200 3300
Max. DC voltage (V) 400 450 500 600
Starting voltage /Min.
operation voltage (V) 65/60 80/60 100/80 120/100
Starting power (W) 30
MPPT Operating
Voltage Range (V) 60-350 80-400 100-410 120-410 120-450 120-550
Number of MPPT/
String Per MPPT 1/1 1/2 2/1
Max. DC current (A) per
MPPT x Number of MPPT 10x1 10x1 10x1 13x1 15x1 10x2
DC switch Optional
Output (AC)
Rated power (W) 750 1000 1500 2000 3000 3000
Max. AC output current (A) 3.6 4.5 6.5 9 13 16
AC voltage range
230/180~277Vac
According to VDE-AR-N4105, G83/2, C10/11, TF3.2.1, AS4777/3100, CQC
Grid frequency
50Hz (44~55Hz) / 60Hz (54~65Hz)
According to VDE-AR-N4105, G83/2, C10/11, TF3.2.1, AS4777/3100, CQC
Power factor ≥0.99 (Adjustable)
THD < 3% (At Rated Power)
AC connection Single-phase (L, N, PE)
System
Cooling method Natural Cooling method
Max. efficiency 96.80% 96.90% 97.20% 97.20% 97.30% 97.90%
Euro-efficiency 95.95% 96.00% 96.10% 96.10% 96.50% 96.80%
MPPT efficiency 99%
Degree of protection IP65
Self-consumption (at night) <1W
Topology Transformerless
Operating temperature range -25℃~+60℃, (derate after 45℃)
Relative humidity 0~95%, no condensation
Protection Over voltage protect ; DC insulation monitoring; DC Over current Protection; Grounding fault monitoring;
Grid protection; island protection; Overheating protection; Overvoltage and short circuit protection etc.
Display and communication
Display LED Display (standard) /LCD (Optional)
System language English, Chinese,German, Dutch
Communication interfaces: RS485 (Standard), WiFi, Ethernet (Optional)
Mechanical parameters
Dimension (H x W x D mm) 280x300x138 460x360x160
Weight (kg) 9.5 17
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-CF-S2, 5-6 (+ ) ....; PV-CM-S2, 5-6 (-)..., Helios H4 2.5mm² )
Certifications VDE-AR-N4105, G83/2, C10/11, TF3.2.1, AS4777/3100, CQC, EN61000-6-1:4,
EN61000-3-2:3, EN61000-11:12, IEC 62109-1:2010, LVRT
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
9 10
iMars Series Grid-tied Solar Inverter Catalog
iMars MG Series
Single Phase Grid-tied Solar Inverter
MG4KTL
MG4K6TL
MG5KTL
MG4KTL-2M
MG4K6TL-2M
MG5KTL-2M
Specication
Description
MG series single phase inverter is a new generation of
PV string inverter which has been developed by INVT for
residential users. MG series inverters have the advantages
of compact size, light weight, easy installation and
maintenance, and are above all cost efcient.
Features
• The core technologies are from
Germany.
• Software optimization for the power
grid with much wider adaptability.
• Global integrated monitoring and
management, supporting all kinds
of portable mobile devices.HMI is
optional.
• Wider voltage range, lower starting
voltage, higher conversion efciency.
• Designed with latest thermal
simulation technology for longer
service life.
HMI Features
• Small and exquisite appearance.
• LCD display and easy to operate
keyboard with multiple functions.
• Plug & play.
MG4KTL MG4K6TL MG5KTL MG4KTL-2M MG4K6TL-2M MG5KTL-2M
Input (DC)
Rated DC input power (W) 4000 4600 5000 4000 4600 5000
Max. DC input power (W) 4500 5000 5500 4500 5000 5500
Starting power (W) 50
Starting voltage /Min.
operation voltage (V) 120/100
MPPT range (V) 120-550
Number of MPPT / String
per MPPT 1/2 2/1
Max. DC current (A) per
MPPT x Number of MPPT 18x1 18x1 20x1 10x2 11x2 12x2
DC switch Optional
Output (AC)
Rated power (W) 3680 4200 4600 3680 4200 4600
Max power (W) 4000 4600 5000 4000 4600 5000
Max. AC output current (A) 19 21 23 19 21 23
AC voltage range
230/180~277Vac
According to VDE-AR-N4105, G83/2, G59/3, AS4777/3100, CQC
Grid frequency
50Hz (44~55Hz) / 60Hz (54~65Hz)
According to VDE-AR-N4105, G83/2, G59/3, AS4777/3100, CQC
Power factor ≥0.99 (Adjustable)
THD < 3% (At Rated Power)
AC connection Single-phase (L, N, PE)
System
Cooling method Natural Cooling method
Max. efficiency 97.70% 97.70% 97.80% 97.90% 98.00% 98.00%
Euro-efciency 96.50% 96.70% 96.80% 96.80% 96.80% 96.80%
MPPT efficiency 99%
Degree of protection IP65
Self-consumption (at night) <1W
Topology Transformerless
Operating temperature range -25℃~+60℃, (derate after 45℃)
Relative humidity 0~95%, no condensation
Protection Over voltage protect; DC insulation monitoring; DC over current protection; monitoring; Grounding fault monitoring;
island protection; Overheating protection; Electronic protection; Overvoltage and short circuit protection etc.
Display and communication
Display LED Display (standard) / LCD (Optional)
System language English, Chinese, German, Dutch
Communication interfaces: RS485 (Standard), WiFi, Ethernet (Optional)
Mechanical parameters
Dimension (H x W x D mm) 405x360x150 460x360x150
Weight (kg) 15 17
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-CF-S2, 5-6 (+) ....; PV-CM-S2, 5-6 (-)..., Helios H4 2.5mm² )
Certifications VDE-AR-N4105, G83/2, C10/11, TF3.2.1, AS4777/3100,CQCEN61000-6-1:4,
EN61000-3-2:3, EN61000-11:12, IEC 62109-1:2010, LVRT
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
11 12
iMars Series Grid-tied Solar Inverter Catalog
BG4KTR BG5KTR BG6KTR BG8KTR BG10KTR
Input (DC)
Max. DC voltage (V) 900
Starting voltage /Min. operation
voltage (V) 220/180
Starting power (W) 150
MPPT operating voltage range /
Rated voltage (V) 200-800/580
Rated power voltage range (V) 210-800 260-800 300-800 400-800 450 - 800
Number of MPPT / String per
MPPT 2/2
Max. DC Power (W) 4200 5200 6200 8300 10400
Max. DC Current (A) Per MPPT
x Number of MPPT 10x2 10x2 10x2 12x2 12x2
DC switch Integrated
Output (AC)
Rated power (W) 4000 5000 6000 8000 10000
Max. AC Current (A) 7 8.5 10 13 15
Rated. AC voltage range 3/PE, 230/400V (320~460V) ;3/PE,220/380V (320~460V).
According to VDE0126-1-1, VDE-AR-N4105, CQC, G83/2,C10/11, AS4777/3100.
Grid frequency 50Hz (47~51.5Hz) / 60Hz (57~61.5Hz)
According to VDE0126-1-1, VDE-AR-N4105, CQC, G83/2,C10/11, AS4777/3100.
Power factor -0.8~+0.8 (Adjustable)
THD < 3% (at rated power)
AC connection Three-phase (L1, L2, L3, PE) or (L1, L2, L3, N, PE)
System
Cooling method Natural Cooling method
Max efciency 98.10% 98.10% 98.20% 98.20% 98.20%
Euro-efciency 97.50% 97.60% 97.70% 97.70% 97.70%
MPPT efciency 99.9%
Degree of protection IP65
Self-consumption (at night) <0.5W
Topology Transformerless
Operating temperature range -25℃~+60℃ (derate after 45℃)
Relative humidity 0~95%, no condensation
Protection DC isolation monitoring, grounding fault monitoring, island protection, overvoltage and short ciruit protection, etc
Noise < 30dB < 50dB
Display and communication
Display 2.1 inches LCD display, support backlit display
System language English, Chinese, German, Dutch
Communication interfaces: RS485 (Standard), WiFi, Ethernet (Optional)
Mechanical parameters
Dimension (H x W x D mm) 530x360x150 575x360x150
Weight (kg) 20 23
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-FT-CF-C-4-300-BU (-); PV-FT-CM-C-4-300-RD (+), Helios H4 4mm² )
Certications VDE0126-1-1, VDE-AR-N4105, G59/3, C10/11, AS4777/3100, CQC
EN61000-6-1:4, EN61000-11:12, IEC62109-1:2010, PEA, LVRT
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)

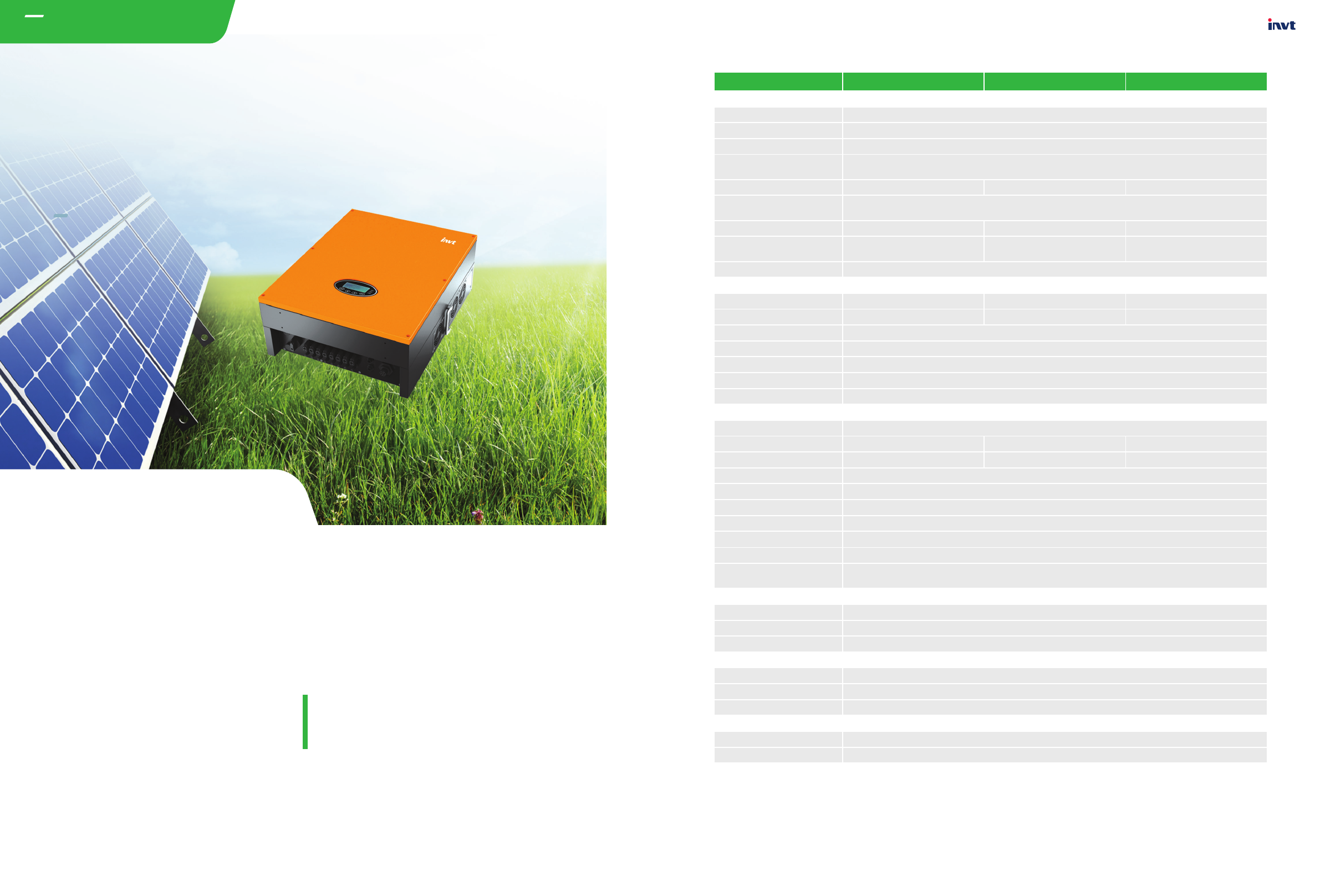

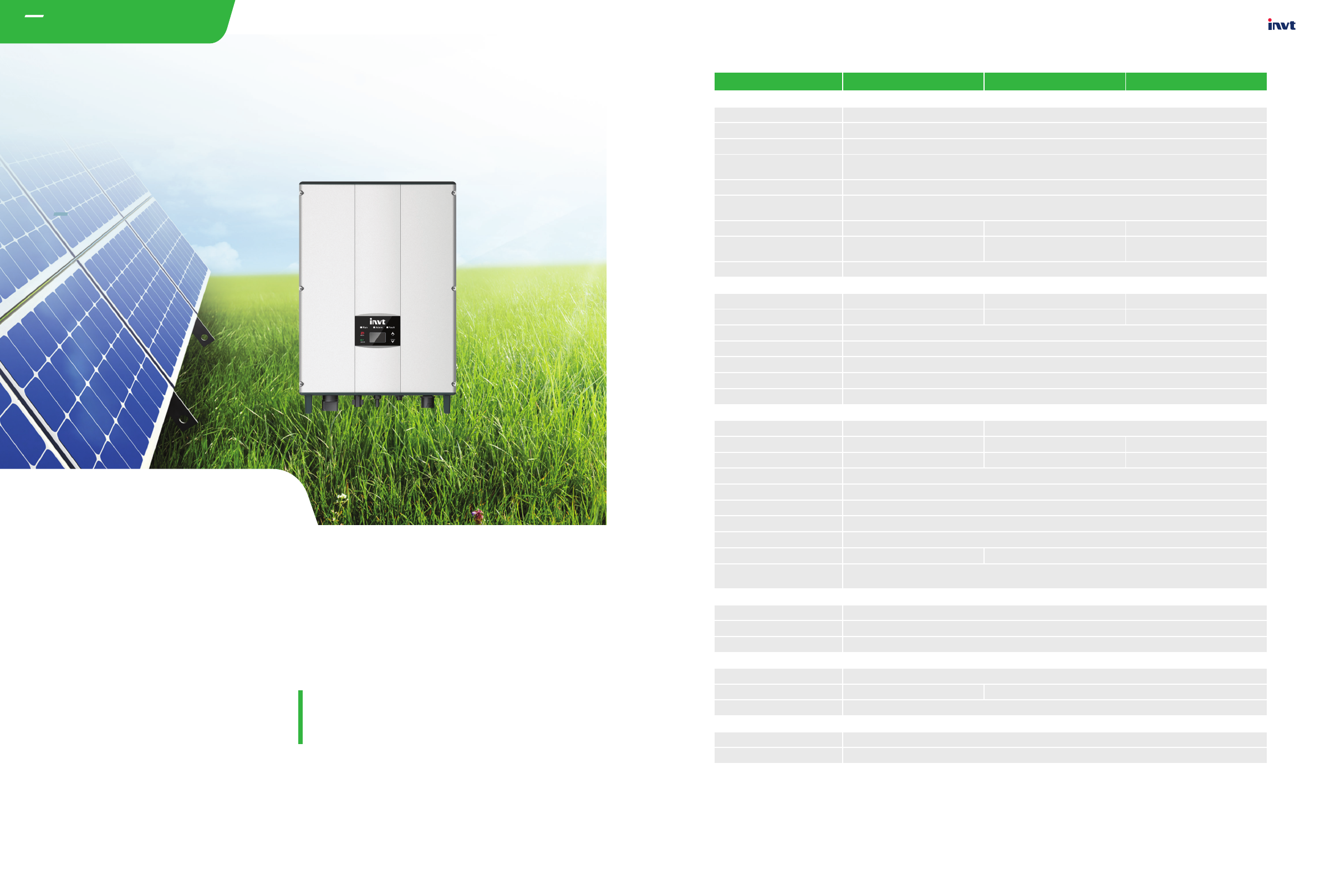

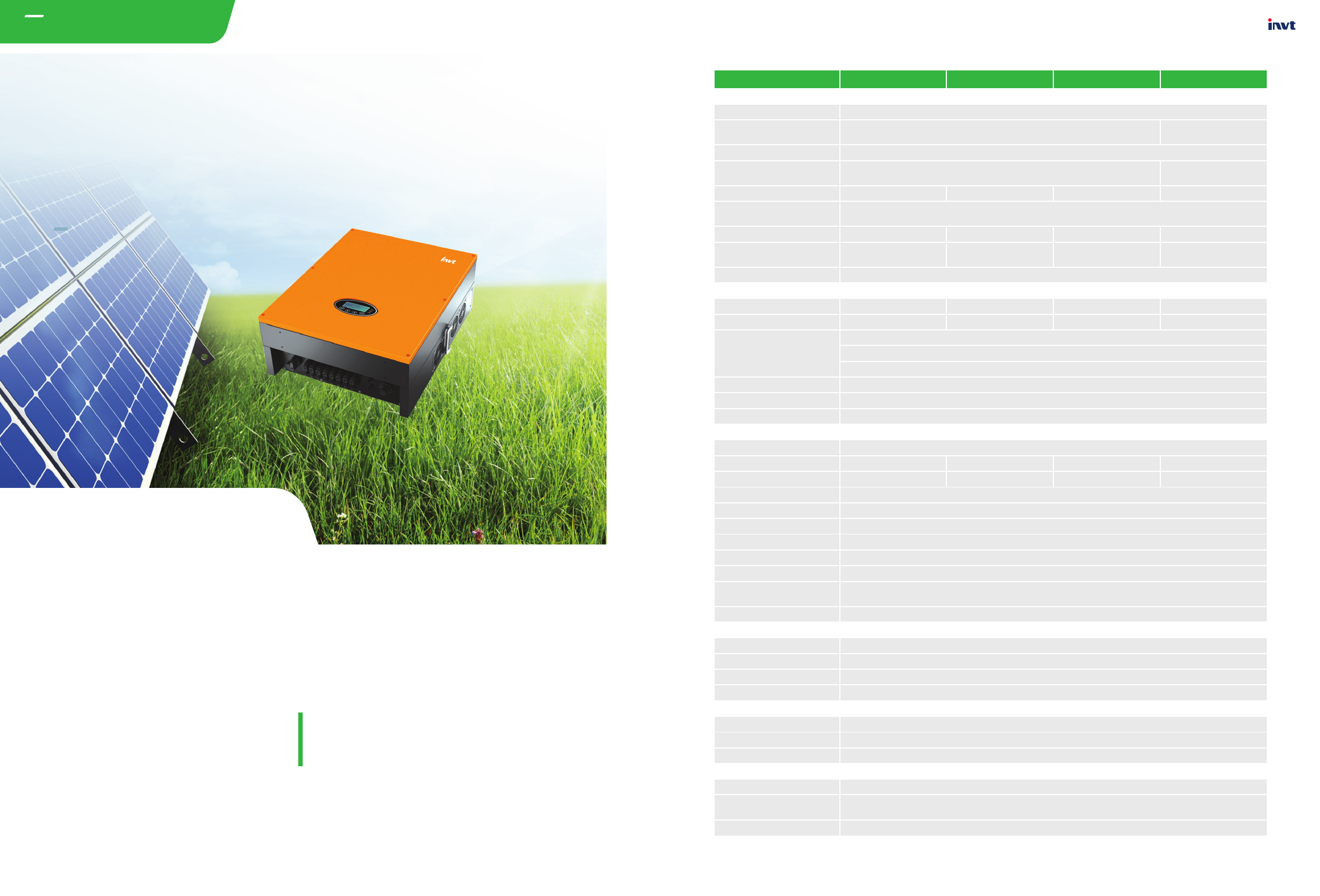

iMars BG Series
Three Phase Grid-tied Solar Inverter
BG4KTR
BG5KTR
BG6KTR
BG8KTR
BG10KTR
Features
• The core technologies are from Germany.
• Software optimization for the power grid with
much wider adaptability.
• Global integrated monitoring and management,
supporting all kinds of portable mobile devices,
HMI is optional.
Description
BG series three phase inverter is a new generation of PV string
inverters which has been developed by INVT for residential and small
commercial customers.This series adopts the latest technologies
and combination of T Topology three level topology with SVPWM.
This series also has many outstanding advantages such as compact
size, light weight, easy installation and maintenance, and most of all,
competitive prices.
It also provides exible system conguration and monitoring solutions
for household and commercial systems.
• Wider voltage range, lower starting
voltage and higher conversion
efciency.
• Designed with latest thermal
simulation technology for longer
service life.
Specication
13 14
iMars Series Grid-tied Solar Inverter Catalog
BG12KTR BG15KTR BG17KTR BG20KTR-M
Input (DC)
Max. DC voltage (V) 1000
Starting voltage /Min. operation
voltage (V) 200/180 300/200
Starting power (W) 150
MPPT Operating Voltage Range
(V) / Rated Voltage 180- 800/610V 280- 800/610V
Rated power voltage range (V) 350 - 800 400 - 800 400 - 800 450-800
Number Of MPPT /
String Per MPPT 2/2
Max. DC Power (W) 12500 15600 17500 20800
Max. DC Current (A) Per MPPT x
Number Of MPPT 19x2 21x2 23x2 25x2
DC switch Integrated
Output (AC)
Rated power (W) 12000 15000 17000 20000
Max AC Current (A) 20 24 28 32
Rated AC Voltage And Range/
Rated Grid frequency And Range
3/PE, 230/400V, (320~460V), 3/PE,220/380V, (320~460V)
50Hz (47~51.5Hz) / 60Hz (57~61.5Hz)
According to VDE0126-1-1, VDE-AR-N4105, CQC, G59/3, C10/11, AS4777/3100.
Power factor -0.8~+0.8 (Adjustable)
THD < 3% (at rated power)
AC connection Three-phase (L1, L2, L3, PE) or (L1, L2, L3, N, PE)
System
Cooling method Smart Cooling method
Max efciency 98.20% 98.30% 98.30% 98.40%
Euro-efciency 97.60% 97.80% 97.80% 98.00%
MPPT efciency 99.90%
Degree of protection IP65
Self-consumption (at night) <0.5W
Topology Transformerless
Operating temperature range -25℃~+60℃ (derate after 45℃)
Relative humidity 0~95%, no condensation
Protection Functions DC isolation monitoring, DC monitoring, grounding fault monitoring, grid monitoring,
island protection, overvoltage and short circuit protection, etc
Noise < 50dB
Display and communication
Display 3.5 inches LCD display, support backlit display
System language English, Chinese, German, Dutch
Key Integrated
Communication interfaces: RS485 (Standard),WiFi, Ethernet (Optional)
Mechanical parameters
Dimension (H x W x D mm) 610x480x204
Weight (kg) 38
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-FT-CF-C-4-300-BU (-); PV-FT-CM-C-4-300-RD (+), Helios H4 4mm² )
Certications VDE0126-1-1, VDE-AR-N4105, CQC, G59/3, C10/11, AS4777/3100.
EN61000-6-1:4, EN61000-11:12, IEC62109-1:2010, PEA, LVRT
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
Specication
iMars BG Series
Three Phase Grid-tied Solar Inverter
BG12KTR
BG15KTR
BG17KTR
BG20KTR-M
Features
• Dual MPPTs work independently and allow
unbalanced input power. One MPPT maximum
input is up to 60% of Max.DC power.
• High efciency and stable performance at entire
input voltage and output power range.
• Max efciency is up to 98.3%.
• Wide input voltage range gives more possibilities
for accepting different string conguration and
different Topology of PV modules.
• Bus capacitors consist of advanced lm
capacitors, designed with the latest thermal
simulation technology for longer lifespan.
• Integrated intelligent DC combiner and surge protection
improve system exibility and lower the cost.
• 5V 200mA auxiliary DC power interface is optional for
system expansion.
• AC output power is adjustable between 1-100%.
• Reactive power control and Power factor adjustable: 0.8
leading ~ 0.8 lagging.
• RS485, Ethernet, WiFi, GPRS Communication modes
are optional for realizing multiple monitoring solutions
via local or internet by PC, smart phone, etc.
Description
iMars BG series three-phase grid-tied solar inverters adopt
the latest technologies combination of T Topology three level
topology and SVPWM, provide exible system conguration
and monitoring solutions for household, commercial and
power plant systems.
15 16
iMars Series Grid-tied Solar Inverter Catalog
BG20KTR BG25KTR BG30KTR BG33KTR BG35KTR
Input (DC)
Max. DC voltage (V) 1000
Starting voltage /Min. operation
voltage (V) 300/280
Starting power (W) 150
MPPT Operating Voltage Range
(V) / Rated Voltage 280 - 800/610V
Rated power voltage range (V) 450 - 800 480 - 800 480 - 800 500-800 550-800
Number of MPPT /
String Per MPPT 2/3 2/4
Max. DC Power (W) 20800 26000 31200 36000 38000
Max. DC Current (A) Per MPPT x
Number Of MPPT 25x2 30x2 33x2 33x2 33x2
DC switch Integrated
Output (AC)
Rated power (W) 20000 25000 30000 33000 35000
Max AC Current (A) 32 40 48 48 48
Rated AC Voltage And Range/
Rated Grid frequency And
Range
3/PE, 230/400V (320~460V); 3/PE, 220/380V (320~460V). 3/N/PE,243/400V,
(357~483V)
50Hz (47~51.5Hz) / 60Hz (57~61.5Hz)
According to VDE0126-1-1, VDE-AR-N4105, CQC, G59/3, C10/11, AS4777/3100, PEA
Power factor -0.8~+0.8 (Adjustable)
THD < 3% (at rated power)
AC connection Three-phase (L1, L2, L3, PE) or (L1, L2, L3, N, PE)
System
Cooling method Smart Cooling method
Max efciency 98.40% 98.40% 98.50% 98.50% 98.50%
Euro-efciency 98.00% 98.00% 98.00% 98.10% 98.10%
MPPT efciency 99.9%
Degree of protection IP65
Self-consumption (at night) <0.5W
Topology Transformerless
Operating temperature range -25℃~+60℃ ( derate after 45℃)
Relative humidity 0~95%, no condensation
Protection DC isolation monitoring, DC monitoring, grounding fault monitoring, grid monitoring,
island protection, overvoltage and short circuit protection, etc.
Noise < 50dB
Display and communication
Display 3.5inches LCD display, support backlit display
System language English, Chinese, German, Dutch
Key Integrated
Communication interfaces: RS485 (Standard), WiFi, Ethernet (Optional)
Mechanical parameters
Dimension (H x W x D mm) 660x525x250
Weight (kg) 52
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-FT-CF-C-4-300-BU (-); PV-FT-CM-C-4-300-RD (+), Helios H4 4mm² )
Certications TUV, CE, VDE0126-1-1, VDE-AR-N4105, G59/3,C10/11, TF3.2.1, AS4777/3100,CQC
EN61000-6-1:4, EN61000-11:12, IEC62109-1:2010, PEA,ZVRT,LVRT
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
Specication
Description
iMars BG series three-phase grid-tied solar inverters adopt
the latest technologies combination of T Topology three level
topology and SVPWM, provide exible system conguration
and monitoring solutions for household, commercial and
power plant systems.
Features
• Dual MPPTs work independently and allow
unbalanced input power. One MPPT maximum
input is up to 60% of Max. DC power.
• High efciency and stable performance at
entire input voltage and output power range.
• Max efciency is up to 98.6%.
• Wide input voltage range gives more
possibilities for accepting different string
conguration and different Topology of PV
modules.
• Bus capacitors consist of advanced lm
capacitors, designed with the latest thermal
simulation technology for longer lifespan.
• Integrated intelligent DC combiner and surge protection
improve system’s exibility and lower the cost.
• 5V 200mA auxiliary DC power interface is optional for
system expansion.
• AC output power is adjustable between 1-100%.
• Reactive power control and Power factor adjustable: 0.8
leading ~ 0.8 lagging.

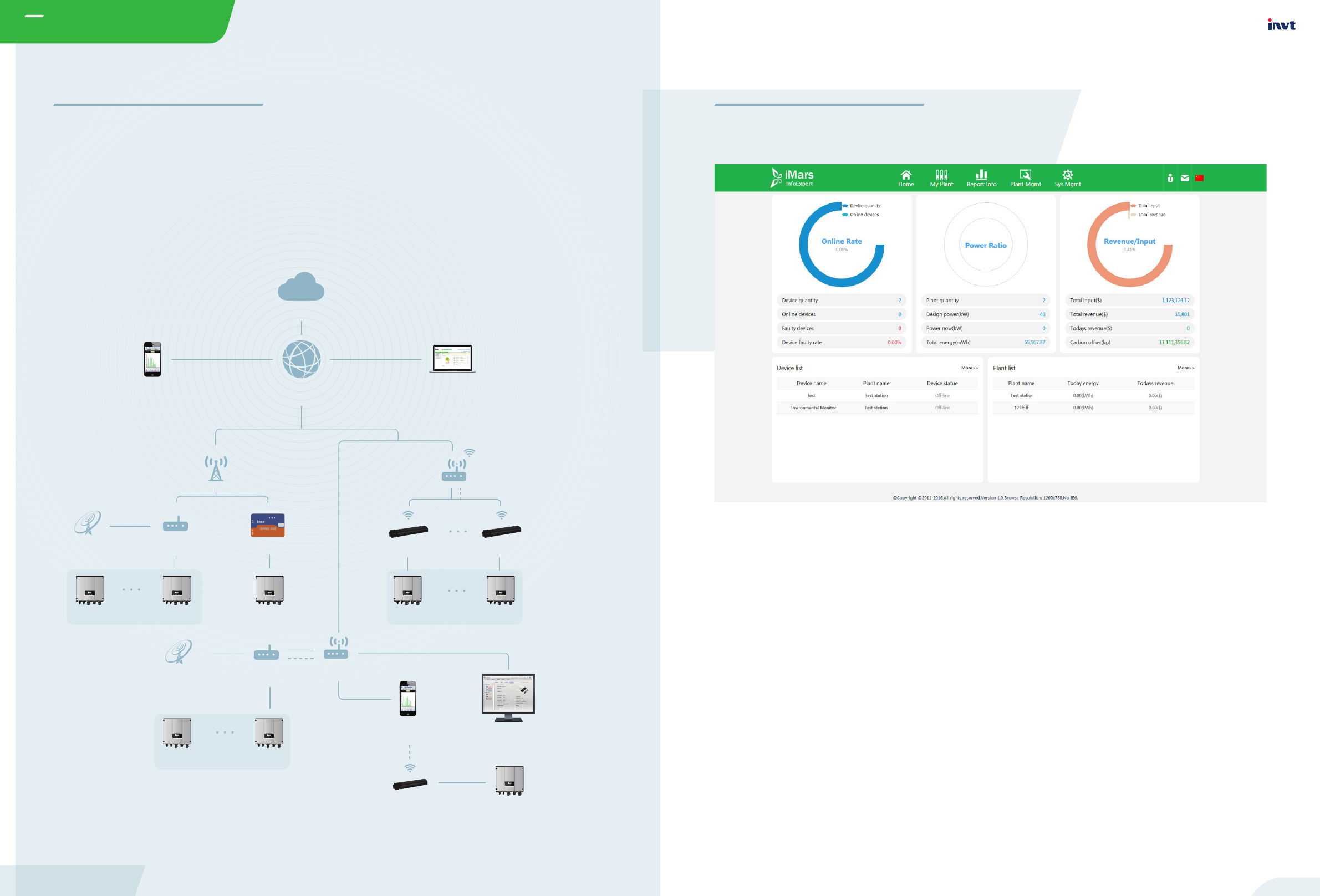

• RS485, Ethernet, WiFi, GPRS Communication modes
are optional for realizing multiple monitoring solutions via
local or internet by PC, smart phone, etc.
iMars BG Series
Three Phase Grid-tied Solar Inverter
BG20KTR
BG25KTR
BG30KTR
BG33KTR
BG35KTR
17 18
iMars Series Grid-tied Solar Inverter Catalog
BG40KTR BG50KTR BG60KTR
Input (DC)
Max. DC voltage (V) 1000 1100
Starting voltage /Min. operation
voltage (V) 300/280
Starting power (W) 150
MPPT Operating Voltage Range (V)
/ Rated Voltage 280 - 800/610V
Rated power voltage range (V) 580 – 800 550-850
Number of MPPT /
String Per MPPT 2/4 2/5 2/6
Max. DC Power (W) 40800 54300 66000
Max. DC Current (A) Per MPPT x
Number Of MPPT 33x2 42x2
DC switch Integrated
Output (AC)
Rated power (W) 40000 50000 60000
Max AC Current (A) 48 52 55.7
Rated AC Voltage And Range 3/PE, 277/480V
(384~552V)
3/N/PE,310/540V
(459~594V)
3/N/PE,381/660V
(561~726V)
Rated Grid frequency And Range 50Hz (47~51.5Hz) / 60Hz (57~61.5Hz)
According to VDE0126-1-1, VDE-AR-N4105, CQC, G59/3, C10/11, AS/NZS 4777.2:2015, PEA
Power factor -0.8~+0.8 (Adjustable)
THD < 3% (at rated power)
AC connection Three-phase (L1, L2, L3, PE) or (L1, L2, L3, N, PE)
System
Cooling method Smart Cooling method
Max efficiency 98.60% 98.90%
Euro-efficiency 98.20% 98.60%
MPPT efficiency 99.9%
Degree of protection IP65
Self-consumption (at night) <0.5W
Topology Transformerless
Operating temperature range -25℃~+60℃ ( derate after 45℃)
Relative humidity 0~95%, no condensation
Protection DC isolation monitoring, DC monitoring, grounding fault monitoring, grid monitoring,
island protection, overvoltage and short circuit protection, etc.
Noise < 50dB
Display and communication
Display 3.5inches LCD display, support backlit display
System language English, Chinese, German, Dutch
Key Integrated
Communication interfaces: RS485 (Standard), WiFi, Ethernet (Optional)
Mechanical parameters
Dimension (H x W x D mm) 660x525x250 700x540x250
Weight (kg) 52
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-FT-CF-C-4-300-BU (-); PV-FT-CM-C-4-300-RD (+), Helios H4 4mm² )
Certifications TUV, CE, VDE0126-1-1, VDE-AR-N4105, G59/3,C10/11, TF3.2.1, AS/NZS 4777.2:2015,CQC
EN61000-6-1:4, EN61000-11:12, IEC62109-1:2010, PEA,ZVRT,LVRT
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
Specication
Description
iMars BG series three-phase grid-tied solar inverters adopt
the latest technologies combination of T Topology three level
topology and SVPWM, provide exible system conguration
and monitoring solutions for household, commercial and
power plant systems.
Features
• Dual MPPTs work independently and allow
unbalanced input power. One MPPT maximum
input is up to 60% of Max. DC power.
• High efciency and stable performance at
entire input voltage and output power range.
• Max efciency is up to 98.6%.
• Wide input voltage range gives more
possibilities for accepting different string
conguration and different Topology of PV
modules.
• Bus capacitors consist of advanced lm
capacitors, designed with the latest thermal
simulation technology for longer lifespan.
• Integrated intelligent DC combiner and surge protection
improve system’s exibility and lower the cost.
• 5V 200mA auxiliary DC power interface is optional for
system expansion.
• AC output power is adjustable between 1-100%.
• Reactive power control and Power factor adjustable: 0.8
leading ~ 0.8 lagging.
• RS485, Ethernet, WiFi, GPRS Communication modes
are optional for realizing multiple monitoring solutions via
local or internet by PC, smart phone, etc.
iMars BG Series
Three Phase Grid-tied Solar Inverter
BG40KTR
BG50KTR
BG60KTR
19 20
iMars Series Grid-tied Solar Inverter Catalog
BG4KTR-US BG5KTR-US BG6KTR-US
Input (DC)
Max. DC voltage (V) 1000
Starting Voltage (V) 200
Min. Operation Voltage (V) 180
MPPT Operating Voltage Range (V)
/ Rated Voltage (V) 180 - 800/610V
Rated power voltage range (V) 220 - 800
Number of MPPT /
String Per MPPT 2/2
Max. DC Power (W) 4400 5300 6300
Max. DC Current (A) Per MPPT x
Number Of MPPT 10 x 2 14 x 2 19 x 2
DC switch Integrated
Output (AC)
Rated power (W) 4000 5000 6000
Max AC Current (A) 12 15 18
Rated AC Voltage 3/PE, 220V/127V
Rated Grid frequency 60Hz (57~61.5Hz)
Power factor -0.8~+0.8 (Adjustable)
THD < 3% (at rated power)
AC connection Three-phase (L1, L2, L3, PE) or (L1, L2, L3, N, PE)
System
Cooling method Natural Cooling method Smart Cooling method
Max efciency 97.60% 97.80% 98.20%
Euro-efciency 97.00% 97.30% 97.60%
MPPT efciency 99.9%
Degree of protection IP65
Self-consumption (at night) <1W
Topology Transformerless
Operating temperature range -25℃～+60℃ (derate after 45℃)
Relative humidity <30dB <50dB
Protection DC isolation monitoring, DC monitoring, grounding fault monitoring, grid monitoring,
island protection, overvoltage and short circuit protection, etc.
Display and communication
Display 3.5inches LCD display, support backlit display
System language English, Chinese, German, Dutch
Communication interfaces: RS485 (Standard), Ethernet, WiFi (Optional)
Mechanical parameters
Dimension (H x W x D mm) 575x360x150
Weight (kg) 20 23
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-FT-CF-C-4-300-BU (-); PV-FT-CM-C-4-300-RD (+), Helios H4 4mm² )
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
Specication
Description
BG series three phase inverter is a new generation of PV string
inverters which has been developed by INVT for residential and
commercial customers.This series adopts the latest technologies
and combination of T Topology three level topology with SVPWM.
This series also has many outstanding advantages such as
compact size, light weight, easy installation and maintenance, and
most of all, competitive prices.
It also provides exible system conguration and monitoring
solutions for household and commercial systems.
Features
• The core technologies are from Germany.
• Optimized software for the power grid
with much wider adaptability.
• Global integrated monitoring and
management system, monitoring APP is
availalbe for both Android and iPhone iOS
system.
• Much wider operating voltage range,
lower starting voltage and higher
conversion efciency.
• Designed with latest thermal
simulation technology for a longer
service life.
iMars BG Series
Three phase Grid-tied Solar inverters for US
BG4KTR-US
BG5KTR-US
BG6KTR-US
21 22
iMars Series Grid-tied Solar Inverter Catalog
BG7KTR-US BG9KTR-US BG10KTR-US
Input (DC)
Max. DC voltage (V) 1000
Starting Voltage (V) 200
Min. Operation Voltage (V) 180
MPPT Operating Voltage Range
(V) / Rated Voltage (V) 180 - 800/610V
Rated power voltage range (V) 220 - 800 240 - 800
Number of MPPT /
String Per MPPT 2/3
Max. DC Power (W) 7300 9400 10500
Max. DC Current (A) Per MPPT x
Number Of MPPT 19 x 2 21 x 2 23 x 2
DC switch Integrated
Output (AC)
Rated power (W) 7000 9000 10000
Max AC Current (A) 20 25 28
Rated AC Voltage 3/PE, 220V/127V
Rated Grid frequency 60Hz (57~61.5Hz)
Power factor -0.8~+0.8 (Adjustable)
THD < 3% (at rated power)
AC connection Three-phase (L1, L2, L3, PE) or (L1, L2, L3, N, PE)
System
Cooling method Smart Cooling method
Max efciency 98.20% 98.30% 98.30%
Euro-efciency 97.60% 97.80% 97.80%
MPPT efciency 99.9%
Protection IP65
Self-consumption (at night) <0.5W
Topology Transformerless
Operating temperature range -25℃～+60℃ (derate after 45℃)
Relative humidity <50dB
Protection DC isolation monitoring, DC monitoring, grounding fault monitoring, grid monitoring,
island protection, overvoltage and short circuit protection, etc.
Display and communication
Display 3.5inches LCD display, support backlit display
System language English, Chinese, German, Dutch
Communication interfaces: RS485 (Standard), Ethernet, WiFi (Optional)
Mechanical parameters
Dimension (H x W x D mm) 610x480x204
Weight (kg) 38
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-FT-CF-C-4-300-BU (-); PV-FT-CM-C-4-300-RD (+), Helios H4 4mm² )
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
Specication
iMars BG Series
Three phase Grid-tied Solar inverters for US
BG7KTR-US
BG9KTR-US
BG10KTR-US
Features
• Dual MPPTs work independently and allow
unbalanced input power. One MPPT maximum
input is up to 60% of Max.DC power.
• High efciency and stable performance at entire
input voltage and output power range.
• Max efciency is up to 98.3%.
• Wide input voltage range gives more possibilities
for accepting different string conguration and
different Topology of PV modules.
• Bus capacitors consist of advanced lm
capacitors, designed with the latest thermal
simulation technology for longer lifespan.
Description
iMars BG series three-phase grid-tied solar inverters adopt
the latest technologies combination of T Topology three level
topology and SVPWM, provide exible system conguration
and monitoring solutions for household, commercial and
power plant systems.
• Integrated intelligent DC combiner and surge protection
improve system exibility and lower the cost.
• 5V 200mA auxiliary DC power interface is optional for
system expansion.
• AC output power is adjustable between 1-100%.
• Reactive power control and Power factor adjustable: 0.8
leading ~ 0.8 lagging.
• RS485, Ethernet, WiFi, GPRS Communication modes
are optional for realizing multiple monitoring solutions
via local or internet by PC, smart phone, etc.
23 24
iMars Series Grid-tied Solar Inverter Catalog
BG12KTR-US BG15KTR-US BG17KTR-US
Input (DC)
Max. DC voltage (V) 1000
Starting Voltage (V) 200
Min. Operation Voltage (V) 280
MPPT Operating Voltage Range (V)
/ Rated Voltage (V) 280 - 800 / 610V
Rated power voltage range (V) 320 - 800 320 - 800 320 - 800
Number of MPPT /
String Per MPPT 2/4
Max. DC Power (W) 12400 15400 17400
Max. DC Current (A) Per MPPT x
Number Of MPPT 25 x 2 30 x 2 33 x 2
DC switch Integrated
Output (AC)
Rated power (W) 12000 15000 17000
Max AC Current (A) 34 42 48
Rated AC Voltage 3/PE, 220V/127V
Rated Grid frequency 60Hz (57~61.5Hz)
Power factor -0.8~+0.8 (adjustable)
THD < 3% (at rated power)
AC connection Three-phase (L1, L2, L3, PE) or (L1, L2, L3, N, PE)
System
Cooling method Smart Cooling method
Max efciency 98.30% 98.30% 98.40%
Euro-efciency 97.80% 97.80% 98.00%
MPPT efciency 99.9%
Degree of protection IP65
Self-consumption (at night) <1W
Topology Transformerless
Operating temperature range -25℃～+60℃ (derate after 45℃)
Relative humidity <50dB
Protection DC isolation monitoring, DC monitoring, grounding fault monitoring, grid monitoring,
island protection, overvoltage and short circuit protection, etc.
Display and communication
Display 3.5 inches LCD display, support backlit display
System language English, Chinese, German, Dutch
Communication interfaces: RS485 (Standard), Ethernet, WiFi (Optional)
Mechanical parameters
Dimension (H x W x D mm) 660x525x220
Weight (kg) 52
Installation Wall mounting
Others
DC terminal BC03A, BC03B ( PV-FT-CF-C-4-300-BU (-); PV-FT-CM-C-4-300-RD (+), Helios H4 4mm² )
Factory warranty (years) 5 (standard) / 10, 15, 20 (optional)
Specication
iMars BG Series
Three phase Grid-tied Solar inverters for US
BG12KTR-US
BG15KTR-US
BG17KTR-US
Description
iMars BG series three-phase grid-tied solar inverters adopt
the latest technologies combination of T Topology three level
topology and SVPWM, provide exible system conguration
and monitoring solutions for household, commercial and
power plant systems.
Features
• Dual MPPTs work independently and allow
unbalanced input power. One MPPT maximum
input is up to 60% of Max.DC power.
• High efciency and stable performance at
entire input voltage and output power range.
• Max efciency is up to 98.6%.
• Wide input voltage range gives more
possibilities for accepting different string
conguration and different Topology of PV
modules.
• Bus capacitors consist of advanced lm
capacitors, designed with the latest thermal
simulation technology for longer lifespan.
• Integrated intelligent DC combiner and surge protection
improve system’s exibility and lower the cost.
• 5V 200mA auxiliary DC power interface is optional for
system expansion.
• AC output power is adjustable between 1-100%.
• Reactive power control and Power factor adjustable: 0.8
leading ~ 0.8 lagging.
• RS485, Ethernet, WiFi, GPRS Communication modes
are optional for realizing multiple monitoring solutions via
local or internet by PC, smart phone, etc.
25 26
iMars Series Grid-tied Solar Inverter Catalog
BD3K6TL BD5KTL BD3K6TL-TD BD5KTL-TD
DC INPUT (PV)
Max. DC Input power (W) 5200 6600 5200 6600
Max. DC voltage (W) 5200
Nominal DC voltage (V) 380
Start-up voltage / Minimum working
voltage (V) 150V/100
MPP voltage range 120V~450
Max. Input Current 15A
Number of MPPT / String per MPPT 2/2
AC OUTPUT 1 (GRID)
Rated power (W) 3680 4600 3680 4600
Rated voltage 208/220/230/240V (Single-phase)
Rated frequency 50Hz/60Hz
Voltage range 180V~270 VAC
Frequency range 45~55Hz/55~65Hz
Rated current 16A 22A 16A 22A
Power factor ≥0.99 (at rated power)
THDI ≤3% ( at rated power)
Max eiffciency 97.20% 97.70% 97.20% 97.70%
Euro- eiffciency 96.50% 97.00% 96.50% 97.00%
AC OUTPUT 2 (LOAD)
Rated power (W) 3000
Rated voltage (V) 208/220/230/240V (±2%)
Rated frequency 50Hz/60Hz (±0.2%)
BATTERY
Rated voltage 48V 120V
Voltage range 43-58V 108-138V
Topology of battery Lithium battery or Lead-acid battery
Max. charging current ≤65A ≤20A
Max. discharging current ≤65A ≤20A
Max eiffciency 94% 95%
OTHERS
Operating temperature range -25℃ to +40℃
Cooling method topology Fan
Degree of protection IP 20/< 1000m;
Humidity 0~95%, Non-condensing
Noise < 45dB
Protection DC insulation monitoring, DC over current protection, Grounding fault monitoring,
Overheating protection, Electronic Protection, Overvoltage and short circuit protection etc.
Display LCD
LED / Button Integrated
Communication interfaces: RS485 (standard) Wi (optional), Ethernet (optional), CAN-BUS (Internal Communication), USB, Genset Port
Dimension (H x W x D mm) 500x430x190
Weight (kg) 25
Installation Moving roller / Wall-mount
Certication VDE-AR-N4105, AS4777/3100, G83/2
Warranty (Years) 1 (standard) / 3 (optional)
Specication
Description
BD series hybrid inverter Series is a new generation of photovoltaic
storage proudcts which were developed by INVT based on the
intelligent and free maintenance concept. This series integrates
charge, energy storageand photovoltaic inverter inside with
multifunctional and integrated BMS (battery managemet system).
It can automatically detect the state of grid and connect to it
smoothly. This series is the best solution for the demand of peak
shaving and can help consumers to maximize self-consumption of
PV system.
Features
• Support moving roller Topology and wall
mounting Topology installation, which largely
saves the space and can move exibly, suitable
for various occasions;
• Professional BMS (battery management system),
compatible with lead-acid battery and lithium
battery;
• Available for setting the charging current of
battery according to various battery Topologys;
• Combination of on-grid and off-grid function,
UPS and backup all-in-one function;
• User-friendly HMI, colorful LCD;
• Equipped with a variety of communication
options: RS485 (standard), USB (standard),
Ethernet (standard), Wi (optional), diesel genset
communication interface (optional);
• With Zero Export Function.
Hybrid Inverter
BD3K6TL
BD5KTL
BD3K6TL-TD
BD5KTL-TD
27 28
iMars Series Grid-tied Solar Inverter Catalog
1024E 1524E 2024E 3024E
Line Mode Specications
AC Input Voltage 220/230 Vac
AC voltage range 155Vac~272 Vac ±2%
Frequency 50Hz/ 60Hz (Auto detection)
Frequency Range 47+0.3Hz ~ 55+0.3Hz for 50Hz; 57+0.3Hz ~ 65+0.3Hz for 60Hz
Over-Load /Short Protection Circuit breaker
Efciency >95%
Transfer Time 10ms (typical)
Max Bypass Overload Current 30A
Invert Mode
Output Voltage Waveform Sine wave
Rated Output Power (VA) 1000 1500 2000 3000
Rated Output Power (W) 1000 1500 2000 3000
Power factor 1.0
Output Voltage (V) 230Vac
Output Voltage Regulation ±10%
Output Frequency (Hz) 50Hz ± 0.3Hz/60Hz ± 0.3Hz
Efciency >80%
Over-Load Protection (110%<load<125%) ±10%: Fault (shutdown output) after 15 minutes; (125%<load<150%) ±10%: Fault (shutdown output)
after 60s; Load>150% ±10%: Fault (shutdown output) after 20s
Surge Rating (10s) 3000VA 4500VA 6000VA 11000VA
Capable of starting electric motor 1 HP 2HP
Output Short-Circuit Protection Current limit (Fault after 10s)
Bypass Breaker Size 10A 30A
Nominal DC Input Voltage/ Min DC
start voltage 24V /22V
DC voltage range 20.0Vdc~32Vdc , ± 0.6Vdc regulation（Low alarm:21V; Shut-down: 20V; High fault: 32V;High recovery:31V）
Power saver Load ≦25W (Enabled on “P/S auto” setting of Remote control)
AC OUTPUT 2 (LOAD)
Charge Current 20A 25A 35A 50A
Charge Current Regulation ± 5Adc
Battery initial voltage 20 –31.4Vdc
Charger Short Circuit Protection Circuit breaker
Breaker Size 30A
Over Charge Protection Bat. V ≥ 31.4Vdc, beeps 0.5s every 1s & fault after 60s
Charger(solar)
MPPT Voltage range 15-90V
Max PV open-circuit voltage 90V
Rated Charge Current 50A
efciency 98%
Overload protection(DC load) 2.0xInom>20s, 1.5xInom temperature controlled
Battery temperature sensor BTS-optional remote battery temperature sensor for increased charging precision
Standby Power Consumption 5W
General Specications
Safety Certication/ EMC
Classication CE(EN62040-1), EN62040-2, C2
Protection class IP20
Operating temperature range -15°C to 40°C (-25ºC ～60ºC for storage)
Operation humidity 5% to 95%
Audible Noise 60dB max
Communication RS-485/RS-232/Remote control
Size 381mm x 217mm x 179mm 461mm x 217mm x 179mm
Specication
Description
iMars BN series single-phase off-grid inverter adopt the
combination technology of integrating traditional isolated UPS
function and solar inverter . to provide the exible and reliable
system solution for residential or industrial uninterruptible power
requirements.
Features
• Protection class IP20;
• Isolated internal transformer design to ensure the
stability and reliability;
• Capable of providing the continuous power to
linear load or non-linear load of lamp, computer,
fridge, air-conditioner and the industrial devices;
• MPPT solar charging technology;
• Electricity Quick charging function;
• Multiple charging voltage grades to adapt to
more battery Topologys, to maximize battery
performance;
• over-load and short-circuit protection;
• multiple working mode are optional for different working priority
(Grid / battery/saving mode);
• User-friendly multiple communication module(RS485, RS232,
Ethernet, GPRS, WIFI ) are optional to be compatible with more
monitoring device : mobile ,computer, internet/remote operation;
• Support 12/24V battery, 120V/230V (50/60Hz) output .
iMars BN Series
single-phase off-grid inverter
BN1024E
BN1524E
BN2024E
BN3024E
29 30
iMars Series Grid-tied Solar Inverter Catalog
PV Module Meter
AC Power Switch BoxPV Inverter Grid
Specication
Intelligent Anti Feedback Solutions
Description
JTPV series smart photovoltaic combiner is designed
for multi-string inputs photovoltaic generation system.
JTPV integrates functions as string combining, detection,
monitoring and protection, and ensures secure, reliable
and simple connection between multi-string PV inputs and
inverter. This series can be attached to iMars inverter as a
unit, or installed separately.
In some applications, Power Grid Corp normally requires the PV system to be equipped with anti feedback function. That means that surplus
generated electricity is not allowed to be injected into the grid via a low voltage distribution circuit and must be used for local consumption.
With intelligent anti feedback function, the system sends a control signal to the inverter and adjusts the power output of the grid inverter to attain
the objective of providing max power to the local load and no feedback to the grid.
Features
• Two outputs, directly connect to two
MPPTs of inverter
• Integrating DC lightening protection
module and fuse, upgrade input
protection to inverter
• Precise monitoring string current,
voltage and operation status
• Extended Analog Input port,
supporting to connect environment
monitoring instrument
• Intelligent anti feedback function is
optional.
• Acting to smart grid dispatching
signals
• Setting output power and
time interval via WinExpert and
PhoneExpert
• An external 12V 100mA auxiliary
power connector providing availability
to system expansion
• RS485 communication interface, fully
compatible with photovoltaic power
generation system of internal and
external communication
Smart PV Combiner
Fuse
Output A
Output B
3~5 Strings
Input
Fuse
3~5 Strings
Input
Configuration
Input
6~10
Strings
Current
Detection
2 Outputs
Voltage
Detection
Communication
with Inverter
Communication
with PC
Environment
Data Detection
SPD
Detection
DSP Controller
JTPV-CB6
JTPV-CB8
JTPV-CB10
JTPV-CB6 JTPV-CB8 JTPV-CB10
Electrical Parameter
Number of Max. DC Input strings 6 8 10
Max. DC input Voltage (V) 1000
Max. DC Output Current(A)
× Output strings 30x2 40x2 50x2
Model of Input Connection M16
Model of Output Connection M16
Detection Function Input String Current; Output Voltage; SPD State
Communication Interface RS485
Communicating Protocol MODBUS-RTU
Power Supply Internal Power Supply
Measuring Accuracy 2% rated (Rated current Per string 10A)
Extended Analog Input 5 inputs of 4~20mA current signal
Environmental Parameter
Degree of protection IP65
Operation Temperature -25 ℃~+70 ℃
Relative humidity 99%, no condensation
Operating Altitude 4000m
Protection Parameter
Fuse 15A
Number of Fuse 6 8 10
SPD Class II
Lightening Protection for
Communication Integrated
Lightening Protection for
Communication Port of PC Software None
Mechanical Parameter
Dimension (H x W x D mm) 380 x 280 x 140
Weight (kg) <10
Installation M5 screw
31 32
iMars Series Grid-tied Solar Inverter Catalog
Solar Pumping Inverter Introduction:
BPD series solar water-pump inverter adopts the dynamic
VI MPPT technology and motor control technology, and is
suitable for AC water pumps with prompt response, high
efciency and stable performance.
Features
• Support driving single-phase motor and
three-phase 220V motor.
• One pump inverter can be connected with
multiple pumps, support vector control.
• Protection class IP65 and fanless system
design, with convenient installation,
maintenance free.
• Bypass function optional, support 220V Utility
Power input and diesel engine input; optional
water level detection module and diesel
engine start/stop module.
• Low startup voltage and wide input voltage
range give more possibilities for accepting multi
PV strings conguration and different Topology
of PV module, save PV module cost.
• Digital intelligent control can exibly adjust and
set the pump speed range. In addition to the
soft start function it can also provide lightning
protection, overvoltage, over current, overload
protection function etc.
Solar Pumping Inverter
BPD0K7TN
BPD1K5TN
BPD2K2TN
BPD0K7TNAC
BPD1K5TNAC
BPD2K2TNAC
BPD0K7TN BPD1K5TN BPD2K2TN BPD0K7TNAC BPD1K5TNAC BPD2K2TNAC
Input (DC)
Max. DC voltage (V) 450 450 450 450
Starting voltage (V) 80 100 80 100
Minimum working voltage (V) 60 80 60 80
MPPT Operating Voltage
Range (V) 80-400 100-400 80-400 100-400
Number of MPPT 1
Max. DC Current (A) 9 12 12 9 12 12
Bypass input (AC)
Input voltage (VAC) N/A 220/230/240(1PH)-15%+10%
Input frequency (Hz) N/A 47-63
Input connect method (AC) N/A 1P2L
Output (AC)
Rated power (W) 750 1500 2200 750 1500 2200
Rated current (A)
5.1（1PH）10.2（1PH）14（1PH）5.1（1PH）10.2（1PH）14（1PH）
4.2（3PH）7.5（3PH）10（3PH）4.2（3PH）7.5（3PH）10（3PH）
Output connect method 1P2L / 3P3L
Output frequency (Hz) 1-400
Performance
Control mode Motor control technology
Topology of motor asynchronous machine
Other Parameter
Dimension (H x W x D mm) 280×300×130
Weight (kg) ≤10.5
Degree of protection IP65
Cooling method Natural Cooling method
HMI LED screen extend (not support LCD screen)
communication
external communication RS485/3 digital Inputs
Certifications
Certification CE: IEC61800-3 C3
Working environment
Ambient temperature -25℃～60℃ (derate after 45℃)
Working altitude 3000m (more than 2000m derating)
Design life 5 years (warranty 18 months)
Recommended solar array configuration
250Wp（Open-circuit
voltage 38V±3V）4*1 8*1 11*1 4*1 8*1 11*1
300Wp（Open-circuit
voltage 45V±3V）3*1 6*1 9*1 3*1 6*1 9*1
Specication
33 34
iMars Series Grid-tied Solar Inverter Catalog
Data Server
InterNet
Date WebBox
PhoneExpert App InfoExpert
WinExpertPhoneExpert for IOS/Android
Router
PV Inverter PV Inverter
Run
Alarm Fault
Run
Alarm Fault
PV Inverter
RS485
WIFI200/ENET200
PV Inverter PV Inverter
WIFI200/ENET200
WIFI
Wireless
Router
Run
Alarm Fault
WIFI WIFI
Run
Alarm Fault
Run
Alarm Fault
WIFI200
WIFI
Environmental Monitor
NET
PV Inverter
Run
Alarm Fault
GPRS200
RS485
Date WebBox
PV InverterPV Inverter
Run
Alarm Fault
Run
Alarm Fault
RS485
Environmental Monitor
Monitoring Solution Remote Monitoring Platform iMars InfoExpert
Features
• Able to communicate with the WEB browser version of the iMars WinExpert remote monitoring platform server.
• Manage user information and power station equipment
• Able to view the status of the operation of power plants, power plant equipment fault information, realtime power and investment income and
other related data; and have the report function.
• Visualizde interface, display the power station and its equipment data, running state in chart.
• Able to query inverter version information, update online, collect user feedback, adjust output power and other functions.
• A neutral version of the login interface is available to our important partners.
We can provide our customers with a flexible internet monitoring solution which is suitable for residential, commercial rooftop systems and PV
power plants. System monitoring device is user-friendly and reliable. It can transmit Real-time data to our server via internet. Our customers can
login monitoring website or use smart phone Apps to check power plant info
Description
IMars InfoExpert photovoltaic power system remote monitoring platform is a new generation of photovoltaic networking monitoring platform
developed by INVT, It includes power monitoring, power management, fault processing equipment, power generating capacity and investment
income data analysis functions, provides professional power management and intelligent operation and maintenance scheme for distributors,
installers and end users.
35 36
iMars Series Grid-tied Solar Inverter Catalog
Specication
Description
Data Webbox is a data collection equipment which connects
multiple solar inverters to server. Users and manufacturers
can effectively monitor the power generation and operation
status by collect the data of solar inverters and weather
station. Meanwhile, it also helps manufacturer maintain the
equipments through remote data acquisition.
Features
• Support up to 10 inverters of data acquisition;
• Support USB for data storage;
• Can connect combiner, environment monitor,
transformers and other equipment;
• Plug and play, easy to use.
• Collect solar inverters operation data and environmental monitoring equipment data, combiner box data, dry Topology transformer equipment
data etc.
• Two RS-485 port for data collection, one for inverter data collection, another for weather station data collection;
• Support Ethernet, GPRS and WiFi to upload data to sever;
• Flexibly congure the required monitoring data by Data Collection Web Page or PV Monitoring Site;
• Support remote maintenance and upgration. Users can grasp the dynamic real time operation status of the power plant at any time through the
mobile phone APP or monitoring website.
Data Webbox
In case there is any fault, It can inform the users by SMS, email, WeChat or App, which reduces the power plant operation and maintenance
work. Ethernet communication of the data collector adopts the international universal networking protocol which is an important interface to
access the cloud platform.
• Can be connected to the cloud platform, and relevant
monitoring sites, supporting mobile phone APP
Functions:
Parameter
Max.Supported Device 10
Inverter Interface RS-485
Remote Communication interfaces: GPRS, Ethernet, WiFi
Serial Communication Distance < 1km
Serial Communication Bord Rate 1200-38400bps
Radio Frequency 800/900/1800/1900MHz
The Data Sampling Interval 5 minutes by default, congurable
Data Storage RS485
Parameter Setting Method Web page or site monitoring
The Firmware Update Mode Serial port, Ethernet
Data Access Mode Serial port, remote server
Status Display 5 LED
Electrical Features
Input Voltage DC 5V
Static Power < 2w
The Maximum Instantaneous Power < 3w
Storage Temperature -40 ~ 85℃
Operating temperature range -10 ~ 65℃
Working Humidity 10%~90% Relative humidity, no condensation
Storage Humidity < 40%
Degree of protection IP21
Physical Parameters
Size 150mm x 80mm x 26mm
Weight 1.1KG
Installation Class II
37 38
iMars Series Grid-tied Solar Inverter Catalog

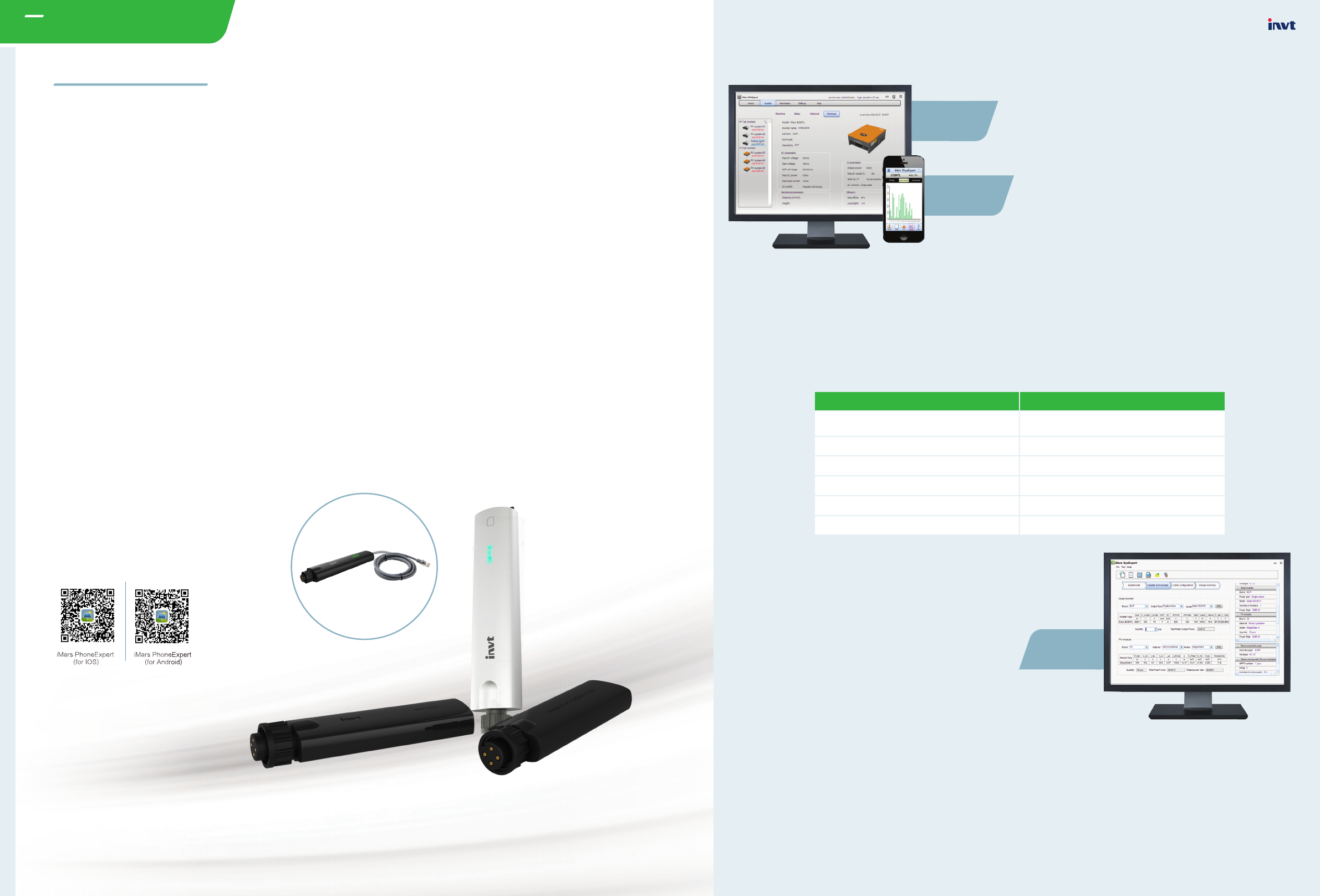

iMars
SysExpert
Introduction
WinExpert and PhoneExpert are designed for
monitoring grid-tied solar system. The user can use
the PC or handheld terminal equipment to connect
iMars inverter. iMars WinExpert and PhoneExpert
can display and record the real-time parameters,
status, historical data and alert information of the
overall solar system and the single iMars inverter.
Introduction
iMars SysExpert, an easy-to-use professional
grid-tied PV system design software, is designed
specically for iMars series grid-tied solar inverters.
After three steps of editing system information,
component selection and system conguration, a
single-phase or three-phase photovoltaic grid-
tied power system can be designed to produce a
professional design report within a few minutes.
Features
Multi-level User Management
-
• Administrator authority: change software settings
and modify system conguration.
• Guest authority: browse software settings and
system parameters.
User-friendly Interface
-
• Simple menu bar and browser window;
• Can be zoomed out to the sticker window;
Powerful Analysis Capabilities
-
• Power output per day, month, year and total;
• CO2 emission reduction, power generation prot;
Features
• User-friendly Interface;
• Three-step design process;
• Professional design report;
• Constantly updated database support;
• Powerful system of mathematical analysis model;
Software Function
Product Description
iMars Wi200/ENET200 is an external wireless / wired
communication device, which connects with solar inverter
via RS485 interface to monitor inverter’s operation
status and history. It is very easy to view the data with
monitoring software (iMars WinExpert for PC or iMars
PhoneExpert for smart phone).
Specication
• Serial Port:RS485 Waterproof Plug
• WiFi 200 Transmission Distance:30m(no barrier)
• ENET 200 Transmission Distance:100m
• Wireless Protocol Standard:802.11 n/g/b
• Operation Temperature: 0OC~+40OC
• Working Humidity: 10% - 90% RH (no condensation)
• Storage Temperature: -40OC~+70OC
• Store Humidity: 5% - 90% RH ( no condensation)
• Size: 139mmx31.7mmx21mm
Monitoring Software
Solar System
Design Software
iMars Wifi200 / ENET200 / GPRS200
Communications Server
iMars
WinExpert
(for Windows)
iMars
PhoneExpert
iMars WinExpert iMars PhoneExpert
• The system generating capacity, economic
benets and environmental benets
• The system generating capacity, economic
benets and environmental benets
• View and print the system information • View the inverters real-time status
• View the inverters real-time status • Add and remove inverters
• Add and remove inverters • Communication management
• Communication management
• E-mail system
Monitoring Modules
39 40
iMars Series Grid-tied Solar Inverter Catalog
Brazil Region
City: Limeira
Add: Via Pref. Jurandyr Paixão, 2400 - Galpão
255/265 - Jd,Campo Belo - Limeira,
SP | BRASIL
Tel:
0055 019 3443-8228
Email:
Solar@invt.com.cn
India Region
City: Mumbai
Add: 306, Kane Plaza, Link Road,
Malad (W), Mumbai.
Tel: 0091 224 266 2796
Email: Solar@invt.com.cn
Australia Region
City: Sydney
Add: 2702/2 Cunningham Street, Sydney,
NSW 2000.
Tel: 0061 040 650 6055, 0061 027 901 5244
Email: Solar@invt.com.cn
INVT Headquarters
Shenzhen INVT Electric Co., Ltd
City: Shenzhen, China
Add: 4#Bldg, Gaofa Technological Park,
Longjing, Nanshan District, Shenzhen
Service Hotline: 0086 755 86312834
(Sales, Technical Consultation, After-sales)
Tel: 0086 755 86312834
Fax: 0086 755 86312880
Email: Solar@invt.com.cn
Russia Region
City: Saint Petersburg
Add: A-317, Building 76, Line 7,
Vasiliostrovskaya, Saint Petersburg, Russia.
Tel: 0079 032 988 608
Email: fengguodong@invt.com.cn
City: Moscow
Add: Russia,Moscow, Balakavskij prospkt,
Bldg.2.2.
Tel: 0079 653 641 914
Email: Solar@invt.com.cn
Mexico Region
City: Mexico City
Add: Col. Cuauhtemoc, Rio Guadalquivir
#76. Interior 603. Mexico D.F.
Tel: 0052 (1) 442 438 5506
Email: Solar@invt.com.cn
Germany Region
City: Wuerselen
Add: Am Alten Kaninsberg 12
52146 Wuerselen Germany
Tel: 0049 02405 1403821
Email: Solar@invt.com.cn
Thailand Region
City: Bangkok
Add: Sukumvit50, Prakhanong,
KlongToey Bangkok 10260,Thailand
Tel: +66(0)968103664
Email: Solar@invt.com.cn
Poland Region
City: Warsaw
Add: 64, Bukowinska 26c,
Warsaw, Poland
Tel: 0048 501937227
Email: Solar@invt.com.cn
Denmark
Netherlands
Beigium
Turkey
Ukraine Shanghai,
China
Dongguan,
China
Zhongshan,
China
Perth,
Australia
India
Thailand
Queensland,
Australia
Brazil
Greece
ShenZhen,
China
Key informaton needed for maintenance
Model, product serial No.
Fault description
Customer location and contacts
Applications &
Service Network
Acceptance method Contact Service Region Service Time Remark
Web Declaration www.invt-solar.com Global 7*24hour Recommended
Email solar-service@invt.com.cn Global 7*24hour Recommended
41 42
iMars Series Grid-tied Solar Inverter Catalog

Navigation menu
