VIDEO ENTRY SYSTEMS
SYSTEM CATALOGUE
SINCE 1972, CAME HAS BEEN PRODUCING
THE WIDEST RANGE OF OPERATORS
FOR RESIDENTIAL AND INDUSTRIAL
ENTRANCES, PARKING FACILITIES AND
ACCESS CONTROL, INCLUDING THE
DEVELOPMENT OF HOME AUTOMATION
AND BURGLAR ALARM SYSTEMS
AUTOMATING
ENTRANCES
ALARM
CCTV
TUBULAR
MOTORS
HOME AUTOMATION
TEMPERATURE CONTROL
ACCESS
CONTROL
LED
LIGHTING
PARKING FACILITIES
ROAD BARRIERS
AUTOMATIC BOLLARDSVIDEO ENTRY SYSTEMS
With a focus on ongoing innovation, Came boasts significant expertise
in overall home control, in the field of systems for large collective
environments and in managing cities and public spaces, offering
integrated solutions to all regulatory requirements as well as flow and
access monitoring.
THE
DIVISIONS
came.com
1972 - 2015
FOR OVER 40 YEARS
LEADER IN HOME & BUILDING
AUTOMATION
5
INTRODUCTION
PRESENTATION OF THE SYSTEM 6
CAME CONNECT 10
SYSTEM FUNCTIONS 14
SYSTEM FUNCTIONS 14
INTEGRATIONS 20
SYSTEM DEVICES 44
FUTURA IP VIDEO ENTRY SYSTEM 26
THANGRAM IP ENTRY PANEL 27
DCOMBO KEYPAD MODULE 28
ACMR REFID READERS WITH BUILT-IN KEYPAD 29
ETI/MINISER SERVER 30
ETI/SER XIP V2 SERVER 31
EXAMPLES OF INSTALLATION 32
SOLUTIONS FOR SINGLE-FAMILY HOMES 32
SOLUTIONS FOR TWO-FAMILY HOMES 33
MIXED COMMERCIAL AND RESIDENTIAL SOLUTIONS 34
SOLUTIONS FOR LARGE SYSTEMS 35
CODES AND ARTICLES 36
SYSTEM COMPOSITION TABLE 40
6
7
VIDEO ENTRY
SYSTEMS
360-DEGREE IP
8
IP360: the new video entry system that's right for
all installation environments.
Advanced video entry system functions to match
the most modern residential, business, industrial
and service-sector scenarios. Individual homes
or large residential complex: the IP360 system
always provides the perfect answer.
MAXIMUM
FLEXIBILITY
PRESENTATION OF THE SYSTEM
9
NO LIMIT
Maximum freedom for setting up with no technical
or installation limits. The IP360 system surpasses
all the limits of traditional video entry systems,
setting no limits on distance and the number of
different devices that can be connected, the size
of the network and the simultaneous audio/video
calls being made.
All the IP360 system devices can be connected to
existing LAN networks, adding the functionalities of
the digital system without the need for any special
wiring. The system uses Ethernet distribution as
its main communication structure.
The Ethernet network guarantees almost infinite
expansion of the system.
INTEGRATION WITH
LAN NETWORK
PRESENTATION OF THE SYSTEM10
11
CLOUD-ORIENTED
Thanks to the network connection and without
the need for additional devices, the IP360 video
entry system is always connected to the internet.
Via the Came Cloud service, it makes it possible
to remotely provide the user with a series of
advanced features and enables installers to
monitor installed systems, intervening quickly and
safely when necessary.
OPEN SYSTEM
In a rapidly-changing world that constantly
offers new technologies, IP360 fully meets the
growing needs for simplification and integration
between different systems. By using standard
communication protocols, the system opens up
to endless possibilities of application, enabling
the use of Bpt video entry systems within multi-
division systems. This allows the various devices
in the group to communicate with each other
and with third-party systems using a common
language.
12
Came offers a Cloud service that enables you to enjoy
all the functionality of the devices installed, not only in
a room, but also remotely, via a simple, safe and highly
reliable connection.
This innovative technology enables you to monitor the
video entry system at any time, wherever you are, via
the Internet. On your smartphone you can receive audio/
video calls from the entry panel, open the gate or view the
CCTV’s on the system remotely, simply by downloading
the XIP Mobile App from the App Store or Google Play.
All this is thanks to CAME CONNECT.
Whatever the installation environment, from an apartment
to a detached house or a large residential system, from
a small office to a big company, Came Connect enables
you to always be connected to your system.
TECHNOLOGY THAT MANAGES YOUR HOME,
WHEN YOU’RE NOT THERE
13

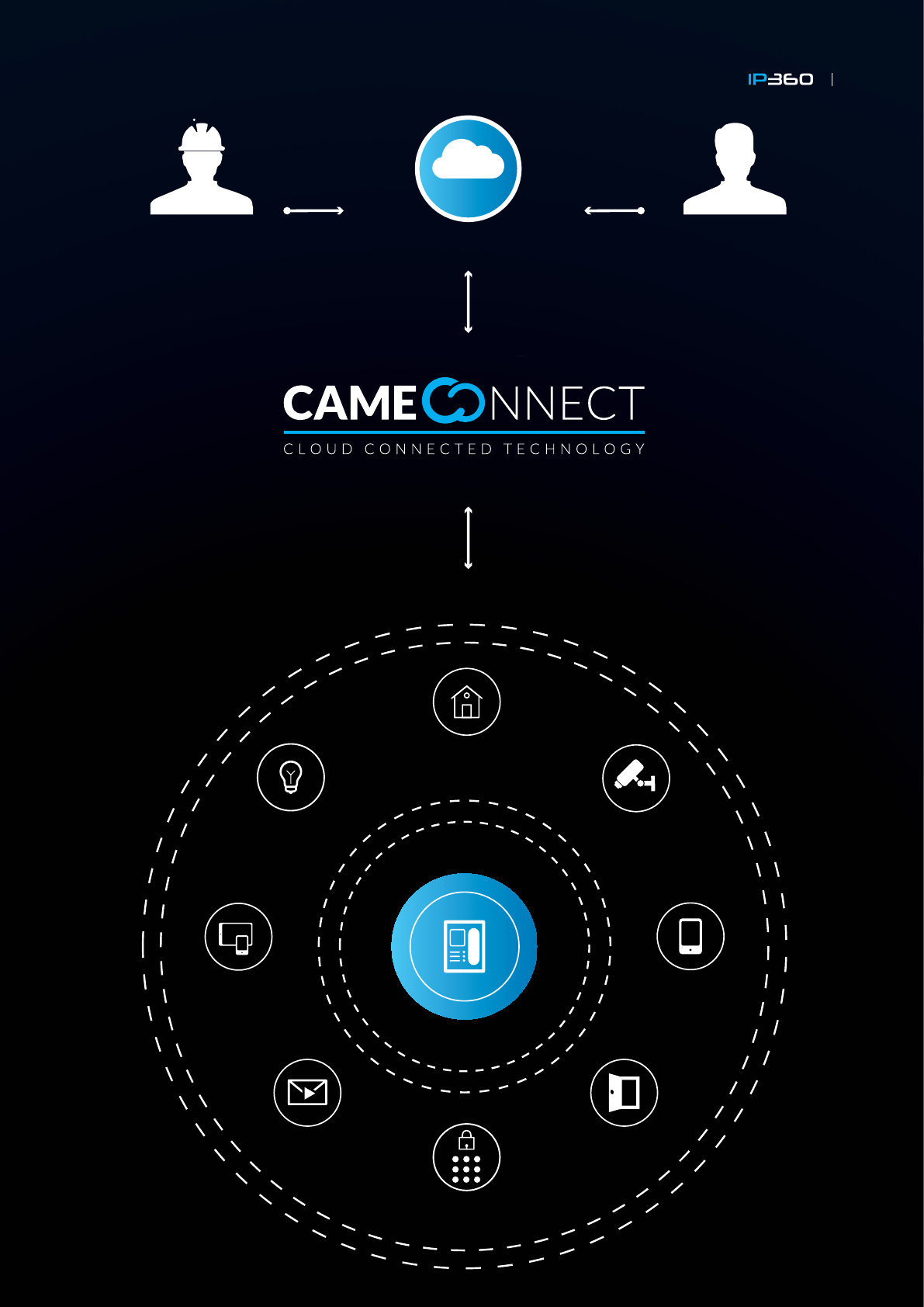

CAME CLOUD
INSTALLER USER
INTEGRATION WITH HOME
AUTOMATION SYSTEM
INTEGRATION WITH
THE CCTV SYSTEM
XIP MOBILE APP
OPENINGS
CONTROL
ACCESS CONTROL
VIDEO VOICEMAIL
VIDEO ENTRY SYSTEM
ON MOBILE DEVICES
LIGHTING CONTROL
14
VIDEO ENTRY SYSTEM ON
MOBILE DEVICES
VIDEO ENTRY SYSTEM
ALWAYS AT YOUR FINGERTIPS
With XIP Mobile, the Bpt App developed for iPhones®,
iPads®, smartphones and Android™ tablets, you
can manage audio/video calls from the IP360 digital
video entry system elements directly from your mobile
device. In addition, with a simple touch you can
activate functions to open the door, turn on stairwell
lighting, turn on the video privacy function, all achieved
through programming the auxiliary commands.
SYSTEM FUNCTIONS
15
VIDEO ENTRY SYSTEMS
ON PC
VIDEO ENTRY SYSTEM
AT THE CLICK OF A MOUSE
The Bpt video entry system can be managed and
enjoyed from your home or office PC using the special
"Soft Receiver" software, available on USB flash drive
or CD.
Android is a trademark of Google Inc.
Google Play is a trademark of Google Inc.
iPhone® and iPad® are trademarks of
Apple Inc., registered in the U.S. and other
countries.
16
ACCESS
CONTROL
SECURITY IS NOT OPTIONAL

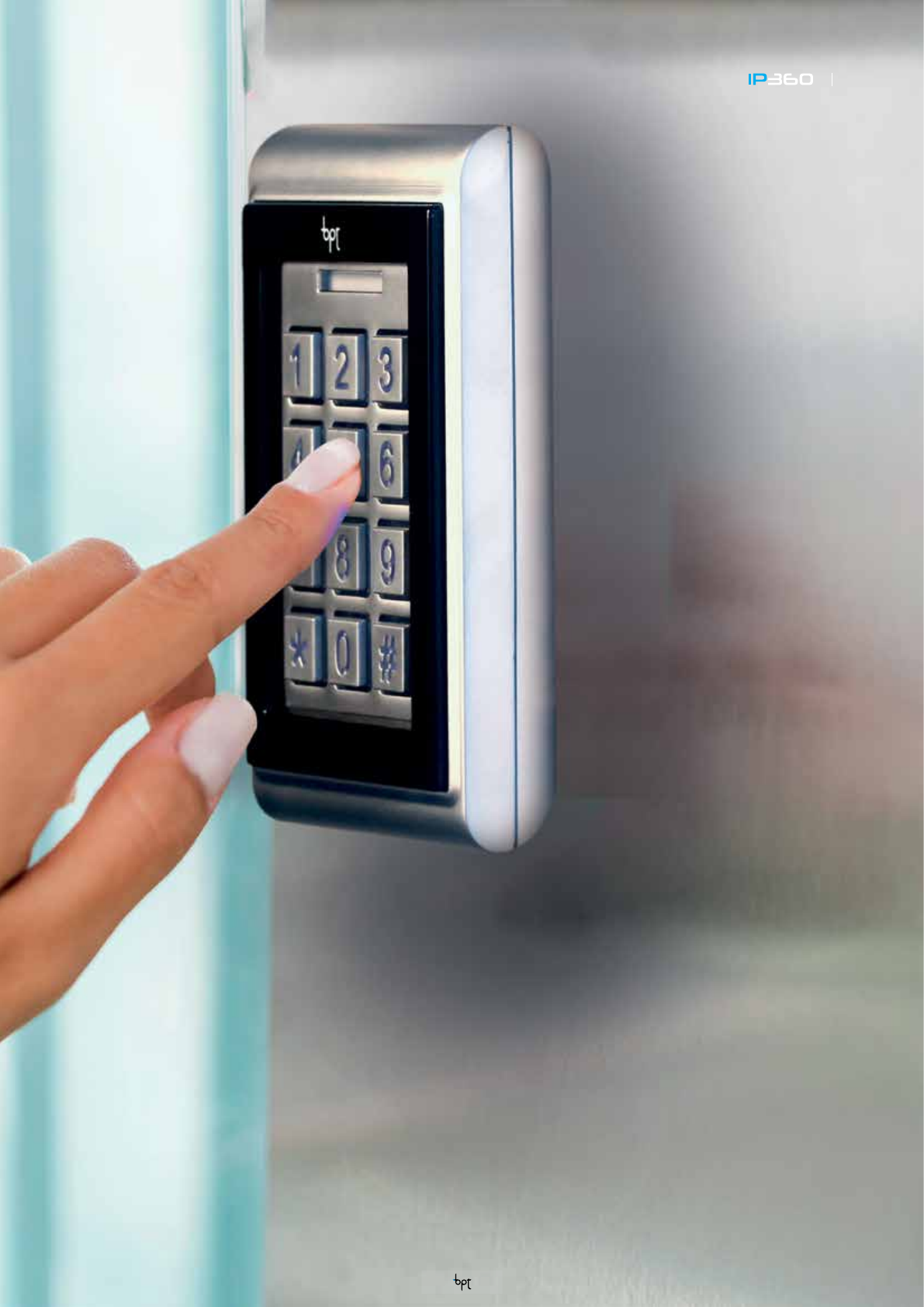

Access control governs the entrances to the
structure through the doors controlled by the entry
panels. No further devices need to be installed as
far as the video entry system is concerned. Setting
up can be basic, via simple manual programming,
or advanced, by using the software on your PC.
Through the set-up webpages you can create
new and more advanced access control functions
linked to rights assigned to each user group.
SYSTEM FUNCTIONS
17
18
DEVICES UPDATABLE
FROM PC

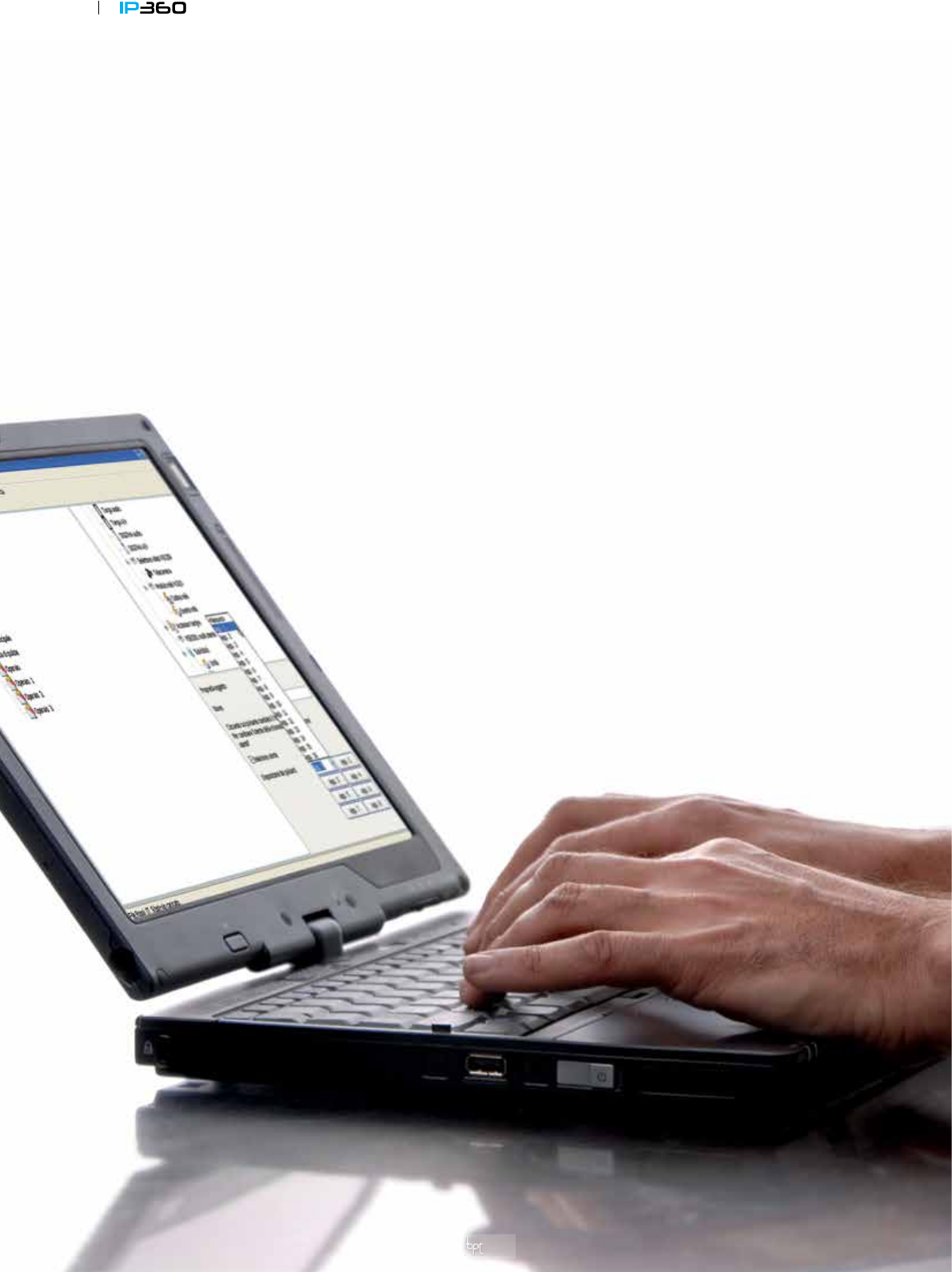

Bpt supplies PCS/XIP software for PC’s, with which it
is possible to programme the system easily using an
intuitive graphics interface.
With our software, reconfiguring devices or updating
user names can take place without any need for
direct intervention on the system.
SYSTEM FUNCTIONS
20 INTEGRATIONS
21
The IP360 system enables users to view, the images
coming in from the entry panel and from both
traditional and IP video cameras connected to the
system, from any internal receiver or from any porter's
desk. Analogue cameras can be connected to the
system power supplies or directly to the gateways
using the relevant selector switches.
WITH THE CCTV SYSTEM
IP360 offers many functions integrating the 2
systems:
·
The IP video cameras can be displayed on the
FUTURA IP terminals
· The video streams coming from the IP video
cameras can be recorded on the FUTURA IP
terminals (even following alarms)*
· Motions detected by the IP video cameras can
cause video entry system actions such as turning
on lights or triggering video calls to smartphones
and tablets.
WITH SIP DEVICES
The IP360 system can be interfaced with third-
party devices using the SIP protocol, such as,
home automation terminals or VoIP telephone
switchboards**, all without using any special
interfaces. In this way it will be possible to receive
a video entry system call and open a gate or a door
from the touch panel without needing to have a
video entry phone in the home. In addition, the
system lets you use SIP telephone interfaces with
analogue or GSM phones. This means you can
always be reached on a landline or your mobile
phone.
* this function will be made available in future software updates.
** for more details on supported models, please contact Came Service.
22
INTEGRATION WITH
CAME’S
HOME AUTOMATION
SYSTEM

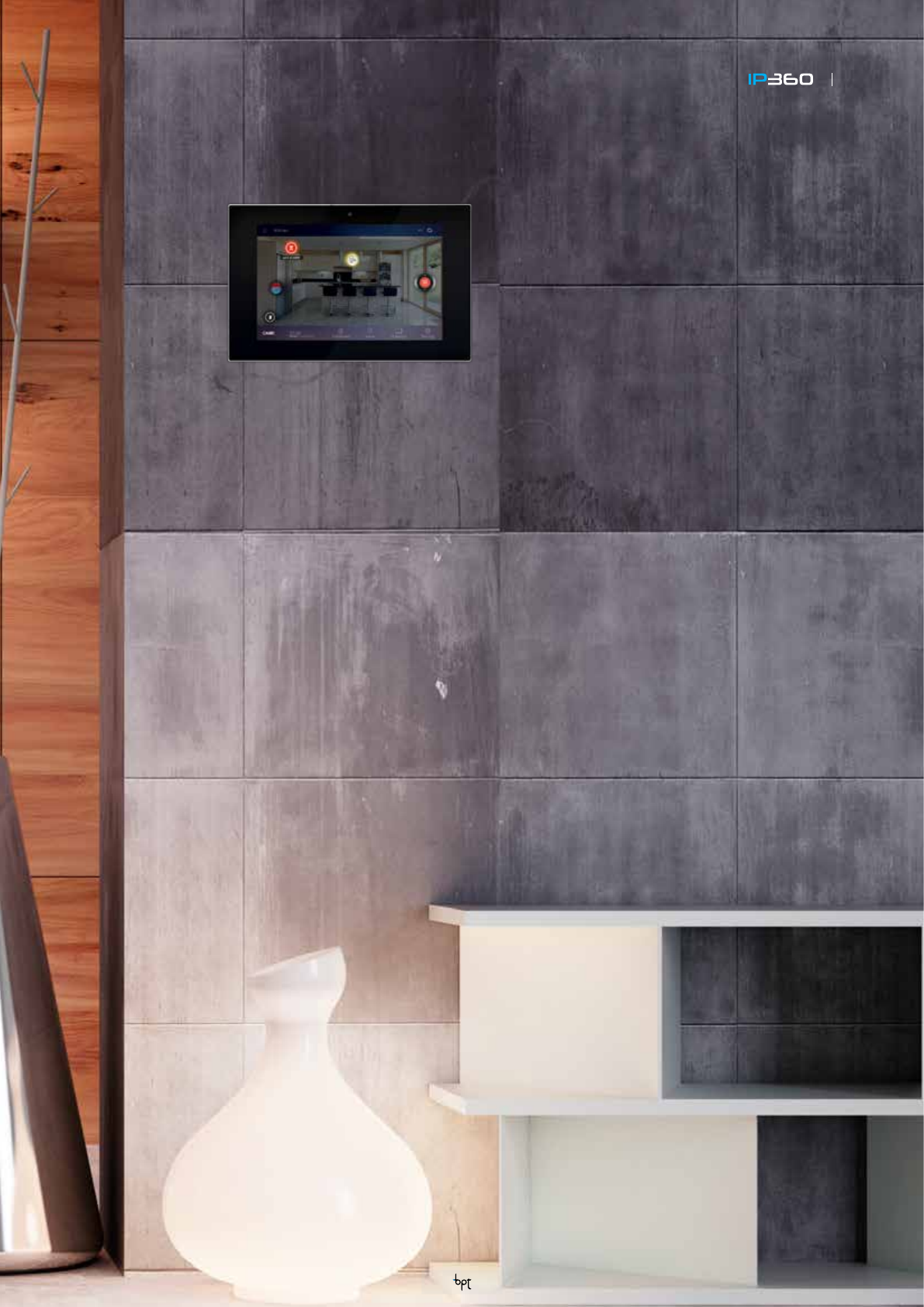

The IP360 system integrates fully and easily
with Came's new home automation system.
Integrating the two systems means installing
additional devices can be avoided. All the video
entry system functions will be managed directly
from the home automation touch screens.
IP360 and Came's home automation together
take video entry systems to new, even more
advance levels.
23
24
SYSTEM
DEVICES
SYSTEM DEVICES

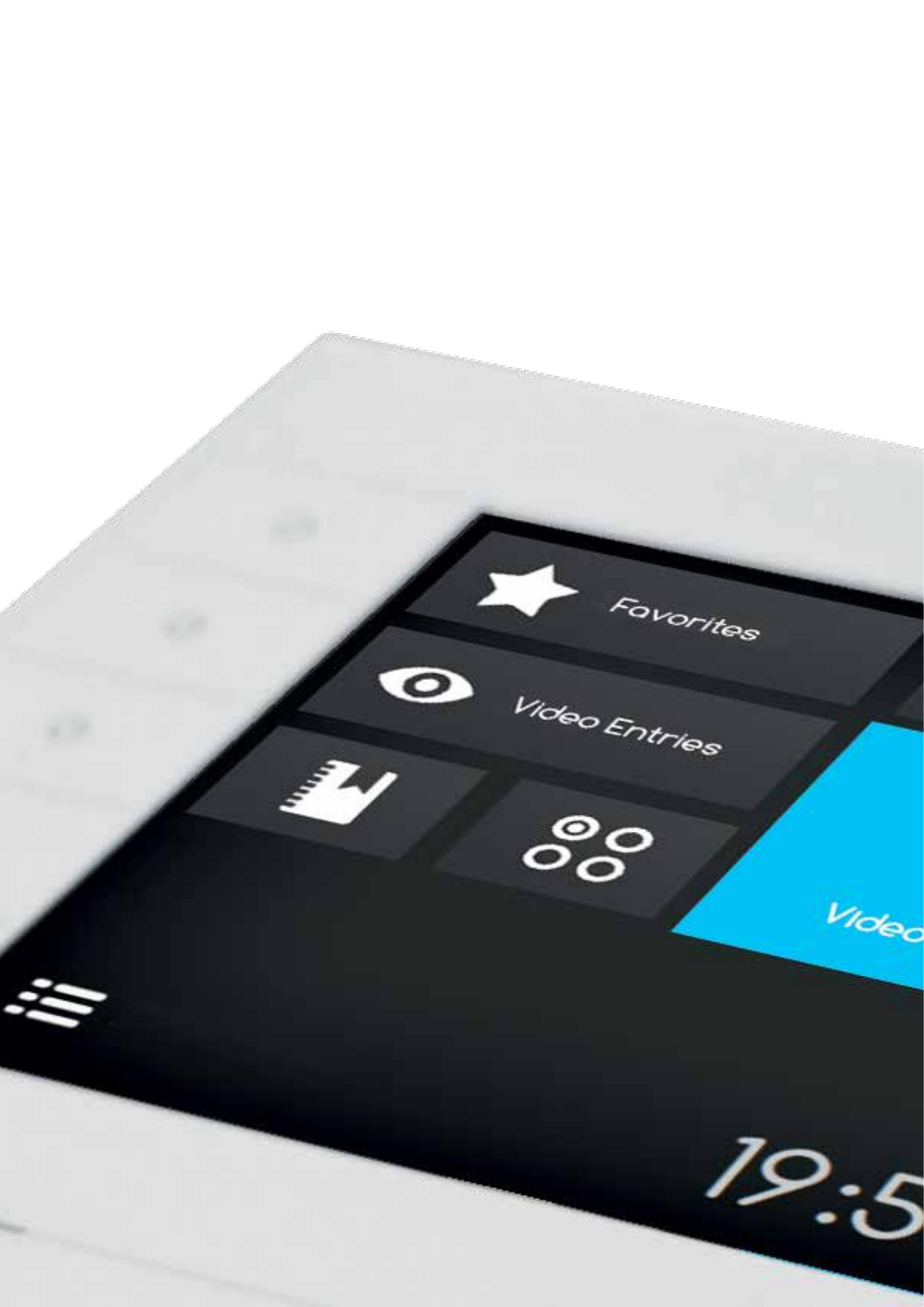

The video receiver with user-friendly 7" display
that's perfect in any room thanks to its simple but
sophisticated design.
FUTURA IP
POWER SUPPLY
POE OR LOCAL
ADVANCED, MULTILINGUAL
USER INTERFACE
VIDEO VOICEMAIL WITH OPTION TO
RECORD CALLS AUTOMATICALLY OR
ON DEMAND
UNLIMITED INTERCOM CALLS
TO OTHER FUTURA IP INTERNAL
RECEIVERS OR TO SMARTPHONES AND
TABLETS
26
DISPLAY OF THE IP VIDEO
CAMERAS PRESENT IN THE
SYSTEM
· SIP protocol
· H.264 video codec, G.711 audio codec
· Built-in webserver for setting up and managing
via browser
· Lift control for integration with lift systems
· Door status feedback
PERFECT VIDEO QUALITY IN ALL
ENVIRONMENTAL CONDITIONS.
COLOUR VIDEO CAMERA WITH VGA
RESOLUTION (640X480), ANGLE OF
VIEW 82° VERTICALLY AND 100°
HORIZONTALLY.
COMPATIBLE WITH ALL THE
EXISTING ACCESSORIES
IN THE THANGRAM RANGE
LED’S WITH PICTOGRAMS FOR
DOOR STATUS,
ACTIVE
COMMUNICATION,
CALL IN
PROGRESS, SYSTEM BUSY
MAXIMUM PROTECTION AGAINST
WATER AND KNOCKS THANKS TO ITS
INCREDIBLE ROBUSTNESS AND IP54
PROTECTION RATING
HIGH-TECH HEART
· SIP, H.264 VIDEO
CODEC, G.711 AUDIO CODEC
· BUILT-IN WEBSERVER.
· 12 V ELECTRIC LOCK OUTPUT
· 2 IN/OUT CONTACTS WITH
FUNCTIONS THAT CAN BE
PROGRAMMED FROM THE
WEBPAGE*
· 1 LOCAL DOOR OPENER CONTACT
· 1 RELAY OUTPUT
BLUE BACKLIGHTING OF BUTTON
PLATES, THAT CAN BE TURNED OFF
OR ADJUSTED FOR BRIGHTNESS
· PoE and local power supply
· Easy to set up via webpages
· Standard SIP video and VoIP protocols
· Recessed or wall-mounted installation
· Brushed chrome metal finish
· Updating firmware from the web
· Thickness of 2 mm (recessed)
· Compatible with Bpt XIP System
· Integration with Came's home automation system
Bpt's first IP entry panel that can be directly connected
within a LAN network. With an innovative design and high
performance, THANGRAM IP is the ultra-thin entry panel
that makes itself noticed for its elegance.
27
THANGRAM IP
METAL FINISH
* this function will be made available in future software updates.
DCOMBO
BACKLIT LCD DISPLAY
WITH TWO LINES (128 X 32
PIXELS)
BUILT-IN RFID READER WITH
MIFARE TECHNOLOGY FOR
READING PROXIMITY KEYS
(BADGES ANDDI BPT TAGS)
ALPHANUMERIC KEYPAD WITH
SOFT TOUCH BUTTONS
The DCOMBO module is an ALL-IN-ONE device from the
Thangram series, able to perform video entry and access
control functions. The module’s internal memory allows
you to view up to 2600 names on the display.
SYSTEM DEVICES28
CAPSENSE TECHNOLOGY
ENABLES OPERATION EVEN
IN THE PRESENCE OF WATER
DROPLETS ON THE SENSITIVE
SURFACE
· Digital call via alphanumeric keypad
· Lock opening connected to the entry panel via numerical
code or proximity key
· Username search via display
29
RFID READERS WITH
BUILT-IN KEYPAD
Vandal-proof version
(ACMR-VR/08)
Plastic version
(ACMR-P/08)
The Bpt access control system is expanded with
the introduction of new RFID readers with built-in
numeric keypad from the ACMR series. Based on
Mifare technology, it allows access control of buildings
by swiping a badge or tag or by entering numeric
codes. You can set different operating modes for each
reader depending on the type of action you want to
accomplish: to name a few, by the acceptance of a
badge or a code entered on a reader you may trigger
the door opener on an associated entry panel, allow the
activation of staircase lights- or call a lift to the correct
floor. Moreover, thanks to the presence of 3 configurable
inputs, the relays on board each individual reader can
be activated by indoor receivers or porters to generate
any type of action. Thanks to the versatility of the
system, there are almost infinite configuration options
for the implementation of specific access control and
other functions. The readers are fully compatible with
new video entry systems but also with existing systems.
· 2 on-board relays
· 3 configurable inputs
· Built-in antenna for Mifare badge/tag
· Reading frequency: 13.56 MHz
· Blue backlit keypad
· Power supply: 12 to 24 V DC ~ 12 to 24 V AC
· IP65 protection rating
ETI/MINISER
SYSTEM DEVICES
IP40 PROTECTION
RATING
To enhance the functionality of the IP360 system, ETI/
MiniSer is the perfect solution for different types of systems.
The device can in fact be installed to act both as the primary
system for small/medium-sized contexts or as an interface
for each apartment in extended residential contexts.
ETI/miniSer is able to manage calls to smartphones,
tablets or third-party devices (e.g. Crestron touchscreens),
allowing you to manage the video entry system call with
simple actions and with the same effect as you would
have using a traditional monitor. 6 universal licenses are
included allowing you usage on multiple devices, with
quick and easy configuration across all platforms. The
number of managed devices can be further expanded by
adding either APP or GST licenses.
2 ETHERNET NETWORK
INTERFACES - 10/100 MBITS
POWER SUPPLY
12-24 V DC
DEVICE STATUS
INDICATOR LED
BUILT-IN WEBSERVER
FOR CONFIGURATION
30
UP TO 10 CALLS AT THE
SAME TIME BETWEEN
SIP DEVICES
DIMENSIONS: 6 DIN
33
ETI/SER XIP V2
The server allows the use of porter software, PC Soft-
Receivers, video entry system apps and third-party
devices, centralising the access control and porter
service functions. It includes an RJ45 connector for
Ethernet 10/100/1000BaseT networks, a DVI connector
to connect a digital monitor (for diagnostics only), 2 x
USB 2.0 ports for maintenance.
The server has a default licence that can be used for the
Porter or Soft-Receiver software.
IP40 PROTECTION
RATING
DIMENSIONS:
150 X 150 X 51 MM
POWER SUPPLY:
12 V DC
31
ONE LICENCE
INCLUDED
32
SOLUTIONS FOR SINGLE-FAMILY
HOMES
EXAMPLES OF INSTALLATION
UTP CAT.5
2 WIRES
ROUTER
FUTURA IP
DVC/IP ME
ETI/MINISER
POE SWITCH
INTERNET
UTP CAT.5
2 x 1.5
VAS/100MH
33
SOLUTIONS FOR TWO-FAMILY
HOMES
POE SWITCH
POE SWITCH
ETI/MINISER
DVC/IP
FUTURA IP
FUTURA IP
ROUTER
ETI/MINISER
APARTMENT WITH VIDEO ENTRY SYSTEM
APARTMENT WITH MANAGEMENT OF
VIDEO ENTRY SYSTEM FROM MOBILE
UTP CAT.5
2 WIRES
UTP CAT.5
2 x 1.5
INTERNET
VAS/100MH
VAS/100MH
MIXED COMMERCIAL AND RESIDENTIAL
SOLUTIONS WITH BUILT-IN HOME AUTOMATION
EXAMPLES OF INSTALLATION
XIP/PORTER
ETI/SER XIP V2
DVC/IP ME IP VIDEO CAMERA
SWITCH
DVC/IP ME
+
DCOMBO
ETI/MINISER
POE SWITCH POE SWITCH
ROUTER
ROUTER
ETI/DOMO XIP
OH/SER
HOME
AUTOMATION
MODULES
TS10
FUTURA IP
SOFT RECEIVER
SIP PHONE
34
SOFT RECEIVER
SIP PHONE
APARTMENT WITH HOME AUTOMATIONAPARTMENT WITH VIDEO ENTRY SYSTEM
VAS/100MH
VAS/100MH
UTP CAT.5
RS422
2 x 1.5
SOLUTIONS FOR LARGE
SYSTEMS
35
XIP/PORTER
ETI/SER XIP
UTP CAT.5
DVC/IP ME
ETI/MINISER
VSC/08
COAX
DVC/IP ME
+
DCOMBO
ETI/DOMO XIP
OH/SER
HOME
AUTOMATION
MODULES
FUTURA IP AMA TS10
FUTURA IP
FUTURA IP
IP VIDEO CAMERA
DVC/IP ME
ROUTER
ANALOGUE
VIDEO CAMERA
RS422
ROUTER
VAS/100MH
VAS/100MH
2 x 1.5
ENTRY PANEL ACCESSORIES
DSI 60090050
Plastic recessed box Dimensions (LxHxD): 140x294x54.5 mm.
DCI ME 61800020
Plastic recessed frame covered in satin chrome, Metal colour.
Dimensions (LxHxD): 127x280x30 (1.2) mm.
DTP 61800390
Painted steel roof to protect from rain. Dimensions (LxHxD): 103.8x252.8x45.5 mm.
DSM 60090630
Galvanized steel recessed box. Dimensions (LxHxD): 115x269x47 mm.
DPF AL 60090060
Front plate in anodised aluminum. Aluminium colour. Dimensions (LxHxD): 99x254x18 mm.
DPF NF 60090070
Front plate in anodised aluminum. Opaque black colour. Dimensions (LxHxD): 99x254x18 mm
DPF ME 60090530
Front plate in anodised aluminum. Metal colour. Dimensions (LxHxD): 99x254x18 mm
ENTRY PANELS
DVC/IP ME* 62020340
Video entry panel; technopolymer body with brushed chrome Metal finish.
IP54 protection rating. Dimensions (LxHxD): 99x254x25 mm.
*Also available in the audio entry phone version (DC/IP ME 60091030)
36
CODES AND ARTICLES
INDOOR RECEIVERS
FUTURA IP WH* 62100560
IP colour hands-free video receiver with 7" LCD display, equipped with User Graphics interface.
Power over Ethernet (PoE) power supply, built-in voicemail function, soft-touch buttons,
white. Dimensions (LxHxD): 212 x 161 x 28 mm wall-mounted, 212 x 161 x 10.5 mm recessed.
*Also available in black (FUTURA IP BK 62100570)
37
DP0 60090080
Additional technopolymer pushbutton panel for outdoor audio and video entry panels.
Dimensions (LxHxD): 99x254x25 mm.
DPS 61800030
Single button. Dimensions (LxHxD): 20x60x14 mm.
DPH 61800040
Double height button. Dimensions (LxHxD): 40x60x14 mm.
DPD 61800050
Double button. Dimensions (LxHxD): 20x60x14 mm.
DTS ME 61800070
Single plastic cap covered in Metal colour satin chrome.
Dimensions (LxHxD): 20x60x12 mm.
DTH ME 61800090
Single plastic cap covered in Metal colour satin chrome.
Dimensions (LxHxD): 20x60x12 mm.
DMI 61800440
Information module for generic messages. Do not use as a call button.
DCOMBO 61800760
Access control keypad with RFID and built-in display
DRFID 61800290
Proximity key reader. Dimensions (LxHxD): 40x60x12 mm.
DNA ME 61800360
Plastic keypad covered in Metal colour satin chrome.
Dimensions (LxHxD): 60x60x14 mm
DTAG5 61800470
Keyring format proximity key. Pack of 5 pieces. Dimensions (LxHxD): 53x37x10 mm
DBAD10 61800460
Card format proximity reader. Pack of 10 pieces. Dimensioni (LxH): 85x54 mm
38
SYSTEM ACCESSORIES
VAS/101 62700011
Additional power supply. Low DIN 4-module dimensions. IP30 protection rating. Powered from mains 230 V
AC 50/60 Hz.
VAS/100.30 62703310
Additional power supply. Low DIN 8-module dimensions. IP30 protection rating. Powered from mains 230 V
AC 50/60 Hz.
VSC/08 62740020
Manual CCTV switcher. Low DIN 1-module dimension. Power supply from external power supply module 12
V DC 0.09 A max.
ETI/SER XIP V2 62740120
System server. This allows the use of porter software and centralises the access control functions and
porter services. It comes in a container measuring 150 x 150 x 51 mm. IP40 protection rating. Power supply
230 V AC 600 mA.
ETI/miniSER 62740110
XIP system server. Low DIN 6-module dimensions. Requires power supply (12 - 24 V DC, 300 mA max).
VLS/3 62800290
3-relay unit for auxiliary services (controlling lights, openings, ringtones etc.). Low DIN 4-module dimensions.
IP30 protection rating. Power supply 11/18V DC 200 mA.
DREAD 61800370
USB interface with keypad emulation for reading RFID devices
RIR/08 62800330
Line repeater for XIP and IP360 system data
GCR/08
62740130
ACMR/08 access control keypad interface. Low DIN 1-module dimension. Power supply from external power
supply module 12 -18 V DC 70 mA max.
KDIN12 61800350
Kit with DIN rail and terminal covers for 12-module power supplies
KDIN8 61800480
Kit with DIN rail and terminal covers for 8-module power supplies
KDIN6 61800450
Kit with DIN rail and terminal covers for 6-module power supplies
KDIN4 61800430
Kit with DIN rail and terminal covers for 4-module power supplies
SYSTEM ACCESSORIES
ACMR-VR/08
61800720
RFID reader with integrated vandal-proof keypad for access control. Dimensions 123x79x21 mm.
Requires the GCR/08 interface in order to operate.
ACMR-P/08
61800730
RFID reader with integrated plastic keypad for access control. Dimensions 120x76x22 mm.
Requires the GCR/08 interface in order to operate.
PCS/XIP
62800310
Programming software
39
LICENCES
PCS/PORTER
62800320
Licence for porter switchboard
LIC/SR001
62880050
Package with single licence for 1 PC workstation
LIC/SR010
62880060
Package with licences for 10 PC workstations
LIC/SR050
62880070
Package with licences for 50 PC workstations
LIC/SR100
62880080
Package with licences for 100 PC workstations
LIC/GST001 62880010
Package with single licence for 1 third-party device
LIC/GST010 62880020
Package with licences for 10 third-party devices
LIC/GST050 62880030
Package with licences for 50 third-party devices
LIC/GST100 62880040
Package with licences for 100 third-party devices
LIC/APP001 62880090
Package with single licence for 1 workstation
LIC/APP010 62880100
Package with licences for 10 workstations
LIC/APP050 62880110
Package with licences for 50 workstations
LIC/APP100 62880120
Package with licences for 100 workstations
no. of apartments
ENTRY PANEL RECESSED
ACCESSORIES CONTROL DEVICES FOR THE SHARED PART
PLATE KEYPAD
MODULE RECESSED ACCESSORIES POWER SUPPLY SERVER
+ + +
DVC/IP DCOMBO DSI DCI ME VAS/100.30 ETI/SER XIP V2 PoE SWITCH
62080010 60090550 60090050 61800010 62703310 62740120
1 1 1 1 1 1 1 1
2 1 1 1 1 1 1 1
3 1 1 1 1 1 1 1
4 1 1 1 1 1 1 1
5 1 1 1 1 1 1 1
6 1 1 1 1 1 1 1
7 1 1 1 1 1 1 1
8 1 1 1 1 1 1 1
9 1 1 1 1 1 1 1
10 1 1 1 1 1 1 1
11 1 1 1 1 1 1 1
12 1 1 1 1 1 1 1
13 1 1 1 1 1 1 1
14 1 1 1 1 1 1 1
15 1 1 1 1 1 1 1
16 1 1 1 1 1 1 1
17 1 1 1 1 1 1 1
18 1 1 1 1 1 1 1
19 1 1 1 1 1 1 1
20 1 1 1 1 1 1 1
21 1 1 1 1 1 1 1
22 1 1 1 1 1 1 1
23 1 1 1 1 1 1 1
24 1 1 1 1 1 1 1
25 1 1 1 1 1 1 1
26 1 1 1 1 1 1 1
27 1 1 1 1 1 1 1
28 1 1 1 1 1 1 1
29 1 1 1 1 1 1 1
30 1 1 1 1 1 1 1
COMPOSITION TABLE FOR SYSTEMS WITH
BETWEEN 1 AND 30 APARTMENTS WITH
PCS/PORTER SWITCHBOARD AND XIP
MOBILE APP
COMPOSITION TABLE40
no. of apartments
ENTRY PANEL RECESSED
ACCESSORIES CONTROL DEVICES FOR THE SHARED PART
PLATE KEYPAD
MODULE RECESSED ACCESSORIES POWER SUPPLY SERVER
+ + +
DVC/IP DCOMBO DSI DCI ME VAS/100.30 ETI/SER XIP V2 PoE SWITCH
62080010 60090550 60090050 61800010 62703310 62740120
1 1 1 1 1 1 1 1
2 1 1 1 1 1 1 1
3 1 1 1 1 1 1 1
4 1 1 1 1 1 1 1
5 1 1 1 1 1 1 1
6 1 1 1 1 1 1 1
7 1 1 1 1 1 1 1
8 1 1 1 1 1 1 1
9 1 1 1 1 1 1 1
10 1 1 1 1 1 1 1
11 1 1 1 1 1 1 1
12 1 1 1 1 1 1 1
13 1 1 1 1 1 1 1
14 1 1 1 1 1 1 1
15 1 1 1 1 1 1 1
16 1 1 1 1 1 1 1
17 1 1 1 1 1 1 1
18 1 1 1 1 1 1 1
19 1 1 1 1 1 1 1
20 1 1 1 1 1 1 1
21 1 1 1 1 1 1 1
22 1 1 1 1 1 1 1
23 1 1 1 1 1 1 1
24 1 1 1 1 1 1 1
25 1 1 1 1 1 1 1
26 1 1 1 1 1 1 1
27 1 1 1 1 1 1 1
28 1 1 1 1 1 1 1
29 1 1 1 1 1 1 1
30 1 1 1 1 1 1 1
APARTMENT MANAGEMENT DEVICES
INDOOR RECEIVER POWER SUPPLY SERVER
FUTURA IP VAS/101 ETI/miniSER PoE SWITCH
62100570 62700011 62740110 or apartment router
1 1 1 1
2 2 2 2
3 3 3 3
4 4 4 4
5 5 5 5
6 6 6 6
7 7 7 7
8 8 8 8
9 9 9 9
10 10 10 10
11 11 11 11
12 12 12 12
13 13 13 13
14 14 14 14
15 15 15 15
16 16 16 16
17 17 17 17
18 18 18 18
19 19 19 19
20 20 20 20
21 21 21 21
22 22 22 22
23 23 23 23
24 24 24 24
25 25 25 25
26 26 26 26
27 27 27 27
28 28 28 28
29 29 29 29
30 30 30 30
41
Came S.p.A.
Via Martiri della Libertà, 15
31030 Dosson di Casier
Treviso - Italy
Tel. (+39) 0422 4940
Fax (+39) 0422 4941
info@came.com - www.came.com
Came S.p.A.
has
Quality and Environment
certification
UNI EN ISO 9001
UNI EN ISO 14001
© CAME SPA - KBCENIP015 - AUG_2015 - EN
EVEN PARTIAL REPRODUCTION IS FORBIDDEN
CAME RESERVES THE RIGHT TO MAKE MODIFICATIONS TO THIS DOCUMENT AT ANY TIME
