IPL, McCulloch, Cabrio Plus 257B, 953900740, Prefix 01, 2007 Brush Cutter 953900740 Mc Culloch,

User Manual: 953900740

Open the PDF directly: View PDF PDF.
Page Count: 5

HUSQVARNA OUTDOOR PRODUCTS ITALI
A
PNC Type
/
Model Brand
Prefix/
nd
953900740 01 CABRIO PLUS 257B McCulloch
953900770 01 B 267B Partner
953900771 01 B 297B Partner
Number of Pages 1 of 5
Factory: IIQ - Valmadrera Product Group: OP 93
Publication Number: MIPL2007_V050000001 Petrol Portable
Publication Date: 29/01/07 Sub Group 9433
HUSQVARNA OUTDOOR PRODUCTS ITALI
A
Publication No: MIPL2007_V050000001 Page: 2 of 5

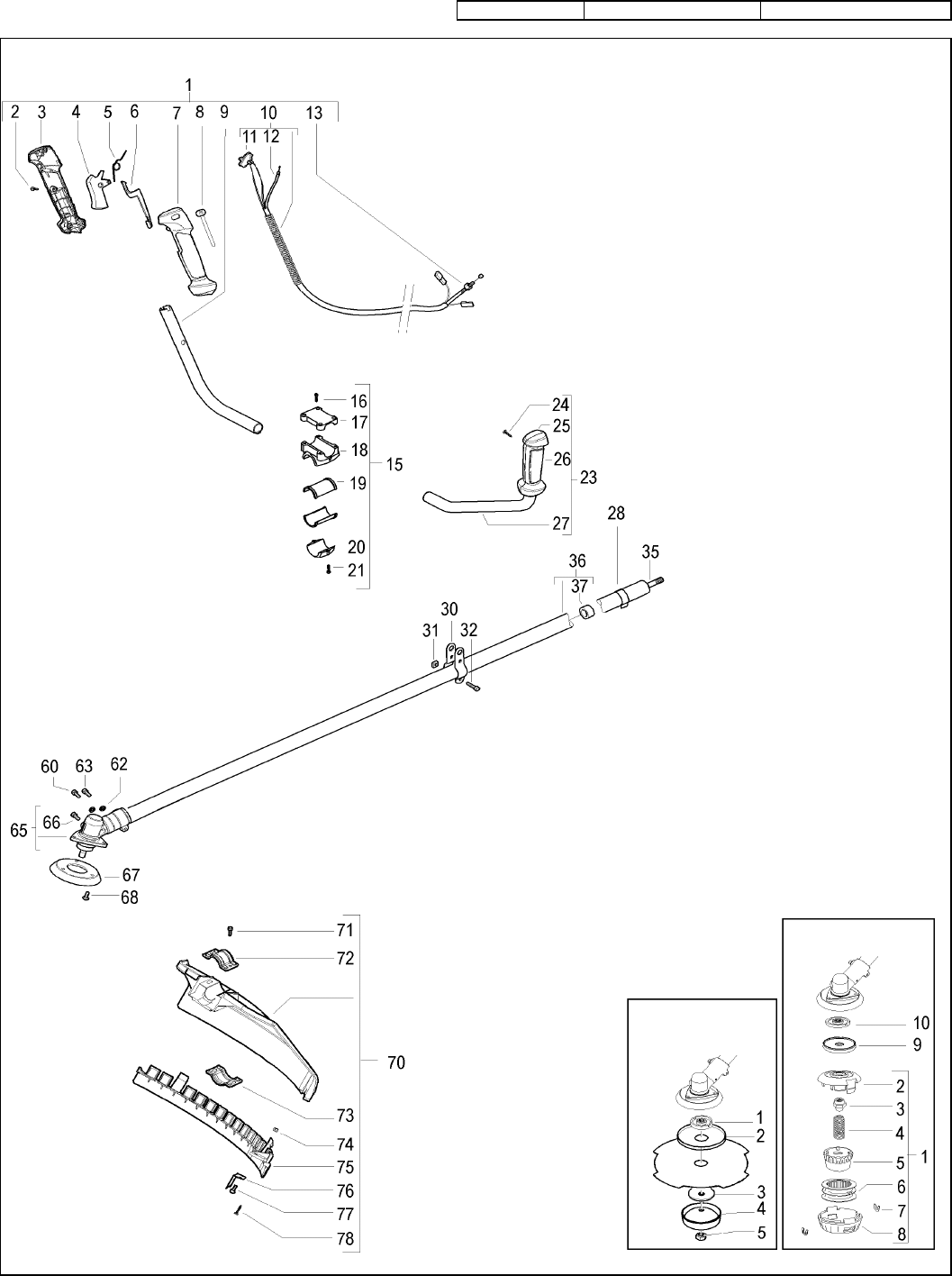

FIGURE 1
FIGURE 3
FIGURE 2
HUSQVARNA OUTDOOR PRODUCTS ITALI
A
Publication No: MIPL2007_V050000001
Item P/N McC P/N ELX Qty DESCRIPTION Item P/N McC P/N ELX Qty DESCRIPTION
A 70 249155 538249155 1d.25 safety guard ass'y
1 243563 538243563 1right handle assy 71 z227563 538227563 2M5x16 screw
2z240862 538240862 3screw 4x18 72 z242629 538242629 1upper clamp
3z242533 538242533 1right handle (right half) 73 z242752 538242752 1lower clamp
4z242537 538242537 1throttle trigger 74 z229208 538229208 2nut M5
5z242540 538242540 1trigger spring 75 z242644 538242644 1string head guard
6z242538 538242538 1safety lever 76 z241973 538241973 1line cutter
7z242534 538242534 1right handle (left half) 77 z227563 538227563 2M5x16 screw
8z242539 538242539 1throttle advance 78 z240862 538240862 1screw 4x18
9z242605 538242605 1right handle bar
C10 z243566 538243566 1wires assy
11 zz 242439 538242439 1switch
C12 zz 243569 538243569 1throttle cable
13 z235912 538235912 1nut M6
15 243428 538243428 1handle clamp assy
16 z235803 538235803 4screw M5x25
17 z242200 538242200 1upper clamp
18 z243082 538243082 1handle clamp
19 z241684 538241684 2d.25 adapter
20 z242900 538242900 1lower clamp
21 z229077 538229077 2screw M5x18
23 243565 538243565 1left handle assy A 1 531025001 531025001 1P 25 trimmer head
24 z240862 538240862 2screw 4x18 2z537419302 537421501 1body
25 z242536 538242536 1left handle (right half) 3z537338901 537427901 1adapter T25
26 z242535 538242535 1left handle (left half) C4 z537338901 537338901 1spring T25
27 z242606 538242606 1left handle bar C5 z537419601 537419601 1knob
28 229850 538229850 1cable retainer C6 z537419501 537419501 1spool (without line)
30 228152 538228152 2harness half hook C7 z537419701 537419701 2bushing
31 236642 538236642 2nut M6 8z537419401 537419401 1cover
32 235911 538235911 2screw M6x12 9 242823 538242823 1spacer
35 240486 538240486 1drive shaft 10 242815 538242815 1flange
36 242442 538242442 1outer shaft
37 z228192 538228192 5bushing ass'y
60 235802 538235802 1screw m5x14
62 236529 538236529 2split washer
63 235803 538235803 1screw m5x25
65 242728 538242728 1gear box ass'y A 1 242815 538242815 1flange
66 z240151 538240151 1screw M8x10 A 2 241155 538241155 1grass shield
67 242729 538242729 1flange guard A 3 241006 538241006 1flange
68 240688 538240688 3screw+washer A 4 236596 538236596 1cup
A 5 240481 538240481 1nut
A=ALTA ROTAZIONE A=HIGH MOVING A=HAUTE DEMANDE A=GROBE NACHFRAGE
B=MEDIA ROTAZIONE B=MEDIUM MOVING B=MOYENNE DEMANDE B=MITTELMAESSIGE
C=ALTA ROTAZIONE C=SLOW MOVING C=BASSE DEMANDE C=WENIGE NACHFRAGE
NUOVI CODICI NEW P. NUMBERS NOUVELLES REFERENCES NEU CODEX
Page: 3 of 5
FIGURE 1
FIGURE 2
FIGURE 3
HUSQVARNA OUTDOOR PRODUCTS ITALI
A
Publication No: MIPL2007_V050000001 Page: 4 of 5

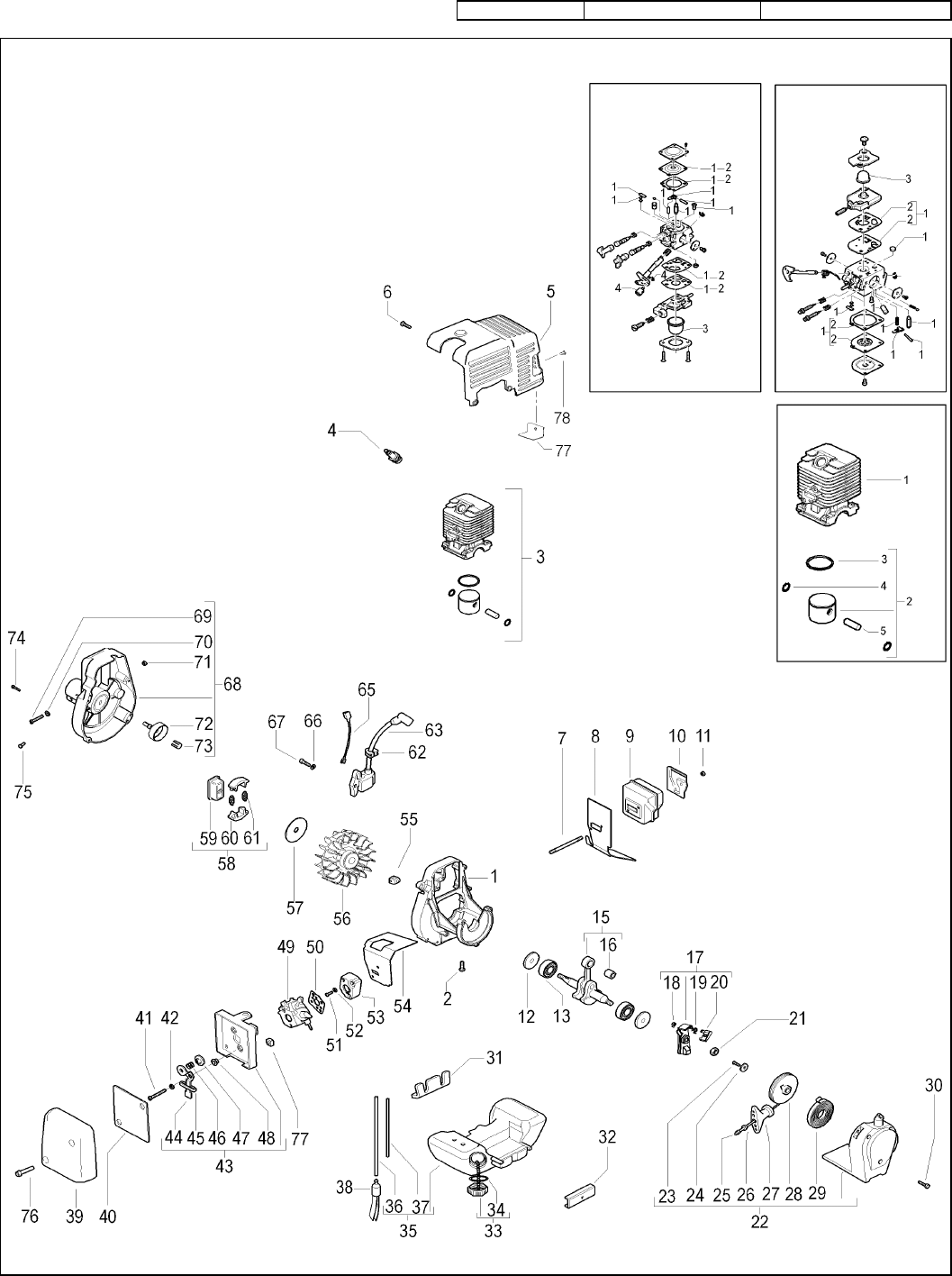

FIGURE 4
FIGURE 5 FIGURE 6
FIGURE 7
HUSQVARNA OUTDOOR PRODUCTS ITALI
A
Publication No: MIPL2007_V050000001
Item P/N McC P/N ELX Qty DESCRIPTION Item P/N McC P/N ELX Qty DESCRIPTION
56 243311 538243311 1flywheel
1 242802 538242802 1crankcase 57 241604 538241604 1dust shield
2 227565 538227565 4screw M5x25 B 58 241793 538241793 1clutch assy
3 FIGURE 7,8 59 z241789 538241789 1clutch hub
A 4 92879 538092879 1spark plug RDJ8J 60 z241743 538241743 2clutch shoe
5 243488 538243488 1engine cover A61 z241794 538241794 2clutch spring
6 241963 538241963 2screw M4x22 62 236322 538236322 1grommet
7 242037 538242037 2stud bolt C 63 243429 538243429 1ignition coil
B 8 243273 538243273 1exhaust gasket 65 241606 538241606 1ground wire
C 9 242131 538242131 1muffler 66 235248 538235248 2washer
10 323760 538323760 1muffler shield 67 235806 538235806 2screw M5x20
11 235642 538235642 2nut M5 C 68 241725 538241725 1joint assy
C 12 242994 538242994 2seal 69 z235803 538235803 1screw M5x25
C 13 241594 538241594 2ball bearing 70 z235248 538235248 1washer
15 243486 538243486 1crankshaft assy 71 z229524 538229524 1nut M5
C16 z235742 538235742 1needle bearing 72 z241785 538241785 1clutch drum
17 241784 538241784 1starter pawl assy 73 z228260 538228260 1pin
18 z111088 538111088 1snap ring 74 227568 538227568 4screw M4x20
19 z241782 538241782 1spring 75 236981 538236981 1screw 3,5x9,5
20 z241781 538241781 1pawl 76 235803 538235803 2screw M5x25
21 235248 538235248 1nut 77 229524 538229524 2nut M5
C 22 242041 538242041 1starter assy 78 243519 538243519 1bracket
23 z240862 538240862 1screw M4x18 79 241974 538241974 1rivet 3.2x6
24 z241703 538241703 1washer
A25 z241746 538241746 1rope
26 z235612 538235612 1washer
27 z241778 538241778 1handle FIGURE 5 WALBRO WT 686
B28 z241620 538241620 1pulley C - 242932 538242932 carb.
B29 z241619 538241619 1spring B1 z324013 538324013 K20 rep. Kit
30 241963 538241963 3screw M4x20 A2 zz 324009 538324009 D20 gasket kit
31 242038 538242038 1tank grommet (crankcase side) C3 z225834 538225834 primer bulb
32 242039 538242039 1tank grommet (starter side) 4z224466 538224466 swivel kit
B 33 242484 538242484 1fuel tank cap assy
A34 z236564 538236564 1gasket FIGURE 6 ZAMA C1Q M38
C 35 242040 538242040 1fuel tank assy C- - - carb.
B36 z229717 538229717 1hose B1 z300465 538300465 RB-28 rep.kit
B37 z229743 538229743 1primer bulb hose A2 zz 300473 538300473 diaph/gasket kit
A 38 240452 538240452 1fuel pickup C3 z246946 538246946 primer bulb
39 243489 538243489 1air filter cover
B 40 227023 538227023 1air filter
41 235808 538235808 2screw 5x50 FIGURE 7 cylinder, piston
42 235248 538235248 1washer C 1 242803 538242803 1cylinder 25 cc
43 248170 538248170 1air box assy C 2 248177 538248177 1piston kit 25 cc
44 z241769 538241769 1choke lever B3 z240002 538240002 1piston ring
45 z241622 538241622 1choke lever grommet 4z235008 538235008 2snap ring
46 z235822 538235822 1spring 5z241735 538241735 1piston pin
47 z241602 538241602 1choke shutter
48 z227022 538227022 2bushing C 1 243076 538243076 1cylinder 29 cc
C 49 FIGURE 5,6 C 2 249179 538249179 1piston kit 29 cc
A 50 241600 538241600 1carb. Gasket B3 z242602 538242602 1piston ring
51 235806 538235806 2screwM5x20 4z235008 538235008 2snap ring
52 235248 538235248 2washer 5z241735 538241735 1piston pin
B 53 241750 538241750 1carb. Spacer
B 54 242860 538242860 1intake gasket
55 241607 538241607 1grommet
A=ALTA ROTAZIONE A=HIGH MOVING A=HAUTE DEMANDE A=GROBE NACHFRAGE
B=MEDIA ROTAZIONE B=MEDIUM MOVING B=MOYENNE DEMANDE B=MITTELMAESSIGE
C=ALTA ROTAZIONE C=SLOW MOVING C=BASSE DEMANDE C=WENIGE NACHFRAGE
NUOVI CODICI NEW P. NUMBERS NOUVELLES REFERENCES NEU CODEX
Page: 5 of 5
FIGURE 4
