IPPD Training Manual!
!
October 22, 2015
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Table of Contents!
!
!
!
1.#Introduction#
!
2.#Overview#of#IPPD#
!
3.#IPPD#Deliverables#
!
4.#IPPD#Software#Deliverables#
!
!
!
!
5.#Peer,#Faculty#and#Sponsor#Reviews#
!
!
6.#Expectations#for#Teams#and#Individuals#
7.#Evaluation#Policy#
8.#Classroom#Labs#
9.#Financial#Policies#and#Procedures#
10.#Appendix#
!
Copyright!©1997!–!2015!College!of!Engineering,!University!of!Florida
Training'Manual'rev.'October'22,'2015'Page'2!
Introduction
Welcome to the Integrated Product and Process Design Program; we are delighted to have you
on board as a new engineer. We are excited to have you work with your teammates and an
experienced engineer who will coach your team to complete a project sponsored by a company.
This manual has been written to assist you in completing the project successfully and to teach
you the Integrated Product and Process Design methods you will use throughout your career. It
will also introduce you to some of the basic processes and policies of our corporation. Over an
eight-month training program, new engineers are taught a structured design process and will get
a chance to practice it in solving the customer's problem.
The training program provides both classroom and laboratory experience. You will learn:
•!How fundamental engineering science is relevant to effective product and process design
•!That design involves not just product function but also producibility, cost, schedule,
reliability, customer preference and life cycle issues
•!How to complete projects on time and within budget
•!That engineering is a multidisciplinary effort
Working in small multidisciplinary project teams, you will get important practical experience in
teamwork and communication and in developing your leadership, management and people skills.
Training'Manual'rev.'October'22,'2015'Page'3!
Table of Contents
Introduction ....................................................................................................................................................2!
Table of Contents ...........................................................................................................................................3!
Overview of Integrated Product and Process Design ....................................................................................9!
IPPD program logistics ..............................................................................................................................9!
Canvas ....................................................................................................................................................9!
How to Upload Assignments .................................................................................................................9!
Project activities .....................................................................................................................................9!
Team Project Types (Hardware, Software, Combination, or Process) ....................................................11!
Hardware projects ....................................................................................................................................12!
Overview ..............................................................................................................................................12!
Phase I - Conceptual design .................................................................................................................12!
Phase II - System level design .............................................................................................................13!
Phase III - Detail product and process design ......................................................................................13!
Phase IV - Verification ........................................................................................................................14!
Phase V - Production ...........................................................................................................................14!
IPPD Structured Design Process Chart (Hardware) ............................................................................15!
Software projects .....................................................................................................................................16!
Overview ..............................................................................................................................................16!
Phase I - System requirements and product design .............................................................................16!
Phase II - Detail design and comprehensive test planning ..................................................................17!
Phase III - Code/unit test/build and integration ...................................................................................18!
Phase IV - Product verification ............................................................................................................19!
IPPD Structured Design Process Chart (Software) ..............................................................................21!
IPPD Deliverables ........................................................................................................................................22!
Introduction ..............................................................................................................................................22!
Overview ..............................................................................................................................................22!
Deliverable types .................................................................................................................................22!
Packaging deliverables .........................................................................................................................23!
Technical strategy ....................................................................................................................................24!
Overview ..............................................................................................................................................24!
Training'Manual'rev.'October'22,'2015'Page'4!
Presenting this deliverable ...................................................................................................................25!
Product design specification ....................................................................................................................25!
Requirements .......................................................................................................................................25!
Specifications .......................................................................................................................................29!

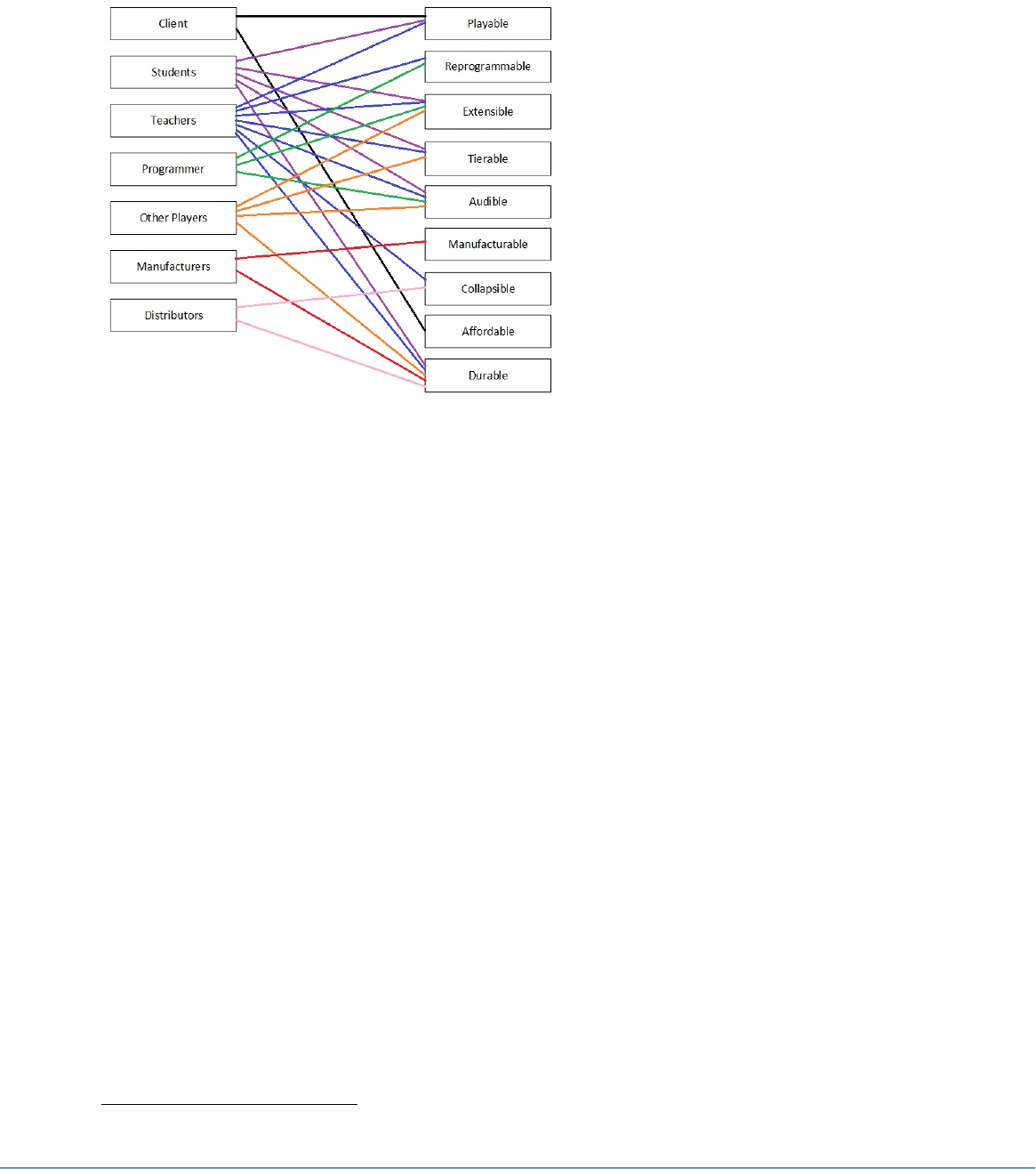

Mapping specifications into requirements ...........................................................................................30!
Presenting this deliverable ...................................................................................................................34!
Project roadmap .......................................................................................................................................34!
Overview ..............................................................................................................................................34!
Presenting this deliverable ...................................................................................................................35!
Concept generation/evaluation and selection ...........................................................................................36!
Concept generation ..............................................................................................................................36!
Functional decomposition ....................................................................................................................37!
Functional decomposition ....................................................................................................................40!
Concept generation for software ..........................................................................................................43!
Presenting this deliverable ...................................................................................................................44!

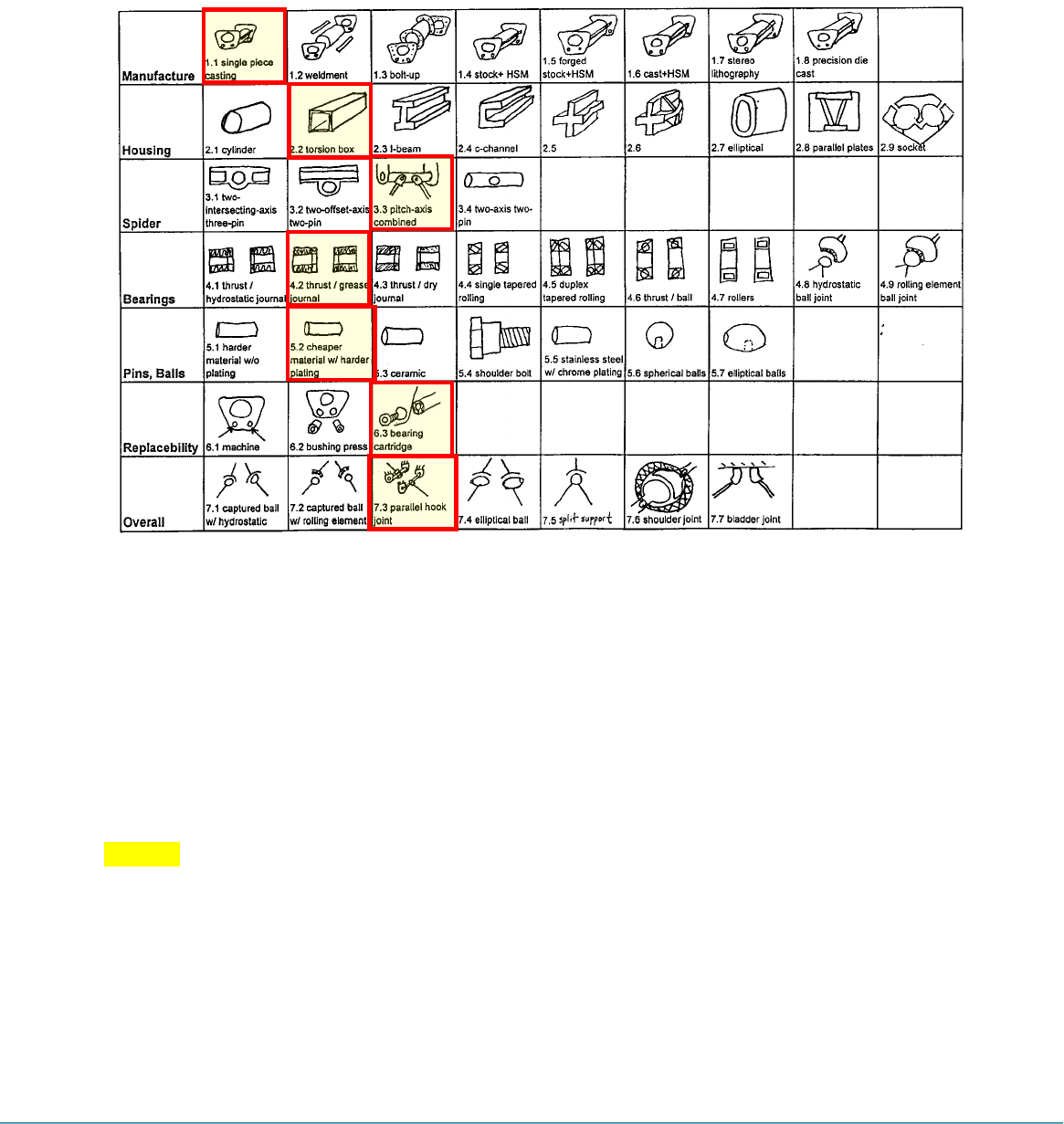

Concept selection .................................................................................................................................44!
System/product architecture .....................................................................................................................46!
Overview ..............................................................................................................................................46!
Presenting this deliverable ...................................................................................................................47!
Configuration management plan ..............................................................................................................47!
Project plan ..............................................................................................................................................48!
Overview ..............................................................................................................................................48!
Project risks ..........................................................................................................................................49!
Plan example ........................................................................................................................................50!
Presenting this deliverable ...................................................................................................................50!
Business case ...........................................................................................................................................50!
Overview ..............................................................................................................................................50!
Presenting this deliverable ...................................................................................................................51!
Prototype plan ..........................................................................................................................................51!
Overview ..............................................................................................................................................51!
Presenting this deliverable ...................................................................................................................53!
Preliminary design report and project plan ..............................................................................................53!
Overview ..............................................................................................................................................53!
Training'Manual'rev.'October'22,'2015'Page'5!
Proposed content and presentation outline ..........................................................................................53!
Preliminary Design Report Peer Review .............................................................................................56!
Product architecture .................................................................................................................................56!
Overview ..............................................................................................................................................57!
Create the schematic ............................................................................................................................57!
Cluster the elements .............................................................................................................................59!
Create a rough layout ...........................................................................................................................62!
Identify the interactions .......................................................................................................................63!
Modularity leads to rapid progress ......................................................................................................64!
Presenting this deliverable ...................................................................................................................64!
Component design specifications ............................................................................................................65!
Overview ..............................................................................................................................................65!
Presenting this deliverable ...................................................................................................................66!
Analytical and experimental plans/prototype test plan ............................................................................66!
Overview ..............................................................................................................................................66!
Presenting this deliverable ...................................................................................................................67!
Preliminary manufacturing plan/product cost ..........................................................................................67!
Overview ..............................................................................................................................................67!
Presenting this deliverable ...................................................................................................................68!
System level design report .......................................................................................................................69!
Overview ..............................................................................................................................................69!
SLDR Report submission requirements ...............................................................................................72!
Review One-on-One with Dr. Stanfill .................................................................................................73!
Detail product and process design ...........................................................................................................74!
Analytical and experimental report ..........................................................................................................74!
Overview ..............................................................................................................................................74!
Proposed report content .......................................................................................................................74!
Presenting this deliverable ...................................................................................................................75!
Detailed manufacturing process and tool documentation ........................................................................75!
Overview ..............................................................................................................................................75!
Presenting this deliverable ...................................................................................................................76!
Acceptance test results and report ............................................................................................................76!
Overview ..............................................................................................................................................76!
Training'Manual'rev.'October'22,'2015'Page'6!
Proposed report content .......................................................................................................................76!
Presenting this deliverable ...................................................................................................................76!
Final manufacturing and test plan ............................................................................................................77!
Overview ..............................................................................................................................................77!
Presenting this deliverable ...................................................................................................................77!
Final product cost .....................................................................................................................................77!
Overview ..............................................................................................................................................77!
Presenting this deliverable ...................................................................................................................77!
Final report and project documentation ...................................................................................................77!
Overview ..............................................................................................................................................77!
Documentation requirements ...............................................................................................................78!
Final Design Report .............................................................................................................................78!
Due Dates .............................................................................................................................................79!
Meet with Dr. Stanfill ..........................................................................................................................80!
Signature page information ..................................................................................................................80!

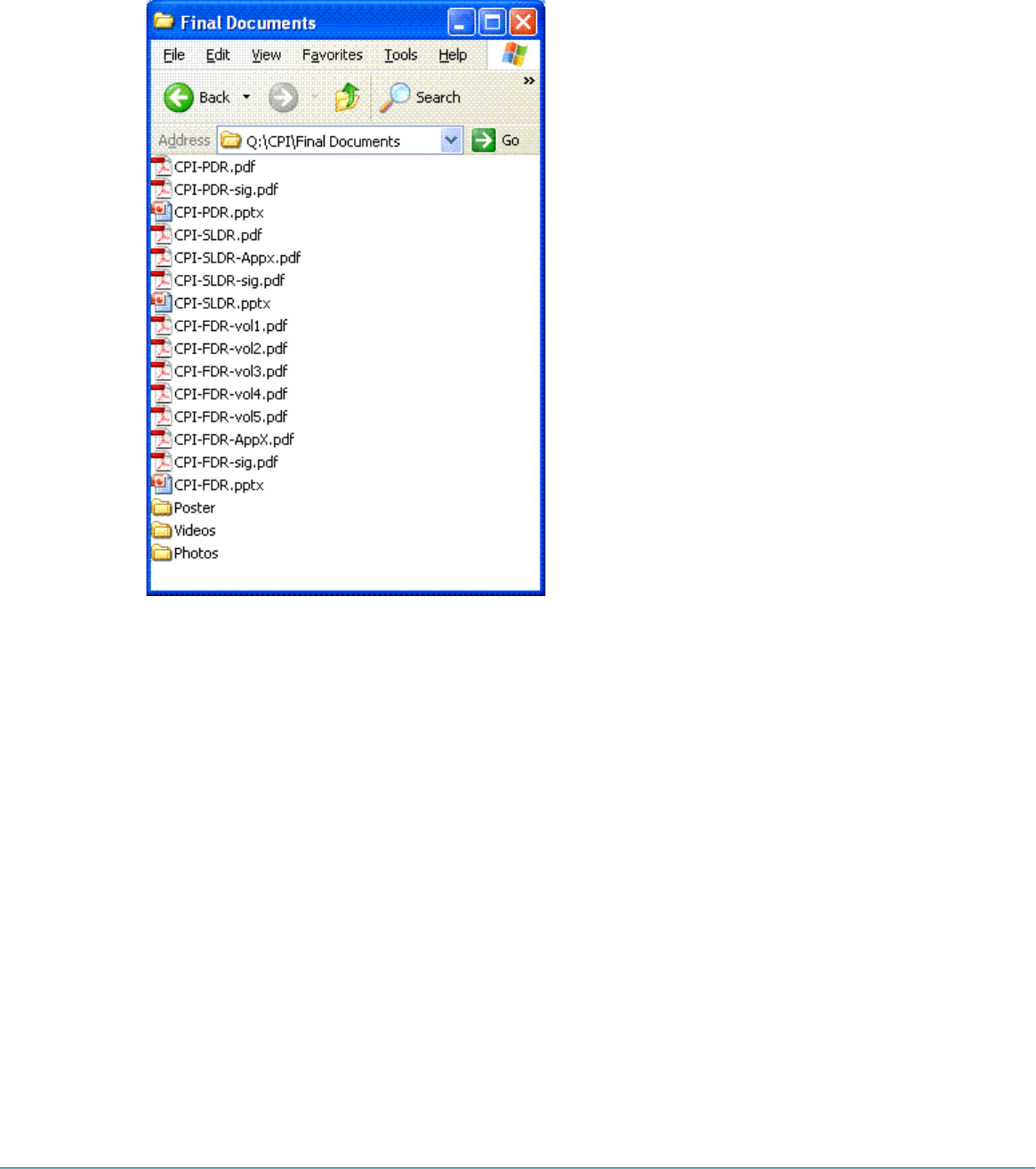

Submitting the report ...........................................................................................................................80!
IPPD Software Deliverables ........................................................................................................................85!
Introduction ..............................................................................................................................................85!
Overview ..............................................................................................................................................85!
Technical strategy ....................................................................................................................................85!
Overview ..............................................................................................................................................85!
Presenting this deliverable ...................................................................................................................85!
System/product requirements ...................................................................................................................86!
Overview ..............................................................................................................................................86!
Presenting this deliverable ...................................................................................................................86!
Complete and testable product specifications ..........................................................................................87!
Overview ..............................................................................................................................................87!
Presenting this deliverable ...................................................................................................................88!
System/product architecture .....................................................................................................................88!
Overview ..............................................................................................................................................88!
Presenting this deliverable ...................................................................................................................89!
Prototype plans .........................................................................................................................................89!
Overview ..............................................................................................................................................89!
Training'Manual'rev.'October'22,'2015'Page'7!
Presenting this deliverable ...................................................................................................................90!
Preliminary design report .........................................................................................................................90!
Comprehensive test planning ...................................................................................................................90!
Comprehensive test plan ......................................................................................................................90!
Unit test plan ........................................................................................................................................91!
Functional verification test plan ...........................................................................................................91!
Product verification test plan ...............................................................................................................91!
System verification test plan ................................................................................................................92!
Presenting this deliverable ...................................................................................................................92!
Software development methodologies .....................................................................................................92!
Configuration management plan ..........................................................................................................92!
Reviews, inspections and walkthroughs ..............................................................................................93!
In-process measurements .....................................................................................................................93!
Peer, Faculty, and Sponsor Reviews ............................................................................................................95!
Overview ..................................................................................................................................................95!
Peer reviews with other teams .................................................................................................................96!
Preliminary Design Peer Review .........................................................................................................96!
System Level Design Peer Review ......................................................................................................96!
Final Design Peer Review ....................................................................................................................96!
Reviews with sponsor companies ............................................................................................................96!
Preliminary Design Review .................................................................................................................96!
System Level Design Review ..............................................................................................................98!
Final Design Review ............................................................................................................................98!
Qualification Review Boards ...................................................................................................................98!
Project Plan Review Session ................................................................................................................98!
Prototype Review Session ....................................................................................................................99!
Expectations for Teams and Individuals ....................................................................................................101!
Team expectations .................................................................................................................................101!
Overview ............................................................................................................................................101!
Team meetings ...................................................................................................................................101!
Team selection ...................................................................................................................................101!
Individual expectations ..........................................................................................................................102!
Overview ............................................................................................................................................102!
Training'Manual'rev.'October'22,'2015'Page'8!
Design notebook ................................................................................................................................102!
Team member reports ........................................................................................................................102!
Individual lecture/workshop expectations .............................................................................................103!
Evaluation Policy .......................................................................................................................................104!
Guidelines ..............................................................................................................................................104!
Classroom Labs ..........................................................................................................................................105!
Financial Policies and Procedures .............................................................................................................106!
Appendix: Weekly Status Memo ...............................................................................................................107!
Appendix: Project Roadmap ......................................................................................................................108!
Background and motivation ...............................................................................................................108!
Proposed deliverable: the project roadmap ........................................................................................109!
New section for the final report: process assessment ........................................................................109!
Appendix: Project Video Requirements ....................................................................................................111!
(See Prototype Demonstration Video section.) ......................................................................................111!
Thoughts ................................................................................................................................................111!
Video capture .........................................................................................................................................111!
Video editing tools .................................................................................................................................111!
Software tutorial tools ............................................................................................................................112!
Training'Manual'rev.'October'22,'2015'Page'9!
Overview of Integrated Product and Process
Design
The Integrated Product and Process Design (IPPD) program is an eight-month training program
for new engineers. In this program, new engineers from various disciplines are divided into five-
or six-person teams. These teams work with an experienced engineer (team coach) and a liaison
engineer from the customer to design and build real-life industrial projects. This chapter
describes the overall IPPD program and the structured, top-down hardware and software
development processes used to successfully complete projects on time and within budget.
IPPD program logistics
Canvas
Throughout the program, you will be using the IPPD site on Canvas to find out your weekly
schedule, deliverables, announcements, and to upload your assignments. You will receive
important email updates regularly from the Canvas site, so please be sure to read these emails.
Also, keep in mind that IPPD does read everything you upload to the Canvas site.
Be sure to upload everything in deliverables, even if they are still in draft mode. IPPD wants to
see where you are in the project. We realize it’s not your final version of it, so we don’t expect it
to be perfect. In the professional world, we don’t always have things completed and perfected
when we turn them in. We hand them in, so we can discuss with the team and get feedback.
How$to$Upload$Assignments$
All deliverables must be uploaded to the IPPD Canvas site. For individual deliverables, respond
to the instructions in the assignment directions. Unless otherwise specified, all uploads are due
by noon of the day of class.
All teams are required to use Git as their project data repository.
To find more details on Canvas, Git, and the Team Wiki, please consult your IPPD Professional
Manual, which can be found on the course home page in Canvas.
Project activities
Class lectures & workshops. During the eight-month period, engineering teams and their
coaches will attend weekly lectures and workshops. There could be up to five lectures per week
for all team members and coaches and at least one separate workshop for each team and their
coach. During the lectures, new engineers will be introduced to major topics of a product and
process design process. They will learn how to prepare for project deliverables that are generally
due in the ensuing weeks. In the weekly team specific workshops, the teams and their coaches
will customize the more generic lecture content to their specific projects.
Training'Manual'rev.'October'22,'2015'Page'10!
Weekly team meetings. In addition to the weekly lectures and workshops, teams will meet
separately to discuss status and assignments on their projects. Effective meeting practices include
the creation of meeting minutes following each team meeting. These minutes should be
distributed to your teammates, liaison engineer, and project coach. To keep the IPPD Director
and project liaison engineer up to date on all project activities each week, Weekly Status

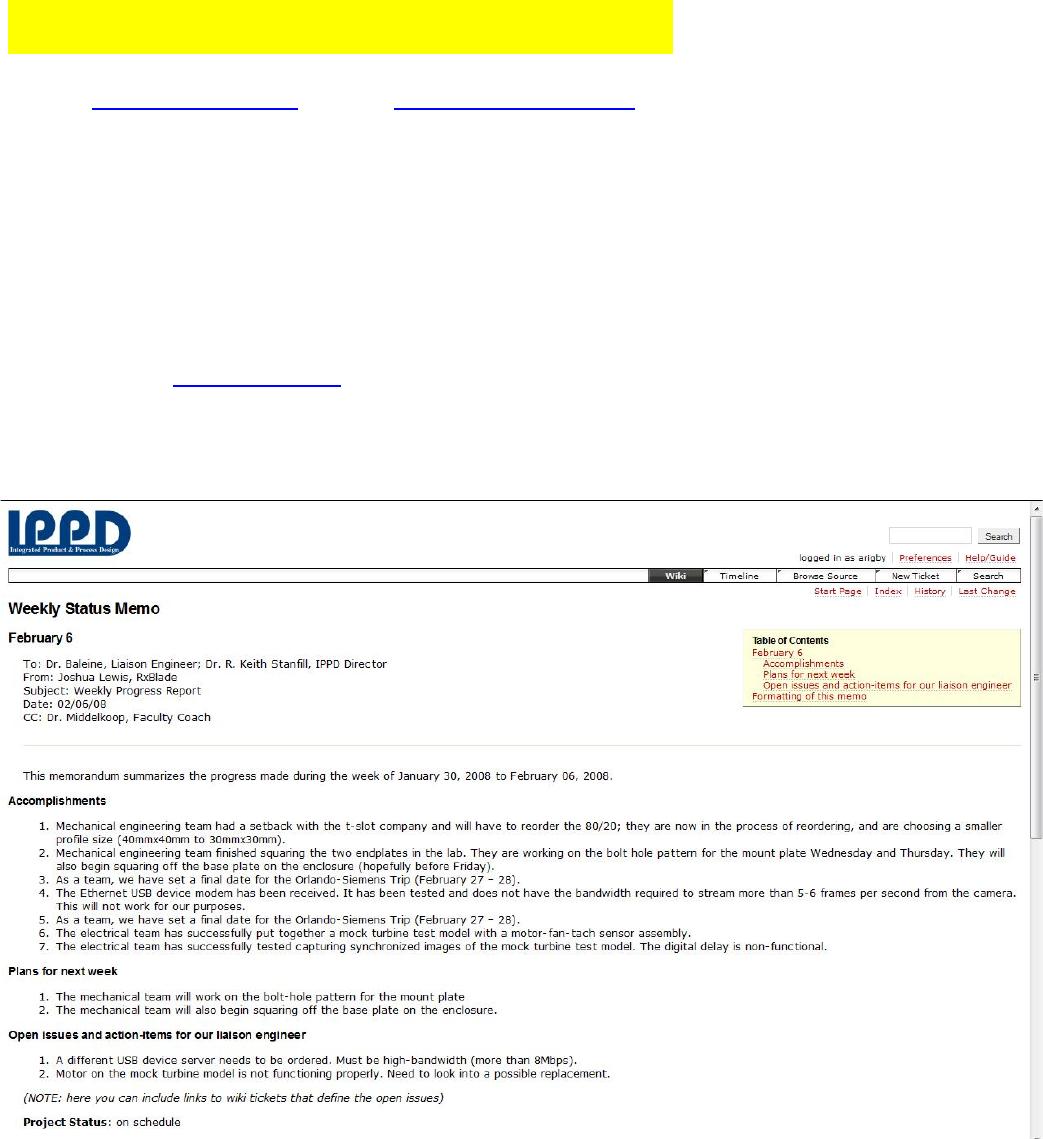

Memos will be distributed. For consistency across all project teams, a web-based tool will be
used to create and publish the Weekly Status Memos
Projects are assigned to coaches before the start of the training; this will allow the coach to visit
with the sponsor company, to develop a better understanding of the project and establish a
working relationship with the liaison engineer. Communication with the liaison engineer is
expected during the weekly team meetings.
Weekly reviews with liaison engineers. During the eight months of the program, the
engineering team will review the status of their project regularly with the liaison engineer. These
reviews should be weekly at a predetermined time and need to be coordinated with the liaison
engineer. Regular liaison communications reduces project risks and helps avoid surprises at
major design reviews.
Design reviews. At a minimum, the project team will participate in three major design reviews
with the sponsor company. The preliminary design review is held at the sponsor company’s
facility, while the system level and final design reviews are held on the University of Florida
campus. Additional formal reviews with the sponsor may be scheduled if required to meet
special project requirements.
Peer reviews. Prior to the three major design reviews with the sponsor company, a presentation
practice session will be held with other project teams and coaches. The purpose of a peer review
is to improve the content and delivery of important design information prior to presenting live in
front of the project sponsor. The peer review audience evaluates each presentation and provides
written feedback to the presenters. Peer reviews are typically scheduled for two consecutive
periods. Attendance is mandatory.
Prototype inspections. Early prototyping is a key to success for engineered projects. Two
prototype inspection sessions will be held. The first will occur in the fall semester two weeks
ahead of the System Level Design Review. The second will occur at least three weeks ahead of
the final design review. The format of the inspections will include a live demonstration of the
project to an audience of faculty and staff members. The format varies from “speed dating”
where the prototype is demonstrated to one or two new reviewers every 5 to 10 minutes over the
course of an hour, or a single 5 to 10 demonstration to a larger audience.
Qualification Review Boards. The Qualification Review Board (QRB) is a group of faculty
coaches that will attend your peer review sessions and will lead project reviews intended to
expose project risks and provide recommendations for corrective action. The QRB will also
review your major design reports for content. During the QRB sessions, each project team
presents privately before the QRB subject matter experts. The sessions last thirty minutes and are
scheduled during class time.
Training'Manual'rev.'October'22,'2015'Page'11!
Design system training. Design system training may be provided in the form of specially
scheduled workshops, computer-based training, or paper-based tutorials.
Team$Project$Types$(Hardware,$Software,$Combination,$or$Process)$
The following list gives you information about your team project and the project type (Hardware: HW,
Software: SW, a combination of both, or Process: PR). Deliverables can differ, depending on your project
type. Please check the list below to be sure you know what your project type is, so you will know what
deliverables your team needs to upload throughout the year.
No.$
Team$
Project$
Type$
Title$
1$
Just!Wing!It!
HW!
CAE!KingAir!
2$
FiberFlex!
PR!
Optimize!fiber!reinforcement!type,!quantity,!mixing,!
and!forming!to!enhance!the!mechanical!properties!of!
CertainTeed!Gypsum’s!wallboard!!
3$
Florida!Filtration!
PR!
Optimization!of!Waste!Water!Effluent!!
4$
ImpactAid!
HW/SW!
Device!to!quantify!bony!fixation!of!orthopaedic!
implants!in!realVtime!during!surgery!
5$
Apollo!Connection!
HW/SW!
HighVSpeed!Data!Link!
6$
ZOOM!
HW/SW!
Engineering!design!unit!(EDU)!SRAM!memory!multiV
module!test!station!
7$
StratuSstream!
SW!
Product!Pulse!Dashboard!
8$
SPOTR!
HW/SW!
Heterogeneous!Robots!Equipped!for!Search!and!
Recovery!
9$
CerebroStim!
SW!
Integration!of!Wearable!Sensors!to!Medtronic!NexusVD!
for!ClosedVLoop!Deep!Brain!Stimulation!
10$
Cell!Seeker!
HW/PR!
Modular,!Disposable!PackedVcolumn!Cell!Separator!
11$
Rock!Solid!Solutions!
PR!
Acid!Resistant!Concrete!Materials!Design!
12$
AntiVCaking!Engineering!
(ACE)!
PR!
Product!and!Process!Factor!Evaluation!Affecting!Quality!
of!Ammonium!Phosphate!Fertilizers!
13$
Reverse!Air!
HW!
3D!Measurement,!Modeling,!and!Fabrication!for!
Aerospace!Applications!
14$
AutoMed!Solutions!
HW!
Automation!of!Bone!Paste!Syringe!Filling!
15$
Drill!Data!Diagnostics!
SW!
Wireless!Diagnostics!For!Mobile!Drill!Rigs!
16$
FERIT!
HW/SW!
Imaging!Sensor!Miniaturization!for!Gas!Turbine!
Inspection!
17$
Crash!Capture!
SW!
Crash!Analyzer!Portal!
18$
MouseTrap!
SW!
IT!Security!Communications!Mobile!Application!
19$
Guarden!Technologies!
HW/SW!
Smart!Garden/Pond!Protector!
Training'Manual'rev.'October'22,'2015'Page'12!
Hardware projects
Overview
The hardware development process for the IPPD program is defined in five major phases:
1.!Phase I Conceptual design
2.!Phase II System level design
3.!Phase III Detailed product and process design
4.!Phase IV Verification
5.!Phase V Production
In the following, each of these development phases are described as if they were standalone and
sequential. In practice, these phases typically overlap and the content of each as described may
have to be customized for different products.
The outcome of each development phase must be validated, verified and refined as necessary to
eliminate as many problems as possible. Feedback into other phases may be required. If the
product version at that design stage is satisfactory it should be baselined i.e. put under formal
change control (configuration management).
The described hardware development process does not imply that a product as a whole has to
move from one phase to the next. It may be effective to break a product into discrete modules
and move them separately through the various phases. This could facilitate testing and rapid
prototyping could provide early end user feedback.
While the content of each described development phase may be different depending on the
product, dates for deliverables and major milestones do not change.
Phase I - Conceptual design
The major objectives of this development phase are the following:
•!determine and document customer needs and product requirements = (HOQ)
•!generate and evaluate alternate product concepts
•!select one or more concepts for further development
•!develop a set of specifications and benchmark competitive products
•!produce an economic justification and development plan
The major tasks during Phase I are to develop the following:
•!system/product requirements
•!product design specifications
•!concept generation, evaluation and selection
•!a project plan
•!a business case
Training'Manual'rev.'October'22,'2015'Page'13!
Major development milestone
Timing
Preliminary design review with project sponsor
early October
Phase II - System level design
The system level design defines the product architecture and the decomposition of the product
into subsystems and components (Ulrich and Eppinger: Product Design and Development,
2000). It embodies a detailed technical specification of the product to this point. This description
includes overall design objectives for hardware and software, a description of the major
subassemblies, components and software subsystems. The system level design provides proof
that the selected design concepts have been verified will meet the product design specifications
and can be translated into the detail design.
The focus in the system level design phase is on development of a product architecture that
facilitates modularized development—allowing individuals or sub-groups from within the team
to work in parallel. This allows the team to make much more rapid progress than the earlier serial
tasks completed in the conceptual design phase.
The following major tasks must be completed during Phase II of the Hardware Development
Process:
•!product architecture
•!component design specifications
•!analytical and experimental plans
•!proof of concept prototype
•!prototype test plan
•!manufacturing plan (project dependent)
•!product cost (project dependent)
Major development milestone
Timing
Prototype inspection
late November
System level design review with project sponsor
early December
Phase III - Detail product and process design
The detail product and process design translates the system specifications into a structured set of
detailed specifications of the product geometry, materials, and tolerances of all the unique parts
in the product and the identification of all standard parts to be purchased from suppliers (Ulrich
and Eppinger: Product Design and Development, 2000). These control documents and
specifications include the following:
•!part and assembly drawings
•!printed circuit board layouts
•!complete bill of materials
•!software programs
•!manufacturing process descriptions
•!vendor part information
•!assembly and fabrication process plans
Training'Manual'rev.'October'22,'2015'Page'14!
•!tooling drawings
•!test procedures
•!proposed tool and test equipment
•!installation/maintenance procedures.
The following major tasks must be completed during Phase III of the Hardware Development
Process:
•!project plan and detail design review
•!translate verified circuit simulations into routed printed circuit board layout
•!develop accurate solid models of assembly and produce detail drawings of components and
subsystems
•!analytical and experimental report
•!procure/fabricate functional prototypes
•!develop detailed time lines for testing at module and integration levels
•!update product specifications
•!manufacturability assessment (project dependent)
•!detail manufacturing and tool documentation (project dependent)
Major development milestone
Timing
Project plan review QRB
mid January
Prototype results QRB
late February
Phase IV - Verification
During the Verification phase, the final system prototype is tested against the product design
specifications.
The following major tasks must be completed during Phase IV of the Hardware Development
Process:
•!manufacturing and test plan (project dependent)
•!final product cost (project dependent)
•!acceptance test results and report
•!final report and documentation
•!project poster
•!project video
Major development milestone
Timing
Prototype inspection
late March
Final design review with project sponsor
mid April
Phase V - Production
The Production phase is listed here for completeness. There is not adequate time in the 8-month
development process to address these activities. It is up to the project sponsor to initiate this
activity.
Training'Manual'rev.'October'22,'2015'Page'15!
IPPD$Structured$Design$Process$Chart$(Hardware)$
!
!
!
"#$#%&#'!()#!
"#$#%&#'!*+,!
-.)/,00!&,!%1,)%,'!
!234!
!"534!
"6478!
"6479!
!:34!
!
"!2',&,&;1#!<)%1#=&<,)!
"!2',&,&;1#!<)%1#=&<,)!
>.?,'!&.%@%!A;!1B.%#!
•!%;%&#$C1',/D=&!
'#ED<'#$#)&%!
•!1',/D=&!/#%<F)!
%1#=<0<=.&<,)%!
•!=,)=#1&!F#)#'.&<,)G!
#H.ID.&<,)!.)/!
%#I#=&<,)!
•!1',?#=&!1I.)!
•!AD%<)#%%!=.%#!
•!1',/D=&!
.'=B<&#=&D'#!
•!=,$1,)#)&!/#%<F)!
%1#=<0<=.&<,)%!
•!.).I;&<=.I!.)/!
#J1#'<$#)&.I!1I.)%!
•!1',,0!,0!=,)=#1&!
•!1',&,&;1#!&#%&!1I.)!
•!$.)D0.=&D'<)F!
1I.)!
•!1',/D=&!=,%&!
•!='#.&#!$<)<$D$!
H<.AI#!1',/D=&!
1',&,&;1#!
•!1',?#=&!1I.)!.)/!
/#&.<I!/#%<F)!
'#H<#+!K6478L!
•!&'.)%I.&#!H#'<0<#/!
%<$DI.&<,)%!<)&,!
/#&.<I!$,/#I%C!
/'.+<)F%!,0!
=,$1,)#)&%!.)/!
%DA%;%&#$%!
•!.).I;&<=.I!.)/!
#J1#'<$#)&.I!
'#1,'&!
•!1',=D'#C0.A'<=.&#!
0D)=&<,).I!1',&,M
&;1#%!
•!1',&,&;1#!'#%DI&%!
N!'#1,'&!K6479L!
•!/#H#I,1!/#&.<I#/!
&<$#!I<)#%!0,'!
&#%&<)F!.&!$,/DI#!
.)/!<)&#F'.&<,)!
I#H#I%!
•!D1/.&#!1',/D=&!
%1#=<0<=.&<,)%!
•!$.)D0.=&D'.A<I<&;!
.%%#%%$#)&!
•!/#&.<I!$.)D0.=M
&D'<)F!.)/!&,,I!
/,=D$#)&.&<,)!
•!$.)D0.=&D'<)F!
.)/!&#%&!1I.)!
•!0<).I!1',/D=&!=,%&!
•!0.A'<=.&#!0<).I!
1',&,&;1#!
•!.==#1&.)=#!&#%&!
'#%DI&%!.)/!
'#1,'&!
•!0<).I!'#1,'&!.)/!
/,=D$#)&.&<,)!
•!1',?#=&!1,%&#'!
•!1',?#=&!H</#,!
•!%1,)%,'!<)<&<.&#/!
.=&<H<&<#%!
!
Key$to$symbols$and$abbreviations:$
!!O!>.?,'!/#%<F)!'#1,'&!.)/!'#H<#+!
K%1,)%,'!.11',H.IL!
"!O!P)&#').I!0.=DI&;!'#H<#+!
234!O!2'#I<$<).';!3#%<F)!4#1,'&!
"534!O!";%&#$!5#H#I!3#%<F)!4#1,'&!
:34!O!:<).I!3#%<F)!4#1,'&Q!
647!O!6D.I<0<=.&<,)!4#H<#+!7,.'/!
!
!
R,)=#1&D.I!
3#%<F)
";%&#$!
5#H#I!
3#%<F)
3#&.<I!
3#%<F) S#'<0<=.&<,)
2',/D=&<,)
Training'Manual'rev.'October'22,'2015'Page'16!
Software projects
Overview
The software development process for the IPPD program, created to manage the development of
highly structured, embedded systems, is defined in four major phases:
1.!Phase I System requirements and product design
2.!Phase II Detailed design and test planning
3.!Phase III Code/unit test/build and integration
4.!Phase IV Product verification
The process may be used as the default development process for software projects, including
application software and web-based tools1. In the following each of these development phases
are described as if they were stand alone and sequential. In practice these phases typically
overlap and the content of each as described may have to be customized for different products.
The outcome of each development phase must be validated, verified and refined as necessary to
eliminate as many problems as possible. Feedback into other phases may be required. If the
product version at that design stage is satisfactory it should be baselined i.e. put under formal
change control (configuration management).
The described software development process does not imply that a product as a whole has to
move from one phase to the next. It may be effective to break a product into increments of
functional capability and move them separately through the various phases. This could facilitate
testing and rapid prototyping could provide early feedback of user experience.
While the content of each described development phase may be different depending on the
product, dates for deliverables and major milestones do not change.
Phase I - System requirements and product design
The major objectives of this development phase are the following:
•!determine unambiguous, validated and prioritized requirements for the functions, interfaces and
expected performance of the software product
•!determine an unambiguous, verified set of specifications of the overall hardware-software
architecture, control structure and data structure
•!develop a preliminary design for each subsystem
•!validate and verify requirements and specifications
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
1!Recent!software!engineering!practices!for!the!development!of!application!software!are!focusing!on!soVcalled!“agile”!
methodologies.!SCRUM!is!popular!agile!approach!that!has!been!effectively!utilized!on!IPPD!software!projects!since!2009.!In!lieu!
of!following!the!4Vphase!process!defined!in!the!following,!project!teams!are!welcome!to!utilize!SCRUM!to!complete!their!
development—provided!that!key!deliverables!are!produced!in!concert!with!the!default!IPPD!software!process.!
Training'Manual'rev.'October'22,'2015'Page'17!
Major tasks
The major tasks during Phase I are to develop the following:
•!a technical strategy
•!system/product requirements
•!complete and testable product specifications
•!a system/product architecture, data flow diagrams, data modeling and class hierarchy
•!preliminary plans for code reuse
•!a preliminary design of each subsystem
•!simulation and prototyping plans
•!preliminary verification test plans
•!configuration management control plans
•!a project plan
•!a business case
Major development milestone
Timing
Preliminary design review with project sponsor
early October
Phase II - Detail design and comprehensive test planning
The Detail Design translates the system specifications into a structured set of software
components. Depending on the complexity of the product there may be up to 3 design stages in
the programming architecture. The following defines each stage:
Product level design defines product structure hierarchy of classes, objects and system
interfaces. In this design stage software components may be identified including function, data
and interfaces.
Component level design defines component structure, subclasses and objects, modules, data
definition and interfaces.
Module level design defines function, logic, data and interfaces for the smallest logical unit-
usually less than 100 source instructions.
The detail design and comprehensive test planning of each of these stages must be captured in a
Technical Design Specification that defines what actions must be performed to satisfy the system
specification. To evaluate design alternatives and proof design concepts, rapid prototyping must
be considered. As part of the detail design strong consideration must be given to maximize reuse
of existing code. Comprehensive test planning and development of test cases must be done in
parallel with the development of the detail design. A key objective of test planning is to provide
enough details from the testing process to assess the overall design. Test planning should cover
the following topics:
•!code inspection methodologies
•!unit and integration test
•!functional verification test
•!product verification test
•!system verification test
Training'Manual'rev.'October'22,'2015'Page'18!
•!test environment
•!test tools & equipment
•!test simulators and drivers
•!test stations/configurations needed
As with detail design, test planning should consider “reuse” opportunities including test plans
and especially test cases. See the Preliminary design report
An outline for the
Preliminary design report and project plan major deliverable is provided in the
Comprehensive test planning section for additional details.
Major tasks
The following major tasks must be completed during Phase II of the Software Development
Process:
•!detail module/component and product level designs have been completed and verified
•!a comprehensive test plan has been established
•!the detail designs and the comprehensive test plan are captured in the “Technical Design
Specifications”
•!configuration management control has been implemented.
Major development milestone
Timing
Technical design specification review with project sponsor
mid November
Prototype inspection
late November
System level design review with project sponsor
early December
Phase III - Code/unit test/build and integration
The major objective of this development phase is to translate the design details into source code.
Code inspection and unit test for the smallest logical software module follow this. Unit test is a
repetitive process and continues until all modules have been thoroughly tested. Typically test
cases during Unit Test deal with the following:
•!interface testing
•!branch coverage
•!boundary testing
•!error cases
•!output generation
Code and Unit test is followed by build and integration. The purpose of the build process is to
transform all developed source code into executable software. All modified/created source code
modules, programmable information and all reused code modules will be compiled for unique
identification, control and management. The integration test verifies that the functionality and
stability of the developed software product is maintained when all the features are integrated into
a single product build.
Training'Manual'rev.'October'22,'2015'Page'19!
Major tasks
The following major tasks must be completed during Phase III of the Software Development
Process:
•!source code has been created and inspected
•!all new and changed code must be successfully unit tested
•!the source code must be integrated into a change controlled database (configuration management
control)
•!the comprehensive test plan should be refined
•!test cases for functional, product and system verification tests have been developed.
Major development milestone
Timing
Project plan review QRB
mid January
Prototype results QRB
late February
Test readiness review with sponsor
late February
Phase IV - Product verification
Product verification generally encompasses three formal test stages following unit testing-
functional verification test, product verification test and system verification test/acceptance test.
Functional verification test
This test verifies proper execution of product components and does not require that the product
being tested interface with other program products. This could allow testing of a product before
others are ready. It may also be more effective to initially test in a controlled and isolated
environment.
Major tasks
Verify successful execution for all function, module and component interfaces and operational
characteristics against final programming specifications. Test different values for parameters and
variables. Execute all new and modified function paths. Recommend actions as needed.
Product verification test
This test verifies the proper execution of the entire product against defined product
specifications. It requires a direct interface with other program products.
Major tasks
Verify successful execution for all functions, operational characteristics and interfaces between
modules, components and other system products against final programming specifications.
Execute all new and modified functions and error paths. Recommend actions as needed.
•!acceptance test results and report
•!final report and documentation
•!project poster
•!project video
Training'Manual'rev.'October'22,'2015'Page'20!
System verification test/acceptance test
This test verifies proper execution of all related software and hardware products and is
performed using only the actual software and hardware.
Major tasks
Verify execution of the software product with all related software and hardware products, using
only the actual software and hardware applicable against final programming specifications
Major development milestone
Timing
Prototype inspection
late March
Final design review with project sponsor
mid April
Training'Manual'rev.'October'22,'2015'Page'21!

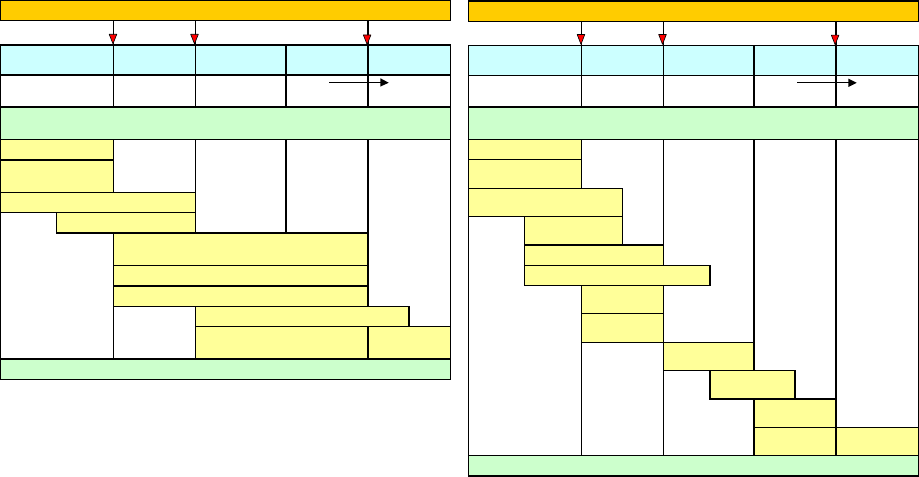

IPPD$Structured$Design$Process$Chart$(Software)$
!
!
Semester!One!
Semester!Two!
Handoff!to!sponsor!
!PDR!
!SLDR!
"QRB1!
"QRB2!
!FDR!
!
"!Prototype!inspection!
"!Prototype!inspection!
Major!tasks!by!phase!
•!technical!strategy!
•!system/product!
requirements!
•!complete!and!
testable!product!
specifications!
•!system/product!
architecture,!data!
flow!diagrams,!data!
modeling!and!class!
hierarchy!
•!preliminary!plans!
for!code!reuse!
•!preliminary!design!
of!each!subsystem!
•!simulation!and!
prototyping!plans!
•!preliminary!
verification!test!
plans!
•!configuration!
management!control!
plans!
•!project!plan!
•!business!case!
•!detail!module/!
component!and!
product!level!
designs!have!been!
completed!and!
verified!
•!comprehensive!
test!plan!
established!
•!detail!designs!and!
the!comprehensive!
test!plan!are!
captured!in!the!
“Technical!Design!
Specifications”!
report!(SLDR)!
•!configuration!
management!
control!has!been!
implemented!
•!create!minimum!
viable!product!
prototype!
•!project!plan!and!
detail!design!
review!(QRB1)!
•!source!code!has!
been!created!and!
inspected!
•!all!new!and!
changed!code!
successfully!unit!
tested!
•!the!source!code!
integrated!into!a!
change!controlled!
database!
(configuration!
management!
control)!
•!comprehensive!
test!plan!refined!
•!prototype!results!
&!report!(QRB2)!
•!test!cases!for!
functional,!
product!and!
system!
verification!tests!
have!been!
developed.!
•!complete!final!
prototype!
•!acceptance!test!
results!and!
report!
•!final!report!and!
documentation!
•!project!poster!
•!project!video!
•!sponsor!initiated!
activities!
!
Key$to$symbols$and$abbreviations:$
!!=!Major!design!report!and!review!
(sponsor!approval)!
"!=!Internal!faculty!review!
PDR!=!Preliminary!Design!Report!
SLDR!=!System!Level!Design!Report!
FDR!=!Final!Design!Report;!
QRB!=!Qualification!Review!Board!
!
!
System! reqts!
&!product!
design
Detailed design &
test planning
Code/unit!
test/build! &!
integration
Verification
Production
Training'Manual'rev.'October'22,'2015'Page'22!
IPPD Deliverables
Introduction
The progress of engineering design projects is generally managed through a phase review
process. Targets are established for each of the phases. Progress is determined based on
achieving these targets at cost and on time as determined in the overall project plan. To achieve a
target, the design team must deliver a pre-specified target content. Major targets in the design are
therefore marked by deliverables.
Overview
In the Integrated Product and Process Design program we will choose a set of deliverables that
are generally applicable to engineering design projects. They will allow us to monitor the
progress of a project, to evaluate the student team and to report the status of the project to the
industry sponsor. Deliverables that are specific to a particular type of project content are labeled
in this chapter with the following designations:
Label
Project type
Examples
Hardware
hardware oriented
electro-mechanical system development, test
and measurement
Software
software-oriented
mobile apps, embedded systems, decision
support tools, real-time software
Process
process oriented
optimization of process control characteristics,
quick changeover manufacturing process
design, quality improvement of process streams
Deliverables that are not otherwise labeled should be assumed to be applicable to all projects.
As discussed in the Software projects section, agile development methodologies, such as
SCRUM, may be used in lieu of the structured development process described in this chapter.
Your project coach can assist you in determining how to adapt the content and timing of the
major software deliverables described in the following sections to your particular project.
Deliverable$types$
In the IPPD program we will refer to the following three types of deliverables:
1.!major deliverables that are required of all projects; these include the Preliminary Design
Report, the System Level Design Report, the Final Design Report, and the respective design
report presentations, the project poster, and the final prototype system. Milestones and deadlines
associated with the major deliverables may not be changed.
Training'Manual'rev.'October'22,'2015'Page'23!
2.!intermediate deliverables such as the elements defined in this chapter that are project dependent.
The content and sequence of intermediate deliverables are not critical provided appropriate
content is included in the major deliverables.
3.!course deliverables such as team, individual, class, and coach evaluations; weekly status
memos; meeting minutes; pre- and post self-assessments; travel requests and materials and
supplies requests; checklists for design reviews and end-of-semester requirements.
Intermediate deliverables are almost always appropriate. In certain circumstances, detailed
deliverables may not be appropriate for a given project. Faculty coaches and liaison engineers
would have to work out the specifics of what seems more appropriate for a particular project.
The project roadmap provides a mechanism to document planned process deviations from the
standard IPPD process—such as delaying or eliminating a particular intermediate deliverable.
For example, a project that requires significant experimentation may delay concept selection
until after the scheduled delivery of the Preliminary Design Report. Another project may not
result in a manufactured product, so the Product Cost and Manufacturing Plan intermediate
deliverables may not make sense. Note that specific deliverable content may be changed if
absolutely necessary—for instance, the Product Cost deliverable may be modified to be a
Process Cost deliverable.
Packaging deliverables
Deliverables consist of a concise written report with supporting project data (charts, pictures,
graphs, analyses, tables, spreadsheets, research data) from which a short PowerPoint presentation
is derived. The PowerPoint presentation must be ready to be presented during class on the week
it is due. Prior to presenting the deliverable during lecture to peers, the content should be
reviewed and approved by the faculty coach and liaison engineer. While all IPPD student
engineers, staff and faculty have signed off on a Non-disclosure Agreement2, it is still prudent to
avoid presenting proprietary sponsor information unless cleared to do so by the liaison engineer.
Naming conventions: <team name>-<deliverable name>.<type>3
Cybertexters-PDS.pptx
Cybertexters-ProdCost.xlsx
Cybertexters-ProdArch.docx
Upload to Git: All work-in-process and finalized deliverable content in all digital formats
should be accessible on the project team’s Git repository. All team members are expected to
utilize the repository. The repository should be organized so that the liaison engineer, coach or
IPPD staff members can locate and review your work. Deliverables should be placed in the
deliverables folder in the team’s Git repository.
Upload to the team’s folder in Canvas: Rather than uploading deliverable documents to
Canvas, the deliverable assignment shall be satisfied by submitting the appropriate links (URLs)
to the Canvas assignment. By noon of the class meeting day, one team member shall ensure that
the deliverable and its associated files are uploaded to the team Git repository and that the links
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
2!“Assignment!of!Ownership!and!Nondisclosure!Agreement,”!found!on!my.ippd.ufl.edu!!
3!Including!the!revision!number!in!the!filename!is!not!recommended!for!files!managed!in!a!Git!repository!
Training'Manual'rev.'October'22,'2015'Page'24!
to these files are included in the Canvas assignment submission. Be prepared to present your
deliverable to the entire IPPD audience at the start of class. Revision of the deliverables are
permissible beyond the stated due date and time.
Available on team wiki: The wiki is tightly integrated with Git and can serve as a useful tool to
organize the access to specific documents in the repository, such as reports, deliverables, and
meeting minutes.
Time savers: Deliverables documented in both a brief report format and a PowerPoint format
are easy to consolidate into first drafts for the major reports and design presentations.
Develop reusable introduction slides: To ensure consistency in presenting deliverables to peers
and sponsor company engineers, a set of suggested presentation guidelines accompany the
deliverable descriptions that follow. Note that these are guidelines and may be deviated from as
needed to satisfy the intent of the project—do not prepare or present content that does not
support the project outcomes. If you have questions, consult your coach or the Director (in that
order).
Further, it is suggested that each development team create 1 to 2 presentation slides that provide
the following project information:
•!team name and logo
•!project title
•!sponsor company
•!team members--including the faculty coach and liaison engineers
•!a concise description of the project with key objectives
Elevator speech: It is suggested that the team develop an elevator speech to describe the project.
The description should be about 75 to 140 words (one minute maximum). Each team member
should be able to repeat the script, or their own variation, from memory. This script should be
used to introduce the project for all design reviews and deliverable presentations. Be sure
everyone on the project team can give the elevator speech.
The following sections describe the major project deliverables.
Technical strategy
Software!
Overview
Requirements for a product must be evaluated in the context of a technical strategy that provides
the strategic direction for the product. The technical strategy should describe:
•!the basic structure and direction of the product
•!the development methodology (i.e. SCRUM)
Training'Manual'rev.'October'22,'2015'Page'25!
•!the relationship of the product to any pertinent architectural standards4
•!user interface standards
•!interface standards with other products
•!direction for modification or replacement of old source code
•!the software engineering environment and tools required for the product such as:
o!programming language
o!compilers
o!equipment and operating systems
The technical strategy does not describe the internal design or implementation of the product.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides with basic structure & product direction; a list of pertinent architectural, user interface
standards, and system interface standards
•!1 slide with targets for reuse of existing requirements, specifications and code
•!1 slide with list of software environment, tools, programming environment, compliers, equipment
& OS (mention configuration management system if known)
•!1 slide with basic development methodology plan (for instance, if you plan to use SCRUM, how
often will sprints be scheduled, what units will you use for estimation—days, half-days, hours,
etc., how will the burn-down chart be managed, etc.)
Product design specification
Hardware$Software$Process!
The Product Design Specification5 (PDS) is the technical response to customer wants and needs.
The PDS captures the voice of the customer and translates the customer’s qualitative
expectations of the product or process (requirements) into into quantitative targets
(specifications) that can measured. The PDS must be comprehensive and unambiguous for both
hardware and software components of the design. It must provide specifics about what is to be
designed and built and how it will perform.
Metrics of the PDS should, if possible, be quantified and defined in the clearest possible terms. It
is a formal statement of what a product has to do and is the fundamental control mechanism and
basic reference source for the entire product development activity.
Suggestions pertinent for software-oriented PDS will be provided in addition to the broadly
applicable PDS content.
Requirements$
Determining requirements or customer needs for a product can be challenging because
requirements are not always known with precision at the outset and also because they may
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
4!These!standards!include,!but!are!not!limited!to!ANSI,!ISO,!ECMA,!W3C,!IETF,!UML,!CORBA,!HTTP,!PDF,!Windows,!IEEE!1471,!
DoDAF,!C4ISR,!TOGAF,!RMVODP,!SysML,!and!MDA!
5!“Process”!can!be!substituted!for!the!word!“Product”!throughout!this!deliverable!description!
Training'Manual'rev.'October'22,'2015'Page'26!
change over time. The objective of this part of the PDS deliverable is to determine requirements
to be met by the design of the product. Requirements should be unambiguous, validated and
prioritized by the customer of the product. Once requirements have been determined they need to
be baselined i.e. stored in a requirements database. A spreadsheet can be used store the
requirements list.
The Scope of Work (SOW) for a project is a rich source of content for developing project
requirements. The liaison engineer (your customer/client), your project coach, and even your
customer’s customer (important to know this!) can be excellent sources of requirements. To get
started, it is useful to generate a list of project stakeholders and their needs (we may also use the
word “feature” to represent requirements). Figure 1 shows a graphical representation of
stakeholders and associated requirements.
Figure$1$Graphical$representation$of$stakeholders$and$associated$requirements$
Note that some requirements have more connections than others. These may be the most
important needs/requirements to satisfy. Figure 4 shows an example6 with more detail for a
sample product.
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
6!Adapted!from!ASEE!Workshop:!Helping!Students!Achieve!a!“Systems!Perspective”!of!Engineering,!June!14,!2015!
Stakeholder!
1!
Stakeholder!
2
Stakeholder!
3
Requirement!
1
Requirement!
2!
2!2
Requirement!
3
!
Training'Manual'rev.'October'22,'2015'Page'27!
Figure$2$Stakeholders$and$associated$requirements/features$for$a$consumer$product$
Common%stakeholders%
The following are commonly used stakeholders7. The list is not exhaustive and is highly project-
specific.
•!end user
•!client
•!other engineers or scientists
•!regulatory agencies
•!those who maintain or repair or update
•!societal groups (i.e. government, first
responders, Millennials, Gen X, Gen
Y, Baby Boomers)
•!manufacturers, fabricators, assemblers
•!shipping department
•!marketing/sales/retail department
•!legal department
•!quality assurance
•!product testing
•!those responsible for disposal/deletion
of software
Common%features%
The following are common project features8. The list is not exhaustive and is highly project-
specific.
•!something to describe the project’s
primary purpose
•!affordable
•!adaptable
•!recyclable
•!secure
•!robust
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
7!Adapted!from!ASEE!Workshop:!Helping!Students!Achieve!a!“Systems!Perspective”!of!Engineering,!June!14,!2015!
8!Adapted!from!ASEE!Workshop:!Helping!Students!Achieve!a!“Systems!Perspective”!of!Engineering,!June!14,!2015!
Training'Manual'rev.'October'22,'2015'Page'28!
•!small-size/form factor/weight
(compactness)
•!easy to use
•!safe to use
•!simple
•!efficient
•!environmentally friendly
•!reparable
Requirements%differ%from%specifications%
Requirements and specifications are not the same. Sometimes the term requirement and the
term specification are used synonymously. IPPD development process distinguishes between the
two. Requirements refer to qualitative descriptions of customer needs and wants that are written
in the customer’s language (understandable by a non-technical person). Specifications are
quantitative, measurable embodiments of one or more requirements. Specifications are written in
the engineer’s language (very specific, with target metrics). Engineers apply a transformation to
a set of requirements that results in a set of specifications. If all the specifications are met, then
all the requirements should be met (and the customer is happy).
The examples that follow illustrate the differences between the requirements and specifications.
Customer needs/requirements examples:
<R-12>
The software shall provide real-time response to sales activity queries
<R-5>
The system shall be reliable
<R-33>
The housing must remain cool during operation
Note that these requirements do not provide a clear idea of how each would be proven. <R-12>
may be adequate for determining programming objectives, but it is not precise enough to define a
test to measure success. The more testable version of this requirement (the specification), could
be:
Type A queries in less than .5 sec.
Type B queries in less than 1 sec.
Type C queries in less than 2 sec.
Software%requirements%
Software!
The following four-step process may be useful for determining software requirements.
Collecting input requirements: Each input requirement is numbered and includes a brief
description of attributes related to the intended function. Customers of the product are generally
the source of input requirements. Market research, literature and competitive analysis may be
other resources.
Training'Manual'rev.'October'22,'2015'Page'29!
Problem analysis: This analysis should provide a detail description of each underlying problem
from an end user prospective. It contains information needed to understand the requirement. In
addition to control information it may contain a list of problem conditions, descriptions of
current functions, user tasks, end-users and the environment. Analyzing problems can be an
iterative process until it is agreed that the problem description is complete, consistent and
correct.
Solution analysis & definition: The purpose of solution analysis and definition is to develop
one or more effective, external solutions for each selected problem definition. It may include
control information, proposed function, resolved problem conditions, modified or new user tasks,
affected environment and end-user, and a value assessment for the particular solution.
Programming objectives: Programming objectives incorporate a set of solution definitions into
a coordinated description of new and enhanced functions. As programming objectives are being
developed the level of solutions as previously defined may have to be refined. This is an iterative
process until the Programming Objectives satisfy the Problem Definitions.
System modeling can be a part of requirements definition. Entity relationship diagrams (ERD)
would be one example of data modeling aspect of a system model. Viewpoint or data flow
models might be another. For software projects where the user requirements are not well
understood, it is recommended to follow an agile development process, such as SCRUM, where
a series of minimally viable prototype applications are built rapidly and reviewed with the end
users (customers) for feedback and redirection as needed.
Specifications$
Hardware$Software$Process!
Specifications must be testable to the extent that one can define a clear pass/fail test for
determining whether or not the developed product will satisfy the specifications. In order to be
testable, specifications must be specific, unambiguous and quantitative wherever possible. All
specifications must be numbered—especially for reference in test documents.
Specification examples:
<S-16>
The product shall be capable of supporting data signaling transfer among modules in a
full duplex rate from 56 Kbps to 4 Mbs.
<S-17>
The product shall support a time and date clock. Time and date shall be retained across
power cycles.
<S-21>
The system shall operate continuously for 1000 hours without operator intervention
<S-3>
The housing temperature shall not exceed 30 deg C during operation
It may require significant effort to eliminate the vagueness and ambiguity in a specification and
make it testable. It may require iteration (i.e. rapid prototyping) between requirements and
specification to achieve affordable testability. Determining testable specifications at this stage is
also important in preparation for a product verification strategy.
Training'Manual'rev.'October'22,'2015'Page'30!
Software%specifications%
Software!
Specifications must be testable to the extent that one can define a clear pass/fail test for
determining whether or not the developed software will satisfy the specifications. In order to be
testable, specifications must be specific, unambiguous and quantitative wherever possible. All
specifications must be numbers--especially for reference in test documents.
Example: Specifications 16 and 17
<S-16>
The product shall be capable of supporting data signaling transfer among modules in a full
duplex rate from 56 Kbps to 4 Mbs.
<S-17>
The product shall support a time and date clock. Time and date shall be retained across power
cycles.
Software requirements and product specifications checklist:
1.!Is the requirements document complete, i.e., does it reflect all of the known customer needs?
2.!Are the specifications so detailed that designing and coding are restricted to a single
implementation?
3.!Does the human interface follow established standards?
4.!Has the entire infrastructure been specified, i.e., backup, recovery, initialization, etc.
5.!Have all reliability and performance issues been listed?
6.!Have all security considerations been listed?
7.!Do the requirements consider all existing constraints?
8.!Do the requirements provide an adequate base for design?
9.!Are the requirements complete, correct, and unambiguous?
10.!Are all specifications testable?
11.!Are all interface requirements feasible?
Software development should only proceed after satisfactory answers to the questions in this
checklist have been provided or actions to resolve outstanding issues have been defined with a
date for resolution.
Mapping$specifications$into$requirements$
Hardware$Software$Process!
For completeness, every requirement should be covered by at least one specification. Covered
means that the user need articulated in the requirement has at least one measurable specification
associated with it. Table 1 shows a matrix representation of the specifications that cover each
requirement.
Training'Manual'rev.'October'22,'2015'Page'31!
Table$1$Requirements$coverage$matrix$showing$which$specifications$apply$to$a$each$requirement$
No.
Requirement
Specifications covered
R-1
The system shall be safe to use
S-2, S-3, S-5, S-6
R-2
The user interface shall be easy to use
S-3, S-4, S-15
R-3
The system shall require little maintenance
S-1, S-2
Conversely, to show that every specification has at least one corresponding requirement, the
reverse mapping can be presented. shows a matrix representation of the requirements that are
covered by each specification.
Table$2$Specifications$coverage$matrix$showing$which$requirements$apply$to$each$specification$
No.
Specification
Requirements covered
S-1
The MTBF shall exceed 1000 hours
R-3
S-2
The system shall operate without lubrication for 2
hours
R-1, R-3
S-3
The system shall conform to the SAE J2929 standard
R-1, R-2
The relationship between the requirements and specifications can also be depicted graphically;
however, this method can quickly become unwieldy.
House%of%Quality%
Hardware$Software$Process!
The House of Quality (HOQ) is another table-based approach for illustrating the relationship
between requirements and specifications. The HOQ combines customer preferences and
estimation of how well a given specification correlates with a given requirement to provide a
priority ranking of the specifications. IPPD will use just a small portion of overall HOQ
methodology and focus on identifying the most important specifications for initial focus.
Figure 3 shows an HOQ for a new technology steam iron. The simplified HOQ does not include
a roof area above the specifications columns. The roof area provides a visual correlation between
the specifications. Positively correlated attributes will each improve if either improve. For
instance, an improvement in drag coefficient will simultaneously improve fuel consumption rate.
Negatively correlated attributes will behave oppositely. For example, an improvement in
acceleration may increase the fuel consumption rate.
Training'Manual'rev.'October'22,'2015'Page'32!
Figure$3$Simplified$House$of$Quality$example$from$a$new$technology$steam$iron$project$
Each of the customer needs (requirements) has an importance rating from 1 to 5, where 1 is least
important and 5 is most important. The specifications (columns) are correlated with the needs
(rows) and a correlation assessment is applied. Low correlation is set to 1, medium to 3, and high
to 9. Weighted totals for each column are used to establish the ranking of the most important
specifications. The highest ranked specifications should be given the highest priority.
A note on the customer importance rating: it may be difficult for your customer to articulate the
importance ratings—sometimes it seems like everything is important (therefore nothing is
important). Asking the customer to make pairwise rankings can provide insights into overall
rankings, though if there many comparisons to make, this will be time consuming and potentially
irritating to your client. Another approach is to use the stakeholder-feature (needs) diagram and
base the importance ratings on the number of arcs connecting a particular element.
Technical%Performance%Measures%
Hardware$Software$Process!
A Technical Performance Measure (TPM) is a critical specification that will be tracked for
technical progress throughout the IPPD process. Three to seven specifications should be
!"#$%&'($)*$+,-$.!/0
!"1$234(567$(893$)*$:"$'3;
!":$%&&<5=&>?$(893$)*$,"$'3;
!"@$!(349$A3($5$"$'3;B$C3(>33?$C6D'('$8?$E3D(B$7&'B
!"F$G&$>4(3D$H48<'$(&$C3$E47&D8I3=$8?$E3D(B$7&'B
!",$G&$>4(3D$=D87'$&6($&H$8D&?$>J3?$(6D?3=$&HH
!"K$L6?;(8&?$C6((&?'$>8(J$#$7'8$7D3''6D3
!"M$N3973D4(6D3$>8(J8?$#"
°
$&H$(4DO3($(397B
!"-$P6D'($'(349
!#"$P6D'($'7D4Q
!##$%&?(8?6&6'$'(349
!#1$%&?(8?6&6'$'7D4Q
!#:$234(567$;&97<3(3$'8O?4<
Category
Customer,need Imp.
!"#$
/"#$G33='$(&$C3$;&'($3HH3;(8E3 @ - : : : : : : : : : : : :
%&'$()&#
/"1$R?'(4?($J34( @ : - : # # -
/":$R?'(4?($;&&<
@ : : - # #
/"@$%&?'(4?($E3D(8;4<$'(349
@ : - : # : :
/"F$!3<H$4=A6'(8?O$(&$H4CD8;
: -
/",$S?(85=D87
F : - - # #
/"K$%&9H&D(4C<3$J4?=<3
# -
/"M$P6D'($T$;&?(8?6&6'$'(349
@ : # # : : : # - -
/"-$P6D'($T$;&?(8?6&6'$'7D4Q
@ : : - -
/#"$U'3D$8?(3DH4;3
: - # # - # # # # :
*('+,$-
/##$N8OJ($(3973D4(6D3$D4?O3 1 : # # - : - :
.'/&$-
/#1$S6(&$&HH @ : #
/#:$!4H3$(3973D4(6D3$;&?(D&<$7<4;393?(
1
:
Weighted,Column,Totals,(Product)
198 66 66 63 87 94 63 42 68 51 68 51 63
Rank
1 6 6 8 3 2 8 13 411 411 8
01234567!89467:89;9$"9<
!"))&+'$,"=>9;?@"AB9C?1&D,(EB9F?G,HI
0/VWU%N$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$$
Specification
Training'Manual'rev.'October'22,'2015'Page'33!
designated as TPMs. Progress toward meeting TPMs will be reported during the following IPPD
milestone activities: PDR, SLDR, QRB1, QRB2, and FDR. The progress is reported as the
current level of achievement for the TPM.
The following are example TPMs:
•!flow rate of 100 GPM sustained for 3 hours
•!data rate of 25 Mbit/sec over 15 kilometers
•!natural frequency of greater than 7 kHz
•!target acquisition in less than 2 seconds

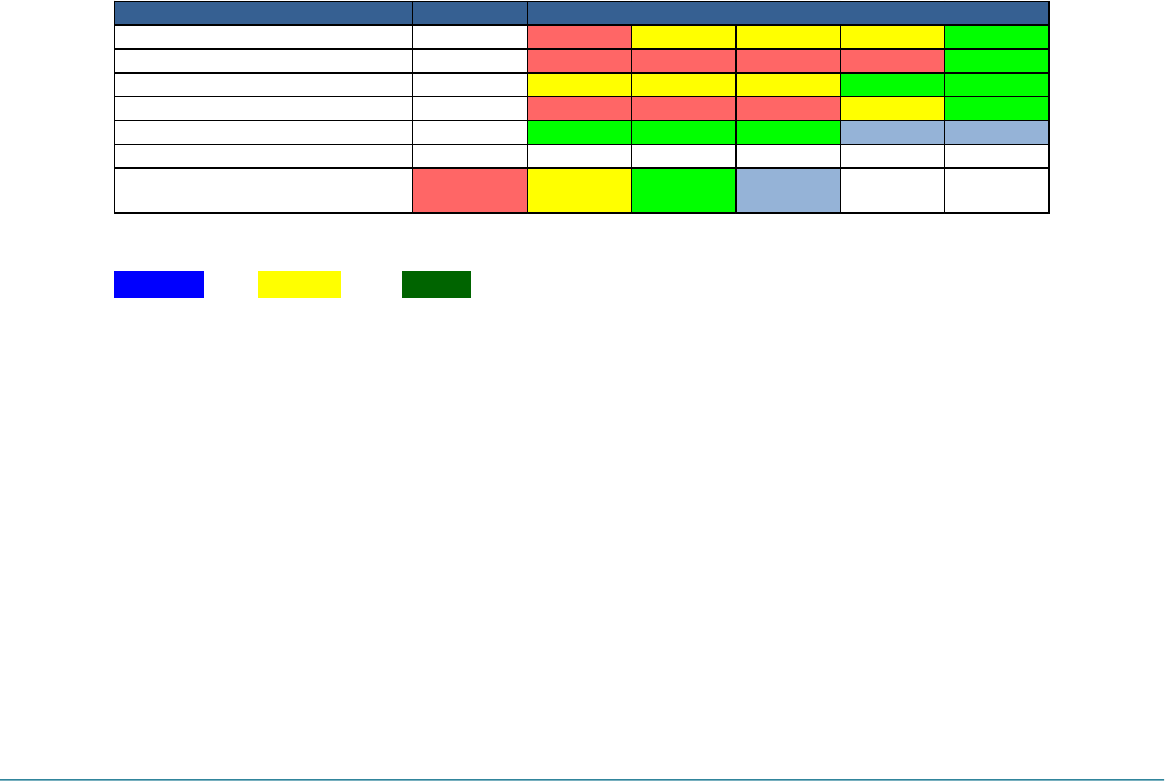

The following is an example of a TPM matrix reported at the FDR. Note the color scheme. Red
indicates current TPM achievement is unacceptable. Yellow indicates trouble, while green
indicates the target has been met. Blue indicates the target has been exceeded—in other words,
the design team can demonstrate a positive margin for this TPM. The color abbreviations serve
two purposes. First, a significant portion of the population is color blind. Second, the chart may
be printed in black and white and the color lost. Note how the each TPM progresses during the
IPPD project.
Required%PDS%elements%
Hardware$Software$Process!
The PDS should consist of the following elements:
•!a numbered list of requirements with priorities and rankings
•!a numbered list of specifications with target metrics and direction of improvement (>
target value, < target value, = target value, etc.)
•!a matrix showing the mapping of the requirements into the specifications—all
requirements should be covered by at least one specification; the House of Quality can be
used for this representation
•!a chart identifying the key specifications that will be tracked as Technical Performance
Measures (TPM) during the project
The PDS should be an up-to-date working document as the design process proceeds; however,
upon completion of the design, the PDS is a written document that matches the product itself.
This must be verified through an acceptance test where the prototype or production sample is
tested against the PDS. The PDS also serves as the basis for the contractual agreement between
!"#$%&#'()*"+,-+.'%#")/"'01+")2!*/3
!'+4"5
!"#$%!&' ($)*+
,-./0$&
,#."/$1 ,".#-$1 *+.23$1 *3.+2$4
!"*$56789$:86;6<8$9678$=>8?$@9A?$ABB$
($".""#$C:DC@?
#.#$&
".-#$& ".#2$& "."#"$& ".""#$4
!"2$E867FGH$7@C8 ($/"$I8J.
//$$1
//$1 /#$1 /"$4 /"$4
!"/$KAA:FLA=?$7@C8 ($*"$I8J.
#2/$$&
+,$& 32$& ,"$1 -+$4
!#0$!786C$M87$NG9I7$L8:6O ($".-$I8J.
.-$4
.-$4 .03$4 .02$P .02$P
%@:8I7A?8IQ 'R& !SR& T&P# T&P2 UR&
KAL8IQ
&V8LW$X$
G?6JJ8H76N:
1V8::A=W$X$
@?$79AGN:8
4V988?W$X$
C87
PV:G8W$X$
Y#"Z$
6#51'(0
Training'Manual'rev.'October'22,'2015'Page'34!
the design team and the sponsor company. It should be presented to the sponsor company as part
of the preliminary design review. This allows the sponsor company to make any objections
known before the actual more detailed design work is started. Establishing product specifications
and selecting design concepts is an integrated/iterative process.
Consider the following important points regarding the PDS:
1.!The PDS is a control document. It represents the specification of what you want to achieve—not
the achievement itself.
2.!The PDS is a user document. Write succinctly and clearly.
3.!The PDS is not an essay. Use short, sharp definitive statements.
4.!The PDS should distinguish between customer NEEDS that must be met under all circumstances
and customer WANTS that should be taken into consideration if possible.
5.!The PDS metrics should be quantified. If in doubt estimate and verify later through experiments.
(Remember you want to test the product against the PDS)
6.!The PDS document and any modifications must be clearly dated.
7.!The most critical specifications should be identified as Technical Performance Measures (TPM).
Progress toward achieving each TPM will be reported at each major milestone in the IPPD
process.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with prioritized customer needs
•!1 slide with a list of specifications with target values
•!1 slide with a house of quality (HOQ) demonstrating the correlation between the specifications
and the customer needs
•!1 slide summarizing the most important specifications (TPMs) as determined from the HOQ,
organized by IPPD milestone
Project roadmap
Hardware$Software$Process!
Overview
The project roadmap is a statement of process. The roadmap lists the IPPD deliverables the team
will be completing and an overlay of any special sponsor deliverables or review requirements.
The team will need to understand the IPPD deliverables early and work with the coach and
sponsor to ascertain which deliverables are applicable and the appropriate timing. The project
roadmap deliverable will be due within a week of the first sponsor visit. This early process-
oriented effort will help the team better understand how the project will be tackled and provide
early visibility into the detailed project plan.
Consider the following key information when creating the project roadmap (and ultimately when
completing the deliverables outlined on the roadmap):
Training'Manual'rev.'October'22,'2015'Page'35!
•!before starting the project roadmap document, read and understand the descriptions for each
deliverable. Discuss the deliverable requirements with your team members, coach and liaison
engineer.
•!follow the spirit of the deliverable/process element and not the letter of the law of each
•!weigh carefully the implications for deviating from the "classic" IPPD process
•!do not get bogged down in trying to create content for every deliverable if the deliverable does
not make sense for the project. Negotiate the applicable aspects
•!major deliverables, such as the Preliminary Design Report, the System Level Design Report, the
Final Design Report, the project poster, the project video, and the final prototype are required for
every project. Content of these project elements will vary depending on the project.
•!intermediate deliverables, such as the elements defined in this chapter are project dependent. For
example, software specifications may not be available until after significant prototype testing
has been completed. In the roadmap, the team may split this deliverable into a preliminary
product specification occurring prior to the Preliminary Design Report and the final product
specification occurring prior to the System Level Design Report.
The following is a partial list of things that may be included in the project roadmap:
•!time for feasibility analysis
•!additional prototypes
•!background research phase
•!a hybrid deliverable process utilizing both hardware and software deliverables
•!others
A template document for the roadmap will be provided by your coach. This document will be in
Excel format. It is recommended to maintain the roadmap in this format.
The roadmap will be submitted to the IPPD Director and a qualification review board to
approve or recommend modifications to the roadmap.
Final report process assessment: The final report will include an assessment of the process
followed by the project team. This assessment will illustrate the actual roadmap followed, detail
what worked and did not work, and will provide recommendations for future projects. The
project roadmap will be made available for future project teams.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide per IPPD project phase illustrating the sequence of the intermediate deliverables and
highlighting any sponsor-specific deliverables
Training'Manual'rev.'October'22,'2015'Page'36!
Concept generation/evaluation and selection
Hardware$Software$Process!
Concept generation
Completion of the product design specification (PDS) provides a better understanding of the
design problem, constraints involved and final design objectives. With this understanding the
design team can now generate, evaluate and select design/manufacturing concepts that will
satisfy the product design specification.
Concept generation, evaluation and selection and the definition of product design specifications
can be iterative in order to arrive at the best design concept. As you generate and evaluate
concepts it may require clarification or modification of the PDS
•!because of additional/new information about customer wants and needs
•!to allow development of a solution in the form of a design·
•!to meet the financial objectives.
This phase in the design process is called the conceptual design. It is completed over the first six
to seven weeks of class. It forces a formalization of the product design to this point. It is the
major part in the preliminary design report that will be reviewed by the sponsor company. It also
provides valuable insight into how well the team understands the problem. Approval of the
conceptual design is the basis for moving on to the next stage of the design process: The System
Level Design.
Important points:
1.!Try to get as many ideas as you can possibly generate.
2.!Record ideas as they occur and number them.
3.!Avoid early temptation to start engineering and developing ideas in detail and making firm
decisions during concept generation.
4.!Do not reinvent the wheel. Understand competitive or similar products and analyze them, look at
analogous problem (or system) solutions, benchmark, research the market, do a thorough
literature and patent search.
5.!Do not reject brilliant concepts because they conflict with the PDS. Maybe the PDS has to be
changed—remember the PDS is evolutionary.
6.!Never proceed without a PDS.
7.!Consider using concept generation tools, such as the TRIZ/TIPS process.
8.!Engineer your concepts as completely and recognizable as possible. Stay within the laws of
physics.
9.!Try to assess the feasibility of concepts. As required use the experience of your liaison engineer
or faculty coach.
10.!Assess the technology required in your concepts for compatibility, completeness, availability and
maturity.
11.!Think about what parts or subsystems of the selected concept you probably would make or buy
for your prototype. Discuss product/part sourcing with your sponsor company at the preliminary
design review.
Training'Manual'rev.'October'22,'2015'Page'37!
12.!Think about how you would prove your concept and test your prototype. Discuss this with your
sponsor company at the preliminary design review.
Functional decomposition
A key to success in concept generation is decompose the desired system into a structured
representation. This representation may reflect a network of user interactions or perhaps a
network of purely functional elements. A systems-based approach utilizes elements of user
interactions and the functional elements to build a functional architecture. Once the key
functional elements are identified, a series of structured and unstructured generative tools will be
employed to create concepts.
Defining%system%actors%
The first step is to revisit the list of stakeholders developed in the PDS, and identify those that
will physically interact with the system. Next, determine what physical things will interact with
the system. These physical things include, but are not limited to items such as power outlets,
network cable connections, other machines or equipment, heat, fluids, foundations and floors,
unintended devices and objects, and as a catch all for consumer-oriented devices, dogs and
babies (think of Fido chewing on your smartphone or TV remote). Anything that interacts
physically with the system will be referred to as an actor—this includes those stakeholders/users
and the physical items mentioned above. Actors are nouns. Figure 4 shows an actor interacting
with a system. The arc connecting the actor to the system is labeled as an Input/Output (I/O).
Figure$4$System$model$showing$an$actor$interacting$with$a$remote$control$system$
Table 3 shows a list of actors with the associated descriptions. Note that not all of the actors are
human. It also follows that not all actors are stakeholders. Stakeholders have a vested interest in
the project outcomes. Dogs and babies would not be stakeholders unless projects are designed
specifically for their use.
Actor Steam!Iron!System
I/O
Training'Manual'rev.'October'22,'2015'Page'38!
Table$3$Actors$and$associated$descriptions$for$a$digitally$controlled$steam$iron$system$
Actor
Description
user
person trying to de-wrinkle fabrics
wall outlet
provides power for heating the sole plate and powering controls
fluids
liquids that may spill onto the iron; fluids that may fill up the reservoir
assembly workers
individuals who assemble and package the iron
ironing board
primary device to support fabrics while de-wrinkling
floor
landing zone for dropped iron
Determining%inputs/outputs%
Inputs/Outputs (I/Os) describe what is being transferred between the actors and the system. I/Os
are nouns. Common examples of I/Os include the following:
•!signals
•!power
•!energy
•!force
•!information
•!mass
•!light
•!heat
•!voltage
•!current
Each of the I/Os should be described and attributed to the different actors previously defined.
Table 4shows an example of a few I/Os from a sample project.
Table$4$Sample$descriptions$of$I/Os$for$a$digitally$controlled$steam$iron$
I/O
Description
Actors
Grip force
Force applied by user to hold and guide the iron
User
Heat up signal
Visual or audible signal that iron is ready
User
Power
Power to wall outlet from the electrical power grid
Wall power outlet
Power grid
Plug-in/pull-out
force
Force applied to insert or remove the power cord plug to/from the
wall outlet
Wall power outlet
User
Heat energy
Energy flow from the iron’s soleplate to the fabric or atmosphere
Fabric
Ironing board
Steam burst
mass transfer
Flow of vaporized water (steam) from soleplate to fabric or
environment
Environment
Fabric
Ironing board
Selection
Command applied to the UI to select iron settings
User
Impulse
Impact force of iron from a fall
User
Dogs & babies
Floor
Reaction force
Force of fabric and ironing board transmitted back to iron through
the soleplate
User
Fabric
Ironing board
Training'Manual'rev.'October'22,'2015'Page'39!
Interactions%
Interactions describe what happens between the actors and the system. Interactions are verbs

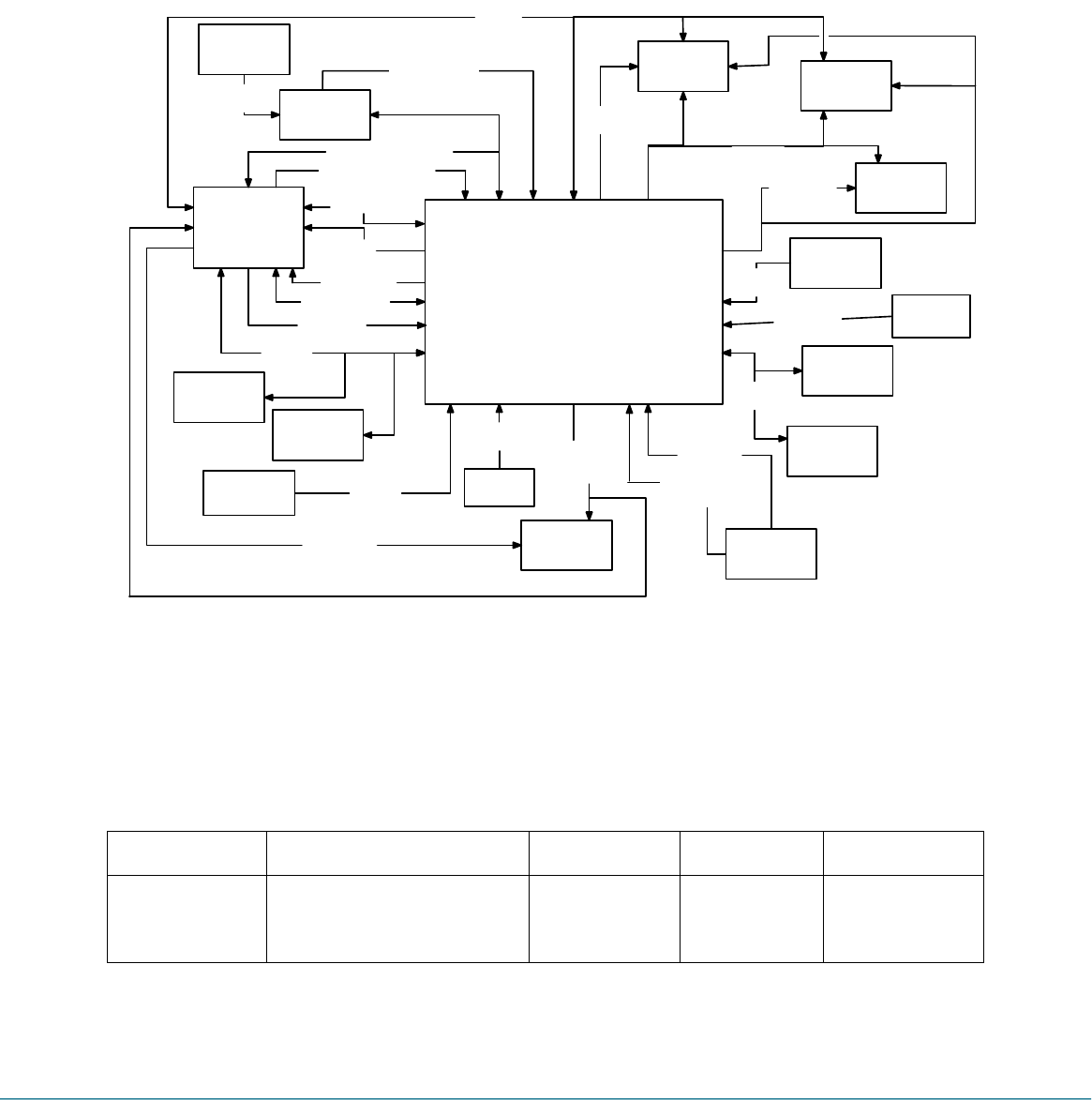

followed by nouns. Figure 5 shows a few interactions for a sample project.
Figure$5$Sample$interactions$between$actors$and$a$digitally$controlled$steam$iron$system$
Table 5 describes in more detail some of the interactions illustrated in Figure 5. Notice how each
interaction is described related back to the actors, pertinent I/Os and requirements. One might
discover in the process of documenting the product or process’s interactions that actors, I/Os or
requirements are missing. It is crucial to revisit earlier system view to add the missing elements.
Table$5$Sample$descriptions$of$interactions$for$a$digitally$controlled$steam$iron$
Interactions
Description
Actors
I/Os
Features/
requirements
Plug in/pull out
power plug
The user pushes/pulls the
power cord into/from the wall
power outlet
User
Wall power
outlet
Plug-in/unplug
forces
Electrical
power IN
Easy to use
Standard VAC
New Technology
Steam Iron
System
User
Fabric
Ironing board
Wall power
outlet
Power grid
Environment
Water
Tester
Service tech
Marketing
Retailer
Sales
Floor
Dogs &
babies
mass xfer
i/o
test signals
i/o
Appearance
i/o
Visual
appearance
i/o
Impulse/
impact i/o
Displacement i/o
Grip force i/o
Heat up
signal i/o
Selection i/o
Plug-in/pull-out force i/o
Power
i/o
Reaction
force i/o
Mass xfer
water mist i/o
Heat
energy i/o
Steam burst
mass xfer i/o
Functions
i/o
Assembler Assembly
forces i/o
Electrical
power IN i/o
Other fluids
Mass xfer i/o
Information i/o
Cord displacement i/o
Money
transaction i/o
Shipping
Handling
forces i/o
Training'Manual'rev.'October'22,'2015'Page'40!
Interactions
Description
Actors
I/Os
Features/
requirements
Select fabric
settings
The user selects the appropriate
temperature for target fabric
User
Selection
Information
Easy to use
Modern UI
Cool look & feel
Heat up signal
Accurate
temperature
Select burst of
steam
The user selects the burst of
steam mode while de-wrinkling
fabrics
User
Water
Environment
Fabric
Ironing board
Selection
Steam burst
mass transfer
Easy to use
Modern UI
Cool look & feel
Burst of steam
Select continuous
steam mode
The user selects the continuous
steam mode for horizontal and
vertical de-wrinkling
User
Water
Environment
Fabric
Ironing board
Selection
Steam burst
mass transfer
Easy to use
Modern UI
Cool look & feel
Vertical steam
Heat up signal
De-wrinkle
fabrics
The user maneuvers the iron
horizontally across fabrics
supported on an ironing board
with cover to press and steam
out wrinkles
User
Water
Environment
Fabric
Ironing board
Grip force
Heat energy
Steam burst
mass transfer
Displacement
Reliable
Safe to use
Easy to use
Modern UI
Cool look & feel
No drip
Heat fast
Cool fast
Heat up signal
Accurate
temperature
Functional$decomposition$
After the interactions are defined, the next step is to follow each system I/O to a functional
element inside the boundaries of the system and begin the process of decomposing the high level
functions into smaller functional blocks. Table 6 shows a few sample functions for the digital
steam iron system. Note that the functions are intentionally decoupled from potential
implementations to provide the maximum flexibility in the search for solutions. These functions
can be further refined into smaller sub functions, with internal I/Os developed to connect the
flow of materials, energy and signals.
Table$6$Partial$documentation$of$functional$blocks$within$the$digital$steam$iron$system$
Function
Description
I/Os
Feature(s)
Combine pieces
mechanically &
distribute forces
The enclosure and housing for the iron system
must withstand impulse loads when dropped
and protect internal hardware from damage
during use and shipping by minimizing forces
to all internal components. Must require
minimal assembly forces during manufacture
and testing.
Impulse
Assembly forces
Grip force
Reaction force
Durable
Reliable
Easy to assemble
Contain water
Provide a means to load and store water for
producing steam burst, continuous steam,
fabric misting.
Water mass
transfer
Burst of steam
Vertical steam
Low effort mist
Training'Manual'rev.'October'22,'2015'Page'41!
Function
Description
I/Os
Feature(s)
Control water
Provide a means to interpret signals and direct
water to steam producing subsystem, prevent
drips and leaks from the soleplate orifices, and
increase pressure for fabric misting
Water mass
transfer
Burst of steam
Vertical steam
Low effort mist
Convert electrical
energy into heat
energy
Provide a means to convert the alternating
current (electrical power IN) provided at the
wall power outlet into heat energy for the
soleplate and the steam producing subsystem
Electrical power IN
Heat energy
Steam burst mass
transfer
Heat fast
Accurate
temperature

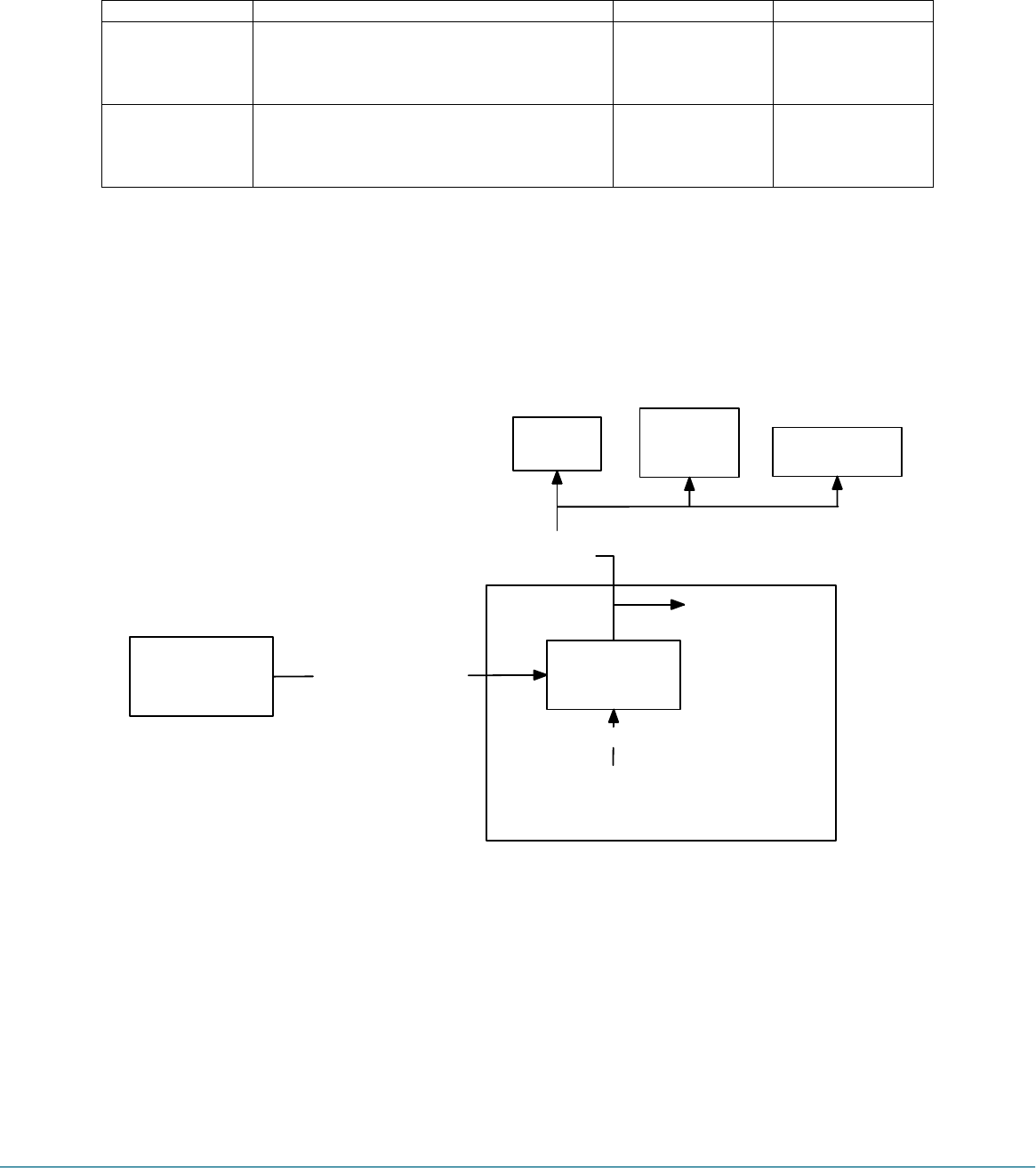

Figure 6 shows a sample functional decomposition for the convert electrical energy into heat
energy function. New I/Os, internal to the system are now defined. Previously, the only I/Os
defined were between the actors and the boundaries of the system model. Each function within
the system should be documented in this way and combined into a complete functional
architecture representation. This functional architecture will later be refined into physical and/or
management architectures (collectively referred to as a product architecture).
Figure$6$Functional$diagram$for$the$convert(electrical(energy(into(heat(energy$function$

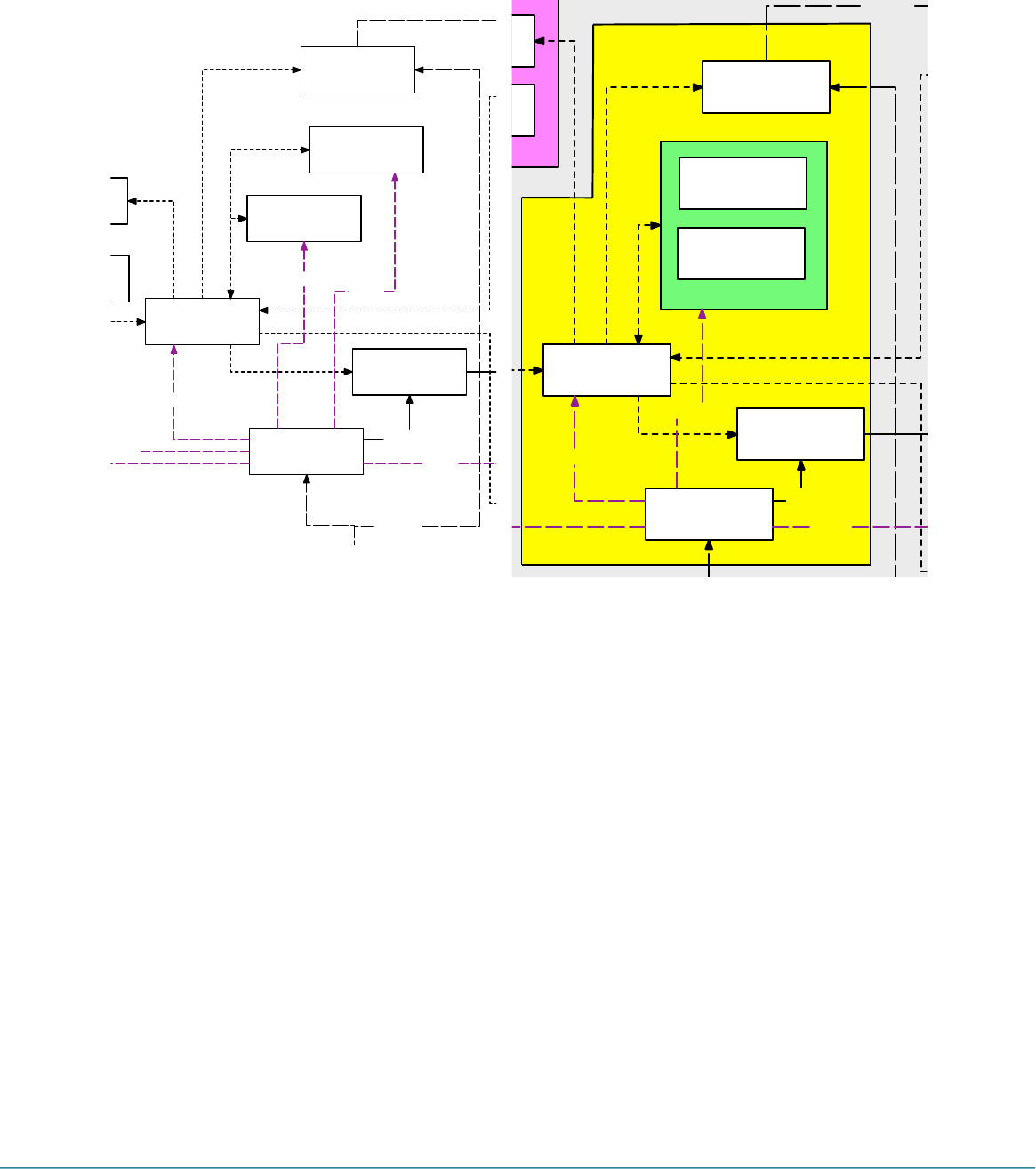

Figure 7 shows the complete functional architecture of the steam iron system. This diagram is the
result of consolidating all the functional diagrams with the interactions model.
New Technology Steam Iron System
Wall power
outlet
Convert electrical
energy
into heat energy
Electrical power IN i/o
Control signal i/o
Fabric Ironing
board Environment
Heat
energy i/o
Training'Manual'rev.'October'22,'2015'Page'42!

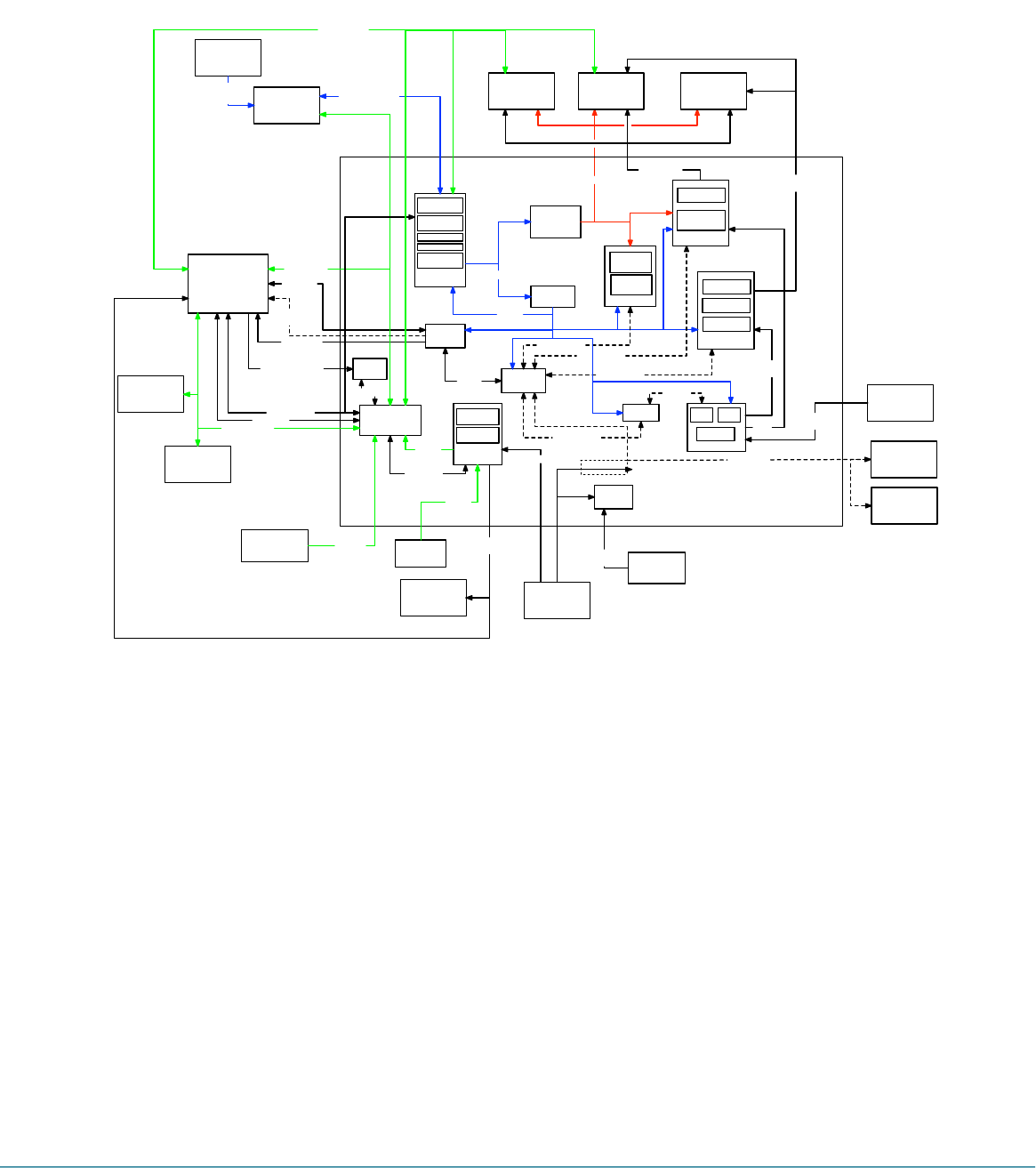

Figure$7$Complete$functional$architecture$model$for$the$digital$steam$iron$
After defining the functional architecture, the team must identify from three to seven critical
functions to use as the basis for concept generation. For the steam iron, the following functions
were identified:
•!Control heat
•!Control water
•!Interact with user
•!Process user settings
With critical functions now identified, the team can commence with internal and external
searches to identify multiple solutions for each of these functions. Each of the functional
solutions should be numbered and captured in sketches, pictures or other graphical or textual
representations. Once defined, the solutions (also referred to as solution fragments or partial
designs) can be arranged into a concept combination table to generate system concepts. Figure 8
shows a sample concept combination table for a six degree of freedom parallel platform knuckle
joint from a full-scale flight simulator. One concept is shown as the combination of one solution
fragment from each of the critical functions (also referred to a critical sub problem) categories.

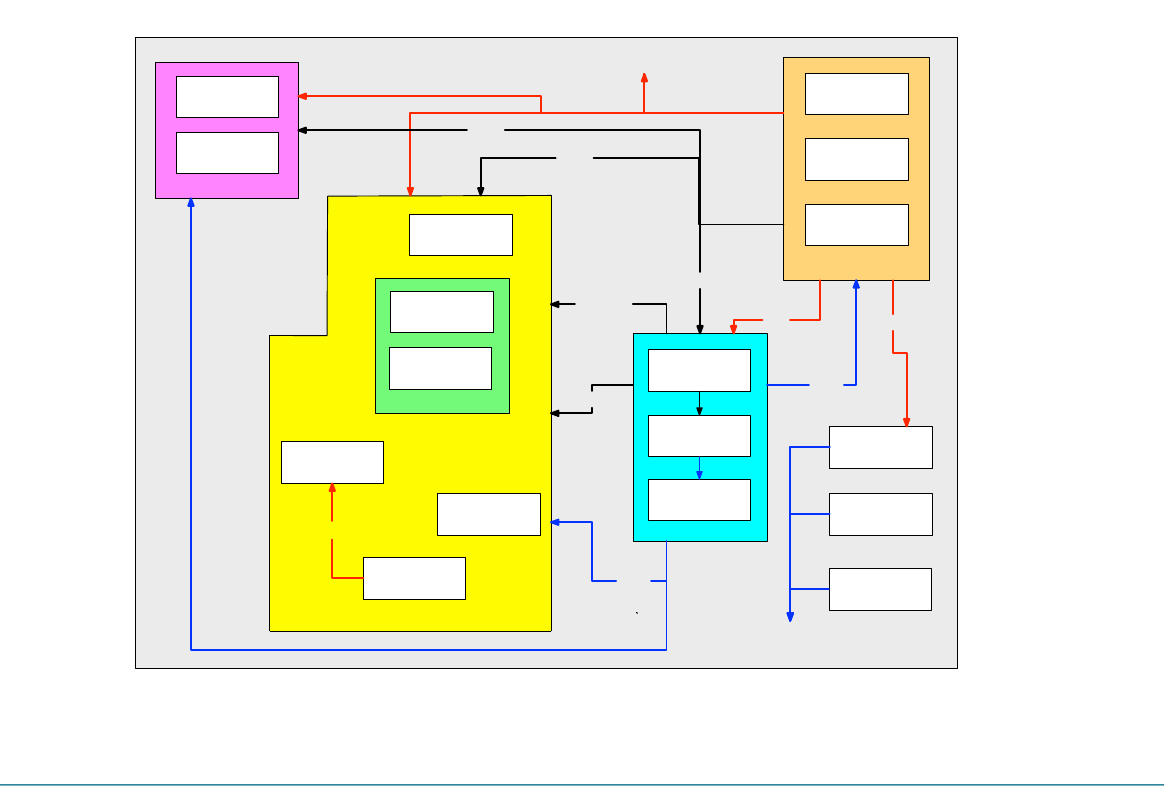

Heat energy i/o
New Technology Steam Iron System
User
Ironing board Fabric
Wall power
outlet
Power grid
Environment
Water
Tester
Service tech
Marketing
Retailer
Sales
Floor
Dogs &
babies
Power
i/o
Assembler
Other fluids
Shipping
Combine pieces
mechanically and
distribute forces
Package final
system
Handling
forces i/o
Visual
appearance i/o
Absorb
forces
Package
attractively
Contain Water
Store Load
Distribute
Control
Water
Control
signal i/o
Convert
electrical energy
into heat energy
Control heat
Sense
temperature
Adjust
heat
Convert
VAC to VDC
Interact
with user
Process
user settings
Data i/o
Mist fabric
Increase P & Q
Atomize water
Direct mist
Steam fabric
Make
steam
Direct steam
Shut off iron
when idle
Sense
orientation
Detect
movement
Monitor time
Kill power
Distribute
power
VAC OUT i/o
Resist
staining
Steam burst i/o
Mass xfer
water mist i/o
DC IN i/o
Mass
xfer i/o
Mass
xfer i/o
Store
cord
Connection i/o
Impulse/impact i/o
Grip force i/o
Displacement i/o
Cord displacement i/o
Information i/o
Heat up
signal i/o
Selection i/o
Plug-in/pull-out
force i/o
Electrical power IN
Control signal i/o
Control signal i/o
Control signal i/o
Control signal i/o
Mass
xfer i/o
Handling
forces i/o
Assembly
forces i/o
Visual
appearance i/o
Appearance i/o
Mass
xfer i/o
Functions i/o to ALL
Test signals i/o
Reaction force i/o
Training'Manual'rev.'October'22,'2015'Page'43!
Note that each solution fragment is numbered so that a concept can be referred to as a
combination of the numbers, i.e. 1.1+2.2+3.3+4.2+5.2+6.3+7.3 defines one concept.
Figure$8$Concept$combination$table$for$a$6$DOF$parallel$platform$knuckle$joint$
The concept combination table is just one way of organizing solution fragments. A concept
classification table can also be utilized. The key point is to be systematic in the organization of
the concepts.
Once organized, concepts for the system should be captured in sketches, pictures or other
graphical or textual representations.
Concept generation for software
Software!
The concept generation process can provide an effective set of tools for software-oriented
projects to develop alternatives for elements such as user experiences, algorithmic approaches,
and data structures. User experiences might include graphical user interfaces and frameworks.
Algorithmic approaches may include optimization routines (Newton’s method, steepest decent,
ALM, etc.), graphics processing (GPU versus CPU), and search (binary, A*, B-tree, etc.). Data
structure alternatives could include considerations such as hash tables, linked lists, and databases
(relational and object-oriented).
One$concept$=$1.1$+$2.2$+$3.3$+$4.2$+$5.2$+$6.3$+$7.3
Training'Manual'rev.'October'22,'2015'Page'44!
The functional decomposition approach in concept generation provides a head start on
development of the preliminary system/product architecture deliverable.
Presenting this deliverable
This deliverable is presented in two parts, over a two-week span.
Preliminary Concept Generation & Evaluation:
•!1 slide with team name, logo, team members, etc.
•!1 slide with problem decomposition graphic with critical functions (sub problems identified)
•!1 slide with evidence of external search (such as patents, competitors, web, lead users, experts)
and solution fragments for critical functions (sub problems)
•!1 slide with evidence of internal search (individual & group sessions) and solution fragments for
critical functions (sub problems)
•!1 slide with systematic exploration--concept combination table, concept classification table, etc.
illustrating overall system solutions
Concept selection
Hardware Software Process
The concept selection process is an important part of concept generation. During concept
selection, concepts will be compared to each other using decision matrices. In the process of
comparing alternatives, new patterns may become evident that will lead to new and better
concepts (concept selection is therefore considered a generative process). The ultimate goal of
this phase is systematically eliminate the least promising concepts until only a few concepts
remain. These final few concepts will likely be built (prototyped) and tested so that a final
concept can developed into a product for the customer.
Concept%screening%
Concept screening matrices are used to reduce a large number of concepts down to a manageable
number. Selection criteria are used to evaluate each design. These criteria are directly related to
the customer needs or product/process design specifications. Once the selection criteria are
agreed upon, a decision matrix is prepared. This approach can be applied to concepts for a
particular function or for the entire system.
Figure 9 shows a concept screening matrix for the control water function within the digital steam
iron example. The first column includes the selection criteria, while the subsequent columns
represent system concepts A through E. A reference concept must be established as a benchmark
for comparison. The example shows concept B as the reference. Note that the rating for all of
concept B’s selection criteria are set to zero (0). This concept was considered to be the average
concept. For each criterion, the design concept is compared to concept B. If the concept is
superior for a particular criterion, then it rates a “+,” while inferior concepts rate a “-.” Concepts
that have similar performance characteristics are rated as “0” or if preferred, “S” for same. The
plusses, minuses and zeroes are summed up to determine which of the concepts will be carried
Training'Manual'rev.'October'22,'2015'Page'45!
forward for further development or selection. In this example, concept E is dropped from
consideration due to its poor performance.
Figure$9$Concept$screening$matrix$for$the$control$water$function$on$the$digital$steam$iron$system.$Concept$B$is$the$reference$
concept.$
Before moving forward to a scoring matrix, the team should see if any new concepts can be
created from combining the best elements of the designs. Once satisfied, the remaining concepts
can be rated with numbers to select the most promising concept(s) for further development.
Concept%scoring%
Concept scoring is used after the least promising concepts are pruned from consideration. The
scoring matrix is similar to the screening matrix in that the concepts are compared to references
for each selection criterion. The key differences are that selection criteria are weighted, the
reference concepts are selected by criterion, and a numerical rating (1 to 5) is selected for each
concept-criterion pair. Figure 10 shows a concept scoring matrix for the control water function.
The weightings for the selection criteria were developed from the priorities established by the
customer. The reference concepts for each criterion are as follows: cost (A), reliability (B), noise
(B), compact size (B), flow control (A), and power consumption (B). Based upon the scoring,
concepts A and B were eliminated.
Control'Water'
'
!"
#"
$"
%"
&"
''
''
''
1'
motor/pump'
1'
motor/pump'
1'
motor/pump'
2'
motor/pump'
2'
motor/pump'
'()(*+,-."$/,+(/,0"
2'on/off'
valves'
24way'valve'
34way'valve'
direct'
connect'
2'on/off'
valves'
''
''
''
continuous'
discrete'
discrete'
discrete'
continuous'
Cost'
'
'
+'
0'
0'
0'
4'
Reliability'
'
'
4'
0'
0'
0'
4'
Noise'
'
'
4'
0'
0'
0'
4'
Compact'size'
'
0'
0'
0'
0'
4'
Flow'control'
'
+'
0'
+'
+'
+'
Power'consumption'
''
0'
0'
0'
4'
4'
1(+"234"
"
"
5"
5"
6"
5"
47"
Total'+'
'
'
2'
0'
1'
1'
1'
Total'4'
'
'
2'
0'
0'
1'
5'
Total'0''
'
'
2'
6'
5'
2'
0'
80.9"
""
""
:"
:"
6"
:"
;"
Continue?'
''
''
<(="
<(="
<(="
<(="
1-"
Training'Manual'rev.'October'22,'2015'Page'46!
Figure$10$Concept$scoring$for$concepts$to$address$the$control$water$function$
The comparisons need to be based upon data—whether this data is gathered from published
specifications or from testing. Sometimes final concept selections cannot be made until after
prototypes are built and validated by the project sponsor. Prior to completing the concept
selection phase, the team should closely review the scoring matrix and see if new promising
concepts can be created from the best elements of other concepts.
Preliminary Concept Selection:
•!1 slide with team name, logo, team members, etc.
•!1 slide with problem decomposition graphic with critical subproblems identified
•!1 slide with systematic exploration—concept combination table, concept classification table, etc.
illustrating overall system solutions
•!1 slide with concept screening results—including new concepts generated and winners
•!1 slide with concept scoring results
•!1 slide with recommended concepts for further development (one to three)
System/product architecture
Software!
Overview
The objective of this deliverable is to provide a clear overall system/ product organization
including a good architectural overview and justification. The total system/product is broken
down into well-defined modules including their functionality and interfaces to each other. All
functions listed in the requirements must be covered neither by too many nor too few modules.
Concept(Scoring
Concept( selection.pptx 23#Sept.#2014
A B C D
Control Water
1 motor/pump,
2 on/off valves,
continuous
1 motor/pump,
2-way valve,
discrete
1 motor/pump,
3-way valve,
discrete
2 motor/pump,
directly
connected
discrete
Selection Criteria Weight Rating
Weight
ed
Score
Rating
Weight
ed
Score
Rating
Weight
ed
Score
Rating
Weight
ed
Score
Cost
30%
3
0.9
3
0.9
3
0.9
3
0.9
Reliability
20%
2
0.4
3
0.6
3
0.6
3
0.6
Noise
10%
1
0.1
3
0.3
3
0.3
2
0.2
Compact size
15%
3
0.45
3
0.45
3
0.45
2
0.3
Flow control
20%
3
0.6
3
0.6
4
0.8
5
1
Power consumption
5%
2
0.1
3
0.15
3
0.15
2
0.1
Total Score
2.55
3
3.2
3.1
Rank
4 3 1 2
Continue?
No No Ye s Ye s
Training'Manual'rev.'October'22,'2015'Page'47!
The architecture should be designed to accommodate likely changes within a module without
affecting the rest of the modules. Major data structures need to be described and justified.
Database organization and content must be specified.
A clear architecture with well-defined modules allows delegation of specific modules to
development engineers for parallel or concurrent development of a product. The functional
architecture developed in the concept generation deliverable will minimally satisfy the
requirements of this deliverable.
System/product architecture checklist:
1.!Is the overall program organization clear, including a good architectural overview and
justification?
2.!Are the components (modules and objectives) well defined including their functionality and
interfaces to other components?
3.!Are all the functions that are listed in the requirements covered?
4.!Is the architecture designed to accommodate likely changes?
5.!Are all major data structures described and justified?
6.!Is the database organization and content specified?
7.!Have all the dependencies been identified?
8.!Is the user interface modularized so that changes in it won't affect the rest of the program?
9.!Are key aspects of the user interface defined?
Software development should only proceed after satisfactory answers to the questions in this
checklist have been provided or actions to resolve outstanding issues have been defined with a
date for resolution.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with a graphic showing where system/product fits within existing environment--
identifying all interfaces
•!1 slide with system/product broken down into well-defined modules with interfaces between
modules (UML or ERD) and functions each module supports
•!1 slide describing major data structures
•!1 slide with sample user interface
Configuration management plan
Software!
Configuration management is a process of identifying the configuration (parts) of a product for
the purpose of systematically controlling changes to the part.
The configuration management plan defines the goals, structure, responsibilities and degree of
change control. The plan is created during Phase I of the IPPD Software Development process
and defines the following:
Training'Manual'rev.'October'22,'2015'Page'48!
•!the baselines to be established during the development cycle
•!the objectives to be included in each baseline
•!database, library structure, responsibilities and tools to be used for managing changes
•!a set of change control criteria for
o!level / method of authorization
o!type of verification
•!change control criteria such as
o!changes of the design or specifications
o!cause of change (errors, enhancements, requirement changes)
o!impact on lines of code, documentation, work items, personal hours
Baselines include those work items that have been verified and agreed upon to serve as the basis
for further development. Once the basis is established no work item may be added or modified
without appropriate authorization.
Teams using Scrum should adapt this deliverable to support their process. For example, the team
should focus on elements such as naming conventions for source code, how the Git repository is
organized, the level of detail for Git commits, and how software versions will be identified.
Presenting this deliverable:
•!1 slide with team name, logo, team members, etc.
•!1 slide identifying baselines for software builds & objectives for each build
•!1 slide with change control criteria (numbering & naming conventions)
•!1 slide enumerating what objects under change control
•!(i.e. requirements, specs, architecture, code, test plan, etc.)
Project plan
Hardware$Software$Process!
Overview
The project plan is required to plan and organize the design effort through the fall and spring
semesters. The Project teams must estimate the physical and financial resources needed to
complete the project and provide a method of tracking progress towards completion. Due dates
for project deliverables and reviews with industry sponsors will be part of the project schedule.
The project plan is dynamic and must be continuously revised and tracked with current progress.
The initial plan and all subsequent revisions will be reviewed with the industry sponsor. Use the
project roadmap as a starting point for the task sequencing and dependencies.
How to create a plan:
1.!Set a clear endpoint for the project and work backward.
2.!Determine due dates for major deliverables.
3.!Determine activities required for deliverables and the relationship among activities.
4.!Estimate time required for each activity.
5.!Create a picture of the schedule. Use Microsoft® Project to develop your plan.
6.!Plan by week.
Training'Manual'rev.'October'22,'2015'Page'49!
7.!Overlay your sponsor’s development process and deliverables or checkpoints onto your plan.
8.!Modify the plan as you improve your understanding of the project.
Important considerations: A good project plan will include more than just a schedule of the
deliverables. The plan should include the following:
•!training for design systems and software tools (CREO, SolidWorks, Mentor Graphics, Altium
Designer, Visual Studio, Minitab)
•!timeline for fabrication
•!timeline for testing
•!timeline for troubleshooting (debugging)
Project risks
A project plan is not complete without an assessment of the project risks. Risks broadly fall
under the following categories:
•!technical
•!schedule
•!manufacturing
•!procurement
•!financial
•!legal
Risks are assessed by rating the negative impact potential (high or low) on the project if the risk
occurs and the probability/likelihood of the risk occurring (high or low). A simple way to rate
risks is to use the following rule:
Risk Rating
Impact
Probability
Risk Code
Very High Risk
High
High
HIHP
High Risk
High
Low
HILP
Medium Risk
Low
High
LIHP
Low Risk
Low
Low
LILP
Project success is highly dependent upon the team's ability to mitigate risks. Risk mitigation
requires specific actions that will move the risk rating for a particular project element from a
higher risk rating to a lower risk rating, with the goal of reducing all major project risks to a low
risk rating. A series of mitigation steps may be required to move a high risk to a low risk.
Examples of mitigation strategies include the following:
•!devising a test to prove that a component or subsystem functions properly
•!validating the work flow of a software tool with a user interface demonstration
•!procuring back-up parts in case of failure during testing
•!performing a system simulation prior to fabrication and physical testing
•!developing a series of prototypes for testing and customer validation prior to final
design/coding/fabrication
Training'Manual'rev.'October'22,'2015'Page'50!
A list of ongoing project risks should be captured and tracked. A convenient way to represent
these risks is to create a risk table, also known as a risk register. A sample risk register is
illustrated below.
No.
Risk
Rating
Code
Mitigation Strategy
Owner
1
Shaft seal will leak
Medium
LIHP
verify shaft diameter with
micrometer prior to ordering seal
Jane
2
Soon-to-be-released
daughter board drivers will
not be available on schedule
Very
High
HIHP
1. work closely with the supplier to
obtain beta releases; 2. identify an
alternative daughter board
Barry
Plan example
An example project plan based on current IPPD project deliverables is illustrated in the
“Creating a Project Plan” document, which can be found in Canvas in the “Resources” section,
in the “How To” folder. Potential areas of project plan execution risk are defined as well.
Important: The project plan is not a “do-it-once-and-forget-it” deliverable. It is expected that
the Project team will consult and update the plan on regular basis (weekly). The plan is a tool to
help manage the project. “Manage the tool; don’t let the tool manage you.”
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 to n slides with project Gantt chart with major project milestones and deadlines
•!1 slide with a sample breakdown of 2 deliverables--show dependencies between tasks, show team
& sponsor tasks--highlight tasks that are project-specific (not a generic IPPD deliverable)
•!1 slide with a risk table showing description and severity, ordered by severity
Business case
Hardware$Software$Process!
Overview
All design projects must include a business case analysis; however, not all projects are
undertaken purely for economic reasons. Some projects are undertaken just to maintain parity
with a competitor or to comply with new regulatory requirements. Department of Defense
projects in particular may be difficult to assess—sometimes it is sufficient to prove that the
chosen design option is the lowest cost among alternatives or show how the design improves
reliability or mission effectiveness.
Typically, the business case will include a list of assumptions, a list of the variables (such as
increased sales revenue, estimated product cost, estimated development effort, and marketing
and support costs), and the calculation of the net present value, internal rate of return, payback
period, profit before and after taxes, and return on investment. The internal rate of return should
be compared to the sponsor company’s hurdle rate.
Training'Manual'rev.'October'22,'2015'Page'51!
Sensitivity analysis: It is important to determine how changes in some of your business case
assumptions affect the profitability and payback of the project. A business case that is insensitive
to variations in the assumptions is said to be robust. The effect of variation in key business case
drivers should be explored in a sensitivity analysis. This analysis will provide insight into how
changes in these key drivers effect the profitability of your proposed solution. The sensitivity
analysis is one tool for managing the uncertainty in the project economic data.
For instance, in a new design or redesign of commercial product, the key business case drivers
might be sales volume, unit cost, and gross margin. In a sensitivity analysis, a baseline is first
established using best guess values for the key drivers. The net present value, internal rate of
return, and payback period are then determined. These calculations are repeated using optimistic
and pessimistic values for the key drivers (for instance, sales volume increases or decreases by
50%).
Important: Due to the competition-sensitive nature of certain cost information, such as labor
rates and product margins, it may not be possible to create an accurate business case. However, it
is still possible and highly desirable to create an accurate business case model. Spreadsheets are
particularly well suited to this task. The sponsor can easily replace your estimated values for the
key economic drivers with precise figures.
Updates: The business case should be revised and up to date for the System Level and Final
Design reports.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with business case assumptions
•!1 slide summarizing the cash flow statement
•!1 slide summarizing the key business case calculations (including sensitivities)
•!1 slide with recommendations
Prototype plan
Hardware$Software$Process!
Overview
Tom Kelley, General Manager at IDEO says, "a picture is worth a thousand words. Only at
IDEO, we've found that a good prototype is worth a thousand pictures." Experience has shown
that successful development teams prototype early and often throughout the IPPD process. Each
IPPD team is required to develop a technology feasibility prototype for demonstration at the
System Level Design Review. The prototype should embody one or more key technical aspects
of the system, such as functional behavior of a system/product or module, user interface mock
ups, or system breadboards. Major advantages that a prototype can provide include the
following:
•!a mechanism that allows designers to evaluate alternatives and to investigate problems
•!an early assessment of the impact of a new function to reduce risk
Training'Manual'rev.'October'22,'2015'Page'52!
•!evaluation of changing environmental characteristics
•!improved requirements, specifications, design verifications and user interfaces
The prototype plan will be included in the Preliminary Design Report and as such must be
approved by both the project coach and sponsor liaison engineer. The plan should be started as
early as possible, but no later than the conclusion of the Preliminary Design phase. The plan
should a minimum include the following:
•!a table indicating what specifications will be demonstrated by the prototype(s)
•!a brief description of the prototype(s), the objectives, and important fabrication elements
•!a list of resources required and responsible team members
•!a schedule that includes acquisition, fabrication, and testing
•!a script indicating how the prototype(s) will be demonstrated during the System Level Design
Review
Through software prototyping the functional behavior of a system/product or module can be
observed early in the development cycle. Rapid prototyping and evolutionary design can be an
alternative to the generation and validation of written requirements/specifications as a way of
ensuring that a software product will be responsive to user needs. Major advantages that a
software prototype can provide include the following:
•!a mechanism that allows designers to evaluate alternatives and to investigate problems
•!an early assessment of the impact of a new function to reduce risk
•!evaluation of changing environmental characteristics
•!improved requirements, specifications, design verifications and user interfaces
Software prototype plans should be made early in the development phase and should be
determined based on guidelines such as the following:
•!What do we need to know about user interfaces (screens, screen transitions, dialogs, reports etc.)?
•!What is our plan to evaluate the prototype feedback?
•!What do we need to know about data flow, internal interfaces, and feasibility of design or
performance issues?
Prototyping results can be used to make a better product. Generally, however, prototype should
not be used in the formal product. A prototype by design and intent answers specific questions.
Attempting to implement the prototype as the operational product can result in new problems as
new questions surface.
Things to avoid when developing a prototype:
•!rushing into prototyping before adequately defining technical objectives
•!losing sight of prototyping objectives
•!developing the prototype into the product
•!making endless prototype iterations
•!delaying documenting the prototype results
Training'Manual'rev.'October'22,'2015'Page'53!
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with specific questions trying to be answered by one or more prototypes
•!1 slide with list of prototypes, prototype classification (i.e. functional, nonfunctional, aesthetic),
tool used for prototyping (i.e. a 4GL, Excel macro, VB application), resources and schedule
•!1 slide with prototype evaluation criteria (how to judge results & what to do with the info)
Preliminary design report and project plan
Hardware$Software$Process!
Overview
(See Major Deliverables in IPPD Report Process section.) The preliminary design report is the
first major deliverable in the eight-month design project. The report summarizes the project to
date and serves as an agreement with the sponsor company that the proposed design solution,
project plan, business case will meet the sponsor’s needs. Prior to presenting the report during a
design review at the sponsor’s facility, the report should be thoroughly peer reviewed by project
team, coach, and liaison engineer.
A signature page should be included in the report. The Preliminary Design Report is your team's
agreement with the sponsor company for the selected design concept, scope of work, and project
plan. As such, it is important that the team, faculty coach, and liaison engineer agree upon the
content. Therefore, we require a signature approval page be included with the report. Please see
the Signature Page Specification and Examples in Canvas in the Files “Deliverables”
folder.
During the design review, new issues may arise and the project may be rescoped. The report
should be revised to reflect these changes and a sign-off from the liaison engineer obtained once
all agreed upon modifications are incorporated.
Proposed content and presentation outline
Executive Summary (~1 page)
•!Provides a quick overview of the report. The reader should gain a good idea of what the
project was all about and what the results were. Key technical specifications, experimental
and prototype results, and financial measures should be included. Explicit recommendations
should also be stated.
Table of Contents
•!Table of Contents
•!Reference Documents
•!List of Figures
•!List of Tables
Training'Manual'rev.'October'22,'2015'Page'54!
1.0 Project Assumptions and Objectives
•!what the project is, background information
•!the scope of the project. What is and what is not to be accomplished
•!the major objectives such as
o!reengineering existing product for cost / expense reduction
o!new product family or extension
o!increased market share, etc.
•!what the product is expected to do
•!annual quantity
•!technical strategy (software)
•!configuration management plan (software)
2.0 Customer Requirements
•!project stakeholders and their wants and needs including the relative importance of each need (or
requirement) another
•!Product Specifications
•!values of measurable engineering characteristics (specifications) of the product as derived from
the customer requirements
•!relationship of product specifications to customer wants and needs (House of Quality)
•!identified Technical Performance Measures (TPM) and current achievement
3.0 Analysis of Competitive Products
•!patent and literature search
•!benchmarking of competitive products
•!customer perception
•!technical performance
•!costs / price
4.0 Concept Selection and Description
•!functional architecture model with description of actors, I/Os, interactions and functions
•!preliminary product/system architecture (software)
•!demonstration of the comprehensiveness of the concept generation (decomposition external
search, internal search, systematic exploration)
•!appropriate documentation of concepts (sketches, schematic diagrams, block diagrams, etc.)
•!list of evaluation criteria
•!documentation of selected concept
o!schematic diagrams
o!block diagrams
o!modeling
o!process layouts
o!evaluation of concept against product specifications
5.0 Prototype Plan
•!planned hardware, simulation and software prototypes
Training'Manual'rev.'October'22,'2015'Page'55!
•!timeline, resources needed and expected costs
6.0 Project Plan, Resources, Schedules
•!major checkpoints/deliverables
•!list of activities
•!time required to complete
•!target dates for completion
•!responsible team members
•!Scrum sprint schedule and burn down charts (software)
7.0 Business Case
•!assumptions
•!increased sales revenue
•!estimated product cost
•!estimated development effort
•!marketing and support costs
•!profit before/after taxes
•!net present value
•!return on investment
8.0 Issues
•!list of areas in the design that are not too well understood and will require additional work
•!parts, components, subsystem sourcing for prototypes
•!prototype testing
9.0 Recommendations
•!list explicitly what you recommend: “approve the selected concept,” “authorize additional
prototyping funds,” “provide team access to company systems, facilities, etc.”
Packaging the report: The Preliminary Design Report should be professionally labeled and
packaged. It serves as the basis for an oral presentation and design review with the project
sponsor company. Prior to presentation at the sponsor site, an 18-minute version of the
presentation will be peer reviewed before an audience of other project teams and faculty from the
University of Florida.
Important Dates:
Due Date
Description
Early to mid Oct.
Peer review (practice session, during class, attendance mandatory)
Training'Manual'rev.'October'22,'2015'Page'56!
Mid Oct.
First complete draft of the Preliminary Design Report posted on team wiki
site
End Oct.
Preliminary Design Review at sponsor's site
End Oct.

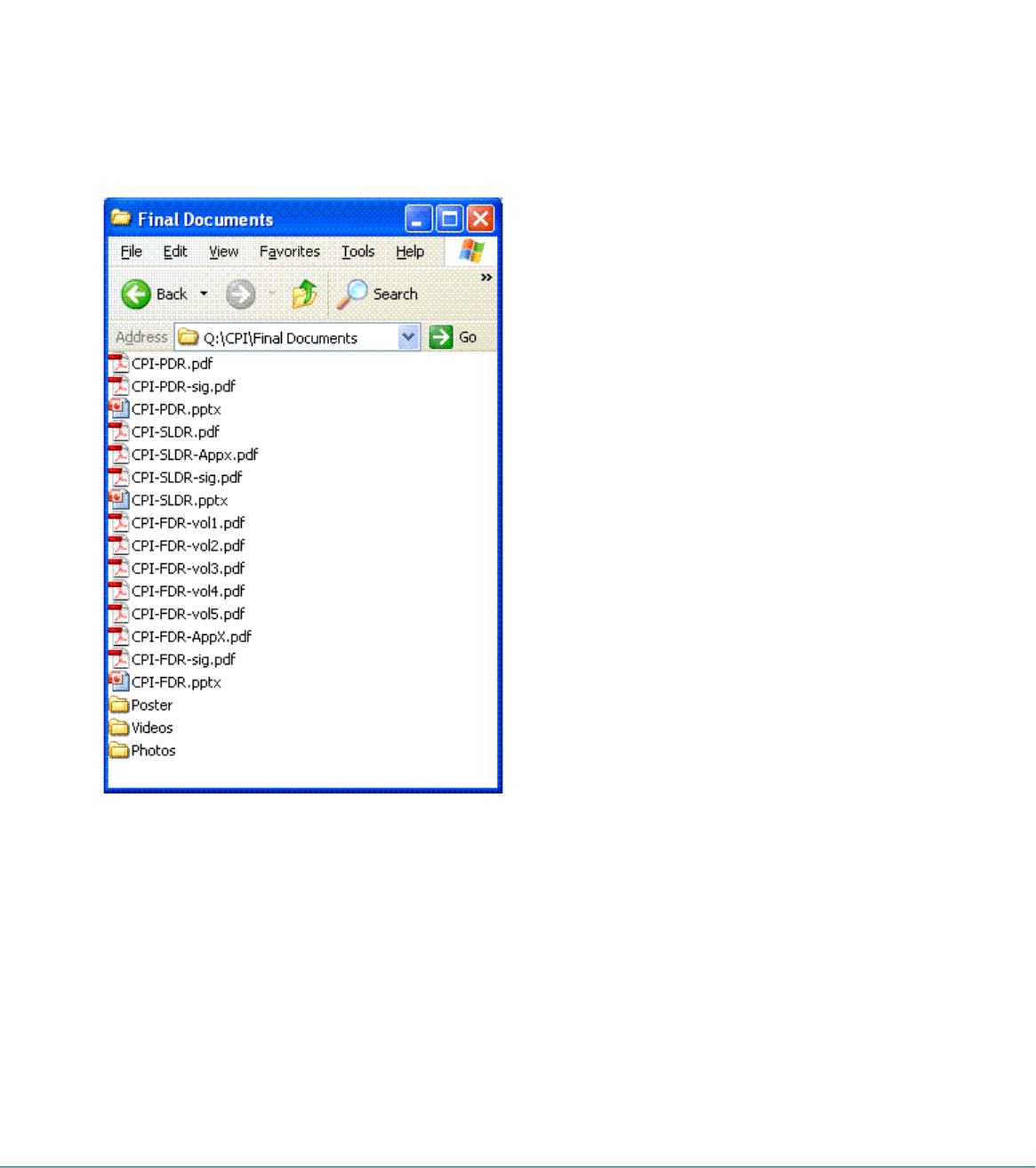

Finalized Preliminary Design Report with signature page uploaded in the
final_documents folder on the team repository
In the beginning of October, your team should plan a visit to your sponsor to present your
Preliminary Design Report. If you have a software-oriented project, you should also include
content from your software deliverables. The PDR is your agreement with the sponsor company
regarding what you will deliver in April.
The first draft of the Preliminary Design Report is due in mid-October. The report is to be
published on your repository. Typically, the sponsor will raise some issues with your report
during the design review. It may take several weeks to resolve the issues. Therefore, the
final approved version of the report is due on end of October. You can find a PDR example in
Canvas in the Files area within the “Deliverables” folder.
A peer review for the PDR presentation will be held in mid-October. Your team will be assigned
a room with three to four other teams. Each team will have 18 minutes to present their PDR and
12 minutes for Q&A. This session will be a dry run of a more comprehensive presentation to be
delivered live to your sponsor. Be sure to have your liaison approve the content you plan to share
on the prior to Peer Review. You may not divulge proprietary information during this
presentation.
Note: the peer review presentation is a subset of the presentation that you will present to your
sponsor.
Preliminary Design Report Peer Review
The Preliminary Design Report needs an 18-minute PowerPoint presentation. A Peer Review is
an 18-minute PowerPoint presentation summary of your report, followed by feedback from your
peers and faculty coaches. Peer Reviews can be for the Preliminary Design Report, System Level
Design Report, and Final Design Report. This presentation is intended to be a subset of the
content to be presented by the team at the sponsor's facility.
Product architecture
Hardware$Process!
Training'Manual'rev.'October'22,'2015'Page'57!
Overview
The objective of this deliverable is to transform the functional architecture elements into a
physical architecture and then each functional element in terms of parts, components and/or
subassemblies. The process of developing the product architecture will serve to partition the
product (or process) into physical elements (blocks) and define the interfaces between each
element.
The process of decomposing the functional requirements of the product during the concept
generation phase results in a functional representation of the product system—the functional
architecture. This functional architecture does not consider how the functions might be grouped,
implemented in physical elements or grouped geometrically. The transformation of the
functional architecture into a physical architecture involves arranging the functional elements
into modules/units (also referred to as “chunks” or “blocks”) created to implement the functions.
The distribution of the various chunks determines the product architecture.
Coupled with each chunk there are associated interfaces that may be required for connections to
other modules. In addition, each chunk may have a technical risk associated with the
development. In developing the architecture, the team must therefore address issues such as
concentration/location of chunks, interfaces and risks. Each of these decisions can have
implications for the product development speed.
The product architecture is developed through the following steps:
1.!create a schematic of the product’s physical elements
2.!cluster the schematic’s physical elements into chunks
3.!create a rough 2D or 3D geometric layout of the chunks
4.!identify the fundamental and incidental interactions between the chunks
Create the schematic
Starting with the functional architecture diagram, develop a schematic of the physical elements
that will implement the product’s functions. Figure 11 shows a schematic of the digital steam
iron that implements the functional architecture depicted in Figure 7. Notice how the schematic
reflects design decisions made during the concept generation and selection process. The function
of control heat, with its sub functions of sense temperature and adjust heat, are now implemented
with a thermistor to sense the temperature, and a relay controlled by a microcontroller to adjust
heat. Detailed specifications for each of these physical elements will be determined once the
physical (product) architecture is completed.
Training'Manual'rev.'October'22,'2015'Page'58!
Figure$11$Schematic$of$the$physical$elements$that$implement$digital$steam$iron$functional$architecture$
Table 7 shows a partial list of the components and subsystems of the physical digital steam iron
schematic. The table is necessary to ensure that all functional elements have been captured by
physical components or sub systems.
Table$7$Subset$of$components$and$subsystems$mapping$into$digital$steam$iron$system$functions$
Component/ sub
system
Description
Physical I/Os
Functions
Display
Display iron status and user selections for
fabric temperature, continuous and burst of
steam, and low effort mist
5 VDC in
Data in
Visuals
Interact with user
Touch interface
Provide a means to turn the iron on/off and to
input user selections for fabric temperature,
continuous and burst of steam, and low effort
mist
5 VDC in
Data out
Press force
Interact with user
Body
Motor
Pump
3-Way Valve
Mist Nozzle
AC/DC Converter
Steam Chamber
Sole Plate
Water Reservoir
Thermistor
Relay
Motor Driver
Microcontroller
Display
Touch Interface
Fill Port
Orientation
Sensor
Motion Sensor
Torque
H2O
H2O
H2O
12 VDC
PWM
H2O
120 VAC
12 VDC
5 VDC
5 VDC
120 VAC
Heat
Heat
Heat out
Steam
out
5 VDC
H2O
H2O in
Mist out
5 VDC
5 VDC
Forces
Displacements
Stains
Spills
5 VDC
H2O
Steam
Visuals
Press
force
Training'Manual'rev.'October'22,'2015'Page'59!
Component/ sub
system
Description
Physical I/Os
Functions
Microcontroller
Process user selections, display iron settings
and status, control heat and water, provide
PWM, and manage auto shut-off
5 VDC in
Data out
Data in
Process user
settings
Monitor time
Control heat
Adjust heat
Control water
Kill power
AC/DC converter
Convert 120 VAC wall power in to 5 and 12
VDC outputs
120 VAC in
12 VDC, 1A out
5 VDC, 30mA out
Convert VAC to
VDC
Motor driver
Convert PWM data stream from
microcontroller and 12 VDC, 1A input to high
power PWM output to operate the pump motor
Data in
12 VDC, 1A in
12 VDC, 1A,
PWM out
Control water
Increase P & Q
Cluster the elements
The physical elements are now assigned to chunks (or blocks). In a modular architecture, each
physical element may be assigned to an individual chunk. In an integral architecture, multiple
elements are assigned to each chunk. Figure 12 shows the PCB and auto shut-off chunks side by
side with the schematic representation. Notice how the auto shut-off chunk is completely
contained within the PCB chunk.
Training'Manual'rev.'October'22,'2015'Page'60!
Figure$12$The$PCB$chunk,$on$the$right,$is$formed$from$multiple$physical$elements.$The$auto$shutWoff$chunk$is$contained$
within$the$PCB$chunk.$
Figure 13 shows the chunks developed for the digital steam iron. The body chunk holds all the
other chunks. Some elements, such as the water reservoir, fill port and mist nozzle, are integrated
within the body rather than implemented as part of other chunks. This is an example of a design
decision made by the development team.
It is possible that certain functional elements will have to be shared across numerous chunks. For
example, a safety system may be deployed across multiple blocks.
Body
Motor
Pump
3-Way Valve
Mist Nozzle
AC/DC Converter
Steam Chamber
Sole Plate
Water Reservoir
Thermistor
Relay
Motor Driver
Microcontroller
Display
Touch Interface
Fill Port
Orientation Sensor
Motion Sensor
Torque
H2O
H2O
H2O
12 VDC
PWM
H2O
120 VAC
12 VDC
5 VDC
5 VDC
120 VAC
Heat
Heat
Heat out
Steam
out
5 VDC
H2O
H2O in
Mist out
5 VDC
5 VDC
Forces
Displacements
Stains
Spills
5 VDC
Body
PCB
Water System
Heat System
User Interface
Motor
Pump
3-Way Valve
Mist Nozzle
AC/DC Converter
Steam Chamber
Sole Plate
Water Reservoir
Thermistor
Relay
Motor Driver
Microcontroller
Display
Touch Interface
Fill Port
Auto Shut-off
Orientation
Sensor
Motion Sensor
H2O
H2O
12 VDC
PWM
H2O
120 VAC
12 VDC
5 VDC
5 VDC
120 VAC
Heat
Heat
Heat out
Steam
out
5 VDC
H2O
H2O in
Mist out
Forces
Displacements Stains
Spills
5 VDC
Training'Manual'rev.'October'22,'2015'Page'61!
Figure$13$Entire$physical$architecture$of$the$digital$steam$iron$
Table 8 shows how the physical elements of the digital steam iron are implemented in physical
chunks/block. The table shows a partial implementation of the mapping. The table is necessary to
ensure that all physical elements have been captured by one or more chunks.
Table$8$Partial$mapping$of$digital$steam$iron$components/sub$systems$into$chunks$
Chunk/block
Description
Physical I/Os
Components/ sub
systems
Auto shut-off
System senses the orientation and movement of
the body
5 VDC, 30 mA in
Data out
Displacement
Orientation sensor
Motion sensor
PCB
Contains primary electronics of the system,
including the microcontroller, power
management, and water and heat control
5 VDC, 30mA out
12 VDC, 1A PWM
out
120 VAC, 15A in
120VAC, 15A out
Data in
Data out
Data in (analog)
Microcontroller
AC/DC converter
Motor driver
Auto shut-off
Relay
Body
PCB
Water System
Heat System
User Interface
Motor
Pump
3-Way Valve
Mist Nozzle
AC/DC Converter
Steam Chamber
Sole Plate
Water Reservoir
Thermistor
Relay
Motor Driver
Microcontroller
Display
Touch Interface
Fill Port
Auto Shut-off
Orientation
Sensor
Motion Sensor
H2O
H2O
12 VDC
PWM
H2O
120 VAC
12 VDC
5 VDC
5 VDC
120 VAC
Heat
Heat
Heat out
Steam
out
5 VDC
H2O
H2O in
Mist out
Forces
Displacements Stains
Spills
5 VDC
Steam
H2O
Press
force
Visuals
Training'Manual'rev.'October'22,'2015'Page'62!
Chunk/block
Description
Physical I/Os
Components/ sub
systems
User interface
Includes a display for iron status and user
settings, and a touch interface for capturing
user inputs such as power on, temperature
setting, steam setting, and misting
5 VDC, 30mA in
Data in
Data out
Press
Visuals
Display
Touch interface
Create a rough layout
Once the chunks are defined, the next step in creating the physical (product) architecture is to
create a rough geometric (2D or 3D) layout of the system. Some chunks may need to be adjacent
to each other to minimize signal or other losses at the interfaces. For example, pressure drops
may occur if fluids have to travel through many connections over long distances, or using long
structures to transmit mechanical signals or loads may lead to loss in fidelity due to excess
deflections or damping. In many cases, circuit board locations may be extremely flexible due to
the ability to transmit voltage and current over wires with few losses.
Figure 14 shows a rough 3D layout of the digital steam iron concept. The layout provides a
notional arrangement of the iron’s physical elements. This layout can be used as a focal point for
discussions with product stakeholders to communicate product intent and gather feedback.

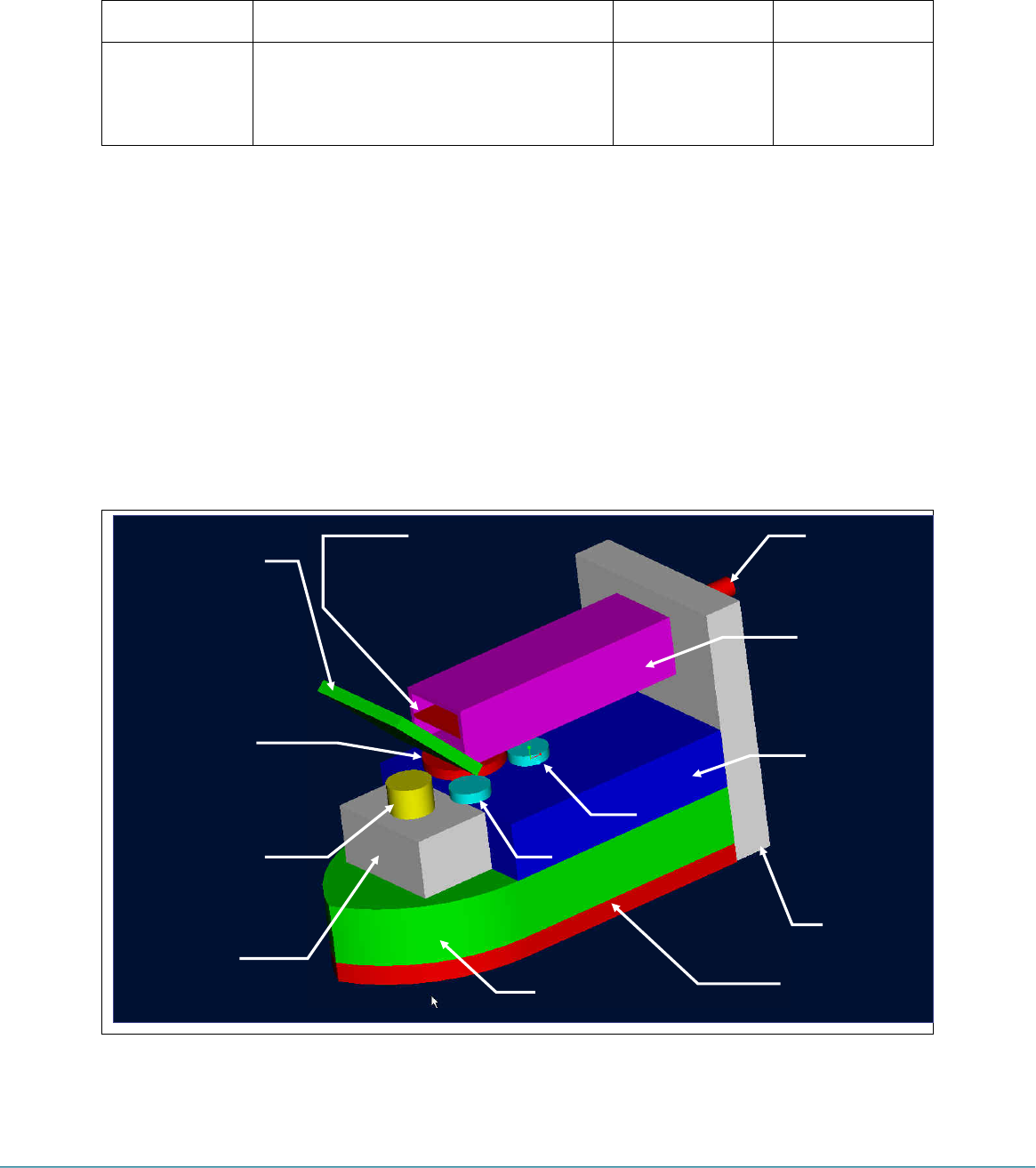

Figure$14$A$rough$geometric$layout$of$a$digital$steam$iron$concept$
Sole%plate
Steam%chamber
Heel
Water%
fill
Mist/spray
Water%
reservoir
power
Handle
User%
interface
Mist%
valve
Steam%
valve
Pump
PCB
Training'Manual'rev.'October'22,'2015'Page'63!
Identify the interactions
As part creating the physical architecture, the interactions between the chunks are provided in a
diagram depicting the intended and incidental interactions. Intended interactions are the desired
interactions that occur at the interfaces between the chunks. The incidental interactions are
undesirable interactions that may occur at the interfaces between the chunks. In the steam iron
example, heat energy from the soleplate to the fabric is a fundamental interaction, while heat
energy to the process user settings chunk would be an incidental interaction. Other examples of
incidental interactions include noise, electromagnetic interference, radiation, water leaks and
vibrations. Understanding the fundamental and incidental interactions allows the design team to
refine physical arrangements (i.e. move the noise-sensitive elements away from the noisy
elements) and countermeasures (such as shielding, damping or insulation).
Figure 15 shows the incidental interactions that may occur between the digital steam iron
chunks. Heat, steam and leaking water are major concerns. Clearly, electronics need to be
physically separated from the sources of these incidental interactions. If physical separation is
not possible, then the design team may consider potting the electronics in a water resistant and
heat tolerant polymer.
Figure$15$Incidental$interactions$between$digital$steam$iron$chunks$
Body
PCB
Water System
Heat System
User Interface
Motor
Pump
3-Way Valve
Mist Nozzle
AC/DC Converter
Steam Chamber
Sole Plate
Water Reservoir
Thermistor
Relay
Motor Driver
Microcontroller
Display
Touch Interface
Fill Port
Auto Shut-off
Orientation Sensor
Motion Sensor
Heat
EMF
Heat
Steam
Steam
Vibrations
Heat
Leaks
Heat
Leaks
Leaks to all
Heat to Body
Steam
Training'Manual'rev.'October'22,'2015'Page'64!
Table 9 shows a partial list of incidental interactions between various digital steam iron chunks.
The mitigation strategies provide guidance in minimizing the impact of the incidental
interactions on the performance of the system. The design team should identify and prioritize
mitigation strategies. Testing may be required to overcome the incidental interactions. This
preliminary work on incidental interactions may provide insights for future studies on Failure
Modes and Effects Analyses (FMEA).
Table$9$Partial$list$of$incidental$interactions$between$digital$steam$iron$chunks$
Incidental
interaction
Description
Chunks
Mitigation strategy
Heat
Voltage converter heat may
damage the microcontroller or
other circuits on the main logic
board
AC/DC converter
Microcontroller
Isolate the AC/DC converter
onto a separate power board
that can be located away from
the logic board. The power
board might also contain the
relay for the control heat
function.
Heat
Heat from the sole plate or steam
chamber may damage/warp the
body or other components such as
the reservoir, user interface or
PCB
Heat system
Body
Water reservoir
Water system
Display
PCB
•!Select high temperature
plastics for the body
•!thermally insulate the hot
parts from the cool parts
Leaks
Leaks from the water system,
reservoir, fill port or mist nozzle
may damage the circuits or user
interface components
Water system
Reservoir
Fill port
Mist nozzle
PCB
User interface
•!Keep water-sensitive
components isolated from
the water source
•!select water-resistant
components
•!gasket and seal areas
around water-sensitive
components
•!Pot the PCB in epoxy
Modularity leads to rapid progress
Modularity, if done well, allows shortening the development cycle, because modules can be
delegated to individual team members and developed in parallel, independent from each other.
This assumes that the interfaces are well defined and the elements can be decoupled from one
another.
Up to the preliminary design report most of the work was done in teams. The total weekly
development time was approximately equal to the time the team spent together. Now team
members can work in parallel or concurrently and the weekly development time is equal to the
sum of the time of all members. This shortens the development cycle significantly. The team
meeting agenda changes to coordination between team members, problem identification and
solution, project planning and management.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
Training'Manual'rev.'October'22,'2015'Page'65!
•!1 slide with the functional architecture
•!1 slide with a schematic showing the major physical elements
•!1 slide depicting the major chunks with interfaces and fundamental interactions identified
between components (additional slides to represent competing architectures if required—such as
modular vs. integrated architectures)
•!1 slide showing the incidental interactions between the major chunks of the system (fundamental
interactions may also be shown)
•!1-2 slides with a graphic depicting possible geometric arrangements of the major chunks
Component design specifications
Hardware$Process!
Overview
All products are made up of component parts which to a greater or lesser degree, have been
defined in overall form during the conceptual design phase or during the product architecture
definition. The physical (product) architecture defines the major chunks of the product and
informs the requirements for the individual components that implement the functions within the
chunks.
In order to proceed with the design of the product you must now improve your knowledge of
these required component parts. You have to take into account the interfacing of the component
with those adjacent to it and its effect on the total product. You have to decide on whether you
want to make or buy the part.
In preparation for the detail design of the product, and also to discuss the component parts with
potential sources of supply (e.g. vendors), it is useful to have a Component Design Specification
(CDS). The major input to the CDS comes from the PDS and is in many cases identical. The
main emphasis in the CDS is on the transformation of overall product specifications into the
following:
•!local performance
•!local environment
•!local constraints
Examples of typical CDS elements:
•!Performance - input/output, load, maximum/minimum temperatures, voltages, currents, flow
rates, etc.
•!Local constraints - size, interfaces, interaction etc.
•!Environment - temperature, humidity, corrosion, shock, etc.
•!Testing
•!Shelf life
•!Quality, Reliability
•!Weight
•!Make or Buy - product sourcing
•!Quantity
•!Standard vs. Unique
Training'Manual'rev.'October'22,'2015'Page'66!
•!Cost
•!Material
•!Ergonomics/Safety
•!Aesthetics
As with the PDS all CDS metrics should be quantified.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides summarizing list of unique & standard parts
•!1-2 slides with detailed specifications for 1-2 unique parts
•!1-2 slides with detailed specifications for 1-2 standard parts
•!1 slide with an example of the process used to determine make or buy for one component
Analytical and experimental plans/prototype test plan
Hardware$Software$Process!
Overview
(See Analytical and Experimental Report section.) At this stage of the design process, at the
latest, the team must develop a plan how to prove the concept and how to test the prototype or
production sample against the PDS.
The analytical or experimental plan defines a structured approach applying modeling or
statistical experimentation to ensure that design parameters are chosen properly and that the
selected concept will work.
The objective of building a prototype or production sample is to verify the product design. The
product design specifications are the criteria for verification. The test against these criteria is
called the acceptance test. For example, if we translated the customer wants and needs correctly
into product design specifications and if we verify our design against these specifications the
product design can be accepted because it should meet the customer requirements.
Ideally the prototype consists of a complete product. In the case of larger products, components
of the total product may be prototyped. Based on the results of building and testing the prototype,
design modifications may be required.
While it seems early in the design process to think about the acceptance test it is important to
plan now how we plan to verify the design, because it may influence the detail design, the
timeline of the project plan and our resources. The team, therefore, should consider the following
major points in preparing the analytical and experimental plans and the prototype test plan.
1.!Develop detailed test objectives
o!What are the specific requirements to verify the design under test?
2.!Develop/modify detailed test plans
Training'Manual'rev.'October'22,'2015'Page'67!
o!What are the planned test durations? e.g. time required to execute testing with and
without problems. What are our problem projections?
o!What will be the specific test vehicles to conduct the test? e.g. models, simulation,
experiments, prototypes, production samples, etc.
o!What are the specific resource requirements to complete the planned test activity?
o!Should we plan for separate unit tests and subsequent system tests? e.g. develop and test
of hardware parallel to software.
3.!Detail the test design
o!Is our product design testable?
o!Do we have to change the product design to improve testability?
o!What techniques will maximize overall test efficiency and effectiveness? (design of
experiments, guardbanding, etc.)
4.!Prepare tests
o!Do we have the available resources such as personnel, tools and test equipment?
o!Are required tools and test equipment operational and calibrated?
o!Do we need special training?
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides summarizing analyses and experiments required for proof of concept (component and
system-level)
•!1-2 slides summarizing verification tests required to prove the design meets the product meets
specifications
•!1 slide special equipment, software, facilities, etc. required for testing
•!1 slide with the schedule
Preliminary manufacturing plan/product cost
Hardware!
Overview
The objective of this deliverable is to establish a manufacturing plan which allows the design
team to estimate the product costs. Major inputs into a total program cost estimate are:
•!a summary of incurred and anticipated costs and expenses of HW/SW design
•!activities (includes expenses for liaison engineer)
•!expenses to release the product design to manufacturing
•!manufacturing costs
•!maintenance and/or support costs
•!life cycle costs
The program cost estimate is the basis for your business case.
In this deliverable we want to concentrate only on the manufacturing cost e.g. what is the unit
cost our sponsor company should expect. As you prepare for your System Level Design report,
you will have to use these estimated manufacturing costs, update the other elements of the
program cost estimate and prepare an updated business case.
Training'Manual'rev.'October'22,'2015'Page'68!
To estimate manufacturing costs at this time you require inputs such as:
•!product description
•!product design assumptions
•!assumptions where and how your intent to manufacture and test the product
•!product sourcing assumptions e.g. whether you plan to make or buy the components of the
product
•!volume assumptions
•!Bill of Material
•!capital expenditures assumptions (tools, equipment, facilities)
•!other assumptions such as
o!overhead
o!labor and burden rates
o!quality requirements
o!yields
o!capacity utilization (1 shift / 2 shifts / 3 shifts)
•!takt time and line throughput
o!supplier quotes
o!competitive analysis, etc.
For future updates of the manufacturing cost, you should record and date the assumptions made.
In the manufacturing plan you should address where and how the product is being manufactured.
To develop this plan you need essentially the same input assumptions as for the manufacturing
costs. In addition you may have to consider:
•!manufacturing location
•!manufacturing line layout
•!work in process and inventory
•!production planning and control systems
•!floor control systems, etc.
If these additional manufacturing plan assumptions impact manufacturing costs, you must
include it in your cost estimate. Record and date all assumptions for future updates.
As you prepare the manufacturing cost estimate you may find that the product design to this
point is not cost competitive. In that case, you have to initiate a cost reduction effort which can
result in
•!modification to the design
•!different vendor sourcing
•!different manufacturing process, etc.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides with bill of materials (identify sourcing & preliminary costs)--note that some projects
may have a prototype BOM and a production BOM
•!1 slide with a summary of the product cost
Training'Manual'rev.'October'22,'2015'Page'69!
•!1 slide with schedule of activities
System level design report
Hardware$Software$Process!
Overview
(See Major Deliverables in IPPD Report Process section.)The System Level Design Report
(SLDR) is a formalized, detailed technical specification of the product to this point. The level of
detail may be project dependent but an attempt must be made to be as specific as possible.
Insufficient details may impact the further development of the design resulting in potential
project failure.
The SLDR must provide an overview of the overall design, design objectives and functional
descriptions for Hardware (HW) and Software (SW). It must describe the major building blocks-
subassemblies, SW subsystems and components. It must describe any operational and
programming characteristics, interface specifications, operating environment and installation
considerations. It must demonstrate that the selected design concepts have been verified, will
meet the Product Design Specifications and can be translated into the detail design.
The overall SLDR should be completed at least 2 weeks prior to the formal System Level Design
presentation to the sponsor companies in early December (see weekly schedule). The SLDR
must be peer reviewed with the liaison engineer prior to the presentation. Issues must be formally
recorded and individuals must be identified to resolve issues. One week should be allowed for
issue resolution.
To proceed expeditiously with software development the SW part of the SLDR should be
completed earlier. A target date should be 2 to 3 weeks after the due date of the preliminary
design report (see weekly schedule in Canvas). This report should be peer reviewed with
subsequent issue resolution. Proposed report content
Executive Summary (~1 page)
•!Provides a quick overview of the report. The reader should gain a good idea of what the project
was all about and what the results were. Key technical specifications, experimental and prototype
results, and financial measures should be included.
Table of Contents
•!Table of Contents
•!Reference Documents
•!List of Figures
•!List of Tables
1.0 Introduction, Purpose, Scope of Report
Training'Manual'rev.'October'22,'2015'Page'70!
2.0 Project Overview
•!General Overview/Background
•!Customer Needs
•!Overall Product Design Specifications
•!Product Architecture
•!Project Plan
•!Business Case
3.0 Hardware Design Description
•!Overview/Objectives
•!Hardware Architecture
•!Organization and Operation
•!Proof of Concept
o!analytical, physical analysis results (power, space, heat transfer etc.)
o!modeling results
o!design of experiments results
•!Preliminary Drawings
o!3D view
o!final assembly
o!subassemblies
o!special components
o!block diagrams
o!layouts
•!Hardware Product Design Specifications
o!subsystems
o!components
4.0 Operational & Programming Characteristics
•!Overview/Objectives
•!Software Interfaces
•!Memory Maps
•!Microprocessors
•!Registers, etc.
5.0 External Interface Specifications
6.0 Operating Environment
7.0 Installation Considerations
8.0 Software Design Description
•!Overview/Objectives
•!Software Architecture
•!High Level Description of Each Subsystem
•!Interfaces Between Subsystems
Training'Manual'rev.'October'22,'2015'Page'71!
•!Proof of Concept
o!reuse of code
o!new code
o!processor utilization
o!interrupt latency/servicing
9.0 Software Functional Description
•!Configuration and Operation
•!Error Handling
10.0 Software Interface Specifications
11.0 Material
•!Overview/Objectives
•!Preliminary Bill of Material
•!Cost Estimate
12.0 Quality/Reliability Objectives and Plans
13.0 Manufacturing Plan
•!Product Sourcing
•!Assembly and Test Process
•!Production Systems
•!Tools and Equipment
14.0 Prototype Plan
•!Sourcing (parts, assemblies, testing)
•!Quantity
•!Cost
•!Schedule
o!parts procurement
o!sub and final assembly
o!test
15.0 Product Verification Plans
•!Software Unit and System Test
•!Hardware Unit and System Test
•!HW/SW Integration Test
•!Product Acceptance Test
•!Regulatory Compliance Test
16.0 Issues, Concerns, Risks and Opportunities
Training'Manual'rev.'October'22,'2015'Page'72!
17.0 Recommendations
Packaging the report: The System Level Design Report should be professionally labeled and
packaged. It serves as the basis for a 20-minute oral presentation to the project sponsor company,
an audience of other sponsors, other project teams and faculty from the University of Florida.
The presentation will be peer reviewed before an audience of other project teams and faculty
from the University of Florida prior the formal design review.
SLDR Report submission requirements
The System Level Design Report (SLDR) is a detailed specification of the project and serves as a
crucial guide to the second semester detail design, implementation activities, and
recommendations. An approval page, signed by the project team, faculty coach and liaison
engineers is to be submitted with the report. The document is expected to be of professional
quality. You may find a Sample SLDR report in Canvas under Files in the “Deliverables”
folder.
Do not e-mail the report to Dr. Stanfill. Follow the instructions below.
Refer to the Signature Page Specification and Examples document in Canvas under Files in
the “Deliverables” folder.
Report Evaluation Form
See the SLDR Rubric located in Canvas under Files in the “Deliverables” folder.
Submitting the report
1.!Save the SLDR in Adobe Acrobat pdf format (design reports) and PowerPoint
(presentations). The design station computers have Adobe Acrobat Professional. This
application allows one to create pdf files via the MS Word, Excel, PowerPoint, Visio, etc.
print menu. Acrobat Pro also allows multiple pdf documents to be merged into a single
document (useful for compiling appendices).
Use the following naming convention for the documents:
teamname-SLDR.pdf
For example, team CPI will submit the following files:
CPI-SLDR.pdf - up-to-date system level design report
CPI-SLDR-AppX.pdf - appendices as required for the SDLR
CPI-SLDR-sig.pdf - signature page for preliminary design report
Training'Manual'rev.'October'22,'2015'Page'73!
CPI-SLDR.ppt - system level design review presentation
(be sure to include support materials such as videos)
•!Put the files in the “final_documents” folder located in your team's repository.
Example:
•!Please take this opportunity to upload your PDR report and presentation to the same
folder, using the same naming convention.
•!Your wiki site should also include the final version of these documents, including the
original .doc, .ppt and .xls formats
Questions on how to access your team's IPPD account should be directed to
support@ippd.ufl.edu
Review One-on-One with Dr. Stanfill
Each team will send two representatives to see Dr. Stanfill for a review of the SLD report. Be
prepared to take notes and make corrections prior to last exam day. To schedule a time, visit the
Doodle poll posted on the weekly schedule in Canvas.
Training'Manual'rev.'October'22,'2015'Page'74!
Detail product and process design
Hardware$Process!
Detail design is essentially concerned with the design and manufacturing of subsystems and
components that make up the whole design. As you proceed with the detail design you may have
to expand the selected concepts into more detail to:
•!better understand the concept
•!sort out difficulties in the technological approach.
Major points to consider during detail design:
1.!Always refer to the selected concept
2.!Consider the interactions between the various areas of the design
3.!Define component constraints to the system
4.!Simple and cheap component design may not be the most economical for the whole of the project
5.!Reduction of component variety generally leads to shorter development times and lower costs
6.!Consider Design for X (DFx) during the design, e.g. Design for Manufacturing/Assembly/Test/
Cost/ Quality, etc.
7.!Can you use standard parts?
8.!Can the design be simpler?
9.!Can parts or functions be split into simpler pieces?
10.!Consider the tradeoff between the design of complex parts and available development time.
The objective of this deliverable is to provide a set of documents that contain all information
necessary to manufacture the product. It includes part and assembly drawings, software
programs, manufacturing process descriptions, vendor part information, assembly instructions,
test procedures, proposed tool and test equipment and installation/maintenance procedures.
Analytical and experimental report
Hardware$Process!
Overview
The objective of this deliverable is to create a report summarizing the results of the analytical
and experimental investigations that were defined in the analytical and experimental
plans/prototype test plan deliverable defined during the System Level Design phase.
Proposed report content
Consider that this report should follow standards practices for a laboratory report. It is
recommended that the analytical and experimental plans/prototype test plan be used as a starting
point for this deliverable. This report should include, at a minimum, the following:
•!table of contents
•!detailed test procedures (the procedures defined in the test plan may not have provided adequate
definition to complete each test or analysis, so be sure to include this new information)
Training'Manual'rev.'October'22,'2015'Page'75!
•!detailed list of materials, components, and equipment required
•!photos and screenshots of the testing
•!test set up diagrams
•!summary of results
•!statistical analysis of the data (such as ANOVA and t-tests)
•!interpretation of the results
•!recommendations
•!appendix
o!raw data
o!detailed testing scripts and source code
o!detailed schematics
o!testing log entries for each experiment(including expected and actual results)
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with a table listing each test
•!1-2 slides summarizing the results of each major test or analysis
•!1 slide with recommendations and next actions
Detailed manufacturing process and tool documentation
Hardware!
Overview
This deliverable defines the work instructions (or operational method sheets) for each of the
fabrication and assembly steps for creating the final product, plus the definition of all the tools,
fixtures and jigs required for production. This deliverable does not include the layout of the
facility. The facilities will be defined in the final manufacturing and test plan deliverable.
The work instructions provide step-by-step descriptions of how the product is made. Similar to a
Bill of Materials, the work instructions should be organized into a Bill of Processes (BOP). The
work instructions should be loaded with fully labeled photographs, figures and drawings
depicting each process step. Key quality checks and specifications (dimensions, torques,
voltages, colors, etc.) should be clearly flagged in the text and on the figures. Required tools,
fixtures and jigs should be referenced for each step. It is very important to create a numbering
scheme for the steps so that specific elements can be cross referenced and quickly located. To
simplify the documentation of the work instructions, it may be useful to create a 2-column table
with column one devoted to the labeled graphics, and column two devoted to the text-based
instructions. Other documentation techniques include using spreadsheets such as Excel or
presentation software such as PowerPoint to define the process steps.
The tool documentation should include a numbered list of each tool, fixture or jig required for
fabrication, assembly and testing. For simplicity, tools, fixtures and jigs will be referred to as
"tooling." All of the tooling should be numbered and organized into a Bill of Tools (BOT). In
general, there is no need to provide great detail on common tools such as screw drivers,
combination wrenches, and socket wrenches. For example, 12mm socket, 12 oz. ball peen
hammer, and standard screwdrivers, would only need a one-line text-based description.
Training'Manual'rev.'October'22,'2015'Page'76!
Commercial-Off-The-Shelf (COTS) elements should reference and included in the appendix.
Links to specialty COTS tools should be provided for reference. Dimensioned drawings for
custom fixtures and jigs should be included in the appendix.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with a simplified Bill of Processes table
•!1-2 slides depicting a sample work instruction
•!1 slide with a simplified Bill of Tools table
•!1-2 slides showing examples of custom tooling
Acceptance test results and report
Hardware$Software$Process!
Overview
The Acceptance test results and report summarizes the tests conducted to prove the product or
process met all the product design specifications that were agreed upon for the project. The
report includes interpretations of the results and recommendations for follow-on actions required
to achieve unmet specifications.
Proposed report content
The report should include a summary table showing the mapping between product specifications
(with target), tests conducted, and results (it is acceptable for the results to be "pass" or "fail," or
"met" or "unmet"). The Summaries of each test, including an overview of the procedure followed
(with test vehicles, schematics, photos, etc.), a data summary, an interpretation of the results, and
the recommendations should follow the summary table. A section entitled summary and
recommendations should conclude the main report. An appendix with the following content
completes the report:
•!details of each test
•!test logs
•!raw data
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides showing the test matrix
•!1-2 slides with showing the detailed summary of one test along with recommendations
•!1-2 slides with recommendations
Training'Manual'rev.'October'22,'2015'Page'77!
Final manufacturing and test plan
Hardware!
(Go back to Detailed manufacturing process and tool documentation)
Overview
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides with
Final product cost
Hardware!
Overview
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides with
Final report and project documentation
Hardware$Software$Process!
Overview
(See Project Roadmap section.) The final report and project documentation contains all
information about the project. It includes product and process descriptions, the results of the
acceptance test, product manuals and any other important information about the project. The
documentation should be complete so that it could be used to get final bids on producing the
product and to use and maintain the product. The exact content of the project documentation may
vary and should be determined together with the faculty coach and the liaison engineer.
The project documentation will consist of a number of volumes. The first volume is the final
report and refers to the other volumes of the documentation. The specific content of each volume
is described later.
An oral presentation of 20 minutes will be made to the project sponsor company an audience of
other sponsors, other project teams, and faculty from the University of Florida. The objective of
this presentation is to show the sponsor the result of the project. If practical a production sample,
a model or a photograph of the project will be displayed.
Training'Manual'rev.'October'22,'2015'Page'78!
Documentation requirements
The project documentation consists of six volumes. The first four volumes (copies) and volume
6, the notebooks (if requested) will be delivered to the sponsor company. The first five volumes
(originals) will be delivered to IPPD and archived at the University of Florida, College of
Engineering. The six volumes are:
Volume 1:
Final Report
Volume 2:
Product and Process Documentation
Volume 3:
Acceptance Test Results and Report
Volume 4:
Product manuals
Volume 5:
UP-TO-DATE Deliverables of entire Project
Volume 6:
Design Notebooks
Volume 7:
Prototype Demonstration Video
Each volume should have a cover sheet with the IPPD logo, the project logo, the volume
number, date, name of the project and the sponsor company (except design notebooks). The
entire project documentation should be bound for submittal to the sponsor company and one
copy in electronic format for the College of Engineering. The content of each volume is
described below:
First report element: Master Table of Contents
An outline of the final report with reference to volumes 2, 3 and 4, including a brief description of what is
in each volume.
Final Design Report
(See Major Deliverables in IPPD Report Process section.) This report should be brief and to the
point, assuming that the audience of the report is the project sponsor company management. The
final report can serve as a structure for the final oral presentation.
Proposed outline:
Executive Summary (~1 page)
•!Provides a quick overview of the report. The reader should gain a good idea of what the project
was all about and what the results were. Key technical specifications, experimental and prototype
results, and financial measures should be included. An executive summary should document the
key requirements and specifications, highlight the selected concept, outline major project
Training'Manual'rev.'October'22,'2015'Page'79!
milestones, identify major risks and opportunities, describe major test results, and summarize the
business case and recommendations. The executive summary must include quantitative
information.
•!This one-page (if single-spaced) section should follow the report title page and precede the table
of contents.
Table of Contents (~2 pages)
•!Table of Contents
•!Reference Documents
•!List of Figures
•!List of Tables
1.0 Introduction (~1 page)
•!Focuses on the problem description and a brief background of the customer and its needs.
2.0 Main Part of the Report (~8 pages)
•!Describes the results and how they were obtained. References to product specifications,
acceptance test results and other volumes. Uses figures and pictures.
3.0 Conclusion (~1 page)
4.0 Appendix
•!At a minimum, the appendix should include a process assessment of the proposed project
roadmap and the actual process followed. This documentation will consist of a copy of the
proposed project roadmap, the actual roadmap process followed, and an analysis of each
deliverable completed during execution of project. The analysis should include a candid review of
what was and was not beneficial to the final results of the project and suggested improvements for
the deliverable. If a new deliverable was created, then it is very important to document the
recommended content and the timing.
Due Dates
Due
Date
Description
Mid-
Apr.
Complete Final Design Report and review final, signed-off version with Dr. Stanfill.
Please, check with your coaches to find out more.
End-
Apr.
Completed final checklist with all approval signatures turned in to Dr. Stanfill, 378
Weil. See the Final Checklist in the weekly schedule and deliverables link in
Canvas.
Training'Manual'rev.'October'22,'2015'Page'80!
Meet with Dr. Stanfill
Each team needs to have one to two representatives meet with Dr. Stanfill to review the
submission of your final report and the FINAL CHECKLIST (found in Canvas). Please visit
the DOODLE poll (posted in Weekly Schedule on Canvas) and select a meeting time. Please
be sure to have the signatures from the Lab Manager and your coach prior to visiting with
Dr. Stanfill. Note that the report must be of professional quality and all the items completed
before grades will be released.
Do not e-mail the report to Dr. Stanfill. Follow the instructions below.
Signature page information
Please refer to the Signature Page Specification and Examples PDF located in Canvas in
the Files folder under the “Deliverables” tab.
Submitting the report
1.!Save the FDR in Adobe Acrobat pdf format (design reports) and PowerPoint
(presentations). The design station computers have Adobe Acrobat Professional. This
application allows one to create pdf files via the MS Word, Excel, PowerPoint, Visio, etc.
print menu. Acrobat Pro also allows multiple pdf documents to be merged into a single
document (useful for compiling appendices).
Use the following naming convention for the documents:
teamname-FDR-vol#.pdf
For example, team CPI will submit the following files:
CPI-PDR.pdf - up-to-date preliminary design report
CPI-SLDR-sig.pdf - signature page for preliminary design report
CPI-PDR.pptx - preliminary design review presentation
CPI-SLDR.pdf - up-to-date system level design report
CPI-SLDR-AppX.pdf - appendices as required for the SLDR
CPI-SLDR-sig.pdf - signature page for system level design report
CPI-SLDR.pptx - system level design review presentation
CPI-FDR-vol1.pdf - final design report volume 1
Training'Manual'rev.'October'22,'2015'Page'81!
CPI-FDR-vol2.pdf - final design report volume 2
CPI-FDR-vol3.pdf - final design report volume 3
CPI-FDR-vol4.pdf - final design report volume 4
CPI-FDR-vol5.pdf - final design report volume 5
CPI-FDR-AppX.pdf - appendices as required for the FDR
CPI-FDR-sig.pdf - signature page for final design report
CPI-FDR.pptx - final design review presentation
/Poster/ - folder with poster files
/Videos/ - folder with videos
/Photos/ - folder with prototype photos
/Original format/ - folder with docx versions of report volumes
•!Put the files in the "Final Documents" folder located in your team's repository. Be sure to
synch with the IPPD server prior to meeting with Dr. Stanfill. Each member of the team
has access to this folder.
Example:
Training'Manual'rev.'October'22,'2015'Page'82!
•!Your wiki site should also include links to the final versions of these documents,
including the original .doc, .ppt and .xls formats
Questions on how to access your team's SVN repository should be directed to
support@ippd.ufl.edu
Product and process documentation
The first page provides a table of contents with page numbers. Includes all pertinent information
to describe the product and processes, such as:
•!product and subsystems/component specifications
•!part and assembly drawings
•!SW programs
•!circuit diagrams
•!bill of materials - parts list
•!process specifications
•!process instructions
•!assembly instructions
•!test procedures, etc.
Includes other important product information such as:
Training'Manual'rev.'October'22,'2015'Page'83!
•!quality plans
•!manufacturing plans (sourcing, tools, equipment. etc.)
•!cost estimates
•!financial analysis
•!product safety assessment
•!legal evaluation
•!environmental impact assessment, etc.
Acceptance test results and report
The first page provides a table of content with page numbers. Describes test vehicle, test
requirements, test methodology, test environment, etc. and the test results.
Product manuals
The first page provides a table of content with page numbers. Includes information about user
interfaces, maintenance, installation, calibration, etc. The content of this volume may vary by
project.
Deliverables
The first page provides a table of content with page numbers. This volume should include the
latest updates of the following major deliverables:
•!concept generation and evaluation
•!conceptual design report
•!project plan
•!system level design report
•!analytical and experimental plan and report
•!prototype results and report (include photos if possible)
Design notebooks
The sponsor may wish to keep the design notebooks. At the end of the project, turn in your
design notebook to your coach.
Prototype demonstration video
The prototype demonstration video is a project artifact that is intended to serve several purposes.
First, the video illustrates the use of the product under controlled conditions that may not be
practical to recreate during a live demonstration in an office or classroom environment. For
instance, the size of the prototype, special power, hardware, software or network requirements,
available only in a laboratory or industrial setting, may not be feasible for a live exhibition.
Actual usage may require more time than can be allotted for in a presentation and the video
allows for editing out long wait times between operations (such as heating, cooling, and drying).
Training'Manual'rev.'October'22,'2015'Page'84!
Second, the video also provides a way to demonstrate a variety of use cases for the system.
These uses may include installation, configuration, maintenance and emergency operations. For a
software application, this demonstration may serve as a user tutorial.
Third, the video concisely describes the project and the capabilities of the design team. The
video should provide a sense of the typical project scope and expected deliverables. This aspect
is useful for informing either potential new clients or attracting new engineers interested in
joining the IPPD program.
Lastly, the video serves as a tool to inspire future design teams.
Each project will include two versions of the video. The first version will be a 20-second trailer,
that may be included within a PowerPoint presentation. The second video will be a full length
video, that should be no longer than about 2 minutes.
More information on the video is available in Appendix: Project Video Requirements.
Training'Manual'rev.'October'22,'2015'Page'85!
IPPD Software Deliverables
Introduction
Overview
Back to Intermediate Deliverables
In the Software Development Process, we have chosen a set of major deliverables that are
generally applicable. They will allow us to monitor the progress of a project, to evaluate the
student team and to report the status of the project to the industry sponsor.
Generally these deliverables are almost always appropriate. In certain circumstances details of a
deliverable have to be customized to reflect the specifics of a particular project. Deliverable
deadlines may not be changed. Specific deliverable content may be changed if absolutely
necessary.
As discussed in the Software projects section, agile development methodologies, such as
SCRUM, may be used in lieu of the structured development process described in this chapter.
Your project coach can assist you in determining how to adapt the content and timing of the
major software deliverables described in the following sections to your particular project.
Technical strategy
Overview
Requirements for a product must be evaluated in the context of a technical strategy that provides
the strategy direction for the product. The technical strategy should describe:
•!the basic structure and direction of the product
•!the relationship of the product to any pertinent architectural standards
•!user interface standards
•!interface standards with other products
•!direction for modification or replacement of old source code
•!the software engineering environment and tools required for the product such as:
o!program language
o!compilers
o!equipment and operating systems
The technical strategy does not describe the internal design or implementation of the product.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides with basic structure & product direction; a list of pertinent architectural, user interface
standards, and system interface standards
•!1 slide with targets for requirements, spec and code reuse
This!chapter!is!being!consolidated!into!the!previous!
chapter.!Sections!that!have!been!incorporated!will!be!lined!
out.!
Training'Manual'rev.'October'22,'2015'Page'86!
•!1 slide with list of software environment, tools, programming environment, compliers, equipment
& OS (mention configuration management system if known)
System/product requirements
Overview
Determining requirements or customer needs for a product can be challenging because
requirements are not always known with precision at the outset and also because they may
change over time.
The objective of this deliverable is to determine requirements to be met by the design of the
product. Requirements should be unambiguous, validated and prioritized by the customer of the
product. Once requirements have been determined they need to be baselined i.e. stored in a
requirements database.
The following is a proposed four-step process to determine requirements.
Collecting input requirements: Each input requirement is numbered and includes a brief
description of attributes related to function. Customers of the product are generally the source of
input requirements. Market research, literature and competitive analysis may be other resources.
Problem analysis: This analysis should provide a detail description of each underlying problem
from an end user prospective. It contains information needed to understand the requirement. In
addition to control information it may contain a list of problem conditions, descriptions of
current functions, user tasks, end-users and the environment. Analyzing problems can be an
iterative process until it is agreed that the problem description is complete, consistent and
correct.
Solution analysis & definition: The purpose of solution analysis and definition is to develop
one or more effective, external solutions for each selected problem definition. It may include
control information, proposed function, resolved problem conditions, modified or new user tasks,
affected environment and end-user, and a value assessment for the particular solution.
Programming objectives: Programming objectives incorporate a set of solution definitions into
a coordinated description of new and enhanced functions. As programming objectives are being
developed the level of solutions as previously defined may have to be refined. This is an iterative
process until the Programming Objectives satisfy the Problem Definitions.
System modeling can be a part of requirements definition. Entity relationship diagrams (ERD)
would be one example of data modeling aspect of a system model. Viewpoint or data flow
models might be another.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-3 slides with a numbered list of requirements (operational characteristics)
Training'Manual'rev.'October'22,'2015'Page'87!
•!1 slide with an example of problem analysis, solution analysis & definition for a sample
requirement
•!1 slide with sample programming objectives for solution definitions, or an appropriate system
model such as an ERD, dataflow or viewpoint model.
Complete and testable product specifications
Overview
(See Intermediate Deliverables section.) Requirements and specifications are not the same:
Sometimes software requirements and software specifications are used synonymously. In the
IPPD software development process we want to distinguish requirements and specifications.
Requirements are generally a qualitative description of customer needs. For example a customer
need may be the following:
“The software shall provide real-time response to sales activity queries.”
Specifications are a quantitative description of the requirements and must be measurable and
testable. The above customer need can be good to determine programming objectives but it is not
precise enough to test it.
The more testable version of this requirement, called the specification, could be:
Type A queries in less than .5 sec.
Type B queries in less than 1 sec.
Type C queries in less than 2 sec.
Specifications must be testable to the extent that one can define a clear pass/fail test for
determining whether or not the developed software will satisfy the specifications. In order to be
testable, specifications must be specific, unambiguous and quantitative wherever possible. All
specifications must be numbers--especially for reference in test documents.
Example: Specifications 16 and 17
<S-16>
The product shall be capable of supporting data signaling transfer among modules in a full
duplex rate from 56 Kbps to 4 Mbs.
<S-17>
The product shall support a time and date clock. Time and date shall be retained across power
cycles.
It may require significant effort to eliminate the vagueness and ambiguity in a specification and
make it testable. It may require iteration (i.e. rapid prototyping) between requirements and
Training'Manual'rev.'October'22,'2015'Page'88!
specification to achieve affordable testability. Determining testable specifications at this stage is
also important in preparation for a product verification strategy.
Product/system requirements and product specifications checklist:
12.!Is the requirements document complete, i.e., does it reflect all of the known customer needs?
13.!Are the specifications so detailed that designing and coding are restricted to a single
implementation?
14.!Does the human interface follow established standards?
15.!Has the entire infrastructure been specified, i.e., backup, recovery, initialization, etc.
16.!Have all reliability and performance issues been listed?
17.!Have all security considerations been listed?
18.!Do the requirements consider all existing constraints?
19.!Do the requirements provide an adequate base for design?
20.!Are the requirements complete, correct, and unambiguous?
21.!Are all specifications testable?
22.!Are all interface requirements feasible?
Software development should only proceed after satisfactory answers to the questions in this
checklist have been provided or actions to resolve outstanding issues have been defined with a
date for resolution.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 to n slides with a numbered list of software specifications
•!1 to 2 slides with examples of how specifications will be tested
System/product architecture
Overview
The objective of this deliverable is to provide a clear overall system/ product organization
including a good architectural overview and justification. The total system/product is broken
down into well-defined modules including their functionality and interfaces to each other. All
functions listed in the requirements must be covered neither by too many nor too few modules.
The architecture should be designed to accommodate likely changes within a module without
affecting the rest of the modules. Major data structures need to be described and justified.
Database organization and content must be specified.
A clear architecture with well-defined modules allows delegation of specific modules to
development engineers for parallel or concurrent development of a product.
System/product architecture checklist:
10.!Is the overall program organization clear, including a good architectural overview and
justification?
Training'Manual'rev.'October'22,'2015'Page'89!
11.!Are the components (modules and objectives) well defined including their functionality and
interfaces to other components?
12.!Are all the functions that are listed in the requirements covered?
13.!Is the architecture designed to accommodate likely changes?
14.!Are all major data structures described and justified?
15.!Is the database organization and content specified?
16.!Have all the dependencies been identified?
17.!Is the user interface modularized so that changes in it won't affect the rest of the program?
18.!Are key aspects of the user interface defined?
Software development should only proceed after satisfactory answers to the questions in this
checklist have been provided or actions to resolve outstanding issues have been defined with a
date for resolution.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with a graphic showing where system/product fits within existing environment--
identifying all interfaces
•!1 slide with system/product broken down into well-defined modules with interfaces between
modules (UML or ERD) and functions each module supports
•!1 slide describing major data structures
•!1 slide with sample user interface
Prototype plans
Overview
Through prototyping the functional behavior of a system/product or module can be observed
early in the development cycle. Rapid prototyping and evolutionary design can be an alternative
to the generation and validation of written requirements/specifications as a way of ensuring that a
software product will be responsive to user needs. Major advantages that a prototype can provide
include the following:
•!a mechanism that allows designers to evaluate alternatives and to investigate problems
•!an early assessment of the impact of a new function to reduce risk
•!evaluation of changing environmental characteristics
•!improved requirements, specifications, design verifications and user interfaces
Prototype plans should be made early in the development phase and should be determined based
on guidelines such as the following:
•!What do we need to know about user interfaces (screens, screen transitions, dialogs, reports etc.)?
•!What is our plan to evaluate the prototype feedback?
•!What do we need to know about data flow, internal interfaces, and feasibility of design or
performance issues?
Training'Manual'rev.'October'22,'2015'Page'90!
Prototyping results can be used to make a better product. Generally, however, prototype code
should not be used in the formal product. A prototype by design and intent answers specific
questions. Attempting to implement the prototype as the operational product can result in new
problems as new questions surface.
Things to avoid when developing a prototype:
•!rushing into prototyping before adequately defining technical objectives
•!losing sight of prototyping objectives
•!developing the prototype into the product
•!making endless prototype iterations
•!delaying documenting the prototype results
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1 slide with specific questions trying to be answered by one or more software prototypes
•!1 slide with list of prototypes, tool used for prototyping (i.e. a 4GL, Excel macro, VB
application), resources and schedule
•!1 slide with prototype evaluation criteria (how to judge results & what to do with the info)
Preliminary design report
•!An!outline!for!the!
Preliminary design report and project plan major deliverable is provided in the
Comprehensive test planning
Comprehensive test plan
The Comprehensive Test Plan (CTP) is a master plan, which defines all design evaluation
activities required for the product including its components to assure that the product will
perform as specified. Comprehensive means that its scope will include all design verification,
simulation and test activities from concept through final product.
CTP major objectives:
•!identify all design verification, simulation and test activities
•!integrate the hierarchy of verification and test plans from module to integrated system
•!identify resources and schedules for the proposed tests
•!determine entry and exit criteria for each phase
•!identify the test environment, test tools & equipment, test simulations & drivers and test stations
•!identify and eliminate redundancies in the development cycle related to design verification and
testing
•!provide a control vehicle to measure progress
Training'Manual'rev.'October'22,'2015'Page'91!
The Comprehensive Test Plan is an evolving plan, becoming more detailed throughout the
product development cycle. The CTP should provide a product testing strategy rather than
detailed test procedures and detailed test requirements.
Depending on the complexity and size of a product there may be up to four different test stages
in the hierarchy of the Comprehensive Test Plan.
Unit test plan
The major objective of a unit test is initial verification of the proper execution of all new,
changed and affected paths in each module. This can be done with or sometimes without a fully
built driver. Unit testing technically occurs before code is integrated into the change control
database.
Unit test is the initial testing of new and changed code and interfaces in a module. It should
verify the following:
•!all branches execute properly in each module
•!implementation at the module level is defect free
•!error recovery works properly at the module level
Functional verification test plan
This test verifies proper execution of product components. It does not require that the product
being tested interface with other products. Simulation can be used to create an acceptable test
environment because often schedules require that one product enter testing before others are
ready. Also it is more effective to carry out initial testing in a controlled and isolated test
environment.
Purpose:
•!Exercise new, changed and affected product functions against programming specifications.
•!Exercise new, changed and affected interfaces between modules and components and verify that
they function correctly.
Product verification test plan
This test verifies the entire product including usability, performance, installability and the error
paths. Usually this test requires a direct interface with other software products.
Purpose:
•!Exercise all product functions and verify proper execution with other software products.
•!Verify usability, performance and installability characteristics.
Training'Manual'rev.'October'22,'2015'Page'92!
System verification test plan
This test verifies the proper execution of all related software and hardware products. It is
performed using only the actual software and hardware without any simulators. This test
simulates the user environment and emphasizes stress, performance, security and cross-product
interaction.
The System Verification Test is the final test stage.
Purpose:
•!Execute the product in a system environment representing the customer environment as
physically and financially practical.
•!Verify the quality of the product to include functional adherence to the product specifications and
all usability, reliability, recoverability, performance, installability and operational characteristics.
Presenting this deliverable
•!1 slide with team name, logo, team members, etc.
•!1-2 slides summarizing the product testing strategy, the testing hierarchy required (could
including all of the following testing plans: unit, functional verification,
•!product verification & system verification), and the entry and exit criteria for each phase
•!1 slide identifying the test environments, tools & equipment, test simulations & drivers, and test
stations
•!1 slide with an example test for each phase
•!1 slide with the schedule and resource assignments
!
Software development methodologies
The following major software development methodologies are not stand-alone deliverables but
need to be part of any previously described deliverables.
Configuration management plan
Configuration management is a process of identifying the configuration (parts) of a product for
the purpose of systematically controlling changes to the part.
The configuration management plan defines the goals, structure, responsibilities and degree of
change control. The plan is created during Phase I of the IPPD Software Development process
and defines the following:
•!the baselines to be established during the development cycle
•!the objectives to be included in each baseline
•!database, library structure, responsibilities and tools to be used for managing changes
•!a set of change control criteria for
Training'Manual'rev.'October'22,'2015'Page'93!
o!level / method of authorization
o!type of verification
•!change control criteria such as
o!changes of the design or specifications
o!cause of change (errors, enhancements, requirement changes)
o!impact on lines of code, documentation, work items, personal hours
Baselines include those work items that have been verified and agreed upon to serve as the basis
for further development. Once the basis is established no work item may be added or modified
without appropriate authorization.
Presenting this deliverable:
•!1 slide with team name, logo, team members, etc.
•!1 slide identifying baselines for software builds & objectives for each build
•!1 slide with change control criteria (numbering & naming conventions)
•!1 slide enumerating what objects under change control
•!(i.e. requirements, specs, architecture, code, test plan, etc.)
Reviews, inspections and walkthroughs
Reviews or inspections and walkthroughs are validation procedures. They are used for verifying
each work item at least once before it is included in the product.
Reviews/inspections: Involve a period of intense study and comparison of a work item against
the reviewer's standard of comparison or previous related items. For example: Review of the
Technical Design Specification by the liaison engineer during November. Issues are identified,
recorded and assigned to an individual for resolution by a determined date.
Walkthrough: A simulation event conducted by a group of trained professionals. Participants
who individually keep track of concurrent states of the walkthrough object play roles and report
observed problems.
For example a usability walkthrough verifies the product design meets what the user wants.
During such a walkthrough product developers attempt to view their design from a user
perspective by role-playing.
In-process measurements
The IPPD Software Development cycle is only eight months. To manage the tight schedule and
keep track of progress made, a few metrics should be gathered, maintained and used to measure
plan vs. actual and take corrective actions. These metrics represent a very small sample of what
is generally used in industry.
Software requirements: Capture of the total number of requirements for the product. Plot of the
number of changes each month. This metric indicates the stability or volatility of the baseline
which correlates to the schedule performance.
Training'Manual'rev.'October'22,'2015'Page'94!
Software size: Planned vs. actual size of the product in terms of lines of code (new, used,
modified).
Software coded and unit tested: Number of software modules planned vs. completed by month.
Software defects: Defects per 1000 line of codes due to defective coding, requirements, design
decisions, interface, etc.
Training'Manual'rev.'October'22,'2015'Page'95!
Peer, Faculty, and Sponsor Reviews
Overview
(See Preliminary Design Report Peer Review section.) Project reviews are key activities
associated with effective product and process design. The project review process allows project
stakeholders not intimately familiar with the project particulars to contribute to project through a
process of questioning and providing constructive feedback.
How many slides are appropriate? If you consider that 40 seconds per slide is average, then for a
15-minute presentation, 23 slides is about right. Guy Kawasaki's formula for winning
presentations follows the 30-20-10 rule: 30-point font (minimum), 20-minute talk, 10 slides. It is
very difficult to cover the required material and follow Guy's formula. Be sure that the audience
understands the context for your presentation--why should they care? who is your customer?
what does the customer want? what do you propose? how will you accomplish it? what will it
cost? what are the issues? what are your recommendations?
Important instructional and schedule documents can be found in Canvas in the weekly
schedule topic links.
Practice for success: It is important for project team members to be able to communicate
technical and business project information to a variety of technical audiences. Further, it is
necessary for all project team members to gain experience and confidence in concisely delivering
a technical presentation. The keys to improving presentation techniques are to practice as an
individual, practice as a team, and practice in front of an audience of your peers.
As mentioned earlier in this guide, the following three types of scheduled reviews are used in the
IPPD process:
1.!peer reviews with other IPPD teams
2.!design reviews with sponsor companies
3.!progress reviews with a panel of faculty coaches
The peer reviews provide a venue for teams to deliver a 15-minute dry run of their design review
presentation to an audience of their fellow engineers. These reviews are held prior to the formal
presentations to the sponsor companies. The peer reviews allow the teams to receive feedback
from project coaches and classmates, and to practice handling questions from the audience.
Presentation content, configuration, and delivery are scrutinized during these sessions.
The sponsor company design reviews may be held on campus, via tele/video/web conferencing,
or live at the sponsor's site. These sessions run anywhere from one hour to half a day. Typically,
the liaison engineer will invite fellow engineers and managers to these review sessions.
The progress reviews with faculty are held in private conference rooms and are limited to 30
minutes. These reviews are used to identify risks, issues, and action plans to insure projects are
delivered on time and within budget.
Training'Manual'rev.'October'22,'2015'Page'96!
Peer reviews with other teams
Peer reviews with other teams are held prior to the sponsor review. Each presentation room with
host three to five project teams and their faculty coaches. Participants are required to stay for the
entire session so that all teams will have an audience. The process is as follows:
•!teams arrive early to preload their PowerPoint presentations onto the desktop of room's computer
•!the faculty room coordinator passes out feedback forms to the audience
•!teams present for 15 minutes and take questions/receive feedback for 5 minutes
•!audience passes feedback forms to the room coordinator at the conclusion of each presentation
•!repeat until all teams have presented
Important:
Each team should provide a unique, meaningful filename for their presentation. As a
default, use <teamname>-PDR.ppt for the Preliminary Design Review
Don't assume the room computer has access to the internet--bring your presentation on
USB media
Rehearse your presentation individually and as a team prior to the peer review
Review the presentation with your liaison prior to the peer review. There may be some
sensitive technology that the sponsor may not wish to reveal to the public
Preliminary Design Peer Review
The Preliminary Design Review (PDR) peer review presentation is typically an abbreviated
version. Since the presentation is limited to 15 minutes, it is recommended that some content be
shortened. For instance, you may wish to present the details of one concept instead of multiple
concepts. You may also limit the number of issues or risks that you discuss.
System Level Design Peer Review
The System Level Design Review (SLDR) is held on the UF campus and is limited to 20 minutes
per team, including questions. Therefore, the peer review presentation should be limited to 15
minutes.
Final Design Peer Review
The Final Design Review (FDR) is held on the UF campus and is limited to 20 minutes per team,
including questions. Therefore, the peer review presentation should be limited to 15 minutes. It is
likely that a longer, more detailed presentation will be delivered by the team at the sponsor's site,
so like the PDR peer, be prepared to remove some content.
Reviews with sponsor companies
Preliminary Design Review
This review is typically held at the sponsor company’s site. This allows the sponsor to provide a
broader technical audience for the review. The intent of this review is to reach agreement with
Training'Manual'rev.'October'22,'2015'Page'97!
the sponsor that the solution path chosen by the project team is technically feasible and
appropriate, that the schedule is realistic, and that the project economics are satisfactory.
The team should plan to present at least thirty minutes of material and be ready to take lots of
notes. Frequently the sponsor requires changes to project prior to signing off on the project
proposal.
Preparation
It is important to send an electronic copy of the presentation ahead of your arrival. Ideally, your
liaison engineer has already reviewed your presentation and has helped you prepare. In addition,
the latest draft of the report should be sent to the liaison. Ask your liaison engineer to reserve a
conference room and invite company representatives. Get a list of attendees and their titles ahead
of time if possible. Be sure to find out what type of computer and multimedia facilities are
available at the site. Do not forget to practice! Leave plenty of travel time in case unexpected
delays occur in route. Plan to get there early.
What to bring
1.!Find out if the sponsor company wants you to bring hardcopies of the design report
2.!Back-up transparencies of the presentation
3.!Hardcopies of the presentation for handouts (make sure you bring enough)
4.!Electronic version of your presentation in CD-ROM and USB thumb drive formats
5.!A laptop with the presentation preloaded
Upon arrival
1.!Get to the presentation room as soon as practical
2.!Set up the required equipment and make sure the presentation operates as designed
3.!Go through one dry run with the liaison engineer as the audience
4.!Now relax!
During the review
1.!Assign one or more official scribes (everyone else should take notes, too)
2.!Be sure to write down any action items and issues
3.!At the conclusion of the review, be sure to read aloud all the action items and issues; make sure
follow-up responsibilities and due dates are clear and agreed to
Follow-up activities
1.!publish a design review meeting summary
2.!close out open action items
Training'Manual'rev.'October'22,'2015'Page'98!
System Level Design Review
The SLDR is held on the UF campus in conference-style format. All the sponsors, plus UF
deans, department chairs, faculty, advisors, and students are invited to attend. The review
features a breakfast networking session, 20-minute team presentations in three or more room
simultaneously and a banquet luncheon with a keynote speaker. Dress code for the SLDR is
business formal. The review is held on the first reading day prior to final exams in December.
Final Design Review
The FDR is held on the UF campus in conference-style format. All the sponsors, plus UF deans,
department chairs, faculty, advisors, and students are invited to attend. The review features a
breakfast networking session, 20-minute team presentations in three or more room
simultaneously, a poster and prototype demonstration session, and a banquet luncheon with a
keynote speaker. Dress for the FDR is business formal. The review is held about two to three
weeks prior to final exams.
Qualification Review Boards
(See Overview: Project Roadmap.) Qualification Review Boards (QRBs) are special project
reviews held before faculty expert panels. The QRBs occur in the second half of the IPPD
program. The QRBs consist of project coaches with subject matter expertise in particular aspects
of your project. The panel is responsible for helping each project team identify and mitigate
project risks. For the process to work, it requires that the project teams openly share project risks,
and be open to constructive criticism.
The reviews last thirty minutes and are held in private conference rooms. Teams should arrive
ten minutes early and wait quietly in the hall outside the conference room.
Important:
•!Use PowerPoint for these presentations
•!Reuse the back-up slides from the SLDR and previous deliverables
•!Prepare hardcopies of the presentation for the review committee (print the slides 2 or 3 to a page)-
-including the MS Project Gantt chart
•!Assign one or more note takers
Project Plan Review Session
The purpose of the project plan review session is to determine if your project is on track, to
identify weaknesses and to recommend corrective actions. The following items and questions
will be covered during a detailed review of your project status. The project review will last 30
minutes. Plan on speaking to the following items for at least 20 minutes:
•!Concise summary of project including key requirements, proposed solution and major scope
changes
•!Time line of major activities in the future (through April)
Training'Manual'rev.'October'22,'2015'Page'99!
•!Status of proof of concept (including software prototypes), experiments, Design of Experiments
•!Status of Detail Design (Hardware and Software)
•!Status of prototype:
o!Where will it be manufactured?
o!Who will manufacture it?
o!Who will fund it?
o!When will it be manufactured? (time line)
o!Where are we going to assemble and test it?
o!Are parts on order? When will they be ordered?
o!Will parts be available on time? Do we have commitments?
•!Prototype (Hardware & Software) Test Plan
o!What are our objectives?
o!Do we have a (comprehensive test) plan?
o!Where will it be tested?
o!What equipment do we require?
o!How are we going to test against product specifications?
o!Are we trained to test it? Do we need special training?
•!Risks and risk mitigation strategy
•!Resource limitations
•!Liaison engineer support and frequency of contact
Provide the reviewers with softcopies via e-mail at least four hours prior to the presentation.
Prototype Review Session
The purpose of the prototype results and report review session is to identify weaknesses in your
project and to recommend corrective actions. It is vital to openly share project issues and identify
where assistance is needed. The review will last 30 minutes; however, only the first five minutes
will be in a predetermined order. The review panel will determine what happens after the initial
"canned" content presentation.
Prepare a concise, five-minute presentation, to be delivered by no more than two speakers, that
includes the following:
1.!One-minute project overview (elevator speech) with key project requirements, proposed solution,
and major scope changes
2.!An architectural slide of the proposed system/solution that illustrates key interactions among the
project chunks; for process-oriented projects, provide a flow chart with the main process elements
3.!A Pert chart with major project activities and timing. This chart should illustrate the dependencies
among the tasks. Either use MS Project (select the Network view), Visio or PowerPoint to create
this graphic. Be sure to indicate the task owner, duration, and status
4.!A risk chart consisting of a numbered list of project risks with assessment of probability of
occurrence (i.e. high/low), negative impact potential (i.e. high/low), mitigation strategy, and
owner
Back-up slides: Prepare back-up slides and organize the slides for ease of access. Provide the
reviewers with softcopies via e-mail at least four hours prior to the presentation.
The back-up slides should include, but not be limited to the following:
Training'Manual'rev.'October'22,'2015'Page'100!
•!Status and results of prototype
o!Fabrication
o!Assembly
o!Coding
o!Testing
•!Design of experiments results
•!Schematics, detail drawings, models
•!Comprehensive test plan (CTP) status
•!Preparations for, or results of, product acceptance testing
•!Status of project documentation
•!Status of the project demonstration to be delivered at the final design review
Training'Manual'rev.'October'22,'2015'Page'101!
Expectations for Teams and Individuals
Team expectations
Overview
There are two main goals to the Integrated Product and Process Design program. The most
important is to teach new engineers a successful integrated product and process development
process. The second goal is to have engineering teams successfully complete an engineering
project for their industrial customer. Both goals are complementary and can be achieved if the
team works well together.
To achieve the second goal, the team must meet customer needs on time and within budget.
Meeting customer needs means that the team effectively identifies customer needs through
consistent, regular interaction with the liaison engineer of the industrial customer. Meeting the
needs on time means that the team must work effectively within the project schedule. Project
deliverables must be ready on time and should be of highest quality. Working within budget
means that the team will regularly monitor its spending.
Each project is scoped at 800 to 1000 hours for an experienced engineer. Assuming a team of
five, each team member is expected to spend approximately 10 to 15 hours on the project per
week. This time is in addition to the weekly general lectures and the formally scheduled weekly
project specific workshop.
Team meetings
Time together as a team is at a premium and should not be wasted. Team meetings should follow
accepted practices for effective meetings. This includes the preparation of an agenda ideally
distributed to team members before the meeting; keeping minutes and timely distribution of
meeting minutes, including assignments made and conducting the meeting.
To conduct their business it is expected that teams must meet at least weekly. Faculty coaches
should be invited as required. Minutes of the meeting should be provided to the coach for
meetings where the coach is not included.
Team selection
A critical issue in the performance of an engineering project is the dynamics of the team. IPPD is
committed to making sure all teams are successful. Assignments to teams are done using as
much information as possible about potential team members. Following are some of the criteria
considered:
•!Expertise Area of team members. Considering preliminary information about the industry design
projects we determined how many students from each discipline would be required per project.
•!Personality of team members based on input from faculty coaches other faculty and learning style
dimensions.
Training'Manual'rev.'October'22,'2015'Page'102!
•!Academic performance of team members. The objective is to achieve a balance in academic
performance.
•!Individual Project Preference
Obviously, this selection process is not perfect but it resembles reasonably well how teams in
industry are formed. Any team can work and work well if all the team members will be active
and willing participants.
Individual expectations
Overview
Although the work on a project will be largely graded on a team effort, the work of a team is
generally accomplished by team members doing individual work that is coordinated within the
team. Thus, if a team wants to do well, individuals will have to work hard. Following are some
of the expectations of an individual team member.
1.!Team members must be reliable. This means that they regularly attend team meetings, contribute
in a positive way, accept and complete assignments.
2.!Team members will support other team members. This means that an individual will not be
overly focused on his / her assignment and not help other team members as necessary. Of course,
individual assignments cannot be neglected with the excuse of helping fellow team members.
3.!IPPD engineers will support other IPPD engineers as necessary. Of course this requires balance
as one's own team project cannot be neglected. While it is important that each team be successful,
it is equally important that the program as a whole be successful.
Design notebook
Individual team members will always keep a complete design notebook. The notebook is a major
deliverable and will be turned in with the final documentation of the project. Please see the
Design Notebook Specifications PDF in the “How To” folder in Canvas.
Team member reports
Accountability: Each team member is held accountable for the assignments he/she has been
given. One way of creating this accountability and also to keep the total team abreast of the
project status is to have individual team members report about their assignment in the team
meeting.
The individual team member report is usually accomplished at the beginning of team meetings.
Team members report the number of hours spent on their assignments during the week and the
progress made. This allows all team members to see if their effort and accomplishment measure
up to the group. In addition, this allows team members to get help from their team in case they
run into problems.
Work records: To ensure that team effort is recorded accurately, each member should keep a
weekly work record. This information should be kept in the Design Notebook. Individual weekly
Training'Manual'rev.'October'22,'2015'Page'103!
work records will be summarized on the team's weekly record and given to the faculty coaches
weekly.
Brevity: The team member's oral report should be kept short.
Individual lecture/workshop expectations
The lecture/workshop content is closely coordinated with the progress of the industrial project.
The project should give each new engineer a chance to apply the methods taught in weekly
lectures and workshops. The primary goal of IPPD is the education of new engineers. The
project should not be allowed to override the educational aspect.
Performance: To help meet the educational objectives a record will be kept of the performance
of each new engineer. This performance will include attendance, assignments, contribution to
discussions, and individual preparation.
Attendance: Attendance is mandatory at all lectures and workshops for new engineers and
coaches.
Reading assignments: On the first day of the IPPD program new engineers will receive a
weekly schedule overview. This will explain the lecture topics, the required reading, the
workshop activities and the deliverables that are due each week. You can also find a weekly
schedule overview of the class in Canvas. New engineers are expected to read the required
material before the lectures.
Training'Manual'rev.'October'22,'2015'Page'104!
Evaluation Policy
Guidelines
The IPPD program is an engineering education program and not just an engineering program.
Evaluation of new engineers therefore is done differently than would be typical of industry. To
keep an appropriate focus on the educational aspects of the experience, new engineers will be
evaluated on both their performance in the lectures and workshops and their performance on the
project.
For detailed information on grading, please see your IPPD syllabus, a copy of which can be
found in Canvas
Training'Manual'rev.'October'22,'2015'Page'105!
Classroom Labs
For detailed information on the classroom labs, please see the IPPD Professional Manual located in
Canvas.
Training'Manual'rev.'October'22,'2015'Page'106!
Financial Policies and Procedures
For information on Materials & Supplies requests and Travel requests, please see the IPPD Professional
Manual located in Canvas.
Training'Manual'rev.'October'22,'2015'Page'107!
Appendix: Weekly Status Memo
Back to Course Deliverables. Back to Weekly Team Meetings.
•!The Weekly Status Memo, is a concise summary of the past week's accomplishments. It
includes completed tasks, agreements reached, key issues, requested help. Note that this
is intended to be a progress update -- not a static update (e.g. no progress to show other
than “held two meetings”). The memo is to be addressed to the IPPD Director and your
liaison engineer(s). The memo must be uploaded to the SVN minutes folder by the day of
class each week. *Note: if you have designed your wiki to be linked to your SVN, please
make sure there is also a wiki link to the file as well.
•!Although you may upload a Word document, it is preferred that you format the memo
using the WikiFormatting. Please refer to the sample memo below. You can create a
PDF of your memo from the wiki by using the WikiToPdf function located at the bottom
of each trac wiki page. You may e-mail the memo to your liaison as a PDF or simply cut
and paste the formatted text into your e-mail message body.
!
Training'Manual'rev.'October'22,'2015'Page'108!
Appendix: Project Roadmap
The Project Roadmap: A New IPPD Deliverable to Add Flexibility to the
Structured Development Process
Go back to Final Report Process Assessment section.
Background and motivation
The IPPD project portfolio undertaken each year has continued to grow in diversity. The project spectrum
includes electronics, machines and components, software, and processes (chemical, people,
manufacturing). Other dimensions of project diversity include maturity of the underlying technology and
striking a balance between application-oriented and research-oriented projects.
Increasing software content in the projects drove the development of special, undocumented work-
arounds to meet final project delivery needs. In the year 2000 program, the top-down structured hardware
development process was complemented with a structured software development process. While this
software development process has in general improved the delivery of software project results, it is not
effective for all software projects. In addition, the structured hardware development process is not one-
size fits-all.
How come if the defined processes do not apply to all projects, we are still consistently successful in
meeting customer expectations? I think the main reason is that we have talented, experienced faculty that
are adept at modifying the IPPD process as needed to get the job done. Unfortunately, we are not
capturing this tribal knowledge for future projects. So, our documented process stays the same, yet the
process we really use changes every year. Worse yet, each coach may invent their own new process every
year.
As we develop best practices and effective strategies, we should write them down for ourselves and future
project teams. Like medicine and law, engineering is a life-long learning profession. New techniques
should be documented and reused.
!
Training'Manual'rev.'October'22,'2015'Page'109!
Proposed deliverable: the project roadmap
The project roadmap is a statement of process. The roadmap will list the IPPD deliverables the team will
be completing and an overlay of any special sponsor deliverables or review requirements. The team will
need to understand the IPPD deliverables early and work with the coach and sponsor to ascertain which
deliverables are applicable and the timing. The project roadmap deliverable will be due within a week of
the first sponsor visit. This early process-oriented effort will help the team better understand how the
project will be tackled and provide early visibility into the detailed project plan.
A partial list of things that may be included in the project roadmap:
•!time for feasibility analysis
•!additional prototypes
•!background research phase
•!a hybrid deliverable process utilizing both hardware and software deliverables
•!others
A template document with “IPPD Classic” will be eventually developed the teams to use as a starting
point. Teams may use any documentation tool to create the roadmap. Microsoft Project (make a high-
level Gantt chart), Word, Excel, or PowerPoint could all be used. Keep it simple. If Microsoft Project is
utilized, then it will be easy to transform the roadmap into a detailed project plan.
The roadmap will be submitted to the IPPD Director. Eventually a process review committee composed
of at least 3 current IPPD coaches will be established to approve or recommend modifications to the
roadmap. The committee will not be formalized until the 2005-2006 program year.
New section for the final report: process assessment
The final report will include an assessment of the process followed by the project team. This assessment
will illustrate the actual roadmap followed, detail what worked and did not work, and will provide
!
Training'Manual'rev.'October'22,'2015'Page'110!
recommendations for future projects. The project roadmap will be made available for future project
teams.
Conceptual roadmap of IPPD development processes:
IPPD Development Process (hardware
orientation)
IPPD Development Process (software orientation)
Time
Prototypes/ Production Samples
Production
Ramp Up
Product Specifications
Design Process Methodologies
(Functionality, Ergonomics, Aesthetics)
Design for Product Quality
Design for Manufacturing
Production Capacity Development
Capstone Design Project
Project Management
Deliverables
Product Architecture
Product Realization Practices
Processes, Organization, Management, Economics
Major Topics
Production
Concept
Generation/Selection
Conceptual Design
System Level
Design
Detail Product/
Process Design
Verification
Customer Needs
Time
Project Management
Deliverables
System Req'ts &
Product Design
Detail Design
& Test Plan
Code/Unit Test/
Build & Intgrtn
Product
Verification
Release
Major Topics
Software Engineering Practices
Processes, Organization, Management, Economics
Technical Strategy
System/Product
Requirements
System/Product
Architecture
Complete & Testable
Product Specifications
Comprehensive Test Plan
Subsystem Design
Mod./Comp.
Level Design
Capstone Design Project
Maintenance
Acceptance
Test
Systems
Integration
Product Level
Design
Create/Test
Source Code
Functional
Verification
!
Training'Manual'rev.'October'22,'2015'Page'111!
Appendix: Project Video Requirements
(See Prototype Demonstration Video section.)
Thoughts
1.!keep it simple
2.!keep it short
3.!videos to be used within PowerPoint presentations should be less than one minute (20 seconds is
optimal)
4.!standalone videos should be no more than 2 minutes
5.!training videos may longer, but typically would include interactive elements
6.!ensure the video format and codec is compatible with PowerPoint if you plan to incorporate it
7.!consider how you might incorporate the project elevator speech
8.!work in the team logo and acknowledge the team members, coach, liaison, and sponsor
9.!create an outline
10.!develop story$boards for the scenes you plan to show; PowerPoint is a good tool for this, but
hand sketches are fine
•!Resources for story boards
°! http://multimedia.journalism.berkeley.edu/tutorials/starttofinish/storyboa
rding/
°! http://accad.osu.edu/womenandtech/Storyboard%20Resource/
°! http://en.wikipedia.org/wiki/Storyboard
°! http://www.sotherden.com/video101/storyboard.htm
11.!create a script for any narration or interaction
12.!consider using voice-overs to add narration to the video during the edit process
13.!480p is fine for most work; don't exceed 720p
14.!30 frames per second (fps) looks the best
15.!secure the video equipment ahead of time
16.!use a tripod
Video capture
IPPD has a Canon digital SLR that can capture still photos and video up to 1080p (15 fps). The
camera can be configured to shoot in 16:9 aspect ratio and in 480p and 720p at 30 fps. Make
arrangements for checking out the camera through the IPPD inventory system. You may of
course also use your own equipment. Note that the lens quality makes a huge difference. The
SLR will provide a far better image than the typical camcorder.
Video editing tools
If you use a camcorder or digital camera to capture the video, then you may wish to use the IPPD
iMac computers to edit the video. iMovie works fine for most applications and can handle a
variety of scene transitions, incorporation of music, and photos, plus titles and captions. Output
will be in Quicktime format, but you can convert this format to others easily using tools such
as Free Video Converter. For more complicated video editing, the iMacs have Final Cut
Express (FCE). Note that FCE has a bit of a learning curve.
!
Training'Manual'rev.'October'22,'2015'Page'112!
Software tutorial tools
An effective way to capture software demos is to use Adobe Flash. Wink is a freeware tool to
capture screen movie demonstrations. Wink is available for download
at http://www.debugmode.com/wink/. Wink runs on windows and x86 Linux distributions, but
the Flash output is viewable on any platform that supports Shockwave Flash formats. Wink
allows screen shots to be annotated with text captions and navigation buttons. Sound files can be
mixed in and voice can be over-dubbed (sound is sampled at 11 kHz, so it will be a little
distorted). Audacity is a freeware sound editing tool that can be used to record voice-over for the
wink demo segments. Audacity is available at http://audacity.sourceforge.net/.
A decent microphone is essential if you wish to do voice-overs. Finding a quiet place to record
will give you the best shot at a clean recording. Combination headphone-microphones may be
useful, but be wary of pop and hiss from your normal speaking voice. You may need to position
the mic up even with the end of your nose and adjust the recording levels to max out at 0 db.
USB mics from Guitar Hero or Rock Band games will probably work fine, though you may need
to add a wind screen (foam) to the mic and place a pop filter (stretch nylon hose over an
embroidery hoop) between you and the mic.
There may be other screen capture tools out there, so please search away. There are likely several
OS X tools that will work fine on the Mac.
