• Testing all relay technologies: electromechanical,
solid state, numerical and IEC61850
• Manual control with color display
• Simultaneously available: 6 Current and 4
Voltage plus 1 battery simulator outputs
• High current outputs: 6 x 32 A, 3 x 64 A,1 x 128 A
• High power outputs: 6 x 430 VA, 3 x 860 VA,
1 x 1000 VA
• High accuracy outputs: better than 0.05%
• IEC 61850 protocol interface
• USB and Ethernet interface
• Pen drive interface
• Internal GPS and IRIG-B interface for end-to-end
tests
• Advanced testing and data management
software TDMS
• Complete library of relays from the major
manufacturers
• Highest quality, safety and reliability
DRTS 64 can test all the following relays
RELAY TYPE IEEE NO
Distance relay 21
Synchronizing device 25
Under/over-voltage relay 27/59
Directional Power relay 32
Field relay 40
Reverse phase current relay 46
Phase sequence voltage relay 47
Incomplete sequence relay 48
Instantaneous over-current relay 50
Inverse time over-current relay 51
Power factor relay 55
Voltage balance relay 60
Ground detector relay 64
Directional over-current relay 67
Phase angle out of step relay 78
Automatic reclosing relay 79
Frequency relay 81
Pilot wire receiver relay 85
Lockout relay 86
Differential protection relay 87
Voltage directional relay 91
Power directional relay 92
Tripping relay 94
DRTS 64 is the leading edge, most powerful and accurate
relay, energy meters (class 0.1) and transducers test set
manufactured by ISA. The locally and PC controlled test set
generates high precision (0.05% accuracy) signals using mul-
tiple DSP technology.
Four hardware configurations are available:
• DRTS 66: with 6 Current 6 Voltage generators plus 1
battery simulator
• DRTS 64: with 6 Current and 4 Voltage generators plus 1
battery simulator
• DRTS 34: with 3 Current and 4 Voltage generators plus
1 battery simulator
• DRTS 33: with 3 Current and 3 Voltage generators plus
1 battery simulator
Its powerful current outputs (3 x 64 A at 860 VA) and voltage
outputs (3 x 300 V at 100 VA) allow to test any type of relays
including electromechanical relays.
The test sets integrate the IEC 61850 protocol interface for
testing relay with Ethernet-based substation communication
protocol.
OPERATOR INTERFACE
DRTS 64 can be operated directly from the front panel by means
of a large color graphical display, a rotary selector, a keypad and
function keys. Two PC interfaces, USB and Ethernet, allow to
control the test set with the advanced testing software TDMS.
It can also be operated by the optional Local Touch Control
(touch screen) module that can be used attached or detached
from the test set.
Relays, energy meters, power quality meters and transducers test set

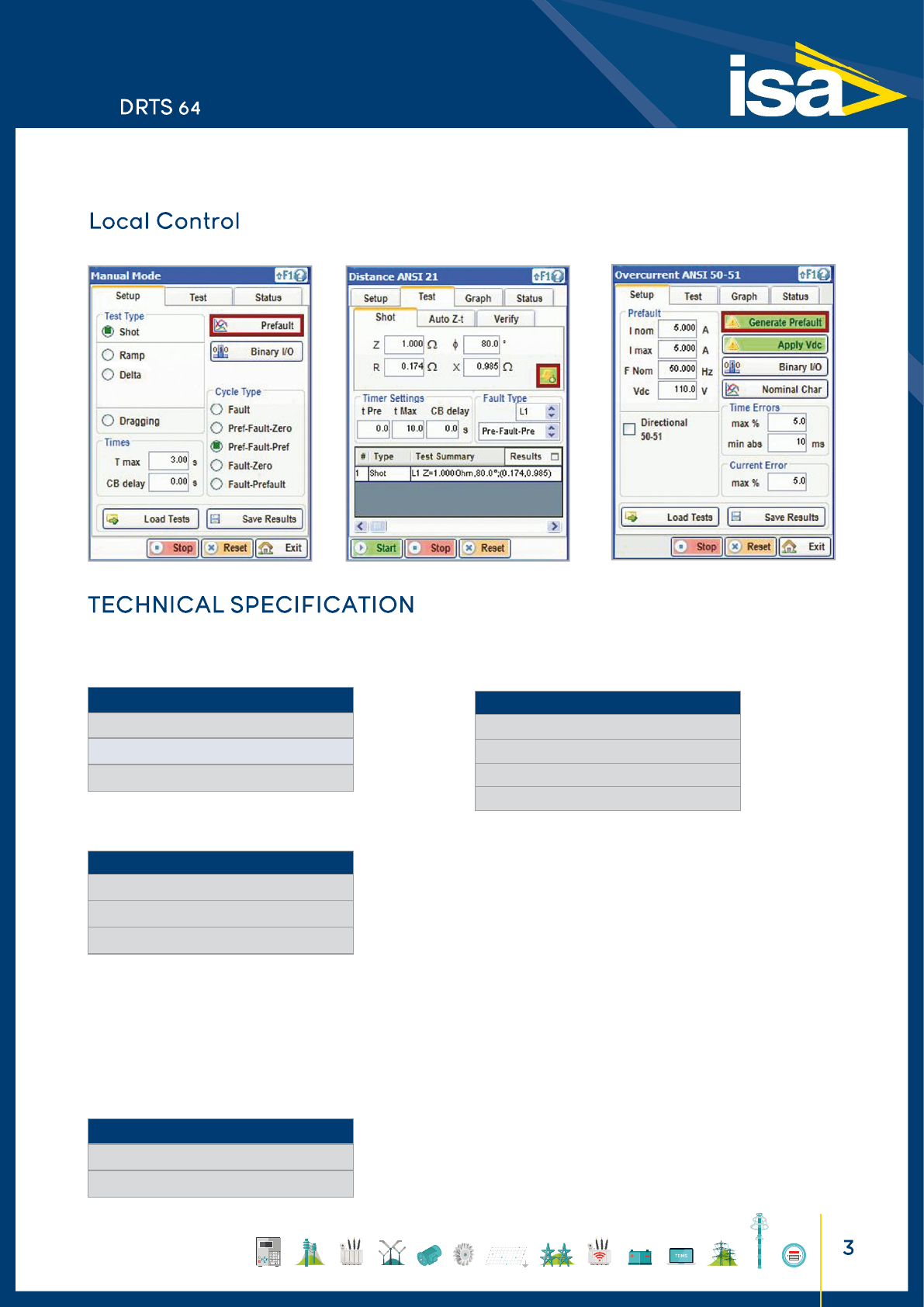

Manual test setup Distance relay test setup Over-current relay test result
CURRENT GENERATORS
Current Outputs
DRTS 64
6 x 0 ... 32 A AC
3 x 0 ... 64 A AC
1 x 0 ... 128 A AC
Output Power
Typical values
DRTS 64
6 x 430 VA at 32 A
3 x 860 VA at 64 A
1 x 1000 VA at 64 A
• Accuracy: typical ±0.02% of the value ±0.01% of the
range; guaranteed 0.04% of the value ± 0.01% of the range.
• Distortion: 0.05% Typical; 0.15% guaranteed
• Resolution: 0.1 mA at 32 A
• Connections: 4 mm banana sockets
VOLTAGE GENERATORS
Voltage Outputs
DRTS 64
4 x 0 ... 300 V
1 x 0 ... 600 V
• Ranges: 12.5 V and 300 V.
Output Power
Typical values
DRTS 64
3 x 100 VA at 125 ... 300 V
4 x 85 VA at 125 ... 300 V
1 x 200 VA at 125 ... 300 V
1 x 200 VA at 600 V
• The output V4 can be selected via software to act as
an independent voltage output, or ,via software, the output
can be selected to be: V0 = (V1+V2+V3)/3 or
V0 = (V1+V2+V3)/1.73 (bolded stays for vector sum).
• Accuracy: Typical ±0.02% of the value ± 0.01% of the range;
guaranteed ±0.04% of the value ± 0.01% of the range.
• Distortion: 0.015% Typical; 0.3% guaranteed.
• Resolution: 0.4 mV at 12.5 V; 10 mV at 300 V.
• Connections: 4 mm banana sockets.
OTHER GENERATOR CHARACTERISTICS
Output Frequency
Currents and Voltages output frequency: 0 to 3000 Hz. For the
voltage: 3 kHz at 60 V; 2 kHz at 100 V; 700 Hz at 300 V.
Transient: 0 to 5000 Hz.
Possibility to program 12 different frequencies on all outputs.
Maximum frequency error: 0.5 ppM.
Resolution: < 5 µHz.
Phase Angle
Range: - 360° ... +360°.
Resolution: 0.001°.
Timing accuracy with respect to test start: 50 µs.
Connections: multipole connector, rear side.
ANALOG DC MEASURING INPUTS
• DC Current measuring input
. Measuring ranges: ± 20 mA and ± 5 mA.
. DC accuracy, 20 mA: ± 0.02% of value ± 0.01% of range.
. DC accuracy, 5 mA: ± 0.05% of value ± 0.02% of range.
Connections: 4 mm banana sockets.
• DC Voltage measuring input
. Measuring range ± 10 V.
. DC Accuracy: ± 0.02% of value ± 0.01% of range.
Connections: 4 mm banana sockets.
NOTE: all specifications apply at 25 °C ± 2 °C.
AC specifications apply for sinusoidal waveform and frequency
between 48 and 62 Hz. Temperature drift: ± 0.01%/°C.
Current outputs derating at 115 V AC power supply.
INTERFACE CONNECTIONS
Type of interfaces: USB, Ethernet, IEC 61850, IRIG-B.
Characteristics of USB interface:
. Transmission rate: 3x minimum.
. Interface cable: 2 meters, included.
Characteristics of the ETHERNET interface:
. Connector type: RJ-45.
. Interface cable: 2 meters, included.
Characteristics of the IEC61850 interface (optional):
. Connector type: RJ-45.
. Interface cable: 2 meters, included.
Characteristics of the IRIG-B connection (optional):
. Fiber optic connector, ST type.
Internal memory
256 Mb internal memory suitable to store in the test set
approximately 2.000 test results.
Pen drive interface
It allows saving and recalling local test setting and results.
DISPLAY KEYPAD FUNCTION KEYS ENCODER
. One Encoder: digital rotary switch.
. One Keyboard: 12 keys.
. Five Function keys.
. Display: 256 colours, type LED, graphic 320 x 240 pixels;
dimension 5.7 inches.
POWER SUPPLY
- Mains power supply: 85 to 264 V AC, sinusoidal, single
phase.
- Frequency: 45 to 65 Hz.
- Power consumption:
. stand-by: less than 150 W;
. maximum load, 115 V supply: 1600 W;
. maximum load, 230 V supply: 2700 W.
Connection: Standard 16 A AC socket.
WEIGHT AND DIMENSIONS
Weight: 20 kg (44 lb).
Dimensions without the handle: 150 (h) x 466 (w) x 423 (d) mm
(5.9 x 18.3 x 16.9’’).
Accuracy (voltages and currents) 50/60 Hz: 0.01° typical, 0.02°
guaranteed.
Battery Simulator
0…260 V DC / 1 A.
Power: 50 W or 1 A.
Accuracy: 2%.
Connections: 4 mm banana sockets.
Low Level Signal Outputs (option included in code 87170)
Number of outputs: 6.
Full range voltage output: 7.26 Vrms.
Output current: 5 mA max.
Resolution: 0.43 mV.
Accuracy: 0.015% typical; 0.05% guaranteed.
Frequency bandwidth: DC to 20 kHz.
Connection: Multipole connector, rear side.
Binary Inputs
Number of inputs: 12 inputs.
Galvanic isolations: six groups of two inputs each, with six
common points isolated among them.
Inputs characteristics: potential-free or with voltage, from 4.5
to 300 V DC (24 to 230 V AC). When the Transcope option is
present, the maximum voltage is 600 V DC (425 V AC).
Selection of the type of input: dry; 5 V; 24 V; 48 V; 100 V.
Trigger conditions: N.O./N.C./Edge/boolean(each input
independent).
Timer range: Infinite.
Timer resolution: 0.01 ms.
Timer accuracy: 0.001% of the measure ± 0.1 ms.
Sample rate: up to 10 kHz; with the Transcope option
up to 50 kHz.
Connections: 4 mm banana sockets.
Counter Inputs
Number of inputs: 2
Frequency range for pulses: 0 to 100 kHz.
Connections: 4 mm banana sockets.
Binary Outputs Relays
Number of binary outputs: 4, make and break.
Type: Potential free timed relays.
Characteristics of the contacts with a resistive load:
. AC: 300 V; 8 A; 2400 VA;
. DC: 300 V; 8 A; 50 W.
. Programmable time delay: from 0 to 999,999.999 s.
. Connections: 4 mm safety banana sockets.
Binary Outputs Transistors (option included in code
87170)
Number: 4
Type: transistor, open collector outputs, dry, connected to a
dedicated connector.
Characteristics of the outputs: 24 V, 5 mA.
Short circuit protection.
Protection for voltages higher than 24 V.
Programmable time delay: 0 to 999,999.999 s.
Relays, energy meters, power quality meters and transducers test set
ACCESSORIES SUPPLIED WITH THE UNIT
Protective carrying bag.
Set of test leads: 12 cables.
Power supply cable.
Ground connection cable.
USB and Ethernet cables.
Instruction and maintenance manuals.
Electromagnetic compatibility:
Directive 2004/108/EC. Applicable Standard : EN61326:2006.
Low voltage:
Directive 2006/95/EC (CE conform). Applicable standard, for
a class I instrument, pollution degree 2, installation category
II: CEI EN 61010-1.
Operating temperature: 0 - 55°C;
Storage: -25°C to 70°C.
Relative humidity : 5 - 95%, without intermal condensation.
Altitude: < 2000 m.
Applicable also to external amplifiers AMI 332 and AMI 632.

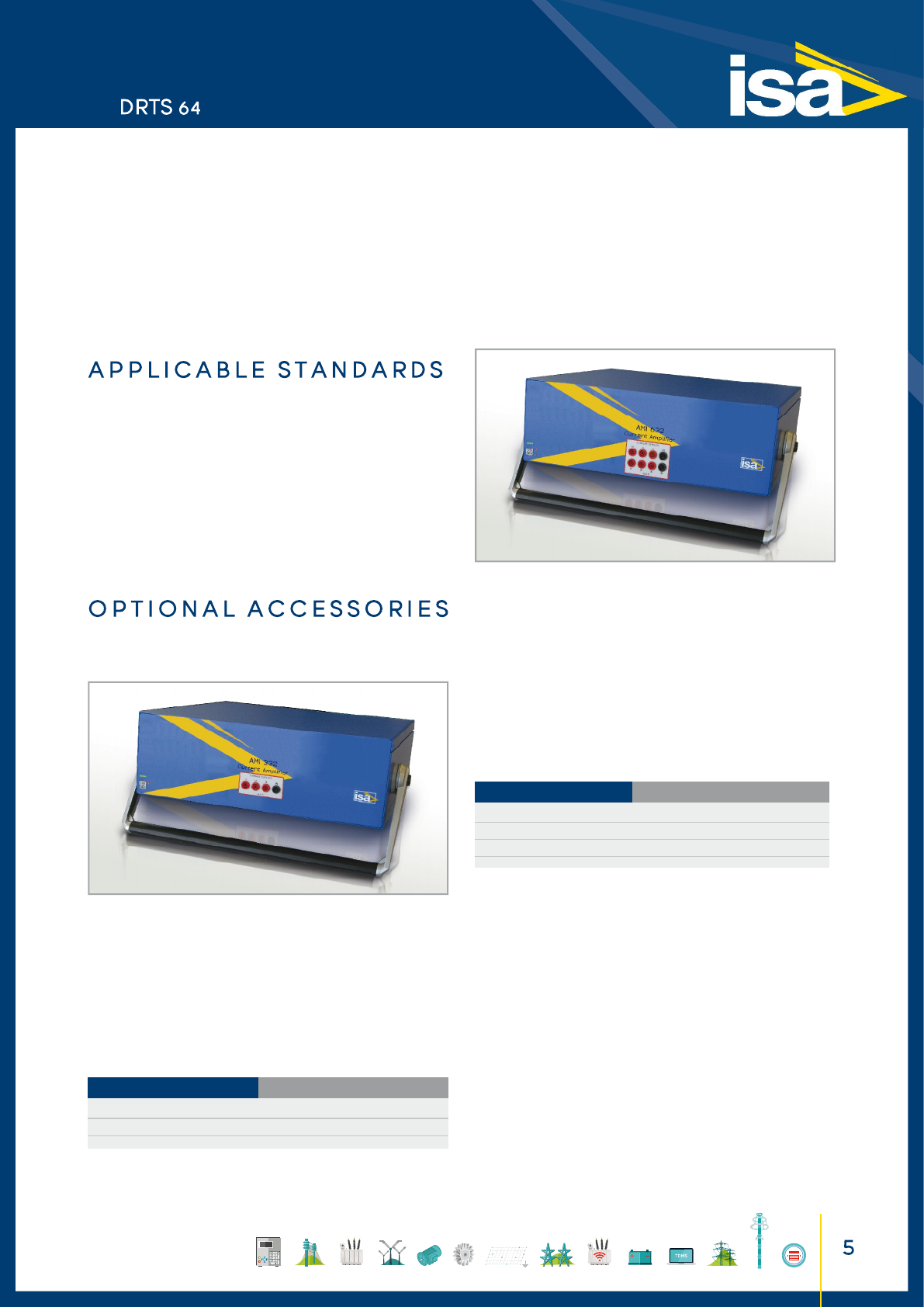

EXTERNAL AMPLIFIERS
AMI 332 CURRENT AMPLIFIER 3X32A
The three phase current amplifier AMI 332 is an additional
device to DRTS 64. The option requires IRIG-B connection and
output extension module on DRTS 64 and it includes three
current generators at 32 A each. In connection with the DRTS
64, the option offers the following features:
. To control nine currents at 32 A each at the meantime, for the
test of two-secondary transformer protection relays;
. To have a three phase generator at 96 A per phase;
. To have a single phase generator at 192 A.
3 x 0 … 32 A AC 3 x 430 VA at 32 A AC
1 x 0 ... 96 A AC 1 x 1000 VA at 64 A AC
CURRENT GENERATORS POWER
AMI 332 - Technical Specification
Accuracy: Typical 0.02% of the value ± 0.01% of the range;
guaranteed 0.04% of the value ± 0.01% of the range.
Distortion: 0.05% Typical - 0.15% guaranteed.
Resolution: 1 mA.
Connections: 4 mm banana sockets.
AMI 632 CURRENT AMPLIFIER 6X32A
The six phase current amplifier AMI 632 is an additional device
to DRTS 64. The option requires IRIG-B connection and output
extension module on DRTS 64 and it includes six current
generators at 32 A each. In connection with the DRTS 64, the
option offers the following features:
. To control twelve currents at 32 A each at the meantime, for
the test of three windings transformer differential protection
relays;
. To have a six phase generator at 64 A per phase;
. To have three phase generator at 128 A per phase;
. To have a single phase output at 256 A.
AMI 632 - Technical Specification
Accuracy: 0.02% of the value ± 0.01% of the range, Typical;
0.04% of the value ± 0.01% of the range, guaranteed.
Distortion: 0.05% Typical; 0.15% guaranteed.
Resolution: 1 mA.
Connections: 4 mm banana sockets.
Power supply for AMI 332 and AMI 632
- Mains power supply: 85V to 264 V AC, sinusoidal, single phase.
- Frequency: 45 to 65 Hz.
- Power consumption:
. at rest: less than 150 W;
. maximum load, 115 V supply: 800/1600 W;
. maximum load, 230 V supply: 1300/2700 W.
Connection: Standard 16 A AC socket.
Accessories supplied with the units
Protective carrying bag, power supply cable, test leads kit and
connection cable to DRTS 64.
6 x 0 … 32 A AC 6 x 430 VA at 32 A AC
3 x 0 … 64 A AC 3 x 860 VA at 64 A AC
1 x 0 … 128 A AC 1 x 1000 VA at 64 A AC
CURRENT GENERATORS POWER
. Maximum timing error with respect to nominal: ± 1 µs.
The option includes:
- the antenna;
- an extension cable for the antenna, 20 m long.
This option is to be specified at order.
EXTERNAL GPS SYNCHRONIZER
The GPS synchronizer is an external module that allows to
synchronize the test start of two DRTS 64. Features:
. 1 digital output O-24 V DC, for synchronization.
. 1 selector to program the following pulse intervals: 5 s; 10 s;
20 s; 30 s; 40 s; 60 s.
. Maximum timing error with respect to nominal: 2 µs.
. Lights to confirm: power-on; Locked; Pulse available.
. 1 START and STOP push-button.
. Power supply: 110/22O V AC.
The option includes:
- the antenna;
- an extension cable for the antenna, 20 m long;
- two cables, red and black, 2 m long, with banana
terminations, for the connection to the test set trip input;
- the power supply cable.
. Weight: 1.7 kg.
. Dimensions: 150 (w) x 100 (h) x 240 (d) mm.
. Case: aluminium.
SH 2003 ENERGY METERS UNIVERSAL
SCANNING HEAD
SH 2003 is a scanning head that eases the test of energy meters.
lt is an universal scanning head because it can be used both with
LED impulse electronic meters and Ferraris rotating disk meters.
With rotating disk the sensor uses a green light beam
that optimizes the recognition of any type of mark.
With LED recognition the following specification applies:
. lmpulse duration: more than 60 us;
. lmpulse frequency: less than 500 Hz;
. Duty cycle: 50%;
. Light wavelength: 500 to 960 nm (red).
The option includes:
. A support to keep the scanning head in front of the energy
meter;
. The cable, 2 m long, from the scanning head to the DRTS 64;
. The power supply transformer, for the power of 220 V AC, to
supply the scanning head.
IEC 61850 INTERFACE
IEC 618508
The standard IEC61850 describes the communication of devices
in substations. IEC61850 messages coming from the devices
connected to the substation network are also called GOOSE.
GOOSE messages describe binary status signals over the
substation network and are also used for relays tripping.
For relay testing applications within IEC61850 substations it is
necessary to access these data. This new feature is performed
by the ISA Automatic Relay Test Set DRTS 64.
IN2CDG CURRENT BOOSTER FOR 1 A RATED
HIGH BURDEN RELAYS
The option IN2-CDG includes a set of three current transformers,
with the following characteristics:
• Primaries: 12.5 A and 15 A. • Secondaries: 0.5 A; 1 A; 2.5 A; 5 A.
Nominal power: 100 VA. Current ratio error: 0.2%.
Case: plastic.
For the single phase test of the CDG relay it is possible to have
three times the above power, connecting current outputs in
series.
HPB 600 AND HPB 400 CURRENT BOOSTERS
These options are aimed at testing old electro-mechanical
overcurrent relays; in particular, at relays rated 1 A. The power
output is so high that it can test even relays rated at less than 1
A . Other features for HPB 400:
• Primary current: 32 A. • Secondary currents: 20 A, 4 A, 1 A.
Other features for HPB 600:
• Primary current: 2 x 32 A. • Secondary currents: 20 A, 10 A,
4 A, 1 A.
For both options:
• Accuracy: 0.5% at half burden; 1% at full burden.
• Connections: two safety sockets for the primary side; four
safety sockets for the secondary side.
TRANSCOPE: ANALOG/DIGITAL RECORDER AND
MEASUREMENT FUNCTION
Optionally the test set can be provided with this feature to
measure and record the following:
. 10 voltages or currents (with clamps or external shunts) AC
and DC meter and recorder;
. Phase angle, wattmeter, frequency, harmonics meter, power
quality meter;
. Oscilloscope functions;
. Sequence of Event recorder (up to 10 digital inputs);
. Fault recording function.
Input characteristics:
- Five isolated groups of two input circuits each.
- Inputs ranges: 100mV; 1; 10; 100; 600 V.
- Input impedance: 500 kOhm, 50 pF.
- Measurement accuracy: ± 0.06% typical; ± 0.15% guaranteed.
. Sampling frequency: 5 kHz, 10 kHz, 20 kHz, 50 kHz, software
selection.
. Total buffer size: 4 Mbytes.
. Maximum recording duration:
.. at 5 kHz: 6 min for 1 input channel / 40 s for 10 input
channels.
.. at 50 kHz: 40 s for 1 input channel / 4 s for 10 input
channels.
Connections: 4 mm banana sockets.
This option is to be specified at order.
INTERNAL GPS SYNCHRONIZER
The GPS synchronizer is an internal module that allows to
synchronize the test start of two DRTS 64 or other test sets.
Relays, energy meters, power quality meters and transducers test set
By means of a dedicated hardware and by the TDMS software,
ISA DRTS 64 can expand its testing capabilities by handling
IEC61850 messages.
The IEC61850 Interface option for DRTS 64 is required for
relay testing with Ethernet-based substation communication
protocol. The IEC61850 Interface is mounted on the front panel
of DRTS 64. The option has to be specified at order.
IEC 6185092
The IEC 61850-9 option allows generating measurement
messages on the system bus. The option and the associated
software provide the following features:
. injection of Sampled Values on the system bus, corresponding
to CT and VT measurements;
. test of relays connected to the system bus, by the generation
of Sampled Values and the monitoring of the relay tripping, as
described above.
The connection is performed via an optical fiber
connector, mounted on the rear of the test set.
The option has to be specified at order.
RELAY CONNECTION CABLE KIT
This option can be added to the basic cable kit to provide
connection to all test set sockets. It includes also 20 adap-
tors for terminal block connections and 3 jumpers to parallel
current outputs.
Optional set of testing cables
Standard set of testing cables
TRANSIT CASE
Three options are available:
. Heavy duty plastic transport case (Discovery type)
. Heavy duty transport case
. Soft carrying bag
PLCK POLARITY CHECKER MODULE
Checking the correct connection of CT’s and VT’s to protection
relays is a problem because relays can be hundreds of meters
away from the transformer. PLCK easilys solves the issue. When
this test is started, DRTS 64 generates a special, not sinusoidal
waveform, which is injected into the connection cables. The
polarity check is easily performed by connecting it at the relay
site. PLCK hast wo lights: green and red. The green light turns
on when the polarity is correct; the red light turns on when the
polarity is wrong.
PLCK POLARITY CHECKER
Heavy duty plas c transport case
(Discovery type)
Heavy duty transport case
87170 IRIG-B synchronization and outputs extension
module
88170 Internal GPS receiver with antenna and
cable *
89170 IEC61850-9-2 Protocol Interface - Sampled
values *
83170 IEC61850-8 Protocol Interface - Goose
70170 HPB 400 current booster
71170 HPB 600 current booster
98156 IN2-CDG - Current Booster for 1 A rated high
burden relays
82170 TRANSCOPE - Analog/Digital recorder and
measurement module
10161 GPS synchronizer - External module with
antenna and cable
20162 SH 2003 energy meter universal scanning head
15170 Complete set of test leads
85170 Heavy duty plastic transport case
17170 Heavy duty transport case
18170 Soft carrying bag
29166 Active AC/DC Current Clamp 2 A - 80 A
72170 Power Line synchronizer with optical fiber output
19170 Stand-up support
13170 Zero power Thytronic thysensor cables set*
12170 Zero power ABB REF542PLUS & REF601
cables set*
41175 PLCK - Polarity checker
06170 Optional Local Touch Control
45170 DRTS 66 6I/6V
35170 DRTS 64 6I/4V
22170 DRTS 34 3I/4V
10170 DRTS 33 3I/3V
40170 DRTS 66 6I/6V - with IRIG-B and output
extension module
30170 DRTS 64 6I/4V - with IRIG-B and output
extension module
20170 DRTS 34 3I/4V - with IRIG-B and ouput
extension module
10015 TDMS - Test & Data Management Software
80170 AMI 332 - 3I*
81170 AMI 632 - 6I*
NOTE*: Internal GPS, IEC61850-9-2, zero power set cables
and external amplifiers require code 87170- IRIG-B and output
extension module.
The document is subject to change without notice.
Always refer to our technical specification for more detailed
information and as formal contract document.
OPTIONAL LOCAL TOUCH CONTROL
With the optional Local Touch Control the unit can be easily
controlled using the rugged touch screen and the Manual
Control software applications. The Local Touch Control can be
used attached or detached to the test set.
When used attached to the test set the rugged Touch Local
Control is fixed to the test unit by means of a robust hinged
module. If detached from the test set the Local Touch Control
unit can be easily managed as a rugged tablet touch screen
controller.
LOCAL TOUCH CONTROL

Navigation menu
