IX DA Install Manual
User Manual: IX-DA - Install Manual
Open the PDF directly: View PDF
.
Page Count: 2
• Read this manual before installation and connection.
Read the "Setting Manual" and "Operation Manual" included on the DVD-ROM that comes with the
Master Station (IX-MV).
• Confi gure the system settings according to the "Setting Manual" after completing the installation
and connection. The system will not function unless it has been properly confi gured.
• After installation, explain to the customer how to use the device, and be sure to provide the
accompanying DVD-ROM that came with the Master Station (IX-MV).
Important
• Perform the installation and connection only after fully understanding this device and the manual.
Illustrations used in this manual may be different from the actual ones.
Mounting frame
Main unit
IX-DA
(Video Door Station)
IX-BA
(Audio Only Door Station)
Panel
Microphone
Communication
indicator (green)
Speaker
Call indicator (orange)
Call button
Camera
Microphone
LED for night illumination
Communication
indicator (green)
Speaker
Call indicator (orange)
Camera angle adjustment
lever (Video Door Station only)
CAT5e/6 cable
connections
Option connector input
Drain holes (4)
Status indicator (red)
Drain holes (4)
Status indicator (red)
Call button
Accessories included
Installation Manual
(this manual) x1
Option connector
x1
Special screwdriver
x1
Chinese RoHS paper
x1
Wall mounting screws
x2
Wall mounting
wood screws x2
MAC address
(beneath the panel)
MAC address
(beneath the panel)
MAC address
Reset button*
* Press and hold the reset
button for longer than 1
second, then release to
restart station.
Side Back
Warning Negligence could result in death or serious injury.
1. Voltage is applied to parts within the
equipment. Do not touch any parts that are
not associated with the installation, wiring,
or connection. Electric shock could result.
Dismantling
or
alteration
2. Do not dismantle or alter the unit.
Fire or electric shock could result.
3. Keep the unit away from water or any
other liquid.
Fire or electric shock could result.
4. The unit is not explosion-proof. Do not
install or use near gases or fl ammable
materials.
Fire or explosion could result.
5. Do not connect any terminal on the unit
to an AC power line.
Fire or electric shock could result.
6. Do not put any metal or fl ammable
material into the unit through the
openings.
Fire, electric shock, or unit trouble could
result.
Caution
Negligence could result in injury to people or damage to property.
1. Do not install or make any wire
terminations while power supply is
plugged in. It can cause electrical shock
or damage to the unit.
2. Before turning on power, make sure
wires are not crossed or shorted. If not,
fi re or electric shock could result.
3. Do not install the unit in any of the
following locations. Fire, electric shock,
or unit trouble could result.
• Places under direct sunlight or places
near heating equipment that varies in
temperature.
• Places subject to dust, oil, chemicals,
hydrogen sulfi de (hot spring).
• Places subject to moisture and
humidity extremes, such as
bathrooms, cellars, greenhouses, etc.
• Places where the temperature is quite
low, such as inside a refrigerated area
or in front of an air conditioner.
• Places subject to steam or smoke (near
heating or cooking surfaces).
• Where noise generating devices
such as dimmer switches or inverter
electrical appliances are close by.
• Locations subject to extremely
powerful electric fi elds.
4. When mounting the unit on a wall,
install the unit in a convenient location,
but not where it could be jarred or
bumped. Injury could result.
5. Do not place or install the unit in the
locations subject to frequent vibration or
impact. If the unit falls, injury to people
or damage to the unit could result.
6. Do not run wires between movable
objects (doors, windows, etc.). It may
cause malfunction.
7. Do not put anything on the unit or cover
the unit with cloth, etc. Fire or unit
trouble could result.
8. Be sure to perform a call test or check
the chime volume with the handset on
the hook. If you operate the hook switch
with the handset on your ear, a sudden
call etc. may arrive causing damage to
your ear.

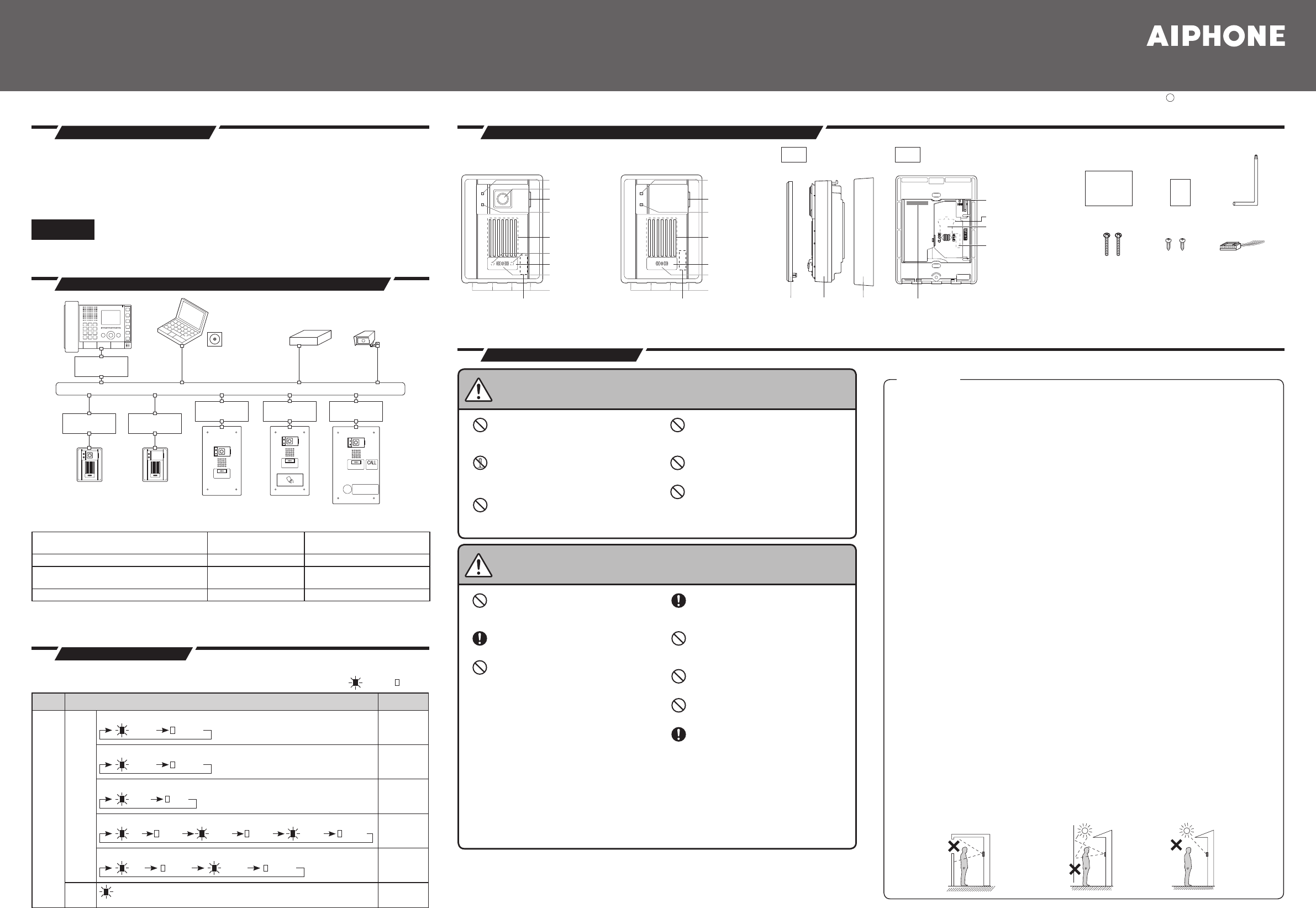

Installation Manual IX-DA (Video Door Station)
IX-BA (Audio Only Door Station)
PrecautionsPrecautions
IntroductionIntroduction
Example of System Confi gurationExample of System Confi guration
IndicatorsIndicators
Refer to the separate "IX-DA & IX-BA Operation Manual" for indicators other than those listed.
:
Light ON
:
Light OFF
Name Status (Pattern)
Explanation
Status
indicator
Red
fl ashing
Normal fl ashing
0.75 sec 0.75 sec
Booting
Fast fl ashing
0.25 sec 0.25 sec
Device
error
Long interval fl ashing
0.5 sec 4 sec
Communication
failure
Long irregular fl ashing
1 sec 0.25 sec 0.25 sec0.25 sec 0.25 sec 0.25 sec
Firmware
version
upgrading
Short irregular fl ashing
1 sec 0.25 sec0.25 sec 0.25 sec
Initializing
Red
light
Standby
Part Names and AccessoriesPart Names and Accessories
LAN
PoE-enabled switch
(third party)
IX Support Tool
(included with IX-MV)
PC
(
third party
)
PoE-enabled switch
(third party)
PoE-enabled switch
(third party)
IX-BAIX-DA
IX-MV Network Video
Recorder
(third party)
Network Camera
(third party)
EMERGENCY
PoE-enabled switch
(third party)
PoE-enabled switch
(third party)
IX-DF-HID*1
IX-DF-P*2
IX-DF
PoE-enabled switch
(third party)
IX-DF-2RA*1
Number of station registrations in address book
Product number Product name
Number of station registrations
in address book
IX-MV Master Station 500 stations
IX-DA, IX-DF, IX-DF-HID-I*1, IX-DF-HID*1,
IX-DF-2RA*1, IX-DF-PI*2, IX-DF-P*2
Video Door Station 20 stations*3
IX-BA, IX-SS, IX-SS-2RA*1
Audio Only Door Station
20 stations*3
*1 North America only.
*2 Except North America. HID Card Reader is not included.
*3 Only Master Stations can be registered (Max. 20).
1. Aiphone assumes no responsibility for damages as a result of delayed or unusable services, which were
due to failures in network equipment, communication services by Internet and cellular phone companies, line
interruptions, communication failures, or inaccuracies or omissions in the transmission unit.
2. We will under no conditions be liable for damage that occurs due to the inability to communicate due to
malfunctions, problems, or operational errors in this product.
3. If personal information leaked by eavesdropping or unauthorized access in the communication paths over
the Internet, please be aware that Aiphone assumes no responsibility for the damages.
4. We will under no conditions be liable for any damages or losses resulting from this product’s contents or
specifi cations.
5. This manual was created by Aiphone Co., Ltd., all rights reserved. Copying a part of or this entire manual
without prior permission from Aiphone Co., Ltd. is strictly forbidden.
6. Please note that this manual may be revised or changed without prior notice.
7. Please note that product specifi cations may be changed for the sake of improvement without prior notice.
8. Please be aware that it is the customer’s responsibility to ensure that their computer is secure. We will under
no conditions be liable for security failures.
9. This system is not intended for life support or crime prevention. It is just a supplementary means of
conveying information. Aiphone will under no conditions be liable for loss of life or property which occurs
while the system is being operated.
10. Keep the unit more than 1m (3.3’) away from radio or TV set.
11. Install the unit in an area that will be accessible for future inspections, repairs, and maintenance.
12. If the unit is down or does not operate properly, unplug the power supply or turn off the POWER switches.
13. If it is used close to a cellular phone, the unit may malfunction.
14. The unit can be damaged if dropped. Handle with care.
15. The unit turns inoperative during power failure.
16. In areas where broadcasting station antennas are close by, the intercom system may be affected by radio
frequency interference.
17. At a gate or porch illuminated by a fl uorescent lamp, the picture may vary, but this is not a malfunction.
18. If stripes or fi ne patterns are refl ected, outlines and colors shown may differ from actual people or
backgrounds, but this is not a malfunction.
19. Warm-color lighting shining on the video door station may change the tint of the picture on the monitor.
20. When using fl uorescent lights to illuminate the screen its colors may periodically change (color rolling), but
this is not a malfunction.
21. The unit case may become a warm with use, but this is not a unit malfunction.
22. Warm air fl owing from inside may interact with the temperature difference in the outside air to cause
condensation to occur on the camera unit. It is recommended that you block the points from which warm air
is fl owing out, such as incoming line ports, in order to prevent condensation.
23. Keep the intercom wires more than 30cm (12’’) away from AC 100-240V wiring. AC induced noise and/or
unit malfunction could result.
24. Door station is weather-resistant, but do not spray high-pressure water. Unit trouble could result.
25. Due to the nature of the camera built into the Video Door Station, external light and the surrounding
environment may affect the projection quality of the TV monitor, so please avoid installing in the following
locations.
Where the background
is white
Where the sky can be seen
in the background
Where direct sunlight
is present
Sky White
wall
Notice
Issue Date : Nov. 2014 FK2122 A P1114 SQ 56142 Printed in Thailand

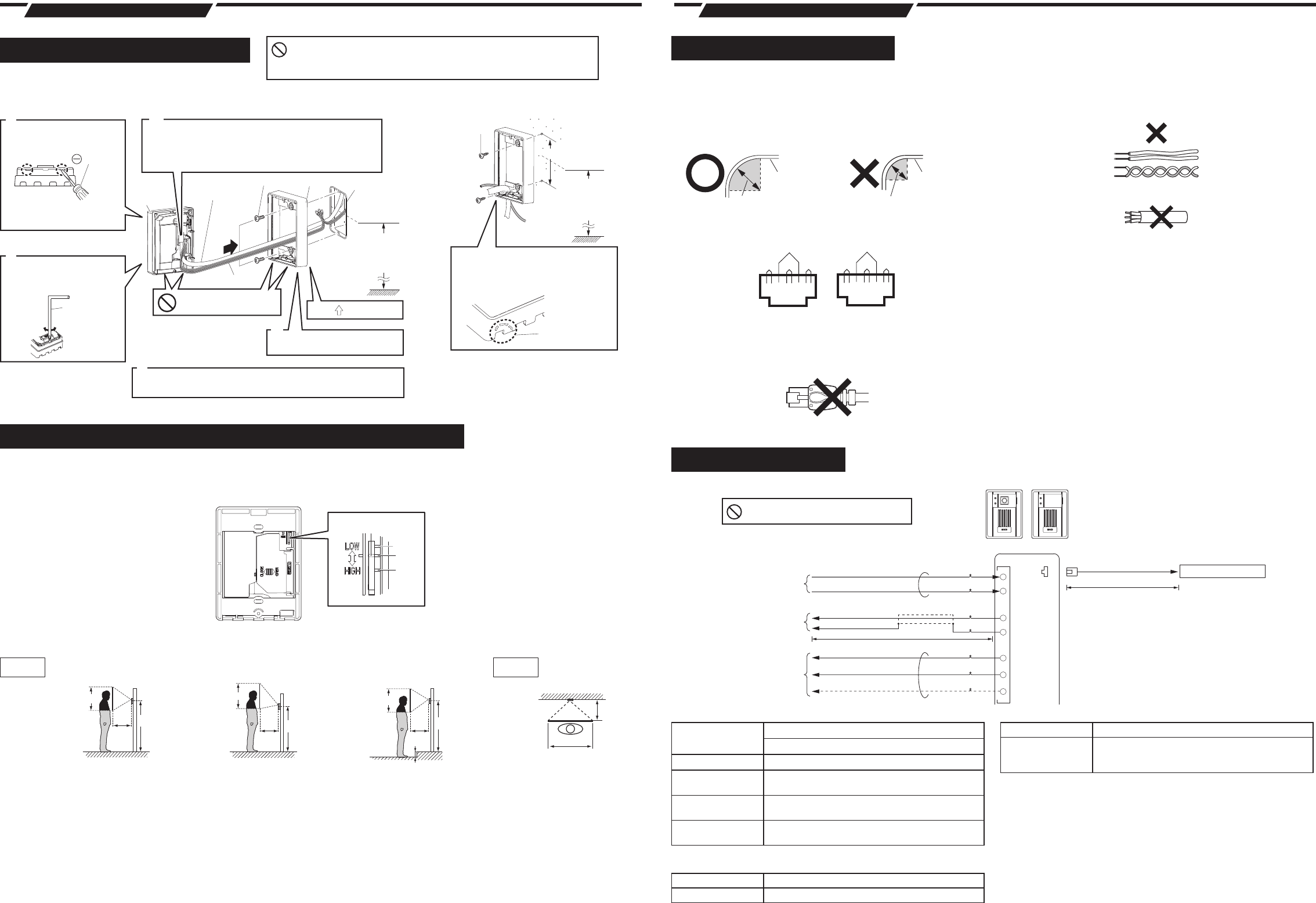

Installation of Door Station
Mounting frame
Attach the main unit to the mounting frame and put the panel on.
Attach the mounting frame
Verify " UP" is facing up
Do not obstruct.
Drain holes
Low voltage cable
1-gang box
Mounting height
(box center)
IX-DA: 1,500 mm (5')
IX-BA: 1,300 mm (4'3")
Included screws x2
4
5
2
3
4
Open the terminal cover and connect the
CAT5e/6 cable and option connector.
Close the terminal cover.
CAT5e/6 cable
Remove the main unit
(loosen the screw)
1
2
Special
screwdriver
Knockout section
Remove the panel
<Bottom>
Screwdriver
1
1
Use a flathead screwdriver to pry
open the panel without scraping it.
Main unit
Included wood
screws x2
Incoming line ports
Please insert the lines from the bottom.
*Make knockouts as necessary.
Mounting height
(device center)
IX-DA: 1,500 mm (5')
IX-BA: 1,300 mm (4'3")
83.5 mm (3-5/16")
Back wiring Surface wiring
Imaging Range and Mounting Location (IX-DA only)
Imaging Position Settings
The camera angle can be adjusted up or down (-8°, 0°, +15°) using the camera angle adjustment lever.
Set it to the optimal level.
Camera angle adjustment lever
+15°
0°
-8°
(Back)
Wall Mounting
The indicated range is a guideline that may change depending on the installation environment.
Unit
center Unit
center
Unit
center
Approx. 1,850 mm (6'1")
Approx. 650 mm (2'2")
500
mm
(20")
500
mm
(20")
500
mm
(20")
Approx. 1,200 mm (3'11")
1,500 mm (5')
Approx. 1,850 mm (6'1")
Approx. 700 mm (2'3")
Approx. 1,150 mm (3'9")
1,300 mm (4'3")
Approx. 1,900 mm (6'3")
Approx. 700 mm (2'3")
150 mm (5")
Approx. 1,200 mm (3'11")
1,500 mm (5')
Camera angle 0° Camera angle +15°
If lower due to a level difference
Horizontal
Vertical Camera angle -8°
Approx. 950 mm (3'1")
500 mm (20")
When light enters the camera, the monitor screen may fl icker brightly or the subject may become dark. Try to prevent strong lighting from entering the
camera directly.
Connection Precautions
Cable
The cable is not included with the product.
CAT5e/6 cable
• Use a straight cable when connecting between equipment.
• Do not use a CAT5e/6 cable with a bending angle of less than a
25 mm (1”) radius. A radius of less than 25 mm (1”) could cause a
communication failure.
CAT5e/6 cableCAT5e/6 cable
Radius ≥ 25 mm (1") Radius < 25 mm (1")
• Do not peel the jacket off the CAT5e/6 cable any more than is
necessary.
• Attach the RJ45 modular plugs using either EIA/TIA-568A or 568B.
Pair4
Pair3
Pair2
Pair1
T568A
Pair4
Pair2
Pair3
Pair1
T568B
12 3 45 6 7812 3 45 6 78
• Use the LAN tester to confi rm conduction before connecting the
CAT5e/6 cable.
• The RJ45 connector with cover cannot be connected to CAT5e/6 cable
terminals for Master Station or Door Stations. Use cables without covers
on the connectors.
• Do not pull the CAT5e/6 cable or apply excessive load.
Cable precautions
• Do not use separate conductors or twisted pair cables.
• Do not use an odd number cable.
Wiring Connection
IX-BAIX-DA
Door Station
Green
Purple
Blue
Brown
Red
Orange
Yellow
NO
LAN/PoE
10BASE-T
100BASE-TX
CAT5e/6 straight (UTP)
Relay Output*3
(the electric lock)
Contact Input*1
Shielded wire
ϕ0.8mm(20AWG)-2C
ϕ0.8mm(20AWG)-2C
Polarized
PoE-enabled switch
100 m (330')
NC
COM
S
SE
P
P
Audio Output*2
(to paging amplifier)
15 m (50')
Connector
Insulate and secure unused wires.
*1 Contact Input Specifi cations
Input method Form C dry contact (N/O or N/C)
Level detection method
Fixed detection time
200 msec or more
Contact resistance Maximum closure resistance: 700 Ω or less
Minimum open resistance: 3 kΩ or more
Terminal short-circuit
current
10 mA or less
Voltage between
the terminals
DC 5V or less (between open terminals)
*2 Audio Output Specifi cations
Output impedance 600 Ω
Output audio level 300 mVrms (600 Ω when terminated)
*3 Relay Output Specifi cations
Output method Form C dry contact (N/O or N/C)
Voltage between
the terminals
AC 24V, 0.5A (resistive load)
DC 24V, 0.5A (resistive load)
Minimum load (AC/DC): 100 mV, 0.1 mA
How to InstallHow to Install How to ConnectHow to Connect
There is no space to accommodate the wiring in the back of the
unit. If you do not use a 1-gang box, please provide openings or
handle exposed wiring in other ways.
