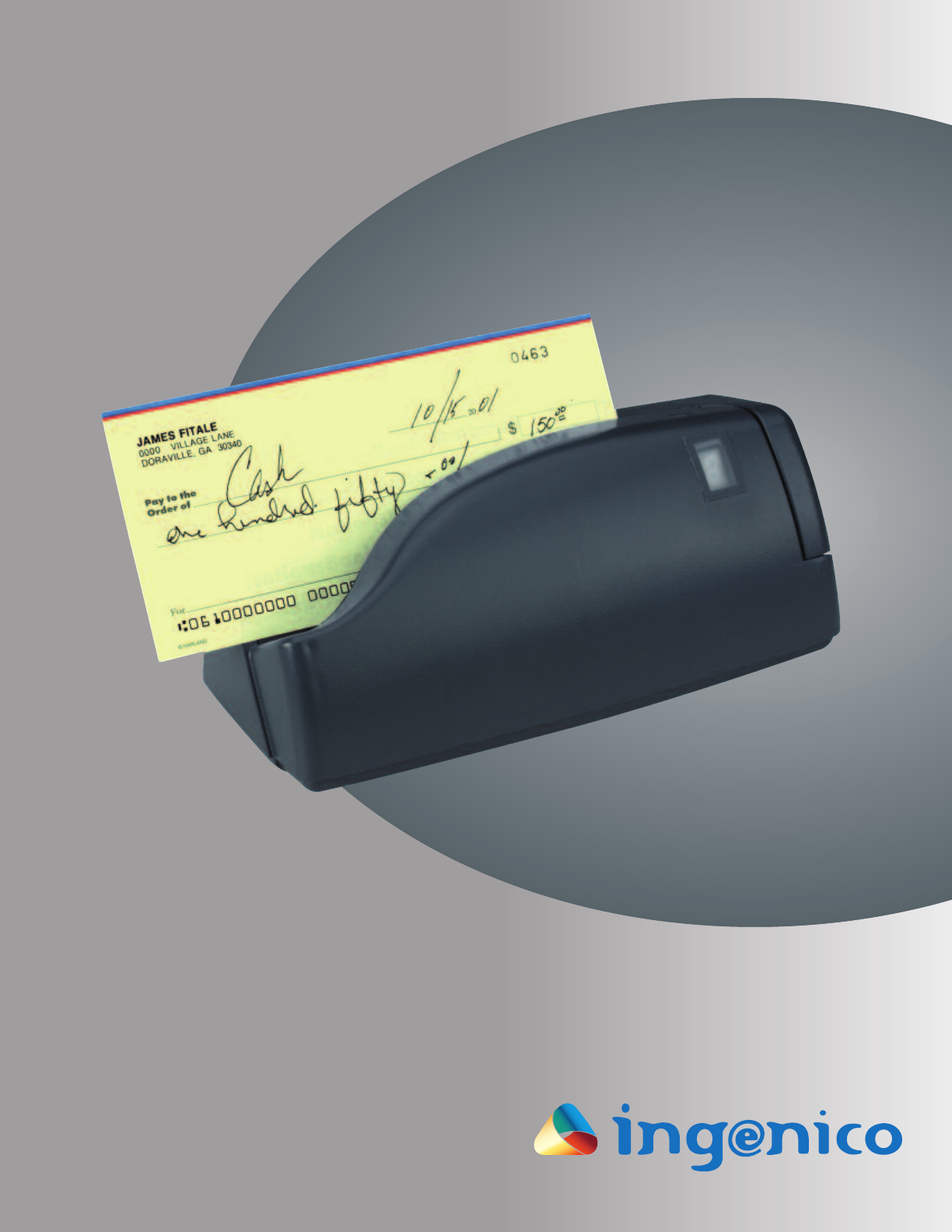

eN-Check 2500

World leader in secure transaction and payment solutions

The new standard in check readers

Continuing the tradition of providing the highest performance check

readers in the industry, Ingenico designed the eN-Check 2500 with an

array of superior features. Its ergonomic design enhances its appearance

and improves its read rate. Its compact size, installation options and

versatile operation allow it to be placed virtually anywhere. Its intuitive

check staging area and increased processing speed make it the check

reader of choice for improving customer service and reducing fraud. And

it is brought to you by the company with more check readers installed

worldwide than anyone. Ingenico.

eN-Check 2500

The new standard

in check readers

Quiet, efficient, and accurate. Three words that describe

the most versatile check reader on the market today.

Ingenico has used the experience we gained in becoming

the global leader in check reading technology to bring you

the eN-Check 2500.

Ergonomically Designed for Flexibility and

Simplicity

•The angle of the check entry area and intuitive design

enhance ease-of-use

•Enhanced cable channeling allows the combined power/

communications cable to be routed out the back or side

of the eN-Check 2500

Expressly Created for Superior Performance

•Improved recognition algorithms produce highly-accurate,

first-pass reads

•7-segment display provides detailed “bad check”

information

•“Hand back/hold away” ensures that exception items are

treated differently than accepted items

•Rapid read times enhance customer service

Specifically Built to Protect Your Investment

•Modular design allows users to add future options such

as check trays for sorting and interface to PC hosts

•Automatically detects communication interfaces on

power up

•Users can implement check conversion with or without

the addition of image capture devices

•Optional magnetic stripe reader

MICR Fonts E13B, CMC7, and CMC0

Optional Magstripe Reader Dual or triple track, bi-directional

Average Track Speed 21 inches per second (533 mm per second)

User Display 7segment readout and LED with 3 colors

Application Software Preloaded

Programmability Downloadable via platform, configuration checks

or PC

Field upgradeable firmware via flash ROM

Interfaces IBM, NCR, Fujitsu/ICL, Symbol Tech., Verifone

and most other POS, PC, wedge and terminal

platforms

Protocols RS232, RS485, TTL, Keyboard Wedge, OCIA,

OCRA, MDL andothers

Life Expectancy One million reads

Voltage

4.9 V DC to 16 V DC (maximum, including ripple)

Current 400 mA normal operations (average)

250 mA quiescent

External Power Supply None required in most installations when at

least 300 mA is available from the POS port

Dimensions & Weight 2.78" (70.6 mm) x 3.0" (76.2 mm) x 7.18"

(182.4 mm) 13.4 oz (.38 kg)

eN-Check 2500

TECHNICAL CHARACTERISTICS

The smallest footprint in the industry

preserves counter space, allowing it to be

placed in a variety of positions.

Over 400 parsing algorithms ensure the

highest read accuracy in the market.

All rights reserved. This document is not binding and the specifications hereabove can be

modified without prior consent.

Ingenico Inc.

1003 Mansell Road - Atlanta, GA 30076

Tel: (770)594-6000 - Fax: (770)594-6003

www.ingenico-us.com

Ingenico Canada Ltd.

79 Torbarrie Road - Toronto, Ontario

Canada M3L 1G5

Tel: (416)245-6700 - Fax: (416)245-6701

www.ingenico-ca.com

Groupe Ingenico 9, quai De Dion Bouton - 92816 Puteaux Cedex - France - Tel : 33 (0)1 46 25 82 00 - Fax : 33 (0)1 47 72 56 95 - www.ingenico.com

06-2005-eN-CHECK 2500 USA-ING
