March 2003 FileNet Document Warehouse for SAP 1

FileNet Document Warehouse for

SAP

Installation and Configuration Manual-Server

Release 5.1

March 2003

FileNet, ValueNET, Visual WorkFlo, and OSAR are registered

trademarks of FileNet Corporation.

Panagon, Document Warehouse, UserNET, and The Substance

Behind eBusiness are trademarks of FileNet Corporation.

All other product and brand names are trademarks or registered

trademarks of their respective companies.

Copyright © 2001, 2003 FileNet Corporation. All rights reserved.

FileNet Corporation

3565 Harbor Boulevard

Costa Mesa, California 92626

800.FILENET (345.3638)

Outside the U.S., call:

1.7 1 4 .3 2 7 .3 4 0 0

www.FileNet.com

Notices

This document contains information proprietary to

FileNet Corporation (FileNet). Due to continuing

product development, product specifications and

capabilities are subject to change without notice. You

may not disclose or use any proprietary information or

reproduce or transmit any part of this document in

any form or by any means, electronic or mechanical,

for any purpose, without written permission from

FileNet.

FileNet has made every effort to keep the information

in this document current and accurate as of the date

of publication or revision. However, FileNet does not

guarantee or imply that this document is error free or

accurate with regard to any particular specification. In

no event will FileNet be liable for direct, indirect,

special incidental, or consequential damages

resulting from any defect in the documentation, even

if advised of the possibility of such dam-ages. No

FileNet agent, dealer, or employee is authorized to

make any modification, extension, or addition to the

above statements.

FileNet may have patents, patent applications,

trade-marks, copyrights, or other intellectual

property rights covering subject matter in this

document. Furnishing this document does not

provide any license to these patents, trademarks,

copyrights, or other intellectual property. FileNet is

a registered trademark. Copyright © 2001, 2003

FileNet Corp. All Rights Reserved.

March 2003 FileNet Document Warehouse for SAP 3

Contents

About this Manual 7

Skill Level Requirements 7

Related Publications 7

Tips, Notes, Cautions, and Background Information 8

Education 8

Comments and Suggestions 8

1. Document Warehouse for SAP 9

What’s new in this Release? 9

Multiple, simultaneous RFC requests 9

On-Line Administration 10

Windows event logging 10

SAP NameSpace 10

Enhanced SAP Document Management Support 11

Pure Thin Document Viewing 11

FileNet Capture for R/3 Upgrade 11

DMS Viewing and Linking ASP Sample Application 11

2. Concepts 12

Overview 12

SAP ArchiveLink and DWSAP 12

New Component Names 14

System Architecture 14

IDM Services for R/3 Component cServer 15

IDM Services for R/3 Component cBarcode 15

3. Installation of IDM Services for R/3 17

Prerequisites to Install IDM Services for R/3 17

Hardware 17

Software 17

Installation process 18

Install IDM services for R/3 18

Install IDM Services for R/3 Server Add On 23

March 2003 FileNet Document Warehouse for SAP 4

View Documents 28

Upgrading from DWSAP Releases 29

Re-installation of IDM Services for R/3 32

Removal of IDM Services for R/3 35

Removal of IDM Services for R/3 using Remove Button 36

Removal of IDM Services for R/3 using Change Button 37

Modifying the setup of IDM Services for R/3 Server Add On 39

Repair and Removal of IDM Services for R/3 Server Add On 44

4. General Server Configuration 45

Configuring FileNet IDM Libraries 45

Defining FileNet Index Fields 45

Defining FileNet Document Classes 47

Creating IDM Services for R/3 Request Queue 48

Creating IDM Image Services Queues for Barcode Transfer 48

Creating Image Services Queues to Process Incoming Documents 48

Configuring FileNet Web Services 49

Guidelines to Define File Exchange Directories 49

5. IDM Services for R/3 Configuration 51

The Configuration Tool 51

Configuration Overview 53

IDM Services for R/3 Category Logging 55

Configuring FileNet Libraries 57

Configuring SAP Systems 58

Configuring Multiple R3 Instances 59

Configuring RFC Communication 59

Testing RFC Communication Parameters 62

Testing RFC client parameters 62

Testing RFC server parameters 63

Configuring SAP System-Specific Security 65

Configuring SAP Archives 67

Configuring Document Classes 68

IDM Services for R/3 Category ‘cServer’ 69

Configuring PreProcessor 71

Preprocessor and the Output File 72

[GLOBAL] 73

[<LinkId.Link>] 74

[INDEX] 74

March 2003 FileNet Document Warehouse for SAP 5

IDM Services for R/3 Category - General 75

IDM Services for R/3 Category - cBarcode 75

Configuring Security 78

Configuring Web-Based Client Environment 79

Configuring Server AddOn Environment 80

Configuration of DMS Viewing and Linking ASP Sample Application 80

Configuration of Category DMS 81

DMS UI Components 82

Configuration of Pure Thin Document Viewing 83

6. Customizing SAP 85

Overview 85

Initial Customizing 86

Basic Settings 86

Creating SAP Queues 87

Maintaining Number Range 88

Maintaining Archive Device 91

Communicating with Archives 91

SAP ArchiveLink Protocols 92

Defining a protocol for thick-client document viewing 92

Defining a Protocol for Pure thin document viewing 96

RFC Destinations 96

SAP Archive Definition 100

SAP Archive Definition in R/3 4.6B 100

Sending a Certificate to an Archive 106

Business Configuration Elements 107

SAP Technical Document Classes and MIME Types 107

ArchiveLink Document Types 108

Defining Links 110

7. Server Configuration 112

Configuring the cServer RFC Service 112

Configuring IDM Services for R/3 in Internet Information Server

for HTTP communication 114

Changing Registry Rights to Use HTTP on Windows 2000

Server 116

Changing Permissions to Use HTTP on Windows 2000 Server

119

March 2003 FileNet Document Warehouse for SAP 6

Security Changes in DCOMCNFG 119

Security changes for Installed Directory of cServer 123

Stopping and Starting cServer 126

Appendix A – OSS Notes 127

Appendix B – Software License Agreement 128

Index 130

March 2003 FileNet Document Warehouse for SAP 7

About this Manual

The FileNet Document Warehouse for SAP (DWSAP) Installation and

Configuration Manual, dated February 2003, supports the 5.1 release of

the DWSAP software. It covers the new IDM Services for R/3 (formerly

known as ServerLink or Server Components), the applications related to it

and the new IDM Desktop for R/3 as well as the possibility to use a web-

based client.

Skill Level Requirements

The installer will need an in-depth understanding of FileNet and SAP

systems, as well as a working knowledge of Windows 2000 and the

corresponding hardware platforms. Specifically, the installer will need to

understand the following:

• FileNet system operations.

• SAP R/3 System.

• PC Operations.

• Windows 2000 procedures.

Related Publications

The DWSAP software integrates the standard FileNet system with the

SAP system through the SAP ArchiveLink interface.

The following FileNet manuals and SAP documentation will prove useful

in the software installation, operation, and administration of DWSAP:

• System Administrator’s Handbook for IDM Image Services

• System Administrator’s Companion for your platform

• Software installation procedure for your platform

• Web Services online documentation

• Online documentation for R/3 System, in particular SAP ArchiveLink

documentation

It is recommended that the SAP R/3 documentation for the SAP

ArchiveLink interface be obtained and studied.

March 2003 FileNet Document Warehouse for SAP 8

Tips, Notes, Cautions, and Background Information

Throughout this manual, there are assorted brief messages designed to

draw your attention to different kinds of information:

Tip: Indicates hints to improve efficiency of performing a task.

Note: Provides important information, such as situations that can affect

the outcome of an operation or affect some other part of the system

CAUTION: Signals, where possible loss of data or time may occur

Background: Explains the concepts behind specific features and

provides helpful information for understanding the design of SAP

ArchiveLink and Document Warehouse for SAP.

Bold Type Indicates menu names, menu items, component names

Blue text Indicates a link to another topic, a link to another section in the

same topic, or a link to an external topic.

Education

FileNet provides various forms of instruction. Please visit the Global

Learning Services in FileNet's Service & Support area at

www.FileNet.com.

Comments and Suggestions

FileNet invites all customers to communicate with the Documentation

group on any question or comment related to FileNet manuals and online

help. Send email to docs@filenet.com. We will make every effort to

respond within one week. Your suggestions help us improve the products

we deliver.

March 2003 FileNet Document Warehouse for SAP 9

1

Document Warehouse for SAP

What’s new in this Release?

DWSAP release 5.1 is an enhanced version of DWSAP release 5.0.1.

The scope of this release is limited to certain functional enhancements.

This release has been qualified to run with Web Services 3.2, Desktop

3.2 and Capture 4.0.

DWSAP release 5.1 supports all the features of DWSAP release 5.0.

Here is a brief overview of the major new functionalities that have been

introduced, or enhanced in DWSAP release 5.1:

• Multiple, simultaneous RFC requests

• On-line administration

• Windows event logging

• SAP namespace

• Enhanced SAP Document Management System (DMS) support

• Pure thin document viewing

• Capture CIM support for Capture 4.0

• DMS viewing and linking ASP sample application

Multiple, simultaneous RFC requests

SAP with release 4.6c has changed the processing of data archiving

requests. SAP processes the data archiving requests synchronously. This

means that the requests are processed sequentially only. This may result

in time out for the other requests present in the queue.

In this release, DWSAP registers multiple instances of RFC server at the

SAP gateway. This enables DWSAP to process multiple RFC requests

simultaneously.

The administrator can configure the number of RFC threads that are

required for a particular SAP system using the configuration tool.

Document Warehouse for SAP

What’s new in this Release?

March 2003 FileNet Document Warehouse for SAP 10

On-Line Administration

DWSAP Server components detect and use changes in configuration,

without restarting the corresponding services, for example, FileNet RFC

Service, WWW Service, and FileNet Barcode Service. Requests that are

received by the Server components before the configuration changes are

saved are processed with the old configuration. The requests received

after re-initialization of the server components are processed with the new

configuration.

Online Administration feature can be enabled/disabled through a check

box in the configuration tool.

Note: This feature has been enabled only for IDM Services for R/3; it is

not available for IDM Desktop for R/3.

Windows event logging

DWSAP supports logging of messages related to its operations in the

Windows Application Event log. The log levels supported for logging in

the Event log are:

• Log all information

• Log errors and warning only

• Log errors only

Logging in the Windows event log is supported for the following DWSAP

components:

• IDM Services for R/3

• IDM Desktop for R/3

• Thin-Client

The log levels for the event logging are maintained separately from log

levels for logging to a file.

Windows event logging feature can be enabled/disabled through a check

box in the configuration tool.

SAP NameSpace

DWSAP differentiates among requests from different copies of the R/3

instances running on different servers but sharing the same authenticity id

and archive id.

To identify different R/3 instances in the configuration program define the

SAP system in the configuration, as

<SAP System Name> - <SAP Server Name (host name)>

Document Warehouse for SAP

What’s new in this Release?

March 2003 FileNet Document Warehouse for SAP 11

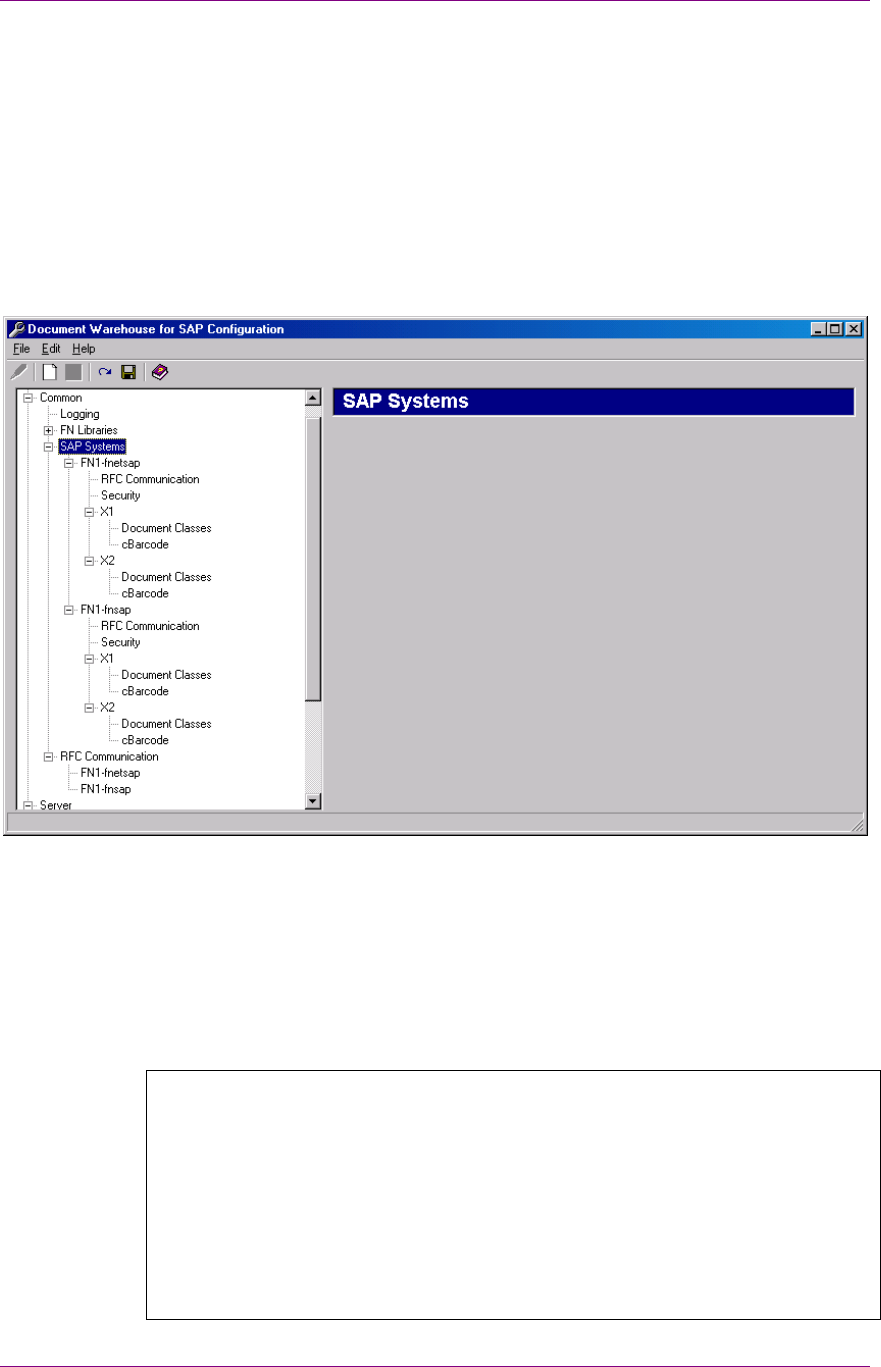

For example, if FN1 is the SAP system, fnetsap, and fnsap are the

servers that have this R/3 instance. The entries in the configuration tool in

this case are FN1-fnetsap and FN1-fnsap.

Enhanced SAP Document Management Support

While creating a new Document Information Record (DIR) in DWSAP 5.1

release, DWSAP end users can use the default value for DIR Description

and Initial Status as defined in the configuration or are prompted to

change the default values at run-time.

This feature can be enabled/disabled through a check box in the

configuration tool.

Pure Thin Document Viewing

DWSAP supports pure thin viewing of documents. In a pure thin client

scenario, only SAPGUI is installed on the client machine. There is no IDM

component or DWSAP client component installed on the client machine.

In the pure thin client scenario, communication occurs directly between

SAPGUI and DWSAP server components installed on the Web server.

The end user can view the documents with either a Java-based viewer, or

IDM Viewer.

Pure thin client viewing of documents is not supported for documents that

use Remote Function Call (RFC) protocol.

This feature can be enabled/disabled through a check box in the

configuration tool.

FileNet Capture for R/3 Upgrade

DWSAP component FileNet Capture for R/3 is qualified to run with

Capture version 4.0.

DMS Viewing and Linking ASP Sample Application

DWSAP has a new sample Document Management System (DMS)

application, which demonstrates the instantiation of DMS objects in a

Web based environment. To access DMS sample application, additional

installation is required on the server. This is provided as Server Add On

for the Server Components.

March 2003 FileNet Document Warehouse for SAP 12

2

Concepts

This chapter provides an overview of DWSAP and its interaction with SAP

ArchiveLink.

Overview

DWSAP is an application that has resulted from the integration of

FileNet’s Image Services (IS) and Content Servcies (CS) with the SAP

system using the SAP ArchiveLink interface. DWSAP enables the

business applications of SAP to process FileNet document images and

archiving of document and data archiving. DWSAP consists of two parts:

• IDM Services for R/3: Represents the product components that

integrate SAP R/3 servers with IS and CS, by implementing SAP

ArchiveLink server-side interface. All components of IDM Services for

R/3 run on server machines.

• IDM Desktop for R/3: Represents the product components that

implement SAP ArchiveLink client-side interface either on the client

desktop, or on a Web server.

SAP ArchiveLink and DWSAP

SAP ArchiveLink connects document management & imaging systems

such as, FileNet IS and CS to SAP R/3 systems. SAP ArchiveLink is an

intermediate layer between SAP business application, and FileNet IS and

CS.

SAP ArchiveLink provides a library of functions to all SAP application

modules that manage documents stored on FileNet system. SAP

ArchiveLink and the FileNet IS and CS communicate using a standard set

of messages. These messages are independent of SAP business

applications.

The SAP ArchiveLink interface requires the archive vendor to provide a

server component that fulfils archiving-related requests, such as archive a

document asynchronously, restore a document synchronously, and

search for a pattern in a print list.

SAP supports two protocols, RFC and HTTP. The versions 3.0 and 3.1 of

SAP ArchiveLink use the RFC protocol. The RFC protocol is proprietary

Concepts

SAP ArchiveLink and DWSAP

March 2003 FileNet Document Warehouse for SAP 13

to SAP. The version 4.5 of SAP ArchiveLink interface uses HTTP

protocol.

In conjunction with the FileNet system, SAP ArchiveLink:

• Processes incoming documents before, during, and after archiving.

• Links incoming documents to transactions in an SAP system.

• Links incoming documents to work items that are routed and

processed, using SAP business workflow.

• Archives SAP-generated outgoing documents and print lists to FileNet

libraries.

• Retrieves documents linked to a transaction in an SAP application

from FileNet libraries, and displays the documents.

• Automatically stores data archiving files on optical media, and

transparently accesses the files as needed.

The following table contains examples of the types of documents that are

SAP ArchiveLink enabled. Check the SAP R/3 online documentation for a

complete list for each SAP R/3 release:

SAP Module Original Documents SAP-Generated

Documents

Document Management

System (DMS)

Any document Any document

Financial Accounting (FI) Credit Memo

Invoice

Payment

Line Item Journal

Full Audit Trail

Classic Audit Trail

Document Journal

Human Resources (HR) Applications

Contracts and related

correspondence

Photo of Employee

Regulatory documents

Certificates.

No documents are

generated

Materials Management

(MM)

Credit Memo

Invoice

LIFO valuation report

Outline Agreement

Purchase Order

Schedule Line

Master Material

Concepts

New Component Names

March 2003 FileNet Document Warehouse for SAP 14

SAP Module Original Documents SAP-Generated

Documents

Sales & Distribution (SD) Complaint

Contract

Delivery Note

Delivery Schedule

Order

Schedule Agreement

Inquiry

Complaint

Contract

Credit Memo

Delivery Note

Delivery Schedule

Order Confirmation

Quotation

Schedule Agreement

Inquiry

Invoice

Workflow (WF) Any document Any document

New Component Names

To reflect the usage of DWSAP product, the component names have

been changed. The following table lists the old and new names of the

components, for the respective releases:

Old Name (Release 2.x) Old Name (Release 4.0) Release 5.x

Document Warehouse for SAP Document Warehouse for SAP Document Warehouse for SAP

ServerLink IDM Services for R/3 IDM Services for R/3

SrvLink, SrvQLink SrvLink, SrvQLink cServer

LinkSAP LinkSAP cBarcode

SAPSearch, Search SAPSearch, Search SAPSearch

ClientLink, CliLink IDM Desktop for R/3 IDM Desktop for R/3

Not Available CIM, Custom CIM View

Not Available Browse CIM FileNet Browse for R/3

Not Available Queue CIM FileNet Queue for R/3

Not Available Capture CIM FileNet Capture for R/3

System Architecture

The two components of DWSAP use Web services API to communicate

with IS and CS libraries. They are:

Concepts

System Architecture

March 2003 FileNet Document Warehouse for SAP 15

• cServer: Refers to the server component that processes SAP

ArchiveLink requests using the RFC and HTTP protocols. For more

information, refer to section IDM Services for R/3 Component cServer.

• cBarcode: Refers to the server component that uses document

barcodes to transfer information about new documents to SAP

ArchiveLink. For more information, refer to section

IDM Services for R/3 Component cBarcode

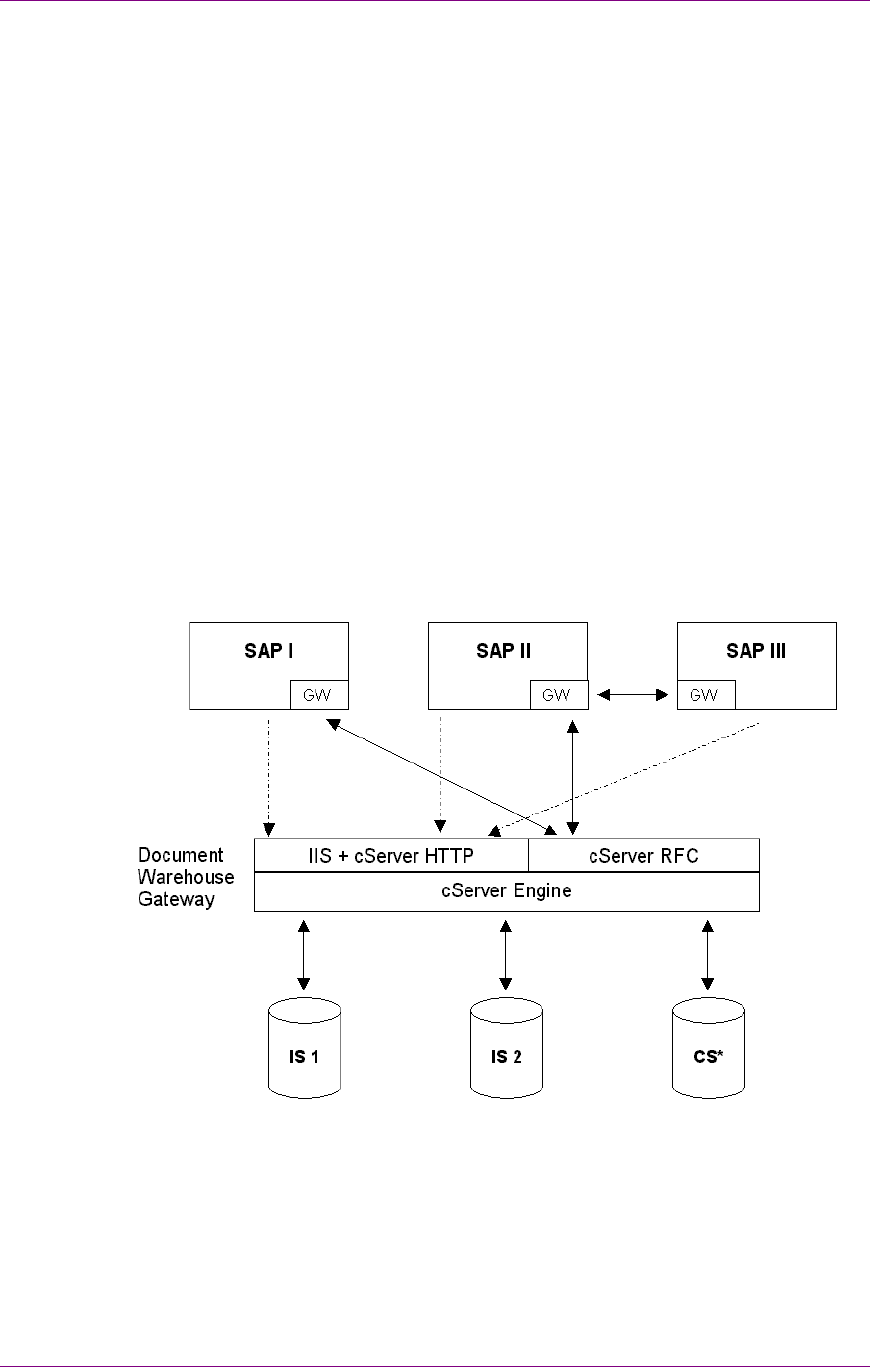

IDM Services for R/3 Component cServer

cServer component runs on a dedicated Document Warehouse Gateway

machine that hosts the Microsoft Internet Information Server (Microsoft

IIS).

CServer communicates with multiple SAP systems in a single installation

using both RFC and HTTP communication protocols. For RFC

communication, multiple SAP Gateways can be configured. HTTP

communication makes use of a Web server, which can in itself already

serve more than one client. cServer can also access multiple FileNet IS

and CS libraries simultaneously.

IDM Services for R/3 Component cBarcode

SAP ArchiveLink provides several input scenarios; some of which use

barcodes, for example the Late Input with Barcode scenario. In this

scenario, the SAP end user enters information such as the business data

Concepts

System Architecture

March 2003 FileNet Document Warehouse for SAP 16

from an incoming document, into an SAP system. The end user then

passes the document to a scan station where the document is captured

into a FileNet library. The business data within SAP is linked to the

FileNet document through the barcodes, thereby completing the input.

The user attaches a barcode label to the paper document, and enters the

barcode along with the business data. During capturing, FileNet reads the

barcode label and stores its value as a property of the document. The

cBarcode component of IDM Services for R/3 sends information about the

new document, along with its barcode to an SAP system. A program finds

the corresponding business data, and creates the link information stored

in SAP system.

cBarcode uses a FileNet IS distributor queue, which contains references

to the documents that have to be linked to SAP R/3 business objects. The

cBarcode configuration requires at least one mapping of a FileNet queue

to an SAP system that serve as source and destination for the transfer of

barcodes. Multiple FileNet queue / SAP system mappings can be

configured.

cBarcode runs as a Windows Service. When the FileNet barcode service

starts, cBarcode looks up the Queue/SAP System mapping configuration,

and processes all queue entries of the first mapping. Subsequently, the

queue entries of the second, third, and fourth mapping are processed.

After all the mappings have been processed, cBarcode waits for a

configurable sleep interval before processing all configured FileNet

Queue/Sap system mappings again.

The following figure shows an example of a mapping configuration: (from

Queue I in a first IS library to SAP system I, from Queue II in the same IS

library to SAP system II, and from Queue III in a second IS library to

SAP system II). Arrows indicate the flow of information:

March 2003 FileNet Document Warehouse for SAP 17

3

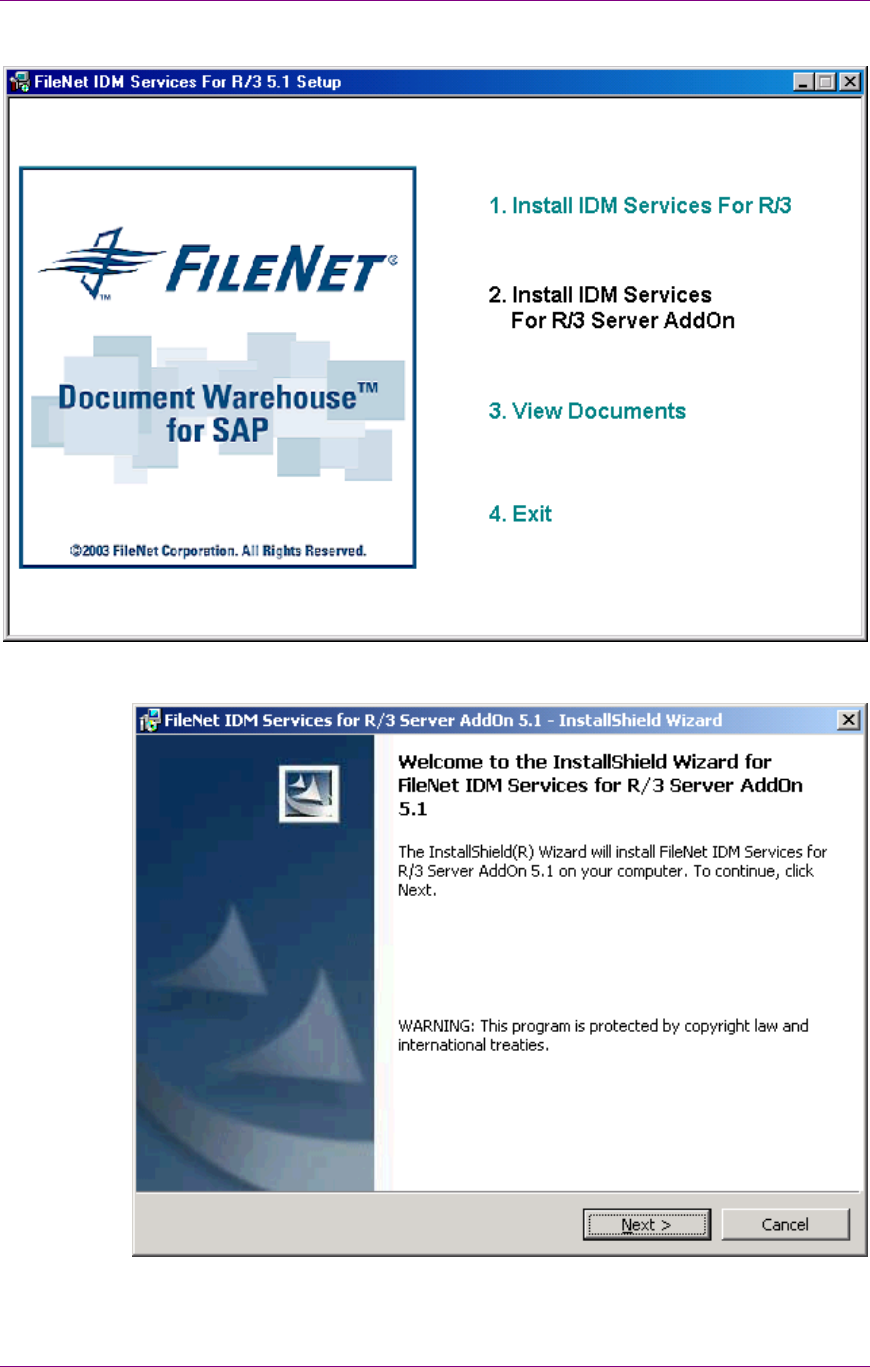

Installation of IDM Services for R/3

Prerequisites to Install IDM Services for R/3

The hardware and software prerequisites for the installations of IDM

Services for R/3 are:

Hardware

The minimum hardware requirements are:

• P III processor

• 256 MB RAM

• 25 MB hard disk space for installation

Software

The software requirements are:

• Windows 2000 Server with Service Pack 2 or 3

• TCP/IP networking protocol

• Web Services 3.2

CAUTION: Web Services must not be installed on the same machine as Image

Services or Content Services.

The DWSAP has been qualified to run with:

• Image Services 3.6.0.

• Content Services 5.2

Note: Storage and retrieval of SAP generated documents for Content

Services is not supported. The server side components are only able to

answer status and delete request against an object in an Content

Services Library.

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 18

Installation process

The installation program for IDM Services for R/3 is a GUI-based

application. This application copies the program files to the target

machine, registers the programs, and creates appropriate entries in the

Start menu of Windows.

CAUTION: DWSAP can only be installed using Administrator login of the server.

Click the setup.exe to begin installation.

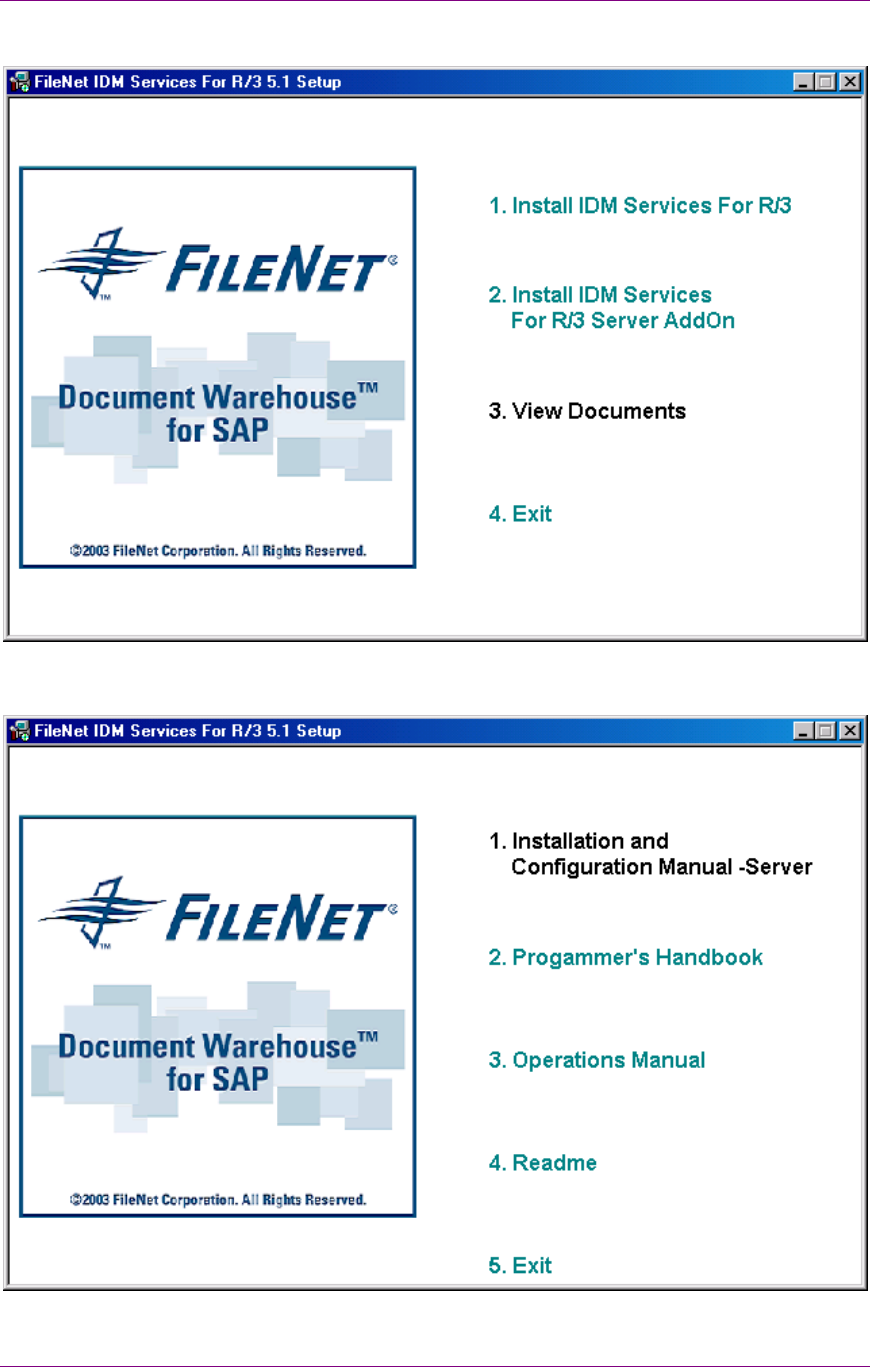

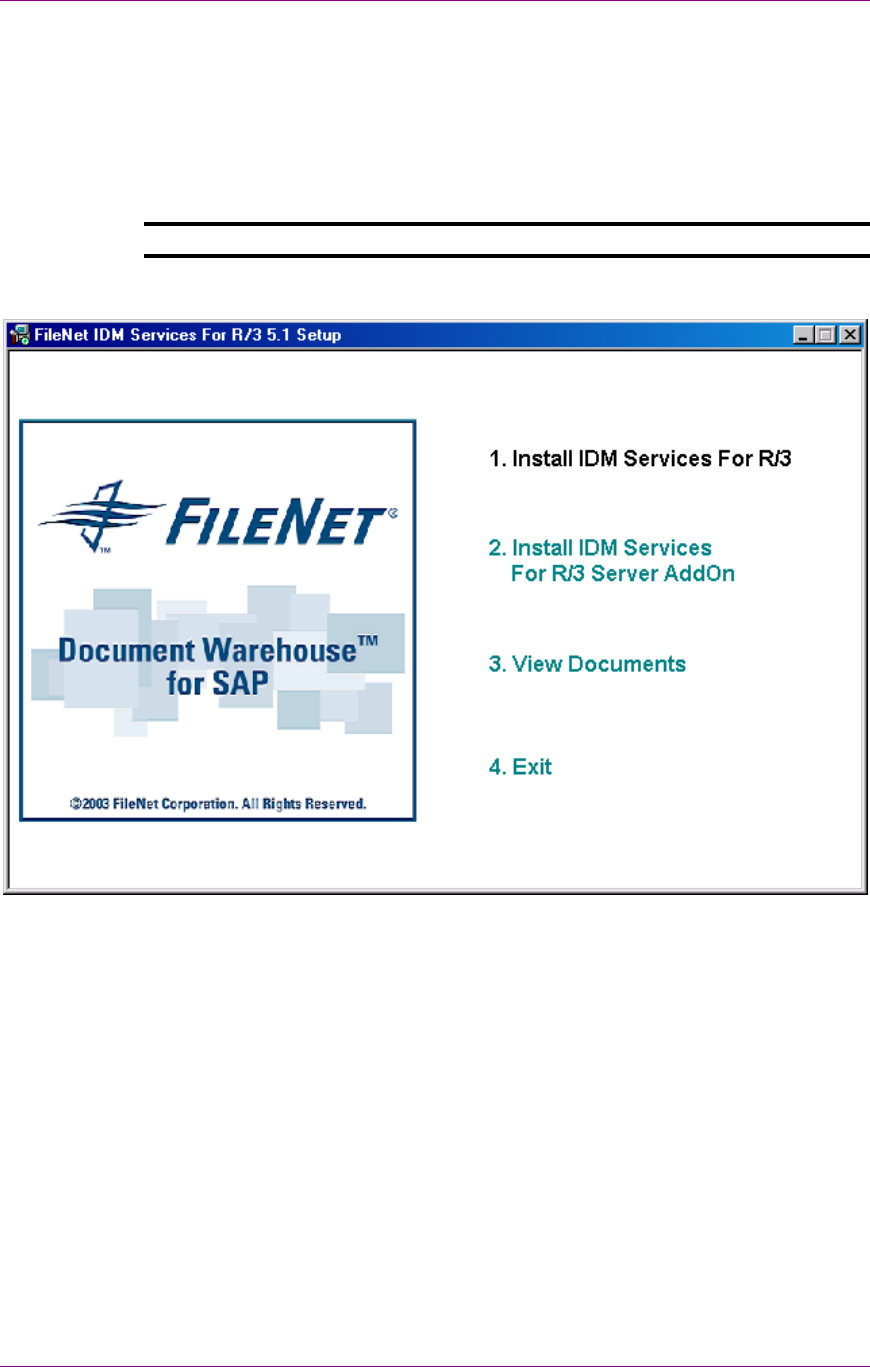

The following options are provided:

• Install IDM Services for R/3:

• Install IDM Services for R/3 Server Addon: This will install the

essential ASP pages and server components, for pure thin client

viewing, DMS sample application, and thin client viewing of document.

• View Documents: Facilitates the end user to view all the DWSAP

documents.

• Exit: Enables the end user to exit from the setup program.

Install IDM services for R/3

1. Click the Install IDM Services for R/3 option. The following screen is

displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 19

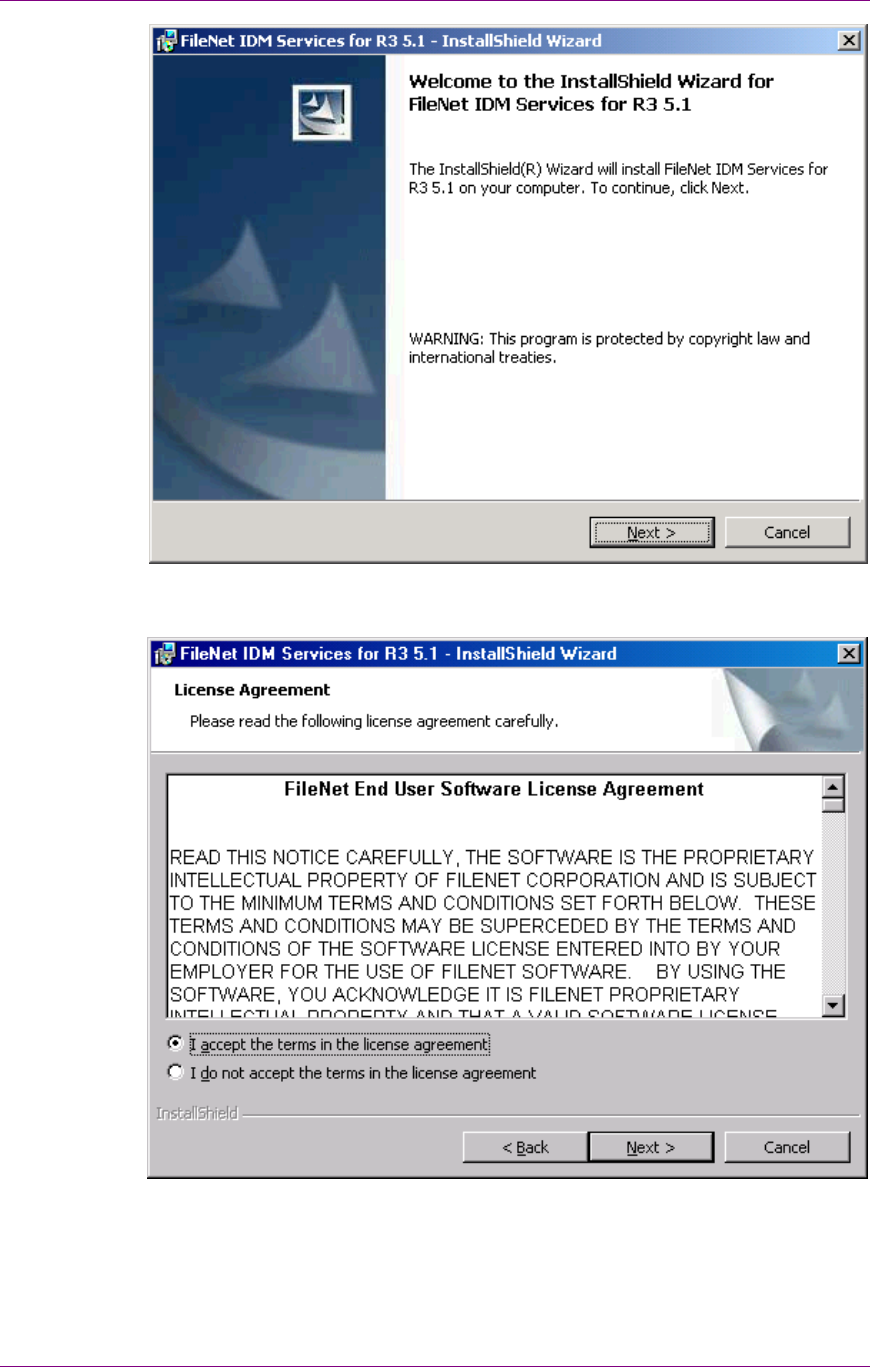

2. Click Next button to continue. Following screen is displayed:

3. Accept the agreement and click Next to continue. Following screen is

displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 20

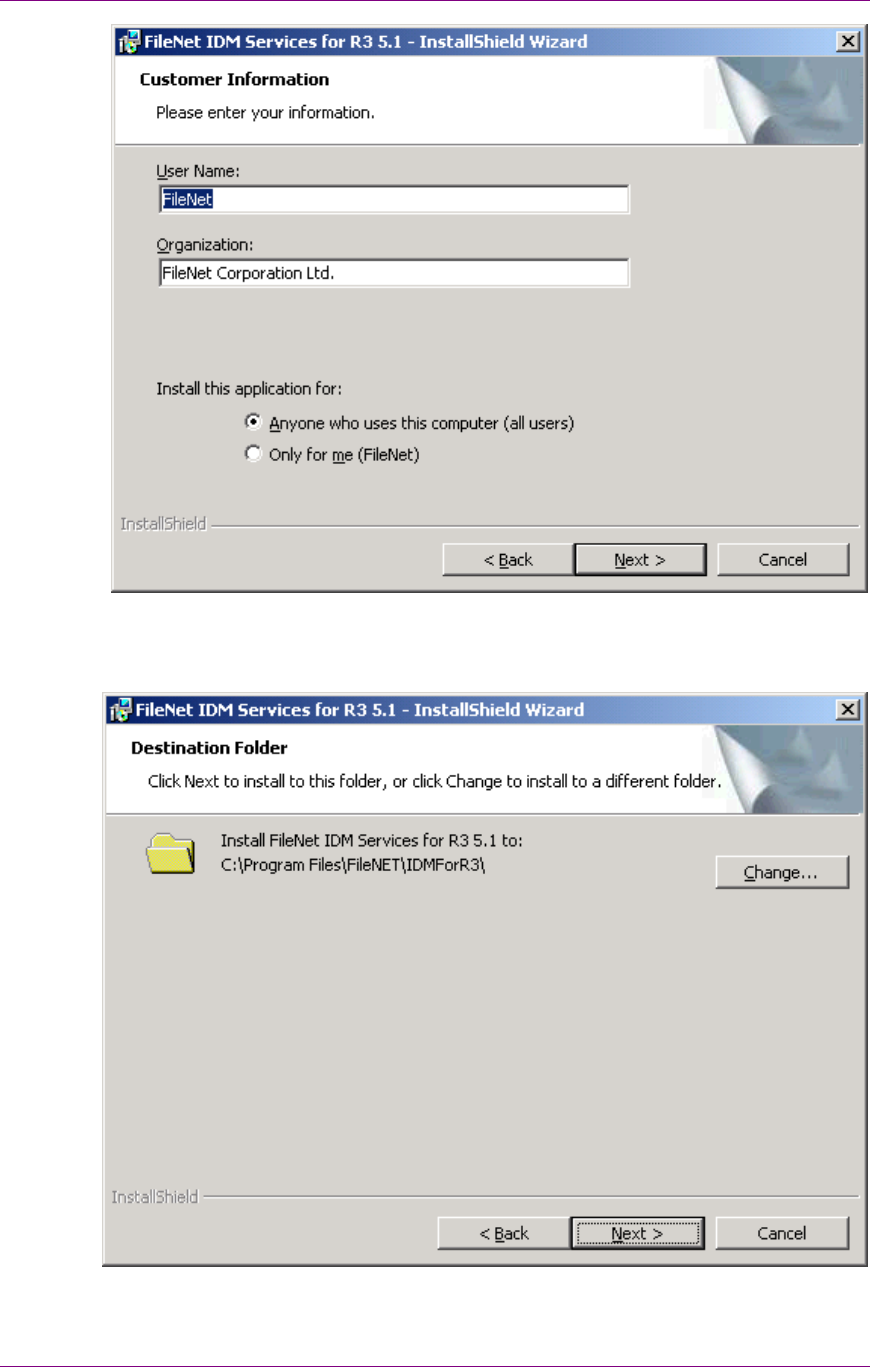

4. Verify that the entries are correct. Click Next to continue. The

following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 21

5. Change the installation folder if required. Click Next to continue.

Following screen is displayed:

Tip: Until this point each screen allows the end user to cancel the installation,

which would leave the system as it was before the installation program had been

invoked.

6. Click Install to continue. Following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 22

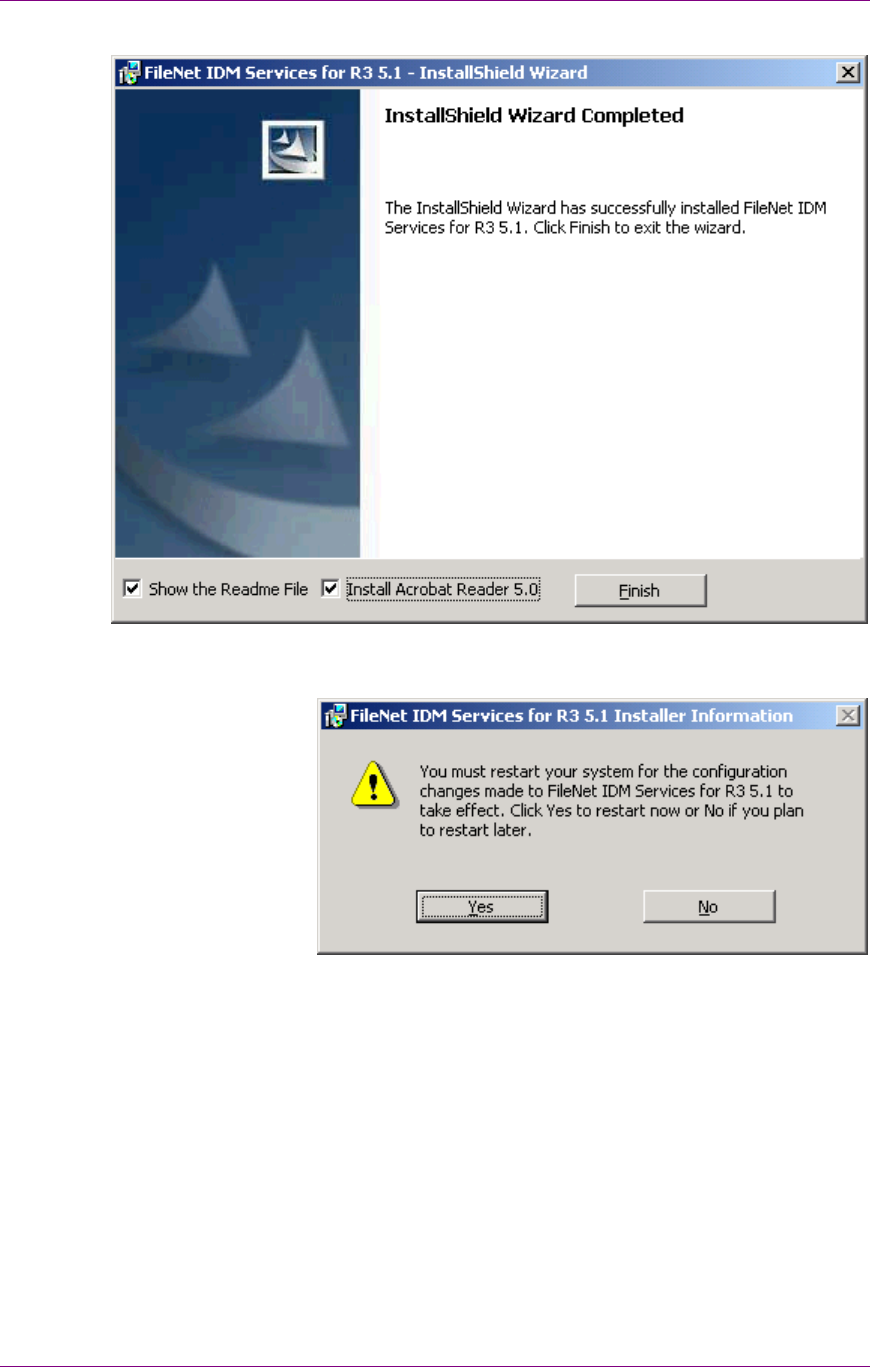

7. After the installation is completed, following screen is displayed:

8. Click Finish to continue. The following screen is displayed:

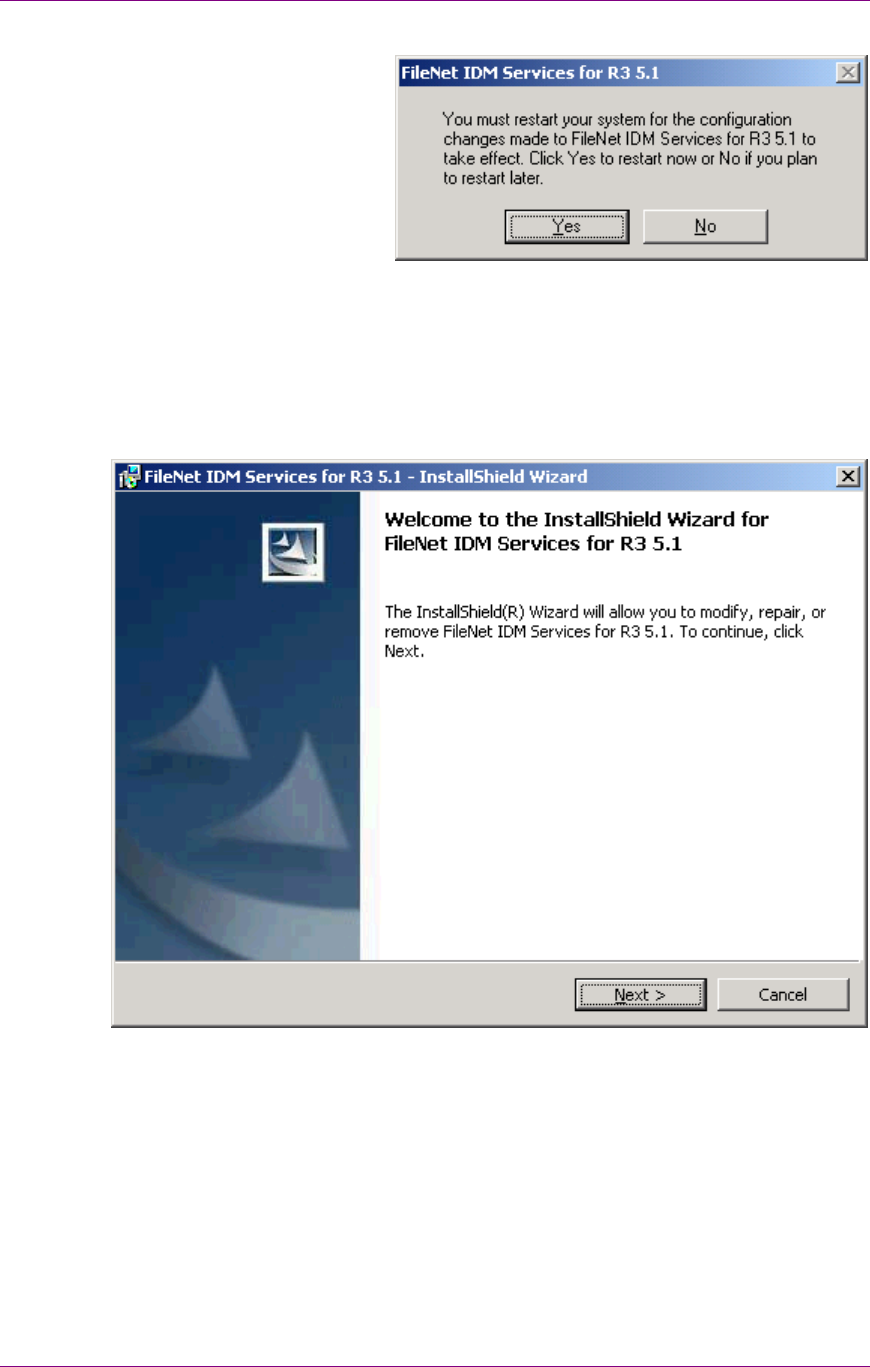

9. To complete the installation, click on Yes to restart the server.

Note: After the installation has completed successfully, the configuration

program must be used to create the settings for the IDM Services for R/3

components.

To use HTTP communication protocol, configure IDM Services for R/3 in

IIS. Refer to section Configuring IDM Services for R/3 in Internet

Information Server for HTTP communication.

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 23

Install IDM Services for R/3 Server Add On

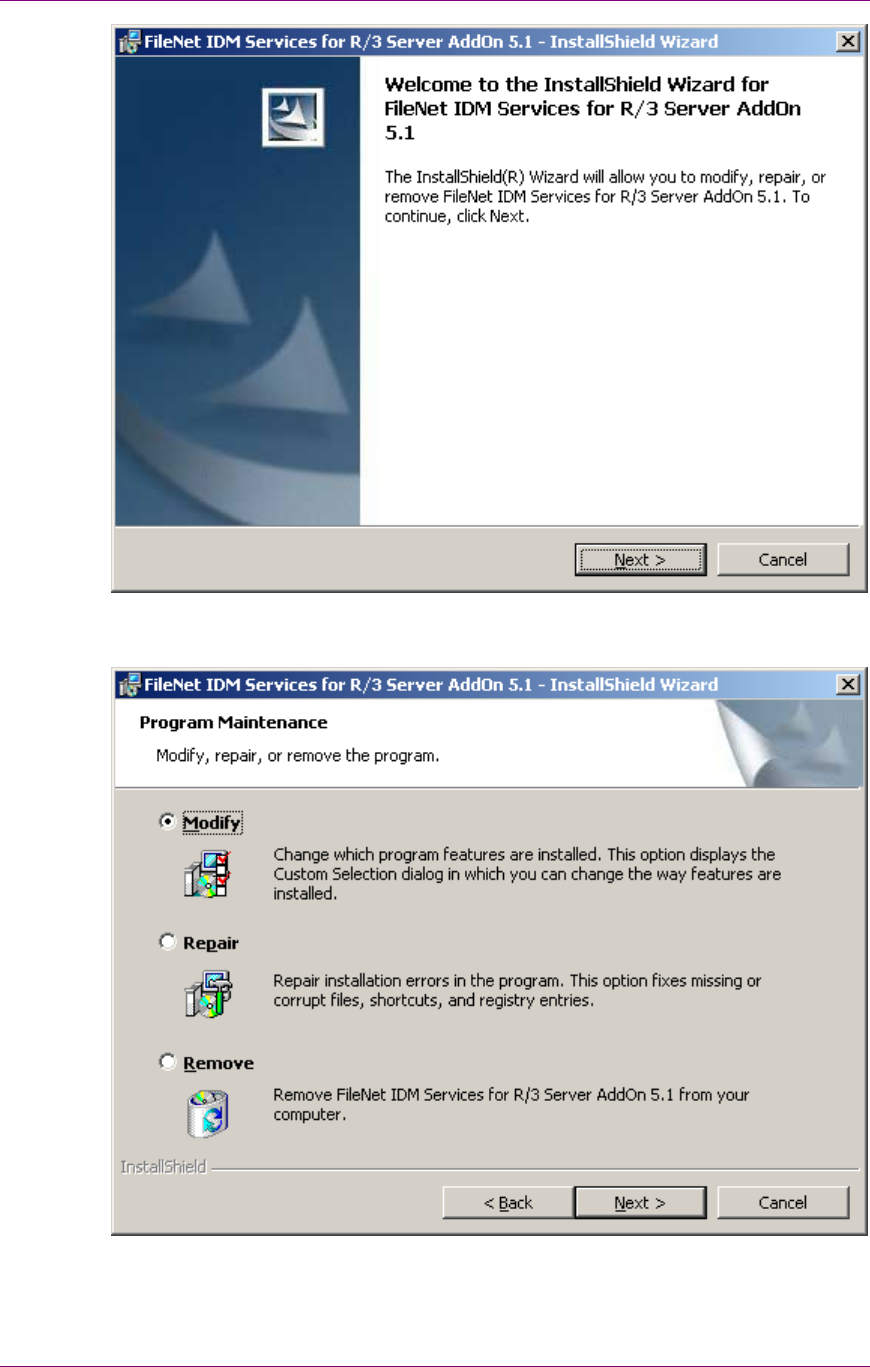

1. Click Install IDM services for R/3 Server Add On. The following

screen is displayed:

2. Click Next to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 24

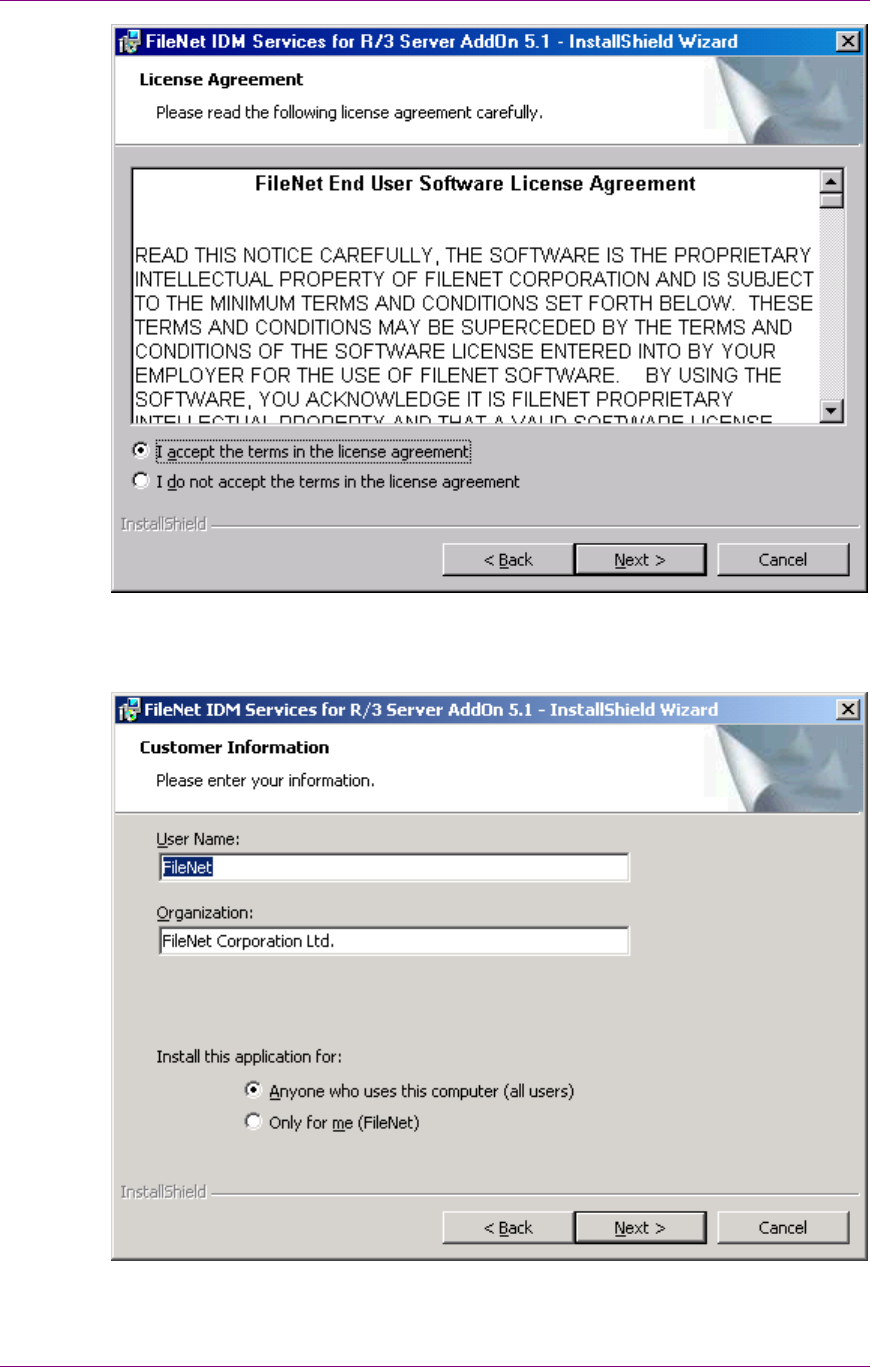

3. Accept the agreement and click Next to continue. The following

screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 25

4. Verify that the entries are correct. Click Next to continue. The

following screen is displayed:

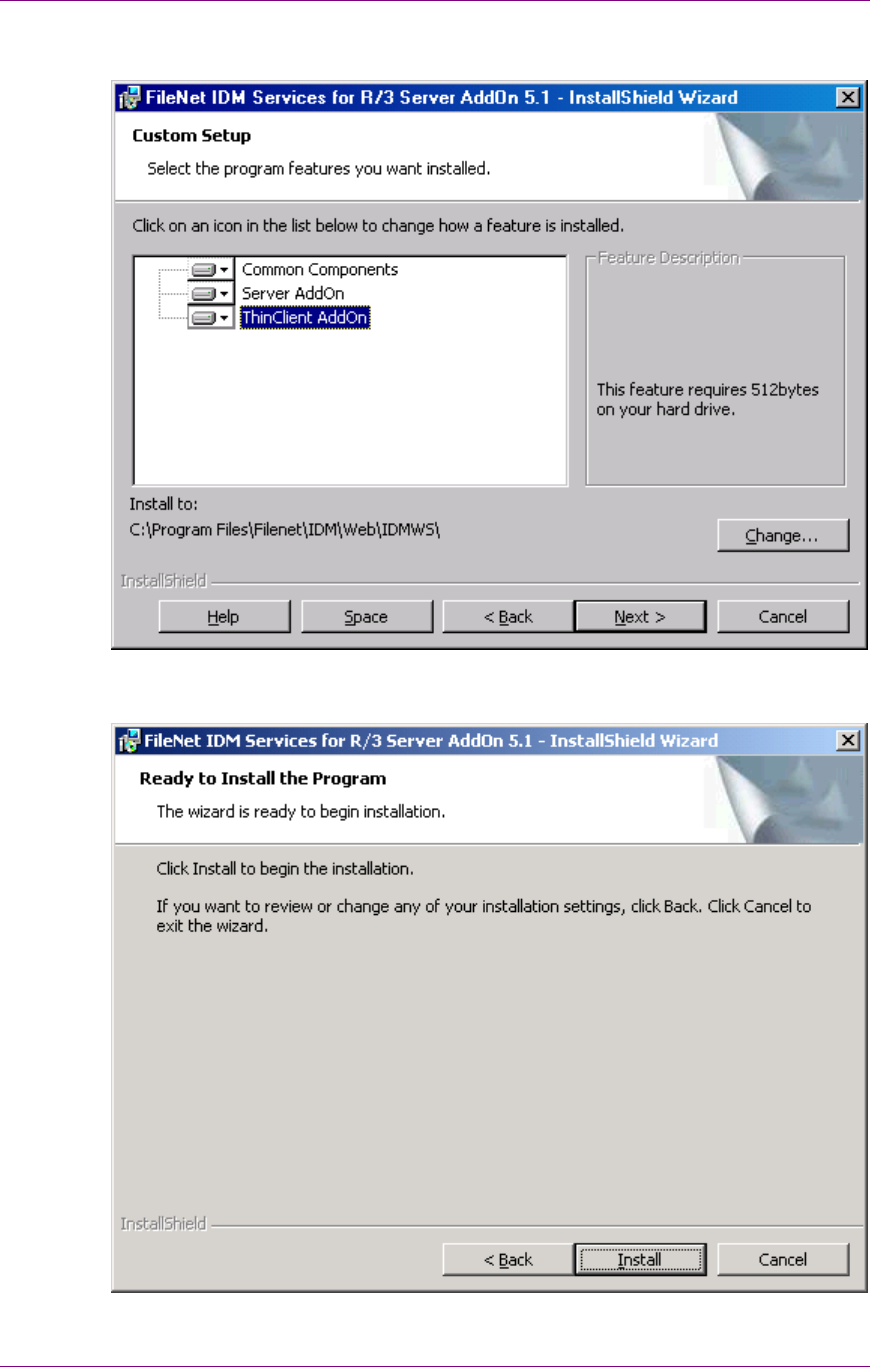

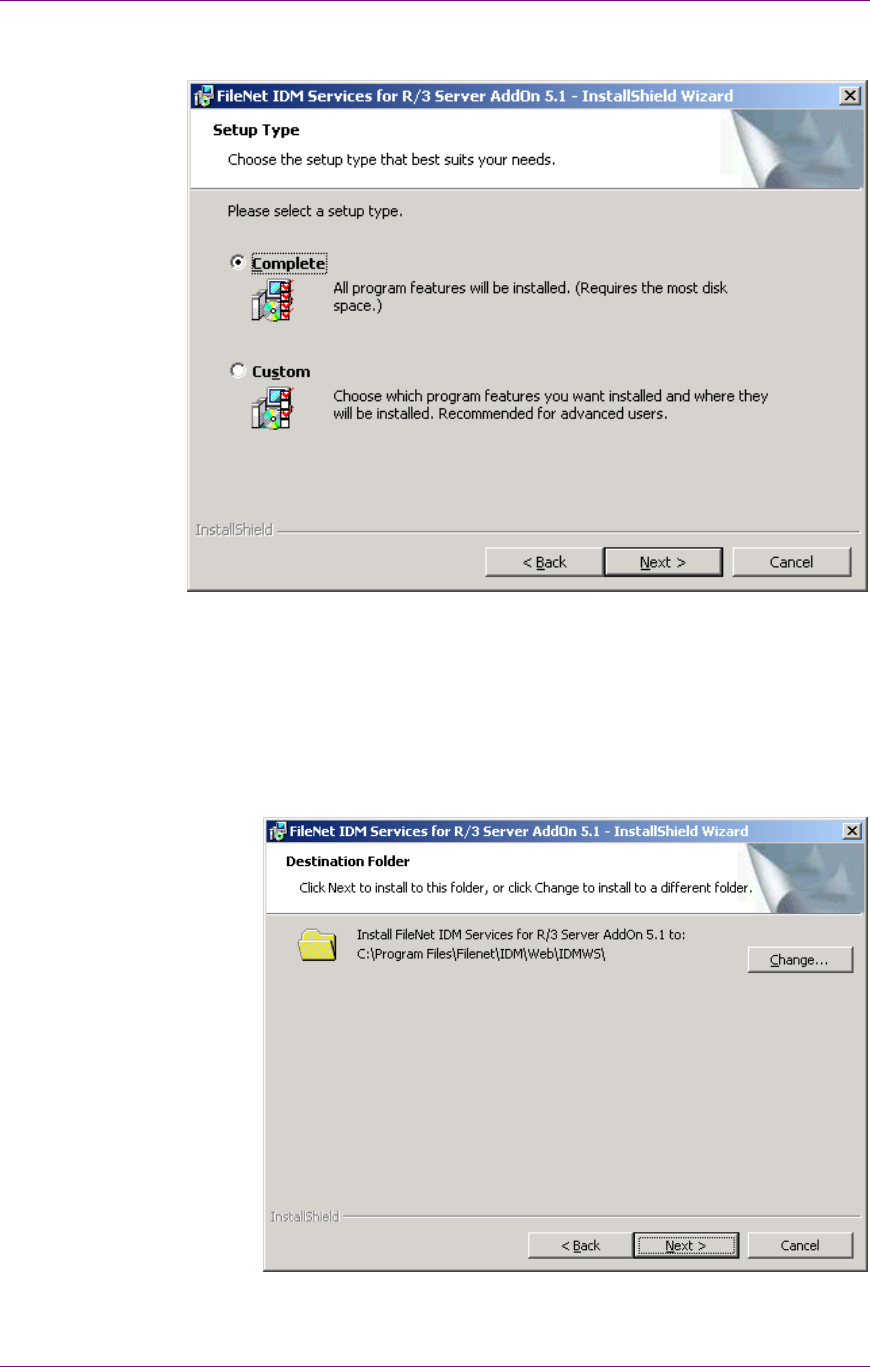

5. Select the type of Installation that is required: Complete or Custom.

The Complete option contains all IDM services for R/3 Server Add on

components. This includes ASP pages for pure thin document

viewing, DMS Sample application and thin client document viewing.

The Custom option lets you customize your installation by choosing

the specific components you want to install.

a Select Complete option. Click Next to continue. The following

screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 26

b Select Custom option. Click Next to continue. The following

screen is displayed:

6. Click Next to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 27

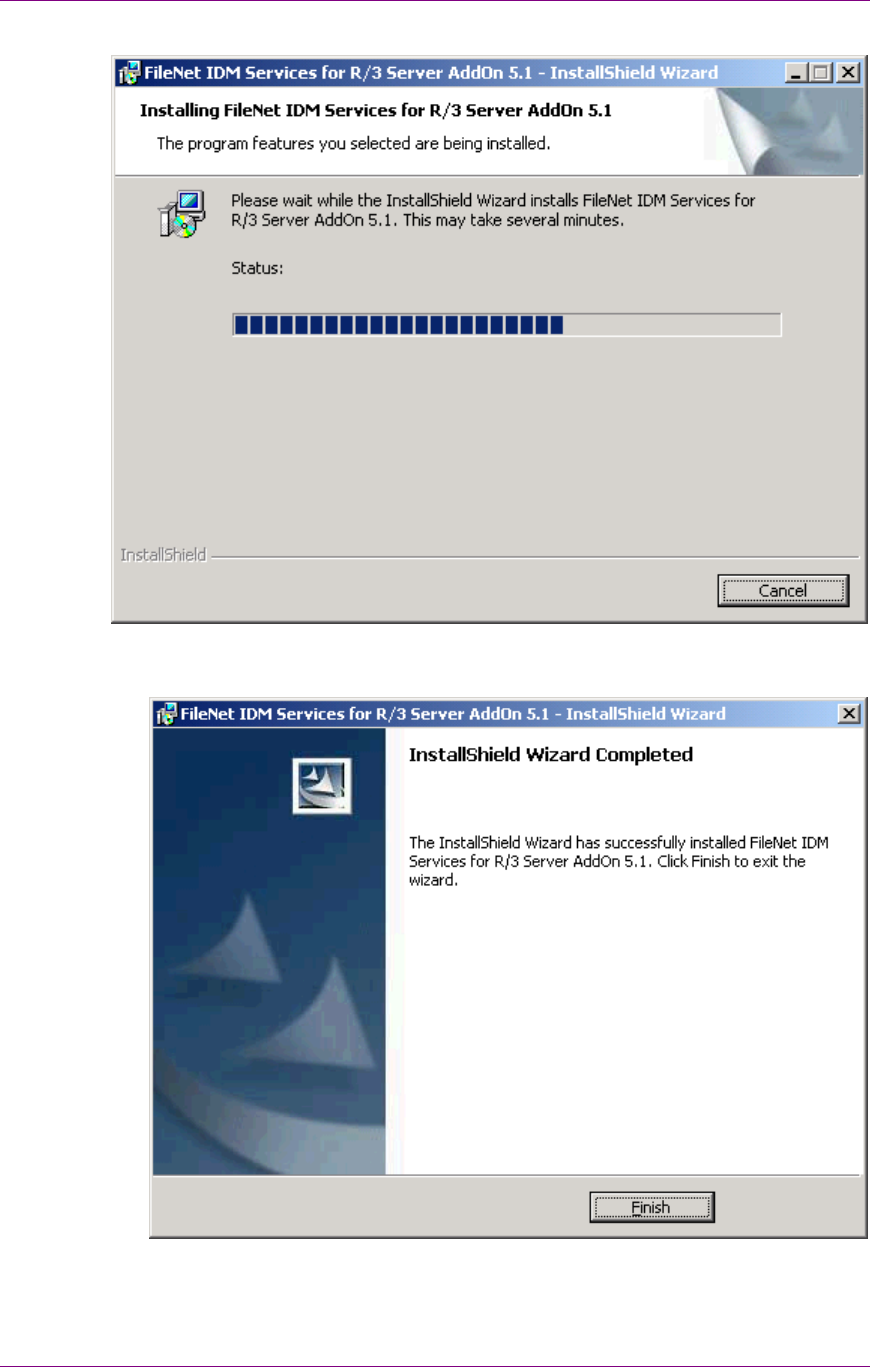

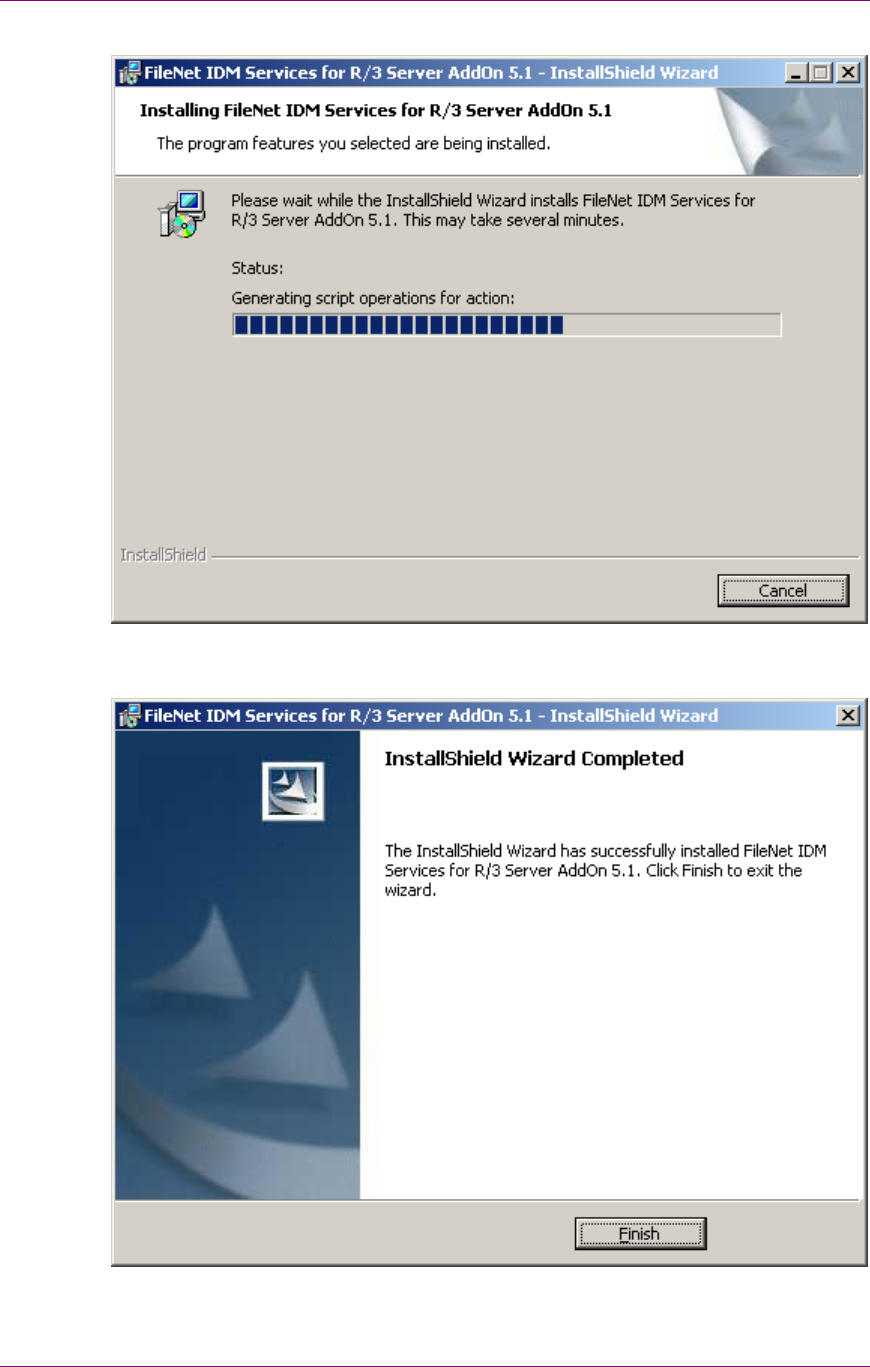

7. Click Install to continue. The following screen is displayed:

8. After the installation is complete, the following screen is displayed:

9. Click Finish to close the Installation Wizard.

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 28

View Documents

1. Click View Documents. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 29

2. Click on appropriate option to view documents.

Note: To view all DWSAP documents Acrobat Reader must be installed

on the system.

3. Click Exit to go back to the previous screen.

Upgrading from DWSAP Releases

DWSAP 5.x does not perform automated upgrades from previous

releases. To upgrade DWSAP from earlier releases:

1. Backup configuration files such as srvlink.cfg, saprfc.ini, and

RFCDES.

2. Remove earlier release of DWSAP and Image services toolkit

(Formerly known as WAL).

3. Install IDM Services for R/3.

Note: Prior to version 5.x, DWSAP was configured using three

configuration files, such as srvlink.cfg, saprfc.ini, and RFCDES, along

with environment variable settings. These files and variables are obsolete

because the storage location and structure of the configuration options

have changed. During upgrade, it is necessary to enter the configuration

information contained in these files into the configuration program.

The following table lists how previous configuration settings can be

converted to the new configuration settings, using the configuration

program, a new setting of n/a refers to an obsolete setting:

Source Setting New Setting

RFCSYS n/a

RFC_INI n/a

Environment

SRVLINK n/a

LOGFILE Logging / Log file name

LOGALL Logging / Log level

CONSOLE n/a

SAP_VERSION n/a

PROGNUM n/a

VERSION n/a

Srvlink.cfg

TIME_FORMAT n/a

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 30

Source Setting New Setting

BASEPATH,

ARCHPATH

Available for a specific SAP archive

under SAP Systems / <system name> /

<archive id>. These paths are set

individually for each archive; the default

paths are not available anymore.

DOC_DELETE See new setting for BASEPATH.

ARCHIVE=<id>,

<fnlib>:<user>:<pw

>

Is split into FileNet Library and SAP-

specific. Add the FileNet library (fnlib)

under FileNet Libraries that contain the

user and password information.

Subsequently, add the archive to the

appropriate SAP system at SAP Systems

/ <system name>. Note that the list of

archives is configured individually for

each SAP system.

[DOCTYPES]

<sapdocclass>=

<fndocclass>

DEFAULT=

<fndocclass>

Maps SAP Technical Document Classes

to FileNet Document Classes. Document

Class is used while creating a new

document in a FileNet library. This list is

now configured individually for each SAP

archive under SAP Sytems / <system

name> / <archive name> / Document

Classes.

[LINKSAP]

WORKSPACE=…

QUEUE=…

INDEX=…

BARCODELEN=…

cBarcode was formerly called LinkSAP.

cBarcode information is configured

individually, for each SAP archive. You

can access the information in two ways:

under SAP Sytems / <system name> /

<archive name> / cBarcode, and under

cBarcode / <system name> / <archive

name>. Note that the INDEX setting is

now called Barcode Property.

[ASYNCQUEUE]

FNLOGON=…

WORKSPACE=…

QUEUE=…

The Asynchronous Queue of Document

Warehouse for SAP release 4 and the

Request Queue of Document Warehouse

for SAP release 5 are not compatible with

each other.

Delete old queue to create a new queue

using configuration tool.

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 31

Source Setting New Setting

[<LOGSYSTEMID

>.

<ARCHIVEID>]

The concept of defining default values in

general sections with potential override in

an SAP storage system-specific section

is no longer available. Instead of the

default information, only SAP archive-

specific information is available. This

improves the comprehensibility of

configuration.

To convert the information of this section,

gather the default information of sections

CONFIG, DOCTYPES, and LINKSAP

and merge it with the information defined

under this section. This results in the SAP

archive specific setting. A description of

how to convert the individual settings is

present in the CONFIG, DOCTYPES, and

LINKSAP conversion details.

DEST=<sapsys>

DEST=<sapsys>_

SV

Maps to the SAP system name under

SAP Systems.

IDM Services for R/3 configuration has

removed the need to have separate

configurations for RFC servers (TYPE=R)

and clients (TYPE=A). It uses a single set

of RFC connection information for both

RFC Servers and RFC Clients This set of

information is entered under SAP

Systems / <system name> / RFC

communication.

TYPE=R

TYPE=A

n/a

ASHOST Maps to SAP Application Server.

SYSNR Maps to SAP Sytem Number.

GWHOST Maps to SAP Gateway Host.

GWSERV Maps to SAP Gateway Service.

PRODID Maps to Program ID.

saprfc.ini

RFC_TRACE Maps to RFC Trace Enabled in RFC

Server and RFC Client sections.

<first identifier> Enter the information contained in each

line under SAP Systems / <system

name> / RFC Communication, where

<system name> maps to the first

identifier of the RFCDES line.

C=<client> Maps to SAP Client.

U=<user> Maps to SAP User.

RFCDES

P=<password> Maps to SAP Password.

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 32

Source Setting New Setting

L=<language> n/a

M=<mode> n/a

T=<trace> Maps to RFC Trace Enabled in the RFC

Client section.

Subsequent to converting the previous configuration, it is mandatory to

enter the new configuration information introduced with this release of

Document Warehouse for SAP. For more information, see section IDM

Services For R/3 Configuration.

It is possible to maintain a previous release of Document Warehouse for

SAP, if it is running on a separate machine. For this scenario, different

RFC destinations must be used.

Re-installation of IDM Services for R/3

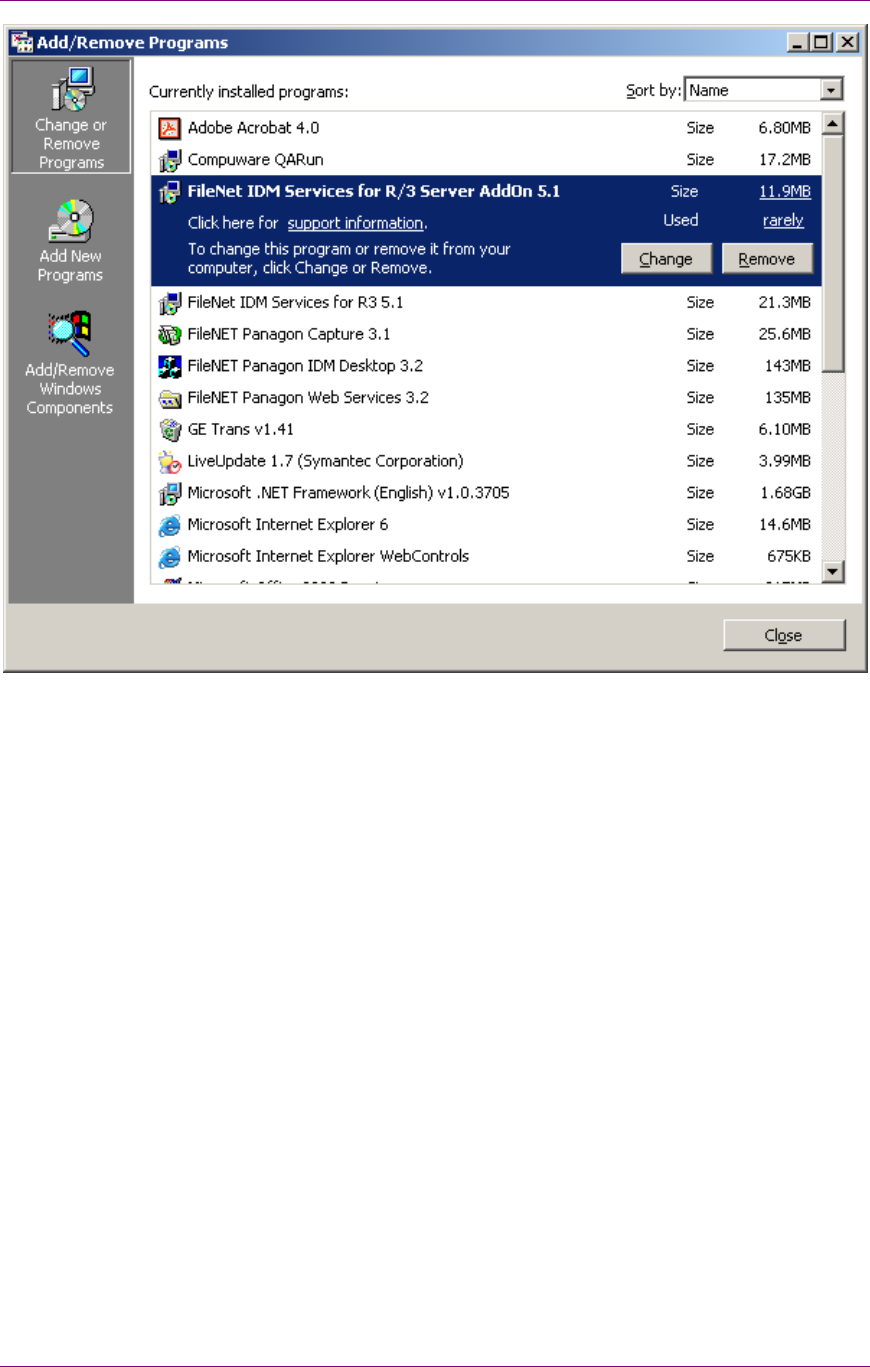

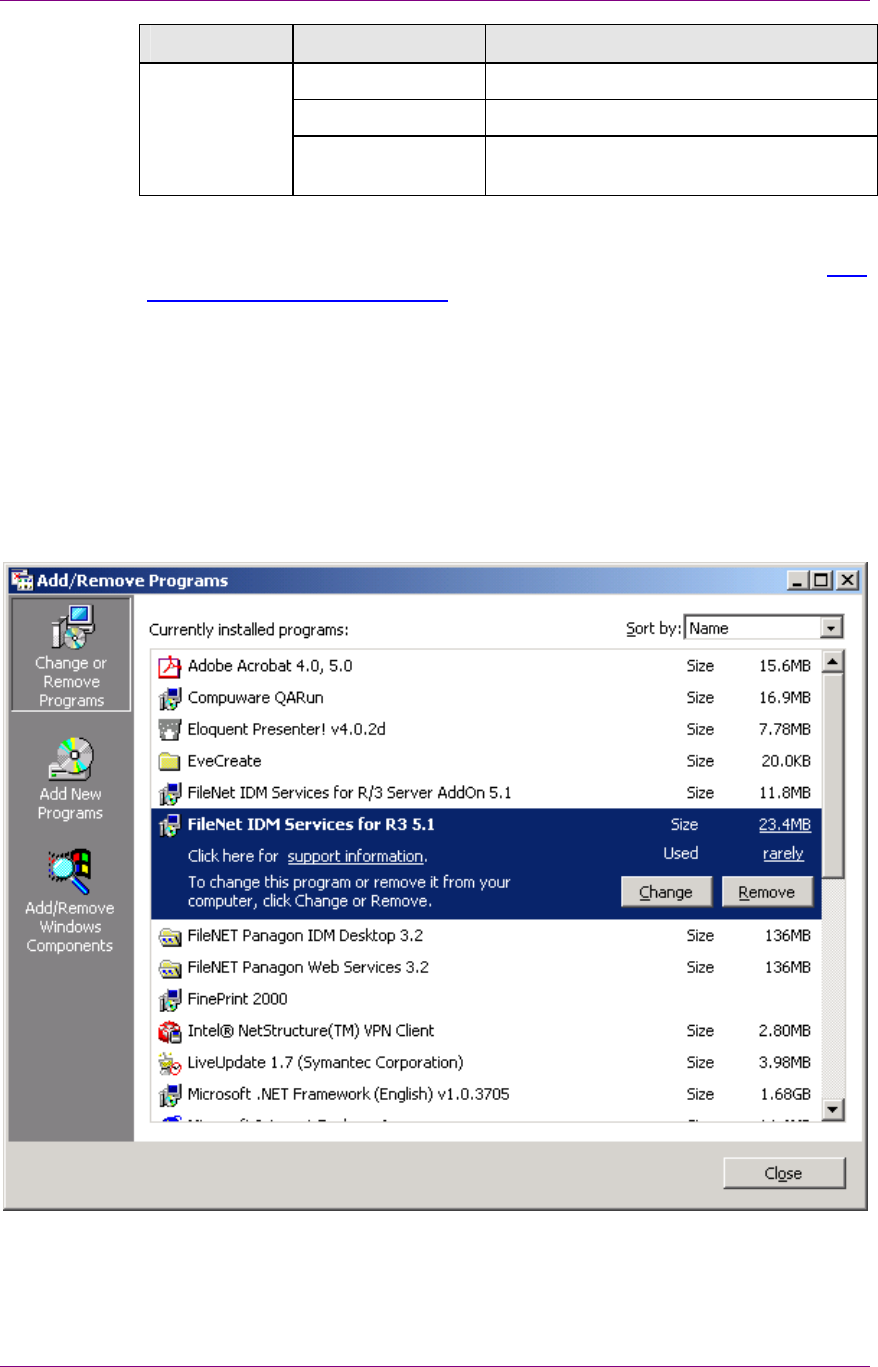

1. Choose the Add/Remove Software (Add/remove programs in

Windows 2000) program of the Windows control panel. The following

screen is displayed:

2. Select FileNet IDM Services for R/3. Click Change. The following

screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 33

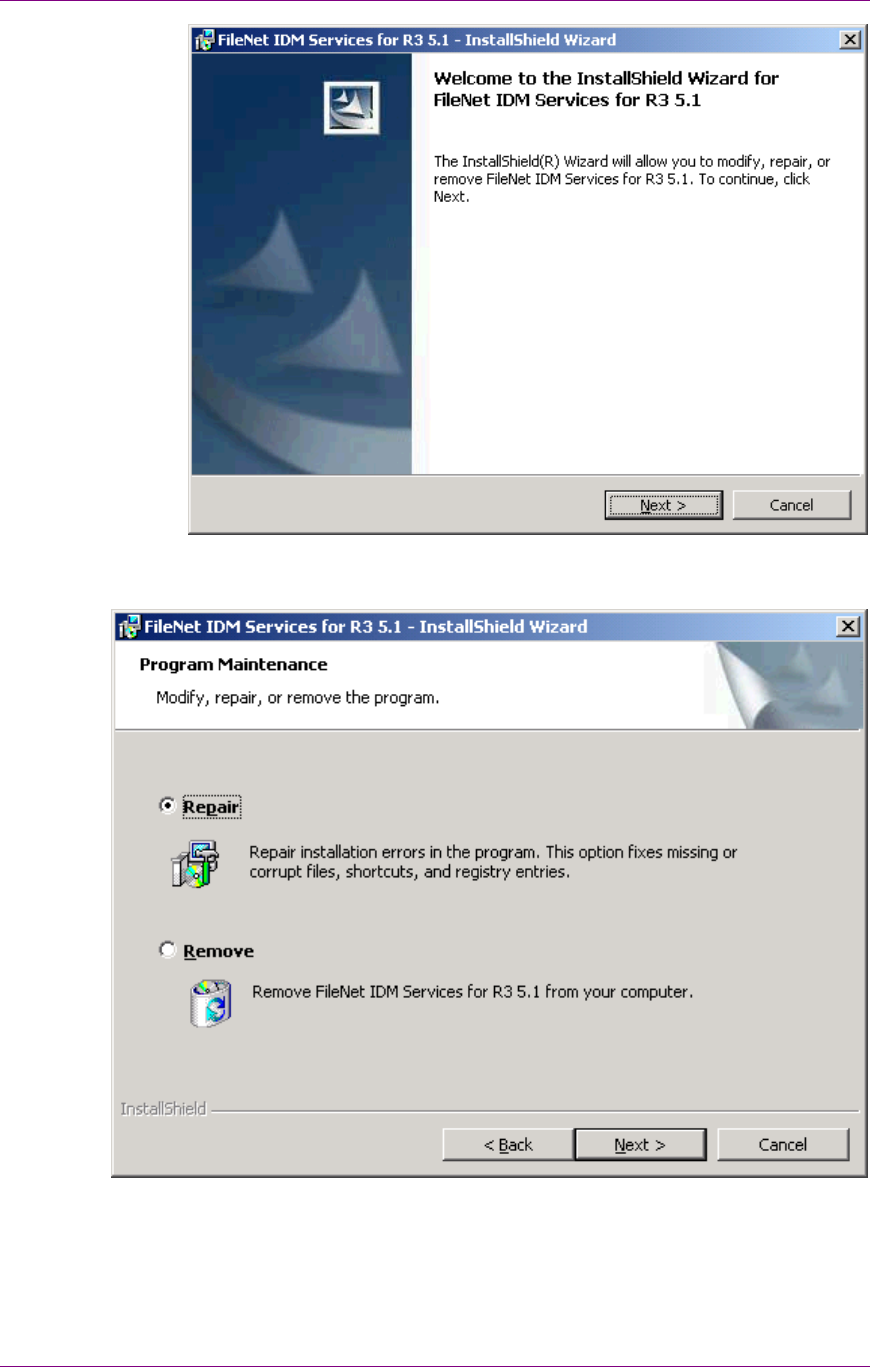

3. Click Next to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 34

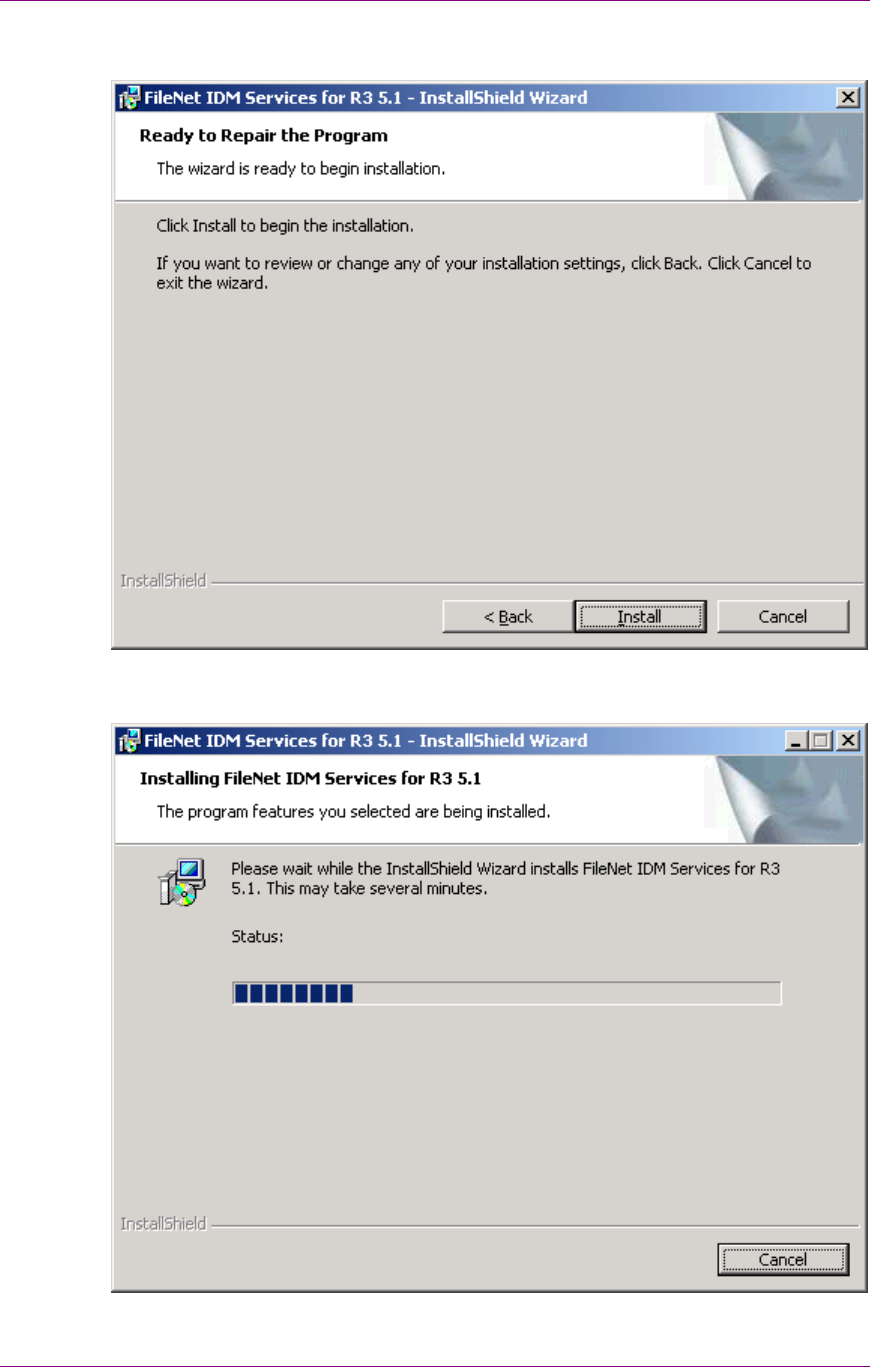

4. Select Repair option and click Next to continue. The following screen

is displayed:

5. Click Install to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 35

6. After the installation is complete, the following screen is displayed:

7. Click Finish. The following screen is displayed:

8. To complete the installation, click Yes to restart the server.

Removal of IDM Services for R/3

Choose the Add/remove programs in the Windows control panel. The

following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 36

Removal of IDM Services for R/3 using Remove Button

1. Select FileNet IDM Services for R/3. Click Remove. The following

screen is displayed:

2. Click Yes to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 37

3. After the removal is complete, following screen is displayed:

4. To complete the removal, click on Yes to restart the server.

Removal of IDM Services for R/3 using Change Button

1. Select FileNet IDM Services for R/3. Click Change. The following

screen is displayed:

2. Click Next to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 38

3. Select Remove option and click Next. The following screen is

displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 39

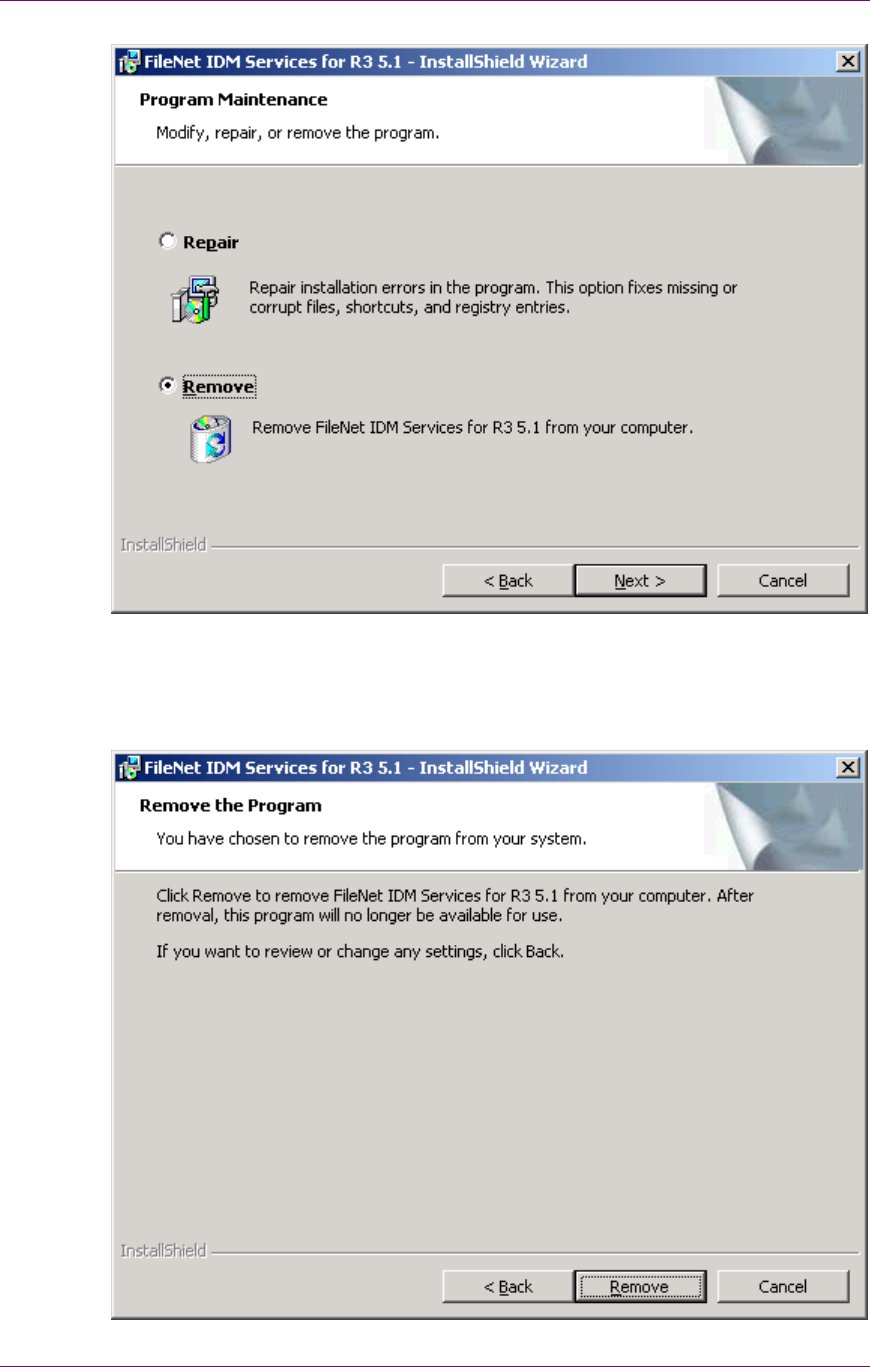

4. Click Remove to continue. The following screen is displayed:

5. Click Finish.

6. To complete the removal, click on Yes to restart the server.

Modifying the setup of IDM Services for R/3 Server Add On

In order to reinstall IDM Services for R/3 Server Add On, following steps

needs to be followed:

1. Choose the Add/Remove Software (Add/remove programs in

Windows 2000) program of the Windows control panel. The following

screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 40

2. Select FileNet IDM Services for R/3 Server Add on 5.1. Click Change.

The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 41

3. Click Next to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 42

4. Select Modify option and click Next to continue. The following screen

is displayed:

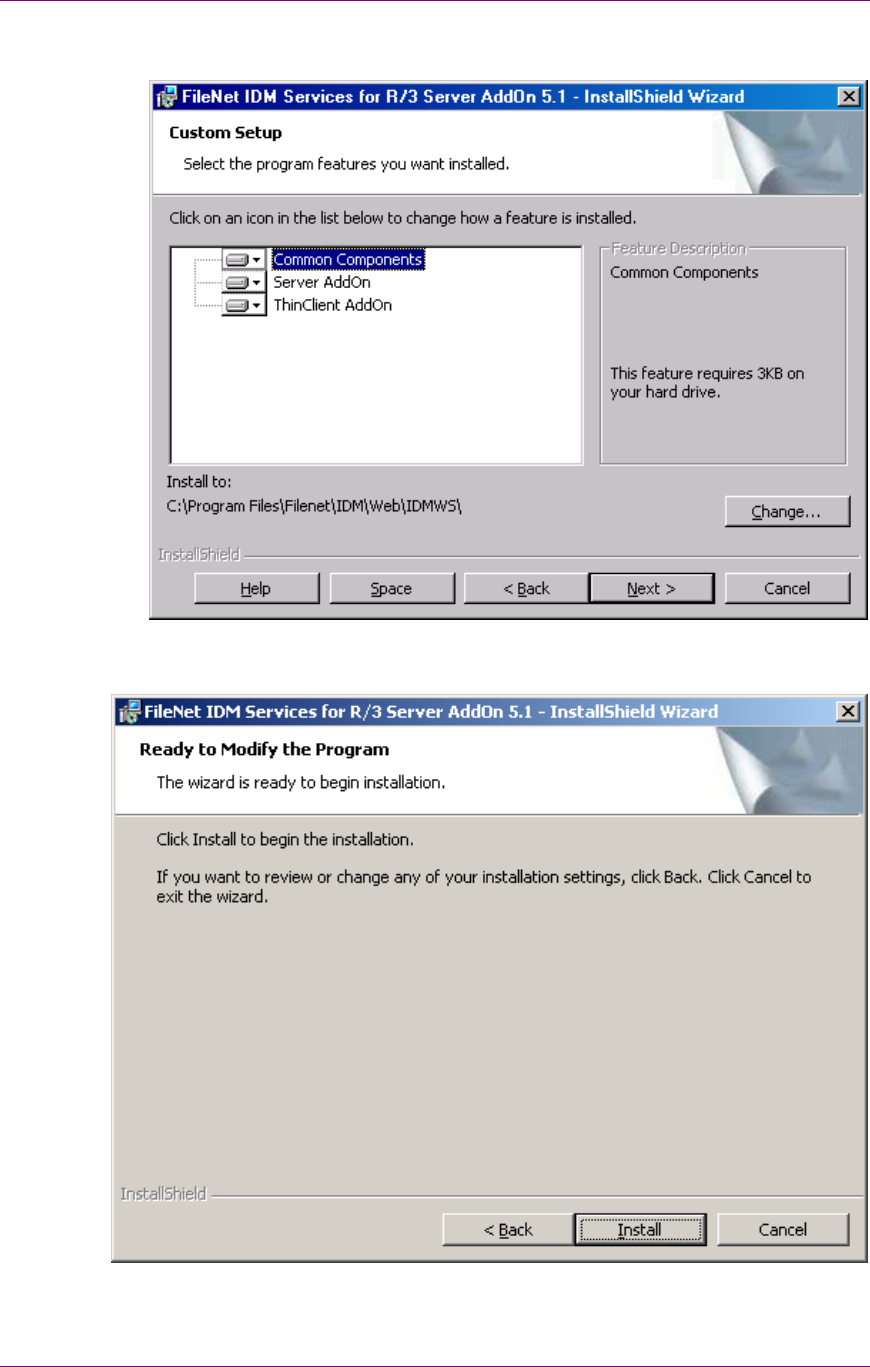

5. Click Next to continue. The following screen is displayed:

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 43

6. Click Install to continue. The following screen is displayed:

7. After the installation is complete, the following screen is displayed:

8. Click Finish to complete the reinstallation.

Installation of IDM Services for R/3

Installation process

March 2003 FileNet Document Warehouse for SAP 44

Repair and Removal of IDM Services for R/3 Server Add On

The steps to re-install and remove the IDM Service for R/3 Server Add

on, are similar to those outlined in the sections Re-Installation of IDM

Services for R/3 and Removal of IDM Services for R/3.

March 2003 FileNet Document Warehouse for SAP 45

4

General Server Configuration

This chapter provides an overview of the configuration settings that

should be done either on the Image Services (IS) and/or Content

Services (CS) to run DWSAP.

Configuring FileNet IDM Libraries

Background: Document Warehouse for SAP uses FileNet Libraries to

store document types such as incoming original documents, print lists,

outgoing documents, document images, and data archived from the

SAP system.

Each FileNet Library system should be configured to use with DWSAP by

performing these steps:

1. Defining FileNet Index Fields.

2. Defining Document Classes.

3. Creating an IS queue for asynchronous SAP ArchiveLink requests for

RFC communication.

4. Creating distributor queues for barcode transfer.

5. Creating distributor queues for further processing of new documents.

Note: Steps 4 and 5 are optional in the configuration process.

Defining FileNet Index Fields

Background: Documents stored in a FileNet library through SAP

ArchiveLink are indexed in the SAP system, using the link tables in SAP

database. Some additional information must be stored as part of the

FileNet document requiring the definition of specific index fields for use

in document classes.

The following table lists the index fields that should be defined in IS:

Index Field Description

SAPType Refers to SAP Technical Document Class. This is a mandatory field.

Required.

General Server Configuration

Configuring FileNet IDM Libraries

March 2003 FileNet Document Warehouse for SAP 46

Index Field Description

ALFpages Refers to the number of IS document pages containing the data

component of a print list. This index field is required to store print lists,

and applies to IS only. Large print lists are split into multiple pages for

faster retrieval.

ALFdpages Refers to the number of IS document pages containing the description

component of a print list. This index field is required to store print lists,

and applies to IS only.

SAPDocId Refers to an identifier for the documents created by an SAP system.

This is required for SAP ArchiveLink 4.5 and later releases.

SAPContType Refers to MIME type information, such as character set and application

version. FileNet Libraries store the MIME type of a file during committal,

yet SAP requires different information. This is required for SAP

ArchiveLink 4.5 and later releases.

SAPDocProt Refers to the SAP document protection information. It is a combination

of the access modes read, create, update, and delete, representing the

need to verify the digital signature of SAP ArchiveLink requests.

Required for SAP ArchiveLink 4.5 and laters.

SAPCompCreated Refers to the timestamp on which SAP document component is created.

This index field is required for SAP ArchiveLink 4.5 and later releases.

SAPCompLengths Refers to the length of the SAP document component. This index field is

required for SAP ArchiveLink 4.5 and later releases.

SAPCompModified Refers to the timestamp on which SAP document component is

modified. This index field is required for SAP ArchiveLink 4.5 and later

releases.

SAPComps Refers to SAP document component IDs. SAP references components

of a document by ID, instead of page numbers. This index field is

required for SAP ArchiveLink 4.5 and later releases.

SAPDocDate Refers to the timestamp on which SAP document is created and

modified. This index field is required for SAP ArchiveLink 4.5 and later

releases.

Tip: Define these index fields using the Database Maintenance for IS, or

DocType and CVL tool for CS.

The index fields that were required for the previous releases of DWSAP

are mandatory for the current release also.

The following table lists the index field parameters for IS:

Index Name Type Retrieval

Key

Length Convert to

Uppercase

SAPType String No 3 Yes

ALFpages String No 3 No

ALFdpages String No 3 No

SAPDocId String Yes 32 Yes

SAPContType String No 239 No

General Server Configuration

Configuring FileNet IDM Libraries

March 2003 FileNet Document Warehouse for SAP 47

Index Name Type Retrieval

Key

Length Convert to

Uppercase

SAPDocProt String No 4 No

SAPCompCreated String No 239 No

SAPCompLengths String No 239 No

SAPCompModified String No 239 No

SAPComps String No 239 No

SAPDocDate String No 239 No

An additional index field is required to process the documents to which

the barcodes are attached. This additional index field contains the

barcode value. It is referenced in the configuration of the cBarcode

component. For more information, refer to section IDM Services for R/3

Category ‘cBarcode’.

Note: The names of index fields are case sensitive.

Defining FileNet Document Classes

Background: A FileNet document class defines attributes of documents

such as index fields, and security. While storing a new document, it

should be assigned to a FileNet document class, from which this

document inherits its attributes. DWSAP uses the SAP-provided MIME

type if the protocol is HTTP or SAP Technical Document Class if the

protocol is RFC to determine the FileNet document class in which to

store a new document. The configuration tool configures this mapping of

SAP types, to FileNet document classes.

Depending on the type, format, and contents of document, different

index fields are required. For example, SAP print lists require ALFpages

and ALFdpages index fields in their document class, whereas barcode

scenarios require a barcode index field.

All index fields, except ALFpages and ALFdpages, are required for

document classes to be used with SAP R/3. ALFpages and ALFdpages

are required for printlist document classes. For IS, while assigning index

fields to document classes, leave the attributes Verify, Batch Total, and

Auto Index blank.

You can define FileNet document classes using Database Maintenance

for IS, or DocType and CVL tool for CS.

Tip: It is recommended that a separate FileNet document class should be

created for each SAP Technical Document Class defined and used on the SAP

system.

General Server Configuration

Configuring FileNet IDM Libraries

March 2003 FileNet Document Warehouse for SAP 48

Additional customer-specific index fields can be assigned to the DWSAP

document classes. These index fields cannot be evaluated or changed by

the DWSAP components.

Creating IDM Services for R/3 Request Queue

Background: DWSAP uses an IS queue to store processing and status

information for SAP ArchiveLink requests, such as asynchronous RFC

requests.

Use the DWSAP configuration tool to create IDM Services for R/3

Request Queue. For more information, refer to section IDM Services for

R/3 Category ‘cServer’.

Creating IDM Image Services Queues for Barcode Transfer

The following table lists the user-defined fields that should be present in a

cBarcode compliant queue:

User-defined

Field

Type Leng

th

Required Unique Rend

ezvo

us

Display Sorting

DocumentNumber Document 4 Yes Yes No Yes No

DWStatus String 20 No No No Yes No

DWRemark String 239 No No No Yes No

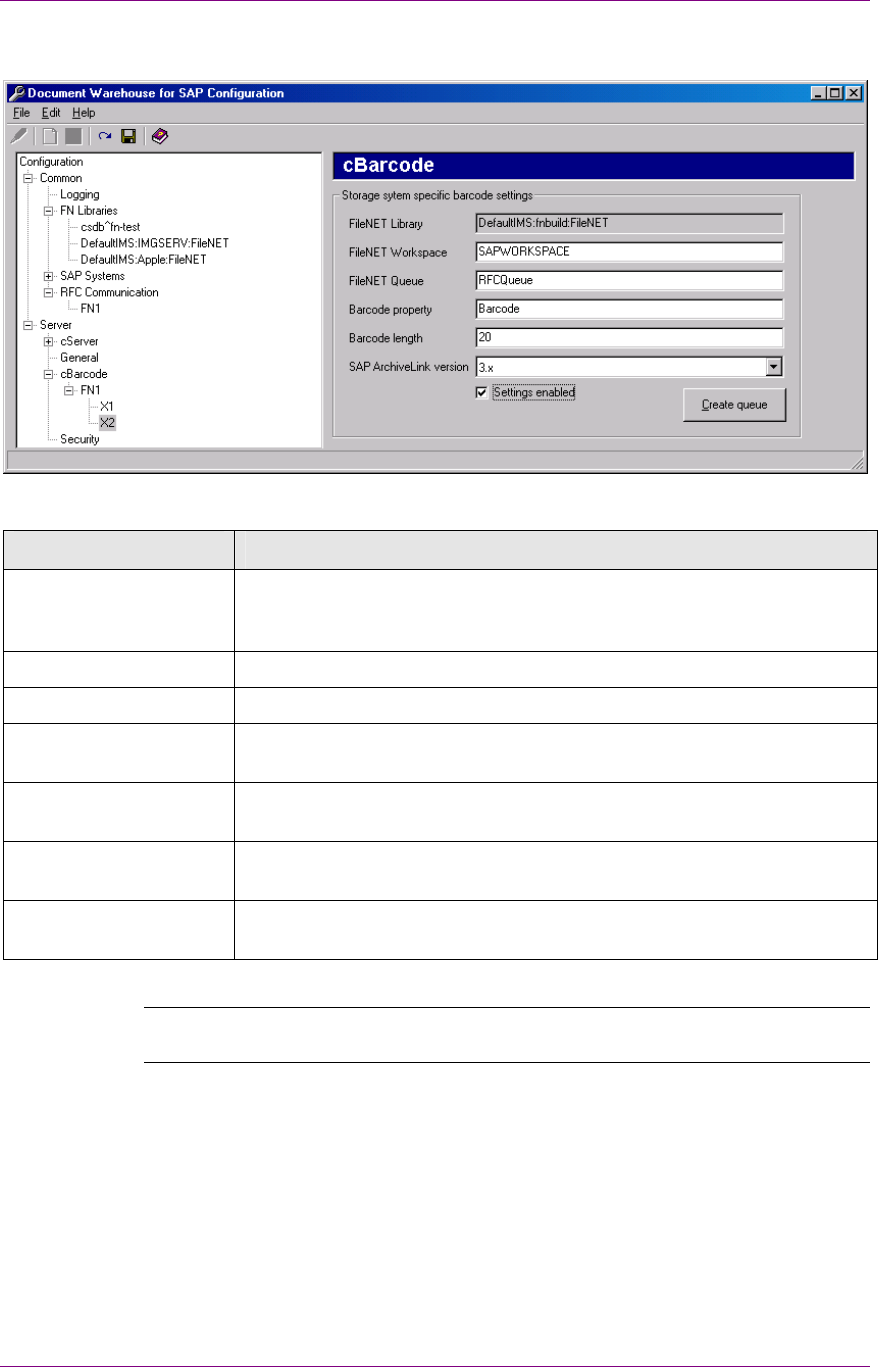

The configuration tool provides a means to create a queue containing this

set of user-defined fields. For more information on how to create this

queue, refer to section IDM Services for R/3 Category ‘cBarcode’.

Creating Image Services Queues to Process Incoming Documents

Background: Subsequent to capturing and storing the incoming

documents in a FileNet IS library, the FileNet Queue for R/3 can process

them further. IS distributor queues facilitate this approach by assigning a

queue to a document class. This distributor queue automatically

receives a new entry when a new document is committed to the

document class.

General Server Configuration

Configuring FileNet Web Services

March 2003 FileNet Document Warehouse for SAP 49

A queue to be used for Incoming Documents must contain at least the

following user defined field:

User defined

Field

Type Len

gth

Required Unique Rende

zvous

Display Sorting

DocumentNumber Document 4 Yes Yes No Yes No

If the distributor queue has a user-defined field of type Document, this

field automatically receives the document id of the newly created

document.

Use the IDM Desktop FNQMaint program to create this queue.

Configuring FileNet Web Services

IDM Services for R/3 use Web services to access IS and CS libraries.

While configuring FileNet Web services it is important to:

• Configure at least one FileNet IS library. Response times have been

found to be very slow if no default network library exists.

• Disable FileNet Trace while running IDM Services for R/3. If FileNet

Trace is enabled, none of the DWSAP components can run.

Guidelines to Define File Exchange Directories

Background: Print lists, outgoing documents, document images, data

archiving data, and other document types are archived from the SAP

system and stored in FileNet library systems. Documents that are

archived to the library can also be restored to the SAP system. When

using RFC, documents can be archived and restored between the

FileNet and SAP systems by reference. This means that the messages

exchanged between FileNet and SAP contain names of the data files to

be processed, instead of the document data. The data files for

processing are stored in the following temporary directories:

Archival Path/Basic Path: Contains data files to be stored in an archive

(FileNet library)

Retrieval Path /Archive Path: Contains data files restored by Document

Warehouse for SAP.

The Archive and Basic directories should be part of a Network File

System (NFS), which is accessible to SAP Application Server and IDM

Services for R/3. SAP ArchiveLink can then be scheduled to send

archiving requests to IDM Services for R/3 at a time that suits the traffic

on the network. This can be important if many documents are archived, or

if size of the documents is large. If the SAP system contains more than

General Server Configuration

Guidelines to Define File Exchange Directories

March 2003 FileNet Document Warehouse for SAP 50

one application server, each application server should be able to access

the directories.

The factors that affect the amount of disk space required for the Archive

and Basic directories are:

• The number and size of new documents being archived, and the size

of data files being written to the Archive directory.

• The number and size of new documents being retrieved from the

FileNet IS/CS, and the corresponding files being written to the data

directory.

• The number of indexed printlists being committed. Indexed print list

have data files as well as description files, which increases the

amount of disk space required.

• Files not deleted by IDM Services for R/3 after the document has

been successfully committed to FileNet IS.

Note: Whenever the IDM Services for R/3 components and SAP are

present in different domains or the exchange directories are configured

on a machine which is in a different domain then for the exchange

directories to be accessible to both IDM Services for R/3 components and

SAP, a trust relationship should be established between the domains.

March 2003 FileNet Document Warehouse for SAP 51

5

IDM Services for R/3 Configuration

To start the configuration tool, click Start 



 Programs 



 FileNet IDM

Services for R3 



 Configure, in Windows.

The Configuration Tool

The configuration tool provides a menu bar, a tool bar, a tree of

configuration categories, a status bar, and an area in which actual

preferences are set and modified. These are illustrated in the following

figure:

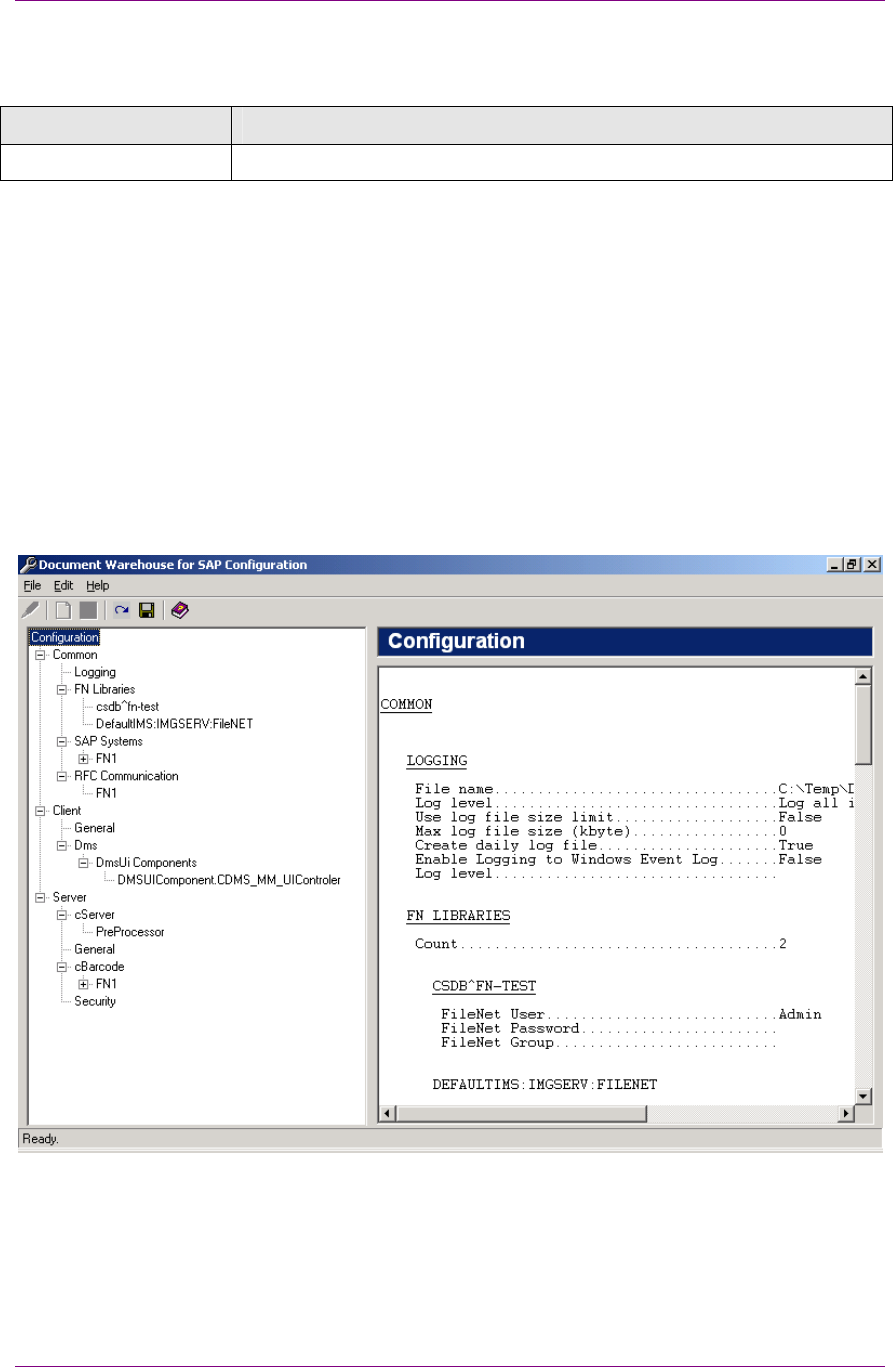

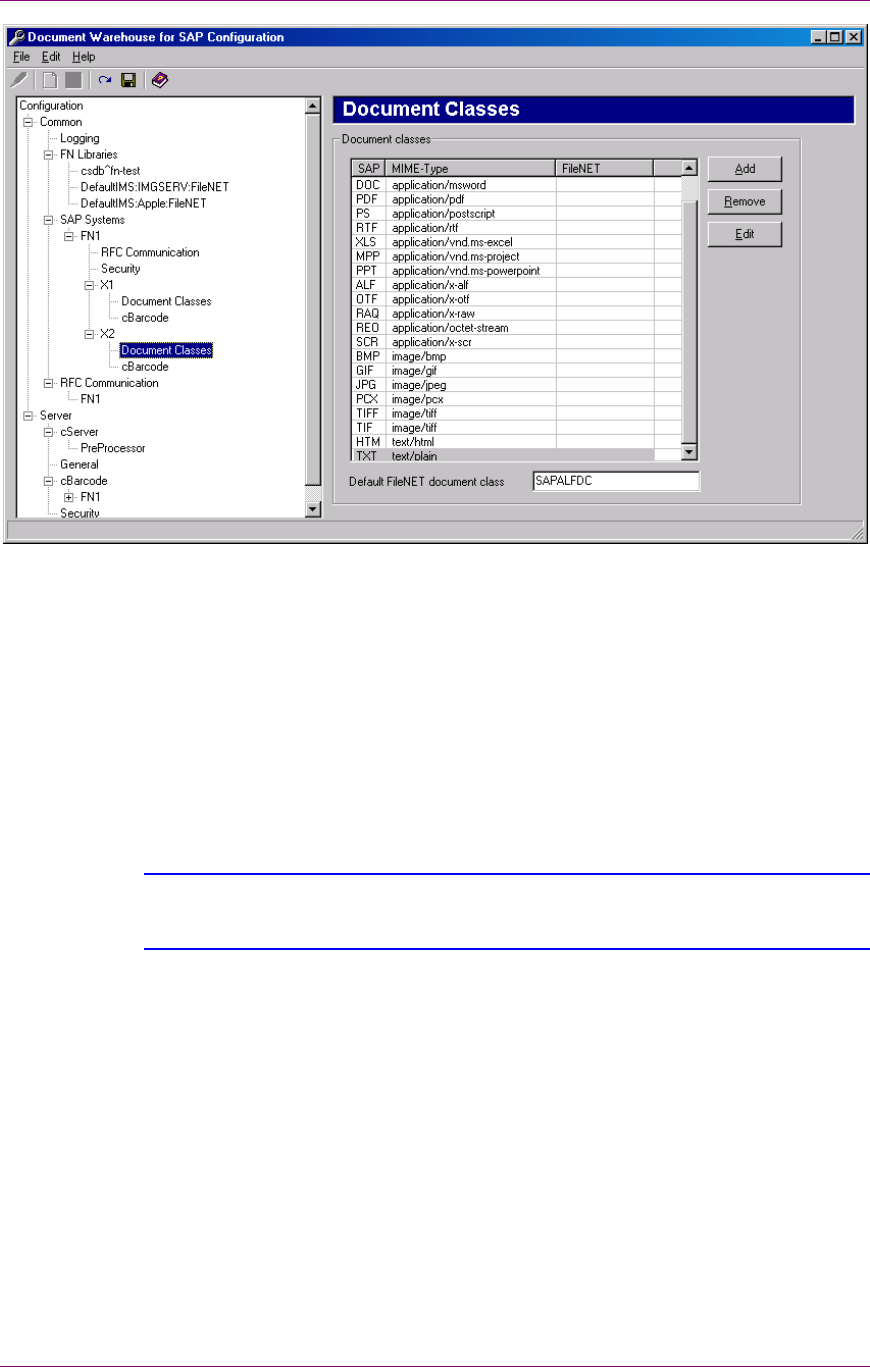

The following table lists the menus and menu items provided by the menu

bar:

Menu Menu Item Description

File Reload Configuration Reloads the configuration from its storage location

discarding all the unsaved changes.

IDM Services for R/3 Configuration

The Configuration Tool

March 2003 FileNet Document Warehouse for SAP 52

Menu Menu Item Description

Save Configuration Saves the current configuration permanently in Windows

registry.

Import Imports a configuration from DwSettings.dwc file

overwriting the current configuration.

Export Exports the current configuration in *.dwc file, which is

saved on the hard disk.

Exit Closes the configuration program without saving. If any

preference is modified, the user is prompted to save the

changes.

Rename This option is enabled only when a selected category

represents the name of a SAP system, SAP archive, or

FileNet library.

Add This option is enabled only when a category contains a

variable list of sub categories. This applies to the following

categories:

• SAP systems where Administrator can Add SAP

systems or SAP Archives.

• FileNet Libraries where Administrator can Add FileNet

Library.

Edit

Remove Removes the sub categories that are added using the Add

function.

Contents Displays the Installation & Configuration Manual.

Help

About Displays the message box, which gives information about

DWSAP configuration tool.

The toolbar provides fast access to more frequently used features such

as Add and remove a sub category. The following table lists all the

features provided through the toolbar:

Icon Name Description

Rename Renames a sub category.

Add Adds a sub category.

Remove Removes a sub category.

Reload Reloads the configuration from its storage location.

Save Saves the configuration in its storage location.

Help Displays the online documentation.

IDM Services for R/3 Configuration

Configuration Overview

March 2003 FileNet Document Warehouse for SAP 53

The categories tree provides a list of categories that should be

configured. When a particular category or a sub category is selected, its

related preferences are displayed in the preference area where

configuration information can be altered. Other additional options, like

adding a sub category, renaming a category or removing a category are

also available.

The status bar shows brief information such as status of the tool, the

success or failure of the last action. The status bar is updated after an

action is performed.

Note: All configuration information is currently stored in the Windows

registry.

Configuration Overview

DWSAP configuration tool displays IDM Services for R/3-specific

categories such as cServer and cBarcode in the categories tree.

The following table gives a description for each category:

Category Category Sub Category Description

Configuration The preference area

displays a summary report

of the current

configuration.

No information in

preference area. Top-level

branch for Logging,

FileNet Libraries, SAP

Systems and RFC

Communication.

Logging Configuration of logging

related preferences.

Contains the list of FileNet

libraries as sub categories.

FileNet Libraries

<fnlibid> Refers to the Name

(identifier) of a configured

FileNet library, such as

DefaultIMS:IMGSERV:Fil

eNet.

Common

SAP Systems Defines SAP systems

known to IDM Services for

R/3.

IDM Services for R/3 Configuration

Configuration Overview

March 2003 FileNet Document Warehouse for SAP 54

Category Category Sub Category Description

<sapsystemname> Names a configured SAP

system, such as FN1. This

name is arbitrary but it

reflects the actual name of

the SAP system that it

represents.

RFC Communication RFC communication

related preferences

specific to a SAP system

such as SAP gateway host

and SAP gateway service.

Security Refers to security related

preferences specific to a

SAP system.

<storagesystemname> Refers to name of a SAP

archive used by SAP

system such as X1. A SAP

system can have multiple

SAP archives.

Document Classes SAP and FileNet

document classes used for

storing a document in a

specific SAP archive.

cBarcode cBarcode component

related preferences which

are specific to a SAP

archive.

RFC

Communication

Configuration of

preferences related to

RFC communication.

<sapsystemname> RFC communication

related preferences

specific to a SAP system.

Server No information in

preferences area. Top-

level branch of cServer,

General, cBarcode,

Security.

cServer Configuration of

preferences specific to the

cServer component.

PreProcessor Configuration of

preferences if a

PreProcessor is used.

General Configuration of commonly

used preferences.

IDM Services for R/3 Configuration

IDM Services for R/3 Category Logging

March 2003 FileNet Document Warehouse for SAP 55

Category Category Sub Category Description

cBarcode Configuration of

preferences specific to the

cBarcode component.

<sapsystemname> Name of a SAP system

defined under SAP

Systems.

<storagesystemname> Configuration of

preferences related to the

cBarcode component,

which are specific to a

SAP archive.

Security Configuration of

preferences related to

security

Certain SAP system specific or SAP archive specific information is

available through two or more sub categories of the categories tree. For

example, selecting the sub category

Common/SAPSystems / <sapsystemname> / <storagesystemname> / cB

arcode

displays the same (identical) information in the preferences area as

Server / cBarcode / <sapsystemname> / <storagesystemname>.

Tip: The preferences altered under one of the two categories as specified above

are instantly reflected under the other sub category because the information is

identical.

In the following section all the IDM Services for R/3 categories and sub

categories are explained:

IDM Services for R/3 Category Logging

Background: All IDM Services for R/3 components record information

regarding the operations in the system. This information can be helpful

in finding problems with the configuration or troubleshooting after an

error has occurred.

The Logging category contains preferences that determine the amount

and location of the logged information.

IDM Services for R/3 Configuration

IDM Services for R/3 Category Logging

March 2003 FileNet Document Warehouse for SAP 56

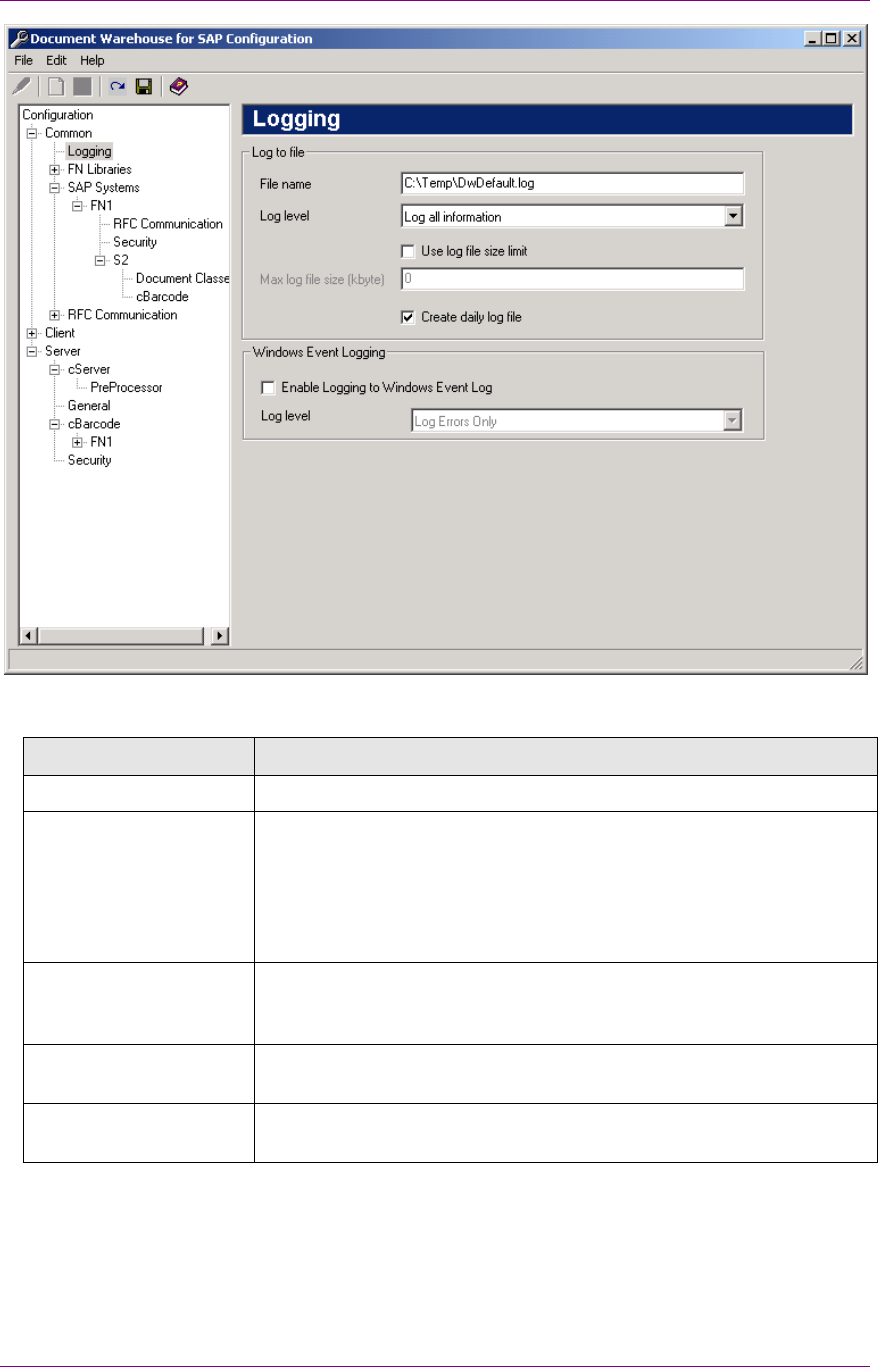

The following table lists the preferences specific to the IDM services for

R/3 category Logging:

Preference Description

File name Enter a file name with path for logging the information.

Log level (Log to file) Determines the category of information to be logged. The log levels

available for logging to a file are:

• Log errors and warnings only (Recommended)

• Log all information.

Use log file size limit

Max log file size(Kbyte)

The size of the log file is restricted to the maximum file size. The

Max Log file size option is enabled only if the Use log file size

option is checked.

Create daily log file Creates a new log file everyday. The file is named as

<filename>_<yyyymmdd>_<extension>.

Enable Logging to

Windows Event Log

The information is logged in the application log of the Windows

event viewer.

IDM Services for R/3 Configuration

Configuring FileNet Libraries

March 2003 FileNet Document Warehouse for SAP 57

Preference Description

Log level (Windows

event log)

Determines the category of information to be logged. The levels

available are:

• Log errors only, (Recommended)

• Log errors and warnings only

• Log all information.

Configuring FileNet Libraries

Background: The FileNet libraries used by IDM Services for R/3 should

be defined in the configuration tool. Different SAP systems and SAP

archives can access the same library. There can however be one set of

credentials, containing user name and password that can be configured

for each library.

To add a new FileNet library:

1. Select the FN Libraries category in the categories tree.

2. Add a new sub category using menu Edit 



 Add.

3. The newly added library name, for example Library 2, is in edit mode.

Enter the identifier of the FileNet library. For example

DefaultIMS:IMGSERV:FileNet for IS libraries, or csdb^fn-test for CS

libraries. Selecting a FileNet library in the categories tree displays the

library preferences in the preference area.

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 58

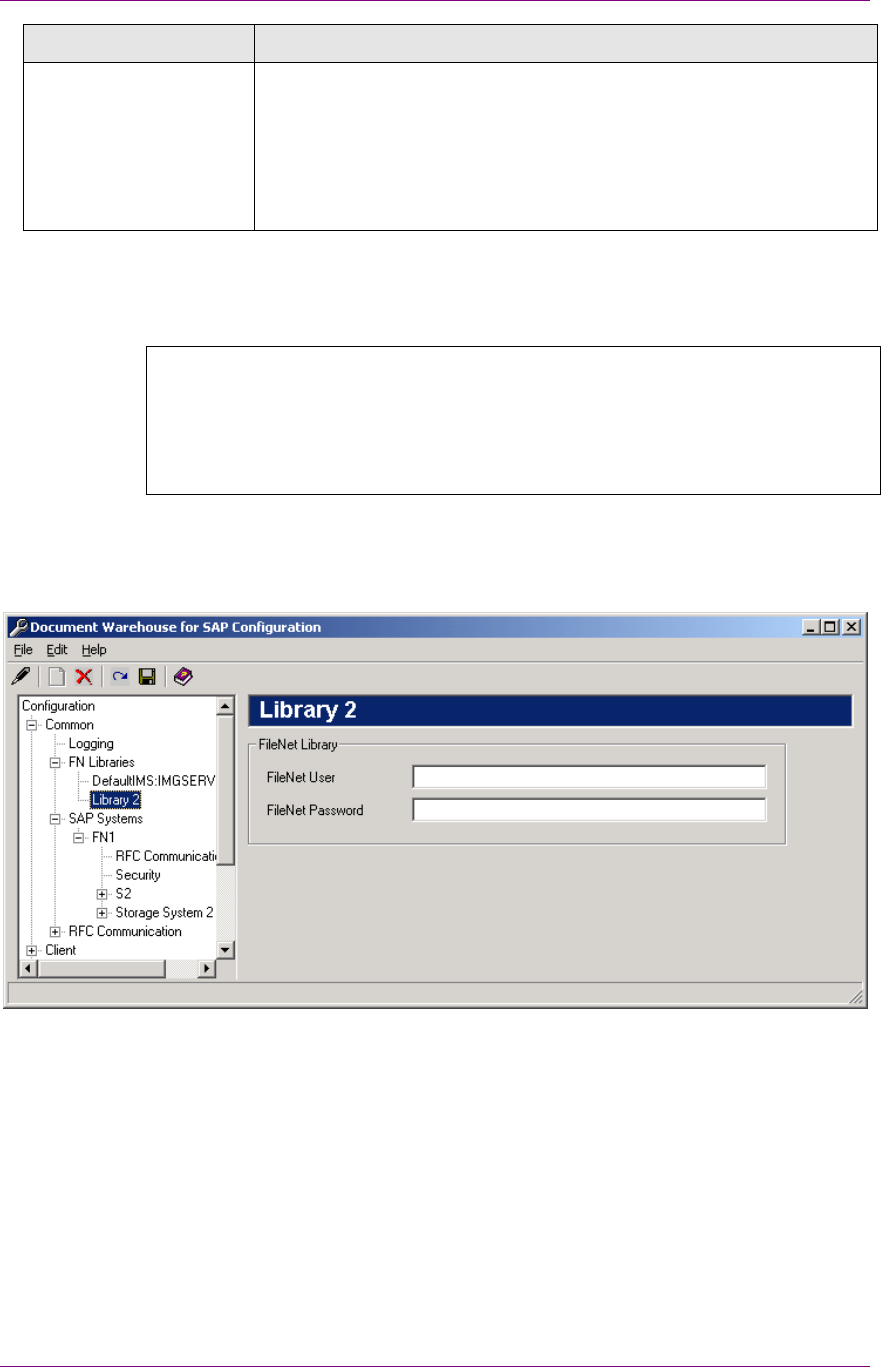

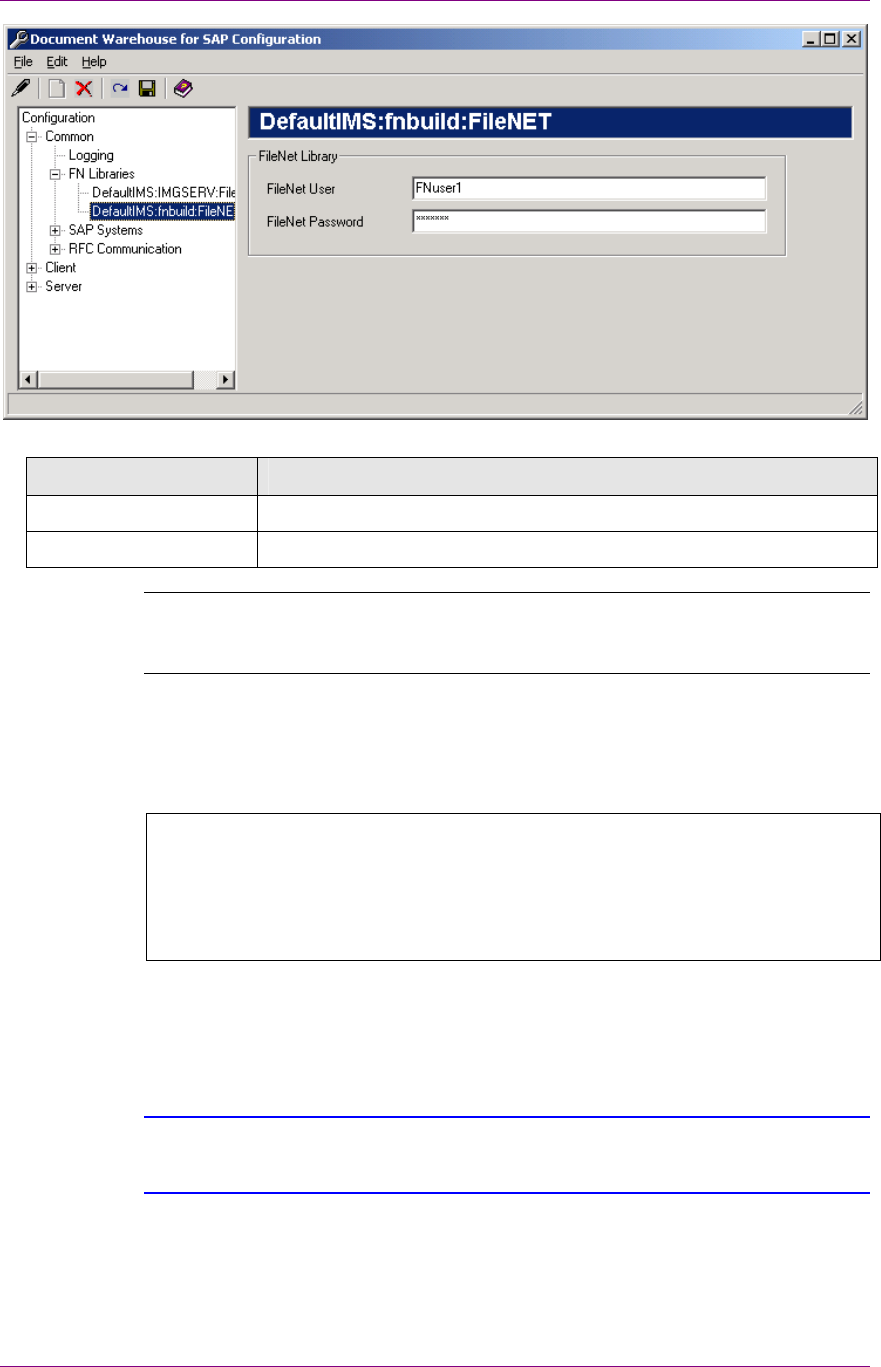

4. Enter the preferences referring to the following table:

Preference Description

FileNet User Represents the logon user name, and is mandatory.

FileNet Password Represents the logon password.

Note: The user credentials and the library name will be validated when

the configuration is saved. If the credentials are wrong, configuration will

not be saved.

Configuring SAP Systems

Background: SAP System preference in IDM Services for R/3

configuration is a DWSAP internal logical name for a SAP system. An

SAP system identifies itself to DWSAP through multiple means

depending on whether RFC or HTTP communication protocol is used.

Multiple archives can be defined for a SAP system.

To add a new SAP system:

1. Select the SAP systems category in the categories tree.

2. Add a new sub category using the menu Edit  Add. Default sub

category of SAP Systems is created automatically.

Tip: With DWSAP release 5.x descriptive names can be used, unlike the earlier

releases, in which the name had to be equivalent to the Logical System ID of

SAP R/3 system.

SAP system sub categories can be renamed or removed by similar

means as described for adding.

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 59

Configuring Multiple R3 Instances

DWSAP differentiates requests coming from different copies of the R/3

instances that run on different servers, but share the same authenticity id

and archive id.

Different R/3 instances should be identified in the configuration tool as:

<SAP System Name> - <SAP Server Name (host name)>

For example, if SAP System Name is FN1 and the servers that have this

R/3 instance are fnetsap, and fnsap, then the entries in the configuration

tool are FN1-fnetsap, FN1-fnsap.

SAP system does not provide any preferences except its name.

Each SAP system category has RFC Communication and Security sub

categories. If SAP archives are defined for SAP system, each archive is

represented as a distinct sub category under the SAP system category.

These sub categories are described in subsequent sections.

Configuring RFC Communication

Background: The SAP ArchiveLink Interface release 3.0 and 3.1 use

SAP proprietary RFC protocol to communicate with IDM Services for

R/3. RFC communication has a RFC client program that invokes a

remote function implemented in a RFC server program. For example,

the cBarcode component is a RFC client, which calls a barcode function

in SAP system. This barcode function sends the document and barcode

information. The cServer component implements both sides. The SAP

ArchiveLink software calls a function of RFC server,

ARCHIV_REQUEST, to request the status, and archival and retrieval of

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 60

documents. On the other hand, while fulfilling asynchronous requests,

cServer acts as an RFC client. This client calls a function in SAP system

to send fulfillment or confirmation information. With DWSAP release 5.x,

RFC communication is always specific to SAP system. This means,

each DWSAP release 5.x has an additional feature to register itself as

an RFC server at multiple SAP gateways, simultaneously.

To configure RFC communication information for SAP system, select

the appropriate SAP system sub category under the RFC

communication category.

Tip: Most of these values are available with the SAP Administrator.

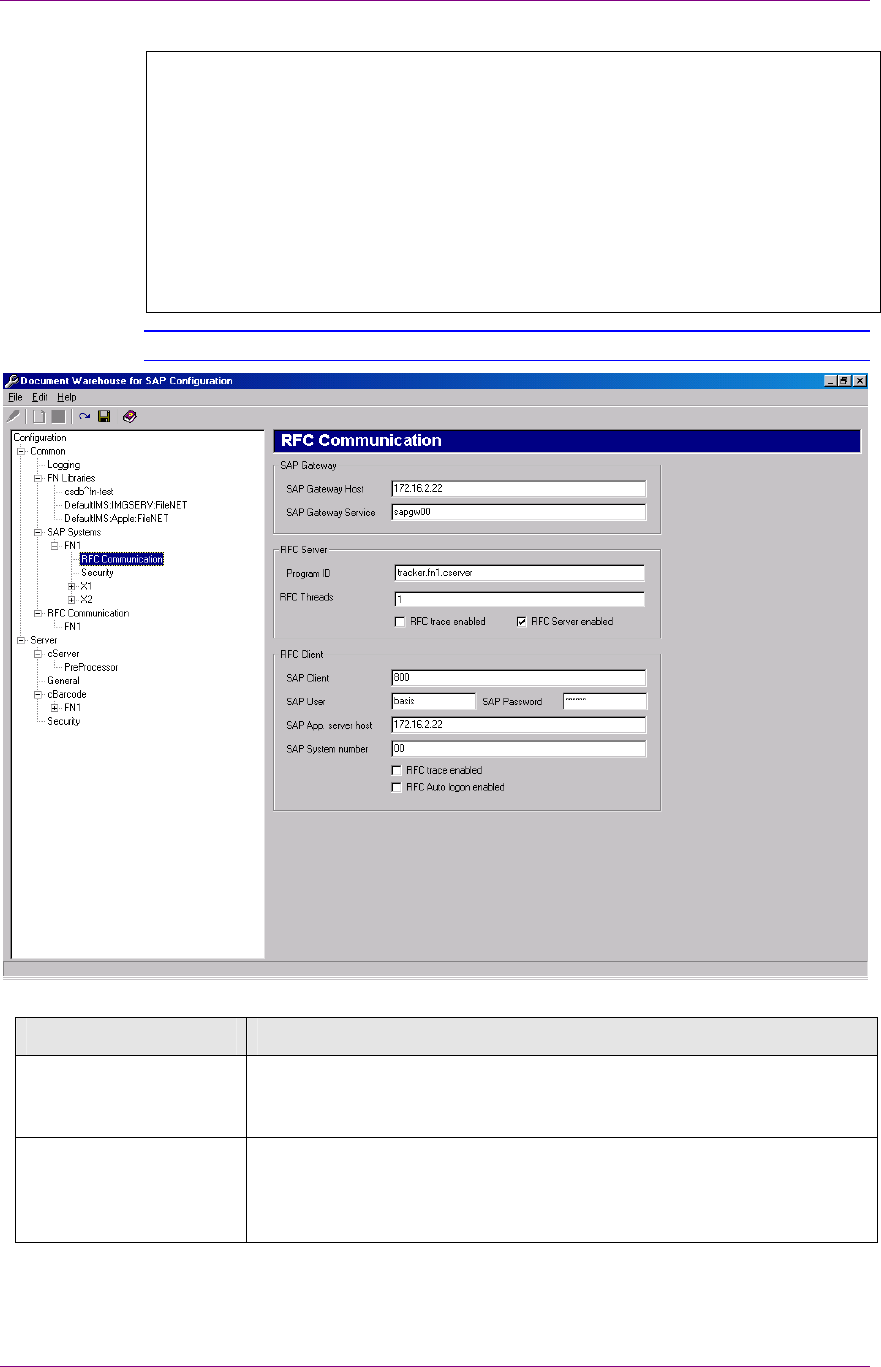

The following preferences are displayed in the preference area:

Preference Description

SAP Gateway Host Refers to the machine on which SAP gateway is running. IDM

Services for R/3 use this gateway to communicate with SAP system.

Both RFC server and client use this value.

SAP Gateway Service Refers to the service the SAP gateway listens on , a value in the

range of sapgw00 to sapgw99. Both the RFC server and RFC client

use this value. These service numbers should be defined in the

services file on IDM Services for R/3 machine.

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 61

Preference Description

Program ID Identifier with which cServer registers at the SAP gateway. This id

must be unique on the SAP gateway machine. The syntax of the id

is:

<IDM Services for R/3 machine name>.<sapsystemname>.cServer

RFC Threads* Refers to the number of instances of RFC server that are be

registered at the SAP gateway.

RFC Trace enabled Enables logging RFC server trace information to a file. This file,

dev_rfc*.trc, is located in the installed directory of the application.

RFC Server enabled Registers cServer as an RFC server at SAP gateway to receive SAP

ArchiveLink requests through RFC. This option disables registration

at the configured gateway.

SAP Client Represents the logon client number.

SAP User Represents the logon user name.

SAP Password Represents the logon password.

SAP Application Server

Host

Represents the machine name of the SAP application server where

the RFC server is registered.

SAP System Number Represents the system number of SAP system.

RFC Client Trace

enabled

Enables logging RFC client trace information to a file.

RFC Auto logon

enabled

Enables the automatic logon of RFC to SAP system.

To communicate with SAP gateway, add information such as

sapdp##, 32##/tcp,

sapgw##, and 33##/tcp

to the services file on the IDM Services for R/3 machine. Here, ## refers

to the actually used service port number. This service port number is a

two-digit number that ranges from 0 to 99. The services file is located in

the Windows operating system directory, under system32\drivers\etc.

The machine entered as SAP gateway host should be pinged from the

IDM Services for R/3 machine. It is necessary to add the machine name

as an IP alias in the host file, on IDM Services for R/3 machine. The host

file is located in the same directory as the services file.

Note: Information about SAP gateway host and service can be obtained

from the SAP administrator. For information on how to ensure that the

preference values are valid, refer to section Testing RFC Communication

Parameters.

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 62

Testing RFC Communication Parameters

The tools provided by SAP to test RFC communication are: RFC client

srfctest.exe, and RFC server srfcserv.exe. Both of these are command

line tools that accept your RFC communication settings as command line

parameters.

Testing RFC client parameters

In order to test the RFC client parameters, follow the steps.

1. Ensure that SAP application server host can be pinged from IDM

Services for R/3 machine.

2. Open a command line box, change the current directory to IDM

Services for R/3 directory/FileNet and invoke srfctest.exe. The

following screen is displayed:

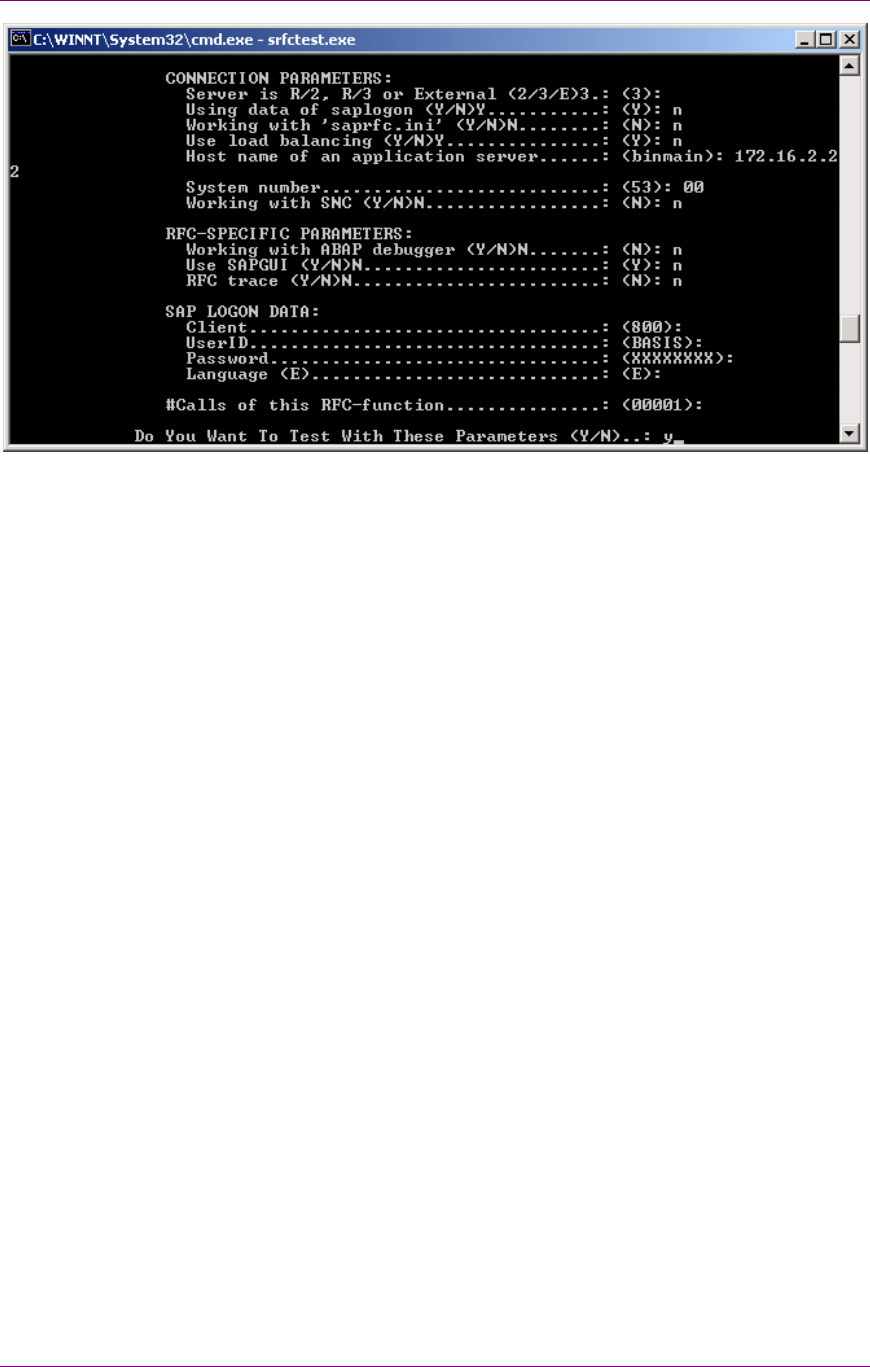

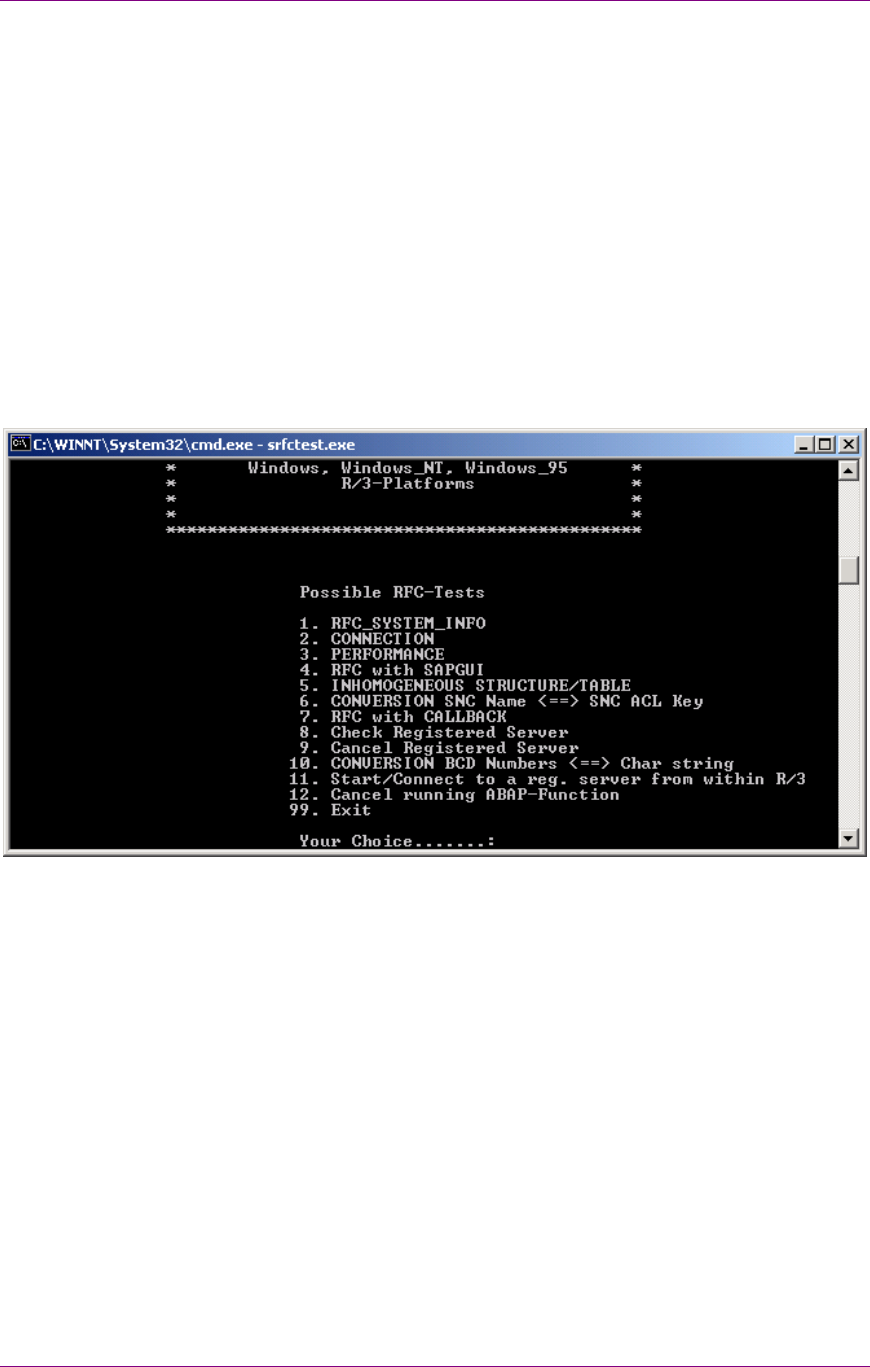

3. From the Options menu, select the option (2.) Connection. The

following screen is displayed:

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 63

4. Enter the RFC connection parameters.

5. The program then informs the user, if the connection was established

and the logon was successful. If not, the program provides error

information.

Testing RFC server parameters

In order to test the RFC server parameters, follow the steps.

1. Ensure that SAP gateway host can be pinged from IDM Services for

R/3 machine.

2. Open a command line box, change the current directory to IDM

Services for R/3 directory/FileNet and invoke srfcserv.exe with the

following parameters:

srfcserv.exe –aYourProgramId –gYourSapGatewayHost –

xYourSapGatewayService

e.g. c:\program files\FileNet\idmforr3> srfcserv.exe –afntest.fn1.cserver –

g172.16.2.22 -xsapgw00

3. If the program does not terminate, it has successfully registered its

RFC function STFC_CONNECTION at the SAP gateway specified by

the –g option in the command line above. If the program terminates,

reason for failure is provided.

4. Open SAPGUI and log on to the SAP system from which the requests

are to be received.

5. Go to RFC destinations maintenance transaction, through transaction

code sm59.

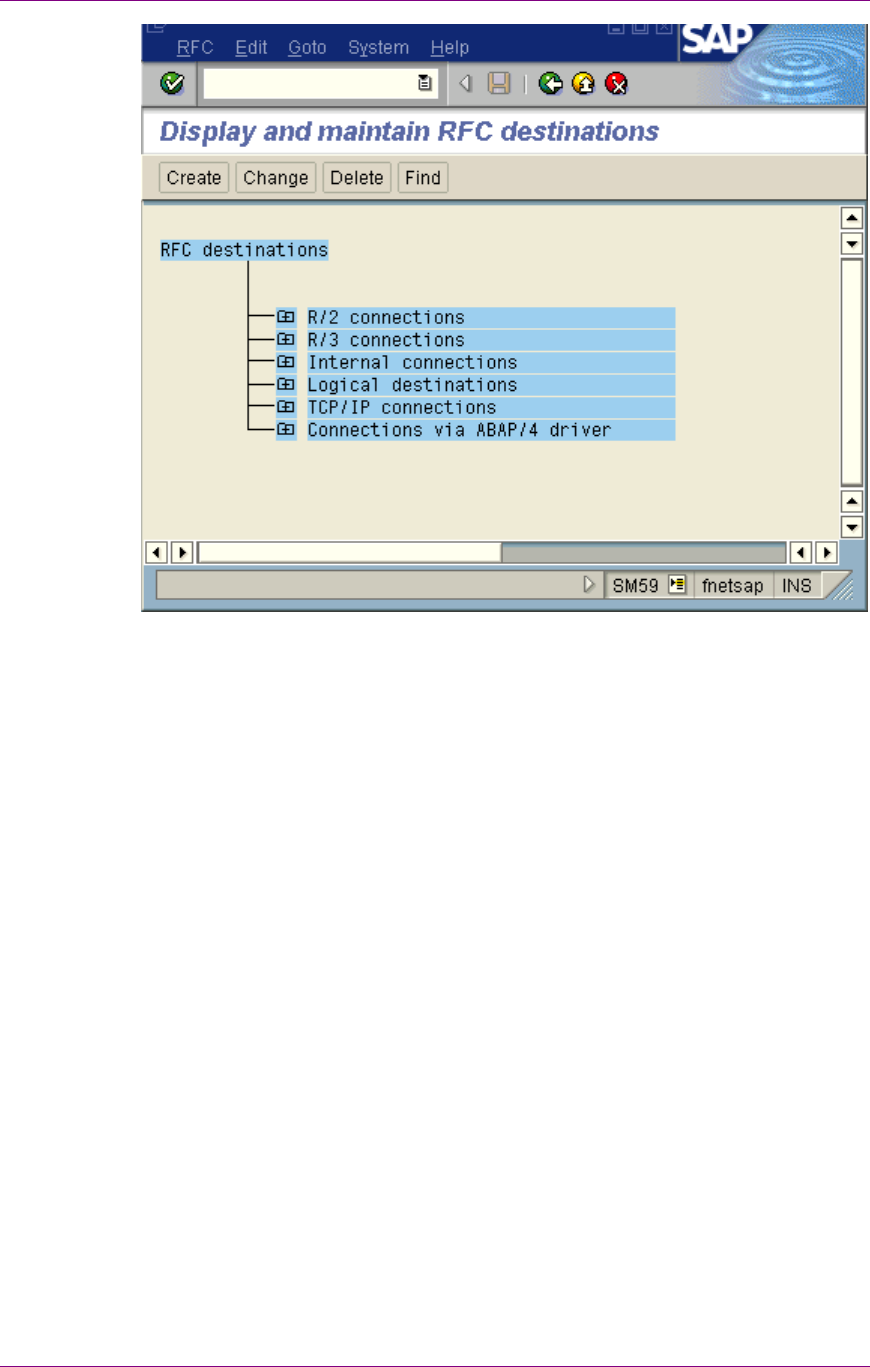

6. If RFC destination for your archive has already been defined, select

this destination. Otherwise, create a temporary destination to test by

following the steps:

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 64

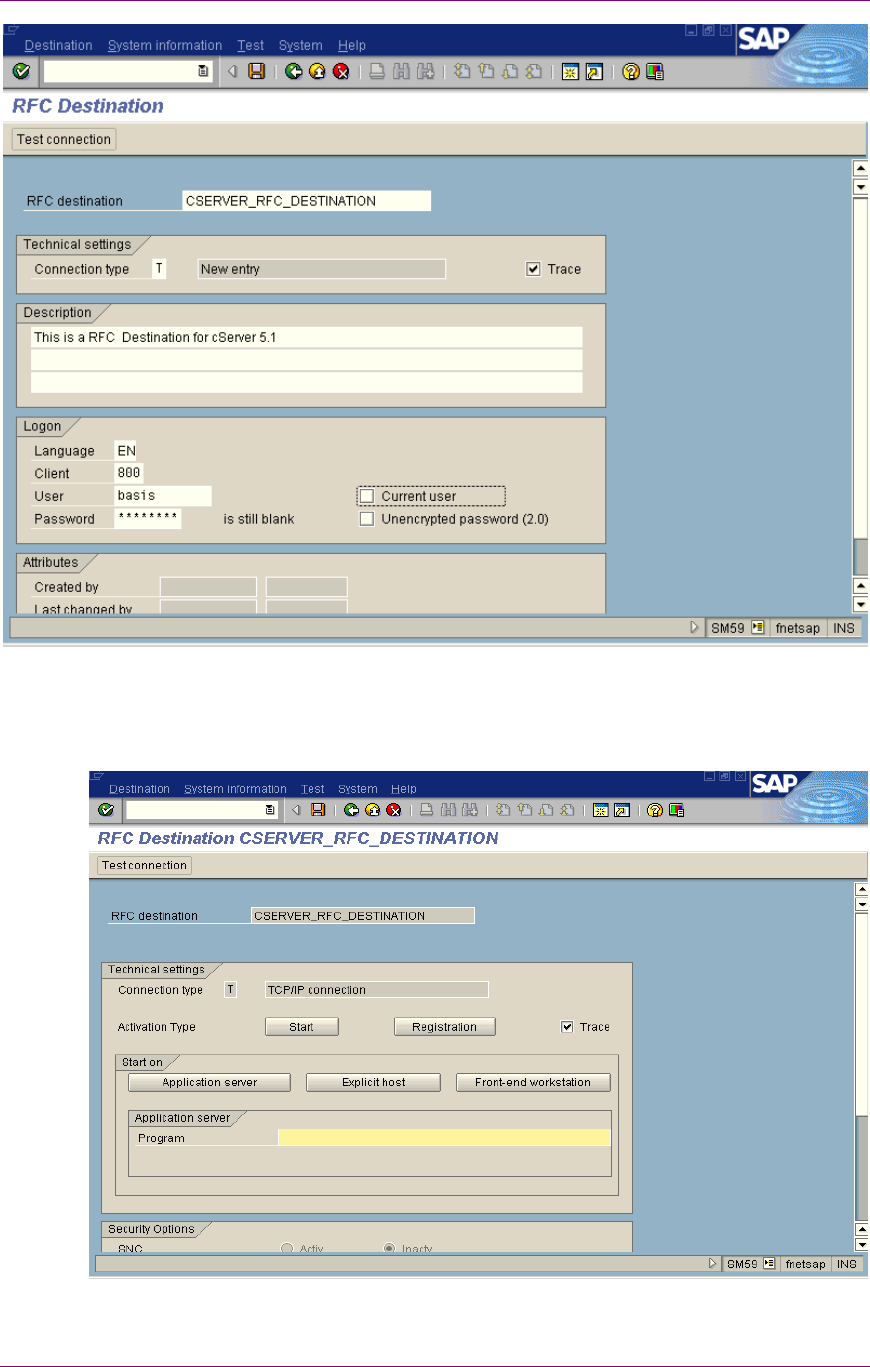

a Click the Create button or select Create from the RFC menu.

For the temporary destination, enter a name, a description and T

in the connection type field and press Enter.

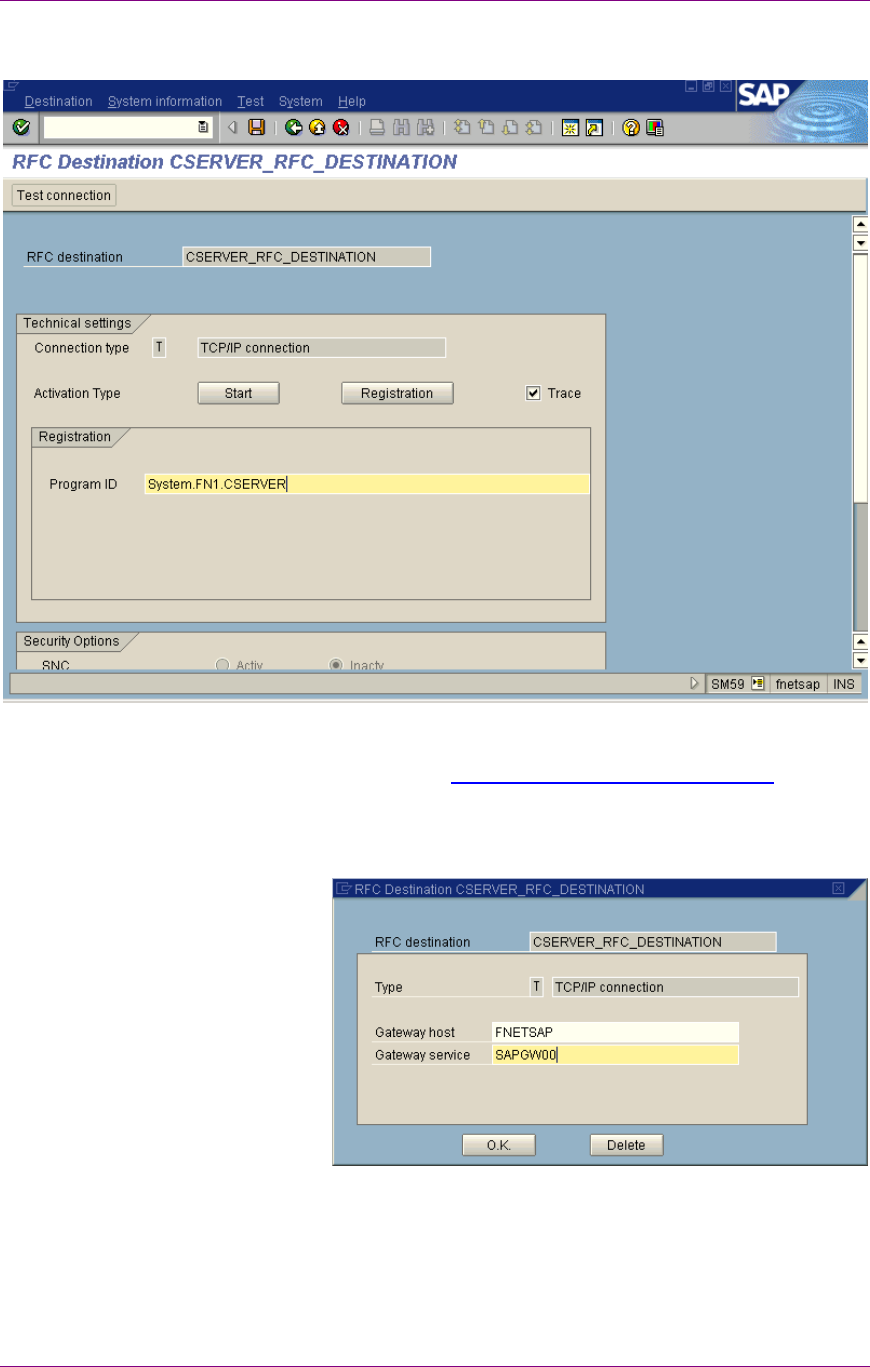

b Choose the Activation Type as Registration and enter the

Program ID. Select Gateway options from the Destination menu

and enter the SAP gateway parameters. The temporary

destination must be saved for the test to function properly. If an

existing destination is being used, make sure the Program ID

matches the Program ID used with srfcserv.exe. For more

information on defining new RFC Destinations refer to section

RFC Destinations

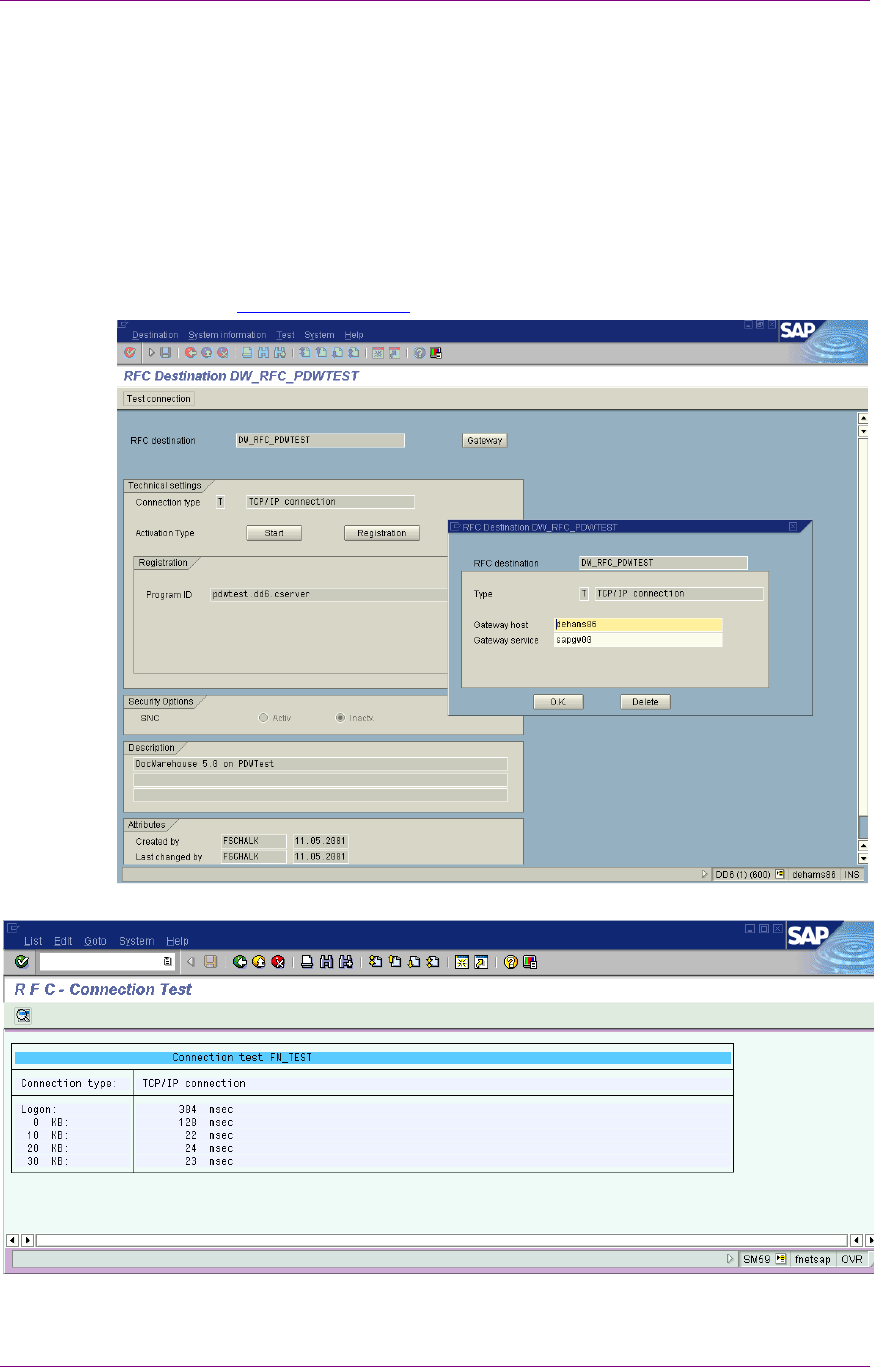

7. Click Test Connection button.

8. On the command line box following line will appear:

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 65

< == RfcDispatch…

< == RfcDispatch rfc_rc = 0

If registration of RFC server at the SAP gateway failed, reason for

the failure will also be provided.

9. If a temporary destination was used delete it.

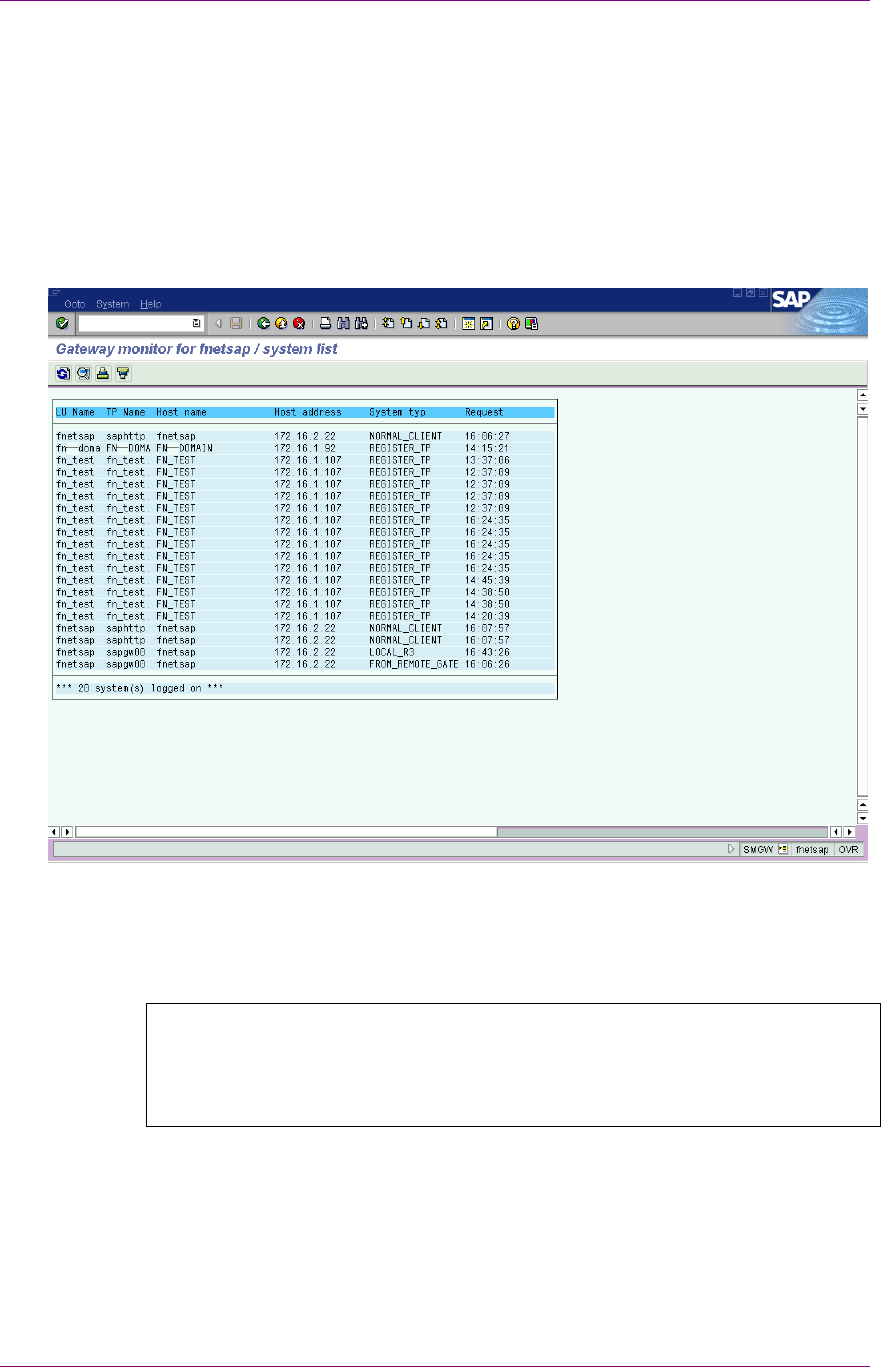

10. Use the SAP gateway monitor (transaction smgw) to view the RFC

servers that are using a gateway. In transaction smgw, use the menu

option Goto→

→→

→Logged on systems.

Configuring SAP System-Specific Security

Background: When SAP sends an HTTP request to cServer, the

request identifies itself by an authenticity id. The authenticity id is CN=,

followed by a three letter identifier such as ID3. cServer uses this

authenticity id to identify configuration for this SAP system.

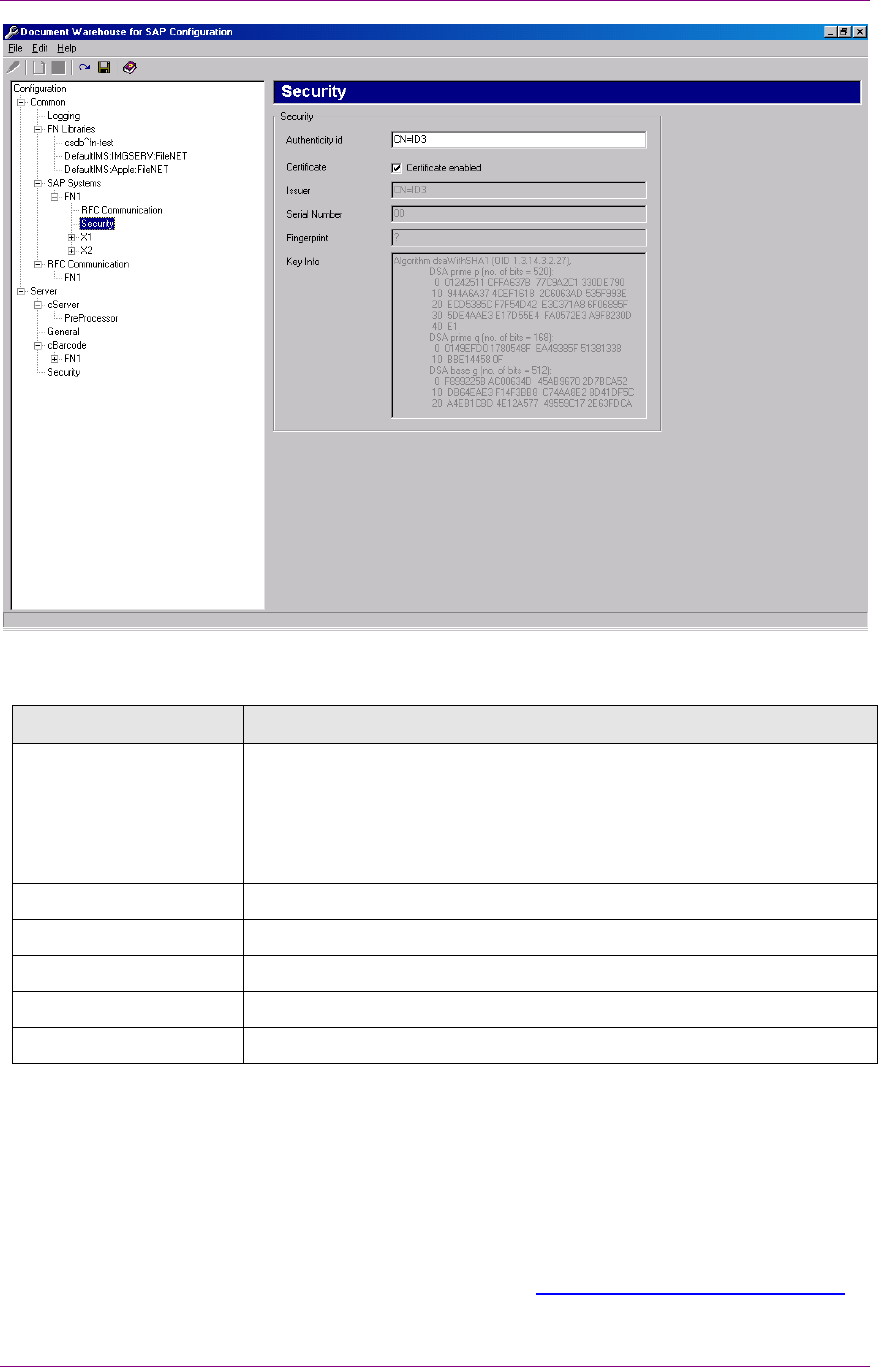

To configure authenticity id Select Security under the relevant SAP

system in the categories tree control.

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 66

The following preferences are displayed in the preference area:

Preference Description

Authenticity id Refers to the SAP system authenticity id in the form CN=<three letter

identifier>.

Note: In SAP 4.5, authenticity id is built from the system name, for

example, FN1. In SAP 4.6, the default authenticity id is ID3. The SAP

administrator can change this.

Certificate Activates SAP certificate, if selected.

Issues Information from SAP system regarding the SAP certificate

Serial Number Information from SAP system regarding the SAP certificate

Fingerprint Information from SAP system regarding the SAP certificate

Key Info Information from SAP system regarding the SAP certificate

To enable IDM Services for R/3 to work with an SAP system through

HTTP, SAP system certificate (public key) should be sent to IDM Services

for R/3 and manually configured by an administrator. If the SAP system

certificate for an archive has been transferred, the fields Certificate,

Issues, Serial Number, Fingerprint and Key Info contain information

about the certificate. The certificate should only be enabled if an

administrator has checked this information. For information on how to

send the authenticity id, refer to section Send a Certificate to an Archive.

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 67

Configuring SAP Archives

Background: A SAP archive corresponds to an archive, defined while

customizing SAP ArchiveLink. Content Repository is also a synonym

for SAP archive. Multiple SAP archives can be configured to point to the

same FileNet library.

To add a new SAP archive:

1. Select the SAP system to which a new archive is to be added.

2. To add a new sub-category, click Edit 



 Add menu. A new archive is

added under the category SAP System.

3. Enter the two-character name as defined in the SAP during archive

definition. Following table lists the preferences for the archive:

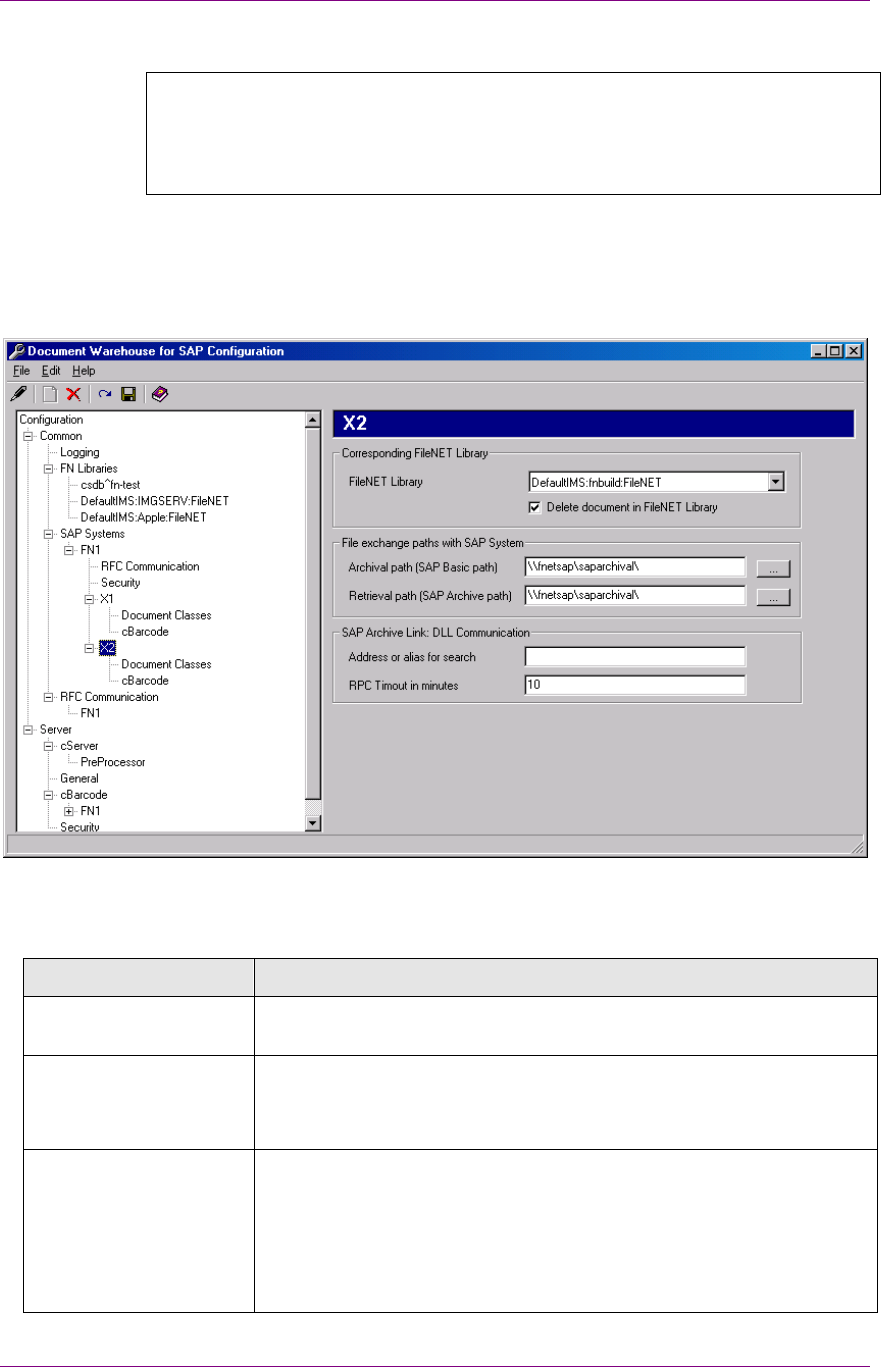

Preference Description

FileNet Library Refers to a FileNet library. This entry creates a logical assignment

from a SAP System + SAP archive to a FileNet Library.

Delete Document Deletes the documents in IS when SAP requests to delete a

document.

If disabled, just sets the document status top closed.

Archival Path Identifies fully qualified directory containing files to be stored in an

archive. Use the Browse… button to select a directory or enter a

path.

A UNC path name can also be specified directly, i.e.

\\<machine>\<share>\<directory>.

IDM Services for R/3 Configuration

Configuring SAP Systems

March 2003 FileNet Document Warehouse for SAP 68

Preference Description

Retrieval Path Identifies the fully qualified directory containing files restored by

IDM Services for R/3. Use the Browse… button to select a

directory or enter a path.

For more information on defining Retrieval path, refer to section

Guidelines to Define File Exchange Directories

Address or alias for

search

Required only while configuring IDM Desktop for R/3.

RPC timeout in

minutes

Required only while configuring IDM Desktop for R/3.

Tip: Distinct exchange paths for each SAP system should be created, and the

Archival and Retrieval path should be different. The directory name could contain

the SAP system name and its functions, such as \FN1_Arch to define a Archival

path and \FN1_Retr to define a Retrieval path.

There are two sub-categories to each SAP archive:

• Document Classes contain the mapping of SAP technical document

classes and MIME types to FileNet document classes for storage. For

more information on document classes, refer to section Configuring

Document Classes.

• cBarcode contains SAP archive specific settings for the cBarcode

component. For more information on cBarcode, refer to section IDM

Services for R/3 Category ‘cBarcode’.

Configuring Document Classes

Background: SAP uses technical document classes and MIME types to

distinguish different classes of documents. Document class is passed on

with the archive request. IDM Services for R/3 use this information to

determine which document class to use, while storing the document in a

FileNet library.

To configure the FileNet document class used for an archive, select

Document Classes in the tree control. The following figure is displayed:

IDM Services for R/3 Configuration

IDM Services for R/3 Category ‘cServer’

March 2003 FileNet Document Warehouse for SAP 69

In the table in the figure above, for each SAP document class or MIME

type, there is a corresponding FileNet document class, which is used to

archive documents.

HTTP requests contain a MIME type, not a SAP type. This table

determines the value for the mandatory FileNet index field SAPType.

• If there is no predefined mapping from a MIME type to a SAPType,

the SAP Type ZZZ is used.

• If SAP does not send a MIME type, the Web server adds a default

MIME type of an application/octet-stream.

• cServer uses a default MIME type of application/octet-stream.

Tip: HTTP archival requests contain a MIME type instead of a SAP document

class name. The MIME type must be translated into a SAP document class

before being stored in the SAPType index field.

Default FileNet document class will be used in the following cases:

• If SAP sends an archive request for an SAP document class or MIME

type that has no configured FileNet Document Class

• An unknown SAP document class or MIME type is encountered,

IDM Services for R/3 Category ‘cServer’

The cServer category contains preferences specific to the cServer

component.

IDM Services for R/3 Configuration

IDM Services for R/3 Category ‘cServer’

March 2003 FileNet Document Warehouse for SAP 70

On selecting the cServer category, following preferences are displayed:

Preference Description

FileNet Library Refers to a FileNet library.

FileNet Workspace Refers to the name of the FileNet Workspace, where the request

queue resides.

FileNet Queue Refers to the name of the request queue, where the status

information should be stored.

Create Queue If the request queue does not exist yet, enter the values and click

the Create Queue button.

Maximum FileNet

Connections

Represents the maximum number of connections with FileNet

Library that can be maintained in the connection pool. Change the

number of sessions for the specified user in the IS Security

Services to this value.

Activate Document

property validations

Enables or disables document property validations using ADO for

create request.

Disabling document property validations removes the checks for

uniqueness of SAP document id, its document class and its

properties.

Online Administration If checked, IDM Services for R3 detects & use changes in

configuration without requiring restart of the corresponding services

(FileNet RFC Service, WWW Service, FileNet Barcode Service).

IDM Services for R/3 Configuration

IDM Services for R/3 Category ‘cServer’

March 2003 FileNet Document Warehouse for SAP 71

Preference Description

Enable Performance

Logging

Performance logging has been added to three components

cServerHTTP, cServer and DwRepos. This checkbox can be used

to enable or disable the performance logging for these components.

The performance information includes time, available physical

memory and thread id.

Performance Log File

Name

Specifies the path and filename for the file to be used for logging

performance information.

The limitations with Online Administration are:

• Any change in the RFC communication category of the specific SAP

system requires a restart of RFC services.

• The configuration program reads and saves the configuration

information in the registry. If any configuration changes are made by

directly editing the registry, the services should be restarted. This

means that all changes should be made using the configuration

program only.

• When the configuration is changed, the new configuration will be read

by the server components only when there are no pending requests. If

a large print list is already being processed in the system, the

configuration changes will not be visible until the request is

processed.

Configuring PreProcessor

Background: DWSAP provides an interface that enables cServer to use

a custom external preprocessor, while processing archive requests from

SAP. IDM Services for R/3 interface allow integration of custom

preprocessors and performing tasks, specific to the needs of the

customer, while archiving documents. The preprocessor can direct an

application to extract indexing information from a document, and pass it

to cServer, to be indexed with the document. The preprocessor interface

can also convert SAP documents from proprietary format to a standard

file format. This enables easy viewing of documents before being

archived by cServer. The external preprocessor interface for IDM

Services for R/3 involves a synchronous program call to the external

preprocessor. The SAPTYpe index field included in the archive request

determines which preprocessor program is called.

IDM Services for R/3 Configuration

IDM Services for R/3 Category ‘cServer’

March 2003 FileNet Document Warehouse for SAP 72

Following table lists the preferences for the Preprocessor sub category:

Preference Description

Filename for DocIds Refers to a full pathname of the file, which contains the document Ids

of the files cServer archives. This file contains the entire template

file’s (specified in the result) document ids archived by cServer. If

filename is not specified, the name is DAT2OTF.DID. This entry is

related to the LINK section of the result file, explained in the following

section.

Keep preprocessor

result file

If this box is checked the system will keep the result file produced by

the preprocessor after cServer has finished reading it.

The preprocessor creates a result file to return the output information

such as optional indexes, document class names, and names of

related documents to cServer. cServer parses the result file and

continues archiving the documents according to the content.

Document classes Specifies the document classes to be used by the preprocessor. Click

edit and uses the button to select a directory or enter a path for the

appropriate exe file of the PreProcessor.

Preprocessor and the Output File

When cServer is configured, it automatically calls the appropriate

preprocessor. The string arguments that cServer passes to the

preprocessor are:

• Input: Refers to the filename of the document to be archived.

• Output: Refers to the filename of the result file, INI file.

Note: If the preprocessor is configured, cServer waits for the

preprocessor to finish processing. When finished, the preprocessor

returns zero on successful completion, or one on failure. cServer returns

a general archiving error message to SAP, when the preprocessor fails.

The preprocessor creates the result file that provides cServer with

archiving instructions from the preprocessor. This output file defines how

a data file and any related file is archived and indexed. The result file

format is similar to INI file format. . The sections of result file format are

shown in the listing below:

[GLOBAL]

File=[<filename1>,<filename2>]...

DocType=<New doctype>

DocClass-<FN DocClass>

Link=[<LinkId1>,<LinkId2>]...

[<LinkId>.LINK]

File=<link filename>

IDM Services for R/3 Configuration

IDM Services for R/3 Category ‘cServer’

March 2003 FileNet Document Warehouse for SAP 73

DocClass=<FN DocClass>

Index=<index field>

<index field1>=<index value1>

<index field2>=<index value2>

[<LinkId2>.Link]

File=<link filename>

DocClass=<FN DocClass>

Index=<index field>

<index field1>=<index value1>

<index field2>-<index value2>

[INDEX]

<index field1>=<index value1>

<index field2>=<index value2>

Note: The preprocessor can return an empty result file. In this case,

cServer assumes that no customizing is needed, and continues archiving

the original file, as before.

[GLOBAL]

This section describes the data file to be archived, its document class,

and any links to other section. The entries in the [GLOBAL] section are

listed in the table below:

Entry Description

File Refers to the name of the file to be archived. Multiple files can be

specified in this entry for a FAX document type. For any other

document type, only a single file is allowed. This entry is committed if

the original file generated by ArchiveLink is used for archiving.

DocType Refers to new SAP doctype such as OTF, ALF, and FAX. This is an

optional entry.

DocClass Refers to the IS document class under which the document is to be

archived. This is an optional entry.

Link Specifies the <LinkId> of subsequent sections, containing further

instructions to archive related documents. This entry can have more

than one LinkId. This is an optional entry.

If DocType and/or DocClass entries are not specified, cServer will uses

the SAP DocType in the archive request, and the DocClass, specified in

the configuration file.

IDM Services for R/3 Configuration

March 2003 FileNet Document Warehouse for SAP 74

[<LinkId.Link>]

This section is required if <LinkId> is specified in the Link entry in the

GLOBAL section. It specifies a template file that should be archived with

the original document produced by SAP ArchiveLink. The resulting

document id can be indexed with the data file. The entries in the

[Linkld.Link] section are listed in the table below:

Entry Description

File Represents the file to be archived.

DocClass Refers to IS document class, under which the document is archived. If

you do not include this entry, the DocClass specified in the GLOBAL

section is used.

Index The index field name of the document class specified in the GLOBAL

section. Once the file is archived, its document id must be assigned to

this index field.

<Index field1> Represents additional index information to be indexed with the file.

More than one index entry can be specified in this section.

The resulting docId of the archived template file is written to a default link

file, DAT2OTF.DID. The resulting docld can also be written to a specified

link file, defined in the Filename DID entry in the cServer configuration

tool.

[INDEX]

To direct cServer to add additional indexes while archiving a document,

the [INDEX] section is used. It describes index information to be indexed

with the document specified under the GLOBAL section. The [INDEX]

section is optional.

There can be several valid index entries that are defined under the

document class. This document class is specified in the GLOBAL section.

cServer can index string, numeric, and date data types.

IDM Services for R/3 Configuration

IDM Services for R/3 Category - General

March 2003 FileNet Document Warehouse for SAP 75

IDM Services for R/3 Category - General

The General category contains preferences used by IDM Services for

R/3.

Preference Description

Directory Refers to a path to store temporary files, e.g. c:\temp.

IDM Services for R/3 require sufficient space in this directory for

proper operation. There should be at least 250 MB of free space.

Several files are created and deleted in this directory; therefore, it is

recommended that the drive should be defragmented on a regular

basis.

Default SAP System If no authenticity id is sent by the SAP system, the settings of the

default SAP system are used.

IDM Services for R/3 Category - cBarcode

The cBarcode category contains preferences specific to the cBarcode

component.

IDM Services for R/3 Configuration

IDM Services for R/3 Category - cBarcode

March 2003 FileNet Document Warehouse for SAP 76

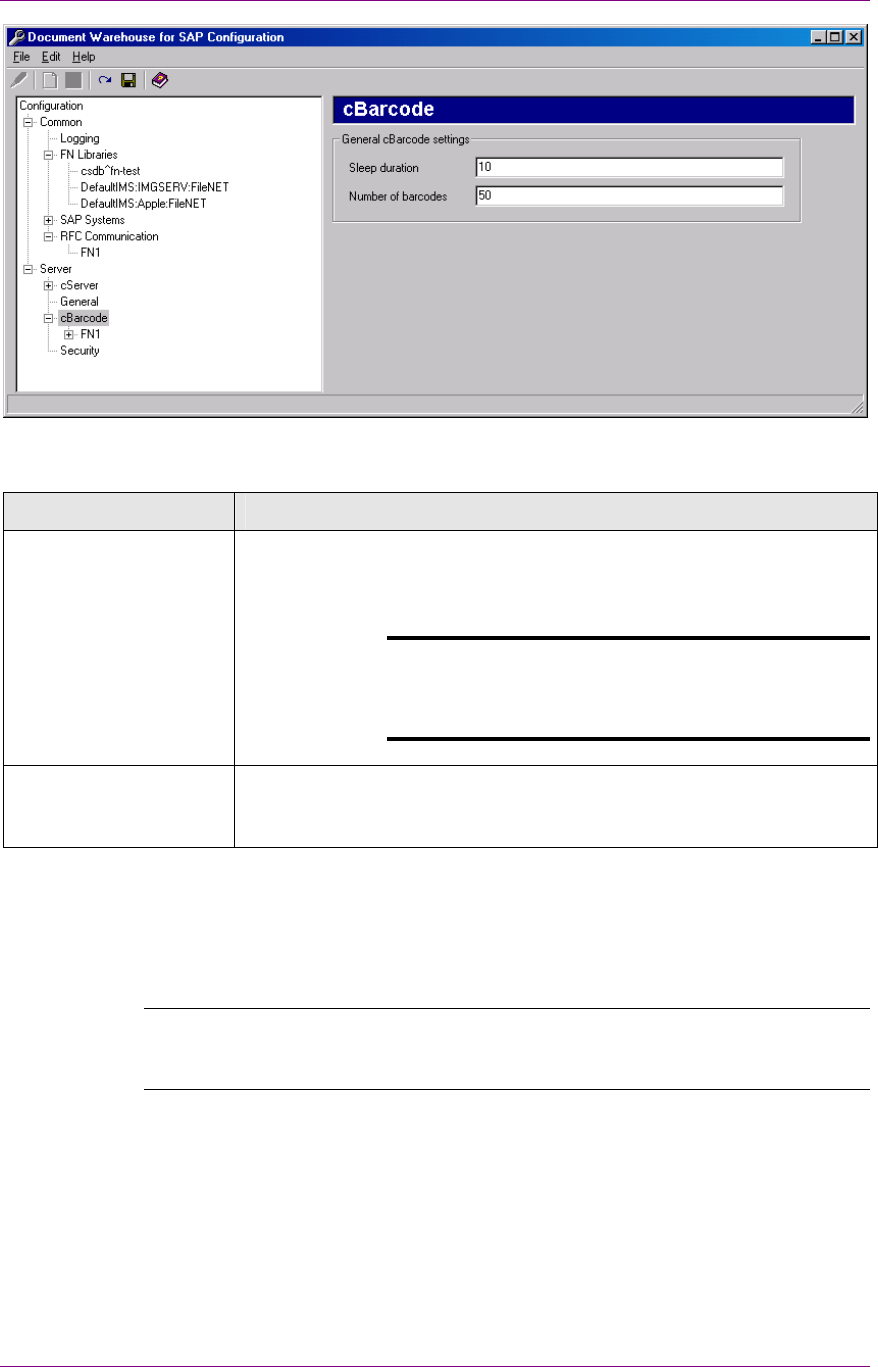

Following table lists the preferences specific to the cBarcode category:

Preference Description

Sleep Duration Refers to the number of minutes that cBarcode waits, after processing

the configured queue / SAP system combinations, prior to restarting

processing. The default value is 10 minutes.

Caution: If the option Online Administration is

enabled then sleep interval should be an integer

value greater than zero. This field should not be left

blank.

Number of Barcodes Refers to the number of barcodes to be transferred in a single

transactional step. The default value is 50. A greater value may

increase performance, but it also increases the number of failures.

The cBarcode category provides sub-categories that contain SAP archive

specific preferences. SAP archives to be used by the cBarcode

component should be added under the SAP systems category first. The

archives will then be available under the cBarcode category.

Note: Every SAP archive has a unique barcode Queue. This definition

serves as the source (the queue to read from) and the destination (the

SAP system to send to) at the same time.

To define a FileNet queue / SAP system mapping,

1. Expand the appropriate SAP system node under the cBarcode

category

2. Select the SAP archive, in which the queue and the documents

reside.

IDM Services for R/3 Configuration

IDM Services for R/3 Category - cBarcode

March 2003 FileNet Document Warehouse for SAP 77

The selected category contains the following preferences as shown in

figure:

Preference Description

FileNet Library Refers to the FileNet library, in which the queue resides. This setting

cannot be changed because it is defined in the archive setting of the

SAP system.

Workspace Refers to the workspace of FileNet library, in which the queue resides.

Queue Refers to queue that contains document references.

Barcode Property Refers to the property of document such as index field, which

contains the barcode.

Barcode Length Represents the maximum length of a barcode. cBarcode truncates

longer barcode values, before transferring them to SAP system.

SAP ArchiveLink

version

Refers to the SAP ArchiveLink interface version to be used for

transfer.

Settings Enabled Refers to enabling or disabling of processing Barcode information by

cBarcode for the selected SAP archive.

Note: The configuration tool does not check the above information for

validity or consistency.

The configuration tool can create the barcode queue, if the latter does not

exist. To create a barcode queue containing the set of queue fields

required by the cBarcode component, enter the preferences as described

above. Click the Create Queue button. The configuration program

creates a barcode queue containing the set of queue fields required by

the cBarcode component. The definition permissions of the queue are set

to SysAdminG group. The content permissions are set to the primary

IDM Services for R/3 Configuration

Configuring Security

March 2003 FileNet Document Warehouse for SAP 78

group of currently logged on user, if no primary group has been specified

for the logged on user then the content permissions are set to the user.

CAUTION: Queues defined using IDM Desktop and SysAdmin user of IDM

Image Services library are inaccessible under certain circumstances. Use a user

other than SysAdmin, to create barcode queues, while creating barcode queue.

Configuring Security

Background: When SAP sends a HTTP request to cServer, SAP sends

a URL to cServer. This URL encodes the type of request e.g. info and

the parameters of the request, such as the archive and document id.

To ensure that some other user does not change this URL, SAP

calculates a security key from the URL and private key of SAP system.

SAP adds this security key to the URL it sends to cServer. CServer

compares the URL with the certificate, which is a public key. SAP had

sent this public key at the time of initial configuration of the archive.

These certificates are stored by cServer in an address book file. In SAP,

the process of signing a URL with a security key and verification by

cServer, is called security check. The security check is independent of

FileNet security.

While creating a document, SAP also determines for what access

modes this security check has to be performed by cServer. Security

check is performed for create, read, delete, and update access modes.

For example, SAP instructs cServer that delete should be protected (i.e.

the URL that encodes a delete request for this document has to be

signed with a security key) while read does not have to be protected (i.e.

that the URL does not have to be signed with a security key). This

document protection is stored in the FileNet index, SAPDocProt. For

documents where SAP does not explicitly determine at creation time

which access modes should be protected, cServer provides

configurable default document protection values These values

determine whether a security check is required. For legacy documents

created with an earlier version of ArchiveLink, the security check is

performed for all access modes.

The SAP user does not have to be concerned with these settings or with

the process of signing a URL for archive requests. This is all done by

the SAP R/3 system and cServer.

IDM Services for R/3 Configuration

Configuring Web-Based Client Environment

March 2003 FileNet Document Warehouse for SAP 79

The preferences for the security category are shown below in the figure.

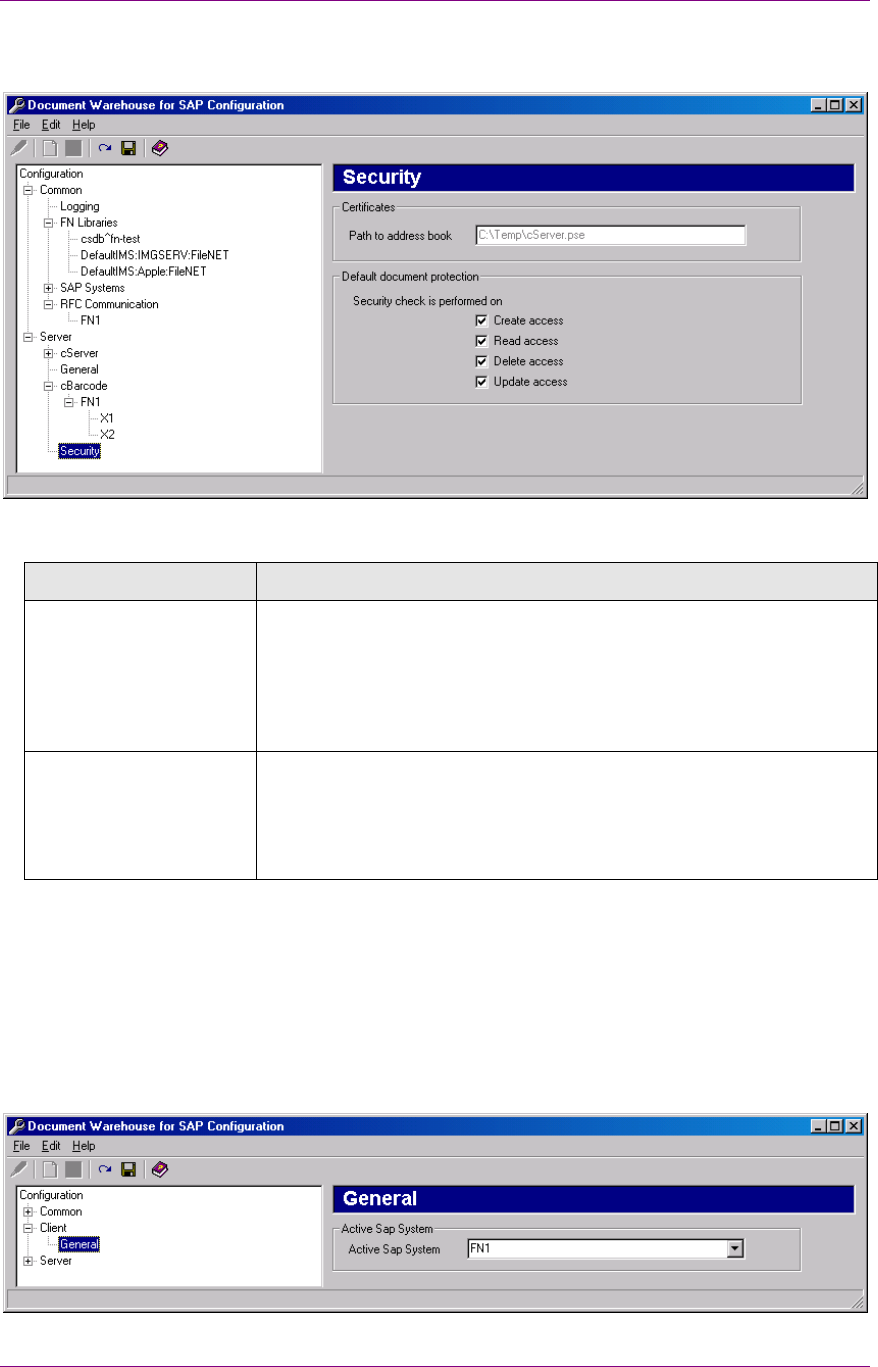

Following table describes the various preferences in the security

category:

Preference Description

Path to address book This is a mandatory preference and specifies the full path and

name of the address book file used to store certificates sent from

SAP system to cServer.

This preference cannot be changed in the configuration tool. The

address book is stored in the temp directory specified under the

general category of Server node in the configuration tool.

Default document

protection

Determines whether a security check is performed for an access

mode, if no document protection is set by SAP, while the document

is created. If checked, the specific access method is protected. The

recommended value is to perform the security check for all access

modes.

Configuring Web-Based Client Environment

If the additional installation for a Web-based client environment on the

server occurs, the configuration tool changes slightly. A new main

category Client is added.

Following figure shows the preferences available in the category Client:

IDM Services for R/3 Configuration

Configuring Server AddOn Environment

March 2003 FileNet Document Warehouse for SAP 80

Following table describes the preferences available in the category Client:

Preference Description

Active Sap System Choose the active SAP system from the drop down list.

Configuring Server AddOn Environment

The configuration tool changes slightly, if the additional installation for a

Server Addon on the server is done for pure thin document viewing, and

DMS viewing and linking ASP sample application.

Configuration of DMS Viewing and Linking ASP Sample Application

A new main category Client is added in the configuration tool. This

category is described in the figure below.

Following table gives a short description of the Client category; refer to

subsequent sections for details on configuring the preferences of a

certain category:

IDM Services for R/3 Configuration

Configuring Server AddOn Environment

March 2003 FileNet Document Warehouse for SAP 81

Category Sub

Category

Description

Refers to the top-level branch of General, DMS.

General Refers to the configuration of commonly used

preferences.

Refers to DMS related preferences, which are used

in DMS Web applications.

Client

DMS

DMSUI

Componen

ts

Refers to the list of DmsUI components as the sub-

category.

Configuration of Category DMS

Background: DWSAP provides DMS functions such as creating and

modifying Document Info Records (DIRs) in the SAP R/3 system

through the DMS BAPI, as well as linking objects from FileNet

repositories to SAP R/3 DIRs. These functions are encapsulated in two

separate components: DMS Component and DMS UI Component.

The configuration required in the category DMS is depicted in the

following figure:

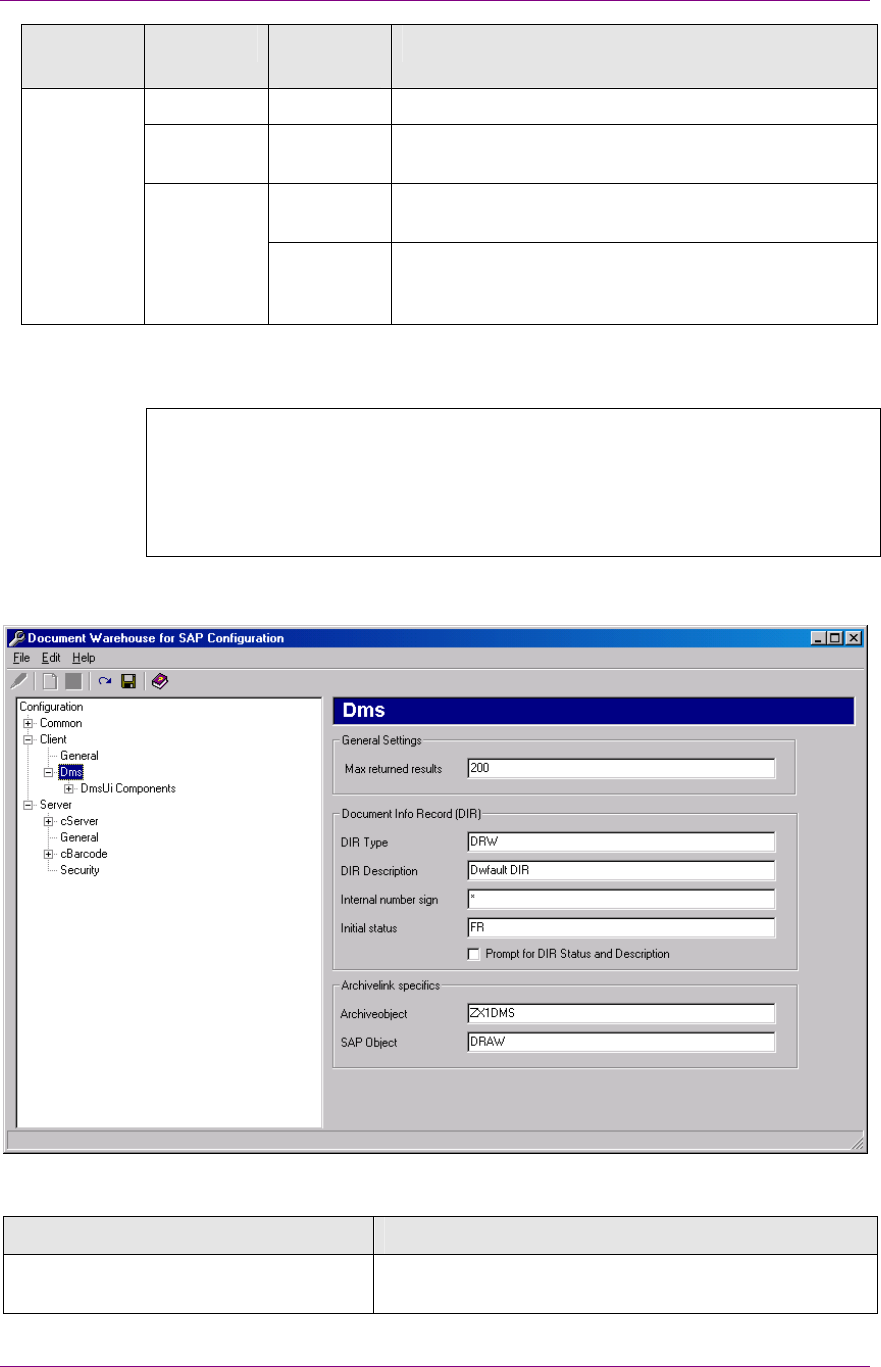

Following table describes the preferences available in the sub category

DMS:

Preference Description

Maximum returned results Refers to the maximum number of results returned,

while issuing a search for SAP master records.

IDM Services for R/3 Configuration

Configuring Server AddOn Environment

March 2003 FileNet Document Warehouse for SAP 82

Preference Description

DIR Type Defines the possible states a document can have e.g.

DRW. It also lists with which master records a

document can be linked.

DIR Description Represents the default description that will be

assigned to a newly created DIR.

Internal number sign Defines the numbering system of DIR. The predefined

DMS document type DRW uses the (*) character to

create a new id.

Initial status Defines the initial status a newly created DIR will be

assigned as a default value. (see transaction cv01).

FR (released) is the initial status for DRW.

Prompt for Dir Status and Description Refers to a checkbox which if checked will prompt the

user to select values for Initial Status and DIR

description when a new DIR is created.

Archive object Represents the SAP document type, which was

created in transaction oac2.

SAP Object Represents the SAP Object type, which needs to be

DRAW.

DMS UI Components

Background: DMS UI Components offer functions to access

information about SAP R/3 master records. DMS UI Components also

offer functions to search and select SAP R/3 master records. These

functions have an interactive interface, in form of user dialog boxes.

You can create a custom DMS UI Component, to use the same functions

with other SAP master records, for example, equip masters

To add a new DMS UI Component:

1. Select the sub-category DMS UI Components in the categories tree.

IDM Services for R/3 Configuration

Configuring Server AddOn Environment

March 2003 FileNet Document Warehouse for SAP 83

2. Add a new sub-category using the menu Edit→

→→

→Add. The new sub-

category represents the individual DMS UI Component and

<libraryname>.<classname> <Count>.

Following figure shows the preferences that need to be entered for a

newly added DMS UI Component:

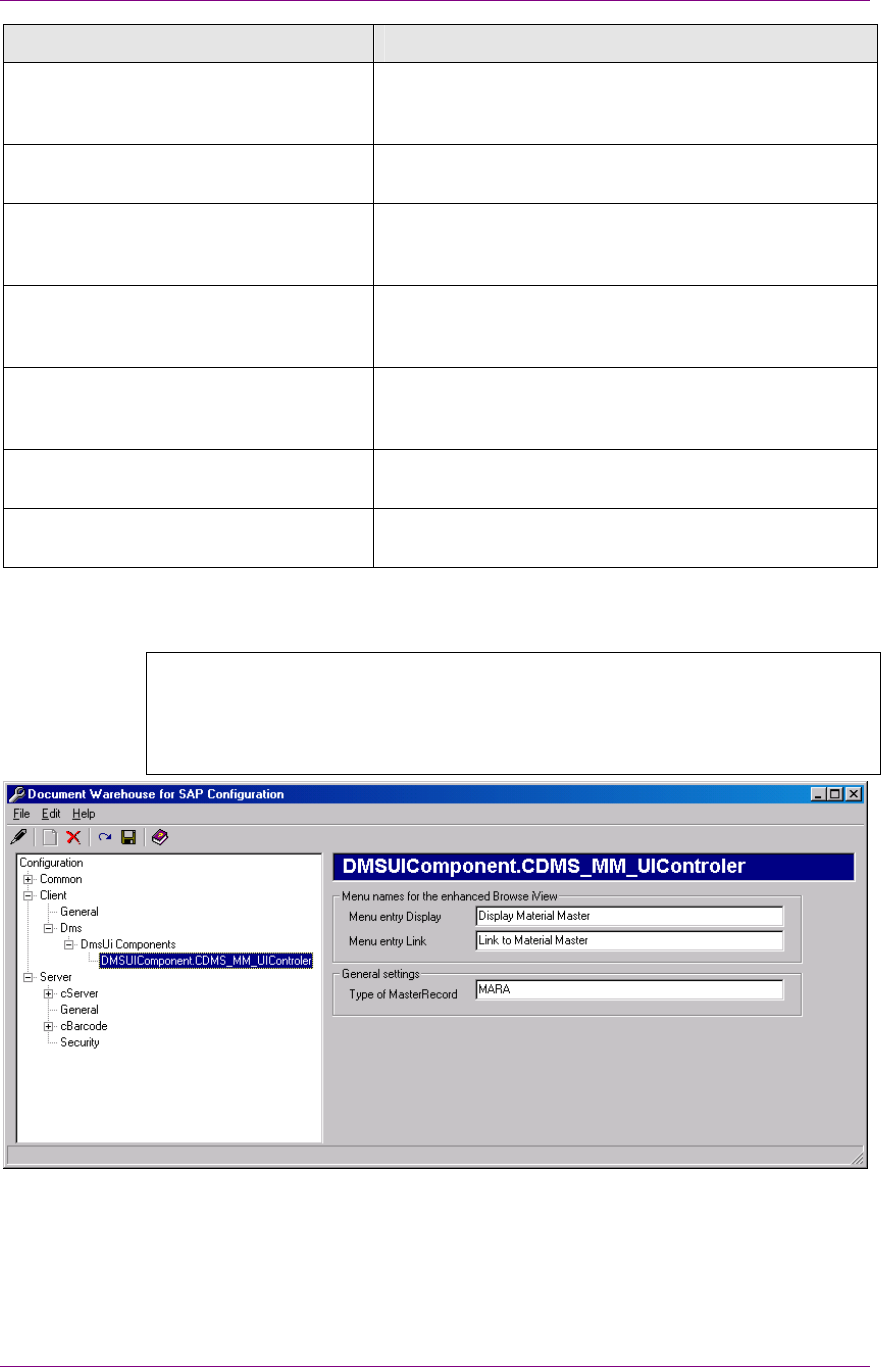

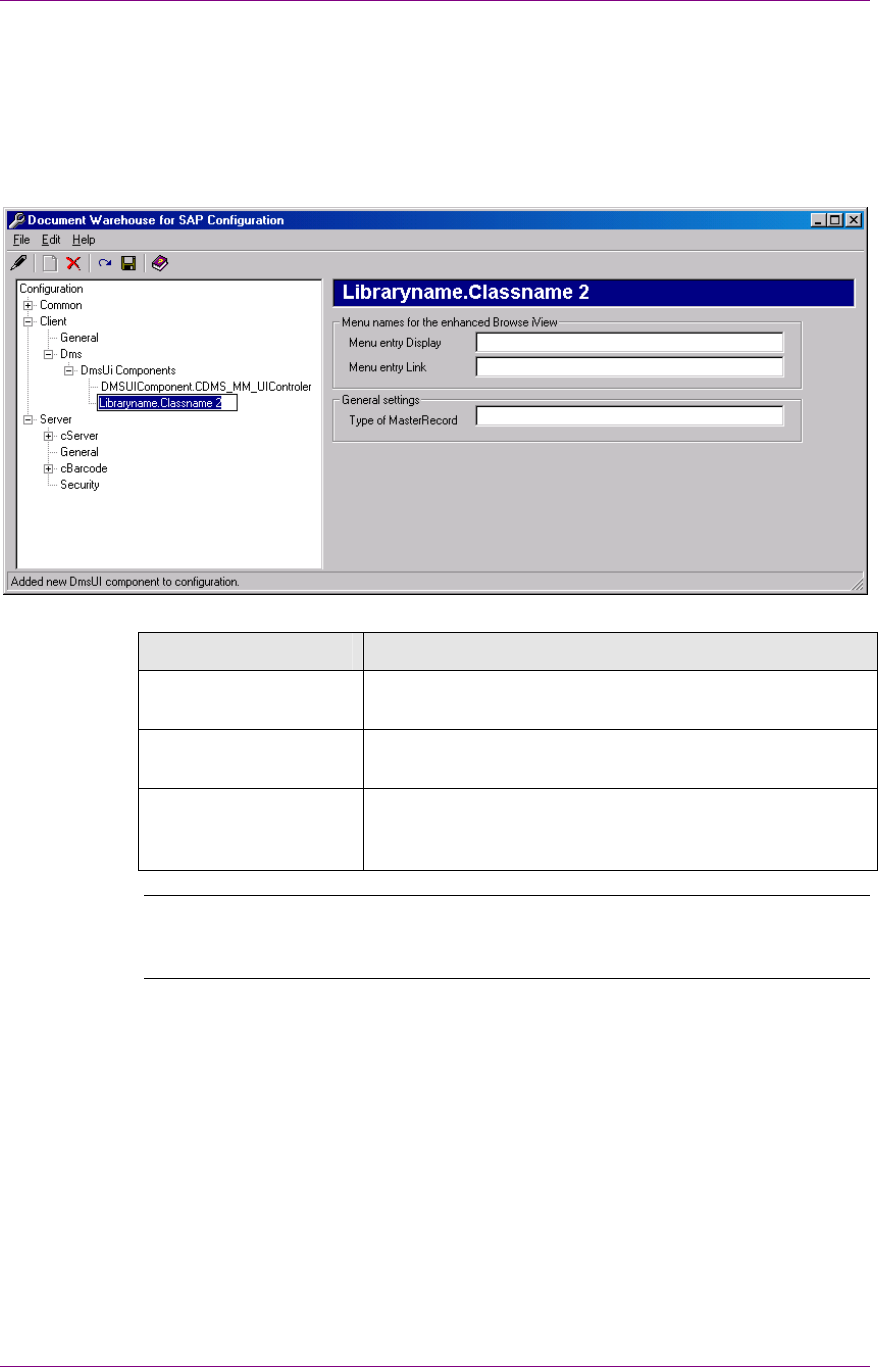

Following table describes the preferences shown in the figure above:

Preference Description

Menu entry Display Displays the description, which appears in the menu

DMS. This is not required for a DMS web environment.

Menu entry Link Displays the description, which appears in the menu

DMS. This is not required for a DMS web environment.

Type of Master

Record

Displays the ID of the master record that is used, for

example, EQUI for Equipment Master or MARA for

material master.

Note: The master records in SAP R/3 system are identified by an id and

type id. The type id is a combination of four characters, and is a part of

the primary key of the record.

Configuration of Pure Thin Document Viewing

In the configuration tool, the Server 



 General section contains

configuration options section for Pure Thin Document Viewing. These

options under the sub-category General and the section Pure Thin

Document Viewing are shown in the Right frame of the following figure:

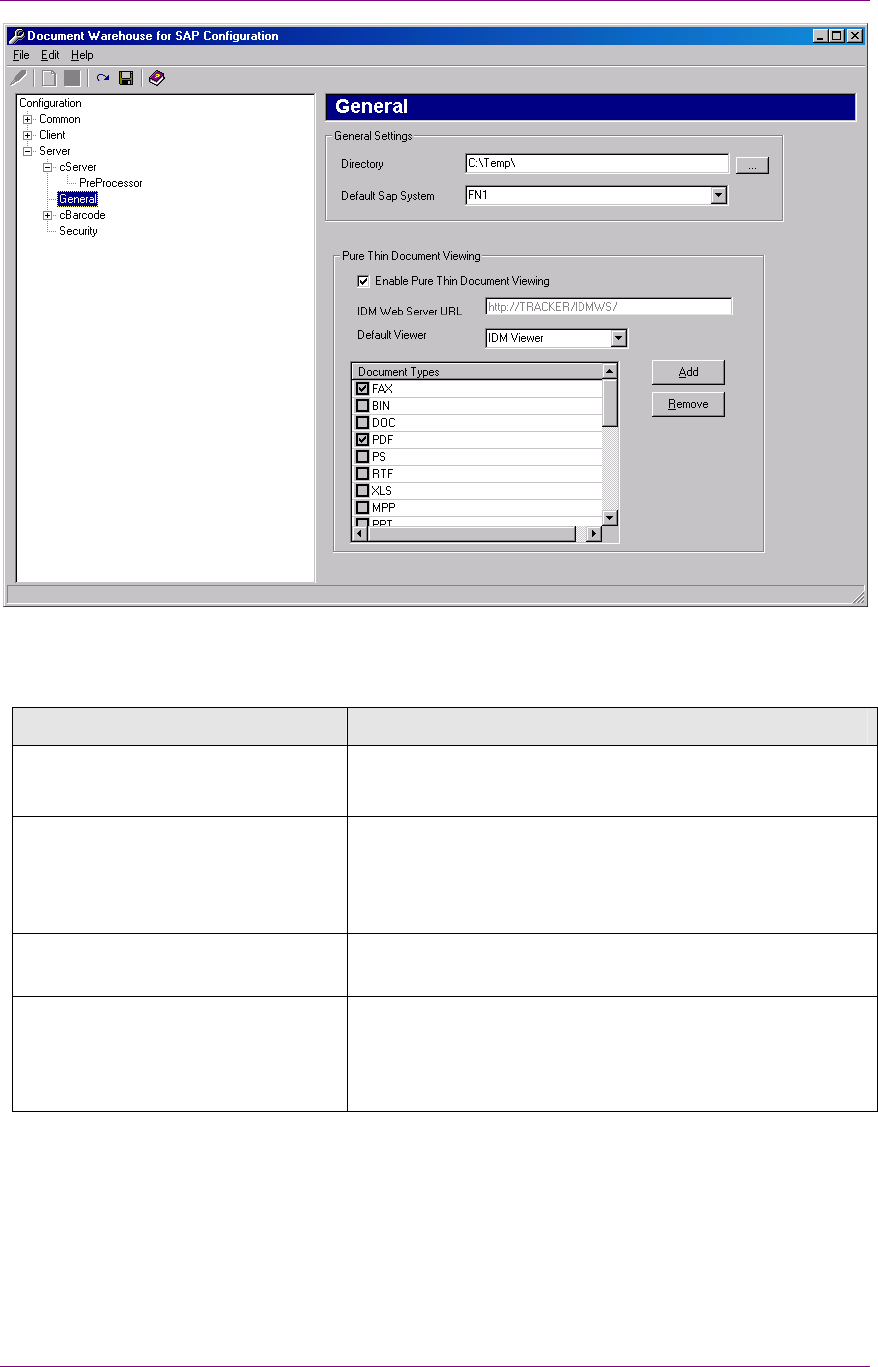

IDM Services for R/3 Configuration

Configuring Server AddOn Environment

March 2003 FileNet Document Warehouse for SAP 84

Following table describes the various preferences for the Pure Thin

Document Viewing configuration:

Option Description

Enable Pure Thin Document

Viewing

Enables or disables pure thin document-viewing support.

IDM Web Server URL Indicates the machine, where IDM services for R3 and

Server Addon are installed. This URL is non-

configurable, and its value is:

http://<machine name>/idmws/

Default Viewer Refers to either ViewOne, or IDM viewer, with which

the document is displayed.

Document Types Allows the user to select document types such as

PDF ALF or FAX that require pure-thin document

viewing support. Addition and removal of user

defined document types is allowed.

March 2003 FileNet Document Warehouse for SAP 85

6

Customizing SAP

SAP ArchiveLink requires customization of R/3 systems, to work with a

content/archiving system vendor such as FileNet. The following sections

describe the necessary customizing for SAP R/3 system:

Tip: If SAP system had been processed with a former release of DWSAP, such

as 4.0, most of the customizing is already done. Only the supplementary SAP

customizing for using cServerHTTP needs to be done.

Overview

Most of SAP ArchiveLink customizing starts in, SAP Easy Access,

which, displays the possible choices such as basic settings in a

hierarchical structure as shown in the following figure:

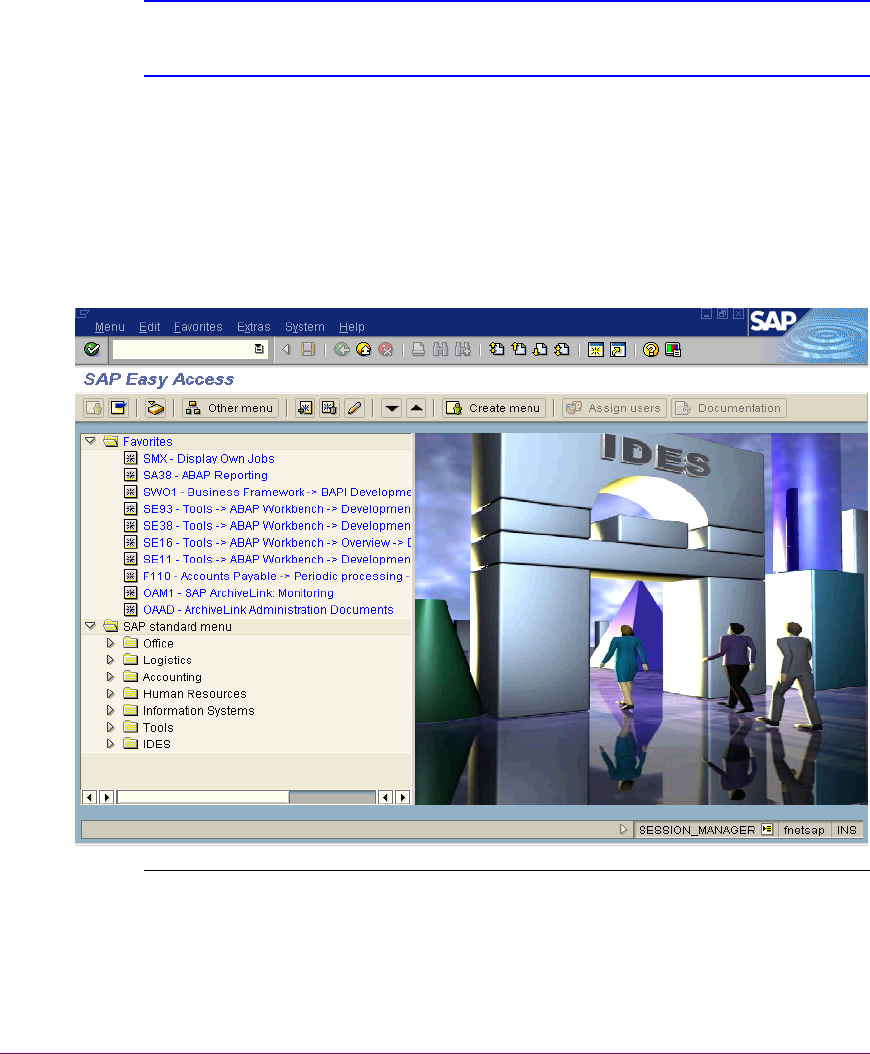

Note: As an alternative, to customize your SAP system, use the SAP

Implementation Guide (IMG). The IMG guide lists the necessary steps,

provides context-sensitive SAP online documentation, and automatically

displays the customizing screens for all SAP related functions. The IMG

Customizing SAP

Initial Customizing

March 2003 FileNet Document Warehouse for SAP 86

can be found under Tools 





AcceleratedSAP 



 Customzing menu, or

through transaction code spro.

There are two types of SAP ArchiveLink customizing required, which are

as follows:

• Customizing specific to DWSAP. The tasks necessary for this type of

customization are SAP Archive definition, SAP Archive Protocol

definition.

• Customizing for SAP modules such as FI and SD, which is

independent of the archive used. This type of customization is not part

of this documentation. Refer to the SAP Online documentation for

more information on the customizing of SAP modules.

Initial Customizing

This is the initial customizing that needs to be done on the SAP side for

configuring the ArchiveLink interface of SAP. Following section, describe

in detail the specific type of customizing that is required on SAP side:

Basic Settings

Following figure shows the Basic Settings, transaction code oag1:

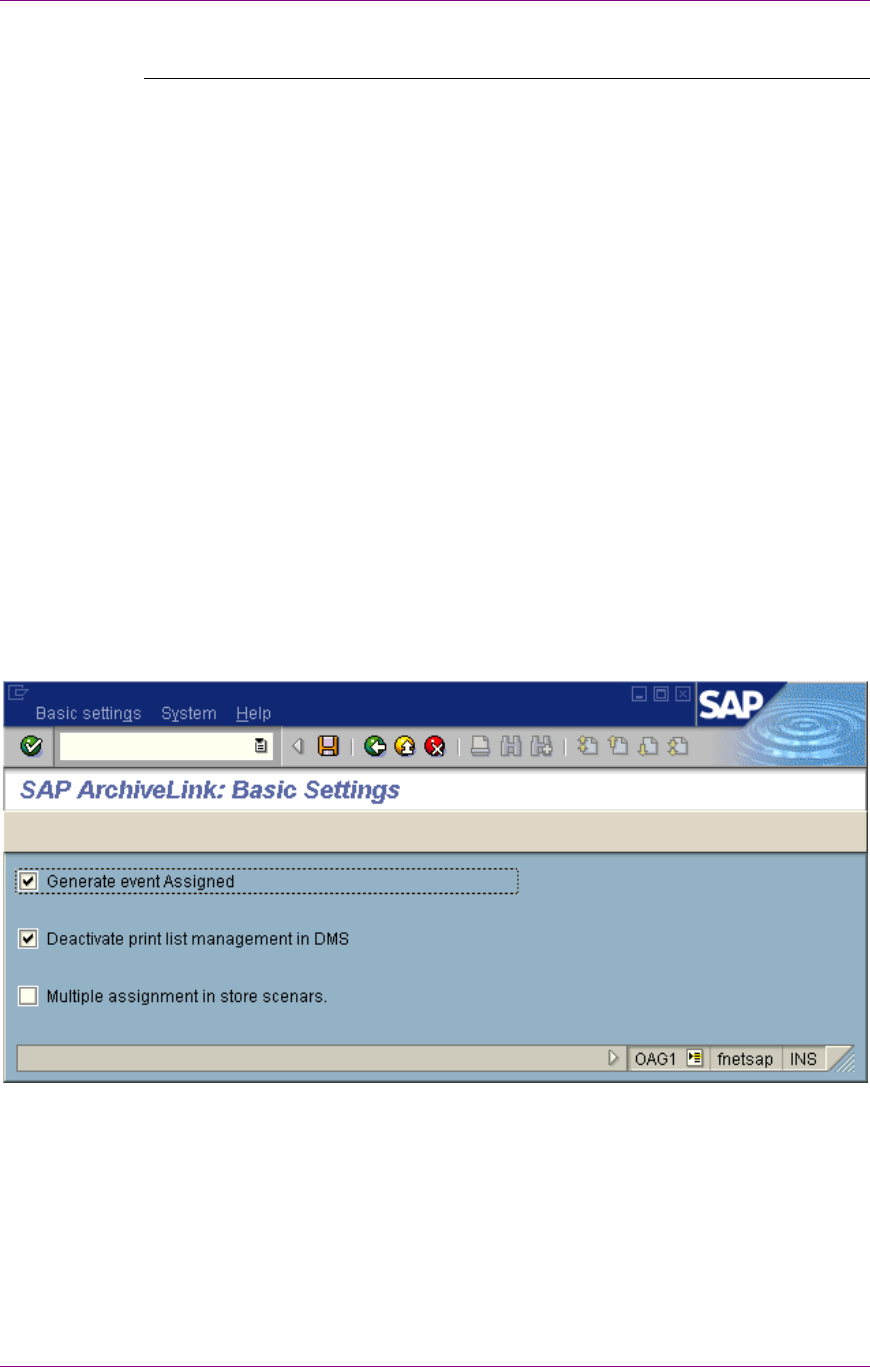

Customizing SAP

Initial Customizing

March 2003 FileNet Document Warehouse for SAP 87

The values that DWSAP requires for the options shown in figures above

are explained in the following table:

Setting Value Remark

Generate event Assigned Check Required to store the value

Storing for subsequent

entry and Store and Enter

(formerly known as Early

and Simultaneous Input).

Deactivate print list management in DMS Check or

uncheck

This option is not relevant to

IDM Services for R/3.

Multiple assignment in store scenarios Check or

uncheck

Not relevant to IDM

Services for R/3.

Creating SAP Queues

Background: SAP ArchiveLink maintains several queues, to

temporarily store asynchronous archiving and retrieval request, and

confirmation messages exchanged with IDM Services for R/3. SAP

system does not automatically create these queues. This means that

the queues must be created as part of SAP ArchiveLink setup. This

needs only be done once per SAP system.

In order to create queues in SAP, access the following menu: Business

Documents 



 Environment 



 Knowledge Provider 



 Kpro 





Create queues or use the transaction code oaqi. The following screen is

displayed:

CAUTION: Re-creating the SAP queues deletes the contents of the queues. In

SAP ArchiveLink Monitor, transaction code oam1, check the Queues section. If

numeric values are displayed next to the buttons Storage, Confirmation, and

Retrieve, it means that SAP queues already exist.

Customizing SAP

Initial Customizing

March 2003 FileNet Document Warehouse for SAP 88

Enter the alphabet X for all queues to be created as shown in above

figure. Enter SAP user name of the administrator, to receive notifications

about errors that occur during queue processing.

Tip: It is not necessary, but it is recommended that all queues should be created

at the same time.

Maintaining Number Range

Background: SAP ArchiveLink requires a number range to generate

unique file names, and IDs for asynchronous requests.

In order to maintain the number range, access the following menu:

Business Documents 



 Environment 



 Knowledge Provider 





Kpro 



 Maintain number range or use the transaction code oanr. The

following screen is displayed:

Customizing SAP

Initial Customizing

March 2003 FileNet Document Warehouse for SAP 89

Following steps are to be followed for maintaining the number range:

1. Check whether the required number range already exists. Click

Number range object 



 Overview in the main menu. The following

screen is displayed:

Customizing SAP

Initial Customizing

March 2003 FileNet Document Warehouse for SAP 90

2. If a number range object for example, 01 exists, as shown in the

screen shot above, another number range should not be created. If

the number range does not exist, proceed to the next step.

3. Create a number range. Click Interval 



 Change in the main menu.

The following screen is displayed:

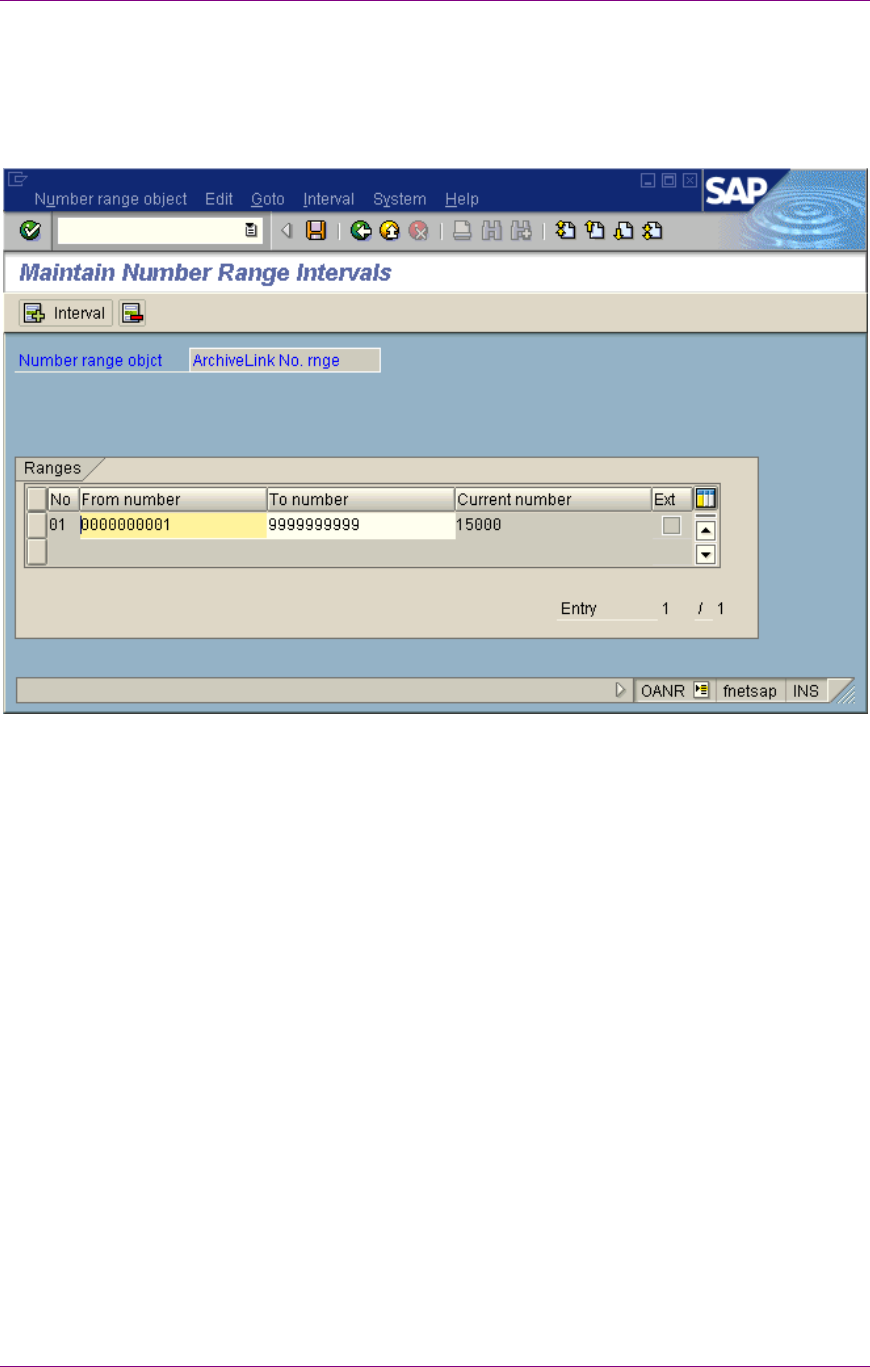

4. To insert a new interval, click Edit 



 Insert interval menu in the main

menu or click the Interval button in the above screen. The following

screen is displayed:

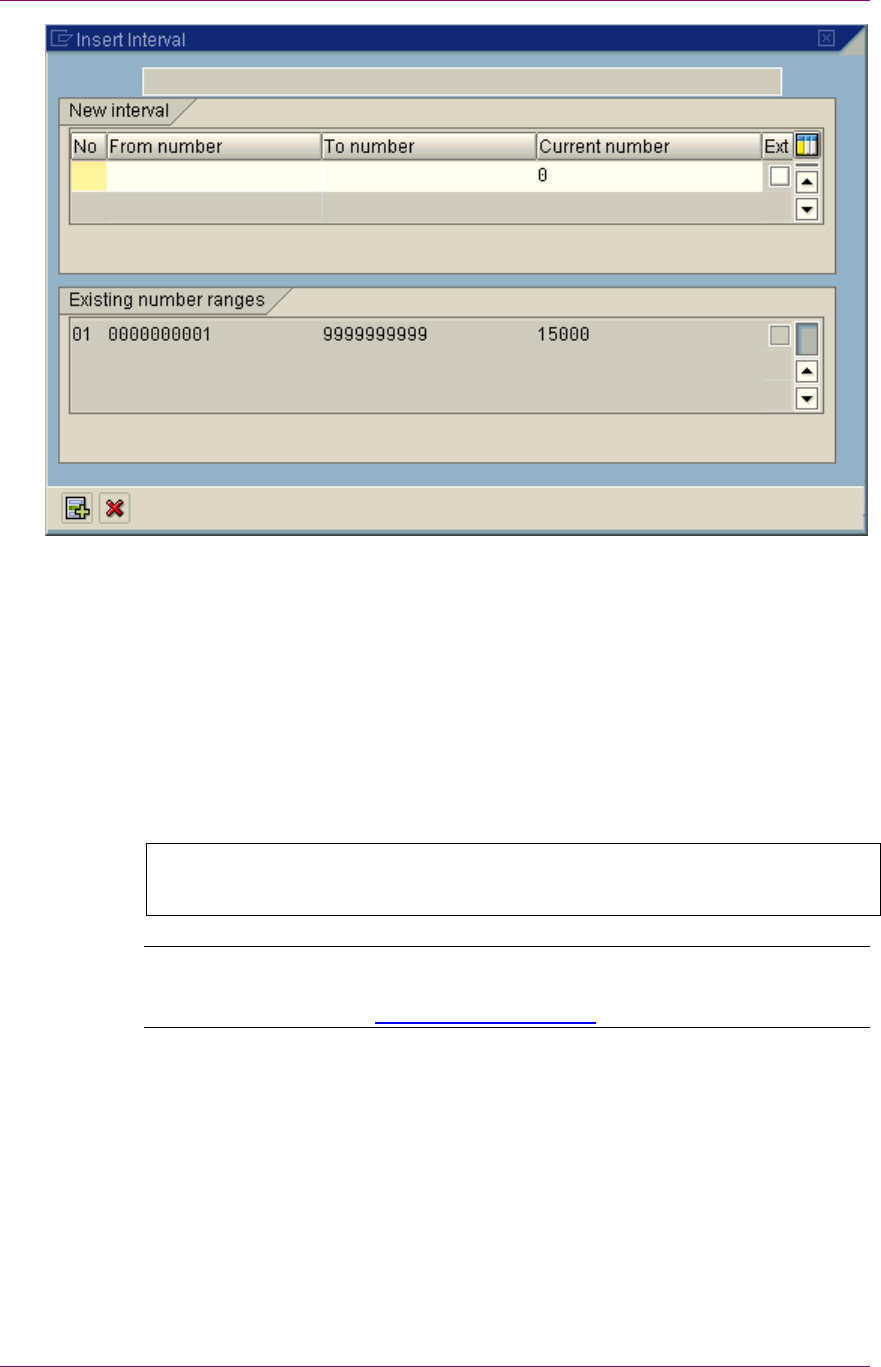

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 91

5. Enter the following values for the various fields that are shown:

No “01”

From Number “0000000001”

To Number “9999999999”

Current Number “1”

Ext “ “ (leave blank)

Maintaining Archive Device

Background: You can specify an archive-specific archive device,

overriding the default archive device ARCH. This is an optional step.

Note: The archive specific archive device can be set in the Content

Repository transaction. For more information on defining an archive

device, refer to section SAP Archive Definition.

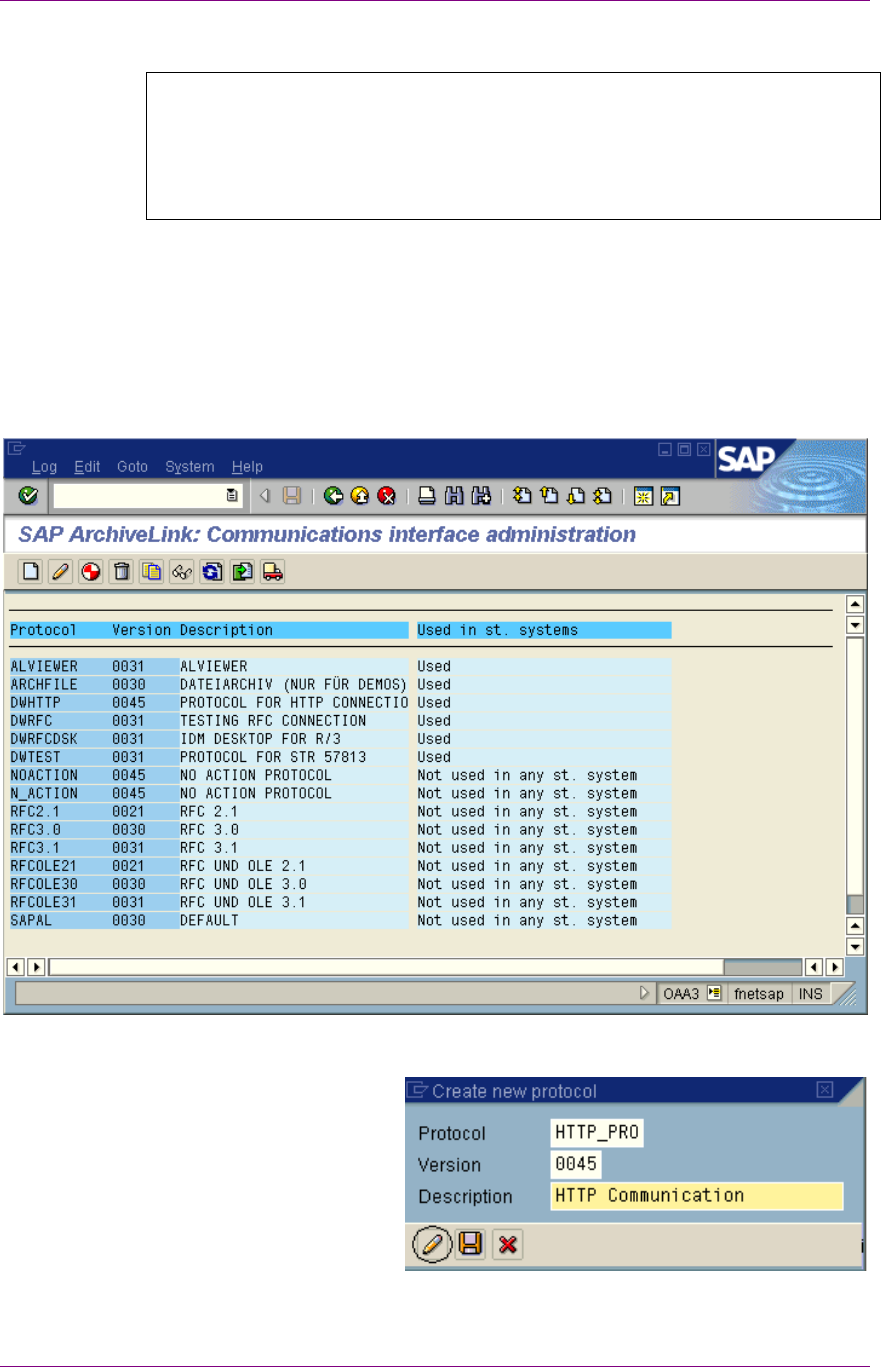

Communicating with Archives

This section describes the protocol that is used to communicate with an

archive. Before configuring a new archive, the protocol should be

configured, as it is used while defining the archive.

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 92

SAP ArchiveLink Protocols

Background: SAP ArchiveLink uses protocols to determine the type of

communication to be used for a specific SAP ArchiveLink function. This

communication is based on the document format such as ALF, PDF.

While defining an archive, identify the SAP ArchiveLink protocol to be

used with the archive.

Defining a protocol for thick-client document viewing

In order to define a new protocol for thick client document viewing , follow

the steps listed below:

1. Access the following menu: Tools 



 Business Documents 



 Basic

settings 



 Communication 



 Protocol or use the transaction code

oaa3. Following screen is displayed:

2. Select menu item Log 



 Create or click the New Protocol icon. The

following screen is displayed:

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 93

3. Enter the name of the new protocol, the SAP ArchiveLink version

number, and a short description. If HTTP communication is used,

choose SAP ArchiveLink release 0045 or later. If RFC communication

is used, choose ArchiveLink version 0031.

Note: The combination of protocol name and releases form the identifier

of the protocol.

4. Click the icon, circled in above screen. The following screen is

displayed which shows the protocol overview:

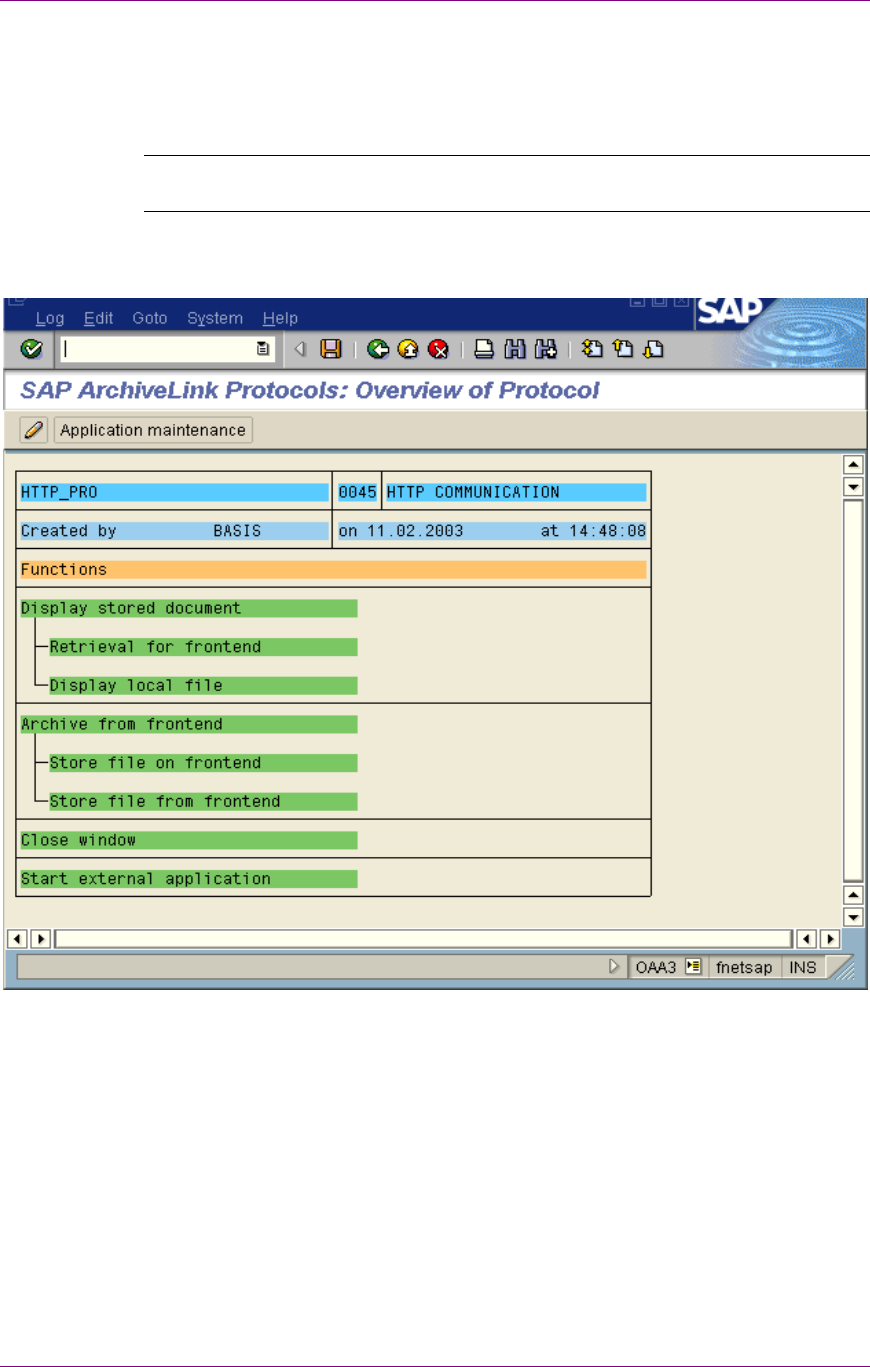

5. In SAP R/3 4.6B, the following functions are available for protocol

customization:

a Display stored document

b Retrieval for frontend

c Display local file

d Archive from frontend

e Store file on frontend

f Store file from frontend

g Close window

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 94

h Start external application

All other functions use the standard communication defined for the

archive, for example, HTTP for an HTTP content server and RFC for an

RFC archive.

6. The SAP ArchiveLink protocol overview screen displays SAP

ArchiveLink functions that can be configured. Double-click a function

to select it. The following screen is displayed, showing the list of

available SAP technical document classes; the (*) document class

represents the default class for the selected function:

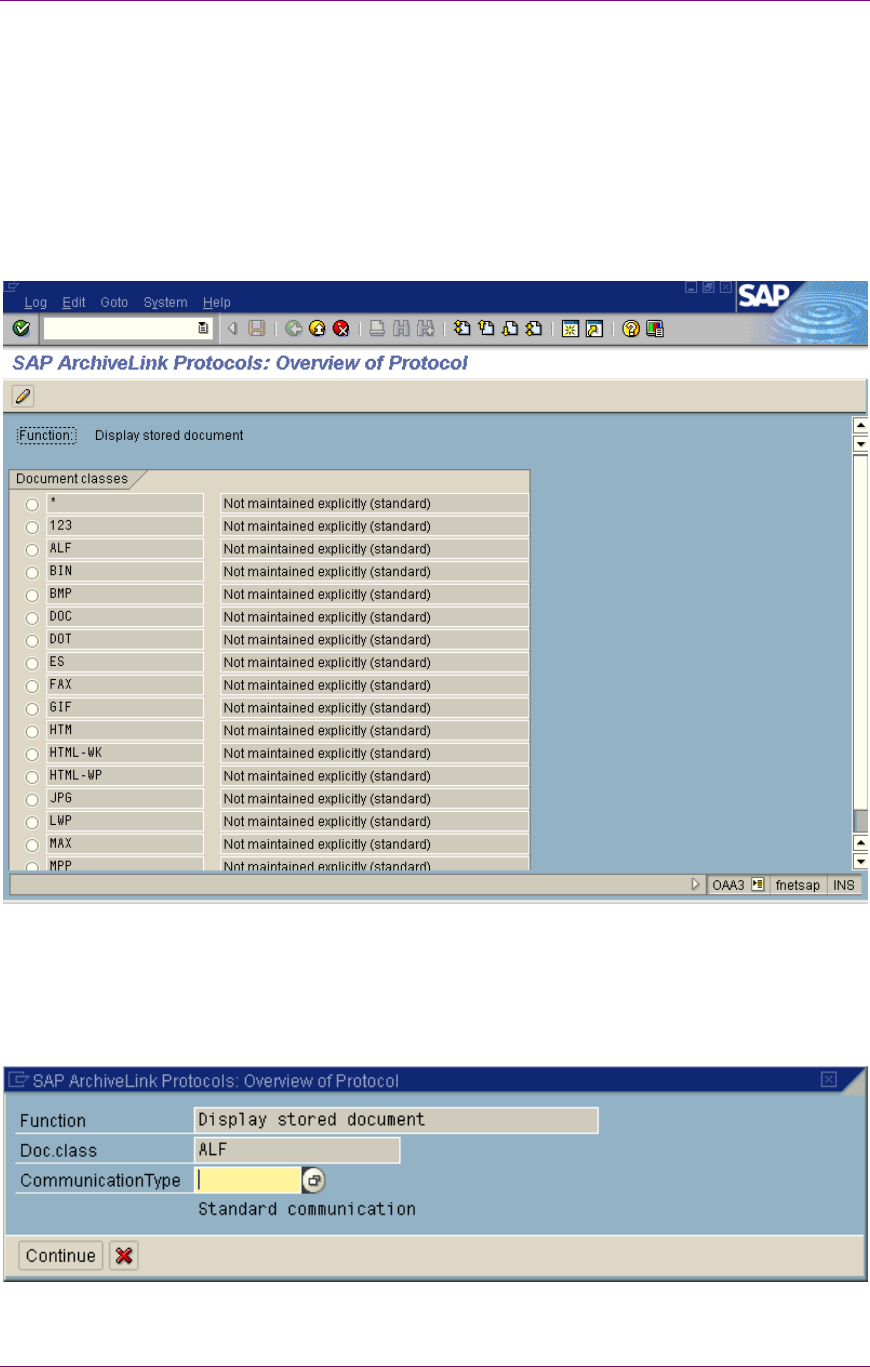

7. To specify a communication type for a document class, select a

document class by selecting the radio button and double-clicking the

document class name. The following screen is displayed:

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 95

8. The default document class (*) can be overridden by a specific setting

for a document class.

9. Enter the communication type that is used in this protocol for the

stated function and the stated document class.

Repeat steps 7 through 9 for all SAP ArchiveLink functions, as specified

in the table below.

The following table lists the communication types frequently used by

DWSAP customers. It is not comprehensive with regard to the possible

communication types. Refer to SAP ArchiveLink online documentation for

detailed information on SAP ArchiveLink functions.

Function Docume

nt Class

Comm.

method

Comments

* OPEN Refers to IDM Desktop for R/3

application. Details about defining IDM

Desktop for R/3 as an OLE application

are provided in Installation and

Configuration Manual-Client.

ALF ICC Refers to print list display in SAP

ArchiveLink Viewer.

ALF R/3 Refers to print list display in SAPGUI.

Protocol version 0045 required for

searching in print lists.

ALF OPEN Refers to print list display in

ArchiveLink Viewer. In this case give

the OLE application as ALVIEWER.

Display stored document

OTF ICC Refers to displaying of OTF

documents. OTF format has been

replaced with PDF. Can only be

displayed by SAP ArchiveLink Viewer.

Retrieval for frontend * OPEN Refers to IDM Desktop for R/3

application.

Display local file Define separately for each document

class.

Archive from frontend * OPEN Refers to IDM Desktop for R/3

application.

Store file on frontend Define separately for each document

class.

Store file from frontend * OPEN Refers to IDM Desktop for R/3

application.

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 96

Note: In table above, additional parameters may be required, for OPEN

communication where the OLE application to be called is entered. In

addition, for some document classes, more than one communication type

is provided. See the respective comments field for more information.

To review the protocol definitions, choose Log 



 Display in the

Communication Interface Administration screen. The screen displays

the list of protocols.

CAUTION: After having customized the SAP ArchiveLink protocol, ensure to

save the changes. Some SAP R/3 releases do not notify the user about unsaved

protocol changes when leaving the transaction.

Defining a Protocol for Pure thin document viewing

In order to define a new protocol for Pure thin document viewing, save a

new protocol without any customization for the SAP Archivelink functions.

RFC Destinations

Background: When using DWSAP as a RFC archive, the definition of

an SAP archive requires an RFC destination. The RFC destination

defines how SAP R/3 system communicates with IDM Services for R/3.

The parameters of RFC destination are: type of transport

communication - TCP/IP, SAP gateway at which IDM Services for R/3 is

registered as an RFC server, and the program ID under which it is

registered. This information is also entered in IDM Services for R/3

configuration. The values should match to ensure a smooth

communication.

In order to define a new RFC Destination, follow the steps listed below:

1. Access the menu: Tool 



 Administration 



 Administration 





Network 



 RFC Destinations or transaction code sm59. The

following screen is displayed:

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 97

2. Expand the TCP/IP connections node.

3. To create a new RFC Destination click Edit 



 Create from the main

menu. The following screen is displayed:

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 98

4. Enter the name of the new RFC destination, and a description in the

screen shown above.

5. Type T for TCP/IP as the Connection type and press Enter. The

screen will change to the one shown below.

Customizing SAP

Communicating with Archives

March 2003 FileNet Document Warehouse for SAP 99

6. Select the Registration button as the activation type. The following

screen is displayed:

7. Enter the program ID you have defined using IDM Services for R/3’s

configuration tool. For more information, about configuring the RFC

program ID refer to section Configuring RFC Communication.

8. If you are not using the standard SAP Gateway of your SAP R/3

system, select Destination 



 Gateway options. The following

screen is displayed:

9. Enter the SAP gateway parameters as defined in the configuration

tool and click O.K.

10. To save your destination, click Save.

Customizing SAP

SAP Archive Definition

March 2003 FileNet Document Warehouse for SAP 100

For more information on how to test RFC destination, refer to section

Testing RFC Communication Parameters.

SAP Archive Definition

Background: An archive is a logical representation of a physical

storage system, for example, a specific FileNet Image Services library.

Note: Archives are called storage systems in R/3 4.5B, and content

repositories in 4.6B.

Before defining a new archive, the following settings must be done:

• The SAP ArchiveLink protocol for the new archive should exist. For

more information, see section SAP ArchiveLink Protocols.

• The RFC Destination (if RFC is used) should exist.

• Obtain a Change Request ID from your SAP System Administration

under which the settings can be saved.

SAP Archive Definition in R/3 4.6B

In order to define a new archive for RFC communication, follow the steps

listed below.

1. Access the following menu: Tools 



 Business Documents 





Environment 



 Knowledge Provider 



 Kpro 



 Content

Repositories or use the transaction code oac0. The following screen

is displayed:

Customizing SAP

SAP Archive Definition

March 2003 FileNet Document Warehouse for SAP 101

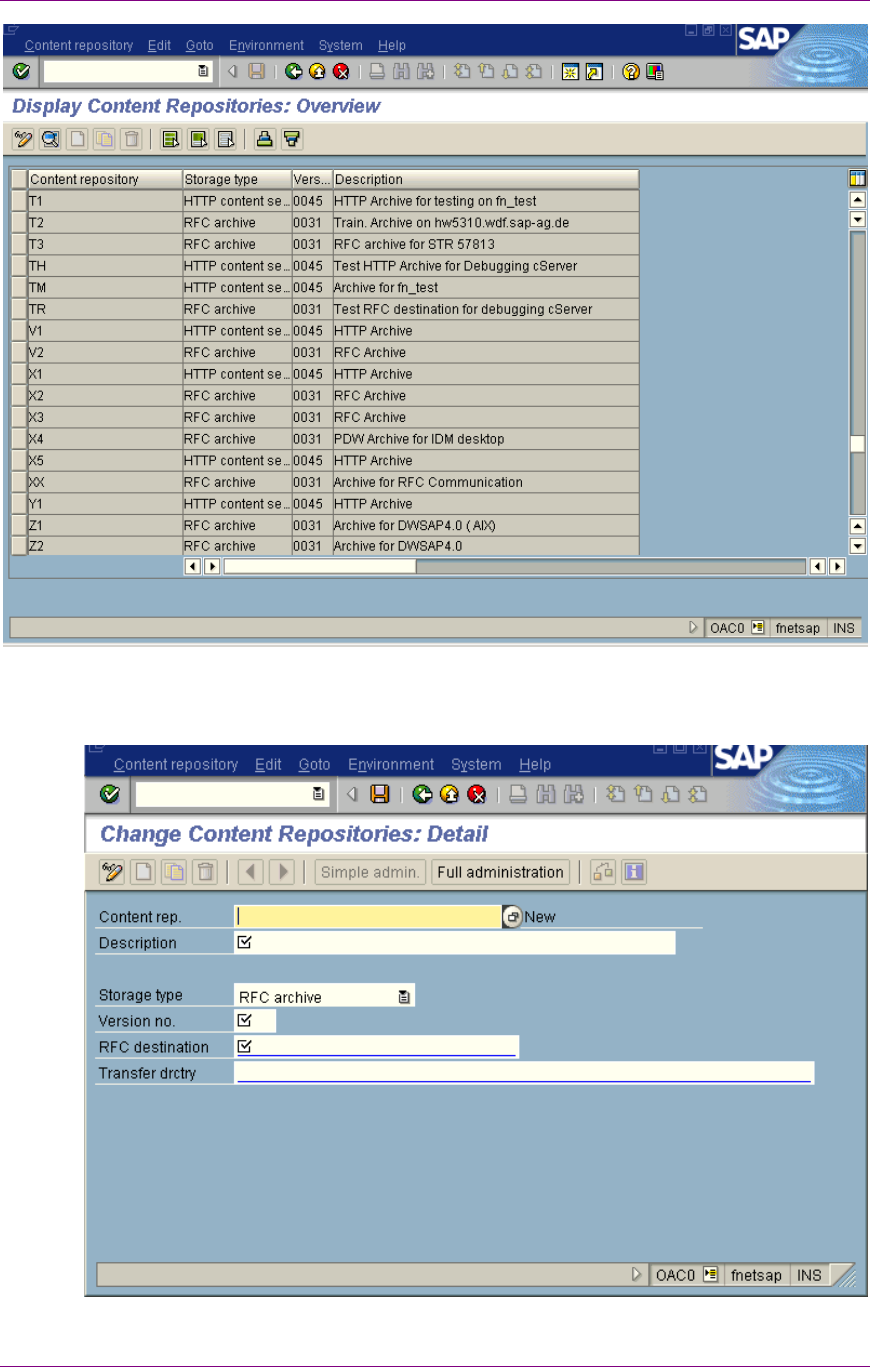

2. Click on the icon Create or choose Content Repository 



 Create.

The following screen is displayed:

Customizing SAP

SAP Archive Definition

March 2003 FileNet Document Warehouse for SAP 102

3. Select the Full administration button. The following screen is

displayed:

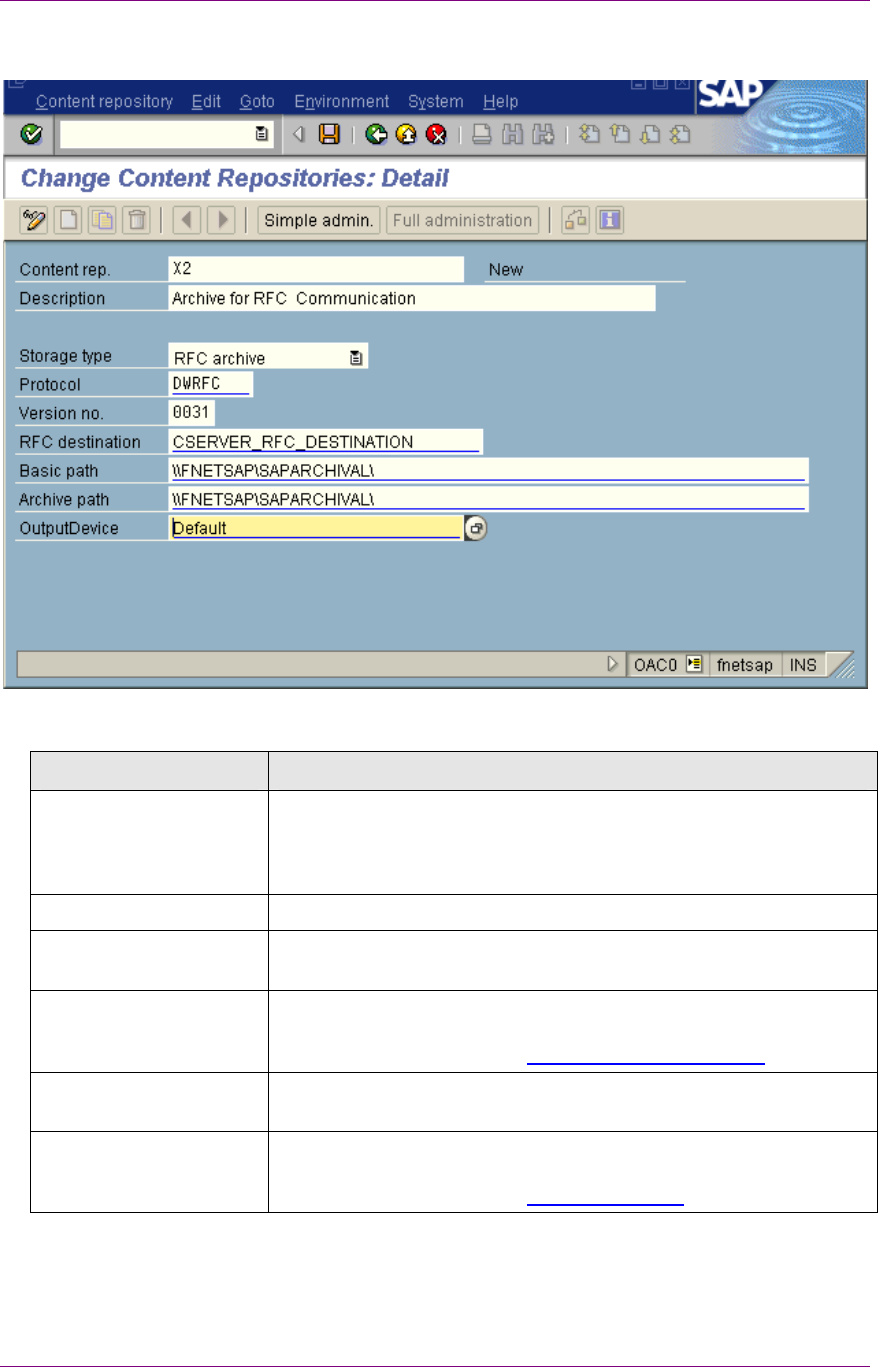

4. Enter the values in all the fields. The values for the new archive are

listed in the table below:

Setting Remark

Content rep. Refers to the name of archive. The name is one alphabetical

character and one alphanumeric character.

Although the screen allows you to enter more than two characters,

SAP ArchiveLink can only work with two character identifiers.

Description Represents language dependent description.

Storage Type Refers to the type of Archive. Choose RFC Archive from the drop

down box.

Protocol Refers to the name of SAP ArchiveLink protocol defined in a

different step of SAP ArchiveLink customizing. For more

information, refer to section SAP ArchiveLink Protocols.

Version no. Represents the SAP ArchiveLink version to be used. Enter the

values 0031.

RFC destination Refers to the RFC destination that will be used by the archive.

Enter the name of the RFC Destination to be used. For more

information, refer to section RFC Destinations

Customizing SAP

SAP Archive Definition

March 2003 FileNet Document Warehouse for SAP 103

Setting Remark

Basic path Refers to the complete path of a directory in which SAP

ArchiveLink can store files temporarily or for exchange with

FileNet IDM Services for R/3 (called Archival path in IDM

Services for R/3 Configuration tool). The path must end with a (\)

in Windows, or (/) in UNIX because the actual file name is

concatenated to this path value.

Archive path Refers to the complete path of a directory into which FileNet IDM

Services for R/3 restores documents (called Retrieval path in

IDM Services for R/3 Configuration tool).

Output device Refers to the Archiving Device. Specify an archive-specific archive

device, overriding the default archive device ARCH.

5. To save the settings, click Save. Depending on the SAP R/3 system

administrative customization, change request information will have to

be entered.

Note: If cServer is running, it is possible to verify some of these settings

with the Test Connection icon. If the test is successful, SAP R/3 can

properly communicate with cServer.

In order to define a new archive for HTTP communication, follow the

steps listed below.

1. Access the following menu: Tools 



 Business Documents 





Environment 



 Knowledge Provider 



 Kpro 



 Content

Repositories or use the transaction code oac0. The following screen

is displayed:

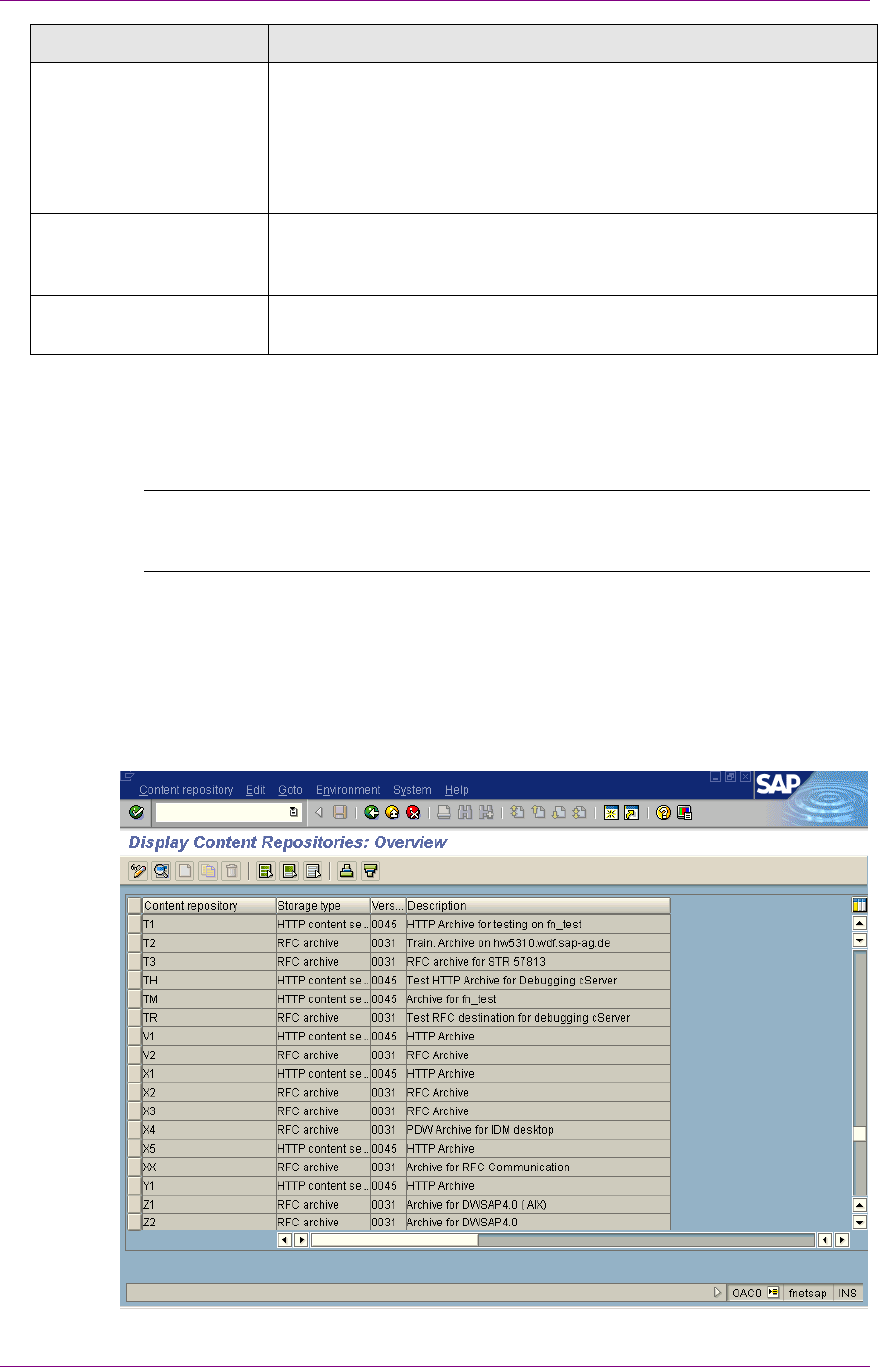

Customizing SAP

SAP Archive Definition

March 2003 FileNet Document Warehouse for SAP 104

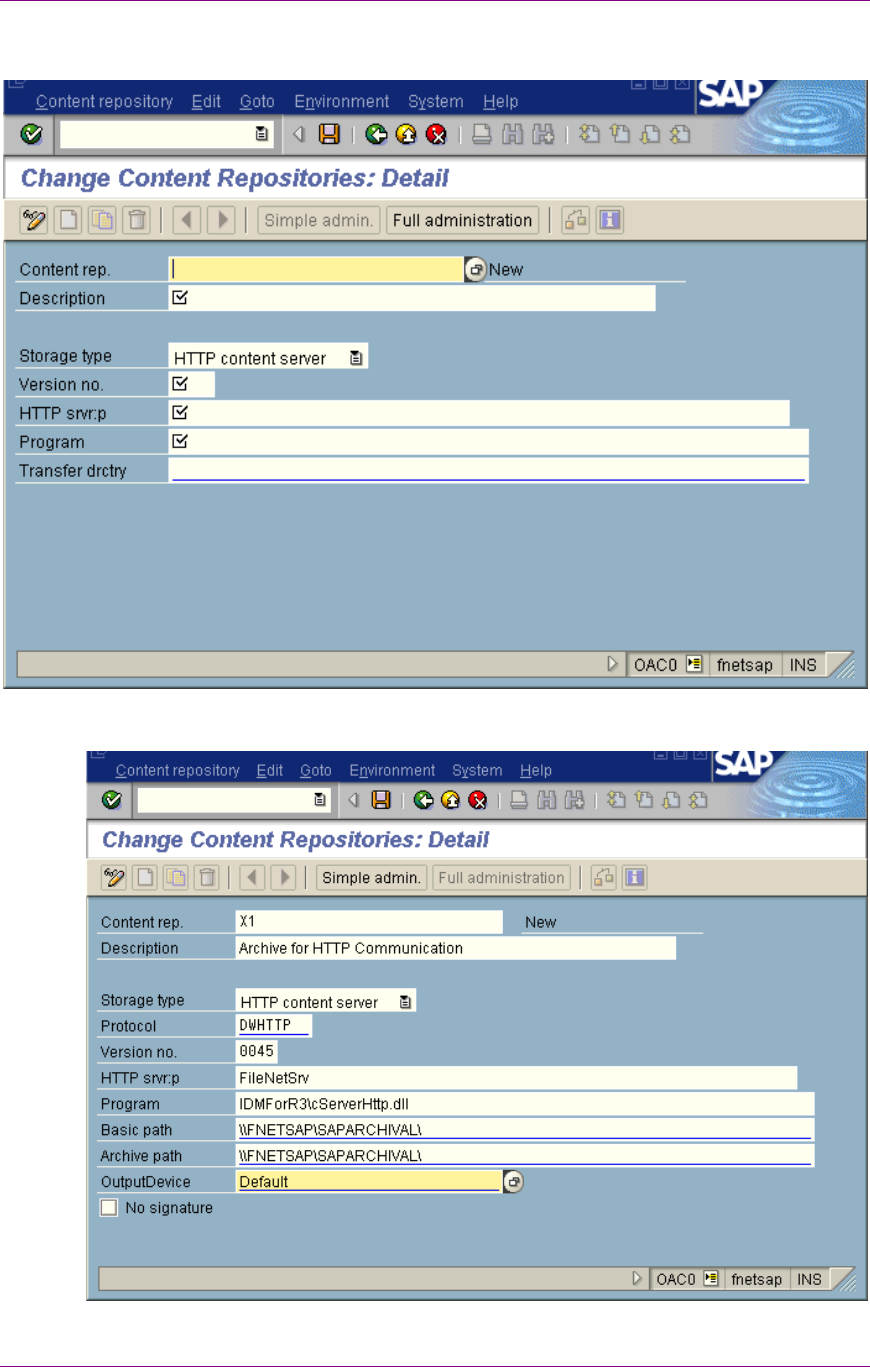

2. Click on the icon Create or choose Content Repository 



 Create.

The following screen is displayed:

3. Select the Full administration button. The following screen is

displayed:

Customizing SAP

SAP Archive Definition

March 2003 FileNet Document Warehouse for SAP 105

4. Enter the values in all the fields. The values for the new archive are

listed in the table below:

Setting Remark

Content rep. Refers to the name of archive (one alphabetical character plus

one alphanumeric character).

Although the screen allows you to enter more than two characters,

SAP ArchiveLink can only work with two character identifiers.

Description Refers to the language dependent description

Storage Type Refers to the Archive type. Chose HTTP content server from the

drop down box. For other values, the screen changes.

Protocol Refers to the protocol. Enter the Name of the SAP ArchiveLink

protocol defined in a different step of the SAP ArchiveLink

customizing. For more information, see section SAP ArchiveLink

Protocols.

Version no. Refers to the SAP ArchiveLink version to be used. Enter 0045.

HTTP srvr;p Refers to the HTTP server address. Enter the domain of the web

server under which FileNet IDM Services for R/3 runs. Do not

enter http:// or any path information.

The domain could also be the IP address or the IP alias of the

web server machine.

If the HTTP Server uses a non-standard port, you can also enter

this port by adding: <port number>.

Program Refers to the program, which will listen to the Http request from

the SAP. This is value is IDMForR3/cServerHTTP.dll.

Basic path Refers to the complete path of a directory in which SAP

ArchiveLink can store files temporarily or for exchange with

FileNet IDM Services for R/3 (called Archival path in IDM

Services for R/3 Configuration tool). The path must end with a (\)

in Windows, or (/) in UNIX because the actual file name is

concatenated to this path value.

Archive path Refers to the complete path of a directory into which FileNet IDM

Services for R/3 restores documents (called Retrieval path in

IDM Services for R/3 Configuration tool).

Output device Refers to the Archiving Device. Specify an archive-specific archive

device, overriding the default archive device ARCH.

No signature Do not check.

5. To save the settings, click Save. Depending on the SAP R/3 system

administrative customization, change request information will have to

be entered.

Note: When cServerHTTP is operational, you can verify some of these

settings with the Test connection icon. If the test is successful, SAP R/3

can properly communicate with cServer.

Customizing SAP

Sending a Certificate to an Archive

March 2003 FileNet Document Warehouse for SAP 106

Sending a Certificate to an Archive

Background: SAP R/3 signs the URL of HTTP requests that it sends to

cServer. cServer uses a certificate that SAP R/3 had sent earlier, to

verify that the URL was unchanged, and was sent by SAP system

designated in the URL. For a detailed description of this process, refer

to section Configuring Security.

In order to send a certificate to an archive, access the following menu

Tools  Environment 



 Knowledge Provider 



 Edit 



 Send

certificates or use transaction code oaht. The following screen is

displayed:

To send a certificate for an archive to cServer, click the Execute button

on the left hand side of the archive ID.

If the certificate is sent successfully, the status bar will be cleared. If not,

a message box is displayed on the screen, informing whether a problem

occurred while communicating with cServer, or whether an internal

problem occurred in the cServer.

Customizing SAP

Business Configuration Elements

March 2003 FileNet Document Warehouse for SAP 107

Note: Certificate sent to cServer, should be activated in the configuration

tool. For more information on sending certificate, refer to section

Configuring SAP System-Specific Security.

Business Configuration Elements

This section describes the definition of SAP technical document classes

and associating them with the configured archives. The section also

describes steps required to associate technical document classes with

SAP business objects.

SAP Technical Document Classes and MIME Types

Background: SAP ArchiveLink uses SAP Technical Document Classes

to identify the format of a document stored in an archive, for example,

print lists in Technical Document Class ALF, or MS Word documents in

Technical Document Class DOC. The technical document class of a

document is maintained in the SAP ArchiveLink link tables as well as a

document index in the FileNet library. SAP ArchiveLink protocol uses

technical document class to determine how to perform an ArchiveLink

function such as Display, or Retrieve. Beginning with SAP ArchiveLink

4.5, each SAP Technical Document Class corresponds to a MIME type,

which is used in HTTP protocol rather than the technical document class

itself, which is used in the RFC protocol. DWSAP handles technical

document classes as well as MIME types.

In order to configure document classes, access the following menu:

Tools 



 Business Documents 



 Basic settings 





Customizing







DocClasses or use the transaction code oad2. The following screen is

displayed:

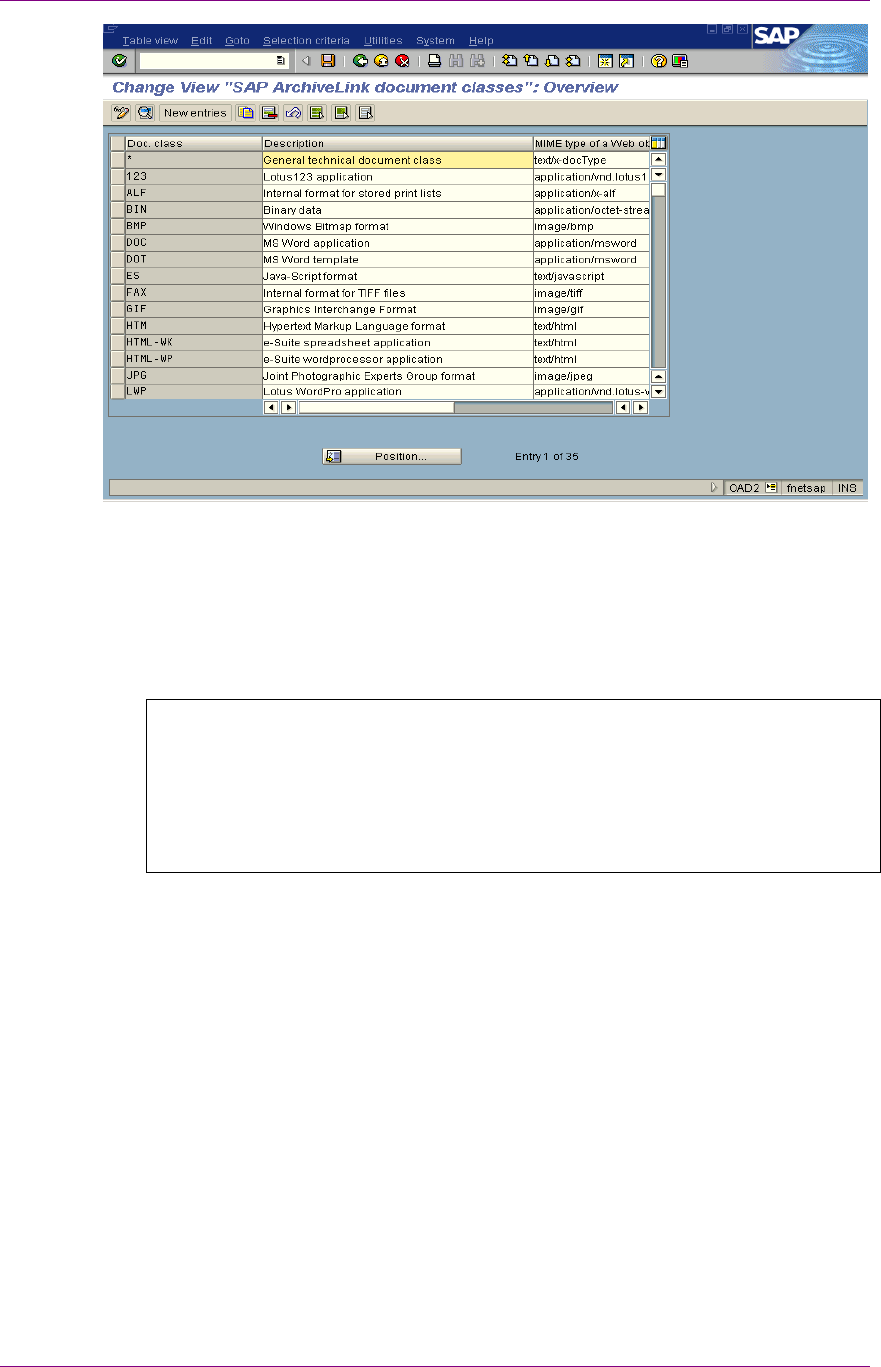

Customizing SAP

Business Configuration Elements

March 2003 FileNet Document Warehouse for SAP 108

SAP ArchiveLink provides a list of predefined SAP Technical Document

Classes, along with their corresponding MIME types. You can define

additional Technical Document Classes, or change the description and

MIME types of the existing ones.

ArchiveLink Document Types

Background: An ArchiveLink document type is a content-related

business definition of a document that can be stored in FileNet

repository. For example, Incoming Financial Invoice and Outgoing

Sales Order. There is one SAP Technical Document Class associated

with each document type. This SAP technical document class defines

the document format.

In order to configure document types, access the following menu: Tools





 Business Documents 



 Document Types 





Global document

types or use the transaction code oac2. The following screen is

displayed:

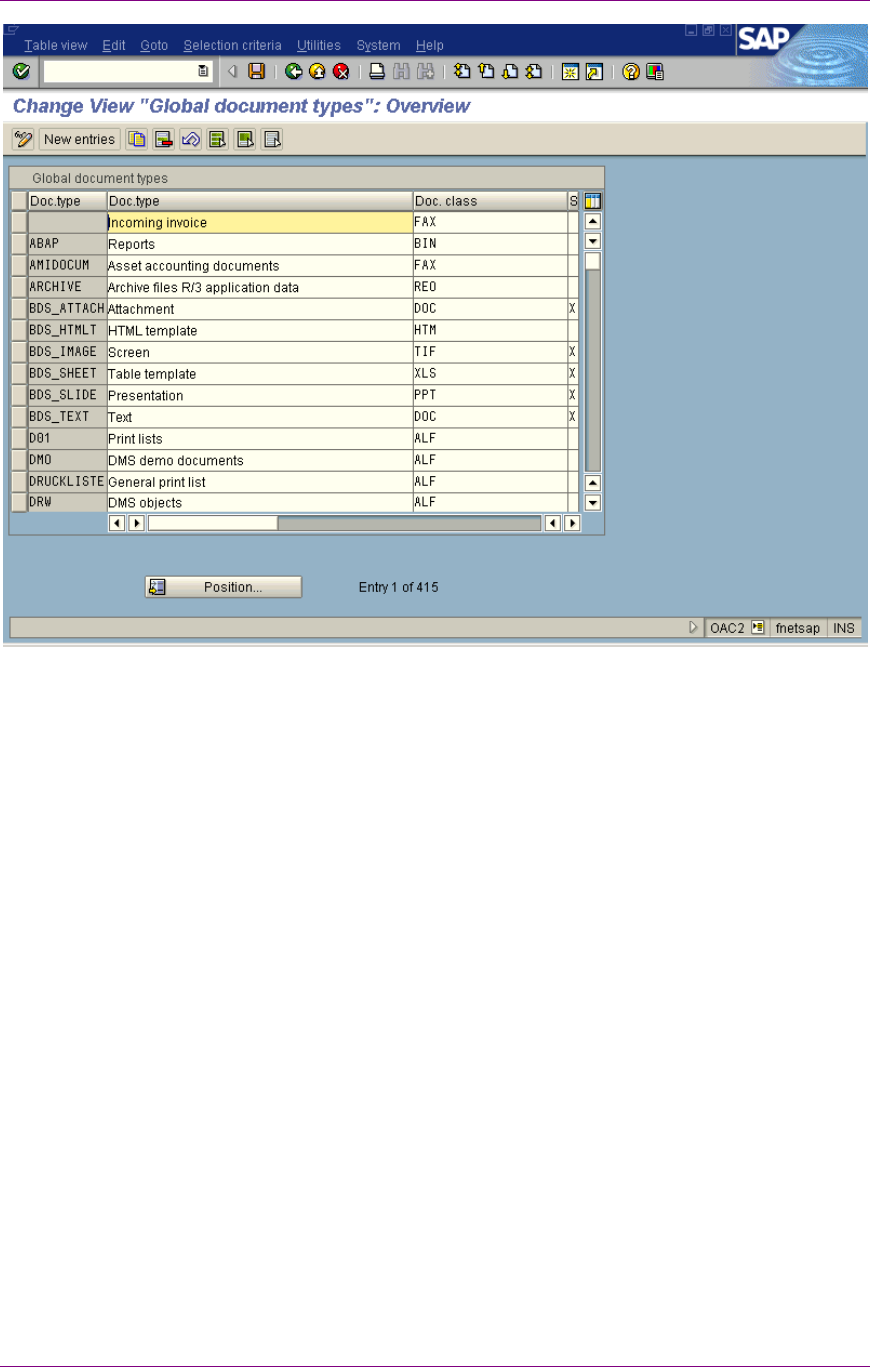

Customizing SAP

Business Configuration Elements

March 2003 FileNet Document Warehouse for SAP 109

Naming conventions: The name of a new document type should be a

concatenation of

<name space id> <sap application> <direction> <description>.

The name space id is Y or Z as described above. The SAP application is

the usual SAP abbreviation for one of its business applications such as FI

(financials), SD (sales and distribution), or HR (human resources). The

direction is either I (incoming) or O (outgoing). The description specifies

the contents of the document in detail, such as INVOICE or ORDER.

Valid names, according to the naming convention, would therefore be

ZFIIINVOICE and YSDOORDER.

To create a new document type:

1. Obtain a Change Request ID from your SAP System Administration.

This is necessary to save the changes.

2. To create the global document type, click Document Types 





Global document types menu. or transaction code oaa3

3. To add new entries for document types click Edit 



 New entries

menu.

4. Enter the name for the new document type (observing the Y or Z

name space), the language-dependent description, and the technical

document class.

There can be any number of new document types entered.

Customizing SAP

Business Configuration Elements

March 2003 FileNet Document Warehouse for SAP 110

CAUTION: SAP requires new document type names to start with a Y or with a Z.

Document types of this name space will not be overwritten or deleted when

updating SAP system software.

Defining Links

Background: SAP R/3 uses a single transaction to define a document

type such as FIINVOICE, which SAP object types it belong to (e.g.

VBAK, a specific FI business object type). The archive, which is used to

store documents of this type (e.g. A1, and the SAP link table is used to

store the link information between a specific document and a specific

SAP object (e.g. TOA01). During this transaction, all this information is

called a link.

A document type can have multiple links, but only one of these links can

be active at a given time.

In order to define a link, access the following menu: Basic Settings 





Links or use the transaction code oac3. The following screen is

displayed:

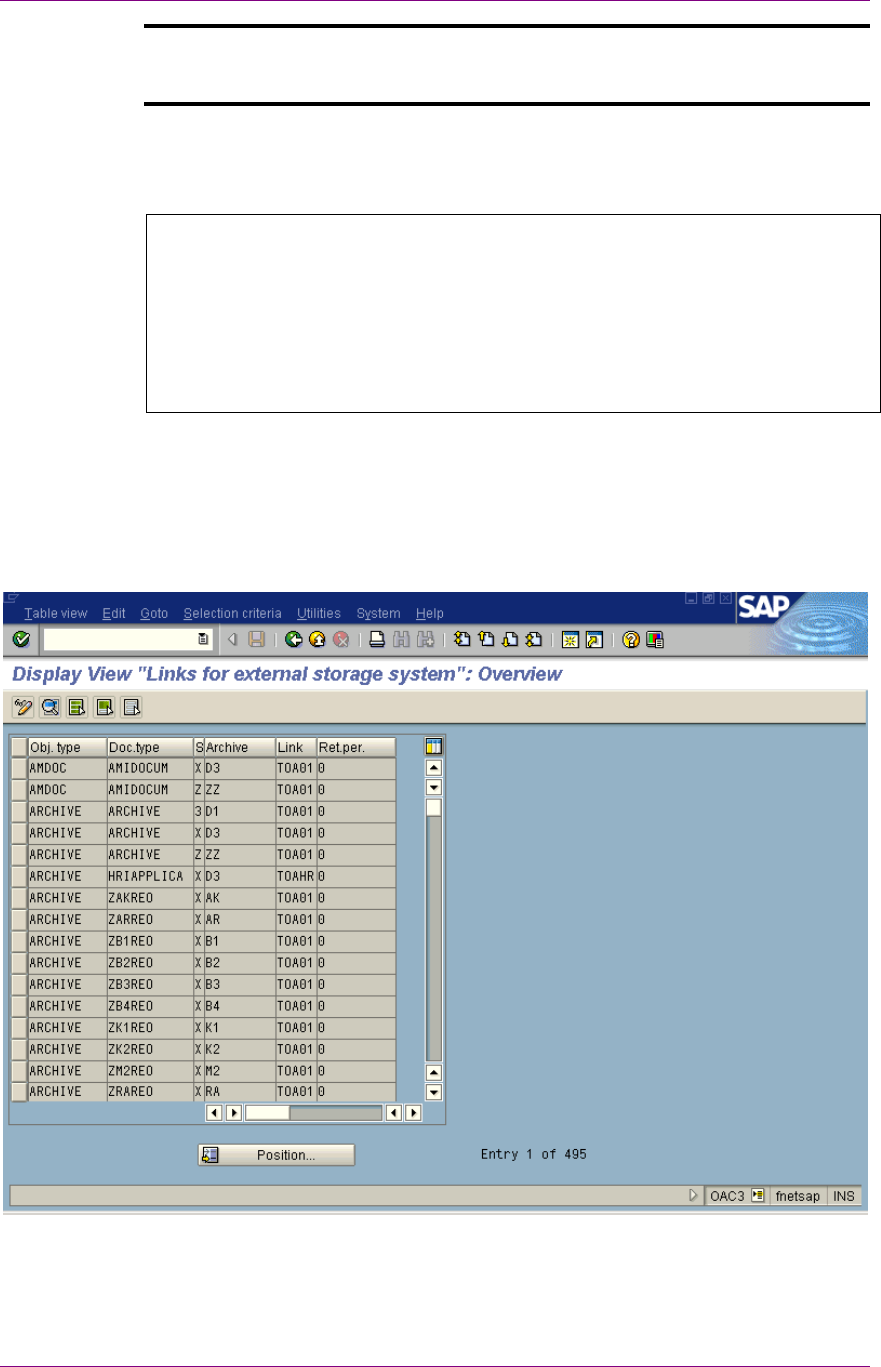

To create a new document link:

1. Start the transaction oac3.

Customizing SAP

Business Configuration Elements

March 2003 FileNet Document Warehouse for SAP 111

2. To switch to change mode (click on the Display 



 Change icon or

select table view 



 display change from the menu).

3. To create a new entry, click the New entries button. An empty line is

added. Enter the appropriate values for different fields as shown in the

above screen.

4. To save the new entry, click Save.

March 2003 FileNet Document Warehouse for SAP 112

8

Server Configuration

This chapter provides an overview of the additional configuration that is to

be done on the IDM Services for R/3 Server machine.

Configuring the cServer RFC Service

IDM Services for R/3 component cServerRFC, is installed as a Windows

service in order to start up each time the machine it is installed on is

started.

The user that is used to run the FileNet RFC Service can be configured

as follows:

1. To start the Services applet, click Start 



 Programs 





Administrative Tools. The following screen is displayed:

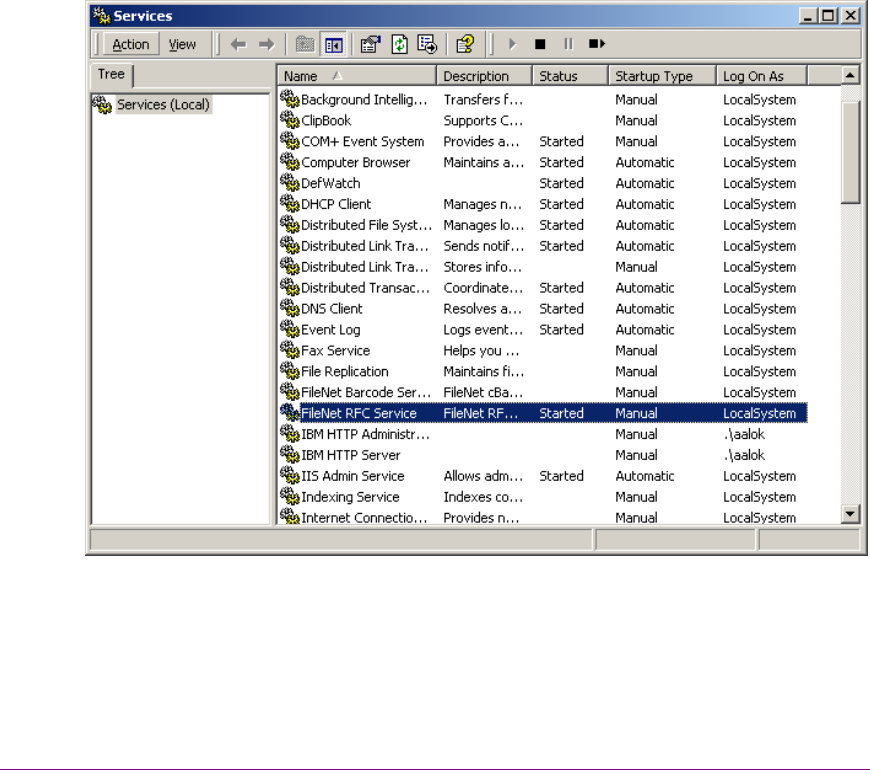

2. Double-click the FileNet RFC Service from the list on the right side.

The following screen is displayed:

Server Configuration

Configuring the cServer RFC Service

March 2003 FileNet Document Warehouse for SAP 113

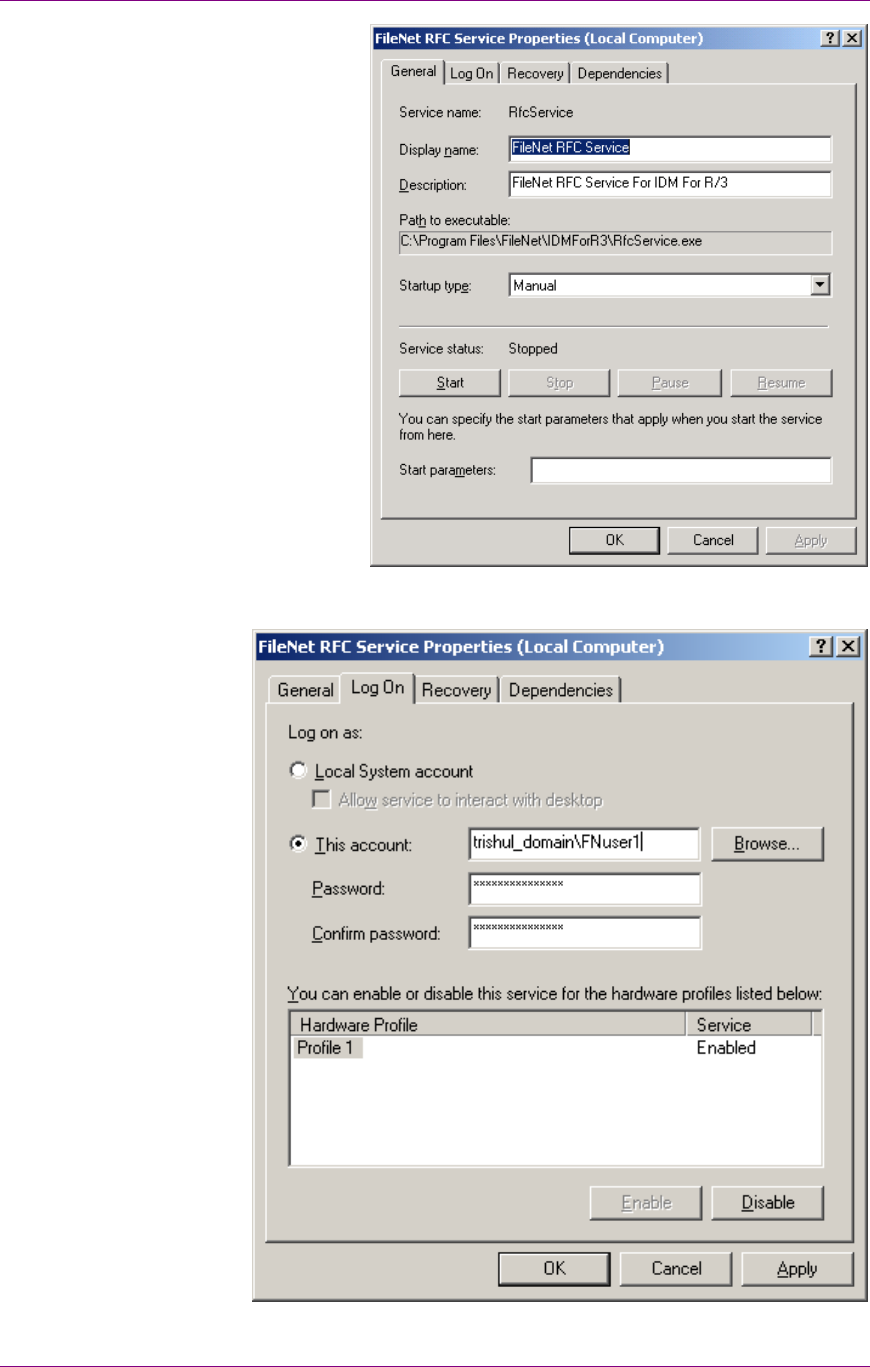

3. Click the Log On As tab. The following screen is displayed:

.

Server Configuration

Configuring IDM Services for R/3 in Internet Information Server for HTTP communication

March 2003 FileNet Document Warehouse for SAP 114

4. Click the This Account: radio button, and enter the user in the

adjacent field. Enter the user password in the corresponding text

boxes below.

The rights that the user, who runs the cServerRFC service must possess

are:

• Windows user rights Logon as a Service and Create a token object.

These rights can be configured by invoking Start 



 Programs 





Administrative Tools 



 Local Security Policies. Open Local

Policies and then User Right Assignment in the tree view. A

window Local security setting opens up. Choose the appropriate

policy (Logon as a Service and Create a token object) and click on

the Add button. Select the right user to run the cServerRFC service

and click on add again.

• The user should have read, write, and delete rights on the directories

used to transfer files between SAP R/3 server and cServer. For more

information on how to configure the exchange directories, refer to

section Guidelines to Define File Exchange Directories

Configuring IDM Services for R/3 in Internet Information

Server for HTTP communication

IDM Services for R/3 use Microsoft IIS as its Web server for HTTP

communication with SAP server. To add IDM Services for R/3 to IIS

please follow the following steps:

1. Click Start 



 Programs 



 Administrative Tools 



 Internet

Service Manager, to start the Internet Service Manager.

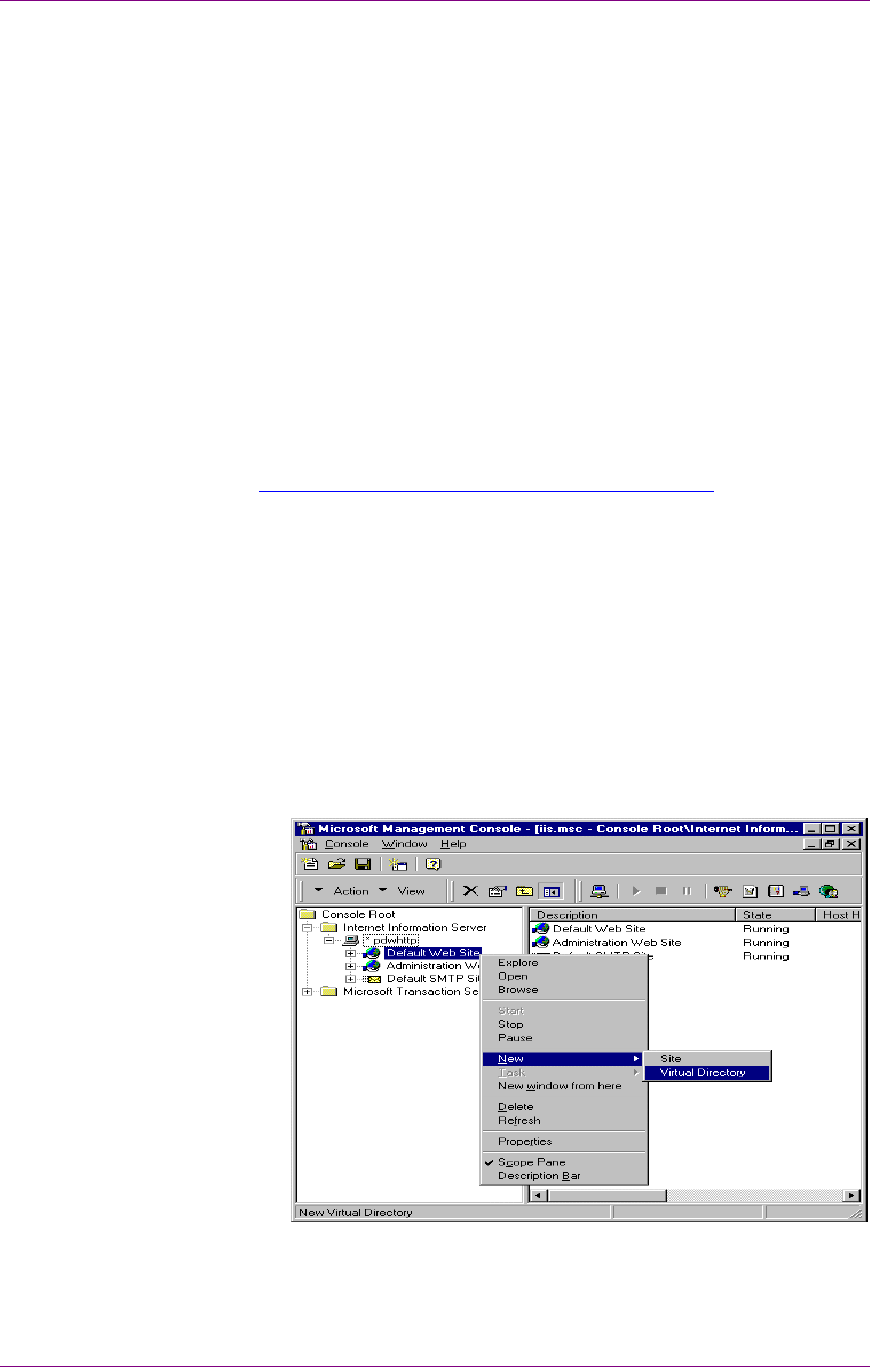

2. In the Internet Information Server folder, right click Default Web

Site



 New 



 Virtual Directory. The New Virtual Directory Wizard

screen is displayed.

Server Configuration

Configuring IDM Services for R/3 in Internet Information Server for HTTP communication

March 2003 FileNet Document Warehouse for SAP 115

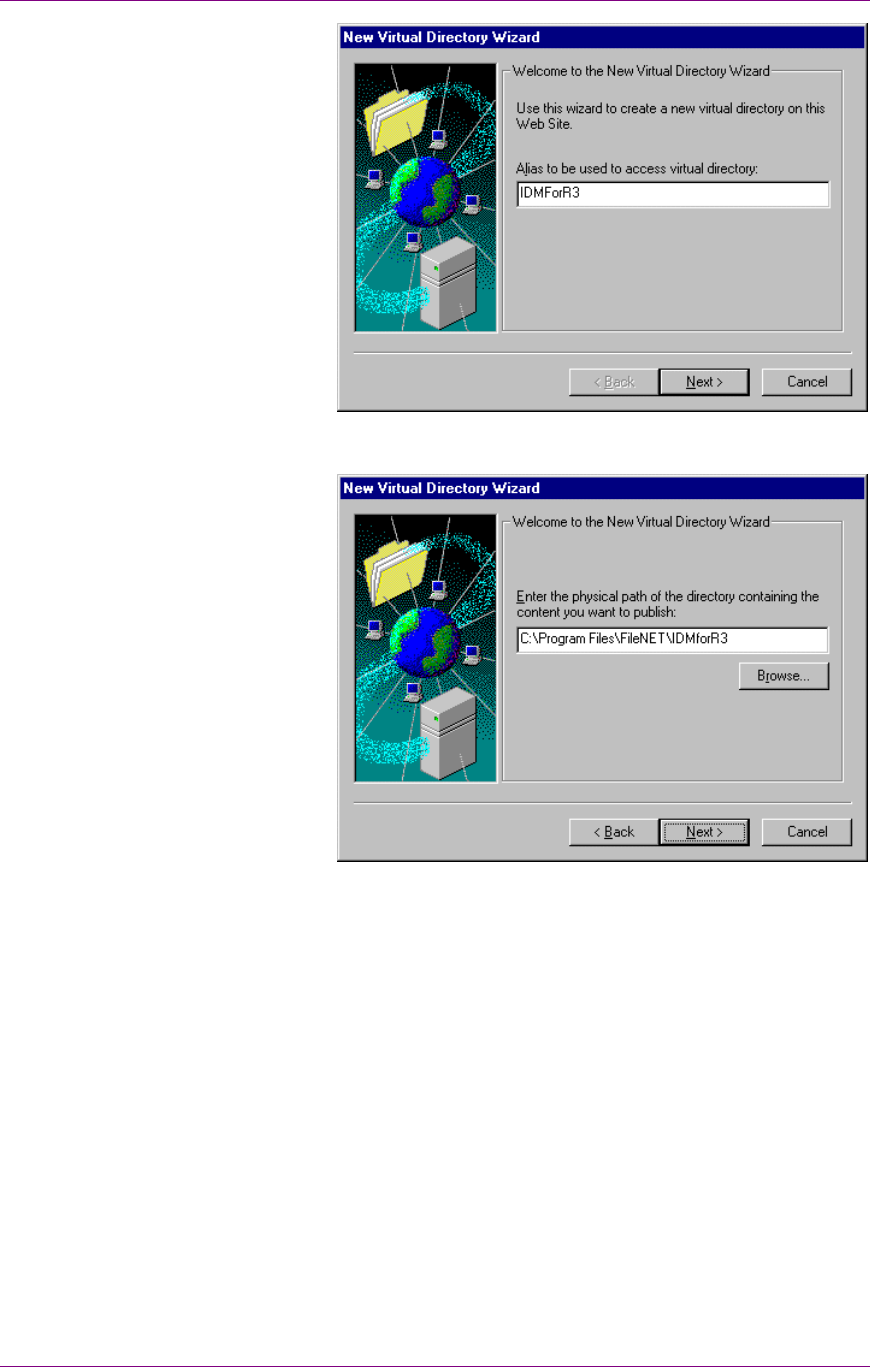

3. Enter a name to be used as an alias to access the virtual directory, for

example IDMF for R3. Click Next. The following screen is displayed:

4. Click Browse to enter the physical path of the IDM Services for R/3

directory, and click Next. The following screen is displayed:

Server Configuration

Changing Registry Rights to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 116

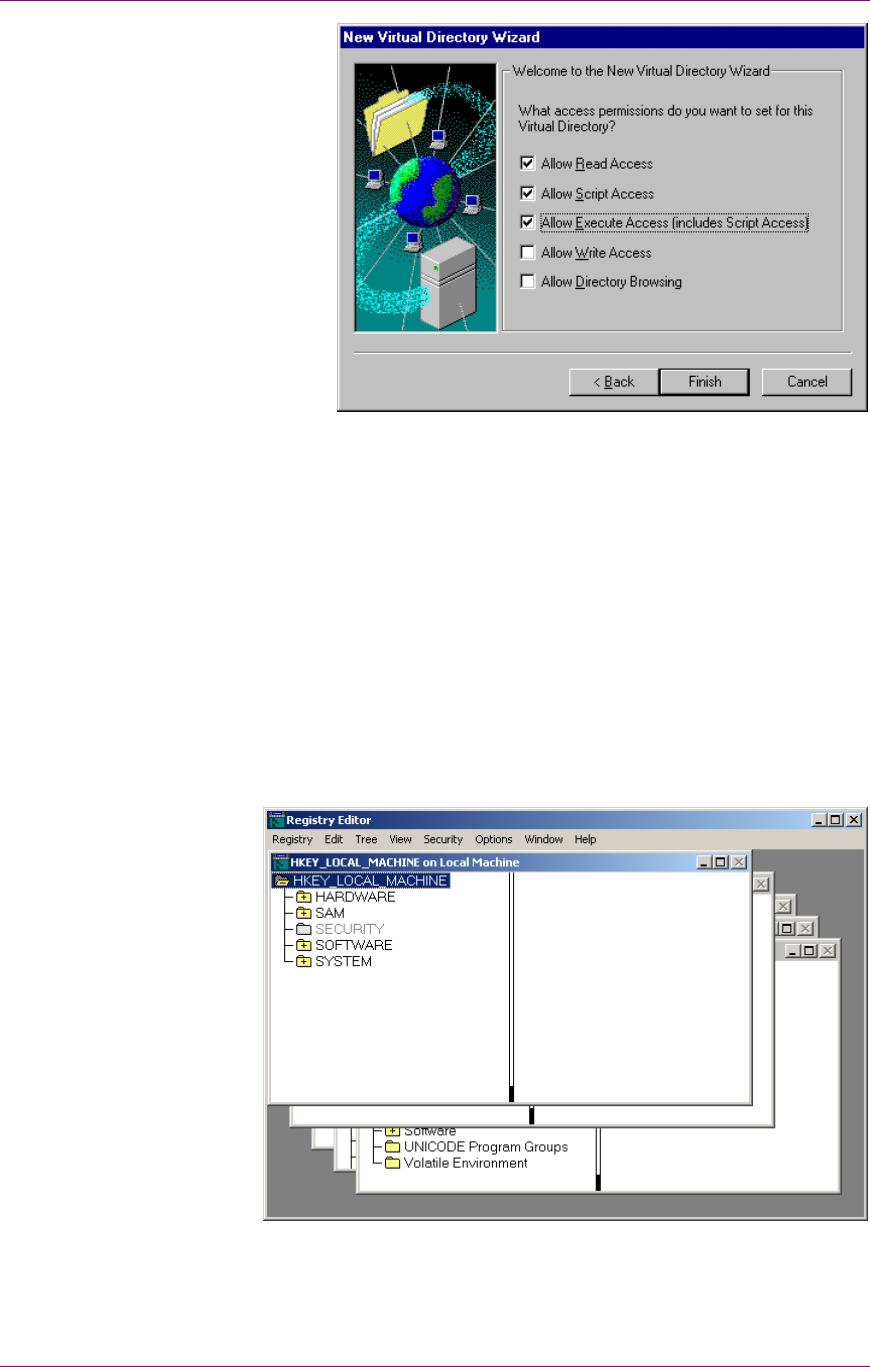

5. Check the access permissions: Allow Read Access, Allow Script

Access, and Allow Execute Access. Click Finish to add virtual

directory to the default Web site.

Changing Registry Rights to Use HTTP on Windows

2000 Server

If Windows 2000 is the operating system for the server, the amendments

that should be made in the registry, to use HTTP are:

1. Run regedt32.

2. Select the window HKEY_LOCAL_MACHINE . The following screen is

displayed:

3. Select Software 



 FileNet 



 Document Warehouse.

Server Configuration

Changing Registry Rights to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 117

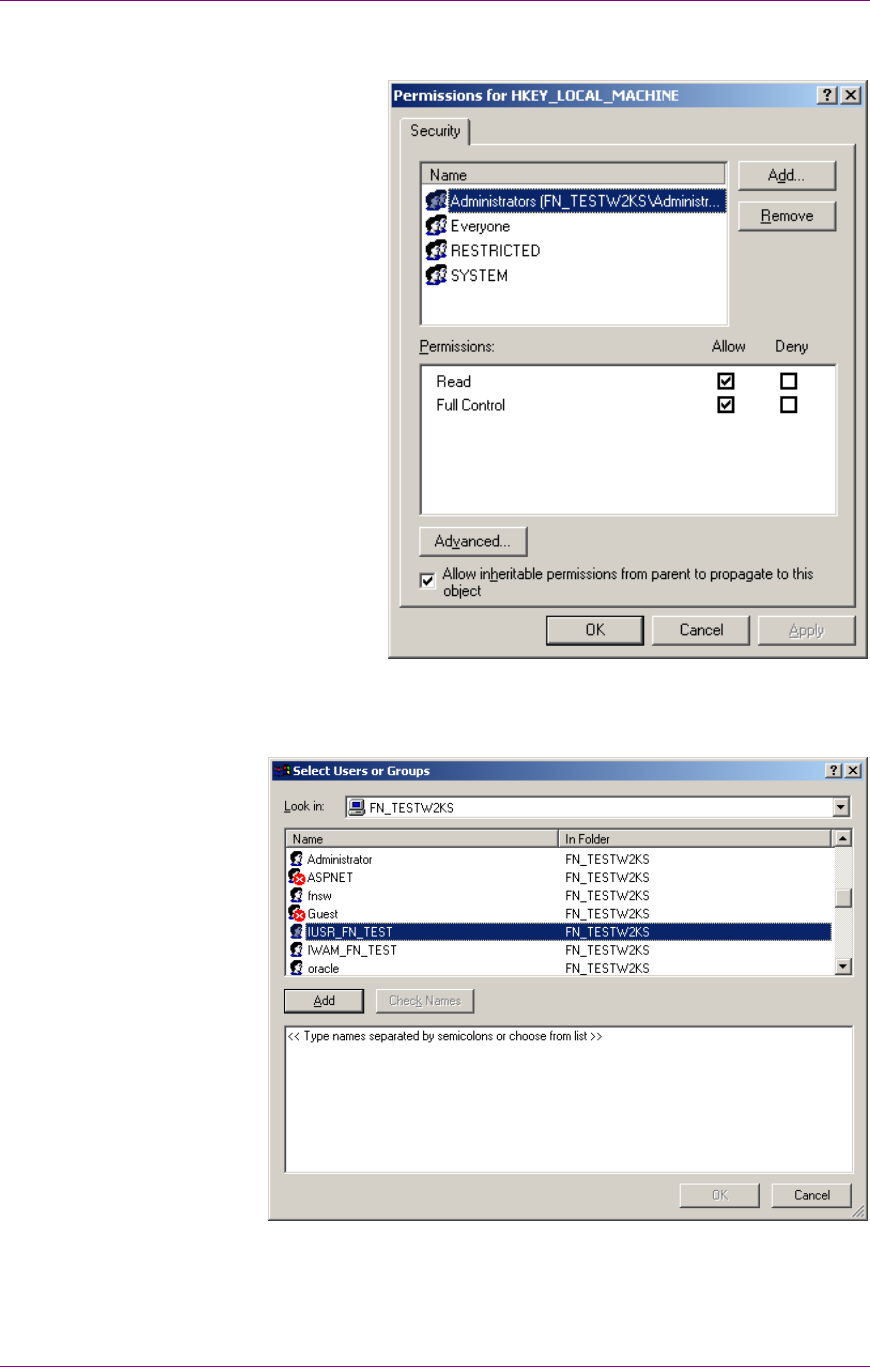

4. In the Security menu of the window, click Permissions. The following

screen is displayed:

5. Click Add and choose the local machine in the Look in field. A list of

all the users is displayed.

6. Select the user IUSR_<machinename> and click Add.

Server Configuration

Changing Registry Rights to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 118

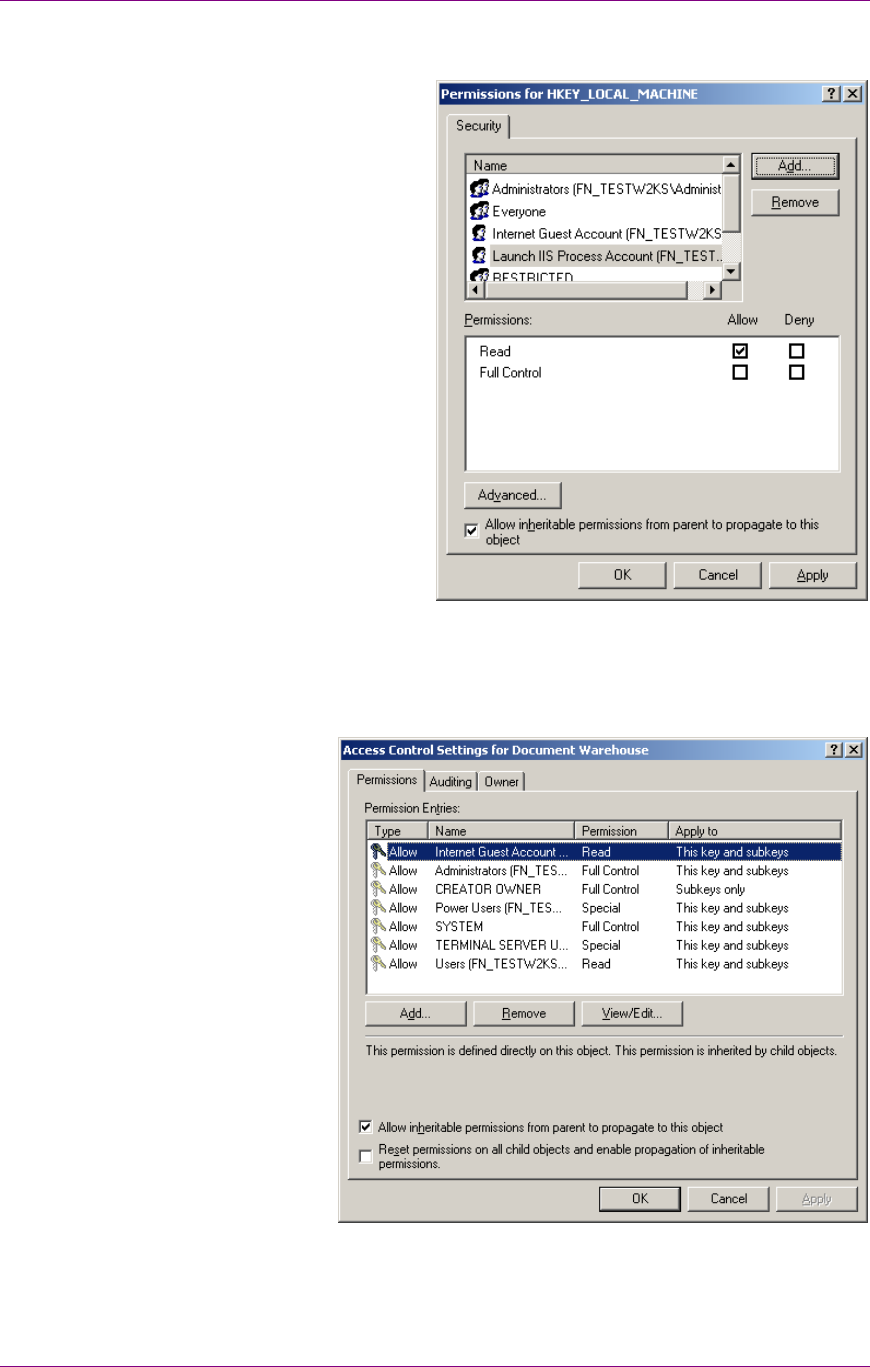

7. After the user appears in the bottom window, click OK. The following

screen is displayed:

8. Select Internet Guest Account from the options listed in the Name

tab and click Advanced. The following screen is displayed:

9. Click View/Edit. The following screen is displayed:

Server Configuration

Changing Permissions to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 119

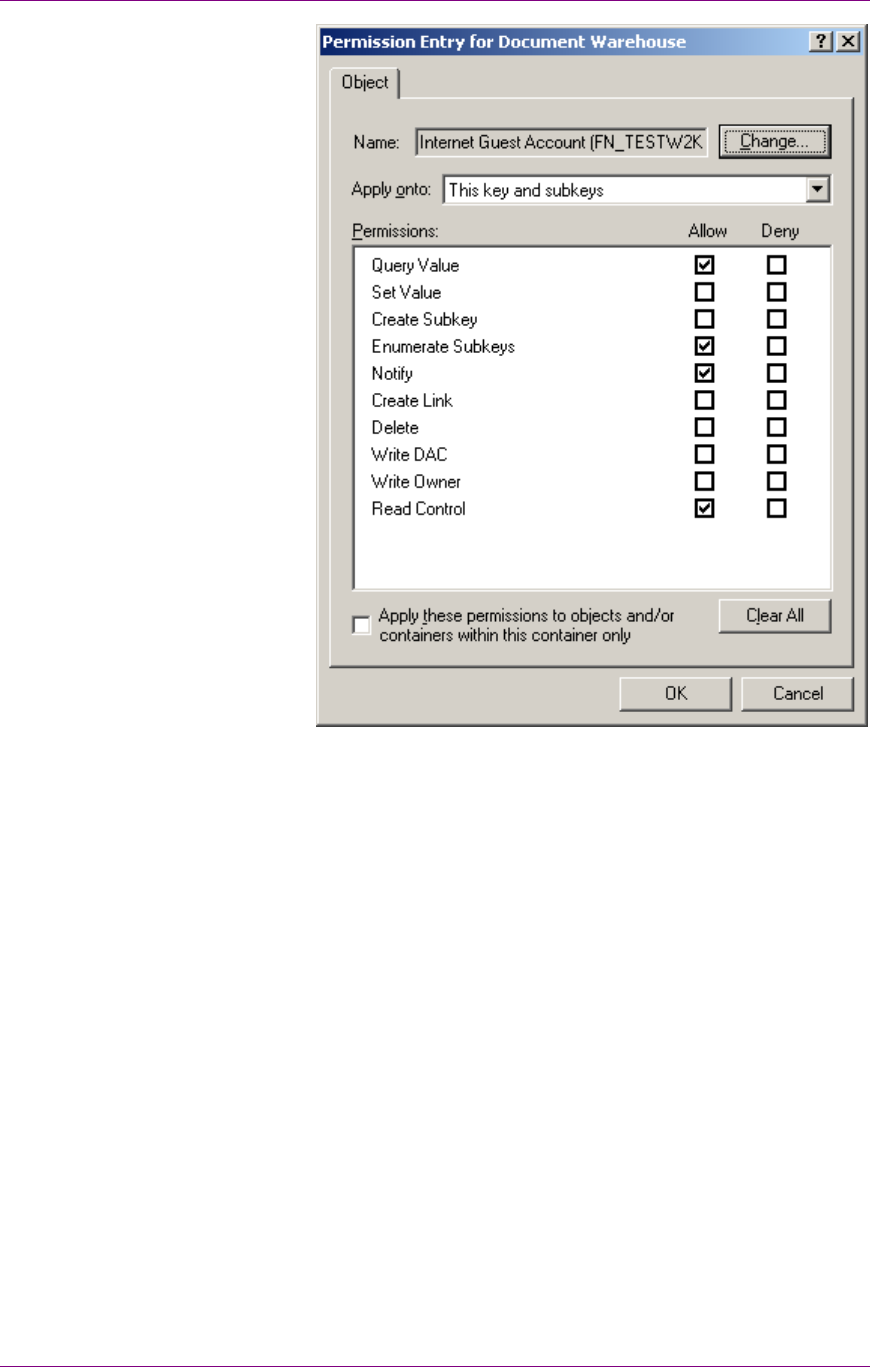

10. Check the Allow checkbox for Set Value and Create Sub key

permissions. This will allow the creation of new sub keys and

modification of existing key values.

11. Click OK to close all the windows.

Changing Permissions to Use HTTP on Windows 2000

Server

Security Changes in DCOMCNFG

If Windows 2000 is the operating system for the server, the amendments

that should be made in the DCOMCNFG, to use HTTP are:

1. Launch DCOMCNFG by clicking the Start button, selecting Run and

typing Dcomcnfg.exe in the Run dialog box.

Server Configuration

Changing Permissions to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 120

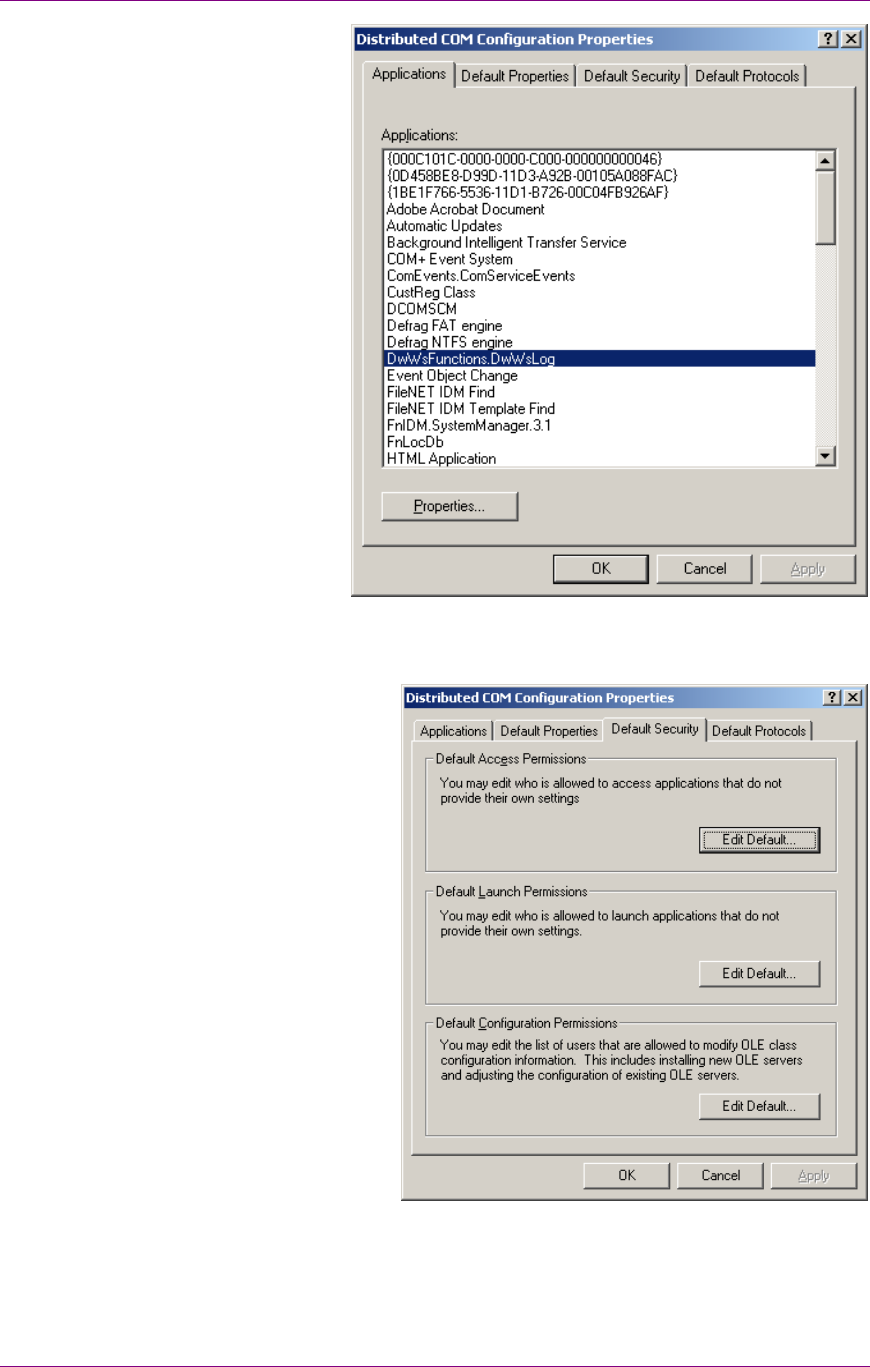

2. Select the entry DwWsFunctions.DwWsLog from the Applications

tab. Click on the Default Security tab. The following screen is

displayed:

3. Click the button Edit Default in the frame Default Access

Permissions. The following screen is displayed:

Server Configuration

Changing Permissions to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 121

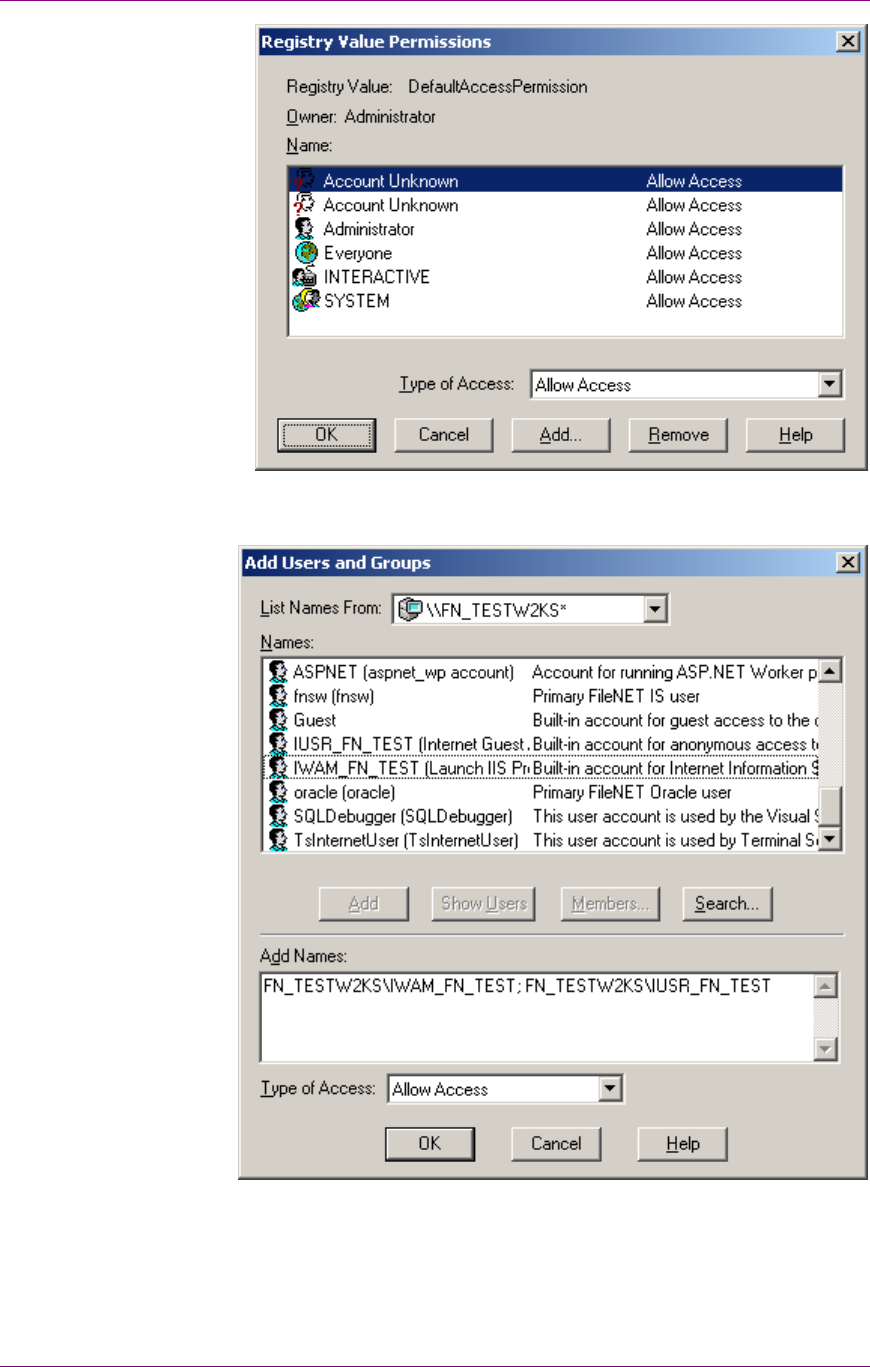

4. Click on the Add button. The following screen is displayed:

5. Add IUSR_<machine_name> account and the INTERACTIVE

account to the registry value permissions dialog box and click OK.

The following screen is displayed:

Server Configuration

Changing Permissions to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 122

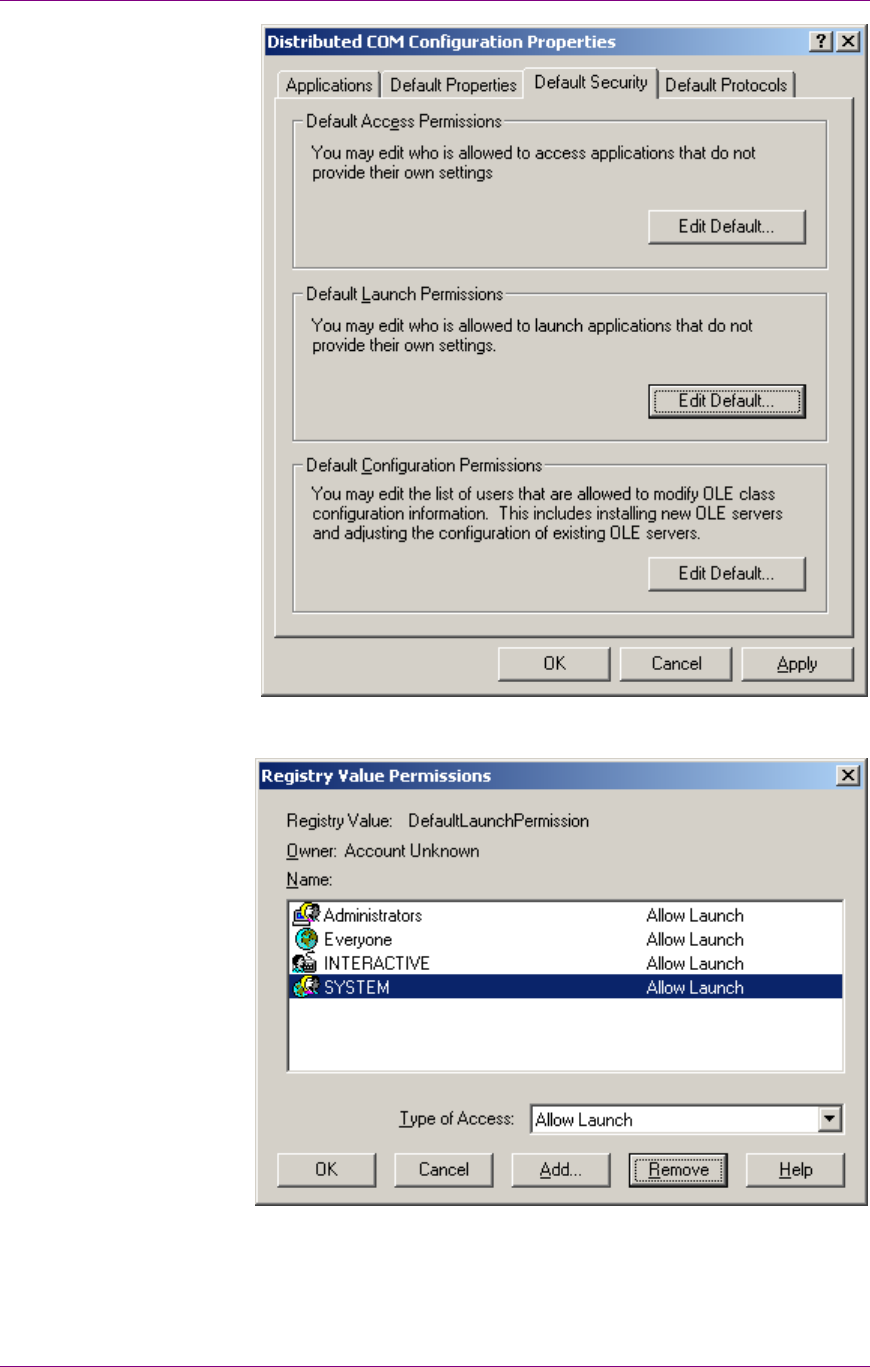

6. In the Default Security tab, click the button Edit Default in the frame

Default Launch Permissions. The following screen is displayed:

7. Click on Add.

Server Configuration

Changing Permissions to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 123

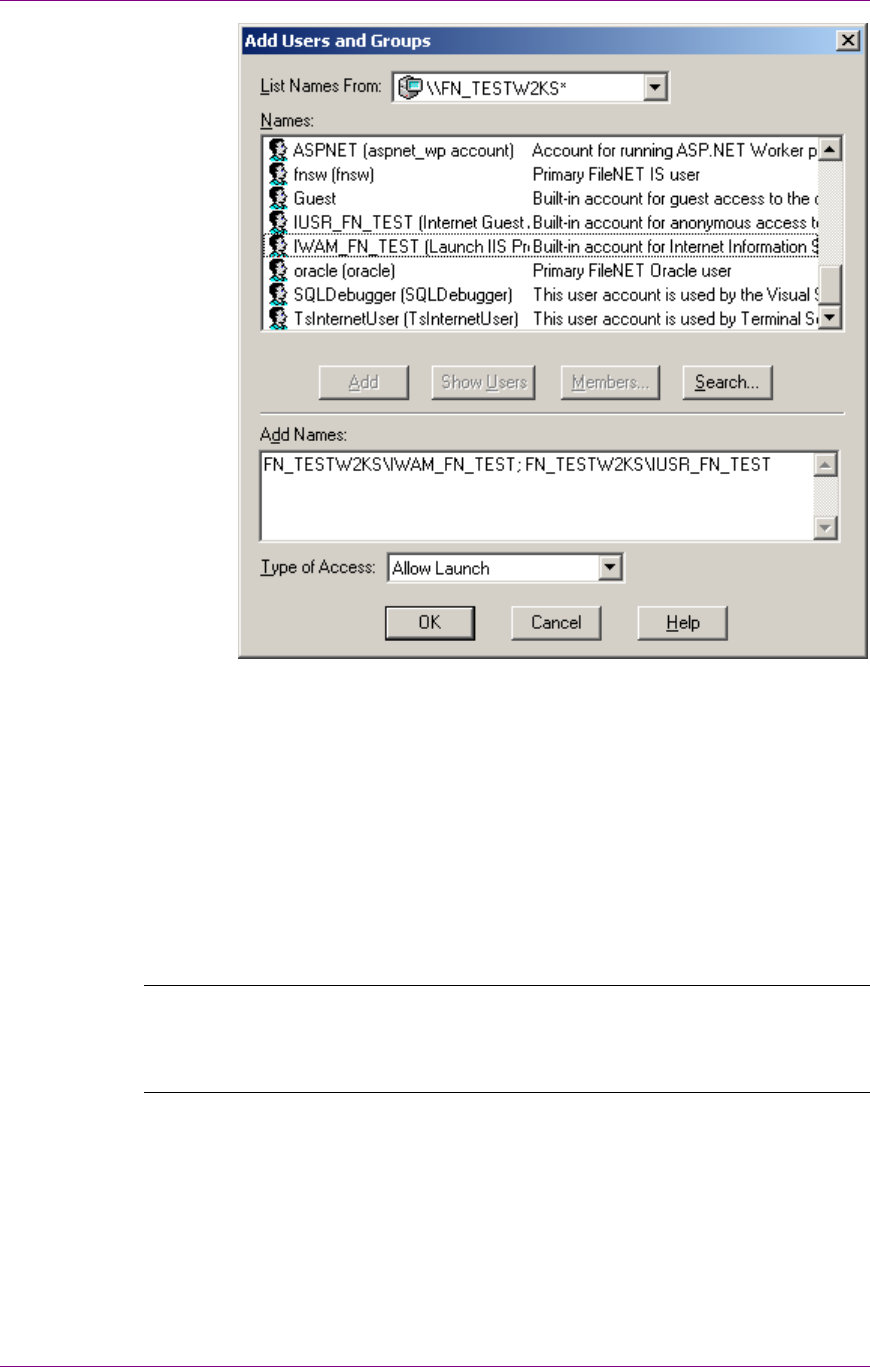

8. Add IUSR_<machine_name> account and the INTERACTIVE

account to the registry value permissions dialog box and click OK.

9. Exit from DCOMCNFG.

10. Restart the IIS Admin Service and World Wide Publishing Service.

Security changes for Installed Directory of cServer

If Windows 2000 is the operating system for the server, the amendments

that should be made in the DWSAP Installed Directory (IDMForR3), to

use HTTP are:

Note: These security setting are done, only if Multiple R3 Instances are

configured in the Configuration Tool. Adding these security permissions

will enable the cServer to create and update the SAPNameSpace.ini file

in the installed path of the cServer.

The steps to be followed are outlined below:

1. Launch the Windows Explorer and browse, to the Installed Directory

where DWSAP Server Components are installed. By default, it is

Program Files/FileNet/IDMForR3. Right click on the IDMForR3

folder, by selecting the folder in the tree view. Select properties from

the context menu. The following screen is displayed:

Server Configuration

Changing Permissions to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 124

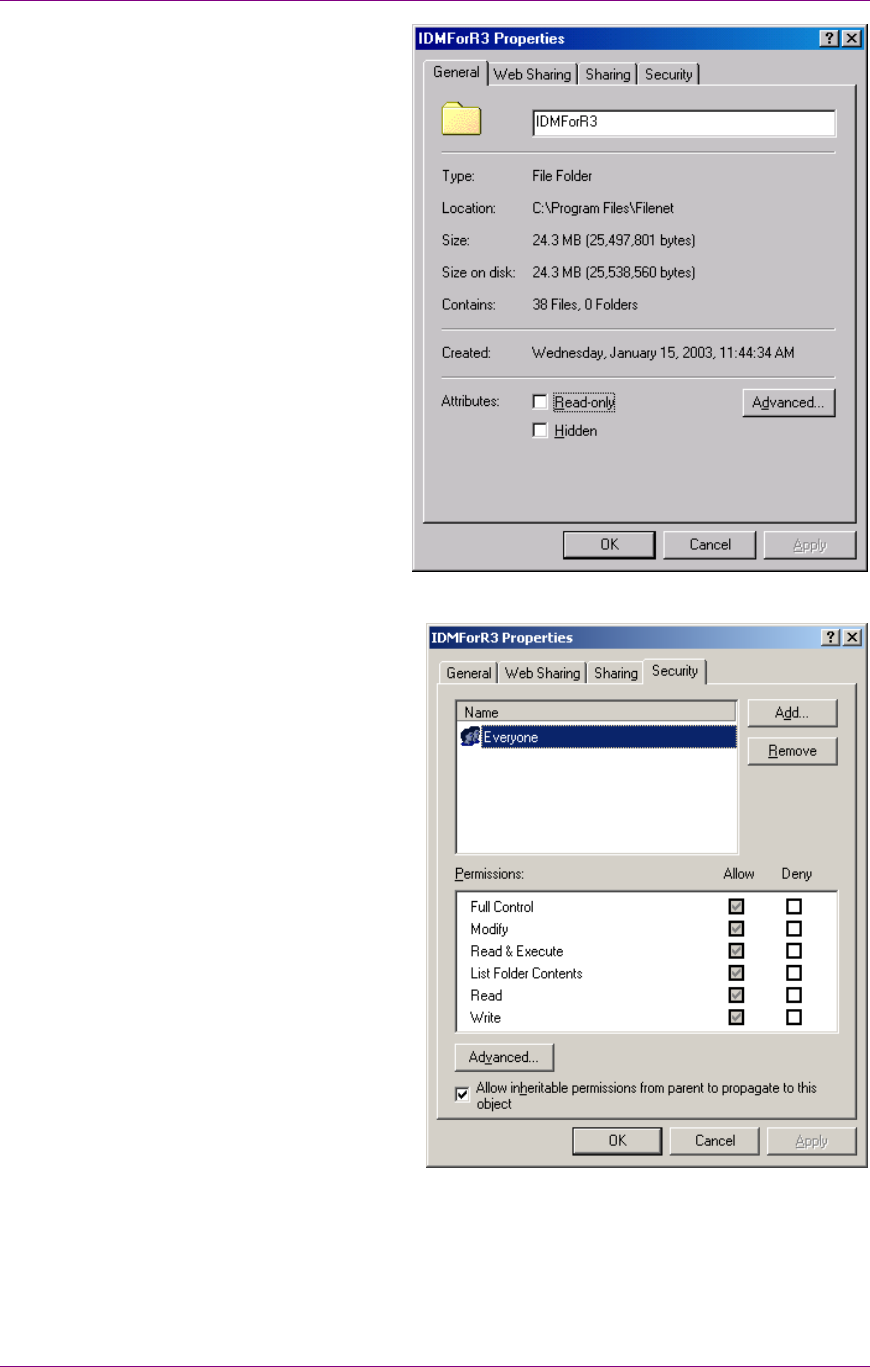

2. Select the Security menu in the above screen. The following screen

is displayed:

3. Click on the Add button and choose the local machine in the Look in

field. A list of all users is displayed as shown below.

Server Configuration

Changing Permissions to Use HTTP on Windows 2000 Server

March 2003 FileNet Document Warehouse for SAP 125

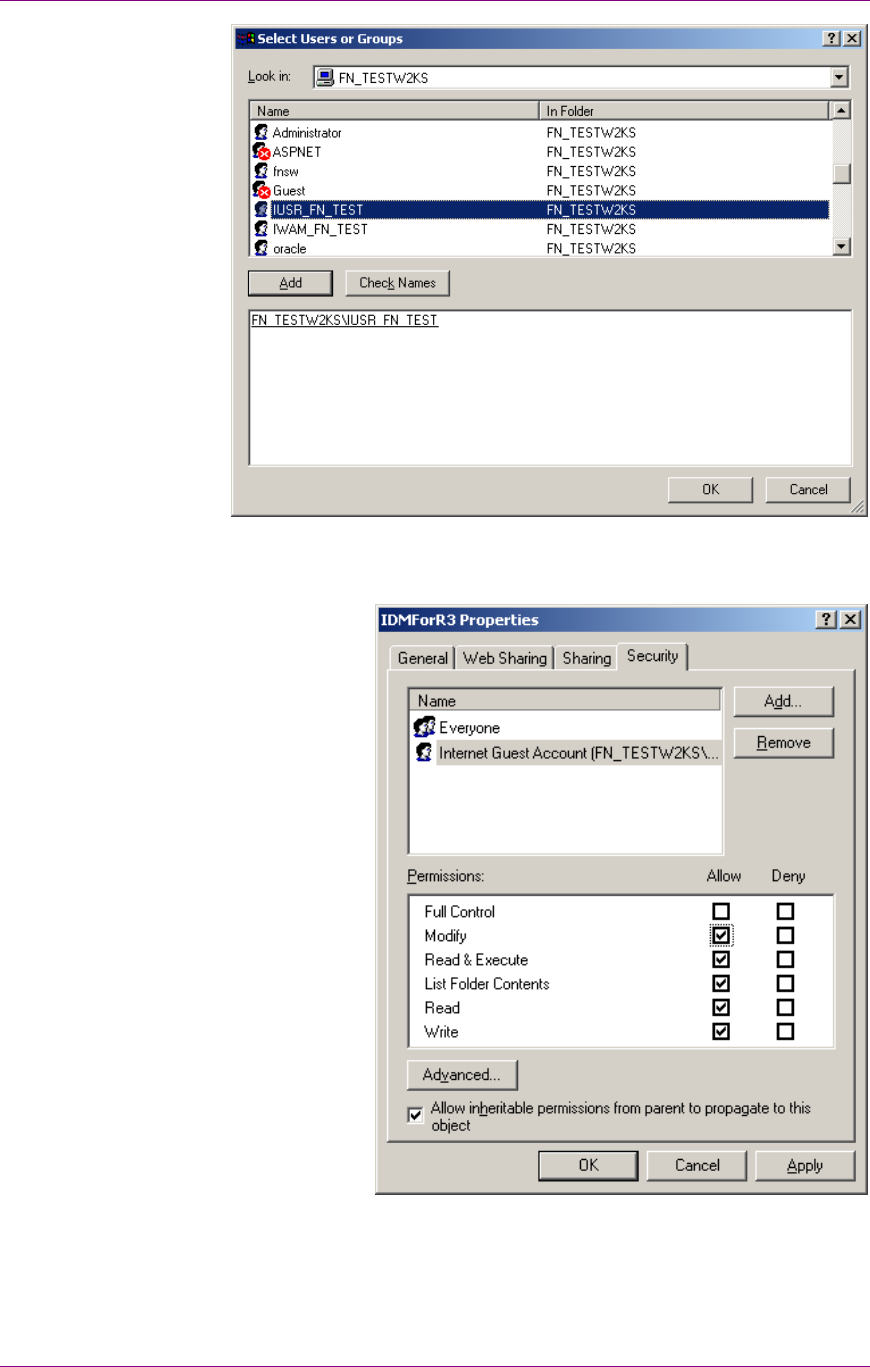

4. Select the entry IUSR_<machine_name> from the list displayed in the

upper window and click the Add button. After the user appears in the

bottom window, click OK. The following screen is displayed:

5. Select Internet Guest Account from the options listed. Allow the

following security permissions by checking the checkboxes listed

below:

Server Configuration

Stopping and Starting cServer

March 2003 FileNet Document Warehouse for SAP 126

• Modify

• Read & Execute

• List Folder Contents

• Read

• Write

6. Click OK to close all windows.

Stopping and Starting cServer

Start cServer: cServer has two components cServerHTTP, cServerRfc

that need to be started for starting up the respective HTTP and RFC

functionality of cServer.

For starting cServerRFC, start the FileNet RFC Service, which is

registered with the service control manager once IDM Services for R/3 is

installed on your machine. The service can be started by launching the

Services applet that can be reached through the windows control panel.

cServerHTTP is automatically loaded and unloaded by IIS. Once the

World Wide Web Publishing Service is started, cServerHTTP is loaded

and it is started as soon as first request is sent by SAP R/3.

Stop cServer:

To stop cServerRfc, stop the FileNet RFC Service using the Services

applet.

To stop cServerHTTP, stop IIS by stopping the World Wide Web

Publishing Service using the Services applet. Stopping the Web site in

the Microsoft management console is not sufficient.

March 2003 FileNet Document Warehouse for SAP 127

Appendix A – OSS Notes

As Document Warehouse for SAP is an interface between FileNet

Libraries and an SAP system, certain issues can occur without finding the

reason for it within Document Warehouse for R/3. During testing, certain

issues with SAP R/3 have been observed. Consult the following SAP

OSS notes for the required SAP coding corrections:

# 0193715 In 4.6B system, OLE calls do not work for an RFC archive.

Error message: "The content repository is not configured

completely."

# 0357207 In 4.6B to 4.6D systems, attribute search in printlists does

not work.

Error message: "No attribute information available." or an

endless loop in SAPGUI occurs.

# 0368569 In 4.6A to 4.6C systems, in transaction FB03, existing

document links are not available.

# 0144097 In 4.5B, Files which are stored by the application server via

HTTP, are not accessible. The problem does not occur

there if the document class FAX or ALF is used.

# 0164203 No specific SAP release, Problems with SAPHTTP

Customer's help for how to use HTTP Tracefiles

# 0387010 In 4.6D system, SAPHTTP generates Dr. Watson errors.

SAPHTTP is terminated and the following error message

appears:

Exception number: c0000005 (access violation)

#91133 Functions.Add call fails with 'Illegal Variant type'

March 2003 FileNet Document Warehouse for SAP 128

Appendix B – Software License Agreement

FileNet End User Software License Agreement

READ THIS NOTICE CAREFULLY, THE SOFTWARE IS THE PROPRIETARY INTELLECTUAL

PROPERTY OF FILENET CORPORATION AND IS SUBJECT TO THE MINIMUM TERMS AND

CONDITIONS SET FORTH BELOW. THESE TERMS AND CONDITIONS MAY BE SUPERCEDED BY THE

TERMS AND CONDITIONS OF THE SOFTWARE LICENSE ENTERED INTO BY YOUR EMPLOYER FOR

THE USE OF FILENET SOFTWARE. BY USING THE SOFTWARE, YOU ACKNOWLEDGE IT IS FILENET

PROPRIETARY INTELLECTUAL PROPERTY AND THAT A VALID SOFTWARE LICENSE WITH FILENET

CORPORATION IS APPLICABLE. THEREFORE AT A MINIMUM, YOU AGREE TO BE BOUND BY THE

FOLLOWING FILENET END USER SOFTWARE LICENSE TERMS AND CONDITIONS (HEREINAFTER

“Agreement”):

1. Definition of Software

The software consists of software owned by FileNet, as well as software owned by certain third party

providers (“Third Party Providers”). Each software product includes any documentation relating to or

describing such software, such as, logic manuals, flow charts, reference materials, and improvements

or updates provided by FileNet (software and documentation collectively called "Software").

2. Grant of License

A. Each Software product, including any documentation relating to or describing such Software, such

as, but not limited to, manuals, flow charts and improvements or updates provided by FileNet

(collectively "Software"), is furnished to End User under a personal, non-exclusive, nontransferable

license solely for End User's own internal use on End User’s servers and client devices (“System”)

in compliance with this license and all applicable laws and regulations. End User agrees that this

license does not permit End User to: (1) use the Software for a service bureau application or (2)

rent, lease, or sublicense the Software; (3) modify or remove any proprietary notices; or (4) transfer

the Software without prior written consent from FileNet. The Software is licensed to the End User,

not sold.

B. The Software may only be copied, in whole or in part (with the proper inclusion of FileNet's

copyright notice and any other proprietary notice and/or trademarks on such Software), as may be

necessary and incidental for archival purposes or to replace a worn or defective copy.

C. Title to and ownership of the Software and any portions (or any modifications, translations, or

derivatives thereof, even if unauthorized) and all applicable rights in patents, copyrights and trade

secrets in the Software shall remain exclusively with FileNet and its licensors, if any. Software

provided hereunder is valuable, proprietary, and unique, and End User agrees to be bound by and

observe the proprietary nature thereof as provided herein. End User agrees to take diligent action

to fulfill its obligations hereunder by instruction or agreement with its employees or agents (whose

confidentiality obligations shall survive termination of employment or agency) who are permitted

access to the Software. Access shall only be given on a need-to-know basis. Except as set forth in

this Agreement or as may be permitted in writing by FileNet, End User shall not use, provide or

otherwise make available the Software or any part or copies thereof to any third party. End User

shall not reverse engineer, decompile or disassemble the Software or any portion thereof, nor

otherwise attempt to create or derive the source code. End User acknowledges that unauthorized

reproduction, use, or disclosure of the Software or any part thereof may cause irreparable injury to

FileNet and/or its licensors, who may therefore be entitled to injunctive relief to enforce these

license restrictions, in addition to any other remedies available at law, in equity, or under this

Agreement. Further, the trademarks are owned by the respective trademark holder.

D. FileNet agrees that End User’s affiliates (business entities of which End User owns or controls

more than fifty {50%} percent of the voting rights or the controlling body of the business entity) may

use the Software; provided that prior to any affiliate’s use of the Software: (i) End User accepts

responsibility for the acts or omissions of such affiliates as if they were End User’s acts or

omissions; (ii) End User shall indemnify FileNet against losses or damages suffered by FileNet

arising from breach of this Agreement by any such affiliate; and (iii) such use shall not constitute an

unauthorized exportation of the Software or documentation under U.S. Government laws and

regulations.

March 2003 FileNet Document Warehouse for SAP 129

3. Termination. FileNet shall have the right to terminate End User's license if End User fails to pay any

and all required license fees or otherwise fails to comply with these license terms and conditions. Upon

expiration of the license term or upon notice of such termination, End User shall immediately return or

destroy the Software and all portions and copies thereof as directed by FileNet and, if requested by

FileNet, shall certify in writing as to the destruction or return of the same. All confidentiality and non-

disclosure obligations herein shall survive termination.

4. Limited Warranty

A. FileNet warrants that it has good and clear title to or has the right to sublicense the Software being

licensed hereunder, free and clear of all liens and encumbrances.

B. FileNet warrants for a period of one year from the Shipment Date, Software used in a manner for

which it was designed will perform the functions described in the applicable FileNet documentation

supplied at the time of delivery provided that, (i) Software is continuously subject to a FileNet

Software Support contract, (ii) any substantial nonconformance is reproducible, and (iii) the

substantial nonconformance is not caused by third party software or hardware not specified in

FileNet’s documentation or not expressly authorized in advance by FileNet. FileNet's sole obligation

and liability hereunder shall be to use reasonable efforts to remedy any material non-conformance

which is reported to FileNet in writing within the warranty period.

C. End User accepts sole responsibility for, system configuration, design and requirements, selection

of the software for the intended results, modifications, changes or alterations.

D. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE OR NONINFRINGEMENT WITH RESPECT TO THIS AGREEMENT,

THE AGREEMENT, OR THE SOFTWARE LICENSED HEREUNDER. FILENET DOES NOT

WARRANT THAT THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPPTED, THAT

THE SOFTWARE IS ERROR-FREE, OR THAT ALL ERRORS CAN BE CORRECTED.

5. Export. End User agrees that the Products purchased hereunder will not be exported directly or

indirectly, separately or as part of any system, without first obtaining a license from the U.S. Department

of Commerce or any other appropriate agency of the U.S. Government, as required.

6. Restrictions on Use. End User acknowledges that one of FileNet's Third Party Providers provides

application integration software as part of the Software (the "Integration Software"). End User agrees to

use the Software solely as follows: (i) FileNet's workflow or content management software will be the

triggering source and/or the destination of the transaction managed by the Integration Software; (ii)

FileNet's workflow or content management functionality must be a necessary part of the transaction

managed by the Integration Software such that without such FileNet functionality, the transaction

managed by the Integration Software could not process; (iii) the Software will not be used or configured

in such a way as to only provide the functionality that the Integration Software provides; and (iv) all

derivative works of the Software made by or for End User are subject to the foregoing restrictions.

7. Choice of Law. The laws of the State of California will govern the construction and operation of this

Agreement without regard to the conflict of laws provisions thereof.

8. U.S. Government Restricted Rights. The Software is Commercial Software and the Software and

Documentation are provided with Restricted Rights. Use, duplication or disclosure by the Government is

subject to restrictions as set forth in paragraph (c) (1) (ii) of the Rights in Technical Data and Computer

Software Clause at DFARS 252.227-7013 or subparagraphs (c) (1) and (2) of the Commercial

Computer Software-Restricted Rights at 48 CFR 52.227-19, as applicable. Contractor/manufacturer is

FileNet Corporation, 3565 Harbor Blvd., Costa Mesa, California 92626.

March 2003 FileNet Document Warehouse for SAP 130

Index

Architecture, 14

ArchiveLink Document Types, 108

Business Configuration Elements, 107

cBarcode, 15, 75

Changing Registry Rights for Using HTTP,

116, 119

Communication with Archives, 91

Configuration, 45

Configuration for Web-Based Client

Environment, 79

Configuring cServer RFC Service, 112

Configuring Document Classes, 68

Configuring FileNET IDM Libraries, 45

Configuring FileNET Libraries, 57

Configuring FileNET Panagon Web

Services, 49

Configuring IDM Services for R/3 in Internet

Information Server, 114

Configuring RFC Communication, 59

Configuring SAP Archives, 67

Configuring SAP Systems, 58

Configuring SAP System-Specific Security,

65

Configuring Security, 78

Configuring the PreProcessor, 71

Create SAP Queues, 87

Creating IDM Image Services Queues for

Barcode Transfer, 48

Creating IDM Image Services Queues for

Processing Incoming Documents, 48

Creating the IDM Services for R/3 Request

Queue, 48

cServer, 15, 69, 112, 126

Customizing SAP, 85

Define Links, 110

Defining FileNET Document Classes, 47

Defining FileNET Index Fields, 45

DMS, 81

DMS UI Components, 82

Document Classes, 68, 107

Document Types, 108

DWSAP Releases 2.2 and 4.0, 29

File Exchange Directories, 49

FileNET Document Classes, 47

FileNET IDM Libraries, 45

FileNET Index Fields, 45

FileNET Libraries, 57

General, 75

IDM Desktop for R/3 Category, 81

IDM Image Services Queues, 48

IDM Services for R/3 Category, 55, 69, 75

IDM Services for R/3 Component, 15

IDM Services for R/3 Configuration, 51

IDM Services for R/3 in Internet Information

Server, 114

IDM Services for R/3 Installation, 18

IDM Services for R/3 Request Queue, 48

Installation of IDM Services for R/3, 17

Installation Prerequisites, 18

Installation Requirements, 17

Logging, 55

Maintain Archive Device, 91

Maintain Number Range, 88

MIME Types, 107

New Component Names, 14

Panagon Web Services, 49

Preprocessor, 72

PreProcessor, 71

Prerequisites, 18

Registry Rights for Using HTTP, 116, 119

Reinstallation, 32, 39

Requirements, 17

RFC Communication, 59

RFC Communication Parameters, 62

RFC Destinations, 96

SAP Archive, 100

SAP Archive Definition in R/3 4.6B, 100

SAP ArchiveLink, 12

SAP ArchiveLink Protocols, 92

SAP Archives, 67

SAP Customizing, 85

SAP Systems, 58

SAP System-Specific Security, 65

SAP Technical Document Classes, 107

Security, 78

Send a Certificate to an Archive, 106

Server Configuration, 45

Stopping and Starting cServer, 126

System Architecture, 14

Testing RFC Communication Parameters,

62

Uninstallation, 32

Upgrading from DWSAP Releases 2.2 and

4.0, 29

Web-Based Client Environment, 79
