CS 4513 – Fall 2017
Instructions for PL/SQL
- Anonymous Blocks
- Declaration Statements, Data types and Variables
- Executable Statements (Some operators, Conditional Logic, Looping)
- More operators
- Cursors
- Procedures
- Functions
- Packages
- Exceptions
- How to edit and execute PL/SQL programs in Oracle SQL Developer
- A Complete Example
- How to call a PL/SQL procedure in a Java program
- Reference
1. Anonymous Blocks
You have to put your PL/SQL code in blocks. The simplest type of blocks is Anonymous Blocks.
/*General Structure of an Anonymous Block*/
[DECLARE
declaration statements]
BEGIN
executable statement(s)
[EXCEPTION
exception handlers]
END;
Legend:
The square brackets [] mark off sections that are optional, i.e. declare and exception sections are
optional.
UPPERCASE words are keywords.
Let’s start with a simple example – an anonymous block that prints out ‘hello, world!’ on the
screen. To enable printing on screen you have to type the following command in the worksheet
of Oracle SQL Developer 3.2:
Page 2 of 43
SET SERVEROUTPUT ON;
/*only once per session, that is until you disconnect from the connection*/
And here is the PL/SQL code:
BEGIN
DBMS_OUTPUT.PUT_LINE('Hello, world!');
END;
2. Declaration Statements
In PL/SQL before you can work with any kind of variable, you must first declare it; that is you
must give it a name and specify its data type.
The most common data types in PL/SQL are String, Number, Data and Boolean. Here are some
examples of declaration statements for every kind of data type.
Note that each declaration ends with semicolon.
2.1 String
Declaration: variable_name VARCHAR2(n);
where n is the maximum length of the string content (up to 32767)
Example:
small_string VARCHAR2(4);
2.2 Number
Declaration: variable_name NUMBER[(precision [,scale] ) ];
where precision and scale are integers
Example:
bean_counter NUMBER(10, 3);
/*can hold values with up to 10 digits of precision, 3 of which are to the right of the decimal
point*/
Page 3 of 43
2.3 Date
Declaration: variable_name DATE;
Example:
birth_date DATE;
2.4 Boolean
Declaration: variable_name BOOLEAN;
Example:
too_young_to_vote BOOLEAN;
Note that in PL/SQL a BOOLEAN variable can be TRUE, FALSE or NULL.
3. Executable Statements
An executable statement can be any SQL statement (except data definition statements such as
CREATE TABLE), a procedure/function call (see sections 6 and 7), or any of the statements
below, ending with semicolon.
3.1 Assignment statement – to assign a value to an already declared variable.
The assignment operator to do this is := (a colon followed by an equal sign).
For DATE the format is ‘DD-MON-YYYY’. For example: 22-APR-2012.
Example: let’s expand the example from section 1 – declare string and date variables, assign
values to them and print their content on the screen.
DECLARE
myMessage VARCHAR2(20); /*declaration*/
myDate DATE; /*declaration*/
BEGIN
myMessage := 'hello, world!'; /*assignment*/
myDate := '20-SEP-2012'; /*assignment*/
DBMS_OUTPUT.PUT_LINE(myMessage);
DBMS_OUTPUT.PUT_LINE(myDate);
END;
Page 4 of 43
3.2 Output statement – to print on the screen.
PL/SQL has limited ability to print out. To do this you have to put what you want to print in the
DBMS_OUTPUT buffer. You have already seen the command for this:
DBMS_OUTPUT.PUT_LINE(X);
where x can be the name of a variable (as in the example in section 3.1) or a literal value (as in
the example in section 1). Note that all the lines put in the buffer are printed on the screen after
the program completes its execution.
3.3 Input statement – to read from keyboard
The operator to do this is & (ampersand) followed by the name of the variable you want to read a
value for. To automatically cast the input from keyboard to string or date you enclose the whole
thing in ‘ ’ (single quotes). In this way the user of your program does not need to enter them
enclosed in single quotes. Numbers and Booleans do not require casting.
Note that the & operator is not part of PL/SQL, it is Oracle SQL Developer operator. In the
Oracle SQL Developer environment, Oracle SQL Developer substitution variables allow
portions of command syntax to be stored and edited into the command before it is run.
Substitution variables are variables that you can use to pass runtime values, number or character,
into a PL/SQL block. You can reference them within a PL/SQL with a preceding ampersand in
the same manner as you reference Oracle SQL Developer substitution variables in a SQL
statement. The text values are substituted into the PL/SQL block before PL/SQL block is
executed. Therefore you cannot substitute different values for the substitution variables by using
a loop. Only one value will replace the substitution variable.
Example: Read a string, a number, a date, and a boolean from keyboard and print them on the
screen.
/*Example of input statements*/
DECLARE
myMessage VARCHAR2(20); /*declaration*/
myNumber NUMBER; /*declaration*/
myDate DATE; /*declaration*/
printOut BOOLEAN; /*declaration*/
BEGIN
myMessage := '&myMessage'; /*reading from keyboard and assignment*/
myNumber := &myNumber; /*reading from keyboard and assignment*/
myDate := '&myDate'; /*reading from keyboard and assignment*/
printOut := &youSure; /*reading from keyboard and assignment*/
Page 5 of 43
DBMS_OUTPUT.PUT_LINE(myMessage);
DBMS_OUTPUT.PUT_LINE(myNumber);
DBMS_OUTPUT.PUT_LINE(myDate);
END;
3.4 IF statement (Conditional Logic)
The general format of the IF statement is as follows.
/*General format of IF statement*/
IF condition 1
THEN
executable statements
[ELSIF condition 2
THEN
executable statements]
[ELSIF condition n
THEN
executable statements]
[ELSE
THEN
executable last statements]
END IF;
Note that the keyword is ELSIF, not ELSEIF.
Example: let’s modify the example in section 3.3 so that it prints the contents of myMessage,
myNumber and myDate only if the Boolean printOut is TRUE, else print a message ‘No print on
screen’.
/*Example of IF statement*/
DECLARE
myMessage VARCHAR2(20); /*declaration*/
myNumber NUMBER; /*declaration*/
myDate DATE; /*declaration*/
printOut BOOLEAN; /*declaration*/
BEGIN
myMessage := '&myMessage'; /*reading from keyboard and assignment*/
myNumber := &myNumber; /*reading from keyboard and assignment*/
myDate := '&myDate'; /*reading from keyboard and assignment*/
printOut := &youSure; /*reading from keyboard and assignment*/
IF printOut
Page 6 of 43
THEN
DBMS_OUTPUT.PUT_LINE(myMessage);
DBMS_OUTPUT.PUT_LINE(myNumber);
DBMS_OUTPUT.PUT_LINE(myDate);
ELSE
DBMS_OUTPUT.PUT_LINE('No print on screen');
END IF;
END;
Also, there are CASE statements for conditional logic (check the references).
3.5 Looping
3.5.1 FOR Loop – you know how many times you want to execute the statements inside the loop.
The general format of the FOR loop is as follows.
/*General format of FOR loop*/
FOR loop_counter IN [REVERSE] lower_bound .. upper_bound
LOOP
statements
END LOOP;
Example: Print out the value stored in the counter variable.
/*Example of FOR loop*/
DECLARE
counter NUMBER;
BEGIN
FOR counter IN 1 .. 6
LOOP
DBMS_OUTPUT.PUT_LINE(counter);
END LOOP;
END;
The counter will get values 1, 2, 3, 4, 5, 6 and they will be printed on the screen.
If you want to assign values to the counter in reverse order, use the REVERSE option.
Example: the same loop, but the counter will get values in reverse order.
/*Example of FOR loop in reverse order*/
DECLARE
counter NUMBER;
BEGIN
FOR counter IN REVERSE 1 .. 6
Page 7 of 43
LOOP
DBMS_OUTPUT.PUT_LINE(counter);
END LOOP;
END;
The counter will get values 6, 5, 4, 3, 2, 1.
3.5.2 Simple (Infinite) Loop – you don’t know the exact number of repetitions, but it will
execute at least once. To get out of the loop, you specify a condition, when it becomes true, the
program gets out of the loop. The general format of the simple loop is as follows.
/*General format of simple loop*/
LOOP
statements
EXIT WHEN condition
END LOOP;
Example: same as the example in section 3.5.1, but will stop when counter becomes equal to 4.
/*Example of simple loop*/
DECLARE
counter NUMBER;
BEGIN
counter := 1;
LOOP
DBMS_OUTPUT.PUT_LINE(counter);
counter := counter + 1;
EXIT WHEN counter >= 4;
END LOOP;
END;
There is also a WHILE loop (check the references).
Page 8 of 43
4. More operators
Here are some more PL/SQL operators.
Notation
Meaning
+,-,/,*,**
Addition, subtraction, division, multiplication, exponentiation
AND, OR, NOT
Boolean operators
=
Equality (of non-nulls)
!=
Inequality
<,>,<=,>=
Less than, greater than, less than or equal, greater than or equal
IN
Equality disjunction
BETWEEN
Range test
IS NULL
Nullity test
IS NOT NULL
Non-nullity test
LIKE
Wildcard matching (for strings)
||
Concatenation (for strings)
--
A line starting with – is a comment line
/*block*/
A block insider /* and */ is treated as comment – multiline comment
5. Cursors
A cursor is a named space in memory where the program can get selected data out of the
database.
For every cursor you should associate a corresponding SELECT statement.
To retrieve data you OPEN the cursor, FETCH from it and CLOSE it.
Example: Suppose we have a table “students” in which we have stored student_id and
student_gpa. Now we want to count how many students who have gpa greater than or equal to
3.0.
Here is the PL/SQL code:
/*Example of using the cursor*/
DECLARE
number_of_students NUMBER;
/*the following four rows is the declaration of the cursor*/
CURSOR ns_cur IS
SELECT COUNT(*)
FROM students
WHERE student_gpa >= 3.0;
BEGIN
number_of_students := 0;
OPEN ns_cur; --open the cursor
FETCH ns_cur INTO number_of_students; --fetch from it
Page 9 of 43
CLOSE ns_cur; --close the cursor
--print out the number of students with gpa >=3.0
DBMS_OUTPUT.PUT_LINE(number_of_students);
END;
6. Procedures
A procedure is a named program that executes some predefined statements and then returns
control to whatever calls it. After defining a procedure you can invoke it by calling its name and
providing any needed parameters.
There are 2 different types of procedures.
The first type is a “run time” procedure, that is, they exist only when you execute a program that
contains them – much like methods in other languages as C++, Java, etc. The general structure of
a “run time” procedure is as follows.
/*General Structure of a Run Time Procedure*/
PROCEDURE procedure_name
(parameter1 MODE DATATYPE [DEFAULT expression],
parameter2 MODE DATATYPE [DEFAULT expression],
…)
AS
[variable1 DATATYPE;
Variable2 DATATYPE;
…]
BEGIN
statements;
[EXCEPTION
WHEN exception_name
THEN
exception handlers]
END;
MODE: can be IN, OUT or IN OUT.
- IN means calling program supplies the values of the parameters and you cannot change it
inside the procedure.
- OUT means the procedure sets the value of the parameter and the calling program can
read it.
- IN OUT – the calling program supplies a value, the procedure can read it and change it,
and the calling program can read the updated value.
Page 10 of 43
[DEFAULT expression] – you can initialize the parameters to some default value. This is
optional.
You should define a run time procedure in the declaration section.
Example: A procedure that inserts a tuple <student_id, student_gpa> into the table “students”
which has attributes student_id and student_gpa.
PROCEDURE insertStudent
(id IN VARCHAR2, gpa IN NUMBER)
AS
BEGIN
--the next two lines are pure SQL DML statements
INSERT INTO students(student_id, student_gpa)
VALUES(id, gpa);
END;
The call to this procedure can be done in the anonymous block that contains this procedure, or
from another procedure or function in the same anonymous block.
For example, consider the following anonymous block.
/*Example of calling a run time procedure*/
DECLARE
…
id VARCHAR2(20);
gpa NUMBER;
…
PROCEDURE insertStudent
(id IN VARCHAR2, pga IN NUMBER)
AS
BEGIN
--the next two lines are pure SQL DML statements
INSERT INTO student(student_id, student_gpa)
VALUES(id, gpa);
END;
BEGIN
…
id := ‘111-111-1111’;
gpa := 3.5;
…
/*call the run time procedure insertStudent*/
insertStudent(id,gpa);
…
END;
Page 11 of 43
The second type is a “stored” procedure. When you define a stored procedure, it is stored in the
database and you can invoke it from different anonymous blocks, procedures and functions, and
from various environments that can access the database. This feature in PL/SQL is very
attractive as it allows for sharing of PL/SQL code by different applications running at different
places. The general structure of a stored procedure is as follows.
/*General Structure of a Stored Procedure*/
CREATE [OR REPLACE] PROCEDURE procedure_name
(parameter1 MODE DATATYPE [DEFAULT expression],
parameter2 MODE DATATYPE [DEFAULT expression],
…)
AS
[variable1 DATATYPE;
Variable2 DATATYPE;
…]
BEGIN
statements;
[EXCEPTION
WHEN exception_name
THEN
Exception handlers]
END;
The code is almost the same as the run time procedure, except the CREATE [OR REPLACE]
keywords.
MODE: same as in run time procedures.
Example: A stored procedure that inserts a tuple <student_id, student_gpa> into the table
“students” which has attributes student_id and student_gpa.
CREATE OR REPLACE PROCEDURE insertStudent
(id IN VARCHAR2, gpa IN NUMBER)
AS
BEGIN
--the next two lines are pure SQL DML statements
INSERT INTO students(student_id, student_gpa)
VALUES(id, gpa);
END;
Page 12 of 43
The call to a stored procedure can be done from any anonymous block, another procedure or a
function, or directly from the Oracle SQL Developer Worksheet.
In case of an anonymous block, here is an example.
/*Example of calling a stored procedure*/
DECLARE
…
id VARCHAR2(20);
gpa NUMBER;
…
/*note that here we did not declare the procedure
It already exists*/
BEGIN
…
id := ‘111-111-1111’;
gpa := 3.5;
…
/*call the run time procedure insertStudent*/
insertStudent(id,gpa);
…
END;
7. Functions
A function is similar to a procedure, except that it returns one single value to the program that
calls it. The data returned by a function is always of a specific, predefined data type.
There are also “run time” and “stored” functions.
Run time functions are defined as follows.
/*General Structure of a Run Time Function*/
FUNCTION function_name
(parameter1 MODE DATATYPE [DEFAULT expression],
parameter2 MODE DATATYPE [DEFAULT expression],
…)
RETURN DATATYPE
AS
[variable1 DATATYPE;
Variable2 DATATYPE;
…]
BEGIN
statements;
Page 13 of 43
RETURN expression
[EXCEPTION
WHEN exception_name
THEN
exception handlers]
END;
Example: A run time function that returns the number of students with GPA greater than some
value from the table “students”.
/*Example of a run time function*/
FUNCTION getNumStudents (gpa IN NUMBER)
/*note that we declare the type of data to be returned*/
RETURN NUMBER
AS
number_of_students NUMBER;
/*the following four rows is the declaration of the cursor*/
CURSOR ns_cur IS
SELECT COUNT(*)
FROM students
WHERE student_gpa >= gpa;
BEGIN
number_of_students := 0;
OPEN ns_cur; --open the cursor
FETCH ns_cur INTO number_of_students; --fetch from it
CLOSE ns_cur; --close the cursor
RETURN number_of_students;
END;
Same as the run time procedures, a run time function should be defined in the declaration
section.
The call to this function should be done in the anonymous block that contains the function, or
from another function or procedure in the same anonymous block.
For example, consider the following anonymous block:
Page 14 of 43
/*Example of calling a run time function*/
DECLARE
…
countStudents NUMBER;
…
FUNCTION getNumStudents (gpa IN NUMBER)
/*note that we declare the type of data to be returned*/
RETURN NUMBER
AS
number_of_students NUMBER;
/*the following four rows is the declaration of the cursor*/
CURSOR ns_cur IS
SELECT COUNT(*)
FROM students
WHERE student_gpa >= gpa;
BEGIN
number_of_students := 0;
OPEN ns_cur; --open the cursor
FETCH ns_cur INTO number_of_students; --fetch from it
CLOSE ns_cur; --close the cursor
RETURN number_of_students;
END;
BEGIN
…
countStudents := getNumStudents(3.5);
…
END;
On the other hand, stored functions are defined as follows.
/*General Structure of a Stored Function*/
CREATE [OR REPLACE] FUNCTION function_name
(parameter1 MODE DATATYPE [DEFAULT expression],
parameter2 MODE DATATYPE [DEFAULT expression],
…)
RETURN DATATYPE
AS
[variable1 DATATYPE;
Variable2 DATATYPE;
…]
Page 15 of 43
BEGIN
statements;
RETURN expression
[EXCEPTION
WHEN exception_name
THEN
exception handlers]
END;
Example: A stored function that returns the number of students with GPA greater than some
value from table “students”.
/*Example of a stored function*/
CREATE [OR REPLACE] FUNCTION getNumStudents (gpa IN NUMBER)
/*note that we declare the type of data to be returned*/
RETURN NUMBER
AS
number_of_students NUMBER;
/*the following four rows is the declaration of the cursor*/
CURSOR ns_cur IS
SELECT COUNT(*)
FROM students
WHERE student_gpa >= gpa;
BEGIN
number_of_students := 0;
OPEN ns_cur; --open the cursor
FETCH ns_cur INTO number_of_students; --fetch from it
CLOSE ns_cur; --close the cursor
RETURN number_of_students;
END;
The call to a stored function can be done from any anonymous block, another function or a
procedure, or directly from the Oracle SQL Developer Worksheet.
For example, consider the following anonymous block:
/*Example of calling a stored function*/
DECLARE
…
Page 16 of 43
countStudents NUMBER;
…
/*note that here we did not declare the function, it already exists*/
BEGIN
…
/*call the stored function*/
countStudents := getNumStudents(3.5);
…
END;
8. Packages
You can use packages to organize your code. When you have several related stored procedures
and/or functions you should combine them in a package. The package is stored in the database,
as well as the procedures and functions it contains, and can be shared. Every package consists of:
8.1 Package specification – describes what can be done using this package (lists the
headers of all procedures/functions).
A template looks like:
CREATE OR REPLACE PACKAGE package_name
AS
Program1 header;
Program2 header;
…
END package_name;
8.2 Package body – describes how to do it (implementing procedures/functions).
CREATE OR REPLACE PACKAGE BODY package_name
AS
Private_programs
/*optional, you cannot invoke these programs from outside*/
Program1 body;
Program2 body;
…
END package_name;
An example of package using the examples in sections 6 and 7:
Page 17 of 43
/*An example of package*/
--package specification--
CREATE OR REPLACE PACKAGE student_pack
AS
PROCEDURE insertStudent(id IN VARCHAR2, gpa IN NUMBER);
FUNCTION getNumStudents(gpa IN NUMBER);
END student_pack;
--package body—
CREATE OR REPLACE PACKAGE BODY student_pack
AS
/*the procedure*/
CREATE OR REPLACE PROCEDURE insertStudent
(id IN VARCHAR2, gpa IN NUMBER)
AS
BEGIN
--the next two lines are pure SQL DML statements
INSERT INTO students(student_id, student_gpa)
VALUES(id, gpa);
END insertStudent;
/*the function*/
CREATE OR REPLACE FUNCTION getNumStudents (gpa IN NUMBER)
/*note that we declare the type of data to be returned*/
RETURN NUMBER
AS
number_of_students NUMBER;
CURSOR ns_cur IS
SELECT COUNT(*)
FROM students
WHERE student_gpa >= gpa;
BEGIN
number_of_students := 0;
OPEN ns_cur; --open the cursor
FETCH ns_cur INTO number_of_students; --fetch from it
CLOSE ns_cur; --close the cursor
RETURN number_of_students;
END getNumStudents;
END student_pack;
Now, if you want to call the procedure or the function, you use the syntax:
Page 18 of 43
package_name.function_name/procedure_name(parameters)
For example, to call them from an anonymous block (also you can do this from another function
or procedure or from the Oracle SQL Developer Worksheet):
/*Example of calling a packet*/
DECLARE
…
numStudents NUMBER;
…
BEGIN
…
student_pack.insertStudent(‘111-234’,3.5);
numStudents := student_pack.getNumStudents(3.6);
…
END;
You will see another example of this (as well as calling a procedure/function directly from
Oracle SQL Worksheet) in section 11.
9. Exceptions
PL/SQL implements run-time error handling via exceptions and exception handlers. When an
error occurs during the execution of a PL/SQL program, an exception is raised. Immediately,
program control is transferred to the exception section of the block in which the exception was
raised. For more information about exceptions and exception handling refer to the materials
listed in Reference.
10. How to edit and execute PL/SQL programs in Oracle SQL Developer?
Please refer to the following example and the materials listed in the Reference.
An example:
In the following example, we first create a table “student” with two attributes “student_id” and
“name” via SQL, then we insert two rows into the table and print out the rows.
Page 19 of 43
Step 1. Create the table “student” using SQL statements.
/*SQL code to create table student*/
create table student ( student_ID NUMBER,
Name VARCHAR(30),
PRIMARY KEY (student_ID));
Step 2. Create a PL/SQL procedure to insert two rows into table student and print all the student
records.

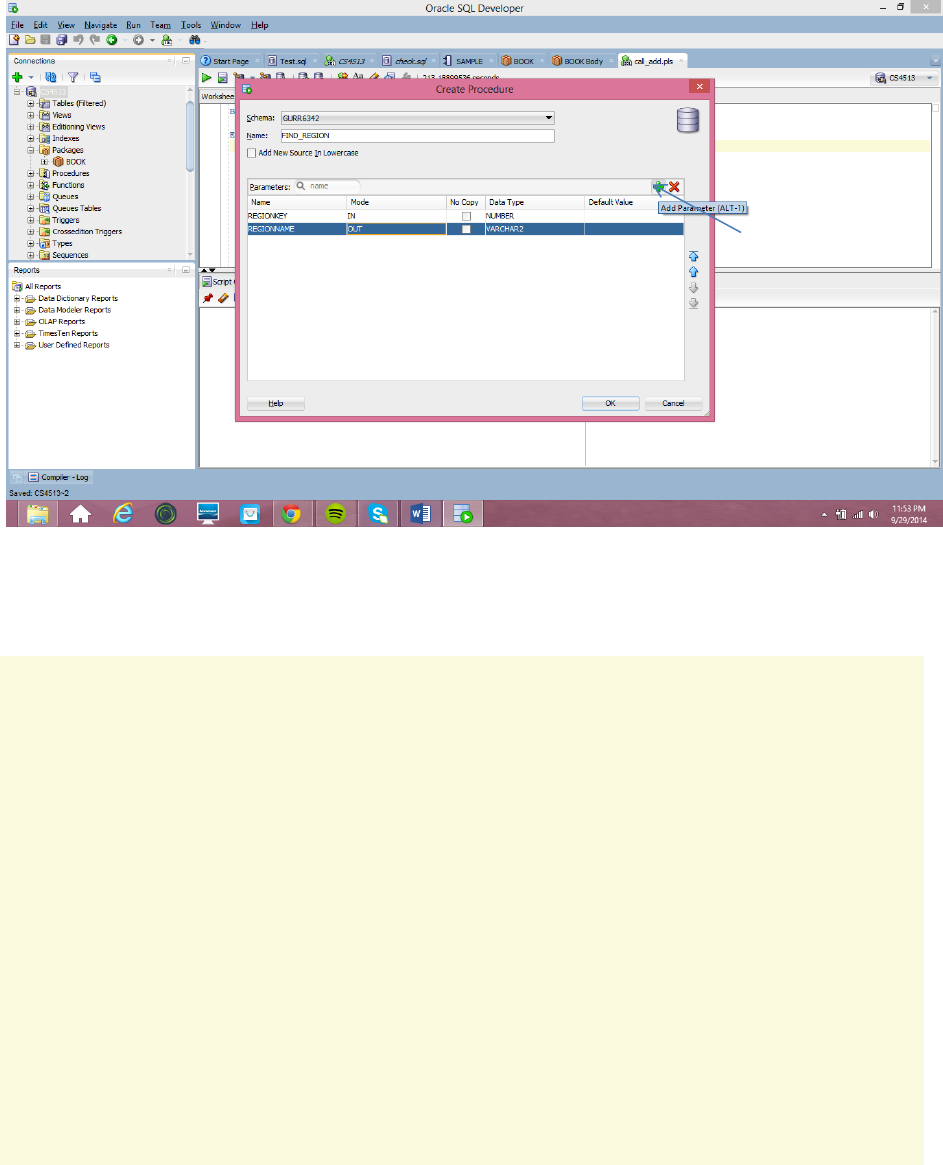

2.1 Click File -> New -> Database Tier -> Database Objects -> Procedure -> OK.

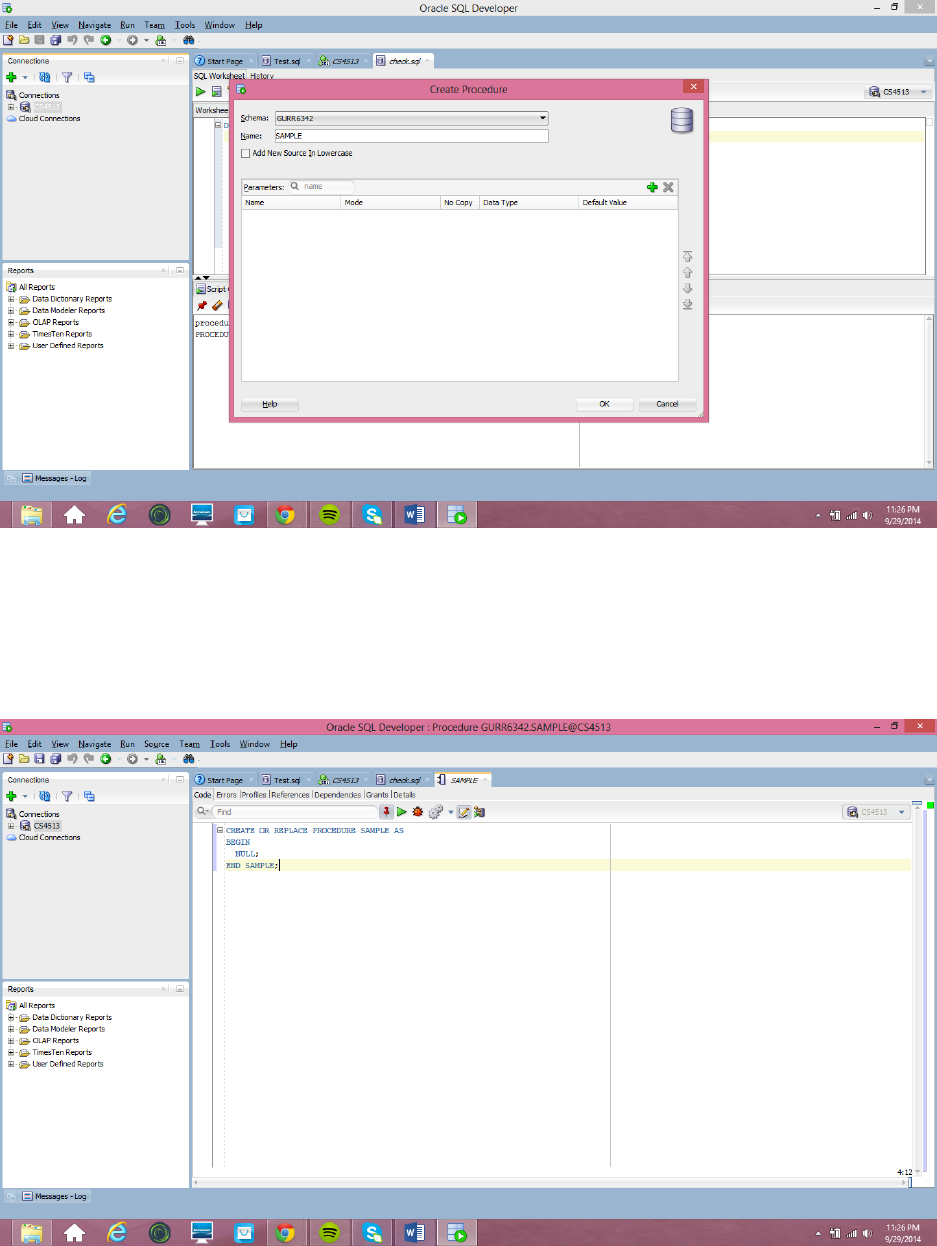

2.2 Select a connection if prompted. Enter you login name and password if you didn’t save.
2.3 Give a name for the procedure.
Page 20 of 43
2.4 Once you clicked the “OK” button, a procedure under that name with a null body will be
displayed.
Page 21 of 43
Step 3. Fill the procedure body with the procedure code.
Here is an example to insert two rows into the table “student” and print out all the student
records.
/*Sample procedure
Insert two rows in the table student
Print out the table
*/
create or replace
PROCEDURE SAMPLE AS
/* the next are DECLARE section */
student_id_1 NUMBER;
student_id_2 NUMBER;
student_name_1 VARCHAR2(30);
student_name_2 VARCHAR2(30);
/* nested procedure to insert into the table */
PROCEDURE insert_Student (student_id in NUMBER,
student_name in VARCHAR2) AS
BEGIN
/*the next two lines are pure SQL statements*/
INSERT INTO STUDENT(student_id, name)
VALUES (student_id, student_name);
END;
/* begin of procedure SAMPLE */
BEGIN
/*assign values to the variables declared above*/
student_id_1 := 100;
student_name_1 := 'Alice';
student_id_2 := 200;
student_name_2 := 'Bob';
/*call the predefined procedure to insert*/
insert_Student(student_id_1, student_name_1);
insert_Student(student_id_2, student_name_2);
/*Print out the table*/
DBMS_OUTPUT.PUT_LINE('Student_id' || ' ' ||
'Student.name');
FOR someone IN (select * from student)
LOOP
DBMS_OUTPUT.PUT_LINE(someone.student_id || ' '
|| someone.name);
END LOOP;
END SAMPLE;
Page 22 of 43

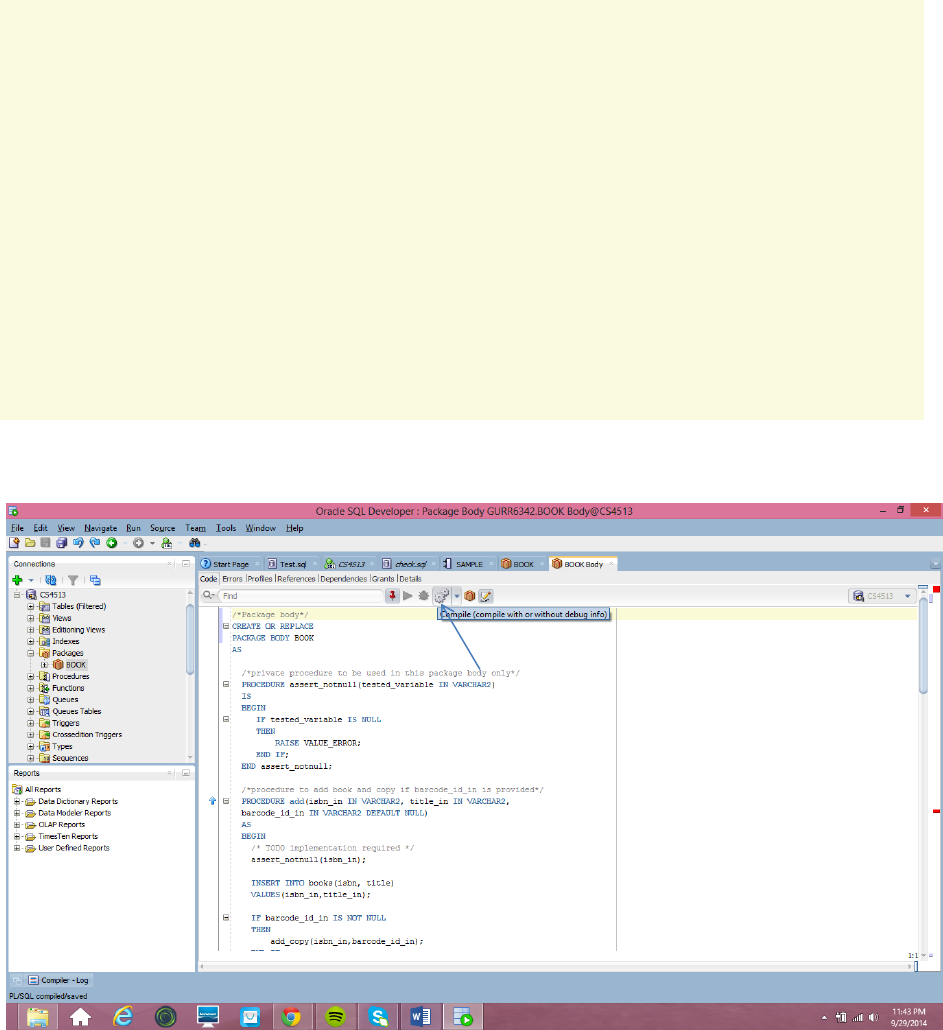

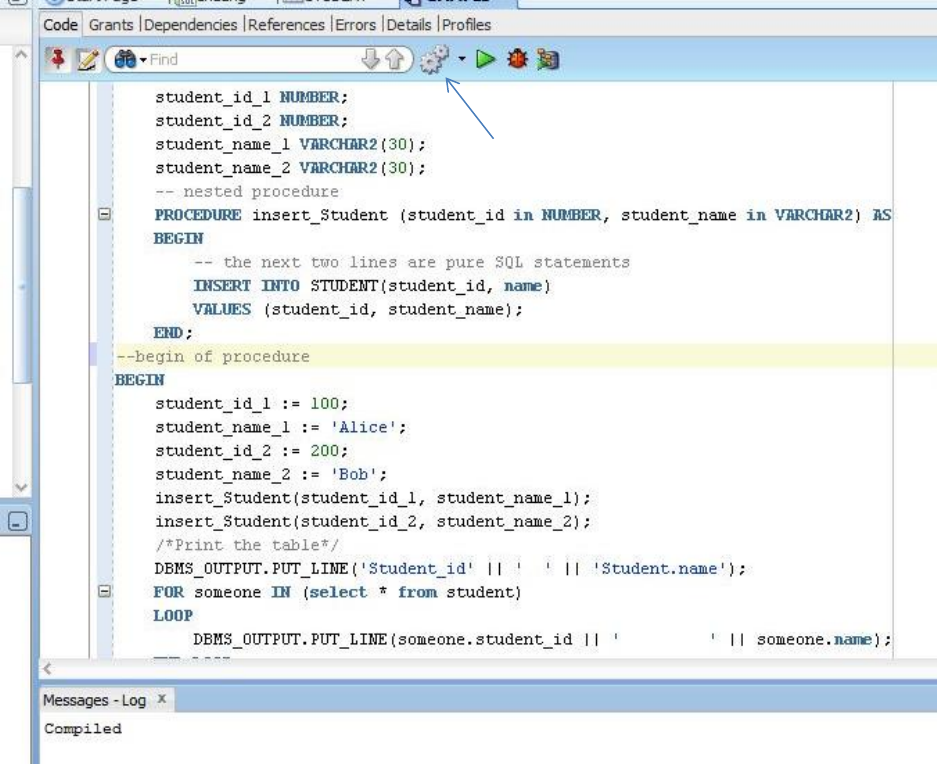

Step 4. Compile and debug the procedure by clicking the star button pointed to by the arrow in
the figure below.

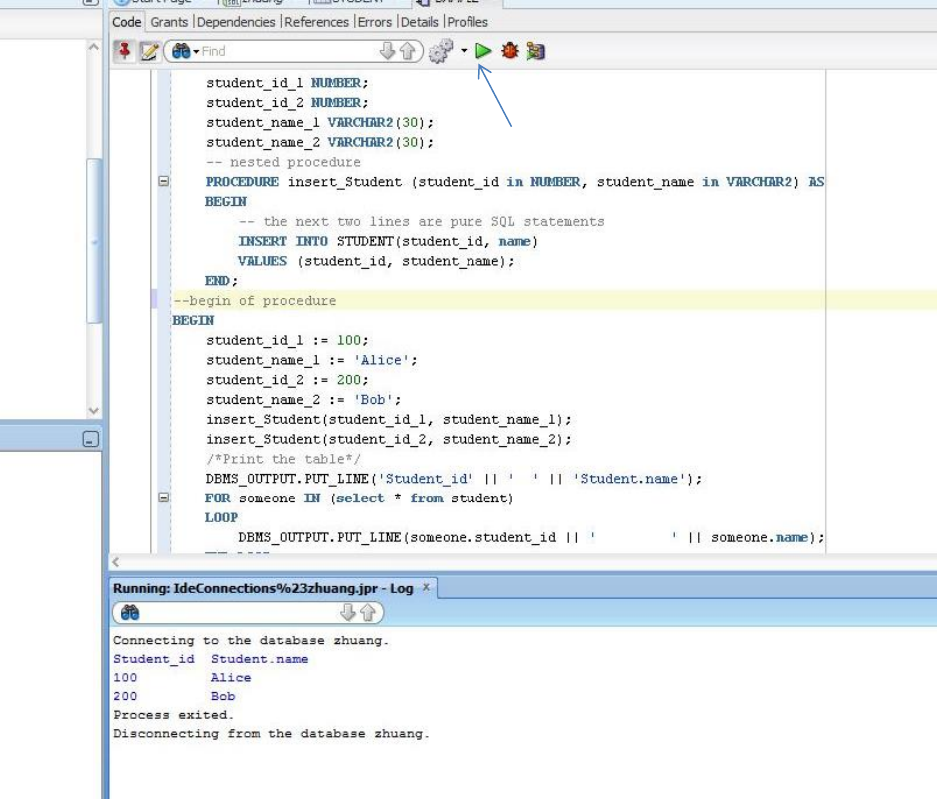

Step 5. Run the procedure by clicking the triangle button pointed to by the arrow below.
Page 23 of 43
Page 24 of 43
11. A Complete Example
Write a set of SQL and PL/SQL programs that will help a library to store the information about
books and book copies.
A book has an isbn code (primary key) and title, and a book copy has a barcode id (primary key).
E-R diagram
1 m
Step 1. Create tables.
Create a file “createTables.sql” with the following code:
/*SQL code to create table books and book_copies*/
CREATE TABLE books(
isbn VARCHAR2(13) NOT NULL PRIMARY KEY,
title VARCHAR2(200)
);
CREATE TABLE book_copies(
Barcode_id VARCHAR2(100) NOT NULL PRIMARY KEY,
isbn VARCHAR2(13),
FOREIGN KEY (isbn) REFERENCES books (isbn)
);
Now assume that we want to write a set of PL/SQL programs to do the following tasks:
- Add book and book copy if barcode_id is provided
- Add a book copy given an isbn of a book and the barcode_id of the copy
- List all books
- Remove a book and all of its copies given the isbn of the book
- Display the title of a book given its isbn
The best way to organize the code is to use packages.
Book
isbn
title
has
Book_copies
barcode_id
isbn
Page 25 of 43
Step 2 Create a package “book”.

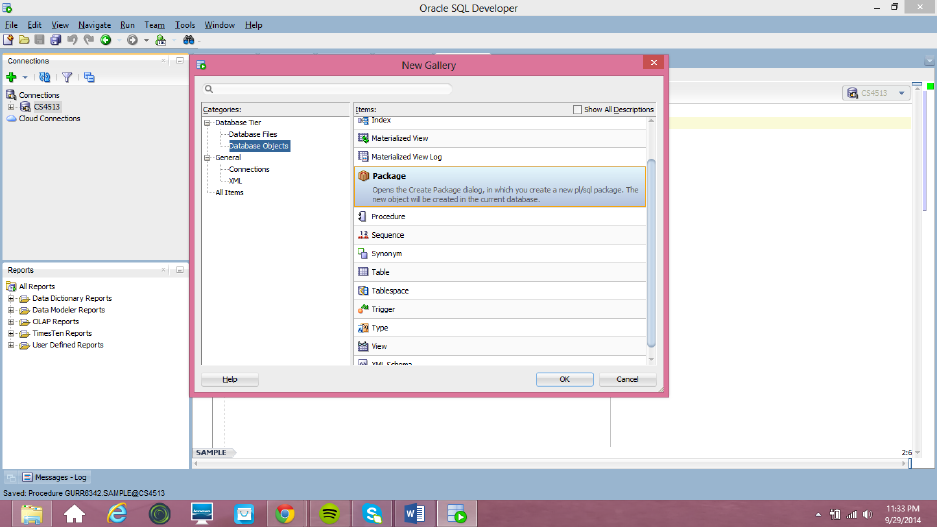

Step 2.1 Click File -> New -> Database Tier -> Database Objects -> Package -> OK.
Step 2.2 Select a connection and enter your login name and password if necessary.

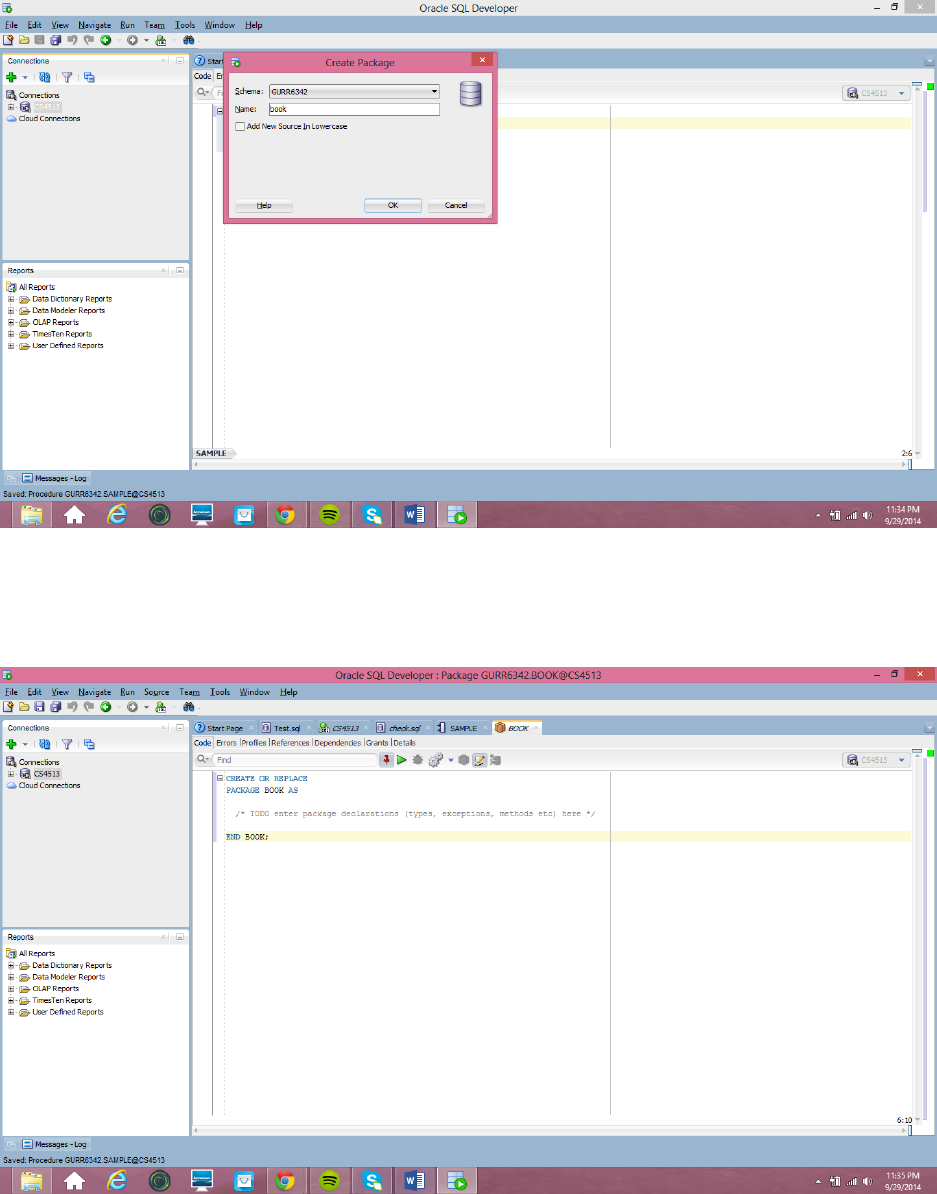

Step 2.3 Give a name for the package and click “OK”.
Page 26 of 43
Step 2.4 Once you clicked the “OK” button, a package specification under that name with a null
body will be displayed.
Page 27 of 43
Step 3. Fill the package specification with the code.
/*Package specification*/
CREATE OR REPLACE PACKAGE book
AS
/*procedure to add book and copy if barcode_id_in is
provided*/
PROCEDURE add(isbn_in IN VARCHAR2, title_in IN VARCHAR2,
barcode_id_in IN VARCHAR2 DEFAULT NULL);
/*procedure to add a copy*/
PROCEDURE add_copy(isbn_in IN VARCHAR2, barcode_id_in IN
VARCHAR2);
/*procedure to list all the books*/
PROCEDURE list_books;
/*procedure to remove a book and all of its copies*/
PROCEDURE weed(isbn_in IN VARCHAR2);
/*procedure to display the title of a book given its isbn*/
PROCEDURE getTitle(isbn_in IN VARCHAR2);
END book;
Step 4. Click the “save” button pointed to by the arrow in the figure below to save the
specification.

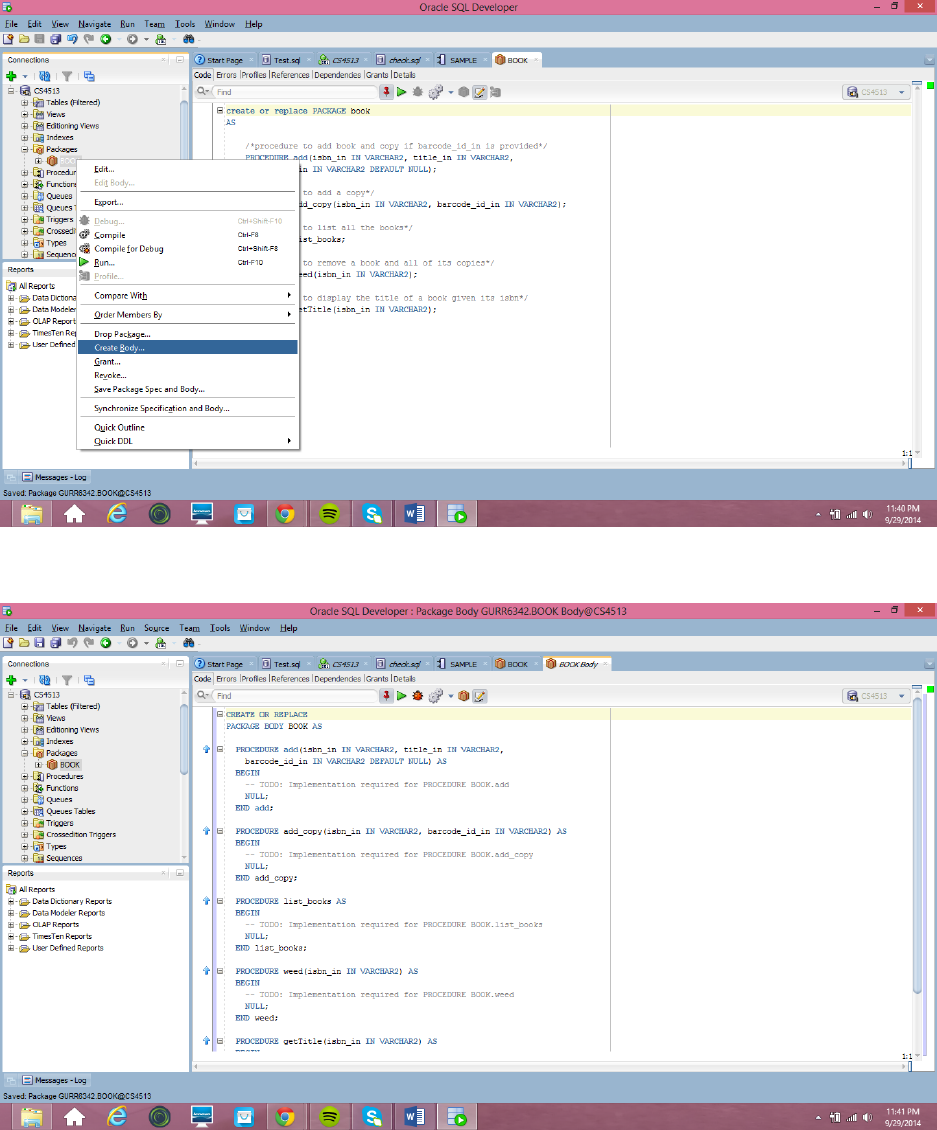

Step 5. Create the body of the package. In the navigator, find the package “book”, right click it
and select “Create Body”.
Page 28 of 43
After that, a null body for the package will be displayed.
Step 6. Fill the package body with the code.
Page 29 of 43
/*Package body*/
CREATE OR REPLACE
PACKAGE BODY BOOK
AS
/*private procedure to be used in this package body only*/
PROCEDURE assert_notnull(tested_variable IN VARCHAR2)
IS
BEGIN
IF tested_variable IS NULL
THEN
RAISE VALUE_ERROR;
END IF;
END assert_notnull;
/*procedure to add book and copy if barcode_id_in is
provided*/
PROCEDURE add(isbn_in IN VARCHAR2, title_in IN VARCHAR2,
barcode_id_in IN VARCHAR2 DEFAULT NULL)
AS
BEGIN
/* TODO implementation required */
assert_notnull(isbn_in);
INSERT INTO books(isbn, title)
VALUES(isbn_in,title_in);
IF barcode_id_in IS NOT NULL
THEN
add_copy(isbn_in,barcode_id_in);
END IF;
END add;
/*procedure to add a copy*/
PROCEDURE add_copy(isbn_in IN VARCHAR2, barcode_id_in IN
VARCHAR2)
AS
BEGIN
assert_notnull(isbn_in);
assert_notnull(barcode_id_in);
INSERT INTO book_copies(isbn,barcode_id)
VALUES(isbn_in, barcode_id_in);
END add_copy;
/*procedure to list all books*/
PROCEDURE list_books
Page 30 of 43
AS
isbn_out VARCHAR2(50);
title_out VARCHAR2(50);
CURSOR lb_cur is
SELECT isbn, titl
FROM books;
BEGIN
/*open the cursor*/
OPEN lb_cur;
/*start the loop*/
LOOP
FETCH lb_cur INTO isbn_out, title_out;
/*exit the loop when there is no more rows*/
EXIT WHEN lb_cur%NOTFOUND;
/*print one row at a time*/
DBMS_OUTPUT.PUT_LINE(isbn_out||’ ‘||title_out);
END LOOP;
/*close the cursor*/
CLOSE lb_cur;
END list_books;
/*procedure to remove a book and all of its copies*/
PROCEDURE weed(isbn_in IN VARCHAR2) AS
BEGIN
assert_notnull(isbn_in);
/*note the order of delete stataments*/
DELETE book_copies
WHERE isbn=isbn_in;
DELETE books
WHERE isbn=isbn_in;
END weed;
/*procedure to display the title of a book given its isbn*/
PROCEDURE getTitle(isbn_in IN VARCHAR2) AS
title_out VARCHAR2(50);
CURSOR gt_cur IS
SELECT title
FROM books
WHERE isbn=isbn_in;
BEGIN
Page 31 of 43
/*open the cursor*/
OPEN gt_cur;
/*start the loop*/
LOOP
FETCH gt_cur INTO title_out;
/*exit when there is no more rows*/
EXIT WHEN gt_cur%NOTFOUND;
/*print one row at a time*/
DBMS_OUTPUT.PUT_LINE(‘The title of a book with isbn=
’||isbn_in||’ is ‘||title_out);
END LOOP;
/*close the cursor*/
CLOSE gt_cur;
END getTitle;
END BOOK;
Step 7. Compile the package body by clicking the button pointed to by the arrow in the figure
below.
Step 8. The last thing that remains to be done is to write different anonymous blocks that will
call the procedures stored in the “book” package. We will invoke the procedure getTitle(isbn_in)
directly from the Oracle SQL Developer Worksheet, so there is no need to write an anonymous
block that will make the call.

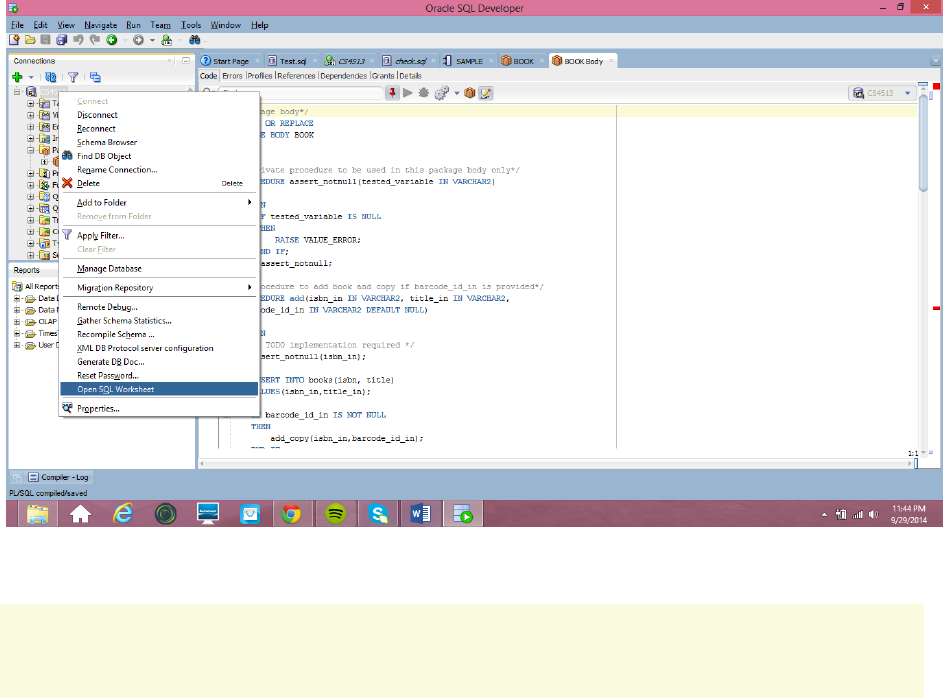

Step 8.1 To add a book and a copy.
Right click the connection name in the navigator and select “Open SQL Worksheet”.
Page 32 of 43
Write the following code in the worksheet:
BEGIN
book.add(‘&isbn_in’,’&title_in’,’&barcode_id_in’);
END;

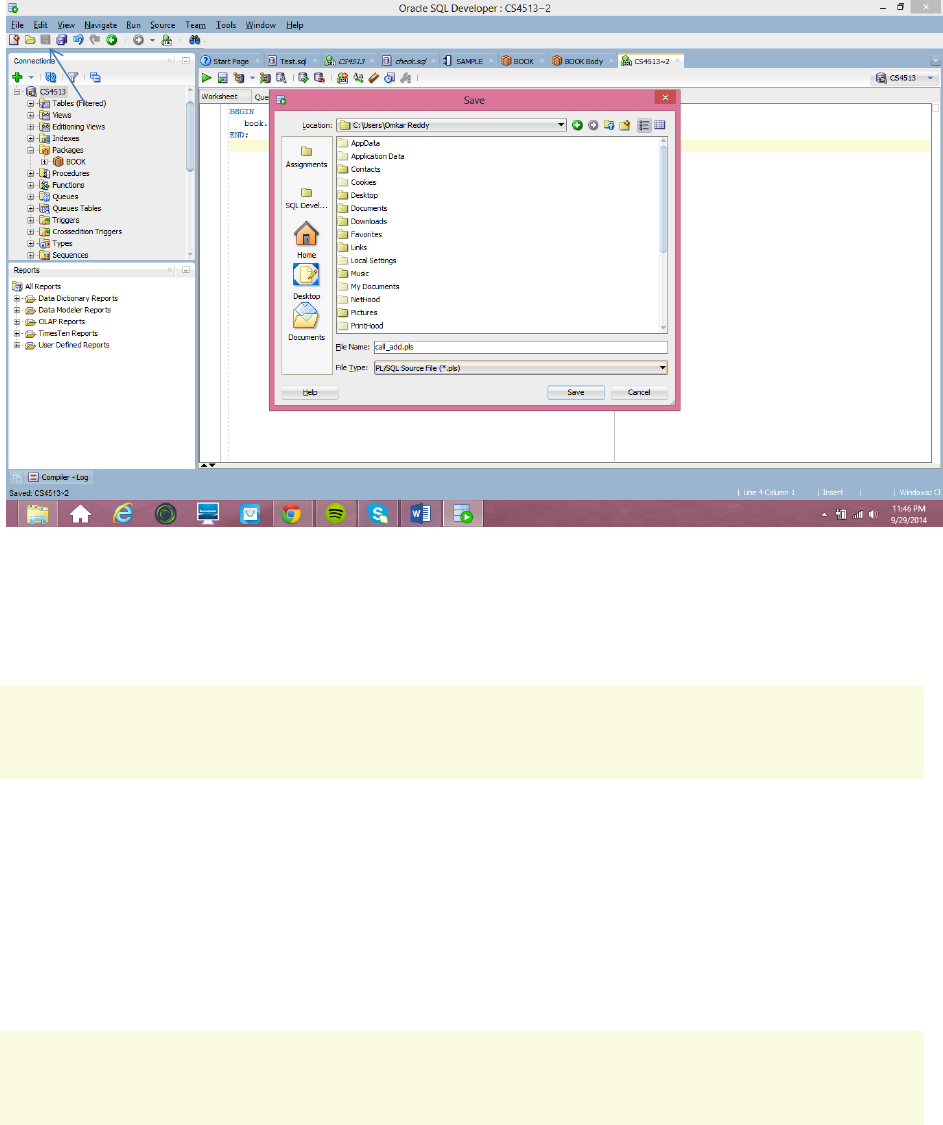

Save the code by clicking the SAVE button pointed to by the arrow in the figure below, give it a
name “call_add” and select the file type “.pls”.
Page 33 of 43
Step 8.2 To add a copy.
Follow the same way as Step 8.1, open another worksheet and write the following code in the
worksheet:
BEGIN
book.add_copy(‘&isbn_in’,’&barcode_id_in’);
END;
Save it in the file with the name “call_add_copy” and type “.pls”.
Step 8.3 To list all books.
Follow the same way as Step 8.1, open another worksheet and write the following code in the
worksheet:
BEGIN
Book.list_books;
END;
Save it in the file with the name “call_list_books” and type “.pls”.
Step 8.4 To remove a book and all its copies.
Follow the same way as Step 8.1, open another worksheet and write the following code in the
worksheet:
Page 34 of 43
BEGIN
book.weed(‘&isbn_in’);
END;
Save it in the file with the name “call_weed” and type “.pls”.
Step 9. Run the programs.
Step 9.1 Create tables by running the file “createTables.sql”.

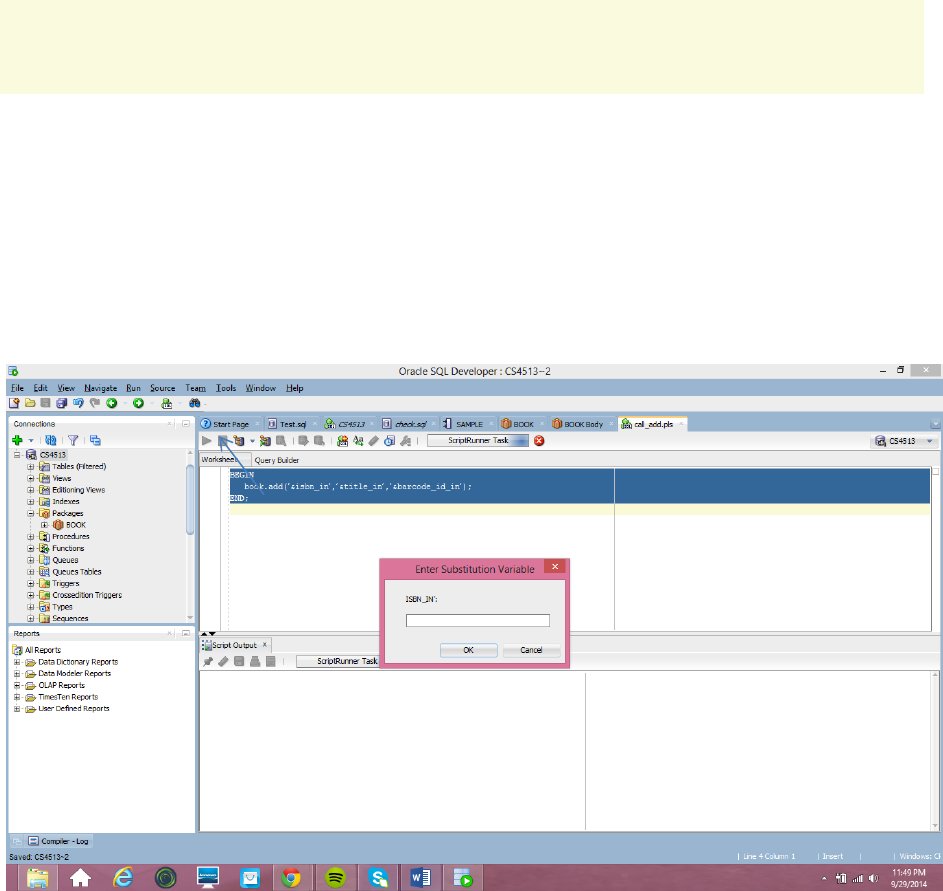

Step 9.2 Add a book and a copy. Click File -> Open -> select “call_add.pls”. Run the file
“call_add.pls” by clicking the “RUN Script” button pointed to by the arrow in the figure below
and enter input information.
Enter value for ISBN_IN: 1
Enter value for TITLE_IN: Oracle
Enter value for BARCODE_ID_IN: 11

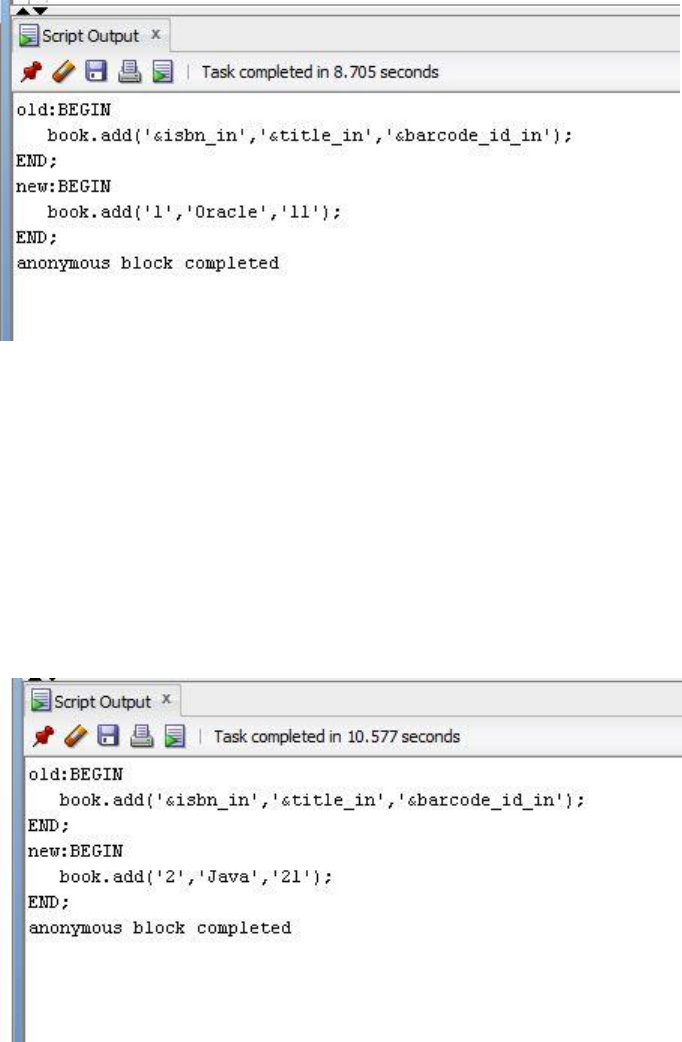

The result is shown in the “Script Output”.
Page 35 of 43
Step 9.3 Add another book and a copy.
Run the file “call_add.pls” again and enter the following information:
Enter value for ISBN_IN: 2
Enter value for TITLE_IN: Java
Enter value for BARCODE_ID_IN: 21
The result is shown in the “Script Output”.

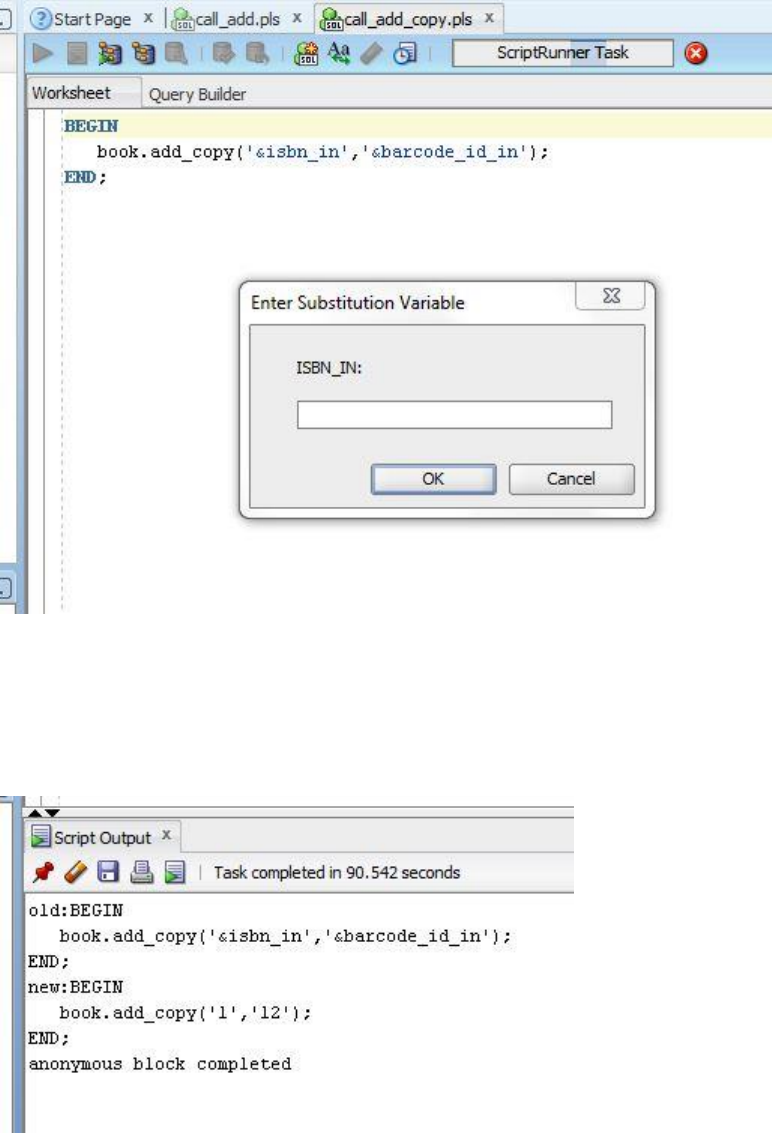

Step 9.4 Add a copy.
Click File -> Open -> select “call_add_copy.pls”. Run the file “call_add_copy.pls” by clicking
the “Run Script” button and enter the information.
Page 36 of 43
Enter value for isbn_in: 1
Enter value for barcode_id_in: 12
The result is shown in the “Script Output”.
Step 9.5 Add another copy.
Run the file “call_add_copy.pls” again and enter the following information:
Enter value for isbn_in: 2
Page 37 of 43
Enter value for barcode_id_in: 22

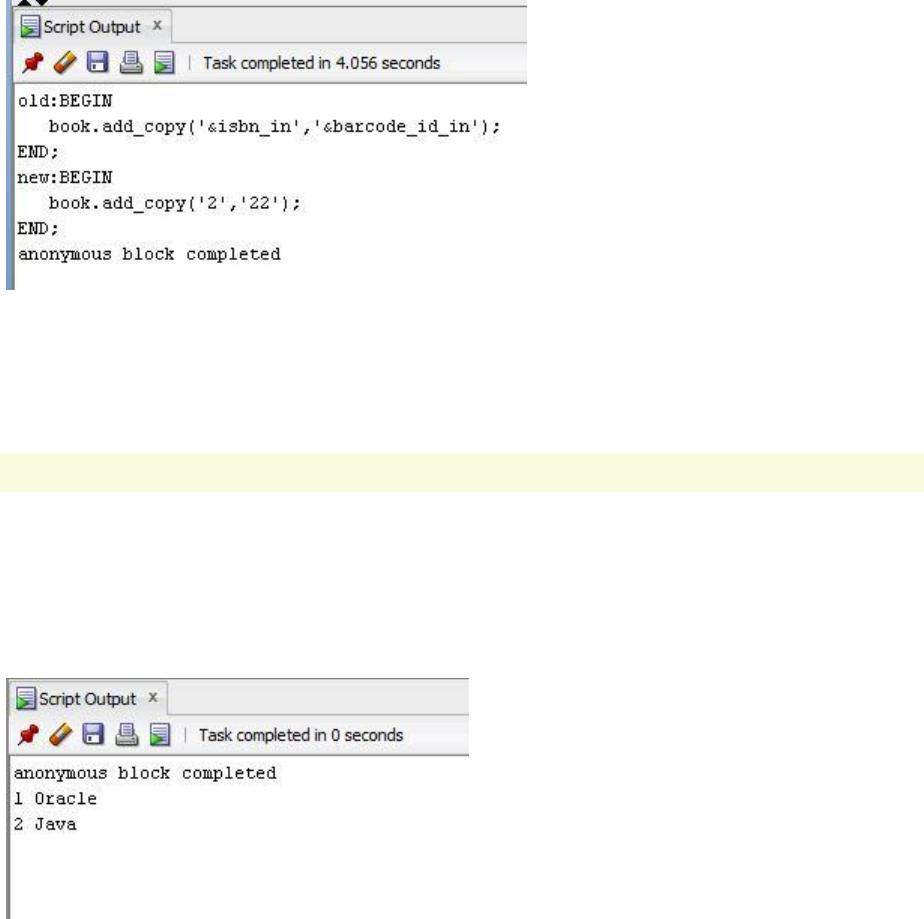

The result is shown in the “Script Output”.
Step 9.6 List the books.
Note that you need to run the following command in the worksheet once per session to display
the result on the screen.
set serveroutput on;
Click File -> Open -> select “call_list_books.pls”. Run the file “call_list_books.pls” by clicking
the “Run Script” button.
The result is shown in the “Script Output”.

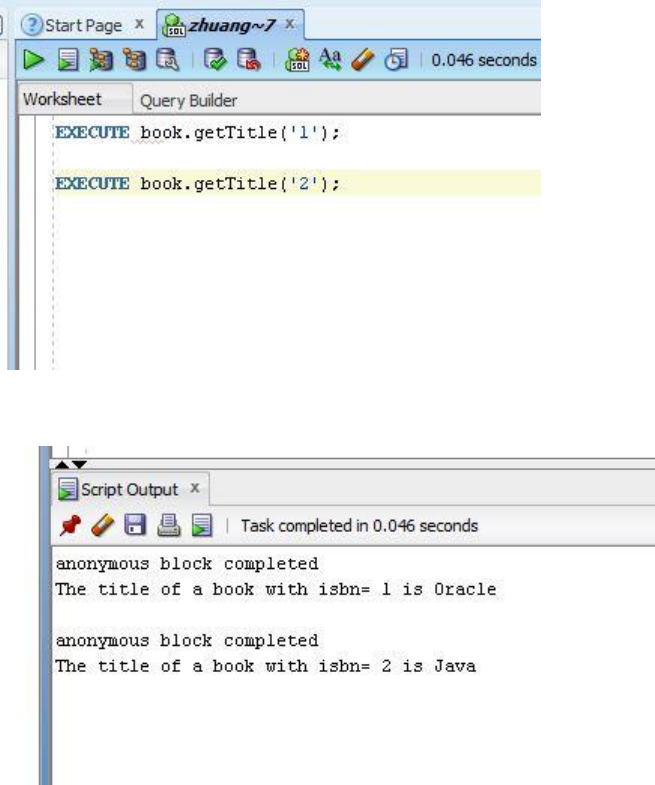

Step 9.7 Call the procedure “book.getTitle” in the worksheet directly.
Enter the code as follows in the worksheet and click the “Run Script” button.
Page 38 of 43
The result is shown in the “Script Output”.

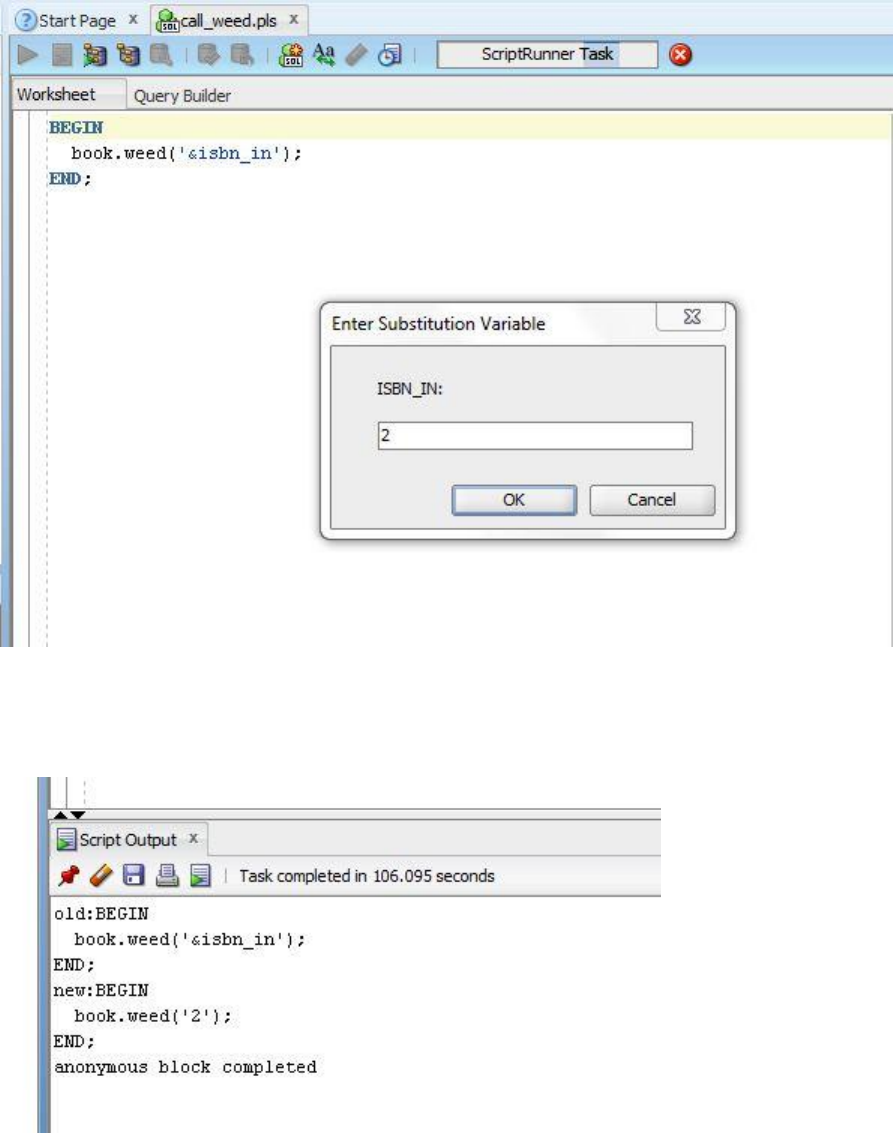

Step 9.8 Remove a book and all its copies.
Click File -> Open -> select “call_weed.pls”. Run the file “call_weed.pls” by clicking the “Run
Script” button.
Page 39 of 43
Enter value for isbn_in: 2
The result is shown in the “Script Output”.
Step 9.9 List all the books.
Click File -> Open -> select “call_list_books.pls”. Run the file “call_list_books.pls” by clicking
the “Run Script” button.
Page 40 of 43

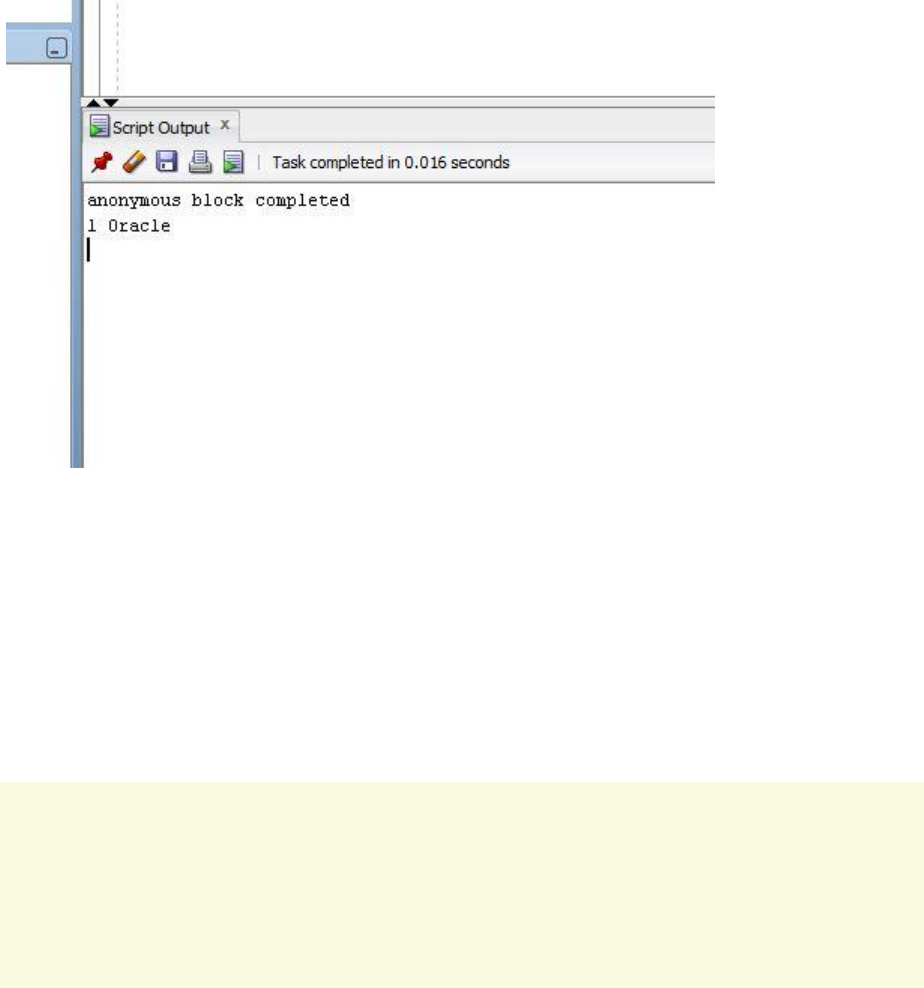

The result is shown in the “Script Output”.
Note that there is only one book now.
12. How to call a PL/SQL procedure in a Java program
Please refer to the following example to call a PL/SQL procedure in a Java program.
Step 1. Create the table “REGION” with two attributes and insert some data.
// create table “REGION”
CREATE TABLE REGION
( R_REGIONKEY NUMBER(2,0) NOT NULL PRIMARY KEY,
R_NAME VARCHAR2 (25) NOT NULL
) ;
INSERT INTO REGION VALUES (1, 'Alice');
INSERT INTO REGION VALUES (2, 'Bob');
Step 2. Create a PL/SQL procedure named “find_region” in Oracle SQL Developer that returns
the region’s name (“regionname”) corresponding to the input of the region’s key (“regionkey”).
The procedure has two parameters: the first one is input parameter and the second one is output
parameter. Note that when you create the procedure “find_region” you need to specify the
parameters (name, type and mode) by clicking the “+” symbol pointed to by the arrow in the
Page 41 of 43
figure below. In this example, the mode of the parameter “regionkey” is “IN” and the mode of
the parameter “regionname” is “OUT”.
The content of the procedure is as follows:
// create the procedure “find_region”
CREATE OR REPLACE PROCEDURE FIND_REGION
(
REGIONKEY IN NUMBER
, REGIONNAME OUT VARCHAR2
)
AS
v_name VARCHAR2(25);
BEGIN
SELECT r_name
INTO v_name
FROM REGION
WHERE r_regionkey = regionkey;
regionname := v_name;
END FIND_REGION;
Page 42 of 43
Step 3. Write the Java program to call the procedure “find_region”.
An example of a Java program using JDBC connection to call a procedure in Oracle 11g
// a sample example of using java to call PL/SQL procedure find_region
// return the value of “r_regionname” corresponding to r_regionkey=1
package callProc;
import java.io.*;// java package for i/o
import java.sql.*;// java package for sql statements
class callProc {
public static void main(String[] args)
throws SQLException, IOException
{
// Step 1. Load a database driver
try {
Class.forName("oracle.jdbc.OracleDriver");
}
catch(Exception x){
System.out.println( "Unable to load the driver class!" );
}
// Step 2. Creating an Oracle JDBC Connection. The following example assumes
// that the login name is smith1234 and the password is johnsmith
Connection conn = DriverManager.getConnection
("jdbc:oracle:thin:@//oracle.cs.ou.edu:1521/pdborcl.cs.ou.edu",”smith1234”, “johnsmith”);
// Step 3. Call the procedure "find_region"
try {
int i_rkey = 1;//input parameter of the procedure
//call procedure FIND_REGION(pram1,pram2)
CallableStatement pstmt = conn.prepareCall("{call
find_region(?,?)}");//call the procedure
pstmt.setInt(1, i_rkey);/*the first parameter (input parameter) to
procedure find_region*/
pstmt.registerOutParameter(2, Types.CHAR);/*the second parameter (output
parameter) from procedure find_region*/
pstmt.executeUpdate();//execute procedure
String o_rname = pstmt.getString(2);
System.out.println("region " + i_rkey + " is: " + o_rname);/*print out
the output*/
pstmt.close();//close the pstmt
}
catch (SQLException e) {
System.err.println(e.getMessage());
Page 43 of 43
}
conn.close();
}
}

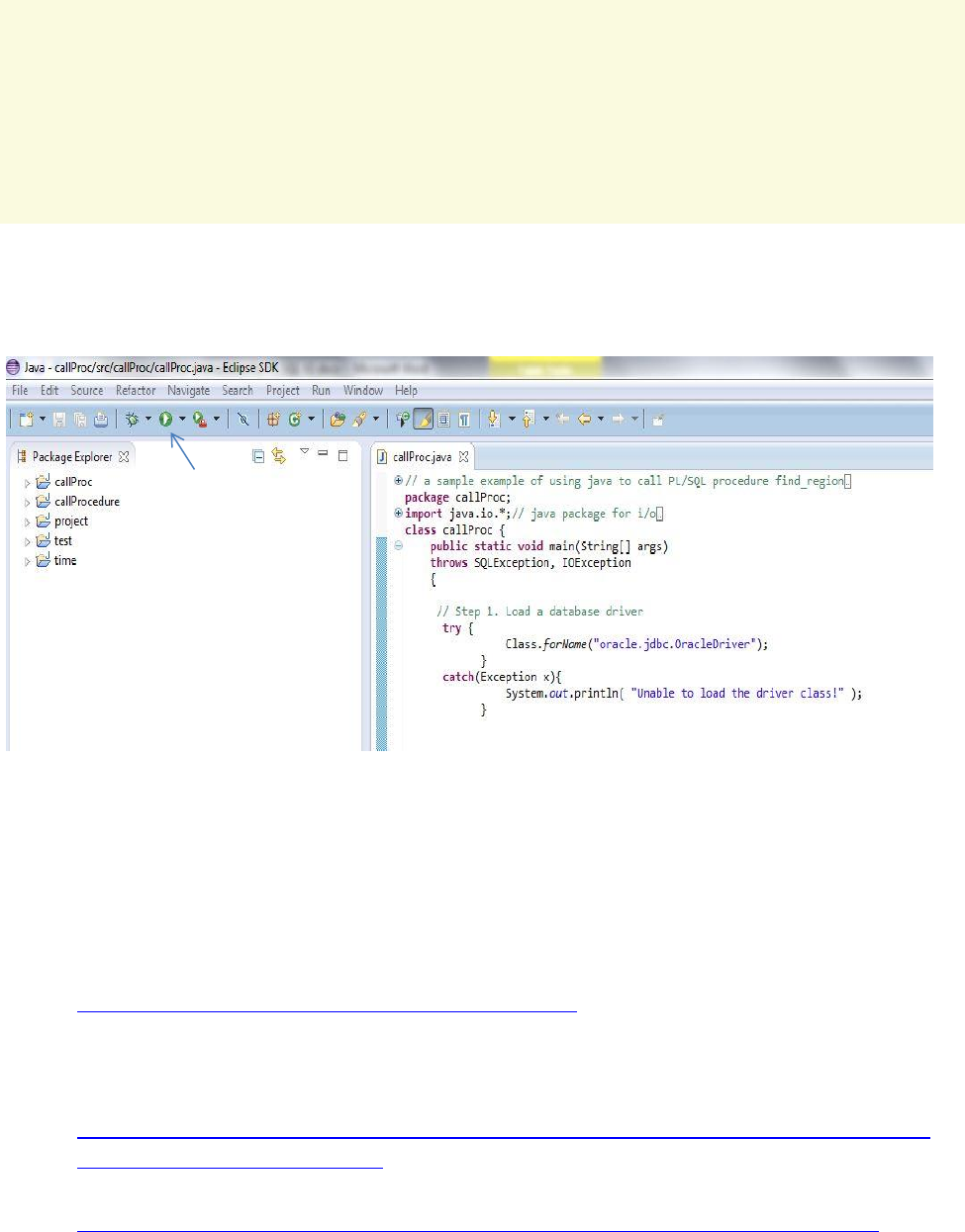

Step 3. To compile and run the program in eclipse, press the RUN button pointed to by the
arrow in the figure below.
References
1. Oracle Database PL/SQL Language Reference 12c Release 1(12.1)
http://docs.oracle.com/database/121/LNPLS/toc.htm
2. “Oracle PL/SQL by Example” (fourth edition), Benjamin Rosenzweig and Elena
Silvestrova Rakhimov, 2009 published by Addison-Wesley.
3. Developing and Debugging PL/SQL using Oracle SQL Developer
4. http://www.oracle.com/webfolder/technetwork/tutorials/obe/db/11g/r2/prod/appdev/sqldev/
plsql_debug/plsql_debug_otn.htm
5. Working with PL/SQL by Sue Harper
http://www.oracle.com/technetwork/issue-archive/2007/07-nov/o67sql-101793.html
