Intel® Management and Security
Status Application
User’s Guide
August 2012
Document Revision Version: 0.8
Firmware version: 9.0
Intel Confidential
![](asset-2.png)
2 Intel Confidential
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED,
BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS
PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER
AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS
INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR
INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in
personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL APPLICATION,
YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS SUBSIDIARIES, SUBCONTRACTORS AND AFFILIATES, AND THE DIRECTORS,
OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL CLAIMS COSTS, DAMAGES, AND EXPENSES AND REASONABLE
ATTORNEYS' FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF PRODUCT LIABILITY, PERSONAL INJURY, OR
DEATH ARISING IN ANY WAY OUT OF SUCH MISSION CRITICAL APPLICATION, WHETHER OR NOT INTEL OR ITS
SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN, MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS
PARTS.
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the
absence or characteristics of any features or instructions marked "reserved" or "undefined". Intel reserves these for future
definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The
information here is subject to change without notice. Do not finalize a design with this information.
The products described in this document may contain design defects or errors known as errata which may cause the product to
deviate from published specifications. Current characterized errata are available on request.
Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.
Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained
by calling 1-800-548-4725, or go to: http://www.intel.com/design/literature.htm%20
All products, platforms, dates, and figures specified are preliminary based on current expectations, and are subject to change
without notice.
This document contains information on products in the design phase of development.
Intel® Active Management Technology requires activation and a system with a corporate network connection, an Intel® AMT-
enabled chipset, network hardware and software. For notebooks, Intel AMT may be unavailable or limited over a host OS-based
VPN, when connecting wirelessly, on battery power, sleeping, hibernating or powered off. Results are dependent upon hardware,
setup and configuration. For more information, visit http://www.intel.com/technology/platform-technology/intel-amt.
Client Initiated Remote Access may not be available in public hot spots or "click to accept" locations. For more information on
CIRA, visit http://software.intel.com/en-us/articles/fast-call-for-help-overview
KVM Remote Control (Keyboard, Video, Mouse) is only available with Inte® Core™ i5 vPro and Core™ i7 vPro processors with
Intel® Active Management technology activated and configured and with integrated graphics active. Discrete graphics are not
supported.
No system can provide absolute security under all conditions. Intel® Anti-Theft Technology requires an enabled chipset, BIOS,
firmware and software and a subscription with a capable Service Provider. Consult your system manufacturer and Service
Provider for availability and functionality. Intel assumes no liability for lost or stolen data and/or systems or any other damages
resulting thereof. For more information, visit http://www.intel.com/go/anti-theft
Code names featured are used internally within Intel to identify products that are in development and not yet publicly announced
for release. Customers, licensees and other third parties are not authorized by Intel to use code names in advertising, promotion
or marketing of any product or services and any such use of Intel's internal code names is at the sole risk of the user.
Intel and the Intel logo are trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Copyright © 2012 Intel Corporation. All rights reserved.
![](asset-3.png)
Intel Confidential 3
IMPORTANT—READ BEFORE COPYING, INSTALLING OR USING.
Do not use or load this software or any associated materials (collectively, the “Software”) until you have carefully read the
following terms and conditions. By loading or using the Software, you agree to the terms of this Agreement. If you do not wish to
so agree, do not install or use the Software.
LICENSE—Subject to the restrictions below, Intel Corporation ("Intel") grants you the following limited, revocable, non-exclusive,
non-assignable, royalty-free copyright licenses in the Software.
The Software may contain the software and other property of third party suppliers, some of which may be identified in, and
licensed in accordance with, the various license files in the firmware kit.
DEVELOPER TOOLS—including developer documentation, installation or development utilities, and other materials, including
documentation. You may use, modify and copy them internally for the purposes of using the Software as herein licensed, but you
may not distribute all or any portion of them.
RESTRICTIONS—You will make reasonable efforts to discontinue use of the Software licensed hereunder upon Intel’s release of
an update, upgrade or new version of the Software.
You shall not reverse-assemble, reverse-compile, or otherwise reverse-engineer all or any portion of the Software.
Use of the Software is also subject to the following limitations:
You,
(i) are solely responsible to your customers for any update or support obligation or other liability which may arise from the
distribution of your product(s)
(ii) shall not make any statement that your product is "certified," or that its performance is guaranteed in any way by Intel
(iii) shall not use Intel's name or trademarks to market your product without written permission
(iv) shall prohibit disassembly and reverse engineering, and
(v) shall indemnify, hold harmless, and defend Intel and its suppliers from and against any claims or lawsuits, including
attorney's fees, that arise or result from your distribution of any product.
OWNERSHIP OF SOFTWARE AND COPYRIGHTS—Title to all copies of the Software remains with Intel or its suppliers. The
Software is copyrighted and protected by the laws of the United States and other countries, and international treaty provisions.
You will not remove, alter, deface or obscure any copyright notices in the Software. Intel may make changes to the Software or
to items referenced therein at any time without notice, but is not obligated to support or update the Software. Except as
otherwise expressly provided, Intel grants no express or implied right under Intel patents, copyrights, trademarks, or other
intellectual property rights. You may transfer the Software only if the recipient agrees to be fully bound by these terms and if you
retain no copies of the Software.
LIMITED MEDIA WARRANTY—If the Software has been delivered by Intel on physical media, Intel warrants the media to be free
from material physical defects for a period of ninety (90) days after delivery by Intel. If such a defect is found, return the media
to Intel for replacement or alternate delivery of the Software as Intel may select.
EXCLUSION OF OTHER WARRANTIES—EXCEPT AS PROVIDED ABOVE, THE SOFTWARE IS PROVIDED "AS IS" WITHOUT ANY
EXPRESS OR IMPLIED WARRANTY OF ANY KIND INCLUDING WARRANTIES OF MERCHANTABILITY, NONINFRINGEMENT, OR
FITNESS FOR A PARTICULAR PURPOSE. Intel or its suppliers do not warrant or assume responsibility for the accuracy or
completeness of any information, text, graphics, links or other items contained in the Software.
LIMITATION OF LIABILITY—IN NO EVENT SHALL INTEL OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, LOST PROFITS, BUSINESS INTERRUPTION, OR LOST INFORMATION) ARISING OUT OF THE
USE OF OR INABILITY TO USE THE SOFTWARE, EVEN IF INTEL HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
SOME JURISDICTIONS PROHIBIT EXCLUSION OR LIMITATION OF LIABILITY FOR IMPLIED WARRANTIES OR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. YOU MAY ALSO HAVE OTHER LEGAL RIGHTS THAT
VARY FROM JURISDICTION TO JURISDICTION.
![](asset-4.png)
4 Intel Confidential
Contents
1 Introduction .......................................................................................................6
2 System Requirements .........................................................................................7
3 Using the Intel® Management and Security Status Application and Icon.....................8
3.1 General Tab ............................................................................................9
3.2 Intel® Active Management Technology Tab ............................................... 12
3.2.1 Fast Call for Help ...................................................................... 13
3.2.2 Support Session Status ............................................................. 13
3.2.3 System Defense ....................................................................... 15
3.3 Intel® Small Business Technology Tab ...................................................... 16
3.4 Intel® Standard Manageability Tab ........................................................... 17
3.4.1 Support Session Status Section .................................................. 18
3.4.2 System Defense ....................................................................... 18
3.5 Intel® Anti-Theft Technology Tab ............................................................. 18
3.5.1 Intel® AT State ......................................................................... 19
3.5.2 Intel® AT Registration ............................................................... 20
3.6 Advanced Tab........................................................................................ 20
3.6.1 Intel® Management Engine ........................................................ 21
3.6.2 Secure Output Window Settings ................................................. 22
3.6.3 WLAN Control........................................................................... 23
3.6.4 Network Information ................................................................. 23
3.6.5 Extended System Details ........................................................... 26
3.6.6 Access Monitor ......................................................................... 29
3.6.7 Advanced Tab with Intel® SBT .................................................... 29
3.7 Exiting the Application ............................................................................ 30
3.8 Windows* 8 .......................................................................................... 31
4 Troubleshooting Intel® Management and Security Status Application ...................... 32

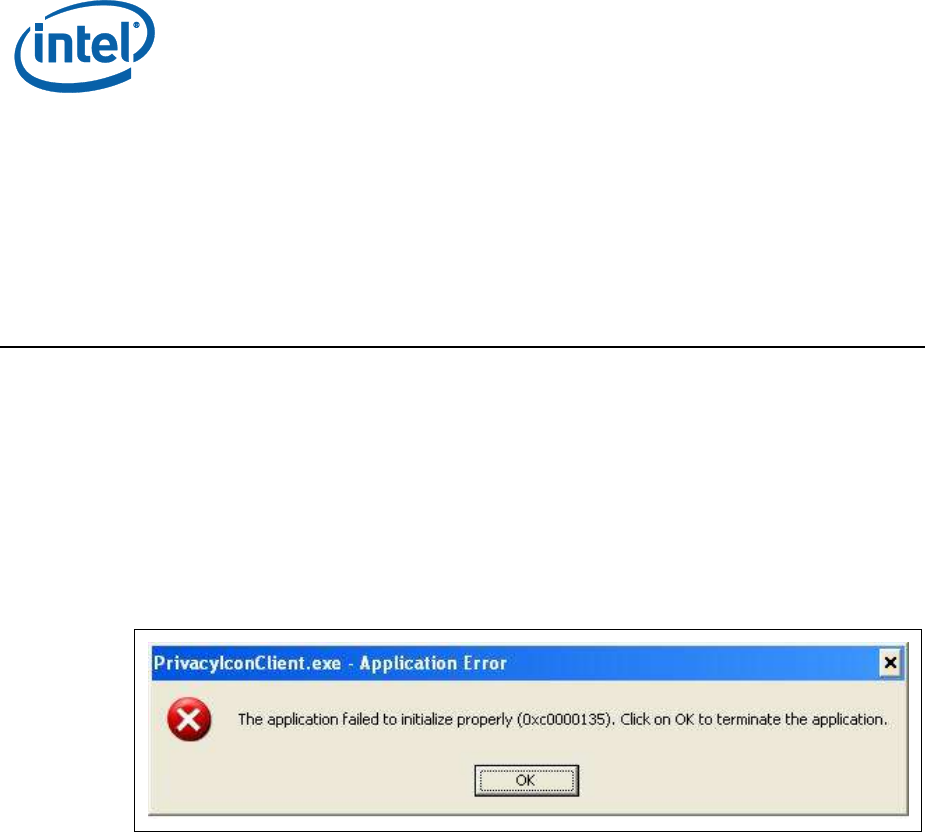

4.1 Error message appears upon application load ............................................ 32
5 Intel® Management and Security Status Application Error Codes ............................ 33
5.1 Partial Firmware Update Failures .............................................................. 33
Figures
Figure 3-1. ........................................................................................................9
Figure 3-2. ...................................................................................................... 12
Figure 3-3. ...................................................................................................... 15
Figure 3-4. ...................................................................................................... 16
Figure 3-5. ...................................................................................................... 17
Figure 3-6. ...................................................................................................... 19
Figure 3-7. ...................................................................................................... 21
Figure 3-8. ...................................................................................................... 24
Figure 3-9. ...................................................................................................... 25
Figure 3-10 ...................................................................................................... 30
![](asset-5.png)
Intel Confidential 5
Figure 3-11 ...................................................................................................... 31
Figure 4-1. ...................................................................................................... 32
![](asset-6.png)
6 Intel Confidential
1 Introduction
This User’s Guide describes how to use the Intel® Management and Security Status
application. The application’s component tabs—detailed in this document—display
information about a platform’s support for the following technologies: Intel® Active
Management Technology (Intel® AMT), Intel® Small Business Technology (Intel® SBT),
Intel® Standard Manageability and Intel® Anti-Theft Technology (Intel® AT). All of
these technologies are built upon the Intel® Management Engine (Intel® ME), a
feature provided within the platform hardware.
The Intel® Management and Security Status icon indicates whether Intel® Active
Management Technology, Intel® Small Business Technology, Intel® Standard
Manageability and Intel® Anti-Theft Technology are running on the platform. The icon
is located in the notification area. By default, each time Windows* starts, Intel®
Management and Security Status application starts and the notification icon is
displayed.
The Intel® Management and Security Status application has a separate version per
every Intel® AMT generation (6.x, 7.x, 8.x, 9.x etc.). The installer for 9.x also
supports the 8.x generation. If the Intel® Management and Security Status application
starts automatically as a result of the user logging on to Windows*, the icon will be
loaded to the notification area only if a supported combination of the following
technologies is present on the platform: Intel® Active Management Technology, Intel®
Small Business Technology, and Intel® Standard Manageability. If the Intel®
Management and Security Status application is started manually (via the Start menu),
the icon is loaded even if none of these technologies are enabled.
Note: The information displayed in the Intel® Management and Security Status application is
not shown in real time. The data is refreshed at predefined intervals.
![](asset-7.png)
Intel Confidential 7
2 System Requirements
The Intel® Management and Security Status application has the following
requirements:
OS
o Windows* 2003 Standard Edition R2
o Windows* 2003 x64 EditionWindows* XP Pro with latest SP
o Windows* XP x64 with latest SP
o Windows* 7 Ultimate 32 bit with latest SP
o Windows* 7 Enterprise 32 bit with latest SP
o Windows* 7 Professional 32 bit with latest SP
o Windows* 7 Ultimate 64 bit with latest SP
o Windows* 7 Enterprise 64 bit with latest SP
o Windows* 7 Professional 64 bit with latest SP
o Windows* 7 Premium 64-bit with latest SP
o Windows* 7 Home Premium 32 bit with latest SP
o Windows* 7 Home Basic 32 bit with latest SP
o Windows* 8
o Windows Server *2008 x86 with latest SP
o Windows Server *2008 x64 with latest SP
o Windows Server* 2012
Platform running Intel® Management Engine firmware
Intel® Management Engine software installed
§
![](asset-8.png)
8 Intel Confidential
3 Using the Intel® Management
and Security Status Application
and Icon
Whenever either Intel® Active Management Technology, Intel® Small Business
Technology or Intel® Standard Manageability is enabled, Intel® Management and
Security Status icon is loaded into the notification area when Windows* starts. It can
also be started by clicking Start> All Programs\Intel\Intel® Management and
Security Status\ Intel® Management and Security Status.
While the Intel® Management and Security Status application is running, the Intel®
Management and Security Status icon is visible in the notification area. This icon will
appear blue if any one of the aforementioned technologies is enabled on the
computer. In any other case, the icon will appear gray.
Note: The icon will also be gray if the Intel® Management and Security Application User
Notification Service is not running or the Intel® Management Engine Interface (Intel® MEI)
driver is disabled or unavailable.
To view the Intel® Management and Security Status application:
Double-click the Intel® Management and Security Status icon, or
Right-click or left-click the icon and choose Open, or
Click Start>All Programs>Intel>Intel® Management and Security Status>
Intel® Management and Security Status.
Note: If your computer is set to Classic Start Menu, the path will start with ‘Programs’
instead of ‘All Programs’.
The following sections describe the information available in the application’s tabs.
Information about the application is available also by clicking either the “Learn more”
button or link.
Note: The application dynamically hides tabs that are not relevant. For example, on
platforms that do not support Intel® AT, the Intel® AT tab is hidden.
![](asset-9.png)
Intel Confidential 9
3.1 General Tab
The General tab provides status information about the Intel AMT, Intel SBT, Intel®
Standard Manageability, and Intel AT status, and events related to these technologies.
Figure 3-1.
![](asset-a.png)
10 Intel Confidential
Events and some of their details are displayed in the Event History section. These
can be sorted by clicking on the relevant column header.
The status of Intel® Active Management Technology, Intel® Small Business
Technology, Intel® Standard Manageability or Intel® Anti-Theft Technology is
displayed in the Service Status section depending on which technology is operational
on the system. The tab displays information for Intel® Active Management
Technology, Intel® Small Business Technology, or Intel® Standard Manageability. The
status can be one of the following:
Intel® AMT: Enabled / Disabled / Information unavailable
When Intel® AMT status presents Enabled it means that the Intel® AMT is
supported on the system. Intel® ME status (in the Advanced Tab) will give the
user information on whether the Intel® ME is configured (hence Intel® AMT is
functional and operating).
When Intel® AMT status presents Disabled it means that the Intel® AMT is
either not enabled on the system or has been disabled by the IT administrator.
Information unavailable: It is not known whether Intel® AMT is supported on
the system. No Intel® AMT information is available. This can be for one of the
following reasons: LMS service has stopped, or the Intel® Management Engine
Interface (Intel® MEI) driver is disabled.
Intel® SBT: Enabled / Disabled / Information unavailable
When Intel® SBT status presents Enabled it means that the Intel® SBT is
supported on the system. Intel® ME status (in the Advanced Tab) will give the
user information on whether the Intel® ME is configured (hence Intel® SBT is
functional and operating).
When Intel® SBT status presents Disabled it means that the Intel® SBT is
either not enabled on the system or has been disabled by the IT administrator.
Information unavailable: It is not known whether Intel® SBT is supported on
the system. No Intel® SBT information is available. This can be for one of the
following reasons: LMS service has stopped, or the Intel MEI driver is disabled.
Intel® Standard Manageability: Enabled / Disabled / Information unavailable
When Intel® Standard Manageability status presents Enabled it means that
the Intel® Standard Manageability technology is supported on the system. Intel®
ME status (in the Advanced Tab) will give the user information on whether the
Intel® ME is configured (hence Intel® Standard Manageability is functional and
operating).
When Intel® Standard Manageability status presents Disabled it means that
the Intel® Standard Manageability technology is either not enabled on the system
or has been disabled by the IT administrator.
![](asset-b.png)
Intel Confidential 11
Information unavailable: It is not known whether Intel® Standard
Manageability technology is supported on the system. No Intel® Standard
Manageability information is available. This can be for one of the following
reasons: LMS service has stopped, or the Intel MEI driver is disabled.
Intel® Anti-Theft Technology: Enabled. This means that the Intel® Anti-Theft
Technology feature is supported on the platform. If Intel® Anti-Theft Technology is
not supported on the platform; no reference to it is displayed. The feature
becomes activated only after the platform has been enrolled with an Intel® Anti-
Theft Technology service provider and all required configurations have been
applied.
Note: The information in this field shows the state of the platform at the last platform boot.
Enable user notification: Checking this box allows the user to enable or disable the
Intel® Management and Security Status icon from displaying important notifications in
the notification area (for instance, notification will be sent when one of the
technologies is enabled or disabled). Checking or unchecking the checkbox affects the
Intel® Management and Security Status application setting for the current user
account only.
On Windows* 8 platforms, IMSS user notifications are also displayed as Windows* 8
UI ‘Toast’ notifications, visible to users working with the Windows* 8 UI. These
notifications will only be displayed as long as a Windows* 8 UI Start Menu shortcut
(Windows* 8 UI ‘tile’) is present.
Intel® Management and Security Status application will be available next
time I log on to Windows*: Checking this box causes the Intel® Management and
Security Status application to be invoked, and the icon to be displayed, whenever you
log on to Windows*. Checking or unchecking the checkbox affects Intel® Management
and Security Status application’s behavior for the current user account only.
Note: The application does not load automatically with Windows* log-on if none of the
technologies it displays (Intel® Active Management Technology, Intel® Small Business
Technology or Intel® Standard Manageability) are supported on the platform. Intel®
Management and Security Status application will load automatically even if all of the
technologies are disabled, so long as they are supported. Intel® Management and Security
Status application will not load if these technologies are not supported in the platform.
![](asset-c.png)
12 Intel Confidential
3.2 Intel® Active Management Technology Tab
Note: This tab is displayed only if the platform supports Intel® AMT.
Click the Intel® AMT tab to display Intel® AMT information.
Figure 3-2.
![](asset-d.png)
Intel Confidential 13
3.2.1 Fast Call for Help
The Fast Call for Help section provides Client Initiated Local Access (CILA) or Client
Initiated Remote Access (CIRA) capabilities depending on whether the system is
connected to the corporate network or not, respectively. The Fast Call for Help section
will be available for the CIRA/CILA use-cases, providing the proper configuration for
CIRA/CILA has been done, as well as for a case in which the user’s system did not
receive an IP address while the wireless network is available for a support session to
take place. Otherwise, the Fast Call for Help section will be grayed out.
CIRA allows a user to connect the Intel® AMT system to the company’s Information
Technology network from an external internet connection. Click the “Get Technical
Help” button to connect to your Information Technology network for system
diagnostics and maintenance. The current connection status is displayed in this
section as well.
CILA (Client Initiated Local Access) feature allows a user connected to the internal
corporate network to send a support request to the IT administrator.
Note: In order for CIRA/CILA to work, the machine needs to be configured correctly, and
support this technology. Such settings are typically done by management software.
(Configuration details appear in the Intel® AMT SDK Implementation and Reference Guide).
Note: The information displayed in the Intel® Management and Security Status application,
including the Fast Call for Help section, is not shown in real time. The data is refreshed every
time an event has arrived.
Note: When the user is connected as Guest account (in Windows*) the “Fast Call For Help”
section will be grayed out. This was designed to prevent users outside of the organization to
influence the organization network.
3.2.2 Support Session Status
The following information is provided:
KVM Remote Control Connection
Indicates whether KVM (Keyboard, Video & Mouse) Remote Control session is open.
Possible values: Connected/ Disconnected/ Information unavailable.
The “KVM Remote Control Connection” section will be grayed out if the KVM Remote
Control feature is disabled on the system.
Media Redirection
Indicates whether there are any open IDE redirection sessions.
Possible values: Connected/ Disconnected/ Information unavailable.
Terminal and Keyboard Redirection
Indicates whether there are any open terminal/keyboard redirection sessions.
Possible values: Connected/ Disconnected/ Information unavailable.
![](asset-e.png)
14 Intel Confidential
Stop Sessions
Click the “Stop Sessions” button to close any open KVM Remote Control, media
redirection, or terminal/keyboard redirection sessions. In cases when user consent
is required for such a session, re-establishing the session will require renewal of
user consent after clicking this button.
Hot Key
Indicates the hot key which could be used to close any open KVM Remote Control,
media redirection, or terminal/keyboard redirection sessions (same effect as “Stop
Sessions” button).
Click on the “Change” button to choose a different hot key for terminating an open
session.
Prevent Access
This button will appear in cases where user consent is required for a remote support
session to occur. In such cases, after the user will provide the required approval to
the remote administrator and as long as the healing session hasn’t begun, the user
will see the “Prevent Access” button. This button enables the user to change his/her
mind, as clicking on it will cancel user consent and disable the ability of the IT
administrator to begin the remote session. During this time, the Hot Key will also
serve as a means to cancel user consent. Once a remote support session has
begun, the “Prevent Access” button will no longer be visible, and the “Stop
Sessions” button will appear instead.
Note: User Consent, when required, will be granted to the administrator per session, by the
user giving the administrator a one-time pass code which will appear on the Secure Output
Window presented on the user’s screen. See more about Secure Output Window and User
Consent Policy under Advanced Tab - Secure Output Window Settings.
Note: During a Support Session conducted over the wireless interface, a notice will be
displayed with a warning triangle. The message will say: “Do not change your wireless
connection until the remote support session completes”.
Intel® Management and Security Status Application Icon during support
session
The notification area tray icon appears animated as long as user consent or support
session is active.
Stop Sessions/ Prevent Access are available also thru clicking on the tray icon.
Intel® AMT tab view with “Prevent Access” button enabled:
![](asset-f.png)
Intel Confidential 15
Figure 3-3.
3.2.3 System Defense
System Defense Status
Indicates whether System Defense policies are currently active.
Possible values: Activated/Not activated/ Information unavailable.
![](asset-10.png)
16 Intel Confidential
3.3 Intel® Small Business Technology Tab
Note: This tab is displayed only if the platform supports Intel® Small Business Technology
(Intel® SBT).
Click the Intel® SBT tab to display Intel® SBT information.
Figure 3-4.
Clicking the link in the What is Intel® SBT section connects you to an Intel site that
provides you with information about Intel® Small Business Technology.
![](asset-11.png)
Intel Confidential 17
3.4 Intel® Standard Manageability Tab
Note: This tab is displayed only if the platform supports Intel® Standard Manageability.
Click the Intel® Std Mgt tab to display Intel® Standard Manageability information.
Figure 3-5.
![](asset-12.png)
18 Intel Confidential
3.4.1 Support Session Status Section
The following information is provided:
Media Redirection
Indicates whether there are any open IDE redirection sessions.
Possible values: Connected/ Disconnected/ Information unavailable
Terminal and Keyboard Redirection
Indicates whether there are any open terminal/keyboard redirection sessions.
Possible values: Connected/ Disconnected/ Information unavailable.
3.4.2 System Defense
System Defense Status
Indicates whether System Defense policies are currently active.
Possible values: Activated/Not activated/ Information unavailable.
3.5 Intel® Anti-Theft Technology Tab
Note: This tab is displayed only if the platform supports Intel® AT.
Click the Intel® AT tab to view Intel® Anti-Theft Technology information.
Note: The information in this tab shows the state of the platform when it was last booted.
![](asset-13.png)
Intel Confidential 19
Figure 3-6.
Clicking the link in the What is Intel® AT section connects you to an Intel site that
provides you with information about Intel® Anti-Theft technology.
3.5.1 Intel® AT State
Provides the following information:
Enrolled: The platform has been enrolled with a service provider that is providing
Intel® Anti-Theft Technology protection for it.
![](asset-14.png)
20 Intel Confidential
Not Enrolled: The platform has not been enrolled with a service provider that is
providing Intel® Anti-Theft Technology protection.
3.5.2 Intel® AT Registration
Note: This section is displayed only if the platform has not been enrolled with a service
provider that is providing Intel® Anti-Theft Technology protection.
Clicking the link in this section displays a list of Intel® AT service providers in your
area and allows you to enroll with their Intel® AT service.
Enable prompt to enroll with Intel® Anti-Theft Technology Service: If this box
is checked, a balloon displaying an invitation to enroll with Intel® AT service is
displayed every 5th time that the Intel® Management and Security Status application
is started. If the platform has been enrolled with Intel® AT service, the balloon is not
displyed.
3.6 Advanced Tab
Click the Advanced tab to view additional information.
Note: The image below includes all buttons and information that may be displayed by
Advanced Tab. However, not everything will be displayed at all times, as this depends on the
specific technologies which are enabled and active on the platform (Intel® Active
Management Technology (Intel® AMT), Intel® Small Business Technology (Intel® SBT) or
Intel® Standard Manageability).
![](asset-15.png)
Intel Confidential 21
Figure 3-7.
3.6.1 Intel® Management Engine
The following information is provided:
Status
The operational status of Intel® ME
Possible values: Configured / Unconfigured / Information unavailable.
In case status is Configured, the configuration date and time will be displayed.
![](asset-16.png)
22 Intel Confidential
Control Mode
There are two configuration modes for Intel® ME – Client Control Mode and Admin
Control Mode. If status is Configured, the relevant Control Mode will be shown.
3.6.2 Secure Output Window Settings
The following information is provided for the Secure Output feature, implemented in
KVM (keyboard/video/mouse) redirection. If the machine was configured in Client
Control Mode this is provided in IDE redirection and remote power operations as well.
Message Language
Specifies the language used by the Secure Output feature for user consent. Choose
one of the listed languages.
Upon installation of the Intel® Management and Security Status application, the
consent language will be set according to the Windows* System Locale language
(note that this may be different than the Windows* Display language). Selecting a
different Message Language on the Advanced Tab will override this initial setting.
Selecting "Windows Default Language" will revert to the Windows* System Locale
language.
Note: On Windows* XP, Chinese characters may appear as rectangles and Hebrew and
Arabic may appear reversed, if the relevant language packs have not been installed.
Windows* XP does not include all language packs by default. They can be added through the
"Control Panel." Open "Regional and Language Options," then click the languages tab. Under
"Supplemental Language Support" select the extra languages you wish to install, and follow
the instructions.
Message Size
Specifies the window size of messages displayed by the Secure Output Feature.
Choose one of the following: Regular or Large. User Consent Policy
Specifies the policy for when the user’s approval will be required in order to
establish a remote support session by an IT administrator. User Consent will be
granted to the administrator per session, by the user giving the administrator a
one-time pass code which will appear on the Secure Output Window presented on
the user’s screen.
Possible Policies are:
User consent not required for any remote session
User consent required for KVM session only
User consent required for all remote sessions (i.e., KVM, IDE redirection,
and remote power operation)
![](asset-17.png)
Intel Confidential 23
3.6.3 WLAN Control
On Intel ME 8.0 systems only, the WLAN control section appears when there is an
active support session in which the remote IT administrator is connecting to the user’s
machine via wireless network.
This section is not shown on platforms from Intel ME 8.1 onwards.
Restore Connection button
On Intel ME 8.0 systems only, if the remote administrator begins a support session
using the wireless network, there is temporarily no wireless network available to the
user’s Operating System. The Restore Connection button enables the user to return
control of the wireless network to the OS. However, if this button is clicked while
the remote support session is still active, the session will be terminated.
This button is not shown on platforms from Intel ME 8.1 onwards.
3.6.4 Network Information
Click the “Network Information” button to display network details regarding Intel® ME
wireless and wired connectivity.
![](asset-18.png)
24 Intel Confidential
Figure 3-8.
In the Connection Type section, click either Wireless Connection or Wired
Connection to display information on the following items for the selected interface:
Link Status
Whether the link is currently active.
Possible values are: Link up/Link down/Information unavailable
MAC Information
XX:XX:XX:XX:XX:XX – e.g. 88:88:88:0A:88:87
![](asset-19.png)
Intel Confidential 25
IPv4 Address
XXX.XXX.XXX.XXX – e.g. 208.77.188.166
IPv4 Mode
Possible values: Static/ DHCP/ Information unavailable.
IPv6 address
If IPv6 addressing is enabled for the Intel ME, the Intel® Management and Security
Status application displays up to 6 IPv6 IP addresses configured for an Intel ME
network interface for wired connection, and up to 5 IPv6 IP addresses for wireless
connection.
Figure 3-9.
![](asset-1a.png)
26 Intel Confidential
Data which appears only for Wireless Connection
Configured for Wireless
Possible values are: Wireless enabled/ Wireless disabled/ Information unavailable.
WLAN control
On Intel ME 8.0 systems only, the WLAN control indicates whether the wireless
network is available to the user’s computer operating system (i.e. regular usage) or
whether it is in control of the Intel® Management Engine for the purpose of remote
support by an IT administrator. Possible values are: HOST / Intel® ME. This control
is not shown on platforms from Intel ME 8.1 onwards.
WLAN preference
On Intel ME 8.0 systems only, WLAN preference indicates whether the wireless
network should preferably be in control of the operating system or the Intel®
Management Engine (Intel® ME). Expected behavior is for WLAN control to be the
same as WLAN preference. However, if for some reason the operating system fails
to take control over the wireless network (e.g. the wireless driver is dysfunctional),
the user will witness WLAN preference given to the operating system while WLAN
control is with Intel® ME (even if the Return Control button was clicked).
Possible values are: Operating System/ Intel® ME. This control is not shown on
platforms from Intel ME 8.1 onwards.
3.6.5 Extended System Details
When clicking Extended System Details, a Windows* System Information window will
open, providing an extensive report about system components and configuration.
The report includes both general information regarding the system (“Host
Information”) and specific Intel® Management Engine Information (“Intel® ME
Information”).
It is possible to save the system report to a file by clicking File->Export on the System
Information Window.
Below are explanations for some of the details displayed under Intel® ME Information:
Host information:
Operating System Name – The Windows* operating system that the application is
running on.
Operating System Version – The version of the operating system.
System Manufacturer – The hardware manufacturer.
System Name – The computer name as recognized by the operating system.
System Model – The hardware platform name.
Processor – The processor full brand name.
![](asset-1b.png)
Intel Confidential 27
BIOS Version – The BIOS manufacturer name and BIOS version number.
LAN Driver – The version number of the LAN device driver.
LAN DeviceID – The PCI Device ID for the LAN device.
WLAN Driver - The version number of the Wireless LAN device driver.
WLAN DeviceID – The PCI Device ID for the Wireless LAN device.
Intel® ME Information:
Intel ME Control Mode – The configuration mode (Client Control or Admin Control).
Provisioning Mode – State of Intel ME configuration (Pre/In/Post).
BIOS boot – The BIOS boot state (expected to be Post Boot).
Last Intel ME reset reason - The reason that the Intel® ME was last reset (Global
System/ FW reset / Power Up/ Unknown cause/ Information unavailable).
System UUID – The Universal Unique Identifier of the computer. Standard System
UUID presentation, such as: 03000200-0400-0500-0006-000700080009.
Local FWUpdate – The local firmware update policy (Enabled/Disabled).
Power Policy – The power modes in which Intel® ME is available (ON in S0 or Intel
ME ON in S0/S4/S5/DC). Note: S0 = Power is on, S4 = Hibernate, S5 = System is
shut down though power cable is connected, DC = Battery Power.
Cryptography Support – The Intel® ME capability to work in TLS/SSL mode
(Enabled/Disabled).
FW Capabilities:
Indicates whether the following technologies are present on the platform and enabled:
Intel® Active Management Technology / Intel® Standard Manageability / Intel® Small
Business Technology
Intel® Anti-Theft Technology PC Protection
Intel Capability Licensing Service
Intel® ME Dynamic Application Loader
Protect Audio Video Path
Intel® Active Management Technology / Intel® Standard Manageability /
Intel® Small Business Technology
Technology State (Enabled or Disabled).
Technology Status (Configured/Not Configured).
![](asset-1c.png)
28 Intel Confidential
CIRA Connection Status – Client Initiated Remote Access Connected/Disconnected
(not available for Intel® Standard Manageability and Intel® Small Business
Technology).
Intel® AT
Intel® AT State (Enabled or Disabled).
Intel® AT Status (Enrolled or Not Enrolled).
Components Information
Presents versions for the following components:
MEBx Version - Intel® ME BIOS Extension version.
FW Version – Firmware version.
LMS Version – Local Management Service software version.
Intel MEI Driver Version – Intel® Management Engine Interface driver version.
Intel MEI DeviceID – Intel® Management Engine Interface PCI Device identification.
SOL Driver Version – Serial Over LAN driver version.
SOL DeviceID - Serial Over LAN PCI Device identification.
Network Information:
LAN MAC Address – The Media Access Control address for the LAN device.
LAN Configuration state – DHCP or static mode for LAN.
LAN Link Status – LAN link up or down.
LAN IPv4 Address – The IPv4 address assigned to LAN.
LAN IPv6 Enablement – IPv6 enabled or disabled for LAN.
WLAN MAC Address – The Media Access Control address for the Wireless LAN
device.
WLAN Configuration state – only DHCP mode supported for Wireless LAN.
WLAN Link Status – Wireless LAN link up or down.
WLAN IPv4 Address – The IPv4 address assigned to Wireless LAN.
WLAN IPv6 Enablement – IPv6 enabled or disabled for Wireless LAN.
Note: When the user is connected as Guest account (in Windows*), some of the system
information will not be available. In such a case, all Host Information and some of the Intel®
ME Information (such as Software Versions) will appear as “NA”.
![](asset-1d.png)
Intel Confidential 29
3.6.6 Access Monitor
If the Access Monitor feature is enabled on the platform, then by clicking the “Access
Monitor” button, the relevant content will be presented through a Windows* System
Information window which will then open. Access Monitor content includes description
of events which occurred on the system and may be of interest to the user from a
privacy and security perspective, such as Network Administration, Storage
Administration, Remote control Operations and more.
Note: Events that occurred before first provisioning of Intel® AMT or Intel® SBT will appear
with irrelevant time/date.
3.6.7 Advanced Tab with Intel® SBT
Intel® Small Business Technology does not support remote management, therefore in
the case of an Intel® SBT system, the Advanced Tab will be limited to the following:
![](asset-1e.png)
30 Intel Confidential
Figure 3-10
3.7 Exiting the Application
To exit the application, right click or left click on the Intel® Management and Security
Status application icon in the notification area and select Exit.
The following window is displayed.
![](asset-1f.png)
Intel Confidential 31
Figure 3-11
Click Yes to automatically start the Intel® Management and Security Status
application when you next log on. (Note: this change affects Intel® Management
and Security Status application behavior for the current user account only).
Click No to not start the Intel® Management and Security Status application when
you next log on. (Note: this change affects Intel® Management and Security Status
application behavior for the current user account only).
Note: This user selection will affect the "Intel® Management and Security Status application
will be available next time I log on to Windows*" checkbox on General Tab.
3.8 Windows* 8
When the application is installed on a Windows* 8 operating system, a Windows* 8 UI
tile is placed on the Windows* 8 start screen. This allows the application to send
Toast* notifications to the Windows* 8 UI. If the tile is deleted, no Toast* notifications
can be posted.
The application will re-create the Windows* 8 UI tile (if missing) if Intel® Active
Management Technology is provisioned on the system.
§
![](asset-20.png)
32 Intel Confidential
4 Troubleshooting Intel®
Management and Security
Status Application
4.1 Error message appears upon application load
.NET applications fail when executed in an environment that has no Microsoft* .NET
Framework installed. Microsoft* does not provide a safeguard mechanism in such
conditions.
The Intel® Management and Security Status application will display the following error
message if no Microsoft* .NET Framework is present in the system:
Figure 4-1.
Please install Microsoft* .NET Framework version 3.5 or above and then re-open the
application.
The Intel® Management and Security Status application will not get installed if
Microsoft* .NET Framework version lower than 2.0 or no Microsoft* .NET Framework
version at all is installed on the system.
§
![](asset-21.png)
Intel Confidential 33
5 Intel® Management and
Security Status Application
Error Codes
5.1 Partial Firmware Update Failures
Intel ME Wireless LAN updates, and User Consent language updates both utilize the
‘Partial Firmware Update’ feature of IMSS. In the event that Partial Firmware Update
failed, the user will be notified via a balloon that the update failed. The Windows*
Event Log will include an error code, signifying the cause of the failure. The possible
causes are listed below:
Code
Meaning
8193
Intel® ME Interface : Cannot locate Intel ME device driver
8703
PLEASE REBOOT YOUR SYSTEM. Firmware update cannot be initiated without a
reboot
8704
Firmware update operation not initiated due to a SKU mismatch
8705
Firmware update not initiated due to version mismatch
8706
Firmware update not initiated due to integrity failure or invalid FW image
8707
Firmware update failed due to an internal error
8708
Firmware Update operation not initiated because a firmware update is already in
progress
8710
Firmware update tool failed due to insufficient memory
8713
Firmware update not initiated due to an invalid FW image or header
8714
Firmware update not initiated due to file open or read failure
8716
Invalid usage
8718
Update operation timed-out; cannot determine if the operation succeeded
![](asset-22.png)
34 Intel Confidential
Code
Meaning
8719
Firmware update cannot be initiated because Local Firmware update is disabled
8722
Intel® ME Interface : Unsupported message type
8723
No Firmware update is happening.
8724
Platform did not respond to update request.
8725
Failed to receive last update status from the firmware.
8727
Firmware update tool failed to get the firmware parameters.
8728
This version of the Intel® FW Update Tool is not compatible with the current
platform.
8741
FW Update Failed.
8744
OEM ID verification failed.
8745
Firmware update cannot be initiated because the OEM ID provided is incorrect.
8746
Firmware update not initiated due to invalid image length.
8747
Firmware update not initiated due to an unavailable global buffer.
8748
Firmware update not initiated due to invalid firmware parameters.
8754
Encountered error writing to file.
8757
Display FW Version failed.
8758
The image provided is not supported by the platform.
8759
Internal Error.
8760
Update downgrade vetoed.
8761
Firmware write file failure.
8762
Firmware read file failure.
8763
Firmware delete file failure.
![](asset-23.png)
Intel Confidential 35
Code
Meaning
8764
Partition layout NOT compatible.
8765
Downgrade NOT allowed, data mismatched.
8766
Password did not match.
8768
Password Not provided when required.
8769
Polling for FW Update Failed.
8771
Invalid File.
8772
Invalid usage, -allows v switch required to update the same version firmware.
8776
Get Partition Attribute Failure.
8777
Update Info Status Failure.
8778
Unable to read FW version from file. Please verify the update image used.
8780
Buffer Copy Failure.
8787
Password exceeded maximum number of retries.
8793
FW Update/Downgrade is not allowed to the supplied FW image.
8794
FW downgrade is not allowed due to SVN restriction.
§
