IPSO - LSG n.v
Instruction manual
Technical specifi cations
Installation instructions
Operating instructions
Maintenance
WE 73, WE 95
WE 132, WE 165
With electronical timer µ20
Nieuwstraat 146 - B-8560 Wevelgem (België)
Tel. 056/41 20 54 - Fax 056/41 86 74
Content
Contents
1 General safety instructions ............................................................ 3
2 Technical data and dimensions ..................................................... 4
Technical data ................................................................................. 4
Dimensions ...................................................................................... 6
3 Installation and connection ............................................................ 8
Ground ............................................................................................ 8
Anchoring ........................................................................................ 8
Water connection ............................................................................ 8
Water drain ...................................................................................... 9
Main power connection ................................................................... 9
Liquid soap connection .................................................................... 10
Connection of a central operating panel for coinmachines ............ 11
Steam connection ............................................................................ 12

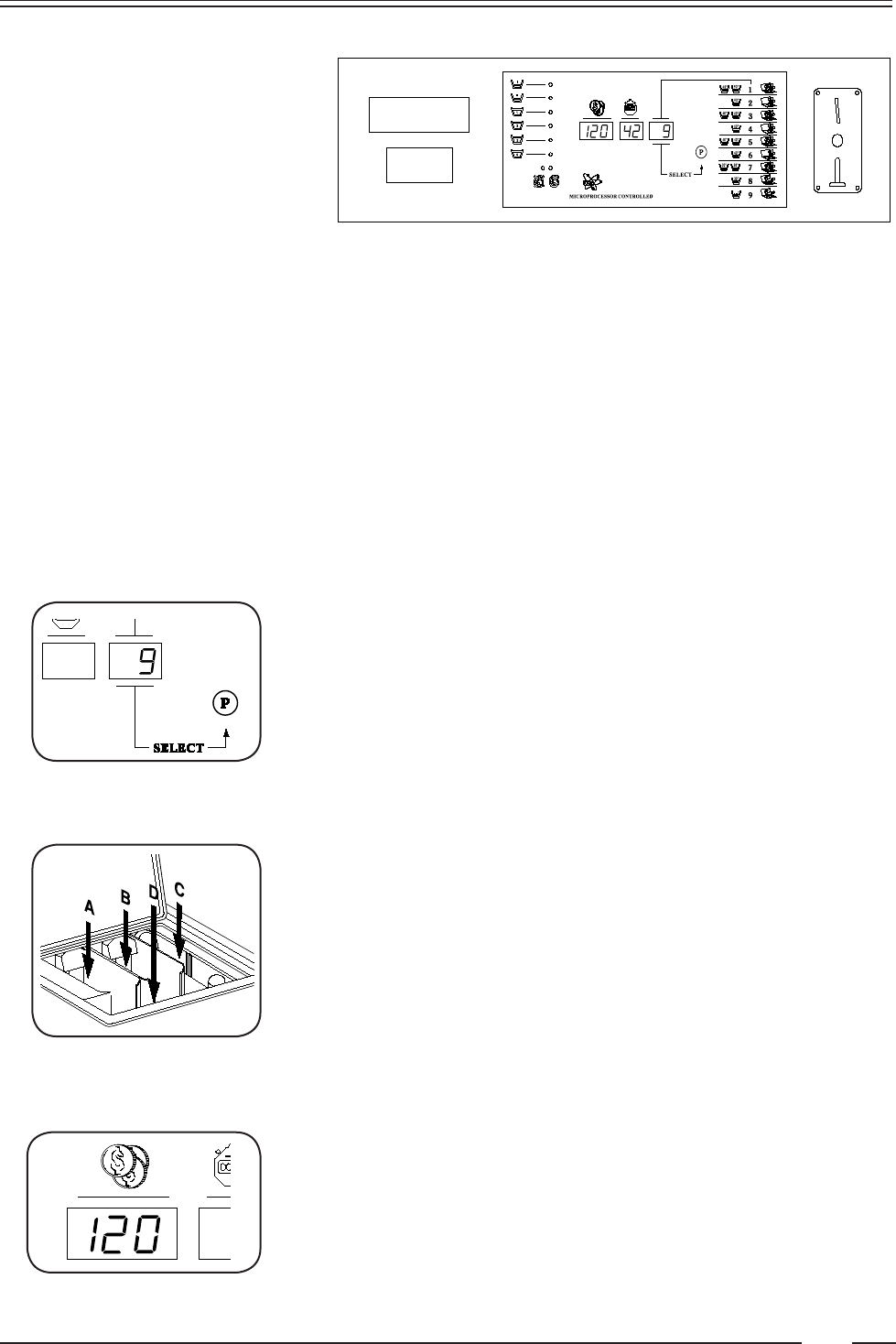

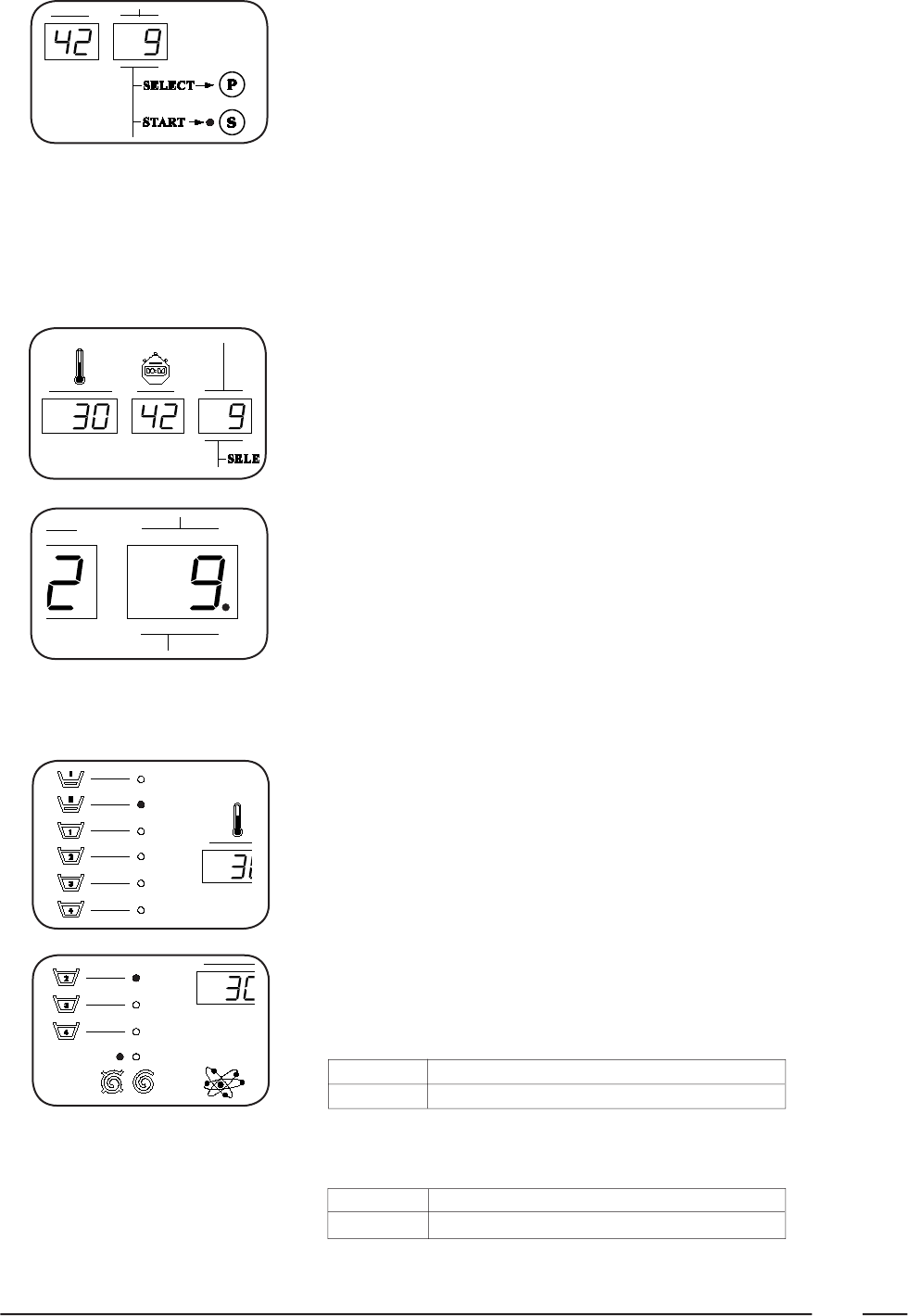

4 Operating instructions ................................................................... 13
Machine with start button ............................................................... 13

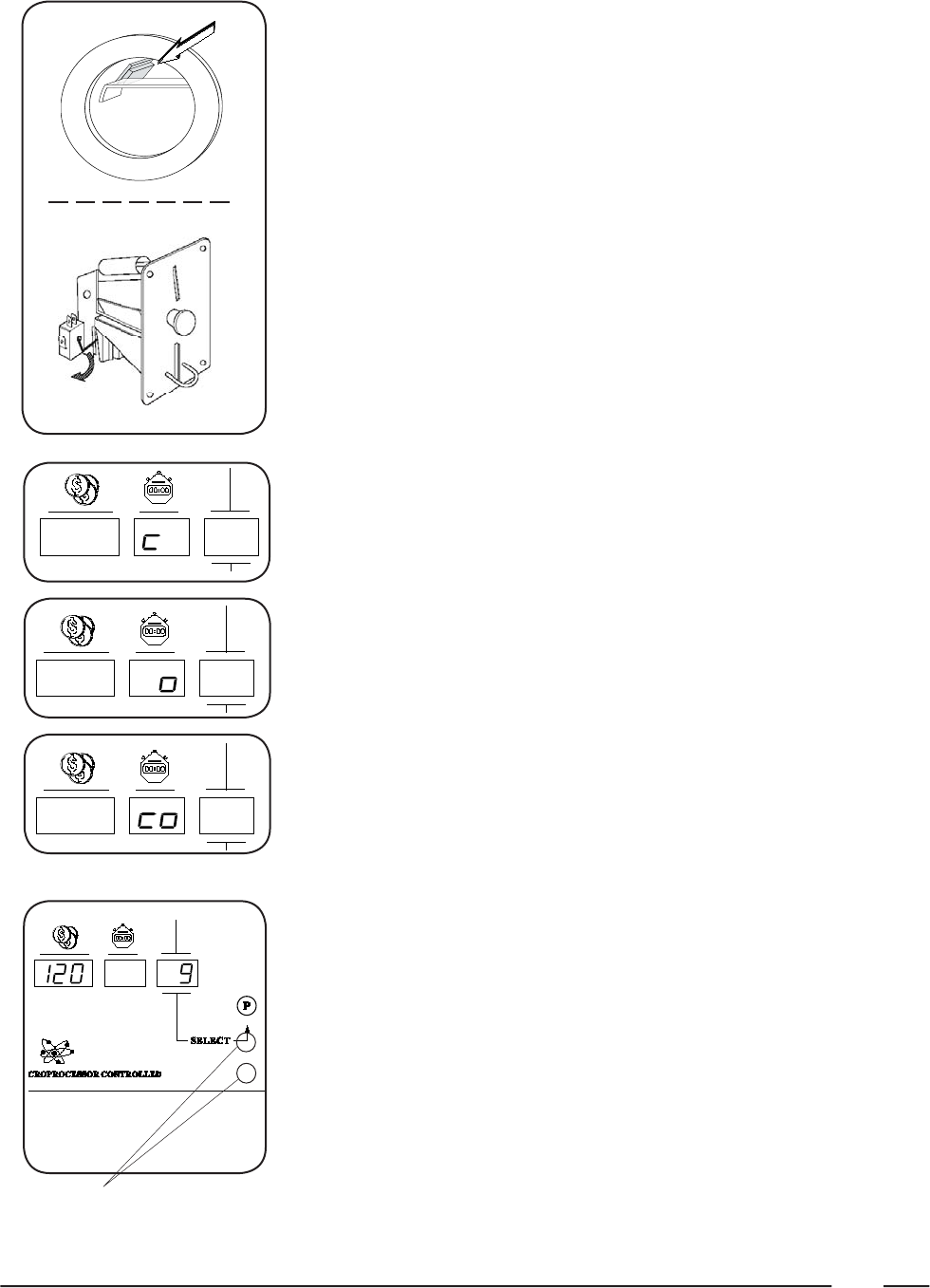

Machine with coin or token operation .............................................. 21

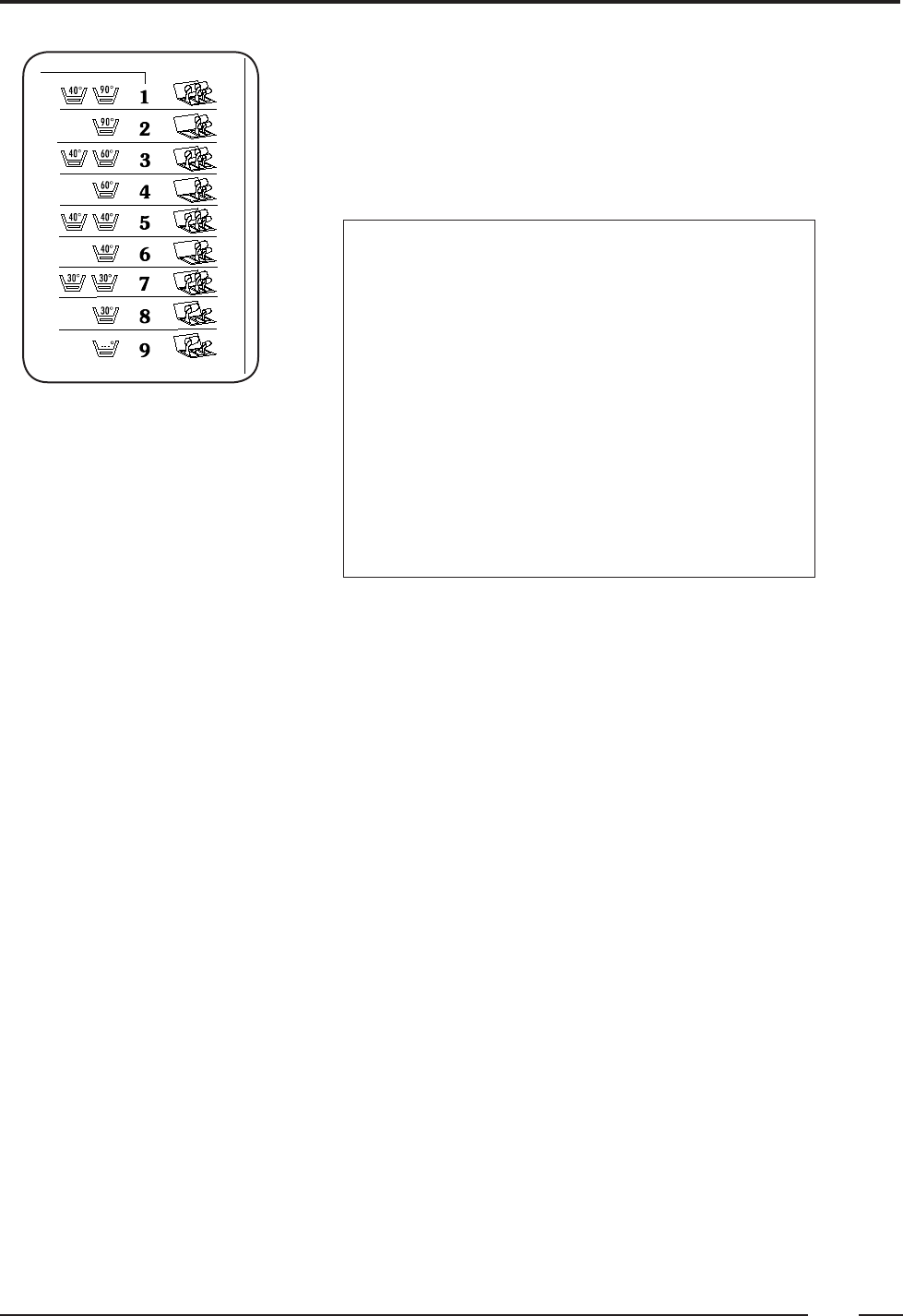

5 Standard programs ........................................................................ 27
6 Technical remarks .......................................................................... 28

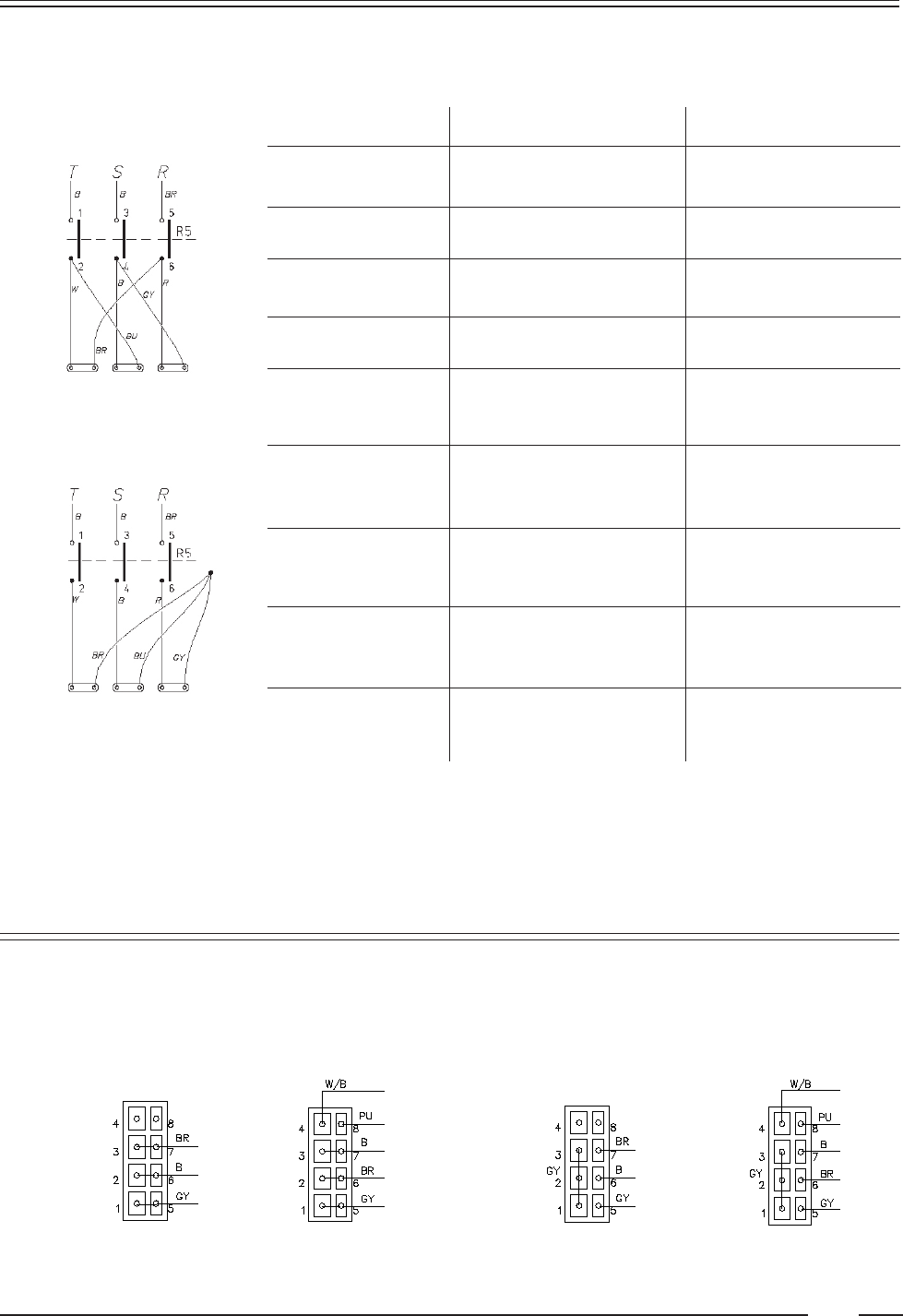

Internal connection of the electrical heating .................................... 28
Internal connections of the motors .................................................. 29
Thermo-magnetic motor protection ................................................. 30

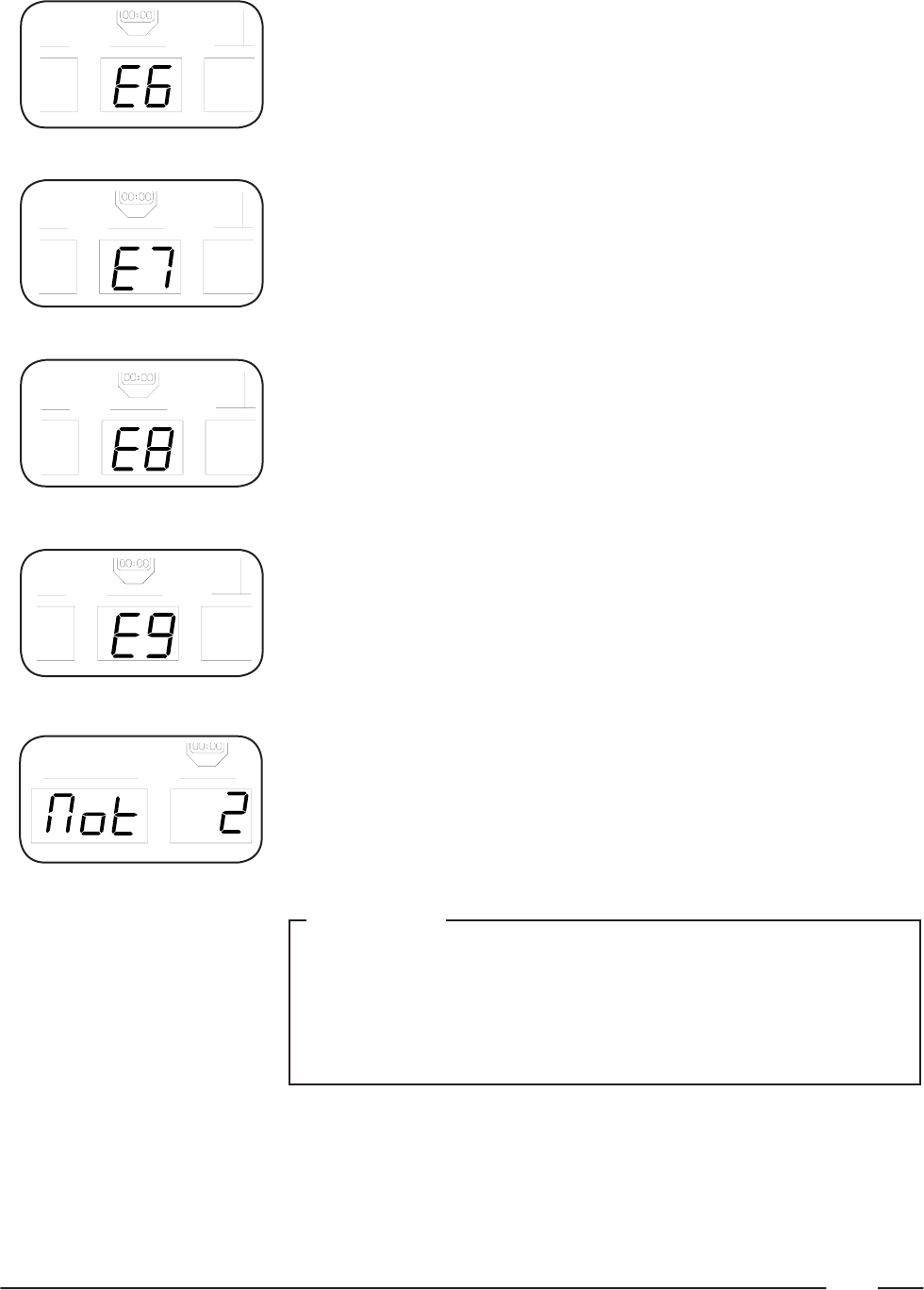

Error messages ............................................................................... 30
7 Maintenance of the machine .......................................................... 32
Code: 249/00162/00
14/10/2005
3
1
General safety instructions
Read the installation and instruction manual carefully before connecting
the machine.
It is recommended that the machine be installed by qualifi ed technici-
ans.
The machine should be installed according to the installation instructions.
(See chapter 4)
The machine should be grounded according to the instructions in order
to eliminate the risk of electrocution.
Do not expose the machine to high humidity or extreme high or low
temperatures.
Cut off all main water inlets, steam and electrical supplies at the end of
each operating day.
Before starting repairs or maintenance, shut off all power and water sup-
plies.
To prevent fi re and explosion:
Keep the area around the machine free from infl ammable or combustible
products.
Do not put fabrics that are treated with infl ammable products into the
machine. These fabrics should be hand-washed or air-dried fi rst.
Always carefully read and follow the instructions on the packing of de-
tergents. Store these products out of the reach of children.
Always take into account the instructions on the labels of clothes.
Never allow children to play in the surroundings of a machine.
These instructions surely cannot prevent all risks of accidents. It is up to the user to act with
the utmost precaution.
Do not hesitate to contact the dealer in case of a problem.
Ignoring any of the safety instructions can cause serious
personal injury and can also cause damage to the linen or
the machine
Remark:
4
2
WE 73 WE 95
Capacity (dry weight)
1/11 6,6 kg 8,6 kg
1/10 7,3 kg 9,5 kg
1/9 8,1 kg 10,5 kg
Cylinder
Diameter 530 mm 530 mm
Depth 345 mm 440 mm
Volume 73 Lit. 95 Lit.
Cabinet
Height 1005 mm 1110 mm
Width 660 mm 660 mm
Depth 670 mm 770 mm
Front loading
Diameter door opening 300 mm 300 mm
Door height 360 mm 455 mm
To center 510 mm 605 mm
Speed
Wash 50 rpm 50 rpm
Spin 500 rpm 500 rpm
G-force
Spin 74
Motor(3 phase)
Wash 18p. 290rpm 120 W 120 W
Spin 2p. 2900 rpm 370 W 550 W
Drain valve
Depend-O-Drain 6/4"
Water supply
Hard, soft, warm water and cool-down 3/4"
Steam connection
Steam connection 3/8"
Heating
Electrical 220/380 V 4,2/6/9 kw
Electrical 380 V 12 kw
Steam X
Warm water (without additional heating) X
Warm water (with additional heating) X
Packing dimensions
(H x W x D) 1140x732x832mm (WE73)
1230x732x950mm (WE95)
Weight
Net 170 kg 178 kg
Gross 225 kg 230 kg
Technical data and dimensions
Technical data
5
2
WE 132 WE 165
Capacity (dry weight)
1/11 12 kg 15 kg
1/10 13,2 kg 16,5 kg
1/9 14,5 kg 18,3 kg
Cylinder
Diameter 650 mm 650 mm
Depth 400 mm 500 mm
Volume 132 Lit. 165 Lit.
Cabinet
Height 1170 mm 1170 mm
Width 780 mm 780 mm
Depth 760 mm 860 mm
Front loading
Diameter door opening 300 mm 300 mm
Door height 465 mm 465 mm
To center 615 mm 615 mm
Speed
Wash 50 rpm 50 rpm
Spin 500 rpm 500 rpm
G-force
Spin 88
Motor(3 phase)
Wash 18p. 290rpm 220 W 280 W
Spin 2p. 2900 rpm 1100 W 1300 W
Drain valve
Depend-O-Drain 6/4"
Water supply
Hard, soft, warm water and cool-down 3/4"
Steam connection
Steam connection 3/8"
Heating
Electrical 220/380 V 12/15/18 kw
Electrical 380 V 21/24 kw
Steam X
Warm water (without additional heating) X
Warm water (with additional heating) X
Packing dimensions
(H x W x D) 1310x850x922mm (WE132)
1310x850x1022mm (WE165)
Weight
Net 235 kg 245 kg
Gross 290 kg 315 kg
6
2
175
56
WE73 = 856.5 - WE95 = 951.5
CDE
H
G
I
A
B
L
F
230
310
390
150
WE73 = 810.5 - WE95 = 905.5
WE73 = 892 - WE95 = 987
140.5
200
WE73 = 280 - WE95 = 375
K
WE73 = 1008 - WE95 = 1103
660
55 55550
WE73 = 350 - WE95 = 470
WE73 = 1035 - WE95 = 1130
24
560
WE73 = 86 - WE95 = 186
WE73 = 670 - WE95 = 770
WE73 = 728 - WE95 = 828
22061
WE 73/95

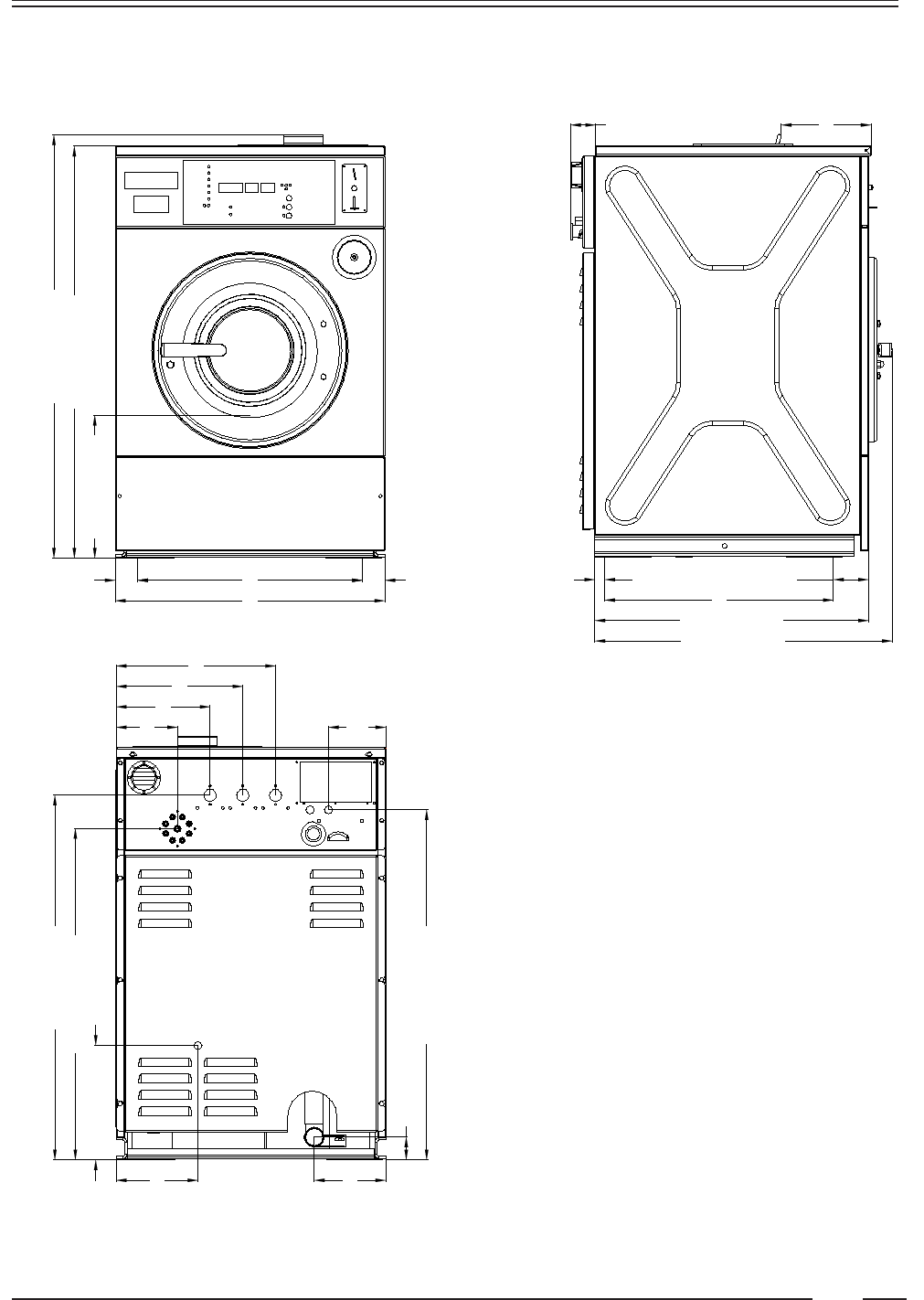

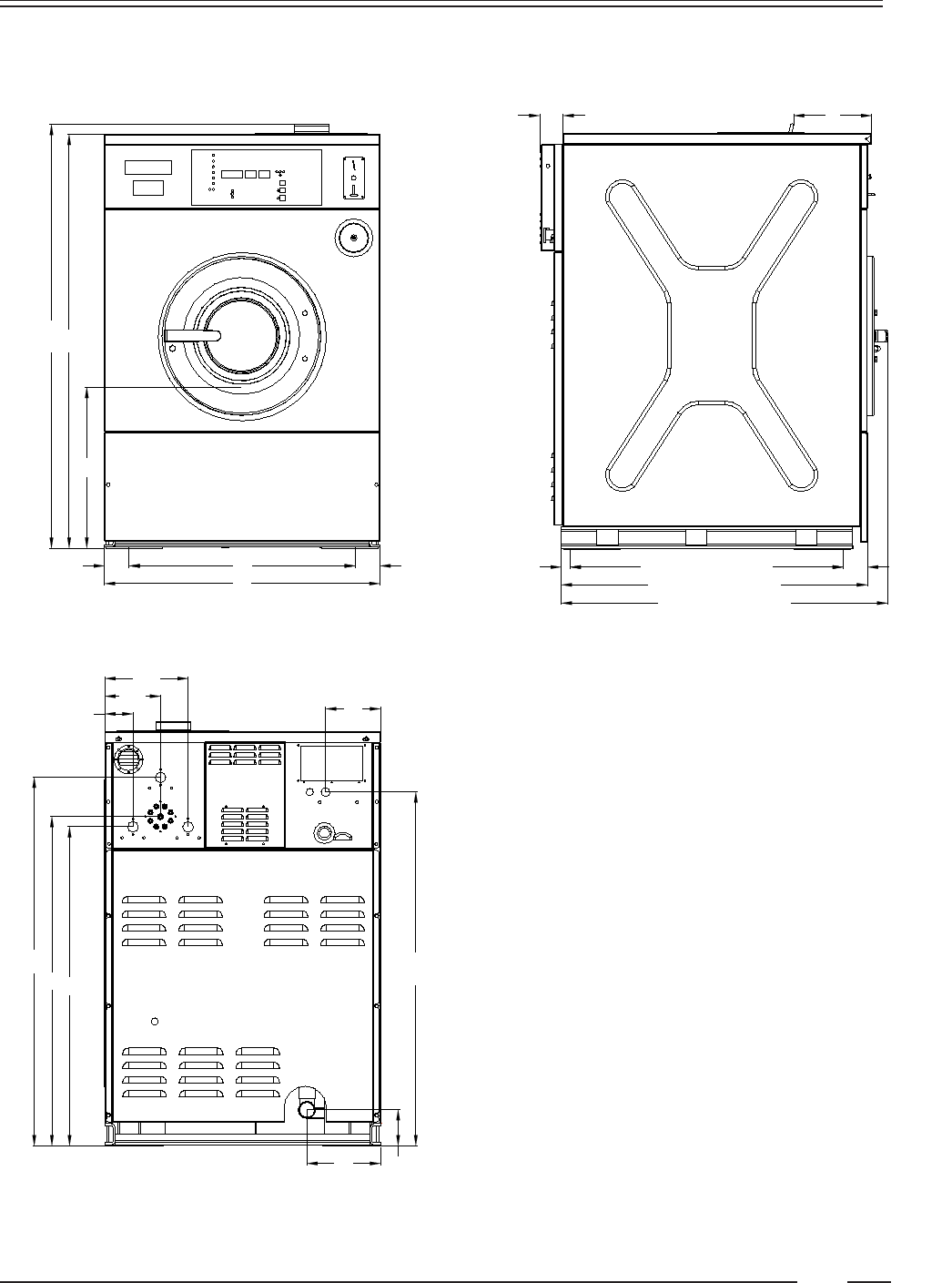

Dimensions
A. Ventilation soap dispenser
B. Liquid soap connetions
C. Hard water connections 3/4"
D. Warm water connections 3/4"
E. Soft water connections 3/4"
F. Connections clamps
G.Electrical connections
H.Emergency button
I. Ventilation tub
K. Drain valve
L. Steam connections
7
H
102
208
A
B
C
D
E
I
F
1000.5
155
79.5
157.5
235.5
902
931
1042
K
L
G
1198.5
1171
455
640
780
7070
WE132 = 820 - WE165 = 920
WE132 = 763 - WE165 = 863
68WE132 = 670 - WE165 = 770
220
65.5
25
2
WE 132 / 165
A. Ventilation soap dispenser
B. Liquid soap connetions
C. Hard water connections 3/4"
D. Warm water connections 3/4"
E. Soft water connections 3/4"
F. Connections clamps
G.Electrical connections
H.Emergency button
I. Ventilation tub
K. Drain valve
L. Steam connections
Dimensions
8
3
B
A
D
C
E
C
D
D
CG
B
A
E
F
The machine must be securely fi xed on a fl at surface (metal base, concrete or
solid ground). The anchoring is to be done on the provided places (A) in the
base. (See Dimensions 2)
The machine must be placed entirely level. For easy maintenance it is recom-
mended to keep a minimal distance of 600 mm between the wall and the back
of the machine.
If several machines are placed next to each another, there should be a minimal
distance of 30 mm between each machine.
Installation and connection
Surface

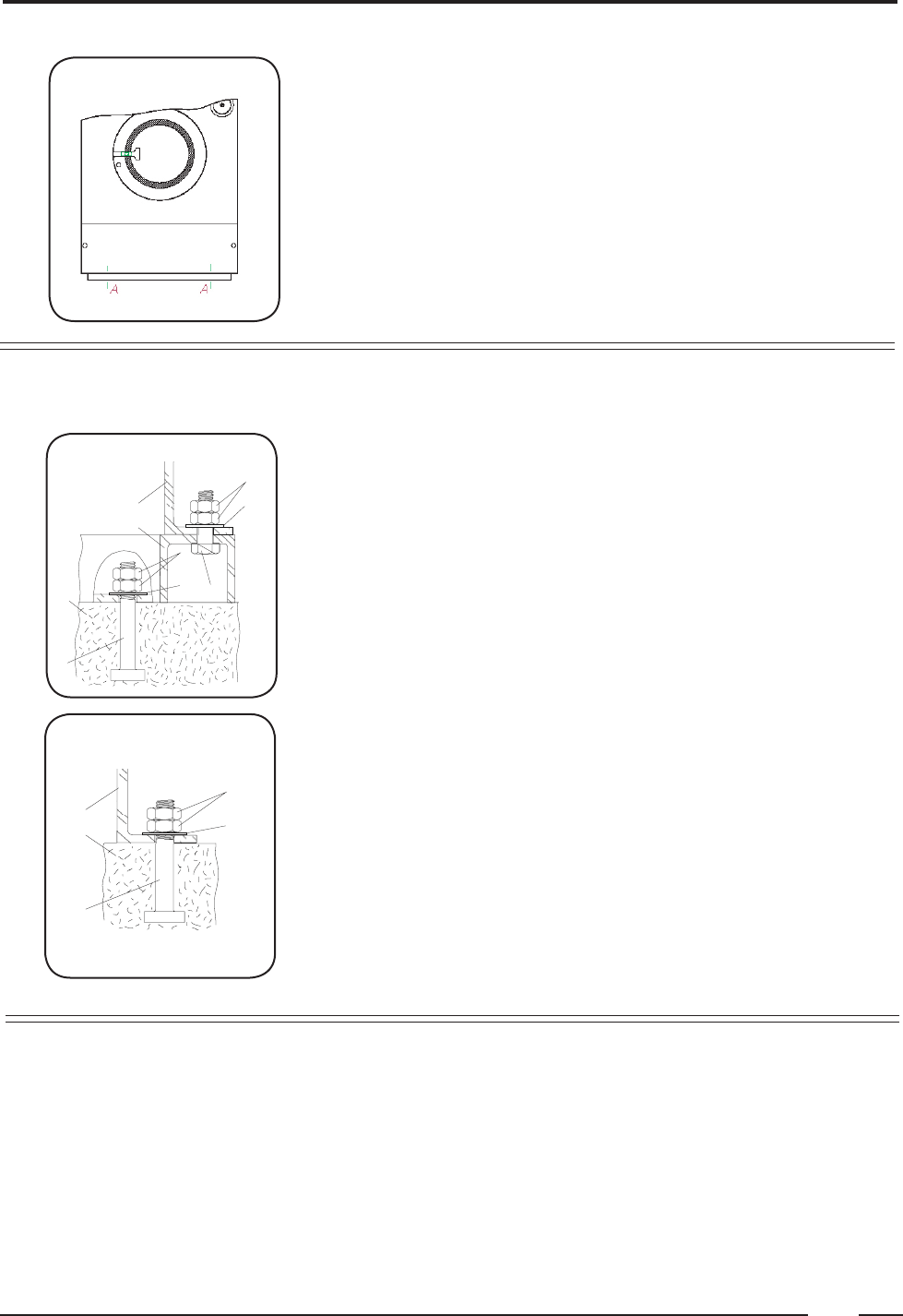

Anchoring
The machine is delivered with hoses with 3/4" connections. These hoses fi t the
water inlet valves of the machine and the main water inlet taps. To ensure the
optimal functioning of the water inlet valves, the water pressure on the inlet
should be between 0,5 and 10 kg/cm² (7 and 145 psi). If the pressure is too low,
the cycle time will increase considerably.
In case of boiler fed machines, a minimum of hot water of 90°C should be
available:
For the WE73: 65 l. WE132: 120l.
For the WE95: 80 l. WE165: 140l.
Water connection
The machine must be anchored directly on a concrete base.
Directly on the ground
The machines must be fi xed on a metal base which is securely anchored on a
concrete base.
A: Bolt M12 (WE73/95), M16 (WE132/165)
B: Concrete base (WE73: 20cm, WE95: 30cm, WE132/165: 40cm)
C: Washer 40x17x4
D: Nut M12 (WE73/95), M16 (WE132/165)
E: Base of the machine
F: Metal base
On a metal base
A: Bolt M12 (WE73/95), M16 (WE132/165)
B: Concrete base (WE73: 20cm, WE95: 30cm, WE132/165: 40cm)
C: Washer 40x17x4
9
3

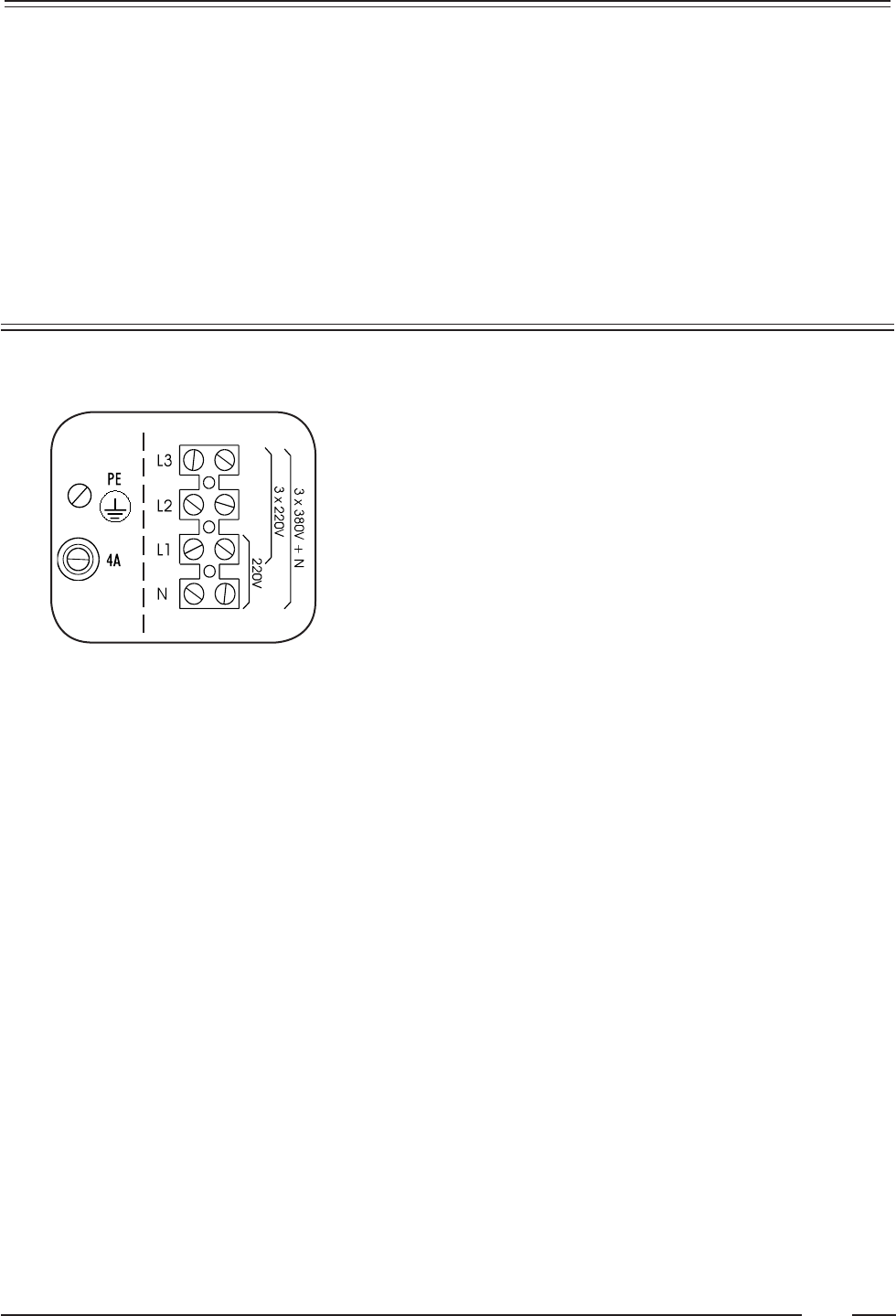

Remove the cover plate at the back of the machine. (See dimensions
(E)).
Connect the power cable to the connectors.
220V 3AC
220V 3 phase (3AC) should be connected to the connectors
“L1,L2,L3”.
The green/yellow grounding clamp has to be connected to the
grounding wire “PE”.
380 V 3AC + N
380 V 3 phase (3AC + N) has to be connected to the connectors
“L1,L2,L3”, the blue neutral to the “N” connector.
The green/yellow grounding clamp has to be connected to the
grounding wire “PE”.
After connection, check the spin direction. The cylinder must
spin in the direction of the arrow, showed on the sticker on the
door window (clockwise).
A wrong spin direction can damage the motor, and can also cause
water to spurt from the soap dispenser.
In case of wrong spin direction: switch the terminal clamps of the
motor circuit “R” and “S” of the connecting cable.
The diameter of the main drain should be adapted to the water fl ow
and the number of machines. It should be suffi cient to handle at
least 80L/min. per machine.
It is necessary to connect the main drain at least on one side to an
open air-brake to allow ventilation.
The machine is equipped with a drain valve with 6/4" outer diameter (50
mm). This drain valve should be connected to the drain by means of the
drain elbow which is delivered with the machine.
Main power connection
Water drain
Power of the breaker plugs: machine with steam heating or boiler fed machines without additio-
nal electrical heating
Heating: 220V 3AC 380V 3AC + N
4,2 kw 16A 16A
6 kw 16A 16A
12 kW 40 A 20 A
15 kW 50 A 25 A
18 kW 50 A 32 A
21 kW ---- 40 A
24 kW ---- 40 A
machine with electrical heating
220V 3AC 380V 3AC + N
16 A 16 A
10
3

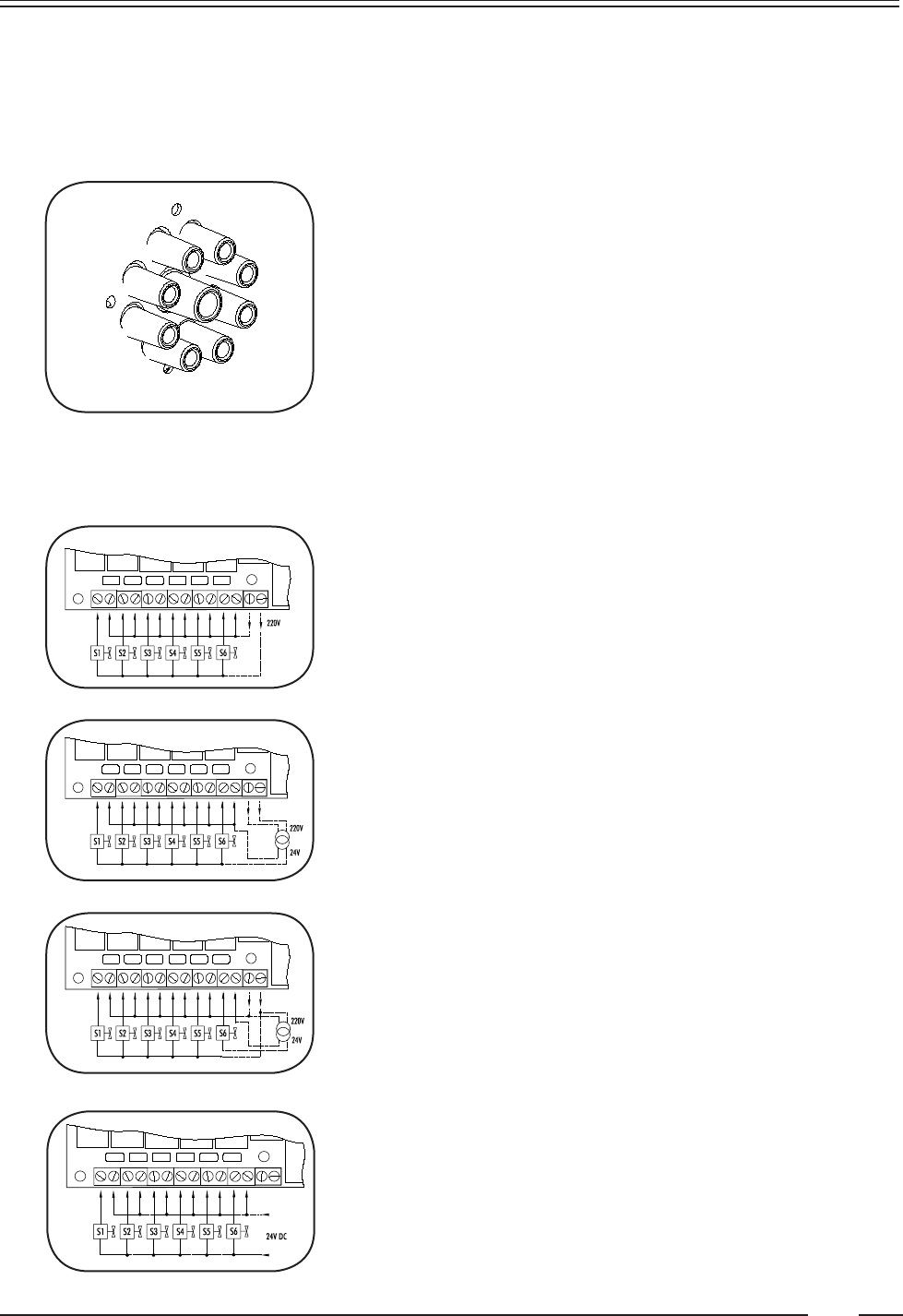

With an external tension 24V DC
Electrical connection of
the liquid soap pumps
On machines equipped with a liquid soap connection, connect the wires
directly on the print board next to the ground wire connection (option).
Connect as indicated on the wiring diagram.
The two connectors on the right give a tension of 220V ~ (max. 4A) which
can be applied to drive 220V ~ soap pumps. If more than 4A is required,
an external tension will have to be used. 6 connections have been provi-
ded, of which one (S6) can be used to drive a waterproofi ng pump (e.g.
for rain coats, etc.).
The 220V can be transformed to other values to drive other type soap
pumps.
Example: pumps 24V ~.
Also, pumps with different operating tension can be combined.
Example: 5 pumps 220V ~ and 1 pump 24V ~.
The liquid soap connection consists of 8 connections for liquid soap
(SI….S).
The central opening is used for ventilation.
Liquid soap connection (option)
Connection of the liquid soap
hoses
11
3
A

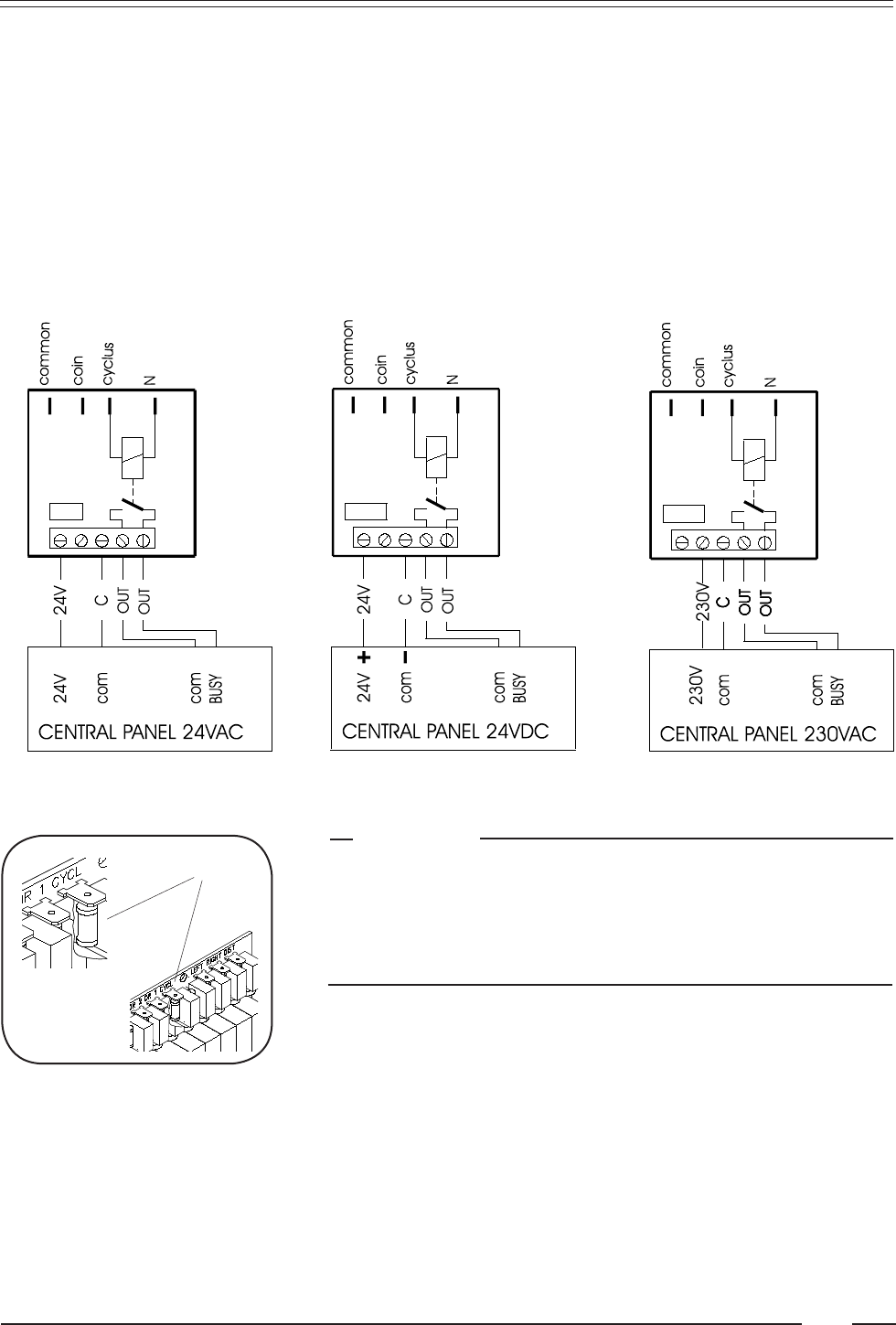

Connection of a central operating
panel for coinmachines (option)
At the backside above the main connectors, you fi nd a printboard, to which the
central operating panel for coinmachines can be connected.
The right connectors form a potential free output contact as a result of which the
operating
panel detects when the machine is activated or not.
The left connectors receive the signal, by means of which a machine is chosen
through the operating panel.
There are 3 different variations possible according to the output voltage of the
operating panel.
Remark :
If a machine is equipped with this kind of printboard or if a printboard
has been built in, the resistance of the cycle contact (A) may no longer
be present on the main printboard.
When this resistance is present, it has to be cut out of the main
printboard.
12
3

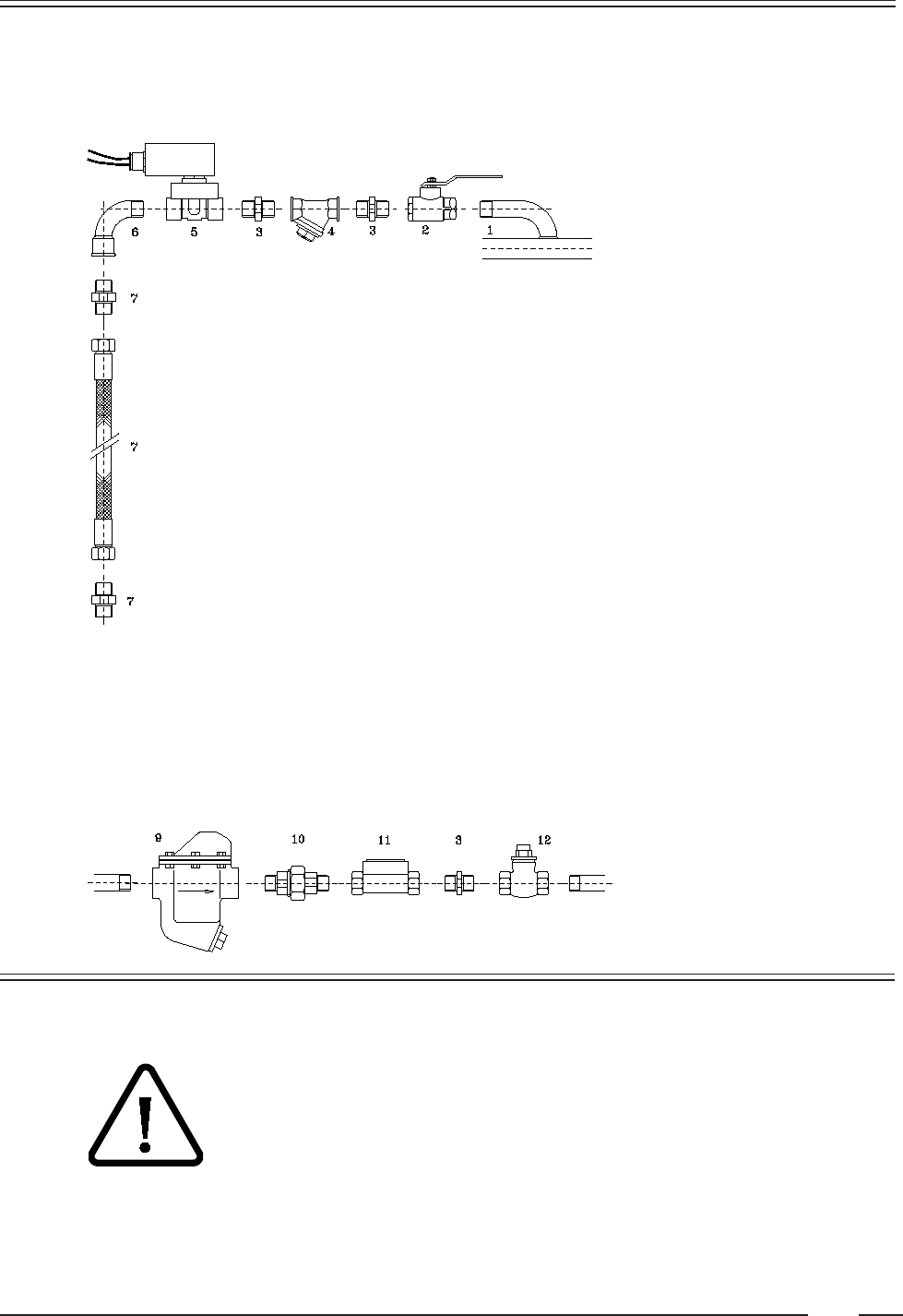

Steam connection
With direct steam injection into the machine
1. Steam pipe
2. Steam cut-off valve 3/8"
3. Pipe coupling 3/8"
4. Steam fi lter 3/8"
5. Magnetic steam valve 3/8"
6. Curve MF 3/8"
7. Steam hose with appropriate pipe coupling 3/8"
The manufacturer is not responsible for damage or accidents
caused by not following the installation instructions!
Added parts for steam heating with heat exchanger
3. Double pipe coupling 1/2"
9. Condensation accumulator with fi lter 1/2"
10. Conical coupling MM 1/2"
11. Single window 1/2"
12. One-way valve 1/2"
M = inner wire, F = outer wire
Machines with steam heating must have a steam valve between the steam
installation and the machine.
13
4

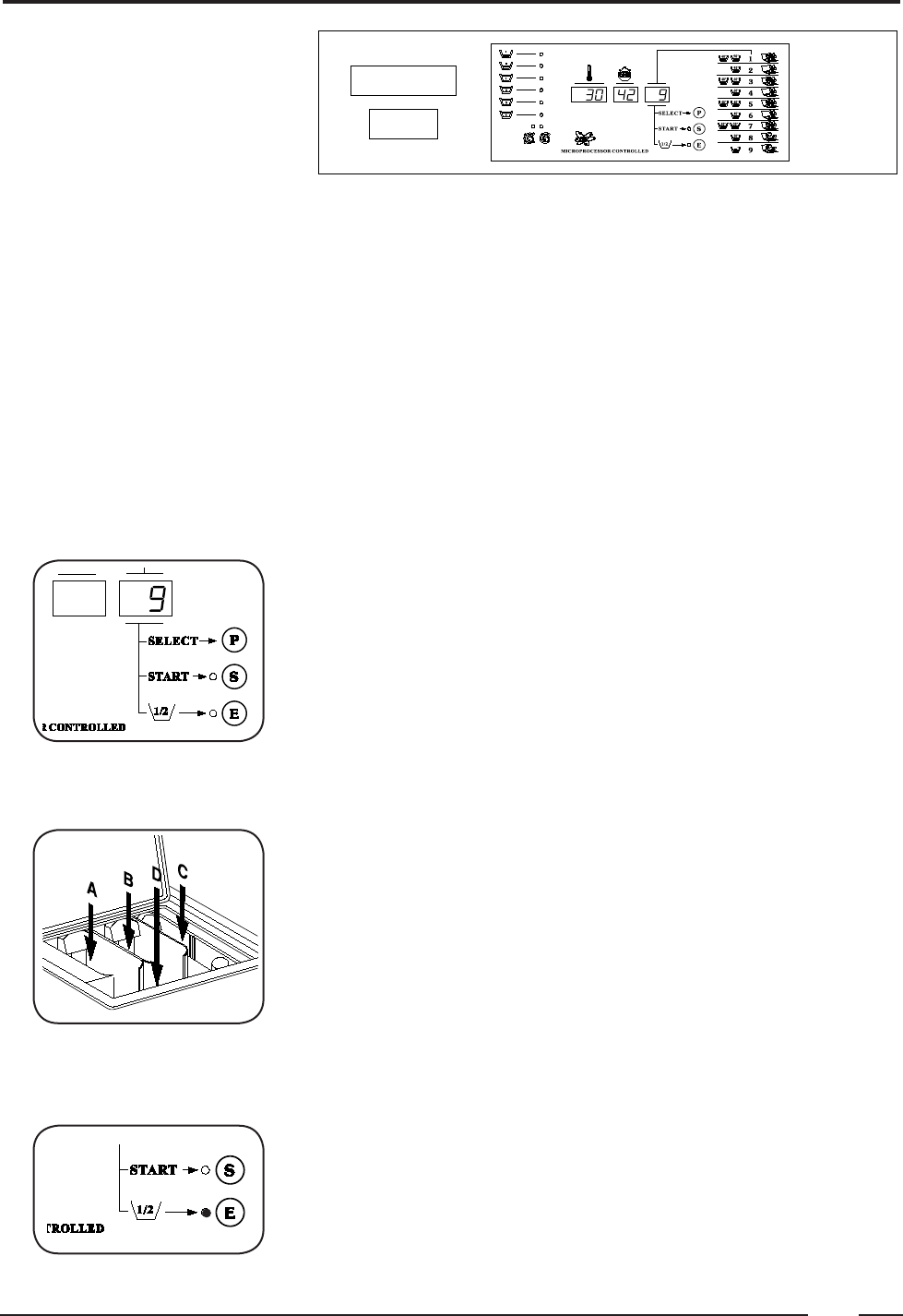

Operating instructions
Machine with start button
Sort the linen according to the type and required temperature of the linen. Empty
all pockets of the garments so that no garments can be damaged and no left
articles can cause damage to the machine. Turn sleeves of shirts, blouses inside
out. It is recommended to mix small and large items to enhance the drop of the
linen during the wash cycle and hence improve the wash quality. Wash loads
of below 80% of machine capacity can obstruct the proper functioning of the
machine and can damage the machine. Overloading the machine can also lead
to a bad wash result.
It is recommended to only use detergents with a “foam-breaker”. These are
often found in the launderette or laundry or can easily be found in retail stores.
Recommended doses are mentioned on the detergent packing.
Overdosing of detergents can lead to reduced wash results and “overfoaming”
which can damage the machine.
Close the door
Fill the drum
On machines with a start button, the programmer can contain up to 100 programs
(0-99). The program number is displayed on the right display.
By pressing the SELECT-button (P), the next program will be displayed.
By pressing the ECO-button (E), the previous program will be displayed. By
keeping this button pressed, this function will be accelerated.
Remark
Select program “0” by keeping the SELECT-button pressed continuously for
more than 5 seconds.
Add detergent
Left compartment A: Prewash (1st wash)
Central compartment B: Main Wash (2nd wash)
Right compartment C: Final Rinse (fabric softener)
Bottom compartment D: Direct access to tub
Moderately soiled linen can be washed using the Economy Wash function,
which reduces the water level of washes and rinses by 20%, allowing savings
of water and energy.
Press the ECO-button during the wash cycle to activate the economy wash
function. The ECO-LED will light up.
At the end of the program the ECO-function will be automatically eliminated.
If the ECO-function is required in the following wash cycle as well, reactivate
this function by repeating the actions described above.
Economy Wash
Opening the door Open the door.
Select program
14
4
Start the wash-cycle by pressing the Start button (S) and releasing it immediately.
The door is sealed and the cycle-LED lights up.
During the fi rst 2 minutes after starting, the program number is blinking and you
can change the program in case of a possibly wrong selection.
To do so, select another program with the SELECT button (P). This new program
will start immediately.
Start the machine

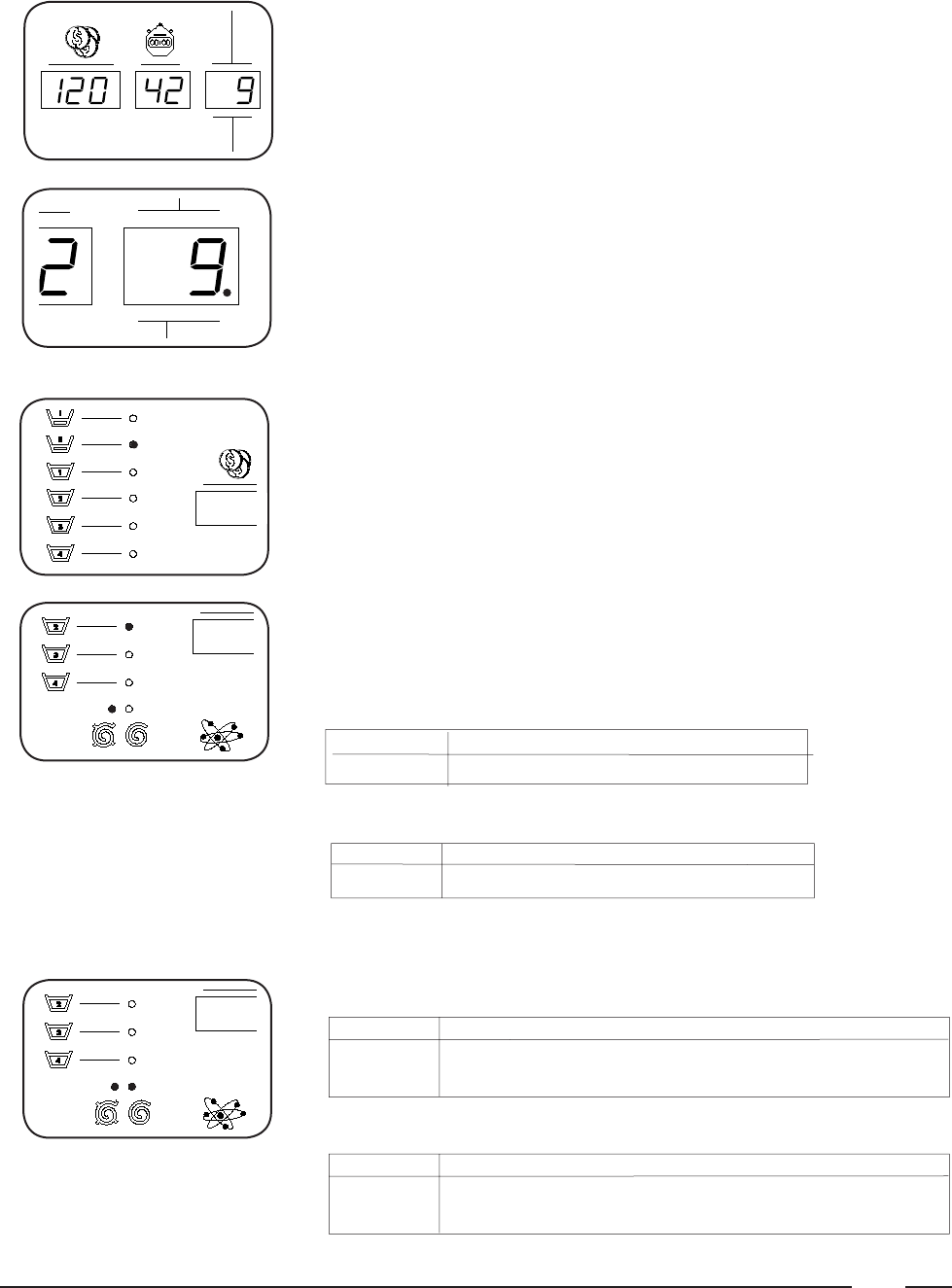

Display information
The left display will indicate the temperature of the wash bath - in °C or °F (on
machines where this function has been selected).
The central display shows the remaining time to the end of the wash cycle.
Indications of program
sequence
For programs which are being run for the fi rst time, the machine will take
a theoretical time estimate. If this time indication does not correspond to
the real cycle time, the cycle time will be corrected from the second cycle
onwards (Self-Teaching function of the machine).
This correction will have to be preprogrammed and is not activated on pro-
gram numbers higher than 20. The corrected time will also be lost when
the power has been cut from the machine for more than 24 hours.
The right display will continue to show the selected program number.
If a Level-stop was programmed (which halts the programmer during the
fi lling of the cylinder) and/or a Heat-stop (which stops the programmer during
the heating up of the wash bath, then the respective LED’s light up in the
display. Once the required water level and/or temperature have been reached,
the LED is turned off and the internal programmer advances again.
Wash cycle-LED’s
Each program segment has a corresponding LED. Each of these 6 LED’s light
up when the appropriate segment is executed. This way, the program sequence
can be accurately followed.
When a LED blinks, the machine is taking up water.
When a LED blinks slowly, the machine is heating up the water.
Spin-LED’s
When the water is drained at the at the end of a program segment and the ma-
chine spins if so desired, the left spin-LED (intermediate spin) will light up
together with the cycle-LED.
- Functioning of the spin-LED’s during intermediate spin:
- Functioning of the spin-LED’s during gentle-intermediate spin:
LED drain/distribution low spin coast
Interm. spin blinking rapidly blinking slowly blinking slowly
LED drain/distribution low spin coast
Interm. spin blinking rapidly continuously continuously
15
4
During fi nal spin, both the left spin-LED (intermediate spin) will light up together
with the right spin-LED (fi nal spin).
- Functioning of the spin-LED’s during fi nal spin:
LED drain/distribution low spin high spin coast tumble
Interm. spin blinking rapidly continuously slowly continuously off
Final spin continuously continuously slowly continuously rapidly
- Functioning of the spin-LED’s during gentle-fi nal spin:
LED drain/distribution low spin high spin coast tumble
Interm. spin blinking rapidly slowly ---- slowly off
Final spin continuously continuously ---- continuously rapidly
Manual interventions during
the program
Following functions can be activated during the program:
F1 = Time stop
To increase the duration of a program segment beyond its originally pro-
grammed duration.
F2 = Soak
To soak heavily soiled linen
F3 = Reduced wash action
To avoid wear of delicate garments
F4 = * Execute high spin as low spin
To avoid creasing delicate linen
F5 = Rapid advance
To skip certain program segments
F6 = No spin
To give total protection to delicate garments
F7 = * on the left display appears the number of revolutions of the drum.
F8 = * changing the number of revolutions at fi nal spin. In order to limit the
rpm for delicate linen.
* = Only for WE132 and WE165

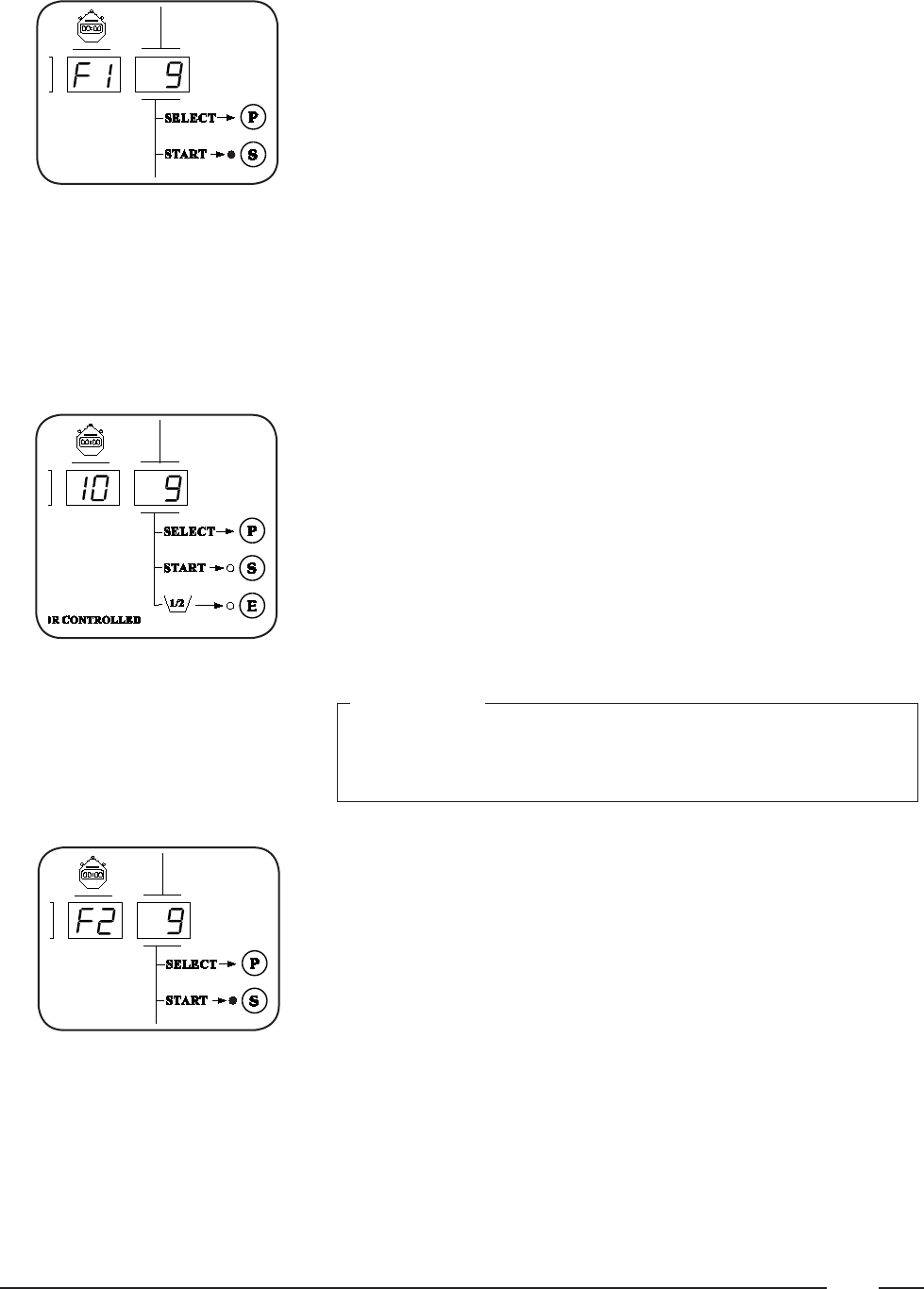

Selecting a function
Push the SELECT-button (P) at the time the special function
needs to be activated and keep the button depressed.
Now push the START-button (S) simultaneously and release same. Only now
release the SELECT-button (P).
The central display now shows F1 and this function is now active.
By pressing the SELECT-button (P) the next function
will appear on the central display. And so on up to F8.
To return to normal operation, press the START-button (S) and release.
A function is also terminated by selecting another function. Functions are also
automatically ended and switched off at the end of the each program.
16
4
Function F1 (Time stop)
During the wash cycle:
The wash time is stopped. The temperature, water level and wash action remain
the same as programmed.
During the wash cycle, this function remains active until the START button
(S) is pressed again.
During intermediate spin :
The intermediate spin normally lasts 1 minute.
By activating function F1, the machine will spin for nine minutes unless the
START button (S) is pressed earlier.
During fi nal spin :
At fi nal spin, you have high spin after low spin.
By activating F1 during low spin, this low spin will be extended to15 minutes
unless the START button (S) is pressed earlier.
If the 15 minutes of low spin have been completed, the high spin is automa-
tically canceled.
By activating F1 after the preprogrammed low spin, you will have a maximum
of 14 minutes of high spin unless the START button (S) is pressed earlier.
Adjustable stop time :
Here you can program a certain stop time. The display shows the countdown
of this extra time. When this time is expired, the function will appear automa-
tically and the program will continue.
Select F1 (see above).
The stop time can be programmed by means of the ECO button (E). By pres-
sing it once, the stop time is programmed for 10 minutes. From now onwards,
“F1” and “10” appear by turns on the middle display.
By pressing the ECO button (E) once more, you add each time 10 minutes.
After 50 minutes, 1.0, 1.1, 1.2, etc... appear with a maximum of 4.0 hours.
By means of the START button (S), you can each time reduce 10 minutes.
Description of the func-
tions
Function F2 (soak)
This function can only be chosen during prewash, main wash and fi rst rinse.
The cycle time is stopped. The bath is fi lled till high water level and heated up
to 40 °C (if a higher temperature was programmed, this will be followed).
As long as this temperature is not reached, the machine makes a reduced wash
action ( shorter action time and longer pause time). When the bath has reached
its temperature, the drum will make one left/right rotation every 4 minutes.
Should the temperature fall, the water will be heated again, during which the
action will be reduced again.
This function remains active until the START button (S) is pressed again.
Programmable soak time :
In the same way as for the stop time, you can program the soak time (see
programmable stop time).
The programmed stop time is executed after the decimal point in the right
display has extinguished.
The stop time cannot be programmed during spin.
Remark :
17
4

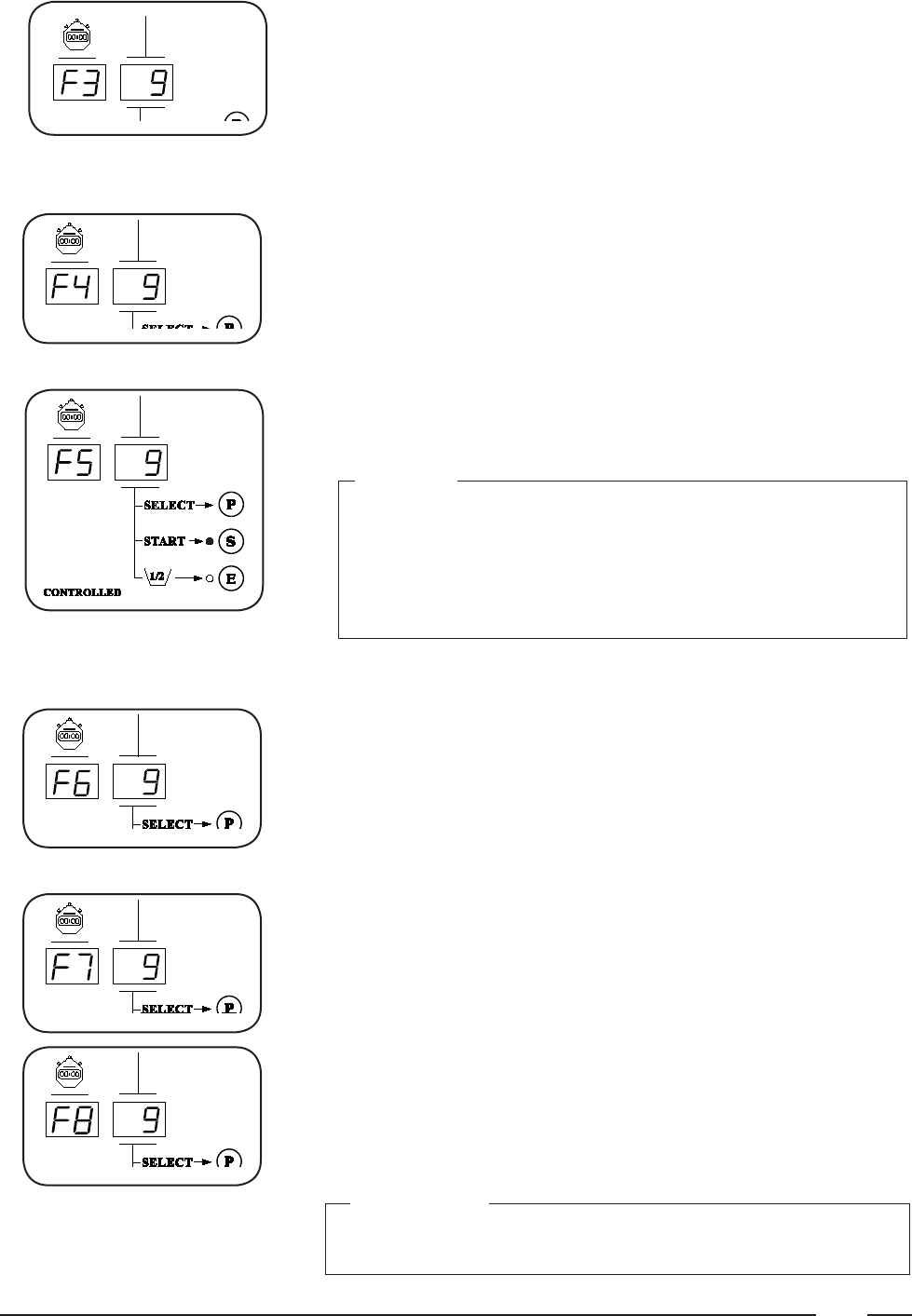

Function F3 (reduced wash action):
By selecting F3, the wash action time and pause time will be reversed; unless
the wash action time was programmed to be shorter than the pause time.
Example: 12 sec. action/3 sec. pause becomes: 3 sec. action/12 sec. pause
6 sec. action/9 sec. pause remains: 6 sec. action/9 sec. pause
This function does not infl uence the cycle time - the program continues nor-
mally - and remains active until the START-button (S) is pressed.
Function F4 (execute high spin as low spin): (Only for WE132 and WE165)
By activating this function, high spin will be automatically replaced by low
spin.
This function does not infl uence the cycle time - the program continues nor-
mally - and remains active until the START-button (S) is pressed.

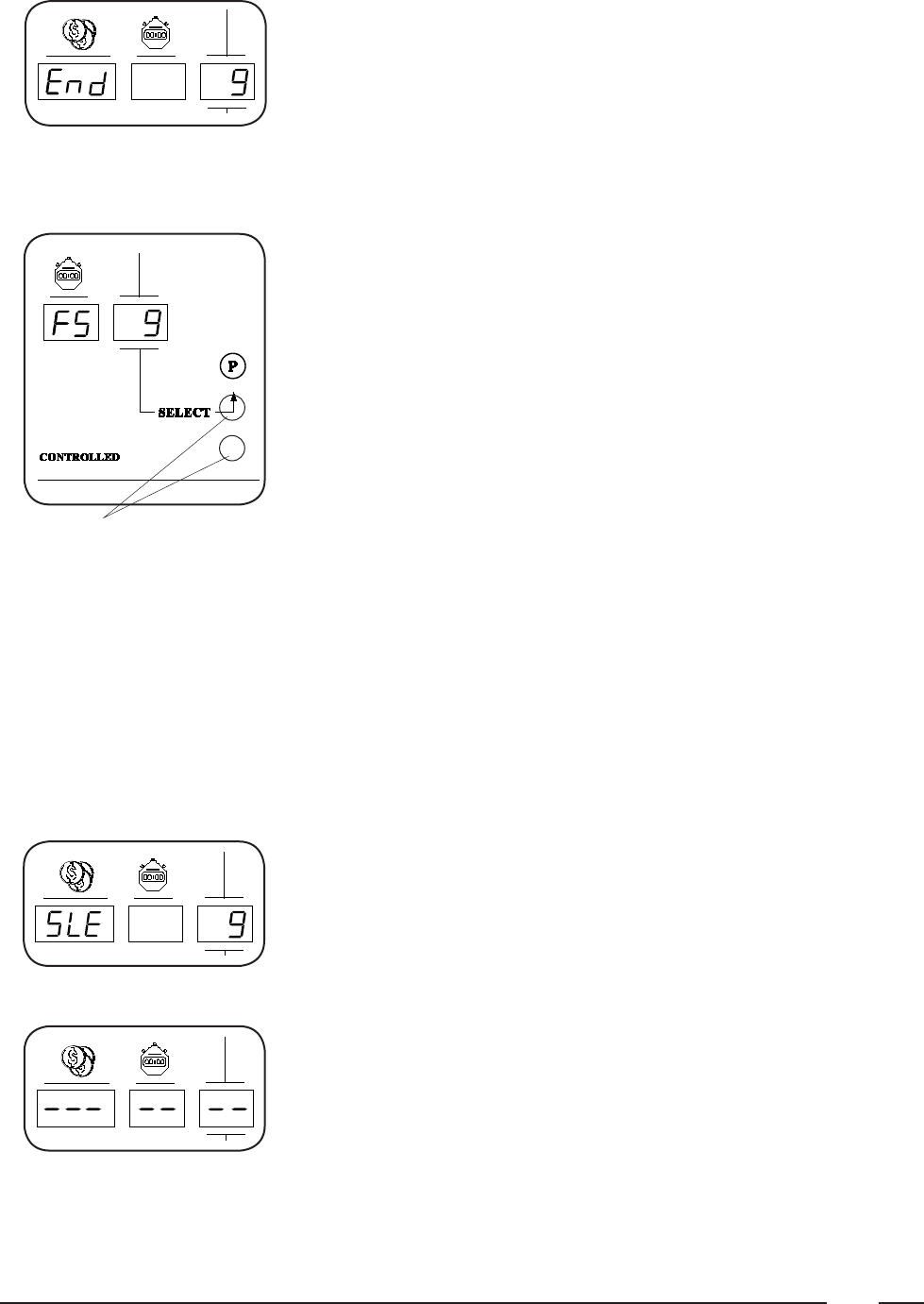

Function F5 (rapid advance):
This function is mostly used by technicians and maintenance staff. It allows
to the program.
By pressing and releasing the ECO-button (E), the programs skips to the next
segment.
Function F6 (no spin):
This function eliminates all spin action.
Intermediate spin is replaced by a regular wash action. During fi nal spin, only
the programmed low spin time will be completed as regular wash action. High
spin is skipped in its entirety.
This function infl uences the cycle time - the program continues normally - and
remains active until the START-button (S) is pressed.
Function F7 (indication of the rpm) (Only for WE132 and WE165)
By using F7 the number of revolutions of the drum (rpm) appears on the right
display.
Function F8 ( changing the number of revolutions (rpm) at fi nal spin)(Only
for WE132 and WE165)
By means of F8, the number of revolutions can be changed at high spin. The
programmed number of revolutions appears on the left display.
Each time you press the ECO button (E), the spin decreases with
25 rpm ( min.500).
Each time you press the START button (S), the spin increases with 25 rpm
(max. 999).
Attention!
If F5 is activated during fi nal spin, this segment of the program will be
skipped as described above. It is however followed by a coast and tumble
time to disentangle the linen. This special function prevents the user from
opening the machine while the drum is still rotating and represents an im-
portant safety feature.
To return to normal operation, press the START-button (S).
Remark :
This function has to be selected before fi nal spin has started.
18
4

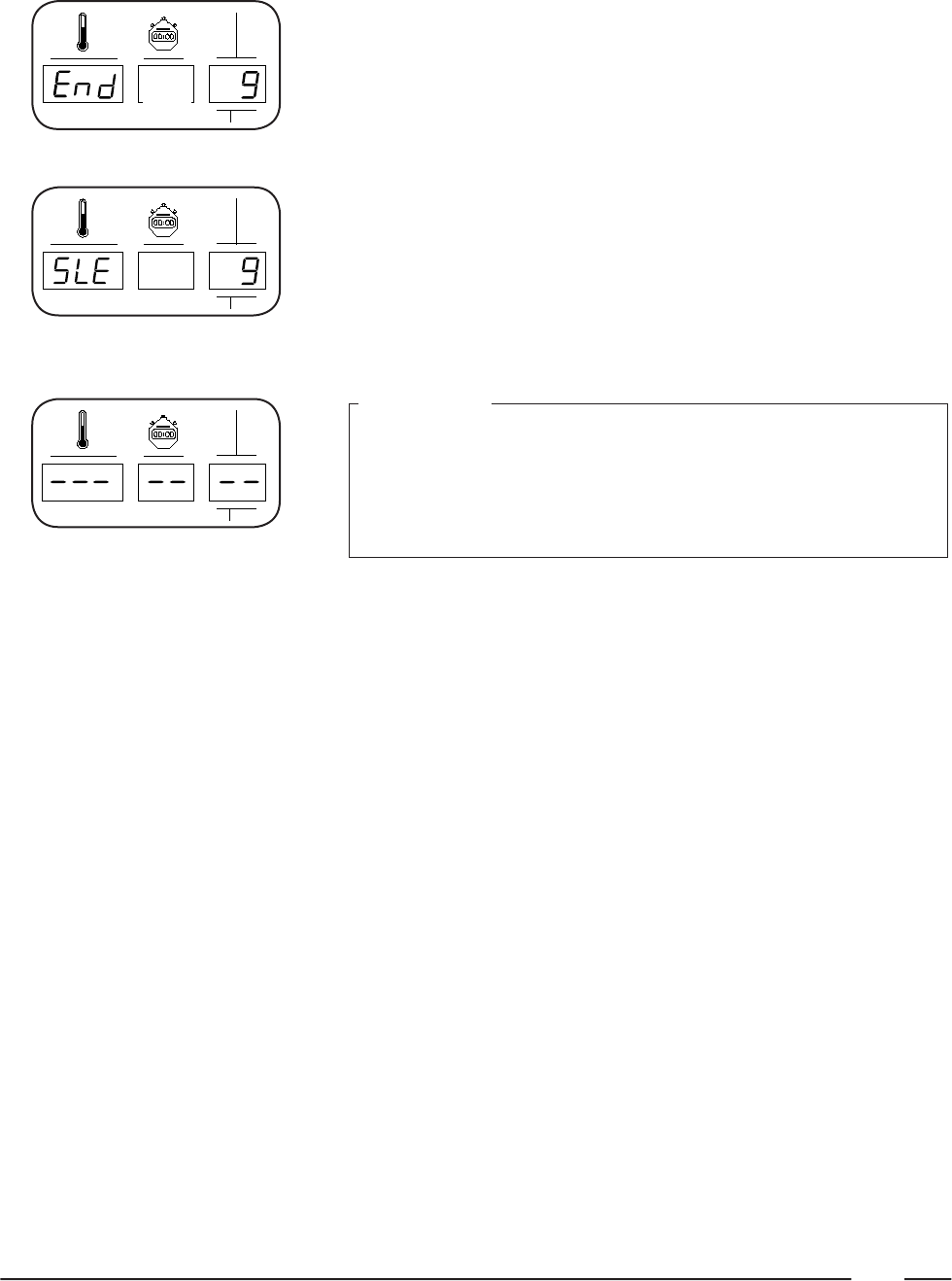

End of a program At the end of a program, while the door is being released, the
left display shows End; and the Start-LED is switched off.
After that only the right display will continue to show the program number.
This is the end of the program.
Premature ending of the program
By pressing the START-button (S) during the program, the Start-LED is swit-
ched off and the water is drained from the machine. As long as the water has
not reached the safety level, the door will remain sealed and the display will
show “SLE” (Safety Level) on the left display. Afterwards the display will
temporarily show “End” on the same display and the Start-LED will be swit-
ched off. After that only the right display will continue to show the program
number. This is the end of the program.
Remark:
If any attempt is made to interrupt the program prematurely during a
spin phase of the program, all functions on the display will be temperary
replaced by blinking horizontal dashes. After that only the right display
will continue to show the program number and the door will be released.
This is the end of the program.
19
4

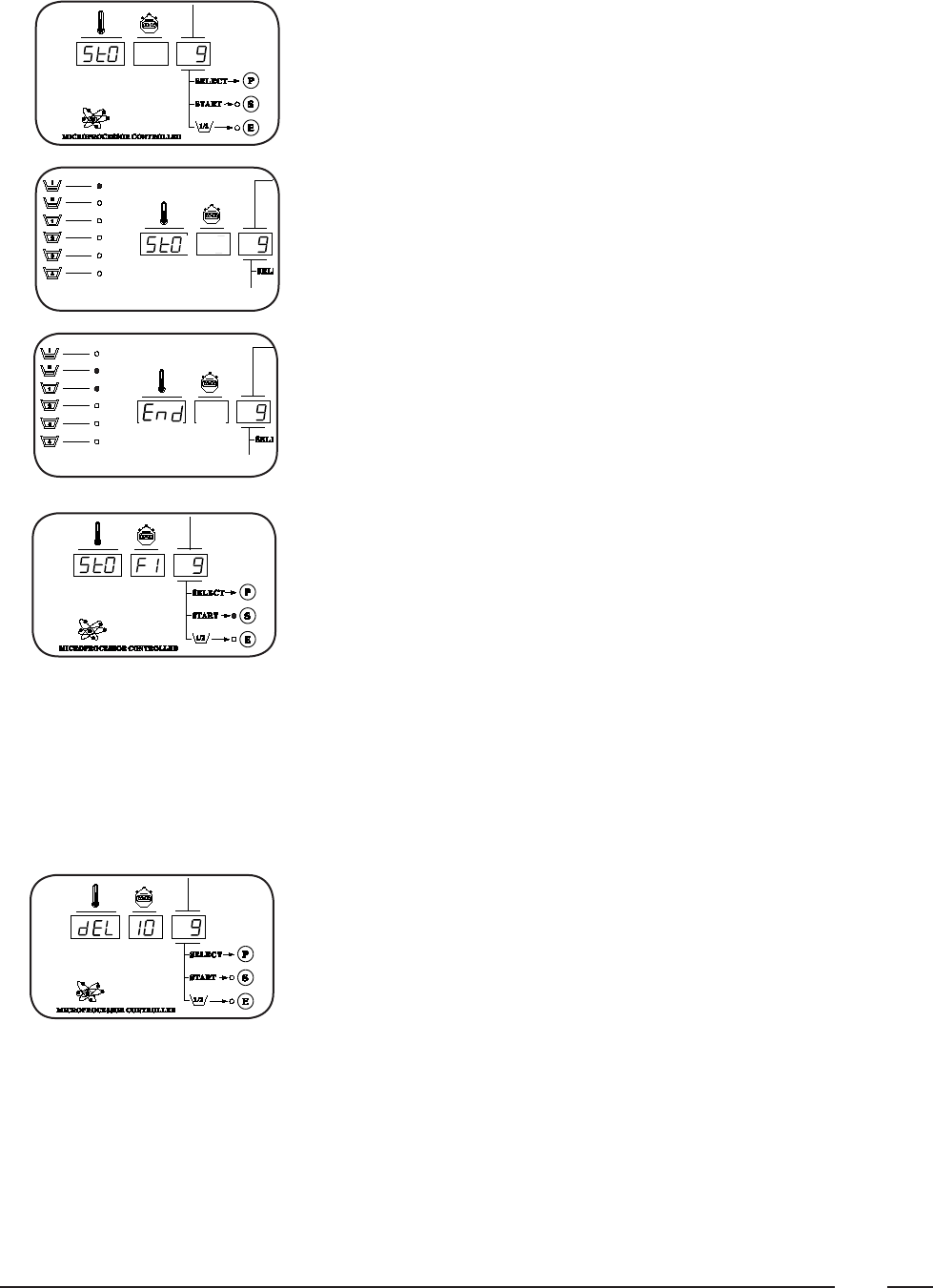

Remarks: Freely programmable stop-function
Before starting a program it is possible to preprogram a time stop in every
program segment. This function permits special additional functions like ad-
ding bleach or extra detergent to the wash bath.
Programming:
After selecting the program, press the ECO-button (E) and keep it depres-
sed.
Now push the START-button (S) simultaneously and release same. Only now
release the ECO-button (E).
The left display now shows “StO” (Stop) and the right display shows
the program number. The fi rst program sequence LED is switched on.
Confi rm by pressing the START-button (S) if a time stop is required in this
phase of the program. If no time stop is needed, press the ECO-button (E) to
move on to the next segment of the program. Run through the entire program
in this way. If needed, return to previous segments by pressing the SELECT-
button (P).
Errors can be corrected by returning to the erroneously programmed time stop
in the segment and correcting by pressing the START-button (S).
After the fi nal program segment all programmed time stops will be displayed
and the left display will show “End”. Confi rm this program by pressing the
START-button (S) again. Now start the program.
Operation:
When a stop is reached during the run of the program, the time
will be stopped. The wash bath will be filled to the appropriate
level and temperature and the programmed wash action is executed.
The left display will alternately show temperature and “StO”, while the cen-
tral display is showing “F1”. Now, if so desired, additional detergents can be
added.
When this has been done, press the START-button (S) to continue the run of
the program. To remove any possible remains of corrosive products in the tub,
the machine will rinse an additional 2 seconds.
Programmable automatic start
By using this function a program can be started up to 99 hours later.
Programming:
After selecting the program, press the SELECT-button (P) again and keep it
depressed.
Now push the START-button (S) simultaneously and release same. Only now
release the SELECT-button (P).
The left display now shows “DEL” (Delay). The central display shows “10”
(minutes). Every push on the SELECT-button (P) will add 10 minutes to the
delayed start time. Hours and minutes are separated by a decimal point: 1.5
stands for 1 hour and 50 minutes. After 10, the counting is done by hours.
By pressing the ECO-button (E), the delay time can be counted down.
Operation:
After having set the desired delay time, the count-down can be started by pres-
sing the START-button (S). During the count-down the displays blink and the
remaining time is counted down. In the last hour the displays blink faster. When
the delay time has elapsed, the program is started automatically.
20
4

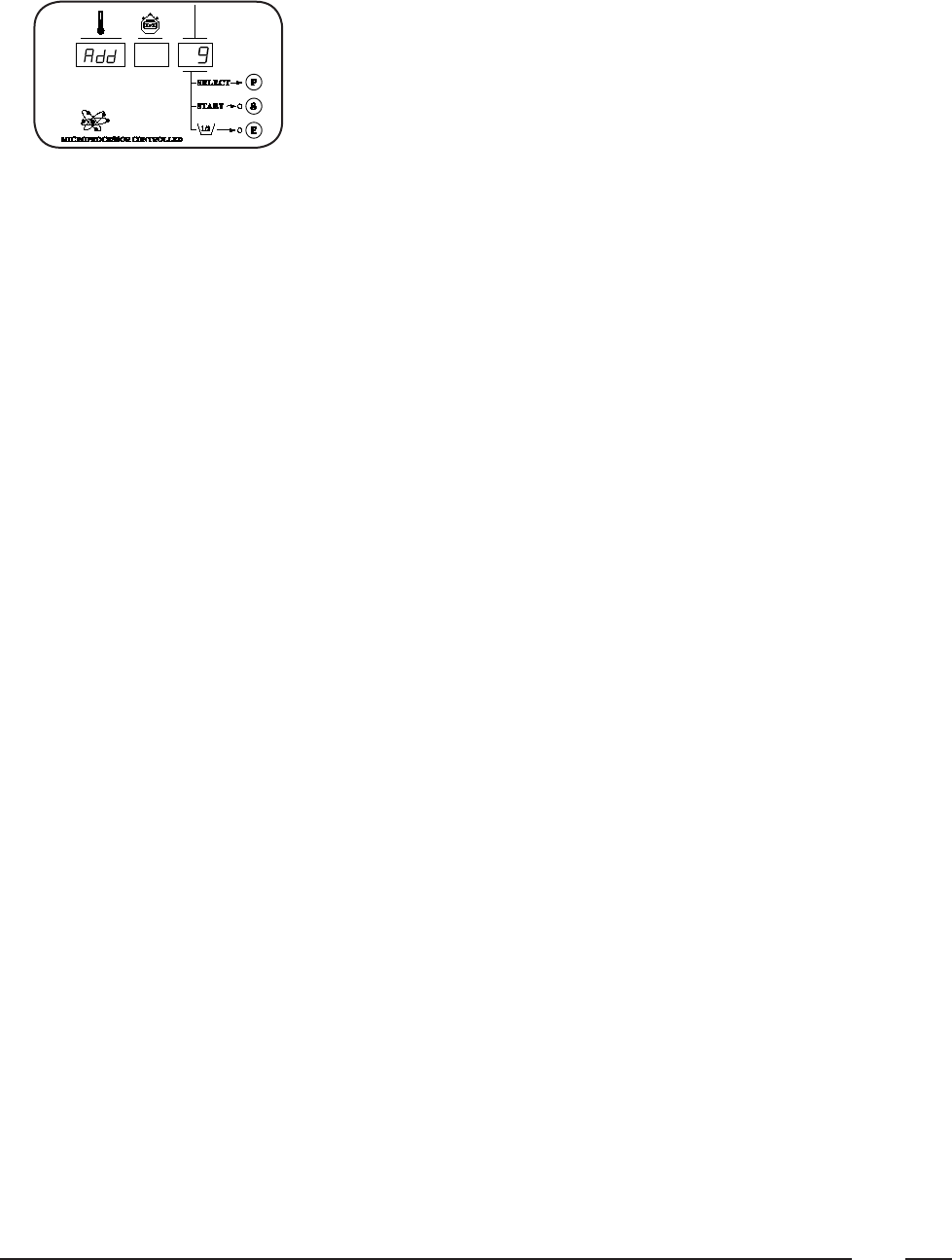

Linking 2 programs
It is possible to run 2 programs automatically in sequence. This can be handy
to perform very special functions (like waterproofi ng outerwear) and add these
to the wash program.
Programming:
First select the program which will be run last.
Now, press the START-button (S) and keep it depressed for at least 5 seconds. The left
display now shows “Add”. Now select the program which will be run fi rst.
The right display now shows both linked programs alternately: the fi rst to be
run program during the longer time span alternating with the following program
displayed during the shorter time span.
This function is canceled by pressing the START-button (S) again for at least
5 seconds.
This function can be combined with an economy wash, with the functions F1
to F6 and with a programmed start. The freely programmable stop-function
can however only be executed during the fi rst program.
Operation:
Press the START-button (S) to start the programs. The central display will show
the remaining time per program. The total time of both programs together is
not displayed.
The right display alternately shows the program in operation (during a longer
time span) and the second program to be executed (during the shorter time
span). After the fi rst program has been run, only the second program number
will be displayed.
21
B
ABefore opening the door, check that all the water has been drained from
the tub and that the cylinder has come to a complete stop.
Important:

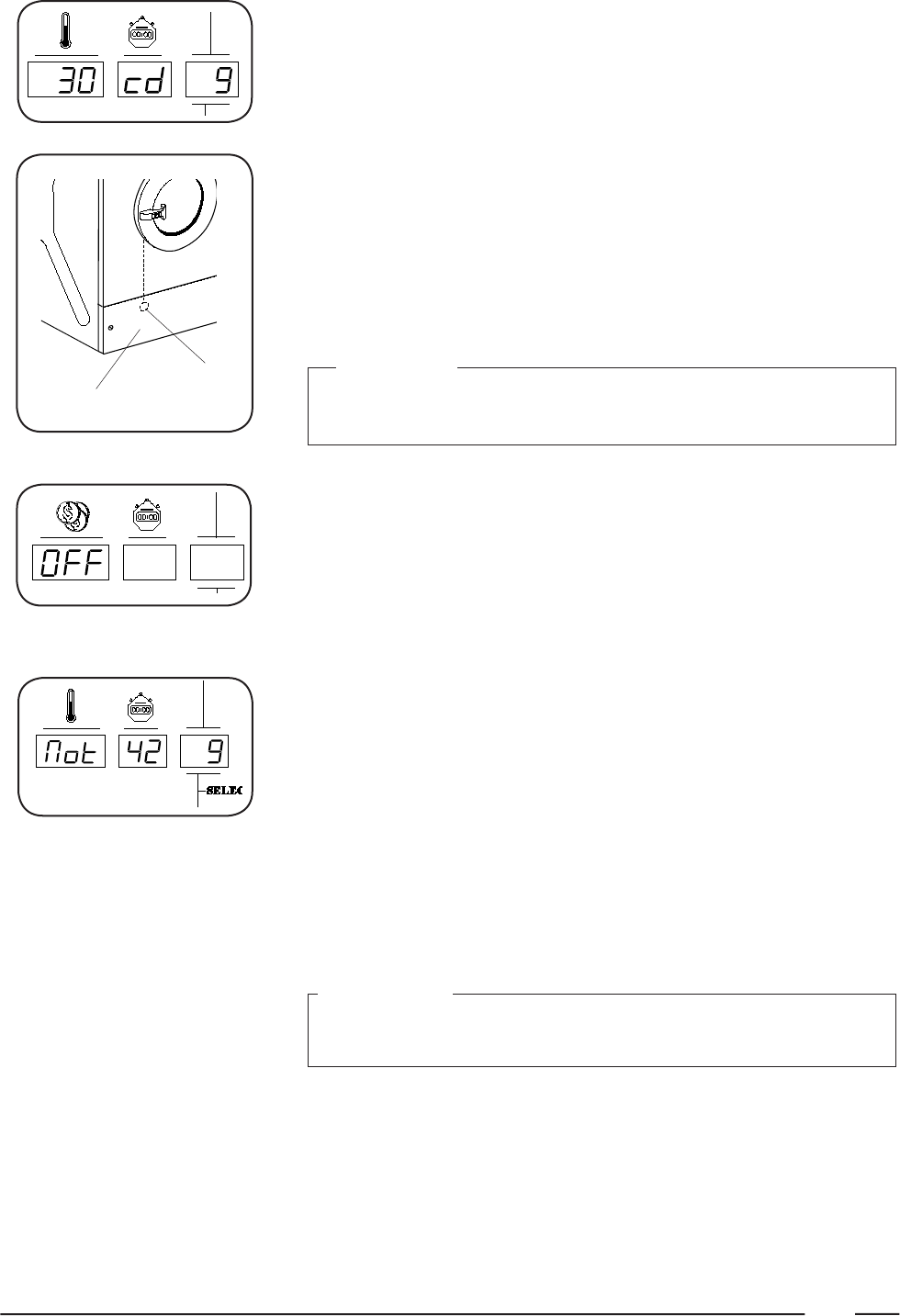

Remote stop function
By means of this function, no cycles can be selected anymore during
a certain period of time (e.g. between 10 p.m. and 7 a.m.). This time
is determined by an extern timer. As soon as the last cycle is fi nished,
“ OFF “ (blinking) appears on the left display as long as this function is
activated.
Cool down
This function allows to gradually lower the temperature of the wash bath to
prevent creasing of the linen.
During a cool down, the remaining program time on the central display will be
replaced by “cd”.
Power Failure
Should the power fall out during the program, the water will be drained and the
door can be opened after maximum 3 minutes. When the door remains locked,
and the power comes back up within 24 hours, the program will continue from
there, where it was at the time of the power failure.
If due to breakdown, the door is not unlocked automatically, you have to remove
the service panel (A) below and pull the ring (B), suspended on the left side,
while opening the door.

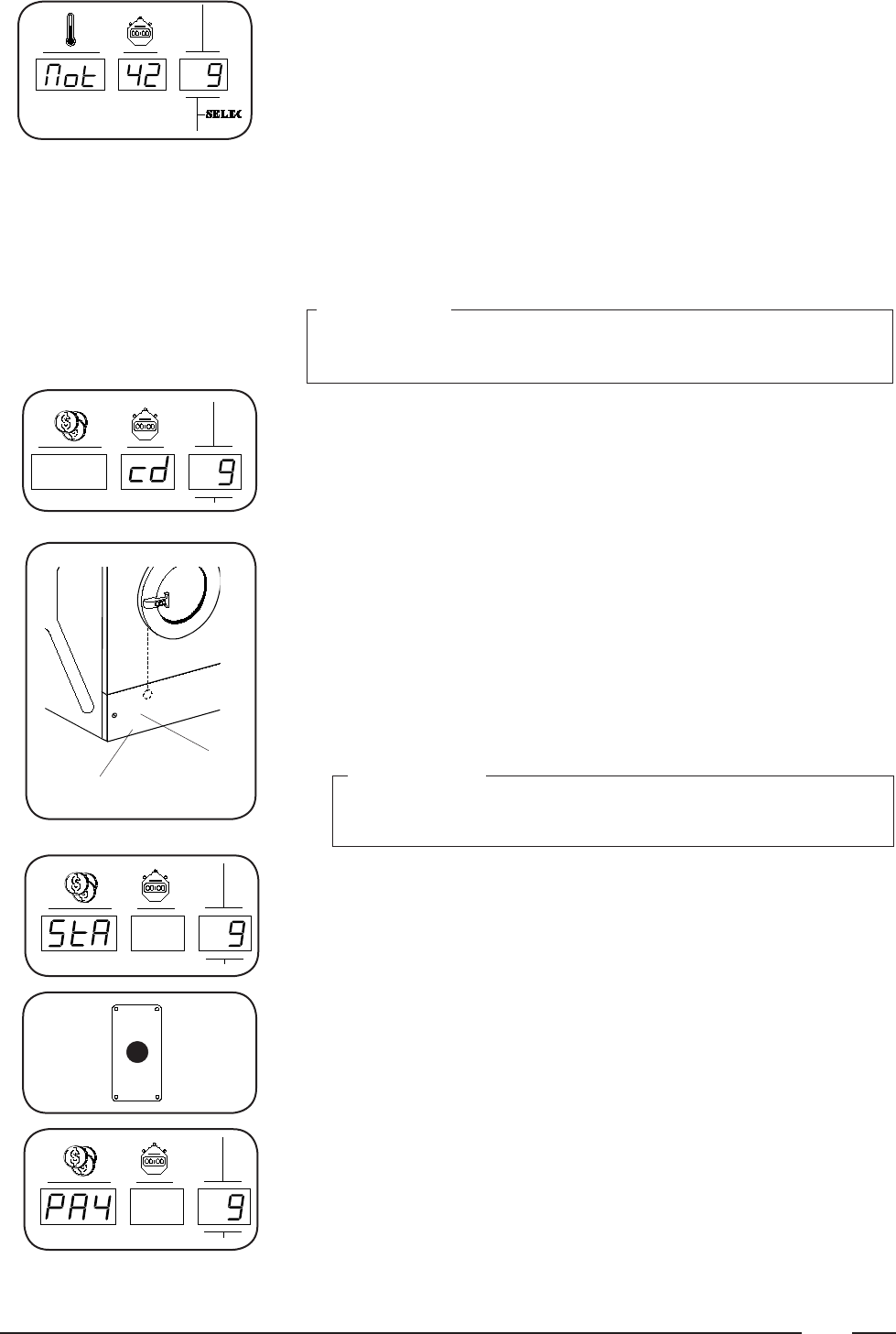

Thermo-magnetic motor protection
If the program switches off due to overheating of the motors and the thermo-
magnetic protection shuts them down, the left display will alternately show
“Mot” and the temperature of the wash bath. This can occur during:
washing
All movement is halted but the water remains in the tub. When the motors
switch back on again, the program will continue to run where it left of.
spinning
All movement is halted and the water is drained. When the motors are switched
on again, the spinning phase will be skipped.
Remark
If the thermo-magnetic motor-protection switches on for the fi fth time during
the same program, this program will be immediately terminated.
22
4
Machine with coin or token operation
Push the red button on the door handle to open the door.
Opening the door
Fill the drum Sort the linen according to the type and required temperature of the linen.
Empty all pockets of the garments so that no garments can be damaged and no
left articles can cause damage to the machine. Turn sleeves of shirts, blouses
inside out. It is recommended to mix small and large items to enhance the drop
of the linen during the wash cycle and hence improve the wash quality. Wash
loads of below 80% of machine capacity can obstruct the proper functioning
of the machine and can damage the machine. Overloading the machine can
also lead to a bad wash result.
On machines with a coin or token meter, the programmer can contain up to 20
programs (0-19). The program number is displayed on the right display.
By pressing the SELECT-button (P), the next program will be displayed.
The price will be displayed on the left display. The display will count down
every time a coin is introduced into the coin meter. When the total price has
been introduced into the machine, the display will be switched off and the
machine will start.
During the fi rst 2 minutes after starting, the program number is blinking and
you can change the program in case of a possibly wrong selection.
To do so, select another program with the SELECT button (P). The new
program will be started immediately.
If a more expensive program has been selected, the price difference with the
previous program will be displayed. The new program will only start after
this price difference has been introduced. If this has not been done within
two minutes of selecting the new program, the machine will switch back to
the original program and continue operating.
Close the door
Select program
It is recommended to only use detergents with a “foam-breaker”. These are
often found in the launderette or laundry or can easily be found in retail stores.
Recommended doses are mentioned on the detergent packing.
Overdosing of detergents can lead to reduced wash results and “overfoaming”
which can damage the machine.
Add detergent
Start the machine
Left compartment A: Prewash (1st wash)
Central compartment B: Main Wash (2nd wash)
Right compartment C: Final Rinse (fabric softener)
Bottom compartment D: Direct access to tub
23
4
Display information
The left display will indicate the temperature of the wash bath - in °C or °F (on
machines where this function has been selected).
The central display shows the remaining time to the end of the wash cycle.
For programs which are being run for the fi rst time, the machine will take a
theoretical time estimate. If this time indication does not correspond to the real
cycle time, the cycle time will be corrected from the second cycle onwards
(Self-Teaching function of the machine).
This function has to be specifi ed during preprogramming.
The right display will continue to show the selected program number.
If a "Level-stop" was programmed (which halts the programmer during the
fi lling of the cylinder) and/or a "Heat-stop" (which stops the programmer du-
ring the heating up of the wash bath, then the respective LED’s light up in the
display. Once the required water level and/or temperature have been reached,
the LED is turned off and the internal programmer advances again.
Wash cycle-LED’s
Each program segment has a corresponding LED. Each of these 6 LED’s light up
when the appropriate segment is executed. This way, the program sequence can
be accurately followed.
When a LED blinks, the machine is taking up water.
When a LED blinks slowly, the machine is heating up the water.
Spin-LED’s
When the water is drained at the at the end of a program segment and the machine
spins if so desired, the left spin-LED (intermediate spin) will light up together
with the cycle-LED.
- Functioning of the spin-LED’s during intermediate spin:
LED drain/distribution low spin coast
Interm. spin blinking rapidly continuously continuously
- Functioning of the spin-LED’s during gentle-intermediate spin:
LED drain/distribution low spin coast
Interm. spin blinking rapidly blinking slowly blinking slowly
During fi nal spin, both the left spin-LED (intermediate spin) will light up together
with the right spin-LED.
- Functioning of the spin-LED’s during fi nal spin:
LED drain/distribution low spin high spin coast tumble
Interm. spin blinking rapidly continuously slowly continuously off
Final spin continuously continuously slowly continuously rapidly
- Functioning of the spin-LED’s during gentle-fi nal spin:
LED drain/distribution low spin high spin coast tumble
Interm. spin blinking rapidly slowly ---- slowly off
Final spin continuously continuously ---- continuously rapidly
Indications of program
sequence
24
4
At the end of a program, while the door is being released, the left display shows
End and the Start-LED is switched off. After that only the right display will
continue to show the program number. This is the end of the program.
End of a program
Rapid advance
This function allows to skip the rest or certain segments of the program. This
function has to be specifi ed during preprogramming and is mostly used by
technicians and maintenance personnel.
Selection
Push the SELECT-button (P) at the time the special
function needs to be activated and keep the button depressed.
Now push the upper hidden button simultaneously and release same. Only
now release the SELECT-button (P).
The central display now shows F5 and this function is now active.
Operation
By pressing and releasing the lower hidden but-
ton and releasing it again, the programs skips to the next seg-
ment (if necessary, the program can be advanced to the end).
To return to the original wash program, press the upper hidden button.
Attention!
If F5 is activated during fi nal spin, this segment of the program will be skip-
ped as described above. It is however followed by a coast and tumble time to
disentangle the linen. This special function prevents the user from opening
the machine while the drum is still rotating and represents an important safety
feature.
Premature ending of the program
By using the rapid advance function during the program, a program can be
prematurely ended. When the end of a program is reached using this function,
and as long as the water has not reached the safety level, the door will remain
sealed and the display will show “SLE” (Safety Level) on the left display.
Afterwards the display will temporarily show “End” on the same display.
After that only the right display will continue to show the program number.
This is the end of the program.
Remarks
Hidden buttons
If any attempt is made to interrupt the program prematurely during a
spin phase of the program, all functions on the display will be temperary
replaced by blinking horizontal dashes. After that only the right display
will continue to show the program number and the door will be released.
This is the end of the program.
Remark:
25
B
A
Cool down
This function allows to gradually lower the temperature of the wash bath to
prevent creasing of the linen.
During a cool down, the remaining program time on the central display will
be replaced by “cd”.
Power Failure
Should the power fall out during the program, the water will be drained and the
door can be opened after maximum 3 minutes. When the door remains locked,
and the power comes back up within 24 hours, the program will continue from
there, where it was at the time of the power failure.
If due to breakdown, the door is not unlocked automatically, you have to re-
move the service panel (A) below and pull the ring (B), suspended on the left
side, while opening the door.
Important:
Central panel control (Option)
Here payment is done through the central panel and not directly into the
machine. As soon as the payment is done, and a machine has been selected
normally, “STA” appears blinking on the left display. The machine can be
started by pressing the START button or the special START button, which
has been built in on the spot of the coin meter (option).
Before opening the door, check that all the water has been drained from
the tub and that the cylinder has come to a complete stop.
Remark :
This option can only be used, when it has actually been programmed as such
in the programmation.(REMOTE START).
For certain versions, PAY can appear on the left display when this operation
is not active.
Therefore, “Remote PAY” was programmed in the programmation.
Thermo-magnetic motor protection
If the program switches off due to overheating of the motors and the thermo-
magnetic protection shuts them down, the left display will alternately show
“Mot” and the temperature of the wash bath. This can occur during:
washing
All movement is halted but the water remains in the tub. When the motors
switch back on again, the program will continue to run where it left of.
spinning
All movement is halted and the water is drained. When the motors are switched
on again, the spinning phase will be skipped.
Remark
If the thermo-magnetic motor-protection switches on for the fi fth time during
the same program, this program will be immediately terminated.
26
The price is set according to the specifi cations at the time of ordering the ma-
chine. If no prices were specifi ed, some standard amounts have been preset.
Every program can be priced differently. These prices can also be modifi ed
easily.
Accessing the price setting mode
Remove the coin box from its house. Certain machines have a press button
inside the coin box house at the left upper part. Access to the price setting
mode is obtained using this button.
If there is no press button, remove the top panel of the machine.
At the back of the coin meter, a switch-lever can be found. Access is obtained
using this switch-lever.
If the machine is equipped with a double coin meter, access is obtained using
the left switch-lever.
Press the button or pull the switch-lever down for 5 seconds.
The central display will show the letter “c”. Release the button or switch .
When the letter “o” appears on the display, press the button are pull the switch-
lever back down again for 5 seconds.
Now the display will show the letters “co”. From now on the price can be
set.
Setting the prices
The right display will show the program number “0”, while the left display
will show the price for this program.
To increase the price: push the upper hidden button.
To decrease the price: push the lower hidden button.
When the price has been adjusted to requirements and no more adjustments
are necessary to this program price, press the SELECT-button (P) again. The
machine moves automatically onto the next program.
Repeat the previous actions if the price of this program has to be modifi ed as
well. When all program prices have been properly set, exit the price setting
mode by pressing the button or pushing the coin meter switch-lever back
down again once more.
Setting the price
Hidden buttons
27
After programming the price for the last program, there are still the following
parameters :
A : Eco - price
This is the decrease in value of the price for economical wash. In other words,
the amount that the customer is saving by using economic wash.
B : Number of coin insertions COIN 1 (up to 60.000)
This parameter is only indicated if it has been programmed as such in the program-
mation (COIN COUNT).
C : Number of coin insertions COIN 2 (up to 60.000)
This parameter is only indicated if it has been programmed as such in the program-
mation (COIN COUNT).
D : Info manufacturer or technician
TMP T/N : Info manufacturer or technician.
Here you can program the temperature to appear on display in case this has not
been done at the programmation.
When all desired programs are provided with the right price, end the operation by
pressing the push button or pulling over the coin meter switch-lever.
28
The machine is standard equipped with 10 programs (0+9). These have been
designed in cooperation with specialized detergent manufacturers to obtain the
best possible wash results using the most frequently used detergents.
Program 0 (starching) is mostly used in very special applications and is therefore
not displayed on the front panel.
0. Starching 1 RINSE COLD
1. HOT WASH 2 BATHS 40°/90°C
2. HOT WASH 1 BATH 90°C
3. COLOUREDS 2 BATHS 40°/60°
4. COLOUREDS 1 BATH 60°C
5. SYNTHETICS 2 BATHS 40°/40°C
6. SYNTHETICS 1 BATH 40°C
7. WOOL 2 BATHS 30°/30°C
8. WOOL 1 BATH 30°
9. CURTAINS 1 BATH COLD
Standard programs
29
3x220V R5 3x380V R5
4,2kW 3x1,4kW LC1D0901 LC1D0901
6kW 3x2kW LC1D0901 LC1D0901
9kW 3x3kW LC1D1810 LC1D0901
12kW 3x4kW ------ ------ LC1D0901
12kW 3x2kW LC1D253 LC1D0901
3x2kW
15kW 3x2kW LC1D253 LC1D1810
3x3kW
18kW 3x3kW LC1D323 LC1D1810
3x3kW
21kW 3x3kW ------ ------ LC1D1810
3x4kW ------ ------ LC1D1810
24kW 3x4kW ------ ------ LC1D1810
3x4kW ------ ------ LC1D1810
6
Heating
Technical remarks
Internal connections of the electrical heating
B = Black Br = Brown
Gy = Grey Bu = Blue
R = Red W = White
PU = Purple W/B = White/black
Remark:
Other executions are available as options.
Internal connections of the motors
220V 380V
Low speed High speed Low speed High speed
30
6
Autom. reset
Man. reset
The thermic overload relay turns off in case of overloading. Because this relay
is installed on automatical reset, after a while the motors are switched back
on automatically.
Installation and type of overload relay
220V
Machine Type value installation
WE73/95 LR2D13109 4-6A 5A
WE110/132 LR2D13149 7-10A 7A
WE165 LR2D13149 7-10A 8A
380V
Machine Type value installation
WE73/95 LR2D13089 2,5A-4A 3A
WE110/132/165 LR2D13109 4-6A 4A
Thermo-magnetic motor protection
When one of the following malfunctions occurs during a program, the central
display will communicate the appropriate error message at the end of the
cycle.
E3 (Eprom)
The Eprom is wrong, replace it by another.
Error messages
Remark :
For coin op machines, it is possible that a program number appears on the
right display in combination with E3.
This indicates a wrong price adjustment for this program. A coin value
“0” or bigger than “1000” was programmed.
Example : wrong price adjustment for program 5.
E5 (Heating)
The wash bath did not reach the required temperature after 80 minutes of
heating.
E4 (water level)
The appropriate water level was not reached after 15 minutes.
31
E7 (safety level)
The water was insuffi ciently drained, the machine did not spin and the water is
possibly still inside the tub.
E8 (temperature sensor)
The temperature sensor is probably broken or malfunctioning.
E9 (motor protection)
The thermo-magnetic protection was activated 5 times.
Remark
When a malfunction occurs during a program, the central display will communi-
cate the appropriate error message at the end of the cycle. When this malfunction
has been removed and a new program has been selected, this error message
also disappears.
When malfunctions E6, E7 or E9 are detected at the start of the wash cycle, the
program will not be started and the error message will remain on the display.
E6 (door lock)
The door lock was released during the wash cycle.
Mot 2 (rotation sensor)
The speed detection is not operating properly. The speed meter is probably out
of order or disconnected.
32
7
Clean the entire cabinet of the machine regularly and remove all traces
of soap, etc....
Remove all detergent residue in the soap dispenser with hot water.
Clean the door gasket and remove all detergents and other products.
Shut off the main water, steam and power connections at the end of each
day. Do not change the setting of the water inlet taps on boiler fed machines
once these have been installed.
It is recommended to leave the door and the soap dispenser open after
use, to ventilate the machine.
Maintenance of the machine
General maintenance
Check regularly if the fi lters of the water inlet are not blocked by calci-
fi cation.
Periodical maintenance
Repair and after-sales
service
In case of important malfunctions and defi ciencies which you cannot
resolve yourself, do not hesitate to contact the technical service of your
distributor.
Data machine: Type: ......................................................................................
Program: ................................................................................
Date of installation: ................................................................
Installed by: ...........................................................................
Serial number: .......................................................................
Operation voltage and frequency: .........................................
Data distributor: Name: ....................................................................................
Address: ................................................................................
Tel.: ........................................................................................
The manufacturer reserves the right to change the content of this instruc-
tion manual, at all times and without previous notice.
