- Return Material Authorisation Request
- General Conditions of Sale
- Quick Reference Index
- Back page and contact address
CONTROLS, AIR-CONDITIONING, REFRIGERATION & BMS PRODUCTS
The UK Products Catalogue
2015
2
Take
the
pressure
off ...
talk to Johnson Controls
Please see page 4 for the full range.
for a complete range of PIC Valves
VP1000 Series
A full selection of thermal, floating & proportional actuators are available.
Pressure Independent Control Valves replace traditional control valves and water pressure balancing sets. They automatically
limit the water flow rate, irrespective of pressure and allows the flow to be modulated to match the load.
Axial valves Axial valves Rotary action valves Flanged valves
DN15-20 DN25-32 DN40-50 DN50-150
3
INDEX
VALVES Page
PICV VP1000, VAP 4
Terminal Unit Valves V5000, VG6000 5
Ball Valves (inc. flanged) VG1205, VG1805, VG1xE5 15
Modulating Water Valves V46, V47, V48 23-24
Linear Plant Valves VG7000, VG8000N, VG9000 8-11
Gas Valves GH-5000 24
Butterfly Valves VFB 17
LINEAR ACTUATORS
For VAP PICV Valves VAPx000 4
For Terminal Unit Valves VA-748x, VA-707x 6-7
For Plant Valves PA-2000, RA-3000, VA1000, 13-15
VA-715x, VA-7200, VA-7700,
VA-7800
ROTARY ACTUATORS
Silence and Small Family M910x, M9304 19
Standard Family M91xx 20
Spring Return Family M9203, M9208, M92x0 20-22
Special & Security Family M91xx 22-23
Valve Family VA9104, M9108, VA9203, 18-19
VA9208
Butterfly Valve Family VA-9070 17
SENSORS / THERMOSTATS
Room Controllers TC-8900, PM-8900, ES-89xx, 35-36
VT7200, VT7300
CO
2
Sensors CD-W00, CD-Wxx, CD-Pxx 37
Dew Point Sensors HX-9100 38
Flow and Float Controls F61, F62, F63 25
Humidity Sensors HT-1000, HT-9000 38
Pressure Transmitters DP0100, DP0250, DP2500, 28
PT-5217
Pressure Switches P232, P233, P28, P45, P48, P74, 28-33
P77, P78, P735, P736, P100
Pressure Transducers P35, P499 33-34
Capillary & Space A19, A25, A28, A36, 270XT 26-27
Thermostats
Temperature Sensors TE-7000, RS-1100, TM-1100, 39-40
TM-2100, TS-6300
ELECTRO-PNEUMATIC TRANSDUCERS
Transducers EP-1000, EP-2000, EP-8000 34
CONTROL MODULES & REFRIGERATION CONTROLLERS
Terminal Unit Controllers TUC3 41
Control Modules System 450 36
Field Controls ER, MS, CR 42-44
Fan Speed Controls P215PR, P315PR, P216, 45-46
P215LR/BR/TR
BUILDING MANAGEMENT SYSTEM
Metasys
®
MS, NS, WRZ 46-48
STYLE REFERENCE & WIRING DIAGRAMS 49
GENERAL ORDERING INFORMATION 50
RETURN MATERIAL REQUEST FORM 51
GENERAL CONDITIONS OF SALE 52-55
QUICK REFERENCE INDEX 56-59
SALES SUPPORT TEAM
Contact Us: Telephone 01753 870300
Fax 0870 889 5664
Email products.uk@jci.com
Customer Mita Virdee & Cynthia Hutson
Service: - Sales order processing
- Availability and lead time information
- Price enquiries
- Returns processing
Technical Mark Delisser - Products
Support: David Newton - Access card specialist
- Product application and technical support
- Datasheet and literature requests
- Compatibility and obsolete product guidance
Finance: Telephone 01753 870300
- Customer accounts and credit approval
- Credit control and collection
- Credit notes and customer account queries
Field Sales: Brian Skelly - UK North 07779 808348
Taimour Osman - UK South 07779 808126
Kevin Kirby - UK OEM Manager 07779 808525
A copy of our Control Valve Sizing Software ‘HIPPOS’ can be
obtained by contacting one of our Sales Support Team.
This industry leading tool allows the sizing, selection and listing
of control valves and actuators – saving huge amounts of time
in the selection and records of valves for a project. You can
easily export the schedule to the O&M Manual too!
VALVE SIZING SOFTWARE
Our actuator range for Terminal and PIC valves has been
reduced due to the innovative feature of different stroke settings
offered by the VA-748x Series actuators. These new actuators
will work on all small Johnson Controls’ valves and most other
leading terminal valve manufactures in the market. Please refer
to selection guide tables on pages 6 & 7.
TERMINAL & PIC ACTUATORS
4Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

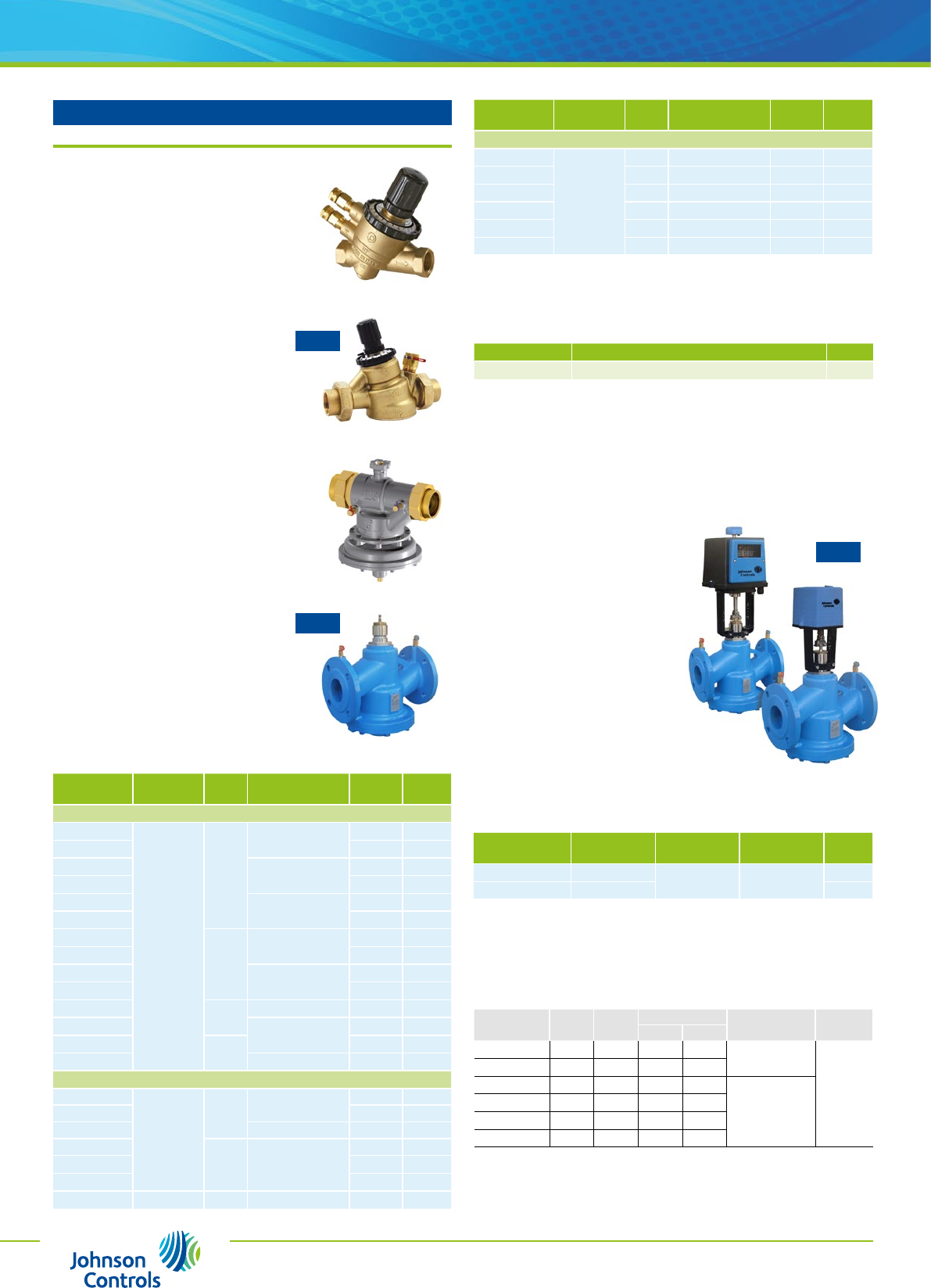

VP1000 Series
DN15-32, PN25
These VP1000 pressure independent control valves
are a combination of a differential pressure regulator
and a regulating valve for flow adjustment.
Installation costs are considerably reduced as
the valve performs the functions of two valves
(balancing and adjustment). To adjust the flow rate,
just set the selected value using the adjustment
knob. Choosing the suitable valve is easy and fast.
Flow rate is the only parameter to be considered.
Following actuators are available:
VP1000 Valves
VA-707x ON/OFF Thermal Actuators (VP1000)
VA-709x Thermal 0-10Vdc Proportional Actuators
VA-748x Floating and Proportional Actuators
VP1000 Ball Valves
M9108 Rotary Actuators (non-spring)
VA9208 Rotary Actuators (spring return)
VAP Flanged Valves
VAPx000 Linear Actuators (non-spring)
FEATURES
n Kvs calculation in not necessary
n
Valve authority calculation not required
n
Specific devices or knowledge are not necessary
n
Compact design
n
Flow rate adjustment without disassembling
the actuators
n Forged brass body
Ordering
Codes
Connection
Type
Body
Size Flow Rate
Pressure
Port
List
Price
Lift & Lay Valve Type – DN15-32 Flow Rate
VP100AAA
BSP
15mm
150 l/h - 0.042 l/s
n£179
VP101AAA - £171
VP100AAE 600 l/h - 0.167 l/s
n£179
VP101AAE
- £171
VP100AAG 780 l/h - 0.217 l/s
n£190
VP101AAG
- £183
VP100BAJ
20mm
1000 l/h - 0.278 l/s
n£202
VP101BAJ
- £208
VP100BAN 1500 l/h - 0.417 l/s
n£167
VP101BAN
- £162
VP100CAU
25mm 2200 l/h - 0.611 l/s
n£230
VP100CAW
2700 l/h - 0.750 l/s
n£248
VP100DAW
32mm
n£275
VP100DAY
3000 l/h - 0.833 l/s
n£282
Ball Valve Type – DN40-DN55 High Flow Rate
VP101DBB
Union
Female
40mm 6001 l/h - 1.7 l/s
- £1,035
VP101EBB - £1,035
VP101EBD
11001 l/h - 3.1 l/s
- £1,386
VP101EBC
50mm 12000 l/h - 3.3 l/s
- £1,221
VP101FBD - £1,188
VP101FBF - £2,140
VP101GBF
Union Male 55mm 18000 l/h - 5 l/s
- £2,140
VALVES AND ACTUATORS
Pressure Independent Control Valves & Actuators
Ordering
Codes
Connection
Type
Body
Size Flow Rate
Pressure
Port
List
Price
Flange Valve Type –
DN50-DN150 High Flow Rate
VPA050-C
Flange
ISO 7005-2
DN50 13 m3/h - 3.64 l/s
- £1,512
VPA065-C
DN65 21 m3/h - 5.8 l/s
- £1,613
VPA080-C
DN80 28 m3/h - 7.8 l/s
- £1,848
VPA100-C
DN100 50 m3/h - 13.9 l/s
- £2,183
VPA125C
DN125 90 m3/h - 25 l/s
- £3,097
VPA150-C
DN150 145 m3/h - 40.3 l/s
- £3,293
Fluid Temperature - –10-+120°C
Max. working Pressure - 2500 kPa - 25 Bar (max.)
Fittings – BSP female threaded body
ACCESSORY
Ordering Code Description Price
T90 Pressure Plug (quantity 2) £14
Actuators for VPA Valves
VAPx000
Series
1000N and 3000N, Linear Actuator,
Proportional Control
These actuators have been specifically designed
to drive the VPA pressure independent
control valves.
The VAP3000 model provides a display to show
functional information and manual override lever.
FEATURES
n Maximum flow rate adjustable
from potentiometer
n C32 bit CPU assures high accuracy
flow rate
n VAP3000 display shows the percentage
of control signal, feedback signal and
failure systems
n Force protection system to avoid actuator overload
n Actuators can automatically detect and memorise
the valve stroke
n Two different output/input signals: 0(2)-10Vdc, 0(4)-20mA
n Manual override on VAP3000
Ordering
Codes Torque Control
Signal
Supply
Voltage
List
Price
VAP1000-24-C
1000N Proportional 24Vac
£504
VAP3000-24-C
3000N
£840
Supply Voltage - 24V 50/60Hz
Nominal Stroke - DN50-65 20mm
DN80-150 40mm
Protection Class - IP54
NEW
VALVE SELECTION GUIDE
Valve
Model
DN
(mm) Inch
Flow Rate
Actuator
P Range
kPA
m3/h I/s
VPA050-C 50 2” 13 3.64 VAP1000-24-C
35-400
VPA065-C 65 2 1/2” 21 5.8
VPA080-C 80 3” 28 7.8
VAP3000-24-C
VPA100-C 100 4” 50 13.9
VPA125-C 125 5” 90 25
VPA150-C 150 6” 145 40.3
Axial valve DN15-20
Rotary action valve DN40-50
Axial valve DN25-32
NEW
Flanged valve DN50-150
NEW
(continued next column)
5
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
Fittings – For V5000 and VG6000 Series
Ordering Codes Description Price
P903ST.1 15x 1/2” Short Thread Adapters (includes nuts/olives) £5.56
P903ST.3 22 x3/4” Short Thread Adapters “ “ £7.96
P903ST.4 22 x 1” Short Thread (new part) “ “ £9.32
Ordering Codes Description Price
P163.05 15mm Nuts £1.52
P165.05 15mm Olives £0.33
P197.15 1/2” Fibre Washers (quantity 10) £1.00
P197.25 3/4” Fibre Washers “ “ £1.00

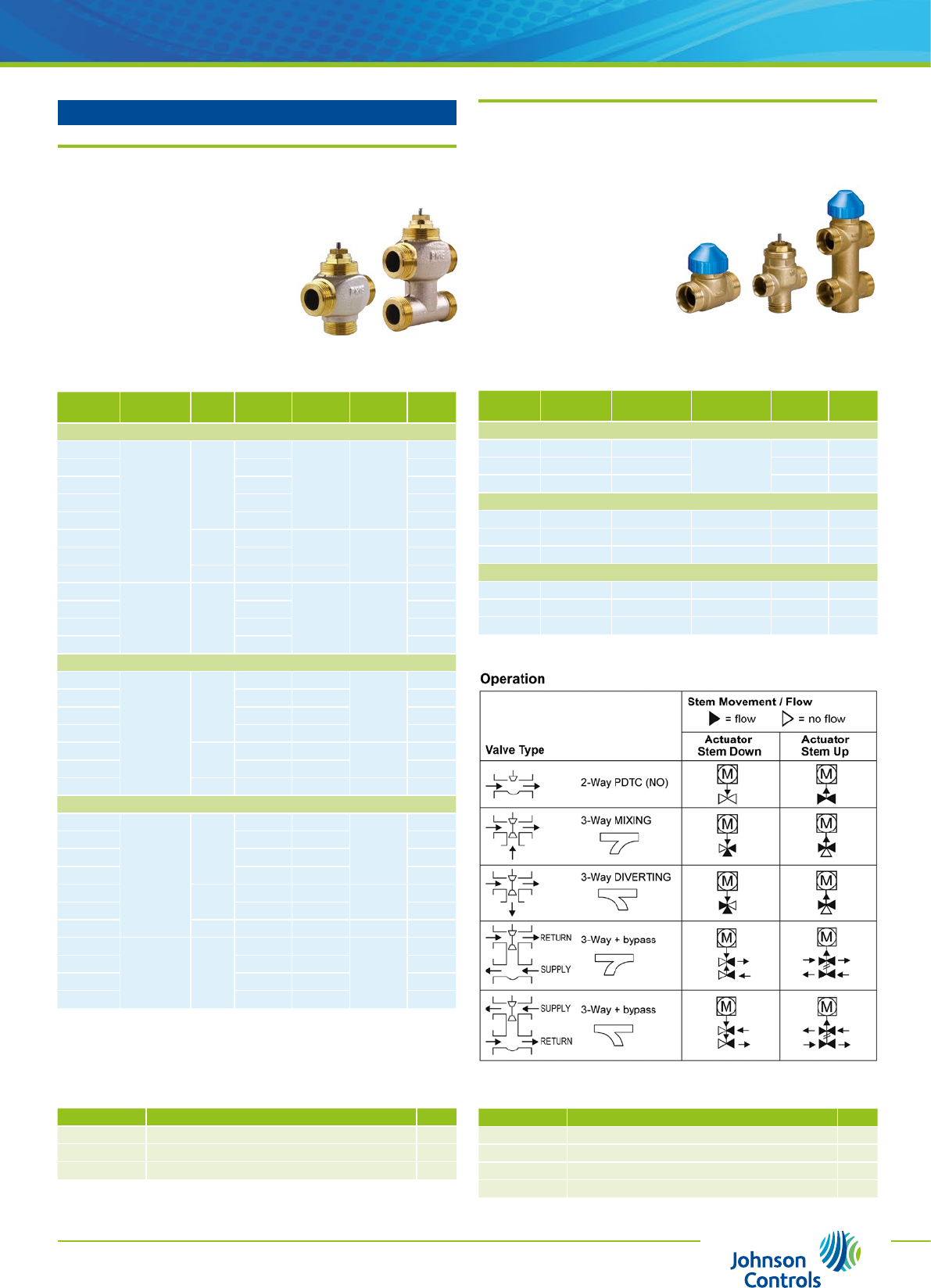

V5000 Series
DN10-20, PN16
These valves are primarily designed to regulate the flow of water
and steam in response to the demand of a controller in zone
and terminal unit applications.
Following actuators are available:
VA-707x Thermal ON/OFF Actuators
VA-709x Thermal Proportional Actuators
VA-748x Floating and Proportional Actuators
(refer to Support Team)
FEATURES
n
Forged brass body, stainless steel stem and spring
n
Inherent flow characteristic: equal percentage
n
Rangeability 50:1
Terminal Unit Valves
VG6000 Series
DN15-25, PN16
These valves are primarily designed to regulate the flow of water in response to the
demand of a controller in zone and terminal unit applications.
Following actuators are available:
VA-7030 ON/OFF Actuators
VA-707x Thermal ON/OFF Actuators
VA-709x Thermal Proportional Actuators
VA-747x Electric Actuators
VA-748x Floating and Proportional
Actuators (refer to Support Team)
FEATURES
n
Forged brass body
n
2-way PDTC (normally open), 3-way mixing and diverting, 3-way mixing
and diverting with built-in bypass configurations
n
Inherent flow characteristic: quick opening
Ordering
Codes*
Connection
Size
Kvs
(Control)
Kvs
(By-pass)
Close-off
(kPa)
List
Price
2-way PDTC (Normally Open) Configuration - Male Thread
VG6210EC 1/2” 1.7
-
250
£25
VG6210JC 3/4” 2.6 150
£34
VG6210LC 1” 4.5 70
£56
3-way Mixing and Diverting Configuration
VG6810EC 1/2” 1.7 (M), 1.7 (D) 1.2 (M), 1.3 (D) 250
£29
VG6810JC 3/4” 2.5 (M), 2.6 (D) 1.6 (M), 1.8 (D) 150
£40
VG6810LC 1” 4.5 (M), 4.5 (D) 3.1 (M), 4.5 (D) 70
£63
3-way Mixing and Diverting Configuration with built-in bypass
VG6510EC 1/2” 1.7 (M), 1.7 (D) 1.2 (M), 1.3 (D) 250
£41
VG6510JC 3/4” 2.5 (M), 2.6 (D) 1.6 (M), 1.8 (D) 150
£49
VG6510LC 1” 4.5 (M), 4.5 (D) 3.1 (M), 4.5 (D) 70
£92
Note: M = Mixing, D = Diverting
Ordering
Codes
Connection
Type
Body
Size
Kvs
(Control)
Kvs
(By-pass)
Close-off
(kPa)
List
Price
2-way PDTC (Normally Open) Configuration
V5210ZC
BSP
1/2”
0.16
-
400
£31
V5210BC 0.4
£31
V5210CC 0.63
£31
V5210DC 1
£31
V5210EC 1.6
£31
V5210JC 3/4” 2.5
-
110
£31
V5210KC 3.5
£34
V5210MC 1” 4.5
- £55
V5290BC
Compression
** 1/2”
0.4
-
400
£31
V5290CC 0.63
£31
V5290DC 1
£31
V5290EC 1.6
£31
3-way Mixing/Diverting Configuration
V5810BC
BSP
1/2”
0.4 0.3
120
£41
V5810CC 0.63 0.4
£41
V5810DC 10.63
£41
V5810EC 1.6 1
£41
V5810JC 3/4” 2.5 1.6 150
£45
V5810KC 42.5
£45
V5810MC 1” 5 3.5 110
£56
3-way Mixing/Diverting with Built-in Bypass Configuration
V5510BC
BSP
1/2”
0.4 0.3
180
£45
V5510CC 0.63 0.4
£45
V5510DC 10.63
£45
V5510EC 1.6 1
£45
V5510JC 3/4” 2.5 1.6 150
£52
V5510KC 42.5
£52
V5510MC 1” 5 3.5 110
£63
V5590BC
Compression
** 1/2”
0.4 0.3
180
£45
V5590CC 0.63 0.4
£45
V5590DC 10.63
£45
V5590EC 1.6 1
£52
Fluid Temperatures - 2-120°C Note: ** Compression
Connections - BSP male, female and compression fittings fittings required
6Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
VALVES AND ACTUATORS (cont)
Johnson Controls
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
VG4000 DN15-20 VA-7480-0011
VA-7481-0011
VA-7480-0013
VA-7481-0013 VA-7482-0011
VG5000 DN15-25
VG6000 DN15-25
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003
VA-7482-1001
V5000 DN10-20 VA-7482-2001
VP1000 DN15-20 VA-7482-1001
VP1000 DN25-32 VA-7482-3001
OTHER LEADING MANUFACTURERS
Sauter
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
VUL
DN10-20 VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003
VA-7482-2001
BUL
VXL VA-7482-1001
BXL
VCL DN10-32 VA-7482-2001
Danfoss
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
AB-QM DN10-20 VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003
VA-7482-1001
DN25-32 VA-7482-3001
TA Hydronics
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
TBV-C DN15-20
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003
VA-7482-2001
DN25 VA-7482-3001
TBV-CM DN15-25 VA-7482-2001TBV-CMP
KTCM512 DN15-20

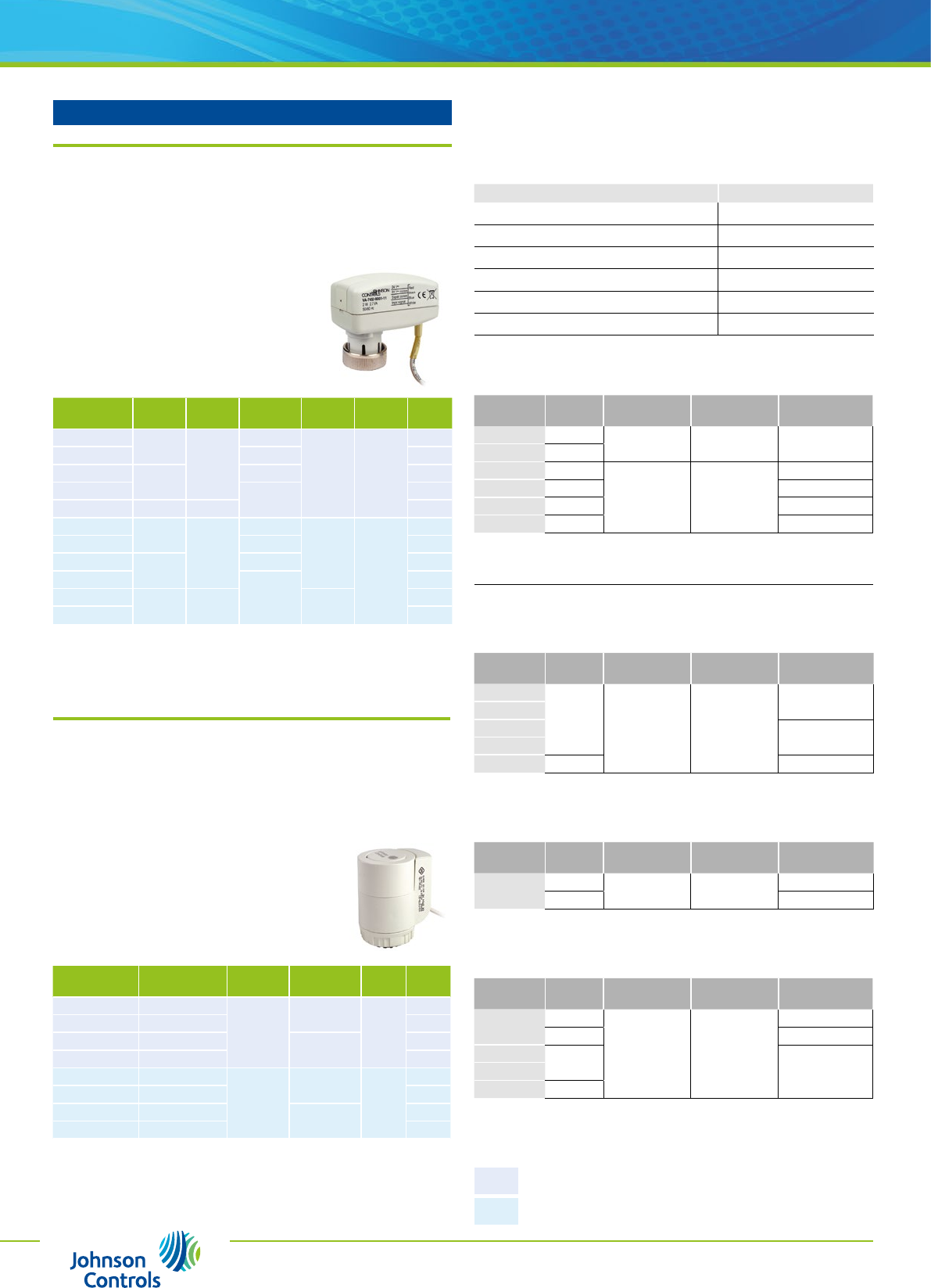

Linear Actuators - for Terminal Unit Valves
VA-748x
Series
120N,
Floating or Proportional Control
These actuators provide incremental or proportional control in terminal unit valve
applications. Their compact design makes them suitable for installation in confined
spaces, such as fan coil, chiller ceiling, manifold etc. applications.
They are designed for field mounting onto VG6000, V5000
and VP1000 terminal unit valves.
FEATURES
n Self calibrating
n Configurable to direct or reverse action
n Configurable stroke on VA-7482 models
n Double colour LED (status and diagnostics)
n Removable cable
n Different cable lengths (ordered separately)
Ordering
Codes
Supply
Voltage
Action
Control
Actuator
Speed
Field
Config.
Mounting
List
Price
VA-7480-0011 24Vac
Floating
13 sec/mm
–
M28 x
1.5
†
£101
VA-7481-0011 8 sec/mm £101
VA-7480-0013 230Vac 13 sec/mm £107
VA-7481-0013 8 sec/mm £107
VA-7482-0011 24Vac/dc Proport. £107
VA-7480-0001 24Vac
Floating
13 sec/mm
–M30 x
1.5
††
£101
VA-7481-0001 8 sec/mm £101
VA-7480-0003 230Vac 13 sec/mm £107
VA-7481-0003
8 sec/mm
£107
VA-7482-1001 24Vac/dc Proport.
n
£107
VA-7482-2001 £107
Size - 80 x 49 x 79.5mm † For VG4000 & VG5000 valves
Cable length - 1.5m (standard) †† For V5000, VG6000 & VP1000 (DN15 to DN32)
Max. Fluid Temp. – 90°C
Protection Class - IP43 Extended cable lengths are available for
large quantity orders.
Replacement Actuators
These versatile actuators replace old or obsolete Johnson Controls’ actuators and can
be used with other leading terminal valve manufactures in the market. Please refer to
selection guide tables on this spread.
Old Johnson Controls Actuators Replacement Actuators
VA-7450-1001 – Floating 24V - M28 x 1.5 VA-7480-0011
VA-7452-1001 – Proportional 24V - M28 x 1.5 VA-7482-0011
VA-7452-9001 – Proportional 24V - M28 x 1.5 VA-7482-0011
VA-7470-1001 – Floating 24V - M30 x 1.5 VA-7480-0001
VA-7472-1001 – Proportional 24V - M30 x 1.5 VA-7482-x001
VA-7472-9001 – Proportional 24V - M30 x 1.5 VA-7482-x001
VA-707x Series
125N, ON/OFF or DAT Control
The VA-707x series terminal unit valve actuators provide ON/OFF and DAT control
in HVAC applications.
These actuators are designed for field mounting onto V5000, VG4000, VG5000 and
VG6000 terminal unit valves. Thanks to an innovative fixing system, the VA-707x is
suitable for almost all the terminal unit valves in the market.
FEATURES
n Direct or reverse action
n
Threaded mounting nut (M28 x 1.5 for VG5000 or
M30 x 1.5 for V5000 and VG6000)
n
Compact design
n
Actuator stroke indicator highly visible
Ordering
Codes
Supply
Voltage
Mounting
Action
Control *
Force
List
Price
VA-7070-21 24Vac/dc
M28 x 1.5
Extends (DA)
125N
£46
VA-7070-23 230Vac
£46
VA-7071-21 24Vac/dc Retracts (RA)
£46
VA-7071-23 230Vac
£46
VA-7077-21 24Vac/dc
M30 x 1.5
Extends (DA)
125N
£46
VA-7077-23 230Vac
£46
VA-7078-21 24Vac/dc Retracts (RA)
£46
VA-7078-23 230Vac
£46
Stroke - 4.5mm
Cable - 2m length
Sizes - 44Ø x 66mm max. NC types, 44Ø x 64mm max. NO types
Protection class - IP54 (in any mounting position)
VALVE & ACTUATOR TABLES - Key to colours
Valves & actuators with M28 x 1.5 fittings
Valves & actuators with M30 x 1.5 fittings
7
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
Honeywell
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
V5822A4xx
DN15-20 VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
V5823A4xx
V5823C4xxx
Fratelli Pettinaroli
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
91VL 1/2”
DN15
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003
VA-7482-1001
91L 1/2”
91H 1/2”
91L 3/4”DN20
91H 3/4”
93L 1” DN25
VA-7482-3001
93H 1”
93L 1 1/4”DN32
93H 1 1/4”
Watts Industries
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
2131
DN15-25 VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
3131
4131
Siemens
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
VVI46 DN15-25
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
VXI46
VVP47
DN10-20VXP47
VMP47
Oventrop
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
CONCON
QTZ
DN10-15
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003
VA-7482-1001
DN20
(Low flow)
DN20
(High flow)
VA-7482-2001
DN25-32
CONCON
2TZ DN15-20
Tri-M Plus DN15
Schneider Electric
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
VZ28
DN15-20 VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
VZ38
VZ48
VZ28C
VZ38C
VZ48C
Industrie Technik
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
VFX2
DN15-20 VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
VFX3
VFX4
Frese ENERGY SAVING
VALVES
Valve
Series Size Actuator
Floating 24V
Actuator
Floating 230V
Actuator
Proportional 24V
DN10 M/M
LOW 2.5 DN10
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
DN10 M/M
LOW 5.0 ** ** **
DN10 M/M
LOW 2.5
DN15
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
DN10 M/M
LOW 5.0 ** ** **
DN15 M/M
HIGH 2.5
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
DN20 M/M
HIGH 2.5
DN20
DN20 M/M
HIGH 4.0
DN20 M/M
HIGH 5.5 ** ** **
DN15 F/F
LOW 2.5
DN15
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
DN15 F/F
LOW 5.0 ** ** **
DN15 F/F
HIGH 2.5
VA-7480-0001
VA-7481-0001
VA-7480-0003
VA-7481-0003 VA-7482-1001
DN20 F/F
HIGH 2.5
DN20
DN20 F/F
HIGH 4.0
DN20 F/F
HIGH 5.0 ** ** **
** Item codes not released yet.
Actuator with special spindle (9.00 to 15.3mm) is needed.
Please contact the Sales Support Team in case of business opportunity.
8Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

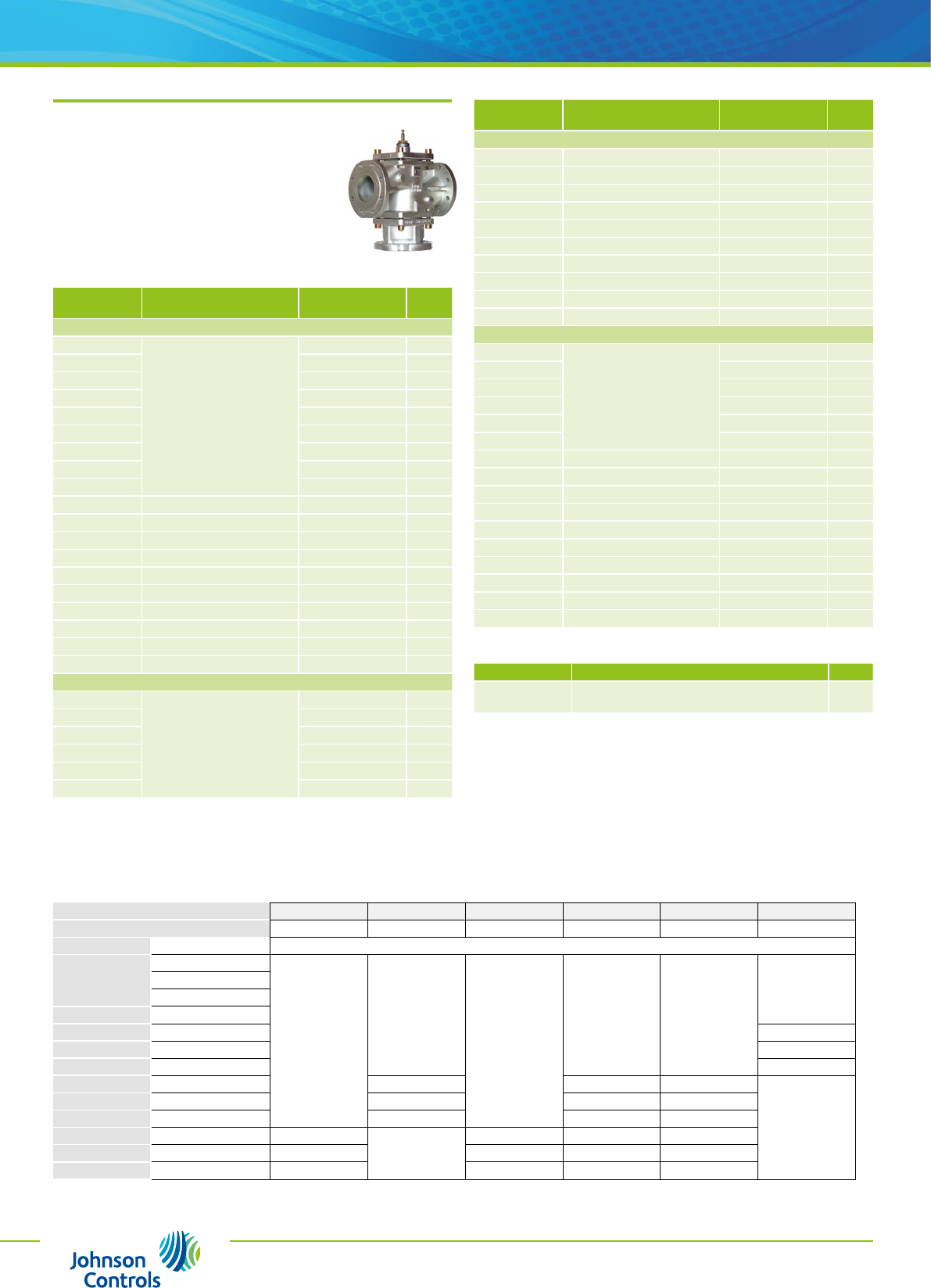

STAINLESS STEEL TRIM VALVES
Ordering
Codes*
Body
Size
Kvs
(Control)
Slotted
Stem Valve Stroke
List
Price
2-way PDTC (Normally Open) - Female Thread
VG7203AT
DN15
0.25
-
8mm
£228
VG7203BT 0.4
£228
VG7203CT 0.63
£228
VG7203DT 1.0
£228
VG7203ET 1.6
£228
VG7203FT 2.5
£228
VG7203GT 4.0
£228
VG7203LT DN20 6.3
-
£259
VG7203NT DN25 10 13mm
£329
VG7203PT DN32 16
£412
VG7203RT DN40 25 19mm
£553
VG7203ST DN50 40
£739
2-way PDTO (Normally Closed) - Female Thread
VG7403AT
DN15
0.25
-
8mm
£214
VG7403BT 0.4
£214
VG7403CT 0.63
£214
VG7403DT 1.0
£214
VG7403ET 1.6
£214
VG7403FT 2.5
£214
VG7403GT 4.0
£228
VG7403LT DN20 6.3
-
£261
VG7403NT DN25 10 13mm
£338
VG7403PT DN32 16
£391
VG7403RT DN40 25 19mm
£615
VG7403ST DN50 40
£730
Notes: * When using VA-7310 Series actuators a valve with a slotted stem
(VG7xxxxS) is required.
Fluid Temperature - 120°C max. (in conjunction with VA-7310).
The valves and actuators can be ordered separately or factory mounted.
When factory mounted, please add ‘+M’ to the order code for the actuator.
Please contact our Sales Support Team for mounting price.
Please refer to next page for ‘Actuator Selection Tables’.
3-WAY MIXING CONFIGURATION - BRASS TRIM VALVES
Ordering
Codes*
Body
Size
Kvs
(Control)
Slotted
Stem* Valve Stroke
List
Price
3-way Mixing Configuration - Female Thread
VG7802AS
DN15
0.25
n
8mm
£182
VG7802AT
- £182
VG7802BS 0.4
n£182
VG7802BT
- £182
VG7802CS 0.63
n£182
VG7802CT
- £182
VG7802DS 1.0
n£182
VG7802DT
- £182
VG7802ES 1.6
n£182
VG7802ET
- £182
VG7802FS 2.5
n£182
VG7802FT
- £182
VG7802GS 4.0
n£182
VG7802GT
- £182
VG7802LS DN20 6.3
n£184
VG7802LT
-
£184
VG7802NT DN25 10 13mm
£271
VG7802PT DN32 16
£341
VG7802RT DN40 25 19mm
£461
VG7802ST DN50 40
£619
(continued next page)

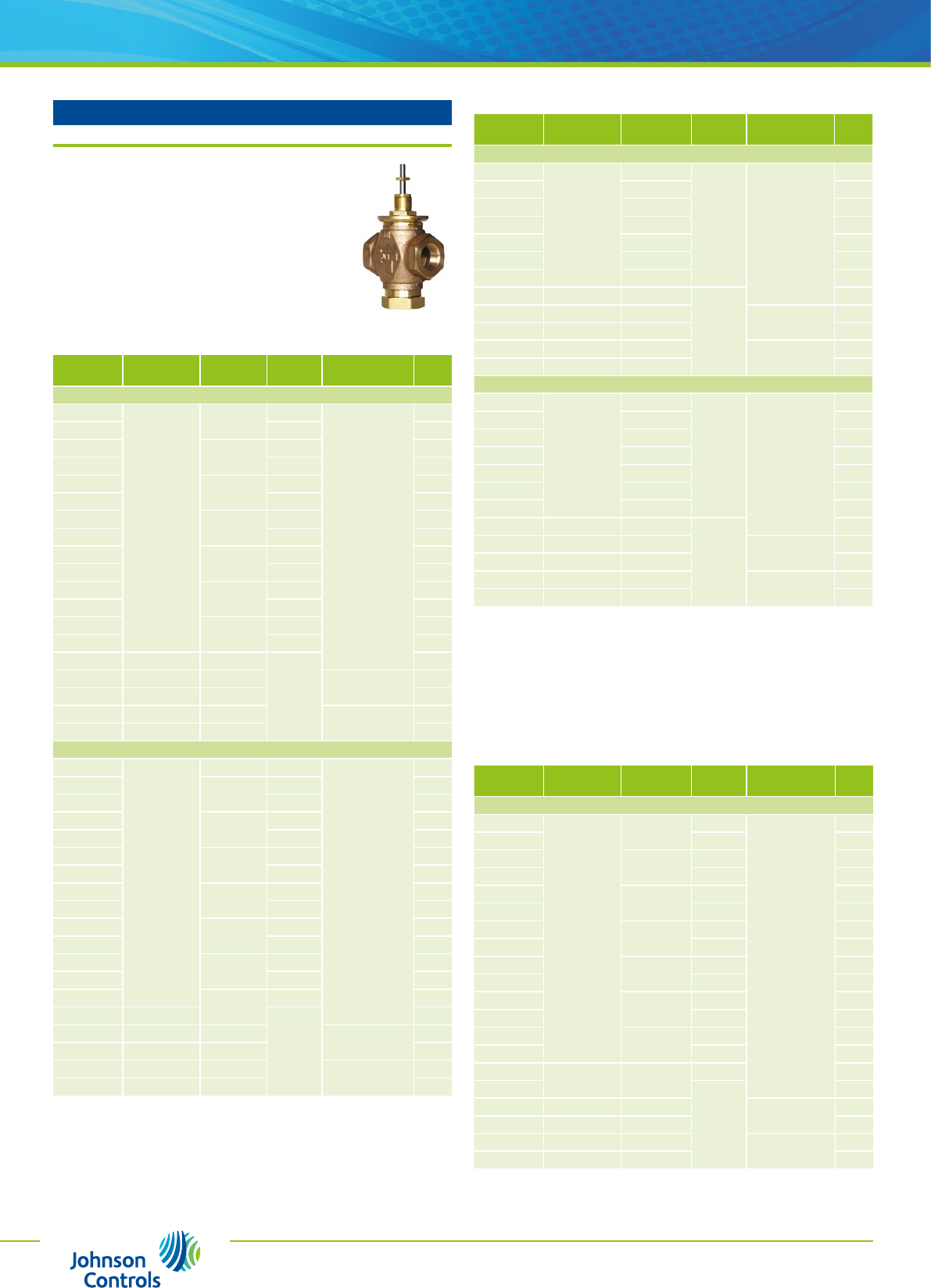

VG7000 Series
DN15-50, PN16 Globe Valves
The VG7000 Series valves are primarily designed to regulate
the flow of water and steam in response to the demand of a
controller in heating, ventilating and air-conditioning systems.
FEATURES
n
Cast bronze body
n
2-way PDTC (normally open), 2-way PDTO (normally closed),
3-way mixing configurations
BRASS TRIM VALVES
Ordering
Codes
Body
Size
Kvs
(Control)
Slotted
Stem* Valve Stroke
List
Price
2-way PDTC (Normally Open) - Female Thread
VG7201AS
DN15
0.25
n
8mm
£138
VG7201AT
- £138
VG7201BS 0.4
n£138
VG7201BT
- £138
VG7201CS 0.63
n£138
VG7201CT
- £138
VG7201DS 1.0
n£138
VG7201DT
- £138
VG7201ES 1.6
n£138
VG7201ET
- £138
VG7201FS 2.5
n£138
VG7201FT
- £138
VG7201GS 4.0
n£138
VG7201GT
- £138
VG7201LT DN20 6.3
-
£143
VG7201NT DN25 10 13mm
£205
VG7201PT DN32 16
£252
VG7201RT DN40 25 19mm
£389
VG7201ST DN50 40
£445
2-way PDTO (Normally Closed) - Female Thread
VG7401AT
DN15
0.25
-
8mm
£165
VG7401BS 0.4
n£165
VG7401BT
- £165
VG7401CS 0.63
n£165
VG7401CT
- £165
VG7401DS 1.0
n£165
VG7401DT
- £165
VG7401ES 1.6
n£165
VG7401ET
- £165
VG7401FS 2.5
n£165
VG7401FT
- £165
VG7401GS 4.0
n£165
VG7401GT
- £165
VG7401LS 6.3
n£165
VG7401LT DN20
-
£168
VG7401NT DN25 10 13mm
£259
VG7401PT DN32 16
£281
VG7401RT DN40 25 19mm
£384
VG7401ST DN50 40
£486
Fluid Temperature - 2-140°C (brass trim models), 2-170°C (stainless steel trim models)
Connections - BSP female threaded body
(continued next column)
Linear Plant Valves
VALVES AND ACTUATORS (cont)
9
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
3-WAY MIXING CONFIGURATION - STAINLESS STEEL TRIM VALVES
Ordering
Codes
Body Size
Kvs
(Control)
Slotted
Stem Valve Stroke
List
Price
3-way Mixing Configuration - Female Thread
VG7804AT
DN15
0.25
-
8mm
£287
VG7804BT 0.4
£287
VG7804CT 0.63
£287
VG7804DT 1.0
£287
VG7804ET 1.6
£287
VG7804FT 2.5
£287
VG7804GT 4.0
£287
VG7804LT DN20 6.3
-
£356
VG7804NT DN25 10 13mm
£385
VG7804PT DN25 16
£518
VG7804RT DN32 25 19mm
£685
VG7804ST DN40 40
£807
Fluid Temperature - 120°C max. (in conjunction with VA-7310)
The valves and actuators can be ordered separately or factory mounted.
When factory mounted, please add ‘+M’ to the order code for the actuator.
VG7000 Series Actuator Selection Table
BRASS TRIM VALVES - 2-WAY & 3-WAY MIXING CONFIGURATIONS STAINLESS STEEL TRIM VALVES - 2-WAY & 3-WAY MIXING CONFIGURATIONS
Actuator Codes VA-77xx VA-78xx
Force 500N 1000N
Valve Body Size Kvs Close-off Pressure (kPa)
DN15 0.25 / 0.4 1600
-
0.63 / 1.0 / 1.6
2.5 / 4.0 1490
DN20 6.3 950
DN25 10 595 1235
DN32 16 360 750
DN40 25 235 480
DN50 40 145 310
Actuator Codes VA-77xx VA-78xx
Force 500N 1000N
Valve Body Size Kvs Close-off Pressure (kPa)
DN15 0.25 / 0.4 1600 16000.63 / 1.0 / 1.6
2.5 / 4.0 930
DN20 6.3 595 1220
DN25 10 370 770
DN32 16 230 470
DN40 25 145 300
DN50 40 90 190
10 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
VALVES AND ACTUATORS (cont)
VG8000N Series Actuator Selection Table
2-WAY PDTC - (Normally Open), 3-WAY MIXING AND 3-WAY DIVERTING CONFIGURATIONS
Actuator Codes FA-2000-741x FA-2000-751x FA-3300 VA-1x20* VA-1125* VA-78xx
Force 150N 2200N 6000N 2000N 2500N 1000N
Valve Body Size Kvs Close-off Pressure (kPa)
DN15 0.1 / 0.16 / 0.25
----
1600 1600
0.4 / 0.63 / 1.0
1.6 / 2.5 / 4.0
DN20 4.0 / 6.3
DN25 6.3 / 10 1570
DN32 10 / 16 770
DN40 16 / 25 440
DN50 40 1030 800 1080
-
DN65 53 790 630 830
DN80 100 370 380 390
DN100 160 190
-
740 160 230
DN125 250 110 460 90 140
DN150 350 50 280 40 75
Notes: FA-2000 / 3000 heavy duty actuators are available on request if a higher close-off is required.
* For fluid temperature >140°C the extension kit VA1000-EP must be fitted.
Ordering
Codes*
Body Size
Kvs
(Control)
List
Price
3-way Mixing Configuration (cont)
VG88B1S1N DN20 6.3
£650
VG88C1S1N DN25 10
£659
VG88D1S1N DN32 16
£688
VG88E1S1N DN40 25
£790
VG88F1S1N DN50 40
£905
VG88G1S1N DN65 63
£1,082
VG88H1S1N DN80 100
£1,384
VG88J1S1N DN100 160
£1,860
VG88K1S1N DN125 250
£3,016
VG88L1S1N DN150 350
£3,594
3-way Diverting Configuration
VG89A6S1N
DN15
0.4
£601
VG89A5S1N 0.63
£601
VG89A4S1N 1.0
£601
VG89A3S1N 1.6
£601
VG89A2S1N 2.5
£601
VG89A1S1N 4.0
£601
VG89B1S1N DN20 6.3
£603
VG89C1S1N DN25 10
£744
VG89D1S1N DN32 16
£662
VG89E1S1N DN40 25
£876
VG89F1S1N DN50 40
£981
VG89G1S1N DN65 63
£1,144
VG89H1S1N DN80 100
£1,456
VG89J1S1N DN100 160
£1,987
VG89K1S1N DN125 250
£3,167
VG89L1S1N DN150 350
£3,771
ACCESSORY
Ordering Code Description Price
VA1000-EP Extension mounting kit for VP1000 series actuators
when fluid temperature >140°C £119
Notes: * For factory mounted valve actuators, add suffix ‘+M’ to the actuator
ordering code: i.e. VG8xxxS1N+M.
To order a valve with Glycerine cup packing, add suffix ‘20’ to end of ordering
code: i.e. VG8xxxS1N20.
Teflon free models are available on request.

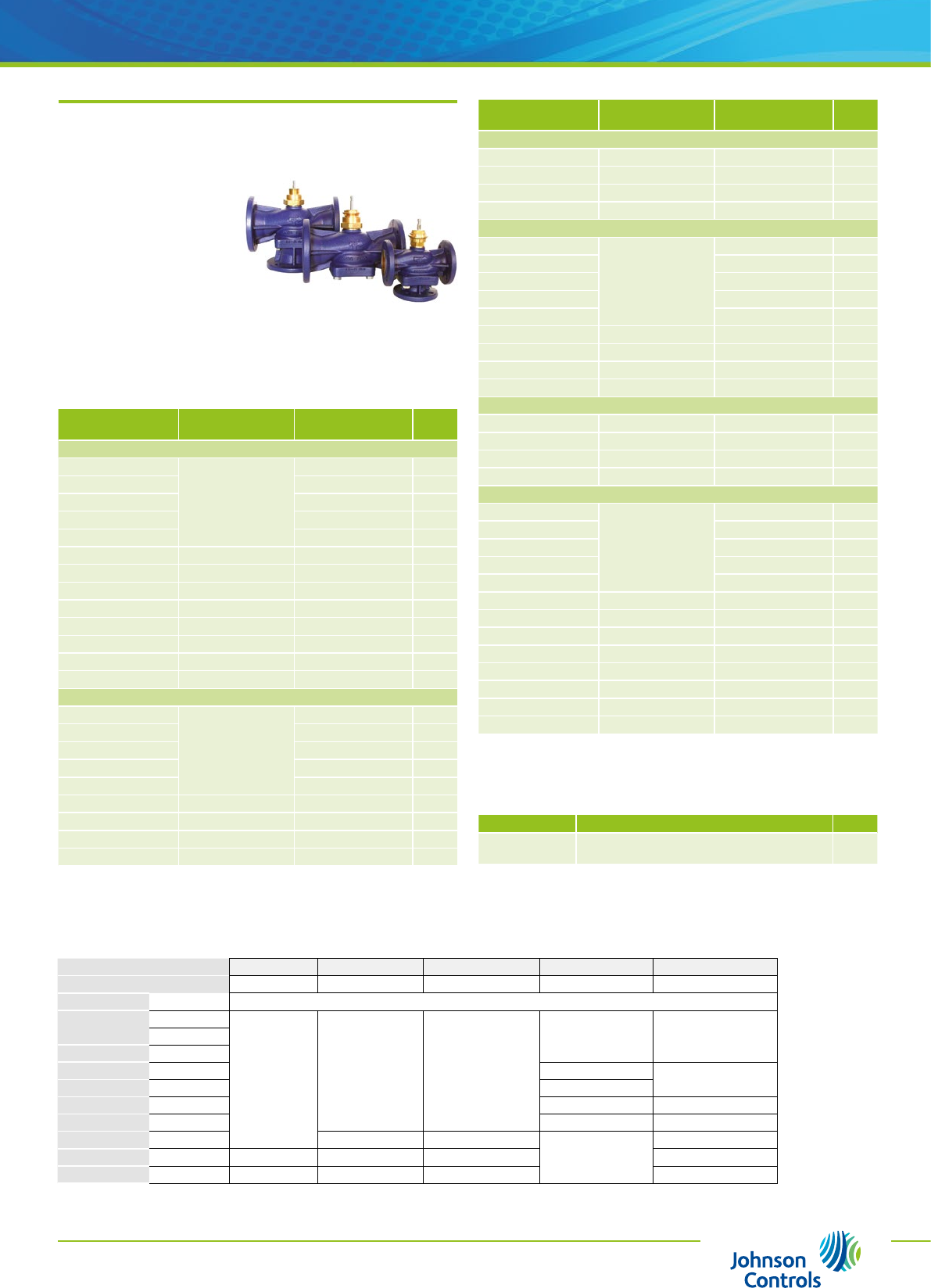

VG8000N Series
DN15-150, PN16 Flanged Valves
These valves are primarily designed to regulate the flow of
water and steam applications.
A variety of electric and pneumatic actuators are available.
FEATURES
n
Nodular cast iron body
n
Large range of valves
n
Fluid temperature 0-180°C (with Glycerine cup -10-+180°C)
Ordering
Codes*
Body Size
Kvs
(Control)
List
Price
2-way PDTC (Normally Open)
VG82A9S1N
DN15
1.0
£471
VG82A8S1N 0.16
£471
VG82A7S1N 0.25
£471
VG82A6S1N 0.4
£471
VG82A5S1N 0.63
£471
VG82A4S1N 1.0
£471
VG82A3S1N 1.6
£471
VG82A2S1N 2.5
£471
VG82A1S1N 4.0
£471
VG82B1S1N DN20 6.3
£477
VG82C1S1N DN25 10
£496
VG82D1S1N DN32 16
£498
VG82E1S1N DN40 25
£547
VG82F1S1N DN50 40
£681
VG82G1S1N DN65 63
£810
VG82H1S1N DN80 100
£1,020
VG82J1S1N DN100 160
£1,203
VG82K1S1N DN125 250
£1,959
VG82L1S1N DN150 350
£2,614
3-way Mixing Configuration
VG88A6S1N
DN15
0.4
£647
VG88A5S1N 0.63
£647
VG88A4S1N 1.0
£647
VG88A3S1N 1.6
£647
VG88A2S1N 2.5
£647
VG88A1S1N 4.0
£647
(continued next column)
11
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
VG9000 Series
DN15-100, PN6 and PN10 Flanged Valves
These flanged valves are primarily designed
to regulate the flow of water and low pressure
steam in response to the demand of
a controller, in heating, ventilating
and air-conditioning systems.
Following electric actuators are
available:
VA-7700 for DN15-50 valves
VA-7810 for DN15-65 valves
VA-1000 for DN65-100 valves
FEATURES
n Modular cast iron body
n
Kvs 0.63-160
n
2-way PDTO (normally closed) and 3-way mixing configurations
n
Fluid temperature 2-140°C
n
DIN flanged
Ordering
Codes* Body Size
Kvs
(Control)
List
Price
PN6 - 2-way PDTO (Normally Closed) Configuration
VG94A5S1K
DN15
0.63
£256
VG94A4S1K 1.0
£256
VG94A3S1K 1.6
£256
VG94A2S1K 2.5
£256
VG94A1S1K 4.0
£256
VG94B1S1K DN20 6.3
£280
VG94C1S1K DN25 10
£290
VG94D1S1K DN32 16
£338
VG94E1S1K DN40 25
£530
VG94F1S1K DN50 40
£728
VG94G1S1K DN65 63
£1,078
VG94H1S1K DN80 100
£728
VG94J1S1K DN100 160
£1,078
PN6 - 3-way (Normally Closed) Configuration
VG98A5S1K
DN15
0.63
£256
VG98A4S1K 1.0
£256
VG98A3S1K 1.6
£256
VG98A2S1K 2.5
£256
VG98A1S1K 4.0
£256
VG98B1S1K DN20 6.3
£280
VG98C1S1K DN25 10
£291
VG98D1S1K DN32 16
£338
VG98E1S1K DN40 25
£362
Ordering
Codes* Body Size
Kvs
(Control)
List
Price
PN6 - 3-way (Normally Closed) Configuration (cont)
VG98F1S1K DN50 40
£338
VG98G1S1K DN65 63
£530
VG98H1S1K DN80 100
£728
VG98J1S1K DN100 160
£1,078
PN10 - 2-way PDTO (Normally Closed) Configuration
VG94A5S1L
DN15
0.63
£268
VG94A4S1L 1.0
£268
VG94A3S1L 1.6
£268
VG94A2S1L 2.5
£268
VG94A1S1L 4.0
£268
VG94B1S1L DN20 6.3
£291
VG94C1S1L DN25 10
£303
VG94D1S1L DN32 16
£355
VG94E1S1L DN40 25
£385
PN10 - 2-way PDTO (Normally Closed) Configuration
VG94F1S1L DN50 40
£426
VG94G1S1L DN65 63
£559
VG94H1S1L DN80 100
£763
VG94J1S1L DN100 160
£1,136
PN10 - 3-way (Normally Closed) Configuration
VG98A5S1L
DN15
0.63
£268
VG98A4S1L 1.0
£268
VG98A3S1L 1.6
£268
VG98A2S1L 2.5
£268
VG98A1S1L 4.0
£268
VG98B1S1L DN20 6.3
£291
VG98C1S1L DN25 10
£303
VG98D1S1L DN32 16
£355
VG98E1S1L DN40 25
£385
VG98F1S1L DN50 40
£426
VG98G1S1L DN65 63
£559
VG98H1S1L DN80 100
£763
VG98J1S1L DN100 160
£1,136
Note:
* For factory mounted valve actuators just add ‘+M’ to the actuator ordering code.
i.e. VG94xxxS1K+M
ACCESSORY
Ordering Code Description Price
VA1000-EP Extension mounting kit for VP1000 series actuators
when fluid temperature >140°C £119
VG9000 Series Actuator Selection Table
PN6, 2-WAY PDTC - (Normally Open) CONFIGURATION
Actuator Codes RA-3000-732x VA-1x20-GGA-1** VA-1125-GGA-1** VA-77xx-820x VA-78xx-xxx-12
Torque 3000N 2000N 2500N 500N 1000N
Valve Body Size Kvs Close-off Pressure (kPa)
DN15 0.63 / 1.0
-- -
600 600
1.6 / 2.5 / 4.0
DN20 6.3
DN25 10 590 600
DN32 16 360
DN40 25 190 480
DN50 40 100 290
DN65 63 470 620
-
150
DN80 100 510 300 400
-
DN100 160 320 180 240
-
(continued next page)
12 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
PN6, 3-WAY MIXING CONFIGURATION
Actuator Codes RA-3000-732x VA-1x20 GGA-1** VA-1125-GGA-1** VA-77xx-820x VA-78xx-xxx-12
Torque 3000N 2000N 2500N 500N 1000N
Valve Body Size Kvs 3-way Mixing Configuration
DN15 0.63 / 1.0
-- -
600 600
1.6 / 2.5 / 4.0
DN20 6.3
DN25 10 490 600
DN32 16 280
DN40 25 130 440
DN50 40 60 260
DN65 63 470 620
-
130
DN80 100 510 300 400
-
DN100 160 320 180 240
-
Note: ** For fluid temperature >140°C the extension kit VA1000-EP must be mounted.
PN10, 2-WAY PDTO (Normally closed) CONFIGURATION
Actuator Codes RA-3000-732x VA-1x20-GGA-1** VA-1125-GGA-1** VA-77xx-820x VA-78xx-xxx-12
Torque 3000N 2000N 2500N 500N 1000N
Valve Body Size Kvs Close-off Pressure (kPa)
DN15 0.63 / 1.0
-- -
1000
1000
1.6 / 2.5 / 4.0
DN20 6.3 980
DN25 10 640
DN32 16 400 900
DN40 25 210 510
DN50 40 110 310
DN65 63 470 620
-
160
DN80 100 510 300 400
-
DN100 160 320 180 240
PN10, 3-WAY MIXING CONFIGURATION
Actuator Codes RA-3000-732x VA-1x20-GGA-1** VA-1125-GGA-1** VA-77xx-820x VA-78xx-xxx-12
Torque 3000N 2000N 2500N 500N 1000N
Valve Body Size Kvs Close-off Pressure (kPa)
DN15 0.63 / 1.0
-- -
1000
1000
1.6 / 2.5 / 4.0
DN20 6.3 880
DN25 10 430
DN32 16 240 790
DN40 25 110 420
DN50 40 40 240
DN65 63 470 620
-
120
DN80 100 510 300 400
-
DN100 160 320 180 240
Note: ** For fluid temperature >140°C the extension kit VA1000-EP must be mounted.
VALVES AND ACTUATORS (cont)
VG9000 Series Actuator Selection Table (cont)
13
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
VA1000
Series
2000 and 2500N, Floating or
Proportional Control
These valve-actuators are of modular construction so that
the required type of control signal is achieved simply by
fitting a module with the required function in-situ. It can be
mounted onto VG8000 (H, N, V), VG8300N&H and VG9000
series valves.
FEATURES
n
Manual override and automatic stem coupling
n
Actuator fixed to valve with one ring nut
n
Self adjusting, automatic stroke adjustment, calibrated pressure control
n
at the end positions
n
Two auxiliary switches, feedback potentiometer and split range unit available
n
Selectable characteristic curve and running time
n
230Vac power supply module available
Ordering
Codes
Supply
Voltage
Force
Spring Return *
List
Price
VA1125-GGA-1
24Vac
2500N None £647
VA1220-GGA-1 2000N Retracts £820
VA1420-GGA-1 Extends £819
* On power failure
ACCESSORIES (for in-situ installation)
Ordering Codes Description Price
VA1000-M230N 230Vac Module £47
VA1000-P2 2 KΩ feedback potentiometer £111
VA1000-S2 2 x SPDT auxiliary switches £94
VA1000-SRU Split range unit module for proportional actuators only £66
VA1000-EP Extension kit for applications with temp. 140-200°C £119
Nominal Stroke - 49mm
Size - 230 x 136/149 x 263mm
Protection Class - IP66

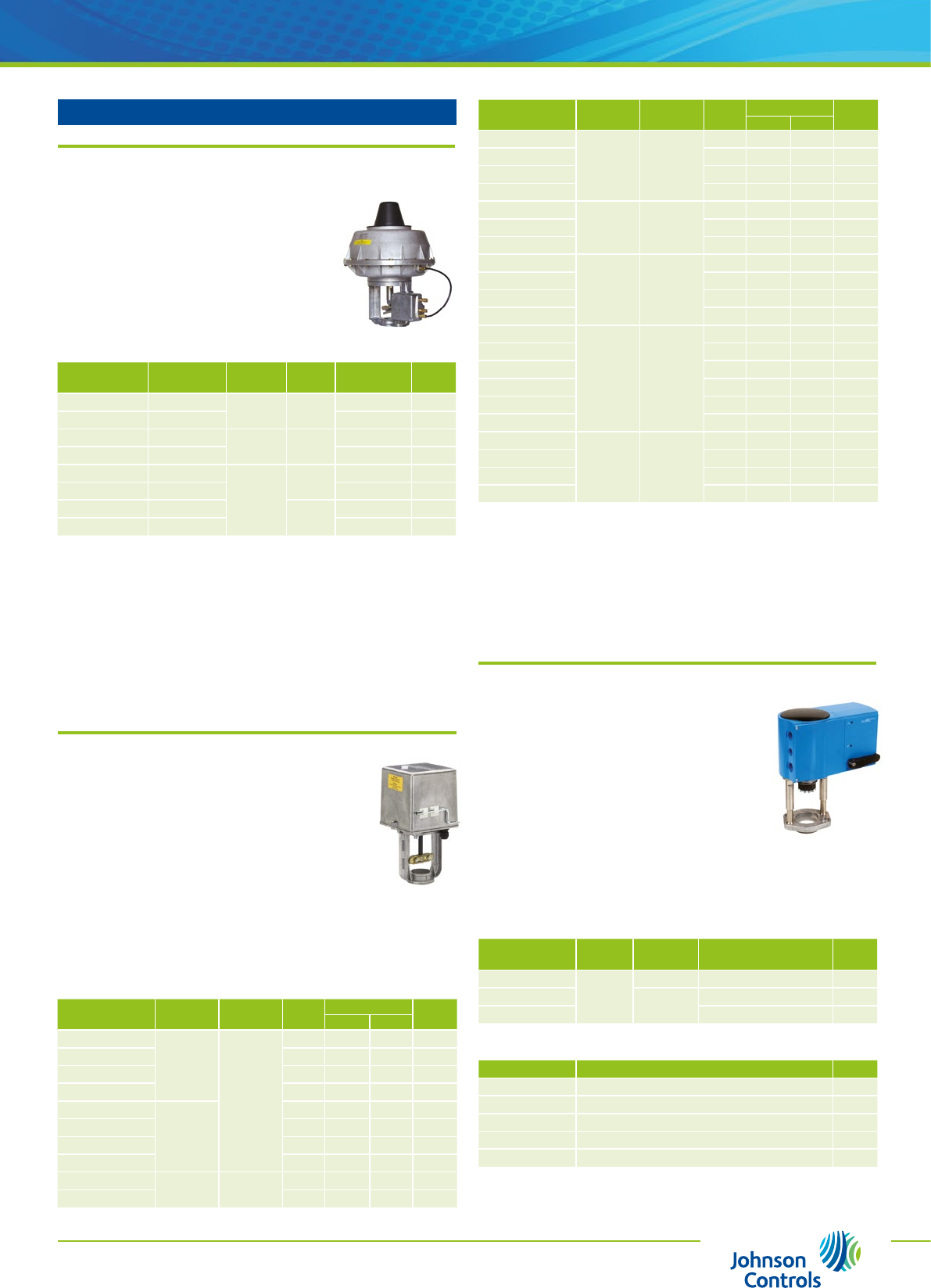

Linear Actuators - for Plant Valves
PA-2000
Series
ON/OFF Control (Pneumatic)
PA-2000 actuators can be combined with VG8000 (H, N, V)
and VG8300 (H, N) series in accordance with the maximum
close-off pressure ratings specified.
The fail safe position can be changed in-situ with a
conversion kit.
FEATURES
n Manual override
n Teflon free series
n Reversible action in-situ
n Accessories available
Ordering
Codes*
Spring Range
Diaphram
Area
Stroke
Handwheel
List
Price
PA-20xy-Z2K2 20-50 kPa 150cm213mm
–
POA
PA-21xy-Z2K7 70-100 kPa
n
POA
PA-20xy-Z3K2 20-50 kPa 300cm225mm
–
POA
PA-21xy-Z3K7 70-100 kPa
n
POA
PA-20xy-Z6K2 20-50 kPa
600cm2
42mm
–
POA
PA-21xy-Z6K7 70-100 kPa
n
POA
PA-20xy-Z7K2 20-50 kPa 25mm
–
POA
PA-21xy-Z7K7 70-100 kPa
n
POA
Notes: *x: 0 = Without positioner
3 = With positioner (PR10)
y: 0 = Without switches and potentiometer
Z: 3 = Standard models
9 = Teflon free
K: 1 = DA Actuator stem extend (spring return UP)
2 = RA Actuator stem retract (spring return DOWN)
Please call our Sales Support Team for
your requirements and list prices.
RA-3000
Series
1600 and 3000N, Floating or
Proportional Control
The RA-3000 series synchronous motor-driven, reversible actuators
feature factory calibrated pressure switches to provide specified
close-off ratings. These actuators can be used with flanged valves
according to maximum close-off pressure
ratings specified.
The RA-3000 actuators are designed for field mounting onto VG8000N
and VG9000 valves.
FEATURES
n
Uses synchronous motor with pressure switches
n
Special clamp coupler quick-fit systems
n
Positioner with adjustable starting point, span and direct/reverse action
n
Optional auxiliary switches, feedback potentiometer and hand crank
Ordering
Codes
Supply
Voltage
Force
Hand
Crank
Variations* List
Price
Y Z
RA-3000-7126
24V
1600N
– - –
£951
RA-3003-7126
–n –
£1,207
RA-3041-7126
– – n
£1,492
RA-3100-7126
n– –
£1,007
RA-3000-7127
230V
– – –
£827
RA-3003-7127
–n –
£1,244
RA-3100-7127
n – –
£1,007
RA-3103-7127
n n –
£1,343
RA-3000-7226 24V 1800N
– – –
£910
RA-3003-7226
–n–
£1,207
Ordering
Codes
Supply
Voltage
Force
Hand
Crank
Variations* List
Price
Y Z
RA-3041-7226
24V 1800N
– – n
£1,492
RA-3100-7226
n – –
£934
RA-3103-7226
n n –
£1,165
RA-3141-7226
n –n
£1,421
RA-3000-7227
230V 1800N
– – –
£827
RA-3003-7227
–n–
£1,244
RA-3103-7227
n n –
£1,255
RA-3000-7325
24V
(60Hz) 3000N
– – –
£948
RA-3041-7325
–n n
£1,515
RA-3103-7325
n– –
£1,340
RA-3141-7325
n n n
£1,596
RA-3000-7326
24V
(50Hz) 3000N
– – –
£948
RA-3003-7326
–n–
£1,165
RA-3041-7326
– – n
£1,407
RA-3100-7326
n– –
£1,055
RA-3103-7326
n n –
£1,283
RA-3141-7326
n–n
£1,525
RA-3000-7327
230V
(50Hz) 3000N
– – –
£948
RA-3003-7327
–n–
£1,255
RA-3100-7327
n– –
£1,137
RA-3103-7327
n n –
£1,381
* Variations:
Y = Two auxiliary switches and two 2 kΩ feedback potentiometers
Z = Built-in positioner 0-10Vdc and two auxiliary switches (only 24Vac models)
Supply Voltage - 24V or 230V, 50/60Hz
Nominal Stroke - 13mm (1600N), 25mm (1800N), 42mm (3000N)
Auxiliary Switches - 5(3)A, 230V 50/60Hz
Size - 345 x 186 x 186mm
Protection Class - IP54
(continued next column)
14 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
VALVES AND ACTUATORS (cont)

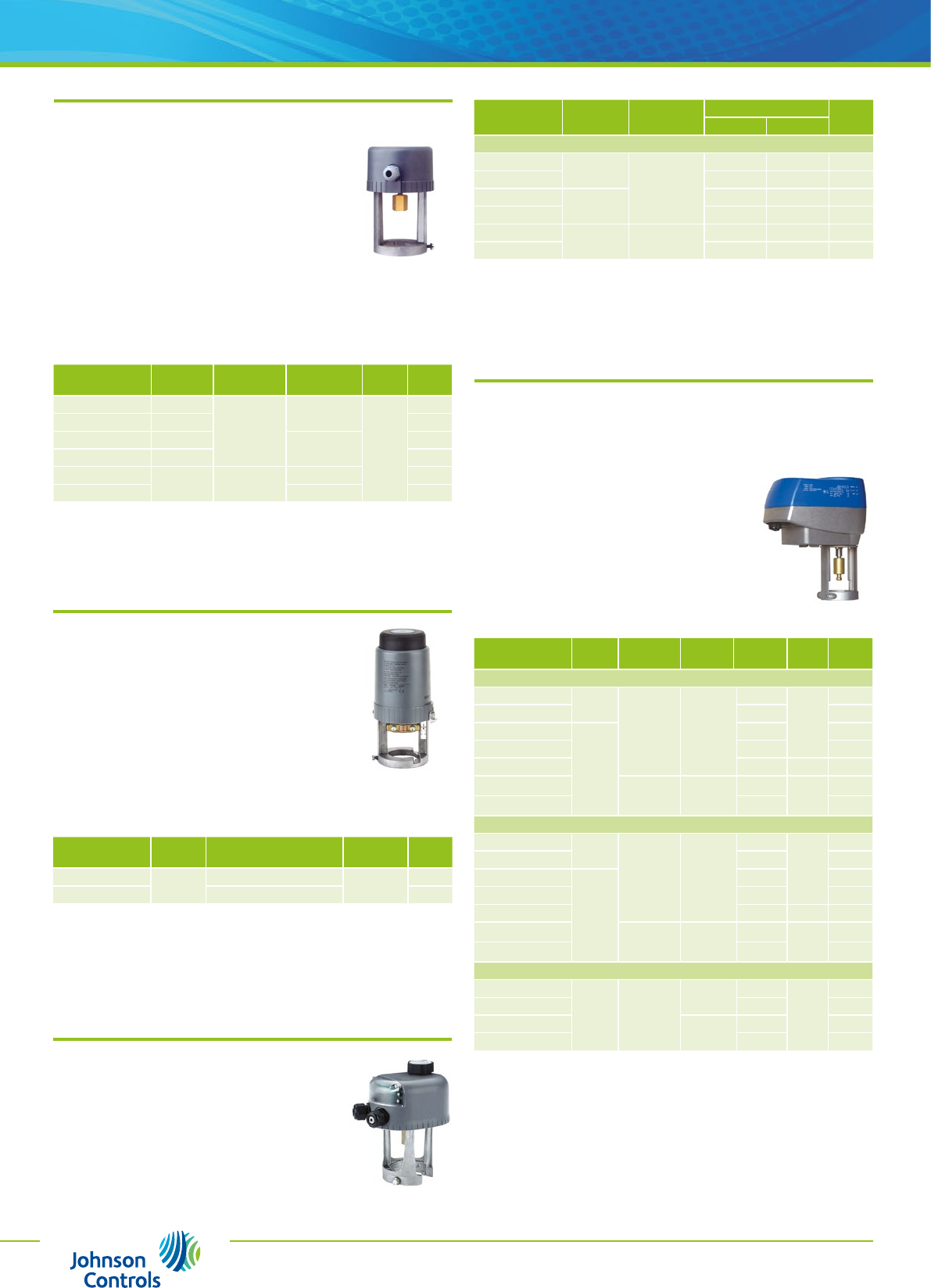

VA7800
Series
1000N, ON/OFF, Floating or Proportional Control
Spring return and non-spring return actuator with 1000N thrust for valves in heating,
ventilation and air-conditioning applications. All models have manual override as
standard. Proportional models are self-calibrating.
This actuator is intended for use with VG7000 and VGS800
threaded valves as well as VG9000, VG8000 (H, N, V) and
VG8300N&H flanged valves.
FEATURES
n
Proportional actuators are self-calibrating
n
Force controlled motor shut-off
n
Manual override as standard and status LED
n
Models with optional aux. switches or 2 kΩ feedback potentiometer
n
Control-signal failure - stem to pre-determined position
n
Stroke position indicator
Ordering
Codes
Supply
Voltage
Action
Control
Spring
Return**
2 x Aux.
Switches
2 KΩ
pot.
List
Price
For VG7000 Series Valves
VA7810-ADA-11 230Vac
ON/OFF
or
Floating
-
-
-
£500
VA7810-ADC-11
n
£558
VA7810-AGA-11
24Vac
-
£382
VA7810-AGC-11
n
£413
VA7810-AGH-11
-n
£413
VA7810-GGA-11 ON/OFF,
Floating or
Proport.*
---
£455
VA7810-GGC-11
n
£517
For VGS8000 / VG8000 / VG9000 Series Valves
VA7810-ADA-12 230Vac
ON/OFF
or
Floating
-
-
-
£509
VA7810-ADC-12
n
£565
VA7810-AGA-12
24Vac
-
£390
VA7810-AGC-12
n
£413
VA7810-AGH-12
-n
£413
VA7810-GGA-12 ON/OFF,
Floating or
Proport.*
---
£455
VA7810-GGC-12
n
£517
For VG7000 Series Valves
VA7820-GGA-11
24Vac
ON/OFF,
Floating or
Proport.*
Retracts
-
-
£484
VA7820-GGC-11
n
£625
VA7830-GGA-11 Extends
-
£484
VA7830-GGC-11
n
£631
VA-7700
Series
500N, Floating or Proportional Control
The VA-7700 series are designed for mounting onto
VG7000, VGS800 and VG9000 valves.
FEATURES
n
Manual override
n
LED operating status display
n Self calibrating
VA-7200
Series
1000N, Floating or Proportional Control
This synchronous motor driven actuator provides control of
valves with up to 19mm stroke.
These actuators can be easily field mounted or ordered
factory coupled to VG7000, VG8000 (H, N, V), VG9000
and VGS800 series valves in accordance with the specified
maximum close-off pressure ratings.
FEATURES
n Compact unit for 1000N force output
n Magnetic clutch
n ‘Signal fail’ safe position
Ordering
Codes
Supply
Voltage
Action Control
Force
List
Price
VA-7200-1001 24Vac Floating 1000N £340
VA-7202-1001 Proportional £499
Supply Voltage - 24Vac, 50/60Hz
Action Control - Floating or Proportional
0-10Vdc, 0(4)-20mA
Nominal Stroke - 20mm max.
Size - 198 x 106mmØ, 198 x 225mmØ
Protection Class - IP40 or IP42
VA-715x
Series
500N, Floating or Proportional Control
The VA-7150 series synchronous motor driven actuator
provide control with up to 19mm stroke.
These actuators can be easily installed on site or ordered
pre-fitted to VG7000, VGS800 and VG9000 flanged valve
series in accordance with the specified maximum close-off
pressure ratings.
FEATURES
n
Compact unit for 500N force
n
Magnetic clutch and unique yoke design
n
Coupler for simple actuator attachment to flanged valves
n
Positioner with adjustable starting point and span, reverse and
direct action modes
n
“Signal fail” safe position
Ordering
Codes
Supply
Voltage
Action
Control
Coupler
Type
Force
List
Price
VA-7150-1001 24Vac
Floating
Threaded
500N
£198
VA-7150-1003 230Vac £198
VA-7150-8201 24Vac Slotted £205
VA-7150-8203 230Vac £205
VA-7152-1001 24Vac Proportional
0-10V
Threaded £308
VA-7152-8201 Slotted £322
Supply Voltage - 24V or 230V, 50/60Hz
Nominal Stroke - 19mm max.
Size - 153 x 97.5mmØ
Protection Class - IP40
Ordering
Codes
Supply
Voltage
Action
Control
Override List
Price
Manual Electrical
For VG7000 Series Valves
VA-7700-1001 24Vac
Floating
- -
£181
VA-7740-1001
n-
£227
VA-7700-1003 230Vac
- -
£159
VA-7740-1003
n-
£227
VA-7706-1001 24Vac Proportional
-n
£366
VA-7746-1001
n n
£412
Supply Voltage - 24Vac or 230Vac, 50/60Hz
Stroke - 20mm
Full Stroke Time - 190 sec.
Size - 178 x 159 x 131mm
Protection Class - IP54
(continued next page)
(continued next column)
15
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

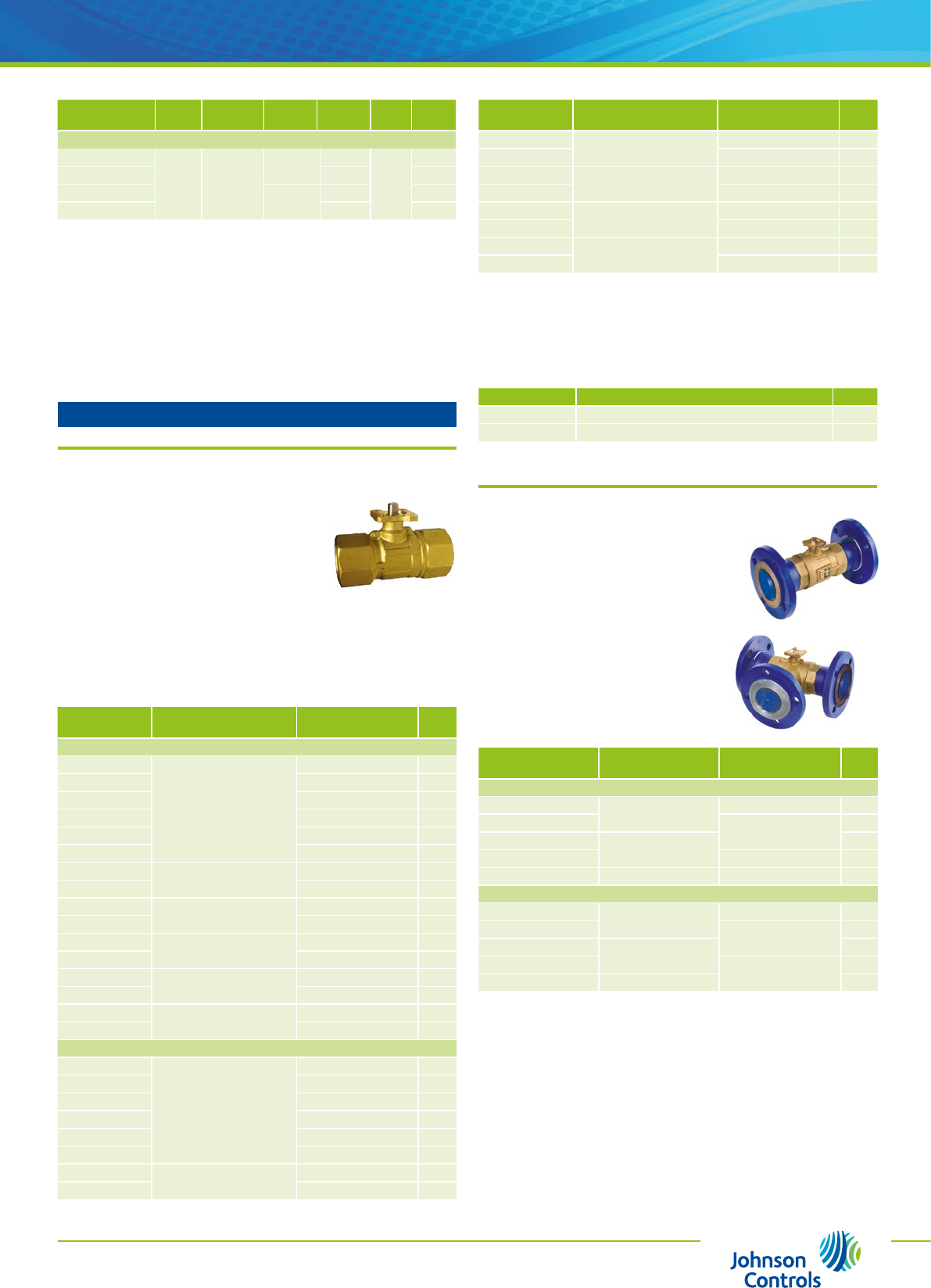

VG1205, VG1805 Series
2 and 3-way SS Screwed Control Valves
with Stainless Steel Ball
These ball valves are primarily designed to regulate the
flow of hot or chilled water and low-pressure steam
in response to the demand of a controller in heating,
ventilating and air-conditioning systems.
Following actuators are available:
ON/OFF, Floating or Proportional actuators - VA9104 Direct Mounted
Non-spring Return Actuators, M9108 Non-spring
Return Actuators, VA9203 and VA9208 Spring Return Actuators
FEATURES
n
Forged brass body
n
Inherent equal percentage flow characteristic in the in-line port of all valves
Ordering
Codes
Body Size
Kvs
(Control Port)
List
Price
2-way Valves - Female Thread
VG1205AD
DN15
1.0
£72
VG1205AE 1.6
£72
VG1205AF 2.5
£72
VG1205AG 4.0
£72
VG1205AL 6.3
£72
VG1205AN 10
£72
VG1205BL DN20 6.3
£76
VG1205BN 10
£76
VG1205CN DN25 10
£78
VG1205CP 16
£78
VG1205DP DN32 16
£143
VG1205DR 25
£143
VG1205ER DN40 25
£187
VG1205ES 40
£187
VG1205FS DN50 40
£254
VG1205FT 63
£254
3-way Valves - Female Thread
VG1805AD
DN15
1.0
£116
VG1805AE 1.6
£116
VG1805AF 2.5
£116
VG1805AG 4.0
£116
VG1805AL 6.3
£116
VG1805AN 10
£112
VG1805BL DN20 6.3
£120
VG1805BN 10
£116
Ball Valves
VG1xE5 Series
DN65-100, DIN Flanged, PN16 Control Ball Valves
With the introduction of this valve we are extending
our HVAC control ball family which offers larger
valve sizes. This gives significant cost advantages
compared to the VG8000 PN16 or VG9000 PN10
series providing high close-off pressure and
identical face to face dimensions.
All valves are operated by remote mounted
non-spring return and spring return rotary actuators.
FEATURES
n Forged brass body
n
Stainless steel ball
n
Inherent equal percentage flow characteristic
in the in-line port of all valves
Ordering
Codes Body Size
Kvs
(Control)
List
Price
2-way Valves - Flanged
VG12E5GT DN65 63
£505
VG12E5GU 100
£505
VG12E5HU DN80
£547
VG12E5HW 180
£547
VG12E5JV DN100 150
£632
3-way Valves - Flanged
VG18E5GT DN65 40
£905
VG18E5GU 63
£905
VG18E5HU DN80
£926
VG18E5HW 75
£926
VG18E5JV DN100
£968
Fluid Temperature Limits - Water: –18-+140°C
Steam: max. 172 kPa
Ordering
Codes
Body Size
Kvs
(Control Port)
List
Price
VG1805CN DN25 10
£154
VG1805CP 16
£148
VG1805DP DN32 16
£244
VG1805DR 25
£233
VG1805ER DN40 25
£355
VG1805ES 40
£340
VG1805FS DN50 40
£493
VG1805FT 63
£471
(Other sizes on request)
Fluid Temperatures - –30-+140°C (–30-+100°C with VA9104) stainless steel ball
and stem fluid types
Connections - BSP female threaded body
See page 16 for ‘Actuator Selection Tables’.
ACCESSORIES
Ordering Codes Description Price
M9000-520-5 Ball valve linkage for M9206-xxx-5S £33
M9000-525-5 Linkage kit for mounting to M9108 series actuators £33
Ordering
Codes
Supply
Voltage
Action
Control
Spring
Return**
2 x Aux.
Switches
2 KΩ
pot.
List
Price
For VGS8000 / VG8000 / VG9000 Series Valves
VA7820-GGA-12
24Vac
ON/OFF,
Floating or
Proport.*
Retracts
-
-
£484
VA7820-GGC-12
n
£625
VA7830-GGA-12 Extends
-
£484
VA7830-GGC-12
n
£625
* Full stroke time 150 secs (selectable 75 sec.)
** On power failure
Supply Voltage - 24Vac or 230Vac, 50/60Hz
Stroke - 7-25mm
Auxiliary Switches - 2(1)A, 230V 50/60Hz
Full Stroke Time - 150 sec. (selectable 75 sec. on proportional models)
Cable - 1.5m length
Size - 212 x 115 x 231mm
Protection Class - IP54
(continued next column)
16 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
FLOATING OR ON/OFF ACTUATORS (Factory-mounted valve/actuator assemblies)
Spring Return
-n
Supply Voltage 24Vac * 230Vac ** 24Vac *
Torque 4 Nm 8 Nm 3 Nm 8 Nm
Aux. Switches
-
2 x SPDT
-
2 x SPDT
-
1 x SPDT
-
2 x SPDT
Actuator Codes VA9104-
IGS-1S
M9108-
AGA-5
M9108-
AGC-5
M9108-
ADA-5
M9108-
ADC-5
VA9203-
AGA-1Z
VA9203-
AGB-1Z
VA9208-
AGA-1
VA9208-
AGC-1
Linkage Codes
-
M9000-525-5
-
Ordering Code
Suffix for Assemblies
+5A4IGA
+6A4IGA ‡+5A8AGA +5A8AGC +5A8ADA +5A8ADC
+533AGA (SO)
+633AGA (SO)‡
+553AGA (SC)
+653AGA (SC)‡
+533AGB (SO)
+633AGB (SO)‡
+553AGB (SC)
+653AGB (SC)‡
+538AGA (SO)
+638AGA (SO)‡
+558AGA (SC)
+658AGA (SC)‡
+538AGC (SO)
+638AGC (SO)‡
+558AGC (SC)
+658AGC (SC)‡
Valve Body Size Valid combinations of valves, linkages and actuators
DN15
nnnnnnn- -
DN20
nnnnnnn- -
DN25
nnnnnnn- -
DN32
-nnnn- - n n
DN40
-nnnn- - n n
DN50
-nnnn- - n n
Notes: FA-2000 / 3000 heavy duty actuators are available on request if a higher close-off is required. (SO) = Spring opens, (SC) = Spring closes,
‡
M9000-561 Thermal barrier included
* Floating with time-out and On/Off control signal ** Floating and On/Off control signal
ON/OFF ACTUATORS (Factory-mounted valve/actuator assemblies)
Spring Return
n
Supply Voltage 24Vac/dc 100-240Vac 230Vac
Torque 3 Nm 8 Nm 3 Nm 8 Nm
Aux. Switches
-
1 x SPDT
-
2 x SPDT
-
1 x SPDT
-
2 x SPDT
Actuator Codes M9203-BGA-1 VA9203-BGB-1 VA9208-BGA-1 VA9208-BGC-1 VA9203-BUA-1 VA9203-BUB-1 VA9208-BDA-1 VA9208-BDC-1
Linkage Codes
- -
Ordering Code
Suffix for Assemblies
+533BGA (SO)
+633BGA (SO)‡
+553BGA (SC)
+653BGA (SC)‡
+533BGB (SO)
+633BGB (SO)‡
+553BGB (SC)
+653BGB (SC)‡
+538BGA (SO)
+638BGA (SO)‡
+558BGA (SC)
+658BGA (SC)‡
+538BGC (SO)
+638BGC (SO)‡
+558BGC (SC)
+658BGC (SC)‡
+533BUA (SO)
+633BUA (SO)‡
+553BUA (SC)
+653BUA (SC)‡
+533BUB (SO)
+633BUB (SO)‡
+553BUB (SC)
+653BUB (SC)‡
+538BDA (SO)
+638BDA (SO)‡
+558BDA (SC)
+658BDA (SC)‡
+538BDC (SO)
+638BDC (SO)‡
+558BDC (SC)
+658BDC (SC)‡
Valve Body Size Valid combinations of valves, linkages and actuators
DN15
n n - - n n - -
DN20
n n - - n n - -
DN25
n n - - n n - -
DN32
- - n n - - n n
DN40
- - n n - - n n
DN50
- - n n - - n n
Notes: FA-2000 / 3000 heavy duty actuators are available on request if a higher close-off is required. (SO) = Spring opens, (SC) = Spring closes,
‡
M9000-561 Thermal barrier included
Actuator Selection Tables
VG1205, VG1805 Series
DN15-50, Threaded Valves
PROPORTIONAL ACTUATORS (Factory-mounted valve/actuator assemblies)
Spring Return
-n
Supply Voltage 24Vac 24Vac
Torque 4 Nm 8 Nm 3 Nm 8 Nm
Aux. Switches
-
2 x SPDT
-
1 x SPDT
-
2 x SPDT
Actuator Codes VA9104-GGA-1S M9108-GGA-5 M9108-GGC-5 VA9203-GGA-1Z VA9203-GGB-1Z VA9208-GGA-1 VA9208-GGC-1
Linkage Codes
-
M9000-525-5
-
Ordering Code
Suffix for Assemblies
+5A4GGA
+6A4GGA ‡+5A8GGA +5A8GGC
+533GGA (SO)
+633GGA (SO)‡
+553GGA (SC)
+653GGA (SC)‡
+533GGB (SO)
+633GGB (SO)‡
+553GGB (SC)
+653GGB (SC)‡
+538GGA (SO)
+638GGA (SO)‡
+558GGA (SC)
+658GGA (SC)‡
+538GGC (SO)
+638GGC (SO)‡
+558GGC (SC)
+658GGC (SC)‡
Valve Body Size Valid combinations of valves, linkages and actuators
DN15
nnnnn- -
DN20
nnnnn- -
DN25
nnnnn- -
DN32
-n n - - n n
DN40
-n n - - n n
DN50
-n n - - n n
Note: FA-2000 / 3000 heavy duty actuators are available on request if a higher close-off is required.
(SO) = Spring opens, (SC) = Spring closes,
‡
M9000-561 Thermal barrier included
VALVES AND ACTUATORS (cont)
17
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
Actuators for VFB Valves
VA-9070 Series
57 to 2034 Nm, Rotary Actuator, ON/OFF,
Floating or Proportional Control
The VA-9070 range of actuators are specifically
developed for use with VFB butterfly valves.
These bi-directional actuators are direct
mounted onto the valve without any linkage.
With a power supply of 24Vac or 230Vac,
actuators can be controlled in 2-point,
3-point (floating) or proportional
configuration.
FEATURES
n
Two isolated auxiliary switches and an
electrical heater are standard
n
IP65 protection class
n
Hand operation is standard
n
Exact positioning ensures precise flow control
n
Extensive range of power sizes
Ordering
Codes Force
Control
Signals
Supply
Voltage
List
Price
VA-9072-13
57 Nm
Proportional 24Vac
£2,519
VA-9072-23 230Vac
£2,351
VA-9072-14 ON/OFF or Floating 24Vac
£1,679
VA-9072-24 230Vac
£1,511
VA-9075-13
226 Nm
Proportional 24Vac
£4,031
VA-9075-23 230Vac
£3,023
VA-9075-14 ON/OFF or Floating 24Vac
£2,855
VA-9075-24 230Vac
£1,948
VA-9077-13 565 Nm Proportional 24Vac
£5,374
VA-9077-14 ON/OFF or Floating
£4,366
VA-9078-23 735 Nm Proportional 230Vac
£3,695
VA-9078-24 ON/OFF or Floating
£3,359
VA-907A-23 1470 Nm Proportional 230Vac
£7,726
VA-907A-24 ON/OFF or Floating
£6,382
VA-907B-24 2034 Nm Proportional 230Vac
£7,726
VA-907B-23 ON/OFF or Floating
£9,405
Supply Voltage - 24Vac or 230Vac, 50/60Hz
Control Signal - ON/OFF, Floating or Proportional 0(2)-10Vdc, 0(4)-20mA
Connection - Direct mounting
Protection Class - IP65
ACCESSORIES
Order Codes Description Price
M9100-100A Linkage for M9116 and DN25 to DN40 valves
£67
M9100-100B Linkage for M9116 & M9124 and DN50 to DN80 valves
£67
M9100-100C Linkage for M9124 and DN100 low close-off pressure valve
£67
M9200-100A Linkage for M9220 and Valves from DN25 to DN40
£67
M9200-100B Linkage for M9220 and Valves from DN50 to DN80
£67
M9200-100C Linkage for M920 and DN100 low close off pressure valve
£67
VF-998-100 Ten Position manual handle for DN25 to DN40 valves
£43
VF-998-101 “ “ for DN50 to DN80 valves
£43
VF-998-102 “ “ for DN100 valve
£43
VF-998-103 “ “ for DN125 to DN150 valves
£43
VF-998-104 “ “ for DN200 valve
£77
VF-998-105 “ “ for DN250 to DN300 valves
£77
VF-998-303 Gear-operated manual hand wheel for DN 50-150 valves
£201
VF-998-304 “ “ “ for DN200 valve
£268
VF-998-305 “ “ “ for DN 250-300 valves
£278
VF-998-307 “ “ “ for DN 350-400 valves
£671
VF-998-308 “ “ “ for DN 450-500 valves
£1,006

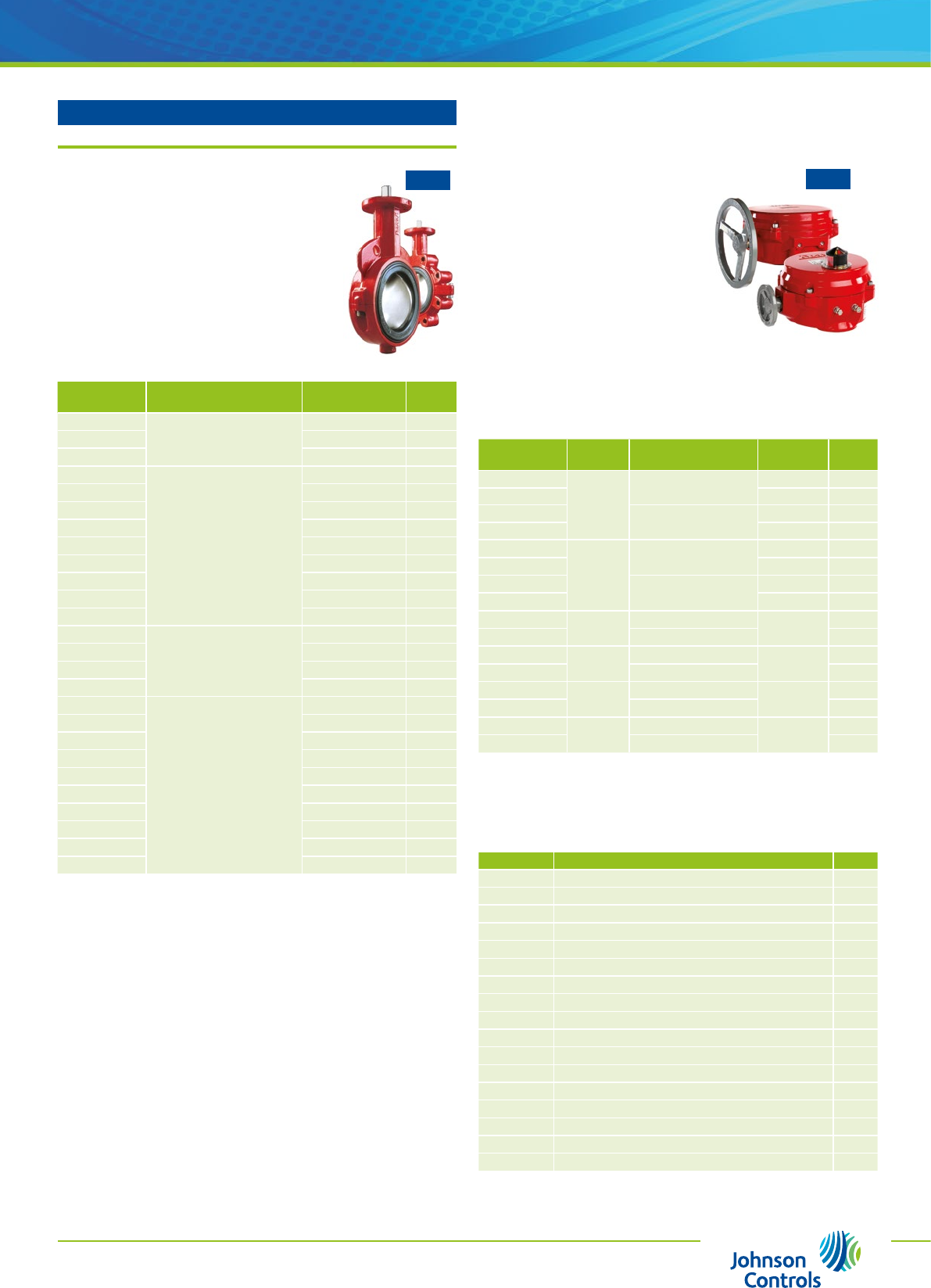

Butterfly Valves and Actuators
VFB Series
DN25-500, PN6, PN10 and PN16 Pipe Flanges
These valves are primarily designed to regulate the flow of
water and steam applications.
A variety of electric and pneumatic actuators are available.
Following rotary actuators are available:
VA-9070 (see next column) and M9000 series
FEATURES
n
Low seating/unseating torques
n
Bubble-tight shut-off
n
Fluid temperature –29-+121°C
n
Water with 50% max. glycol
Ordering
Codes
Close-off
Pressure
Body
Size
List
Price
VFB025H 1000 kPa
(High)
DN25
£134
VFB032H DN32
£137
VFB040H DN40
£141
VFB050H
1200 kPa
(High)
DN50
£144
VFB065H DN65
£154
VFB080H DN80
£181
VFB100H DN100
£218
VFB125H DN125
£238
VFB150H DN150
£275
VFB200H DN200
£369
VFB250H DN250
£856
VFB300H DN300
£1,326
VFB350H
1000 kPa
(High)
DN350
£2,015
VFB400H DN400
£2,754
VFB450H DN450
£3,695
VFB500H DN500
£5,038
VFB100L
300 kPa
(Low)
DN100
£218
VFB125L DN125
£238
VFB150L DN150
£275
VFB200L DN200
£369
VFB250L DN250
£856
VFB300L DN300
£1,326
VFB350L DN350
£2,015
VFB400L DN400
£2,754
VFB450L DN450
£3,695
VFB500L DN500
£5,038
Fluid Temperature Limits - Water: –29-+121°C
NEW NEW
18 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

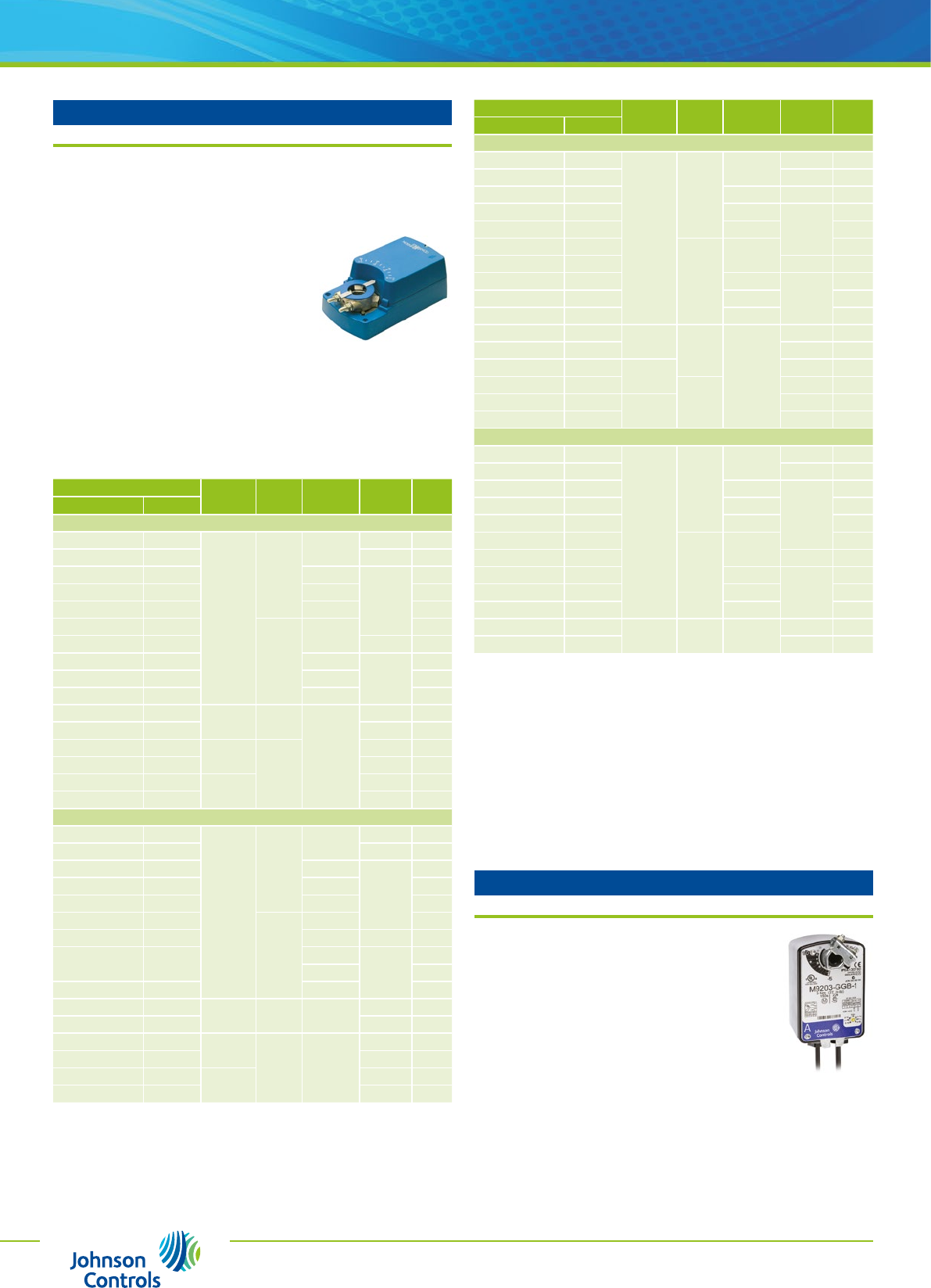

M9108-xxx-5 Series
(Joventa BAS1 / BAS2 / BMS1.1)
8 Nm Actuators
ON/OFF, Floating or Proportional
This series has been developed for operating
VG1000 series ball valves. The actuators can
be mounted onto the valves by the means of the
M9000-525-5 linkage kit.
FEATURES
n
Halogen-free connecting wire
n
Load-independent running time
n
Easy assembly on the console
n
Selectable direction of rotation
n
Manual adjustment by pushing the release button and turning the handle
with position indicator (the release button does not automatically spring
back into position)
n
Automatic switching off in the limit positions
Ordering Codes
Control
Signals
Supply
Voltage
2 x Aux.
Switches
List
Price
Johnson Contr.
Joventa
8 Nm Actuators
M9108-AGA-5
BAS1
ON/OFF
or
Floating
24Vac/dc
- £173
M9108-AGC-5
BAS1.S n£205
M9108-ADA-5
BAS2
230Vac
- £163
M9108-ADC-5
BAS2.S n£205
M9108-GGA-5
BMS1.1
Proportional 24Vac/dc
- £191
M9108-GGC-5
BMS1.1S n£248
VALVES AND ACTUATORS (cont)
VA9203 Series
3 Nm, Spring Return Actuators
ON/OFF, Floating or Proportional Control
These bi-directional, direct-mount spring return actuators
are used to provide accurate positioning on VG1000 series,
DN15 up to DN25, ball valves in heating, ventilating and
air-conditioning (HVAC) applications.
An integral, line voltage auxiliary switch is available on the
VA9203-xxB-1(Z) models, to indicate end-stop position or to
perform switching functions within the selected rotation range.
When power fails during service, the mechanical spring return
system opens or closes the valve ports.
FEATURES
n
Mechanical spring return system
n
Double-insulated construction
n
Direct-coupled design
n
Optional integrated auxiliary switch
n
Reversible mounting
Ordering
Codes
Control
Signals
Supply
Voltage
1 x Aux.
Switches
List
Price
3 Nm Actuators
VA9203-GGA-1Z Proportional
24Vac/dc
- £247
VA9203-GGB-1Z
n£286
VA9203-AGA-1Z ON/OFF or
Floating
- £217
VA9203-AGB-1Z
n£265
VA9203-BGA-1
ON/OFF
24Vac/dc
- £149
VA9203-BGB-1
n£205
VA9203-BUA-1 100-240Vac
- £166
VA9203-BUB-1
n£213
Supply Voltage - 24Vac/dc, 120Vac, 240Vac, 50/60 Hz
Control Signals - ON/OFF, Floating or Proportional 0(2)-10V, 0(4)-20mA
Rotation Range - 95° max. full stroke (adjustable 35-95°)
Auxiliary Switch - 1 x SPDT 240Vac, 5A / 120Vac, 5.8A and 24Vac, 50VA
Size - 124 x 82 x 71mm
Protection Class - IP54
VA9208 Series
8 Nm, Spring Return Actuators
ON/OFF, Floating or Proportional Control
The VA9208 series of electric spring return actuators are
direct-mount actuators.
These bi-directional actuators are used to provide accurate
positioning on VG1000 series, DN32 up to DN50, ball valves in
heating, ventilating and air-conditioning (HVAC) applications.
Two integral, line voltage auxiliary switches are available only
on the VA9208-xxC-1 models, to indicate end-stop position or
to perform switching functions within the selected rotation range. A graduated scale
from 0 to 100% and a position indicator provide visual indication of the valve opening.
When power fails during service, the mechanical spring return system opens or closes
the valve ports.
FEATURES
n
Mechanical spring return system
n
Double-insulated construction
n
Direct-coupled design
n
Optional integrated auxiliary switches
n
Reversible mounting
Rotary Actuators - Valve Family
VA9104-xGA-1S
Series (Joventa BAD1.4 / BAD1 / BMD1.2)
4 Nm Actuators ON/OFF, Floating or Proportional Control
This series of actuators has been developed for operation of ball valves.
These synchronous, motor driven actuators are used
to provide accurate positioning on VG1000 series
DN15, DN20 and DN25 ball valves.
FEATURES
n
Load-independent running time
n
Up to five actuators in parallel operation possible
n
Manual release button
n
Selectable direction of rotation
n
Automatic shut-off at end position
Ordering Codes Control
Signals
Supply
Voltage
Connection
List
Price
Johnson Contr. Joventa
4 Nm Actuators
VA9104-IGA-1S
BAD1
ON/OFF or
Floating* 24Vac Cable
£137
VA9104-GGA-1S
BMD1.2
Proportional
£175
* With timeout
Supply Voltage - 24Vac, 50/60Hz
Control Signal - ON/OFF, Floating or Proportional 0(2)-10Vdc, 0(4)-20mA
Running Time - 72 sec.
Connection - PVC cable (1.2m)
Size - 67 x 140 x 71mm
Protection Class - IP42 (-1S types)
ACCESSORY
Ordering Code Description Price
M9000-525-5 Linkage kit for mounting VG1000 series ball valves £33
Supply Voltage - 24ac/dc, 230Vac, 50/60Hz Size - 180 x 100 x 67.5mm
Running Time - 30 sec. Protection Class - IP54
Auxiliary Switches - SPDT
(continued next page
(continued next column)
19
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
General Accessories
For VA9203 Series & VA9208 Series
Ordering Codes Description Price
M9000-200 Commissioning Tool - control signal to drive 24V on/off,
floating, proportional and/or resistive electric actuator £999
M9000-560 Ball Valve Linkage Kit for applying M9203 and M9208
series ctuators to VG1000 serives valves £18
M9000-561 Thermal Barrier extends M/VA9104, M/VA9203, and
M/VA9208 series actuators £23
M9000-341 Weathershield Kit for VG1000 ball valves of M/VA9104,
M/VA9203, and M/VA9208 actuators £324
M9000-607 Position indicator for VG1000 valve applications (5 off) £14
Note: Replacement parts are available. Please see data sheet.

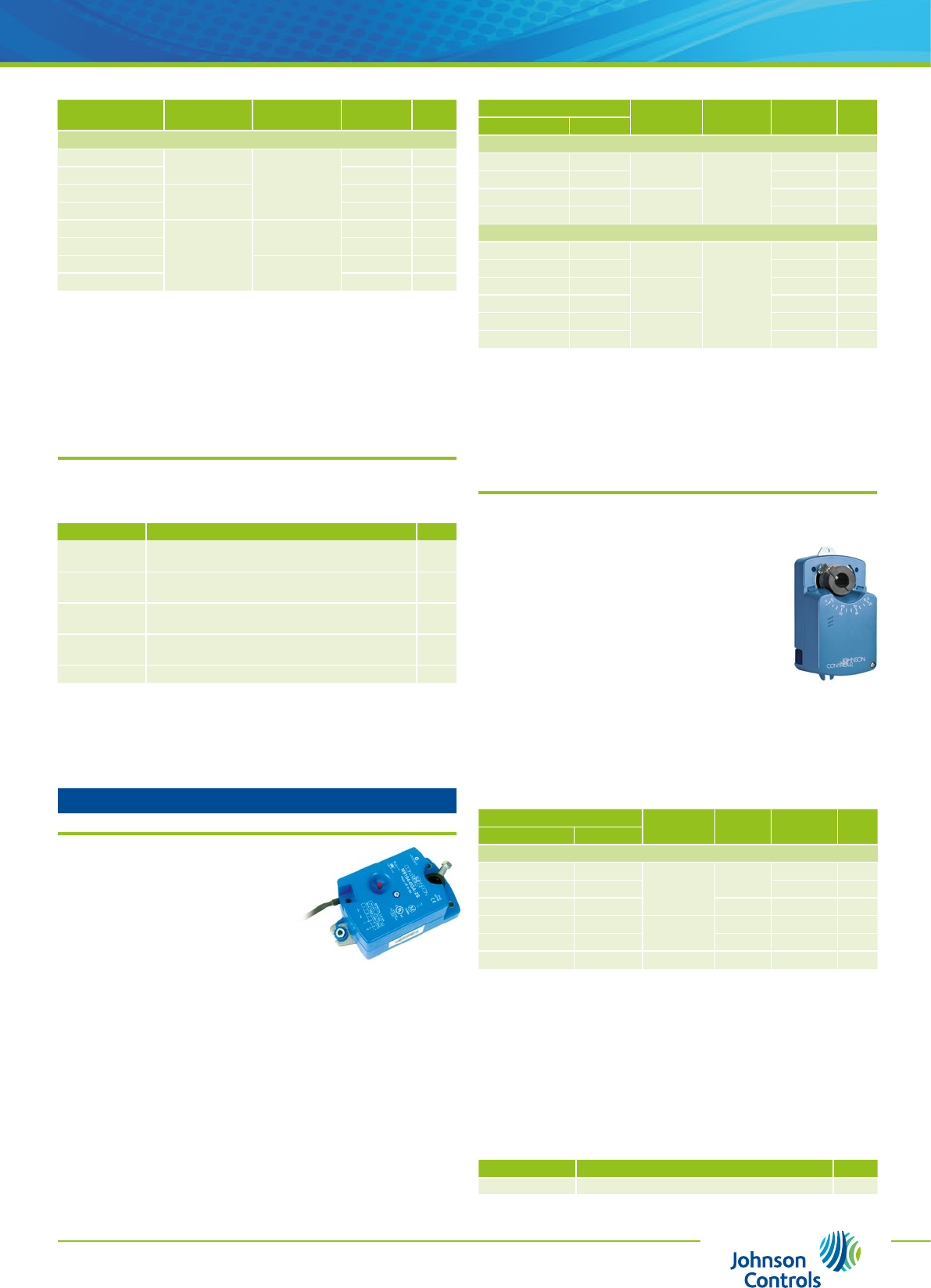

M910x-xGA-xS
Series
(Joventa DAB / DAD / DMD)
2 and 4 Nm, Non-Spring Return
ON/OFF, Floating or Proportional
Control
The ‘Small Family’ electric damper actuator series has been
developed to operate small air dampers in ventilation and
air-conditioning systems. The compact design make this actuator highly versatile.
FEATURES
n
Load-independent running time
n
Up to five actuators in parallel operation is possible
n
Actuators available with PVC cable or with plug-in terminal block connection
n
Simple direct mounting with universal adapter
n
Manual release button
Rotary Actuators - Silence and Small Family
M9304-xxx-1N
Series
(Joventa DAN / DAN2 / DMN)
4 Nm, Non-Spring Return
ON/OFF, Floating or Proportional Control
The ‘Silence Electric’ damper actuator series has been developed
to operate small and medium air dampers in ventilation and
air-conditioning systems. The compact design and universal
adapter fitted with limitation of rotation angle make this actuator
highly versatile.
A key feature of the design is the stem adapter which also
incorporates angle-of-rotation limiting and position indication.
FEATURES
n
Load-independent running time
n
Up to five actuators in parallel operation is possible
n
Simple direct mounting with universal adapter
n
Selectable direction of rotation and limitation of rotation angle
n
Manual release button
n
Automatic shut-off at end position (overload switch)
Ordering Codes Control
Signals
Supply
Voltage
2 x Aux.
Switches**
List
Price
Johnson Contr. Joventa*
4 Nm Actuators
M9304-AGA-1N DAN1N ON/OFF
or
Floating
24Vac/dc
- £132
M9304-AGC-1N DAN1.SN
n£158
M9304-ADA-1N DAN2N 230Vac
- £136
M9304-ADC-1N DAN2.SN ON/OFF or
Floating
230Vac
n£161
M9304-AKA-1N DAN5N 48Vdc
- £109
M9304-GGA-1N DMN1.2N Proportional 24Vac/dc
- £194
* Add ‘K’ after order code for Halogen free cable (1m)
** Adjustable auxiliary contacts
Supply Voltage - 24Vac/dc, 230Vac, 48Vac/dc, 50/60Hz
Control Signals - ON/OFF, Floating or Proportional 0-10Vdc
Running Time - 35 sec.
Universal Adapter - for 6-16mmØ or 8-10mm square shaft or with M9000-Z01DN
adapter kit for 8, 10, 11 and 12mm square shaft. Min. damper shaft length of 45mm.
Auxiliary Switches - 3(1.5)A, 230V 50/60Hz
Damper Size - 0.8 m2
Size - 85 x 65 x 166mm
Protection Class - IP42
ACCESSORY
Ordering Codes Description Price
M9000-Z01DN Adapter Kit for 8, 10, 11 and 12mm square shaft £66
Ordering Codes Control
Signals
Supply
Voltage
Connection
List
Price
Johnson Contr.
Joventa
2 Nm Actuators
M9102-AGA-1S DAB1.4 Floating
24Vac
Cable
£79
M9102-AGA-5S
DAB1.4C
Terminal
£69
M9102-IGA-1S
DAB1
ON/OFF or
Floating*
Cable
£86
M9102-IGA-5S
DAB1C
Terminal
£92
4 Nm Actuators
M9104-AGA-1S
DAD1.4
Floating
24Vac
Cable
£78
M9104-AGA-5S
DAD1.4C
Terminal
£74
M9104-IGA-1S
DAD1
ON/OFF or
Floating*
Cable
£86
M9104-IGA-5S
DAD1C
Terminal
£92
M9104-GGA-1S
DMD1.2
Proportional Cable
£148
M9104-GGA-5S
DMD1.2C
Terminal
£152
Supply Voltage - 24Vac, 50/60Hz * With timeout
Control Signals - ON/OFF, Floating and Proportional 0-10Vdc
Running Time - 36 sec. (2 Nm types), 72 sec. (4 Nm types)

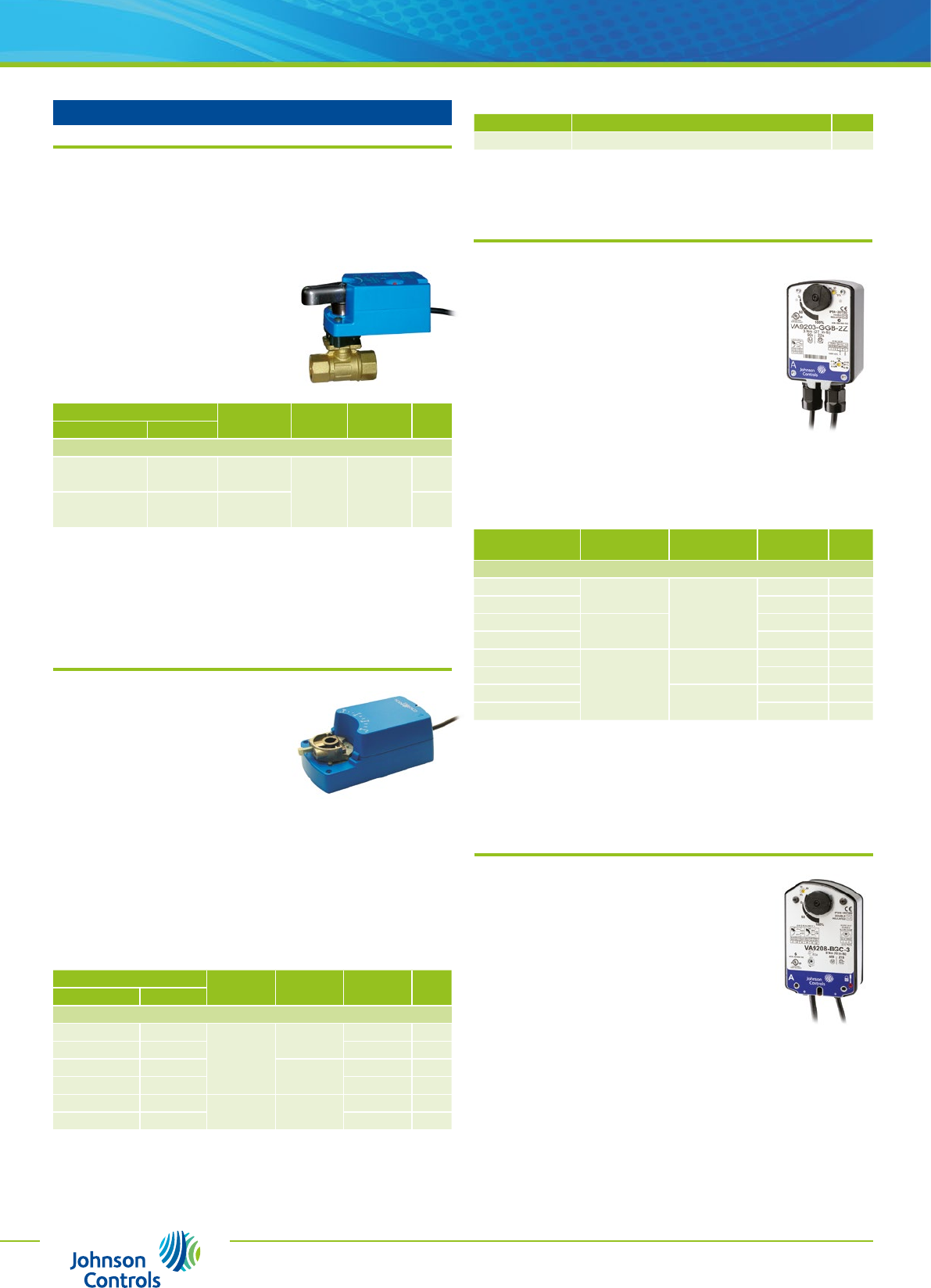

Universal Adapter - for 8-13mmØ or 8-10mm square shaft. 45mm min. shaft length
Damper Sizes - 0.4 m2 (2 Nm types), 0.8 m2 (4 Nm types)
Size - 71 x 52 x 131mm
Protection Class - IP42 (-1S types), IP40 (-5S types)
Ordering
Codes
Control
Signals
Supply
Voltage
2 x Aux.
Switches
List
Price
8 Nm Actuators
VA9208-GGA-1 Proportional
24Vac/dc
- £321
VA9208-GGC-1
n£364
VA9208-AGA-1 ON/OFF or
Floating
- £299
VA9208-AGC-1
n£342
VA9208-BGA-1
ON/OFF
24Vac/dc
- £233
VA9208-BGC-1
n£277
VA9208-BDA-1 100-240Vac
- £255
VA9208-BDC-1
n£299
Supply Voltage - 24Vac/dc, 120Vac, 240Vac, 50/60 Hz
Control Signals - ON/OFF, Floating or Proportional 0(2)-10V, 0(4)-20mA
Rotation Range - 95° max. full stroke (adjustable 35-95°)
Auxiliary Switch - 2 x SPDT 240Vac, 5A / 120Vac, 5.8A and 24Vac, 50VA
Size - 124 x 82 x 71mm
Protection Class - IP54
(continued next column)
20 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
VALVES AND ACTUATORS (cont)
Rotary Actuators - Spring Return Family
M9203-xxx-1x
Series
3 Nm, Spring Return
ON/OFF, Floating or Proportional Control
The M9203 series electric spring return actuators are direct-
mount actuators. These bi-directional actuators do not require a
damper linkage, and are easily installed on round shafts or square
shafts using the standard shaft clamp included with the actuator.
A single M9203 series electric spring return actuator provides 3
Nm running and spring return torque. An integral line voltage
auxiliary switch, available only on the M9203-xxB-1(Z) models,
indicates end-stop position, or performs switching functions within
the selected rotation range.
FEATURES
n Direct-coupled design n Double-insulated construction
n Reversible mounting n Optional integrated auxiliary switch
n Electric stall detection
M91xx-xxx-1N(1)
Series
(Joventa DAS-DMS / DA-DM / DAL-DML / DAG-DMG)
8, 16, 24 and 32 Nm, Non-Spring Return
ON/OFF, Floating or Proportional Control
The ‘Standard Electric’ actuators have been specially
designed for use with small and medium-sized air
dampers and for terminal control units.
The very small size and clever construction make them
ideal for applications where space is limited. A key
feature of the design is the special spindle adapter
which also incorporates angle-of-rotation limiting and
position indication.
FEATURES
n
Load independent running time
n
Paralleling of up to five actuators is possible
n
Simple direct-mount with universal adapter
n
Angle-of-rotation limiting and manual control
by pushbutton
n
Two auxiliary switches
Ordering Codes Control
Signals
Supply
Voltage
Feedback
Potentio.
2 x Aux.
Switches
List
Price
Johnson Contr. Joventa*
8 Nm Actuators
M9108-AGA-1N DAS1
ON/OFF
or
Floating
24V
ac/dc
-- £132
M9108-AGC-1N DAS1.S
n£202
M9108-AGE-1N DAS1.P1 1 kΩ
-
£211
M9108-AGD-1N DAS1.P2 140 Ω
£214
M9108-AGF-1N DAS1.P4 2 KΩ
£174
M9108-ADA-1N DAS2
230Vac
-£161
M9108-ADC-1N DAS2.S
n£202
M9108-ADE-1N DAS2.P1 1 KΩ
-
£174
M9108-ADD-1N DAS2.P2 140 Ω
£174
M9108-ADF-1N DAS2.P4 2 KΩ
£174
M9108-GGA-1N DMS1.1 Proport. 24V
ac/dc
-
- £176
M9108-GGC-1N DMS1.1S
n£215
M9108-GDA-1N DMS2.2 Proport.
0(2)-10Vdc 230Vac
- £239
M9108-GDC-1N DMS2.2S
n£257
M9108-GDA-1N1 DMS2.5 Proport.
0(4)-20mA
- £239
M9108-GDC-1N1 DMS2.5S
n£257
16 Nm Actuators
M9116-AGA-1N DA1
ON/OFF
or
Floating
24V
ac/dc
-- £153
M9116-AGC-1N DA1.S
n£176
M9116-AGE-1N DA1.P1 1 kΩ
-
£225
M9116-AGD-1N DA1.P2 140 Ω
£228
M9116-AGF-1N DA1.P4 2 KΩ
£228
M9116-ADA-1N DA2
230V
- £168
M9116-ADC-1N DA2.S
-n£208
M9116-ADE-1N DA2.P1 1 kΩ
-
£234
M9116-ADD-1N DA2.P2 140 Ω
£203
M9116-ADF-1N DA2.P4 2 KΩ
£238
M9116-GGA-1N DM1.1 Proport. 24V
ac/dc
-- £223
M9116-GGC-1N DM1.1S
n£254
M9116-GDA-1N DM2.2 Proport.
0(2)-10Vdc 230Vac
-
- £244
M9116-GDC-1N DM2.2S
n£280
M9116-GDA-1N1 DM2.5 Proport.
0(4)-20mA
- £244
M9116-GDC-1N1 DM2.5S
n£280
Rotary Actuators - Standard Family
Ordering Codes Control
Signals
Supply
Voltage
Feedback
Potentio.
2 x Aux.
Switches
List
Price
Johnson Contr. Joventa*
24 Nm Actuators
M9124-AGA-1N DAL1
ON/OFF
or
Floating
24V
ac/dc
-- £293
M9124-AGC-1N DAL1.S
n£331
M9124-AGE-1N DAL1.P1 1 kΩ
- £354
M9124-AGD-1N DAL1.P2 140 Ω
-
£354
M9124-AGF-1N DAL1.P4 2 KΩ
£354
M9124-ADA-1N DAL2
230Vac
-£303
M9124-ADC-1N DAL2.S
n£344
M9124-ADE-1N DAL2.P1 1 KΩ
-
£364
M9124-ADD-1N DAL2.P2 140 Ω
£364
M9124-ADF-1N DAL2.P4 2 KΩ
£364
M9124-GGA-1N DML1.1 Proport. 24V
ac/dc
-
- £310
M9124-GGC-1N DML1.1S
n£346
M9124-GDA-1N DML2.2 Proport.
0(2)-10Vdc
- £318
M9124-GDC-1N DML2.2S
230Vac
n£351
M9124-GDA-1N1 DML2.5 Proport.
0(4)-20mA
- £318
M9124-GDC-1N1 DML2.5S
n£351
32 Nm Actuators
M9132-AGA-1N DAG1
ON/OFF
or
Floating
24V
ac/dc
-- £258
M9132-AGC-1N DAG1.S
n£271
M9132-AGE-1N DAG1.P1 1 kΩ
-
£354
M9132-AGD-1N DAG1.P2 140 Ω
£354
M9132-AGF-1N DAG1.P4 2 KΩ
£354
M9132-ADA-1N DAG2
230Vac
-£354
M9132-ADC-1N DAG2.S
n£277
M9132-ADE-1N DAG2.P1 1 KΩ
-
£364
M9132-ADD-1N DAG2.P2 140 Ω
£364
M9132-ADF-1N DAG2.P4 2 KΩ
£364
M9132-GGA-1N DMG1.1 Proport.
**
24V
ac/dc
-- £355
M9132-GGC-1N DMG1.1S
n£378
* Add ‘K’ after code for Halogen free cable (1m)
Control Signals - ON/OFF, Floating or Proportional 0(2)-10Vdc, 0(4)-20mA
Running Time - 30 sec. (8 Nm types), 80 sec. (16 Nm types), 125 sec. (24 Nm types),
140 sec. and 200 sec.** (32 Nm types)
Auxiliary Switch - 3(1.5)A, 230V 50/60Hz
Universal Adapter - for 10-20mmØ or 10-16mm square spindle. Min. damper shaft
length of 45mm.
Damper Size - 1.5m2 (8 Nm types), 3m2 (16 Nm types),
4.5m2 (24 Nm types), 6m2 (32 Nm types)
Connections - Terminal screw
Size - 68 x 100 x 180mm
Protection Class - IP54
(continued next column)
(continued next page)
21
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525

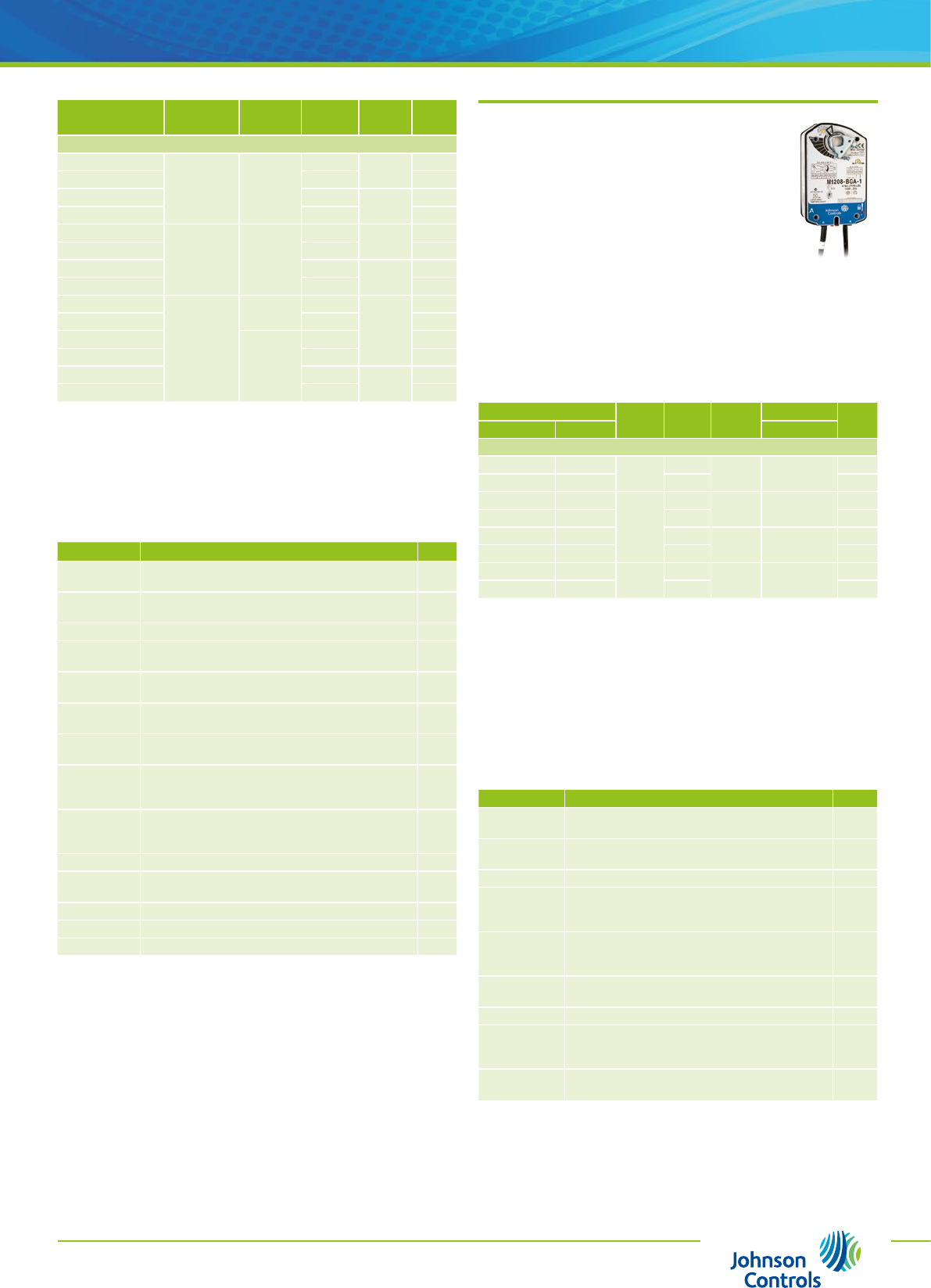

For further information and additional models
please refer to the product data sheet.
M9208-xxx-1
Series
(Joventa DBF1.08 / DAFx.08 / DMF1.08)
8 Nm, Spring Return
ON/OFF, Floating or Proportional Control
This new range of electric damper-actuators has been specially
developed for the motorised operation of air dampers in
air-conditioning systems.
Manual operation is automatically cancelled when the actuator is in
electrical operation. The compact design and universal adapter, fitted
with limitation of rotation angle, makes this actuator highly versatile.
FEATURES
n Up to five actuators in parallel operation is possible
n Electrical connection with halogen-free cable
n Simple direct mounting with universal adapter
n Limitation of rotation angle
n Manual positioning with crank handle
n Two auxiliary switches (one adjustable) with ‘Gold Flash’ contacts
Ordering
Codes
Control
Signals
Supply
Voltage
1 x Aux.
Switch
Running
Time
List
Price
3 Nm Actuators
M9203-GGA-1Z
Proportional 24Vac/dc
-
90 sec
£247
M9203-GGB-1Z
n£286
M9203-GGA-1
-
150 sec
£239
M9203-GGB-1
n£277
M9203-AGA-1Z
ON/OFF or
Floating 24Vac/dc
-
90 sec
£217
M9203-AGB-1Z
n£265
M9203-AGA-1
-
150 sec
£209
M9203-AGB-1
n£256
M9203-BGA-1
ON/OFF
24Vac/dc
-
60 sec
£149
M9203-BGB-1
n£205
M9203-BUA-1
100-
240Vac
- £166
M9203-BUB-1
n£213
M9203-BUA-1Z
-
27 sec
£175
M9203-BUB-1Z
n£222
Supply Voltage - 24Vac/dc, 100-240Vac, 50/60 Hz
Control Signals - ON/OFF, Floating or Proportional 0(2)-10V, 0(4)-20mA
Rotation Range - 95° max. full stroke (adjustable 35-95°)
Universal Adapter - 6-12mm Ø round shafts or 6-8mm square shafts.
Auxiliary Switch - 1 x SPDT 240Vac,5A / 120Vac, 5.8A and 24Vac, 50VA
Size - 162 x 82 x 58mm
Protection Class - IP54
ACCESSORIES AND REPLACEMENT PARTS
Order. Codes Description Price
DMPR-KC003* 178mm Blade Pin Extension (without bracket) for direct
mount damper applications POA
M9000-158 Tandem Mounting Kit - to mount two models of
M9220-xxx-3 series actuators £74
M9000-153 Crank Arm £1
M9000-170 Remote Mounting Kit, Horizontal - includes mounting
bracket, M9000-153 crank arm, ball joint and mounting bolts £79
M9000-171
Remote Mounting Kit, Vertical - includes mounting bracket,
M9000-153 crank arm, ball joint and mounting bolts
£79
M9000-200 Commissioning Tool - provides control signal to drive 24V
floating, floating, proportional and/or resistive electric actuators £999
M9000-604 Anti-rotation Bracket Kit (with screws) - for M9220-xxx-3
series actuators £17
M9220-600
25mm Jackshaft Coupler Kit (with locking clip) - for
mounting M9220-xxx-3 series actuators on to dampers
with 19-27mmØ, or 16, 18 and 19mm square shafts
£13
M9220-601
Replacement Coupler Kit (with locking clip) - for mounting
M9220-xxx-3 series actuators on to dampers with
12-19mmØ, or 10, 12 and 14mm square shafts
£15
M9220-602 Locking Clips for M9220-xxx-3 series actuators (5 per bag) £8
M9220-603 Adjustable Stop Kit - for M9220-xxx-3 series spring
return actuators £12
M9220-610 Shaft Gripper - 10mm square shaft with locking clip £10
M9220-612 Shaft Gripper - 12mm square shaft with locking clip £9
M9220-614 Shaft Gripper - 14mm square shaft with locking clip £10
* Furnished with the damper and may be ordered separately.
Ordering Codes Control
Signals
2 x Aux.*
Switches
Supply
Voltage
Running Time List
Price
Johnson Contr. Joventa Motor (Spring)
8 Nm Actuators
M9208-AGA-1 DBF1.08N ON/OFF or
Floating
-
24Vac/dc 150s
(17-25s)
£300
M9208-AGC-1 DBF1.08SN
n£345
M9208-BGA-1 DAF1.08N
ON/OFF
-
24Vac/dc 55-71s
(13-26s)
£230
M9208-BGC-1 DAF1.08SN
n£277
M9208-BDA-1 DAF2.08N
-
230Vac 55-71s
(13-26s)
£254
M9208-BDC-1 DAF2.08SN
n£300
M9208-GGA-1 DMF1.08N Proport.
**
-
24Vac/dc 150s
(17-25s)
£322
M9208-GGC-1 DMF1.08SN
n£368
* Includes one adjustable auxiliary switch
** Direct or reverse action with signal increase (switch selectable)
Supply Voltage - 24Vac/dc, 230Vac, 50/60 Hz
Control Signals - ON/OFF, Floating or Proportional 0(2)-10V, 0(4)-20mA
Rotation Range - 95° max. full stroke (adjustable 35-95°)
Universal Adapter - 8-16mm Ø round shafts or 6-12mm square shafts.
Optional
‘Jackshaft Coupler Kit’ (M9208-600) for 12-19mmØ or 10-14mm square shafts
Auxiliary Switches - 2 x SPDT 240Vac, 5A and 24Vac, 50VA
Size - 161 x 99 x 58mm
Protection Class - IP54
ACCESSORIES AND REPLACEMENT PARTS
Order. Codes Description Price
M9000-604 Replacement Anti-Rotation Bracket Kit for M9208,
M9210 and M9220 series actuators £18
M9208-100 Remote Mounting Kit, including mounting bracket,
M9208-150 crankarm, ball joint and mounting fastener £26
M9208-150 Crankarm £26
M9208-600
Large Shaft Coupler Kit (with locking clip) for mounting
M9208-xxx-1 series actuators on dampers with 12-
19mmØ or 10-14mm square shafts
£26
M9208-601
Replacement Standard Coupler Kit (with locking clip)
for mounting M9208-xxx-1 series on dampers with
8-16mmØ or 6-12mm square shafts
£26
M9208-602 Replacement Locking Clips for M9208-xxx-1 series
actuators (quantity 5) £26
M9208-603 Adjustable Stop Kit for M9208-xxx-1 series actuators £26
M9208-604
Replacement Manual Override Cranks for M9208
series electric actuators with long crank radius: 72mm
(quantity 5)
£26
M9208-605 Replacement Manual Override Cranks for M9208 series
actuators with short crank radius: 46.5mm (quantity 5) £26
22 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

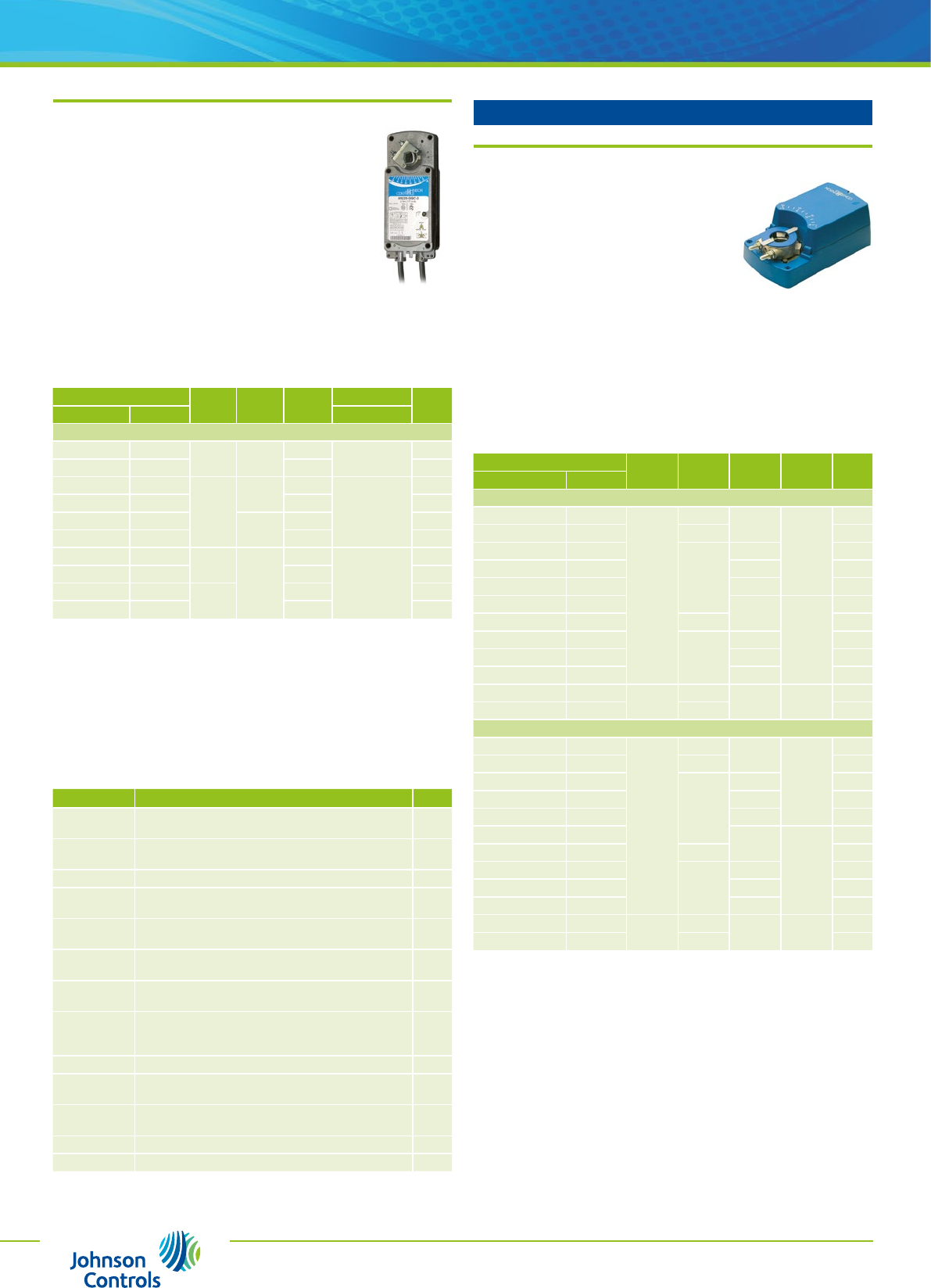

VALVES AND ACTUATORS (cont)
M91xx-xxx-1N4
Series
(Joventa SAx.1xxx / SM1.1x)
8 and 16 Nm, Fast Running Time
ON/OFF, Floating or Proportional
The ‘Special Electric’ actuators have been specially
designed for use with small and medium-sized air
dampers and for terminal control units in air volume
control systems.
The very small size and clever construction make these ideal for applications where
space is limited. A key feature of the design is the special spindle adapter which also
incorporates angle-of-rotation limiting and position indication.
FEATURES
n
Paralleling of up to five actuators is possible
n
Angle-of-rotation limiting
n
Universal adapter
n
Manual control by pushbutton
n
Choice of rotation
Ordering Codes Control
Signals
2 x Aux.
Switches
Feedback
Potentio.
Supply
Voltage
List
Price
Johnson Contr. Joventa*
8 Nm Actuators
M9108-AGA-1N4 SA1.12
ON/OFF
or
Floating
--
24V
ac/dc
£211
M9108-AGC-1N4 SA1.12S
n£249
M9108-AGE-1N4 SA1.12P1
-
1 kΩ
£265
M9108-AGD-1N4 SA1.12P2 140 Ω
£265
M9108-AGF-1N4 SA1.12P4 2 KΩ
£265
M9108-ADA-1N4 SA2.12
-
230Vac
£226
M9108-ADC-1N4 SA2.12S
n£281
M9108-ADE-1N4 SA2.12P1
-
1 kΩ
£281
M9108-ADD-1N4 SA2.12P2 140 Ω
£281
M9108-ADF-1N4 SA2.12P4 2 kΩ
£281
M9108-GGA-1N4 SM1.12 Proport.
--
24V
ac/dc
£301
M9108-GGC-1N4 SM1.12S
n£340
16 Nm Actuators
M9116-AGA-1N4 SA1.10
ON/OFF
or
Floating
--
24V
ac/dc
£211
M9116-AGC-1N4 SA1.10S
n£229
M9116-AGE-1N4 SA1.10P1
-
1 kΩ
£265
M9116-AGD-1N4 SA1.10P2 140 Ω
£265
M9116-AGF-1N4 SA1.10P4 2 KΩ
£265
M9116-ADA-1N4 SA2.10
-
230Vac
£226
M9116-ADC-1N4 SA2.10S
n£281
M9116-ADE-1N4 SA2.10P1
-
1 kΩ
£281
M9116-ADD-1N4 SA2.10P2 140 Ω
£281
M9116-ADF-1N4 SA2.10P4 2 KΩ
£281
M9116-GGA-1N4 SM1.10 Proport.
--
24V
ac/dc
£301
M9116-GGC-1N4 SM1.10S
n£359
*Add ‘K’ after order code for Halogen free cable (1m)
Supply Voltage - 24Vac/dc, 230Vac, 50/60Hz
Control Signals - ON/OFF, Floating or Proportional 0(2)-10Vdc, 0(4)-20mA
Running Time - 8 sec. (8 Nm types), 16 sec. (16 Nm types)
Auxiliary Switches - 3(1.5)A, 230V 50/60Hz
Universal Adapter - 10-20mm Ø shafts or 10-16mm square shafts with
Z01DN- adapter. Minimum shaft length 48mm.
Connections - Screw terminal
Damper Size - 1.5m2 (8 Nm types), 3.0m2 (16 Nm types)
Size - 195 x 100 x 68mm
Protection Class - IP54
Rotary Actuators - Special and Security
M92x0-xxx-1
Series
(Joventa DAFx.10 / DBF1.10 / DMF1.10)
20 Nm, Spring Return
ON/OFF, Floating or Proportional Control
These actuators are direct mount, spring return, providing reliable
control of dampers and valves. These bi-directional actuators do
not require a damper linkage and are easily installed on dampers.
FEATURES
n
Two or three models mounted in tandem deliver twice or
n
triple the torque
n
Up to five actuators in parallel operation is possible
n
Optional adjustable end stops.
n
Integrated cables halogen-free cables
n
Rated aluminium enclosure
n
Easy-to-use locking manual override with auto release and crank storage
n
Two Integral ‘Gold’ auxiliary switches (xxC models)
Ordering Codes Control
Signals
Supply
Voltage
2 x Aux.
Switches
Running Time List
Price
Johnson Contr. Joventa* Motor (Spring)
20 Nm Actuators
M9220-AGA-1 DBF1.20 ON/OFF or
Floating
24V
ac/dc
-
150s
(20s)
£356
M9220-AGC-1 DBF1.20S
n£408
M9220-BDA-1 DAF2.20
ON/OFF
230Vac
-
25-57s
(11-15s)
£319
M9220-BDC-1 DAF2.20S
n£376
M9220-BGA-1 DAF1.20 24V
ac/dc
- £286
M9220-BGC-1 DAF1.20S
n£341
M9220-GGA-1 DMF1.20 Proport.
24V
ac/dc
-
150s
(26s)
£366
M9220-GGC-1 DMF1.20S
n£406
M9220-HGA-1 DHF1.20 Proport.
**
- £376
M9220-HGC-1 DHF1.20S
n£406
* Add ‘K’ after order code for Halogen free cable (1m)
** With span offset
Supply Voltage - 24Vac/dc, 230Vac, 50/60Hz
Control Signals - ON/OFF, Floating or Proportional 0(2)-10Vdc
Auxiliary Switches - 3(1.5)A, 230V 50/60Hz
Damper Size - 2.0m2 (All 10Nm types and 20Nm - ON/OFF or Floating types),
4.0m2 (20Nm - ON/OFF and Proportional types)
Size - 262 x 102 x 84mm
Protection Class - IP54 (NEMA2)
ACCESSORIES AND REPLACEMENT PARTS
Order. Codes Description Price
DMPR-KC003* 178mm Blade Pin Extension (without bracket) for direct
mount damper applications POA
M9000-158 Tandem Mounting Kit - to mount two models of
M9220-xxx-3 series actuators £74
M9000-153 Crank Arm £1
M9000-170 Remote Mounting Kit, Horizontal - includes mounting
bracket, M9000-153 crank arm, ball joint and mounting bolts £79
M9000-171
Remote Mounting Kit, Vertical - includes mounting bracket,
M9000-153 crank arm, ball joint and mounting bolts
£79
M9000-200 Commissioning Tool - provides control signal to drive 24V
floating, floating, proportional and/or resistive electric actuators £999
M9000-604 Anti-rotation Bracket Kit (with screws) - for M9220-xxx-3
series actuators £17
M9220-600
25mm Jackshaft Coupler Kit (with locking clip) - for
mounting M9220-xxx-3 series actuators on to dampers
with 19-27mmØ, or 16, 18 and 19mm square shafts
£13
M9220-602 Locking Clips for M9220-xxx-3 series actuators (5 per bag) £8
M9220-603 Adjustable Stop Kit - for M9220-xxx-3 series spring
return actuators £12
M9220-605 Ball Joint for M8x1.25 threaded rod, M8x1.25 x 16.5mm
thread mount £42
M9220-610 Shaft Gripper - 10mm square shaft with locking clip £10
M9220-612 Shaft Gripper - 12mm square shaft with locking clip £9
* Furnished with the damper and may be ordered separately.
Note: Replacement parts are available. Please see data sheet.
23
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

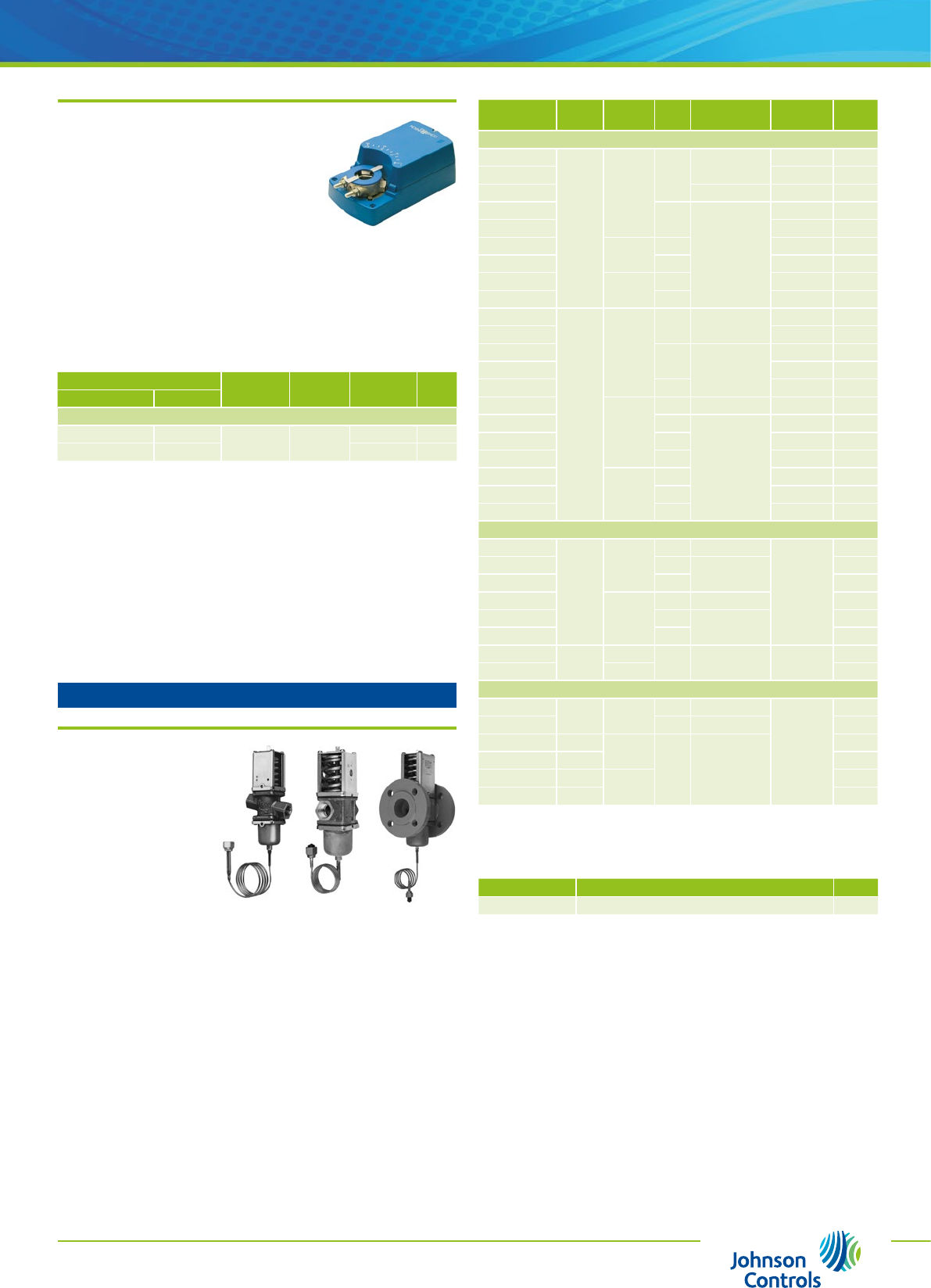

M91xx-GAx-1.01
Series
(Joventa SMxx.5)
8 Nm, Proportional Control
(110Vac supply)
The ‘Special Electric’ actuators have been specially
designed for use with medium and large air dampers.
The very small size and clever construction make them ideal for
applications where space is limited. A key feature of the design is the special spindle
adapter which also incorporates angle-of-rotation limiting and position indication.
FEATURES
n
Paralleling of up to five actuators is possible
n
Universal adapter
n
Choice of rotation and angle-of-rotation limiting
n
Manual control by pushbutton
n
Two floating auxiliary switches
Ordering Codes Control
Signal
Supply
Voltage
2 x Aux.
Switches
List
Price
Johnson Contr. Joventa*
8 Nm Actuators
M9108-GAA-1.01 SMS4.5 Proportional 110Vac
- £266
M9108-GAC-1.01 SMS4.5S
n£336
* Add ‘K’ after order code for Halogen free cable (1m)
Note: 16 and 24Nm actuators are available on request.
Supply Voltage - 110Vac, 50/60Hz
Control Signal - Proportional 0(4)-20mA
Auxiliary Switch - 3(1.5)A, 230V 50/60Hz
Running Time - 30-45 sec.
Universal Adapter - 10-20mm Ø shafts and 10-16mm
square shafts. Minimum shaft length 48mm.
Damper Size - 1.5m2
Connection - Screw terminal
Size - 195 x 100 x 68mm
Protection Class - IP54
Modulating Water Valves
Ordering
Codes
Range
(bar)
Thread
Size
†
Style
Capillary
Length (mm)
Notes
List
Price
Angled Style - Screwed (ISO 228)
V46AA-9600
5-18
3/8”
13 75
-
£116
V46AA-9608* A£147
V46AA-9602* 100 B, C £151
V46AA-9950 34
75
B, D £139
V46AA-9951* E, D £117
V46AB-9600 1/2” 13
-
£122
V46AB-9950 34 D, F £130
V46AC-9600 3/4” 13
-
£190
V46AC-9951 34 D £185
V46AA-9300
5-23
3/8”
5
--
£137
V46AA-9301* B, G, A £109
V46AA-9606 13 75
B,G £154
V46AA-9609* B, G, A £147
V46AA-9510 50 G £139
V46AB-9300
1/2”
5
- -
£144
V46AB-9605 13
75
B, G £136
V46AB-9951 34 D, G £162
V46AB-9510 50 G £144
V46AC-9300
3/4”
5
-
£185
V46AC-9605 13 B, G £164
V46AC-9510 50 G £142
Straight Style - Screwed (ISO 7-RC)
V46AD-9300
5-18
1”
5
-
-
£344
V46AD-9510 50 75 £410
V46AD-9600 13 £418
V46AE-9300
1 1/4”
5
-
£458
V46AE-9510 50 75 £469
V46AE-9600 13 £476
V46AD-9511 10-23 1” 50 75 G £475
V46AE-9512 1 1/4” £438
Straight Style - Flanged (DIN 2533)
V46AR-9300 5-18 1 1/2” 5
-
-
£552
V46AR-9600 13 75 £573
V46AS-9300 5-11.5 2”
5
-
£1,017
V46AS-9301 11-18 £1,036
V46AT-9300 5-11.5 2 1/2” £1,435
V46AT-9301 11-18 £1,435
† See page 49 for ‘Style’ references
* Bulk packs on request
ACCESSORY
Ordering Code Description Price
KIT031N600 Kit for changing Style 13 into Style 45A £105
Notes:
A = With special washer to prevent waterhammer at low flow capacity
B = Nickel plated seat
C = Longer capillary
D = Solder connection
E = 0.040” i.d.cap.
F = 0.062” i.d.cap. MARITIME versions and other specifications
G = High Range are available on request.
H = For ammonia applications Please contact the Sales Support Team.
Angled Style
(Screwed)
Straight Style
(Flanged)
Straight Style
(Screwed)
V46 Series
Two-way, Pressure
Actuated
These pressure actuated
modulating valves control the
quantity of water to a condenser
by directly sensing pressure
changes in a refrigerant circuit.
The valves can be used in non-
corrosive refrigerant systems.
Ammonia power elements and
valves designed for salt-water
applications are available. They
also have a quick opening characteristic and open on pressure increase (direct acting).
Reverse acting (close on pressure increase) is possible.
FEATURES
n
Pressure balanced valve design
n
High refrigerant pressure resistant bellows
n
3/8, 1/2, 3/4” are angled body type valves with high Kv value
n
3/8” up to 2” pressure valves ‘all range’ types
n
Quick opening valve characteristics
n
No close fitting or sliding parts in water passages
n
Easy to disassemble. All parts can be replaced
n
Special bronze bodies and monel parts
n
Power elements with stainless steel bellows available
n
Nickel plated seats available for 3/8, 1/2, and 3/4” valves
n
Direct/reverse action
(continued next column)
24 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
Gas Valves
Screwed
Types
Flanged
Types
GH-5000 Series
Electro-Hydraulic Actuator Gas Valves
These sturdy and reliable, single seat valves are
fast closing and slow opening. Valves are
normally closed (NC). EC type-tested and
certified as safety shut-off valve
Class A (EN 161).
APPLICATIONS
Typical applications include commercial and
industrial boilers, burners, ovens, rooftop
units, make up air heaters, hot water heaters,
kilns, and paint booths.
Ordering
Codes
Size
Max. Operating
Pressure (mbar)
Opening
Time Stroke
List
Price
Flanged Connections with Closed Position Indicator
GH-5229-2610 2” 1,000 ≤8 sec. 22mm
£999
GH-5629-3611 2 1/2”
£1,649
GH-5629-4611 3” 800
£1,688
GH-5729-5610 4”
≤13 sec. 36mm
£2,107
GH-5729-6610 5” 650
£2,330
GH-5729-7610 6” 350
£2,954
Screwed Connections with Closed Position Indicator
GH-5119-5610 1 1/2” 800
≤13 sec. 36mm
£1,203
GH-5219-6610 2” 650
£1,051
GH-5619-7611 2 1/2” 350
£1,472
Power Supply - 230Vac, 50/60Hz
Compression Fitting - EN 50262
Media - Gas families to DVGW - G 260/I 1, 2 and 3. Gas family.
Protection Class - IP54 (NEMA 1)
Angled Style
(Screwed)
Straight Style
(Screwed)
Straight Style
(Flanged)
V47 Series
Temperature Actuated
These modulating water valves can be used for heating applications. It does have a
heating element which means that the bulb temperature always must be higher than
the valve body (power element).
The valve opens at increasing bulb temperature. The bulb must be mounted pointing
downwards up to horizontal.
FEATURES
n
Pressure balanced valve design
n
3/8”, 1/2”, 3/4” are angled body type valves with high Kv value
n
Quick opening valve characteristics
n
No close fitting or sliding parts in water passages
n
Easy to disassemble. All parts can be replaced
n
Special bronze bodies
Ordering
Codes
Range
(˚C)
Thread
Size
Capillary
Length
Bulb Style †
(Length)
List
Price
Angled Valves - Screwed (ISO 228)
V47AA-9161 46-82 3/8”
1.8 m plain Style 4 (82mm)
£292
V47AB-9160 24-57 1/2” £358
V47AC-9160 3/4” £400
Straight Valves - Screwed (ISO 7-RC)
V47AD-9160 24-57 1” 1.8 m
armoured Style 4 (152mm)
£530
V47AD-9161 46-82 £422
V47AE-9160 24-57 1 1/4” £647
V47AE-9161 46-82 £778
Straight Valves - Flanged (DIN 2533)
V47AR-9160 24-57 1 1/2” 1.8 m
armoured Style 4 (152mm) £809
V47AR-9161 46-82 £809
† See page 49 for ‘Style’ references
Ordering
Codes
Thread
Size
Range
(bar)
†
Style
Capillary
Length (mm)
Notes
List
Price
Straight Valves - Screwed (ISO 228)
V48AB-9510 1/2” 4-20 50
750
-
£311
V48AB-9600 4-16 13 £311
V48AC-9510 3/4” 4-20 50 £352
V48AC-9600 4-16 13 £356
Straight Valves - Screwed (ISO 7-RC)
V48AD-9510
1”
6-20 50
750
-
£921
V48AD-9600 4-16 13 £721
V48AD-9602 A£721
V48AE-9510 1 1/4” 6-20 50
-
£962
V48AE-9600 4-16 13 £755
Maritime Type (ISO 228)
V48BC-9600 3/4” 4-16 13 750 B £910
Commercial Type (ISO 228)
V48AF-9300 1 1/2” 6-14 5
-
C£1,021
† See page 49 for ‘Style’ references
Notes:
A = Bodies in-line (port 3 below port 2)
B = Seawater resistant
C = Commercial type
V48 Series
Three-way, Pressure Actuated
These water valves are especially designed for condensing units
cooled either by atmospheric or forced draft cooling towers. They
may be used on single, or multiple condenser hook-ups to the
tower. The valve senses the compressor head pressure and allows
cooling water to flow to the condenser, by-pass the condenser, or
to allow waterflow to both condenser and by-pass line in order to
maintain correct refrigerant head pressure.
A further advantage of this system is that the 3-way permits a
continuous water flow to the tower so the can operate efficiently
with a minimum of maintenance nozzles and wetting surfaces.
The valves can be used in non-corrosive refrigerant systems.
Ammonia power elements and valves designed salt-water
applications are available. The valves have a quick opening
characteristic.
FEATURES
n
Pressure balanced design
n
Free movement of all parts
n
Easy manual flushing
n
High Kv values
n
Pressure actuated
n
Can be used as mixing or diverting valve
VALVES AND ACTUATORS (cont)
(continued next column)
25
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

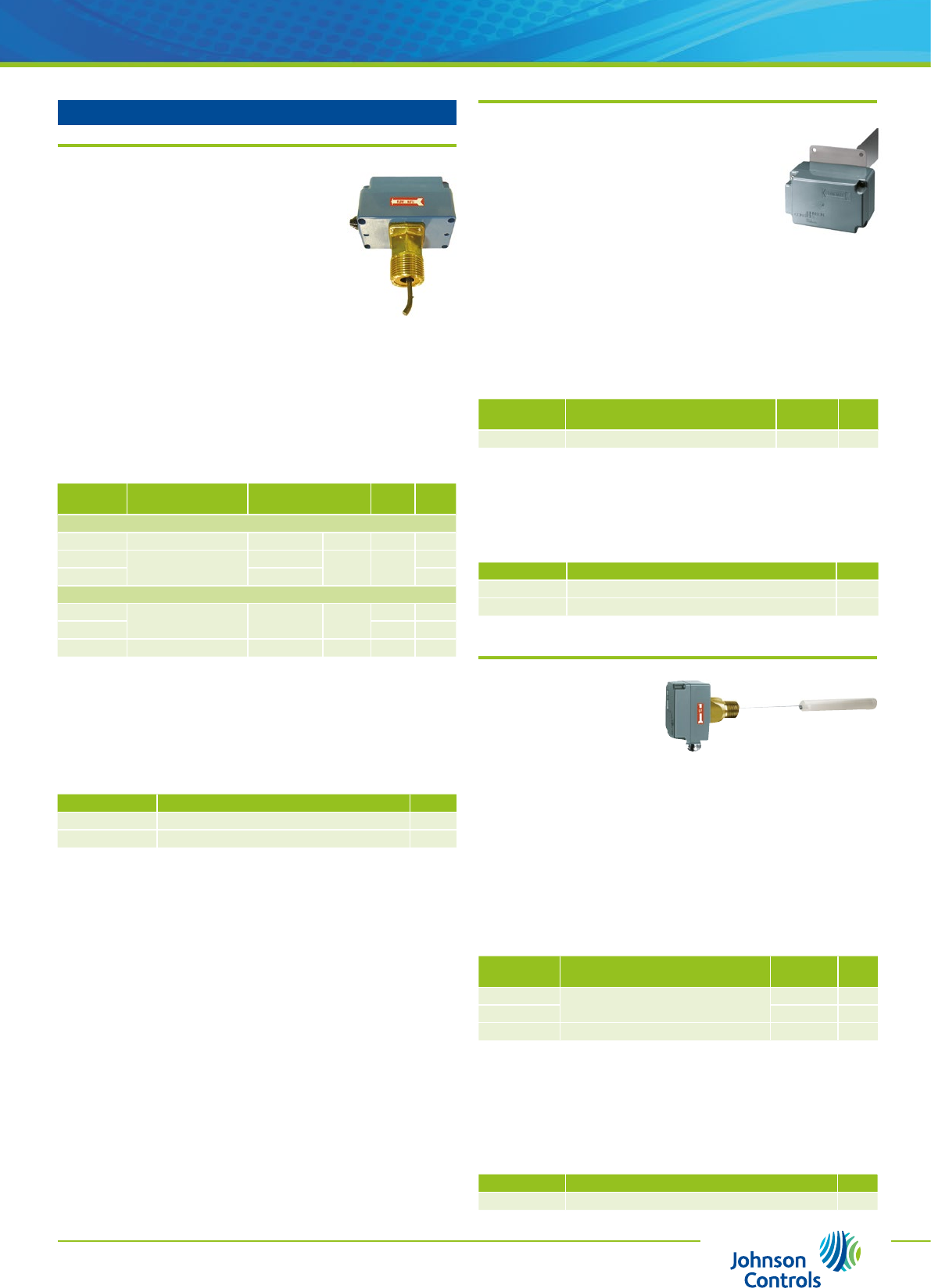

F61 Series
Flow Switches for Liquid
These switches can be used in liquid lines carrying water,
sea water, swimming pool water, ethylene glycol or other
liquids not harmful to the specified materials.
The SPDT contacts can be wired to energise one device
and de-energise another when liquid flow either exceeds
or drops below the set flow rate. Pipe insert models and the
T-body types for low-flow applications are available.
Typical applications: to shut down the compressor on liquid
chiller systems, to prove flow on electric immersion heaters and to
give a signal or alarm when the pump on condenser cooling system shuts down.
FEATURES
n
T-body and pipe-insert types
n
Vapour tight IP67 enclosures
n
Stainless steel pipe-insert type
n
Large wiring space
n
Range screw easy accessible
Note: DM³/s = Decimeter/p same as l/s
Ordering
Codes
Range (bar)
Connection
Notes
List
Price
IP43 Types
F61SB-9100 0.15-46 l/s R1” DIN2999 (ISO R7) A £189
F61SD-9150 0.04-0.07 l/s 1/2 -14 NPTF T-body
-
£185
F61SD-9175 3/4 -14 NPTF £189
IP67 Types
F61TB-9100 0.15-46 l/s R1” DIN2999 (ISO R7) B£226
F61TB-9200 C£477
F61TD-9150 0.04-0.07 dm³/s 1/2 -14 NPTF T-body
-
£221
Notes:
A = Includes three paddles 1”, 2”, 3” stainless steel AISI 301
B = Includes four paddles, 1”, 2”, 3” and 6” stainless steel AISI 301
C = Stainless steel body, bellows, rod with three st.st. AISI 304 paddles 1”, 2”, 3”
Switch Action - SPDT, 15(8)a, 230Vac (220Vac on IP67 types)
Size - 100 x 60 x 90mm
Protection Class - As table
ACCESSORIES
Ordering Codes Description Price
PLT69-11R 6” Stainless steel AISI 301 paddle £2
KIT21A602 Four paddles 1”, 2”, 3” and 6” St.St. AISI 301 £12
F63 Series
Liquid Level Float Switches
These switches can be used in open
or closed tanks where a desired
liquid level has to be maintained and
installations handling water, swimming
pool water, sea water, brine, ethylene glycol or
other liquids not harmful to the specified materials.
The SPDT contacts can be wired to close one circuit and open a second circuit when
the liquid level rises above or falls below the required level. The switch maintains the
liquid level within (approx.) 13mm.
There are three different types available. These float switches should not be used for
liquids lighter than water (density less than 0.95 kg/dm3).
FEATURES
n
Solid polycarbonate float
n
Vapour tight IP67 enclosure
n
Convenient wiring terminals
Ordering
Codes
Connection
Notes
List
Price
F63BT-9101 1-11 1/2 NPT A£268
F63BT-9102 B£295
F63BT-9200 R1” DIN2999 (ISO R7) C £578
Notes:
A = Plastic float, brass body, phosphor bronze bellows (used with non corrosive liquid)
B = Plastic float, stainless steel bellows (for water with high calcium content)
C = Plastic float, stainless steel body, rod, bellows (AISI 316L version)
Switch Action - SPDT, 15(8)A, 230Vac
Size - 100 x 60 x 61mm (head), 215-225mm (float length)
Protection Class - IP67
ACCESSORY
Ordering Codes Description Price
FLT001N001R Plastic Float £52
F62 Series
Air Flow Switch
The F62 switch detects air flow, or the absence of air flow,
by responding only to the velocity of air movement within a
duct. The control can be wired to open one circuit and close a
second circuit (SPDT) for either signaling or interlock purposes.
Failure of air flow during normal operation of air handling
systems may cause over-heating, coil icing and other conditions
that may be detrimental
to the equipment.
Typical applications include: Make-up air systems, air-cooling
or heating processes and exhaust systems.
FEATURES
n
Polycarbonate carbonate IP43 enclosure
n
Large wiring space
n
Range screw easily accessible.
Ordering
Codes
Max. Air Velocity
Note
List
Price
F62SA–9100 10 m/sec A £137
Note: A = With 55mm paddle (mounted) and separate 80mm paddle
Switch Action - SPDT, 15(8)A, 230Vac
Enclosure - Plastic polycarbonate
Size - 100 x 60 x 62mm (blade 196mm)
Protection Class - IP43
ACCESSORIES
Ordering Codes Description Price
PLT112-1R Air Flow Paddle - 55 x 175mm £8
PLT112-2R Air Flow Paddle - 80 x 175mm £7
Flow and Float Controls
SENSORS / THERMOSTATS
26 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

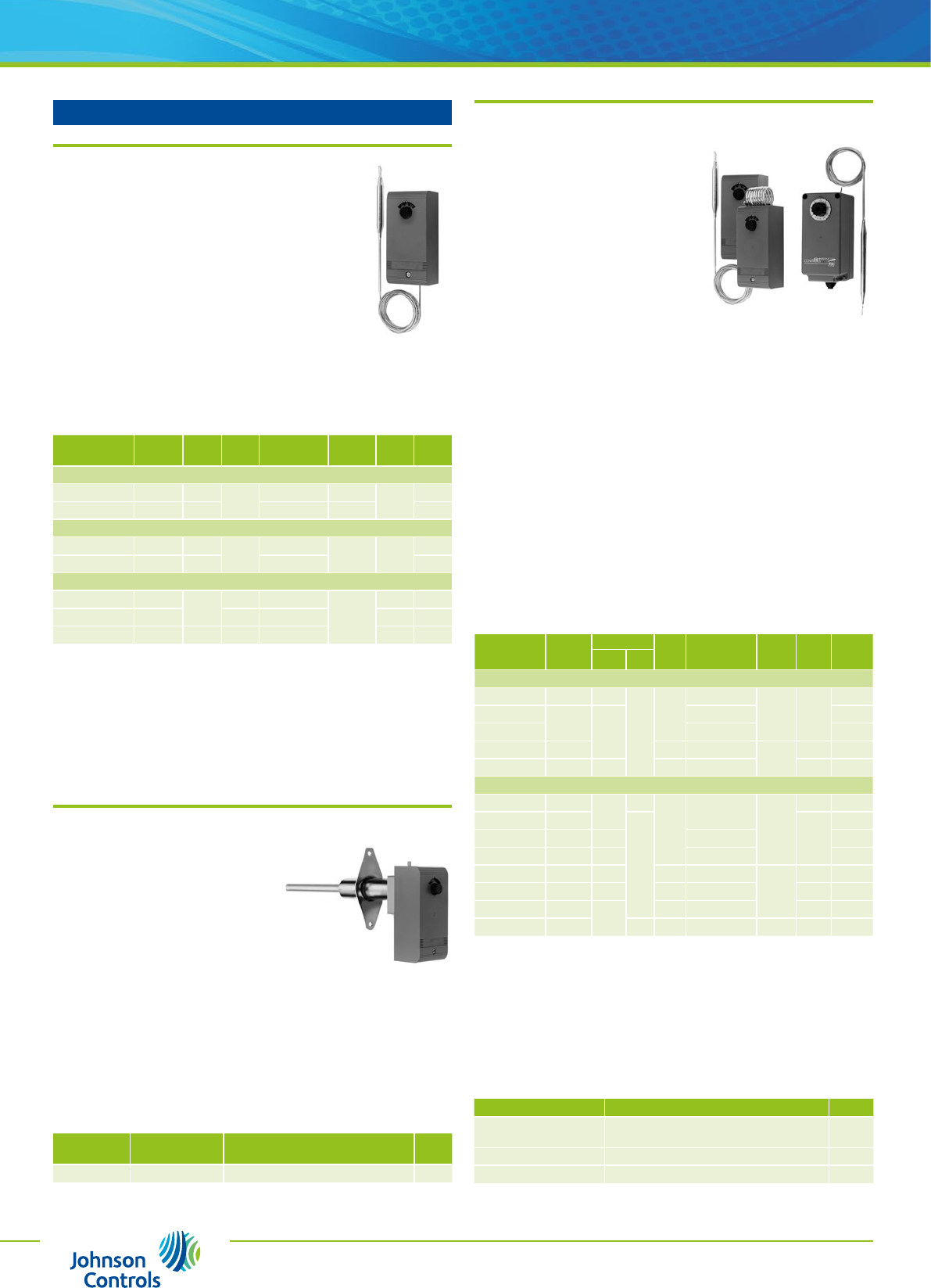

A25 Series
Rod and Tube Sensing Element, IP30
A rod and tube type sensing element actuate
the switch contacts. Main contacts (1-2)
are normally closed, and open when the
temperature at the element rises to the dial
setpoint. Contacts are re-closed only by operation of the
reset lever. The reset lever is ‘trip-free’ and cannot be used to
block contacts in a closed position.
FEATURES
n
Rod and tube type of element
n
Adjustable duct mounting flange
n
Trip-free manual reset
n
Dust-tight PENN switch
APPLICATION
These warm air limit controls ‘lock out’ on a temperature increase to the control
setpoint. Manual reset is required to re-close the electrical contacts. A typical
application is to stop air-conditioning or ventilating fans in the event of excessive
return air temperature, as from a fire.
Ordering
Codes
Range (°C)
Switch. 8A, Manual Reset
List
Price
A25CN-9001 0-100 SPDT, Open High
£179
Note: Visible scale, knob adjustment, NEMA 1 enclosure, with flange for
duct mounting.
IP30 Model
Style 1b and 3
IP65 Model
Style 1b
A28 Series
2-Stage Thermostats, IP30 & IP65
Controls are compact with fixed differential
per stage and (on most models) adjustable
differential between stages. Liquid filled
element provides wide range, constant
differential over whole range and no influence
from barometric pressure. Since the bulb
contains the major portion of the total fill the
thermostat may by considered as cross-
ambient, capillary and cup temperature
variations affect the operating point only
slightly due to the small amount of
fill they contain.
For quantity orders it is possible to have the
below stated optional constructions:
- Without case and cover for panel mounting
- Close differential per stage
- Different capillary lengths
All standard IP30 enclosure models have a universal way of adjustment. For this
purpose a knob and sealing cap are enclosed.
FEATURES
n
Liquid filled sensing element
n
Dust tight PENN switch
n
IP65 protection class models available
n
Front adjustment
APPLICATION
These thermostats are designed for various types of heating, cooling, ventilation,
or air-conditioning applications. All models have two SPDT switches providing the
following control possibilities:
- 2 stage heating
- 2 stage cooling
- Heating/cooling with automatic changeover
Ordering
Codes
Range
(°C)
Diff. (K) †
Style
Capillary
(Bulb mm)
Switch
Notes
List
Price
Stg Bet
IP30 Thermostats
A28AA-9006 -35-+10 2
1-4
1b
2m (110mm)
OL A
£182
A28AA-9007 -5-+28 1.5
2m (135mm)
£165
A28AA-9106 5m (135mm)
£312
A28AA-9113 0- 43 3
-
OH A, B
£200
A28AA-9118 1-60 2 1b 3m (115mm) A, C
£175
IP65 Thermostats
A28QA-9101 5 -50 24
1b
2m (110mm)
OL
D, E
£312
A28QA-9110 -35-+10
1-4
-
£203
A28QA-9111 -5-+28 1.5 2m (135mm)
£215
A28QA-9114 -35-+40 2 3.5m (110mm)
£241
A28QA-9113 0-43 1.5 3
-
OH
B
£255
A28QA-9115 1-60 2 1b 3m (115mm)
- £204
A28QA-9117 20-40 1.5 3
-
B
£258
A28QJ-9100 0-95 1-5 1b 3m (100mm) OL F
£211
Notes:
† See page 49 for ‘Styles and Wiring Diagrams’
A
=
General purpose
Stg = Stage, Bet = Between
B
=
Bulb stainless steel
C
=
Max. bulb temp. 85°C
D
=
Concealed scale
E
=
Screwdriver adjustment
F
=
3A switch
Sizes - 125 x 55 x 46.5mm (IP30 types), 125 x 60 x 59mm (IP65 types)
Switch Contact - SPDT
GENERAL ACCESSORIES for A19 & A28
Ordering Codes Description Price
FTG13A-600R Closed tank connector Style 1b elements,
Max. 10 bar, 120 °C, Min. -40 °C £25
KIT012N600 Capillary Brackets (6 pieces) £15
WEL003N602R Bulb Well, max. pressure 70 bar, temp. 370 °C £135
Capillary and Space Thermostats
A19 Series
Capillary and Space, IP30 & IP65
These thermostats are available with fixed or adjustable
differential. The various control ranges cover a broad range of
temperature applications with a minimum number of models.
On request a built-in high or low limit stop is possible and can
be adjusted quickly and easily in the field. All models have a
universal way of adjustment. For this purpose a knob and sealing
cap are enclosed.
FEATURES
n
Liquid filled sensing element
n
Dust tight PENN switch
APPLICATION
These thermostats are designed for refrigeration, cooling, heating, ventilation and
air-conditioning applications. Standard models are provided for remote sensing or
room sensing. Models with manual reset are available for low or high limit functions.
Ordering
Codes
Range
(°C)
Diff.
(K)**
†
Style
Capillary
(Bulb)
SPDT
Switch*
Notes
List
Price
Capillary Thermostats - IP30
A19AAC-9005 -5-+28 2 1b 2m (135mm) OL
-£54
A19AAC-9009 40-120 3.5 2m (100mm) OH
£47
Capillary Thermostat, Lock-out Low with Manual Reset - IP30
A19ACC-9100 -35-+10 6 1b 2m (110mm) OL
-£107
A19ACC-9101 -5-+28 4 2m (135mm)
£77
Capillary Thermostats - IP65
A19AQC-9101 -5-+5 21a 2m (80mm)
OL
A
£148
A19AQC-9102 -5-+28 1b 2m (135mm) B
£124
A19AQC-9200 -5-+55 2.5 2
- - £144
* Auto recycle, SPDT, 8A † See page 49 for ‘Style’ references
** Fixed OL = Open low, OH = Open high
Notes:
A = 5A switch, ice bank control, bulb dia. 9.3mm, case compensation, concealed
scale, screwdriver adjustment, scale calibrated at increasing temperature.
B = 8A switch, calibrated and set at 2°C, case compensation, pointer adjust, PG16
connect, 1/2”- 14NPT WELL connector.
Other styles and specifications available. Please contact the Sales Support Team.
Style 1b Type
SENSORS / THERMOSTATS (cont)
27
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

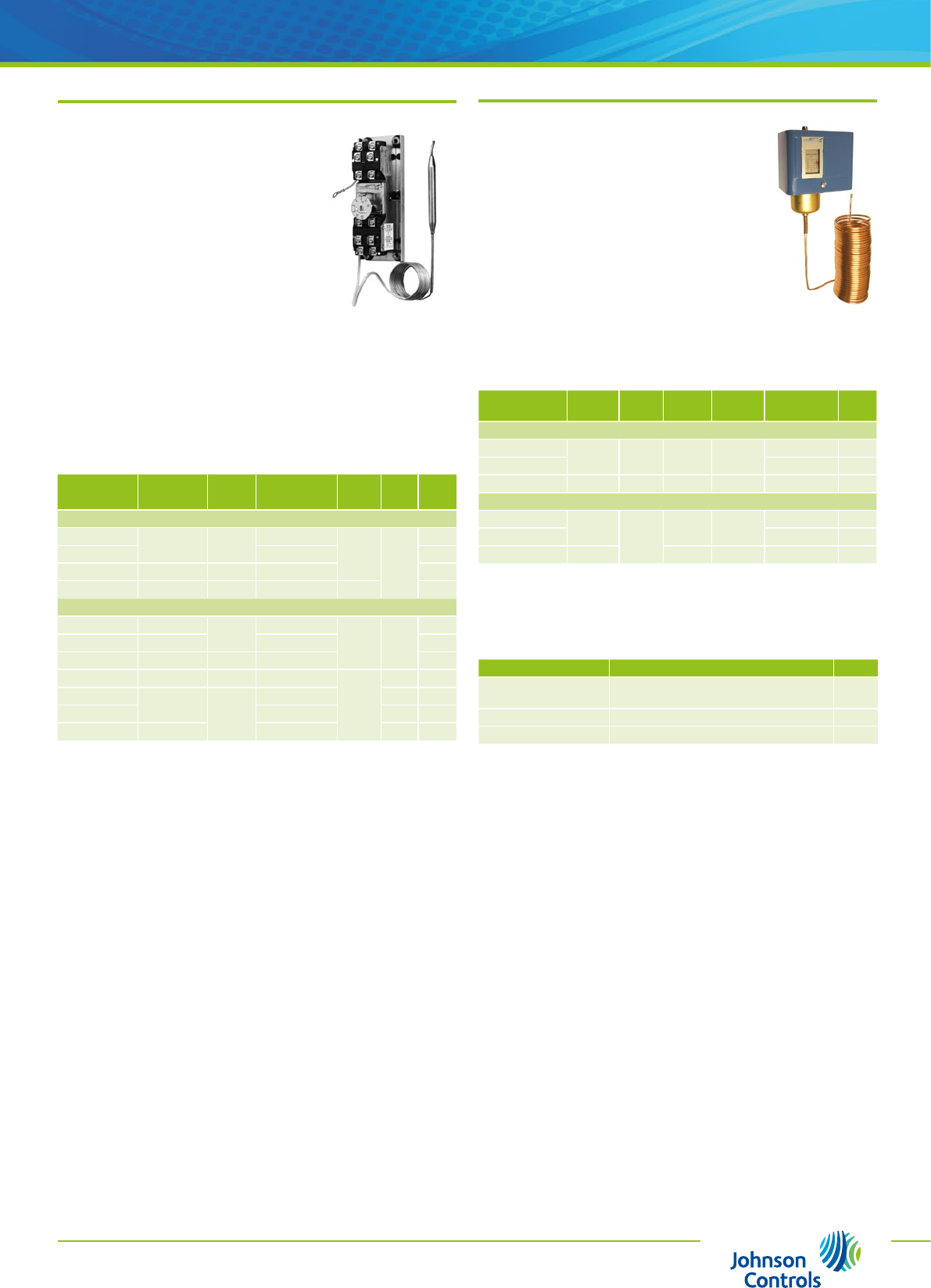

A36 Series
3 and 4-Stage Thermostats
Models are available in ‘open’ construction for panel
mounting. Single knob adjustment moves the entire
staging band up and down within the range of the
control. The differential on each stage and sequencing
between stages are factory set.
This permits the OEM to completely engineer the
cycling of their equipment without the hazard of field
mis-adjustments and erratic sequencing.
FEATURES
n
Dust-tight SPDT switches
n
Cushion mounted
n
Operation from a single, liquid filled element
n
Case compensation standard on all models
APPLICATION
Designed for multi-stage thermostatic operation of electrically
controlled equipment such as:
n
Packaged liquid chillers
n
Heat pumps
n
Electric duct heaters
n
Computer room air-conditioners
Ordering
Codes
Range
(°C)
Adjust
Code
Capillary
(Bulb)
SPDT*
Notes
List
Price
3-Stage Thermostats
A36AGA-9101 -18-+20 B1 5m (125mm)
5A A
£329
A36AGA-9102 3.5m (125mm)
£300
A36AGA-9103 15-35 C1 3.5m (140mm)
£263
A36AGB-9103 -18-+20 B2 3.5m (125mm) 3A
£273
4-Stage Thermostats
A36AHA-9105 -18-+20 B1 3.5m (125mm)
5A A
£293
A36AHA-9107 -16-+20 5m (125mm)
£368
A36AHA-9108 15-35 C1 3.5m (140mm)
£344
A36AHB-9103 10-95 D2 3m (100mm)
3A
B
£348
A36AHB-9104 -18-+20 B2
3.5m (125mm) A
£344
A36AHB-9105 5m (125mm) C
£494
A36AHB-9109 -15-+30 5m (110mm) D
£474
Notes: * Auto recycle
A
=
Armoured PVC capillary
B
=
Max. bulb temp. 115°C
C
=
Braided copper capillary
D
=
Max. bulb temp. 75°C
Switch Contact - SPDT
Size - 173 x 69 x 62mm
Protection Class - IP20
4-Stage Type
270XT Series
Freeze Protection Thermostats
Sensing element is 3 or 6 metres long to permit attaching
across the surface of a coil to guard against freezing at
any point. When any 30cm or more of this element senses
a temperature as low as the control setpoint, it will ‘switch
off’. A special version is available with bulb and 2m capillary,
range –24-+18°C for clamp on or immersion purposes.
SPDT change over contacts permit the use of an alarm signal.
FEATURES
n
Dust tight PENN switch
n
270XTAN provided with trip-free manual reset
n
Controls have adjustable range
APPLICATION
These controls are designed for protection against freeze up of hydronic heating
coils, cooling coils and similar application.
Ordering
Codes
Range
(°C)
Diff. (K)
Fixed
†
Style
Capillary
Bulb
List
Price
Automatic Recycle
270XT-95008 -10-+12 3 9 -3.2 x 6000mm
£185
270XT-95078 3.2 x 3000mm
£171
270XT-95068 -24-+18 4 1 2m 9.5 x 80mm
£169
Trip-free Manual Reset
270XTAN-95008 -10-+12 -9-3.2 x 6000mm
£194
270XTAN-95088 3.2 x 3000mm
£180
270XTAN-95048 -24-+18 1 (bulb) 2m 9.5 x 80mm
£178
† See page 49 for ‘Style’ references
Power Supply - 230V, 50/60Hz
Switch Contact - SPDT 8A, open low
Size - 62 x 53 x 101mm (head)
Protection Class – IP20
GENERAL ACCESSORIES for A19 & 270XT
Ordering Codes Description Price
FTG13A-600R Closed tank connector Style 1b elements,
Max. 10 bar, 120 °C, Min. -40°C £25
KIT012N600 Capillary Brackets (6 pieces) £15
WEL003N602R Bulb Well, max. pressure 70 bar, temp. 370°C £135
28 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

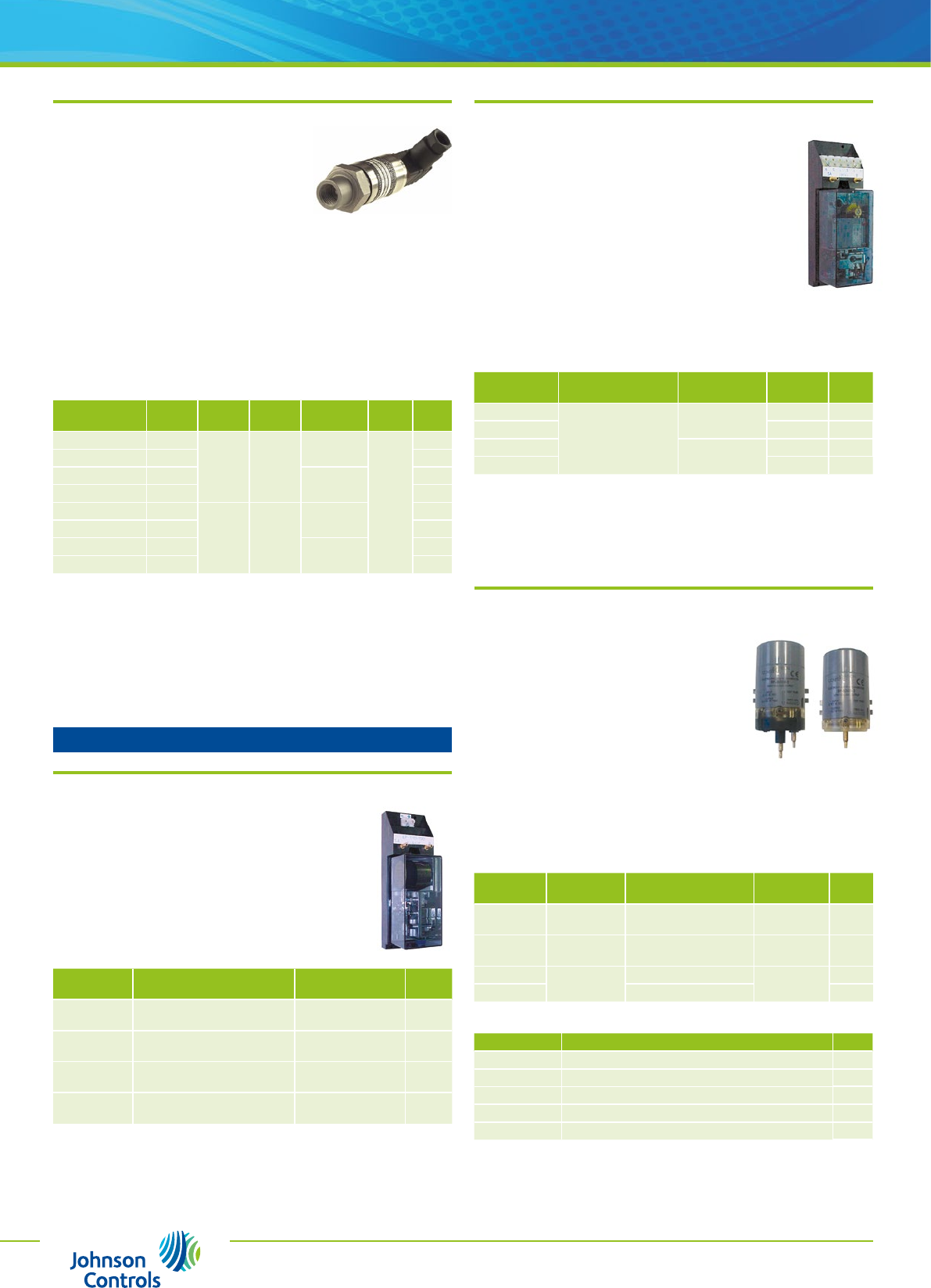

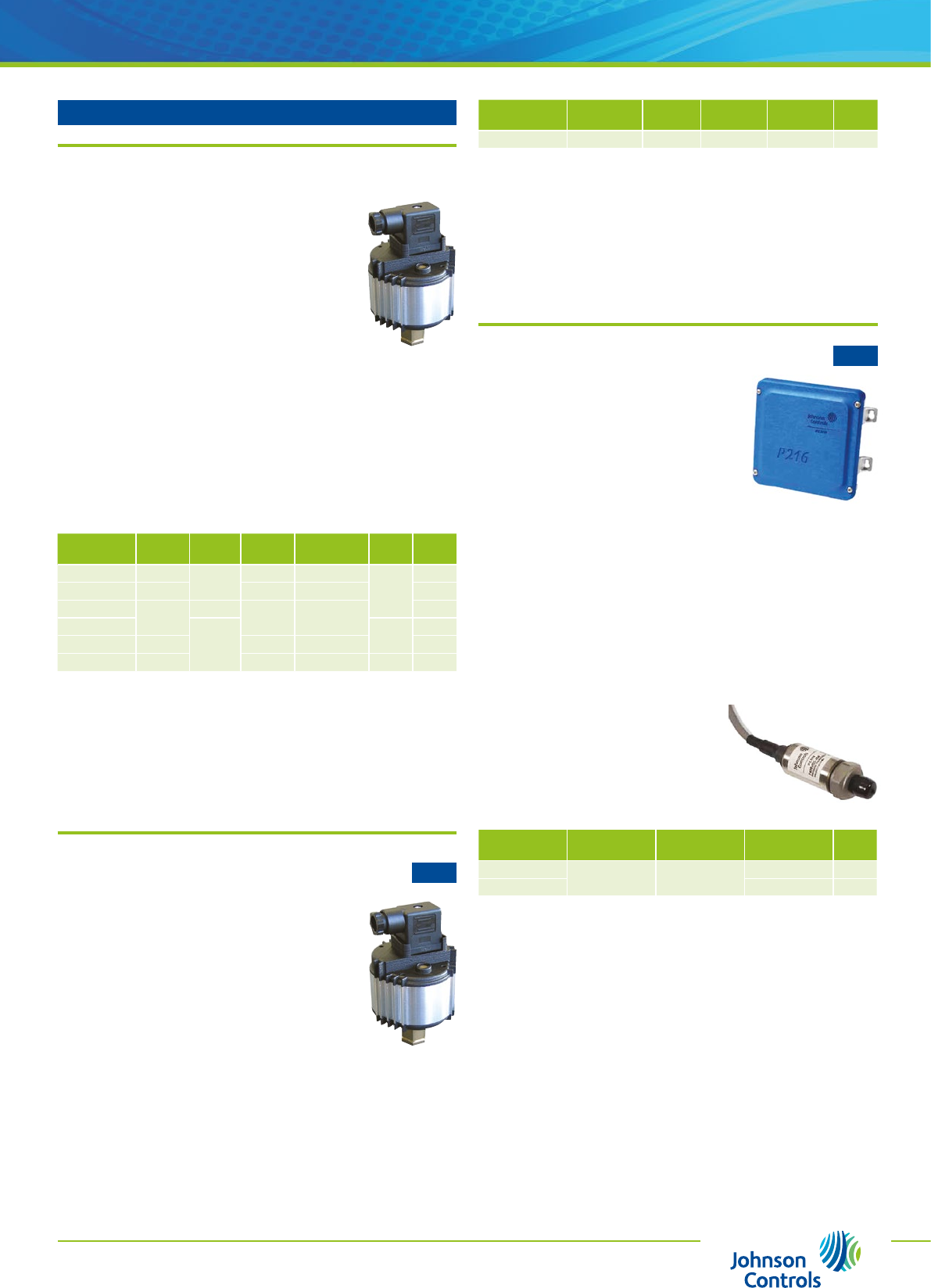

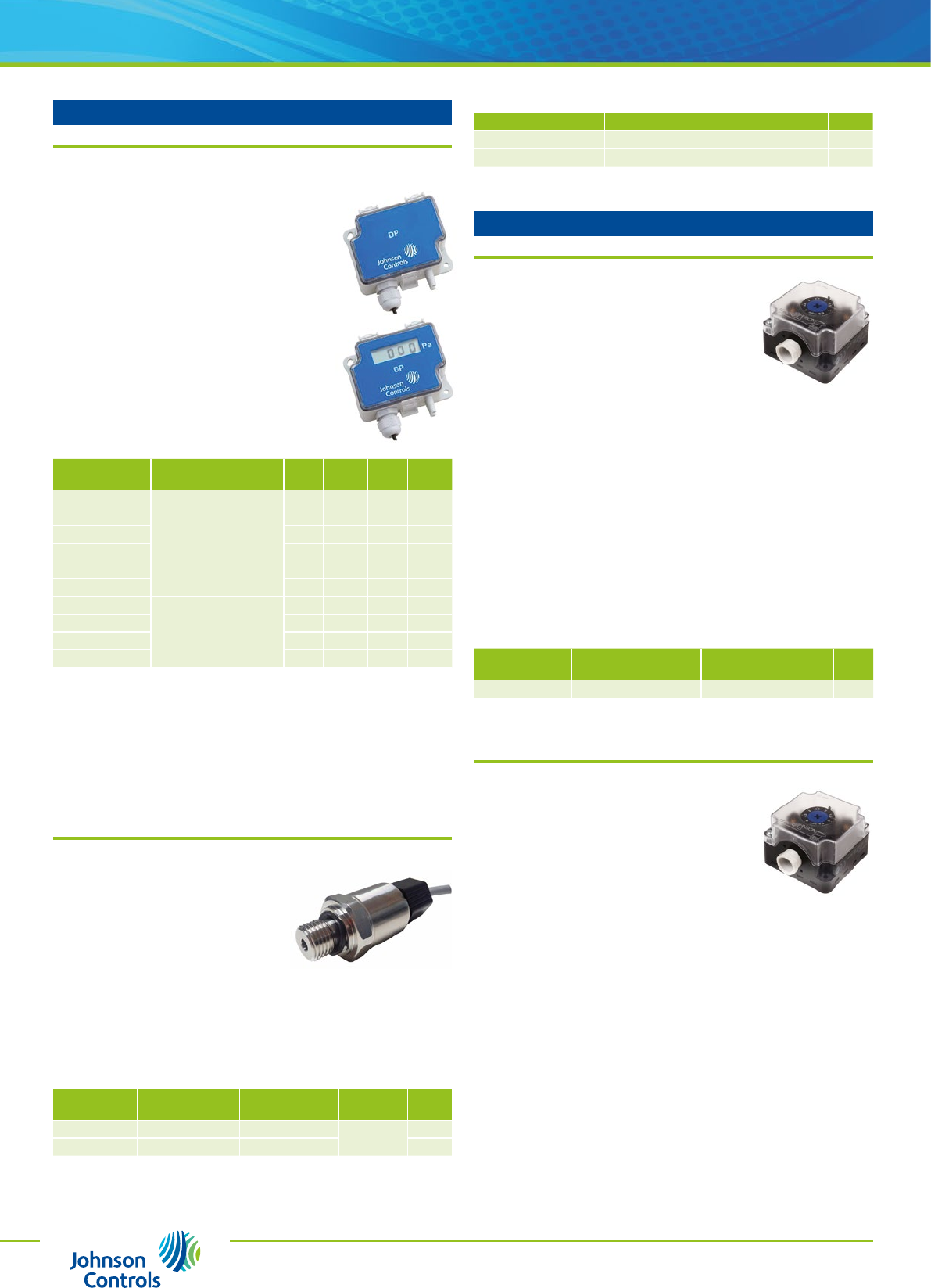

P233 Series
Sensitive Differential Switches
This switch senses a change in the (differential) pressure
as the airflow changes. The (differential) pressure is applied
to the two sides of a diaphragm in the control.
The spring-loaded diaphragm moves and actuates the
switch. They can also be used to detect small positive gauge
pressure or to detect a vacuum.
FEATURES
n
One switch to measure relative differential pressure
n
Various accessories available
n
Compact and durable construction
n
Easy mounting and wiring, various
n
Standard PG 11 nipple and optional DIN 43650 connector
n
Accurate and stable switch
n
SPDT contact standard
APPLICATIONS
This (differential) pressure switch is used to sense flow of air, single or differential air
pressure. Typical uses include: Detect clogged filter, detect frost or ice build-up on air-
conditioning coils, air proving in heating or ventilation ducts, maximum airflow controller
for variable air volume system, detect blocked flue or vent, monitor fan operation.
P232 Series
Sensitive Differential Switch
This switch senses a change in the differential pressure
(either velocity pressure or pressure drop across
a restriction) as the air flow changes. The pressure
(as sensed by two sensing ports) is applied to the two sides
of a diaphragm in the control. The spring loaded diaphragm
moves and actuates the switch.
The series P232 can also be used to detect small positive gauge pressure by using
only the high pressure connection and leaving the low pressure connector open, or
to detect a vacuum by using only the low pressure connection and leaving the high
pressure connector open to ambient pressure.
FEATURES
n
E asy to read setpoint scale
n
Wide range (1-125mm water column)
n
Small differential (1mm water column) at bottom of range
n
Large wiring space
n
Versatile mounting options
APPLICATIONS
This (differential) pressure switch is used to sense flow of air, single or differential
air pressure. Typical applications include: Clogged filter detection, detection of
frost on air-conditioning coils and initiation of defrost cycle, air proving in heating or
ventilation ducts, maximum air flow controller for variable air volume system.
Ordering
Codes
Switch point
Range (in. wc)
Switching
Differential (in. wc)
List
Price
P232A-B-AAC 0.2-1.6 < 0.1
£41
Size - 72 x 72 x 52mm
Pressure Switches
PT-5217 Series
Pressure Transmitters
These transmitters accurately measure pressure
and converts the measurement into a 0-10V
signal. They are especially adapted to measure
air, water and inert gases pressure.
It can also be used in pneumatic control systems
to convert pneumatic into electric standard signals.
FEATURES
n
Low zero drift/time
n
Low sensibility to ambient temperature change
n
Low hysteresis
n
High accuracy
n
Splash proof enclosure
Ordering
Codes
Operating
Range
Max. Overload
Pressure
Output
Signal
List
Price
PT-5217-7011 0-100 kPa 200 kPa 0-10V £447
PT-5217-7101 0-1000 kPa 2000 kPa £447
Supply Voltage - 24Vac ±15%/–10%, 50/60Hz or 13.5-33Vdc, max. 5 mA
Mounting - Direct mounting, 1.5m cable included
Size - 86 x 40mmØ
Protection Class - IP65
SENSORS / THERMOSTATS (cont)
Pressure Transmitters
DP2500, DP0100, DP0250 Series
Differential Pressure Transmitters
The DP Low Differential Pressure Transmitter series is an
accurate and cost competitive solution for measuring low
pressures of air and non-aggressive gases. Ideal for monitoring
and controlling pressures in building automation, HVAC and
clean room systems.
The DP series accurately measures low differential pressure
and converts the measurement into a standard proportional
0-10V signal or 4-20mA. Pressure ranges are selected using
the internal jumper switches.
FEATURES
n
Eight measurement ranges in one device (DP2500)
n
Four digit display
n
AutoZero option (maintenance free)
n
Selectable response time
n
Easy mounting
n
Now with adjustable span
Ordering
Codes
Operating Ranges
Auto
Zero
Display
Span
Adj.
List
Price
DP2500-R8 –100-+100 Pa, 0-100 Pa,
0-250 Pa, 0-500 Pa,
0-1000 Pa, 0-1500 Pa,
0-2000 Pa, 0-2500 Pa
---
£272
DP2500-R8-AZ
n- -
£356
DP2500-R8-D
-n-
£329
DP2500-R8-AZ-D
n n -
£411
DP0250-R8-AZ 0-100 Pa, 0-250 Pa
n- -
£356
DP0250-R8-AZ-D
n n -
£411
DP0100-AZ
–50-+50 Pa,
–100-+100 Pa
n- -
£356
DP0100-AZ-D
n n -
£411
DP0100-AZ-SP
n-n
£412
DP0100-AZ-D-SP
nnn
£491
Power Supply - 24Vac/dc ±10%
Output Signal - 0-10Vdc (1kΩ min) or 4-20mA (500Ω max)
Response Time - 0.8/4 secs (selectable by jumper)
Bursting Pressure - 50 kPa
Media - Suitable for air and non-aggressive gases
Protection Class - IP54
Accessories include fixing screws, two plastic tube connectors and 2m tube Ø 4 / 7mm.
Customised models are available upon request to Sales Support Team.
ACCESSORIES
Ordering Codes Description Price
EQ-6056-7000 Mounting Kit for plastic hose 4 x 6mm £85
EQ-0100-7001 Mounting Kit for DIN-rail £39
(continued next column)
(continued next page)
29
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

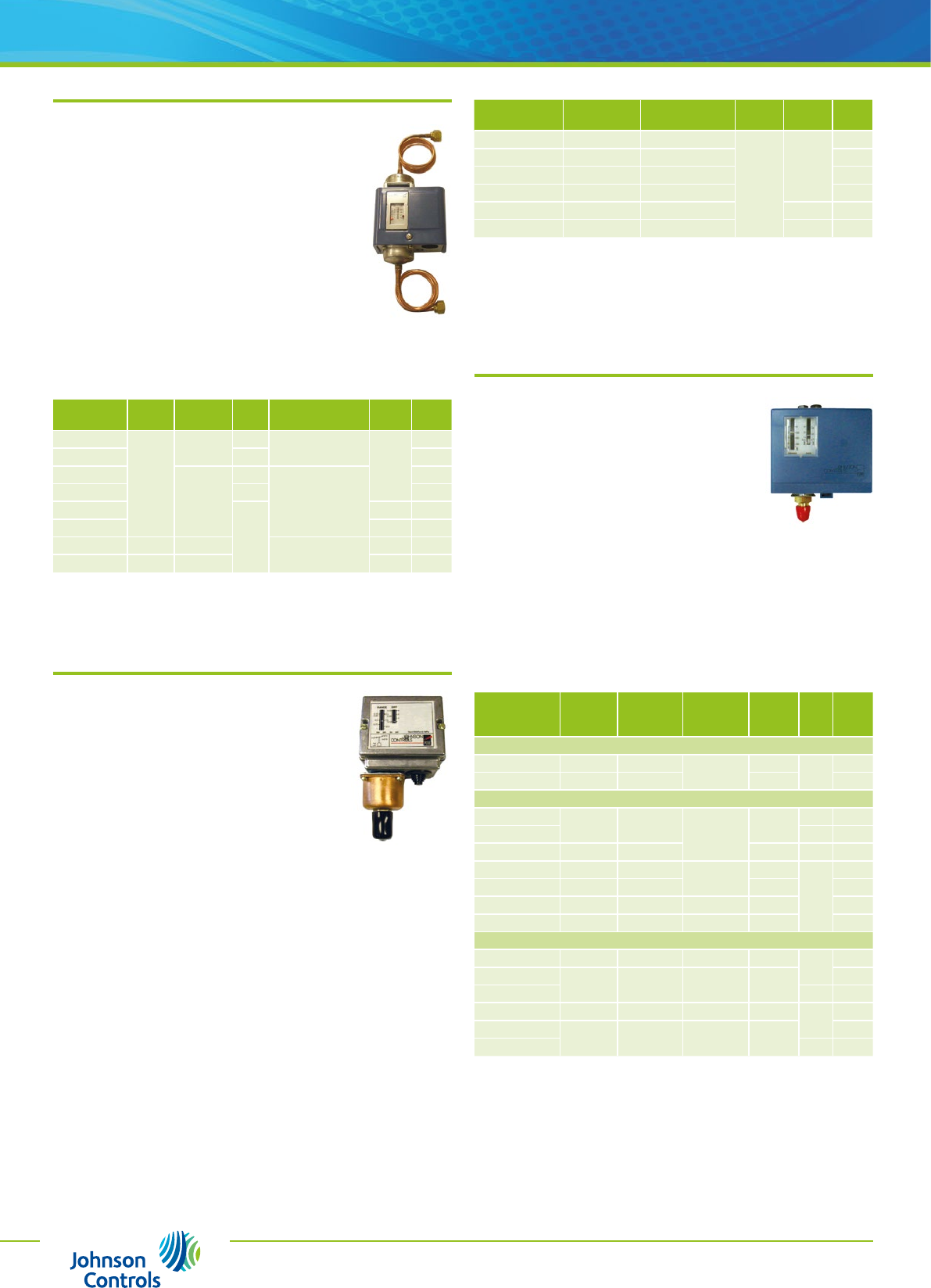

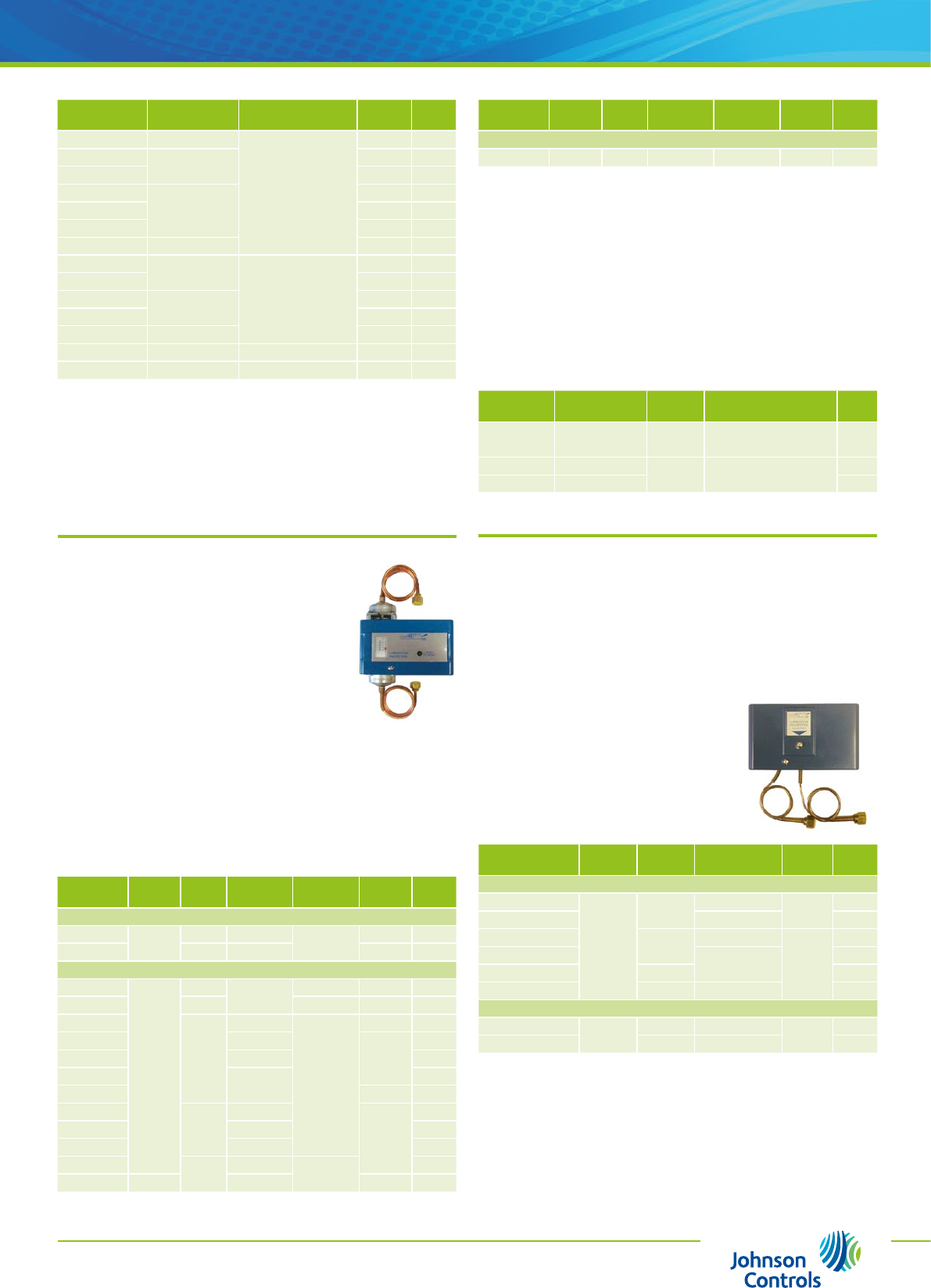

P28 Series
Oil Protection Switches
These controls measure the pressure differential between
the pressure generated by the oil pump and the refrigerant
pressure at the crankcase.
A built-in time delay switch allows for pressure-pick up on
start and avoids nuisance shutdowns on pressure drops of
short duration during the running cycle.
The compressor can never run longer than the
pre-determined time on low oil pressure. Controls are
available only for manual reset after cut-out.
FEATURES
n
Heavy duty pressure elements
n
Safety lock-out with trip-free manual reset
n
Ambient compensated timing
n
Dust-tight PENN switch
APPLICATION
These oil protection controls are designed to give protection against low net lube oil
pressure on pressure lubricated refrigeration compressors.
Ordering
Codes
Range
(bar)
†
Style
Time
Delay (s)
Refrigerant
Notes
List
Price
Voltage 115/230
P28DA-9341 0.6-4.8 5 50 non-corr. A
£325
P28DA-9660 13 90
- £338
Voltage 230
P28DJ-9360
0.6-4.8
590 non-corr. B
£529
P28DJ-9861 15 NH3 B, D
£518
P28DP-9300
5
-
non-corr.
C
£251
P28DP-9340 50
-
£289
P28DP-9360 90
£289
P28DP-9380 120
£260
P28DP-9381 E, F
£347
P28DP-9640
13
50
-
£269
P28DP-9660 90
£269
P28DP-9680 120
£279
P28DP-9840 15 50 NH3
£322
P28DP-9860
-
90 H
£368
P45 Series
Oil Protection Switches
The series P45 controls are designed to give protection against low lube-oil pressure
on pressure lubricated refrigeration compressors.
There are several million in use today. The controls measure the pressure differential
(net oil pressure) between the pressure generated by the oil pump and the refrigerant
pressure at the crankcase. A built-in time delay switch allows pressure build-up during
start and avoids nuisance shut-down on pressure drops of short duration during the
running cycle.
FEATURES
n
Heavy duty pressure elements
n
Key specifications match/exceed other brands
n
Accurate 0.2 bar switch differential standard
n
Adjustable or fixed setpoint
n
Safelight output standard
n
Trip-free manual reset
n
High current rated output
n
Ambient compensated timing
Ordering
Codes
Range
(bar)
Setting
(bar)
Time
Delay (s)
†
Style
List
Price
Voltage 230Vac
P45NBB-9361B
0.5-4
0.6 90 5
£276
P45NBB-9381B 120
£258
P45NBB-9640C 0.7 50
13
£234
P45NBB-9660C 90
£235
P45NBB-9660Q 1.8
£309
P45NBB-9680C 0.7 120
£234
Voltage 115/230
P45NCA-9056 0.5-4 0.45 50 13
£287
P45NCA-9104 0.7 120
£280
† See page 49 for ‘Styles’
Switch Action - Open low, alarm and safe light contacts
Switch Rating - 15(8)A, 230Vac
Size - 83 x 144 x 58mm
Ordering
Codes
Range
(bar)
†
Style
Time
Delay (s)
Refrigerant
Notes
List
Price
Voltage 115/230
P28DN-9750
-
15 50 NH3 E, G, H
£398
† See page 49 for ‘Style’ references
Notes:
A = Includes plastic PG nipple 13.5 + two flare nuts
B = IP66 enclosure
C = Without time relay
D = Includes two connectors CNR003N001
E = Concealed adjustment
F = Set 0.65 bar
G = Set 1.5 bar
H = No switch action
Switch Action - Open low, alarm and safe light contacts
Contact Rating - 15(8)A, 230Vac
Size - 134 x 144 x 53mm
REPLACEMENT TIME RELAYS
Ordering
Codes
Timing (s)
Voltage
Switch Action
List
Price
RLY13A603R
90 120/240 Manual reset,
dual voltage (AC) £158
RLY13A627R
120 24 Manual reset, 24Vac/dc £208
RLY13A635R
90 £205
Ordering
Codes
Switch Point
Range (mbar)
Switching
Differential (mbar)*
Notes
List
Price
P233F-P3-AAC 0.3 fixed
< 0.3
- £49
P233A-4-AAC 0.5-4
- £50
P233A-4-AHC A
£51
P233A-4-PAC
50-400 Pa
- £50
P233A-4-PHC A, B
£47
P233A-4-PKC B, C
£61
P233A-4-AKC 0.5-4 C
£49
P233A-10-AAC 1.4-10
< 0.5
- £40
P233A-10-AHC A
£61
P233A-10-PAC 140-1000 Pa
- £44
P233A-10-PKC B, C
£61
P233A-10-AKC 1.4-10 C
£49
P233A-50-AAC 6-50 < 1 C
£40
P233A-10-PHC 140-1000 Pa < 0.5 A, B
£49
* Switching differential is maximum value mid-range Bulk packs on request
Notes:
A = GMT008N600R + BKT024N001R
B = Scale in Pa
C = FTG015N602R (2x) + 2m tube 4/7mm
Contact Rating - SPDT, 5(2)A, 250Vac
Size - 72 x 72 x 52mm
(continued next column)
30 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
P48 Series
Steam Pressure Switches
The P48 series has been developed for special applications
where pressure must be controlled. All models have an
adjustable differential depending on the range (see type
number selection table). The P48AAA-9110 and
P48AAA-9120 has the power element outside the case.
All the models have phosphor bronze bellows and brass
pressure connections except the P48AAA-9150. This model
has a stainless steel bellows and pressure connection and is
provided with a brass adapter 1/4”-18 NPT female to R3/8 male.
FEATURES
n
Splash-proof enclosure (IP54)
n
SPDT contacts are provided as standard on single pressure control
n
Trip-free manual reset
APPLICATION
The series P48 pressure controls are designed for high/low cut-out control on steam,
air or (hot) water applications. Also for non-combustible gases which are not harmful
to the materials in contact with these mediums. On steam applications a steam trap is
recommended (see Accessories).
P735 Series
Single Pressure Switches
This series of pressure controls may be used for control
functions or limit functions, depending on model number.
All models are provided with alarm contacts. All standard
models have phosphor bronze bellows and brass pressure
connections. Models for use with ammonia are provided
with stainless steel bellows and connectors.
FEATURES
n
SPDT contacts are provided as standard on single pressure controls
n
Trip-free manual reset
APPLICATION
These pressure controls are designed for use in a variety of applications involving
refrigeration high or low pressure. Models supplied have a ‘whole range’ design,
enabling them to be used with all non-corrosive refrigerants which are within the
operating range of the control. They may also be used for other high or low pressure
applications such as air, water etc. Models which can be used with ammonia are
included in the program.
Ordering
Codes
Range
(bar)
Differential
(bar)
Switch †
Action
(wire diag.)
Max.
Bellows
Pressure
†
Style
List
Price
For Water
P735AAA-9200 -0.2-+10 1-4.5 115
*** £76
P735AAA-9201 -0.5-+7 0.5-3 22
£75
For Non-corrosive Refrigerants (Alerter, safety pressure limiter)
P735AAA-9300 -0.5-+7 0.5-3 122 5
£57
P735AAA-9400 30
£58
P735AAA-9301 -0.2-+10 1-4.5 15 5
£61
P735AAA-9350 3-30 3-12 233
5
£55
P735AAA-9351 3.5-21 2.1-5.5 30
£60
P735BCA-9300 -0.5-+7 Man. res.** 1 22
£57
P735BEA-9350 3-30 Man. res.* 3 33
£56
For Non-corrosive Refrigerants
P735AAW-9300 -0.5-+7 0.6 to 3 1 20 5
£60
P735AAW-9350 3-30 3.5 to 12 2 33
£53
P735AAW-9850 28
£77
P735BCB-9300 -0.5-+7 Man. res.** 1 20 5
£60
P735BEB-9350 3-30 Man. res.* 3 33
£56
P735BEB-9850 28
£77
Notes: † See page 49 for ‘Style’ reference
* Resetable at 3 bar below cut-out point
** Resetable at 0.5 bar above cut-out point Contact Rating - SPDT
*** Special pressure connection G 1/4” female Size - 92 x 70 x 51mm
100 kPa = 1 bar = 14.5 psi Protection Class - IP30
SENSORS / THERMOSTATS (cont)
P74 Series
Differential Pressure Switches
These pressure switches incorporate two opposing pressure
elements and an adjustable range setpoint spring with a calibrated
scale. The control switches at the indicated setpoint on an increase
in differential pressure and switches back to the normal position
when the different pressure decreases to the setpoint less the
mechanical switching differential.
FEATURES
n
Heavy duty pressure elements
n
These controls may be used in combination with series P28 lube
oil protection control on two compressor, single motor units
APPLICATIONS
These controls are designed to sense pressure differences between
two points and may be used as operating or limit controls. Typical applications are
to detect flow across a chiller or water cooled condenser, to detect flow in a heating
system and sensing lube oil pressure differential on refrigeration compressors.
Ordering
Codes
Range
(bar)
Mech.
Diff. (bar)
†
Style
Switch Action
Notes
List
Price
P74DA-9300
0.6-4.8
0.7-2
adjustable
5DPST, 10A, contacts
Open Low
-
£214
P74DA-9600 13
£222
P74EA-9300
0.3 fixed
5
SPDT, 5A, contact
Open High
£204
P74EA-9600 13
£252
P74EA-9700
15
A
£320
P74EA-9701 A, B, C
£351
P74FA-9700 0-1 0.1 fixed SPDT, 3A, contact
Open High
D
£319
P74FA-9701 2-8 0.7 fixed A
£452
Notes: † See page 49 for ‘Style’ references
A = For NH3 D = For water
B = Set 1 bar C = Concealed adjustment
Size - 172 x 101 x 53mm
Ordering
Codes
Range
(bar)
Differential
(bar)
†
Style
Notes
List
Price
P48AAA-9110 0-1 0.16-0.55
29a
A
£165
P48AAA-9120 0.2-4 0.25-0.8
£114
P48AAA-9130 -0.2-+10 1-4.5
£114
P48AAA-9140 1-16 1.3-2.5
£114
P48AAA-9150 3-30 3-12 A, B
£141
P48BEA-9140* 4-16
-
C
£155
* Quantity orders only † See page 49 for ‘Style’ references
Notes: Switch Action - SPDT, Open high
A = Automatic Reset Switch Rating - 16(10)A, 220-400Vdc,
B = Stainless steel bellows 12W (pilot duty only)
C = Manual Reset Pressure Connection - G 3/8” male
Size - 146 x 88 x 53mm
(continued next column)
31
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

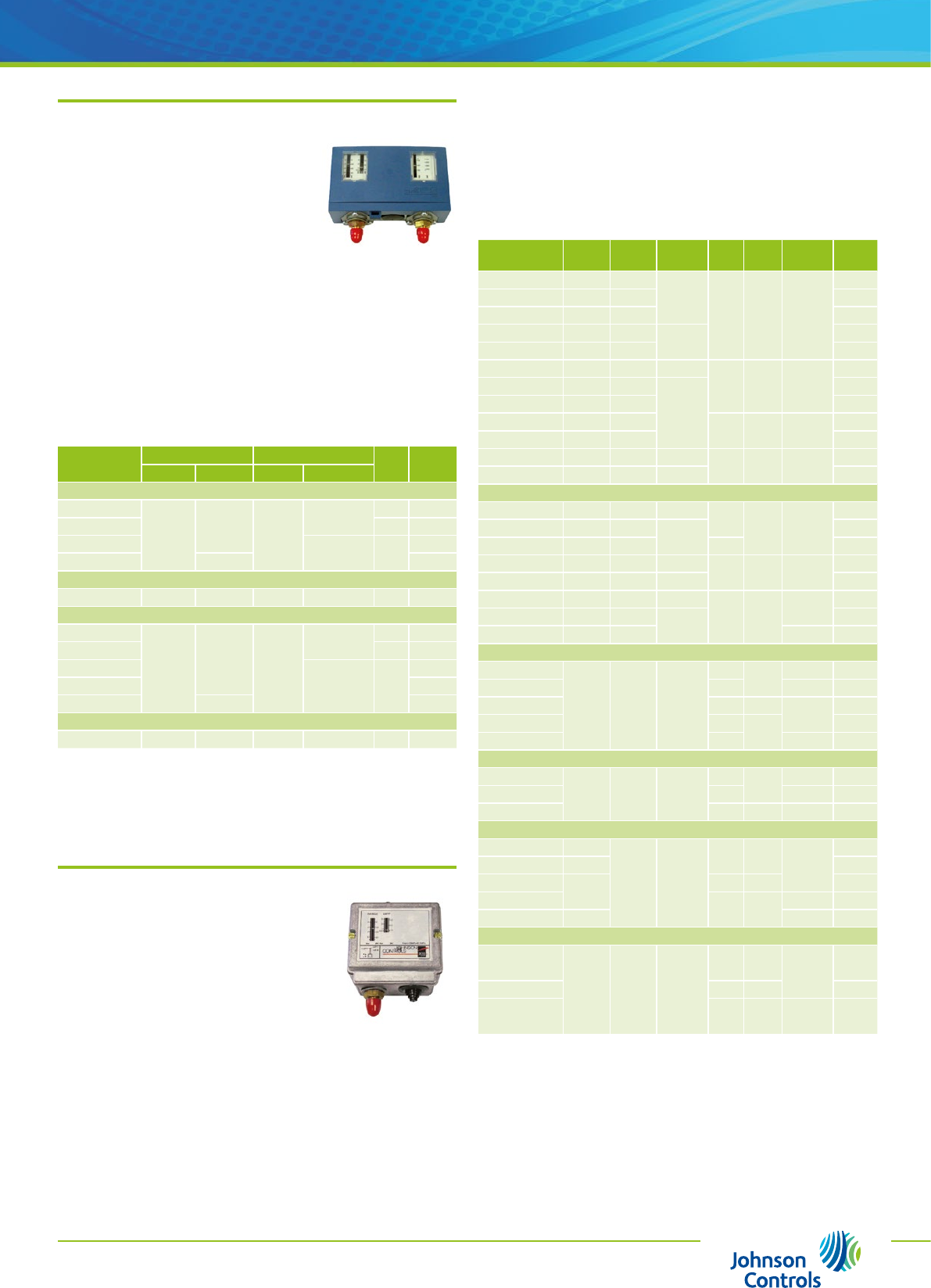

P736 Series
Dual Pressure Switches
The P736 series pressure controls may be used for
control functions or limit functions, depending on
model number. All models are provided with alarm
contacts (except P736ALA). All standard models
have phosphor bronze bellows and brass pressure
connections. Models for use with ammonia are
provided with stainless steel bellows and connectors.
FEATURES
n
Trip-free manual reset
n
Separate alarm contacts for both low pressure
and high pressure cut-out (except P736ALA)
APPLICATION
These dual pressure controls are designed for use in a variety of applications
involving refrigeration high or low pressure. Models supplied have a ‘whole range’
design, enabling them to be used all non-corrosive refrigerants which are within the
operating range of the control. They may also be used for other high or low pressure
applications such as air, water etc. Models which can be used with ammonia are
included in the program.
Ordering
Codes
Left Side (bar) Right Side (bar) †
Style
List
Price
Range Diff. Range Diff.
For Non-corrosive Refrigerants (LP: 22 bar, HP: 33 bar max.)
P736LCA-9300
-0.5-+7 0.5-3 3-30
3 (fixed) 5
£85
P736LCA-9400 30
£96
P736MCA-9300 Man. Res.** 5
£87
P736PGA-9300 Man. Res.*
£92
For Fan Cycling - Air-cooled Condensers, Non-corrosive (HP/HP: 30 bar max.)
P736ALA-9351 3.5-21 1.8 (fixed) 3.5-21 1.8 (fixed) 5
£87
For Non-corrosive Refrigerants (LP: 22 bar, HP: 33 bar max.)
P736LCW-9300
-0.5-+7 0.6-3 3-30
3 (fixed) 5
£96
P736LCW-9800 28
£103
P736MCB-9300
Man. Res.** 5
£103
P736MCS-9300
£96
P736PGB-9300 Man. Res.*
£101
Manual Reset, Safety Pressure Limiter (HP/HP: 30 bar max.)
P736PLM-9370 3-30 Man. Res.** 3-30 Man. Res.** 5
£105
† See page 49 for ‘Styles and Wiring Diagrams’
Notes:
* Resetable at 0.5 bar above cut-out point Contact - SPST
** Resetable at 3 bar below cut-out point Size - 132 x 77 x 51mm
100 kPa = 1 bar ≈ 14.5 psi Protection Class - IP30
APPLICATION
These pressure controls are designed for use in a variety of applications involving
refrigeration high or low pressure. Models supplied have a ‘whole range’ design,
enabling them to be used with refrigerants R22, R134A, R404A, R410A and all other
non-corrosive refrigerants which are within the operating range of the control. They
may also be used for other high or low pressure applications such as air, water etc.
Models which can be used with ammonia are included in the program. Also models
tested and approved to PED 97/23/EC Cat. IV (supersedes DIN and TUV approval) are
included in the program.
Ordering
Codes
Range
(bar)
Diff.
(bar)
Wiring\
Action †
†
Style
Refr.
Notes
List
Price
P77AAA-9300 -0.5-+7 0.5-3
1
5non-
corr.
-
£64
P77AAA-9301 -0.2-+10 1-4.5
£65
P77AAA-9302 -0.3-+2 0.4-1.5
£65
P77AAA-9350 3-30 3-12 2
£64
P77AAA-9351 3.5-21 2-5.5
£63
P77AAA-9400 -0.5-+7 0.5-3 1
30
-
A
£75
P77AAA-9450 3-30 3-12
2
£75
P77AAA-9451 3.5-21 2-5.5
£64
P77AAA-9700 -0.5-+7 0.5-3 15 NH3
-£109
P77AAA-9750 3-30 3-12
£109
P77AAA-9800 -0.5-+7 0.5-3 1 28 non-
corr. B
£76
P77AAA-9850 3-30 3-12 2
£76
Automatic Recycle (Alerter, including lockplate assembly)
P77AAW-9300 -0.5-+7 0.5-3 1 -non-
corr.
-
£79
P77AAW-9350 3-30 3.5-12 2
£72
P77AAW-9355 3-42 4-12 5
£83
P77AAW-9700 -0.5-+7 0.5-3 1 15 NH3
-£131
P77AAW-9750 3-30 3.5-12 2
£187
P77AAW-9800 -0.5-+7 0.5-3 1
28 non-
corr.
B
£79
P77AAW-9850 3-30 3.5-12 2
£96
P77AAW-9855 3-42 4-12
- £100
Manual Reset (LP)
P77BCA-9300
-0.5-+7
-
1
5non-
corr.
- £72
P77BCA-9400 30 A
£86
P77BCA-9700 15 NH3
-£119
P77BCB-9300 5non-
corr.
£88
P77BCB-9800 28 B
£89
Manual Reset (HP)
P77BEA-9350
3-30
-
3
5non-
corr.
- £63
P77BEA-9450 30 A
£82
P77BEA-9750 15 NH3
- £120
Limiter, including lockplate assembly
P77BEB-9350 3-30
-
3
5non-
corr.
-
£85
P77BEB-9355 3-42
£108
P77BEB-9750 3-30 15 NH3
£179
P77BEB-9850 28 non-
corr.
B
£84
P77BEB-9855 3-40
- £112
Safety pressure limiter, including lockplate assembly
P77BES-9350
3-30
-
3
5non-
corr.
-£88
P77BES-9750 15 NH3
£107
P77BES-9850 28 non-
corr. B
£112
Notes: † See page 49 for ‘Styles and Wiring Diagrams’
A = Solder connection 1/4“ ODF
B = Solder connection 6mm ODM Contact - SPST
Size - 88 x 80 x 53mm
Protection Class - IP54
P77 Series
Single Pressure Switches (IP54)
These controls may be used for control functions or
limit functions, depending on model number. All models
are provided with alarm contacts. All standard models
have phosphor bronze bellows and brass pressure
connections. Models for use with ammonia are provided
with stainless steel bellows and connectors. Devices
conforming to PED 97/23/EC Cat. IV (HP models) have the
fail-safe function with double bellows.
FEATURES
n
Splash-proof enclosure (IP54)
n
SPDT contacts are provided as standard on single pressure controls
n
Trip-free manual reset
(continued next column)
32 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

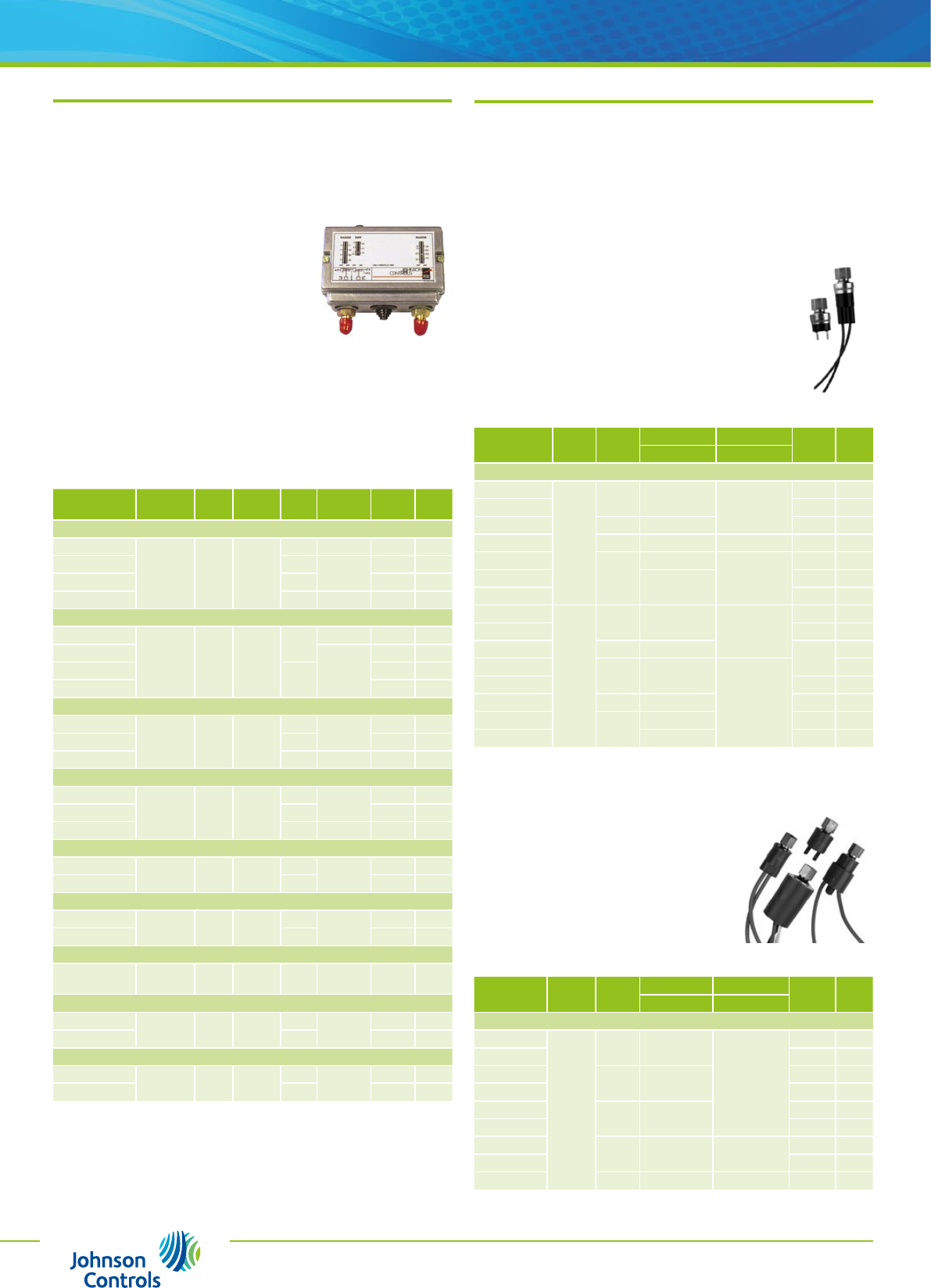

P78 Series
Dual Pressure for IP54 Applications
The P78 series pressure controls may be used for control functions or limit functions,
depending on model number. All models are provided with alarm contacts (except
P78ALA). All standard models have phosphor bronze bellows and brass pressure
connections. Models for use with ammonia are provided
with stainless steel bellows and connectors. Devices
conforming to DIN 32733 have a double bellows on the
high pressure versions.
FEATURES
n
Splash-proof enclosure (IP54)
n
Trip-free manual reset
n
Patented separate alarm contacts for both low
pressure and high pressure cut-out (except P78ALA)
APPLICATION
These pressure controls are designed for use in a variety of applications involving
refrigeration high or low pressure. Models supplied have a ‘whole range’ design,
enabling them to be used with refrigerants R22, R134A, R404A, R410A and all other
non-corrosive refrigerants which are within the operating range of the control. They
may also be used for other high or low pressure applications such as air, water etc.
Models which can be used with ammonia are included in the program. Also models
tested and approved to PED 97/23/EC Cat. IV (supersedes DIN and TUV approval) are
included in the program.
Ordering
Codes
Range
(bar)
Diff.
(bar)
Wiring/
Action†
†
Style
Refr.
Notes
List
Price
Automatic Recycle
P78LCA-9300
-0.5-+7 LP
3-30 HP
0.5-
3 LP 4
5non-corr. - £87
P78LCA-9400
30 -A£87
P78LCA-9500
35 B £109
P78LCA-9700
15 NH3 - £190
Automatic Recycle, Technical Inspection Agency
P78LCW-9300
-0.5-+7 LP
3-30 HP
0.5-
3 LP 4
5non-corr. - £211
P78LCW-9302*
-
C£152
P78LCW-9800
28 D£108
P78LCW-9801*
E£163
Manual Reset (HP)
P78MCA-9300 -0.5-+7 LP
3-30 HP
0.5-
3 LP 4
5non-corr. - £92
P78MCA-9400
30 A £92
P78MCA-9700
15 NH3 - £195
Manual Reset (LP)/Auto. Reset (HP)
P78PGA-9300 -0.5-+7 LP
3-30 HP
-
4
5non-corr. - £103
P78PGA-9400
30 A £120
P78PGA-9700
28 NH3 - £227
Manual Reset (LP/HP)
P78PGB-9300 -0.5-+7 LP
3-30 HP
-
4
5non-corr. - £129
P78PGB-9800
28 D £117
Manual Reset (HP) Limiter, including lockplate assembly
P78MCB-9300 -0.5-+7 LP
3-30 HP
0.5-
3 LP 4
5non-corr. - £110
P78MCB-9800
28 D £117
Manual Reset (HP) Safety Pressure Limiter, including lockplate assembly
P78MCS-9300 -0.5-+7 LP
3-30 HP
0.5-
3 LP 4
5non-corr. - £104
Manual Reset (HP/HP) Safety Pressure Limiter, including lockplate assembly
P78PLM-9350 3-30 LP
3-30 HP
-
5
5non-corr. - £141
P78PLM-9850
28 D £168
Dual Fan Cycling Control
P78ALA-9351 3.5-21 LP
3.5-21 HP
-
6
5non-corr. - £112
P78ALA-9451
30 A £110
† See page 49 for ‘Styles and Wiring Diagrams’
Notes: * Quantity orders only
A = Solder connection 1/4“ ODF
B = With 90cm capillary pressure connection
C = Gold plated contacts
D = Solder connection 6mm ODM
E = Gold plated contacts, fixed settings LP 0.3 bar;
HP 22.5 bar

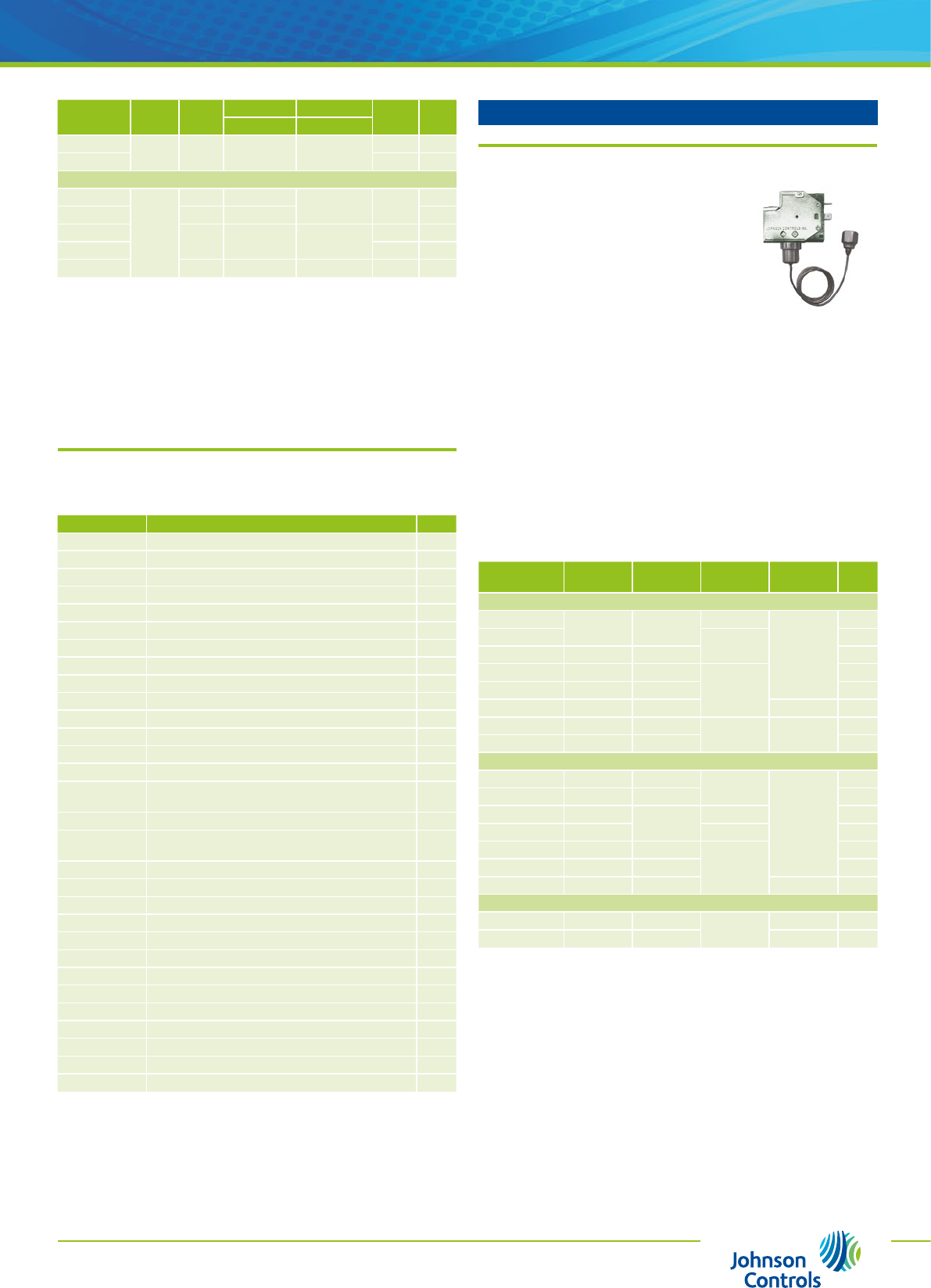

Auto Reset Models
FEATURES
n
Compact size and light weight
n
Encapsulated, dust tight switch IP67
n
Manual reset models have a trip-free design
n
Models with gold-plated contacts available
n
Broad variety of electrical and pressure
connections
Ordering
Codes
Appl.
Refr.
P (bar) P Toler. (bar)
Notes
List
Price
Open (Close) Open (Close)
Manual Reset Models
P100DA-66D
High
Pressure
R134A 16 (-)
0.7 (-)
A, D £19
P100DA-67D
B, D £22
P100DA-68D
R407C 26 (-) A, E £24
P100DA-69D
B, E £24
P100DA-70D
R404A 28 (-) A, E £21
P100DA-71D
B, E £24
P100DA-72D
R410A 38 (-) 1.0 (-) A, D £22
P100DA-73D
B, D £22
P100DA-74D
R407C 26 (-) 0.7 (-) A, F £20
P100 Series
Direct Mount Pressure Switches
These encapsulated, non-adjustable, direct mount pressure controls typically used for
low and highpressure cut-outs for OEM applications. The P100 series are produced
according to switchpoint requirements of customers.
The small dimensions, weight and protection class makes the P100 series applicable
for use without the need of additional mounting brackets. They can be used for all
non-corrosive refrigerants like R134a; R22; R404, R410A and others.
FEATURES
n
Compact size and light weight
n
Encapsulated, dust tight switch IP67
n
Broad variety of electrical and pressure connections.
APPLICATIONS
– Computer room air-conditioning
– Refrigeration/ air-conditioning condensers
– Commercial refrigeration
– Ice machines
– Food service equipment
Ordering
Codes
Appl.
Refr.
P (bar) P Toler. (bar)
Notes
List
Price
Open (Close) Open (Close)
Auto Reset Models
P100AP-300D
Low
Press.
Norm.
Open
R134A 2.5 (4) 0.5 (0.5)
A, D £22
P100AP-301D
B, D £14
P100AP-302D
R407C 4 (6) A, D £14
P100AP-306D
R404A 0.3 (2.8) 0.4 (0.4) A, D £14
P100AP-308D
-
0.5 (1.5)
0.3 (0.3)
A, C £13
P100AP-309D
0.7 (2.2) A, F £14
P100AP-310D
A, E £13
P100CP-102D
High
Press.
Norm.
Closed
R134A 16 (11) 0.7 (1.4)
A, D £19
P100CP-103D
B, D £22
P100CP-104D
R407C 24 (18) A, D £15
P100CP-106D
R404A 28 (23)
0.7 (0.7)
£15
P100CP-107D
B, D £15
P100CP-108D
R410A 38 (28) A, D £15
P100CP-110D
-27.6 (20.7) A, C £11
P100CP-111D
26 (20) A, D £22
Notes:
A = 1/4” SAE Fem Flare
B = 50mm straight, 6mm dia. x 7mm reduced end, copper clad brazing tube (TIF5)
C = Faston termination
D = 2 metre cable
E = 3 metre cable
F = 1.2 metre cable
Manual Reset Models
SENSORS / THERMOSTATS (cont)
Contact - SPST
Size - 88 x 80 x 53mm
Protection Class - IP54
(continued next page)
33
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
General Accessories
for Pressure Switches
Ordering Codes Description Price
BKT034N602R
Mounting bracket + screws for P35AC transducer £7
210-25R
Mounting bracket for P20/P35 (single) £6
WRN12-1
Wrench P20/P21 £18
210-604R
Terminal cover P20/P21 (50 off) £6
BKT024N002R
Mounting bracket for P233 £6
FTG015N602R
Duct mounting kit ‘staight’ £25
FTG015N603R
Duct mounting kit ‘bent’ £31
GMT008N600R
Duct kit for P233, self locking grommet and tubing £12
CNR003N001R
Connector 6mm for P77/P78 £13
CNR003N002R
Connector 8mm for P77/P78 £14
CNR012N001R
Adapter R3/8 female to 1/4-18 NPT male for P48 £21
CNR013N001R
Adapter R 3/8 female to 1/4-18 NPT female for P48 £25
TBG16A-600R
Steam trap assembly P48 £36
KIT023N600
Locking kit for P48, P77/P78 - for field installation £4
KIT031N600
Valve depressors for conversion style 13 - style 45a
(100 off-1 box) £105
KIT034N600
Seal rings for style 50/51 (250 off-1 box) £103
271-51L
Mounting bracket for P28, P45, P48, P74, P77/P78
(50 off) £4
SEC002N600
Capillary kit, 90cm, 2 x style 13 (100 off-1 box) £10
SEC002N602
“ “ 90cm, style 13 - style 45a (100 off-1 box) £11
SEC002N606
“ “ 200cm, style 13 - style 45a (75 off) £17
SEC002N607
“ “ 200cm, 2 x style 13 (75 off) £14
SEC002N616
“ “ 90cm, style 13 - cap. (150 off-1 box) £10
SEC002N617
“ “ 100cm, style 13 - style 13 (100 off-1 box) £12
SEC002N621
“ “ 90cm, style 34 - style 34 (100 off-1 box) £10
SEC002N622
“ “ 90cm, style 50 - style 50 (100 off-1 box) £17
SEC002N624
Capillary kit, 200cm, style 50 - style 50 £22
SEC002N626
“ “ 90cm, style 50 - style 51 £14
SEC002N627
“ “ 200cm, style 50 - style 51 £18
SEC002N628
“ “ 300cm, style 50 - style 51 £19
SEC002N631
“ “ 50cm, style 13 - style 34 £10
Pressure Transducers
P35 Series
Mechanical Transducers
The P35 is a single pressure input fan speed controller
for air cooled condensers. The controller varies the
fan speed by directly sensing the pressure changes
in a refrigerant circuit. The setpoint of each pressure
transducer can be separately adjusted. The controller
selects the input with the greatest cooling demand to
control the fan speed.
The controllers can be used in non corrosive refrigerant systems
and vary the supply voltage to the motor from 45% to ≥ 95% of
the supplied voltage using the phase cutting principle. If the pressure drops below the
adjusted setpoint minus the proportional band, the output to the motor is zero volt or
the adjusted min. speed setting.
This provides speed variation of permanent split capacitor or shaded pole motors
which do not draw more than 3A (rms) full load current. The motor manufacturer
should have approved his product for this speed control principle. It is recommended
to confirm with the electric motor manufacturer, that the motor can be used with a
controller, using the phase cutting principle for speed variation.
FEATURES
n
Condenser pressure control by fan speed variation
n
Pressure input / dual pressure input (BR models)
n
Transducers with proven reliability
n
Built-in suppression filter
n
Adjustable minimum speed or cut-off selection
Ordering
Codes
Range
Setting
(bar)
†
Style
Notes
List
Price
Replacement Pressure Transducers for P215 version (300 KΩ)
P35AC-9100 14-24 16 45A
-
£157
P35AC-9202 47
£192
P35AC-9203 8-14 10
£194
P35AC-9500 14-24 16
50
£166
P35AC-9501 8-14 10
£202
P35AC-9512 22-42 30 A
£204
P35AC-9600 14-24 16 13 B
£157
P35AC-9601 8-14 10
£117
Replacement Pressure Transducers for P255 version (100
KΩ
)
P35AC-9200 14-24
16
47
-
£194
P35AC-9201 8-14
10 £194
P35AC-9106 3.5-10
16 45A £152
P35AC-9604 8-14
13 £161
P35AC-9505 14-24
10
50
£171
P35AC-9506 22 16
£169
P35AC-9511 8-14 30 A
£197
Replacement Pressure Transducers for P255 version (500
KΩ
)
P35AC-9200 14-24 16 50 C
£194
P35AC-9201 22-40 30 D
£194
Notes: † See page 49 for ‘Style’ references
A = For R410A applications
B = Also used for replacement P15/P215 series fan speed controllers
C = Special 500 KΩ for P215LR-400V version
D = Special 500 KΩ version for R410A applications
Capillary Length - 90cm
Ordering
Codes
Appl.
Refr.
P (bar) P Toler. (bar)
Notes
List
Price
Open (Close) Open (Close)
P100DA-75D High
Pressure
R410A 42 (-) 0.7 (-) A, D £22
P100DA-76D
B, D £22
Heavy Duty Models - Auto Reset
P100EE-17D
HP
Norm.
Closed
R404A 20 (25) 1.0 (1.0) A, H £32
P100EE-18D
R134A 15 (11) £26
P100EE-60D
R404A 28 (21) 0.7 (0.7) A, D £23
P100EE-61D
B, D £29
P100EE-68D
R134A 3 (25) 0.35 (0.35) A, G £25
Notes:
A = 1/4” SAE Fem Flare
B = 50mm straight, 6mm dia. x 7mm reduced end, copper clad brazing tube (TIF5)
C = Faston termination
D = 2 metre cable
E = 3 metre cable
F = 1.2 metre cable
G = 1.8 metre cable
H = 1.5 metre cable
34 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
EP-1000 Series
Electro-Pneumatic Transducers
The EP-1110 is an electric to air Pressure Transducer.
The unit is designed to convert an electrical input signal
into a pressure output with a linear relationship.
These service and data information sheets (in brief SDI) are
operating instructions for the safe installation and operation of the
EP-1110-700x (EP-1110) electro-pneumatic transformer. Should
difficulties occur during installation which, cannot be solved with
the help of this SDI please ask the Sales Support Team.
Ordering
Codes
Input *
Output **
List
Price
EP-1110-7001 0-10Vdc,
Ri ≥ 1 kΩ 20-100 kPa £813
EP-1110-7002 2-10Vdc,
0-10Vdc, Ri ≥ 1 kΩ
20-100 kPa,
3-100 kPa £856
EP-1110-7003 0-20 mAdc,
Ri ≤ 450Ω 20-100 kPa £826
EP-1110-7004 4-20Vdc,
0-20 mA(dc) Ri ≤ 450Ω
20-100 kPa,
3-100 kPa £856
* Current through coil approx. 10 mA
** Linearly proportional to input
Size - 188 x 62 x 74.5mm
Electro-Pneumatic Transducers
EP-2000 Series
Electro-Pneumatic Transducers
The EP-2000 Electro-Pneumatic Transducer with motor drive, is
used for converting an electrical contact signal into a 0.2-1 bar
pneumatic standard signal.
These service and data information sheets (in brief SDI) are
operating instructions for the safe installation and operation of
the EP-2000-70xx (EP-2000) Electro-Pneumatic transducer.
Should difficulties occur during installation which, cannot
be solved with the help of this SDI please ask the Sales
Support Team.
FEATURES
n
High linearity and low hysteresis
n
High accuracy
n
Small supply air influence and air consumption
Ordering
Codes
Limit Switch
& Potentiometer **
Accessories
Voltage
Supply
List
Price
EP-2000-7001
120 sec.
-
230V £990
EP-2000-7004 24V £976
EP-2000-7021 2 kΩ pot. 230V £1,058
EP-2000-7024 24V £1,052
* Option upon request
** 2 kΩ Feedback potentiometer
Supply Voltage – 230V, 50/60Hz, +6/–10% or 24V, 50Hz, ±10%
Size - 198 x 62 x 75mm
P499 Series
Electronic Transducers
The P499 Series is a new global Pressure Transducer
with an excellent price performance ratio. The P499
exceeds the latest industrial CE/UL requirements
including surge protection, and is over voltage
protected in both positive and reverse polarity.
The P499 is designed to produce a linear analogue signal based on the sensed
pressure. The pressure port is machined from a solid piece of 17-4PH stainless steel.
There are no O-rings or welds that are exposed to the pressure media. This results in
a leak proof, all metal sealed pressure system which withstand more than 10 million
pressure cycles without failure.
FEATURES
n
Single-piece machined steel pressure port
n
Environmentally sealed electronics
n
Reliable, repeatable performance and long operating life
n
Slender body design
Ordering
Codes
Range
(bar)
Output
Supply
Press
Connection
Note
List
Price
P499ABS-401C -1-+8
0.4-20
mA 9-32Vdc
Male
A
£80
P499ABS-404C 0-30
£80
P499ACS-401C -1-+8 Female
£57
P499ACS-404C 0-30
£46
P499VBS-401C -1-+8
0-10Vdc 12-30Vdc
Male
£67
P499VBS-404C 0-30
£67
P499VCS-401C -1-+8 Female
£62
P499VCS-404C 0-30
£51
Notes:
A
=
Maximum (short) overpressure: Range -1-8 bar: 16 bar Range 0-30 bar:
60 bar Range 0-50 bar: 100 bar.
Can be used with all media which are compatible with stainless steel
type 17-4PH.
Accuracy: +/- 0.25% FS BFSL
Total Error: +/- 1% FS
EP-8000 Series
Electro-Pneumatic Transducers
These transducers convert a voltage or current
signal from an electronic controller into a pneumatic
output pressure signal. An increase or decrease in
the input signal proportionally increases or decreases
(respectively) the output pressure signal from the
EP-8000.
Sequencing of pneumatic valve or damper actuators
can be accomplished using a V-9502 (Valve) or D-9502
(Damper) Actuator Positioner.
FEATURES
n
Compact, simple design
n
Hypodermic needle test point
n
Factory set, fully adjustable zero and span
n
High accuracy with low hysteresis
Ordering
Codes
Input Range
Output
Factory
Output
List
Price
EP-8000-1 0.5-9Vdc Low Volume (non-relay) 7-126 kPa
(1-18 psig) £174
EP-8000-2 0.25-9.5Vdc High Volume (relay) 3.5-133 kPa
(0.5-19 psig) £163
EP-8000-3 4-20 mAdc Low Volume (non-relay) 21-105 kPa
(3-15 psig)
£174
EP-8000-4 High Volume (relay) £163
ACCESSORIES
Ordering Codes Description Price
R-3710-8205 0.18mm Restrictor (required for low volume models) £19
EP-8000-101 Electro-Pneumatic Transducer Mounting Kit £22
A-4000-8001 Inline Air Filter (required for all models) £34
JC 5361 Hypodermic Needle Test Probe Assembly £44
G-2010 Series 0-210 kPa (0-30 psig) Gauge POA
Connections -
Barbed air connections for 5/32 or 1/4 inch o.d. polytubing.
SENSORS / THERMOSTATS (cont)
35
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

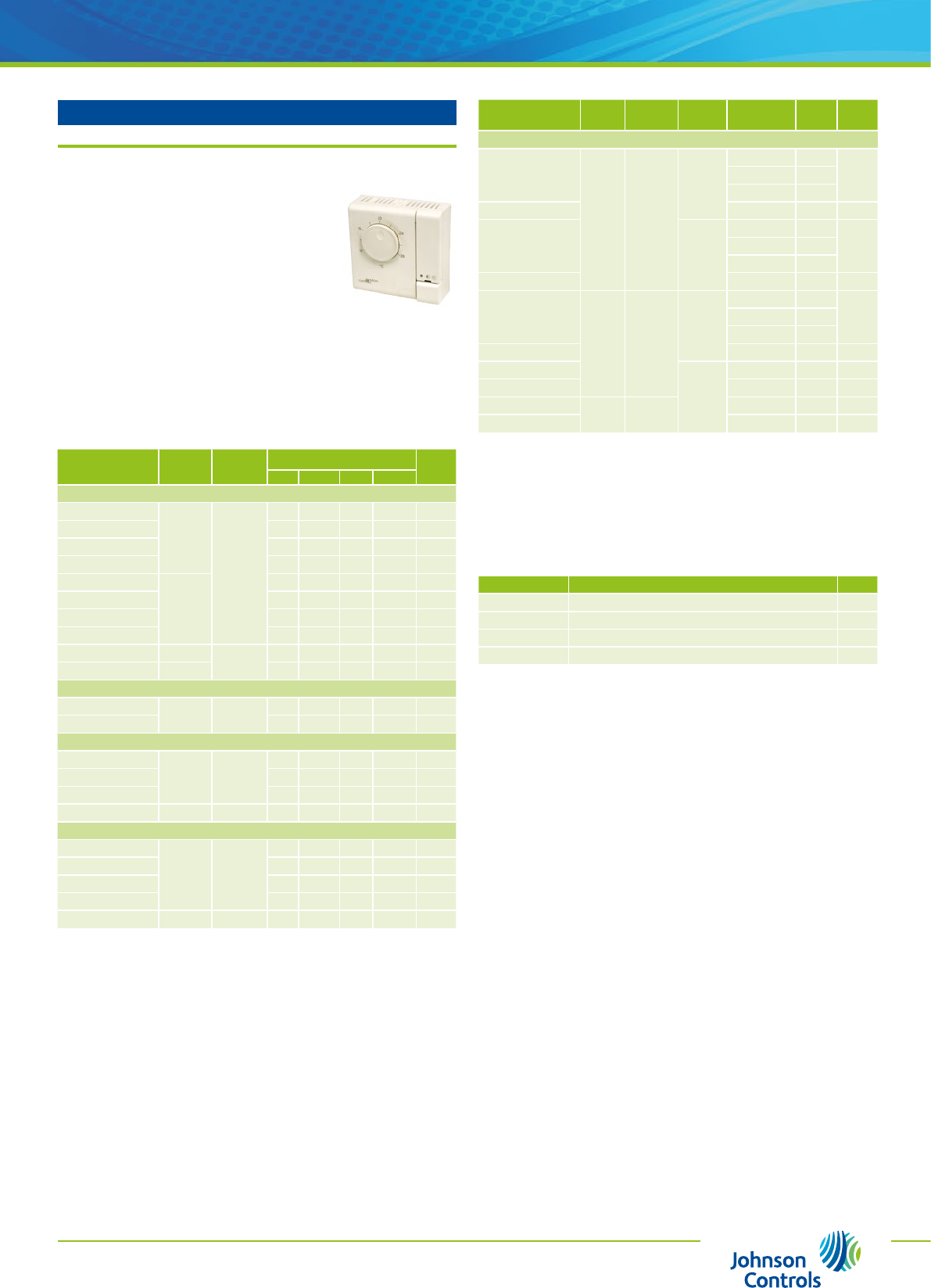

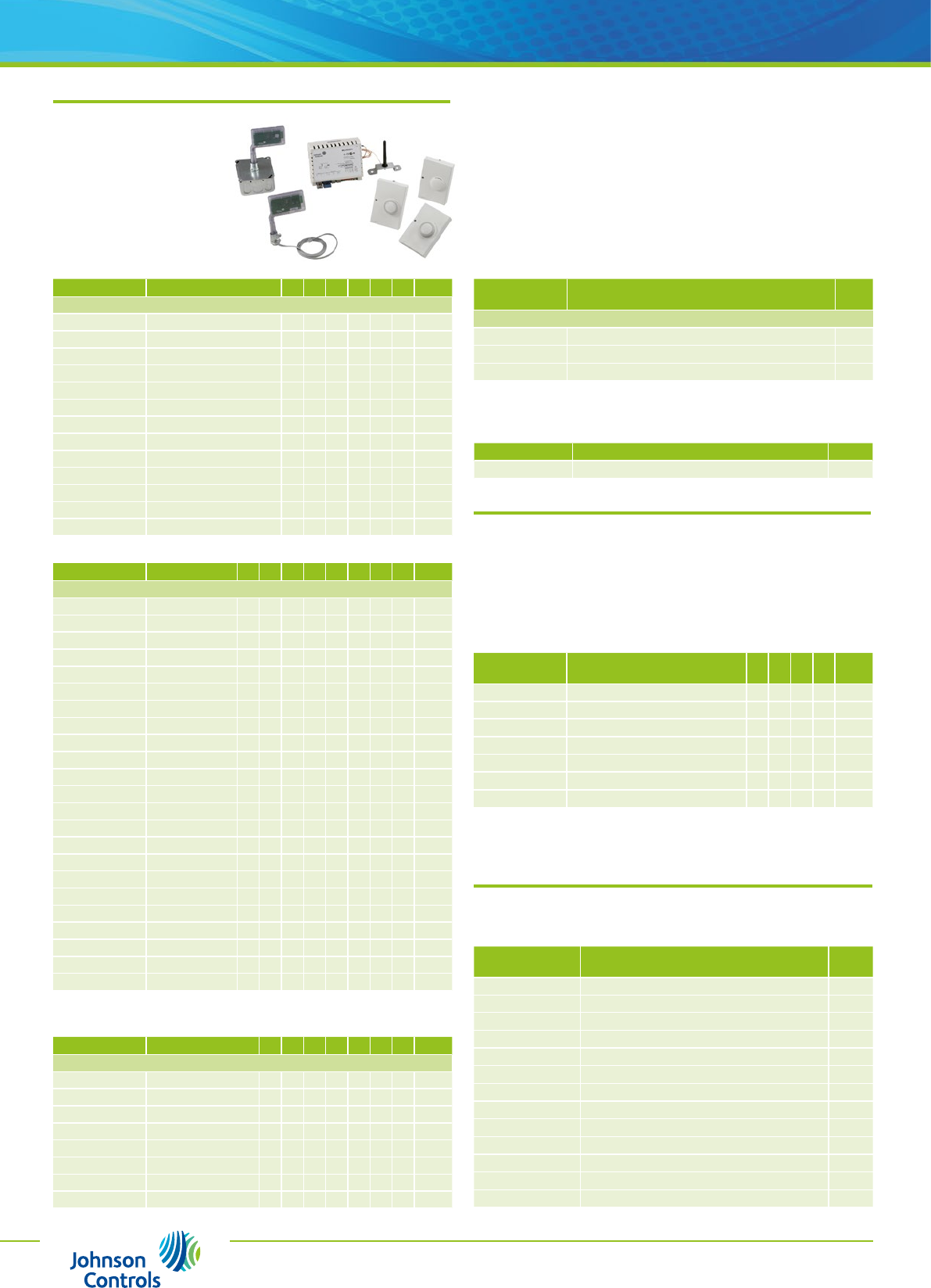

TC-8900, PM-8900 & ES-89xx Series
Room Controllers
This family of analogue controllers is designed for control
of fan coils with 2-pipe, 2-pipe with change-over, 2-pipe
with electrical coil or 4-pipe configurations.
For applications without fan speed control the family
includes stand alone units (TC-890x), local controllers
(TC-893x) with remote setpoint module (ES-8930) and
local controllers (TC-894x) with central setpoint
module (ES-8940).
For applications with fan speed control the family includes the PM-8900
power modules in connection with TC-894x with or without central setpoint
module (ES-8940).
FEATURES
n
2-pipe, 2-pipe with change-over, 2-pipe with electrical coil or 4-pipe
configurations with and withoput 3-speed fan override
n
24Vac and 240Vac power modules
Ordering
Codes
NTC K10
Sensor
Setpoint
Range
Outputs List
Price
PAT 0-10V DAT On/Off
Stand-alone Controllers
TC-8903-1131-WK
n
12-28°C
1
- - -
£166
TC-8901-2131-WK
-
2
- -
£150
TC-8904-2131-WK
- -
2
-
£107
TC-8906-2131-WK
- - -
2£159
TC-8903-1132-WK
-
1
- - -
£155
TC-8901-2132-WK
-
2
- -
£98
TC-8904-2132-WK
- -
2
-
£120
TC-8906-2132-WK
- - -
2£143
TC-8903-1151-WK
n
0-40°C 1
- - -
£169
TC-8903-1152-WK
-
1
- - -
£139
Stand-alone Controllers with 0-10V input
TC-8903-1183-WK
-
0-100% 1
- - -
£166
TC-8901-2183-WK
-
2
- -
£166
Local Controllers used with ES-8930 Remote Setpoint Module
TC-8933-1112-W
- -
1
- - -
£158
TC-8931-2112-W
-
2
- -
£94
TC-8936-2112-W
- - -
2£98
ES-8930-3031-WK
n
12-28°C
- - - -
£128
Local Controllers used with ES-8940 Central Setpoint Module
TC-8943-1141-WK
n
+/–
1
- - -
£129
TC-8941-2141-WK
-
2
- -
£150
TC-8944-2141-WK
- -
2
-
£125
TC-8946-2141-WK
- - -
2£157
ES-8940-4130-WK
-
12-28°C
- - - -
£142
Room Controllers
Ordering
Codes
NTC K10
Sensor
Setpoint
Range
Config.
Outputs
Power
Mod.+
List
Price
Local Controllers (3-speed Fan Output) and used with ES-8940 Module
TC-8902-1031-WK
n
12-28°C
2 pipe
††
1 x 0-10Vdc A
£921 x DAT 230V B
1 x DAT 24V C
TC-8907-1031-WK 1 x Relay † D £159
TC-8902-2031-WK 4 pipe
2 x 0-10Vdc A
£1502 x DAT 230V B
2 x DAT 24V C
TC-8907-2031-WK 2 x Relay † D £157
TC-8902-1032-WK
-
12-28°C
2 pipe
††
1 x 0-10Vdc A
£1031 x DAT 230V B
1 x DAT 24V C
TC-8907-1032-WK 1 x Relay † D £146
TC-8902-2032-WK
4 pipe
2 x 0-10Vdc A £88
TC-8907-2032-WK 2 x DAT 230V B £140
TC-8942-2041-WK*
n
+/-
**
2 x DAT 24V C £150
TC-8947-2041-WK* 2 x Relay † D £159
Notes:
* only in connection with ES-8940-4130-WK
** +/- on local controller TC-89, 12-28°C on ES-8940 central setpoint module
† Relay 3A, 230V/24V
†† With changeover
Size - 80 x 80 x 33mm
Protection Class - IP30
+ POWER MODULES
Ordering Codes Description Price
PM-8902-0500 (A) - 1 x 0-10Vdc Output £126
PM-8905-0300 (B) - 1 x DAT 230V Output £142
PM-8905-0500 (C) - 1 x DAT 24V Output £117
PM-8907-0300 (D) - 1 x Relay 3A 230V/24V Output £116
(continued next column)
36 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

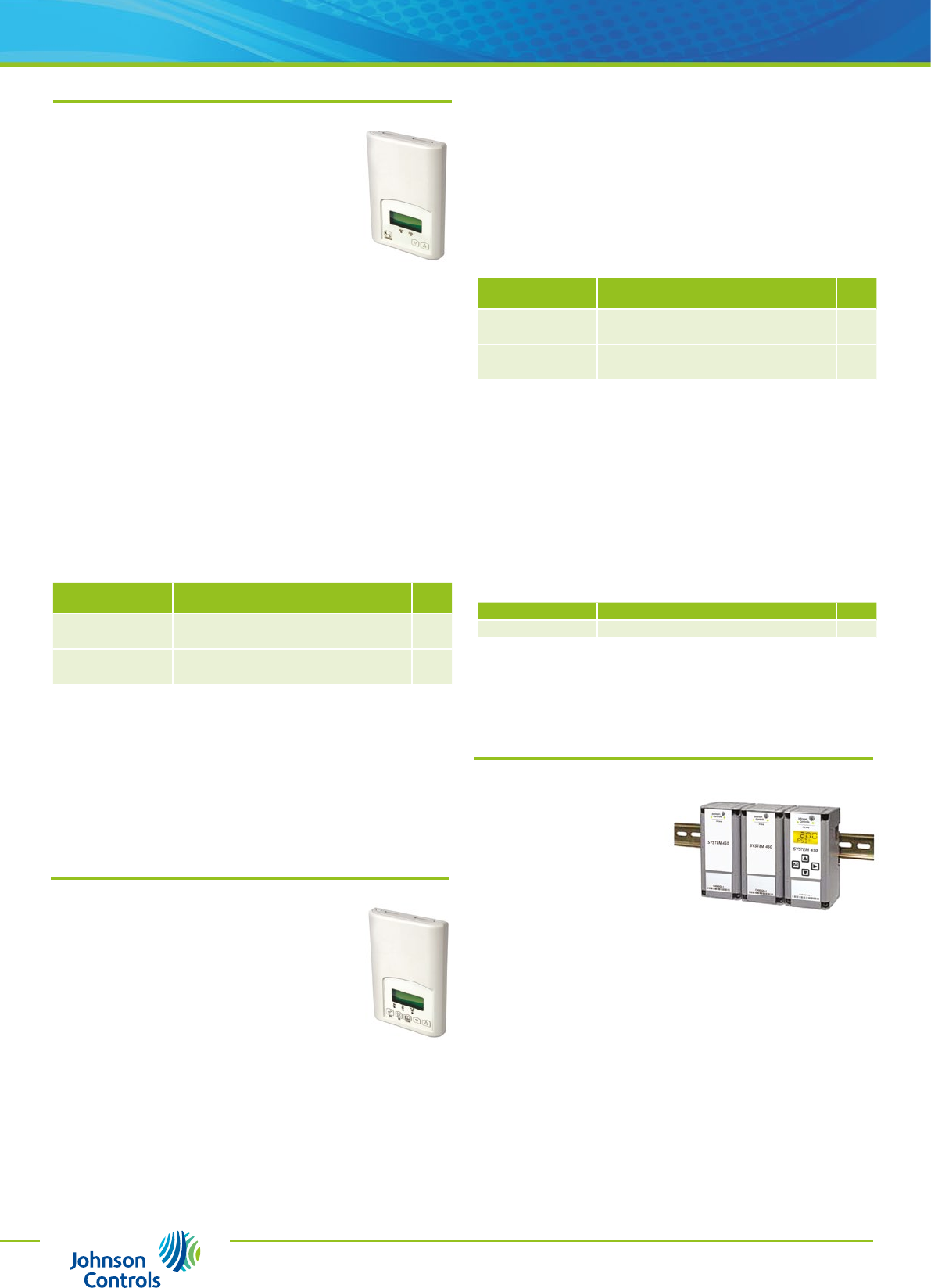

VT7300 Series
Low Voltage, Fan Coil Controllers
The VT7300 PI controller family is specifically designed for fan
coil control in commercial and lodging HVAC applications. The
product features a backlit LCD display with dedicated function
menu buttons for simple operation. Accurate temperature
control is achieved due to the product’s PI proportional control
algorithm, which virtually eliminates temperature offset
associated with traditional, differential-based controllers.
The VT7300 features configurable ‘System’ and ‘Fan’ button
functions to meet all possible applications. They all contain an SPST auxiliary switch
that can be used to control lighting or auxiliary reheat. They also have 0-10Vdc control
and can control up to three fan speed. Three additional inputs are also provided for
monitoring and / or various advanced functions
The controllers are also compatible with the new PIR cover accessories. Thermostats
equipped with a PIR cover provide advanced active occupancy logic, which will
automatically switch occupancy levels from ‘Occupied’ to ‘Stand-By’ and ‘Unoccupied’
as required by local activity being present or not. This advanced occupancy
functionality provides advantageous energy savings during occupied hours without
compromising occupant comfort.
System 450 Series
Modular, Microprocessor
based Control System
These multi-purpose, control modules
are field configurable for a wide variety
of temperature, pressure or humidity
control applications. They can be configured
to monitor and control all three applications
simultaneously. Control modules feature
integrated LCD display with 1 or 2 output
relays, or with analogue outputs.
Controllers can be set-up as stand-alone or connected to expansion modules to
control up to ten outputs based on any of the three inputs. Configurable modules make
it very easy to set-up and adjust inputs and outputs in the field using the automatic
Bus system (serial I2C).
FEATURES
n Out-of-the-box and field configurable
n Simple and complex application control systems are easily built
n Multi-purpose, field configurable modules designed for global use
n Durable, compact modular design with plug-together connectors
n Backlite liquid crystal display (LCD) and four button touchpad user interface (UI)
n Surface or DIN-rail mounting (BKT-rail)
SENSORS / THERMOSTATS (cont)
FEATURES
n Models available with internal humidity sensing
n Advanced occupancy functions
n Three configurable inputs
n Configurable sequences of operation
n Configurable fan functions button
n Unique configurable setup utility
n Multi level lockable keypad
n Auto fan speed mode
n Available for 24Vac On/Off, Floating or Analogue Control
n Auxiliary output
n Ready for PIR accessory cover
Ordering
Codes*
Description
List
Price
VT7300C5031 2 x Tri-state Floating Outputs
1 x Auxiliary or Reheat Contact
£284
VT7300F5031 2 x Analogue 0-10Vdc Outputs
1 x Auxiliary or Reheat Contact
£300
* Minimum order of 10 units
Supply Voltage - 24Vac, 50/60 Hz; 2VA Class 2
Sensor - Local NTC 10K thermistor
Humidity sensor - 10-90% RH
Setpoint (dehumidification) - 30-90% RH
Setpoint (cooling) - 12-37.5°C
Setpoint (heating) - 4.5-32°C
Temperature Display Range - –40-+50°C
Proportional Band - 1.8°C (cooling & heating)
Switch Contact - Valve analogue output 0-10Vdc. Fan relay output 30Vac (1A):
Valve triac output 30Vac (1A):
Size - 125.5 x 86 x 29mm
ACCESSORY
Ordering Code Description Price
COV-PIR-FCU-C-5000 Retrofit PIR Cover - Commercial Interface £155
VT7200 Series
Low Voltage, Zoning Thermostats
The VT7200 PI thermostat family is specifically designed for
zoning applications in commercial HVAC applications. These
include local hydronic reheat valve control and pressure
dependent VAV with or without local reheat.
The product features a backlit LCD display with dedicated
function menu keys for simple operation. Accurate temperature
control is achieved due to the product’s PI proportional control
algorithm, which virtually eliminates temperature offset
associated with traditional, differential-based thermostats. Models are available for
3-point floating and analogue 0-10Vdc control. In addition remote room sensing is
available. They all contain an SPST auxiliary switch that can be used to control lighting
or auxiliary reheat.
The controllers are also compatible with the new PIR cover accessories. Thermostats
equipped with a PIR cover provide advanced active occupancy logic, which will
automatically switch occupancy levels from ‘Occupied’ to ‘Stand-By’ and ‘Unoccupied’
as required by local activity being present or not. This advanced occupancy
functionality provides advantageous energy savings during occupied hours without
compromising occupant comfort.
FEATURES
n Advanced occupancy functions
n
Three configurable inputs
n
Pre-configurable sequences of operation
n
Unique configurable setup utility
n
Lockable keypad
n
Available for 24Vac On/Off, Floating or Analogue Control
n
Auxiliary output
n
Available with various ‘open industry standards’ communication adapters
n
Ready for PIR accessory cover
Ordering
Codes*
Description
List
Price
VT7200C5031 2 x Tri-state Floating Outputs
1 x Auxiliary or Reheat Contact
£213
VT7200F5031 2 x Analogue 0-10Vdc Outputs
1 x Auxiliary or Reheat Contact
£248
* Minimum order of 10 units
Supply Voltage - 24Vac, 50/60 Hz; 2VA Class 2
Sensor - Local NTC 10K thermistor
Setpoint (cooling) - 12-37.5°C
Setpoint (heating) - 4.5-32°C
Temperature Display Range - –40-+50°C
Proportional Band - 1.8°C (cooling & heating)
Switch Contact - Triac output 30Vac (1A): Analogue output 0-10Vdc
Size - 125.5 x 86 x 29mm
(continued next column)
(continued next page)
37
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

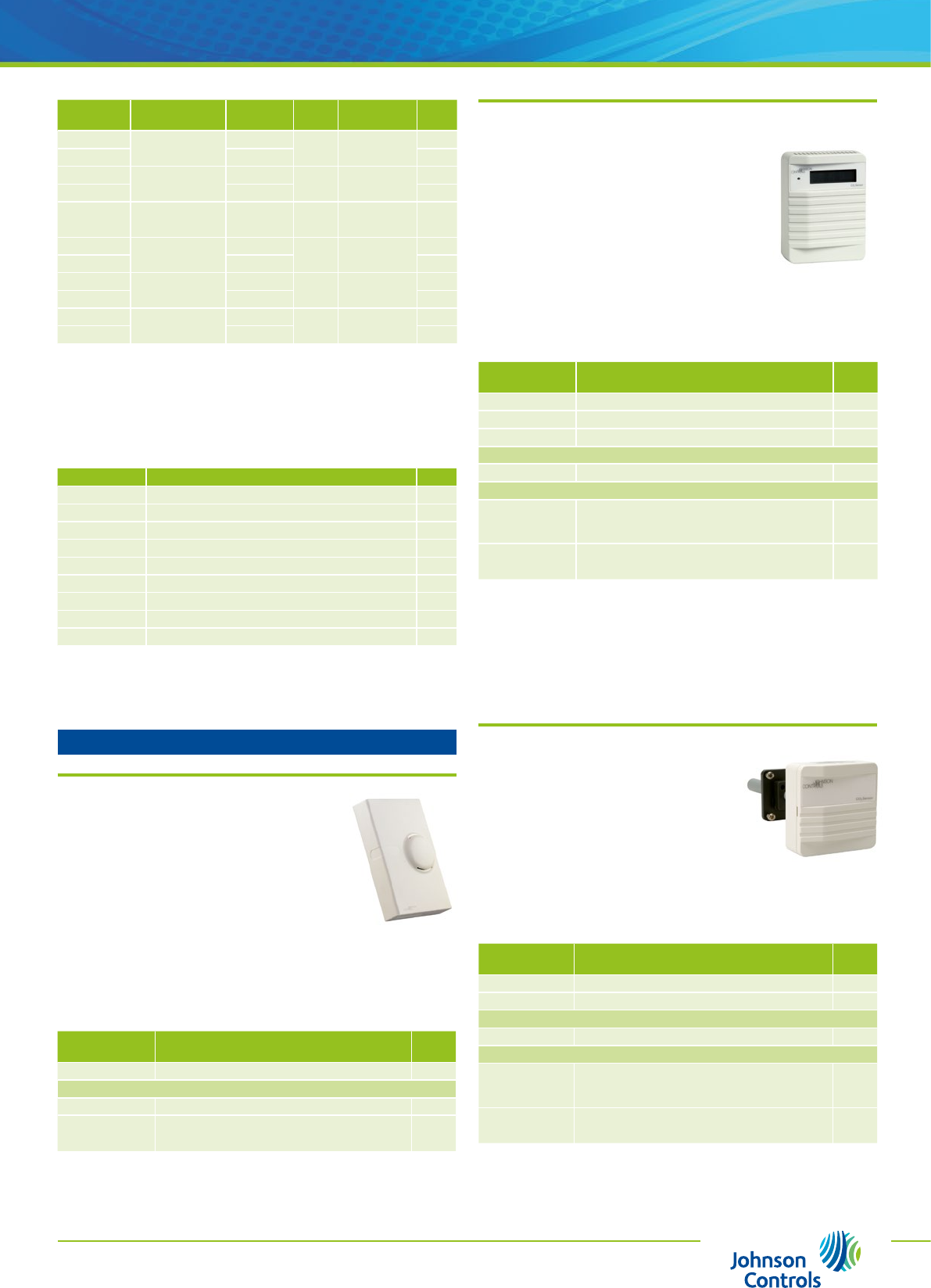

Supply Voltage - 24(20-30)Vac, 50/60 Hz; 10VA min. SELV, Class 2
Input Signal – 0-5Vdc, 1035 ohms
Analogue Input Accuracy – 14-bit resolution
Relay Output – 240V, 10A SPDT
Analogue Output – 0-10V or 4-20mA (see data sheet for load requirements)
Size - 127 x 61 x 61mm
SENSORS
Ordering Code Description Price
A99BA-200C PTC silicon sensor, shielded cable (2m), –40-+120°C £43
A99BB-25C PTC silicon sensor, PVC cable (0.25m), –40-+120°C £33
A99BB-200C PTC silicon sensor, PVC cable (2m), –40-+120°C £36
A99BB-300C PTC silicon sensor, PVC cable (3m), –40-+120°C £41
A99BB-500C PTC silicon sensor, PVC cable (5m), –40-+120°C £50
A99BB-600C PTC silicon sensor, PVC cable (6m), –40-+120°C £55
A99BC-1500C PTC silicon sensor, silicon cable (15m), –40-+120°C £267
HE-67S3-0N0BT Space humidity/temp. sensor, 10-95% RH, –40-+121°C* £429
HE-67S3-0N00P Duct humidity/temp. sensor, 10-95% RH, –40-+121°C* £448
* Space & duct sensors – Integral A99B temp. sensor
Ordering
Codes
Module
Function
Outputs
Supply
Voltage
Sensor
Input
List
Price
C450CBN-3C Relay control
+ display
1 x relay 24Vac A99B, HE-67S3,
P499, DPT265
£159
C450CCN-3C
2 x relays
£204
C450SBN-3C
Reset relay control
+ display & clock
1 x relay -
-£95
C450SCN-3C
2 x relays
£127
C450YNN-1C Power
module
24V rectified 120-
240Vac
-
£87
C450CPN-3C PI control
module
1 x analogue 24Vac A99B, HE-67S3,
P499, DPT265
£172
C450CQN-3C
2 x analogue
£217
C450SPN-3C PI expansion
module
1 x analogue -
-
£106
C450SQN-3C
2 x analogue
£135
C450RBN-3C
Boiler reset control
+ display & clock
1 x relay
24Vac
A99B £280
C450RCN-3C 2 x relays £338
CD-Wxx-00-0 Series
Wall Mount Transmitters
This range of CD-Wxx-00-0 sensors measure and transmit
CO2 levels, ranging from 0-2,000 parts per million (ppm).
Specific applications include: Demand Control Ventilation
(DCV), Fresh Air and Indoor Air Quality (IAQ), and Rooftop
Air Handling Economiser Controls System.
These sensors are designed to work in stand-alone mode
or as part on any integrated Building Automation System
(BAS). They are easy to install and require no maintenance
or field calibration.
FEATURES
n
Response time (0-63%): 1 minute
n
Accuracy at 25°C: ± 50 ppm + 3.0% of reading
Ordering
Codes
Description
List
Price
CD-WA0-00-0 CO2 Transmitter with Analogue Temperature Output £638
CD-WR0-00-0 CO2 Transmitter with Relay £820
CD-WRD-00-0 CO2 Transmitter with Relay and Display £847
Replacement Part
ACC-DWCLIP-0 Drywall Spring-clip Mounting Kit £33
Accessories
ACC-CD-S
Relay Setpoint Software Kit; includes software
and interface cable to reset the On and Off relay
setpoints for CD-WR0-00-0 or CD-WRD-00-0
£513
Y65T31-0 Multiple Primary Transformer, 40VA, 120/208/230V
Primary, 24V Class 2 Secondary £60
Power Supply - 20-30Vac (18-30Vdc), Class 2
Signal Output - 0-10V (default), 0-20mA or 4-20mA signal
Operating Temperature - -5-+45°C
Humidity Range - 0 to 85%
Size - 109 x 80 x 37mm
CO² Sensors
CD-W00-00-1 Series
Wall Mount Transmitter
These sensors measure and transmit CO² levels, ranging from
0-2,000 parts per million (ppm).
Specific applications include: Demand Control Ventilation (DCV),
Fresh Air and Indoor Air Quality (IAQ), and Rooftop Air Handling
Economiser Controls System.
These sensors are designed to work in stand-alone mode or as part
on any integrated Building Automation System (BAS). They are
easy to install and require no maintenance or field calibration.
FEATURES
n
Response time (0-63%): 1 minute
n
Accuracy at 25°C: ±50 ppm + 3.0% of reading
Ordering
Codes
Description
List
Price
CD-W00-00-1 CO² Transmitter - Wall Mount £412
Accessories
ACC-DWCLIP-0 Drywall Spring-Clip Mounting Kit £33
Y65T31-0 Multiple Primary Transformer, 40VA, 120/208/240V
Primary, 24V Class 2 Secondary £60
Power Supply - 20-30Vac (18-30Vdc, Class 2)
Operating Temperature - -5-+45°C
Size - 120 x 80 x 32mm
Humidity Range - 0-85%
CD-Pxx-00-0 Series
Duct Mount Transmitters
These sensors measure and transmit CO2 levels, ranging
from 0-2,000 parts per million (ppm).
Specific applications include: Demand Control Ventilation
(DCV), Fresh Air and Indoor Air Quality (IAQ), and Rooftop
Air Handling Economiser Controls System.
The sensors produce a 0-10V (default), 0-20 mA or 4-20 mA signal.
FEATURES
n
Response time (0-63%): 1 minute
n
Accuracy at 25°C: ± 30 ppm + 2.0% of reading
Ordering
Codes
Description
List
Price
CD-P00-00-0 CO2 Transmitter - Duct Mount £655
CD-PR0-00-0 CO2 Transmitter with Relay - Duct Mount £790
Replacement Part
ACC-CD-CFK1 Conduit Adaptor Kit £51
Accessories
ACC-CD-S Relay Setpoint Software Kit; includes software and
interface cable to reset the On and Off relay setpoints
for CD-PR0-00-0
£513
Y65T31-0 Multiple Primary Transformer, 40VA, 120/208/230V
Primary, 24V Class 2 Secondary £60
Power Supply - 20-30Vac (18-30Vdc), Class 2
Signal Output - 0-10V (default), 0-20mA or 4-20mA signal
Operating Temperature - -5-+45°C
Humidity Range - 0 to 85%
Size - 80 x 80 x 64mm (head), 80-140mm (stem length), 15mm (stem Ø)
38 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
HT-9000 Series
Duct Mount, Humidity Sensors
The HT-9000 Series measures humidity over the
entire range of 0-100% RH (non condensing) and
has a wide operating range. Its fast response,
reliable long-term performance makes this
transmitter well suited for refrigeration and HVAC
installations. This range also includes models with
an integrated temperature sensing element.
FEATURES
n
Humidity accuracy 4% RH from 10-90% RH
n
Temperature outputs 0-10Vdc, NTC K2, Pt 100, Pt 1000, A99
Ordering
Codes
Temp.
Range
Temp.
Output
Probe
Length
Humidity
Output
List
Price
HT-9000-UD1
- -
153mm 0-10Vdc
£279
HT-9001-UD1 0-40°C 0-10Vdc £306
HT-9003-UD1 NTC K2 £236
HT-9005-UD1
0-60°C
Pt100 £323
HT-9006-UD1 Pt1000 £266
HT-9009-UD1 A99 £263
HT-9000-UD2
- -
230mm 0-10Vdc
£254
HT-9001-UD2 0-40°C 0-10Vdc £357
HT-9003-UD2 NTC K2 £300
HT-9005-UD2
0-60°C
Pt100 £275
HT-9006-UD2 Pt1000 £324
HT-9009-UD2 A99 £325
Supply Voltage - 12-30Vdc or 24Vac +15%
Size - 74.5 x 74.5 x 52mm (head), 25mm Ø (probe)
Protection Class - IP30
HT-9000 Series
Wall Mount, Humidity Sensors
These sensors measure humidity over the entire range of
0-100% RH (non condensing) and have a wide operating
temperature range. Its fast response, reliable long-
term performance makes this transmitter well suited for
refrigeration and HVAC installations. This range also includes
models with an integrated temperature sensing element.
FEATURES
n
Humidity Accuracy 4% RH from 10 to 90% RH
n
Temperature Outputs 0-10Vdc, NTC K2, Pt 100, Pt 1000, A99
Ordering
Codes
Temp. Range
Temp. Output
Humidity Output
List
Price
HT-9005-URW 0-60°C Pt100 0-10Vdc £236
HT-9009-URW A99 £257
Humidity Range - 0-100% (non condensing)
Supply Voltage - 12-30Vdc or 24Vac +15%
Size - 81 x 81 x 31mm
Protection Class - IP30
Old HT-9000 Sensors Replacement Sensors (see above)
HT-9000-URW HT-1300-UR
HT-9001-URW HT-1301-UR
HT-9003-URW HT-1303-UR
HT-9006-URW HT-1306-UR
SENSORS / THERMOSTATS (cont)
Humidity Sensors
HT-1000 Series
Room Humidity Sensors
This new sensor provides an active sensing of relative humidity
and, on specific models, also active/passive sensing of
temperature in HVAC applications.
It features a polymer capacitance humidity sensing element
and provides a voltage output signal within either ±2% or
±4% accuracy proportional to 0-100 % relative humidity.
It’s fast response and reliable long-term performance makes
this transmitter well suited for HVAC installations.
They are designed to work in stand-alone mode or as part on
any integrated Building Automation System (BAS).
FEATURES
n
Humidity accuracy 2% RH from 0-100% RH (HT-1201-UR)
n
Temperature outputs 0-10Vdc, NTC K2, Pt1000
n
Transmitter is resistant to many hostile environments
n
Polymer humidity sensing element integral on chip
Ordering
Codes
Accuracy
Temp. Output
Temp. Range*
List
Price
HT-1201-UR ±2% 0-10Vdc 0-40°C £373
HT-1300-UR
±4%
- -
£213
HT-1301-UR 0-10Vdc 0-40°C £260
HT-1303-UR NTC K2
-
£226
HT-1306-UR Pt1000 £239
* If sensing temperature output is present
Supply Voltage - 12-30Vdc or 24Vac, ±15% @ 50/60Hz
Size - 80 x 80 x 32mm
Protection Class - IP30
ACCESSORIES
Ordering Codes Description Price
TM-1100-8931 Surface Mounting Base £18
TM-9100-8900 Special Tool to open module £13
HX-9100 Series
Dew Point Sensors
The HX-9100 is used to prevent condensation on surfaces
such as cold water pipes, cool ceilings and windows. The
sensor provides override functions when condensation is
forming.
FEATURES
n
Hysteresis: 1%
n
Output: open collector closed: 0.5Vdc max
or ≤ + 0.5Vdc
Ordering
Codes
Action
Output at Condensation
List
Price
HX-9100-8001 ON/OFF Open collector closed, 0.5Vdc max. £55
HX-9100-9001 0-10Vdc ≤ +0.5Vdc £118
Power Supply - 15Vdc ±10%
Size - 50 x 15 x 10mm
Protection Class - IP44
Dew Point Sensors
39
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
Temperature Sensors
TE-7000 Series
Room Command Modules
The TE-7000 Room Command Module is designed for
use with the VMA1400 series VAV Modular Assembly.
The module has an NTC temperature sensor, a dial for
setpoint adjustment within the range of 12-28°C or -3 to
+3K, and an occupancy button with an LED indicator. If the
VAV controller is not already in occupied mode as shown
by the LED indicator, the occupant may press the occupancy
button to obtain comfort control for a set period of time
(normally defaulted to one hour).
The module also has a built-in connector for a PC with the software to test and
commission the VMA1400 series VAV Modular Assembly and the air supply system.
FEATURES
n
Power supply from VMA1400
n
Temperature sensor: NTC K2
n
Occupancy override button
n
Remote setpoint adjustment
Ordering
Codes
Colour
Setpoint
Dial Range
List
Price
TE-7000-8002 Off-White / Gray Base 12-28°C £123
TE-7000-8002-W White / White Base £122
TE-7000-8003 Off-White / Gray Base -3 -+3 K £120
TE-7000-8003-W White / White Base £122
Note: Add ‘-K’ to code for setpoint dial with serrated edge, e.g. TE-7000-8002-K,
TE-7000-8002-WK
Supply Voltage - Power from VMA1400
Size - 80 x 80 x 33mm
Protection Class - IP30
ACCESSORIES
Ordering Codes Description Price
TM-9100-8901 Dial-Stop screws kit (bag of 100 self-tapping screws) £24
TM-9100-8902 Serrated knob kit (bag of 10 knobs) - off-white £39
TM-9100-8902-W Serrated knob kit (bag of 10 knobs) - white £39
RS-1100 Series
Room Command Modules
These Room Command Modules are designed for use
with Facility Explorer Series or System 91 controllers
from Johnson Controls and provides a 0-10V signal
directly proportional to the sensed temperature.
FEATURES
n
Remote temperature setpoint adjustment
n
Occupancy override function, (models with or
without display)
n
Fan speed button
Ordering
Codes
Output
Signal
LCD
Display
Setpoint
Dial Range
Override
Function*
Fan Speed
Selection
List
Price
RS-1140-0000
0-10V
dc
-
- -
-
£73
RS-1160-0000 12-28°C Pushbutton £105
RS-1160-0005 +/- £105
RS-1180-0000
n
12-28°C Integrated £138
RS-1180-0005 +/- £139
RS-1190-0000
-
12-28°C
-
£96
RS-1190-0005 +/- £96
TM-1100 Series
Room Command Modules
The TM-1100 Series of Room Command
Modules are designed for use with the
TC-9102, TC-9109 and TCU series of DDC
terminal unit controllers. The setpoint dial
enables the room occupant to adjust the
working set point of the controller within the range
of 12-28°C or -3-+3°, according to the
model number.
The occupancy button enables the occupant to switch the mode of operation of the
controller between COMFORT and STANDBY or to request a temporary COMFORT
mode during NIGHT operation.
An LED indicator shows the current operating mode. For TC-9102 and TCU Fan Coil
Unit controllers, a Room Command Module with a 3-speed fan override is available.
Models without a temperature sensing element are provided for application where the
temperature sensor is mounted inside the Fan Coil Unit.
FEATURES
n
Passive Sensor
n
Remote Temperature Setpoint adjustment
n
3-speed fan override
n
Occupancy override button
Ordering
Codes
Sensing
Element
Setpoint
Dial Scale
Fan Speed
Override
Occupancy
Override
List
Price
TM-1140-0000
NTC K2
-
-
-
£52
TM-1150-0000
n
£68
TM-1160-0000 12-28°C £73
TM-1160-0005 +/- £73
TM-1160-0002 12-28°C 3-Speed £93
TM-1160-0007
+/-
£86
TM-1170-0005 Without
-
£68
TM-1170-0007 3-Speed £77
TM-1190-0000 NTC K2 12-28°C
- -
£73
TM-1190-0005 +/- £73
Supply Voltage - Power from TC-9102, TC-9109 and TCU Series
Unit Size - 80 x 80 x 32mm (TM-1140 only), 80 x 80 x 35mm (other types)
Protection Class - IP30
ACCESSORIES
Ordering Codes Description Price
TM-1100-8931 Plastic Base for surface mount £18
TE-9100-8501 Unit Mount NTC K2 Temperature Sensor (1.5m cable) £31
TM-9100-8900 Special Tool for opening enclosure £13
(continued next column)
Ordering
Codes
Output
Signal
LCD
Display
Setpoint
Dial Range
Override
Function*
Fan Speed
Selection
List
Price
RS-1180-0002 0-10V
dc
n
12-28°C Integrated
n
£181
RS-1180-0007 +/- £181
Note: * Temporary occupancy override function
Supply Voltage - 5Vdc (all models) or 24Vac/dc (only models with display)
Temperature Output - 0-10Vdc
Size - 80 x 80 x 32mm (RS-1140 only), 80 x 80 x 35mm (other types)
Protection Class - IP30
ACCESSORIES
Ordering Codes Description Price
TM-1100-8931 Plastic surface mounting kit £18
TM-9100-8900 Special tool for opening enclosure £13
40 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

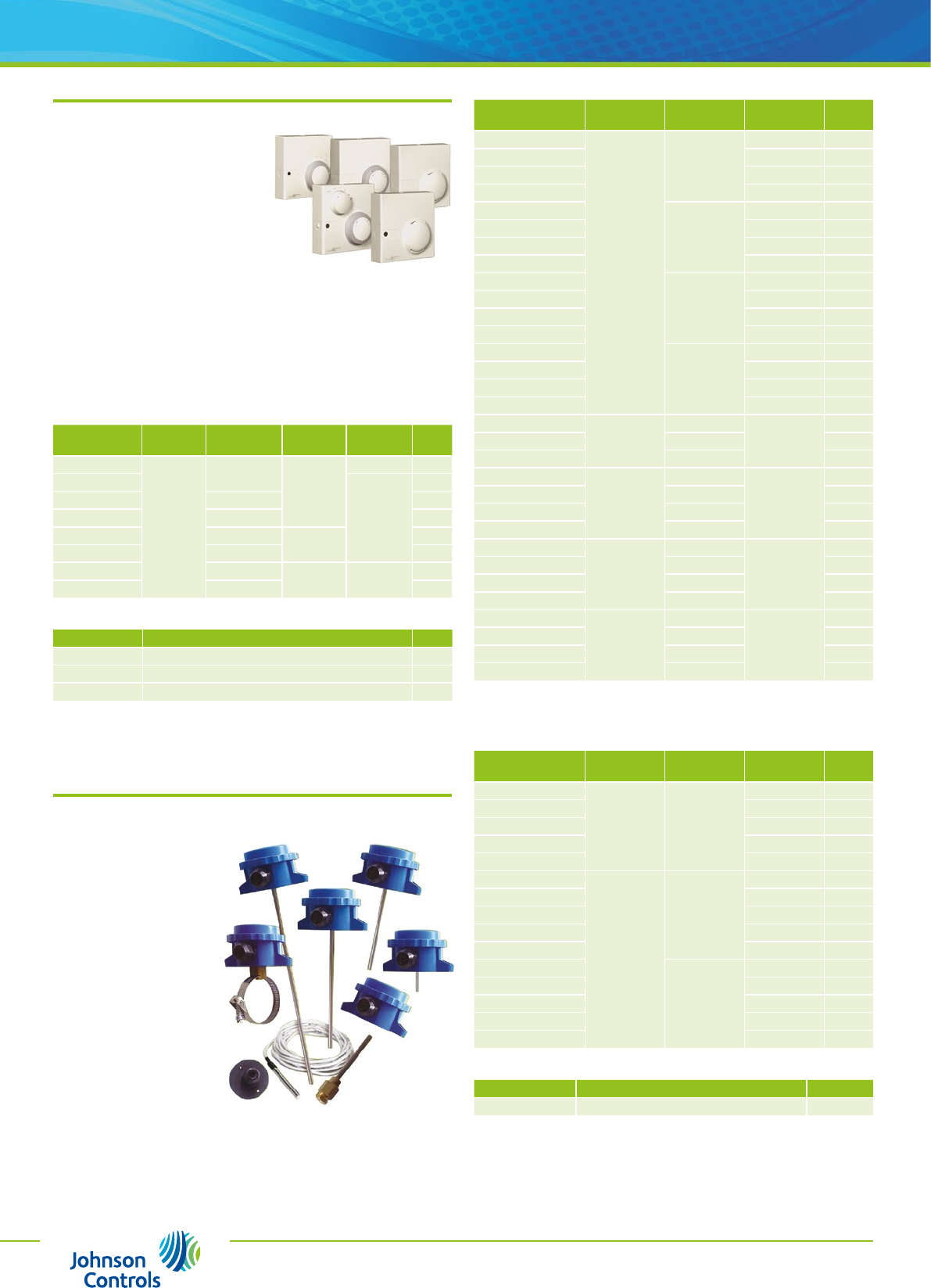

TS-6300 Series
Temperature Sensors
Designed to meet the current
market requirements of quality
and price, The TS-6300 series
temperature sensors provide a
passive signal that corresponds
to the air or water temperature
in heating, ventilating and air
conditioning applications.
The TS-6300 temperature sensor
series has been designed to work
primarily with Johnson Controls
Metasys and System 91 field
controllers.
FEATURES
n
Wide range of mounting types
n
Wide range of signal outputs
n
Different length of tubes and wells for duct and immersion applications
n
Bayonet mounting system
n
For immersion applications, well can be mounted before duct sensor is mounted
n
IP54 and IP67 enclosures
Ordering
Codes
Sensor
Type
Output
Signal
Rod Length
(mm)
List
Price
TS-6330D-A10
Rod*
(duct)
2K2 NTC
138 £41
TS-6330D-B10 192 £44
TS-6330D-C10 290 £46
TS-6330D-D10 446 £51
TS-6340D-A10
10K NTC
138 £41
TS-6340D-B10 192 £44
TS-6340D-C10 290 £46
TS-6340D-D10 446 £51
TS-6350D-A10
Pt100
138 £41
TS-6350D-B10 192 £44
TS-6350D-C10 290 £51
TS-6350D-D10 446 £51
TS-6360D-A10
Pt1000
138 £41
TS-6360D-B10 192 £44
TS-6360D-C10 290 £46
TS-6360D-D10 446 £51
TS-6330K-F00 Remote
element
2K2 NTC 2m
cable
£26
TS-6340K-F00 10K NTC £26
TS-6360K-F00 Pt1000 £26
TS-6330E-000
Outdoor
2K2 NTC
-
£38
TS-6340E-000 10K NTC £38
TS-6350E-000 Pt100 £38
TS-6360E-000 Pt1000 £38
TS-6330S-000
Strap-on
2K2 NTC
-
£51
TS-6340S-000 10K NTC £51
TS-6350S-000 Pt100 £51
TS-6360S-000 Pt1000 £51
TS-6330C-E10
Ceiling
2K2 NTC
-
£44
TS-6340C-E10 10K NTC £44
TS-6350C-E10 Pt100 £44
TS-6360C-E10 Pt1000 £44
Note: * Rod sensor can either be for:-
Duct applications (alone) - Immersions applications (with well)
IMMERSION WELLS
Ordering
Codes
Material
Thread
Length
(mm)
List
Price
TS-6300W-E200
Brass R 1/2”
50 £18
TS-6300W-F200 120 £20
TS-6300W-G200 150 £20
TS-6300W-H200 200 £20
TS-6300W-I200 260 £21
TS-6300W-E300
Stainless
steel
R 1/2”
50 £32
TS-6300W-F300 120 £33
TS-6300W-G300 150 £33
TS-6300W-H300 200 £34
TS-6300W-I300 260 £41
TS-6300W-E400
G 1/2”
50 £26
TS-6300W-F400 120 £26
TS-6300W-G400 150 £27
TS-6300W-H400 200 £29
TS-6300W-I400 260 £30
ACCESSORY
Ordering Code Description Price
TS-6300D-000 TS-6300 Duct flange kit £9
TM-2100 Series
Room Command Modules
This Series of Room Command Modules
is designed for use with the FCC and
Facility Explorer Series of DDC terminal unit
controllers. The setpoint dial enables the
room occupant to adjust the working set point
of the controller within the range of 12-28°C
or -3-+3°, according to the model number.
The occupancy button enables the occupant to switch
the mode of operation of the controller between COMFORT and STANDBY or to
request a temporary COMFORT mode during NIGHT operation. An LED indicator shows
the current operating mode. A Room Command Module with a 3-speed fan override
adjuster is available.
FEATURES
n
Passive sensor
n
Remote temperature setpoint adjustment
n
3-speed fan override
n
Occupancy override button
Ordering
Codes
Sensing
Element
Setpoint
Dial Scale
Fan Speed
Override
Occupancy
Override
List
Price
TM-2140-0000
NTC 10K
-
-
-
£53
TM-2150-0000
n
£56
TM-2160-0000 12-28°C £73
TM-2160-0005 +/- £61
TM-2160-0002 12-28°C 3-Speed £72
TM-2160-0007 +/- £61
TM-2190-0000 12-28°C
- -
£61
TM-2190-0005 +/- £61
ACCESSORIES
Ordering Codes Description Price
TM-1100-8931 Plastic base for surface mount £18
TE-9100-8501 Unit Mount NTC K2 Temperature Sensor (1.5 m cable) £31
TM-9100-8900 Special Tool for opening enclosure £13
Supply Voltage - Power from FCC and Facility Explorer Series
Size - 80 x 80 x 32mm (TM-2140 only), 80 x 80 x 35mm (other types)
Protection Class - IP30
SENSORS / THERMOSTATS (cont)
(continued next column)
41
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.

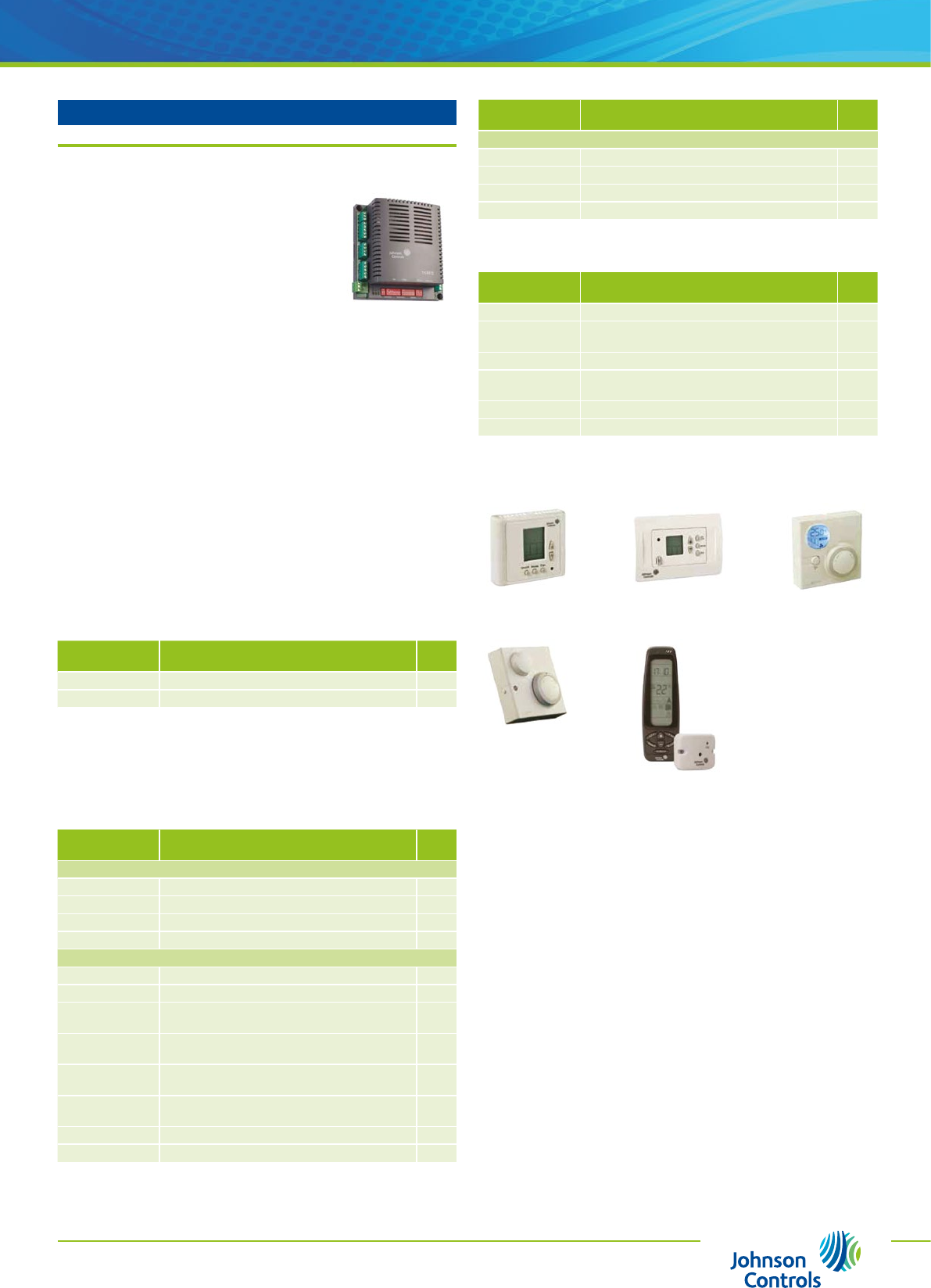

TERMINAL UNIT CONTROLLERS
Terminal Unit Controller
ACCESSORIES
Ordering
Codes
Description
List
Price
LP-KIT003-010C Remote temp. sensor, NTC 50k Ω, bulb, 80cm leads £7
LP-KIT003-011C Remote temp. sensor, NTC 50k Ω, wall mount,
decorative box £20
LP-KIT003-012C Remote temp. sensor, NTC 50k Ω, duct mount £44
LP-KIT003-013C Remote temp. sensor, NTC 50k Ω, wall mount,
decorative box £22
HX-9100-8001 Condensation (dew point) sensor £55
TE-9100-8502 Remote temp. sensor, NTC 10k Ω, bulb, 150cm leads £35
Ordering
Codes
Description
List
Price
Room Sensor Modules with Backlit LCD Display – 80mm x 80mm
RS-1180-0000 Sensor with 12-28°C setpoint dial
£138
RS-1180-0005 Sensor with +/– setpoint dial
£139
RS-1180-0002 Sensor with 12-28°C setpoint dial, fan speed override
£181
RS-1180-0007 Sensor with +/- setpoint dial, fan speed override
£181
(continued next column)
TUC3 Series
Configurable Unit Controllers
The TUC03 configurable Terminal Unit Controller is designed
specifically to provide direct digital control of terminal unit
applications with heating and/or cooling coils, an electric
heater and a three-speed or variable speed fan.
These applications include close control units, fan coil
units, unit ventilators and chilling or heating ceiling beam
installations.
The device can be configured by the installer, without the need of a PC and
software tool, using a set of on-board dip-switches. The controller is designed
for field installation in a panel or enclosure or for mounting by original equipment
manufacturers (OEMs) on DIN-rail or directly on a surface.
The space comfort set point, occupancy mode and fan speed may be adjusted from a
wide range of room sensor modules with options for a digital display.
Communication options are available to enable the controller to be integrated into an
N2 Open or BACnet® network of a building automation system. The BACnet interface
of the controller complies with the ANSI/ASHRAE Standard 135-2004 for sharing data
other devices on the network.
FEATURES
n Field Selectable application type, communication protocol and room module,
via dip-switches on controller
n 230Vac power supply
n 5Vdc / 15Vdc / 24Vac power supply for field devices, directly provided by
the controller
n Modular range of room sensor modules
n Network communications options - N2 Open and BACnet MS/TP
n BACnet MS/TP with peer to peer communication
n Configurable using standard tools
CONTROLLERS
Ordering
Codes
Description
List
Price
TUC0311-2 N2 / BACnet Terminal Unit Controller only
£205
TUC0311-2Bundle Fan Coil Unit Control Bundle*
£330
* Special kit pack consist of:
1 x TUC03011-2 – 230Vac N2/BACnet Terminal Unit Controller
1 x LP-KIT03-010C – Bulb Style Temperature Sensor
2 x VA-7482-1001 – Proportional Valve Actuator
When purchased with two Unitary Control Valves.
Usual discounts apply.
SENSORS
Ordering
Codes
Description
List
Price
Room Sensor Modules with LCD Display and Integrated IR Receiver
LP-RSM003-000C Room Sensor Module – wall mount
£140
LP-RSM003-001C Room Sensor Module – horizontal flush mount
£159
LP-RSM003-003C IR Receiver with integrated temperature sensor
£53
LP-RSM003-004C IR Hand-held Remote Control Unit
£76
Room Sensor Modules without Display – 80mm x 80mm
TM-2140-0000 Sensor with temperature sensor only
£53
TM-2150-0000 Sensor with occupancy button and LED
£56
TM-2160-0000 Sensor with 12-28°C setpoint dial, occupancy button
and LED
£73
TM-2160-0002 Sensor with 12-28°C setpoint dial, occupancy button
and LED, fan speed override
£72
TM-2160-0005 Sensor with +/– setpoint dial, occupancy button
and LED
£61
TM-2160-0007 Sensor with +/– setpoint dial, occupancy button and
LED, fan speed override
£61
TM-2190-0000 Sensor with 12-28°C setpoint dial
£61
TM-2190-0005 Sensor with +/– setpoint dial
£61
LP-RSM003-000C LP-RSM003-001C RS-Series
TM-Series
LP-RSM003-003C
& LP-RSM003-004C
42 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

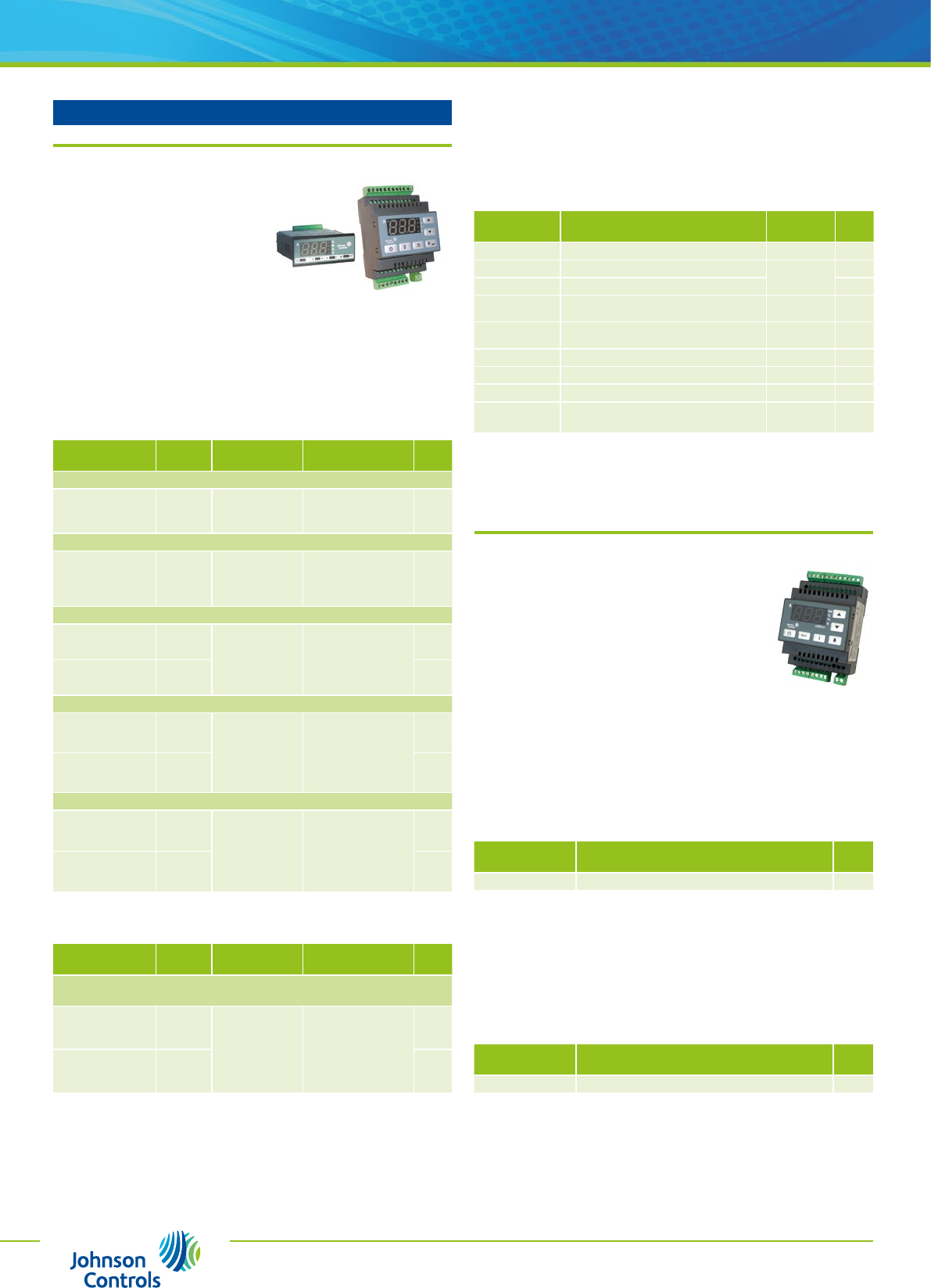

Field Controls
ER Series
Electronic Refrigeration Line
Units are designed to be incorporated
into refrigerated display cases and cold
storage rooms.
ER Line proposes progressive offer from
basic controls to advanced controls including
real-time clock, energy saving and network
communication to be integrated with
monitoring system.
FEATURES
n Robust front panel for durability and long term usage
n
Up to 5 relays in a single package
n
NTC or PTC (A99) sensors
n
Embedded real-time clock, no additional clock card required
n
Embedded RS485 port, no additional communication card required
EVAPORATOR CONTROLLERS
Ordering
Codes*
RS485
Inputs Outputs
List
Price
Panel Mount, Cool-heat Thermostat, High Power Relays 16(8)A/230Vac*
ER52-PM230-501C
-
2 x temperatures
1 x voltage free
contact
Compressor:
SPST 16(8)A
Auxillary: SPST 7(2)A
£95
Panel Mount, Cool Thermostat and Ventilated Unit*
ER53-PM230-501C
-
2 x temperatures
1 x voltage free
contact
Compressor:
SPST 16(5)A
Fan: SPST 7(2)A
Auxillary: SPST 7(2)A
£109
Panel Mount,
Cool-heat Thermostat, Comprehensive Controls, Real-time Clock*
ER54-PMW-501C MODBUS 3 x temperatures
2 x voltage free
contact
Compressor:
SPST 12(5)A
Fan: SPST 7(2)A
Defrost: SPST 7(2)A
Auxillary: SPST 7(2)A
£168
ER54-PMW-001C N2 Open
£168
DIN-rail Mounting, Cool-heat Thermostat, Comprehensive Controls*
ER55-DR230-501C MODBUS 3 x temperatures
2 x voltage free
contacts
Compressor:
SPST 7(2)A
Fan: SPST 7(2)A
Defrost: SPST 16(4)A
Auxillary 1: SPST 7(2)A
Auxillary 2: SPST 7(2)A
£180
ER55-DR230-001C N2 Open
£180
Split Mounting, Cool Thermostat, Comprehensive Controls*
ER55-SM230-501C MODBUS 3 x temperatures
2 x voltage free
contacts
Compressor:
SPST 16(8)A
Fan: SPST 8(3)A
Defrost: SPST 16(4)A
Auxillary 1: SPST 7(2)A
Auxillary 2: SPST 7(2)A
£197
ER55-SM230-001C N2 Open
£197
Note: * NTC Sensor included
RACK CONTROLLERS
Ordering
Codes*
RS485
Inputs Outputs
List
Price
DIN-rail, Pressure or Temperature Control, 4 Compressors or Fans Sequencer,
RS485, Plug Connectors
ER65-RK230-501C MODBUS 1 x temperature
1 x pressure
2 x voltage free
contacts
3 x supplied
contacts (230V)
Stages (x4):
SPST 5(1)A
Alarm: SPDT 7(2)A
£344
ER65-RK230-001C N2 Open £344
Notes:
Sensor to be ordered seperately, see also P499 pressure transducer section.
Power Supply - 230Vac, +/–10%
Temperature Range - –40 to +70°C, accuracy +/-0.3°C
Display - LED 3 digits, decimal displaying
Sizes - 77 x 71 x 35mm (panel types), 98 x 71 x 81mm (DIN-rail types),
98 x 105 x 48mm (Split mounting type).
Protection Class - Panel mount (front IP55, back IP20), DIN-rail (IP20)
ACCESSORIES
Ordering
Codes
Description
Applied
Products
List
Price
ER-NTC-0C NTC sensor, 2m cable, universal replace. All ER £18
ER-NTC-1C NTC sensor, 2m cable, T1 mark on cable ER52, ER53,
ER54, ER55
£18
ER-NTC-2C NTC sensor, 2m cable, T2 mark on cable £18
ER-FIX-01C Panel mounting clips ER52, ER53,
ER54 £19
ER-COM-1C RS485 cable, 1.5m, plug connector ER54,
ER55-SM £23
ER-ERM-2C RS485 cable, 1.5m, RJ connector ER55-DR £32
ER-COM-3C Display cable, 2m ER55-SM £13
ER-DIS-1C Remote Display, Panel Mount Blue LED ER55-SM £57
P499Axx-xxx Pressure transducer, 4-20 mA
(refer to P499 section on page 34) ER65 £ *
* Prices on page 34.
ER Series
Heating Controller
This unit is a new generation of electronic controllers
dedicated to small domestic or residential heating units.
A simple to use, simple to understand and simple to install
product. All-in-one design allows applying a single controller
to many small heating applications
FEATURES
n Controller covers water and air heating applications
n All-in-one design allows full flexibility to apply a single controller to many small
heating applications
n The controller incorporates a comprehensive energy saving function and can be
connected to a supervisory system via its on board communications port
n Robust front panel for durability and long term usage
n Direct 230V supply: no external transformer required
n Selectable inputs and outputs: up to three sensors, two digital inputs and
four outputs
HEATING CONTROLLER
Ordering
Code
Description
List
Price
ER65-DRW-501C Modbus Heating Controller
£294
Power Supply - 230Vac, +/–10%
Inputs - 3 temperature and 2 digital
Outputs - 3 relays and 2 triacs
Temperature Range - –40 to +70°C, accuracy +/-0.3°C
Display - LED 3 digits, decimal displaying
Sizes - 77 x 71 x 35mm (panel types), 98 x 71 x 81mm (DIN-rail types),
98 x 105 x 48mm (Split mounting type).
Protection Class - Panel mount (front IP55, back IP20), DIN-rail (IP20)
ACCESSORY
Ordering Code
Description
List
Price
ER-NTC-0C NTC bulb sensor, 2m (spare part) £18
FIELD CONTROLLERS
(continued next column)
43
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
REFRIGERATION CONTROLLERS
PARAMETER DESCRIPTIONS
Display
Codes
Parameters
(Setting Range)
Default
MS1
MS x1
MS2
MS4
Temperature Control Parameters
H1 Hysteresis - HY (1-9 K) 2
n n n
S2
Setpoint 2 (direct/reverse = 1-40 units,
deadband = 2-40 units, indip. setpoint = low to
high limit)
3
-n n
H2 Hysteresis - HY (1-9 K) -40
-n n
S3 Setpoint 3 (1-40 units) -40
- - n
H3 Hysteresis - HY (1-9 K) -40
- - n
S4 Setpoint 4 (1-40 units) -40
- - n
H4 Hysteresis - HY (1-9 K) -40
- - n
LL Lower setpoint limit - LL (-40°C to higher limit) -40
n n n
HL Higher setpoint limit - HL (lower limit to 125 units) 70
n n n
CC Anti short cycling cooling - CC (0-9 min) 2
n n n
CH Anti short cycling heating - CH (0-99 min) 60
n n n
rt Soft start (0-99 min / units) 3
n n n
Alarm Parameters
AH High temperature alarm
(0-50 units related to setpoint) 10
n n n
AL Low temperature alarm
(-50-0 units related to setpoint) -10
n n n
Ad Alarm differential (1-9 units) 1
n n n
At Alarm time delay (0-99 min) 30
n n n
Temperature Parameters
Lc Non compensated band (0-20 K) OF
- - n
Uc Heating compensation (0-6 K/K) 0
- - n
nc Cooling compensation (0-6 K/K) 20
- - n
Other Parameters
So Sensor offset (-20-+20 units) 0
n n n
Un Temperature units (0 = Celsius degrees,
1 = Fahrenheit degrees) 0
n n n
PU Display updating time delay (1-99 sec) 7
n n n
iF
Digital input function (0 = not used, 1 = shut off
and alarm signalling, 2 = stand by mode,
3 = remote switch off)
6
-n n
Sb Stand-by bias (0-20 units) 40
-n n
Id Digital input time delay (0-99 sec) 5
-n n
IS Interstage delay (3-99 sec) 20
-n n
Lr Low range analogue input 1 (-40 to high range) 20
n n -
Hr High range analogue input 1 (low range to 100) 20
n n -
Note:
When there are two setpoints (MS2 or MS4 is configured for independent setpoint
mode), the low alarm is linked to the lowest setpoint and the high alarm is linked to
the highest setpoint.
(continued next column)

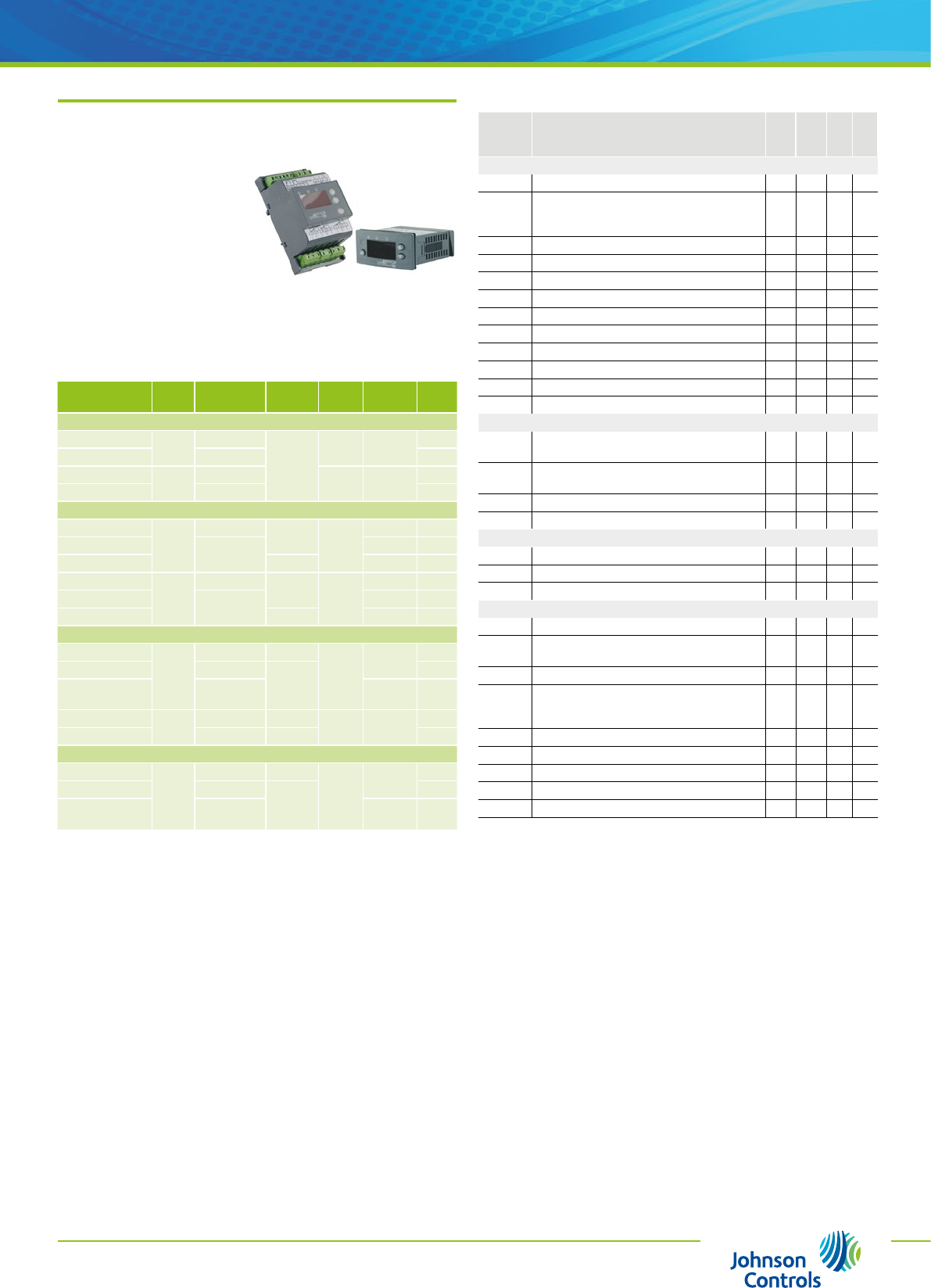

MS Series
General Purpose and Multi Stages
This range of versatile controls is
intended for single or multistage (2 or
4 stages) applications such as heating,
cooling but also humidity or pressure
depending on the input type. This range
incorporates all control functions as required
by modern applications and it exists in both
panel mount and DIN rail enclosures.
FEATURES
n
Up to four relays in panel mount enclosure
n
Accept temperature (A99) and 0-10V sensor signal depending on models
n
Accurate and interchangeable IP68 sensor
n
Wide range of enclosures for sensors available
n
Keyboard lock
Ordering
Codes
Range
(˚C)
Power
Supply
Enclosure
Input
Output
Rating
List
Price
MS Display
DIS12T-1C -40-
+70
12Vac/dc
Panel
A99 *
Sensor
-
£106
DIS230T-1C 230Vac £106
DIS12V-1C 0-100%
(Rh)
12Vac 0-10V
**
-
£106
DIS230V-1C 230Vac £106
1-stage Control (Alarm Output - Open Collector 40Vdc/100 mA)
MS1PM12RT-1C -40-
+70
12Vac/dc Panel A99 *
Sensor
SPST £120
MS1PM230T-1C 230Vac SPDT £127
MS1DR230T-1C DIN-rail SPST £141
MS1PM12RV-1C -40-
+100
12Vac Panel 0-10V
**
SPST £120
MS1PM230V-1C 230Vac SPDT £123
MS1DR230V-1C DIN-rail SPST £142
2-stage Control
MS2PM12RT-1C
-40-
+70
12Vac/dc Panel
A99 *
Sensor
SPST £175
MS2DR230T-1C 230Vac
DIN-rail
£185
MS2DR48DT-1C 12-24Vac/dc
48Vdc SPDT £234
MS2PM12RV-1C -40-
+100
12Vac Panel 0-10V
** SPST £178
MS2DR230V-1C 230Vac DIN-rail £181
4-stage Control
MS4PM12RT-1C
-40-
+70
12Vac/dc Panel
A99 *
Sensor
SPST £206
MS4DR230T-1C 230Vac
DIN-rail
£237
MS4DR48T-1C 12-24Vac/dc
48Vdc SPDT £237
Notes:
* A99 sensor (included)
** 0-10V from humidity sensor (not included)
Output Rating - 250Vac, 8(3)A (each stage)
Sizes - 118 x 70 x 63mm (DIN-rail types), 35 x 75 x 68mm (panel types)
Protection Class - Panel (overall IP20, front IP54), DIN rail (IP20)
44 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk

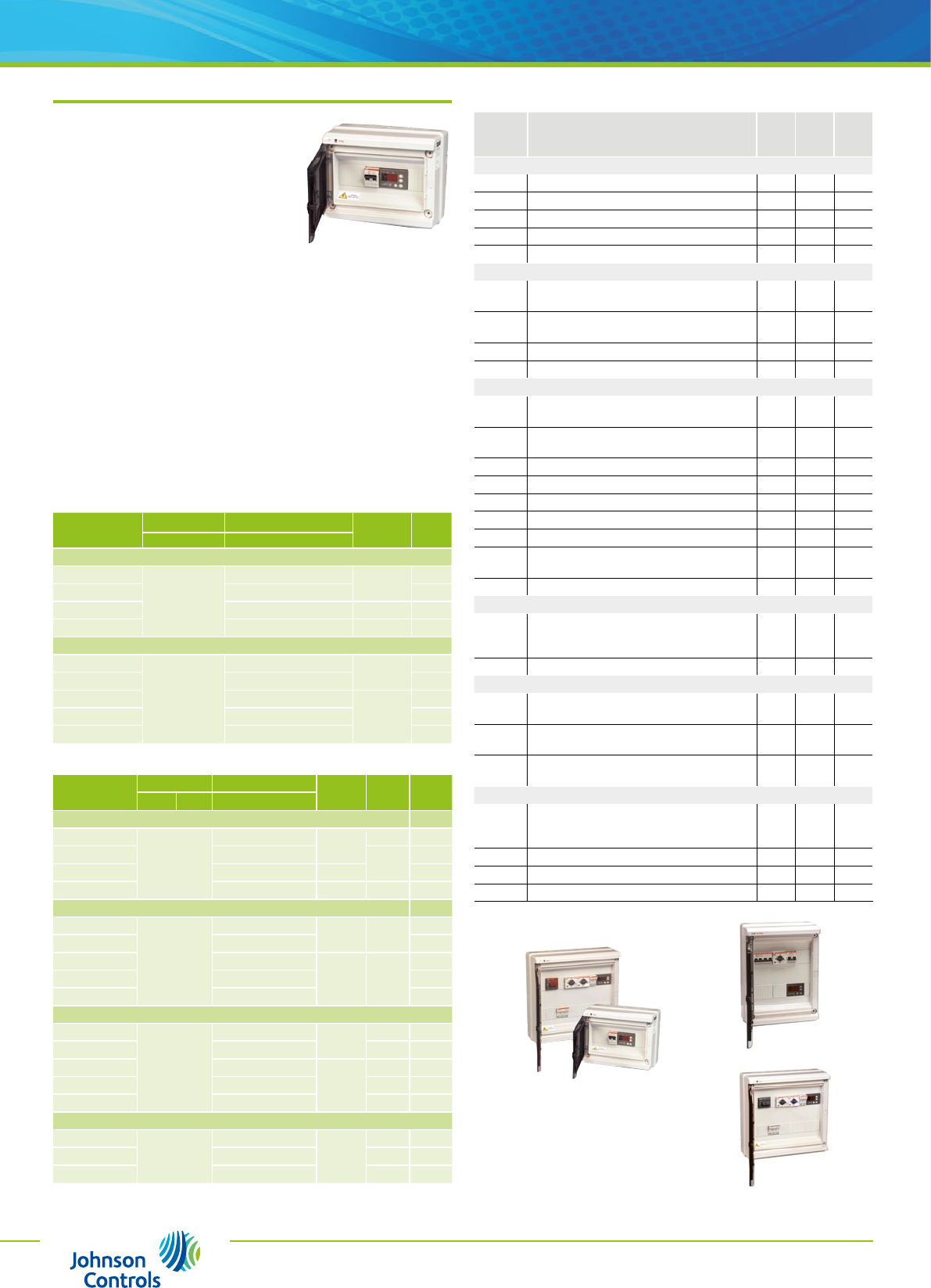

CR Series
Electrical Cabinets
Designed to facilitate installers work, this range
of electrical cabinets is intended for use in
cold rooms working at positive or negative
temperatures and powered either with single
phase or three phase power supply. Based on
specifically designed controllers, it incorporates
all control functions as required by modern cold
room units, such as compressor control, defrost management, fan management, alarm
function and solenoid valve for ‘pump down’. It also includes all the safety equipment
needed such as circuit breakers for the compressor and for the controller. Particular
attention has been given to the accessibility so that the installation time will be
reduced to a minimum. Space has been left available for customisation.
FEATURES
n
Power rating from: 0.37-1.5 kW in single phase 1.5-7.5 kW in three phases
n
Most wiring integrated on the controller
n
Specifically designed controller to manage Pump Down
n
Accurate and interchangeable
n
IP68 sensor
n
IP65 standard DIN polycarbonate cabinets
n
Integrate circuit breaker for motor and controller
n
In field extension
n
Main switch
POSITIVE TEMPERATURE COLD ROOM CABINETS
Ordering
Codes
Power Supply Compressor Eva. Fan
(Amps)
List
Price
Vac (Φ) Power AC-3 (Amps)
12 Module Cabinets
CR-PS037-1
230 (1)
0.37 kW (5) 1.6 £440
CR-PS075-1 0.75 kW (8) £463
CR-PS110-1 1.1 kW (10) 3.2 £501
CR-PS150-1 1.5 kW (12) 4.8 £520
18 Module Cabinets
CR-PT150-1
400 (3)
1.5 kW (3.5) 3.2 £653
CR-PT250-1 2.5 kW (5.7) £658
CR-PT400-1 4.0 kW (8.5)
4.8
£667
CR-PT550-1 5.5 kW (11.5) £681
CR-PT750-1 7.5 kW (15.5) £696
NEGATIVE TEMPERATURE COLD ROOM CABINETS
Ordering
Codes
Power Supply Compressor Eva. Fan
(Amps)
Defrost
(Amps)
List
Price
Vac ΦPower AC-3 (Amps)
12 Module Cabinets
CR-NS037-1
230 (1)
0.37 kW (5) 1.6 8£501
CR-NS075-1 0.75 kW (8) 12 £542
CR-NS110-1 1.1 kW (10) 3.2 £566
CR-NS150-1 1.5 kW (12) 4.8 16 £563
18 Module Cabinets with Auxiliary Output*
CR-NT150-1
400 (3)
1.5 kW (3.5) 3.2 12 £678
CR-NT250-1 2.5 kW (5.7) £702
CR-NT400-1 4.0 kW (8.5)
4.8 15
£703
CR-NT550-1 5.5 kW (11.5) £718
CR-NT750-1 7.5 kW (15.5) £788
24 Module Cabinets with 3-Phase Defrost
CR-NDT150-1
400 (3)
1.5 kW (3.5) 3.2 3 x 5 £1,024
CR-NDT250-1 2.5 kW (5.7) 3 x 9 £1,024
CR-NDT400-1 4.0 kW (8.5)
4.8
3 x 10 £1,042
CR-NDT550-1 5.5 kW (11.5) 3 x 12 £1,076
CR-NDT750-1 7.5 kW (15.5) 3 x 16 £1,090
36 Module Cabinets with Auxillary Output*, 3-Phase Defrost and Fan
CR-NFDT150-1
400 (3)
1.5 kW (3.5)
3 x 2
3 x 5 £979
CR-NFDT400-1 4.0 kW (8.5) 3 x 10 £1,217
CR-NFDT750-1 7.5 kW (15.5) 3 x 16 £1,428
Note: .* Condenser fan or door frame heater. Auxillary output 3 Amps
36 Moduler Type
PARAMETER DESCRIPTIONS
Display
Codes
Parameters
(Setting Range)
Default
MR12DR
MR15DR
Temperature Control Parameters
Hy Hysteresis - HY (1-9 K) 2
n n
LL Lower setpoint limit - LL (-40°C to higher limit) -40
n n
HL Higher setpoint limit - HL (lower limit to 70°C) 70
n n
CC Anti short cycling - CC (0-9 min) 2
n n
Co Deep freezing time - Co (0-99 min) 60
n n
Alarm Parameters
AH High temperature alarm (0-50°C related to
setpoint) 10
n n
AL Low temperature alarm (-50-0°C related to
setpoint) -10
n n
Ad Alarm differential (1-9 K) 1
n n
At Alarm time delay (0-99 min) 30
n n
Defrost Parameters
dF Defrost function. (0 = electric heater,
1 = hot gas) 0
-n
dE Defrost end function. (0 = by time,
1 = by temperature) 1
-n
dt Defrost termination temp. (0-20°C) 7
-n
di Defrost interval time (0-99 hours) 12
n n
dd Max. defrost duration (0-99 min) 40
n n
dC Dripping time (0-99 min) 5
n n
dU First defrost after power ON (OFF 0-99 min) OFF
n n
dP Display during defrost. (0 = last value before
defrost, 1 = setpoint) 0
n n
dr Delay displayed temp. after defrost (1-99 min) 20
n n
Digital Input Parameters
iF
Digital input function (0 = instrument off,
1 = alarm signalling, 2 = alarm reset, 3 = alarm
reset and fan cut-off)
0
n n
id Digital input time delay (0-99 sec) 5
n n
Fan Control Parameters
FF Fan operating function (0 = parallel with
compressor, 1 = continuous running) 0
-n
Fd Fan start-up delay after defrost end and
power up (0-99 min.) 5
-n
Fr Fan start-up temperature after defrost end and
power up (-30-+5°C/-22-+41 °F) 2
-n
Other Parameters
SF
Thermostat operating function when sensor
failure (0 = always ON, 1 = always OFF,
2 = automatic)
2
n n
So Offset thermostat sensor (-20-+20 units) 0
n n
Un Temperature units (0 =°C, 1 = °F) 0
n n
PU Display updating time delay (1-99 sec) 1
n n
24 Module Type
18 Module Type
12 Module Type
Sizes:
220 x 275 x 140mm (12 Module types)
220 x 380 x 140mm (18 Module types)
370 x 275 x 140mm (24 Module types)
370 x 380 x 140mm (36 Module types)
(continued next column)
36 Module Type
REFRIGERATION CONTROLLERS (cont)
45
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
P216 Series
Condenser Controller, Single-phase
These controllers are designed for speed variation of
single phase motors, especially for fan speed control
on air cooled condensers. Head pressure control of a
refrigeration system, through speed variation of the
fan on an air-cooled condenser, results in optimum
performance throughout the year.
Using a pressure transducer as the input device to the
fan speed controller, gives the most direct and fastest
response to pressure variations in the refrigerant
system. The controller varies the supply voltage to the motor from 45%
to at least 95% over the proportional band using the phase cutting principle.
If the pressure drops below the adjusted setpoint minus the proportional band, the
output to the motor is zero volt or the adjusted min. speed setting. This provides
speed variation of permanent split capacitor or shaded pole motors which do not draw
more than 12A (rms) full load current.
The controller used for dual pressure input varies the fan speed by directly sensing the
pressure changes of two separate refrigerant circuits. The setpoint of each pressure
transducer can be separately adjusted. The controller selects the input with the
greatest cooling demand to control the fan speed.
The transducers can be used in non-corrosive refrigerant systems.
FEATURES
n
The new benchmark in standard FSC
n
Easy to install and operate
n
Output range 0.5 to 12 Amp (1 phase)
n
Heat pump and reverse operation mode
n
Master/slave mode
n
Fixed pressure ranges for direct P215 replacement
n
Setpoint and minimum speed potentiometers
n
P216EEA-1K includes 0-50 bar pressure transducer P499
Ordering
Codes
Adjustable
Range (bar)
Fixed Prop.
Band (bar)
Pressure
Transducer
List
Price
P216EEA-100C 4-42 2-5 –£264
P216EEA-1K
n
£335
Supply Voltage - 208-240Vac, 50/60Hz
Input Signal - 0-10Vdc
Output Range - 0.5 to 12 Amp
Control Action - Direct or reverse mode
Size - 159 x 177 x 70mm
Protection Class - IP54
P315PR Series
Direct Mount Pressure Actuated, Single-phase
(suitable for refrigerant R410a)
The P315PR series is designed for speed control of
electronically commutated (EC) condenser fan motors.
Condenser pressure control of a refrigeration system, via
speed control of the fans on an air-cooled condenser, results
in optimum performance throughout the year. The controller
is designed for non-corrosive refrigerant systems.
A pressure actuated control provides the most direct and
fastest response to pressure changes in a refrigerant system.
The controller varies the supply voltage to the motor from
5% to at least 95% over the proportional band.
FEATURES
n
Pressure range 8 to 25 bar and 22 to 42 bar
n
Condenser pressure control by fan speed variation
n
Direct mount
n
Setpoint screw on top
n
Built-in suppression filter
n
Quick connector plug included
P215PR Series
Direct Mount Pressure Actuated, Single-phase
These direct mount pressure actuated condenser fan
speed controllers are designed for speed variation of
single-phase motors.
Head pressure control of a refrigeration system, through
speed variation of the fan on an air-cooled condenser, results
in optimum performance throughout the year. A pressure
actuated device, gives the most direct and fastest response to
pressure variations in the refrigerant system.
The controller varies the supply voltage to the motor
from 30% to at least 95% over the proportional band using
the phase cutting principle. This provides speed variation of
permanent split capacitor or shaded pole motors that do not
draw more than 4A (rms) full load current. Cut-off models (fan stops at low pressure)
as well as minimum speed models (fan keeps running at 30%) are available. The
controllers can be used in non-corrosive refrigerant systems.
FEATURES
n
Condenser pressure control by fan speed variation
n
Direct mount
n
Setpoint screw on top
n
Built-in suppression filter
n
Quick connector plug included
Ordering
Codes
Range
(bar)
†
Style
Setpoint
(bar)
P.B.
(bar)
Notes
List
Price
P215PR-9200 10-25 47 19 4.5
-
£120
P215PR-9202 22-42 26 5.5 £120
P215PR-9800 10-25 28 19 4.5 £135
P215PR-9230
47 A£141
P215PR-9232 22-42 26 5.5 £141
P215PR-9250 10-25 19 4.5 A, B £143
Notes: † Refer to page 49 for ‘Style’ references
A = Bulk Pack
B = Bulk Pack, 2 metre cable connector included
Supply Voltage - 230Vac, 50/60Hz
Rating - 4 Amp
Controller Mode - Cut-off
Size - 106 x 65mmØ (Style 47 types), head and stem 90mm (Style 28 type)
Protection Class - IP65
Fan Speed Controls
Ordering
Codes
Range
(bar)
†
Style
Setpoint
(bar)
P.B.
(bar)
List
Price
P315PR-9202C 8-25 & 22-42 47 19 4 £88
† See page 49 for ‘Style’ references
Supply Voltage - 230Vac, 50/60Hz
Rating - 4 Amp
Control Action - Direct
Size - 106 x 65mmØ
Protection Class - IP65
P499VCS-405C
(continued next column)
NEW
NEW
46 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
P215LR/BR/TR Series
Single/Dual/Triple Input Pressure Actuated
The P215LR is a single pressure input, the P215BR is a dual
pressure input and the P215TR is a triple pressure input fan
speed controller for air cooled condensers with respectively
single, dual and triple refrigerant circuits.
The controller varies the fan speed by directly sensing the
pressure changes of one, two or three separate refrigerant
circuits. The setpoint of each pressure transducer can be
separately adjusted. The controller selects the input with the
greatest cooling demand to control the fan speed.
The controllers can be used in non corrosive refrigerant systems
and vary the supply voltage to the motor from 45% to ≥95% of the supplied voltage
using the phase cutting principle. It is recommended to confirm with the electric
motor manufacturer if a controller using the phase cutting principle for speed variation
can be used. If the pressure drops below the adjusted setpoint minus the proportional
band, the output to the motor is zero volt or the adjusted min. speed setting.
FEATURES
n
Condenser pressure control by fan speed variation
n
Model with heat pump input available
n
Transducers with proven reliability
n
Easy accessible setpoint screw
n
Adjustable minimum speed or cut-off selection (only on LR and BR models)
n
Dual pressure input (BR models)
n
Triple pressure input (TR models)
Ordering
Codes
Range
(bar)
P.B
(bar)
Setpoint
(bar)
Pressure
Conn. (Style†)
Notes
List
Price
3 Amp Rating
P215LR-9110 14-24 4 16 90cm cap.
(style 50)
A, B
£179
P215LR-9111 8-14 2.5 10 £191
P215LR-9130 Bulk pack version of type P215LR-9110 (15 pcs) £179
P215LR-9210 14-24 4 16 Direct mount (47) £191
P215LR-9610 Direct mount
(style 51)
£156
P215LR-9611 8-14 2.5 10 £156
P215LR-9114 22-42 6 30
90cm cap.
(style 50)
C£158
P215LR-9140
14-24 4 16
D£169
P215LR-9120 E£256
P215BR-9110
A, F
£281
P215BR-9111 8-14 2.5 10 £297
P215BR-9210 14-24 4 16 Direct mount (47) £293
P215TR-9110 90cm cap. (50) G £329
† See page 49 for ‘Style’ references
Notes:
A = Minimum speed adjustable E = 400V version
B = Single pressure input F = Dual pressure input
C = For R410A applications G = Triple pressure input
D = 230V heat pump input
REPLACEMENT PARTS (for Fan Speed Control 230V Versions)
Controller
Code
Range
(bar)
Element
Style †
Replacement Item
Pressure Transducer Electronic Module
P215LR-9110 14-24 50 P35AC-9500 P38AA-9111
P215LR-9111 8-14 50 P35AC-9501 P38AA-9111
P215LR-9210 14-24 47 P35AC-9502 P38AA-9111
P215LR-9211 8-14 47 P35AC-9503 P38AA-9111
P215LR-9610 14-24 51 P35AC-9507 P38AA-9111
P215LR-9611 8-14 51 P35AC-9508 P38AA-9111
P215BR-9110 14-24 50 P35AC-9500 P38AA-9211
P215BR-9111 8-14 50 P35AC-9501 P38AA-9211
P215BR-9210 14-24 47 P35AC-9202 P38AA-9211
P215BR-9211 8-14 47 P35AC-9203 P38AA-9211
Notes: † See page 49 for ‘Style’ references
P35 Mechanical Transducers – see page 33
P38 Electronic Boards – please refer to the Sales Support Team
Supply Voltage - 230V, 50/60Hz
Rating - 3 Amp
Size - 118 x 70 x 53mm
REFRIGERATION CONTROLLERS (cont)
Building Management System
MS-FEC/IOM/FAC/VMA/TUC Series
Field Equipment Controllers
These controllers comprise a group of versatile BACnet®, master-slave/token-passing
(MS/TP) network compliant field controllers designed to monitor, control and integrate
a wide variety of heating, ventilating and air-conditioning (HVAC). This family also
includes field equipment controllers (FAC & FEC), input/output module (IOM) and the
variable air volume modular assembly (VMA) 16 contoller.
Ordering
Codes
Desciption
List
Price
MS-FAC2611-0
17-point Advanced Application Field Equipment Controller,
6UI, 2BI, 2AO, 3BO & 4CO; 24Vac; SA Bus
£633
MS-FAC2612-1
18-point Advanced Application Field Equipment Controller,
5UI, 4BI, 4CO & 5RO 24Vac; SA Bus, pluggable terminals
£671
MS-FAC2612-2
18-point Advanced Application Field Equipment Controller,
5UI, 4BI, 4CO & 5RO 120-240Vac; SA Bus, pluggable term.
£772
MS-FEC1611-0 10-point BACnet Controller, 2UI, 1DI, 3DO, 4CO
£859
MS-FEC1621-0 10-point BACnet Controller, as above but with display
£1,185
MS-FEC2611-0 17-point BACnet Controller, 6UI, 2DI, 2AO, 3DO, 4CO
£1,182
MS-FEC2621-0 17-point BACnet Controller, as above but with display
£1,629
MS-ADS/RAP Series
Application and Data Servers (ADS/ADX)
The ADS server is an optional component
of the system manages the collection and
presentation of large amounts of trend data,
event messages, operator transactions, and
system configuration data. The ADX is a larger
scale system that runs on a server operating
system to provide extended historical archiving
and reporting capabilities.
Ordering
Codes
Desciption
List
Price
MS-ADS05U-0
Application & Data Server (5 users)
POA
MS-ADX10SQL-0
Application & Data Server (10 users) c/w SQL2008
POA
MS-ADX10U-0 Application & Data Server (10 users)
POA
MS-ADXSWO-0
Application & Data Server (25 users)
POA
MS-ADXSWOSQL-0
Application & Data Server (25 users) c/w SQL2008
POA
MS-ADSLE5U-0
ADS-Lite-E (supports upto 5 engines in NAE35,
NAE45, NCE, and/or NIE29/39/49)
POA
MS-RAP-0
Ready Access Portal (for NxE stand-alone sites)
POA
The Metasys® system family of Field Equipment Controllers comprise a
group of versatile BACnet®, Master-Slave/Token-Passing (MS/TP) network
compliant field controllers and communicating zone and network sensors.
These products require engineering by specialist engineers, and are only
available to Johnson Controls’ Solution Integrators. All enquiries should
be passed to your Account Manager.
(continued next page)
METASYS® SYSTEM
47
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
MS-NCE Series
Network Control Engines
Network control engine (NEC) series controllers
combine the network supervisor capabilities
and internet protocol (IP) network connectivity
of a network automation engine (NAE) with the
input/output (I/O) point connectivity and direct digital control capabilities of a field
equipment controller (FEC). NCEs provide cost-effective solution designed for
integrating central plants and large built-up networks.
Ordering
Codes
Desciption
M
DI
List
Price
MS-NCE2510-0 NCE* + N2 trunk (upto 32 devices)
- - £2,023
MS-NCE2511-0 NCE* + N2 trunk “ “
n- £2,236
MS-NCE2516-0 NCE* + N2 trunk “ “
-n£2,391
MS-NCE2517-0
NCE
*
+ N2 trunk
“ “
n n £2,462
MS-NCE2520-0 NCE* + LonWorks trunk (upto 32 devices)
- - £2,165
MS-NCE2521-0
NCE
*
+ LonWorks trunk
“ “
n- £2,177
MS-NCE2526-0
NCE
*
+ LonWorks trunk
“ “
-n£2,391
MS-NCE2527-0
NCE
*
+ LonWorks trunk
“ “
n n £2,462
MS-NCE2560-0 NCE* + BACnet MS/TP trunk (upto 32 devices)
- - £2,165
MS-NCE2561-0 NCE* + BACnet MS/TP trunk
“ “
n- £2,177
MS-NCE2566-0 NCE* + BACnet MS/TP trunk
“ “
-n£2,391
MS-NCE2567-0 NCE* + BACnet MS/TP trunk
“ “
n n £2,462
MS-NCE2500-0 NCE* (no FC Bus)
- - £1,252
MS-NCE2506-0 NCE* (no FC Bus) + integral display
-n£1,440
*Standard configuration - 33-points, 10UI, 8DI, 4AO, 7DO, 4CO
Key: M – Modem, DI – LCD display
MS-NAE Series
Network Automation Engines
These network automation engines (NAE) enable
internet protocol (IP) connectivity and web-based
access to Metasys buildig management systems.
NAE units leverage standard building management
communications technologies, including BACnet® protocol, LONWORKS® network, and
N2 Bus protocol to monitor and supervise a wide variety of heating, ventilating and air
conditioning (HVAC); lighting; security; and fire safety equipment.
Ordering
Codes
Desciption
M
List
Price
MS-NAE3510-2 NAE + N2 or BACnet MS/TP (upto 50 devices)
- £4,886
MS-NAE3511-2 NAE + N2 or BACnet MS/TP “ “
n£5,173
MS-NAE3520-2 NAE + LonWorks (upto 64 devices)
- £4,983
MS-NAE3521-2 NAE + LonWorks “ “
n£5,277
MS-NAE4510-2 NAE + N2 or BACnet MS/TP (upto 100 devices)
- £9,485
MS-NAE4511-2 NAE + N2 or BACnet MS/TP “ “
n£9,916
MS-NAE4520-2 NAE + LonWorks (upto 127 devices)
- £9,674
MS-NAE4521-2 NAE + LonWorks “ “
n£10,114
MS-NAE5510-2E NAE + 2 trunks BACnet MS/TP (upto 100 devices)
- £12,796
MS-NAE5511-2E NAE + 2 trunks BACnet MS/TP “ “
n£13,310
MS-NAE5520-2E NAE + 2 trunks LonWorks (upto 127 devices)
- £14,253
MS-NAE5521-2E NAE + 2 trunks LonWorks “ “
n£13,820
Key: M – Modem
Ordering
Codes
Desciption
List
Price
MS-IOM1711-0 4-point I/O Module, with BI, FC Bus, SA Bus support
£275
MS-IOM2721-0 10-point I/O Module, 8UI, 2AO, FC Bus, SA Bus support
£242
MS-IOM3721-0 16-point I/O Module, 16BI, FC Bus, SA Bus support
£208
MS-IOM3731-0 16-point I/O Module, 8BI, 8BO, FC Bus, SA Bus support
£249
MS-IOM4711-0
17-point, I/O Module, 6UI, 2BI, 3BO, 2AO, 4CO, SA Bus sup.
£632
MS-VMA1832-0
Cooling Controller with Reheat and Fan Control
£675
MS-VMA1615-0
32-bit, Integrated VAV Contr./Actuator/Press. Sensor, 3UI
& 2BO; 24 Vac; Field Controller Bus & Sensor/Actuator Bus
£468
MS-VMA1630-0
32-bit, Integrated VAV Contr./Actuator/Press. Sensor, 3UI,
3BO & 2CO; 24 Vac; FC Bus & SA Bus
£502
MS-VMA1617-0
As MS-VMA1615-0 but includes 8-pin TSTAT Port for use
with TE-7xx Series Non-Communicating Sensors **
POA
MS-VMA1632-0
As MS-VMA1630-0 but includes 8-pin TSTAT Port for use
with TE-7xx Series Non-Communicating Sensors **
POA
** This model is currently available only in Asia; please contact your
local representative for more information.
FAD0351-0
Touch-Screen, Field Advanced Display
with BACnet Communication
The Field Advanced Display (FAD) is a user friendly operator
interface featuring BACnet® communication and a coluorful,
graphic display with touch-screen interface.
The solution is specifically designed to enable user
interaction with a BACnet
MS/TP-based Building Automation Control System through a
convenient, comprehensive and intuitive user interface.
The FAD is delivered with a factory programmed application for ease of use and to
reduce and simplify its set-up.
Its flexible, attractive and intuitive graphical interface allows any user type to
navigate the Building Automation Control System to view useful information such as
temperatures, adjustparameters like set-points, command outputs such as valves or
fans, program schedules and calendars and monitor other dynamic information for
example alarms and events.
FEATURES
n
Factory Programmed Application
n
BACnet® MS/TP Communication
n
Compact design and flexible installation
Ordering
Codes
Desciption
List
Price
FAD0351-0 3.5” Field Advanced Display with neutral front plate
£617
WMB0351-0 Wall Mounting Box
POA
FMB0351-0 Flush Mounting Box
POA
IPG0351-0 IP65 Protection Gasket
POA
WPF0351-0 White Plastic Frame
POA
BPF0351-0 Black Plastic Frame
POA
Bundle Codes
FED1611-1
Field Equipment Contr, 24Vac, 10-point with FAD Display
POA
FED2611-1
“ “ 24Vac, 17-point “ “
POA
FCD2611-0
Field Advanced Contr, 24Vac, 17-point with FAD Display
POA
FCD2612-1
“ “ 24Vac, 18-point “ “
POA
FCD2612-2
“ “ 230Vac, 18-point “ “
POA
NEW
48 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
METASYS® SYSTEM (cont)
(continued next column)
WRZ-TT/MS-ZFR Series
Wireless Sensors
These sensors and BUS router provides wireless monitoring and control of HVAC
quipment within multiple levels of a Metasys system using BACnet protocol - from
supervisory engines, to controllers and room temperature sensors. Field controllers
(FEC, IOM or VMA16) can be wirelessly enabled using a ZFR1811 wireless field bus
router. One router is required per field controller.
Ordering
Codes
Desciption
DI
TA
FC
FS
List
Price
WRZ-TTP0000-0 Sensor (warmer/cooler +/–)
-
Set
- - £247
WRZ-TTR0000-0 Sensor only
- - - - £239
WRZ-TTS0000-0 Sensor (13-29°C/55-85°F)
-
Set
- - £247
WRZ-TTB0000-0 Sensor (13-29°C/55-85°F)
n
Set
n- £247
WRZ-TTD0000-0 Sensor (13-29°C/55-85°F)
n
Set
n n £247
MS-ZFR1811-0 Wireless Field Bus Router
- - - - £206
MS-ZFR1810-0 Wireless Fileld Bus Co-ordinator
- - - - £607
Key:
DI – LCD display FC – F/C button
TA – SET (setpoint adjustment) FS – Fan speed control
MS Series
Spares and Accessories
Ordering
Codes
Desciption
List
Price
MS-BACEOL-0 Terminal Module
£100
MS-BAT1010-0 Battery 12V for NAE/NIE
£135
MS-BAT1020-0 Battery Pack
£68
MS-BTCVT-1 Bluetooth MSTP Interface
£847
MS-BTCVTCBL-700 Cable Replacement BTCVT
£20
MS-DIS1710-0 Remote Display for NCE/FEC
£363
MS-EREPORT-0 Energy Essentials Software for ADX only
£1,493
MS-EXPORT-0 Metasys Export Utility
£2,095
MS-FUSE01-0 10 Fuses (1 packet)
£49
MS-LDT1102-0 Local Display Terminal Kit
£1,005
TL-BRTRP-0 BACnet to MS/TP Router
£808
TL-JCIBPP-DVD0 Tools DVD for the branches
POA
TL-JCIBPP-DVD6 Tools DVD for the branches
POA
Key:
DI – LCD display
TA – Temperature adjustment: SET (setpoint
adjustment), W/C (warmer/cooler dial)
OO – Occupancy override
OS – PIR occupancy sensor
ST – F/C scale toggle
FC – Fan control button
CO – Connection: ST (screw terminals),
MJ (modular jack)
AS – Address switches (DIP switch set)
BF – Balancing feature (VAV)
ACCESSORY
Ordering Code Description Price
NS-WALLPLATE-0
Adapts NS sensor to standard 80 x 120mm wallbox £14
Ordering
Codes
Desciption
List
Price
CO2 Sensor and Duct Temperature Sensors
NS-BCN7004-0 CO2 sensor, 0-2000 ppm, no display (surface mount)
£974
NS-DTN7043-0 Duct mount, temp. sensor, 102mm, with 3m flying lead
£141
NS-DTN7083-0 Duct mount, temp. sensor, 203mm, “ “
£141
Supply Voltage – 15Vdc nominal (from SA Bus)
Sizes – CO2 sensor: 120 x 80 x 32mm, duct sensor: 76 x 76 x 51mm
NS Series
Network Sensors
This series of NS sensors is designed
to function directly with FEC, OM and
VMA16 controllers. Several sensors
can monitor room temperature. Zone
humidity, carbon dioxide (CO2), local
temperature setpoint adjustments,
and other variables are transmitted
to a field controller on the SA-Bus.
Ordering Codes Desciption DI TA OO ST CO AS Price
Temp. & Humidity Sensors, Surface Mount
NS-AHA7001-0
Sensor (RH 3% acc.)
n
Set
n-
MJ
- £517
NS-AHA7002-0 “ “
n
Set
n-
ST
- £517
NS-AHB7001-0 “ “
n
Set
n n
MJ
- £517
NS-AHB7002-0 “ “
n
Set
n n
ST
- £517
NS-AHB7003-0 “ “
n
Set
n n
ST
n£517
NS-AHN7001-0 “ “
----
MJ
- £386
NS-AHN7001-2 “ “
----
ST
- £349
NS-AHP7001-0 “ “
-
W/C
n-
MJ
- £398
NS-APA7001-0
Sensor (RH 2% acc.)
n
Set
n-
MJ
- £646
NS-APA7002-0 “ “
n
Set
n-
ST
- £646
NS-APB7001-0 “ “
n
Set
n n
MJ
- £646
NS-APB7002-0 “ “
n
Set
n n
ST
- £646
NS-APB7003-0 “ “
n
Set
n n
ST
n£646
Note: Please refer to ‘Key’ in next column.
Ordering Codes Desciption DI TA OO ST FC CO AS BF Price
Temp. Sensors, Surface Mount
NS-ATA7001-0 Temp. sensor
n
Set
n- -
MJ
- - £126
NS-ATA7002-0 “ “
n
Set
n- -
ST
- - £126
NS-ATA7003-0 “ “
n
Set
n- -
ST
n- £126
NS-ATB7001-0 “ “
n
Set
n n -
MJ
- - £133
NS-ATB7002-0 “ “
n
Set
n n -
ST
- - £133
NS-ATB7003-0 “ “
n
Set
n n -
ST
n- £133
NS-ATC7001-0 “ “
n
Set
n-n
MJ
- - £142
NS-ATC7002-0 “ “
n
Set
n-n
ST
- - £142
NS-ATD7001-0 “ “
n
Set
nnn
MJ
- - £143
NS-ATD7002-0 “ “
n
Set
nnn
ST
- - £143
NS-ATF7001-0 “ “
n
W/C
n n -
MJ
- - £126
NS-ATF7002-0 “ “
n
W/C
n n -
ST
- - £126
NS-ATN7001-0 “ “
-----
MJ
- - £101
NS-ATN7001-2 “ (no JC logo)
-----
MJ
- - £101
NS-ATN7003-0 Temp. sensor
-----
ST
n- £101
NS-ATN7003-2 “ (no JC logo)
-----
ST
n- £94
NS-ATP7001-0 Temp. sensor
-
W/C
n- -
MJ
- - £111
NS-ATP7001-2 “ “
-
W/C
n- -
MJ
- - £111
NS-ATP7002-0 “ “
-
W/C
n- -
ST
- - £111
NS-ATP7003-0 “ “
-
W/C
n- -
ST
n- £111
NS-ATP7003-2 “ “
-
W/C
n- -
ST
n- £101
NS-ATV7001-0 Balancing Tool
n
Set
n n -
* MJ
-n£152
NS-ATV7002-0 “ “
n
Set
n n -
* ST
-n£152
* VAV balancing models - the fan control button is replaced by a lightbulb button
used in the VAV balancing process.
Supply Voltage – 15Vdc nominal
(from SA Bus)
Temp. Measurement – 0-40°C
Humidity Range – 0-100% RH
(0-90% RH calibrated)
Size – 80 x 80 x 32mm (35mm)
Ordering Codes Desciption DI TA OO OS ST FC CO Price
Network Sensors, Wall Mount or Surface Mount
NS-MTB7001-0 Temp. sensor
n
Set
-n n -
MJ
£405
NS-MTB7002-0 “ “
n
Set
-n n -
ST
£405
NS-MTL7001-0 “ “
- - n n - -
MJ
£404
NS-MTL7002-0 “ “
- - n n - -
ST
£405
NS-MHL7001-0 Temp./RH (3% acc.)
- - n n - -
MJ
£550
NS-MHL7002-0 “ “
- - n n - -
ST
£550
NS-MNN7001-0 Motion Detection only
---n- -
MJ
£246
NS-MNN7003-0 “ “ “
---n- -
ST
£246
49
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
Style Reference & Wiring Diagrams
Style 1a Style 1b Style 2 Style 3
Style 4H Style 5 Style 13 Style 15
Style 28 Style 29A Style 30 Style 34
Style 35 Style 45A Style 47 Style 50
Style 51
max. 20A
Line~
M
A
HPLP
A - C opens on pressure decrease
A - B closes simultaneously
A - C opens on pressure increase
A - D closes simultaneously
LP.
HP.
D
C
B
max. 20A
Line~
M1
HPHP
A
B
M2
D
M
max. 20A
Line
~
A
C
B
A - C opens on pressure decrease
max. 20A
Line
~
A
C
B
A - B opens on pressure increase
M
M
max. 20A
Line
~
A
B
C
A - C opens on pressure increase
Wiring 1 Wiring 2 Wiring 3
Wiring 4 Wiring 5 Wiring 6
A - C opens on pressure increase
A - B closes simultaneously
A - C opens on pressure increase
A - D closes simultaneously
Left side HP.
Right side HP.
max. 20A
Line~
M
HPHP
A
B
D
C
50 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
General Ordering Information
Opening an Account
Johnson Controls’ products are available from a nationwide network of
wholesalers and distributors.
Should you wish to establish a trading account or require a list of your
nearest stockists please contact the Customer Support Team. You can
also email your request to products.uk@jci.com.
Placing an Order
Please help us to help you! So that we can process your
purchase orders quickly can you please ensure your purchase orders
show the correct part number and pricing. This will help us eradicate any
unwanted shipments, returns, delays and credits. If you’re unsure of any
detail, please call the Customer Service Team in Slough for assistance.
Please send your order by fax to 0870 889 5664 or by post to our Slough
office: Johnson Controls Limited, Products Dept., 72 Buckingham Avenue,
Slough, Berkshire SL1 4PN
Minimum Order Value
Orders of less than £100 in value will be subject to a carriage charge
(packing and postage). Order values of over £100 include free delivery
within the United Kingdom.
Cancellation of Order
In the event of an order being cancelled then the customer is
liable for any costs incurred by Johnson Controls Limited. No cancellation
fee will be charged if the office is notified by writing within 24 hours of
placing the order. After that time a 25% re-stocking charge will apply. Non
standard items or customised products will be subject to different terms.
Product Warranty
3 years on all products.
The warranty becomes invalid if the product has been tampered with in
any way or has been installed incorrectly or has been selected for an
unsuitable application.
Warranty Return
All warranty returns should be authorised prior to return by our Customer
Service Team (CST) in Slough. Full details are shown in the General
Conditions of Sale.
In short the process is:
1. Fill-out a return material authorisation (RMA) form on the next page and
fax/post to our Slough office.
2. Contact CST for an authorisation number and arrangement of the return
of the goods.
3. The goods are returned to Slough for checking ahead of returning to
their factory of origin for full inspection.
4. Credits are issued once these checks are completed.
ISO 9001 Accreditation
Johnson Controls Limited operates a Quality Management System which
complies with the requirements of ISO 9001:2008 for the following scope:
Property, facilities and services management. Project management of
construction and building services.
Consultancy services related to property portfolios.
Complete building service and maintenance management, covering, M&E
service, HVAC service, chiller service, building automation and control
systems, fire and security service. This would also encompass, turn-key
plant and system retrofit/upgrade; energy solutions; environmental and
legislative compliance. Procurement, project management, installation and
commissioning of building automation (including fire and security), heating
ventilation, air-conditioning control systems and air-conditioning systems.
The supply, systems design and installation of computerised access control,
alarm monitoring, intruder, CTV, fire, perimeter protection, time and
attendance and control systems, and the
provision of Customer Training.
WEEE Compliance
Johnson Controls Limited complies with the Waste Electrical and Electronic
Equipment Regulations 2006, through the Budget Pack WEEE Compliance
Scheme Accreditation No. WEE/UP3838PL/SCH, for 2007.
Producer Registration No. WEE/GC0069TY
FS 23823
ISO 9001:2008
51
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
Return Material Authorisation Request
Your Company
Your Name
Your Reference (if any)
Your Email Address
Fax No.
JCI Order Number
Your Order Number
Reason For Return
1. Fault
Type of fault
Electrical
Leak
Mechanical
Physical
Details of fault (please be specific)
2. Incorrectly Specified By Johnson Controls
Who specified (person)
Detail of specification
Why product does not
match specification
3. Wrong Part Supplied
Part Number Ordered
Part Number Supplied
4. Duplicated Order
Details of duplication
5. Part Number(s) being returned
Additional Comments
Johnson Controls Use Only
RMA Number
Issued By
Date
Please complete this form and fax to 0870 889 5664. The RMA Approval Number will then be faxed back to you.
Returns Address Johnson Controls, Products Dept. (Returns), 71/72 Buckingham Ave, Slough Industrial Estate, Slough, Berkshire SL1 4PN
52 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
General Conditions of Sale
1. Definitions
In these conditions
‘Seller’ means Johnson Controls Limited.
‘Buyer’ means any purchaser of Goods (hereinafter defined) from
the Seller.
‘Goods’ means the items which are the subject of sales between
the Buyer and the Seller.
‘Order’ means any contract for the sale of Goods by the Seller
to the Buyer to which these Conditions apply.
‘Instalment Delivery’ means the delivery of part only of the Goods, which are
to be purchased pursuant to the order.
‘Purchase Price’ means the price (exclusive of VAT and other taxes if any)
payable by the Buyer to the Seller in respect of the Order.
The masculine gender shall include the feminine and
neuter genders and singular number shall include the
plural and vice-versa.
2. Application
(A) All quotations, offers and tenders are made and all Orders are subject to the
following conditions. Subject only to Condition 2(B) all other terms, Conditions
or warranties whatsoever excluded from any other Contract between Seller
and Buyer or any other variation thereof unless expressly accepted in writing
by a director or other authorised representative of the Seller.
(B) In the event of a conflict between these Conditions and the Seller’s express
terms of any quotation or acknowledgement of Order then such express
terms shall prevail.
(C) If any statement or representation has been made to the Buyer by the
Seller, or its officers, employees or agents upon which the Buyer relies
(other than in document(s) enclosed with the Seller’s quotation or
acknowledgement of Order), then the Buyer must set out that statement or
representation in a document to be attached to or endorsed on the Order
and in any such case the Seller may confirm, reject or clarify the point and
submit a new quotation, if appropriate. Under no circumstances shall the
Seller be responsible for, or be held liable in respect of, any statement
or representation relied upon by the Buyer (other than a fraudulent or
representation) which is not attached to or endorsed on the Order and
subsequently confirmed in writing by the Seller.
(D) Unless otherwise agreed in writing all trade terms shall be interpreted in
accordance with INCOTERMS current at the time the Order is accepted.
3. Quotations
(A) A quotation by the Seller does not constitute an offer and the Seller
reserves the right to withdraw or revise the same at any time prior to the
Seller’s acceptance of the Buyer’s Order.
(B) Quotations, offers and tenders issued by the Seller are for the whole of
the Goods referred to in them and the Seller reserves the right to refuse
acceptance of any Order which relates to only part of the Goods forming
the subject of a quotation, offer or tender.
(C) Quotations shall be available for acceptance for a maximum period of 14
days from date of issue and may be withdrawn by the Seller at any time
prior to the Buyer’s acceptance by written or oral notice.
4. Prices
(A) Save as otherwise agreed the Purchase Price shall be that contained in
the Seller’s net list prices current at the time of despatch. The Seller shall
have the right at any time prior to despatch to withdraw any discount from
its normal prices and/or to revise prices to take into account increases in
costs including (without limitation) costs of any goods materials carriage
packaging labour or overheads the increase or imposition of any tax duty or
other levy and any variation in exchange rates.
(B) The minimum Purchase Price for any order shall be £100 (one hundred
pounds) and the Seller shall be entitled to charge the Buyer £100 (one
hundred pounds) exclusive of VAT and any other ancillary charges in
relation to any order submitted by the Buyer for Goods to a value of less
than £100 (one hundred pounds) without giving credit for the difference
between £100 (one hundred pounds) and the value of the Goods ordered.
(C) Where the Seller delivers the Goods the Buyer shall be liable to the Seller
for carriage costs and demurrage costs incurred by the Seller in the event
of vehicles being unduly delayed at the designated point of delivery.
(D) Unless otherwise specified VAT and any other tax or duties payable by the
Buyer shall be added to the Purchase Price.
5. Payment
(A) Unless otherwise agreed by the Seller in writing and subject to satisfactory
trade references, payment shall be due and payable (30) days after the date
of invoice. The Seller shall be entitled to submit its invoice with its delivery
advice note or any time afterwards save that where delivery has been
postponed at the request of or by the default of the Buyer then the Seller
may submit its invoice at any time after the Goods are ready for delivery or
would have been ready in ordinary course but for the request or default on
the part of the Buyer.
(B) Failure to pay on the due date shall entitle the Seller to withhold further
despatches in respect of he Order as well as in respect of any other
contract for the purchase of Goods between the Seller and the Buyer and
to serve notice on the Buyer requiring immediate payment for all Goods
supplied by the Seller under this and all other Contracts with the Buyer
whether or not payment is otherwise due or invoiced.
(C) Any extension of credit allowed to the Buyer may be changed or withdrawn
at any time.
(D) Save as otherwise agreed in writing by the Seller interest shall be payable
on overdue accounts at the annual rate of two per cent above the Base
Rate from time to time of National Westminster Bank Limited such interest
to accrue daily and to run from the due date for payment of the Purchase
Price until receipt by the Seller of the full amount thereof as well before as
after any judgement or order.
(E) No disputes arising under the Contract nor delays beyond the reasonable
control of the Seller shall interfere with prompt payment in full by the
Buyer.
6. Delivery
(A) The Seller shall advise the Buyer of the scheduled date of despatch.
(B) Delivery dated mentioned in any quotation acknowledgement of order or
elsewhere as approximate only and not of any contractual effect and the
Seller shall not be under any liability to the Buyer in respect of any failure
to deliver on any particular date or dates unless hereof such requirement
has been brought to the attention of the Seller by the Buyer and the Seller
has agreed in writing thereto. Time for delivery is given as accurately as
possible but is not guaranteed. The Buyer shall have no right to damages
or to cancel the Contract for failure for any cause to meet any delivery
stated. The date of delivery shall in every case be dependent upon prompt
receipt of all necessary information, final instructions or approvals from the
Buyer. Any delays or alterations by the Buyer in design, specifications or
quantities required may result in delay in delivery.
(C) By agreement in writing between the Seller and the Buyer the Order
may be satisfied by Instalment Deliveries PROVIDED ALWAYS that each
instalment Delivery shall be deemed to be a separate contract subject
mutates mutants to these Conditions of Sale and the Seller may accordingly
submit an invoice to the Buyer in respect of each Instalment Delivery for
a proportional part of the Purchase Price. Failure by the Buyer to take
delivery of or to make payment in respect of any one or more instalments
of Goods delivered under the Contract shall entitle the Seller to treat the
Contract as repudiated by the Buyer either in whole or in part.
(D) Delivery shall be at the Buyer’s premises unless otherwise agreed in writing
by the Seller.
(E) If the Buyer refuses or fails to take delivery of Goods tendered in
accordance with the Order the Seller shall be entitled to immediate
payment in full for Goods so tendered. The Seller shall be entitled to store
at the risk of the Buyer any Goods of which the Buyer refuses or fails to
take delivery and the Buyer shall in addition to the Purchase Price pay all
costs of such storage and any additional costs incurred as a result of such
refusal or failure. The Seller shall be entitled upon the expiration of 3
months from the date of invoice of dispose of the Goods in such manner
as the Seller may determine. The Seller will endeavour to comply with
reasonable requests by the Buyer for postponement of delivery but shall
be under no obligation to do so. Where delivery is postponed, otherwise
than due to the default by the Seller, the Buyer shall pay all costs and
expenses, including a reasonable charge for storage and transportation so
occasioned, and payment for the Goods shall be made in accordance with
these Conditions.
7. Risk
(A) Risk shall pass to the Buyer so that the Buyer is responsible for all loss,
damage or deterioration of the Goods: -
(i) If the Seller delivers the Goods by its own transport, or in accordance with
53
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
a specific contractual obligation arranges transport for the Goods, at the
time when the Goods arrive at the designated place of delivery; or
(ii) In all other circumstances, at the time when the Goods leave the premises
of the Seller.
(B) Where delivery of the Goods to the Buyer is to be effected at the Seller’s
premises risk therein shall pass to the Buyer upon transfer of the Goods to
the Buyer’s carrier or 30 days from the Seller notifying the Buyer that the
Goods are available for collection whichever first occurs.
(C) The Seller and the Buyer shall each effect and maintain insurance cover
against the risk accepted by them under this condition.
8. Title
(A) Title to the Goods shall only pass to the Buyer upon the happening of any
one of the following events:-
(i) The Buyer has paid to the Seller all sums (including) any default interest
due from it to the Seller under this Contract and under all other contracts
between the Seller and the Buyer including (for the avoidance or doubt)
any sums due under contracts made after this Contract whether or not the
same are immediately payable and under all contracts between the Seller
and any associate or subsidiary company of the Buyer or any company
under the ultimate control of the same parent company as has ultimate
control of the Buyer; or
(ii) When the Seller serves on the Buyer notice in writing specifying that title in
the Goods has passed.
(B) The Seller reserves the right to re-possess any Goods in respect of which
payment is overdue and thereafter to re-sell the same and for this purpose the
Buyer hereby grants an irrevocable right and licence to the Seller’s servants and
agents to enter upon all of any of its premises with or without vehicles during
normal business hours. This right shall continue to subsist notwithstanding the
termination or cancellation of the order for any reason and is without prejudice
to any accrued rights of the Seller thereunder or otherwise.
(C) Until title to the Goods has passed to the Buyer pursuant to these
Conditions it shall possess the Goods as fiduciary agent and baliee of the
Seller. If the Seller so requires, the Buyer shall store the Goods separately
from other goods and shall ensure that they are clearly identifiable as
belongings to the Seller.
9. Cancellation
(A) Subject to paragraph (C) of this Condition an Order may be varied or cancelled
by the Buyer at any time prior to delivery (or in the event of Instalment
Deliveries at any time prior to the delivery of any particular instalment in
respect of that Instalment Delivery but not in respect of Instalment Deliveries
already completed) by notice in writing to the Seller upon condition that
the Buyer pays to the Seller compensation pursuant to paragraph (B) of this
Condition PROVIDED ALWAYS that no variation or cancellation shall be effective
until receipt of the said compensation by the Seller.
(B) The compensation payable under paragraph (A) of this Condition shall be
such sum not exceeding 25% of the Purchase Price as is stipulated by the
Seller for loss and expense occasioned by the variation or cancellation
including but not limited to loss of profit, administrative and restocking
charges, the capital cost of maintaining stocks, storage and internal
transportation charges. The Seller shall notify the Buyer of the amount of
compensation within a reasonable time of receiving the notice of variation
or cancellation from the Buyer.
(C) Nothing in this condition shall affect the rights of the Seller where a
purported variation or cancellation amounts to a wrong repudiation of the
Order. Goods returned tot he Seller without the Seller’s written consent
will under no circumstances be accepted for credit.
(D) All variations required by the Buyer and accepted by the Seller shall be agreed
in writing and the price, if not agreed prior to the manufacture or delivery
of the Goods shall be based on appropriate contracts prices (if any) plus
escalation in respect of inflation and increased costs of materials and labour.
10. Third Party Rights
(A) The Buyer shall indemnify the Seller and hold him indemnified against any
and all liabilities claims and costs incurred by or made against the Seller
as a direct or indirect result of the carrying out of any work required
to be done on or to the Goods in accordance with the requirements
or specifications of the Buyer involving any infringement or alleged
infringement of any third party.
(B) The Seller shall have no liability to the Buyer in the event of the Goods
infringement or being alleged to infringe the rights of any third party. In the
event that the Goods are or may be the subject of patent copyright registered
design trade mark or other rights of any third party the Seller shall be obliged
to transfer to the Buyer only such title as the Seller may have.
11. Specifications
(A) The Buyer assumes responsibility that the Goods are suitable for his
purpose.
(B) Unless expressly agreed in writing by the Seller all drawings, designs,
specifications and particulars of weights and dimensions submitted by the
Seller are approximate only and the Seller shall have no liability in respect
of any deviation therefrom. Any performance figures given by the Seller
are based upon the Seller’s experience and are such as the Seller would
expect to obtain on test. The Seller accepts no liability for failure to obtain
any performance figures quoted by him unless expressly and specifically
guaranteed by the Seller in writing. In the event of a failure to achieve
such performance figures the Seller may at its option replace or repair
the Goods concerned. The Seller reserves the right to alter or change
dimensions or composition of the Goods supplied to conform to applicable
standards or laws or otherwise within reasonable limits having regard to
the nature of the Goods.
(C) The Seller accepts no responsibility for any error omissions or other defects
in any drawings, designs, or specifications not prepared by the Seller and
the Buyer against any and all liabilities and expenses incurred by the Seller
arising therefrom shall indemnify the Seller.
(D) All drawings designs or specifications supplied by the Seller under or in
connection with any quotation or contract of sale shall remain the property
of the Seller and the Buyer shall not copy them without the consent of the
Seller and shall comply with the Seller’s reasonable requirements as to
their use, return and otherwise.
(E) The information contained in advertising, sales and technical literature issued
by the Seller may be relied upon to be accurate in the exact circumstances
in which it is expressed, otherwise any illustrations, performance details,
examples of installations and methods of assembly and all other technical
data in such literature are based on experience and upon trials under test
Conditions and are provided for general guidance only. No such information
or data shall form part of the Contract unless the Buyer shall have complied
with condition 2 (C) relating to statements and representations. All drawings,
documents, confidential records, computer software and other information
supplied by the Seller are supplied on the express understanding that
copyright is reserved to the Seller and that the Buyer will not, without the
written consent of the Seller, either give away, loan, exhibit or sell any such
drawings, documents, records, software or other information or extracts
therefrom or copies thereof or use them in any way except in connection
with the Goods in respect of which they are issued.
(F) All claims for alleged infringement in respect of patents, trade marks,
registered design, design right or copyright received by the Buyer must be
notified immediately to the Seller and the Seller must thereafter be kept
fully informed of the conduct of such claims.
(G) The Buyer shall be solely responsible for ensuring that all drawings,
information, advice and recommendations given to the Seller,
either directly or indirectly by the Buyer or by the Buyer’s officers,
employees, agents, consultants, or advisers, are accurate, correct and
suitable. Examination or consideration by the Seller of such drawings,
information, advice or recommendations shall in no way limit he Buyer’s
responsibility hereunder unless the Seller under the hand of a director or
other authorised representative specifically agrees in writing to accept
responsibility.
(H) The Buyer shall indemnify the Seller from and against all actions, claims,
costs, and proceedings which arise due to the manufacture of Gods or
performance of services to the drawings or specifications of the Buyer
where such drawings or specifications are at fault or where it is alleged that
they involve an infringement of patent, copyright, registered, design, design
right or design copyright or other exclusive right.
(I) The Seller can give no guarantee of the suitability of materials or design
Goods made specially to the Buyer’s requirements and differing from
Seller’s standard specifications even if the purpose be known to the Seller.
(J) The Seller cannot accept responsibility for Buyer’s samples, drawings,
tools and the like while in he Seller’s possession and the Seller will not
accept any claim for loss, breakage’s or damages to the same whatever the
cause. It is agreed between the Seller and the Buyer that the Buyer shall
54 Sales and Technical Support - 01753 870300
fax: 0870 889 5664, email: products.uk@jci.com
website: www.johnsoncontrols.co.uk
be responsible for insurance cover in its own name and its cost for the risks
specified in this Condition 12.
(K) Where materials are supplied by the Buyer to the Seller such materials shall
remain at the risk of the Buyer at all times and the Seller shall not be liable
for the loss of, or damage to, any material during fabrication by the Seller
or by any sub-contractor employed by the Seller or whilst on premises of
the Seller or any such sub-contractor or in transit to or from the premises
to the Seller or of any sub-contractor provided that the Seller may, at its
own discretion, make a contribution towards the replacement costs of the
material.
(L) Where materials are supplied by, or on behalf of, the Buyer to the Seller
the Buyer shall be responsible to ensure that the material is of satisfactory
quality and is fit for its purpose and shall indemnify the Seller against any
loss, damage, injury or expense whatsoever arising directly from any fault
in incorrect specification of the said material.
12. Tests
(A) The Goods are carefully inspected and when practicable submitted to the
Seller’s standard tests before despatch. The Seller shall make an extra
charge for any special tests requested by the Buyer. If the Buyer or his
appointed representative desires to be present at such tests and is given
reasonable notice of the date and time of the tests by the Seller but is not
present at the notified date and time the tests shall proceed and shall be
deemed to have been carried out in the manner described by the Buyer or
his appointed representative.
13. Liability
(A) The Seller hereby undertakes that for a period of twelve months from
and including the date of delivery he shall at no cost to the Buyer and at
the option of the Seller repair or replace any Goods found not to be of
merchantable quality due to defective workmanship or materials PROVIDED
ALWAYS that the Goods concerned are promptly returned carriage paid to
the Seller’s premises.
(B) The Seller shall not be liable to the Buyer.
(B1) The Buyer shall have no claim for shortages or defects in the Goods
supplied apparent in visual inspection unless: -
(i) The Buyer inspects the Goods within (three) working days of their arrival at
its premises or other agreed destinations; and
(ii) a written complaint specifying the shortage or defect is made to the Seller
and to the carrier within (seven) working days of delivery in the event of
shortage, defect, or non-delivery of any separate part of a consignment, or
within (fourteen) working days of the notified date if despatch in the event
of non-delivery of a whole consignment or, in either event, within such
shorter period as the carrier’s Conditions (if applicable) require; and
(iii) the Seller is given an opportunity to inspect the Goods and investigate any
complaint before any use of or alteration to or interference with the Goods.
(B2) The Buyer shall have no claim in respect of defects in the Goods supplied
and services performed which are not apparent on visual inspection at the
time of delivery or completion of performances unless.
(i) a written complaint is sent to the Seller as soon as reasonably practicable
after the defect is discovered and no use is made of the Goods thereafter
and no alteration made thereto or interference made therewith before the
Seller is given an opportunity to inspect the Goods (and service performed)
in accordance with this Condition, and
(ii) the complaint is sent within (12) months of the date of delivery of the
Goods or completion of the performance of the services or, in the case
of an item not manufactured by the Seller, within the guarantee period
specified by the manufacturer of such items.
(C) In the case of Goods not manufactured by the Seller the Buyer shall be
entitled only to such warranties or guarantees as are available to the Seller
in respect thereof.
(D) The Seller may at its option make good any shortage or non delivery
and/or as appropriate replace or repair any Goods found to be damaged
or defective PROVIDED ALWAYS that the damaged or defective Goods are
promptly returned carriage paid to the Seller’s premises.
(E) The Seller’s aggregate liability to the Buyer whether for negligence breach
of contract misrepresentation or otherwise shall in no circumstances
exceed the cost of the defective, damaged or undelivered Goods
determined by net price invoiced to the Buyer In respect of any occurrence
of series of occurrence.
(F) The Seller’s prices are determined on the basis of the limits of liability set
out in this Condition. The Buyer may by written notice to the Seller request
to agree a higher limit of liability set out in this Condition. The Buyer may
by written notice tot he Seller request the Seller to agree a higher limit of
liability provided insurance cover can be obtained therefor. The Seller shall
effect insurance up to such limit and the Buyer shall pay upon demand the
amount of any and all premiums. The Buyer shall disclose such information,
as the insurers shall require. In no case shall the Buyer be entitled to
recover from the Seller more than the amount received from the insures.
(G) Subject to the foregoing all conditions warranties and representatives
expressed or implies by statute common law or otherwise in relation to
the Goods are hereby and excluded and the Seller shall be under on liable
to the Buyer for any loss damage or injury direct resulting from defective
material faulty workmanship or otherwise however arising and whether or
not caused by the negligence of the Seller its employees or agents SAW
the Seller shall accept liability for death or personal injury caused by them
negligence of the Seller.
(H) If a complaint is not made to the Seller as provided in this Condition 13
then the Goods shall be deemed to be in all respect in accordance with the
Contract and the Buyer shall be bound to pay for the same accordingly.
(I) Defects in quality or dimension in any instalment delivery shall not be a
ground for cancellation of the remainder of the Contract.
(J) The Buyer shall not be entitled to any claim in respect of any repairs or
alterations undertaken by the Buyer without prior specific written consent
of the Seller nor in respect of any defect arising by reason of fair wear and
tear or damage due to accident, neglect or misuse nor in respect of any
Goods to which alterations have been made without such consent or to
which replacement parts not supplied by the Seller have been fitted.
(K) The Seller shall not be liable for (and the Buyer shall indemnify the Seller
against claims arising therefrom) loss or damage suffered by reason of
use of the Goods after the Buyer becomes aware of a defect or after
circumstances which should reasonably have indicated to the Buyer the
existence of a defect.
(L) The Seller may within 15 days of receiving a written complaint (or 28
days where the Goods are suitable outside the United Kingdom) inspect
the Goods and the Buyer, if so required by the Seller, shall take all steps
necessary to enable the Seller to do so.
(M) Save as otherwise provided by the other Conditions of these Selections 13 to
15 if the Sale of Goods Act 1979 and, where applicable, Sections 3 to 5 of the
Supply of Goods and Services Act 1982 are to be implied into the Contract.
(N) In the event of the condition of the Goods or the performance of the
services being such as might or would (subject to these Conditions) entitle
the Buyer to claim damages, to repudiate the Contract and/or reject the
Goods or services the Buyer shall not then do so but shall first ask the
Seller to repair or supply satisfactory substitute Goods (or rectify the
services) and the Seller shall thereupon be entitled at its option to repair or
take back the defective Goods and to supply satisfactory substitute Goods
or perform works of rectification free of cost and within a reasonable time
or to repay the price of the Goods and/or services in respect of which the
complaint is made.
(O) If the Seller does so repair the Goods or supply satisfactory Goods or effect
repayment or rectification pursuant to Condition (N) above the Buyer shall
be bound to accept such repaired or substituted Goods, repayment or
rectification and the Seller shall be under no liability in respect of any loss
or damage whatsoever arising from the initial delivery of the defective
Goods or from the initial performance of the services or from the delay
before the defective Goods are repaired or the substitute Goods are
delivered or the repayment or rectification is effected.
(P) In the case of Goods not manufactured by the Seller:-
(i) the Seller gives no assurance or guarantee whatsoever that the sale or
use of the Goods will not infringe the patent, copyright or other industrial
property rights of any other person, firm of company, and
(ii) the guarantee will be limited to the guarantee (if any) which the Seller
receives from the manufacturer or supplier of such Goods.
(Q) The Seller shall not be liable:-
(i) in respect of claims arising by reason of death or personal injury unless
the Seller is shown to have failed to exercise reasonable care in the
performance of the Contract and/or the Goods are deemed to be defective
within the meaning of Part 1 of the Consumer Protection Act 1987, or
General Conditions of Sale (cont)
55
Field Sales - UK North - Brian Skelly 07779 808348
UK South - Taimour Osman 07779 808126
OEM Sales - Kevin Kirby 07779 808525
For further information and additional models
please refer to the product data sheet.
(ii) in respect of claims arising through damage to property unless the Goods
are deemed to be defective within meaning of Part 1 of the Consumer
Protection Act 1987.
(R) Further, under no circumstances whatsoever shall the Seller be liable for
consequential loss (including removal of rectification of work required in
connection with the installation of repaired or substitute Goods) loss of
profits, damage to property or wasted expenditure.
(S) Without prejudice to Condition (R) where Goods are supplied for the
purpose of a business the Seller’s liability, whether in respect of one claim
or the aggregate of various claims (other than claims for death or personal
injury or pursuant to Part 1 of the Consumer Protection Act 1987), shall not
exceed [£100,000] and the Buyer agreed to insure adequately to cover
claims in excess of such amount.
14. Licences and Consents
(A) If any licence or consent of any government or other authority shall be
required for acquisition carriage or use of the Goods by the Buyer the Buyer
shall obtain the same at its own expense and if necessary produce evidence
of the same to the Seller on demand. Failure to do so shall not entitle the
Buyer to withhold or delay payment of the Purchase Price. Any additional
expense or charges incurred by the Sellers resulting from such failure shall
be for the Buyer’s account.
15. Force Majeure
(A) The Seller shall not be liable to the Buyer for any loss or damage which
may be suffered by the Buyer as a direct or indirect result of the supply
of Goods by the Seller being prevented hindered delayed or rendered
uneconomic by reason of circumstances or events beyond the Seller’s
reasonable control including but not limited to Acts of God war riot strike
lock-out trade dispute or labour disturbance accident break-down of plant
or machinery fire flood storm difficulty or increased expense in obtaining
workmen materials or transport or other circumstances affecting the supply
of the Goods or of raw materials therefor by the Seller’s normal source of
supply or the manufacture of the Goods by the Seller’s normal means or
the delivery of the Goods by the Seller’s normal route or means of delivery.
The Seller may at its option suspend performance or cancel its obligations
under the Contract without liability for any damage or consequential
loss resulting therefrom such suspension or cancellation being without
prejudice to the Seller’s right to recover all sums owing to it in respect of
consignments delivered, and/or services performed, and costs incurred
prior to the date of suspension or cancellation.
16. Insolvency Default
(A) If the Buyer ceases to trade or enters into a deed of arrangement or
commits an act of bankruptcy or compounds with his creditors or if a
receiving order is made against him or if (being a company) an order is
made or a resolution is passed for the winding up of the Buyer (otherwise
than for the purposes of amalgamation or reconstruction) or if a receiver is
appointed of any of the Buyer’s assets or undertaking or if circumstances
arise which entitle the court or a creditor to appoint a receiver or a
manager or which entitles the Court to make a winding up order or if the
Buyer takes or suffers any similar or analogous action in consequence of
debt or commits any breach of this or any other contract between the
Seller and the Buyer the Seller may without prejudice to any of it’s other
rights stop any Goods in transit and/or suspend further deliveries and/or
determine the rights of the Buyer under condition 8 hereof and/or by notice
in writing to the Buyer determine the contract.
17. Waiver
(A) Failure by the Seller to exercise or enforce any rights hereunder shall no
be deemed to be a waiver of any such right nor operate so as to bar the
exercise or enforcement thereof at any time or times thereafter.
18. Notices
(A) Any notice hereunder shall be deemed to have been duly given if sent by
prepaid first class post or telex to the party concerned at his last known
address. Notices sent by first call post shall be deemed to have been given
seven days after despatch and notices sent by telex shall be deemed to
have been given on the date of despatch.
19. Clause Headings
(A) Clause headings are inserted in these Conditions for ease of reference
only and do not form part of the contract for Sale for the purpose of
interpretation.
20. Governing Law
(A) The contract shall be governess by and construed in accordance with the
laws of England and the parties hereby submit to the jurisdiction of the
English Courts.
21. Consumer Protection Act 1987 (“the Act”)
(A) In circumstances where the Seller supplies parts or products to the Buyer
for incorporation with, or use ancillary to, any composite or other products
to be produced, manufactured, processed or supplied by the Buyer then:-
(i) the Buyer shall forthwith on demand produce for inspection by the
Seller copies of all written instructions, information and warnings to be
supplied by the Buyer in relation to the said composite or other products,
provided nevertheless that such inspection or right to inspect shall not
itself constitute acceptance or approval on the part of the Seller of such
instructions, information or warnings, and
(ii) the Buyer shall indemnify, reimburse and compensate the Seller for all
losses and damages (including costs, expenses and charges for legal
actions in which the Seller may be involved) that the Seller may incur, or
has to bear, in the event that any claim or claims are made against the
Seller pursuant to the Act or otherwise relating to the said composite
or other products of the Buyer in circumstances in which the part or
product supplied by the Seller was either (I) not the defective part of the
said composite product, or (ii) was only rendered the defective part or
became a defective product by reason of actions or omissions of the Buyer
(including without limitation the supply of defective free issue materials),
or (iii) was only rendered he defective part or become a defective product
by reason of instructions or warnings given by the Buyer or other supplier
of said composite or other products or (iv) supplied in accordance with a
specification and/or drawing furnished by, or on behalf of, the Buyer.
(iii) for the purposes of this Condition only the world ‘defective’ shall be
interpreted in accordance with the definition of ‘defect’ contained in Part 1
of the Act.
(B) The Buyer hereby acknowledges that it is under a duty to pass on to its
customers (where appropriate) all instructions, information and warnings
supplied to it by the Seller with the Goods.
22. Assignment
(A) The Contract is between the Seller and the Buyer as principles and under
no circumstances shall the Buyer assign the benefit or burden of it without
the prior written consent of the Seller. The Seller shall be entitled to assign
or sub-contract the whole or part of its obligations under the Contract.
23. Severability
(A) In the event of any provision of these Conditions being or becoming void in
whole or in part the other provisions of these Conditions shall remainfully
valid and enforceable and void provisions shall, where appropriate, be
replaced in accordance with the meaning and purpose of these Conditions.
24. Attendance on Site
(A) Should the Seller attend on the Buyer’s premises to perform any services in
relation to the Contract then the Buyer shall indemnify the Seller in respect
of all claims made, or proceedings taken, against the Seller (and associated
legal costs) by any third party including but not limited to the Seller’s
employee’s, the Buyer’s employee’s or the employee’s of any contractor
employed by the Buyer or the personal representatives or dependants of
such employee’s or other third parties in respect of death, personal injury
or damage to property (including damage as a result of fire or explosion)
caused by or arising out of the work in any manner whatsoever.
25. Packing
(A) Unless otherwise agreed in writing, cases and other packing materials,
when charged for, will be credited if returned to the Seller’s works within
[14 days] of the date of invoice, carriage paid and in good Condition.
(B) Any packaging supplied by the Seller, unless otherwise expressly agreed in
writing, is intended to provide adequate protection in normal Conditions of
transit of usual duration.
56
Quick Reference Index
2
210-25R £6 33
210-604R £6 33
270XT-95008 £185 27
270XT-95068 £169 27
270XT-95078 £171 27
270XTAN-95008 £194 27
270XTAN-95048 £178 27
270XTAN-95088 £180 27
271-51L £4 33
A
A-4000-8001 £34 34
A19AAC-9005 £54 26
A19AAC-9009 £47 26
A19ACC-9100 £107 26
A19ACC-9101 £77 26
A19AQC-9101 £148 26
A19AQC-9102 £124 26
A19AQC-9200 £144 26
A25CN-9001 £179 26
A28AA-9006 £182 26
A28AA-9007 £165 26
A28AA-9106 £312 26
A28AA-9113 £200 26
A28AA-9118 £175 26
A28QA-9101 £312 26
A28QA-9110 £203 26
A28QA-9111 £215 26
A28QA-9113 £255 26
A28QA-9114 £241 26
A28QA-9115 £204 26
A28QA-9117 £258 26
A28QJ-9100 £211 26
A36AGA-9101 £329 27
A36AGA-9102 £300 27
A36AGA-9103 £263 27
A36AGB-9103 £273 27
A36AHA-9105 £293 27
A36AHA-9107 £368 27
A36AHA-9108 £344 27
A36AHB-9103 £348 27
A36AHB-9104 £344 27
A36AHB-9105 £494 27
A36AHB-9109 £474 27
A99BA-200C £43 37
A99BB-200C £36 37
A99BB-25C £33 37
A99BB-300C £41 37
A99BB-500C £50 37
A99BB-600C £55 37
A99BC-1500C £267 37
ACC-CD-CFK1 £51 37
ACC-CD-S £513 37
ACC-DWCLIP-0 £33 37
B
BKT024N002R £6 33
BKT034N602R £7 33
BPF0351-0 POA 47
C
C450CBN-3C £159 37
C450CCN-3C £204 37
C450CPN-3C £172 37
C450CQN-3C £217 37
C450RBN-3C £280 37
C450RCN-3C £338 37
C450SBN-3C £95 37
C450SCN-3C £127 37
C450SPN-3C £106 37
C450SQN-3C £135 37
C450YNN-1C £87 37
CD-P00-00-0 £655 37
CD-PR0-00-0 £790 37
CD-W00-00-1 £412 37
CD-WA0-00-0 £638 37
CD-WR0-00-0 £820 37
CD-WRD-00-0 £847 37
CNR003N001R £13 33
CNR003N002R £14 33
CNR012N001R £21 33
CNR013N001R £25 33
COV-PIR-FCU-C-5000
£155 36
CR-NDT150-1 £1,024 44
CR-NDT250-1 £1,024 44
CR-NDT400-1 £1,024 44
CR-NDT550-1 £1,076 44
CR-NDT750-1 £1,090 44
CR-NFDT150-1 £979 44
CR-NFDT400-1 £1,217 44
CR-NFDT750-1 £1,428 44
CR-NS037-1 £501 44
CR-NS075-1 £542 44
CR-NS110-1 £566 44
CR-NS150-1 £563 44
CR-NT150-1 £678 44
CR-NT250-1 £702 44
CR-NT400-1 £703 44
CR-NT550-1 £718 44
CR-NT750-1 £788 44
CR-PS037-1 £440 44
CR-PS075-1 £463 44
CR-PS110-1 £501 44
CR-PS150-1 £520 44
CR-PT150-1 £653 44
CR-PT250-1 £658 44
CR-PT400-1 £667 44
CR-PT550-1 £681 44
CR-PT750-1 £696 44
D
DIS12T-1C £106 43
DIS12V-1C £106 43
DIS230T-1C £106 43
DIS230V-1C £106 43
DMPR-KC003 POA 21/22
DP0100-AZ £356 28
DP0100-AZ-D £411 28
DP0100-AZ-D-SP £491 28
DP0100-AZ-SP £412 28
DP0250-R8-AZ £356 28
DP0250-R8-AZ-D £411 28
DP2500-R8 £272 28
DP2500-R8-AZ £356 28
DP2500-R8-AZ-D £411 28
DP2500-R8-D £329 28
E
EP-1110-7001 £813 34
EP-1110-7002 £856 34
EP-1110-7003 £826 34
EP-1110-7004 £856 34
EP-2000-7001 £990 34
EP-2000-7004 £976 34
EP-2000-7021 £1,058 34
EP-2000-7024 £1,052 34
EP-8000-1 £174 34
EP-8000-101 £22 34
EP-8000-2 £163 34
EP-8000-3 £174 34
EP-8000-4 £163 34
EQ-0100-7001 £39 28
EQ-6056-7000 £85 28
ER-COM-1C £23 42
ER-COM-2C £32 42
ER-COM-3C £13 42
ER-DIS-1C £57 42
ER-FIX-1C £19 42
ER-NTC-0C £18 42
ER-NTC-1C £18 42
ER-NTC-2C £18 42
ER52-PM230-501C £95 42
ER53-PM230-501C £109 42
ER54-PMW-001C £168 42
ER54-PMW-501C £168 42
ER55-DR230-001C £180 42
ER55-DR230-501C £180 42
ER55-SM230-001C £197 42
ER55-SM230-501C £197 42
ER65-DRW-501C £294 42
ER65-RK230-001C £344 42
ER65-RK230-501C £344 42
ES-8930-3031-WK £128 35
ES-8940-4130-WK £142 35
F
F61SB-9100 £189 25
F61SD-9150 £185 25
F61SD-9175 £189 25
F61TB-9100 £226 25
F61TB-9200 £477 25
F61TD-9150 £221 25
F62SA-9100 £137 25
F63BT-9101 £268 25
F63BT-9102 £295 25
F63BT-9200 £578 25
FAD0351-0 £617 47
FCD2611-0 POA 47
FCD2612-1 POA 47
FCD2612-2 POA 47
FED1611-1 POA 47
FED2611-2 POA 47
FMB0351-0 POA 47
FLT001N001R £52 25
FTG015N602R £25 33
FTG015N603R £31 33
FTG13A-600R £25 26/27
G
G-2010 Series POA 34
GH-5119-5610 £1,203 24
GH-5219-6610 £1,051 24
GH-5229-2610 £999 24
GH-5619-7611 £1,472 24
GH-5629-3611 £1,649 24
GH-5629-4611 £1,688 24
GH-5729-5610 £2,107 24
GH-5729-6610 £2,330 24
GH-5729-7610 £2,954 24
GMT008N600R £12 33
H
HE-67S3-0N00P £448 37
HE-67S3-0N0BT £429 37
HT-1201-UR £373 38
HT-1300-UR £213 38
HT-1301-UR £260 38
HT-1303-UR £226 38
HT-1306-UR £239 38
HT-9000-UD1 £279 38
HT-9000-UD2 £254 38
HT-9001-UD1 £306 38
HT-9001-UD2 £357 38
HT-9003-UD1 £236 38
HT-9003-UD2 £300 38
HT-9005-UD1 £323 38
HT-9005-UD2 £275 38
HT-9005-URW £236 38
HT-9006-UD1 £266 38
HT-9006-UD2 £324 38
HT-9009-UD1 £263 38
HT-9009-UD2 £325 38
HT-9009-URW £257 38
HX-9100-8001 £55 38/41
HX-9100-9001 £118 38
I
IPG0351-0 POA 47
J
JC 5361 £44 34
K
KIT012N600 £15 26/27
KIT023N600 £4 33
KIT031N600 £105 23/33
KIT034N600 £103 33
KIT21A602 £12 25
L
LP-KIT003-010C £7 41
LP-KIT003-011C £20 41
LP-KIT003-012C £44 41
LP-KIT003-013C £22 41
LP-RSM003-000C £140 41
LP-RSM003-001C £159 41
LP-RSM003-003C £53 41
LP-RSM003-004C £76 41
M
M9000-153 £1 21/22
M9000-158 £74 21/22
M9000-170 £79 21/22
M9000-171 £79 21/22
M9000-200 £999 19
M9000-341 £324 19
M9000-520-5 £33 15
M9000-525-5 £33 15/18
M9000-560 £18 19
M9000-561 £23 19
M9000-604 £18 21/22
M9000-607 £14 19
M9000-Z01DN £66 19
M9102-AGA-1S £79 19
M9100-100A £67 17
M9100-100B £67 17
M9100-100C £67 17
M9102-AGA-5S £69 19
M9102-IGA-1S £86 19
M9102-IGA-5S £92 19
M9104-AGA-1S £78 19
M9104-AGA-5S £74 19
M9104-GGA-1S £148 19
M9104-GGA-5S £152 19
M9104-IGA-1S £86 19
M9104-IGA-5S £92 19
M9108-ADA-1N £161 20
M9108-ADA-1N4 £226 22
M9108-ADA-5 £163 18
M9108-ADC-1N £202 20
M9108-ADC-1N4 £281 22
M9108-ADC-5 £205 18
M9108-ADD-1N £174 20
M9108-ADD-1N4 £281 22
M9108-ADE-1N £174 20
M9108-ADE-1N4 £281 22
M9108-ADF-1N £174 20
M9108-ADF-1N4 £281 22
M9108-AGA-1N £132 20
M9108-AGA-1N4 £211 22
M9108-AGA-5 £173 18
M9108-AGC-1N £202 20
M9108-AGC-1N4 £249 22
M9108-AGC-5 £205 18
M9108-AGD-1N £214 20
M9108-AGD-1N4 £265 22
M9108-AGE-1N £211 20
M9108-AGE-1N4 £265 22
M9108-AGF-1N £174 20
M9108-AGF-1N4 £265 22
M9108-GAA-1.01 £266 23
M9108-GAC-1.01 £336 23
M9108-GDA-1N £239 20
M9108-GDA-1N1 £239 20
M9108-GDC-1N £257 20
M9108-GDC-1N1 £257 20
M9108-GGA-1N £176 20
M9108-GGA-1N4 £301 22
M9108-GGA-5 £191 18
M9108-GGC-1N £215 20
M9108-GGC-1N4 £340 22
M9108-GGC-5 £248 18
M9116-ADA-1N £168 20
M9116-ADA-1N4 £226 22
M9116-ADC-1N £208 20
M9116-ADC-1N4 £281 22
M9116-ADD-1N £203 20
M9116-ADD-1N4 £281 22
M9116-ADE-1N £234 20
M9116-ADE-1N4 £281 22
M9116-ADF-1N £238 20
M9116-ADF-1N4 £281 22
M9116-AGA-1N £153 20
M9116-AGA-1N4 £211 22
M9116-AGC-1N £176 20
M9116-AGC-1N4 £229 22
M9116-AGD-1N £228 20
M9116-AGD-1N4 £265 22
M9116-AGE-1N £225 20
M9116-AGE-1N4 £265 22
M9116-AGF-1N £228 20
M9116-AGF-1N4 £265 22
M9116-GDA-1N £244 20
M9116-GDA-1N1 £244 20
M9116-GDC-1N £280 20
M9116-GDC-1N1 £280 20
M9116-GGA-1N £223 20
M9116-GGA-1N4 £301 22
M9116-GGC-1N £254 20
M9116-GGC-1N4 £359 22
M9124-ADA-1N £303 20
M9124-ADC-1N £344 20
M9124-ADD-1N £364 20
M9124-ADE-1N £364 20
M9124-ADF-1N £364 20
M9124-AGA-1N £293 20
M9124-AGC-1N £331 20
M9124-AGD-1N £354 20
M9124-AGE-1N £354 20
M9124-AGF-1N £354 20
M9124-GDA-1N £318 20
M9124-GDA-1N1 £318 20
M9124-GDC-1N £351 20
M9124-GDC-1N1 £351 20
M9124-GGA-1N £310 20
M9124-GGC-1N £346 20
M9132-ADA-1N £354 20
M9132-ADC-1N £277 20
M9132-ADD-1N £364 20
M9132-ADE-1N £364 20
M9132-ADF-1N £364 20
M9132-AGA-1N £258 20
M9132-AGC-1N £271 20
M9132-AGD-1N £354 20
M9132-AGE-1N £354 20
M9132-AGF-1N £354 20
M9132-GGA-1N £355 20
M9132-GGC-1N £378 20
M9200-100A £67 17
M9200-100B £67 17
M9200-100C £67 17
M9203-AGA-1 £209 21
M9203-AGA-1Z £217 21
M9203-AGB-1 £256 21
M9203-AGB-1Z £265 21
M9203-BGA-1 £149 21
M9203-BGB-1 £205 21
M9203-BUA-1 £166 21
M9203-BUA-1Z £175 21
M9203-BUB-1 £213 21
M9203-BUB-1Z £222 21
M9203-GGA-1 £239 21
M9203-GGA-1Z £247 21
M9203-GGB-1 £277 21
M9203-GGB-1Z £286 21
M9208-100 £26 21
M9208-150 £26 21
M9208-600 £26 21
M9208-601 £26 21
M9208-602 £26 21
M9208-603 £26 21
M9208-604 £26 21
M9208-605 £26 21
M9208-AGA-1 £300 21
Product Price Page Product Price Page Product Price Page Product Price Page Product Price Page
57
MS-NCE2521-0 £2,177 47
MS-NCE2526-0 £2,391 47
MS-NCE2527-0 £2,462 47
MS-NCE2560-0 £2,165 47
MS-NCE2561-0 £2,177 47
MS-NCE2566-0 £2,391 47
MS-NCE2567-0 £2,462 47
MS-RAP-0 POA 47
MS-VMA1615-0 £468 47
MS-VMA1617-0 POA 47
MS-VMA1630-0 £502 47
MS-VMA1632-0 POA 47
MS-VMA1832-0 £675 48
MS-ZFR1810-0 £607 48
MS-ZFR1811-0 £206 48
MS1DR230T-1C £141 43
MS1DR230V-1C £142 43
MS1PM12RT-1C £120 43
MS1PM12RV-1C £120 43
MS1PM230T-1C £127 43
MS1PM230V-1C £123 43
MS2DR230T-1C £185 43
MS2DR230V-1C £181 43
MS2DR48DT-1C £234 43
MS2PM12RT-1C £175 43
MS2PM12RV-1C £178 43
MS4DR230T-1C £237 43
MS4DR48T-1C £237 43
MS4PM12RT-1C £206 43
N
NS-AHA7001-0 £517 48
NS-AHA7002-0 £517 48
NS-AHB7001-0 £517 48
NS-AHB7002-0 £517 48
NS-AHB7003-0 £517 48
NS-AHN7001-0 £386 48
NS-AHN7001-2 £349 48
NS-AHP7001-0 £398 48
NS-APA7001-0 £646 48
NS-APA7002-0 £646 48
NS-APB7001-0 £646 48
NS-APB7002-0 £646 48
NS-APB7003-0 £646 48
NS-ATA7001-0 £126 48
NS-ATA7002-0 £126 48
NS-ATA7003-0 £126 48
NS-ATB7001-0 £133 48
NS-ATB7002-0 £133 48
NS-ATB7003-0 £133 48
NS-ATC7001-0 £142 48
NS-ATC7002-0 £142 48
NS-ATD7001-0 £143 48
NS-ATD7002-0 £143 48
NS-ATF7001-0 £126 48
NS-ATF7002-0 £126 48
NS-ATN7001-0 £101 48
NS-ATN7001-2 £101 48
NS-ATN7003-0 £101 48
NS-ATN7003-2 £94 48
NS-ATP7001-0 £111 48
NS-ATP7001-2 £111 48
NS-ATP7002-0 £111 48
NS-ATP7003-0 £111 48
NS-ATP7003-2 £101 48
NS-ATV7001-0 £152 48
NS-ATV7002-0 £152 48
NS-BCN7004-0 £974 48
NS-DTN7043-0 £141 48
NS-DTN7083-0 £141 48
NS-MHL7001-0 £550 48
NS-MHL7002-0 £550 48
NS-MNN7001-0 £246 48
NS-MNN7003-0 £246 48
NS-MTB7001-0 £405 48
NS-MTB7002-0 £405 48
NS-MTL7001-0 £404 48
NS-MTL7002-0 £405 48
NS-WALLPLATE-0 £14 48
P
P100AP-300D £22 32
P100AP-301D £14 32
P100AP-302D £14 32
P100AP-306D £14 32
P100AP-308D £13 32
P100AP-309D £14 32
P100AP-310D £13 32
P100CP-102D £19 32
P100CP-103D £22 32
P100CP-104D £15 32
P100CP-106D £15 32
P100CP-107D £15 32
P100CP-108D £15 32
P100CP-110D £11 32
P100CP-111D £22 32
P100DA-66D £19 32
P100DA-67D £22 32
P100DA-68D £24 32
P100DA-69D £24 32
P100DA-70D £21 32
P100DA-71D £24 32
P100DA-72D £22 32
P100DA-73D £22 32
P100DA-74D £20 32
P100DA-75D £22 33
P100DA-76D £22 33
P100EE-17D £32 33
P100EE-18D £26 33
P100EE-60D £23 33
P100EE-61D £29 33
P100EE-68D £25 33
P163.05 £1.52 5
P165.05 £0.33 5
P197.15 £1.00 5
P197.25 £1.00 5
P215BR-9110 £281 46
P215BR-9111 £297 46
P215BR-9210 £293 46
P215LR-9110 £179 46
P215LR-9111 £191 46
P215LR-9114 £158 46
P215LR-9120 £256 46
P215LR-9130 £179 46
P215LR-9140 £169 46
P215LR-9210 £191 46
P215LR-9610 £156 46
P215LR-9611 £156 46
P215PR-9200 £120 45
P215PR-9202 £120 45
P215PR-9230 £141 45
P215PR-9232 £141 45
P215PR-9250 £143 45
P215PR-9800 £135 45
P215TR-9110 £329 46
P216EEA-100C £264 45
P216EEA-1K £335 45
P232A-B-AAC £41 28
P233A-10-AAC £40 29
P233A-10-AHC £61 29
P233A-10-AKC £49 29
P233A-10-PAC £44 29
P233A-10-PHC £49 29
P233A-10-PKC £61 29
P233A-4-AAC £50 29
P233A-4-AHC £51 29
P233A-4-AKC £49 29
P233A-4-PAC £50 29
P233A-4-PHC £47 29
P233A-4-PKC £61 29
P233A-50-AAC £40 29
P233F-P3-AAC £49 29
P28DA-9341 £325 29
P28DA-9660 £338 29
P28DJ-9360 £529 29
P28DJ-9861 £518 29
P28DN-9750 £398 29
P28DP-9300 £251 29
P28DP-9340 £289 29
P28DP-9360 £289 29
P28DP-9380 £260 29
P28DP-9381 £347 29
P28DP-9640 £269 29
P28DP-9660 £269 29
P28DP-9680 £279 29
P28DP-9840 £322 29
P28DP-9860 £368 29
P315PR-9202C £88 45
P35AC-9100 £157 33
P35AC-9106 £152 33
P35AC-9200 £194 33
P35AC-9200 £194 33
P35AC-9201 £194 33
P35AC-9201 £194 33
P35AC-9202 £192 33
P35AC-9203 £194 33
P35AC-9500 £166 33
P35AC-9501 £202 33
P35AC-9505 £171 33
P35AC-9506 £169 33
P35AC-9511 £197 33
P35AC-9512 £204 33
P35AC-9600 £157 33
P35AC-9601 £117 33
P35AC-9604 £161 33
P45NBB-9361B £276 29
P45NBB-9381B £258 29
P45NBB-9640C £234 29
P45NBB-9660C £235 29
P45NBB-9660Q £309 29
P45NBB-9680C £234 29
P45NCA-9056 £287 29
P45NCA-9104 £280 29
P48AAA-9110 £165 30
P48AAA-9120 £114 30
P48AAA-9130 £114 30
P48AAA-9140 £114 30
P48AAA-9150 £141 30
P48BEA-9140 £155 30
P499ABS-401C £80 34
P499ABS-404C £80 34
P499ACS-401C £57 34
P499ACS-404C £46 34
P499VCS-401C £62 34
P499VBS-401C £67 34
P499VBS-404C £67 34
P499VCS-404C £51 34
P735AAA-9200 £76 30
P735AAA-9201 £75 30
P735AAA-9300 £57 30
P735AAA-9301 £61 30
P735AAA-9350 £55 30
P735AAA-9351 £60 30
P735AAA-9400 £58 30
P735AAW-9300 £60 30
P735AAW-9350 £53 30
P735AAW-9850 £77 30
P735BCA-9300 £57 30
P735BCB-9300 £60 30
P735BEA-9350 £56 30
P735BEB-9350 £56 30
P735BEB-9850 £77 30
P736ALA-9351 £87 31
P736LCA-9300 £85 31
P736LCA-9400 £96 31
P736LCW-9300 £96 31
P736LCW-9800 £103 31
P736MCA-9300 £87 31
P736MCB-9300 £103 31
P736MCS-9300 £96 31
P736PGA-9300 £92 31
P736PGB-9300 £101 31
P736PLM-9370 £105 31
P74DA-9300 £214 30
P74DA-9600 £222 30
P74EA-9300 £204 30
P74EA-9600 £252 30
P74EA-9700 £320 30
P74EA-9701 £351 30
P74FA-9700 £319 30
P74FA-9701 £452 30
P77AAA-9300 £64 31
P77AAA-9301 £65 31
P77AAA-9302 £65 31
P77AAA-9350 £64 31
P77AAA-9351 £63 31
P77AAA-9400 £75 31
P77AAA-9450 £75 31
P77AAA-9451 £64 31
P77AAA-9700 £109 31
P77AAA-9750 £109 31
P77AAA-9800 £76 31
P77AAA-9850 £76 31
P77AAW-9300 £79 31
P77AAW-9350 £72 31
P77AAW-9355 £83 31
P77AAW-9700 £131 31
P77AAW-9750 £187 31
P77AAW-9800 £79 31
P77AAW-9850 £96 31
P77AAW-9855 £100 31
P77BCA-9300 £72 31
P77BCA-9400 £86 31
P77BCA-9700 £119 31
P77BCB-9300 £88 31
P77BCB-9800 £89 31
P77BEA-9350 £63 31
P77BEA-9450 £82 31
P77BEA-9750 £120 31
P77BEB-9350 £85 31
P77BEB-9355 £108 31
P77BEB-9750 £179 31
P77BEB-9850 £84 31
P77BEB-9855 £112 31
P77BES-9350 £88 31
P77BES-9750 £107 31
P77BES-9850 £122 31
P78ALA-9351 £112 32
P78ALA-9451 £110 32
P78LCA-9300 £87 32
P78LCA-9400 £87 32
P78LCA-9500 £109 32
P78LCA-9700 £190 32
P78LCW-9300 £211 32
P78LCW-9302 £152 32
P78LCW-9800 £108 32
P78LCW-9801 £163 32
P78MCA-9300 £92 32
P78MCA-9400 £92 32
P78MCA-9700 £195 32
P78MCB-9300 £110 32
P78MCB-9800 £117 32
P78MCS-9300 £104 32
P78PGA-9300 £103 32
P78PGA-9400 £120 32
P78PGA-9700 £227 32
P78PGB-9300 £129 32
P78PGB-9800 £117 32
P78PLM-9350 £141 32
P78PLM-9850 £168 32
P903ST.1 £5.56 5
P903ST.3 £7.96 5
P903ST.4 £9.32 5
PA-20xy-Z2K2 POA 13
PA-21xy-Z2K7 POA 13
PA-20xy-Z3K2 POA 13
PA-21xy-Z3K7 POA 13
PA-20xy-Z6K2 POA 13
PA-21xy-Z6K7 POA 13
PA-20xy-Z7K2 POA 13
PA-21xy-Z7K7 POA 13
PLT112-1R £8 25
PLT112-2R £7 25
PLT69-11R £2 25
PM-8902-0500 £126 35
PM-8905-0300 £142 35
M9208-AGC-1 £345 21
M9208-BDA-1 £254 21
M9208-BDC-1 £300 21
M9208-BGA-1 £230 21
M9208-BGC-1 £277 21
M9208-GGA-1 £322 21
M9208-GGC-1 £368 21
M9220-600 £13 21/22
M9220-601 £15 21
M9220-602 £8 21/22
M9220-603 £12 21/22
M9220-605 £42 22
M9220-610 £10 21/22
M9220-612 £9 21/22
M9220-614 £10 21
M9220-AGA-1 £356 22
M9220-AGC-1 £408 22
M9220-BDA-1 £319 22
M9220-BDC-1 £379 22
M9220-BGA-1 £286 22
M9220-BGC-1 £341 22
M9220-GGA-1 £366 22
M9220-GGC-1 £406 22
M9220-HGA-1
£376 22
M9220-HGC-1 £406 22
M9304-ADA-1N £136 19
M9304-ADC-1N £161 19
M9304-AGA-1N £132 19
M9304-AGC-1N £158 19
M9304-AKA-1N £109 19
M9304-GGA-1N £194 19
MS-ADS05U-0 POA 46
MS-ADSLE5U-0 POA 46
MS-ADX10SQL-0 POA 46
MS-ADX10U-0 POA 46
MS-ADXSWO-0 POA 46
MS-ADXSWOSQL-0
POA 46
MS-BACEOL-0 £100 48
MS-BAT1010-0 £135 48
MS-BAT1020-0 £68 48
MS-BTCVT-1 £847 48
MS-BTCVTCBL-700
£20 48
MS-DIS1710-0 £363 48
MS-EREPORT-0 £1,493 48
MS-EXPORT-0 £2,095 48
MS-FAC2611-0 £633 46
MS-FAC2612-1 £671 46
MS-FAC2612-2 £772 46
MS-FAD0351-0 £617 48
MS-FEC1611-0 £859 46
MS-FEC1621-0
£1,185
46
MS-FEC2611-0
£1,182
46
MS-FEC2621-0 £1,629 46
MS-FUSE01-0 £49 49
MS-IOM1711-0 £275 47
MS-IOM2721-0 £242 47
MS-IOM3721-0 £208 47
MS-IOM3731-0 £249 47
MS-IOM4711-0 £632 47
MS-LDT1102-0 £1,005 49
MS-NAE3510-2 £4,886 47
MS-NAE3511-2 £5,173 47
MS-NAE3520-2 £4,983 47
MS-NAE3521-2 £5,277 47
MS-NAE4510-2 £9,485 47
MS-NAE4511-2 £9,916 47
MS-NAE4520-2 £9,674 47
MS-NAE4521-2 £10,114 47
MS-NAE5510-2E £12,796 47
MS-NAE5511-2E £13,310 47
MS-NAE5520-2E £14,253 47
MS-NAE5521-2E £13,820 47
MS-NCE2500-0 £1,252 47
MS-NCE2506-0 £1,440 47
MS-NCE2510-0 £2,023 47
MS-NCE2511-0 £2,236 47
MS-NCE2516-0 £2,391 47
MS-NCE2517-0 £2,462 47
MS-NCE2520-0 £2,165 47
Product Price Page Product Price Page Product Price Page Product Price Page Product Price Page
58
TC-8903-1152-WK £139 35
TC-8903-1183-WK £166 35
TC-8904-2131-WK £107 35
TC-8904-2132-WK £120 35
TC-8906-2131-WK £159 35
TC-8906-2132-WK £143 35
TC-8907-1031-WK £159 35
TC-8907-1032-WK £146 35
TC-8907-2031-WK £157 35
TC-8907-2032-WK £140 35
TC-8931-2112-W £94 35
TC-8933-1112-W £158 35
TC-8936-2112-W £98 35
TC-8941-2141-WK £150 35
TC-8942-2041-WK £150 35
TC-8943-1141-WK £129 35
TC-8944-2141-WK £125 35
TC-8946-2141-WK £157 35
TC-8947-2041-WK £159 35
TE-7000-8002 £123 39
TE-7000-8002-W £122 39
TE-7000-8003 £120 39
TE-7000-8003-W £122 39
TE-9100-8501 £31 39/40
TE-9100-8502 £35 41
TL-BRTRP-0 £808 48
TL-JCIBPP-DVD0 POA 48
TL-JCIBPP-DVD6 POA 48
TM-1100-8931 £18 39/40
TM-1140-0000 £52 39
TM-1150-0000 £68 39
TM-1160-0000 £73 39
TM-1160-0002 £93 39
TM-1160-0005 £73 39
TM-1160-0007 £86 39
TM-1170-0005 £68 39
TM-1170-0007 £77 39
TM-1190-0000 £73 39
TM-1190-0005 £73 39
TM-2140-0000 £53 40/41
TM-2150-0000 £56 40/41
TM-2160-0000 £73 40/41
TM-2160-0002 £72 40/41
TM-2160-0005 £61 40/41
TM-2160-0007 £61 40/41
TM-2190-0000 £61 40/41
TM-2190-0005 £61 40/41
TM-9100-8900 £13 39/40
TM-9100-8901 £24 39
TM-9100-8902 £39 39
TM-9100-8902-W £39 39
TS-6300D-000 £9 40
TS-6300W-E200 £18 40
TS-6300W-E300 £32 40
TS-6300W-E400 £26 40
TS-6300W-F200 £20 40
TS-6300W-F300 £33 40
TS-6300W-F400 £26 40
TS-6300W-G200 £20 40
TS-6300W-G300 £33 40
TS-6300W-G400 £27 40
TS-6300W-H200 £20 40
TS-6300W-H300 £34 40
TS-6300W-H400 £29 40
TS-6300W-I200 £21 40
TS-6300W-I300 £41 40
TS-6300W-I400 £30 40
TS-6330C-E10 £44 40
TS-6330D-A10 £41 40
TS-6330D-B10 £44 40
TS-6330D-C10 £46 40
TS-6330D-D10 £51 40
TS-6330E-000 £38 40
TS-6330K-F00 £26 40
TS-6330S-000 £51 40
TS-6340C-E10 £44 40
TS-6340D-A10 £41 40
TS-6340D-B10 £44 40
TS-6340D-C10 £46 40
TS-6340D-D10 £51 40
TS-6340E-000 £38 40
TS-6340K-F00 £26 40
TS-6340S-000 £51 40
TS-6350C-E10 £44 40
TS-6350D-A10 £41 40
TS-6350D-B10 £44 40
TS-6350D-C10 £51 40
TS-6350D-D10 £51 40
TS-6350E-000 £38 40
TS-6350S-000 £51 40
TS-6360C-E10 £44 40
TS-6360D-A10 £41 40
TS-6360D-B10 £44 40
TS-6360D-C10 £46 40
TS-6360D-D10 £51 40
TS-6360E-000 £38 40
TS-6360K-F00 £26 40
TS-6360S-000 £51 40
TUC0311-2 £205 41
TUC0311-2Bundle £315 41
V
V46AA-9300 £137 23
V46AA-9301 £109 23
V46AA-9510 £139 23
V46AA-9600 £116 23
V46AA-9602 £151 23
V46AA-9606 £154 23
V46AA-9608 £147 23
V46AA-9609 £147 23
V46AA-9950 £139 23
V46AA-9951 £117 23
V46AB-9300 £144 23
V46AB-9510 £144 23
V46AB-9600 £122 23
V46AB-9605 £136 23
V46AB-9950 £130 23
V46AB-9951 £162 23
V46AC-9300 £185 23
V46AC-9510 £142 23
V46AC-9600 £190 23
V46AC-9605 £164 23
V46AC-9951 £185 23
V46AD-9300 £344 23
V46AD-9510 £410 23
V46AD-9511 £475 23
V46AD-9600 £418 23
V46AE-9300 £458 23
V46AE-9510 £469 23
V46AE-9512 £438 23
V46AE-9600 £476 23
V46AR-9300 £552 23
V46AR-9600 £573 23
V46AS-9300 £1,017 23
V46AS-9301 £1,036 23
V46AT-9300 £1,435 23
V46AT-9301 £1,435 23
V47AA-9161 £292 23
V47AB-9160 £358 23
V47AC-9160 £400 23
V47AD-9160 £530 23
V47AD-9161 £422 23
V47AE-9160 £647 23
V47AE-9161 £778 23
V47AR-9160 £809 23
V47AR-9161 £809 23
V48AB-9510 £311 24
V48AB-9600 £311 24
V48AC-9510 £352 24
V48AC-9600 £356 24
V48AD-9510 £921 24
V48AD-9600 £721 24
V48AD-9602 £721 24
V48AE-9510 £962 24
V48AE-9600 £755 24
V48AF-9300 £1,021 24
V48BC-9600 £910 24
V5210BC £31 5
V5210CC £31 5
V5210DC £31 5
V5210EC £31 5
V5210JC £31 5
V5210KC £34 5
V5210MC £55 5
V5210ZC £31 5
V5290BC £31 5
V5290CC £31 5
V5290DC £31 5
V5290EC £31 5
V5510BC £45 5
V5510CC £45 5
V5510DC £45 5
V5510EC £45 5
V5510JC £52 5
V5510KC £52 5
V5510MC £63 5
V5590BC £45 5
V5590CC £45 5
V5590DC £45 5
V5590EC £52 5
V5810BC £41 5
V5810CC £41 5
V5810DC £41 5
V5810EC £41 5
V5810JC £45 5
V5810KC £45 5
V5810MC £56 5
VA-7070-21 £46 6
VA-7070-23 £46 6
VA-7071-21 £46 6
VA-7071-23 £46 6
VA-7077-21 £46 6
VA-7077-23 £46 6
VA-7078-21 £46 6
VA-7078-23 £46 6
VA-7150-1001 £198 14
VA-7150-1003 £198 14
VA-7150-8201 £205 14
VA-7150-8203 £205 14
VA-7152-1001 £308 14
VA-7152-8201 £322 14
VA-7200-1001 £340 14
VA-7202-1001 £499 14
VA-7480-0001 £101 6
VA-7480-0003 £107 6
VA-7480-0011 £101 6
VA-7480-0013 £107 6
VA-7481-0001 £101 6
VA-7481-0003 £107 6
VA-7481-0011 £101 6
VA-7481-0013 £107 6
VA-7482-0011 £107 6
VA-7482-1001 £107 6
VA-7482-2001 £107 6
VA-7700-1001 £181 14
VA-7700-1003 £159 14
VA-7706-1001 £366 14
VA-7740-1001 £227 14
VA-7740-1003 £227 14
VA-7746-1001 £412 14
VA-9072-13 £2,519 17
VA-9072-14 £1,679 17
VA-9072-23 £2,351 17
VA-9072-24 £1,511 17
VA-9075-13 £4,031 17
VA-9075-14 £2,855 17
VA-9075-24 £1,948 17
VA-9077-13 £5,374 17
VA-9077-14 £4,366 17
VA-9078-23 £3,695 17
VA-9078-24 £3,359 17
VA-907A-23 £7,726 17
VA-907A-24 £6,382 17
VA-907B-23 £9,405 17
VA-907B-24 £7,726 17
VA1000-EP £119 9/13
VA1000-M230N £47 13
VA1000-P2 £111 13
VA1000-S2 £94 13
VA1000-SRU £66 13
VA1125-GGA-1 £647 13
VA1220-GGA-1 £820 13
VA1420-GGA-1 £819 13
VA7810-ADA-11 £500 14
VA7810-ADA-12 £509 14
VA7810-ADC-11 £558 14
VA7810-ADC-12 £565 14
VA7810-AGA-11 £382 14
VA7810-AGA-12 £390 14
VA7810-AGC-11 £413 14
VA7810-AGC-12 £413 14
VA7810-AGH-11 £413 14
VA7810-AGH-12 £413 14
VA7810-GGA-11 £455 14
VA7810-GGA-12 £455 14
VA7810-GGC-11 £517 14
VA7810-GGC-12 £517 14
VA7820-GGA-11 £484 14
VA7820-GGA-12 £484 15
VA7820-GGC-11 £625 14
VA7820-GGC-12 £625 15
VA7830-GGA-11 £484 14
VA7830-GGA-12 £484 15
VA7830-GGC-11 £631 14
VA7830-GGC-12 £625 15
VA9104-IGA-1S £137 18
VA9104-GGA-1S £175 18
VA9203-AGA-1Z £217 18
VA9203-AGB-1Z £265 18
VA9203-BGA-1 £149 18
VA9203-BGB-1 £205 18
VA9203-BUA-1 £166 18
VA9203-BUB-1 £213 18
VA9203-GGA-1Z £247 18
VA9203-GGB-1Z £286 18
VA9208-AGA-1 £299 17
VA9208-AGC-1 £342 17
VA9208-BDA-1 £255 17
VA9208-BDC-1 £299 17
VA9208-BGA-1 £233 17
VA9208-BGC-1 £277 17
VA9208-GGA-1 £321 17
VA9208-GGC-1 £364 17
VAP1000-24-C £504 4
VAP3000-24-C £840 4
VF-998-100 £43 17
VF-998-101 £43 17
VF-998-102 £43 17
VF-998-103 £43 17
VF-998-104 £77 17
VF-998-105 £77 17
VF-998-303 £201 17
VF-998-304 £268 17
VF-998-305 £278 17
VF-998-307 £671 17
VF-998-308 1006 17
VFB025H £134 17
VFB032H £137 17
VFB040H £141 17
VFB050H £144 17
VFB065H £154 17
VFB080H £181 17
VFB100H £218 17
VFB100L £218 17
VFB125H £238 17
VFB125L £238 17
VFB150H £275 17
VFB150L £275 17
VFB200H £369 17
VFB200L £369 17
VFB250H £856 17
VFB250L £856 17
VFB300H £1,326 17
VFB300L £1,326 17
VFB350H £2,015 17
VFB350L £2,015 17
PM-8905-0500 £117 35
PM-8907-0300 £116 35
PT-5217-7011 £447 28
PT-5217-7101 £447 28
R
R-3710-8205 £19 34
RA-3000-7126 £951 13
RA-3000-7127 £827 13
RA-3000-7226 £910 13
RA-3000-7227 £827 13
RA-3000-7325 £948 13
RA-3000-7326 £948 13
RA-3000-7327 £948 13
RA-3003-7126 £1,207 13
RA-3003-7127 £1,244 13
RA-3003-7226 £1,207 13
RA-3003-7227 £1,244 13
RA-3003-7326 £1,165 13
RA-3003-7327 £1,255 13
RA-3041-7126 £1,492 13
RA-3041-7226 £1,492 13
RA-3041-7325 £1,515 13
RA-3041-7326 £1,407 13
RA-3100-7126 £1,007 13
RA-3100-7127 £1,007 13
RA-3100-7226 £934 13
RA-3100-7326 £1,055 13
RA-3100-7327 £1,137 13
RA-3103-7127 £1,343 13
RA-3103-7226 £1,165 13
RA-3103-7227 £1,255 13
RA-3103-7325 £1,340 13
RA-3103-7326 £1,283 13
RA-3103-7327 £1,381 13
RA-3141-7226 £1,421 13
RA-3141-7325 £1,596 13
RA-3141-7326 £1,525 13
RLY13A603R £158 28
RLY13A627R £208 28
RLY13A635R £205 28
RS-1140-0000 £73 39
RS-1160-0000 £105 39
RS-1160-0005 £105 39
RS-1180-0000 £138 39/41
RS-1180-0002 £181 39/41
RS-1180-0005 £139 39/41
RS-1180-0007 £181 39/41
RS-1190-0000 £96 39
RS-1190-0005 £96 39
S
SEC002N600 £10 33
SEC002N602 £11 33
SEC002N606 £17 33
SEC002N607 £14 33
SEC002N616 £10 33
SEC002N617 £12 33
SEC002N621 £10 33
SEC002N622 £17 33
SEC002N624 £22 33
SEC002N626 £14 33
SEC002N627 £18 33
SEC002N628 £19 33
SEC002N631 £10 33
T
T90 £13 4
TBG16A-600R £36 32/33
TC-8901-2131-WK £150 35
TC-8901-2132-WK £98 35
TC-8901-2183-WK £166 35
TC-8902-1031-WK £92 35
TC-8902-1032-WK £103 35
TC-8902-2031-WK £150 35
TC-8902-2032-WK £88 35
TC-8903-1131-WK £166 35
TC-8903-1132-WK £155 35
TC-8903-1151-WK £169 35
Product Price Page Product Price Page Product Price Page Product Price Page Product Price Page
Quick Reference Index (cont)
59
VG7203DT £228 8
VG7203ET £228 8
VG7203FT £228 8
VG7203GT £228 8
VG7203LT £259 8
VG7203NT £329 8
VG7203PT £412 8
VG7203RT £553 8
VG7203ST £739 8
VG7401AT £165 8
VG7401BS £165 8
VG7401BT £165 8
VG7401CS £165 8
VG7401CT £165 8
VG7401DS £165 8
VG7401DT £165 8
VG7401ES £165 8
VG7401ET £165 8
VG7401FS £165 8
VG7401FT £165 8
VG7401GS £165 8
VG7401GT £165 8
VG7401LS £165 8
VG7401LT £168 8
VG7401NT £259 8
VG7401PT £281 8
VG7401RT £384 8
VG7401ST £486 8
VG7403AT £214 8
VG7403BT £214 8
VG7403CT £214 8
VG7403DT £214 8
VG7403ET £214 8
VG7403FT £214 8
VG7403GT £228 8
VG7403LT £261 8
VG7403NT £338 8
VG7403PT £391 8
VG7403RT £615 8
VG7403ST £730 8
VG7802AS £182 8
VG7802AT £182 8
VG7802BS £182 8
VG7802BT £182 8
VG7802CS £182 8
VG7802CT £182 8
VG7802DS £182 8
VG7802DT £182 8
VG7802ES £182 8
VG7802ET £182 8
VG7802FS £182 8
VG7802FT £182 8
VG7802GS £182 8
VG7802GT £182 8
VG7802LS £184 8
VG7802LT £184 8
VG7802NT £271 8
VG7802PT £341 8
VG7802RT £461 8
VG7802ST £619 8
VG7804AT £287 9
VG7804BT £287 9
VG7804CT £287 9
VG7804DT £287 9
VG7804ET £287 9
VG7804FT £287 9
VG7804GT £287 9
VG7804LT £356 9
VG7804NT £385 9
VG7804PT £518 9
VG7804RT £685 9
VG7804ST £807 9
VG82A1S1N £471 10
VG82A2S1N £471 10
VG82A3S1N £471 10
VG82A4S1N £471 10
VG82A5S1N £471 10
VG82A6S1N £471 10
VG82A7S1N £471 10
VG82A8S1N £471 10
VG82A9S1N £471 10
VG82B1S1N £477 10
VG82C1S1N £496 10
VG82D1S1N £498 10
VG82E1S1N £547 10
VG82F1S1N £681 10
VG82G1S1N £810 10
VG82H1S1N £1,020 10
VG82J1S1N £1,203 10
VG82K1S1N £1,959 10
VG82L1S1N £2,614 10
VG88A1S1N £647 10
VG88A2S1N £647 10
VG88A3S1N £647 10
VG88A4S1N £647 10
VG88A5S1N £647 10
VG88A6S1N £647 10
VG88B1S1N £650 10
VG88C1S1N £659 10
VG88D1S1N £688 10
VG88E1S1N £790 10
VG88F1S1N £905 10
VG88G1S1N £1,082 10
VG88H1S1N £1,384 10
VG88J1S1N £1,860 10
VG88K1S1N £3,016 10
VG88L1S1N £3,592 10
VG89A1S1N £601 10
VG89A2S1N £601 10
VG89A3S1N £601 10
VG89A4S1N £601 10
VG89A5S1N £601 10
VG89A6S1N £601 10
VG89B1S1N £603 10
VG89C1S1N £744 10
VG89D1S1N £662 10
VG89E1S1N £876 10
VG89F1S1N £981 10
VG89G1S1N £1,144 10
VG89H1S1N £1,456 10
VG89J1S1N £1,987 10
VG89K1S1N £3,167 10
VG89L1S1N £3,771 10
VG94A1S1K £256 11
VG94A1S1L £268 11
VG94A2S1K £256 11
VG94A2S1L £268 11
VG94A3S1K £256 11
VG94A3S1L £268 11
VG94A4S1K £256 11
VG94A4S1L £268 11
VG94A5S1K £256 11
VG94A5S1L £268 11
VG94B1S1K £280 11
VG94B1S1L £291 11
VG94C1S1K £277 11
VG94C1S1L £303 11
VG94D1S1K £338 11
VG94D1S1L £355 11
VG94E1S1K £530 11
VG94E1S1L £385 11
VG94F1S1K £728 11
VG94F1S1L £426 11
VG94G1S1K £1,078 11
VG94G1S1L £559 11
VG94H1S1K £728 11
VG94H1S1L £763 11
VG94J1S1K £1,078 11
VG94J1S1L £1,136 11
VG98A1S1K £256 11
VG98A1S1L £268 11
VG98A2S1K £256 11
VG98A2S1L £268 11
VG98A3S1K £256 11
VG98A3S1L £268 11
VG98A4S1K £256 11
VG98A4S1L £268 11
VG98A5S1K £256 11
VFB400H £2,754 17
VFB400L £2,754 17
VFB450H £3,695 17
VFB450L £3,695 17
VFB500H £5,038 17
VFB500L £5,038 17
VG1205AD £72 15
VG1205AE £72 15
VG1205AF £72 15
VG1205AG £72 15
VG1205AL £72 15
VG1205AN £72 15
VG1205BL £76 15
VG1205BN £76 15
VG1205CN £78 15
VG1205CP £78 15
VG1205DP £143 15
VG1205DR £143 15
VG1205ER £187 15
VG1205ES £187 15
VG1205FS £254 15
VG1205FT £254 15
VG12E5GT £505 15
VG12E5GU £505 15
VG12E5HU £547 15
VG12E5HW £547 15
VG12E5JV £632 15
VG1805AD £116 15
VG1805AE £116 15
VG1805AF £116 15
VG1805AG £116 15
VG1805AL £116 15
VG1805AN £112 15
VG1805BL £120 15
VG1805BN £116 15
VG1805CN £154 15
VG1805CP £148 15
VG1805DP £244 15
VG1805DR £233 15
VG1805ER £355 15
VG1805ES £340 15
VG1805FS £493 15
VG1805FT £471 15
VG18E5GT £905 15
VG18E5GU £905 15
VG18E5HU £926 15
VG18E5HW £926 15
VG18E5JV £968 15
VG6210EC £25 5
VG6210JC £34 5
VG6210LC £56 5
VG6510EC £41 5
VG6510JC £49 5
VG6510LC £92 5
VG6810EC £29 5
VG6810JC £40 5
VG6810LC £63 5
VG7201AS £138 8
VG7201AT £138 8
VG7201BS £138 8
VG7201BT £138 8
VG7201CS £138 8
VG7201CT £138 8
VG7201DS £138 8
VG7201DT £138 8
VG7201ES £138 8
VG7201ET £138 8
VG7201FS £138 8
VG7201FT £138 8
VG7201GS £138 8
VG7201GT £138 8
VG7201LT £143 8
VG7201NT £205 8
VG7201PT £252 8
VG7201RT £389 8
VG7201ST £445 8
VG7203AT £228 8
VG7203BT £228 8
VG7203CT £228 8
Product Price Page Product Price Page Product Price Page
VG98A5S1L £268 11
VG98B1S1K £280 11
VG98B1S1L £291 11
VG98C1S1K £291 11
VG98C1S1L £303 11
VG98D1S1K £338 11
VG98D1S1L £355 11
VG98E1S1K £362 11
VG98E1S1L £385 11
VG98F1S1K £338 11
VG98F1S1L £426 11
VG98G1S1K £530 11
VG98G1S1L £559 11
VG98H1S1K £728 11
VG98H1S1L £763 11
VG98J1S1K £1,078 11
VG98J1S1L £1,136 11
VP100AAA £179 4
VP100AAE £179 4
VP100AAG £190 4
VP100BAJ £202 4
VP100BAN £167 4
VP100CAU £230 4
VP100CAW £248 4
VP100DAW £275 4
VP100DAY £282 4
VP101AAA £171 4
VP101AAE £171 4
VP101AAG £183 4
VP101BAJ £208 4
VP101BAN £162 4
VP101DBB £1,035 4
VP101EBB £1,035 4
VP101EBC £1,221 4
VP101EBD £1,386 4
VP101FBD £1,188 4
VP101FBF £2,140 4
VP101GBF £2,140 4
VPA050-C £1,512 4
VPA065-C £1,613 4
VPA080-C £1,848 4
VPA100-C £2,183 4
VPA125-C £3,097 4
VPA150-C £3,293 4
VT7200C5031 £213 36
VT7200F5031 £248 36
VT7300C5031 £284 35
VT7300F5031 £300 35
W
WEL003N602R £135 26/27
WMB0351-0 POA 47
WPF0351-0 POA 47
WRN12-1 £18 33
WRZ-TTB0000-0 £247 48
WRZ-TTD0000-0 £247 48
WRZ-TTP0000-0 £247 48
WRZ-TTR0000-0 £239 48
WRZ-TTS0000-0 £247 48
Y
Y65T31-0 £60 37
Product Price Page
Johnson Controls Limited
UK Products Group
72 Buckingham Avenue
Slough
Berkshire SL1 4PN
United Kingdom
Tel: 01753 870300
Fax: 0870 889 5664
Email: products.uk@jci.com
Web: www.johnsoncontrols.co.uk &
www.johnsoncontrols.com
Your stockist:
Johnson Controls Limited, a company registered in England & Wales.
Registered office: Johnson Controls Limited, 2 The Briars, Waterberry Drive,
Waterlooville, Hants, PO7 7YH, United Kingdom. Registered number: 661449.
©2009-2014 Johnson Controls Limited. All rights reserved. Printed in England
Manufacturer reserves the right to change specifications without prior notice. E & OE
