4.34–5.44 M DIGGING DEPTH

DOZERS

310J | 310SJ | 310SJ TMC | 410J | 410J TMC | 710J

JBACKHOES

DKAJLBH Page 1

Smart choices.

Whether you use them as a “shovel” or your main

machine, there’s a J-Series Backhoe Loader to help

you get it done. Loaded for bear or barely loaded,

you’ll beneﬁt from proven John Deere advantages

such as attachment interchangeability, ground-level

daily servicing, industry-low maintenance costs,

smooth and responsive hydraulics, and unsurpassed

resale value. Enhancements such as an advanced

multifunction diagnostic monitor, durable solid-state

electronics, and improved cooling system make the

J-Series even simpler to run and cheaper to keep.

Plus, Total Machine Control (TMC) and tool carrier

options raise the bar even higher, offering one-of-a-

kind control and versatility.

PAGES

2–3

310J

63 kW (84 hp)

6295-kg (13,880 lb.) operating weight

4.34-m (14 ft. 3 in.) backhoe digging depth

41.6-kN (9,350 lb.) loader breakout force

2996-kg (6,600 lb.) loader lift capacity

410J TMC

73 kW (98 hp)

8626-kg (19,022 lb.) operating weight

4.90-m (16 ft. 1 in.) backhoe digging depth

45.4-kN (10,210 lb.) loader breakout force

3332-kg (7,340 lb.) loader lift capacity

DKAJLBH Page 2

310SJ TMC

69 kW (93 hp)

8171-kg (18,017 lb.) operating weight

4.55-m (14 ft. 11 in.) backhoe digging depth

49.6-kN (11,160 lb.) loader breakout force

3368-kg (7,419 lb.) loader lift capacity

Total Machine Control (TMC)

option features industry-

exclusive in-the-armrest

joysticks for smooth

ﬁngertip control, exceptional

fatigue-beating comfort, and

enhanced productivity.

State-of-the-art multi-function

monitor with easy-to-read

messaging, large analog

gauges, and LED warning

lights gives vital operating

info at a glance.

Tool carrier with quick-

coupler boasts increased lift

capability and best-in-class

work-tool visibility — plus

set-and-forget parallel lift,

return-to-carry, and boom

height kick-out. It’s available

on either TMC machine.

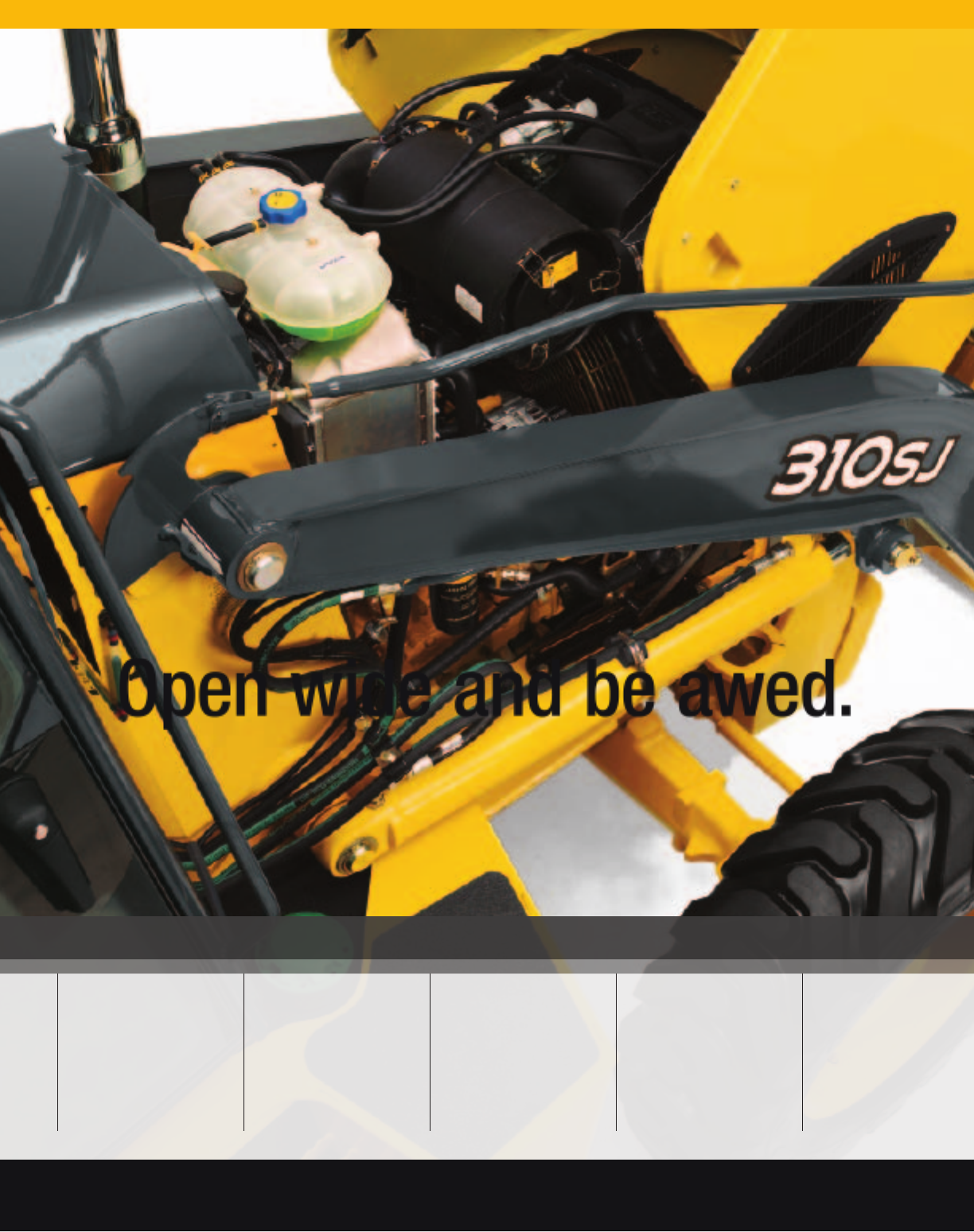

PowerTech™ wet-sleeve

diesels deliver power without

compromise and long-term

durability.

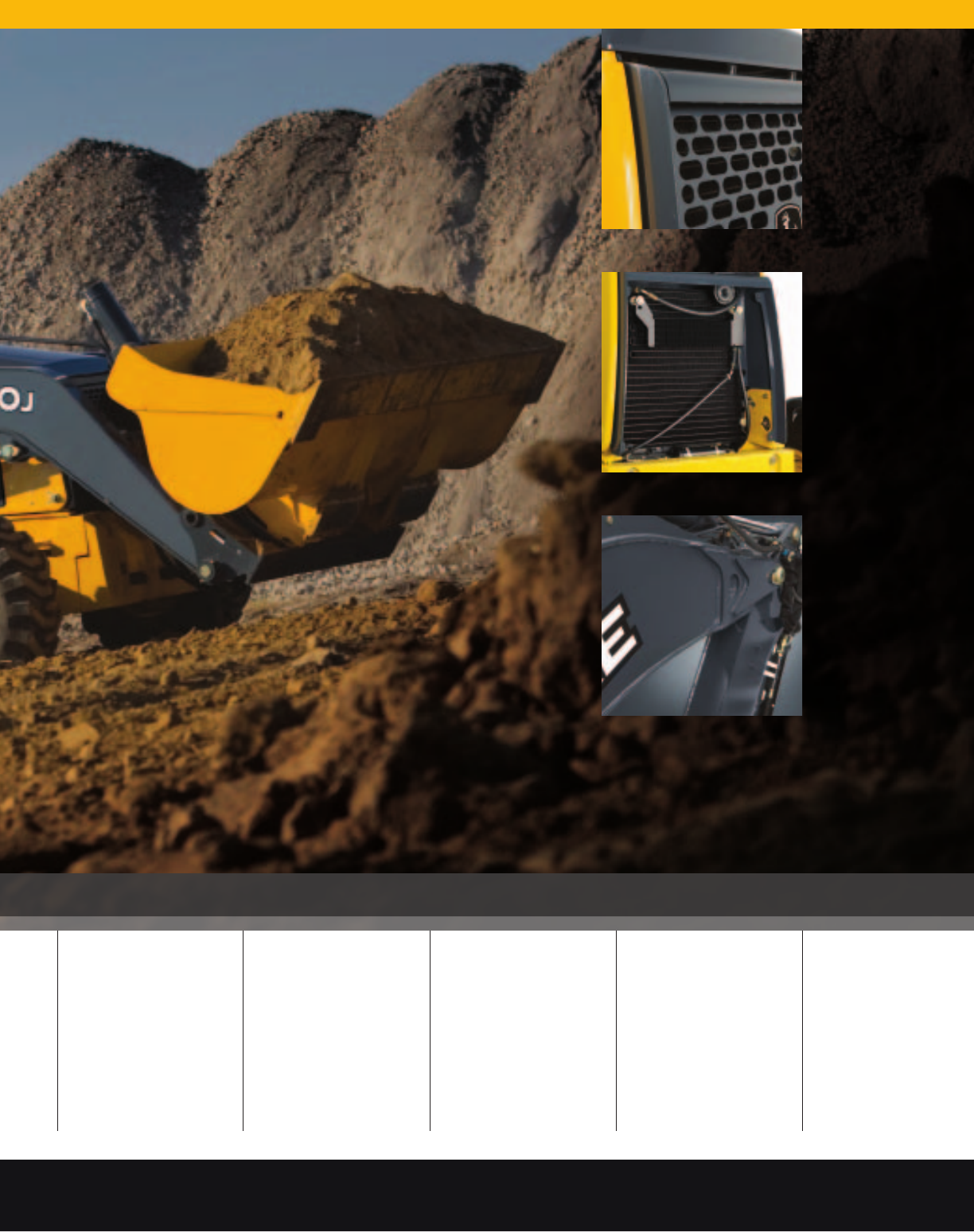

Enhanced cooling package

employs oil-to-water hydraulic

and transmission coolers.

Fewer stacked cores allow

faster cold-weather warm-up,

less plugging, and simpliﬁed

cleanout.

310SJ

69 kW (93 hp)

6580-kg (14,510 lb.) operating weight

4.42-m (14 ft. 6 in.) backhoe digging depth

49.6-kN (11,160 lb.) loader breakout force

3368-kg (7,419 lb.) loader lift capacity

410J

73 kW (98 hp)

6839-kg (15,080 lb.) operating weight

4.83-m (15 ft. 10 in.) backhoe digging depth

45.4-kN (10,210 lb.) loader breakout force

3332-kg (7,340 lb.) loader lift capacity

710J

94 kW (126 hp)

10 431-kg (23,000 lb.) operating weight

5.44-m (17 ft. 10 in.) backhoe digging depth

69.1-kN (15,540 lb.) loader breakout force

4212-kg (9,277 lb.) loader lift capacity

DKAJLBH Page 3

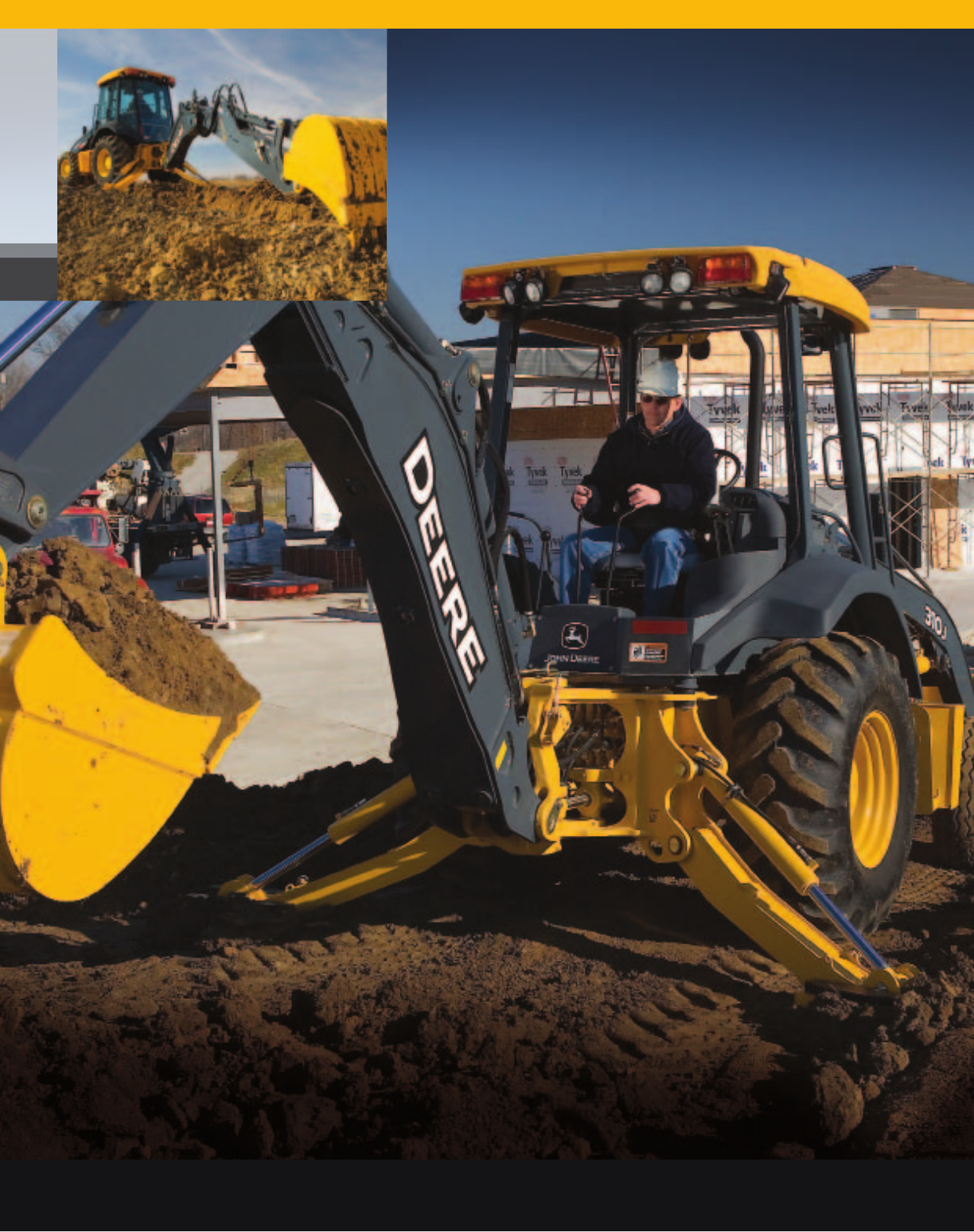

Whether you’re loading trucks, busting up blacktop,

picking pipe, digging deep, or moving materials,

J-Series Backhoes are more than up to it. Powerful

and quick high-pressure hydraulics deliver generous

breakout and lift capacity at both ends, along with

impressive backhoe crowd power and swing torque.

Excavator-style hydraulics smoothly blend functions,

so your operators won’t have to work hard to be more

productive. The standard PowerShift™ transmission

is also easy to operate, offering smooth, on-the-go

clutchless shifting. Delivers faster acceleration, higher

transport speed, and better hill-climbing capability, too.

No other backhoe lineup offers a similar combination

of power, speed, and ability.

PAGES

4–5

Simply more productive.

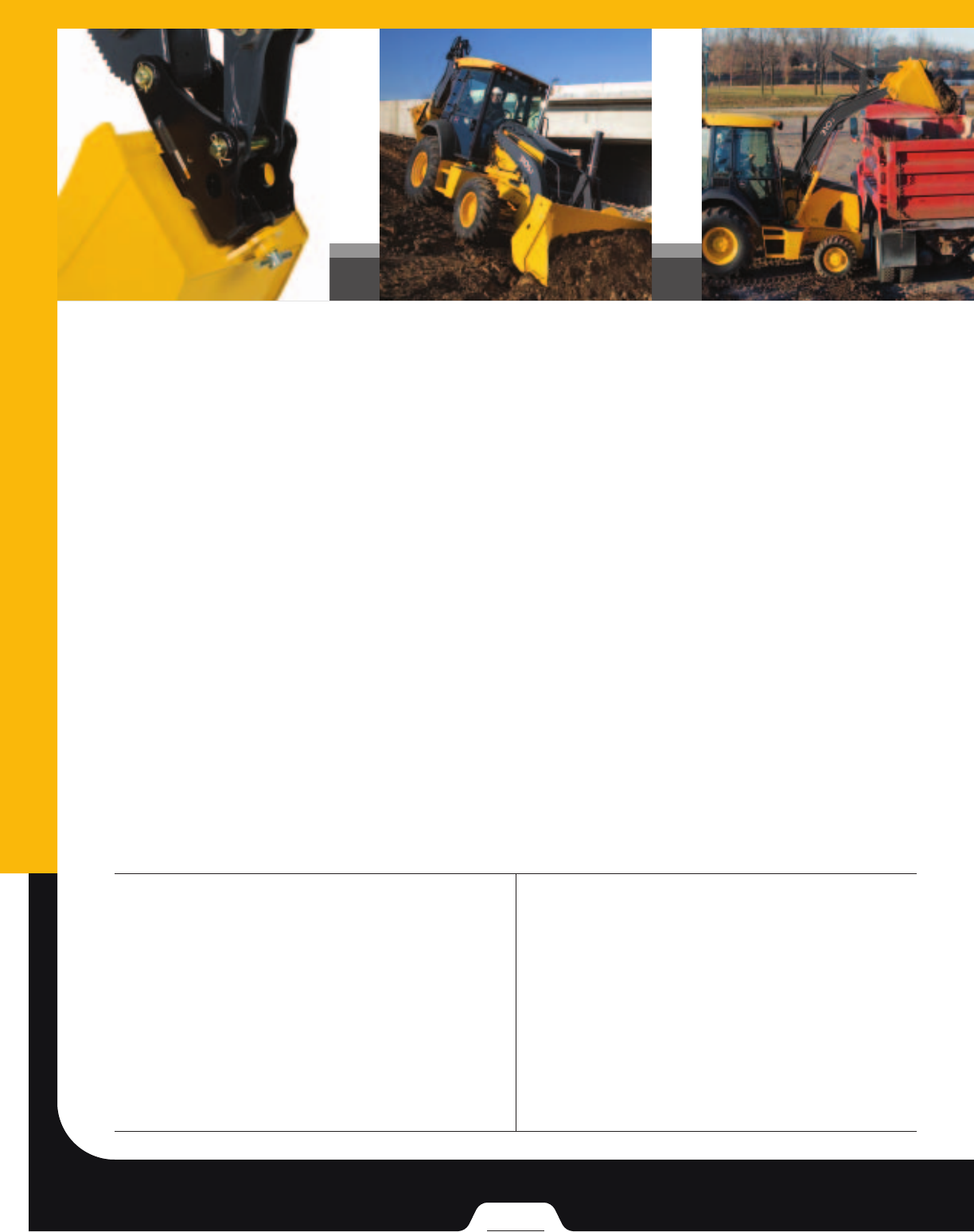

Worksite Pro™ top-hook coupler allows

quick and easy single-pin bucket changes.

Accommo dates 305-, 456-, and 610-mm

(12, 18, and 24-in.) heavy-duty buckets.

Optional limited-slip mechanical-front-wheel

drive delivers 80 percent of available power

to the wheel with the best traction. Engage it

“on the ﬂy,” for true all-wheel drive when and

where you need it.

Curved-knee loader-boom design enhances

visibility and provides superior reach, easily

dumping to the center of the truck. For fuller

loads, faster.

DKAJLBH Page 4

All front and rear attach-

ments are interchangeable

with those from previous

John Deere backhoes.

High-pressure hydraulics

deliver smooth response,

superior combined-function

metering, and low-effort

control regardless of the

load or application.

J-Series Backhoes provide

the swing-torque, boom, and

dipperstick lift capacity needed

to crane heavy objects.

Extendable dipperstick adds digging depth,

reach, and ability. Outer-box design grasps

objects such as concrete slabs between the

bucket and gripper teeth while extending or

retracting. For easier loading into trucks.

Rearward-angled, box-

constructed stabilizers and

no-drift cylinders ensure

rock-solid stability.

DKAJLBH Page 5

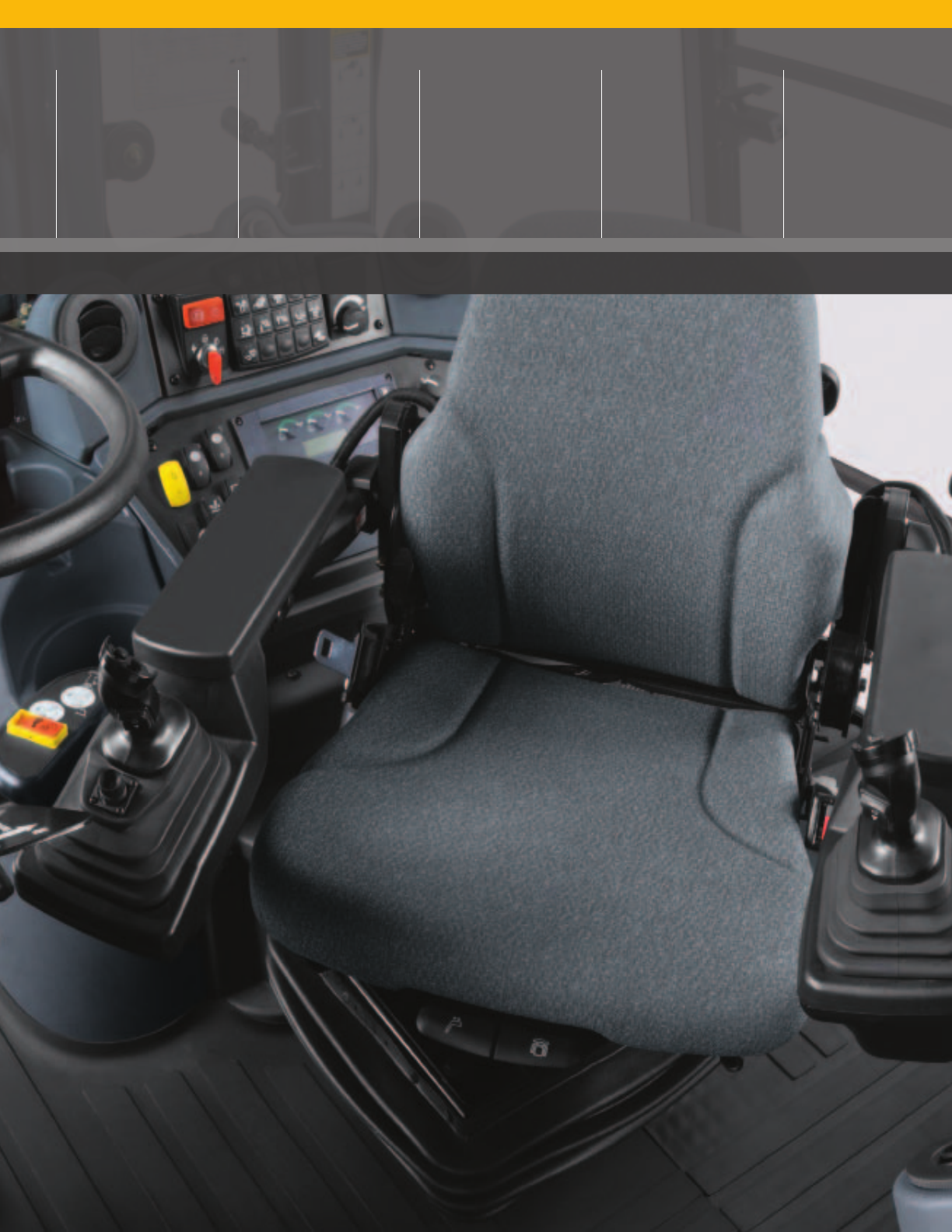

Armrest-mounted controls

enable TMC backhoes to be

operated with the seat rotated

up to 90 degrees from the

rear position. For those times

when you need to focus on the

action beside you.

Choose the backhoe hydraulic

speed you need. Fast for up to

20-percent quicker cycle times.

Medium for normal digging.

Or slow for craning objects,

working in conﬁned spaces, or

excavating around existing utili-

ties. Controls deliver the same

low-effort, consistent response,

regardless of hydraulic speed.

Go from backhoe- to

excavator-style controls

at the push of a button.

Adjusting hydraulic ﬂow

when changing attachments

is also pushbutton easy.

Backlit pushbuttons in the

sealed switch module allow

ﬁngertip control of various

functions such as return-

to-dig.

With auto-idle, momentarily

releasing the joysticks slows

engine speed, reducing fuel

consumption and noise.

Preset speed automatically

resumes when a joystick is

activated.

Do more without lifting a ﬁnger.

DKAJLBH Page 6

Need to reposition quickly or

get unstuck? Mini-joystick lets

you run the loader and backhoe

simultaneously without removing

your hands from the joysticks or

swiveling the seat.

PAGES

6–7

Joystick switch provides

ﬁngertip control of hydraulic-

powered attachments. Toggle

on and off, or push and hold for

momentary control. Armrest-

mounted switches operate the

stabilizers.

Want maximum productivity with minimal effort?

Add the TMC package to a 310SJ or 410J

Backhoe. You’ll enjoy intuitive, effortless fingertip

control — and up to 20-percent faster cycle

times. Joysticks respond easily to an operator’s

touch, for quicker, smoother control of loader

and backhoe functions. Controls are conveniently

located in the armrests, so you can even

operate the backhoe while facing to the side.

There’s also a unique mini-joystick that lets you

run both loader and backhoe simultaneously

without removing your hands from the controls.

Fatigue-beating joysticks pro-

vide smooth, intuitive control

of auxiliary loader attach-

ments, extendable dipperstick,

backhoe auxiliary attachments,

hammer, MFWD, and horn.

Do more without lifting a ﬁnger.

DKAJLBH Page 7

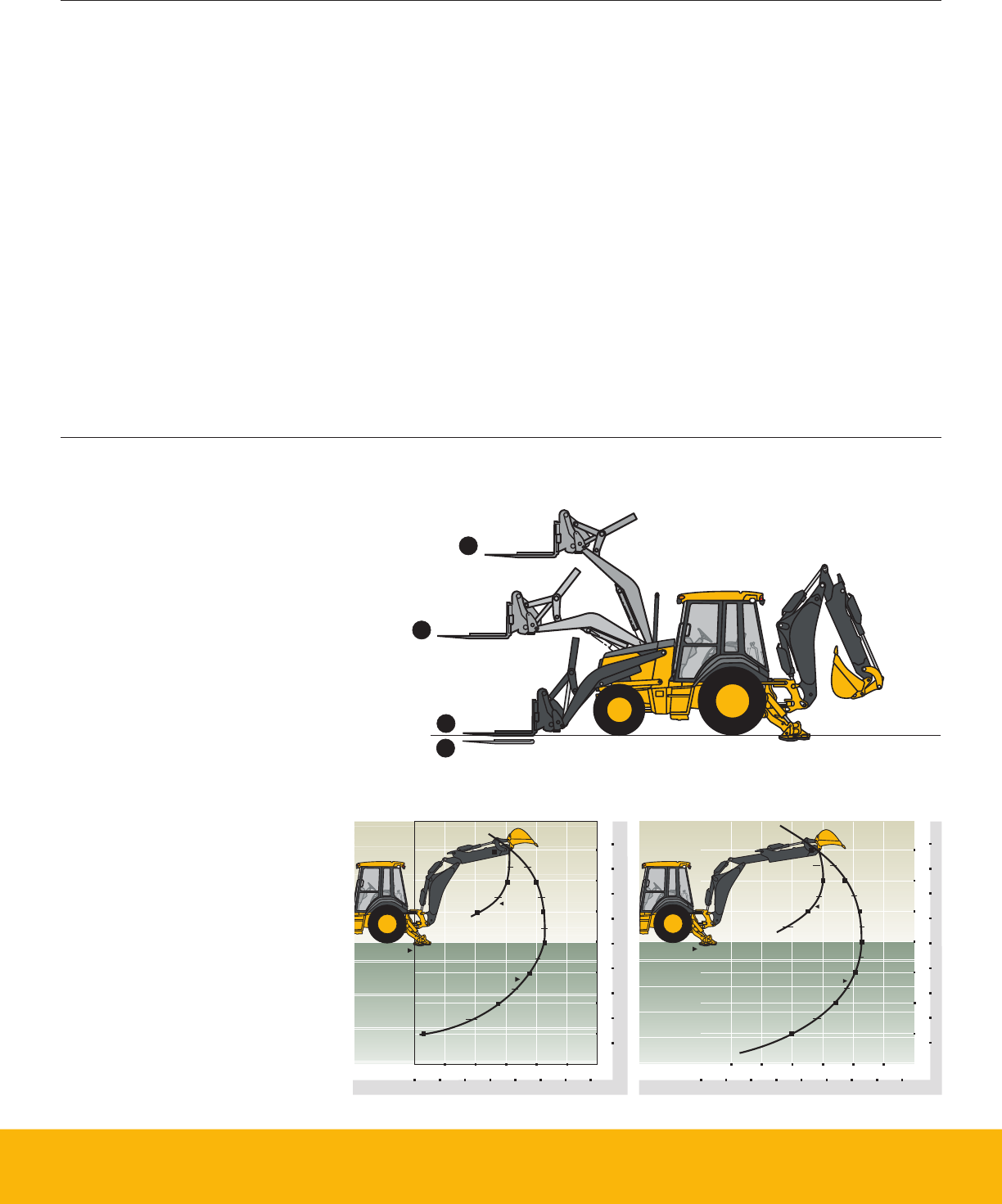

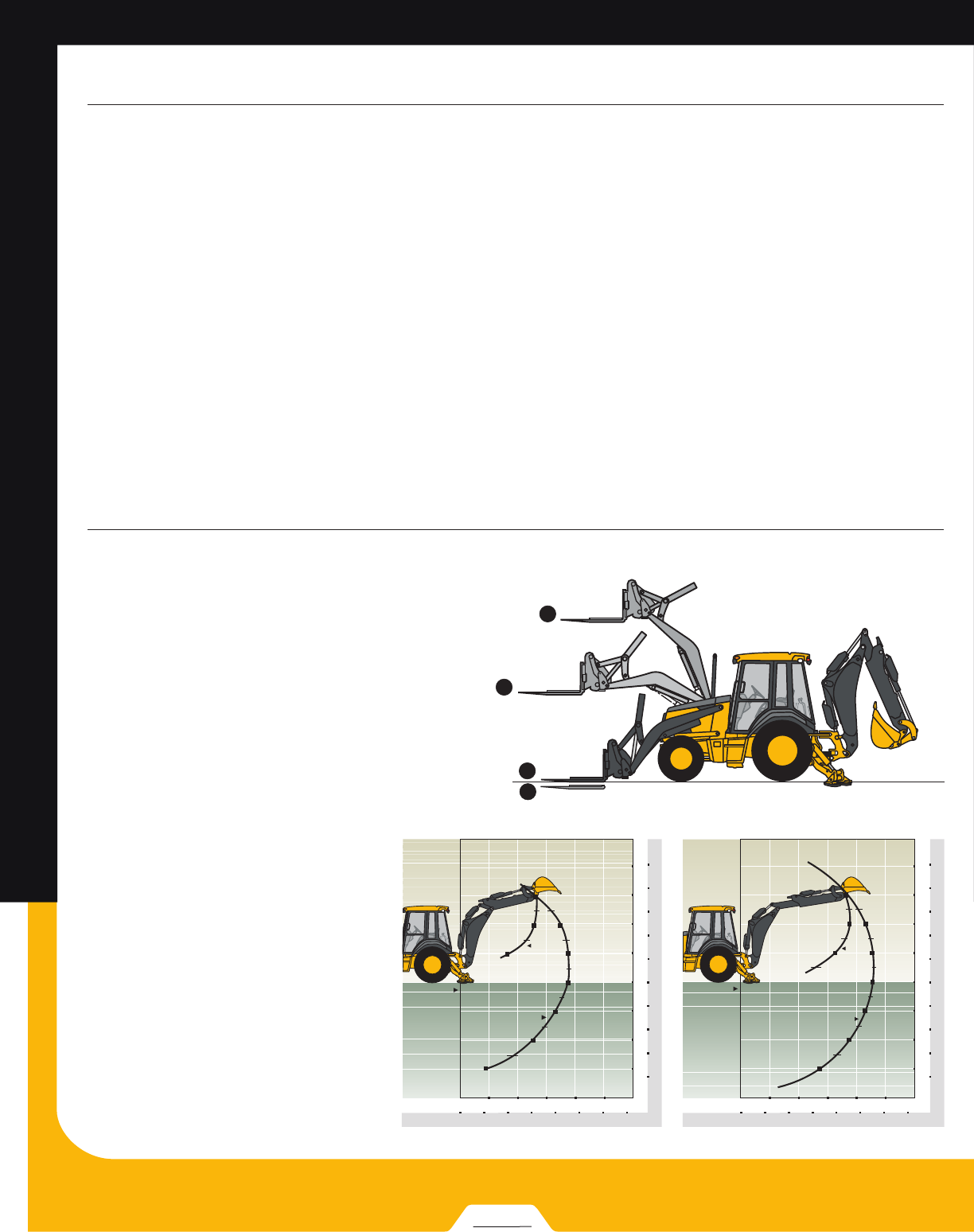

Parallel-lift that’s

simply unparalleled.

Parallel-lift that’s

simply unparalleled.

PAGES

8–9

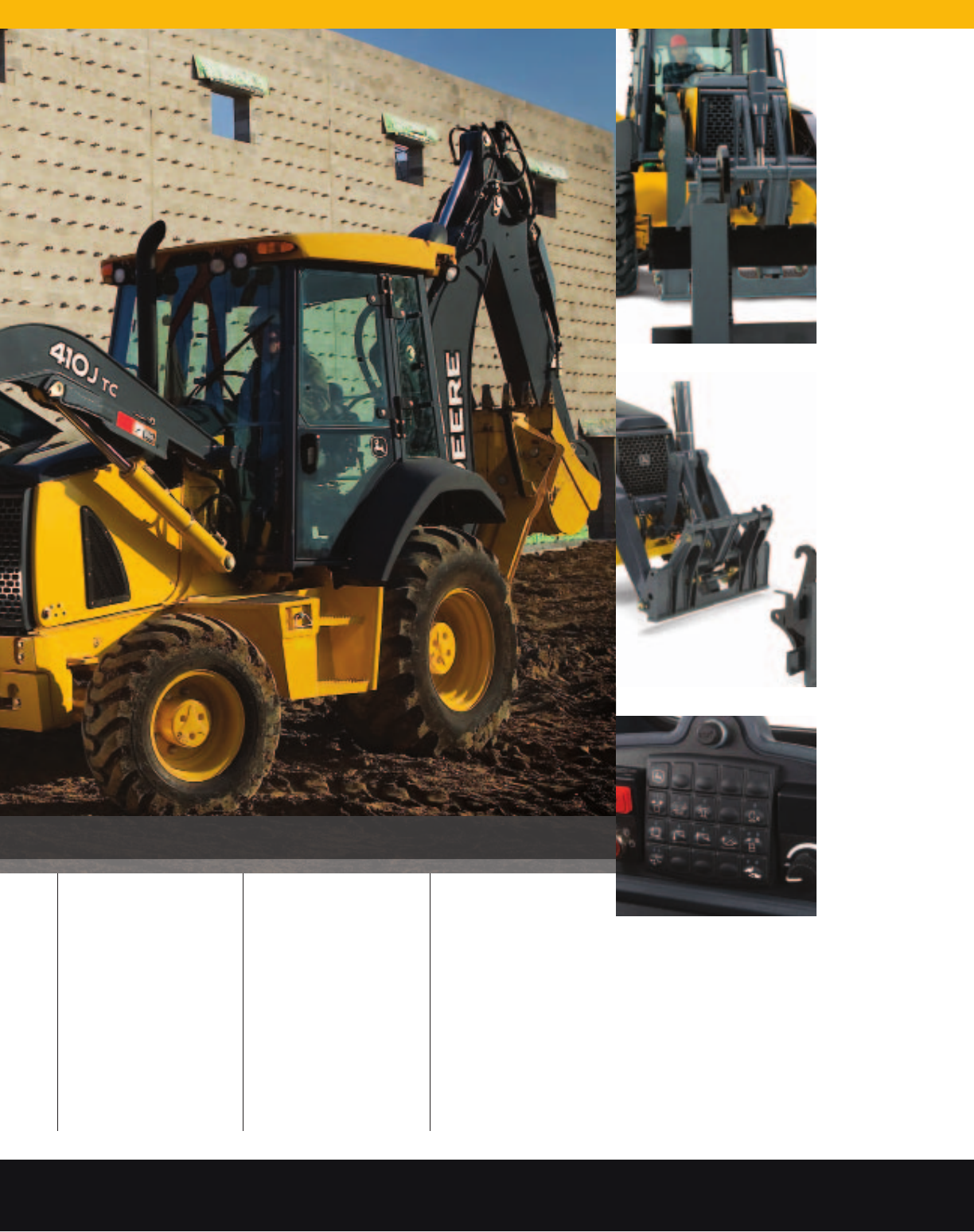

John Deere backhoes are already highly capable

machines. Opt for a tool carrier on a TMC-

equipped 310SJ or 410J and take versatility

to an even higher level. With the most accurate

leveling system available on a backhoe loader,

you’ll have all the ﬁnesse you need to get more

done. Unlike mechanical loader linkages, exclusive

electrohydraulic parallel-lift employs fewer parts,

so you’ll spend less time on maintenance. And

you won’t have to worry about replacing current

attachments, either. The quick-coupler lets you hook

up to a variety of John Deere E- and G-Series as well

as non-Deere loader attachments. For versatility

without parallel, opt for a John Deere tool carrier.

DKAJLBH Page 8

Low-proﬁle loader knee

is narrower through the

line of sight, for a better

view of the attachment.

Visibility to the forks at

truck-bed height is best

in class.

One-of-a-kind electro-

hydraulic design delivers

unsurpassed capability. With

true parallel-lift throughout

the lift arc, it’s perfect for

a multitude of material-

handling tasks.

Backlit pushbuttons

give convenient control

of boom height kick-

out, return-to-dig, and

return-to-carry right

from the seat.

Worksite Pro™ quick-

coupler lets you change

attachments quickly and

easily without leaving

your seat. Accommo-

dates a wide variety of

attachments.

Unlike traditional designs,

John Deere’s tool carrier

eliminates the Z-bar linkage,

self-leveling rod, and numer-

ous grease zerks.

Boom height kick-out sets

maximum desired dump

height, while return-to-carry

and return-to-dig predeter-

mine the lowered boom and

bucket position. Helps speed

production in repetitive load-

ing applications.

DKAJLBH Page 9

Who wouldn’t be more productive in the spacious,

well-equipped cab of a J-Series Backhoe? Its

expansive, curved windshield provides a virtually

unobstructed panoramic view of the work at

hand and surrounding jobsite. An automatic high-

velocity climate-control system and fully adjustable

suspension seat ensure year-round comfort. The

state-of-the-art multifunction monitor with easy-

to-read messaging, large analog gauges, and LED

warning lights gives vital operating info at a glance.

Add to these amenities such as an AM/FM radio,

12-volt power ports, and generous storage space for

cups and other carry-ons, and it’s easy to see why

your operators will be more comfortably productive.

Comfortably ahead of

the competition.

Comfortably ahead of

the competition.

Choose from joystick, pilot, two-lever, three-lever,

four-lever, or SAE excavator-style controls. For

smooth, combined-function metering. (Shown with

pilot controls.)

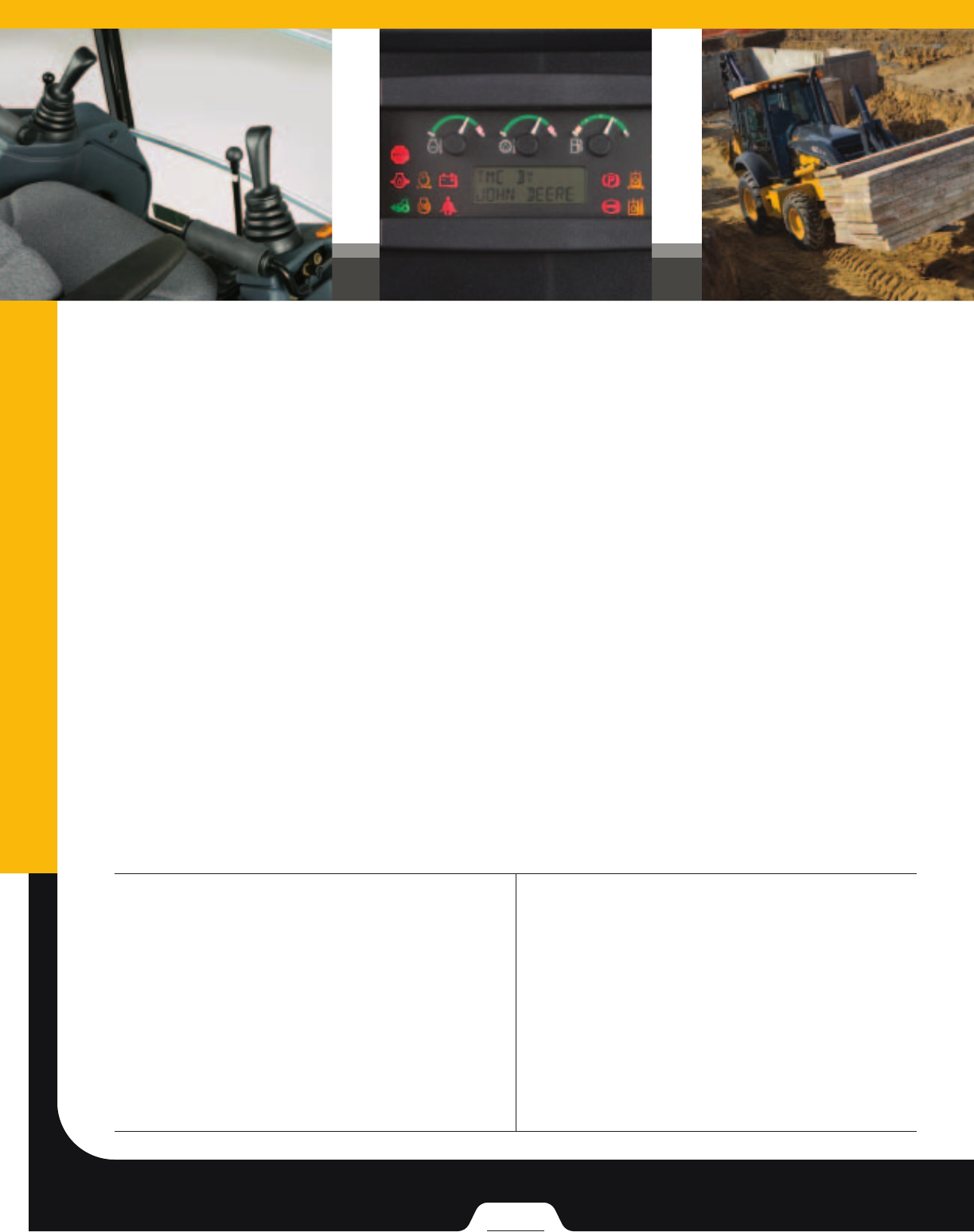

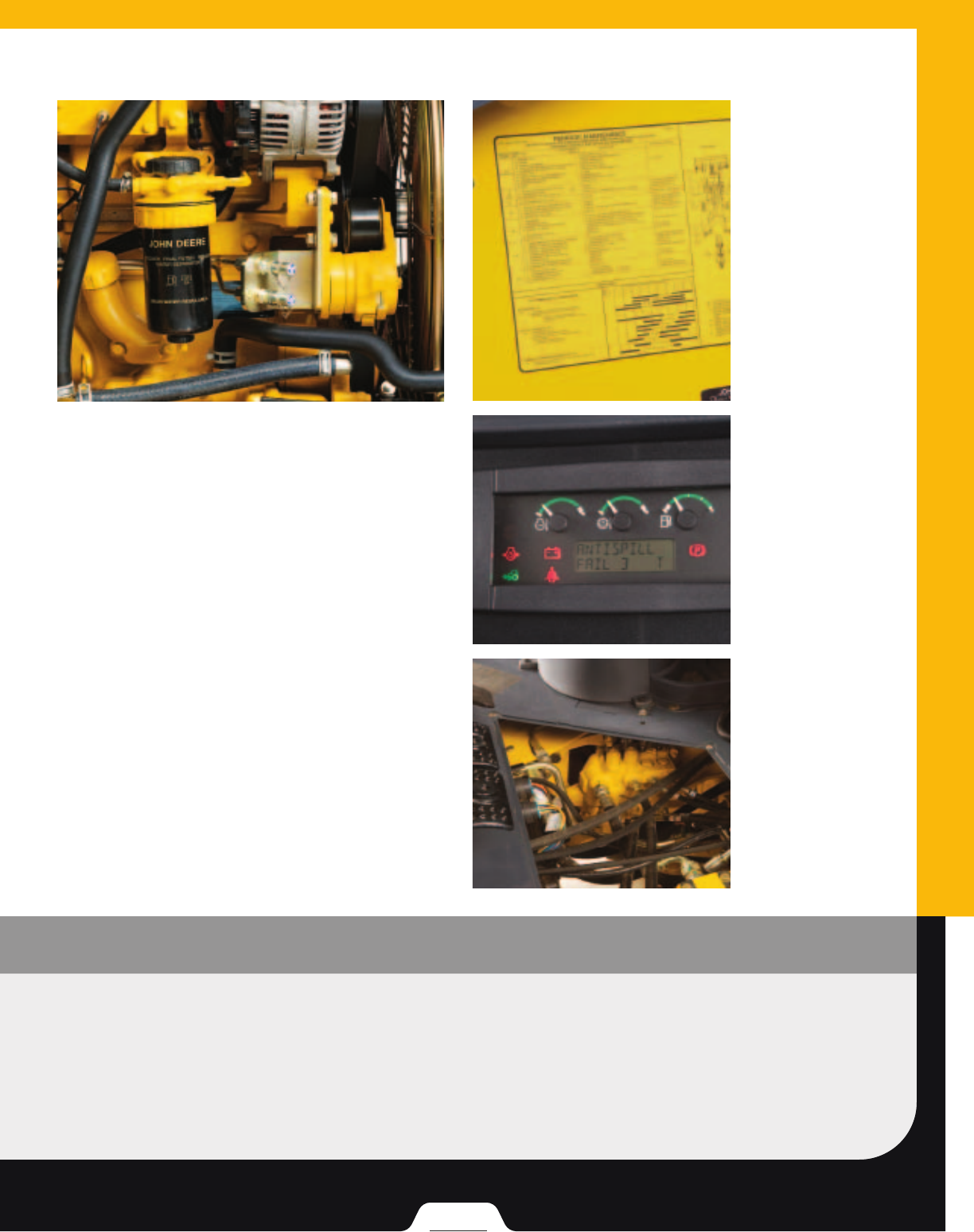

Advanced monitor provides:

Vital and general operating information including

hours, engine speed, and gear selection.

Industry-exclusive onboard diagnostics of most

sensors and switches for quick troubleshooting.

Available machine security system prevents unauthor-

ized machine movement. Requires pass code.

PAGES

10–11

Ride-control option smoothes moves over rough

terrain, so full loads are more likely to arrive at their

destination — instead of somewhere in-between.

Reduces operator fatigue, too.

DKAJLBH Page 10

Standard PowerShift™ trans-

mission allows no-clutch

on-the-go shifting on all

machines. It’s an industry

exclusive on the 310J.

Optional sound-suppression

package signiﬁcantly

reduces noise levels and

operator fatigue.

With convenient handholds,

self-cleaning steps, and

wide entryways, getting to

work has never been easier.

Separate service and park

brake systems provide an

extra measure of security.

No shortage of storage

in here. There are cup

holders, a place for a cell

phone, and extra room for

other carry-ons.

TMC option (shown)

includes a sculpted

suspension seat with fully

adjustable armrest-mounted

joystick controls for all-day

comfort. And near-effortless

control.

12-volt power ports on both

sides of the console provide

convenient power for cell

phones and other devices.

Auto-idle automatically

reduces engine speed

when hydraulics aren’t

in use. Reduces noise and

preserves precious fuel.

Highly efﬁcient HVAC

system with automotive-

style directional vents helps

keep the view clear and the

cab comfortable.

You’ve got cruise control in

your pickup — why not in

your backhoes? Industry-

exclusive rotary throttle lets

you dial-in the speed you

need. Engaging the brakes

automatically drops engine

speed to idle.

Tilt steering wheel is

inﬁnitely adjustable. Angles

up and out of the way for

swiveling the seat or pass-

ing through the cab.

Need to extend your work-

day? Deluxe lighting pack-

age provides unsurpassed

360-degree illumination

(optional on 310J).

DKAJLBH Page 11

Headline

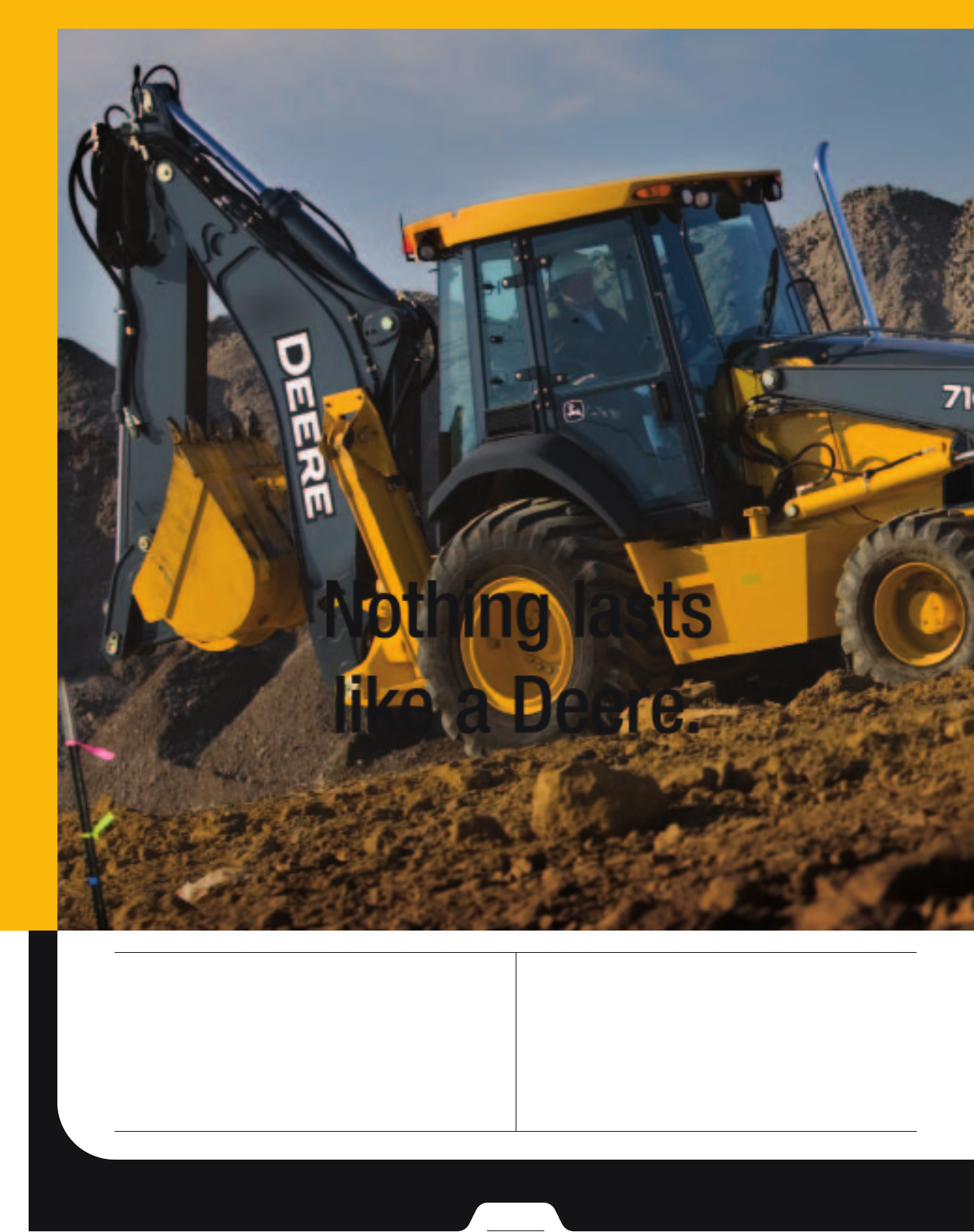

Nothing lasts

like a Deere.

Nothing lasts

like a Deere.

PAGES

12–13

Built with state-of-the-art tools and techniques

by a quality-conscious workforce at our world-

class facility in Dubuque, Iowa, J-Series

Backhoes deliver unsurpassed reliability and

uptime. Everything about these backhoes — from

their exceptionally durable one-piece, totally

welded mainframe to their box-constructed

loaders, booms, and dippersticks — is designed

for maximum uptime. When you know how they’re

built, you’ll run a John Deere.

Solid-state electrical system

eliminates numerous relays

and connectors for enhanced

reliability.

Powertrain components are

isolated from shock-load

stress and individually

removable to help speed

repairs and downtime.

Totally welded mainframe

resists torsional stress,

absorbs shock loads, and

delivers maximum strength.

Simpliﬁes service access to

major components, too.

DKAJLBH Page 12

Engine hood is constructed

of a resilient composite

material that resists impacts

and damage. Standard grille

extensions further protect the

front end.

Backhoe boom, dipperstick,

stabilizers, and loader are

box-constructed of low-alloy

steel for maximum strength.

No more stacked hydraulic

and transmission coolers

in front of the radiator. With

improved airﬂow, fan speed

has been reduced for less

debris build-up and noise.

Cleanout is easier, too.

Wet-sleeve liners provide

uniform engine cooling and

longer durability than cast-in-

block designs.

Sealed front axle and larger

kingpins and differentials

help ensure drivetrain

durability.

Large pins and replaceable

bushings deliver long-term

durability, and keep the

backhoe and loader tightly

secured and digging true.

Unlike axles that rely on

internal augers to direct oil

to critical components,

Deere’s design provides full-

time, full-axle lubrication on

any angle in any terrain.

Planetary ﬁnal drives distrib-

ute loads over three gears

and are sealed in a cooling

oil bath for long life and

trouble-free service.

DKAJLBH Page 13

Headline

Open wide and be awed.

500-hour engine and

2,000-hour hydraulic oil

service intervals enable

J-Series Backhoes to work

longer between changes.

Compare routine maintenance

costs with other backhoes

during their ﬁrst 3,000 hours.

You’ll discover what owners

already know — it costs less

to run a Deere.

Diagnostic test ports and

available ﬂuid-sample ports

help speed preventative

maintenance and trouble-

shooting.

Wide-mouth fuel tank allows

fast, ground-level ﬁll-ups.

Generous capacity lets you

work longer before refueling.

Your John Deere dealer has

the parts and service you

need to stay productive,

and offers a wide variety of

preventative maintenance

and support programs to

help control costs.

DKAJLBH Page 14

Vertical spin-on engine, transmission, and hydraulic ﬁlters and

quick-release fuel ﬁlters allow quick, no-spill changes.

PAGES

14–15

If something goes wrong,

the monitor displays easy-

to-understand diagnostic

information to get you back

up and running quickly.

Split ﬂoor mats and a large

removable panel provide

convenient, top-side access

to internal components.

Convenient lube and

periodic maintenance

chart ensures that nothing

gets overlooked. Synthetic

bushings in the loader

linkage and extendable

dipperstick eliminate

numerous grease zerks.

Tilt the hood and discover the many advantages

that make J-Series Backhoes the simplest,

least expensive to maintain. Same-side ground-

level access to checkpoints makes quick work

of the daily routine. Service intervals have been

extended so you can work longer between

changes. And because no maintenance beats

low maintenance, self-adjusting serpentine belts,

park brake, and wet-disc brakes seldom, if ever,

require attention. With the John Deere J-Series,

you’ll spend less time and expense getting ready

for work — and more time getting work done.

DKAJLBH Page 15

310J

PAGES

16–17

Engine 310J

For use in U.S., Canada, and Europe For use outside U.S., Canada, and Europe

Manufacturer and Model . . . . . . . . . . . . . . . . . . . . John Deere PowerTechTM E 4045HT054 turbocharged, standard John Deere PowerTech 4045T optional

turbocharged

Non-Road Emissions Standard . . . . . . . . . . . . . . . . EPA Tier 3/EU Stage IIIA EPA Tier 2/EU Stage II

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 L (276 cu. in.) 4.5 L (276 cu. in.)

Net Peak Power (ISO9249) . . . . . . . . . . . . . . . . . . . 63 kW (84 hp) @ 2,000 rpm 59 kW (79 hp) @ 2,000 rpm

Net Peak Torque (ISO9249) . . . . . . . . . . . . . . . . . . 367 Nm (270 lb.-ft.) @ 1,300 rpm 340 Nm (250 lb.-ft.) @ 1,400 rpm

Net Torque Rise ...........................47% 41%

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure system with spin-on filter and cooler pressure system with spin-on filter and cooler

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual-stage dry type with safety element and evacuator valve dual-stage dry type with safety element and evacuator valve

Cooling

Fan Type ................................suction

Engine Coolant Rating . . . . . . . . . . . . . . . . . . . . . . –37 deg. C (–34 deg. F)

Engine Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . oil to water

Powertrain

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-speed, helical-cut gears, full PowerShift

with hydraulic reverser standard; electric clutch cutoff on loader lever

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . single stage, dual phase with 2.63:1 stall ratio; 280 mm (11 in.)

Maximum Travel Speeds with Standard

Engine ...........................Forward Reverse

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.7 km/h (3.5 mph) 7.2 km/h (4.5 mph)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.4 km/h (6.5 mph) 13.2 km/h (8.2 mph)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.4 km/h (13.3 mph) N/A

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . 35.9 km/h (22.3 mph) N/A

Axles

Axle Oscillations, Stop to Stop (both axles) . . . . 22 deg.

Axle Ratings .......................... Mechanical-front-

Standard wheel drive Rear

Static . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 000 kg 12 000 kg 13 000 kg

(39,683 lb.) (26,455 lb.) (28,660 lb.)

Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . 7200 kg 6000 kg 7000 kg

(15,873 lb.) (13,228 lb.) (15,432 lb.)

Ultimate . . . . . . . . . . . . . . . . . . . . . . . . . . 32 950 kg 28 200 kg 30 600 kg

(72,642 lb.) (62,170 lb.) (67,461 lb.)

Differentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic locking rear, electric, foot actuated; open front

Steering (ISO5010) . . . . . . . . . . . . . . . . . . . . . . . . hydrostatic power and emergency steering

Axle .................................Mechanical-

front-wheel drive Non-powered front

Curb-Turning Radius

With Brakes . . . . . . . . . . . . . . . . . . . . 3.58 m (11 ft. 9 in.) 3.44 m (11 ft. 4 in.)

Without Brakes . . . . . . . . . . . . . . . . . 4.08 m (13 ft. 5 in.) 3.94 m (12 ft. 11 in.)

Bucket Clearance Circle

With Brakes . . . . . . . . . . . . . . . . . . . . 10.11 m (33 ft. 2 in.) 9.89 m (32 ft. 5 in.)

Without Brakes . . . . . . . . . . . . . . . . . 11.05 m (36 ft. 3 in.) 10.76 m (35 ft. 4 in.)

Steering Wheel Turns (lock to lock) . . . . . 2.7 3.3

Final Drive (mechanical-front wheel and

rear axle) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heavy-duty, outboard planetary final drives distribute shock loads over 3 gears

Brakes (conform to ISO 3450)

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . power assisted, hydraulic wet disc, mounted inboard, self-adjusting and self-equalizing

Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . spring-applied, hydraulically released, wet, multi disc, independent of service brakes with electric switch control

DKAJLBH Page 16

Hydraulics 310J

Main Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . open center, single gear

Pump Flow @ 2,200 rpm

Backhoe .............................106 L/m (28 gpm)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 L/m (28 gpm)

System Relief Pressure

Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 063 kPa (3,200 psi)

Bucket Dump at Maximum Height . . . . . . . . . . . . . 1.3 sec.

Boom Lower (power down) . . . . . . . . . . . . . . . . . . 2.5 sec.

Backhoe Controls . . . . . . . . . . . . . . . . . . . . . . . . . two-lever manual standard; pilot controls with pattern select, three-lever manual controls with foot swing, and manual and/or electric

auxiliary functions optional

Loader Controls . . . . . . . . . . . . . . . . . . . . . . . . . . single-lever control with electric clutch cutoff switch standard; manual auxiliary function optional

Cylinders

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heat-treated, chrome-plated, polished rods; hardened-steel (replaceable bushings) pivot pins

Bore Rod Diameter Stroke

Loader Boom (2) . . . . . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 50 mm (1.97 in.) 790 mm (31.10 in.)

Loader Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 744 mm (29.29 in.)

Backhoe Boom (1) . . . . . . . . . . . . . . . . . . . . . . . . 110 mm (4.33 in.) 56 mm (2.20 in.) 821 mm (32.32 in.)

Backhoe Crowd (1) . . . . . . . . . . . . . . . . . . . . . . . 110 mm (4.33 in.) 63 mm (2.48 in.) 553 mm (21.77 in.)

Backhoe Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 50 mm (1.97 in.) 892 mm (35.12 in.)

Backhoe Swing (2). . . . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 45 mm (1.77 in.) 310 mm (12.20 in.)

Backhoe Extendable Dipperstick (1) . . . . . . . . . 63 mm (2.48 in.) 32 mm (1.26 in.) 1062 mm (41.81 in.)

Backhoe Stabilizer (2) . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 50 mm (1.97 in.) 500 mm (19.69 in.)

Non-Powered Axle (1) . . . . . . . . . . . . . . . . . . . . . 70 mm (2.76 in.) 42 mm (1.65 in.) 213 mm (8.39 in.)

Mechanical-Front-Wheel Drive (1) . . . . . . . . . . . 67 mm (2.64 in.) 42 mm (1.65 in.) 210 mm (8.27 in.)

Electrical

Voltage .................................12 volt

Alternator Rating . . . . . . . . . . . . . . . . . . . . . . . . . . 90 amp

Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 halogen: 2 front and 2 rear (32,500 candlepower each); turn signals and flashers 2 front and 2 rear; stop and tailights and 2 rear reflectors

Operator Station

Type (SAE J1040) . . . . . . . . . . . . . . . . . . . . . . . . . canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof

Tires/Wheels

Front Rear

Non-Powered Front Axle . . . . . . . . . . . . . . . . . . . . 11L-16 SL F-3 (12) 19.5L-24 R-4 (10)

Mechanical-Front-Wheel Drive . . . . . . . . . . . . . . . . 12-16.5 NHS SS-1 (8) 19.5L-24 R-4 (10)

Serviceability

Hydraulic Oil Filter, Spin-On Enclosed Replace-

able Element, Vertically Mounted . . . . . . . . . . 6-micron filtration / 1,000 service hours

Refill Capacities

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 25 L (26 qt.)

Rear Axle ............................18 L (19 qt.)

Engine Oil (including vertical spin-on filter) . . . . 13 L (14 qt.)

Torque Converter and Transmission . . . . . . . . 15 L (16 qt.)

Fuel Tank (with ground-level fueling) . . . . . . . 155 L (41 gal.)

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . 91 L (24 gal.)

Hydraulic Reservoir . . . . . . . . . . . . . . . . . . . . . 39 L (10.2 gal.)

Mechanical-Front-Wheel-Drive Housing

Axle .............................6.5 L (7 qt.)

Planetary (each) . . . . . . . . . . . . . . . . . . . . 1 L (1 qt.)

Operating Weights

With Full Fuel Tank, 79-kg (175 lb.) Operator,

and Standard Equipment . . . . . . . . . . . . . . . . . 6295 kg (13,880 lb.)

Typical with Cab, Mechanical-Front-Wheel

Drive, Extendable Dipperstick, and

454-kg (1,000 lb.) Counterweight . . . . . . . . . . 7356 kg (16,220 lb.)

Optional Components

Cab .................................263 kg (580 lb.)

Mechanical-Front-Wheel Drive with Tires . . . . 168 kg (370 lb.)

Extendable Dipperstick . . . . . . . . . . . . . . . . . . 200 kg (440 lb.)

Front Loader Coupler . . . . . . . . . . . . . . . . . . . . 286 kg (630 lb.)

Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 59 kg (130 lb.)

DKAJLBH Page 17

PAGES

18–19

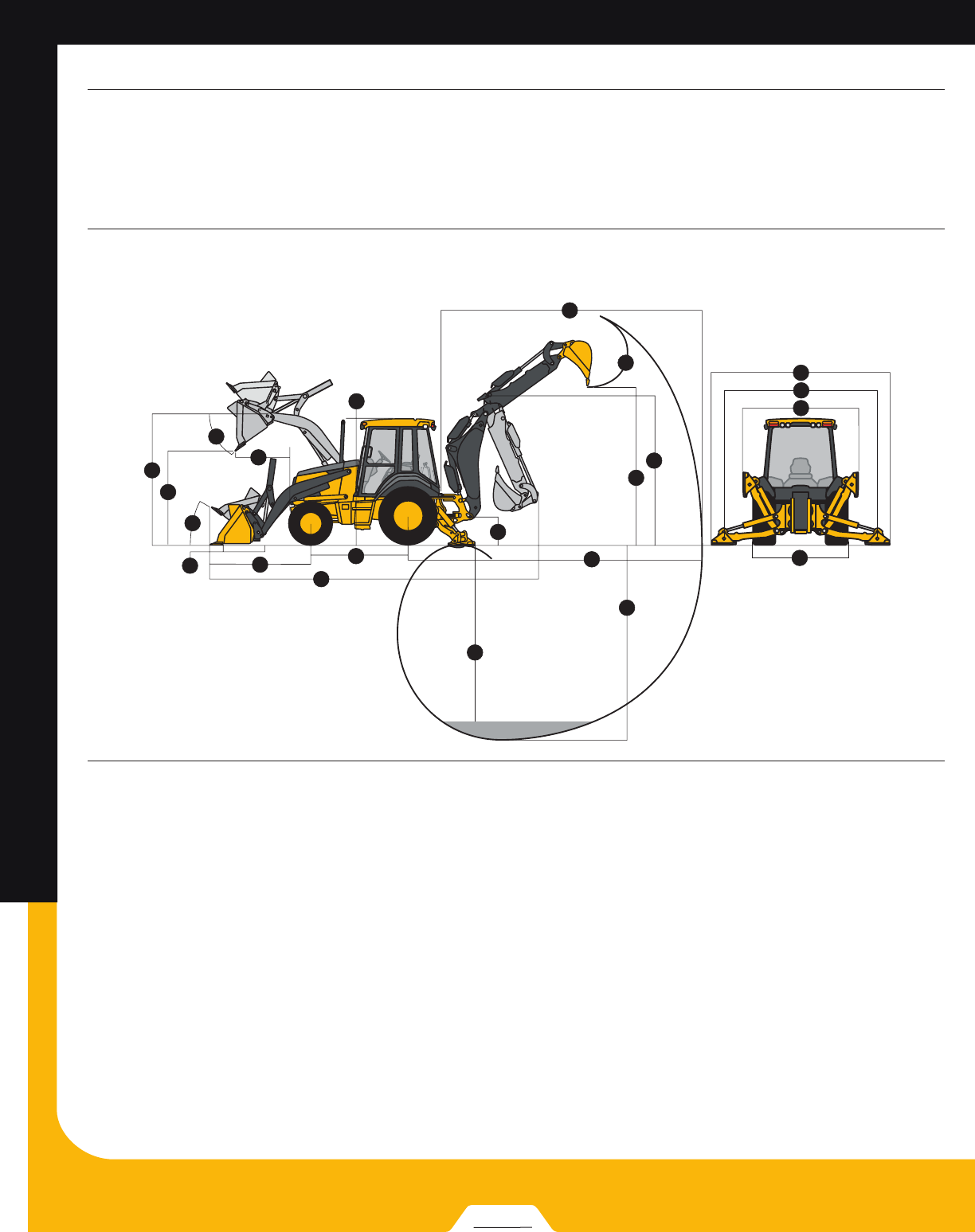

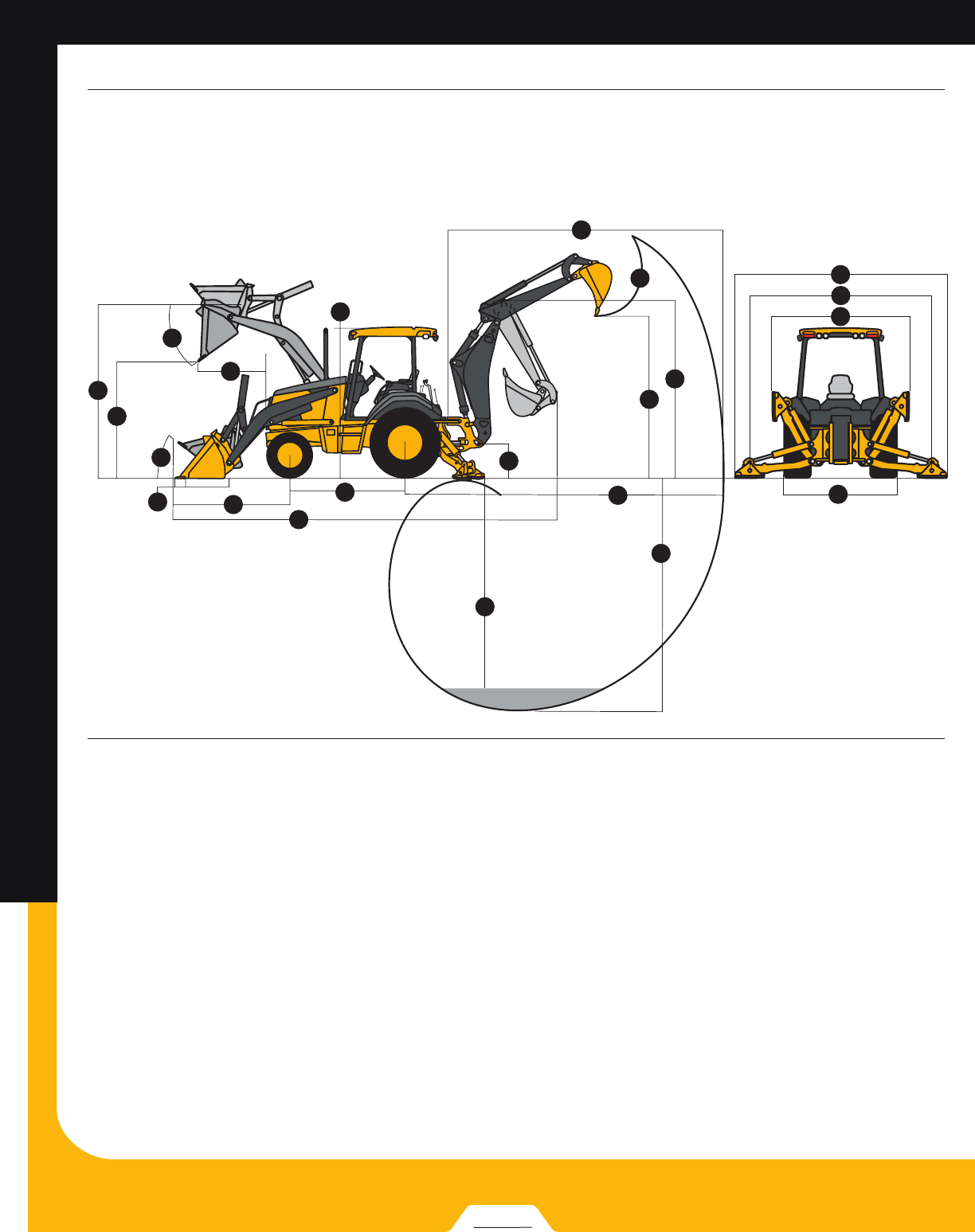

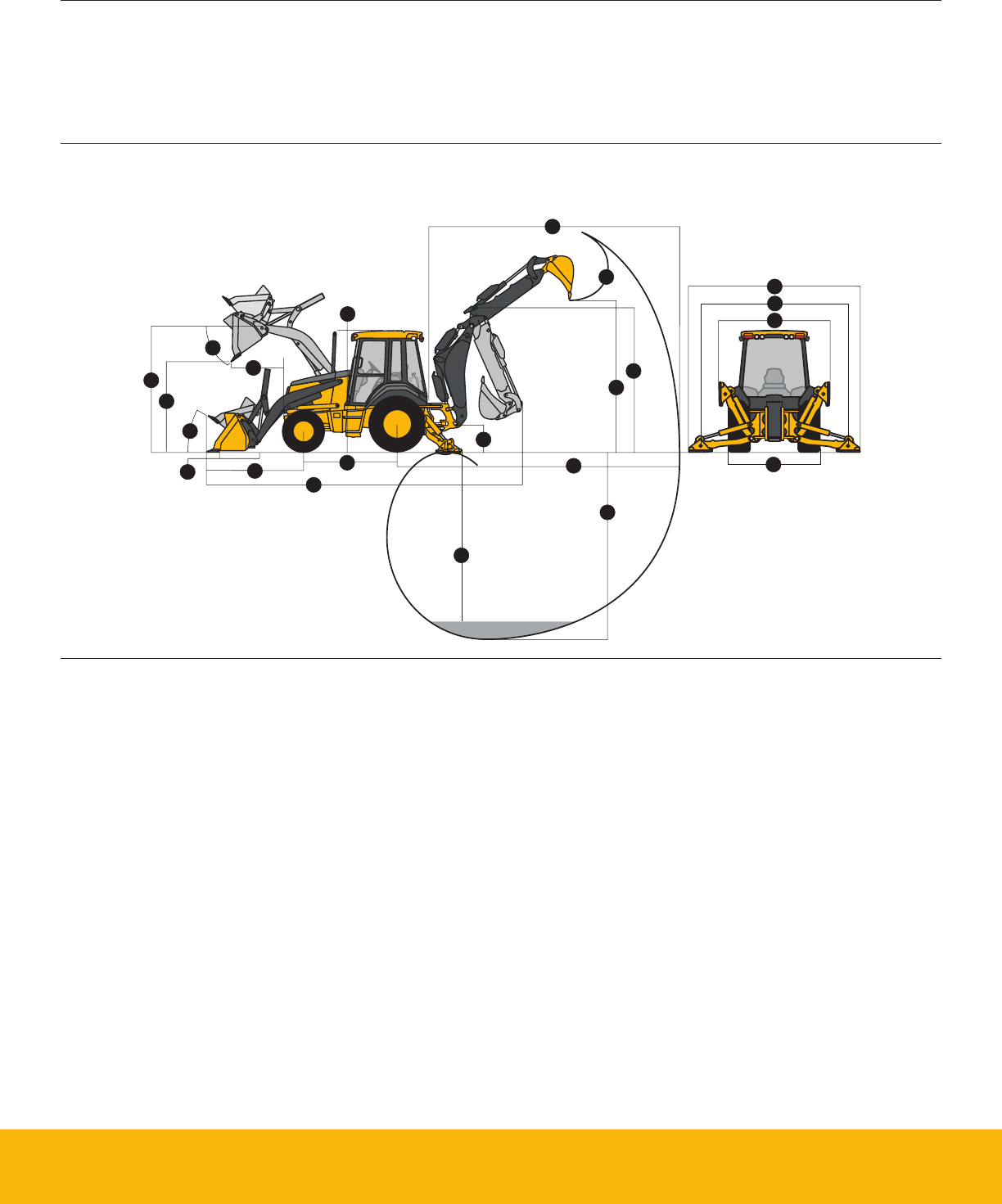

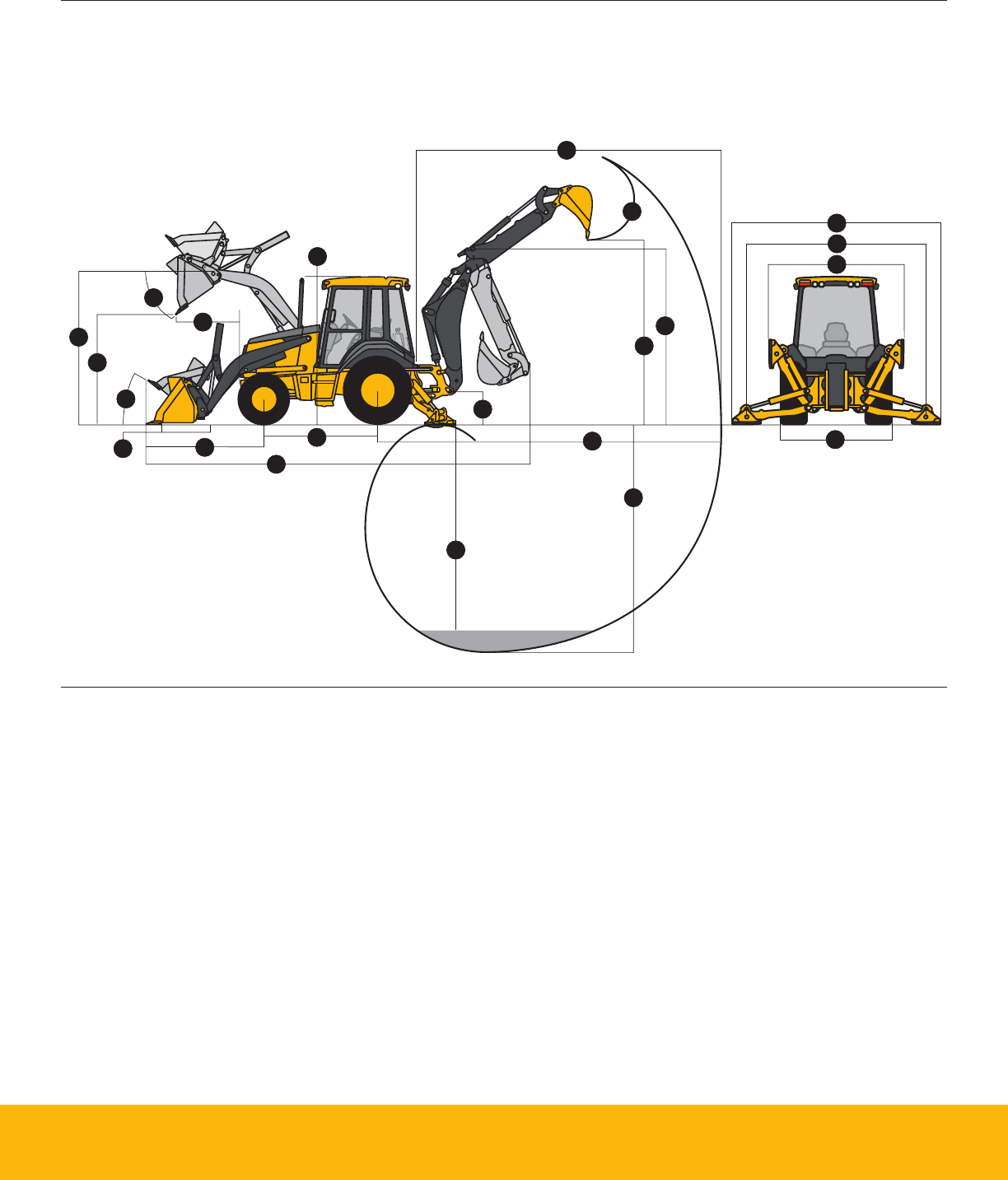

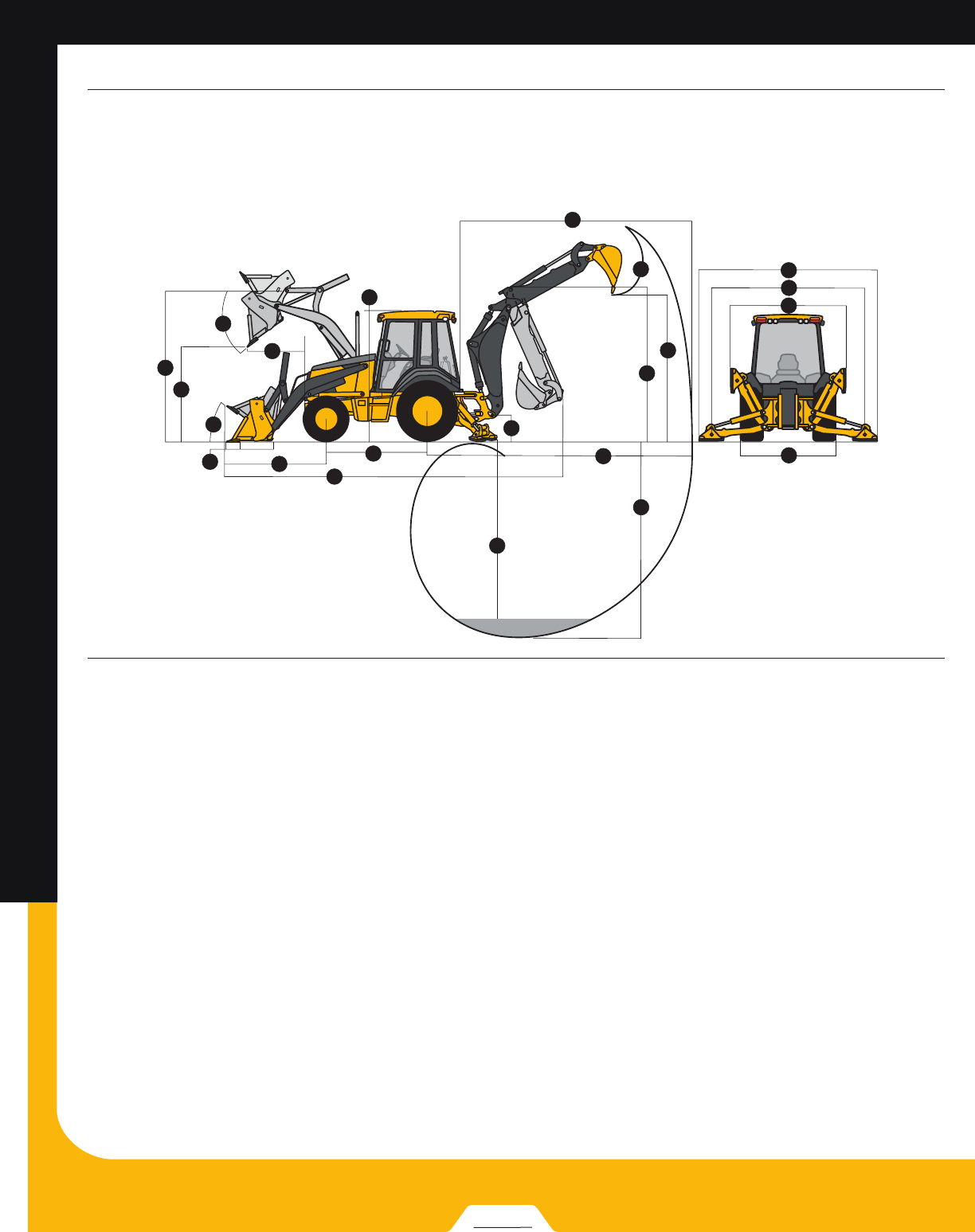

Backhoe Dimensions / Performance 310J

Backhoe specifications are with 610-mm x

0.18-m3 (24 in. x 6.5 cu. ft.) bucket

Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305–762 mm (12–30 in.)

Digging Force

Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 49.4 kN (11,106 lb.)

Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 31.2 kN (7,006 lb.)

Swing Arc ...............................180 deg.

Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two levers

Leveling Angle ............................14 deg.

Stabilizer Angle Rearward . . . . . . . . . . . . . . . . . . . 18 deg.

With Standard With Optional Extendable Dipperstick

Backhoe Retracted Extended

F Loading Height (truck loading position) . . . . . . . 3.33 m (10 ft. 11 in.) 3.38 m (11 ft. 1 in.) 4.24 m (13 ft. 11 in.)

G Reach from Center of Swing Pivot. . . . . . . . . . . 5.44 m (17 ft. 10 in.) 5.51 m (18 ft. 1 in.) 6.53 m (21 ft. 5 in.)

H Reach from Center of Rear Axle . . . . . . . . . . . . 6.50 m (21 ft. 4 in.) 6.58 m (21 ft. 7 in.) 7.59 m (24 ft. 11 in.)

I Digging Depth (SAE maximum) . . . . . . . . . . . . . 4.34 m (14 ft. 3 in.) 4.39 m (14 ft. 5 in.) 5.46 m (17 ft. 11 in.)

J Digging Depth (SAE)

610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 4.32 m (14 ft. 2 in.) 4.37 m (14 ft. 4 in.) 5.44 m (17 ft. 10 in.)

2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 3.96 m (13 ft. 0 in.) 4.06 m (13 ft. 4 in.) 5.18 m (17 ft. 0 in.)

K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.) 2.18 m (7 ft. 2 in.) 2.18 m (7 ft. 2 in.)

L Stabilizer Spread (operating) . . . . . . . . . . . . . . . 3.10 m (10 ft. 2 in.) 3.10 m (10 ft. 2 in.) 3.10 m (10 ft. 2 in.)

M Stabilizer Overall Width (operating) . . . . . . . . . . 3.53 m (11 ft. 7 in.) 3.53 m (11 ft. 7 in.) 3.53 m (11 ft. 7 in.)

N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg. 190 deg.

O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 3.43 m (11 ft. 3 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.)

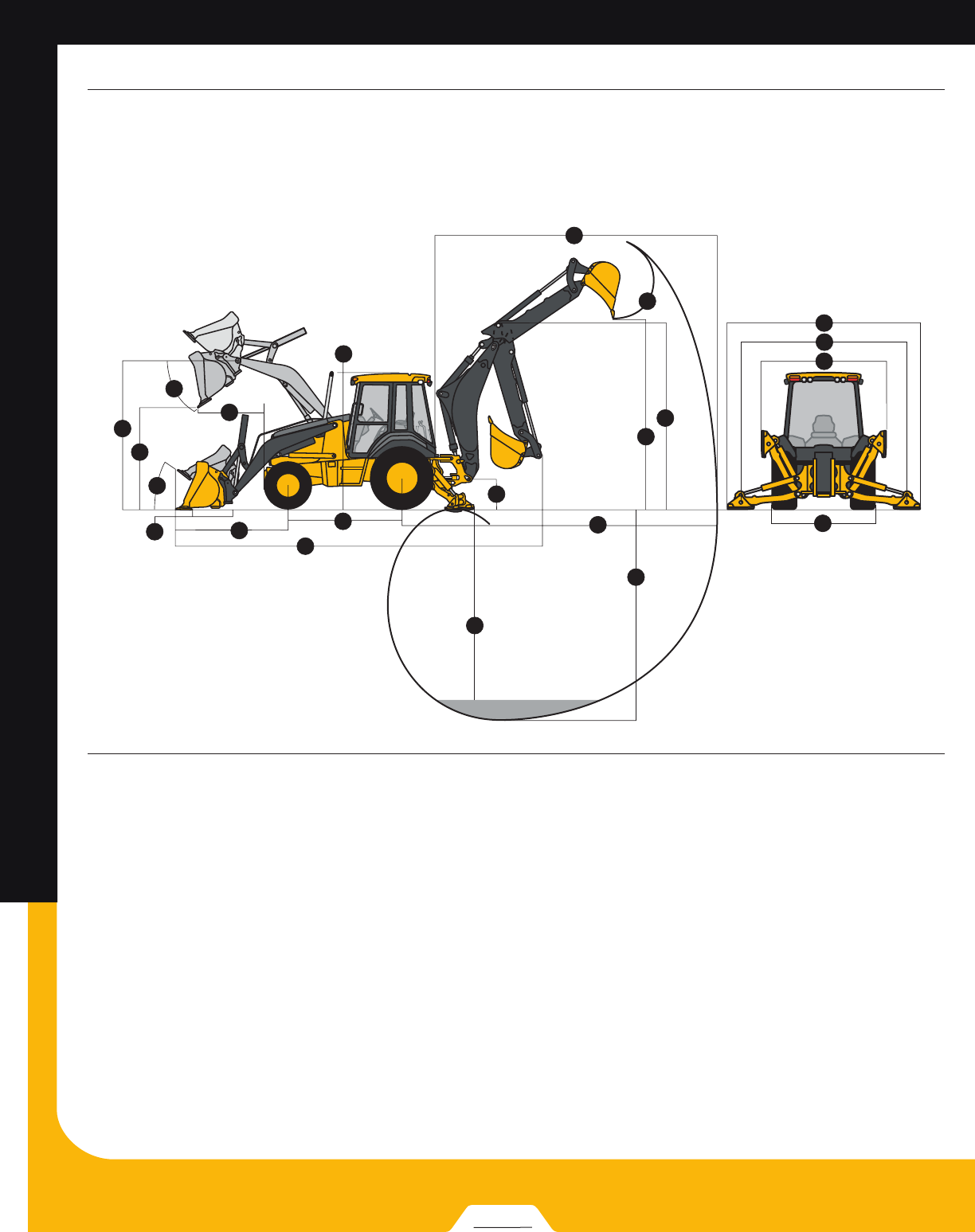

Overall Dimensions 310J

A Ground Clearance (minimum) . . . . . . . . . . . . . . 305 mm (12 in.)

B Overall Length (transport) . . . . . . . . . . . . . . . . . 7.09 m (23 ft. 3 in.)

C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.)

D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.74 m (9 ft. 0 in.)

E Length from Axle to Axle

Non-Powered Front Axle . . . . . . . . . . . . . . 2.11 m (6 ft. 11 in.)

Mechanical-Front-Wheel-Drive Axle . . . . . . 2.14 m (7 ft. 0 in.)

DKAJLBH Page 18

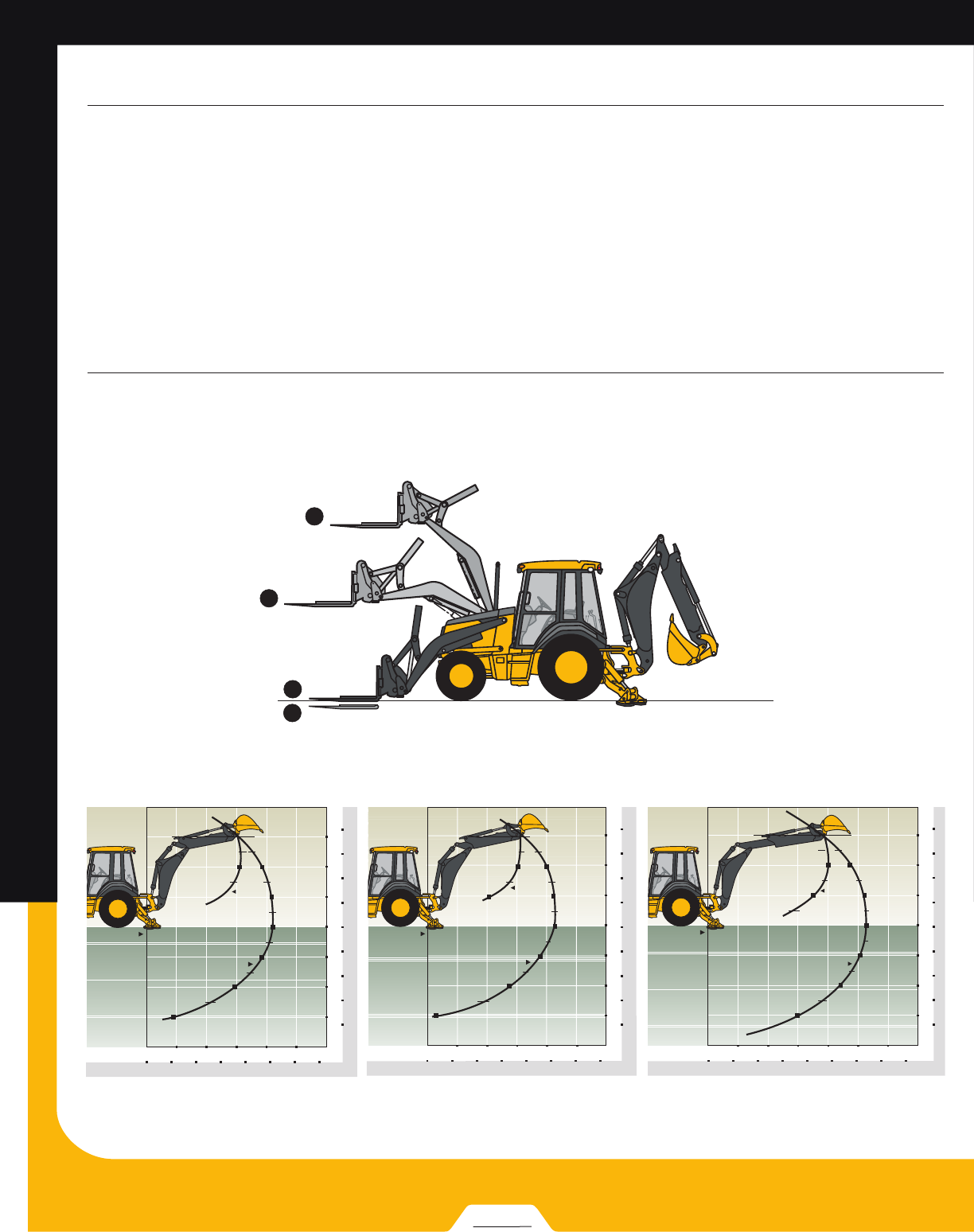

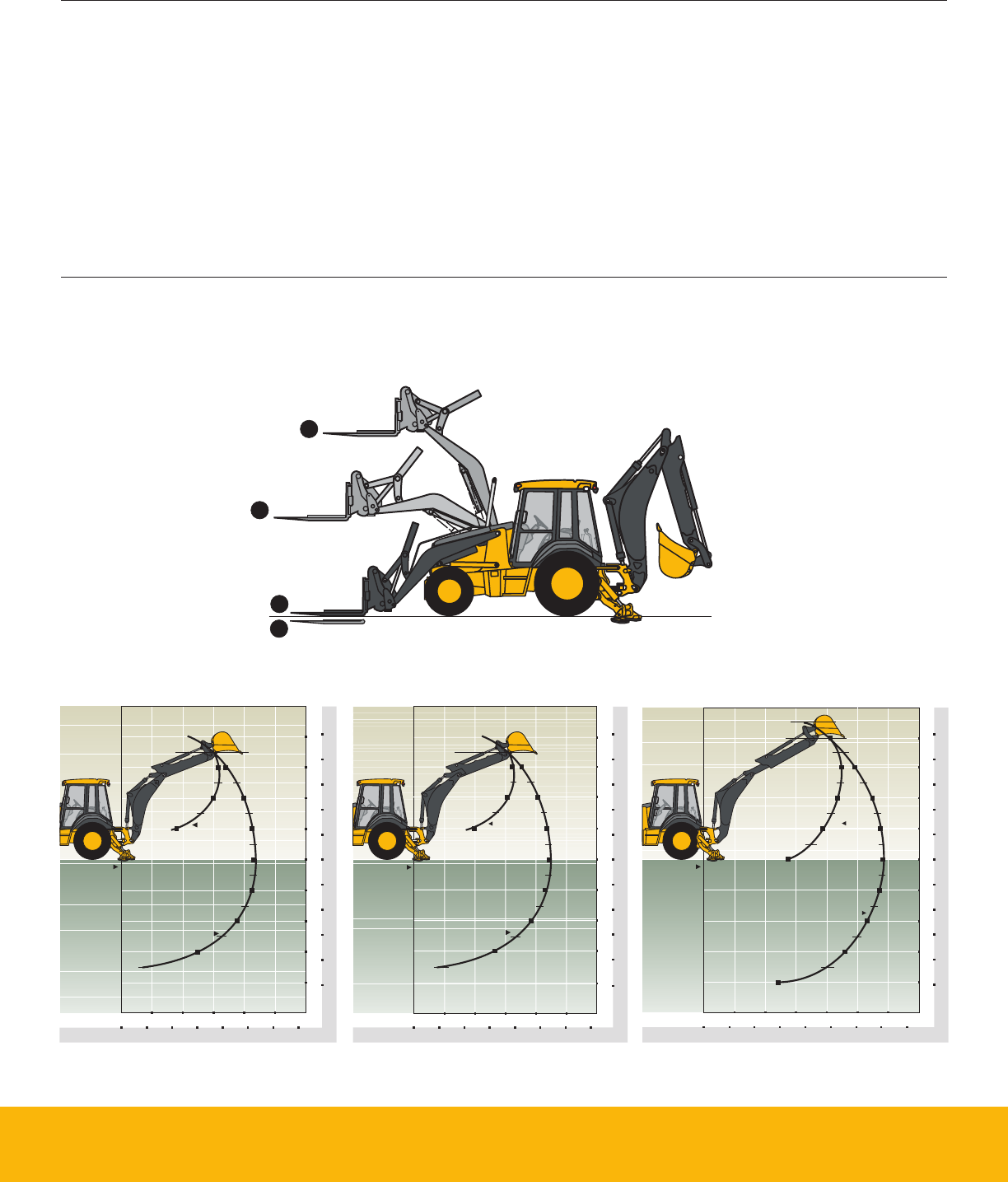

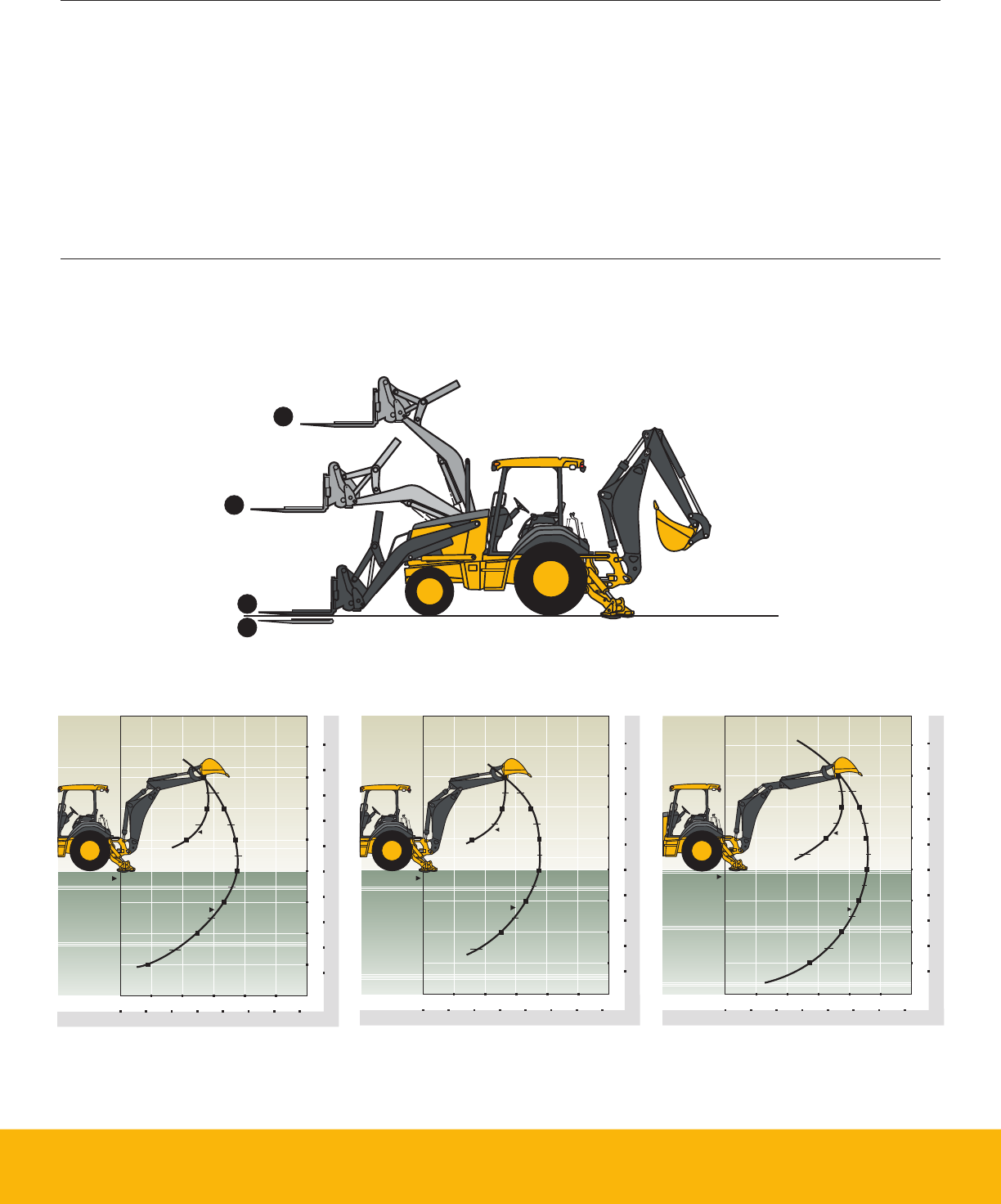

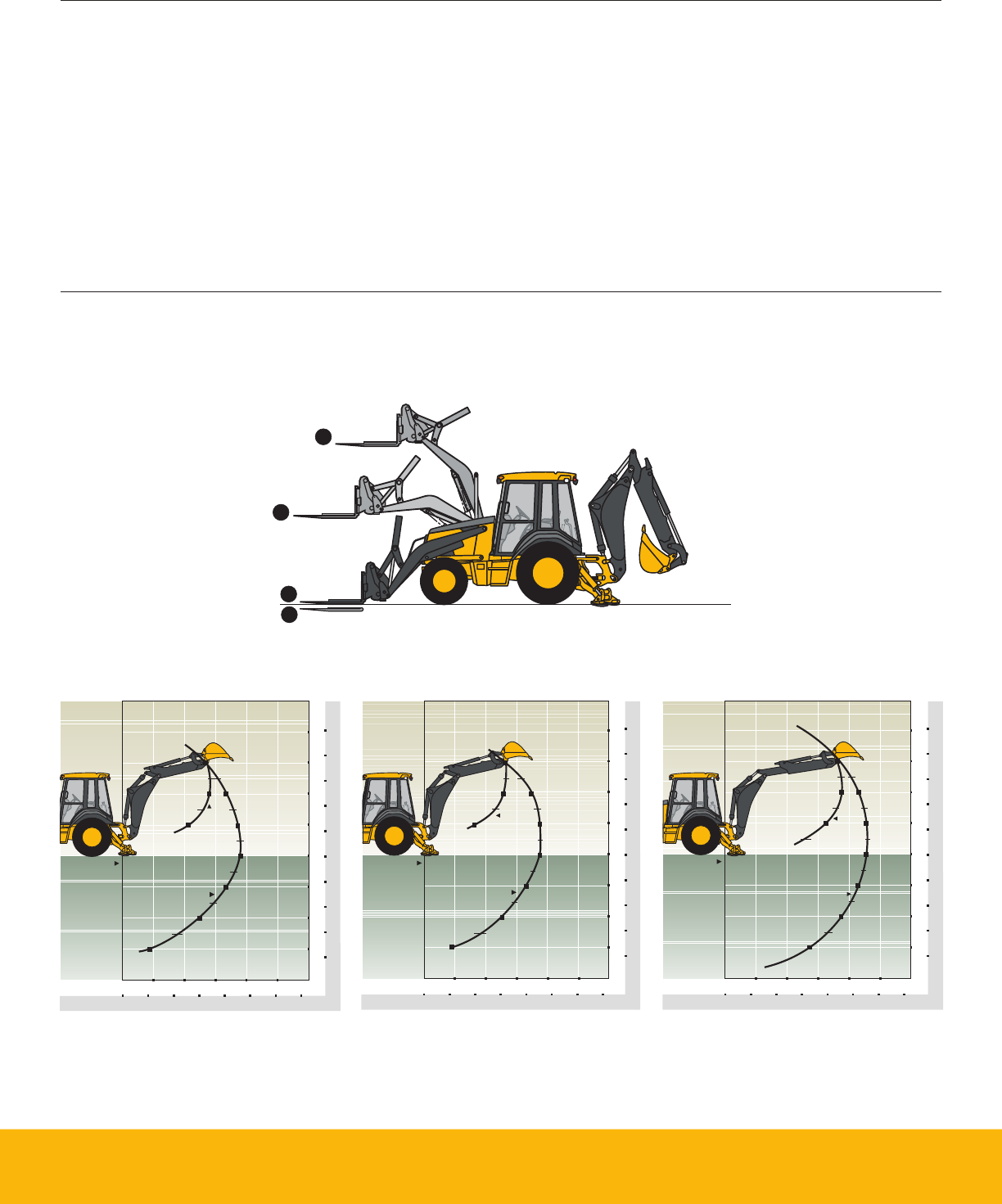

Lift capacities are over-end values in kg (lb.) according to SAE J31. Figures listed are 87% of the maximum lift force available. Base vehicle includes counterweight.

310J Backhoe with Standard Dipperstick

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 65°

BOOM

LIFT

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 65°

BOOM

LIFT

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

FEET

METERS

0 4 8 12 16 20

0 1 2 3 4 5 6 7

1300 (2,867)

1259 (2,775)

1207 (2,662)

1154 (2,545)

1103 (2,432)

1056 (2,327)

1010 (2,227)

969 (2,136)

933 (2,058)

900 (1,984)

876 (1,931)

868 (1,914)

1837 (4,050)

1845 (4,067)

2056 (4,533)

2013 (4,437)

892 (1,966)

878 (1,936)

858 (1,892)

836 (1,844)

813 (1,792)

789 (1,740)

750 (1,653)

770 (1,697)

732 (1,614)

716 (1,579)

706 (1,557)

703 (1,549)

714 (1,575)

1235 (2,723)

1296 (2,858)

1441 (3,176)

1778 (3,919)

1289 (2,841)

1466 (3,232)

1417 (3,123)

1362 (3,002)

1304 (2,875)

1251 (2,758)

1200 (2,645)

1154 (2,545)

1113 (2,453)

1073 (2,366)

1040 (2,292)

1014 (2,236)

1008 (2,223)

2204 (4,859)

2253 (4,968)

2017 (4,446)

2005 (4,420)

3473 (7,656) 2960

(6,525)

BOOM

LIFT

DIPPER

LIFT

WITH

BOOM

AT 65°

310J Backhoe with 1.07-m (3 ft. 6 in.)

Extendable Dipperstick, Retracted

310J Backhoe with 1.07-m (3 ft. 6 in.)

Extendable Dipperstick, Extended

For more detailed spec information and available options, log on to www.JohnDeere.com.

Loader Dimensions / Performance 310J

P Bucket Dump Angle (maximum) . . . . . . . . . . . . 45 deg.

Q Rollback Angle at Ground Level . . . . . . . . . . . . 40 deg.

Heavy-duty Heavy-duty Heavy-duty long lip Multipurpose Multipurpose

Bucket Capacity ...........................0.77 m3 (1.00 cu. yd.) 0.86 m3 (1.12 cu. yd.) 0.96 m3 (1.25 cu. yd.) 0.77 m3 (1.00 cu. yd.) 0.96 m3 (1.25 cu. yd.)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2184 mm (86 in.) 2184 mm (86 in.) 2184 mm (86 in.) 2083 mm (82 in.) 2184 mm (86 in.)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363 kg (800 lb.) 390 kg (860 lb.) 405 kg (892 lb.) 771 kg (1,699 lb.) 795 kg (1,750 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 41.6 kN (9,350 lb.) 42.3 kN (9,500 lb.) 39.9 kN (8,975 lb.) 37.3 kN (8,375 lb.) 36.4 kN (8,175 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 2996 kg (6,600 lb.) 3076 kg (6,775 lb.) 2849 kg (6,275 lb.) 2554 kg (5,625 lb.) 3757 kg (8,275 lb.)

R Height to Bucket Hinge Pin (maximum) . . . . . . . 3.38 m (11 ft. 1 in.) 3.38 m (11 ft. 1 in.) 3.38 m (11 ft. 1 in.) 3.38 m (11 ft. 1 in.) 3.38 m (11 ft. 1 in.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.69 m (8 ft. 10 in.) 2.69 m (8 ft. 10 in.) 2.48 m (8 ft. 2 in.) 2.59 m (8 ft. 6 in.) 2.59 m (8 ft. 6 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 785 mm (30.9 in.) 767 mm (30.2 in.) 809 mm (31.9 in.) 818 mm (32.2 in.) 818 mm (32.2 in.)

U Digging Depth Below Ground (bucket level) . . . . 160 mm (6.3 in.) 175 mm (6.9 in.) 147 mm (5.8 in.) 197 mm (7.8 in.) 197 mm (7.8 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.03 m (6 ft. 8 in.) 2.03 m (6 ft. 8 in.) 2.18 m (7 ft. 2 in.) 2.15 m (7 ft. 1 in.) 2.20 m (7 ft. 3 in.)

Lift Capacity with Quick-Coupler / Forks

Hydraulic Capacity ........................1219-mm (48 in.) tines 1524-mm (60 in.) tines

A' Maximum Height. . . . . . . . . . . . . . . . . . . . . . . . 1746 kg (3,850 lb.) 1556 kg (3,430 lb.)

B' Maximum Reach . . . . . . . . . . . . . . . . . . . . . . . . 2688 kg (5,925 lb.) 2467 kg (5,438 lb.)

C' At Ground Line . . . . . . . . . . . . . . . . . . . . . . . . . 3493 kg (7,700 lb.) 3269 kg (7,207 lb.)

D' Below Ground Line . . . . . . . . . . . . . . . . . . . . . . 262 mm (10.3 in.) 262 mm (10.3 in.)

DKAJLBH Page 19

310SJ

PAGES

20–21

Engine 310SJ

For use in U.S., Canada, and Europe For use outside U.S., Canada, and Europe

Manufacturer and Model . . . . . . . . . . . . . . . . . . . . John Deere PowerTechTM E 4045HT054 turbocharged, standard John Deere PowerTech 4045T turbocharged, standard*

Non-Road Emissions Standard . . . . . . . . . . . . . . . . EPA Tier 3/EU Stage IIIA EPA Tier 2/EU Stage II

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 L (276 cu. in.) 4.5 L (276 cu. in.)

Net Peak Power (ISO9249) . . . . . . . . . . . . . . . . . . . 69 kW (93 hp) @ 2,000 rpm 69 kW (92 hp) @ 2,000 rpm

Net Peak Torque (ISO9249) . . . . . . . . . . . . . . . . . . 392 Nm (288 lb.-ft.) @ 1,300 rpm 384 Nm (282 lb.-ft.) @ 1,400 rpm

Net Torque Rise ...........................47% 46%

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure system with spin-on filter and cooler pressure system with spin-on filter and cooler

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual-stage dry type with safety element and evacuator valve dual-stage dry type with safety element and evacuator valve

*This engine not available on 310SJ TMC.

Cooling

Fan Type ................................suction

Engine Coolant Rating . . . . . . . . . . . . . . . . . . . . . . –37 deg. C (–34 deg. F)

Engine Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . oil to water

Powertrain

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-speed, helical-cut gears, full PowerShift

with hydraulic reverser standard; electric clutch cutoff on loader lever

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . single stage, dual phase with 2.63:1 stall ratio; 280 mm (11 in.)

Maximum Travel Speeds with Standard

Engine ...........................Forward Reverse

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.7 km/h (3.5 mph) 7.2 km/h (4.5 mph)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.4 km/h (6.5 mph) 13.1 km/h (8.1 mph)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.4 km/h (13.3 mph) 21.1 km/h (13.1 mph)

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . 36.2 km/h (22.5 mph) N/A

Axles

Axle Oscillations, Stop to Stop (both axles) . . . . 22 deg.

Axle Ratings .......................... Mechanical-

Standard front-wheel drive Rear

Static . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 000 kg 12 000 kg 13 000 kg

(39,683 lb.) (26,455 lb.) (28,660 lb.)

Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . 7200 kg 6000 kg 7000 kg

(15,873 lb.) (13,228 lb.) (15,432 lb.)

Ultimate . . . . . . . . . . . . . . . . . . . . . . . . . . 32 950 kg 28 200 kg 30 600 kg

(72,642 lb.) (62,170 lb.) (67,461 lb.)

Differentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic locking rear, electric, foot actuated; limited slip front

Steering (ISO5010) . . . . . . . . . . . . . . . . . . . . . . . . hydrostatic power and emergency steering

Axle .................................Mechanical-

front-wheel drive Non-powered front

Curb-Turning Radius

With Brakes . . . . . . . . . . . . . . . . . . . . 3.58 m (11 ft. 9 in.) 3.44 m (11 ft. 4 in.)

Without Brakes . . . . . . . . . . . . . . . . . 4.08 m (13 ft. 5 in.) 3.94 m (12 ft. 11 in.)

Bucket Clearance Circle

With Brakes . . . . . . . . . . . . . . . . . . . . 10.11 m (33 ft. 2 in.) 9.89 m (32 ft. 5 in.)

Without Brakes . . . . . . . . . . . . . . . . . 11.05 m (36 ft. 3 in.) 10.76 m (35 ft. 4 in.)

Steering Wheel Turns (lock to lock) . . . . . 2.7 3.3

Final Drive (mechanical-front wheel and

rear axle) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heavy-duty, outboard planetary final drives distribute shock loads over 3 gears

Brakes (conform to ISO 3450)

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . power assisted, hydraulic wet disc, mounted inboard, self-adjusting and self-equalizing

Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . spring-applied, hydraulically released, wet, multi disc, independent of service brakes with electric switch control

DKAJLBH Page 20

Hydraulics 310SJ

Main Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . open center, gear type, tandem with unloader

Pump Flow @ 2,200 rpm

Backhoe .............................136 L/m (36 gpm)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 L/m (28 gpm)

System Relief Pressure

Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

auxiliary functions optional

Loader Controls . . . . . . . . . . . . . . . . . . . . . . . . . . single-lever control with electric clutch cutoff switch standard; manual auxiliary function optional

Cylinders

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heat-treated, chrome-plated, polished rods; hardened-steel (replaceable bushings) pivot pins

Bore Rod Diameter Stroke

Loader Boom (2) . . . . . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 50 mm (1.97 in.) 790 mm (31.10 in.)

Loader Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 744 mm (29.29 in.)

Backhoe Boom (1) . . . . . . . . . . . . . . . . . . . . . . . . 120 mm (4.72 in.) 56 mm (2.20 in.) 795 mm (31.30 in.)

Backhoe Crowd (1) . . . . . . . . . . . . . . . . . . . . . . . 115 mm (4.53 in.) 63 mm (2.48 in.) 603 mm (23.72 in.)

Backhoe Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 56 mm (2.20 in.) 810 mm (31.89 in.)

Heavy-Duty Option (1) . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 63 mm (2.48 in.) 810 mm (31.89 in.)

Backhoe Swing (2). . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 278 mm (10.94 in.)

Backhoe Extendable Dipperstick (1) . . . . . . . . . 70 mm (2.76 in.) 40 mm (1.57 in.) 1067 mm (42.01 in.)

Backhoe Stabilizer

Standard (2) . . . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 500 mm (19.69 in.)

Longer Optional (2) . . . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 50 mm (1.97 in.) 500 mm (19.69 in.)

Non-Powered Axle (1) . . . . . . . . . . . . . . . . . . . . . 70 mm (2.76 in.) 42 mm (1.65 in.) 213 mm (8.39 in.)

Mechanical-Front-Wheel Drive (1) . . . . . . . . . . . 67 mm (2.64 in.) 42 mm (1.65 in.) 210 mm (8.27 in.)

Electrical

Voltage .................................12 volt

Alternator Rating . . . . . . . . . . . . . . . . . . . . . . . . . . 90 amp

Operator Station

Type (SAE J1040) . . . . . . . . . . . . . . . . . . . . . . . . . canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof

Tires/Wheels

Front Rear

Non-Powered Front Axle . . . . . . . . . . . . . . . . . . . . 11L-16 SL F-3 (12) 19.5L-24 R-4 (10)

Mechanical-Front-Wheel Drive . . . . . . . . . . . . . . . . 12.5/80-18 I-3 (10) 19.5L-24 R-4 (10)

340/80R18 XMCL 500/70R24 XMCL

Serviceability

Hydraulic Oil Filter, Spin-On Enclosed Replace-

able Element, Vertically Mounted . . . . . . . . . . 6-micron filtration / 1,000 service hours

Refill Capacities

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 25 L (26 qt.)

Rear Axle ............................18 L (19 qt.)

Engine Oil (including vertical spin-on filter) . . . . 13 L (14 qt.)

Torque Converter and Transmission . . . . . . . . 15 L (16 qt.)

Fuel Tank (with ground-level fueling) . . . . . . . 155 L (41 gal.)

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . 91 L (24 gal.)

Hydraulic Reservoir . . . . . . . . . . . . . . . . . . . . . 39 L (10.2 gal.)

Mechanical-Front-Wheel-Drive Housing

Axle .............................6.5 L (7 qt.)

Planetary (each) . . . . . . . . . . . . . . . . . . . . 1 L (1 qt.)

Operating Weights

With Full Fuel Tank, 79-kg (175 lb.) Operator,

and Standard Equipment . . . . . . . . . . . . . . . . . 6580 kg (14,510 lb.)

Typical with Cab, Mechanical-Front-Wheel

Drive, Extendable Dipperstick, and

454-kg (1,000 lb.) Counterweight . . . . . . . . . . 7728 kg (17,040 lb.)

Optional Components

Cab .................................263 kg (580 lb.)

Mechanical-Front-Wheel Drive with Tires . . . . 220 kg (485 lb.)

Extendable Dipperstick . . . . . . . . . . . . . . . . . . 222 kg (490 lb.)

Front Loader Coupler . . . . . . . . . . . . . . . . . . . . 286 kg (630 lb.)

Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 63 kg (138 lb.)

DKAJLBH Page 21

PAGES

22–23

Backhoe Dimensions / Performance 310SJ

Backhoe specifications are with 610-mm x

0.21-m3 (24 in. x 7.5 cu. ft.) bucket

Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305–762 mm (12–30 in.)

Digging Force

Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 53.3 kN (11,990 lb.)

With Heavy-Duty Cylinder Option . . . . . . . 67.8 kN (15,236 lb.)

Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 36.0 kN (8,090 lb.)

Swing Arc ...............................180 deg.

Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two levers

With Standard With Optional Extendable Dipperstick

Backhoe Retracted Extended

F Loading Height (truck loading position) . . . . . . . 3.43 m (11 ft. 3 in.) 3.43 m (11 ft. 3 in.) 4.29 m (14 ft. 1 in.)

G Reach from Center of Swing Pivot. . . . . . . . . . . 5.56 m (18 ft. 3 in.) 5.66 m (18 ft. 7 in.) 6.68 m (21 ft. 11 in.)

H Reach from Center of Rear Axle . . . . . . . . . . . . 6.63 m (21 ft. 9 in.) 6.73 m (22 ft. 1 in.) 7.72 m (25 ft. 4 in.)

I Digging Depth (SAE maximum) . . . . . . . . . . . . . 4.42 m (14 ft. 6 in.) 4.55 m (14 ft. 11 in.) 5.61 m (18 ft. 5 in.)

J Digging Depth (SAE)

610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 4.37 m (14 ft. 4 in.) 4.50 m (14 ft. 9 in.) 5.56 m (18 ft. 3 in.)

2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 4.06 m (13 ft. 4 in.) 4.19 m (13 ft. 9 in.) 5.33 m (17 ft. 6 in.)

K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.) 2.18 m (7 ft. 2 in.) 2.18 m (7 ft. 2 in.)

L Stabilizer Spread (operating)

Standard Stabilizers . . . . . . . . . . . . . . . . . . . . . 3.10 m (10 ft. 2 in.) 3.10 m (10 ft. 2 in.) 3.10 m (10 ft. 2 in.)

Long Stabilizers . . . . . . . . . . . . . . . . . . . . . . . . 3.45 m (11 ft. 4 in.) 3.45 m (11 ft. 4 in.) 3.45 m (11 ft. 4 in.)

M Stabilizer Overall Width (operating)

Standard Stabilizers . . . . . . . . . . . . . . . . . . . . . 3.53 m (11 ft. 7 in.) 3.53 m (11 ft. 7 in.) 3.53 m (11 ft. 7 in.)

Long Stabilizers . . . . . . . . . . . . . . . . . . . . . . . . 4.03 m (13 ft. 3 in.) 4.03 m (13 ft. 3 in.) 4.03 m (13 ft. 3 in.)

N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg. 190 deg.

O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 3.51 m (11 ft. 6 in.) 3.48 m (11 ft. 5 in.) 3.48 m (11 ft. 5 in.)

Overall Dimensions 310SJ

A Ground Clearance (minimum) . . . . . . . . . . . . . . 330 mm (13 in.)

B Overall Length (transport) . . . . . . . . . . . . . . . . . 7.16 m (23 ft. 6 in.)

C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.)

D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.79 m (9 ft. 2 in.)

E Length from Axle to Axle

Non-Powered Front Axle . . . . . . . . . . . . . . 2.11 m (6 ft. 11 in.)

Mechanical-Front-Wheel-Drive Axle . . . . . . 2.14 m (7 ft. 0 in.)

DKAJLBH Page 22

Lift capacities are over-end values in kg (lb.) according to SAE J31. Figures listed are 87% of the maximum lift force available. Base vehicle includes counterweight.

310SJ Backhoe with Standard Dipperstick

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 65°

BOOM

LIFT

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 65°

BOOM

LIFT

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

FEET

METERS

0 4 8 12 16 20

0 1 2 3 4 5 6 7

1415 (3,119)

1383 (3,049)

1342 (2,958)

1298 (2,862)

1257 (2,771)

1217 (2,684)

1182 (2,606)

1150 (2,536)

1127 (2,484)

1117 (2,462)

1140 (2,514)

2259

(4,981)

2303 (5,078)

2591 (5,712)

1989 (4,384)

991 (2,184)

997 (2,197)

992 (2,188)

979 (2,158)

965 (2,127)

949 (2,092)

918 (2,023)

931 (2,053)

906 (1,997)

896 (1,975)

894 (1,971)

902 (1,988)

933 (2,058)

1335 (2,945)

1431 (3,155)

1530 (3,373)

1674 (3,691)

1991 (4,390)

1213 (2,674)

1699 (3,745)

1659 (3,658)

1604 (3,537)

1545 (3,406)

1486 (3,276)

1431 (3,154)

1381 (3,045)

1336 (2,945)

1295 (2,854)

1261 (2,780)

1235 (2,723)

1239 (2,732)

2533 (5,585)

2998 (6,609)

2624 (5,785)

2569 (5,664)

5166 (11,389) 3780

(8,334)

BOOM

LIFT

DIPPER

LIFT

WITH

BOOM

AT 65

1500 (3,306)

310SJ Backhoe with 1.07-m (3 ft. 6 in.)

Extendable Dipperstick, Retracted

310SJ Backhoe with 1.07-m (3 ft. 6 in.)

Extendable Dipperstick, Extended

For more detailed spec information and available options, log on to www.JohnDeere.com.

Loader Dimensions / Performance 310SJ

P Bucket Dump Angle (maximum) . . . . . . . . . . . . 45 deg.

Q Rollback Angle at Ground Level . . . . . . . . . . . . 40 deg.

Heavy-duty Heavy-duty Heavy-duty long lip Heavy-duty Multipurpose Multipurpose

Bucket Capacity ...........................0.77 m3 0.86 m3 0.96 m3 1.00 m3 0.96 m3 1.00 m3

(1.00 cu. yd.) (1.12 cu. yd.) (1.25 cu. yd.) (1.31 cu. yd.) (1.25 cu. yd.) (1.31 cu. yd.)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2184 mm (86 in.) 2184 mm (86 in.) 2184 mm (86 in.) 2337 mm (92 in.) 2184 mm (86 in.) 2337 mm (92 in.)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363 kg (800 lb.) 390 kg (860 lb.) 405 kg (892 lb.) 521 kg (1,148 lb.) 795 kg (1,750 lb.) 817 kg (1,800 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 49.6 kN (11,160 lb.) 49.2 kN (11,051 lb.) 45.4 kN (10,210 lb.) 45.8 kN (10,300 lb.) 43.1 kN (9,700 lb.) 42.9 kN (9,650 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 3368 kg (7,419 lb.) 3338 kg (7,353 lb.) 3332 kg (7,340 lb.) 3269 kg (7,200 lb.) 3042 kg (6,700 lb.) 2996 kg (6,600 lb.)

R Height to Bucket Hinge Pin (maximum) . . . . . . . 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.69 m (8 ft. 10 in.) 2.69 m (8 ft. 10 in.) 2.48 m (8 ft. 2 in.) 2.64 m (8 ft. 8 in.) 2.62 m (8 ft. 7 in.) 2.62 m (8 ft. 7 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 785 mm (30.9 in.) 767 mm (30.2 in.) 911 mm (35.9 in.) 765 mm (30.1 in.) 818 mm (32.2 in.) 818 mm (32.2 in.)

U Digging Depth Below Ground (bucket level) . . . . 160 mm (6.3 in.) 175 mm (6.9 in.) 147 mm (5.8 in.) 206 mm (8.1 in.) 185 mm (7.3 in.) 185 mm (7.3 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.03 m (6 ft. 8 in.) 2.03 m (6 ft. 8 in.) 2.18 m (7 ft. 2 in.) 2.03 m (6 ft. 8 in.) 2.20 m (7 ft. 3 in.) 2.15 m (7 ft. 1 in.)

Lift Capacity with Quick-Coupler / Forks

Hydraulic Capacity ........................1219-mm (48 in.) tines 1524-mm (60 in.) tines

A' Maximum Height. . . . . . . . . . . . . . . . . . . . . . . . 2073 kg (4,570 lb.) 1891 kg (4,170 lb.)

B' Maximum Reach . . . . . . . . . . . . . . . . . . . . . . . . 3162 kg (6,971 lb.) 3003 kg (6,621 lb.)

C' At Ground Line . . . . . . . . . . . . . . . . . . . . . . . . . 4145 kg (9,138 lb.) 3883 kg (8,561 lb.)

D' Below Ground Line . . . . . . . . . . . . . . . . . . . . . . 211 mm (8.3 in.) 211 mm (8.3 in.)

DKAJLBH Page 23

310SJ with

Total Machine ControlTM

310SJ with

Total Machine ControlTM

310SJ with

Total Machine ControlTM

PAGES

24–25

Hydraulics 310SJ TMC

Main Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure-compensated load-sensing (PCLS) axial piston

Pump Flow @ 2,200 rpm

Backhoe .............................159 L/m (42 gpm)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 L/m (42 gpm)

System Relief Pressure

Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Backhoe Controls . . . . . . . . . . . . . . . . . . . . . . . . . TMC electrohydraulic controls standard; auxiliary functions optional

Loader Controls . . . . . . . . . . . . . . . . . . . . . . . . . . TMC electrohydraulic controls standard; auxiliary function and TMC tool carrier optional

Cylinders

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heat-treated, chrome-plated, polished rods; hardened-steel (replaceable bushings) pivot pins

Bore Rod Diameter Stroke

Loader Boom (2) . . . . . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 50 mm (1.97 in.) 790 mm (31.10 in.)

Tool-Carrier Option (2) . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 672.9 mm (26.49 in.)

Loader Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 744 mm (29.29 in.)

Tool-Carrier Option (1) . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 56 mm (2.20 in.) 729.8 mm (28.73 in.)

Backhoe Boom (1) . . . . . . . . . . . . . . . . . . . . . . . . 120 mm (4.72 in.) 56 mm (2.20 in.) 795 mm (31.30 in.)

Backhoe Crowd (1) . . . . . . . . . . . . . . . . . . . . . . . 115 mm (4.53 in.) 63 mm (2.48 in.) 602.5 mm (23.72 in.)

Backhoe Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 63 mm (2.48 in.) 810 mm (31.89 in.)

Backhoe Swing (2). . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 278 mm (10.94 in.)

Backhoe Extendable Dipperstick (1) . . . . . . . . . 70 mm (2.76 in.) 40 mm (1.57 in.) 1067 mm (42.01 in.)

Backhoe Stabilizer

Standard (2) . . . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 500 mm (19.69 in.)

Longer Optional (2) . . . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 50 mm (1.97 in.) 500 mm (19.69 in.)

Non-Powered Axle (1) . . . . . . . . . . . . . . . . . . . . . 70 mm (2.76 in.) 42 mm (1.65 in.) 213 mm (8.39 in.)

Mechanical-Front-Wheel Drive (1) . . . . . . . . . . . 67 mm (2.64 in.) 42 mm (1.65 in.) 210 mm (8.27 in.)

Electrical

Voltage .................................12 volt

Alternator Rating . . . . . . . . . . . . . . . . . . . . . . . . . . 120 amp

Operator Station

Type (SAE J1040) . . . . . . . . . . . . . . . . . . . . . . . . . canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof

Tires/Wheels

Front Rear

Non-Powered Front Axle . . . . . . . . . . . . . . . . . . . . 11L-16 SL F-3 (12) 19.5L-24 R-4 (10)

Mechanical-Front-Wheel Drive . . . . . . . . . . . . . . . . 12.5/80-18 I-3 (10) 19.5L-24 R-4 (10)

340/80R18 XMCL 500/70R24 XMCL

Serviceability

Hydraulic Oil Filter, Spin-On Enclosed Replace-

able Element, Vertically Mounted . . . . . . . . . . 6-micron filtration / 1,000 service hours

Refill Capacities

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 25 L (26 qt.)

Rear Axle ............................18 L (19 qt.)

Engine Oil (including vertical spin-on filter) . . . . 13 L (14 qt.)

Torque Converter and Transmission . . . . . . . . 15 L (16 qt.)

Fuel Tank (with ground-level fueling) . . . . . . . 155 L (41 gal.)

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . 91 L (24 gal.)

Hydraulic Reservoir . . . . . . . . . . . . . . . . . . . . . 39 L (10.2 gal.)

Mechanical-Front-Wheel-Drive Housing

Axle .............................6.5 L (7 qt.)

Planetary (each) . . . . . . . . . . . . . . . . . . . . 1 L (1 qt.)

See page 20 for Engine, Cooling, and Powertrain information.

DKAJLBH Page 24

Operating Weights 310SJ TMC

With Full Fuel Tank, 79-kg (175 lb.) Operator,

and Standard Equipment (Cab, Extend-

able Dipperstick, and 567-kg [1,250 lb.]

Counterweight) . . . . . . . . . . . . . . . . . . . . . . . . 8171 kg (18,017 lb.)

Optional Components

Tool Carrier (includes mechanical-front-

wheel drive) . . . . . . . . . . . . . . . . . . . . . . . 482 kg (1,062 lb.)

Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 63 kg (138 lb.)

Overall Dimensions

A Ground Clearance (minimum) . . . . . . . . . . . . . . 330 mm (13 in.) E Length from Axle to Axle

B Overall Length (transport) . . . . . . . . . . . . . . . . . 7.16 m (23 ft. 6 in.) Non-Powered Front Axle . . . . . . . . . . . . . . .2.11 m (6 ft. 11 in.)

C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.) Mechanical-Front-Wheel-Drive Axle . . . . . .2.14 m (7 ft. 0 in.)

D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.79 m (9 ft. 2 in.)

Backhoe Dimensions / Performance 310SJ TMC

Backhoe specifications are with 610-mm x

0.21-m3 (24 in. x 7.5 cu. ft.) bucket

Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305–762 mm (12–30 in.)

Digging Force

Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 67.8 kN (15,236 lb.)

Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 36.0 kN (8,090 lb.)

Swing Arc ...............................180 deg.

Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two joysticks

With Extendable Dipperstick

Retracted Extended

F Loading Height (truck loading position) . . . . . . . 3.43 m (11 ft. 3 in.) 4.29 m (14 ft. 1 in.)

G Reach from Center of Swing Pivot. . . . . . . . . . . 5.66 m (18 ft. 7 in.) 6.68 m (21 ft. 11 in.)

H Reach from Center of Rear Axle . . . . . . . . . . . . 6.73 m (22 ft. 1 in.) 7.72 m (25 ft. 4 in.)

I Digging Depth (SAE maximum) . . . . . . . . . . . . . 4.55 m (14 ft. 11 in.) 5.61 m (18 ft. 5 in.)

J Digging Depth (SAE)

610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 4.50 m (14 ft. 9 in.) 5.56 m (18 ft. 3 in.)

2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 4.19 m (13 ft. 9 in.) 5.33 m (17 ft. 6 in.)

K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.) 2.18 m (7 ft. 2 in.)

L Stabilizer Spread (operating)

Standard Stabilizers . . . . . . . . . . . . . . . . . . . . . 3.10 m (10 ft. 2 in.) 3.10 m (10 ft. 2 in.)

Long Stabilizers . . . . . . . . . . . . . . . . . . . . . . . . 3.45 m (11 ft. 4 in.) 3.45 m (11 ft. 4 in.)

M Stabilizer Overall Width (operating)

Standard Stabilizers . . . . . . . . . . . . . . . . . . . . . 3.53 m (11 ft. 7 in.) 3.53 m (11 ft. 7 in.)

Long Stabilizers . . . . . . . . . . . . . . . . . . . . . . . . 4.03 m (13 ft. 3 in.) 4.03 m (13 ft. 3 in.)

N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg.

O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 3.48 m (11 ft. 5 in.) 3.48 m (11 ft. 5 in.)

DKAJLBH Page 25

PAGES

26–27

Lift capacities are over-end values in kg (lb.) according to SAE J31.

Figures listed are 87% of the maximum lift force available.

Base vehicle includes counterweight.

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 65°

BOOM

LIFT

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

FEET

METERS

0 4 8 12 16 20

0 1 2 3 4 5 6 7

1415 (3,119)

1383 (3,049)

1342 (2,958)

1298 (2,862)

1257 (2,771)

1217 (2,684)

1182 (2,606)

1150 (2,536)

1127 (2,484)

1117 (2,462)

1140 (2,514)

2259

(4,981)

2303 (5,078)

2591 (5,712)

1989 (4,384)

991 (2,184)

997 (2,197)

992 (2,188)

979 (2,158)

965 (2,127)

949 (2,092)

918 (2,023)

931 (2,053)

906 (1,997)

896 (1,975)

894 (1,971)

902 (1,988)

933 (2,058)

1335 (2,945)

1431 (3,155)

1530 (3,373)

1674 (3,691)

1991 (4,390)

1213 (2,674)

3780

(8,334)

BOOM

LIFT

DIPPER

LIFT

WITH

BOOM

AT 65

1500 (3,306)

310SJ TMC Backhoe with 1.07-m (3 ft. 6 in.)

Extendable Dipperstick, Retracted

310SJ TMC Backhoe with 1.07-m (3 ft. 6 in.)

Extendable Dipperstick, Extended

Loader Dimensions / Performance

(See page 25 for line art) 310SJ TMC

P Bucket Dump Angle (maximum) . . . . . . . . . . . . 45 deg.

Q Rollback Angle at Ground Level . . . . . . . . . . . . 40 deg.

Heavy-duty Heavy-duty Heavy-duty long lip Heavy-duty Multipurpose Multipurpose

Bucket Capacity ...........................0.77 m3 0.86 m3 0.96 m3 1.00 m3 0.96 m3 1.00 m3

(1.00 cu. yd.) (1.12 cu. yd.) (1.25 cu. yd.) (1.31 cu. yd.) (1.25 cu. yd.) (1.31 cu. yd.)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2184 mm (86 in.) 2184 mm (86 in.) 2184 mm (86 in.) 2337 mm (92 in.) 2184 mm (86 in.) 2337 mm (92 in.)

R Height to Bucket Hinge Pin (maximum) . . . . . . . 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.)

Standard Loader Option

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363 kg (800 lb.) 390 kg (860 lb.) 405 kg (892 lb.) 521 kg (1,148 lb.) 795 kg (1,750 lb.) 817 kg (1,800 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 49.6 kN (11,160 lb.) 49.2 kN (11,051 lb.) 45.4 kN (10,210 lb.) 45.8 kN (10,300 lb.) 43.1 kN (9,700 lb.) 42.9 kN (9,650 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 3368 kg (7,419 lb.) 3338 kg (7,353 lb.) 3332 kg (7,340 lb.) 3269 kg (7,200 lb.) 3042 kg (6,700 lb.) 2996 kg (6,600 lb.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.69 m (8 ft. 10 in.) 2.69 m (8 ft. 10 in.) 2.48 m (8 ft. 2 in.) 2.64 m (8 ft. 8 in.) 2.62 m (8 ft. 7 in.) 2.62 m (8 ft. 7 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 785 mm (30.9 in.) 767 mm (30.2 in.) 911 mm (35.9 in.) 765 mm (30.1 in.) 818 mm (32.2 in.) 818 mm (32.2 in.)

U Digging Depth Below Ground (bucket level) . . . . 160 mm (6.3 in.) 175 mm (6.9 in.) 147 mm (5.8 in.) 206 mm (8.1 in.) 185 mm (7.3 in.) 185 mm (7.3 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.03 m (6 ft. 8 in.) 2.03 m (6 ft. 8 in.) 2.18 m (7 ft. 2 in.) 2.03 m (6 ft. 8 in.) 2.20 m (7 ft. 3 in.) 2.15 m (7 ft. 1 in.)

Tool-Carrier Loader Option

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 379 kg (835 lb.) 396 kg (873 lb.) 390 kg (860 lb.) 493 kg (1,085 lb.) 766 kg (1,687 lb.) 789 kg (1,737 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.2 kN (11,287 lb.) 52.9 kN (11,900 lb.) 45.8 kN (10,300 lb.) 50.9 kN (11,450 lb.) 43.3 kN (9,740 lb.) 43.1 kN (9,680 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 3190 kg (7,026 lb.) 3269 kg (7,200 lb.) 3008 kg (6,625 lb.) 3276 kg (7,215 lb.) 2701 kg (5,950 lb.) 2656 kg (5,850 lb.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.58 m (8 ft. 6 in.) 2.61 m (8 ft. 7 in.) 2.51 m (8 ft. 3 in.) 2.59 m (8 ft. 6 in.) 2.50 m (8 ft. 2 in.) 2.50 m (8 ft. 2 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 777 mm (30.6 in.) 744 mm (29.3 in.) 868 mm (34.2 in.) 762 mm (30.0 in.) 836 mm (32.9 in.) 836 mm (32.9 in.)

U Digging Depth Below Ground (bucket level) . . . . 140 mm (5.5 in.) 140 mm (5.5 in.) 122 mm (4.8 in.) 140 mm (5.5 in.) 152 mm (6.0 in.) 152 mm (6.0 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.15 m (7 ft. 1 in.) 2.15 m (7 ft. 1 in.) 2.30 m (7 ft. 7 in.) 2.15 m (7 ft. 1 in.) 2.32 m (7 ft. 7 in.) 2.27 m (7 ft. 5 in.)

Lift Capacity with Quick-Coupler / Forks

Hydraulic Capacity ........................1219-mm (48 in.) tines 1524-mm (60 in.) tines

A' Maximum Height. . . . . . . . . . . . . . . . . . . . . . . . 2211 kg (4,875 lb.) 2053 kg (4,526 lb.)

B' Maximum Reach . . . . . . . . . . . . . . . . . . . . . . . . 3438 kg (7,580 lb.) 3294 kg (7,261 lb.)

C' At Ground Line . . . . . . . . . . . . . . . . . . . . . . . . . 4400 kg (9,700 lb.) 4180 kg (9,215 lb.)

D' Below Ground Line . . . . . . . . . . . . . . . . . . . . . . 211 mm (8.3 in.) 211 mm (8.3 in.)

DKAJLBH Page 26

410J

Engine 410J

For use in U.S., Canada, and Europe For use outside U.S., Canada, and Europe

Manufacturer and Model . . . . . . . . . . . . . . . . . . . . John Deere PowerTechTM E 4045HT054 turbocharged, standard John Deere 4045T PowerTech turbocharged, standard*

Non-Road Emissions Standard . . . . . . . . . . . . . . . . EPA Tier 3/EU Stage IIIA EPA Tier 2/EU Stage II

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5 L (276 cu. in.) 4.5 L (276 cu. in.)

Net Peak Power (ISO9249) . . . . . . . . . . . . . . . . . . . 73 kW (98 hp) @ 2,000 rpm 72 kW (96 hp) @ 2,100 rpm

Net Peak Torque (ISO9249) . . . . . . . . . . . . . . . . . . 416 Nm (306 lb.-ft.) @ 1,300 rpm 378 Nm (278 lb.-ft.) @ 1,500 rpm

Net Torque Rise ...........................47% 26%

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure system with spin-on filter and cooler pressure system with spin-on filter and cooler

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual-stage dry type with safety element and evacuator valve dual-stage dry type with safety element and evacuator valve

*This engine not available on 410J TMC.

Cooling

Fan Type ................................suction

Engine Coolant Rating . . . . . . . . . . . . . . . . . . . . . . –37 deg. C (–34 deg. F)

Engine Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . oil to water

Powertrain

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-speed, helical-cut gears, full PowerShift

with hydraulic reverser standard; electric clutch cutoff on loader lever

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . single stage, dual phase with 2.63:1 stall ratio; 280 mm (11 in.)

Maximum Travel Speeds with Standard

Engine ...........................Forward Reverse

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.9 km/h (3.7 mph) 7.4 km/h (4.6 mph)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10.8 km/h (6.7 mph) 13.6 km/h (8.5 mph)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 21.9 km/h (13.6 mph) 21.6 km/h (13.4 mph)

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . 37.4 km/h (23.2 mph) N/A

Axles

Axle Oscillations, Stop to Stop (both axles) . . . . 22 deg.

Axle Ratings .......................... Mechanical-

Standard front-wheel drive Rear

Static . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 000 kg 12 000 kg 13 000 kg

(39,683 lb.) (26,455 lb.) (28,660 lb.)

Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . 7200 kg 6000 kg 7000 kg

(15,873 lb.) (13,228 lb.) (15,432 lb.)

Ultimate . . . . . . . . . . . . . . . . . . . . . . . . . . 32 950 kg 28 200 kg 30 600 kg

(72,642 lb.) (62,170 lb.) (67,461 lb.)

Differentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic locking rear, electric, foot actuated; limited slip front

Steering (ISO5010) . . . . . . . . . . . . . . . . . . . . . . . . hydrostatic power and emergency steering

Axle ....................................Mechanical-

front-wheel drive Non-powered front

Curb-Turning Radius

With Brakes . . . . . . . . . . . . . . . . . . . . . . . 3.58 m (11 ft. 9 in.) 3.44 m (11 ft. 4 in.)

Without Brakes . . . . . . . . . . . . . . . . . . . . . 4.08 m (13 ft. 5 in.) 3.94 m (12 ft. 11 in.)

Bucket Clearance Circle

With Brakes . . . . . . . . . . . . . . . . . . . . . . . 10.11 m (33 ft. 2 in.) 9.89 m (32 ft. 5 in.)

Without Brakes . . . . . . . . . . . . . . . . . . . . . 11.05 m (36 ft. 3 in.) 10.76 m (35 ft. 4 in.)

Steering Wheel Turns (lock to lock, flow

amplified) . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 to 3.6 3.1 to 4.4

Final Drive

Mechanical-Front Wheel . . . . . . . . . . . . . . . . . heavy-duty, outboard planetary final drives distribute shock loads over 3 gears

Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . heavy-duty, outboard planetary final drives distribute shock loads over 4 gears

Brakes (conform to ISO 3450)

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . power assisted, hydraulic wet disc, mounted inboard, self-adjusting and self-equalizing

Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . spring-applied, hydraulically released, wet, multi disc, independent of service brakes with electric switch control

DKAJLBH Page 27

PAGES

28–29

Hydraulics 410J

Main Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure-compensated load sensing (PCLS), axial piston

Pump Flow @ 2,200 rpm

Backhoe .............................159 L/m (42 gpm)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 L/m (42 gpm)

System Relief Pressure

Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

auxiliary functions optional

Loader Controls . . . . . . . . . . . . . . . . . . . . . . . . . . single-lever control with electric clutch cutoff switch standard; manual auxiliary function optional

Cylinders

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heat-treated, chrome-plated, polished rods; hardened-steel (replaceable bushings) pivot pins

Bore Rod Diameter Stroke

Loader Boom (2) . . . . . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 50 mm (1.97 in.) 790 mm (31.10 in.)

Loader Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 744 mm (29.29 in.)

Backhoe Boom (1) . . . . . . . . . . . . . . . . . . . . . . . . 125 mm (4.92 in.) 63 mm (2.48 in.) 897 mm (35.31 in.)

Backhoe Crowd (1) . . . . . . . . . . . . . . . . . . . . . . . 115 mm (4.53 in.) 63 mm (2.48 in.) 698 mm (27.49 in.)

Backhoe Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 63 mm (2.48 in.) 810 mm (31.89 in.)

Backhoe Swing (2). . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 278 mm (10.94 in.)

Backhoe Extendable Dipperstick (1) . . . . . . . . . 70 mm (2.76 in.) 40 mm (1.57 in.) 1214 mm (47.78 in.)

Backhoe Stabilizer, Standard (2) . . . . . . . . . . . . 100 mm (3.94 in.) 50 mm (1.97 in.) 500 mm (19.69 in.)

Non-Powered Axle (1) . . . . . . . . . . . . . . . . . . . . . 70 mm (2.76 in.) 42 mm (1.65 in.) 213 mm (8.39 in.)

Mechanical-Front-Wheel Drive (1) . . . . . . . . . . . 67 mm (2.64 in.) 42 mm (1.65 in.) 210 mm (8.27 in.)

Electrical

Voltage .................................12 volt

Alternator Rating . . . . . . . . . . . . . . . . . . . . . . . . . . 90 amp

Operator Station

Type (SAE J1040) . . . . . . . . . . . . . . . . . . . . . . . . . canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof

Tires/Wheels

Front Rear

Non-Powered Front Axle . . . . . . . . . . . . . . . . . . . . 11L-16 SL F-3 (12) 19.5L-24 R-4 (10)

14.5/75-16.1 SL F-3 (10) 21L-24 R-4 (10)

Mechanical-Front-Wheel Drive . . . . . . . . . . . . . . . . 12.5/80-18 I-3 (10) 19.5L-24 R-4 (10)

340/80R18 XMCL 500/70R24 XMCL

12.5/80-18 I-3 (10) 21L-24 R-4 (10)

Serviceability

Hydraulic Oil Filter, Spin-On Enclosed Replace-

able Element, Vertically Mounted . . . . . . . . . . 6-micron filtration / 1,000 service hours

Refill Capacities

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 25 L (26 qt.)

Rear Axle ............................18 L (19 qt.)

Engine Oil (including vertical spin-on filter) . . . . 13 L (14 qt.)

Torque Converter and Transmission . . . . . . . . 15 L (16 qt.)

Fuel Tank (with ground-level fueling) . . . . . . . 155 L (41 gal.)

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . 95 L (25 gal.)

Hydraulic Reservoir . . . . . . . . . . . . . . . . . . . . . 39 L (10.2 gal.)

Mechanical-Front-Wheel-Drive Housing

Axle .............................6.5 L (7 qt.)

Planetary (each) . . . . . . . . . . . . . . . . . . . . 1 L (1 qt.)

Operating Weights

With Full Fuel Tank, 79-kg (175 lb.) Operator,

and Standard Equipment . . . . . . . . . . . . . . . . . 6839 kg (15,080 lb.)

Typical with Cab, Mechanical-Front-Wheel

Drive, Extendable Dipperstick, and

454-kg (1,000 lb.) Counterweight . . . . . . . . . . 8426 kg (18,580 lb.)

Optional Components

Cab .................................263 kg (580 lb.)

Mechanical-Front-Wheel Drive with Tires . . . . 220 kg (485 lb.)

Extendable Dipperstick . . . . . . . . . . . . . . . . . . 289 kg (638 lb.)

Front Loader Coupler . . . . . . . . . . . . . . . . . . . . 286 kg (630 lb.)

Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 63 kg (138 lb.)

DKAJLBH Page 28

Backhoe Dimensions / Performance 410J

Backhoe specifications are with 610-mm x

0.21 m3 (24 in. x 7.5 cu. ft.) bucket

Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305–762 mm (12–30 in.)

Digging Force

Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 65.8 kN (14,801 lb.)

Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 38.9 kN (8,741 lb.)

Swing Arc ...............................180 deg.

Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two levers

With Standard With Optional Extendable Dipperstick

Backhoe Retracted Extended

F Loading Height (truck loading position) . . . . . . . 3.81 m (12 ft. 6 in.) 3.86 m (12 ft. 8 in.) 4.72 m (15 ft. 6 in.)

G Reach from Center of Swing Pivot. . . . . . . . . . . 5.99 m (19 ft. 8 in.) 6.07 m (19 ft. 11 in.) 7.21 m (23 ft. 8 in.)

H Reach from Center of Rear Axle . . . . . . . . . . . . 7.11 m (23 ft. 4 in.) 7.19 m (23 ft. 7 in.) 8.33 m (27 ft. 4 in.)

I Digging Depth (SAE maximum) . . . . . . . . . . . . . 4.83 m (15 ft. 10 in.) 4.90 m (16 ft. 1 in.) 6.10 m (20 ft. 0 in.)

J Digging Depth (SAE)

610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 4.78 m (15 ft. 8 in.) 4.85 m (15 ft. 11 in.) 6.07 m (19 ft. 11 in.)

2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 4.45 m (14 ft. 7 in.) 4.55 m (14 ft. 11 in.) 5.82 m (19 ft. 1 in.)

K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.30 m (7 ft. 7 in.) 2.30 m (7 ft. 7 in.) 2.30 m (7 ft. 7 in.)

L Stabilizer Spread (operating) . . . . . . . . . . . . . . . 3.45 m (11 ft. 4 in.) 3.45 m (11 ft. 4 in.) 3.45 m (11 ft. 4 in.)

M Stabilizer Overall Width (operating) . . . . . . . . . . 4.03 m (13 ft. 3 in.) 4.03 m (13 ft. 3 in.) 4.03 m (13 ft. 3 in.)

N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg. 190 deg.

O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 3.94 m (12 ft. 11 in.) 3.91 m (12 ft. 10 in.) 3.91 m (12 ft. 10 in.)

Overall Dimensions 410J

A Ground Clearance (minimum) . . . . . . . . . . . . . . 356 mm (14 in.)

B Overall Length (transport) . . . . . . . . . . . . . . . . . 7.29 m (23 ft. 11 in.)

C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.)

D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.82 m (9 ft. 3 in.)

E Length from Axle to Axle

Non-Powered Front Axle . . . . . . . . . . . . . . 2.11 m (6 ft. 11 in.)

Mechanical-Front-Wheel-Drive Axle . . . . . . 2.14 m (7 ft. 0 in.)

DKAJLBH Page 29

PAGES

30–31

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 60°

BOOM

LIFT

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 60°

BOOM

LIFT

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

FEET

METERS

0 4 8 12 16 20 24

0 1 2 3 4 5 6 7 8

1344 (2,962)

1356 (2,989)

1340 (2,954)

1312 (2,893)

1280 (2,823)

1247 (2,750)

1216 (2,680)

1186 (2,614)

1160 (2,558)

1143 (2,519)

1135 (2,503)

1150 (2,536)

2210

(4,872)

2249 (4,959)

2470 (5,446)

924 (2,036)

943 (2,079)

947 (2,088)

945 (2,084)

939 (2,071)

931 (2,053)

914 (2,014)

921 (2,031)

906 (1,997)

902 (1,988)

912 (2,010)

935 (2,062)

1529 (3,371)

1541 (3,398)

1606 (3,541)

1742 (3,841)

2023 (4,459)

1565 (3,450)

1567 (3,454)

1577 (3,467)

1555 (3,428)

1527 (3,366)

1492 (3,289)

1456 (3,210)

1422 (3,136)

1389 (3,062)

1365 (3,010)

1346 (2,967)

1340 (2,954)

1359 (2,997)

2492 (5,494)

2447 (5,394)

2746 (6,055)

BOOM

LIFT

DIPPER

LIFT

WITH

BOOM

AT 60

1490 (3,284)

1247 (2,749)

2311 (5,094)

2565 (5,655)

Lift capacities are over-end values in kg (lb.) according to SAE J31. Figures listed are 87% of the maximum lift force available. Base vehicle includes counterweight.

410J Backhoe with Standard Dipperstick

410J Backhoe with 1.22-m (4 ft.)

Extendable Dipperstick, Retracted

410J Backhoe with 1.22-m (4 ft.)

Extendable Dipperstick, Extended

For more detailed spec information and available options, log on to www.JohnDeere.com.

Loader Dimensions / Performance

(See page 29 for line art) 410J

P Bucket Dump Angle (maximum) . . . . . . . . . . . . 45 deg.

Q Rollback Angle at Ground Level . . . . . . . . . . . . 40 deg.

Heavy-duty long lip Heavy-duty Heavy-duty Multipurpose

Bucket Capacity ...........................0.96 m3 (1.25 cu. yd.) 1.00 m3 (1.31 cu. yd.) 1.15 m3 (1.50 cu. yd.) 1.00 m3 (1.31 cu. yd.)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2184 mm (86 in.) 2337 mm (92 in.) 2388 mm (94 in.) 2337 mm (92 in.)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405 kg (892 lb.) 521 kg (1,148 lb.) 548 kg (1,208 lb.) 817 kg (1,800 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 45.4 kN (10,210 lb.) 45.8 kN (10,300 lb.) 45.2 kN (10,170 lb.) 42.9 kN (9,650 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 3332 kg (7,340 lb.) 3269 kg (7,200 lb.) 3210 kg (7,070 lb.) 2996 kg (6,600 lb.)

R Height to Bucket Hinge Pin (maximum) . . . . . . . 3.35 m (11 ft. 0 in.) 3.35 m (11 ft. 0 in.) 3.35 m (11 ft. 0 in.) 3.35 m (11 ft. 0 in.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.54 m (8 ft. 4 in.) 2.69 m (8 ft. 10 in.) 2.67 m (8 ft. 9 in.) 2.62 m (8 ft. 7 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 902 mm (35.5 in.) 762 mm (30.0 in.) 787 mm (31.0 in.) 818 mm (32.2 in.)

U Digging Depth Below Ground (bucket level) . . . . 107 mm (4.2 in.) 170 mm (6.7 in.) 157 mm (6.2 in.) 182 mm (7.2 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.) 2.03 m (6 ft. 8 in.) 2.03 m (6 ft. 8 in.) 2.15 m (7 ft. 1 in.)

Lift Capacity with Quick-Coupler / Forks

Hydraulic Capacity ........................1219-mm (48 in.) tines 1524-mm (60 in.) tines

A' Maximum Height. . . . . . . . . . . . . . . . . . . . . . . . 2073 kg (4,570 lb.) 1891 kg (4,170 lb.)

B' Maximum Reach . . . . . . . . . . . . . . . . . . . . . . . . 3162 kg (6,971 lb.) 3003 kg (6,621 lb.)

C' At Ground Line . . . . . . . . . . . . . . . . . . . . . . . . . 4145 kg (9,138 lb.) 3883 kg (8,561 lb.)

D' Below Ground Line . . . . . . . . . . . . . . . . . . . . . . 211 mm (8.3 in.) 211 mm (8.3 in.)

DKAJLBH Page 30

410J with

Total Machine ControlTM

410J with

Total Machine ControlTM

410J with

Total Machine ControlTM

Hydraulics 410J TMC

Main Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure-compensated load-sensing (PCLS) axial piston

Pump Flow @ 2,200 rpm

Backhoe .............................159 L/m (42 gpm)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 L/m (42 gpm)

System Relief Pressure

Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Backhoe Controls . . . . . . . . . . . . . . . . . . . . . . . . . TMC electrohydraulic controls standard; auxiliary functions optional

Loader Controls . . . . . . . . . . . . . . . . . . . . . . . . . . TMC electrohydraulic controls standard; auxiliary function and TMC tool carrier optional

Cylinders

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heat-treated, chrome-plated, polished rods; hardened-steel (replaceable bushings) pivot pins

Bore Rod Diameter Stroke

Loader Boom (2) . . . . . . . . . . . . . . . . . . . . . . . . . 80 mm (3.15 in.) 50 mm (1.97 in.) 790 mm (31.10 in.)

Tool-Carrier Option (2) . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 672.9 mm (26.49 in.)

Loader Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 744 mm (29.29 in.)

Tool-Carrier Option (1) . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 56 mm (2.20 in.) 729.8 mm (28.73 in.)

Backhoe Boom (1) . . . . . . . . . . . . . . . . . . . . . . . . 125 mm (4.92 in.) 63 mm (2.48 in.) 897 mm (35.31 in.)

Backhoe Crowd (1) . . . . . . . . . . . . . . . . . . . . . . . 115 mm (4.53 in.) 63 mm (2.48 in.) 698.2 mm (27.49 in.)

Backhoe Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 63 mm (2.48 in.) 810 mm (31.89 in.)

Backhoe Swing (2). . . . . . . . . . . . . . . . . . . . . . . . 90 mm (3.54 in.) 50 mm (1.97 in.) 278 mm (10.94 in.)

Backhoe Extendable Dipperstick (1) . . . . . . . . . 70 mm (2.76 in.) 40 mm (1.57 in.) 1214 mm (47.78 in.)

Backhoe Stabilizer, Standard (2) . . . . . . . . . . . . 100 mm (3.94 in.) 50 mm (1.97 in.) 500 mm (19.69 in.)

Non-Powered Axle (1) . . . . . . . . . . . . . . . . . . . . . 70 mm (2.76 in.) 42 mm (1.65 in.) 213 mm (8.39 in.)

Mechanical-Front-Wheel Drive (1) . . . . . . . . . . . 67 mm (2.64 in.) 42 mm (1.65 in.) 210 mm (8.27 in.)

Electrical

Voltage .................................12 volt

Alternator Rating . . . . . . . . . . . . . . . . . . . . . . . . . . 120 amp

Operator Station

Type (SAE J1040) . . . . . . . . . . . . . . . . . . . . . . . . . canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof

Tires/Wheels

Front Rear

Non-Powered Front Axle . . . . . . . . . . . . . . . . . . . . 11L-16 SL F-3 (12) 19.5L-24 R-4 (10)

14.5/75-16.1 SL F-3 (10) 21L-24 R-4 (10)

Mechanical-Front-Wheel Drive . . . . . . . . . . . . . . . . 12.5/80-18 I-3 (10) 19.5L-24 R-4 (10)

340/80R18 XMCL 500/70R24 XMCL

12.5/80-18 I-3 (10) 21L-24 R-4 (10)

Serviceability

Hydraulic Oil Filter, Spin-On Enclosed Replace-

able Element, Vertically Mounted . . . . . . . . . . 6-micron filtration / 1,000 service hours

Refill Capacities

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 25 L (26 qt.)

Rear Axle ............................18 L (19 qt.)

Engine Oil (including vertical spin-on filter) . . . . 13 L (14 qt.)

Torque Converter and Transmission . . . . . . . . 15 L (16 qt.)

Fuel Tank (with ground-level fueling) . . . . . . . 155 L (41 gal.)

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . 95 L (25 gal.)

Hydraulic Reservoir . . . . . . . . . . . . . . . . . . . . . 39 L (10.2 gal.)

Mechanical-Front-Wheel-Drive Housing

Axle .............................6.5 L (7 qt.)

Planetary (each) . . . . . . . . . . . . . . . . . . . . 1 L (1 qt.)

See page 27 for Engine, Cooling, and Powertrain information.

DKAJLBH Page 31

PAGES

32–33

Operating Weights 410J TMC

With Full Fuel Tank, 79-kg (175 lb.) Operator,

and Standard Equipment (Cab, Extend-

able Dipperstick, and 567-kg [1,250 lb.]

Counterweight) . . . . . . . . . . . . . . . . . . . . . . . . 8626 kg (19,022 lb.)

Optional Components

Tool Carrier (includes mechanical-front-

wheel drive) . . . . . . . . . . . . . . . . . . . . . . . 482 kg (1,062 lb.)

Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 63 kg (138 lb.)

Overall Dimensions

A Ground Clearance (minimum) . . . . . . . . . . . . . . 356 mm (14 in.) E Length from Axle to Axle

B Overall Length (transport) . . . . . . . . . . . . . . . . . 7.29 m (23 ft. 11 in.) Non-Powered Front Axle . . . . . . . . . . . . . . .2.11 m (6 ft. 11 in.)

C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.) Mechanical-Front-Wheel-Drive Axle . . . . . .2.14 m (7 ft. 0 in.)

D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.82 m (9 ft. 3 in.)

Backhoe Dimensions / Performance 410J TMC

Backhoe specifications are with 610-mm x

0.21-m3 (24 in. x 7.5 cu. ft.) bucket

Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305–762 mm (12–30 in.)

Digging Force

Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 65.8 kN (14,801 lb.)

Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 38.9 kN (8,741 lb.)

Swing Arc ...............................180 deg.

Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . two joysticks

With Extendable Dipperstick

Retracted Extended

F Loading Height (truck loading position) . . . . . . . 3.86 m (12 ft. 8 in.) 4.72 m (15 ft. 6 in.)

G Reach from Center of Swing Pivot. . . . . . . . . . . 6.07 m (19 ft. 11 in.) 7.21 m (23 ft. 8 in.)

H Reach from Center of Rear Axle . . . . . . . . . . . . 7.19 m (23 ft. 7 in.) 8.33 m (27 ft. 4 in.)

I Digging Depth (SAE maximum) . . . . . . . . . . . . . 4.90 m (16 ft. 1 in.) 6.10 m (20 ft. 0 in.)

J Digging Depth (SAE)

610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 4.85 m (15 ft. 11 in.) 6.07 m (19 ft. 11 in.)

2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 4.55 m (14 ft. 11 in.) 5.82 m (19 ft. 1 in.)

K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.30 m (7 ft. 7 in.) 2.30 m (7 ft. 7 in.)

L Stabilizer Spread (operating) . . . . . . . . . . . . . . . 3.45 m (11 ft. 4 in.) 3.45 m (11 ft. 4 in.)

M Stabilizer Overall Width (operating) . . . . . . . . . . 4.03 m (13 ft. 3 in.) 4.03 m (13 ft. 3 in.)

N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg.

O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 3.91 m (12 ft. 10 in.) 3.91 m (12 ft. 10 in.)

DKAJLBH Page 32

Lift capacities are over-end values in kg (lb.) according to

SAE J31. Figures listed are 87% of the maximum lift force

available. Base vehicle includes counterweight.

SWING PIVOT

DIPPER

LIFT

WITH

BOOM

AT 60°

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

FEET

METERS

0 4 8 12 16 20 24

0 1 2 3 4 5 6 7 8

1344 (2,962)

1356 (2,989)

1340 (2,954)

1312 (2,893)

1280 (2,823)

1247 (2,750)

1216 (2,680)

1186 (2,614)

1160 (2,558)

1143 (2,519)

1135 (2,503)

1150 (2,536)

2210

(4,872)

2249 (4,959)

2470 (5,446)

924 (2,036)

943 (2,079)

947 (2,088)

945 (2,084)

939 (2,071)

931 (2,053)

914 (2,014)

921 (2,031)

906 (1,997)

902 (1,988)

912 (2,010)

935 (2,062)

1529 (3,371)

1541 (3,398)

1606 (3,541)

1742 (3,841)

2023 (4,459)

1565 (3,450)

BOOM

LIFT

DIPPER

LIFT

WITH

BOOM

AT 60

1247 (2,749)

2311 (5,094)

BOOM

LIFT

410J TMC Backhoe with 1.22-m (4 ft.)

Extendable Dipperstick, Retracted

410J TMC Backhoe with 1.22-m (4 ft.)

Extendable Dipperstick, Extended

Loader Dimensions / Performance 410J TMC

P Bucket Dump Angle (maximum) . . . . . . . . . . . . 45 deg.

Q Rollback Angle at Ground Level . . . . . . . . . . . . 40 deg.

Heavy-duty long lip Heavy-duty Heavy-duty Multipurpose

Bucket Capacity ...........................0.96 m3 (1.25 cu. yd.) 1.00 m3 (1.31 cu. yd.) 1.15 m3 (1.50 cu. yd.) 1.00 m3 (1.31 cu. yd.)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2184 mm (86 in.) 2337 mm (92 in.) 2388 mm (94 in.) 2337 mm (92 in.)

Standard Loader Option

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405 kg (892 lb.) 521 kg (1,148 lb.) 548 kg (1,208 lb.) 817 kg (1,800 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 45.4 kN (10,210 lb.) 45.8 kN (10,300 lb.) 45.2 kN (10,170 lb.) 42.9 kN (9,650 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 3332 kg (7,340 lb.) 3269 kg (7,200 lb.) 3210 kg (7,070 lb.) 2996 kg (6,600 lb.)

R Height to Bucket Hinge Pin (maximum) . . . . . . . 3.35 m (11 ft. 0 in.) 3.35 m (11 ft. 0 in.) 3.35 m (11 ft. 0 in.) 3.35 m (11 ft. 0 in.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.54 m (8 ft. 4 in.) 2.69 m (8 ft. 10 in.) 2.67 m (8 ft. 9 in.) 2.62 m (8 ft. 7 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 902 mm (35.5 in.) 762 mm (30.0 in.) 787 mm (31.0 in.) 818 mm (32.2 in.)

U Digging Depth Below Ground (bucket level) . . . . 107 mm (4.2 in.) 170 mm (6.7 in.) 157 mm (6.2 in.) 182 mm (7.2 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.18 m (7 ft. 2 in.) 2.03 m (6 ft. 8 in.) 2.03 m (6 ft. 8 in.) 2.15 m (7 ft. 1 in.)

Tool-Carrier Loader Option

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390 kg (860 lb.) 493 kg (1,085 lb.) 520 kg (1,145 lb.) 789 kg (1,737 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 45.8 kN (10,300 lb.) 50.9 kN (11,450 lb.) 47.3 kN (10,640 lb.) 43.1 kN (9,680 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 3008 kg (6,625 lb.) 3276 kg (7,215 lb.) 3094 kg (6,815 lb.) 2656 kg (5,850 lb.)

R Height to Bucket Hinge Pin (maximum) . . . . . . . 3.40 m (11 ft. 2 in.) 3.40 m (11 ft. 2 in.) 3.35 m (11 ft. 0 in.) 3.40 m (11 ft. 2 in.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.51 m (8 ft. 3 in.) 2.59 m (8 ft. 6 in.) 2.57 m (8 ft. 5 in.) 2.50 m (8 ft. 2 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 868 mm (34.2 in.) 762 mm (30.0 in.) 787 mm (31.0 in.) 836 mm (32.9 in.)

U Digging Depth Below Ground (bucket level) . . . . 122 mm (4.8 in.) 140 mm (5.5 in.) 140 mm (5.5 in.) 152 mm (6.0 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.30 m (7 ft. 7 in.) 2.15 m (7 ft. 1 in.) 2.15 m (7 ft. 1 in.) 2.27 m (7 ft. 5 in.)

Lift Capacity with Quick-Coupler / Forks

Hydraulic Capacity ........................1219-mm (48 in.) tines 1524-mm (60 in.) tines

A' Maximum Height. . . . . . . . . . . . . . . . . . . . . . . . 2211 kg (4,875 lb.) 2053 kg (4,526 lb.)

B' Maximum Reach . . . . . . . . . . . . . . . . . . . . . . . . 3438 kg (7,580 lb.) 3294 kg (7,261 lb.)

C' At Ground Line . . . . . . . . . . . . . . . . . . . . . . . . . 4400 kg (9,700 lb.) 4180 kg (9,215 lb.)

D' Below Ground Line . . . . . . . . . . . . . . . . . . . . . . 211 mm (8.3 in.) 211 mm (8.3 in.)

DKAJLBH Page 33

710J

PAGES

34–35

Engine 710J

For use both in and outside U.S., Canada, and Europe

Manufacturer and Model . . . . . . . . . . . . . . . . . . . . John Deere PowerTechTM E 6068HT067 turbocharged, standard

Non-Road Emissions Standard . . . . . . . . . . . . . . . . EPA Tier 3/EU Stage IIIA

Displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8 L (414 cu. in.)

Net Peak Power (ISO9249) . . . . . . . . . . . . . . . . . . . 94 kW (126 hp) @ 2,000 rpm

Net Peak Torque (ISO9249) . . . . . . . . . . . . . . . . . . 549 Nm (404 lb.-ft.) @ 1,300 rpm

Net Torque Rise ...........................38%

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure system with spin-on filter and cooler

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . dual-stage dry type with safety element and evacuator valve

Cooling

Fan Type ................................suction

Engine Coolant Rating . . . . . . . . . . . . . . . . . . . . . . –37 deg. C (–34 deg. F)

Engine Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . oil to water

Powertrain

Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-speed, helical-cut gears, full PowerShift

with hydraulic reverser standard; electric clutch cutoff on loader lever

Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . single stage, dual phase with 1.95:1 stall ratio; 280 mm (11 in.)

Maximum Travel Speeds with Standard

Engine and 21L-28 Rear Tires . . . . . . . . . Forward Reverse

With 15-19.5 Front Tires and

Mechanical-Front-Wheel Drive

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . 6.1 km/h (3.8 mph) 6.9 km/h (4.3 mph)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . 10.3 km/h (6.4 mph) 11.4 km/h (7.1 mph)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . 24.9 km/h (15.5 mph) 27.5 km/h (17.1 mph)

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . 36.0 km/h (22.4 mph) N/A

With 14.5/75-16.1 Front Tires

Gear 1 . . . . . . . . . . . . . . . . . . . . . . . . 6.1 km/h (3.8 mph) 6.9 km/h (4.3 mph)

Gear 2 . . . . . . . . . . . . . . . . . . . . . . . . 10.3 km/h (6.4 mph) 11.6 km/h (7.2 mph)

Gear 3 . . . . . . . . . . . . . . . . . . . . . . . . 24.9 km/h (15.5 mph) 27.7 km/h (17.2 mph)

Gear 4 . . . . . . . . . . . . . . . . . . . . . . . . 36.0 km/h (22.4 mph) N/A

Axles

Axle Oscillations, Stop to Stop (both axles) . . . . 22 deg.

Axle Ratings .......................... Mechanical-

Standard front-wheel drive Rear

Static . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 950 kg 18 500 kg 19 700 kg

(50,596 lb.) (40,786 lb.) (43,431 lb.)

Dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . 9200 kg 7700 kg 9800 kg

(20,283 lb.) (16,976 lb.) (21,605 lb.)

Ultimate . . . . . . . . . . . . . . . . . . . . . . . . . . 41 000 kg 43 600 kg 46 400 kg

(90,390 lb.) (96,122 lb.) (102,295 lb.)

Differentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . hydraulic locking rear, electric, foot-actuated; limited slip front

Steering (ISO5010) . . . . . . . . . . . . . . . . . . . . . . . . hydrostatic power and emergency steering

Axle .................................Mechanical-

front-wheel drive Non-powered front

Curb-Turning Radius

With Brakes . . . . . . . . . . . . . . . . . . . . 4.05 m (13 ft. 3 in.) 4.07 m (13 ft. 4 in.)

Without Brakes . . . . . . . . . . . . . . . . . 4.62 m (15 ft. 2 in.) 4.65 m (15 ft. 3 in.)

Bucket Clearance Circle

With Brakes . . . . . . . . . . . . . . . . . . . . 11.04 m (36 ft. 3 in.) 11.31 m (37 ft. 1 in.)

Without Brakes . . . . . . . . . . . . . . . . . 12.07 m (39 ft. 7 in.) 12.31 m (40 ft. 5 in.)

Steering Wheel Turns (lock to lock,

flow amplified) . . . . . . . . . . . . . . . . . . 2.7 to 4.4 2.8 to 4.5

Final Drive

Mechanical-Front Wheel . . . . . . . . . . . . . . . . . heavy-duty, inboard planetary final drives distribute shock loads over 3 gears

Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . heavy-duty, inboard planetary final drives distribute shock loads over 4 gears

DKAJLBH Page 34

Powertrain 710J

Brakes (conform to ISO 3450)

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . full power, hydraulic wet disc, mounted inboard, self-adjusting and self-equalizing

Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . spring-applied, hydraulically released, wet, multi disc, independent of service brakes with electric switch control

Hydraulics

Main Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pressure-compensated load sensing (PCLS), axial piston

Pump Flow @ 2,200 rpm

Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 L/min. (52 gpm)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197 L/min. (52 gpm)

System Relief Pressure

Backhoe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 993 kPa (3,625 psi)

Backhoe Controls . . . . . . . . . . . . . . . . . . . . . . . . . pilot controls with pattern select standard; two-lever manual, three-lever manual controls with foot swing, and manual and/or electric

auxiliary functions optional

Loader Controls . . . . . . . . . . . . . . . . . . . . . . . . . . single-lever control with electric clutch cutoff switch standard; manual auxiliary function optional

Cylinders

Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . heat-treated, chrome-plated, polished rods; hardened-steel (replaceable bushings) pivot pins

Bore Rod Diameter Stroke

Loader Boom (2) . . . . . . . . . . . . . . . . . . . . . . . . . 100 mm (3.94 in.) 56 mm (2.20 in.) 805 mm (31.69 in.)

Loader Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . . 110 mm (4.33 in.) 56 mm (2.20 in.) 672 mm (26.44 in.)

Backhoe Boom (1) . . . . . . . . . . . . . . . . . . . . . . . . 160 mm (6.30 in.) 95 mm (3.74 in.) 944 mm (37.17 in.)

Backhoe Crowd (1) . . . . . . . . . . . . . . . . . . . . . . . 140 mm (5.51 in.) 85 mm (3.35 in.) 792 mm (31.16 in.)

Backhoe Bucket (1) . . . . . . . . . . . . . . . . . . . . . . . 110 mm (4.33 in.) 70 mm (2.76 in.) 939 mm (36.97 in.)

Backhoe Swing (2). . . . . . . . . . . . . . . . . . . . . . . . 110 mm (4.33 in.) 56 mm (2.20 in.) 308 mm (12.13 in.)

Backhoe Extendable Dipperstick (1) . . . . . . . . . 80 mm (3.15 in.) 45 mm (1.77 in.) 1372 mm (54.00 in.)

Backhoe Stabilizer, Standard (2) . . . . . . . . . . . . 115 mm (4.53 in.) 63 mm (2.48 in.) 588 mm (23.15 in.)

Non-Powered Axle (1) . . . . . . . . . . . . . . . . . . . . . 75 mm (2.95 in.) 45 mm (1.77 in.) 230 mm (9.06 in.)

Mechanical-Front-Wheel Drive (1) . . . . . . . . . . . 75 mm (2.95 in.) 50 mm (1.97 in.) 260 mm (10.24 in.)

Electrical

Voltage .................................12 volt

Alternator Rating . . . . . . . . . . . . . . . . . . . . . . . . . . 90 amp

Operator Station

Type (SAE J1040) . . . . . . . . . . . . . . . . . . . . . . . . . canopy, isolation mounted, ROPS/FOPS, left/right access, with molded roof

Tires/Wheels

Front Rear

Non-Powered Front Axle . . . . . . . . . . . . . . . . . . . . 14.5/75-16.1 SL F-3 (10) 21L-28 R-4 (14)

16.5L-16.1 SL F-3 (10) 21L-28 R-4 (14)

Mechanical-Front-Wheel Drive . . . . . . . . . . . . . . . . 15-19.5 NHS SS-1 (8) 21L-28 R-4 (14)

15-19.5 NHS SS-1 (8) 20.5-25 L-2 (12)

Serviceability

Hydraulic Oil Filter, Spin-On Enclosed Replace-

able Element, Vertically Mounted . . . . . . . . . . 6-micron filtration / 1,000 service hours

Refill Capacities

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 23 L (24.7 qt.)

Rear Axle ............................16 L (17 qt.)

Engine Oil (including vertical spin-on filter) . . . . 20 L (21.1 qt.)

Torque Converter and Transmission . . . . . . . . 15.1 L (16 qt.)

Fuel Tank (with ground-level fueling) . . . . . . . 261 L (69 gal.)

Hydraulic System . . . . . . . . . . . . . . . . . . . . . . 151 L (40 gal.)

Hydraulic Reservoir . . . . . . . . . . . . . . . . . . . . . 47 L (12.4 gal.)

Mechanical-Front-Wheel-Drive Housing

Axle .............................9 L (9.5 qt.)

Planetary (each) . . . . . . . . . . . . . . . . . . . . 0.81 L (0.86 qt.)

Operating Weights

With Full Fuel Tank, 79-kg (175 lb.) Operator,

and Standard Equipment . . . . . . . . . . . . . . . . . 10 431 kg (23,000 lb.)

Typical with Cab, Mechanical-Front-Wheel

Drive, Extendable Dipperstick, and

740-kg (1,630 lb.) Counterweight . . . . . . . . . . 11 791 kg (26,000 lb.)

Optional Components

Cab .................................293 kg (645 lb.)

Mechanical-Front-Wheel Drive with Tires . . . . 373 kg (822 lb.)

Extendable Dipperstick . . . . . . . . . . . . . . . . . . 317 kg (700 lb.)

Front Loader Coupler . . . . . . . . . . . . . . . . . . . . 363 kg (800 lb.)

Backhoe Bucket Coupler . . . . . . . . . . . . . . . . . 299 kg (660 lb.)

DKAJLBH Page 35

PAGES

36–37

Backhoe Dimensions / Performance 710J

Backhoe specifications are with 610-mm x

0.31-m3 (24 in. x 11.1 cu. ft.) bucket

Bucket Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 610–914 mm (24–36 in.)

Digging Force

Bucket Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 75.6 kN (17,000 lb.)

Crowd Cylinder . . . . . . . . . . . . . . . . . . . . . . . . 52.3 kN (11,750 lb.)

Swing Arc ...............................180 deg.

Operator Control . . . . . . . . . . . . . . . . . . . . . . . . . . pilot control

With Standard With Optional Extendable Dipperstick

Backhoe Retracted Extended

F Loading Height (truck loading position) . . . . . . . 4.34 m (14 ft. 3 in.) 4.34 m (14 ft. 3 in.) 5.18 m (17 ft. 0 in.)

G Reach from Center of Swing Pivot. . . . . . . . . . . 6.86 m (22 ft. 6 in.) 6.86 m (22 ft. 6 in.) 8.19 m (26 ft. 10 in.)

H Reach from Center of Rear Axle . . . . . . . . . . . . 8.13 m (26 ft. 8 in.) 8.13 m (26 ft. 8 in.) 9.46 m (31 ft. 0 in.)

I Digging Depth (SAE maximum) . . . . . . . . . . . . . 5.44 m (17 ft. 10 in.) 5.44 m (17 ft. 10 in.) 6.81 m (22 ft. 4 in.)

J Digging Depth (SAE)

610-mm (2 ft.) Flat Bottom . . . . . . . . . . . . . . . . 5.41 m (17 ft. 9 in.) 5.41 m (17 ft. 9 in.) 6.83 m (22 ft. 5 in.)

2440-mm (8 ft.) Flat Bottom . . . . . . . . . . . . . . . 5.18 m (17 ft. 0 in.) 5.18 m (17 ft. 0 in.) 6.58 m (21 ft. 7 in.)

K Stabilizer Width (transport) . . . . . . . . . . . . . . . . 2.41 m (7 ft. 11 in.) 2.41 m (7 ft. 11 in.) 2.41 m (7 ft. 11 in.)

L Stabilizer Spread (operating) . . . . . . . . . . . . . . . 3.99 m (13 ft. 1 in.) 3.99 m (13 ft. 1 in.) 3.99 m (13 ft. 1 in.)

M Stabilizer Overall Width (operating) . . . . . . . . . . 4.65 m (15 ft. 3 in.) 4.65 m (15 ft. 3 in.) 4.65 m (15 ft. 3 in.)

N Bucket Rotation . . . . . . . . . . . . . . . . . . . . . . . . 190 deg. 190 deg. 190 deg.

O Transport Height . . . . . . . . . . . . . . . . . . . . . . . . 4.17 m (13 ft. 8 in.) 4.22 m (13 ft. 10 in.) 4.22 m (13 ft. 10 in.)

Overall Dimensions 710J

A Ground Clearance (minimum) . . . . . . . . . . . . . . 356 mm (14 in.)

B Overall Length (transport) . . . . . . . . . . . . . . . . . 8.15 m (26 ft. 9 in.)

C Width over Tires . . . . . . . . . . . . . . . . . . . . . . . . 2.29 m (7 ft. 6 in.)

D Height to Top of ROPS/Cab . . . . . . . . . . . . . . . . 2.97 m (9 ft. 9 in.)

E Length from Axle to Axle

Non-Powered Front Axle . . . . . . . . . . . . . . . . . . 2.52 m (8 ft. 3 in.)

Mechanical-Front-Wheel-Drive Axle . . . . . . . . . 2.49 m (8 ft. 2 in.)

DKAJLBH Page 36

SWING PIVOT

3117 6,871

2788 (6,146)

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

SWING PIVOT

2311 (5,096)

0 4 8 12 16 20

0 1 2 3 4 5 6 7

FEET

METERS

SWING PIVOT

0 4 8 12 16 20 24

0 1 2 3 4 5 6 7 8

FEET

METERS

1123 (2,476)

1104 (2,436)

1083 (2,388)

1060 (2,336)

1036 (2,283)

1012 (2,230)

966 (2,130)

988 (2,179)

946 (2,085)

928 (2,045)

913 (2,012)

902 (1,988)

898 (1,979)

1134 (2,500)

904 (1,995)

937 (2,065)

1651 (3,640)

1773 (3,908)

1910 (4,210)

2098 (4,625)

2434 (5,366)

806 (1,777)

1144 (2,523)

1521 (3,355)

3509 (7,735)

1363 (3,006)

DIPPER

LIFT

WITH

BOOM

AT 65

1132 (2,496)

1104 (2,434)

DIPPER

LIFT

WITH

BOOM

AT 65

BOOM

LIFT

1955 (4,310)

1909 (4,208)

1857 (4,093)

1803 (3,975)

1751 (3,860)

1701 (3,749)

1653 (3,645)

1609 (3,548)

1569 (3,460)

1535 (3,383)

1505 (3,319)

1487 (3,278)

3288 (7,248)

3115 (6,867)

3768 (8,306)

1490 (3,285)

1985 (4,376)

1579 (3,480)

5521 (12,171)

2785 (6,140)

1189 (2,622)

1730 (3,814)

1256 (2,770)

5262 (11,601)

1695 (3,737)

1645 (3,627)

1590 (3,506)

1535 (3,383)

1480 (3,262)

1427 (3,147)

1378 (3,037)

1331 (2,935)

1289 (2,841)

1251 (2,757)

1223 (2,686)

1194 (2,633)

2885 (6,360)

3057 (6,740)

3530 (7,783)

BOOM

LIFT

DIPPER

LIFT

WITH

BOOM

AT 65°

BOOM

LIFT

Lift capacities are over-end values in kg (lb.) according to SAE J31. Figures listed are 87% of the maximum lift force available. Base vehicle includes counterweight.

710J Backhoe with Standard Dipperstick

710J Backhoe with 1.37-m (4 ft. 6 in.)

Extendable Dipperstick, Retracted

710J Backhoe with 1.37-m (4 ft. 6 in.)

Extendable Dipperstick, Extended

For more detailed spec information and available options, log on to www.JohnDeere.com.

Loader Dimensions / Performance 710J

P Bucket Dump Angle (maximum) . . . . . . . . . . . . 45 deg.

Q Rollback Angle at Ground Level . . . . . . . . . . . . 40 deg.

Standard-duty Standard-duty Multipurpose

Bucket Capacity ...........................1.24 m3 (1.62 cu. yd.) 1.43 m3 (1.87 cu. yd.) 1.05 m3 (1.375 cu. yd.)

Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2464 mm (97 in.) 2464 mm (97 in.) 2451 mm (96.5 in.)

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 831 kg (1,830 lb.) 867 kg (1,909 lb.) 970 kg (2,136 lb.)

Breakout Force . . . . . . . . . . . . . . . . . . . . . . . . . . . 69.1 kN (15,540 lb.) 65.8 kN (14,800 lb.) 69.8 kN (15,690 lb.)

Lift Capacity (full height) . . . . . . . . . . . . . . . . . . . . 4212 kg (9,277 lb.) 3947 kg (8,693 lb.) 3964 kg (8,732 lb.)

R Height to Bucket Hinge Pin (maximum) . . . . . . . 3.78 m (12 ft. 5 in.) 3.78 m (12 ft. 5 in.) 3.78 m (12 ft. 5 in.)

S Dump Clearance (bucket at 45 deg.) . . . . . . . . . 2.92 m (9 ft. 7 in.) 2.84 m (9 ft. 4 in.) 2.95 m (9 ft. 8 in.)

T Reach at Full Height (bucket at 45 deg.) . . . . . . 691 mm (27.2 in.) 770 mm (30.3 in.) 683 mm (26.9 in.)

U Digging Depth Below Ground (bucket level) . . . . 104 mm (4.1 in.) 104 mm (4.1 in.) 81 mm (3.2 in.)

V Length From Front Axle Centerline to

Bucket Cutting Edge . . . . . . . . . . . . . . . . . . . . . 2.10 m (6 ft. 11 in.) 2.21 m (7 ft. 3 in.) 2.06 m (6 ft. 9 in.)

Lift Capacity with Quick-Coupler / Forks

Hydraulic Capacity ........................1219-mm (48 in.) tines

A' Maximum Height. . . . . . . . . . . . . . . . . . . . . . . . 2632 kg (5,803 lb.)

B' Maximum Reach . . . . . . . . . . . . . . . . . . . . . . . . 4378 kg (9,651 lb.)

C' At Ground Line . . . . . . . . . . . . . . . . . . . . . . . . . 6057 kg (13,353 lb.)

D' Below Ground Line . . . . . . . . . . . . . . . . . . . . . . 140 mm (5.5 in.)

DKAJLBH Page 37

Net engine power is with standard equipment including air

cleaner, exhaust system, alternator, and cooling fan at test

conditions specified per ISO9249. No derating is required up

to 1500-m (5,000 ft.) altitude for the 310J and up to 3050-m

(10,000 ft.) for the 310J with optional altitude-compensating

turbocharger, the 310SJ, the 410J, and the 710J.

Specifications and design are subject to change without notice. Wherever applicable, specifications are in accordance with ISO standards.

Except where otherwise noted, these specifications are based on a 310J unit with 19.5L-24-in. 10PR (R4) tubeless rear and 11L-16-in.

12PR (F3) front tires, 0.76-m3 (1.00 cu. yd.) loader bucket, and 610-mm x 0.18-m3 (24 in. x 6.5 cu. ft.) backhoe bucket; a 310SJ unit

with 19.5L-24-in. 10PR (R4) tubeless rear and 11L-16-in. 12PR (F3) front tires, 0.86-m3 (1.12 cu. yd.) loader bucket, and 610-mm x

0.21-m3 (24 in. x 7.5 cu. ft.) backhoe bucket; a 410J unit with 19.5L-24-in. 10PR (R4) tubeless rear and 11L-16-in. 12PR (F3) front

tires, 1.00-m3 (1.30 cu. yd.) loader bucket, and 610-mm x 0.21-m3 (24 in. x 7.5 cu. ft.) backhoe bucket; and a 710J unit with 21L-28

R-4 (14) rear and 14.5/75-16.1 SL F-3 (10) front tires, 1.24-m3 (1.62 cu. yd.) loader bucket, and 610-mm x 0.31-m3 (24 in. x 11.1 cu. ft.)

backhoe bucket.

310J 310SJ 410J 710J

Engine

l l l l Meets EPA Tier 3/EU Stage IIIA emissions

l John Deere Model 4045HT054 – 4.5 liter, 63 kW

(84 net peak hp) turbocharged, isolation mounted

l John Deere Model 4045HT054 – 4.5 liter, 69 kW

(93 net peak hp) turbocharged, isolation mounted

l John Deere Model 4045HT054 – 4.5 liter, 73 kW

(98 net peak hp) turbocharged, isolation mounted

l John Deere Model 6068HT067 – 6.8 liter, 94 kW

(126 net peak hp) turbocharged, isolation mounted

l l l l Vertical spin-on engine oil filter

l l l l Vertical spin-on fuel filter with water separator

l l l l Oil-to-water engine oil cooler

l l l l Antifreeze, –37°C (–34°F)

l l l l Coolant recovery tank

l l l l Serpentine belt with automatic belt tensioner

l l l l Suction-type cooling fan

l l l l Enclosed safety fan guard

s s s High ambient temperature engine cooling

l l l l Dual-element dry-type air cleaner

l l l l Muffler, under hood with curved-end exhaust stack

s s s Chrome exhaust extension

s s s s Cold-start package – electric ether starting aid

and engine coolant heater, 1,000 watts

Powertrain

l l l l PowerShiftTM transmission: Torque converter with

electrically actuated twist grip F-N-R with neutral

safety switch interlock (1st through 4th gears)

l l l l Transmission oil cooler

l l l l Vertical spin-on transmission filter

s s s s Transmission remote oil-sampling port

l l l l Differential lock, electric foot-actuated

l l l l Planetary final drives

l l l Power-assisted hydraulic service brakes (conform

to ISO 3450): Inboard, wet multi-disc, self-adjust-

ing and self-equalizing

l Full-power hydraulic service brakes (conform to

ISO 3450): Inboard, wet multi-disc, self-adjust-

ing and self-equalizing

l l l l Parking/emergency brake with electric switch

control (conforms to ISO 3450): Spring applied,

hydraulically released wet multi-disc / Indepen-

dent of service brakes

l l l l Hydrostatic power steering with emergency

manual mode

s s s s Non-powered front axle

l Mechanical-front-wheel drive with open differ-

ential: Electric on/off control / Sealed axle

l l l Mechanical-front-wheel drive with traction control

limited-slip differential: Electric on/off control /

Sealed axle

s s s s Rear wheel spacers for use with chains

s s s MFWD driveshaft guard

Backhoe

l Standard dipperstick, 4.34-m (14 ft. 3 in.)

digging depth

l Standard dipperstick, 4.42-m (14 ft. 6 in.)

digging depth

l Standard dipperstick, 4.83-m (15 ft. 10 in.)

digging depth

l Standard dipperstick, 5.44-m (17 ft. 10 in.)

digging depth

s s Extendable dipperstick, 1.07-m (3 ft. 6 in.)

extension

s Extendable dipperstick, 1.22-m (4 ft.) extension

s Extendable dipperstick, 1.37-m (4 ft. 6 in.)

extension

s Heavy-duty backhoe bucket cylinder option

l l l s 2-lever (Deere) backhoe controls

s s s l 2-lever pilot controls with pattern-selection feature

l l l l Backhoe transport lock lever

l l l l Swing lock pin stored in operator’s station

l l l l Stabilizers with 2-direction anti-drift valves

l l l l Pivoting stabilizers with reversible pads

s Extended (long) stabilizers with reversible pads

l l l l Less bucket, with bucket pins

s s s Standard-duty backhoe bucket with lift loops

310J 310SJ 410J 710J

Backhoe (continued)

s s s s Heavy-duty backhoe bucket with lift loops

s s s Severe-duty backhoe bucket with lift loops

s s s Backhoe coupler for “C,” “D,” “E,” “G,” and “J”

Series John Deere, Case, and Cat buckets

s s s s Auxiliary backhoe valve for swingers, thumbs,

etc. with auxiliary plumbing

s s s s Auxiliary backhoe valve for hammers and com-

pactors with auxiliary plumbing

s s s Hydraulic thumb

Loader†

l l l l Loader bucket anti-spill (rollback)

l l l l Return-to-dig feature

l l l l Single-lever control with electric clutch cutoff

switch

l l l l Bucket-level indicator

l l l l Loader boom service lock

s s s s Auxiliary loader hydraulics with 2-lever control

s s s s Hydraulic coupler for buckets, forks, etc.

l l l l Less bucket, with bucket pins

l l l High-visibility loader arms

Hydraulic System

l 106-L/min. (28 gpm) gear pump, open center

system

l 136-L/min. (36 gpm) tandem gear pump, open-

center system

l 159-L/min. (42 gpm) axial piston pump, PCLS

system

l 197-L/min. (52 gpm) axial piston pump, PCLS

system

l l l l Independent hydraulic reservoir

l l l l “O”-ring face seal connectors

l l l l 6-micron vertical spin-on filter

Electrical System

l l l l 12-volt system

l l l l 90-amp alternator

l l l Single battery with 190-min. reserve capacity

and 950 CCA

s s s l Dual batteries with 380-min. reserve capacity

and 1,900 CCA

l l l l Positive terminal battery cover

l l l l Blade-type multi-fused circuits

l l l l By-pass start safety cover on starter

s s s s Master disconnect switch

l l l l Jump/auxiliary start terminal

Lights

l l l l Halogen lights (4), 32,500 candlepower each

(2 front driving/working and 2 rear working)

l l l l Turn signal/flashing (2 front and 2 rear)

l l l l Rear stop and tail (2)

l l l l Rear reflectors (2)

Operator’s Station

l l l l Modular-design ROPS/FOPS canopy with molded

roof (conforms to SAE J1040): Isolation mounted

l l l l Left and right access

l l l l Slip-resistant steps and ergonomically located

handholds (conform to SAE J185)

l l l l Molded floor mats

l l l l Headliner

l l l l Coat hook

l l l l 12-volt outlets (2 cab, 1 canopy)

l l l l Built-in beverage and Thermos bottle holders

l l l l Built-in Operator’s Manual storage compartment

with manual

l l l l Interior rearview mirror

s s s s Interior front-view mirror

s s s s Outside rearview mirrors

l l l l Rotary hand throttle

l l l l Suspended foot throttle

l l l l Horn

l l l l Seat belt, 76-mm (3 in.), with retractor

l l l l Key start switch with electric fuel shutoff

s s s s Electronic anti-theft enabled through monitor

l l l l Engine coolant temperature gauge, illuminated

electronic, with audible warning

l l l l Oil temperature gauge, illuminated electronic,

with audible warning

310J 310SJ 410J 710J

Operator’s Station (continued)

l l l l Fuel gauge, illuminated electronic

l l l l Digital display of engine hours, engine rpm, and

system voltage

l l l l Monitor system with audible and visual warnings:

Engine air restriction indicator / Low alternator

voltage indicator / Engine oil pressure indicator

with audible warning / Hydraulic filter restriction

indicator / Parking brake on/off indicator with

audible warning / Seat belt indicator / Low brake

pressure / Machine diagnostic information via

4-push-button/LCD operator interface

l Basic Canopy: Mechanical suspension deluxe

vinyl swivel seat with lumbar adjustment and

armrests (fully adjustable)

l l l Canopy: Mechanical suspension deluxe vinyl

swivel seat with lumbar adjustment and armrests

(fully adjustable) / Tilt steering, infinitely adjustable /

Additional halogen work lights (6), 32,500 candle-

power each (2 front, 2 rear, and 2 side docking)

l Basic Cab: Air-suspension deluxe fabric swivel

seat with lumbar adjustment / Air conditioner

(7.6-kW [26,000 Btu/hr.] output and CFC-free

R134a refrigerant)

l l l l Premium Cab: Air-suspension deluxe fabric swivel

seat with lumbar adjustment / Tilt steering, infi-

nitely adjustable / AM/FM/weather-band radio /

Sun visor / Headliner, dome light, left and right

cab doors, tinted safety glass, windshield wiper

(1 rear and 1 front), front windshield washer,

fresh-air intake, and heater/defroster/pressurizer

(11.7-kW [40,000 Btu/ hr.] heater) / Additional

halogen work lights (6), 32,500 candlepower

each (2 front, 2 rear, and 2 side docking)

l l l l Ultimate Cab: Air-suspension deluxe fabric swivel

seat with lumbar adjustment / Tilt steering, infi-

nitely adjustable / AM/FM/weather-band radio

with CD player / Sun visor / Headliner, dome light,

left and right cab doors, tinted safety glass, wind-

shield wiper (1 rear and 1 front), front windshield

washer, fresh-air intake, and heater/defroster/

pressurizer (11/7-kW [40,000 Btu/hr.] heater) /

Additional halogen work lights (6), 32,500 candle-

power each (2 front, 2 rear, and 2 side docking) /

Air conditioner (7.6-kW [26,000 Btu/hr.] output

and CFC-free R134a refrigerant) / Ride control

Overall Vehicle

l l l l 1-piece unitized construction mainframe

l l l l Vehicle tie-downs (2 front and 2 rear)

l l l l Remote grease bank for front axle

l l l Front cover

s s s Heavy-duty front bumper

s s s 204-kg (450 lb.) front counterweight

s s s 317-kg (700 lb.) front counterweight

s s s 454-kg (1,000 lb.) front counterweight

s s s 567-kg (1,250 lb.) front counterweight

s s s 657-kg (1,450 lb.) front counterweight

l 422-kg (930 lb.) front counterweight

s 740-kg (1,630 lb.) front counterweight

s s s Rubber grille bumpers

l l l Fuel tank, 155 L (41 gal.), ground-level fueling

l Fuel tank, 261 L (69 gal.), ground-level fueling

l l l l 2-position easy-tilt hood

l l l Extended grille frame

l l l l Removable toolbox with padlock hasp

l l l l Vandal protection for locking monitor, engine

hood, toolbox, hydraulic reservoir, and fuel tank

l l l l Reverse warning alarm

s s s Sound-reduction package

l l l l Dent-resistant full-coverage rear fenders

s Boom-protection plate

s s s s JDLinkTM wireless communication system

(available in specific countries; see your dealer

for details)

†See dealer for range of heavy-duty, multipurpose, and coupler

buckets and forks.

310J / 310SJ / 410J / 710J BACKHOE LOADERS

Key: l Standard equipment s Optional equipment *See your John Deere dealer for further information.

DKAJLBH Page 38

Net engine power is with standard equipment including air

cleaner, exhaust system, alternator, and cooling fan at test

conditions specified per ISO9249. No derating is required up

to 10,000-ft. (3050 m).

Specifications and design are subject to change without notice. Wherever applicable, specifications are in accordance with ISO standards.

Except where otherwise noted, these specifications are based on a 310SJ TMC unit with 19.5L-24-in. 10PR (R4) tubeless rear and

11L-16-in. 12PR (F3) front tires, 1.12-cu.-yd. (0.86 m3) loader bucket, and 24-in. x 7.5-cu.-ft. (610 mm x 0.21 m3) backhoe bucket;

and a 410J TMC unit with 19.5L-24-in. 10PR (R4) tubeless rear and 11L-16-in. 12PR (F3) front tires, 1.30-cu.-yd. (1.00 m3) loader

bucket, and 24-in. x 7.5-cu.-ft. (610 mm x 0.21 m3) backhoe bucket.

310SJ 410J

TMC TMC

Engine

l l Meets EPA Tier 3/EU Stage IIIA emissions

l John Deere Model 4045HT054 – 4.5 liter, 70 kW

(94 net peak hp) turbocharged, isolation mounted

l John Deere Model 4045HT054 – 4.5 liter, 73 kW

(98 net peak hp) turbocharged, isolation mounted

l l Vertical spin-on engine oil filter

l l Vertical spin-on fuel filter with water separator

l l Oil-to-water engine oil cooler

l l Antifreeze, –37°C (–34°F)

l l Coolant recovery tank

l l Serpentine belt with automatic belt tensioner

l l Suction-type cooling fan

l l Enclosed safety fan guard

s s High ambient temperature engine cooling

l l Dual-element dry-type air cleaner

l l Muffler, under hood with curved-end exhaust

stack

s s Chrome exhaust extension

s s Cold-start package – electric ether starting aid

and engine coolant heater, 1,000 watts

Powertrain

l l PowerShiftTM transmission: Torque converter with

electrically actuated twist grip F-N-R with neutral

safety switch interlock (1st through 4th gears)

l l Transmission oil cooler

l l Vertical spin-on transmission filter

l l Transmission remote oil-sampling port

l l Differential lock, electric foot-actuated

l l Planetary final drives

l l Power-assisted hydraulic service brakes (con-

form to ISO 3450): Inboard, wet multi-disc, self-

adjusting and self-equalizing

l l Parking/emergency brake with electric switch

control (conforms to ISO 3450): Spring applied,

hydraulically released wet multi-disc / Indepen-

dent of service brakes

l l Hydrostatic power steering with emergency

manual mode

l l Mechanical-front-wheel drive with traction

control limited-slip differential: Electric on/off

control / Sealed axle

s s Rear wheel spacers for use with chains

s s MFWD driveshaft guard

Backhoe

l Extendable dipperstick, 1.07-m (3 ft. 6 in.)

extension

l Extendable dipperstick, 1.22-m (4 ft.) extension

l Heavy-duty backhoe bucket cylinder

l l Backhoe transport lock lever

l l Swing lock pin stored in operator’s station

l l Stabilizers with 2-direction anti-drift valves

l l Pivoting stabilizers with reversible pads

l Extended (long) stabilizers with reversible pads

l l Less bucket, with bucket pins

s s Standard-duty backhoe bucket with lift loops

s s Heavy-duty backhoe bucket with lift loops

s s Severe-duty backhoe bucket with lift loops

s s Backhoe coupler for “C,” “D,” “E,” “G,” and “J”

Series John Deere, Case, and Cat buckets

l l Auxiliary backhoe valve for swingers, thumbs,

etc. with auxiliary plumbing

l l Auxiliary backhoe valve for hammers and com-

pactors with auxiliary plumbing

310SJ 410J

TMC TMC

Backhoe (continued)

s s Hydraulic thumb

Loader†

l l Loader bucket anti-spill (settable height)

l l Return-to-dig feature (settable / activates from

curled or dumped bucket position)

l l Armrest-mounted joysticks with electric clutch

cutoff, auxiliary loader control, extendible dipper-

stick control, MFWD control (momentary), MFWD

control (permanent), proportional auxiliary back-

hoe control, and horn

l l Auxiliary loader hydraulics with thumb-switch

control

l l Mini joystick for simultaneous control of loader

and backhoe

l l Electric bucket-level indicator

l l Loader boom service lock

l l Ride control

l l Less bucket, with bucket pins

l l High-visibility loader arms

l l Tool-carrier loader: Front loader hydraulic quick-

coupler / Parallel lift (selectable) / Return-to-carry

(selectable / height set) / Boom-height kickout

Hydraulic System

l l 159-L/min. (42 gpm) axial piston pump

l l Independent hydraulic reservoir

l l “O”-ring face seal connectors

l l 6-micron vertical spin-on filter

Electrical System

l l 12-volt system

l l 120-amp alternator

l l Dual batteries with 380-min. reserve capacity

and 1,900 CCA

l l Dual battery master-disconnect switch

l l Positive terminal battery cover

l l Blade-type multi-fused circuits

l l By-pass start safety cover on starter

l l Jump/auxiliary start terminal

Lights

l l Turn signal/flashing (2 front and 2 rear)

l l Rear stop and tail (2)

l l Rear reflectors (2)

Operator’s Station

l l Modular-design ROPS/FOPS cab with molded

roof (conforms to SAE J1040): Isolation mounted

l l Left and right access

l l Slip-resistant steps and ergonomically located

handholds (conform to SAE J185)

l l Molded floor mats

l l Headliner

l l Coat hook

l l 12-volt outlets (2)

l l Built-in beverage and Thermos bottle holders

l l Built-in Operator’s Manual storage compartment

with manual

l l Auto-idle

l l Interior rearview mirror

l l Interior front-view mirror

s s Outside rearview mirrors

l l Stabilizer controls in the left armrest

l l Rotary-dial hand throttle

l l Suspended foot throttle

l l Tilt steering, infinitely adjustable

310SJ 410J

TMC TMC

Operator’s Station (continued)

l l Horn in side console

l l Seat belt, 76-mm (3 in.), with retractor

l l Key start switch with electric fuel shutoff

l l Electronic anti-theft enabled through monitor

l l Engine coolant temperature gauge, illuminated

electronic, with audible warning

l l Oil temperature gauge, illuminated electronic,

with audible warning

l l Fuel gauge, illuminated electronic

l l Digital display of engine hours, engine rpm, and

system voltage

l l Monitor system with audible and visual warn-

ings: Engine air restriction indicator / Low alter-

nator voltage indicator / Engine oil pressure

indicator with audible warning / Hydraulic filter

restriction indicator / Parking brake on/off indi-

cator with audible warning / Seat belt indicator /

Low brake pressure / Machine diagnostic infor-

mation via 4-pushbutton/LCD operator interface

l l TMC Canopy: Air-suspension deluxe vinyl

swivel seat with lumbar adjustment and arm-

rests (fully adjustable) / Tilt steering, infinitely

adjustable / Additional halogen work lights (6),

32,500 candlepower each (2 front, 2 rear, and

2 side docking)

l l Ultimate Cab: Air-suspension deluxe fabric

swivel seat with lumbar adjustment / Tilt steer-

ing / AM/FM/weather-band radio with CD player /

Sun visor / Headliner, dome light, left and right

cab doors, tinted safety glass, windshield wiper

(1 rear and 1 front), front windshield wiper, fresh-

air intake, and heater/defroster/pressurizer

(11.7-kW [40,000 Btu/hr.] heater) / Additional

halogen work lights (6), 32,500 candlepower

each (2 front, 2 rear, and 2 side docking) / Air

conditioner (7.6-kW [26,000 Btu/hr.] output and

CFC-free R134a refrigerant)

Overall Vehicle

l l 1-piece unitized construction mainframe

l l Vehicle tie-downs (2 front and 2 rear)

l l Remote grease bank for front axle

l l Heavy-duty front bumper

s s 204-kg (450 lb.) front counterweight

s s 317-kg (700 lb.) front counterweight

s s 454-kg (1,000 lb.) front counterweight

s s 567-kg (1,250 lb.) front counterweight

s s 657-kg (1,450 lb.) front counterweight

s s Rubber grille bumpers

l l Fuel tank, 155 L (41 gal.), ground-level fueling

l l 2-position easy-tilt hood

l l Extended grille frame

l l Removable toolbox with padlock hasp

l l Vandal protection for locking engine hood, tool-

box, hydraulic reservoir, and fuel tank

l l Reverse warning alarm

s s Sound-reduction package

l l Dent-resistant full-coverage rear fenders

s s JDLinkTM wireless communication system

(available in specific countries; see your

dealer for details)

†See dealer for range of heavy-duty, multipurpose, and

coupler buckets and forks.

310SJ / 410J WITH TOTAL MACHINE CONTROLTM

Key: l Standard equipment s Optional equipment *See your John Deere dealer for further information.

DKAJLBH Page 39

08-01-11

www.JohnDeere.com

DKAJLBH Page 40

J BACKHOES 710J JSeries

Navigation menu

Versions of this User Manual:

Views

Navigation
