SERVICE MANUAL

2005/4

COMPACT COMPONENT SYSTEM

MB38520054

MX-JE3,MX-JE31

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-41

Area suffix

US ------------------------ Singapore

UW ----------- Brazil,Mexico,Peru

UX -------------------- Saudi Arabia

UY ------------------------ Argentina

UG --- Turkey,South Africa,Egypt

UE -----------------------------Turkey

UN ----------------------------- Asean

MX-JE3

Area suffix

UX -------------------- Saudi Arabia

UG --- Turkey,South Africa,Egypt

UN ----------------------------- Asean

MX-JE31

(CA-MXJE3) (SP-MXJE3)

(SP-MXJE3)

(CA-MXJE31) (SP-MXJE31)

(SP-MXJE31)

1-2 (No.MB385)

SPECIFICATION

*1: Measured at 1 kHz, with tape recording signal 300 mV

Design and specifications are subject to change without notice.

Amplifier section Output Power 80 W per channel, min. RMS, driven into 6 Ω at 1 kHz with no

more than 10% total harmonic distortion.

Digital output OPTICAL DIGITAL

OUTPUT

-21 dBm to -15 dBm (660 nm ±30 nm)

Audio input sensitivity/

Impedance*1

AUX 300 mV/47 kΩ

MIC 1/2 3.0 mV/50 kΩ

VIDEO OUT Color system NTSC/PAL selectable

VIDEO (composite) 1 V(p-p)/75Ω

S-VIDEO Y (luminance) : 1 V(p-p)/75Ω

C (chrominance, burst) : 0.286 V(p-p)/75Ω

Speaker Terminals 6 Ω - 16 Ω (Main speakers)

Tuner section FM tuning range 87.50 MHz - 108.00 MHz

AM (MW) tuning range 531 kHz - 1 710 kHz (at 9 kHz)

530 kHz - 1 710 kHz (at 10 kHz)

For Saudi Arabia only 531 kHz - 1 602 kHz (at 9 kHz)

530 kHz - 1 600 kHz (at 10 kHz)

Disc player section Playable disc DVD Video/CD/VCD/SVCD

CD-R/CD-RW (recorded in Audio CD/ Video CD/

Super Video CD/ MP3/ WMA/ JPEG format)

DVD-R/DVD-RW (recorded in video format)

Dynamic range 90 dB

Horizontal resolution 500 lines

Wow and flutter Immeasurable

Cassette deck section Frequency response Normal (type I) 50 Hz - 14 000 Hz

Wow and flutter 0.15% (WRMS)

General Power requirement AC 110 V / AC 127 V / AC 220 V / AC 230 V - AC 240 V , (ad-

justable with the voltage selector), 50 Hz / 60 Hz

Power consumption 125 W (at operation) (MX-JE3/JE31)

17 W (on standby)

Dimensions (approx.) 265 mm × 335 mm × 352 mm (W/H/D)

Mass (approx.) 8.0 kg

Speakers Type 3-Way 3-Speaker Bass Reflex Type (Magnetically Shielded

type)

Speakers Woofer 15 cm cone × 1

Midrange 5 cm cone × 1

Tweeter 2 cm dome × 1

Power handling capacity 80 W

Impedance 6 Ω

Frequency range 42 Hz - 29 000 Hz

Sound pressure level 83 dB/W·m

Dimensions (approx.) JE31: 205 mm × 335 mm × 250 mm (W/H/D)

JE3: 205 mm × 335 mm × 232 mm (W/H/D)

Mass (approx.) JE31: 3.6 kg each

JE3: 3.5 kg each

(No.MB385)1-3

SECTION 1

PRECAUTION

1.1 Safety Precautions

(1) This design of this product contains special hardware and

many circuits and components specially for safety purpos-

es. For continued protection, no changes should be made

to the original design unless authorized in writing by the

manufacturer. Replacement parts must be identical to

those used in the original circuits. Services should be per-

formed by qualified personnel only.

(2) Alterations of the design or circuitry of the product should

not be made. Any design alterations of the product should

not be made. Any design alterations or additions will void

the manufacturers warranty and will further relieve the

manufacture of responsibility for personal injury or property

damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These characteris-

tics are often not evident from visual inspection nor can the

protection afforded by them necessarily be obtained by us-

ing replacement components rated for higher voltage, watt-

age, etc. Replacement parts which have these special

safety characteristics are identified in the Parts List of Ser-

vice Manual. Electrical components having such features

are identified by shading on the schematics and by ( ) on

the Parts List in the Service Manual. The use of a substitute

replacement which does not have the same safety charac-

teristics as the recommended replacement parts shown in

the Parts List of Service Manual may create shock, fire, or

other hazards.

(4) The leads in the products are routed and dressed with ties,

clamps, tubings, barriers and the like to be separated from

live parts, high temperature parts, moving parts and/or

sharp edges for the prevention of electric shock and fire

hazard. When service is required, the original lead routing

and dress should be observed, and it should be confirmed

that they have been returned to normal, after reassem-

bling.

(5) Leakage shock hazard testing

After reassembling the product, always perform an isola-

tion check on the exposed metal parts of the product (an-

tenna terminals, knobs, metal cabinet, screw heads,

headphone jack, control shafts, etc.) to be sure the product

is safe to operate without danger of electrical shock.Do not

use a line isolation transformer during this check.

• Plug the AC line cord directly into the AC outlet. Using a

"Leakage Current Tester", measure the leakage current

from each exposed metal parts of the cabinet, particular-

ly any exposed metal part having a return path to the

chassis, to a known good earth ground. Any leakage cur-

rent must not exceed 0.5mA AC (r.m.s.).

• Alternate check method

Plug the AC line cord directly into the AC outlet. Use an

AC voltmeter having, 1,000Ω per volt or more sensitivity

in the following manner. Connect a 1,500Ω 10W resistor

paralleled by a 0.15µF AC-type capacitor between an ex-

posed metal part and a known good earth ground.

Measure the AC voltage across the resistor with the AC

voltmeter.

Move the resistor connection to each exposed metal

part, particularly any exposed metal part having a return

path to the chassis, and measure the AC voltage across

the resistor. Now, reverse the plug in the AC outlet and

repeat each measurement. Voltage measured any must

not exceed 0.75 V AC (r.m.s.). This corresponds to 0.5

mA AC (r.m.s.).

1.2 Warning

(1) This equipment has been designed and manufactured to

meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that

these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant

safety standards.

(4) It is essential that safety critical components are replaced

by approved parts.

(5) If mains voltage selector is provided, check setting for local

voltage.

1.3 Caution

Burrs formed during molding may be left over on some parts

of the chassis.

Therefore, pay attention to such burrs in the case of pre-

forming repair of this system.

1.4 Critical parts for safety

In regard with component parts appearing on the silk-screen

printed side (parts side) of the PWB diagrams, the parts that are

printed over with black such as the resistor ( ), diode ( )

and ICP ( ) or identified by the " " mark nearby are critical

for safety. When replacing them, be sure to use the parts of the

same type and rating as specified by the manufacturer.

(This regulation dose not Except the J and C version)

Good earth ground

Place this

probe on

each exposed

metal part.

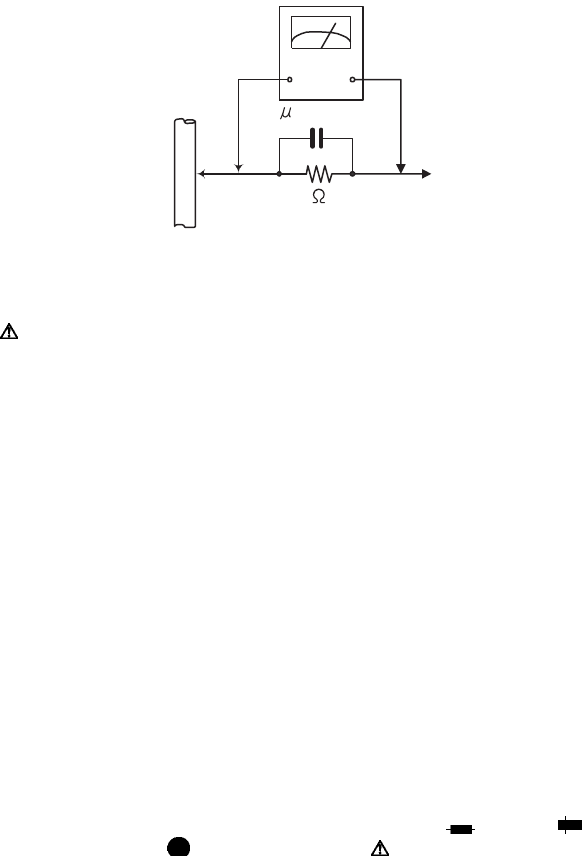

AC VOLTMETER

(Having 1000

ohms/volts,

or more sensitivity)

1500 10W

0.15 F AC TYPE

1-4 (No.MB385)

1.5 Preventing static electricity

Electrostatic discharge (ESD), which occurs when static electricity stored in the body, fabric, etc. is discharged, can destroy the laser

diode in the traverse unit (optical pickup). Take care to prevent this when performing repairs.

1.5.1 Grounding to prevent damage by static electricity

Static electricity in the work area can destroy the optical pickup (laser diode) in devices such as laser products.

Be careful to use proper grounding in the area where repairs are being performed.

(1) Ground the workbench

Ground the workbench by laying conductive material (such as a conductive sheet) or an iron plate over it before placing the

traverse unit (optical pickup) on it.

(2) Ground yourself

Use an anti-static wrist strap to release any static electricity built up in your body.

(3) Handling the optical pickup

• In order to maintain quality during transport and before installation, both sides of the laser diode on the replacement optical

pickup are shorted. After replacement, return the shorted parts to their original condition.

(Refer to the text.)

• Do not use a tester to check the condition of the laser diode in the optical pickup. The tester's internal power source can easily

destroy the laser diode.

1.6 Handling the traverse unit (optical pickup)

(1) Do not subject the traverse unit (optical pickup) to strong shocks, as it is a sensitive, complex unit.

(2) Cut off the shorted part of the flexible cable using nippers, etc. after replacing the optical pickup. For specific details, refer to the

replacement procedure in the text. Remove the anti-static pin when replacing the traverse unit. Be careful not to take too long a

time when attaching it to the connector.

(3) Handle the flexible cable carefully as it may break when subjected to strong force.

(4) I t is not possible to adjust the semi-fixed resistor that adjusts the laser power. Do not turn it.

1.7 Attention when traverse unit is decomposed

*Please refer to "Disassembly method" in the text for the pickup unit.

• Apply solder to the short land sections before the flexible wire is disconnected from the connecto on the servo board. (If the flexible

wire is disconnected without applying solder, the pickup may be destroyed by static electricity.)

• In the assembly, be sure to remove solder from the short land sections after connecting the flexible wire.

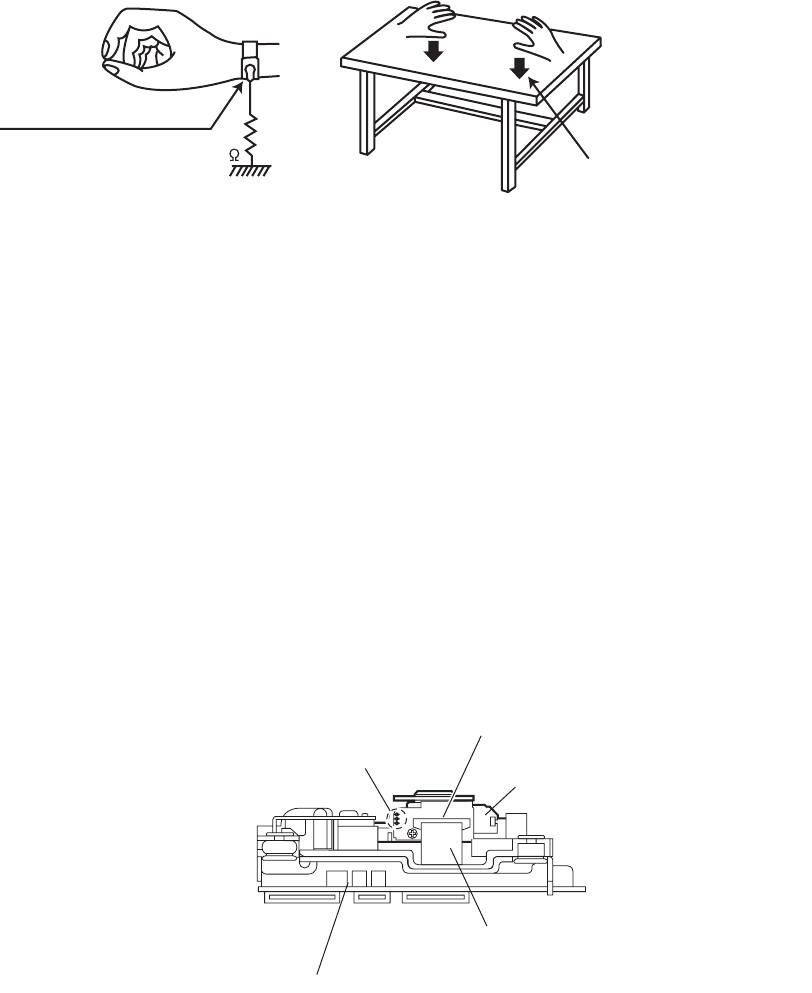

Conductive material

(conductive sheet) or iron palate

(caption)

Anti-static wrist strap

Traverse mechanism assembly

Pickup

Short land section

Card wire

Connector

(No.MB385)1-5

1.8 Important for laser products

1.CLASS 1 LASER PRODUCT

2.DANGER : Invisible laser radiation when open and inter

lock failed or defeated. Avoid direct exposure to beam.

3.CAUTION : There are no serviceable parts inside the

Laser Unit. Do not disassemble the Laser Unit. Replace

the complete Laser Unit if it malfunctions.

4.CAUTION : The CD,MD and DVD player uses invisible

laser radiation and is equipped with safety switches which

prevent emission of radiation when the drawer is open and

the safety interlocks have failed or are defeated. It is

dangerous to defeat the safety switches.

5.CAUTION : If safety switches malfunction, the laser is able

to function.

6.CAUTION : Use of controls, adjustments or performance of

procedures other than those specified here in may result in

hazardous radiation exposure.

REPRODUCTION AND POSITION OF LABELS

CAUTION : Visible and Invisible

laser radiation when open and

interlock failed or defeated.

AVOID DIRECT EXPOSURE TO

BEAM. (e)

VARNING : Synlig och

osynling laserstrålning när

den öppnas och spärren är

urkopplad. Betrakta ej

strålen. (s)

VARO : Avattaessa ja suojalukitus

ohitettuna tai viallisena olet alttiina

näkyvälle ja näkymättömälle

lasersäteilylle. Vältä säteen

kohdistumista suoraan itseesi. (f)

ADVARSEL : Synlig og usynlig

laserstråling når maskinen er

åben eller interlocken fejeler.

Undgå direkte eksponering til

stråling. (d)

Please use enough caution not to

see the beam directly or touch it

in case of an adjustment or operation

check.

CLASS 1

LASER PRODUCT

CAUTION : Visible and Invisible

laser radiation when open and

interlock failed or defeated.

AVOID DIRECT EXPOSURE TO

BEAM. (e)

VARNING : Synlig och

osynling laserstrålning när

den öppnas och spärren är

urkopplad. Betrakta ej

strålen. (s)

VARO : Avattaessa ja suojalukitus

ohitettuna tai viallisena olet alttiina

näkyvälle ja näkymättömälle

lasersäteilylle. Vältä säteen

kohdistumista suoraan itseesi. (f)

ADVARSEL : Synlig og usynlig

laserstråling når maskinen er

åben eller interlocken fejeler.

Undgå direkte eksponering til

stråling. (d)

WARNING LABEL

1-6 (No.MB385)

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.

(No.MB385)1-7

SECTION 3

DISASSEMBLY

3.1 Main body section

3.1.1 Removing the metal cover

(See Figs.1 to 3)

(1) From the both sides of the main body, remove the two

screws A attaching the metal cover. (See Figs.1 and 2.)

(2) From the back side of the main body, remove the six

screws B attaching the metal cover. (See Fig.3.)

(3) Remove the metal cover from the main body while lifting

the rear section of the metal cover in the direction of the ar-

row. (See Figs.1 and 2.)

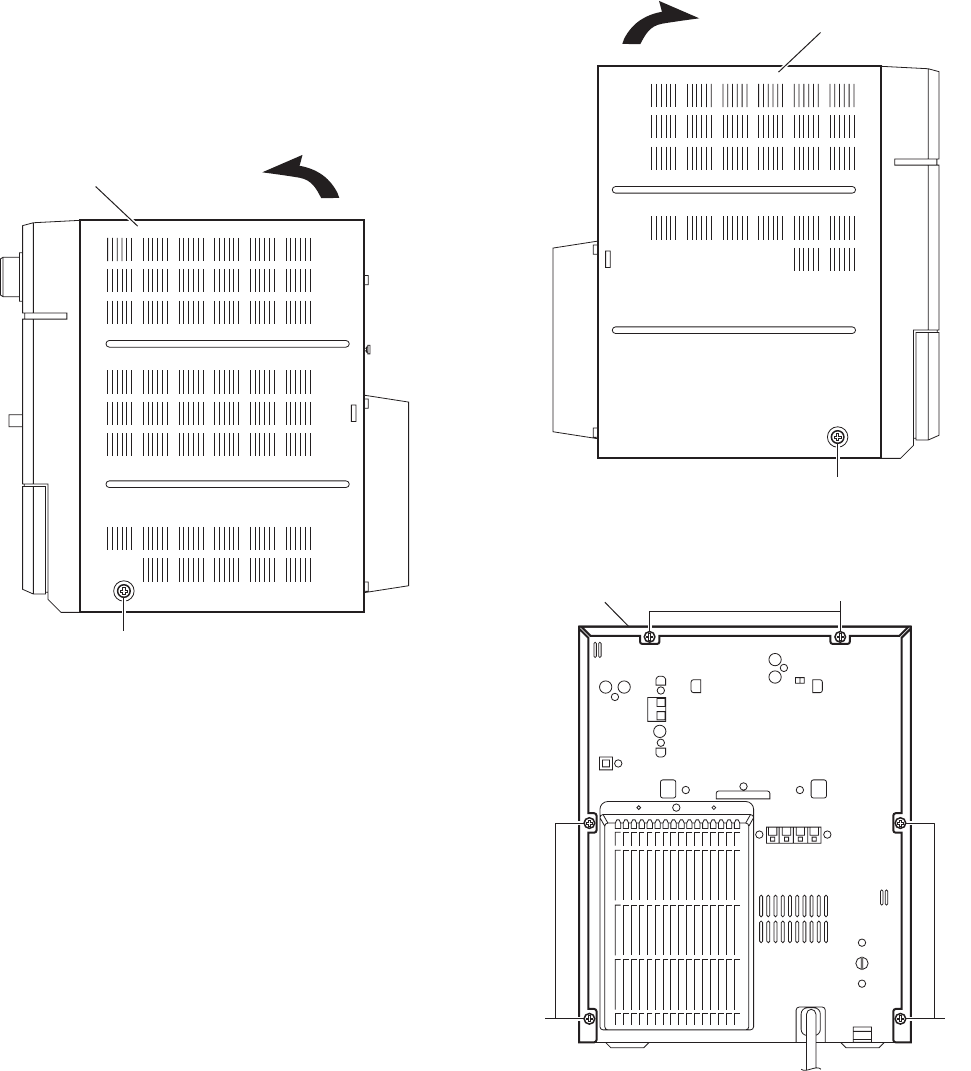

Fig.1

Fig.2

Fig.3

Metal cover

Metal cover B

1-8 (No.MB385)

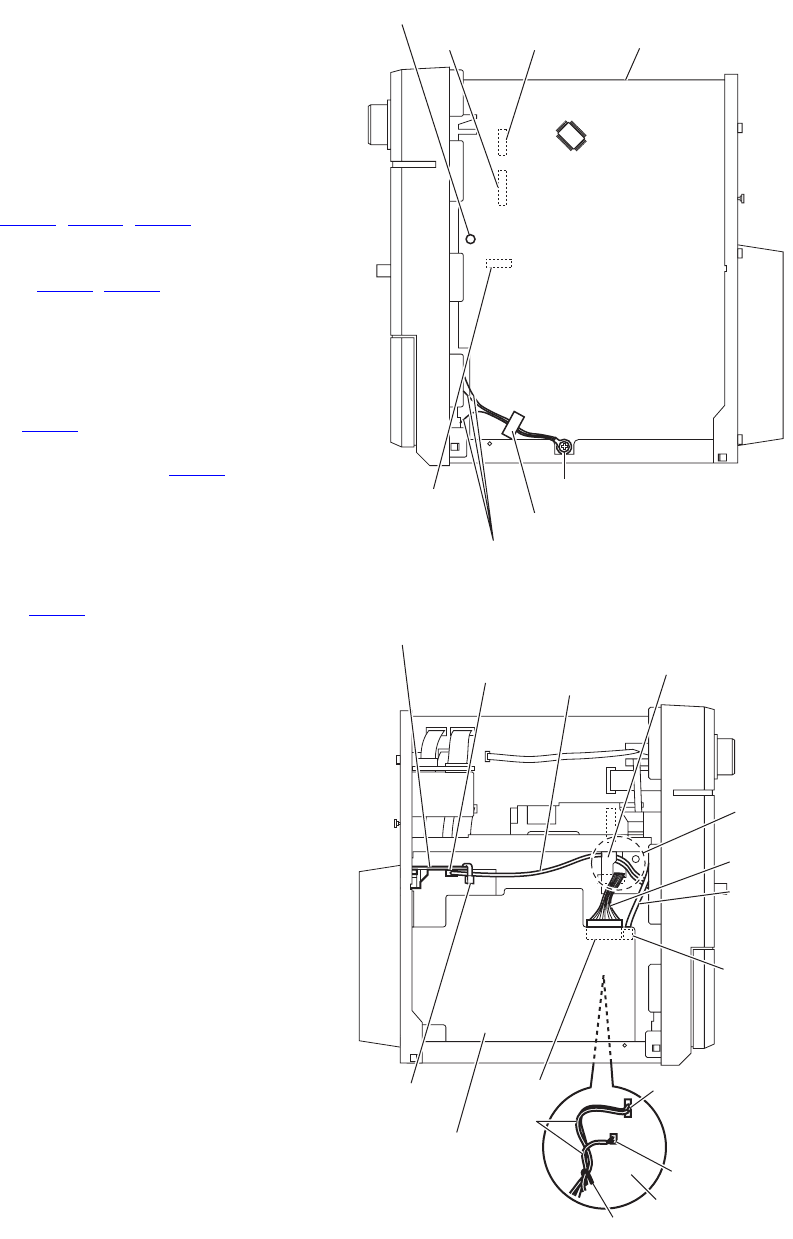

3.1.2 Removing the front panel assembly

(See Figs.4 to 7)

• Remove the metal cover.

(1) From the right side of the main body, remove the screw C

attaching the earth wires on the reverse side of the main

board. (See Fig.4.)

Reference:

After attaching the earth wires, fix them with a spacer as

before. (See Fig.4.)

(2) Remove the plastic rivet attaching the main board. (See

Fig.4.)

(3) From the inside of the main body, disconnect the card wires

from the connectors (CN303, CN860, CN880) on the for-

ward side of the main board. (See Fig.4.)

(4) Remove the wire clamp fixing the wires and disconnect the

wires from the connector (CN301, CN302) on the forward

side of the main board. (See Fig.5.)

Reference:

After connecting the wires to the connectors, fix the wires

with the wire clamp as before. (See Fig.5.)

(5) From the left side of the main body, disconnect the parallel

wire from the connector CN103 on the transformer board.

(See Fig.5.)

(6) Disconnect the wire from the connector CN119 on the

transformer board. (See Fig.5.)

Reference:

After connecting the wire, pass the wire through the slot

b of the holder board as before. (See Fig.5.)

(7) Remove the tie band fixing the wire and disconnect the

wire from the connector CN106 on the speaker terminal

board. (See Fig.5.)

Reference:

• After connecting the wire, fix the wire with a new tie

band as before. (See Fig.5.)

• After connecting the wire, pass the wire through the

slot b of the holder board as before. (See Fig.5.)

(8) From the top side of the main body, remove the two screws

D attaching the front panel assembly to the main body.

(See Fig.6.)

(9) From the bottom side of the main body, remove the three

screws E and two screws F attaching the front panel as-

sembly. (See Fig.7.)

(10) Release the claws a and remove the front panel assembly

from the main body in the direction of the arrow. (See

Fig.7.)

Fig.4

Fig.5

Main board

Earth wires

Spacer

CN303

CN860

Plastic rivet

CN880

CN301

CN103

CN119

Tie band

Transformer board

Speaker terminal board

CN106 Parallel wire

CN302

wires

Wire clamp

Main board

Parallel

wire

Wire

Holder board

(No.MB385)1-9

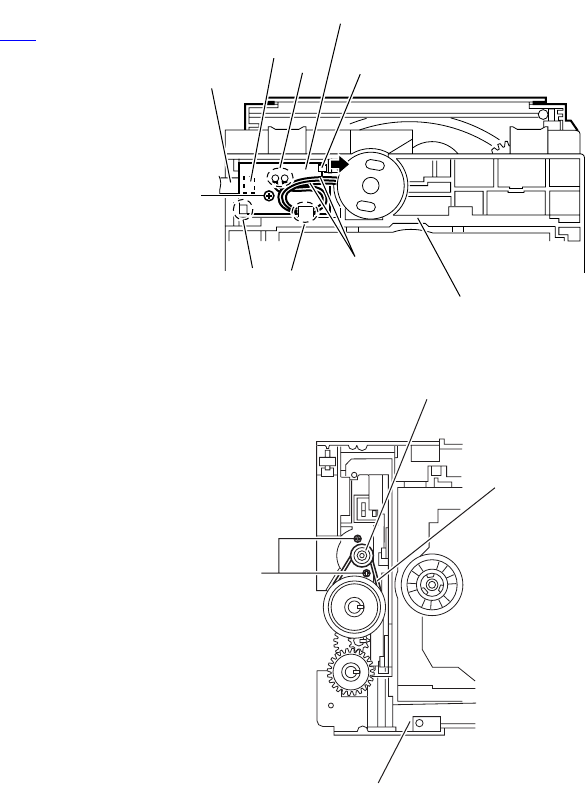

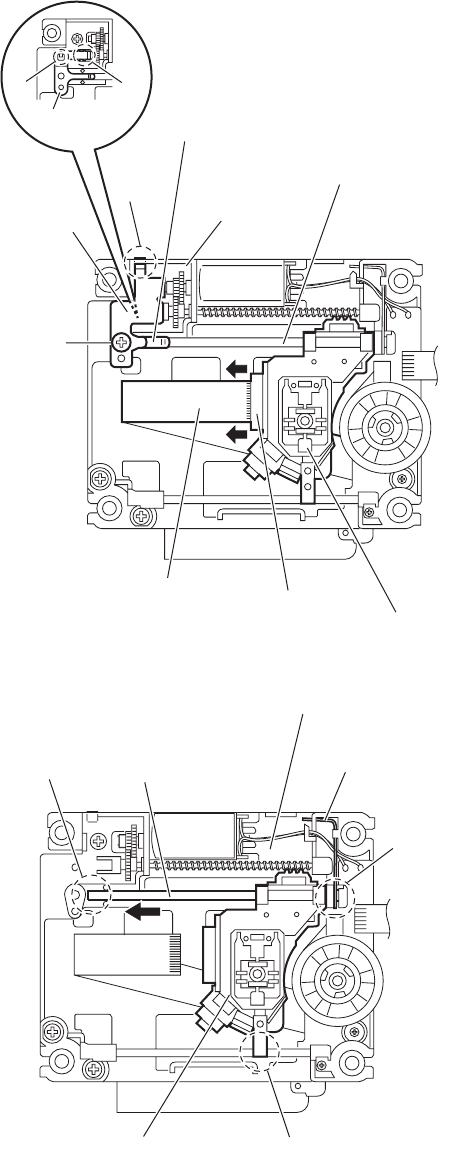

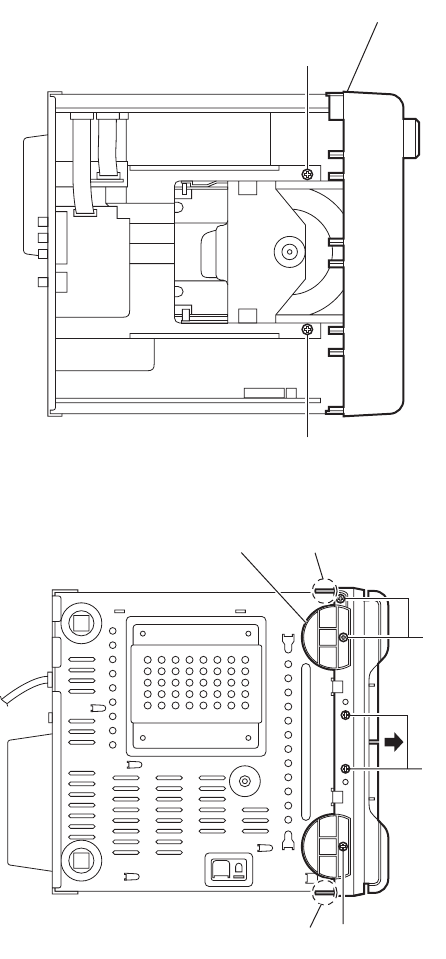

Fig.6

Fig.7

Front panel assembly

1-10 (No.MB385)

3.1.3 Removing the tuner

(See Figs.8 and 9.)

• Remove the metal cover.

(1) From the top side of the main body, disconnect the card

wire from the connector CN21 on the main board. (See

Fig.8.)

(2) From the back side of the main body, remove the two

screws G attaching the tuner to the rear panel. (See Fig.9.)

3.1.4 Removing the video board

(See Figs.8 and 9.)

• Remove the metal cover.

(1) From the top side of the main body, disconnect the card

wire from the connector CN410 on the main board. (See

Fig.8.)

(2) From the back side of the main body, remove the screw H

attaching the video board to the rear panel. (See Fig.9.)

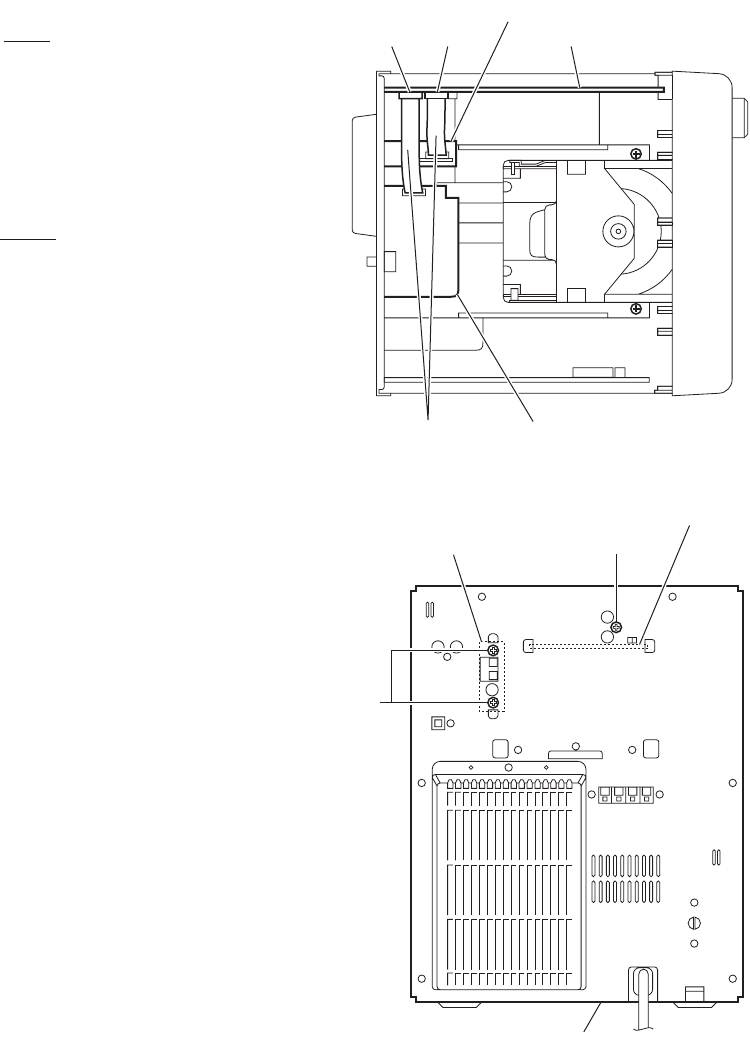

Fig.8

Fig.9

CN410 CN21 Main board

Video boardCard wires

Tuner

Rear panel

Tuner

Video board

(No.MB385)1-11

3.1.5 Removing the rear panel

(See Figs.10 and 11)

• Remove the metal cover.

(1) From the back side of the main body, remove the screw J

attaching the rear cover. (See Fig.10.)

(2) Release the sections c and remove the rear cover from the

rear panel. (See Fig.10.)

(3) Remove the two screws K and fifteen screws L attaching

the rear panel. (See Fig.11.)

Reference:

Remove the tuner and video board as required. (See

Figs.8 and 9.)

(4) From the both sides of the main body, release the sections

d of the center chassis in the direction of the arrow and re-

lease the joints e attaching the rear panel to the bottom

chassis. (See Fig. 11.)

Fig.10

Fig.11

Rear panelRear cover

Bottom chassis

Rear panel L

e e

1-12 (No.MB385)

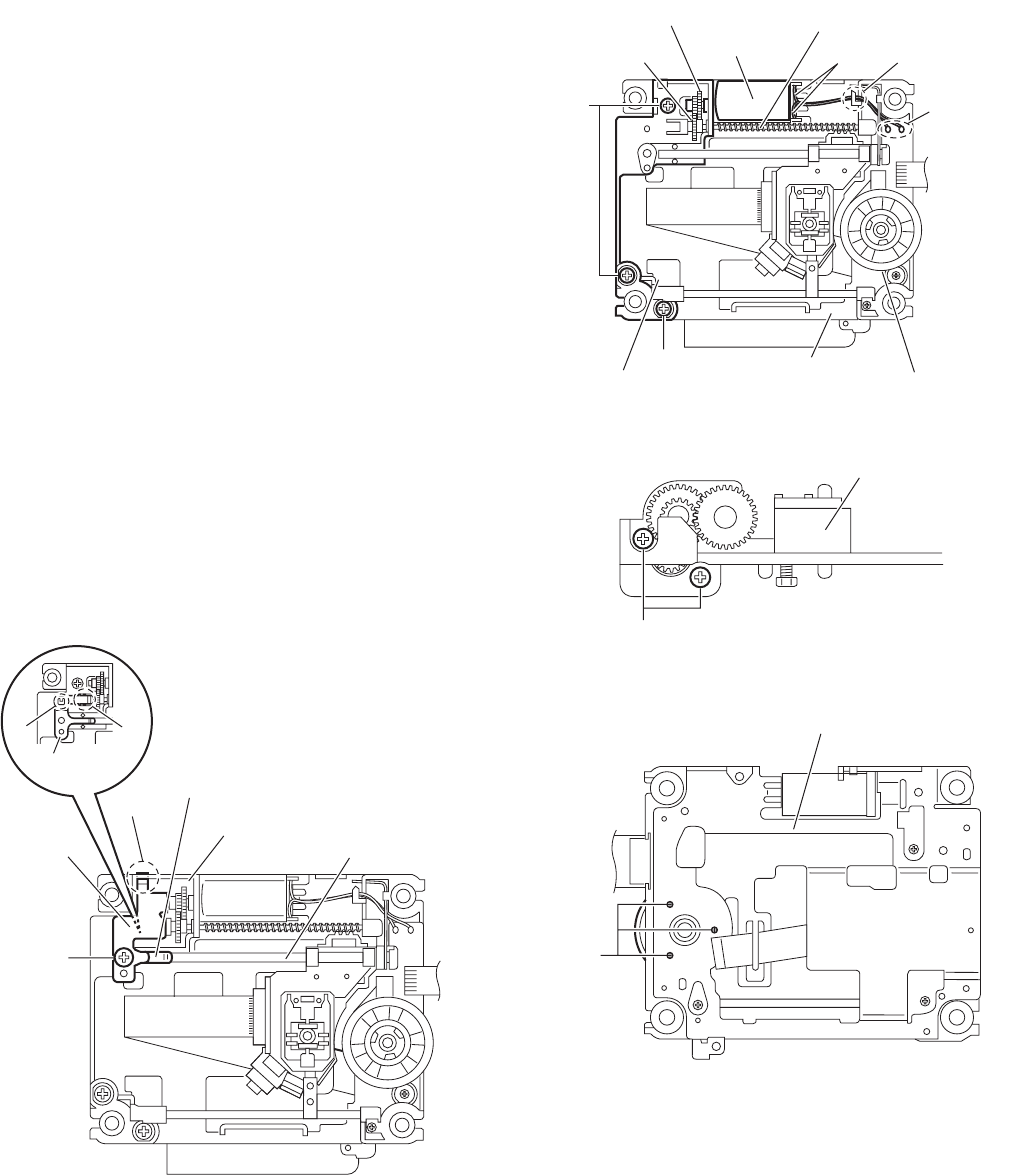

3.1.6 Removing the DVD mechanism assembly

(See Figs.12 and 13)

• Remove the metal cover, tuner and video board.

(1) From the top side of the main body, remove the three

screws M attaching the DVD mechanism assembly on the

center chassis. (See Fig.12.)

(2) From the forward side of the main board, disconnect the

card wires from the connectors (CN11, CN511, CN513).

(See Fig.12.)

Reference:

When reassembly, pass the card wire through the sec-

tion f of the main board before connecting the card wire

to the connector CN11. (See Fig.12.)

(3) Remove the spacers fixing the card wires. (See Fig.12.)

Reference:

After connecting the card wires, fix them with the spacers

as before. (See Fig.12.)

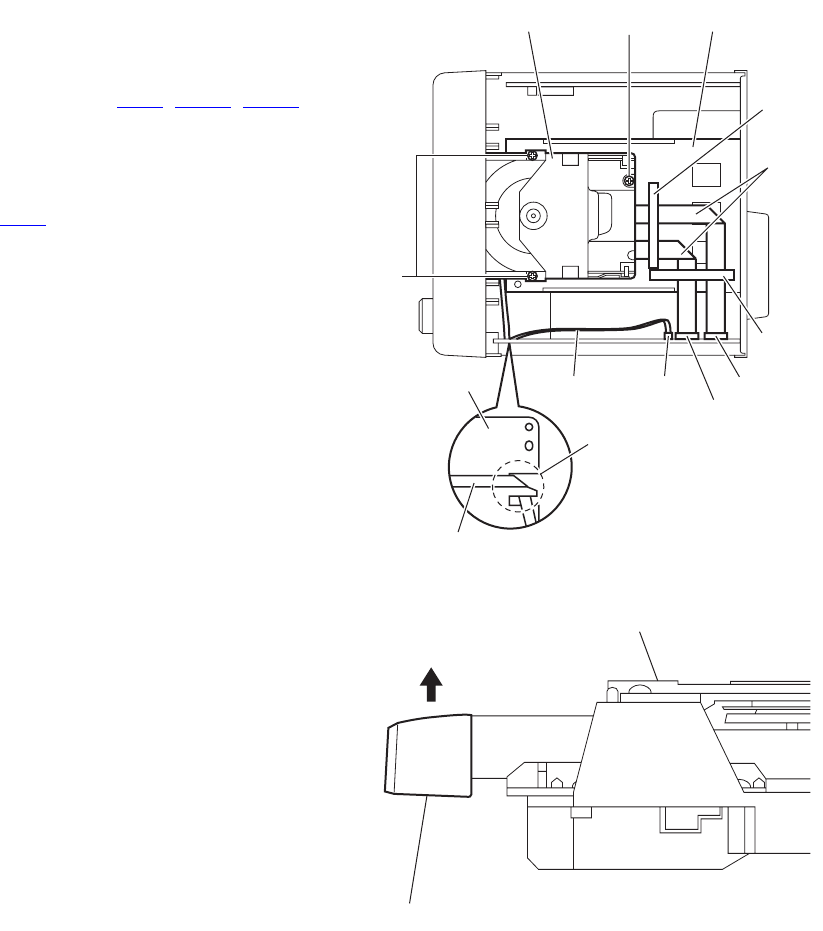

(4) From the inside of the main body, take out the DVD mech-

anism assembly.

(5) Remove the tray fitting from the DVD mechanism assembly

in the direction of the arrow. (See Fig.13.)

Fig.12

Fig.13

DVD mechanism assembly

MCenter chassis

Space

CN513CN11

CN511

Card

wires

Card wire

Main board

Card wire

DVD mechanism assembly

Tray fitting

(No.MB385)1-13

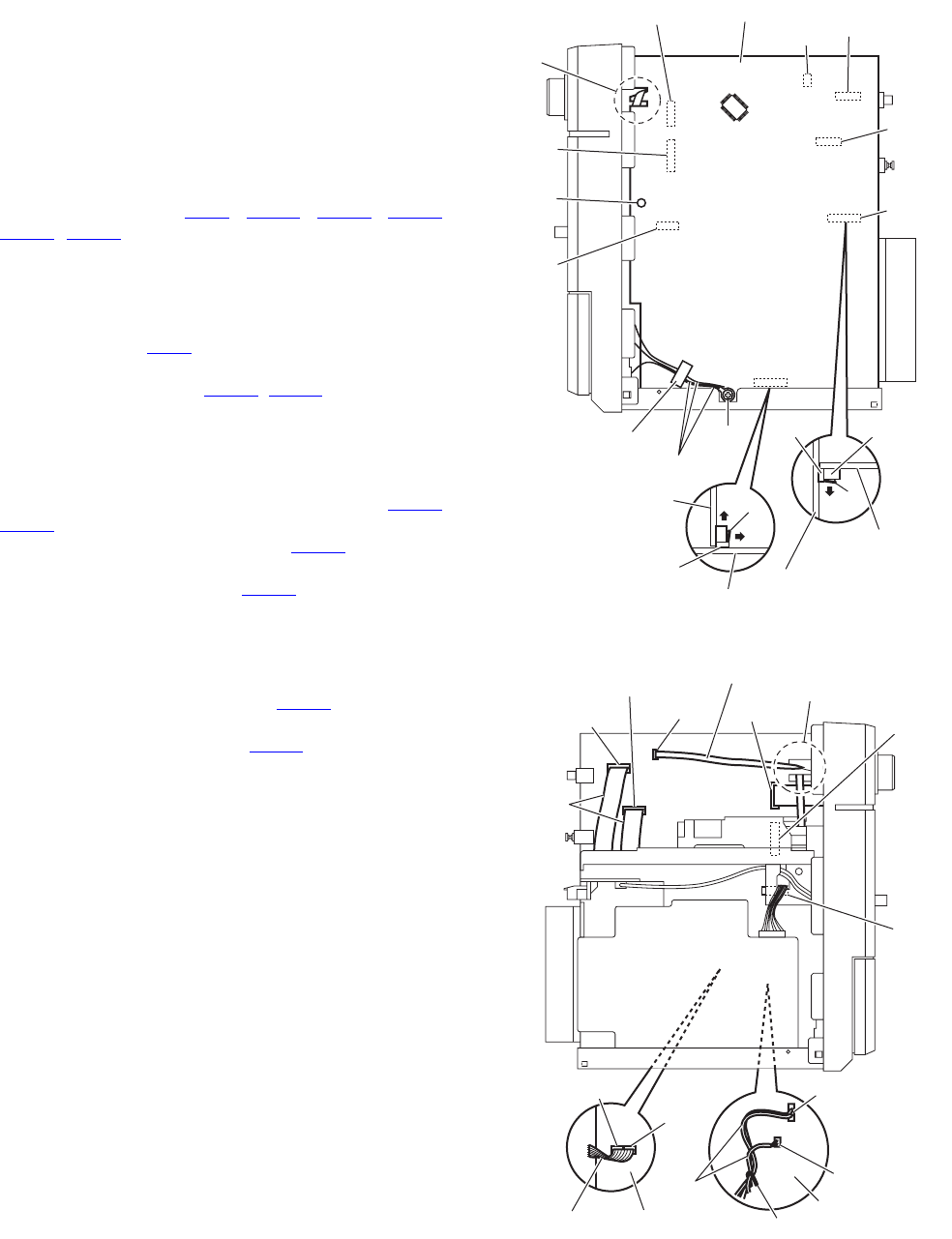

3.1.7 Removing the main board

(See Figs.14 and 15)

• Remove the metal cover, tuner, video board and rear panel.

(1) From the right side of the main body, remove the screw N

attaching the earth wires on the reverse side of the main

board. (See Fig.14.)

Reference:

After attaching the earth wires, fix them with a spacer as

before. (See Fig.14.)

(2) Remove the plastic rivet attaching the main board. (See

Fig.14.)

(3) From the inside of the main body, disconnect the card wires

from the connectors (CN11, CN303, CN511, CN513,

CN860, CN880) on the forward side of the main board.

(See Figs.14 and 15.)

Reference:

When reassembly, pass the card wire through the sec-

tion f of the main board before connecting the card wire

to the connector CN11. (See Fig.14.)

(4) Remove the wire clamp fixing the wires and disconnect the

wires from the connector (CN301, CN302) on the forward

side of the main board. (See Fig.15.)

Reference:

After connecting the wires to the connectors, fix the wires

with the wire clamp as before. (See Fig.15.)

(5) Disconnect the parallel wire from the connectors (CN220,

CN221) on the main board. (See Fig.15.)

(6) Release the lock g of the connector CN216 on the main

board in the direction of the arrow 1 and disconnect the

main board from the connector CN216 on the speaker ter-

minal board toward this side. (See Fig.14.)

Note:

When releasing the lock g, take care not to break it. (See

Fig.14.)

(7) Release the lock h of the connector CN201 on the primary

board in the direction of the arrow 2 and disconnect the

main board from the connector CN201 in the direction of

the arrow 3. (See Fig.14.)

Note:

When releasing the lock h, take care not to break it. (See

Fig.14.)

Fig.14

Fig.15

Main board

CN11 CN513

CN880

CN860

Plastic

rivet

CN303

Spacer

Main board

CN201

Primary board

Main board

Speaker terminal

board

CN206

CN216

Earth wires

CN511

CN216

CN201

CN513 CN11 CN880 CN860

CN303

CN220

Main boardParallel wire

CN221

Card wire

Card

wires

CN511

CN301

CN302

wires

Wire clamp

Main board

1-14 (No.MB385)

3.1.8 Removing the center chassis assembly

(See Fig.16)

• Remove the metal cover, tuner, video board and rear panel.

(1) From the top side of the main body, disconnect the card

wires from the connectors (CN11, CN511, CN513) on the

main body.

Reference:

When reassembly, pass the card wire through the sec-

tion f of the main board before connecting the card wire

to the connector CN11.

(2) Remove the two screws P attaching the center chassis as-

sembly.

(3) Take out the center chassis assembly with the DVD mech-

anism assembly from the main body.

Fig.16

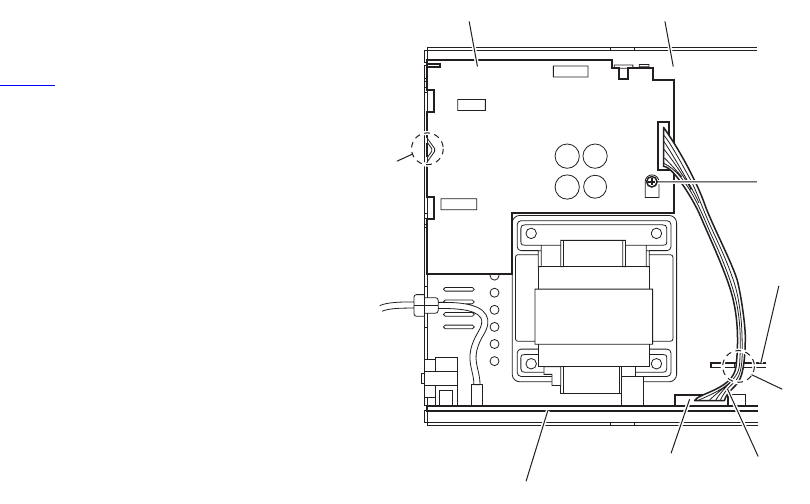

3.1.9 Removing the transformer board

(See Fig.17)

• Remove the metal cover, tuner, video board, rear panel and

center chassis assembly.

(1) From the top side of the main body, disconnect the wires

from the connectors (CN119, CN250) on the transformer

board.

(2) Disconnect the parallel wire from the connector CN103 on

the transformer board.

(3) Remove the four screws Q attaching the transformer board

and take out the transformer board from the main board.

Fig.17

Main board

CN513

DVD mechanism assembly

CN11

CN511 Card wire

Card

wires

Center chassis assembly

CN250

Power

cord

CN119

CN103

Parallel wire

Transformer board

(No.MB385)1-15

3.1.10 Removing the speaker terminal board

(See Fig.18.)

• Remove the metal cover, tuner, video board, rear panel, main

board and center chassis assembly.

(1) From the top side of the main body, remove the tie band fix-

ing the parallel wire.

Reference:

After connecting the parallel wire, fix it with the new tie

band.

(2) Disconnect the parallel wire from the connector CN106 on

the speaker terminal board.

(3) Release the locks (i, j) of the connectors (CN205, CN214)

and disconnect the speaker terminal board in an upward di-

rection.

Note:

When releasing the locks (i, j), take care not to break them.

Fig.18

Speaker terminal board

CN205

CN214

CN106 Tie band

Primary board

Parallel wire

1-16 (No.MB385)

3.1.11 Removing the regulator board and main amplifier board

(See Figs.19 and 20)

• Remove the metal cover, tuner, video board, rear panel, main

board, center chassis assembly and speaker terminal board.

(1) From the top side of the main body, disconnect the regula-

tor and main amplifier boards in an upward direction while

releasing the locks (k, m) of the connectors (CN202,

CN203) on the primary board. (See Fig.19.)

Note:

When releasing the locks (k, m), take care not to break

them. (See Fig.19.)

(2) Take out the regulator and main amplifier boards at the

same time from the main body.

(3) Remove the two screws R attaching the leaf spring to the

heat sink and remove the regulator board from the heat

sink. (See Fig.20.)

(4) Remove the two screws R attaching the main amplifier

board to the heat sink. (See Fig.20.)

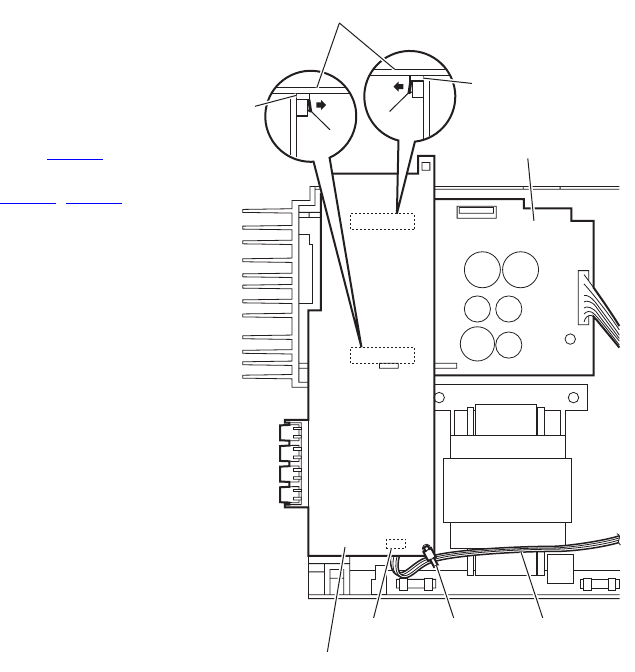

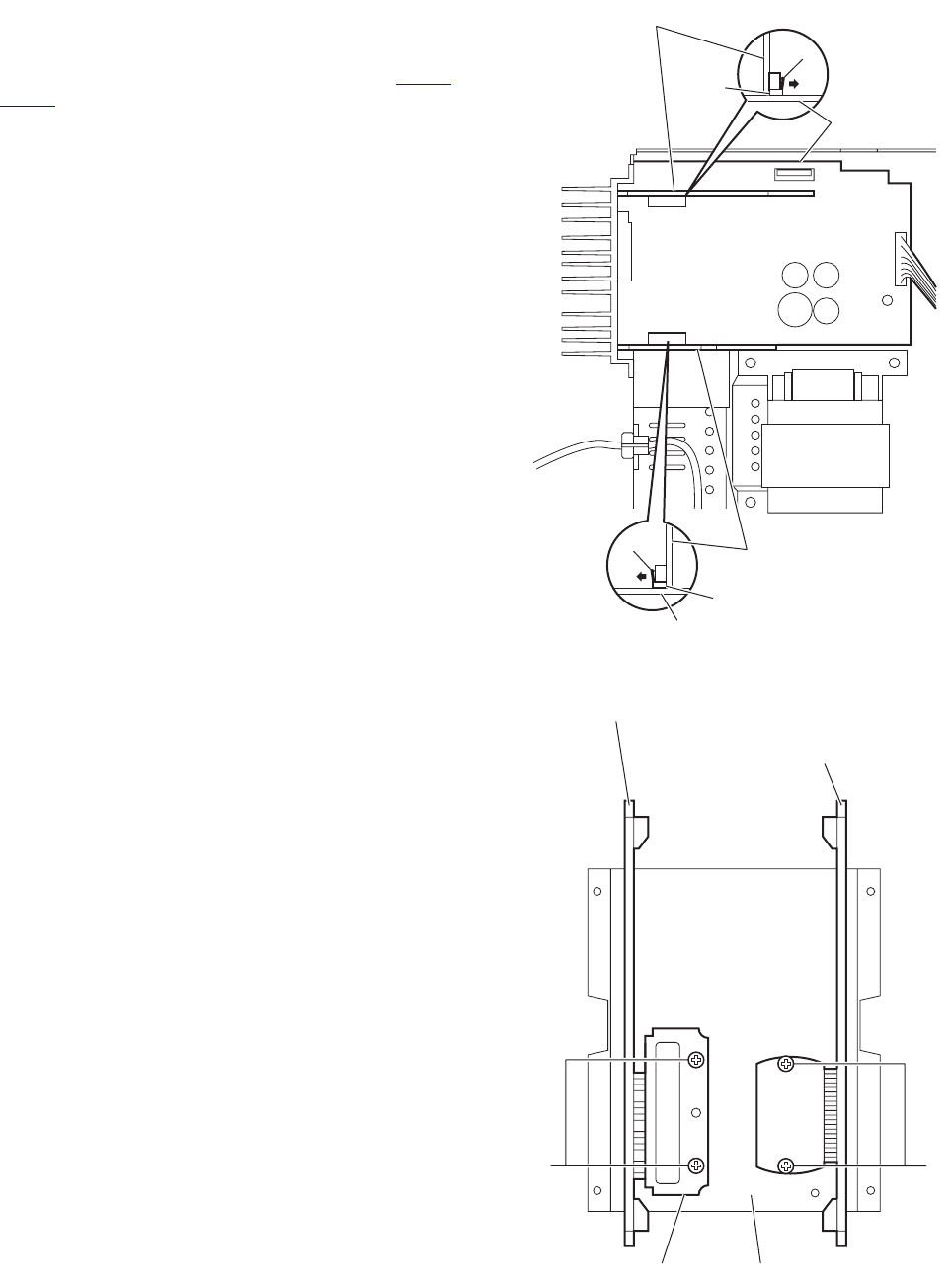

Fig.19

Fig.20

Main amplifier board

Regulator board

CN202

CN203

Primary board

Leaf spring

Regulator board

Main amplifier board

Heat sink

(No.MB385)1-17

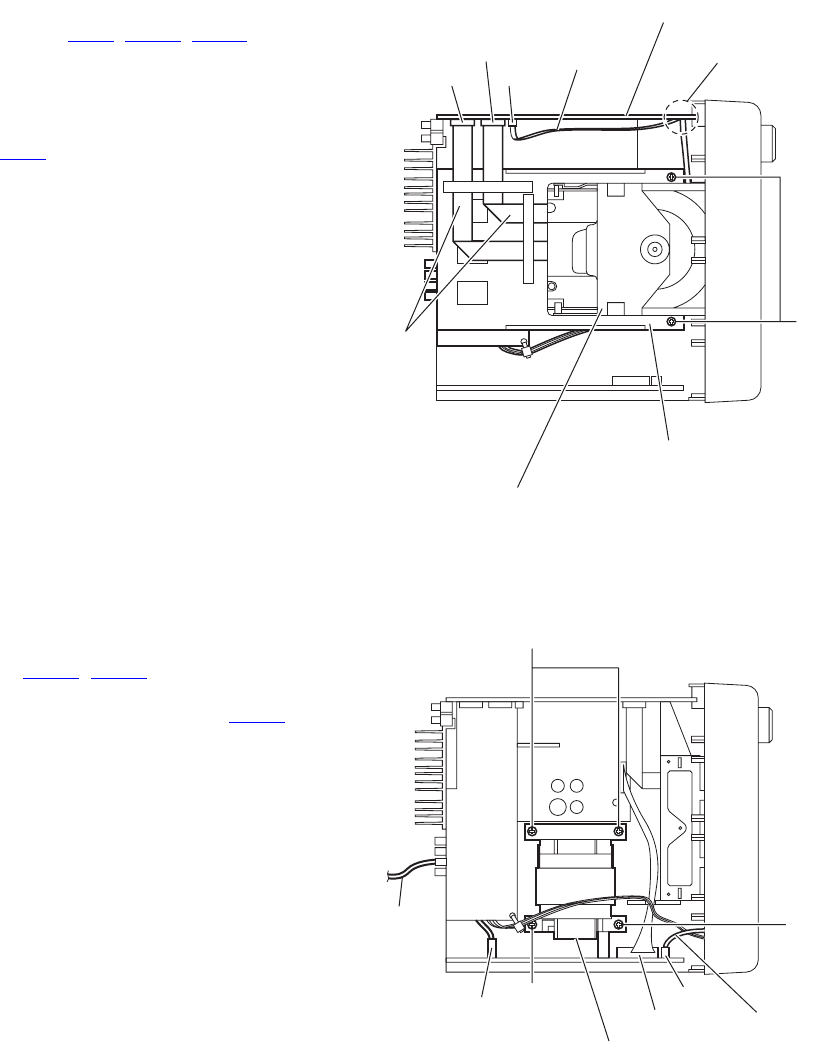

3.1.12 Removing the primary board

(See Fig.21)

• Remove the metal cover, tuner, video board, rear panel, main

board, center chassis assembly, speaker terminal board, reg-

ulator board and main amplifier board.

(1) From the top side of the main body, disconnect the wire

from the connector CN119 on the transformer board.

Reference:

Pass the wire through the slot n of the holder board be-

fore connecting the wire to the connector.

(2) Remove the screw S attaching the primary board on the

bottom chassis.

(3) Remove the section p of the primary board and take out the

primary board from the bottom chassis.

Fig.21

Primary board Bottom chassis

Holde

board

CN119 Wire

Transformer board

1-18 (No.MB385)

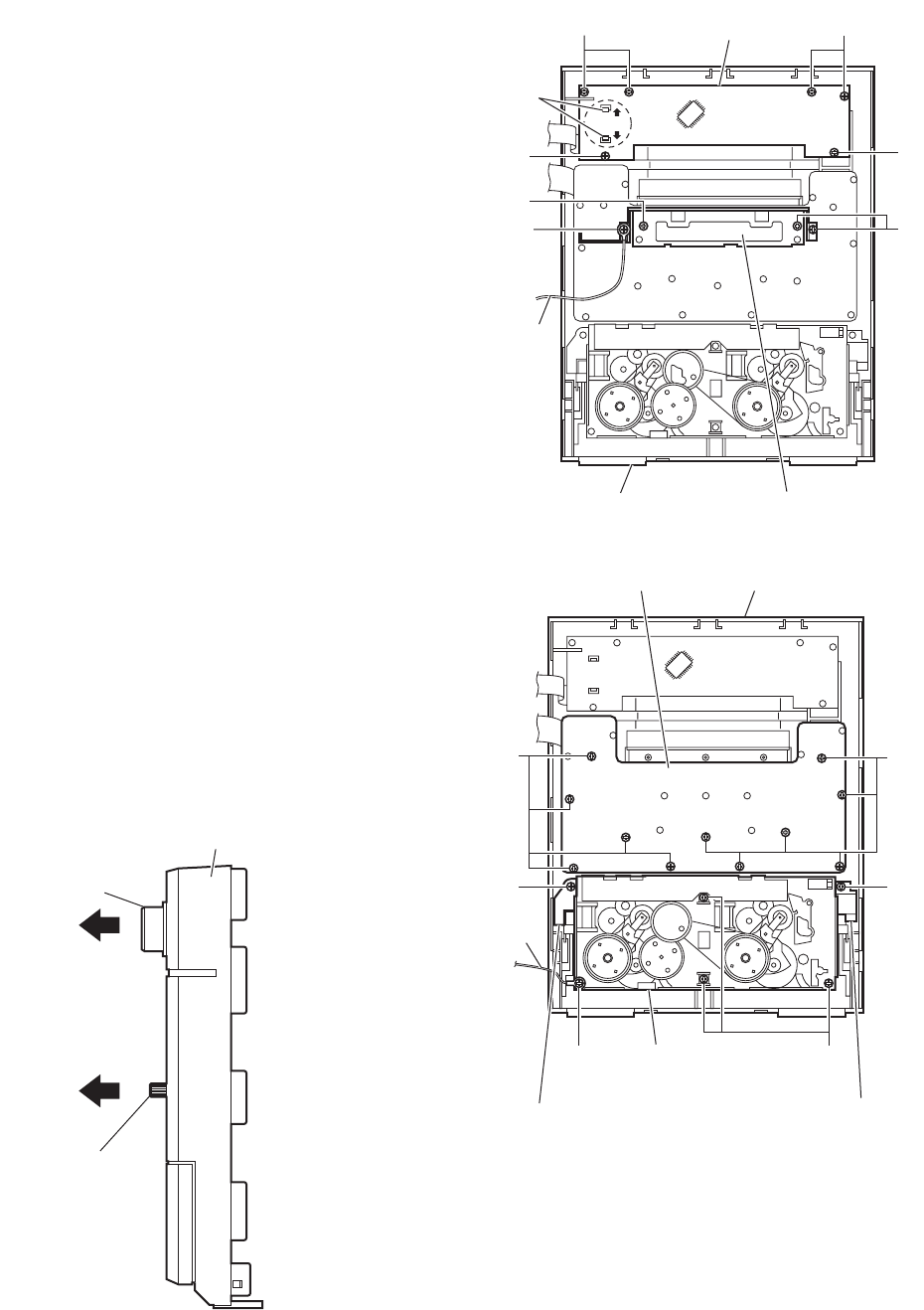

3.1.13 Removing the FL board

(See Figs.22 and 23)

• Remove the metal cover and front panel assembly.

(1) From the front side of the front panel assembly, pull the vol-

ume knob out of the front panel assembly. (See Fig.22.)

(2) From the inside of the front panel assembly, remove the six

screws T attaching the FL board. (See Fig.23.)

(3) Release the claws q in the direction of the arrow and take

out the FL board from the front panel assembly. (See

Fig.23.)

3.1.14 Removing the switch board

(See Figs.22 to 24)

• Remove the metal cover and front panel assembly.

(1) From the front side of the front panel assembly, pull the mi-

crophone knob out of the front panel assembly. (See

Fig.22.)

(2) From the inside of the front panel assembly, remove the

three screws U and screw U' attaching the stay bracket.

(See Fig.23.)

Reference:

When attaching the screw U', attach the earth wire with

it. (See Fig.23.)

(3) From the inside of the front panel assembly, remove the

eleven screws V attaching the switch board. (See Fig.24.)

(4) Take out the switch board from the front panel assembly.

3.1.15 Removing the cassette mechanism assembly

(See Fig.24)

• Remove the metal cover and front panel assembly.

(1) From the inside of the front panel assembly, remove the

three screws W, screw W' and two screws X attaching the

cassette mechanism assembly.

(2) Take out the cassette mechanism assembly from the front

panel assembly.

Reference:

• When attaching the screw W', attach the earth wire with it.

• When attaching the screws X, attach the swing cam (L)/(R)

with them.

Fig.22

Fig.23

Fig.24

Microphone knob

Volume knob

Front panel assembly

FL board

Stay bracketFront panel assembly

Earth wire

Front panel assembly

Swing cam (R)

Earth

wire

Swing cam (L)

Cassette mechanism

assembly

Switch board

(No.MB385)1-19

3.2 DVD mechanism section

• Remove the DVD mechanism assembly from the main body.

(See "3.1.6 Removing the DVD mechanism assembly".)

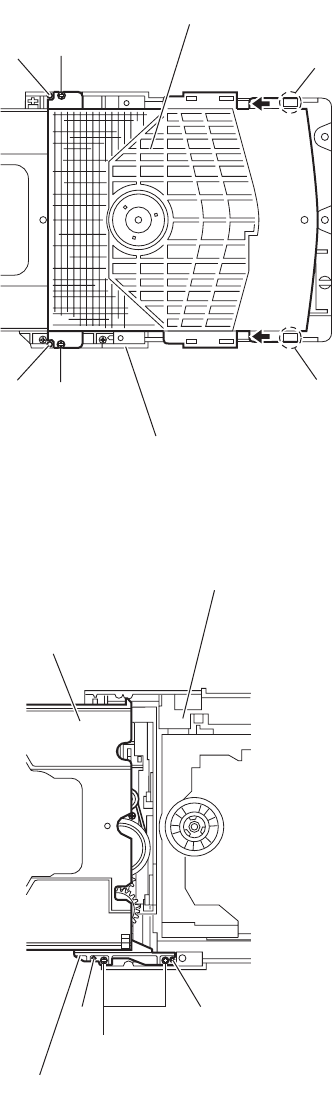

3.2.1 Removing the clamper base

(See Fig.1)

(1) From the top side of the DVD mechanism assembly, re-

move the two screws A attaching the clamper base.

(2) Lift the clamper base in an upward direction to remove it

from the projections a of the DVD mechanism assembly.

(3) Slide the clamper base in the direction of the arrow and re-

move it from the joints b.

Fig.1

3.2.2 Removing the tray assembly

(See Fig.2)

(1) From the top side of the DVD mechanism assembly, re-

move the two screws B attaching the shaft guide of the tray

assembly.

(2) Remove the tray assembly from the projections c of the

DVD mechanism assembly and take out the tray assem-

bly.

Fig.2

Clamper base

DVD mechanism assembly

Tray assembly

DVD mechanism assembly

Shaft guide

1-20 (No.MB385)

3.2.3 Removing the traverse mechanism assembly

(See Figs.3)

(1) From the bottom side of the DVD mechanism assembly, re-

move the four screws C attaching the traverse mechanism

assembly.

(2) Take out the traverse mechanism assembly with the DVD

module board.

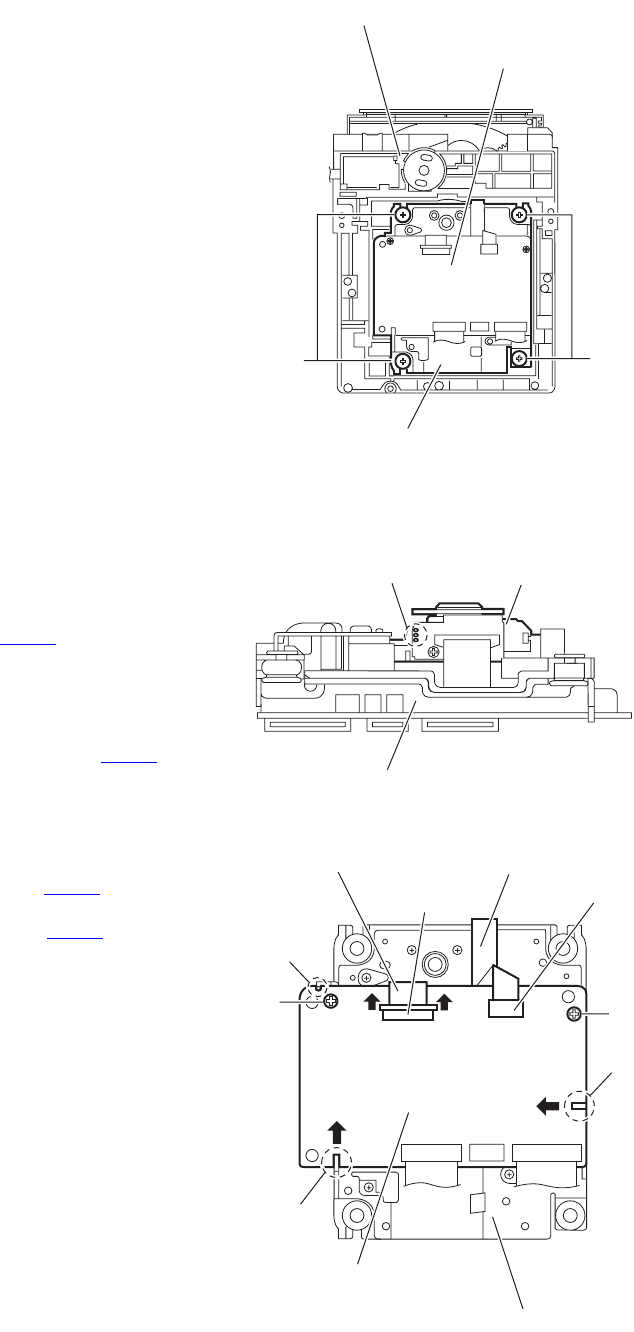

Fig.3

3.2.4 Removing the DVD module board

(See Figs.4 and 5)

• Remove the traverse mechanism assembly.

(1) From the side of the traverse mechanism assembly, solder

the short land sections d on the pickup. (See Fig.4.)

(2) From the bottom side of the traverse mechanism assem-

bly, release the lock of the connector CN101 on the DVD

module board in the direction of the arrow 1 and disconnect

the card wire. (See Fig.5.)

Caution:

• Solder the short land sections d on the pickup before

disconnecting the card wire from the connector CN101

on the DVD module board. If the card wire is discon-

nected without attaching solder, the pickup may be de-

stroyed by static electricity. (See Figs.4 and 5.)

• When attaching the DVD module board, be sure to re-

move solders from the short land sections d after con-

necting the card wire to the connector CN101 on the

DVD module board. (See Figs.4 and 5.)

(3) Disconnect the card wire from the connector CN201 on the

DVD module board. (See Fig.5.)

(4) Remove the two screws D attaching the DVD module

board. (See Fig.5.)

(5) Remove the DVD module board from the projection e in an

upward direction and remove the engagement section g in

the direction 3 while removing the engagement section f in

the direction of the arrow 2. (See Fig.5.)

Fig.4

Fig.5

DVD mechanism assembly

Traverse mechanism assembly

DVD module board

Traverse mechanism assembly

Pickup

Card wire Card wire

DVD module board

Traverse mechanism assembly

CN101 CN201

(No.MB385)1-21

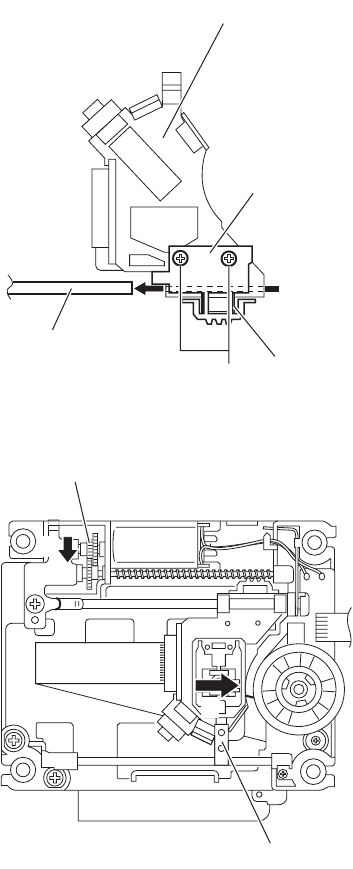

3.2.5 Removing the pickup

(See Figs.4,6 to 8)

• Remove the traverse mechanism assembly.

(1) From the side of the traverse mechanism assembly, solder

the short land sections d on the pickup. (See Fig.4.)

(2) Release the lock of the connector on the pickup in the di-

rection of the arrow and disconnect the card wire. (See

Fig.6.)

Caution:

• Solder the short land sections d on the pickup before

disconnecting the card wire from the connector on the

pickup. If the card wire is disconnected without attach-

ing solder, the pickup may be destroyed by static elec-

tricity. (See Figs.4 and 6.)

• When attaching the pickup, be sure to remove solders

from the short land sections d after connecting the

card wire to the connector on the pickup. (See Figs.4

and 6.)

(3) Remove the screw E attaching the plate and thrust spring.

(See Fig.6.)

(4) Remove the engagement section h attaching the plate to

the feed holder and remove the plate. (See Fig.6.)

(5) Remove the engagement sections (i, j), remove the thrust

spring. (See Fig.6.)

(6) Remove the shaft of the pickup from the section k on the

traverse mechanism assembly and remove the shaft from

the section m while moving it in the direction of the arrow.

(See Fig.7.)

(7) Remove the pickup from the section n of the traverse

mechanism assembly and take out the pickup with the

shaft. (See fig.7.)

(8) From the bottom side of the pickup, remove the two screws

F attaching the SW actuator and lead spring. (See Fig.8.)

(9) Pull the shaft out of the pickup. (See Fig.8.)

Fig.6

Fig.7

Pickup

Connector

Card wire

Thrust spring

Plate

hTraverse mechanism assembly

Feed holder

Thrust spring

Shaft

Pickup

Traverse mechanism assembly

Torsion spring

1-22 (No.MB385)

3.2.6 Attaching the pickup

(See Figs.4,6 to 9)

• See "3.2.5 Removing the pickup".

(1) Attach the shaft, SW actuator and lead spring to the pickup.

(See Fig.8.)

(2) Align the pickup to the section n of the traverse mechanism

assembly first and set the both ends of the shaft of the pick-

up in the sections (k, m) of the traverse mechanism assem-

bly. (See Fig.7.)

Note:

When attaching the shaft to the section m, attach it under

the torsion spring. (See Fig.7.)

(3) Attach the plate and thrust spring. (See Fig.6.)

(4) Remove solders from the short land sections d after con-

necting the card wire to the connector on the pickup. (See

Figs.4 and 6.)

(5) Turn the feed gear M in the direction of the arrow 1 to move

the pickup in the direction of the arrow 2. (See Fig.9.)

Fig.8

Fig.9

Pickup

SW actuator

Lead spring

Shaft

Feed gear M

Pickup

(No.MB385)1-23

3.2.7 Removing the feed motor

(See Figs.10 to 12)

• Remove the traverse mechanism assembly.

(1) From the top side of the traverse mechanism assembly, re-

move the screw G attaching the plate and thrust spring.

(See Fig.10.)

(2) Remove the engagement section p attaching the plate to

the feed holder and remove the plate. (See Fig.10.)

(3) Remove the engagement sections (q, r), remove the thrust

spring. (See Fig.10.)

(4) Remove the wires from the soldered section s on the spin-

dle motor board. (See Fig.11.)

Reference:

When attaching the feed motor, pass the wire through

the section t on the spindle base. (See Fig.11.)

(5) Remove the feed holder, feed motor, lead screw, feed gear

E and feed gear M at the same time after removing the

three screws H attaching the feed holder. (See Fig.11.)

(6) From the side of the feed holder, remove the two screws J

attaching the feed motor. (See Fig.12.)

3.2.8 Removing the spindle motor board

(See Figs.11 and 13)

• Remove the traverse mechanism assembly and DVD module

board.

(1) From the top side of the traverse mechanism assembly, re-

move the wires from the soldered section s on the spindle

motor board. (See Fig.11.)

(2) From the bottom side of the traverse mechanism assem-

bly, remove the three screws K attaching the spindle motor

board. (See Fig.13.)

Fig.10

Fig.11

Fig.12

Fig.13

Thrust spring

Plate

Traverse mechanism assembly

Thrust spring

Feed holder

Spindle motor board

Spindle base

Feed holder

Feed gear E

Feed gear M

Feed motor

Lead screw

Wires t

Feed holder

Traverse mechanism assembly

1-24 (No.MB385)

3.2.9 Removing the switch board

(See Fig.14.)

(1) From the bottom side of the DVD mechanism assembly, re-

move the screw L attaching the switch board.

(2) Disconnect the card wire from the connector CN1 on the

switch board.

(3) Remove the wires from the soldered section u on the

switch board.

(4) Lift the switch board while pressing the claw v of the DVD

mechanism assembly in the direction of the arrow and re-

move it from the section w.

Reference:

Put the wires on the section x after attaching the switch board

to the DVD mechanism assembly.

3.2.10 Removing the motor

(See Figs.14 and 15)

• Remove the clamper base and tray assembly.

(1) From the bottom side of the DVD mechanism assembly, re-

move the wires from the soldered section u on the switch

board. (See Fig.14.)

(2) From the top side of the DVD mechanism assembly, re-

move the belt from the motor pulley. (See Fig.15.)

Note:

Take care not to attach grease on the belt.

(3) Remove the two screws M attaching the motor to the DVD

mechanism assembly and take out the motor from the bot-

tom side of the DVD mechanism assembly. (See Fig.15.)

Reference:

Put the wires on the section x after attaching the motor to the

DVD mechanism assembly. (See Fig.14.)

Fig.14

Fig.15

Switch board

Wires

DVD mechanism assembly

CN1

Card wire

DVD mechanism assembly

Belt

Motor pulley

(No.MB385)1-25

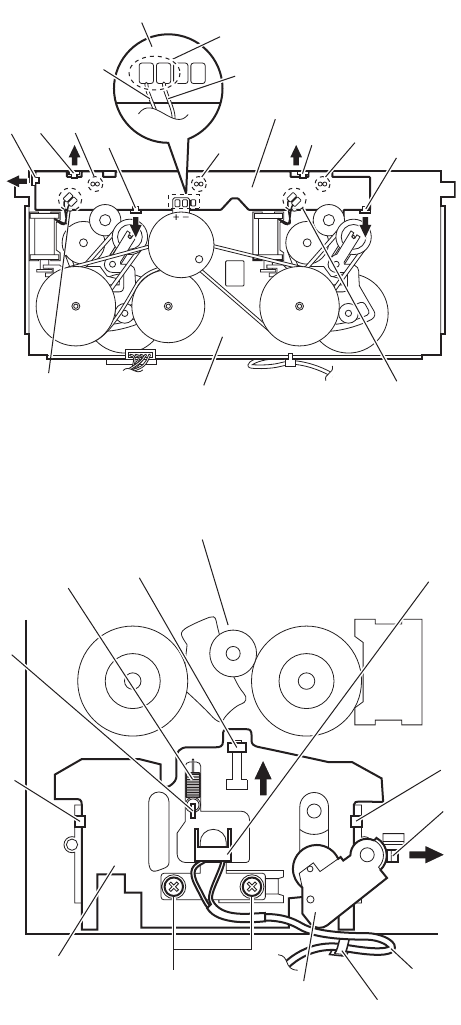

3.3 Cassette mechanism assembly section

• Prior to performing the following procedures, remove the cassette mechanism assembly.

(See "3.1.16 Removing the cassette mechanism assembly".)

3.3.1 Removing the main motor and replacing the main belts

(See Figs.1 and 2)

(1) From the front side of the cassette mechanism assembly,

remove the two screws A attaching the main motor. (See

Fig.1.)

(2) From the back side of the cassette mechanism assembly,

remove the wires from the soldered sections a on the

switch board. (See Fig.2.)

Caution:

After reassembling, check the direction of the main mo-

tor and polarity of the wires. (See Fig.2.)

(3) Remove the main motor and main belts. (See Fig.2.)

Note:

When attaching the main belts, take care not to attach

grease on the main belts.

Fig.1

Fig.2

3.3.2 Replacing the F/R belts

(See Fig.3)

• Prior to performing the following procedures, remove the main

motor and main belts.

• Remove the wires of the main motor as required.

From the back side of the cassette mechanism assembly, re-

move the F/R belts from the flywheel 1 and flywheel 2.

Fig.3

Cassette mechanism assembly

Main belt Main belt

Main motor

Cassette mechanism assembly

Switch board

Wire (Black)

Wire (Red)

Switch board

F/R belts Flywheel 2

Flywheel 1

Cassette mechanism assembly

1-26 (No.MB385)

3.3.3 Removing the clutch assemblies

(See Figs.4 to 7)

• Prior to performing the following procedures, remove the main

motor, main belts and F/R belts.

• Remove the wires of the main motor as required.

(1) From the front side of the cassette mechanism assembly,

remove the three slit washers attaching the flywheel 1, fly-

wheel 2 and flywheel 3. (See Fig.4.)

(2) From the back side of the cassette mechanism assembly,

pull out the flywheel 1, flywheel 2 and flywheel 3. (See

Fig.5.)

(3) Remove the stoppers in an upward direction. (See Fig.5.)

(4) Remove the springs from the sections b. (See Fig.6.)

(5) Release the claws c in the direction of the arrow, remove

the plates and pulleys. (See Fig.6.)

(6) Release the claws d in the direction of the arrow, remove

the guide arms. (See Fig.7.)

Note:

When attaching the guide arms, attach the springs with

them as before. (See Fig.7.)

(7) Remove the cam gears in an upward direction. (See Fig.7.)

(8) Take out the clutch assemblies from the cassette mecha-

nism assembly. (See Fig.7.)

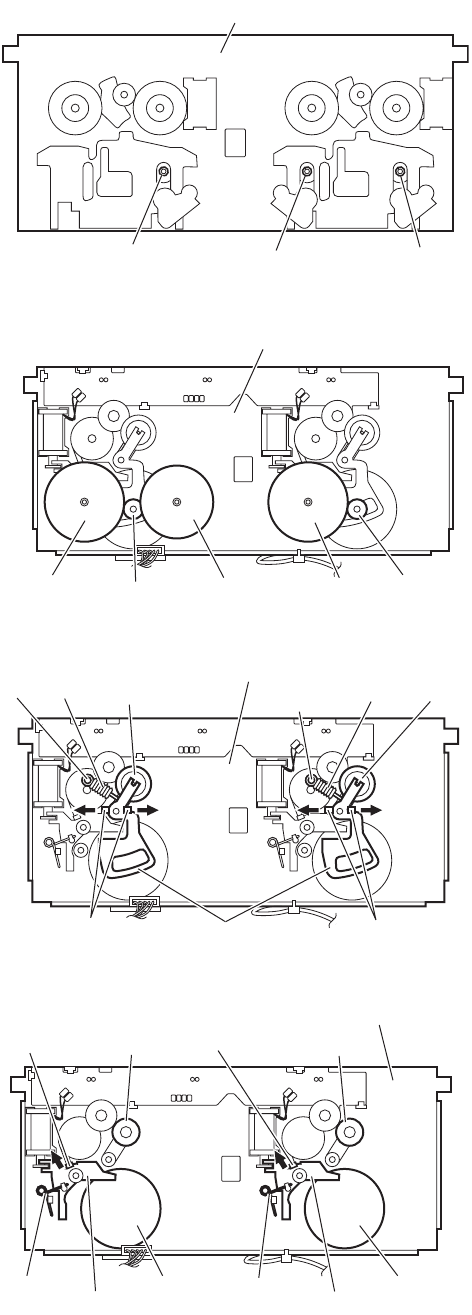

Fig.4

Fig.5

Fig.6

Fig.7

Cassette mechanism assembly

Slit washer Slit washer Slit washer

Flywheel 2

Flywheel 1

Cassette mechanism assembly

Flywheel 3

Stopper Stoppe

Plates

Cassette mechanism assembly

Spring Spring

Pulley Pulley

Cam gearCam gear

Guide arm Guide arm

Spring

Cassette mechanism assembly

Clutch assemblyClutch assembly d

(No.MB385)1-27

3.3.4 Removing the leaf switches

(See Fig.8)

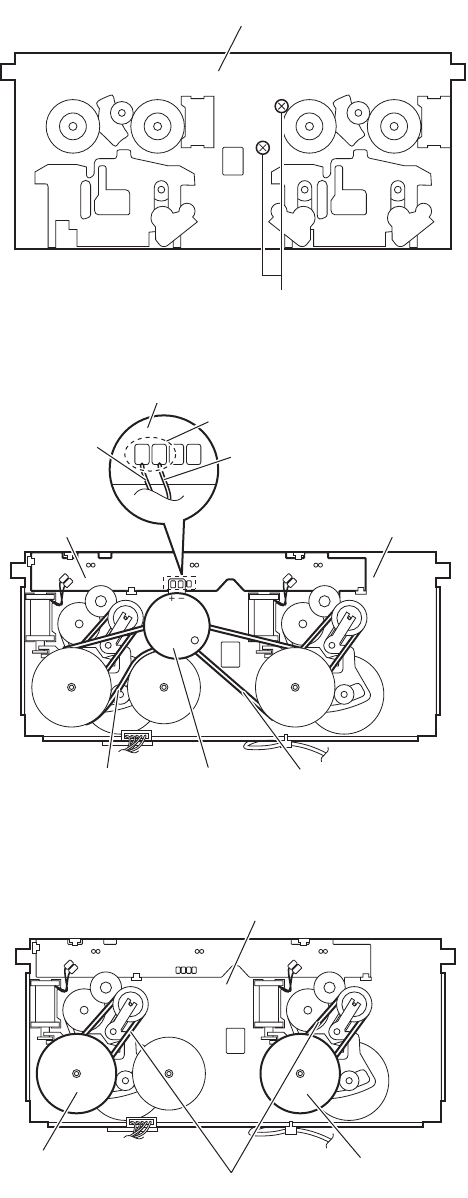

(1) From the back side of the cassette mechanism assembly,

remove the solders from the soldered sections e attaching

the leaf switches on the switch board.

(2) From the front side of the cassette mechanism assembly,

pull out the leaf switches.

3.3.5 Removing the switch board

(See Fig.8)

(1) From the back side of the cassette mechanism assembly,

remove the solders from the soldered sections (f, g) con-

necting the wires.

Note:

After reassembling, check the polarity of the wires.

(2) Release the claws h in the direction of the arrow and re-

move the switch board from the cassette mechanism as-

sembly.

Fig.8

3.3.6 Removing the PB head block

(See Fig.9)

(1) From the bottom side of the cassette mechanism assem-

bly, remove the tie band fixing the wire.

Reference:

After reassembling, fix the wire with a new tie band as

before.

(2) From the front side of the cassette mechanism assembly,

release the claw i in the direction of the arrow 1 and pull out

the pinch roller in an upward direction.

(3) Remove the screw B attaching the PB head.

(4) Remove the spring from the section j.

(5) Move the PB head block in the direction of the arrow 2 and

remove the hooks k from the PB head block.

(6) Take out the PB head block from the cassette mechanism

assembly.

Fig.9

Cassette mechanism assembly

Switch board

Wire (Black) Wire (Red)

Switch board

ehh

BPinch roller

Tie band

Wire

PB head

Cassette mechanism assembly

Spring

PB head block

1-28 (No.MB385)

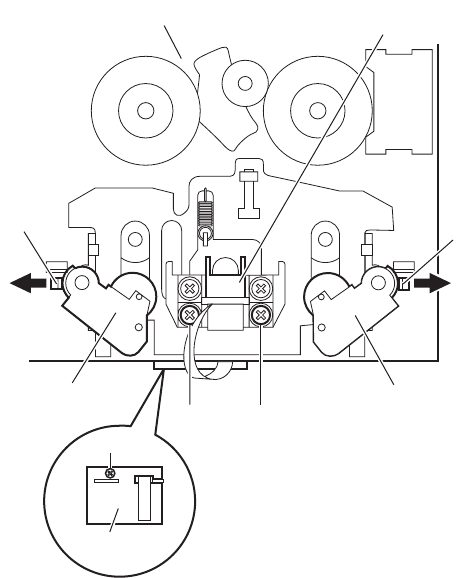

3.3.7 Removing the R/P head block

(See Fig.10)

(1) From the front side of the cassette mechanism assembly,

release the claw m in the direction of the arrow 1 and pull

out the pinch roller L in an upward direction.

(2) Release the claw n in the direction of the arrow 2 and pull

out the pinch roller R in an upward direction.

(3) From the bottom side of the cassette mechanism assem-

bly, remove the screw C attaching the R/P head board.

(4) From the front side of the cassette mechanism assembly,

remove the two screws D attaching the R/P head.

(5) Take out the R/P head block (R/P head and R/P head

board) from the cassette mechanism assembly.

Fig.10

Pinch roller R

R/P head

Cassette mechanism assembly

Pinch roller L

R/P head

board

(No.MB385)1-29

3.4 Speaker section (For MX-JE3)

3.4.1 Removing the front panel assembly

(See Figs.1 to 3)

(1) Insert the tip of a flat-bladed screwdriver or similar tool into

the space between the speaker main body and front panel

assembly, and lift the front panel assembly little by little to

remove the joint sections a. (See Figs.1 and 2.)

Note:

To prevent damaging the front panel assembly and

speaker main body, insert cushioning plates etc. into the

space between the speaker main body and front panel

assembly. (See Fig.2.)

(2) From the inside of the front panel assembly, disconnect the

gray and black wires from the terminals of the tweeter. (See

Fig.3.)

Fig.1

Fig.2

Fig.3

Net assembly

Front panel assembly Cushioning

plate, etc.

Flat-bladed

screwdriver,etc.

Wire(black)

Terminals

Wire(gray)

Tweeter

Front panel assembly

1-30 (No.MB385)

3.4.2 Removing the speaker

(See Figs.4 and 5)

• Remove the front panel assembly.

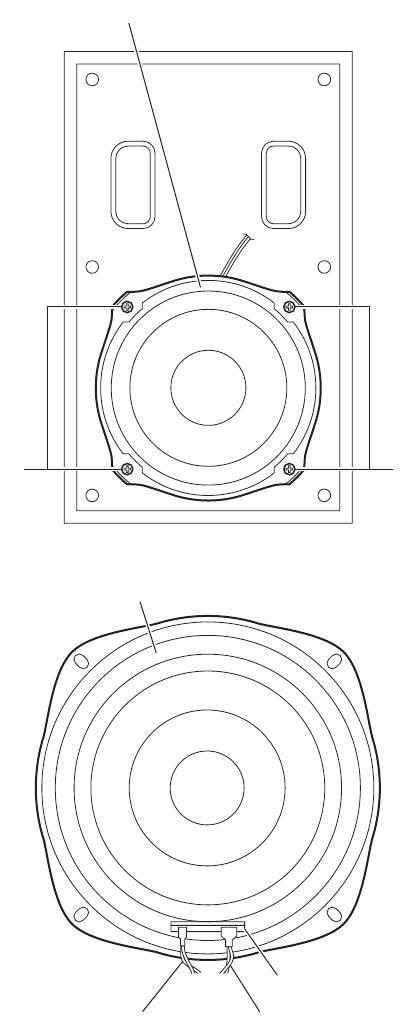

(1) From the front side of the speaker main body, remove the

four screws A attaching the speaker. (See Fig.4.)

(2) Take out the speaker from the speaker main body and dis-

connect the wires (red/black, gray/black) from the terminal

of the speaker. (See Fig.5.)

Fig.4

Fig.5

Speaker

A A

Speaker

Wires (gray/black) Wires (red/black)

Terminal

(No.MB385)1-31

3.5 Speaker section (For MX-JE31)

3.5.1 Removing the net assembly

(See Fig.1)

From the front side of the speaker main body, remove the sec-

tions a of the net assembly toward this side.

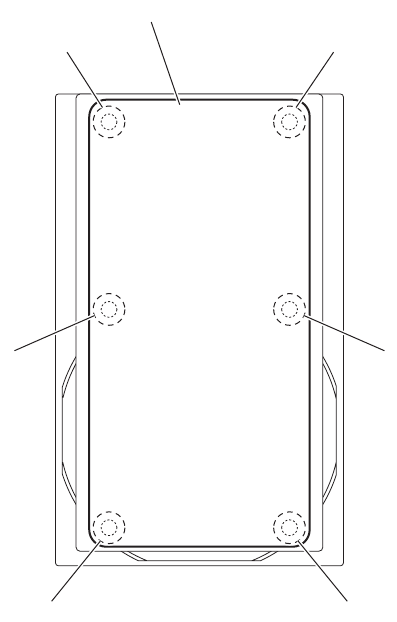

Fig.1

Net assembly

1-32 (No.MB385)

3.5.2 Removing the front panel assembly

(See Figs.2 to 4)

• Remove the net assembly as required.

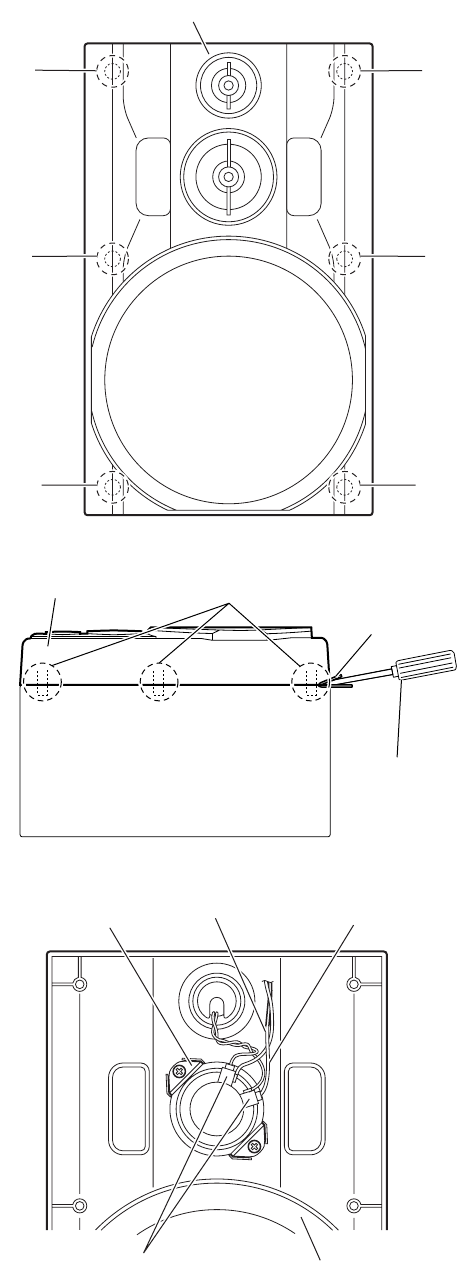

(1) Insert the tip of a flat-bladed screwdriver or similar tool into

the space between the speaker main body and front panel

assembly, and lift the front panel assembly little by little to

remove the sections b. (See Figs.2 and 3.)

Note:

To prevent damaging the front panel assembly and

speaker main body, insert cushioning plates etc. into the

space between the speaker main body and front panel

assembly. (See Fig.3.)

(2) From the inside of the front panel assembly, disconnect the

gray and black wires from the terminals of the tweeter. (See

Fig.4.)

Fig.2

Fig.3

Fig.4

Front panel assembly

Front panel assembly Cushioning

plate, etc.

Flat-bladed

screwdriver,etc.

Wire(black)

Terminals

Wire(gray)

Tweeter

Front panel assembly

(No.MB385)1-33

3.5.3 Removing the speaker

(See Figs.5 and 6)

• Remove the front panel assembly.

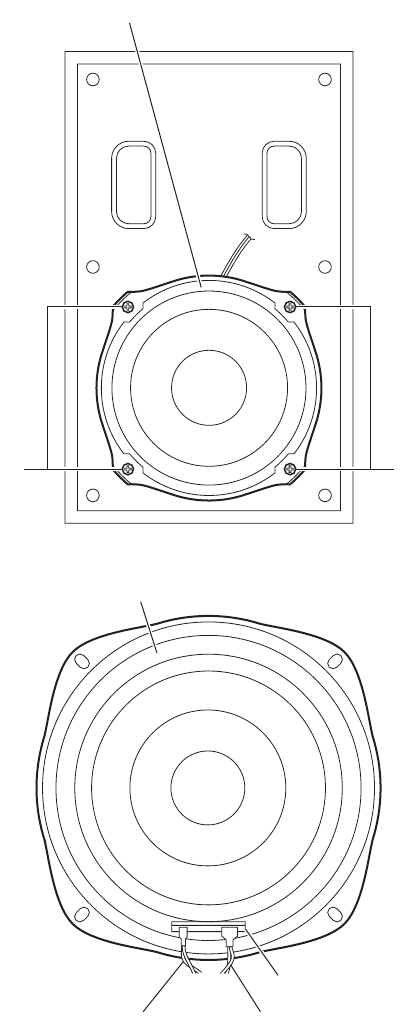

(1) From the front side of the speaker main body, remove the

four screws A attaching the speaker. (See Fig.5.)

(2) Take out the speaker from the speaker main body and dis-

connect the wires (red/black, gray/black) from the terminal

of the speaker. (See Fig.6.)

Fig.5

Fig.6

Speaker

A A

Speaker

Wires (gray/black) Wires (red/black)

Terminal

1-34 (No.MB385)

SECTION 4

ADJUSTMENT

4.1 Measurement Instruments Required for Adjustment

(1) Low frequency oscillator

This oscillator should have a capacity to output 0dBs to

600Ω at an oscillation frequency of 50Hz-20kHz.

(2) Attenuator impedance : 600Ω

(3) Electronic voltmeter

(4) Distortion meter

(5) Frequency counter

(6) Wow & flutter meter

(7) Test tape

VT703 : Head azimuth

(8) Blank tape

TYPE l : AC-514

(9) Test disc: VT-501, CTS-1000

4.2 Measurement conditons

4.2.1 Radio Input signal

4.2.2 Tuner section

4.2.3 Standard measurement position of volume

Precautions for measurement

(1) Apply 30pF and 33kΩ to the IF sweeper output side and

0.082µ F and 100kΩ in series to the sweeper input side.

(2) The IF sweeper output level should be made as low as

possible within the adjustable range.

(3) Since the IF sweeper is a fixed device, there is no need

to adjust this sweeper.

(4) Since a ceramic oscillator is used, there is no need to

perform any MIX adjustment.

(5) Since a fixed coil is used, there is no need to adjust the

FM tracking.

(6) The input and output earth systems are separated. In

case of simultaneously measuring the voltage in both of

the input and output systems with an electronic voltmeter

for two channels, therefore, the earth should be connect-

ed particularly carefully.

(7) In the case of BTL connection amp., the minus terminal

of speaker is not for earthing. Therefore, be sure not to

connect any other earth terminal to this terminal. This

system is of an BTL system.

(8) For connecting a dummy resistor when measuring the

output, use the wire with a greater code size.

(9) Whenever any mixed tape is used, use the band pass fil-

ter (DV-12).

Power supply voltage:

AC110V / AC127V / AC220V / AC230V to AC240V

50Hz / 60Hz (Adjustable with the voltage selector)

Reference output: Speaker : 0.775V/4Ω

Headphone : 0.077V/32Ω

Reference frequency and

input level:

1kHz, AUX : -8dBs

Measurement output terminal: at Speaker J200

Load resistance: 4Ω

AM frequency: 400Hz

AM modulation: 30%

FM frequency: 400Hz

FM frequency deviation: 22.5kHz

FM Band cover: 87.5 - 108.0MHz

AM Band cover: 531 - 1,710kHz (at 9kHz)

530 - 1,710kHz (at 10kHz)

531 - 1,602kHz (at 9kHz) : UX version only

530 - 1,600kHz (at 10kHz) : UX version only

Voltage applied to tuner: +B : DC5.7V

VT : DC 12V

Reference measurement

output:

26.1mV(0.28V)/3Ω

Input positions: AM : Standard loop antenna

FM : TP1 (hot) and TP2 (GND)

Function switch to Tape

Beat cut switch to Cut

Super Bass/Active hyper Bass to OFF

Bass Treble to Center

Adjustment of main volume to reference output VOL : 28

(No.MB385)1-35

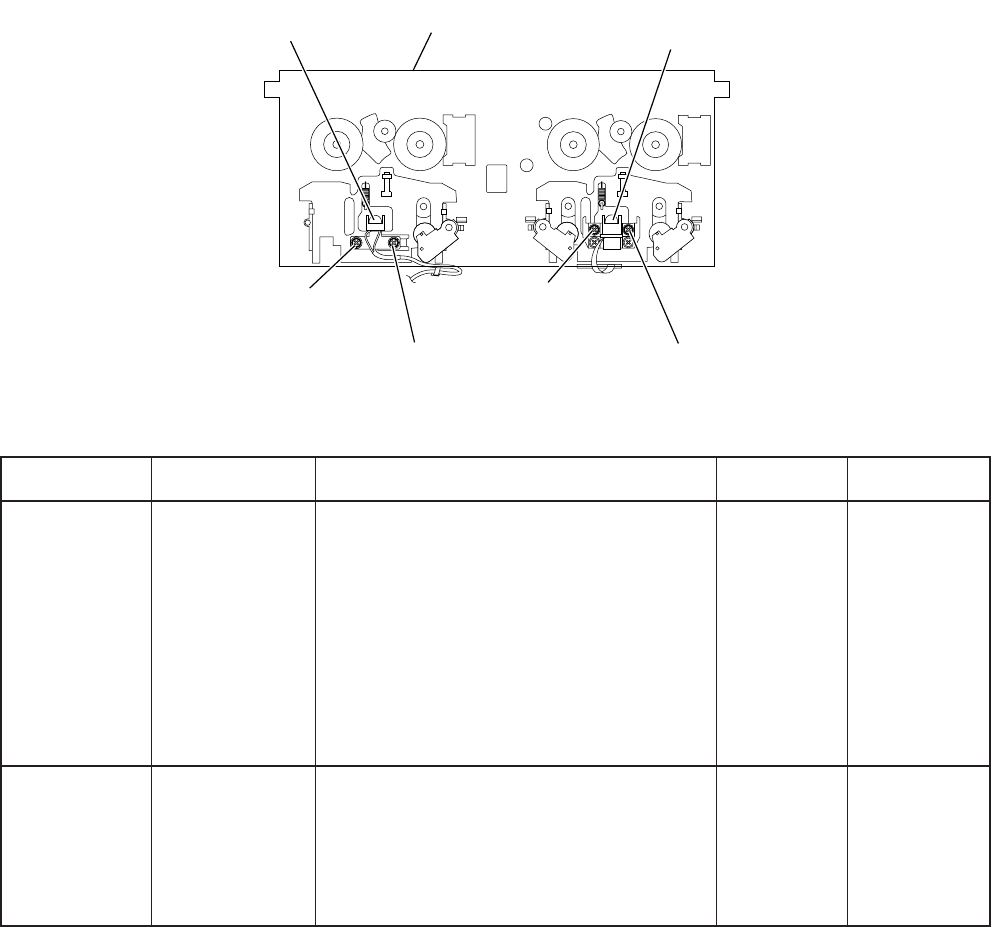

4.3 Arrangement of adjusting positions

4.4 Tape recorder section

Cassette mechanism assembly

(Front side)

PB Head

(Deck-A) REC/PB Head

(Deck-B)

Head azimuth screw

(Forward side)

(Reverse side)

(Forward side)

Head azimuth screw

Head azimuth screw Head azimuth screw

(Reverse side)

Items Measurement

conditions Measurement method

1. Playback the test tapeVT703 (10KHz) or equivalent.

2. Adjust the head azimuth screw to obtain maximum

output and both output of L / R is in 3dB.

3. Put on the screw lock paint after alignments.

Test tape

:VT703 (10kHz)

Measurement output

terminal

:Left and Right

speaker output

(6-ohm loaded)

Headphone Output

(32-ohm loaded)

Test tape

:TYPE I AC-514

Measurement output

terminal

:Erase head terminal

(CN308 8-Pin)

Maximum output

80kHz+/-3kHz

Adjust the head

azimuth screw

only when the

head has been

changed.

Cassette Head

Azimuth Alignments

Recording Bias

Frequency Alignment

1. Insert the recording tape in deck-B.

2. Starting the recording.

3. Adjust the oscillation frequency to 80kHz+/-3kHz by

core of Oscillation coil of L301.

Standard

values

Adjusting

positions

Use the High-

Impedance Probe

or Frequency

counter input.

1-36 (No.MB385)

4.5 Service mode

4.5.1 Confirming contents

(1) Cold start

(2) FL display and LED display check

(3) System ROM number, firmware version and region check

(4) Change AM frequency step 9kHz/10kHz (Toggle)

(5) Tray LOCK/UNLOCK (Toggle)

(6) System micon cold start

(7) System micon soft reset

(8) Setting of DVD NTSC mode

(9) DVD test mode

4.5.2 Confirming methods

2. FL display and LED display check

All of the FL and LED display light up.

1. Cold start

Cold start is completed.

Press the VOLME +(UP) button twice while

pressing the ENTER, STANDBY/ON

buttons on the remote controller at standby.

COLD SET

FL indication

Press the VOLME - (DOWN) button while

pressing the ENTER, STANDBY/ON

buttons on the remote controller at standby.

Indication returns to normal indication by doing

the same operation again.

This confirmation is possible in a power on state.

3. System ROM number, firmware version and region check

Press the FADE MUTING button while

pressing

the ENTER, STANDBY/ON

buttons on the

remote controller

in a power on state.

SYS X.XX #

FL indication

Press the FADE MUTING button again while

pressing the ENTER, STANDBY/ON

buttons

on the remote controller.

3 CHARACTERS + ROM CORRECTION #

(Example) SYS 1.03 0

DVD YYYY

FL indication YYYY : Firmware version

(Example) DVD 0471

Press the FADE MUTING button again while

pressing the ENTER, STANDBY/ON

buttons

on the remote controller.

MX-JE3 ZZ

FL indication ZZ : Region

(Example) MX-JE3 US

If there is not the button input, each indication returns to normal indication automatically.

Press the FADE MUTING button again while

pressing the ENTER, STANDBY/ON

buttons

on the remote controller.

(No.MB385)1-37

4. Change AM frequency step 9kHz/10kHz (Toggle)

6. System micon cold start

This unit returns to initial setting.

Setting of AM frequency is completed.

Press the

STANDBY/ON

button while

pressing the STOP

button on the main

unit at standby.

AM ##

FL indication ## : 9K or 10K

AM frequency changes by the same operation again.

5. Tray LOCK/UNLOCK (Toggle)

Setting of tray LOCK/UNLOCK is completed.

Press the

OPEN/CLOSE

button while

pressing the STOP

button on the main

unit at standby.

XXXXX

FL indication XXXXX : LOCKED or UNLOCKED

Setting of LOCK/UNLOCK changes by the same operation again.

Insert the power cord in an outlet while

pressing the CANCEL and

buttons

on the main unit.

7. System micon soft reset

System micon is initialized.

Press the STANDBY/ON button while

pressing the CANCEL and PAUSE

buttons on the main unit at standby.

8. Setting of DVD NTSC mode

Setting of DVD NTSC mode is completed.

Insert the power cord in an outlet while

pressing the SET and

buttons on

the main unit.

Press the STANDBY/ON button

on the main unit at standby.

This setting is maintained after having been cut off.

1-38 (No.MB385)

9. DVD test mode

VERSION

VERSION LIST:

JC / 1U / D / E / 2U / 3U / UB / UT / 4U / UY / EE / UF

FE Learning Condition

Region

A. EEPROM INITIALIZE

(NORMAL)

Press the button on the main unit for two seconds.

Insert the power cord in an outlet while

pressing the

SET

and buttons on the

main unit.

FL indication

TEST #@

Press the "PAUSE" button on the main unit.

B. EEPROM INITIALIZE

(FULL)

Press the "MENU" button on the remote controller.

FL indication

(For Example) " 1234 "

DISPLAY SHOWS DEVICE KEY CHECKSUM

Press the "MENU" button on the remote controller.

FL indication

" aaaa cccc "

VERSION DISPLAY

aaaa : Syscon micon version

cccc : Backend micon version

Press the "MENU" button on the remote controller.

FL indication

ALL FL light UP

Press the "MENU" button on the remote controller.

Enter to "CHECK MODE"

FL ALL ON check

TEST #@

TEST #@0

FL indication

TEST #33

FL indication

(No.MB385)1-39

Press the "1" button on the remote controller.

START PLAY

Press the "2" button on the remote controller.

WOBBLE

Press the "4" button on the remote controller.

CD LASER Current

Press the "5" button on the remote controller.

DVD LASER Current

Press the "6" button on the remote controller.

DVD-SL Jitter

Press the "7" button on the remote controller.

EEPROM (BWD)

Press the "8" button on the remote controller.

EEPROM (FWD)

Press the "9" button on the remote controller.

Temperature

Press the "STOP" button on the main unit or

remote controller.

STOP

POWER OFF

or SOURCE CHANGE

Cancellation of the

"DVD TEST MODE"

WOBBLE display

CD Laser Current

DVD Laser Current

DVD-SL Jitter

Memory BWD

Memory FWD

Temperature

Press the "10" button on the remote controller.

DVD-DL/SL Jitter

Press the "+10" button on the remote controller.

EEPROM Initialize

Press the "0" button on the remote controller.

Monitor Change

Monitor Display

FL indication

CHECK

Press the "OPEN/CLOSE" button

on the main unit.

OPEN/CLOSE

FL indication

Press the "PLAY" button on the main unit or

remote controller.

PLAY

Laser & Jitter

FL indication

CHECK

1-40 (No.MB385)

4.5.3 Indicating check for FL display

Note

By AC cord on with holding SET and

: VERSION

@: FE learning condition

#: REGION

By pressing PAUSE (Front)

By pressing and holding (Front) for 2-sec

By pressing MENU (Remote)

aaaa: Syscon, cccc: Backend

By pressing MENU (Remote)

By pressing 1 (Remote)

By pressing 2 (Remote)

By pressing 4 (Remote)

By pressing 5 (Remote)

By pressing 6 (Remote)

By pressing 7 (Remote)

By pressing 8 (Remote)

By pressing 9 (Remote)

By pressing 10 (Remote)

By pressing +10 (Remote)

By pressing 0 (Remote)

By pressing STOP (Front or Remote)

By pressing OPEN/CLOSE (Front)

By pressing PLAY (Front or Remote)

Laser & Jitter

DVD TEST MODE

TEST START

(Version info)

A. EEPROM INITIALIZE

(NORMAL)

B. EEPROM INITIALIZE

(FULL)

DEVICE KEY DISPLAY

VERSION DISPLAY

FL ALL ON

CHECK MODE

START PLAY

WOBBLE

CD LASER current

DVD LASER current

DVD-SL jitter

EEPROM (BWD)

EEPROM (FWD)

Temperature

DVD-DL/SL jitter

EEPROM initialize

Monitor change

STOP

OPEN/CLOSE

PLAY

FL displayFunction

(No.MB385)1-41

SECTION 5

TROUBLESHOOTING

This service manual does not describe TROUBLESHOOTING.

(No.MB385)

AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

Victor Company of Japan, Limited

VPT

Printed in Japan

SCHEMATIC DIAGRAMS

MX-JE3,MX-JE31

Contents

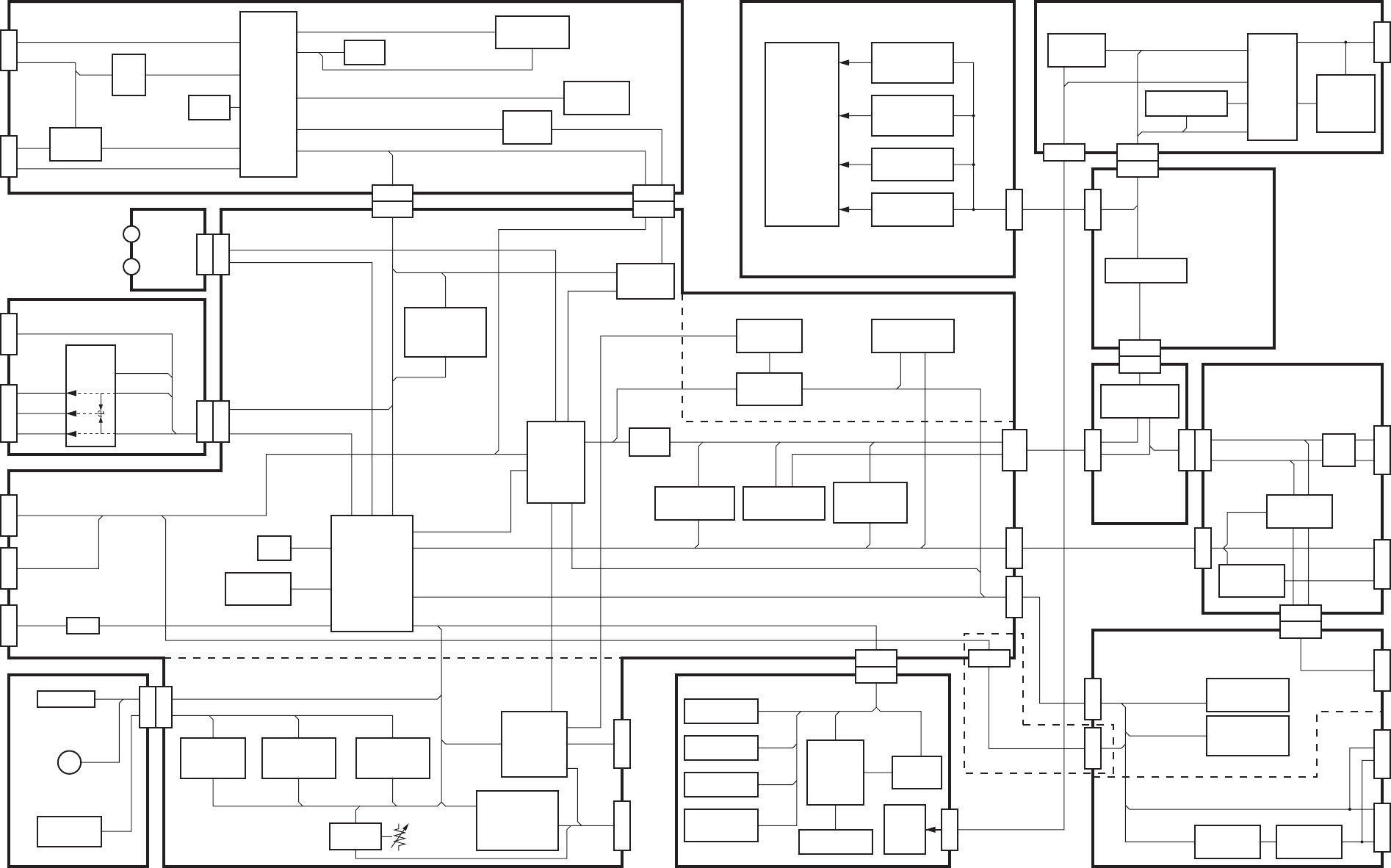

Block diagram

Standard schematic diagrams

Printed circuit boards

2-1

2-2

2-9 to 13

CD-ROM No.SML200504

COMPACT COMPONENT SYSTEM

No.MB385SCH

2005/4

Area suffix

US ------------------------ Singapore

UW ----------- Brazil,Mexico,Peru

UX -------------------- Saudi Arabia

UY ------------------------ Argentina

UG --- Turkey,South Africa,Egypt

UE -----------------------------Turkey

UN ----------------------------- Asean

MX-JE3

Area suffix

UX -------------------- Saudi Arabia

UG --- Turkey,South Africa,Egypt

UN ----------------------------- Asean

MX-JE31

(CA-MXJE3) (SP-MXJE3)

(SP-MXJE3)

(CA-MXJE31) (SP-MXJE31)

(SP-MXJE31)

In regard with component parts appearing on the silk-screen printed side (parts side) of the PWB diagrams, the

parts that are printed over with black such as the resistor ( ), diode ( ) and ICP ( ) or identified by the " "

mark nearby are critical for safety.

2-1

IC201

DRVER

IC301

DV2.1 IC505

SDRAM

IC509

FLASH ROM

DVD pickup

mechanism

CN101

A, B, C, D, E, F, RF+, PD(CD), PD(DVD)

F+/-

T+/-

FM+/-

WOUT

VOUT

UOUT

COM

LD(CD)

LD(DVD)

FAOUTL, FAOUTR

Q101

Q104

S2UDT, U2SDT, SCLK, SCS, CPURST

UCS, SMUTE, LRMUTE, DAC1OUT

DAC2OUT, DAC3OUT, DAC4OUT, DAC5OUT

EXDAT0 to 15, EXADT0 to 15, EXADR16 to 20

NEXCE, NEXOE, NEXWE

MA0 to 11, BA0, BA1, MDQ0 to 15, DQM0, DQM1

NCSM,NRAS, NCAS, NWE,MCK

X351

27MHz

DVD traverse

mechanism

CN201

LPCO1, LPCO2

CDLDCUR

DVDLDCUR

SPDRV, TRSDRV

FODRV, TRDRV

/DRVMUTE,VHALF

/SPMUTE,FG

TRVSW

CN501

CN503

IC701

DAC

AOUT 0, BCK, PCMCLK, LRCLK

DACPDN, DAC0CS, DCLK, DDATA

DVD servo section

IC270

5.6V MICOM

REG.

IC260

MOTOR

9V REG.

IC280

SLC12V REG.

CN213

S4H

S4L

IC290

9V REG.

MOTOR9V

5.6VMICOM

SLC12V

Audio output section (Regulator)

Q190 to Q194

H/P MUTE

SPEAKER

TERMINAL

J81

SWL_OUT

SWR_OUT

CN106

Q181

FAN DRIVER

FAN

CN106

RY160

FAN+/-

STATUS

CN214 CN206

FANCONTROL

HPMUTE

Audio output

section

(Speaker terminal)

POWER

TRANS.

S500

VOLTAGE

SELECTOR

SWITCH

CN250

AC IN

Q2010

34V REG.

CN101 CN119

D2010 to D2013

DIODE BRIDGE

34V

S4H

S2 S4L

Primary section (Transformer)

IC920

DISPLAY

MICOM

FL910

FL DISPLAY

FLLATB

P1 to P37

G1 to G8

CN890

KEY4

S920

POWER SW

FW241

FL1

FL2

34V

JS920

VOL JOG

VOL+/-

IC900

BUFFER

FLDATA

FLCLK

FLBK

CLKB

D925

STANDBY LED

REMIN

STBYLED

IC930

REMOCON

FL display section (FL)

IC970

ECHO MIX

KEY1, KEY2, KEY3

D933 to D938

SOURCE LED

CN870

FW116

J995

HEADPHONE

JACK

J970

MIC JACK

J971

MIC JACK /

AUX JACK

S939 to S955

S960 to S967

SWITCH KEY

IC971

MIC AMP.

SBLED, AUXLED

TUNERLED, DVDLED

TAPEALED, TAPEBLED

Except UW/UY/UE

HPL

HPR

FL display section

(Switch)

D211 to D214

DIODE BRIDGE

-VL

FW109

CN203

CN202

S4H

S4L

Audio output

section (Primary)

S-VIDEO

COMPOSITE

VIDEO OUT

J1010

IC100

VIDEO

DRIVER

YOUT

C_OUT

CN420

VMUTE1

INT/PROG

S1001

NTSC/

PAL

SWITCH

NTSC/PAL

FL display section (Video out)

IC602

POWER AMP.

CN204

CN212

FW208

MAINL

MAINR

SWFB

Audio output

section

(Amplifier)

SWITCH

SOLENOID

CN1

Tuner

CN511

EEDA

EECLK

AUXL, AUXR

IC460

VOLUME

X801

J454

AUX IN

Q585 to Q587

MUTE

SYSTEM

IC801

EEPROM

CN880

TUL, TUR

J812

CN410

CN860

TUCLK

TUCE

TUDATA

SDATA

IC810

SYSTEM

MICOM

CN216

Q806

SBLED, AUXLED, TUNERLED, DVDLED, TAPEALED, TAPEBLED

KEY1, KEY2, KEY3

AVC

FLBK, FLDATA, FLCLK, FLATB

REMIN, KEY4, SBYLED, VOL+, VOL-

COMP

LINK

J814

OPTICAL

OUTPUT

CN220

CN221

VOLDA

VOLCLK

VOLCE1

Q120 to Q123

AHB

IC120

AMP

Q520, Q521

MIC MUTE

IC521

LR MIX

IC520

MIC MIX

Except UW/UY/UE

MAINL,MAINR

MICMUTESMUTE

MIC

SWFB

Q124 to Q129

AHB CONTROL

BASS1

BASS2

AUXL, AUXR

CN513

CN21

RECL, RECR

CY, CbOUT, CrOUT, COUT, YOUT

VMUTE, INT/PROG

NTSC/PAL

IC815

5V-3.3V

CONVERTER

U2SDT

SCLK

UCS

S2UDT, U2SDT

SCLK, SCS

CPURST, UCS

SMUTE

FAOUTL+

FAOUTR+

SPDIF

Q410,Q421

Q467

LR MUTE

LRMUTE

AUXL

AUXR

FL, FR

System control section

L+, L–,

R+, R–

Q360

Q362 to Q366

HEAD

SWITCH

Q307, Q309

MOTOR

DRIVE

Q310, Q311

SOLENOID

DRIVE A

IC300

MECHA

MICOM

CN303

MECHA

HEAD

CN301

Q312, Q313

SOLENOID

DRIVE B

PLAY

BACK

HEAD

CN302

L+, R+

PBL

PBR

RECH

SOLASOLBMOTOR

SLCKEY1, SLCKEY2, END SW1, END SW2

A/B, RMUTE

PBMUTE

RECL

RECR

Tape mechanism section

Block diagram

IC453

RESET /FL_RST

SPDIF

AVCI

AVCO

AUXL

AUXR

SOLASOLBMTR+

L320

BIAS OSC

RECB

VR320

R/P frequency

response adj.

CN454

FW444

For UW/UY/UE

FL1, FL2

2-2

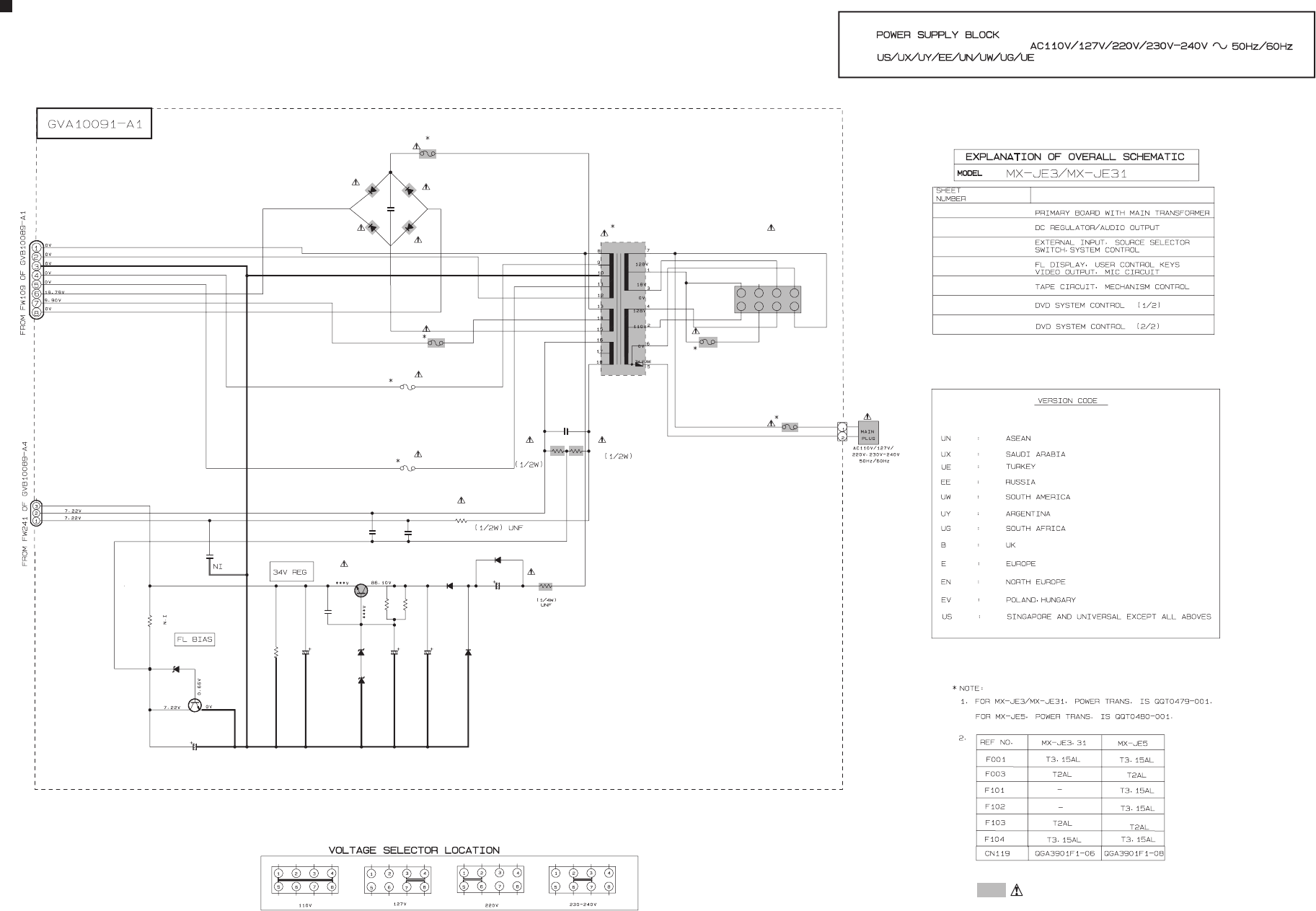

SHEET 1

Parts are safety assurance parts.

When replacing those parts make

sure to use the specified one.

CN250

R2014

C2018

C2017

F103

Q2011

D2010

C2015

C2010

D2016

D2015

D2020

F104

R2010

Q2010

F102

D2012

D2013

D2011

F101

F001

F003

S500

R2017 R2018

C2019

CN119

R2013

CN101

C2019

D2018

D2017

R2011

R2012

C2012

C2013

C2014

C2011

D2019

C2020

R2016

QGA7901C1-02

0.33

0.1/50

KTC3203/0Y/-T

1N5402M-20

10/50

100/6.3

1N4003S-T5

MTZJ6.8B-T2

4.7

KTC2026/OY/

1N5402M-20

QSW0812-001

47 47

0.01/50

QGA3901F1-08

100K

QGD2504C1-03Z

0.022/50

MTZJ22B-T2

1N4003S-T5

33K

100K

22/50

0.01/16

47/100

MTZJ15B-T2

0.1/100

33K

FL1

S4H

FL2

34V

S4L

CTS4

1234

5678

(SHEET 2)

(SHEET 4)

Standard schematic diagrams

Primary section

2-3

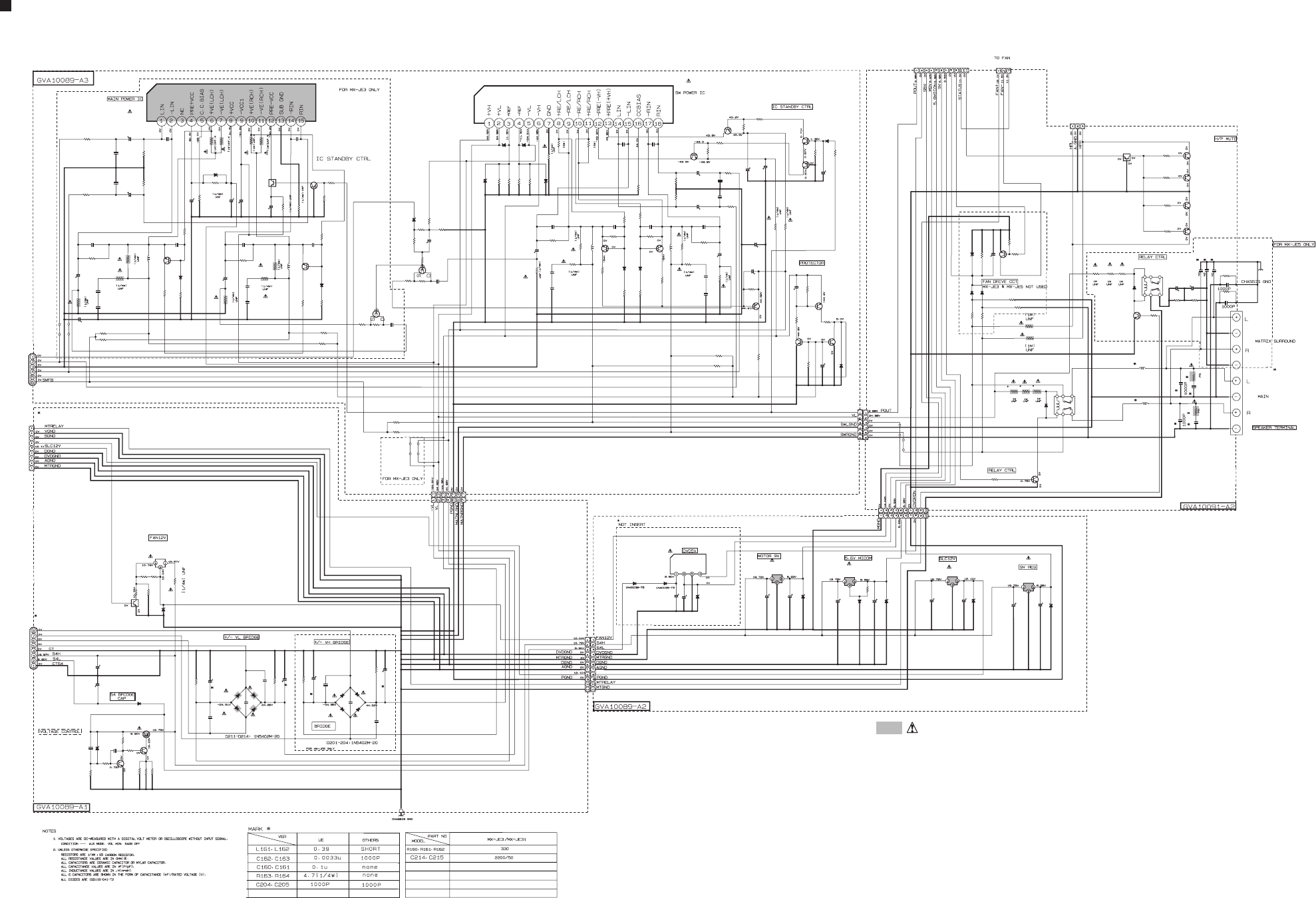

SHEET 2

Parts are safety assurance parts.

When replacing those parts make

sure to use the specified one.

CN204

CN214

Q196

R793

R792

R169

R168

R675

J81

D231

IC290

CN106

B6881

IC280

IC230

C177

D251 D252

CN201

R195

CN215

Q601

CN206

CN205

B6283

RY170

CN203

R196

R162

R161

IC250

FW208

CN202

CN212

IC260

C165

C164

R170 R171 R172

R234

L161

L162

Q195

C178

R183

R184

CN213

C622

C605

R676

C609

R676

R684

EP201

Q190

Q192

R615

C621

Q191

Q193

Q194

R190

R191

R192

R193

R167

R177

IC602

C606

Q230

R602

R668

FW109

R235

D212

D213

D211

D214

D201

D203

D204

D202

R160

IC701

C705 C706

D704D703

Q710

Q713

Q711

R786

R778

D726

R608

C722

C721

R708

R762R761

R707

R716R715

R616

Q681

C709 C731 C730 C710

C739

Q702

R728

Q728

Q726

R739

R740

R198

C610

R197

C602

Q181

R182

IC270

Q602

CN105

C601

R686

Q612

R687 C682

Q613

R681

C639

R776

R725

Q725

R726

D622

R743

Q221

C738

Q222

Q223

R226

R224

R775

D222

R688

R689

R756

R755 C727

Q729

B6077

B6078

C173

C174

C172

C291

R163

C171

C160 R164

C212

D280

C280

D170

C222

C281

C603

C163

C162

RY160

C250

D160

C211

C711

C712

R603

C604

C213

R604

C607

R230

R682

R613

R605

C613C615

L601

R165

R166

R652

R654

D162

D161

R232

R233

C612

C623

C624

R666

R601

R674

D180

C221

R217

C214

R617

C203

R619

R218

C215

R215

C205

C202

R216

C204

C201

R741

R723

R724

R742

R774

R766

D723

D724

C180

R753

R754

Q712

R787

R777

R768

R769

R704R703

R621

R606

C703

R717

R718

R714

R713

R705

R706

R722

R720

R719

R721

R614

R623

R620

D681

R618

R702

R701

C713C715

C714C716

C707

C708

D720

D719

L701

L702

Q701

C260

C261

R667

C614

R730

R727

R729

C726

C729

D728

Q727

C616

D260

D620

D619

C608

C611

L602

R180

D250

C271

C251

R181

D271

D270

R271

R683

R685

C681

R744

C704

R650

R656

R222

R221

R223

R225

R227

C225

C226

C723

C270

D221

B7053

B6059

D290

C290

QGB2510K1-06

QGB2510J1-06

KTC3199/GL/-T

82K

2.7K

QNB0171-001

MTZJ13B-T2

KIA7809API

QGD2503F1-03

KIA7812API

KIA317PI

100/50

QGB2510J1-09

2.2K

QGB2510K1-10

QGB2510K1-11

QGB2510J1-10

QSK0109-001

QGB2510J1-09

2.2K

PQ05RD21

QUM156-11DGZ4

QGB2510J1-07

QGB2510K1-07

KIA7809API

82 82 82

270

0.39

KTC3199/GL/-T

100/50

QGB2510K1-09

10/35V

220P

3.3p

56K

10K

QNZ0136-001Z

2SC3576-JVC-T

10/35V

2SC3576-JVC-T

KRA111M-T

4.7K

470

STK432-070

220P

KRC102M-T

100

10K

QJK015-082904

STK412-400

220P 220P

KTA1023/OY/-T

KTC1027/OY/-T

KTC3200/GL/-T

10K

56K

10/35

56K

1K1K

56K

1010

2SK301/PQ/-T

8.2p 0.022 0.022 8.2p

1/50

10K

82K

100K

3.3p

100K

0.022

KTC3203/OY/-T

KIA7805API

QGA2501F1-03

0.022

3.9K

KTA1267/YG/-T

1M 0.082

15K

1/50

82K

100K

MTZJ9.1B-T2

10K

KTA1046/Y/

10/50

KTC3199/GL/-T

2.7K 680

MTZJ5.6C-T2

2A02M

82K

3.9K 1M 0.082

2SK301/PQ/-T

0.001/50

10/50

4R1( 1/4W)

0.1uF

0.1uF 4R7( 1/4W)

0.01/100

MTZJ15B-T2

KTC3199/GL/-T

10/50

8200/16

10/50

220P

QSK0109-001

10/50

0.01/100

1/50

47K

220P

0.1/250

47K

4.7/50

4R7

20K

1.2K

0.0470.047

0.39

15K

0.22

3.3K

2.4K

100/50

10/50

33K

100

MTZJ5.1B-T2

8200/25

100K

2200/50

220

0.1/250

2.2K

100K

2200/50

100K

4700/50

0.01/250

100K

4700/50

0.01/250

MTZJ15B-T2

6.8K

33K

MTZJ36B-T2

47/25

0.22

KTA1268/GL/-T

10K

100K

2.2K

56K56K

47K

1.2K

470P

820

47K

5.6K

47K

2.2K

MTZJ2.4B-T2

220

0.010.01

10/35

0.39

KTC3200/GL/-T

10/50

220/16

10K

0.047

10K

100K

10/50

47/16

KTA1268/GL/-T

KTC3199/GL/-T

KTC3200/GL/-T

0.047

MTZJ11B-T2

4.7/50

100/50

0.39

47K

MTZJ5.6C-T2

10/50

470/25

10K

MTZJ6.8C-T2

KTC3199/GL/-T

47K

4.7M

KRC102M-T

0.22/50

KTA1268/GL/-T

100K

470p

0.22

4.7K

680

0.01/50

220P/50

100/10

10/50

MTZJ11B-T2

10/50

MAINR

POUT

S4H

MAINL

SWROUT

MTGND

SLC12V

MAINGND

FANSPEED

MTRELAY

SWLOUT

SURR

S4L

SWROUT

PRT

FAN12V

SLC12V

M9V

SWRGND

-VL

-VH

HPMUTE

SWLGND

-VH

FAN12V

PGND

DVDPON

FAN12V

MTRELAY

S5V

5.6MICON

PGND

MTGND

S5V

5.6MICON

DVDPON

MTRELAY

MTGND

MGND

MRELAY

M9V

PGND

FANCONTROL

STATUS

TO CN220 AND CN221 OF GVA10090-A1

TO CN211 OF GVA20090-A1

(SHEET 3)

TO CN119 OF GVA10091-A1

(SHEET 1)

(SHEET 3)

TO CN216 OF GVA10090-A1

(SHEET 4)

FROM FW116 OF GVA10091-A3

Audio output section

2-4

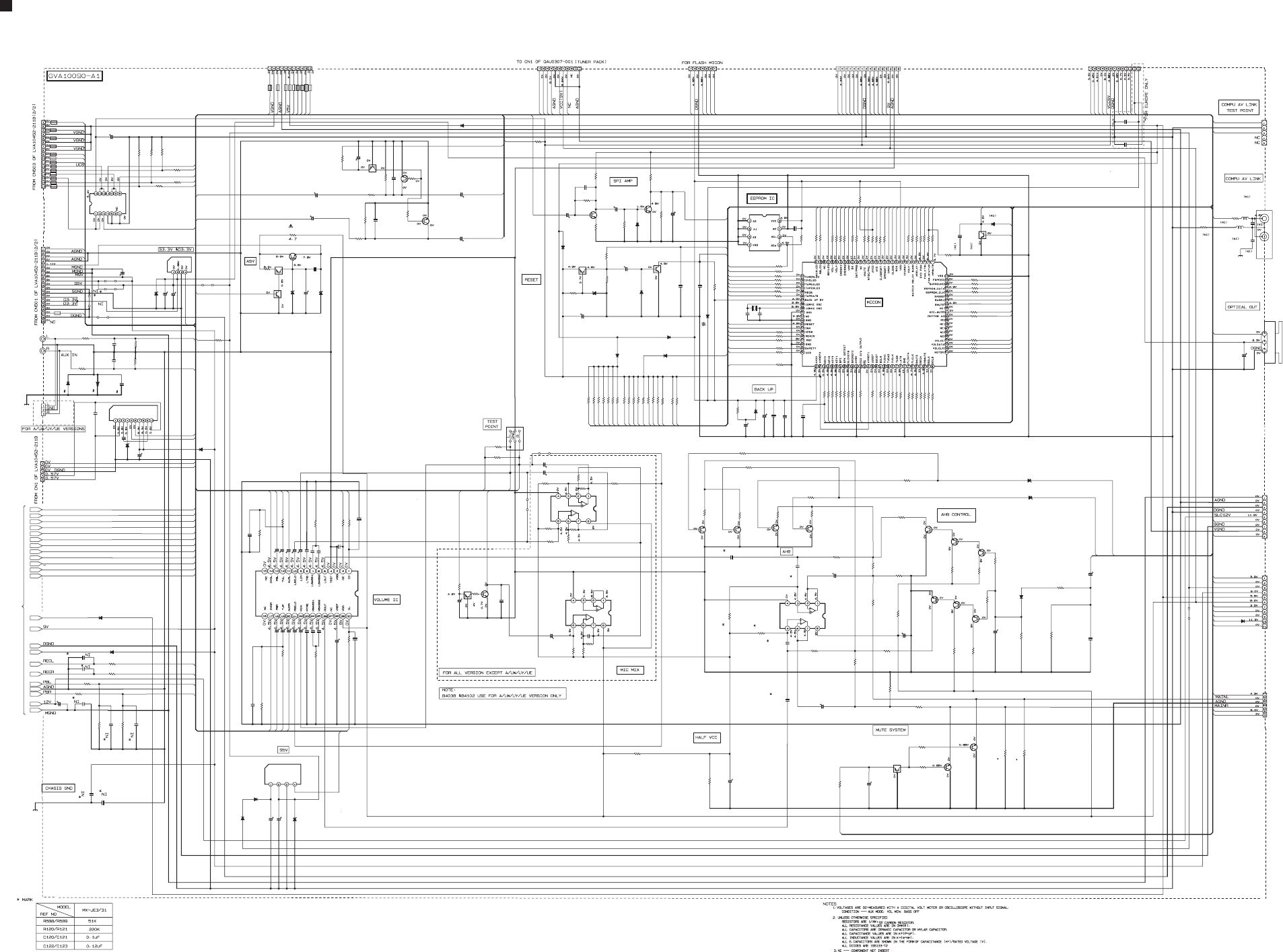

SHEET 3

CN800

CN511

CN216

D374

K425

D862

IC815

K403

C815

CN513

R830

C825

R430

CN21

CN221

CN220

CN454

K404

C407

D375

C406

K405

R403

Q417

IC420

C419

CN410

B4506

R888

R891

J812

B4016

Q415

D420

C529

R489

C415

IC414

K406

B4042

B4117

K407

R521

K408

D807

D444

K409

K410

K411

K412

K413

K414

B4013

K415

B4012

R534

R535

Q431

C431

Q430

R474

C432

C433

CN860

CN880

D808

C824

D803

CN211

D422

IC421

CN812

R863

Q521

R452

Q421

C436

R451 C437

IC801

R525

R886

C377

C375

R551

C992

R533

R409

C378

R411

R887

R412

R552

C376

C528

R379

R380

J814

Q129

C122

C813

R123

C125

C123

R127

R129

R377

C810

R806

R531

R524

C532

R378

C533

R527

R530

R526

C373

R464

R130

R585

R120

R398

R586

D384

D385

L812

R141

R139

C124

R122 R126

IC410

R140

R138

C120

L813

R807

J454

IC460

CN11

IC810

D806

R467

R860

R880

R845

R844

R895

X801

R898

R858

C808 C809

R857

R889

R892

R900

C804

Q802

C801

R800

C800

D804

Q801

R854

R853

R850

R890

R828

R905

R894

R866

R899

R868

R553

C508

R885

R869

C421

D810

R462

C423

IC521

C420

R865

R864

R523

R588

D415

R465

R589

C414

D414

B4615

C397

C408

C409

K416

K417

K418

K419

K420

K421

C430

R471

R470

D430

C445

R472

R473 R475

K422

K423

C816

K424

C422

R897

R856

D421

D423

B4059

C412

R468

C447

R466

C446

Q420

R520

C526

Q520

C527

R463

C380

C454

R992

R408

C455

R406

R405

IC520

C814

C560

C121

R613

C555

R125

Q127

R135

R137

R566 D551

R804

R571

IC120

R133

C379

Q585

Q586

R819

D455

Q806

D454

R825

R522

R528

R529

R812

C456

R834

R373

R374

C374

B4201

B4202

B4200

R131

C812

C587

R587

Q121

R121

Q123

R143

R145

R124

R128

R132

Q120

R134

R136

Q122

Q124

Q128

Q126

R142

R144

Q587

C479

R483

R481

C461

R482

R480

C478

C463

C465

C467

C471

C462

C464

C466

C470

C472

C469

D410

C474

C476

C473

C411

C475

C477

R487

R486

R488

R484

R485

C460

C413

R884

R801

R876

R879

R878

Q410

R903

R859

R874

R469

R867

R873

C811

R843

C468

R841

R861

R862

R842

R829

R832

R840

R835

R820

R863

R818

R816

R839

R838

R837

R836

R846

R901

R822

R824

R827

R814

R907

R831

C806

C805

D809

R805

C807

R803

C803

D805

R802

C802

D801

R833

R896

R908

R906

R902

R847

R904

R826

R815

R817

R813

R811

R821

R823

D802

R871

R872

R810

QGF1205F1-07

QGF1036C1-19

QGB2510J1-11

SN74AHCT08NS-X

10/50

QGF1036C1-17

10K

1.5

QGF1205C1-11

QGD2504C1-03Z

QGA250C1-03

10/35

1N4003S-T5

10/35

1.2K

UN2115-X

PQ033EF02SZ

2200/16

QGF1205F1-11

QNS0089-001

UN2213-X

MTZJ3.9B-T2

270p/50

10K

0.01/16

KTC3200/GL/-T

47K

1N4003-T5

NQR0360-002X

30K

1/50

2SD601A/RS/-X

2.2M

33p/50

1/50

QGF1205C1-16

QGF1205C1-12

IN4003S-T5

1.5

ISS244-T2

QGB2510K1-09

1N4003S-T5

KIA278R05P1-U

QGF1205F1-05

10K

2SD1328/ST/-X

4.7K

2SD1328/ST/-X

10/35

4.7K 10/35

BR24L02AF-W-X

10K

470/10

220p/50

18k

470/10

10K

1.2K

0.022/50

1.2K

18k

220p/50

2.2/50

GP1FA553TZ

2SD601A/RS/-X

220p/50

47/16

6.8K

22k

0.01/16 220

10K

47/25

10K

10K10K

1000P

6.8K

10K

2.2K

10K

MTZJ3.9B-T2

2.2uH

22k

24K

47/16

1K 6.8K

LB1641

22k

24K

2.2uH

470

QNN0420-001

LC75342M-X

QGF1036C1-05

UPD78F4218AGF

10k

QAX0724-001Z

27p/50 30p/50

4.7K

470/10

UN2211-X

4.7/50

100/16

MTZJ4.3B-T2

UN2115-X

10K

100

10K

1.3K

330/10

10K

10/50

10K

82k

470/25

NJM4565M-WE

47/10

47K

MTZJ5.6B-T2

100/16

MTZJ6.2B-T2

0.18/50

100p/50

NQR0360-002X

1/50

100k

10k

UN2215-X

1/50

100k

6.8k 47k

0.01

NQR0360-002X

10/50

1N4003S-T5

MTZJ5.6C-T2

0.1/16

4.7K

47p/50

4.7K

47p/50

2SD1328/ST/-X

10/50

UN2113-X

0.068

82k

0.001/50

220P/50

100

2.2K

220P/50

2.2K

NJM4565M-WE

100/6.3

4.7/50

100

1/50

2.2K

2SD601A/RS/-X

100

220k

270k

10K

NJM4565M-WE

2SD601A/RS/-X

0.001/50

UN2113-X

2SD1328/ST/-X

4.7K

UN2211-X

10K

6.8K

10K

2200P/16

100k

0.01

6.8K

220p/50

10/50

2SD601A/RS/-X

56K

24K

2.2K

22k

100

2SD601A/RS/-X

100

220k

2SD601A/RS/-X

56K

24K

2SD1328/ST/-X

100/16

20K

15K

470p/50

20K

15K

470p/50

2.2/50

10/50

2.2/50

10/50

2700p

10/50

MTZJ4.7C-T2

2.2/10

0.15/10

2700p

0.01/50

2.2/10

0.15/10

3.6K

470p/50

470/10

UN2113-X

10k

0.022/16

10/50

10K

100

1/16

100/16

330

0.01

0.22/16

2.2K

0.22/16

ISS244-T2

10K

4.7K

10K

SAFETY

SWMUTE

U2SDT

ENDSW2

LRMUTE

YOUT

UCS

COUT

FAOUTL+

PRT

SW8V

FAOUTR+

CrOUT

VGND

CbOUT

SPDIF

S2UDT

ENDSW1

SWFB

DGND

FAOUTL+

SGND

SW5V

S3.3V

LRMUTE

SURR

CPURST

SCS

FAOUTR+

INH

MOTOR

AUXL

SAFETY

SCLK

U2SDT

POUT

SOLB

MRELAY

F.CONTROL

HPMUTE

DVDPON

F.STATUS

5.6V

SCLK

SMUTE

DVDGND

F.STATUS

AVC

A5V

M5V

DVDPON

LM-

AUXR

SPI

SPDIF

DGND

AVCI

AVCO

MTRELAY

LM+

PBL

EEDA

EECLK

AVCO

TUNERLED

AVCI

DVDLED

TAPEALED

RECB

A/B

HPSW

REMIN

PRT

SAFETY

UCS

S5V

TAPEBLED

RESET

INH

SOLA

RECR

PBR

RECL

SLCKEY1

SLCKEY2

PBMUTE

RECH

RMUTE

A/B

RECB

M9V

CLOSEDET

OPENDET

F.SPEED

SURR

EEDATA

EECLK

BASS2

BASS1

OPEN

VPP

MICMUTE

VOLCE

VOLDATA

VOLCLK

MOTOR

RESET

SWFB

TUCE

SDATA

MIC_MUTE

VMUTE

TUCLK

SMUTE

DVDPON

C_OUT

TDATA

CO_OUT

Cr_OUT

TUL

TUR

RESET

BASS1

BASS2

S2UDT

AUXL

SUB5V

NTSC/PAL

MIC

CLOSEDET

RECR

SCS

VOLCE1

OPENDET

INT/PROG

CPURST

S2UDT

ENDSW1

ENDSW2

SCLK

U2SDT

VPP

SBLED

VOLCLK

AUXLED

TUNERLED

DVDLED

TAPEALED

TAPEBLED

KEY2

HPSW

KEY1

KEY3

SBYLED

KEY4

REMIN

OPEN

VOL-

VOL+

FLLATB

FLDATA

FLCLK

FLBK

VOLDA

CLOSEDET

SBYLED

OPENDET

SDATA

NTSC/PAL

AUXR

F.CTRL

AVCO

AVCI

TUL

VMUTE

PBL

RECL

TUDAI

TUR

YOUT

POUT

INT/PRG

ECO

DVDPON

MTRELAY

SPI

FLBK

PBR

AVCI

KEY3

KEY1

KEY2

KEY4

ENDSW1

SLCKEY2

ENDSW2

SLCKEY1

AVC

KEY2

VOL_

VOL+

SBLED

AUXLED

MRELAY

F.STATUS

HPMUTE

KEY4

KEY3

KEY1

SLCKEY2

SLCKEY1

U2SDT

SCLK

TDATA

TUCLK

TUCE

FLLATB

FLDATA

FLCLK

RMUTE

RECH

PBMUTE

SOLA

SOLB

VPP

NTSC/PAL

VOL-

VOL+

HPSW

PRT

TUCE

(SHEET 7)

(SHEET 4)(SHEET 5) TO

Loading mecha

TO CN420 OF GVA10090-A2

(SHEET 4)

TO CN870 OF GVA10091-A3

(SHEET 4)

TO CN890 OF GVA10089-A4

(SHEET 4)

FROM CN206 OF GVA10091-A2

(SHEET 2)

FROM FW208 OF GVA10089-A3

(SHEET 2)

FROM CN201 OF GVA10089-A1

(SHEET 2)

System control section

2-5

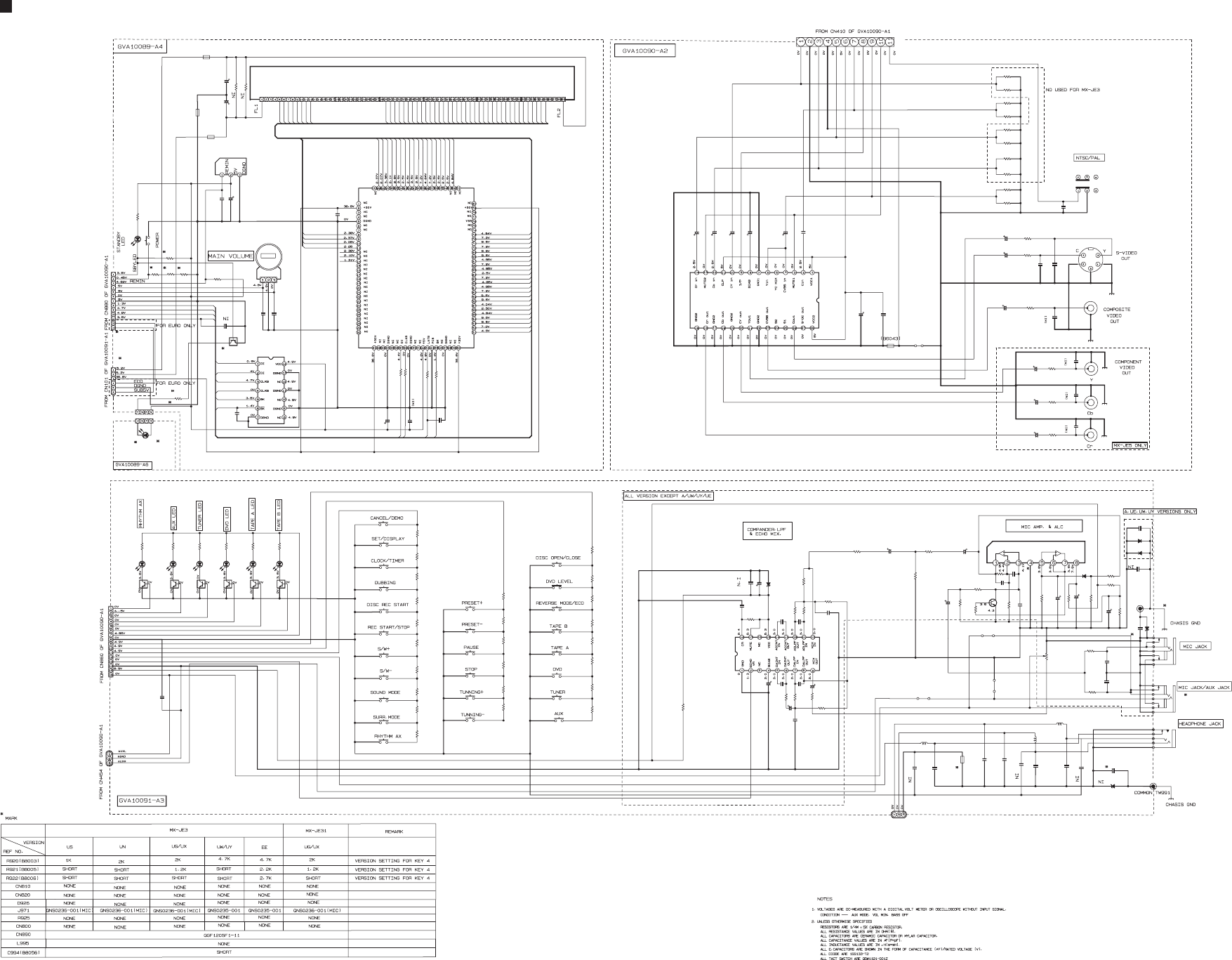

SHEET 4

B6042

C932

C924

R1011

C980

FL910

C1000

R925

L998

R1012

R1013

IC920

CN870

C970

C973

S960

C1010

C975

C1009

C1013

B8054

R970

R984

R983

C979

C976

R974

C993

J1010

R922

CN810

C925

R1002

C978

IC900

C977

C926

R921

J995

Q925

R1016

C957

R996

D957

D958

R997

R1015

R1014

C1017

C1016

C1015

R923

C905

J1020

R929

FW444

FW241

S965

S1001

R1003

L1001

R1004

R1005

S964

S962

S963

S961

R1006

R1007

R1001

R1008

R1009

R1010

CN890

CN420

C933

C934

C906

L920

L923

C920 C921

B8055 J970

J971

JS920

D926

S939

S949

R998

R920

R999

FW116

S951

S952

R988

R986

C994

S950

S948

C981

S966

S967

C984

D992

Q987

VR970

R993

R994

D994

L996

L997

IC971

IC930

S940

S941

S953

S954

S955

S946

S947

S942

S943

S945

S944

IC970

D933

D934

R975

D935

C1012

C972

D936

D937

R981

C1011

D938

C971

R927

C974

C1014

R933

R928

R930

R982

R926

R934

C1001

C922

C923

C1002

R973

CN820

C904

R962

IC100

R972

R971

C1003

C992

R960

C1004

C1006

C931

C930

R935

C905

C991

C1005

C1007

C1008

C903

C989

D991

C1020 C1019 C1018

C990

R964R965

R932

R961

D971

R963

S920

TW991

R931

B8050

L921

Q933

Q934

Q935

Q936

Q937

Q938

R936

R937

R938

R940

R969

C995

C985

R952

C996

C997

R949

C999

C998

R924

R951

R987

D925

R989

R966

R985

R967

C983

C982

R950

R995

R992

R991

C987

C988

R990

L995

C986

R954

R941

R953

R948

R955

R945 R943 R942R947 R946 R944

330p/50

22/50

4.7/50

1000p/50

QQR1183-001Z

PT6305

QLF0149-001

QGF1205C1-16

100p/50

0.01/16

1/50

0.01/16

470/10

33K

15K

4.7K

2.2/50

22/16

20K

0.01/16

QNN0434-001

QGB2024K1-04S

22/50

330

3300p/16

SN74HCU04N

0.47/50

0.22/50

QNS0237-001

KRC102M-T

2200p/50

4.7K

470/6.3

QNN0624-001

47K

0.01/50

10K

QJP001-033600

QUM153-18DGZ4-E

QSW0454-001

330

QQR1183-0017

330

200

120

200

330

120

330

QGF1205F1-11

QGF1205C1-11

330p/50

2200p/50

QQR0621-001Z

0.01/16

QNS0236-001

QNS0235-001

QSW0857-001

SLR-343VC/NPQ-T

4.7K

1.5K

QUM153-29DGZ4-E

20K

2200p/16

0.22/50

330p/50

2SC3576-JVC-T

QVQ0299-B54

390

12K

MTZJ2.4B-T2

QQL231K-470Y

RC4580IP

GP1UM281XKVF

BU9253AS

SLR-343VC/NPQ-T

SLI-343URC-W-T

220

SLI-343URC-W-T

180p/50

100/16

SLI-343URC-W-T

10K

180p/50

SLI-343URC-W-T

0.01/16

4700p/16

180p/50

180

4.7K

270

10/50

100/10

0.01/16

10/50

20K

QGB2024J1-04S

1000p/50

1.2K

MM1623XF-X

8.2K

10K

10/50

0.01/16

1/50

0.01/16

1000p/50

10/50

270

1000p/50

10/50

470/6.3

0.1/16

1000p/50

MTZJ2.4B-T2

180p/50 180p/50 180p/50

1000p/50

2.2K

2.7K

MTZJ5.1B-T2

1.5K

QUB220-18HPDM

QQR0621-001Z

KRC102M-T

270

10K

1000p/50

150p/50

1.2K

1000p/50

18K

1000p/50

180

560

SLR-343VC/NPQ-T

3.9K

4.7K

5.6K

150p/50

2.2/50

10K

1.5K

100

100/16

220/10

4.7M

QQL231K-2R2Y

4.7/50

2.2K

1.5K

10K

2.7K

2.7K 1.5K 1.2K

5.6K 3.9K 2.2K

KEY1

P10

SUB5V

HPSW

FLDATA P7

ECO

SBLED

KEY4

KEY3

VOL+

FLCLK

VOL-

AUXLED

FLLATB

P11

P12

P13

P14

P15

P16

FLBK

P17

P18

P19

34V

P20

P21

P22

P23

FLDATA

FLCLK

VCC5V

DGND

CLKB

FLBK

AGND

TUNERLED

DVDLED

TAPEALED

TAPEBLED

VCC5V

KEY2

P37

P36

P35

P34

FLLATB

P37

P36

P25

CLKB P35

P24

VGND

P34

P33

P32

C_OUT

P33

P31

P30

P29

HPR

P28

P27

P26

AGND

DGND

Cr_OUT

P32

P31

P30

P29

P28

P27

P26

P25

P24

P23

P22

P21

P20

P19

P18

P17

P16

P15

Cb_OUT

INT/PROG

VMUTE1

AGND

P14

P13

P12

P11

P10

HPL

YOUT

NTSC/PAL

(SHEET 1)

(SHEET 3) (SHEET 3) (SHEET 3)

(SHEET 2)

FROM CN106 OF GVA10091-A2

(SHEET 3)

FL display section

2-6

SHEET 5

Parts are safety assurance parts.

When replacing those parts make

sure to use the specified one.

C351

R367

R344

VR320

Q310

Q309

R332

R303

C355

R362

Q360

R317

C326

IC300

R319

R331

R306

R325

R326

C350

R369

R330

R341

R320

CN303

R302

C360

C325

L320

C332

C361

R300

R301

R368

R307

Q311

Q307

C356

R333

C354

C353

C352

Q316

C369

R335

R337

R324

R304

Q312

R363

Q362

R364

R365

R366

Q363

Q365

Q364

Q366

Q313

R305

Q320

C315

R315

C368

C309

L317

TP100 R316

CN302

C343

C358

C337

D303

CN301

D304

R313

R309

R360

Q306

C357

C303

R346

C345

R347

C371

C306

C346

C338

C372

C344

R310

R343

R361

C359

R338

C330

C335

C331

C370

C340

C367

R340

C341

R311

C311

C300

R345

R339

C301

R370

R359

C336

R336

R312 C313

C314

C324

C323

C318

C321

C322

R318

C307

220p

220

11K

QVP0008-203Z

KTC3199/GL/-T

KTA1271/OY/-T

100K

24K

220p/50

2.2K

KRC103M-T

330p/50

HA12237F

4.7

10K

15K

0.01/50

12K

100

27K

2.2K

QGF1205C1-13

27K

150p/50

330p/50

QQR1118-001

10/16V

150p/50

22K

10K

12K

3.3K

2SB562/C/-T

KRC107M-T

0.01/50

22K

47/50V

1/50V

47/50V

2SK2001/K/-T

0.0068p/16

27K

11K

470K

10K

KTC3199/GL/-T

4.7K

KRA111M-T

4.7K

2SC3576-JVC-T

2SB562/C/-T

39K

2SK2001/K/-T

0.0015/16

15K

0.0068p/16

100/16

QQL244K-100Z

100

QGA2001C1-03

390p/50

820p/50

2.2/50V

1N4003S-T5

QGA2001C1-06

1N4003S-T5

150

22K

KRC107M-T

820p/50

0.1/50

5.1K

0.1/50

5.1K

4.7p/50

22/50

0.1/50

4.7p/50

2.2/50V

4.7K

27K

2.2K

4.7/50

2.2K

220/10V

270p/50

1/50V

4.7/50

0.1/50

100/16

5.1K

270p/50

150

0.01/16

4.7p/50

2.2K

5.1K

4.7p/50

390p/50

27K

4.7K 0.01/16

100/16

0.0047/50

0.022/50

1/50

100/16

2.2

4.7/50

PBR

RECL

RECR

PRL

(SHEET 3)

Tape mechanism section

2-7

SHEET 6

K102

CN101

TP351

R126

Q102

Q104

K101

R104 R112

Q101 Q103

R319

IC301

C908

R341

CN301

TP317

C107

R122

R119

R107 R115

C306

IC302

C317

TP305

R362

R361

R123

C307

C311

R390

C910

C315

C907

IC201

TP350

R120

C356

R340

TP99

R333

R213

C211

C316

C212

C260

C261

C262

C253

TP330

C255

R207

R206

C206

C205

R204

C339

R208

C312

C101

R378

R379

R395

TP98

C341

C313

TP319

C343

Q105

R337

R336

C378

R335

R334

C344

C345

C346

X351

C326

TP320

TP321

TP322

TP323

R343

C325

R315

R316

R318

R317

R392

R391

C391

R342

R321

C318

C308

C309

R323

R339

R338

TP332

TP333

TP324

TP325

C377

R345

IC453

R306

R307

C324

R360

R359

R358

R357

R310

R311

C359

R325

R326

C455

C372

C373 C374 C375 C376

C379

C102

C104

R320

CN201

R381

R382

R383

R351

C111

R101

R102

C103

R105

R109

R113

R108

R103

TP326

R219

C106

C108

R106

TP316

R114

TP309

R110

R303

R118

C305

R116

C217

R117

TP22

TP23

TP21

R393

TP24

TP25

TP26

TP27

TP318

TP310

TP28

R394

R111

K201

C204

TP308

TP307

R372

R371

R124

R373

R121

R374

R215

R214

TP306

C257

C258

C259

TP331

R251

R252

C251

C109

TP313

R254

C340

R255

C256

R201

R256

R205

C110

C208

R125

C105

R352

TP312

TP302

TP303

C314

TP328

C331

C330

C334

C333

C332

C335

TP329

C337

TP311

C338

C319

C347

TP314

C310

K301

R312

R314

TP315

R257

R909

R324

C348

C304

R301

R302

C301

C302

C303

C327

TP327

R313

C349

R458

C320

C321

R308

R309

C322

C323

R363

C358

C350

R457

K302

K303

R128

R375

R376

R377

C263

C264

R384R385

C371

TP9

TP7

TP6

TP5

TP4

TP3

TP2

TP1

TP10 TP11

TP12

TP13

TP14

TP15

TP20

TP16

TP17

TP18

TP19

TP8

R220

R221

R259

QGF0523F1-24W

180

2SC4617/R/-X

S3.3V

30k 30k

MN2DS0003AA-H

3.6k

DGND

0.1/16

S5V

100 100

0.1/16

LM1117MP-ADJ-X

0.1/16

330

P3.3V

0.1/16

4.7k

D1.2V

0.1/16

DGND

LA6502-X

1/16

30k

SGND

16k

10K

0.022

0.1/16

0.01/16

0.022

560p

M9V

MGND DGND

M5V

0.015/16

47K

30K

150P

270P

27K

0.1/16

22k

0.1/16

SGND

0.1/16

DGNDSGND

1/6.3

0.1/16

UN2119-X

150

NAX0550-001X

15p

D3.3V

P3.3V

VGND

18p

33k

10K

NAD0025-103X

0.1/16

2.2K

0.1/16

DGND

P3.3V

SGND

DGND

D3.3V

S3.3V

S-80827CNNB-W

0.47

0.1/16

330

0.01/16

NI NI NI NI NI

0.1/16

10k

QGF1016F2-08W

680

0.1/16

100

1000.1/16

470

24k KTA1001/Y/-X

KTA1001/Y/-X

18K

47/6.3

2.2

0.1/16

470

0.1/16

330

24k

0.1/16

10k

10K

0.0082

0.015/16

0.47

2.2

0.47/10

20k

1/16

10k

0.1/16

27k

560p

47/6.3

0.1/16

0.033/16

0.1/16

0.018/16

0.0056

0.1/16

NQR0354-001X

0.1/16

220/4

47/4

0.01

0.1/16

1/16

0.1/16

22K

100k

0.1/16

150

NI 0.1/16

100

1/16

24K

6.8K

10K

/HFMON

RF+

T+

F+

F-

T-

/FL_RST

VREFH

EXADR20

PCMCLK

UCS

/TALK

AD4

DAC0CS

TRDRV

DAC4OUT

EXDAT8

AOUT2

MDQ4

TRDRV

FODRV

MDQ10

MDQ5

DCLK

DDATA

LPC1

LPC2

MDQ9

DAC2CS

DAC1CS

DACPDN

MDQ15

MDQ0

MDQ14

MDQ1

MDQ13

MDQ2

MDQ12

MDQ3

MDQ11

LRCLK

BCK

SWMUTE

AOUT0

AOUT1

FM+

FM-

WOUT

VOUT

UOUT

COM

TRVSW

NEXWE

EXADT0

EXADT4

EXADT8

EXADT12

EXADR16

EXADR18

EXADT14

EXADT10

EXADT6

EXADT2

NEXCE

EXADT1

EXADT5

EXADT9

EXADT13

EXADR17

EXADR19

EXADT15

EXADT11

EXADT7

EXADT3

NEXOE

DAC3OUT

DAC1OUT

DAC2OUT

DAC5OUT

DVDLDCUR

CDLDCUR

LPCO2

DVDLDCUR

CPURST

CDLDCUR/SPMUTE

LPCO1

EXDAT11

EXDAT5

EXDAT10

EXDAT6

EXDAT9

/DRVMUTE

EXDAT7

FODRV

TRSDRV

EXDAT0

EXDAT15

T-

EXDAT4

EXDAT12

EXDAT3

EXDAT13

EXDAT2

EXDAT14

EXDAT1

MDQ7

MDQ8

MDQ6

TRSDRV

MA3

MA4

SCLK

U2SDT

SPDRV

MA2

MA5

MA1

MA6

MA0

MA7

MA10

MA8

HAGUP

MA9

MCK

NWE

BA0

BA1

NCSM

NRAS

NCAS

DQM0

DQM1

/SPMUTE

MA11

VREFH

VHALF

T+

VHALF

LPCO2

RF+

INDEX

TRACK

COPY

DEMP

F+

S2UDT

F-

LPC2

FM-

FM+

LPCO1

LPC1

SCS

LRMUTE

COM

/HFMON

WOUT

VOUT

UOUT

/DRVMUTE

TRVSW

(SHEET 7)

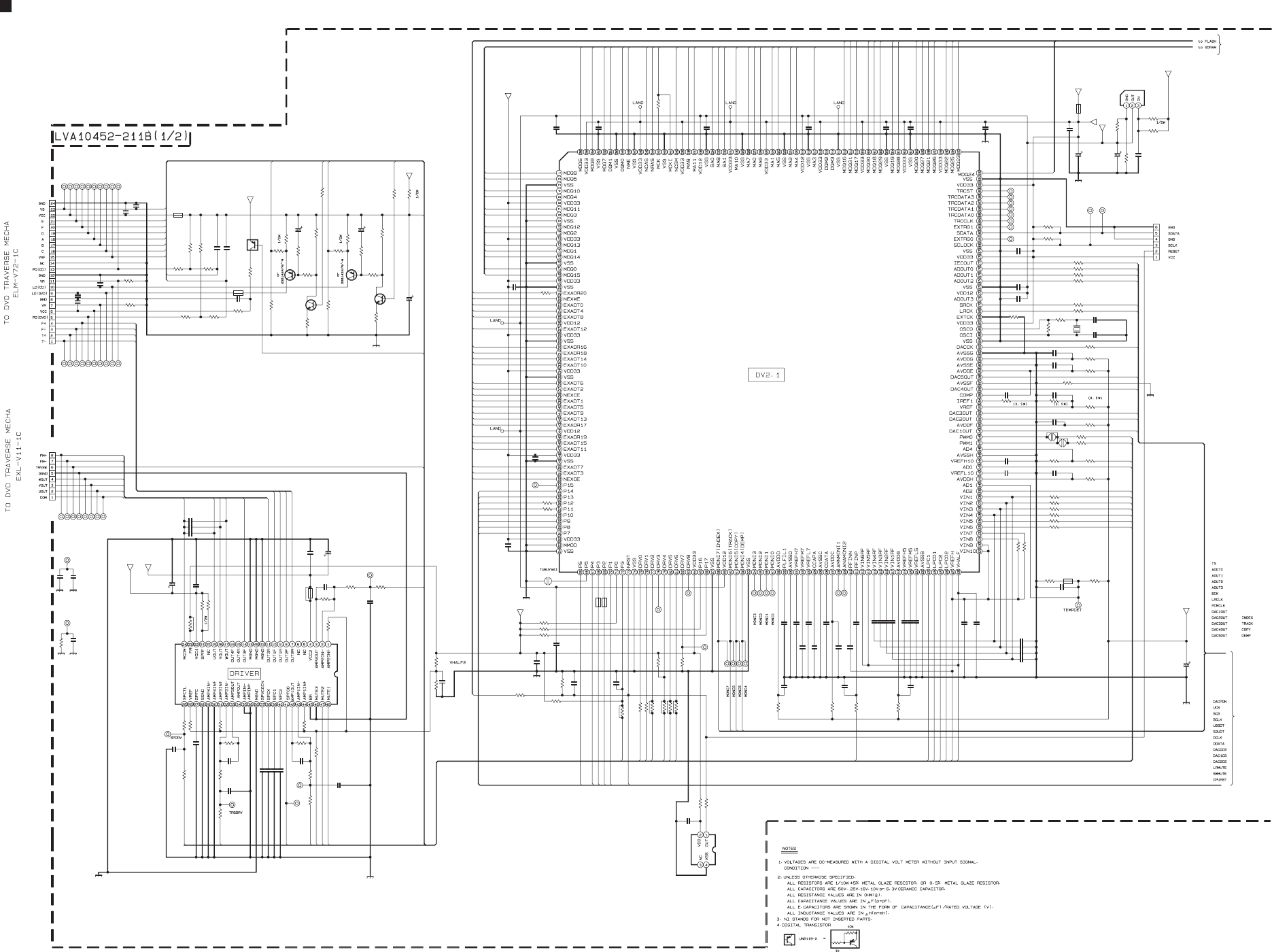

DVD servo section (1/2)

2-8

IC505

CN501

IC509

C707

C709

C711

C706

R741

R551

C701

CN502

K556

CN503

R742

C551

C558

R501

R502

R552

R718

R747

R553

R554

R555

R556

R557

R558

R743

R744

C552

C553

R511

K551

K552

K553

R746

R745

R510

R748

K554

R704

R530

R702

C555

C556

L501

C702

C703

R710

IC701

IC702

IC703

C557

R711

R713

R712

R714

R715

C705

R716

C554

R719

IC704

R701

C712

IC705

C714

R717 R720

C559

R322

TP51

TP86

TP93

TP85

TP94

TP84

TP87

TP82

TP81

K555

C905

TP71

TP88

C902

C901

C903

TP72

K721

TP73

TP74

TP75

TP76

TP77

TP52

R729

TP89

TP78

R728

TP90

K723

TP91

R730

TP92

TP59

TP53

C906

C912

TP55

R703

TP54

TP57

TP60

TP701

TP702

TP703

TP61

TP704

TP705

TP706

TP56

TP62

TP83

R911

TP63

C721

R727

IC501

R725

R723

R724

C704

R722

C501

C904

TP64

TP65

C502

C503

K724

K722

K725

TP58

R721

C713

C715

K4S641632F-TC75

QGF1016F2-19W

AT49LV1614T90TC

0.1/16

S5V

P3.3V

10/16

M5V

0.1/16

QGF1016F2-08W

NQR0129-002X

QGF1016F2-17W

0.1/16

470

47k

M9V

VGND

0.1/16

22/6.3

NQR0129-002X

0.1/16

NQL044K-100X

AK4384VT-X

MGND

1/10

220

SGND DGND

S3.3V

220

0.1/16

D3.3V

NI NI

DGND

0.1/16

47k

DGND

NQR0022-005X

0.1/16

NQR0251-004X

0.1/16

0.001

100

220/6.3

0.1/16

NQR0251-004X

SWMUTE

DAC1OUT

EXADT15

MA11

MA9

EXADT14

DAC2OUT

MA3

DACPDN

MA1

EXADT13

LRMUTE

EXADT12

EXADT11

DAC5OUT

DAC4OUT

DAC3OUT

SCS

/FL_RST

EXADT10

EXADT9

EXADT8

EXADT7

EXADT6

EXADT5

EXADT4

EXADT3

EXADT2

EXADT1 EXADT0

MDQ15

MDQ14

DAC0CS

MDQ13

PCMCLK

MDQ12

MDQ11

MDQ10

MDQ9

MDQ8

MA8

MA7

MA6

UCS

MA5

MA4

MA2

MA0

MA10

MDQ7

MDQ6

MDQ5

MDQ4

MDQ3

MDQ2

MDQ1

MDQ0

DAC1CS

SCLK

U2SDT

S2UDT

CPURST

DAC2CS

EXADR20

DCLK

DQM0

NRAS

NCAS

NWE

DDATA

NCSM

BA0

BA1

BCK

AOUT0

AOUT1

EXADR16

AOUT2

NEXCE

DQM1

MCK

EXDAT15

EXDAT7

LRCLK

EXDAT14

EXDAT6

EXDAT13

EXDAT5

EXDAT12

EXDAT4

EXDAT11

EXADR19

EXADR18

EXADR17

EXDAT3

EXDAT10

EXDAT2

EXDAT9

EXDAT1

EXDAT8

EXDAT0

NEXOE

NEXWE

AOUT1

SWMUTE

AOUT0

DEMP

LRCLK

COPY

TRACK

INDEX

AOUT2

(SHEET 6)

(SHEET 3)

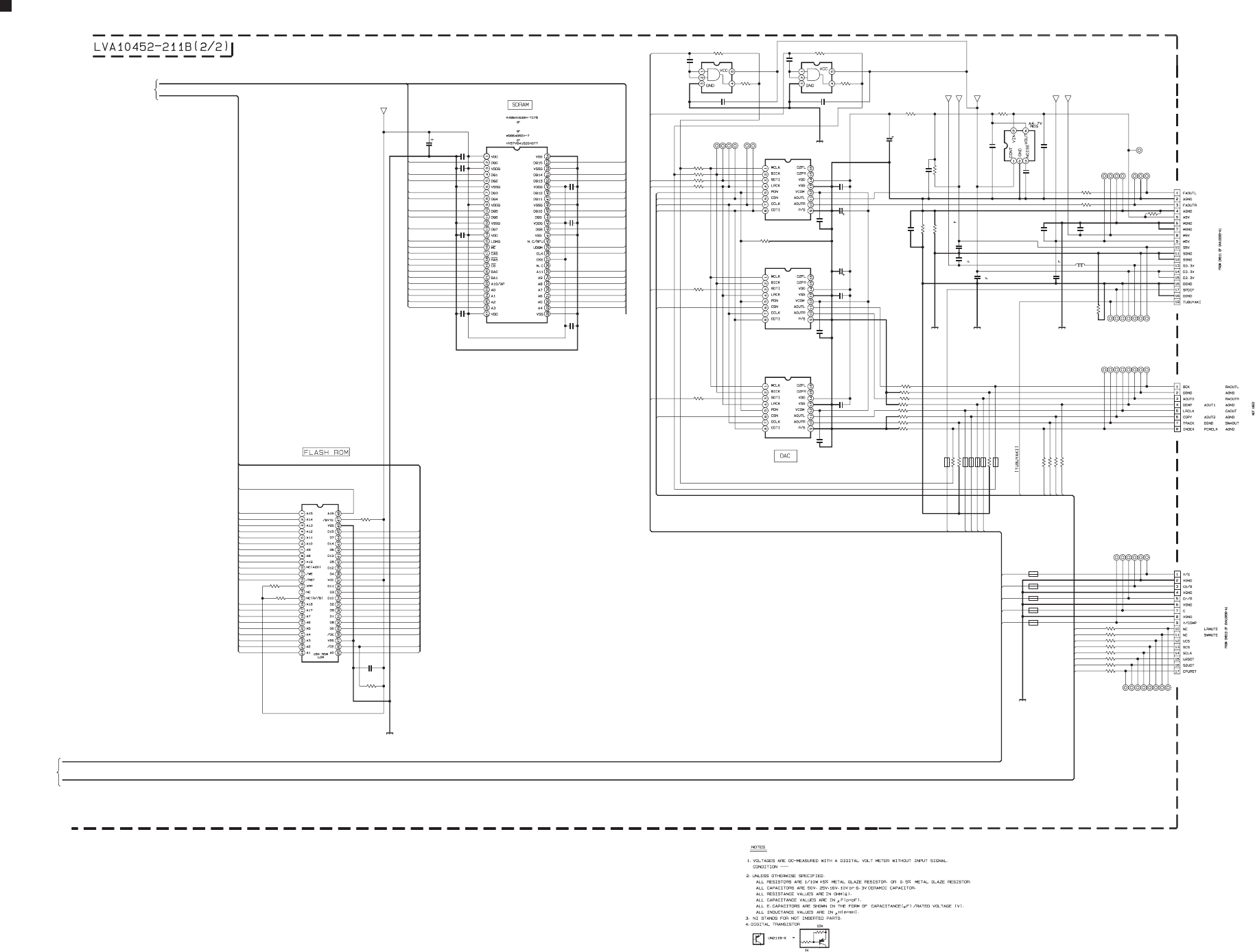

DVD servo section (2/2)

SHEET 7

2-9

C250

C251

C260

C261

C270

C271

C280

C281

C290

C291

CN215

D250

D260

D270

D271

D280

D290

IC250

IC260 IC270

IC280

IC290

R250

R260

R270

R271

R280

R290

CN213

D251

D252

C601

C602

C603

C604

C605

C606

C607

C608

C609

C610

C611

C612

C613

C614

C615

C616

C621

C622

C623

C624

C639

C681

C682

C703

C704

C705

C706

C707

C708

C709

C710

C711

C712

C713

C714

C715

C716

C721

C722

C723

C726

C729

C730

C731

C738

C739

D619

D620

D622

D681

D703 D704

D719

D720

D723 D724

D726

D728

IC602

IC701

L601

L602

L701

L702

Q601

Q602

Q612

Q613

Q681

Q701

Q702

Q710

Q711

Q712

Q713

Q725

Q726

Q727

Q728

R601

R602

R603

R604

R605

R606

R607

R608

R613

R614

R615

R616

R617

R618

R619

R620

R621

R623

R650

R652

R654

R656

R666

R667

R668

R674

R675

R676

R681

R682

R683

R684

R685

R686

R687

R701

R702

R703

R704

R705

R706

R707

R708

R713

R714

R715

R716

R717

R718

R719

R720

R721

R722

R723

R724

R725

R726

R727

R728

R729

R730

R739

R740

R741

R742

R743

R744

R753

R754

R761

R762

R766

R768

R769

R774

R775

R776

R777

R778

R786

R787

C727

FW208

CN212

CN204

R792

R793

R688

EP601

R689

FW601

R756

Q729

R755

C201

C202

C203

C204

C205

C211

C212

C213

C214

C215

C221

C222

C231

C232

C233

C241

C242

C243

CN201

CN203

D201

D202

D203

D204

D211

D212

D213

D214

D240

D241

EP201

IC230

J120

Q230

R215 R216

R217

R218

R230

R232

R233

R234

R235

R236

R237

R238

R246

R247

R248

RY240

RY241

FW109

CN202

PP201

Q221

Q222

Q223

R222

R223

R221

R224

R225

R226

R227

D221

C226

C225

D222

D231

J130

CN219

C920

C921

C922

C923

C924

C925

C930

C931

R923

D925

IC920

L920

L921

L923

Q925

R920

R921

R922

R924

R925

R926

R927

R928

R930

S920

CN810

IC900

R929

C926

TW920

FW241

R932

R931

FL910

IC930

JS920

C933

C932

CN890

C934

(Regulator board)

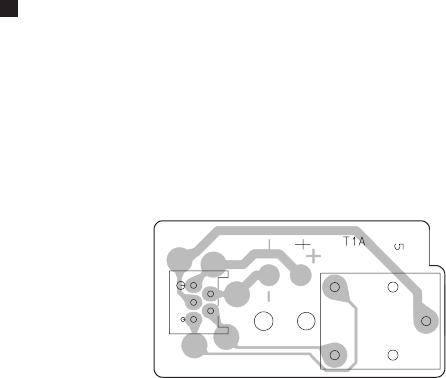

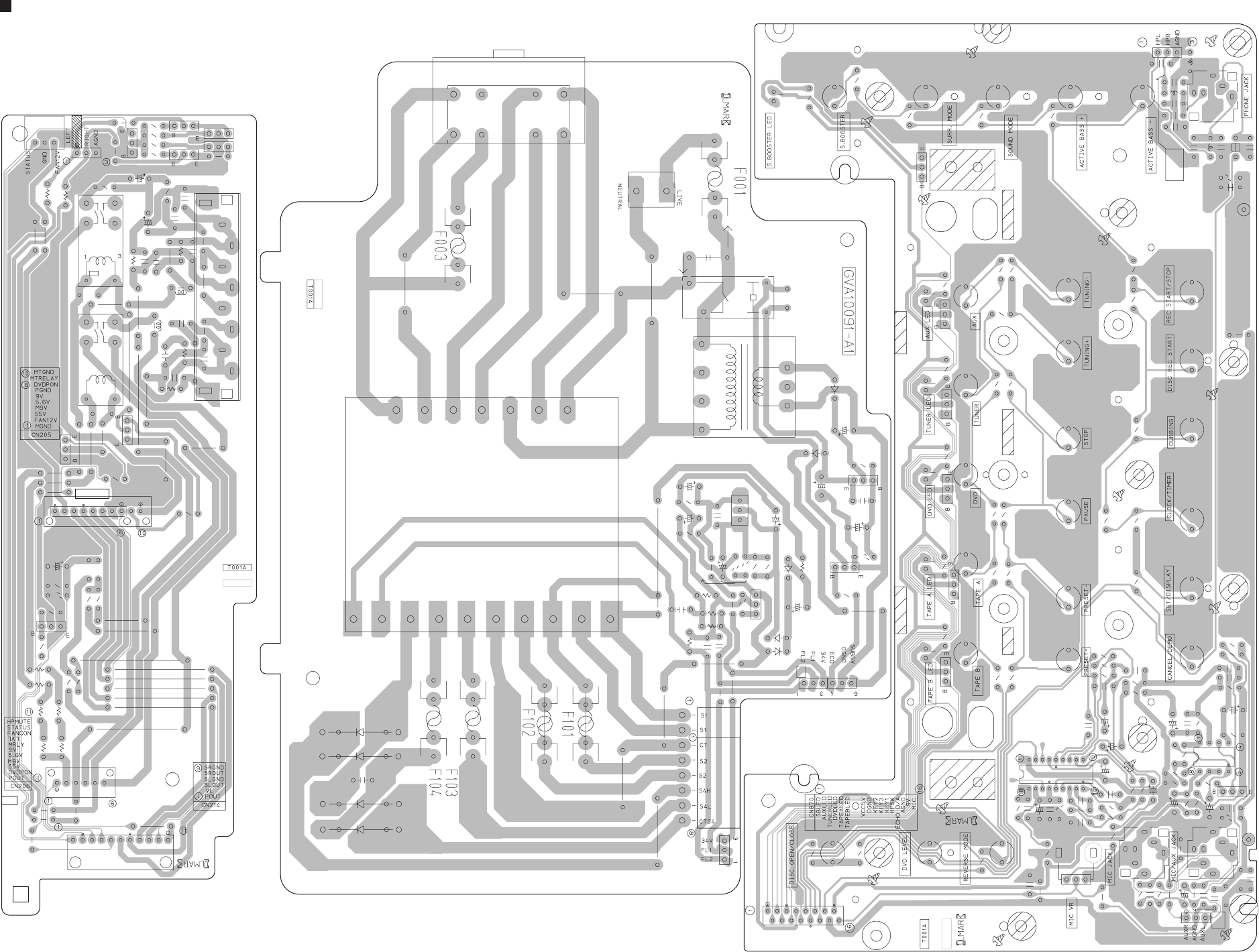

Printed circuit boards

Power board

(Main amplifier board)

(Primary board)

(FL board)

2-10

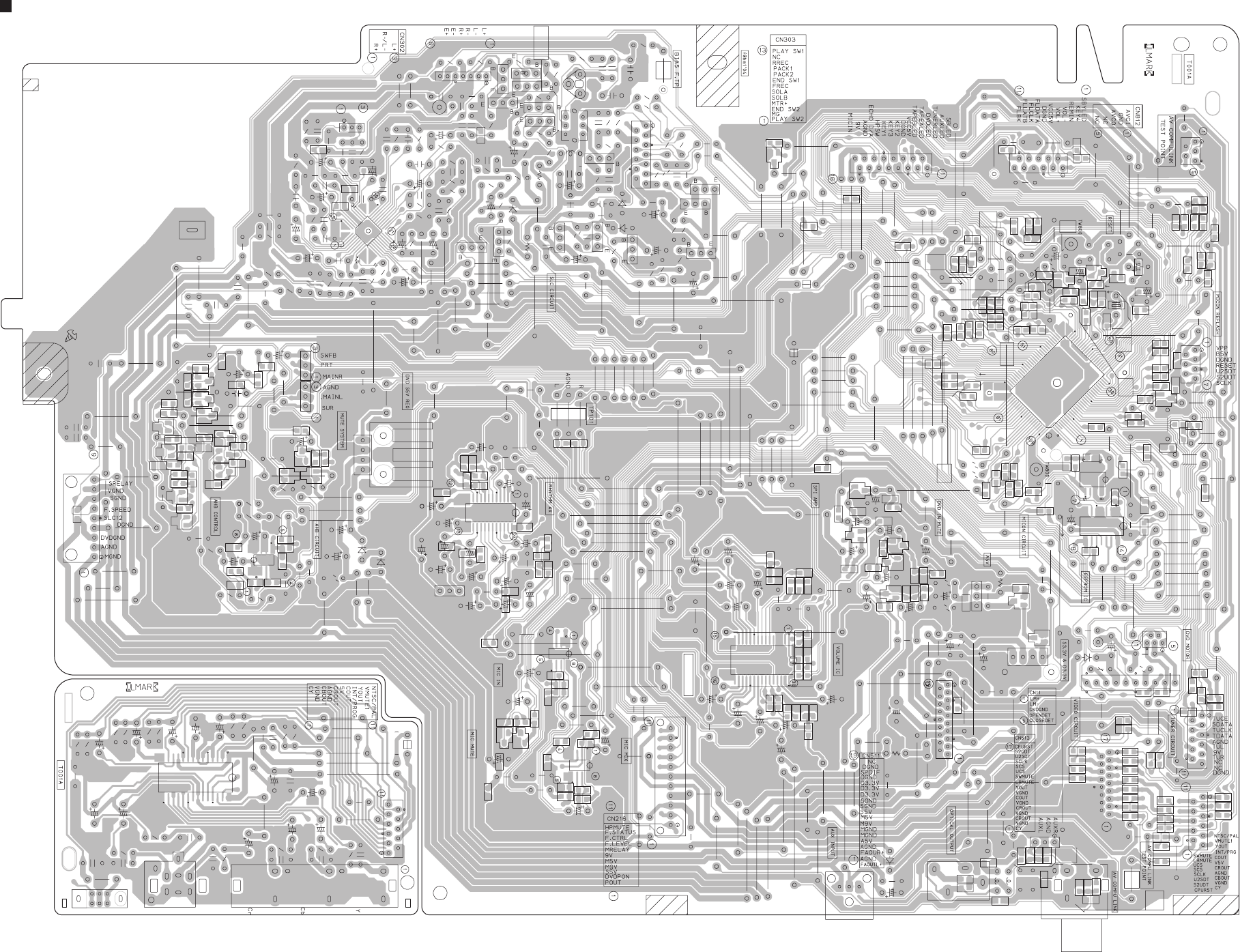

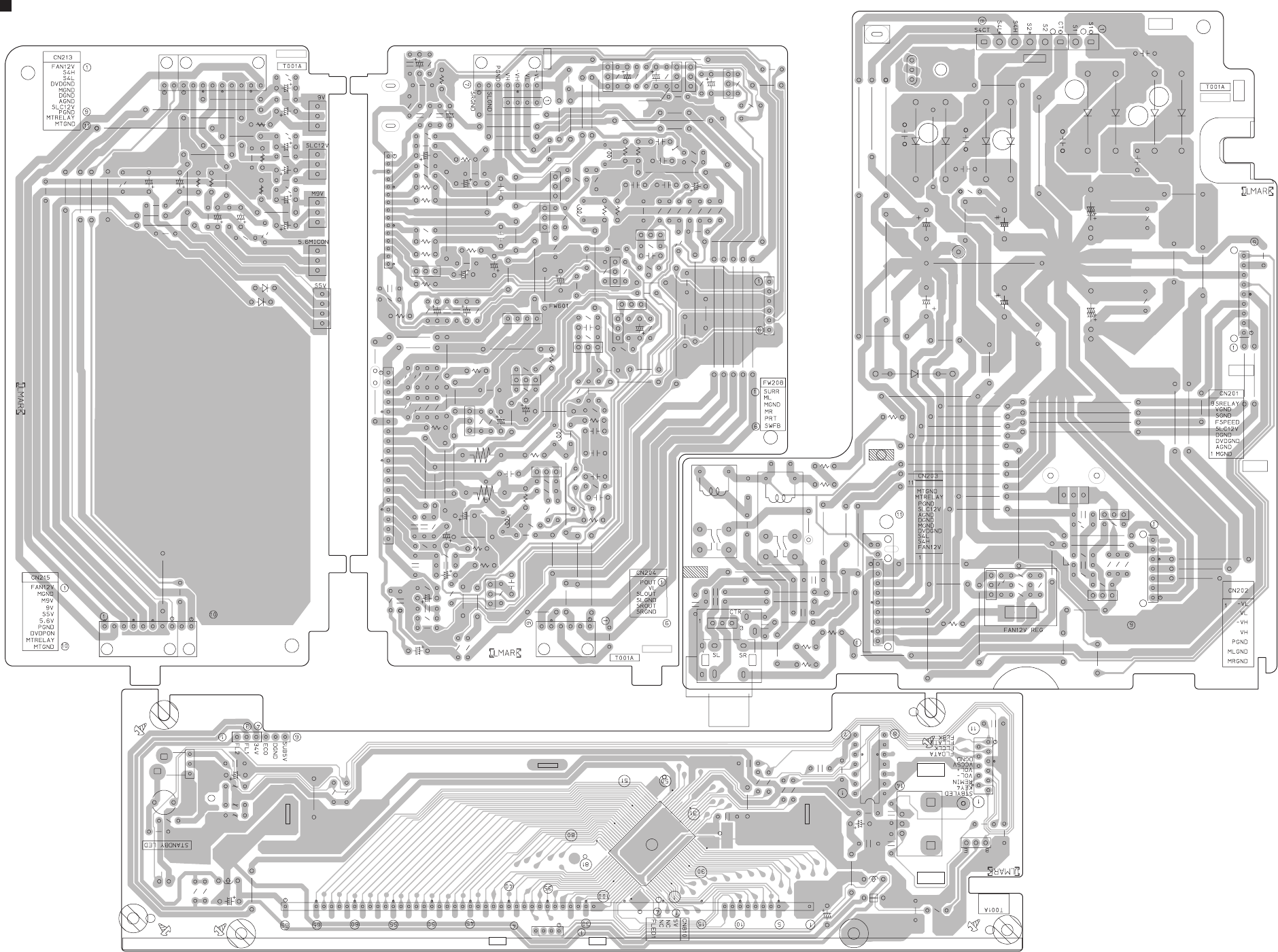

CN880

B433

D810

C300

C301

C306

C307

C309

C311

C313

C314

C315

C318

C321

C322

C323

C324

C325

C326

C330

C331

C332

C335

C336

C337

C338

C340

C341

C343

C344

C345

C346

C350

C351

C352

C353

C354

C355 C356

C359

C367

C368

C369

C370

C371

C372

C373

C374

C375

C376

C377

C378

C379

C380

C124

C120

C381

C411 C412

C413

C414

C415

C419

C420

C421

C816

C339

C334

PP310

C529

C436

C437

C445

C446

C447

C409

C454

C455

C456

C460

C461

C462

C463

C464

C465

C466

C467

C468

C469

C470

C471

C472

C473

C474

C475

C476

C477

C478

C479

C480

C481

C408

C484

C485

C486

C487

C488

C489

C490

C491

C492

C493

R897

C496

C499

C500

C501

C508

C526

C527

C528

C532

C533

C122

C123

C121

C125

C555

C560

B445

C587

C800

C801

C802

C803

C804

C805

C806

C807

C808 C809

C810

C811

C812

C813

C814

CN11

CN21

CN211

CN216

PP301

CN302

CN303

CN410

B404

CN800

D311

D312

D374

D375

D384

D385

D410

D414

D420

D454

D455

R863

D551

D801

D802

D803

D804

D805

D806

D807

D808

D809

IC300

IC410

D415

IC420

IC460

IC480

IC120

IC801

IC810

J454

J812

J814

K401

K402

L317

L320

K411

D444

L812

L813

Q306

Q307

Q309

Q310

Q311

Q312

Q313

Q316

Q320

Q360

Q362

Q363

Q364

Q365

Q366

Q123

Q121

Q122

Q120

Q128

Q126

Q124

R413

Q410

Q420

Q421

Q480

Q520

Q521

Q125

Q127

Q129

Q585

Q586

Q587

Q801

Q802

Q806

R300

R301

R302

R303

R304

R305

R306

R307

C407

R309

R310

R311

R312

R313

R315

R316

R317

R318

R319

R320

R324

R325 R326

R330

R332

R333

R335R336

R337

R338

R339

R340

R341

R343

R344

R345

R346

R347

R359

R360

R361

R362

R363

R364

R365

R366

R367

R368

R369

R370

R371

R372

R373

R374

R377

R378

R379

R380

R141

R140

R139

R138

R145

R143

R144

R142

R136

R134

R132

R128

R124

R126

R122

R398

R120

R405

R406

R408

R409

R883

R411

R412

Q880

C358

C357

C482

R882

R444

R451

R452

CN812

R462

R463

R464

R465

R466

R467

R468

R469

R480

R481

R482

R483

R484 R485

R486

R487

R488

R489

R490

R491

R492

R493

R494

R495

R496

R497

R498

B439

R500

R501

R502

R503

R504

R520

R521

R522

R523

R524

R525

R526

R527

R528

R529

R530

R531

R533

R534R535

IC421

HS421

R551

R552

R553

C422

R121

C423

R123

R125

R127

R129

D423

R133

R135

R137

R566

R571

D421

D422

R131

R130

R585

R586

R587

R589 R588

R800

R801

R802

R803

R804

R805

R806

R807

R810

R811

R812

R813

R814

R815

R816

R817

R818

R819

R820

R821

R822

R823

R824

R825

R826

R827

R828

R829

R831

R832

R833

R834

R835

R836

R837

R838

R839

R840

R841

R842

R843

R844

R846

R847

R853

R856

R857

R858

R898

R862

R864

R867

R871

R872

R873

R874

R876

R878

R879

B440

R886

R887

R892

B430

R894

R895

R896

R866

R899

R900

R901

R902

R903

R904

R905

R906

R907

R908

VR320

X801

HS420

B400

B401

B405

B402

B403

K425

K409

K408

K406

K407

K404

K403

K405

K413

K410

K412

K414

K417

K422

K420

K423

K418

K419

K421

K416

K424

CN513

CN511

IC815

C815

CN860

Q430

Q431

C431

C433

C430

D430

R470

R471

R472

R473

R474

R475

C432

B426

B424

K400

Q415

Q417

R403

R430

C397

CN221

CN220

B428

B431

B432

R869

R868

IC414

R830

D862

CN301

IC520

IC521

C406

B443

D303

D304

C303

D864

B444

C360

C361

CN454

C308

C304

C302

C305

C817

C1000

C1002

C1003

C1005

C1004

C1007

C1006

CN420

C1008

C1009

C1010

C1011

C1012

C1013

C1014

C1015

C1016

C1017

C1018

C1019

C1020

IC100

J1010

B6043

C1001

L1001

R1001

R1002

R1003

R1004

R1005

R1006

R1007

R1008

R1009

R1010

R1011

R1012

R1013

R1014

R1015

R1016

S1001

J1020

(Main board)

Input board

(Video board)

2-11

C970

C971

C972

C973

C974

C975

C976 C977

C978

C979

C980

C981

C982

C983

C984

C985

C986

C987

C988

C989

C990

C991

C992

C993

C994

C995

C996

C997

C998

C999

C903

C904

C905

D971

D991

D992

D994

D933

IC970

IC971

J970

J971

J995

L995

L996

L997

L998

Q933

Q934

Q935

Q936

Q937

Q938

Q987

R933

R934

R935

R936

R937

R938

R940 R941

R942

R943 R944 R945

R946

R947

R948

R949

R950 R951

R952

R953

R954

R955

R960

R961

R962

R963 R964 R965 R966

R967

R969

R970

R971

R972

R973

R974

R975

R981

R982

R983

R984

R985

R986

R987

R988

R989

R990

R991

R992

R993

R994

R995

R996

R997

R998

R999

S939 S940

S941 S942

S943

S944

S945

S946

S947

S948

S949

S950 S951 S952 S953 S954 S955

S960

S961

S962

S963

S964

S965 S966

S967

TW991

TW995

VR970

FW116

FW444

D934

CN870

D958

D957

C957

D935D936

D937

D938

C969

C906

Q181

C162 C163

C164

C165

C172

C173

C174

C180

CN105

CN206

D160

D161

D162

D170

D180

J81

R183

Q190 Q191

Q192

Q193

Q194

Q195

R160 R161

R162

R163

R164

R165

R166

R167

R170 R171

R172

R198

R180

R181

R182

R190

R191

R192

R193

R195

RY160 RY170 R177

R196

CN214

R169

CN205

R168

R197

Q196

C171

C160

CN106

L162

L161

C178

C177

R184

C2010

Q2010

C2012

C2014

C2013

R2014

CN250

D2017

D2016

D2019

D2020

D2018

D2015

D2012

D2013

D2010

D2011

R2015

FT111

FT131

FT531

FT512

FT151

FT521

CN101

C2019

Q2030

R2010

R2011

R2012

R2013

S500

C2015

FT132

FT112

RY203

FT511

FT522

FT152

FT532

D2034

Q2011

D2030

CN119

D2032

Q2031

R2030

R2031

C2032

D2031

C2033

C2031

C2030

C2020

CN102

R2016

CN103

C2018

C2017

C2011

R2018

R2017

C2034

(Switch board)

Front board

(Transformer board)

(Speaker terminal board)

2-12

C101

C103

C104

C107

C111

C205

C206

C208

C211

C212

C251

C253

C255

C256

C257

C258

C259

C312

C313

C316

C318

C320

C321

C322

C323

C325

C326

C331

C332

C333

C334

C337

C338

C339

C341

C343

C344

C345

C346

C551

C554

C555

C556

C557

C907

C908

R909

C910

CN101

TP331

CN301

CN501

CN502

CN503

R128

TP305

TP329

IC509

IC701

IC702

IC703

R126

C558

K551

K552

K553

K554

K555

K556

K721

K722

K723

Q103

Q104

Q105

R101

R102

R111

R112

R113

R115

R116

R117

R118

R204

R205

R206

R207

R208

R213

R214

R215

C552

R254

R255

R256

R257

TP350

R306

R307

R315

R316

R317

R334

R335

R336

R337

R338

R339

R340

R341

R342

R345

R357

R358

R530

R552

K710

R711

R712

R724

R729

IC505

TP1

TP2

TP3

TP4

TP5

TP6

TP7

TP8

TP9

TP10

TP11

TP12

TP13

TP14

TP15

TP16

TP17

TP18

TP19

TP20

TP21

TP22

TP23

TP24

TP25

TP26

TP27 TP28

R321

R322

R323

R745

R746

R747

TP51

TP52

TP53

R748

TP55

TP56

TP57

TP58

TP59

TP60

TP61

TP62

TP63

TP64

TP65

TP71

TP72

TP73

TP74

TP75

TP76

TP77

TP78

TP81

TP82

TP83

TP84

TP85

TP86

TP87

TP88

TP89

TP90

TP91

TP92

TP93

TP94

TP98

TP99

IC704

IC705

TP302

TP303

TP306

TP307

TP308

TP309

TP310

TP311

TP312

TP313

TP314

TP315

TP316

TP317

TP318

TP319

TP320

TP321

TP322

TP323

TP324

TP325

TP326

TP327

TP701

TP702

TP703

TP704

TP705

TP706

X351

TP328

CN201

IC201

TP330

R384

R385

C371

TP351

C553

R501

R502

K564

K565 K566

K567

R558

R382

R383

R510

R511

TP54

R704

TP332

TP333

R324

R325

R326

K302

C559

R378

R379

C715

C713

C712

C714

R719

R716

R717

R720

C508

C509

C510

C511

K501

C548

C549

C550

C547

C328

R344

C265

C266

C267

K252

C102

C105

C106

C108

C109

C110

C204

C217

C260

C261

C262 C263 C264

C301

C302

C303

C304

C305

C306

C307

C308

C309

C310

C311

C314

C315

C319

C324

C330

C335

C340

C347

C348

C349

C350

C356

C358

C391

C701

C702

C703

C704

C705

C901

C902

C903

C904

C905

R911

IC301

IC302

K101

K102

K301

K724

K725

L501

Q101

Q102

R103

R104

R105

R106

R107

R108

R109 R110

R114

R119

R120

R121

R122

R123

R124

R125

R201

R219

R220

R221

R251

R252

R259

R301

R302

R303

C378

R308

R309

R310

K305

R312

R313

R314

R318

R333

R343

R359

R360

R361

R362

R363

R391 R392

R551

R701

R713

R714

R715

R721

R722

R723

R725

R727

R728

R730

C372

C373

K201

R320

R319

C317

C706

C707

C709

C711

R393

R394

R741

R742

R743

R744

R371

R372 R373

R374

R375

R376

R377

C912

K563

R395

R381

R351

R352

R702

R703

C906

R390

IC501

C503

C501

C502

C721

R718

C327

K303

C359

C374

IC453

R457

R458 C455

C375

C376

C377

C379

C505

C506

C507

R503

C392

C329

K502

K304

K251

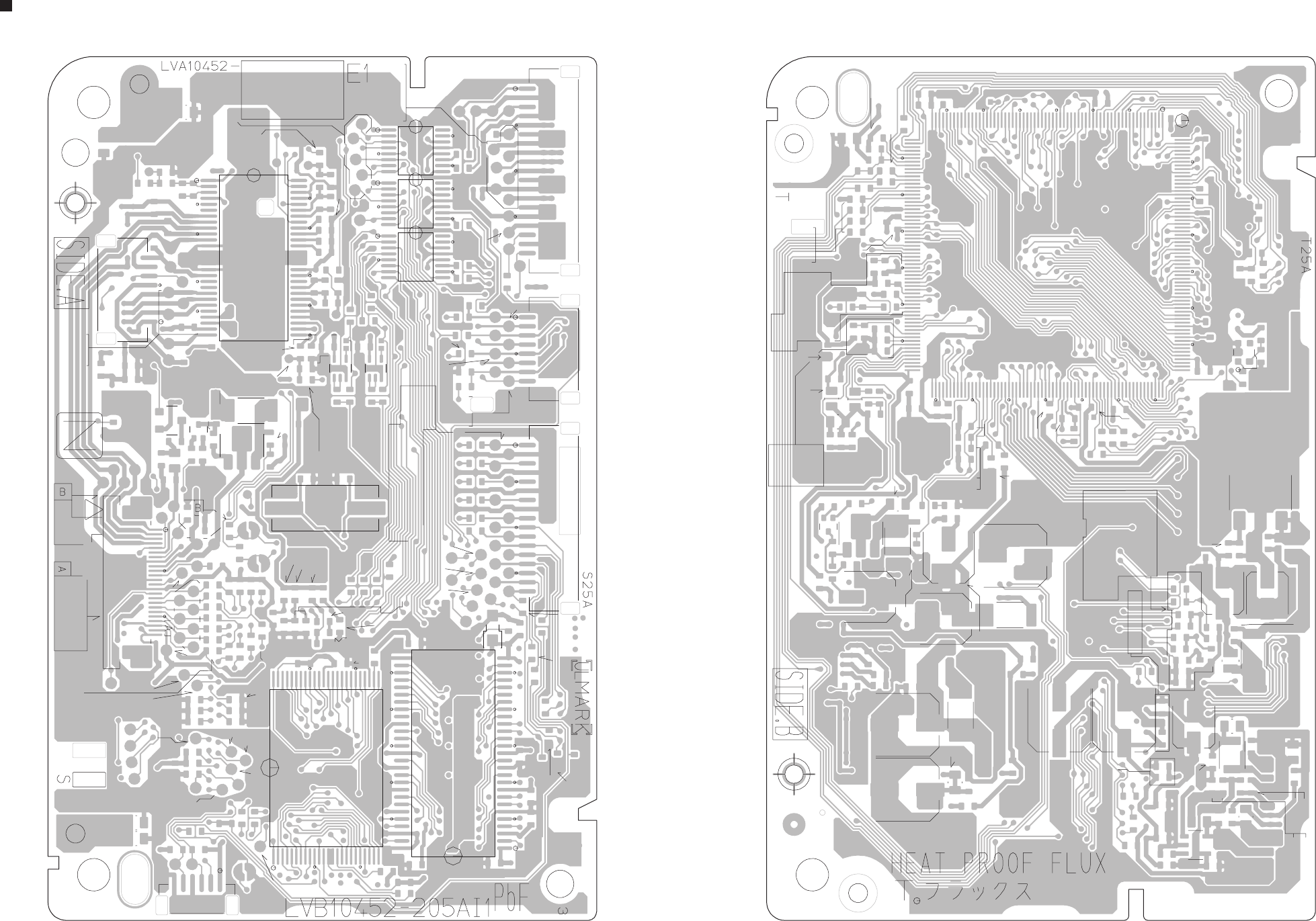

Forward side Reverse side

DVD module board

2-13

CN1

DVD loading switch board

Victor Company of Japan, Limited

(No.MB385SCH)

Printed in Japan

VPT

AV & MULTIMEDIA COMPANY AUDIO/VIDEO SYSTEMS CATEGORY 10-1,1chome,Ohwatari-machi,Maebashi-city,371-8543,Japan

3-1

PARTS LIST

* All printed circuit boards and its assemblies are not available as service parts.

- Contents -

Exploded view of general assembly and parts list (Block No.M1)

DVD mechanism assembly and parts list(Block No.MJ)

DVD loading base assembly and parts list (Block No.MN)

Electrical parts list (Block No.01~05)

Packing materials and accessories parts list (Block No.M3)

[ MX-JE3 ] [ MX-JE31 ]

3- 2

3- 6

3- 8

3-10

3-22

Area suffix

US ---------------------- Singapore

UW ---------- Brazil,Mexico,Peru

UX ------------------- Saudi Arabia

UY ----------------------- Argentina

UG - Turkey,South Africa,Egypt

UE-----------------------------Turkey

UN ----------------------------Aseans

MX-JE3

Area suffix

UX ------------------- Saudi Arabia

UG - Turkey,South Africa,Egypt

UN ----------------------------Aseans

MX-JE31

MB385

3-2

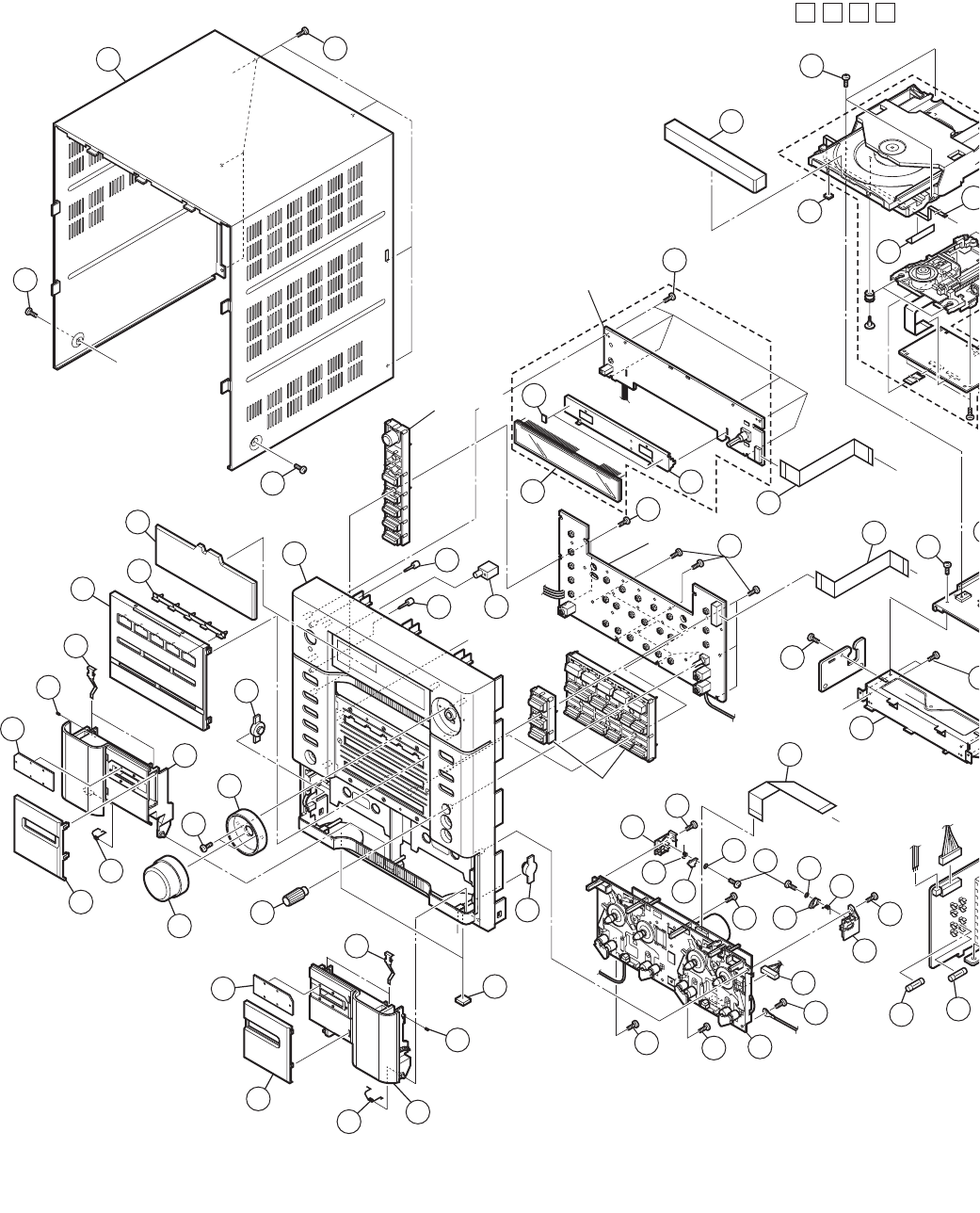

Exploded view of general assembly and parts list

Block No. MM

Switch board

FL board

This parts include in No.1.

31 10

91 92

F103

Transformer b

38 38 22

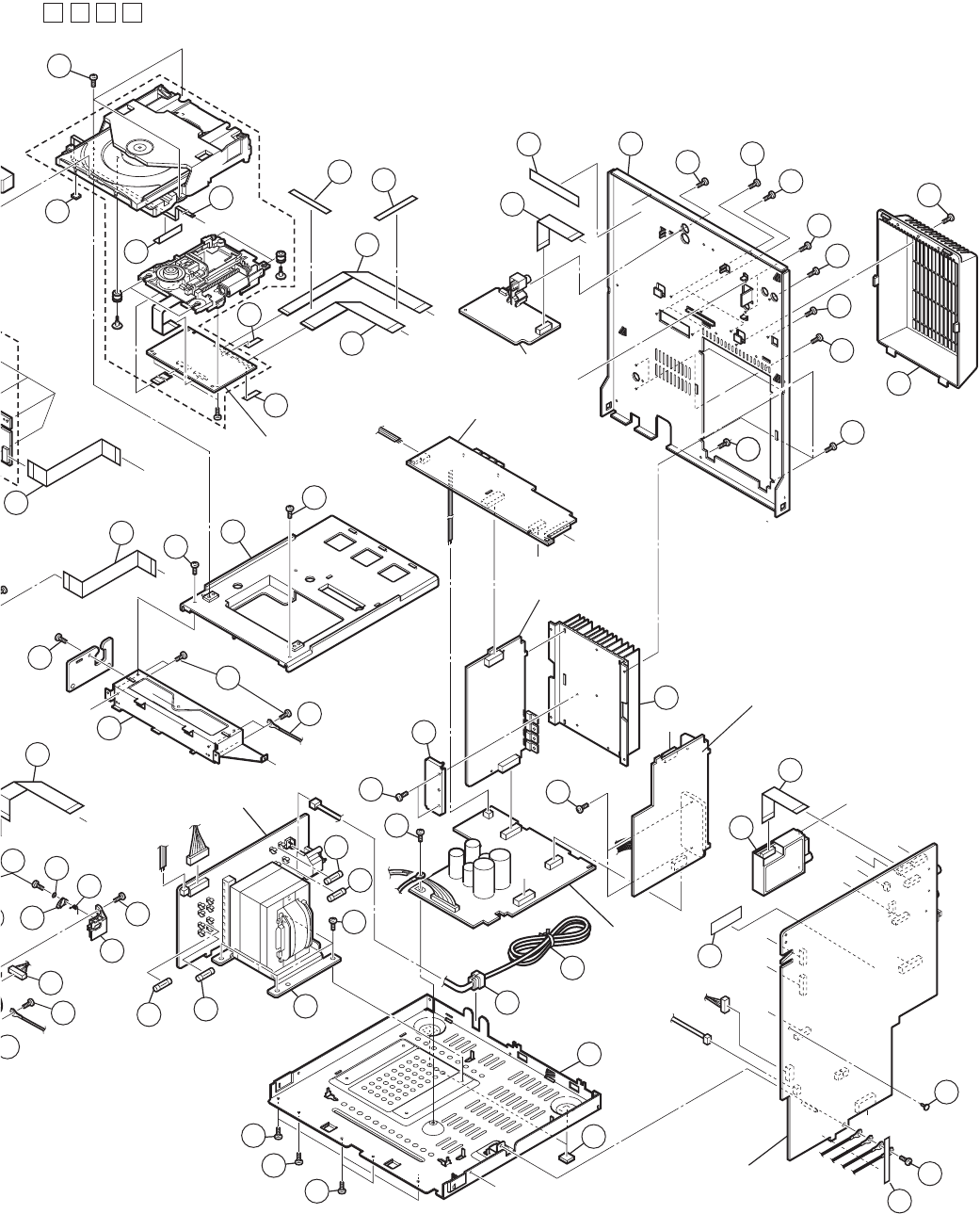

3-3

No. MM

DVD module board

88 g

F103

F001

F003

F104

Main board

Regulator board

Speaker terminal

board

Main amplifier board

Primary board

Transformer board

89 75

Video board

65 68

18 16

3-4

General Assembly

Block No. [M][1][M][M]



Symbol No. Part No. Part Name Description Local

1 GV10220-022A FRONT PANEL ASSY

JE31UG,JE31UN,JE31UX

1 GV10220-019A FRONT PANEL ASSY

JE3UG,JE3UN,JE3US,JE3UX

1 GV10220-021A FRONT PANEL ASSY

JE3UE,JE3UW,JE3UY

2 GV30576-007A FL LENS

3 GV20277-007A FRONT COVER

JE31UG,JE31UN,JE31UX

3 GV20277-008A FRONT COVER

JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX

JE3UY

4 GV30577-001A FUNC.INDICATOR

5 GV40485-002A REMOTE LENS

6 GV40486-002A INDICATOR LENS (x2)

7 GV30580-001A VOLUME KNOB

8 LV42979-003A VOLUME RING

9 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x2)

10 GV40083-004A MIC.KNOB

JE31UG,JE31UN,JE31UX,JE3UG,JE3UN,JE3USJ

E3UX

11 GV30583-006A TRAY FITTING

JE31UG,JE31UN,JE31UX

11 GV30583-005A TRAY FITTING

JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX

JE3UY

12 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)

13 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x11)

14 GV40246-001A FOOT SPACER (x2)

15 GV40246-002A FOOT SPACER (x2)

16 GV10206-003A CENTER CHASSIS

17 GV20275-001A STAY BRACKET

18 QYSBSG3008ZA TAP SCREW M3 x 8mm(x2)

19 QYSBSG3008ZA TAP SCREW M3 x 8mm

20 E310243-002 PLASTIC RIVET

21 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x4)

22 QAL0700-001 MECHA ASSY

23 GV40496-001A SWING CAM(L)

24 GV40497-001A SWING CAM(R)

25 GV40501-001A SWING CAM (x2)

26 GV40502-002A SPRING (x2)

27 GV40503-001A WASHER (x2)

28 GV40504-002A SCREW (x2)

29 GV10204-002A CASS.HOLDER(L)

30 GV10205-002A CASS.HOLDER(R)

31 GV20278-006A CASS.COVER (L)

JE31UG,JE31UN,JE31UX

31 GV20278-003A CASS.COVER (L)

JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX,

E3UY

32 GV20279-006A CASS.COVER (R)

JE31UG,JE31UN,JE31UX

32 GV20279-003A CASS.COVER (R)

JE3UE,JE3UG,JE3UN,JE3US,JE3UW,JE3UX

JE3UY

33 GV40487-001A CASS.LENS (x2)

34 GV40489-001A DOOR SPRING

35 GV40490-001A DOOR SPRING(R)

36 GV40034-001A DAMPER ASSY. (x2)

37 VKY4180-401 CASSETTE SPRING (x4)

38 QYSBSF3010ZA TAP SCREW M3 x 10mm(x6)

39 GV40515-001A METAL PIN (x2)

40 QYSBSF3012ZA TAP SCREW M3 x 12mm(x3)

41 LV30225-011A SPACER (x2)

42 LV30225-011A SPACER

43 GV30349-003A SPACER

44 GV10209-002A BOTTOM CHASSIS

45 QYSBSGG3008EA TAP SCREW M3 x 8mm

46 QYSBSGG3008EA TAP SCREW M3 x 8mm

47 GV10217-005A METAL COVER

48 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2)

49 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)

50 GV30581-002A HEAT SINK

51 GV40488-001A LEAF SPRING

52 QYSBSG3014EA TAP SCREW M3 x 14mm(x4)

53 QYSBSGY3008EA TAP SCREW M3 x 8mm(x4)

54 QZW0033-001 STRAIN RELIEF

55 QYSSST3006ZA TAP SCREW M3 x 6mm(x2)

56 QYSBSG3010ZA TAP SCREW M3 x 10mm

57 GV30349-003A SPACER (x2)

58 E3400-431 SPECER

59 GV10207-033A REAR PANEL

JE31UN

59 GV10207-032A REAR PANEL

JE31UG,JE31UX

59 GV10207-030A REAR PANEL

JE3UE

59 GV10207-027A REAR PANEL

JE3UN,JE3US

59 GV10207-031A REAR PANEL

JE3UW

59 GV10207-026A REAR PANEL

JE3UG,JE3UX

59 GV10207-028A REAR PANEL

JE3UY

3-5

60 GV10208-001A REAR COVER

61 QAU0278-003 TUNER

JE3UE

61 QAU0307-003 TUNER

JE31UG,JE31UN,JE31UX,JE3UG,JE3UN,JE3USJ

E3UW,JE3UX,JE3UY

62 QYSBSGY3008EA TAP SCREW M3 x 8mm

JE31UG,JE31UN,JE31UX,JE3UG,JE3UN,JE3USJ

E3UX

63 QYSBSGY3008EA TAP SCREW M3 x 8mm

64 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)

65 QYSBSGY3008EA TAP SCREW M3 x 8mm

66 QYSBSGY3008EA TAP SCREW M3 x 8mm(x2)

67 QYSBSF3012EA TAP SCREW M3 x 12mm(x2)

68 QYSBSGY3008EA TAP SCREW M3 x 8mm(x3)

69 QYSBSGY3008EA TAP SCREW M3 x 8mm(x6)

70 QYSBSGY3008EA TAP SCREW M3 x 8mm

71 QYSBSGY3008EA TAP SCREW M3 x 8mm

72 QYSDSG3006NA TAP SCREW M3 x 6mm(x2)

73 LV41843-002A LASER CAUTION



74 QMPK210-205-JN POWER CORD(EU) 2.05m BLACK

JE31UG,JE31UN,JE31UX,JE3UE,JE3UG,JE3UNJ

E3US,JE3UW,JE3UX



74 QMPR300-200-JC POWER CORD 2m BLACK

JE3UY



75 QQT0479-001 POWER TRANSF

76 QUQH12-1108AJ-E FFC WIRE 11pin 8cm

77 QUQH12-1314AJ-E FFC WIRE 13pin 14cm

78 QUQH12-1614BJ-E FFC WIRE 16pin 14cm

79 QUQH10-1730BJ-E FFC WIRE 17pin 30cm

80 QUQH10-1920BJ-E FFC WIRE 19pin 20cm

81 QUQH10-0541BJ-E FFC WIRE 5pin 41cm

82 QUQH12-1111AJ-E FFC WIRE 11pin 11cm

83 QUQH12-1110AJ-E FFC WIRE 11pin 10cm

84 WJN0074-005A-E SIGNAL WIRE

85 WJZ0137-001A-E S.WIRE

JE31UG,JE31UN,JE31UX,JE3UG,JE3UN,JE3USJ

E3UW,JE3UX,JE3UY



86 QMF51W2-3R15-J8 FUSE 3.15A AC250V



87 QMF51W2-2R0-J8 FUSE 2A AC250V



88 QMF51W2-2R0-J8 FUSE 2A AC250V



89 QMF51W2-3R15-J8 FUSE 3.15A AC250V

90 LV30225-011A SPACER

JE3UE,JE3UW,JE3UY

91 QLF0149-001 FL TUBE

92 GV30507-001A FL HOLDER

93 GV30349-021A SPACER (x2)



Symbol No. Part No. Part Name Description Local

3-6

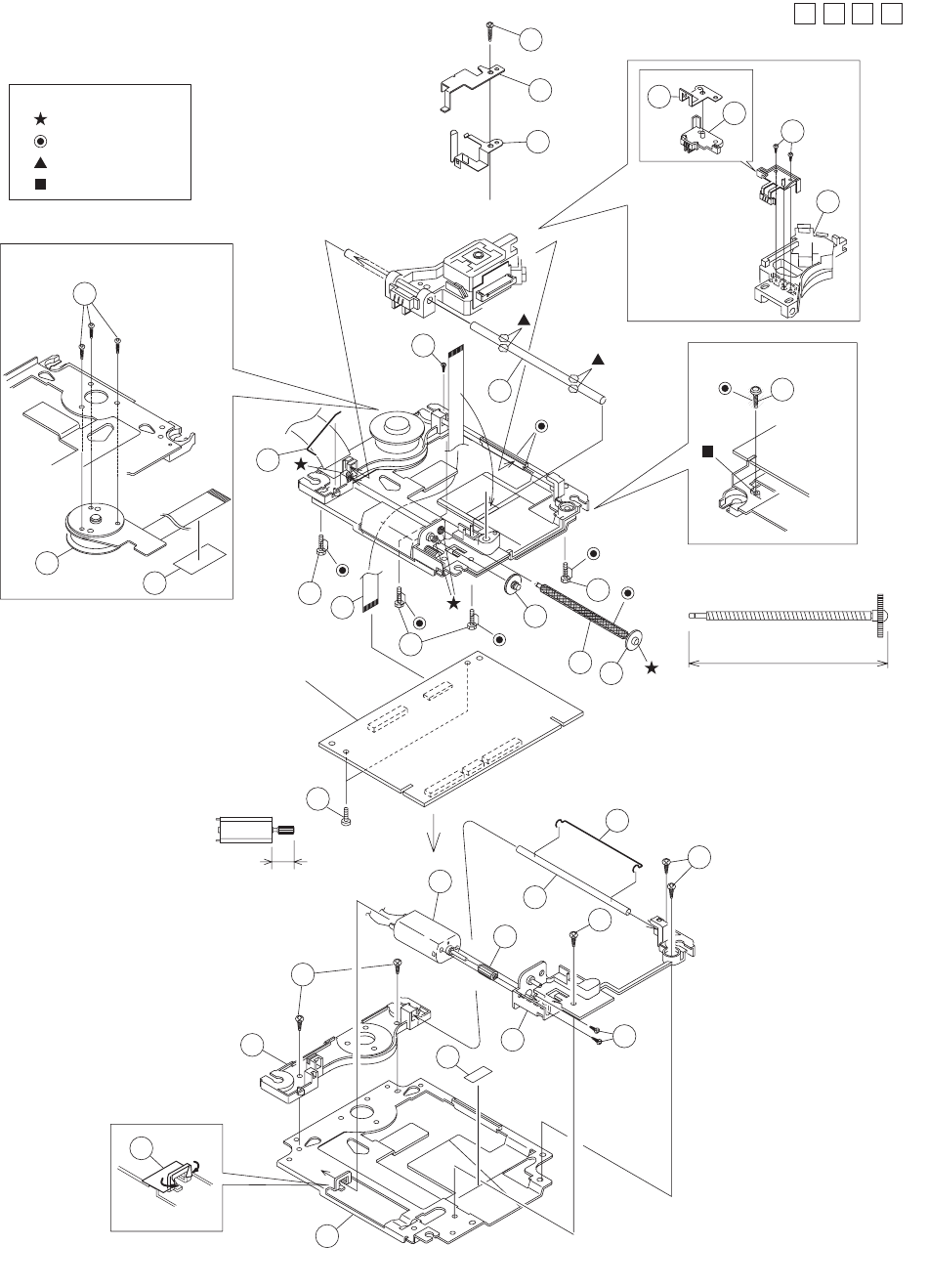

DVD mechanism assembly and parts list

Block No.

< Back side >

Grease

=1401C

=PG-641

=CFD-4007ZY2

=JVG-31N

19 18

27 63.3mm

DVD module board 0.1mm

10.5mm 0.1mm

FTU-JZ1-11M

The parts without symbol number are not service.

3-7

DVD mechanism

Block No. [M][J][M][M]



Symbol No. Part No. Part Name Description Local

1 LV21814-001A MECHA BASE

2 LE20731-001A SPINDLE BASE

3 QYSDST2605M TAP SCREW M2.6 x 5mm(x2)

4 LE40931-001A SHAFT

5 LE40995-001A BAR SPRING

6 QYSPSTU2080M TAP SCREW M2 x 8mm

7 LE20730-002A FEED HOLDER

8 QAR0165-001 FEED MOTOR

9 LV41510-201A FEED GEAR T

10 QYSPSPU2040M SCREW M2 x 4mm(x2)

11 QYSDST2605M TAP SCREW M2.6 x 5mm(x3)

12 QAL0577-001 P.UP

13 LE20732-001A SW ACTUATOR

14 LE31093-001A LEAD SPRING

15 QYSPSFU1740Z TAP SCREW M1.7 x 4mm(x2)

16 QUQ105-2412AC FFC WIRE 24pin 12cm

17 LE40931-001A SHAFT

18 LE40855-002A FEED GEAR E

19 LV41517-003A LEAD SCREW

20 LE40930-001A FEED GEAR M

21 LE40928-002A THURUST SPRING

22 LE40927-002A PLATE

23 QYSDST2614Z TAP SCREW M2.6 x 14mm

24 QAR0334-001 S.MOTOR

25 QYSPSPU1760Z SCREW M1.7 x 6mm(x3)

26 LE40994-001A T.SPRING

27 LE40858-002A SPECIAL SCREW (x4)

28 QYSDST2004Z TAP SCREW M2 x 4mm(x2)

29 LV30225-0X6A SPACER

30 LV30225-0X5A SPACER

31 LV44007-001A TAPE

3-8

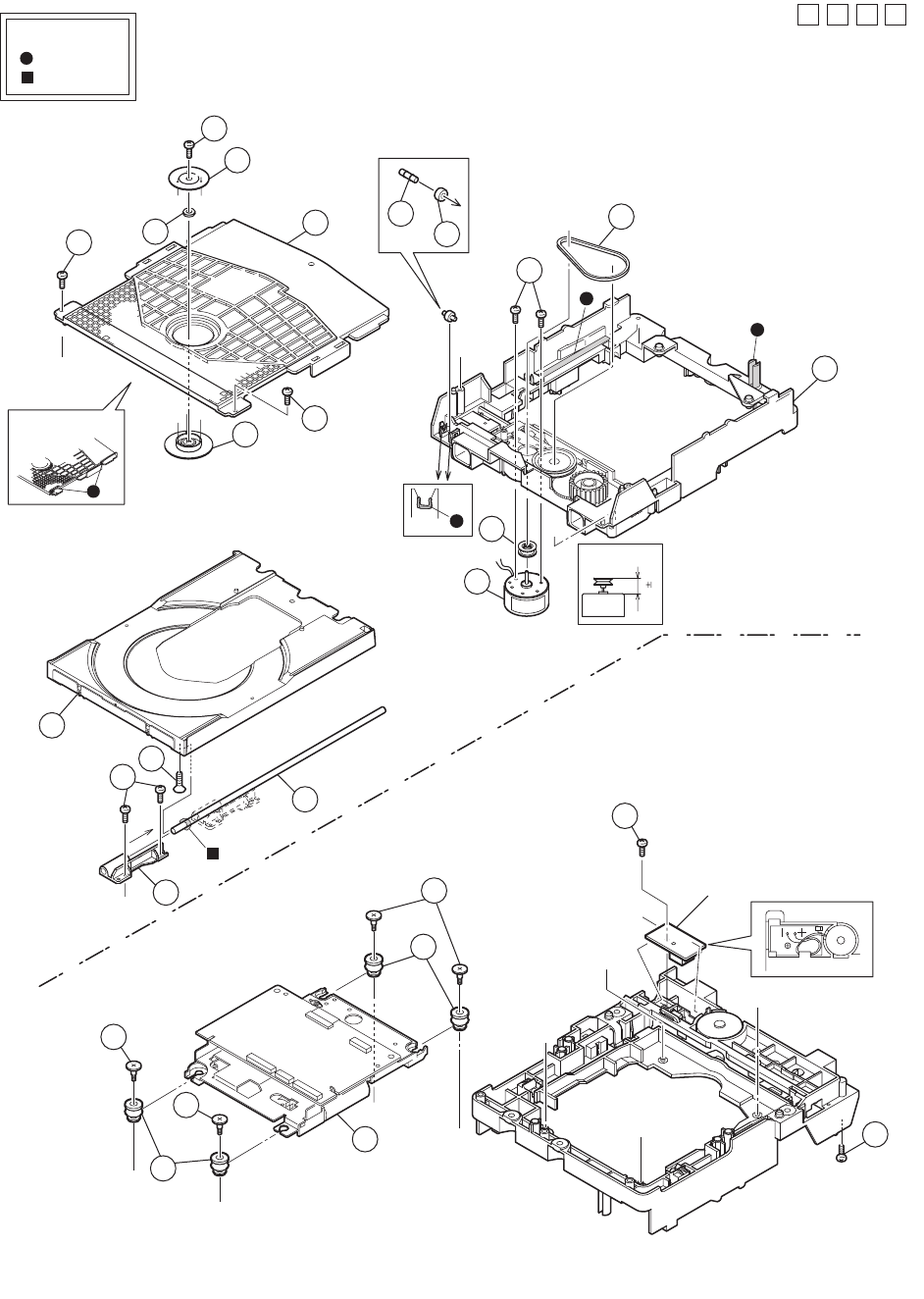

DVD loading base assembly and parts list

JBS-1003

JVG-450

Grease

18 14

Block No. MM

FMU-MZ1-11M

Backside

The parts without symbol number are not service.

< Back side >

7.75mm 0.10mm

DVD loading switch board

3-9

DVD loading base

Block No. [M][N][M][M]



Symbol No. Part No. Part Name Description Local

1 LV11065-002A LOADER SUB ASSY

2 E407140-001SS C.D ROLLER

3 E407149-001SS RUBBER TUBE

4 LV10979-002A TRAY

5 LV35499-001A SHAFT GUIDE

6 LV44022-001A SHAFT

7 QYSSSF2008ZA TAP SCREW M2 x 8mm

8 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)

9 LV41741-004A SPECIAL SCREW

10 QAR0197-001 MOTOR

11 LV43844-002A MOTOR PULLEY

12 QYSPSPU1730ZA SCREW M1.7 x 3mm(x2)

13 QYSDSF2008ZA TAP SCREW M2 x 8mm

14 LV43974-001A BELT

15 LV21852-003A CLAMPER BASE

16 QYSDSF2008ZA TAP SCREW M2 x 8mm(x2)

17 LV35056-002A DVD CLAMPER

18 LV42930-003A P.C.MAGNET

19 LV43848-001A YOKE

20 LE40906-002A SPECIAL SCREW

21 ------------ DVD TRAMECHA UN

22 LE40900-003A INSULATOR (x2)

23 LE40900-005A INSULATOR (x2)

24 LE40901-002A SPECIAL SCREW (x4)

3-10

Electrical parts list

Power board

Block No. [0][1]



Symbol No.

Part No. Part Name Description Local



IC260 KIA7809API IC



IC270 KIA7805API IC



IC280 KIA7812API IC



IC290 KIA7809API IC



IC602 STK432-070 IC

IC900 SN74HCU04N FL DRIVER

IC920 PT6305 FL DRIVER

IC930 GP1UM281XKVF IR DETECT UNIT



Q221 KTA1046/Y/ TRANSISTOR

Q222 KTC3199/GL/-T TRANSISTOR

Q223 KTC3199/GL/-T TRANSISTOR

Q601 KTC3199/GL/-T TRANSISTOR

Q602 KTC3199/GL/-T TRANSISTOR

Q612 KTA1267/YG/-T TRANSISTOR

Q613 KRC102M-T DIGI TRANSISTOR

Q681 2SK301/PQ/-T TRANSISTOR

Q725 KTA1267/YG/-T TRANSISTOR

Q726 KTC3199/GL/-T TRANSISTOR

Q727 KTA1267/YG/-T TRANSISTOR

Q728 KTC3199/GL/-T TRANSISTOR



D211 1N5402M-20 DIODE



D212 1N5402M-20 DIODE



D213 1N5402M-20 DIODE



D214 1N5402M-20 DIODE

D221 MTZJ5.6C-T2 Z DIODE

D222 2A02-M DIODE

D260 MTZJ11B-T2 Z DIODE

D270 1SS133-T2 SI DIODE

D271 MTZJ6.8C-T2 Z DIODE

D280 MTZJ15B-T2 Z DIODE

D290 MTZJ11B-T2 Z DIODE

D619 1SS133-T2 SI DIODE

D620 1SS133-T2 SI DIODE

D622 MTZJ9.1B-T2 Z DIODE

D681 MTZJ2.4B-T2 Z DIODE

D728 1SS133-T2 SI DIODE

D925 SLR-343VC/NPQ-T LED

C204 QEZ0726-688 E CAPACITOR 6800uF

C205 QEZ0726-688 E CAPACITOR 6800uF

C213 QFKC2EK-104Z MM CAPACITOR 0.1uF 250V K

C214 QETM1HM-338 E CAPACITOR 3300uF 50V M

JE31U

N,JE3

C215 QETM1HM-338 E CAPACITOR 3300uF 50V M

JE31U

N,JE3

C221 QETM1EM-688 E CAPACITOR 6800uF 25V M

C222 QEZ0724-828 E CAPACITOR 8200uF

C225 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K

C226 QCBB1HK-221Y C CAPACITOR 220pF 50V K

C260 QETN1HM-106Z E CAPACITOR 10uF 50V M

C261 QETN1CM-227Z E CAPACITOR 220uF 16V M

C270 QETN1HM-106Z E CAPACITOR 10uF 50V M

C271 QETN1HM-106Z E CAPACITOR 10uF 50V M

C280 QETN1HM-106Z E CAPACITOR 10uF 50V M

C281 QETN1HM-106Z E CAPACITOR 10uF 50V M

C290 QETN1HM-106Z E CAPACITOR 10uF 50V M

C291 QETN1HM-106Z E CAPACITOR 10uF 50V M

C601 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J

C602 QFLC1HJ-223Z M CAPACITOR 0.022uF 50V J

C603 QCBB1HK-221Y C CAPACITOR 220pF 50V K

C604 QCBB1HK-221Y C CAPACITOR 220pF 50V K

C605 QCBB1HK-221Y C CAPACITOR 220pF 50V K

C606 QCBB1HK-221Y C CAPACITOR 220pF 50V K

C607 QTE1C06-476Z E CAPACITOR 47uF 16V

C608 QTE1C06-476Z E CAPACITOR 47uF 16V

C609 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K

C610 QCSB1HK-3R3Y C CAPACITOR 3.3pF 50V K

C611 QETN1HM-107Z E CAPACITOR 100uF 50V M

C612 QETN1HM-107Z E CAPACITOR 100uF 50V M

C613 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J

C614 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J

C615 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J

C616 QFLC1HJ-473Z M CAPACITOR 0.047uF 50V J

C621 QTE1V06-106Z E CAPACITOR 10uF 35V

C622 QTE1V06-106Z E CAPACITOR 10uF 35V

C623 QTE1H28-106Z E CAPACITOR 10uF 50V

C624 QTE1H28-106Z E CAPACITOR 10uF 50V

C639 QETN1HM-105Z E CAPACITOR 1uF 50V M

C681 QETN1HM-224Z E CAPACITOR 0.22uF 50V M

C682 QFLC1HJ-823Z M CAPACITOR 0.082uF 50V J

C726 QETN1HM-106Z E CAPACITOR 10uF 50V M

C729 QETN1EM-476Z E CAPACITOR 47uF 25V M

C738 QETN1HM-106Z E CAPACITOR 10uF 50V M

C920 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

C921 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

C922 QEKC1AM-107Z E CAPACITOR 100uF 10V M

C924 QEKC1HM-226Z E CAPACITOR 22uF 50V M

C925 QETN1HM-226Z E CAPACITOR 22uF 50V M

C926 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K

C930 QETN1HM-106Z E CAPACITOR 10uF 50V M

C931 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C932 QCBB1HK-331Y C CAPACITOR 330pF 50V K

C933 QCBB1HK-331Y C CAPACITOR 330pF 50V K

R215 QRE141J-223Y C RESISTOR 22k

Ω

1/4W J

R216 QRE141J-223Y C RESISTOR 22k

Ω

1/4W J

R221 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R222 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R223 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R224 QRE141J-681Y C RESISTOR 680

Ω

1/4W J

R225 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R226 QRE141J-272Y C RESISTOR 2.7k

Ω

1/4W J

R227 QRE141J-681Y C RESISTOR 680

Ω

1/4W J

R271 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R601 QRJ146J-101X UNF C RESISTOR 100

Ω

1/4W J

R602 QRJ146J-101X UNF C RESISTOR 100

Ω

1/4W J

R603 QRE141J-473Y C RESISTOR 47k

Ω

1/4W J

R604 QRE141J-473Y C RESISTOR 47k

Ω

1/4W J



R605 QRJ146J-122X UNF C RESISTOR 1.2k

Ω

1/4W J



R606 QRJ146J-122X UNF C RESISTOR 1.2k

Ω

1/4W J

R607 QRE141J-563Y C RESISTOR 56k

Ω

1/4W J

R608 QRE141J-563Y C RESISTOR 56k

Ω

1/4W J



R613 QRJ146J-100X UNF C RESISTOR 10

Ω

1/4W J



R614 QRJ146J-100X UNF C RESISTOR 10

Ω

1/4W J



R615 QRJ146J-100X UNF C RESISTOR 10

Ω

1/4W J



R616 QRJ146J-100X UNF C RESISTOR 10

Ω

1/4W J

R617 QRE141J-221Y C RESISTOR 220

Ω

1/4W J

R618 QRE141J-221Y C RESISTOR 220

Ω

1/4W J

R619 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R620 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R621 QRE141J-473Y C RESISTOR 47k

Ω

1/4W J

R623 QRE141J-473Y C RESISTOR 47k

Ω

1/4W J



R650 QRT01DJ-R22X MF RESISTOR 0.22

Ω

1W J



R652 QRT01DJ-R22X MF RESISTOR 0.22

Ω

1W J



R654 QRT01DJ-R22X MF RESISTOR 0.22

Ω

1W J



R656 QRT01DJ-R22X MF RESISTOR 0.22

Ω

1W J

R666 QRE141J-333Y C RESISTOR 33k

Ω

1/4W J

R667 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R668 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R674 QRJ146J-100X UNF C RESISTOR 10

Ω

1/4W J

R675 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R676 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R681 QRE141J-153Y C RESISTOR 15k

Ω

1/4W J

R682 QRE141J-203Y C RESISTOR 20k

Ω

1/4W J

R683 QRE141J-473Y C RESISTOR 47k

Ω

1/4W J

R684 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R685 QRE141J-475Y C RESISTOR 4.7M

Ω

1/4W J

R686 QRE141J-392Y C RESISTOR 3.9k

Ω

1/4W J

R687 QRE141J-105Y C RESISTOR 1M

Ω

1/4W J

R688 QRE141J-823Y C RESISTOR 82k

Ω

1/4W J

R689 QRE141J-823Y C RESISTOR 82k

Ω

1/4W J

R725 QRE141J-823Y C RESISTOR 82k

Ω

1/4W J

R726 QRE141J-104Y C RESISTOR 100k

Ω

1/4W J

R727 QRE141J-104Y C RESISTOR 100k

Ω

1/4W J

R728 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J



Symbol No.

Part No. Part Name Description Local

3-11

Input board

Block No. [0][2]

R729 QRE141J-104Y C RESISTOR 100k

Ω

1/4W J

R730 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R743 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R744 QRE141J-104Y C RESISTOR 100k

Ω

1/4W J

R792 QRE141J-823Y C RESISTOR 82k

Ω

1/4W J

R793 QRE141J-823Y C RESISTOR 82k

Ω

1/4W J

R920 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

JE3US

R920 QRE141J-202Y C RESISTOR 2k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3UX

R920 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

JE3UE,

JE3UW

,JE3UY

R921 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

JE3UE

R921 QRE141J-122Y C RESISTOR 1.2k

Ω

1/4W J

JE31U

G, J E3 1

UX,JE3

UG,JE3

R923 QRE141J-473Y C RESISTOR 47k

Ω

1/4W J

R924 QRE141J-181Y C RESISTOR 180

Ω

1/4W J

R926 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R927 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R928 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R929 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R930 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

L601 QQLZ035-R39 COIL 0.39uH

L602 QQLZ035-R39 COIL 0.39uH

L920 QQR0621-001Z COIL

L921 QQR0621-001Z COIL

L923 QQR0621-001Z COIL

CN201 QGB2510J1-09 CONNECTOR B-B (1-9)

CN202 QGB2510J1-07 CONNECTOR B-B (1-7)

CN203 QGB2510J1-09 CONNECTOR B-B (1-9)

CN204 QGB2510K1-06 CONNECTOR B-B (1-6)

CN212 QGB2510K1-07 CONNECTOR B-B (1-7)

CN213 QGB2510K1-09 CONNECTOR B-B (1-9)

CN215 QGB2510K1-08 CONNECTOR B-B (1-8)

CN890 QGF1205F1-11 CONNECTOR FFC/FPC (1-11)

EP201 QNZ0136-001Z EARTH PLATE

FW109 QJK015-062924-E WIRE SOCKET

FW208 QUM156-08DGZ4-E FLAT WIRE

FW241 QUM153-18DGZ4-E FLAT WIRE

FW601 QUM154-10Z4Z4-E FLAT WIRE

JS920 QSW0857-001 ROTARY SW

PP201 QZW0112-001 WIRE CLAMP

S920 QSW1121-001Z PUSH SW I.M

SP920 GV40205-004A IC HOLDER



Symbol No.

Part No. Part Name Description Local

IC100 MM1623XF-X IC

IC120 RC4558D-X IC

IC300 HA12237F IC

IC410 LB1641 IC

IC414 KTC3200/GL/-T TRANSISTOR

IC420 KIA278R33PI REGULATOR IC

IC421 KIA278R05PI TRANSISTOR

IC460 LC75342M-X IC

IC520 RC4558D-X IC

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Symbol No.

Part No. Part Name Description Local

IC521 RC4558D-X IC

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

IC801 BR24L02F-W-X IC

IC810 UPD784217AGF551 IC

IC815 SN74AHCT08NS-X IC

Q120 KTC3875/YG/-X SI TRANSISTOR

Q121 KTC3875/YG/-X SI TRANSISTOR

Q122 KTC3875/YG/-X SI TRANSISTOR

Q123 KTC3875/YG/-X SI TRANSISTOR

Q124 KTC3875/YG/-X SI TRANSISTOR

Q125 KTC3875/YG/-X SI TRANSISTOR

Q126 KTC3875/YG/-X SI TRANSISTOR

Q127 KTC3875/YG/-X SI TRANSISTOR

Q128 KTC3875/YG/-X SI TRANSISTOR

Q129 KTC3875/YG/-X SI TRANSISTOR

Q306 KRC107M-T DIGI TRANSISTOR

Q307 KRC107M-T DIGI TRANSISTOR

Q309 KTA1271/OY/-T TRANSISTOR

Q310 KTC3199/GL/-T TRANSISTOR

Q311 2SB562/C/-T TRANSISTOR

Q312 KTC3199/GL/-T TRANSISTOR

Q313 2SB562/C/-T TRANSISTOR

Q316 2SC2001/K/-T TRANSISTOR

Q320 2SC2001/K/-T TRANSISTOR

Q360 KRC103M-T TRANSISTOR

Q362 KRA111M-T DIGI TRANSISTOR

Q363 2SC3576-JVC-T TRANSISTOR

Q364 2SC3576-JVC-T TRANSISTOR

Q365 2SC3576-JVC-T TRANSISTOR

Q366 2SC3576-JVC-T TRANSISTOR

Q410 KRA104S-X DIGI TRANSISTOR

Q415 KRC104S-X TRANSISTOR

Q417 KRA111S-X D. TRANSISTOR

Q420 2SD2114K/VW/-X TRANSISTOR

Q421 2SD2114K/VW/-X TRANSISTOR

Q430 KRC111S-X TRANSISTOR

Q431 KTC3875/YG/-X SI TRANSISTOR

Q520 KRA104S-X DIGI TRANSISTOR

Q521 2SD2114K/VW/-X TRANSISTOR

Q585 KRA104S-X DIGI TRANSISTOR

Q586 2SD2114K/VW/-X TRANSISTOR

Q587 2SD2114K/VW/-X TRANSISTOR

Q801 KRA111S-X D. TRANSISTOR

Q802 KRC102S-X DIGI TRANSISTOR

D303 1N4003S-T5 SI DIODE

D304 1N4003S-T5 SI DIODE

D374 1SS133-T2 SI DIODE

D375 1N4003S-T5 SI DIODE

D384 MTZJ3.9B-T2 Z DIODE

D385 MTZJ3.9B-T2 Z DIODE

D410 MTZJ4.7C-T2 Z DIODE

D414 MTZJ6.2B-T2 Z DIODE

D415 MTZJ5.6B-T2 Z DIODE

D420 MTZJ3.9B-T2 Z DIODE

D421 1N4003S-T5 SI DIODE

D422 1N4003S-T5 SI DIODE

D423 MTZJ5.6C-T2 Z DIODE

D430 1SS133-T2 SI DIODE

D444 1N4003S-T5 SI DIODE

D454 1SS133-T2 SI DIODE

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

D455 1SS133-T2 SI DIODE

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Symbol No.

Part No. Part Name Description Local

3-12

D551 1SS133-T2 SI DIODE

D801 1SS244-T2 SI DIODE

D802 1SS133-T2 SI DIODE

D803 1SS244-T2 SI DIODE

D804 MTZJ4.3B-T2 Z DIODE

D805 1SS133-T2 SI DIODE

D807 1SS133-T2 SI DIODE

D808 1N4003S-T5 SI DIODE

D809 1SS133-T2 SI DIODE

D862 1SS133-T2 SI DIODE

C120 QFZ0225-473Z MYLAR CAPA 0.047uF

C121 QFZ0225-473Z MYLAR CAPA 0.047uF

C122 QFZ0225-473Z MYLAR CAPA 0.047uF

C123 QFZ0225-473Z MYLAR CAPA 0.047uF

C124 QTE1C06-476Z E CAPACITOR 47uF 16V

C125 QTE1C06-476Z E CAPACITOR 47uF 16V

C300 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K

C301 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K

C302 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

JE3UE

C303 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J

C306 QETN1HM-226Z E CAPACITOR 22uF 50V M

C307 QETN1HM-475Z E CAPACITOR 4.7uF 50V M

C308 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K

JE3UE

C309 QETN1CM-107Z E CAPACITOR 100uF 16V M

C311 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

C313 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

C314 QETN1CM-107Z E CAPACITOR 100uF 16V M

C315 QDXB1CM-152Y C CAPACITOR 1500pF 16V M

C318 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K

C321 QCFB1HZ-104Y C CAPACITOR 0.1uF 50V Z

C322 QETN1CM-107Z E CAPACITOR 100uF 16V M

C323 QFG32AJ-223Z PP CAPACITOR 0.022uF 100V J

C324 QFLC1HJ-472Z M CAPACITOR 4700pF 50V J

C325 QCBB1HK-331Y C CAPACITOR 330pF 50V K

C326 QCBB1HK-331Y C CAPACITOR 330pF 50V K

C330 QETN1AM-227Z E CAPACITOR 220uF 10V M

C331 QETN1HM-105Z E CAPACITOR 1uF 50V M

C332 QETN1HM-106Z E CAPACITOR 10uF 50V M

C334 NCS21HJ-821X C CAPACITOR 820pF 50V J

C335 QCBB1HK-271Y C CAPACITOR 270pF 50V K

C336 QCBB1HK-391Y C CAPACITOR 390pF 50V K

C337 QETN1HM-225Z E CAPACITOR 2.2uF 50V M

C338 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J

C339 NCS21HJ-821X C CAPACITOR 820pF 50V J

C340 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J

C341 QCBB1HK-271Y C CAPACITOR 270pF 50V K

C343 QCBB1HK-391Y C CAPACITOR 390pF 50V K

C344 QETN1HM-225Z E CAPACITOR 2.2uF 50V M

C345 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J

C346 QFLA1HJ-104Z M CAPACITOR 0.1uF 50V J

C350 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K

C351 QCBB1HK-221Y C CAPACITOR 220pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UW

,JE3UX

,JE3UY

C352 QETN1HM-476Z E CAPACITOR 47uF 50V M

C353 QETN1HM-105Z E CAPACITOR 1uF 50V M

C354 QETN1HM-476Z E CAPACITOR 47uF 50V M

C355 QCBB1HK-221Y C CAPACITOR 220pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UW

,JE3UX

,JE3UY

C356 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K

C357 NCS21HJ-821X C CAPACITOR 820pF 50V J

C358 NCS21HJ-821X C CAPACITOR 820pF 50V J

C359 QETN1HM-475Z E CAPACITOR 4.7uF 50V M

C360 QCBB1HK-151Y C CAPACITOR 150pF 50V K

JE3UE

C361 QCBB1HK-151Y C CAPACITOR 150pF 50V K

JE3UE

C367 QETN1CM-107Z E CAPACITOR 100uF 16V M

C368 QDXB1CM-682Y C CAPACITOR 6800pF 16V M



Symbol No.

Part No. Part Name Description Local

C369 QDXB1CM-682Y C CAPACITOR 6800pF 16V M

C370 QETN1HM-475Z E CAPACITOR 4.7uF 50V M

C371 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K

C372 QCSB1HK-4R7Y C CAPACITOR 4.7pF 50V K

C373 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K

JE3UE

C374 QCBB1HK-103Y C CAPACITOR 0.01uF 50V K

JE3UE

C375 QCBB1HK-221Y C CAPACITOR 220pF 50V K

JE3UE

C376 QCBB1HK-221Y C CAPACITOR 220pF 50V K

JE3UE

C377 QETN1AM-477Z E CAPACITOR 470uF 10V M

C378 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K

JE3UE

C379 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

JE3UE

C380 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

JE3UE

C397 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J

C406 QTE1V06-106Z E CAPACITOR 10uF 35V

C407 QTE1V06-106Z E CAPACITOR 10uF 35V

C408 NDC31HJ-101X C CAPACITOR 100pF 50V J

C409 NDC31HJ-101X C CAPACITOR 100pF 50V J

C411 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C412 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C413 QETN1AM-477Z E CAPACITOR 470uF 10V M

C414 QTE1C06-476Z E CAPACITOR 47uF 16V

C415 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C420 QETN1EM-476Z E CAPACITOR 47uF 25V M

C421 QETN1HM-106Z E CAPACITOR 10uF 50V M

C422 QETN1HM-106Z E CAPACITOR 10uF 50V M

C423 QETN1CM-477Z E CAPACITOR 470uF 16V M

C430 QETN1HM-105Z E CAPACITOR 1uF 50V M

C431 QETN1HM-105Z E CAPACITOR 1uF 50V M

C432 NDC31HJ-330X C CAPACITOR 33pF 50V J

C433 QETN1HM-105Z E CAPACITOR 1uF 50V M

C436 QTE1V06-106Z E CAPACITOR 10uF 35V

C437 QTE1V06-106Z E CAPACITOR 10uF 35V

C445 QETN1HM-105Z E CAPACITOR 1uF 50V M

C446 QCBB1HK-331Y C CAPACITOR 330pF 50V K

C447 QCBB1HK-331Y C CAPACITOR 330pF 50V K

C454 NCB31HK-221X C CAPACITOR 220pF 50V K

C455 NCB31HK-221X C CAPACITOR 220pF 50V K

C456 NCB31HK-222X C CAPACITOR 2200pF 50V K

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C460 NCB31HK-471X C CAPACITOR 470pF 50V K

C461 NCB31HK-471X C CAPACITOR 470pF 50V K

C462 QETN1HM-225Z E CAPACITOR 2.2uF 50V M

C463 QETN1HM-225Z E CAPACITOR 2.2uF 50V M

C464 QETN1HM-106Z E CAPACITOR 10uF 50V M

C465 QETN1HM-106Z E CAPACITOR 10uF 50V M

C466 QETN1HM-106Z E CAPACITOR 10uF 50V M

C467 QETN1HM-106Z E CAPACITOR 10uF 50V M

C468 QTE1H28-106Z E CAPACITOR 10uF 50V

C469 QTE1H28-106Z E CAPACITOR 10uF 50V

C470 QTE1H28-106Z E CAPACITOR 10uF 50V

C471 QTE1H28-106Z E CAPACITOR 10uF 50V

C472 QFLC1HJ-272Z M CAPACITOR 2700pF 50V J

C473 QFLC1HJ-272Z M CAPACITOR 2700pF 50V J

C474 QTE1V06-106Z E CAPACITOR 10uF 35V

C475 QTE1V06-106Z E CAPACITOR 10uF 35V

C476 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J

C477 QFVF1HJ-224Z MF CAPACITOR 0.22uF 50V J

C478 NCB31HK-471X C CAPACITOR 470pF 50V K

C479 QTE1C28-107Z E CAPACITOR 100uF 16V

C508 QETN1AM-337Z E CAPACITOR 330uF 10V M

C526 QETN1HM-106Z E CAPACITOR 10uF 50V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C527 NCB21HK-683X C CAPACITOR 0.068uF 50V K

C528 QFLC1HJ-103Z M CAPACITOR 0.01uF 50V J



Symbol No.

Part No. Part Name Description Local

3-13

C529 NCB31HK-271X C CAPACITOR 270pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C532 QETN1EM-476Z E CAPACITOR 47uF 25V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C533 QETN1EM-476Z E CAPACITOR 47uF 25V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C555 QETN1HM-105Z E CAPACITOR 1uF 50V M

C560 QETN1HM-475Z E CAPACITOR 4.7uF 50V M

C587 QETN1HM-106Z E CAPACITOR 10uF 50V M

C800 QETN1CM-107Z E CAPACITOR 100uF 16V M

C801 QETN1HM-475Z E CAPACITOR 4.7uF 50V M

C802 NCB31CK-224X C CAPACITOR 0.22uF 16V K

C803 NCB31CK-224X C CAPACITOR 0.22uF 16V K

C804 QETN1AM-477Z E CAPACITOR 470uF 10V M

C805 QETN0JM-227Z E CAPACITOR 220uF 6.3V M

C806 NCF21CZ-105X C CAPACITOR 1uF 16V Z

C807 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C808 NDC31HJ-270X C CAPACITOR 27pF 50V J

C809 NDC31HJ-300X C CAPACITOR 30pF 50V J

C810 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C814 QETN1CM-107Z E CAPACITOR 100uF 16V M

C815 QETN1HM-106Z E CAPACITOR 10uF 50V M

C816 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C817 NCF21CZ-105X C CAPACITOR 1uF 16V Z

C1000 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C1004 QETN1HM-105Z E CAPACITOR 1uF 50V M

C1005 QETN1HM-106Z E CAPACITOR 10uF 50V M

C1006 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

C1007 QETN1AM-477Z E CAPACITOR 470uF 10V M

C1008 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

C1009 QETN1AM-477Z E CAPACITOR 470uF 10V M

C1010 QETN1HM-105Z E CAPACITOR 1uF 50V M

C1011 QCBB1HK-181Y C CAPACITOR 180pF 50V K

C1012 QCBB1HK-181Y C CAPACITOR 180pF 50V K

JE3UE,

JE3UG,

JE3UN

,JE3US

,JE3U

W,JE3

UX,JE3

C1013 QETN1AM-477Z E CAPACITOR 470uF 10V M

R120 NRSA63J-434X MG RESISTOR 430k

Ω

1/16W J

R121 NRSA63J-394X MG RESISTOR 390k

Ω

1/16W J

R122 QRE141J-272Y C RESISTOR 2.7k

Ω

1/4W J

R123 QRE141J-242Y C RESISTOR 2.4k

Ω

1/4W J

R124 QRE141J-622Y C RESISTOR 6.2k

Ω

1/4W J

R125 QRE141J-562Y C RESISTOR 5.6k

Ω

1/4W J

R126 NRSA63J-133X MG RESISTOR 13k

Ω

1/16W J

R127 NRSA63J-133X MG RESISTOR 13k

Ω

1/16W J

R128 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R129 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R130 QRE141J-682Y C RESISTOR 6.8k

Ω

1/4W J

R131 QRE141J-682Y C RESISTOR 6.8k

Ω

1/4W J

R132 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R133 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R134 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R135 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R136 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R137 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R138 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

R139 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

R140 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R141 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R142 NRSA63J-563X MG RESISTOR 56k

Ω

1/16W J

R143 NRSA63J-563X MG RESISTOR 56k

Ω

1/16W J



Symbol No.

Part No. Part Name Description Local

R144 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

R145 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

R300 QRE141J-223Y C RESISTOR 22k

Ω

1/4W J

R301 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R302 QRE141J-273Y C RESISTOR 27k

Ω

1/4W J

R303 QRE141J-243Y C RESISTOR 24k

Ω

1/4W J

R304 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R305 QRE141J-393Y C RESISTOR 39k

Ω

1/4W J

R306 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R307 QRE141J-332Y C RESISTOR 3.3k

Ω

1/4W J

R309 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R310 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R311 QRE141J-151Y C RESISTOR 150

Ω

1/4W J

R312 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R313 QRE141J-151Y C RESISTOR 150

Ω

1/4W J

R315 QRE141J-153Y C RESISTOR 15k

Ω

1/4W J

R316 QRE141J-101Y C RESISTOR 100

Ω

1/4W J



R317 QRZ9005-100X FUSI RESISTOR 10

Ω

R318 QRE141J-2R2Y C RESISTOR 2.2

Ω

1/4W J



R319 QRJ146J-4R7X UNF C RESISTOR 4.7

Ω

1/4W J

R320 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R324 QRE141J-474Y C RESISTOR 470k

Ω

1/4W J

R325 QRE141J-153Y C RESISTOR 15k

Ω

1/4W J

R326 QRE141J-153Y C RESISTOR 15k

Ω

1/4W J

R330 QRE141J-101Y C RESISTOR 100

Ω

1/4W J

R332 QRE141J-104Y C RESISTOR 100k

Ω

1/4W J

R333 QRE141J-223Y C RESISTOR 22k

Ω

1/4W J

R335 QRE141J-273Y C RESISTOR 27k

Ω

1/4W J

R336 QRE141J-273Y C RESISTOR 27k

Ω

1/4W J

R337 QRE141J-113Y C RESISTOR 11k

Ω

1/4W J

R338 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R339 QRE141J-512Y C RESISTOR 5.1k

Ω

1/4W J

R340 QRE141J-512Y C RESISTOR 5.1k

Ω

1/4W J

R341 QRE141J-273Y C RESISTOR 27k

Ω

1/4W J

R343 QRE141J-273Y C RESISTOR 27k

Ω

1/4W J

R344 QRE141J-113Y C RESISTOR 11k

Ω

1/4W J

R345 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R346 QRE141J-512Y C RESISTOR 5.1k

Ω

1/4W J

R347 QRE141J-512Y C RESISTOR 5.1k

Ω

1/4W J

R359 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R360 QRE141J-223Y C RESISTOR 22k

Ω

1/4W J

R361 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R362 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R363 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R364 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R365 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R366 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R367 QRE141J-221Y C RESISTOR 220

Ω

1/4W J

R368 QRE141J-123Y C RESISTOR 12k

Ω

1/4W J

R369 QRE141J-123Y C RESISTOR 12k

Ω

1/4W J

R370 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R373 QRE141J-104Y C RESISTOR 100k

Ω

1/4W J

R374 QRE141J-104Y C RESISTOR 100k

Ω

1/4W J

R377 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R378 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R379 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R380 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R398 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R403 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R405 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R406 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R408 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R409 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R411 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R412 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R430 QRZ9006-4R7X F.RESISTOR 4.7

Ω

1/4W J

R451 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R452 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R462 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R463 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R464 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R465 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R466 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R467 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R468 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R469 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R470 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R471 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J



Symbol No.

Part No. Part Name Description Local

3-14

R472 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R473 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R474 NRSA63J-225X MG RESISTOR 2.2M

Ω

1/16W J

R475 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R480 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R481 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R482 NRSA63J-203X MG RESISTOR 20k

Ω

1/16W J

R483 NRSA63J-203X MG RESISTOR 20k

Ω

1/16W J

R484 NRSA63J-362X MG RESISTOR 3.6k

Ω

1/16W J

R485 NRSA63J-362X MG RESISTOR 3.6k

Ω

1/16W J

R486 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R487 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R488 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R489 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R520 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R521 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R522 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R523 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R524 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R525 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R526 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R527 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R528 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R529 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Symbol No.

Part No. Part Name Description Local

R530 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R531 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R533 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R534 NRSA63J-303X MG RESISTOR 30k

Ω

1/16W J

R535 NRSA63J-303X MG RESISTOR 30k

Ω

1/16W J

R551 NRSA63J-183X MG RESISTOR 18k

Ω

1/16W J

R552 NRSA63J-183X MG RESISTOR 18k

Ω

1/16W J

R553 NRSA63J-132X MG RESISTOR 1.3k

Ω

1/16W J

R566 NRSA63J-753X MG RESISTOR 75k

Ω

1/16W J

R571 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R585 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R586 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R587 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R588 QRE141J-513Y C RESISTOR 51k

Ω

1/4W J

R589 QRE141J-513Y C RESISTOR 51k

Ω

1/4W J

R800 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R801 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R802 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R803 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R804 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R805 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R810 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R811 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R812 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R813 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R814 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R815 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R816 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R817 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R818 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R819 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R820 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R821 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R822 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R823 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R824 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R825 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R826 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R827 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R828 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R829 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R830 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R831 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R832 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R833 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R834 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R835 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R836 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R837 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R838 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R839 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R840 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R841 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R842 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R843 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R844 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R846 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R847 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R853 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R856 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R857 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R858 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J



Symbol No.

Part No. Part Name Description Local

3-15

Front board

Block No. [0][3]

R862 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R863 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R864 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R866 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R867 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R868 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R869 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R871 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R872 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R873 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R874 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R876 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R878 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R879 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R882 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R883 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R886 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R887 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R892 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R894 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R895 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R896 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R897 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R898 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R899 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R900 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R901 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R902 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R903 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R904 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R905 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R906 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R907 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R908 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R1003 QRE141J-331Y C RESISTOR 330

Ω

1/4W J

R1004 QRE141J-331Y C RESISTOR 330

Ω

1/4W J

R1009 QRE141J-331Y C RESISTOR 330

Ω

1/4W J

R1010 QRE141J-331Y C RESISTOR 330

Ω

1/4W J

R1011 QRE141J-750Y C RESISTOR 75

Ω

1/4W J

R1012 QRE141J-750Y C RESISTOR 75

Ω

1/4W J

R1013 QRE141J-750Y C RESISTOR 75

Ω

1/4W J

VR320 QVP0004-203Z TRIM RESISTOR 20k

Ω

L317 QQL244K-100Z COIL 10uH K

L320 QQR1118-002 OSC COIL(BIAS)

CN11 QGF1036C1-05 CONNECTOR FFC/FPC (1-5)

CN21 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)

CN211 QGB2510K1-09 CONNECTOR B-B (1-9)

CN216 QGB2510J1-11 CONNECTOR B-B (1-11)

CN220 QGD2504C1-03Z CONNECTOR (1-3)

CN221 QGD2504C1-03Z CONNECTOR (1-3)

CN301 QGA2001C1-07 CONNECTOR W-B (1-7)

CN302 QGA2001C1-03 CONNECTOR W-B (1-3)

CN303 QGF1205C1-13 CONNECTOR FFC/FPC (1-13)

CN410 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)

CN420 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)

CN454 QGA2501C1-03 CONNECTOR W-B (1-3)

JE3UE,

JE3UW

,JE3UY

CN511 QGF1036C1-19 CONNECTOR FFC/FPC (1-19)

CN513 QGF1036C1-17 CONNECTOR FFC/FPC (1-17)

CN860 QGF1205C1-16 CONNECTOR FFC/FPC (1-16)

CN880 QGF1205C1-11 CONNECTOR FFC/FPC (1-11)

HS420 GV40577-001A HEAT SINK

HS421 LV40057-002A HEAT SINK

J454 QNN0420-001 SURROUND JACK

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

J814 GP1FAV30TK0F OPTICAL JACK

J1010 QNN0557-002 PIN JACK

K403 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K404 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K405 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K406 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K407 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J



Symbol No.

Part No. Part Name Description Local

K408 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K409 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K410 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K411 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K412 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K413 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K414 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K416 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K417 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K418 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K419 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K420 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K421 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K422 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K423 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K424 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K425 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

PP301 QZW0112-001 WIRE CLAMP

PP310 QNZ0104-001 POST PIN

JE3UE

S1001 QSW0454-001 SW

X801 QAX0724-001Z CRYSTAL 12.000000MHz



Symbol No.

Part No. Part Name Description Local

IC970 BU9253AS IC

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

IC971 RC4580IP IC

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

Q190 2SC3576-JVC-T TRANSISTOR

Q191 2SC3576-JVC-T TRANSISTOR

Q192 2SC3576-JVC-T TRANSISTOR

Q193 2SC3576-JVC-T TRANSISTOR

Q194 KRA111M-T DIGI TRANSISTOR

Q195 KTC3199/GL/-T TRANSISTOR

Q933 KRC102M-T DIGI TRANSISTOR

Q934 KRC102M-T DIGI TRANSISTOR

Q935 KRC102M-T DIGI TRANSISTOR

Q936 KRC102M-T DIGI TRANSISTOR

Q937 KRC102M-T DIGI TRANSISTOR

Q938 KRC102M-T DIGI TRANSISTOR

Q987 2SC3576-JVC-T TRANSISTOR

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Q2010 KTC2026/Y/ TRANSISTOR

Q2011 KTC3203/OY/-T TRANSISTOR

D160 1SS133-T2 SI DIODE

D161 1SS133-T2 SI DIODE

D162 1SS133-T2 SI DIODE

D180 MTZJ5.6B-T2 Z DIODE

D933 SLR-343VC/NPQ-T LED

D934 SLI-343URC-W-T LED

D935 SLI-343URC-W-T LED

D936 SLI-343URC-W-T LED

D937 SLI-343URC-W-T LED

D938 SLI-343URC-W-T LED

D957 1SS133-T2 SI DIODE

JE3UE,

JE3UW

,JE3UY



Symbol No.

Part No. Part Name Description Local

3-16

D958 1SS133-T2 SI DIODE

JE3UE,

JE3UW

,JE3UY

D971 MTZJ5.1B-T2 Z DIODE

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

D991 MTZJ2.4B-T2 Z DIODE

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

D992 1SS133-T2 SI DIODE

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



D2010 1N5402M-20 DIODE



D2011 1N5402M-20 DIODE



D2012 1N5402M-20 DIODE



D2013 1N5402M-20 DIODE

D2015 1N4003S-T5 SI DIODE

D2016 1N4003S-T5 SI DIODE

D2017 1N4003S-T5 SI DIODE

D2018 MTZJ15B-T2 Z DIODE

D2019 MTZJ22B-T2 Z DIODE

D2020 MTZJ6.8B-T2 Z DIODE

C160 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J

JE3UE

C162 QCBB1HK-332Y C CAPACITOR 3300pF 50V K

JE3UE

C162 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UW

,JE3UX

,JE3UY

C163 QCBB1HK-332Y C CAPACITOR 3300pF 50V K

JE3UE

C163 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UW

,JE3UX

,JE3UY

C164 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C165 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C171 QFLC1HJ-104Z M CAPACITOR 0.1uF 50V J

JE3UE

C180 QETN1CM-107Z E CAPACITOR 100uF 16V M

C957 QCBB1HK-222Y C CAPACITOR 2200pF 50V K

JE3UE,

JE3UW

,JE3UY

C970 QCBB1HK-101Y C CAPACITOR 100pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C972 QETN1CM-107Z E CAPACITOR 100uF 16V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C973 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Symbol No.

Part No. Part Name Description Local

C974 QDXB1CM-472Y C CAPACITOR 4700pF 16V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C975 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C976 QEKC1CM-226Z E CAPACITOR 22uF 16V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C977 QEKC1HM-474Z E CAPACITOR 0.47uF 50V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C978 QDXB1CM-332Y C CAPACITOR 3300pF 16V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C979 QETN1HM-225Z E CAPACITOR 2.2uF 50V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C980 QEKC1HM-475Z E CAPACITOR 4.7uF 50V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C981 QEKC1HM-224Z E CAPACITOR 0.22uF 50V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C982 QETN1HM-225Z E CAPACITOR 2.2uF 50V M

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C983 QCBB1HK-151Y C CAPACITOR 150pF 50V K

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C984 QCBB1HK-331Y C CAPACITOR 330pF 50V K

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C985 QCBB1HK-151Y C CAPACITOR 150pF 50V K

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Symbol No.

Part No. Part Name Description Local

3-17

C986 QETN1HM-475Z E CAPACITOR 4.7uF 50V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C987 QETN1CM-107Z E CAPACITOR 100uF 16V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C988 QEKC1AM-227Z E CAPACITOR 220uF 10V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C989 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C990 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C991 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C992 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C993 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

C995 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C996 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C997 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C998 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C999 QDGB1HK-102Y C CAPACITOR 1000pF 50V K

C2010 QETN1JM-107Z E CAPACITOR 100uF 63V M

C2011 QETN2AM-476Z E CAPACITOR 47uF 100V M

C2012 QETN1HM-226Z E CAPACITOR 22uF 50V M

C2013 QETN1HM-226Z E CAPACITOR 22uF 50V M

C2014 QDYB1CM-103Y C CAPACITOR 0.01uF 16V M

C2015 QETN1HM-106Z E CAPACITOR 10uF 50V M

C2017 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K

C2018 QCBB1HK-223Y C CAPACITOR 0.022uF 50V K

C2019 QFVF1HJ-104Z MF CAPACITOR 0.1uF 50V J

C2020 QFLC2AJ-103Z M CAPACITOR 0.01uF 100V J



R160 QRL01DJ-331X OMF RESISTOR 330

Ω

1W J



R161 QRL01DJ-331X OMF RESISTOR 330

Ω

1W J



R162 QRL01DJ-331X OMF RESISTOR 330

Ω

1W J

R163 QRZ9006-4R7X F.RESISTOR 4.7

Ω

1/4W J

JE3UE

R164 QRZ9006-4R7X F.RESISTOR 4.7

Ω

1/4W J

JE3UE

R165 QRE141J-153Y C RESISTOR 15k

Ω

1/4W J

R166 QRE141J-153Y C RESISTOR 15k

Ω

1/4W J



R167 QRL01DJ-471X OMF RESISTOR 470

Ω

1W J

R168 QRE141J-822Y C RESISTOR 8.2k

Ω

1/4W J

R169 QRE141J-822Y C RESISTOR 8.2k

Ω

1/4W J



R177 QRL01DJ-471X OMF RESISTOR 470

Ω

1W J

R180 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R190 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R191 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R192 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R193 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

R195 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R933 QRE141J-181Y C RESISTOR 180

Ω

1/4W J



Symbol No.

Part No. Part Name Description Local

R934 QRE141J-271Y C RESISTOR 270

Ω

1/4W J

R935 QRE141J-271Y C RESISTOR 270

Ω

1/4W J

R936 QRE141J-271Y C RESISTOR 270

Ω

1/4W J

R937 QRE141J-271Y C RESISTOR 270

Ω

1/4W J

R938 QRE141J-271Y C RESISTOR 270

Ω

1/4W J

R940 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R941 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R942 QRE141J-122Y C RESISTOR 1.2k

Ω

1/4W J

R943 QRE141J-152Y C RESISTOR 1.5k

Ω

1/4W J

R944 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R945 QRE141J-272Y C RESISTOR 2.7k

Ω

1/4W J

R946 QRE141J-392Y C RESISTOR 3.9k

Ω

1/4W J

R947 QRE141J-562Y C RESISTOR 5.6k

Ω

1/4W J

R948 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R949 QRE141J-183Y C RESISTOR 18k

Ω

1/4W J

R950 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R951 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R952 QRE141J-122Y C RESISTOR 1.2k

Ω

1/4W J

R953 QRE141J-152Y C RESISTOR 1.5k

Ω

1/4W J

R954 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R955 QRE141J-272Y C RESISTOR 2.7k

Ω

1/4W J

R960 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R961 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

R962 QRE141J-122Y C RESISTOR 1.2k

Ω

1/4W J

R963 QRE141J-152Y C RESISTOR 1.5k

Ω

1/4W J

R964 QRE141J-222Y C RESISTOR 2.2k

Ω

1/4W J

R965 QRE141J-272Y C RESISTOR 2.7k

Ω

1/4W J

R966 QRE141J-392Y C RESISTOR 3.9k

Ω

1/4W J

R967 QRE141J-562Y C RESISTOR 5.6k

Ω

1/4W J

R969 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R970 QRE141J-393Y C RESISTOR 39k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R971 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R972 QRE141J-822Y C RESISTOR 8.2k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R973 QRE141J-203Y C RESISTOR 20k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R974 QRE141J-203Y C RESISTOR 20k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R975 QRE141J-221Y C RESISTOR 220

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Symbol No.

Part No. Part Name Description Local

3-18

R981 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R982 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R983 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R984 QRE141J-153Y C RESISTOR 15k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R985 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R986 QRE141J-102Y C RESISTOR 1k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R987 QRE141J-561Y C RESISTOR 560

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R988 QRE141J-203Y C RESISTOR 20k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R989 QRE141J-510Y C RESISTOR 51

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R990 QRE141J-475Y C RESISTOR 4.7M

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R991 QRE141J-101Y C RESISTOR 100

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R992 QRE141J-152Y C RESISTOR 1.5k

Ω

1/4W J

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



Symbol No.

Part No. Part Name Description Local

R993 QRE141J-391Y C RESISTOR 390

Ω

1/4W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R994 QRE141J-123Y C RESISTOR 12k

Ω

1/4W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R995 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R996 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R997 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R998 QRE141J-472Y C RESISTOR 4.7k

Ω

1/4W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

R999 QRE141J-152Y C RESISTOR 1.5k

Ω

1/4W J

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX



R2010 QRJ146J-4R7X UNF C RESISTOR 4.7

Ω

1/4W J

R2011 QRE141J-333Y C RESISTOR 33k

Ω

1/4W J

R2012 QRE141J-103Y C RESISTOR 10k

Ω

1/4W J

R2016 QRE141J-333Y C RESISTOR 33k

Ω

1/4W J



R2017 QRK126J-470X UNF C RESISTOR 47

Ω

1/2W J



R2018 QRK126J-470X UNF C RESISTOR 47

Ω

1/2W J

VR970 QVQ0299-B54 V RESISTOR

JE31U

G,J E 31

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

L996 QQL231K-470Y COIL 47uH K

L997 QQL231K-470Y COIL 47uH K

L998 QQR0621-001Z COIL

CN103 QGD2504C1-03Z CONNECTOR (1-3)

CN106 QGD2503F1-03 CONNECTOR (1-3)

CN119 QGA3901F1-06 CONNECTOR W-B (1-6)

CN205 QGB2510J1-08 CONNECTOR B-B (1-8)

CN206 QGB2510K1-11 CONNECTOR B-B (1-11)

CN214 QGB2510J1-06 CONNECTOR B-B (1-6)

CN250 QGA7901C1-02 CONNECTOR W-B (1-2)

CN870 QGF1205C1-16 CONNECTOR FFC/FPC (1-16)

FT111 QNG0003-001Z FUSE CLIP

FT112 QNG0003-001Z FUSE CLIP

FT131 QNG0003-001Z FUSE CLIP

FT132 QNG0003-001Z FUSE CLIP

FT151 QNG0003-001Z FUSE CLIP

FT152 QNG0003-001Z FUSE CLIP

FT521 QNG0003-001Z FUSE CLIP

FT522 QNG0003-001Z FUSE CLIP

FW116 QUM153-29DGZ4-E FLAT WIRE



Symbol No.

Part No. Part Name Description Local

3-19

DVD module board

Block No. [0][4]

FW444 QJP001-033600-E FLAT WIRE

JE3UE,

JE3UW

,JE3UY

J81 QNB0089-001 SPK.TERMINAL

J970 QNS0236-001 PHONE JACK

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

J971 QNS0236-001 PHONE JACK

JE31U

G, J E3 1

UN,JE

31UX,J

E3UG,J

E3UN,

JE3US,

JE3UX

J971 QNS0235-001 PHONE JACK

JE3UE,

JE3UW

,JE3UY

J995 QNS0237-001 PHONE JACK

RY160 QSK0109-001 RELAY



S500 QSW0812-001 VOLTAGE SWITCH

S939 QSW1121-001Z PUSH SW I.M

S940 QSW1121-001Z PUSH SW I.M

S941 QSW1121-001Z PUSH SW I.M

S942 QSW1121-001Z PUSH SW I.M

S943 QSW1121-001Z PUSH SW I.M

S944 QSW1121-001Z PUSH SW I.M

S945 QSW1121-001Z PUSH SW I.M

S946 QSW1121-001Z PUSH SW I.M

S947 QSW1121-001Z PUSH SW I.M

S948 QSW1121-001Z PUSH SW I.M

S949 QSW1121-001Z PUSH SW I.M

S950 QSW1121-001Z PUSH SW I.M

S951 QSW1121-001Z PUSH SW I.M

S952 QSW1121-001Z PUSH SW I.M

S953 QSW1121-001Z PUSH SW I.M

S954 QSW1121-001Z PUSH SW I.M

S955 QSW1121-001Z PUSH SW I.M

S960 QSW1121-001Z PUSH SW I.M

S961 QSW1121-001Z PUSH SW I.M

S962 QSW1121-001Z PUSH SW I.M

S963 QSW1121-001Z PUSH SW I.M

S964 QSW1121-001Z PUSH SW I.M

S965 QSW1121-001Z PUSH SW I.M

S966 QSW1121-001Z PUSH SW I.M

S967 QSW1121-001Z PUSH SW I.M



Symbol No.

Part No. Part Name Description Local

IC201 LA6502-X IC

IC301 MN2DS0003AA-H IC

IC302 LM1117MP-ADJ-X IC

IC453 S-80827CNNB-W IC

IC505 K4S641632H-UC75 IC

IC509 AT49BV162AT70TI IC (FLASH)

IC701 AK4384VT-X IC

Q101 KTA1001/Y/-X TRANSISTOR

Q102 2SC4617/R/-X TRANSISTOR

Q103 KTA1001/Y/-X TRANSISTOR

Q104 2SC4617/R/-X TRANSISTOR

Q105 UN2119-X TRANSISTOR

C101 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C102 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C103 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C104 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C105 NEA70JM-476X E CAPACITOR 47uF 6.3V M

C106 NEA70JM-476X E CAPACITOR 47uF 6.3V M

C107 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C108 NEA70JM-476X E CAPACITOR 47uF 6.3V M



Symbol No.

Part No. Part Name Description Local

C111 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C204 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C205 NCB31HK-271X C CAPACITOR 270pF 50V K

C206 NDC31HJ-151X C CAPACITOR 150pF 50V J

C208 NCB31HK-561X C CAPACITOR 560pF 50V K

C211 NCB31HK-223X C CAPACITOR 0.022uF 50V K

C212 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C217 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C251 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C253 NCB31HK-561X C CAPACITOR 560pF 50V K

C255 NCB31CK-153X C CAPACITOR 0.015uF 16V K

C256 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C257 NCB31HK-822X C CAPACITOR 8200pF 50V K

C258 NCB31CK-153X C CAPACITOR 0.015uF 16V K

C259 NCB31CK-153X C CAPACITOR 0.015uF 16V K

C260 NCB31EK-223X C CAPACITOR 0.022uF 25V K

C261 NCB31EK-223X C CAPACITOR 0.022uF 25V K

C262 NCB31EK-223X C CAPACITOR 0.022uF 25V K

C264 NEA70JM-227X E CAPACITOR 220uF 6.3V M

C265 NDC31HJ-221X C CAPACITOR 220pF 50V J

C266 NDC31HJ-221X C CAPACITOR 220pF 50V J

C267 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C301 NEA70GM-227X E CAPACITOR 220uF 4V M

C302 NEA70GM-476X E CAPACITOR 47uF 4V M

C303 NEA70GM-476X E CAPACITOR 47uF 4V M

C304 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C305 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C306 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C307 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C308 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C309 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C310 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C311 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C312 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C313 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C314 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C315 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C316 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C317 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C318 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C319 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C320 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C321 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C322 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C323 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C324 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C325 NDC31HJ-180X C CAPACITOR 18pF 50V J

C326 NDC31HJ-150X C CAPACITOR 15pF 50V J

C327 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C330 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C331 NCB31CK-333X C CAPACITOR 0.033uF 16V K

C332 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C333 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C334 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C335 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C337 NCB31CK-183X C CAPACITOR 0.018uF 16V K

C338 NCB31HK-562X C CAPACITOR 5600pF 50V K

C339 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C340 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C341 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C347 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C348 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C349 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C350 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C356 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C359 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C371 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C374 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C391 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C392 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C455 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C505 NDC31HJ-330X C CAPACITOR 33pF 50V J

C506 NDC31HJ-330X C CAPACITOR 33pF 50V J

C507 NDC31HJ-330X C CAPACITOR 33pF 50V J

C508 NDC31HJ-330X C CAPACITOR 33pF 50V J

C509 NDC31HJ-330X C CAPACITOR 33pF 50V J

C510 NDC31HJ-330X C CAPACITOR 33pF 50V J

C547 NCB31CK-104X C CAPACITOR 0.1uF 16V K



Symbol No.

Part No. Part Name Description Local

3-20

C551 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C552 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C553 NBE20JM-226X TA E CAPACITOR 22uF 6.3V M

C554 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C555 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C556 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C557 NCF31AZ-105X C CAPACITOR 1uF 10V Z

C558 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C559 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C701 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C704 NEA70JM-227X E CAPACITOR 220uF 6.3V M

C706 NEA71CM-106X E CAPACITOR 10uF 16V M

C707 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C721 NCB31HK-102X C CAPACITOR 1000pF 50V K

C902 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C903 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C904 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C906 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R101 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R102 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R103 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

R104 NRSA63J-303X MG RESISTOR 30k

Ω

1/16W J

R105 NRS125J-270X MG RESISTOR 27

Ω

1/2W J

R106 NRSA63J-2R2X MG RESISTOR 2.2

Ω

1/16W J

R107 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R108 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R109 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R110 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R111 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

R112 NRSA63J-303X MG RESISTOR 30k

Ω

1/16W J

R113 NRS125J-270X MG RESISTOR 27

Ω

1/2W J

R114 NRSA63J-2R2X MG RESISTOR 2.2

Ω

1/16W J

R115 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R116 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R117 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R118 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R119 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R120 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R122 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R123 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R125 NRS125J-1R0X MG RESISTOR 1

Ω

1/2W J

R126 NRSA02J-101X MG RESISTOR 100

Ω

1/10W J

R128 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R204 NRSA63J-273X MG RESISTOR 27k

Ω

1/16W J

R205 NRSA63J-273X MG RESISTOR 27k

Ω

1/16W J

R206 NRSA63J-303X MG RESISTOR 30k

Ω

1/16W J

R207 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R208 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R213 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R214 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R215 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R219 NRSA63J-183X MG RESISTOR 18k

Ω

1/16W J

R220 NRSA63J-243X MG RESISTOR 24k

Ω

1/16W J

R221 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R251 NRS125J-R47X MG RESISTOR 0.47

Ω

1/2W J

R252 NRSA63J-2R2X MG RESISTOR 2.2

Ω

1/16W J

R254 NRSA63J-203X MG RESISTOR 20k

Ω

1/16W J

R255 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R257 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R259 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R302 NRSA63J-240X MG RESISTOR 24

Ω

1/16W J

R303 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R306 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R307 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R308 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R309 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R310 NRS125J-R47X MG RESISTOR 0.47

Ω

1/2W J

R312 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R313 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R314 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R315 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R316 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R317 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R318 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R319 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R320 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R322 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J



Symbol No.

Part No. Part Name Description Local

R325 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R326 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R333 NRSA63J-163X MG RESISTOR 16k

Ω

1/16W J

R334 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R335 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R336 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R337 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R338 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R339 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R340 NRSA63D-303X MG RESISTOR 30k

Ω

1/16W D

R341 NRSA63D-362X MG RESISTOR 3.6k

Ω

1/16W D

R342 NRSA63D-222X MG RESISTOR 2.2k

Ω

1/16W D

R343 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R344 NRSA63J-6R8X MG RESISTOR 6.8

Ω

1/16W J

R345 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R351 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R352 NRSA63J-105X MG RESISTOR 1M

Ω

1/16W J

R357 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R358 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R361 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R362 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R363 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R372 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R373 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R374 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R375 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R376 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R377 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R378 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R379 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R384 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R385 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R390 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R391 NAD0025-103X N THERMISTOR 10k

Ω

R392 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R393 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R394 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R395 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R457 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R458 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R501 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R502 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R503 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R530 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R551 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R558 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R701 NRSA63J-100X MG RESISTOR 10

Ω

1/16W J

R702 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R711 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R712 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R713 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R716 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R718 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R719 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R723 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R724 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R725 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R727 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R728 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R909 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R911 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

L501 NQL044K-100X COIL 0.26

Ω

10uH K

CN101 QGF0523F1-24W CONNECTOR FFC/FPC (1-24)

CN201 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)

CN501 QGF1016F2-19W CONNECTOR FFC/FPC (1-19)

CN502 QGF1016F2-08W CONNECTOR FFC/FPC (1-8)

CN503 QGF1016F2-17W CONNECTOR FFC/FPC (1-17)

K101 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K102 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K251 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K252 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

K301 NQR0354-001X FERRITE BEADS

K302 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

K303 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

K304 NQR0502-001X FERRITE BEADS

K501 NQR0129-002X FERRITE BEADS



Symbol No.

Part No. Part Name Description Local

3-21

DVD loading switch board

Block No. [0][5]

K551 NQR0129-002X FERRITE BEADS

K552 NQR0129-002X FERRITE BEADS

K553 NQR0129-002X FERRITE BEADS

K554 NQR0129-002X FERRITE BEADS

K555 NQR0022-005X FERRITE BEADS

K556 NQR0129-002X FERRITE BEADS

K563 NQR0129-002X FERRITE BEADS

K564 NQR0129-002X FERRITE BEADS

K565 NQR0129-002X FERRITE BEADS

K566 NQR0129-002X FERRITE BEADS

K567 NQR0129-002X FERRITE BEADS

K710 NQR0129-002X FERRITE BEADS

K721 NQR0251-004X FERRITE BEADS

K722 NQR0251-004X FERRITE BEADS

K723 NQR0251-004X FERRITE BEADS

X351 NAX0550-001X CRYSTAL 27.000MHz



Symbol No.

Part No. Part Name Description Local

CN1 QGF1016F3-05 CONNECTOR FFC/FPC (1-5)

S1 QSW1074-001 DETECT SWITCH



Symbol No.

Part No. Part Name Description Local

3-22

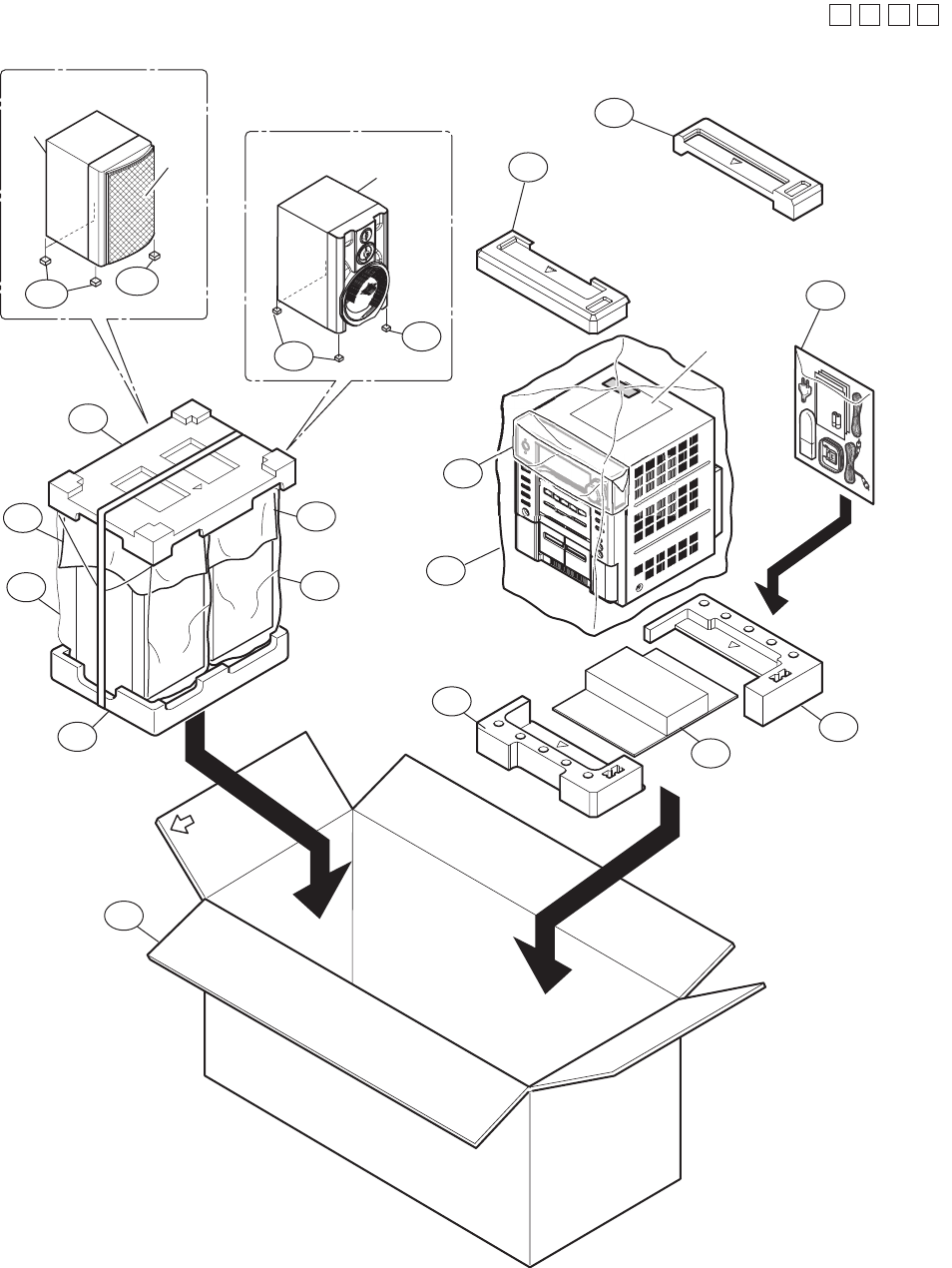

Packing materials and accessories parts list

Block No. MM

Speaker x2 (EX-JE3)

A11

P11

P9 P9

P10 P10

P11

P1 A1 A2 A3

A4 A5 A6

A7 A8 A9

A10

Speaker x2 (EX-JE31)

A12

A13

P8 P8

3-23

Packing and Accessories

Block No. [M][3][M][M]



Symbol No. Part No. Part Name Description Local

A 1 QAL0014-001 AM LOOP ANT

A 2 QAL0457-001 ANT.WIRE



A 3 QAM0112-002 PLUG ADAPTOR

JE31UN,JE3UE,JE3UN,JE3US,JE3UW

A 4 QAM0216-001 SIGNAL CORD

A 5 RM-SMXJE3U REMOCON

JE31UG,JE31UN,JE31UX,JE3UG,JE3UN,JE3US,

JE3UX

A 5 RM-SMXJE3A REMOCON

JE3UE,JE3UW,JE3UY

A 6 ------------ BATTERY (x2)

A 7 GVT0145-001A INST BOOK ENG

JE31UG,JE31UN,JE31UX,JE3UG,JE3UN,JE3US,

JE3UX

A 7 GVT0145-002A INST BOOK ENG

JE3UE,JE3UW,JE3UY

A 8 GVT0145-005A INST BOOK TUR

JE3UE

A 8 GVT0145-003A INST BOOK ENG

JE31UN,JE3UN,JE3US

A 8 GVT0145-004A INST BOOK ARA PER

JE31UG,JE31UX,JE3UG,JE3UX

A 8 GVT0145-006A INST BOOK SPA POR

JE3UW,JE3UY

A 9 GV40524-001B NOTICE SHEET

JE31UG,JE31UN,JE31UX,JE3UE,JE3UG,JE3UN,

JE3US,JE3UX

A 9 GV40524-002A NOTICE SHEET

JE3UW,JE3UY

A 10 GV40631-001A NOTICE SHEET

JE31UN,JE3UN

A 11 SPMXJE3K-SPBOX SPK WITH BOX (x2)

JE3US,JE3UW,JE3UX,JE3UY,JE3UG,JE3UE,

JE3UN

A 12 SPMXJE31U-SPBOX SPK WITH BOX-F (x2)

JE31UX,JE31UG,JE31UW

A 13 J201-XJE311S-40 SPK NET (x2)

JE31UX,JE31UG,JE31UW

P 1 QPC02503515P POLY BAG 25cm x 35cm

P 2 GV30735-003A CARTON ASSY.

JE31UN

P 2 GV30735-004A CARTON ASSY.

JE31UG,JE31UX

P 2 GV30714-009A CARTON ASSY.

JE3UE

P 2 GV30714-006A CARTON ASSY.

JE3UN,JE3US

P 2 GV30714-007A CARTON ASSY.

JE3UG,JE3UX

P 2 GV30714-008A CARTON ASSY.

JE3UW,JE3UY

P 3 GV10223-001A CUSHION (TOP)

P 4 GV10224-001A CUSHION (BOTTOM

P 5 QPC06507030P POLY BAG 65cm x 70cm

P 6 GV30778-001A SPACER

P 7 GV40437-003A CLOTH

P 8 441-802104-00 LEG CUSHION (x2)

P 9 715-250031-00 MIRAMAT SHEET (x2)

P 10 700-120034-20 HDPE BAG (x2)

P 11 720-MXJE3F-00 CUSHION (x2)

P 11 720-MXJE5F-00 CUSHION (x2)

Mb385 MX JE31 JVC JE3

Navigation menu

Versions of this User Manual:

Views

Navigation
