User Guide

Revision History

Version

Date

Author

Description

0.0.1

5/1/2019

Masayuki Otoshi

Document Created

Table of Contents

1. Introduction ............................................................................................................................... 2

2. Installation ................................................................................................................................. 4

3. Getting Started ........................................................................................................................... 5

4. Examples .................................................................................................................................... 9

5. Tea Script Language Specifications ........................................................................................... 30

6. Preprocessor ............................................................................................................................ 39

7. TeaBase defined variables and methods .................................................................................. 39

8. Custom Shift Methods .............................................................................................................. 41

9. Properties File – Multiple Languages ....................................................................................... 43

10. Template Transformation ..................................................................................................... 45

11. Debugging Tips ..................................................................................................................... 55

12. Event Listener ....................................................................................................................... 58

13. Command Usage .................................................................................................................. 60

14. Troubleshooting ................................................................................................................... 61

15. Pairwise Testing .................................................................................................................... 64

16. JavaTea as a Demonstration Tool ......................................................................................... 68

1. Introduction

Selenium is a tool widely used to code tests in test automation. It is very efficient to make sure

all functions work as we expected. However, in order to make our tests reusable and

maintainable, for example, applying Page Object Model (POM), some amount of programming

is required. With this approach, you need to create page classes and define properties that

represent elements to be displayed on target web page. This concept works fine while your

web application works stable. But, in real word, we need to continuously change the code to

enhance features and fix issues. The changes break existing tests and you need to spend time

to fix. Because of this, developers spends a lot of time to manage tests as well as application

code.

To reduce the cost of test automation, testing tool must be highly flexible and describable.

JavaTea is designed to capture web elements based on text strings shown on the web page to

provide an intuitive and easy way to point the target element.

Suppose we have the above web page and want to populate values in each input element.

Now you can get an element of the 'Email' label with the expression below:

'Email'

Tea script finds a text element from the page by using the text 'Email'. Also it allows you to

access other input elements around the text element by using the index number from the text.

Since we are on the Email label, the index number is now numbered as shown below:

First Name

John

Last Name

Smith

your@email

Date of Birth

1911

-1

-2

your@email

1911

Smith

John

'Email'>

'Email'>>

'Email'<

'Email'<<

-1

-2

To move the index, '>' and '<'operators can be used. The > moves the index to the right and <

operator moves to the left. Likewise, '>>' and '<<' operators move by two input elements to

the right and left, respectively.

If you want to enter an email address in the Email input box, you can describe the script using

the > operator:

'Email'> = 'your@email'

If you want to enter your date of birth (for example, December 31st, 1911), describe this:

'Email'>> = 12 31 1911

This expression tries to access the second input element on the right direction from the Email

label, which is the input box next to 'Date of Birth' label on the right. After the first value '12' is

entered, the index is automatically counted up and the index becomes 3, which is now points

to the second input box for the Date of Birth. So, the number '31' is populated into the second

input box, and the index is also counted up again. The last number '1911' is populated into the

third input box.

Next example is using < operator. If you want to enter first and last names (first name: John,

last name: Smith), use this expression:

'Email'< = 'Smith' 'John'

The '<' operator sets index to -1 from the current position, thus, the first value 'Smith' is set to

Last name input box. This time, the index is decreased and the value becomes '-2', which

points to the First name input box. Thus, the next value 'John' is populated into the First name

input box.

In order to show example to use < operator, I accessed starting from the Email label, however,

in real world, we usually gets the first label on the page and simply enter the values from the

top to bottom.

'First name'> = 'John' 'Smith'

'your@email' // Email

12 31 1911 // Date of birth

Or you can also specify label text for each element in order to make your script robustness for

future changes:

'First name'> = 'John' 'Smith'

'Email'> = 'your@email'

'Date of Birth'> = 12 31 1911

The tea script is described in Java code, and it is compiled as a Java class. Thus, you can easily

integrate existing other Java libraries. Also you can debug the Java code compiled from Tea

script using your favorite IDE.

JavaTea also supports pairwise testing with using 2 and 3-wise algorithm to reduce the

number of combinations. A test script created for a single test scenario can be easily extended

to the script for pairwise testing by adding possible values to each element.

For more details, please see chapter Pairwise Testing.

2. Installation

Dependencies

JavaTea requires the following software:

 Java SE Version 8 or above

https://www.oracle.com/technetwork/java/javase/

 Maven Version 3.1.6 or above

https://maven.apache.org/

 Chrome browser

https://www.google.com/chrome/

 ChromeDriver (WebDriver for Chrome)

http://chromedriver.chromium.org/

In this document, we assume that Maven and ChromeDriver are installed in the following

folder structure:

/ (Root)

├── apache-maven-3.6.1

│ └── ...

│

├── webdrivers

│ └── chromedriver.exe

└── ...

The apache-maven and webdrivers directories should be placed on your system PATH.

SET PATH=%PATH%;/apache-maven-3.6.1;/webdrivers

3. Getting Started

Download, Compile and Run

JavaTea samples are available to get from the site:

https://github.com/teafarm/javatea/tree/master/examples/

We here show one of easiest samples, GoogleSearchTest:

Step 1. Download the following files:

 pom.xml

https://github.com/teafarm/javatea/tree/master/examples/GoogleSearch/pom.xml

 GoogleSearchTest.javat

https://github.com/teafarm/javatea/tree/master/examples/GoogleSearch/src/test/G

oogleSearchTest.javat

Store the files in the following folder structure:

. (Current)

├── pom.xml

├── src

│ └── test

│ └── javat

│ └── GoogleSearchTest.javat

└── ...

Step 2. Compile and Run tests

C:> SET PATH=/apache-maven-3.6.1/bin;/webdrivers;C:/Windows/System32

C:> mvn exec:java

C:> mvn test

A chrome browser will be opened and show a Google site. And a keyword search will be

executed automatically.

Basic Syntax

To understand basic syntax on JavaTea and Tea script, go back to previous chapter and see the

sample code.

import org.junit.jupiter.api.Test;

public class GoogleSearchTest extends tea.TeaBase {

@Test

public void test() {

createDriver('chrome');

driver.get('http://www.google.com');

'name:q' = 'Test Tool'

true

}

There are the following JavaTea specific rules:

Rule 1: A test class must inherit from tea.TeaBase class:

public class GoogleSearchTest extends tea.TeaBase {

Rule 2: createDriver() must be called with a browser name before starting to access target

web pages. Once you call this, a WebDriver object is created internally and available to use

through a property ‘driver’.

createDriver('chrome');

Rule 3: driver.get() must be called to display the target web page.

driver.get('http://www.google.com');

Rule 4: Tea script must be described between # and #.

#'name:q' = 'Test Tool'#

Multiple statements can be described between # and #.

'Name'> = 'John'

'Email'> = 'jon@email'

The closing # can be omitted if the script ends with ‘,’ or ‘)’.

assertEquals(#'NAME'@>, 'John', 'Name entered');

hideElement(#'NAME'@>);

If the script starts with ‘= #’ and ends with ‘;’, closing # can be also omitted.

TeaElement name = #'NAME'>;

If you want to invoke a method or access a property of the TeaElement, the method or

property name can be described by ending with ‘#’.

// Call getText method

String nameText = #'NAME'>#.getText();

// Access element property

builder.doubleClick(#'id:clickBtn'#.element).perform();

Rule 5: Java code in Tea script must be described between { and } or {% and %}.

'Name'> = 'John'

{ TeaElement emailInput = blurElement(#'Email'>); }

emailInput.'john@email'

Example 1: Switch to Tea script mode by # and #

private void login(String userId, String password) {

'User ID'> = userId password true

}

Example 2: Switch to Java mode by ( and )

assertEquals function is called in TeaScript mode (between # and #),

but the parameters are peocessed as Java code.

Hence, you need to use # notation to describe Tea script code (#'Name'>) in the parentheses.

The Tea script mode ends with ',' and the second and third parameters are treated as Java

String objects.

'Name'> = 'John'

assertEquals(#'Name'>, 'John', 'Name entered');

Mode switch between Java and Tea script code

In javat file, Tea script can be inserted in Java code. By default, described code is processed as

Java code, and code written between # and # is treated as Tea script. Even in the Tea script,

you can explicitly change back to Java mode by { } or {% %} notations.

Also, code between ( and ), [ and ] are also processed as Java.

Explicit mode switch: { }, {% %}

Implicit mode switch: ( ), [ ]

Those mode switches can be nested. For example, you can change back to Tea script mode

with # notation in a { and } as shown below:

public void test() {

createDriver('chrome');

driver.get(new java.io.File('../Wizard/Page1.html').toURI().toString());

'Name'> = 'John'

'Name'>.balloonAndWait('Enter your name.');

{TeaElement emailInput = blurElement(#'Email'>);}

'Email'> = 'john@email'

'Next'.balloonAndWait('Click Next.',

'font-size:14pt;',

{onhide:() -> #'Next' = true});

driver.quit();

}

Tea script

mode

Java mode

Tea script

4. Examples

This chapter shows some useful examples to understand how to compile and run JavaTea tests

and how to describe Tea scripts in it.

Locations Example

https://github.com/teafarm/javatea/tree/master/examples/Locators

The first example is Locators. This example accesses the web page shown below and shows

various ways to find element objects:

Text locator (text:)

Text locator is the most-used locator in JavaTea. It finds a web element by a text displayed on

the page. The text must exact match with the body text of a tag. For example, if you want to

find ‘Name’, it has to be defined as <span>Name</span>. If it may contains extra spaces such

as <span> Name </span>, use partial text locator instead.

To use a text locator, add ‘text:’ prefix on the target text string. For example, if you want to

find a text element of label ‘Name’, describe as shown below:

'text:Name'

Or you can also simply specify the label text only (‘text:’ is optional)

'Name'

If you access the text element in a function parameter, use # , or # ) syntax.

assertEquals(#'Name', 'Name', 'text locator');

hideElement(#'Name');

Partial Text locator (partial:)

Partial text locator finds an element by using a part of text string.

With specifying the partial: prefix, you can find Name text element by using a partial string, for

example, ‘ame’.

'partial:ame'

The ‘partial:ame’ matches all displayed text elements which contains a text ‘ame’, e.g. ‘Name’,

‘frame’, ‘america’

XPath locator (xpath:)

XPath locator finds an element by using a XPath expression. The expression below returns an

input element whose id attribute is ‘name’:

'xpath://input[@id="name"]'

ID locator (id:)

ID locator finds an element by using an id attribute value. The expression below returns a tag

whose id attribute is ‘name’:

'id:name'

Name locator (name:)

Name locator finds an element by using a name attribute value. The expression below returns

a tag whose name attribute is ‘option-value’:

'name:option-value'

Link Text locator (linkText:)

Link Text locator finds an element by using a text string of a hyper link. The expression below

returns an anchor link tag whose body text exacts match with the given text ‘Visit JavaTea

site’:

'linkText:Visit JavaTea site'

Partial Link Text locator (partialLinkText:)

Partial Link Text locator finds an element by using a text string of a hyper link with using partial

match condition. The expression below returns an anchor link tag whose body text contains

the given text ‘JavaTea site’:

'partialLinkText:JavaTea site'

Class Name locator (className:)

Class Name locator finds an element by using a class attribute value. The expression below

returns a tag whose class is ‘label’, class=”label”:

'className:label'

Tag Name locator (tagName:)

Tag Name locator finds an element by using a tag name. The expression below returns a tag

whose tag name is h2:

'tagName:h2'

CSS Selector locator (cssSelector:)

CSS Selector locator finds an element by using a CSS Selector expression. The expression below

returns a tag whose id attribute is ‘name’:

'cssSelector:#name'

This Locators example contains a sample code to obtain a TeaElement object by using =# ;

syntax.

TeaElement name = #'id:name';

The TeaElement implements WebElement interface, so you can get the element information

through the APIs.

name.getTagName();

name.getAttribute('id');

name.getText();

name.getCssValue('font-family');

name.getLocation();

name.getSize();

name.clear();

name.click();

name.findBy(By.id('id'));

etc.

If the element found is Select box, ISelect interface is also available to be invoked on the

TeaElement object.

select.getFirstSelectedOption();

select.getOptions();

select.selectByIndex(1);

select.selectByValue('ny');

select.selectByVisibleText('New York');

etc.

ArraySuffix (and Shift) Example

https://github.com/teafarm/javatea/tree/master/examples/ArraySuffix

Locator returns the first element if it found more than one element with the given condition. If

you want to access another element, for example the second element, use array suffix to

specify the index. The index number starts with zero.

'Name'[0] // returns the first Name text element

'Name'[1] // returns the second Name text element

'Name'[2] // returns the third Name text element

Once you obtained an element object, you can move to another form element (input, button,

select, etc) by using shift operator ‘>’.

'Name'> // returns the first input element displayed right next to the Name element

'Name'>> // returns the second input element

'Name'2> // returns the second input element

'Name'>>> // returns the third input element

'Name'3> // returns the third input element

Elements Example

https://github.com/teafarm/javatea/tree/master/examples/Elements

This sample shows ways to set a value into various type of elements.

Input element

Enter a value ‘John Smith’ into an input element displayed right next to ‘Name’ text element.

1) Clear and enter the given value.

'Name'> = 'John Smith'

2) Enter the given value

Keep the original value and append the given value (Use += assignment)

'Name'> += ' suffix'

Select element - single selection

There are some ways to select an option.

1) Select an option by the displayed text ‘Tokyo’. (Assign a string object using an equal

assignment)

'Place'> = 'New York'

2) Select an option by the option value ‘ny’. (Use @= assignment)

'Place'> @= 'ny'

'Place'>.selectByValue('ny'); // same as @=

3) Select an option by the index number (0-orign). (Assign an int number using an equal

assignment)

'Place'> = 1 // select the second option

'Place'>.selectByIndex(1); // same as ‘= int’

4) Select an option by the display text with using a regular expression. (Use /…/ leteral)

(Select an option text starting with ‘New’)

'Place'> = /New.*/

Name

Place

New York

Select element - multiple selection

Select options by the displayed texts. (Use an array).

'Color'> = ['Red', 'Blue']

Radio button

Click on a radio button (Use true literal).

1) Click on Auto radio button.

'Type'> = true

2) Click on Truck (Skip Auto radio button).

'Type'> = false true

'Truck'< = true

Check box

Click on a check box (Use true literal).

'Agreement'> = true

Button element

Click on a button (Use true literal).

'Next' = true

Note that ‘>’ is not needed to specify. In this case, we want to click the ‘Next’ button itself.

Color

Red

Yellow

Blue

Type

Auto

Truck

Agreement

Lambda Example

https://github.com/teafarm/javatea/tree/master/examples/Lambda

This sample shows how to call lambda function in Tea script.

In Tea script, a lambda function call sets the return value into the current element unless the

return value is null.

Tea script supports the following lambda function formats:

A single statement with no parameters

The function below executes func() and set the return value into the current element.

() -> func()

A single statement with a parameter

The current element is given to the function below through its parameter. The func(element) is

executed and set the return value into the current element.

Note that parentheses for the lambda parameter is required even though there is one

parameter.

(element) -> func(element.getAttribute(‘id’))

Multiple statements with no parameters

The function below executes the function body and set the return value into the current

element.

() -> {

func();

return true;

}

Multiple statements with a parameter

The current element is given to the function below through its parameter. The function body is

executed and set the return value into the current element.

(element) -> {

String id = element.getAttribute(‘id’);

func(id);

return true;

}

Wizard Example

https://github.com/teafarm/javatea/tree/master/examples/Wizard

This is a realistic example compared to previous ones. We here test HTML pages with wizard

style. There are two pages titled Page 1 and Page 2. This sample enters a name, an email

address and select a place on the first page. Then the second page shows the values entered.

Here is the JavaTea file to test the pages above.

WizardTest.javat

import static tea.TeaAssert.assertEquals;

import org.junit.jupiter.api.Test;

public class WizardTest extends tea.TeaBase {

@Test

public void test() {

createDriver('chrome');

driver.get(new java.io.File('Page1.html').toURI().toString());

'Name'> = 'John'

'john@email'

'Tokyo'

true

assertEquals(#'NAME'@>, 'John', 'Name entered');

assertEquals(#'EMAIL'@>, 'john@email', 'Email entered');

assertEquals(#'PLACE'@>, 'Tokyo', 'Place selected');

driver.quit();

}

The main Tea script code in this sample is this:

'Name'> = 'John'

'john@email'

'Tokyo'

true

The assignment statement in the first line represents sending a value to Name input field. The

‘Name’ is a text locator which returns a text element object of the Name label. But > operator

is attached on the right, so it actually returns a Name input element object displayed right next

to the Name label. Thus, the test string ‘John’ is set in the Name field after execution of this

line.

The assignment statement also counts up element index pointing to current element. Thus

current element index is now pointed to Email input field.

After the first line, there is a value defined in each line. This is because the first line element

index has already set. Since JavaTea moves among elements automatically when a value is set,

you don’t have to specify where you set the value.

The second text string ‘john@email’ is set into the Email field, and element index is increased

and points to the next input element. Likewise, the third line selects ‘Tokyo’ from the selection

box. And the fourth line clicks on the Next button.

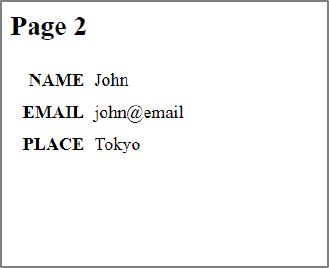

After submitted the form on the Page 1, the sample code validates the values entered with the

code below:

assertEquals(#'NAME'@>, 'John', 'Name entered');

assertEquals(#'EMAIL'@>, 'john@email', 'Email entered');

assertEquals(#'PLACE'@>, 'Tokyo', 'Place selected');

The assertEquals() takes three parameters:

void assertEquals( TesElement actual, String expected, String message );

To set an actual value displayed on the Page 2, we want to use a Tea script. So the first

parameter starts with a # sign, and specify the label text of the target value. Next we need to

make a shift and get a target text string of Name. Although we used > operator to shift and

find an input element, this time we need to use @> operator instead. It is because the target

operator is read-only text element, not editable one. ‘Name’@> finds a text string displayed

right next to the ‘Name’ label. In this sample, it is expected to be ‘John’. If the application

works fine as expected, the first parameter in the assertion returns ‘John’ and it matches with

the second parameter which is an expected value.

In the sample folder, run the following commands to compile and run the test.

C:> SET PATH=/apache-maven-3.6.1/bin;/webdrivers;C:/Windows/System32

C:> mvn exec:java

C:> mvn test

Optional Example

https://github.com/teafarm/javatea/tree/master/examples/Optional

The Optional example shows how optional keyword works. By default, Tea script waits until

the element specified by the locator appears on the page. But in some cases you may want to

skip the element if it does not exist. For example, when entering user information, Name input

field and Next button are displayed for all users, but other input elements (Email, City, Place

and Zip) may not be displayed based on the user profile. In this case, optional keyword can be

added on those locators as shown below:

'Name'> = 'John'

optional 'Email'> = 'john@email'

optional 'City'> = 'Test City'

optional 'Place'> = 'Tokyo'

optional 'Zip'> = '12345-6789'

'Next' = true

After Tea script has finished to perform the first Name element, if Email text element does not

exist on the page, the second line for Email is skipped. The assignment is executed when

exists.

Note that optional keyword must be used after you confirmed that another element related to

the target is displayed. In the above example, the confirmation is done by ‘Name’ text

element. If ‘Email’ element is displayed, it has to be already displayed when the script handled

the ‘Name’ element.

If there is no other elements on the form page, for example, you can use a text element shown

on the page:

waitForText('Page 1')

optional 'Email'> = 'john@email'

Or Example

https://github.com/teafarm/javatea/tree/master/examples/Or

This contains three examples for Or expression which is used when an element to be displayed

is changed based on stored data. For example, if there are three possibilities on a text to be

displayed on the page, you can describe a list of the three locators separated by a pipe ‘|’.

First example

'Ship To'> | 'Bill To'> | 'Note'> = [

'Ship To Address',

'Bill To Address',

'Note Message'

]

The first example waits for three text strings ‘Ship To’, ‘Bill To’ and ‘Note’. JavaTea checks to

see if each text is displayed from the left (check ‘Ship To’ -> ‘Bill To’ -> ‘Note’ -> ‘Ship To’ -> …)

until one of the text strings has been shown.

Once one of the texts has been appeared, the corresponding array value is sent to the element

found. For example, if ‘Ship To’ text is found first, ‘Ship To Address’ is set to the element.

Likewise, if ‘Bill To’ appears first, ‘Bill To Address’ is set. And if ‘Note’ appears first, ‘Note

Message’ is set.

Second example

'Ship To'> | 'Bill To'> | 'Note'> = 'Default message'

The second example defines only one value, ‘Default message’. In this case, no matter which

element is found, the ‘Default message’ is set to the element found.

Third example

'Ship To'> | 'Bill To'> | 'Note'> = [ 'Ship To Address' ]

The third example has also only one value but this time it is defined in an array. So it is the

same expression as the first example from the syntax point of view. However, this example has

no second and third values in it, which means they are null. The example can be revised by

explicitly defining null values as shown below:

Third example (revised)

'Ship To'> | 'Bill To'> | 'Note'> = [

'Ship To Address',

null,

null

]

If ‘Ship To’ appears first, ‘Ship To Address’ is set. But if ‘Bill To’ or ‘Note’ appears first, nothing

happens.

Screenshot Example

https://github.com/teafarm/javatea/tree/master/examples/Screenshot

This example shows how to capture a screenshot when the test failed.

public class ScreenshotTest extends tea.TeaBase {

@Test

public void test() {

try {

createDriver('chrome');

scenario();

} catch (Throwable t) {

takeScreenshot("error.png");

throw t;

} finally {

driver.quit();

}

private void scenario() {

…

assertEquals(#'NAME'@>, 'Invalid Name', 'Incorrect Name to throw an exception');

}

Test scripts are described in scenario() function and it is called from try block in test(). The

assertEquals() in scenario() compares with an invalid name to fail the test. Thus, the test fails

and shows error messages below on console.

[ERROR] Failures:

[ERROR] ScreenshotTest.test:9->scenario:26 Incorrect Name to throw an exception

expected [Invalid Name] but found [John]

[ERROR] Tests run: 1, Failures: 1, Errors: 0, Skipped: 0

Also an image ‘error.png’ will be generated in the same folder so that you can check the

screen when failed.

Pairwise Example

https://github.com/teafarm/javatea/tree/master/examples/Pairwise

This example uses the same HTMLs as Wizard example. But it specifies two input values

between {* and *} for Name, Email and Place elements. If we test all combinations, we need to

create eight test cases (2 x 2 x 2 = 8 combinations). However, JavaTea has a feature to

generate test cases with using Pairwise technique. In this case, it focuses all pairs of input

values and generates only four test cases. Please see chapter Pairwise Testing to see how

Pairwise reduces the number of test cases.

import static tea.TeaAssert.assertEquals;

import org.junit.jupiter.api.Test;

public class PairwiseTest extends tea.TeaBase {

@Test

public void test() {

createDriver('chrome');

driver.get(new java.io.File('../Wizard/Page1.html').toURI().toString());

'Name'> = {* 'John', '' *}

{* 'john@email', '' *}

{* 'New York', 'Tokyo' *}

true

assertEquals(#'NAME'@>, toActualValue({***0***}), 'Name entered');

assertEquals(#'EMAIL'@>, toActualValue({***1***}), 'Email entered');

assertEquals(#'PLACE'@>, {***2***}, 'Place selected');

driver.quit();

}

private String toActualValue(String value) {

return value.length() > 0 ? value : "No Value";

}

Once you compile the javat file, four java files are generated.

Parallel Execution Example

https://github.com/teafarm/javatea/tree/master/examples/ParallelExecution

This example shows how to execute tests in parallel with using JUnit.

import static tea.TeaAssert.assertEquals;

import org.junit.jupiter.api.Test;

import org.junit.jupiter.api.parallel.Execution;

import org.junit.jupiter.api.parallel.ExecutionMode;

@Execution(ExecutionMode.CONCURRENT)

public class ParallelExecutionTest extends tea.TeaBase {

@Test

public void test() {

…

In order to run in parallel, you need to annotate @Execution on the test class, and specify

CONCURRENT execution mode.

Also you need to create a junit-platform.properties file and specify the following parameters:

junit.jupiter.execution.parallel.enabled=true

junit.jupiter.execution.parallel.config.strategy=fixed

junit.jupiter.execution.parallel.config.fixed.parallelism=6

You can also use TestNG to run tests in parallel. Example for TestNG is available to see the URL

below:

https://github.com/teafarm/javatea/tree/master/examples/ParallelExecutionNG

Actions Example

https://github.com/teafarm/javatea/tree/master/examples/Actions

Selenium provides Actions class to simulate complex user operations, e.g. double click, drag

and drop.

Actions builder = new Actions(driver);

builder.doubleClick(#'id:clickBtn'#.element)

.perform();

You can simply use Actions class provided by Selenium. The constructor requires a WebDriver

object, so you can pass driver property to it. Once you get an Actions object (builder variable

in this example), call the Actions APIs.

Note that some APIs requires a WebElement object, but Tea script #'id:clickBtn'# returns

TeaElement. So, you can get the WebElement by the element property.

Alert Example

https://github.com/teafarm/javatea/tree/master/examples/Alert

This example shows how to handle Alert, Confirm and Prompt dialogs.

Alert dialog

Alert alert = driver.switchTo().alert();

assertEquals(alert.getText(), 'Hello from alert!', 'Alert message');

alert.accept();

Like Selenium code, you need to get an Alert object by calling switchTo().alert(). Then you can

get the text displayed on the dialog. To close the dialog, call alert.accept().

Confirm dialog

Alert alert = driver.switchTo().alert();

assertEquals(alert.getText(), 'Hello from confirm!', 'Confirmation message');

alert.accept();

Selenium handles Confirm dialog also by using Alert class, hence the code above looks almost

same as the Alert example. But it can call alert.dismiss() to cancel the dialog.

Prompt dialog

Alert alert = driver.switchTo().alert();

assertEquals(alert.getText(), 'Hello from prompt!', 'Prompt message');

#alert = 'New Message'#

alert.accept();

Prompt can be handled by Alert class, hence you can call alert.accept() to click OK and call

alert.dismiss() to cancel the dialog. In addition, Prompt has an input box. To send a value, you

can use an equal assignment in Tea script.

Demo Example

https://github.com/teafarm/javatea/tree/master/examples/Demo

This is an example using balloon and setAttribute functions for demonstration purpose. We

here assumed that you are going to demonstrate a web application using JavaTea. JavaTea

executes demo scenarios and pause at some points where you want to explain to audience.

Also this shows how to emphasize elements using CSS effects on a web page so that you can

easily to show audience which elements need to be focused on the page. For the details on

balloon APIs and setAttribute function, see JavaTea as a Demonstration Tool chapter.

The DemoTest.javat contains some private methods to make CSS effects on an element.

 blurElement()

 hideElement()

 emphasizeElement()

 moveElement()

The blurElement() function blurs text message in the given element. In this example, this

function is applied on an Email text box on Page 1 and an Email text displayed on Page 2 so

that audience cannot see the actual email address presenter entered.

The hideElement() function hides the element from the page.

The emphasizeElement() and moveElement() functions are examples using animation effects.

The emphasizeElement() glows the text in the element by 1pt, and moveElement() moves the

element down by the specified amount of pixels.

It also calls Balloon APIs to show comments on the page.

5. Tea Script Language Specifications

This chapter describes language specifications of Tea script. Tea script can be described

between # and # in Java code.

Expression

Description

# <script> #

Sets a value into a specified element or current element object.

Multiple statements can be described in a script section. For example,

#‘Name’> = ‘John Smith’#

#‘Date of Birth’> = 1911 2 3#

The above two statements can be rewritten as shown below:

‘Name’> = ‘John Smith’

‘Date of Birth’> = 1911 2 3

In parentheses,

(# <script>)

(# <script> , …)

Closing # can be omitted if it ends with ‘)’ or ‘,’ in parameter parentheses

of a function call.

The script only returns a value. The value is NOT set to the current

element object.

Example:

assertEquals( #’Name’@>, #’UserName’@> );

In variable

assignment

statement,

var = # <script> ;

Closing # can be omitted if it starts with ‘= #’ and ends with ‘;’.

The script only returns a value. The value is NOT set to the current

element object.

Example:

TeaScript name = #’Name’>;

Between # and # notations, the following tokens are available to describe.

Comments

 /* comment */

Multiple-line comment can be described between /* and */.

 // comment

Single-line comment can be described after //.

Keywords

The following word is reserved for use as Tea script keywords and cannot be used as

identifiers.

 optional

The ‘optional’ keyword makes element optional. By default, JavaTea waits until it finds the

element or timed out (default: 20 seconds). If you specify the optional keyword, JavaTea

checks the existence of the element once. If the element does not exist, JavaTea skips the

statement and execute the next line.

Keyword

Description

optional

Do not wait for appearance of the target element.

(JavaTea waits until the target element appears on the page by

default)

Boolean Literals

A boolean type has two values below:

 true

 false

A true value represents a mouse click, and false does nothing to do. For example, the following

code makes a mouse click on Truck (second option) but Auto.

‘Track’> = false true

String Literals

A string literal consist of zero or more characters enclosed in single or double quotes.

 "text"

 'text'

NOTE: A single character enclosed in single quotes is NOT converted into a String object. If you

want to pass a character as a String, it must be enclosed in double quotes.

Click on the current element if true.

Do not click if false.

Regular Expression Literals

A regular expression literal consist of a regular expression enclosed with slashes. Flags can be

added.

 /regular expression/

 /regular expression/flags

Below are the flags available to specify:

Flag

Description

Value in Java

Enables canonical equivalence.

Pattern.CANON_EQ

Enables case-insensitive matching.

Pattern.CASE_INSENSITIVE

Permits whitespace and comments in

pattern.

Pattern.COMMENTS

Enables dotall mode.

Pattern.DOTALL

Enables literal parsing of the pattern.

Pattern.LITERAL

Enables multiline mode.

Pattern.MULTILINE

Enables Unicode-aware case folding.

Pattern.UNICODE_CASE

Enables the Unicode version of

Predefined character classes and POSIX

character classes.

Pattern.UNICODE_CHARACTER_CLASS

Enables Unix lines mode.

Pattern.UNIX_LINES

Character Literals

A character literal consist of one character enclosed in single quotes. For example,

 'a'

Number Literals

A number literal consist of one or more digits. It may starts with a minus sign.

For example,

 123

 -123

Map Literals

A map literal consist of one or more key-value pairs in braces. The key only accepts onhide,

onload and onclick, and the value only accepts String, Runner and Consumer<TeaElement>

functions.

For example,

 { onhide: () -> hideElement(e) }

 { onload: balloonElement -> moveElement(balloonElement) }

 {

onhide: () -> hideElement(e),

onload: balloonElement -> moveElement(balloonElement)

}

NOTE:

Map literal is used to specify event functions for balloonAndWait function.

Map literal can be described in both Java and Tea script modes.

Java Code Section

By default, javat file is in Java mode. Hence, you can start writing Java code without any special

notations. Use the following expressions, when you need to change back to Java mode from

Script mode.

 { Java code }

{ String s = #’Name’>.toString(); }

Note that the number of start and close curly braces must be matched in the code. If it

does not match, use {%, %}.

 {% Java code %}

{% for (int index=0; index<10; index++) { %}

‘Name’index> = ‘’

{% } %}

Java and Tea script modes can be nested.

‘Name’> = () -> {

return ‘Test’ + getUserID(#’User’@>);

}

Lambda Java Functions

A lambda function executes the Java code and set the return value to the current element

object if it is not null.

 Thin arrow

( parameters ) -> {

Java code

}

Curly braces are optional if there is only a single function call in the body section.

 () -> func()

The above expression is equivalent to the following code:

 () -> { func(); }

Java Methods

A Java method executes the method, but the return value is ignored. It isn’t set to the current

element object.

 method( parameters )

The above expression is equivalent to the following code:

 { method( parameters ); }

Element

An element represents a web element on the target web page.

Locators

The element can be found by Selenium locators (xpath, cssName, tagName, etc) as well as text

string displayed on the page.

By default, JavaTea uses text locator. The text locator searches web elements that the body

text matches with the given text. Suppose you described ‘Name’ in your script, the text locator

could return an element object, for example, <SPAN>Name</SPAN>.

Other locator names are the same as the ones defined in Selenium Java API.

Locator name

Description

Text

Finds element based on the text displayed on the page. (default)

Partial

Finds element based on the partial text displayed on the page.

partialText

Same as ‘partial’

className

Finds element based on the value of the "class" attribute.

cssSelector

Finds element via the driver's underlying W3 Selector engine.

Finds element based on the value of the "id" attribute.

linkText

Finds element based on the body text of the "a" tag.

name

Finds element based on the value of the "name" attribute.

partialLinkText

Finds element based on the partial body text of the "a" tag.

tagName

Finds element based on the tag name.

xpath

Finds element based on the given xpath.

The locator names can be described at the beginning of element text string. The locator name

and element text must be separated by ‘:’. If you do not specify a locator name, text locator is

used by default.

’Name’ // text locator

’text:Name’

’partial:Name’

‘xpath://button’ // xpath locator

‘id:ID-name’

‘name:Name’

‘className:Element Class’

‘tagName:TABLE’

‘linkText:Click here’

‘partialLinkText:Partial Link Text’

‘cssSelector:tag.class[attribute=value]’

OPTIONAL

In addition to locators, element accepts the keyword below:

 optional JavaTea does not wait for the element appearance.

#optional ‘Name’;

The above statement searches a text element which body test is ‘Name’. And it tries to search

once (optional). If the element does not exist, JavaTea moves to the next statement to

execute.

ARRAY SUFFIX

An array suffix represents an index number of elements found. When multiple elements found

with the given text, you need to specify the index number to pick one element from the

elements. The index number starts with zero.

 ‘label’[0] The first element in the found elements.

SHIFT INDEX

TeaElement internally has an index number pointing to the current index. With using a shift

expression, you can increase or decrease the index number.

Notation

Description

Stays at the current position.

Moves 1 unit forward from the current position. (Same as ‘1 >’)

Moves 2 units forward from the current position. (Same as ‘2 >’)

>>>

Moves 3 units forward from the current position. (Same as ‘3 >’)

Moves 1 unit backward from the current position. (Same as ‘1 <’)

Moves 2 units backward from the current position. (Same as ‘2 <’)

<<<

Moves 3 units backward from the current position. (Same as ‘3 <’)

number >

Moves number units forward from the current position.

number <

Moves number units backward from the current position.

Example

‘Name’ points to the text element whose tag body is ‘Name’, and the element index is set to

zero. Now, we want to get a web element next to the Name text. By using a shift operator > ,

we can move the position to the right.

‘Name’> represents the element for the Name input box. Likewise, ‘Name’>> or ‘Name’2>

returns the element of year input box. And ‘Name’>>> or ‘Name’3> returns the element of

month input box.

Assignment

An assignment statement sets a value to the given element object.

If you use ‘+=’ against an input or textarea element, the given value is appended at the end of

existing value.

If you use ‘@=’ against a select element, the option in the select box is chosen by the given

value. (It is not selected by the visible value)

 <element> = <value>

 <input or textarea> += <value>

 <select> @= <value>

elementIndex = 0

elementIndex = 1

elementIndex = 2

elementIndex = 3

elementIndex = 4

For examples,

 ‘label’[1]> = ‘Test value’

 ‘label’[1]> += ‘Test value’ // append mode

 ‘typeSelect’> @= ‘value1’ // select by value

 ‘label’ = () -> func()

Most of elements treats the value as a String value. For example, even if you specify a number,

the number is converted into a String object and sent to the target element.

#'Name'> = '123';

#'Name'> = 123;

If the 'Name'> represents an input box, the above two statements behaves exact same. A

String "123" is set to the input.

However, if the target element is a select element, the behavior is different depending on the

type of value.

#'Make'> = '0';

If you specify a String value, it searches an option which visible text is ‘0’. Instead of the String,

if you specify a number, it selects by an index. In this example below, the first option is

selected. (The index is zero-origin)

#'Make'> = 0;

Array

An array values pass multiple values to an element object.

 <element> = [ value1, value2, …, valuen ]

This expression is only available when the element is select tag with ‘multiple’ attribute.

The values in the array are selected.

 <element1> | <element2> | … | <elementn> = [ value1, value2, …, valuen ]

 <element1> | <element2> | … | <elementn> = value

Multiple elements can be described on the left hand side to switch processes based on

order of element appearance on the page. JavaTea watches all the elements and executes

only the value for the first element appeared.

If there is only one value (not an array) on the right hand side, no matter what element is

chosen, the value is set to the element found.

6. Preprocessor

JavaTea reads the source code before parsing Tea script for the following preprocessing.

Command

Description

include <path>

Includes the file contents. The file must be in your CLASSPATH.

Example: Include contents of Common.javatt.

include ‘Common,javatt’

7. TeaBase defined variables and methods

TeaBase declares some variables and methods for your development.

Variables:

Name

Description

driver

A WebDriver object.

You must call createDriver(browser) method in your Test to populate a driver

object into this variable.

Methods:

Name

Description

createDriver(String)

Initializes a WebDriver object based on the given browser

type. The generated driver object is set into the driver

variable.

options.setVerbose(boolean)

Displays detail messages on console if true is given. No

messages are displayed if it is false. (default: true)

setPropertiesFile(String)

Set a properties file that defines message keys and values.

{key} expression in your text is replaced with the value for

the key defined in the properties file. (default: no

properties)

$(String)

Expand properties expressions in the given text.

pushContext()

popContext()

If you want to execute your method in different context (use

another element index), call pushContext() when entered

into your method. And call popContext() before leaving from

your method.

element(String)

Finds an element object by using the given text, and returns

the element object when you call build() method.

elements()

Returns a list of elements in current context stack.

currentElement()

Returns a current element object.

elementIndex()

Returns an index number of the current element.

buildOr(elementBuilder…)

Chooses one element from the given element builders.

shift(int)

Returns a xpath string to find an element shifted by the

given number.

shiftAt(int)

Same as shift(int) except finding an text element.

print(String)

Prints the given text on console. When verbose is false, it

does not display any messages.

takeScreenshot(String)

Takes a screenshot and generates a PNG file.

sleep(long)

Wait for the specified period in milliseconds.

Also TeaBase provides the following methods to wait under various conditions.

Methods:

Name

Description

waitForText(String)

Waits until the given text is displayed on the page.

waitForNotText(String)

Waits until the given text disappears from the page.

waitForPartialText(String)

Waits until a text containing the given partial text is

displayed.

waitForNotPartialText(String)

Waits until texts containing the given text disappear from

the page.

waitUntil(BooleanSupplier)

Wait until the supplier function returns true.

waitUntilSuccess(Runnable)

Wait until the runner function is executed with no errors.

8. Custom Shift Methods

Override

Shift methods are the methods to define how to move an element by using <, > operators. By

default, Tea script provide you two shift methods, shift and shiftAt. Each method is called

when you use the following operators:

Method

Operators

shift( int n )

>, >>, >>>, n>, <, <<, <<<, n<

shiftAt ( int n )

@>, @>>, @>>>, @n>, @<, @<<, @<<<, @n<

For example, > operator is converted into shift(1), << operator is shift(-2). Likewise, @> is

converted to shiftAt(1), @<< is shiftAt(-2).

Let’s see the source code of the shift():

protected String shift(int n) {

return "./" + (n < 0 ? "preceding" : "following") +

"::*[self::input or self::select or self::textarea or self::a or self::button]";

}

The methods returns a XPath string that defines HTML tags to find. By default, it only captures

input, select, textarea, a and button tags.

How about shiftAt()?

protected String shiftAt(int n) {

return "./" + (n < 0 ? "preceding" : "following") +

"::*[text() and (self::div or self::span or self::p)]";

}

As you can see the source code above, shiftAt() finds text node only and also it limits to get

div, span and p tags only.

Since it is a protected, you can override with another implementation in your test class. For

example, if you want to move on input tag only, override the shift() with the implementation

below:

Let’s see the source code of the shift():

protected String shift(int n) {

return "./" + (n < 0 ? "preceding" : "following") + "::input";

}

Custom Shift

If you want to use additional implementation with keeping the default implementations, you

can define a custom shift method.

Define a shift method in your test class with the name starting “shift”. For example, if you

need a shift method moving on input tag only, you can define the following method with the

name “shiftinput”.

protected String shiftinput(int n) {

return "./" + (n < 0 ? "preceding" : "following") + "::input";

}

To call the method from your script, specify the name ‘input’ between the text string and @>

operator.

# 'Name'input@> = 'Your Name';

To move the element by 5 to the right, describe the number between @ and > operator.

# 'Name'input@5> = 'Your Name';

9. Properties File – Multiple Languages

This chapter shows how to handle to test web site that supports multiple languages. To do so,

you need to create properties file and define messages in it for each language. Here is an

example of web site that supports English and Japanese.

English

Japanese

First, you need to create properties files for English and Japanese, and define the keys and

values of each language.

message.properties

Name = Name

DOB = Date of Birth

TestName = John Smith

message_ja_JP.properties

Name = 名前

DOB = 生年月日

TestName = ジョンスミス

In your script, you need to set properties file by calling setPropertiesFile() method, and then

use {key} expression instead of the actual message.

setPropertiesFile('message.properties');

'{Name}' = '{TestName}'

'{DOB}' = 12 31 1911

Name

John Smith

Date of Birth

1911

名前

John Smith

生年月日

1911

The {Name} is replaced with the Name value, ‘Name’, in message.properties file. Likewise, the

{TestName} and {DOB} are replaced with ‘John Smith’ and ‘Date of Birth’, respectively.

When you test Japanese messages, set message_ja_JP.properties.

setPropertiesFile('message_ja_JP.properties');

'{Name}' = '{TestName}'

'{DOB}' = 12 31 1911

String values for element and value are automatically expanded into actual values defined in

properties file. However, you may need to access actual value to specify in other places, such

as JavaScript parameters. In that case, you can use $() method to expand {key} expression.

assertEquals(#'Name'@>, $('{TestName}') );

The 'Name' is handled as element text, hence, you don’t have to convert using $(). But the second

parameter is neither element text nor element value, so you have to expand the {TextName} by yourself

using the $() method.

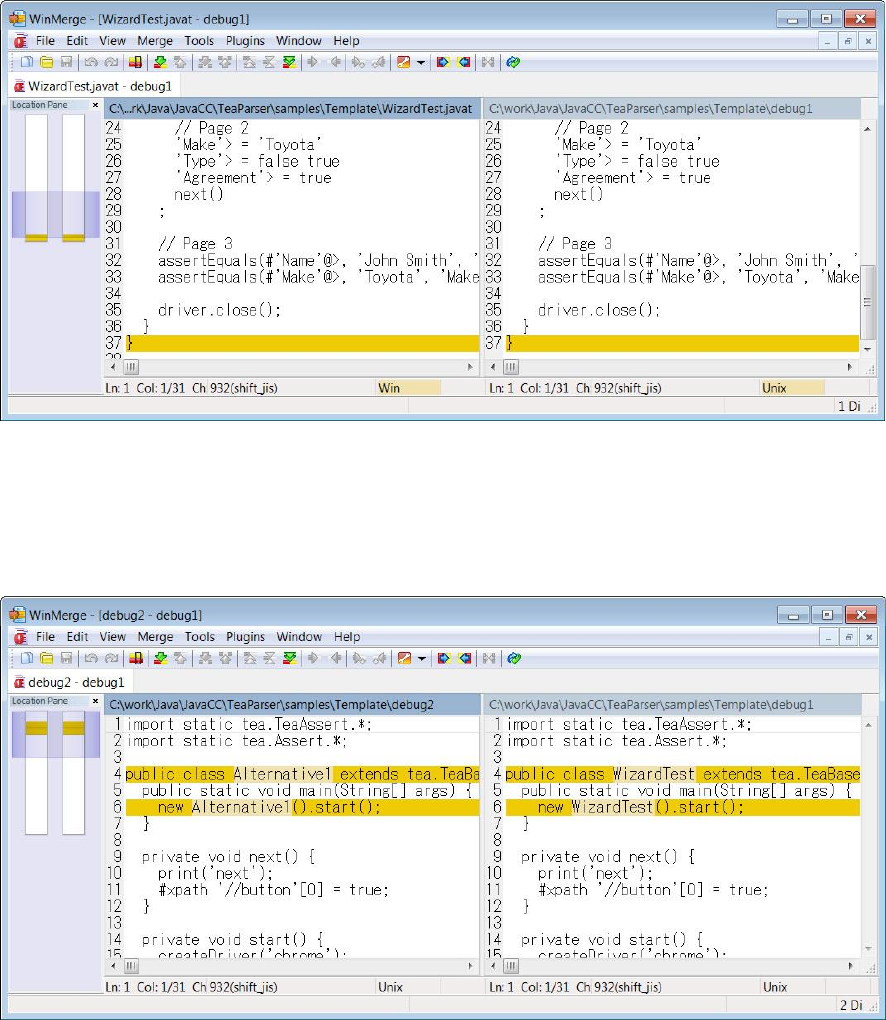

10. Template Transformation

In practice, you may often have created many different versions of test script based on a main

scenario. It is because there are many alternative flows in web site. Suppose you are entering

your address on an address form.

 You normally need to enter Street address, city, state and zip code (Main flow).

 If you know 9 digits of a full zip code, the web site may be able to populate the rest of

all information (Alternative flow #1).

 Even if you know only 5 digits zip code, the site could detect your city and state

(Alternative flow #2).

 Instead of entering zip code, if user enters city and state, the site could populate the

zip code automatically.

To test all the scenarios (main and alternative flows), you need to create four test scripts. But

they are representing operations executed on the same page, thus, the scripts tend to have

duplicate codes. To avoid the duplicates, JavaTea provides a template transformation feature

that transforms specific parts of a template file by using advice and joinpoint. The following

advice types are available.

Advice

Description

before

Inserts code before a joint point.

after

Inserts code after a joint point.

around

Replace a joint point or codes between joint points with the given code.

Around advice can use a ‘proceed’ keyword to keep the original code.

The advice can be described in the following format:

advice joinpoint { code }

Main flow

Alternative flow #1

Search by a full Zip code

Alternative flow #2

Search by 5 digits Zip code

Alternative flow #3

Search by city and state

Addition to that, around advice can be also described in the format below:

around start-joinpoint end-joinpoint { code }

Joinpoint is a point where the code is inserted or replaced with. The following joinpoint types

are available to specify:

Joinpoint

Description

String literal

A quoted string, e.g. ‘My Class’, “assertEquals”.

Label

JavaTea label ending with an exclamation mark, e.g. Label!

Regular expression

literal

A regular expression enclosed between slashes and flags,

e.g. /public.*/g , /testcase/i

The string literal and label joinpoints can add Array Suffix, Shift Suffix and AddSub Suffix.

Array Suffix

Description

[ n ]

The nth joinpoint in joinpoints found.

[ s .. e ]

Joinpoints between sth and eth. The s and e are optional.

1..3 represents 1st, 2nd and 3rd joinpoints

..2 represents 0th, 1st and 2nd joinpoints

1.. represents 1st, 2nd, …, and the last endpoint.

.. represents all joinpoints

Array Suffix also accepts multiple values split by a comma. Below are the examples:

[ 1, 3, 5 ] // 1st, 3rd and 5th joinpoints

[ ..2, 5, 7..9, 11, 15.. ] // 0, 1, 2, 5, 7, 8, 9, 11, 15 and the rest of joinpoints

Shift Suffix

Array Suffix

Description

n>, >>, >>>

Move jointpoint to the nth newline code to the right from the given

joinpoint.

n<, <<, <<<

Move jointpoint to the nth newline code to the left from the given

joinpoint.

AddSub Suffix (Only available for before/after advice)

Array Suffix

Description

+ n

Move jointpoint by n characters to the right from the given joinpoint.

- n

Move jointpoint by n characters to the left from the given joinpoint.

Also following two labels are predefined. You can use the labels without defining in your

template file.

Predefined Label

Description

BOF!

Beginning of file. It points to the top of the file.

EOF!

End of file. It points to the end of the file.

Below shows some examples of joinpoints:

public class HelloWorld extends tea.TeaBase {[Newline]

public static void main(String[] args) {[Newline]

#System.out.println('Hello, World!');[Newline]

}[Newline]

}

Before starting to operate file contents, you need to load the file into memory. The commands

below operate files to load and save.

Command

Description

load ‘path’

Load the file contents into memory.

save ‘path’

Save the updated contents in memory into a file.

This command is used for debugging purpose.

Alternative Flow

Let’s create an alternative flow based on WizardTest using template feature. Here is the javat

code, WizardTest, explained in Getting Started chapter.

WizardTest.javat

import static tea.TeaAssert.*;

import static tea.Assert.*;

public class WizardTest extends tea.TeaBase {

public static void main(String[] args) {

new WizardTest().start();

}

private void next() {

BOF!

EOF!

‘public’[0]

‘public’[1]

BOF!>

‘public’[0]>

‘public’[1]>

‘public’[1]3>

‘public’[1]>

‘public’[0]>>

BOF!>>

EOF!<

EOF!<<

BOF!<<<

‘public’[1]>>

‘public’[0..1]

print('next');

#'xpath://button'[0] = true#

}

private void start() {

createDriver('chrome');

driver.get(new java.io.File('Page1.html').toURI().toString());

// Page 1

'Name'> = 'John Smith'

'Date of Birth'> = 1911 2 3

next();

// Page 2

'Make'> = 'Toyota'

'Type'> = false true

'Agreement'> = true

next();

// Page 3

assertEquals(#'Name'@>, 'John Smith', 'Name on Page 3');

assertEquals(#'Make'@>, 'Toyota', 'Make on Page 3');

driver.close();

}

To implement another Test class for an alternative flow, create a javatt file below:

Alternative1.javatt

// Load template code into this working memory.

load 'WizardTest.javat'

// Replace class names.

around 'WizardTest' {Alternative1}

// Insert a new statement

before "'Type'" {

'Area'> = ['Tokyo', 'Other']

}

// Insert a new assertion

after 'assertEquals'[1]> {

assertEquals(#'Area'@>, 'Tokyo,Other', 'Area on Page 3');

}

First, you need to load the base javat file.

load 'WizardTest.javat'

Next, replace the class name with the new name, Alternative1, by using around advice.

around 'WizardTest' {Alternative1}

The around advice searches the keyword, ‘WizardTest’, in the loaded code. It will find two

places, at line 4 and 6. By default, it replaces both with the code in { and }, ‘Alternative1’.

The next advice is ‘before’ that inserts a new statement for setting Area selection values.

before "'Type'" {

'Area'> = ['Tokyo', 'Other']

}

The before advice searches the keyword “‘Type’” and insert the code described in { and }

before the keyword. Thus, the new statement will be added between Make and Type

statements.

The last advice is ‘after’ that inserts a new statement for Area assertion.

after 'assertEquals'[1]> {

assertEquals(#'Area'@>, 'Tokyo,Other', 'Area on Page 3');

}

The after advice searches the given keyword ‘assertEquals’, however, array and shift suffixes

are attached.

'assertEquals'[1]>

The array suffix [1] represents to pick the specific keyword from the keywords founds by the

index number. The index starts with zero, so it returns the second keyword.

Also it has a shift suffix ‘>’ that means the position where found the keyword will be moved to

the place where a newline code appears to the right.

As you can see, there are two ‘assertEquals’, and the ‘assertEquals’[1] points to the second

one. And then it searches a newline code to the right from the second ‘assertEquals’.

// Page 3[newline]

assertEquals(#'Name'@>, 'John Smith', 'Name on Page 3');[newline]

assertEquals(#'Make'@>, 'Toyota', 'Make on Page 3');[newline]

[newline]

[1]

Thus, the after advice inserts the code after the newline code at the end of the second

assertEquals method.

Run the command below to generate javat file from the javatt.

C:> java tea.JavaTea Alternative1.javatt

It will generate Alternative1.javat below:

Alternative1.javat

import static tea.TeaAssert.*;

import static tea.Assert.*;

public class Alternative1 extends tea.TeaBase {

public static void main(String[] args) {

new Alternative1().start();

}

private void next() {

print('next');

#'xpath://button'[0] = true#

}

private void start() {

createDriver('chrome');

driver.get(new java.io.File('../Wizard/Page1.html').toURI().toString());

// Page 1

'Name'> = 'John Smith'

'Date of Birth'> = 1911 2 3

next();

// Page 2

'Make'> = 'Toyota'

'Area'> = ['Tokyo', 'Other']

'Type'> = false true

'Agreement'> = true

next();

// Page 3

assertEquals(#'Name'@>, 'John Smith', 'Name on Page 3');

assertEquals(#'Make'@>, 'Toyota', 'Make on Page 3');

assertEquals(#'Area'@>, 'Tokyo,Other', 'Area on Page 3');

driver.close();

}

To compile and execute the generated javat, run the following commands.

C:> java tea.JavaTea Alternative1.javat

C:> javac Alternative1.java

C:> java Alternative1

TestNG Template

This section shows another example using a template. When you created a test for TestNG,

you may notice that some codes are reusable in most of your tests. We here define the

common code as a template, and define test specific code in javatt.

First, we create a common template for TestNG:

TestTemplate.javat

import static tea.TeaAssert.*;

import static org.testng.Assert.*;

import org.testng.annotations.Parameters;

import org.testng.annotations.Optional;

import org.testng.annotations.Test;

import!

public class className! extends tea.TeaBase {

@Parameters({ "browser", "verbose" })

@Test

public void test(String browser, @Optional String verbose) {

try {

createDriver(browser);

options.setVerbose(verbose);

scenario();

} catch (Throwable t) {

takeScreenshot("error{***ID***}.png");

} finally {

driver.close();

}

private void scenario() {

driver.get(url!);

testcode!

}

javacode!

}

The above code was created based on WizardTest.javat for TestNG, but we deleted test

scenario code and Java methods called from the scenario. Also we added some Tea labels to

make us easily point the place to insert or replace with new code from javatt.

Now we can create a test based the template.

WizardTest.javatt

load 'TestTemplate.javat'

around className! {WizardTest}

around url! {new java.io.File('../Wizard/Page1.html').toURI().toString()}

before import! {

import tea.TeaElement;

}

before javacode! {

private void next() {

print('next');

#'xpath://button'[0] = true#

}

private String error() {

TeaElement el = #"xpath://*[contains(@class, 'error')]"[0];

return el != null ? el.toString().trim() : null;

}

private Object checkElement(TeaElement element) {

assertEquals(element.getAttribute("id"), "area");

return null;

}

before testcode! {

// Page 1 (error)

#'Name'> = ''#

next();

if (error() == null) fail('Should show a validation error message for an empty name.');

// Page 1 (success)

'Name'> = {*'John Smith','George Washington'*}

'Date of Birth'> = {*1911 2 3, '2001' '02' '03'*}

assertEquals(#'Name'>,

{***0***},

'Failed to fill in name element.')

next();

// Page 2

'Make'> = 'Toyota'

'Area'> = checkElement(#.#) [{*'Tokyo', 'Osaka'*}, 'Other'] // (multiple selection)

'Type'> = false true

'Agreement'> = () -> {

return 'Toyota'.equals(#'Make'>#.toString());

}

next();

// Page 3

assertEquals(#'Name'@>, {***0***}, 'Name on Page 3');

assertEquals(#'Area'@>, {***2***}+',Other', 'Area on Page 3');

assertEquals(#'Make'@>, 'Toyota', 'Make on Page 3');

assertEquals(#'Type'@>, 'Truck', 'Type on Page 3');

assertTrue(#'Agreement'@>, 'Agreement on Page 3');

}

At first, load the template into the memory and replace className! with the actual class name

‘WizardTest’ by using around advice. Likewise, replace url! Label with an accrual URL.

Next, insert an import statement before the import! label.

Likewise, insert Java methods before javacode! And insert test scenario code before testcode!.

To generate javat from the javatt, execute the following command.

C:> java tea.JavaTea WizardTest.javatt

It generates WizardTest.javat, so run these to generate java files and compile.

C:> java tea.JavaTea -X -t 2 WizardTest.javat

C:> javac *.java

The –X option generates a testing.xml, so you can run it using TestNG with the following

command.

C:> java org.testng.TestNG testng.xml

11. Debugging Tips

This chapter introduces some tips to debug javat and javatt files.

Screenshot

If you want to see element states on screen while running your script, you can take a

screenshot and check the image. JavaTea provides you the following method to take a

screenshot:

void takeScreenshot ( String path );

The method take a screenshot of the current screen and save it in your local disk with the

given path.

If you have already narrowed down where could go wrong, you can manually add the method

call in your script. But if you have no idea where is wrong and you need to check all screens to

see what is wrong, you can create a custom EventListener class and implement events where

you want to take screenshots. For example, most of updates on screen happens by mouse-

click. So, it is a good idea to capture beforeClickOn and afterClickOn events and implement

code to take a screenshot in each event.

For the details, see chapter Event Listener.

Element location

TeaElement class implements setAttibute() methods:

void setAttribute ( String attrName, String attrValue );

void setAttribute ( String attrName, String propName, String propValue );

The method populates a given value to the specified attribute in the element object. With

using this, you can draw a box surrounding the target element to ensure that your script code

properly finds the element you intended.

Suppose there are multiple Search buttons on a page, and you wanted to click one of the

Search buttons but search was not performed. You somehow need to identify what element

was actually selected with the expression of the locator.

For that purpose, you can call setAttribute method with the locator expression:

#'Search'[0]#.setAttribute('style', 'border: 1px solid red');

#'Search'[1]#.setAttribute('style', 'border: 1px solid blue');

The setAttribute sets a value into an attribute of the element found. The above example

searches elements which the body text is ‘Search’, and populates a style attribute with a value

that draws a border box surround its element in RED and BLUE, respectively.

If you want to click the Search button, describe the statement below:

#’Search’[0] = true#

If you want to click on the Search link, describe below:

#’Search’[1] = true#

Debug javatt

In javatt file, if you describes many advices and updated contents a lot, it may be hard to

understand what keywords are there to define joinpoints in later steps. To see the updated

contents and what parts are updated in each step, JavaTea provides save command.

load 'WizardTest.javat'

save 'debug1'

around 'WizardTest' {Alternative1}

save 'debug2'

before "'Type'" {

'Area'> = ['Tokyo', 'Other']

}

save 'debug3'

after 'assertEquals'[1]> {

assertEquals(#'Area'@>, 'Tokyo,Other', 'Area on Page 3');

}

save 'debug4'

As you can see in the above, if you add save command between steps, you can check to see

what are updated in each step. After you run the javatt, debug1 to 4 files will be generated as

well as javat file. And then you can compare the files using diff command or tool.

For example, if you compare 'WizardTest.javat' with 'debug1', you will see a difference at the

bottom of the file. If you use Mac

‘Search’[0]

‘Search’[1]

This is because load command removes spaces at the beginning and end of the file so that you

can easily count lines from BOF! And EOF!.

Likewise, compare 'debug1' with 'debug2'. You will see changes updated by the statement,

“around 'WizardTest' {Alternative1}”.

The above shows that replacement of WizardTest with Alternative1 was applied in two places

at line 4 and 6.

12. Event Listener

Selenium has a capability to listen events and fire actions defined in custom EventListener

class. It enables us to create effective logging, taking screenshot and reporting in Selenium.

You can use the capability from JavaTea also. This chapter shows how to capture screenshot

before and after mouse click is fired as an example.

First, you need to create your custom EventListener class:

CustomEventListener.java

import tea.util.SeleniumUtil;

import org.openqa.selenium.*;

import org.openqa.selenium.support.events.AbstractWebDriverEventListener;

public class CustomEventListener extends AbstractWebDriverEventListener {

private int index = 0;

@Override

public void beforeClickOn(WebElement element, WebDriver driver) {

SeleniumUtil.takeScreenshot(driver, "screenshot"+(++index)+".png");

}

@Override

public void afterClickOn(WebElement element, WebDriver driver) {

SeleniumUtil.takeScreenshot(driver, "screenshot"+(++index)+".png");

}

Your EventListener class must be extended from AbstractWebDriverEventListener, and

override interface that you want to change default behavior. We here want to capture mouse

events and insert our custom logic to take screenshot before and after mouse click, so we

override the following two interface:

 void beforeClickOn(WebElement element, WebDriver driver)

 void afterClickOn(WebElement element, WebDriver driver)

The beforeClickOn method is fired before mouse click, hence we can capture a screen image

before the mouse click and save into a PNG image file. Likewise, the afterClickOn method is

fired after mouse click, and save a screen image after the mouse click.

Next, you need to register the CustomEventListener class into WebDriver. Since WebDriver is

generated in createDriver() method, you need to override the method and create a

EventFiringWebDriver in your test class.

import org.openqa.selenium.chrome.ChromeDriver;

import org.openqa.selenium.support.events.EventFiringWebDriver;

public class WizardTest extends tea.TeaBase {

@Override

protected void createDriver(String browser) {

ChromeDriver webDriver = new ChromeDriver();

driver = new EventFiringWebDriver(webDriver);

((EventFiringWebDriver) driver).register(new CustomEventListener());

}

…

The above is a sample code of createDriver() method that replaces with your own

implementation that creates an EventFiringWebDriver object and registers your custom

EventListener into it. Now the WebDriver calls beforeClickOn and afterClickOn methods

implemented in your CustomEventListener class whenever mouse click is executed.

13. Command Usage

JavaTea

JavaTea command converts Tea scripts into Java code, and generates a Java file.

java tes.JavaTea [ -t <n> ] [ -i <input-dir> ] [ -o <output-dir> ] [ -X ] [ -x <path> ] javat-file…

JavaTea accepts the following options:

Option

Description

-t

t-wise number (a degree of thoroughness)

0 : All combinations

1 : Single

2 : Pairwise (default)

3 : 3-wise

-i <input-dir>

A directory path where javat / javatt source files are stored.

(default: current directory)

-o <output-dir>

A directory path where java / javat output files are generated.

(default: current directory)

-X

Generates a testing.xml file to execute the tests with using TestNG tool.

-x <path>

Generates a testing XML file with the given path name.

After that, it accepts javat or javatt file names. If you specify javat file, JavaTea generates a

java file. If you specify javatt file, javat file is generated.

Examples:

Generate a java files that covers with the test cases created based on pairwise (2-wise)

algorithm. Also it generates a Test NG XML file with the name, ‘wizard.xml’.

java tea.JavaTea –t 2 –x wizard.xml WizardTest.javat

14. Troubleshooting

Bind error (socket) on Windows

If you run tests with parallel executions on Windows machine, you need to edit the following

two Windows Registry values.

Modern browsers make HTTP connections with keep-alive. Even though the communication

was done, the connection is still alive. It makes the number of using connections increase and

uses up all available ports and you will see socket bind errors in your console. To avoid the

error, you need to increase the number of available ports and change to shorter timeout to

release used connections timely.

Location:

HKEY_LOCAL_MACHINE¥SYSTEM¥CurrentControlSet¥Services¥Tcpip¥Parameters

Parameter Name

Data Type

Description

Recommended

Value

MaxUserPort

REG_DWORD

Determines the highest port

number TCP can assign when an

application requests an available

user port from the system.

65534

TcpTimedWaitDelay

REG_DWORD

Determines the time that must

elapse before TCP can release a

closed connection and reuse its

resources. This interval between

closure and release is known as

the TIME_WAIT state or 2MSL

state.

60 to 120

Kill driver process

If your test finished by calling driver.quite() properly, this issue won’t happen. If you use

driver.close() or even if you coded to call driver.quite(), it won’t be invoked when an exception

is thrown, the driver process (e.g. chromedriver.exe for Chrome, geckodriver.exe for FireFox,

IEDriverServer.exe for IE) will not be killed.

To kill the process, you need to run command below from command line:

C:> taskkill /im chromedriver.exe /im geckodriver.exe /im IEDriverServer.exe /f

Out of disk space

Selenium drivers create temporary folders and some of folders are not removed after

WebDriver finishes the process. Thus, disk space on your machine will be consumed and you

will encounter out of disk space error.

Where and what folders are created depends on selenium driver version and your machine.

Here is an example of chromedriver.exe on Windows 7.

Location:

C:\Users\<username>\AppData\Local\Temp

%AppData%\..\Local\Temp

Folders and files created by Selenium:

scoped_dir1234_56789

seleniumSslSupport12345678901234567890.selenium.doesnotexist


We strongly recommend you watching in your temporary directory and clean up regularly if

you found such folders.

15. Pairwise Testing

For those who never heard about Pairwise Testing, this chapter explains the basic idea of the

testing. Pairwise Testing is a method of software testing to create test cases that covers all

combinations for all possible parameter values. There are many terms to express Pairwise

Testing, for example, All Pairs, 2-wise, t-wise, etc. The letter ‘t’ represents the number of

parameters that cover all combinations, so it expresses the degree of thoroughness and bigger

number generates more test cases. The 2-wise is one of instances of t-wise, in this case, 2-wise

represents t-wise testing with 2 degree of toughness.

It will come up a question which degree is enough to detect errors. Below shows cumulative

percent of faults triggered by t-wise testing:

RAX

conver-

gence

RAX

correct-

ness

RAX

interf

RAX

engine

POSIX

modules

Medical

Devices

Browser

Server

NASA

GSFC

100

*= not reported

Source: IEEE TRANSACTIONS ON SOFTWARE ENGINEERING, VOL. 30, NO. 6, JUNE 2004

Software Fault Interactions and Implications for Software Testing

https://pdfs.semanticscholar.org/1ad8/adab7815cf9299b752e00ea860bc28c4c090.pdf

According to the case study, if your target application is a mission critical system that requires

extremely high quality, you may need to test with t=3 to 6. But it requires more test cases to

test, and it is unrealistic to apply such a big number to all tests. Hence, in general, we apply t=2

(pairwise) on general test scenarios and apply t=3 (3-wise) on some critical scenarios.

To understand how pairwise covers test patterns, let’s see test cases created for all

combinations and test cases created by using pairwise. Consider pairs of three input boxes on

a page, and each element could have two values.

For example,

 ‘John’ and <empty> for First Name,

 ‘Smith’ and <empty> for Last Name,

 ‘your@email’ and ‘invalid’ for Email.

To simplify this explanation, we here call the elements, Parameter A, B and C instead of First

Name, Last Name and Email. And each parameter could have two values: 0 or 1, instead of

actual values.

 A = 0 or 1

 B = 0 or 1

 C = 0 or 1

If we test all the combinations of the three parameters, the total number of combinations will

be eight ( 2 x 2 x 2 = 8 ), and the test patterns are below:

Test Case ID

Now, let’s focus on all combinations of each two parameters: AB, BA and AC.

Next, create a test case with zero values for all parameters.

Test Case ID

First Name

John

Last Name

Smith

your@email

Parameter A

Parameter B

Parameter C

This test case covers three parameter combinations (AB=00, BC=00, AC=00) to test.

Create another test case with zero values for all parameters.

Test Case ID

The test case covers another three parameter combinations (AB=01, BC-11, AC=01).

Likewise, create two more test cases below:

Test Case ID

And the additional test cases covers the rest of combinations as shown below:

By focusing on combinations of two parameters, we can reduce the number of test cases to 4

from 8. This is a basic idea of pairwise algorithm that only covers all patterns for between two

parameters.

We could reduce the number of test cases with pairwise, but you may feel that it is not a big

difference. However, in real world, we could have more elements and possible values that

make the number of test cases dramatically increase. If we have, for example, 6 elements and

3 possible values each, the total number combinations are 729 ( 3 x 3 x 3 x 3 x 3 = 729 ). If we

apply pairwise (2-wise) on it, it can be decreased to about 15 to 30 test cases (the number is

vary depending on implementation of pairwise algorithm). That is a reasonable number of

tests that we can execute.

For more information about Pairwise Testing, see the site below:

https://inductive.no/pairwiser/knowledge-base/introduction-to-pairwise-testing/

16. JavaTea as a Demonstration Tool

JavaTea is designed and implemented as test tool, but it can be used when you demonstrate a

web application developed. For this purpose, the following APIs are useful:

Balloon APIs

Balloon APIs pops up a balloon with a given message on the target web page. During your

demonstration, you can show balloons and pause at points where you want to comment.

Balloon APIs are implemented in TeaElement class and there are four different parameter sets

for a balloon function:

Format:

TeaElement balloon ( String message );

TeaElement balloon ( String message,

String properties );

TeaElement balloon ( String message,

String properties,

String onclick );

Parameter

Description

Default Value

message

A message to be displayed in the balloon.

properties

Balloon or CSS properties. See properties

table.

null

onclick

JavaScript code to be executed when the

balloon is clicked.

Tea script is NOT allowed to specify.

null

Return Value:

The balloon function returns a TeaElement object passed through the first parameter.

The balloon function finishes its execution after showing a balloon, thus the next line of code

is executed immediately. But you may sometimes want to pause while showing the balloon to

explain. To do so, call balloonAndWait instead of balloon. The balloonAndWait accepts the

same parameters but it waits until the balloon displayed is clicked and hid from the page.

Format:

TeaElement balloonAndWait ( String message );

TeaElement balloonAndWait ( String message,

String properties );

TeaElement balloonAndWait ( String message,

String properties,

Map<String, MapValueObject> events );

Parameter

Description

Default Value

message

A message to be displayed in the balloon.

properties

Balloon or CSS properties. See properties

table.

null

onhide

Java function to be executed when the

balloon is clicked or hid.

If the balloon was removed from the page

by page reloading, the function is NOT

invoked.

For Consumer function, this TeaElement

object is passed through the first

parameter.

null

events

A Map object holding event functions.

Available events are onload and onhide.

The Map object has to be given a pair of

event name and function. The function type

should be Runnable or

Consumer<TeaElement>.

null

Balloon and CSS properties:

Key

Description

Values

balloon

Specifies the type of positioning for a

balloon.

top

bottom (default)

left

right

balloon-pointer

Specifies the type of positioning for a

balloon pointer.

If balloon position is ‘top’ or ‘bottom’,

‘left’, ‘right’ and ‘center’ are available

to specify, and the default value is

‘left’.

If balloon position is ‘left’ or ‘right’,

‘top’, ‘bottom’ and ‘center’ are

available to specify, and the default

value is ‘center’.

left (default)

right

top

bottom

center (default)

balloon-parent

Specifies the type of parent element

of a balloon.

If ‘element’ is specified, a balloon is

inserted at the same level of the

element. The balloon behaves same as

the element regarding the

overwrapping tags, scrolling frame.

body (default)

element

left

Sets the left margin for a balloon.

<n>px

(default: 0px)

width

Sets the width of a balloon.

<n>px

(default: message

length)

color

Sets the color of a balloon message.

CSS colors

(default: black)

background-color

Sets the background color of a

balloon.

CSS colors

(default: gold)

font-size

Sets the font size of a balloon

message.

CSS font sizes

font

Sets the font family, boldness, size,

and the style of a balloon message.

CSS font values

border-size

Sets the border width of a balloon.

<n>px

(default: 6px)

border-color

Sets the border color of a balloon.

CSS colors

(default: orange)

border

Sets the border width, style and color.

CSS border values

balloon and balloon-pointer positions:

As you can see the Balloon and CSS properties table, there are two position properties for

balloon. The ‘balloon’ property specifies balloon position based on TeaElement given in the

balloon function. There are four values available to specify: ‘top’, ’bottom’, ‘left’ and ’right’.

The other property ‘balloon-pointer’ specifies pointer position of the balloon. If balloon

position is ‘top’ or ‘bottom’, balloon-pointer can be set to ‘left’, ‘center’ or ‘right’.

If balloon position is ‘left’ or ‘right’, balloon-pointer can be set to ‘top’, ‘center’ or ‘bottom’.

Base Element

bottom

top

right

left

Base Element

left

Base Element

right

Base Element

center

Element

top

Element

right

center

Example 1: Balloon under Name input field with a message “Enter your name”.

'Name'>.balloon('Enter your name.');

Example 2: Balloon right next to Email input field.

'Email'>.balloon('Enter your email.', 'balloon:right');

Example 3: Balloon under Place select box and move to right by 100px. Also change

background color, text color and border color.

'Place'>.balloon(

"Select 'Tokyo'",

'left:100px; background-color:red; color:white;border-color:pink;');

left:100px

Example 4: When clicked the balloon, execute the given lambda function that clicks on Next

button.

'Next'.balloonAndWait('Click Next.', null, {onhide: () -> #'Next' = true});

The above can be rewritten with a lambda function with an element parameter.

'Next'.balloonAndWait('Click Next.', null, {onhide: element -> element.click()} );

Or it can be coded without using onclick event as shown below:

'Next'.balloonAndWait('Click Next.');

optional 'Next' = true

The reason why the ‘optional’ keyword is required is that there is no ‘Next’ button if user clicks

on the Next button instead of the balloon. If you do not specify the ‘optional’, JavaTea will

keep looking for the ‘Next’ button even though it was disappeared by page reloaded.

Example 5: Register an ‘onhide’ event function that moves the element down by 200 pixels.

And show a balloon higher place by 200 pixels than target place. When the balloon is displayed

on the page, the onhide event is fired and invokes the moveElement function. It moves the

balloon to the target place using animation effect.

public void test() {

#'PLACE'@>#.balloonAndWait('Values entered on Page 1.', 'top:-200px;',

{onload: balloonElement -> moveElement(balloonElement, 200)});

}

private TeaElement moveElement(TeaElement teaElement, int yDistance) {

Point p = teaElement.getLocation();

for (int dy = 10; dy < yDistance; dy+=10) {

if (dy > 10) sleep(30);

teaElement.setAttribute('style', 'top', (p.y + dy)+'px');

}

teaElement.setAttribute('style', 'top', (p.y + yDistance)+'px');

return teaElement;

}

CSS Effects

In addition to showing balloons, you can apply various effects using CSS, for example, changing

font size and color, blur texts, add borders, etc. The element style change can be done by

setAttribute function in TeaElement class. There are two formats below:

Format:

void setAttribute ( String attrName,

String attrValue );

void setAttribute ( String attrName,

String propName,

String propValue );

Parameter

Description

Sample Value

attrName

An attribute name.

e.g. ‘style’

attrValue

New attribute value. It can contain multiple

style values separated by semi-colon ‘;’.

‘font-size:12pt; color:red’

propName

A property name.

‘font-size’

propValue

A property value.

‘12pt’

The first format replaces the original style with the new attribute value specified. If you want

to set to a specific style property, use the second format.

Here are some examples to make CSS effects on elements displayed.

Example 1: Change color of Name text element to red.

'Name'.setAttribute('style', 'color', 'red');

200px

Name

Example 2: Change font size of Name text element to 24pt.

'Name'.setAttribute('style', 'font-size', '24pt');

Example 3: Hide Name text element from the page.

'Name'.setAttribute('style', 'display', 'none');

Example 4: Blur texts entered in an email text box so that audience cannot see it.

TeaElement emailInput = #'Email'>;

emailInput.setAttribute('style', 'color', 'transparent');

emailInput.setAttribute('style', 'text-shadow', '0 0 5px rgba(0,0,0,0.4)');

Example 5: Make the font size of Name text element grow bigger every 40 milliseconds.

TeaElement name = #'Name';

for (int i=14; i<24; i++) {

if (i > 14) sleep(40);

name.setAttribute('style', 'font-size', i+'pt');

}

For a sample code using balloon APIs and CSS effects, see Demo example.

https://github.com/teafarm/javatea/tree/master/examples/Demo

Name

Hid from the page

Name

Animation effect

Grow the text by 1pt

Java Tea User Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
