Johan Vos, Stephen Chin, Weiqi Gao, James Weaver, Dean Iverson Pro Java FX 9 A Definitiv

User Manual:

Open the PDF directly: View PDF .
Page Count: 356 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Contents
About the Authors
About the Technical Reviewers
Acknowledgments
Foreword
Introduction
Chapter 1: Getting a Jump-Start in JavaFX
Chapter 2: Creating a User Interface in JavaFX
Chapter 3: Properties and Bindings
Chapter 4: Using Scene Builder to Create a User Interface
Chapter 5: Collections and Concurrency
Chapter 6: Creating Charts in JavaFX
Chapter 7: Connecting to Enterprise Services
Index

Pro JavaFX 9

A Definitive Guide to Building Desktop,

Mobile, and Embedded Java Clients

—

Fourth Edition

—

Johan Vos

Stephen Chin

Weiqi Gao

James Weaver

Dean Iverson

Pro JavaFX 9

A Definitive Guide to Building Desktop,

Mobile, and Embedded Java Clients

Fourth Edition

Johan Vos

Stephen Chin

Weiqi Gao

James Weaver

Dean Iverson

Pro JavaFX 9: A Definitive Guide to Building Desktop, Mobile, and Embedded Java Clients

Johan Vos Stephen Chin

Leuven, Belgium BELMONT, California, USA

Weiqi Gao James Weaver

Ballwin, Missouri, USA Marion, Indiana, USA

Dean Iverson

Fort Collins, Colorado, USA

ISBN-13 (pbk): 978-1-4842-3041-1 ISBN-13 (electronic): 978-1-4842-3042-8

https://doi.org/10.1007/978-1-4842-3042-8

Library of Congress Control Number: 2017963349

This work is subject to copyright. All rights are reserved by the Publisher, whether the whole or part of the

material is concerned, specifically the rights of translation, reprinting, reuse of illustrations, recitation,

broadcasting, reproduction on microfilms or in any other physical way, and transmission or information storage

and retrieval, electronic adaptation, computer software, or by similar or dissimilar methodology now known or

hereafter developed.

Trademarked names, logos, and images may appear in this book. Rather than use a trademark symbol with

every occurrence of a trademarked name, logo, or image we use the names, logos, and images only in an

editorial fashion and to the benefit of the trademark owner, with no intention of infringement of the trademark.

The use in this publication of trade names, trademarks, service marks, and similar terms, even if they are

not identified as such, is not to be taken as an expression of opinion as to whether or not they are subject to

proprietary rights.

While the advice and information in this book are believed to be true and accurate at the date of publication,

neither the authors nor the editors nor the publisher can accept any legal responsibility for any errors or

omissions that may be made. The publisher makes no warranty, express or implied, with respect to the material

contained herein.

Cover image by Freepik (www.freepik.com)

Managing Director: Welmoed Spahr

Editorial Director: Todd Green

Acquisitions Editor: Steve Anglin

Development Editor: Matthew Moodie

Technical Reviewers: Mark Heckler and Jonathan Giles

Coordinating Editor: Mark Powers

Copy Editor: Kimberly Burton-Weisman

Distributed to the book trade worldwide by Springer Science+Business Media New York,

233 Spring Street, 6th Floor, New York, NY 10013. Phone 1-800-SPRINGER, fax (201) 348-4505, e-mail

orders-ny@springer-sbm.com, or visit www.springeronline.com. Apress Media, LLC is a California LLC

and the sole member (owner) is Springer Science + Business Media Finance Inc (SSBM Finance Inc).

SSBM Finance Inc is a Delaware corporation.

For information on translations, please e-mail rights@apress.com, or visit http://www.apress.com/

rights-permissions.

Apress titles may be purchased in bulk for academic, corporate, or promotional use. eBook versions

and licenses are also available for most titles. For more information, reference our Print and eBook Bulk

Sales web page at http://www.apress.com/bulk-sales.

Any source code or other supplementary material referenced by the author in this book is available to

readers on GitHub via the book's product page, located at www.apress.com/9781484230411. For more

detailed information, please visit http://www.apress.com/source-code.

Printed on acid-free paper

iii

Contents

About the Authors �� ix

About the Technical Reviewers �� xi

Acknowledgments �� xiii

Foreword ��xv

Introduction ��xvii

■Chapter 1: Getting a Jump-Start in JavaFX �� 1

A Brief History of JavaFX �� 1

Prepare Your JavaFX Journey �� 4

Required Tools �� 4

JavaFX, the Community �� 5

Use the Ofﬁcial Speciﬁcations �� 5

Scenic View �� 6

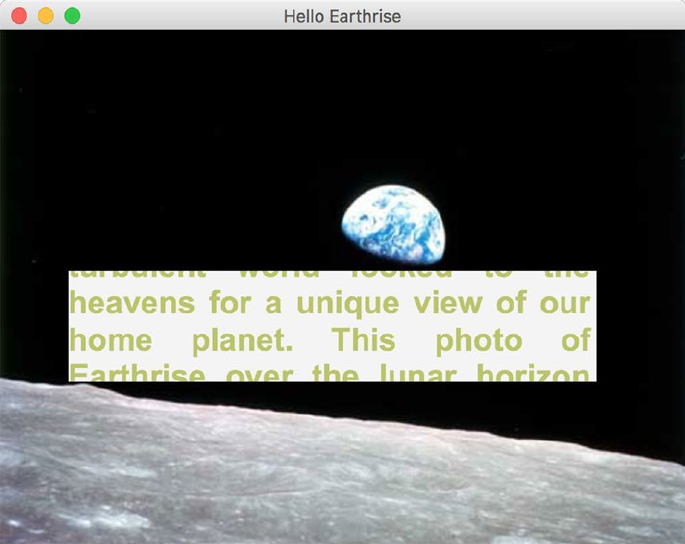

Developing Your First JavaFX Program: Hello Earthrise �� 7

Compiling and Running from the Command Line �� 8

Understanding the Hello Earthrise Program �� 9

Building and Running the Program with NetBeans �� 16

Developing Your Second JavaFX Program: “More Cowbell!” �� 20

Building and Running the Audio Conﬁguration Program ��20

The Behavior of the Audio Conﬁguration Program�� 21

Understanding the Audio Conﬁguration Program ��22

Colors and Gradients ��25

The Model Class for the Audio Conﬁguration Example �� 26

Using InvalidationListeners and Lambda Expressions ��27

■ Contents

Surveying JavaFX Features �� 29

Summary �� 30

Resources�� 31

■Chapter 2: Creating a User Interface in JavaFX �� 33

Programmatic vs� Declarative Creation of the User Interface �� 33

Introduction to Node-Centric UIs �� 33

Setting the Stage �� 34

Understanding the Stage Class �� 34

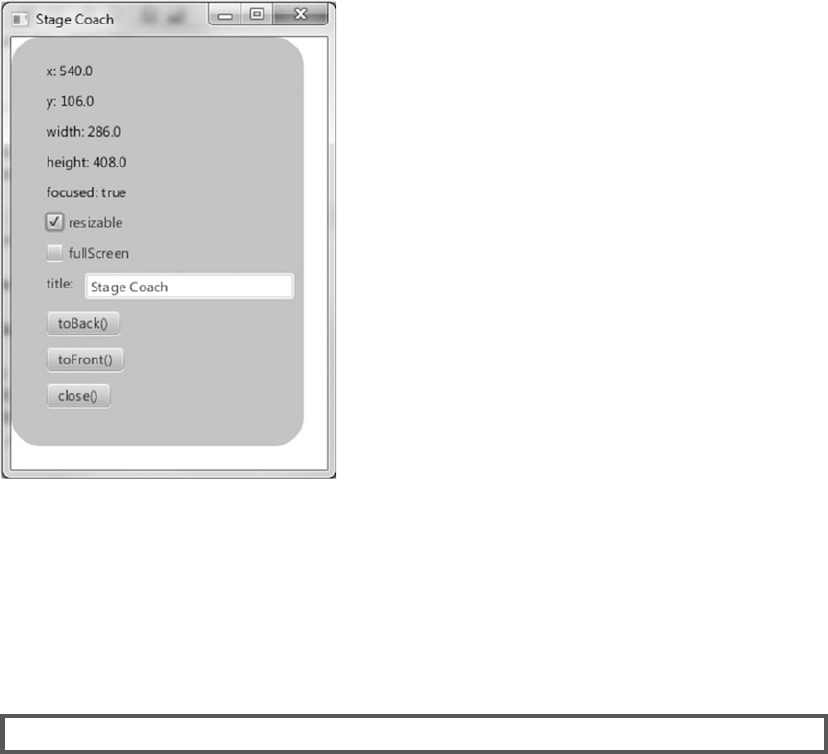

Using the Stage Class: The StageCoach Example�� 35

Understanding the StageCoach Program ��39

Making a Scene �� 46

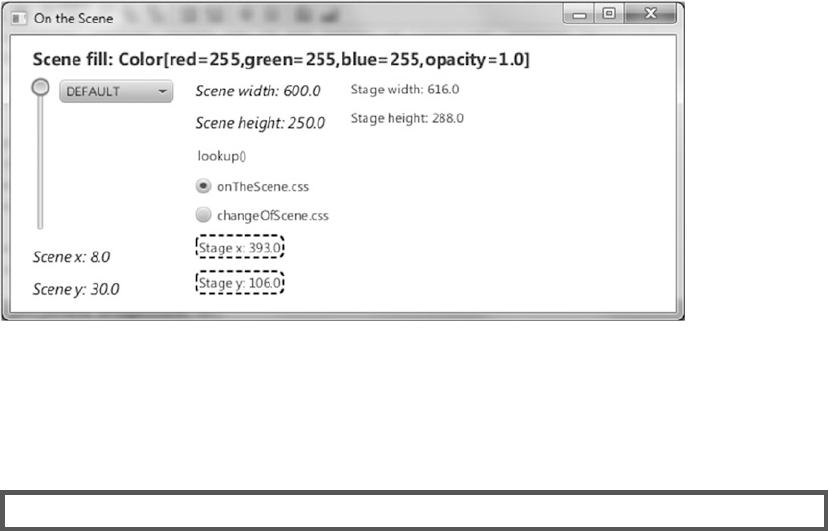

Using the Scene Class: The OnTheScene Example �� 46

Understanding the OnTheScene Program �� 48

Handling Input Events �� 56

Surveying Mouse, Keyboard, Touch, and Gesture Events and

Handlers �� 56

Understanding the KeyEvent Class �� 57

Understanding the MouseEvent Class �� 57

Understanding the TouchEvent Class �� 58

Understanding the GestureEvent Class ��58

Animating Nodes in the Scene �� 58

Using a Timeline for Animation �� 59

Using the Transition Classes for Animation �� 64

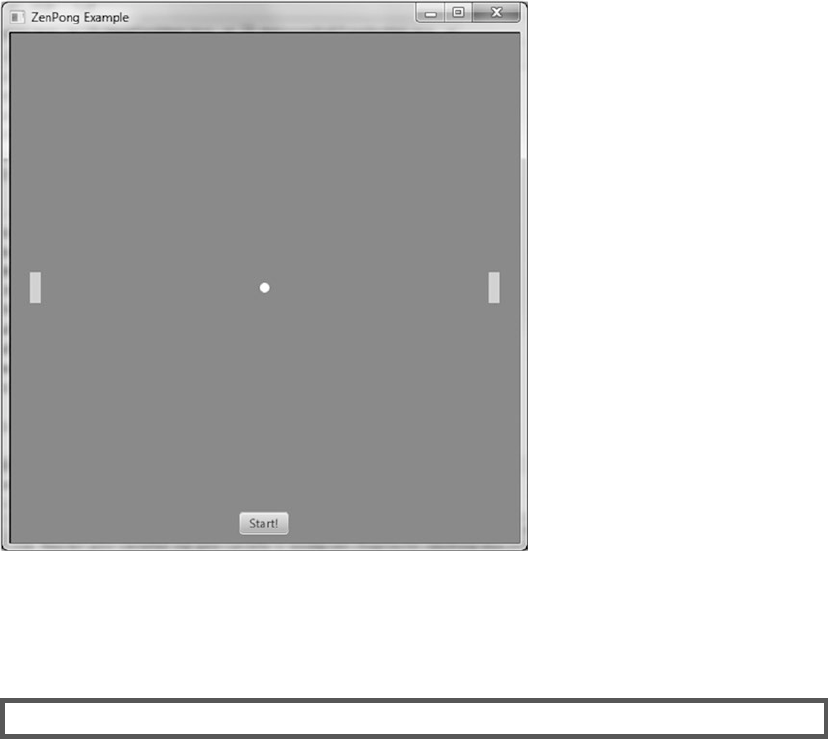

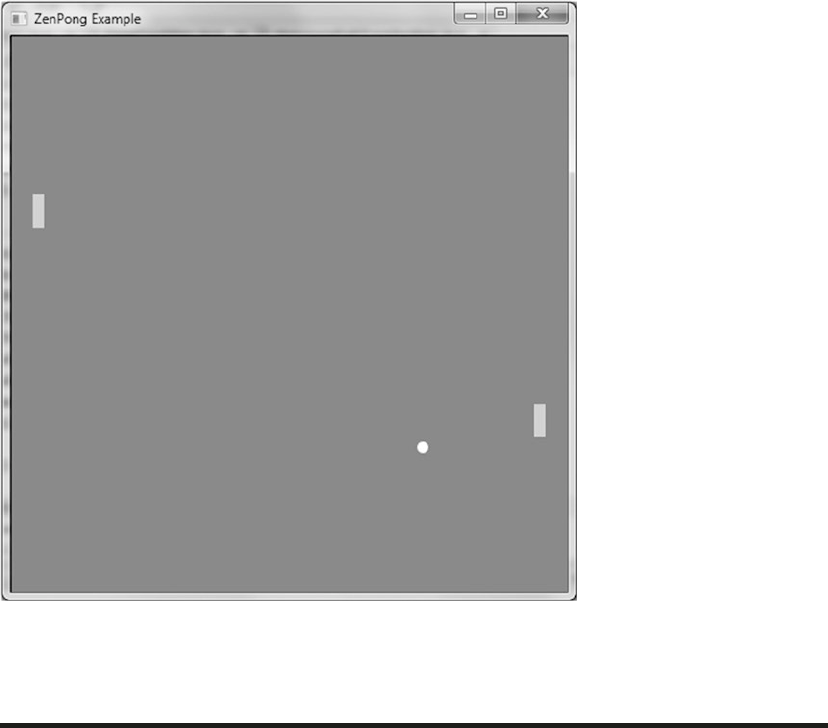

The Zen of Node Collision Detection �� 71

Summary �� 81

Resources�� 81

■Chapter 3: Properties and Bindings �� 83

Forerunners of JavaFX Binding �� 83

A Motivating Example �� 84

■ Contents

Understanding Key Interfaces and Concepts �� 87

Understanding the Observable Interface �� 88

Understanding the ObservableValue Interface ��89

Understanding the WritableValue Interface �� 90

Understanding the ReadOnlyProperty Interface �� 90

Understanding the Property Interface �� 90

Understanding the Binding Interface �� 92

Type-Speciﬁc Specializations of Key Interfaces �� 93

A Common Theme for Type-Speciﬁc Interfaces �� 94

Commonly Used Classes �� 97

Creating Bindings �� 98

Understanding the Bindings Utility Class �� 98

Understanding the Fluent Interface API �� 102

Understanding the JavaFX Beans Convention �� 112

The JavaFX Beans Speciﬁcation ��113

Understanding the Eagerly Instantiated Properties Strategy �� 113

Understanding the Lazily Instantiated Properties Strategy �� 117

Using Selection Bindings �� 119

Adapting JavaBeans Properties to JavaFX Properties�� 122

Understanding JavaBeans Properties ��122

Understanding the JavaFX Property Adapters �� 124

Summary �� 127

Resources�� 128

■Chapter 4: Using Scene Builder to Create a User Interface �� 129

Setting the Stage with FXML �� 130

Creating a User Interface Graphically with JavaFX Scene Builder �� 130

Understanding the FXML File �� 131

Understanding the Controller �� 135

Understanding the FXMLLoader �� 138

■ Contents

Understanding the FXML Loading Facility �� 140

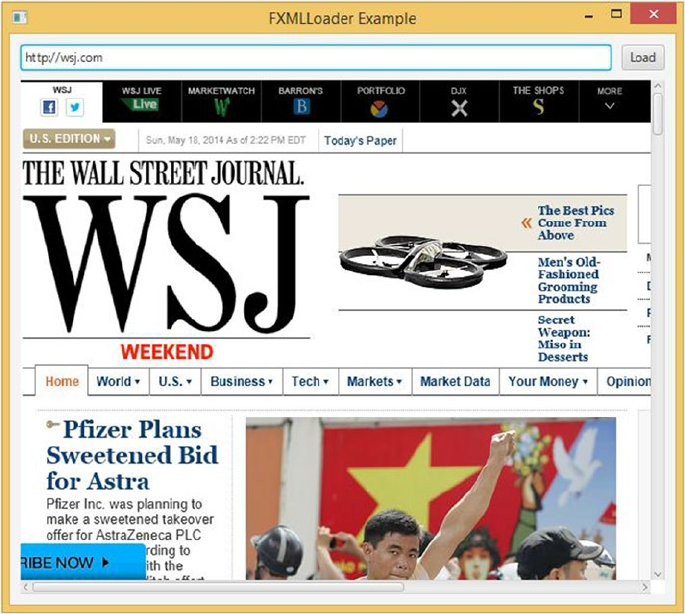

Understanding the FXMLLoader Class �� 141

Understanding the @FXML Annotation �� 146

Exploring the Capabilities of FXML Files �� 149

The Deserialization Power of the FXML Format �� 149

Understanding Default and Static Properties �� 156

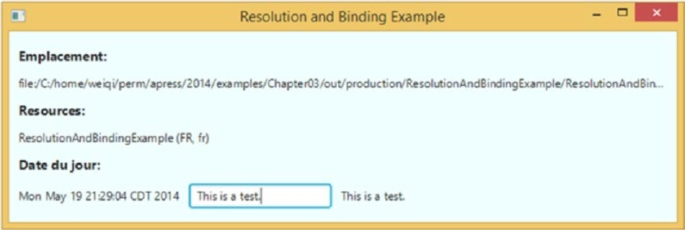

Understanding Attribute Resolutions and Bindings ��156

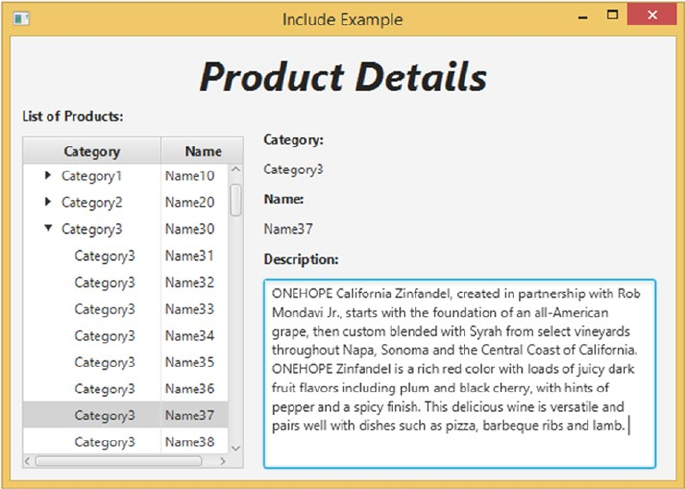

Using Multiple FXML Files �� 161

Creating Custom Components Using fx:root ��168

Event Handling Using Scripting or Controller Properties �� 173

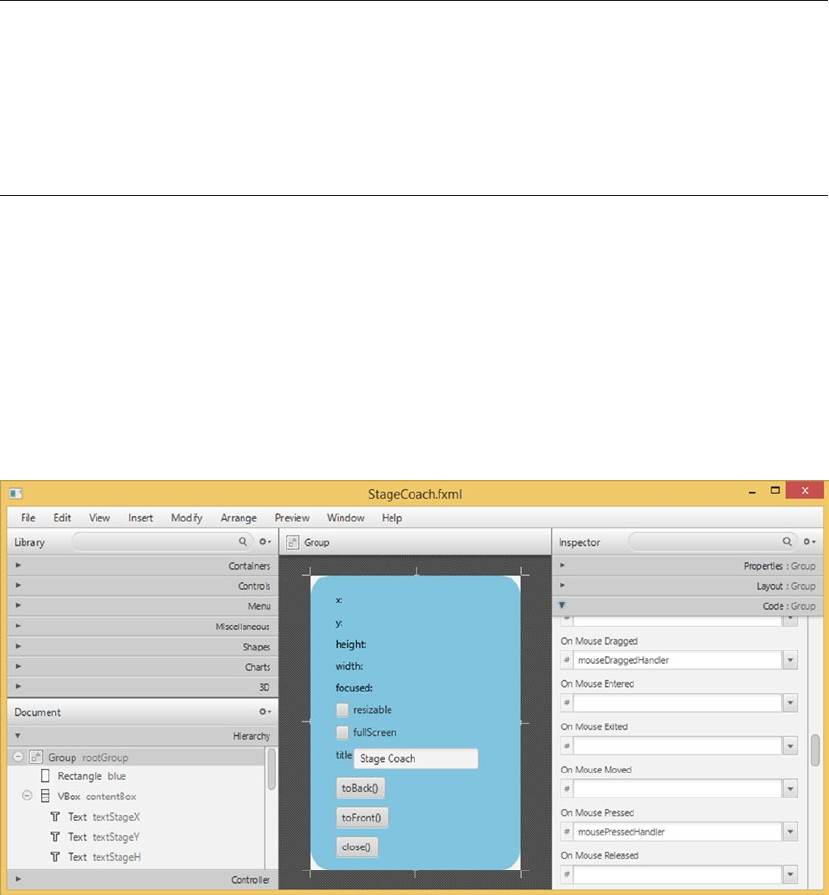

Using JavaFX Scene Builder �� 175

Overview of JavaFX Scene Builder �� 176

Understanding the Menu Bar and Items �� 176

Understanding the Library Panel �� 182

Understanding the Document Panel �� 185

Understanding the Content Panel �� 187

Understanding the Inspector Panel �� 188

Summary �� 191

Resources�� 191

■Chapter 5: Collections and Concurrency �� 193

Understanding Observable Collections and Arrays �� 193

Understanding ObservableList �� 194

Handling Change Events in ListChangeListener �� 198

Understanding ObservableMap �� 202

Understanding ObservableSet �� 206

Understanding ObservableArrays �� 209

Using Factory and Utility Methods from FXCollections �� 213

Using the JavaFX Concurrency Framework �� 218

Identifying the Threads in a JavaFX Application �� 218

Fixing Unresponsive UIs �� 224

Understanding the javafx�concurrent Framework ��230

■ Contents

vii

Mixing JavaFX with Other GUI Toolkits �� 251

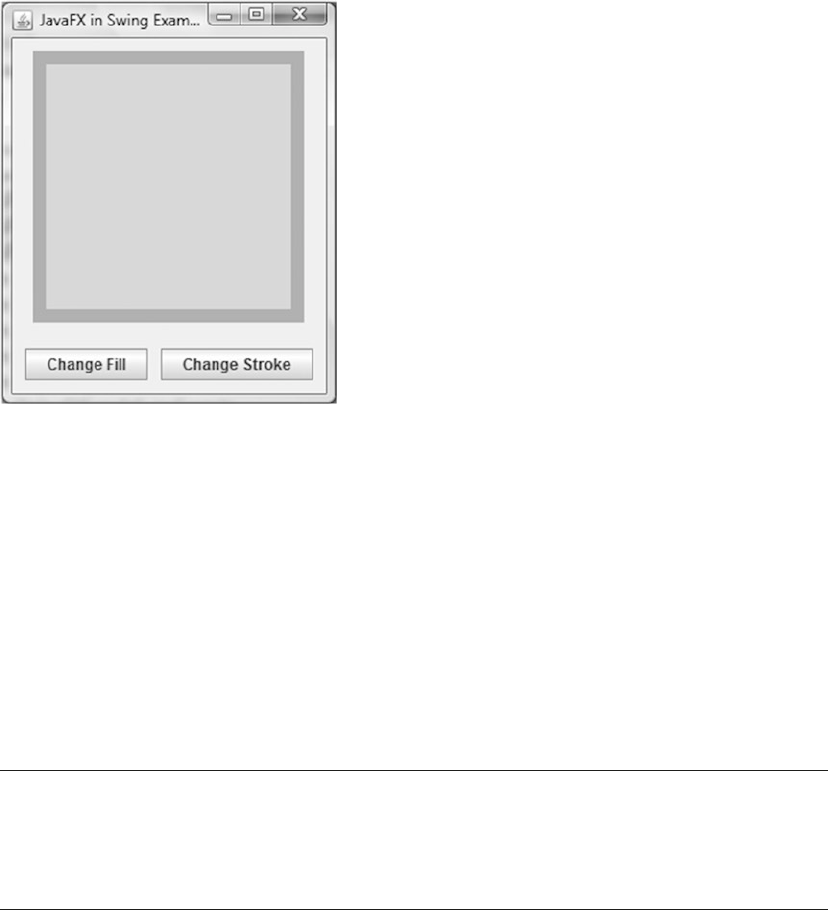

Embedding JavaFX Scenes in Swing Applications �� 251

Embedding JavaFX Scenes in SWT Applications �� 258

Embedding Swing Components in JavaFX Applications �� 267

Summary �� 273

Resources�� 275

■Chapter 6: Creating Charts in JavaFX �� 277

Structure of the JavaFX Chart API �� 277

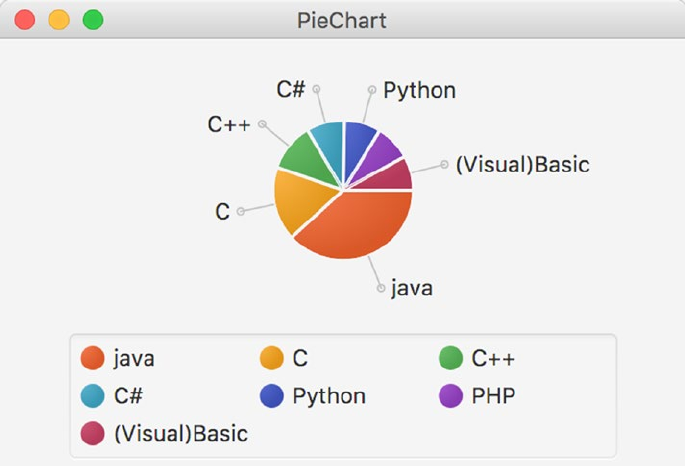

Using the JavaFX PieChart �� 279

The Simple Example �� 279

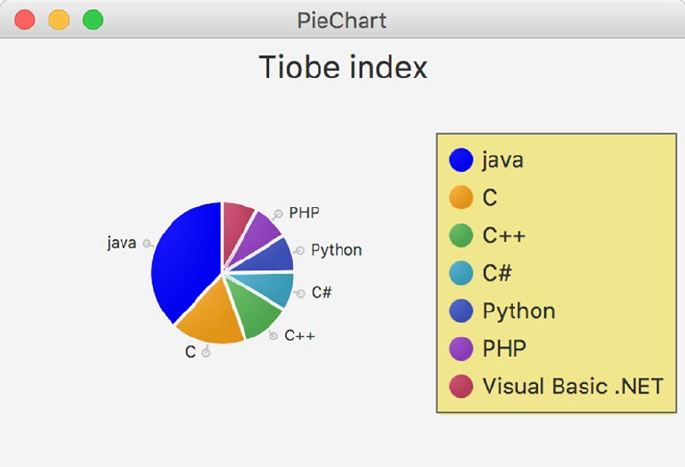

Some Modiﬁcations �� 282

Using the XYChart �� 287

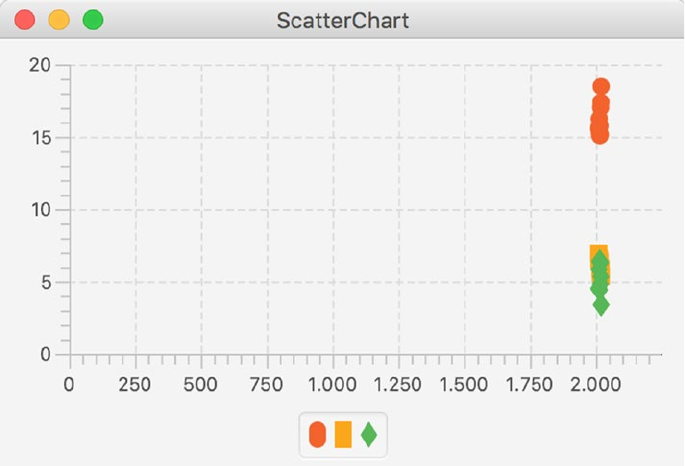

Using the ScatterChart �� 288

Using the LineChart �� 294

Using the BarChart �� 295

Using the StackedBarChart ��297

Using the AreaChart �� 299

Using the StackedAreaChart ��300

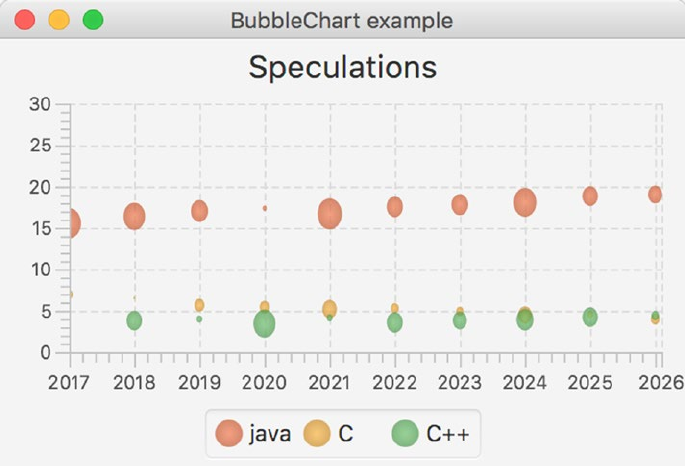

Using the BubbleChart �� 300

Summary �� 305

Resources�� 305

■Chapter 7: Connecting to Enterprise Services �� 307

Front-End and Back-End Platforms �� 307

Merging JavaFX and Java Enterprise Modules in the Same Environment �� 309

Using JavaFX to Call Remote (Web) Services �� 310

REST �� 310

Using External Libraries �� 336

Summary �� 341

Index �� 343

About the Authors

Johan Vos is a Java Champion who started to work with Java in 1995. As part of the Blackdown team, he

helped port Java to Linux. With LodgON, the company he cofounded, he has been mainly working on

Java-based solutions for social networking software. His main focus is on end-to-end Java, combining the

strengths of back-end systems and embedded devices. His favorite technologies are currently Java EE/

Glassfish at the back end and JavaFX at the front end. He contributes to a number of open source projects,

including DataFX and the Android port of JavaFX. Johan’s blog can be followed at http://blogs.lodgon.

com/johan, he tweets at http://twitter.com/johanvos, and can be reached at johan@lodgon.com.

Stephen Chin is a Java Ambassador at Oracle specializing in embedded and user interface technology and

the JavaOne Content Chair. He has been featured at Java conferences around the world including Devoxx,

JFokus, OSCON, JFall, GeeCON, JustJava, and JavaOne, where he three times received a Rock Star Award.

Stephen is an avid motorcyclist who has done several Pan-European evangelism tours, interviewing hackers

in their natural habitat and posting the videos on http://nighthacking.com. When he is not traveling, he

enjoys teaching kids how to do embedded and robot programming together with his 11-year-old daughter.

Weiqi Gao is a principal software engineer with Object Computing, Inc. in St. Louis, Missouri. He has

decades of software development experience and has been using Java technology since 1998. He is

interested in programming languages, object-oriented systems, distributed computing, and graphical user

interfaces. He is a member of the steering committee of the St. Louis Java Users Group. Weiqi holds a PhD in

mathematics.

James Weaver is an author, a speaker, a teacher, and a developer in rich Internet application technologies

such as JavaFX. He is also an Oracle engineer. He may be contacted at jim.weaver@javafxpert.com.

Dean Iverson has been writing software professionally for more than 15 years. He is employed by the

Virginia Tech Transportation Institute, where he is a senior researcher and rich client application developer.

He also has a small software consultancy called Pleasing Software Solutions, which he cofounded with

his wife.

About the Technical Reviewers

Mark Heckler is a Java software architect/engineer with development experience in numerous

environments. He has worked for and with key players in the manufacturing, emerging markets, retail,

medical, telecom, and financial industries to develop and deliver critical capabilities on time and on

budget. Currently, he works primarily with enterprise customers using Java throughout the stack. He also

participates in open source development at every opportunity, being a JFXtras project committer, developer

of DialogFX and MonologFX, co-developer of Autonomous4j, and more. When Mark isn’t working with Java,

he enjoys sharing his experiences at conferences and via the Java Jungle web site (https://blogs.oracle.

com/javajungle), his personal web site (www.thehecklers.org), and Twitter (@MkHeck). Mark lives with his

very understanding wife, three kids, and dog in St. Louis, Missouri.

Jonathan Giles is a software engineer who has worked with Java and JavaFX for a very long time. He has

been responsible for large sections of the JavaFX toolkit stack since 2009, and as such, is intimately familiar

with it. He is a JavaOne Rockstar speaker and track lead, an initiator of many open source projects (such as

ControlsFX and Scenic View—both referenced in this book), and a technical reviewer of many Java-related

books. He blogs at jonathangiles.net, and can be found on Twitter @JonathanGiles.

xiii

Acknowledgments

Writing a book is often done in spare time. I want to thank my wife, Kathleen, and our children, Merlijn

and Linde, for allowing me to spend evening and weekend time in front of my computer. I want to thank

authors Jim Weaver, Weiqi Gao, Stephen Chin, and Dean Iverson; technical reviewer Mark Heckler; and

the Apress team for their trust in me. A special thanks to my LodgON colleagues Joeri Sykora and Erwin

Morrhey for helping me with the examples. The JavaFX team at Oracle did a great job releasing JavaFX 8.

The combination of their efforts and those of the Java community makes JavaFX an excellent platform for an

increasing number of clients.

—Johan Vos

To my wife, Justine, and daughters, Cassandra and Priscilla, who supported me in writing this book on top of

all my other responsibilities. Also, a huge thanks to the entire author team, including our newest members,

Johan Vos and Mark Heckler, who both went above and beyond in their contributions to this title. Finally, a

great debt of gratitude to the JavaFX team and JVM language designers who have produced technology that

will profoundly change the way we design and code user interfaces going forward.

—Stephen Chin

I would like to thank my wife, Youhong Gong, for her support, understanding, and encouragement during

the writing process. My thanks also go to the author and technical review team: Johan Vos, Jim Weaver,

Stephen Chin, Dean Iverson, and Mark Heckler for making this book a fun project. I share with my coauthors

the appreciation for the JavaFX team at Oracle and the editorial team at Apress.

—Weiqi Gao

I would like to thank my family, Sondra, Alex, and Matt, for their support and understanding during yet

another writing project. You guys make this possible. I would also like to thank the writing and review

team of Jim Weaver, Stephen Chin, Weiqi Gao, Johan Vos, and Mark Heckler for their dedication and their

patience. The editorial team at Apress was, as usual, first rate and utterly professional. And, of course, none

of this would be possible without the hard work of an extremely talented team of engineers on the JavaFX

team at Oracle.

—Dean Iverson

To my wife Julie, daughters, Lori and Kelli, son, Marty, and grandchildren, Kaleb and Jillian. Thanks Merrill

and Barbara Bishir, Ken and Marilyn Prater, and Walter Weaver for being such wonderful examples. My

contributions to this book are dedicated to the memory of Merrill Bishir and Ken Prater. “I have told you

these things, so that in me you may have peace. In this world you will have trouble. But take heart! I have

overcome the world.” (John 16:33)

—James Weaver

Foreword

I remember it distinctly, like it was yesterday: standing center stage at Moscone Center when we launched

JavaFX at JavaOne 2007. We promised to build a world-class client platform for Java. With the world watching

with skeptical eyes and in a crowded client arena, we set out to build the dream. In hindsight, it was a rather

ambitious goal.

Fast-forward seven years, with the release of Java SE 8, we have taken a huge leap forward in fulfilling

that promise. As the vision unfolded, our product plans have shifted to match the evolving RIA market and

what developers and the Java community told us they were looking for. As someone who was there at the

inception of JavaFX and who has watched it mature over the last seven years to this current release, my

feelings are akin to a parent watching a toddler blossom.

James Weaver and Stephen Chin have been traveling through the evolution of JavaFX with me. They

have both presented on JavaFX at numerous international conferences and have been developing with

and blogging about JavaFX since 2007. James is a 30-year software veteran who has authored several books

on Java, as well as articles for Java Magazine and the Oracle Technology Network. He has also developed

numerous JavaFX applications for a wide variety of customers.

Stephen is passionate about open source technologies and is the founder of WidgetFX and JFXtras.

He also has a deep passion for improving development technologies and processes, as well as agile

development methodologies.

Johan Vos is cofounder of LodgON. He holds a PhD in applied physics and he has been a very prolific

member of the JavaFX community. His interest lies in the enterprise communication aspects of JavaFX,

combining the world of large servers with end-user devices. Johan’s analogy to physics: The grand unified

theory combines quantum mechanics (small) with relativity theory (large); similarly, in software, Java

combines JavaFX with Java EE.

Dean Iverson is a longtime client developer with a great eye for creating elegant user interfaces.

He develops GroovyFX libraries and is a contributor to the JFXtras project. He has been developing and

blogging about JavaFX since 2007. Weiqi Gao holds a PhD in mathematics. His expertise is in the language

aspects of JavaFX, as reflected in the chapters on properties and bindings, and collections and concurrency.

Today, the core JavaFX team at Oracle still has several of the developers who were part of the early

versions of JavaFX and we also have new engineers who have joined us. As we move ahead and open source

JavaFX, we are looking forward to having more developers and experts from the extended Java community

join us in making JavaFX the number one choice for client development.

I am proud and honored to be part of this key software technology. Given their length of experience and

depth of expertise in all aspects of JavaFX and across the Java platform, I cannot think of a better group of

authors to bring you JavaFX 8. I hope you will enjoy this book and find JavaFX as satisfying as I have found it

over the years. I hope it piques your interest sufficiently to join the JavaFX community in making JavaFX the

platform of choice for clients.

—Nandini Ramani

Vice President, Java Client Development

Oracle Corporation

xvii

Introduction

As a developer, author, speaker, and advocate for JavaFX since its inception in 2007, I am very excited about

JavaFX 8. It was released in March 2014 as an integral part of Java SE 8, and is the successor to Java Swing. As

you’ll read in the pages of this book, JavaFX runs on desktops (Mac, Windows, Linux), as well as embedded

devices such as the Raspberry Pi. As the Internet of things (IoT) is increasingly realized, JavaFX is well

positioned to enable the user interface of IoT. Also, because of community projects led by folks such as Johan

Vos and Niklas Therning, developers are deploying JavaFX apps on Android and iOS devices.

The JavaFX community has many talented, passionate, and cordial developers, and I count it a privilege

to call them my colleagues. One such colleague, Johan Vos, is a coauthor of our Pro JavaFX 2 book, and is the

lead author of Pro JavaFX 8. It has been my pleasure to continue working with Johan on this book under his

leadership. Please join me in welcoming and congratulating him in this role, perhaps by tweeting him at

@JohanVos or posting a review of this book on Amazon. It is my hope that you’ll find this book both enjoyable

and instrumental in helping you learn JavaFX!

—James L. Weaver

Java Technology Ambassador

Oracle Corporation

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8_1

CHAPTER 1

Getting a Jump-Start in JavaFX

Don’t ask what the world needs. Ask what makes you come alive, and go do it. Because

what the world needs is people who have come alive.

—Howard Thurman

At the annual JavaOne conference in May 2007, Sun Microsystems announced a new product family named

JavaFX. Its stated purpose includes enabling the development and deployment of content-rich applications

on consumer devices such as cell phones, televisions, in-dash car systems, and browsers. Josh Marinacci,

a software engineer at Sun, made the following statement, very appropriately, in a Java Posse interview:

“JavaFX is sort of a code word for reinventing client Java and fixing the sins of the past.” He was referring

to the fact that Java Swing and Java 2D have lots of capability, but are also very complex. Furthermore,

technologies have evolved a lot since Swing and Java 2D were created. Today’s client systems (desktops as

well as mobile and embedded devices) are equipped with powerful graphical processors—the GPU. JavaFX

takes advantage of the new features and performance increases offered by GPUs. By using FXML, JavaFX

allows us to simply and elegantly express user interfaces (UIs) with a declarative programming style. It also

leverages the full power of Java, because you can instantiate and use the millions of Java classes that exist

today. Add features such as binding the UI to properties in a model and change listeners that reduce the

need for setter methods, and you have a combination that will help restore Java to the client-side Internet

applications.

In this chapter, we give you a jump-start in developing JavaFX applications. After bringing you up to

date on the brief history of JavaFX, we show you how to get the required tools. We also explore some great

JavaFX resources and walk you through the process of compiling and running JavaFX applications. In the

process, you’ll learn a lot about the JavaFX application programming interface (API) as we walk through

application code together.

A Brief History of JavaFX

JavaFX started life as the brainchild of Chris Oliver when he worked for a company named SeeBeyond.

They had a need for richer user interfaces, so Chris created a language that he dubbed F3 (Form Follows

Function) for that purpose. In the article “Mind-Bendingly Cool Innovation” (cited in the “Resources”

section at the end of this chapter), Chris is quoted as follows: “When it comes to integrating people into

business processes, you need graphical user interfaces for them to interact with, so there was a use case for

graphics in the enterprise application space, and there was an interest at SeeBeyond in having richer user

interfaces.”

SeeBeyond was acquired by Sun, who subsequently changed the name of F3 to JavaFX, and announced

it at JavaOne 2007. Chris Oliver joined Sun during the acquisition and continued to lead the development of

JavaFX.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

The first version of JavaFX Script was an interpreted language, and was considered a prototype of the

compiled JavaFX Script language that was to come later. Interpreted JavaFX Script was very robust, and

there were two JavaFX books published in the latter part of 2007 based on that version. One was written in

Japanese, and the other was written in English (JavaFX Script: Dynamic Java Scripting for Rich Internet/

Client-Side Applications by Jim Weaver (Apress, 2007)).

While developers were experimenting with JavaFX and providing feedback for improvement, the JavaFX

Script compiler team at Sun was busy creating a compiled version of the language. This included a new set

of runtime API libraries. The JavaFX Script compiler project reached a tipping point in early December 2007,

which was commemorated in a blog post entitled “Congratulations to the JavaFX Script Compiler Team—

The Elephant Is Through the Door.” That phrase came from the JavaFX Script compiler project leader Tom

Ball in a blog post, which contained the following excerpt.

An elephant analogy came to me when I was recently grilled about exactly when the

JavaFX Script compiler team will deliver our first milestone release. “I can’t give you an

accurate date,” I said. “It’s like pushing an elephant through a door; until a critical mass

makes it past the threshold you just don’t know when you’ll be finished. Once you pass that

threshold, though, the rest happens quickly and in a manner that can be more accurately

predicted.”

A screenshot of the silly, compiled JavaFX application written by one of the authors, Jim Weaver, for that

post is shown in Figure1-1, demonstrating that the project had in fact reached the critical mass to which

Tom Ball referred.

Figure 1-1. Screenshot for the “Elephant Is Through the Door” program

Much progress continued to be made on JavaFX in 2008:

• The NetBeans JavaFX plug-in became available for the compiled version in

March 2008.

• Many of the JavaFX runtime libraries (mostly focusing on the UI aspects of JavaFX)

were rewritten by a team that included some very talented developers from the

Java Swing team.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

• In July 2008, the JavaFX Preview Software Development Kit (SDK) was released, and at

JavaOne 2008, Sun announced that the JavaFX 1.0 SDK would be released in fall 2008.

• On December 4, 2008, the JavaFX 1.0 SDK was released. This event increased the

adoption rate of JavaFX by developers and IT managers because it represented a

stable codebase.

• In April 2009, Oracle and Sun announced that Oracle would be acquiring Sun. The

JavaFX 1.2 SDK was released at JavaOne 2009.

• In January 2010, Oracle completed its acquisition of Sun. The JavaFX 1.3 SDK was

released in April 2010, with JavaFX 1.3.1 being the last of the 1.3 releases.

At JavaOne 2010, JavaFX 2.0 was announced. The JavaFX 2.0 roadmap was published by Oracle and

included items such as the following.

• Deprecate the JavaFX Script language in favor of using Java and the JavaFX 2.0 API.

This brings JavaFX into the mainstream by making it available to any language

(e.g., Java, Groovy, and JRuby) that runs on the Java Virtual Machine (JVM). As a

consequence, existing developers do not need to learn a new language, but they can

use existing skills and start developing JavaFX applications.

• Make the compelling features of JavaFX Script, including binding to expressions,

available in the JavaFX 2.0 API.

• Offer an increasingly rich set of UI components, building on the components already

available in JavaFX 1.3.

• Provide a Web component for embedding HTML and JavaScript content into JavaFX

applications.

• Enable JavaFX interoperability with Swing.

• Rewrite the media stack from the ground up.

JavaFX 2.0 was released at JavaOne 2011, and has enjoyed a greatly increased adoption rate due to the

innovative features articulated previously.

JavaFX 8 marked another important milestone. JavaFX is now an integral part of the Java Platform,

Standard Edition.

• This is a clear indication that JavaFX is considered mature enough, and that it is the

future of Java on the client.

• This greatly benefits developers, as they don’t have to download two SDKs and tool

suites.

• The new technologies in Java 8, in particular the lambda expressions, Stream API,

and default interface methods, are very usable in JavaFX.

• Many new features have been added, including native 3D support, a printing API,

and some new controls including a datepicker.

• Since the release of JavaFX 8, the JavaFX platform follows the same version and

release procedures as the Java Platform, Standard Edition. As a consequence, when

Java 9 was released, JavaFX 9 was released as well.

• The main focus for Java 9 is modularity. The Java Platform, Standard Edition, has

become bigger and bigger, and not all applications require all classes to be available.

By modularizing the Java Platform, it is easier to create subsets of the Java platform

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

that combine a number of modules that are sufficient to run a particular application.

This modularization effort was huge, and it took many years before it was complete.

All parts of the Java Platform, Standard Edition have been refactored into modules,

including the JavaFX 9 Platform APIs.

• One of the consequences of the modularization is that it is now not allowed anymore

for code to depend on internal APIs of another module. This has far-reaching

consequences. Before JavaFX 9, Controls were often created by implementing

undocumented internal APIs. Those APIs were public, because they were used

internally by other JavaFX classes, in different packages. As a consequence,

developer could use them as well.

• Since those internal APIs are now in modules that by default do not expose this

functionality, a new approach was needed for developers who want to create

custom controls. Hence, the JavaFX team was not only faced with moving all the

JavaFX public APIs into a number of modules, it also had to provide public APIs for

functionality that was previously accessed via internal APIs.

In Java 9, the JavaFX platform provides the following modules:

• javafx.base

• javafx.controls

• javafx.fxml

• javafx.graphics

• javafx.jmx

• javafx.media

• javafx.swing

• javafx.swt

• javafx.web

• jdk.packager

• jdk.packager.services

Now that you’ve had the obligatory history lesson in JavaFX, let’s get one step closer to writing code by

showing you where some examples, tools, and other resources are.

Prepare Your JavaFX Journey

Required Tools

Because JavaFX is part of Java 9, you don’t have to download a separate JavaFX SDK. The whole JavaFX

API and implementation is part of the Java 9 SE SDK that can be downloaded from www.oracle.com/

technetwork/java/javase/downloads/index.html.

This SDK contains everything you need to develop, run, and package JavaFX applications. You can

compile JavaFX applications using command-line tools contained in the Java 9 SE SDK.

Most developers, however, prefer an integrated development environment (IDE) for increased

productivity. By definition, an IDE that supports Java 9 also supports JavaFX 9. Hence, you can use your

favorite IDE and develop JavaFX applications. In this book, we mainly use the NetBeans IDE, but other

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

IDE’s, such as IntelliJ or Eclipse, can be used as well. The NetBeans IDE can be downloaded from

https://netbeans.org/downloads.

Many JavaFX developers, especially those working on user interfaces, prefer a WYSIWYG tool for

creating interfaces. Scene Builder is a stand-alone tool that allows you to design JavaFX interfaces rather

than coding them. We discuss Scene Builder in Chapter 4. Although Scene Builder produces FXML—and

we discuss FXML in Chapter 3 as well—that can be used in any IDE, NetBeans provides a tight integration

with Scene Builder. The Scene Builder tool can be downloaded at http://gluonhq.com/products/scene-

builder/.

JavaFX, the Community

JavaFX is not a closed-source project, developed in a secret bunker. To the contrary, JavaFX is being

developed in an open spirit, with an open source code base, open mailing lists, and an open and active

community sharing knowledge.

The source code is developed in the OpenJFX project, which is a subproject of the OpenJDK project in

which Java SE is being developed. If you want to examine the source code or the architecture, or if you want

to read the technical discussions on the mailing list, have a look at http://openjdk.java.net/projects/

openjfx.

The developer community is very active, both in OpenJFX as well as in application-specific areas. Many

JavaFX developers regularly blog about their JavaFX activities, and many non-Oracle products and projects

related to JavaFX are being created and maintained by this community.

In addition, blogs maintained by JavaFX engineers and developers are great resources for up-to-

the-minute technical information on JavaFX. For example, Oracle JavaFX Engineer Jonathan Giles keep

the developer community apprised of the latest JavaFX innovations at http://fxexperience.com. The

“Resources” section at the end of this chapter contains the URLs of the blogs that the authors of this book

use to engage the JavaFX developer community.

Two important characteristics of the JavaFX Community are its own creativity and the desire to share.

There are a number of open-source efforts bringing added value to the JavaFX Platform. Because of good

cooperation between the JavaFX platform engineers and the external JavaFX developers, these open-source

projects fit very well with the official JavaFX platform.

Some of the most interesting efforts are listed here:

• Gluon allows you to create iOS and Android applications using Java and JavaFX. As

a consequence, your JavaFX application can be used to create an app for Android

devices and for the iPhone or the iPad.

This mobile port of JavaFX is discussed in more detail in Chapter 12.

• ControlsFX is a project working on adding high-quality controls and add-ons to the

JavaFX platform.

• JFXtras.org is another project working on adding high-quality controls and add-ons

to the JavaFX platform.

It is worth mentioning that the JavaFX team is closely watching the efforts in both JFXtras.org and

ControlsFX, and ideas that start in one of those projects might make it into one of the next releases of JavaFX.

Take a few minutes to explore these sites. Next, we point out some valuable resources.

Use the Official Specifications

While developing JavaFX applications, it is very useful to have access to the API Javadoc documentation,

which is available at http://download.java.net/jdk9/jfxdocs/index.html and shown in Figure1-2.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

The API documentation in Figure1-2, for example, shows how to use the Rectangle class, located in the

javafx.scene.shape package. Scrolling down this web page shows the properties, constructors, methods,

and other helpful information about the Rectangle class. By the way, this API documentation is available in

the Java 8 SE SDK that you downloaded, but we wanted you to know how to find it online as well.

Apart from the Javadoc, it is very useful to have the Cascading Style Sheets (CSS) style reference at hand as

well. This document explains all the style classes that can be applied to a particular JavaFX element. You can

find this document at http://download.java.net/jdk9/jfxdocs/javafx/scene/doc-files/cssref.html.

Scenic View

You already downloaded Scene Builder, which is the tool that allows you to create UIs by designing them,

rather than writing code. We expect that there will be more tools developed by companies and individuals

that help you create JavaFX applications. One of the first tools that was made available for free and that is

very helpful when debugging JavaFX applications is ScenicView, originally created by Amy Fowler at Oracle,

and later maintained by Jonathan Giles. You can download ScenicView at http://scenic-view.org/.

ScenicView is particularly helpful because it provides a convenient UI that allows developers to inspect

properties of nodes (i.e., dimensions, translations, CSS) at runtime.

Packaging and Distribution

The techniques used for delivering software to the end user are always changing. In the past, the preferred

way for delivering Java applications was via the Java Network Launch Protocol (JNLP). Doing so, both

applets and stand-alone applications can be installed on a client. However, there are a number of issues

Figure 1-2. JavaFX SDK API Javadoc

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

with this technique. The idea only works if the end user has a JVM installed that is capable of executing the

application. This is not always true. Even in the desktop world, where a system can be delivered preinstalled

with a JVM, there are issues with versioning and security. Indeed, some applications are hard-coded against

a specific version of the JVM. Although vulnerabilities in the JVM are in most cases fixed very fast, this still

requires the end user to always install the latest version of the JVM, which can be pretty frustrating.

On top of that, browser manufacturers are increasingly reluctant to support alternative embedded

platforms. In summary, relying on a browser and on a local, preinstalled JVM does not provide the best end-

user experience.

The client software industry is shifting more and more toward the so-called app stores. In this concept,

applications can be downloaded and installed that are self-containing. They do not rely on preinstalled

execution environments. The principles originated in the mobile space, where Apple’s AppStore and

Android’s Play Store are leading the market. Especially in these markets, single-click installs have a huge

advantage over local downloads, unpacking, manual configuration, and more nightmares.

In Java terminology, a self-contained application means that the application is bundled together with a

JVM that is capable of running the application. In the past, this idea was often rejected because it made the

application bundle too big. However, with increasing memory and storage capacities, and with decreasing

costs of sending bytes over the Internet, this disadvantage is becoming less relevant.

There are a number of technologies being developed currently that help you bundle your application

with the correct JVM version and package it.

The standard technology for bundling Java applications with a Java Virtual Machine runtime is the

JavaPackager, which is developed inside the OpenJFX project area. JavaFXPackager contains an API for

creating self-contained bundles. This tool is used by NetBeans, and it can be used to generate self-contained

bundles with just a few clicks.

Now that you have the tools installed, we show you how to create a simple JavaFX program, and then

we walk through it in detail. The first program that we’ve chosen for you is called “Hello Earthrise,” which

demonstrates more features than the typical beginning “Hello World” program.

Developing Your First JavaFX Program: Hello Earthrise

On Christmas Eve in 1968, the crew of Apollo 8 entered lunar orbit for the first time in history. They were

the first humans to witness an “Earthrise,” taking the magnificent picture shown in Figure1-3. This image is

dynamically loaded from this book’s web site when the program starts, so you’ll need to be connected to the

Internet to view it.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

In addition to demonstrating how to dynamically load images over the Internet, this example shows you

how to use animation in JavaFX. Now it’s time for you to compile and run the program. We show you two

ways to do this: from the command line and using NetBeans.

Compiling and Running from the Command Line

We usually use an IDE to build and run JavaFX programs, but to take all of the mystery out of the process we

use the command-line tools first.

■Note For this exercise, as with most others in the book, you need the source code. If you prefer not to type

the source code into a text editor, you can obtain the source code for all of the examples in this book from the

code download site. See the “Resources” section at the end of this chapter for the location of this site.

Assuming that you’ve downloaded and extracted the source code for this book into a directory, follow

the directions in this exercise, performing all of the steps as instructed. We dissect the source code after the

exercise.

Figure 1-3. The Hello Earthrise program

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

COMPILING AND RUNNING THE HELLO EARTHRISE PROGRAM FROM

THE COMMAND LINE

You’ll use the javac and java command-line tools to compile and run the program in this exercise. From

the command-line prompt on your machine:

1. Navigate to the Chapter01/Hello directory.

2. Execute the following command to compile the HelloEarthRiseMain.java file.

javac -d . HelloEarthRiseMain.java

3. Because the –d option was used in this command, the class files generated are

placed in directories matching the package statements in the source files. The roots

of those directories are specified by the argument given for the –d option, in this

case the current directory.

4. To run the program, execute the following command. Note that we use the fully

qualified name of the class that will be executed, which entails specifying the

nodes of the path name and the name of the class, all separated by periods.

java projavafx.helloearthrise.ui.HelloEarthRiseMain

The program should appear as shown in Figure 1-4, with the text scrolling slowly upward, reminiscent

of the Star Wars opening crawls.

Congratulations on completing your first exercise as you explore JavaFX!

Understanding the Hello Earthrise Program

Now that you’ve run the application, let’s walk through the program listing together. The code for the Hello

Earthrise application is shown in Listing 1-1.

Listing 1-1. The HelloEarthRiseMain.java Program

package projavafx.helloearthrise.ui;

import javafx.animation.Interpolator;

import javafx.animation.Timeline;

import javafx.animation.TranslateTransition;

import javafx.application.Application;

import javafx.geometry.VPos;

import javafx.scene.Group;

import javafx.scene.Scene;

import javafx.scene.image.Image;

import javafx.scene.image.ImageView;

import javafx.scene.paint.Color;

import javafx.scene.shape.Rectangle;

import javafx.scene.text.Font;

import javafx.scene.text.FontWeight;

import javafx.scene.text.Text;

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

import javafx.scene.text.TextAlignment;

import javafx.stage.Stage;

import javafx.util.Duration;

/**

* Main class for the "Hello World" style example

public class HelloEarthRiseMain extends Application {

/**

* @param args the command line arguments

public static void main(String[] args) {

Application.launch(args);

}

@Override

public void start(Stage stage) {

String message

= "Earthrise at Christmas: "

+ "[Forty] years ago this Christmas, a turbulent world "

+ "looked to the heavens for a unique view of our home "

+ "planet. This photo of Earthrise over the lunar horizon "

+ "was taken by the Apollo 8 crew in December 1968, showing "

+ "Earth for the first time as it appears from deep space. "

+ "Astronauts Frank Borman, Jim Lovell and William Anders "

+ "had become the first humans to leave Earth orbit, "

+ "entering lunar orbit on Christmas Eve. In a historic live "

+ "broadcast that night, the crew took turns reading from "

+ "the Book of Genesis, closing with a holiday wish from "

+ "Commander Borman: \"We close with good night, good luck, "

+ "a Merry Christmas, and God bless all of you -- all of "

+ "you on the good Earth.\"";

// Reference to the Text

Text textRef = new Text(message);

textRef.setLayoutY(100);

textRef.setTextOrigin(VPos.TOP);

textRef.setTextAlignment(TextAlignment.JUSTIFY);

textRef.setWrappingWidth(400);

textRef.setFill(Color.rgb(187, 195, 107));

textRef.setFont(Font.font("SansSerif", FontWeight.BOLD, 24));

// Provides the animated scrolling behavior for the text

TranslateTransition transTransition = new TranslateTransition(new Duration(75000),

textRef);

transTransition.setToY(-820);

transTransition.setInterpolator(Interpolator.LINEAR);

transTransition.setCycleCount(Timeline.INDEFINITE);

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

// Create an ImageView containing the Image

Image image = new Image ("http://projavafx.com/images/earthrise.jpg");

ImageView imageView = new ImageView(image);

// Create a Group containing the text

Group textGroup = new Group(textRef);

textGroup.setLayoutX(50);

textGroup.setLayoutY(180);

textGroup.setClip(new Rectangle(430, 85));

// Combine ImageView and Group

Group root = new Group(imageView, textGroup);

Scene scene = new Scene(root, 516, 387);

stage.setScene(scene);

stage.setTitle("Hello Earthrise");

stage.show();

// Start the text animation

transTransition.play();

}

Now that you’ve seen the code, let’s take a look at its constructs and concepts in some more detail.

What Happened to the Builders?

If you were using JavaFX 2 before, you are probably familiar with the so-called builder pattern. Builders

provide a declarative style of programming. Rather than calling set() methods on a class instance to specify

its fields, the builder pattern uses an instance of a Builder class to define how the target class should be

composed.

Builders were very popular in JavaFX. However, it turned out that there were major technical hurdles

with keeping them in the platform. As a consequence, the decision was made to phase out builders. In Java 8,

Builder classes were still usable, but they are deprecated. In Java 9, Builder classes have been removed

entirely.

More information on the reason why Builder classes are not preferred anymore can be found in a

mailing list entry by JavaFX Client Architect Richard Bair at http://mail.openjdk.java.net/pipermail/

openjfx-dev/2013-March/006725.html. The bottom of this entry contains a very important statement:

“I believe that FXML or lambda’s or alternative languages all provide other avenues for achieving the same

goals as builders but without the additional cost in byte codes or classes.”

This is what we will show throughout this book. Near the end of this chapter, we show a first example

of a lambda expression in our code. In Chapter 3, we show how Scene Builder and FXML allow you to use a

declarative way of defining a UI.

In the current example, we programmatically define the different components of the UI, and we glue

them together. In Chapter 3, we show the same example using a declarative FXML-based approach.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

The JavaFX Application

Let’s have a look at the class declaration in our first example:

public class HelloEarthRiseMain extends Application

This declaration states that our application extends the javafx.application.Application class. This

class has one abstract method that we should implement:

public void start(Stage stage) {}

This method will be called by the environment that executes our JavaFX application.

Depending on the environment, JavaFX applications will be launched in a different way. As a developer,

you don’t have to worry about how your application is launched, and where the connection to a physical

screen is made. You have to implement the “start” method and use the provided Stage parameter to create

your UI, as discussed in the next paragraph.

In our command-line example, we launched the applications by executing the main method of the

application class. The implementation of the main method is very simple:

public static void main(String[] args) {

Application.launch(args);

}

The only instruction in this main method is a call to the static launch method of the application, which

will launch the application.

■Tip A JavaFX application always has to extend the javafx.application.Application class.

A Stage and a Scene

A Stage contains the UI of a JavaFX app, whether it is deployed on the desktop, on an embedded system,

or on other devices. On the desktop, for example, a Stage has its own top-level window, which typically

includes a border and title bar.

The initial stage is created by the JavaFX runtime, and passed to you via the start() method, as

described in the previous paragraph. The Stage class has a set of properties and methods. Some of these

properties and methods, as shown in the following code snippet from the listing, are as follows.

• A scene that contains the graphical nodes in the UI

• A title that appears in the title bar of the window (when deployed on the desktop)

• The visibility of the Stage

stage.setScene(scene);

stage.setTitle("Hello Earthrise");

stage.show();

A Scene is the top container in the JavaFX scene graph. A Scene holds the graphical elements that are

displayed on the Stage. Every element in a Scene is a graphical node, which is any class that extends

javafx.scene.Node. The scene graph is a hierarchical representation of the Scene. Elements in the scene

graph may contain child elements, and all of them are instances of the Node class.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

The Scene class contains a number of properties, such as its width and height. A Scene also has a property

named root that holds the graphical elements that are displayed in the Scene, in this case a Group instance that

contains an ImageView instance (which displays an image) and a Group instance. Nested within the latter Group

is a Text instance (which is a graphical element, usually called a graphical node, or simply node).

Notice that the root property of the Scene contains an instance of the Group class. The root property may

contain an instance of any subclass of javafx.scene.Node, and typically contains one capable of holding its

own set of Node instances. Take a look at the JavaFX API documentation that we showed you how to access in

the “Use the Official Specifications” section and check out the Node class to see the properties and methods

available to any graphical node. Also, take a look at the ImageView class in the javafx.scene.image package

and the Group class in the javafx.scene package. In both cases, they inherit from the Node class.

■Tip We can’t emphasize enough the importance of having the JavaFX API documentation handy

while reading this book. As classes, variables, and functions are mentioned, it’s a good idea to look at the

documentation to get more information. In addition, this habit helps you become more familiar with what is

available to you in the API.

Displaying Images

As shown in the following code, displaying an image entails using an ImageView instance in conjunction

with an Image instance.

Image image = new Image ("http://projavafx.com/images/earthrise.jpg");

ImageView imageView = new ImageView(image);

The Image instance identifies the image resource and loads it from the URL assigned to its URL variable.

Both of these classes are located in the javafx.scene.image package.

Displaying Text

In the example, we created a Text Node as follows:

Text textRef = new Text(message);

If you consult the JavaFX API documentation, you will notice that a Text instance, contained in package

javafx.scene.text, extends a Shape that extends a Node. As a consequence, a Text instance is a Node as

well, and all the properties on Node apply on Text as well. Moreover, Text instances can be used in the scene

graph the same way other nodes are used.

As you can detect from the example, a Text instance contains a number of properties that can be

modified. Most of the properties are self-explanatory, but again, it is always useful to consult the JavaFX API

documentation when manipulating objects.

Because all graphical elements in JavaFX directly or indirectly extend the Node class, and because the

Node class already contains many useful properties, the amount of properties on a specific graphical element

such as Text can be rather high.

In our example, we set a limited number of properties that are briefly explained next.

The textRef.setLayoutY(100) method applies a vertical translation of 100 pixels to the Text content.

The fill method is used to specify the color of the text.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

While you’re looking at the javafx.scene.text package in the API documentation, take a look at the

font function of the Font class, which is used to define the font family, weight, and size of the Text.

The textOrigin property specifies how the text is aligned with its area.

Referring again to the JavaFX API documentation, notice that the VPos enum (in the javafx.geometry

package) has fields that serve as constants, for example, BASELINE, BOTTOM, and TOP. These control the

origin of the text with respect to vertical locations on the displayed Text:

• The TOP origin, as we’re using it in the previous code snippet, places the top of the

text (including ascenders) at the layoutY position, relative to the coordinate space in

which the Text is located.

• The BOTTOM origin would place the bottom of the text, including descenders

(located in a lowercase g, for example) at the layoutY position.

• The BASELINE origin would place the baseline of the text (excluding descenders) at

the layoutY position. This is the default value for the textOrigin property of a Text

instance.

The wrappingWidth property enables you to specify at what number of pixels the text will wrap.

The textAlignment property enables you to control how the text will be justified. In our example,

TextAlignment.JUSTIFY aligns the text on both the left and right sides, expanding the space between words

to achieve that.

The text that we’re displaying is sufficiently long enough to wrap and be drawn on the Earth, so we need

to define a rectangular region, outside of which the text cannot be seen.

■Tip We recommend you modify some of the values, recompile the example, and run it again. This will help

you understanding how the different properties work. Alternatively, by using ScenicView you can inspect and

modify the different properties at runtime.

Working with Graphical Nodes as a Group

One powerful graphical feature of JavaFX is the ability to create scene graphs, which consist of a tree of

graphical nodes. You can then assign values to properties of a Group located in the hierarchy, and the nodes

contained in the Group will be affected. In our current example from Listing 1-1, we’re using a Group to

contain a Text node and to clip a specific rectangular region within the Group so that the text doesn’t appear

on the moon or the Earth as it animates upward. Here’s the relevant code snippet:

Group textGroup = new Group(textRef);

textGroup.setLayoutX(50);

textGroup.setLayoutY(180);

textGroup.setClip(new Rectangle(430, 85));

Notice that the Group is located 50 pixels to the right and 180 pixels down from where it would have

been located by default. This is due to the values assigned to the layoutX and layoutY variables of the Group

instance. Because this Group is contained directly by the Scene, its upper-left corner’s location is 50 pixels

to the right and 180 pixels down from the upper-left corner of the Scene. Take a look at Figure1-4 to see this

example illustrated as you read the rest of the explanation.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

A Group instance contains instances of Node subclasses by assigning a collection of them to itself via

the children() method. In the previous code snippet, the Group contains a Text instance that has a value

assigned to its layoutY property. Because this Text is contained by a Group, it assumes the two-dimensional

space (also called the coordinate space) of the Group, with the origin of the Text node (0,0) coincident

with the top-left corner of the Group. Assigning a value of 100 to the layoutY property causes the Text to

be located 100 pixels down from the top of the Group, which is just below the bottom of the clip region,

thus causing it to be out of view until the animation begins. Because a value isn’t assigned to the layoutX

variable, its value is 0 (the default).

The layoutX and layoutY properties of the Group just described are examples of our earlier statement

that nodes contained in a Group will be affected by values assigned to properties of the Group. Another

example is setting the opacity property of a Group instance to 0.5, which causes all of the nodes contained in

that Group to become translucent. If the JavaFX API documentation is handy, look at the properties available

in the javafx.scene.Group class. Then look at the properties available in the javafx.scene.Node class

properties, which is where you’ll find the layoutX, layoutY, and opacity variables that are inherited by the

Group class.

Figure 1-4. The Scene, Group, Text, and clip illustrated

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

Clipping Graphical Areas

To define a clipping area, we assign a Node subclass to the clip property that defines the clipping shape,

in this case a Rectangle that is 430 pixels wide and 85 pixels high. In addition to keeping the Text from

covering the moon, when the Text scrolls up as a result of animation, the clipping area keeps the Text from

covering the earth.

Animating the Text to Make It Scroll Up

When the HelloEarthriseMain program is invoked, the Text begins scrolling up slowly. To achieve this

animation, we’re using the TranslateTransition class located in the javafx.animation package, as shown

in the following snippet from Listing 1-1.

TranslateTransition transTransition = new TranslateTransition(new Duration(75000), textRef);

transTransition.setToY(-820);

transTransition.setInterpolator(Interpolator.LINEAR);

transTransition.setCycleCount(Timeline.INDEFINITE);

...code omitted...

// Start the text animation

transTransition.play();

The javafx.animation package contains convenience classes for animating nodes. This

TranslateTransition instance translates the Text node referenced by the textRef variable from its original

Y position of 100 pixels to a Y position of –820 pixels, over a duration of 75 seconds. The Interpolator.

LINEAR constant is assigned to the interpolator property, which causes the animation to proceed in a linear

fashion. A look at the API docs for the Interpolator class in the javafx.animation package reveals that

there are other forms of interpolation available, one of which is EASE_OUT, which slows down the animation

toward the end of the specified duration.

■Note Interpolation in this context is the process of calculating the value at any point in time, given a

beginning value, an ending value, and a duration.

The last line in the previous snippet begins executing the play method of the TranslateTransition

instance created earlier in the program. This makes the Text begin scrolling upward. Because of the value

assigned to the cycleCount variable, this transition will repeat indefinitely.

Now that you’ve compiled and run this example using the command-line tools and we’ve walked

through the code together, it is time to begin using the NetBeans IDE to make the development and

deployment process faster and easier.

Building and Running the Program with NetBeans

Assuming that you’ve downloaded and extracted the source code for this book into a directory, follow the

directions in this exercise to build and run the Hello Earthrise program in NetBeans. If you haven’t yet

downloaded the Java SDK and NetBeans, please do so from the site listed in the “Resources” section at the

end of this chapter.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

BUILDING AND RUNNING HELLO EARTHRISE WITH NETBEANS

To build and run the Hello Earthrise program, perform the following steps.

1. Start NetBeans.

2. Choose File ➤ New Project from the menu bar. The first window of the New Project

Wizard will appear. Select the JavaFX category, and you will see wizard shown in

Figure 1-5.

3. Choose JavaFX Application in the Projects pane, and then click Next. The next page

in the New Project Wizard, shown in Figure 1-6, should appear.

Figure 1-5. New Project Wizard

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

4. On this screen, type the project name (we used HelloEarthRise) and click Browse.

5. Select a Project Location either by typing it directly into the text box or by

clicking Browse to navigate to the desired directory (we used /home/johan/

NetBeansProjects).

6. Select the Create Application Class check box, and change the supplied package/

class name to projavafx.helloearthrise.ui.HelloEarthRiseMain

7. Click Finish. The HelloEarthRise project with a default main class created by

NetBeans should now be created. If you’d like to run this default program, right-

click the HelloEarthRise project in the Projects pane and select Run Project from the

shortcut menu.

8. Enter the code from Listing 1-1 into the HelloEarthRiseMain.java code window.

You can type it in, or cut and paste it from the HelloEarthRiseMain.java file

located in the Chapter01/HelloEarthRise/src/projavafx/helloearthrise/ui

directory of this book’s source code download.

9. Right-click the HelloEarthRise project in the Projects pane and select Run Project

from the shortcut menu.

The HelloEarthRise program should begin executing, as you saw in Figure 1-3 earlier in the chapter.

At this point, you’ve built and run the “Hello Earthrise” program application, both from the command

line and using NetBeans. Before leaving this example, we show you another way to achieve the scrolling

Text node. There is a class in the javafx.scene.control package named ScrollPane whose purpose is

Figure 1-6. The next page of the New Project Wizard

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

to provide a scrollable view of a node that is typically larger than the view. In addition, the user can drag

the node being viewed within the scrollable area. Figure1-7 shows the Hello Earthrise program after being

modified to use the ScrollPane control.

Figure 1-7. Using the ScrollPane control to provide a scrollable view of the Text node

Notice that the move cursor is visible, signifying that the user can drag the node around the clipped

area. Note that the screenshot in Figure1-7 is of the program running on macOS X, and the move cursor has

a different appearance on other platforms. Listing 1-2 contains the relevant portion of code for this example,

named HelloScrollPaneMain.java.

Listing 1-2. The HelloScrollPaneMain.java Program

...code omitted...

// Create a ScrollPane containing the text

ScrollPane scrollPane = new ScrollPane();

scrollPane.setLayoutX(50);

scrollPane.setLayoutY(180);

scrollPane.setPrefWidth(400);

scrollPane.setPrefHeight(85);

scrollPane.setHbarPolicy(ScrollPane.ScrollBarPolicy.NEVER);

scrollPane.setVbarPolicy(ScrollPane.ScrollBarPolicy.NEVER);

scrollPane.setPannable(true);

scrollPane.setContent(textRef);

scrollPane.setStyle("-fx-background-color: transparent;");

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

// Combine ImageView and ScrollPane

Group root = new Group(imageView, scrollPane);

Scene scene = new Scene(root, 516, 387);

Now that you’ve learned some of the basics of JavaFX application development, let’s examine another

sample application to help you learn more JavaFX concepts and constructs.

Developing Your Second JavaFX Program: “More Cowbell!”

If you’re familiar with the Saturday Night Live television show, you may have seen the “More Cowbell”

sketch, in which Christopher Walken’s character keeps asking for “more cowbell” during a Blue Oyster Cult

recording session. The following JavaFX example program covers some of the simple but powerful concepts

of JavaFX in the context of an imaginary application that lets you select a music genre and control the

volume. Of course, “Cowbell Metal,” shortened to “Cowbell,” is one of the available genres. Figure1-8 shows

a screenshot of this application, which has a sort of retro iPhone application look.

Figure 1-8. The Audio Configuration “More Cowbell” program

Building and Running the Audio Configuration Program

Earlier in the chapter, we showed you how to create a new JavaFX project in NetBeans. For this example

(and the rest of the examples in the book), we take advantage of the fact that the code download bundle for

the book contains both NetBeans and Eclipse project files for each example. Follow the instructions in this

exercise to build and run the Audio Configuration application.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

BUILDING AND RUNNING THE AUDIO CONFIGURATION

PROGRAM USING NETBEANS

To build and execute this program using NetBeans, perform the following steps.

1. From the File menu, select the Open Project menu item. In the Open Project dialog

box, navigate to the Chapter01 directory where you extracted the book’s code

download bundle, as shown in Figure 1-9.

2. Select the AudioConfig project in the pane on the left, and click Open Project.

3. Run the project as discussed previously.

The application should appear as shown in Figure 1-8.

The Behavior of the Audio Configuration Program

When you run the application, notice that adjusting the volume slider changes the associated decibel

(dB) level displayed. Also, selecting the Muting check box disables the slider, and selecting various genres

changes the volume slider. This behavior is enabled by concepts that are shown in the code that follows,

such as the following:

• Binding to a class that contains a model

• Using change listeners

• Creating observable lists

Figure 1-9. The Chapter 01 directory in the Open Project dialog box

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

Understanding the Audio Configuration Program

The Audio Configuration program contains two source code files, shown in Listing 1-3 and Listing 1-4:

• The AudioConfigMain.java file in Listing 1-3 contains the main class, and expresses

the UI in a manner that you are familiar with from the Hello Earthrise example in

Listing 1-1.

• The AudioConfigModel.java file in Listing 1-4 contains a model for this program,

which holds the state of the application, to which the UI is bound.

Take a look at the AudioConfigMain.java source code in Listing 1-3, after which we examine it together,

focusing on concepts not covered in the previous example.

Listing 1-3. The AudioConfigMain.java Program

package projavafx.audioconfig.ui;

import javafx.application.Application;

import javafx.geometry.VPos;

import javafx.scene.Group;

import javafx.scene.Scene;

import javafx.scene.control.CheckBox;

import javafx.scene.control.ChoiceBox;

import javafx.scene.control.Slider;

import javafx.scene.paint.Color;

import javafx.scene.paint.CycleMethod;

import javafx.scene.paint.LinearGradient;

import javafx.scene.paint.Stop;

import javafx.scene.shape.Line;

import javafx.scene.shape.Rectangle;

import javafx.scene.text.Font;

import javafx.scene.text.FontWeight;

import javafx.scene.text.Text;

import javafx.stage.Stage;

import projavafx.audioconfig.model.AudioConfigModel;

public class AudioConfigMain extends Application {

// A reference to the model

AudioConfigModel acModel = new AudioConfigModel();

Text textDb;

Slider slider;

CheckBox mutingCheckBox;

ChoiceBox genreChoiceBox;

Color color = Color.color(0.66, 0.67, 0.69);

public static void main(String[] args) {

Application.launch(args);

}

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

@Override

public void start(Stage stage) {

Text title = new Text(65,12, "Audio Configuration");

title.setTextOrigin(VPos.TOP);

title.setFill(Color.WHITE);

title.setFont(Font.font("SansSerif", FontWeight.BOLD, 20));

Text textDb = new Text();

textDb.setLayoutX(18);

textDb.setLayoutY(69);

textDb.setTextOrigin(VPos.TOP);

textDb.setFill(Color.web("#131021"));

textDb.setFont(Font.font("SansSerif", FontWeight.BOLD, 18));

Text mutingText = new Text(18, 113, "Muting");

mutingText.setTextOrigin(VPos.TOP);

mutingText.setFont(Font.font("SanSerif", FontWeight.BOLD, 18));

mutingText.setFill(Color.web("#131021"));

Text genreText = new Text(18,154,"Genre");

genreText.setTextOrigin(VPos.TOP);

genreText.setFill(Color.web("#131021"));

genreText.setFont(Font.font("SanSerif", FontWeight.BOLD, 18));

slider = new Slider();

slider.setLayoutX(135);

slider.setLayoutY(69);

slider.setPrefWidth(162);

slider.setMin(acModel.minDecibels);

slider.setMax(acModel.maxDecibels);

mutingCheckBox = new CheckBox();

mutingCheckBox.setLayoutX(280);

mutingCheckBox.setLayoutY(113);

genreChoiceBox = new ChoiceBox();

genreChoiceBox.setLayoutX(204);

genreChoiceBox.setLayoutY(154);

genreChoiceBox.setPrefWidth(93);

genreChoiceBox.setItems(acModel.genres);

Stop[] stops = new Stop[]{new Stop(0, Color.web("0xAEBBCC")), new Stop(1, Color.

web("0x6D84A3"))};

LinearGradient linearGradient = new LinearGradient(0, 0, 0, 1, true, CycleMethod.

NO_CYCLE, stops);

Rectangle rectangle = new Rectangle(0, 0, 320, 45);

rectangle.setFill(linearGradient);

Rectangle rectangle2 = new Rectangle(0, 43, 320, 300);

rectangle2.setFill(Color.rgb(199, 206, 213));

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

Rectangle rectangle3 = new Rectangle(8, 54, 300, 130);

rectangle3.setArcHeight(20);

rectangle3.setArcWidth(20);

rectangle3.setFill(Color.WHITE);

rectangle3.setStroke(color);

Line line1 = new Line(9, 97, 309, 97);

line1.setStroke(color);

Line line2 = new Line(9, 141, 309, 141);

line2.setFill(color);

Group group = new Group(rectangle, title, rectangle2, rectangle3,

textDb,

slider,

line1,

mutingText,

mutingCheckBox, line2, genreText,

genreChoiceBox);

Scene scene = new Scene(group, 320, 343);

textDb.textProperty().bind(acModel.selectedDBs.asString().concat(" dB"));

slider.valueProperty().bindBidirectional(acModel.selectedDBs);

slider.disableProperty().bind(acModel.muting);

mutingCheckBox.selectedProperty().bindBidirectional(acModel.muting);

acModel.genreSelectionModel = genreChoiceBox.getSelectionModel();

acModel.addListenerToGenreSelectionModel();

acModel.genreSelectionModel.selectFirst();

stage.setScene(scene);

stage.setTitle("Audio Configuration");

stage.show();

}

Now that you’ve seen the main class in this application, let’s walk through the new concepts.

The Magic of Binding

One of the most powerful aspects of JavaFX is binding, which enables the application’s UI to easily stay in

sync with the state, or model, of the application. The model for a JavaFX application is typically held in one

or more classes, in this case the AudioConfigModel class. Look at the following snippet, taken from

Listing 1-3, in which we create an instance of this model class.

AudioConfigModel acModel = new AudioConfigModel();

There are several graphical node instances in the scene of this UI (recall that a scene consists of a

sequence of nodes). Skipping past several of them, we come to the graphical nodes shown in the following

snippet that have a property bound to the selectedDBs property in the model.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

textDb = new Text();

... code omitted

slider = new Slider();

...code omitted...

textDb.textProperty().bind(acModel.selectedDBs.asString().concat(" dB"));

slider.valueProperty().bindBidirectional(acModel.selectedDBs);

As shown in this code, the text property of the Text object is bound to an expression. The bind function

contains an expression (that includes the selectedDBs property), which is evaluated and becomes the value

of the text property. Look at Figure1-9 (or check the running application) to see the content value of the Text

node displayed to the left of the slider.

Notice also in the code that the value property of the Slider node is bound to the selectedDBs

property in the model as well, but that it uses the bindBidirectional() method. This causes the bind to

be bidirectional, so in this case when the slider is moved, the selectedDBs property in the model changes.

Conversely, when the selectedDBs property changes (as a result of changing the genre), the slider moves.

Go ahead and move the slider to demonstrate the effects of the bind expressions in the snippet. The

number of decibels displayed at the left of the slider should change as the slider is adjusted.

There are other bound properties in Listing 1-3 that we point out when we walk through the model

class. Before leaving the UI, we point out some color-related concepts in this example.

Colors and Gradients

The following snippet from Listing 1-3 contains an example of defining a color gradient pattern, as well as

defining colors.

Stop[] stops = new Stop[]{new Stop(0, Color.web("0xAEBBCC")), new Stop(1, Color.

web("0x6D84A3"))};

LinearGradient linearGradient = new LinearGradient(0, 0, 0, 1, true, CycleMethod.NO_CYCLE,

stops);

Rectangle rectangle = new Rectangle(0, 0, 320, 45);

rectangle.setFill(linearGradient);

If the JavaFX API docs are handy, first take a look at the javafx.scene.shape.Rectangle class and

notice that it inherits a property named fill that is of type javafx.scene.paint.Paint. Looking at

the JavaFX API docs for the Paint class, you’ll see that the Color, ImagePattern, LinearGradient, and

RadialGradient classes are subclasses of Paint. This means that the fill of any shape can be assigned a

color, pattern, or gradient.

To create a LinearGradient, as shown in the code, you need to define at least two stops, which define

the location and color at that location. In this example, the offset value of the first stop is 0.0, and the offset

value of the second stop is 1.0. These are the values at both extremes of the unit square, the result being that

the gradient will span the entire node (in this case a Rectangle). The direction of the LinearGradient is

controlled by its startX, startY, endX, and endY values, which we pass via the constructor. In this case, the

direction is only vertical because the startY value is 0.0 and the endY value is 1.0, whereas the startX and

endX values are both 0.0.

Note that in the Hello Earthrise example in Listing 1-1, the constant named Color.WHITE was used to

represent the color white. In the previous snippet, the web function of the Color class is used to define a

color from a hexadecimal value.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

The Model Class for the Audio Configuration Example

Take a look at the source code for the AudioConfigModel class in Listing 1-4.

Listing 1-4. The Source Code for AudioConfigModel.java

package projavafx.audioconfig.model;

import javafx.beans.Observable;

import javafx.beans.property.BooleanProperty;

import javafx.beans.property.IntegerProperty;

import javafx.beans.property.SimpleBooleanProperty;

import javafx.beans.property.SimpleIntegerProperty;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.scene.control.SingleSelectionModel;

/**

* The model class that the AudioConfigMain class uses

public class AudioConfigModel {

/**

* The minimum audio volume in decibels

public double minDecibels = 0.0;

/**

* The maximum audio volume in decibels

public double maxDecibels = 160.0;

/**

* The selected audio volume in decibels

public IntegerProperty selectedDBs = new SimpleIntegerProperty(0);

/**

* Indicates whether audio is muted

public BooleanProperty muting = new SimpleBooleanProperty(false);

/**

* List of some musical genres

public ObservableList genres = FXCollections.observableArrayList(

"Chamber",

"Country",

"Cowbell",

"Metal",

"Polka",

"Rock"

);

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

/**

* A reference to the selection model used by the Slider

public SingleSelectionModel genreSelectionModel;

/**

* Adds a change listener to the selection model of the ChoiceBox, and contains

* code that executes when the selection in the ChoiceBox changes.

public void addListenerToGenreSelectionModel() {

genreSelectionModel.selectedIndexProperty().addListener((Observable o) -> {

int selectedIndex = genreSelectionModel.selectedIndexProperty().getValue();

switch(selectedIndex) {

case 0: selectedDBs.setValue(80);

break;

case 1: selectedDBs.setValue(100);

break;

case 2: selectedDBs.setValue(150);

break;

case 3: selectedDBs.setValue(140);

break;

case 4: selectedDBs.setValue(120);

break;

case 5: selectedDBs.setValue(130);

}

});

}

Using InvalidationListeners and Lambda Expressions

In the “The Magic of Binding” section, we showed how you can use property binding for dynamically

changing parameters. There is another, more low-level but also more flexible way of achieving this, using

ChangeListeners and InvalidationListeners. These concepts are discussed in more detail in Chapter 4.

In our example, we add an InvalidationListener to the selectedIndexProperty of the

genreSelectionModel. When the value of the selectedIndexProperty changes, and when we didn’t retrieve

it yet, the invalidated(Observable) method on the added InvalidationListener will be called. In the

implementation of this method, we retrieve the value of the selectedIndexProperty, and based on its value,

the value of the selectedDBs property is changed. This is achieved with the following code:

public void addListenerToGenreSelectionModel() {

genreSelectionModel.selectedIndexProperty().addListener((Observable o) -> {

int selectedIndex = genreSelectionModel.selectedIndexProperty().getValue();

switch(selectedIndex) {

case 0: selectedDBs.setValue(80);

break;

case 1: selectedDBs.setValue(100);

break;

case 2: selectedDBs.setValue(150);

break;

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

case 3: selectedDBs.setValue(140);

break;

case 4: selectedDBs.setValue(120);

break;

case 5: selectedDBs.setValue(130);

}

});

}

Note that we are using a lambda expression here rather than creating a new instance of the

InvalidationListener and implementing its single abstract method invalidated.

■Tip One of the major enhancements in JavaFX 8 is the fact that it is using Java 8. As a consequence,

abstract classes with a single abstract method can easily be replaced by lambda expressions, which clearly

enhance the readability of the code.

What causes selectedIndexProperty of the genreSelectionModel to change? To see the answer to this,

we have to revisit some code in Listing 1-3. In the following code snippet, the setItems method of ChoiceBox

is used to populate the ChoiceBox with items that each contain a genre.

genreChoiceBox = new ChoiceBox();

genreChoiceBox.setLayoutX(204);

genreChoiceBox.setLayoutY(154);

genreChoiceBox.setPrefWidth(93);

genreChoiceBox.setItems(acModel.genres);

This snippet from the model code in Listing 1-4 contains the collection to which the ComboBox items are

bound:

/**

* List of some musical genres

public ObservableList genres = FXCollections.observableArrayList(

"Chamber",

"Country",

"Cowbell",

"Metal",

"Polka",

"Rock"

);

When the user chooses a different item in the ChoiceBox, the invalidationListener is invoked.

Looking again at the code in the invalidationListener, you’ll see that the value of the selectedDBs

property changes, which as you may recall, is bidirectionally bound to the slider. This is why the slider moves

when you select a genre in the combo box. Go ahead and test this by running the Audio Config program.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

■Note Associating the items property of the ChoiceBox with an ObservableList causes the items in the

ChoiceBox to be automatically updated when the elements in the underlying collection are modified.

Surveying JavaFX Features

We close this chapter by surveying many of the features of JavaFX, some of which are a review for you. We do

this by describing several of the more commonly used packages and classes in the Java SDK API.

The javafx.stage package contains the following:

• The Stage class, which is the top level of the UI containment hierarchy for any

JavaFX application, regardless of where it is deployed (e.g., the desktop, a browser, or

a cell phone).

• The Screen class, which represents the displays on the machine in which a JavaFX

program is running. This enables you to get information about the screens, such as

size and resolution.

The javafx.scene package contains some classes that you’ll use often:

• The Scene class is the second level of the UI containment hierarchy for JavaFX

applications. It includes all of the UI elements contained in the application. These

elements are called graphical nodes, or simply nodes.

• The Node class is the base class of all of the graphical nodes in JavaFX. UI elements

such as text, images, media, shapes, and controls (e.g., text boxes and buttons) are all

subclasses of Node. Take a moment to look at the variables and functions in the Node

class to appreciate the capabilities provided to all of its subclasses, including bounds

calculation and mouse and keyboard event handling.

• The Group class is a subclass of the Node class. Its purpose includes grouping nodes

together into a single coordinate space and allowing transforms (e.g., rotate) to be

applied to the whole group. Also, attributes of the group that are changed

(e.g., opacity) apply to all of the nodes contained within the group.

Several packages begin with javafx.scene that contain subclasses of Node of various types. Examples

include the following:

• The javafx.scene.image package contains the Image and ImageView classes,

which enable images to be displayed in the Scene. The ImageView class is a

subclass of Node.

• The javafx.scene.shape package contains several classes for drawing shapes such

as Circle, Rectangle, Line, Polygon, and Arc. The base class of the shapes, named

Shape, contains an attribute named fill that enables you to specify a color, pattern,

or gradient with which to fill the shape.

• The javafx.scene.text package contains the Text class for drawing text in the

scene. The Font class enables you to specify the font name and size of the text.

• The javafx.scene.media package has classes that enable you to play media. The

MediaView class is a subclass of Node that displays the media.

• The javafx.scene.chart package has classes that help you easily create area, bar,

bubble, line, pie, and scatter charts. The corresponding UI classes in this package are

AreaChart, BarChart, BubbleChart, LineChart, PieChart, and ScatterChart.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

Here are some other packages in the JavaFX 8 API.

• The javafx.scene.control package contains several UI controls, each one having

the ability to be skinned and styled via CSS.

• The javafx.scene.transform package enables you to transform nodes (scale, rotate,

translate, shear, and affine).

• The javafx.scene.input package contains classes such as MouseEvent and

KeyEvent that provide information about these events from within an event handler

function such as the Node class’s onMouseClicked event.

• The javafx.scene.layout package contains several layout containers, including

HBox, VBox, BorderPane, FlowPane, StackPane, and TilePane.

• The javafx.scene.effect package contains easy-to-use effects such as Reflection,

Glow, Shadow, BoxBlur, and Lighting.

• The javafx.scene.web package contains classes for easily embedding a web

browser in your JavaFX applications.

• The javafx.animation package contains time-based interpolations typically used

for animation and convenience classes for common transitions.

• The javafx.beans, javafx.beans.binding, javafx.beans.property, and javafx.

beans.value packages contain classes that implement properties and binding.

• The javafx.fxml package contains classes that implement a very powerful facility

known as FXML, a markup language for expressing JavaFX UIs in XML.

• The javafx.util package contains utility classes such as the Duration class used in

the HelloEarthRise example.

• The javafx.print package contains utilities for printing (parts of) the layout of a

JavaFX application.

• The javafx.embed.swing package contains the required functionality for embedded

JavaFX applications in a Swing application.

• The javafx.embed.swt package contains the required functionality for embedding

JavaFX applications in an SWT application.

Take a look at the JavaFX API docs again in light of this information to get a deeper sense of how you can

use its capabilities.

Summary

Congratulations! You learned a lot about JavaFX in this chapter, including

• JavaFX is rich-client Java, and is needed by the software development industry.

• Since the Java 9 release, the JavaFX APIs are split in a number of modules that follow

the Java 9 conventions and rules.

• Some of the high points of the history of JavaFX.

• Where to find JavaFX resources, including the Java SDK, NetBeans, Scene Builder,

ScenicView, and the API documentation.

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

• How to compile and run a JavaFX program from the command line.

• How to build and run a JavaFX program using NetBeans.

• How to use several of the classes in the JavaFX API.

• How to create a class in JavaFX and use it as a model that contains the state of a

JavaFX application.

• How to use property binding to keep the UI easily in sync with the model.

We also looked at many of the available API packages and classes, and you learned how you can

leverage their capabilities. Now that you have a jump-start in JavaFX, you can begin examining the details of

JavaFX in Chapter 2.

Resources

For some background information on JavaFX, you can consult the following resources.

• This book’s code examples: The Source Code/Download section on the Apress

web site (www.apress.com).

• Java Posse #163: Newscast for February 8, 2008: This is a podcast of a Java Posse

interview with Josh Marinacci and Richard Bair on the subject of JavaFX.

(http://javaposse.com/java_posse_163_newscast_for_feb_8th_2008).

• “Congratulations to the JavaFX Script Compiler Team—The Elephant Is Through the

Door”: A blog post by one of this book’s authors, Jim Weaver, that congratulated the

JavaFX compiler team for reaching a tipping point in the project.

(http://learnjavafx.typepad.com/weblog/2007/12/congratulations.html).

• Oracle’s JavaFX.com site: The home page for JavaFX where you can download the

JavaFX SDK and other resource for JavaFX. (www.javafx.com)

• FX Experience: A blog maintained by Oracle JavaFX Engineers Richard Bair, Jasper

Potts, and Jonathan Giles. (http://fxexperience.com)

• Jim Weaver’s JavaFX Blog: A blog, started in October 2007, the stated purpose of

which is to help the reader become a “JavaFXpert.” (http://javafxpert.com)

• Weiqi Gao’s Observation: A blog in which Weiqi Gao shares his experience in

software development. (http://weiqigao.blogspot.com)

• Dean Iverson’s Pleasing Software Blog: A blog in which Dean Iverson shares his

innovations in JavaFX and GroovyFX. (http://pleasingsoftware.blogspot.com)

• Steve on Java: A blog in which Stephen Chin keeps the world updated on his tireless

exploits in the areas of JavaFX, Java, and Agile development. (http://steveonjava.com)

• Johan’s blog: A blog in which Johan Vos discusses JavaFX and Java Enterprise.

(http://blogs.lodgon.com/johan)

• JavaFX Eclipse Plugin: Eclipse tooling for JavaFX 2.0, developed by Tom Shindl.

(http://tomsondev.bestsolution.at/2011/06/24/introducing-efxclipse/)

CHAPTER 1 ■ GETTING A JUMP-START IN JAVAFX

• Scenic View: An application for inspecting the scenegraph of your JavaFX

applications. (http://scenic-view.org)

• Gluon web site: (http://gluonhq.com)

• ControlsFX, high-quality custom JavaFX controls. (http://controlsfx.org)

• JFXtras.org, high-quality custom JavaFX controls. (http://jfxtras.org)

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8_2

CHAPTER 2

Creating a User Interface in JavaFX

Life is the art of drawing without an eraser.

—John W. Gardner

Chapter 1 gave you a jump start using JavaFX by covering the basics in developing and executing JavaFX

programs. Now we cover many of the details about creating a UI in JavaFX that were glossed over in Chapter 1.

First on the agenda is to get you acquainted with the theater metaphor used by JavaFX to express UIs and to

cover the significance of what we call a node-centric UI.

Programmatic vs. Declarative Creation of the User Interface

The JavaFX platform provides two complementary ways for creating a UI. In this chapter, we discuss how

you can use the Java API to create and populate a UI. This is a convenient way for Java developers who are

used to writing code to leverage APIs.

Designers often use graphical tools that allow them to declare rather than program a UI. The JavaFX

platform defines FXML, which is an XML-based markup language that can be used to declaratively describe

a UI. Furthermore, a graphical tool called Scene Builder is made available by Gluon, and this tool is capable

of working with FXML files. The use of Scene Builder is demonstrated in Chapter 4.

Note that parts of a UI can be created using the API, where other parts can be created using Scene

Builder. The FXML APIs provide the bridge and the integration glue between the two approaches.

Introduction to Node-Centric UIs

Creating a UI in JavaFX is like creating a theater play, in that it typically consists of these very simple steps:

1. Create a stage on which your program will perform. The realization of your stage

will depend on the platform on which it is deployed (e.g., a desktop, a tablet, or

an embedded system).

2. Create a scene in which the actors and props (nodes) will visually interact with

each other and the audience (the users of your program). Like any good set

designer in the theater business, good JavaFX developers endeavor to make their

scenes visually appealing. To this end, it is often a good idea to collaborate with a

graphic designer on your “theater play.”

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

3. Create nodes in the scene. These nodes are subclasses of the javafx.scene.Node

class, which include UI controls, shapes, Text (a type of shape), images, media

players, embedded browsers, and custom UI components that you create. Nodes

can also be containers for other nodes, often providing cross-platform layout

capabilities. A scene has a scene graph that contains a directed graph of nodes.

Individual nodes and groups of nodes can be manipulated in many ways

(e.g., moving, scaling, and setting opacity) by changing the values of a very rich

set of Node properties.

4. Create variables and classes that represent the model for the nodes in the scene.

As discussed in Chapter 1, one of the very powerful aspects of JavaFX is binding,

which enables the application’s UI to stay in sync easily with the state, or model,

of the application.

■Note Most of the examples in this chapter are small programs intended to demonstrate UI concepts. For

this reason, the model in many of these examples consists of variables appearing in the main program, rather

than being contained by separate Java classes (e.g., the AudioConfigModel class in Chapter 1).

5. Create event handlers, such as onMousePressed, that allow the user to interact

with your program. Often these event handlers manipulate instance variables

in the model. Many of these handlers require a single abstract method to be

implemented, and as a consequence provide a perfect opportunity to use

lambda expressions.

6. Create timelines and transitions that animate your scene. For example, you might

want the thumbnail images of a list of books to move smoothly across the scene

or a page in the UI to fade into view. You might simply want a ping-pong ball to

move across the scene, bouncing off walls and paddles; this is demonstrated later

in this chapter in the “The Zen of Node Collision Detection” section.

Let’s get started with a closer look at step 1, in which we examine the capabilities of the stage.

Setting the Stage

The appearance and functionality of your stage will depend on the platform on which it is deployed. For

example, if deployed in a mobile device, or an embedded device with a touch screen, your stage might be the

whole touch screen. The stage for a JavaFX program deployed in an X11 system will be a window.

Understanding the Stage Class

The Stage class is the top-level container for any JavaFX program that has a graphical UI. It has several

properties and methods that allow it, for example, to be positioned, sized, given a title, made invisible, or

given some degree of opacity. The two best ways that we know of to learn the capabilities of a class are to

study the JavaFX API documentation and to examine (and write) programs that use it. In this section, we ask

you to do both, beginning with looking at the API docs.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Go ahead and explore the documentation for each of the properties and methods in the Stage class,

remembering to click the links to reveal more detailed information. When you’re finished, come back

and we’ll show you a program that demonstrates many of the properties and methods available in the

Stage class.

Using the Stage Class: The StageCoach Example

A screenshot of the unassuming, purposely ill-fitting StageCoach example program is shown in Figure2-2.

Figure 2-1. A portion of the Stage class documentation in the JavaFX API

The JavaFX API docs, just like the other Java API docs, are available online at the http://download.java.

net/java/jdk9/docs/api/overview-summary. Open the index.html file in your browser, navigate to the

javafx.stage package in the javafx.graphics module, and select the Stage class. That page should contain

tables of Properties, Constructors, and Methods, including select ones shown in the excerpt in Figure2-1.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

The StageCoach program was created to coach you through the finer points of using the Stage class

and related classes such as StageStyle and Screen. Also, we use this program to show you how to get

arguments passed into the program. Before walking through the behavior of the program, go ahead and

open the project. Follow the instructions for building and executing the Audio-Config project in Chapter 1.

The project file is located in the Chapter02 directory subordinate to where you extracted the book’s code

download bundle.

EXAMINING THE BEHAVIOR OF THE STAGECOACH PROGRAM

When the program starts, its appearance should be similar to the screenshot in Figure 2-2. To fully

examine its behavior, perform the following steps. Note that for instructional purposes, the property and

method names on the UI correspond to the properties and methods in the Stage instance.

Notice that the StageCoach program’s window is initially displayed near the top of the screen, with its

horizontal position in the center of the screen. Drag the program’s window and observe that the x and y

values near the top of the UI are dynamically updated to reflect its position on the screen.

Resize the program’s window and observe that the width and height values change to reflect the

width and height of the Stage. Note that this size includes the decorations (title bar and borders) of the

window.

Click the program (or cause it to be in focus some other way) and notice that the focused value is true.

Cause the window to lose focus, perhaps by clicking somewhere else on the screen, and notice that the

focused value becomes false.

Figure 2-2. A screenshot of the StageCoach example

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Clear the resizable check box and then notice that the resizable value becomes false. Then try to resize

the window and note that it is not permitted. Select the resizable check box again to make the window

resizable.

Select the fullScreen check box. Notice that the program occupies the full screen and that the window

decorations are not visible. Clear the fullScreen check box to restore the program to its former size.

Edit the text in the text field beside the title label, noticing that the text in the window’s title bar is

changed to reflect the new value.

Drag the window to partially cover another window, and click toBack(). Notice that this places the

program behind the other window, therefore causing the z-order to change.

With a portion of the program’s window behind another window, but with the toFront() button visible,

click that button. Notice that the program’s window is placed in front of the other window.

Click close(), noticing that the program exits.

Invoke the program again, passing in the string "undecorated". If invoking from NetBeans, use the

Project Properties dialog box to pass this argument as shown in Figure 2-3. The "undecorated" string

is passed as a parameter without a value.

Figure 2-3. Using NetBeans’ Project Properties dialog box to pass an argument into the program

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Notice that this time the program appears without any window decorations, but the white background

of the program includes the background of the window. The black outline in the screenshot shown in

Figure 2-4 is part of the desktop background.

Exit the program again by clicking close( ), and then run the program again, passing in the string

"transparent" as the argument. Notice that the program appears in the shape of a rounded rectangle,

as shown in Figure 2-5.

■Note You might have noticed that the screenshots in Figures 2-4 and 2-5 have y values that are negative.

This is because the application was positioned on the secondary monitor, logically above the primary monitor,

when the screenshots were taken.

Figure 2-4. The StageCoach program after being invoked with the undecorated argument

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Click the application’s UI, drag it around the screen, and click close( )when finished. Congratulations

on sticking with this 13-step exercise! Performing this exercise has prepared you to relate to the code

behind it, which we now walk through together.

Understanding the StageCoach Program

Take a look at the code for the StageCoach program in Listing 2-1 before we point out new and relevant

concepts.

Listing 2-1. StageCoachMain.java

package projavafx.stagecoach.ui;

import java.util.List;

import javafx.application.Application;

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

import javafx.geometry.Rectangle2D;

import javafx.geometry.VPos;

import javafx.scene.Group;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.control.CheckBox;

import javafx.scene.control.Label;

import javafx.scene.control.TextField;

import javafx.scene.input.MouseEvent;

import javafx.scene.layout.HBox;

import javafx.scene.layout.VBox;

Figure 2-5. The StageCoach program after being invoked with the transparent argument

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

import javafx.scene.paint.Color;

import javafx.scene.shape.Rectangle;

import javafx.scene.text.Text;

import javafx.stage.Screen;

import javafx.stage.Stage;

import javafx.stage.StageStyle;

import javafx.stage.WindowEvent;

public class StageCoachMain extends Application {

StringProperty title = new SimpleStringProperty();

Text textStageX;

Text textStageY;

Text textStageW;

Text textStageH;

Text textStageF;

CheckBox checkBoxResizable;

CheckBox checkBoxFullScreen;

double dragAnchorX;

double dragAnchorY;

public static void main(String[] args) {

Application.launch(args);

}

@Override

public void start(Stage stage) {

StageStyle stageStyle = StageStyle.DECORATED;

List<String> unnamedParams = getParameters().getUnnamed();

if (unnamedParams.size() > 0) {

String stageStyleParam = unnamedParams.get(0);

if (stageStyleParam.equalsIgnoreCase("transparent")) {

stageStyle = StageStyle.TRANSPARENT;

} else if (stageStyleParam.equalsIgnoreCase("undecorated")) {

stageStyle = StageStyle.UNDECORATED;

} else if (stageStyleParam.equalsIgnoreCase("utility")) {

stageStyle = StageStyle.UTILITY;

}

final Stage stageRef = stage;

Group rootGroup;

TextField titleTextField;

Button toBackButton = new Button("toBack()");

toBackButton.setOnAction(e -> stageRef.toBack());

Button toFrontButton = new Button("toFront()");

toFrontButton.setOnAction(e -> stageRef.toFront());

Button closeButton = new Button("close()");

closeButton.setOnAction(e -> stageRef.close());

Rectangle blue = new Rectangle(250, 350, Color.SKYBLUE);

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

blue.setArcHeight(50);

blue.setArcWidth(50);

textStageX = new Text();

textStageX.setTextOrigin(VPos.TOP);

textStageY = new Text();

textStageY.setTextOrigin(VPos.TOP);

textStageH = new Text();

textStageH.setTextOrigin(VPos.TOP);

textStageW = new Text();

textStageW.setTextOrigin(VPos.TOP);

textStageF = new Text();

textStageF.setTextOrigin(VPos.TOP);

checkBoxResizable = new CheckBox("resizable");

checkBoxResizable.setDisable(stageStyle == StageStyle.TRANSPARENT

|| stageStyle == StageStyle.UNDECORATED);

checkBoxFullScreen = new CheckBox("fullScreen");

titleTextField = new TextField("Stage Coach");

Label titleLabel = new Label("title");

HBox titleBox = new HBox(titleLabel, titleTextField);

VBox contentBox = new VBox(

textStageX, textStageY, textStageW, textStageH, textStageF,

checkBoxResizable, checkBoxFullScreen,

titleBox, toBackButton, toFrontButton, closeButton);

contentBox.setLayoutX(30);

contentBox.setLayoutY(20);

contentBox.setSpacing(10);

rootGroup = new Group(blue, contentBox);

Scene scene = new Scene(rootGroup, 270, 370);

scene.setFill(Color.TRANSPARENT);

//when mouse button is pressed, save the initial position of screen

rootGroup.setOnMousePressed((MouseEvent me) -> {

dragAnchorX = me.getScreenX() - stageRef.getX();

dragAnchorY = me.getScreenY() - stageRef.getY();

});

//when screen is dragged, translate it accordingly

rootGroup.setOnMouseDragged((MouseEvent me) -> {

stageRef.setX(me.getScreenX() - dragAnchorX);

stageRef.setY(me.getScreenY() - dragAnchorY);

});

textStageX.textProperty().bind(new SimpleStringProperty("x: ")

.concat(stageRef.xProperty().asString()));

textStageY.textProperty().bind(new SimpleStringProperty("y: ")

.concat(stageRef.yProperty().asString()));

textStageW.textProperty().bind(new SimpleStringProperty("width: ")

.concat(stageRef.widthProperty().asString()));

textStageH.textProperty().bind(new SimpleStringProperty("height: ")

.concat(stageRef.heightProperty().asString()));

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

textStageF.textProperty().bind(new SimpleStringProperty("focused: ")

.concat(stageRef.focusedProperty().asString()));

stage.setResizable(true);

checkBoxResizable.selectedProperty()

.bindBidirectional(stage.resizableProperty());

checkBoxFullScreen.selectedProperty().addListener((ov, oldValue, newValue) -> {

stageRef.setFullScreen(checkBoxFullScreen.selectedProperty().getValue());

});

title.bind(titleTextField.textProperty());

stage.setScene(scene);

stage.titleProperty().bind(title);

stage.initStyle(stageStyle);

stage.setOnCloseRequest((WindowEvent we) -> {

System.out.println("Stage is closing");

});

stage.show();

Rectangle2D primScreenBounds = Screen.getPrimary().getVisualBounds();

stage.setX((primScreenBounds.getWidth() - stage.getWidth()) / 2);

stage.setY((primScreenBounds.getHeight() - stage.getHeight()) / 4);

}

Obtaining Program Arguments

The first new concept introduced by this program is the ability to read the arguments passed into a JavaFX

program. The javafx.application package includes a class named Application that has application life

cycle-related methods such as launch(), init(), start(), and stop(). Another method in the Application

class is getParameters(), which gives the application access to the arguments passed on the command line,

as well as unnamed parameters and <name,value> pairs specified in a JNLP file. Here’s the relevant code

snippet from Listing 2-1 for your convenience:

StageStyle stageStyle = StageStyle.DECORATED;

List<String> unnamedParams = getParameters().getUnnamed();

if (unnamedParams.size() > 0) {

String stageStyleParam = unnamedParams.get(0);

if (stageStyleParam.equalsIgnoreCase("transparent")) {

stageStyle = StageStyle.TRANSPARENT;

}

else if (stageStyleParam.equalsIgnoreCase("undecorated")) {

stageStyle = StageStyle.UNDECORATED;

}

else if (stageStyleParam.equalsIgnoreCase("utility")) {

stageStyle = StageStyle.UTILITY;

}

...code omitted...

stage.initStyle(stageStyle);

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Setting the Style of the Stage

We’re using the getParameters() method described previously to get an argument that tells us whether the

stage style of the Stage instance should be its default (StageStyle.DECORATED), StageStyle.UNDECORATED,

or StageStyle.TRANSPARENT. You saw the effects of each in the preceding exercise, specifically in Figures2-2,

2-4, and 2-5.

Controlling Whether a Stage Is Resizable

As shown in the following excerpt from Listing 2-1, to make this application’s window initially resizable

we’re calling the setResizable() method of the Stage instance. To keep the resizable property of the Stage

and the state of the resizable check box synchronized, the check box is bidirectionally bound to the resizable

property of the Stage instance.

stage.setResizable(true);

checkBoxResizable.selectedProperty()

.bindBidirectional(stage.resizableProperty());

■Tip A property that is bound cannot be explicitly set. In the code preceding the snippet, the resizable

property is set with the setResizable() method before the property is bound in the next line.

Making a Stage Full Screen

Making the Stage show in full-screen mode is done by setting the fullScreen property of the Stage instance

to true. As shown in the following snippet from Listing 2-1, to keep the fullScreen property of the Stage and

the state of the fullScreen check box synchronized, the fullScreen property of the Stage instance is updated

whenever the selected property of the checkBox changes.

checkBoxFullScreen.selectedProperty().addListener((ov, oldValue, newValue) -> {

stageRef.setFullScreen(checkBoxFullScreen.selectedProperty().getValue());

});

Note that the full-screen mode doesn’t have an impact on some platforms. On mobile, for example, the

JavaFX applications will by default be in full-screen mode, and the distribution for JavaFX on Mobile does

not allow a non-full-screen option because that does not make sense in the world of mobile apps on devices.

Working with the Bounds of the Stage

The bounds of the Stage are represented by its x, y, width, and height properties, the values of which can

be changed at will. This is demonstrated in the following snippet from Listing 2-1 where the Stage is placed

near the top and centered horizontally on the primary screen after the Stage has been initialized.

Rectangle2D primScreenBounds = Screen.getPrimary().getVisualBounds();

stage.setX((primScreenBounds.getWidth() - stage.getWidth()) / 2);

stage.setY((primScreenBounds.getHeight() - stage.getHeight()) / 4);

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

We’re using the Screen class of the javafx.stage package to get the dimensions of the primary screen

so that the desired position may be calculated.

■Note We intentionally made the Stage in Figure 2-2 larger than the Scene contained within to make the

following point. The width and height of a Stage include its decorations (title bar and border), which vary on

different platforms. It is therefore usually better to control the width and height of the Scene (we show you how

in a bit) and let the Stage conform to that size.

Drawing Rounded Rectangles

As pointed out in Chapter 1, you can put rounded corners on a Rectangle by specifying the arcWidth and

arcHeight for the corners. The following snippet from Listing 2-1 draws the sky-blue rounded rectangle that

becomes the background for the transparent window example in Figure2-5.

Rectangle blue = new Rectangle(250, 350, Color.SKYBLUE);

blue.setArcHeight(50);

blue.setArcWidth(50);

In this snippet, we use the three-argument constructor of Rectangle, in which the first two parameters

specify the width and the height of the Rectangle. The third parameter defines the fill color of the

Rectangle.

As you can detect from this code snippet, rounded rectangles are easily created using the

arcWidth(double v) and arcHeight(double v) methods, where the parameter v defines the diameter of

the arc.

Dragging the Stage on the Desktop When a Title Bar Isn’t Available

The Stage may be dragged on the desktop using its title bar, but in the case where its StageStyle is

UNDECORATED or TRANSPARENT, the title bar isn’t available. To allow dragging in this circumstance, we added

the code shown in the following code snippet from Listing 2-1.

//when mouse button is pressed, save the initial position of screen

rootGroup.setOnMousePressed((MouseEvent me) -> {

dragAnchorX = me.getScreenX() - stageRef.getX();

dragAnchorY = me.getScreenY() - stageRef.getY();

});

//when screen is dragged, translate it accordingly

rootGroup.setOnMouseDragged((MouseEvent me) -> {

stageRef.setX(me.getScreenX() - dragAnchorX);

stageRef.setY(me.getScreenY() - dragAnchorY);

});

Event handlers are covered a little later in the chapter, but as a preview, the lambda expression that is

supplied to the onMouseDragged() method is called when the mouse is dragged. As a result, the values of the

x and y properties are altered by the number of pixels that the mouse was dragged, which moves the Stage

as the mouse is dragged.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Using UI Layout Containers

When developing applications that will be deployed in a cross-platform environment or are

internationalized, it is good to use layout containers. One advantage of using layout containers is that when

the node sizes change, their visual relationships with each other are predictable. Another advantage is that

you don’t have to calculate the location of each node that you place in the UI.

The following snippet from Listing 2-1 shows how the VBox layout class, located in the javafx.

scene.layout package, is used to arrange the Text, CheckBox, HBox, and Button nodes in a column. This

snippetalso shows that layout containers may be nested, as demonstrated by the HBox with the name

titleBox that arranges the Label and TextField nodes horizontally. Note that several lines of code are

omitted from this snippet to show the layout nesting clearly:

HBox titleBox = new HBox(titleLabel, titleTextField);

VBox contentBox = new VBox(

textStageX, textStageY, textStageW, textStageH, textStageF,

checkBoxResizable, checkBoxFullScreen,

titleBox, toBackButton, toFrontButton, closeButton);

The VBox layout class is similar to the Group class discussed in the Hello Earthrise example in Chapter 1,

in that it contains a collection of nodes within it. Unlike the Group class, the VBox class arranges its contained

nodes vertically, spacing them apart from each other by the number of pixels specified in the spacing

property.

Ascertaining Whether the Stage Is in Focus

To know whether your JavaFX application is the one that currently is in focus (e.g., keys pressed are delivered

to the application), simply consult the focused property of the Stage instance. The following snippet from

Listing 2-1 demonstrates this.

textStageF.textProperty().bind(new SimpleStringProperty("focused: ")

.concat(stageRef.focusedProperty().asString()));

Controlling the Z-Order of the Stage

In the event that you want your JavaFX application to appear on top of other windows or behind other

windows onscreen, you can use the toFront() and toBack() methods, respectively. The following snippet

from Listing 2-1 shows how this is accomplished.

Button toBackButton = new Button("toBack()");

toBackButton.setOnAction(e -> stageRef.toBack());

Button toFrontButton = new Button("toFront()");

toFrontButton.setOnAction(e -> stageRef.toFront());

Once again, note how using lambda expressions enhances the readability of the code. It is clear from

the first line of the snippet that a Button named toBackButton is created with a text "toBack()" being

displayed on the button. The second line defines that when an action is performed on the button (i.e., the

button is clicked), the stage is sent to the back.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Without using a lambda expression, the second line would be replaced by a call to an anonymous inner

class as follows:

toBackButton.setOnAction(new EventHandler<javafx.event.ActionEvent>() {

@Override public void handle(javafx.event.ActionEvent e) {

stageRef.toBack();

}

})

This approach not only requires more code, it doesn’t allow the Java runtime to optimize calls and it is

much less readable.

Closing the Stage and Detecting When It Is Closed

As shown in the following code snippet from Listing 2-1, you can programmatically close the Stage with its

close() method. This is important when the stageStyle is undecorated or transparent, because the close

button supplied by the windowing system is not present.

Button closeButton = new Button("close()");

closeButton.setOnAction(e -> stageRef.close());

By the way, you can detect when there is an external request to close the Stage by using the

onCloseRequest event handler as shown in the following code snippet from Listing 2-1.

stage.setOnCloseRequest((WindowEvent we) -> {

System.out.println("Stage is closing");

});

To see this in action, run the application without any arguments so that it has the appearance of

Figure2-2 shown previously, and then click the close button on the decoration of the window.

■Tip The onCloseRequest event handler is only called when there is an external request to close the

window. This is why the “Stage is closing” message doesn’t appear in this example when you click the button

labeled “close()”.

Making a Scene

Continuing on with our theater metaphor for creating JavaFX applications, we now discuss putting a Scene

on the Stage. The Scene, as you recall, is the place in which the actors and props (nodes) visually interact

with each other and the audience (the users of your program).

Using the Scene Class: The OnTheScene Example

As with the Stage class, we’re going to use a contrived example application to demonstrate and teach the

details of the available capabilities in the Scene class. See Figure2-6 for a screenshot of the OnTheScene

program.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Go ahead and run the OnTheScene program, putting it through its paces as instructed in the following

exercise. We follow up with a walkthrough of the code so that you can associate the behavior with the code

behind it.

EXAMINING THE BEHAVIOR OF THE ONTHESCENE PROGRAM

When the OnTheScene program starts, its appearance should be similar to the screenshot in Figure 2-6.

To fully examine its behavior, perform the following steps. Note that the property and method names

on the UI correspond to the property and methods in the Scene, Stage, and Cursor classes, as well as

Cascading Style Sheets (CSS) file names.

1. Drag the application around, noticing that although the Stage x and y values are

relative to the screen, the Scene’s x and y values are relative to the upper-left

corner of the exterior of the Stage (including decorations). Similarly, the width and

height of the Scene are the dimensions of the interior of the Stage (which doesn’t

include decorations). As noted earlier, it is best to set the Scene width and height

explicitly (or let them be set implicitly by assuming the size of the contained nodes),

rather than setting the width and height of a decorated Stage.

2. Resize the program’s window and observe that the width and height values change

to reflect the width and height of the Scene. Also notice that the position of much of

the content in the scene changes as you change the height of the window.

3. Click the lookup( ) hyperlink and notice that the string “Scene height: XXX.X” prints

in the console, where XXX.X is the Scene’s height.

4. Hover the mouse over the choice box drop-down list and notice that it becomes

slightly larger. Click the choice box and choose a cursor style in the list, noticing

that the cursor changes to that style. Be careful about choosing NONE, as the

cursor might disappear, and you’ll need to use the keyboard (or psychic powers

while moving the mouse) to make it visible.

Figure 2-6. The OnTheScene program when first invoked

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

5. Drag the slider on the left, noticing that the fill color of the Scene changes and that

the string at the top of the Scene reflects the red-green-blue (RGB) and opacity

values of the current fill color.

6. Notice the appearance and content of the text on the Scene. Then click

changeOfScene.css, noticing that the color and font and content characteristics for

some of the text on the Scene changes as shown in the screenshot in Figure 2-7.

7. Click OnTheScene.css, noticing that the color and font characteristics return to their

previous state.

Now that you've explored this example program that demonstrates features of the Scene, let’s walk

through the code!

Understanding the OnTheScene Program

Take a look at the code for the OnTheScene program in Listing 2-2, before we point out new and relevant

concepts.

Listing 2-2. OnTheSceneMain.java

import javafx.application.Application;

import javafx.beans.property.DoubleProperty;

import javafx.beans.property.SimpleDoubleProperty;

import javafx.beans.property.SimpleStringProperty;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.geometry.HPos;

import javafx.geometry.Insets;

import javafx.geometry.Orientation;

import javafx.geometry.VPos;

import javafx.scene.Cursor;

import javafx.scene.Scene;

import javafx.scene.control.ChoiceBox;

Figure 2-7. The OnTheScene program with the changeOfScene CSS style sheet applied

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

import javafx.scene.control.Hyperlink;

import javafx.scene.control.Label;

import javafx.scene.control.RadioButton;

import javafx.scene.control.Slider;

import javafx.scene.control.ToggleGroup;

import javafx.scene.layout.FlowPane;

import javafx.scene.layout.HBox;

import javafx.scene.paint.Color;

import javafx.scene.text.Font;

import javafx.scene.text.FontWeight;

import javafx.scene.text.Text;

import javafx.stage.Stage;

public class OnTheSceneMain extends Application {

DoubleProperty fillVals = new SimpleDoubleProperty(255.0);

Scene sceneRef;

ObservableList cursors = FXCollections.observableArrayList(

Cursor.DEFAULT,

Cursor.CROSSHAIR,

Cursor.WAIT,

Cursor.TEXT,

Cursor.HAND,

Cursor.MOVE,

Cursor.N_RESIZE,

Cursor.NE_RESIZE,

Cursor.E_RESIZE,

Cursor.SE_RESIZE,

Cursor.S_RESIZE,

Cursor.SW_RESIZE,

Cursor.W_RESIZE,

Cursor.NW_RESIZE,

Cursor.NONE

);

public static void main(String[] args) {

Application.launch(args);

}

@Override

public void start(Stage stage) {

Slider sliderRef;

ChoiceBox choiceBoxRef;

Text textSceneX;

Text textSceneY;

Text textSceneW;

Text textSceneH;

Label labelStageX;

Label labelStageY;

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Label labelStageW;

Label labelStageH;

final ToggleGroup toggleGrp = new ToggleGroup();

sliderRef = new Slider(0, 255, 255);

sliderRef.setOrientation(Orientation.VERTICAL);

choiceBoxRef = new ChoiceBox(cursors);

HBox hbox = new HBox(sliderRef, choiceBoxRef);

hbox.setSpacing(10);

textSceneX = new Text();

textSceneX.getStyleClass().add("emphasized-text");

textSceneY = new Text();

textSceneY.getStyleClass().add("emphasized-text");

textSceneW = new Text();

textSceneW.getStyleClass().add("emphasized-text");

textSceneH = new Text();

textSceneH.getStyleClass().add("emphasized-text");

textSceneH.setId("sceneHeightText");

Hyperlink hyperlink = new Hyperlink("lookup");

hyperlink.setOnAction((javafx.event.ActionEvent e) -> {

System.out.println("sceneRef:" + sceneRef);

Text textRef = (Text) sceneRef.lookup("#sceneHeightText");

System.out.println(textRef.getText());

});

RadioButton radio1 = new RadioButton("onTheScene.css");

radio1.setSelected(true);

radio1.setToggleGroup(toggleGrp);

RadioButton radio2 = new RadioButton("changeOfScene.css");

radio2.setToggleGroup(toggleGrp);

labelStageX = new Label();

labelStageX.setId("stageX");

labelStageY = new Label();

labelStageY.setId("stageY");

labelStageW = new Label();

labelStageH = new Label();

FlowPane sceneRoot = new FlowPane(Orientation.VERTICAL, 20, 10, hbox,

textSceneX, textSceneY, textSceneW, textSceneH, hyperlink,

radio1, radio2,

labelStageX, labelStageY,

labelStageW,

labelStageH);

sceneRoot.setPadding(new Insets(0, 20, 40, 0));

sceneRoot.setColumnHalignment(HPos.LEFT);

sceneRoot.setLayoutX(20);

sceneRoot.setLayoutY(40);

sceneRef = new Scene(sceneRoot, 600, 250);

sceneRef.getStylesheets().add("onTheScene.css");

stage.setScene(sceneRef);

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

choiceBoxRef.getSelectionModel().selectFirst();

// Setup various property binding

textSceneX.textProperty().bind(new SimpleStringProperty("Scene x: ")

.concat(sceneRef.xProperty().asString()));

textSceneY.textProperty().bind(new SimpleStringProperty("Scene y: ")

.concat(sceneRef.yProperty().asString()));

textSceneW.textProperty().bind(new SimpleStringProperty("Scene width: ")

.concat(sceneRef.widthProperty().asString()));

textSceneH.textProperty().bind(new SimpleStringProperty("Scene height: ")

.concat(sceneRef.heightProperty().asString()));

labelStageX.textProperty().bind(new SimpleStringProperty("Stage x: ")

.concat(sceneRef.getWindow().xProperty().asString()));

labelStageY.textProperty().bind(new SimpleStringProperty("Stage y: ")

.concat(sceneRef.getWindow().yProperty().asString()));

labelStageW.textProperty().bind(new SimpleStringProperty("Stage width: ")

.concat(sceneRef.getWindow().widthProperty().asString()));

labelStageH.textProperty().bind(new SimpleStringProperty("Stage height: ")

.concat(sceneRef.getWindow().heightProperty().asString()));

sceneRef.cursorProperty().bind(choiceBoxRef.getSelectionModel()

.selectedItemProperty());

fillVals.bind(sliderRef.valueProperty());

// When fillVals changes, use that value as the RGB to fill the scene

fillVals.addListener((ov, oldValue, newValue) -> {

Double fillValue = fillVals.getValue() / 256.0;

sceneRef.setFill(new Color(fillValue, fillValue, fillValue, 1.0));

});

// When the selected radio button changes, set the appropriate style sheet

toggleGrp.selectedToggleProperty().addListener((ov, oldValue, newValue) -> {

String radioButtonText = ((RadioButton) toggleGrp.getSelectedToggle())

.getText();

sceneRef.getStylesheets().clear();

sceneRef.getStylesheets().addAll(radioButtonText);

});

stage.setTitle("On the Scene");

stage.show();

// Define an unmanaged node that will display Text

Text addedTextRef = new Text(0, -30, "");

addedTextRef.setTextOrigin(VPos.TOP);

addedTextRef.setFill(Color.BLUE);

addedTextRef.setFont(Font.font("Sans Serif", FontWeight.BOLD, 16));

addedTextRef.setManaged(false);

// Bind the text of the added Text node to the fill property of the Scene

addedTextRef.textProperty().bind(new SimpleStringProperty("Scene fill: ").

concat(sceneRef.fillProperty()));

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

// Add to the Text node to the FlowPane

((FlowPane) sceneRef.getRoot()).getChildren().add(addedTextRef);

}

Setting the Cursor for the Scene

The cursor can be set for a given node, for the entire scene, or for both. To do the latter, set the cursor

property of the Scene instance to one of the constant values in the Cursor class, as shown in the following

snippet from Listing 2-2.

sceneRef.cursorProperty().bind(choiceBoxRef.getSelectionModel()

.selectedItemProperty());

These cursor values can be seen by looking at the javafx.scene.Cursor class in the JavaFX API docs;

we've created a collection of these constants in Listing 2-2.

Painting the Scene’s Background

The Scene class has a fill property of type javafx.scene.paint.Paint. Looking at the JavaFX API will

reveal that the known subclasses of Paint are Color, ImagePattern, LinearGradient, and RadialGradient.

Therefore, a Scene’s background can be filled with solid colors, patterns, and gradients. If you don’t set the

fill property of the Scene, the default color (white) will be used.

■Tip One of the Color constants is Color.TRANSPARENT, so you may make the Scene’s background

completely transparent if desired. In fact, the reason that the Scene behind the rounded-cornered rectangle in

the StageCoach screenshot in Figure 2-5 isn’t white is that its fill property is set to Color.TRANSPARENT

(see Listing 2-1).

To set the fill property in the OnTheScene example, instead of using one of the constants in the Color

class (e.g., Color.BLUE), we’re using an RGB formula to create the color. Take a look at the javafx.scene.

paint.Color class in the JavaFX API docs and scroll down past the constants such as ALICEBLUE and

WHITESMOKE to see the constructors and methods. We’re using a constructor of the Color class, setting the fill

property to it, as shown in the following snippet from Listing 2-2.

sceneRef.setFill(new Color(fillValue, fillValue, fillValue, 1.0));

As you move the Slider, to which the fillVals property is bound, each of the arguments to the Color()

constructor is set to a value from 0 to 255, as indicated in the following code snippet from Listing 2-2.

fillVals.bind(sliderRef.valueProperty());

Populating the Scene with Nodes

As covered in Chapter 1, you can populate a Scene with nodes by instantiating them and adding them

to container nodes (e.g., Group and VBox) that can contain other nodes. These capabilities enable you to

construct complex scene graphs containing nodes. In the example here, the root property of the Scene

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

contains a Flow layout container, which causes its contents to flow either vertically or horizontally,

wrapping as necessary. The Flow container in our example contains an HBox (which contains a Slider and a

ChoiceBox) and several other nodes (instances of Text, Hyperlink, and RadioButton classes).

Finding a Scene Node by ID

Each node in a Scene can be assigned an ID in the id property of the node. For example, in the following

snippet from Listing 2-2, the id property of a Text node is assigned the String "sceneHeightText". When

the action event handler in the Hyperlink control is called, the lookup() method of the Scene instance is

used to obtain a reference to the node with the id of "sceneHeightText". The event handler then prints the

content of the Text node to the console.

■Note The Hyperlink control is essentially a button that has the appearance of hyperlink text. It has

an action event handler in which you could place code that opens a browser page or any other desired

functionality.

textSceneH = new Text();

textSceneH.getStyleClass().add("emphasized-text");

textSceneH.setId("sceneHeightText");

Hyperlink hyperlink = new Hyperlink("lookup");

hyperlink.setOnAction((javafx.event.ActionEvent e) -> {

System.out.println("sceneRef:" + sceneRef);

Text textRef = (Text) sceneRef.lookup("#sceneHeightText");

System.out.println(textRef.getText());

});

A close examination of the action event handler reveals that the lookup() method returns a Node, but

the actual type of object returned in this snippet is a Text object. Because we need to access a property of the

Text class (text) that isn’t in the Node class, it is necessary to coerce the compiler into trusting that at runtime

the object will be an instance of the Text class.

Accessing the Stage from the Scene

To obtain a reference to the Stage instance from the Scene, we use a property in the Scene class named

window. The accessor method for this property appears in the following snippet from Listing 2-2 to get the x

and y co-ordinates of the Stage on the screen.

labelStageX.textProperty().bind(new SimpleStringProperty("Stage x: ")

.concat(sceneRef.getWindow().xProperty().asString()));

labelStageY.textProperty().bind(new SimpleStringProperty("Stage y: ")

.concat(sceneRef.getWindow().yProperty().asString()));

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Inserting a Node into the Scene’s Content Sequence

Sometimes it is useful to add a node dynamically to the children of a UI container class. The code snippet

from Listing 2-2 that follows demonstrates how this may be accomplished by dynamically adding a Text

node to the children of the FlowPane instance:

// Define an unmanaged node that will display Text

Text addedTextRef = new Text(0, -30, "");

addedTextRef.setTextOrigin(VPos.TOP);

addedTextRef.setFill(Color.BLUE);

addedTextRef.setFont(Font.font("Sans Serif", FontWeight.BOLD, 16));

addedTextRef.setManaged(false);

// Bind the text of the added Text node to the fill property of the Scene

addedTextRef.textProperty().bind(new SimpleStringProperty("Scene fill: ").

concat(sceneRef.fillProperty()));

// Add the Text node to the FlowPane

((FlowPane) sceneRef.getRoot()).getChildren().add(addedTextRef);

This particular Text node is the one at the top of the Scene shown in Figures2-6 and 2-7, in which

the value of the Scene’s fill property is displayed. Note that in this example the managed property of the

addedTextRef instance is set to false, so its position isn’t governed by the FlowPane. By default, nodes are

“managed,” which means that their parent (the container to which this node is added) is responsible for the

layout of the node. By setting the managed property to false, the developer is assumed to be responsible for

laying out the node.

CSS Styling the Nodes in a Scene

A very powerful aspect of JavaFX is the ability to use CSS to style the nodes in a Scene dynamically. You

used this capability in step 6 of the previous exercise when you clicked changeOfScene.css to change the

appearance of the UI from what you saw in Figure2-6 to what was shown in Figure2-7. Also, in step 7 of the

exercise, the appearance of the UI changed back to what was shown in Figure2-6 when you selected the

onTheScene.css radio button. The relevant code snippet from Listing 2-2 is shown here:

sceneRef.getStylesheets().add("onTheScene.css");

...code omitted...

// When the selected radio button changes, set the appropriate stylesheet

toggleGrp.selectedToggleProperty().addListener((ov, oldValue, newValue) -> {

String radioButtonText = ((RadioButton) toggleGrp.getSelectedToggle())

.getText();

sceneRef.getStylesheets().clear();

sceneRef.getStylesheets().addAll("/"+radioButtonText);

});

In this snippet, the stylesheets property of the Scene is initialized to the location of the onTheScene.

css file, which in this case is the root directory. Also shown in the snippet is the assignment of the CSS files to

the Scene as the appropriate buttons are clicked. The text of the RadioButton instances is equal to the names

of the style sheets, hence we can easily set the corresponding style sheet to the scene. Take a look at Listing

2-3 to see the style sheet that corresponds to the screenshot in Figure2-6. Some of the CSS selectors in this

style sheet represent the nodes whose id property is either "stageX" or "stageY". There is also a selector in

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

this style sheet that represents nodes whose styleClass property is "emphasized-text". In addition, there

is a selector in this style sheet that maps to the ChoiceBox UI control by substituting the camel-case name of

the control to a lowercase hyphenated name (choice-box). The properties in this style sheet begin with "-fx",

and correspond to the type of node with which they are associated. The values in this style sheet (e.g., black,

italic, and 14pt) are expressed as standard CSS values.

Listing 2-3. onTheScene.css

#stageX, #stageY {

-fx-padding: 1;

-fx-border-color: black;

-fx-border-style: dashed;

-fx-border-width: 2;

-fx-border-radius: 5;

}

.emphasized-text {

-fx-font-size: 14pt;

-fx-font-weight: normal;

-fx-font-style: italic;

}

.choice-box:hover {

-fx-scale-x: 1.1;

-fx-scale-y: 1.1;

}

.radio-button .radio {

-fx-background-color: -fx-shadow-highlight-color, -fx-outer-border,

-fx-inner-border, -fx-body-color;

-fx-background-insets: 0 0 -1 0, 0, 1, 2;

-fx-background-radius: 1.0em;

-fx-padding: 0.333333em;

}

.radio-button:focused .radio {

-fx-background-color: -fx-focus-color, -fx-outer-border,

-fx-inner-border, -fx-body-color;

-fx-background-radius: 1.0em;

-fx-background-insets: -1.4, 0, 1, 2;

}

Listing 2-4 is the style sheet that corresponds to the screenshot in Figure2-7. For more information on

CSS style sheets, see the “Resources” section at the end of this chapter.

Listing 2-4. changeOfScene.css

#stageX, #stageY {

-fx-padding: 3;

-fx-border-color: blue;

-fx-stroke-dash-array: 12 2 4 2;

-fx-border-width: 4;

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

-fx-border-radius: 5;

}

.emphasized-text {

-fx-font-size: 14pt;

-fx-font-weight: bold;

-fx-font-style: normal;

}

.radio-button *.radio {

-fx-padding: 10;

-fx-background-color: red, yellow;

-fx-background-insets: 0, 5;

-fx-background-radius: 30, 20;

}

.radio-button:focused *.radio {

-fx-background-color: blue, red, yellow;

-fx-background-insets: -5, 0, 5;

-fx-background-radius: 40, 30, 20;

}

Now that you've had some experience with using the Stage and Scene classes, several of the Node

subclasses, and CSS styling, we show you how to handle events that can occur when your JavaFX program is

running.

Handling Input Events

So far we've shown you a couple of examples of event handling. For example, we used the onAction event

handler to execute code when a button is clicked. We also used the onCloseRequest event handler of the

Stage class to execute code when the Stage has been requested externally to close. In this section, we

explore more of the event handlers available in JavaFX.

Surveying Mouse, Keyboard, Touch, and Gesture Events and

Handlers

Most of the events that occur in JavaFX programs are related to the user manipulating input devices such as

a mouse, a keyboard, or a multitouch screen. To see the available event handlers and their associated event

objects, we take yet another look at the JavaFX API documentation. First, navigate to the javafx.scene.

Node class and look for the properties that begin with the letters “on”. These properties represent the event

handlers common to all nodes in JavaFX. Here is a list of these event handlers in the JavaFX 8 API:

• Key event handlers: onKeyPressed, onKeyReleased, onKeyTyped

• Mouse event handlers: onMouseClicked, onMouseDragEntered, onMouseDragExited,

onMouseDragged, onMouseDragOver, onMouseDragReleased, onMouseEntered,

onMouseExited, onMouseMoved, onMousePressed, onMouseReleased

• Drag-and-drop handlers: onDragDetected, onDragDone, onDragDropped,

onDragEntered, onDragExited, onDragOver

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

• Touch handlers: onTouchMoved, onTouchPressed, onTouchReleased,

onTouchStationary

• Gesture handlers: onRotate, onRotationFinished, onRotationStarted, onScroll,

onScrollStarted, onScrollFinished, onSwipeLeft, onSwipeRight, onSwipeUp,

onSwipeDown, onZoom, onZoomStarted, onZoomFinished

Each of these is a property that defines a method to be called when particular input events occur. In

the case of the key event handlers, as shown in the JavaFX API docs, the method’s parameter is a javafx.

scene.input.KeyEvent instance. The method’s parameter for the mouse event handlers is a javafx.scene.

input.MouseEvent. Touch handlers consume a javafx.scene.input.TouchEvent instance, and when a

gesture event occurs, the method’s parameter for the handle event is an instance of javax.scene.input.

GestureInput.

Understanding the KeyEvent Class

Take a look at the JavaFX API docs for the KeyEvent class, and you’ll see that it contains several methods, a

commonly used one being getCode(). The getCode() method returns a KeyCode instance representing the

key that caused the event when pressed. Looking at the javafx.scene.input.KeyCode class in the JavaFX

API docs reveals that a multitude of constants exist that represent keys on an international set of keyboards.

Another way to find out what key was pressed is to call the getCharacter() method, which returns a string

that represents the Unicode character associated with the key pressed.

The KeyEvent class also enables you to see whether the Alt, Ctrl, Meta, and/or Shift keys were down

at the time of the event by calling the isAltDown(), isControlDown(), isMetaDown(), or isShiftDown()

methods, respectively.

Understanding the MouseEvent Class

Take a look at the MouseEvent class in the JavaFX API docs, and you see that significantly more methods

are available than in KeyEvent. Like KeyEvent, MouseEvent has the isAltDown(), isControlDown(),

isMetaDown(), and isShiftDown() methods, as well as the source field, which is a reference to the object

in which the event originated. In addition, it has several methods that pinpoint various coordinate spaces

where the mouse event occurred, all expressed in pixels:

• getX() and getY() return the horizontal and vertical position of the mouse event,

relative to the origin of the node in which the mouse event occurred.

• getSceneX() and getSceneY() return the horizontal and vertical position of the

mouse event, relative to the Scene.

• getScreenX() and getScreenY() return the horizontal and vertical position of the

mouse event, relative to the screen.

Here are a few other commonly useful methods:

• isDragDetect() returns true if a drag event is detected.

• getButton(), isPrimaryButtonDown(), isSecondaryButtonDown(),

isMiddleButtonDown(), and getClickCount() contain information about what

button was clicked, and how many times it was clicked.

A little later in this chapter you get some experience with creating key and mouse event handlers in the

ZenPong example program. To continue preparing you for the ZenPong example, we now give you a look at

how you can animate the nodes that you put in your scene.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Understanding the TouchEvent Class

With more and more devices being equipped with a touch screen, built-in support for touch events makes

JavaFX a state-of-the art platform for creating applications that leverage multitouch capabilities, by which we

mean that the platform is able to track more than one touchpoint in a single set of events.

The TouchEvent class provides the getTouchPoint() method, which returns a specific touch point.

The methods on this TouchPoint are similar to the methods on a MouseEvent, for example, you can retrieve

the relative and absolute positions by calling getX() and getY(), or getSceneX() and getSceneY(), or

getScreenX() and getScreenY().

The TouchEvent class also allows the developer to get information about the other touch points that

belong to the same set. By calling getEventSetId(), you get the unique identifier of the set of TouchEvent

instances, and the list of all touch points in the set can be obtained by calling getTouchPoints(), which

returns a list of TouchPoint instances.

Understanding the GestureEvent Class

Besides handling multitouch events, JavaFX also supports the creation and dispatching of gesture events.

Gestures are increasingly used on smartphones, tablets, touch screens, and other input devices. They

provide an intuitive way of performing an action, for example, by having the user swipe his or her finger.

The GestureEvent class currently has four subclasses, each representing a specific gesture: RotateEvent,

ScrollEvent, SwipeEvent, and ZoomEvent. All of these events have methods comparable to the MouseEvent

for retrieving the position of the action—the getX() and getY(), getSceneX() and getSceneY(), and the

getScreenX() and getScreenY() methods.

The specific subclasses all allow for retrieving a more detailed type of the event. A SwipeEvent, for

example can be a swipe to the right or the left, to the top or the bottom. This information is obtained by

calling the getEventType() method on the GestureEvent.

Animating Nodes in the Scene

One of the strengths of JavaFX is the ease with which you can create graphically rich UIs. Part of that richness

is the ability to animate nodes that live in the Scene. At its core, animating a node involves changing the

value of its properties over a period of time. Examples of animating a node include the following.

• Gradually increasing the size of a node when the mouse enters its bounds, and

gradually decreasing the size when the mouse exits its bounds. Note that this

requires scaling the node, which is referred to as a transform.

• Gradually increasing or decreasing the opacity of a node to provide a fade-in or fade-

out effect, respectively.

• Gradually altering values of properties in a node that change its location, causing it to

move from one location to another. This is useful, for example, when creating a game such

as Pong. A related capability is detecting when a node has collided with another node.

Animating a node involves the use of the Timeline class, located in the javafx.animation package.

Depending on the requirements of an animation and personal preference, use one of two general techniques:

• Create an instance of the Timeline class directly and supply key frames that specify

values and actions at specific points in time.

• Use the javafx.animation.Transition subclasses to define and associate specific

transitions with a node. Examples of transitions include causing a node to move

along a defined path over a period of time, and rotating a node over a period of time.

Each of these transition classes extends the Timeline class.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

We now cover these techniques, showing examples of each, beginning with the first one listed.

Using a Timeline for Animation

Take a look at the javafx.animation package in the JavaFX API docs, and you see three of the classes that

are used when directly creating a timeline: Timeline, KeyFrame, and Interpolator. Peruse the docs for these

classes, and then come back so we can show you some examples of using them.

■Tip Remember to consult the JavaFX API docs for any new packages, classes, properties, and methods

that you encounter.

The Metronome1 Example

We use a simple metronome example to demonstrate how to create a timeline.

As the screenshot in Figure2-8 shows, the Metronome1 program has a pendulum as well as four buttons

that start, pause, resume, and stop the animation. The pendulum in this example is a Line node, and we’re

going to animate that node by interpolating its startX property over the period of one second. Go ahead and

take this example for a spin by doing the following exercise.

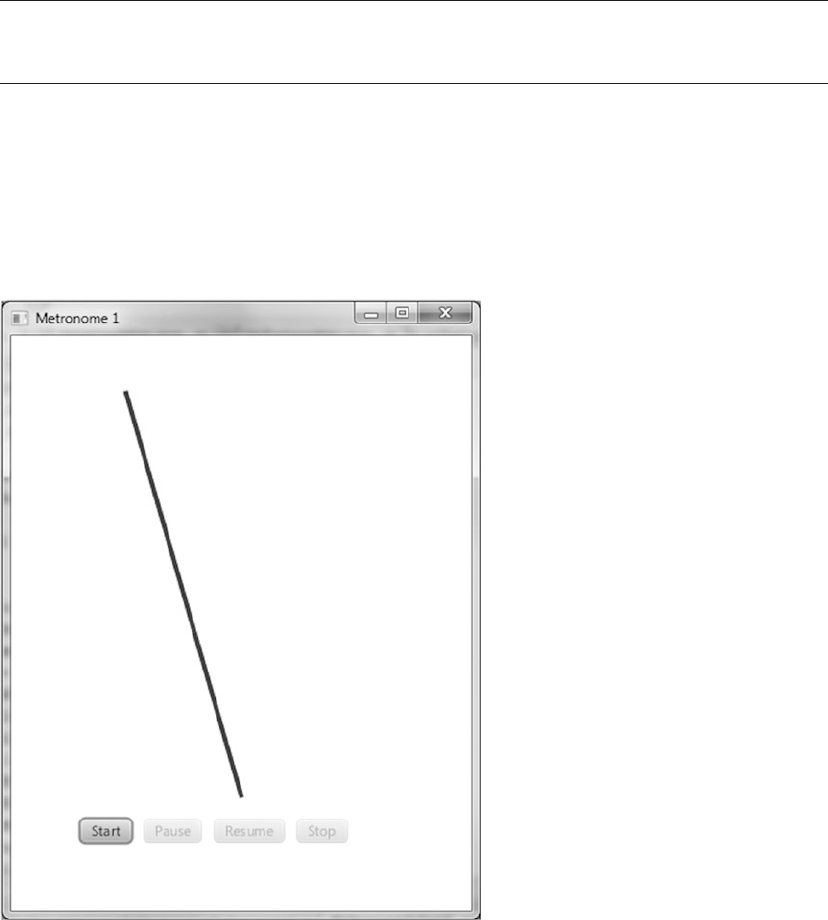

Figure 2-8. The Metronome1 program

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

EXAMINING THE BEHAVIOR OF THE METRONOME1 PROGRAM

When the Metronome1 program starts, its appearance should be similar to the screenshot in Figure 2-8.

To fully examine its behavior, perform the following steps.

1. Observe that of the four buttons on the scene, only the Start button is enabled.

2. Click Start. Notice that the top of the line moves back and forth, taking one second

to travel each direction. Also, observe that the Start and Resume buttons are

disabled and that the Pause and Stop buttons are enabled.

3. Click Pause, noticing that the animation pauses. Also, observe that the Start and

Pause buttons are disabled and that the Resume and Stop buttons are enabled.

4. Click Resume, noticing that the animation resumes from where it was paused.

5. Click Stop, noticing that the animation stops and that the button states are the

same as they were when the program was first started (see step 1).

6. Click Start again, noticing that the line jumps back to its starting point before

beginning the animation (rather than simply resuming as it did in step 4).

7. Click Stop.

Now that you've experienced the behavior of the Metronome1 program, let’s walk through the code

behind it.

Understanding the Metronome1 Program

Take a look at the code for the Metronome1 program in Listing 2-5, before we discuss relevant concepts.

Listing 2-5. Metronome1Main.java

package projavafx.metronome1.ui;

import javafx.animation.Animation;

import javafx.animation.Interpolator;

import javafx.animation.KeyFrame;

import javafx.animation.KeyValue;

import javafx.animation.Timeline;

import javafx.application.Application;

import javafx.beans.property.DoubleProperty;

import javafx.beans.property.SimpleDoubleProperty;

import javafx.scene.Group;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.layout.HBox;

import javafx.scene.paint.Color;

import javafx.scene.shape.Line;

import javafx.stage.Stage;

import javafx.util.Duration;

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

public class Metronome1Main extends Application {

DoubleProperty startXVal = new SimpleDoubleProperty(100.0);

Button startButton;

Button pauseButton;

Button resumeButton;

Button stopButton;

Line line;

Timeline anim;

public static void main(String[] args) {

Application.launch(args);

}

@Override

public void start(Stage stage) {

anim = new Timeline(

new KeyFrame(new Duration(0.0), new KeyValue(startXVal, 100.)),

new KeyFrame(new Duration(1000.0), new KeyValue(startXVal, 300.,

Interpolator.LINEAR))

);

anim.setAutoReverse(true);

anim.setCycleCount(Animation.INDEFINITE);

line = new Line(0, 50, 200, 400);

line.setStrokeWidth(4);

line.setStroke(Color.BLUE);

startButton = new Button("start");

startButton.setOnAction(e -> anim.playFromStart());

pauseButton = new Button("pause");

pauseButton.setOnAction(e -> anim.pause());

resumeButton = new Button("resume");

resumeButton.setOnAction(e -> anim.play());

stopButton = new Button("stop");

stopButton.setOnAction(e -> anim.stop());

HBox commands = new HBox(10,

startButton,

pauseButton,

resumeButton,

stopButton);

commands.setLayoutX(60);

commands.setLayoutY(420);

Group group = new Group(line, commands);

Scene scene = new Scene(group, 400, 500);

line.startXProperty().bind(startXVal);

startButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.STOPPED));

pauseButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.RUNNING));

resumeButton.disableProperty().bind(anim.statusProperty()

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

.isNotEqualTo(Animation.Status.PAUSED));

stopButton.disableProperty().bind(anim.statusProperty()

.isEqualTo(Animation.Status.STOPPED));

stage.setScene(scene);

stage.setTitle("Metronome 1");

stage.show();

}

Understanding the Timeline Class

The main purpose of the Timeline class is to provide the ability to change the values of properties in a

gradual fashion over given periods of time. Take a look at the following snippet from Listing 2-5 to see the

timeline being created, along with some of its commonly used properties.

DoubleProperty startXVal = new SimpleDoubleProperty(100.0);

...code omitted...

Timeline anim = new Timeline(

new KeyFrame(new Duration(0.0), new KeyValue(startXVal, 100.)),

new KeyFrame(new Duration(1000.0), new KeyValue(startXVal, 300.,

Interpolator.LINEAR))

);

anim.setAutoReverse(true);

anim.setCycleCount(Animation.INDEFINITE);

...code omitted...

line = new Line(0, 50, 200, 400);

line.setStrokeWidth(4);

line.setStroke(Color.BLUE);

...code omitted...

line.startXProperty().bind(startXVal);

■Note In JavaFX 2, it was recommended to use the builder pattern for creating Nodes. As a consequence,

creating a Line would be done as follows:

line = LineBuilder.create()

.startY(50)

.endX(200)

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

.endY(400)

.strokeWidth(4)

.stroke(Color.BLUE)

.build();

The advantage of this approach is that it is clear what the parameter “50” in the second line means: The line

has a start-coordinate of 50 in the vertical position. The same readability can be achieved by calling setter

methods, for example

line.setStartY(50);

In practice, however, many parameters are passed via the constructor of the Node. In the case of a Line

instance, the second parameter is the startY parameter. This approach leads to fewer lines of code, but the

developer should be careful about the order and the meaning of the parameters in the constructor. Once again,

we strongly recommend having the Javadoc available while writing JavaFX applications.

Inserting Key Frames into the Timeline

Our timeline contains a collection of two KeyFrame instances. Using the KeyValue constructor, one of these

instances assigns 100 to the startXVal property at the beginning of the timeline, and the other assigns 300 to

the startXVal property when the timeline has been running for one second. Because the startX property of

the Line is bound to the value of the startXVal property, the net result is that the top of the line moves 200

pixels horizontally over the course of one second.

In the second KeyFrame of the timeline, the KeyValue constructor is passed a third argument that

specifies that the interpolation from 100 to 300 will occur in a linear fashion over the one-second duration.

Other Interpolation constants include EASE_IN, EASE_OUT, and EASE_BOTH. These cause the interpolation in

a KeyFrame to be slower in the beginning, ending, or both, respectively.

The following are the other Timeline properties, inherited from the Animation class, used in this

example:

• autoReverse, which we’re initializing to true. This causes the timeline to

automatically reverse when it reaches the last KeyFrame. When reversed, the

interpolation goes from 300 to 100 over the course of one second.

• cycleCount, which we’re initializing to Animation.INDEFINITE. This causes the

timeline to repeat indefinitely until stopped by the stop() method of the Timeline

class.

Speaking of the methods of the Timeline class, now is a good time to show you how to control the

timeline and monitor its state.

Controlling and Monitoring the Timeline

As you observed when using the Metronome1 program, clicking the buttons causes the animation to start,

pause, resume, and stop. This in turn has an effect on the states of the animation (running, paused, or

stopped). Those states are reflected in the buttons in the form of being enabled or disabled. The following

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

snippet from Listing 2-5 shows how to start, pause, resume, and stop the timeline, as well as how to tell

whether the timeline is running or paused.

startButton = new Button("start");

startButton.setOnAction(e -> anim.playFromStart());

pauseButton = new Button("pause");

pauseButton.setOnAction(e -> anim.pause());

resumeButton = new Button("resume");

resumeButton.setOnAction(e -> anim.play());

stopButton = new Button("stop");

stopButton.setOnAction(e -> anim.stop());

...code omitted...

startButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.STOPPED));

pauseButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.RUNNING));

resumeButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.PAUSED));

stopButton.disableProperty().bind(anim.statusProperty()

.isEqualTo(Animation.Status.STOPPED));

As shown here in the action event handler of the Start button, the playFromStart() method of the

Timeline instance is called, which begins playing the timeline from the beginning. In addition, the disable

property of that Button is bound to an expression that evaluates whether the status property of the timeline

is not equal to Animation.Status.STOPPED. This causes the button to be disabled when the timeline is not

stopped (in which case it must be either running or paused).

When the user clicks the Pause button, the action event handler calls the timeline’s pause() method,

which pauses the animation. The disable property of that Button is bound to an expression that evaluates

whether the timeline is not running.

The Resume button is only disabled when the timeline is not paused. To resume the timeline from

where it was paused, the action event handler calls the play() method of the timeline.

Finally, the Stop button is disabled when the timeline is stopped. To stop the timeline, the action event

handler calls the stop() method of the timeline.

Now that you know how to animate nodes by creating a Timeline class and creating KeyFrame

instances, it’s time to learn how to use the transition classes to animate nodes.

Using the Transition Classes for Animation

Using a TimeLine allows very flexible animations. There are a number of common animations facilitating the

translation from one state to another that are out-of-the box supported by JavaFX. The javafx.animation

package contains several classes whose purpose is to provide convenient ways to do these commonly used

animation tasks. Both TimeLine and Transition (the abstract root class for all concrete transitions) extend

the Animation class.

Table2-1 contains a list of transition classes in that package.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Let’s take a look at a variation on the metronome theme in which we create a metronome using

TranslateTransition for the animation.

The MetronomeTransition Example

When using the transition classes, we take a different approach toward animation than when using the

Timeline class directly:

• In the timeline-based Metronome1 program, we bound a property of a node

(specifically, startX) to a property in the model (startXVal), and then used the

timeline to interpolate the value of the property in the model.

• When using a transition class, however, we assign values to the properties of the

Transition subclass, one of which is a node. The net result is that the node itself is

affected, rather than just a bound attribute of the node being affected.

The distinction between these two approaches becomes clear as we walk through the

MetronomeTransition example. Figure2-9 shows a screenshot of this program when it is first invoked.

Table 2-1. Transition Classes in the javafx.animation Package for Animating Nodes

Transition Class Name Description

TranslateTransition Translates (moves) a node from one location to another over a given period of

time. This was employed in the Hello Earthrise example program in Chapter 1.

PathTransition Moves a node along a specified path.

RotateTransition Rotates a node over a given period of time.

ScaleTransition Scales (increases or decreases the size of) a node over a given period of time.

FadeTransition Fades (increases or decreases the opacity of) a node over a given period of time.

FillTransition Changes the fill of a shape over a given period of time.

StrokeTransition Changes the stroke color of a shape over a given period of time.

PauseTransition Executes an action at the end of its duration; designed mainly to be used in a

SequentialTransition as a means to wait for a period of time.

SequentialTransition Allows you to define a series of transitions that execute sequentially.

ParallelTransition Allows you to define a series of transitions that execute in parallel.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

The first noticeable difference between this example and the previous (Metronome1) example is that

instead of one end of a line moving back and forth, we’re going to make a Circle node move back and forth.

The Behavior of the MetronomeTransition Program

Go ahead and run the program, and perform the same steps that you did in the previous exercise with

Metronome1. Everything should function the same, except for the visual difference pointed out previously.

Understanding the MetronomeTransition Program

Take a look at the code for the MetronomeTransition program in Listing 2-6, before we point out relevant

concepts.

Listing 2-6. MetronomeTransitionMain.fx

package projavafx.metronometransition.ui;

import javafx.animation.Animation;

import javafx.animation.Interpolator;

import javafx.animation.TranslateTransition;

Figure 2-9. The MetronomeTransition program

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

import javafx.application.Application;

import javafx.scene.Group;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.layout.HBox;

import javafx.scene.paint.Color;

import javafx.scene.shape.Circle;

import javafx.stage.Stage;

import javafx.util.Duration;

public class MetronomeTransitionMain extends Application {

Button startButton;

Button pauseButton;

Button resumeButton;

Button stopButton;

Circle circle;

public static void main(String[] args) {

Application.launch(args);

}

@Override

public void start(Stage stage) {

circle = new Circle(100, 50, 4, Color.BLUE);

TranslateTransition anim = new TranslateTransition(new Duration(1000.0), circle);

anim.setFromX(0);

anim.setToX(200);

anim.setAutoReverse(true);

anim.setCycleCount(Animation.INDEFINITE);

anim.setInterpolator(Interpolator.LINEAR);

startButton = new Button("start");

startButton.setOnAction(e -> anim.playFromStart());

pauseButton = new Button("pause");

pauseButton.setOnAction(e -> anim.pause());

resumeButton = new Button("resume");

resumeButton.setOnAction(e -> anim.play());

stopButton = new Button("stop");

stopButton.setOnAction(e -> anim.stop());

HBox commands = new HBox(10, startButton,

pauseButton,

resumeButton,

stopButton);

commands.setLayoutX(60);

commands.setLayoutY(420);

Group group = new Group(circle, commands);

Scene scene = new Scene(group, 400, 500);

startButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.STOPPED));

pauseButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.RUNNING));

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

resumeButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.PAUSED));

stopButton.disableProperty().bind(anim.statusProperty()

.isEqualTo(Animation.Status.STOPPED));

stage.setScene(scene);

stage.setTitle("Metronome using TranslateTransition");

stage.show();

}

Using the TranslateTransition Class

As shown in the following snippet from Listing 2-6, to create a TranslateTransition we’re supplying

values that are reminiscent of the values that we used when creating a timeline in the previous example. For

example, we’re setting autoReverse to true and cycleCount to Animation.INDEFINITE. Also, just as when

creating a KeyFrame for a timeline, we’re supplying a duration and an interpolation type here as well.

In addition, we’re supplying some values to properties that are specific to a TranslateTransition,

namely fromX and toX. These values are interpolated over the requested duration and assigned to the

layoutX property of the node controlled by the transition (in this case, the circle). If we also wanted to cause

vertical movement, assigning values to fromY and toY would cause interpolated values between them to be

assigned to the layoutY property.

An alternative to supplying toX and toY values is to provide values to the byX and byY properties, which

enables you to specify the distance to travel in each direction rather than start and end points. Also, if you

don’t supply a value for fromX, the interpolation will begin with the current value of the node’s layoutX

property. The same holds true for fromY (if not supplied, the interpolation will begin with the value of

layoutY).

circle = new Circle(100, 50, 4, Color.BLUE);

TranslateTransition anim = new TranslateTransition(new Duration(1000.0), circle);

anim.setFromX(0);

anim.setToX(200);

anim.setAutoReverse(true);

anim.setCycleCount(Animation.INDEFINITE);

anim.setInterpolator(Interpolator.LINEAR);

Controlling and Monitoring the Transition

The TranslateTransition class, as do all of the classes in Table2-1, extends the javafx.animation.

Transition class, which in turn extends the Animation class. Because the Timeline class extends the

Animation class, as you can see by comparing Listings 2-5 and 2-6, all of the code for the buttons in

this example is identical to that in the previous example. Indeed, the functionality required to start,

pause, resume, and stop an animation is defined on the Animation class itself, and inherited by both the

Translation classes as well as the Timeline class.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

The MetronomePathTransition Example

As shown in Table2-1, PathTransition is a transition class that enables you to move a node along a

defined geometric path. Figure2-10 shows a screenshot of a version of the metronome example, named

MetronomePathTransition, that demonstrates how to use the PathTransition class.

Figure 2-10. The MetronomePathTransition program

The Behavior of the MetronomePathTransition Program

Go ahead and run the program, performing once again the same steps that you did for the Metronome1

exercise. Everything should function the same as it did in the MetronomeTransition example, except that the

node is an ellipse instead of a circle, and the node moves along the path of an arc.

Understanding the MetronomePathTransition Program

Listing 2-7 contains code snippets from the MetronomePathTransition program that highlight the

differences from the preceding (MetronomeTransition) program. Take a look at the code, and then we

review relevant concepts.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Listing 2-7. Portions of MetronomePathTransitionMain.java

package projavafx.metronomepathtransition.ui;

...imports omitted...

public class MetronomePathTransitionMain extends Application {

Button startButton;

Button pauseButton;

Button resumeButton;

Button stopButton;

Ellipse ellipse;

Path path;

public static void main(String[] args) {

Application.launch(args);

}

@Override

public void start(Stage stage) {

ellipse = new Ellipse(100, 50, 4, 8);

ellipse.setFill(Color.BLUE);

path = new Path(

new MoveTo(100, 50),

new ArcTo(350, 350, 0, 300, 50, false, true)

);

PathTransition anim = new PathTransition(new Duration(1000.0), path, ellipse);

anim.setOrientation(OrientationType.ORTHOGONAL_TO_TANGENT);

anim.setInterpolator(Interpolator.LINEAR);

anim.setAutoReverse(true);

anim.setCycleCount(Timeline.INDEFINITE);

startButton = new Button("start");

startButton.setOnAction(e -> anim.playFromStart());

pauseButton = new Button("pause");

pauseButton.setOnAction(e -> anim.pause());

resumeButton = new Button("resume");

resumeButton.setOnAction(e -> anim.play());

stopButton = new Button("stop");

stopButton.setOnAction(e -> anim.stop());

HBox commands = new HBox(10, startButton,

pauseButton,

resumeButton,

stopButton);

commands.setLayoutX(60);

commands.setLayoutY(420);

Group group = new Group(ellipse, commands);

Scene scene = new Scene(group, 400, 500);

startButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.STOPPED));

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

pauseButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.RUNNING));

resumeButton.disableProperty().bind(anim.statusProperty()

.isNotEqualTo(Animation.Status.PAUSED));

stopButton.disableProperty().bind(anim.statusProperty()

.isEqualTo(Animation.Status.STOPPED));

stage.setScene(scene);

stage.setTitle("Metronome using PathTransition");

stage.show();

}

Using the PathTransition Class

As shown in Listing 2-7, defining a PathTransition includes supplying an instance of type Path to the path

property that represents the geometric path that the node is to travel. Here we’re creating a Path instance

that defines an arc beginning at 100 pixels on the x axis and 50 pixels on the y axis, ending at 300 pixels on

the x axis and 50 pixels on the y axis, with 350 pixel horizontal and vertical radii. This is accomplished by

creating a Path that contains the MoveTo and ArcTo path elements. Take a look at the javafx.scene.shape

package in the JavaFX API docs for more information on the PathElement class and its subclasses, which are

used for creating a path.

■Tip The properties in the ArcTo class are fairly intuitive except for sweepFlag. If sweepFlag is true, the line

joining the center of the arc to the arc itself sweeps through increasing angles; otherwise, it sweeps through

decreasing angles.

Another property of the PathTransition class is orientation, which controls whether the node’s

orientation remains unchanged or stays perpendicular to the path’s tangent as it moves along the path.

Listing 2-7 uses the OrientationType.ORTHOGONAL_TO_TANGENT constant to accomplish the latter, as the

former is the default.

Drawing an Ellipse

As shown in Listing 2-7, drawing an Ellipse is similar to drawing a Circle, the difference being that an

additional radius is required (radiusX and radiusY instead of just radius).

Now that you've learned how to animate nodes by creating a timeline and by creating transitions, we

create a very simple Pong-style game that requires animating a ping-pong ball. In the process, you learn how

to detect when the ball has hit a paddle or wall in the game.

The Zen of Node Collision Detection

When animating a node, you sometimes need to know when the node has collided with another node. To

demonstrate this capability, our colleague Chris Wright developed a simple version of the Pong-style game

that we call ZenPong. Originally, we asked him to build the game with only one paddle, which brought the

famous Zen koan (philosophical riddle) “What is the sound of one hand clapping?” to mind. Chris had

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

so much fun developing the game that he snuck a second paddle in, but we’re still calling this example

ZenPong. Figure2-11 shows this very simple form of the game when first invoked.

Figure 2-11. The initial state of the ZenPong game

Try out the game by following the instructions in the upcoming exercise, remembering that you control

both paddles (unless you can get a colleague to share your keyboard and play).

EXAMINING THE BEHAVIOR OF THE ZENPONG GAME

When the program starts, its appearance should be similar to the screenshot in Figure 2-11. To fully

examine its behavior, perform the following steps.

1. Before clicking Start, drag each of the paddles vertically to other positions. One

game cheat is to drag the left paddle up and the right paddle down, which will put

them in good positions to respond to the ball after being served.

2. Practice using the A key to move the left paddle up, the Z key to move the left

paddle down, the L key to move the right paddle up, and the comma (,) key to move

the right paddle down.

3. Click Start to begin playing the game. Notice that the Start button disappears and

the ball begins moving at a 45° angle, bouncing off paddles and the top and bottom

walls. The screen should look similar to Figure 2-12.

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

4. If the ball hits the left or right wall, one of your hands has lost the game. Notice that

the game resets, looking again like the screenshot in Figure 2-11.

Now that you’ve experienced the behavior of the ZenPong program, let’s review the code behind it.

Understanding the ZenPong Program

Examine the code for the ZenPong program in Listing 2-8, before we highlight some concepts demonstrated

within.

Listing 2-8. ZenPongMain.java

package projavafx.zenpong.ui;

...imports omitted...

public class ZenPongMain extends Application {

/**

* The center points of the moving ball

Figure 2-12. The ZenPong game in action

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

DoubleProperty centerX = new SimpleDoubleProperty();

DoubleProperty centerY = new SimpleDoubleProperty();

/**

* The Y coordinate of the left paddle

DoubleProperty leftPaddleY = new SimpleDoubleProperty();

/**

* The Y coordinate of the right paddle

DoubleProperty rightPaddleY = new SimpleDoubleProperty();

/**

* The drag anchor for left and right paddles

double leftPaddleDragAnchorY;

double rightPaddleDragAnchorY;

/**

* The initial translateY property for the left and right paddles

double initLeftPaddleTranslateY;

double initRightPaddleTranslateY;

/**

* The moving ball

Circle ball;

/**

* The Group containing all of the walls, paddles, and ball. This also

* allows us to requestFocus for KeyEvents on the Group

Group pongComponents;

/**

* The left and right paddles

Rectangle leftPaddle;

Rectangle rightPaddle;

/**

* The walls

Rectangle topWall;

Rectangle rightWall;

Rectangle leftWall;

Rectangle bottomWall;

Button startButton;

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

/**

* Controls whether the startButton is visible

BooleanProperty startVisible = new SimpleBooleanProperty(true);

/**

* The animation of the ball

Timeline pongAnimation;

/**

* Controls whether the ball is moving right

boolean movingRight = true;

/**

* Controls whether the ball is moving down

boolean movingDown = true;

/**

* Sets the initial starting positions of the ball and paddles

void initialize() {

centerX.setValue(250);

centerY.setValue(250);

leftPaddleY.setValue(235);

rightPaddleY.setValue(235);

startVisible.set(true);

pongComponents.requestFocus();

}

/**

* Checks whether or not the ball has collided with either the paddles,

* topWall, or bottomWall. If the ball hits the wall behind the paddles, the

* game is over.

void checkForCollision() {

if (ball.intersects(rightWall.getBoundsInLocal())

|| ball.intersects(leftWall.getBoundsInLocal())) {

pongAnimation.stop();

initialize();

} else if (ball.intersects(bottomWall.getBoundsInLocal())

|| ball.intersects(topWall.getBoundsInLocal())) {

movingDown = !movingDown;

} else if (ball.intersects(leftPaddle.getBoundsInParent()) && !movingRight) {

movingRight = !movingRight;

} else if (ball.intersects(rightPaddle.getBoundsInParent()) && movingRight) {

movingRight = !movingRight;

}

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

/**

* @param args the command line arguments

public static void main(String[] args) {

Application.launch(args);

}

@Override

public void start(Stage stage) {

pongAnimation = new Timeline(

new KeyFrame(new Duration(10.0), t -> {

checkForCollision();

int horzPixels = movingRight ? 1 : -1;

int vertPixels = movingDown ? 1 : -1;

centerX.setValue(centerX.getValue() + horzPixels);

centerY.setValue(centerY.getValue() + vertPixels);

})

);

pongAnimation.setCycleCount(Timeline.INDEFINITE);

ball = new Circle(0, 0, 5, Color.WHITE);

topWall = new Rectangle(0, 0, 500, 1);

leftWall = new Rectangle(0, 0, 1, 500);

rightWall = new Rectangle(500, 0, 1, 500);

bottomWall = new Rectangle(0, 500, 500, 1);

leftPaddle = new Rectangle(20, 0, 10, 30);

leftPaddle.setFill(Color.LIGHTBLUE);

leftPaddle.setCursor(Cursor.HAND);

leftPaddle.setOnMousePressed(me -> {

initLeftPaddleTranslateY = leftPaddle.getTranslateY();

leftPaddleDragAnchorY = me.getSceneY();

});

leftPaddle.setOnMouseDragged(me -> {

double dragY = me.getSceneY() - leftPaddleDragAnchorY;

leftPaddleY.setValue(initLeftPaddleTranslateY + dragY);

});

rightPaddle = new Rectangle(470, 0, 10, 30);

rightPaddle.setFill(Color.LIGHTBLUE);

rightPaddle.setCursor(Cursor.CLOSED_HAND);

rightPaddle.setOnMousePressed(me -> {

initRightPaddleTranslateY = rightPaddle.getTranslateY();

rightPaddleDragAnchorY = me.getSceneY();

});

rightPaddle.setOnMouseDragged(me -> {

double dragY = me.getSceneY() - rightPaddleDragAnchorY;

rightPaddleY.setValue(initRightPaddleTranslateY + dragY);

});

startButton = new Button("Start!");

startButton.setLayoutX(225);

startButton.setLayoutY(470);

startButton.setOnAction(e -> {

startVisible.set(false);

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

pongAnimation.playFromStart();

pongComponents.requestFocus();

});

pongComponents = new Group(ball,

topWall,

leftWall,

rightWall,

bottomWall,

leftPaddle,

rightPaddle,

startButton);

pongComponents.setFocusTraversable(true);

pongComponents.setOnKeyPressed(k -> {

if (k.getCode() == KeyCode.SPACE

&& pongAnimation.statusProperty()

.equals(Animation.Status.STOPPED)) {

rightPaddleY.setValue(rightPaddleY.getValue() - 6);

} else if (k.getCode() == KeyCode.L

&& !rightPaddle.getBoundsInParent().intersects(topWall.

getBoundsInLocal())) {

rightPaddleY.setValue(rightPaddleY.getValue() - 6);

} else if (k.getCode() == KeyCode.COMMA

&& !rightPaddle.getBoundsInParent().intersects(bottomWall.

getBoundsInLocal())) {

rightPaddleY.setValue(rightPaddleY.getValue() + 6);

} else if (k.getCode() == KeyCode.A

&& !leftPaddle.getBoundsInParent().intersects(topWall.

getBoundsInLocal())) {

leftPaddleY.setValue(leftPaddleY.getValue() - 6);

} else if (k.getCode() == KeyCode.Z

&& !leftPaddle.getBoundsInParent().intersects(bottomWall.

getBoundsInLocal())) {

leftPaddleY.setValue(leftPaddleY.getValue() + 6);

}

});

Scene scene = new Scene(pongComponents, 500, 500);

scene.setFill(Color.GRAY);

ball.centerXProperty().bind(centerX);

ball.centerYProperty().bind(centerY);

leftPaddle.translateYProperty().bind(leftPaddleY);

rightPaddle.translateYProperty().bind(rightPaddleY);

startButton.visibleProperty().bind(startVisible);

stage.setScene(scene);

initialize();

stage.setTitle("ZenPong Example");

stage.show();

}

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

Using the KeyFrame Action Event Handler

We’re using a different technique in the timeline than demonstrated in the Metronome1 program earlier in

the chapter (see Figure2-8 and Listing 2-5). Instead of interpolating two values over a period of time, we’re

using the action event handler of the KeyFrame instance in our timeline. Take a look at the following snippet

from Listing 2-8 to see this technique in use.

pongAnimation = new Timeline(

new KeyFrame(new Duration(10.0), t -> {

checkForCollision();

int horzPixels = movingRight ? 1 : -1;

int vertPixels = movingDown ? 1 : -1;

centerX.setValue(centerX.getValue() + horzPixels);

centerY.setValue(centerY.getValue() + vertPixels);

})

);

pongAnimation.setCycleCount(Timeline.INDEFINITE);

As shown in the snippet, we use only one KeyFrame, and it has a very short time (10 milliseconds).

When a KeyFrame has an action event handler, the code in that handler—which in this case is once again a

lambda expression—is executed when the time for that KeyFrame is reached. Because the cycleCount of this

timeline is indefinite, the action event handler will be executed every 10 milliseconds. The code in this event

handler does two things:

• Calls a method named checkForCollision(), which is defined in this program, the

purpose of which is to see whether the ball has collided with either paddle or any of

the walls

• Updates the properties in the model to which the position of the ball is bound, taking

into account the direction in which the ball is already moving

Using the Node intersects( ) Method to Detect Collisions

Take a look inside the checkForCollision() method in the following snippet from Listing 2-8 to see how we

check for collisions by detecting when two nodes intersect (share any of the same pixels).

void checkForCollision() {

if (ball.intersects(rightWall.getBoundsInLocal()) ||

ball.intersects(leftWall.getBoundsInLocal())) {

pongAnimation.stop();

initialize();

}

else if (ball.intersects(bottomWall.getBoundsInLocal()) ||

ball.intersects(topWall.getBoundsInLocal())) {

movingDown = !movingDown;

}

else if (ball.intersects(leftPaddle.getBoundsInParent()) && !movingRight) {

movingRight = !movingRight;

}

else if (ball.intersects(rightPaddle.getBoundsInParent()) && movingRight) {

movingRight = !movingRight;

}

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

The intersects() method of the Node class shown here takes an argument of type Bounds, located in

the javafx.geometry package. It represents the rectangular bounds of a node, for example, the leftPaddle

node shown in the preceding code snippet. Notice that to get the position of the left paddle in the Group that

contains it, we’re using the boundsInParent property that the leftPaddle (a Rectangle) inherited from the

Node class.

The net results of the intersect method invocations in the preceding snippet are as follows.

• If the ball intersects with the bounds of the rightWall or leftWall, the

pongAnimation Timeline is stopped and the game is initialized for the next play.

Note that the rightWall and left Wall nodes are one-pixel-wide rectangles on the

left and right sides of the Scene. Take a peek at Listing 2-8 to see where these are

defined.

• If the ball intersects with the bounds of the bottomWall or topWall, the vertical

direction of the ball will be changed by negating the program’s Boolean movingDown

variable.

• If the ball intersects with the bounds of the leftPaddle or rightPaddle, the

horizontal direction of the ball will be changed by negating the program’s Boolean

movingRight variable.

■Tip For more information on boundsInParent and its related properties, layoutBounds and

boundsInLocal, see the “Bounding Rectangles” discussion at the beginning of the javafx.scene.Node class in

the JavaFX API docs. For example, it is a common practice to find out the width or height of a node by using the

expression myNode.getLayoutBounds().getWidth() or myNode.getLayoutBounds().getHeight().

Dragging a Node

As you experienced previously, the paddles of the ZenPong application may be dragged with the mouse.

The following snippet from Listing 2-8 shows how this capability is implemented in ZenPong for dragging

the right paddle.

DoubleProperty rightPaddleY = new SimpleDoubleProperty();

...code omitted...

double rightPaddleDragStartY;

double rightPaddleDragAnchorY;

...code omitted...

void initialize() {

...code omitted...

rightPaddleY.setValue(235);

}

...code omitted...

rightPaddle = new Rectangle(470, 0, 10, 30);

rightPaddle.setFill(Color.LIGHTBLUE);

rightPaddle.setCursor(Cursor.CLOSED_HAND);

rightPaddle.setOnMousePressed(me -> {

initRightPaddleTranslateY = rightPaddle.getTranslateY();

rightPaddleDragAnchorY = me.getSceneY();

});

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

rightPaddle.setOnMouseDragged(me -> {

double dragY = me.getSceneY() - rightPaddleDragAnchorY;

rightPaddleY.setValue(initRightPaddleTranslateY + dragY);

});

...code omitted...

rightPaddle.translateYProperty().bind(rightPaddleY);

Note that in this ZenPong example, we’re dragging the paddles only vertically, not horizontally

Therefore, the code snippet only deals with dragging on the y axis. After creating the paddle at the initial

location, we register event handlers for MousePressed and MouseDragged events. The latter manipulates the

rightPaddleY property, which is used for translating the paddle along the y axis. Properties and bindings

will be explained in detail in Chapter 3.

Giving Keyboard Input Focus to a Node

For a node to receive key events, it has to have keyboard focus. This is accomplished in the ZenPong example

by doing these two things, as shown in the snippet that follows from Listing 2-8:

• Assigning true to the focusTraversable property of the Group node. This allows the

node to accept keyboard focus.

• Calling the requestFocus() method of the Group node (referred to by the

pongComponents variable). This requests that the node obtain focus.

■Tip You cannot directly set the value of the focused property of a Stage. Consulting the API docs also

reveals that you cannot set the value of the focused property of a Node (e.g., the Group that we’re discussing

now). However, as discussed in the second point just mentioned, you can call requestFocus() on the node,

which if granted (and focusTraversable is true) sets the focused property to true. By the way, Stage doesn’t

have a requestFocus() method, but it does have a toFront() method, which should give it keyboard focus.

...code omitted...

pongComponents.setFocusTraversable(true);

pongComponents.setOnKeyPressed(k -> {

if (k.getCode() == KeyCode.SPACE

&& pongAnimation.statusProperty()

.equals(Animation.Status.STOPPED)) {

rightPaddleY.setValue(rightPaddleY.getValue() - 6);

} else if (k.getCode() == KeyCode.L

&& !rightPaddle.getBoundsInParent().intersects(topWall.getBoundsInLocal())) {

rightPaddleY.setValue(rightPaddleY.getValue() - 6);

} else if (k.getCode() == KeyCode.COMMA

&& !rightPaddle.getBoundsInParent().intersects(bottomWall.getBoundsInLocal())) {

rightPaddleY.setValue(rightPaddleY.getValue() + 6);

} else if (k.getCode() == KeyCode.A

&& !leftPaddle.getBoundsInParent().intersects(topWall.getBoundsInLocal())) {

leftPaddleY.setValue(leftPaddleY.getValue() - 6);

} else if (k.getCode() == KeyCode.Z

CHAPTER 2 ■ CREATING A USER INTERFACE IN JAVAFX

&& !leftPaddle.getBoundsInParent().intersects(bottomWall.getBoundsInLocal())) {

leftPaddleY.setValue(leftPaddleY.getValue() + 6);

}

});

Now that the node has focus, when the user interacts with the keyboard, the appropriate event handlers

will be invoked. In this example, we’re interested in whenever certain keys are pressed, as discussed next.

Using the onKeyPressed Event Handler

When the user presses a key, the lambda expression supplied to the onKeyPressed method is invoked,

passing a KeyEvent instance that contains information about the event. The method body of this expression,

shown in the preceding snippet from Listing 2-8, compares the getCode() method of the KeyEvent instance

to the KeyCode constants that represent the arrow keys to ascertain which key was pressed.

Summary

Congratulations! You have learned a lot in this chapter about creating UIs in JavaFX, including the following.

• Creating a UI in JavaFX, which we loosely based on the metaphor of creating a

theater play, and typically consists of creating a stage, a scene, nodes, a model, and

event handlers, and animating some of the nodes

• The details about using most of the properties and methods of the Stage class,

including how to create a Stage that is transparent with no window decorations

• How to use the HBox and VBox layout containers to organize nodes horizontally and

vertically, respectively

• The details about using many of the properties and methods of the Scene class

• How to create and apply CSS styles to nodes in your program by associating one or

more style sheets with the Scene

• How to handle keyboard and mouse input events

• How to animate nodes in the scene, both with the Timeline class and the transition

classes

• How to detect when nodes in the scene have collided

In Chapter 3, we will discuss the alternative approach for creating UIs, this time with Scene Builder.

Then, in Chapter 4, we take a deeper dive into the areas of properties and binding.

Resources

For some additional information on creating JavaFX UIs, you can consult the following resources.

• JavaFX 9 SDK documentation online: http://download.java.net/jdk9/jfxdocs/

• JavaFX 9 CSS Reference Guide: http://docs.oracle.com/javase/9/docs/api/

javafx/scene/doc-files/cssref.html

• The w3schools.com CSS Tutorial: www.w3schools.com/css

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8_3

CHAPTER 3

Properties and Bindings

Heaven acts with vitality and persistence.

In correspondence with this

The superior person keeps himself vital without ceasing.

—I Ching

In Chapters 1 and 2, we introduced you to the JavaFX 9 platform that is part of Oracle JDK 9. You set up

your development environment with your favorite IDE: Eclipse, NetBeans, or IntelliJ IDEA. You wrote and

ran your first JavaFX GUI programs. You learned the fundamental building blocks of JavaFX: the Stage and

Scene classes, and the Nodes that go into the Scene. You have no doubt noticed the use of user-defined model

classes to represent the application state and have that state communicated to the UI through properties and

bindings.

In this chapter, we give you a guided tour of the JavaFX properties and bindings framework. After

recalling a little bit of history and presenting a motivating example that shows various ways that a

JavaFX Property can be used, we cover key concepts of the framework: Observable, ObservableValue,

WritableValue, ReadOnlyProperty, Property, and Binding. We show you the capabilities offered by these

fundamental interfaces of the framework. We then show you how Property objects are bound together, how

Binding objects are built out of properties and other bindings—using the factory methods in the Bindings

utility class, the fluent interface API, or going low level by directly extending abstract classes that implement

the Binding interface—and how they are used to easily propagate changes in one part of a program to other

parts of the program without too much coding. We then introduce the JavaFX Beans naming convention, an

extension of the original JavaBeans naming convention that makes organizing your data into encapsulated

components an orderly affair. We finish this chapter by showing how to adapt old-style JavaBeans properties

into JavaFX properties.

Because the JavaFX properties and bindings framework is a nonvisual part of the JavaFX platform, the

example programs in this chapter are also nonvisual in nature. We deal with Boolean, Integer, Long, Float,

Double, String, and Object type properties and bindings as these are the types in which the JavaFX binding

framework specializes. Your GUI building fun resumes in the next and further chapters.

Forerunners of JavaFX Binding

The need for exposing attributes of Java components directly to client code, allowing them to observe and to

manipulate such attributes, and to take action when their values change, was recognized early in Java’s life.

The JavaBeans framework in Java 1.1 provided support for properties through the now familiar getter and

setter convention. It also supported the propagations of property changes through its PropertyChangeEvent

and PropertyChangeListener mechanism. Although the JavaBeans framework is used in many Swing

CHAPTER 3 ■ PROPERTIES AND BINDINGS

applications, its use is quite cumbersome and requires quite a bit of boilerplate code. Several higher-level

data binding frameworks were created over the years with various levels of success. The heritage of the

JavaBeans in the JavaFX properties and bindings framework lies mainly in the JavaFX Beans getter, setter,

and property getter naming convention when defining JavaFX components. We talk about the JavaFX Beans

getter, setter, and property getter naming convention later in this chapter, after we have covered the key

concepts and interfaces of the JavaFX properties and bindings framework.

Another strand of heritage of the JavaFX properties and bindings framework comes from the

JavaFX Script language that was part of the JavaFX 1.x platform. Although the JavaFX Script language

was deprecated in the JavaFX platform in favor of a Java-based API, one of the goals of the transition

was to preserve most of the powers of the JavaFX Script’s bind keyword, the expressive power of which

has delighted many JavaFX enthusiasts. As an example, JavaFX Script supports the binding to complex

expressions:

var a = 1;

var b = 10;

var m = 4;

def c = bind for (x in [a..b] where x < m) { x * x };

This code will automatically recalculate the value of c whenever the values of a, b, or m are changed.

Although the JavaFX properties and bindings framework does not support all of the binding constructs

of JavaFX Script, it supports the binding of many useful expressions. We talk more about constructing

compound binding expressions after we cover the key concepts and interfaces of the framework.

A Motivating Example

Let’s start with an example in Listing 3-1 that shows off the capabilities of the Property interface through the

use of a couple of instances of the SimpleIntegerProperty class.

Listing 3-1. MotivatingExample.java

import javafx.beans.InvalidationListener;

import javafx.beans.property.IntegerProperty;

import javafx.beans.property.SimpleIntegerProperty;

import javafx.beans.value.ChangeListener;

import javafx.beans.value.ObservableValue;

public class MotivatingExample {

private static IntegerProperty intProperty;

public static void main(String[] args) {

createProperty();

addAndRemoveInvalidationListener();

addAndRemoveChangeListener();

bindAndUnbindOnePropertyToAnother();

}

private static void createProperty() {

System.out.println();

intProperty = new SimpleIntegerProperty(1024);

System.out.println("intProperty = " + intProperty);

System.out.println("intProperty.get() = " + intProperty.get());

CHAPTER 3 ■ PROPERTIES AND BINDINGS

System.out.println("intProperty.getValue() = " + intProperty.getValue().intValue());

}

private static void addAndRemoveInvalidationListener() {

System.out.println();

final InvalidationListener invalidationListener = observable ->

System.out.println("The observable has been invalidated: " + observable + ".");

intProperty.addListener(invalidationListener);

System.out.println("Added invalidation listener.");

System.out.println("Calling intProperty.set(2048).");

intProperty.set(2048);

System.out.println("Calling intProperty.setValue(3072).");

intProperty.setValue(Integer.valueOf(3072));

intProperty.removeListener(invalidationListener);

System.out.println("Removed invalidation listener.");

System.out.println("Calling intProperty.set(4096).");

intProperty.set(4096);

}

private static void addAndRemoveChangeListener() {

System.out.println();

final ChangeListener changeListener = (ObservableValue observableValue, Object

oldValue, Object newValue) ->

System.out.println("The observableValue has changed: oldValue = " + oldValue + ",

newValue = " + newValue);

intProperty.addListener(changeListener);

System.out.println("Added change listener.");

System.out.println("Calling intProperty.set(5120).");

intProperty.set(5120);

intProperty.removeListener(changeListener);

System.out.println("Removed change listener.");

System.out.println("Calling intProperty.set(6144).");

intProperty.set(6144);

}

private static void bindAndUnbindOnePropertyToAnother() {

System.out.println();

IntegerProperty otherProperty = new SimpleIntegerProperty(0);

System.out.println("otherProperty.get() = " + otherProperty.get());

System.out.println("Binding otherProperty to intProperty.");

otherProperty.bind(intProperty);

System.out.println("otherProperty.get() = " + otherProperty.get());

CHAPTER 3 ■ PROPERTIES AND BINDINGS

System.out.println("Calling intProperty.set(7168).");

intProperty.set(7168);

System.out.println("otherProperty.get() = " + otherProperty.get());

System.out.println("Unbinding otherProperty from intProperty.");

otherProperty.unbind();

System.out.println("otherProperty.get() = " + otherProperty.get());

System.out.println("Calling intProperty.set(8192).");

intProperty.set(8192);

System.out.println("otherProperty.get() = " + otherProperty.get());

}

In this example we created a SimpleIntegerProperty object called intProperty with an initial value

of 1024. We then updated its value through a series of different integers while we added and then removed

an InvalidationListener, added and then removed a ChangeListener, and finally, created another

SimpleIntegerProperty named otherProperty, bound it to, and then unbound it from the intProperty.

We have taken advantage of the Java 8 lambda syntax in defining our listeners. The sample program used a

generous amount of println calls to show what is happening inside the program.

When we run the program in Listing 3-1, the following output is printed to the console:

intProperty = IntegerProperty [value: 1024]

intProperty.get() = 1024

intProperty.getValue() = 1024

Added invalidation listener.

Calling intProperty.set(2048).

The observable has been invalidated: IntegerProperty [value: 2048].

Calling intProperty.setValue(3072).

The observable has been invalidated: IntegerProperty [value: 3072].

Removed invalidation listener.

Calling intProperty.set(4096).

Added change listener.

Calling intProperty.set(5120).

The observableValue has changed: oldValue = 4096, newValue = 5120

Removed change listener.

Calling intProperty.set(6144).

otherProperty.get() = 0

Binding otherProperty to intProperty.

otherProperty.get() = 6144

Calling intProperty.set(7168).

otherProperty.get() = 7168

Unbinding otherProperty from intProperty.

otherProperty.get() = 7168

Calling intProperty.set(8192).

otherProperty.get() = 7168

CHAPTER 3 ■ PROPERTIES AND BINDINGS

By correlating the output lines with the program source code (or by stepping through the code in the

debugger of your favorite IDE), we can draw the following conclusions.

• A SimpleIntegerProperty object such as intProperty and otherProperty holds

an int value. The value can be manipulated with the get(), set(), getValue(), and

setValue() methods. The get() and set() methods perform their operation with

the primitive int type. The getValue() and setValue() methods use the Integer

wrapper type.

• You can add and remove InvalidationListener objects to and from intProperty.

• You can add and remove ChangeListener objects to and from intProperty.

• Another Property object such as otherProperty can bind itself to intProperty.

When that happens, otherProperty receives the value of intProperty.

• When a new value is set on intProperty, whatever object that is attached to it is

notified. The notification is not sent if the object is removed.

• When notified, InvalidationListener objects are only informed of which object is

sending out the notification and that object is only known as an Observable.

• When notified, ChangeListener objects are informed on two more pieces of

information—the oldValue and the newValue—in addition to the object sending the

notification. The sending object is known as an ObservableValue.

• In the case of a binding property such as otherProperty, we cannot tell from the

output when or how it is notified of the change of value in intProperty. However,

we can infer that it must have known of the change because when we asked

otherProperty for its value we got back the latest value of intProperty.

■Note Even though this motivating example uses an Integer property, similar examples can be made to

use properties based on the Boolean, Long, Float, Double, String, and Object types. In the JavaFX properties

and bindings framework, when interfaces are extended or implemented for concrete types, they are always

done for the Boolean, Integer, Long, Float, Double, String, and Object types.

This example brings to our attention some of the key interfaces and concepts of the JavaFX properties

and bindings framework: including the Observable and the associated InvalidationListener interfaces,

the ObservableValue and the associated ChangeListener interfaces, the get(), set(), getValue(), and

setValue() methods that allow us to manipulate the values of a SimpleIntegerProperty object directly, and

the bind() method that allows us to relinquish direct manipulation of the value of a SimpleIntegerProperty

object by subordinating it to another SimpleIntegerProperty object.

In the next section, we show you these and some other key interfaces and concepts of the JavaFX

properties and bindings framework in more detail.

Understanding Key Interfaces and Concepts

Figure3-1 is a UML diagram showing the key interfaces of the JavaFX properties and bindings framework. It

includes some interfaces that you saw in the last section, and some that you haven’t yet seen.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

■Note We did not show you the fully qualified names of the interfaces in the UML diagram. These interfaces

are spread out in four packages: javafx.beans, javafx.beans.binding, javafx.beans.property, and

javafx.beans.value. You can easily figure out which interface belongs to which package by examining the

JavaFX API documentation or by the “find class” feature of your favorite IDE.

Understanding the Observable Interface

At the root of the hierarchy is the Observable interface. You can register InvalidationListener objects to

an Observable object to receive invalidation events. You have already seen invalidation events fired from

one kind of Observable object, the SimpleIntegerProperty object intProperty in the motivating example

in the last section. It is fired when the set() or setValue() methods are called to change the underlying

value from one int to a different int.

■Note An invalidation event is fired only once by any of the implementations of the Property interface in

the JavaFX properties and bindings framework if you call the setter with the same value several times in a row.

Figure 3-1. Key interfaces of the JavaFX properties and bindings framework

CHAPTER 3 ■ PROPERTIES AND BINDINGS

Another place where invalidation events are fired is from Binding objects. You haven’t seen an example

of a Binding object yet, but there are plenty of Binding objects in the second half of this chapter. For now we

just note that a Binding object may become invalid, for example, when its invalidate() method is called, or

as we show later in this chapter, when one of its dependencies fires an invalidation event.

■Note An invalidation event is fired only once by any of the implementations of the Binding interface in the

JavaFX properties and bindings framework if it becomes invalid several times in a row.

Understanding the ObservableValue Interface

Next up in the hierarchy is the ObservableValue interface. It’s simply an Observable that has a

value. Its getValue() method returns its value. The getValue() method that we called on the

SimpleIntegerProperty objects in the motivating example can be considered to have come from this

interface. You can register ChangeListener objects to an ObservableValue object to receive change events.

You saw change events being fired in the motivating example in the last section. When the change event

fires, the ChangeListener receives two more pieces of information: the old value and the new value of the

ObservableValue object.

■Note A change event is fired only once by any of the implementations of the ObservableValue interface in

the JavaFX properties and bindings framework if you call the setter with the same value several times in a row.

The distinction between an invalidation event and a change event is made so that the JavaFX properties

and bindings framework may support lazy evaluations. We show an example of this by looking at three lines

of code from the motivating example:

otherProperty.bind(intProperty);

intProperty.set(7168);

System.out.println("otherProperty.get() = " + otherProperty.get());

When intProperty.set(7168) is called, it fires an invalidation event to otherProperty. On receiving

this invalidation event, otherProperty simply makes a note of the fact that its value is no longer valid. It does

not immediately perform a recalculation of its value by querying intProperty for its value. The recalculation

is performed later when otherProperty.get() is called. Imagine if instead of calling intProperty.set()

only once as in the preceding code we call intProperty.set() multiple times; otherProperty still

recalculates its value only once.

■Note The ObservableValue interface is not the only direct subinterface of Observable. There are four

other direct subinterfaces of Observable that live in the javafx.collections package: ObservableList,

ObservableMap, ObservableSet, and ObservableArray with corresponding ListChangeListener,

MapChangeListener, SetChangeListener, and ArrayChangeListener as callback mechanisms. These JavaFX

observable collections are covered in Chapter 7.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

Understanding the WritableValue Interface

This might be the simplest subsection in the entire chapter, for the WritableValue interface is truly as simple

as it looks. Its purpose is to inject the getValue() and setValue() methods into implementations of this

interface. All implementation classes of WritableValue in the JavaFX properties and bindings framework

also implement ObservableValue; therefore, you can make an argument that the value of WritableValue is

only to provide the setValue() method.

You have seen the setValue() method at work in the motivating example.

Understanding the ReadOnlyProperty Interface

The ReadOnlyProperty interface injects two methods into its implementations. The getBean() method

should return the Object that contains the ReadOnlyRroperty or null if it is not contained in an Object.

The getName() method should return the name of the ReadOnlyProperty or the empty string if the

ReadOnlyProperty does not have a name.

The containing object and the name provide contextual information about a ReadOnlyProperty.

The contextual information of a property does not play any direct role in the propagation of invalidation

events or the recalculation of values. However, if provided, it will be taken into account in some peripheral

calculations.

In our motivating example, the intProperty is constructed without any contextual information. Had we

used the full constructor to supply it a name,

intProperty = new SimpleIntegerProperty(null, "intProperty", 1024);

the output would have contained the property name:

intProperty = IntegerProperty [name: intProperty, value: 1024]

Understanding the Property Interface

Now we come to the bottom of our key interfaces hierarchy. The Property interface has as its superinterfaces

all four interfaces we have examined thus far: Observable, ObservableValue, ReadOnlyProperty, and

WritableValue. Therefore, it inherits all the methods from these interfaces. It also provides five methods of

its own:

void bind(ObservableValue<? extends T> observableValue);

void unbind();

boolean isBound();

void bindBidirectional(Property<T> tProperty);

void unbindBidirectional(Property<T> tProperty);

You have seen two of the methods at work in the motivating example in the last section: bind() and

unbind().

Calling bind() creates a unidirectional binding or a dependency between the Property object and the

ObservableValue argument. Once they enter this relationship, calling the set() or setValue() methods on

the Property object will cause a RuntimeException to be thrown. Calling the get() or getValue() methods

on the Property object will return the value of the ObservableValue object. And, of course, changing the

value of the ObservableValue object will invalidate the Property object. Calling unbind() releases any

existing unidirectional binding the Property object may have. If a unidirectional binding is in effect, the

isBound() method returns true; otherwise, it returns false.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

Calling bindBidirectional() creates a bidirectional binding between the Property caller and the

Property argument. Notice that unlike the bind() method, which takes an ObservableValue argument,

the bindBidirectional() method takes a Property argument. Only two Property objects can be bound

together bidirectionally. Once they enter this relationship, calling the set() or setValue() methods on

either Property object will cause both objects’ values to be updated. Calling unbindBidirectional()

releases any existing bidirectional binding the caller and the argument may have. The program in Listing 3-2

shows a simple bidirectional binding at work.

Listing 3-2. BidirectionalBindingExample.java

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

public class BidirectionalBindingExample {

public static void main(String[] args) {

System.out.println("Constructing two StringProperty objects.");

StringProperty prop1 = new SimpleStringProperty("");

StringProperty prop2 = new SimpleStringProperty("");

System.out.println("Calling bindBidirectional.");

prop2.bindBidirectional(prop1);

System.out.println("prop1.isBound() = " + prop1.isBound());

System.out.println("prop2.isBound() = " + prop2.isBound());

System.out.println("Calling prop1.set(\"prop1 says: Hi!\")");

prop1.set("prop1 says: Hi!");

System.out.println("prop2.get() returned:");

System.out.println(prop2.get());

System.out.println("Calling prop2.set(prop2.get() + \"\\nprop2 says: Bye!\")");

prop2.set(prop2.get() + "\nprop2 says: Bye!");

System.out.println("prop1.get() returned:");

System.out.println(prop1.get());

}

In this example we created two SimpleStringProperty objects called prop1 and prop2, created a

bidirectional binding between them, and then called set() and get() on both properties.

When we run the program in Listing 3-2, the following output is printed to the console:

Constructing two StringProperty objects.

Calling bindBidirectional.

prop1.isBound() = false

prop2.isBound() = false

Calling prop1.set("prop1 says: Hi!")

prop2.get() returned:

prop1 says: Hi!

Calling prop2.set(prop2.get() + "\nprop2 says: Bye!")

prop1.get() returned:

prop1 says: Hi!

prop2 says: Bye!

CHAPTER 3 ■ PROPERTIES AND BINDINGS

■Caution Each Property object may have at most one active unidirectional binding at a time. It may have

as many bidirectional bindings as you want. The isBound() method pertains only to unidirectional bindings.

Calling bind() a second time with a different ObservableValue argument while a unidirectional binding is

already in effect will unbind the existing one and replace it with the new one.

Understanding the Binding Interface

The Binding interface defines four methods that reveal the intentions of the interface. A Binding object is an

ObservableValue whose validity can be queried with the isValid() method and set with the invalidate()

method. It has a list of dependencies that can be obtained with the getDependencies() method. And finally

a dispose() method signals that the binding will not be used anymore and resources used by it can be

cleaned up.

From this brief description of the Binding interface, we can infer that it represents a unidirectional

binding with multiple dependencies. Each dependency, we imagine, could be an ObservableValue to which

the Binding is registered to receive invalidation events. When the get() or getValue() method is called, if

the binding is invalidated, its value is recalculated.

The JavaFX properties and bindings framework does not provide any concrete classes that implement

the Binding interface. However, it provides multiple ways to create your own Binding objects easily: You

can extend the abstract base classes in the framework; you can use a set of static methods in the utility class

Bindings to create new bindings out of existing regular Java values (i.e., unobservable values), properties,

and bindings; you can also use a set of methods that are provided in the various properties and bindings

classes and form a fluent interface API to create new bindings. We go through the utility methods and the

fluent interface API in the “Creating Bindings” section later in this chapter. For now, we show you the first

example of a binding by extending the DoubleBinding abstract class. The program in Listing 3-3 uses a

binding to calculate the area of a rectangle.

Listing 3-3. RectangleAreaExample.java

import javafx.beans.binding.DoubleBinding;

import javafx.beans.property.DoubleProperty;

import javafx.beans.property.SimpleDoubleProperty;

public class RectangleAreaExample {

public static void main(String[] args) {

System.out.println("Constructing x with initial value of 2.0.");

final DoubleProperty x = new SimpleDoubleProperty(null, "x", 2.0);

System.out.println("Constructing y with initial value of 3.0.");

final DoubleProperty y = new SimpleDoubleProperty(null, "y", 3.0);

System.out.println("Creating binding area with dependencies x and y.");

DoubleBinding area = new DoubleBinding() {

private double value;

{

super.bind(x, y);

}

@Override

protected double computeValue() {

System.out.println("computeValue() is called.");

CHAPTER 3 ■ PROPERTIES AND BINDINGS

return x.get() * y.get();

}

};

System.out.println("area.get() = " + area.get());

System.out.println("Setting x to 5");

x.set(5);

System.out.println("Setting y to 7");

y.set(7);

System.out.println("area.get() = " + area.get());

}

In the anonymous inner class, we called the protected bind() method in the superclass DoubleBinding,

informing the superclass that we would like to listen to invalidation events from the DoubleProperty

objects x and y. We finally implemented the protected abstract computeValue() method in the superclass

DoubleBinding to do the actual calculation when a recalculation is needed.

When we run the program in Listing 3-3, the following output is printed to the console:

Constructing x with initial value of 2.0.

Constructing y with initial value of 3.0.

Creating binding area with dependencies x and y.

computeValue() is called.

area.get() = 6.0

Setting x to 5

Setting y to 7

computeValue() is called.

area.get() = 35.0

Notice that computeValue() is called only once when we call area.get() twice in a row.

■Caution The DoubleBinding abstract class contains a default implementation of dispose() that is empty

and a default implementation of getDependencies() that returns an empty list. To make this example a correct

Binding implementation, we should override these two methods to behave correctly.

Now that you have a firm grasp of the key interfaces and concepts of the JavaFX properties and bindings

framework, we show you how these generic interfaces are specialized to type-specific interfaces and

implemented in type-specific abstract and concrete classes.

Type-Specific Specializations of Key Interfaces

We did not emphasize this fact in the last section because we believe its omission does not hurt the

explanations there, but except for Observable and InvalidationListener, the rest of the interfaces are

generic interfaces with a type parameter <T>. In this section, we examine how these generic interfaces are

specialized to the specific types of interest: Boolean, Integer, Long, Float, Double, String, and Object. We

CHAPTER 3 ■ PROPERTIES AND BINDINGS

also examine some of the abstract and concrete classes of the framework and explore typical usage scenarios

of each class.

■Note Specializations of these interfaces also exist for List, Map, and Set. They are designed for working

with observable collections. We cover observable collections in Chapter 7.

A Common Theme for Type-Specific Interfaces

Although the generic interfaces are not all specialized in exactly the same way, a common theme exists:

• The Boolean type is specialized directly.

• The Integer, Long, Float, and Double types are specialized through the Number

supertype.

• The String type is specialized through the Object type.

This theme exists in the type-specific specializations of all the key interfaces. As an example, we

examine the subinterfaces of the ObservableValue<T> interface:

• ObservableBooleanValue extends ObservableValue<Boolean>, and it offers one

additional method.

• boolean get();

• ObservableNumberValue extends ObservableValue<Number>, and it offers four

additional methods.

• int intValue();

• long longValue();

• float floatValue();

• double doubleValue();

• ObservableObjectValue<T> extends ObservableValue<T>, and it offers one

additional method.

• T get();

• ObservableIntegerValue, ObservableLongValue, ObservableFloatValue, and

ObservableDoubleValue extend ObservableNumberValue and each offers an

additional get() method that returns the appropriate primitive type value.

• ObservableStringValue extends ObservableObjectValue<String> and inherits its

get() method that returns String.

Notice that the get() method that we have been using in the examples is defined in the type-specific

ObservableValue subinterfaces. A similar examination reveals that the set() method that we have been

using in the examples is defined in the type-specific WritableValue subinterfaces.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

A practical consequence of this derivation hierarchy is that any numerical property can call bind()

on any other numerical property or binding. Indeed, the signature of the bind() method on any numerical

property is as follows:

void bind(ObservableValue<? extends Number> observable);

And any numerical property and binding is assignable to the generic parameter type. The program in

Listing 3-4 shows that any numerical properties of different specific types can be bound to each other.

Listing 3-4. NumericPropertiesExample.java

import javafx.beans.property.DoubleProperty;

import javafx.beans.property.FloatProperty;

import javafx.beans.property.IntegerProperty;

import javafx.beans.property.LongProperty;

import javafx.beans.property.SimpleDoubleProperty;

import javafx.beans.property.SimpleFloatProperty;

import javafx.beans.property.SimpleIntegerProperty;

import javafx.beans.property.SimpleLongProperty;

public class NumericPropertiesExample {

public static void main(String[] args) {

IntegerProperty i = new SimpleIntegerProperty(null, "i", 1024);

LongProperty l = new SimpleLongProperty(null, "l", 0L);

FloatProperty f = new SimpleFloatProperty(null, "f", 0.0F);

DoubleProperty d = new SimpleDoubleProperty(null, "d", 0.0);

System.out.println("Constructed numerical properties i, l, f, d.");

System.out.println("i.get() = " + i.get());

System.out.println("l.get() = " + l.get());

System.out.println("f.get() = " + f.get());

System.out.println("d.get() = " + d.get());

l.bind(i);

f.bind(l);

d.bind(f);

System.out.println("Bound l to i, f to l, d to f.");

System.out.println("i.get() = " + i.get());

System.out.println("l.get() = " + l.get());

System.out.println("f.get() = " + f.get());

System.out.println("d.get() = " + d.get());

System.out.println("Calling i.set(2048).");

i.set(2048);

System.out.println("i.get() = " + i.get());

System.out.println("l.get() = " + l.get());

System.out.println("f.get() = " + f.get());

System.out.println("d.get() = " + d.get());

CHAPTER 3 ■ PROPERTIES AND BINDINGS

d.unbind();

f.unbind();

l.unbind();

System.out.println("Unbound l to i, f to l, d to f.");

f.bind(d);

l.bind(f);

i.bind(l);

System.out.println("Bound f to d, l to f, i to l.");

System.out.println("Calling d.set(10000000000L).");

d.set(10000000000L);

System.out.println("d.get() = " + d.get());

System.out.println("f.get() = " + f.get());

System.out.println("l.get() = " + l.get());

System.out.println("i.get() = " + i.get());

}

In this example we created four numeric properties and bound them into a chain in decreasing size to

demonstrate that the bindings work as expected. We then reversed the order of the chain and set the double

property’s value to a number that would overflow the integer property to highlight the fact that even though

you can bind different sizes of numeric properties together, when the value of the dependent property is

outside the range of the binding property, normal Java numeric conversion applies.

When we run the program in Listing 3-4, the following is printed to the console:

Constructed numerical properties i, l, f, d.

i.get() = 1024

l.get() = 0

f.get() = 0.0

d.get() = 0.0

Bound l to i, f to l, d to f.

i.get() = 1024

l.get() = 1024

f.get() = 1024.0

d.get() = 1024.0

Calling i.set(2048).

i.get() = 2048

l.get() = 2048

f.get() = 2048.0

d.get() = 2048.0

Unbound l to i, f to l, d to f.

Bound f to d, l to f, i to l.

Calling d.set(10000000000L).

d.get() = 1.0E10

f.get() = 1.0E10

l.get() = 10000000000

i.get() = 1410065408

CHAPTER 3 ■ PROPERTIES AND BINDINGS

Commonly Used Classes

We now give a survey of the content of the four packages javafx.beans, javafx.beans.binding, javafx.

beans.property, and javafx.beans.value. In this section, the SimpleIntegerProperty series of classes

refers to the classes extrapolated over the Boolean, Integer, Long, Float, Double, String, and Object types.

Therefore, what is said also applies to SimpleBooleanProperty, and so on.

• The most often used classes in the JavaFX properties and bindings framework are the

SimpleIntegerProperty series of classes. They provide all the functionalities of the

Property interface including lazy evaluation. They are used in all the examples of

this chapter up to this point.

• Another set of concrete classes in the JavaFX properties and bindings framework

is the ReadOnlyIntegerWrapper series of classes. These classes implement the

Property interface but also have a getReadOnlyProperty() method that returns

a ReadOnlyProperty that is synchronized with the main Property. They are very

handy to use when you need a full-blown Property for the implementation of a

component but you only want to hand out a ReadOnlyProperty to the client of the

component.

• The IntegerPropertyBase series of abstract classes can be extended to

provide implementations of full Property classes, although in practice the

SimpleIntegerProperty series of classes is easier to use. The only abstract methods

in the IntegerPropertyBase series of classes are getBean() and getName().

• The ReadOnlyIntegerPropertyBase series of abstract classes can be extended to

provide implementations of ReadOnlyProperty classes. This is rarely necessary. The

only abstract methods in the ReadOnlyIntegerPropertyBase series of classes are

get(), getBean(), and getName().

• The WeakInvalidationListener and WeakChangeListener classes can be used to

wrap InvalidationListener and ChangeListener instances before addListener()

is called. They hold weak references of the wrapped listener instances. As long as

you hold a reference to the wrapped listener on your side, the weak references will

be kept alive and you will receive events. When you are done with the wrapped

listener and have unreferenced it from your side, the weak references will be eligible

for garbage collection, and then later garbage collected. All the JavaFX properties

and bindings framework Observable objects know how to clean up a weak listener

after its weak reference has been garbage collected. This prevents memory leaks

when the listeners are not removed after use. The WeakInvalidationListener

and WeakListener classes implement the WeakListener interface, whose

wasGarbageCollected() method will return true if the wrapped listener instance

was garbage collected.

That covers all the JavaFX properties and bindings APIs that reside in the javafx.beans, javafx.beans.

property, and javafx.beans.value packages and some but not all of the APIs in the javafx.beans.binding

package. The javafx.beans.property.adapters package provides adapters between old-style JavaBeans

properties and JavaFX properties. We will cover these adapters in the “Adapting JavaBeans Properties to

JavaFX Properties” section. The remaining classes of the javafx.beans.binding package are APIs that help

you to create new bindings out of existing properties and bindings. That is the focus of the next section.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

Creating Bindings

We now turn our focus to the creation of new bindings out of existing properties and bindings. You learned

in the “Understanding Key Interfaces and Concepts” section earlier in this chapter that a binding is an

observable value that has a list of dependencies that are also observable values.

The JavaFX properties and bindings framework offers three ways of creating new bindings:

• Extending the IntegerBinding series of abstract classes.

• Using the bindings-creating static methods in the utilities class Bindings.

• Using the fluent interface API provided by the IntegerExpression series of abstract

classes.

You saw the direct extension approach in the “Understanding the Binding Interface” section. We

explore the Bindings utility class next.

Understanding the Bindings Utility Class

The Bindings class contains 236 factory methods that make new bindings out of existing observable values

and regular values. Most of the methods are overloaded to take into account that both observable values and

regular Java (unobservable) values can be used to build new bindings. At least one of the parameters must

be an observable value. Here are the signatures of the nine overloaded add() methods:

public static NumberBinding add(ObservableNumberValue n1, ObservableNumberValue n2)

public static DoubleBinding add(ObservableNumberValue n, double d)

public static DoubleBinding add(double d, ObservableNumberValue n)

public static NumberBinding add(ObservableNumberValue n, float f)

public static NumberBinding add(float f, ObservableNumberValue n)

public static NumberBinding add(ObservableNumberValue n, long l)

public static NumberBinding add(long l, ObservableNumberValue n)

public static NumberBinding add(ObservableNumberValue n, int i)

public static NumberBinding add(int i, ObservableNumberValue n)

When the add() method is called, it returns a NumberBinding with dependencies that include all the

observable value parameters, and whose value is the sum of the value of its two parameters. Similarly

overloaded methods exist for subtract(), multiply(), and divide().

■Note Recall from the last section that ObservableIntegerValue, ObservableLongValue,

ObservableFloatValue, and ObservableDoubleValue are subclasses of ObservableNumberValue. Therefore,

the four arithmetic methods just mentioned can take any combinations of these observable numeric values as

well as any unobservable values.

The program in Listing 3-5 uses the arithmetic methods in Bindings to calculate the area of a triangle in

the Cartesian plane with vertices (x1, y1), (x2, y2), (x3, y3) using this formula:

Area = (x1*y2 + x2*y3 + x3*y1 – x1*y3 – x2*y1 – x3*y2) / 2

CHAPTER 3 ■ PROPERTIES AND BINDINGS

Listing 3-5. TriangleAreaExample.java

import javafx.beans.binding.Bindings;

import javafx.beans.binding.NumberBinding;

import javafx.beans.property.IntegerProperty;

import javafx.beans.property.SimpleIntegerProperty;

public class TriangleAreaExample {

public static void main(String[] args) {

IntegerProperty x1 = new SimpleIntegerProperty(0);

IntegerProperty y1 = new SimpleIntegerProperty(0);

IntegerProperty x2 = new SimpleIntegerProperty(0);

IntegerProperty y2 = new SimpleIntegerProperty(0);

IntegerProperty x3 = new SimpleIntegerProperty(0);

IntegerProperty y3 = new SimpleIntegerProperty(0);

final NumberBinding x1y2 = Bindings.multiply(x1, y2);

final NumberBinding x2y3 = Bindings.multiply(x2, y3);

final NumberBinding x3y1 = Bindings.multiply(x3, y1);

final NumberBinding x1y3 = Bindings.multiply(x1, y3);

final NumberBinding x2y1 = Bindings.multiply(x2, y1);

final NumberBinding x3y2 = Bindings.multiply(x3, y2);

final NumberBinding sum1 = Bindings.add(x1y2, x2y3);

final NumberBinding sum2 = Bindings.add(sum1, x3y1);

final NumberBinding sum3 = Bindings.add(sum2, x3y1);

final NumberBinding diff1 = Bindings.subtract(sum3, x1y3);

final NumberBinding diff2 = Bindings.subtract(diff1, x2y1);

final NumberBinding determinant = Bindings.subtract(diff2, x3y2);

final NumberBinding area = Bindings.divide(determinant, 2.0D);

x1.set(0); y1.set(0);

x2.set(6); y2.set(0);

x3.set(4); y3.set(3);

printResult(x1, y1, x2, y2, x3, y3, area);

x1.set(1); y1.set(0);

x2.set(2); y2.set(2);

x3.set(0); y3.set(1);

printResult(x1, y1, x2, y2, x3, y3, area);

}

private static void printResult(IntegerProperty x1, IntegerProperty y1,

IntegerProperty x2, IntegerProperty y2,

IntegerProperty x3, IntegerProperty y3,

NumberBinding area) {

System.out.println("For A(" +

CHAPTER 3 ■ PROPERTIES AND BINDINGS

100

x1.get() + "," + y1.get() + "), B(" +

x2.get() + "," + y2.get() + "), C(" +

x3.get() + "," + y3.get() + "), the area of triangle ABC is " + area.

getValue());

}

We used IntegerProperty to represent the coordinates. The building up of the NumberBinding area

uses all four arithmetic factory methods of Bindings. Because we started with IntegerProperty objects,

even though the return type from the arithmetic factory methods of Bindings is NumberBinding, the actual

objects that are returned, up to determinant, are IntegerBinding objects. We used 2.0D rather than a

mere 2 in the divide() call to force the division to be done as a double division, not as int division. All

the properties and bindings that we build up form a tree structure with area as the root, the intermediate

bindings as internal nodes, and the properties x1, y1, x2, y2, x3, y3 as leaves. This tree is similar to the parse

tree we will get if we parse the mathematical expression for the area formula using grammar for the regular

arithmetic expressions.

When we run the program in Listing 3-5, the following output is printed to the console:

For A(0,0), B(6,0), C(4,3), the area of triangle ABC is 9.0

For A(1,0), B(2,2), C(0,1), the area of triangle ABC is 1.5

Aside from the arithmetic methods, the Bindings class also has the following factory methods.

• Logical operators: and, or, not

• Numeric operators: min, max, negate

• Object operators: isNull, isNotNull

• String operators: length, isEmpty, isNotEmpty

• Relational operators:

• equal

• equalIgnoreCase

• greaterThan

• greaterThanOrEqual

• lessThan

• lessThanOrEqual

• notEqual

• notEqualIgnoreCase

• Creation operators:

• createBooleanBinding

• createIntegerBinding

• createLongBinding

• createFloatBinding

CHAPTER 3 ■ PROPERTIES AND BINDINGS

101

• createDoubleBinding

• createStringBinding

• createObjectBinding

• Selection operators:

• select

• selectBoolean

• selectInteger

• selectLong

• selectFloat

• selectDouble

• selectString

Except for the creation operators and the selection operators, the preceding operators all do what you

think they will do. The object operators are meaningful only for observable string values and observable

object values. The string operators are meaningful only for observable string values. All relational operators

except for the IgnoreCase ones apply to numeric values. There are versions of the equal and notEqual

operators for numeric values that have a third double parameter for the tolerance when comparing float or

double values. The equal and notEqual operators also apply to boolean, string, and object values. For string

and object values, the equal and notEqual operator compares their values using the equals() method.

The creation operators provide a convenient way of creating a binding without directly extending the

abstract base class. It takes a Callable and any number of dependencies as an argument. The area double

binding in Listing 3-3 can be rewritten using a lambda expression as the Callable, as follows,:

DoubleBinding area = Bindings.createDoubleBinding(() -> {

return x.get() * y.get();

}, x, y);

The selection operators operate on what are called JavaFX Beans, Java classes constructed according

to the JavaFX Beans specification. We talk about JavaFX Beans in the “Understanding JavaFX Beans

Convention” section later in this chapter.

There are a number of methods in Bindings that deal with observable collections. We cover them in

Chapter 7.

That covers all methods in Bindings that return a binding object. There are 18 methods in Bindings that

do not return a binding object. The various bindBidirectional() and unbindBidirectional() methods

create bidirectional bindings. As a matter of fact, the bindBidirectional() and unbindBidirectional()

methods in the various properties classes simply call the corresponding ones in the Bindings class. The

bindContent() and unbindContent() methods bind an ordinary collection to an observable collection. The

convert(), concat(), and a pair of overloaded format() methods return StringExpression objects. And

finally, the when() method returns a When object.

The When and the StringExpression classes are part of the fluent interface API for creating bindings,

which we cover in the next subsection.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

102

Understanding the Fluent Interface API

If you asked, “Why would anybody name a method when()?” and “What kind of information would the When

class encapsulate?”—welcome to the club. While you were not looking, the object-oriented programming

community invented a brand-new method of API design that totally disregards the decades-old principles of

object-oriented practices. Instead of encapsulating data and distributing business logic into relevant domain

objects, this new methodology produces a style of API that encourages method chaining and uses the return

type of one method to determine what methods are available for the next car of the choo-choo train. Method

names are chosen not to convey complete meaning, but to make the entire method chain read like a fluent

sentence. This style is called a fluent interface API.

■Note You can find a more thorough exposition of fluent interfaces on Martin Fowler’s web site, referenced

at the end of this chapter.

The fluent interface APIs for creating bindings are defined in the IntegerExpression series of classes.

IntegerExpression is a superclass of both IntegerProperty and IntegerBinding, making the methods of

IntegerExpression also available in the IntegerProperty and IntegerBinding classes. The four numeric

expression classes share a common superinterface NumberExpression, where all the methods are defined.

The type-specific expression classes override some of the methods that yield a NumberBinding to return a

more appropriate type of binding.

The methods thus made available for the seven kinds of properties and bindings are listed here:

• For BooleanProperty and BooleanBindingBooleanBinding

and(ObservableBooleanValue b)

• BooleanBinding or(ObservableBooleanValue b)

• BooleanBinding not()

• BooleanBinding isEqualTo(ObservableBooleanValue b)

• BooleanBinding isNotEqualTo(ObservableBooleanValue b)

• StringBinding asString()

• Common for all numeric properties and bindings

• BooleanBinding isEqualTo(ObservableNumberValue m)

• BooleanBinding isEqualTo(ObservableNumberValue m, double err)

• BooleanBinding isEqualTo(double d, double err)

• BooleanBinding isEqualTo(float f, double err)

• BooleanBinding isEqualTo(long l)

• BooleanBinding isEqualTo(long l, double err)

• BooleanBinding isEqualTo(int i)

• BooleanBinding isEqualTo(int i, double err)

• BooleanBinding isNotEqualTo(ObservableNumberValue m)

• BooleanBinding isNotEqualTo(ObservableNumberValue m, double err)

CHAPTER 3 ■ PROPERTIES AND BINDINGS

103

• BooleanBinding isNotEqualTo(double d, double err)

• BooleanBinding isNotEqualTo(float f, double err)

• BooleanBinding isNotEqualTo(long l)

• BooleanBinding isNotEqualTo(long l, double err)

• BooleanBinding isNotEqualTo(int i)

• BooleanBinding isNotEqualTo(int i, double err)

• BooleanBinding greaterThan(ObservableNumberValue m)

• BooleanBinding greaterThan(double d)

• BooleanBinding greaterThan(float f)

• BooleanBinding greaterThan(long l)

• BooleanBinding greaterThan(int i)

• BooleanBinding lessThan(ObservableNumberValue m)

• BooleanBinding lessThan(double d)

• BooleanBinding lessThan(float f)

• BooleanBinding lessThan(long l)

• BooleanBinding lessThan(int i)

• BooleanBinding greaterThanOrEqualTo(ObservableNumberValue m)

• BooleanBinding greaterThanOrEqualTo(double d)

• BooleanBinding greaterThanOrEqualTo(float f)

• BooleanBinding greaterThanOrEqualTo(long l)

• BooleanBinding greaterThanOrEqualTo(int i)

• BooleanBinding lessThanOrEqualTo(ObservableNumberValue m)

• BooleanBinding lessThanOrEqualTo(double d)

• BooleanBinding lessThanOrEqualTo(float f)

• BooleanBinding lessThanOrEqualTo(long l)

• BooleanBinding lessThanOrEqualTo(int i)

• StringBinding asString()

• StringBinding asString(String str)

• StringBinding asString(Locale locale, String str)

• For IntegerProperty and IntegerBinding

• IntegerBinding negate()

• NumberBinding add(ObservableNumberValue n)

• DoubleBinding add(double d)

CHAPTER 3 ■ PROPERTIES AND BINDINGS

104

• FloatBinding add(float f)

• LongBinding add(long l)

• IntegerBinding add(int i)

• NumberBinding subtract(ObservableNumberValue n)

• DoubleBinding subtract(double d)

• FloatBinding subtract(float f)

• LongBinding subtract(long l)

• IntegerBinding subtract(int i)

• NumberBinding multiply(ObservableNumberValue n)

• DoubleBinding multiply(double d)

• FloatBinding multiply(float f)

• LongBinding multiply(long l)

• IntegerBinding multiply(int i)

• NumberBinding divide(ObservableNumberValue n)

• DoubleBinding divide(double d)

• FloatBinding divide(float f)

• LongBinding divide(long l)

• IntegerBinding divide(int i)

• For LongProperty and LongBinding

• LongBinding negate()

• NumberBinding add(ObservableNumberValue n)

• DoubleBinding add(double d)

• FloatBinding add(float f)

• LongBinding add(long l)

• LongBinding add(int i)

• NumberBinding subtract(ObservableNumberValue n)

• DoubleBinding subtract(double d)

• FloatBinding subtract(float f)

• LongBinding subtract(long l)

• LongBinding subtract(int i)

• NumberBinding multiply(ObservableNumberValue n)

• DoubleBinding multiply(double d)

• FloatBinding multiply(float f)

CHAPTER 3 ■ PROPERTIES AND BINDINGS

105

• LongBinding multiply(long l)

• LongBinding multiply(int i)

• NumberBinding divide(ObservableNumberValue n)

• DoubleBinding divide(double d)

• FloatBinding divide(float f)

• LongBinding divide(long l)

• LongBinding divide(int i)

• For FloatProperty and FloatBinding

• FloatBinding negate()

• NumberBinding add(ObservableNumberValue n)

• DoubleBinding add(double d)

• FloatBinding add(float g)

• FloatBinding add(long l)

• FloatBinding add(int i)

• NumberBinding subtract(ObservableNumberValue n)

• DoubleBinding subtract(double d)

• FloatBinding subtract(float g)

• FloatBinding subtract(long l)

• FloatBinding subtract(int i)

• NumberBinding multiply(ObservableNumberValue n)

• DoubleBinding multiply(double d)

• FloatBinding multiply(float g)

• FloatBinding multiply(long l)

• FloatBinding multiply(int i)

• NumberBinding divide(ObservableNumberValue n)

• DoubleBinding divide(double d)

• FloatBinding divide(float g)

• FloatBinding divide(long l)

• FloatBinding divide(int i)

• For DoubleProperty and DoubleBinding

• DoubleBinding negate()

• DoubleBinding add(ObservableNumberValue n)

• DoubleBinding add(double d)

CHAPTER 3 ■ PROPERTIES AND BINDINGS

106

• DoubleBinding add(float f)

• DoubleBinding add(long l)

• DoubleBinding add(int i)

• DoubleBinding subtract(ObservableNumberValue n)

• DoubleBinding subtract(double d)

• DoubleBinding subtract(float f)

• DoubleBinding subtract(long l)

• DoubleBinding subtract(int i)

• DoubleBinding multiply(ObservableNumberValue n)

• DoubleBinding multiply(double d)

• DoubleBinding multiply(float f)

• DoubleBinding multiply(long l)

• DoubleBinding multiply(int i)

• DoubleBinding divide(ObservableNumberValue n)

• DoubleBinding divide(double d)

• DoubleBinding divide(float f)

• DoubleBinding divide(long l)

• DoubleBinding divide(int i)

• For StringProperty and StringBinding

• StringExpression concat(Object obj)

• BooleanBinding isEqualTo(ObservableStringValue str)

• BooleanBinding isEqualTo(String str)

• BooleanBinding isNotEqualTo(ObservableStringValue str)

• BooleanBinding isNotEqualTo(String str)

• BooleanBinding isEqualToIgnoreCase(ObservableStringValue str)

• BooleanBinding isEqualToIgnoreCase(String str)

• BooleanBinding isNotEqualToIgnoreCase(ObservableStringValue str)

• BooleanBinding isNotEqualToIgnoreCase(String str)

• BooleanBinding greaterThan(ObservableStringValue str)

• BooleanBinding greaterThan(String str)

• BooleanBinding lessThan(ObservableStringValue str)

• BooleanBinding lessThan(String str)

• BooleanBinding greaterThanOrEqualTo(ObservableStringValue str)

CHAPTER 3 ■ PROPERTIES AND BINDINGS

107

• BooleanBinding greaterThanOrEqualTo(String str)

• BooleanBinding lessThanOrEqualTo(ObservableStringValue str)

• BooleanBinding lessThanOrEqualTo(String str)

• BooleanBinding isNull()

• BooleanBinding isNotNull()

• IntegerBinding length()

• BooleanExpression isEmpty()

• BooleanExpression isNotEmpty()

• For ObjectProperty and ObjectBinding

• BooleanBinding isEqualTo(ObservableObjectValue<?> obj)

• BooleanBinding isEqualTo(Object obj)

• BooleanBinding isNotEqualTo(ObservableObjectValue<?> obj)

• BooleanBinding isNotEqualTo(Object obj)

• BooleanBinding isNull()

• BooleanBinding isNotNull()

With these methods, you can create an infinite variety of bindings by starting with a property and

calling one of the methods that is appropriate for the type of the property to get a binding, and calling one

of the methods that is appropriate for the type of the binding to get another binding, and so on. One fact

that is worth pointing out here is that all the methods for the type-specific numeric expressions are defined

in the NumberExpression base interface with a return type of NumberBinding, and are overridden in the

type-specific expression classes with an identical parameter signature but a more specific return type. This

way of overriding a method in a subclass with an identical parameter signature but a more specific return

type is called covariant return-type overriding, and has been a Java language feature since Java 5. One of

the consequences of this fact is that numeric bindings built with the fluent interface API have more specific

types than those built with factory methods in the Bindings class.

Sometimes it is necessary to convert a type-specific expression into an object expression holding the

same type of value. This can be done with the asObject() method in the type-specific expression class. The

conversion back can be done using static methods in the expressions class. For IntegerExpression, these

static methods are as follows:

static IntegerExpression integerExpression(ObservableIntegerValue value)

static <T extends java.lang.Number> IntegerExpression integerExpression(ObservableValue<T> value)

The program in Listing 3-6 is a modification of the triangle area example in Listing 3-5 that uses the

fluent interface API instead of calling factory methods in the Bindings class.

Listing 3-6. TriangleAreaFluentExample.java

import javafx.beans.binding.Bindings;

import javafx.beans.binding.NumberBinding;

import javafx.beans.binding.StringExpression;

import javafx.beans.property.IntegerProperty;

import javafx.beans.property.SimpleIntegerProperty;

CHAPTER 3 ■ PROPERTIES AND BINDINGS

108

public class TriangleAreaFluentExample {

public static void main(String[] args) {

IntegerProperty x1 = new SimpleIntegerProperty(0);

IntegerProperty y1 = new SimpleIntegerProperty(0);

IntegerProperty x2 = new SimpleIntegerProperty(0);

IntegerProperty y2 = new SimpleIntegerProperty(0);

IntegerProperty x3 = new SimpleIntegerProperty(0);

IntegerProperty y3 = new SimpleIntegerProperty(0);

final NumberBinding area = x1.multiply(y2)

.add(x2.multiply(y3))

.add(x3.multiply(y1))

.subtract(x1.multiply(y3))

.subtract(x2.multiply(y1))

.subtract(x3.multiply(y2))

.divide(2.0D);

StringExpression output = Bindings.format(

"For A(%d,%d), B(%d,%d), C(%d,%d), the area of triangle ABC is %3.1f",

x1, y1, x2, y2, x3, y3, area);

x1.set(0); y1.set(0);

x2.set(6); y2.set(0);

x3.set(4); y3.set(3);

System.out.println(output.get());

x1.set(1); y1.set(0);

x2.set(2); y2.set(2);

x3.set(0); y3.set(1);

System.out.println(output.get());

}

Notice how the 13 lines of code and 12 intermediate variables used in Listing 3-5 to build up the area

binding are reduced to the 7 lines of code with no intermediate variables used in Listing 3-6. We also used

the Bindings.format() method to build up a StringExpression object called output. There are two

overloaded Bindings.format() methods with signatures:

StringExpression format(Locale locale, String format, Object... args)

StringExpression format(String format, Object... args)

They work similarly to the corresponding String.format() methods in that they format the values args

according to the format specification format and the Locale locale, or the default Locale. If any of the args

is an ObservableValue, its change is reflected in the StringExpression.

When we run the program in Listing 3-6, the following output is printed to the console:

For A(0,0), B(6,0), C(4,3), the area of triangle ABC is 9.0

For A(1,0), B(2,2), C(0,1), the area of triangle ABC is 1.5

CHAPTER 3 ■ PROPERTIES AND BINDINGS

109

Next we unravel the mystery of the When class and the role it plays in constructing bindings that are

essentially if/then/else expressions. The When class has a constructor that takes an ObservableBooleanValue

argument:

public When(ObservableBooleanValue b)

It has the following 11 overloaded then() methods.

When.NumberConditionBuilder then(ObservableNumberValue n)

When.NumberConditionBuilder then(double d)

When.NumberConditionBuilder then(float f)

When.NumberConditionBuilder then(long l)

When.NumberConditionBuilder then(int i)

When.BooleanConditionBuilder then(ObservableBooleanValue b)

When.BooleanConditionBuilder then(boolean b)

When.StringConditionBuilder then(ObservableStringValue str)

When.StringConditionBuilder then(String str)

When.ObjectConditionBuilder<T> then(ObservableObjectValue<T> obj)

When.ObjectConditionBuilder<T> then(T obj)

The type of object returned from the then() method depends on the type of the argument.

If the argument is a numeric type, either observable or unobservable, the return type is a nested

class When.NumberConditionBuilder. Similarly, for Boolean arguments, the return type is When.

BooleanConditionBuilder; for string arguments, When.StringConditionBuilder; and for object arguments,

When.ObjectConditionBuilder.

These condition builders in turn have the following otherwise() methods.

• For When.NumberConditionBuilder

• NumberBinding otherwise(ObservableNumberValue n)

• DoubleBinding otherwise(double d)

• NumberBinding otherwise(float f)

• NumberBinding otherwise(long l)

• NumberBinding otherwise(int i)

• For When.BooleanConditionBuilder

• BooleanBinding otherwise(ObservableBooleanValue b)

• BooleanBinding otherwise(boolean b)

• For When.StringConditionBuilder

• StringBinding otherwise(ObservableStringValue str)

• StringBinding otherwise(String str)

• For When.ObjectConditionBuilder

• ObjectBinding<T> otherwise(ObservableObjectValue<T> obj)

• ObjectBinding<T> otherwise(T obj)

CHAPTER 3 ■ PROPERTIES AND BINDINGS

110

The net effect of these method signatures is that you can build up a binding that resembles an if/then/

else expression this way:

new When(b).then(x).otherwise(y)

b is an ObservableBooleanValue, and x and y are of similar types and can be either observable or

unobservable. The resulting binding will be of a type similar to that of x and y.

The program in Listing 3-7 uses the fluent interface API from the When class to calculate the area of a

triangle with given sides a, b, and c. Recall that to form a triangle, the three sides must satisfy the following

conditions:

a + b > c, b + c > a, c + a > b.

When the preceding conditions are satisfied, the area of the triangle can be calculated using Heron’s

formula:

Area = sqrt(s * (s – a) * (s – b) * (s – c))

where s is the semiperimeter:

s = (a + b + c) / 2.

Listing 3-7. HeronsFormulaExample.java

import javafx.beans.binding.DoubleBinding;

import javafx.beans.binding.When;

import javafx.beans.property.DoubleProperty;

import javafx.beans.property.SimpleDoubleProperty;

public class HeronsFormulaExample {

public static void main(String[] args) {

DoubleProperty a = new SimpleDoubleProperty(0);

DoubleProperty b = new SimpleDoubleProperty(0);

DoubleProperty c = new SimpleDoubleProperty(0);

DoubleBinding s = a.add(b).add(c).divide(2.0D);

final DoubleBinding areaSquared = new When(

a.add(b).greaterThan(c)

.and(b.add(c).greaterThan(a))

.and(c.add(a).greaterThan(b)))

.then(s.multiply(s.subtract(a))

.multiply(s.subtract(b))

.multiply(s.subtract(c)))

.otherwise(0.0D);

a.set(3);

b.set(4);

c.set(5);

System.out.printf("Given sides a = %1.0f, b = %1.0f, and c = %1.0f," +

CHAPTER 3 ■ PROPERTIES AND BINDINGS

111

" the area of the triangle is %3.2f\n", a.get(), b.get(), c.get(),

Math.sqrt(areaSquared.get()));

a.set(2);

b.set(2);

c.set(2);

System.out.printf("Given sides a = %1.0f, b = %1.0f, and c = %1.0f," +

" the area of the triangle is %3.2f\n", a.get(), b.get(), c.get(),

Math.sqrt(areaSquared.get()));

}

Inasmuch as there is no ready-made binding method in DoubleExpression that calculates the square

root, we create a DoubleBinding for areaSquared instead. The constructor argument for When() is a

BooleanBinding built out of the three conditions on a, b, and c. The argument for the then() method is a

DoubleBinding that calculates the square of the area of the triangle. And because the then() argument is

numeric, the otherwise() argument also has to be numeric. We choose to use 0.0D to signal that an invalid

triangle is encountered.

■Note Instead of using the When() constructor, you can also use the factory method when() in the

Bindings utility class to create the When object.

When we run the program in Listing 3-7, the following output is printed to the console:

Given sides a = 3, b = 4, and c = 5, the area of the triangle is 6.00.

Given sides a = 2, b = 2, and c = 2, the area of the triangle is 1.73.

If the binding defined in Listing 3-7 makes your head spin a little, you are not alone. We choose this

example simply to illustrate the use of the fluent interface API offered by the When class. As a matter of

fact, this example might be better served with a direct subclassing approach we first introduced in the

“Understanding the Binding Interface” section.

The program in Listing 3-8 solves the same problem as Listing 3-7 by using the direct extension method.

Listing 3-8. HeronsFormulaDirectExtensionExample.java

import javafx.beans.binding.DoubleBinding;

import javafx.beans.property.DoubleProperty;

import javafx.beans.property.SimpleDoubleProperty;

public class HeronsFormulaDirectExtensionExample {

public static void main(String[] args) {

final DoubleProperty a = new SimpleDoubleProperty(0);

final DoubleProperty b = new SimpleDoubleProperty(0);

final DoubleProperty c = new SimpleDoubleProperty(0);

CHAPTER 3 ■ PROPERTIES AND BINDINGS

112

DoubleBinding area = new DoubleBinding() {

{

super.bind(a, b, c);

}

@Override

protected double computeValue() {

double a0 = a.get();

double b0 = b.get();

double c0 = c.get();

if ((a0 + b0 > c0) && (b0 + c0 > a0) && (c0 + a0 > b0)) {

double s = (a0 + b0 + c0) / 2.0D;

return Math.sqrt(s * (s - a0) * (s - b0) * (s - c0));

} else {

return 0.0D;

}

};

a.set(3);

b.set(4);

c.set(5);

System.out.printf("Given sides a = %1.0f, b = %1.0f, and c = %1.0f," +

" the area of the triangle is %3.2f\n", a.get(), b.get(), c.get(),

area.get());

a.set(2);

b.set(2);

c.set(2);

System.out.printf("Given sides a = %1.0f, b = %1.0f, and c = %1.0f," +

" the area of the triangle is %3.2f\n", a.get(), b.get(), c.get(),

area.get());

}

The direct extension method is preferred for complicated expressions and for expressions that go

beyond the available operators.

Now that you have mastered all the APIs in the javafx.beans, javafx.beans.binding, javafx.beans.

property, and javafx.beans.value packages, you are ready to step beyond the details of the JavaFX

properties and bindings framework and learn how these properties are organized into bigger components

called JavaFX Beans.

Understanding the JavaFX Beans Convention

JavaFX introduces the concept of JavaFX Beans, a set of conventions that provide properties support for Java

objects. In this section, we talk about the naming conventions for specifying JavaFX Beans properties, several

ways of implementing JavaFX Beans properties, and finally the use of selection bindings.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

113

The JavaFX Beans Specification

For many years Java has used the JavaBeans API to represent a property of an object. A JavaBeans property

is represented by a pair of getter and setter methods. Property changes are propagated to property change

listeners through the firing of property change events in the setter code.

JavaFX introduces the JavaFX Beans specification that adds properties support to Java objects through

the help of the properties classes from the JavaFX properties and bindings framework.

■Caution The word property is used here with two distinct meanings. When we say, “JavaFX Beans

properties,” it should be understood to mean a higher-level concept similar to JavaBeans properties. When

we say, “JavaFX properties and bindings framework properties,” it should be understood to mean the

various implementations of the Property or ReadOnlyProperty interfaces, such as IntegerProperty,

StringProperty, and so on. JavaFX Beans properties are specified using the JavaFX properties and bindings

framework properties.

Like their JavaBeans counterparts, JavaFX Beans properties are specified by a set of methods in a Java

class. To define a JavaFX Beans property in a Java class, you provide three methods: the getter, the setter, and

the property getter. For a property named height of type double, the three methods are:

public final double getHeight();

public final void setHeight(double h);

public DoubleProperty heightProperty();

The names of the getter and setter methods follow the JavaBeans convention. They are obtained

by concatenating “get” and “set” with the name of the property with the first character capitalized. For

boolean type properties, the getter name can also start with “is”. The name of the property getter is obtained

by concatenating the name of the property with “Property”. To define a read-only JavaFX Beans property,

you can either remove the setter method or change it to a private method and change the return type of the

property getter to be a ReadOnlyProperty.

This specification speaks only about the interface of JavaFX Beans properties and does not impose

any implementation constraints. Depending on the number of properties a JavaFX Bean may have, and

the usage patterns of these properties, there are several implementation strategies. Not surprisingly, all of

them use the JavaFX properties and bindings framework properties as the backing store for the values of the

JavaFX Beans properties. We show you these strategies in the next two subsections.

Understanding the Eagerly Instantiated Properties Strategy

The eagerly instantiated properties strategy is the simplest way to implement JavaFX Beans properties. For

every JavaFX Beans property you want to define in an object, you introduce a private field in the class that

is of the appropriate JavaFX properties and bindings framework property type. These private fields are

instantiated at bean construction time. The getter and setter methods simply call the private field’s get()

and set() methods. The property getter simply returns the private field itself.

The program in Listing 3-9 defines a JavaFX Bean with an int property i, a String property str, and a

Color property color.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

114

Listing 3-9. JavaFXBeanModelExample.java

import javafx.beans.property.IntegerProperty;

import javafx.beans.property.ObjectProperty;

import javafx.beans.property.SimpleIntegerProperty;

import javafx.beans.property.SimpleObjectProperty;

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

import javafx.scene.paint.Color;

public class JavaFXBeanModelExample {

private IntegerProperty i = new SimpleIntegerProperty(this, "i", 0);

private StringProperty str = new SimpleStringProperty(this, "str", "Hello");

private ObjectProperty<Color> color = new SimpleObjectProperty<Color>(this, "color",

Color.BLACK);

public final int getI() {

return i.get();

}

public final void setI(int i) {

this.i.set(i);

}

public IntegerProperty iProperty() {

return i;

}

public final String getStr() {

return str.get();

}

public final void setStr(String str) {

this.str.set(str);

}

public StringProperty strProperty() {

return str;

}

public final Color getColor() {

return color.get();

}

public final void setColor(Color color) {

this.color.set(color);

}

public ObjectProperty<Color> colorProperty() {

return color;

}

CHAPTER 3 ■ PROPERTIES AND BINDINGS

115

This is a straightforward Java class. There are only two things we want to point out in this

implementation. First, the getter and setter methods are declared final by convention. Second, when the

private fields are initialized, we called the simple properties constructors with the full context information,

supplying them with this as the first parameter. In all of our previous examples in this chapter, we used

null as the first parameter for the simple properties constructors because those properties are not part of a

higher-level JavaFX Bean object.

The program in Listing 3-10 defines a view class that watches over an instance of the JavaFX Bean

defined in Listing 3-9. It observes changes to the i, str, and color properties of the bean by hooking up

change listeners that print out any changes to the console.

Listing 3-10. JavaFXBeanViewExample.java

import javafx.beans.value.ChangeListener;

import javafx.beans.value.ObservableValue;

import javafx.scene.paint.Color;

public class JavaFXBeanViewExample {

private JavaFXBeanModelExample model;

public JavaFXBeanViewExample(JavaFXBeanModelExample model) {

this.model = model;

hookupChangeListeners();

}

private void hookupChangeListeners() {

model.iProperty().addListener(new ChangeListener<Number>() {

@Override

public void changed(ObservableValue<? extends Number> observableValue, Number

oldValue, Number newValue) {

System.out.println("Property i changed: old value = " + oldValue + ", new

value = " + newValue);

}

});

model.strProperty().addListener(new ChangeListener<String>() {

@Override

public void changed(ObservableValue<? extends String> observableValue, String

oldValue, String newValue) {

System.out.println("Property str changed: old value = " + oldValue + ", new

value = " + newValue);

}

});

model.colorProperty().addListener(new ChangeListener<Color>() {

@Override

public void changed(ObservableValue<? extends Color> observableValue, Color

oldValue, Color newValue) {

System.out.println("Property color changed: old value = " + oldValue + ",

new value = " + newValue);

}

});

}

CHAPTER 3 ■ PROPERTIES AND BINDINGS

116

The program in Listing 3-11 defines a controller that can modify a model object.

Listing 3-11. JavaFXBeanControllerExample.java

import javafx.scene.paint.Color;

public class JavaFXBeanControllerExample {

private JavaFXBeanModelExample model;

private JavaFXBeanViewExample view;

public JavaFXBeanControllerExample(JavaFXBeanModelExample model,

JavaFXBeanViewExampleÉ

view) {

this.model = model;

this.view = view;

}

public void incrementIPropertyOnModel() {

model.setI(model.getI() + 1);

}

public void changeStrPropertyOnModel() {

final String str = model.getStr();

if (str.equals("Hello")) {

model.setStr("World");

} else {

model.setStr("Hello");

}

public void switchColorPropertyOnModel() {

final Color color = model.getColor();

if (color.equals(Color.BLACK)) {

model.setColor(Color.WHITE);

} else {

model.setColor(Color.BLACK);

}

Notice that this is not a full-blown controller and does not do anything with its reference to the view

object. The program in Listing 3-12 provides a main program that assembles and test drives the classes in

Listings 3-9 to 3-11 in a typical model–view–controller pattern.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

117

Listing 3-12. JavaFXbeanMainExample.java

public class JavaFXBeanMainExample {

public static void main(String[] args) {

JavaFXBeanModelExample model = new JavaFXBeanModelExample();

JavaFXBeanViewExample view = new JavaFXBeanViewExample(model);

JavaFXBeanControllerExample controller = new JavaFXBeanControllerExample(model, view);

controller.incrementIPropertyOnModel();

controller.changeStrPropertyOnModel();

controller.switchColorPropertyOnModel();

controller.incrementIPropertyOnModel();

controller.changeStrPropertyOnModel();

controller.switchColorPropertyOnModel();

}

When we run the program in Listings 3-9 to 3-12, the following output is printed to the console:

Property i changed: old value = 0, new value = 1

Property str changed: old value = Hello, new value = World

Property color changed: old value = 0x000000ff, new value = 0xffffffff

Property i changed: old value = 1, new value = 2

Property str changed: old value = World, new value = Hello

Property color changed: old value = 0xffffffff, new value = 0x000000ff

Understanding the Lazily Instantiated Properties Strategy

If your JavaFX Bean has many properties, instantiating all the properties objects up front at bean creation

time may be too heavy an approach. The memory for all the properties objects is truly wasted if only a few of

the properties are actually used. In such situations, you can use one of several lazily instantiated properties

strategies. Two typical such strategies are the half-lazy instantiation strategy and the full-lazy instantiation

strategy.

In the half-lazy strategy, the property object is instantiated only if the setter is called with a value that is

different from the default value, or if the property getter is called. The program in Listing 3-13 illustrates how

this strategy is implemented.

Listing 3-13. JavaFXBeanModelHalfLazyExample.java

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

public class JavaFXBeanModelHalfLazyExample {

private static final String DEFAULT_STR = "Hello";

private StringProperty str;

public final String getStr() {

if (str != null) {

return str.get();

} else {

CHAPTER 3 ■ PROPERTIES AND BINDINGS

118

return DEFAULT_STR;

}

public final void setStr(String str) {

if ((this.str != null) || !(str.equals(DEFAULT_STR))) {

strProperty().set(str);

}

public StringProperty strProperty() {

if (str == null) {

str = new SimpleStringProperty(this, "str", DEFAULT_STR);

}

return str;

}

In this strategy, the client code can call the getter many times without the property object being

instantiated. If the property object is null, the getter simply returns the default value. As soon as the setter

is called with a value that is different from the default value, it will call the property getter, which lazily

instantiates the property object. The property object is also instantiated if the client code calls the property

getter directly.

In the full-lazy strategy, the property object is instantiated only if the property getter is called. The

getter and setter go through the property object only if it is already instantiated; otherwise, they go through a

separate field.

The program in Listing 3-14 shows an example of a full-lazy property.

Listing 3-14. JavaFXBeanModelFullLazyExample.java

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

public class JavaFXBeanModelFullLazyExample {

private static final String DEFAULT_STR = "Hello";

private StringProperty str;

private String _str = DEFAULT_STR;

public final String getStr() {

if (str != null) {

return str.get();

} else {

return _str;

}

public final void setStr(String str) {

if (this.str != null) {

this.str.set(str);

} else {

_str = str;

}

CHAPTER 3 ■ PROPERTIES AND BINDINGS

119

public StringProperty strProperty() {

if (str == null) {

str = new SimpleStringProperty(this, "str", _str);

}

return str;

}

■Caution The full-lazy instantiation strategy incurs the cost of an extra field to stave off the need for

property instantiation a little longer. Similarly, both the half-lazy and the full-lazy instantiation strategies incur

costs of implementation complexity and runtime performance to gain the benefit of a potentially reduced

runtime memory footprint. This is a classic trade-off situation in software engineering. Which strategy you

choose will depend on the circumstance of your application. Our advice is to introduce optimization only if there

is a need.

Using Selection Bindings

As you saw in the “Understanding the Bindings Utility Class” section, the Bindings utility class contains

seven selection operators. The method signatures of these operators are:

• select(Object root, String… steps)

• selectBoolean(Object root, String… steps)

• selectDouble(Object root, String… steps)

• selectFloat(Object root, String… steps)

• selectInteger(Object root, String… steps)

• selectLong(Object root, String… steps)

• selectString(Object root, String… steps)

These selection operators allow you to create bindings that observe deeply nested JavaFX Beans

properties. Suppose that you have a JavaFX bean that has a property, whose type is a JavaFX bean that has

a property, whose type is a JavaFX bean that has a property, and so on. Suppose also that you are observing

the root of this properties chain through an ObjectProperty. You can then create a binding that observes

the deeply nested JavaFX Beans property by calling one of the select methods whose type matches the type

of the deeply nested JavaFX Beans property with the ObjectProperty as the root, and the successive JavaFX

Beans property names that reach into the deeply nested JavaFX Beans property as the rest of the arguments.

■Note There is another set of select methods that takes an ObservableValue as the first parameter. They

were introduced in JavaFX 2.0. The set of select methods that takes an Object as the first parameter allows us

to use any Java object, not merely JavaFX Beans, as the root of a selection binding.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

120

In the following example, we use a few classes from the javafx.scene.effect package—Lighting and

Light—to illustrate how the selection operator works. We teach you how to apply lighting to a JavaFX scene

graph in a later chapter of the book. For now, our interest lies in the fact that Lighting is a JavaFX bean that

has a property named light whose type is Light, and that Light is also a JavaFX bean that has a property

named color whose type is Color (in javafx.scene.paint).

The program in Listing 3-15 illustrates how to observe the color of the light of the lighting.

Listing 3-15. SelectBindingExample.java

import javafx.beans.binding.Bindings;

import javafx.beans.binding.ObjectBinding;

import javafx.beans.property.ObjectProperty;

import javafx.beans.property.SimpleObjectProperty;

import javafx.beans.value.ChangeListener;

import javafx.beans.value.ObservableValue;

import javafx.scene.effect.Light;

import javafx.scene.effect.Lighting;

import javafx.scene.paint.Color;

public class SelectBindingExample {

public static void main(String[] args) {

ObjectProperty<Lighting> root = new SimpleObjectProperty<>(new Lighting());

final ObjectBinding<Color> selectBinding = Bindings.select(root, "light", "color");

selectBinding.addListener(new ChangeListener<Color>() {

@Override

public void changed(ObservableValue<? extends Color> observableValue, Color

oldValue, Color newValue) {

System.out.println("\tThe color changed:\n\t\told color = " +

oldValue + ",\n\t\tnew color = " + newValue);

}

});

System.out.println("firstLight is black.");

Light firstLight = new Light.Point();

firstLight.setColor(Color.BLACK);

System.out.println("secondLight is white.");

Light secondLight = new Light.Point();

secondLight.setColor(Color.WHITE);

System.out.println("firstLighting has firstLight.");

Lighting firstLighting = new Lighting();

firstLighting.setLight(firstLight);

System.out.println("secondLighting has secondLight.");

Lighting secondLighting = new Lighting();

secondLighting.setLight(secondLight);

System.out.println("Making root observe firstLighting.");

root.set(firstLighting);

CHAPTER 3 ■ PROPERTIES AND BINDINGS

121

System.out.println("Making root observe secondLighting.");

root.set(secondLighting);

System.out.println("Changing secondLighting's light to firstLight");

secondLighting.setLight(firstLight);

System.out.println("Changing firstLight's color to red");

firstLight.setColor(Color.RED);

}

In this example, the root is an ObjectProperty that observes Lighting objects. The binding

colorBinding observes the color property of the light property of the Lighting object that is the value of

root. We then created some Light and Lighting objects and changed their configuration in various ways.

When we run the program in Listing 3-15, the following output is printed to the console:

firstLight is black.

secondLight is white.

firstLighting has firstLight.

secondLighting has secondLight.

Making root observe firstLighting.

The color changed:

old color = 0xffffffff,

new color = 0x000000ff

Making root observe secondLighting.

The color changed:

old color = 0x000000ff,

new color = 0xffffffff

Changing secondLighting's light to firstLight

The color changed:

old color = 0xffffffff,

new color = 0x000000ff

Changing firstLight's color to red

The color changed:

old color = 0x000000ff,

new color = 0xff0000ff

As expected, a change event is fired for every change in the configuration of the object being observed

by root, and the value of colorBinding always reflects the color of the light of the current Lighting object in

root.

■Caution The JavaFX properties and bindings framework does not issue any warnings if the supplied

property names do not match any property names in a JavaFX bean. It will simply have the default value for the

type: null for object type, zero for numeric types, false for boolean type, and the empty string for string type.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

122

Adapting JavaBeans Properties to JavaFX Properties

Over the many years since the JavaBeans specification was published, a lot of JavaBeans were written for

various projects, products, and libraries. To better help Java developers leverage these JavaBeans, a set of

adapters were provided in the javafx.beans.properties.adapter package to make them useful in the

JavaFX world by creating a JavaFX property out of JavaBeans properties.

In this section, we first briefly review the JavaBeans specification definition of properties, bound

properties, and constrained properties by way of a simple example. We then show you how to create JavaFX

properties out of JavaBeans properties using the adapters.

Understanding JavaBeans Properties

JavaBeans properties are defined using the familiar getter and setter naming convention. A property is “read

only” if only a getter is provided, and it is “read/write” if both a getter and a setter are provided. A JavaBeans

event is made up of the event object, the event listener interface, and listener registration methods on the

JavaBean. Two particular kinds of events are available for use by JavaBeans properties: A PropertyChange

event can be fired when a JavaBeans property is changed; a VetoableChange event can also be fired when

a JavaBeans property is changed; and if the listener throws a PropertyVetoException, the property change

should not take effect. A property whose setter fires PropertyChange events is called a bound property.

A property whose setter fires VetoableChange events is called a constrained property. Helper classes

PropertyChangeSupport and VetoableChangeSupport allow bound properties and constrained properties to

be easily defined in JavaBean classes.

Listing 3-16 defines a JavaBean Person with three properties: name, address, and phoneNumber. The

address property is a bound property, and the phoneNumber property is a constrained property.

Listing 3-16. Person.java

import java.beans.PropertyChangeListener;

import java.beans.PropertyChangeSupport;

import java.beans.PropertyVetoException;

import java.beans.VetoableChangeListener;

import java.beans.VetoableChangeSupport;

public class Person {

private PropertyChangeSupport propertyChangeSupport;

private VetoableChangeSupport vetoableChangeSupport;

private String name;

private String address;

private String phoneNumber;

public Person() {

propertyChangeSupport = new PropertyChangeSupport(this);

vetoableChangeSupport = new VetoableChangeSupport(this);

}

public String getName() {

return name;

}

CHAPTER 3 ■ PROPERTIES AND BINDINGS

123

public void setName(String name) {

this.name = name;

}

public String getAddress() {

return address;

}

public void setAddress(String address) {

String oldAddress = this.address;

this.address = address;

propertyChangeSupport.firePropertyChange("address", oldAddress, this.address);

}

public String getPhoneNumber() {

return phoneNumber;

}

public void setPhoneNumber(String phoneNumber) throws PropertyVetoException {

String oldPhoneNumber = this.phoneNumber;

vetoableChangeSupport.fireVetoableChange("phoneNumber", oldPhoneNumber,

phoneNumber);

this.phoneNumber = phoneNumber;

propertyChangeSupport.firePropertyChange("phoneNumber", oldPhoneNumber, this.

phoneNumber);

}

public void addPropertyChangeListener(PropertyChangeListener l) {

propertyChangeSupport.addPropertyChangeListener(l);

}

public void removePropertyChangeListener(PropertyChangeListener l) {

propertyChangeSupport.removePropertyChangeListener(l);

}

public PropertyChangeListener[] getPropertyChangeListeners() {

return propertyChangeSupport.getPropertyChangeListeners();

}

public void addVetoableChangeListener(VetoableChangeListener l) {

vetoableChangeSupport.addVetoableChangeListener(l);

}

public void removeVetoableChangeListener(VetoableChangeListener l) {

vetoableChangeSupport.removeVetoableChangeListener(l);

}

public VetoableChangeListener[] getVetoableChangeListeners() {

return vetoableChangeSupport.getVetoableChangeListeners();

}

CHAPTER 3 ■ PROPERTIES AND BINDINGS

124

Understanding the JavaFX Property Adapters

The interfaces and classes in the javafx.beans.property.adapter package can be used to easily adapt

JavaBeans properties to JavaFX properties. The ReadOnlyJavaBeanProperty interface is a subinterface of

ReadOnlyProperty, and adds two methods:

void dispose()

void fireValueChangedEvent()

The JavaBeanProperty interface extends the ReadOnlyJavaBeanProperty and the Property

interfaces. Each of these two interfaces has concrete class specializations for Boolean, Integer, Long,

Float, Double, Object, and String types. These classes do not have public constructors. Instead,

builder classes are provided to create instances of these types. We use the JavaBeanStringProperty

class in the following example code. The same pattern applies to all other JavaFX property adapters. The

JavaBeanStringPropertyBuilder supports the following methods:

public static JavaBeanStringPropertyBuilder create()

public JavaBeanStringProperty build()

public JavaBeanStringPropertyBuilder name(java.lang.String)

public JavaBeanStringPropertyBuilder bean(java.lang.Object)

public JavaBeanStringPropertyBuilder beanClass(java.lang.Class<?>)

public JavaBeanStringPropertyBuilder getter(java.lang.String)

public JavaBeanStringPropertyBuilder setter(java.lang.String)

public JavaBeanStringPropertyBuilder getter(java.lang.reflect.Method)

public JavaBeanStringPropertyBuilder setter(java.lang.reflect.Method)

To use the builder, start by calling its static method create(). Then call a chain of the methods that

returns the builder itself. Finally, the build() method is called to create the property. For most cases, it

suffices to call the bean() and the name() methods to specify the JavaBean instance and the name of the

property. The getter() and setter() methods can be used to specify a getter and setter that does not follow

the naming convention. The beanClass() method can be used to specify the JavaBean class. Setting the

JavaBean class up front on the builder allows you to more efficiently create adapters for the same JavaBeans

property for multiple instances of the same JavaBean class.

■Note Although the builders of the JavaFX scene, control, and so on, classes have been deprecated, the

builders in the javafx.beans.property.adapter package have not been deprecated. They are required to

generate the JavaBeans property adapters.

The program in Listing 3-17 illustrates the adaption of the three JavaBeans properties of the Person

class into JavaBeanStringProperty objects.

Listing 3-17. JavaBeanPropertiesExamples.java

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.adapter.JavaBeanStringProperty;

import javafx.beans.property.adapter.JavaBeanStringPropertyBuilder;

import java.beans.PropertyVetoException;

CHAPTER 3 ■ PROPERTIES AND BINDINGS

125

public class JavaBeanPropertiesExample {

public static void main(String[] args) throws NoSuchMethodException {

adaptJavaBeansProperty();

adaptBoundProperty();

adaptConstrainedProperty();

}

private static void adaptJavaBeansProperty() throws NoSuchMethodException {

Person person = new Person();

JavaBeanStringProperty nameProperty = JavaBeanStringPropertyBuilder.create()

.bean(person)

.name("name")

.build();

nameProperty.addListener((observable, oldValue, newValue) -> {

System.out.println("JavaFX property " + observable + " changed:");

System.out.println("\toldValue = " + oldValue + ", newValue = " + newValue);

});

System.out.println("Setting name on the JavaBeans property");

person.setName("Stephen Chin");

System.out.println("Calling fireValueChange");

nameProperty.fireValueChangedEvent();

System.out.println("nameProperty.get() = " + nameProperty.get());

System.out.println("Setting value on the JavaFX property");

nameProperty.set("Johan Vos");

System.out.println("person.getName() = " + person.getName());

}

private static void adaptBoundProperty() throws NoSuchMethodException {

System.out.println();

Person person = new Person();

JavaBeanStringProperty addressProperty = JavaBeanStringPropertyBuilder.create()

.bean(person)

.name("address")

.build();

addressProperty.addListener((observable, oldValue, newValue) -> {

System.out.println("JavaFX property " + observable + " changed:");

System.out.println("\toldValue = " + oldValue + ", newValue = " + newValue);

});

System.out.println("Setting address on the JavaBeans property");

person.setAddress("12345 Main Street");

}

private static void adaptConstrainedProperty() throws NoSuchMethodException {

System.out.println();

Person person = new Person();

JavaBeanStringProperty phoneNumberProperty = JavaBeanStringPropertyBuilder.create()

.bean(person)

.name("phoneNumber")

.build();

CHAPTER 3 ■ PROPERTIES AND BINDINGS

126

phoneNumberProperty.addListener((observable, oldValue, newValue) -> {

System.out.println("JavaFX property " + observable + " changed:");

System.out.println("\toldValue = " + oldValue + ", newValue = " + newValue);

});

System.out.println("Setting phoneNumber on the JavaBeans property");

try {

person.setPhoneNumber("800-555-1212");

} catch (PropertyVetoException e) {

System.out.println("A JavaBeans property change is vetoed.");

}

System.out.println("Bind phoneNumberProperty to another property");

SimpleStringProperty stringProperty = new SimpleStringProperty("866-555-1212");

phoneNumberProperty.bind(stringProperty);

System.out.println("Setting phoneNumber on the JavaBeans property");

try {

person.setPhoneNumber("888-555-1212");

} catch (PropertyVetoException e) {

System.out.println("A JavaBeans property change is vetoed.");

}

System.out.println("person.getPhoneNumber() = " + person.getPhoneNumber());

}

In the adaptJavaBeanProperty() method, we instantiated a Person bean and adapted its name

JavaBeans property into a JavaFX JavaBeanStringProperty. To help you understand when a ChangeEvent

is delivered to the nameProperty, we added a ChangeListener (in the form of a lambda expression) to it.

Because name is not a bound property, when we call person.setName(), the nameProperty is not aware of

the change. To notify nameProperty of the change, we call its fireValueChangedEvent() method. When we

call nameProperty.get(), we get the name that we have set on the person bean. Conversely, after we call

nameProperty.set(), a call to person.getName() will return what we have set on nameProperty.

In the adaptBoundProperty() method, we instantiated a Person bean and adapted its address

JavaBeans property into a JavaFX JavaBeanStringProperty. To help you understand when a ChangeEvent

is delivered to the addressProperty, we added a ChangeListener (in the form of a lambda expression) to

it. Because address is a bound property, the addressProperty is registered as a PropertyChangeListener

to the person bean; therefore, when we call person.setAddress(), the addressProperty is notified

immediately without us having to call the fireValuechangedEvent() method.

In the adaptConstrainedProperty() method, we instantiated a Person bean and adapted its

phoneNumber JavaBeans property into a JavaBeanStringProperty. Again we added a ChangeListener

to it. Because phoneNumber is a constrained property, phoneNumberProperty is capable of vetoing

person.setPhoneNumber() calls. When that happens, the person.setPhoneNumber() call throws a

PropertyVetoException. The phoneNumberProperty will veto such a change if it is itself bound to another

JavaFX property. We call person.setPhoneNumber() twice, once before we bind phoneNumberProperty to

another JavaFX property, and once after phoneNumberProperty is bound. The first call succeeds in altering

the value of the phoneNumberProperty, and the second call throws a PropertyVetoException.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

127

When we run the program in Listing 3-17, the following output is printed to the console:

Setting name on the JavaBeans property

Calling fireValueChange

JavaFX property StringProperty [bean: Person@776ec8df, name: name, value: Stephen Chin] changed:

oldValue = null, newValue = Stephen Chin

nameProperty.get() = Stephen Chin

Setting value on the JavaFX property

JavaFX property StringProperty [bean: Person@776ec8df, name: name, value: Johan Vos] changed:

oldValue = Stephen Chin, newValue = Johan Vos

person.getName() = Johan Vos

Setting address on the JavaBeans property

JavaFX property StringProperty [bean: Person@41629346, name: address, value: 12345 main

Street] changed:

oldValue = null, newValue = 12345 main Street

Setting phoneNumber on the JavaBeans property

JavaFX property StringProperty [bean: Person@6d311334, name: phoneNumber, value: 800-555-

1212] changed:

oldValue = null, newValue = 800-555-1212

Bind phoneNumberProperty to another property

JavaFX property StringProperty [bean: Person@6d311334, name: phoneNumber, value: 866-555-

1212] changed:

oldValue = 800-555-1212, newValue = 866-555-1212

Setting phoneNumber on the JavaBeans property

A JavaBeans property change is vetoed.

person.getPhoneNumber() = 866-555-1212

Summary

In this chapter, you learned the fundamentals of the JavaFX properties and bindings framework, and the

JavaFX Beans specification. You should now understand the following important principles.

• JavaFX properties and bindings are the fundamental workhorses of the framework.

• They conform to the key interfaces of the framework.

• They fire two kinds of events: an invalidation event and a change event.

• All properties and bindings provided by the framework recalculate their values

lazily—only when a value is requested. To force them into eager reevaluation, a

ChangeListener needs to be attached.

• New bindings are created out of existing properties and bindings in one of three

ways: using the factory methods of the Bindings utility class, using the fluent

interface API, or directly extending the IntegerBinding series of abstract classes.

• The JavaFX Beans specification uses three methods to define a property: the getter,

the setter, and the property getter.

CHAPTER 3 ■ PROPERTIES AND BINDINGS

128

• JavaFX Beans properties can be implemented through the eager, half-lazy, and

full-lazy strategies.

• Old-style JavaBeans properties can be adapted easily to JavaFX properties.

Resources

The following are useful resources on properties and bindings.

• Martin Fowler’s write-up on fluent interface APIs: www.martinfowler.com/bliki/

FluentInterface.html

• The Properties and Binding tutorial at Oracle’s JavaFX.com: http://docs.oracle.

com/javase/8/javafx/properties-binding-tutorial/

• Michael Heinrichs’s blog includes entries on JavaFX properties and bindings:

http://blog.netopyr.com/

129

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8_4

CHAPTER 4

Using Scene Builder to Create a

User Interface

Give me a lever long enough and a fulcrum on which to place it, and I shall move the

world.

—Archimedes

In Chapter 2, you learned about the two ways of creating a JavaFX UI, programmatically and declaratively,

and how to programmatically create a UI using the JavaFX APIs. You are familiar with the theater metaphor

of the JavaFX UI, with the Stage representing a window in a Windows, Mac, or Linux program, or the touch

screen in a mobile device, the Scene and the Nodes it contains representing the content of the UI. In this

chapter, we tackle the other side of the UI story in JavaFX: the declarative creation of UIs.

At the center of this approach of UI design is the FXML file. It is an XML file format designed specifically

to hold information about UI elements. It contains the “what” of the UI elements, but not the “how.” This is

why this method of creating JavaFX UIs is called declarative. At its core, FXML is a Java object serialization

format that can be used for any Java classes written in a certain way, including all old-style JavaBeans. In

practice, however, it is only used for specifying JavaFX UIs.

Aside from direct editing in a text editor or your favorite Java integrated development environment

(IDE), FXML files can also be manipulated by a graphical tool designed for working with FXML files called

JavaFX Scene Builder. JavaFX Scene Builder 1.0 was released in August 2012, and JavaFX Scene Builder 1.1

was released in September 2013. Both 1.0 and 1.1 work with JavaFX 2. JavaFX Scene Builder 2.0 was released

in May 2014 and works with JavaFX 8. The JavaFX Scene Builder 2.0 code base is released as open source,

and while the Oracle JavaFX team is still contributing to it, the development and release of Scene Builder is

now coordinated by Gluon.

Gluon merges contributions from Oracle, Gluon engineers and community contributors, and maintains

a public code repository and an issue tracker. Also, Gluon creates binary releases for Windows, Mac, and

Linux. All information on Scene Builder, including how to download and install, is now maintained at

http://gluonhq.com/products/scene-builder/.

JavaFX Scene Builder is a fully graphical tool that allows you to paint the screens of your UI out of a

palette of available containers, controls, and other visual nodes, and lay them out by direct manipulation on

the screen and modification of their properties through property editors.

FXML files are loaded into JavaFX applications by the JavaFX runtime using the FXMLLoader class. The

result of loading an FXML file is always a Java object, usually a container Node such as a Group or a Pane.

This object can be used as the root in a Scene, or attached to a bigger programmatically created scene graph

as a node. To the rest of the JavaFX application, the nodes loaded from an FXML file are no different from

programmatically constructed nodes.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

130

We present the intricately related materials about the content and format of FXML files, how they

are loaded at runtime, and how they are fashioned at design time, in a spiraling progression. We start this

chapter with a complete example showing how the StageCoach program in Listing 2-1 from Chapter 2 can

be done using FXML. We then present the FXML loading facility in detail. We then present a series of small

handcrafted FXML files that highlight all the features of the FXML file format. Once you understand the

FXML file format, we show you how to create these FXML files using JavaFX Scene Builder, covering all the

features of JavaFX Scene Builder 2.0.

■Note You will need to download and install Gluon’s open source JavaFX Scene Builder 9.0 from

http://gluonhq.com/products/scene-builder/ to go through the examples in this chapter. We also highly

recommend configuring your favorite IDE to use JavaFX Scene Builder 9.0 to edit FXML files. NetBeans and

IntelliJ IDEA come bundled with JavaFX support. Eclipse users can install the e(fx)clipse plug-in. Once configured,

you can right-click any FXML files in your projects in your IDE and select the “Edit with Scene Builder” context

menu item. Of course, you can also use your IDE’s XML file editing capabilities to edit FXML files as XML files.

Setting the Stage with FXML

The process of converting the StageCoach program in Chapter 2 from using a programmatically created UI

to using a declaratively created UI is straightforward.

Creating a User Interface Graphically with JavaFX Scene Builder

We first created an FXML file that represented the root node of the scene with JavaFX Scene Builder.

Figure4-1 shows a screenshot as this UI is being created.

Figure 4-1. StageCoach.fxml being created in JavaFX Scene Builder

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

131

We will go into details of how to use JavaFX Scene Builder in the latter half of this chapter. For now,

simply observe the major functional areas of the tool. In the middle is the Content panel showing the look

of the UI being worked on. On the left side are the Library panel at the top, which includes all the possible

nodes that can be used in the Content panel divided into neat subsets such as Containers, Controls, Shapes,

Charts, and so on, and the Document panel below, which shows the scene graph that is being worked on in

the Content panel as a tree structure called the Hierarchy, and the Controller that provides event handler

code for the various controls in the UI. On the right side is the Inspector area that has subareas that allow

you to manipulate Properties, Layout, and Code hookup of the currently selected control.

Understanding the FXML File

Listing 4-1 shows the FXML file that is saved by JavaFX Scene Builder from the UI we have created.

Listing 4-1. StageCoach.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.control.Button?>

<?import javafx.scene.control.CheckBox?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.control.TextField?>

<?import javafx.scene.Group?>

<?import javafx.scene.layout.HBox?>

<?import javafx.scene.layout.VBox?>

<?import javafx.scene.shape.Rectangle?>

<?import javafx.scene.text.Text?>

<Group fx:id="rootGroup"

onMouseDragged="#mouseDraggedHandler"

onMousePressed="#mousePressedHandler"

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1"

fx:controller="projavafx.stagecoach.ui.StageCoachController">

<Rectangle fx:id="blue"

arcHeight="50.0"

arcWidth="50.0"

fill="SKYBLUE"

height="350.0"

strokeType="INSIDE"

width="250.0"/>

<VBox fx:id="contentBox"

layoutX="30.0"

layoutY="20.0"

spacing="10.0">

<Text fx:id="textStageX"

strokeType="OUTSIDE"

strokeWidth="0.0"

text="x:"

textOrigin="TOP"/>

<Text fx:id="textStageY"

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

132

layoutX="10.0"

layoutY="23.0"

strokeType="OUTSIDE"

strokeWidth="0.0"

text="y:"

textOrigin="TOP"/>

<Text fx:id="textStageH"

layoutX="10.0"

layoutY="50.0"

strokeType="OUTSIDE"

strokeWidth="0.0"

text="height:"

textOrigin="TOP"/>

<Text fx:id="textStageW"

layoutX="10.0"

layoutY="77.0"

strokeType="OUTSIDE"

strokeWidth="0.0"

text="width:"

textOrigin="TOP"/>

<Text fx:id="textStageF"

layoutX="10.0"

layoutY="104.0"

strokeType="OUTSIDE"

strokeWidth="0.0"

text="focused:"

textOrigin="TOP"/>

<CheckBox fx:id="checkBoxResizable"

mnemonicParsing="false"

text="resizable"/>

<CheckBox fx:id="checkBoxFullScreen"

mnemonicParsing="false"

text="fullScreen"/>

<Label fx:id="titleLabel"

text="title"/>

<TextField fx:id="titleTextField"

text="Stage Coach"/>

</children>

</HBox>

<Button fx:id="toBackButton"

mnemonicParsing="false"

onAction="#toBackEventHandler"

text="toBack()"/>

<Button fx:id="toFrontButton"

mnemonicParsing="false"

onAction="#toFrontEventHandler"

text="toFront()"/>

<Button fx:id="closeButton"

mnemonicParsing="false"

onAction="#closeEventHandler"

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

133

text="close()"/>

</children>

</VBox>

</children>

</Group>

■Note The FXML file created by JavaFX Scene Builder has longer lines. We reformatted the FXML file to fit

the page of the book.

Most of this FXML file can be understood intuitively: It represents a Group holding two children, a

Rectangle and a VBox. The VBox in turn holds five Text nodes, two CheckBoxes, an HBox, and three Buttons.

The HBox holds a Label and a TextField. Various properties of these nodes are set to some sensible values;

for example, the text on the three Buttons is set to "toBack()", "toFront()" and "close()".

Some of the constructs in this FXML file need a little bit more explanation. The XML processing

instructions at the top of the file

<?import javafx.scene.control.Button?>

<?import javafx.scene.control.CheckBox?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.control.TextField?>

<?import javafx.scene.Group?>

<?import javafx.scene.layout.HBox?>

<?import javafx.scene.layout.VBox?>

<?import javafx.scene.shape.Rectangle?>

<?import javafx.scene.text.Text?>

inform the consumer of this file, either JavaFX Scene Builder at design time or FXMLLoader at runtime,

to import the mentioned Java classes. These have the same effect as import directives in Java source files.

Two namespace declarations are provided for the top-level element Group. JavaFX Scene Builder puts

these namespaces in every FXML file it creates:

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1"

■Caution The FXML file is not validated against any XML schemas. The namespaces specified here are

used by the FXMLLoader, JavaFX Scene Builder, and Java IDEs such as NetBeans, Eclipse, and IntelliJ IDEA to

provide assistance when editing FXML files. The actual prefix, empty string for the first namespace and “fx” for

the second namespace, should not be altered.

This FXML file contains two kinds of attributes with the fx prefix, fx:controller and fx:id. The

fx:controller attribute appears on the top-level element Group. It informs the JavaFX runtime that the UI

designed in the current FXML file is meant to work together with a Java class called its controller:

fx:controller="projavafx.stagecoach.ui.StageCoachController"

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

134

The preceding attribute declares that StageCoach.fxml will work together with the Java class

projavafx.stagecoach.ui.StageCoachController. The fx:id attribute can appear in every element that

represents a JavaFX Node. The value of fx:id is the name of a field in the controller that represents the Node

after the FXML file has been loaded. The StageCoach.fxml file declares the following fx:ids (only lines with

fx:id attribute are shown):

<Group fx:id="rootGroup"

<Rectangle fx:id="blue"

<VBox fx:id="contentBox"

<Text fx:id="textStageX"

<Text fx:id="textStageY"

<Text fx:id="textStageH"

<Text fx:id="textStageW"

<Text fx:id="textStageF"

<CheckBox fx:id="checkBoxResizable"

<CheckBox fx:id="checkBoxFullScreen"

<Label fx:id="titleLabel"

<TextField fx:id="titleTextField"

<Button fx:id="toBackButton"

<Button fx:id="toFrontButton"

<Button fx:id="closeButton"

Thus after the FXMLLoader is done loading the FXML file, the top-level Group node in the FXML file can

be accessed and manipulated in Java code as the rootGroup field of the StageCoachController class. In this

FXML file, we assigned an fx:id to all the nodes that we create. This is done for illustration purposes only.

If there is no reason to manipulate a node programmatically, such as is the case for a static label, both the

fx:id attribute and the corresponding field in the controller can be omitted.

Providing programmatic access to the nodes in an FXML file is one role that the controller plays.

Another role the controller plays is to provide the methods that handle user input and interaction events

originating from the nodes in an FXML file. These event handlers are specified by attributes whose

name begins with “on”, such as onMouseDragged, onMousePressed, and onAction. They correspond to

the setOnMouseDragged(), setOnMousePressed(), and setOnAction() methods in the Node classes or

its subclasses. To set the event handlers to a method in the controller, use the method name preceded

with a “#” character as the value of the onMouseDragged, onMousePressed, and onAction attributes. The

StageCoach.fxml file declares the following event handlers (only lines with event handlers are shown):

<Group fx:id="rootGroup"

onMouseDragged="#mouseDraggedHandler"

onMousePressed="#mousePressedHandler"

<Button fx:id="toBackButton"

onAction="#toBackEventHandler"

<Button fx:id="toFrontButton"

onAction="#toFrontEventHandler"

<Button fx:id="closeButton"

onAction="#closeEventHandler"

The event handler methods in the controller class should in general conform to the signature of the

single method in the EventHandler<T> interface

void handle(T event)

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

135

where T is the appropriate event object, MouseEvent for the onMouseDragged and onMousePressed event

handlers, and ActionEvent for the onAction event handlers. A method that does not take any arguments can

also be set as event handler methods. You can use such a method if you do not plan to use the event object.

Now that we understand the FXML file, we move on to the controller class next.

Understanding the Controller

Listing4-2 shows the controller class that works with the FXML file we created in the last subsection.

Listing 4-2. StageCoachController.java

package projavafx.stagecoach.ui;

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

import javafx.event.ActionEvent;

import javafx.fxml.FXML;

import javafx.scene.control.Button;

import javafx.scene.control.CheckBox;

import javafx.scene.control.Label;

import javafx.scene.control.TextField;

import javafx.scene.input.MouseEvent;

import javafx.scene.layout.HBox;

import javafx.scene.layout.VBox;

import javafx.scene.shape.Rectangle;

import javafx.scene.text.Text;

import javafx.stage.Stage;

import javafx.stage.StageStyle;

public class StageCoachController {

@FXML

private Rectangle blue;

@FXML

private VBox contentBox;

@FXML

private Text textStageX;

@FXML

private Text textStageY;

@FXML

private Text textStageH;

@FXML

private Text textStageW;

@FXML

private Text textStageF;

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

136

@FXML

private CheckBox checkBoxResizable;

@FXML

private CheckBox checkBoxFullScreen;

@FXML

private HBox titleBox;

@FXML

private Label titleLabel;

@FXML

private TextField titleTextField;

@FXML

private Button toBackButton;

@FXML

private Button toFrontButton;

@FXML

private Button closeButton;

private Stage stage;

private StringProperty title = new SimpleStringProperty();

private double dragAnchorX;

private double dragAnchorY;

public void setStage(Stage stage) {

this.stage = stage;

}

public void setupBinding(StageStyle stageStyle) {

checkBoxResizable.setDisable(stageStyle == StageStyle.TRANSPARENT

|| stageStyle == StageStyle.UNDECORATED);

textStageX.textProperty().bind(new SimpleStringProperty("x: ")

.concat(stage.xProperty().asString()));

textStageY.textProperty().bind(new SimpleStringProperty("y: ")

.concat(stage.yProperty().asString()));

textStageW.textProperty().bind(new SimpleStringProperty("width: ")

.concat(stage.widthProperty().asString()));

textStageH.textProperty().bind(new SimpleStringProperty("height: ")

.concat(stage.heightProperty().asString()));

textStageF.textProperty().bind(new SimpleStringProperty("focused: ")

.concat(stage.focusedProperty().asString()));

stage.setResizable(true);

checkBoxResizable.selectedProperty()

.bindBidirectional(stage.resizableProperty());

checkBoxFullScreen.selectedProperty().addListener((ov, oldValue, newValue) ->

stage.setFullScreen(checkBoxFullScreen.selectedProperty().getValue()));

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

137

title.bind(titleTextField.textProperty());

stage.titleProperty().bind(title);

stage.initStyle(stageStyle);

}

@FXML

public void toBackEventHandler(ActionEvent e) {

stage.toBack();

}

@FXML

public void toFrontEventHandler(ActionEvent e) {

stage.toFront();

}

@FXML

public void closeEventHandler(ActionEvent e) {

stage.close();

}

@FXML

public void mousePressedHandler(MouseEvent me) {

dragAnchorX = me.getScreenX() - stage.getX();

dragAnchorY = me.getScreenY() - stage.getY();

}

@FXML

public void mouseDraggedHandler(MouseEvent me) {

stage.setX(me.getScreenX() - dragAnchorX);

stage.setY(me.getScreenY() - dragAnchorY);

}

This class is extracted from the StageCoachMain class of Chapter 2, and this is the class that we specified

as the controller class for the FXML file StageCoach.fxml. Indeed, it includes fields whose types and names

match the fx:ids in the FXML file. It also includes methods whose names and signatures match those

specified as the event handlers for the various nodes in the FXML file.

The only thing that needs some explanation is the @FXML annotation. It belongs to the javafx.fxml

package. This is a marker annotation with a runtime retention that can be applied to fields and methods.

When applied to a field, the @FXML annotation tells JavaFX Scene Builder the field’s name can be used as the

fx:id of the appropriately typed elements in an FXML file. When applied to a method, the @FXML annotation

tells JavaFX Scene Builder the method’s name can be used as the value of the appropriately typed event

handler attributes. Fields and methods annotated with @FXML are made accessible to the FXML loading

facility regardless of the modifiers. Therefore it is safe to change all the @FXML annotated fields from public to

private without adversely affecting the FXML loading process.

The StageCoachController class includes matching fields for all the fx:ids declared in the FXML file.

It also includes the five event handler methods to which the event handler attributes in the FXML file point.

All of these fields and methods are annotated with @FXML.

The StageCoachController also includes some fields and methods that are not annotated with the

@FXML annotation. These fields and methods are present in the class for other purposes. For example, the

stage field, the setStage(), and the setupBindings() methods are used directly in Java code.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

138

Understanding the FXMLLoader

Now that we understand both the FXML file and the controller class that works with the FXML file, we turn

our attention to the loading of the FXML file at runtime. The FXMLLoader class in the javafx.fxml package

does the bulk of the work of loading FXML files. In our example, the FXML file loading is done in the

StageCoachMain class. Listing 4-3 shows the StageCoachMain class.

Listing 4-3. StageCoachMain.java

package projavafx.stagecoach.ui;

import javafx.application.Application;

import javafx.fxml.FXMLLoader;

import javafx.geometry.Rectangle2D;

import javafx.scene.Group;

import javafx.scene.Scene;

import javafx.scene.paint.Color;

import javafx.stage.Screen;

import javafx.stage.Stage;

import javafx.stage.StageStyle;

import java.io.IOException;

import java.util.List;

public class StageCoachMain extends Application {

@Override

public void start(Stage stage) throws IOException {

final StageStyle stageStyle = configStageStyle();

FXMLLoader fxmlLoader = new FXMLLoader(StageCoachMain.class

.getResource("/projavafx/stagecoach/ui/StageCoach.fxml"));

Group rootGroup = fxmlLoader.load();

final StageCoachController controller = fxmlLoader.getController();

controller.setStage(stage);

controller.setupBinding(stageStyle);

Scene scene = new Scene(rootGroup, 250, 350);

scene.setFill(Color.TRANSPARENT);

stage.setScene(scene);

stage.setOnCloseRequest(we -> System.out.println("Stage is closing"));

stage.show();

Rectangle2D primScreenBounds = Screen.getPrimary().getVisualBounds();

stage.setX((primScreenBounds.getWidth() - stage.getWidth()) / 2);

stage.setY((primScreenBounds.getHeight() - stage.getHeight()) / 4);

}

public static void main(String[] args) {

launch(args);

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

139

private StageStyle configStageStyle() {

StageStyle stageStyle = StageStyle.DECORATED;

List<String> unnamedParams = getParameters().getUnnamed();

if (unnamedParams.size() > 0) {

String stageStyleParam = unnamedParams.get(0);

if (stageStyleParam.equalsIgnoreCase("transparent")) {

stageStyle = StageStyle.TRANSPARENT;

} else if (stageStyleParam.equalsIgnoreCase("undecorated")) {

stageStyle = StageStyle.UNDECORATED;

} else if (stageStyleParam.equalsIgnoreCase("utility")) {

stageStyle = StageStyle.UTILITY;

}

return stageStyle;

}

Before looking at the FXMLLoader code, let me point out that for this example, we choose to put the

StageCoach.fxml file together with the StageCoachMain.java and the StageCoachController.java files.

And they all reside in the projavafx/stagecoach/ui directory. That relation is preserved when we compile

the source files. Therefore when we run this program, the FXML file appears as a resource /projavafx/

stagecoach/ui/StageCoach.fxml in the classpath. Figure4-2 illustrates the file layout of our example.

Figure 4-2. The file layout of the StageCoach example

The loading of the FXML file is performed by the following snippet of code:

FXMLLoader fxmlLoader = new FXMLLoader(StageCoachMain.class

.getResource("/projavafx/stagecoach/ui/StageCoach.fxml"));

Group rootGroup = fxmlLoader.load();

final StageCoachController controller = fxmlLoader.getController();

Here we use the one-parameter constructor of the FXMLLoader class to construct an fxmlLoader object

and pass in a URL object returned by the getResource() call on the Class object of StageCoachMain. This

URL object is a jar URL or a file URL, depending on whether you run this program from a jar. We then call

the load() method on the fxmlLoader object. This method reads the FXML file, parses it, instantiates all the

nodes it specified, and hooks them up according to the containment relationships it specified. Because a

controller is specified in the FXML file, the method also instantiates a StageCoachController instance and

assigns the nodes to the fields of the controller instance according to the fx:ids. This step is usually called

injecting the FXML nodes into the controller. The event handlers are also hooked up. The load() method

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

140

returns the top-level object in the FXML file, which in our example is a Group. This returned Group object is

assigned to the rootGroup variable and is used in subsequent code the same way as the programmatically

created rootGroup in Chapter 2 is used. We then call the getController() method to get the controller with

its node fields already injected by the FXMLLoader. This controller is assigned to the controller variable and

is used in subsequent code as if we have just created it and assigned its node fields programmatically.

Now that we’ve finished switching the Stage Coach program from programmatic to declarative UI

creation, we can run it. It behaves just like in Chapter 2. Figure4-3 shows the program running with the

transparent command-line argument.

Figure 4-3. The Stage Coach program run with transparent command-line argument

In this section we touched on all aspects of the FXML design-time and runtime facilities. However, we

described only parts of each facility, barely enough to get our example program going. In the rest of this

chapter, we study each of the facilities in detail.

Understanding the FXML Loading Facility

The FXML file loading facility is made up of two classes, an interface, an exception, and an annotation

in the javafx.fxml package. The FXMLLoader is the class that does the bulk of the work, such as reading

and parsing the FXML file, recognizing processing instructions in the FXML file, and responding with

the necessary actions, recognizing each element and attribute of the FXML file and delegating the object

creation tasks to a set of builders, creating the controller object if necessary and injecting the nodes

and other objects into the controller. The JavaFXBuilderFactory is responsible for creating builders in

response for FXMLLoader’s requests for builders for a particular class. The Initializable interface can be

implemented by controller classes to receive information from the FXMLLoader as in previous versions of

JavaFX; however, this functionality has been superseded by the injection approach, so we do not discuss it.

A LoadException is thrown if the FXML file contains errors that make it impossible for the FXMLLoader to

construct all the objects specified in the FXML file. The @FXML annotation can be used in controller classes to

mark certain fields as injection targets and certain methods as event handler candidates.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

141

Understanding the FXMLLoader Class

The FXMLLoader class has the following public constructors:

• FXMLLoader()

• FXMLLoader(URL location)

• FXMLLoader(URL location, ResourceBundle resources)

• FXMLLoader(URL location, ResourceBundle resources, BuilderFactory

builderFactory)

• FXMLLoader(URL location, ResourceBundle resources, BuilderFactory

BuilderFactory builderFactory, Callback<Class<?>, Object>

controllerFactory)

• FXMLLoader(Charset charset)

• FXMLLoader(URL location, ResourceBundle resources, BuilderFactory

BuilderFactory builderFactory, Callback<Class<?> controllerFactory,

Object>, Charset charset)

• FXMLLoader(URL location, ResourceBundle resources, BuilderFactory

BuilderFactory builderFactory, Callback<Class<?>, Object>

controllerFactory, Charset charset, LinkedList<FXMLLoader> loaders)

Constructors with fewer parameters delegate to constructors with more parameters, with the missing

parameters filled in with default values. The location parameter is the URL of the FXML file to be loaded.

It defaults to null. The resources parameter is the resource bundle to be used with the FXML file. This is

necessary if internationalized strings are used in the FXML file. It defaults to null. The builderFactory

parameter is the builder factory that FXMLLoader uses to get the builders of the various objects that it creates.

It defaults to an instance of the JavaFXBuilderFactory. This builder factory has knowledge about all the

standard JavaFX types that are likely to appear in FXML files, so a customized builder factory is rarely

used. The controllerFactory is a javafx.util.CallBack that is capable of returning an instance of the

controller when provided with the class of the controller. It defaults to null, in which case the FXMLLoader

will instantiate the controller through reflection by calling the no-parameters constructor of the controller

class. Therefore you need to supply a controllerFactory only if the controller cannot be constructed that

way. The charset is used when the FXML is parsed. It defaults to UTF-8. The loaders parameter is a list of

FXMLLoaders. It defaults to an empty list.

The FXMLLoader class has the following getter and setter methods that alter the states of the FXMLLoader:

• URL getLocation()

• void setLocation(URL location)

• ResourceBundle getResources()

• void setResources(ResourceBundle resources)

• ObservableMap<String, Object> getNamespace()

• <T> T getRoot()

• void setRoot(Object root)

• <T> T getController()

• void setController(Object controller)

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

142

• BuilderFactory getBuilderFactory()

• void setBuilderFactory(BuilderFactory builderFactory)

• Callback<Class<?>, Object> getControllerFactory()

• void setControllerFactory(Callback<Class<?>, Object> controllerFactory)

• Charset getCharset()

• void setCharset(Charset charset)

• ClassLoader getClassLoader()

• void setClassLoader(ClassLoader classLoader)

As you can see from this list, the location, resources, builderFactory, controllerFactory, and

the charset can also be set after the FXMLLoader is constructed. In addition, we can get and set the root,

controller, classLoader, and get the namespace of the FXMLLoader. The root is relevant only if the FXML

file uses fx:root as its root element, in which case setRoot() must be called before the FXML file is loaded.

We go into more detail about the usage of fx:root in the next section. The controller needs to be set before

the FXML file is loaded only if the fx:controller attribute is not present in the top-level element in the

FXML file. The classLoader and namespace are mostly used internally by the FXMLLoader and usually are

not called by user code.

The actual loading of the FXML file happens when one of the load() methods is called. The FXMLLoader

class has the following load methods:

• <T> T load() throws IOException

• <T> T load(InputStream input) throws IOException

• static <T> T load(URL location) throws IOException

• static <T> T load(URL location, ResourceBundle resources) throws

IOException

• static <T> T load(URL location, ResourceBundle resources, BuilderFactory

builderFactory) throws IOException

• static <T> T load(URL location, ResourceBundle resources, BuilderFactory

builderFactory, Callback<Class<?>, Object> controllerFactory) throws

IOException

• static <T> T load(URL location, ResourceBundle resources, BuilderFactory

builderFactory, Callback<Class<?>, Object> controllerFactory, Charset

charset) throws IOException

The load() method with no argument can be called on an FXMLLoader instance that has all the

necessary fields already initialized. The load() method that takes an InputStream argument will load the

FXML from the specified input. All the static load() methods are convenience methods that will instantiate

an FXMLLoader with the supplied parameters and then call one of its nonstatic load() methods.

In our next example, we deliberately did not specify fx:controller in the FXML file. We also added a

one-parameter constructor to the controller class. The FXML file, the controller class, and the main class are

shown in Listings 4-4, 4-5, and 4-6.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

143

Listing 4-4. FXMLLoaderExample.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.geometry.Insets?>

<?import javafx.scene.control.Button?>

<?import javafx.scene.control.TextField?>

<?import javafx.scene.layout.HBox?>

<?import javafx.scene.layout.VBox?>

<?import javafx.scene.web.WebView?>

<VBox maxHeight="-Infinity"

maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity"

prefHeight="400.0"

prefWidth="600.0"

spacing="10.0"

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1">

<TextField fx:id="address"

onAction="#actionHandler"

HBox.hgrow="ALWAYS">

</padding>

</TextField>

<Button fx:id="loadButton"

mnemonicParsing="false"

onAction="#actionHandler"

text="Load"/>

</children>

</HBox>

<WebView fx:id="webView"

prefHeight="200.0"

prefWidth="200.0"

VBox.vgrow="ALWAYS"/>

</children>

</padding>

</VBox>

Listing 4-5. FXMLLoaderExampleController.java

import javafx.event.ActionEvent;

import javafx.fxml.FXML;

import javafx.scene.control.Button;

import javafx.scene.control.TextField;

import javafx.scene.web.WebView;

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

144

public class FXMLLoaderExampleController {

@FXML

private TextField address;

@FXML

private WebView webView;

@FXML

private Button loadButton;

private String name;

public FXMLLoaderExampleController(String name) {

this.name = name;

}

@FXML

public void actionHandler() {

webView.getEngine().load(address.getText());

}

Listing 4-6. FXMLLoaderExampleMain.java

import javafx.application.Application;

import javafx.fxml.FXMLLoader;

import javafx.scene.Scene;

import javafx.scene.layout.VBox;

import javafx.stage.Stage;

public class FXMLLoaderExampleMain extends Application {

@Override

public void start(Stage primaryStage) throws Exception {

FXMLLoader fxmlLoader = new FXMLLoader();

fxmlLoader.setLocation(

FXMLLoaderExampleMain.class.getResource("/FXMLLoaderExample.fxml"));

fxmlLoader.setController(

new FXMLLoaderExampleController("FXMLLoaderExampleController"));

final VBox vBox = fxmlLoader.load();

Scene scene = new Scene(vBox, 600, 400);

primaryStage.setTitle("FXMLLoader Example");

primaryStage.setScene(scene);

primaryStage.show();

}

public static void main(String[] args) {

launch(args);

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

145

Because we did not specify the fx:controller attribute in the top-level element of the FXML file, we

need to set the controller on fxmlLoader before loading the FXML file:

FXMLLoader fxmlLoader = new FXMLLoader();

fxmlLoader.setLocation(

FXMLLoaderExampleMain.class.getResource("/FXMLLoaderExample.fxml"));

fxmlLoader.setController(

new FXMLLoaderExampleController("FXMLLoaderExampleController"));

final VBox vBox = fxmlLoader.load();

If the controller is not set, a LoaderException will be thrown, with a message “No controller specified.”

This is because we did specify the controller method actionHandler as the action event handler for both

the text field and the button. The FXMLLoader needs the controller to fulfill these specifications in the FXML

file. Had the event handlers not been specified, the FXML file would have been loaded successfully because

there is no need for a controller.

This program is a very primitive web browser with an address bar TextField, a load Button, and a

WebView. Figure4-4 shows the FXMLLoaderExample program at work.

Figure 4-4. The FXMLLoaderExample program

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

146

Our next example, ControllerFactoryExample, is nearly identical to the FXMLLoaderExample with only

two differences, so we do not show the complete code here. You can find it in the code download bundle.

Unlike in FXMLLoaderExample, we do specify fx:controller in the FXML file. This forces us to remove

the setController() call in the main class, because otherwise we get a LoadException with a message

“Controller value already specified.” However, because our controller does not have a default constructor,

FXMLLoader will throw a LoadException caused by its inability to instantiate the controller. This exception

can be remedied by a simple controller factory that we set on the fxmlLoader:

fxmlLoader.setControllerFactory(

clazz -> new ControllerFactoryExampleController("ExampleController"));

Here we used a simple lambda expression to implement the functional interface Callback<Class<?>,

Object>, which has a single method:

Object call(Class<?>)

In our implementation we simply return an instance of ControllerFactoryExampleController.

Understanding the @FXML Annotation

We have seen two uses of the @FXML annotation. It can be applied to fields in the controller of an FXML file

whose name and type match the fx:id attribute and element name of an FXML element to be injected with

the node. It can be applied to void methods that take either no parameter or one parameter of type javafx.

event.Event or its subtype, making them eligible for use as event handlers for elements in FXML files.

The FXMLLoader will inject its location and resources into the controller if it has the fields to receive

them:

@FXML

private URL location;

@FXML

private ResourceBundle resources;

The FXMLLoader will also invoke an @FXML annotated initialization method with the following signature:

@FXML

public void initialize() {

// ...

}

The FXMLInjectionExample in Listings 4-7, 4-8, and 4-9 illustrates how these features work. In this

example, we put four Labels in a VBox in the FXML file. We inject two of the Labels into the controller. We

also specify the location and resources injection fields in the controller class. Finally, in the initialize()

method, we set the text of the two injected Labels to the string representations of location and resource.

Listing 4-7. FXMLInjectionExample.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.geometry.Insets?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.layout.VBox?>

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

147

<?import javafx.scene.text.Font?>

<VBox alignment="CENTER_LEFT"

maxHeight="-Infinity"

maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity"

prefHeight="150.0"

prefWidth="700.0"

spacing="10.0"

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1"

fx:controller="FXMLInjectionExampleController">

<font>

</font>

</Label>

<font>

</font>

</Label>

</children>

</opaqueInsets>

</padding>

</VBox>

Listing 4-8. FXMLInjectionExampleController.java

import javafx.fxml.FXML;

import javafx.scene.control.Label;

import java.net.URL;

import java.util.ResourceBundle;

public class FXMLInjectionExampleController {

@FXML

private Label resourcesLabel;

@FXML

private Label locationLabel;

@FXML

private URL location;

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

148

@FXML

private ResourceBundle resources;

@FXML

public void initialize() {

locationLabel.setText(location.toString());

resourcesLabel.setText(resources.getBaseBundleName());

}

Listing 4-9. FXMLInjectionExampleMain.java

import javafx.application.Application;

import javafx.fxml.FXMLLoader;

import javafx.scene.Scene;

import javafx.scene.layout.VBox;

import javafx.stage.Stage;

import java.util.ResourceBundle;

public class FXMLInjectionExampleMain extends Application {

@Override

public void start(Stage primaryStage) throws Exception {

FXMLLoader fxmlLoader = new FXMLLoader();

fxmlLoader.setLocation(

FXMLInjectionExampleMain.class.getResource("/FXMLInjectionExample.fxml"));

fxmlLoader.setResources(ResourceBundle.getBundle("FXMLInjectionExample"));

VBox vBox = fxmlLoader.load();

Scene scene = new Scene(vBox);

primaryStage.setTitle("FXML Injection Example");

primaryStage.setScene(scene);

primaryStage.show();

}

public static void main(String[] args) {

launch(args);

}

Notice that we also created an empty FXMLInjectionExample.properties file to use as the resource

bundle to illustrate the injection of the resources field into the controller. We explain how to use resource

bundles with FXML files in the next section. When the FXMLInjectionExample is run on our machine, the

FXML Injection Example window in Figure4-5 is displayed on the screen.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

149

The @FXML annotation can also be used for included FXML file controller injection, and for marking

controller properties of javafx.event.EventHandler type for use as event handlers in FXML files. We cover

them in detail when we discuss the relevant features of the FXML file in the next section.

Exploring the Capabilities of FXML Files

In this section, we go over the features of the FXML file format. Because a major goal of the FXMLLoader is to

deserialize an FXML file into Java objects, it should be no surprise that it provides facilities that help to make

writing FXML files easier.

The Deserialization Power of the FXML Format

Because the features that we cover in this section have more to do with deserializing generic Java objects,

we will move away from the GUI world and work with plain Java classes. We use the JavaBean defined in

Listing 4-10 in our discussion. It is a made-up class meant to illustrate the different FXML features.

Listing 4-10. FXMLBasicFeaturesBean.java

package projavafx.fxmlbasicfeatures;

import javafx.scene.paint.Color;

import java.util.ArrayList;

import java.util.HashMap;

import java.util.List;

import java.util.Map;

public class FXMLBasicFeaturesBean {

private String name;

private String address;

private boolean flag;

private int count;

private Color foreground;

private Color background;

private Double price;

private Double discount;

private List<Integer> sizes;

private Map<String, Double> profits;

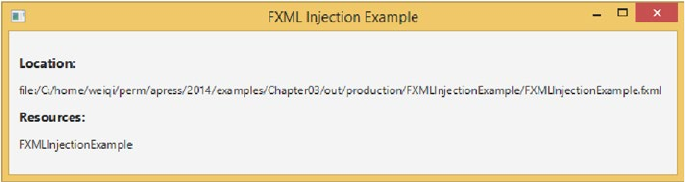

Figure 4-5. The FXMLInjection program

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

150

private Long inventory;

private List<String> products = new ArrayList<String>();

private Map<String, String> abbreviations = new HashMap<>();

public String getName() {

return name;

}

public void setName(String name) {

this.name = name;

}

public String getAddress() {

return address;

}

public void setAddress(String address) {

this.address = address;

}

public boolean isFlag() {

return flag;

}

public void setFlag(boolean flag) {

this.flag = flag;

}

public int getCount() {

return count;

}

public void setCount(int count) {

this.count = count;

}

public Color getForeground() {

return foreground;

}

public void setForeground(Color foreground) {

this.foreground = foreground;

}

public Color getBackground() {

return background;

}

public void setBackground(Color background) {

this.background = background;

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

151

public Double getPrice() {

return price;

}

public void setPrice(Double price) {

this.price = price;

}

public Double getDiscount() {

return discount;

}

public void setDiscount(Double discount) {

this.discount = discount;

}

public List<Integer> getSizes() {

return sizes;

}

public void setSizes(List<Integer> sizes) {

this.sizes = sizes;

}

public Map<String, Double> getProfits() {

return profits;

}

public void setProfits(Map<String, Double> profits) {

this.profits = profits;

}

public Long getInventory() {

return inventory;

}

public void setInventory(Long inventory) {

this.inventory = inventory;

}

public List<String> getProducts() {

return products;

}

public Map<String, String> getAbbreviations() {

return abbreviations;

}

@Override

public String toString() {

return "FXMLBasicFeaturesBean{" +

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

152

"name='" + name + '\'' +

",\n\taddress='" + address + '\'' +

",\n\tflag=" + flag +

",\n\tcount=" + count +

",\n\tforeground=" + foreground +

",\n\tbackground=" + background +

",\n\tprice=" + price +

",\n\tdiscount=" + discount +

",\n\tsizes=" + sizes +

",\n\tprofits=" + profits +

",\n\tinventory=" + inventory +

",\n\tproducts=" + products +

",\n\tabbreviations=" + abbreviations +

'}';

}

The FXML file in Listing 4-11 is loaded and printed out to the console in the program in Listing 4-12.

Listing 4-11. FXMLBasicFeatures.fxml

<?import javafx.scene.paint.Color?>

<?import projavafx.fxmlbasicfeatures.FXMLBasicFeaturesBean?>

<?import projavafx.fxmlbasicfeatures.Utilities?>

<?import java.lang.Double?>

<?import java.lang.Integer?>

<?import java.lang.Long?>

<?import java.util.HashMap?>

<?import java.lang.String?>

<FXMLBasicFeaturesBean name="John Smith"

flag="true"

count="12345"

xmlns:fx="http://javafx.com/fxml/1">

</background>

<price>

</price>

</discount>

<sizes>

</Utilities>

</sizes>

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

153

</profits>

<fx:define>

</fx:define>

<fx:reference source="inv"/>

</inventory>

</products>

</FXMLBasicFeaturesBean>

Listing 4-12. FXMLBasicFeaturesMain.java

package projavafx.fxmlbasicfeatures;

import javafx.fxml.FXMLLoader;

import java.io.IOException;

public class FXMLBasicFeaturesMain {

public static void main(String[] args) throws IOException {

FXMLBasicFeaturesBean bean = FXMLLoader.load(

FXMLBasicFeaturesMain.class.getResource(

"/projavafx/fxmlbasicfeatures/FXMLBasicFeatures.fxml")

);

System.out.println("bean = " + bean);

}

We made use of a small utility class that contains a few constants and a factory method that creates a

List<Integer>, as shown in Listing 4-13.

Listing 4-13. Utilities.java

package projavafx.fxmlbasicfeatures;

import java.util.ArrayList;

import java.util.List;

public class Utilities {

public static final Double TEN_PCT = 0.1d;

public static final Double TWENTY_PCT = 0.2d;

public static final Double THIRTY_PCT = 0.3d;

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

154

public static List<Integer> createList() {

return new ArrayList<>();

}

The FXMLBasicFeaturesBean object is being created in the FXML file; this is indicated by the fact that

the top-level element of the FXML file is FXMLBasicFeaturesBean. The name and address fields illustrate that

a field can be set either as an attribute or as a subelement:

<FXMLBasicFeaturesBean name="John Smith"

flag="true"

count="12345"

xmlns:fx="http://javafx.com/fxml/1">

The foreground and background fields illustrate two ways of setting a javafx.scene.paint.Color

subelement, either through a hex string, or using a Color element (remember Color is an immutable object

without a default constructor):

</background>

The price field illustrates a way to construct a Double object. The fx:value attribute invokes

the valueOf(String) method on Double. This works on any Java class that has a factory method

valueOf(String):

<price>

</price>

The discount field illustrates how to use a constant defined in a Java class. The fx:constant attribute

accesses constant (public static final) fields of the type of its element. The following sets the discount field to

Utilities.TEN_PCT, which is 0.1:

</discount>

The sizes field illustrates the use of factory methods to create objects. The fx:factory attribute

invokes the specified factory method on the type of its element. In our case, it calls Utilities.createList()

to create a list of Integers, which is then populated with three Integers. Notice that sizes is a read-write

property. You will see an example of how a read-only list property is populated later.

<sizes>

</Utilities>

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

155

</sizes>

The profits field illustrates how to populate a read-write map. Here we set the profits field to a HashMap

that we create with key/value pairs:

</profits>

The inventory field illustrates how to define an object in one place and reference it in another place.

The fx:define element creates a stand-alone object that has an fx:id attribute. The fx:reference

element creates a reference to an object defined elsewhere, and its source attribute points to the fx:id of a

previously defined object:

<fx:define>

</fx:define>

<fx:reference source="inv"/>

</inventory>

The products field illustrates how to populate a read-only list. The following fragment of FXML is

equivalent to invoking bean.getProducts().addAll("widget", "gadget", "models"):

</products>

The abbreviations field illustrates how to populate a read-only map:

When the FXMLBasicFeaturesMain program is run, the following output is printed to the console, as

expected:

bean = FXMLBasicFeaturesBean{name='John Smith',

address='12345 Main St.',

flag=true,

count=12345,

foreground=0xff8800ff,

background=0x00ff80ff,

price=3.1415926,

discount=0.1,

sizes=[1, 2, 3],

profits={q1=1000, q2=1100, q3=1200, a4=1300},

inventory=9765625,

products=[widget, gadget, models],

abbreviations={MO=Missouri, FL=Florida, NY=New York, CA=California}}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

156

Understanding Default and Static Properties

Many JavaFX classes have a default property. Default properties are specified with a @DefaultProperty

annotation on the class. The @DefaultProperty annotation belongs to the javafx.beans package. The

default property of the javafx.scene.Group class, for example, is its children property. In FXML files, when

a default property is specified via a subelement, the beginning and ending tag of the default property itself

can be omitted. As an example, the following snippet, which you saw in Listing 4-1.

<Label fx:id="titleLabel"

text="title"/>

<TextField fx:id="titleTextField"

text="Stage Coach"/>

</children>

</HBox>

can be simplified to

<Label fx:id="titleLabel"

text="title"/>

<TextField fx:id="titleTextField"

text="Stage Coach"/>

</HBox>

A static property is a property that is set on an object not by calling a setter method on the object itself,

but by calling a static method of a different class, passing both the object and the value of the property as

parameters. Many of JavaFX’s container Nodes have such static methods. These methods are called on a Node

prior to adding it to the container to affect certain results. Static properties are represented in FXML files as

attributes on the inner object (the object that is passed in as the first parameter to the static method) with

a name that includes both the class name and the static method name separated by a dot. You can spot an

example of a static property in Listing 4-4:

<WebView fx:id="webView"

prefHeight="200.0"

prefWidth="200.0"

VBox.vgrow="ALWAYS"/>

Here we are adding a WebView to a VBox, and the VBox.vgrow attribute indicates that the FXMLLoader

needs to call the following prior to adding webView to the VBox.

VBox.vgrow(webView, Priority.ALWAYS)

Static properties can appear as subelements in addition to appearing as attributes.

Understanding Attribute Resolutions and Bindings

As you have seen in earlier parts of this chapter, object properties can be represented both as attributes and

as subelements. Sometimes it is as effective to model a property as a subelement or an attribute. However,

the FXMLLoader will perform additional processing for attributes, making it more attractive to use attributes.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

157

When processing attributes, the FXMLLoader will perform three kinds of attribute value resolutions and

expression binding.

When an attribute’s value starts with the @ character, FXMLLoader will treat the value as a location

relative to the current file. This is called location resolution. When an attribute’s value starts with a %

character, FXMLLoader will treat the value as a key in a resource bundle and substitute the locale-specific

value for the key. This is called resource resolution. When an attribute’s value starts with a $ character,

FXMLLoader will treat the value as a variable name, and substitute the value of the referenced variable as the

value of the attribute. This is called variable resolution.

When an attribute’s value starts with ${ and ends with }, and if the attribute represents a JavaFX

property, FXMLLoader will treat the value as a binding expression, and binds the JavaFX property to the

enclosed expression. This is called expression binding. You will learn about JavaFX properties and bindings

in Chapter 3. For now simply understand that when a property is bound to an expression, every time the

expression changes value, the change is reflected in the property. Supported expressions include string

literals, boolean literals, numeric literals, the unary – (minus) and ! (negation) operators, the arithmetic

operators (+, –, *, /, %), the logical operators (&&, ||), and the relational operators (>, >=, <, <=, ==, !=).

The ResolutionAndBindingExample, shown in Listings 4-14 to 4-19, illustrates the use of location

resolution, resource resolution, and variable resolution as well as expression binding.

Listing 4-14. ResolutionAndBindingExample.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.geometry.Insets?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.control.TextField?>

<?import javafx.scene.layout.HBox?>

<?import javafx.scene.layout.VBox?>

<?import javafx.scene.text.Font?>

<?import java.util.Date?>

<VBox id="vbox" alignment="CENTER_LEFT" maxHeight="-Infinity" maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity" prefHeight="200.0" prefWidth="700.0" spacing="10.0"

stylesheets="@ResolutionAndBindingExample.css" xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1" fx:controller="ResolutionAndBindingController">

<font>

</font>

</Label>

<font>

</font>

</Label>

<font>

</font>

</Label>

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

158

<fx:define>

</fx:define>

</children>

</HBox>

</children>

</opaqueInsets>

</padding>

</VBox>

Listing 4-15. ResolutionAndBindingController.java

import javafx.fxml.FXML;

import javafx.scene.control.Label;

import java.net.URL;

import java.util.ResourceBundle;

public class ResolutionAndBindingController {

@FXML

private Label resourcesLabel;

@FXML

private Label locationLabel;

@FXML

private Label currentDateLabel;

@FXML

private URL location;

@FXML

private ResourceBundle resources;

@FXML

public void initialize() {

locationLabel.setText(location.toString());

resourcesLabel.setText(resources.getBaseBundleName() +

" (" + resources.getLocale().getCountry() +

", " + resources.getLocale().getLanguage() + ")");

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

159

Listing 4-16. ResolutionAndBindingExample.java

import javafx.application.Application;

import javafx.fxml.FXMLLoader;

import javafx.scene.Scene;

import javafx.scene.layout.VBox;

import javafx.stage.Stage;

import java.util.ResourceBundle;

public class ResolutionAndBindingExample extends Application {

@Override

public void start(Stage primaryStage) throws Exception {

FXMLLoader fxmlLoader = new FXMLLoader();

fxmlLoader.setLocation(

ResolutionAndBindingExample.class.getResource(

"/ResolutionAndBindingExample.fxml"));

fxmlLoader.setResources(

ResourceBundle.getBundle(

"ResolutionAndBindingExample"));

VBox vBox = fxmlLoader.load();

Scene scene = new Scene(vBox);

primaryStage.setTitle("Resolution and Binding Example");

primaryStage.setScene(scene);

primaryStage.show();

}

public static void main(String[] args) {

launch(args);

}

Listing 4-17. ResourceAndBindingExample.properties

location=Location:

resources=Resources:

currentDate=CurrentDate:

Listing 4-18. ResolutionAndBindingExample_fr_FR.properties

location=Emplacement:

resources=Resources:

currentDate=Date du jour:

Listing 4-19. ResolutionAndBindingExample.css

#vbox {

-fx-background-color: azure ;

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

160

Location resolution is used in the FXML file to specify the location of the CSS file. The stylesheet

attribute is set to the location “@ResolutionAndBindingExample.css”:

<VBox id="vbox" alignment="CENTER_LEFT" maxHeight="-Infinity" maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity" prefHeight="200.0" prefWidth="700.0" spacing="10.0"

stylesheets="@ResolutionAndBindingExample.css" xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1" fx:controller="ResolutionAndBindingController">

The stylesheet sets the background color of the VBox to azure. Resource resolution is used to set the text

for three labels in the program:

These labels will get their texts from the resource bundle that is supplied to the FXMLLoader before

the FXML file is loaded. Both the default locale and a French locale translation of the properties file are

provided. Variable resolution happens between a defined java.util.Date instance and a Label:

<fx:define>

</fx:define>

The defined Date was given the fx:id of capturedDate and the label used the variable for its text.

Finally, the expression binding happens between a TextField and a Label:

The TextField was given the fx:id of textField and the label binds to the expression textField.text,

with a result of the label mimicking what is typed in the text field. When the ResolutionAndBindingExample

is run with the French locale, the Resolution and Binding Example window shown in Figure4-6 is displayed.

Figure 4-6. The ResolutionAndBindingExample program

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

161

Using Multiple FXML Files

Because the result of loading an FXML file is a JavaFX Node that can be used in a Scene, you are not limited to

using only one FXML file for any Scene. You can, for example, break your scene into two or more parts and

represent each part by its own FXML file. Then you can call one of the load() methods of FXMLLoader on the

FXML file of each part, and assemble the resulting nodes programmatically into your scene.

The FXML file format supports another mechanism to combine separately prepared FXML files

together. One FXML file can include another with an fx:include element. The fx:include element

supports three attributes: the source attribute holds the location of the included FXML file; the resources

attribute holds the location of the resource bundle that is used by the included FXML file; and the charset

attribute holds the charset for the included FXML file. If the source attribute starts with a “/” character, it is

interpreted as a path in the classpath; otherwise it is interpreted as relative to the location of the including

FXML file. The resource and the charset attributes are optional. When they are not specified, their values

used for loading the including FXML file are used. The builder factory and the controller factory used for

loading the including FXML file are also used for loading the included FXML file.

An fx:id can be specified for an fx:include element. When an fx:id is specified, a corresponding field

in the controller of the including FXML file can be specified, and the FXMLLoader will inject this field with the

result of loading the included FXML file. Moreover, if the included FXML file has an fx:controller specified

in its root element, that included FXML file’s controller can also be injected into the including FXML file’s

controller, provided a properly named and typed field is available in the including file’s controller to receive

the injected included FXML file’s controller. In the example application of this section, we use two FXML

files to represent the application’s UI. The including FXML file has lines like the following:

<BorderPane maxHeight="-Infinity"

...

fx:controller="IncludeExampleTreeController">

<fx:include fx:id="details"

source="IncludeExampleDetail.fxml" />

And the included FXML has lines like the following:

<VBox maxHeight="-Infinity"

...

fx:controller="IncludeExampleDetailController">

Consequently, loading the included FXML file will result in a root element of type VBox, and

a controller of type IncludeExampleDetailController. The controller of the including FXML file,

IncludeExampleTreeController has fields like the following:

@FXML

private VBox details;

@FXML

private IncludeExampleDetailController detailsController;

These fields will hold the loaded root and controller of the included FXML file when the including

FXML file is loaded.

The complete source codes of this section’s example are shown in Listings 4-20 to 4-25.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

162

Listing 4-20. IncludeExampleTree.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.geometry.Insets?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.control.TreeTableColumn?>

<?import javafx.scene.control.TreeTableView?>

<?import javafx.scene.layout.BorderPane?>

<?import javafx.scene.layout.VBox?>

<?import javafx.scene.text.Font?>

<BorderPane maxHeight="-Infinity"

maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity"

prefHeight="400.0"

prefWidth="600.0"

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1"

fx:controller="IncludeExampleTreeController">

<top>

<Label text="Product Details"

BorderPane.alignment="CENTER">

<font>

</font>

</Label>

</top>

<left>

<font>

</font>

</Label>

<TreeTableView fx:id="treeTableView"

prefHeight="200.0"

prefWidth="200.0"

BorderPane.alignment="CENTER"

VBox.vgrow="ALWAYS">

<TreeTableColumn fx:id="category"

editable="false"

prefWidth="125.0"

text="Category"/>

<TreeTableColumn fx:id="name"

editable="false"

prefWidth="75.0"

text="Name"/>

</columns>

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

163

</TreeTableView>

</children>

<BorderPane.margin>

</BorderPane.margin>

</VBox>

</left>

<fx:include fx:id="details"

source="IncludeExampleDetail.fxml"/>

</center>

</padding>

</BorderPane>

Listing 4-21. IncludeExampleDetail.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.geometry.Insets?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.control.TextArea?>

<?import javafx.scene.layout.VBox?>

<?import javafx.scene.text.Font?>

<VBox maxHeight="-Infinity"

maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity"

prefHeight="346.0"

prefWidth="384.0"

spacing="10.0"

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1"

fx:controller="IncludeExampleDetailController">

<font>

</font>

</Label>

<font>

</font>

</Label>

<font>

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

164

</font>

</Label>

<TextArea fx:id="description"

prefHeight="200.0"

prefWidth="200.0"

VBox.vgrow="ALWAYS"/>

</children>

</padding>

</VBox>

Listing 4-22. IncludeExampleTreeController.java

import javafx.beans.property.ReadOnlyStringWrapper;

import javafx.fxml.FXML;

import javafx.scene.control.TreeItem;

import javafx.scene.control.TreeTableColumn;

import javafx.scene.control.TreeTableView;

import javafx.scene.layout.VBox;

public class IncludeExampleTreeController {

@FXML

private TreeTableView<Product> treeTableView;

@FXML

private TreeTableColumn<Product, String> category;

@FXML

private TreeTableColumn<Product, String> name;

@FXML

private VBox details;

@FXML

private IncludeExampleDetailController detailsController;

@FXML

public void initialize() {

Product[] products = new Product[101];

for (int i = 0; i <= 100; i++) {

products[i] = new Product();

products[i].setCategory("Category" + (i / 10));

products[i].setName("Name" + i);

products[i].setDescription("Description" + i);

}

TreeItem<Product> root = new TreeItem<>(products[100]);

root.setExpanded(true);

for (int i = 0; i < 10; i++) {

TreeItem<Product> firstLevel =

new TreeItem<>(products[i * 10]);

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

165

firstLevel.setExpanded(true);

for (int j = 1; j < 10; j++) {

TreeItem<Product> secondLevel =

new TreeItem<>(products[i * 10 + j]);

secondLevel.setExpanded(true);

firstLevel.getChildren().add(secondLevel);

}

root.getChildren().add(firstLevel);

}

category.setCellValueFactory(param ->

new ReadOnlyStringWrapper(param.getValue().getValue().getCategory()));

name.setCellValueFactory(param ->

new ReadOnlyStringWrapper(param.getValue().getValue().getName()));

treeTableView.setRoot(root);

treeTableView.getSelectionModel().selectedItemProperty()

.addListener((observable, oldValue, newValue) -> {

Product product = null;

if (newValue != null) {

product = newValue.getValue();

}

detailsController.setProduct(product);

});

}

Listing 4-23. IncludeExampleDetailController.java

import javafx.beans.value.ChangeListener;

import javafx.fxml.FXML;

import javafx.scene.control.Label;

import javafx.scene.control.TextArea;

public class IncludeExampleDetailController {

@FXML

private Label category;

@FXML

private Label name;

@FXML

private TextArea description;

private Product product;

private ChangeListener<String> listener;

public void setProduct(Product product) {

if (this.product != null) {

unhookListener();

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

166

this.product = product;

hookTo(product);

}

private void unhookListener() {

description.textProperty().removeListener(listener);

}

private void hookTo(Product product) {

if (product == null) {

category.setText("");

name.setText("");

description.setText("");

listener = null;

} else {

category.setText(product.getCategory());

name.setText(product.getName());

description.setText(product.getDescription());

listener = (observable, oldValue, newValue) ->

product.setDescription(newValue);

description.textProperty().addListener(listener);

}

Listing 4-24. IncludeExample.java

import javafx.application.Application;

import javafx.fxml.FXMLLoader;

import javafx.scene.Scene;

import javafx.scene.layout.BorderPane;

import javafx.stage.Stage;

public class IncludeExample extends Application {

@Override

public void start(Stage primaryStage) throws Exception {

FXMLLoader fxmlLoader = new FXMLLoader();

fxmlLoader.setLocation(

IncludeExample.class.getResource("IncludeExampleTree.fxml"));

final BorderPane borderPane = fxmlLoader.load();

Scene scene = new Scene(borderPane, 600, 400);

primaryStage.setTitle("Include Example");

primaryStage.setScene(scene);

primaryStage.show();

}

public static void main(String[] args) {

launch(args);

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

167

Listing 4-25. Product.java

public class Product {

private String category;

private String name;

private String description;

public String getCategory() {

return category;

}

public void setCategory(String category) {

this.category = category;

}

public String getDescription() {

return description;

}

public void setDescription(String description) {

this.description = description;

}

public String getName() {

return name;

}

public void setName(String name) {

this.name = name;

}

In this IncludeExample program, we build up the UI in two FXML files, each one backed by its own

controller. The UI features a TreeTableView on the left side, and some Labels and a TextArea on the right

side. The TreeTableView is loaded with dummy Product data. When a row in the left TreeTableView is

selected, the corresponding Product is shown on the right side. You can edit the Product’s description field

using the TextArea on the right side. As you navigate away from an old row to a new row on the left side, the

Product on the right side reflects the change. However, all the changes that you made to previously displayed

Products are retained in the model. When you navigate back to a modified Product, your changes will be

shown again. The TreeTableView class is covered in more detail in Chapter 6.

We used a ChangeListener<String> that is attached to the TextField’s textProperty to synchronize

the text in the TextField and the description in the Product. JavaFX properties and change listeners are

part of the JavaFX Properties and Bindings API. We cover this API in the next chapter.

When the IncludeExample is run, the Include Example window shown in Figure4-7 is displayed.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

168

Creating Custom Components Using fx:root

The fx:include element allows us to attach one FXML file into another FXML file. Similarly, the fx:root

element allows us to attach an FXML file to a Node that is provided in code. The fx:root element must be the

top-level element in an FXML file. It must be supplied with a type attribute, which determines the type of

the Node that needs to be created in code to load this FXML file.

In its simplest form, you can change any one of the earlier FXML files’ top-level element from

<SomeType ...

<fx:root type="some.package.SomeType" ...

and instantiate SomeType in code and set it as the root in the FXMLLoader before loading the FXML file, like

the following:

SomeType someType = new SomeType();

fxmlLoader.setRoot(someType);

fxmlLoader.load();

The next example goes one step further. It defines a class that extends the fx:root type of the FXML file,

and serves as both the root and the controller of the FXML file. It loads the FXML file in its constructor, and

uses the initialize() method to set up the desired relationships between the nodes that are constructed

in the FXML file. This class can then be used as if it is a native JavaFX node. Classes that are constructed this

way are called custom components.

Figure 4-7. The IncludeExample program

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

169

The custom component we define here is a simple composite custom component, meaning that it is

composed of several nodes that together fulfill some business requirement. The custom component we

create in this example is called ProdId. It’s designed to help with data entry of product ID that must have the

form “A-123456” where there is only one character before the dash, and it must be “A” or “B” or “C.” There

could be up to six characters after the dash. This program is shown in Listings 4-26 to 4-28.

Listing 4-26. ProdId.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?import javafx.scene.control.Label?>

<?import javafx.scene.control.TextField?>

<fx:root type="javafx.scene.layout.HBox"

alignment="BASELINE_LEFT"

maxHeight="-Infinity"

maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity"

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1">

</children>

</fx:root>

Listing 4-27. ProdId.java

package projavafx.customcomponent;

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

import javafx.fxml.FXML;

import javafx.fxml.FXMLLoader;

import javafx.scene.control.TextField;

import javafx.scene.layout.HBox;

import java.io.IOException;

public class ProdId extends HBox {

@FXML

private TextField prefix;

@FXML

private TextField prodCode;

private StringProperty prodId = new SimpleStringProperty();

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

170

public ProdId() throws IOException {

FXMLLoader fxmlLoader = new FXMLLoader(ProdId.class.getResource("ProdId.fxml"));

fxmlLoader.setRoot(this);

fxmlLoader.setController(this);

fxmlLoader.load();

}

@FXML

public void initialize() {

prefix.textProperty().addListener((observable, oldValue, newValue) -> {

switch (newValue) {

case "A":

case "B":

case "C":

prodCode.requestFocus();

break;

default:

prefix.setText("");

}

});

prodCode.textProperty().addListener((observable, oldValue, newValue) -> {

if (newValue.length() > 6) {

prodCode.setText(newValue.substring(0, 6));

} else if (newValue.length() == 0) {

prefix.requestFocus();

}

});

prodId.bind(prefix.textProperty().concat("-").concat(prodCode.textProperty()));

}

public String getProdId() {

return prodId.get();

}

public StringProperty prodIdProperty() {

return prodId;

}

public void setProdId(String prodId) {

this.prodId.set(prodId);

}

Listing 4-28. CustomComponent.java

package projavafx.customcomponent;

import javafx.application.Application;

import javafx.geometry.Insets;

import javafx.geometry.Pos;

import javafx.scene.Scene;

import javafx.scene.control.Label;

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

171

import javafx.scene.layout.HBox;

import javafx.scene.layout.VBox;

import javafx.scene.text.Font;

import javafx.stage.Stage;

public class CustomComponent extends Application {

@Override

public void start(Stage primaryStage) throws Exception {

VBox vBox = new VBox(10);

vBox.setPadding(new Insets(10, 10, 10, 10));

vBox.setAlignment(Pos.BASELINE_CENTER);

final Label prodIdLabel = new Label("Enter Product Id:");

final ProdId prodId = new ProdId();

final Label label = new Label();

label.setFont(Font.font(48));

label.textProperty().bind(prodId.prodIdProperty());

HBox hBox = new HBox(10);

hBox.setPadding(new Insets(10, 10, 10, 10));

hBox.setAlignment(Pos.BASELINE_LEFT);

hBox.getChildren().addAll(prodIdLabel, prodId);

vBox.getChildren().addAll(hBox, label);

Scene scene = new Scene(vBox);

primaryStage.setTitle("Custom Component Example");

primaryStage.setScene(scene);

primaryStage.show();

}

public static void main(String[] args) {

launch(args);

}

Notice that in the main program CustomComponent class, we did not load any FXML files. We simply

instantiated ProdId, and proceed to use it as if it is a native JavaFX node. The FXML file simply put

two TextFields and a Label in an HBox type fx:root. No fx:controller is set because we want to set

it in the constructor of the ProdId class. In addition to the two injected TextFields, we have another

StringProperty field called prodId, for which we defined a getter getProdId(), a setter setProdId(), and a

property getter prodIdProperty().

private StringProperty prodId = new SimpleStringProperty();

public String getProdId() {

return prodId.get();

}

public StringProperty prodIdProperty() {

return prodId;

}

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

172

public void setProdId(String prodId) {

this.prodId.set(prodId);

}

The validation requirement and the convenience functionality are in the initialize() method, which

will be called by the FXMLLoader when it has finished loading the FXML file. We hooked up ChangeListeners

to the textProperty of the two TextFields, and allow only valid changes to occur. We also move the cursor

to prodCode when the prefix is filled with the correct data. Likewise, when we back off from the prodCode

field, the cursor will naturally jump to the prefix text field.

@FXML

public void initialize() {

prefix.textProperty().addListener((observable, oldValue, newValue) -> {

switch (newValue) {

case "A":

case "B":

case "C":

prodCode.requestFocus();

break;

default:

prefix.setText("");

}

});

prodCode.textProperty().addListener((observable, oldValue, newValue) -> {

if (newValue.length() > 6) {

prodCode.setText(newValue.substring(0, 6));

} else if (newValue.length() == 0) {

prefix.requestFocus();

}

});

prodId.bind(prefix.textProperty().concat("-").concat(prodCode.textProperty()));

}

When the CustomComponent program is run, the Custom Component Example window shown in

Figure4-8 is displayed.

Figure 4-8. The CustomComponent program

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

173

Event Handling Using Scripting or Controller Properties

In the last section, we introduced you to using a method of the controller as an event handler for a node

in an FXML file. JavaFX allows two more ways to set up event handlers in FXML files. One way is to use

scripting. Any JSR-223 compatible javax.script-based scripting engine can be used. The language to be

used for scripting must be specified at the top of the FXML file. To use the Nashorn JavaScript engine that

ships with Oracle JDK 8, the following processing instruction must be present at the top of the FXML file:

<?language javascript?>

The fx:script element is used to introduce scripts. Both inline scripts and external file scripts are

supported. The following is an inline script:

<fx:script>

function actionHandler(event) {

webView.getEngine().load(address.getText());

}

</fx:script>

The external script takes the following form:

<fx:script source="myscript.js"/>

Any node in the FXML file that has an fx:id can be accessed from the scripting environment by

their fx:id names. If the FXML file has a controller, then the controller is available as a variable named

controller. Variables declared in fx:script sections are also available for use as variables in attributes in

the rest of the FXML file. To use the actionHandler(event) function defined in the fx:script section as an

event handler, it can be specified as follows:

<TextField fx:id="address"

onAction="actionHandler(event)"

■Caution You can use either a function that takes no argument if your event handler does not need to

inspect the event object, or a function that takes one argument as the value of the event handler attribute,

such as onAction. If you call a function with one argument, then you must pass the system-provided event

variable into it.

The ScriptingExample in Listings 4-29 and 4-30 illustrates event handling using scripting.

Listing 4-29. ScriptingExample.fxml

<?xml version="1.0" encoding="UTF-8"?>

<?language javascript?>

<?import javafx.geometry.Insets?>

<?import javafx.scene.control.Button?>

<?import javafx.scene.control.TextField?>

<?import javafx.scene.layout.HBox?>

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

174

<?import javafx.scene.layout.VBox?>

<?import javafx.scene.web.WebView?>

<VBox maxHeight="-Infinity"

maxWidth="-Infinity"

minHeight="-Infinity"

minWidth="-Infinity"

prefHeight="400.0"

prefWidth="600.0"

spacing="10.0"

xmlns="http://javafx.com/javafx/8"

xmlns:fx="http://javafx.com/fxml/1">

<fx:script>

function actionHandler(event) {

webView.getEngine().load(address.getText());

}

</fx:script>

<TextField fx:id="address"

onAction="actionHandler(event)"

HBox.hgrow="ALWAYS">

</padding>

</TextField>

<Button fx:id="loadButton"

mnemonicParsing="false"

onAction="actionHandler(event)"

text="Load"/>

</children>

</HBox>

<WebView fx:id="webView"

prefHeight="200.0"

prefWidth="200.0"

VBox.vgrow="ALWAYS"/>

</children>

</padding>

</VBox>

Listing 4-30. ScriptingExample.java

import javafx.application.Application;

import javafx.fxml.FXMLLoader;

import javafx.scene.Scene;

import javafx.scene.layout.VBox;

import javafx.stage.Stage;

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

175

public class ScriptingExample extends Application {

@Override

public void start(Stage primaryStage) throws Exception {

FXMLLoader fxmlLoader = new FXMLLoader();

fxmlLoader.setLocation(

ScriptingExample.class.getResource("/ScriptingExample.fxml"));

final VBox vBox = fxmlLoader.load();

Scene scene = new Scene(vBox, 600, 400);

primaryStage.setTitle("Scripting Example");

primaryStage.setScene(scene);

primaryStage.show();

}

public static void main(String[] args) {

launch(args);

}

When the ScriptingExample is run, the Scripting Example window very similar to Figure4-4 is

displayed.

You can also specify an event handler with the variable syntax:

<TextField fx:id="address"

onAction="$controller.actionHandler"

This will set the actionHandler property from the controller as the event handler of the onActionEvent.

In the controller, the actionHandler property should have the correct event handler type. For the onAction

event, the property should be like the following:

@FXML

public EventHandler<ActionEvent> getActionHandler() {

return event -> {

// handle the event

};

}

Now that we have a thorough understanding of the FXML file format, we can effectively take advantage

of the GUI editing convenience in creating FXML files.

Using JavaFX Scene Builder

In the previous sections, you learned the fundamentals of the FXML file format. That knowledge should

come in very handy when trying to use and comprehend the JavaFX Scene Builder tool. In this last section of

the chapter, we dive into the usages of the JavaFX Scene Builder.

Because laying out a UI is a highly subjective, sometimes artistic endeavor, a lot depends on the

application at hand and the design sensibilities of the UI and user experience teams. We do not pretend

to know the best ways of doing UI design. So in this section, we give you a guided tour of the JavaFX Scene

Builder 2.0 itself, point out to you the various parts of the UI designer, and discuss how to turn the knobs and

switch the gears to achieve a desired result.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

176

Overview of JavaFX Scene Builder

When you start JavaFX Scene Builder, the screen looks like Figure4-9.

Figure 4-9. The JavaFX Scene Builder program

When first started, the JavaFX Scene Builder UI has a menu bar at the top, two accordion containers

named Library and Document on the left side of the screen, a Content panel in the middle of the screen, and

an accordion container named Inspector on the right of the screen.

Understanding the Menu Bar and Items

There are nine menus in JavaFX Scene Builder. Let’s examine them one by one.

The File menu is shown in Figure4-10.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

177

The New, Open, Save, Save As, Revert to Saved, Reveal in Explorer (or Finder, or Desktop), Close

Window, and Exit menu items do pretty much what you think they should do. The New from Template menu

item creates a new FXML file from an existing template. The list of templates is shown in Figure4-11.

Figure 4-10. The File menu

Figure 4-11. The templates

The Import menu item allows you to copy the content of another FXML file into the current FXML file.

It also allows you to add image and media files to the current FXML file. Such imported files are wrapped in

an ImageView or MediaView node. The Include menu item allows you to add an fx:include element into the

current FXML file. The Close Window menu item closes the FXML file being edited in the current window.

The Preferences menu item allows you to set certain preferences that control how JavaFX Scene Builder

looks. The Quit menu item allows you to exit the JavaFX Scene Builder application entirely. It will ask you to

save any unsaved files before shutting the application down.

The Edit menu is shown in Figure4-12.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

178

The Undo, Redo, Cut, Copy, Paste, Paste Into, Duplicate, Delete, Select All, Select None, Select Parent,

Select Next, and Select Previous menu items all perform their normal duties. The Trim Document to

Selection menu item deletes everything that is not selected.

The View menu is shown in Figure4-13.

Figure 4-12. The Edit menu

Figure 4-13. The View menu

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

179

The Content menu item puts the focus on the Content panel in the middle of the screen. The Properties,

Layout, and Code menu items put the focus on the Property, Layout, or Code sections in the Inspector panel

on the right side of the screen. The Hide Library command hides the Library panel on the top of the left side

of the screen. The menu item will change to Show Library once the Library is hidden. The Hide Document

menu item does the same to the Document panel on the bottom of the left side of the screen. The Show CSS

Analyzer menu item shows the CSS Analyzer, which is initially not shown. The Hide Left Panel and Hide

Right Panel menu items hide the left panel (the Library panel and the Document panel) or the Right panel

(the Inspector panel). The Show Outlines menu item shows the outlines of the items. The Show Sample Data

menu item will show sample data for TreeView, TableView, and TreeTableView nodes to help you visualize

the node at work. The sample data are not saved with the FXML file. The Disable Alignment Guides menu

item disables the alignment guidelines that are shown when you move a node around in a container in the

Content panel. These alignment guidelines help you to position the nodes in the right spot on the screen.

The Zoom menu item allows you to change the magnification rate of the Content panel. The Show Sample

Controller Skeleton menu item will open a dialog box showing a skeleton controller class declaration based

on the controller setting made in the Document panel and the fx:ids declared for the nodes in the FXML file.

Figure4-14 shows the JavaFX Scene Builder screen with the CSS Analyzer shown.

Figure 4-14. The JavaFX Scene Builder screen with the CSS Analyzer shown

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

180

The Insert menu is shown in Figure4-15.

Figure 4-15. The Insert menu

The Insert menu contains submenus and menu items that allow you to insert different kinds of nodes

into the Content panel. The submenus and their menu items represent the same hierarchy as in the Library

panel. They include the Containers, Controls, Menu, Miscellaneous, Shapes, Charts, and 3D categories. We

cover these nodes in more detail in subsequent chapters.

The Modify menu is shown in Figure4-16.

Figure 4-16. The Modify menu

The Fit to Parent menu item will expand the selected node to fill an AnchorPane container and anchor

the node to the parent on all sides. The Use Computed Sizes menu item will resize the selected element to

USE_COMPUTED_SIZE. The GridPane submenu contains items that work with the GridPane container. The Set

Effect submenu contains items for each effect that can be set on the current node. The Add Popup Control

allows you to add a ContextMenu or a Tooltip to the selected node. The Scene Size submenu allows you to

change the size of the scene to some popular sizes, including 320×240 (QVGA), 640×480 (VGA), 1280×800,

and 1920×1080.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

181

The Bring to Front, Send to Back, Bring Forward, and Send Backward menu items move the selected

node to the front, back, up, or down the z-order of overlapping nodes. The Wrap in submenu contains items

for each container type and allows you to wrap a group of selected nodes into the container. For example,

you can choose to wrap two adjacent Labels into an HBox. The Unwrap menu item removes the container

from the selected node.

The Preview menu is shown in Figure4-18.

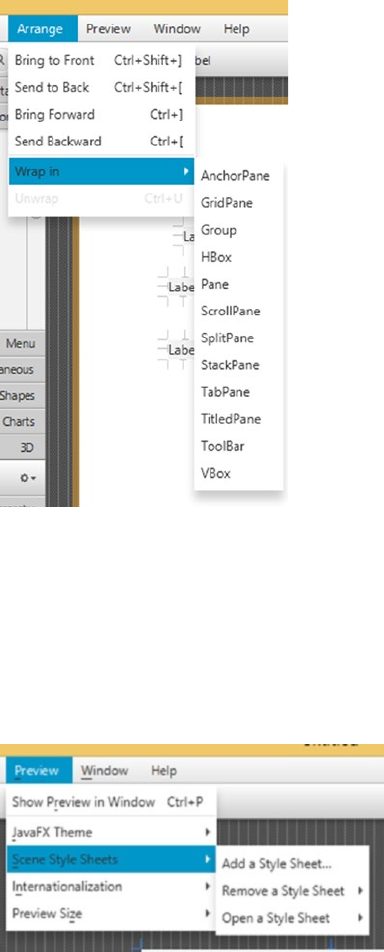

Figure 4-17. The Arrange menu

Figure 4-18. The Preview menu

The Arrange menu is shown in Figure4-17.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

182

The Show Preview in Window menu item allows you to preview the scene in a live window to see how

it works in real life. This is the most useful menu item because you will be using it many times. The JavaFX

Theme submenu contains various themes that you can preview the scene with. The Scene Style Sheets

submenu contains items that allow you to add, remove, or edit a style sheet that is applied to the scene

during the preview. The Internationalization submenu contains items that allow you to add, remove, or

edit a resource bundle that is used during the preview. The Preview Size submenu contains items for the

preferred screen size during the preview.

The Window menu allows you to switch between multiple FXML files that are being edited at the same

time.

The Help menu shows the online help and the about box for JavaFX Scene Builder.

Understanding the Library Panel

The Library panel lives in the top portion of the left panel, and can be hidden using the View ➤ Hide Library

menu item. It holds the containers and nodes that you can use to build a UI. Figure4-19 shows the Library

panel with its Containers drawer open, showing some of the containers. You can click the other drawers to

see what they contain. Figure4-20 shows the Library panel with its Controls drawer open, showing some of

the controls.

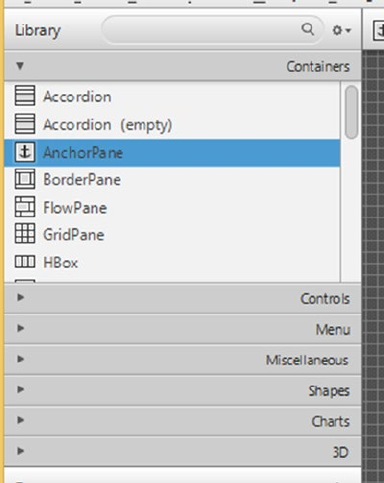

Figure 4-19. The Library panel with its Containers drawer open

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

183

There is a search box at the top of the Library panel. You can type in the name of a container or a control

or something that belongs to one of the other drawers into the search box. As you type, the Library panel will

change its display from the accordion arrangement to a single list with all the nodes whose names match

the name entered in the search box. This allows you to find a node by name quickly without having to go

through the drawers one by one. Figure4-21 shows the Library panel in search mode. To exit search mode,

simply click the x mark on the right end of the search box.

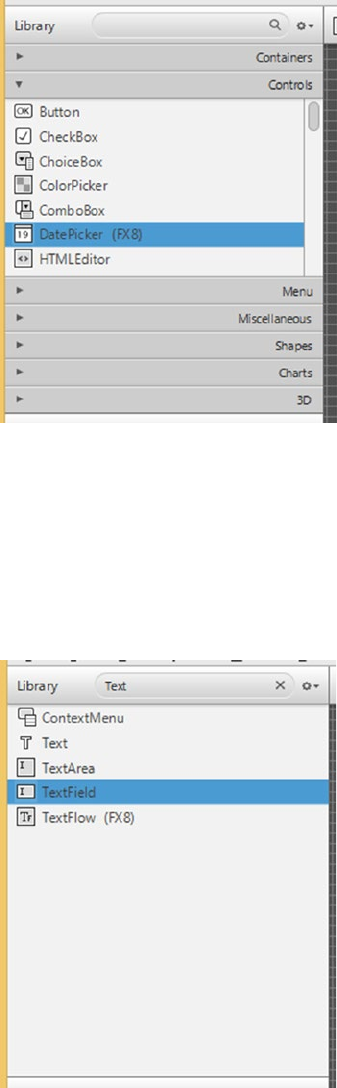

Figure 4-20. The Library panel with its Controls drawer open

Figure 4-21. The Library panel in search mode

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

184

Once a container or a node is found, you can drag it to the Content panel, drag it to the Hierarchy tree

in the Document panel, or double-click it. Bringing containers to the Content panel and then populating the

containers with controls and other nodes is how you build up a UI in the JavaFX Scene Builder.

To the right of the search box is a menu button that contains several menu items and a submenu that

alters the Library panel’s behavior. Figure4-22 shows what is available in this menu button. The View as List

menu item changes the Library panel from displaying its nodes in several sections into displaying its nodes

all together without sections. The View as Sections changes the Library panel from displaying its nodes

in one list into displaying its nodes in several sections. The Import JAR/FXML File menu item allows you

to import an external jar file or FXML file into JavaFX Scene Builder as a custom component. The Import

Selection menu item allows you to import the currently selected nodes into JavaFX Scene Builder as custom

components. The Custom Library Folder submenu contains two menu items. The Reveal in Explorer menu

item opens the folder that holds the custom components in the operating system’s File Explorer (or Finder),

allowing you to remove any imported custom libraries. The Show JAR Analysis Report menu item displays a

report showing JavaFX Scene Builder’s assessment of the imported jar files.

Figure 4-22. The Library panel with its menu open

To illustrate the importing of a custom component into JavaFX Scene Builder, we package the class

files and the FXML file from the CustomComponent example from the last section into a CustomComponent.

jar file. We then invoke the Import JAR/FXML File menu item, navigate to the directory, and select the

CustomComponent.jar file to import. As soon as we click the Open button in the file selection dialog box,

JavaFX Scene Builder opens the Import dialog box, shown in Figure4-23.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

185

We can examine each custom component included in the jar file by clicking the custom component

name in the list on the left. Information about the selected custom component, including a visual

representation of the custom component, is displayed on the right side of the screen. We can select which

custom components to import by selecting the check box by the name of the component. We then click the

Import Component button to finish the importing process. After importing, the ProdId custom component

shows up in the Library panel’s Custom section, and can be added to any further UIs that are built.

Understanding the Document Panel

The Document panel lives in the bottom portion of the left panel, and can be hidden using the View ➤ Hide

Document menu item. It holds two sections. The Hierarchy section displays a tree view of all the nodes that

are added to the Content panel, organized by the containment relationship. Because the layout of the nodes

in the Content panel might make it tricky to select a node from the Content panel, it might be easier to make

the selection in the Hierarchy section in the Document panel.

Figure4-24 shows the Hierarchy section of the Document panel for the FXML file in the

FXMLLoaderExample in Listing 4-4. You can see the expanded node tree with the WebView node selected.

Figure 4-23. The Import dialog for importing CustomComponent.jar

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

186

The Controller section displays information about the controller of the FXML file. Figure4-25 shows the

Controller section of the Document panel for the FXML file in the FXMLInjectionExample in Listing 4-7. You

can set the name of the controller class in this section. You can also choose to use the fx:root construct for

the FXML file in this section. You also see a list of nodes with fx:ids that are already set, and you can select

the nodes by clicking on the row in the Assigned fx:id table.

Figure 4-24. The Hierarchy section of the Document panel for FXMLLoaderExample.fxml

Figure 4-25. The Controller section of the Document panel for FXMLInjectionExample.fxml

There is a menu button in the top right corner of the Document panel. It contains a Hierarchy Displays

submenu that has three menu items, as shown in Figure4-26. The Info menu item causes the Hierarchy

section to display each node with its general information, usually what is also displayed in the Content panel

for the same node. The fx:id menu item causes the Hierarchy section to display each node with its fx:id if it

has been set. The Node Id menu item causes the Hierarchy section to display each node with its node ID if it

has been set. The node ID is used by CSS to find the node and to manipulate the node’s styles.

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

187

Understanding the Content Panel

The Content panel is where the UI is composed. You first drag a container to the Content panel. You then

drag other nodes to the Content panel and position then onto the container node. As you drag your nodes,

red guidelines will appear as the node you drag reaches certain alignment and spacing positions. With the

help of these guidelines, you should be able to create visually pleasing UIs.

Above the Content panel, there is a bread-crumb bar that shows the path of the selected node in the

content area. This allows you to easily navigate to the containing nodes of the currently selected node.

JavaFX Scene Builder will display warning and error messages in this bar when the situation arises.

One handy feature of JavaFX Scene Builder is that when you have several nodes selected, you can go to

the context menu by right-clicking the selected nodes, choosing the Wrap in submenu, and then selecting one

of the container types. You can also Unwrap a node this way, removing any containers that contain the node.

Figure4-27 shows the IncludeExampleTree.fxml file from Listing 4-20 being edited in JavaFX Scene

Builder.

Figure 4-26. The Document panel with its menu open

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

188

Understanding the Inspector Panel

The Inspector panel lives in the right panel and can be hidden using the View ➤ Hide Right Panel menu item.

It contains the Properties, Layout, and Code sections. The Properties section lists all the generic properties

of the selected node in the Content panel. You can set the properties by changing the values shown here.

You can also change a property back to its default value by invoking the small menu button to the right of the

property. You can set the node ID in the ID property editor in the Properties section. Figure4-28 shows the

Properties section of the Inspector panel.

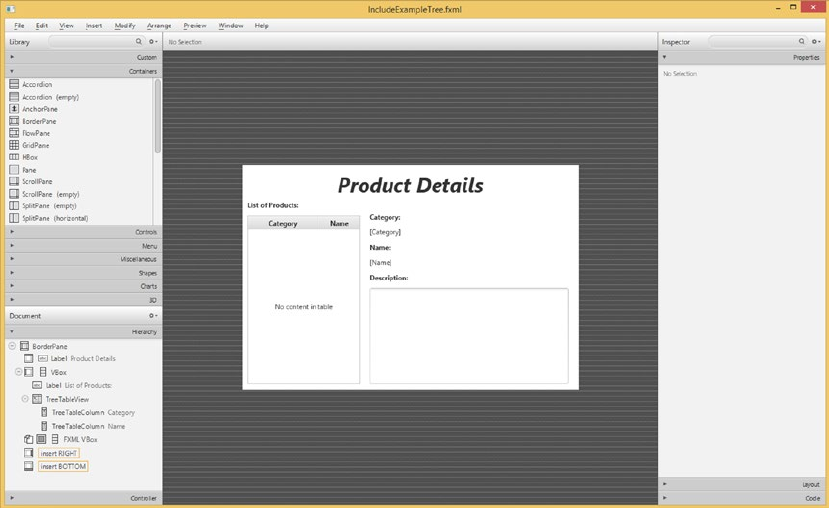

Figure 4-27. The IncludeExampleTree.fxml file being edited in JavaFX Scene Builder

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

189

The Layout section lists all layout-related properties of the currently selected node. Figure4-29 shows

the Layout section of the Inspector panel.

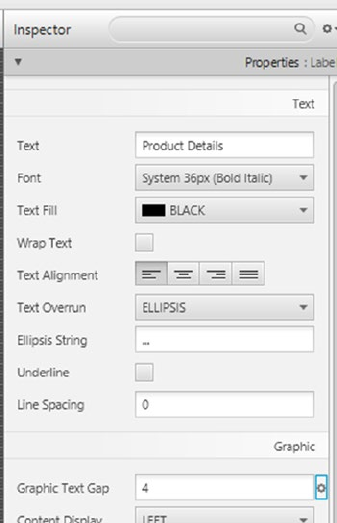

Figure 4-28. The Properties section of the Inspector panel

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

190

The Code section lists all the event handlers the selected node in the Content panel could have. It also

allows you to set the fx:id for the selected node. You can hook up the event handlers in the Code section

in any way you want, but the most convenient way of providing event handlers is to set them to properly

signatured methods in the controller. Figure4-30 shows the Code section of the Inspector panel.

Figure 4-29. The Layout section of the Inspector panel

Figure 4-30. The Code section of the Inspector panel

CHAPTER 4 ■ USING SCENE BUILDER TO CREATE A USER INTERFACE

191

Summary

In this chapter, you learned the declarative way of creating a UI in JavaFX. You learned the following

important tools and information:

• FXML files are the carriers of declarative UI information, and are central assets of

JavaFX projects.

• FXML files are loaded into JavaFX applications by FXMLLoader. The result of the

loading is a node that can be incorporated into a Scene.

• FXML files can have a companion controller class that performs programmatical

functions, such as event handling, at runtime on behalf of the nodes declared in the

FXML file.

• FXML files can be edited easily in your favorite Java IDEs with smart suggestions and

completions.

• FXML files can also be edited in Gluon Scene Builder 9.0, an open source tool for

editing FXML files.

• The JavaFX Scene Builder is a highly productive tool for specifying JavaFX UIs. You

can add containers, controls, and other JavaFX nodes into the content of an FXML

file.

• You can set up a controller and define the fx:ids of the various nodes in the scene.

• You can organize the hierarchical information in an FXML file by manipulating the

containers, controls, and other nodes in the Hierarchy section of the Document

panel.

• You can manipulate the attributes of nodes in an FXML file by using the Properties,

Layout, and Code sections in the Inspector panel.

• You can visually compose your UI in the Content panel.

• You can analyze the CSS of the UI with the CSS Analyzer.

Resources

• The Gluon Scene Builder information site:

http://gluonhq.com/products/scene-builder

• Jasper Pott’s blog post announcing the release of JavaFX Scene Builder 2.0:

http://fxexperience.com/2014/05/announcing-scenebuilder-2-0/

• A nine-minute video showing JavaFX Scene Builder 2.0’s capabilities (accompanies

Jasper Pott’s announcement): https://www.youtube.com/watch?v=ij0HwRAlCmo&fe

ature=youtu.be

• The e(fx)clipse Eclipse plug-in to provide JavaFX support for Eclipse IDEs:

www.eclipse.org/efxclipse/install.html

193

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8_5

CHAPTER 5

Collections and Concurrency

When you know a thing, to hold that you know it; and when you do not know a thing, to

allow that you do not know it—this is knowledge.

—Confucius

After the fast-paced exploration of JavaFX UI controls in Chapter 4, we refocus our attention on some of the

lower level facilities of JavaFX in this chapter.

Recall that in Chapter 4 you learned about the Observable interface and one of its subinterfaces

ObservableValue. In this chapter, we examine four other subinterfaces of Observable—ObservableList,

ObservableMap, ObservableSet, and ObservableArray—rounding out the story of the Observable family of

interfaces and classes.

We then cover concurrency in JavaFX. We explain the JavaFX threading model, pointing out the most

important threads present in a JavaFX application. We look at the rules that you must follow to ensure your

JavaFX application is responsive to user inputs and not locked up by event handlers that take too long to

execute. We also show you how the javafx.concurrent framework can be used to offload long-running

routines to background threads.

We conclude this chapter with examples that show how a JavaFX scene graph can be embedded into a

Swing application using JFXPanel, how it can be embedded into an SWT application using FXCanvas, paying

attention to how to make the JavaFX event thread play nicely with the Swing event dispatching thread, and

how Swing components can be embedded into a JavaFX scene using SwingNode.

Understanding Observable Collections and Arrays

As we saw in Chapter 4, the Observable interface has five direct subinterfaces—the ObservableValue

interface, the ObservableList interface, the ObservableMap interface, the ObservableSet interface, and the

ObservableArray interface. We learned that the ObservableValue interface plays a central role in the JavaFX

Properties and Bindings framework.

The ObservableList, ObservableMap, ObservableSet, and ObservableArray interfaces reside in

the javafx.collections package, and are referred to as the JavaFX observable collections and arrays. In

addition to extending the Observable interface, ObservableList, ObservableMap, and ObservableSet also

extend the java.util.List, java.util.Map, and java.util.Set interfaces, respectively, making them

genuine collections in the eyes of the Java collections framework. You can call all the Java collections

framework methods you are familiar with on objects of these interfaces and expect exactly the same

results. What the JavaFX observable collections and arrays provide in addition to the stock Java collections

framework are notifications to registered listeners. Because they are Observables, you can register

InvalidationListeners with the JavaFX observable collections objects and be notified when the content of

the observable collections and arrays becomes invalid.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

194

Each of the JavaFX observable collections and arrays interfaces supports a change event that conveys

more detailed information of the change. We examine the JavaFX observable collections and arrays and the

change events that they support in the following sections.

Understanding ObservableList

Figure5-1 is a UML diagram showing the ObservableList and supporting interfaces.

Figure 5-1. Key interfaces that support the JavaFX observable list

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

195

To prevent clutter, we omitted the java.util.List interface from the diagram in Figure5-1. The java.

util.List interface is the other super interface of ObservableList. The following two methods on the

ObservableList interface allow you to register and unregister ListChangeListeners:

• addListener(ListChangeListener<? super E> listener)

• removeListener(ListChangeListener<? super E> listener)

The following additional methods on ObservableList make working with the interface easier:

• addAll(E... elements)

• setAll(E... elements)

• setAll(Collection<? extends E> col)

• removeAll(E... elements)

• retainAll(E... elements)

• remove(int from, int to)

• filtered(Predicate<E>)

• sorted(Comparator<E>)

• sorted()

The filtered() and the two sorted() methods return a FilteredList or a SortedList that wraps the

ObservableList. When the original ObservableList is mutated, the wrapper FilteredList and SortedList

reflect the changes.

The ListChangeListener interface has only one method: onChange(ListChangeListener.

Change<? extends E> change). This method is called back when the content of the ObservableList is

manipulated. Notice that this method’s parameter type is the nested class Change that is declared in the

ListChangeListener interface. We show you how to use the ListChangeListener.Change class in the next

subsection. For now, we look at a simple example in Listing 5-1 illustrating the firing of invalidation and list

change events when an ObservableList is manipulated.

Listing 5-1. ObservableListExample.java

package com.projavafx.collections;

import javafx.beans.Observable;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import java.util.Arrays;

import java.util.Iterator;

import java.util.List;

import static javafx.collections.ListChangeListener.Change;

public class ObservableListExample {

public static void main(String[] args) {

ObservableList<String> strings = FXCollections.observableArrayList();

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

196

strings.addListener((Observable observable) -> {

System.out.println("\tlist invalidated");

});

strings.addListener((Change<? extends String> change) -> {

System.out.println("\tstrings = " + change.getList());

});

System.out.println("Calling add(\"First\"): ");

strings.add("First");

System.out.println("Calling add(0, \"Zeroth\"): ");

strings.add(0, "Zeroth");

System.out.println("Calling addAll(\"Second\", \"Third\"): ");

strings.addAll("Second", "Third");

System.out.println("Calling set(1, \"New First\"): ");

strings.set(1, "New First");

final List<String> list = Arrays.asList("Second_1", "Second_2");

System.out.println("Calling addAll(3, list): ");

strings.addAll(3, list);

System.out.println("Calling remove(2, 4): ");

strings.remove(2, 4);

final Iterator<String> iterator = strings.iterator();

while (iterator.hasNext()) {

final String next = iterator.next();

if (next.contains("t")) {

System.out.println("Calling remove() on iterator: ");

iterator.remove();

}

System.out.println("Calling removeAll(\"Third\", \"Fourth\"): ");

strings.removeAll("Third", "Fourth");

}

Unlike the Java collections framework, where the public API contains both the interfaces, such as

List, Map, and Set, and concrete implementations of the interfaces that you can instantiate, such as

ArrayList, HashMap, and HashSet, the JavaFX observable collections framework provides only the interfaces

ObservableList, ObservableMap, ObservableSet, and ObservableArray. The concrete implementation

classes are not public, but you have to use the utility class FXCollections to obtain an object of a JavaFX

observable collections and arrays. In Listing 5-1, we obtain an ObservableList<String> object by calling a

factory method on FXCollections:

ObservableList<String> strings = FXCollections.observableArrayList();

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

197

We then hooked an InvalidationListener and a ListChangeListener to the observable list. Because

both listeners have a one-argument method and are added using addListener(), we have to specify the

parameter type in the lambda expressions. The invalidation listener simply prints out a message every

time it’s called. The list change listener prints out the content of the observable list. The rest of the program

simply manipulates the content of the observable list in various ways: by calling methods on the java.util.

List interface, by calling some of the new convenience methods added to ObservableList, and by calling

the remove() method on an Iterator obtained from the observable list.

When we run the program in Listing 5-1, the following output is printed to the console:

Calling add("First"):

list invalidated

strings = [First]

Calling add(0, "Zeroth"):

list invalidated

strings = [Zeroth, First]

Calling addAll("Second", "Third"):

list invalidated

strings = [Zeroth, First, Second, Third]

Calling set(1, "New First"):

list invalidated

strings = [Zeroth, New First, Second, Third]

Calling addAll(3, list):

list invalidated

strings = [Zeroth, New First, Second, Second_1, Second_2, Third]

Calling remove(2, 4):

list invalidated

strings = [Zeroth, New First, Second_2, Third]

Calling remove() on iterator:

list invalidated

strings = [New First, Second_2, Third]

Calling remove() on iterator:

list invalidated

strings = [Second_2, Third]

Calling removeAll("Third", "Fourth"):

list invalidated

strings = [Second_2]

Indeed, every call that we made in the code to change the content of the observable list triggered a

callback on both the invalidation listener and the list change listener.

If an instance of an invalidation listener or a list change listener has already been added as a listener

to an observable list, all subsequent addListener() calls with that instance as an argument are ignored.

Of course, you can add as many distinct invalidation listeners and list change listeners as you like to an

observable list.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

198

Handling Change Events in ListChangeListener

In this section, we take a closer look at the ListChangeListener.Change class and discuss how the

onChange() callback method should handle the list change event.

As we saw in the preceding section, for an ObservableList obtained by calling FXCollections.

observableArrayList(), each mutator call—that is, each call to a single method that changes the content

of the observable list—generates a list change event delivered to each registered observer. The event object,

an instance of a class that implements the ListChangeListener.Change interface, can be thought of as

representing one or more discrete changes, each of which is of one of four kinds: elements added, elements

removed, elements replaced, or elements permuted. The ListChangeListener.Change class provides the

following methods that allow you to get at this detailed information about the change:

• boolean next()

• void reset()

• boolean wasAdded()

• boolean wasRemoved()

• boolean wasReplaced()

• boolean wasPermutated()

• int getFrom()

• int getTo()

• int getAddedSize()

• List<E> getAddedSublist()

• int getRemovedSize()

• List<E> getRemoved()

• int getPermutation(int i)

• ObservableList<E> getList()

The next() and reset() methods control a cursor that iterates through all the discrete changes in the

event object. On entry to the onChange() method of ListChangeListener, the cursor is positioned before

the first discrete change. You must call the next() method to move the cursor to the first discrete change.

Succeeding calls to the next() method will move the cursor to the remaining discrete changes. If the next

discrete change is reached, the return value will be true. If the cursor is already on the last discrete change,

the return value will be false. Once the cursor is positioned on a valid discrete change, the wasAdded(),

wasRemoved(), wasReplaced(), and wasPermutated() methods can be called to determine the kind of

change the discrete change represents.

■Caution The wasAdded(), wasRemoved(), wasReplaced(), and wasPermutated() methods are not

orthogonal. A discrete change is a replacement only if it is both an addition and a removal. The proper order for

testing the kind of a discrete change is to first determine whether it is a permutation or a replacement and then

to determine whether it is an addition or a removal.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

199

Once you have determined the kind of discrete change, you can call the other methods to get more

information about it. For addition, the getFrom() method returns the index in the observable list where

new elements were added; the getTo() method returns the index of the element that is one past the end

of the added elements; the getAddedSize() method returns the number of elements that were added; and

the getAddedSublist() method returns a List<E> that contains the added elements. For removal, the

getFrom() and getTo() methods both return the index in the observable list where elements were removed;

the getRemovedSize() method returns the number of elements that were removed; and the getRemoved()

method returns a List<E> that contains the removed elements. For replacement, both the methods that

are relevant for addition and the methods that are relevant for removal should be examined, because a

replacement can be seen as a removal followed by an addition at the same index. For permutation, the

getPermutation(int i) method returns the index of an element in the observable list after the permutation

whose index in the observable list before the permutation was i. In all situations, the getList() method

always returns the underlying observable list.

In the example shown in Listing 5-2, we perform various list manipulations after attaching a

ListChangeListener to an ObservableList. The implementation of ListChangeListener, called

MyListener, includes a pretty printer for the ListChangeListener.Change object, and prints out the list

change event object when an event is fired.

Listing 5-2. ListChangeEventExample.java

package com.projavafx.collections;

import javafx.collections.FXCollections;

import javafx.collections.ListChangeListener;

import javafx.collections.ObservableList;

public class ListChangeEventExample {

public static void main(String[] args) {

ObservableList<String> strings = FXCollections.observableArrayList();

strings.addListener(new MyListener());

System.out.println("Calling addAll(\"Zero\", \"One\", \"Two\", \"Three\"): ");

strings.addAll("Zero", "One", "Two", "Three");

System.out.println("Calling FXCollections.sort(strings): ");

FXCollections.sort(strings);

System.out.println("Calling set(1, \"Three_1\"): ");

strings.set(1, "Three_1");

System.out.println("Calling setAll(\"One_1\", \"Three_1\", \"Two_1\", \"Zero_1\"): ");

strings.setAll("One_1", "Three_1", "Two_1", "Zero_1");

System.out.println("Calling removeAll(\"One_1\", \"Two_1\", \"Zero_1\"): ");

strings.removeAll("One_1", "Two_1", "Zero_1");

}

private static class MyListener implements ListChangeListener<String> {

@Override

public void onChanged(Change<? extends String> change) {

System.out.println("\tlist = " + change.getList());

System.out.println(prettyPrint(change));

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

200

private String prettyPrint(Change<? extends String> change) {

StringBuilder sb = new StringBuilder("\tChange event data:\n");

int i = 0;

while (change.next()) {

sb.append("\t\tcursor = ")

.append(i++)

.append("\n");

final String kind =

change.wasPermutated() ? "permutated" :

change.wasReplaced() ? "replaced" :

change.wasRemoved() ? "removed" :

change.wasAdded() ? "added" : "none";

sb.append("\t\tKind of change: ")

.append(kind)

.append("\n");

sb.append("\t\tAffected range: [")

.append(change.getFrom())

.append(", ")

.append(change.getTo())

.append("]\n");

if (kind.equals("added") || kind.equals("replaced")) {

sb.append("\t\tAdded size: ")

.append(change.getAddedSize())

.append("\n");

sb.append("\t\tAdded sublist: ")

.append(change.getAddedSubList())

.append("\n");

}

if (kind.equals("removed") || kind.equals("replaced")) {

sb.append("\t\tRemoved size: ")

.append(change.getRemovedSize())

.append("\n");

sb.append("\t\tRemoved: ")

.append(change.getRemoved())

.append("\n");

}

if (kind.equals("permutated")) {

StringBuilder permutationStringBuilder = new StringBuilder("[");

for (int k = change.getFrom(); k < change.getTo(); k++) {

permutationStringBuilder.append(k)

.append("->")

.append(change.getPermutation(k));

if (k < change.getTo() - 1) {

permutationStringBuilder.append(", ");

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

201

}

permutationStringBuilder.append("]");

String permutation = permutationStringBuilder.toString();

sb.append("\t\tPermutation: ").append(permutation).append("\n");

}

return sb.toString();

}

In the preceding example, we triggered the four kinds of discrete changes in an observable list. Because

no methods on an ObservableList will trigger a permutation event, we used the sort() utility method

from the FXCollections class to effect a permutation. We have more to say about FXCollections in a later

section. We triggered the replace event twice, once with set(), and once with setAll(). The nice thing

about setAll() is that it effectively does a clear() and an addAll() in one operation and generates only

one change event.

When we run the program in Listing 5-2, the following output is printed to the console:

Calling addAll("Zero", "One", "Two", "Three"):

list = [Zero, One, Two, Three]

Change event data:

cursor = 0

Kind of change: added

Affected range: [0, 4]

Added size: 4

Added sublist: [Zero, One, Two, Three]

Calling FXCollections.sort(strings):

list = [One, Three, Two, Zero]

Change event data:

cursor = 0

Kind of change: permutated

Affected range: [0, 4]

Permutation: [0->3, 1->0, 2->2, 3->1]

Calling set(1, "Three_1"):

list = [One, Three_1, Two, Zero]

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [1, 2]

Added size: 1

Added sublist: [Three_1]

Removed size: 1

Removed: [Three]

Calling setAll("One_1", "Three_1", "Two_1", "Zero_1"):

list = [One_1, Three_1, Two_1, Zero_1]

Change event data:

cursor = 0

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

202

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [One_1, Three_1, Two_1, Zero_1]

Removed size: 4

Removed: [One, Three_1, Two, Zero]

Calling removeAll("One_1", "Two_1", "Zero_1"):

list = [Three_1]

Change event data:

cursor = 0

Kind of change: removed

Affected range: [0, 0]

Removed size: 1

Removed: [One_1]

cursor = 1

Kind of change: removed

Affected range: [1, 1]

Removed size: 2

Removed: [Two_1, Zero_1]

In all but the removeAll() call, the list change event object contains only one discrete change. The

reason that the removeAll() call generates a list change event that contains two discrete changes is that the

three elements that we wish to remove fall in two disjoint ranges in the list.

In the majority of use cases where we care about list change events, you don’t necessarily need to

distinguish the kinds of discrete changes. Sometimes you simply want to do something to all added and

removed elements. In such a case, your ListChangeListener method can be as simple as the following.

@Override

public void onChanged(Change<? extends Foo> change) {

while (change.next()) {

for (Foo foo : change.getAddedSubList()) {

// starting up

}

for (Foo foo : change.getRemoved()) {

// cleaning up

}

Understanding ObservableMap

Although ObservableMap appears equivalent to ObservableList in the JavaFX observable collections

framework hierarchy, it is actually not as sophisticated as ObservableList. Figure5-2 is a UML diagram

showing the ObservableMap and supporting interfaces.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

203

To prevent clutter, we omitted the java.util.Map interface from the diagram in Figure5-2. The

java.util.Map interface is the other super interface of ObservableMap. The following methods on the

ObservableMap interface allow you to register and unregister MapChangeListeners:

• addListener(MapChangeListener<? super K, ? super V> listener)

There are no additional convenience methods on ObservableMap.

The MapChangeListener interface has only one method: onChange(MapChangeListener.Change<?

extends K, ? extends V> change). This method is called back when the content of the ObservableMap

is manipulated. Notice that this method’s parameter type is the nested class Change that is declared in the

MapChangeListener interface. Unlike the ListChangeListener.Change class, the MapChangeListener.

Change class is geared toward reporting the change of a single key in a map. If a method call on

ObservableMap affects multiple keys, as many map change events as the number of affected keys will be

fired.

The MapChangeListener.Change class provides the following methods for you to inspect the changes

made to a key.

• boolean wasAdded()returns true if a new value was added for the key.

• boolean wasRemoved()returns true if an old value was removed from the key.

• K getKey()returns the affected key.

• V getValueAdded()returns the value that was added for the key.

• V getValueRemoved()returns the value that was removed for the key. (Note that a

put() call with an existing key will cause the old value to be removed.)

• ObservableMap<K, V> getMap()

In the example in Listing 5-3, we perform various map manipulations after attaching a

MapChangeListener to an ObservableMap. The implementation of MapChangeListener, called MyListener,

includes a pretty printer for the MapChangeListener.Change object, and prints out the map change event

object when an event is fired.

Figure 5-2. Key interfaces that support the JavaFX observable map

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

204

Listing 5-3. MapChangeEventExample.java

package com.projavafx.collections;

import javafx.collections.FXCollections;

import javafx.collections.MapChangeListener;

import javafx.collections.ObservableMap;

import java.util.HashMap;

import java.util.Iterator;

import java.util.Map;

public class MapChangeEventExample {

public static void main(String[] args) {

ObservableMap<String, Integer> map = FXCollections.observableHashMap();

map.addListener(new MyListener());

System.out.println("Calling put(\"First\", 1): ");

map.put("First", 1);

System.out.println("Calling put(\"First\", 100): ");

map.put("First", 100);

Map<String, Integer> anotherMap = new HashMap<>();

anotherMap.put("Second", 2);

anotherMap.put("Third", 3);

System.out.println("Calling putAll(anotherMap): ");

map.putAll(anotherMap);

final Iterator<Map.Entry<String, Integer>> entryIterator = map.entrySet().

iterator();

while (entryIterator.hasNext()) {

final Map.Entry<String, Integer> next = entryIterator.next();

if (next.getKey().equals("Second")) {

System.out.println("Calling remove on entryIterator: ");

entryIterator.remove();

}

final Iterator<Integer> valueIterator = map.values().iterator();

while (valueIterator.hasNext()) {

final Integer next = valueIterator.next();

if (next == 3) {

System.out.println("Calling remove on valueIterator: ");

valueIterator.remove();

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

205

private static class MyListener implements MapChangeListener<String, Integer> {

@Override

public void onChanged(Change<? extends String, ? extends Integer> change) {

System.out.println("\tmap = " + change.getMap());

System.out.println(prettyPrint(change));

}

private String prettyPrint(Change<? extends String, ? extends Integer> change) {

StringBuilder sb = new StringBuilder("\tChange event data:\n");

sb.append("\t\tWas added: ").append(change.wasAdded()).append("\n");

sb.append("\t\tWas removed: ").append(change.wasRemoved()).append("\n");

sb.append("\t\tKey: ").append(change.getKey()).append("\n");

sb.append("\t\tValue added: ").append(change.getValueAdded()).append("\n");

sb.append("\t\tValue removed: ").append(change.getValueRemoved()).append("\n");

return sb.toString();

}

When we run the program in Listing 5-3, the following output is printed to the console:

Calling put("First", 1):

map = {First=1}

Change event data:

Was added: true

Was removed: false

Key: First

Value added: 1

Value removed: null

Calling put("First", 100):

map = {First=100}

Change event data:

Was added: true

Was removed: true

Key: First

Value added: 100

Value removed: 1

Calling putAll(anotherMap):

map = {Second=2, First=100}

Change event data:

Was added: true

Was removed: false

Key: Second

Value added: 2

Value removed: null

map = {Second=2, Third=3, First=100}

Change event data:

Was added: true

Was removed: false

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

206

Key: Third

Value added: 3

Value removed: null

Calling remove on entryIterator:

map = {Third=3, First=100}

Change event data:

Was added: false

Was removed: true

Key: Second

Value added: null

Value removed: 2

Calling remove on valueIterator:

map = {First=100}

Change event data:

Was added: false

Was removed: true

Key: Third

Value added: null

Value removed: 3

In the preceding example, notice that the putAll() call generated two map change events because the

other map contains two keys.

Understanding ObservableSet

The ObservableSet interface is similar to the ObservableMap interface in that its SetChangeListener.Change

object tracks a single element. Figure5-3 is a UML diagram showing the ObservableSet and supporting

interfaces.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

207

To prevent clutter, we omitted the java.util.Set interface from the diagram in Figure5-3. The

java.util.Set interface is the other super interface of ObservableSet. The following methods on the

ObservableSet interface allow you to register and unregister SetChangeListeners:

• addListener(SetChangeListener<? super E> listener)

There are no additional convenience methods on ObservableSet.

The SetChangeListener interface has only one method: onChange(SetChangeListener.

Change<? extends E> change). This method is called back when the content of the ObservableSet is

manipulated. Notice that this method’s parameter type is the nested class Change that is declared in the

SetChangeListener interface. The SetChangeListener.Change class is geared toward reporting the change

of a single element in a set. If a method call on ObservableSet affects multiple elements, as many set change

events as the number of affected elements will be fired.

The SetChangeListener.Change class provides the following methods for you to inspect the changes

made to an element.

• boolean wasAdded()returns true if a new element was added to the set.

• boolean wasRemoved()returns true if an element was removed from the set.

• E getElementAdded()returns the element that was added to the set.

• E getElementRemoved()returns the element that was removed from the set.

• ObservableSet<E> getSet()

Figure 5-3. Key interfaces that support the JavaFX observable set

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

208

In the example in Listing 5-4, we perform various set manipulations after attaching a

SetChangeListener to an ObservableSet. The implementation of SetChangeListener, called MyListener,

includes a pretty printer for the SetChangeListener.Change object, and prints out the set change event

object when an event is fired.

Listing 5-4. SetChangeEventExample.java

package com.projavafx.collections;

import javafx.collections.FXCollections;

import javafx.collections.ObservableSet;

import javafx.collections.SetChangeListener;

import java.util.Arrays;

public class SetChangeEventExample {

public static void main(String[] args) {

ObservableSet<String> set = FXCollections.observableSet();

set.addListener(new MyListener());

System.out.println("Calling add(\"First\"): ");

set.add("First");

System.out.println("Calling addAll(Arrays.asList(\"Second\", \"Third\")): ");

set.addAll(Arrays.asList("Second", "Third"));

System.out.println("Calling remove(\"Third\"): ");

set.remove("Third");

}

private static class MyListener implements SetChangeListener<String> {

@Override

public void onChanged(Change<? extends String> change) {

System.out.println("\tset = " + change.getSet());

System.out.println(prettyPrint(change));

}

private String prettyPrint(Change<? extends String> change) {

StringBuilder sb = new StringBuilder("\tChange event data:\n");

sb.append("\t\tWas added: ").append(change.wasAdded()).append("\n");

sb.append("\t\tWas removed: ").append(change.wasRemoved()).append("\n");

sb.append("\t\tElement added: ").append(change.getElementAdded()).append("\n");

sb.append("\t\tElement removed: ").append(change.getElementRemoved()).

append("\n");

return sb.toString();

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

209

When we run the program in Listing 5-4, the following output is printed to the console:

Calling add("First"):

set = [First]

Change event data:

Was added: true

Was removed: false

Element added: First

Element removed: null

Calling addAll(Arrays.asList("Second", "Third")):

set = [Second, First]

Change event data:

Was added: true

Was removed: false

Element added: Second

Element removed: null

set = [Second, First, Third]

Change event data:

Was added: true

Was removed: false

Element added: Third

Element removed: null

Calling remove("Third"):

set = [Second, First]

Change event data:

Was added: false

Was removed: true

Element added: null

Element removed: Third

In the preceding example, notice that the addAll() call generated two set change events because the list

that was added to the observable set contains two elements.

Understanding ObservableArrays

The ObservableArray interface is introduced for situations where a list of primitive int or float values needs

to be observed but the overhead of boxing and unboxing of the primitive values every time they are added

or removed from the list is unacceptable for performance reasons. Implementations of ObservableArray

and its two subinterfaces, ObservableIntegerArray and ObservableFloatArray, are expected to use

primitive arrays as the backing stores of their content. The JavaFX 3D API makes use of ObservableArray,

ObservableIntegerArray, and ObservableFloatArray. Figure5-4 is a UML diagram showing the

ObservableArray and supporting interfaces.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

210

Unlike for the ObservableList, ObservableMap, and ObservableSet interfaces, the ObservableArray

interface does not implement any Java collections framework interfaces. The following methods on the

ObservableArray interface allow you to register and unregister ArrayChangeListeners:

• addListener(ArrayChangeListener<T> listener)

• removeListener(ArrayChangeListener<T> listener)

The following additional methods on ObservableArray give you control of the underlying primitive

arrays:

• resize(int size)

• ensureCapacity(int capacity)

• trimToSize()

• clear()

• size()

These methods deal with the capacity and size of an ObservableArray. The capacity is the length of

the underlying primitive array. The size is the number of elements that actually contain application data.

The capacity is always greater than or equal to the size. The ensureCapacity() method allocates a new

underlying primitive array if the length of the current underlying primitive array is less than the desired

new capacity. The resize() method changes the size of ObservableArray. If the new size is greater than

the current capacity, the capacity is increased. If the new size is greater than the current size, the additional

elements are filled with zero. If the new size is less than the current size, resize() does not actually shrink

the array, but the "lost" elements are filled with zero. The trimToSize() method replaces the underlying

primitive array with one whose length is the same as the size of the ObservableArray. The clear()

method resizes the ObservableArray to size zero. The size() method returns the current size of the

ObservableArray.

The ArrayChangeListener interface has only one method: onChanged(T observableArray,

boolean sizeChanged, int from, int to). Notice that instead of passing a Change object to the

onChange() method, as is done in ListChangeListener, MapChangeListener, and SetChangeListener,

ArrayChangeListener passes characteristics of the change directly as parameters. The first parameter is

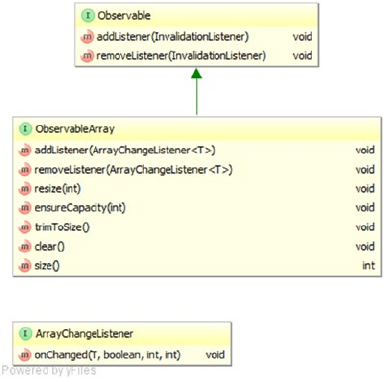

Figure 5-4. Key interfaces that support the JavaFX observable array

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

211

the ObservableArray itself. The sizeChanged parameter will be true if the size of the observable array has

changed. The from and to parameters mark the range of the changed elements, inclusive on the from end,

and exclusive on the to end.

The ObservableIntegerArray and ObservableFloatArray interfaces have methods that

manipulate the data in a type-specific way. We list the methods of ObservableIntegerArray (methods of

ObservableFloatArray are similar):

• copyTo(int srcIndex, int[] dest, int destIndex, int length)

• copyTo(int srcIndex, ObservableIntegerArray dest, int destIndex, int

length)

• int get(int index)

• addAll(int... elements)

• addAll(ObservableIntegerArray src)

• addAll(int[] src, int srcIndex, int length)

• addAll(ObservableIntegerArray src, int srcIndex, int length)

• setAll(int... elements)

• setAll(int[] src, int srcIndex, int length)

• setAll(ObservableIntegerArray src)

• setAll(ObservableIntegerArray src, int srcIndex, int length)

• set(int destIndex, int[] src, int srcIndex, int length)

• set(int destIndex, ObservableIntegerArray src, int srcIndex, int length)

• set(int index, int value)

• int[] toArray(int[] dest)

• int[] toArray(int srcIndex, int[] dest, int length)

The addAll() methods append to the ObservableIntegerArray. The setAll() methods replace

the content of the ObservableIntegerArray. The sources to these two sets of methods can be a vararg

array of ints, an ObservableIntegerArray, an int array with a starting index and a length, or an

ObservableIntegerArray with a starting index and a length. The get() method returns the value at the

specified index. The set() methods replace a portion of the ObservableIntegerArray with new values

starting at the index specified in the first parameter. The replacement data can be a single int value,

an int array with a starting index and a length, or an ObservableIntegerArray with a starting index

and a length. If there is not enough room in the original ObservableIntegerArray to accommodate

the replacement data, an ArrayIndexOutOfBoundsException is thrown. The copyTo() methods copy a

portion of the ObservableIntegerArray starting at the specified srcIndex into a destination int array or

ObservableIntegerArray starting at the specified destIndex. The length parameter dictates the length

of the portion copied. If there are not enough elements in the source ObservableIntegerArray to form a

portion of the specified length, or if there is not enough room in the destination to accommodate the copied

portion, an ArrayIndexOutOfBoundsException is thrown. The toArray() methods copy the content of

the ObservableIntegerArray into an int array. If the dest parameter is not null and has enough room, it

is filled and returned; otherwise, a new int array is allocated, filled, and returned. In the form where the

srcIndex and length are specified, if there are not enough elements in the ObservableIntegerArray, an

ArrayIndexOutOfBoundsException is thrown.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

212

In the example shown in Listing 5-5, we perform various array manipulations after attaching an

ArrayChangeListener to an ObservableIntegerArray. We print out the parameters passed to the

onChange() method when an event is fired.

Listing 5-5. ArrayChangeEventExample.java

package com.projavafx.collections;

import javafx.collections.FXCollections;

import javafx.collections.ObservableIntegerArray;

public class ArrayChangeEventExample {

public static void main(String[] args) {

final ObservableIntegerArray ints = FXCollections.observableIntegerArray(10, 20);

ints.addListener((array, sizeChanged, from, to) -> {

StringBuilder sb = new StringBuilder("\tObservable Array = ").append(array).

append("\n")

.append("\t\tsizeChanged = ").append(sizeChanged).append("\n")

.append("\t\tfrom = ").append(from).append("\n")

.append("\t\tto = ").append(to).append("\n");

System.out.println(sb.toString());

});

ints.ensureCapacity(20);

System.out.println("Calling addAll(30, 40):");

ints.addAll(30, 40);

final int[] src = {50, 60, 70};

System.out.println("Calling addAll(src, 1, 2):");

ints.addAll(src, 1, 2);

System.out.println("Calling set(0, src, 0, 1):");

ints.set(0, src, 0, 1);

System.out.println("Calling setAll(src):");

ints.setAll(src);

ints.trimToSize();

final ObservableIntegerArray ints2 = FXCollections.observableIntegerArray();

ints2.resize(ints.size());

System.out.println("Calling copyTo(0, ints2, 0, ints.size()):");

ints.copyTo(0, ints2, 0, ints.size());

System.out.println("\tDestination = " + ints2);

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

213

When we run the program in Listing 5-5, the following output is printed to the console:

Calling addAll(30, 40):

Observable Array = [10, 20, 30, 40]

sizeChanged = true

from = 2

to = 4

Calling addAll(src, 1, 2):

Observable Array = [10, 20, 30, 40, 60, 70]

sizeChanged = true

from = 4

to = 6

Calling set(0, src, 0, 1):

Observable Array = [50, 20, 30, 40, 60, 70]

sizeChanged = false

from = 0

to = 1

Calling setAll(src):

Observable Array = [50, 60, 70]

sizeChanged = true

from = 0

to = 3

Calling copyTo(0, ints2, 0, ints.size()):

Destination = [50, 60, 70]

Using Factory and Utility Methods from FXCollections

The FXCollections class plays a similar role in the JavaFX observable collections and arrays framework that

the java.util.Collections class plays in the Java collections framework. The FXCollections class contains

the following factory methods for ObservableList:

• ObservableList<E> observableList(List<E> list)

• ObservableList<E> observableList(List<E> list, Callback<E, Observable[]>

extractor);

• ObservableList<E> observableArrayList()

• ObservableList<E> observableArrayList(Callback<E, Observable[]>

extractor);

• ObservableList<E> observableArrayList(E... items)

• ObservableList<E> observableArrayList(Collection<? extends E> col)

• ObservableList<E> concat(ObservableList<E>... lists)

• ObservableList<E> unmodifiableObservableList(ObservableList<E> list)

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

214

• ObservableList<E> checkedObservableList(ObservableList<E> list, Class<E>

type)

• ObservableList<E> synchronizedObservableList(ObservableList<E> list)

• ObservableList<E> emptyObservableList()

• ObservableList<E> singletonObservableList(E e)

It contains the following factory methods for ObservableMap:

• ObservableMap<K, V> observableMap(Map<K, V> map)

• ObservableMap<K, V> unmodifiableObservableMap(ObservableMap<K, V> map)

• ObservableMap<K, V> checkedObservableMap(ObservableMap<K, V> map,

Class<K> keyType, Class<V> valType)

• ObservableMap<K, V> synchronizedObservableMap(ObservableMap<K, V> map)

• ObservableMap<K, V> emptyObservableMap();

• ObservableMap<K, V> observableHashMap()

It contains the following factory methods for ObservableSet:

• ObservableSet<E> observableSet(Set<E> set)

• ObservableSet<E> observableSet(E...)

• ObservableSet<E> unmodifiableObservableSet(ObservableSet<E> set)

• ObservableSet<E> checkedObservableSet(ObservableSet<E> set, Class<E>

type)

• ObservableSet<E> synchronizedObservableSet(ObservableSet<E>)

• ObservableSet<E> emptyObservableSet()

It contains the following factory methods for ObservableIntegerArray and ObservableFloatArray:

• ObservableIntegerArray observableIntegerArray()

• ObservableIntegerArray observableIntegerArray(int...)

• ObservableIntegerArray observableIntegerArray(ObservableIntegerArray)

• ObservableFloatArray observableFloatArray()

• ObservableFloatArray observableFloatArray(float...)

• ObservableFloatArray observableFloatArray(ObservableFloatArray)

It also contains nine utility methods that are parallels of methods with the same name in java.util.

Collections. They all act on ObservableList objects. And they differ from their java.util.Collections

counterparts in that when they act on an ObservableList, care is taken to generate only one list change event,

whereas their java.util.Collections counterpart would have generated more than one list change event.

• void copy(ObservableList<? super T> dest, java.util.List<? extends T> src)

• void fill(ObservableList<? super T> list, T obj)

• boolean replaceAll(ObservableList<T> list, T oldVal, T newVal)

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

215

• void reverse(ObservableList list)

• void rotate(ObservableList list, int distance)

• void shuffle(ObservableList<?> list)

• void shuffle(ObservableList list, java.util.Random rnd)

• void sort(ObservableList<T> list)

• void sort(ObservableList<T> list, java.util.Comparator<? super T> c)

We illustrate the effects of these utility methods in Listing 5-6.

Listing 5-6. FXCollectionsExample.java

package com.projavafx.collections;

import javafx.collections.FXCollections;

import javafx.collections.ListChangeListener;

import javafx.collections.ObservableList;

import java.util.Arrays;

import java.util.Comparator;

import java.util.Random;

public class FXCollectionsExample {

public static void main(String[] args) {

ObservableList<String> strings = FXCollections.observableArrayList();

strings.addListener(new MyListener());

System.out.println("Calling addAll(\"Zero\", \"One\", \"Two\", \"Three\"): ");

strings.addAll("Zero", "One", "Two", "Three");

System.out.println("Calling copy: ");

FXCollections.copy(strings, Arrays.asList("Four", "Five"));

System.out.println("Calling replaceAll: ");

FXCollections.replaceAll(strings, "Two", "Two_1");

System.out.println("Calling reverse: ");

FXCollections.reverse(strings);

System.out.println("Calling rotate(strings, 2): ");

FXCollections.rotate(strings, 2);

System.out.println("Calling shuffle(strings): ");

FXCollections.shuffle(strings);

System.out.println("Calling shuffle(strings, new Random(0L)): ");

FXCollections.shuffle(strings, new Random(0L));

System.out.println("Calling sort(strings): ");

FXCollections.sort(strings);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

216

System.out.println("Calling sort(strings, c) with custom comparator: ");

FXCollections.sort(strings, new Comparator<String>() {

@Override

public int compare(String lhs, String rhs) {

// Reverse the order

return rhs.compareTo(lhs);

}

});

System.out.println("Calling fill(strings, \"Ten\"): ");

FXCollections.fill(strings, "Ten");

}

// We omitted the nested class MyListener, which is the same as in Listing 5-2

}

When we run the program in Listing 5-6, the following output is printed to the console:

Calling addAll("Zero", "One", "Two", "Three"):

list = [Zero, One, Two, Three]

Change event data:

cursor = 0

Kind of change: added

Affected range: [0, 4]

Added size: 4

Added sublist: [Zero, One, Two, Three]

Calling copy:

list = [Four, Five, Two, Three]

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [Four, Five, Two, Three]

Removed size: 4

Removed: [Zero, One, Two, Three]

Calling replaceAll:

list = [Four, Five, Two_1, Three]

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [Four, Five, Two_1, Three]

Removed size: 4

Removed: [Four, Five, Two, Three]

Calling reverse:

list = [Three, Two_1, Five, Four]

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

217

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [Three, Two_1, Five, Four]

Removed size: 4

Removed: [Four, Five, Two_1, Three]

Calling rotate(strings, 2):

list = [Five, Four, Three, Two_1]

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [Five, Four, Three, Two_1]

Removed size: 4

Removed: [Three, Two_1, Five, Four]

Calling shuffle(strings):

list = [Three, Four, Two_1, Five]

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [Three, Four, Two_1, Five]

Removed size: 4

Removed: [Five, Four, Three, Two_1]

Calling shuffle(strings, new Random(0L)):

list = [Five, Three, Four, Two_1]

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [Five, Three, Four, Two_1]

Removed size: 4

Removed: [Three, Four, Two_1, Five]

Calling sort(strings):

list = [Five, Four, Three, Two_1]

Change event data:

cursor = 0

Kind of change: permutated

Affected range: [0, 4]

Permutation: [0->0, 1->2, 2->1, 3->3]

Calling sort(strings, c) with custom comparator:

list = [Two_1, Three, Four, Five]

Change event data:

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

218

cursor = 0

Kind of change: permutated

Affected range: [0, 4]

Permutation: [0->3, 1->2, 2->1, 3->0]

Calling fill(strings, "Ten"):

list = [Ten, Ten, Ten, Ten]

Change event data:

cursor = 0

Kind of change: replaced

Affected range: [0, 4]

Added size: 4

Added sublist: [Ten, Ten, Ten, Ten]

Removed size: 4

Removed: [Two_1, Three, Four, Five]

Notice that each invocation of a utility method in FXCollections generated exactly one list change

event.

Using the JavaFX Concurrency Framework

It is common knowledge nowadays that almost all GUI platforms use a single-threaded event dispatching

model. JavaFX is no exception, and indeed all UI events in JavaFX are processed in the JavaFX Application

Thread. However, with multicore desktop machines becoming common in recent years (e.g., this chapter

was written on a quad-core PC), it is natural for the designers of JavaFX to take advantage of the full power of

the hardware by leveraging the excellent concurrency support of the Java programming language.

In this section, we examine important threads that are present in all JavaFX applications. We explain

the role they play in the overall scheme of JavaFX applications. We then turn our attention to the JavaFX

Application Thread, explaining why executing long-running code in the JavaFX Application Thread makes

your application appear to hang. Finally, we look at the javafx.concurrent framework and show you how to

use it to execute long-running code in a worker thread off the JavaFX Application Thread and communicate

the result back to the JavaFX Application Thread to update the GUI states.

■Note If you are familiar with Swing programming, the JavaFX Application Thread is similar to Swing’s

Event Dispatcher Thread (EDT), usually with the name AWT-EventQueue-0.

Identifying the Threads in a JavaFX Application

The program in Listing 5-7 creates a simple JavaFX GUI with a ListView, a TextArea and a Button, and

populates the ListView with the names of all live threads of the application. When you select an item from

the ListView, that thread’s stack trace is displayed in the TextArea. The original list of threads and stack

traces is populated as the application is starting up. You can update the list of threads and stack traces by

clicking the Update button.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

219

Listing 5-7. JavaFXThreadsExample.java

package com.projavafx.collections;

import javafx.application.Application;

import javafx.beans.value.ChangeListener;

import javafx.beans.value.ObservableValue;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.event.ActionEvent;

import javafx.event.EventHandler;

import javafx.geometry.Insets;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.control.ListView;

import javafx.scene.control.TextArea;

import javafx.scene.layout.VBox;

import javafx.stage.Stage;

import java.util.Map;

public class JavaFXThreadsExample extends Application

implements EventHandler<ActionEvent>, ChangeListener<Number> {

private Model model;

private View view;

public static void main(String[] args) {

launch(args);

}

public JavaFXThreadsExample() {

model = new Model();

}

@Override

public void start(Stage stage) throws Exception {

view = new View(model);

hookupEvents();

stage.setTitle("JavaFX Threads Information");

stage.setScene(view.scene);

stage.show();

}

private void hookupEvents() {

view.updateButton.setOnAction(this);

view.threadNames.getSelectionModel().selectedIndexProperty().addListener(this);

}

@Override

public void changed(ObservableValue<? extends Number> observableValue,

Number oldValue, Number newValue) {

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

220

int index = (Integer) newValue;

if (index >= 0) {

view.stackTrace.setText(model.stackTraces.get(index));

}

@Override

public void handle(ActionEvent actionEvent) {

model.update();

}

public static class Model {

public ObservableList<String> threadNames;

public ObservableList<String> stackTraces;

public Model() {

threadNames = FXCollections.observableArrayList();

stackTraces = FXCollections.observableArrayList();

update();

}

public void update() {

threadNames.clear();

stackTraces.clear();

final Map<Thread, StackTraceElement[]> map = Thread.getAllStackTraces();

for (Map.Entry<Thread, StackTraceElement[]> entry : map.entrySet()) {

threadNames.add("\"" + entry.getKey().getName() + "\"");

stackTraces.add(formatStackTrace(entry.getValue()));

}

private String formatStackTrace(StackTraceElement[] value) {

StringBuilder sb = new StringBuilder("StackTrace: \n");

for (StackTraceElement stackTraceElement : value) {

sb.append(" at ").append(stackTraceElement.toString()).append("\n");

}

return sb.toString();

}

private static class View {

public ListView<String> threadNames;

public TextArea stackTrace;

public Button updateButton;

public Scene scene;

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

221

private View(Model model) {

threadNames = new ListView<>(model.threadNames);

stackTrace = new TextArea();

updateButton = new Button("Update");

VBox vBox = new VBox(10, threadNames, stackTrace, updateButton);

vBox.setPadding(new Insets(10, 10, 10, 10));

scene = new Scene(vBox, 440, 640);

}

This is a pretty minimal JavaFX GUI application. Before letting you run this program, we point out

several features of the program. First of all, make a mental note of the main() method:

public static void main(String[] args) {

launch(args);

}

You have seen this method several times already. This stylized main() method always appears in

a class that extends the javafx.application.Application class. There is an overloaded version of the

Application.launch() method that takes a Class object as the first parameter that can be called from other

classes:

launch(Class<? Extends Application> appClass, String[] args)

Therefore, you can move the main() method to another class:

public class Main {

public static void main(String[] args) {

Application.launch(JavaFXThreadsExample.class, args);

}

to achieve the same result.

Next, notice that the nested class Model builds up its data model, which consists of a list of all live

threads and the stack traces of each thread, in its update() method:

public void update() {

threadNames.clear();

stackTraces.clear();

final Map<Thread, StackTraceElement[]> map = Thread.getAllStackTraces();

for (Map.Entry<Thread, StackTraceElement[]> entry : map.entrySet()) {

threadNames.add("\"" + entry.getKey().getName() + "\"");

stackTraces.add(formatStackTrace(entry.getValue()));

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

222

This method is called once in the constructor of Model, which is called from the constructor of the

JavaFXThreadsExample, and once from the event handler of the Update button.

When we run the program in Listing 5-7, the GUI in Figure5-5 is displayed on the screen. You can

explore the threads in this JavaFX program by clicking on each thread name in the list and seeing the stack

trace for that thread in the text area. Here are some interesting observations:

• The "main" thread’s call stack includes a call to com.sun.javafx.application.

LauncherImpl.launchApplication().

• The "JavaFX-Launcher" thread’s call stack includes a call to com.sun.javafx.

application.PlatformImpl.runAndWait(). This puts code, including the invocation

of the constructor, on the JavaFX Application Thread.

• The "JavaFX Application Thread" thread’s call stack includes the native com.

sun.glass.ui.win.WinApplication._runLoop()method on a Windows box, and

something similar on Mac or Linux boxes.

• The "QuantumRenderer-0" thread’s call stack includes the com.sun.javafx.

tk.quantum.QuantumRenderer$PipelineRunnable.run()method.

Now when you click the Update button and examine the call stack for the "JavaFX Application

Thread" thread, you will discover that the event handler of the Update button is executed on the JavaFX

Application Thread.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

223

This little experiment reveals some of the architectural elements of the JavaFX runtime system.

Although parts of this information include implementation details represented by, appropriately, classes

in the com.sun hierarchy (therefore not to be used in code of normal JavaFX applications), it is nevertheless

beneficial to have some knowledge of how the internals work.

■Caution In the discussion that follows, we mention Java classes in packages with names that begin with

com.sun. These classes are implementation details of the JavaFX runtime system and are not meant to be used

in normal JavaFX applications. They might change in future releases of JavaFX.

Figure 5-5. The JavaFXThreadsExample program

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

224

The javafx.application.Application class provides life-cycle support for JavaFX applications. In

addition to the two static launch() methods we mentioned earlier in this section, it provides the following

life-cycle methods.

• public void init() throws Exception

• public abstract void start(Stage stage) throws Exception

• public void stop() throws Exception

The init() method is called in the "JavaFX-Launcher" thread. The constructor, start(), and stop()

methods are called in the JavaFX Application Thread. The JavaFX Application Thread is part of the Glass

Windowing Toolkit in the com.sun.glass package hierarchy. JavaFX events are processed on the JavaFX

Application Thread. All live scene manipulation must be performed in the JavaFX Application Thread.

Nodes that are not attached to a live scene can be created and manipulated in other threads until they are

attached to a live scene.

■Note The role the Glass Windowing Toolkit plays in a JavaFX application is similar to that of the AWT in

Swing applications. It provides drawing surfaces and input events from the native platform. Unlike in AWT,

where the EDT is different from the native platform’s UI thread and communication has to occur between them,

the JavaFX Application Thread in the Glass Windowing Toolkit uses the native platform’s UI thread directly.

The owner of the "QuantumRenderer-0" thread is the Quantum Toolkit that lives in the com.sun.

javafx.tk.quantum package hierarchy. This thread is responsible for rendering the JavaFX scene graph

using the Prism Graphics Engine in the com.sun.prism package hierarchy. Prism will use a fully accelerated

rendering path if the graphics hardware is supported by JavaFX. Prism will fall back to the Java2D rendering

path if the graphics hardware is not supported by JavaFX. The Quantum Toolkit is also responsible for

coordinating the activities of the event thread and the rendering thread. It does the coordination using pulse

events.

■Note A pulse event is an event that is put on the queue for the JavaFX application thread. When it is

processed, it synchronizes the state of the elements of the scene graph down the rendering layer. Pulse events

are scheduled if the states of the scene graph change, either through running animation or by modifying the

scene graph directly. Pulse events are throttled at 60 frames per second.

Had the JavaFXThreadsExample program included media playing, another thread named "JFXMedia

Player EventQueueThread" would have shown up on the list. This thread is responsible for synchronizing

the latest frame through the scene graph by using the JavaFX application thread.

Fixing Unresponsive UIs

Event handlers execute on the JavaFX application thread, thus if an event handler takes too long to finish its

work, the whole UI will become unresponsive because any subsequent user actions will simply queue up

and won’t be handled until the long-running event handler is done.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

225

We illustrate this in Listing 5-8.

Listing 5-8. UnresponsiveUIExample.java

package com.projavafx.collections;

import javafx.application.Application;

import javafx.beans.property.ObjectProperty;

import javafx.beans.property.SimpleObjectProperty;

import javafx.geometry.Insets;

import javafx.geometry.Pos;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.layout.BorderPane;

import javafx.scene.layout.HBox;

import javafx.scene.paint.Color;

import javafx.scene.paint.Paint;

import javafx.scene.shape.Rectangle;

import javafx.stage.Stage;

public class UnresponsiveUIExample extends Application {

private Model model;

private View view;

public static void main(String[] args) {

launch(args);

}

public UnresponsiveUIExample() {

model = new Model();

}

@Override

public void start(Stage stage) throws Exception {

view = new View(model);

hookupEvents();

stage.setTitle("Unresponsive UI Example");

stage.setScene(view.scene);

stage.show();

}

private void hookupEvents() {

view.changeFillButton.setOnAction(actionEvent -> {

final Paint fillPaint = model.getFillPaint();

if (fillPaint.equals(Color.LIGHTGRAY)) {

model.setFillPaint(Color.GRAY);

} else {

model.setFillPaint(Color.LIGHTGRAY);

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

226

// Bad code, this will cause the UI to be unresponsive

try {

Thread.sleep(Long.MAX_VALUE);

} catch (InterruptedException e) {

// TODO properly handle interruption

}

});

view.changeStrokeButton.setOnAction(actionEvent -> {

final Paint strokePaint = model.getStrokePaint();

if (strokePaint.equals(Color.DARKGRAY)) {

model.setStrokePaint(Color.BLACK);

} else {

model.setStrokePaint(Color.DARKGRAY);

}

});

}

private static class Model {

private ObjectProperty<Paint> fillPaint = new SimpleObjectProperty<>();

private ObjectProperty<Paint> strokePaint = new SimpleObjectProperty<>();

private Model() {

fillPaint.set(Color.LIGHTGRAY);

strokePaint.set(Color.DARKGRAY);

}

final public Paint getFillPaint() {

return fillPaint.get();

}

final public void setFillPaint(Paint value) {

this.fillPaint.set(value);

}

final public Paint getStrokePaint() {

return strokePaint.get();

}

final public void setStrokePaint(Paint value) {

this.strokePaint.set(value);

}

final public ObjectProperty<Paint> fillPaintProperty() {

return fillPaint;

}

final public ObjectProperty<Paint> strokePaintProperty() {

return strokePaint;

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

227

private static class View {

public Rectangle rectangle;

public Button changeFillButton;

public Button changeStrokeButton;

public HBox buttonHBox;

public Scene scene;

private View(Model model) {

rectangle = new Rectangle(200, 200);

rectangle.setStrokeWidth(10);

rectangle.fillProperty().bind(model.fillPaintProperty());

rectangle.strokeProperty().bind(model.strokePaintProperty());

changeFillButton = new Button("Change Fill");

changeStrokeButton = new Button("Change Stroke");

buttonHBox = new HBox(10, changeFillButton, changeStrokeButton);

buttonHBox.setPadding(new Insets(10, 10, 10, 10));

buttonHBox.setAlignment(Pos.CENTER);

BorderPane root = new BorderPane(rectangle, null, null, buttonHBox, null);

root.setPadding(new Insets(10, 10, 10, 10));

scene = new Scene(root);

}

This class stands up a simple UI with a rectangle with a pronounced Color.DARKGRAY stroke and a

Color.LIGHTGRAY fill in the center of a BorderPane, and two buttons at the bottom labeled Change Fill

and Change Stroke. The Change Fill button is supposed to toggle the fill of the rectangle between Color.

LIGHTGRAY and Color.GRAY. The Change Stroke button is supposed to toggle the stroke of the rectangle

between Color.DARKGRAY and Color.BLACK. When we run the program in Listing 5-8, the GUI in Figure5-6

is displayed on the screen.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

228

However, this program has a bug in the event handler of the Change Fill button:

@Override

public void handle(ActionEvent actionEvent) {

final Paint fillPaint = model.getFillPaint();

if (fillPaint.equals(Color.LIGHTGRAY)) {

model.setFillPaint(Color.GRAY);

} else {

model.setFillPaint(Color.LIGHTGRAY);

}

// Bad code, this will cause the UI to be unresponsive

try {

Thread.sleep(Long.MAX_VALUE);

} catch (InterruptedException e) {

// TODO properly handle interruption

}

The Thread.sleep(Long.MAX_VALUE) simulates code that takes a long time to execute. In real-life

applications, this might be a database call, a web service call, or a piece of complicated code. As a result, if

you click the Change Fill button, the color change is not seen in the rectangle. What is worse, the whole UI

appears to be locked up: The Change Fill and Change Stroke buttons stop working; the close window button

that is provided by the operating system will not have the desired effect. The operating system might also

mark the program as Not Responding, and the only way to stop the program is to use the operating system’s

forced kill functionality.

To fix problems like this, we need to offload long-running code to worker threads and communicate the

result of the long computation back to the JavaFX application thread to update the states of the UI so that

the user can see the result. Depending on when you learned your Java, your answer to the first question of

offloading code to worker threads might be different. If you are a longtime Java programmer your instinctive

Figure 5-6. The UnresponsiveUIExample program

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

229

reaction might be to instantiate a Runnable, wrap it in a Thread, and call start() on it. If you started with

Java after Java 5 and learned the java.util.concurrent hierarchy of classes, your reaction might be to

stand up a java.util.concurrent.ExecutorService and submit java.util.concurrent.FutureTasks to

it. JavaFX includes a worker threading framework based on the latter approach in the javafx.concurrent

package.

We examine the interfaces and classes in this framework in the next few sections, but before we do that

we use the Runnable and Thread approach to offload computation to a worker thread. Our intention here

is to highlight the answer to the second question of how to cause code to be run on the JavaFX application

thread from a worker thread. The complete corrected program can be found in ResponsiveUIExample.java.

Here is the new code for the event handler of the Change Fill button:

view.changeFillButton.setOnAction(actionEvent -> {

final Paint fillPaint = model.getFillPaint();

if (fillPaint.equals(Color.LIGHTGRAY)) {

model.setFillPaint(Color.GRAY);

} else {

model.setFillPaint(Color.LIGHTGRAY);

}

Runnable task = () -> {

try {

Thread.sleep(3000);

Platform.runLater(() -> {

final Rectangle rect = view.rectangle;

double newArcSize =

rect.getArcHeight() < 20 ? 30 : 0;

rect.setArcWidth(newArcSize);

rect.setArcHeight(newArcSize);

});

} catch (InterruptedException e) {

// TODO properly handle interruption

}

};

new Thread(task).start();

});

We have replaced the long sleep with code that executes in a worker thread. After sleeping for three

seconds, the worker thread calls the runLater() method of the javafx.application.Platform class,

passing it another Runnable that toggles the rounded corners of the rectangle. Because the long-running

computation is done in a worker thread, the event handler is not blocking the JavaFX application thread.

The change of fill is now reflected immediately in the UI. Because the Platform.runLater() call causes the

Runnable to be executed on the JavaFX application thread, the change to the rounded corners is reflected in

the UI after three seconds. The reason we have to execute the Runnable on the JavaFX application thread is

that it modifies the state of a live scene.

The Platform class includes the following other helpful utility methods:

• public static boolean isFxApplicationThread()returns true if it is executed on

the JavaFX application thread and false otherwise.

• public static boolean isSupported(ConditionalFeature) tests whether the

execution environment supports a ConditionalFeature. Testable ConditionalFeatures

include GRAPHICS, CONTROLS, MEDIA, WEB, SWT, SWING, FXML, SCENE3D, EFFECT, SHAPE_CLIP,

INPUT_METHOD, TRANSPARENT_WINDOW, UNIFIED_WINDOW, TWO_LEVEL_FOCUS, VIRTUAL_

KEYBOARD, INPUT_TOUCH, INPUT_MULTITOUCH, and INPUT_POINTER.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

230

• public static void exit(), if called after the application’s start() method has

been called, causes the application’s stop() method to be executed on the JavaFX

application thread before the JavaFX application thread and other JavaFX platform

threads are taken down. If the application’s start() method has not been called yet,

the application’s stop() method may not be called.

• public static boolean isImplicitExit() and public static void

setImplicitExit(boolean) tests and sets the implicit exit flag. When this flag is

true, the JavaFX runtime will shut down when the last application window is closed;

otherwise, you have to explicitly call Platform.exit() to shut down the JavaFX

runtime. The default value of this flag is true.

■Note If you are familiar with Swing programming, you should see the similarity between JavaFX’s

Platform.runLater() and Swing’s EventQueue.invokeLater(), or SwingUtilities.invokeLater().

Now that we have solved our problem with Runnable and Thread and Platform.runLater(),it is time

to see how we can use JavaFX’s built-in worker threading framework to solve the problem in a more flexible

and elegant way.

Understanding the javafx.concurrent Framework

The JavaFX worker threading framework in the javafx.concurrent package combines the versatility and

flexibility of the Java concurrency framework introduced in Java 5 with the convenience of the JavaFX

properties and bindings framework to produce an easy-to-use toolset that is aware of the JavaFX application

threading rules and also very easy to use. It consists of one interface, Worker, and three abstract base

classes—Task<V>, Service<V>, and ScheduledService<V>—that implement the interface.

Understanding the Worker Interface

The Worker interface specifies a JavaFX bean with nine read-only properties, one method named cancel(),

and a state model and state transition rules. A Worker represents a unit of work that runs in one or more

background threads yet has some of its internal states safely observable to the JavaFX application thread.

The nine read-only properties are as follows.

• title is a String property that represents the title of the task.

• message is a String property that represents a more detailed message as the task

progresses.

• running is a boolean property that is true only when the Worker is in the Worker.

State.SCHEDULED or Worker.State.RUNNING state.

• state is an Object property that represents the Worker.State of the task.

• totalWork is a double property that represents the total amount of work of the task.

Its value is –1.0 when the total amount of work is not known.

• workDone is a double property that represents the amount of work that has been

done so far in the task. Its value is –1.0 or a number between 0 and totalWork.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

231

• progress is a double property that represents the percentage of the total work that

has been done so far in the task. Its value is –1.0 or the ratio between workDone and

totalWork.

• value is an Object property that represents the output of the task. Its value is non-

null only when the task has finished successfully, that is, has reached the Worker.

State.SUCCEEDED state.

• exception is an Object property that represents a Throwable that the

implementation of the task has thrown to the JavaFX worker threading framework.

Its value is non-null only when the task is in the Worker.State.FAILED state.

The preceding properties are meant to be accessed from the JavaFX application thread. It is safe to

bind scene graph properties to them because the invalidation events and change events of these properties

are fired on the JavaFX application thread. It is helpful to think of the properties through an imaginary

task progress message box that you see in many GUI applications. They usually have a title, a progress bar

indicating the percentage of the work that has been done, and a message telling the user how many items

it has processed already and how many more to go. All of these properties are set by the JavaFX worker

threading framework itself or by the actual implementation of the task.

The running, state, value, and exception properties are controlled by the framework and no user

intervention is needed for them to be observed in the JavaFX application thread. When the framework wants

to change these properties, it does the heavy lifting of making sure that the change is done on the JavaFX

application thread. The title, message, totalWork, workDone, and progress properties are updatable by

the implementation code of the task by calling framework-provided protected methods that guarantee the

change is done on the JavaFX application thread.

Worker.State is a nested enum that defines the following six states of a Worker:

• READY (initial state)

• SCHEDULED (transitional state)

• RUNNING (transitional state)

• SUCCEEDED (terminal state)

• CANCELLED (terminal state)

• FAILED (terminal state)

The cancel() method will transition the Worker to the CANCELLED state if it is not already in the

SUCCEEDED or FAILED state.

Now that you are familiar with the properties and states of the Worker interface, you can proceed to

learn the three abstract classes in the JavaFX worker threading framework that implements this interface,

Task<V> and Service<V>, and ScheduledService<V>.

Understanding the Task<V> Abstract Class

The Task<V> abstract class is an implementation of the Worker interface that is meant to be used for one-

shot tasks. Once its state progresses to SUCCEEDED or FAILED or CANCELLED, it will stay in the terminal state

forever. The Task<V> abstract class extends the FutureTask<V> class, and as a consequence supports the

Runnable, Future<V>, and RunnableFuture<V> interfaces as well as the Worker interface. The Future<V>,

RunnableFuture<V>, and FutureTask<V> interfaces and class are part of the java.util.concurrent

package. Because of this heritage, a Task<V> object can be used in various ways that befit its parent class.

However, for typical JavaFX usage, it is enough to use just the methods in the Task<V> class itself, a list of

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

232

which can be found in the Javadoc for the class. The following is a list of these methods, excluding the read-

only properties that were discussed in the preceding section:

• protected abstract V call() throws Exception

• public final boolean cancel()

• public boolean cancel(boolean mayInterruptIfRunning)

• protected void updateTitle(String title)

• protected void updateMessage(String message)

• protected void updateProgress(long workDone, long totalWork)

• protected void updateProgress(double workDone, double totalWork)

• protected void updateValue(V)

The Task<V> abstract class implements the javafx.event.EventTarget interface. The events it

supports are represented by the WorkerStateEvent class. There is a WorkerStateEvent for each of the

five Worker.States. The events are fired when the Task<V> transitions into a state. There are five object

properties of type EventHandler<WorkerStateEvent> as well as five protected methods in Task<V>. These

event handlers and protected methods are called when the corresponding event is fired:

• onScheduled property

• onRunning property

• onSucceeded property

• onCancelled property

• onFailed property

• protected void scheduled()

• protected void running()

• protected void succeeded()

• protected void cancelled()

• protected void failed()

Extensions of Task<V> must override the protected abstract call() method to perform the actual

work. The implementation of the call() method may call the protected methods updateTitle(),

updateMessage(), updateProgress(), and updateValue() to publish its internal state to the JavaFX

application thread. The implementation has total control of what the title and message of the task should

be. For the updateProgress() call that takes two longs, the workDone and totalWork must either both be

–1, indicating indeterminate progress, or satisfy the relations workDone >= 0 and workDone <= totalWork,

resulting in a progress value of between 0.0 and 1.0 (0% to 100%).

■Caution The updateProgress() API will throw an exception if workDone > totalWork, or if one of them

is <–1. However, it allows you to pass in (0, 0), resulting in a progress of NaN.

The two cancel() methods can be called from any thread, and will move the task to the CANCELLED state

if it is not already in the SUCCEEDED or FAILED state. If either cancel() method is called before the task is run,

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

233

it will move to the CANCELLED state and will never be run. The two cancel() methods differ only if the task is

in the RUNNING state, and only in their treatment of the running thread. If cancel(true) is called, the thread

will receive an interrupt. For this interrupt to have the desired effect of causing the task to finish processing

quickly, the implementation of the call() method has to be coded in a way that will detect the interrupt and

skip any further processing. The no-argument cancel() method simply forwards to cancel(true).

Listing 5-9 illustrates the creation of a Task, starting it, and observing the properties of the task from a

simple GUI that displays all nine of the properties.

Listing 5-9. WorkerAndTaskExample.java

package com.projavafx.collections;

import javafx.application.Application;

import javafx.beans.binding.Bindings;

import javafx.beans.property.ReadOnlyObjectProperty;

import javafx.concurrent.Task;

import javafx.concurrent.Worker;

import javafx.geometry.HPos;

import javafx.geometry.Insets;

import javafx.geometry.Pos;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.control.Label;

import javafx.scene.control.ProgressBar;

import javafx.scene.layout.BorderPane;

import javafx.scene.layout.ColumnConstraints;

import javafx.scene.layout.GridPane;

import javafx.scene.layout.HBox;

import javafx.stage.Stage;

import java.util.concurrent.atomic.AtomicBoolean;

public class WorkerAndTaskExample extends Application {

private Model model;

private View view;

public static void main(String[] args) {

launch(args);

}

public WorkerAndTaskExample() {

model = new Model();

}

@Override

public void start(Stage stage) throws Exception {

view = new View(model);

hookupEvents();

stage.setTitle("Worker and Task Example");

stage.setScene(view.scene);

stage.show();

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

234

private void hookupEvents() {

view.startButton.setOnAction(actionEvent -> {

new Thread((Runnable) model.worker).start();

});

view.cancelButton.setOnAction(actionEvent -> {

model.worker.cancel();

});

view.exceptionButton.setOnAction(actionEvent -> {

model.shouldThrow.getAndSet(true);

});

}

private static class Model {

public Worker<String> worker;

public AtomicBoolean shouldThrow = new AtomicBoolean(false);

private Model() {

worker = new Task<String>() {

@Override

protected String call() throws Exception {

updateTitle("Example Task");

updateMessage("Starting...");

final int total = 250;

updateProgress(0, total);

for (int i = 1; i <= total; i++) {

if (isCancelled()) {

updateValue("Canceled at " + System.currentTimeMillis());

return null; // ignored

}

try {

Thread.sleep(20);

} catch (InterruptedException e) {

updateValue("Canceled at " + System.currentTimeMillis());

return null; // ignored }

if (shouldThrow.get()) {

throw new RuntimeException("Exception thrown at " + System.

currentTimeMillis());

}

updateTitle("Example Task (" + i + ")");

updateMessage("Processed " + i + " of " + total + " items.");

updateProgress(i, total);

}

return "Completed at " + System.currentTimeMillis();

}

@Override

protected void scheduled() {

System.out.println("The task is scheduled.");

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

235

@Override

protected void running() {

System.out.println("The task is running.");

}

};

((Task<String>) worker).setOnSucceeded(event -> {

System.out.println("The task succeeded.");

});

((Task<String>) worker).setOnCancelled(event -> {

System.out.println("The task is canceled.");

});

((Task<String>) worker).setOnFailed(event -> {

System.out.println("The task failed.");

});

}

private static class View {

public ProgressBar progressBar;

public Label title;

public Label message;

public Label running;

public Label state;

public Label totalWork;

public Label workDone;

public Label progress;

public Label value;

public Label exception;

public Button startButton;

public Button cancelButton;

public Button exceptionButton;

public Scene scene;

private View(final Model model) {

progressBar = new ProgressBar();

progressBar.setMinWidth(250);

title = new Label();

message = new Label();

running = new Label();

state = new Label();

totalWork = new Label();

workDone = new Label();

progress = new Label();

value = new Label();

exception = new Label();

startButton = new Button("Start");

cancelButton = new Button("Cancel");

exceptionButton = new Button("Exception");

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

236

final ReadOnlyObjectProperty<Worker.State> stateProperty =

model.worker.stateProperty();

progressBar.progressProperty().bind(model.worker.progressProperty());

title.textProperty().bind(

model.worker.titleProperty());

message.textProperty().bind(

model.worker.messageProperty());

running.textProperty().bind(

Bindings.format("%s", model.worker.runningProperty()));

state.textProperty().bind(

Bindings.format("%s", stateProperty));

totalWork.textProperty().bind(

model.worker.totalWorkProperty().asString());

workDone.textProperty().bind(

model.worker.workDoneProperty().asString());

progress.textProperty().bind(

Bindings.format("%5.2f%%", model.worker.progressProperty().multiply(100)));

value.textProperty().bind(

model.worker.valueProperty());

exception.textProperty().bind(Bindings.createStringBinding(() -> {

final Throwable exception = model.worker.getException();

if (exception == null) return "";

return exception.getMessage();

}, model.worker.exceptionProperty()));

startButton.disableProperty().bind(

stateProperty.isNotEqualTo(Worker.State.READY));

cancelButton.disableProperty().bind(

stateProperty.isNotEqualTo(Worker.State.RUNNING));

exceptionButton.disableProperty().bind(

stateProperty.isNotEqualTo(Worker.State.RUNNING));

HBox topPane = new HBox(10, progressBar);

topPane.setAlignment(Pos.CENTER);

topPane.setPadding(new Insets(10, 10, 10, 10));

ColumnConstraints constraints1 = new ColumnConstraints();

constraints1.setHalignment(HPos.CENTER);

constraints1.setMinWidth(65);

ColumnConstraints constraints2 = new ColumnConstraints();

constraints2.setHalignment(HPos.LEFT);

constraints2.setMinWidth(200);

GridPane centerPane = new GridPane();

centerPane.setHgap(10);

centerPane.setVgap(10);

centerPane.setPadding(new Insets(10, 10, 10, 10));

centerPane.getColumnConstraints()

.addAll(constraints1, constraints2);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

237

centerPane.add(new Label("Title:"), 0, 0);

centerPane.add(new Label("Message:"), 0, 1);

centerPane.add(new Label("Running:"), 0, 2);

centerPane.add(new Label("State:"), 0, 3);

centerPane.add(new Label("Total Work:"), 0, 4);

centerPane.add(new Label("Work Done:"), 0, 5);

centerPane.add(new Label("Progress:"), 0, 6);

centerPane.add(new Label("Value:"), 0, 7);

centerPane.add(new Label("Exception:"), 0, 8);

centerPane.add(title, 1, 0);

centerPane.add(message, 1, 1);

centerPane.add(running, 1, 2);

centerPane.add(state, 1, 3);

centerPane.add(totalWork, 1, 4);

centerPane.add(workDone, 1, 5);

centerPane.add(progress, 1, 6);

centerPane.add(value, 1, 7);

centerPane.add(exception, 1, 8);

HBox buttonPane = new HBox(10,

startButton, cancelButton, exceptionButton);

buttonPane.setPadding(new Insets(10, 10, 10, 10));

buttonPane.setAlignment(Pos.CENTER);

BorderPane root = new BorderPane(centerPane,

topPane, null, buttonPane, null);

scene = new Scene(root);

}

The Model nested class for this program holds a worker field of type Worker, and a shouldThrow

field of type AtomicBoolean. The worker field is initialized to an instance of an anonymous subclass

of Task<String> that implements its call() method by simulating the processing of 250 items at a

20-milliseconds-per-item pace. It updates the properties of the task at the beginning of the call and in

each iteration of the loop. It handles cancellation in two places. It checks the isCancelled() flag at the top

of each iteration, and it also checks the isCancelled() flag in the InterruptedException handler of the

Thread.sleep() call. If the task is cancelled, it calls the updateValue(), and gets out of the loop and returns

quickly. The return value is ignored by the framework. The shouldThrow field is controlled by the View to

communicate to the task that it should throw an exception.

The View nested class of this program creates a simple UI that has a ProgressBar at the top, a set of

Labels at the center that display the various properties of the worker, and three buttons at the bottom. The

contents of the Labels are bound to the various properties of the worker. The disable properties of the

buttons are also bound to the state property of the worker so that only the relevant buttons are enabled at

any time. For example, the Start button is enabled when the program starts but becomes disabled after it is

pressed and the task execution begins. Similarly, the Cancel and Exception buttons are enabled only if the

task is running.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

238

Notice that the progress bar is in an indeterminate state. The values of Title, Message, Value, and

Exception are empty. The value of Running is false. The value of State is READY, the values of Total Work

and Work Done are –1.0, and Progress displays –100%. The Start button is enabled, whereas the Cancel and

Exception buttons are disabled.

After the Start button is clicked, the task starts to execute and the GUI automatically reflects the values

of the properties as the task progresses. Figure5-8 is a screenshot of the application at this stage. Notice

that the progress bar is in a determinate state and reflects the progress of the task. The values of Title and

Message reflect what is set to these properties in the implementation of the call() method in the task. The

value of Running is true. The value of State is RUNNING, and the values of Total Work, Work Done, and

Progress reflect the current state of the executing task: 156 of 250 items done. The Value and the Exception

fields are empty because neither a value nor an exception is available from the task. The Start button is

disabled now. The Cancel and Exception buttons are enabled, indicating that we may attempt to cancel the

task or force an exception to be thrown from the task at this moment.

Figure 5-7. The WorkerAndTaskExample program after starting up

When we run the program in Listing 5-9, the GUI in Figure5-7 is displayed on the screen.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

239

When the task finishes normally, we arrive at the screenshot in Figure5-9. Notice that the progress bar

is at 100.00%. The Title, Message, Total Work, Work Done, and Progress fields all have values that reflect the

fact that the task has finished processing all 250 items. The Running value is false. The State is SUCCEEDED,

and the Value field now contains the return value from the call() method.

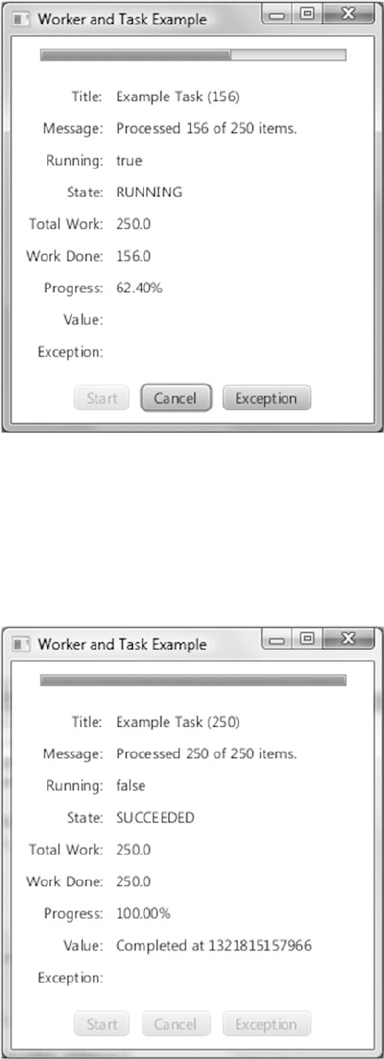

Figure 5-8. The WorkerAndTaskExample program while a task is in progress

Figure 5-9. The WorkerAndTaskExample program after the task succeeded

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

240

If, instead of letting the task finish normally, we click the Cancel button, the task will finish immediately

and the screenshot in Figure5-10 results. Notice that the State field has the value CANCELLED now. The

Value field contains the string we passed to the updateValue() method when the task was cancelled. When

we detect that the task is cancelled, we have two choices of exiting from the method body. In the program

in Listing 5-7, we chose to update the Value and return from the method. We could also have chosen to exit

from the method body by throwing a RuntimeException. Had we made that choice, the screenshot would

have an empty Value field but with a nonempty Exception field. The state of the worker would have been

CANCELLED either way.

■Caution When you return normally in response to cancellation, a bug in the current implementation of

Task causes an IllegalStateException to be recorded as the exception of the Task. This will be fixed in the

next release.

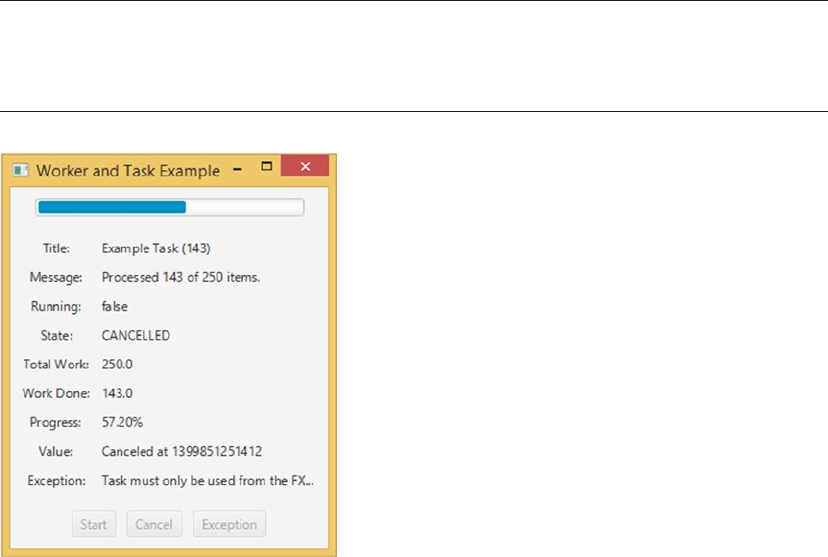

Figure 5-10. The WorkerAndTaskExample program after the task has been cancelled

The final screenshot, Figure5-11, shows what happens when the Exception button is clicked when

the task is executing. We simulate an exception in the task by setting an AtomicBoolean flag from the

JavaFX application, which the task then picks up in the worker thread and throws the exception. Notice

that the status field has the value FAILED now. The Value field is empty because the task did not complete

successfully. The Exception field is filled with the message of the RuntimeException that we threw.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

241

We overrode the scheduled() and running() methods in the anonymous extension of Task, and set

up event handlers for the succeeded, cancelled, and failed events, in the Model class. You should see these

events being logged to the console as you work through the scenarios.

■Note The Task<V> class defines one-shot tasks that are executed once and never run again. You have to

restart the WorkerAndTaskExample program after each run of the task.

Understanding the Service<V> Abstract Class

The Service<V> abstract class is an implementation of the Worker interface that is meant to be reused.

It extends Worker’s state model by allowing its state to be reset to Worker.State.READY. The Service<V>

abstract class does not extend any class and implements the Worker and EventTarget interfaces. In addition

to the nine read-only properties of the Worker interface, Service<V> has an additional read write property

of type Executor called executor. It also has the event handler properties and the protected event callback

methods just like the Task class. The following is a list of the rest of the Service<V> methods:

• protected abstract Task<V> createTask()

• public void start()

• public void reset()

• public void restart()

• public boolean cancel()

Extensions of Service<V> must override the protected abstract createTask() method to generate a

freshly created Task. The start() method can only be called when the Service<V> object is in the Worker.

State.READY state. It calls createTask() to obtain a freshly minted Task, and asks the executor property

for an Executor. If the executor property is not set, it creates its own Executor. It binds the Service<V>

object’s nine Worker properties to that of the Task’s. It then transitions the Task to the Worker.State.

Figure 5-11. The WorkerAndTaskExample program after the task threw an exception

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

242

SCHEDULED state, and executes the Task on the Executor. The reset() method can only be called when

the Service<V>‘s state is not Worker.State.SCHEDULED or Worker.State.RUNNING. It simply unbinds the

nine Service<V> properties from that of the underlying Task and resets their values to fresh startup values:

Worker.State.READY for the state property, and null or "" or false or –1 for the other properties. The

restart() method simply cancels the currently executing Task, if any, and then does a reset() followed by

a start(). The cancel() method will cancel the currently executing Task, if any; otherwise, it will transition

the Service<V> to the Worker.State.CANCELLED state.

Listing 5-10 illustrates using an instance of an anonymous subclass of the Service<V> abstract class to

execute Tasks repeatedly in its own Executor.

Listing 5-10. ServiceExample.java

package com.projavafx.collections;

import javafx.application.Application;

import javafx.beans.binding.Bindings;

import javafx.beans.property.IntegerProperty;

import javafx.beans.property.ReadOnlyObjectProperty;

import javafx.beans.property.SimpleIntegerProperty;

import javafx.concurrent.Service;

import javafx.concurrent.Task;

import javafx.concurrent.Worker;

import javafx.geometry.HPos;

import javafx.geometry.Insets;

import javafx.geometry.Pos;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.control.Label;

import javafx.scene.control.ProgressBar;

import javafx.scene.control.TextField;

import javafx.scene.layout.BorderPane;

import javafx.scene.layout.ColumnConstraints;

import javafx.scene.layout.GridPane;

import javafx.scene.layout.HBox;

import javafx.stage.Stage;

import java.util.concurrent.atomic.AtomicBoolean;

public class ServiceExample extends Application {

private Model model;

private View view;

public static void main(String[] args) {

launch(args);

}

public ServiceExample() {

model = new Model();

}

@Override

public void start(Stage stage) throws Exception {

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

243

view = new View(model);

hookupEvents();

stage.setTitle("Service Example");

stage.setScene(view.scene);

stage.show();

}

private void hookupEvents() {

view.startButton.setOnAction(actionEvent -> {

model.shouldThrow.getAndSet(false);

((Service) model.worker).restart();

});

view.cancelButton.setOnAction(actionEvent -> {

model.worker.cancel();

});

view.exceptionButton.setOnAction(actionEvent -> {

model.shouldThrow.getAndSet(true);

});

}

private static class Model {

public Worker<String> worker;

public AtomicBoolean shouldThrow = new AtomicBoolean(false);

public IntegerProperty numberOfItems = new SimpleIntegerProperty(250);

private Model() {

worker = new Service<String>() {

@Override

protected Task createTask() {

return new Task<String>() {

@Override

protected String call() throws Exception {

updateTitle("Example Service");

updateMessage("Starting...");

final int total = numberOfItems.get();

updateProgress(0, total);

for (int i = 1; i <= total; i++) {

if (isCancelled()) {

updateValue("Canceled at " + System.currentTimeMillis());

return null; // ignored

}

try {

Thread.sleep(20);

} catch (InterruptedException e) {

if (isCancelled()) {

updateValue("Canceled at " + System.currentTimeMillis());

return null; // ignored

} }

if (shouldThrow.get()) {

throw new RuntimeException("Exception thrown at " +

System.currentTimeMillis());

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

244

}

updateTitle("Example Service (" + i + ")");

updateMessage("Processed " + i + " of " + total + " items.");

updateProgress(i, total);

}

return "Completed at " + System.currentTimeMillis();

}

};

}

};

}

private static class View {

public ProgressBar progressBar;

public Label title;

public Label message;

public Label running;

public Label state;

public Label totalWork;

public Label workDone;

public Label progress;

public Label value;

public Label exception;

public TextField numberOfItems;

public Button startButton;

public Button cancelButton;

public Button exceptionButton;

public Scene scene;

private View(final Model model) {

progressBar = new ProgressBar();

progressBar.setMinWidth(250);

title = new Label();

message = new Label();

running = new Label();

state = new Label();

totalWork = new Label();

workDone = new Label();

progress = new Label();

value = new Label();

exception = new Label();

numberOfItems = new TextField();

numberOfItems.setMaxWidth(40);

startButton = new Button("Start");

cancelButton = new Button("Cancel");

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

245

exceptionButton = new Button("Exception");

final ReadOnlyObjectProperty<Worker.State> stateProperty =

model.worker.stateProperty();

progressBar.progressProperty().bind(model.worker.progressProperty());

title.textProperty().bind(

model.worker.titleProperty());

message.textProperty().bind(

model.worker.messageProperty());

running.textProperty().bind(

Bindings.format("%s", model.worker.runningProperty()));

state.textProperty().bind(

Bindings.format("%s", stateProperty));

totalWork.textProperty().bind(

model.worker.totalWorkProperty().asString());

workDone.textProperty().bind(

model.worker.workDoneProperty().asString());

progress.textProperty().bind(

Bindings.format("%5.2f%%", model.worker.progressProperty().multiply(100)));

value.textProperty().bind(

model.worker.valueProperty());

exception.textProperty().bind(Bindings.createStringBinding(() -> {

final Throwable exception = model.worker.getException();

if (exception == null) return "";

return exception.getMessage();

}, model.worker.exceptionProperty()));

model.numberOfItems.bind(Bindings.createIntegerBinding(() -> {

final String text = numberOfItems.getText();

int n = 250;

try {

n = Integer.parseInt(text);

} catch (NumberFormatException e) {

}

return n;

}, numberOfItems.textProperty()));

startButton.disableProperty().bind(

stateProperty.isEqualTo(Worker.State.RUNNING));

cancelButton.disableProperty().bind(

stateProperty.isNotEqualTo(Worker.State.RUNNING));

exceptionButton.disableProperty().bind(

stateProperty.isNotEqualTo(Worker.State.RUNNING));

HBox topPane = new HBox(10, progressBar);

topPane.setPadding(new Insets(10, 10, 10, 10));

topPane.setAlignment(Pos.CENTER);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

246

ColumnConstraints constraints1 = new ColumnConstraints();

constraints1.setHalignment(HPos.RIGHT);

constraints1.setMinWidth(65);

ColumnConstraints constraints2 = new ColumnConstraints();

constraints2.setHalignment(HPos.LEFT);

constraints2.setMinWidth(200);

GridPane centerPane = new GridPane();

centerPane.setHgap(10);

centerPane.setVgap(10);

centerPane.setPadding(new Insets(10, 10, 10, 10));

centerPane.getColumnConstraints().addAll(constraints1, constraints2);

centerPane.add(new Label("Title:"), 0, 0);

centerPane.add(new Label("Message:"), 0, 1);

centerPane.add(new Label("Running:"), 0, 2);

centerPane.add(new Label("State:"), 0, 3);

centerPane.add(new Label("Total Work:"), 0, 4);

centerPane.add(new Label("Work Done:"), 0, 5);

centerPane.add(new Label("Progress:"), 0, 6);

centerPane.add(new Label("Value:"), 0, 7);

centerPane.add(new Label("Exception:"), 0, 8);

centerPane.add(title, 1, 0);

centerPane.add(message, 1, 1);

centerPane.add(running, 1, 2);

centerPane.add(state, 1, 3);

centerPane.add(totalWork, 1, 4);

centerPane.add(workDone, 1, 5);

centerPane.add(progress, 1, 6);

centerPane.add(value, 1, 7);

centerPane.add(exception, 1, 8);

HBox buttonPane = new HBox(10,

new Label("Process"), numberOfItems, new Label("items"),

startButton, cancelButton, exceptionButton);

buttonPane.setPadding(new Insets(10, 10, 10, 10));

buttonPane.setAlignment(Pos.CENTER);

BorderPane root = new BorderPane(centerPane, topPane, null, buttonPane, null);

scene = new Scene(root);

}

The preceding program is derived from the WorkerAndTaskExample class that we studied in the previous

section. The Model nested class for this program holds a worker field of type Worker, a shouldThrow field

of type AtomicBoolean, and a numberOfItems field of type IntegerProperty. The worker field is initialized

to an instance of an anonymous subclass of Service<String> that implements its createTask() method

to return a Task<String> with a call() method that is implemented almost exactly like the Task<String>

implementation in the last section, except that instead of always processing 250 items, it picks up the

number of items to process from the numberOfItems property from the Model class.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

247

The View nested class of this program creates a UI that is almost identical to that in the previous

section but with some additional controls in the button panel. One of the controls added to the button

panel is a TextField named numberOfItems. The model’s numberOfItems IntegerProperty is bound to an

IntegerBinding created with the textProperty() of the view’s numberOfItems field. This effectively controls

the number of items each newly created Task will process. The Start button is disabled only if the service is

in the Worker.State.RUNNING state. Therefore, you can click the Start button after a task has finished.

The action handler of the Start button now resets the shouldThrow flag to false and calls restart() of

the service.

The screenshots in Figures5-12 to 5-16 are taken with the ServiceExample program under situations

similar to those for the screenshots in Figures5-7 to 5-11 for the WorkerAndTaskExample program.

Figure 5-12. The ServiceExample program after starting up

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

248

Figure 5-13. The ServiceExample program while a task is in progress

Figure 5-14. The ServiceExample program after the task succeeded

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

249

Figure 5-16. The ServiceExample program after the task threw an exception

Figure 5-15. The ServiceExample program after the task has been cancelled

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

250

As you can see from the preceding screenshots, the number that is entered into the text field does

indeed influence the number of items processed in each run of the service, as is evidenced by the messages

reflected in the UI in the screenshots.

■Caution Because the task that is started with the JavaFX worker threading framework executes in

background threads, it is very important not to access any live scenes in the task code.

Understanding the ScheduledService<V> Abstract Class

The ScheduledService<V> abstract class extends the Service<V> abstract class, and provides repeated

executions of the tasks created by the service. The ScheduledService<V> class controls how its tasks are

repeated through the following properties:

• delay

• period

• backOffStrategy

• restartOnFailure

• maximumFailureCount

• currentFailureCount

• cumulativePeriod

• maximumCumulativePeriod

• lastValue

The delay property controls how much time must elapse after the start() call on the scheduled service

before the task starts to run. The period property controls how much time must elapse after one run of

the task before the next run of the task can start. The period measures the differences between the start of

one run and the start of the next run. The delay and period are object properties of type Duration. If no

failure condition occurs while the task is executing, the ScheduledService will keep on repeating the task

indefinitely.

If a failure condition occurs while the task is executing, what happens next is controlled by the

restartOnFailure property. If this property is false, the ScheduledService will remain in the FAILED state

and nothing more will happen. If the restartOnFailure property is true, the ScheduledService will rerun

the task again. The rerunning of failed tasks is controlled by the backOffStrategy, maximumFailureCount,

and maximumCumulativePeriod properties. The back off strategy is simply a lambda expression that

takes the ScheduledService as an argument and returns a Duration, which is set as the value of the

cumulativePeriod property. The rerunning of the task will start when the elapsed time since the start

of the last failed run of the task reaches cumulativePeriod. In addition to cumulativePeriod, the

ScheduledService also keeps track of the currentFailureCount property, which is the number of

consecutive failed runs in the current sequence of failed runs. If the rerunning of the task is successful,

ScheduledService will go back to its normal behavior of running the task in period time intervals;

otherwise (that is, if the rerun failed again), ScheduledService will ask the backOffStrategy for a new

cumulativePeriod, and rerun again. If the currentFailureCount reaches maximumFailureCount, or if the

cumulativePeriod becomes greater than or equal to the maximumCumulativePeriod, the ScheduledService

will go into the FAILED state and nothing more will happen.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

251

Three back off strategies are provided. They are constants in ScheduledService. The LINEAR_BACKOFF_

STRATEGY returns ever longer Durations that grow linearly. The EXPONENTIAL_BACKOFF_STRATEGY returns

ever longer Durations that grow exponentially. The LOGARITHMIC_BACKOFF_STRATEGY returns ever longer

Durations that grow logarithmically. You can easily define your own back off strategies.

You can reset and restart a ScheduledService by calling reset() and start() methods.

Mixing JavaFX with Other GUI Toolkits

Having examined the threading paradigm of the JavaFX runtime and ways to execute code from the JavaFX

application thread, we now look at how to make JavaFX coexist with some other GUI toolkits. JavaFX

provides classes and frameworks that make it possible to mix JavaFX with Swing or SWT. You can embed

a JavaFX scene in a Swing application. You can embed a JavaFX scene in a SWT application. And you can

embed Swing components in a JavaFX application.

Embedding JavaFX Scenes in Swing Applications

JavaFX supports embedding a JavaFX scene into a Swing application through the javafx.embed.swing

package of classes. This is a pretty small package that includes one public class for embedding JavaFX scenes

into Swing—JFXPanel—and another class—SwingNode—for embedding Swing components into JavaFX

applications. The JFXPanel class extends javax.swing.JComponent, and as such can be placed in a Swing

program just as any other Swing component. JFXPanel can also host a JavaFX scene, and as such can add a

JavaFX scene to a Swing program.

However, this Swing program with a JavaFX scene embedded in it needs both the Swing runtime to

make its Swing portion function correctly, and the JavaFX runtime to make the JavaFX portion function

correctly. Therefore, it has both the Swing Event Dispatching Thread (EDT) and the JavaFX Application

Thread. The JFXPanel class does a two-way translation of all the user events between Swing and JavaFX.

Just as JavaFX has the rule that requires all access to live scenes to be done in the JavaFX Application

Thread, Swing has the rule that requires all access to Swing GUIs to be done in the EDT. You still need

to jump the thread if you want to alter a Swing component from a JavaFX event handler or vice versa.

The proper way to execute a piece of code on the JavaFX Application Thread, as we saw earlier, is to use

Platform.runLater(). The proper way to execute a piece of code on the Swing EDT is to use EventQueue.

invokeLater().

In this section, we convert a pure Swing program into a Swing and JavaFX hybrid program. We start off

with the Swing program in Listing 5-11, which is very similar to the ResponsiveUIExample program.

Listing 5-11. NoJavaFXSceneInSwingExample.java

package com.projavafx.collections;

import javax.swing.*;

import java.awt.*;

import java.awt.event.ActionEvent;

import java.awt.event.ActionListener;

public class NoJavaFXSceneInSwingExample {

public static void main(final String[] args) {

EventQueue.invokeLater(new Runnable() {

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

252

@Override

public void run() {

swingMain(args);

}

});

}

private static void swingMain(String[] args) {

Model model = new Model();

View view = new View(model);

Controller controller = new Controller(model, view);

controller.mainLoop();

}

private static class Model {

public Color fillColor = Color.LIGHT_GRAY;

public Color strokeColor = Color.DARK_GRAY;

}

private static class View {

public JFrame frame;

public JComponent canvas;

public JButton changeFillButton;

public JButton changeStrokeButton;

private View(final Model model) {

frame = new JFrame("No JavaFX in Swing Example");

canvas = new JComponent() {

@Override

public void paint(Graphics g) {

g.setColor(model.strokeColor);

g.fillRect(0, 0, 200, 200);

g.setColor(model.fillColor);

g.fillRect(10, 10, 180, 180);

}

@Override

public Dimension getPreferredSize() {

return new Dimension(200, 200);

}

};

FlowLayout canvasPanelLayout = new FlowLayout(FlowLayout.CENTER, 10, 10);

JPanel canvasPanel = new JPanel(canvasPanelLayout);

canvasPanel.add(canvas);

changeFillButton = new JButton("Change Fill");

changeStrokeButton = new JButton("Change Stroke");

FlowLayout buttonPanelLayout = new FlowLayout(FlowLayout.CENTER, 10, 10);

JPanel buttonPanel = new JPanel(buttonPanelLayout);

buttonPanel.add(changeFillButton);

buttonPanel.add(changeStrokeButton);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

253

frame.add(canvasPanel, BorderLayout.CENTER);

frame.add(buttonPanel, BorderLayout.SOUTH);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setLocationByPlatform(true);

frame.pack();

}

private static class Controller {

private View view;

private Controller(final Model model, final View view) {

this.view = view;

this.view.changeFillButton.addActionListener(new ActionListener() {

@Override

public void actionPerformed(ActionEvent e) {

if (model.fillColor.equals(Color.LIGHT_GRAY)) {

model.fillColor = Color.GRAY;

} else {

model.fillColor = Color.LIGHT_GRAY;

}

view.canvas.repaint();

}

});

this.view.changeStrokeButton.addActionListener(new ActionListener() {

@Override

public void actionPerformed(ActionEvent e) {

if (model.strokeColor.equals(Color.DARK_GRAY)) {

model.strokeColor = Color.BLACK;

} else {

model.strokeColor = Color.DARK_GRAY;

}

view.canvas.repaint();

}

});

}

public void mainLoop() {

view.frame.setVisible(true);

}

When the program in Listing 5-11 is run, the UI in Figure5-17 is displayed. It is a JFrame holding three

Swing components, a JComponent with overridden paint()and getPreferredSize() methods that makes

it look like the rectangle we saw in the earlier program, and two JButtons that will change the fill and the

stroke of the rectangle.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

254

Inasmuch as the custom-painted JComponent in NoJavaFXSceneInSwingExample is hard to maintain

over the long run, we replace it with the JavaFX Rectangle. This is done by replacing the Swing code with the

equivalent JFXPanel code. This is the Swing code:

canvas = new JComponent() {

@Override

public void paint(Graphics g) {

g.setColor(model.strokeColor);

g.fillRect(0, 0, 200, 200);

g.setColor(model.fillColor);

g.fillRect(10, 10, 180, 180);

}

@Override

public Dimension getPreferredSize() {

return new Dimension(200, 200);

}

};

And here is the JFXPanel code:

canvas = new JFXPanel();

canvas.setPreferredSize(new Dimension(210, 210));

Platform.runLater(new Runnable() {

@Override

public void run() {

final Rectangle rectangle = new Rectangle(200, 200);

rectangle.setStrokeWidth(10);

rectangle.fillProperty().bind(model.fillProperty());

rectangle.strokeProperty().bind(model.strokeProperty());

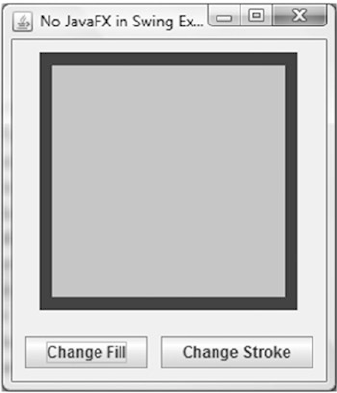

Figure 5-17. The NoJavaFXSceneInSwingExample program

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

255

final VBox vBox = new VBox(rectangle);

final Scene scene = new Scene(vBox);

canvas.setScene(scene);

}

});

The JFXPanel constructor bootstraps the JavaFX runtime system. We set the preferred size to the

JFXPanel for it to be laid out correctly in Swing containers. We then constructed the scene graph on the

JavaFX application thread and bound it to the model, which we changed into a JavaFX bean. Another set of

changes that need to be made are in the ActionListeners of the two JButtons. Modifying the model triggers

a change to the JavaFX rectangle, so the following code needs to be run on the JavaFX application thread:

this.view.changeFillButton.addActionListener(e -> {

Platform.runLater(() -> {

final Paint fillPaint = model.getFill();

if (fillPaint.equals(Color.LIGHTGRAY)) {

model.setFill(Color.GRAY);

} else {

model.setFill(Color.LIGHTGRAY);

}

});

The completed Swing JavaFX hybrid program is shown in Listing 5-12.

Listing 5-12. JavaFXSceneInSwingExample.java

package com.projavafx.collections;

import javafx.application.Platform;

import javafx.beans.property.ObjectProperty;

import javafx.beans.property.SimpleObjectProperty;

import javafx.embed.swing.JFXPanel;

import javafx.scene.Scene;

import javafx.scene.layout.VBox;

import javafx.scene.paint.Color;

import javafx.scene.paint.Paint;

import javafx.scene.shape.Rectangle;

import javax.swing.*;

import java.awt.*;

public class JavaFXSceneInSwingExample {

public static void main(final String[] args) {

EventQueue.invokeLater(() -> {

swingMain(args);

});

}

private static void swingMain(String[] args) {

Model model = new Model();

View view = new View(model);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

256

Controller controller = new Controller(model, view);

controller.mainLoop();

}

private static class Model {

private ObjectProperty<Color> fill = new SimpleObjectProperty<>(Color.LIGHTGRAY);

private ObjectProperty<Color> stroke = new SimpleObjectProperty<>(Color.DARKGRAY);

public final Color getFill() {

return fill.get();

}

public final void setFill(Color value) {

this.fill.set(value);

}

public final Color getStroke() {

return stroke.get();

}

public final void setStroke(Color value) {

this.stroke.set(value);

}

public final ObjectProperty<Color> fillProperty() {

return fill;

}

public final ObjectProperty<Color> strokeProperty() {

return stroke;

}

private static class View {

public JFrame frame;

public JFXPanel canvas;

public JButton changeFillButton;

public JButton changeStrokeButton;

private View(final Model model) {

frame = new JFrame("JavaFX in Swing Example");

canvas = new JFXPanel();

canvas.setPreferredSize(new Dimension(210, 210));

Platform.runLater(new Runnable() {

@Override

public void run() {

final Rectangle rectangle = new Rectangle(200, 200);

rectangle.setStrokeWidth(10);

rectangle.fillProperty().bind(model.fillProperty());

rectangle.strokeProperty().bind(model.strokeProperty());

final VBox vBox = new VBox(rectangle);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

257

final Scene scene = new Scene(vBox);

canvas.setScene(scene);

}

});

FlowLayout canvasPanelLayout = new FlowLayout(FlowLayout.CENTER, 10, 10);

JPanel canvasPanel = new JPanel(canvasPanelLayout);

canvasPanel.add(canvas);

changeFillButton = new JButton("Change Fill");

changeStrokeButton = new JButton("Change Stroke");

FlowLayout buttonPanelLayout = new FlowLayout(FlowLayout.CENTER, 10, 10);

JPanel buttonPanel = new JPanel(buttonPanelLayout);

buttonPanel.add(changeFillButton);

buttonPanel.add(changeStrokeButton);

frame.add(canvasPanel, BorderLayout.CENTER);

frame.add(buttonPanel, BorderLayout.SOUTH);

frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

frame.setLocationByPlatform(true);

frame.pack();

}

private static class Controller {

private View view;

private Controller(final Model model, final View view) {

this.view = view;

this.view.changeFillButton.addActionListener(e -> {

Platform.runLater(() -> {

final Paint fillPaint = model.getFill();

if (fillPaint.equals(Color.LIGHTGRAY)) {

model.setFill(Color.GRAY);

} else {

model.setFill(Color.LIGHTGRAY);

}

});

this.view.changeStrokeButton.addActionListener(e -> {

Platform.runLater(() -> {

final Paint strokePaint = model.getStroke();

if (strokePaint.equals(Color.DARKGRAY)) {

model.setStroke(Color.BLACK);

} else {

model.setStroke(Color.DARKGRAY);

}

});

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

258

public void mainLoop() {

view.frame.setVisible(true);

}

When the program in Listing 5-12 is run, the GUI in Figure5-18 is displayed. You can’t tell from the

screenshot, but the rectangle in the center of the JFrame is a JavaFX rectangle.

Figure 5-18. The JavaFXSceneInSwingExample program

Embedding JavaFX Scenes in SWT Applications

JavaFX is capable of embedding a JavaFX scene into an SWT application through the javafx.embed.swt

package of classes. It contains two public classes, FXCanvas and SWTFXUtils. The FXCanvas class extends

org.eclipse.swt.widgets.Canvas, and can be placed in an SWT program just like any other SWT widget.

FXCanvas can also host a JavaFX scene, and can add a JavaFX scene to an SWT program.

Because both SWT and JavaFX use the native platform’s UI thread as their own event dispatching

thread, the SWT UI thread (where a Display object is instantiated and where the main loop is started and

where all other UI widgets must be created and accessed) and the JavaFX application thread are one and the

same. Therefore, there is no need to use Platform.runLater() or its SWT equivalent display.asyncExec()

in your SWT and JavaFX event handlers.

The SWT program in Listing 5-13 is an SWT port of the Swing program in Listing 5-11.

■Note You need to add the jar file that contains the SWT classes to your classpath to compile the programs

in Listings 5-13 and 5-14. On our development machine, the SWT jar is located in %ECLIPSE_HOME%\plugins\

org.eclipse.swt.win32.win32.x86_64_3.102.1.v20140206-1358.jar, where %ECLIPSE_HOME% is an

Eclipse (Kepler SR2) installation directory.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

259

Listing 5-13. NoJavaFXSceneInSWTExample.java

import org.eclipse.swt.SWT;

import org.eclipse.swt.events.MouseEvent;

import org.eclipse.swt.events.MouseMoveListener;

import org.eclipse.swt.events.MouseTrackAdapter;

import org.eclipse.swt.events.PaintEvent;

import org.eclipse.swt.events.PaintListener;

import org.eclipse.swt.events.SelectionAdapter;

import org.eclipse.swt.events.SelectionEvent;

import org.eclipse.swt.graphics.Color;

import org.eclipse.swt.graphics.GC;

import org.eclipse.swt.graphics.RGB;

import org.eclipse.swt.layout.RowData;

import org.eclipse.swt.layout.RowLayout;

import org.eclipse.swt.widgets.Button;

import org.eclipse.swt.widgets.Canvas;

import org.eclipse.swt.widgets.Composite;

import org.eclipse.swt.widgets.Display;

import org.eclipse.swt.widgets.Label;

import org.eclipse.swt.widgets.Shell;

public class NoJavaFXSceneInSWTExample {

public static void main(final String[] args) {

Model model = new Model();

View view = new View(model);

Controller controller = new Controller(model, view);

controller.mainLoop();

}

private static class Model {

public static final RGB LIGHT_GRAY = new RGB(0xd3, 0xd3, 0xd3);

public static final RGB GRAY = new RGB(0x80, 0x80, 0x80);

public static final RGB DARK_GRAY = new RGB(0xa9, 0xa9, 0xa9);

public static final RGB BLACK = new RGB(0x0, 0x0, 0x0);

public RGB fillColor = LIGHT_GRAY;

public RGB strokeColor = DARK_GRAY;

}

private static class View {

public Display display;

public Shell frame;

public Canvas canvas;

public Button changeFillButton;

public Button changeStrokeButton;

public Label mouseLocation;

public boolean mouseInCanvas;

private View(final Model model) {

this.display = new Display();

frame = new Shell(display);

frame.setText("No JavaFX in SWT Example");

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

260

RowLayout frameLayout = new RowLayout(SWT.VERTICAL);

frameLayout.spacing = 10;

frameLayout.center = true;

frame.setLayout(frameLayout);

Composite canvasPanel = new Composite(frame, SWT.NONE);

RowLayout canvasPanelLayout = new RowLayout(SWT.VERTICAL);

canvasPanelLayout.spacing = 10;

canvasPanel.setLayout(canvasPanelLayout);

canvas = new Canvas(canvasPanel, SWT.NONE);

canvas.setLayoutData(new RowData(200, 200));

canvas.addPaintListener(new PaintListener() {

@Override

public void paintControl(PaintEvent paintEvent) {

final GC gc = paintEvent.gc;

final Color strokeColor = new Color(display, model.strokeColor);

gc.setBackground(strokeColor);

gc.fillRectangle(0, 0, 200, 200);

final Color fillColor = new Color(display, model.fillColor);

gc.setBackground(fillColor);

gc.fillRectangle(10, 10, 180, 180);

strokeColor.dispose();

fillColor.dispose();

}

});

Composite buttonPanel = new Composite(frame, SWT.NONE);

RowLayout buttonPanelLayout = new RowLayout(SWT.HORIZONTAL);

buttonPanelLayout.spacing = 10;

buttonPanelLayout.center = true;

buttonPanel.setLayout(buttonPanelLayout);

changeFillButton = new Button(buttonPanel, SWT.NONE);

changeFillButton.setText("Change Fill");

changeStrokeButton = new Button(buttonPanel, SWT.NONE);

changeStrokeButton.setText("Change Stroke");

mouseLocation = new Label(buttonPanel, SWT.NONE);

mouseLocation.setLayoutData(new RowData(50, 15));

frame.pack();

}

private static class Controller {

private View view;

private Controller(final Model model, final View view) {

this.view = view;

view.changeFillButton.addSelectionListener(new SelectionAdapter() {

@Override

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

261

public void widgetSelected(SelectionEvent e) {

if (model.fillColor.equals(model.LIGHT_GRAY)) {

model.fillColor = model.GRAY;

} else {

model.fillColor = model.LIGHT_GRAY;

}

view.canvas.redraw();

}

});

view.changeStrokeButton.addSelectionListener(new SelectionAdapter() {

@Override

public void widgetSelected(SelectionEvent e) {

if (model.strokeColor.equals(model.DARK_GRAY)) {

model.strokeColor = model.BLACK;

} else {

model.strokeColor = model.DARK_GRAY;

}

view.canvas.redraw();

}

});

view.canvas.addMouseMoveListener(new MouseMoveListener() {

@Override

public void mouseMove(MouseEvent mouseEvent) {

if (view.mouseInCanvas) {

view.mouseLocation.setText("(" + mouseEvent.x + ",

" + mouseEvent.y + ")");

}

});

this.view.canvas.addMouseTrackListener(new MouseTrackAdapter() {

@Override

public void mouseEnter(MouseEvent e) {

view.mouseInCanvas = true;

}

@Override

public void mouseExit(MouseEvent e) {

view.mouseInCanvas = false;

view.mouseLocation.setText("");

}

});

}

public void mainLoop() {

view.frame.open();

while (!view.frame.isDisposed()) {

if (!view.display.readAndDispatch()) {

view.display.sleep();

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

262

view.display.dispose();

}

When the program in Listing 5-13 is run, the UI in Figure5-19 is displayed. It is an SWT Shell holding

four SWT widgets, a Canvas with a PaintListener that makes it look like the rectangle we saw earlier,

two Buttons that will change the fill and the stroke of the rectangle, and a Label widget that will show the

location of the mouse pointer when the mouse is inside the rectangle.

Figure 5-19. The NoJavaFXSceneInSWTExample program

As we did with the Swing example, we replace the custom painted Canvas widget in the program

NoJavaFXSceneInSWTExample with a JavaFX Rectangle. This is done by replacing the SWT code with the

equivalent FXCanvas code. The following is the SWT code:

canvas = new Canvas(canvasPanel, SWT.NONE);

canvas.setLayoutData(new RowData(200, 200));

canvas.addPaintListener(new PaintListener() {

@Override

public void paintControl(PaintEvent paintEvent) {

final GC gc = paintEvent.gc;

final Color strokeColor = new Color(display, model.strokeColor);

gc.setBackground(strokeColor);

gc.fillRectangle(0, 0, 200, 200);

final Color fillColor = new Color(display, model.fillColor);

gc.setBackground(fillColor);

gc.fillRectangle(10, 10, 180, 180);

strokeColor.dispose();

fillColor.dispose();

}

});

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

263

And here is the FXCanvas code:

canvas = new FXCanvas(canvasPanel, SWT.NONE);

rectangle = new Rectangle(200, 200);

rectangle.setStrokeWidth(10);

VBox vBox = new VBox(rectangle);

Scene scene = new Scene(vBox, 210, 210);

canvas.setScene(scene);

rectangle.fillProperty().bind(model.fillProperty());

rectangle.strokeProperty().bind(model.strokeProperty());

We also changed the model into a JavaFX bean. The event listeners are changed in a natural way. The

complete SWT JavaFX hybrid program is shown in Listing 5-14.

Listing 5-14. JavaFXSceneInSWTExample.java

package com.projavafx.collections;

import javafx.beans.property.ObjectProperty;

import javafx.beans.property.SimpleObjectProperty;

import javafx.embed.swt.FXCanvas;

import javafx.event.EventHandler;

import javafx.scene.Scene;

import javafx.scene.input.MouseEvent;

import javafx.scene.layout.VBox;

import javafx.scene.paint.Color;

import javafx.scene.paint.Paint;

import javafx.scene.shape.Rectangle;

import org.eclipse.swt.SWT;

import org.eclipse.swt.events.SelectionAdapter;

import org.eclipse.swt.events.SelectionEvent;

import org.eclipse.swt.layout.RowData;

import org.eclipse.swt.layout.RowLayout;

import org.eclipse.swt.widgets.Button;

import org.eclipse.swt.widgets.Composite;

import org.eclipse.swt.widgets.Display;

import org.eclipse.swt.widgets.Label;

import org.eclipse.swt.widgets.Shell;

public class JavaFXSceneInSWTExample {

public static void main(final String[] args) {

Model model = new Model();

View view = new View(model);

Controller controller = new Controller(model, view);

controller.mainLoop();

}

private static class Model {

private ObjectProperty<Color> fill = new SimpleObjectProperty<>(Color.LIGHTGRAY);

private ObjectProperty<Color> stroke = new SimpleObjectProperty<>(Color.DARKGRAY);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

264

public Color getFill() {

return fill.get();

}

public void setFill(Color value) {

this.fill.set(value);

}

public Color getStroke() {

return stroke.get();

}

public void setStroke(Color value) {

this.stroke.set(value);

}

public ObjectProperty<Color> fillProperty() {

return fill;

}

public ObjectProperty<Color> strokeProperty() {

return stroke;

}

private static class View {

public Display display;

public Shell frame;

public FXCanvas canvas;

public Button changeFillButton;

public Button changeStrokeButton;

public Label mouseLocation;

public boolean mouseInCanvas;

public Rectangle rectangle;

private View(final Model model) {

this.display = new Display();

frame = new Shell(display);

frame.setText("JavaFX in SWT Example");

RowLayout frameLayout = new RowLayout(SWT.VERTICAL);

frameLayout.spacing = 10;

frameLayout.center = true;

frame.setLayout(frameLayout);

Composite canvasPanel = new Composite(frame, SWT.NONE);

RowLayout canvasPanelLayout = new RowLayout(SWT.VERTICAL);

canvasPanelLayout.spacing = 10;

canvasPanel.setLayout(canvasPanelLayout);

canvas = new FXCanvas(canvasPanel, SWT.NONE);

rectangle = new Rectangle(200, 200);

rectangle.setStrokeWidth(10);

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

265

VBox vBox = new VBox(rectangle);

Scene scene = new Scene(vBox, 210, 210);

canvas.setScene(scene);

rectangle.fillProperty().bind(model.fillProperty());

rectangle.strokeProperty().bind(model.strokeProperty());

Composite buttonPanel = new Composite(frame, SWT.NONE);

RowLayout buttonPanelLayout = new RowLayout(SWT.HORIZONTAL);

buttonPanelLayout.spacing = 10;

buttonPanelLayout.center = true;

buttonPanel.setLayout(buttonPanelLayout);

changeFillButton = new Button(buttonPanel, SWT.NONE);

changeFillButton.setText("Change Fill");

changeStrokeButton = new Button(buttonPanel, SWT.NONE);

changeStrokeButton.setText("Change Stroke");

mouseLocation = new Label(buttonPanel, SWT.NONE);

mouseLocation.setLayoutData(new RowData(50, 15));

frame.pack();

}

private static class Controller {

private View view;

private Controller(final Model model, final View view) {

this.view = view;

view.changeFillButton.addSelectionListener(new SelectionAdapter() {

@Override

public void widgetSelected(SelectionEvent e) {

final Paint fillPaint = model.getFill();

if (fillPaint.equals(Color.LIGHTGRAY)) {

model.setFill(Color.GRAY);

} else {

model.setFill(Color.LIGHTGRAY);

}

});

view.changeStrokeButton.addSelectionListener(new SelectionAdapter() {

@Override

public void widgetSelected(SelectionEvent e) {

final Paint strokePaint = model.getStroke();

if (strokePaint.equals(Color.DARKGRAY)) {

model.setStroke(Color.BLACK);

} else {

model.setStroke(Color.DARKGRAY);

}

});

view.rectangle.setOnMouseEntered(new EventHandler<MouseEvent>() {

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

266

@Override

public void handle(MouseEvent mouseEvent) {

view.mouseInCanvas = true;

}

});

view.rectangle.setOnMouseExited(new EventHandler<MouseEvent>() {

@Override

public void handle(final MouseEvent mouseEvent) {

view.mouseInCanvas = false;

view.mouseLocation.setText("");

}

});

view.rectangle.setOnMouseMoved(new EventHandler<MouseEvent>() {

@Override

public void handle(final MouseEvent mouseEvent) {

if (view.mouseInCanvas) {

view.mouseLocation.setText("(" + (int) mouseEvent.getSceneX() + ",

" + (int) mouseEvent.getSceneY() + ")");

}

});

}

public void mainLoop() {

view.frame.open();

while (!view.frame.isDisposed()) {

if (!view.display.readAndDispatch()) view.display.sleep();

}

view.display.dispose();

}

When the program in Listing 5-14 is run, the GUI in Figure5-20 is displayed. The rectangle in the center

of the SWT Shell is a JavaFX rectangle.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

267

Embedding Swing Components in JavaFX Applications

The SwingNode class in the javafx.embed.swing package is a JavaFX Node that can host a Swing JComponent,

and therefore allows you to embed a Swing component in your JavaFX application. This gives legacy Swing

applications a piecemeal way of migrating to JavaFX. Aside from the default constructor, the only other

public methods designed for use by application developers are a pair of getter and setter methods for the

embedded JComponent:

• public void setContent(JComponent)

• public JComponent getContent()

When a SwingNode that contains a JComponent is attached to a live JavaFX scene, the SwingNode class

takes care of forwarding all JavaFX input and focus events to the embedded JComponent. Only lightweight

Swing components are allowed to be embedded in JavaFX applications. Just like in the case for a JavaFX

scene embedded in a Swing application, the presence of the two event dispatching threads in a JavaFX

application with an embedded Swing component, the JavaFX Application Thread and the Swing EDT,

warrants our attention. In particular, the requirement of performing JavaFX live scene manipulation in the

JavaFX Application Thread and the requirement of performing Swing UI manipulations in the Swing EDT

should be honored. In practical terms, this means that if you want to manipulate the Swing UI in a JavaFX

event handler, you should send it to the Swing EDT with EventQueue.invokeLater(); and if you want to

manipulate JavaFX Nodes in a Swing event listener method, you should send it to the JavaFX Application

Thread with Platform.runLater().

In this section, we turn the sample program that we have been using for this chapter into a JavaFX

application with an embedded custom Swing component. The custom Swing component is a simple

subclass of JComponent that draws a rectangle with a thick border in two different colors.

private static class MyRectangle extends JComponent {

private final Model model;

public MyRectangle(Model model) {

this.model = model;

}

Figure 5-20. The JavaFXSceneInSWTExample program

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

268

@Override

public void paint(Graphics g) {

g.setColor(model.getStrokeColor());

g.fillRect(0, 0, 200, 200);

g.setColor(model.getFillColor());

g.fillRect(10, 10, 180, 180);

}

@Override

public Dimension getMaximumSize() {

return new Dimension(200, 200);

}

The current implementation of SwingNode lacks the ability to respond well to its JavaFX container

Nodes layout requests. We extend it so that the layout of the application is improved:

private static class MySwingNode extends SwingNode {

@Override

public double minWidth(double height) {

return 250;

}

@Override

public double minHeight(double width) {

return 200;

}

When the two JavaFX buttons are clicked, we invoke code that alters the state of the Swing component

MyRectangle in a Runnable represented as a lambda expression through EventQueue.invokeLater():

view.changeFillButton.setOnAction(actionEvent -> {

EventQueue.invokeLater(() -> {

final java.awt.Color fillColor = model.getFillColor();

if (fillColor.equals(java.awt.Color.LIGHT_GRAY)) {

model.setFillColor(java.awt.Color.GRAY);

} else {

model.setFillColor(java.awt.Color.LIGHT_GRAY);

}

view.canvas.repaint();

});

■Note The repaint() method is actually one of the rare Swing UI methods that can be called from any

thread, not just the Swing EDT. Our use of EventQueue.invokeLater() is for illustration purposes only.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

269

When the mouse hovers over the MyRectangle, we update a JavaFX Label by updating a

StringProperty named mouseLocation in our Model class that the textProperty of the Label binds to:

canvas.addMouseMotionListener(new MouseMotionListener() {

@Override

public void mouseDragged(MouseEvent e) {

}

@Override

public void mouseMoved(MouseEvent e) {

Platform.runLater(() -> {

model.setMouseLocation("(" + e.getX() + ", " + e.getY() + ")");

});

}

});

swingNode.setContent(canvas);

The complete Swing component in JavaFX example application is shown in Listing 5-15.

Listing 5-15. SwingComponentInJavaFXExample.java

package com.projavafx.collections;

import javafx.application.Application;

import javafx.application.Platform;

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

import javafx.embed.swing.SwingNode;

import javafx.geometry.Insets;

import javafx.geometry.Pos;

import javafx.scene.Scene;

import javafx.scene.control.Button;

import javafx.scene.control.Label;

import javafx.scene.layout.HBox;

import javafx.scene.layout.VBox;

import javafx.stage.Stage;

import javax.swing.*;

import java.awt.*;

import java.awt.event.MouseAdapter;

import java.awt.event.MouseEvent;

import java.awt.event.MouseMotionListener;

public class SwingComponentInJavaFXExample extends Application {

private Model model;

private View view;

public static void main(String[] args) {

launch(args);

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

270

public SwingComponentInJavaFXExample() {

model = new Model();

}

@Override

public void start(Stage stage) throws Exception {

view = new View(model);

hookupEvents();

stage.setTitle("Swing in JavaFX Example");

stage.setScene(view.scene);

stage.show();

}

private void hookupEvents() {

view.changeFillButton.setOnAction(actionEvent -> {

EventQueue.invokeLater(() -> {

final java.awt.Color fillColor = model.getFillColor();

if (fillColor.equals(java.awt.Color.LIGHT_GRAY)) {

model.setFillColor(java.awt.Color.GRAY);

} else {

model.setFillColor(java.awt.Color.LIGHT_GRAY);

}

view.canvas.repaint();

});

view.changeStrokeButton.setOnAction(actionEvent -> {

EventQueue.invokeLater(() -> {

final java.awt.Color strokeColor = model.getStrokeColor();

if (strokeColor.equals(java.awt.Color.GRAY)) {

model.setStrokeColor(java.awt.Color.BLACK);

} else {

model.setStrokeColor(java.awt.Color.GRAY);

}

view.canvas.repaint();

});

}

private static class Model {

private java.awt.Color fillColor;

private java.awt.Color strokeColor;

final private StringProperty mouseLocation = new SimpleStringProperty(this,

"mouseLocation", "");

private Model() {

fillColor = java.awt.Color.LIGHT_GRAY;

strokeColor = java.awt.Color.GRAY;

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

271

public java.awt.Color getFillColor() {

return fillColor;

}

public void setFillColor(java.awt.Color fillColor) {

this.fillColor = fillColor;

}

public java.awt.Color getStrokeColor() {

return strokeColor;

}

public void setStrokeColor(java.awt.Color strokeColor) {

this.strokeColor = strokeColor;

}

public final void setMouseLocation(String mouseLocation) {

this.mouseLocation.set(mouseLocation);

}

public final StringProperty mouseLocationProperty() {

return mouseLocation;

}

private static class View {

public JComponent canvas;

public Button changeFillButton;

public Button changeStrokeButton;

public Label mouseLocation;

public HBox buttonHBox;

public Scene scene;

private View(Model model) {

SwingNode swingNode = new MySwingNode();

EventQueue.invokeLater(() -> {

canvas = new MyRectangle(model);

canvas.addMouseListener(new MouseAdapter() {

@Override

public void mouseExited(MouseEvent e) {

Platform.runLater(() -> {

model.setMouseLocation("");

});

}

});

canvas.addMouseMotionListener(new MouseMotionListener() {

@Override

public void mouseDragged(MouseEvent e) {

}

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

272

@Override

public void mouseMoved(MouseEvent e) {

Platform.runLater(() -> {

model.setMouseLocation("(" + e.getX() + ", " + e.getY() + ")");

});

}

});

swingNode.setContent(canvas);

});

changeFillButton = new Button("Change Fill");

changeStrokeButton = new Button("Change Stroke");

mouseLocation = new Label("(100, 100)");

mouseLocation.setPrefSize(60, 15);

mouseLocation.textProperty().bind(model.mouseLocationProperty());

buttonHBox = new HBox(10, changeFillButton, changeStrokeButton, mouseLocation);

buttonHBox.setPadding(new Insets(10, 0, 10, 0));

buttonHBox.setAlignment(Pos.CENTER);

VBox root = new VBox(10, swingNode, buttonHBox);

root.setPadding(new Insets(10, 10, 10, 10));

scene = new Scene(root);

}

private static class MySwingNode extends SwingNode {

@Override

public double minWidth(double height) {

return 250;

}

@Override

public double minHeight(double width) {

return 200;

}

private static class MyRectangle extends JComponent {

private final Model model;

public MyRectangle(Model model) {

this.model = model;

}

@Override

public void paint(Graphics g) {

g.setColor(model.getStrokeColor());

g.fillRect(0, 0, 200, 200);

g.setColor(model.getFillColor());

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

273

g.fillRect(10, 10, 180, 180);

}

@Override

public Dimension getMaximumSize() {

return new Dimension(200, 200);

}

When the program in Listing 5-15 is run, the GUI in Figure5-21 is displayed. The rectangle in the center

of the JavaFX application is a Swing JComponent.

Figure 5-21. The SwingComponentInJavaFXExample program

■Tip In case you are wondering if there is a way to embed an SWT widget into a JavaFX application, the

answer is no. The reason is that SWT widgets are heavyweight components and thus harder to integrate into a

lightweight GUI toolkit like JavaFX.

Summary

In this chapter, we looked at JavaFX observable collections, the JavaFX worker threading framework,

embedding a JavaFX scene in Swing and SWT applications, and embedding Swing components in JavaFX

applications to help you understand the following principles and techniques.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

274

• JavaFX supports observable collections and arrays: ObservableList, ObservableMap,

ObservableSet, and ObservableArray, with subinterfaces ObservableIntegerArray

and ObservableFloatArray.

• ObservableList fires Change events through ListChangeListener.

ListChangeListener.Change may contain one or more discrete changes.

• ObservableMap fires Change events through MapChangeListener.

MapChangeListener.Change represents the change of only one key.

• ObservableSet fires Change events through SetChangeListener.

SetChangeListener.Change represents the change of only one element.

• ObservableArray and its subinterfaces fire change events through

ArrayChangeListener.

• The FXCollections class contains factory methods to create observable collections

and arrays, and utility methods to work on them.

• The main event processing thread in JavaFX applications is the JavaFX application

thread. All access to live scenes must be done through the JavaFX application thread.

• Other important threads such as the prism rendering thread and the media event

thread collaborate with the JavaFX application thread to make graphics rendering

and media playback possible.

• Long-running computations on the JavaFX application thread make JavaFX GUIs

unresponsive. They should be farmed out to background, or worker, threads.

• The Worker interface defines nine properties that can be observed on the JavaFX

application thread. It also defines a cancel() method.

• Task<V> defines a one-time task for offloading work to background, or worker,

threads and communicates the results or exceptions to the JavaFX application

thread.

• Service<V> defines a reusable mechanism for creating and running background

tasks.

• ScheduledService<V> defines a reusable mechanism for creating and running

background tasks in a recurring fashion.

• The JFXPanel class is a JComponent that can put a JavaFX scene into a Swing

application.

• In a Swing JavaFX hybrid program, use Platform.runLater() in Swing event

listeners to access the JavaFX scene, and use EventQueue.invokeLater() or

SwingUtilities.invokeLater() in JavaFX event handlers to access Swing widgets.

• The FXCanvas class is an SWT widget that can put a JavaFX scene into an SWT

application.

• In an SWT JavaFX hybrid program, the SWT UI thread and the JavaFX application

thread are one and the same.

• The SwingNode class is a JavaFX Node that can put a Swing component into a JavaFX

application.

CHAPTER 5 ■ COLLECTIONS AND CONCURRENCY

275

Resources

Here are some useful resources for understanding this chapter’s material:

• The original JavaFX worker threading framework write-up on FX Experience:

http://fxexperience.com/2011/07/worker-threading-in-javafx-2-0/

• The original JavaFX and SWT interoperability write-up on FX Experience:

http://fxexperience.com/2011/12/swt-interop/

277

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8_6

CHAPTER 6

Creating Charts in JavaFX

Any sufficiently advanced technology is indistinguishable from magic.

—Arthur C. Clarke

Reporting is an important aspect in many business applications. The JavaFX platform contains an API

for creating charts. Because a Chart is basically a Node, integrating charts with other parts of a JavaFX

application is straightforward. As a consequence, reporting is an integral part of the typical JavaFX business

application.

Designing an API is often a compromise among a number of requirements. Two of the most common

requirements are “make it easy” and “make it easy to extend.” The JavaFX Chart API fulfills both of these.

The Chart API contains a number of methods that allow developers to change the look and feel as well as

the data of the chart, making it a flexible API that can be easily extended. The default values for the settings

are very reasonable, though, and make it easy to integrate a chart with a custom application, with only a few

lines of code.

The JavaFX Chart API in JavaFX 9 has eight concrete implementations that are ready to be used by

developers. Apart from those, developers can add their own implementations by extending one of the

abstract classes.

Structure of the JavaFX Chart API

Different types of charts exist, and there are a number of ways to categorize them. The JavaFX Chart API

distinguishes between two-axis charts and charts without an axis. The JavaFX 9 release contains one

implementation of a no-axis chart, which is the PieChart. There are a number of two-axis charts, which all

extend the abstract XYChart class, as shown in Figure6-1.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

278

The abstract Chart class defines the setup for all charts. Basically, a chart consists of three parts: the

title, legend, and content. The content is specific for each implementation of the chart, but the legend

and the title concepts are similar across the implementations. Therefore, the Chart class has a number of

properties with corresponding getter and setter methods that allow the manipulation of those concepts. The

Javadoc of the Chart class mentions the following properties.

BooleanProperty animated

ObjectProperty<Node> legend

BooleanProperty legendVisible

ObjectProperty<Side> legendSide

StringProperty title

ObjectProperty<Side> titleSide

We use some of these properties in the upcoming examples, but we also show that even without setting

values for these properties, the Chart API allows you to create nice charts.

Because Chart extends Region, Parent, and Node, all of the properties and methods available on these

classes can be used on a Chart as well. One of the benefits is that the same CSS styling techniques that are

used to add style information to JavaFX Nodes also apply to JavaFX charts.

The JavaFX CSS Reference Guide, available at http://download.java.net/jdk8/jfxdocs/ javafx/

scene/doc-files/cssref.html, contains an overview of CSS properties that can be altered by designers

and developers. By default, the modena style sheet that comes with the JavaFX 9 runtime is used to skin

JavaFX charts. For more information on using CSS styles in JavaFX charts, refer to the Oracle chart tutorial at

http://docs.oracle.com/javase/8/javafx/user-interface-tutorial/css-styles.htm.

Figure 6-1. Overview of the charts in the JavaFX Chart API

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

279

Using the JavaFX PieChart

A PieChart renders information in a typical pie structure, where the sizes of the slices are proportional to the

values of the data. Before diving into the details, we show a small application that renders a PieChart.

The Simple Example

Our example shows the “market share” of a number of programming languages, based on the TIOBE index

in April 2017. The TIOBE Programming Community Index is available at https://www.tiobe.com/tiobe-

index, and it provides an indication of the popularity of programming languages based on search engine

traffic. A screenshot of the ranking in April 2017 is shown in Figure6-2.

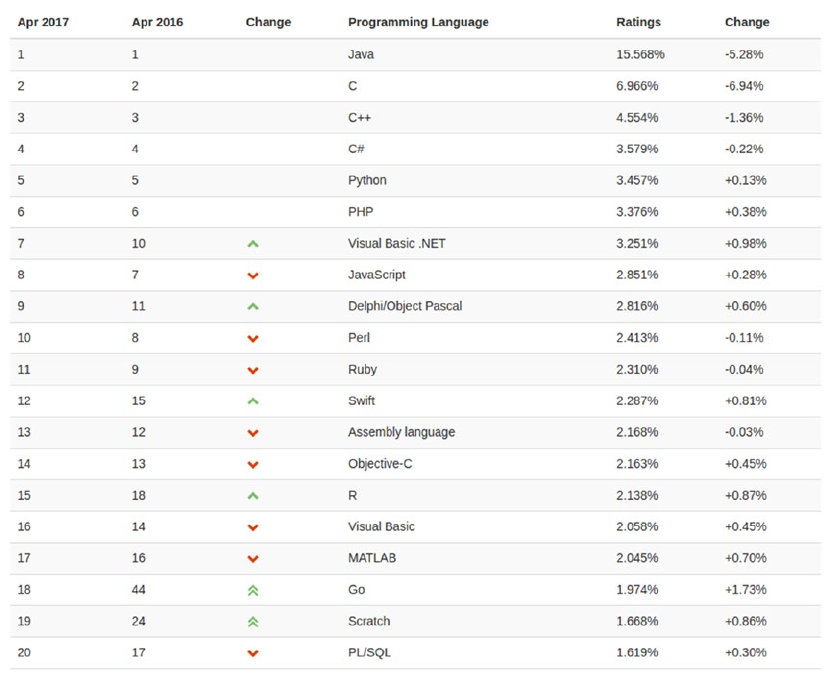

Figure 6-2. Screenshot of the TIOBE index in April 2017, taken from www.tiobe.com/tiobe-index

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

280

■Note The algorithm used by TIOBE is described at https://www.tiobe.com/tiobe-index/programming-

languages-definition/. The scientific value of the numbers is out of scope for our examples.

Listing 6-1 contains the code for the example.

Listing 6-1. Rendering the TIOBE Index in a PieChart

package com.projavafx.charts ;

import javafx.application.Application;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.scene.Scene;

import javafx.scene.chart.PieChart;

import javafx.scene.layout.StackPane;

import javafx.stage.Stage;

public class ChartApp1 extends Application {

@Override

public void start(Stage primaryStage) {

PieChart pieChart = new PieChart();

pieChart.setData(getChartData());

primaryStage.setTitle("PieChart");

StackPane root = new StackPane();

root.getChildren().add(pieChart);

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

private ObservableList<PieChart.Data> getChartData() {

ObservableList<PieChart.Data> answer = FXCollections.observableArrayList();

answer.addAll(new PieChart.Data("java", 15.57),

new PieChart.Data("C", 6.97),

new PieChart.Data("C++", 4.55),

new PieChart.Data("C#", 3.58),

new PieChart.Data("Python", 3.45),

new PieChart.Data("PHP", 3.38),

new PieChart.Data("Visual Basic .NET", 3.25));

return answer;

}

The result of running this example is shown in Figure6-3.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

281

With only a limited amount of code, we can render data in a PieChart. Before we make modifications to

this example, we explain the different parts.

The code required for setting up the application, the stage, and the scene is covered in Chapter 1. A

PieChart extends a Node, so we can easily add it to the scene graph. The first two lines of code in the start

method create the PieChart, and add the required data to it:

PieChart pieChart = new PieChart();

pieChart.setData(getChartData());

The data, which are of type ObservableList<PieChart.Data> are obtained from the getChartData()

method and for our example, it contains static data. As the return type of the getChartData() method

specifies, the returned data are an ObservableList of PieChart.Data.

An instance of PieChart.Data, which is a nested class of PieChart, contains the information required to

draw one slice of the pie. PieChart.Data has a constructor that takes the name of the slice and its value:

PieChart.Data(String name, double value)

We use this constructor to create data elements containing the name of a programming language and

its score in the TIOBE index.

new PieChart.Data("java", 15.57)

We then add those elements to the ObservableList<PieChart.Data> we need to return.

Figure 6-3. Rendering the TIOBE index in a PieChart

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

282

Some Modifications

Although the result of the simple example already looks good, we can tweak both the code and the

rendering. First of all, the example uses two lines of code for creating the PieChart and populating it with

data:

PieChart pieChart = new PieChart();

pieChart.setData(getChartData());

Because PieChart has a single argument constructor as well, the preceding code snippets can be

replaced as follows.

PieChart pieChart = new PieChart(getChartData());

Apart from the properties defined on the abstract Chart class, a PieChart has the following properties.

BooleanProperty clockwise

ObjectProperty<ObservableList<PieChart.Data>> data

DoubleProperty labelLineLength

BooleanProperty labelsVisible

DoubleProperty startAngle

We covered the data property in the previous section. Some of the other properties are demonstrated in

the next code snippet. Listing 6-2 contains a modified version of the start() method.

Listing 6-2. Modified Version of the PieChart Example

public void start(Stage primaryStage) {

PieChart pieChart = new PieChart();

pieChart.setData(getChartData());

pieChart.setTitle("Tiobe index");

pieChart.setLegendSide(Side.LEFT);

pieChart.setClockwise(false);

pieChart.setLabelsVisible(false);

primaryStage.setTitle("PieChart");

StackPane root = new StackPane();

root.getChildren().add(pieChart);

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

Because we used the Side.LEFT field in the new code, we have to import the Side class in our

application as well. This is done by adding the following line in the import block of the code.

import javafx.geometry.Side

Running this modified version results in the modified output shown in Figure6-4.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

283

Changing a few lines of code results in output that looks very different. We go over the changes we made

in a bit more detail. First, we added a title to the chart. That was done using the call

pieChart.setTitle("Tiobe index");

We could also have used the titleProperty:

pieChart.titleProperty().set("Tiobe index");

Both approaches result in the same output.

■Note The upcoming modifications could also be done using the same patterns. We only document the

approach with setter methods, but it is easy to replace this with a property-based approach.

The next line of code in our modified example changes the location of the legend:

pieChart.setLegendSide(Side.LEFT);

When the legendSide is not specified, the legend is shown at the default location, which is below

the chart. The title and the legendSide are both properties that belong to the abstract Chart class. As a

consequence, they can be set on any chart. The next line in our modified example modifies a property that is

specific to a PieChart:

pieChart.setClockwise(false);

Figure 6-4. The output of the modified PieChart example

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

284

By default, the slices in a PieChart are rendered clockwise. By setting this property to false, the slices are

rendered counterclockwise. We also disabled showing the labels in the PieChart. The labels are still shown

in the legend, but they do not point to the individual slices anymore. This is achieved by the following line of

code:

pieChart.setLabelsVisible(false);

All layout changes so far are done programmatically. It is also possible, and often recommended, to

style applications in general and charts in particular using a CSS style sheet.

We remove the layout changes from the Java code and add a style sheet containing some layout

instructions. Listing 6-3 shows the modified code of the start() method and Listing 6-4 contains the style

sheet we added.

Listing 6-3. Remove Programmatic Layout Instructions

public void start(Stage primaryStage) {

PieChart pieChart = new PieChart();

pieChart.setData(getChartData());

pieChart.titleProperty().set("Tiobe index");

primaryStage.setTitle("PieChart");

StackPane root = new StackPane();

root.getChildren().add(pieChart);

Scene scene = new Scene (root, 400, 250);

scene.getStylesheets().add("/chartappstyle.css");

primaryStage.setScene(scene);

primaryStage.show();

}

Listing 6-4. Style Sheet for PieChart Example

.chart {

-fx-clockwise: false;

-fx-pie-label-visible: true;

-fx-label-line-length: 5;

-fx-start-angle: 90;

-fx-legend-side: right;

}

.chart-pie-label {

-fx-font-size:9px;

}

.chart-content {

-fx-padding:1;

}

.default-color0.chart-pie {

-fx-pie-color:blue;

}

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

285

.chart-legend {

-fx-background-color: #f0e68c;

-fx-border-color: #696969;

-fx-border-width:1;

}

Running this code results in the output shown in Figure6-5.

Figure 6-5. Using CSS to style the PieChart

We now go over the changes we made. Before we go over the individual changes in detail, we show how

we include the CSS with our application. This is achieved by adding the style sheet to the scene, which is

done as follows.

scene.getStylesheets().add("/chartappstyle.css");

The file containing the style sheet, chartappstyle.css, must be in the classpath when the application is

running.

In Listing 6-2, we set the clockwise configuration using

pieChart.setClockwise(false)

We removed that line from the code in Listing 6-3, and instead defined the -fx-clockwise property on

the chart class in the style sheet:

.chart {

-fx-clockwise: false;

-fx-pie-label-visible: true;

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

286

-fx-label-line-length: 5;

-fx-start-angle: 90;

-fx-legend-side: right;

}

In that same .chart class definition, we make the labels on the pie visible by setting the -fx-pie-

label-visible property to true, and we specify the length of the lines for each label to be 5.

Also, we rotate the whole pie by 90 degrees, which is achieved by defining the -fx-start-angle

property. The labels are now defined in the style sheet, and we remove the corresponding definition from

the code by omitting the following line.

pieChart.setLabelsVisible(false)

To make sure the legend will appear at the right side of the chart, we specify the -fx-legend-side

property.

By default, a PieChart uses the default colors defined in the caspian style sheet. The first slice is filled

with default-color0, the second slice with default-color1, and so on. The easiest way to change the color

of the different slices is by overriding the definitions of the default color. In our style sheet, this is done by

.default-color0.chart-pie {

-fx-pie-color: blue;

}

The same can be done for the other slices.

If you run the example without the other parts of the CSS, you would notice the chart itself is rather

small, and the size of the labels takes too much space. Therefore, we modify the font size of the labels as

follows:

.chart-pie-label {

-fx-font-size:9px;

}

Also, we decrease the padding in the chart area:

.chart-content {

-fx-padding:1;

}

Finally, we change the background and the stroke of the legend. This is achieved by overriding the

chart-legend class as follows.

.chart-legend {

-fx-background-color: #f0e68c;

-fx-border-color: #696969;

-fx-border-width:1;

}

Again, we refer the reader to http://docs.oracle.com/javase/9/javafx/user-interface-tutorial/

css-styles.htm [TODO: FINAL LINK] for more information about using CSS with JavaFX charts.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

287

Using the XYChart

The XYChart class is an abstract class with seven direct known subclasses. The difference between these

classes and the PieChart class is that an XYChart has two axes and an optional alternativeColumn or

alternativeRow. This translates to the following list of additional properties on an XYChart.

BooleanProperty alternativeColumnFillVisible

BooleanProperty alternativeRowFillVisible

ObjectProperty<ObservableList<XYChart.Series<X,Y>>> data

BooleanProperty horizontalGridLinesVisible

BooleanProperty horizontalZeroLineVisible

BooleanProperty verticalGridLinesVisible

BooleanProperty verticalZeroLineVisible

Data in an XYChart are ordered in series. How these series are rendered is specific to the

implementation of the subclass of XYChart. In general, a single element in a series contains a number of

pairs. The following examples use a hypothetical projection of market share of three programming languages

in the future. We start with the TIOBE index for Java, C, and C++ in 2017, and add random values (between

–2 and +2) to them for each year until 2020. The resulting (year, number) pairs for Java constitute the Java

Series, and the same holds for C and C++. As a result, we have three series, each containing 10 pairs.

A major difference between a PieChart and an XYChart is the presence of an x axis and a y axis in

the XYChart. These axes are required when creating an XYChart, as can be observed from the following

constructor.

XYChart (Axis<X> xAxis, Axis<Y> yAxis)

The Axis class is an abstract class extending Region (hence also extending Parent and Node) with two

subclasses: CategoryAxis and ValueAxis. The CategoryAxis is used to render labels that are in the String

format, as can be observed from the class definition:

public class CategoryAxis extends Axis<java.lang.String>

The ValueAxis is used to render data entries that represent a Number. It is an abstract class itself, defined

as follows.

public abstract class ValueAxis <T extends java.lang.Number> extends Axis<T>

The ValueAxis class has one concrete subclass, which is the NumberAxis:

public final class NumberAxis extends ValueAxis<java.lang.Number>

The differences between those Axis classes will become clear throughout the examples. We now show

some examples of the different XYChart implementations, starting with the ScatterChart. Some features

common to all XYCharts are also explained in the section on ScatterChart.

■Note Because the Axis classes extend Region, they allow for applying the same CSS elements as any

other Regions. This allows for highly customized Axis instances.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

288

Using the ScatterChart

An instance of the ScatterChart class is used to render data where each data item is represented as a

symbol in a two-dimensional area. As mentioned in the previous section, we will render a chart containing

three series of data, representing the hypothetical evolution of the TIOBE index for Java, C, and C++. We first

show the code of a naive implementation, and refine that to something more useful.

A Simple Implementation

A first implementation of our application using a ScatterChart is shown in Listing 6-5.

Listing 6-5. First Implementation of Rendering Data in a ScatterChart

package com.projavafx ;

import javafx.application.Application;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.scene.Scene;

import javafx.scene.chart.NumberAxis;

import javafx.scene.chart.ScatterChart;

import javafx.scene.chart.XYChart;

import javafx.scene.chart.XYChart.Series;

import javafx.scene.layout.StackPane;

import javafx.stage.Stage;

public class ChartApp3 extends Application {

public static void main(String[] args) {

launch(args);

}

@Override

public void start(Stage primaryStage) {

NumberAxis xAxis = new NumberAxis();

NumberAxis yAxis = new NumberAxis();

ScatterChart scatterChart = new ScatterChart(xAxis, yAxis);

scatterChart.setData(getChartData());

primaryStage.setTitle("ScatterChart");

StackPane root = new StackPane();

root.getChildren().add(scatterChart);

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

private ObservableList<XYChart.Series<Integer, Double>> getChartData() {

double javaValue = 15.57;

double cValue = 6.97;

double cppValue = 4.55;

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

289

ObservableList<XYChart.Series<Integer, Double>> answer = FXCollections.

observableArrayList();

Series<Integer, Double> java = new Series<>();

Series<Integer, Double> c = new Series<>();

Series<Integer, Double> cpp = new Series<>();

for (int i = 2017; i < 2027; i++) {

java.getData().add(new XYChart.Data(i, javaValue));

javaValue = javaValue + 4 * Math.random() - 2;

c.getData().add(new XYChart.Data(i, cValue));

cValue = cValue + Math.random() - .5;

cpp.getData().add(new XYChart.Data(i, cppValue));

cppValue = cppValue + 4 * Math.random() - 2;

}

answer.addAll(java, c, cpp);

return answer;

}

Executing this application results in a graph similar to the image shown in Figure6-6.

Figure 6-6. The result of the naive implementation of the ScatterChart

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

290

Although the chart shows the required information, it is not very readable. We add a number of

enhancements, but first let’s have a deeper look at the different parts of the code.

Similar to the PieChart example, we created a separate method for obtaining the data. One of the

reasons for this is that in real-world applications, it is unlikely to have static data. By isolating the data

retrieval in a separate method, it becomes easier to change the way data are obtained.

A single data point is defined by an instance of XYChart.Data<Integer, Double>, created with the

constructor XYChart.Data(Integer i, Double d) where the parameters have the following definitions.

i: Integer, representing a specific year (between 2017 and 2026)

d: Double, representing the hypothetical TIOBE index for the particular series in the year

specified by I

The local variables javaValue, cValue, and cppValue are used for keeping track of the scores for

the different programming languages. They are initialized with the real values from 2017. Each year, an

individual score is incremented or decremented by a random value between –2 and +2. Data points are

stacked into a series. In our examples, we have three series each containing 10 instances of XYChart.

Data<Integer, Double>. Those series are of type XYChart.Series<Integer, Double>.

The data entries are added to the respective series by calling

java.getData().add (...)

c.getData().add(...)

and

cpp.getData().add(...)

Finally, all series are added to the ObservableList<XYChart.Series<Integer, Double>> and returned.

The start() method of the application contains the functionality required for creating and rendering

the ScatterChart, and for populating it with the data obtained from the getChartData method.

■Note As discussed earlier, we can use different patterns here with PieChart. We used the JavaBeans

pattern in the examples, but we could also use properties.

To create a ScatterChart, we need to create an xAxis and a yAxis. In our first simple implementation,

we use two instances of NumberAxis for this:

NumberAxis xAxis = new NumberAxis();

NumberAxis yAxis = new NumberAxis();

Apart from calling the following ScatterChart constructor, there is nothing different in this method

than in the case of the PieChart.

ScatterChart scatterChart = new ScatterChart(xAxis, yAxis);

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

291

Improving the Simple Implementation

One of the first observations when looking at Figure6-5 is that all data plots in a series are almost rendered

on top of each other. The reason for this is clear: the x-Axis starts at 0 and ends at 2250. By default, the

NumberAxis determines its range automatically. We can overrule this behavior by setting the autoRanging

property to false, and by providing values for the lowerBound and the upperBound. If we replace the

constructor for the xAxis in the original example by the following code snippet,

NumberAxis xAxis = new NumberAxis();

xAxis.setAutoRanging(false);

xAxis.setLowerBound(2017);

xAxis.setUpperBound(2027);

the resulting output will look similar to that shown in Figure6-7.

Figure 6-7. Defining the behavior of the xAxis

Next, we want to add a title to the chart, and we want to have names near the symbols in the legend node.

Adding a title to the chart is no different from adding a title to the PieChart and is achieved by the code:

scatterChart.setTitle("Speculations");

By adding a name to the three instances of XYChart.Series, we add labels to the symbols in the legend

node. The relevant part of the getChartData method becomes

Series<Integer, Double> java = new Series<>();

Series<Integer, Double> c = new Series<>();

Series<Integer, Double> cpp = new Series<>();

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

292

java.setName("java");

c.setName("C");

cpp.setName("C++");

Running the application again after applying both changes results in output similar to that shown in

Figure6-8.

Figure 6-8. ScatterChart with a title and named symbols

Until now, we used a NumberAxis for the xAxis. Inasmuch as years can be represented as Number

instances, that works. However, because we don’t do any numerical operation on the years, and because the

distance between consecutive data entries is always one year, we can also use a String value to represent

this information.

We now modify the code to work with a CategoryAxis for the xAxis. Changing the xAxis from a

NumberAxis to a CategoryAxis also implies that the getChartData() method should return an instance of

ObservableList<XYChart.Series<String, Double>> and that implies that the different elements in a single

Series should have the type XYChart.Data<String, Double>.

In Listing 6-6, the original code has been modified to use the CategoryAxis.

Listing 6-6. Using CategoryAxis Instead of NumberAxis for the xAxis

package projavafx ;

import javafx.application.Application;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.scene.Scene;

import javafx.scene.chart.CategoryAxis;

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

293

import javafx.scene.chart.NumberAxis;

import javafx.scene.chart.ScatterChart;

import javafx.scene.chart.XYChart;

import javafx.scene.chart.XYChart.Series;

import javafx.scene.layout.StackPane;

import javafx.stage.Stage;

public class ChartApp7 extends Application {

public static void main(String[] args) {

launch(args);

}

@Override

public void start(Stage primaryStage) {

CategoryAxis xAxis = new CategoryAxis();

NumberAxis yAxis = new NumberAxis();

ScatterChart scatterChart = new ScatterChart(xAxis, yAxis);

scatterChart.setData(getChartData());

scatterChart.setTitle("speculations");

primaryStage.setTitle("ScatterChart example");

StackPane root = new StackPane();

root.getChildren().add(scatterChart);

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

private ObservableList<XYChart.Series<String, Double>> getChartData() {

double javaValue = 15.57;

double cValue = 6.97;

double cppValue = 4.55;

ObservableList<XYChart.Series<String, Double>> answer = FXCollections.

observableArrayList();

Series<String, Double> java = new Series<>();

Series<String, Double> c = new Series<>();

Series<String, Double> cpp = new Series<>();

java.setName("java");

c.setName("C");

cpp.setName("C++");

for (int i = 2017; i < 2027; i++) {

java.getData().add(new XYChart.Data(Integer.toString(i), javaValue));

javaValue = javaValue + 4 * Math.random() - .2;

c.getData().add(new XYChart.Data(Integer.toString(i), cValue));

cValue = cValue + 4 * Math.random() - 2;

cpp.getData().add(new XYChart.Data(Integer.toString(i), cppValue));

cppValue = cppValue + 4 * Math.random() - 2;

}

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

294

answer.addAll(java, c, cpp);

return answer;

}

Running the modified application results in output similar to Figure6-9.

Figure 6-9. Using a ScatterChart with a CategoryAxis on the xAxis

Using the LineChart

The example in the previous section resulted in data entries being represented by single dots or symbols.

Often, it is desirable to have the dots connected by a line because this helps in seeing trends. The JavaFX

LineChart is well suited for this.

The API for the LineChart has many methods in common with the API for the ScatterChart. In fact,

we can reuse most of the code in Listing 6-6, and just replace the ScatterChart occurrences with LineChart

and the import for javafx.scene.chart.ScatterChart with javafx.scene.chart.LineChart. The data stay

exactly the same, so we only show the new start() method in Listing 6-7.

Listing 6-7. Using a LineChart Instead of a ScatterChart

public void start(Stage primaryStage) {

CategoryAxis xAxis = new CategoryAxis();

NumberAxis yAxis = new NumberAxis();

LineChart lineChart = new LineChart(xAxis, yAxis);

lineChart.setData(getChartData());

lineChart.setTitle("speculations");

primaryStage.setTitle("LineChart example");

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

295

StackPane root = new StackPane();

root.getChildren().add(lineChart);

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

Running this application gives output like that shown in Figure6-10.

Figure 6-10. Using a LineChart for displaying trends

Most of the functionality available for the ScatterChart is also available for the LineChart. Changing

the location of the legend, adding or removing a title, and using a NumberAxis instead of a CategoryAxis are

possible using the LineChart.

Using the BarChart

A BarChart is capable of rendering the same data as a ScatterChart and a LineChart, but it looks different.

In a BarChart, the focus is often more on showing the relative differences between the different series for a

given category. In our case, that means that we focus on the differences between the values for Java, C,

and C++.

Again, we do not need to modify the method that returns our data. Indeed, a BarChart requires

a CategoryAxis for its xAxis, and we already modified the getChartData() method to return an

ObservableList containing XYChart.Series<String, double>. Starting from Listing 6-6, we change only

the occurrences of ScatterChart to BarChart and we obtain Listing 6-8.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

296

Listing 6-8. Using a BarChart Instead of a ScatterChart

public void start(Stage primaryStage) {

CategoryAxis xAxis = new CategoryAxis();

NumberAxis yAxis = new NumberAxis();

BarChart barChart = new BarChart(xAxis, yAxis);

barChart.setData(getChartData());

barChart.setTitle("speculations");

primaryStage.setTitle("BarChart example");

StackPane root = new StackPane();

root.getChildren().add(barChart);

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

Once we replace the import for javafx.scene.chart.ScatterChart with one for javafx.scene.chart.

BarChart, we can build the application and run it. The result is a BarChart similar to that shown in Figure6-11.

Figure 6-11. Using BarChart for highlighting differences between the values

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

297

Although the result indeed shows the differences between the values for each year, it is not very clear

because the bars are rather small. With a total scene width at 400 pixels, there is not much space to render

large bars. However, the BarChart API contains methods to define the inner gap between bars and the gap

between categories. In our case, we want a smaller gap between the bars, for example, one pixel. This is done

by calling

barChart.setBarGap(1);

Adding this single line of code to the start method and rerunning the application results in the output

shown in Figure6-12.

Figure 6-12. Setting the gap between bars to one pixel

Clearly, this one line of code leads to a huge difference in readability.

Using the StackedBarChart

The StackedBarChart was added in JavaFX 2.1. The StackedBarChart displays data in bars just like the

BarChart, but instead of rendering bars in the same category next to each other, the StackedBarChart shows

the bars within the same category on top of each other. This often makes it easier to inspect totals.

Typically, categories correspond with the common key values in the data series. As a consequence,

in our example the different years (2017, 2018, … 2026) can be considered as categories. We can add these

categories to the xAxis, as follows:

IntStream.range(2017,2026).forEach(t -> xAxis.getCategories().add(String.valueOf(t)));

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

298

Apart from this, the only code change is replacing the BarChart with the StackedBarChart in code and

in the import statement. This leads to the code snippet in Listing 6-9.

Listing 6-9. Using a StackedBarChart Instead of a ScatterChart

public void start(Stage primaryStage) {

CategoryAxis xAxis = new CategoryAxis();

IntStream.range(2017,2026).forEach(t -> xAxis.getCategories().add(String.valueOf(t)));

NumberAxis yAxis = new NumberAxis();

StackedBarChart stackedBarChart = new StackedBarChart(xAxis, yAxis, getChartData());

stackedBarChart.setTitle("speculations");

primaryStage.setTitle("StackedBarChart example");

StackPane root = new StackPane();

root.getChildren().add(stackedBarChart);

Scene scene = new Scene(root, 400, 250);

primaryStage.setScene(scene);

primaryStage.show();

}

Running the application now produces output like that shown in Figure6-13.

Figure 6-13. Rendering stacked bar chart plots using StackedBarChart

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

299

Using the AreaChart

In some cases, it makes sense to fill the area under the line connecting the dots. Although the same data are

rendered as in the case of a LineChart, the result looks different. Listing 6-10 contains the modified start()

method that uses an AreaChart instead of the original ScatterChart. As in the previous modifications, we

didn’t change the getChartData() method.

Listing 6-10. Using an AreaChart Instead of a ScatterChart

public void start(Stage primaryStage) {

CategoryAxis xAxis = new CategoryAxis();

NumberAxis yAxis = new NumberAxis();

AreaChart areaChart = new AreaChart(xAxis, yAxis);

areaChart.setData(getChartData());

areaChart.setTitle("speculations");

primaryStage.setTitle("AreaChart example");

StackPane root = new StackPane();

root.getChildren().add(areaChart);

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

Running this application results in output like that shown in Figure6-14.

Figure 6-14. Rendering area plots using AreaChart

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

300

Using the StackedAreaChart

The StackedAreaChart is to the AreaChart what the StackedBarChart is to the BarChart. Rather than

showing individual areas, the StackedAreaChart always shows the sum of the values in a specific category.

Changing an AreaChart into a StackedAreaChart only requires the change of one line of code and the

appropriate import statement.

AreaChart areaChart = new AreaChart(xAxis, yAxis);

must be replaced with

StackedAreaChart areaChart = new StackedAreaChart(xAxis, yAxis);

Applying this change and running the application results in a graph like the one in Figure6-15.

Figure 6-15. Rendering area plots using AreaChart

Using the BubbleChart

The last implementation of the XYChart is a special one. The BubbleChart does not contain properties that

are not already on the XYChart class, but it is the only direct implementation in the current JavaFX Chart API

that uses the additional parameter on the XYChart.Data class.

We first modify the code in Listing 6-6 to use the BubbleChart instead of the ScatterChart. Because

by default, bubbles are stretched when the span on the xAxis is much different from the span on the yAxis,

we do not use years, but a tenth of a year as the value on the xAxis. Doing so, we have a span of 100 units on

the xAxis (10 years) compared with a span of about 30 units on the yAxis. This is also more or less the ratio

between the width and the height of our chart. As a consequence, the bubbles are relatively circular.

Listing 6-11 contains the code for rendering a BubbleChart.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

301

Listing 6-11. Using the BubbleChart

package com.projavafx.charts;

import javafx.application.Application;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.scene.Scene;

import javafx.scene.chart.*;

import javafx.scene.chart.XYChart.Series;

import javafx.scene.layout.StackPane;

import javafx.stage.Stage;

import javafx.util.StringConverter;

public class ChartApp14 extends Application {

public static void main(String[] args) {

launch(args);

}

@Override

public void start(Stage primaryStage) {

NumberAxis xAxis = new NumberAxis();

NumberAxis yAxis = new NumberAxis();

yAxis.setAutoRanging(false);

yAxis.setLowerBound(0);

yAxis.setUpperBound(30);

xAxis.setAutoRanging(false);

xAxis.setLowerBound(20170);

xAxis.setUpperBound(20261);

xAxis.setTickUnit(10);

xAxis.setTickLabelFormatter(new StringConverter<Number>() {

@Override

public String toString(Number n) {

return String.valueOf(n.intValue() / 10);

}

@Override

public Number fromString(String s) {

return Integer.valueOf(s) * 10;

}

});

BubbleChart bubbleChart = new BubbleChart(xAxis, yAxis);

bubbleChart.setData(getChartData());

bubbleChart.setTitle("Speculations");

primaryStage.setTitle("BubbleChart example");

StackPane root = new StackPane();

root.getChildren().add(bubbleChart);

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

302

primaryStage.setScene(new Scene(root, 400, 250));

primaryStage.show();

}

private ObservableList<XYChart.Series<Integer, Double>> getChartData() {

double javaValue = 15.57;

double cValue = 6.97;

double cppValue = 4.55;

ObservableList<XYChart.Series<Integer, Double>> answer = FXCollections.

observableArrayList();

Series<Integer, Double> java = new Series<>();

Series<Integer, Double> c = new Series<>();

Series<Integer, Double> cpp = new Series<>();

java.setName("java");

c.setName("C");

cpp.setName("C++");

for (int i = 20170; i < 20260; i = i + 10) {

double diff = Math.random();

java.getData().add(new XYChart.Data(i, javaValue));

javaValue = Math.max(javaValue + 2 * diff - 1, 0);

diff = Math.random();

c.getData().add(new XYChart.Data(i, cValue));

cValue = Math.max(cValue + 2 * diff - 1, 0);

diff = Math.random();

cpp.getData().add(new XYChart.Data(i, cppValue));

cppValue = Math.max(cppValue + 2 * diff - 1, 0);

}

answer.addAll(java, c, cpp);

return answer;

}

The xAxis ranges from 201670 to 20261, but of course we want to show the years at the axis. This can be

achieved by calling

xAxis.setTickLabelFormatter(new StringConverter<Number>() {

...

}

where the StringConverter we supply converts the numbers we use (e.g., 20210) to Strings (e.g., 2021)

and vice versa. Doing so, we are able to use whatever quantity we want for calculating the bubbles and still

have a nice way of formatting the labels. Running this example results in the chart shown in Figure6-16.

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

303

Until now, we didn’t leverage the three-argument constructor of XYChart.Data. Apart from the two-

argument constructor that we are already familiar with,

XYChart.Data (X xValue, Y yValue)

XYChart.Data also has a three-argument constructor:

XYChart.Data (X xValue, Y yValue, Object extraValue)

The extraValue argument can be of any type. This allows for developers to implement their own

subclasses of XYChart that take advantage of additional information that can be enclosed inside a single data

element. The BubbleChart implementation uses this extraValue for deciding how large the bubbles should

be rendered.

We now modify the getChartData() method to use the three-argument constructor. The xValue

and yValue parameters are still the same as in the previous listing, but we now add a third parameter that

indicates an upcoming trend. The larger this parameter is, the bigger the rise in the next year. The smaller

the parameter is, the bigger the drop in the next year. The modified getChartData() method is shown in

Listing 6-12.

Listing 6-12. Using a Three-Argument Constructor for XYChart.Data Instances

private ObservableList<XYChart.Series<Integer, Double>> getChartData() {

double javaValue = 15.57;

double cValue = 6.97;

double cppValue = 4.55;

ObservableList<XYChart.Series<Integer, Double>> answer = FXCollections.

observableArrayList();

Series<Integer, Double> java = new Series<>();

Figure 6-16. Using a BubbleChart with fixed radius

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

304

Series<Integer, Double> c = new Series<>();

Series<Integer, Double> cpp = new Series<>();

java.setName("java");

c.setName("C");

cpp.setName("C++");

for (int i = 20170; i < 20270; i = i+10) {

double diff = Math.random();

java.getData().add(new XYChart.Data(i, javaValue, 2*diff));

javaValue = Math.max(javaValue + 2*diff - 1,0);

diff = Math.random();

c.getData().add(new XYChart.Data(i, cValue,2* diff));

cValue = Math.max(cValue + 2*diff - 1,0);

diff = Math.random();

cpp.getData().add(new XYChart.Data(i, cppValue, 2*diff));

cppValue = Math.max(cppValue + 2*diff - 1,0);

}

answer.addAll(java, c, cpp);

return answer;

}

Integrating this method with the start() method in Listing 6-11 results in output like that shown in

Figure6-17.

Figure 6-17. Adding variations in the size of the Bubbles

CHAPTER 6 ■ CREATING CHARTS IN JAVAFX

305

Summary

The JavaFX Chart API provides a number of ready-to-use implementations for different chart types. Each

of these implementations serves a different purpose, and it is up to the developer to choose the most

appropriate Chart.

Modifying a Chart and tuning it for a specific application can be done by applying CSS rules or by using

Chart-specific methods or properties.

In case you need a more customized Chart, you can extend the abstract Chart class and take advantage

of the existing properties on that class, or you can extend the abstract XYChart class if your chart requires two

axes.

Resources

For more information on the JavaFX Chart API, consult the following resources:

• http://docs.oracle.com/javase/8/javafx/user-interface-tutorial/

charts.htm

• http://docs.oracle.com/javase/8/javafx/user-interface-tutorial/

css-styles.htm

307

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8_7

CHAPTER 7

Connecting to Enterprise Services

An expert is a man who has made all the mistakes which can be made, in a narrow field.

—Niels Bohr

Client applications can be very exciting, but more often than not they don’t live in an isolated environment.

A typical client application somehow exchanges data and functionality with other applications, with back-

end components and with cloud environments. This adds new requirements to the development of client

applications.

So far, we’ve explained how the JavaFX platform can be used both for rendering information and for

interactively manipulating data. In this chapter, we provide a brief overview of the options available for

integrating JavaFX applications with enterprise systems, and then continue with some specific examples of

that process.

Our examples are constructed to demonstrate how easily a JavaFX application can access a REST

resource and then translate the response (from either JSON or XML format) into a format understandable by

JavaFX controls. As our example external data source, the Stack Exchange APIs are ideal, as they are publicly

available, easy to understand, and widely used on the Internet.

Front-End and Back-End Platforms

JavaFX is often considered a front-end platform. Although that statement does not do justice to the APIs in

the JavaFX platform that are not related to a UI, it is true that most JavaFX applications focus on the rich and

interactive visualization of “content.”

One of the great things about Java is the fact that a single language can be used within a wide range

of devices, desktops, and servers. The same Java language that creates the core of JavaFX is also the

fundamental core of the Java Platform, Enterprise Edition (Java EE).

The Java platform is the number one development platform for enterprise applications. The

combination of the JavaFX platform providing a rich and interactive UI with enterprise applications running

on the Java platform creates huge possibilities. To achieve this, JavaFX applications and Java enterprise

applications must be exchanging data. Exchanging data can happen in a number of ways, and depending

on the requirements (from the front end as well as from the back end); one way might be more suited than

another.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

308

Basically, there are two different approaches:

• The JavaFX application can leverage the fact that it runs on the same infrastructure

as typical enterprise applications, and can deeply integrate with these enterprise

components. This is illustrated in Figure7-1.

• JavaFX applications live in a relatively simple Java platform, and exchange data

with enterprise servers using standard protocols that are already supported by Java

enterprise components. This is shown in Figure7-2.

Figure 7-1. JavaFX and enterprise components on a single system

Figure 7-2. JavaFX application communicates with enterprise components on a remote server

The first approach is mentioned and briefly touched on, but the focus of this chapter is on the second

approach, where the JavaFX client communicates with Java enterprise components on a remote server.

There is no such thing as the best approach, as it really depends on the environment and the use case.

A typical Java client application runs on hardware with fewer capabilities than today’s back-end server and

cloud environments, and in that case the first approach is not recommended. However, there are clearly

cases where resources (CPU, clustering, scalability) are widely available on client systems, and in that case

this approach can definitely be considered.

It should also be stressed here that as long as a standard, well-defined protocol (e.g., SOAP/REST) is

used, it is very possible to connect a JavaFX application to a non-Java back-end application. The decoupling

between client and server indeed allows for different programming languages to be used on the client and

on the server.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

309

Merging JavaFX and Java Enterprise Modules in the Same

Environment

JavaFX 9 is built on top of the Java Platform, Standard Edition. As a consequence, all functionality provided

by this platform can be leveraged in JavaFX 9. Two of the most popular Java Enterprise frameworks—the Java

Platform, Enterprise Edition and the Spring Framework—are also built on top of the Java Platform, Standard

Edition. As a consequence, JavaFX applications can live in the same environment as applications using the

Java Platform, Enterprise Edition, or applications built with the Spring Framework.

The JavaFX developer can thus use his or her favorite enterprise tools to create applications. There are

a number of advantages in doing so. Enterprise components offer tools that allow developers to focus on a

specific domain layer, while shielding them from, for example, database resources and transactions.

Java is a popular platform in the enterprise environment, and a number of enterprise components and

libraries have been developed by companies, organizations, and individuals.

The Java Platform, Enterprise Edition, is defined by specifications that are standardized via the Java

Community Process (JCP) program. For the different constituting parts, individual Java Specification

Requests (JSRs) are filed.

Most of these individual JSRs are implemented by a number of companies, and implementations are

often grouped into a product. Typical enterprise frameworks implement one or more JSRs, and they might

include additional product-specific functionality.

Among the most popular implementations of some or all of these specifications, we count Tomcat/

TomEE, Hibernate, JBoss/WildFly, GlassFish, Payara, WebLogic, and WebSphere. A number of products

implement all JSRs, and those products are then called implementations of the Java Platform, Enterprise

Edition, often referred to as Java EE platforms or application servers.

The other popular Java Enterprise Framework, the Spring Framework, contains implementations

for many of the JSRs that are defined in the Java Platform, Enterprise Edition, and it adds more specific

components and APIs.

Technically, there are no restrictions in the JavaFX platform that prevent Java enterprise components

from being used. It is very well possible to run a Java Enterprise Application Server on a client system, or to

execute Spring Framework applications on the same client system. The applications that leverage either the

Java Enterprise Application Servers or the Spring Framework can also contain JavaFX code.

However, enterprise development differs from client development in a number of ways:

• Enterprise infrastructure is shifting toward the cloud. Specific tasks (e.g., storage,

mail, etc.) are outsourced to components in a “cloud” that offer specific functionality.

Enterprise servers are often located in a cloud environment, allowing fast and

seamless interaction with cloud components.

• In terms of resource requirements, enterprise systems focus on computing resources

(CPU, cache, and memory) where desktop computers and laptops focus instead on

visual resources (e.g., graphical hardware acceleration).

• Startup time is hardly an issue in servers, but is critical in many desktop applications.

Also, servers are supposed to be up and running 24/7, which is not the case with

most clients.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

310

• Deployment and life cycle management are often specific to a server product or

a client product. Upgrading servers or server software is often a tedious process.

Downtime has to be minimized because client applications might have open

connections to the server. Deploying a client application can happen in a number of

ways, such as via stand-alone, self-contained applications or Java Network Launch

Protocol (JNLP).

• Enterprise development uses a number of patterns (e.g., Inversion of Control,

container-based initialization) that can be useful in client development, but that

often require a different architecture than traditional clients.

Using JavaFX to Call Remote (Web) Services

Enterprise components are often accessed via web resources. Some specifications clearly describe how

web-based frameworks should interact with enterprise components for rendering information. However,

there are other specifications that allow enterprise components (written in Java or in another language) to

be accessed from non-web resources as well. Because those specifications allow for a decoupling between

enterprise development and any other development, they have been defined by a number of stakeholders.

In 1998, Simple Object Access Protocol (SOAP) was invented by Microsoft and subsequently used as the

exchange format between Java applications and .NET applications. SOAP is based on XML, and the current

version 1.2 became a W3C recommendation in 2003. Java provides a number of tools that allow developers

to exchange data with SOAP.

Although powerful and relatively readable, SOAP is often considered to be rather verbose. With the

rise of mashups and simple services offering specific functionality, a new architectural style emerged: the

representational state transfer (REST). REST allows server and client developers to exchange data in a loosely

coupled and more streamlined way, where the protocol can be XML, JSON, Atom, or any other format.

In the next section, we will show a number of examples that are using REST APIs to establish a

communication between JavaFX client applications and server or cloud components. While this approach

will show how data is transmitted, it still requires some boiler plate code. Following this section, we will talk

about frameworks that make the connection to enterprise components even more transparent to the JavaFX

developer.

REST

Plenty of resources and documentation about REST and REST-based web services can be found on the

Internet. REST-based web services expose a number of URIs that can be accessed using the HTTP protocol.

Typically, different HTTP request methods (get, post, put, delete) are used to indicate different operations

on resources.

REST-based web services can be accessed using standard HTTP technologies, and the Java platform

comes with a number of APIs (mainly in java.io and java.net) that facilitate access to REST-based web

services.

One of the major advantages of JavaFX being written on top of the Java Platform, Standard Edition 9,

is the ability to use all of these APIs in JavaFX applications. This is what we do in the first examples in this

chapter. We show how we can use Java APIs for consuming REST-based web services and how we can

integrate the result in a JavaFX application.

Next, we show how to leverage the JavaFX APIs to avoid common pitfalls (e.g., unresponsive

applications, no dynamic update, etc.). Finally, we give a brief overview of third-party libraries that make it

easy for JavaFX developers to access REST-based web services.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

311

Setting up the Application

First of all, we create the framework for our samples. We will use the APIs provided by Stack Exchange. The

Stack Exchange network is a cluster of forums, each in a specific domain, where questions and answers

are combined in such a way that the “best” answers from the most trusted users bubble to the top. Java

developers are probably familiar with Stack Overflow, which was the first site in Stack Exchange and

provides an incredible number of questions and related answers for IT-related issues.

The REST APIs provided by Stack Exchange are very well described at https://api.stackexchange.

com. It is not our goal to explore all the possibilities offered by Stack Exchange and the corresponding APIs,

so the interested reader is referred to the documentation available on the web site.

In the samples in this chapter, we want to visualize the author of a question, the title of the question,

and the day the question was asked.

Initially, we represent a question by a Java object with getters and setters. This is shown in Listing 7-1.

Listing 7-1. Question Class

package projavafx;

public class Question {

private String owner;

private String question;

private long timestamp;

public Question () {

}

public Question (String o, String q, long t) {

this.owner = o;

this.question = q;

this.timestamp = t;

}

public String getOwner() {

return owner;

}

public void setOwner(String owner) {

this.owner = owner;

}

public String getQuestion() {

return question;

}

public void setQuestion(String question) {

this.question = question;

}

public long getTimestamp() {

return timestamp;

}

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

312

public void setTimestamp(long timestamp) {

this.timestamp = timestamp;

}

Our Question class has two constructors. The zero-arg constructor is needed in one of the following

examples and we come back to this later. The constructor that takes three arguments is used for convenience

in other examples.

In Listing 7-2, we show how to display questions. In this first example, the questions are not obtained

via the Stack Exchange API, but they are hard-coded in the example.

Listing 7-2. Framework for Rendering Questions in a ListView

package projavafx;

import javafx.application.Application;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.scene.Scene;

import javafx.scene.control.ListView;

import javafx.scene.layout.StackPane;

import javafx.stage.Stage;

public class StackOverflowApp1 extends Application {

public static void main(String[] args) {

launch(args);

}

@Override

public void start(Stage primaryStage) {

ListView<Question> listView = new ListView<>();

listView.setItems(getObservableList());

StackPane root = new StackPane();

root.getChildren().add(listView);

Scene scene = new Scene(root, 500, 300);

primaryStage.setTitle("StackOverflow List");

primaryStage.setScene(scene);

primaryStage.show();

}

ObservableList<Question> getObservableList() {

ObservableList<Question> answer = FXCollections.observableArrayList();

long now = System.currentTimeMillis();

long yesterday = now - 1000 * 60 * 60 * 24;

Question q1 = new Question("James", "How can I call a REST service?", now);

Question q2 = new Question("Stephen", "Does JavaFX work on Android?", yesterday);

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

313

answer.addAll(q1, q2);

return answer;

}

If you have read the previous chapters, this code does not contain anything new. We create a ListView,

add it to a StackPane, create a Scene, and render the Stage.

The ListView is populated with an ObservableList containing Questions. This ObservableList is

obtained by calling the getObservableList() method. In the following samples, we modify this method and

show how to retrieve Questions from the Stack Exchange API.

■Note The getObservableList returns an ObservableList. The ListView automatically observes

this ObservableList. As a consequence, changes in the ObservableList are immediately rendered in the

ListView control. In a later sample, we leverage this functionality.

Running this example results in the window shown in Figure7-3.

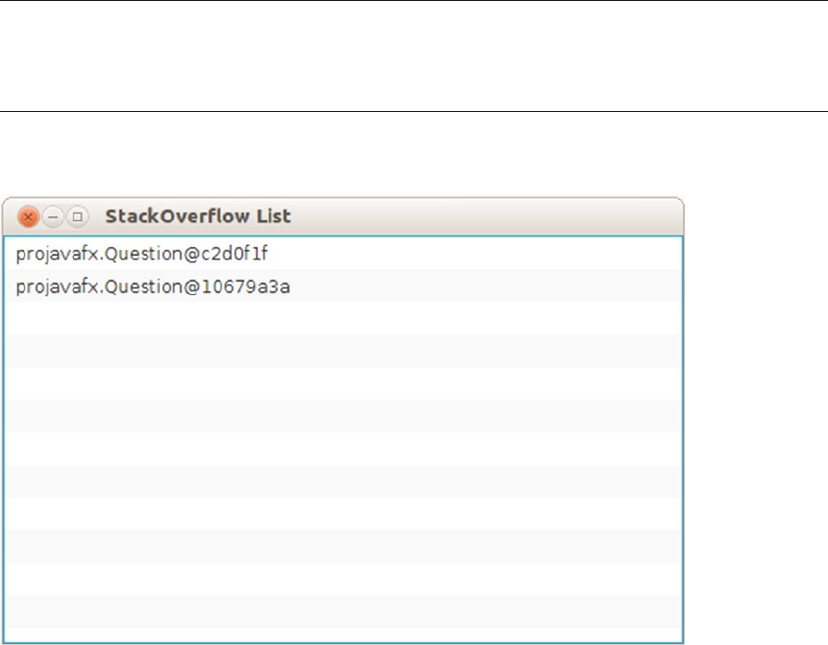

Figure 7-3. The result of the first example

The resulting window contains a ListView with two entries. Those entries correspond to the two

questions that are created in the getObservableList() method at the bottom of Listing 7-2.

The information about the questions that is shown in the window is not very useful. Indeed, we told

the ListView that it should display some instances of Question, but we did not tell how those should be

displayed. The latter can be achieved by specifying a CellFactory. In this chapter, our goal is not to create

a fancy UI; rather, we want to show how to retrieve data and render these data in the UI. Hence, we briefly

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

314

show how the developer can alter the visualization of data by using the CellFactory concept. For an

overview of the UI controls that we use in our examples (ListView and TableView), refer to Chapter 6.

In Listing 7-3, we create a QuestionCell class that extends ListCell and defines how to lay out a cell.

Listing 7-3. Define QuestionCell

package projavafx;

import java.text.SimpleDateFormat;

import java.util.Date;

import javafx.scene.control.ListCell;

public class QuestionCell extends ListCell<Question> {

static final SimpleDateFormat sdf = new SimpleDateFormat ("dd-MM-YY");

@Override

protected void updateItem(Question question, boolean empty){

super.updateItem(question, empty);

if (empty) {

setText("");

} else {

StringBuilder sb= new StringBuilder();

sb.append("[").append(sdf.format(new Date(question.getTimestamp()))).append("]")

.append(" ").append(question.getOwner()+": "+question.getQuestion());

setText(sb.toString());

}

When a cell item has to be updated, we tell it to show some text containing the timestamp between

square brackets, followed by the author and the title of the question. Next, the ListView needs to be told that

it should render QuestionCells. We do this by calling the ListView.setCellFactory() method and provide

a lambda expression that creates a new QuestionCell when called. In Listing 7-4, we show the modified

version of the start method of our StackOverflowApplication.

Listing 7-4. Use CellFactory on the ListView

public void start(Stage primaryStage) {

ListView<Question> listView = new ListView<>();

listView.setItems(getObservableList());

listView.setCellFactory(l -> new QuestionCell());

StackPane root = new StackPane();

root.getChildren().add(listView);

Scene scene = new Scene(root, 500, 300);

primaryStage.setTitle("StackOverflow List");

primaryStage.setScene(scene);

primaryStage.show();

}

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

315

If we now run the application, the output appears as in Figure7-4.

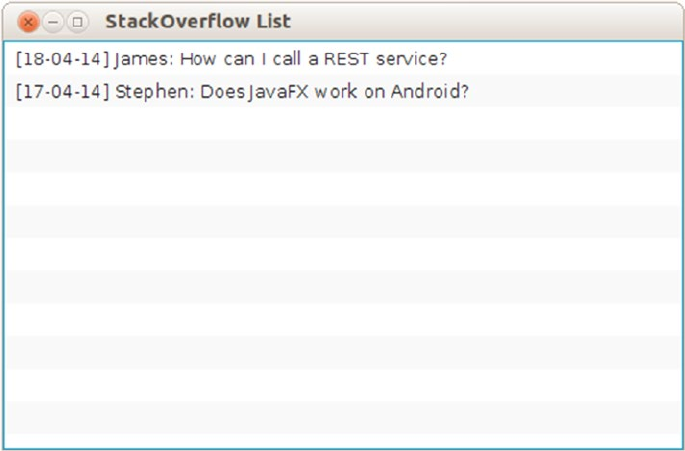

Figure 7-4. The result of adding a QuestionCell

For every question that is in the items of the ListView, the output is now what we expected it to be. We

can do a lot more with CellFactories (e.g., we can use graphics instead of just text), but that is beyond the

scope of this chapter.

We now replace the hard-coded questions with real information obtained via the Stack Exchange API.

Using the Stack Exchange API

The Stack Exchange network (http://stackexchange.com) allows third-party developers to browse and

access questions and answers using a REST-based interface. Stack Exchange maintains a number of REST-

based APIs, but for our examples we limit ourselves to the Stack Exchange Search API. More information on

this API is at http://api.stackexchange.com/docs.

The resource URL—the endpoint for the REST service—is very simple:

http://api.stackexchange.com/2.2/search

A number of query parameters can be supplied here. We will only use two parameters, and the

interested reader is referred to the Stack Exchange documentation for information about the other

parameters.

• site: Specify the domain you want to search, in our case this is "stackoverflow".

• tagged: A semicolon delimited list of tags. We want to search all questions tagged

with "javafx".

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

316

Combining both parameters leads to the following REST call:

http://api.stackexchange.com/2.2/search?tagged=javafx&site=stackoverflow

When executing this REST call in a browser, or using a command tool (e.g., cURL), the result is

something like the JSON-text in Listing 7-5.

Listing 7-5. JSON Response Obtained from the Stack Exchange Search API

{

"items": [

{

"tags": [

"java",

"sorting",

"javafx",

"tableview"

"owner": {

"reputation": 132,

"user_id": 578518,

"user_type": "registered",

"accept_rate": 84,

"profile_image": "https://www.gravatar.com/avatar/bdbee99c377a7063b24e09e7121fb1ab?

s=128&d=identicon&r=PG",

"display_name": "Rps",

"link": "http://stackoverflow.com/users/578518/rps"

"is_answered": false,

"view_count": 7,

"answer_count": 1,

"score": 0,

"last_activity_date": 1397845222,

"creation_date": 1397844823,

"last_edit_date": 1397845143,

"question_id": 23159737,

"link": "http://stackoverflow.com/questions/23159737/javafx-tableview-ordered-by-date",

"title": "javafx Tableview ordered by date"

...

,"has_more":true

,"quota_max":300,

"quota_remaining":290

}

The Stack Exchange API only provides JSON-based responses. A number of web services deliver

information in XML, and others provide both JSON and XML. Because we want to show how to process XML

responses as well, we create our own XML-based output for the Stack Exchange REST Service. Rather than

calling an external REST endpoint, this XML response will be obtained by reading a local file.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

317

Our self-defined XML response is shown in Listing 7-6.

Listing 7-6. Artificial XML Response Obtained from the Stack Exchange Search API

<?xml version="1.0" encoding="UTF-8"?>

<items>

<item>

<tags>

<tag>sorting</tag>

<tag>javafx</tag>

<tag>tableview</tag>

</tags>

<creation_date>1397844823</creation_date>

<title>javafx Tableview ordered by date</title>

<item>

</items>

Although the data in the JSON response contain the same information as the data in the XML response,

the format is, of course, very different. JSON and XML are both widely used on the Internet, and a large

number of web services offer responses in both formats.

Depending on the use case and the developer, one format might be preferred over the other. In general,

JavaFX applications should be able to work with both formats, because they have to connect with third-party

data, and the JavaFX developer cannot always influence the data format used by the back end.

■Note Many applications allow a number of formats, and by specifying the HTTP “Accept” Header, the client

can choose between the different formats.

In the next example, we show how to retrieve and parse the JSON response used in the Stack Exchange

Search API.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

318

JSON Response Format

JSON is a very popular format on the Internet, especially in web applications where incoming data are

parsed with JavaScript. JSON data are rather compact and more or less human readable.

A number of tools exist in Java for reading and writing JSON data. As of June 2013, when Java Enterprise

Edition 7 was released, there is a standard specification in Java that describes how to read and write JSON

data. This Java specification is defined as JSR 353, and more information can be obtained at www.jcp.org/

en/jsr/detail?id=353.

JSR 353 only defines a specification, and an implementation is still needed to do the

actual work. In our examples, we will use JSONP, which is the Reference Implementation of

JSR 353. This Reference Implementation can be found at https://jsonp.java.net/. Readers are

encouraged to try out their favorite implementation of JSR 353, though.

Although JSR 353 is a specification that is part of the Java Enterprise Edition umbrella, the reference

implementation also works in a Java Standard Edition environment. There are no external dependencies.

We now replace the hard-coded list containing two fake questions with real questions obtained via the

Stack Exchange REST API. We keep the existing code, but we modify the getObservableList() method as

shown in Listing 7-7.

Listing 7-7. Obtain Questions via the Stack Exchange REST API, JSON Format, and Parse the JSON

ObservableList<Question> getObservableList() throws IOException {

String url = "http://api.stackexchange.com/2.2/search?tagged=javafx&site=stackoverflow";

URL host = new URL(url);

JsonReader jr = Json.createReader(new GZIPInputStream(host.openConnection().

getInputStream()));

JsonObject jsonObject = jr.readObject();

JsonArray jsonArray = jsonObject.getJsonArray("items");

ObservableList<Question> answer = FXCollections.observableArrayList();

jsonArray.iterator().forEachRemaining((JsonValue e) -> {

JsonObject obj = (JsonObject) e;

JsonString name = obj.getJsonObject("owner").getJsonString("display_name");

JsonString quest = obj.getJsonString("title");

JsonNumber jsonNumber = obj.getJsonNumber("creation_date");

Question q = new Question(name.getString(), quest.getString(), jsonNumber.

longValue() * 1000);

answer.add(q);

});

return answer;

}

Before we dive into the code, we show the result of the modified application in Figure7-5.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

319

The code in Listing 7-7 can be divided into four parts:

1. Call the REST endpoint.

2. Obtain the raw JSON data.

3. Convert each item into a question.

4. Add the Questions to the result.

Calling the REST endpoint is very straightforward:

String url = "http://api.stackexchange.com/2.2/search?tagged=javafx&site=stackoverflow";

URL host = new URL(url);

JsonReader jr = Json.createReader(new GZIPInputStream(host.openConnection().

getInputStream()));

First, we create a URL object that refers to the desired location. Next, we open the connection to the

location. Because Stack Exchange is sending its data as zipped data, we open a GZIPInputStream using the

InputStream obtained from the connection. We pass this GZIPInputStream as the InputStream argument in

the Json.createReader() method.

We now have a JSON reader that consumes the data we want to have. Extracting Java objects from this

JSON reader manually requires specific code for a specific case.

■Note We could also have used a JSON parser instead of a JSON reader. It is not our intention to deliver an

exhaustive JSON parsing guide. We only try to show how JSON data can be converted into Java objects for our

specific use case. You can easily find a number of tutorials on JSON on the Internet.

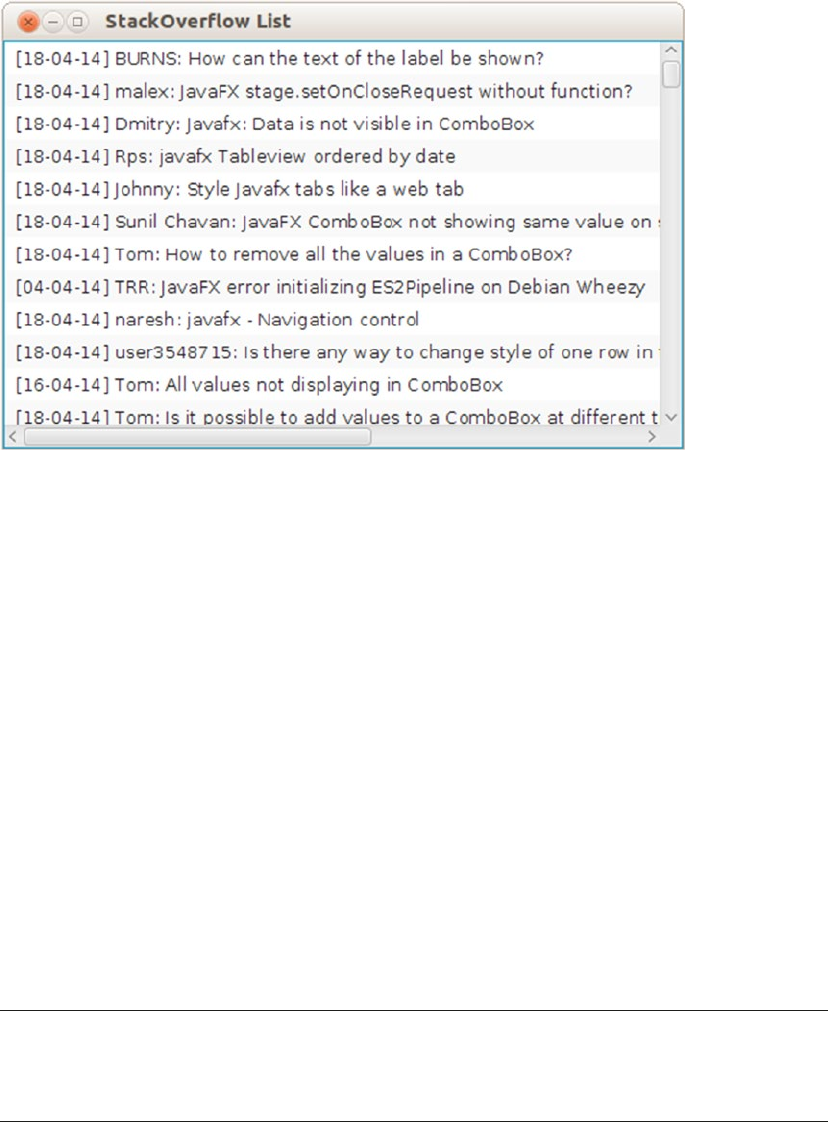

Figure 7-5. The result of the StackOverflowApplication retrieving JSON data

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

320

In Listing 7-5, we observe that the questions are in an array named items, starting with the left square

bracket ([). We can obtain this JSON array using the following statement:

JsonArray jsonArray = jsonObject.getJsonArray("items");

Next, we need to iterate over all these elements. For every item we encounter, we want to create a

Question instance.

Iterating over the array elements can be done using

jsonArray.iterator().forEachRemaining((JsonValue e) -> {

...

}

To create a Question instance, we need to obtain the name of the author, the title, and the creation date

of the question. The Java JSON API provides a standard way for doing this:

JsonObject obj = (JsonObject) e;

JsonString name = obj.getJsonObject("owner").getJsonString("display_name");

JsonString quest = obj.getJsonString("title");

JsonNumber jsonNumber = obj.getJsonNumber("creation_date");

Finally, we need to create a Question instance based on this information, and add it to the

ObservableList instance we will return:

Question q = new Question(name.getString(), quest.getString(), jsonNumber.longValue() *

1000);

answer.add(q);

This example shows that it is very easy to retrieve and read JSON data obtained from a REST endpoint,

and convert the result into a ListView. In the next section, we demonstrate a similar process for XML

responses.

XML Response Format

The XML format is widely used in the Java platform. As a consequence, standardization of XML-based

operations in Java happened years ago. There are a number of XML tools built into the Java Platform,

Standard Edition, and we can use these APIs and tools in JavaFX without any external dependency. In this

section, we first use a DOM processor for parsing the XML response that we artificially built. Next, we use the

JAXB standard to automatically obtain Java objects.

Changing our application from JSON input to XML input requires only the getObservableList method

to be changed. The new implementation is shown in Listing 7-8.

Listing 7-8. Obtaining Questions from the XML-Based Response

ObservableList<Question> getObservableList() throws IOException,

ParserConfigurationException, SAXException {

ObservableList<Question> answer = FXCollections.observableArrayList();

InputStream inputStream = this.getClass().getResourceAsStream("/stackoverflow.xml");

DocumentBuilderFactory dbf = DocumentBuilderFactory.newInstance();

DocumentBuilder db = dbf.newDocumentBuilder();

Document doc = db.parse(inputStream);

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

321

NodeList questionNodes = doc.getElementsByTagName("item");

int count = questionNodes.getLength();

for (int i = 0; i < count; i++) {

Question question = new Question();

Element questionNode = (Element) questionNodes.item(i);

NodeList childNodes = questionNode.getChildNodes();

int cnt2 = childNodes.getLength();

for (int j = 0; j < cnt2; j++) {

Node me = childNodes.item(j);

String nodeName = me.getNodeName();

if ("creation_date".equals(nodeName)) {

question.setTimestamp(Long.parseLong(me.getTextContent()));

}

if ("owner".equals(nodeName)) {

question.setOwner(me.getTextContent());

}

if ("title".equals(nodeName)) {

question.setQuestion(me.getTextContent());

}

answer.add(question);

}

return answer;

}

Again, the goal of this section is not to give a comprehensive overview of the DOM APIs. There are a

large number of resources available on the Internet that provide information about XML in general, or DOM

in particular.

To be able to compile the code in Listing 7-8, the following import statements had to be added.

import javax.xml.parsers.DocumentBuilder;

import javax.xml.parsers.DocumentBuilderFactory;

import javax.xml.parsers.ParserConfigurationException;

import org.w3c.dom.Document;

import org.w3c.dom.Node;

import org.w3c.dom.NodeList;

import org.xml.sax.SAXException;

Before we go into detail about the code, we show the output of this example in Figure7-6.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

322

The code in Listing 7-8 shows some similarities to the code in Listing 7-7. In both cases, we process data

available in a text format (JSON or XML) and convert the data into Question instances. In Listing 7-8, the

DOM approach is used to inspect the received response.

An org.w3c.dom.Document instance is obtained using the following code.

InputStream inputStream = this.getClass().getResourceAsStream("/stackoverflow.xml");

DocumentBuilderFactory dbf = DocumentBuilderFactory.newInstance();

DocumentBuilder db = dbf.newDocumentBuilder();

Document doc = db.parse(inputStream);

In this case, we create a Document based on an InputStream. The InputStream is obtained from the

artificially created file. We can also create an InputStream from a URLConnection, and pass this InputStream

to the db.parse() method. Even easier, the DocumentBuilder.parse method also accepts a String

parameter that contains the URL of a REST endpoint.

This shows that although we are using a static file containing questions in this case, we can easily use

the same code when using a real REST endpoint.

The resulting Document can now be queried. From the XML response shown in Listing 7-6, we learn that

the individual questions are enclosed in XML elements named “item”. We use the following to obtain a list of

those XML elements.

NodeList questionNodes = doc.getElementsByTagName("item");

We then iterate over this list, and obtain the question-specific fields by inspecting the childNodes in the

respective XML elements. Finally, we add the resulting question to the ObservableList of Question objects

named answer.

Figure 7-6. The result of the question application using XML response

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

323

This approach is rather simple, but we still have to do some manual XML parsing. Although this

allows for flexibility, parsing becomes harder and more error prone with increasing complexity of the data

structure.

Fortunately, the Java Standard Edition APIs contain tools for converting XML directly into Java objects.

The specification for these APIs is defined by the JAXB standard, and is available in the javax.xml.bind

package. The process of converting XML data into Java objects is called unmarshalling.

We now modify our example and make it use a mix of DOM parsing and JAXB unmarshalling. Again, we

only change the getObservableList() method. The modified implementation is shown in Listing 7-9.

Listing 7-9. Combining XML Parsing and JAXB

ObservableList<Question> getObservableList() throws IOException,

ParserConfigurationException, SAXException {

ObservableList<Question> answer = FXCollections.observableArrayList();

InputStream inputStream = this.getClass().getResourceAsStream("/stackoverflow.xml");

DocumentBuilderFactory dbf = DocumentBuilderFactory.newInstance();

DocumentBuilder db = dbf.newDocumentBuilder();

Document doc = db.parse(inputStream);

NodeList questionNodes = doc.getElementsByTagName("item");

int count = questionNodes.getLength();

for (int i = 0; i < count; i++) {

Element questionNode = (Element) questionNodes.item(i);

DOMSource source = new DOMSource(questionNode);

final Question question = (Question) JAXB.unmarshal(source, Question.class);

answer.add(question);

}

return answer;

}

The only difference between this approach and the approach used in Listing 7-8 is the parsing of

the individual questions. Instead of using DOM parsing for obtaining the specific fields of the individual

questions, we use the unmarshal method in JAXB. The JAXB specifications allow for lots of flexibility and

configuration, and the JAXB.unmarshal method is only a convenience method. However, in many cases, this

method is sufficient. The JAXB.unmarshal method takes two parameters: the input source and the class that

is the result of the conversion.

We want to convert the XML source into instances of our Question class, but how does the JAXB

framework know how to map the fields? In many cases, the mapping is straightforward and does not require

changes to existing code, but in other cases, the mapping is a bit more complex. Good enough, a whole

package with annotations exists that we can use to help JAXB determine the conversion between XML and

the Java object.

To make the code in Listing 7-9 work, we made some minor modifications to the Question class. The

new code for the Question class is shown in Listing 7-10.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

324

Listing 7-10. Question Class with JAXB Annotations

package projavafx;

import javax.xml.bind.annotation.XmlAccessType;

import javax.xml.bind.annotation.XmlAccessorType;

import javax.xml.bind.annotation.XmlElement;

@XmlAccessorType(XmlAccessType.FIELD)

public class Question {

private String owner;

@XmlElement(name = "title")

private String question;

@XmlElement(name = "creation_date")

private long timestamp;

public Question(String o, String q, long t) {

this.owner = o;

this.question = q;

this.timestamp = t;

}

public Question() {

}

/**

* @return the owner

public String getOwner() {

return owner;

}

/**

* @param owner the owner to set

public void setOwner(String owner) {

this.owner = owner;

}

/**

* @return the question

public String getQuestion() {

return question;

}

/**

* @param question the question to set

public void setQuestion(String question) {

this.question = question;

}

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

325

/**

* @return the timestamp

public long getTimestamp() {

return timestamp;

}

/**

* @param timestamp the timestamp to set

public void setTimestamp(long timestamp) {

this.timestamp = timestamp;

}

We added three annotations to the original Question class. First, we annotated the class itself with

@XmlAccessorType(XmlAccessType.FIELD)

This annotation tells the JAXB framework to map XML data on the fields of this class, as opposed to on

the JavaBean properties (getter/setter methods) of this class. The second and third annotations are added to

the question field and the timeStamp field:

@XmlElement(name = "title")

private String question;

@XmlElement(name = "creation_date")

private long timestamp;

This indicates that the question field corresponds to an XML element named “title” and that the

timestamp field corresponds to an XML element named "creation_date". Indeed, if we look at Listing 7-6,

it shows that the question is in an element with the name “title” and that the timestamp is in an element with

the name "creation_date". We have to instruct the JAXB runtime to map this element with our timestamp

field, and this is what we do with the @XmlElement annotation.

Using the JAXB annotations made it easy to convert the XML question elements into individual

Question instances, but we still had some manual XML processing in our main class. However, we can

completely remove the manual XMLParsing and convert the whole XML response into a Java object. Doing

so, the getObservableList() method becomes very simple, as shown in Listing 7-11.

Listing 7-11. Parsing Incoming XML Data Using JAXB

ObservableList<Question> getObservableList() {

InputStream inputStream = this.getClass().getResourceAsStream("/stackoverflow.xml");

QuestionResponse response = JAXB.unmarshal(inputStream, QuestionResponse.class);

return FXCollections.observableArrayList(response.getItem());

}

In this example, we use JAXB to convert the XML response into an instance of QuestionResponse, and

the questions are then obtained via this QuestionResponse instance. Note that we convert the questions

from a regular List object into an ObservableList object, as required by the method signature. We later

show an example where we don’t have to do that additional conversion.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

326

The QuestionResponse class has two goals: map the XML response onto a Java object and make the

question items available as a List of Question instances. This is achieved by the code in Listing 7-12.

Listing 7-12. QuestionResponse Class, Enabling Conversion Between XML Response and Java Objects

package projavafx;

import java.util.List;

import javax.xml.bind.annotation.XmlAccessType;

import javax.xml.bind.annotation.XmlAccessorType;

import javax.xml.bind.annotation.XmlRootElement;

@XmlRootElement(name="items")

@XmlAccessorType(XmlAccessType.FIELD)

public class QuestionResponse {

private List<Question> questions;

public List<Question> getQuestions() {

return questions;

}

public void setQuestions(List<Question> questions) {

this.questions = questions;

}

The QuestionResponse class itself has two annotations. We’ve already discussed the following:

@XmlAccessorType(XmlAccessType.FIELD)

This annotation indicates that this class corresponds to a root object in the XML structure, with the

name "items".

@XmlRootElement(name="items")

This indeed corresponds to the syntax of the XML response we created in Listing 7-6.

The previous examples show how existing technologies available in the Java 2 Platform, Standard

Edition, can be used to obtain data from web services and inject these data in JavaFX controls. We now

modify the example code to take advantage of some specific features of the JavaFX platform.

Asynchronous Processing

A major problem with the examples so far is that they block the UI during the process of data retrieval

and parsing. In many real-world situations, this is unacceptable. Calls to external web services might take

longer than expected due to network or server issues. Even when the external calls are fast, a temporarily

unresponsive UI decreases the overall quality of the application.

Fortunately, the JavaFX platform allows for concurrency and asynchronous tasks. The concepts of

Task, Worker, and Service were discussed in Chapter 7. In this section, we show how to leverage the javafx.

concurrent package when accessing web services. We also leverage the fact that the ListView watches the

ObservableList that contains its items.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

327

The basic idea is that, when creating the ListView, we immediately return an empty ObservableList,

while retrieving the data in a background thread. Once we retrieve and parse the data, we add it to the

ObservableList and the result will immediately be visible in the ListView.

The main class for this example is shown in Listing 7-13. We started with the code in Listing 7-7, where

we obtained the questions in JSON format using a REST request to the Stack Exchange API. With some

minor modifications, we could use the XML response as well, though.

Listing 7-13. Use a Background Thread for Retrieving Question ListView

package projavafx;

import java.io.IOException;

import javafx.application.Application;

import static javafx.application.Application.launch;

import javafx.beans.InvalidationListener;

import javafx.beans.Observable;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.concurrent.Service;

import javafx.concurrent.Worker;

import javafx.scene.Scene;

import javafx.scene.control.ListView;

import javafx.scene.layout.StackPane;

import javafx.stage.Stage;

public class StackOverflow4 extends Application {

@Override

public void start(Stage primaryStage) throws IOException {

ListView<Question> listView = new ListView<>();

listView.setItems(getObservableList());

listView.setCellFactory(l -> new QuestionCell());

StackPane root = new StackPane();

root.getChildren().add(listView);

Scene scene = new Scene(root, 500, 300);

primaryStage.setTitle("StackOverflow List");

primaryStage.setScene(scene);

primaryStage.show();

System.out.println (« Done with the setup ») ;

}

ObservableList<Question> getObservableList() throws IOException {

String url = "http://api.stackexchange.com/2.2/search?order=desc&sort=activity&

tagged=javafx&site=stackoverflow";

Service<ObservableList<Question>> service = new QuestionRetrievalService(url);

ObservableList<Question> answer = FXCollections.observableArrayList();

service.stateProperty().addListener(new InvalidationListener() {

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

328

@Override

public void invalidated(Observable observable) {

System.out.println("value is now "+service.getState());

if (service.getState().equals(Worker.State.SUCCEEDED)) {

answer.addAll(service.getValue());

}

});

System.out.println("START SERVICE = "+service.getTitle());

service.start();

return answer;

}

/**

* @param args the command line arguments

public static void main(String[] args) {

launch(args);

}

The main method is not different from the previous example, apart from the addition of a System.out

log message that will print a message when we are done with the setup.

The getObservableList method will first create an instance of ObservableList, and this instance is

returned on method completion. Initially, this instance will be an empty list. In this method, an instance of

QuestionRetrievalService is created and the location of the REST endpoint is passed in the constructor.

The QuestionRetrievalService, which extends javafx.concurrent.Service, is started, and we listen

for changes in the State of the Service. When the state of the Service changes to State.SUCCEEDED, we

add the retrieved questions to the ObservableList. Note that on every state change in the instance of the

QuestionRetrievalService, we log a message to System.out.

We now take a closer look at the QuestionRetrievalService to understand how it starts a new thread,

and how it makes sure that the retrieved questions are added to the ListView control using the JavaFX

thread. The code of the QuestionRetrievalService is shown in Listing 7-14.

Listing 7-14. QuestionRetrievalService

package projavafx;

import java.net.URL;

import java.util.zip.GZIPInputStream;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.concurrent.Service;

import javafx.concurrent.Task;

import javax.json.Json;

import javax.json.JsonArray;

import javax.json.JsonNumber;

import javax.json.JsonObject;

import javax.json.JsonReader;

import javax.json.JsonString;

import javax.json.JsonValue;

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

329

public class QuestionRetrievalService extends Service<ObservableList<Question>> {

private String loc;

public QuestionRetrievalService(String loc) {

this.loc = loc;

}

@Override

protected Task<ObservableList<Question>> createTask() {

return new Task<ObservableList<Question>>() {

@Override

protected ObservableList<Question> call() throws Exception {

URL host = new URL(loc);

JsonReader jr = Json.createReader(new GZIPInputStream(host.openConnection().

getInputStream()));

JsonObject jsonObject = jr.readObject();

JsonArray jsonArray = jsonObject.getJsonArray("items");

ObservableList<Question> answer = FXCollections.observableArrayList();

jsonArray.iterator().forEachRemaining((JsonValue e) -> {

JsonObject obj = (JsonObject) e;

JsonString name = obj.getJsonObject("owner").getJsonString("display_

name");

JsonString quest = obj.getJsonString("title");

JsonNumber jsonNumber = obj.getJsonNumber("creation_date");

Question q = new Question(name.getString(), quest.getString(),

jsonNumber.longValue() * 1000);

System.out.println("Adding question "+q);

answer.add(q);

});

return answer;

}

};

}

The QuestionRetrievalService extends Service and thus has to implement a createTask method.

When the Service is started, this task is executed in a separate thread. The createTask method on the

QuestionRetrievalService creates a new Task and returns it. The signature of this method,

Task<ObservableList<Question>> createTask(),

ensures that the Task creates an ObservableList of questions. The generic type parameter ObservableList

<Question> is the same as the type parameter in the declaration of the Service. As a consequence, the

getValue() method of the Service will also return an ObservableList of Questions.

Indeed, the following code snippet states that the questionRetrievalService.getValue() should

return an ObservableList<Question>.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

330

ObservableList<Question> answer = FXCollections.observableArrayList();

...

if (now == State.SUCCEEDED) {

answer.addAll(service.getValue());

}

The Task instance that we created in the QuestionRetrievalService has to implement the call method.

This method is actually doing what the getObservableList method in the previous examples was doing:

retrieving the data and parsing them.

Although the real work in a Service (the Task created by createTask) is done in a background thread,

all methods on the Service, including the getValue() call, should be accessed from the JavaFX thread. The

internal implementation makes sure that all changes to the available properties in the Service are executed

on the JavaFX Application Thread.

Running the example gives the exact same visual output as running the previous example. However, we

added some System.out messages for clarity. If we run the example, the following messages can be seen on

the console.

State of service is READY

State of service is SCHEDULED

Done with the setup

State of service is RUNNING

Adding question projavafx.Question@482fb3d5

...

Adding question projavafx.Question@2d622bf7

State of service is SUCCEEDED

This shows that the getObservableList method returns before the questions are obtained and added

to the list.

■Note In theory, you could notice a different behavior inasmuch as the background thread might be

completed before the other initialization has been done. In practice, however, this behavior is unlikely when

network calls are involved.

Converting Web Services Data to TableView

So far, all our examples showed questions in a ListView. The ListView is an easy and powerful JavaFX

control, however, there are other controls that are in some cases more suitable to render information.

We can show the Question data in a TableView as well, and that is what we do in this section. The

retrieval and parsing of the data stay the same as in the previous example. However, we now use a TableView

to render the data, and we have to define which columns we want to see. For each column, we have to

specify the origination of the data. The code in Listing 7-15 shows the start method used in the example.

Listing 7-15. The Start Method in the Application Rendering Questions in a TableView

@Override

public void start(Stage primaryStage) throws IOException {

TableView<Question> tableView = new TableView<>();

tableView.setItems(getObservableList());

TableColumn<Question, String> dateColumn = new TableColumn<>("Date");

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

331

TableColumn<Question, String> ownerColumn = new TableColumn<>("Owner");

TableColumn<Question, String> questionColumn = new TableColumn<>("Question");

dateColumn.setCellValueFactory((CellDataFeatures<Question, String> cdf) -> {

Question q = cdf.getValue();

return new SimpleStringProperty(getTimeStampString(q.getTimestamp()));

});

ownerColumn.setCellValueFactory((CellDataFeatures<Question, String> cdf) -> {

Question q = cdf.getValue();

return new SimpleStringProperty(q.getOwner());

});

questionColumn.setCellValueFactory((CellDataFeatures<Question, String> cdf) -> {

Question q = cdf.getValue();

return new SimpleStringProperty(q.getQuestion());

});

questionColumn.setPrefWidth(350);

tableView.getColumns().addAll(dateColumn, ownerColumn, questionColumn);

StackPane root = new StackPane();

root.getChildren().add(tableView);

Scene scene = new Scene(root, 500, 300);

primaryStage.setTitle("StackOverflow Table");

primaryStage.setScene(scene);

primaryStage.show();

}

Clearly, this example requires more code than the example showing a ListView. Setting up a table is

slightly more complex, due to the different columns that are involved. There is not much difference between

setting the contents of the ListView and setting the contents of the TableView. This is achieved doing

tableView.setItems(getObservableList());

where the getObservableList() method is the same implementation as in the previous example. Note

that we could also use the convenient constructor

TableView<Question> tableView = new TableView<>(getObservableList());

When using a TableView, we have to define a number of TableColumns. This is done in the following

code snippet.

TableColumn<Question, String> dateColumn = new TableColumn<>("Date");

TableColumn<Question, String> ownerColumn = new TableColumn<>("Owner");

TableColumn<Question, String> questionColumn = new TableColumn<>("Question");

Using the TableColumn constructor, we create one TableColumn with title “Date,” one with title “Owner,”

and a third one titled “Question.” The Generics <Question, String> indicate that each entry in a row

represents a Question, and the individual cells in the specified column are of type String.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

332

Next, the instances of TableColumn that we created need to know what data they should render. This is

done using CellFactories, as shown in the following snippet.

dateColumn.setCellValueFactory((CellDataFeatures<Question, String> cdf) -> {

Question q = cdf.getValue();

return new SimpleStringProperty(getTimeStampString(q.getTimestamp()));

});

A detailed description of the setCellValueFactory method is beyond the scope of this chapter. The

reader is encouraged to have a look at the Javadoc of the TableView and TableColumn classes while working

with tables. The Javadoc explains that we have to specify a Callback class with a call method that returns an

ObservableValue containing the content of the specific cell. Fortunately, we can use a lambda expression for

this.

The question we are displaying in this row can be obtained via the CellDataFeatures instance that

is passed as the single parameter in this lambda expression. Because we want to show the timestamp, we

return a SimpleStringProperty whose content is set to the timestamp of the specified Question.

The same technique has to be used for the other TableColumns (containing the owner and the question

contained within the applicable Question object).

Finally, we have to add the columns to the TableView:

tableView.getColumns().addAll(dateColumn, ownerColumn, questionColumn);

Running this example results in the visual output shown in Figure7-7.

Figure 7-7. Using a TableView for rendering questions

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

333

This sample requires lots of boilerplate code for a simple table, but fortunately the JavaFX platform

contains a way to reduce the amount of code. Manually setting the CellValueFactory instances for each

column is cumbersome, but we can use another method for doing this, by using JavaFX properties.

Listing 7-16 contains a modified version of the start method of the main class, where we leverage the

JavaFX properties concept.

Listing 7-16. Rendering Data in Columns Based on JavaFX Properties

@Override

public void start(Stage primaryStage) throws IOException {

TableView<Question> tableView = new TableView<>();

tableView.setItems(getObservableList());

TableColumn<Question, String> dateColumn = new TableColumn<>("Date");

TableColumn<Question, String> ownerColumn = new TableColumn<>("Owner");

TableColumn<Question, String> questionColumn = new TableColumn<>("Question");

dateColumn.setCellValueFactory(new PropertyValueFactory<>("timestampString"));

ownerColumn.setCellValueFactory(new PropertyValueFactory<>("owner"));

questionColumn.setCellValueFactory(new PropertyValueFactory<>("question"));

questionColumn.setPrefWidth(350);

tableView.getColumns().addAll(dateColumn, ownerColumn, questionColumn);

StackPane root = new StackPane();

root.getChildren().add(tableView);

Scene scene = new Scene(root, 500, 300);

primaryStage.setTitle("StackOverflow Table");

primaryStage.setScene(scene);

primaryStage.show();

}

This code is clearly shorter than the code in the previous sample. We actually replaced

dateColumn.setCellValueFactory((CellDataFeatures<Question, String> cdf) -> {

Question q = cdf.getValue();

return new SimpleStringProperty(getTimeStampString(q.getTimestamp()));

});

dateColumn.setCellValueFactory(new PropertyValueFactory<>("timestampString"));

The same holds for the ownerColumn and the questionColumn.

We are using instances of javafx.scene.control.cell.PropertyValueFactory<S,T>(String name)

for defining what specific data should be rendered in which cell.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

334

The PropertyValueFactory searches for a JavaFX property with the specified name and returns the

ObservableValue of this property when called. In case no property with such a name can be found, the

Javadoc says the following:

In this example, the "firstName" string is used as a reference to an assumed

firstNameProperty() method in the Person class type (which is the class type of the TableView

items list). Additionally, this method must return a Property instance. If a method meeting

these requirements is found, then the TableCell is populated with this ObservableValue.

In addition, the TableView will automatically add an observer to the returned value, such

that any changes fired will be observed by the TableView, resulting in the cell immediately

updating.

If no method matching this pattern exists, there is fall-through support for attempting

to call get<property>() or is<property>() (that is, getFirstName() or isFirstName() in the

preceding example). If a method matching this pattern exists, the value returned from this

method is wrapped in a ReadOnlyObjectWrapper and returned to the TableCell. However, in

this situation, this means that the TableCell will not be able to observe the ObservableValue

for changes (as is the case in the first approach).

From this, it is clear that JavaFX properties are the preferred way for rendering information in a

TableView. So far, we used the POJO Question class with JavaBean getter and setter methods as the value

object for being displayed in both a ListView and a TableView.

Although the preceding example also works without using JavaFX properties, as stated by the Javadoc,

we now modify the Question class to use a JavaFX property for the owner information. The timeStamp and

the text fields could have been modified to use JavaFX properties as well, but the mixed example shows that

the fall-through scenario described in the Javadoc really works. The modified Question class is shown in

Listing 7-17.

Listing 7-17. Implementation of Question Class Using JavaFX Properties for the Author Field

package projavafx;

import java.text.SimpleDateFormat;

import java.util.Date;

import javafx.beans.property.SimpleStringProperty;

import javafx.beans.property.StringProperty;

import javax.xml.bind.annotation.XmlAccessType;

import javax.xml.bind.annotation.XmlAccessorType;

@XmlAccessorType(XmlAccessType.PROPERTY)

public class Question {

static final SimpleDateFormat sdf = new SimpleDateFormat ("dd-MM-YY");

private StringProperty ownerProperty = new SimpleStringProperty();

private String question;

private long timestamp;

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

335

public Question (String o, String q, long t) {

this.ownerProperty.set(o);

this.question = q;

this.timestamp = t;

}

public String getOwner() {

return ownerProperty.get();

}

public void setOwner(String owner) {

this.ownerProperty.set(owner);

}

public String getQuestion() {

return question;

}

public void setQuestion(String question) {

this.question = question;

}

public long getTimestamp() {

return timestamp;

}

public void setTimestamp(long timestamp) {

this.timestamp = timestamp;

}

public String getTimestampString() {

return sdf.format(new Date(timestamp));

}

There are a few things to note about this implementation. The ownerProperty follows the standard

JavaFX convention, as explained in Chapter 3.

Apart from the introduction of JavaFX properties, there is another major change in the implementation

of the Question class. The class is now annotated with

@XmlAccessorType(XmlAccessType.PROPERTY)

The reason for this is that when doing so, the setter methods will be called by the JAXB.unmarshal

method when it creates an instance of the Question with some specific information. Now that we are using

JavaFX properties instead of primitive types, this is required. The JAXB framework could easily assign

the value of the XML element “owner” to the owner String field, but it cannot assign a value to a JavaFX

Property object by default.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

336

By using XmlAccessType.PROPERTY, the setOwner(String v) method will be called by the JAXB

framework, supplying the value of the XML element to the setOwner method. The implementation of this

method

ownerProperty.set(owner);

will then update the JavaFX property that is subsequently being used by the TableColumn and the TableView.

The other important change in the Question implementation is that we added a method

String getTimestampString()

This method will return the timestamp in a human-readable format. You might have noticed in

Listing 7-16 that we set the CellValueFactory for the dateColumn to a PropertyValueFactory that points to

"timestampString" rather than "timeStamp":

dateColumn.setCellValueFactory(new PropertyValueFactory<>("timestampString"));

The reason for this is that the getTimestamp() method returns a long, whereas we prefer to visualize

the timestamp in a more readable format. By adding a getTimestampString() method and pointing the

CellValueFactory to this method, the content of the cells in this column will be readable time indications.

The examples we have shown so far in this chapter demonstrate that the Java Platform, Standard

Edition, already contains a number of APIs that are very useful when accessing web services. We also

showed how to use the JavaFX Concurrent Framework, the ObservableList pattern, JavaFX properties, and

the PropertyValueFactory class to enhance the flow between calling the web service and rendering the data

in the JavaFX controls.

Although there is no rocket science involved in the examples, additional requirements will make things

more complex, and more boilerplate code will be required. Fortunately, a number of initiatives have already

popped up in the JavaFX community, with the goal of making our lives easier.

Using External Libraries

All our examples so far did not require any additional external library. The Java Platform, Standard Edition,

and the JavaFX platform offer a great environment that can be used for accessing web services. In this

section, we use two external libraries and show how they make accessing web services easier.

Gluon Connect

The previous editions of this book mentioned DataFX as an external library that provides a JavaFX API for

connecting to remove endpoints. The development of the DataFX data services has since merged into the

development of Gluon Connect.

Gluon Connect is an open-source, BSD licensed framework, managed by Gluon. The Gluon Connect

product is described at http://gluonhq.com/products/mobile/connect and the code is available at

Bitbucket (https://bitucket.org/gluon-oss/gluon-connect).

According to Bitbucket: “Gluon Connect is a client-side library that simplifies binding your data

from any source and format to your JavaFX UI controls. It works by retrieving data from a data source and

converting that data from a specific format into JavaFX observable lists and observable objects that can be

used directly in JavaFX UI controls. It is designed to allow developers to easily add support for custom data

sources and data formats.”

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

337

A major advantage of Gluon Connect is that it is also supported on mobile platforms. We will talk about

JavaFX on mobile in the next chapter.

In the next example, we integrate Gluon Connect with our Stack Exchange example. Once again, the only

change is in the getObservableList method, but for clarity, we show the whole main class in Listing 7-18.

Listing 7-18. Obtaining Questions Using Gluon Connect

import java.io.IOException;

import javafx.application.Application;

import static javafx.application.Application.launch;

import javafx.collections.ObservableList;

import javafx.concurrent.Worker;

import javafx.scene.Scene;

import javafx.scene.control.ListView;

import javafx.scene.layout.StackPane;

import javafx.stage.Stage;

import org.datafx.provider.ListDataProvider;

import org.datafx.provider.ListDataProviderBuilder;

import org.datafx.io.RestSource;

import org.datafx.io.RestSourceBuilder;

import org.datafx.io.converter.InputStreamConverter;

import org.datafx.io.converter.JsonConverter;

public class StackOverflowGluonConnect extends Application {

@Override

public void start(Stage primaryStage) throws IOException {

ListView<Question> listView = new ListView<>();

listView.setItems(getObservableList());

listView.setCellFactory(l -> new QuestionCell());

StackPane root = new StackPane();

root.getChildren().add(listView);

Scene scene = new Scene(root, 500, 300);

primaryStage.setTitle("StackOverflow List");

primaryStage.setScene(scene);

primaryStage.show();

System.out.println ("Done with the setup");

}

ObservableList<Question> getObservableList() throws IOException {

InputStreamConverter converter = new JsonConverter("item", Question.class);

RestSource restSource = RestSourceBuilder.create()

.converter(converter)

.host("http://api.stackexchange.com")

.path("2.2").path("search")

.queryParam("order", "desc")

.queryParam("sort", "activity")

.queryParam("tagged", "javafx")

.queryParam("site", "stackoverflow").build();

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

338

ListDataProvider<Question> ldp = ListDataProviderBuilder.create()

.dataReader(restSource)

.build();

Worker<ObservableList<Question>> retrieve = ldp.retrieve();

return retrieve.getValue();

}

public static void main(String[] args) {

launch(args);

}

The relevant part, the implementation of the getObservableList method, is very simple.

We first create a RestClient, using the builder pattern. We supply information on the REST endpoint,

by adding the request method, the hostname, and the path. Query parameters are supplied by calling the

queryParam() method for each query parameter that needs to be used in the query.

Next, we call a convenience method on the DataProvider and ask it to retrieve the list that belongs to the

RestClient we just created. We supply the target class for the different entities we expect in this list. Doing so,

the DataProvider will try to map the incoming data to the target we specified. Gluon Connect will recognize

JSON and XML-formatted data, and it can handle zipped InputStreams.

The latter is required in the Stack Overflow samples, as the Stack Overflow endpoint returns its data

in a compressed format. It would require lots of boilerplate code to do a manual check to see if data is

compressed or not.

The result of the call to DataProvider.retrieveList is an instance of GluonObservableList, a class

that extends the standard JavaFX ObservableList. The GluonObservableList adds a few properties to the

ObservableList that make it more suited in the particular area of remote data retrieval. For example, there

is a state property that can have one of the following values:

• READY

• RUNNING

• FAILED

• SUCCEEDED

• REMOVED

In case the retrieval of data fails, the state property is set to FAILED. Another property, the exception

property, will then contain the wrapped exception that indicates why the data retrieval has failed.

Calling the DataProvider.retrieveList method starts an asynchronous Service. Instead of waiting for

the result, we can immediately return the result object to our visual controls. The Gluon Connect framework

will update the result object while it reads and parses incoming data. For large chunks of data, this is very

useful, because this approach allows developers to render parts of the data while other parts are still coming

in or are still being processed.

Gluon Connect is an Open-Source framework, licensed under the business-friendly BSD license, so

you are free to use it in both open-source as well as proprietary (commercial) software. It already contains a

number of enhancements that remove boilerplate code, and that make it more suitable for client-to-server

communication.

With Gluon Connect, you can easily retrieve data from a variety of sources, including files and REST

endpoints.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

339

Gluon also provides a commercial extension to this. Gluon CloudLink, which can be found at https://

gluonhq.com/products/cloudlink, allows developers to synchronize both data and functionality between

JavaFX client applications and a number of cloud providers and backend services. The Data Service

component in Gluon CloudLink allows for real-time, bidirectional synchronization of content. Doing so, a

Java Enterprise developer can modify a Java class in some backend code, and the result will be immediately

visible in a UI component on the JavaFX client.

Gluon Connect contains support for Gluon CloudLink, and the APIs that you used in the previous

example can be reused in case the data comes via Gluon CloudLink.

JAX-RS

The release of Java Enterprise Edition 7 includes the release of JAX-RS 2.0. This specification not only defines

how Java developers can provide REST endpoints, but also how Java code can consume REST endpoints.

In the next example, we modify the QuestionRetrievalService of Listing 7-14 to use the JAX-RS API.

This is shown in Listing 7-19.

Listing 7-19. Using JAX-RS for Retrieving Questions

package projavafx.jerseystackoverflow;

import javafx.collections.FXCollections;

import javafx.collections.ObservableList;

import javafx.concurrent.Service;

import javafx.concurrent.Task;

import javax.ws.rs.client.Client;

import javax.ws.rs.client.ClientBuilder;

import javax.ws.rs.client.WebTarget;

import javax.ws.rs.core.MediaType;

public class QuestionRetrievalService extends Service<ObservableList<Question>> {

private String loc;

private String path;

private String search;

public QuestionRetrievalService(String loc, String path, String search) {

this.loc = loc;

this.path = path;

this.search = search;

}

@Override

protected Task<ObservableList<Question>> createTask() {

return new Task<ObservableList<Question>>() {

@Override

protected ObservableList<Question> call() throws Exception {

Client client = ClientBuilder.newClient();

WebTarget target = client.target(loc).path(path).queryParam("tagged",

search).queryParam("site", "stackoverflow");

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

340

QuestionResponse response = target.request(MediaType.APPLICATION_JSON).

get(QuestionResponse.class);

return FXCollections.observableArrayList(response.getItem());

}

};

}

To show one of the nice tools of JAX-RS, we slightly modified the constructor of the

QuestionRetrievalService to take three parameters:

public QuestionRetrievalService(String host, String path, String search);

This is because JAX-RS allows us to use the Builder pattern to construct REST resources, allowing a

distinction among hostname, path, query parameters, and others.

As a consequence, we have to make a slight modification in Listing 7-13:

String url = "http://api.stackexchange.com/2.2/search?order=desc&sort=activity&tagged=javafx

&site=stackoverflow";

Service<ObservableList<Question>> service = new QuestionRetrievalService(url);

is replaced by

String url = "http://api.stackexchange.com/";

String path = "2.2/search";

String search = "javafx";

Service<ObservableList<Question>> service = new QuestionRetrievalService(url, path, search);

The hostname, path, and search parameter are used to create a JAX-RS WebTarget:

Client client = ClientBuilder.newClient();

WebTarget target = client.target(loc).path(path).queryParam("tagged", search)

.queryParam("site", "stackoverflow");

On this WebResource, we can call the request method to execute the request, followed by the

get(Class clazz) method, and supply a class parameter. The result of the REST call will then be parsed

into an instance of the supplied class, which is also what we did using JAXB in our example in Listing 7-11.

QuestionResponse response = target.request(MediaType.APPLICATION_JSON).get(QuestionResponse.

class);

The response now contains a list of questions, and we can use the exact same code as in Listing 7-4 to

render the questions.

CHAPTER 7 ■ CONNECTING TO ENTERPRISE SERVICES

341

Summary

In this chapter, we explained briefly two options for integrating JavaFX applications and enterprise

applications. We demonstrated a number of techniques for retrieving data available via web services, and

also showed how to render the data in typical JavaFX controls such as ListView and TableView.

We used a third-party tool that facilitates the process of retrieving, parsing, and rendering data. We

demonstrated some JavaFX-specific issues related to remote web services (i.e., updating the UI should

happen on the JavaFX application thread).

It is important to realize that the decoupling between JavaFX client applications and web services

allows for a large degree of freedom. There are different tools and techniques for dealing with web services,

and developers are encouraged to use their favorite tools in their JavaFX application.

343

J. Vos et al., Pro JavaFX 9, https://doi.org/10.1007/978-1-4842-3042-8

A

Animating nodes

Metronome1 program (see Metronome1

program)

transition classes

javafx.animation package, 64–65

MetronomeTransition

program, 65–68

TranslateTransition classes

controlling and monitoring, 68

ellipse, 71

layoutX property, 68

MetronomePathTransition, 69–70

PathTransition class, 71

AreaChart, 299

Audio Conguration

“More Cowbell” program

behavior of, 21

building and running, 20

colors and gradients, 25

graphical node, 24

InvalidationListeners, 27–28

Lambda Expressions, 28

model class, 26

source code les, 22, 24

slider node, 25

B

BarChart, 295, 297

Binding interface, 92–93

Bindings utility class

area of triangle, 98–100

equals() method, 101

overloaded add() methods, 98

relational operators, 100–101

selection operators, 101

BubbleChart, 300–303

Builder class, 11

C, D

Cascading style sheets (CSS)

changeOfScene.css, 55–56

JavaFX SDK API Javadoc, 6

nodes styling, 54–56

OneScene program, 47–48

values, 55

Concurrency framework

JavaFX Application read, 224

JavaFX-Launcher read, 224

launch() methods, 224

QuantumRenderer-0 thread, 224

ScheduledService<V> abstract

class, 250–251

Service<V> abstract class

createTask() method, 241, 246

executor, 241

restart() method, 242

ServiceExample program, 247–249

Worker.State.CANCELLED state, 242

Worker.State.RUNNING state, 247

Worker.State.SCHEDULED state, 241

Task<V> abstract class

AtomicBoolean, 240

call() method, 238

cancel() methods, 232

FutureTask<V> class, 231

InterruptedException, 240

Model nested class, 237

protected methods, 232

RuntimeException, 240

task creation, 233

updateProgress() call method, 232

View nested class, 237

thread identication, 218–224

unresponsive UIs

java.util.concurrent, 229

long-running event handler, 224–225, 228

Platform class, 229

Index

■ INDEX

344

ResponsiveUIExample.java, 229

read.sleep(Long.MAX_VALUE), 228

Worker interface

exception, 231

message, 230

progress, 231

title, 230

totalWork, 230

running, 230

value, 231

workDone, 230

Worker.State, 231

E

Eagerly instantiated properties strategy

i, str, and color, 113, 115–116

model–view–controller, 113, 115–116

Enterprise services

front-end and back-end platforms, 307–308

Java enterprise components, 309–310

JavaFX developer, 309

JSR, 309

REST (see Representational state

transfer (REST))

Event handler methods, 134

Expression binding, 157

F

Fluent interface API

BooleanProperty and BooleanBinding, 102

DoubleProperty and DoubleBinding, 105–106

FloatProperty and FloatBinding, 105

Heron’s formula, 110–112

if/then/else expressions, 109–110

IntegerProperty and IntegerBinding, 103–104

LongProperty and LongBinding, 104–105

ObjectProperty and ObjectBinding, 107

otherwise() methods, 109

StringProperty and StringBinding, 106–107

triangle area, 107–108

FXML les

controller class, 135

create UI, 130–131

creating custom component, 168–172

default properties, 156, 157

denition, 33

discount eld, 154

event handler methods, 134

features, 149

fx:controller attribute, 133

fx:id attribute, 134

fx:include element, 161

fx:root element, 168

fx:script element, 173–174

@FXML annotation, 137

FXMLLoader class

controller class and main class, 142–145

expression binding, 157

@FXML annotation, 146–148

getter and setter methods, 141

LoaderException, 145

load() methods, 142

ResolutionAndBindingExample, 157–160

resource resolution, 157, 160

setController(), 146

StageCoachMain class, 138–139

transparent command-line argument, Stage

Coach program, 140

variable resolution, 157

Initializable interface, 140

inventory eld, 155

JavaFX Scene Builder, 129

price eld, 154

ProdId, 169

products eld, 155

prots eld, 155

sizes eld, 154

StageCoachController class, 137

static properties, 156

utility class, 153

G

getChartData() method, 281

Gluon, 129

H

Hello Earthrise

clipping graphical areas, 16

code, 9

command-line, 8–9

graphical nodes, 14–15

image displaying, 13

NetBeans, 16–20

scene class, 13

text animation, 16

text displaying, 13–14

Heron’s formula, 110–112

I

Integrated development environment (IDE), 4, 129

Concurrency framework (cont.)

■ INDEX

345

J

Java 9, 3–4

JavaBeans properties, 122, 124

JavaFX

API chart structure, 277–278

applications, 12

AreaChart, 299

BarChart

dierences, 296

getChartData() method, 295

bindings utility class (see Bindings utility class)

BubbleChart

xed radius, 303

integrating method, 304

XYChart.Data Instances, 303

Builder class, 11

concurrency framework (see Concurrency

framework)

uent interface API (see Fluent interface API)

Group class, 29

intProperty, 87

JavaFX Beans (see JavaFX Beans)

key interfaces and concepts (see Key interfaces

and concepts)

LineChart

ScatterChart, 295

start() method, 294

Node class, 29

observable collections (see ObservableList)

open source, 5

Oracle’s ocial JavaFX web site, 6

PieChart, 279–286

property adapters

adaptBoundProperty() method, 126

adaptConstrainedProperty() method, 126

adaptJavaBeanProperty() method, 126

JavaBeanStringPropertyBuilder, 124

Person class into JavaBeanStringProperty

objects, 124–126

ScenicView, 6

Screen class, 29

screenshot, 2

script language, 2, 84

SimpleIntegerProperty class, 84

StackedAreaChart, 300

StackedBarChart, 297–298

stage and scene, 12–13, 29

swing applications (see Swing applications)

XYChart (see XYChart)

JavaFX 2.0 features, 3

JavaFX 8, 3–4

JavaFX 8 API, 30

JavaFX Beans

eagerly instantiated properties strategy, 117

getter and setter methods, 113

lazily instantiated properties

strategy, 117–119

selection operators, 121

word property, 113

JavaFX Scene Builder

Arrange menu, 181

Content panel, 187–188

CSS Analyzer, 179

Document panel, 185–187

Edit menu, 177–178

File menu, 176–177

Insert menu, 180

Inspector panel, 188–190

Library panel, 182, 184–185

Modify menu, 180

Preview menu, 181–182

templates, 177

View menu, 178

Java network launch protocol (JNLP), 310

Java Specication Requests (JSRs), 309

Java Virtual Machine (JVM), 3, 7

JAXB.unmarshal method, 323

K

Key interfaces and concepts

Binding interface, 93

Observable interface, 88–89

Property interface, 90–92

ReadOnlyProperty, 90

SimpleBooleanProperty, 97

type-specic specializations, 97

WritableValue interface, 90

L

Lazily instantiated properties strategy

full-lazy strategy, 118–119

half-lazy strategy, 117–118

LineChart, 294–295

M

Metronome1 program

behavior, 60

code for, 60–61

screenshot, 59

Timeline class

key frames insertion, 63

pause() method, 64

properties, 62–63

resume button, 64

Start() method, 64

stop button, 64

More Cowbell program, see Audio Conguration

“More Cowbell” program

■ INDEX

346

N

NetBeans, 16–20

O

Observable interface, 88–89

ObservableList

addListener() calls, 197

factory and utility methods, 213

java.util.List interface, 195

key interfaces, 194

ListChangeListener

FXCollections.observableArrayList()

method, 198

getAddedSize() method, 199

getAddedSublist() method, 199

getFrom() method, 199

getPermutation(int i) method, 199

getRemoved() method, 199

getRemovedSize() method, 199

next() and reset() methods, 198

ObservableList, 195–196

onChange() callback method, 198

removeAll() call method, 202

setAll() method, 201

sort() utility method, 201

ObservableArray interface

addAll() methods, 211

clear() method, 210

copyTo() methods, 211

ensureCapacity() method, 210

key interfaces, 210

onChange() method, 212

resize() method, 210

set() methods, 211

toArray() methods, 211

ObservableMap interface

key interfaces, 203

MapChangeListener interface, 203–204

ObservableSet interface

key interfaces, 207

SetChangeListener interface, 207, 208

remove() method, 197

UML diagram, 194

OneScene program

behavior, 47–48

CSS le, 47–48

OneSceneMain.java, 48

screenshots, 46

P, Q

PieChart

abstract Chart class, 282

clockwise conguration, 285

CSS to style, 285

fx-pie-label-visible property, 286

getChartData() method, 281

layout instructions, 284

modied chart,output, 283

modied version, 282

rendering,TIOBE index, 280–281

start() method, 284

stylesheet, 284

TIOBE index screenshot, 279

Property interface, 90–92

R

ReadOnlyProperty interface, 90

Representational state transfer (REST)

asynchronous processing

ListView, 327

QuestionRetrievalService, 328

DataFX, 338

getObservableList() method, 313

hard-coded questions, 315

HTTP protocol, 310

JAX-RS, 339–340

ListView, 313, 314

QuestionCells, 314

Question class, 311

rendering questions, 312

StackExchange API

Json.createReader() method, 319

JSON response, 316, 318

RSS response, 317

StackOverowApplication retrieving JSON

data, 319

TableView

boilerplate code, 333

CellFactories, 332

rstNameProperty() method, 334

getTimestampString() method, 336

JavaFX properties, 333–335

ownerProperty, 335

POJO Question class, 334

PropertyValueFactory, 334

setCellValueFactory method, 332

SimpleStringProperty, 332

start method, 330–331

TableColumn constructor, 331

XmlAccessType.PROPERTY, 336

XML format

DOM approach, 322

getObservableList() method, 323

import statements, 321

JavaBean properties, 325

JAXB annotations, 324–325

manual XML parsing, 325

QuestionResponse class, 326

■ INDEX

347

timeStamp eld, 325

unmarshalling, 323

XML-based response, 320

XML parsing and JAXB, 323

zero-arg constructor, 312

S

Scene settings, root property, 13

Scenic View, 6

Selection operators

Lighting objects, 120–121

signatures, 119

Self-contained application, 7

Simple object access protocol (SOAP), 310

Software Development Kit (SDK), 3–4

StackedAreaChart, 300

StackedBarChart, 297–298

StageCoach program

behavior, 36–39

StageCoachMain.java, 39

Swing Event Dispatching read (EDT), 251

Swing applications

ActionListeners, 255

display.asyncExec(), 258

EventQueue.invokeLater(), 251, 267–268

FXCanvas code, 262

javafx.embed.swing package, 267

javafx.embed.swt package, 258

JavaFX hybrid program, 255–256, 258

JavaFX Rectangle, 258, 262

javax.swing.JComponent, 251

Swing JComponent, 273

JFXPanel class, 251

Label widget, 262

Model class, 269

org.eclipse.swt.widgets.Canvas, 258

paint()and getPreferredSize()methods, 253

Platform.runLater(), 251, 258

ResponsiveUIExample program, 251–253

Swing code, 254–255

Swing component, 269–272

SWT JavaFX hybrid program, 263–266

SWT port, 258–261

SWT Shell, JavaFX rectangle, 266

T

Triangle area, uent interface API, 107–108

U, V

User interfaces (UIs)

animating nodes

Metronome1 program (see Metronome1

program)

techniques, 58

transition classes, 64–65

TranslateTransition classes, 68–69

event handling

GestureEvent class, 58

KeyEvent class, 57

MouseEvent class, 57

TouchEvent class, 58

node-centric

javafx.scene.Node class, 34

onMousePressed, 34

program vs. declarative, 33

scene making

cursor setting, 52

javafx.scene.paint, 52

nodes, 52

OneSceneprogram (see OneScene

program)

scene class property, 53

scene’s content sequence, 54

text node, 53

stage setting

bounds stage, 43

close() method, 46

desktop, 44

draw round rectangles, 44

focused property, 45

fullScreen property, 43

layout containers, 45

program arguments, 42–43

resizable property, 43

stage class, 34–35

StageCoach program, 35–39

style setting, 43

text node, 53

VBox layout class, 45

Z-Order, 45–46

ZenPonggame (see ZenPong game)

W

WritableValue interface, 90

X, Y

XYChart

abstract class, 287

behavior,xAxis, 291

CategoryAxis, 292, 294

getChartData method, 291

implementations, 287

implementations of

ScatterChart, 289

NumberAxis, 292–293

properties, 287

ScatterChart, 288

start() method, 290

■ INDEX

348

title and named symbols, 292

xAxis constructor, 291

Z

ZenPong game

behavior, 72

checkForCollision() method, 78

initial state, 72

intersects()

method, 79

keyboard input focus, 80–81

keyFrame action

event handler, 78

nodes dragging, 79–80

ZenPongMain.java, 73

Z-order, 45–46

XYChart (cont.)
