K 360 M K360M PLUS 1.141 136.0

User Manual: K 360 M

Open the PDF directly: View PDF PDF.
Page Count: 11

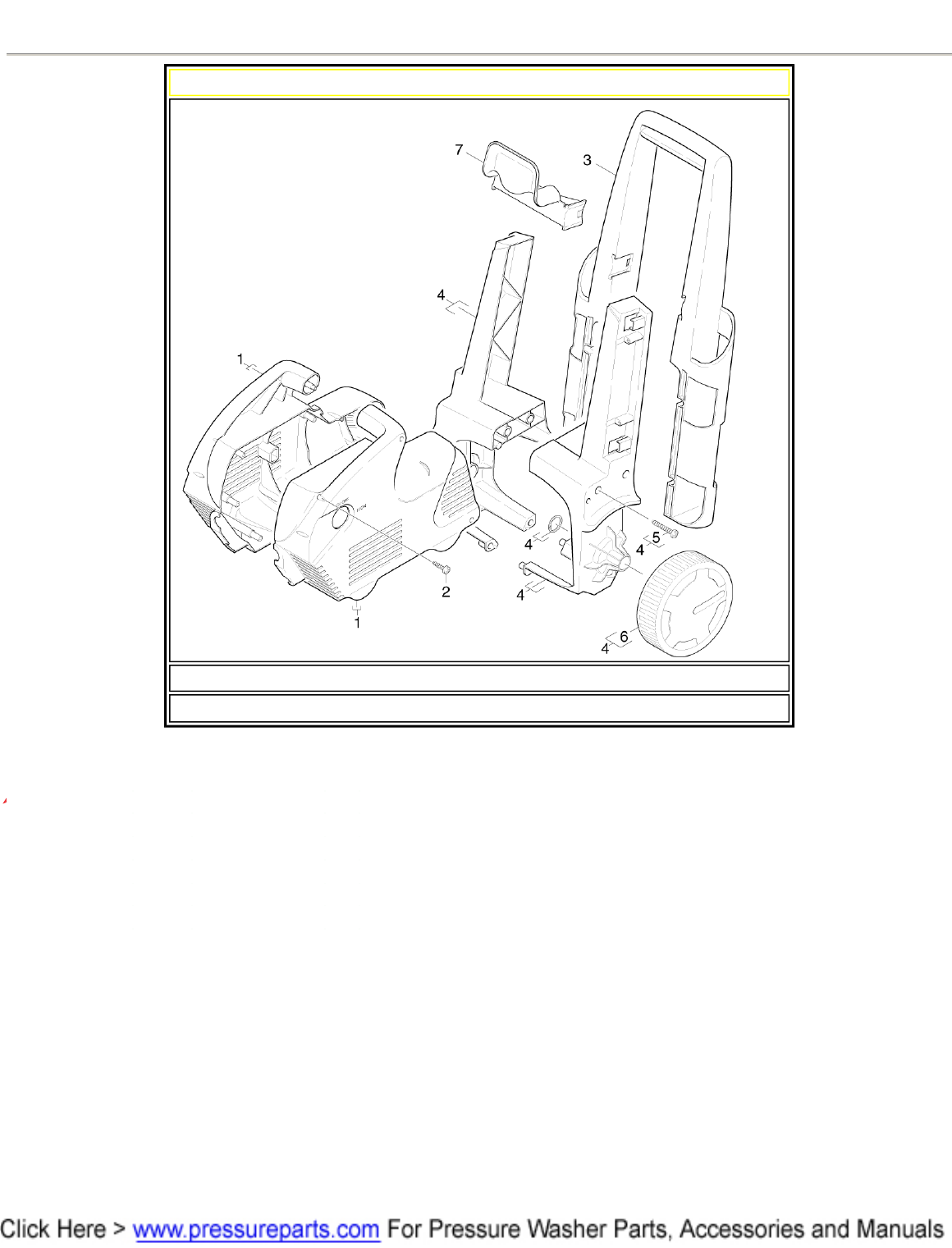

Karcher Model:K 360M ( 59586880 ) - Parts Section:1.0 PIECE PARTS
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
1
90365930
1
HOUSING
2
63031500
8
SCREW
3
53215300
1
HANDLE
4
90011570
1
TRANSPORT FRAME
5
69033950
8
SCREW
6
90362730
2
WHEEL
7
50440690
1
BRACKET
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 1 of 11
Karcher Model:K 360M ( 59586880 ) - Parts Section:2.1 CYLINDER HEAD
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call:
-
800
-
999
-
2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
1
57316090
1
FILTER
2
63882160
1
HOSE
TO ORDER AS CUT GOODS
3
90011030
1
SPARE PARTS SET
4
90011040
1
SPARE PARTS SET
5
73115690
1
SQUARE NUT
6
90814180
1
FORM SEAL
7
90363220
3
SUPPORTING DISK
8
63628750
3
GROOVED RING
9
90011100
1
MOULDED PART
SET CONSISTS OF 3X MACHINED PA
10
90011050
1
CYLINDER HEAD SET
11
90011490
1
VALVE SET
SET CONSITSTS OF 3X VALVE
12
90011060
1
JOINING PIECE
13
90420180
1
PRESSURE CAP
14
73060420
4
CHEESE HEAD SCREW
15
90470260
1
SPRING
16
90011070
1
CAGE
17
90011080
1
INJECTOR
18
90011880
1
SPARE PARTS SET
USA VERSION 1
18
90011870
1
SPARE PARTS SET
CDN VERSION 2
19
63898700
1
CONNECTION
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 2 of 11
CDN
20
63897160
1
HOSE COUPLING
3/4" HOSE
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 3 of 11

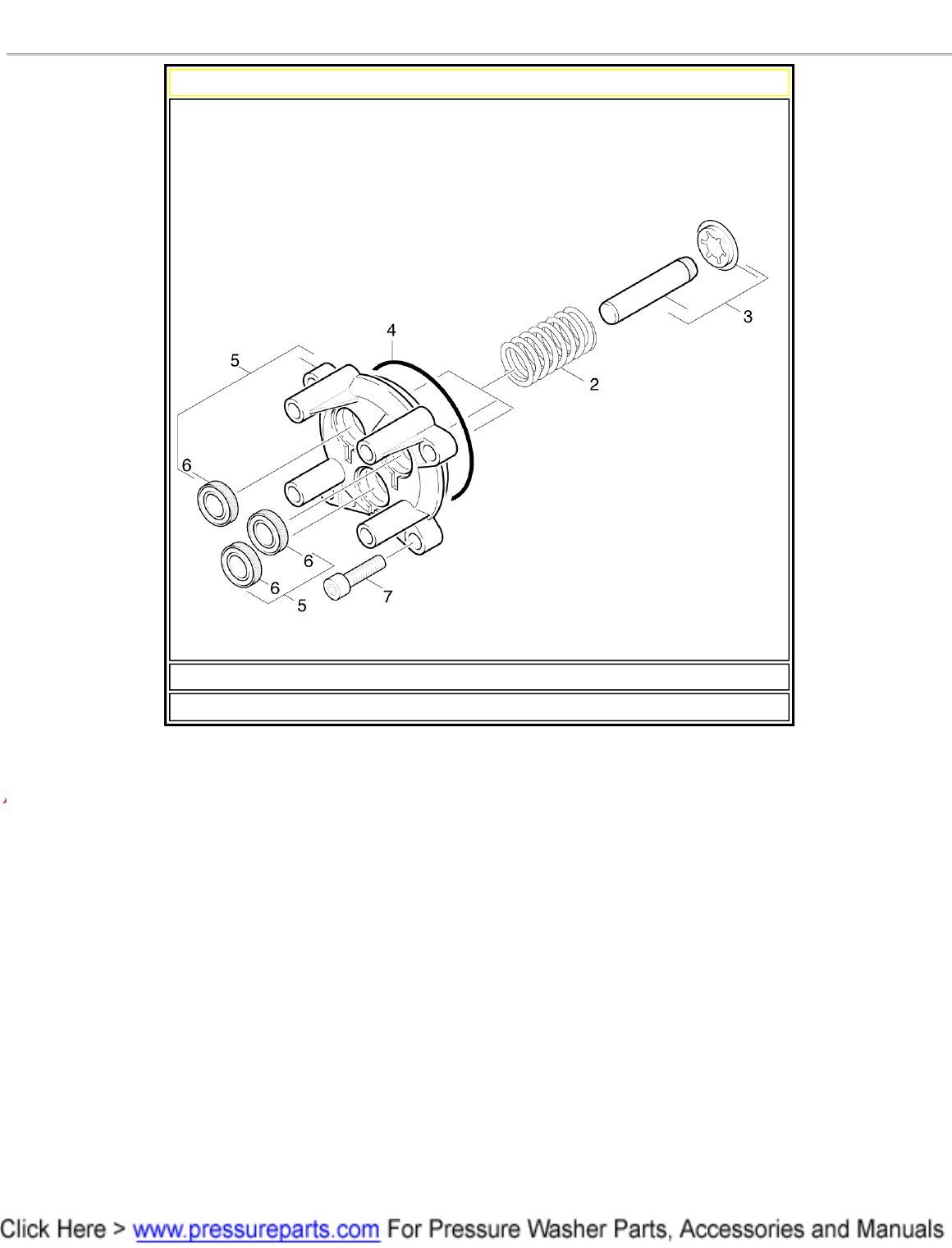

Karcher Model:K 360M ( 59586880 ) - Parts Section:2.2 THRUST GUIDANCE
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
2
90470230
3
SPRING
3
90011020
1
PISTON
SET CONSISTS OF 3X PISTON COMP
4
90813730
1
GASKET
5
90011010
1
THRUST GUIDANCE
6
69640260
1
GROOVED RING
7
73060420
4
CHEESE HEAD SCREW
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 4 of 11

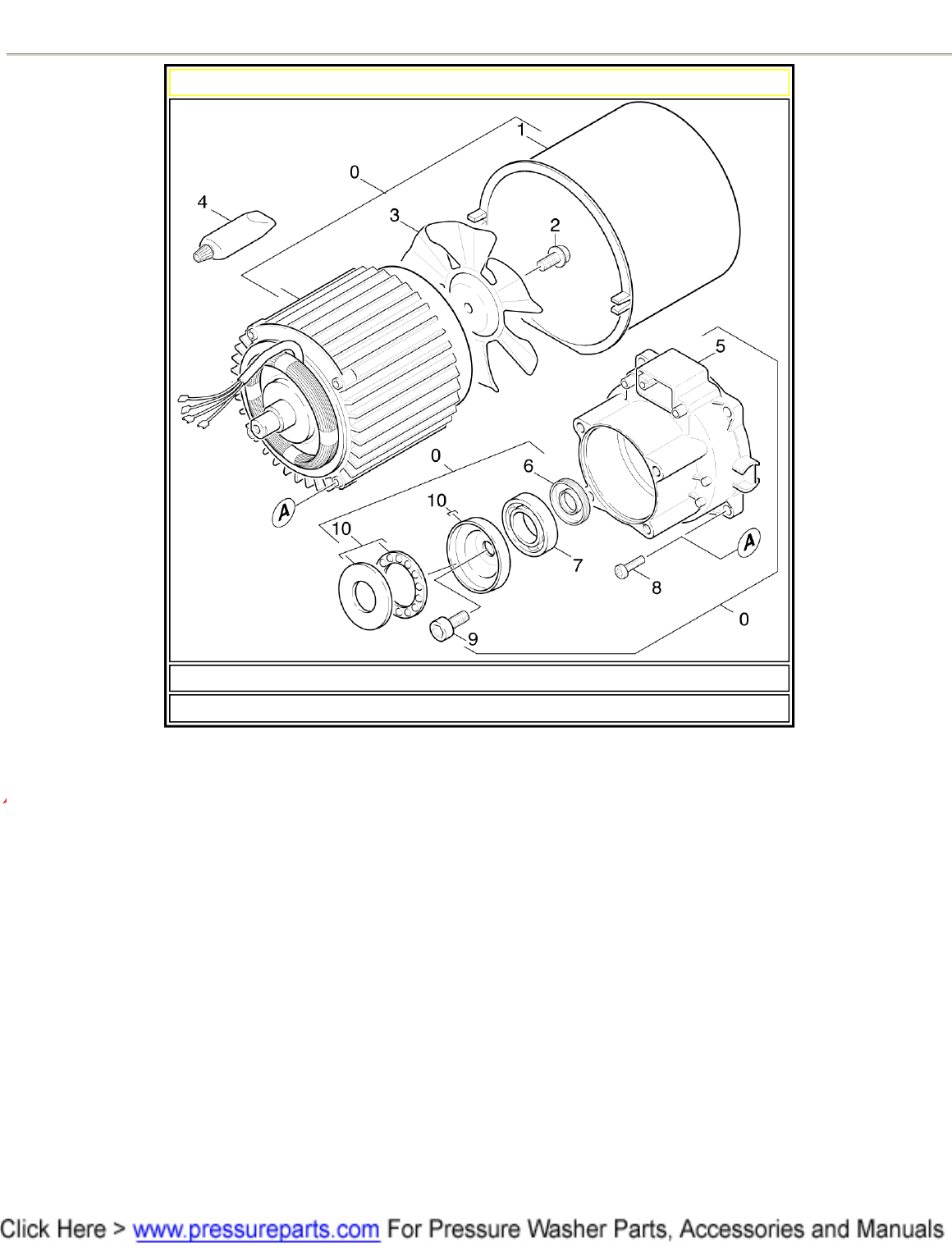

Karcher Model:K 360M ( 59586880 ) - Parts Section:3.1 MOTOR
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
0
90011540
1
MOTOR
1
69640900
1
FAN HOUSING
2
90861700
1
HEXAGONAL HEAD SCREW
3
90391020
1
BLOWER WHEEL
4
69640920
1
FAT
5
69640960
1
END PLATE
6
90780040
1
ROTARY SHAFT SEAL
7
74011220
1
BALL BEARING
8
90861530
4
OVAL HEAD SCREW
9
90861690
1
SCREW
10
90390910
1
SWASH PLATE
11
90363870
1
BUSH
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 5 of 11
Karcher Model:K 360M ( 59586880 ) - Parts Section:3.2 MOTOR
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
0
90011590
1
MOTOR
1
69640900
1
FAN HOUSING
2
90861700
1
HEXAGONAL HEAD SCREW
3
90391020
1
BLOWER WHEEL
4
69640920
1
FAT
5
69640960
1
END PLATE
6
90780040
1
ROTARY SHAFT SEAL
7
74011360
1
BALL BEARING
8
90861530
4
OVAL HEAD SCREW
9
90861690
1
SCREW
10
90390980
1
SWASH PLATE
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 6 of 11
Karcher Model:K 360M ( 59586880 ) - Parts Section:4.1 TRIGGER GUN
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
0
47753910
1
PISTOL
VERSION 1
1
90364520
1
HOUSING
2
69640440
1
MOULDED PART
3
90114020
1
BUSH
4
69640020
1
SPRING
6
69640470
1
MOULDED PART
7
69640480
1
LEVER
8
63031220
6
OVAL HEAD SCREW
9
28802960
1
SPARE PARTS KIT
In Kit ->63629570
GASKET
10
90820500
1
HIGH PRESSURE HOSE
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 7 of 11
Karcher Model:K 360M ( 59586880 ) - Parts Section:4.2 TRIGGER GUN
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
0
47753890
1
PISTOL-M
1
50371370
1
CLAMP
2
53324640
1
PRESSURE SPRING
3
28802960
1
SPARE PARTS KIT
In Kit ->63629570
GASKET
4
63904990
1
HD-M-HOSE 7,5/14 MPA
5
63631980
1
GASKET
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 8 of 11
Karcher Model:K 360M ( 59586880 ) - Parts Section:4.3 JET PIPE
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
3
26405890
1
BRUSH
4
28831110
2
SPARE PARTS KIT
In Kit ->63621820
GASKET
In Kit ->54110760
DRAIN PLUG
5
90113830
1
JET PIPE
6
47639860
1
ROTARY NOZZLE
9
90364020
1
HANDLES
10
90364030
1
PIPE
11
63031220
6
OVAL HEAD SCREW
12
63625340
1
GASKET
13
47622380
1
NOZZLE CAP
14
90114190
1
JET PIPE
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 9 of 11

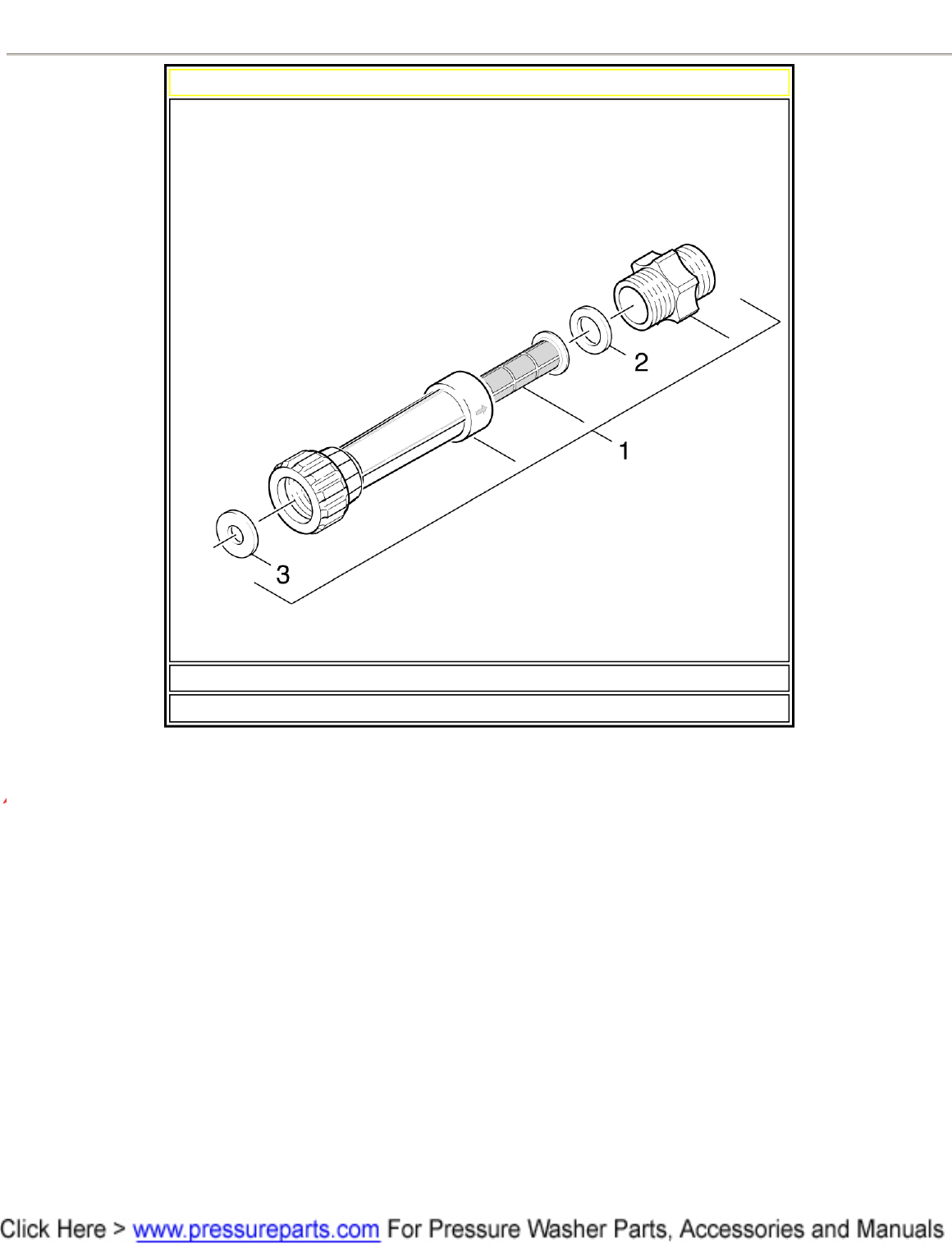

Karcher Model:K 360M ( 59586880 ) - Parts Section:4.4 WATER FILTER
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
1
47300980
1
WATER FILTER
2
53635450
1
SEAL
3
53641290
1
GASKET
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 10 of 11

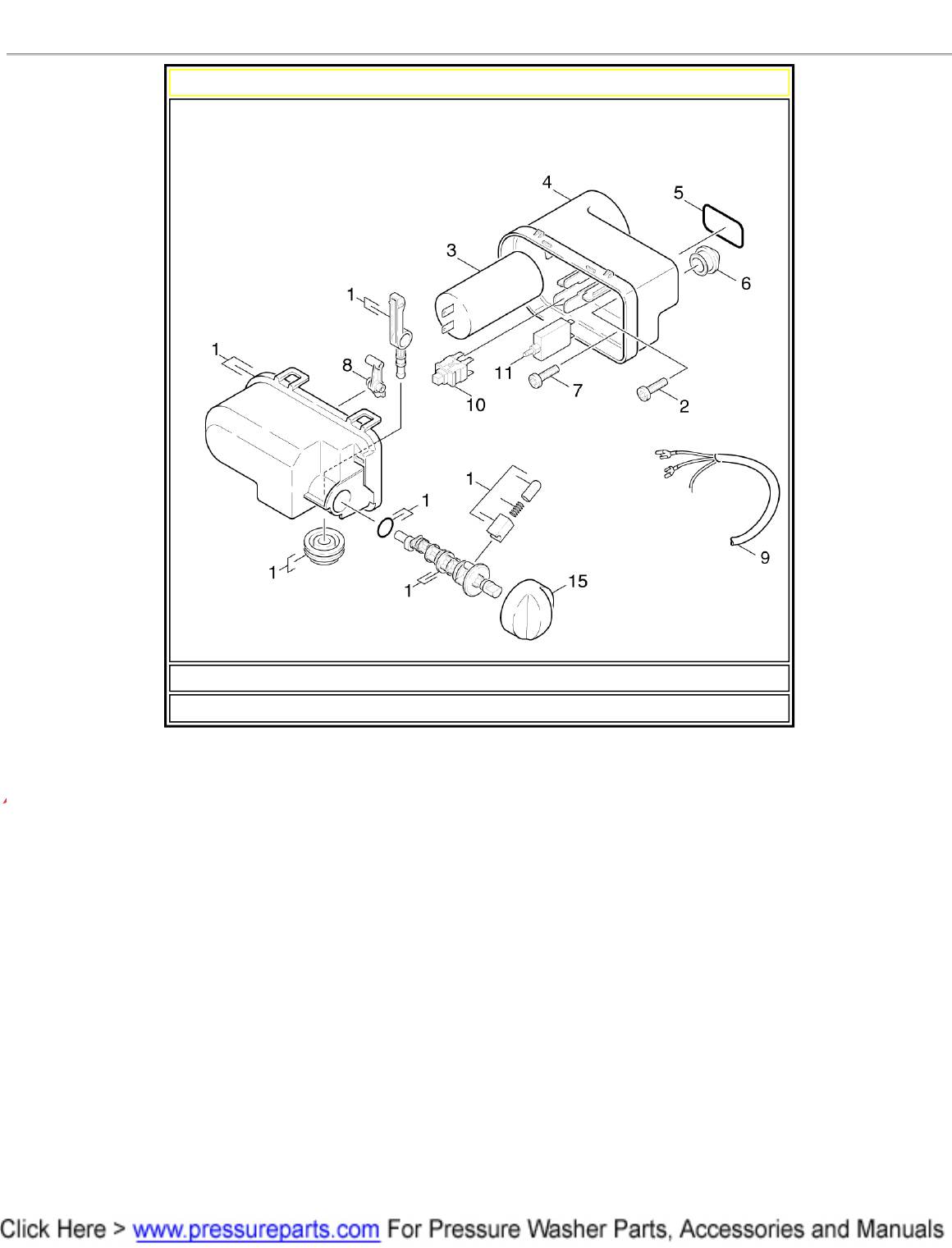

Karcher Model:K 360M ( 59586880 ) - Parts Section:
5.0 ELECTRIC CONTROL BOX
Buy Karcher Parts Online: www.pressureparts.com
Need Technical Help? Call: 1-800-999-2245
email Requests to: sales@pressureparts.com
pos
part no.
Qty.
Description
1
90113820
1
COVER
2
73030310
1
SCREW
3
66611960
1
CAPACITOR
4
90364260
1
HOUSING
5
63628700
1
GASKET
6
90480110
1
BUSH
7
90861530
2
OVAL HEAD SCREW
8
90363810
1
SWITCH
9
90840870
1
CABLE
10
90850340
1
SWITCH
11
90850320
1
MOTOR PROT. SWITCH
15
90363510
1
SWITCH KNOB
Very Important, Please Note:
If you are having difficulty with your pressure washer we advise you to contact an authorized service center for examination by a
factory-trained professional. Caution: Any repairs or disassembly conducted by untrained or unauthorized persons may result in
machine damage and/or personal injury and will void your new machine warranty. Product improvements, part substitutions,
manuals and parts lists are updated frequently at the factory and subject to change without notice. PressureParts.com or Its
Parent Company Jineco Equipment shall not be responsible for any damage caused by, use of products, improper installation of
products, injury to personnel or lost income due to damages.
Pressure Washer Parts Lists Manuals Available At: www.pressureparts.com
-
©
2005
Page 11 of 11

Navigation menu
