KB-5451/JS
3 Axis Controller
REF: GENIE CCTV
DATE: 09/09/09
ISSUE No: 2009/1
TECHNICAL DATA SHEET
ORDERING INFORMATION
KB5451/JS 3 Axis Controller, Black
KEY FEATURES
• Controls A Wide Range Of Cameras,
PTZ Domes and DVRs
• Controls Genie PTZs and GDVR series DVRs
• Multi Protocols (Baud Rate Selectable)
• RS485 Communication
• Variable Manual Control Speed
• Programmable User Preferences
(Preset, Tour, Pattern, etc.)
• Easy Upload Programmed Data via
Serial Communication
• USB Port (USB Cable Included)
• User Password Support
• Graphical Display
• Worldwide Switch Mode PSU Adaptor Included
TECHNICAL SPECIFICATION
Model Number KB-5451/JS
Keyboard Communication Interface: RS-485 (Tx 3 Port, TRx 1 Port), Pan / Tilt
Operating Distance 1029m
Connector Type Data Terminal Block (8p)
Protocols Protocols: Pelco D, Pelco P (Baud Rate Selectable)
Controller Joystick Type, 3-Axis, Variable Speed with Zoom
LCD Display 16 x 2 Graphic Display
Input Voltage DC 12V Or 9V Battery
Operating Conditions Temperature: 0ºC ~ 45ºC, Humidity: 10% ~ 70%
Power Consumption 140mA max
Dimensions (W x H x D) 280 x 92 x 174 mm
Weight 700g
Features and specifications are subject to change for further improvement without any notice

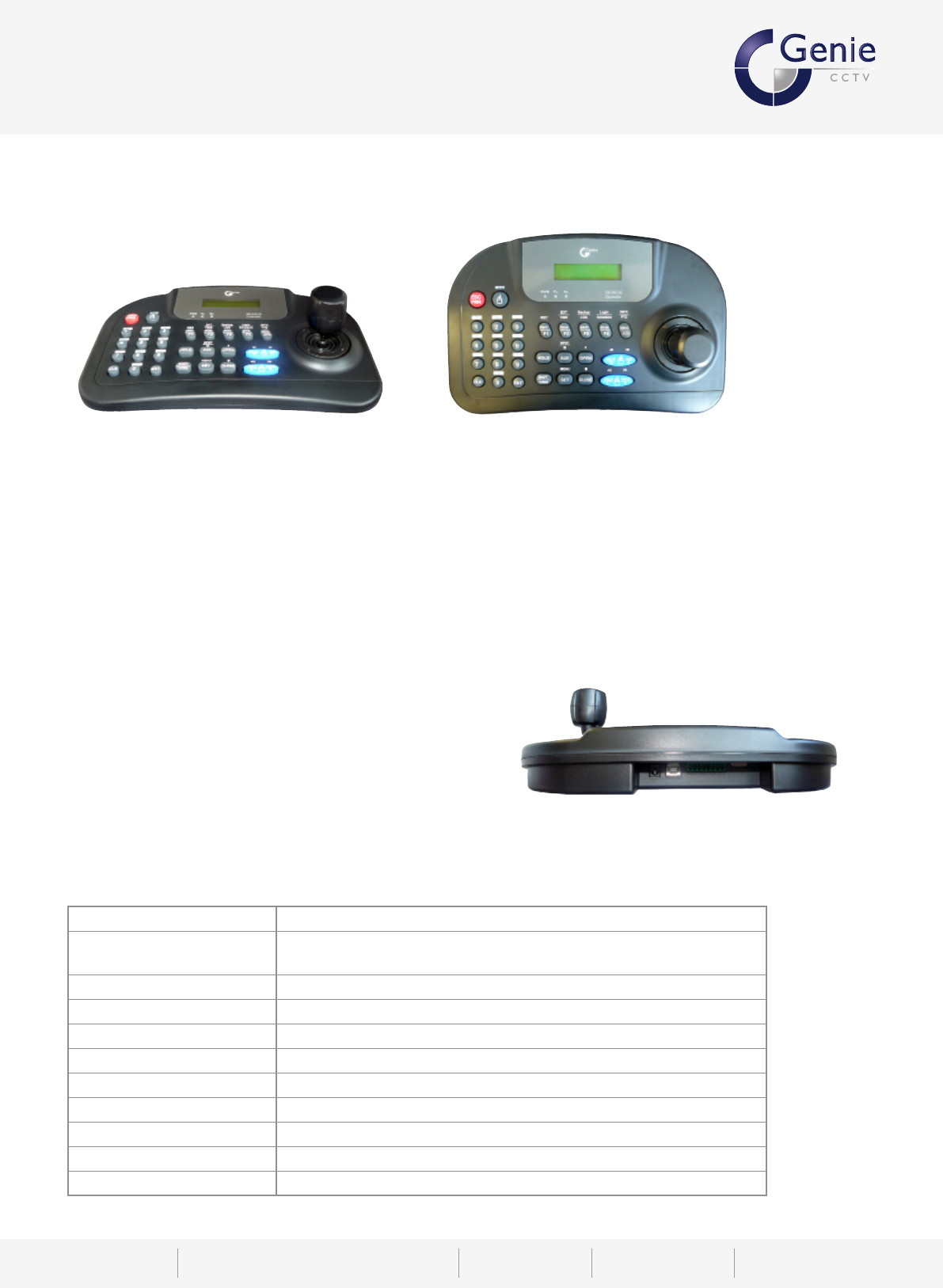

Front View Overhead View
Rear View
