9 883 757 03 KDL32ML130

LCD DIGITAL COLOR TELEVISION

SERVICE MANUAL

MA1

CHASSIS

MODEL NAME REMOTE COMMANDER DESTINATION

9-883-757-04

KDL-26M3000

RM-YD021 US/CANADA

KDL-26M3000

RM-YD021 LATIN NORTH/LATIN SOUTH

KDL-26ML130

RM-YD021 US/CANADA

KDL-32M3000

RM-YD021 US/CANADA

KDL-32M3000

RM-YD021 LATIN NORTH/LATIN SOUTH

KDL-32ML130

RM-YD021 US/CANADA

Self Diagnosis

Supported model

KDL-32M3000 RM-YD021

3

KDL-26M3000/26ML130/32M3000/32ML130

TABLE OF CONTENTS

SECTION TITLE PAGE SECTION TITLE PAGE

Speciﬁ cations ................................................................................. 4

Warnings and Cautions .................................................................. 6

Safety-Related Component Warning .............................................. 7

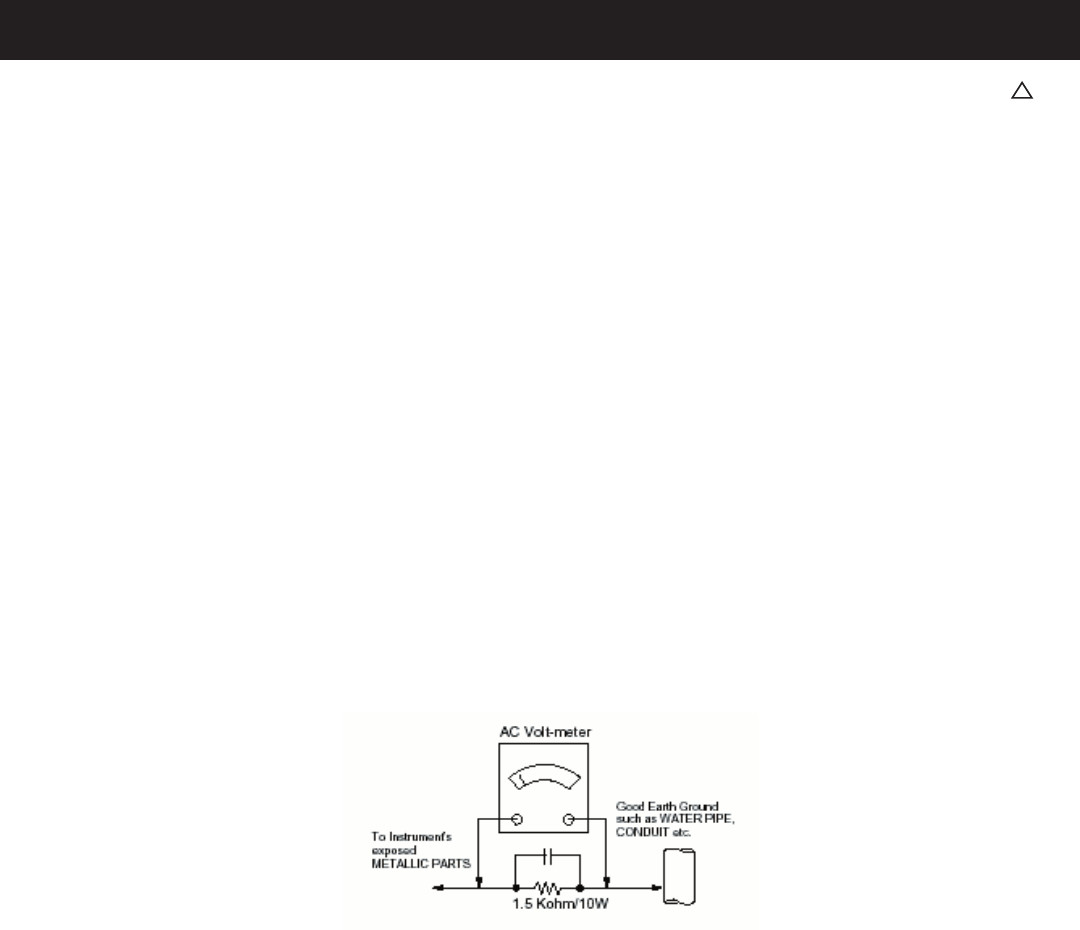

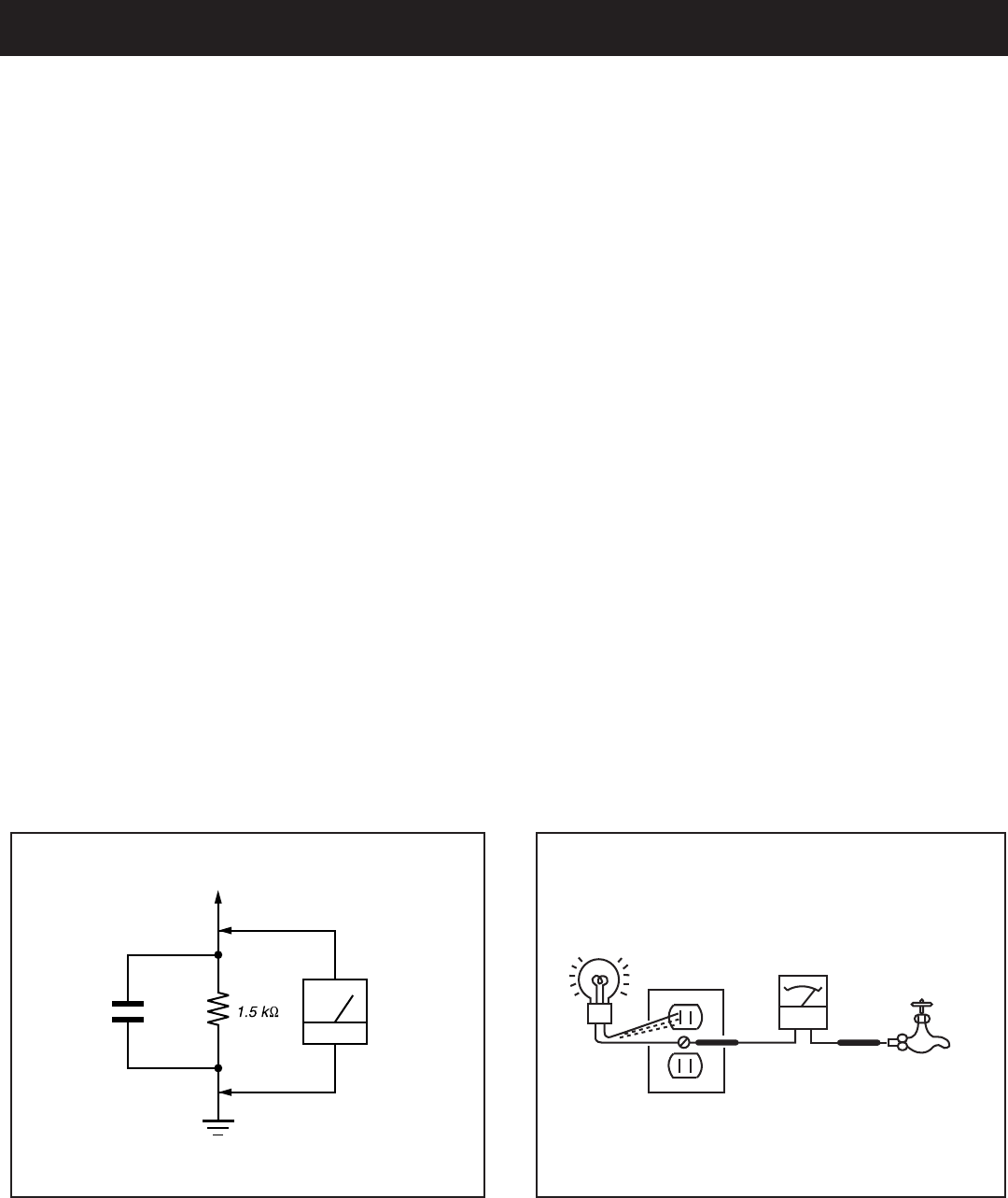

Safety Check-Out ........................................................................... 9

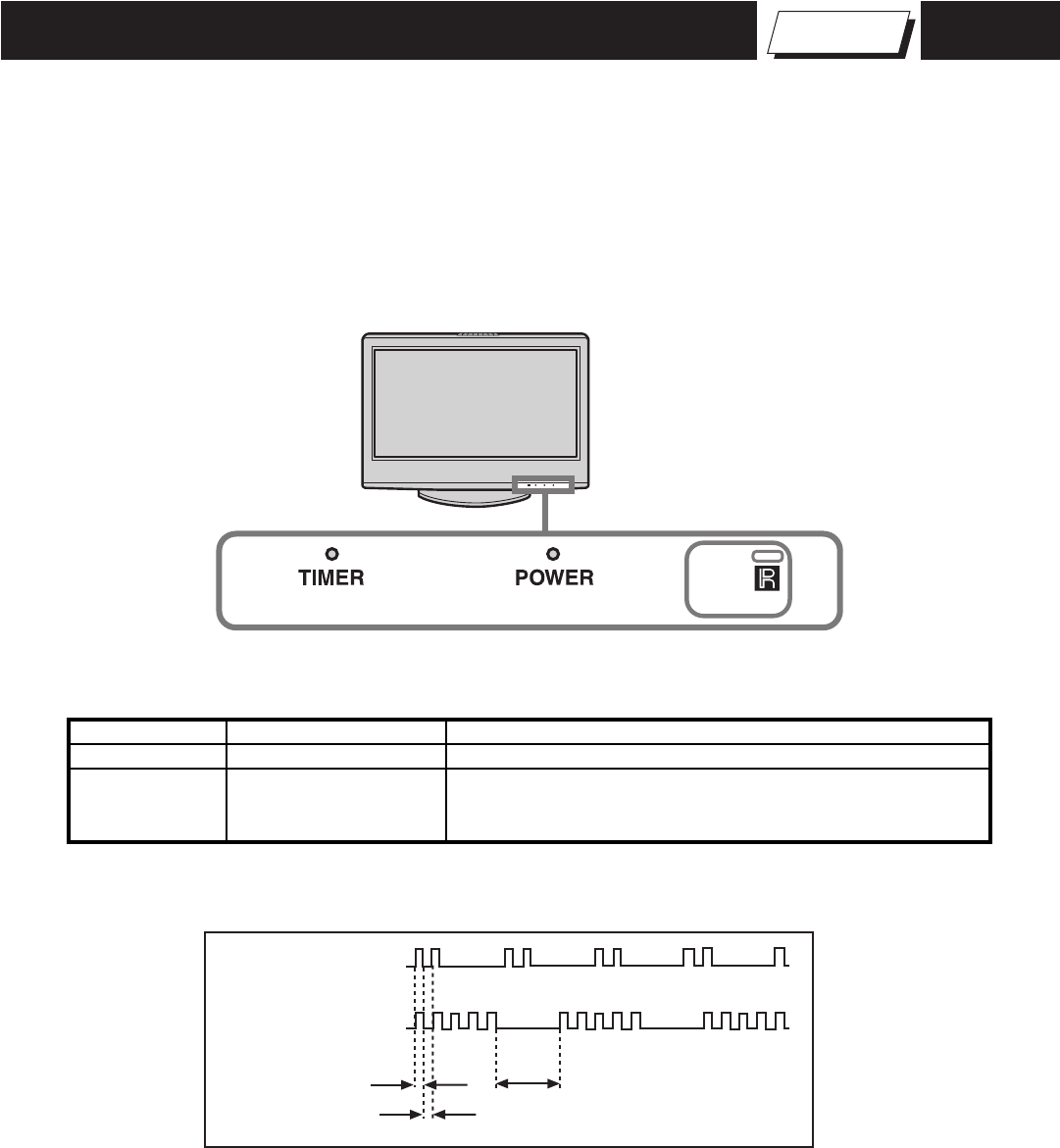

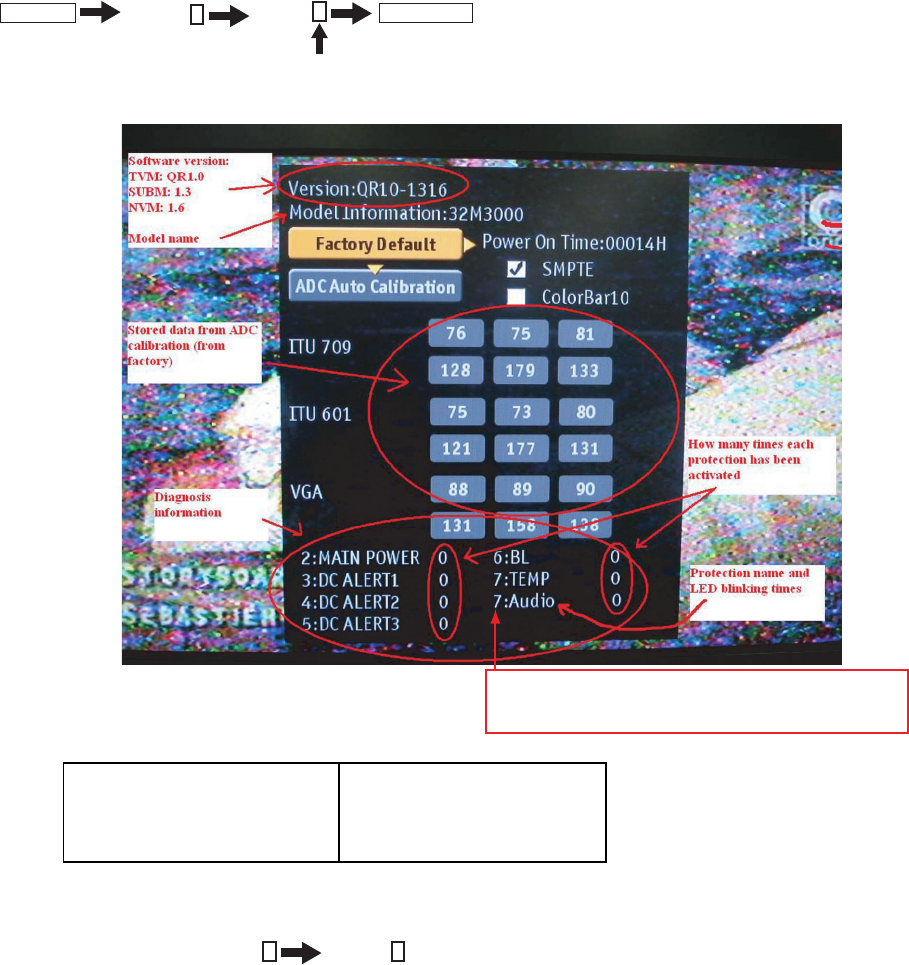

Self-Diagnostic Function ............................................................... 10

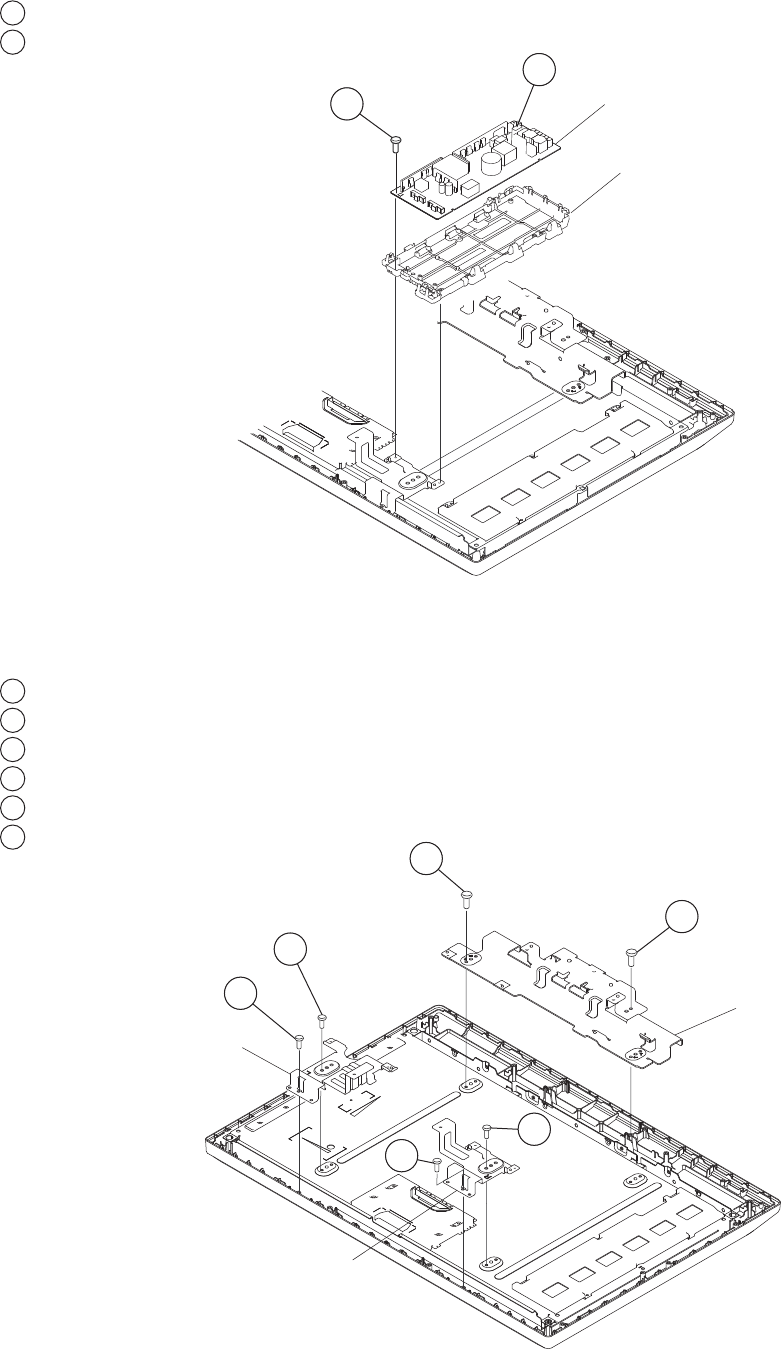

SECTION 1: DISASSEMBLY ............................................................... 12

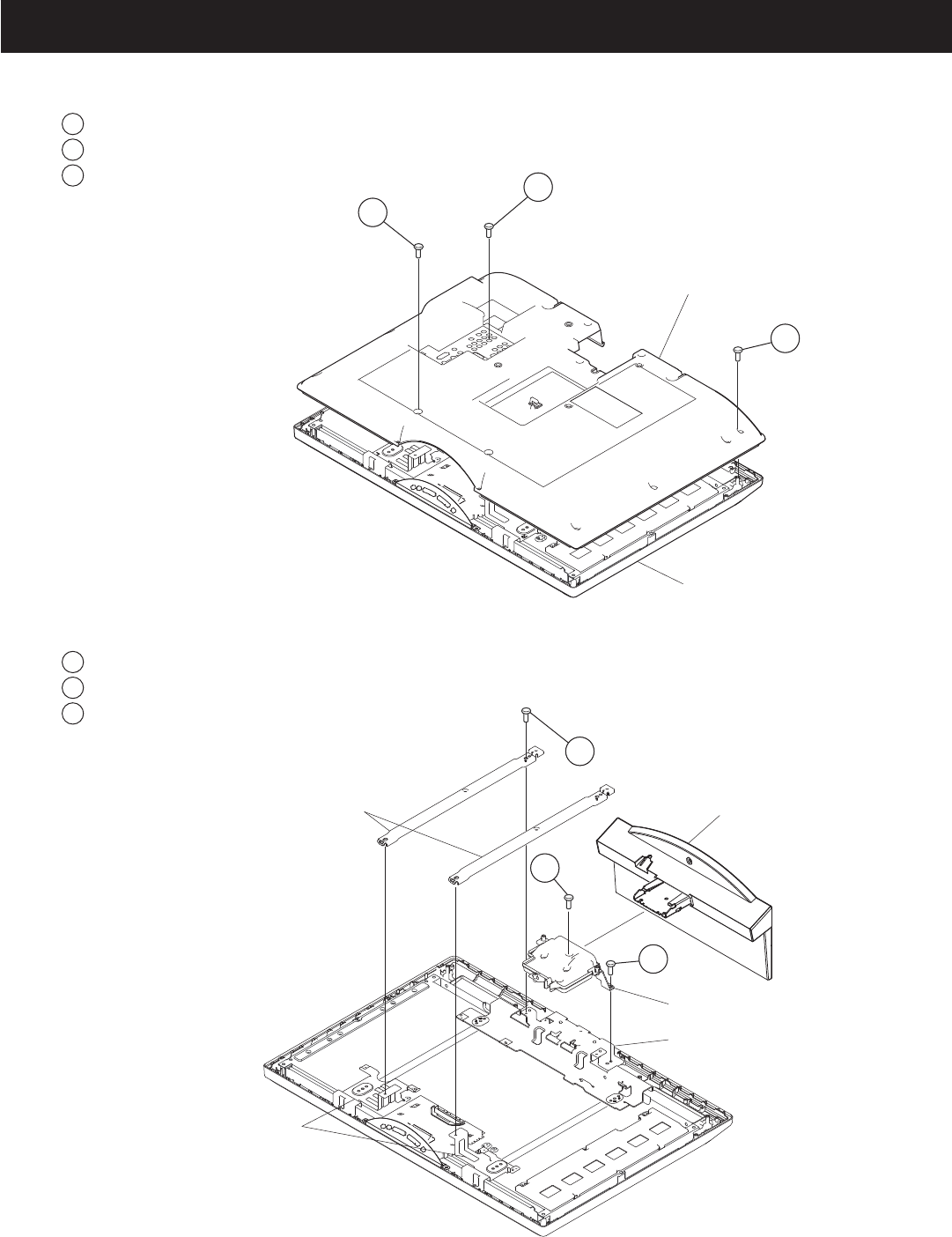

1-1. Rear Cover Removal ............................................................ 12

1-2. Arm, Under Cover and Stand Removal ................................ 12

1-3. HM1 Board Removal ............................................................ 13

1-4. UM Board and Jack Holder Removal ................................... 13

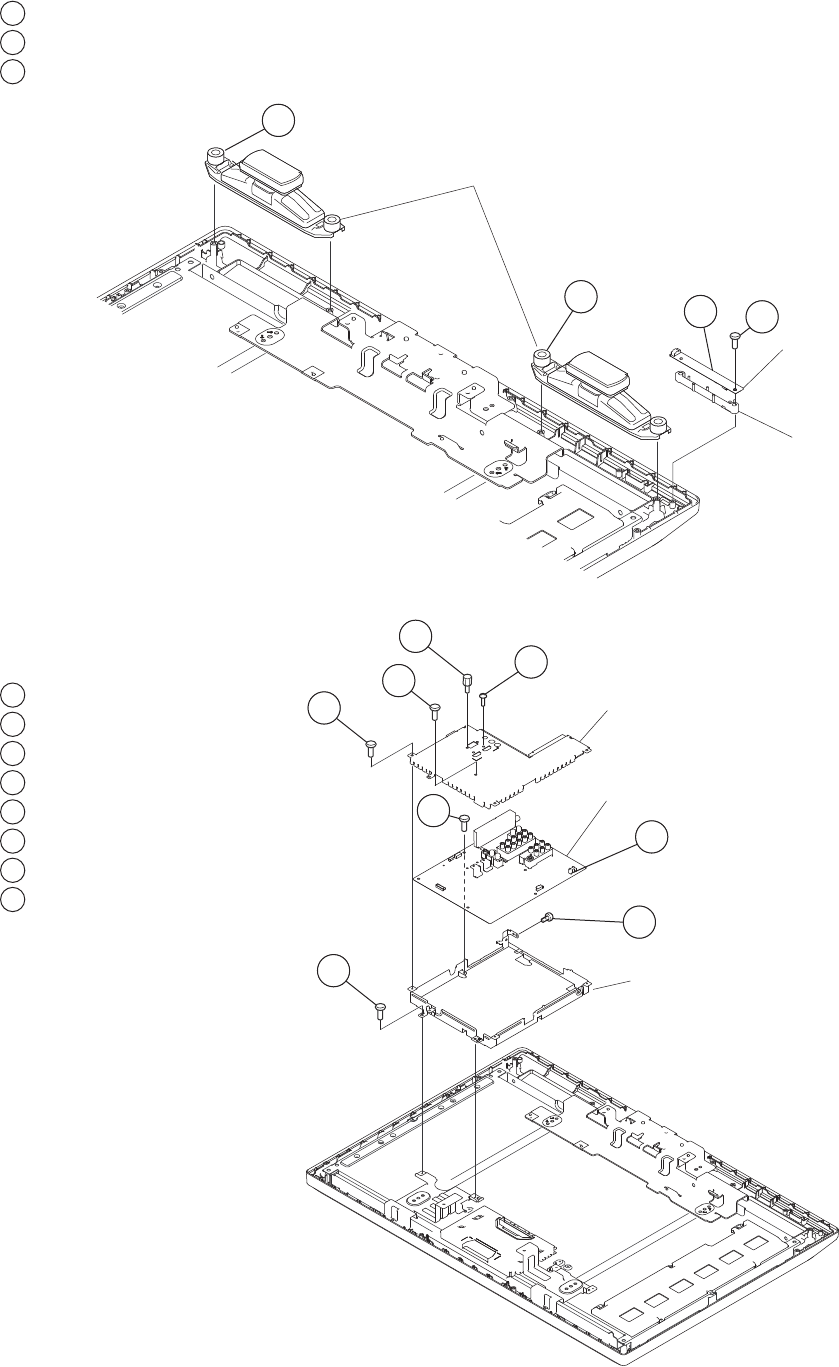

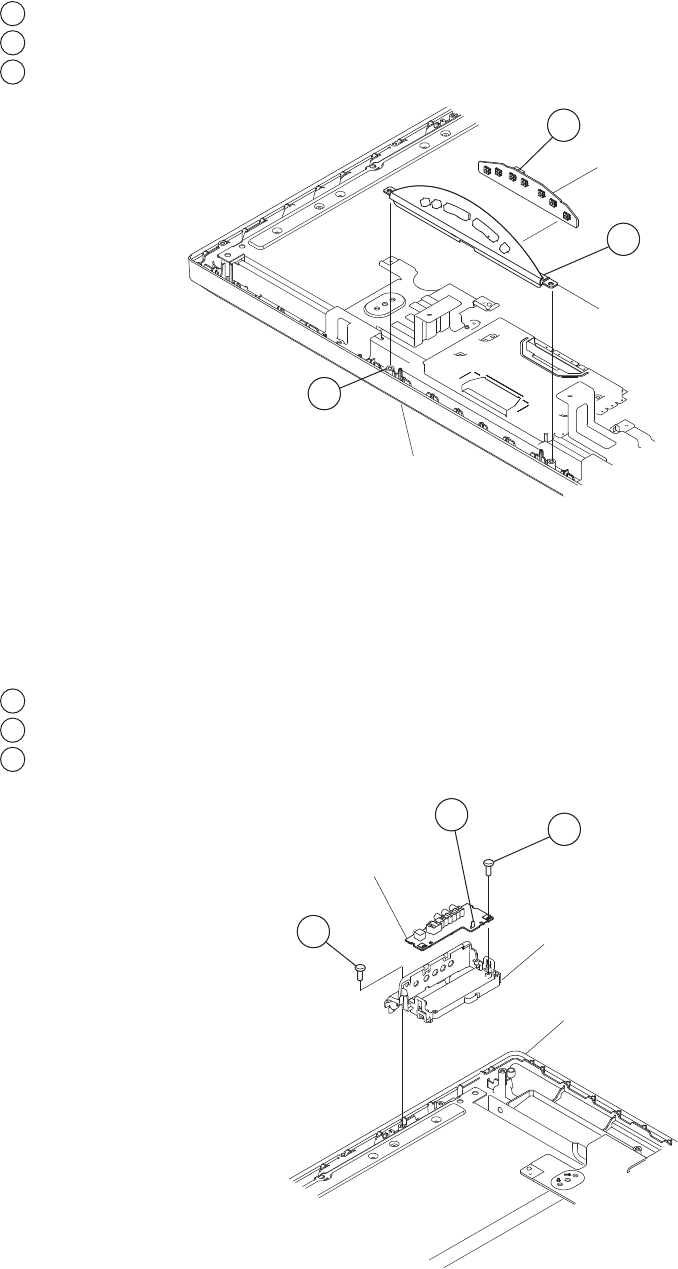

1-5. Speaker, Light Guide and HM3 Board Removal .................. 14

1-6. BM Board Removal .............................................................. 14

1-7. G1 Bracket and G1M Board Removal .................................. 15

1-8. VESA Bracket Removal ....................................................... 15

1-9 LCD Panel/Bracket and LED Light Guide Removal ............. 16

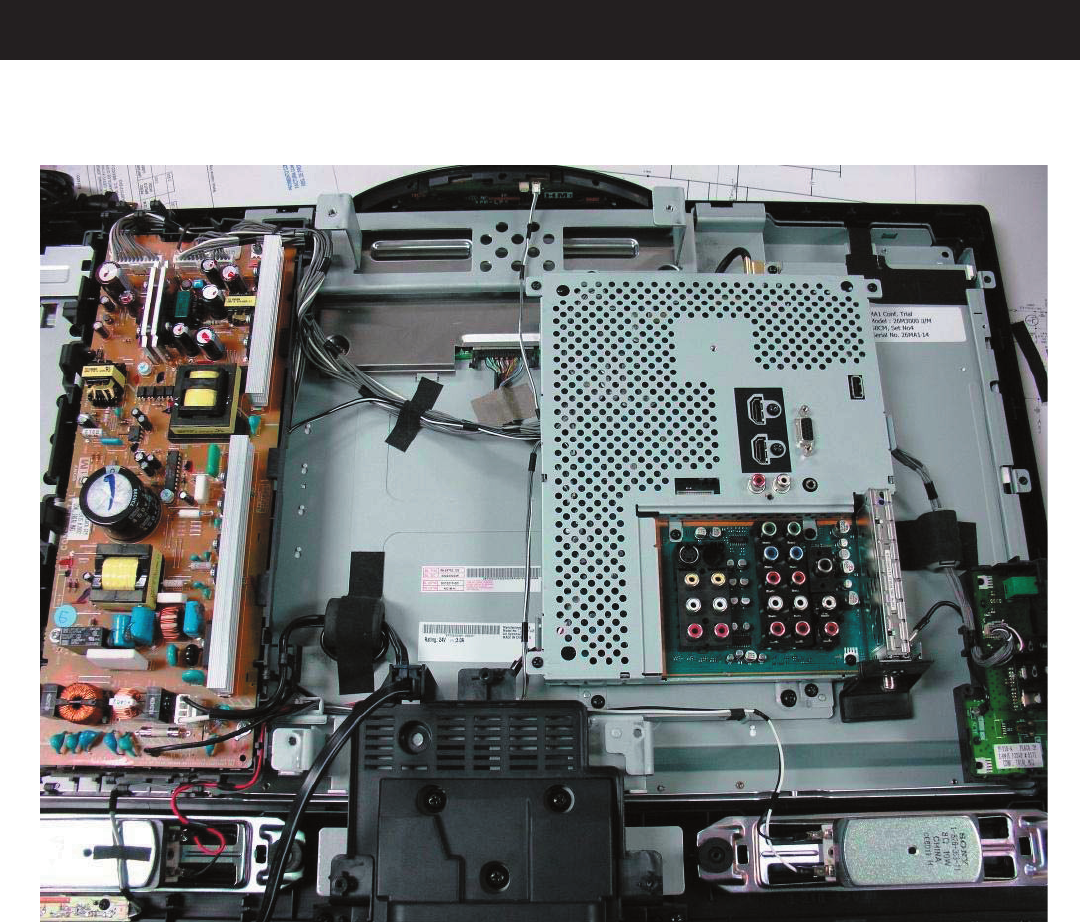

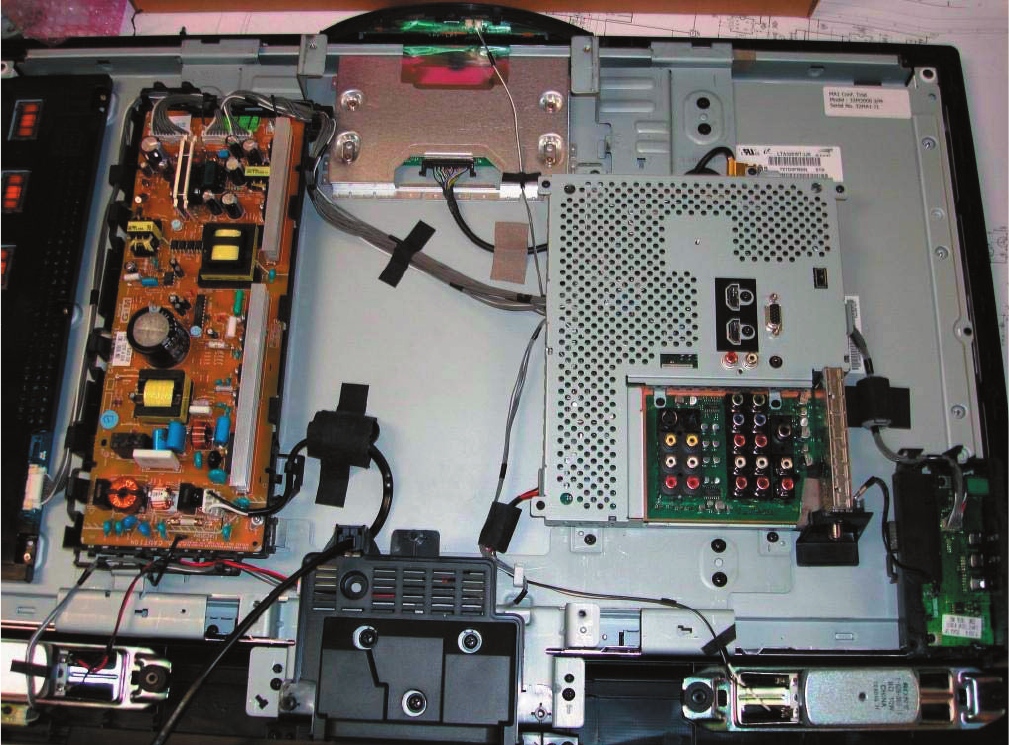

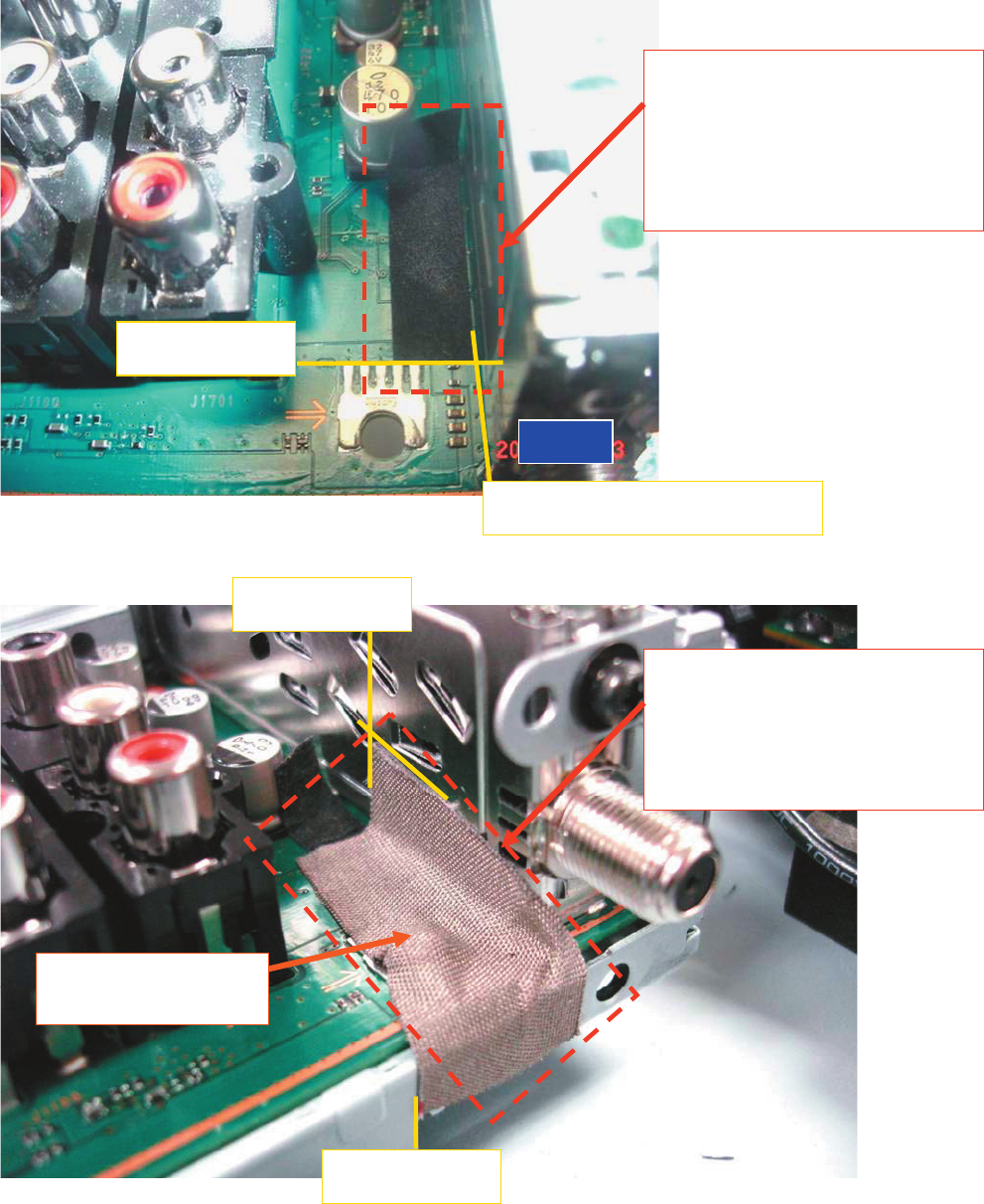

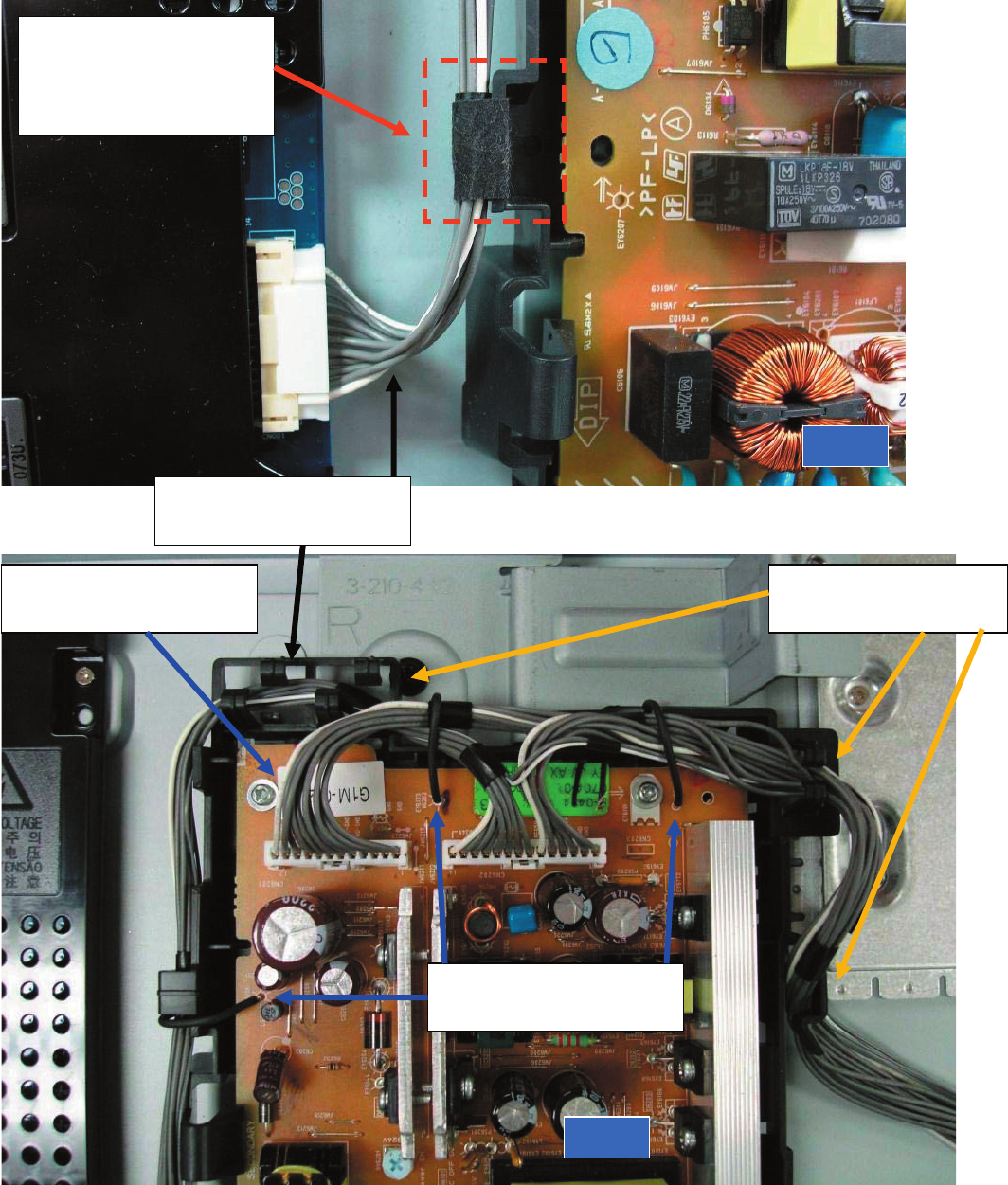

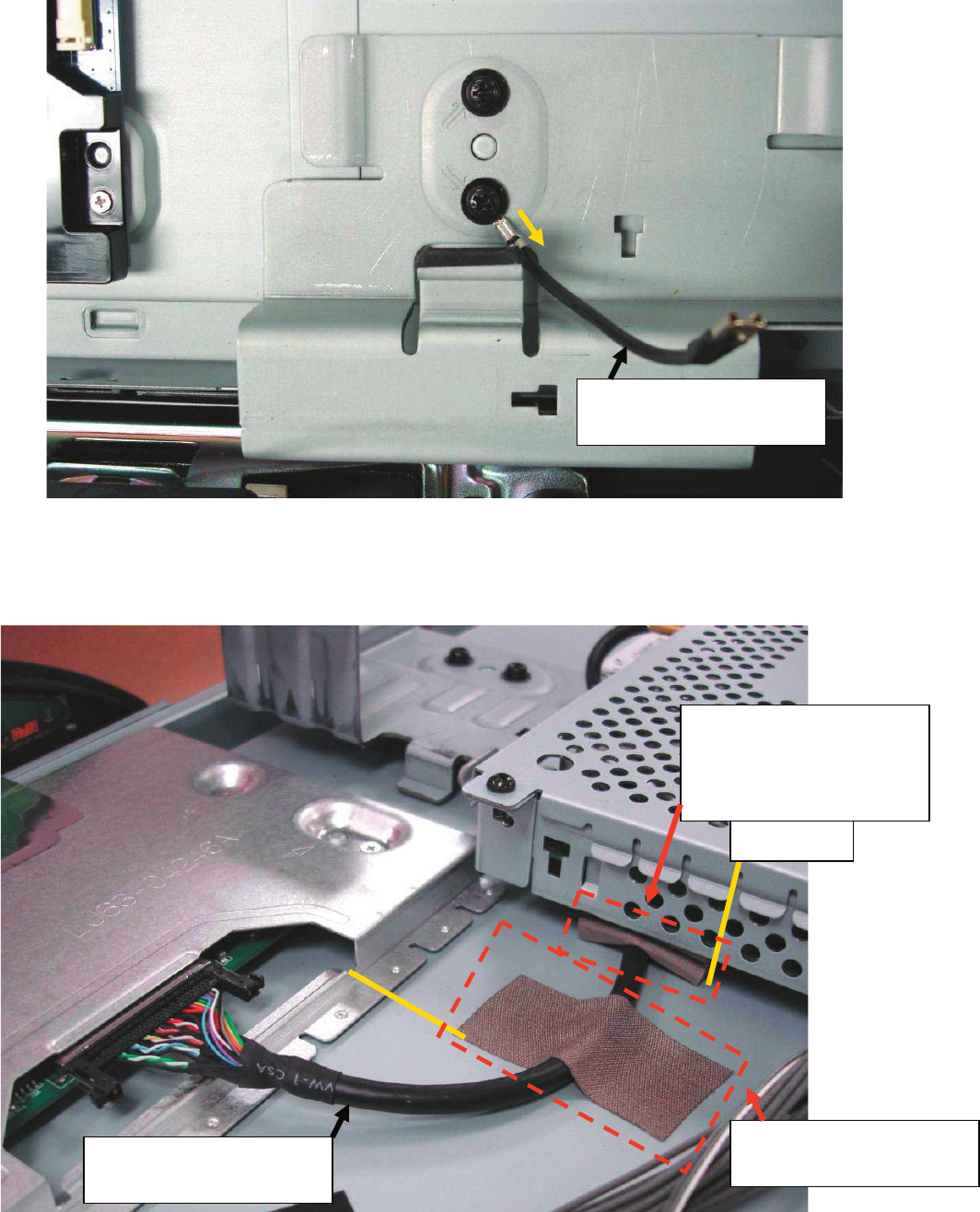

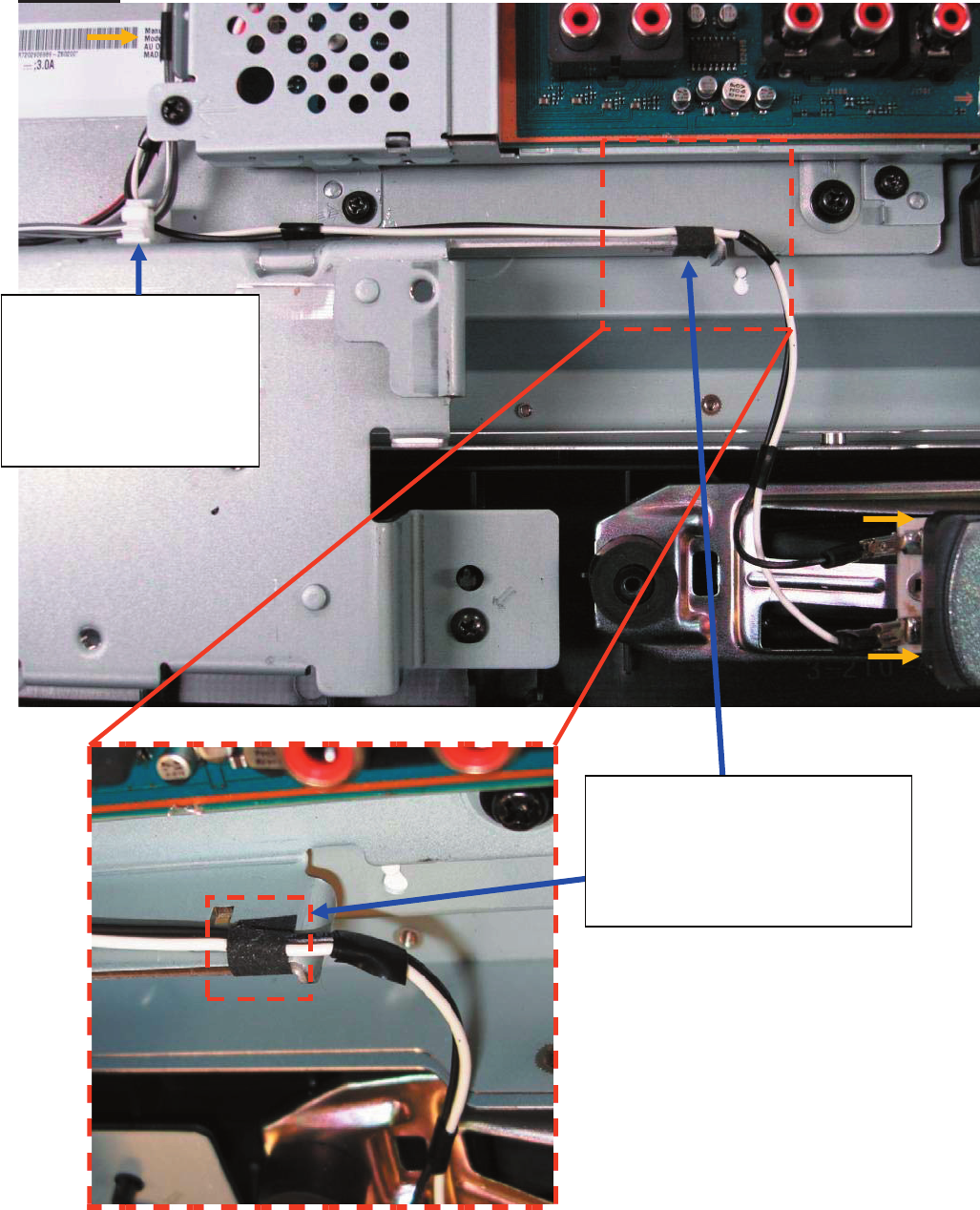

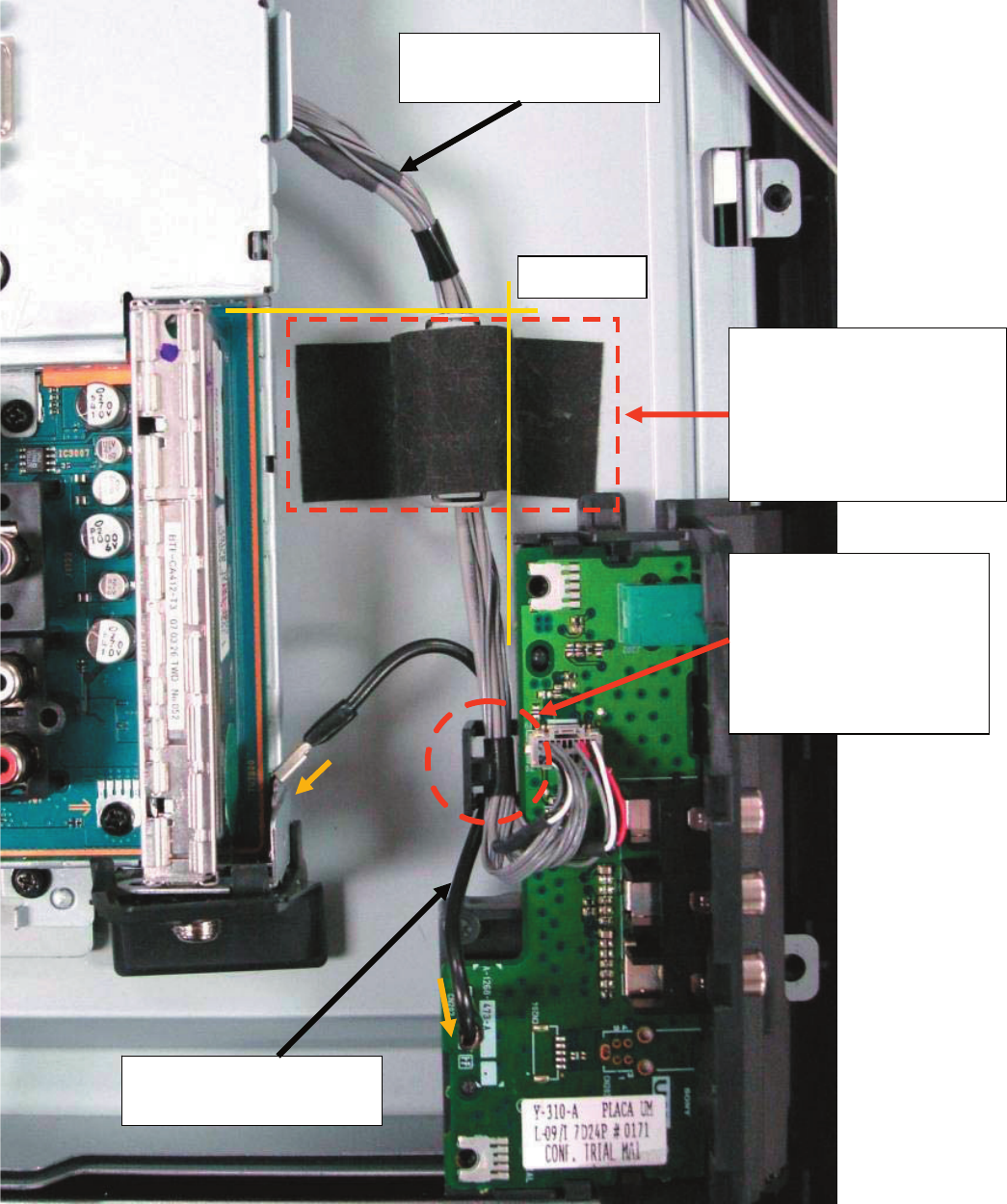

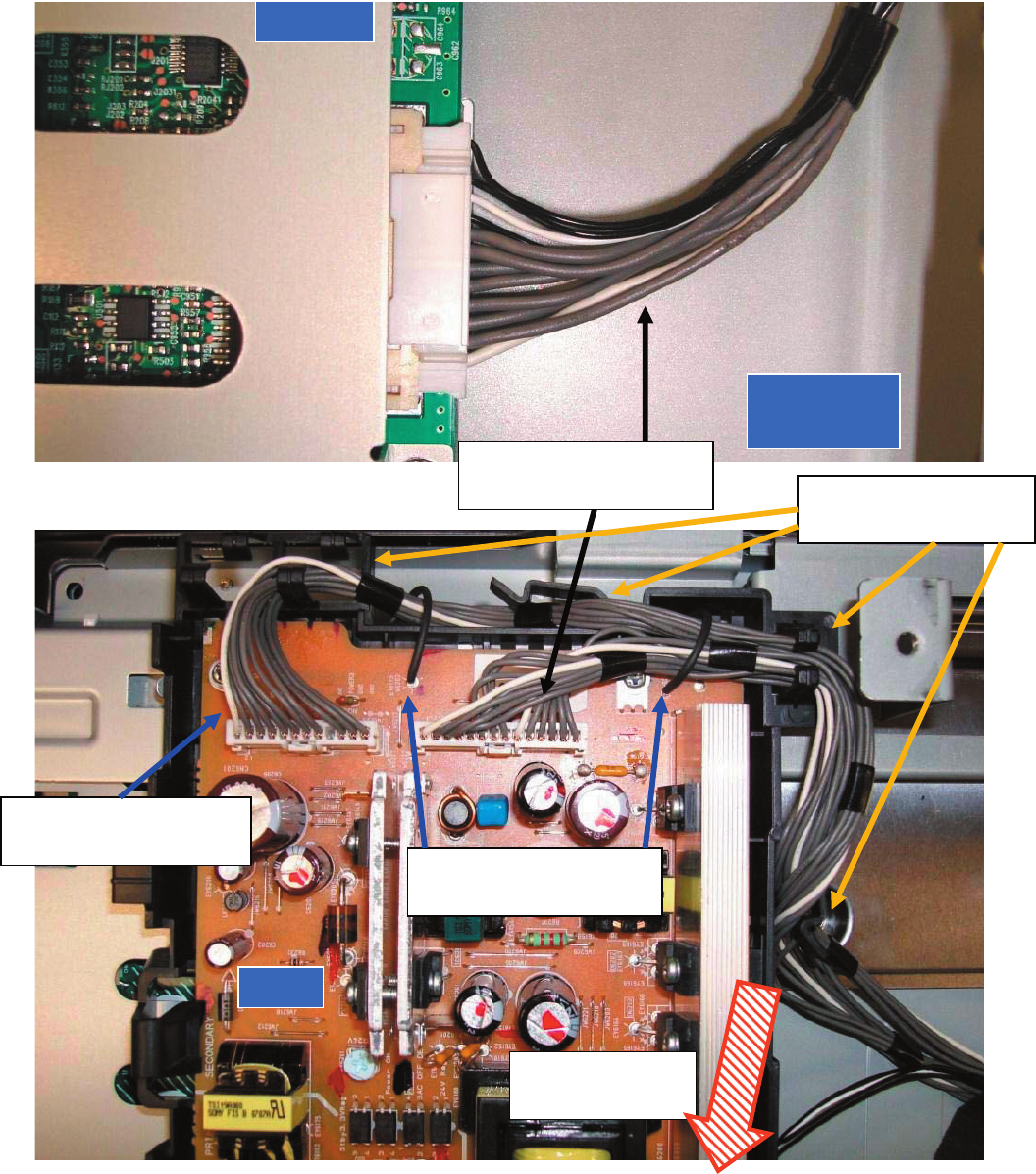

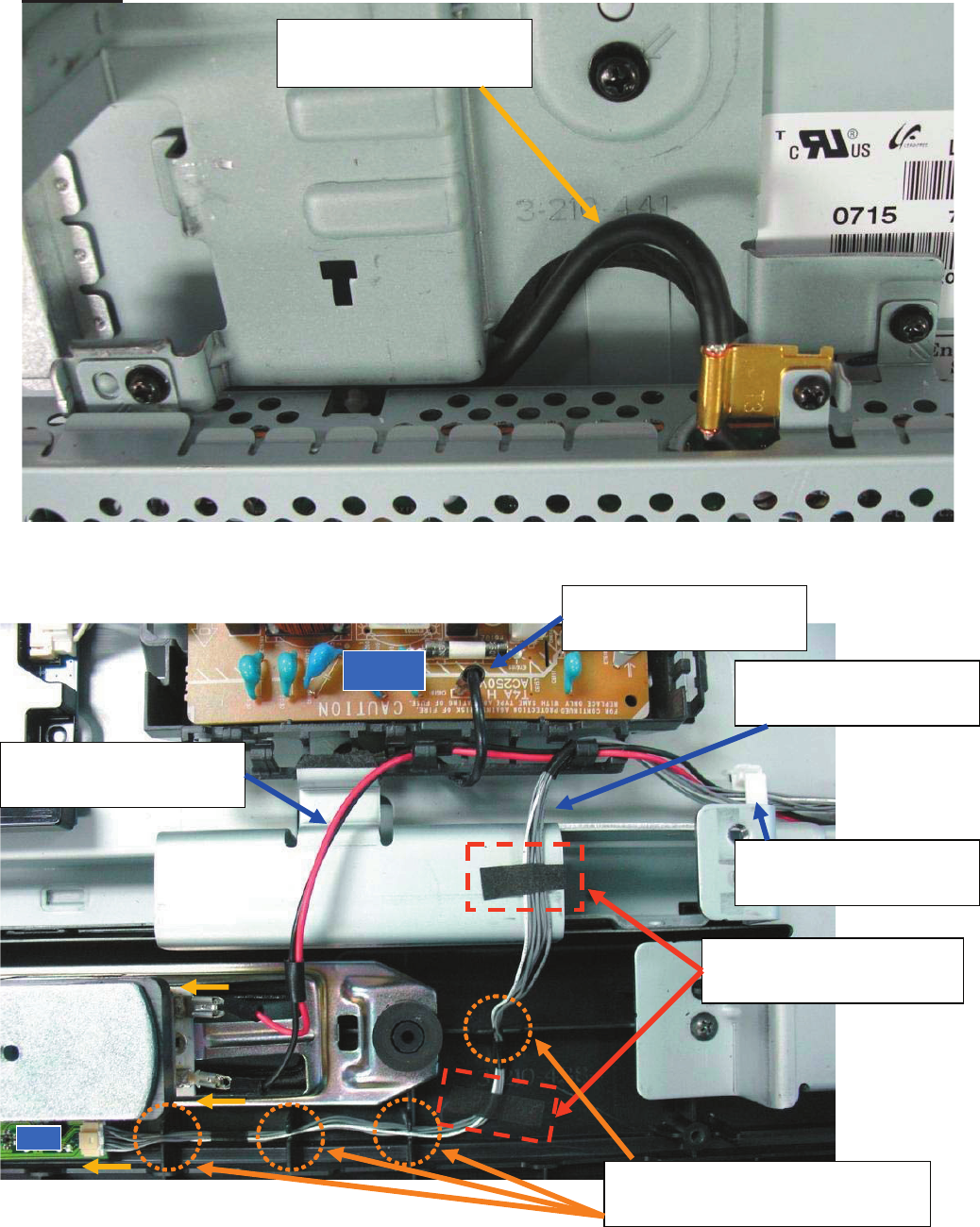

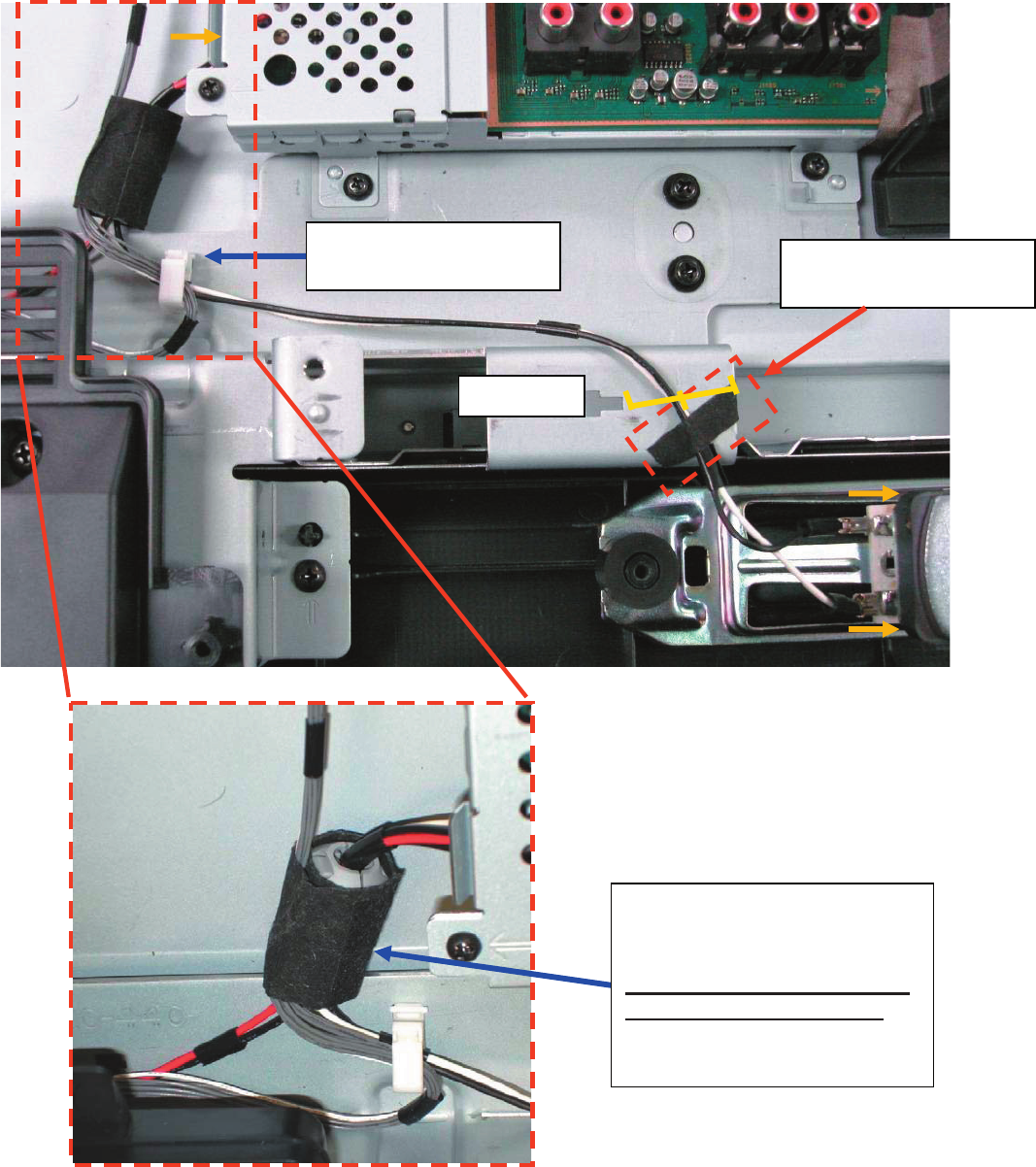

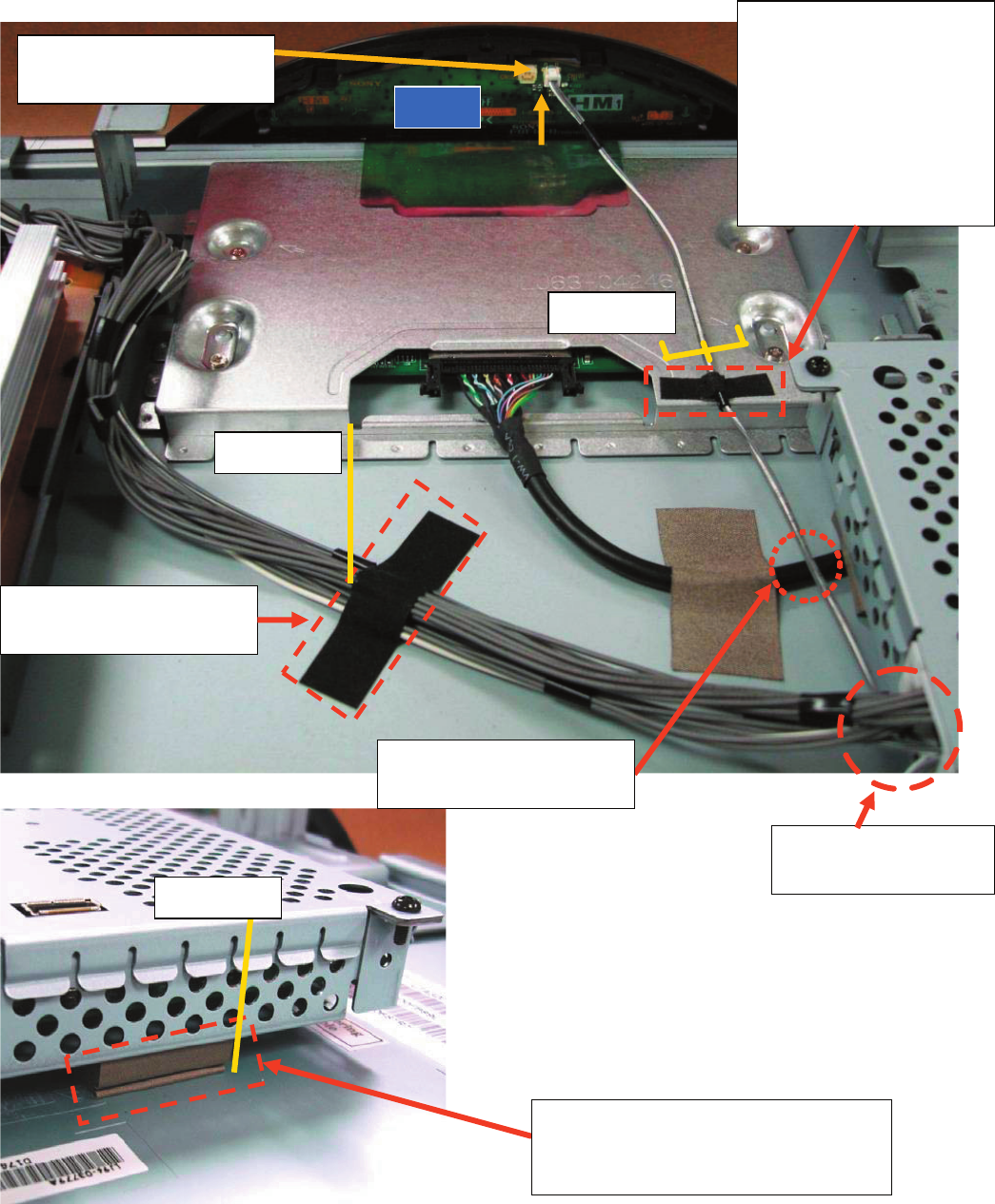

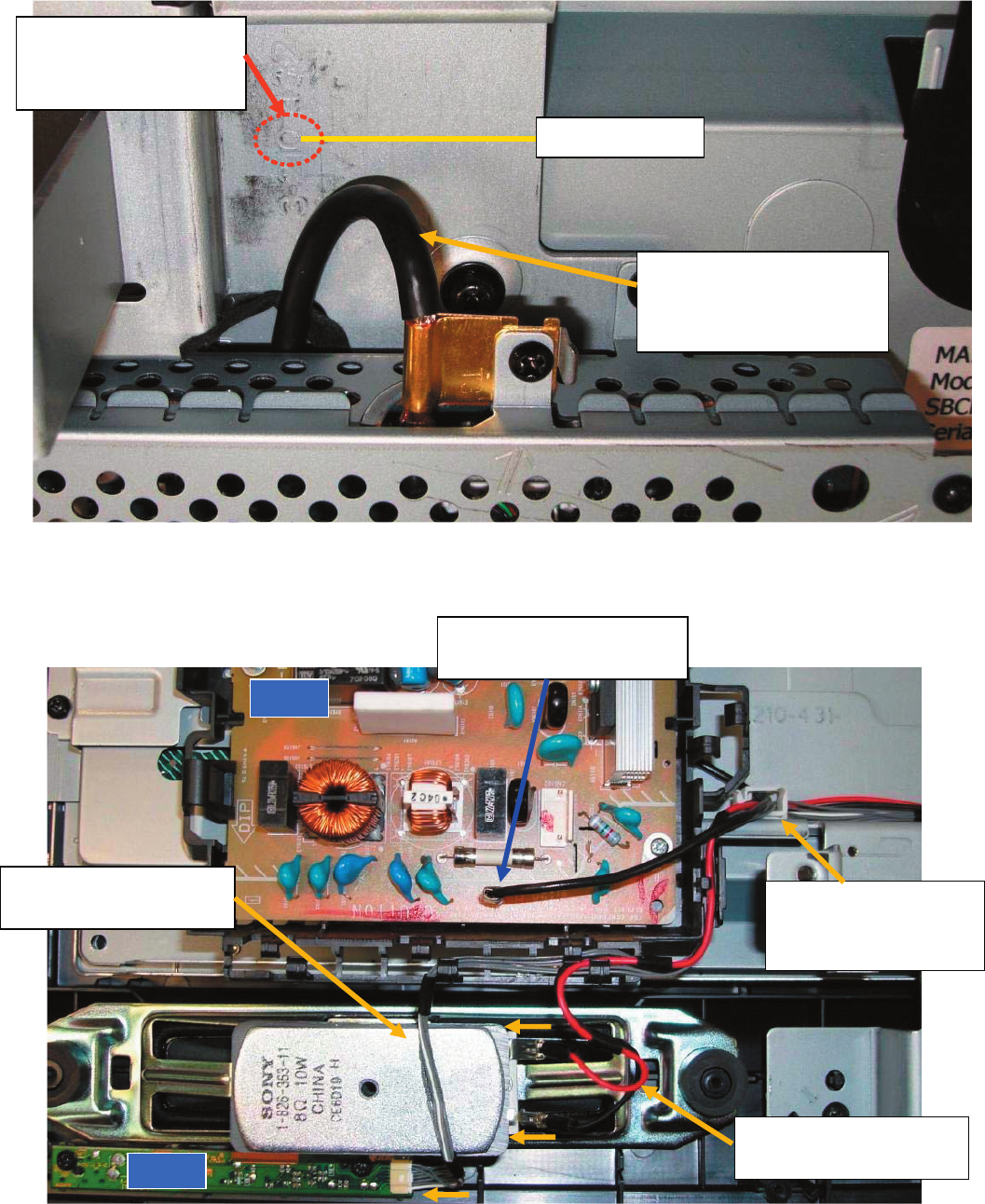

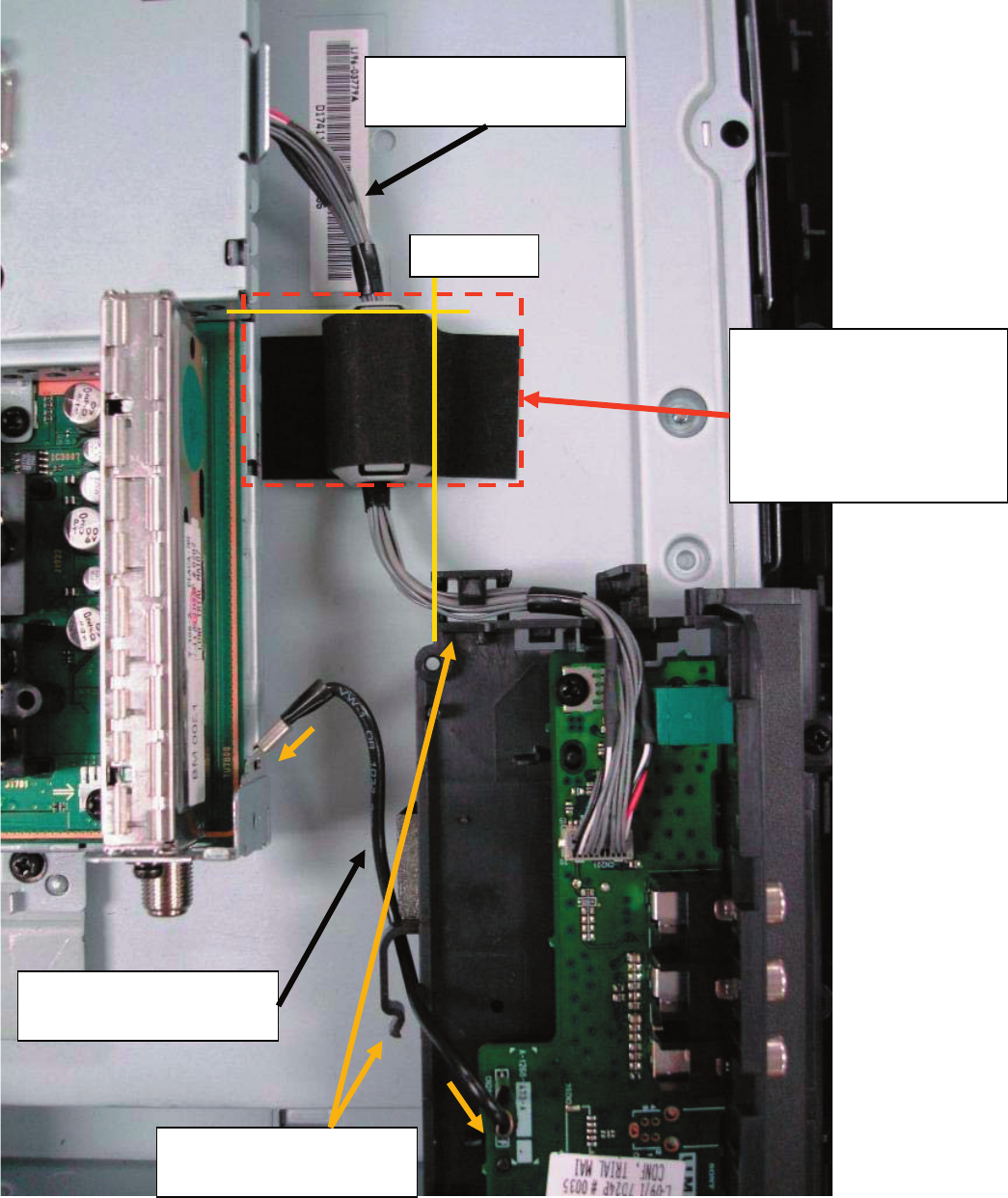

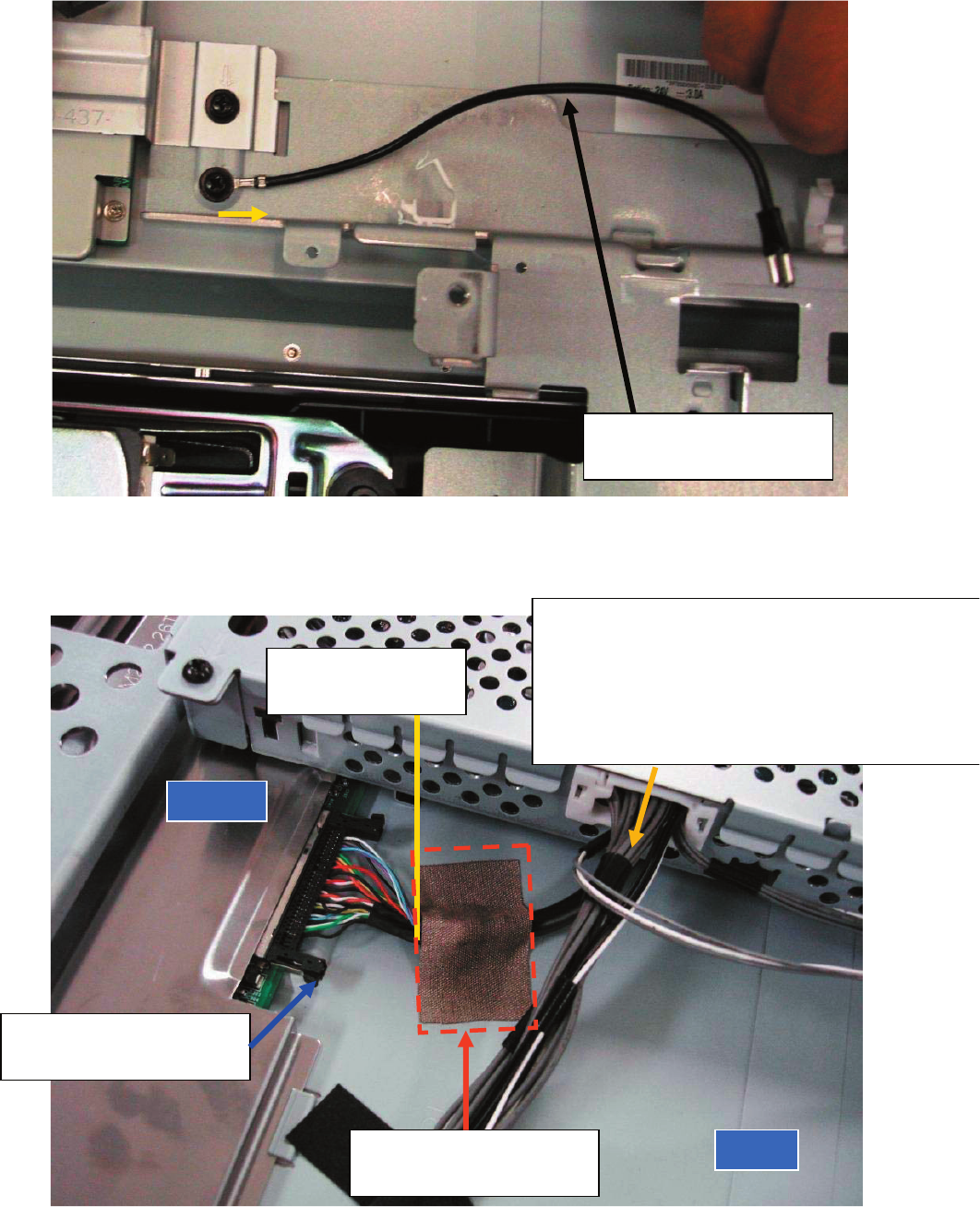

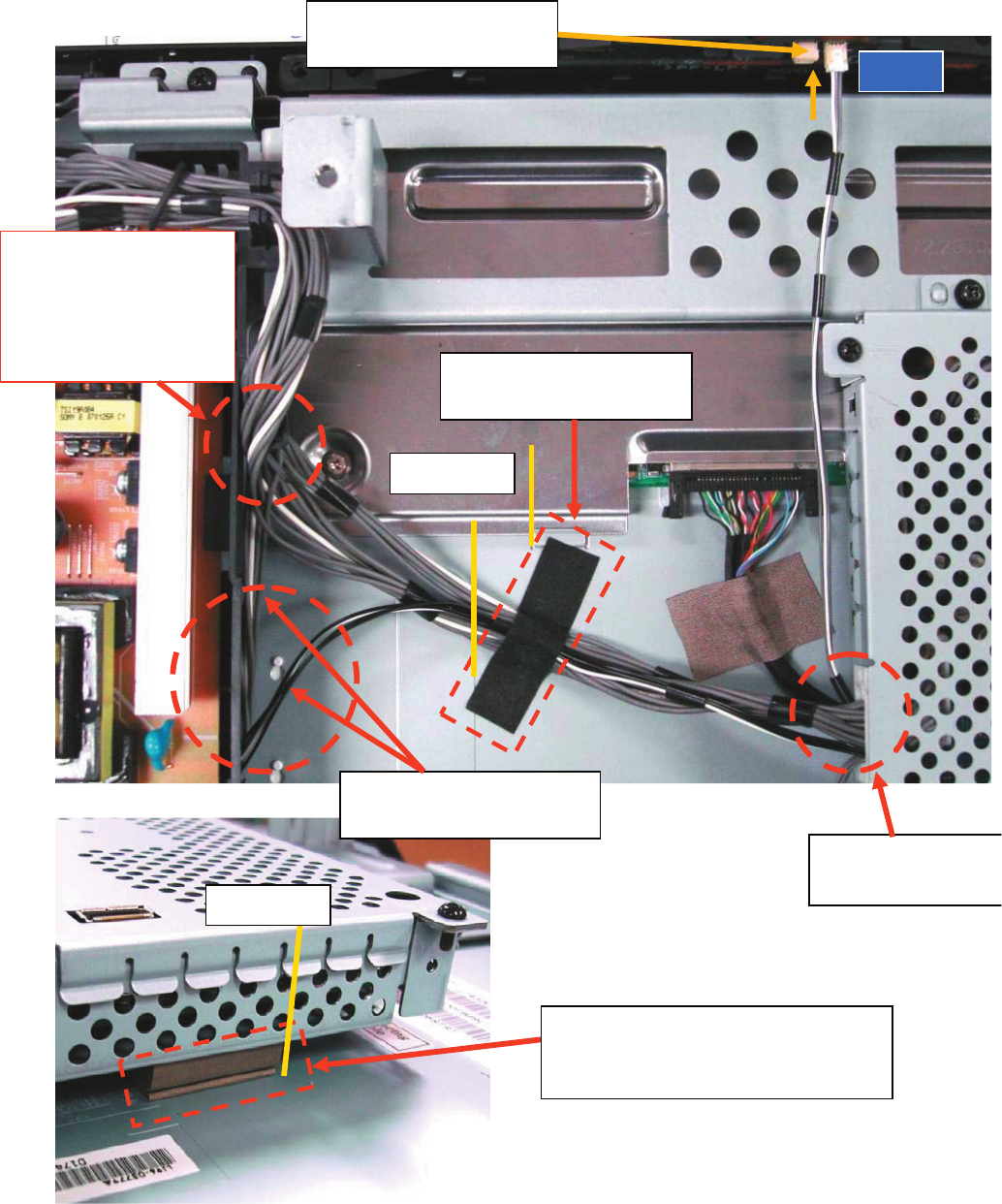

Wire Dressing ............................................................................... 17

KDL-26M3000/26ML130 Only .............................................. 17

KDL-32M3000/32ML130 Only .............................................. 27

SECTION 2: SERVICE ADJUSTMENTS ............................................. 38

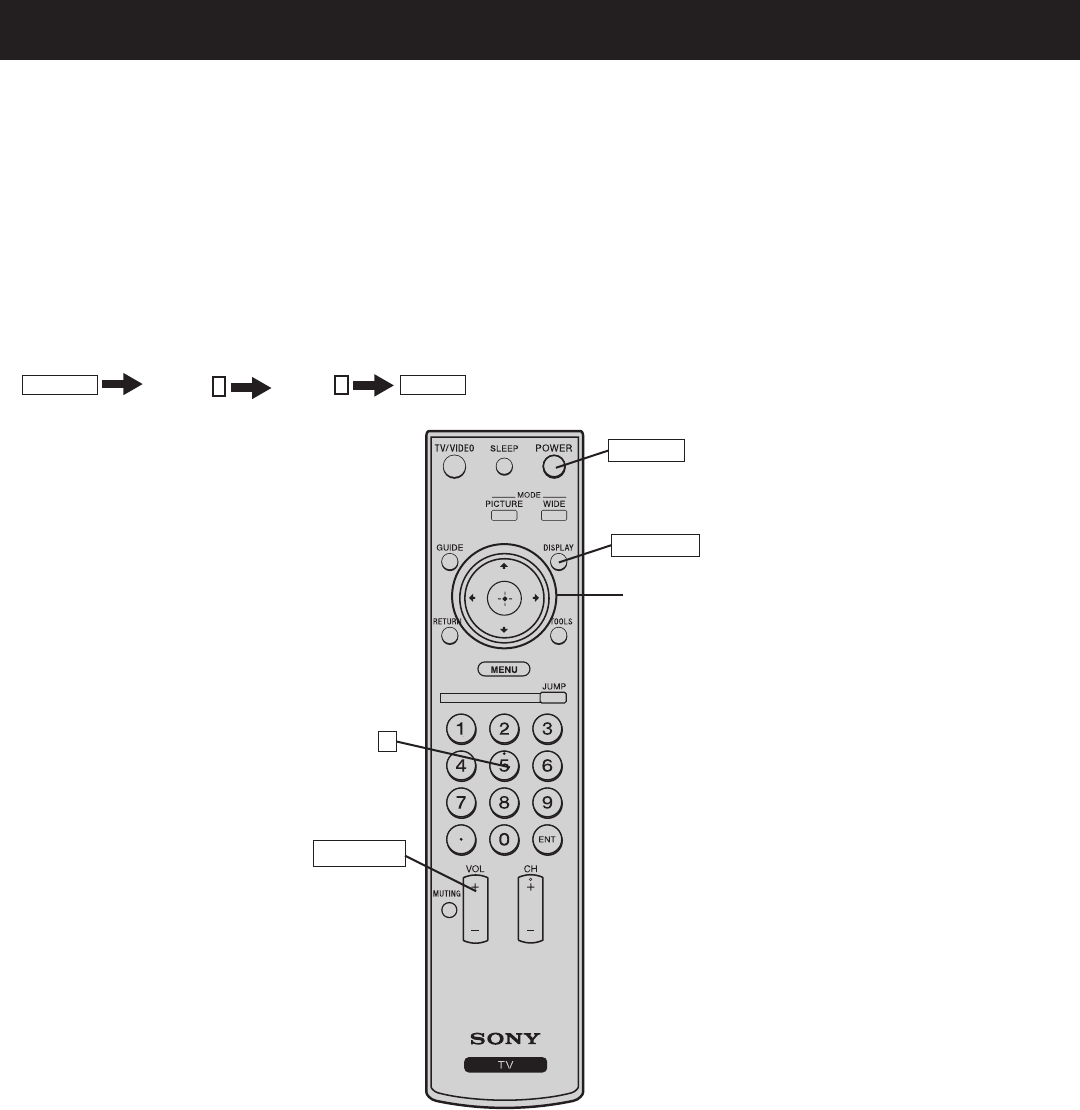

2-1. Using the Remote Commander for Electrical Adjustments .. 38

2-2. Accessing Service Adjustment Mode ................................... 38

2-3. Viewing the Service Menus .................................................. 39

2-4. Resetting to Factory Defaults ............................................... 39

SECTION 3: DIAGRAMS ..................................................................... 40

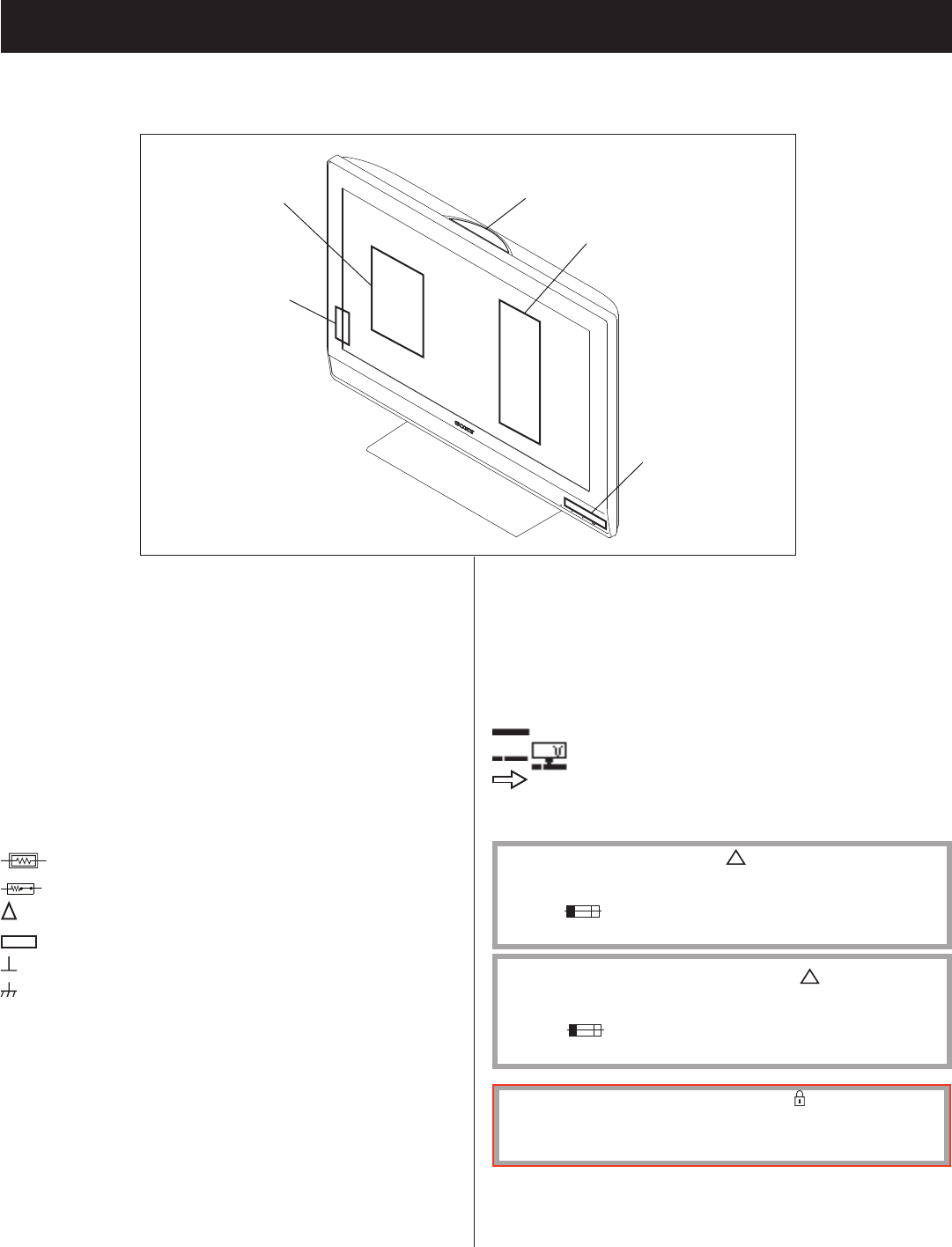

3-1. Circuit Boards Location ........................................................ 40

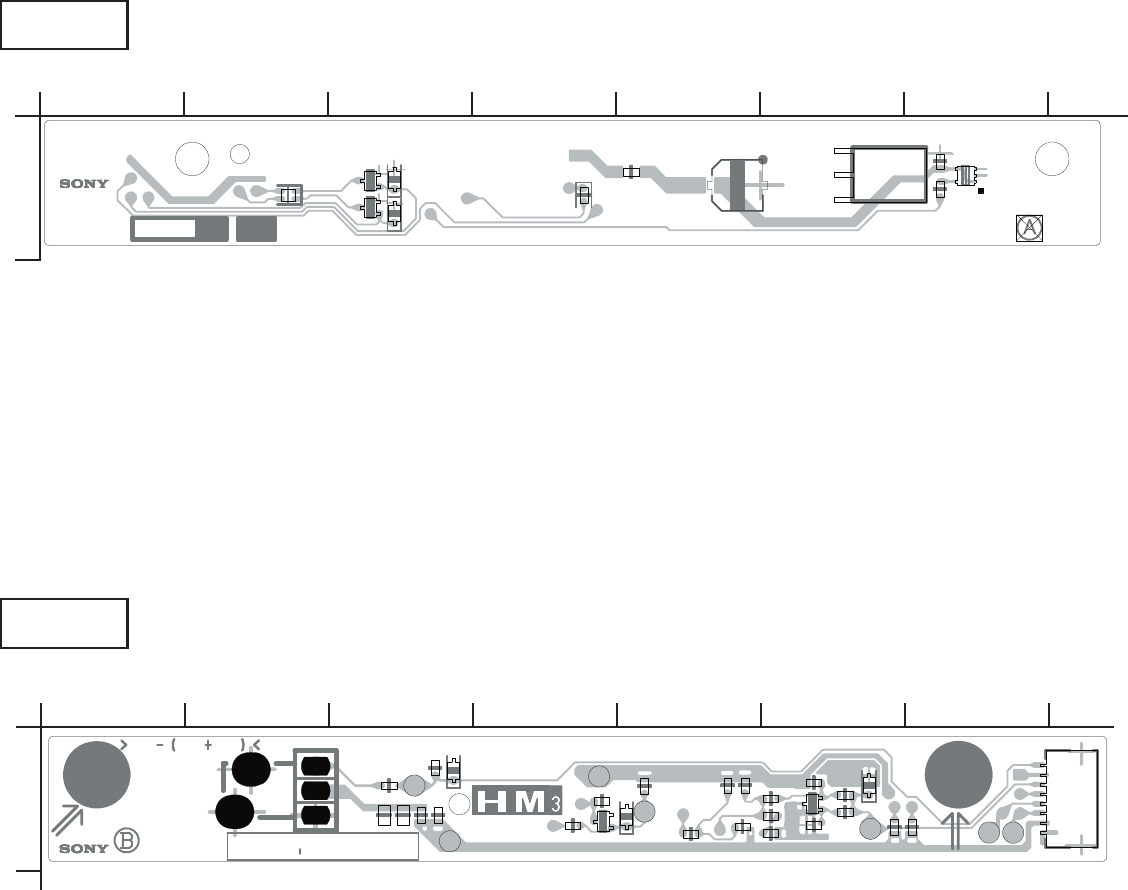

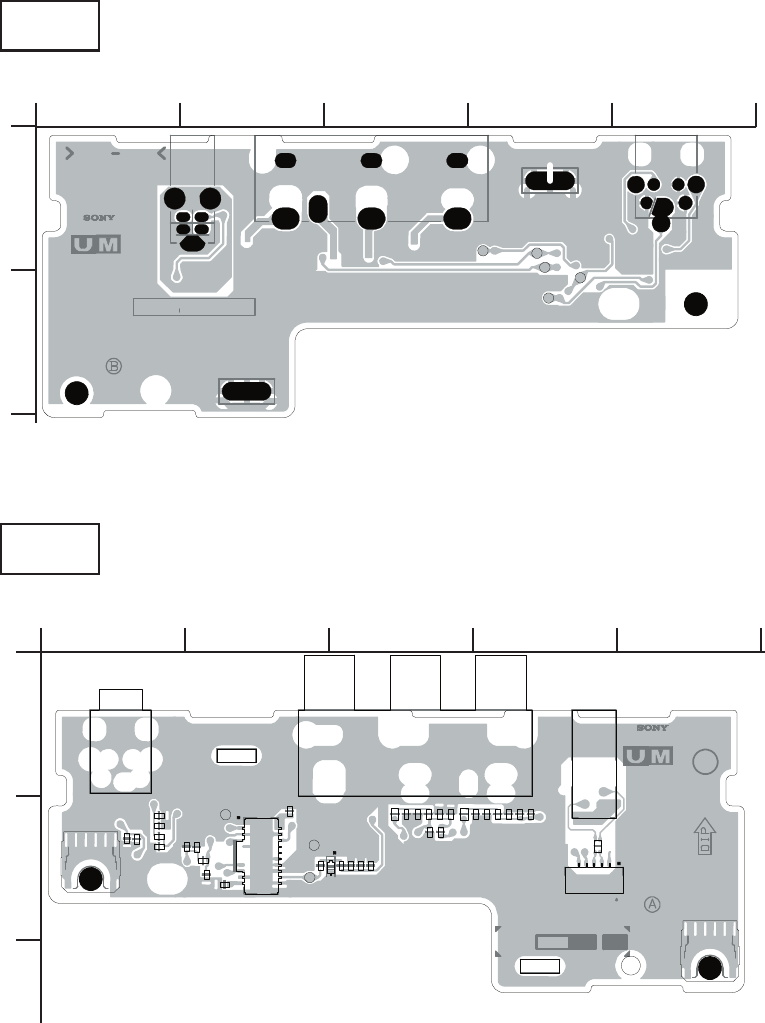

3-2. Printed Wiring Boards and

Schematic Diagrams Information ......................................... 40

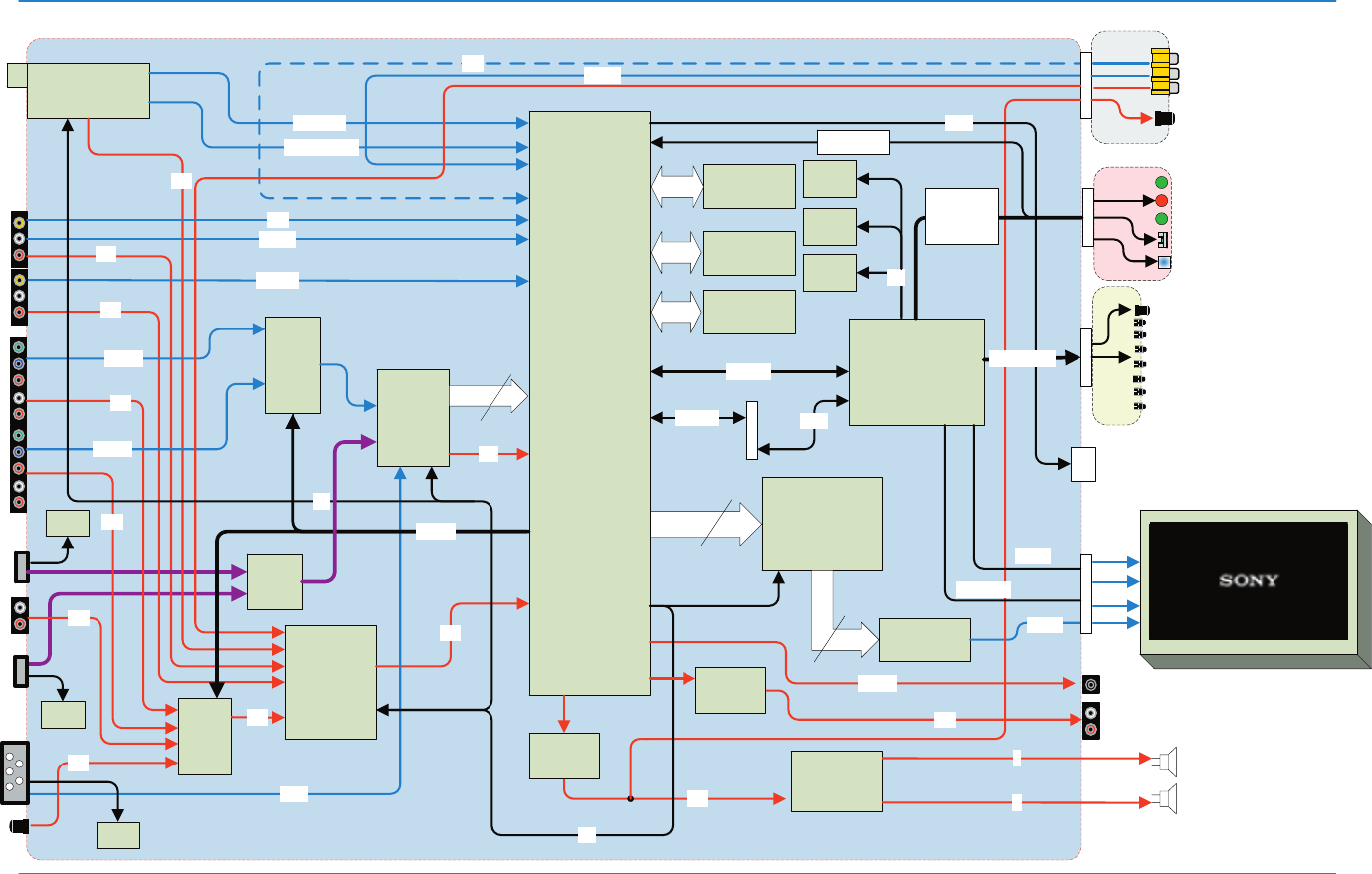

3-3. Block Diagram ...................................................................... 42

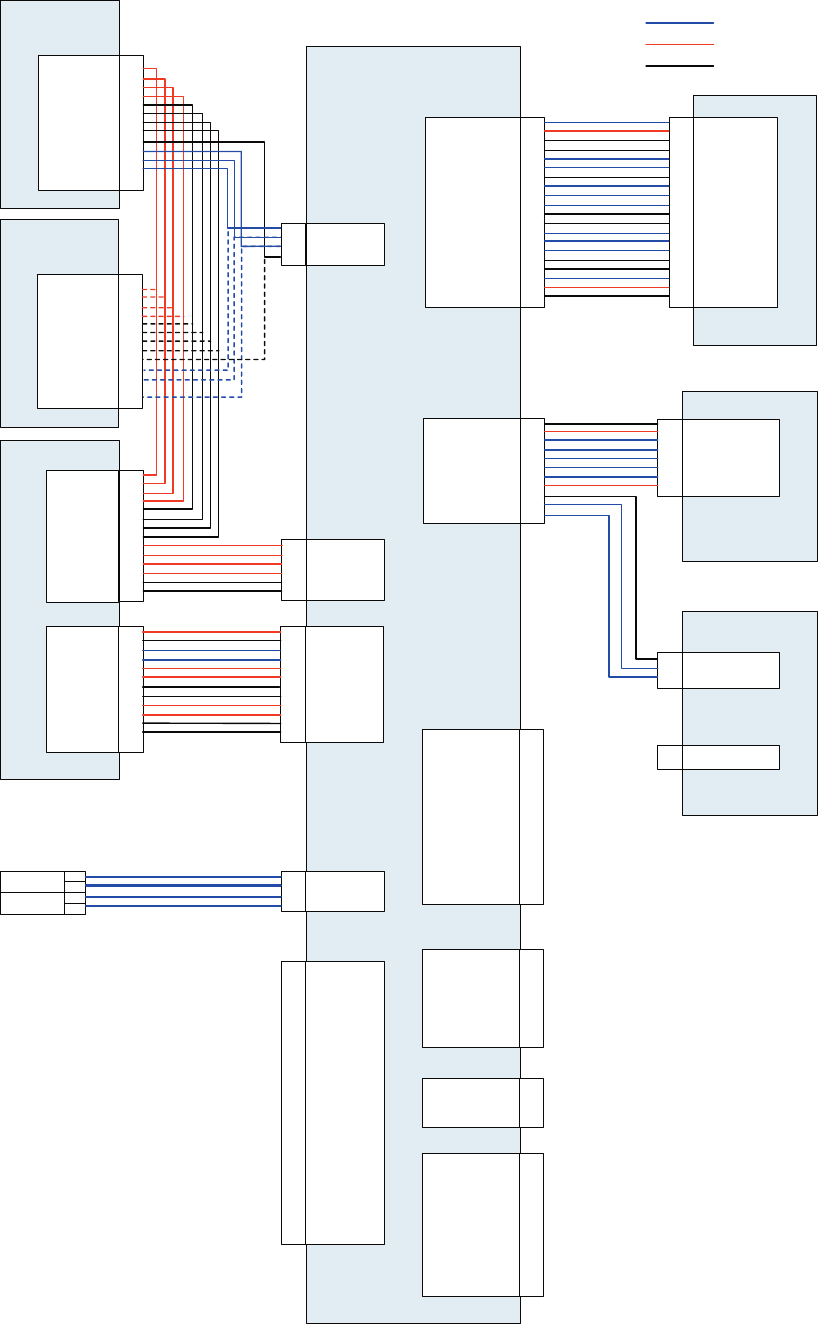

3-4. Connection Diagram ............................................................ 43

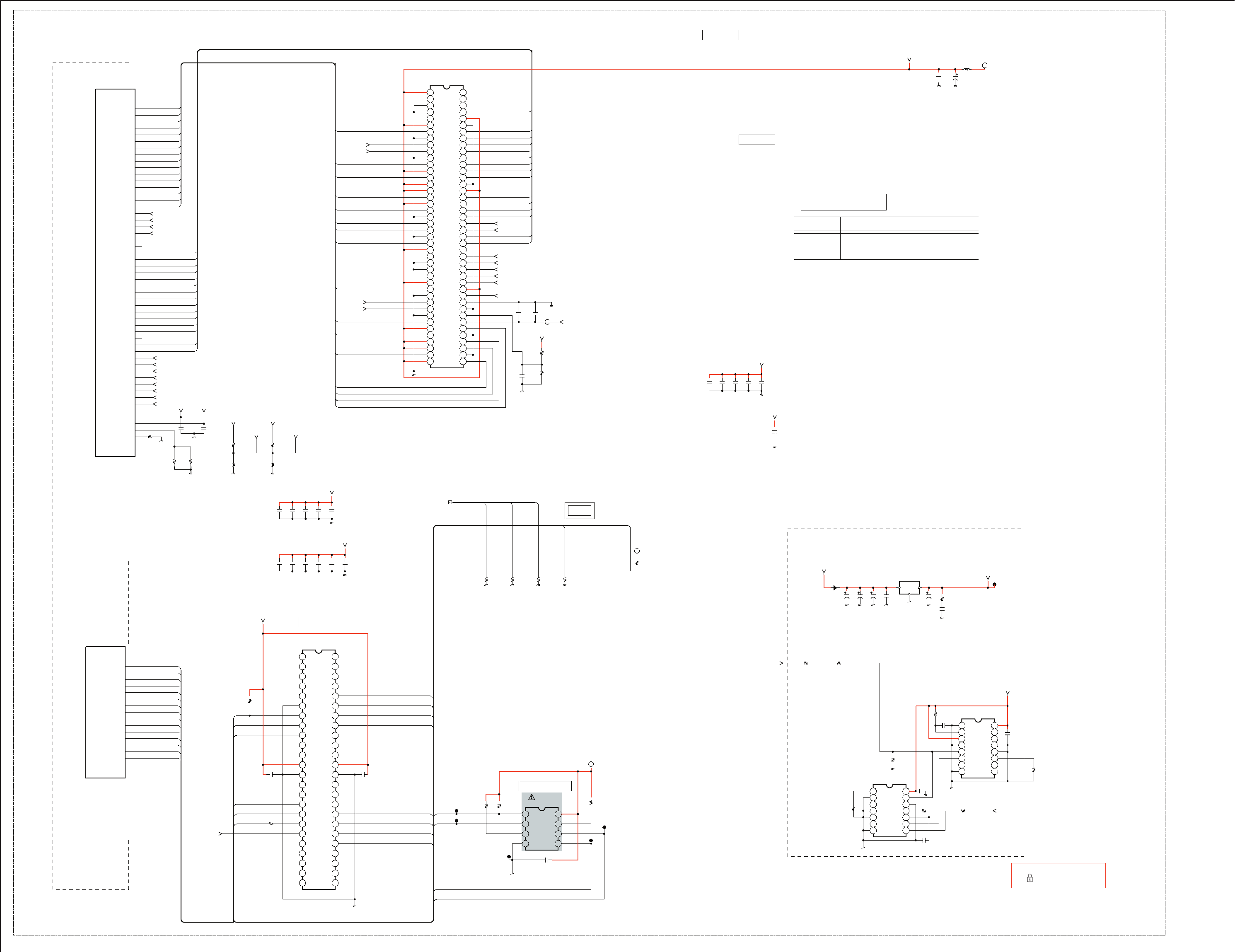

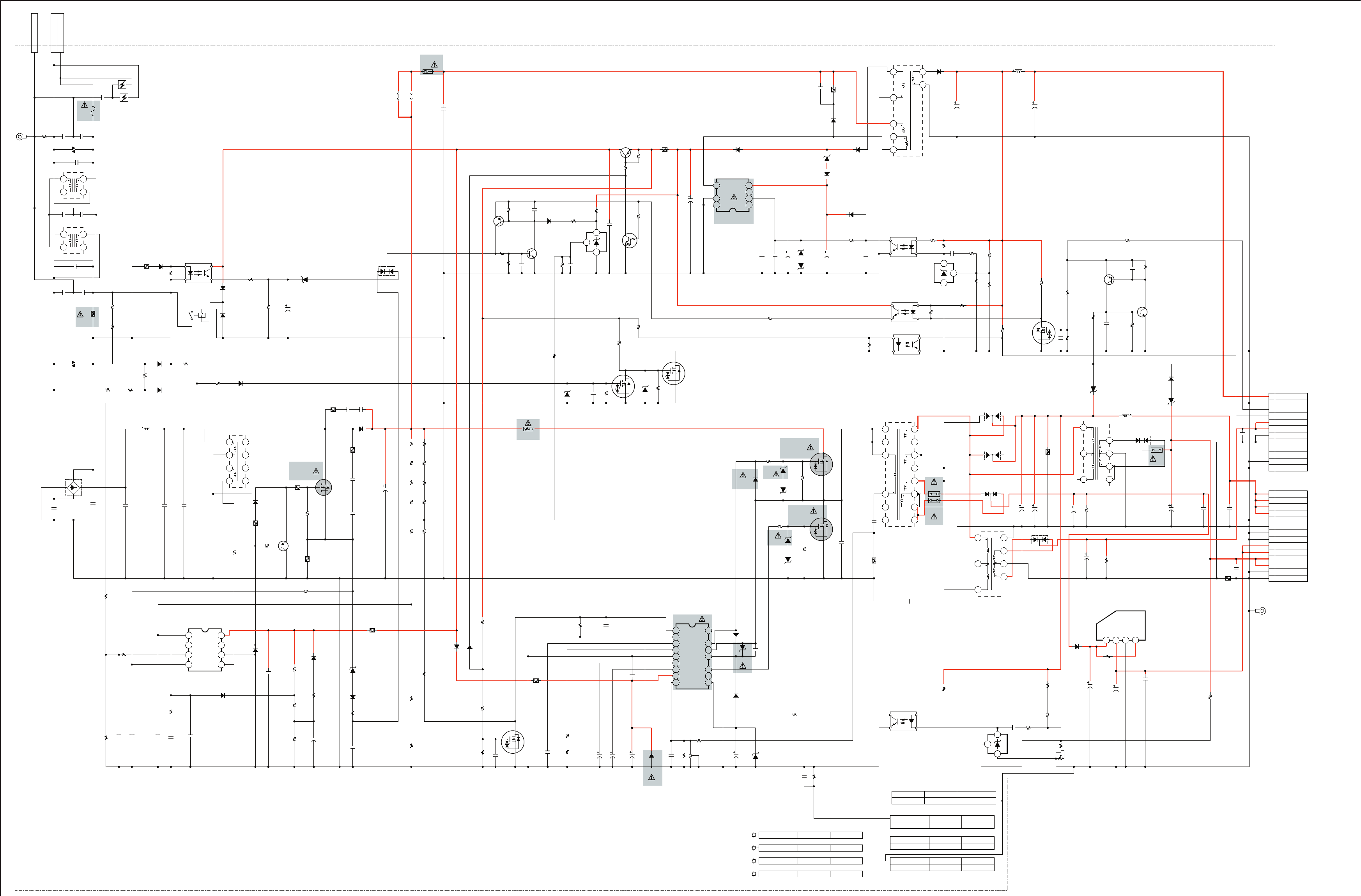

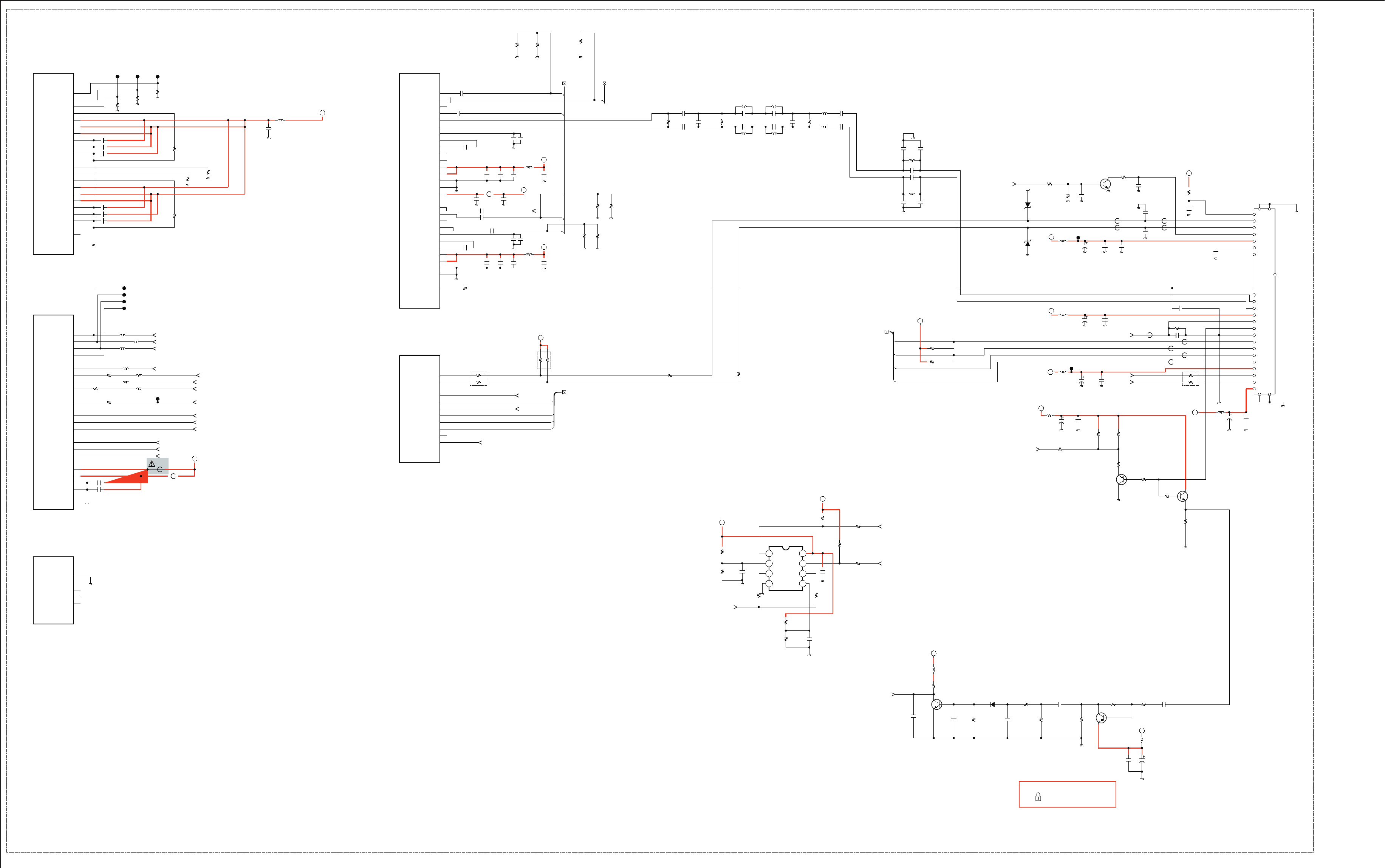

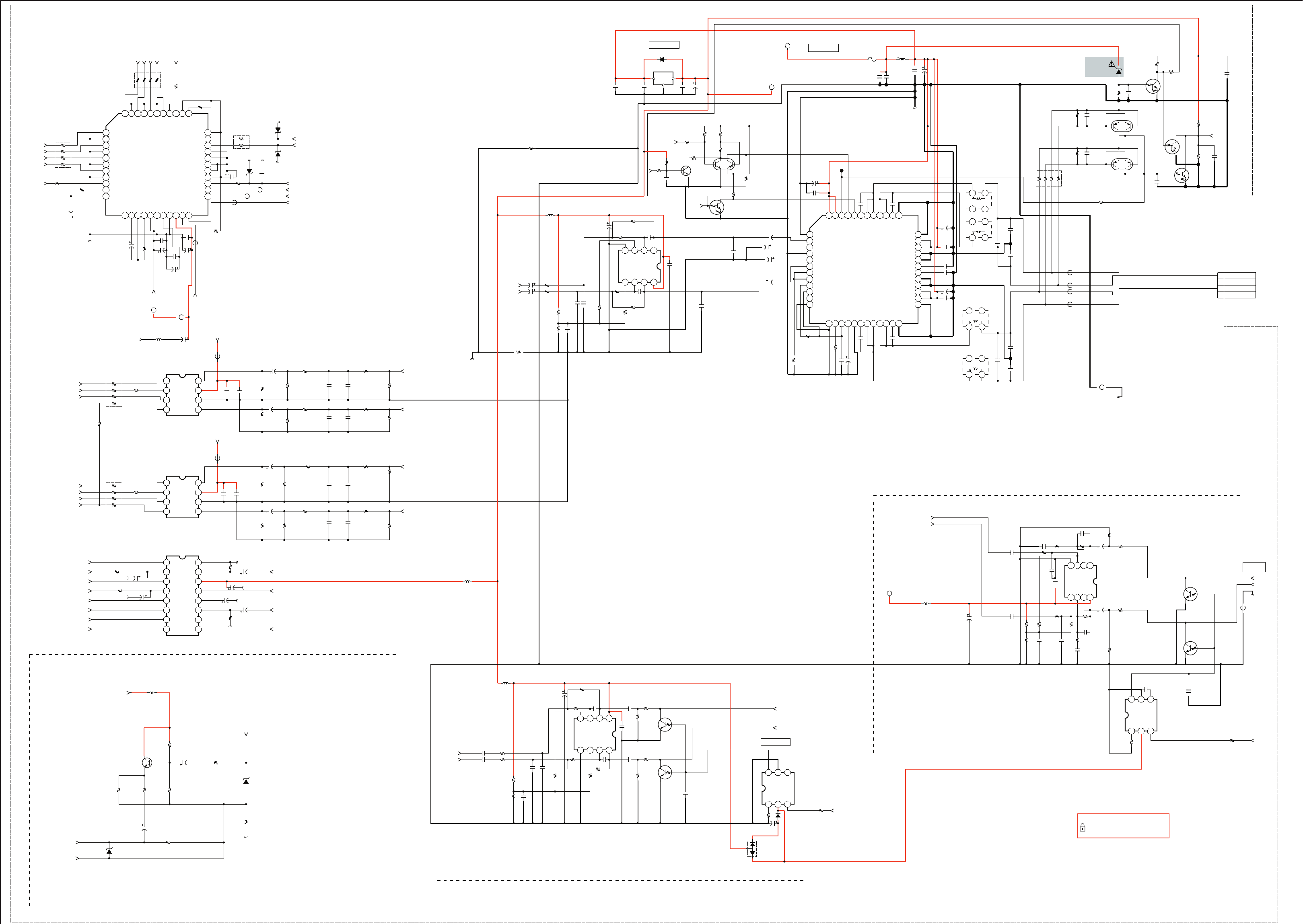

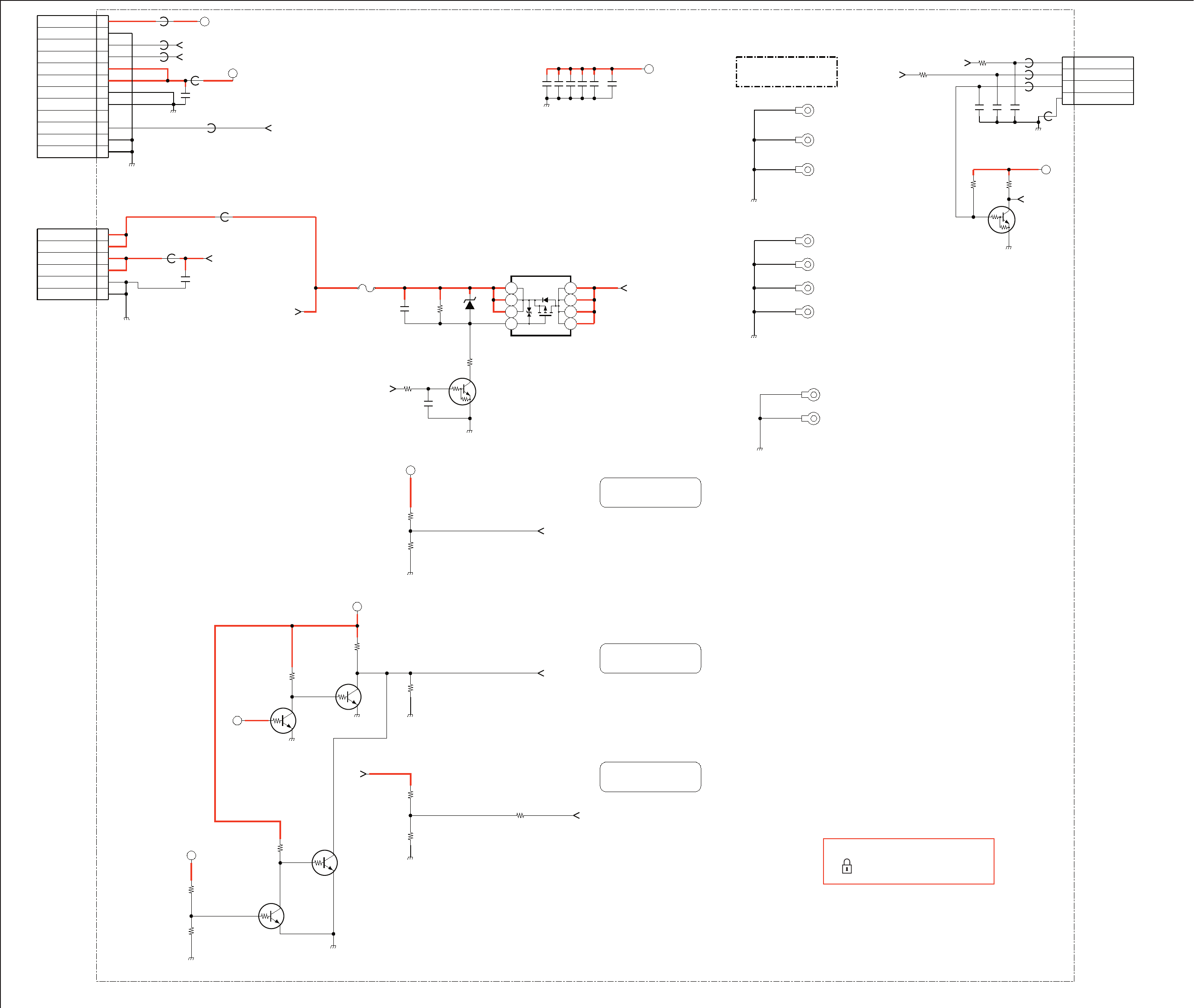

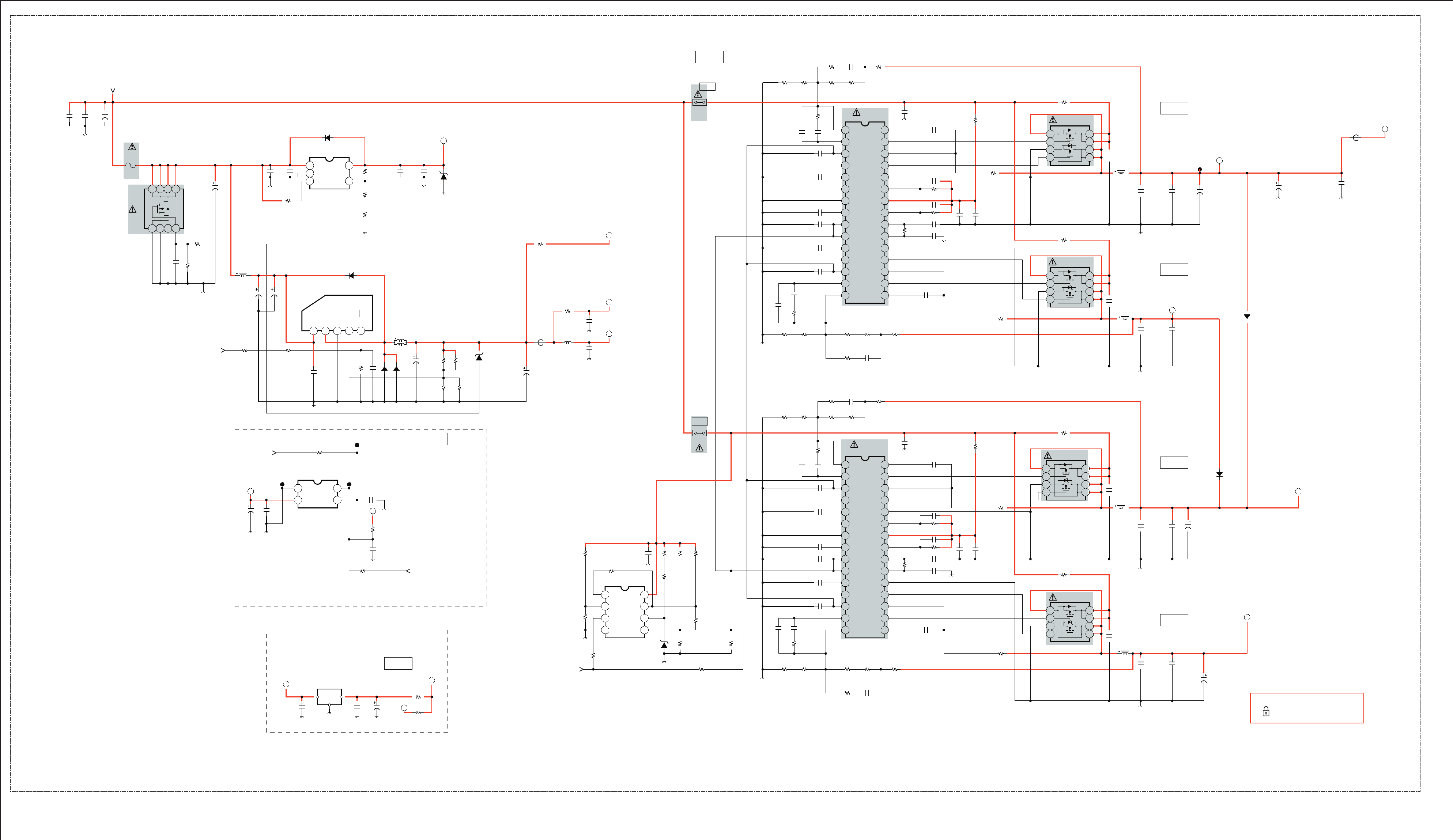

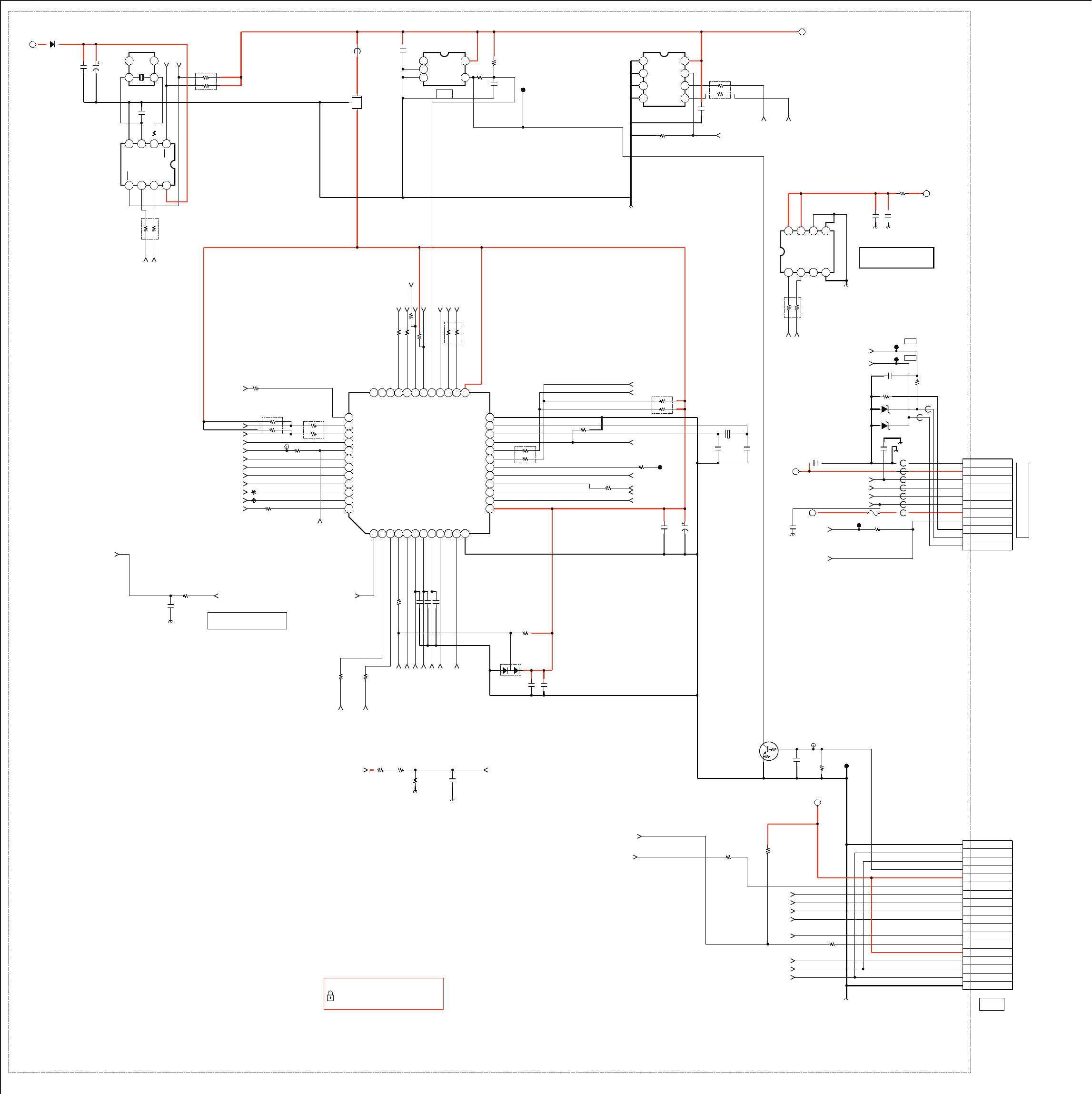

3-5. Schematics and Supporting Information .............................. 44

BM Board Schematic Diagram (1 of 12) .............................. 44

BM Board Schematic Diagram (2 of 12) .............................. 45

BM Board Schematic Diagram (3 of 12) .............................. 46

BM Board Schematic Diagram (4 of 12) .............................. 47

BM Board Schematic Diagram (5 of 12) .............................. 48

BM Board Schematic Diagram (6 of 12) .............................. 49

BM Board Schematic Diagram (7 of 12) .............................. 50

BM Board Schematic Diagram (8 of 12) .............................. 51

BM Board Schematic Diagram (9 of 12) .............................. 52

BM Board Schematic Diagram (10 of 12) ............................ 53

BM Board Schematic Diagram (11 of 12) ............................. 54

BM Board Schematic Diagram (12 of 12) ............................ 55

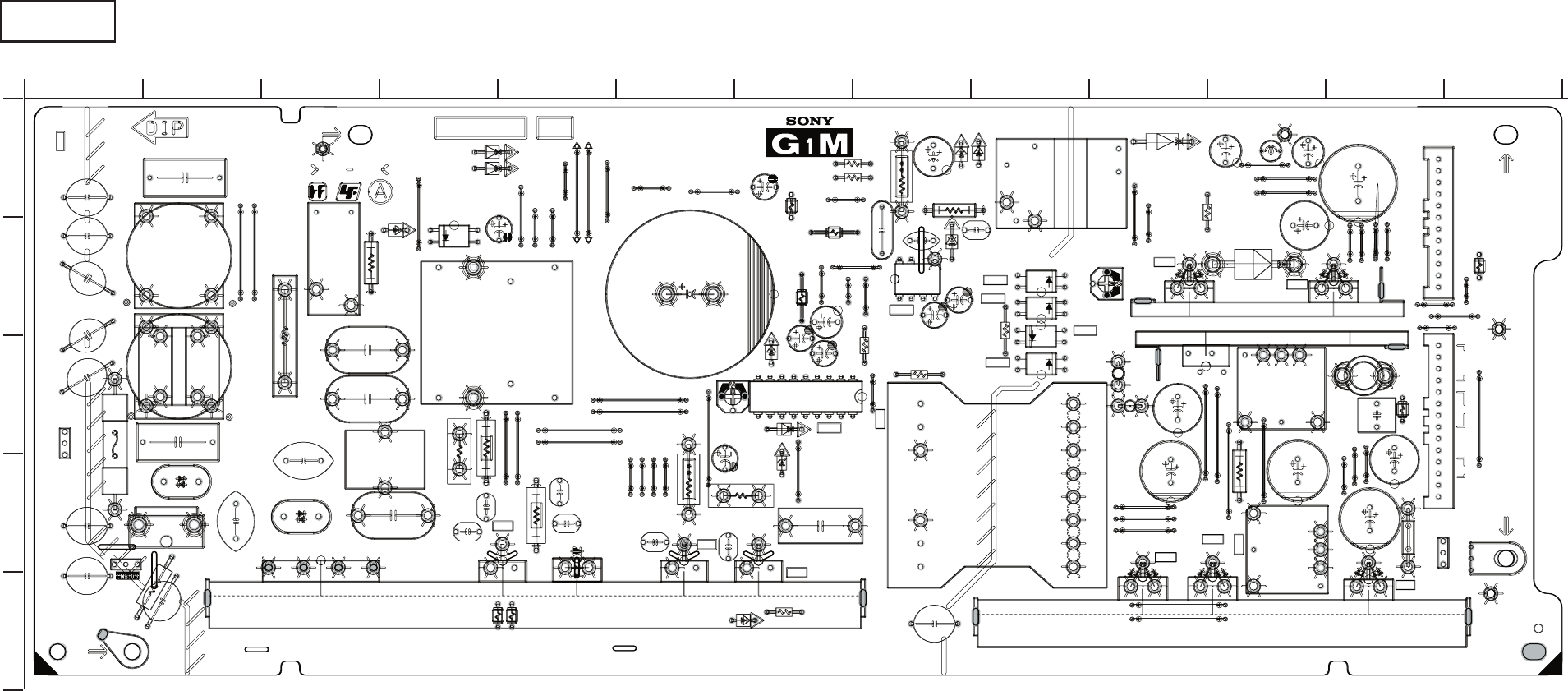

G1M Board Schematic Diagram .......................................... 57

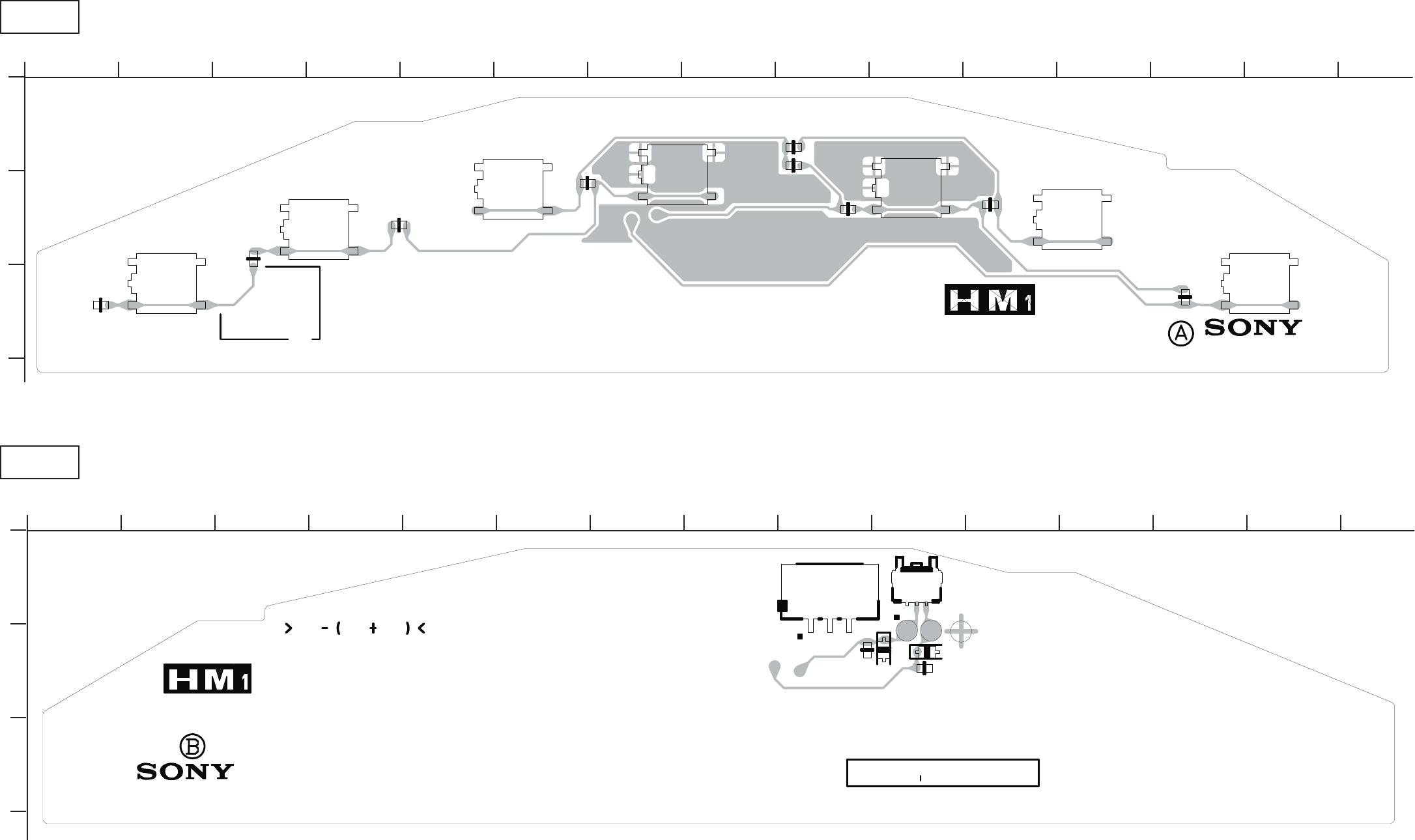

HM1 Board Schematic Diagram ........................................... 60

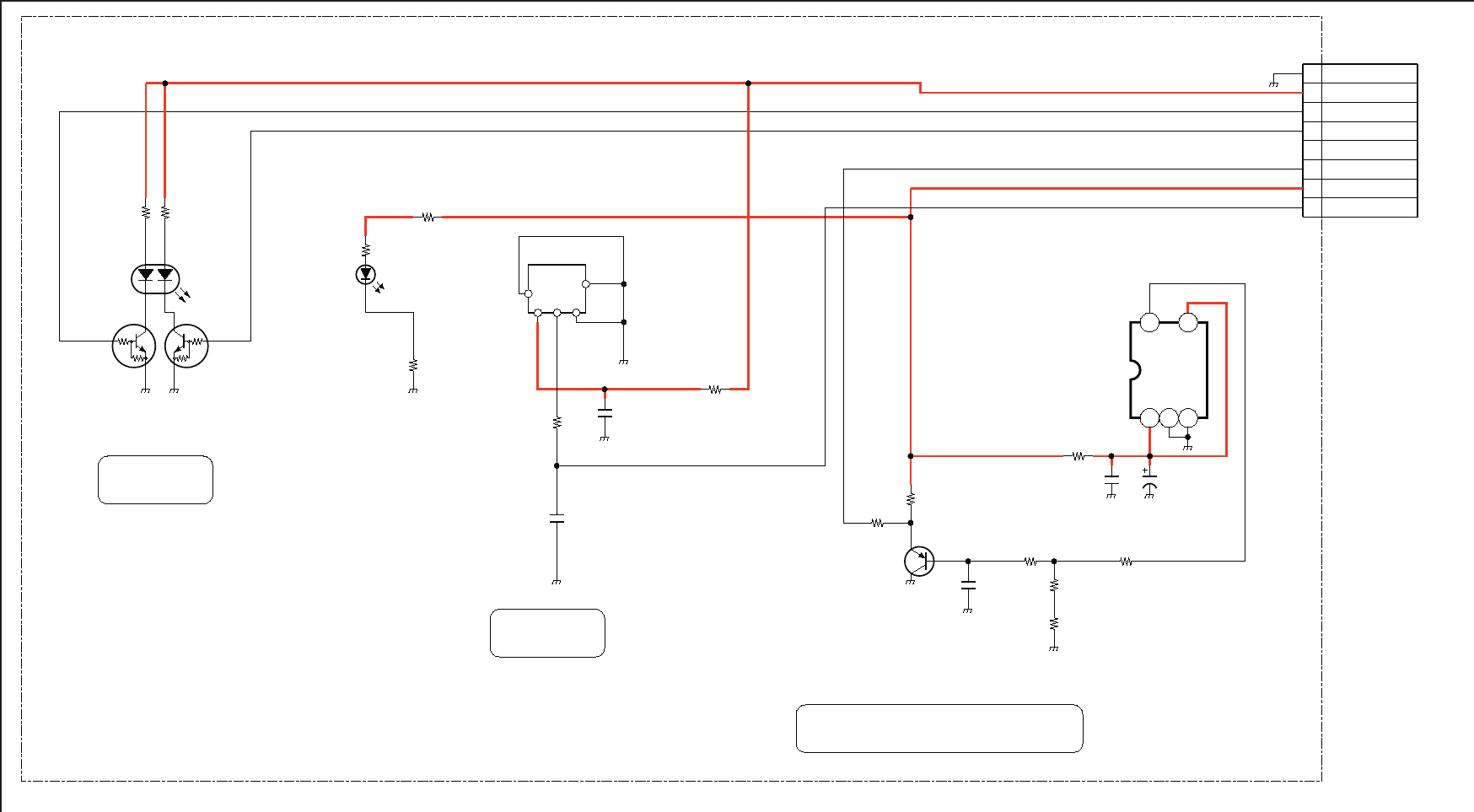

HM3 Board Schematic Diagram ........................................... 62

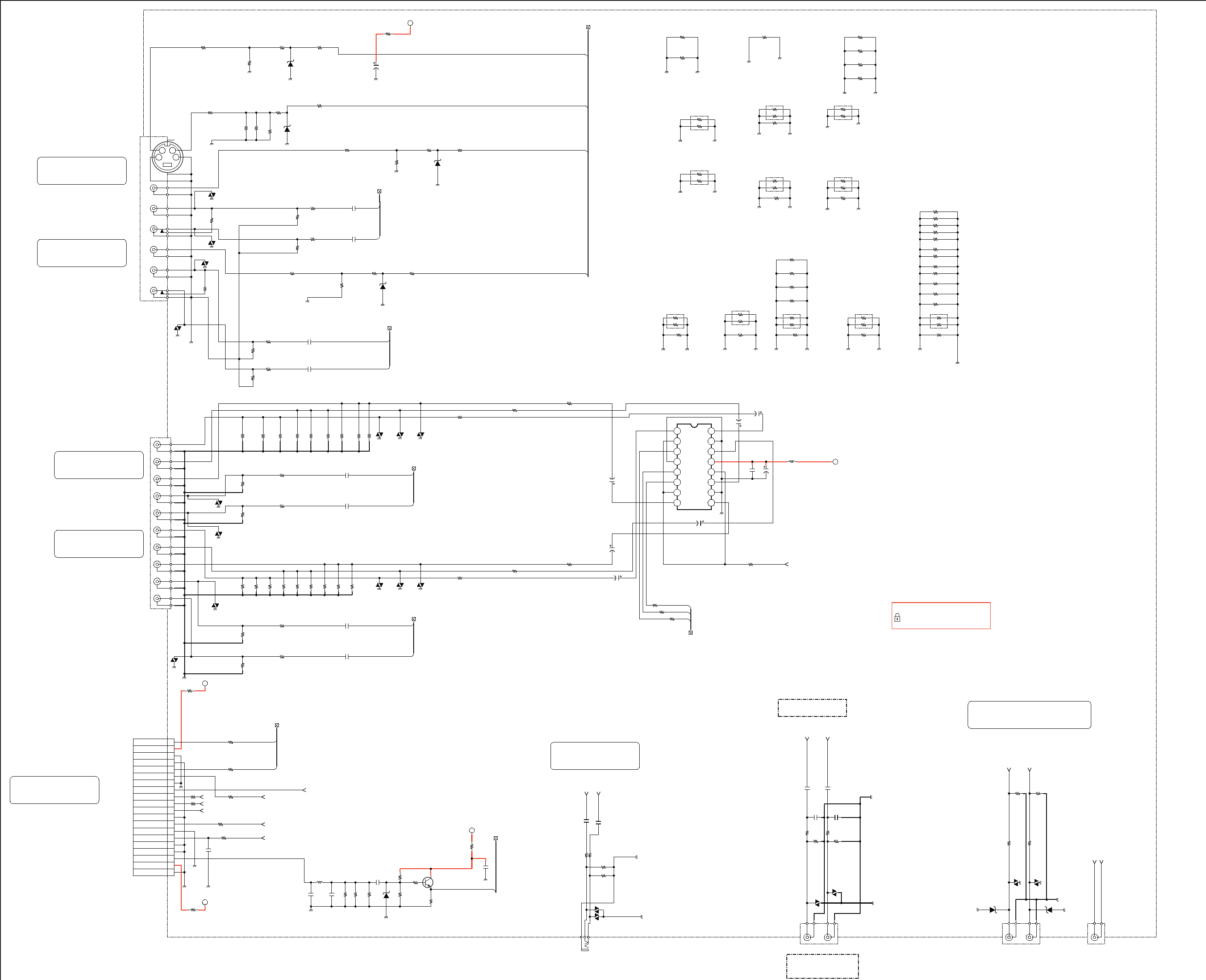

UM Board Schematic Diagram ............................................. 64

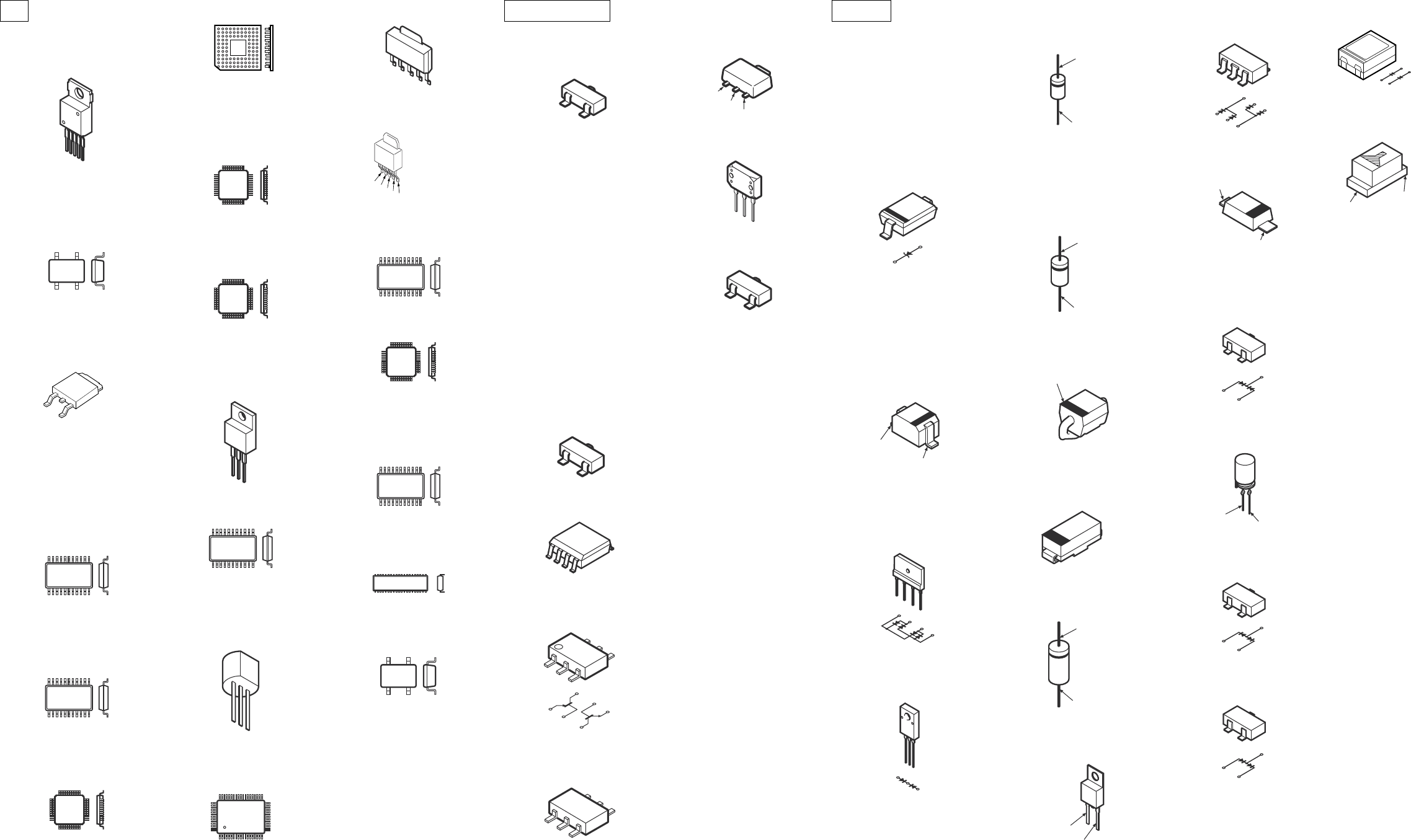

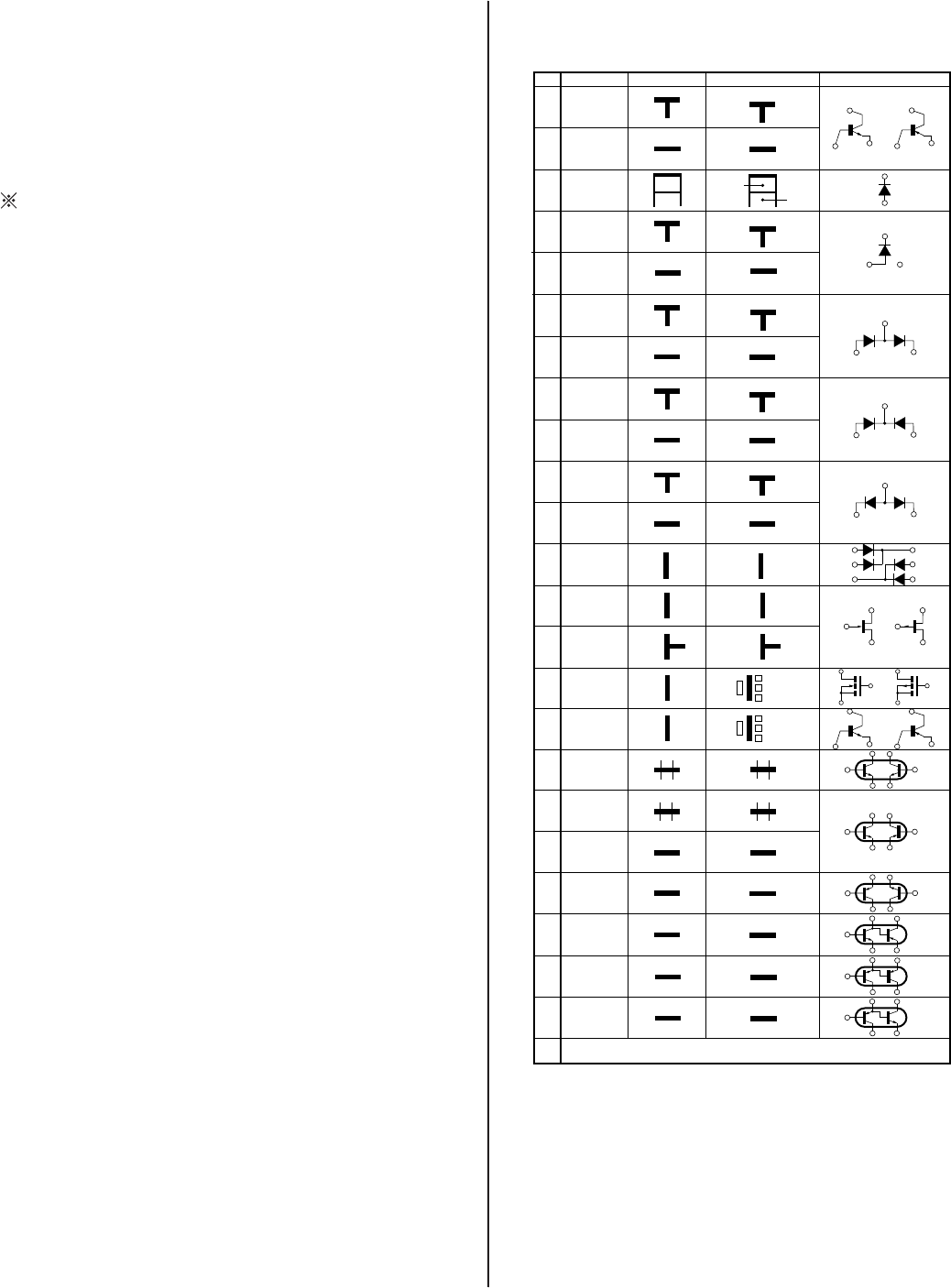

3-6. Semiconductors ................................................................... 66

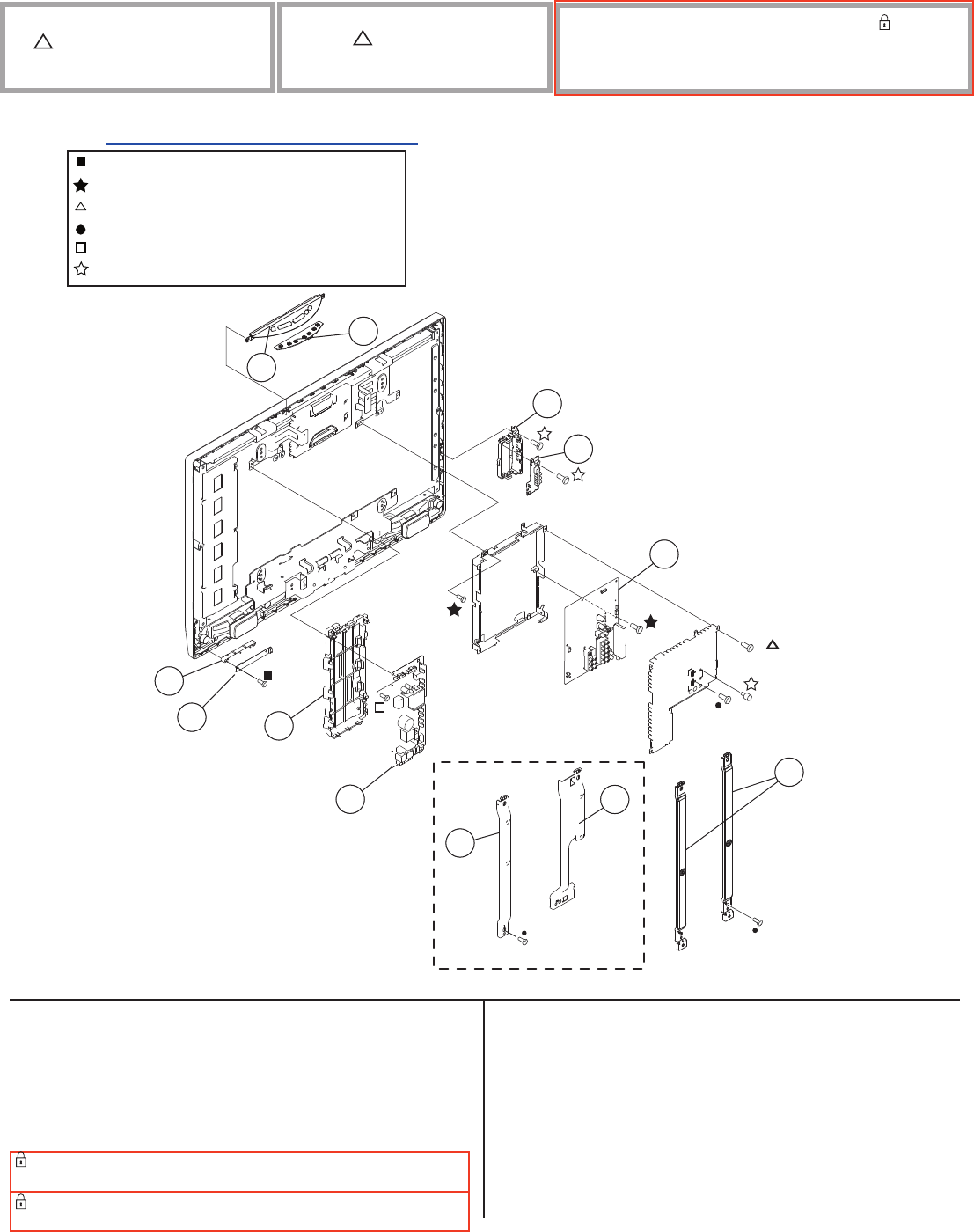

SECTION 4: EXPLODED VIEWS ........................................................ 67

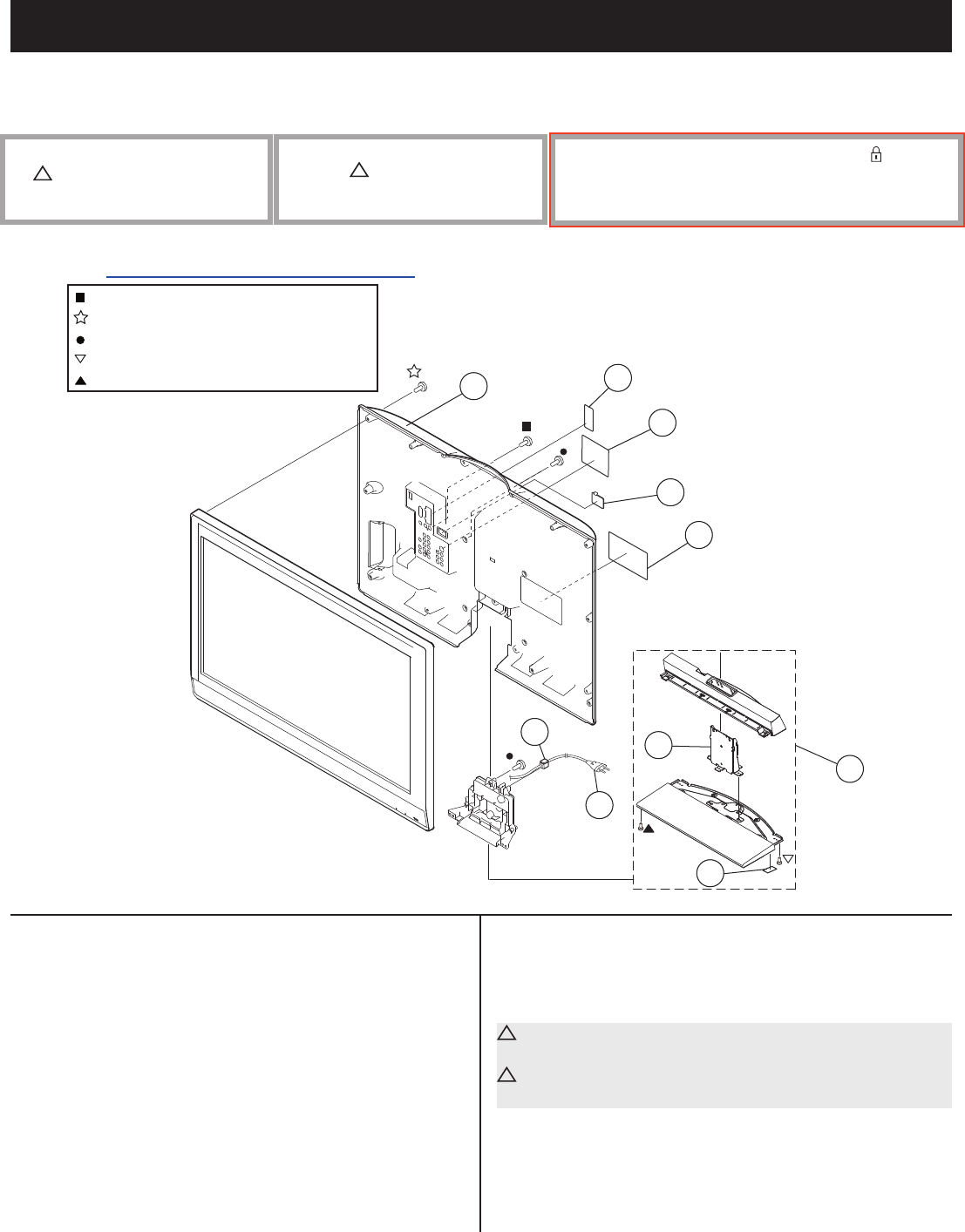

4-1. Rear Cover Assembly and Stand Assembly ........................ 67

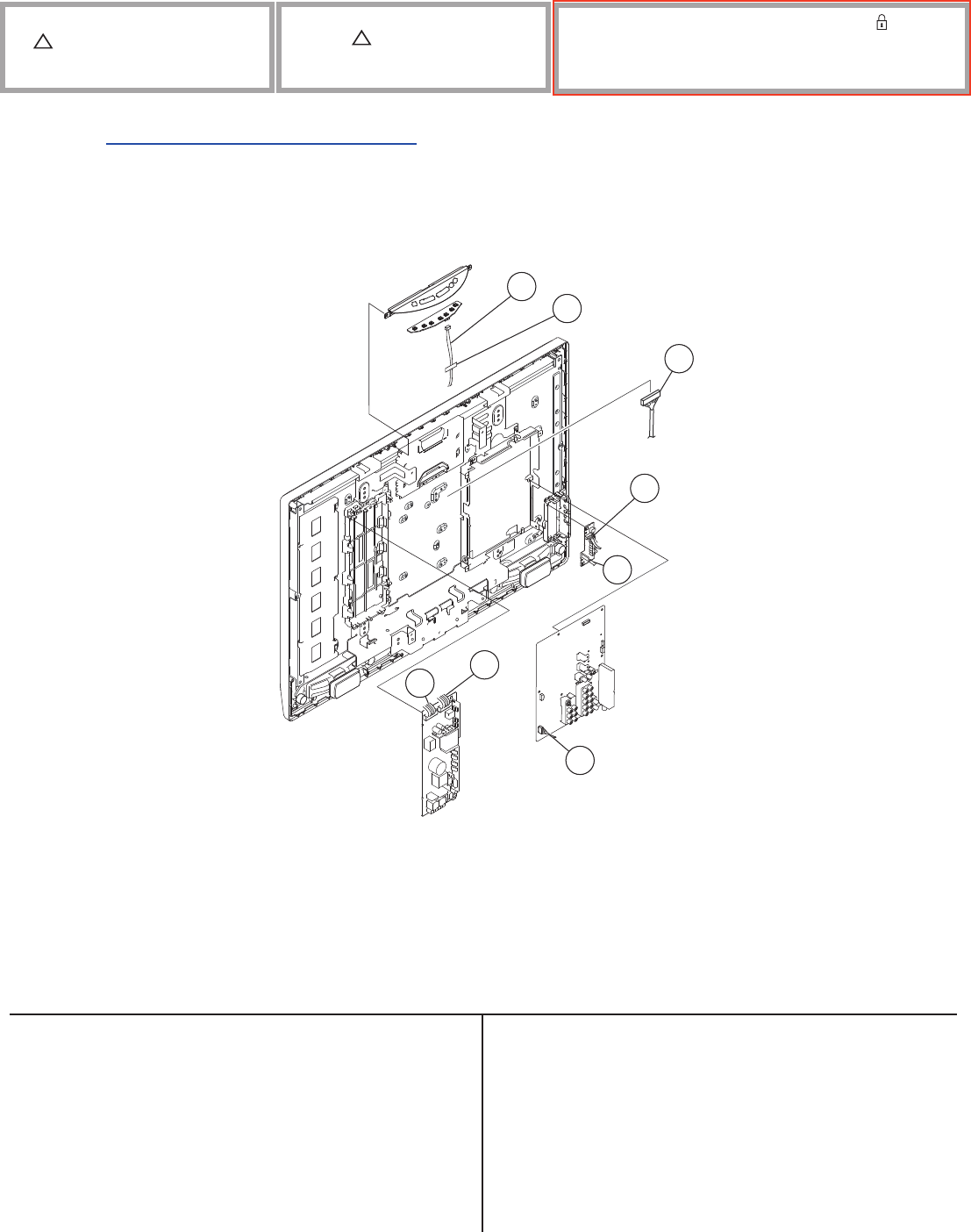

4-2. Chassis ................................................................................ 68

4-3. Connectors ........................................................................... 69

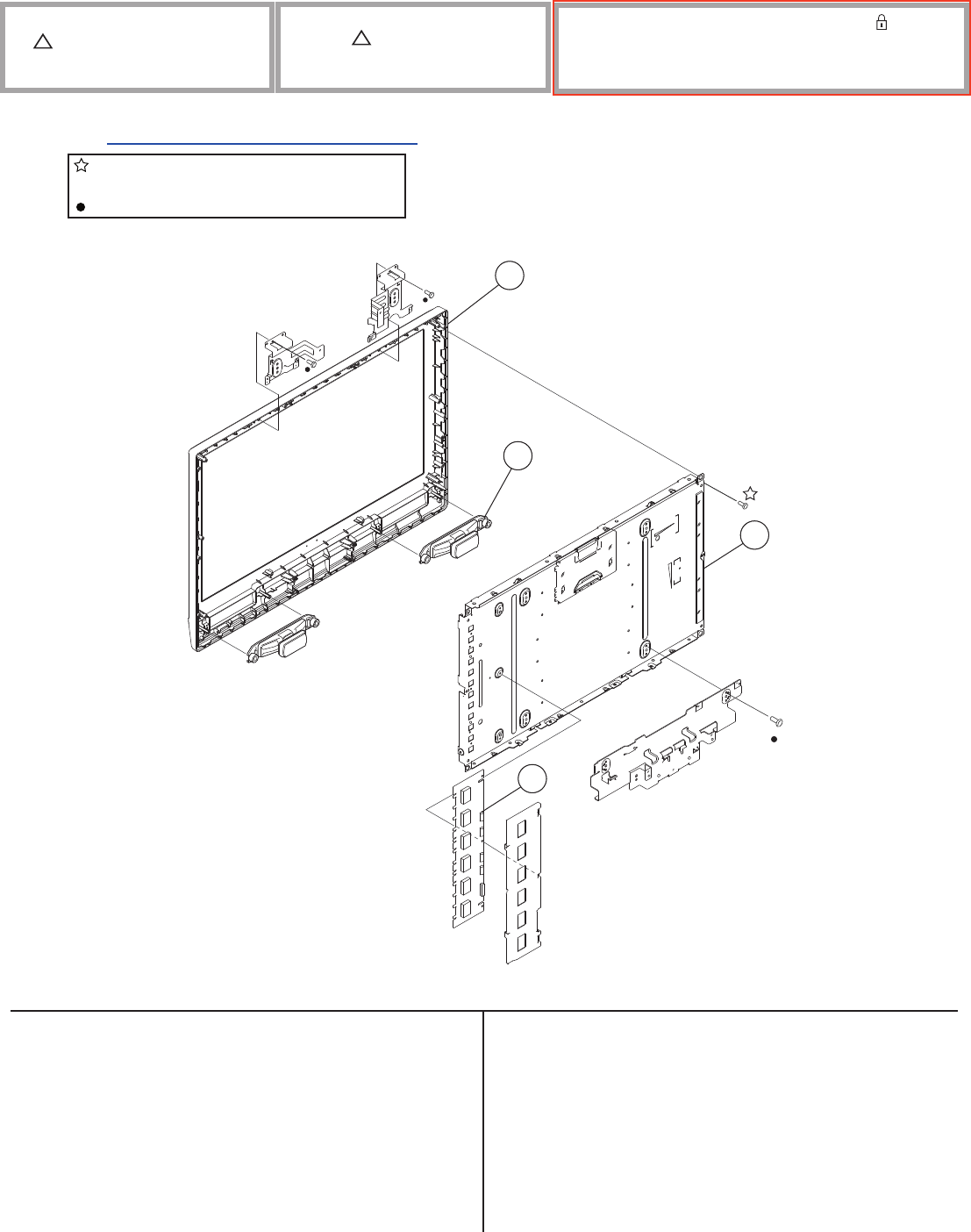

4-4. Bezel Assembly, LCD Panel and Speakers ......................... 70

SECTION 5: ELECTRICAL PARTS LIST ............................................ 71

APPENDIX A: ENCRYPTION KEY COMPONENTS ..........................A-1

4

KDL-26M3000/26ML130/32M3000/32ML130

SPECIFICATIONS

Design and speciﬁ cations are subject to change without notice.

120V AC, 60Hz

220V, 50/60 Hz (Chile, Perú)

Video (IN) 1/2/3

S Video (4-Pin Mini DIN (VIDEO 1 Only)

Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative

C: 0.286 Vp-p (Burst signal), 75 ohms

Video

1.0 Vp-p, 75ohms unbalanced, sync negative

Audio

500 mVrms (100% modulation)

Impedance:47 kilohms

COMPONENT IN 1/2

YPBPR (Component Video)

Y:1.0 Vp-p, 75 ohms unbalanced, sync negative

P

B:0.7 Vp-p, 75 ohms

P

R:0.7 Vp-p, 75 ohms

Signal format: 480i, 480p, 720p, 1080i

AUDIO

500 mVrms (100% modulation)

Impedance: 47 kilohms

Power Requirements HDMI IN 1/2:

HDMI: Video:480i, 480p, 720p, 1080i

Audio: Two channel linear PCM 32, 44.1 and

48 kHz, 16, 20 and 24 bits

AUDIO: (HDMI IN 2 only) 500 mVrms (100% modulation)

Impedance: 47 kilohms

AUDIO OUT:

500 mVrms (100% modulation)

More than 1 Vrms at the maximum volume setting (Variable)

More than 500 mVrms (Fixed)

PC IN:

D-sub 15-pin, analog RGB, 0.7 Vp-p, 75 ohms, positive

PC AUDIO INPUT:

Stereo mini jack, 500 mVrms, 47 kilohm

HEADPHONES:

Stereo mini jack

Impedance: 16 ohms

Trademark Information

Manufactured under license from Dolby Laboratories. “Dolby” and

double-D symbol are trademarks of Dolby Laboratories.

This TV incorporates High-Definition Multimedia Interface (HDMI™)

technology. HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing

LLC.

Blu-ray is a trademark. “BRAVIA” and , , and PS3 are

trademarks or registered marks of Sony Corporation.

☛

5

KDL-26M3000/26ML130/32M3000/32ML130

Television system

NTSC American TV Standard

ATSC (8VSB terrestrial) ATSC compliant 8VSB

QAM on cable: ANSI/SCTE 07 2000

Channel coverage

Analog Digital

Terrestrial 2-69 2-69

Cable 1-125 1-135

Antenna

75-ohm external terminal for VHF/UHF

Panel System

LCD (Liquid Crystal Display) Panel

Display Resolution (horizontal x vertical):

1,366 dots x 768 lines

Screen Size (measured diagonally)

approx. 26 inches (KDL-26M3000/26ML130 Only)

approx. 31.5 inches (KDL-32M3000/32ML130 Only)

Supplied Accessories

Remote Commander RM-YD021

Two Size AA (R6) Batteries

AC Power Cord

Suport Belt, Securing Screw, and Wood Screw

Cable Holder

Operating Instructions

Quick Setup Guide

Warranty Card

Online Registration Card

Wall-Mount Instructions

Optional Accessories

Headphones Plug Adapter

Connecting Cables

Wall-Mount Bracket

SU-WL100 (KDL-26M3000/26ML130 Only)

SU-WL500 (KDL-32M3000/32ML130 Only)

HD15-HD15 Cable

75-ohm Coaxial Cable

KDL-26M3000 KDL-26ML130 KDL-32M3000 KDL-32ML130

in use

in standby

mm

in

with stand

mm

in

without stand

mm

in

Mass

with stand

kg

lbs

without stand

kg

lbs

135W

Less than 1W

10W + 10W

Dimensions (W x H x D)

Power Consumption

Speaker Output (W)

Dimensions (W x H x D)

796 x 590 x 214 mm

313/8 x 231/4 x 81/2 in

170W

146 x 35 mm

53/4 x 13/8 in

662 x 515 x 214 mm

261/8 x 203/8 x 81/2 in

662 x 468 x 108 mm

261/8 x 181/2 x 43/8 in

796 x 544 x 100 mm

313/8 x 211/2 x 4 in

14 kg

31 lbs

16 kg

36 lbs

13 kg

29 lbs

11 kg

25 lbs

All measurements are approximations.

6

KDL-26M3000/26ML130/32M3000/32ML130

WARNINGS AND CAUTIONS

CAUTION

These servicing instructions are for use by qualiﬁ ed service personnel only. To reduce the risk of electric shock, do not perform any servicing other

than that contained in the operating instructions unless you are qualiﬁ ed to do so.

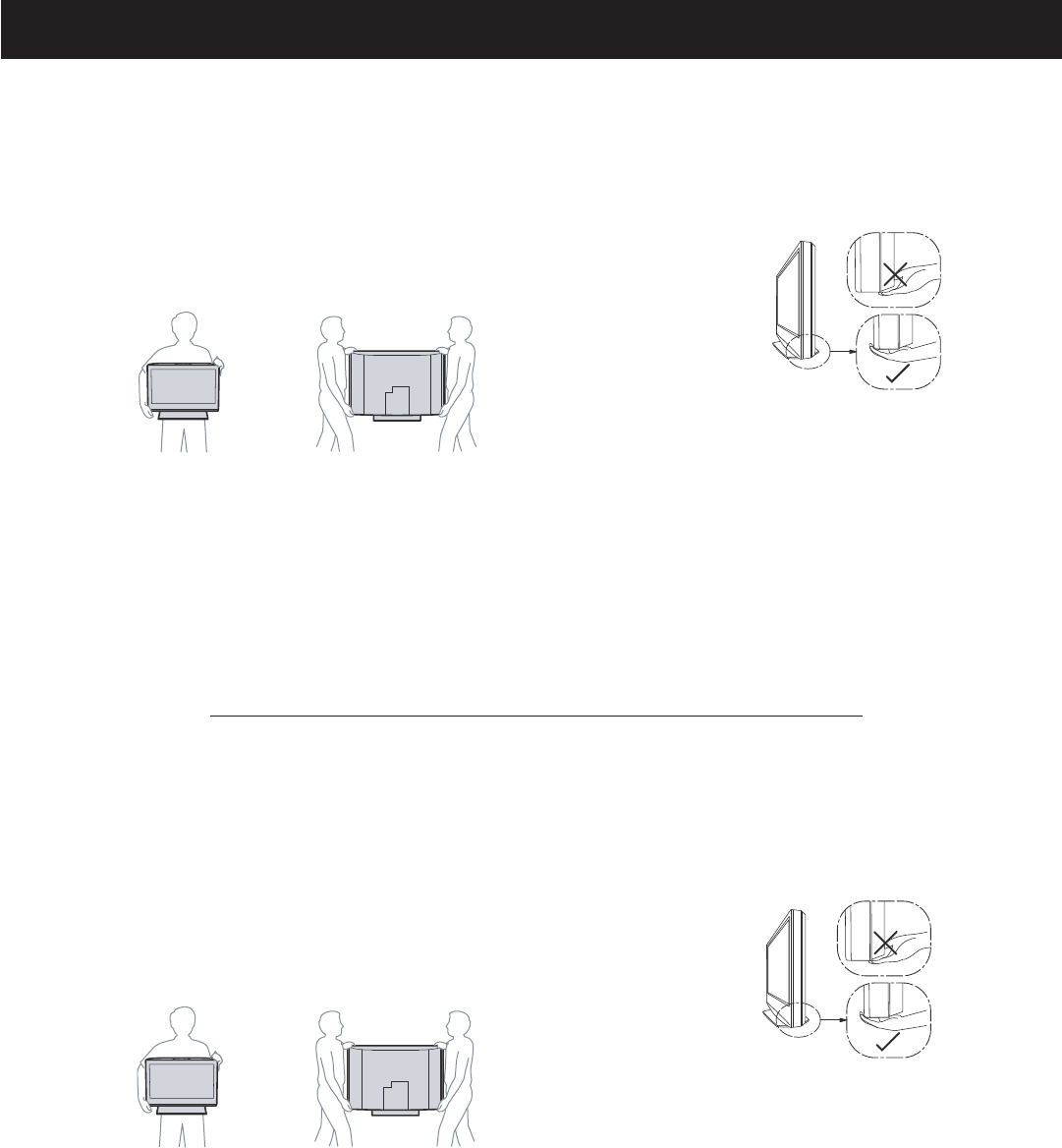

CARRYING THE TV

To avoid dropping the TV and causing serious injury, be sure to follow

these guidelines:

sBefore carrying the TV, disconnect all cables.

sCarrying the large size TV requires two or more people.

sWhen you carry the TV, place your hand as illustrated and hold it

securely. Do not put stress on the LCD panel.

sWhen lifting or moving the TV, hold it firmly from the bottom. Place

your palm directly under the panel.

sWhen carrying, do not subject the TV to shocks or vibration, or

excessive force.

KDL-32M3000/32ML130KDL-26M300026ML130

WARNING!!

An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis. The chassis of this receiver is

directly connected to the ac power line.

! SAFETY-RELATED COMPONENT WARNING!!

Components identiﬁ ed by shading and

!

mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace

these components with Sony parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that

are critical for safe operation are identiﬁ ed in this manual. Follow these procedures whenever critical components are replaced or improper operation is

suspected.

ATTENTION!!

Ces instructions de service sont à l’usage du personnel de service qualiﬁ é seulement. Pour prévenir le risque de choc électrique, ne pas faire

l’entretien autre que celui contenu dans le Mode d’emploi à moins que vous soyez qualiﬁ é faire ainsi.

POUR TRANSPORTER LE TÉLÉVISEUR

KDL-32M3000/32ML130

KDL-26M300026ML130

Assurez-vous de suivre ces consignes pour éviter de laisser tomber le

téléviseur et de provoquer des blessures graves :

sAvant de transporter le téléviseur, débranchez tous les câbles.

sLe transport du téléviseur doit être effectué par au moins deux

personnes.

sLorsque vous le transportez, placez vos mains tel que cela est illustré

et tenez solidement l’appareil. N’appliquez pas de pression sur

l’écran ACL.

sLorsque vous levez ou déplacez le téléviseur, assurez-vous de tenir

solidement de la base. Placez la paume des mains directement sous

sLorsque vous transportez le téléviseur, ne le soumettez pas à des

chocs ou vibrations, ni à une force excessive.

le panneau.

Aﬁ n d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout dépannage. Le

chássis de ce récepteur est directement raccordé à l’alimentation du secteur.

! ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!

Les composants identiﬁ es par une trame et par une marque

!

sur les schemas de principe, les vues explosees et les listes de pieces sont d’une

importance critique pour la securite du fonctionnement. Ne les remplacer que par des composants Sony dont le numero de piece est indique dans le

present manuel ou dans des supplements publies par Sony. Les reglages de circuit dont l’importance est critique pour la securite du fonctionnement

sont identiﬁ es dans le present manuel. Suivre ces procedures lors de chaque remplacement de composants critiques, ou lorsqu’un mauvais

fonctionnement suspecte.

7

KDL-26M3000/26ML130/32M3000/32ML130

SAFETY-RELATED COMPONENT WARNING

There are critical components used in LCD color TVs that are important for safety. These components are identiﬁ ed with shading and

!

mark on the schematic diagrams and the electrical parts list. It is essential that these critical parts be replaced only with the part number

speciﬁ ed in the electrical parts list to prevent electric shock, ﬁ re, or other hazard.

NOTE: Do not modify the original design without obtaining written permission from the manufacturer or you will void the original parts and

labor guarantee.

USE CAUTION WHEN HANDLING THE LCD PANEL

When repairing the LCD panel, be sure you are grounded by using a wrist band.

When installing the LCD panel on a wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.

To avoid damaging the LCD panel:

 do not press on the panel or frame edge to avoid the risk of electric shock.

 do not scratch or press on the panel with any sharp objects.

 do not leave the module in high temperatures or in areas of high humidity for an extended period of time.

 do not expose the LCD panel to direct sunlight.

 avoid contact with water. It may cause a short circuit within the module.

 disconnect the AC adapter when replacing the backlight (CCFL) or inverter circuit.

(High voltage occurs at the inverter circuit at 650Vrms.)

 always clean the LCD panel with a soft cloth material.

 use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.

 protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).

LEAKAGE CURRENT HOT CHECK CIRCUIT

8

KDL-26M3000/26ML130/32M3000/32ML130

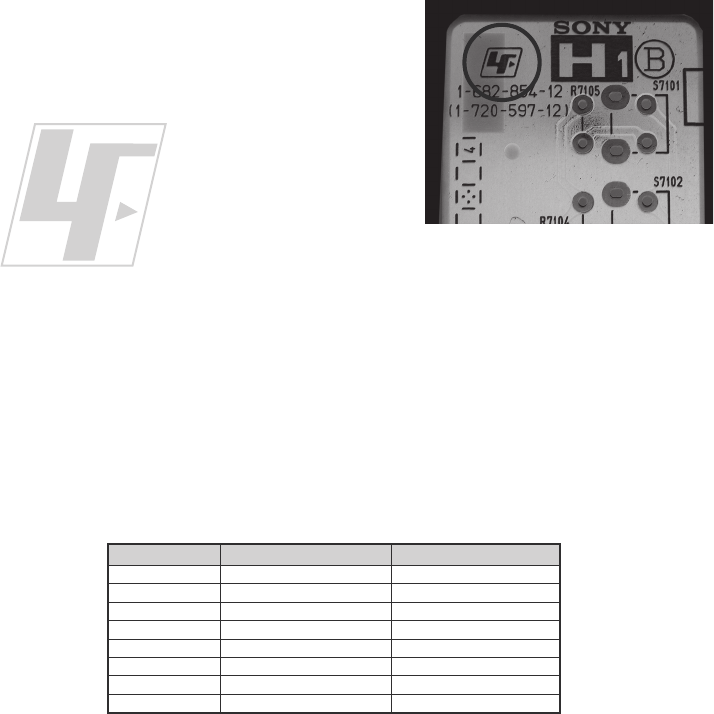

The circuit boards used in these models have been processed using

Lead Free Solder. The boards are identified by the LF logo located

close to the board designation e.g. H1 etc [ see example ]. The

servicing of these boards requires special precautions to be taken as

outlined below.

example 1

It is strongly recommended to use Lead Free Solder material in order to guarantee optimal quality of new solder joints.

Lead Free Solder is available under the following part numbers :

Due to the higher melting point of Lead Free Solder the soldering iron tip temperature needs to be set to 370 degrees centigrade.

This requires soldering equipment capable of accurate temperature control coupled with a good heat recovery characteristics.

For more information on the use of Lead Free Solder, please refer to

http://www.sony-training.com

rebmuntraP retemaiD skrameR

91-500-046-7mm3.0gK52.0

02-500-046-7mm4.0gK05.0

12-500-046-7mm5.0gK05.0

22-500-046-7mm6.0gK52.0

32-500-046-7mm8.0gK00.1

42-500-046-7mm0.1gK00.1

52-500-046-7mm2.1gK00.1

62-500-046-7mm6.1gK00.1

9

KDL-26M3000/26ML130/32M3000/32ML130

SAFETY CHECK-OUT

After correcting the original service problem, perform the following

safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly soldered

connections. Check the entire board surface for solder splashes and

bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or

touching high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and

mounting hardware have been replaced. Be absolutely certain that

you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors,

that were installed during a previous repair. Point them out to the

customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of

deterioration. Point them out to the customer and recommend their

replacement.

6. Check the line cords for cracks and abrasion. Recommend the

replacement of any such line cord to the customer.

7. Check the antenna terminals, metal trim, “metallized” knobs, screws,

and all other exposed metal parts for AC leakage. Check leakage as

described below.

Leakage Test

The AC leakage from any exposed metal part to earth ground and

from all exposed metal parts to any exposed metal part having a

return to chassis, must not exceed 0.5 mA (500 microamperes).

Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA

WT-540A. Follow the manufacturers’ instructions to use these

instructions.

2. A battery-operated AC milliampmeter. The Data Precision 245

digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a VOM

or battery-operated AC voltmeter. The “limit” indication is 0.75

V, so analog meters must have an accurate low voltage scale.

The Simpson’s 250 and Sanwa SH-63TRD are examples of

passive VOMs that are suitable. Nearly all battery-operated digital

multimeters that have a 2 VAC range are suitable (see Figure A).

How to Find a Good Earth Ground

A cold-water pipe is a guaranteed earth ground; the cover-plate

retaining screw on most AC outlet boxes is also at earth ground. If the

retaining screw is to be used as your earth ground, verify that it is at

ground by measuring the resistance between it and a cold-water pipe

with an ohmmeter. The reading should be zero ohms.

If a cold-water pipe is not accessible, connect a 60- to 100-watt

trouble- light (not a neon lamp) between the hot side of the receptacle

and the retaining screw. Try both slots, if necessary, to locate the hot

side on the line; the lamp should light at normal brilliance if the screw

is at ground potential (see Figure B).

To Exposed Metal

Parts on Set

0.15 μF

Earth Ground

AC

Voltmeter

(0.75V)

Trouble Light

AC Outlet Box Ohmmeter

Cold-water Pipe

Figure A. Using an AC voltmeter to check AC leakage. Figure B. Checking for earth ground.

10

KDL-26M3000/26ML130/32M3000/32ML130

SELF-DIAGNOSTIC FUNCTION

Self Diagnosis

Supported model

The units in this manual contain a self-diagnostic function. If an error occurs, the TIMER LED indicator will automatically begin to ﬂ ash. The number

of times the LED ﬂ ashes translates to a probable source of the problem. A deﬁ nition of the TIMER LED ﬂ ash indicators is listed in the instruction

manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the Remote Commander can be used to review the failure

occurrence data stored in memory to reveal past problems and how often these problems occur.

1. Diagnostic Test Indicators

When an error occurs, the TIMER LED indicator will ﬂ ash a set number of times to indicate the possible cause of the problem. If there is more than

one error, the indicator will identify the ﬁ rst of the problem areas.

Control Buttons

Description of LED Indictors

LED LED Type Description

POWER LED Green LED * Light is green when the TV set is on

* Li

g

ht is

g

reen when the Picture Of

f

feature is activated.

* Light is amber when the timer is set.

* Blinks red when indicating the TV may need servicing

TIMER

LED Amber/Green/Red LED

Display of TIMER LED Flash Count

2 times

5 times

LED ON 0.3 sec.

LED OFF 0.3 sec. LED OFF

3 sec.

11

KDL-26M3000/26ML130/32M3000/32ML130

Viewing the Self Check Diagnostic List

1. TV must be in standby mode. (Power off).

2. Press the following buttons on the Remote Commander within a second of each other:

DISPLAY Channel

5 Volume

+

TV POWER .

The Self Check list displays. This is the SAME as accessing Service Adjustments.

Results for all of the following diagnostic items are displayed at the bottom of the screen. No error has occurred if the screen displays a “0”.

NOTE: The On Screen Displays shows 7,

but it should be 8 for Audio.

2: MAIN_POWER 0 6: BL (Back Light) 0 Í0 indicates no error was detected

3: DC_ALERT1 0 7: TEMP 1 Í1 indicates an error was detected

4: DC_ALERT2 0 8: Audio 0

5: DC_ALERT3 0

Clearing the Self Check Diagnostic List

1. In Service Mode, press the Channel 8 Channel

0.

☛

12

KDL-26M3000/26ML130/32M3000/32ML130

1-1. REAR COVER REMOVAL

SECTION 1: DISASSEMBLY

1 Remove 2 screws from Rear Cover arm positions, +PSW M5X16

2 Remove 2 screws from Terminals, +BVTP 3X12 TYPE2 TT(B)

3 Remove 14 screws from Rear Cover, +BVTP2 4X16

1-2. ARM, UNDER COVER AND STAND REMOVAL

1 Remove 2 screws from bottom of VESA Arms, +PSW M5X16

2 Remove 3 screws from Under Cover and Stand, +PSW M5X16

3 Remove 2 screws from Under Cover and Bezel, +BVTP2 4X16

3

1

2

Bezel

Rear Cover

2

3

1

Bottom Bracket

Top Brackets

Stand Assembly

Under Cover

VESA Arms

☛

13

KDL-26M3000/26ML130/32M3000/32ML130

1-3. HM1 BOARD REMOVAL

1-4. UM BOARD AND JACK HOLDER REMOVAL

1 Remove from bezel

2 Disconnect one connector

3 Release hooks and remove HM1 Board

1 Remove one screw, +BVTP 3X12 TYPE2 TT(B)

2 Disconnect 2 connectors

3 Remove 2 screws, +BVTP 3X12 TYPE2 TT(B)

1

2

3

Bezel

Multi Button Assembly

HM1 Board

1

3

2

Bezel

Side Jack Holder

UM Board

14

KDL-26M3000/26ML130/32M3000/32ML130

1-5. SPEAKER, LIGHT GUIDE AND HM3 BOARD REMOVAL

1-6. BM BOARD REMOVAL

1 Slide out Speakers from Bezel

2 Disconnect one connector

3 Remove 2 screws, +BVTP 3X12 TYPE2 TT(B)

1 Remove 4 screws, +BVST 3X8

2 Remove 2 screws, +BVST 3X8

3 Remove 2 screws, HEX

4 Remove 2 screws, +PSW M3X5

5 Remove 7 screws, +BVST 3X8

6 Disconnect 8 connectors

7 Remove one screw, +PSW M3X5

8 Remove 4 screws, +PSW M3X5

3

1

12

Speakers

HM3 Board

Light Guide

8

Top Shield

BM Board

Bottom Shield

1

2

5

6

7

3

4

15

KDL-26M3000/26ML130/32M3000/32ML130

1-7. G1 BRACKET AND G1M BOARD REMOVAL

1 Remove 3 screws (32”), 4 screws (26”), +PSW 3SG

2 Disconnect 3 connectors

1-8. VESA BRACKET REMOVAL

1 Remove 4 screws, +PSW M4X8

2 Remove 2 screws, +BVTP2 4X16

3 Remove 4 screws, +PSW M4X8

4 Remove 2 screws, +BVTP2 4X16

5 Remove 4 screws, +PSW M4X8

6 Remove 2 screws, +BVTP2 4X16

2

1G1M Board

G1 Bracket

5

6

1

2

4

3

Top Bracket (L)

Top Bracket (R)

Bottom Bracket

16

KDL-26M3000/26ML130/32M3000/32ML130

1-9 LCD PANEL/BRACKET AND LED LIGHT GUIDE REMOVAL

CAUTION:

Be sure to identify the inverter cover screws before proceeding. DO NOT remove the screws securing the plastic strip holding the lamp

sockets.

1 Remove 2 screws, +BVTP2 4X16

1

LCD Panel Inverter Board Cover

Inverter Board

Bezel

SHIELD REMOVAL

INVERTER BOARD REMOVAL

WARNING

NEVER REMOVE THE

SCREWS SECURING THE

PLASTIC STRIP HOLDING

THE LAMP SOCKETS

DAMAGE TO THE

BACKLIGHT TUBES WILL

Only remove the screws securing the inverter

cover which may be metal or plastic. The

remaining plastic strip contains sockets for the

ﬂuorescent backlights and should never be

loosened. The backlights will pop out of the

sockets and/or break the backlight requiring a

LCD panel replacement. The example shown

is a 32” model but applies to all models.

REMOVE SCREWS

SECURING

SHIELD

REMOVE

CONNECTOR AND

PULL BOARD TO

THE RIGHT

!

.

OCCUR!

BACKLIGHT

END VIEW

SOCKET

17

KDL-26M3000/26ML130/32M3000/32ML130

WIRE DRESSING

KDL-26M3000/26ML130 ONLY

OVERALL VIEW

18

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

GROUND CABLE

MA1 Wire Dressing [Rev: 0.6]

26 inch.

GND Cable,

1-910-036-30 (165mm)

LVDS Cable,

1-834-383-11 (350mm)

TCON

Reference:

End of color wires

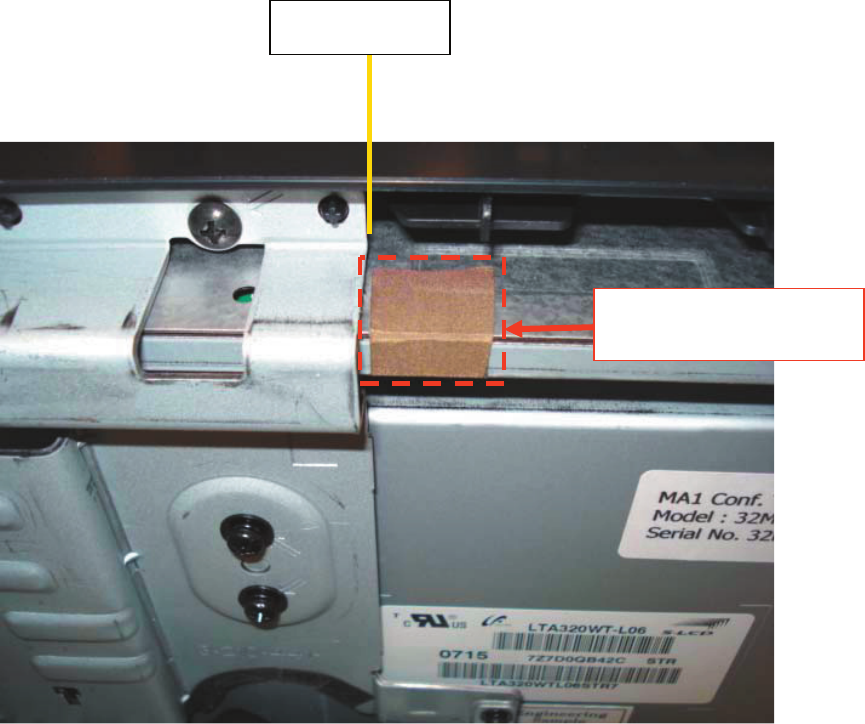

LVDS cable goes under the BM Bottom Shield.

Use middle of plastic clamp as Reference.

CAUTION POINT: Do not route cable between

bottom shield and TCON only between bottom

shield and Panel.

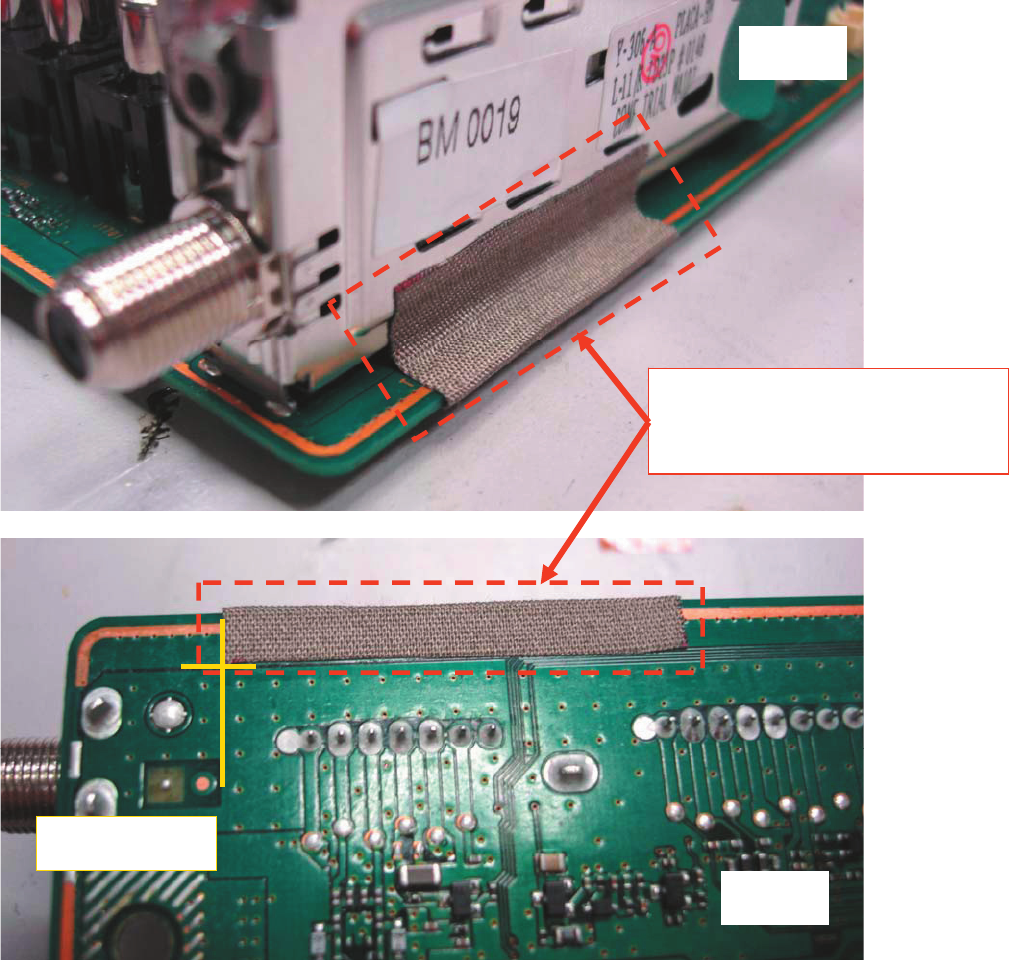

Shield Tape,

2-688-010-01 (20x40)

Panel

Page 13/21

LVDS CONNECTOR

MA1 Wire Dressing [Rev: 0.6]

26 inch.

GND Cable,

1-910-036-30 (165mm)

LVDS Cable,

1-834-383-11 (350mm)

TCON

Reference:

End of color wires

LVDS cable goes under the BM Bottom Shield.

Use middle of plastic clamp as Reference.

CAUTION POINT: Do not route cable between

bottom shield and TCON only between bottom

shield and Panel.

Shield Tape,

2-688-010-01 (20x40)

Panel

Page 13/21

19

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

LVDS CONNECTOR (CONTINUED)

MA1 Wire Dressing [Rev: 0.6]

Draw a horizontal line

using the number “0”

as a reference

R

eference Line

Dress LVDS cable to

have this route. Do not

cross the Reference line

G1M

HM3/HM1 cable:

1-910-038-35 (550mm)

Speaker cable:

1-910-038-30 (350mm)

HM3, SpkrR and

GND cables trough

this clamp.

GND cable connected to

GND Tab on G1M Board.

HM3

Page 14/21

HM3 BOARD AND SPEAKERS

MA1 Wire Dressing [Rev: 0.6]

Draw a horizontal line

using the number “0”

as a reference

R

eference Line

Dress LVDS cable to

have this route. Do not

cross the Reference line

G1M

HM3/HM1 cable:

1-910-038-35 (550mm)

Speaker cable:

1-910-038-30 (350mm)

HM3, SpkrR and

GND cables trough

this clamp.

GND cable connected to

GND Tab on G1M Board.

HM3

Page 14/21

20

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

HM3 BOARD AND SPEAKERS (CONTINUED)

26 inch.

HM3 cable and SpkrL

cable trough this clamp.

HM3 cable goes from

right to left side and

White Spkr cable goes

o

pp

osite direction.

Fix cable to metal part using:

Himelon Tape (LCD)

2-688-062-01 (8x30)

Cable and Himelon position

should be as shown in picture.

Different Angle

21

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

INVERTER BOARD CONNECTORS

Inverter cable:

Inverter

Hold cables using 2 Pin

Wires on G1M

Inverter cable

1-910-038-36 (300mm) Use clamps on bracket

to route cables

Area under

G1M Board

StandBy cable

1-910-038-29 (450mm)

G1M

Inverter cable

Goes under G1M

22

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

HDMI CONNECTORS

MA1 Wire Dressing [Rev: 0.6]

HM3/HM1 cable:

1-910-038-35 (220mm)

HM1

EMI:

Himelon Tape

2-688-011-01 (15x60)

Inverter cable: 2 cables

coming from under G1M

Reference

CAUTION POINT:

On this CLAMP,

Inverter cable must be

inserted before the rest

of cables.

HM1 cable must go

under these wires.

EMI Gasket on BM Bottom Shield:

GASKET (30x12)

2-676-705-01

Reference

Page 17/21

23

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

VIDEO CONNECTORS AND GROUND CABLE

Video 2 cable with GND:

Video2 cable:

1-910-038-33 (210mm)

Ferrite Core (140005211)

ZCAT 2235-1030

Fix ferrite to panel using:

Himelon Core Sheet (A)

2-688-014-01

Use clamp to route

GND cable and Wires

CAUTION POINT:

GND cable must go

under Video 2 Cable, as

shown on picture.

GND Cable FASTON

1-910-038-32 (100mm)

Reference

24

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

AC CORD CONNECTOR

MA1 Wire Dressing [Rev: 0.6]

Ferrite Core (150002111)

ZCAT 3035-1330

Completely cover Ferrite using:

Himelon Cushion LB x 2 (140x20)

2-686-782-11

120 mm 60 mm

G1M

Route the cable

using this Cut and

Clamp on Bracket

Fix ferrite to panel using:

Himelon Cushion LB (140x20)

2-686-782-11

Reference

AC HOLDER

4-022-115-12

Page 19/21

25

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

SHIELD TAPE PLACEMENT

DPU:

Shield Tape (20x40mm)

2-688-010-01

Top view and Bottom View

A side

B side

For Reference

26

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130 ONLY

SHIELD TAPE PLACEMENT (CONTINUED)

Tuner

STEP 1:

Add 1 Himelon Tape (LCD)

PN: 2-688-062-01 (8x30mm)

Note: R7853 should be covered

with himelon.

For Reference: Edge of Tuner

For Reference

Screw and himelon

is under the tape

STEP 2:

Add 1 Shield Tape

PN: 2-688-010-01 (20x40mm)

Apply after putting the himelon

(step 1) and the screw.

27

KDL-26M3000/26ML130/32M3000/32ML130

OVERALL VIEW

KDL-32M3000/32ML130 ONLY

28

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

GROUND CABLE

32 inch.

GND Cable:

GND Cable,

1-910-026-38 (65mm)

LVDS Cable:

Shield Tape,

2-688-010-01 (20x40)

LVDS cable pass trough

the middle of this gasket

EMI GASKET 30x12

2-676-705-01

Reference

LVDS Cable,

1-834-383-11 (350mm)

LVDS CONNECTOR

32 inch.

GND Cable:

GND Cable,

1-910-026-38 (65mm)

LVDS Cable:

Shield Tape,

2-688-010-01 (20x40)

LVDS cable pass trough

the middle of this gasket

EMI GASKET 30x12

2-676-705-01

Reference

LVDS Cable,

1-834-383-11 (350mm)

29

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

MA1 Wire Dressing [Rev: 0.6]

Dress LVDS cable to

have this route.

GND cable connected to

GND Tab on G1M Brd.

Speaker cable:

1-910-038-07 (410mm)

HM3/HM1 cable:

1-910-038-28 (690mm)

G1M

HM3 and SpkrR cables

trough this clamp.

Himelon Tape x 2 (LCD)

2-688-062-01 (8x30)

Route cable by inserting it trough

these 4 Holder Ribs on Bezel

HM3

Page 3/21

LVDS CONNECTOR (CONTINUED)

MA1 Wire Dressing [Rev: 0.6]

Dress LVDS cable to

have this route.

GND cable connected to

GND Tab on G1M Brd.

Speaker cable:

1-910-038-07 (410mm)

HM3/HM1 cable:

1-910-038-28 (690mm)

G1M

HM3 and SpkrR cables

trough this clamp.

Himelon Tape x 2 (LCD)

2-688-062-01 (8x30)

Route cable by inserting it trough

these 4 Holder Ribs on Bezel

HM3

Page 3/21

HM3 BOARD AND SPEAKERS

30

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

HM3 BOARD AND SPEAKERS (CONTINUED)

Different Angle

Ferrite Core (146908911)

ZCAT 1730-0730

Completely cover Ferrite and

grab the HM3 cable using:

Himelon Core Sheet (A)

2-688-014-01

HM3 cable and SpkrL

cable trough this clamp.

Reference

Himelon Tape (LCD)

2-688-062-01 (8x30)

31

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

INVERTER BOARD CONNECTORS

32 inch.

Inverter cable:

Hold cables using 3 Pin

Wires on G1M

Use clamps on braket

to route cables

StandBy cable

1-910-038-29 (450mm)

Hold cable to G1M

Bracket using:

Himelon Tape

2-688-011-01

(

15x60

)

Inverter cable

1-910-038-31 (420mm)

G1M

32

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

HDMI CONNECTORS

MA1 Wire Dressing [Rev: 0.6]

32 inch.

Himelon Tape

2-688-011-01 (15x60)

Reference

HM1 cable must go over

LVDS cable

HM1 cable must go

under these wires.

EMI Gasket on BM Bottom Shield:

GASKET 30x12

2-676-705-01

Reference

Himelon Tape (LCD)

2-688-062-01 (8x30)

Himelon Position:

Use UL Tape Position

on cable to set the

himelon, DO NOT

STRESS THE CABLE

HM1

HM3/HM1 cable:

1-910-038-28 (290mm)

Page 6/21

33

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

VIDEO CONNECTORS AND GROUND CABLE

32 inch.

Video 2 cable with GND:

Video2 cable:

1-910-038-33 (210mm)

GND Cable FASTON

1-910-038-32 (100mm)

Use clamps to route

GND cable and Wires

Reference

Ferrite Core (140005211)

ZCAT 2235-1030

Fix ferrite to panel using:

Himelon Core Sheet (A)

2-688-014-01

Page 7/21

34

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

AC CORD CONNECTOR

MA1 Wire Dressing [Rev: 0.6]

Ferrite Core (150002111)

ZCAT 3035-1330

Completely cover Ferrite using:

Himelon Cushion LB x 2 (140x20)

2-686-782-11

120 mm 80 mm

G1M

Route the cable

using this Cut and

Clamp on Bracket

Reference

Fix ferrite to panel using:

Himelon Cushion LB (140x20)

2-686-782-11

AC HOLDER

4-022-115-12

Page 8/21

35

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

SHIELD TAPE PLACEMENT

DPU:

Shield Tape (20x40mm)

2-688-010-01

Top view and Bottom View

A side

B side

For Reference

36

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

SHIELD TAPE PLACEMENT (CONTINUED)

Tuner

STEP 1:

Add 1 Himelon Tape (LCD)

PN: 2-688-062-01 (8x30mm)

Note: R7853 should be covered

with himelon.

For Reference: Edge of Tuner

For Reference

Screw and himelon

is under the tape

STEP 2:

Add 1 Shield Tape

PN: 2-688-010-01 (20x40mm)

Apply after putting the himelon

(step 1) and the screw.

37

KDL-26M3000/26ML130/32M3000/32ML130

KDL-32M3000/32ML130 ONLY

SHIELD TAPE PLACEMENT (CONTINUED)

MA1 Wire Dressing [Rev: 0.6]

32 inch.

For Reference

Shield Tape (20x40mm)

2-688-010-01

Page 11/21

38

KDL-26M3000/26ML130/32M3000/32ML130

2-1. USING THE REMOTE COMMANDER FOR ELECTRICAL ADJUSTMENTS

To adjust various set features, use the Remote Commander to put the set into service mode to display the service menus and categories.

Equipment Needed:

 Pattern Generator (with component outputs)

 Oscilloscope

 Digital multimeter

2-2. ACCESSING SERVICE ADJUSTMENT MODE

1. TV must be in standby mode. (Power off).

2. To display the service menu, press the following buttons on the Remote Commander within a second of each other:

DISPLAY Channel

5 Volume

+

POWER .

POWER

Onscreen cursor

and select button

RM-YD021

5

VOLUME+

DISPLAY

SECTION 2: SERVICE ADJUSTMENTS

39

KDL-26M3000/26ML130/32M3000/32ML130

2-3. VIEWING THE SERVICE MENUS

Use the Remote Commander to view the BE and Digital service menus options.

Sample Service Menu

2-4. RESETTING TO FACTORY DEFAULTS

The following instructions restore the User Controls and Channel Memory settings to the preset factory conditions.

1. In Service Mode to select Factory Default press , then to select Yes press .

40

KDL-26M3000/26ML130/32M3000/32ML130

SECTION 3: DIAGRAMS

3-1. CIRCUIT BOARDS LOCATION

UM BOARD

HM1 BOARD

G1M BOARD

BM BOARD

HM3 BOARD

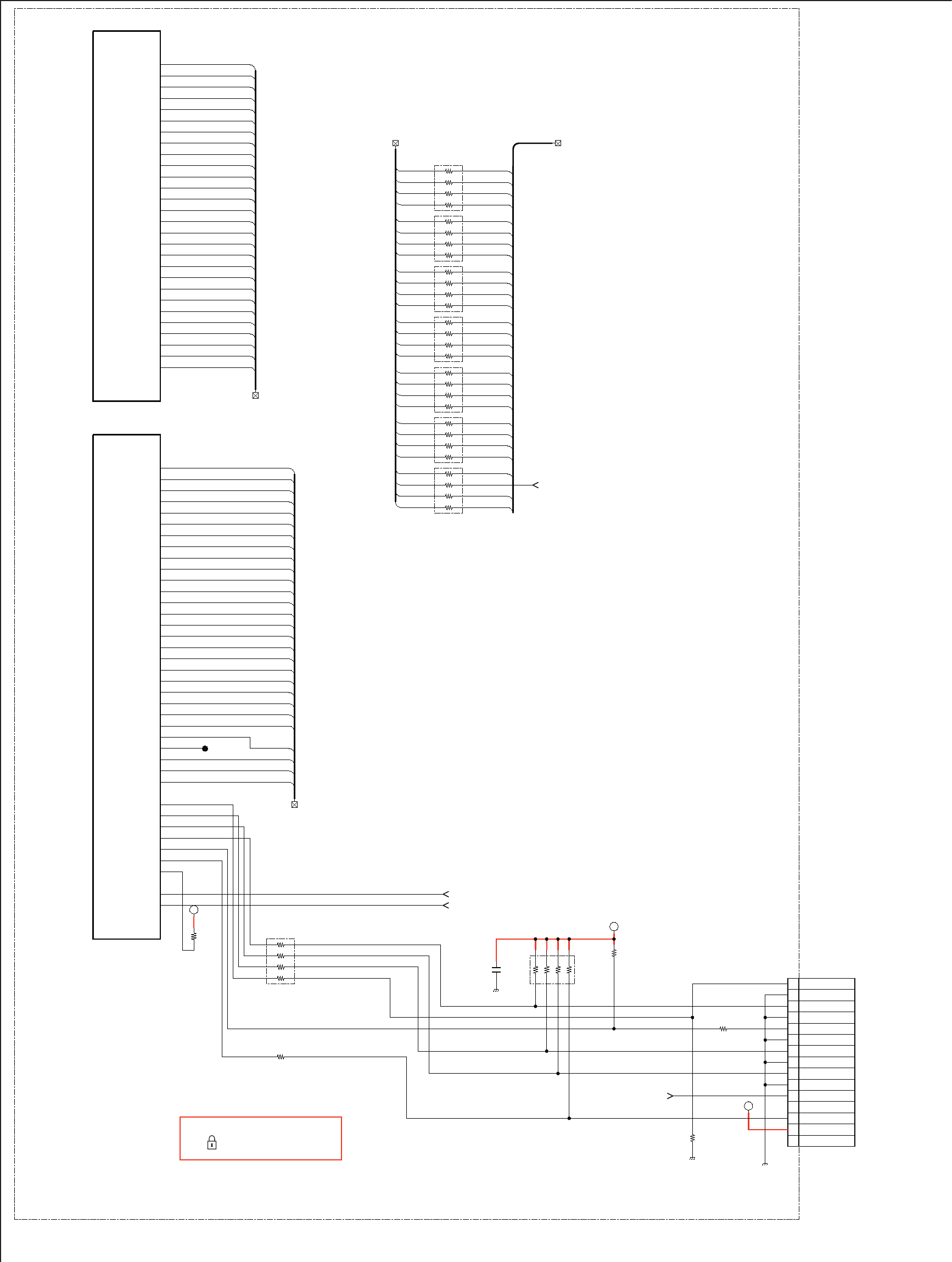

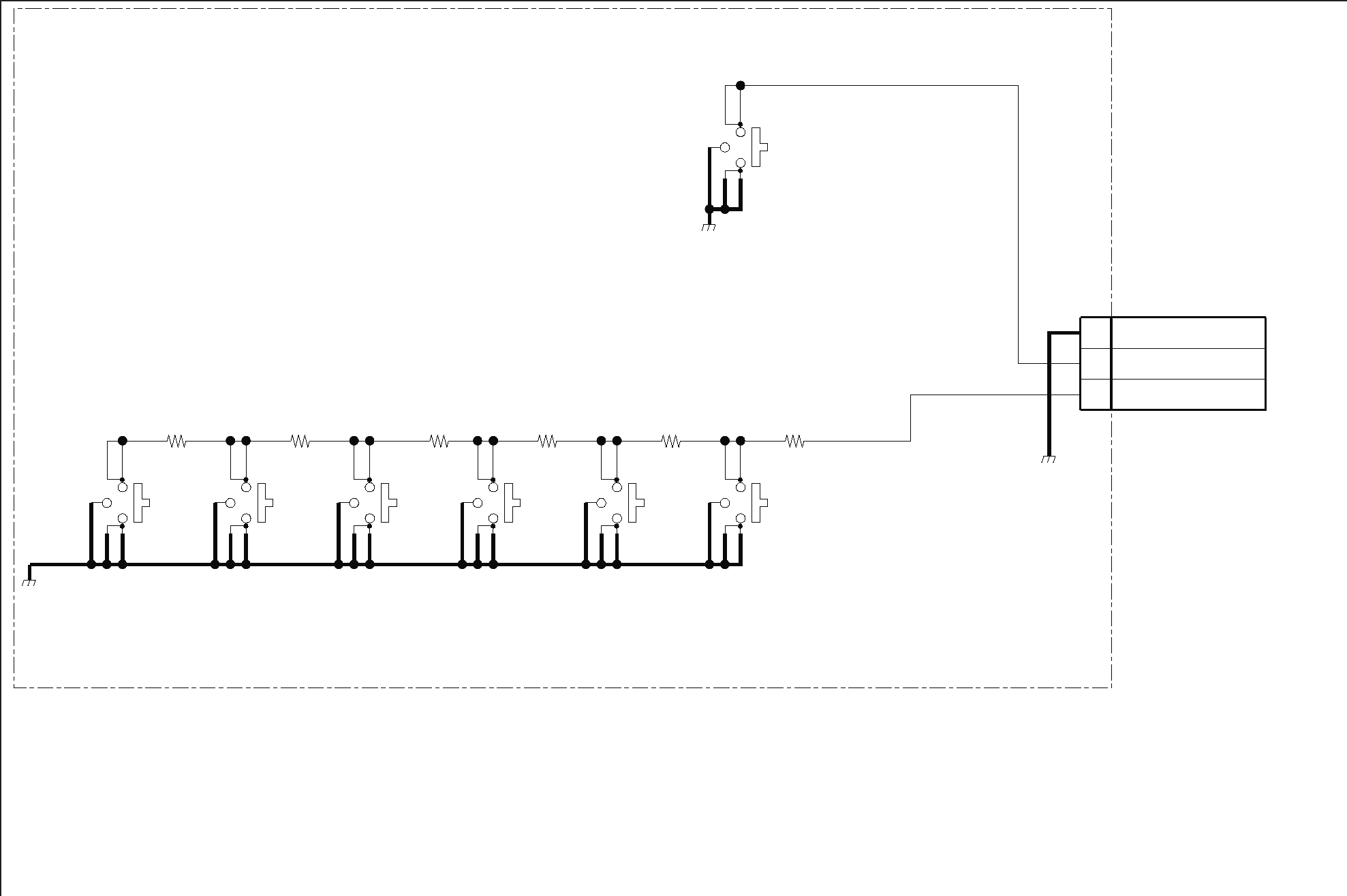

3-2. PRINTED WIRING BOARDS AND

SCHEMATIC DIAGRAMS INFORMATION

All capacitors are in μF unless otherwise noted. pF : μμF 50WV or

less are not indicated except for electrolytics and tantalums.

All electrolytics are in 50V unless otherwise speciﬁ ed.

All resistors are in ohms. kΩ=1000Ω, MΩ=1000kΩ

Indication of resistance, which does not have one for rating

electrical power, is as follows: Pitch : 5mm

Rating electrical power :

1/ 4 W

1/ 4 W in resistance, 1/10 W and 1/16 W in chip resistance.

: nonﬂ ammable resistor

: fusible resistor

: internal component

: panel designation and adjustment for repair

: earth ground

: earth-chassis

All variable and adjustable resistors have characteristic curve B,

unless otherwise noted.

Readings are taken with a color-bar signal input.

Readings are taken with a 10MΩ digital multimeter.

Voltages are DC with respect to ground unless otherwise noted.

Voltage variations may be noted due to normal production

tolerances.

All voltages are in V.

S : Measurement impossibility.

: B+line.

: B-line. (Actual measured value may be different).

: signal path. (RF)

Circled numbers are waveform references.

The components identiﬁ ed by shading and

!

symbol are critical for safety. Replace

only with part number speciﬁ ed.

The symbol indicates a fast operating fuse and is displayed on the component

side of the board. Replace only with fuse of the same rating as marked.

Les composants identiﬁ es per un trame et une marque

!

sont critiques pour la

securite. Ne les remplacer que par une piece portant le numero speciﬁ e.

Le symbole indique une fusible a action rapide. Doit etre remplace par une

fusible de meme yaleur, comme maque.

NOTE: The components identiﬁ ed by a red outline and a mark contain conﬁ dential

information. Speciﬁ c instructions must be adhered to whenever these components

are repaired and/or replaced.

See Appendix A: Encryption Key Components in the back of this manual.

41

KDL-26M3000/26ML130/32M3000/32ML130

G

D

S

B1 E1

C2

B2 C1E2

2

3

4

5

6

7

8

9

0

!¡

!™

!¢

!§

!¶

!•

–

1

G

D

S

B2 E2

C1

B1 C2

E1

B2 E2

C1

B1 C2E1

B2 E2

C1

B1 C2E1

!ª

B1 E1

E2

C1(B2)

C2

@º

B1

E2

C1

C2

@™

@£

(B2)

E1

(B2)

E1

E2

B1

C2

C1

@¡

B1

E1

C2

B2

C1

E2

G

SS

D

G

D

B1

E1

C2

B2

C1

E2

B1

E2

C2C1(B2)

E2

B1

C1

C2E1(B2)

C2

B1

C1

E2E1(B2)

C2

B1

C1

E2

B2

E1

C2

Ver.1.6

Transistor

(FET)

Transistor

Discrete semiconductot

(Chip semiconductors that are not actually used are included.)

Diode

Source

Anode Anode

(NC)

Cathode

Anode

Cathode

Common

Cathode Cathode

Common

Cathode Cathode

Common

Cathode

Anode

Base Emitter

Collector

Base Emitter

Collector

Drain

Gate

Drain

Device Printed symbol Terminal name Circuit

Terminal name of semiconductors in silk screen

printed circuit ( )

Anode

Anode Cathode

Anode Anode

Cathode

!£

Transistor

(FET)

Transistor

(FET)

!?

Emitter

Collector

Base

Transistor

Source

Gate

Drain

Cathode

Anode

Anode Cathode

Anode

*

REFERENCE INFORMATION

RESISTOR

: RN METAL FILM

: RC SOLID

: FPRD NONFLAMMABLE CARBON

: FUSE NONFLAMMABLE FUSIBLE

: RW NONFLAMMABLE WIREWOUND

: RS NONFLAMMABLE METAL OXIDE

: RB NONFLAMMABLE CEMENT

: ADJUSTMENT RESISTOR

COIL

: LF-8L MICRO INDUCTOR

CAPACITOR

: TA TANTALUM

: PS STYROL

: PP POLYPROPYLENE

: PT MYLAR

: MPS METALIZED POLYESTER

: MPP METALIZED POLYPROPYLENE

: ALB BIPOLAR

: ALT HIGH TEMPERATURE

: ALR HIGH RIPPLE

42

KDL-26M3000/26ML130/32M3000/32ML130

3-3. BLOCK DIAGRAM

DDR

64 MB

NAND Flash

16 MB

Serial Flash

512 K

TV Micro

LVDS Tx

DCP

CXD9690

$88

Xilleon

242

HDMI/

VGA/

YUV

Receiver

(AD9380)

Tuner

Audio ADC

(AK5365)

VGA IN

I2S

I2S In 1

L/R

LVDS

L/R

1st Audio Out LCD

PANEL

Video 2

Headphones

YCbCr

24

Digital IF

Tuner CVBS

CVBS

L/R

YUV

switch

YPbPr

NVM

1Kb

RGB AMP

L

HM1

HM3

CVBS

Y/C

NVM

I2S I2S In 2

L/R

RTC

RGB

24

DVOP

LED, SIRCS,

Light sensor

Top Keys

Power button

HDMI 1

R

BM

C

o

m

p

1

C

o

m

p

2

V

i

d

1

V

i

d

3

SBCT-PD

L/R

RGB

24

IIC

SPDIF

L/R

2nd Audio Out

SPDIF Out

IIC

Y/C

IIC

Dimer

Backlight

Audio

SW

L/R

NVM

1Kb

AVSW

USB

Key/Power

USB for Service

ECS

UART1

JIG

connector

for Service

HDMI

switch

NVM

1Kb

HDMI 2

UM

UART0

SIRCS/

LED/

L.Sensor

SIRCS

Temp.

Sensor

DAC

CS4335

DAC

CS4335

KDL-26M3000/26ML130/32M3000/32ML130

43

3-4. CONNECTION DIAGRAM

GM1

UM

BM

INVERTER

32"

V2_IN_AU_L

D3.3V

AU_IN_GND

GND

V2_IN_AU_R

V2_IN_SSW

AU_IN_GND

V2_IN_C

HP_OUT_AU_L

V2_IN_S2SW

HP_IN_GIND

GND

HP_OUT_AU_R

V2_IN_Y

HP_DET

GND

V2_IN_V

D5V

GND

VDDB

GND

NC

VBLON

DIMMER

NC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

1

2

3

4

5

6

7

8

9

10

11

12

13

14

GND

STBY3.3V

STBY_LED

ON_TIMER_LED

POWER_LED

BL_IN

VD3.3V

SIRCS

GND

POWER_INT

KEY1

1

2

3

4

5

6

7

8

9

10

11

CN3008

STBY3.3V

GND

POWER_ON

AC_OFF_DET

AU_13V

AU_GND

NC

POWER 3

GND

1

2

3

4

5

6

7

8

9

10

11

12

CN4001

PANEL5V

REG12V

GND

1

2

3

4

5

6

CN4002

CN4003

REG24V

GND

REG 5V

REG12V

GND

14

13

12

11

10

9

8

7

6

5

4

3

2

1

STBY3.3V

GND

POWER ON

AC OFF DET

UNREG13V

AU_GND

NC

POWER 3

GND

13

12

11

10

9

8

7

6

5

4

3

2

1

CN6202

CN6201

HM3

HM1

GND

STBY3.3V

STBY_LED

ON_TIMER

PWR/RESERVE

BL_IN

VD3.3V

SIRCS

GND

POWERINT

KEY1

GND

1

2

3

1

2

CN101

CN102

1

2

3

4

5

6

7

8

SIGNAL

POWER

GND

CN201

CN301

V2_IN_AU_L

D3.3V

AU_IN_GND

GND

V2_IN_AU_R

V2_IN_SSW

AU_IN_GND

V2_IN_C

HP_OUT_AU_L

V2_IN_S2SW

HP_IN_GIND

GND

HP_OUT_AU_R

V2_IN_Y

HP_DET

GND

V2_IN_V

D5V

GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

CN1400

Speakers

INVERTER

26"

VDDB

GND

VDIM

VBLON

NC

DET

DIMMER

BACKLIGHT

PANEL_DET

GND

1

2

3

4

1

2

3

4

5

6

7

8

9

10

11

12

13

14

R-

R+

L+

L-

1

2

3

4

GND

TXD

RXD

RES

VIN

MOD

UART1_RXD

PROG_CLK

SDA_DEVICE

SCL_DEVICE

PROG_GD

UART1_TXD

NC

VIN

B INT

RXD

TXD

GND

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

CN3004

CN2000

DIAG_TXD

DIAB_RXD

GND

/RESET_OUT

SPI_CLK

SPI_IN

SPI_OUT

/SPI_DET

SPI_CS0

NC

1

2

3

4

5

6

7

8

9

10

CN7303

5V

PB

NB

GND

1

2

3

4

5

CN7301

/RST

GND

TDI

GND

TDO

GND

TMS

GND

TCK

GND

/RST

NC

DINT

VIO

NC

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

CN7600

TA-

GND

TA+

DCC

TB-

GND

TB+

GND

TC-

GND

TC+

GND

TCKL-

GND

TCKL+

VCC

TD-

VCC

TD+

GND

DCC

GND

NC

GND

NC

VCC

DCC LUT

VCC

DCC MODE

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

CN9102

R-

L

+

-

+

Speakers

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 44

BM BOARD SCHEMATIC DIAGRAM (1 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

3-5. SCHEMATICS AND SUPPORTING INFORMATION

CHIP0

R1408

A_HP_OUT_AU_R

CHIP0

R1403

CHIP0

R1401

GND_A

CHIP0

R1405

A_HP_OUT_AU_L

CHIP0

R1402

1005

50V

X7R

C1403

0.001

A_V2_IN_AU_L,A_V2_IN_AU_R

REG5V

HP_DET

CHIP0

R1406

GND_HP

CHIP0

R1404

GND_AUGND_T

GND_AGND_T

1005

CHIP

R1025

0

1005

CHIP

R1016

0

2012

16V

1

B

C1010

1/16W

CHIP

470k

R1014

2012

16V

1

B

C1007

CHIP

0

R1022

CHIP

0

R1015

CHIP

0

R1013

1/16W

CHIP

470k

R1012

A_V3_IN_AU_L,A_V3_IN_AU_R

2012

16V

1

B

C1005

A_V1_IN_AU_L,A_V1_IN_AU_R

VIDEO1-3

GND_T

VD1701

L

R

J1701

1

2

3

4

VD1700

1005

1/16W

CHIP

5%

220k

R1701

A_AUOUT_AU_R

1005

1/16W

CHIP

5%

220k

R1700

A_AUOUT_AU_L

CHIP

2.2k

R1702

1/16W

5%

CHIP

2.2k

R1703

1/16W

5%

GND_A

1005

CHIP

R1721

5%

1/16W

470k

2012

16V

1

B

C1714

CHIP

1k

R1712

1/16W

2012

16V

1

B

C1724

2012

16V

1

B

C1725

GND_D

CHIP

1k

R1723

1/16W

VD1721

5%

R1710

470k

1/16W

1005

CHIP

1608

50V

B

C1722

1000p

VD1711

2012

16V

1

B

C1715

VD1720

R1711

470k

PC_IN_L

CHIP

1k

R1713

1/16W

DVI_IN_L

VD1710

DVI_IN_R

1608

50V

B

C1723

1000p

CHIP

1k

R1722

1/16W

R1720

470k

PC_IN_R

GND_D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

20P

CN1400

V2_IN_AU_L

D3.3V

AU_IN_GND

GND

V2_IN_AU_R

HP_OUT_AU_L

NC

AU_IN_GND

USB_5V

USB_PA

USB_NA

USB_GND

GND

HP_OUT_AU_R

HP_IN_GND

HP_DET

GND

V2_IN_V

D5V

GND

GND_T

VIDEO2

GND_T

L

R

J1720

J1710

GND_T

CHIP

0

R1822

CHIP

0

R1832

GND_A GND_A1

GND_A1 GND_D

GND_A

GND_D

VD1004

VD1003

VD1002

VD1001

GND_A

CHIP

0

R1848

GND_T

CHIP

0

R1836

GND_D

CHIP

0

R1842

CHIP

0

R1845

CHIP

0

R1839

COAXS

COAXG

GND_T

5V_TU

1608

CHIP

R1867

0

1608

CHIP

R1866

0

MA8100-TX

D1013

1/10W

RN-CP

0.5%

220

R1859

GND_T

1/10W

RN-CP

0.5%

220

R1870

1608

CHIP

R1868

0

1608

CHIP

R1876

0

MA8100-TX

D1014

1/10W

RN-CP

0.5%

220

R1871

1/10W

RN-CP

0.5%

220

R1869

GND_T

1608

CHIP

R1877

0

1608

CHIP

R1885

0

MA8100-TX

D1015

1/10W

RN-CP

0.5%

220

R1878

GND_T

1608

CHIP

R1886

0

1608

CHIP

R1894

0

MA8100-TX

D1016

1/10W

RN-CP

0.5%

220

R1887

5V_TU

1/16W

CHIP

5%

R1919

100

GND_T

2SD601A-QRS-TX

Q1007

1/10W

RN-CP

0.5%

220

R1915

1005

1/16W

CHIP

5%

R1918

10k

3216

10V

10

X7R

C1754

L1007

2.2uH

1005

1/16W

CHIP

5%

R1917

22k

1005

50V

B

C1752

220p

MA8100-TX

D1019

1/10W

RN-CP

0.5%

220

R1916

1/10W

RN-CP

0.5%

R1920

470

1005

50V

B

C1753

220p

1/10W

RN-CP

0.5%

220

R1914

GND_A

10uH

L1001

1005

CHIP

0

R1116

1608

1/10W

RN-CP

0.5%

220

R1132

6.3V

1000

C1731

1005

CHIP

0

R1144

1005

1/16W

CHIP

5%

22

R1135

1005

1/16W

CHIP

5%

22

R1105

1/10W

RN-CP

5%

100

R1850

VD1132

1608

1/10W

RN-CP

0.5%

220

R1136

2012

16V

1

B

C1130

1005

1/16W

CHIP

470k

R1145

VD1108

GND_A

V45YPBPR

VD1107

1608

1/10W

RN-CP

0.5%

220

R1110 VD1100

1608

1/10W

RN-CP

0.5%

220

R1140

GRN

BLU

RED

WHT

RED

GRN

BLU

RED

WHT

RED

J1100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

1005

1/16W

CHIP

5%

22

R1139

1608

25V

0.1

F

C1730

1005

1/16W

CHIP

470k

R1147

GND_D

GND_A

1005

1/16W

CHIP

5%

22

R1143

1005

CHIP

0

R1114

GND_A

1608

1/10W

RN-CP

0.5%

220

R1137

2012

16V

1

B

C1012

1005

CHIP

0

R1146

GND_T

GND_AGND_D

2012

16V

1

B

C1102

VD1102

VD1131

A_D2_IN_AU_L,A_D2_IN_AU_R

GND_A

1608

1/10W

RN-CP

0.5%

220

R1142

1005

1/16W

CHIP

5%

22

R1109

16 15 14 13 12 11 10 9

87654321

M52055FP

IC1001

IN1B

SW1

OUT1

E

OUT2

OUT3

SW3

IN3A IN3B

E

IN2A

SW2

VCC

IN2B

E

IN1A

10V

100

C1732

2012

16V

1

B

C1100

VD1130

GND_A

1608

1/10W

RN-CP

0.5%

220

R1141

GND_D

10V

100

C1729

GND_A

1608

1/10W

RN-CP

0.5%

220

R1134

VD1106

GND_T

A_D1_IN_AU_L,A_D1_IN_AU_R

10V

100

C1728

GND_A

VD1101

GND_A

1005

1/16W

CHIP

470k

R1115

10V

100

C1726

1/16W

CHIP

470k

R1021

10V

100

C1733

2012

16V

1

B

C1132

1608

1/10W

RN-CP

0.5%

220

R1138

10V

100

C1727

CHIP

0

R1024

AVSW_1

1005

1/16W

CHIP

470k

R1117

1/16W

CHIP

470k

R1023

1608

1/10W

RN-CP

0.5%

220

R1133

VD1109

D3.3V

1005

1/16W

CHIP

5%

22

R1113

GND_T

GND_A

0

RB1001

0

RB1002 0

RB1003

0

RB1004

0

RB1005 0

RB1006 0

RB1007 0

RB1008

0

RB1009

0

RB1010

1/10W

RN-CP

0.5%

220

R1111

1/10W

RN-CP

0.5%

220

R1112

1/10W

RN-CP

0.5%

220

R1106

1/10W

RN-CP

0.5%

220

R1107

1/10W

RN-CP

0.5%

220

R1108

1/10W

RN-CP

0.5%

220

R1102

1/10W

RN-CP

0.5%

220

R1103

1/10W

RN-CP

0.5%

220

R1104

CHIP

0

R1726

CHIP

0

R1727

CHIP

0

R1728

J1722

GND_DGND_A

0

RB1011

CHIP

0

R1833

REG5V

6.3V

1000

C1755

GND_T

USB_5V

USB_PA

USB_NA

GND_D

3225

16V

22

B

C1756 GND_A

0

R1922

0

R1923

34

12

L1

R1

V1

L2

R2

V2

J1000

NC

CHIP0

R1924

CHIP0

R1925

CHIP0

R1926

CHIP0

R1927

CHIP0

R1928

CHIP0

R1929

CHIP0

R1930

CHIP0

R1931

CHIP0

R1932

CHIP0

R1933

CHIP0

R1934

CHIP0

R1935

CHIP0

R1936

CHIP0

R1937

CHIP0

R1938

CHIP0

R1939

MA8100-TX

D1020

MA8100-TX

D1021

GND_T

2012

CHIP

R1940

0

2012

CHIP

R1941

0

2012

CHIP

R1942

0

2012

CHIP

R1943

0

2012

CHIP

R1944

0

2012

CHIP

R1945

0

2012

CHIP

R1946

0

GND_T

GND_D

GND_T

GND_D GND_D

GND_T

0

C1736

CHIP

0

C1739

CHIP

0

C1742

CHIP

0

C1745

CHIP

0

FB1700

CHIP

2.2UH

R1947

A_V2_IN_AU_L

A_V2_IN_AU_R

A_V1_IN_AU_L

A_V1_IN_AU_R

A_V1_IN_Y

GND_TGND_T

GND_T

A_V3_IN_V

GND_T

GND_A

V5PR

V4PB

V4PR

A_V3_IN_AU_L

V4Y

V5Y

A_D1_IN_AU_L

A_D2_IN_AU_L

A_D2_IN_AU_R

A_D1_IN_AU_R

A_V3_IN_AU_R

GND_A

V45PR

V45PB

V45Y

GND_T

A_V1_IN_C

A_V1_IN_V

A_V2_IN_V

VideoInput3

VideoInput1

Coax/Audio Output

VideoInput2

BM 1/12

PC_LR IN

AUDIO IN

TO AUDIO

ComponentInput2

ComponentInput1

I/O TERMINALS

A-1278-778-A <MA1>BM-P1

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 45

BM BOARD SCHEMATIC DIAGRAM (2 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

2012

25V

1

B

C2145

1/16W

CHIP

47k

R 2121

2012

25V

0.22

B

C2115

GND_D

A U _13V

MAIN_L

2012

25V

0.22

B

C2120

DTC614TUT106

Q2019

A_V2_IN_AU_L

1608

25V

0.1

C2130

16V

47

C2150

25V

4.7

C2104

2012

25V

0.22

B

C2116

MAIN_L

1/16W

RN-CP

1.5k

R 2117

0uH

F B 2009

1/16W

RN-CP

1.5k

R 2118

1/16W

CHIP

47k

R 2113

CHIP

10k

R 2206

1/16W

MAIN_R

25V

4.7

C2074

1/16W

CHIP

100k

R 2177

A_V2_IN_AU_R

GND_AU

CHIP

10k

R 2161

1/16W

DTC614TUT106

Q2007

1

2

3

4

4P

CN2000

R-

R+

L+

L-

2012

25V

0.22

B

C2119

0uH

F B 2007

ATT_SW

SP_SD

8765

4321

N JM 3414A V ( T E 2)

IC 2010

AOUT

A- IN

A+ IN

V-

B+IN

B- IN

BOUT

V+

A_AUOUT_AU_R

2012

25V

1

C2127

0uH

F B 2006

A_AUOUT_AU_L

1608

25V

0.1

C2090

SP1

A_HP_OUT _AU_R

1/16W

CHIP

10k

R 2202

20V

22

C2124

1/16W

CHIP

5%

47k

R 2151

123

456

R T 8H 225C

IC 2008

R

VCC

IN C

GND

OUT

8765

4321

N JM 4558V -T E 2

IC 2006

AOUT

A- IN

A+ IN

V-

B+IN

B- IN

BOUT

V+

100k

R 2162

25V

4.7

C2105

1/16W

CHIP

47k

R 2122

A_V1_IN_AU_L

1/16W

CHIP

100k

R 2153

R T 1N 141M -T P-1

Q2016

L 2016

22uH

12

1/16W

RN-CP

5.6k

R 2111

25V

470

C2123

25V

4.7

C2075

A_HP_OUT_AU_L

R T 1N 141M-T P-1

Q2017

16V

47

C2149

8765

4321

N JM 4558V -T E 2

IC2004

AOUT

A- IN

A+IN

V- B+IN

B- IN

BOUT

V+

TV_R

1/16W

RN-CP

5.6k

R 2110

LINE_L

A_V1_IN_AU_R

DTC614TUT106

Q2008

1/16W

CHIP

100k

R 2204

25V

4.7

C2103

1/16W

CHIP

100k

R 2200

10uH

L 2015

TV_L

2012

25V

1

C2126

LINE_R

F2000

4A

24V

123

456

R T 8H 225C

IC2011

R

VCC

IN C

GND

OUT

2012

25V

1

B

C2146

A_V3_IN_AU_L

L 2017

10uH

1/16W

CHIP

47k

R 2112

ATT_SW

10uH

L 2011

1/16W

CHIP

100k

R 2178

20V

22

C2128

1/16W

CHIP

6.8k

R2198

SP_MUTE

25V

C2156

B

1608

0.1

0uH

F B 2008

A_V3_IN_AU_R

0uH

F B 2000

1/16W

CHIP

47k

R2205

1608

25V

0.1

C2097

DTC614TUT106

Q2020

GND_T

MAIN_R

25V

4.7

C2114

VCC

GND

OUT

BA09FP-E2

IC 2005

M A 111-T X

D2002

16V

C2107

47

D3.3V

16V

22

C2000

2012

10V

2.2

B

C2069

2012

10V

2.2

B

C2070

10V

2.2

C2073

B

2012

16V

47

C2077

10V

2.2

C2078

B

2012

16V

47

C2085

2012

10V

2.2

B

C2091

2012

10V

2.2

B

C2092

1608

25V

0.1

C2111

B

1608

25V

0.1

C2125

B

1608

25V

0.1

C2129

B

2012

25V

0.22

B

C2132

2012

25V

0.22

B

C2136

2012

25V

0.22

B

C2137

2012

25V

0.22

B

C2133

2012

25V

0.22

B

C2138

2012

25V

0.22

B

C2139

1608

25V

0.1

B

C2157

1608

25V

0.1

B

C2158

16V

47

C2131

10V

2.2

C2141

B

2012

1/16W

CHIP

47k

R 2169

5%

1/16W

CHIP

47k

R 2176

5%

1608

25V

0.1

B

C2095

1608

25V

0.1

B

C2098

16V

100

C2100

MM3Z9V1ST1

D2014

CHIP

0

R 2116

CHIP

0

R 2114

0uH

FB2010

1/16W

RN-CP

5.6k

R 2143

0.5%

1/16W

RN-CP

5.6k

R 2145

0.5%

1/16W

RN-CP

3.9k

R 2130

0.5%

1/16W

RN-CP

3.9k

R 2131

0.5%

HN1B01FU-TE85R

Q2010

1

2

3

4

5

6

L 2005

10uH

GND_T

GND_HP

JL 2002

0uH

FB2012

123456789101112

13

14

15

16

17

18

19

20

21

22

23

24

252627282930313233343536

37

38

39

40

41

42

43

44

45

46

47

48

T PA 3100D 2PH PR

IC 2009

P1 GND

P2 RINN

P3 RINP

P4 AGND

P5 LINP

P6 LINN

P7 GAIN0

P8 GAIN0

P9 GAIN1

P10 MSTR/SLV

P11 SYNC

P12 GND

P13 GND

P14 ROSC

P15 VREG

P16 VBYP

P17 AGND

P18 BSLP

P19 LOUTP

P20 LOUTP

P21 LOUTN

P22 LOUTN

P23 BSLN

P24 GND

P25

GND

P26

PV CC L

P27

PV CC L

P28

PGNDL

P29

PGNDL

P30

VCLAMPL

P31

VCLAMPR

P32

PGNDR

P33

PGNDR

P34

PV CC R

P35

PV CC R

P36

GND

P37

GND

P38

BSRN

P39

ROUTN

P40

ROUTN

P41

ROUTP

P42

ROUTP

P43

BSRP

P44

SHUTDOWN

P45

MUTE

P46

FAULT

P47

AVCC

P48

AVCC

AU_HP9V

I2CA_SDA

I2CA_SCL

1/16W

CHIP

10k

R 2199

MA111-TX

D2008

1608

50V

330p

CH

C2094

1608

50V

330p

CH

C2096

1608

50V

330p

CH

C2081

1608

50V

330p

CH

C2084

M1MA152WA-T1

D2017

1/10W

RN-CP

220

R 2186

5%

1/10W

RN-CP

220

R 2187

5%

RT3AMMM

Q2012

RT3AMMM

Q2013

R T 1N 141M-T P-1

Q2018

100k

R B 2001

2

1

4

3

6

5

8

7

1/16W

CHIP

100k

R 2179

5%

1/16W

CHIP

2.2k

R 2142

5%

2012

10V

2.2

B

C2134

1/16W

CHIP

22k

R 2149

1/16W

CHIP

47k

R 2126

5%

1/16W

CHIP

47k

R 2120

5%

2012

10V

2.2

B

C2143

1/16W

CHIP

4.7k

R 2168

5%

1/16W

CHIP

10k

R 2170

5%

100p

C2144

2012

10V

2.2

B

C2135

1/16W

CHIP

10k

R 2184

5%

1/16W

CHIP

4.7k

R 2171

5%

1/16W

CHIP

470k

R2139

5%

CHIP

0

R 2147

1/16W

CHIP

10k

R 2185

5%

1/16W

CHIP

10k

R 2166

5%

1/16W

CHIP

100k

R 2181

5%

1/16W

CHIP

47k

R2133

5%

1/16W

CHIP

22k

R 2150

1/16W

CHIP

10k

R 2167

5%

1/16W

CHIP

10k

R 2180

5%

1/16W

CHIP

470k

R2138

5%

2012

10V

2.2

B

C2140

1/16W

CHIP

47k

R 2148

1/16W

CHIP

47k

R 2129

5%

1/16W

CHIP

2.2k

R 2141

5%

100p

C2142

1/16W

RN-CP

0.5%

2.2k

R 2210

1/16W

RN-CP

0.5%

2.2k

R 2211

1608

50V

2700p

B

C2168

1608

50V

2700p

B

C2169

1/16W

RN-CP

0.5%

15k

R 2212

1/16W

RN-CP

0.5%

15k

R 2213

1608

50V

2700p

B

C2170

1608

50V

2700p

B

C2171

1005

50V

0.001

X7R

C2160

1005

50V

0.001

X7R

C2161

1005

50V

0.001

X7R

C2101

1005

50V

0.001

X7R

C2086 1005

50V

0.001

X7R

C2159

1005

50V

0.001

X7R

C2102

1005

50V

0.001

X7R

C2118

1005

50V

0.001

X7R

C2117

1005

50V

0.001

X7R

C2121

1005

25V

0.01

X7R

C2113

25V

4.7

C2112

16 15 14 13 12 11 10 9

87654321

N JM 2750M- T E 2

IC 2013

D1R

SW1

D2R

SW2

PCR

D1L

D2L

PCL DV I L

NC

OUT L

VREF

DVIR

VCC

OUT R

GND

1/16W

CHIP

5%

10k

R 2214

1/16W

CHIP

5%

10k

R 2215

16V

10

C2172

16V

10

C2173

1/16W

CHIP

5%

100k

R 2216

1/16W

CHIP

5%

100k

R 2217

16V

100

C2174

16V

10

C2175

10uH

L 2022

PC_IN_R

002:15F

A_D2_IN_A U_L

002:6H

PC_IN_L

002:15F

A_D2_IN_AU_R

002:6H

A_D1_IN_AU_R

002:6F

A_SW_AD_R

DVI_IN_R

A_SW_AD_L

DVI_IN_L

GND_T

GND_TGND_T

A_D1_IN_A U_L

002:6F

1/16W

CHIP

5%

47k

R 2222

1/16W

CHIP

5%

24k

R 2230

1/16W

CHIP

5%

24k

R 2231

ATI_WS

ATI_SCK

ATI_MCLK

ATI_SDO

25V

4.7

C2176

25V

4.7

C2177

1608

25V

0.1

B

C2178

1608

25V

0.1

B

C2179

1608

25V

0.1

B

C2180

16V

10

C2181

16V

10

C2182

16V

10

C2183

REG5V

U DZ ST E - 1710B

D2018

16V

47

C2185

16V

47

C2186

1608

1/10W

RN-CP

5%

R 2234

10k

1/10W

RN-CP

5%

220

R 2235

1/10W

RN-CP

5%

68

R 2236

2S D601A -QR S -T X

Q2021

1/10W

RN-CP

5%

1k

R 2237

1/10W

RN-CP

5%

1k

R 2238

1/10W

RN-CP

5%

1k

R 2239

U DZ ST E - 1710B

D2019

GND_T

10uH

L 2025

REG5V

SPDIF

25V

4.7

C2106

A_SW_AD_R

A_SW_AD_L

AVSW_1

AVSW_2

COAXS

COAXG

GND_T

GND_D

1/16W

CHIP

100

R 2249

5%

1608

25V

0.1

B

C2195 /R E S E T _O UT

CHIP

0

R 2250

1/16W

CHIP

5%

1k

R 2251

HP_DET

25V

4.7

C2196

25V

4.7

C2197

47K

R B 2002

1/16W

CHIP

5%

47k

R 2227

47K

R B 2003

1

23

4

L 2019

22uH

NC

1

23

4

L 2018

22uH

NC

1

23

4

22uH

L 2026

NC

1

23

4

22uH

L 2027

NC

1234567891011

12

13

14

15

16

17

18

19

20

21

22

232425

2627282930313233

34

35

36

37

38

39

40

41

42

43

44

IC 2014

A K 5366V Q- L

V3L

T1

V2L

T2

V1L

T3

TVL

T4

SWL

LOPIN

LOUT

IPGAL

IPGAR

ROUT

ROPIN

AVDD

AVSS

VCOM

DVSS

DVDD

SDTO

BICK

LRCK

MCLK

PDN

TVDD

SMUTE

SEL 0

SEL 1

SEL 2

SDA

SCL

CSN

I2C

M/S

SWR

T5

TVR

T6

V1R

T7

V2R

T8

V3R

1/16W

CHIP

5%

4.7k

R 2252

100

R B 2004

L 2023

0

CHIP

8765

4321

CS4335-K SZR

IC 2015

SDATA

SCLK /DEM

LRCK

MCLK AOUTR

AGND

VA+

AOUTL

8765

4321

CS4335-K SZR

IC 2016

SDATA

SCLK /DEM

LRCK

MCLK AOUTR

AGND

VA+

AOUTL

CHIP

0

R2253

CHIP

0

R 2254

22

R B 2005

22

R B 2006

I2S_WS_OUTA

I2S_SCK_OUTA

I2S_SD_OUTA

I2S_SOSCK_OUTB

I2S_SD_OUTB

I2S_WS_OUTB

I2S_SCK _OUTB

0uH

F B 2013

0uH

F B 2014

REG5VREG5V

1005

25V

0.01

X7R

C2198

1005

25V

0.01

X7R

C2199

2012

16V

1

B

C2200

2012

16V

1

B

C2201

1/16W

RN-CP

0.5%

270k

R 2257

1/16W

RN-CP

0.5%

270k

R 2258

1/16W

RN-CP

0.5%

270k

R 2259

1/16W

RN-CP

0.5%

270k

R 2260

25V

4.7

C2204

25V

4.7

C2205

25V

4.7

C2206

25V

4.7

C2207

1/16W

CHIP

5%

10k

R 2261

1/16W

CHIP

5%

10k

R 2262

1/16W

CHIP

5%

10k

R 2263

1/16W

CHIP

5%

10k

R2264

1/16W

CHIP

5%

560

R 2265

1/16W

CHIP

5%

560

R 2266

1/16W

CHIP

5%

560

R 2267

1/16W

CHIP

5%

560

R 2268

1005

50V

1500p

B

C2208

1005

50V

1500p

B

C2209

1005

50V

1500p

B

C2210

1005

50V

1500p

B

C2211

1005

50V

1500p

B

C2212

1005

50V

1500p

B

C2213

1005

50V

1500p

B

C2214

1005

50V

1500p

B

C2215

1/16W

CHIP

5%

100

R 2269

1/16W

CHIP

5%

100

R 2270

1/16W

CHIP

5%

100

R 2271

1/16W

CHIP

5%

100

R 2272

1/16W

CHIP

5%

47k

R 2273

1/16W

CHIP

5%

47k

R 2274

1/16W

CHIP

5%

47k

R 2275

1/16W

CHIP

5%

47k

R 2276

MAIN_L

MAIN_R

LINE_L

LINE_R

CHIP

0

R 2277

CHIP

0

R 2278

MA8056-TX

D2020

M A 8056-T X

D2021

GND_D

MA8056-TX

D2022

1608

50V

0.047

B

C2216

GND_DGND_D

1005

CHIP

R 2201

0

1005

1/16W

CHIP

5%

R2163

47k

R T 1N 141M-T P -1

Q2009

Q2006

2S C4154T P -1E F

1/16W

RN-CP

0.5%

3.3k

R2281

1/16W

RN-CP

0.5%

100k

R 2282

2012

10V

2.2

B

C2217

2012

10V

2.2

B

C2218

2012

10V

2.2

B

C2221

2012

10V

2.2

B

C2223

1005

CHIP

R 2283

0

R2228

0uH 0uH

R 2229

0uH

R 2232

0uH

R 2233

GND_T

TO DETECT

HEADPHONE OUTPUTS

LINE_OUT

HP_OUT

AUDIO_9V A U DI O_13V

AUDIO SWITCH /ADC

AUDIO AMP

PIN A SSI GMENT BY A T I

PIN A SSI GNME NT B Y ATI

TO SPEAKERS

AUDIO

BM 2/12

A -1278- 778-A <MA 1>B M -P 2

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 46

BM BOARD SCHEMATIC DIAGRAM (3 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 |

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

JL3041

1PS302

D3007

JL3042

GND_D

JL3033

GND_D

JL3043

JL1060

GND_D

STBY3.3V

JL3046

JL3003

EMI

G

0uH

FL3001

JL3002

6.3V

C3011

100

GND_D

1/16W

CHIP

4.7k

R3218

5%

1/16W

R3101 3.3k

1/16W

CHIP

220

R3223

1/16W

RN-CP

910

R3190

0.5%

CHIP

R3247

0

R3087 01005 CHIP

MA785-(TX),SO

D3002

L3002

STBY3.3V

R3249

5%

CHIP

1/16W

1005

33

STBY3.3V

T_ALARM2

004:9D

CHIP 0R3073

D3.3V

0

R3010

RT1N141M-TP-1

Q3007

1/16W

R3270 100

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

18P

CN3004

GND

TXD

RXD

RES

VIN

MOD

UART0_RXD

SDA_DEVICE

SDA_JIG

SCL_JIG

PROG_GD

UART0_TXD

PROG_CLK

VIN

SCL_DEVICE

RXD

TXD

GND

GND_D

8765

4321

S-35390A-J8T1G

IC3009

INT1

XOUT

XIN

VSS

INT2

SCL

SDA

VDD

POWER_LED

DC_DET

SCL_JIG

KEY

WRT_PRT

SCL_DEVICE

POWER_LED

SENSOR_DET

T_ALARM

ECS_RXD

SDA_DEVICE

TMR_RED_LED

TMR_GREEN_LED

SIRCS

T_ALARM

SENSOR_DET

POWER3

POWER_KEY

ECS_TXD

TMR_RED_LED

UART0_TXD

DC_DET POWER_KEY

SIRCS

SDA_JIG

REG12V

T_ALARM2

POWER1

KEY

1608

50V

CH

C3019

7p

10V

0.1

B

C3110

2

3

4

1

32.768kHz

X3009

1/16W

0.5%

15k

R3037

CHIP

100

R3243

5% 1/16W

16V

0.01

C3005

16V

0.01

C3006

1005

16V

0.01

X7R

C3007

1005

10V

0.1

X7R

C3057

1005

10V

0.1

X7R

C3063

1005

10V

0.1

X7R

C3066

1005

16V

0.01 X7R

C3070

C3076

1

10V

B1608

1005

10V

0.1

X7R

C3083

1005

50V

0.001

X7R

C3084

1/16W

RN-CP

0.5%

6.8k

R3034

1/16W

RN-CP

0.5%

68k

R3031

8765

4321

IC3007

ADT75ARZ-REEL

SDA

SCL

O.S.

NC

GND A2

A1

A0

VCC

8765

4321

IC3005

M24C16-WMN6T(B)

E0

E1

E2

GND SDA_A

SCL_A

NVM_WP

VCC

DIMMER

BACKLIGHT

PANEL_FAIL

S1_OFF

DC_ALERT2

DC_ALERT3

CEC_OUT

UART0_RXD

1005

50V

X7R

C3072

0.001

GND_D

SDA_DEVICE

SCL_DEVICE

SDA_DEVICE

SCL_DEVICE

3216

10V

10

X7R

C3081

50V

X7R

C3112

0.001

GND_D

LVDS1_PD 0 R3201

D3020

MA8056-TX

D3021

MA8056-TX

1005

16V

C3010

0.1

10k

RB3014

2

1

4

3

47

RB3015

2

1

4

3

100

RB3017

10k

RB3018

2

1

4

3

AC_OFF_DET

C3062

10

10V

X7R

3216

S1_OFF

1005

1/16W

CHIP

5%

R3146

100

0uH

R3255

0uH

R3256

0uH

R3257

0uHR3258

0uH

R3260

0uH

R3261

0uH

R3262

0uH

R3264

0uH

R3265

54

321

BD4729GTR

IC3010

NC

SUB

GND VOUT

VCC

1608

25V

0.01

B

C3113

1/10W

RN-CP

5%

10k

R3515

1/10W

RN-CP

5%

100

R3516

1608

16V

0.1

B

C3114

10MHz

X3010

1608

50V

22p

CH

C3115 1608

50V

22p

CH

C3116

CHIP

R3517

1/16W

5%

1M

100

RB3024

ECS_RXD

RB3025

10k

CEC_IN

1608

RN-CP

R3519

100

1/10W

5%

47

RB3026

SDA_DEVICE

SCL_DEVICE

GND_D

MOD

1005

1/16W

CHIP

5%

R3180

10k

100

RB3021

POWER2

PROG_CLK

PROG_GD

0

R3524

123456789101112

13

14

15

16

17

18

19

20

21

22

23

24

252627282930313233343536

37

38

39

40

41

42

43

44

45

46

47

48

MB95F118ASPMT-G-SPE1

IC3011

P1

O_IIC_SW3

P2 IO_UART_TXD

P3 IO_UART_RXD

P4 I_KEY

P5 I_SENSOR_DET

P6 I_PANEL_FAIL

P7 I_DC_DET

P8 I_S1_OFF

P9 O_BACKLIGHT

P10

P11 O_POWER1

P12 AVss

P13

AVcc

P14

I_SIRCS

P15

O_WRT_PRT

P16

I_SP1

P17

O_DIMMER

P18

P19

IO_SDA_DEVICE

P20

IO_SCL_DEVICE

P21

I_MOD

P22

X0

P23

X1

P24

Vss

P25

Vcc

P26

O_IIC_SW1

P27

O_II_SW2

P28

I_DC_ALERT1

P29

/RST

P30

I_POWER_KEY

P31

O_POWER2

P32

I_T_ALARM

P33

I_T_ALARM2

P34

I_HP_DET

P35

I_VSYNC_AD

P36

P37 O_LVDS1_PD

P38 IO_ECS_RXD

P39 IO_ECS_TXD

P40 IO_PROG_CLK

P41 I_CEC_IN

P42 O_POWER3

P43 O_TMR_GREEN_LED

P44 O_TMR_RED_LED

P45 O_POWER_LED

P46 O_CEC_OUT

P47 I_DC_ALERT2

P48 I_DC_ALERT3

16V

10

C3118

1608

25V

0.01

B

C3119

JL3072

POWER4

CHIP

0

R3526

ECS_TXD

1/16W100R3527 SP1

1005

CHIP

R3528

0

CHIP

0

R3533

CHIP

0

R3534

UART1_TXD

UART1_RXD

MOD

DC_ALERT1

IIC_SW3

100

RB3027

IIC_SW2

IIC_SW1

JL3107

CHIP

0

R3267

TMR_GREEN_LED

1

2

3

4

5

6

7

8

9

10

11

11P

CN3008

GND

STBY3.3V

TMR_GREEN_LED

TMR_RED_LED

POWER_LED

BL_IN

VD3.3V

SIRCS

GND

POWER_INT

KEY1

50V

0.5A

F3001

SIRCS_ATI

SDA_DEVICE

SCL_DEVICE

CHIP

0

R3539

NVM_WP

CHIP

0

R3541

EEPROM

RESET

<< STBY3.3V >>

PINT

KEY1

Temp Sensor

JTAG

FROM G PWB

RTC

(CHANGED FROM AU_PROT)

FOR HM1\HM3 PWB

BM 3/12

A-1278-778-A

TV ǴCON

TO HM1

CN101

TO HM3

CN301

<MA1>BM-P3

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 47

BM BOARD SCHEMATIC DIAGRAM (4 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27

|

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

1608

1/10W

RN-CP

0.5%

R 4545

75

1608

1/10W

RN-CP

0.5%

R 4546

75

1608

1/10W

RN-CP

0.5%

R 4547

75 GND_D

V45YPBPR

1608

50V

0.047

B

C4501

1608

50V

0.047

B

C4502

1608

50V

0.047

B

C4503

1608

50V

0.047

B

C4504

1608

50V

0.047

B

C4505

1608

50V

0.047

B

C4506

RED_AD

GREEN_AD

BLUE_AD

1005

50V

1000p

B

C4507

HSYNC_AD

VSYNC_AD

CHIP

0

R 4551

1608

25V

8200p

B

C4508

1005

10V

0.082

B

C4509

1/10W

RN-CP

5%

1.5k

R 4552

1/10W

RN-CP

5%

510

R 4553

GND_D

1/10W

RN-CP

5%

10k

R 4554

1/10W

RN-CP

5%

10k

R 4555

1608

25V

0.1

B

C4510

1608

25V

0.1

B

C4511

1608

25V

0.1

B

C4512

1608

25V

0.1

B

C4513

16V

10

C4514

GND_D

1608

25V

0.1

B

C4515

1608

25V

0.1

B

C4516

1608

25V

0.1

B

C4517

1608

25V

0.1

B

C4518

1608

25V

0.1

B

C4519

1608

25V

0.1

B

C4520

16V

10

C4521

10uH

L4501

GND_D 1608

25V

0.1

B

C4522

1608

25V

0.1

B

C4523

1608

25V

0.1

B

C4524

10uH

L 4502

1608

25V

0.1

B

C4525

1608

25V

0.1

B

C4526

1608

25V

0.1

B

C4527

16V

10

C4528

1608

25V

0.1

B

C4530

1608

25V

0.1

B

C4529

1/10W

RN-CP

5%

22

R 4559

I2CA_SCL

1/10W

RN-CP

5%

22

R 4558

22

R B 4518

2

NC

1

NC

4

3

6

5

8

7

GND_D

22

R B 4517

22

R B 4516

1608

25V

0.1

B

C4534

1/10W

RN-CP

5%

22

R 4557

PWR DN_9380

I2SWS_DVI

I2SCLK _DVI

1/10W

RN-CP

5%

22

R 4556

I2CA_SDA

GND_D

22

R B 4515

1608

25V

0.1

B

C4533

GND_D

22

R B 4514

1608

25V

0.1

B

C4532

I2SSD_DVI

1608

25V

0.1

B

C4531

22

R B 4512

22

R B 4513

EDID_SCL

EDID_SDA

D3.3V

D3.3V AV CC3.3V

AVCC3.3V

DVIDATA

HDMI_MAIN

12345678910111213141516171819202122232425

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51525354555657585960616263646566676869707172737475

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

A D9380K ST Z-100

IC4501

GND

G7

G6

G5

G4

G3

G2

G1

G0

VDD

GND

B7

B6

B5

B4

B3

B2

B1

B0

MCLKIN

MCLKOUT

SCLK

LRCLK

I2S3

I2S2

I2S1

I2S0

S/PDIF

GND

DVDD

GND

DVDD

VD

RX0-

RX0+

GND

RX1-

RX1+

GND

RX2-

RX2+

GND

RXC+

RXC-

VD

RTERM

GND

DVDD

DDCSCL

DDCSDA

PU2

PU1

ALGND

PV DD

GND

PV DD

FILT

GND

PV DD

VSYNC1

VSYNC0

EXTCLK/COAST

HSYNC1

HSYNC0

GND

BAIN1

VD

BAIN0

GND

SOGIN1

GAIN1

VD

SOGIN0

GAIN0

GND

VD

RAIN1

GND

RAIN0

VD

PWR DN

SCL

SDA

O/E FIEL D

VSOUT

SOGOUT

HSOUT

DE

DATACK

VDD

GND

R7

R6

R5

R4

R3

R2

R1

R0

VDD

D3.3V

GND_D

100

R B 4519

10uH

L4503

1/16W

CHIP

5%

22k

R 4560

1/16W

CHIP

5%

22k

R 4561

1/16W

CHIP

5%

22k

R 4562

1/16W

CHIP

5%

22k

R4563

1/16W

CHIP

5%

22k

R 4564

1/16W

CHIP

5%

22k

R 4565

1608

CHIP

R 4575

0

1608

CHIP

R 4576

0

1608

CHIP

R 4577

0

16V

10

C4538

16V

10

C4539

16V

10

C4540

2SC 3052E F-T 1-L E F

Q4501

2SC 3052E F-T 1-L E F

Q4502

2SC 3052E F-T 1-L E F

Q4503

GND_D

REG5V

GND_D

1/16W

RN-CP

0.5%

470

R 4578

1/16W

RN-CP

0.5%

470

R 4579

1/16W

RN-CP

0.5%

470

R 4580

GND_D

D1.8V

4.7uH

L4504

10uH

L4505

4V

220

C4544

GND_D

1608

25V

0.1

B

C4545

6.3V

1000

C4546

1608

25V

0.1

B

C4547

6.3V

1000

C4548

GND_D GND_D GND_D GND_D

10V

470

C4549

GND_D

FB 4502

10uH

FB 4501

2.2uH

SI GN4493

EDID_SDA

EDID_SCL

SI GN4495

SI GN4496

GND_D

RXC_3R-

RXC_3R+

RX2_3R-

R X 1_3R +

RX1_3R-

RX0_3R+

DVIDATA0

DVIDATA1

DVIDATA2

DVIDATA3

DVIDATA4

DVIDATA5

DVIDATA6

DVIDATA7

DVIDATA8

DVIDATA9

DVIDATA10

DVIDATA11

DVIDATA12

DVIDATA13

DVIDATA14

DVIDATA15

DVIDATA16

DVIDATA17

DVIDATA18

DVIDATA19

DVIDATA20

DVIDATA21

DVIDATA22

DVIDATA23

DVICLK

DVIDE

DV IHSY NC

DV IV SY NC

GND_D

RX0_3R-

RX2_3R+

GND_D

V45PR

V 45Y

V45PB

TO HDMI

A-1278-778-A

A nolog I nterface/H DM I R E C E I V E R

B M 4/12

<M A 1>B M -P4

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 48

BM BOARD SCHEMATIC DIAGRAM (5 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

8765

4321

M24C02-WMN6T(B)

IC5000

E0

E1

E2

VSS SDA

SCL

WC

VCC

GND_D

FB50010uH

FB5000 0uH

FB5002 0uH

GND_D

D3.3V

GND_D

GND_D GND_D

1/10W RN-CP

0.5%

R5012 150

1608

50V

100p

CH

C5006

1608

50V

100p

CH

C5005

1/16W

CHIP

22

R5029

1/10W RN-CP

0.5%R5017 150

1/10W RN-CP

0.5%R5015 150

1/10W RN-CP

0.5%

R5013 150

1/16W

CHIP

22

R5030

1/10W RN-CP

0.5%

R5018 150

1/10W RN-CP

0.5%

R5014 150

1608

10V

B

C5008

1

FB5004

0uH

D5003

M1MA152WK-T1

D5000

MA8056-TX

D5001

MA8056-TX

D5002

MA8056-TX

0uH

FB5005

D3.3V

VD5002

VD5003

VD5004

VD5005

VD5006

RED_AD

GND_D

GREEN_AD

VSYNC_AD

GND_D

HSYNC_AD

BLUE_AD

1/16W

CHIP

5%

R5019

100k

1005

16V

C5002

0.1

1005

16V

X7R

C5009

0.01

10k

RB5001

2

1

4

3

47

RB5002

2

1

4

3

0uH

FB5501

MMDL914T1

D5516

CHIP

0

R5557

10V

0.1

B

C5505

8765

4321

BR24L02F-WE2

IC5501

A1

A0

A2

ESDA

SCL

WP

VCC

100

R5527

HDMI3.3V

GND_D

HDMI3.3V

100

R5543

GND_D

PGB0010603NR

D5509

WRT_PRT

HDMI5V

GND_D

100

R5530

1/16W

CHIP

5%

47k

R5536

GND_D

0.1

B

C5528

10V

1/16W

CHIP

5%

47k

R5535

S

2SK2036(TE85L)

Q5503

47k

R5529

GND_D

REG5V

GND_D

MMDL914T1

D5508

1005

25V

0.01

B

C5509

PGB0010603NR

D5506

PGB0010603NR

D5517

CHIP

0

R5580

GND_D

100

R5514

GND_D

CHIP

0

R5539

8765

4321

BR24L02F-WE2

IC5503

A1

A0

A2

ESDA

SCL

WP

VCC

GND_D

MMDL914T1

D5528

1/16W

CHIP

47k

R5538

5%

GND_D

EMI

G

0uH

FL5501

GND_D

MMDL914T1

D5525

1/16W

CHIP

10

R5505

1/16W

CHIP

10

R5501

4.7k

R5519

S

2SK2036(TE85L)

Q5505

100

R5513

GND_D

4.7k

R5534

RT1N141M-TP-1

Q5507

D3.3V

1005

10V

0.1

B

C5531

GND_D

HDMI5V

GND_D

100

R5528

10V

0.1

B

C5502

1005

25V

0.01

B

C5510

HDMI3.3V

PGB0010603NR

D5513

EMI

G

FL5502

0uH

CEC

1/16W

CHIP

5%

47k

R5525

1/16W

CHIP

5%

47k

R5521

0

RB5501

2

1

4

3

0

RB5503

2

1

4

3

1005

50V

0.001

X7R

C5529

1/16W

CHIP

5%

R5016

1k

HPD_DET1

HPD_DET2

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

J5506

D2+

E

D2-

D1+

E

D1-

D0+

E

DO-

CLK+

E

CLK-

CEC

NC

DDC CLK

DDC DAT

E

DDC +5V

HPD

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

J5505

D2+

E

D2-

D1+

E

D1-

D0+

E

DO-

CLK+

E

CLK-

CEC

NC

DDC CLK

DDC DAT

E

DDC +5V

HPD

14 13 12 11 10 98

76

54321

TC74LCX14FT(EKJ)

IC5001

1A

1Y

2A

2Y

3A

3Y

GND 4Y

4A

5Y

5A

6Y

6A

Vcc

CN5000

15P

BLK

12345

678910

1112131415

CHIP

0

R5637

CHIP

0

R5638

GND_D

1/16W

CHIP

5%

10k

R5622

CEC_IN

1005

1/16W

RN-CP

0.5%

R5504

1k

1005

1/16W

RN-CP

0.5%

R5512

1k

10V

10

C5530

X7R

3216

3

12

4

0uH

L5005

3

1 2

4

0uH

L5006

3

12

4

0uH

L5008

3

1 2

4

0uH

L5007

HPD_1

DTC114EUA-T106

Q5624

GND_D

HPD_2

DTC114EUA-T106

Q5625

GND_D

3

12

4

0uH

L5501

3

12

4

0uH

L5502

3

12

4

0uH

L5504

3

12

4

0uH

L5503

PS5000

50V

0.5A

8765

4321

PCA9517DP

IC5511

VCCA

SCLA

SDAA

GND EN

SDAB

SDLB

VCCB

CHIP

0

R5642

1005

16V

0.01

X7R

C5623

1005

16V

0.01

X7R

C5624

1/16W

CHIP

5%

4.7k

R5644

1/16W

CHIP

5%

4.7k

R5645

HDMI5V

HDMI3.3V

EDID_SCL

005:4D

EDID_SDA

005:4D

SCL_HDMI_MAIN

SDA_HDMI_MAIN

GND_D

SCL_HDMI1

SDA_HDMI1

16 15 14 13 12 11 10 9

87654321

SN74LV4053APWR

IC5512

2Y1

2Y0

3Y1

3COM

3YO

INH

GND

GND C

B

A

1Y0

NC

1Y1

NC

1COM

NC

2COM

VOC

CHIP

0

R5648

1005

10V

0.1

B

C5625

SCL_HDMI_MAIN

SCL_HDMI1

SCL_HDMI2

SDA_HDMI1

SDA_HDMI_MAIN

SDA_HDMI2

HDMI5V

SDA_HDMI2

SCL_HDMI2

GND_D

1005

50V

0.001

X7R

C5626

1005

50V

0.001

X7R

C5627

1005

50V

0.001

X7R

C5628

1005

50V

0.001

X7R

C5629

1005

50V

0.001

X7R

C5630

1005

50V

0.001

X7R

C5631

1005

50V

0.001

X7R

C5632

1005

50V

0.001

X7R

C5633 3216

10V

10

X7R

C5634

1005

16V

0.01

X7R

C5635

1005

50V

0.001

X7R

C5636

1005

50V

0.001

X7R

C5637

123456789101112

13

14

15

16

17

18

19

20

21

22

23

24

252627282930313233343536

37

38

39

40

41

42

43

44

45

46

47

48

CXB1441R-T4

IC5513

P1 TEST

P2 VCC

P3 BDT0N

P4 BDT0P

P5 GND

P6 BDT1N

P7 BDT1P

P8 GND

P9 BDT2N

P10 BDT2P

P11 VCC

P12 REXT

P13

YDT2P

P14

YDT2N

P15

GND

P16

YDT1P

P17

YDT1N

P18

VCC

P19

VCC

P20

YDT0P

P21

YDT0N

P22

GND

P23

YCKP

P24

YCKN

P25

CE

P26

VCC

P27

ACKN

P28

ACKP

P29

GND

P30

ADT0N

P31

ADT0P

P32

GND

P33

ADT1N

P34

ADT1P

P35

VCC

P36

SEL

P37 VCC

P38 VCC

P39 ADT2N

P40 ADT2P

P41 GND

P42 VCC

P43 VCC

P44 GND

P45 BCKN

P46 BCKP

P47 VCC

P48 VCC

1/16W

CHIP

5%

4.7k

R5658

GND_D

HDMI_IN_1

HDMI_IN_SEL

HDMI_IN_1

HDMI_MAIN

HDMI3.3V

22

RB5504

2

1

4

3

6

5

8

7

10

RB5505

10

RB5506

10

RB5507

10

RB5508

RB5510

10

2

1

4

3

6

5

8

7

RB5509

10

2

1

4

3

6

5

8

7

CHIP

0

R5660

VD5520

VD5511

VD5514

VD5518

VD5507

VD5523

VD5503

VD5504

VD5515

VD5526

VD5527

VD5522

VD5510

VD5524

VD5519

VD5512

SCL_PC

SDA_PC

GND_D GND_D

GND_D

GND_DGND_D

WRT_PC

1/16W

CHIP

5%

100

R5671

WRT_PC

GND_D

SCL_HDMI2

GND_D

RX0_2R-

RX0_2R+

RX1_2R-

RX1_2R+

RX2_2R-

RX2_2R+

RXC_2R+

RXC_2R-

GND_D

RXC_1R-

RXC_1R+

RX0_1R-

RX0_1R+

RX1_1R-

RX1_1R+

RX2_1R-

RX2_1R+

RX2_3R+

RX2_3R-

RX1_3R+

RX1_3R-

RX0_3R+

RX0_3R-

RXC_3R+

RXC_3R-

GND_D

GREEN_AD

RX1_1R-

RX1_1R+

RX0_1R+

RX0_1R-

RXC_1R+

RXC_1R-

RX1_2R-

RX1_2R+

RX2_2R-

RX2_2R+

RX0_2R-

RX0_2R+

RXC_2R-

RXC_2R+

RX2_1R-

RX2_1R+

PC-V

PC-H

PC-B

PC-G

PC-R

PC-SDA

PC-SCL

TO AD9380

HDMI_IN_1

HDMI_IN_2

TO MAIN MAICON

PIN ASIGMENT BY ATI

PIN ASIGNMENT BY ATI

PIN ASSIGNMENT BY ATI

FROM H2 PWB

A-1278-778-A

HDMI/PC INPUT

BM 5/12

<MA1>BM-P5

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 49

BM BOARD SCHEMATIC DIAGRAM (6 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

1/16W

CHIP

100k

R4042

5%

1005

1/16W

CHIP

5%

R4013

100k

DC_ALERT1

GND_D

1005

1/16W

CHIP

R4007

5%

150k

DC_ALERT3

1608

CHIP

R4045

0

1005

1/16W

CHIP

5%

R4050

33k

GND_D

1/16W

CHIP

100k

R4006

5%

PANEL_V

POWER3

GND_D

1/16W

CHIP

5%

10k

R4008

GND_D

1/16W

CHIP

150k

R4043

5%

DC_ALERT2

DTC114EUA-T106

Q4011

1608

16V

B

C4030

0.1

E

ET4007

E

ET4004

E

ET4001

E

ET4006

E

ET4002

E

ET4003

E

ET4005

D1.0V

D3.3V

GND_D

1/16W

CHIP

5%

100k

R4002

GND_D

REG5V

0uH

FB4007

C4035

2012

16V

1

B

BACKLIGHT

0uH

FB4005

LFBK1608HS601

PANEL_FAIL

1/10W

RN-CP

10k

R4058

1005

25V

0.01

X7R

C4033

GND_D

RT1N141M-TP-1

Q4014

1/10W

RN-CP

470

R4048

0.5%

D3.3V

1

2

3

4

4P

CN4003

DIMMER

BACKLIGHT

PANEL_DET

GND

1/10W

RN-CP

2.2k

R4047

0uH

FB4010

0uH

FB4006

GND_D

DIMMER

2012

6.3V

4.7

X6S

C4034

1/10W

RN-CP

10k

R4060

GND_D

REG12V

1005

50V

0.001

X7R

C4040

1

2

3

4

5

6

6P

CN4002

WHT

PANEL12V

REG12V

GND

0uH

FB4001

0uH

FB4008

AC_OFF_DET

1

2

3

4

5

6

7

8

9

10

11

12

CN4001

12P

WHT

STBY3.3V

GND

POWER_ON

AC_OFF_DET

AU_13V

AU_GND

NC NC

POWER3

GND

STBY3.3V

0uH

FB4002

AU_13V

0uH

FB4009

GND_AU

FB4003

0uH

POWER1

0uH

FB4011

1005

50V

0.001

X7R

C4001

GND_D

1005

50V

470p

B

C4043

D3.3V

1005

50V

470p

B

C4041

1005

50V

100p

CH

C4046

GND_D

1005

50V

470p

B

C4042

1005

50V

470p

B

C4045

1005

50V

470p

B

C4044

RT1N140M-TP-1

Q4001

RT1N140M-TP-1

Q4002

PANEL_V

330k

R4061

2012

25V

1

C4049

POWER3

FB4013

0uH

1/16W

CHIP

5%

6.8k

R4063

1/16W

CHIP

5%

10k

R4064

1/16W

CHIP

5%

33k

R4065

RT1N140M-TP-1

Q4016

RT1N140M-TP-1

Q4017

D1.8V

GND_D

24V

5A

F4001

8765

4321

S1 S2 S3 G

D1D2D3D4

UPA1716G-E2

Q4018

MA8150-TX

D4012

GND_T

PANEL5V

GND_D

CHIP

0

R4067

E

ET4012

E

ET4013

DCALERT2

GND TERMINAL

PANEL5V

FE

DCALERT1

DCALERT3

BYPASS CAP FOR BACKEND AREA

CN6201

TO G1M

A-1278-778-A

BM 6/12

POWER/DC ALERT

CN6202

TO G1M

BOARD

TO INVERTER

<MA1>BM-P6

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 50

BM BOARD SCHEMATIC DIAGRAM (7 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27

| 28

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

3225

25V

10

B

C7052

12

3225

25V

10

B

C7051

12

3225

25V

10

B

C7076

12

3225

25V

10

B

C7074

12

3225

25V

10

B

C7075

12

3225

25V

10

B

C7073

12

3225

16V

22

B

C7080

12

3216

10V

10

B

C7078

12

3225

25V

10

B

C7000

12

25V

0.1

C7062

12

25V0.1

C7061

12

0.1

C7057

12

0.1

C7056

12

1608

25V

0.1

B

C7068

12

1608

25V

0.1

B

C7067

12

1608

25V

0.1

B

C7024

12

1608

16V

0.1

B

C7088

12

1608

16V

0.1

B

C7087

12

1608

16V

0.1

B

C7086

12

1005

16V

0.1

C7023

12

16V

0.1

C7041

12

0.1

C7035

12

4V

220

C7021

1

2

2012

25V

1

C7066

12

2012

25V

1

C7065

12

1005

16V

0.015

B

C7038

12

16V

0.015

C7044

12

1005

16V

0.015

B

C7039

12

1005

16V

0.015

B

C7033

12

1005

50V

22p

CH

C7040

12

1005

50V

22p

CH

C7034

12

1005

50V

33p

CH

C7032

12

1005

50V

33p

CH

C7028

12

1005

50V

33p

CH

C7027

12

1005

50V

33p

CH

C7031

12

16V

220p

C7047

12

16V

220p

C7048

12

1005

16V

220p

CH

C7050

12

1005

16V

220p

CH

C7049

12

50V

1000p

C7042

12

1005

50V

1000p

B

C7036

12

1005

50V

1000p

B

C7030

12

1005

50V

1000p

B

C7046

12

1005

50V

1000p

B

C7045

12

1005

50V

1000p

B

C7026

12

1005

50V

1000p

B

C7029

12

1

C7059

12

10V1C7064

12

1608

10V

1

B

C7055

12

1

C7058

12

10V1C7063

12

1608

10V

1

B

C7060

12

1/16W

RN-CP

1.5k

R 7037

0.5%

12

1/16W

RN-CP

33k

R 7038

0.5%

12

1/16W

RN-CP

2.2k

R 7049

0.5%

12

1/16W

RN-CP

2.2k

R7047

0.5%

12

1/16W

RN-CP

2.2k

R 7054

0.5%

12

1/16W

RN-CP

2.2k

R 7052

0.5%

12

1/16W

RN-CP

3.3k

R 7035

0.5%

12

10k

R 7065

0.5%

12

1/16W

10kR 7067 0.5%

12

1/16W

RN-CP

47k

R 7041

0.5%

12

1/16W

RN-CP

33k

R 7045

0.5%

12

1/16W

RN-CP

33k

R7046

0.5%

12

1/16W

RN-CP

33k

R 7040

0.5%

12

1/16W

RN-CP

33k

R 7043

0.5%

12

1/16W

RN-CP

56k

R 7044

0.5%

12

1/16W

RN-CP

100k

R 7056

0.5%

12

1/16W

RN-CP

100k

R7057

0.5%

12

1/16W

RN-CP

100k

R7058

0.5%

12

1/16W

RN-CP

100k

R 7055

0.5%

12

1/16W

RN-CP

270k

R 7042

0.5%

12

1/16W

RN-CP

270k

R 7036

0.5%

12

CHIP

0

R7079

12

CHIP

0

R 7080

12

CHIP

0

R 7081

12

CHIP

0

R 7082

12

CHIP

0

R 7069

12

CHIP

0

R 7070

12

1/10W

RN-CP

3.3

R 7072

12

1/10W

RN-CP

5%

3.3

R 7073

12

1/10W

RN-CP

5%

3.3

R 7074

12

1/10W

RN-CP

5%

3.3

R 7071

12

1/10W

RN-CP

5%

820

R 7022

12

CHIP

0

R7064

12

CHIP

0

R 7063

12

1/16W

CHIP

5%

47

R 7061

12

1/16W

CHIP

5%

47

R 7062

12

1/16W

CHIP

5%

47

R 7060

12

1/16W

CHIP

47

R 7059

12

1/16W

CHIP

100

R 7050

12

1/16W

CHIP

100

R 7048

12

1/16W

CHIP

5%

100

R 7053

12

1/16W

CHIP

5%

100

R 7051

12

1/16W

CHIP

5%

4.7k

R 7030

12

1/16W

CHIP

5%

10k

R 7027

12

1/16W

CHIP

5%

100k

R 7034

12

CHIP

0

R7032

12

5.6uH

L7006

3.9A

12

10uH

L7007

2.9A

12

10uH

L 7004

1.85A

12

10uH

L 7005

1.85A

12

3.15A

PS7000

12

3.15A

PS7001

12

43

12

PS T 3629UL

IC7003

1

GND

2

VDD

3

CD

4

OUT

8765

4321

L M2903DT

IC7002

1

OUT

2

IN-

3

IN+

4

GND

5

IN+

6

IN-

7

OUT

8

VCC

R B 160M -30T R

D7013

12

R B 160M -30T R

D7010

12

UDZSTE-173.9B

D7008

12

3216

10V

10

B

C7079

12

6.3V

0.22

C7037

12

6.3V0.22C7043

12

1005

6.3V

0.22

B

C7025

12

GND_D

JL 7005

1

GND_D

GND_DGND_D

3225

16V

22

B

C7081

12

GND_D

1608

16V

0.1

B

C7089

12

GND_D

1608

10V

1

B

C7053

12

1608

10V

1

B

C7054

12

GND_D

REG12V

/R E S E T _ S Y S T E M

30 29 28 27 26 25 24

7

654321

181920212223

8910

17 16

11 12 13 14 15

T PS 5124DB T R G 4

IC7005

INV1

FB1

SOFTSTART1

NC

CT

NC

GND

REF

STBY 1

STBY 2

SCP

NC

SOFTSTART2

FB2

INV2 LH2

OUT 2_U

LL2

OUT 2_D

OUT GND2

VLSD

VREF5

TRIP2

VCC

TRIP1

OUT GND1

OUT 1_D

LL1

OUT 1_U

LH1

30 29 28 27 26 25 24

7

654321

181920212223

8910

17 16

11 12 13 14 15

T PS 5124DB T R G 4

IC7004

INV1

FB1

SOFTSTART1

NC

CT

NC

GND

REF

STBY 1

STBY 2

SCP

NC

SOFTSTART2

FB2

INV2 LH2

OUT 2_U

LL2

OUT 2_D

OUT GND2

LVSD

VREF5

TRIP2

VCC

TRIP1

OUT GND1

OUT 1_D

LL1

OUT 1_U

LH1

1005

16V

0.1

C7100

12

GND_D

4V

470

C7093

1

2

4V

C7092

220

3225

25V

B

C7001

10

12

1/16W

RN-CP

33k

R 7039

0.5%

16V

100

C7002

1/16W

RN-CP

0.5%

110k

R 7025

12

1/16W

RN-CP

0.5%

750k

R 7028

12

1/16W

RN-CP

100k

R 7026

0.5%

12

8765

4321

S1/D2 G1 S2 G2

D2/S1D1 D1 D2/S1

F DS 6986A S-NL

Q7004

1234

5678

8765

4321

S1/D2 G1 S2 G2

D2/S1D1 D1 D2/S1

F DS 6986A S-NL

Q7003

1234

5678

8765

4321

S1/D2 G1 S2 G2

D2/S1D1 D1 D2/S1

FDS6986AS-NL

Q7001

1234

5678

8765

4321

S1/D2 G1 S2 G2

D2/S1D1 D1 D2/S1

F DS 6986A S-NL

Q7002

1234

5678

JL 7003JL 7002

12k

R 7066

0.5%

12

1/16W

10k

R 7068 0.5%

12

JL 7004

/E JT A G _R E S E T

1/16W

CHIP

5%

100

R 7024

12

4V

220

C7090

1

2

GND_DGND_D

6.3V

100

C7094

1608

25V

0.1

B

C7091

1608

6.3V

1

B

C7077

12

GND_D

IO

G

MM1661JTRE

IC7006

1/10W

RN-CP

5%

680

R 7023

12

1005

R 7029

0

12

1005

R 7020

0

12

POWER2

004:6G

1005

R 7019

10k

12

1005

RN-CP

R 7018

100k

12

1005

R 7021

0

12

0

R 7016

POWER4

1/10W

RN-CP

1k

R 7002

5%

MMDL914T1

D7000

1608

25V

B

C7019

0.1

12345

PQ1C Y 1032ZP

IC7000

VIN

VOUT

COM

0A DJ

ON/OFF

1/10W

RN-CP

0.5%

1k

R 7007

M A 8068-M -T X

D7004

1/10W

RN-CP

47k

R 7004

5%

16V

470

C7006

1/10W

RN-CP

5%

1k

R 7000

6.3V

1000

C7015

8765

4321

S1 S2 S3 G

D1D2D3D4

FDS6690A

Q7000

6.3V

1000

C7011

F7000

3.15A

24V

FB 7000

1/10W

RN-CP

0.5%

3.9k

R 7006

1/10W

RN-CP

5%

330

R 7001

R 7011

XX

1608

RN-CP

R 7008

1/10W

0.5%

12k

47uH

L7001

C7007 25V

B3225

10

R B 053L -30T E 25

D7002

2012

16V

1C7003

25V

100

C7004

1608

25V

0.01

B

C7009

GND_D

25V

0.1

B

C7020

GND_D

REG5V

5V _USB

5V _T U

D2.5V

D3.3V

D1.0V

1/10W

RN-CP

0.5%

470k

R 7010

GND_D

U DZ ST E -1710B

D7003

GND_D

3216

25V

4.7

X7R

C7008

1608

25V

0.1

B

C7005

54

321

M IC 5235Y M 5T R

IC7001

3216

16V

4.7

B

C7010

D7001

GND_D

1/10W

RN-CP

0.5%

6.8k

R 7005

1/10W

RN-CP

0.5%

68k

R 7009

1608

16V

0.1

B

C7012

GND_D

1/10W

RN-CP

1k

R 7003

5%

9V

DDR_1.8V

D1.8V

2012

CHIP

R 7088

0

CHIP

0

R 7089

D1.8V

0uH

FB 7003

D2.5V

CHIP

0

R7012

D2.5V_ATI

D3.3V

47uH

L7002

16V

470

C7106

1005

CHIP

R 7092

0

R B 053L -30T E 25

D7019

R 7017

4.7uH

6.3V

1000

C7107

GND_D

/E JT A G _R E S E T

TO XILLEON RESET# INPUT PIN

12V

D2.5V

D1.0V

D3.3V

D1.8V

0.5A

RESET

1.8V

0.8A

2.1A

865mA

0.8A

2.1A

V oltage T hreshol d D etect

VIN

GND

ON/OFF

VOUT

VADJ

500mA

350mA

125mA

DDR2 550mA

X 242 65mA

A -1278-778-A

B M 7/12

POWER/DC AL ERT

<M A 1>B M -P7

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 51

BM BOARD SCHEMATIC DIAGRAM (8 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

1005

16V

0.1

C7250

12

4V

220

C7208

1

2

1005

6.3V

1

C7237

12

1005

16V

0.1

C7217

12

1005

6.3V

1

C7241

12

1005

6.3V

1

C7240

12

1005

6.3V

1

C7256

12

1005

16V

0.1

C7257

12

1005

16V

0.1

C7243

12

1005

16V

0.1

C7251

12

1005

16V

0.1

C7227

12

1005

16V

0.1

C7254

12

1005

16V

0.1

C7213

12

1005

16V

0.1

C7211

12

1005

6.3V

1

C7262

12

1005

16V

0.1

C7218

12

1005

6.3V

1

C7204

12

1005

16V

0.1

C7214

12

1005

6.3V

1

C7259

12

1005

16V

0.1

C7203

12

4V

470

C7200

1

2

1005

6.3V

1

C7229

12

1005

6.3V

1

C7235

12

1005

6.3V

1

C7231

12

1005

6.3V

1

C7255

12

1005

6.3V

1

C7230

12

1005

6.3V

1

C7225

12

1005

16V

0.1

C7207

12

1005

6.3V

1

C7260

12

1005

6.3V

1

C7226

12

1005

6.3V

1

C7238

12

1005

16V

0.1

C7258

12

1005

6.3V

1

C7264

12

1005

6.3V

1

C7239

12

1005

6.3V

1

C7224

12

1005

16V

0.1

C7221

12

4V

470

C7242

1

2

1005

6.3V

1

C7233

12

1005

16V

0.1

C7249

12

1005

16V

0.1

C7222

12

1005

16V

0.1

C7244

12

1005

6.3V

1

C7263

12

4V

470

C7216

1

2

1005

16V

0.1

C7228

12

1005

6.3V

1

C7236

12

1005

6.3V

1

C7234

12

1005

16V

0.1

C7210

12

1005

16V

0.1

C7219

12

1005

16V

0.1

C7201

12

1005

16V

0.1

C7206

12

1005

16V

0.1

C7209

12

1005

16V

0.1

C7253

12

1005

16V

0.1

C7247

12

1005

16V

0.1

C7205

12

1005

16V

0.1

C7246

12

1005

16V

0.1

C7202

12

1005

6.3V

1

C7232

12

1005

16V

0.1

C7252

12

GND_D GND_DGND_D GND_D

GND_D

JL 7200

1

GND_D

VDDR_MEM

2012

6.3V

10

X6S

C7212

12

2012

6.3V

10

X6S

C7220

12

2012

6.3V

10

X6S

C7245

12

2012

6.3V

10

C7215

X6S

12

2012

6.3V

10

C7223

X6S

12

2012

6.3V

10

X6S

C7261

12

50V

15p

C7271 12

X7200

25.14M Hz

12

50V

15p

C7272 12

GND_D

16V0.1C7266

12

16V0.1C7268

12

16V0.1C7265

12

16V0.1C7267

12

16V0.1C7270

12

JL 7201

1

16V0.1C7269

12

GND_D

3216

6.3V

22

B

C7248

12

1/16W

CHIP

R 7200

1M

12

FLEX BUS_STRAP

GND_D

0uH

F B 7203

12

GND_D

GND_D 1608

25V

0.1

B

C7279

12

JL 7202

1

GND_D

0uH

F B 7204

12

GND_D 2012

6.3V

10

B

C7278

12

4V

220

C7280

1

2

2012

6.3V

10

X6S

C7276

12

2012

6.3V

10

B

C7277

12

0uH

F B 7202

12

D1.0V

2012

6.3V

10

B

C7273

12

2012

6.3V

10

X6S

C7275

12

0uH

F B 7200

12

GND_D

1/10W

RN-CP

5%

4.7

R 7201

12

0uH

F B 7201

12

GND_D

2012

6.3V

10

X6S

C7274

12

0uH

L7201

1

2

D2.5V_ATI

D2.5V _AT I

D1.0V D3.3V

CHIP

0

R 7301

CHIP

R 7302

0

Mount Mecha 409815701

A 7300 IC 7300

W_AFT

AFT_UP

AFT_DN

SP_MUTE

0

R B 7200

0

R B 7201

2

1

4

3

6

5

8

7

HPD_1

HPD_2

HPD_DET1

HDMI_IN_SEL

HPD_DET2

ATT_SW

0

R B 7207

AVSW_1

AVSW_2

0uH

F B 7301

12

I2CA_SCL

GND_D

0uH

FB7303

12

25V

0.01

B

C7306

12

UART0_TXD

1608

25V

0.1

B

C7301

12

0

R B 7206

2

1

4

3

JL 7307

1

0

RB7202

2

1

4

3

6

5

8

7

GND_D

JL 7315

1

2

3

4

5

6

7

8

9

10

10P

CN7303

DIAG_TX D

DIAG_RX D

GND

/R E S E T _O U T

SPI_CLK

SPI_IN

SPI_OUT

SPI_CS0

SPI_CS1

GND_D

1005

1/16W

CHIP

5%

R 7307

10k

12

UART0_RXD

D3.3V

1/10W

RN-CP

5%

15k

R 7332

12

1/16W

CHIP

5%

3.3k

R 7330

12

ATI_MCLK

0uH

F B 7302

12

JL 7316

1

16V

100

C7300

1

2

UART1_TXD

0uH

F B 7300

12

8765

4321

T PS 2051A DR

IC 7301

1

GND

2

IN

3

IN

4

EN

5

/OC

6

OUT

7

OUT

8

OUT

16V

22

B

C7303

12

UART1_RXD

1/10W

4.7R 7318 12

GND_D

5V _USB

1

2

4

3

L7300

1

2

4

3

GND_D

UART1_TXD

1/10W

RN-CP

5%

15k

R 7331

12

/R E S E T _OU T

D3.3V

JL 7317

1

GND_D

JL 7304

1/16W

CHIP

5%

100k

R7327

12

16V

100

C7305

1

2

GND_D

UART1_RXD

D3.3V

1/10W

RN-CP

5%

15k

R 7333

12

JL 7300

1

I2CA_SDA

JL 7313

100

R B 7204

2

1

4

3

25V

0.1

B

C7302

12

1/10W

RN-CP

5%

15k

R 7329

12

JL 7314

1/10W

4.7

R 7317 12

1

2

3

4

5

WHT

5P

CN7301

5V

PA

NA

USB_GND

1/16W

CHIP

5%

3.3k

R7328

12

100

R B 7205

100

R B 7208

2

1

4

3

4P

CN7304

1

2

3

4

CHIP

0

R 7202

1/16W

CHIP

5%

100

R 7203

CHIP

0

R7334 CHIP

0

R7335

GND_D

SIRCS_ATI

USB_5V

USB_PA

USB_NA

JL 7320

GND_D

1/16W

CHIP

5%

10k

R 7337

M MD L 914T 1

D7201

D3.3V

GROUND BALLS

IC 7300

215H 4A A L A 11H G2

VSSRH0 T23

V S SR _M E M ST _A 0 M23

V S SR _M E M ST _A 1 J23

VSS D11

VSS D12

VSS D14

VSS D15

VSS D16

VSS J10

VSS J11

VSS J12

VSS J13

VSS J14

VSS J15

VSS J16

VSS J17

VSS K9

VSS K10

VSS K11

VSS K12

VSS K13

VSS K14

VSS K15

VSS K16

VSS K17

VSS K18

VSS L9

VSS L10

VSS L11

VSS L12

VSS L13

VSS L14

VSS L15

VSS L16

VSS L17

VSS L18

VSS M9

VSS M10

VSS M11

VSS M12

VSS M13

VSS M14

VSS M15

VSS M16

VSS M17

VSS M18

VSS N9

VSS N10

VSS N11

VSS N12

VSS N13

VSSN14

VSS N15

VSS N16

VSS N17

VSS N18

VSS P9

VSS P10

VSS P11

VSS P12

VSS P13

VSS P14

VSS P15

VSS P16

VSS P17

VSS P18

VSS R9

VSS R10

VSS R11

VSS R12

VSS R13

VSS R14

VSS R15

VSS R16

VSS R17

VSS R18

VSS T9

VSS T10

VSS T11

VSS T12

VSS T13

VSS T14

VSS T15

VSS T16

VSS T17

VSS T18

VSS U9

VSS U10

VSS U11

VSS U12

VSS U13

VSS U14

VSS U15

VSS U16

VSS U17

VSS U18

VSS V10

VSS V11

VSS V12

VSS V13

VSS V14

VSS V1

5

VSS V16

VSS V17

POWER_SUPPL Y

215H 4A A L A 11H G2

IC 7300

VDDC D6

VDDC D7

VDDC D17

VDDC D18

VDDC D23

VDDC E23

VDDC F4

VDDC G4

VDDC H4

VDDC L4

VDDC M4

VDDC N4

VDDC N23

VDDC P23

VDDC AA23

VDDC AC4

VDDC AC5

VDDC AC6

VDDC AC9

VDDC AC10

VDDC AC11

VDDC AC17

VDDC AC18

VDDR1 D20

VDDR1 D21

VDDR1 D22

VDDR1 F23

VDDR1 G23

VDDR1 G24

VDDR1 H23

VDDR1 K23

VDDR1 U23

VDDR1 V23

VDDR1 W23

VDDR1 Y23

VDDR1 AC19

VDDR1 AC20

VDDR1 AC21

VDDR1 AC22

VDDRH0 R23

FLEXBUS_IF

215H 4A A L A 11H G2

IC 7300

FAD0 B4

FAD1 A4

FAD2 B5

FAD3 B6

FAD4 A6

FAD5 C7

FAD6 B7

FAD7 A7

FAD8 G3

FAD9 G2

FAD10 E1

FAD11 F3

FAD12 D2

FAD13 D1

FAD14 C2

FAD15 C3

FRD AF4

FWE AF3

/F C E 1 V2

FALE0 C8

FINTR0 D25

FINTR1 D26

FINTR2 E25

FINTR5 AE4

POWER_SUPPL Y

215H 4A A L A 11H G2

IC 7300

VDDR3 D4

VDDR3 D5

VDDR3 D8

VDDR3 D9

VDDR3 D19

VDDR3 E4

VDDR3 J4

VDDR3 K4

VDDR3 V4

VDDR3 AC7

VDDR3 AC8

VDDR3 AC12

VDDR3 AC13

VDDR3 AC15

VDDR3 AC16

PESD E24

PESD AB23

VDD25 D13

VDD25 P4

VDD25 AC14

V25 D24

V25 L23

V25 AC23

CLK_PLL

215H 4A A L A 11HG 2

IC 7300

FE_XTALIN A18

FE_XTALOUT B18

F E _OSC _C L K C18

F E _OSC _A V D D A17

F E _OSC _A V S S B17

FE_OSC_GUARD C17

MPVDD AC24

MPVSS AD25

DPVDD T4

DPVSS U4

DPVDD12 R4

FPVDD B20

FPVSS C20

FPVDD12 A20

USB_UART_I2C_IR_

TIMER_SPI_IF

215H 4A A L A 11HG 2

IC 7300

USBPA AE22

USBNA AD22

USBPB AD23

USBNB AE23

/U S B _ OV R C U R AF22

RDA AD16

TDA AF17

/C T S A AE17

/R T S A AD17

RDB F25

TDB E26

RDC AF19

TDC AD18

I2CCLK A AF16

I2CDATAA AE16

I2CCLKC F24

I2CDATAC F26

IRRXDA AE15

IRTXDA AD15

CAPT1 AE18

COMP1 AF18

SPI_CL K C26

SPI_IN C25

SPI_OUT B26

SPI_CS0 B25

SPI_CS1 A25

IRBIDB V3

/W P _G P I O

E

A 7301

E

A 7302

GND_D

FAD8

FAD9

FAD10

FAD11

FAD10

FAD9

FAD8

GND_D

XILLEON242GROUND BALLS ASIC CORE POWER

CORE_1.0V

D1.0V

(NEED <50mV NOISE)

POWER_SUPPLY_FOR_XILLEON242

XILLEON242CLOCK/PLL

FL E X _B US_X IL L E ON242

XILLEON242

POW E R ME M OR Y I O (1.8V )

IO POWER 3.3V PIN (e.g.GPIO)

X 242 POWE R/PL L / FL EX BUS

USB /PERIPHERALS

NFIO8

NFIO9

NFIO10

NFIO11

NFIO12

NFIO13

NFIO14

NFIO15

FINTR3

AGC_SDM2

AGC_SDMX

GPIOC3

FINTR4

NMI

HSYNC_OUT

GPIOC7

GPIOC4

GPIOC5

GPIOC6

GPIOC2

UART-C

USB-B

" A " rec eptacl e

I2C-A

I2C-A IS CONFIGURED AS I2C MASTER

USB

/S P I _ D E T

I2C-C

SPI

USB SMT

HORIZONTAL

IR

CEC

UART-A POR T -A IS FOR TV COMM

TIMER

UART-B

USB-A

A -1278- 778-A

B M 8/12

<M A 1>B M - P8

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 52

BM BOARD SCHEMATIC DIAGRAM (9 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

1/16W

CHIP

5%

2.2k

R 7501

12

1005

16V

0.1

C7504

12

1005

16V

0.1

C7502

12

1/16W

CHIP

5%

10k

R7517

12

1/16W

CHIP

5%

10k

R7506

12

CHIP

0

R 7502

12

1/16W

100k

R 7508

12

1005

16V

0.1

C7501

12

GND_D

NAND_/WP

012:13J

NAND_3.3V

JL 7505

48 43

65

46

4321

47 45 44 42 41 37383940

1210 11987

36 313233

3435

181716

151413

30 29 28 27 26 25

242322212019

K 9F 5608U 0D-P CB 0T

IC 7501

NC

GND

RY/BY

/R E

/C E

NC

VCC

VSS

NC

CLE

ALE

/W E

/W P

NC

NC NC

NC

I/00

I/01

I/02

I/03

NC

VSS

VCC

NC

I/04

I/05

I/06

I/07

NC

JL 7500

JL 7501

JL 7503

JL 7504

MEM_DQM1#

MVREFS

MVREFD

MEM_ODT

MEM_QS0

MRWE#

GND_D

MRAS#

MCLK

1005

16V

0.1

C7400

MCS#

MCLK #

1005

16V

0.1

C7401

MEM_DQM0#

MCAS#

1/16W

RN-CP

0.5%

10k

R7400

MCKEN

MEM_QS1

GND_D

1005

CHIP

R 7509

10k

1/16W

5%

12

1005

CHIP

R 7513

10k

1/16W

5%

12

1/16W

CHIP

5%

10k

R7521

12

1005

CHIP

R 7511

10k

1/16W

5%

12

GND_D

1/16W

CHIP

5%

10k

R 7505

12

GND_DGND_D

GND_D

1/16W

RN-CP

47

R 7401

0.5%

12

1/16W

RN-CP

1k

R 7402

0.5%

12

FLE X BUS_STRAP

1005

CHIP

R7532

0

1005

1/16W

CHIP

5%

R 7528

1k

3216

10V

10

B

C7514

REG12V

16 15 14 13 12 11 10 9

87654321

CD74HC 4538PW R

IC 7506

1CX

1R X C X

/1R

1A

/1B

1Q

/1Q

GND /2Q

2Q

/2B

2A

/2R

2R X C X

2CX

VCC

2012

16V

B

C7509

1

1005

50V

B

C7511

1000p

GND_D

1005

16V

C7510

0.1

R 7529

100k

12

1608

10V

B

C7512

0.47

GND_D

NAND_3.3V

16V

C7506

100

JL7509

16V

C7505

100

GND_D

4V

C7513

220

1005

16V

C7515

0.1

GND_D GND_D GND_D

14 13 12 11 10 9 8

7123456

S N74L V C 32A PW R

IC 7504

1A

1B

1Y

2A

2B

2Y

GND 3Y

3A

3B

4Y

4A

4B

VCC

GND_D

E C 21QS 03L -T E 12L

D7500

GND_D

16V

C7507

100

1/10W

RN-CP

5%

1

R 7533

GND_D

NAND_3.3V

VCC

GND

OUT

B A 33B C 0FP-E 2

IC 7505

GND_D

1005

1/16W

CHIP

5%

R7526

10k

NAND_/WP

1608

25V

0.1

B

C7430

12

GND_D

4V

220

C7431

1

2

VDDR_MEM

GND_D

DDR_1.8V

D3.3V

0uH

L 7431

GND_D

1/16W

RN-CP

0.5%

1k

R 7408

1005

6.3V

1

C7424

12

1005

16V

0.1

C7408

12

VDDR_MEM

GND_D

MVREFS

1005

16V

0.1

C7405

12

MEM_DQM1#

MCAS#

2012

6.3V

10

C7432

B

12

2012

6.3V

10

C7433

B

12

VDDR_MEM

GND_D

1005

6.3V

1

C

C7403

VDDR_MEM

1005

6.3V

1

C7422

12

MVREFD

GND_D

VDDR_MEM

MEM_QS1

MRWE#

1005

6.3V

1

C7425

12

VDDR_MEM

0uH

F B 7400

GND_D

1005

6.3V

1

C7411

12

VDDR_MEM

1005

16V

0.1

C7406

12

1005

16V

0.1

C7418

12

GND_D

MRAS#

1005

16V

0.1

C7404

1/16W

RN-CP

0.5%

1k

R 7403

1005

16V

0.1

C7417

12

1005

16V

0.1

C7410

12

VDDR_MEM

GND_D

1/16W

RN-CP

0.5%

1k

R 7405

1005

6.3V

1

C7412

12

VDDR_MEM

1/16W

RN-CP

0.5%

1k

R 7407

MCS#

MCKEN

MEM_ODT

MCLK #

1005

16V

0.1

C7420

12

1005

16V

0.1

C7409

12

1/16W

RN-CP

0.5%

1k

R 7404

1005

6.3V

1

C7413

12

1005

16V

0.1

C7407

12

N2

B7A1 A2 A3 A7 A8 A9 B1 B2 B3

N3N7N8P2P3P7P8P9 L7

D2

M8

C1 C8

N1 M9 M7 M3 M2 L8

D1C9C7B8 B9 C2 C3

L3 L1L2

D3 D7 D8 D9 E1 E2 E3 E7 E8 E9

R3 R2R8 R7 R1

F2F1 F3 F8F7 F9 G2G1 G3 G8G7

K7K9 K8 H9K3 K2 H3H8 H7 H1H2

G9

J1J2J3J7J8J9

H Y B 18T C 512160B F-2.5

IC 7400

VDD1

NC#A2

VSS1

VSSQ1

UDQS#

VDDQ1

DQ14

VSSQ2

UDM

UDQS

VSSQ3

DQ15

VDDQ2

DQ9

VDDQ3

VDDQ4

DQ8

VDDQ5

DQ12

VSSQ4

DQ11

DQ10

VSSQ5

DQ13

VDD2

NC#E2

VSS2

DQ4

VSSQ9

DQ3

DQ2

VSSQ10

DQ5

VDDL

VREF

VSS3

VSSDL

CK

VDD3

VSSQ6

LDQS/

VDDQ6 CKE

WE

RAS

CK#

ODT

NC#L1

DQ6

VSSQ7

LDM

LDQS

VSSQ8

DQ7

VDDQ7

DQ1

VDDQ8

VDDQ9

DQ0

BA0

BA1

CAS

CS

A10/AP

A1

A2

A0

VDD4

VSS4

A3

A5

A6

A4

A7

A9

A11

A8

VSS5

VDD5

A12

NC#R3

NC#R7

VDDQ10

NC#R8

GND_D

MCLK

1/16W

RN-CP

0.5%

1k

R 7406

MEM_QS0

MEM_DQM0#

1005

16V

0.1

C7402

8765

4321

M 25P40-V M N6T P

IC 7503

/S

Q

/W

VSS D

C

/H O L D

VCC

DRAM_IF

215H 4A A L A 11H G2

IC 7300

DQA_0 R24

DQA_1 P24

DQA_2 P25

DQA_3 P26

DQA_4 N24

DQA_5 M24

DQA_6 M25

DQA_7 M26

DQA_8 L25

DQA_9 L26

DQA_10 K24

DQA_11 K25

DQA_12 K26

DQA_13 J26

DQA_14 H24

DQA_15 H25

/D Q M A _ 0 L24

/D Q M A _ 1 H26

QSA_0 N25

QSA_1 J24

/Q S A _ 0 N26

/Q S A _ 1 J25

MAA_0 U26

MAA_1 V24

MAA_2 W26

MAA_3 T25

MAA_4 T24

MAA_5 Y26

MAA_6 W24

MAA_7 Y25

MAA_8 T26

MAA_9 V26

MAA_10 V25

MAA_11 Y24

MAA_12 U24

MAA_13 U25

MAA_14 W25

MAA_15 AA26

/R A S A AC26

/C A S A AA24

/W E A AA25

/C S A AB25

ODTA AB24

CKEA AB26

CLK A R26

/C L K A R25

MVREFD G25

MVREFS G26

MEMTEST AC25

TEST_Y CLK AD26

NAND_FLASH_IF

215H 4A A L A 11H G2

IC 7300

NFIO0 H2

NFIO1 H3

NFIO2 G1

NFIO3 F2

NFIO4 F1

NFIO5 E3

NFIO6 E2

NFIO7 D3

/N F C E 0 B1

/N F C E 1 B2

/N F R E A2

/N F W E B3

NFAL E A3

NFCLE C4

/N F R Y _ B Y C1

CHIP

0

R 7535

CHIP

0

R 7541

CHIP

0

R 7542

CHIP

0

R 7544

/RESET_OUT

/N F R E

NFCLE

NFALE

NFI07

NFI04

NFI05

NFI06

NFI00

NFI01

NFI02

NFI03

/N F W E

/N F C E 0

/N F R E

NFALE

/N F W E

GND_D

MEM_DQA0

MEM_DQA1

MEM_DQA2

MEM_DQA3

MEM_DQA4

MEM_DQA5

MEM_DQA6

MEM_DQA7

MEM_DQA8

MEM_DQA9

MEM_DQA10

MEM_DQA11

MEM_DQA12

MEM_DQA13

MEM_DQA14

MEM_DQA15

MEM_AA0

MEM_AA1

MEM_AA2

MEM_AA3

MEM_AA4

MEM_AA5

MEM_AA6

MEM_AA7

MEM_AA8

MEM_AA9

MEM_AA10

MEM_AA11

MEM_AA12

MEM_AA14

MEM_AA15

NFI00

NFI01

NFI02

NFI03

NFI04

NFI05

NFI06

NFI07

/N F C E 0

/N F C E 1

/N F R E

/N F W E

NFALE

NFCLE

/N F R Y /B Y

NFI05

FAD10

FAD9

FAD8

GND_D

/N F R Y /B Y

MEM_AA12

MEM_AA8

MEM_AA11

MEM_AA9

MEM_AA7

MEM_AA4

MEM_AA6

MEM_AA5

MEM_AA3

MEM_AA0

MEM_AA2

MEM_AA1

MEM_AA10

MEM_AA14

MEM_AA15

MEM_DQA3

MEM_DQA1

MEM_DQA4

MEM_DQA2

MEM_DQA5

MEM_DQA0

MEM_DQA7

MEM_DQA6

MEM_DQA9

MEM_DQA12

MEM_DQA8

MEM_DQA10

MEM_DQA13

MEM_DQA11

MEM_DQA15

MEM_DQA14

/N F C E 1

NFI07

DR A M POR T = 128MB

X242

D D R /F L A S H /N V M

SERIAL BOOT FLASH

NAND FLASH

STRAPS

BOOTROM_SEL (1)

BOOTROM_SEL (2)

BOOTROM_SEL (0)

BOOTROM_SEL (3)

NAND FLASH DATA PROTECTION

DDR2 SDRAM

DDR2 SDRAM DDR2 SDRAM

NAND FLASH

MEMORY CONFIGURATION

64MB X 8 (512Mbit) 2PC S FOR DE V E L OPM E NT

16MB (128Mbit)

DDR2 MEMORY

MA CHASSIS

SYS_CFG (1)

A -1278- 778-A

B M 9/12

<M A 1>B M - P9

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 53

BM BOARD SCHEMATIC DIAGRAM (10 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

/RESET_SYSTEM

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

CN7600

15P

/TRST

GND

TDI

GND

TDO

GND

TMS

GND

TCK

GND

/RST

DINT

VIO

NC

1/16W

CHIP

5%

1k

R7610

12

22

RB7605

2

1

4

3

6

5

8

7

/EJTAG_RESET

GND_D

1/16W

CHIP

22

R7611

12

1/16W

CHIP

22

R7607

12

1/16W

CHIP

5%

10k

R7609

12

GND_D

1005

16V

0.1

C7600

12

GND_D

1/16W

CHIP

47k

R7608

5%

12

10k

RB7607

2

1

4

3

6

5

8

7

D3.3V

D3.3V /RESET_OUT

DVODATA

DVIDATA

33

RB9021

33

RB9022

33

RB9023

33

RB9024

33

RB9025

33

RB9026

33

RB9027

DCP_VIDEO

DVODATA

DVODE_LVDS

JL9009

DVI_IF

215H4AALA11HG2

IC7300

DVIDATA0 U3

DVIDATA1 U2

DVIDATA2 U1

DVIDATA3 T3

DVIDATA4 T2

DVIDATA5 T1

DVIDATA6 R3

DVIDATA7 R2

DVIDATA8 R1

DVIDATA9 P3

DVIDATA10 P2

DVIDATA11 P1

DVIDATA12 M2

DVIDATA13 M1

DVIDATA14 L1

DVIDATA15 L2

DVIDATA16 L3

DVIDATA17 K1

DVIDATA18 K2

DVIDATA19 K3

DVIDATA20 J1

DVIDATA21 J2

DVIDATA22 J3

DVIDATA23 H1

DVICLK N1

DVIHSYNC N3

DVIVSYNC N2

DVIDE M3

DVO_IF

215H4AALA11HG2

IC7300

DVODATA0 AF15

DVODATA1 AD14

DVODATA2 AE14

DVODATA3 AF14

DVODATA4 AF13

DVODATA5 AE13

DVODATA6 AD13

DVODATA7 AF12

DVODATA8 AE12

DVODATA9 AD12

DVODATA10 AE11

DVODATA11 AD11

DVODATA12 AE9

DVODATA13 AD9

DVODATA14 AF8

DVODATA15 AE8

DVODATA16 AD8

DVODATA17 AF7

DVODATA18 AE7

DVODATA19 AD7

DVODATA20 AF6

DVODATA21 AE6

DVODATA22 AD6

DVODATA23 AF5

DVOCLK0 AF11

DVOCLK1 AF10

DVODE AE10

DVOHSYNC AF9

DVOVSYNC AD10

/TRST AE26

TMS AD24

TCK AE25

TDI AF25

TDO AE24

DINT AF24

TAPSEL AF23

/RESET AD5

/RESETOUT AE5

DVOGA3_PAD

DVOGA1_PAD

DVOGA2_PAD

DVOGA0_PAD

DVIDATA0

DVIDATA1

DVIDATA2

DVIDATA3

DVIDATA4

DVIDATA5

DVIDATA6

DVIDATA7

DVIDATA8

DVIDATA9

DVIDATA10

DVIDATA11

DVIDATA12

DVIDATA13

DVIDATA14

DVIDATA15

DVIDATA16

DVIDATA17

DVIDATA18

DVIDATA19

DVIDATA20

DVIDATA21

DVIDATA22

DVIDATA23

DVICLK

DVIHSYNC

DVIVSYNC

DVIDE

DVOVSYNC

DVOHSYNC

DVODE

DVOCLK0

DR-7

DR-6

DR-5

DR-4

DR-3

DR-2

DR-1

DR-0

DG-7

DG-6

DG-5

DG-4

DG-3

DG-2

DG-1

DG-0

DB-7

DB-6

DB-5

DB-4

DB-3

DB-2

DB-1

DB-0

DB-1

DB-2

DB-3

DB-4

DB-5

DB-6

DB-7

DG-0

DG-1

DG-2

DG-3

DG-4

DG-5

DG-6

DG-7

DR-0

DR-1

DR-2

DR-3

DR-4

DR-5

DR-6

DR-7

DVODE

DVOHSYNC

DVOVSYNC

DB-0

DB-1

DB-2

DB-3

DB-4

DB-5

DB-6

DB-7

DG-0

DG-1

DG-2

DG-3

DG-4

DG-5

DG-6

DG-7

DR-0

DR-1

DR-2

DR-3

DR-4

DR-5

DR-6

DR-7

D-CLK

D-HS

D-VS

DVOCLK0

DVO_IF

INPUT TO XILLEON

OUTPUT FROM XILLEON

DIGITAL IF / EJTAG

EJTAG CONNECTOR

A-1278-778-A

BM 10/12

<MA1>BM-P10

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 54

BM BOARD SCHEMATIC DIAGRAM (11 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 2

6

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

GND_D

1/16W

CHIP

33

R 7716

12

AUDIO_CTRL

1005

16V

0.1

C7808

12

1005

16V

0.1

C7812

12

1005

50V

39p

CH

C7825

12

100516V0.1C7703

12

1005

16V

0.1

C7809

12

100516V0.1C7702

12

I2SCLK_DVI

0.22uH

L7801

12

0.33uH

L7805

12

1005

50V

33p

CH

C7829

12

100516V0.1C 7707

12

1005

16V

0.1

C7810

12

0.22uH

L7802

12

100516V0.1C 7805

12

2012

6.3V

10

B

C7811

12

1/16W

CHIP

R 7706

33

12

AGC_MUTE

2012

6.3V

10

B

C7816

12

1005

50V

22p

CH

C7821

12

0.68uH

L 7804

12

100516V0.1C7706

12

1005

16V

0.1

C7814

12

T V _M_M ON_V

1/16W

CHIP

33

R 7717

12

GND_D

0.39uH

L7807

12

100516V0.1C 7705

12

1005

1/16W

CHIP

1k

R 7714

12

V_DET

1005

50V

33p

CH

C7828

12

1005

50V

56p

CH

C7823

12

GND_D

1/16W

CHIP

470

R 7808

5%

12

GND_D

0.68uH

L 7803

12

1005

50V

22p

CH

C7822

12

1005

16V

0.1

C7813

12

SPDIF

1005

50V

39p

CH

C7820

12

GND_D

I2S_SD_OUTB

1005

1/16W

CHIP

1k

R 7715

12

1005

50V

56p

CH

C7824

12

1005

16V

0.1

C7815

12

GND_D

1608

25V

0.1

B

C7819

12

1/16W

CHIP

R 7710

33

12

1/16WR 7705 100

12

GND_D

JL 7714

0.33uH

L 7800

12

GND_D

1/16W

CHIP

1k

R 7800

12

1608

25V

0.1

B

C7818

12

100516V0.1C 7704

12

1/16W

CHIP

R 7712

33

12

GND_D

0uH

F B 7800

12

1005

16V

0.1

C7804

12

GND_D

0

R 7703

1005

16V

0.1

C7801

12

1005

16V

0.1

C7807

12

2012

6.3V

10

B

C7817

12

GND_D

100516V0.1

C7800

12

0.39uH

L7806

12

JL 7713JL 7712JL 7707

100516V0.1C 7700

12

100516V0.1C 7701

12

GND_D

0uH

F B 7700

12

0uH

F B 7701

12

JL 7708

JL 7709

JL 7710

JL 7711

CHIP

R 7814

100

1/16W

5%

1005

CHIP

R7819

100

1/16W

5%

GND_A

JL 7801

22k

R 7821

10V

470

C7852

0uH

F B 7801

1/16W

RN-CP

0.5%

22k

R7849

0uH

FB7805

50V

0.001

X7R

C7850

1005

50V

27p

CH

C7841

16V

100

C7844

GND_AGND_A

1/16W

CHIP

R7842

1k

GND_A

1/16W

RN-CP

0.5%

150

R 7843

GND_A

1005

50V

27p

CH

C7836

0uH

FB7806

GND_A

0uH

F B 7807

GND_D

6.3V

1000

C7848

GND_A

JL 7800

3216

6.3V

B

C7857

22

1005

50V

27p

CH

C7835

GND_A

0uH

F B 7802

10uH

L 7811

10uH

L 7814

GND_A

1005

50V

1p

CK

C7837

GND_A

AUDIO_CTRL

0.27uH

L7809

1005

0.1

C7864

16V

GND_A

10uH

L 7813

1/16W

CHIP

5%

10k

R7853

GND_A

1005

50V

CK

C7838

1p

1005

16V

0.1

C7863

GND_A

1005

50V

C7858

100p

CH

1/16W

CHIP

5%

1k

R7840

25V

0.01

X7R

C7854

RN-CP

100

R 7847

1/16W

0.5%

22k

R 7822

AGC_MUTE

1005

50V

27p

CH

C7840

GND_A

50V

C7859

100p

GND_A

0.27uH

L 7810

0uH

FB7804

1005

25V

0.01

B

C7853

50V

0.001

X7R

C7856

1005

50V

33p

CH

C7867

1005

16V

0.1

C7845

GND_A

GND_D

T V _M_M ON_V

10uH

L 7812

GND_A

2S C3052E F -T 1- L E F

Q7803

1/16W

RN-CP

0.5%

120k

R 7852

16V

47

C7846

1/16W

RN-CP

0.5%

1.8k

R7844

1/16W

CHIP

10k

R 7845

1005

25V

0.01

B

C7849

CHIP

0

R 7836

REG5V

6.3V

47

C7832

1005

1/16W

CHIP

4.7k

R7829

GND_A

2012

6.3V

4.7

X6S

C7862

1005

10V

0.1

B

C7833

1005

6.3V

0.22

B

C7855

1005

16V

0.022

B

C7831

1005

1/16W

CHIP

1M

R7831

1005

1/16W

RN-CP

0.5%

2.7k

R 7838

V_DET

1005

1/16W

CHIP

R 7834

2.2k

1005

50V

4700p

B

C7842

1005

1/16W

CHIP

1M

R 7848

2S C3052E F -T 1- L E F

Q7804

GND_A

1005

50V

2200p

B

C7847

1005

1/16W

RN-CP

0.5%

3.9k

R 7839

10uH

L 7808

I SA 1235A C 1T P-1E F

Q7800

R B 501V -40T E - 17

D7801

1005

1/16W

CHIP

3.3k

R 7851

0uH

F B 7803

AFT

014:9J

TV_R

TV_L

I2SWS_DVI

I2S_SCK_OUTA

I2S_WS_OUTA

I2S_SD_OUTA

2012

6.3V

10

B

C7870

12

1608

6.3V

1

B

C7720

12

GND_D 2012

6.3V

10

B

C7871

12

GND_D

0uH

L7720

1

2

GND_D

D2.5V_ATI

D3.3V

D2.5V_ATI

D3.3V

5V _T U

5V _ T U

9V

D3.3V

10V

470

C7878

1608

50V

0.022

F

C7879

GND_A GND_A

5V _T U

0uH

L 7817

0uH

L 7818

1/16W

RN-CP

0.5%

1.8k

R7868

1/16W

CHIP

5%

100

R 7869

10uH

L7819

1/16W

CHIP

5%

100

R 7971

REG5V

1005

25V

0.01

B

C7951

1/16W

CHIP

5%

100

R7974

AFT

014:15E

1/16W

CHIP

5%

22k

R7970

1/16W

CHIP

5%

3.3k

R 7973

1005

25V

0.01

B

C7950

AFT_UP

8765

4321

N JM 2903V (T E 2)

IC7950

AO

A-

A+

V- B+

B-

BO

V+

GND_D

1/16W

CHIP

5%

100

R7975

1/16W

RN-CP

0.5%

51k

R7965

1608

10V

1

B

C7952

GND_D

1/16W

CHIP

5%

3.3k

R 7972

AFT_DN

1005

1/16W

CHIP

5%

R 7964

22k

1/16W

CHIP

5%

100

R 7967

D3.3V

I2S_SCK _OUTB

1005

16V

0.1

C7953

1005

16V

0.1

C7954

1005

16V

0.1

C7956

1005

16V

0.1

C7958

1005

16V

0.1

C7959

I2SSD_DVI

ATI_SCK

ATI_WS

ATI_SDO

I2S_SOSCK_OUTB

RN-CP

220

R 7976

1/16W

0.5%

PWRDN_9380

R7969

51k

0.5%

RN-CP

1/16W

1005

D3.3V

GND_A

VIDEO1-3 VIDEO2

100

R B 7701 0

RB002

10k

R B 7703

Q7802

ISA1602AM1TP-1EF

2S C4154T P -1E F

Q7807

GND_A

0uH

FB7808

0uH

F B 7809

ADR

RF_AGC

A5V_TU

IF_MONI

A32V_MONI

D_IF1

D_IF2

A5V_VIF

MODE

A9V_MPX

TU_SDA

TU_SCL

IF_AGC

AFT_OUT

F_MONO

L_OUT

A5V_DD

R_OUT

DET _OUT

AGND

ST_ID

SAP_ID

T U 7800

VIDEO_IF

215H4AALA11HG2

IC 7300

RAA1

GY1

BY2

RSET AA2

VDD1DI W2

A1VDD Y4

A1VDDQ W4

VSS1DI W1

A1VSSQ W3

A1VSSN Y3

CAC1

YAB1

R2SET AC2

VDD2DI AB2

A2VDD AB4

A2VDDQ AA3

VSS2DI AC3

A2VSSQ AA4

A2VSSN AB3

VSYNC_OUT V1

AUDIO_IF

215H4AALA11HG2

IC 7300

AUDA_O1N C22

AUDA_O1P A21

AUDA_O2N B22

AUDA_O2P A22

I2SSCK_OUTB A24

I2SWS_OUTB A23

I2SSD_OUTB B24

I2SSOSCK_OUTB C24

SPDIF_OUTA AE3

I2SSCK_INC AD1

I2SWS_INC AE1

I2SSD_INC AD2

I2SSCK_IND AE2

I2SWS_IND AF2

I2SSD_IND AD3

VDDR_AUDA B21

VDDR_AUDB B23

VSSR_AUDA C21

VSSR_AUDB C23

215H4AALA11HG2

IC 7300

TESTEN AD4

NC0 A19

NC1 B19

NC2 C19

FRONT_END_IF

215H 4A A L A 11H G2

IC 7300

VI_IN0 B16

VI_IN1 C15

VI_IN2 B14

VI_IN3 A13

FAT_IFP A15

FAT_IFM A16

V I_BY PASS0 A14

VI_REFP0 B12

VI_REFM0 A12

VI_ATBP C12

VI_ATBM C13

ADC0_AVDD C14

ADC0_AVDD C16

ADC0_AVSS B13

ADC0_AVSS B15

VI_AVDD33 D10

VI_IN4 C11

VI_IN5 A11

VI_IN6 B10

VI_IN7 A9

V I_BY PASS1 C9

VI_REFP1 B8

VI_REFM1 A8

ADC1_AVDD B11

ADC1_AVDD C10

ADC1_AVSS A10

ADC1_AVSS B9

AGC_SDM1 C5

GPIOC

215H 4A A L A 11H G2

IC 7300

GPIOC0 A5

GPIOC1 C6

GPIOC8 AD21

GPIOC9 AE21

GPIOC10 AF21

GPIOC11 AD20

GPIOC12 AE20

GPIOC13 AF20

GPIOC14 AD19

GPIOC15 AE19

I2S_WS_OUTB

M A 8056-T X

D7802

M A 8056-T X

D7803

GND_D

0uH

L 7820

0uH

L7821

0uH

L 7822

0uH

L 7824

0uH

L 7825

0uH

L 7826

0uH

L 7827

1608

1/10W

RN-CP

0.5%

R 7977

220

1608

1/10W

RN-CP

0.5%

R 7979

220

GND_D GND_D

1608

1/10W

RN-CP

0.5%

R 7982

150

GND_D

1608

1/10W

RN-CP

0.5%

R 7983

220

1608

1/10W

RN-CP

0.5%

R 7984

220

GND_D GND_D

1608

1/10W

RN-CP

0.5%

R 7987

220

1608

1/10W

RN-CP

0.5%

R 7988

220

GND_D GND_D

L7815

10uH

GND_A

100p

C7866

ST_ID

SAP_ID

F_MONO

MODE

F_MONO

MODE

ST_ID

SAP_ID

A_V1_IN_C

A_V3_IN_V

A_V2_IN_V A_V2_IN_V

A_V1_IN_V

A_V1_IN_Y

TU_I2C_SCL

X242AUDIOOUT/FE/TUNER

TU_SDA

TU_SCL

GPIO for Memory Size Config.

L O=64M B / HI =128MB

I2SSCK_OUTA

I2SWS_OUTA

I2SSD_OUTA

I2SSOSCK _OUTA

A -1278- 778-A

B M 11/12

<M A 1>B M -P 11

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 55

BM BOARD SCHEMATIC DIAGRAM (12 OF 12)

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

1608

25V

0.01

B

C9105

12

10uH

L9104

1

2

1608

25V

0.01

B

C9131

12

GND_D

4

12

3

0uH

L9107

1608

16V

0.1

B

C9145

12

CHIP

0

R9117

12

R9178 0

GND_D

1608

25V

0.01

B

C9140

12

1608

25V

0.01

B

C9136

12

PANEL_V

2012

6.3V

10

B

C9152

12

1608

25V

0.01

B

C9159

10uH

L9100

1

2

1608

25V

0.01

B

C9128

12

1608

25V

0.01

B

C9124

12

1608

50V

1000p

B

C9161

1608

25V

0.01

B

C9114

12

1/10W

RN-CP

5%

100k

R9159

12

1608

25V

0.01

B

C9121

12

CHIP

0

R9153

12

4

12

3

0uH

L9109

1608

25V

0.01

B

C9134

12

1608

16V

0.1

B

C9138

12

1608

16V

0.1

B

C9155

12

4

12

3

0uH

L9110

1608

25V

0.01

B

C9112

12

1608

25V

0.01

B

C9125

12

1608

25V

0.01

B

C9133

12

4V

220

C9100

1

2

1608

25V

0.01

B

C9147

12

D3.3V

CHIP

R9185 0

1608

50V

1000p

B

C9154

12

33

RB9109

2

1

4

3

6

5

8

7

1608

25V

0.01

B

C9153

12

DCP_VIDEO

CHIP

0

R9146

12

33

RB9106

2

1

4

3

6

5

8

7

1608

25V

0.01

B

C9116

12

1/10W

RN-CP

5%

1k

R9111

12

DCP_RST

1608

25V

0.01

B

C9122

12

10uH

L9101

1

2

4

12

3

0uH

L9106

1608

16V

0.1

B

C9149

12

1608

50V

1000p

B

C9139

12

GND_D

4V

220

C9101

1

2

4

12

3

0uH

L9108

1608

25V

0.01

B

C9108 12

1608

25V

0.01

B

C9160

1608

25V

0.01

B

C9129

12

1608

25V

0.01

B

C9119

12

1608

25V

0.01

B

C9144

12

CHIPR9184 0

1608

25V

0.01

B

C9130

12

1608

25V

0.01

B

C9135

12

R9179 100

1608

25V

0.01

B

C9123

12

10uH

L9103

1

2

D3.3V

2012

6.3V

10

B

C9151

12

33

RB9110

2

1

4

3

6

5

8

7

1/10W

RN-CP

5%

33

R9139

12

1608

16V

0.1

B

C9115

12

1608

25V

0.01

B

C9110

12

GND_D

1608

25V

0.01

B

C9118

12

1/10W

RN-CP

5%

10k

R9109

12

0uH

L9111

1608 50V

470p

CH

C9163

33

RB9112

2

1

4

3

6

5

8

7

1608

50V

1000p

B

C9143

12

33

RB9108

2

1

4

3

6

5

8

7

33

RB9111

2

1

4

3

6

5

8

7

1608

25V

0.01

B

C9113

12

GND_D

2012

6.3V

10

B

C9137

12

1608

25V

0.01

B

C9127

12

1608

25V

0.01

B

C9107

12

1608

25V

0.01

B

C9111

12

1608

25V

0.01

B

C9132

12

CONT VDD

OUT

24MHz

X9100

1

23

4

12345678910111213141516

17

18

19

20

21

22

29

28

27

26

25

24

23

30

31

32

33343536373839404142434445464748

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

THC63LVD103

IC9102

1

TD5

2

GND

3

TD6

4

TE0

5

TE1

6

TE2

7

VCC

8

TE3

9

TE4

10

GND

11

TE5

12

CLKIN

13

PD

14

PGND

15

PVCC

16

TE6

17

LGND

18

TE+

19

TE-

20

TD+

21

TD-

22

TCLK+

23

TCLK-

24

TC+

25

TC-

26

LGND

27

LVCC

28

TB+

29

TB-

30

TA+

31

TA-

32

LGND

33

TA0

34

TA1

35

TA2

36

TA3

37

TA4

38

TA5

39

GND

40

TA6

41

TB0

42

TB1

43

RS

44

TB2

45

TB3

46

TB4

47

GND

48

TB5

49 TB6

50 TC0

51 VCC

52 TC1

53 TC2

54 TC3

55 TC4

56

GND

57 TC5

58 TC6

59 TD0

60 R/F

61 TD1

62 TD2

63

TD3

64

TD4

1608

25V

0.01

B

C9126

12

0

R9177

D3.3V

33

RB9113

2

1

4

3

6

5

8

7

1/10W

RN-CP

5%

22

R9110

12

10uH

L9105

1

2

1608

50V

1000p

B

C9146

12

1608

25V

0.01

B

C9162

1608

25V

0.01

B

C9106

12

123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354555657585960

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156157158159160161162163164165166167168169170171172173174175176177178179180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

240

231

232

233

234

235

236

237

238

239

CXD9690Q

IC9100

1

CRFIN9

2

CRFIN8

3

CRFIN7

4

CRFIN6

5

CLKF

6

VDDE

7

VSS

8

CRFIN5

9

CRFIN4

10

CRFIN3

11

CRFIN2

12

CRFIN1

13

CRFIN0

14

HFIN

15

VFIN

16

OVDD

17

OVSS

18

VDDE

19

VSS

20

YGOUT9

21

YGOUT8

22

YGOUT7

23

YGOUT6

24

YGOUT5

25

VDDI

26

YGOUT4

27

YGOUT3

28

YGOUT2

29

YGOUT1

30

VSS

31

YGOUT0

32

CBOUT9

33

CBOUT8

34

CBOUT7

35

CBOUT6

36

VDDI

37

OVDD

38

CBOUT5

39

CBOUT4

40

CBOUT3

41

CBOUT2

42

VDDI

43

VSS

44

CBOUT1

45

CBOUT0

46

CROUT9

47

CROUT8

48

CROUT7

49

CROUT6

50

CROUT5

51

CROUT4

52

CROUT3

53

CROUT2

54

VDDE

55

VSS

56

CLKO

57

CROUT1

58

CROUT0

59

HOUT

60

VOUT

61

GBRVOUT

62

GBRBLK

63

GBRHOUT

64

BOUT9

65

BOUT8

66

VDDE

67

VSS

68

GBRCLKO

69

BOUT7

70

BOUT6

71

BOUT5

72

BOUT4

73

BOUT3

74

BOUT2

75

BOUT1

76

BOUT0

77

VDDI

78

VSS

79

GOUT9

80

GOUT8

81

GOUT7

82

GOUT6

83

OVDD

84

GOUT5

85

GOUT4

86

GOUT3

87

GOUT2

88

GOUT1

89

VDDI

90

VSS

91

OSD2CLKO

92

GOUT0

93

ROUT9

94

ROUT8

95

ROUT7

96

ROUT6

97

ROUT5

98

OVDD

99

ROUT4

100

ROUT3

101

VDDI

102

VSS

103

ROUT2

104

ROUT1

105

ROUT0

106

OSD1VOUT

107

OSD1CLK0

108

OVDD

109

OSD2VOUT

110

OSD2HOUT

111

OSD1HOUT

112

CLP1OUT

113

OVSS

114

VDDE

115

VSS

116

OSD1HIN

117

YS2

118

YM2

119

OSD2BIN1

120

OSD2BIN0

121

OSD2GIN1

122

OSD2GIN0

123

OSD2RIN1

124

OSD2RIN0

125

OSD1BIN7

126

VDDE

127

VSS

128

OSD1CLK

129

OSD1BIN6

130

OSD1BIN5

131

OSD1BIN4

132

OSD1BIN3

133

OSD1BIN2

134

OSD1BIN1

135

OSD1BIN0

136

OSD1GIN7

137

OSD1GIN6

138

VDDE

139

VSS

140

OSD1GIN5

141

OSD1GIN4

142

OSD1GIN3

143

OSD1GIN2

144

OSD1GIN1

145

VDDI

146

OSD1GIN0

147

OSD1RIN7

148

OSD1RIN6

149

OSD1RIN5

150

VSS

151

OSD1RIN4

152

OSD1RIN3

153

OSD1RIN2

154

OSD1RIN1

155

OSD1RIN0

156

VDDI

157

YS1

158

YM1

159

SCL

160

SDA

161

SASEL

162

VDDI

163

VSS

164

HIN

165

VIN

166

YGIN9

167

YGIN8

168

YGIN7

169

YGIN6

170

OVDD

171

IN

172

BUS

173

OVSS

174

VDDE

175

VSS

176

VPD0

177

TCK

178

TRST

179

TMS

180

TDI

181 TD0

182 NC

183 YGIN5

184 YGIN4

185 YGIN3

186 VDDE

187 VSS

188 RST_X

189 YGIN2

190 YGIN1

191 YGIN0

192 CBIN9

193 CBIN8

194 CBIN7

195 CBIN6

196 CBIN5

197 VDDI

198 VSS

199 CLK

200

CBIN4

201 CBIN3

202 CBIN2

203 CBIN1

204 CBIN0

205 CRIN9

206 CRIN8

207 CRIN7

208 CRIN6

209

DDI

210

VSS

211

CRIN5

212

CRIN4

213

CRIN3

214

CRIN2

215

CRIN1

216

CRIN0

217

YGFIN9

218

YGFIN8

219

YGFIN7

220

YGFIN6

221

VDDI

222

VSS

223

YGFIN5

224

YGFIN4

225

YGFIN3

226

YGFIN2

227

YGFIN1

228

YGFIN0

229

CBFIN9

230

CBFIN8

231

CBFIN7

232

CBFIN6

233

CBFIN5

234

VDDE

235

VSS

236

CBFIN4

237

CBFIN3

238

CBFIN2

239

CBFIN1

240

CBFIN0

1608

25V

0.01

B

C9117

12

33

RB9107

2

1

4

3

6

5

8

7

LVDS1_PD

I2CA_SDA

I2CA_SCL

100

RB9115

2

1

4

3

D2.5V

CHIP

0

R9186

CHIP

0

R9187

CHIP

0

R9190

1608

CHIP

R9193

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

WHT

30P

CN9102

TA-

GND

TA+

DCC

TB-

GND

TB+

GND

TC-

GND

TC+

GND

TCLK-

GND

TCLK+

VCC

TD-

VCC

TD+

GND

DCC

GND

NC

GND

NC

VCC

DCC LUT

VCC

DCCMODE

GND_D

CHIP

0

R9196

DCP_BLK_DE

0uH

FB9101

54

321

PST3629NR

IC9105

OUT

VDD

Vss CD

NC

1608

16V

0.1

B

C9156

1608

16V

0.1

B

C9157

1608

50V

4700p

B

C9158

1/10W

RN-CP

5%

10k

R9166

1/10W

RN-CP

5%

1k

R9169

1/10W

RN-CP

5%

1k

R9167

2SA1235TP-1EF

Q9100

1/10W

RN-CP

5%

1k

R9165

2SC3052EF-T1-LEF

Q9101

1/10W

RN-CP

5%

1k

R9163

1608

25V

0.01

B

C9150

CHIP

0

R9154

GND_D

D3.3V

DCP_RST

D3.3V

R4

G3

R5

GND_D

G9

R9

B4

R2

GND_D

R6

G5

R6

R7

B8

GND_D

B9

VS

R8

R9

G4

G6

R7

G5

B7

G7

B2

HS

G6

G2

G7

R3

G3

G8

G2

G9

R3

R5

R2

VS

B4

HS

B3

B6

B3

B9

B2

B8

R4

B5

B7

B6

G4

B5

GND_D

D-HS

D-VS

DG-7

DG-6

DG-5

DG-4

DR-0

DR-1

DR-2

DR-3

DR-4

DR-5

DR-6

DR-7

DB-0

DB-1

DB-2

D-CLK

DB-3

DB-4

DB-5

DB-6

DB-7

DG-0

DG-1

DG-2

DG-3

CLK

GND_D

LVDS

TRANSMITTER

DCP

TO PANEL

DSP/LVDS

BM 12/12

A-1278-778-A <MA1>BM-P12

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 56

[I/O TERMINALS, AUDIO, TV

μ

CON, ANALOG INTERFACE/HDMI RECEIVER, HDMI/PC INPUT, POWER/DC ALERT, X242 POWER/PLL/FLEXBUS/USB/PERIPHERALS, DDR/FLASH/NVM, DIGITAL IF/EJTAG, X242 AUDIO OUT/FE/TUNER, DSP/LVDS]

BM COMPONENT SIDE

[I/O TERMINALS, AUDIO, TV

μ

CON, ANALOG INTERFACE/HDMI RECEIVER, HDMI/PC INPUT, POWER/DC ALERT, X242 POWER/PLL/FLEXBUS/USB/PERIPHERALS, DDR/FLASH/NVM, DIGITAL IF/EJTAG, X242 AUDIO OUT/FE/TUNER, DSP/LVDS]

BM CONDUCTOR SIDE

C7028

C7030

C7032

C7039

C7040

C7041

C7043

C7044

C7046

C7048

C7050

C7105

CAM50

CAM63

CN4002

IC7005

PS7001

R4052

R7037

R7038

R7040

R7043

R7044

R7046

R7049

R7050

R7053

R7054

R7056

R7058

C4040

C7002

C7027

C7029

C7031

C7033

C7034

C7035

C7037

C7038

C7045

C7047

C7049

C7505

C7507

C7509

CAM64

D7500

FB4001

IC7004

PS7000

R7035

R7036

R7039

R7041

R7042

R7045

R7047

R7048

R7051

R7052

R7055

R7057

C7242

C7430

C

CAM56

CN7303

ET4003

L7431

C7207

C7215

C7223

C7431

C7433

C7600

CAM57

IC7400

R7409

R7410

CAM58

CN7600

RB7607

C9104

C9129 C9130

CAM60

CN9102

IC7502

L9106

L9107

L9108

L9109

L9110

L9112

R9134

R9175

R9176

R9177

R9178

R9179

R9180 R9181

R9182

R9184

R9185

R9190R9191

R9192 R9193

R9194

R9195

RB9106

C9131 C9132 C9133 C9134 C9135 C9136

C9159

C9160

C9161

C9162

C9163

L9111

RB9107 RB9108 RB9109 RB9110 RB9111 RB9112

RB9113

C9156

C9164

C9165

ET4006

FB9101

C7052

C7054 C7060

C7061

C7062 C7063

C7071

C7090

C7093

C7094

C7200

C7216

CAM65

CAM66

L7005

L7007

Q7001

Q7004

R7060

R7062

R7073

R7074

R7077

R7089

C7051

C7053

C7055

C7056

C7057 C7058

C7069

C7092

C7096

C7501

C7506

C7513

CAM67

CAM68

CAM84

CAM85

IC7501

IC7505

L7004

L7006

Q7002

Q7003

R7059

R7061

R7071

R7072

R7075

R7533

R7534

A7300

A7301

C7107

C7271 C7272

C7514

C7805

C7954

C7956

C7959

JL7301JL7302

JL7303JL7305

R7200

R7203

R7336

R7501

R7503

R7513

R7515

R7520

R7522

RB7200

RB7202

X7200

C7400 C7401

C7402

C7800

C7801

C7812

C7816

C7958

CAM77

IC7300

R7334

R7403

R7404

R7405

R7406

R7407

R7408

R7505

R7507

R7509

R7514

R7521

RB7201 RB7204

A7302

C4042

C7021

C7503

C9000

D7201

JL9009

R7202

R7328 R7330

R7335

R7337

R7400

R7401

R7402

R7607

R7609

R7705

R7706

R7710

R7712

R7714

R7715

R7716

R7717

R9008

RB7208

RB7401

RB9027

C9105C9106

C9112 C9114

C9115

C9117 C9119 C9122 C9125 C9127

CAM109

CAM114

CAM116

IC9100

L9100

R7516

R9109

R9110

R9111

R9116 R9117

R9186

R9187

R9188

R9189

X9100

C7305

C9107C9108 C9110 C9111

C7300

C9100

C9101

C9113 C9116 C9118 C9121 C9123 C9124 C9126 C9128

C9150

CAM82

CAM110

CN7304

L9101

R9154

R9163

C4001

C7003

C7106

CAM51

CAM83

CN4001

FB4003

FB4008

FB4009

FB4010

FB4011

L7001

Q7000

R4058

R4060

R7000

R7088

C7004 C7006

C7011

C7015

C7098

D7002

D7004

D7019

FB7004

L7002

R7001

C4525

C4527

C4528

C4531

C4532

C4545

C4546

C4547

C4548

C7018 C7019

C7020

C7208

CAM112

D7006

FB7000

IC4501

L4504

L4505

R7012

R7015

R7016

R7017

R7523

R7524

R7525

RB4512

RB4518

C4510

C4511

C4512

C4513

C4544

C4551

C4552

C7280

CAM76

L4501

R4556

R4557

RB4513 RB4514 RB4515

RB4516RB4517

C4549

C5631

C5635

J5505

J5506

JL7320

JL7707

JL7712

JL7713

R7204

C5502

C5509

C5510

CAM80

CN5000

D5508

D5525

IC5501

Q5503

Q5505

Q5507

Q5624

Q5625

R5501

R5503

R5504

R5505 R5511R5512

R5519

R5529

R5530

R5537

R5538

R5539

R5671

R5681

C4043

C5005

C5006

C5008

C5009

CAM87

D5000

D5001

D5002

D5003

D5004

D5006

FB5000

FB5003

FB5004

FB5005

IC5001

JL5006

JL5010JL5011

JL5020

PS5000

R5002 R5003

R5016

R5017

R5018

R5019

R5020

R5029

R5030

R5037

R5038

R7317

R7318

R7332 R7333

RB5001

RB5002

VD5003VD5005VD5006

C1401

C1406C1407C1408C1409

C1756

CAM29

CAM61

CAM62

CN1400 CN7301

FB1701

JL1402

JL1403

JL1404

JL1405

L7300

R1401

R1402

R1403

R1404

R1405

RB7209

D3021

ET4004

R3256

R3257

R3260

R3264

R3267

C2176

C3072

C3076

C3077

C3095

C4006

C4007

CAM52

CAM53

CN3008 CN4003

D3020

D4004

D4005

F3001

FB4005

FB4006

FB4007

FL3001

IC3010

IC3011

JL3002

JL3004

JL3102

JL3105

JL3106

JL3107

JL9105

Q4001

Q4002

Q4014

R2222R2230

R3005

R3031

R3034R3037

R3201

R3243

R3255

R3258

R3261

R3262

R3265

R3526

R3528

R3541

R3542

R4002

R4006

R4007 R4008

R4047

R4048

R4065

RB3021

RB3025

C3005 C3006

C3007

C3010

C3011

C3019 C3020

C3064

C3065

C3070

C3110

C3113

C3114

C3115

C3116

C3118

C3119

C3120

CAM59

CAM70

CAM71

CAM72

CAM113

CAM117

CAM118

D3001

D3002

IC3009

JL3009

JL3103 JL3104

L3002

R3010

R3030

R3061

R3073

R3087

R3101

R3132

R3270

R3515

R3516

R3527

R4013

RB3018

RB3022

RB3024

RB3026

RB3027

X3009

X3010

C4508

C4522

C4526

C4529

C4530

C4534

C5620

C5621

C5622

CN3004

D5620

FB4500

Q5620

Q5621

Q5622

Q5623

R4553

R4554

R4555

R5622

R5623

R5624

R5625

R5626

R5628

R5629

R5630

R5631

R5639

R5640

R5641

R5659

RB4519

C4504

C4505

C4506

C4509

C4515C4516

C4517

C4518 C4519

C4520

C4523

C4524

C4538

C4539

C4540

C4542

C4543

CAM55

CAM111

JL3083JL3084

L4503

R4548

R4549

R4550

R4552

R4558

R4559

C4541

C5636

C5637

J1720

C5505

CAM81

D5516

D5528

IC5503

J1710

R5534

R5543

R5546

R5557

R5680

C1710 C1711

C1712

C1713

C1714C1715

C2184

C2185

C5002

CAM115

D2018

FB5001

FB5002

IC5000

JL5007 J L5008 JL5009

Q2021

R1710 R1711

R1712

R1713

R1714

R1715

R2234

R2235

R2236

R2237

R2238

R5012

R5013

R5014

R5015

RB5504

VD1710 VD1711

VD5002 VD5004

C1403

C1405

C2186

D2019

ET4007

JL1406

L2025

R1406

R1408

R1836

R1842

R1936

R1937

R1938

R1939

R1951

R1952

R1953

R2239 R2240

RB1004

RB1006

TU7800

C2117

C2118

F2000

L2016 C2000

C2070

C2077

C2086

C2092

C2098

C2107

C2171

C2177

C2178C2179C2180

C2181C2182

C2183

C4041

D2002

FB2000

IC2005

IC2014

L2005

L2011

L2013

Q2007

Q2008

R2023

R2111

R2116

R2139

R2142

R2228

R2229

R2231

R2232

R2233

RB1009

C2069

C2091

C2095

C2100

C2131

C2134

C2135

C2149

C2150

C2160

C2161

C2170

C2195

C2206

C2216

D2022

L2017

Q2019

Q2020

R2110

R2138

R2141

R2168

R2171

R2184 R2185

R2186

R2187

R2227

R2249

R2250

R2252

RB2002 RB2003

CAM16

ET4002

J1000

R1839

R1924

R1925

R1926

R1927

C1729

C1731

C1733

C1755

CAM75

D1007

D1011

D1012

IC1001

L1001

R1849

R1854

R1855

R1856

RB1005

C1726

C1730

C1732

D1008

D1009D1010

ET4012

J1100

R1851

R1852R1853

R1858

C3081

C3083

ET4005

IC3007

J1722

R3247

C7844

C7845

C7846

C7848

C7849

C7853

C7878

C7879

CAM86

ET4013

JL7800

L7811

L7812

L7814

L7819

Q7807

R1407

R1928

R1929

R1930

R1931

R1954

R1955

R1956

R7868

R7869

RB3015

C2123

CN2000

C2121

C2124

C2125

C2128

C2129

C2147 C2148C2153 C2154

CAM54

FB2006

FB2007

FB2008

FB2009

FB2010

IC2009

L2018

L2019

L2020

L2026

R2182

C2074

C2075

C2085

C2101

C2103

C2104

C2105

C2106

C2111

C2112

C2114

C2115

C2116

C2119

C2120

C2202

C2203

C2204

C2205

C2207

CAM73

L2015

L2027

R2162

R2163

R2283

R2284

ET4008 ET4009 ET4010 ET4011

R1016VD1001 VD1002

C1727

C2173

C2175

IC2013

R2215

R2217

C1728

C2172

C2174

CAM74

R2214

R2216

J1701

C7832

C7852

C7854

C7856

ET4001

JL7801

L7808

L7813

R1833

R1845

R1932

R1933

R1934

R1935

R1947

R1948

R1949

R1950

R7853

RB1007

RB1011

C1004

C1005

C1006

C1007

C1030

C1031

R1012

R1013

R1014

R1015

R1030 R1031

C1009

C1010

C1011

C1012

C1032

C1033

C2196

R1021

R1022

R1023

R1024

R1025

R1032R1033

VD1003

VD1004

C2197

L2022 RB1003

RB1010

C1700

C1701

C1702

C1703

R1700

R1701

R1702

R1703

R1822

R1832

RB1001

RB1002

VD1700

VD1701

R1848

R1961

R1962

R1963

RB1008

27

13

7

1

IC7005

CN4002

IC7004

CN7303

1-874-195-12 CN7600

IC7400

CN9102

IC7505

IC7300

IC7502

IC9100

CN7304

CN4001 IC3009

IC7501

24V

IC4501

F7000 3.15A

J5505

CN5000

IC5501

IC5503

IC5001

CN7301

CN3008

CN4003 IC3010

IC3011

A-1268-

CN3004

J5506

J1720

IC5000

J1710

CN1400

F2000 4A/25V

IC2005

IC2014

J1000

IC1001

IC3007

J1722

CN2000 IC2009

IC2013

TU7800

---ƒ

J1701J1100

C7028

C7030

C7032

C7039

C7040

C7041

C7043

C7044

C7046

C7048

C7050

C7105

CAM50

CAM63

CN4002

IC7005

PS7001

R4052

R7037

R7038

R7040

R7043

R7044

R7046

R7049

R7050

R7053

R7054

R7056

R7058

C4040

C7002

C7027

C7029

C7031

C7033

C7034

C7035

C7037

C7038

C7045

C7047

C7049

C7505

C7507

C7509

CAM64

D7500

FB4001

IC7004

PS7000

R7035

R7036

R7039

R7041

R7042

R7045

R7047

R7048

R7051

R7052

R7055

R7057

C7242

C7430

C

CAM56

CN7303

ET4003

L7431

C7207

C7215

C7223

C7431

C7433

C7600

CAM57

IC7400

R7409

R7410

CAM58

CN7600

RB7607

C9104

C9129 C9130

CAM60

CN9102

IC7502

L9106

L9107

L9108

L9109

L9110

L9112

R9134

R9175

R9176

R9177

R9178

R9179

R9180 R9181

R9182

R9184

R9185

R9190R9191

R9192 R9193

R9194

R9195

RB9106

C9131 C9132 C9133 C9134 C9135 C9136

C9159

C9160

C9161

C9162

C9163

L9111

RB9107 RB9108 RB9109 RB9110 RB9111 RB9112

RB9113

C9156

C9164

C9165

ET4006

FB9101

C7052

C7054 C7060

C7061

C7062 C7063

C7071

C7090

C7093

C7094

C7200

C7216

CAM65

CAM66

L7005

L7007

Q7001

Q7004

R7060

R7062

R7073

R7074

R7077

R7089

C7051

C7053

C7055

C7056

C7057 C7058

C7069

C7092

C7096

C7501

C7506

C7513

CAM67

CAM68

CAM84

CAM85

IC7501

IC7505

L7004

L7006

Q7002

Q7003

R7059

R7061

R7071

R7072

R7075

R7533

R7534

A7300

A7301

C7107

C7271 C7272

C7514

C7805

C7954

C7956

C7959

JL7301JL7302

JL7303JL7305

R7200

R7203

R7336

R7501

R7503

R7513

R7515

R7520

R7522

RB7200

RB7202

X7200

C7400 C7401

C7402

C7800

C7801

C7812

C7816

C7958

CAM77

IC7300

R7334

R7403

R7404

R7405

R7406

R7407

R7408

R7505

R7507

R7509

R7514

R7521

RB7201 RB7204

A7302

C4042

C7021

C7503

C9000

D7201

JL9009

R7202

R7328 R7330

R7335

R7337

R7400

R7401

R7402

R7607

R7609

R7705

R7706

R7710

R7712

R7714

R7715

R7716

R7717

R9008

RB7208

RB7401

RB9027

C9105C9106

C9112 C9114

C9115

C9117 C9119 C9122 C9125 C9127

CAM109

CAM114

CAM116

IC9100

L9100

R7516

R9109

R9110

R9111

R9116 R9117

R9186

R9187

R9188

R9189

X9100

C7305

C9107C9108 C9110 C9111

C7300

C9100

C9101

C9113 C9116 C9118 C9121 C9123 C9124 C9126 C9128

C9150

CAM82

CAM110

CN7304

L9101

R9154

R9163

C4001

C7003

C7106

CAM51

CAM83

CN4001

FB4003

FB4008

FB4009

FB4010

FB4011

L7001

Q7000

R4058

R4060

R7000

R7088

C7004 C7006

C7011

C7015

C7098

D7002

D7004

D7019

FB7004

L7002

R7001

C4525

C4527

C4528

C4531

C4532

C4545

C4546

C4547

C4548

C7018 C7019

C7020

C7208

CAM112

D7006

FB7000

IC4501

L4504

L4505

R7012

R7015

R7016

R7017

R7523

R7524

R7525

RB4512

RB4518

C4510

C4511

C4512

C4513

C4544

C4551

C4552

C7280

CAM76

L4501

R4556

R4557

RB4513 RB4514 RB4515

RB4516RB4517

C4549

C5631

C5635

J5505

J5506

JL7320

JL7707

JL7712

JL7713

R7204

C5502

C5509

C5510

CAM80

CN5000

D5508

D5525

IC5501

Q5503

Q5505

Q5507

Q5624

Q5625

R5501

R5503

R5504

R5505 R5511R5512

R5519

R5529

R5530

R5537

R5538

R5539

R5671

R5681

C4043

C5005

C5006

C5008

C5009

CAM87

D5000

D5001

D5002

D5003

D5004

D5006

FB5000

FB5003

FB5004

FB5005

IC5001

JL5006

JL5010JL5011

JL5020

PS5000

R5002 R5003

R5016

R5017

R5018

R5019

R5020

R5029

R5030

R5037

R5038

R7317

R7318

R7332 R7333

RB5001

RB5002

VD5003VD5005VD5006

C1401

C1406C1407C1408C1409

C1756

CAM29

CAM61

CAM62

CN1400 CN7301

FB1701

JL1402

JL1403

JL1404

JL1405

L7300

R1401

R1402

R1403

R1404

R1405

RB7209

D3021

ET4004

R3256

R3257

R3260

R3264

R3267

C2176

C3072

C3076

C3077

C3095

C4006

C4007

CAM52

CAM53

CN3008 CN4003

D3020

D4004

D4005

F3001

FB4005

FB4006

FB4007

FL3001

IC3010

IC3011

JL3002

JL3004

JL3102

JL3105

JL3106

JL3107

JL9105

Q4001

Q4002

Q4014

R2222R2230

R3005

R3031

R3034R3037

R3201

R3243

R3255

R3258

R3261

R3262

R3265

R3526

R3528

R3541

R3542

R4002

R4006

R4007 R4008

R4047

R4048

R4065

RB3021

RB3025

C3005 C3006

C3007

C3010

C3011

C3019 C3020

C3064

C3065

C3070

C3110

C3113

C3114

C3115

C3116

C3118

C3119

C3120

CAM59

CAM70

CAM71

CAM72

CAM113

CAM117

CAM118

D3001

D3002

IC3009

JL3009

JL3103 JL3104

L3002

R3010

R3030

R3061

R3073

R3087

R3101

R3132

R3270

R3515

R3516

R3527

R4013

RB3018

RB3022

RB3024

RB3026

RB3027

X3009

X3010

C4508

C4522

C4526

C4529

C4530

C4534

C5620

C5621

C5622

CN3004

D5620

FB4500

Q5620

Q5621

Q5622

Q5623

R4553

R4554

R4555

R5622

R5623

R5624

R5625

R5626

R5628

R5629

R5630

R5631

R5639

R5640

R5641

R5659

RB4519

C4504

C4505

C4506

C4509

C4515C4516

C4517

C4518 C4519

C4520

C4523

C4524

C4538

C4539

C4540

C4542

C4543

CAM55

CAM111

JL3083JL3084

L4503

R4548

R4549

R4550

R4552

R4558

R4559

C4541

C5636

C5637

J1720

C5505

CAM81

D5516

D5528

IC5503

J1710

R5534

R5543

R5546

R5557

R5680

C1710 C1711

C1712

C1713

C1714C1715

C2184

C2185

C5002

CAM115

D2018

FB5001

FB5002

IC5000

JL5007 J L5008 JL5009

Q2021

R1710 R1711

R1712

R1713

R1714

R1715

R2234

R2235

R2236

R2237

R2238

R5012

R5013

R5014

R5015

RB5504

VD1710 VD1711

VD5002 VD5004

C1403

C1405

C2186

D2019

ET4007

JL1406

L2025

R1406

R1408

R1836

R1842

R1936

R1937

R1938

R1939

R1951

R1952

R1953

R2239 R2240

RB1004

RB1006

TU7800

C2117

C2118

F2000

L2016 C2000

C2070

C2077

C2086

C2092

C2098

C2107

C2171

C2177

C2178C2179C2180

C2181C2182

C2183

C4041

D2002

FB2000

IC2005

IC2014

L2005

L2011

L2013

Q2007

Q2008

R2023

R2111

R2116

R2139

R2142

R2228

R2229

R2231

R2232

R2233

RB1009

C2069

C2091

C2095

C2100

C2131

C2134

C2135

C2149

C2150

C2160

C2161

C2170

C2195

C2206

C2216

D2022

L2017

Q2019

Q2020

R2110

R2138

R2141

R2168

R2171

R2184 R2185

R2186

R2187

R2227

R2249

R2250

R2252

RB2002 RB2003

CAM16

ET4002

J1000

R1839

R1924

R1925

R1926

R1927

C1729

C1731

C1733

C1755

CAM75

D1007

D1011

D1012

IC1001

L1001

R1849

R1854

R1855

R1856

RB1005

C1726

C1730

C1732

D1008

D1009D1010

ET4012

J1100

R1851

R1852R1853

R1858

C3081

C3083

ET4005

IC3007

J1722

R3247

C7844

C7845

C7846

C7848

C7849

C7853

C7878

C7879

CAM86

ET4013

JL7800

L7811

L7812

L7814

L7819

Q7807

R1407

R1928

R1929

R1930

R1931

R1954

R1955

R1956

R7868

R7869

RB3015

C2123

CN2000

C2121

C2124

C2125

C2128

C2129

C2147 C2148C2153 C2154

CAM54

FB2006

FB2007

FB2008

FB2009

FB2010

IC2009

L2018

L2019

L2020

L2026

R2182

C2074

C2075

C2085

C2101

C2103

C2104

C2105

C2106

C2111

C2112

C2114

C2115

C2116

C2119

C2120

C2202

C2203

C2204

C2205

C2207

CAM73

L2015

L2027

R2162

R2163

R2283

R2284

ET4008 ET4009 ET4010 ET4011

R1016VD1001 VD1002

C1727

C2173

C2175

IC2013

R2215

R2217

C1728

C2172

C2174

CAM74

R2214

R2216

J1701

C7832

C7852

C7854

C7856

ET4001

JL7801

L7808

L7813

R1833

R1845

R1932

R1933

R1934

R1935

R1947

R1948

R1949

R1950

R7853

RB1007

RB1011

C1004

C1005

C1006

C1007

C1030

C1031

R1012

R1013

R1014

R1015

R1030 R1031

C1009

C1010

C1011

C1012

C1032

C1033

C2196

R1021

R1022

R1023

R1024

R1025

R1032R1033

VD1003

VD1004

C2197

L2022 RB1003

RB1010

C1700

C1701

C1702

C1703

R1700

R1701

R1702

R1703

R1822

R1832

RB1001

RB1002

VD1700

VD1701

R1848

R1961

R1962

R1963

RB1008

1

A

B

C

D

E

F

G

H

I

J

2345678

C4026

C4030

C4049

C7024

C7042

CAM88

D4011

D4012

D7008

D7009

F4001

F4002

FB4013

IC7002

JL4025

JL4027

JL9123

Q4011

Q4018

R4042

R4043

R4045

R4050

R4055

R4061

R4067

R7021

R7022

R7023

R7025

R7026

R7027R7028

R7033

R7034

C7000

C7001

C7036

C7508

C7510

C7511

C7512

C7515

C7516

CAM97

CAM98

IC7504

IC7506

IC7507

JL4029

JL7508

JL7509

Q7952

R7031

R7526

R7528

R7529

R7530

R7531

R7532

R7535

R7536

R7537

R7538

R7539 R7540

R7541

R7542 R7543R7544

R7968

R7969

C7951

C7952

FB7302FB7303

IC7950

JL7300

JL7304

JL7307

JL7308

JL7314

R7967

R7970

R7971

R7973

R7975

C7404

C7405

C7406

C7407

C7408

C7409

C7410

C7411

C7412

C7413

C7417

C7418 C7420

C7422

C7425

C7432

JL7200

JL7400

JL7402

JL7609

C7424

JL7316

JL7401

JL7403

JL7507

JL7600

JL7601

JL7602

JL7603

JL7604

JL7605

JL7606

JL7607

JL7608

R7608

R7610

R7611

JL9122

C9157

C9158

CAM107

IC9105

Q9100

R9165

R9166

R9167

R9169

C7064

C7066

C7068

C7072

C7075

C7076

C7077

C7080

C7081

C7084

C7085

C7088

C7089

C7095

CAM108

D7010

D7011D7012 D7013

D7017

D7018

IC7006

JL7006

JL7007

R4068

R7018

R7019

R7020

R7029

R7064

R7067

R7068

R7070

R7078

R7081

R7082

C7059

C7065

C7067

C7070

C7073

C7074

C7078

C7079

C7082

C7083

C7086

C7087

C7100

D7014

D7015

D7016

JL7005

JL7008

JL7700

JL7702

JL7703

Q7951

R7063

R7065

R7066

R7069

R7076

R7079

R7080

R7962

R7966

C7502

C7504

C7950

C7953

CAM96

IC7503

JL7313

JL7502

JL7504

JL7505

JL7701

JL7708

JL7709

JL7710

JL7711

JL7802

JL7803

JL7804

JL7805

JL7806

JL7807

L7820

L7821

L7822

L7823

L7824

L7826

Q7950

R7301

R7517

R7700

R7701

R7702

R7958

R7959

R7960

R7961

R7963

R7964

R7965

R7972

R7974

R7977

C7201

C7203

C7205

C7206

C7209

C7211

C7212

C7213

C7214

C7217

C7219

C7222

C7224

C7226

C7228

C7229

C7230

C7232

C7234

C7235

C7237

C7240

C7241

C7245

C7248

C7249

C7252

C7253

C7256

C7257

C7258

C7260

C7261

C7262

C7264

C7265

C7266

C7267

C7269

C7270

C7274

C7275

C7276

C7277

C7278

C7279

C7403

C7700

C7701

C7722

C7804

C7806

C7807

C7808

C7809

C7810

C7811

C7813

C7814

C7815

C7817

C7870

C7871

FB7200

FB7201

FB7203

FB7204

FB7400

FB7700

FB7701

FB7800

JL7201

JL7202

JL7315

JL7319

L7201

L7817

L7818

L7825

L7827

R7201

R7504 R7510

R7511

R7512

R7703

R7711

R7800

R7976

C7023

C7025

C7026

C7202

C7204

C7210

C7218

C7220

C7221

C7225

C7227

C7231

C7233

C7236

C7238

C7239

C7243

C7244

C7246

C7247

C7250

C7251

C7254

C7255

C7259

C7263

C7268

C7702

C7703

C7704

C7705

C7706

C7707

C7720

FB7202

IC7003

JL7004

JL7317

JL7506

JL9007

JL9008

L7720

R7024

R7030

R7032

R7302

R7329R7331

R9007

RB7205

RB7206

RB7207

RB7605

RB9021

RB9022

RB9023

RB9024

RB9025

RB9026

C9147

C9149

C9151C9152

C9153

C9154

C9155

L9104 L9105

RB9115

C4046

C7302

C7303

C7304

C9137

C9138

C9139

C9140

C9143

C9144

C9145C9146

CAM106

FB7300

IC9102

L9103

R9139

R9145

R9146

R9159

R9196R9197

C7301

C7306

CAM104

FB7301

IC7301

JL7309

JL7312

Q9101

R7307

R7326

R7327

C3112

C7007

C7091 CAM69

CAM89

D7000

FB4002

IC7000

JL3040

JL3042

JL3071

JL3076

JL3079

JL3080

JL3081

JL3082

JL4016

JL4018

JL4019

JL4020

JL4021

JL4022

JL4023

JL4024

Q3109

R3127

R3146

R4066

C7005

C7008

C7009

C7010

C7012

C7013

D7001

D7003

F7000

IC7001 JL3033

JL3075

JL3078

JL7000

Q3007

R7002

R7003

R7004

R7005

R7006

R7007

R7008

R7009

R7010

R7011

R7092

R7093

CAM121

JL7500

JL7501

JL7503

R7502

R7506

R7508

R7978

R7979

R7980

R7981

R7982 R7983

R7984

R7985

R7986

R7987

R7988

C5629

FB4502

FB7003

IC5513

R5660

R7091

RB7701

RB7703

C5628 C5630

C5632

C5633

C7273

JL7002 JL7003

JL7714

L5005

L5007

L5008

RB5505RB5506

RB5509

VD5503

VD5504

VD5507

VD5511

VD5520

VD5523

C5528

C5529 C5530

C5531

C5532

C5624

C5625

CAM102

CAM120

D5506

D5509

FB5501

FL5501

FL5502

IC5511

IC5512

JL5013

JL5014

L5006

R5513 R5514

R5521

R5525

R5580

R5583

R5584

R5637

R5642

R5643

R5646

R5647

R5648

R5649

R5678

R5679

RB5501

VD5514

VD5518

JL5018

JL5019

Q5626

Q5629

Q5632

R5661

R5664

R5666

R5667

R5668

R5669

R5670

R5675

JL1407

JL7310JL7311

Q1007

R1918

R1919

R1922

R1923

JL3090

C3084

C4033

C4034

C4035

D3006

JL3003

JL3043

JL3085

JL3086

JL3088

JL3089

JL3092

JL3093

JL3094

JL3096

JL3097

JL3098

JL3101

JL3108

JL3109

JL3110

JL3111

JL4014

JL4015

Q4016

Q4017

R3249

R3519

R3530

R3533

R3534

R3537

R3540

R4063

R4064

C3057

C3062

C3063

C3066

CAM125

D3007

IC3005

JL1060

JL3026

JL3041

JL3046

JL3072

JL3077

R3165

R3180

R3190

R3218

R3223

R3517

R3518

R3524

R3536

R3538

R3539

RB3014

RB3017

C4533

C7818

C7819

C7820

C7821

C7822

C7823

C7824

C7825

C7828

C7829

L4502

L7800

L7801

L7802

L7803

L7804

L7805

L7806

L7807

R7808

C4044

C4501

C4502

C4503

C4507

C5634

FB4501

JL1408

JL1409

JL1410

Q4501Q4502Q4503

Q4504Q4505 Q4506

R1726R1727 R1728

R1943 R1944 R19 45 R1946

R4545R4546R4547

R4551

R4560

R4561

R4562

R4563

R4564

R4565

R4566

R4567

R4568

R4569

R4570

R4571

R4572

R4573

R4574

R4575

R4576

R4577

R4578R4579R4580

R5658 C5626C5627

CAM100

L5501

L5503

L5504

R4581R4582 R4583

RB5507 RB5508

RB5510

VD5510

VD5512

VD5515

VD5519

VD5526

VD5527

C5623

D5513

D5517

JL5012

JL5015

JL5016

JL5017

JL5022

JL5023

L5502

Q5627

Q5628

Q5630

Q5631

Q5633

Q5634

R5527R5528

R5535R5536

R5638

R5644 R5645

R5662

R5663

R5665

R5673

R5674

R5676

R5677

RB5503

VD5522

VD5524

JL5000

JL5021

R5672

C1752

C1753

C1754

D1019

L1007

R1913

R1914

R1915

R1916

R1917

R1920

R1921

C2073

C2084

C2090

C2110

C2221

C2222

CAM90

CAM91

D2008

D2017 IC2004

IC2008

R2112

R2113

R2120R2126

R2131

R2153

R2161

R2213

C2081

C2130

C2140

C2141

C2142

C2143

C2144

C2156

C2223

C2224

CAM92

CAM93

D2020

D2021

FB2012

IC2010

IC2011

R2130

R2166

R2167

R2169

R2170

R2176

R2179

R2180

R2181

R2200

R2206

R2212

RB2004

C1734

C1735

C1736

C1737

C1738

C1739

C1740

C1741

C1742

C1743

C1744

C1745

D1013 D1014

D1015 D1016

FB1700

L1003 L1004

L1008

L1009

Q1001 Q1002

Q1003 Q1004

R1859

R1860

R1861

R1862

R1863

R1864

R1865

R1866

R1867

R1868

R1869

R1870

R1871

R1872

R1873

R1874

R1875

R1876

R1877

R1878

R1879

R1880

R1881

R1882

R1883

R1884

R1885

R1886

R1887

R1888

R1889

R1890

R1892

R1893

R1894

R1940

R1941

R1942

C1122

C1123

C1124

C1125

C1152

C1153

C1154

C1155

R1106

R1107

R1108

R1109

R1110

R1111

R1112

R1113

R1136

R1137

R1138

R1139

R1140

R1141

R1142

R1143

R1850

R1857

R1891

VD1100 VD1101VD1130 VD1131

L2023

L2024

C7835C7836

C7837

C7838

C7840C7841

C7863

C7864

FB7803

FB7804

FB7805

FB7806

FB7807

J7809J7811J7813J7815J7817J7819J7821

L7809

L7810

Q7802

R7821

R7822

R7836 R7840

R7843

R7844

R7847

R7852

RB002

J7810J7812J7814J7816J7818J7820J7822

C2218

C2220

D2014

JL2005

JL2006

C2126C2127

C2133

C2138

C2145C2146

C2157

C2158

C2159

CAM123

CAM124

JL2002

JL2003

JL2004

Q2012Q2013 Q2016

Q2017Q2018

R2177R2178

R2198

R2199

R2201

R2202R2204R2205

RB2001

C2078

C2094

C2096

C2097

C2102

C2113

C2139

C2168

C2169

C2198

C2199

C2200

C2201

C2208

C2209

C2210

C2211

C2212

C2213

C2214

C2215

C2217

C2219

CAM94

CAM95

CAM103

CAM119 CAM122

FB2013

FB2014

IC2006

IC2015

IC2016

Q2006

Q2009

Q2010

R2117

R2118

R2121

R2122

R2129

R2133

R2143

R2145

R2147R2148

R2149R2150

R2151

R2210

R2211

R2251

R2253

R2254

R2255

R2256

R2257

R2258

R2259

R2260

R2261

R2263R2264

R2265

R2267

R2268

R2269

R2271

R2272

R2273

R2275R2276

R2277

R2278

R2279

R2280

R2281

R2282

RB2005

RB2006

R2262

R2266

R2270

R2274

C1100

C1101

C1102

C1103

C1120

C1121

C1126 C1127

C1130

C1131

C1132

C1133

C1150

C1151

C1156 C1157

C1720

C1721

C1722

C1723

C1724

C1725

R1102

R1103

R1104

R1105

R1114

R1115

R1116

R1117

R1120 R1121

R1132

R1133

R1134

R1135

R1144

R1145

R1146

R1147

R1150 R1151

R1720

R1721

R1722

R1723

R1724

R1725

VD1102 VD1106 VD1107VD1108 VD1109

VD1132

VD1720

VD1721

C4045

C7831

C7833

C7842

C7847

C7850

C7855

C7857

C7858

C7859

C7860

C7862

C7867

D7801

D7802

D7803

FB7801

FB7802

FB7808

FB7809

J7802J7804J7806

L7815

Q7800

Q7803

Q7804

R7814

R7815

R7816

R7817R7818

R7819

R7829

R7831

R7834

R7838R7839

R7842

R7845

R7848

R7849

R7851

R7989

R7990

C7866

C7960

C7961

C7962

J7803J7805J7807J7808

R1957

R1958

R1959

R1960

C2132

C2137

C2136

L2012

R2114

R2123

D1020D1021

27

1

7

13

IC7002

Q4018

IC7504 IC7506

IC7950

IC7507

F4001

1-874-195-12

MCLK#

MEM-QQS0

MEM- QQS1

MCLK

IC9102

IC9105

IC7006

5A/24V

IC7301

IC7000

IC7503

IC5512

IC5511

IC7003

---

IC3005

IC5513

IC2004

IC2008

IC2010

IC2011

IC2016

IC2015

C4026

C4030

C4049

C7024

C7042

CAM88

D4011

D4012

D7008

D7009

F4001

F4002

FB4013

IC7002

JL4025

JL4027

JL9123

Q4011

Q4018

R4042

R4043

R4045

R4050

R4055

R4061

R4067

R7021

R7022

R7023

R7025

R7026

R7027R7028

R7033

R7034

C7000

C7001

C7036

C7508

C7510

C7511

C7512

C7515

C7516

CAM97

CAM98

IC7504

IC7506

IC7507

JL4029

JL7508

JL7509

Q7952

R7031

R7526

R7528

R7529

R7530

R7531

R7532

R7535

R7536

R7537

R7538

R7539 R7540

R7541

R7542 R7543R7544

R7968

R7969

C7951

C7952

FB7302FB7303

IC7950

JL7300

JL7304

JL7307

JL7308

JL7314

R7967

R7970

R7971

R7973

R7975

C7404

C7405

C7406

C7407

C7408

C7409

C7410

C7411

C7412

C7413

C7417

C7418 C7420

C7422

C7425

C7432

JL7200

JL7400

JL7402

JL7609

C7424

JL7316

JL7401

JL7403

JL7507

JL7600

JL7601

JL7602

JL7603

JL7604

JL7605

JL7606

JL7607

JL7608

R7608

R7610

R7611

JL9122

C9157

C9158

CAM107

IC9105

Q9100

R9165

R9166

R9167

R9169

C7064

C7066

C7068

C7072

C7075

C7076

C7077

C7080

C7081

C7084

C7085

C7088

C7089

C7095

CAM108

D7010

D7011D7012 D7013

D7017

D7018

IC7006

JL7006

JL7007

R4068

R7018

R7019

R7020

R7029

R7064

R7067

R7068

R7070

R7078

R7081

R7082

C7059

C7065

C7067

C7070

C7073

C7074

C7078

C7079

C7082

C7083

C7086

C7087

C7100

D7014

D7015

D7016

JL7005

JL7008

JL7700

JL7702

JL7703

Q7951

R7063

R7065

R7066

R7069

R7076

R7079

R7080

R7962

R7966

C7502

C7504

C7950

C7953

CAM96

IC7503

JL7313

JL7502

JL7504

JL7505

JL7701

JL7708

JL7709

JL7710

JL7711

JL7802

JL7803

JL7804

JL7805

JL7806

JL7807

L7820

L7821

L7822

L7823

L7824

L7826

Q7950

R7301

R7517

R7700

R7701

R7702

R7958

R7959

R7960

R7961

R7963

R7964

R7965

R7972

R7974

R7977

C7201

C7203

C7205

C7206

C7209

C7211

C7212

C7213

C7214

C7217

C7219

C7222

C7224

C7226

C7228

C7229

C7230

C7232

C7234

C7235

C7237

C7240

C7241

C7245

C7248

C7249

C7252

C7253

C7256

C7257

C7258

C7260

C7261

C7262

C7264

C7265

C7266

C7267

C7269

C7270

C7274

C7275

C7276

C7277

C7278

C7279

C7403

C7700

C7701

C7722

C7804

C7806

C7807

C7808

C7809

C7810

C7811

C7813

C7814

C7815

C7817

C7870

C7871

FB7200

FB7201

FB7203

FB7204

FB7400

FB7700

FB7701

FB7800

JL7201

JL7202

JL7315

JL7319

L7201

L7817

L7818

L7825

L7827

R7201

R7504 R7510

R7511

R7512

R7703

R7711

R7800

R7976

C7023

C7025

C7026

C7202

C7204

C7210

C7218

C7220

C7221

C7225

C7227

C7231

C7233

C7236

C7238

C7239

C7243

C7244

C7246

C7247

C7250

C7251

C7254

C7255

C7259

C7263

C7268

C7702

C7703

C7704

C7705

C7706

C7707

C7720

FB7202

IC7003

JL7004

JL7317

JL7506

JL9007

JL9008

L7720

R7024

R7030

R7032

R7302

R7329R7331

R9007

RB7205

RB7206

RB7207

RB7605

RB9021

RB9022

RB9023

RB9024

RB9025

RB9026

C9147

C9149

C9151C9152

C9153

C9154

C9155

L9104 L9105

RB9115

C4046

C7302

C7303

C7304

C9137

C9138

C9139

C9140

C9143

C9144

C9145C9146

CAM106

FB7300

IC9102

L9103

R9139

R9145

R9146

R9159

R9196R9197

C7301

C7306

CAM104

FB7301

IC7301

JL7309

JL7312

Q9101

R7307

R7326

R7327

C3112

C7007

C7091 CAM69

CAM89

D7000

FB4002

IC7000

JL3040

JL3042

JL3071

JL3076

JL3079

JL3080

JL3081

JL3082

JL4016

JL4018

JL4019

JL4020

JL4021

JL4022

JL4023

JL4024

Q3109

R3127

R3146

R4066

C7005

C7008

C7009

C7010

C7012

C7013

D7001

D7003

F7000

IC7001 JL3033

JL3075

JL3078

JL7000

Q3007

R7002

R7003

R7004

R7005

R7006

R7007

R7008

R7009

R7010

R7011

R7092

R7093

CAM121

JL7500

JL7501

JL7503

R7502

R7506

R7508

R7978

R7979

R7980

R7981

R7982 R7983

R7984

R7985

R7986

R7987

R7988

C5629

FB4502

FB7003

IC5513

R5660

R7091

RB7701

RB7703

C5628 C5630

C5632

C5633

C7273

JL7002 JL7003

JL7714

L5005

L5007

L5008

RB5505RB5506

RB5509

VD5503

VD5504

VD5507

VD5511

VD5520

VD5523

C5528

C5529 C5530

C5531

C5532

C5624

C5625

CAM102

CAM120

D5506

D5509

FB5501

FL5501

FL5502

IC5511

IC5512

JL5013

JL5014

L5006

R5513 R5514

R5521

R5525

R5580

R5583

R5584

R5637

R5642

R5643

R5646

R5647

R5648

R5649

R5678

R5679

RB5501

VD5514

VD5518

JL5018

JL5019

Q5626

Q5629

Q5632

R5661

R5664

R5666

R5667

R5668

R5669

R5670

R5675

JL1407

JL7310JL7311

Q1007

R1918

R1919

R1922

R1923

JL3090

C3084

C4033

C4034

C4035

D3006

JL3003

JL3043

JL3085

JL3086

JL3088

JL3089

JL3092

JL3093

JL3094

JL3096

JL3097

JL3098

JL3101

JL3108

JL3109

JL3110

JL3111

JL4014

JL4015

Q4016

Q4017

R3249

R3519

R3530

R3533

R3534

R3537

R3540

R4063

R4064

C3057

C3062

C3063

C3066

CAM125

D3007

IC3005

JL1060

JL3026

JL3041

JL3046

JL3072

JL3077

R3165

R3180

R3190

R3218

R3223

R3517

R3518

R3524

R3536

R3538

R3539

RB3014

RB3017

C4533

C7818

C7819

C7820

C7821

C7822

C7823

C7824

C7825

C7828

C7829

L4502

L7800

L7801

L7802

L7803

L7804

L7805

L7806

L7807

R7808

C4044

C4501

C4502

C4503

C4507

C5634

FB4501

JL1408

JL1409

JL1410

Q4501Q4502Q4503

Q4504Q4505 Q4506

R1726R1727 R1728

R1943 R1944 R19 45 R1946

R4545R4546R4547

R4551

R4560

R4561

R4562

R4563

R4564

R4565

R4566

R4567

R4568

R4569

R4570

R4571

R4572

R4573

R4574

R4575

R4576

R4577

R4578R4579R4580

R5658 C5626C5627

CAM100

L5501

L5503

L5504

R4581R4582 R4583

RB5507 RB5508

RB5510

VD5510

VD5512

VD5515

VD5519

VD5526

VD5527

C5623

D5513

D5517

JL5012

JL5015

JL5016

JL5017

JL5022

JL5023

L5502

Q5627

Q5628

Q5630

Q5631

Q5633

Q5634

R5527R5528

R5535R5536

R5638

R5644 R5645

R5662

R5663

R5665

R5673

R5674

R5676

R5677

RB5503

VD5522

VD5524

JL5000

JL5021

R5672

C1752

C1753

C1754

D1019

L1007

R1913

R1914

R1915

R1916

R1917

R1920

R1921

C2073

C2084

C2090

C2110

C2221

C2222

CAM90

CAM91

D2008

D2017 IC2004

IC2008

R2112

R2113

R2120R2126

R2131

R2153

R2161

R2213

C2081

C2130

C2140

C2141

C2142

C2143

C2144

C2156

C2223

C2224

CAM92

CAM93

D2020

D2021

FB2012

IC2010

IC2011

R2130

R2166

R2167

R2169

R2170

R2176

R2179

R2180

R2181

R2200

R2206

R2212

RB2004

C1734

C1735

C1736

C1737

C1738

C1739

C1740

C1741

C1742

C1743

C1744

C1745

D1013 D1014

D1015 D1016

FB1700

L1003 L1004

L1008

L1009

Q1001 Q1002

Q1003 Q1004

R1859

R1860

R1861

R1862

R1863

R1864

R1865

R1866

R1867

R1868

R1869

R1870

R1871

R1872

R1873

R1874

R1875

R1876

R1877

R1878

R1879

R1880

R1881

R1882

R1883

R1884

R1885

R1886

R1887

R1888

R1889

R1890

R1892

R1893

R1894

R1940

R1941

R1942

C1122

C1123

C1124

C1125

C1152

C1153

C1154

C1155

R1106

R1107

R1108

R1109

R1110

R1111

R1112

R1113

R1136

R1137

R1138

R1139

R1140

R1141

R1142

R1143

R1850

R1857

R1891

VD1100 VD1101VD1130 VD1131

L2023

L2024

C7835C7836

C7837

C7838

C7840C7841

C7863

C7864

FB7803

FB7804

FB7805

FB7806

FB7807

J7809J7811J7813J7815J7817J7819J7821

L7809

L7810

Q7802

R7821

R7822

R7836 R7840

R7843

R7844

R7847

R7852

RB002

J7810J7812J7814J7816J7818J7820J7822

C2218

C2220

D2014

JL2005

JL2006

C2126C2127

C2133

C2138

C2145C2146

C2157

C2158

C2159

CAM123

CAM124

JL2002

JL2003

JL2004

Q2012Q2013 Q2016

Q2017Q2018

R2177R2178

R2198

R2199

R2201

R2202R2204R2205

RB2001

C2078

C2094

C2096

C2097

C2102

C2113

C2139

C2168

C2169

C2198

C2199

C2200

C2201

C2208

C2209

C2210

C2211

C2212

C2213

C2214

C2215

C2217

C2219

CAM94

CAM95

CAM103

CAM119 CAM122

FB2013

FB2014

IC2006

IC2015

IC2016

Q2006

Q2009

Q2010

R2117

R2118

R2121

R2122

R2129

R2133

R2143

R2145

R2147R2148

R2149R2150

R2151

R2210

R2211

R2251

R2253

R2254

R2255

R2256

R2257

R2258

R2259

R2260

R2261

R2263R2264

R2265

R2267

R2268

R2269

R2271

R2272

R2273

R2275R2276

R2277

R2278

R2279

R2280

R2281

R2282

RB2005

RB2006

R2262

R2266

R2270

R2274

C1100

C1101

C1102

C1103

C1120

C1121

C1126 C1127

C1130

C1131

C1132

C1133

C1150

C1151

C1156 C1157

C1720

C1721

C1722

C1723

C1724

C1725

R1102

R1103

R1104

R1105

R1114

R1115

R1116

R1117

R1120 R1121

R1132

R1133

R1134

R1135

R1144

R1145

R1146

R1147

R1150 R1151

R1720

R1721

R1722

R1723

R1724

R1725

VD1102 VD1106 VD1107VD1108 VD1109

VD1132

VD1720

VD1721

C4045

C7831

C7833

C7842

C7847

C7850

C7855

C7857

C7858

C7859

C7860

C7862

C7867

D7801

D7802

D7803

FB7801

FB7802

FB7808

FB7809

J7802J7804J7806

L7815

Q7800

Q7803

Q7804

R7814

R7815

R7816

R7817R7818

R7819

R7829

R7831

R7834

R7838R7839

R7842

R7845

R7848

R7849

R7851

R7989

R7990

C7866

C7960

C7961

C7962

J7803J7805J7807J7808

R1957

R1958

R1959

R1960

C2132

C2137

C2136

L2012

R2114

R2123

D1020D1021

1

A

B

C

D

E

F

G

H

I

J

2345678

KDL-26M3000/26ML130/32M3000/32ML130

KDL-26M3000/26ML130/32M3000/32ML130 57

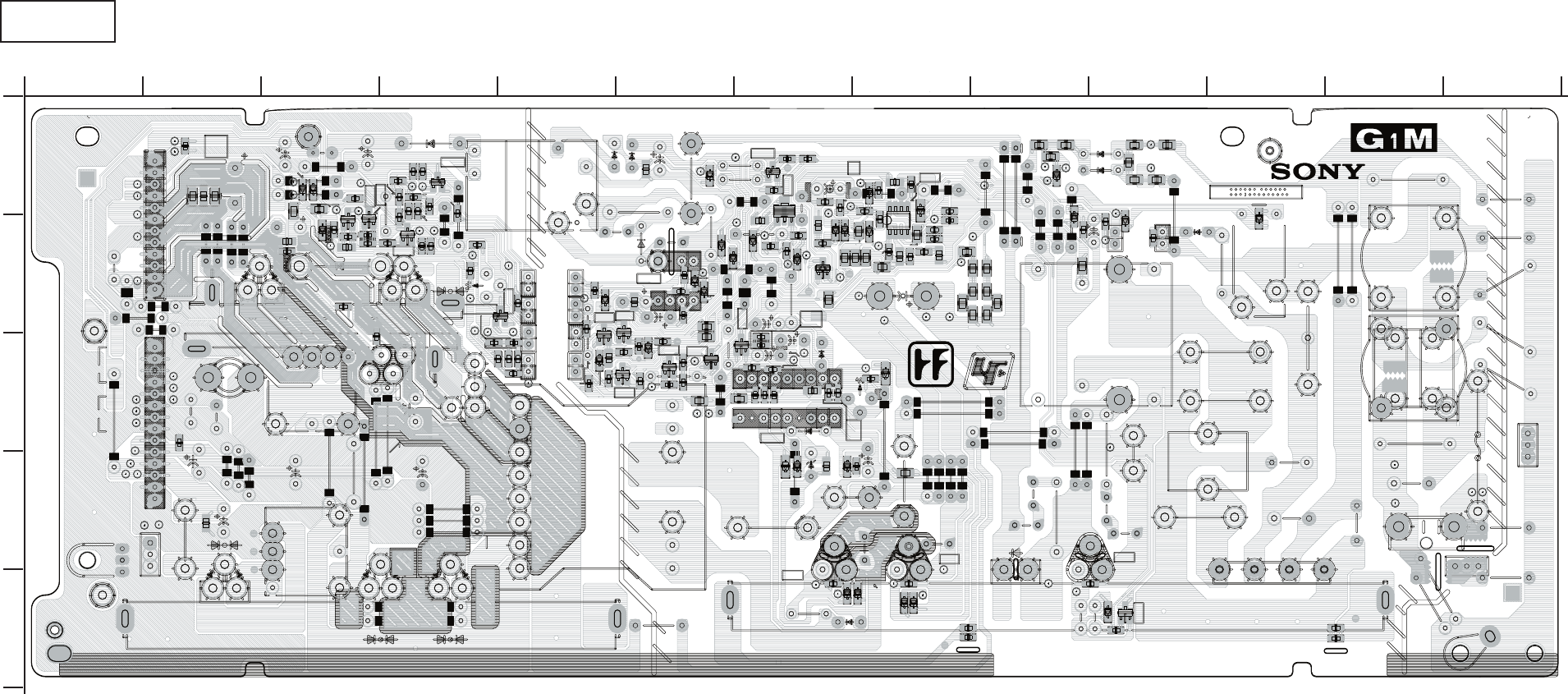

G1M BOARD SCHEMATIC DIAGRAM

10V

1500

C6209

1

2

25V

1500

C6252

1

2

35V

1000

C6204

1

2

35V

1000

C6205

1

2

250V

4700p

E

C6101

12

250V

4700p

E

C6110

12

250V

470p

B

C6109

12

250V

470p

B

C6104

12

250V

0.001

E

C6111

12

250V

0.001

E

C6254

12

25V

3300

C6206

1

2

250V

100p

B

C6102

12

250V

100p

B

C6107

12

250V

220p

B

C6103

12

250V

220p

B

C6108

12

275V

0.22

C6105

12

275V

0.22

C6106

1W

RS

1k

R6113

12

1W

RS

2.2k

R6237

2W

RS

22

R6129

1W

RS

100k

R6172

1/2W

RF

0.1

R6147

10W

RB

6.8

R6101

0.4uH

L6201

12

2.2uH

L6203

12

250V

4A

F6102

12

RY6101

1

2

3

4

Mount Mecha 404240802

W6202

Mount Mecha 404240802

W6203

PS2561AL1-1-V-W

PH6101

1

23

4

PS2561AL1-1-V-W

PH6102

1

23

4

PS2561AL1-1-V-W

PH6103

1

23

4

PS2561AL1-1-V-W

PH6104

1

23

4

PS2561AL1-1-V-W

PH6105

1

23

4

18 16 15 14 12 11 10

987654321

CXD9841P

IC6104

Vsen

FB

Ct

Rt

GND

PROT

SS

Vc1

OCP Vc2

PGND

VGL

VB

VS

VGH

VD

87 5

4321

MIP2H2

IC6105

VDD

FB

OLP

VCCD

S

FCQ10A06

D6204

12

3

FCQ10A06

D6205

12

3

FCQ10A06

D6211

12

3

S

2SK3683-01MR-F111

Q6103

1

2

3

FSF05A60

D6109

12

FCH08A10

D6202

12

3

FCH08A10

D6203

12

3

D4SB60L

D6101

1

2

3

4

1

23

4

LF6101

1

23

4

0uH

L6101

12

5A

PS6201

12

5A

PS6202

12

25V

1

C6256

12

2012

25V

1

C6257

12

25V

1

C6258

25V

0.1

C6133

12

25V

0.1

C6212

12

16V

0.47

C6117

12

16V

0.1

C6145

12

16V

0.1

C6208

16V

0.1

C6166

16V

0.1

C6165

50V

0.1

C6121

50V

0.1

C6138

12

25V

0.22

C6143

12

25V

680p

CH

C6131

12

16V

1

B

C6127

16V

1

B

C6210

12

16V

0.22

B

C6201

12

50V

100p

CH

C6146

50V

1000p

B

C6114

50V

1000p

B

C6115

50V

1000p

B

C6135

50V

1000p

B

C6153

50V

2200p

B

C6112

25V

0.01

B

C6129

12

25V

0.01

B

C6158

12

50V

0.01

B

C6136

12

50V

0.01

B

C6160

25V

0.022

B

C6139

12

25V

0.022

B

C6203

16V

0.047

B

C6130

1/10W

RN-CP

220

R6136

12

1/10W

RN-CP

8.2k

R6135

12

1/10W

RN-CP

22k

R6235

1/10W

RN-CP

27k

R6142

12

1/10W

RN-CP

47k

R6185

1/10W

RN-CP

220k

R6134

1/10W

RN-CP

220k

R6141

1/10W

RN-CP

270k

R6130

12

1/10W

RN-CP

270k

R6131

12

1/10W

RN-CP

270k

R6132

12

1/10W

RN-CP

270k

R6133

12

1/10W

RN-CP

1M

R6137

12

1/10W

RN-CP

1M

R6138

12

1/10W

RN-CP

1M

R6139

12

1/10W

RN-CP

1M

R6140

12

1/10W

RN-CP

1M

R6188

12

1/10W

RN-CP

47

R6163

1/10W

CHIP

10

R6125

12

1/10W

CHIP

22

R6168

1/10W

CHIP

1k

R6169

1/10W

CHIP

4.7k

R6165

1/10W

CHIP

10k

R6107

1/10W

CHIP

10k

R6222

12

1/10W

CHIP

15k

R6114

12

1/10W

CHIP

220k

R6186

1/10W

RN-CP

22

R6128

1/10W

RN-CP

100

R6124

1/10W

RN-CP

470

R6117

12

1/10W

RN-CP

470

R6207

1/10W

RN-CP

1k

R6175

1/10W

RN-CP

1k

R6179

1/10W

RN-CP

1k

R6201

1/10W

RN-CP

1k

R6219

1/10W

RN-CP

1k

R6225

1/10W

RN-CP

2.2k

R6149

1/10W

RN-CP

2.2k

R6160

12

1/10W

RN-CP

2.2k

R6202

1/10W

RN-CP

2.2k

R6221

12

1/10W

RN-CP

4.7k

R6180

1/10W

RN-CP

4.7k

R6204

12

1/10W

RN-CP

4.7k

R6208

1/10W

RN-CP

5.6k

R6173

1/10W

RN-CP

10k

R6122

1/10W

RN-CP

10k

R6150

1/10W

RN-CP

10k

R6151

1/10W

RN-CP

10k

R6159

1/10W

RN-CP

10k

R6170

1/10W

RN-CP

10k

R6171

1/10W

RN-CP

10k

R6212

1/10W

RN-CP

10k

R6213

1/10W

RN-CP

10k

R6223

1/10W

RN-CP

10k

R6226

1/10W

RN-CP

10k

R6191

1/10W

RN-CP

22k

R6119

1/10W

RN-CP

22k

R6183

1/10W

RN-CP

22k

R6220

1/10W

RN-CP

22k

R6224

1/10W

RN-CP

100k

R6120

1/10W

RN-CP

100k

R6189

1/10W

RN-CP

330k

R6118

1/10W

RN-CP

330k

R6146

1/10W

RN-CP

1M

R6144

1/10W

RN-CP

1M

R6178

1

2

CHIP

0

R6153

1/10W

RN-CP

1k

R6218

1/10W

RN-CP

4.7k

R6214

1/10W

RN-CP

6.8k

R6211

1/10W

RN-CP

6.8k

R6215

1/10W

RN-CP

10k

R6210

1/10W

RN-CP

11k

R6152

1/10W

RN-CP

18k

R6106

1/10W

RN-CP

39k

R6209

1/10W

RN-CP

43k

R6154

1/10W

RN-CP

220k

R6155

1/10W

RN-CP

220k

R6187

1/10W

RN-CP

220k

R6110

1/10W

RN-CP

220k

R6104

1/10W

RN-CP

220k

R6112

1/10W

RN-CP

470k

R6102

1/10W

RN-CP

470k

R6103

1/10W

RN-CP

470k

R6109

1/10W

RN-CP

470k

R6108

MM3Z4V7ST1

D6137

12

MM3Z4V7ST1

D6140

12

MM3Z5V1ST1

D6110

12

MM3Z7V5ST1

D6127

12

MC2838-T112-1

D6112

12

3

MM3Z16VT1

D6123

12

MM3Z16VT1

D6124

12

MM3Z16VT1

D6125

12

MM3Z16VT1

D6126

12

MM3Z16VT1

D6131

12

MM3Z16VT1

D6130

12

MM3Z27VT1

D6206

12

MM3Z3V3T1

D6135

12

3

1

2

TS3431BILT

IC6201

1

2

3

1

3

2

TS2431BILT

IC6103

3

2

1

3

2

TS2431BILT

IC6202

3

2

1

1SS357-TPH3

D6107

12

1SS357-TPH3

D6119

12

MMDL914T1

D6102

12

MMDL914T1

D6105

12

MMDL914T1

D6106

12

MMDL914T1

D6209

12

MMDL914T1

D6108

12

MMDL914T1

D6111

12

MMDL914T1

D6113

MMDL914T1

D6114

MMDL914T1

D6115

12

MMDL914T1

D6128

12

MMDL914T1

D6132

MMDL914T1

D6138

MMDL914T1

D6141

12

MM3Z15VT1

D6122

12

MM3Z15VT1

D6210

12

RT1N141C-TP-1

Q6108

1

2

3

S

2SK2158-T2B

Q6104

1

2

3

S

2SK2158-T2B

Q6111

1

2

3

S

2SK2158-T2B

Q6112

1

2

3

S

2SK2158-T2B

Q6201

1

2

3

2SC3052EF-T1-LEF

Q6106

1

2

3

2SC3052EF-T1-LEF

Q6203

1

2

3

8765

4321

FA5501AN-D1-TE1

IC6101

FB

COMP

MUL

IS ZCD

GND

OUT

VCC

2SB1132-T100-QR

Q6107

1

2

3

35V

47

C6142

1

2

10V

220

C6119

1

2

35V

100

C6137

50V

2.2

C6149

50V

4.7

C6147

50V

10

C6122

50V

10

C6132

50V

22

C6134

6.3V

470

C6202

1

2

6.3V

470

C6251

50V

1

C6255

50V

100

C6152

500V

470p

R

C6123

500V

470p

R

C6126

500V

470p

R

C6148

500V

470p

R

C6151

200

RV6201

1

3

2

1/4W

22

R6167

1/4W

100

R6232

12

1/4W

4.7k

R6161

1/4W

5.6k

R6166

1/4W

10k

R6157

1/4W

10k

R6158

1/4W

1M

R6145

D1NF60-TA

D6120

12

10ERB20-TA1B2

D6103

12

10ERB20-TA1B2

D6104

HZS27NTD

D6136

12

2W

0.12

R6123

RB

630V

PT

0.01

C6159

500V

R

C6124

470p

500V

R

C6125

470p

2W

R6127

RS

22

V6102

12

V6101

12

EY6173

VD6101

12

VD6102

12

1/4W

FPRD

2.2

R6190

4A

PS6203

200

RV6101

1

3

2

800V

0.015

C6155

450V

1

C6113

12

450V

1

C6116

12

450V

1

C6118

12

E

ET6101

10ERB20-TB5

D6139

12

450V

180

*C6128

1

2

1/2W

RF

10

R6182

21DQ06N-TA2B1

D6201

12

E

ET6102

Mount Mecha X21773691

A6100

Mount Mecha X21773701

A6200

Mount Mecha X21773711

A6201

1

CN6101

1P

Earth

2SB624T1-BV345

Q6102

1

2

3

ISA1235AC1TP-1EF

Q6105

1

2

3

ISA1235AC1TP-1EF

Q6202

1

2

3

1/4W

FPRD

22

R6115

1/4W

FPRD

2.2

R6148

1/4W

FPRD

22

R6121

1

2

1/4W

22

R6181

FPRD

12

S

2SK3561(LBS2SONY,Q)

Q6109

1

2

3

S

2SK3561(LBS2SONY,Q)

Q6110

1

2

3

TA26

D6129

12

2W

RB

0.22

R6177

1

2

3

4

LF6102

1

2

3

4

11

62

912

74

1

275uH

L6102

10

9

2

14

15

11

13

12

16 1

3

6

7

8

T6101

7

1

5

8

9

3

6

T6201

7

1

5

8

9

3

10

T6202

1

3

10

11

7

5

6

T6102

1/10W

RN-CP

0.5%

68

R6162

1/10W

RN-CP

3.3k

R6203

1/4W

FPRD

2.2

R6230

10ERB60-TB5

D6134

12

11EQS03LN-TB5

D6116

12

11EQS03LN-TB5

D6121

12

11EFS4-TB5

D6133

12

20

JW6132

1

2

3

4

5

6

7

8

9

10

11

12

12P

CN6201

GND

POWER3

NC

AU_GND

UNREG13V

AC OFF DET

POWER ON

GND

STBY3.3V

1

2

3

4

5

6

7

8

9

10

11

12

13

14

14P

CN6202

GND

REG12V

REG5V

GND

REG24V

1234

PQ05RD21

IC6203

Vin

Vout

GND

Vc

RU4AM-T3

D6212

1608

25V

0.1

B

C6259

CHIP

0

JR6239

Mount Mecha

X21773711 A6202

1

2

CN6102

2P

AC-L

AC-N

1W

RN

8.2M

R6192

C6260

2200

10V

C6261

2200

10V

20

JW6133

Mount Mecha 404240802

W6204

Mount Mecha 404240802

W6205

EY6206

EY6207

EY6208

600SW_9

PG

FG

24V REG

AC OFF DET

POWER ON

St-by3.3V REG

2SA1235

TO BM

CN4001

BOARD

TO INVERTER

DRIVER

SWITCH

5V REG

SWITCH

POWER CONTROL

SWITCHING

A-1315-710-A <MA1>G1M

POWER_SUPPLY

G1M

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

J

—

K

—

L

—

M

—

N

—

O

—

P

KDL-26M3000/26ML130/32M3000/32ML130

58

KDL-26M3000/26ML130/32M3000/32ML130

[POWER SUPPLY]

COMPONENT SIDE

G1M

10

91

18

14

58

11 2141

CE

CECECE

CE

IOG

21

GS

GSGS

+-

1

EY6108

D6109

EY6109

C6132

C6134EY6110

10 18

19

IC6104

EY6111

IC6105

1

85

4

EY6112

C6137

EY6113

EY6114

EY6115

D6116

EY6116

EY6117

R6113

EY6118

EY6119

R6115

C6141

C6142

D6120

EY6120

D6121

EY6121

EY6122

C6147

EY6123

C6148

EY6124

C6149

EY6125

R6121

VD6101

EY6126

VD6102

EY6127

R6123EY6128

D6129

EY6129

R6127

C6150

L6201

C6151

R6129

C6152

L6203

EY6130

C6155

EY6131 EY6132

C6157

D6133

EY6133

D6134

EY6134

C6159

EY6135

D6136

EY6136

EY6137

EY6138

D6139

EY6139

JW6200

EY6140

JW6201

EY6141

JW6202

EY6142

JW6203

EY6143

EY6144

JW6204

EY6145

JW6205

JW6206

EY6146

JW6207

EY6147

JW6208

EY6148

JW6209

EY6149

R6145

F6102

R6147

R6148

T6101

T6102

JW6210

EY6150

JW6211

EY6151

EY6152

JW6212

JW6213

EY6153

JW6214

EY6154

JW6215

EY6155

EY6156

JW6216

EY6157

JW6217

EY6158

JW6218

EY6159

JW6219

R6157

R6158

EY6160

JW6220

JW6221

EY6161

JW6222

EY6162EY6163

JW6223

JW6224

EY6164

EY6165

JW6225

R6161

EY6166

EY6167

EY6168

EY6169

R6166

R6167

EY6170

EY6171

EY6172

EY6173

EY6174

EY6175

EY6176

R6172

EY6177

EY6178

EY6179

R6177

EY6180

EY6181EY6182EY6183

EY6184EY6185

R6181

EY6186

R6182

EY6187

EY6188

RV6201

EY6189

PF LP

EY6190

EY6191

EY6192

EY6193

EY6194

A6200

R6190

A6201

EY6195

R6192

A6202

EY6196

EY6197

112

CN6201

14

1

CN6202

CN6203

C6202

C6204

C6205

PH6101

C6206

PH6102

PH6103

PH6104

C6209

PH6105

EY6200

EY6201

D6201

EY6202

D6202

EY6203

D6203

EY6204

D6204

EY6205

D6205

EY6206

EY6207

EY6208

IO G

IC6203

D6211

D6212

L6101

L6102

C6252

C6254

C6255

R6230

JW6101

R6232

JW6102

JW6103

R6234

JW6104

JW6105

JW6106

R6237

JW6107

C6260

JW6108

C6261

JW6109

ET6101

ET6102

JW6110

JW6111

JW6112

JW6113

JW6114

JW6115

JW6116

JW6117

JW6118

T6201

JW6119

T6202

JW6121

JW6122

JW6123

JW6124

JW6125

JW6126

JW6127

LF6101

LF6102

LF6103

JW6130

JW6131

JW6132

JW6133

PS6201

PS6202

PS6203

RV6101

A6100

W6202

W6203

W6204

W6205

CN6101

CN6102

C6101

C6102

C6103

C6104

C6105

C6106

C6107

G

S

Q6103

C6108

C6109

GS

Q6109

C6110

C6111

C6113

GS

Q6110

C6116

C6118

C6119

RY6101

C6122

C6123

C6124

C6125

+-

D6101

EY6101

C6126

EY6102

D6103

EY6103

C6128

D6104

EY6104

EY6105

R6101

EY6106

EY6107

CAUTION

Stby3.3VReg

PRIMARY

LN

23

41

4

3

4

1

2

3

4

A-1315 -710-A

1-874-197-11

(1-728-829-11)

T4A H

AC250V

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,

RATING OF FUSE.WITH SAME TYPEREPLACE ONLY AND

OCP ADJ

1

2

3

4

1

2

4

3

2

1

2

4

3

2

1

Power ON

AC OFF DET

24V Reg

REG24V

REG12V

GND

REG24V

AC OFF DET

UNREG13V

AU-GND

GND

SECONDARY

REG5V

POWER3

NC

POWER ON

GND

STBY

3.3V

10

91

18

14

58

11 2141

CE

CECECE

CE

IOG

21

GS

GSGS

+-

EY6108

D6109

EY6109

C6132

C6134

EY6110

IC6104

EY6111

IC6105

EY6112

C6137

EY6113

EY6114

EY6115

D6116

EY6116

EY6117

R6113

EY6118

EY6119

R6115

C6141

C6142

D6120

EY6120

D6121

EY6121

EY6122

C6147

EY6123

C6148

EY6124

C6149

EY6125

R6121

VD6101

EY6126

VD6102

EY6127

R6123

EY6128

D6129

EY6129

R6127

C6150

L6201

C6151

R6129

C6152

L6203

EY6130

C6155

EY6131 EY6132

C6157

D6133

EY6133

D6134

EY6134

C6159

EY6135

D6136

EY6136

EY6137

EY6138

D6139

EY6139

EY6140

EY6141

JW6202

EY6142

JW6203

EY6143

EY6144

JW6204

EY6145

JW6205

JW6206

EY6146

EY6147

JW6208

EY6148

JW6209

EY6149

R6145

F6102

R6147

R6148

T6101

T6102

JW6210

EY6150

JW6211

EY6151

EY6152

JW6212

JW6213

EY6153

JW6214

EY6154

JW6215

EY6155

EY6156

JW6216

EY6157

JW6217

EY6158

JW6218

EY6159

JW6219

R6157

R6158

EY6160

JW6220

JW6221

EY6161

EY6162

EY6163

EY6164

EY6165

R6161

EY6166

EY6167

EY6168

EY6169

R6166

R6167

EY6170

EY6171 EY6172

EY6173

EY6174

EY6175

EY6176

R6172

EY6177

EY6178

EY6179

R6177

EY6180

EY6181

EY6182

EY6183

EY6184

EY6185

R6181

EY6186

R6182

EY6187

EY6188

RV6201

EY6189

EY6190

EY6191

EY6193

EY6194

A6200

R6190

A6201

EY6195

A6202

EY6196

EY6197

CN6203

C6202

C6204

C6205

PH6101

C6206

PH6102PH6103

PH6104

C6209

PH6105

D6201

D6202

D6203

D6204 D6205

EY6208

IC6203

D6211

L6101

L6102

C6251

C6252

C6254

C6255

R6230

JW6101

R6232

JW6102

JW6103

R6234

JW6104

JW6105

JW6106

R6237

JW6107

JW6108

JW6109

ET6101

ET6102

JW6110

JW6111

JW6112

JW6113

JW6114

JW6115

JW6116

JW6117

JW6118

T6201

JW6119

T6202

JW6121

JW6122

JW6123

JW6124

JW6125

JW6126

JW6127

LF6101 LF6102

JW6130

JW6131

JW6132

PS6201

PS6202

PS6203

RV6101

A6100

W6202

W6203

CN6101

C6101

C6102

C6103

C6104

C6105

C6106

C6107

Q6103

C6108

C6109

Q6109

C6110

C6111

C6113

Q6110

C6116

C6118

C6119

RY6101

C6122

C6123

C6124

C6125

D6101

EY6101

C6126

EY6102

D6103

EY6103

C6128

D6104

EY6104

EY6105

R6101

EY6106

EY6107

1

A

B

C

D

E

2345678910111213

KDL-26M3000/26ML130/32M3000/32ML130

59

KDL-26M3000/26ML130/32M3000/32ML130

[POWER SUPPLY]

CONDUCTOR SIDE

G1M

14

58

GS

BE

GS

BE

C

BE

GS

D6108

R6104

D6109

R6106

R6107

C6130

R6108

C6131

R6109

IC6101

C6132

C6133

IC6103

C6134

D6110

10

18

1

9

IC6104

C6135

D6111

IC6105

8

5

4

1

C6136

D6112

C6137

D6113

C6138

D6114

R6110

C6139

D6115

R6111

D6116

R6112

D6117

R6113

D6118

R6114

D6119

R6115

R6116

R6117 C6140

R6118

C6141

R6119

C6142

C6143

C6144

D6120

C6145

D6121

C6146

D6122

C6147

D6123

C6148

D6124

R6120

C6149

D6125

R6121

VD6101

D6126

R6122

VD6102

D6127

R6123

D6128

R6124

D6129

R6125

R6127

C6150

R6128

L6201

C6151

R6129

C6152

L6203

C6153

C6154

D6130

C6155

D6131

D6132

C6157

D6133

C6158

D6134

R6130

C6159

D6135

R6131

D6136

R6132

D6137

R6133

D6138

R6134

D6139

R6135

R6136

R6137

C6160

R6138

R6139

C6162

C6163

C6164

D6140

C6165

D6141

C6166

R6140

R6141

R6142

R6143

R6144

R6145

R6146

F6102

R6147

R6148

R6149

T6101

T6102

R6150

R6151

R6152

R6153

R6154

R6155

R6156

R6157

R6158

R6159

R6160

R6161

R6162

R6163

R6164

R6165

R6166

R6167

R6168

R6169

R6170

R6171

R6172

R6173

R6175

R6177

R6178

R6179

R6180

R6181

R6182

R6183

R6184

RV6201

R6185

M

D

R6186

R6187

R6188

R6189

A6200

R6190

A6201

R6191

A6202

1

12 14

1

CN6202

CN6203

C6201

C6202

C6203

C6204

Q6201

C6205

PH6101

C6206

Q6202

PH6102

Q6203

PH6103

C6208

PH6104

C6209 PH6105

C6210 C6212

D6201

D6202

D6203

D6204

D6205

R6201

R6202

D6206

R6203

R6204

D6209

R6205

R6206 R6207

R6208

R6209

IC6201

IC6202

I

O

G

IC6203

D6210

D6211

R6210

R6211

R6212

R6213

R6214

R6215

R6217

R6218

R6219

L6101

L6102

R6220

R6222

R6224

R6225

R6226

C6251

C6252

C6253

C6254

C6255

C6256

C6257

C6258

R6230

C6259

R6232

R6234

R6235

R6236

R6237

C6260R6238

C6261

ET6101

ET6102

T6201

T6202

LF6101

LF6102 LF6103

PS6201

PS6202

PS6203

RV6101

A6100

JR6239

W6202

W6203

JR6240

CN6101

CN6102

CN6103

C6101

C6102

C6103

C6104

C6105

C6106

Q6102

C6107

G

S

Q6103

C6108

Q6104

C6109

Q6105

Q6106

Q6107

Q6108

G

S

Q6109

C6110

C6111

C6112

C6113

C6114

G

S

Q6110

C6115

Q6111

C6116

Q6112

C6117

C6118

C6119

RY6101

C6120

C6121

C6122

C6123

C6124

C6125

+-

D6101

C6126

D6102

C6127

D6103

C6128

D6104

C6129

D6105

R6101

D6106

R6102

D6107

R6103

PRIMARYSECONDARY

Stby

3.3VReg

Power ON

AC OFF DET

24V Reg

L

N

R1

1-874-197-11

(1-728-829-11)

GND

REG12V

GND

REG24V

REG12V

REG 5V

POWER3

NC

STBY

3.3V

GND

POWER ON

AC OFF DET

UNREG13V

AU-GND

14

58

GS

BE

GS

BE

C

BE

GS

1

A

B

C

D

E

2345678910111213

KDL-26M3000/26ML130/32M3000/32ML130

60

KDL-26M3000/26ML130/32M3000/32ML130

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14

A

—

B

—

C

—

D

—

E

—

F

—

G

—

H

—

I

—

HM1 BOARD SCHEMATIC DIAGRAM

S101

12

345

S107

12

345

S106

12

345

S105

12

345

S104

12

345

S103

12

345

S102

12

345

R102

220

1/10W

RN-CP

330

R103

0.5%

1/10W

RN-CP

1.1k

R105

0.5%

1/10W

RN-CP

560

R104

0.5%

1/10W

RN-CP

150

R101

0.5%

0

R107

1

2

3

3P

CN101

GND

POWER INT

KEY1

POWER

CH-CH+

HOME

MENU

WEGAGATE

VOL-VOL+INPUT SEL

USER CONTROL

HM1

A-1268-471-A <MA1>HM1

TO BM

CN3008

KDL-26M3000/26ML130/32M3000/32ML130

61

KDL-26M3000/26ML130/32M3000/32ML130

[USER CONTROL]

COMPONENT SIDE

HM1

[USER CONTROL]

CONDUCTOR SIDE

HM1

S106 INPUT SEL

S104

VOL- S105 R102

R108

S102

CH-

S103

CH+

S107 R104

R103

VOL+

R107 R101

S101

POWER

C103

R105

MENU

HOME 1-874-193-21

R106

WEGAGATE (172882721)

1

A

B

C

23456789101112131415

JL103

CN101

JL102

JL101

CN102

EP GW GN

C102

D102

D101

C101

D

M

471-A

A-1268-

1-874-193-21

(172882721)

1

A

B

C

23456789101112131415

KDL-26M3000/26ML130/32M3000/32ML130

62

KDL-26M3000/26ML130/32M3000/32ML130

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |

A

—

B

—

C

—

D

—

E

—

F

—

G

HM3 BOARD SCHEMATIC DIAGRAM

6.3V

C323

47

RT1N141M-TP-1

Q303 RT1N141M-TP-1

Q304

54

321

TPS853(SONY)

IC320

1

VCC

2

GND

3

N.C.

4

V STBY

5

OUT

CL-165HR/SYG-D-T

D305

1

R

2

3

G

4

SML-310MTT86

D308

1/10W

RN-CP

330

R305

5%

1/10W

RN-CP

R323

10k

1608

16V

B

C322

0.1

1/10W

RN-CP

R328

3.3k

CHIP

R327

0

1/10W

RN-CP

330

R303

5%

1/10W

RN-CP

R304

5%

680

1/10W

RN-CP

R321

33k

1/10W

RN-CP

R326

220k

1/10W

RN-CP

R322

1k

1/10W

RN-CP

R325

220k

1608

10V

C320

1

X7R

ISA1602AM1TP-1EF

Q320

1608

50V

220p

B

C401

2012

6.3V

10

X6S

C402

VCC

OUT

GND

GP1UE26RK0VF

IC401

1/10W

RN-CP

5%

470

R401

1/10W

RN-CP

5%

47

R402

CHIP

0

R307

CHIP

0

R308

1

2

3

4

5

6

7

8

8P

CN301

GND

STBY3.3V

TMR_GREEN_LED

TMR_RED_LED

POWER_LED

BL_IN

VD3.3V

SIRCS

Optical Sensor

LED

IR

A-1268-472-A <MA1>HM3

HM3

TO BM

CN3008

63

KDL-26M3000/26ML130/32M3000/32ML130

[OPTICAL SENSOR]

COMPONENT SIDE

HM3

[OPTICAL SENSOR]

CONDUCTOR SIDE

HM3

IC401 IC320

D305

D304D306

Q303Q304

D308

R327

C323

C322R328

cam16

cam25

(172882721) 1-874-194-21

IC401

VCC

O2

IC320

Optical Sensor

A-1268- 472-A

D305

TIMER D308

POWER

C323

1

3

IC401 IC320

D305

D304D306

Q303Q304

D308

R327

C323

C322R328

cam16

cam25

1

A

234567

CN301

JL321

C401

D401

JL303JL304

D320

JL320

R303

R304

C320

Q320

R306

R320

R321

R322 R323

R324

R325

R326

D307

JL305

R305

R308

R310

Q305

R307

R309

C301

C402

C403

JL306

JL307

JL403 R401

R402

CN301

1-874-194-21

(172882721)

EP GW GN

O

D

M

VCC

1

CN301

JL321

C401

D401

JL303JL304

D320

JL320

R303

R304

C320

Q320

R306

R320

R321

R322 R323

R324

R325

R326

D307

JL305

R305

R308

R310

Q305

R307

R309

C301

C402

C403

JL306

JL403 R401

R402

1

A

234567

KDL-26M3000/26ML130/32M3000/32ML130

64

KDL-26M3000/26ML130/32M3000/32ML130

1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13

A

—

B

—

C

—

D

—

E

—

F

—

G

—

UM BOARD SCHEMATIC DIAGRAM

GND_D

J202

GND_D

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

20P

CN201

V2_IN_AU_L

D3.3V

AU_IN_GND

GND

V2_IN_AU_R

HP_OUT_AU_L

AU_IN_GND

USB 5V

NC

USB_PA

NC

USB_NA

NC

USB_GND

NC

GND

HP_OUT_AU_R

HP_IN_GND

HP_DET

GND

V2_IN_V

D5V

GND

1608

50V

B

C215

1000p

R218

0

CHIP

D204

R219

0

CHIP

R220

0

CHIP

GND_D

1

CN202

TAB(CONTACT)

GND_D

VD201

VD202 VD203

VD204VD205

2012

25V

1

C206

2012

25V

1

C209

E

ET201

E

ET202

R212

5%

1M

1/10W

RN-CP

R215

5%

1M

1/10W

RN-CP

R213

2.2k

RN-CP

1/10W

5%

R216

2.2k

RN-CP

1/10W

5%

L

R

V

J201

1608

CHIP

R211

00

C203

CHIP

Video IN 2

HP

GND TERMINAL

TO BM

UM

A-1268-473-A <MA1>UM

CN1400

65

KDL-26M3000/26ML130/32M3000/32ML130

[VIDEO 2 IN]

COMPONENT SIDE

UM

[VIDEO 2 IN]

CONDUCTOR SIDE

UM

JL203

JL204

JL205

JL209

JL211

PF LP

(172882811)

1-874-196-11

DM

1

2

3

4

CN203

J201

CN202

CN205

J202

JL203

JL204

JL205

JL209

JL211

1

A

B

2345

ET201

CN203

CN204

L201

cam3

CN202

cam38

J201

C207

C208

C209

R215

R216

R217

VD205

C204

C205

C206

R208

R209

R210

R212

R213

R214

R218

VD204

C203

C216

CN201

CN205

D204

JL210

JL212

R211

cam5

J202

C211

C212

C213

C214

C215

C217

JL213

R219

R220

VD201

VD202

cam1

ET202

VD203

1-874-196-11

(172882811)

CN203

1

2

3

4

CN204

CN202

473-A

J201

A-1268-

CN201

CN205

1

220

19

J202

ET201

CN203

CN204

L201

cam3

CN202

J201

C207

C208

C209

R215

R216

R217

VD205

C204

C205

C206

R208

R209

R210

R212

R213

R214

R218

VD204

C203

C216

CN201

CN205

D204

JL210

JL212

R211

cam5

J202

C211

C212

C213

C214

C215

C217

JL213

R219

R220

VD201

VD202

cam1

ET202

VD203

1

A

B

C

2345

KDL-26M3000/26ML130/32M3000/32ML130

66

3-6. SEMICONDUCTORS

CI

5V-TSA00AB

5

1

2E-PF50AB 2E-PF90AB GFTSYN-CM33B1111-S G2TY8G-CMNC82908-S )R58ET(UF521ZS7CT

1

PIHC niP5

2E-PF0CB81AB 2E-PF0CB52AB

12

3

2

2EW-F20L42RB RZSK-5334SC 1ET-N1055AF 3-XMIC57ML )A(T6NMWB-82142M )B(T6NMW-20C42M )2ET(V1252MJN )2ET(VA4143MJN RD8554CR RWP8554CR

WEIV POT

1

POS niP8

RSNB2504DC X61MA8146SMF

WEIV POT

1

POS niP61

4T-Q8812AXC

OT PWEIV

1

PFQ niP04

GM5-IB0239A6ME

WEIV MOTTOB 1

A

AGP niP441

VXF93A2963346DH 4AD-VXF4963F46DH RPHP2D4003APT

WEI

V POT

1

PFQ niP84

10-18621-8732F46DH

WEIV POT

1

PFQ niP441

LT-AF-T50M88L

ET-PF74325M

OT PWEIV

1

POS niP02

TTA1341MM

1

2

3

1HFA9411WJN

911

02

23

3315

25

46

TWEIV PO

PZ2301YC1QP

HPZ2H14ZC1QP

1

niV :1

tuoV :2

MOC :3

jdaO :4

F

FO/NO :5

2345

BF-2E-A783C5VR

POTWEIV

1

001GTC3999IIS

OTP WEIV

1

PFQ niP001

RWPA231VL47NS RWPA41CVL47NS

POT WEIV

1

POS niP41

9616A-RTS

WEIV POT

1

PID niP8

LTM91811KT

1

PIHC niP6

ROTSISNART

UE411CTD 601TFAUE411CTD

DNG

NI

TUO

601

T-AUE411C

TD 601T-AUE511CTD 641T-AKW441CTD 641-

T-KT413C

TD KT323CTD 641TKT323CTD 1T1122NUM 1T2122NUM 1T3125N

UM 5

11-KE411CTDP 1122NU 511-R6751AP2 511-R1804CP2 511-RA1

06DP2 RQ-641T-KA

7

301AS2 R-64

1T-KA7301AS2 RQ-601T-A6751AS2 R4771AS2 RQ-LT4771AS2 6L5L-3261CS2 RQ-641-T-K2142CS2 R-1804CS2 R601T1804CS2 R7164CS2 RQ-LT7164CS2 K4112DS2 XT-Q-A106DS2

E

B

C

A0966SDF

SSSG

DDD

D

R58ET-UF10B1NH

5

4

6

3

1

2

1

2

3

6

5

4

)R58ET(UF51N6MSS

1S

1G

2D

1D

2G

2S

S-2211BS

2E-DT-TS-2211BS2 TS-1261DS2 E-DT-TS1261DS2

E

B

C

641TK4112DS2

BCE

B2T-

8

512KS2

S

G

D

EDOID

511-613SA

B02AF50PE 1TV01

Z

3M

M1TV1

1Z3MM 1TV31Z3MM 1TSV81Z3MM 1TV22Z3MM 1T4V2Z3MM 1TS6V5Z3MM 1TS2V6Z3MM 1TS8V6Z3MM 1TS2V8Z3MM

1

2

1

2

1TH45TAB B01ZTD FRTG6.5UZH )X

T

(-311AM 1T419LDMM 1T-BS6.5DR B81-71-ET-ZDU B2.6-71-ET-Z

DU B8.6-71-ET-ZDU

EDOH

TAC

EDONA

4SBS01D F4SBS01

D40F-A06BS2D L06BS4D

~

+

_

~~

+–

M6C

S

01D

12

3

123

2AT-04LN1D 2RT-04LN1D 80-22ARE

EDOHTAC

EDONA

6SN1D RT-6SN1D TBRVA60-22ARE 32GKP

5

004FU 3BT-02BRE01 UT4045N1

E

DOHTAC

EDONA

40-SQ

0

1CE 5L21

ET-40SQ01CE

KRAMEDOHTAC

L21ET-L30SQ12CE 5-A03JBMS6P B9.3-52ET-ZTP

ED

O

NA

EDOHTAC

BLFK80-22ARE

EDOHT

A

C

EDONA

06A50FSF

EDOHTAC

E

DONA

L58ET-UF30

D1NH R58ET-UF30D1NH

5

3

2

1

6

4

5

3

2

1

6

4

3MF1M

EDOHTAC

EDONA

KW231AM XT-K

W231AM XT-KW151AM 481SS1

1

2

3

1

2

3

B0171-ETSZDU

E

DOHTAC

E

DO

NA

601TN61ZMU

1

2

3

1

2

3

203

SP1

1

2

3

1

2

3

68T-TVM020-LMS

4

3

2

4

2

1

3

1

68TTL013-LMS

EDOHTAC

EDONA

67

KDL-26M3000/26ML130/32M3000/32ML130

Components not identiﬁ ed by a part number or

description are not stocked because they are seldom

required for routine service.

The component parts of an assembly are indicated by the

reference numbers in the far right column of the parts list

and within the dotted lines of the diagram.

* Items marked with an asterisk are not stocked since

they are seldom required for routine service. Expect

some delay when ordering these components.

NOTE: Les composants identiﬁ es per un trame et

une marque

!

sont critiques pour la securite.

Ne les remplacer que par une piece portant le

numero speciﬁ e.

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: The components identiﬁ ed by a red outline and a mark contain

conﬁ dential information. Speciﬁ c instructions must be adhered to whenever

these components are repaired and/or replaced.

See Appendix A: Encryption Key Components in the back of this manual.

SECTION 4: EXPLODED VIEWS

1 3-210-430-01 COVER, REAR (26)

(KDL-26M3000/26ML130 ONLY)

1 3-210-439-01 COVER, REAR (32)

(KDL-32M3000/32ML130 ONLY)

2 3-217-797-01 LABEL, HDMI

3 3-213-435-01 LABEL, REAR TERMINAL

4 3-210-448-01 COVER, ECS

* 5 3-270-540-01 LABEL, INFORMATION

(KDL-26M3000 US/CND MODEL ONLY)

* 5 3-270-542-01 LABEL, INFORMATION

(KDL-26ML130 ONLY)

* 5 3-272-480-01 LABEL, INFORMATION

(KDL-26M3000 LN/LS MODELS ONLY)

* 5 3-213-436-01 LABEL, INFORMATION

(KDL-32M3000 US/CND MODEL ONLY)

4-1. REAR COVER ASSEMBLY AND STAND ASSEMBLY

7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)

2-580-640-01 SCREW, +BVTP2 4X16

2-580-608-01 SCREW, +PSW M5X16

2-580-644-01 SCREW, +KTP2 3X8

2-580-606-01 SCREW, +PSW M5X8

* 5 3-270-543-01 LABEL, INFORMATION

(KDL-32ML130 ONLY)

* 5 3-272-478-01 LABEL, INFORMATION

(KDL-32M3000 LN/LS MODELS ONLY)

6 4-022-115-00 HOLDER, AC CORD

!

7 1-834-555-11 AC POWER CORD (WITH CONNECTOR)

(KDL-26M3000/26ML130/32M3000/32ML130 US/CND MODELS ONLY)

!

7 1-834-554-11 AC POWER CORD WITH CONNECTOR

(KDL-26M3000/32M3000 LN/LS MODELS ONLY)

8 A-1274-853-A STAND ASSEMBLY (MA) [9-10]

(KDL-26M3000/32M3000 ONLY)

8 A-1318-635-A STAND ASSEMBLY (MA) [9-10]

(KDL-26ML130/32ML130 ONLY)

9 3-213-762-01 FOOT (15X30)

10 3-106-486-01 NECK (M)

(Check the Sony Electronics Service Information website for any additional service related issues for this model.)

REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

8

2

3

1

4

5

6

7

10

9

☛

68

KDL-26M3000/26ML130/32M3000/32ML130

NOTE: Les composants identiﬁ es per un trame et

une marque

!

sont critiques pour la securite.

Ne les remplacer que par une piece portant le

numero speciﬁ e.

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: The components identiﬁ ed by a red outline and a mark contain

conﬁ dential information. Speciﬁ c instructions must be adhered to whenever

these components are repaired and/or replaced.

See Appendix A: Encryption Key Components in the back of this manual.

51 X-2186-624-1 BUTTON, MULTI ASSEMBLY

52 A-1268-471-A HM1 BOARD, MOUNTED

53 3-268-323-11 HOLDER, SIDE JACK (S)

(KDL-26M3000/26ML130 ONLY)

53 3-106-473-21 HOLDER, SIDE JACK(M)

(KDL-32M3000/32ML130 ONLY)

54 A-1268-473-A UM BOARD, MOUNTED

55 A-1376-787-A BM BOARD, MOUNTED

(KDL-26M3000/26ML130 ONLY)

55 A-1376-788-A BM BOARD, MOUNTED

(KDL-32M3000/32ML130 ONLY)

7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B)

2-580-629-01 SCREW, +BVST 3X8

2-580-591-01 SCREW, +PSW M3X5

2-580-608-01 SCREW, +PSW M5X16

2-674-965-31 SCREW, +PSW 3SG

4-635-966-01 SCREW (HEX)

4-2. CHASSIS

56 X-2177-549-1 VESA ARM(32) ASSEMBLY

(KDL-32M3000/32ML130 ONLY)

57 X-2178-787-1 ARM ASSEMBLY, VESA (26L)

(KDL-26M3000/26ML130 ONLY)

58 X-2178-788-1 ARM ASSEMBLY, VESA (26R)

(KDL-26M3000/26ML130 ONLY)

59 A-1315-710-A G1M BOARD, MOUNTED

* 60 3-106-471-11 BRACKET, G1

61 A-1268-472-A HM3 BOARD, MOUNTED

62 3-210-445-01 GUIDE, LIGHT

REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

(Check the Sony Electronics Service Information website for any additional service related issues for this model.)

51

52

53

54

55

60

59 57

58

56

61

62

KDL26M3000/26ML130

69

KDL-26M3000/26ML130/32M3000/32ML130

NOTE: Les composants identiﬁ es per un trame et

une marque

!

sont critiques pour la securite.

Ne les remplacer que par une piece portant le

numero speciﬁ e.

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: The components identiﬁ ed by a red outline and a mark contain

conﬁ dential information. Speciﬁ c instructions must be adhered to whenever

these components are repaired and/or replaced.

See Appendix A: Encryption Key Components in the back of this manual.

4-3. CONNECTORS

101 1-910-038-35 CONN ASSEMBLY, 11P MM CRIMP 550

(KDL-26M3000/26ML130 ONLY)

101 1-910-038-28 CONN ASSEMBLY, 11P MM CRIMP 690

(KDL-32M3000/32ML130 ONLY)

102 2-688-062-01 TAPE (LCD)

103 1-834-383-11 LVDS CABLE

104 1-910-038-33 CONN ASSEMBLY, 20P MM CRIMP 210

105 1-910-038-32 WIRE ASSEMBLY, FASTON TERMINAL

106 1-910-038-30 CONN ASSEMBLY, 4P SPEAKER FASTON

(KDL-26M3000/26ML130 ONLY)

106 1-910-038-07 FI CONNECTOR ASSEMBLY 30P

(KDL-32M3000/32ML130 ONLY)

107 1-910-038-29 CONN ASSEMBLY, 12P MM CRIMP 450

108 1-910-038-36 CONN ASSEMBLY, 14P MM CRIMP 300

(KDL-26M3000/26ML130 ONLY)

108 1-910-038-31 CONN ASSEMBLY, 14P MM CRIMP 420

(KDL-32M3000/32ML130 ONLY)

(Check the Sony Electronics Service Information website for any additional service related issues for this model.)

101

102

103

104

106

107

108

105

REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

70

KDL-26M3000/26ML130/32M3000/32ML130

NOTE: Les composants identiﬁ es per un trame et

une marque

!

sont critiques pour la securite.

Ne les remplacer que par une piece portant le

numero speciﬁ e.

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: The components identiﬁ ed by a red outline and a mark contain

conﬁ dential information. Speciﬁ c instructions must be adhered to whenever

these components are repaired and/or replaced.

See Appendix A: Encryption Key Components in the back of this manual.

REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]

2-580-654-01 SCREW, +PWTP2 4X16

(KDL-32M3000/32ML130 ONLY)

2-580-600-01 SCREW, +PSW M4X8

151 X-2178-368-1 BEZEL ASSEMBLY (26)

(KDL-26M3000 ONLY)

151 X-2179-761-1 BEZEL ASSEMBLY (26)

(KDL-26ML130 ONLY)

151 X-2178-370-1 BEZEL ASSEMBLY (32)

(KDL-32M3000 ONLY)

151 X-2178-439-1 BEZEL ASSEMBLY (32)

(KDL-32ML130 ONLY)

152 1-826-363-11 LOUDSPEAKER (4.2X15CM)

153 1-802-268-11 LCD PANEL 26INCH WXGA TFT

(KDL-26M3000/26ML130 ONLY)

153 1-802-494-11 LCD PANEL (32 INCH WXGA TFT)

(KDL-32M3000/32ML130 ONLY)

154 1-789-720-11 ETC-INVERTER MT BOARD

(KDL-26M3000/26ML130 ONLY)

154 1-789-907-11 ETC-INVERTER MT BOARD

(KDL-32M3000/32ML130 ONLY)

4-4. BEZEL ASSEMBLY, LCD PANEL AND SPEAKERS

(Check the Sony Electronics Service Information website for any additional service related issues for this model.)

151

152

153

154

KDL-26M3000/26ML130/32M3000/32ML130

71

* Items marked with an asterisk are not stocked since they

are seldom required for routine service. Expect some delay

when ordering these components.

RESISTORS

• All resistors are in ohms

• F : nonﬂ ammable

• All variable and adjustable resistors

have characteristic curve B, unless

otherwise noted.

REF. NO. PART NO. DESCRIPTION VALUES

When ordering parts by reference

number, please include the board name.

REF. NO. PART NO. DESCRIPTION VALUES

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: Les composants identiﬁ es per un trame et

une marque

!

sont critiques pour la securite.

Ne les remplacer que par une piece portant le

numero speciﬁ e.

NOTE: The components identiﬁ ed by a red outline and a mark

contain conﬁ dential information. Speciﬁ c instructions must be

adhered to whenever these components are repaired and/or

replaced.

See Appendix A: Encryption Key Components in the back of this

manual.

BM

A-1376-787-A BM BOARD, MOUNTED

(KDL-26M3000/26ML130 ONLY)

A-1376-788-A BM BOARD, MOUNTED

(KDL-32M3000/32ML130 ONLY)

2-586-175-11 SHEET B, RADIATION

4-098-157-01 HEAT SINK (DTT)

CONTACT TERMINAL

A7301 1-694-974-21 CONTACT TERMINAL

A7302 1-694-974-21 CONTACT TERMINAL

CAPACITOR

C1005 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1007 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1010 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1012 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1100 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1102 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1130 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1132 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1403 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C1714 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1715 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1722 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C1723 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C1724 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1725 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C1726 1-165-492-21 ELECT CHIP 100μF 20% 10V

C1727 1-165-492-21 ELECT CHIP 100μF 20% 10V

C1728 1-165-492-21 ELECT CHIP 100μF 20% 10V

C1729 1-165-492-21 ELECT CHIP 100μF 20% 10V

C1730 1-164-156-11 CERAMIC CHIP 0.1μF 25V

SECTION 5: ELECTRICAL PARTS LIST

C1731 1-100-588-21 ELECT CHIP 1000μF 20% 6.3V

C1732 1-165-492-21 ELECT CHIP 100μF 20% 10V

C1733 1-165-492-21 ELECT CHIP 100μF 20% 10V

C1736 1-216-296-11 SHORT CHIP

C1739 1-216-296-11 SHORT CHIP

C1742 1-216-296-11 SHORT CHIP

C1745 1-216-296-11 SHORT CHIP

C1752 1-164-933-11 CERAMIC CHIP 220pF 10% 50V

C1753 1-164-933-11 CERAMIC CHIP 220pF 10% 50V

C1754 1-112-066-11 CERAMIC CHIP 10μF 10% 10V

C1755 1-100-588-21 ELECT CHIP 1000μF 20% 6.3V

C1756 1-100-055-11 CERAMIC CHIP 22μF 20% 16V

C2000 1-126-395-11 ELECT CHIP 22μF 20% 16V

C2069 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2070 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2073 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2074 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2075 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2077 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2078 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2081 1-162-959-11 CERAMIC CHIP 330pF 5% 50V

C2084 1-162-959-11 CERAMIC CHIP 330pF 5% 50V

C2085 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2086 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2090 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2091 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2092 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2094 1-162-959-11 CERAMIC CHIP 330pF 5% 50V

C2095 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2096 1-162-959-11 CERAMIC CHIP 330pF 5% 50V

C2097 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2098 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2100 1-135-366-11 ELECT CHIP 100μF 20% 16V

C2101 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2102 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

KDL-26M3000/26ML130/32M3000/32ML130

72

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

C2103 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2104 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2105 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2106 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2107 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2111 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2112 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2113 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V

C2114 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2115 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2116 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2117 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2118 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2119 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2120 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2121 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2123 1-112-797-11 ELECT CHIP 470μF 20% 25V

C2124 1-135-349-21 ELECT CHIP 22μF 20% 20V

C2125 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2126 1-100-912-11 CERAMIC CHIP 1μF 10% 25V

C2127 1-100-912-11 CERAMIC CHIP 1μF 10% 25V

C2128 1-135-349-21 ELECT CHIP 22μF 20% 20V

C2129 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2130 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2131 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2132 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2133 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2134 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2135 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2136 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2137 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2138 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2139 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C2140 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2141 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2142 1-164-874-11 CERAMIC CHIP 100pF 5% 50V

C2143 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2144 1-164-874-11 CERAMIC CHIP 100pF 5% 50V

C2145 1-100-591-91 CERAMIC CHIP 1μF 10% 25V

C2146 1-100-591-91 CERAMIC CHIP 1μF 10% 25V

C2149 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2150 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2156 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2157 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2158 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2159 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2160 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2161 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C2168 1-162-979-11 CERAMIC CHIP 0.0027μF 10% 50V

C2169 1-162-979-11 CERAMIC CHIP 0.0027μF 10% 50V

C2170 1-162-979-11 CERAMIC CHIP 0.0027μF 10% 50V

C2171 1-162-979-11 CERAMIC CHIP 0.0027μF 10% 50V

C2172 1-124-779-00 ELECT CHIP 10μF 20% 16V

C2173 1-124-779-00 ELECT CHIP 10μF 20% 16V

C2174 1-135-366-11 ELECT CHIP 100μF 20% 16V

C2175 1-124-779-00 ELECT CHIP 10μF 20% 16V

C2176 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2177 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2178 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2179 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2180 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2181 1-124-779-00 ELECT CHIP 10μF 20% 16V

C2182 1-124-779-00 ELECT CHIP 10μF 20% 16V

C2183 1-124-779-00 ELECT CHIP 10μF 20% 16V

C2185 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2186 1-126-396-11 ELECT CHIP 47μF 20% 16V

C2195 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C2196 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2197 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2198 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V

C2199 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V

C2200 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C2201 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C2204 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2205 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2206 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2207 1-100-764-21 ELECT CHIP 4.7μF 20% 25V

C2208 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2209 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2210 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2211 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2212 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2213 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2214 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2215 1-164-938-11 CERAMIC CHIP 0.0015μF 10% 50V

C2216 1-100-756-91 CERAMIC CHIP 0.047μF 50V

C2217 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2218 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2221 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

C2223 1-125-889-11 CERAMIC CHIP 2.2μF 10% 10V

BM

KDL-26M3000/26ML130/32M3000/32ML130

73

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

C3005 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C3006 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C3007 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C3010 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C3011 1-126-206-11 ELECT CHIP 100μF 20% 6.3V

C3019 1-162-912-11 CERAMIC CHIP 7pF 0.50pF 50V

C3057 1-100-907-11 CERAMIC CHIP 0.1μF 10% 10V

C3062 1-112-066-11 CERAMIC CHIP 10μF 10% 10V

C3063 1-100-907-11 CERAMIC CHIP 0.1μF 10% 10V

C3066 1-100-907-11 CERAMIC CHIP 0.1μF 10% 10V

C3070 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C3072 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C3076 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C3081 1-112-066-11 CERAMIC CHIP 10μF 10% 10V

C3083 1-100-907-11 CERAMIC CHIP 0.1μF 10% 10V

C3084 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C3110 1-125-777-11 CERAMIC CHIP 0.1μF 10% 10V

C3112 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C3113 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C3114 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C3115 1-162-919-11 CERAMIC CHIP 22pF 5% 50V

C3116 1-162-919-11 CERAMIC CHIP 22pF 5% 50V

C3118 1-126-394-11 ELECT CHIP 10μF 20% 16V

C3119 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C4001 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C4030 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C4033 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V

C4034 1-112-046-11 CERAMIC CHIP 4.7μF 10% 6.3V

C4035 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C4040 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C4041 1-164-935-11 CERAMIC CHIP 470pF 10% 50V

C4042 1-164-935-11 CERAMIC CHIP 470pF 10% 50V

C4043 1-164-935-11 CERAMIC CHIP 470pF 10% 50V

C4044 1-164-935-11 CERAMIC CHIP 470pF 10% 50V

C4045 1-164-935-11 CERAMIC CHIP 470pF 10% 50V

C4046 1-164-874-11 CERAMIC CHIP 100pF 5% 50V

C4049 1-100-912-11 CERAMIC CHIP 1μF 10% 25V

C4501 1-100-756-91 CERAMIC CHIP 0.047μF 50V

C4502 1-100-756-91 CERAMIC CHIP 0.047μF 50V

C4503 1-100-756-91 CERAMIC CHIP 0.047μF 50V

C4504 1-100-756-91 CERAMIC CHIP 0.047μF 50V

C4505 1-100-756-91 CERAMIC CHIP 0.047μF 50V

C4506 1-100-756-91 CERAMIC CHIP 0.047μF 50V

C4507 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C4508 1-164-174-11 CERAMIC CHIP 0.0082μF 10% 25V

C4509 1-100-899-81 CERAMIC CHIP 0.082μF 10% 10V

C4510 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4511 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4512 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4513 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4514 1-100-765-21 ELECT CHIP 10μF 20% 16V

C4515 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4516 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4517 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4518 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4519 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4520 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4521 1-100-765-21 ELECT CHIP 10μF 20% 16V

C4522 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4523 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4524 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4525 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4526 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4527 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4528 1-100-765-21 ELECT CHIP 10μF 20% 16V

C4529 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4530 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4531 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4532 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4533 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4534 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4538 1-124-779-00 ELECT CHIP 10μF 20% 16V

C4539 1-124-779-00 ELECT CHIP 10μF 20% 16V

C4540 1-124-779-00 ELECT CHIP 10μF 20% 16V

C4544 1-126-210-21 ELECT CHIP 220μF 20% 4V

C4545 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4546 1-100-588-21 ELECT CHIP 1000μF 20% 6.3V

C4547 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C4548 1-100-588-21 ELECT CHIP 1000μF 20% 6.3V

C4549 1-128-396-11 ELECT CHIP 470μF 20% 10V

C5002 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C5005 1-162-927-11 CERAMIC CHIP 100pF 5% 50V

C5006 1-162-927-11 CERAMIC CHIP 100pF 5% 50V

C5008 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C5009 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C5502 1-125-777-11 CERAMIC CHIP 0.1μF 10% 10V

C5505 1-125-777-11 CERAMIC CHIP 0.1μF 10% 10V

C5509 1-100-567-81 CERAMIC CHIP 0.01μF 10% 25V

C5510 1-100-567-81 CERAMIC CHIP 0.01μF 10% 25V

C5528 1-125-777-11 CERAMIC CHIP 0.1μF 10% 10V

BM

KDL-26M3000/26ML130/32M3000/32ML130

74

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

C5529 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5530 1-112-066-11 CERAMIC CHIP 10μF 10% 10V

C5531 1-125-777-11 CERAMIC CHIP 0.1μF 10% 10V

C5623 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C5624 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C5625 1-125-777-11 CERAMIC CHIP 0.1μF 10% 10V

C5626 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5627 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5628 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5629 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5630 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5631 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5632 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5633 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5634 1-112-066-11 CERAMIC CHIP 10μF 10% 10V

C5635 1-100-906-11 CERAMIC CHIP 0.01μF 10% 16V

C5636 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C5637 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C7000 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7001 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7002 1-117-681-11 ELECT CHIP 100μF 20% 16V

C7003 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C7004 1-128-536-11 ELECT CHIP 100μF 20% 25V

C7005 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C7006 1-112-794-11 ELECT CHIP 470μF 20% 16V

C7007 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7008 1-100-911-11 CERAMIC CHIP 4.7μF 10% 25V

C7009 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C7010 1-127-820-11 CERAMIC CHIP 4.7μF 10% 16V

C7011 1-112-789-11 ELECT CHIP 1000μF 20% 6.3V

C7012 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C7015 1-100-588-21 ELECT CHIP 1000μF 20% 6.3V

C7019 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7020 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7021 1-126-210-21 ELECT CHIP 220μF 20% 4V

C7023 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7024 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7025 1-165-887-91 CERAMIC CHIP 0.22μF 10% 6.3V

C7026 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7027 1-164-862-11 CERAMIC CHIP 33pF 5% 50V

C7028 1-164-862-11 CERAMIC CHIP 33pF 5% 50V

C7029 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7030 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7031 1-164-862-11 CERAMIC CHIP 33pF 5% 50V

C7032 1-164-862-11 CERAMIC CHIP 33pF 5% 50V

C7033 1-127-988-81 CERAMIC CHIP 0.015μF 10% 16V

C7034 1-164-858-11 CERAMIC CHIP 22pF 5% 50V

C7035 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7036 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7037 1-165-887-91 CERAMIC CHIP 0.22μF 10% 6.3V

C7038 1-127-988-81 CERAMIC CHIP 0.015μF 10% 16V

C7039 1-127-988-81 CERAMIC CHIP 0.015μF 10% 16V

C7040 1-164-858-11 CERAMIC CHIP 22pF 5% 50V

C7041 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7042 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7043 1-165-887-91 CERAMIC CHIP 0.22μF 10% 6.3V

C7044 1-127-988-81 CERAMIC CHIP 0.015μF 10% 16V

C7045 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7046 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7047 1-164-882-11 CERAMIC CHIP 220pF 5% 16V

C7048 1-164-882-11 CERAMIC CHIP 220pF 5% 16V

C7049 1-164-882-11 CERAMIC CHIP 220pF 5% 16V

C7050 1-164-882-11 CERAMIC CHIP 220pF 5% 16V

C7051 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7052 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7053 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7054 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7055 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7056 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7057 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7058 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7059 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7060 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7061 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7062 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7063 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7064 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7065 1-100-912-11 CERAMIC CHIP 1μF 10% 25V

C7066 1-100-912-11 CERAMIC CHIP 1μF 10% 25V

C7067 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7068 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7073 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7074 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7075 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7076 1-135-960-91 CERAMIC CHIP 10μF 10% 25V

C7077 1-125-837-91 CERAMIC CHIP 1μF 10% 6.3V

C7078 1-165-875-11 CERAMIC CHIP 10μF 10% 10V

C7079 1-165-875-11 CERAMIC CHIP 10μF 10% 10V

C7080 1-100-055-11 CERAMIC CHIP 22μF 20% 16V

C7081 1-100-055-11 CERAMIC CHIP 22μF 20% 16V

BM

KDL-26M3000/26ML130/32M3000/32ML130

75

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

C7086 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C7087 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C7088 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C7089 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C7090 1-126-210-21 ELECT CHIP 220μF 20% 4V

C7091 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7092 1-126-210-21 ELECT CHIP 220μF 20% 4V

C7093 1-100-583-21 ELECT CHIP 470μF 20% 4V

C7094 1-126-392-11 ELECT CHIP 100μF 20% 6.3V

C7100 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7106 1-112-794-11 ELECT CHIP 470μF 20% 16V

C7107 1-100-588-21 ELECT CHIP 1000μF 20% 6.3V

C7200 1-100-583-21 ELECT CHIP 470μF 20% 4V

C7201 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7202 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7203 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7204 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7205 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7206 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7207 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7208 1-126-210-21 ELECT CHIP 220μF 20% 4V

C7209 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7210 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7211 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7212 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7213 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7214 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7215 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7216 1-100-583-21 ELECT CHIP 470μF 20% 4V

C7217 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7218 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7219 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7220 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7221 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7222 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7223 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7224 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7225 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7226 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7227 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7228 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7229 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7230 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7231 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7232 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7233 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7234 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7235 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7236 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7237 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7238 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7239 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7240 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7241 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7242 1-100-583-21 ELECT CHIP 470μF 20% 4V

C7243 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7244 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7245 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7246 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7247 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7248 1-100-159-91 CERAMIC CHIP 22μF 10% 6.3V

C7249 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7250 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7251 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7252 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7253 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7254 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7255 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7256 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7257 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7258 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7259 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7260 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7261 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7262 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7263 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7264 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7265 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7266 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7267 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7268 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7269 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7270 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7271 1-164-854-11 CERAMIC CHIP 15pF 5% 50V

C7272 1-164-854-11 CERAMIC CHIP 15pF 5% 50V

C7273 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7274 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7275 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7276 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

C7277 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

BM

KDL-26M3000/26ML130/32M3000/32ML130

76

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

C7278 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7279 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7280 1-126-210-21 ELECT CHIP 220μF 20% 4V

C7300 1-117-681-11 ELECT CHIP 100μF 20% 16V

C7301 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7302 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7303 1-100-055-11 CERAMIC CHIP 22μF 20% 16V

C7305 1-117-681-11 ELECT CHIP 100μF 20% 16V

C7306 1-100-567-81 CERAMIC CHIP 0.01μF 10% 25V

C7400 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7401 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7402 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7403 1-100-506-91 CERAMIC CHIP 1μF 20% 6.3V

C7404 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7405 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7406 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7407 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7408 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7409 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7410 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7411 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7412 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7413 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7417 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7418 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7420 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7422 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7424 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7425 1-114-148-11 CERAMIC CHIP 1μF 6.3V

C7430 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7431 1-126-210-21 ELECT CHIP 220μF 20% 4V

C7432 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7433 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7501 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7502 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7504 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7505 1-117-681-11 ELECT CHIP 100μF 20% 16V

C7506 1-117-681-11 ELECT CHIP 100μF 20% 16V

C7507 1-117-681-11 ELECT CHIP 100μF 20% 16V

C7509 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C7510 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7511 1-164-937-11 CERAMIC CHIP 0.001μF 10% 50V

C7512 1-125-891-11 CERAMIC CHIP 0.47μF 10% 10V

C7513 1-126-210-21 ELECT CHIP 220μF 20% 4V

C7514 1-165-875-11 CERAMIC CHIP 10μF 10% 10V

C7515 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7600 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7700 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7701 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7702 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7703 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7704 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7705 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7706 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7707 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7720 1-125-837-91 CERAMIC CHIP 1μF 10% 6.3V

C7800 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7801 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7804 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7805 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7807 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7808 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7809 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7810 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7811 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7812 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7813 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7814 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7815 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7816 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7817 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7818 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7819 1-100-566-91 CERAMIC CHIP 0.1μF 10% 25V

C7820 1-164-864-11 CERAMIC CHIP 39pF 5% 50V

C7821 1-164-858-11 CERAMIC CHIP 22pF 5% 50V

C7822 1-164-858-11 CERAMIC CHIP 22pF 5% 50V

C7823 1-164-868-11 CERAMIC CHIP 56pF 5% 50V

C7824 1-164-868-11 CERAMIC CHIP 56pF 5% 50V

C7825 1-164-864-11 CERAMIC CHIP 39pF 5% 50V

C7828 1-164-862-11 CERAMIC CHIP 33pF 5% 50V

C7829 1-164-862-11 CERAMIC CHIP 33pF 5% 50V

C7831 1-107-819-11 CERAMIC CHIP 0.022μF 10% 16V

C7832 1-126-205-11 ELECT CHIP 47μF 20% 6.3V

C7833 1-125-777-11 CERAMIC CHIP 0.1μF 10% 10V

C7835 1-164-860-11 CERAMIC CHIP 27pF 5% 50V

C7836 1-164-860-11 CERAMIC CHIP 27pF 5% 50V

C7837 1-164-840-11 CERAMIC CHIP 1pF 0.25pF 50V

C7838 1-164-840-11 CERAMIC CHIP 1pF 0.25pF 50V

C7840 1-164-860-11 CERAMIC CHIP 27pF 5% 50V

C7841 1-164-860-11 CERAMIC CHIP 27pF 5% 50V

BM

KDL-26M3000/26ML130/32M3000/32ML130

77

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

C7842 1-100-581-81 CERAMIC CHIP 0.0047μF 10% 50V

C7844 1-117-681-11 ELECT CHIP 100μF 20% 16V

C7845 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7846 1-137-765-21 ELECT CHIP 47μF 20% 16V

C7847 1-164-939-11 CERAMIC CHIP 0.0022μF 10% 50V

C7848 1-100-588-21 ELECT CHIP 1000μF 20% 6.3V

C7849 1-100-567-81 CERAMIC CHIP 0.01μF 10% 25V

C7850 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C7852 1-128-396-11 ELECT CHIP 470μF 20% 10V

C7853 1-100-567-81 CERAMIC CHIP 0.01μF 10% 25V

C7854 1-112-777-11 CERAMIC CHIP 0.01μF 10% 25V

C7855 1-165-887-91 CERAMIC CHIP 0.22μF 10% 6.3V

C7856 1-100-905-11 CERAMIC CHIP 0.001μF 10% 50V

C7857 1-100-159-91 CERAMIC CHIP 22μF 10% 6.3V

C7858 1-164-874-11 CERAMIC CHIP 100pF 5% 50V

C7859 1-164-874-11 CERAMIC CHIP 100pF 5% 50V

C7862 1-112-046-11 CERAMIC CHIP 4.7μF 10% 6.3V

C7863 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7864 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7866 1-164-874-11 CERAMIC CHIP 100pF 5% 50V

C7867 1-164-862-11 CERAMIC CHIP 33pF 5% 50V

C7870 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7871 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C7878 1-128-396-11 ELECT CHIP 470μF 20% 10V

C7879 1-162-995-11 CERAMIC CHIP 0.022μF 50V

C7950 1-100-567-81 CERAMIC CHIP 0.01μF 10% 25V

C7951 1-100-567-81 CERAMIC CHIP 0.01μF 10% 25V

C7952 1-165-908-11 CERAMIC CHIP 1μF 10% 10V

C7953 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7954 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7956 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7958 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C7959 1-100-916-11 CERAMIC CHIP 0.1μF 10% 16V

C9100 1-126-210-21 ELECT CHIP 220μF 20% 4V

C9101 1-126-210-21 ELECT CHIP 220μF 20% 4V

C9105 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9106 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9107 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9108 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9110 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9111 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9112 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9113 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9114 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9115 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C9116 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9117 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9118 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9119 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9121 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9122 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9123 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9124 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9125 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9126 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9127 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9128 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9129 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9130 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9131 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9132 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9133 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9134 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9135 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9136 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9137 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C9138 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C9139 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C9140 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9143 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C9144 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9145 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C9146 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C9147 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9149 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C9150 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9151 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C9152 1-165-989-11 CERAMIC CHIP 10μF 10% 6.3V

C9153 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9154 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C9155 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C9156 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C9157 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C9158 1-162-968-11 CERAMIC CHIP 0.0047μF 10% 50V

C9159 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9160 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9161 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C9162 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C9163 1-164-315-11 CERAMIC CHIP 470pF 5% 50V

BM

KDL-26M3000/26ML130/32M3000/32ML130

78

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: Les composants identiﬁ es per un trame et une

marque

!

sont critiques pour la securite. Ne les remplacer

que par une piece portant le numero speciﬁ e.

CONNECTOR

* CN1400 1-819-928-11 HEADER ASSENBLY 20P

* CN2000 1-819-461-11 HEADER ASSEMBLY FOR PWB

CN3004 1-779-936-51 CONNECTOR, FFC/FPC 18P

* CN3008 1-820-188-11 HEADER ASSEMBLY (PRINT PWB) 11P

* CN4001 1-820-550-11 HEADER ASSEMBLY FOR PWB

CN5000 1-821-013-11 D SUB CONNECTOR

* CN7301 1-819-333-11 HEADER ASSEMBLY FOR PWB

CN7303 1-820-187-11 HEADER ASSEMBLY (PRINT PWB) 10P

* CN7600 1-793-141-21 PIN, CONNECTOR (PC BOARD) 15P

* CN9102 1-818-656-21 HEADER ASSEMBLY 30P

DIODE

D1013 8-719-423-03 DIODE MA8100

D1014 8-719-423-03 DIODE MA8100

D1015 8-719-423-03 DIODE MA8100

D1016 8-719-423-03 DIODE MA8100

D1019 8-719-423-03 DIODE MA8100

D1020 8-719-423-03 DIODE MA8100

D1021 8-719-423-03 DIODE MA8100

D2002 8-719-404-50 DIODE MA111-TX

D2008 8-719-404-50 DIODE MA111-TX

!

D2014 6-500-028-01 DIODE MM3Z9V1ST1

D2017 8-719-050-37 DIODE M1MA152WA-T1

D2018 8-719-977-28 DIODE DTZ10B

D2019 8-719-977-28 DIODE DTZ10B

D2020 8-719-422-46 DIODE MA8056

D2021 8-719-422-46 DIODE MA8056

D2022 8-719-422-46 DIODE MA8056

D3002 8-719-071-87 DIODE MA785-(TX),SO

D3007 8-719-077-59 DIODE 1PS302

D3020 8-719-422-46 DIODE MA8056

D3021 8-719-422-46 DIODE MA8056

D4012 8-719-017-89 DIODE MA8150-TX

D5000 8-719-422-46 DIODE MA8056

D5001 8-719-422-46 DIODE MA8056

D5002 8-719-422-46 DIODE MA8056

D5003 8-719-050-38 DIODE M1MA152WK-T1

D5506 6-500-701-01 DIODE PGB1010603NR

D5508 8-719-081-97 DIODE MMDL914T1

D5509 6-500-701-01 DIODE PGB1010603NR

D5513 6-500-701-01 DIODE PGB1010603NR

D5516 8-719-081-97 DIODE MMDL914T1

D5517 6-500-701-01 DIODE PGB1010603NR

D5525 1-216-864-11 SHORT CHIP

D5528 1-216-864-11 SHORT CHIP

D7000 8-719-081-97 DIODE MMDL914T1

D7001 8-719-988-61 DIODE 1SS355TE-17

D7002 6-500-253-01 DIODE RB053L-30TE25

D7003 8-719-977-28 DIODE DTZ10B

D7004 8-719-977-12 DIODE DTZ6.8B

D7008 8-719-083-58 DIODE UDZSNPTE-173.9B

D7010 8-719-081-34 DIODE RB160M-30TR

D7013 8-719-081-34 DIODE RB160M-30TR

D7019 6-500-253-01 DIODE RB053L-30TE25

D7201 8-719-081-97 DIODE MMDL914T1

D7500 8-719-073-34 DIODE EC21QS03L-TE12L

D7801 8-719-058-24 DIODE RB501V-40TE-17

D7802 8-719-422-46 DIODE MA8056

D7803 8-719-422-46 DIODE MA8056

EARTH TERMINAL

ET4001 1-780-482-11 EARTH TERMINAL

ET4002 1-780-482-11 EARTH TERMINAL

ET4003 1-780-482-11 EARTH TERMINAL

ET4004 1-780-482-11 EARTH TERMINAL

ET4005 1-780-482-11 EARTH TERMINAL

ET4006 1-780-482-11 EARTH TERMINAL

ET4007 1-780-482-11 EARTH TERMINAL

* ET4012 1-780-431-11 ON-BOARD CONTACT

* ET4013 1-780-431-11 ON-BOARD CONTACT

FUSE

F2000 1-576-958-21 FUSE 4A 24V

F3001 1-576-646-11 FUSE 0.5A 50V

F4001 1-576-933-21 FUSE 5A 24V

!

F7000 1-576-603-21 FUSE 3.15A 24V

FERRITE BEAD

FB1700 1-216-864-11 SHORT CHIP

FB1701 1-412-983-31 INDUCTOR 2.2μH

FB2000 1-400-212-22 FERRITE 0μH

FB2006 1-400-089-21 FERRITE 0μH

FB2007 1-400-089-21 FERRITE 0μH

FB2008 1-400-089-21 FERRITE 0μH

FB2009 1-400-089-21 FERRITE 0μH

FB2010 1-400-089-21 FERRITE 0μH

BM

KDL-26M3000/26ML130/32M3000/32ML130

79

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: Les composants identiﬁ es per un trame et une

marque

!

sont critiques pour la securite. Ne les remplacer

que par une piece portant le numero speciﬁ e.

FB2012 1-400-089-21 FERRITE 0μH

FB2013 1-400-089-21 FERRITE 0μH

FB2014 1-400-089-21 FERRITE 0μH

FB4001 1-400-089-21 FERRITE 0μH

FB4002 1-400-110-21 FERRITE 0μH

FB4003 1-400-089-21 FERRITE 0μH

FB4005 1-414-445-11 FERRITE 0μH

FB4006 1-414-445-11 FERRITE 0μH

FB4007 1-414-445-11 FERRITE 0μH

FB4008 1-400-591-22 FERRITE 0μH

FB4009 1-400-591-22 FERRITE 0μH

FB4010 1-400-591-22 FERRITE 0μH

FB4011 1-400-591-22 FERRITE 0μH

FB4013 1-400-089-21 FERRITE 0μH

FB4501 1-412-983-31 INDUCTOR 2.2μH

FB4502 1-469-555-21 INDUCTOR 10μH

FB5000 1-469-100-21 FERRITE 0μH

FB5001 1-469-100-21 FERRITE 0μH

FB5002 1-469-100-21 FERRITE 0μH

FB5004 1-469-100-21 FERRITE 0μH

FB5005 1-400-141-22 FERRITE 0μH

FB7000 1-400-794-21 FERRITE 0μH

FB7003 1-400-089-21 FERRITE 0μH

!

FB7200 1-414-229-11 FERRITE 0μH

!

FB7201 1-414-229-11 FERRITE 0μH

FB7202 1-414-229-11 FERRITE 0μH

FB7203 1-414-229-11 FERRITE 0μH

FB7204 1-414-229-11 FERRITE 0μH

FB7300 1-400-089-21 FERRITE 0μH

FB7301 1-400-089-21 FERRITE 0μH

FB7302 1-414-229-11 FERRITE 0μH

FB7303 1-414-229-11 FERRITE 0μH

FB7400 1-414-229-11 FERRITE 0μH

!

FB7700 1-414-229-11 FERRITE 0μH

FB7701 1-414-229-11 FERRITE 0μH

FB7800 1-414-229-11 FERRITE 0μH

FB7801 1-218-990-81 SHORT CHIP

FB7802 1-218-990-81 SHORT CHIP

FB7803 1-469-084-21 FERRITE 0MH

FB7804 1-469-083-21 FERRITE 0μH

FB7805 1-469-083-21 FERRITE 0μH

FB7806 1-469-083-21 FERRITE 0μH

FB7807 1-469-083-21 FERRITE 0μH

FB7808 1-400-198-21 FERRITE 0μH

FB7809 1-400-198-21 FERRITE 0μH

FB9101 1-400-089-21 FERRITE 0μH

FILTER

FL3001 1-234-177-21 FERRITE 0μH

FL5501 1-234-177-21 FERRITE 0μH

FL5502 1-234-177-21 FERRITE 0μH

IC

IC1001 8-759-548-56 IC M52055FP

IC2004 8-759-278-58 IC NJM4558V-TE2

IC2005 8-759-460-79 IC BA09FP-E2

IC2006 8-759-278-58 IC NJM4558V-TE2

IC2008 6-709-927-01 IC RT8H225C-TP-2

IC2009 6-710-904-01 IC TPA3100D2PHPR

IC2010 8-759-359-49 IC NJM3414AV(TE2)

IC2011 6-709-927-01 IC RT8H225C-TP-2

IC2013 6-701-105-01 IC NJM2750M-TE2

IC2014 6-707-181-01 IC AK5366VQ-L

IC2015 6-704-819-01 IC CS4335-KSZR

IC2016 6-704-819-01 IC CS4335-KSZR

IC3005 6-704-607-01 IC M24C16-WMN6T(B)

IC3007 6-709-731-01 IC ADT75ARZ-REEL

IC3009 6-709-517-01 IC S-35390A-J8T1G

IC3010 6-801-402-01 IC BD4729GTR

IC3011 6-806-734-01 IC MB95F118ASPMT-G-SPE1

!

IC4501 6-711-281-01 IC AD9380KSTZ-100

IC5000 6-704-600-01 IC M24C02-WMN6T(B)

IC5001 6-707-846-01 IC TC74LCX14FT(EKJ)

IC5501 6-704-001-01 IC BR24L02F-WE2

IC5503 6-704-001-01 IC BR24L02F-WE2

IC5511 6-708-758-01 IC PCA9517DP.118

IC5512 8-759-596-34 IC SN74LV4053APWR

IC5513 8-753-255-97 IC CXB1441R-T4

IC7000 6-702-142-01 IC PQ1CY1032ZP

IC7001 6-708-171-01 IC MIC5235YM5TR

IC7002 6-703-708-01 IC LM2903DT

IC7003 6-703-175-01 IC PST3629UL

!

IC7004 6-709-075-01 IC TPS5124DBTRG4

!

IC7005 6-709-075-01 IC TPS5124DBTRG4

IC7006 6-707-739-01 IC MM1661JTRE

IC7300 6-711-353-01 IC 100CK2254

IC7301 6-700-631-01 IC TPS2051ADR

IC7400 6-711-198-01 IC HYB18TC512160BF-2.5

BM

KDL-26M3000/26ML130/32M3000/32ML130

80

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: Les composants identiﬁ es per un trame et une

marque

!

sont critiques pour la securite. Ne les remplacer

que par une piece portant le numero speciﬁ e.

IC7501 6-709-504-01 IC K9F5608U0D-PCB0T

!

IC7503 6-807-556-01 IC M25P40-VMN6TP

IC7504 8-759-675-48 IC SN74LVC32APWR

IC7505 6-705-468-01 IC BA33BC0FP-E2

IC7506 6-703-038-01 IC CD74HC4538PWR

IC7950 8-759-338-95 IC NJM2903V(TE2)

IC9100 6-702-973-01 IC CXD9690Q

IC9102 6-704-519-01 IC THC63LVD103

IC9105 6-701-680-01 IC PST3629NR

JACK

J1000 1-780-487-11 S TERMINAL BLOCK

J1100 1-821-064-11 PHONO JACK 10P

J1701 1-820-765-11 PHONO JACK 2P

J1710 1-820-638-11 JACK (SMALL TYPE)

* J1722 1-821-418-11 PIN JACK BLOCK 1P

J5505 1-818-737-11 HDMI CONNECTOR

J5506 1-818-737-11 HDMI CONNECTOR

COIL

L1001 1-469-555-21 INDUCTOR 10μH

L1007 1-412-983-31 INDUCTOR 2.2μH

L2005 1-469-555-21 INDUCTOR 10μH

L2011 1-469-555-21 INDUCTOR 10μH

L2015 1-469-555-21 INDUCTOR 10μH

L2016 1-481-083-11 INDUCTOR 22μH

L2017 1-412-058-11 INDUCTOR 10μH

L2018 1-457-429-11 INDUCTOR 22μH

L2019 1-457-429-11 INDUCTOR 22μH

L2022 1-469-555-21 INDUCTOR 10μH

L2023 1-216-864-11 SHORT CHIP

L2025 1-469-555-21 INDUCTOR 10μH

L2026 1-457-429-11 INDUCTOR 22μH

L2027 1-457-429-11 INDUCTOR 22μH

L3002 1-400-794-21 FERRITE 0μH

L4501 1-469-555-21 INDUCTOR 10μH

L4502 1-469-555-21 INDUCTOR 10μH

L4503 1-469-555-21 INDUCTOR 10μH

L4504 1-469-555-21 INDUCTOR 10μH

L4505 1-469-555-21 INDUCTOR 10μH

L5005 1-457-223-11 INDUCTOR 0μH

L5006 1-457-223-11 INDUCTOR 0μH

L5007 1-457-223-11 INDUCTOR 0μH

L5008 1-457-223-11 INDUCTOR 0μH

L5501 1-457-223-11 INDUCTOR 0μH

L5502 1-457-223-11 INDUCTOR 0μH

L5503 1-457-223-11 INDUCTOR 0μH

L5504 1-457-223-11 INDUCTOR 0μH

L7001 1-457-242-11 INDUCTOR 47μH

L7002 1-424-976-21 INDUCTOR 47μH

L7004 1-424-922-21 INDUCTOR 10μH

L7005 1-424-922-21 INDUCTOR 10μH

L7006 1-400-325-11 INDUCTOR 5.6μH

L7007 1-400-281-11 INDUCTOR 10μH

L7201 1-400-180-21 FERRITE 0μH

L7300 1-400-284-21 INDUCTOR 0μH

L7431 1-400-180-21 FERRITE 0μH

L7720 1-400-180-21 FERRITE 0μH

L7800 1-412-973-11 INDUCTOR 0.33μH

L7801 1-412-971-31 INDUCTOR 0.22μH

L7802 1-412-971-31 INDUCTOR 0.22μH

L7805 1-412-973-11 INDUCTOR 0.33μH

L7806 1-412-974-41 INDUCTOR 0.39μH

L7807 1-412-974-41 INDUCTOR 0.39μH

L7808 1-469-555-21 INDUCTOR 10μH

L7809 1-412-972-31 INDUCTOR 0.27μH

L7810 1-412-972-31 INDUCTOR 0.27μH

L7811 1-469-555-21 INDUCTOR 10μH

L7812 1-469-555-21 INDUCTOR 10μH

L7813 1-469-555-21 INDUCTOR 10μH

L7814 1-469-555-21 INDUCTOR 10μH

L7815 1-469-555-21 INDUCTOR 10μH

L7817 1-400-180-21 FERRITE 0μH

L7818 1-400-180-21 FERRITE 0μH

L7819 1-469-555-21 INDUCTOR 10μH

L7820 1-400-180-21 FERRITE 0μH

L7821 1-400-180-21 FERRITE 0μH

L7822 1-400-180-21 FERRITE 0μH

L7824 1-400-180-21 FERRITE 0μH

L7825 1-400-180-21 FERRITE 0μH

L7826 1-400-180-21 FERRITE 0μH

L7827 1-400-180-21 FERRITE 0μH

L9100 1-469-555-21 INDUCTOR 10μH

L9101 1-412-029-11 INDUCTOR 10μH

L9103 1-469-555-21 INDUCTOR 10μH

L9104 1-469-555-21 INDUCTOR 10μH

L9105 1-469-555-21 INDUCTOR 10μH

L9106 1-456-984-11 INDUCTOR 0μH

L9107 1-456-984-11 INDUCTOR 0μH

L9108 1-456-984-11 INDUCTOR 0μH

BM

KDL-26M3000/26ML130/32M3000/32ML130

81

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: Les composants identiﬁ es per un trame et une

marque

!

sont critiques pour la securite. Ne les remplacer

que par une piece portant le numero speciﬁ e.

L9109 1-456-984-11 INDUCTOR 0μH

L9110 1-456-984-11 INDUCTOR 0μH

L9111 1-400-177-21 FERRITE 0μH

IC LINK

PS5000 1-576-646-11 FUSE 0.5A 50V

!

PS7000 1-576-925-11 IC LINK 3.15A 0V

!

PS7001 1-576-925-11 IC LINK 3.15A 0V

TRANSISTOR

Q1007 8-729-422-27 TRANSISTOR 2SD601A-Q

Q2006 8-729-620-13 TRANSISTOR 2SC4154TP-1EF

Q2007 6-551-364-01 TRANSISTOR DTC614TUT106

Q2008 6-551-364-01 TRANSISTOR DTC614TUT106

Q2009 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q2010 8-729-013-28 TRANSISTOR HN1B01FU-TE85R

Q2012 6-551-271-01 TRANSISTOR RT3AMMM

Q2013 6-551-271-01 TRANSISTOR RT3AMMM

Q2016 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q2017 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q2018 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q2019 6-551-364-01 TRANSISTOR DTC614TUT106

Q2020 6-551-364-01 TRANSISTOR DTC614TUT106

Q2021 8-729-422-27 TRANSISTOR 2SD601A-Q

Q3007 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q4001 8-729-028-97 TRANSISTOR DTC114TUA-T106

Q4002 8-729-028-97 TRANSISTOR DTC114TUA-T106

Q4011 8-729-907-00 TRANSISTOR DTC114EU

Q4014 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q4016 8-729-028-97 TRANSISTOR DTC114TUA-T106

Q4017 8-729-028-97 TRANSISTOR DTC114TUA-T106

Q4018 8-729-054-36 TRANSISTOR UPA1716G-E2

Q4501 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q4502 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q4503 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q5503 8-729-028-28 TRANSISTOR 2SK2036(TE85L)

Q5505 8-729-028-28 TRANSISTOR 2SK2036(TE85L)

Q5507 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q5624 8-729-907-00 TRANSISTOR DTC114EU

Q5625 8-729-907-00 TRANSISTOR DTC114EU

!

Q7000 8-729-046-04 TRANSISTOR FDS6690A

!

Q7001 6-709-438-01 TRANSISTOR FDS6986AS-NL

!

Q7002 6-709-438-01 TRANSISTOR FDS6986AS-NL

!

Q7003 6-709-438-01 TRANSISTOR FDS6986AS-NL

!

Q7004 6-709-438-01 TRANSISTOR FDS6986AS-NL

Q7800 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q7802 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF

Q7803 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q7804 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q7807 8-729-620-13 TRANSISTOR 2SC4154TP-1EF

Q9100 8-729-600-22 TRANSISTOR 2SA1235-F

Q9101 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

RESISTOR

R1012 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1013 1-218-990-81 SHORT CHIP

R1014 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1015 1-218-990-81 SHORT CHIP

R1016 1-218-990-81 SHORT CHIP

R1021 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1022 1-218-990-81 SHORT CHIP

R1023 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1024 1-218-990-81 SHORT CHIP

R1025 1-218-990-81 SHORT CHIP

R1102 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1103 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1104 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1105 1-218-933-11 RES-CHIP 22 5% 1/16W

R1106 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1107 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1108 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1109 1-218-933-11 RES-CHIP 22 5% 1/16W

R1110 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1111 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1112 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1113 1-218-933-11 RES-CHIP 22 5% 1/16W

R1114 1-218-990-81 SHORT CHIP

R1115 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1116 1-218-990-81 SHORT CHIP

R1117 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1132 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1133 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1134 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1135 1-218-933-11 RES-CHIP 22 5% 1/16W

R1136 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1137 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1138 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1139 1-218-933-11 RES-CHIP 22 5% 1/16W

R1140 1-218-831-11 METAL CHIP 220 0.50% 1/10W

BM

KDL-26M3000/26ML130/32M3000/32ML130

82

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

R1141 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1142 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1143 1-218-933-11 RES-CHIP 22 5% 1/16W

R1144 1-218-990-81 SHORT CHIP

R1145 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1146 1-218-990-81 SHORT CHIP

R1147 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1401 1-216-864-11 SHORT CHIP

R1402 1-218-990-81 SHORT CHIP

R1403 1-218-990-81 SHORT CHIP

R1404 1-218-990-81 SHORT CHIP

R1405 1-218-990-81 SHORT CHIP

R1406 1-218-990-81 SHORT CHIP

R1408 1-216-864-11 SHORT CHIP

R1700 1-218-981-91 RES-CHIP 220K 5% 1/16W

R1701 1-218-981-91 RES-CHIP 220K 5% 1/16W

R1702 1-218-957-11 RES-CHIP 2.2K 5% 1/16W

R1703 1-218-957-11 RES-CHIP 2.2K 5% 1/16W

R1710 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1711 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1712 1-218-953-11 RES-CHIP 1K 5% 1/16W

R1713 1-218-953-11 RES-CHIP 1K 5% 1/16W

R1720 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1721 1-218-985-11 RES-CHIP 470K 5% 1/16W

R1722 1-218-953-11 RES-CHIP 1K 5% 1/16W

R1723 1-218-953-11 RES-CHIP 1K 5% 1/16W

R1726 1-216-864-11 SHORT CHIP

R1727 1-216-864-11 SHORT CHIP

R1728 1-216-864-11 SHORT CHIP

R1822 1-218-990-81 SHORT CHIP

R1832 1-218-990-81 SHORT CHIP

R1833 1-218-990-81 SHORT CHIP

R1836 1-218-990-81 SHORT CHIP

R1839 1-218-990-81 SHORT CHIP

R1842 1-218-990-81 SHORT CHIP

R1845 1-218-990-81 SHORT CHIP

R1848 1-218-990-81 SHORT CHIP

R1850 1-216-809-11 METAL CHIP 100 5% 1/10W

R1859 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1866 1-216-864-11 SHORT CHIP

R1867 1-216-864-11 SHORT CHIP

R1868 1-216-864-11 SHORT CHIP

R1869 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1870 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1871 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1876 1-216-864-11 SHORT CHIP

R1877 1-216-864-11 SHORT CHIP

R1878 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1885 1-216-864-11 SHORT CHIP

R1886 1-216-864-11 SHORT CHIP

R1887 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1894 1-216-864-11 SHORT CHIP

R1914 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1915 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1916 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R1917 1-218-969-11 RES-CHIP 22K 5% 1/16W

R1918 1-218-965-11 RES-CHIP 10K 5% 1/16W

R1919 1-218-941-81 RES-CHIP 100 5% 1/16W

R1920 1-218-839-11 METAL CHIP 470 0.50% 1/10W

R1922 1-218-990-81 SHORT CHIP

R1923 1-218-990-81 SHORT CHIP

R1924 1-216-864-11 SHORT CHIP

R1925 1-216-864-11 SHORT CHIP

R1926 1-216-864-11 SHORT CHIP

R1927 1-216-864-11 SHORT CHIP

R1928 1-216-864-11 SHORT CHIP

R1929 1-216-864-11 SHORT CHIP

R1930 1-216-864-11 SHORT CHIP

R1931 1-216-864-11 SHORT CHIP

R1932 1-216-864-11 SHORT CHIP

R1933 1-216-864-11 SHORT CHIP

R1934 1-216-864-11 SHORT CHIP

R1935 1-216-864-11 SHORT CHIP

R1936 1-216-864-11 SHORT CHIP

R1937 1-216-864-11 SHORT CHIP

R1938 1-216-864-11 SHORT CHIP

R1939 1-216-864-11 SHORT CHIP

R1940 1-216-295-91 SHORT CHIP

R1941 1-216-295-91 SHORT CHIP

R1942 1-216-295-91 SHORT CHIP

R1943 1-216-295-91 SHORT CHIP

R1944 1-216-295-91 SHORT CHIP

R1945 1-216-295-91 SHORT CHIP

R1946 1-216-295-91 SHORT CHIP

R2110 1-208-905-11 METAL CHIP 5.6K 0.50% 1/16W

R2111 1-208-905-11 METAL CHIP 5.6K 0.50% 1/16W

R2112 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2113 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2114 1-216-864-11 SHORT CHIP

R2116 1-216-864-11 SHORT CHIP

BM

KDL-26M3000/26ML130/32M3000/32ML130

83

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

R2117 1-208-687-11 METAL CHIP 1.5K 0.50% 1/16W

R2118 1-208-687-11 METAL CHIP 1.5K 0.50% 1/16W

R2120 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2121 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2122 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2126 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2129 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2130 1-208-697-11 METAL CHIP 3.9K 0.50% 1/16W

R2131 1-208-697-11 METAL CHIP 3.9K 0.50% 1/16W

R2133 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2138 1-218-985-11 RES-CHIP 470K 5% 1/16W

R2139 1-218-985-11 RES-CHIP 470K 5% 1/16W

R2141 1-218-957-11 RES-CHIP 2.2K 5% 1/16W

R2142 1-218-957-11 RES-CHIP 2.2K 5% 1/16W

R2143 1-208-905-11 METAL CHIP 5.6K 0.50% 1/16W

R2145 1-208-905-11 METAL CHIP 5.6K 0.50% 1/16W

R2147 1-218-990-81 SHORT CHIP

R2148 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2149 1-218-969-11 RES-CHIP 22K 5% 1/16W

R2150 1-218-969-11 RES-CHIP 22K 5% 1/16W

R2151 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2153 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2161 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2162 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2163 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2166 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2167 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2168 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R2169 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2170 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2171 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R2176 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2177 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2178 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2179 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2180 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2181 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2184 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2185 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2186 1-216-813-11 METAL CHIP 220 5% 1/10W

R2187 1-216-813-11 METAL CHIP 220 5% 1/10W

R2198 1-218-963-11 RES-CHIP 6.8K 5% 1/16W

R2199 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2200 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2201 1-218-990-81 SHORT CHIP

R2202 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2204 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2205 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2206 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2210 1-208-691-11 METAL CHIP 2.2K 0.50% 1/16W

R2211 1-208-691-11 METAL CHIP 2.2K 0.50% 1/16W

R2212 1-208-711-11 METAL CHIP 15K 0.50% 1/16W

R2213 1-208-711-11 METAL CHIP 15K 0.50% 1/16W

R2214 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2215 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2216 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2217 1-218-977-11 RES-CHIP 100K 5% 1/16W

R2222 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2227 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2228 1-469-083-21 FERRITE 0μH

R2229 1-469-083-21 FERRITE 0μH

R2230 1-220-199-81 RES-CHIP 24K 5% 1/16W

R2231 1-220-199-81 RES-CHIP 24K 5% 1/16W

R2232 1-469-083-21 FERRITE 0μH

R2233 1-469-083-21 FERRITE 0μH

R2234 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2235 1-216-813-11 METAL CHIP 220 5% 1/10W

R2236 1-216-807-11 METAL CHIP 68 5% 1/10W

R2237 1-216-821-11 METAL CHIP 1K 5% 1/10W

R2238 1-216-821-11 METAL CHIP 1K 5% 1/10W

R2239 1-216-821-11 METAL CHIP 1K 5% 1/10W

R2249 1-218-941-81 RES-CHIP 100 5% 1/16W

R2250 1-218-990-81 SHORT CHIP

R2251 1-218-953-11 RES-CHIP 1K 5% 1/16W

R2252 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R2253 1-218-990-81 SHORT CHIP

R2254 1-218-990-81 SHORT CHIP

R2257 1-218-982-11 RES-CHIP 270K 5% 1/16W

R2258 1-218-982-11 RES-CHIP 270K 5% 1/16W

R2259 1-218-982-11 RES-CHIP 270K 5% 1/16W

R2260 1-218-982-11 RES-CHIP 270K 5% 1/16W

R2261 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2262 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2263 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2264 1-218-965-11 RES-CHIP 10K 5% 1/16W

R2265 1-218-950-11 RES-CHIP 560 5% 1/16W

R2266 1-218-950-11 RES-CHIP 560 5% 1/16W

R2267 1-218-950-11 RES-CHIP 560 5% 1/16W

R2268 1-218-950-11 RES-CHIP 560 5% 1/16W

R2269 1-218-941-81 RES-CHIP 100 5% 1/16W

BM

KDL-26M3000/26ML130/32M3000/32ML130

84

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

R2270 1-218-941-81 RES-CHIP 100 5% 1/16W

R2271 1-218-941-81 RES-CHIP 100 5% 1/16W

R2272 1-218-941-81 RES-CHIP 100 5% 1/16W

R2273 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2274 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2275 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2276 1-218-973-11 RES-CHIP 47K 5% 1/16W

R2277 1-218-990-81 SHORT CHIP

R2278 1-218-990-81 SHORT CHIP

R2281 1-208-695-11 METAL CHIP 3.3K 0.50% 1/16W

R2282 1-208-935-11 METAL CHIP 100K 0.50% 1/16W

R2283 1-218-990-81 SHORT CHIP

R3010 1-218-990-81 SHORT CHIP

R3031 1-208-931-11 METAL CHIP 68K 0.50% 1/16W

R3034 1-208-703-11 METAL CHIP 6.8K 0.50% 1/16W

R3037 1-208-711-11 METAL CHIP 15K 0.50% 1/16W

R3073 1-218-990-81 SHORT CHIP

R3087 1-218-990-81 SHORT CHIP

R3101 1-218-959-11 RES-CHIP 3.3K 5% 1/16W

R3146 1-218-941-81 RES-CHIP 100 5% 1/16W

R3180 1-218-965-11 RES-CHIP 10K 5% 1/16W

R3190 1-208-886-81 METAL CHIP 910 0.50% 1/16W

R3201 1-218-990-81 SHORT CHIP

R3218 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R3223 1-218-945-11 RES-CHIP 220 5% 1/16W

R3243 1-218-941-81 RES-CHIP 100 5% 1/16W

R3247 1-218-990-81 SHORT CHIP

R3249 1-218-935-11 RES-CHIP 33 5% 1/16W

R3255 1-400-591-22 FERRITE 0μH

R3256 1-400-591-22 FERRITE 0μH

R3257 1-400-591-22 FERRITE 0μH

R3258 1-400-591-22 FERRITE 0μH

R3260 1-400-591-22 FERRITE 0μH

R3261 1-400-591-22 FERRITE 0μH

R3262 1-400-591-22 FERRITE 0μH

R3264 1-400-591-22 FERRITE 0μH

R3265 1-400-591-22 FERRITE 0μH

R3267 1-216-864-11 SHORT CHIP

R3270 1-218-941-81 RES-CHIP 100 5% 1/16W

R3515 1-216-833-11 METAL CHIP 10K 5% 1/10W

R3516 1-216-809-11 METAL CHIP 100 5% 1/10W

R3517 1-218-989-11 RES-CHIP 1M 5% 1/16W

R3519 1-216-809-11 METAL CHIP 100 5% 1/10W

R3524 1-218-990-81 SHORT CHIP

R3526 1-216-864-11 SHORT CHIP

R3527 1-218-941-81 RES-CHIP 100 5% 1/16W

R3528 1-218-990-81 SHORT CHIP

R3533 1-216-864-11 SHORT CHIP

R3534 1-216-864-11 SHORT CHIP

R3539 1-218-990-81 SHORT CHIP

R3541 1-218-990-81 SHORT CHIP

R4002 1-218-977-11 RES-CHIP 100K 5% 1/16W

R4006 1-218-977-11 RES-CHIP 100K 5% 1/16W

R4007 1-218-979-11 RES-CHIP 150K 5% 1/16W

R4008 1-218-965-11 RES-CHIP 10K 5% 1/16W

R4013 1-218-977-11 RES-CHIP 100K 5% 1/16W

R4042 1-218-977-11 RES-CHIP 100K 5% 1/16W

R4043 1-218-979-11 RES-CHIP 150K 5% 1/16W

R4045 1-216-864-11 SHORT CHIP

R4047 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R4048 1-218-839-11 METAL CHIP 470 0.50% 1/10W

R4050 1-218-971-11 RES-CHIP 33K 5% 1/16W

R4058 1-216-833-11 METAL CHIP 10K 5% 1/10W

R4060 1-216-833-11 METAL CHIP 10K 5% 1/10W

R4061 1-218-983-11 RES-CHIP 330K 5% 1/16W

R4063 1-218-963-11 RES-CHIP 6.8K 5% 1/16W

R4064 1-218-965-11 RES-CHIP 10K 5% 1/16W

R4065 1-218-971-11 RES-CHIP 33K 5% 1/16W

R4067 1-218-990-81 SHORT CHIP

R4545 1-218-665-11 METAL CHIP 75 0.50% 1/10W

R4546 1-218-665-11 METAL CHIP 75 0.50% 1/10W

R4547 1-218-665-11 METAL CHIP 75 0.50% 1/10W

R4551 1-216-864-11 SHORT CHIP

R4552 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R4553 1-218-289-11 METAL CHIP 510 5% 1/10W

R4554 1-216-833-11 METAL CHIP 10K 5% 1/10W

R4555 1-216-833-11 METAL CHIP 10K 5% 1/10W

R4556 1-216-801-11 METAL CHIP 22 5% 1/10W

R4557 1-216-801-11 METAL CHIP 22 5% 1/10W

R4558 1-216-801-11 METAL CHIP 22 5% 1/10W

R4559 1-216-801-11 METAL CHIP 22 5% 1/10W

R4560 1-218-969-11 RES-CHIP 22K 5% 1/16W

R4561 1-218-969-11 RES-CHIP 22K 5% 1/16W

R4562 1-218-969-11 RES-CHIP 22K 5% 1/16W

R4563 1-218-969-11 RES-CHIP 22K 5% 1/16W

R4564 1-218-969-11 RES-CHIP 22K 5% 1/16W

R4565 1-218-969-11 RES-CHIP 22K 5% 1/16W

R4575 1-216-864-11 SHORT CHIP

R4576 1-216-864-11 SHORT CHIP

R4577 1-216-864-11 SHORT CHIP

BM

KDL-26M3000/26ML130/32M3000/32ML130

85

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

R4578 1-208-675-11 METAL CHIP 470 0.50% 1/16W

R4579 1-208-675-11 METAL CHIP 470 0.50% 1/16W

R4580 1-208-675-11 METAL CHIP 470 0.50% 1/16W

R5012 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R5013 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R5014 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R5015 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R5016 1-218-953-11 RES-CHIP 1K 5% 1/16W

R5017 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R5018 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R5019 1-218-977-11 RES-CHIP 100K 5% 1/16W

R5029 1-218-933-11 RES-CHIP 22 5% 1/16W

R5030 1-218-933-11 RES-CHIP 22 5% 1/16W

R5501 1-218-929-11 RES-CHIP 10 5% 1/16W

R5504 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R5505 1-218-929-11 RES-CHIP 10 5% 1/16W

R5512 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R5513 1-218-941-81 RES-CHIP 100 5% 1/16W

R5514 1-218-941-81 RES-CHIP 100 5% 1/16W

R5519 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R5521 1-218-973-11 RES-CHIP 47K 5% 1/16W

R5525 1-218-973-11 RES-CHIP 47K 5% 1/16W

R5527 1-218-941-81 RES-CHIP 100 5% 1/16W

R5528 1-218-941-81 RES-CHIP 100 5% 1/16W

R5529 1-218-973-11 RES-CHIP 47K 5% 1/16W

R5530 1-218-941-81 RES-CHIP 100 5% 1/16W

R5534 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R5535 1-218-973-11 RES-CHIP 47K 5% 1/16W

R5536 1-218-973-11 RES-CHIP 47K 5% 1/16W

R5538 1-218-973-11 RES-CHIP 47K 5% 1/16W

R5539 1-218-990-81 SHORT CHIP

R5543 1-218-941-81 RES-CHIP 100 5% 1/16W

R5557 1-218-990-81 SHORT CHIP

R5580 1-216-295-91 SHORT CHIP

R5622 1-218-965-11 RES-CHIP 10K 5% 1/16W

R5637 1-218-990-81 SHORT CHIP

R5638 1-218-990-81 SHORT CHIP

R5642 1-216-864-11 SHORT CHIP

R5644 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R5645 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R5648 1-216-864-11 SHORT CHIP

R5658 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R5660 1-218-990-81 SHORT CHIP

R5671 1-218-941-81 RES-CHIP 100 5% 1/16W

R7000 1-216-821-11 METAL CHIP 1K 5% 1/10W

R7001 1-216-815-11 METAL CHIP 330 5% 1/10W

R7002 1-216-821-11 METAL CHIP 1K 5% 1/10W

R7003 1-216-821-11 METAL CHIP 1K 5% 1/10W

R7004 1-216-841-11 METAL CHIP 47K 5% 1/10W

R7005 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W

R7006 1-218-861-11 METAL CHIP 3.9K 0.50% 1/10W

R7007 1-218-847-11 METAL CHIP 1K 0.50% 1/10W

R7008 1-218-873-11 METAL CHIP 12K 0.50% 1/10W

R7009 1-218-891-11 METAL CHIP 68K 0.50% 1/10W

R7010 1-218-911-11 METAL CHIP 470K 0.50% 1/10W

R7012 1-216-295-91 SHORT CHIP

R7016 1-216-295-91 SHORT CHIP

R7017 1-469-553-21 INDUCTOR 4.7μH

R7018 1-208-935-11 METAL CHIP 100K 0.50% 1/16W

R7019 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7020 1-218-990-81 SHORT CHIP

R7021 1-218-990-81 SHORT CHIP

R7022 1-216-820-11 METAL CHIP 820 5% 1/10W

R7023 1-216-819-11 METAL CHIP 680 5% 1/10W

R7024 1-218-941-81 RES-CHIP 100 5% 1/16W

R7025 1-208-936-11 METAL CHIP 110K 0.50% 1/16W

R7026 1-208-935-11 METAL CHIP 100K 0.50% 1/16W

R7027 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7028 1-208-956-81 METAL CHIP 750K 0.50% 1/16W

R7029 1-218-990-81 SHORT CHIP

R7030 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R7032 1-218-990-81 SHORT CHIP

R7034 1-218-977-11 RES-CHIP 100K 5% 1/16W

R7035 1-208-695-11 METAL CHIP 3.3K 0.50% 1/16W

R7036 1-218-982-11 RES-CHIP 270K 5% 1/16W

R7037 1-208-687-11 METAL CHIP 1.5K 0.50% 1/16W

R7038 1-208-923-11 METAL CHIP 33K 0.50% 1/16W

R7039 1-208-923-11 METAL CHIP 33K 0.50% 1/16W

R7040 1-208-923-11 METAL CHIP 33K 0.50% 1/16W

R7041 1-208-927-11 METAL CHIP 47K 0.50% 1/16W

R7042 1-218-982-11 RES-CHIP 270K 5% 1/16W

R7043 1-208-923-11 METAL CHIP 33K 0.50% 1/16W

R7044 1-208-929-81 METAL CHIP 56K 0.50% 1/16W

R7045 1-208-923-11 METAL CHIP 33K 0.50% 1/16W

R7046 1-208-923-11 METAL CHIP 33K 0.50% 1/16W

R7047 1-208-691-11 METAL CHIP 2.2K 0.50% 1/16W

R7048 1-218-941-81 RES-CHIP 100 5% 1/16W

R7049 1-208-691-11 METAL CHIP 2.2K 0.50% 1/16W

R7050 1-218-941-81 RES-CHIP 100 5% 1/16W

R7051 1-218-941-81 RES-CHIP 100 5% 1/16W

BM

KDL-26M3000/26ML130/32M3000/32ML130

86

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

R7052 1-208-691-11 METAL CHIP 2.2K 0.50% 1/16W

R7053 1-218-941-81 RES-CHIP 100 5% 1/16W

R7054 1-208-691-11 METAL CHIP 2.2K 0.50% 1/16W

R7055 1-208-935-11 METAL CHIP 100K 0.50% 1/16W

R7056 1-208-935-11 METAL CHIP 100K 0.50% 1/16W

R7057 1-208-935-11 METAL CHIP 100K 0.50% 1/16W

R7058 1-208-935-11 METAL CHIP 100K 0.50% 1/16W

R7059 1-218-937-11 RES-CHIP 47 5% 1/16W

R7060 1-218-937-11 RES-CHIP 47 5% 1/16W

R7061 1-218-937-11 RES-CHIP 47 5% 1/16W

R7062 1-218-937-11 RES-CHIP 47 5% 1/16W

R7063 1-216-864-11 SHORT CHIP

R7064 1-216-864-11 SHORT CHIP

R7065 1-208-911-11 METAL CHIP 10K 0.50% 1/16W

R7066 1-208-709-11 METAL CHIP 12K 0.50% 1/16W

R7067 1-208-911-11 METAL CHIP 10K 0.50% 1/16W

R7068 1-208-911-11 METAL CHIP 10K 0.50% 1/16W

R7069 1-216-295-91 SHORT CHIP

R7070 1-216-295-91 SHORT CHIP

R7071 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R7072 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R7073 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R7074 1-216-791-11 METAL CHIP 3.3 5% 1/10W

R7079 1-216-295-91 SHORT CHIP

R7080 1-216-295-91 SHORT CHIP

R7081 1-216-295-91 SHORT CHIP

R7082 1-216-295-91 SHORT CHIP

R7089 1-216-295-91 SHORT CHIP

R7092 1-218-990-81 SHORT CHIP

R7200 1-218-989-11 RES-CHIP 1M 5% 1/16W

R7201 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R7202 1-218-990-81 SHORT CHIP

R7203 1-218-941-81 RES-CHIP 100 5% 1/16W

R7301 1-216-864-11 SHORT CHIP

R7302 1-216-864-11 SHORT CHIP

R7307 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7317 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R7318 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R7327 1-218-977-11 RES-CHIP 100K 5% 1/16W

R7328 1-218-959-11 RES-CHIP 3.3K 5% 1/16W

R7329 1-216-835-11 METAL CHIP 15K 5% 1/10W

R7330 1-218-959-11 RES-CHIP 3.3K 5% 1/16W

R7331 1-216-835-11 METAL CHIP 15K 5% 1/10W

R7332 1-216-835-11 METAL CHIP 15K 5% 1/10W

R7333 1-216-835-11 METAL CHIP 15K 5% 1/10W

R7334 1-216-864-11 SHORT CHIP

R7335 1-216-864-11 SHORT CHIP

R7337 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7400 1-208-911-11 METAL CHIP 10K 0.50% 1/16W

R7401 1-208-855-81 METAL CHIP 47 0.50% 1/16W

R7402 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R7403 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R7404 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R7405 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R7406 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R7407 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R7408 1-208-683-11 METAL CHIP 1K 0.50% 1/16W

R7501 1-218-957-11 RES-CHIP 2.2K 5% 1/16W

R7502 1-218-990-81 SHORT CHIP

R7505 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7506 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7508 1-218-977-11 RES-CHIP 100K 5% 1/16W

R7509 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7511 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7513 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7517 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7521 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7526 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7528 1-218-953-11 RES-CHIP 1K 5% 1/16W

R7529 1-218-977-11 RES-CHIP 100K 5% 1/16W

R7532 1-218-990-81 SHORT CHIP

R7533 1-218-446-11 METAL CHIP 1 5% 1/10W

R7535 1-218-990-81 SHORT CHIP

R7541 1-218-990-81 SHORT CHIP

R7542 1-218-990-81 SHORT CHIP

R7544 1-218-990-81 SHORT CHIP

R7607 1-218-933-11 RES-CHIP 22 5% 1/16W

R7608 1-218-973-11 RES-CHIP 47K 5% 1/16W

R7609 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7610 1-218-953-11 RES-CHIP 1K 5% 1/16W

R7611 1-218-933-11 RES-CHIP 22 5% 1/16W

R7703 1-218-990-81 SHORT CHIP

R7705 1-218-941-81 RES-CHIP 100 5% 1/16W

R7706 1-218-935-11 RES-CHIP 33 5% 1/16W

R7710 1-218-935-11 RES-CHIP 33 5% 1/16W

R7712 1-218-935-11 RES-CHIP 33 5% 1/16W

R7714 1-218-953-11 RES-CHIP 1K 5% 1/16W

R7715 1-218-953-11 RES-CHIP 1K 5% 1/16W

R7716 1-218-935-11 RES-CHIP 33 5% 1/16W

R7717 1-218-935-11 RES-CHIP 33 5% 1/16W

BM

KDL-26M3000/26ML130/32M3000/32ML130

87

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

R7800 1-218-953-11 RES-CHIP 1K 5% 1/16W

R7808 1-218-949-11 RES-CHIP 470 5% 1/16W

R7814 1-218-941-81 RES-CHIP 100 5% 1/16W

R7819 1-218-941-81 RES-CHIP 100 5% 1/16W

R7821 1-218-969-11 RES-CHIP 22K 5% 1/16W

R7822 1-218-969-11 RES-CHIP 22K 5% 1/16W

R7829 1-218-961-11 RES-CHIP 4.7K 5% 1/16W

R7831 1-218-989-11 RES-CHIP 1M 5% 1/16W

R7834 1-218-957-11 RES-CHIP 2.2K 5% 1/16W

R7836 1-218-990-81 SHORT CHIP

R7838 1-218-958-11 RES-CHIP 2.7K 5% 1/16W

R7839 1-208-697-11 METAL CHIP 3.9K 0.50% 1/16W

R7840 1-218-953-11 RES-CHIP 1K 5% 1/16W

R7842 1-218-953-11 RES-CHIP 1K 5% 1/16W

R7843 1-208-663-11 METAL CHIP 150 0.50% 1/16W

R7844 1-208-893-11 METAL CHIP 1.8K 0.50% 1/16W

R7845 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7847 1-218-941-11 RES-CHIP 100 5% 1/16W

R7848 1-218-989-11 RES-CHIP 1M 5% 1/16W

R7849 1-208-715-11 METAL CHIP 22K 0.50% 1/16W

R7851 1-218-959-11 RES-CHIP 3.3K 5% 1/16W

R7852 1-218-978-11 RES-CHIP 120K 5% 1/16W

R7853 1-218-965-11 RES-CHIP 10K 5% 1/16W

R7868 1-208-893-11 METAL CHIP 1.8K 0.50% 1/16W

R7869 1-218-941-81 RES-CHIP 100 5% 1/16W

R7964 1-218-969-11 RES-CHIP 22K 5% 1/16W

R7965 1-208-928-11 METAL CHIP 51K 0.50% 1/16W

R7967 1-218-941-81 RES-CHIP 100 5% 1/16W

R7969 1-208-928-11 METAL CHIP 51K 0.50% 1/16W

R7970 1-218-969-11 RES-CHIP 22K 5% 1/16W

R7971 1-218-941-81 RES-CHIP 100 5% 1/16W

R7972 1-218-959-11 RES-CHIP 3.3K 5% 1/16W

R7973 1-218-959-11 RES-CHIP 3.3K 5% 1/16W

R7974 1-218-941-81 RES-CHIP 100 5% 1/16W

R7975 1-218-941-81 RES-CHIP 100 5% 1/16W

R7976 1-208-871-81 METAL CHIP 220 0.50% 1/16W

R7977 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R7979 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R7982 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R7983 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R7984 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R7987 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R7988 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R9109 1-216-833-11 METAL CHIP 10K 5% 1/10W

R9110 1-216-801-11 METAL CHIP 22 5% 1/10W

R9111 1-216-821-11 METAL CHIP 1K 5% 1/10W

R9117 1-216-864-11 SHORT CHIP

R9139 1-216-803-11 METAL CHIP 33 5% 1/10W

R9146 1-216-864-11 SHORT CHIP

R9153 1-216-864-11 SHORT CHIP

R9154 1-216-864-11 SHORT CHIP

R9159 1-216-845-11 METAL CHIP 100K 5% 1/10W

R9163 1-216-821-11 METAL CHIP 1K 5% 1/10W

R9165 1-216-821-11 METAL CHIP 1K 5% 1/10W

R9166 1-216-833-11 METAL CHIP 10K 5% 1/10W

R9167 1-216-821-11 METAL CHIP 1K 5% 1/10W

R9169 1-216-821-11 METAL CHIP 1K 5% 1/10W

R9177 1-218-990-81 SHORT CHIP

R9178 1-218-990-81 SHORT CHIP

R9179 1-218-941-81 RES-CHIP 100 5% 1/16W

R9184 1-218-990-81 SHORT CHIP

R9185 1-218-990-81 SHORT CHIP

R9186 1-216-864-11 SHORT CHIP

R9187 1-216-864-11 SHORT CHIP

R9190 1-216-864-11 SHORT CHIP

R9193 1-216-864-11 SHORT CHIP

R9196 1-218-990-81 SHORT CHIP

RESISTOR BRIDGE

RB002 1-234-106-81 RES, NETWORK 0

RB1001 1-234-106-81 RES, NETWORK 0

RB1002 1-234-106-81 RES, NETWORK 0

RB1003 1-234-106-81 RES, NETWORK 0

RB1004 1-234-106-81 RES, NETWORK 0

RB1005 1-234-106-81 RES, NETWORK 0

RB1006 1-234-106-81 RES, NETWORK 0

RB1007 1-234-106-81 RES, NETWORK 0

RB1008 1-234-106-81 RES, NETWORK 0

RB1009 1-234-106-81 RES, NETWORK 0

RB1010 1-234-106-81 RES, NETWORK 0

RB1011 1-234-106-81 RES, NETWORK 0

RB2001 1-234-381-21 RES, NETWORK 100K (1005X4)

RB2002 1-234-380-21 RES, NETWORK 47K (1005X4)

RB2003 1-234-380-21 RES, NETWORK 47K (1005X4)

RB2004 1-239-674-81 RESISTOR, NETWORK 100

RB2005 1-234-370-21 RES, NETWORK 22 (1005X4)

RB2006 1-234-370-21 RES, NETWORK 22 (1005X4)

RB3014 1-239-698-11 RESISTOR, NETWORK 10K

RB3015 1-239-670-81 RESISTOR, NETWORK 47

BM

KDL-26M3000/26ML130/32M3000/32ML130

88

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

RB3017 1-239-674-81 RESISTOR, NETWORK 100

RB3018 1-239-698-11 RESISTOR, NETWORK 10K

RB3021 1-239-674-81 RESISTOR, NETWORK 100

RB3024 1-239-674-81 RESISTOR, NETWORK 100

RB3025 1-239-698-11 RESISTOR, NETWORK 10K

RB3026 1-239-670-81 RESISTOR, NETWORK 47

RB3027 1-239-674-81 RESISTOR, NETWORK 100

RB4512 1-234-370-21 RES, NETWORK 22 (1005X4)

RB4513 1-234-370-21 RES, NETWORK 22 (1005X4)

RB4514 1-234-370-21 RES, NETWORK 22 (1005X4)

RB4515 1-234-370-21 RES, NETWORK 22 (1005X4)

RB4516 1-234-370-21 RES, NETWORK 22 (1005X4)

RB4517 1-234-370-21 RES, NETWORK 22 (1005X4)

RB4518 1-234-370-21 RES, NETWORK 22 (1005X4)

RB4519 1-239-674-81 RESISTOR, NETWORK 100

RB5001 1-239-698-11 RESISTOR, NETWORK 10K

RB5002 1-239-670-81 RESISTOR, NETWORK 47

RB5501 1-234-106-81 RES, NETWORK 0

RB5503 1-234-106-81 RES, NETWORK 0

RB5504 1-234-370-21 RES, NETWORK 22 (1005X4)

RB5505 1-234-369-21 RES, NETWORK 10 (1005X4)

RB5506 1-234-369-21 RES, NETWORK 10 (1005X4)

RB5507 1-234-369-21 RES, NETWORK 10 (1005X4)

RB5508 1-234-369-21 RES, NETWORK 10 (1005X4)

RB5509 1-234-369-21 RES, NETWORK 10 (1005X4)

RB5510 1-234-369-21 RES, NETWORK 10 (1005X4)

RB7200 1-234-795-21 RES, NETWORK 0X4 (2010)

RB7201 1-234-795-21 RES, NETWORK 0X4 (2010)

RB7202 1-234-795-21 RES, NETWORK 0X4 (2010)

RB7204 1-239-674-81 RESISTOR, NETWORK 100

RB7205 1-239-674-81 RESISTOR, NETWORK 100

RB7206 1-234-106-81 RES, NETWORK 0

RB7207 1-234-106-81 RES, NETWORK 0

RB7208 1-239-674-81 RESISTOR, NETWORK 100

RB7605 1-234-370-21 RES, NETWORK 22 (1005X4)

RB7607 1-234-378-21 RES, NETWORK 10K (1005X4)

RB7701 1-239-674-81 RESISTOR, NETWORK 100

RB7703 1-233-789-11 RES, NETWORK 10K (1608)

RB9021 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9022 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9023 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9024 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9025 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9026 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9027 1-242-963-21 RES, NETWORK 33 (1005X4)

RB9106 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9107 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9108 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9109 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9110 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9111 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9112 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9113 1-234-524-21 RES, CHIP NETWORK 33 (3216)

RB9115 1-239-674-81 RESISTOR, NETWORK 100

VARISTOR

VD1001 1-802-078-11 VARISTOR (SMD)

VD1002 1-802-078-11 VARISTOR (SMD)

VD1003 1-802-078-11 VARISTOR (SMD)

VD1004 1-802-078-11 VARISTOR (SMD)

VD1100 1-804-988-21 VARISTOR, CHIP (1608)

VD1101 1-804-988-21 VARISTOR, CHIP (1608)

VD1102 1-804-988-21 VARISTOR, CHIP (1608)

VD1106 1-802-078-11 VARISTOR (SMD)

VD1107 1-802-078-11 VARISTOR (SMD)

VD1108 1-802-078-11 VARISTOR (SMD)

VD1109 1-802-078-11 VARISTOR (SMD)

VD1130 1-804-988-21 VARISTOR, CHIP (1608)

VD1131 1-804-988-21 VARISTOR, CHIP (1608)

VD1132 1-804-988-21 VARISTOR, CHIP (1608)

VD1700 1-802-082-11 VARISTOR (SMD)

VD1701 1-802-082-11 VARISTOR (SMD)

VD1710 1-802-078-11 VARISTOR (SMD)

VD1711 1-802-078-11 VARISTOR (SMD)

VD1720 1-802-078-11 VARISTOR (SMD)

VD1721 1-802-078-11 VARISTOR (SMD)

VD5002 1-802-078-11 VARISTOR (SMD)

VD5003 1-802-078-11 VARISTOR (SMD)

VD5004 1-802-078-11 VARISTOR (SMD)

VD5005 1-802-078-11 VARISTOR (SMD)

VD5006 1-802-078-11 VARISTOR (SMD)

VD5503 1-802-417-11 SURGE ABSORBER

VD5504 1-802-417-11 SURGE ABSORBER

VD5507 1-802-417-11 SURGE ABSORBER

VD5510 1-802-417-11 SURGE ABSORBER

VD5511 1-802-417-11 SURGE ABSORBER

VD5512 1-802-417-11 SURGE ABSORBER

VD5514 1-802-417-11 SURGE ABSORBER

VD5515 1-802-417-11 SURGE ABSORBER

VD5518 1-802-417-11 SURGE ABSORBER

VD5519 1-802-417-11 SURGE ABSORBER

BM

KDL-26M3000/26ML130/32M3000/32ML130

89

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

VD5520 1-802-417-11 SURGE ABSORBER

VD5522 1-802-417-11 SURGE ABSORBER

VD5523 1-802-417-11 SURGE ABSORBER

VD5524 1-802-417-11 SURGE ABSORBER

VD5526 1-802-417-11 SURGE ABSORBER

VD5527 1-802-417-11 SURGE ABSORBER

CRYSTAL

X3009 1-813-784-21 VIBRATOR, CRYSTAL

X3010 1-767-984-21 VIBRATOR, CRYSTAL

X7200 1-813-761-21 VIBRATOR, CRYSTAL

X9100 1-813-546-21 QUARTZ CRISTAL OSCILLATOR

G1M

A-1315-710-A G1M BOARD, MOUNTED

2-409-877-21 WASHER (3X10), RS TITE SPRING

CAPACITOR

C6101 1-113-924-11 CERAMIC 0.0047μF 20% 250V

C6102 1-119-884-51 CERAMIC 100pF 10% 250V

C6103 1-119-891-51 CERAMIC 220pF 10% 250V

C6104 1-117-697-41 CERAMIC 470pF 10% 250V

C6105 1-165-529-11 MYLAR 0.22μF 10 275V

C6106 1-165-529-11 MYLAR 0.22μF 10 275V

C6107 1-119-884-51 CERAMIC 100pF 10% 250V

C6108 1-119-891-51 CERAMIC 220pF 10% 250V

C6109 1-117-697-41 CERAMIC 470pF 10% 250V

C6110 1-113-924-11 CERAMIC 0.0047μF 20% 250V

C6111 1-117-699-11 CERAMIC 0.001μF 99% 250V

C6112 1-162-966-11 CERAMIC CHIP 0.0022μF 10% 50V

C6114 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C6115 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C6117 1-107-823-11 CERAMIC CHIP 0.47μF 10% 16V

C6119 1-107-875-91 ELECT 220μF 20% 10V

C6121 1-115-339-11 CERAMIC CHIP 0.1μF 10% 50V

C6122 1-107-906-11 ELECT 10μF 20% 50V

C6123 1-165-127-11 CERAMIC 470pF 10% 500V

C6124 1-165-127-11 CERAMIC 470pF 10% 500V

C6125 1-165-127-11 CERAMIC 470pF 10% 500V

C6126 1-165-127-11 CERAMIC 470pF 10% 500V

C6127 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C6129 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C6130 1-165-176-11 CERAMIC CHIP 0.047μF 10% 16V

C6131 1-115-412-11 CERAMIC CHIP 680pF 5% 25V

C6132 1-107-906-11 ELECT 10μF 20% 50V

C6133 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C6134 1-107-907-11 ELECT 22μF 20% 50V

C6135 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C6136 1-163-021-91 CERAMIC CHIP 0.01μF 10% 50V

C6137 1-107-910-11 ELECT 100μF 20% 50V

C6138 1-115-339-11 CERAMIC CHIP 0.1μF 10% 50V

C6139 1-164-227-11 CERAMIC CHIP 0.022μF 10% 25V

C6142 1-104-962-91 ELECT 47μF 20% 35V

C6143 1-115-340-11 CERAMIC CHIP 0.22μF 10% 25V

C6145 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C6146 1-162-927-11 CERAMIC CHIP 100pF 5% 50V

C6147 1-107-905-11 ELECT 4.7μF 20% 50V

C6148 1-165-127-11 CERAMIC 470pF 10% 500V

C6149 1-107-903-11 ELECT 2.2μF 20% 50V

C6151 1-165-127-11 CERAMIC 470pF 10% 500V

C6152 1-137-807-31 ELECT 100μF 20% 50V

C6153 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

C6158 1-162-970-11 CERAMIC CHIP 0.01μF 10% 25V

C6160 1-163-021-91 CERAMIC CHIP 0.01μF 10% 50V

C6165 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C6166 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C6201 1-127-715-91 CERAMIC CHIP 0.22μF 10% 16V

C6202 1-112-208-21 ELECT 470μF 20% 6.3V

C6203 1-164-227-11 CERAMIC CHIP 0.022μF 10% 25V

C6204 1-112-254-21 ELECT 1000μF 20% 35V

C6205 1-112-254-21 ELECT 1000μF 20% 35V

C6206 1-112-835-11 ELECT 3300μF 20% 25V

C6208 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C6210 1-127-573-11 CERAMIC CHIP 1μF 10% 16V

C6212 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C6251 1-112-208-21 ELECT 470μF 20% 6.3V

C6252 1-112-242-21 ELECT 1500μF 20% 25V

C6254 1-117-699-11 CERAMIC 0.001μF 99% 250V

C6255 1-137-198-81 FILM 1μF 5% 50V

C6256 1-100-591-91 CERAMIC CHIP 1μF 10% 25V

C6257 1-100-591-91 CERAMIC CHIP 1μF 10% 25V

C6258 1-100-591-91 CERAMIC CHIP 1μF 10% 25V

C6259 1-100-597-91 CERAMIC CHIP 0.1μF 10% 25V

C6260 1-112-222-21 ELECT 2200μF 20% 10V

C6261 1-112-222-21 ELECT 2200μF 20% 10V

G1MBM

KDL-26M3000/26ML130/32M3000/32ML130

90

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: Les composants identiﬁ es per un trame et une

marque

!

sont critiques pour la securite. Ne les remplacer

que par une piece portant le numero speciﬁ e.

CONNECTOR

CN6101 1-695-915-11 TAB (CONTACT)

CN6102 1-580-843-11 PIN, CONNECTOR (POWER)

* CN6201 1-785-708-11 PIN, CONNECTOR (PC BOARD) 12P

* CN6202 1-793-236-11 PIN, CONNECTOR (PC BOARD) 14P

DIODE

D6101 8-719-510-53 DIODE D4SB60L

D6102 8-719-081-97 DIODE MMDL914T1

D6103 6-500-567-01 DIODE 10ERB20-TA1B2

D6104 6-500-567-01 DIODE 10ERB20-TA1B2

D6105 8-719-081-97 DIODE MMDL914T1

D6106 8-719-081-97 DIODE MMDL914T1

D6107 8-719-027-76 DIODE 1SS357-TPH3

D6108 8-719-081-97 DIODE MMDL914T1

D6109 8-719-054-59 DIODE FSF05A60

D6110 8-719-976-99 DIODE DTZ5.1B

D6111 8-719-081-97 DIODE MMDL914T1

D6112 6-500-335-01 DIODE MC2838-T112-1

D6113 8-719-081-97 DIODE MMDL914T1

D6114 8-719-081-97 DIODE MMDL914T1

D6115 8-719-081-97 DIODE MMDL914T1

!

D6116 6-501-906-01 DIODE 11EQS03LN-TB5

D6119 8-719-027-76 DIODE 1SS357-TPH3

D6120 6-500-448-11 DIODE D1NF60-TA

!

D6121 6-501-906-01 DIODE 11EQS03LN-TB5

D6122 8-719-082-03 DIODE MM3Z15VT1

D6127 8-719-056-83 DIODE UDZ-TE-17-6.8B

D6128 8-719-081-97 DIODE MMDL914T1

D6129 6-501-297-11 DIODE 1F6G-TA26

D6132 8-719-081-97 DIODE MMDL914T1

D6133 6-501-450-11 DIODE 11EFS4-TB5

D6134 6-501-822-11 DIODE 10ERB60-TB5

D6135 6-500-600-01 DIODE MM3Z3V3T1

!

D6136 8-719-931-47 DIODE HZS27NTD

D6137 6-500-021-01 DIODE MM3Z4V7ST1

D6138 8-719-081-97 DIODE MMDL914T1

D6139 6-500-567-21 DIODE 10ERB20-TB5

D6140 6-500-021-01 DIODE MM3Z4V7ST1

D6141 8-719-081-97 DIODE MMDL914T1

D6201 8-719-200-31 DIODE 21DQ05

D6202 8-719-082-75 DIODE FCH08A10

D6203 8-719-082-75 DIODE FCH08A10

D6204 6-501-319-01 DIODE FCQ10A06

D6205 6-501-319-01 DIODE FCQ10A06

D6206 6-500-555-01 DIODE MM3Z27VT1

D6209 8-719-081-97 DIODE MMDL914T1

D6210 8-719-082-03 DIODE MM3Z15VT1

D6211 6-501-319-01 DIODE FCQ10A06

D6212 8-719-312-10 DIODE RU4AM-T3

ET6101 1-537-770-21 TERMINAL BOARD, GROUND

IC

IC6101 6-709-192-01 IC FA5501AN-D1-TE1

!

IC6104 6-707-749-01 IC CXD9841P

!

IC6105 6-708-801-01 IC MIP2H2

IC6201 6-709-155-01 IC TS3431BILT

IC6203 6-700-898-01 IC PQ05RD21J00H

CHIP CONDUCTOR

JR6239 1-216-864-11 SHORT CHIP

IC LINK

PS6201 1-533-597-41 IC LINK 5A 90V

!

PS6202 1-533-597-41 IC LINK 5A 90V

!

PS6203 1-533-596-21 IC LINK 4A 90V

TRANSISTOR

Q6102 8-729-141-48 TRANSISTOR 2SB624-BV345

!

Q6103 6-551-303-01 TRANSISTOR 2SK3683-01MR-F111

Q6104 8-729-045-62 TRANSISTOR 2SK2158-T2B

Q6105 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q6106 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

Q6107 8-729-920-79 TRANSISTOR 2SB1132-T100-QR

Q6108 8-729-027-43 TRANSISTOR DTC114EKA-T146

!

Q6109 6-551-302-01 TRANSISTOR 2SK3561(LBS1SONY,Q

!

Q6110 6-551-302-01 TRANSISTOR 2SK3561(LBS1SONY,Q

Q6111 8-729-045-62 TRANSISTOR 2SK2158-T2B

Q6112 8-729-045-62 TRANSISTOR 2SK2158-T2B

Q6201 8-729-045-62 TRANSISTOR 2SK2158-T2B

Q6202 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF

Q6203 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF

RESISTOR

!

R6101 1-240-251-92 METAL 6.8 5% 10W

R6102 1-240-576-21 METAL CHIP 470K 1% 1/10W

R6103 1-240-576-21 METAL CHIP 470K 1% 1/10W

R6106 1-218-877-11 METAL CHIP 18K 0.50% 1/10W

R6107 1-216-073-91 RES-CHIP 10K 5% 1/10W

G1M

KDL-26M3000/26ML130/32M3000/32ML130

91

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

NOTE: The components identiﬁ ed by shading

and

!

mark are critical for safety. Replace only

with part number speciﬁ ed.

NOTE: Les composants identiﬁ es per un trame et une

marque

!

sont critiques pour la securite. Ne les remplacer

que par une piece portant le numero speciﬁ e.

R6108 1-240-576-21 METAL CHIP 470K 1% 1/10W

R6109 1-240-576-21 METAL CHIP 470K 1% 1/10W

R6113 1-215-869-11 METAL OXIDE 1K 5% 1W

R6114 1-216-077-91 RES-CHIP 15K 5% 1/10W

R6115 1-249-397-11 CARBON 22 5% 1/4W

R6117 1-216-817-11 METAL CHIP 470 5% 1/10W

R6118 1-216-851-11 METAL CHIP 330K 5% 1/10W

R6119 1-216-837-11 METAL CHIP 22K 5% 1/10W

R6120 1-216-845-11 METAL CHIP 100K 5% 1/10W

R6121 1-249-397-11 CARBON 22 5% 1/4W

R6122 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6124 1-216-809-11 METAL CHIP 100 5% 1/10W

R6125 1-216-001-00 RES-CHIP 10 5% 1/10W

R6127 1-215-882-00 METAL OXIDE 22 5% 2W

R6128 1-216-801-11 METAL CHIP 22 5% 1/10W

R6129 1-215-882-00 METAL OXIDE 22 5% 2W

R6130 1-208-840-11 METAL CHIP 270K 0.50% 1/10W

R6131 1-208-840-11 METAL CHIP 270K 0.50% 1/10W

R6132 1-208-840-11 METAL CHIP 270K 0.50% 1/10W

R6133 1-208-840-11 METAL CHIP 270K 0.50% 1/10W

R6134 1-218-760-11 METAL CHIP 220K 0.50% 1/10W

R6135 1-208-804-11 METAL CHIP 8.2K 0.50% 1/10W

R6136 1-216-635-11 METAL CHIP 220 0.50% 1/10W

R6137 1-208-854-11 METAL CHIP 1M 0.50% 1/10W

R6138 1-208-854-11 METAL CHIP 1M 0.50% 1/10W

R6139 1-208-854-11 METAL CHIP 1M 0.50% 1/10W

R6140 1-208-854-11 METAL CHIP 1M 0.50% 1/10W

R6141 1-218-760-11 METAL CHIP 220K 0.50% 1/10W

R6142 1-216-685-11 METAL CHIP 27K 0.50% 1/10W

R6144 1-216-857-11 METAL CHIP 1M 5% 1/10W

R6145 1-247-903-00 CARBON 1M 5% 1/4W

R6146 1-216-851-11 METAL CHIP 330K 5% 1/10W

!

R6147 1-202-933-61 FUSIBLE 0.1 10% 1/2W

R6148 1-249-385-11 CARBON 2.2 5% 1/4W

R6149 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R6150 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6151 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6152 1-218-872-11 METAL CHIP 11K 0.50% 1/10W

R6153 1-216-864-11 SHORT CHIP

R6154 1-218-886-11 METAL CHIP 43K 0.50% 1/10W

R6155 1-218-903-11 METAL CHIP 220K 0.50% 1/10W

R6157 1-249-429-11 CARBON 10K 5% 1/4W

R6158 1-249-429-11 CARBON 10K 5% 1/4W

R6159 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6160 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R6161 1-249-425-11 CARBON 4.7K 5% 1/4W

R6162 1-211-989-11 METAL CHIP 68 0.50% 1/10W

R6163 1-211-985-11 METAL CHIP 47 0.50% 1/10W

R6165 1-216-065-91 RES-CHIP 4.7K 5% 1/10W

R6166 1-249-426-11 CARBON 5.6K 5% 1/4W

R6167 1-247-791-91 CARBON 22 5% 1/4W

R6168 1-216-009-91 RES-CHIP 22 5% 1/10W

R6169 1-216-049-11 RES-CHIP 1K 5% 1/10W

R6170 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6171 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6172 1-218-642-11 METAL OXIDE 100K 5% 1W

R6173 1-216-830-11 METAL CHIP 5.6K 5% 1/10W

R6175 1-216-821-11 METAL CHIP 1K 5% 1/10W

R6178 1-216-857-11 METAL CHIP 1M 5% 1/10W

R6179 1-216-821-11 METAL CHIP 1K 5% 1/10W

R6180 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R6181 1-249-397-11 CARBON 22 5% 1/4W

R6183 1-216-837-11 METAL CHIP 22K 5% 1/10W

R6185 1-208-822-11 METAL CHIP 47K 0.50% 1/10W

R6186 1-216-105-91 RES-CHIP 220K 5% 1/10W

R6187 1-218-903-11 METAL CHIP 220K 0.50% 1/10W

R6188 1-208-854-11 METAL CHIP 1M 0.50% 1/10W

R6189 1-216-845-11 METAL CHIP 100K 5% 1/10W

R6190 1-249-385-11 CARBON 2.2 5% 1/4W

R6191 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6192 1-247-289-00 METAL 8.2M 5% 1W

R6201 1-216-821-11 METAL CHIP 1K 5% 1/10W

R6202 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R6203 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R6204 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R6207 1-216-817-11 METAL CHIP 470 5% 1/10W

R6208 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R6209 1-218-885-11 METAL CHIP 39K 0.50% 1/10W

R6210 1-218-871-11 METAL CHIP 10K 0.50% 1/10W

R6211 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W

R6212 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6213 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6214 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W

R6215 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W

R6218 1-218-847-11 METAL CHIP 1K 0.50% 1/10W

R6219 1-216-821-11 METAL CHIP 1K 5% 1/10W

R6220 1-216-837-11 METAL CHIP 22K 5% 1/10W

R6221 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R6222 1-216-073-91 RES-CHIP 10K 5% 1/10W

R6223 1-216-833-11 METAL CHIP 10K 5% 1/10W

G1M

KDL-26M3000/26ML130/32M3000/32ML130

92

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

R6224 1-216-837-11 METAL CHIP 22K 5% 1/10W

R6225 1-216-821-11 METAL CHIP 1K 5% 1/10W

R6226 1-216-833-11 METAL CHIP 10K 5% 1/10W

R6230 1-249-385-11 CARBON 2.2 5% 1/4W

R6232 1-247-807-31 CARBON 100 5% 1/4W

R6235 1-208-814-91 METAL CHIP 22K 0.50% 1/10W

R6237 1-215-871-11 METAL OXIDE 2.2K 5% 1W

RELAY

RY6101 1-755-488-11 RELAY (LKP1AF-18V)

VARISTOR

VD6101 1-804-996-21 VARISTOR

VD6102 1-804-996-21 VARISTOR

HM1

A-1268-471-A HM1 BOARD, MOUNTED

CONNECTOR

* CN101 1-820-180-11 HEADER ASSEMBLY (PRINT PWB)

RESISTOR

R101 1-218-827-11 METAL CHIP 150 0.50% 1/10W

R102 1-218-831-11 METAL CHIP 220 0.50% 1/10W

R103 1-218-835-11 METAL CHIP 330 0.50% 1/10W

R104 1-218-841-11 METAL CHIP 560 0.50% 1/10W

R105 1-218-848-11 METAL CHIP 1.1K 0.50% 1/10W

R107 1-216-864-11 SHORT CHIP

SWITCH

S101 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)

S102 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)

S103 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)

S104 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)

S105 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)

S106 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)

S107 1-572-595-11 SWITCH, TACTILE (REFLOW TYPE)

HM3

A-1268-472-A HM3 BOARD, MOUNTED

CAPACITOR

C320 1-112-781-11 CERAMIC CHIP 1μF 10% 10V

C322 1-107-826-11 CERAMIC CHIP 0.1μF 10% 16V

C323 1-126-205-11 ELECT CHIP 47μF 20% 6.3V

C401 1-162-960-11 CERAMIC CHIP 220pF 10% 50V

C402 1-100-909-11 CERAMIC CHIP 10μF 10% 6.3V

CONNECTOR

* CN301 1-820-287-11 HEADER ASSEMBLY (PRINT PWB)

DIODE

D305 8-719-085-26 DIODE CL-165HR/SYG-D-T

D308 8-719-053-07 DIODE SML-310MTT86

IC

IC320 6-600-447-01 IC TPS853(SONY)

IC401 6-600-502-01 HIC GP1UE26RK0VF

TRANSISTOR

Q303 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q304 8-729-028-96 TRANSISTOR DTC114EUA-T106

Q320 6-551-699-01 TRANSISTOR ISA1602AM1TP-1EF

RESISTOR

R303 1-216-815-11 METAL CHIP 330 5% 1/10W

R304 1-216-819-11 METAL CHIP 680 5% 1/10W

R305 1-216-815-11 METAL CHIP 330 5% 1/10W

R307 1-216-864-11 SHORT CHIP

R308 1-216-864-11 SHORT CHIP

R321 1-216-839-11 METAL CHIP 33K 5% 1/10W

R322 1-216-821-11 METAL CHIP 1K 5% 1/10W

R323 1-216-833-11 METAL CHIP 10K 5% 1/10W

R325 1-216-849-11 METAL CHIP 220K 5% 1/10W

R326 1-216-849-11 METAL CHIP 220K 5% 1/10W

R327 1-216-864-11 SHORT CHIP

R328 1-216-827-11 METAL CHIP 3.3K 5% 1/10W

R401 1-216-817-11 METAL CHIP 470 5% 1/10W

R402 1-216-805-11 METAL CHIP 47 5% 1/10W

G1M HM1 HM3

KDL-26M3000/26ML130/32M3000/32ML130

93

Sony Corporation

Sony Technology Center

Technical Services

Service Promotion Department

9-883-757-04

English

2007GJ74WEB-1

Printed in USA

REF. NO. PART NO. DESCRIPTION VALUES REF. NO. PART NO. DESCRIPTION VALUES

UM

A-1268-473-A UM BOARD, MOUNTED

CAPACITOR

C203 1-216-864-11 SHORT CHIP

C206 1-100-912-11 CERAMIC CHIP 1μF 10% 25V

C209 1-100-912-11 CERAMIC CHIP 1μF 10% 25V

C215 1-162-964-11 CERAMIC CHIP 0.001μF 10% 50V

CONNECTOR

* CN201 1-819-928-11 HEADER ASSENBLY 20P

CN202 1-695-915-11 TAB (CONTACT)

DIODE

D204 8-719-423-03 DIODE MA8100

ET201 1-780-482-11 EARTH TERMINAL

ET202 1-780-482-11 EARTH TERMINAL

JACK

J201 1-819-356-21 PHONO JACK 3P

J202 1-815-325-11 JACK

RESISTOR

R211 1-216-864-11 SHORT CHIP

R212 1-216-857-11 METAL CHIP 1M 5% 1/10W

R213 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R215 1-216-857-11 METAL CHIP 1M 5% 1/10W

R216 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R218 1-216-864-11 SHORT CHIP

R219 1-216-864-11 SHORT CHIP

R220 1-216-864-11 SHORT CHIP

VARISTOR

VD201 1-804-988-21 VARISTOR, CHIP (1608)

VD202 1-804-988-21 VARISTOR, CHIP (1608)

VD203 1-804-988-21 VARISTOR, CHIP (1608)

VD204 1-804-988-21 VARISTOR, CHIP (1608)

VD205 1-804-988-21 VARISTOR, CHIP (1608)

ACCESSORIES AND PACKING

X-2186-601-1 BAG ASSEMBLY, RUDDER LOCK

(Contains Items Below)

X-2186-603-1 LOCK ASSEMBLY, RUDDER (Belt)

2-593-320-02 SCREW, CION (M6X18)

2-580-663-01 SCREW, WOOD 3.8X20

* 2-678-263-01 BAG, PROTECTION

(KDL-26M3000/26ML130 ONLY)

* 2-678-264-01 BAG, PROTECTION

(KDL-32M3000/32ML130 ONLY)

* 3-213-717-01 BAG, PROTECTION (STAND)

(KDL-26M3000/26ML130 ONLY)

* 3-213-713-01 CARTON, INDIVIDUAL

(KDL-26M3000/26ML130 ONLY)

* 3-213-429-01 CARTON, INDIVIDUAL

(KDL-32M3000/32ML130 ONLY)

2-595-155-02 CLAMP

* 3-213-715-01 CUSHION, LOWER

(KDL-26M3000/26ML130 ONLY)

* 3-213-428-01 CUSHION, LOWER

(KDL-32M3000/32ML130 ONLY)

* 3-213-714-01 CUSHION, UPPER

(KDL-26M3000/26ML130 ONLY)

* 3-213-427-01 CUSHION, UPPER

(KDL-32M3000/32ML130 ONLY)

3-213-438-11 GUIDE, QUICK SETUP (ENGLISH VERSION)

3-213-438-21 GUIDE, QUICK SETUP (FRENCH VERSION)

3-213-438-31 GUIDE, QUICK SETUP (SPANISH VERSION)

3-213-437-11 MANUAL, INSTRUCTION (ENGLISH VERSION)

3-213-437-21 MANUAL, INSTRUCTION (FRENCH VERSION)

3-213-437-31 MANUAL, INSTRUCTION (SPANISH VERSION)

MISCELLANEOUS

1-469-089-11 FILTER, CLAMP (FERRITE CORE)

(KDL-32M3000/32ML130 ONLY)

* 1-400-052-11 FILTER, CLAMP (FERRITE CORE)

2-580-602-01 SCREW, +PSW M4X12

(KDL-26M3000/26ML130 ONLY)

1-910-036-30 WIRE ASSEMBLY, FASTON TERMINAL

REMOTE COMMANDER

1-480-266-11 REMOTE COMMANDER (RM-YD021)

9-885-099-05 BATTERY COVER (for RM-YD021)

UM

☛

A-1

KDL-26M3000/26ML130/32M3000/32ML130

APPENDIX A: ENCRYPTION KEY COMPONENTS

Encryption key components developed by Sony Corporation contain conﬁ dential

information, and shall be handled under the non-disclosure obligations provided in the

applicable agreement with Sony Corporation (and/or its subsidiary).

As part of this agreement speciﬁ c instructions must be adhered to whenever a Circuit

Board containing encryption key components is repaired and/or replaced pursuant to the

following:

1) In the service manual the Circuit Board(s) containing encryption key components

shall be identiﬁ ed with a red outline and a .

2) Only repair boards or components listed in the service manual shall be utilized for

replacement and/or repair.

3) Disassembly, decryption, or reverse-engineering component(s) is strictly prohibited.

4) Any board in which the Servicer replaces an encryption key component must be

placed back into the set it orignally came from and the replaced defective component

MUST BE DESTROYED. Boards cannot be swapped.

5) If a Circuit Board identiﬁ ed with a red outline and a in the service manual is deemed

to be defective:

a) and if a core charge is imposed and is covered under the product warranty, the

defective un-repaired or modiﬁ ed board MUST BE RETURNED to Sony.

b) and if the core charge is NOT covered under the product warranty, the defective

un-repaired or modiﬁ ed board MUST BE DESTROYED.

5) If a unit is destroyed (such as ﬁ eld scrap), the Circuit Board identiﬁ ed with a

red outline and a in the service manual MUST BE DESTROYED.

SERVICE MANUAL

MA1

CHASSIS

In an effort to reduce the size of this pdf ﬁ le the tiled

schematics are not attached to this Service Manual. To receive

a complete set of the tiled schematics for this manual please

submit a request to the Service Promotion Department at

Service_Promotion@am.sony.com.

9 883 757 03 KDL32ML130

Navigation menu

Versions of this User Manual:

Views

Navigation
