KITCHENS DIRECT ONLINE
Showroom 4 King Street
Timaru
New Zealand
0800 534 732
P: 03 684 0183
F: 03 684 0184
E: info@kitchensdirect.co.nz
W: www.kitchensdirect.co.nz
![](asset-2.png)
1
The Self-Assembly Kitchen Advantage.
The Kitchens Direct Online kitset system combines our quality components,
professional design advice and your imagination to create a stunning and
functional kitchen for your individual needs.
• Enjoy the substantial cost savings with Self-Assembly
- no expensive tradesmen.
• Have the satisfaction of doing it yourself.
• Save more by choosing Doors and Benchtops from the kitset range.
Kitset kitchens are flexible in design, style, cost and come with the following
standard Features:
Cabinets : 16 mm Moisture Resistant White. (inc: backs)
Edging : PVC
Shelving : Fully Adjustable.
Warranty : Five Years.
Hardware: Metal drawer Slides, Metal Self Closing Hinges,
Clip–on Fully Adjustable Legs to ensure
perfect levelling. All European made.
The Kitchens Direct Online kitset system has been developed to suit both the
Handyman and Tradesman:
• All components are pre-drilled, edged and labelled.
• Assembly instructions are provided for each individual cabinet type.
• All hardware is supplied.
• All you need is basic tools and a bit of elbow grease.
Our Showroom has:
• Assembly display room.
• Colour matching room.
• Many Kitchens on display
• Timaru, 4 King Street
• Mon-Fri 9am to 5pm.
Sat 10am to 1pm
![](asset-3.png)
2
Planning and Ordering
1. Measure the length, width and height of your room and note the
size and location of all windows and doors. Note the location of services
(such as plumbing, power & gas).
2. Use these room measurements to draw a plan view of your kitchen on the
graph paper on the back of the Planning Guide.
• 1 square on graph paper = 10cm, 10 sqs = 1 metre
• Choose cabinets from the Kitset Catalogue for your individual Kitchen
Design
• Note: Size adjustments are possible if catalogue items do not fit your
space.
3. Allowances are required for end panels , benchtop overhang
and scribes etc. It is important to note on your plan, exposed ends and
backs of cabinets. We will confirm detailing of panels & scribes on our
kitset plan. Benchtops are made to suit your layout and are calculated
exactly on final kitset plan.
4. Complete the QUOTE REQUEST FORM (include any other details
you may think important) and return to us with your Kitchen Plan for a
quotation. Post, Fax or Email.
NOTE: Don’t worry if your Draft Plan is not perfect – we are very
experienced at interpreting your drawings! We will contact you if there
are queries or design issues to clarify. Alternately, you may wish to
contact us for assistance to complete your plan – we are pleased to
offer design advice or drawing assistance.
5. When we are sure of your exact requirements we will forward
your Quotation within 7 days.
6. Kitchens Direct Online orders requires a deposit of 25%. On receipt of
deposit, a kitset plan of your kitchen will be forwarded for
prompt attention. Balance of payment is due at time of pick up or prior to
delivery.
7. Pick-up is available from the Timaru location 8am – 5pm Monday – Friday.
Or Kitchens Direct Online can arrange a low cost delivery. This cost will be
passed onto the purchaser.
8. Your completed kitset kitchen will be securely packed for
transport and will include: Plan, Assembly Instructions and Itemised Hardware.
![](asset-4.png)
3

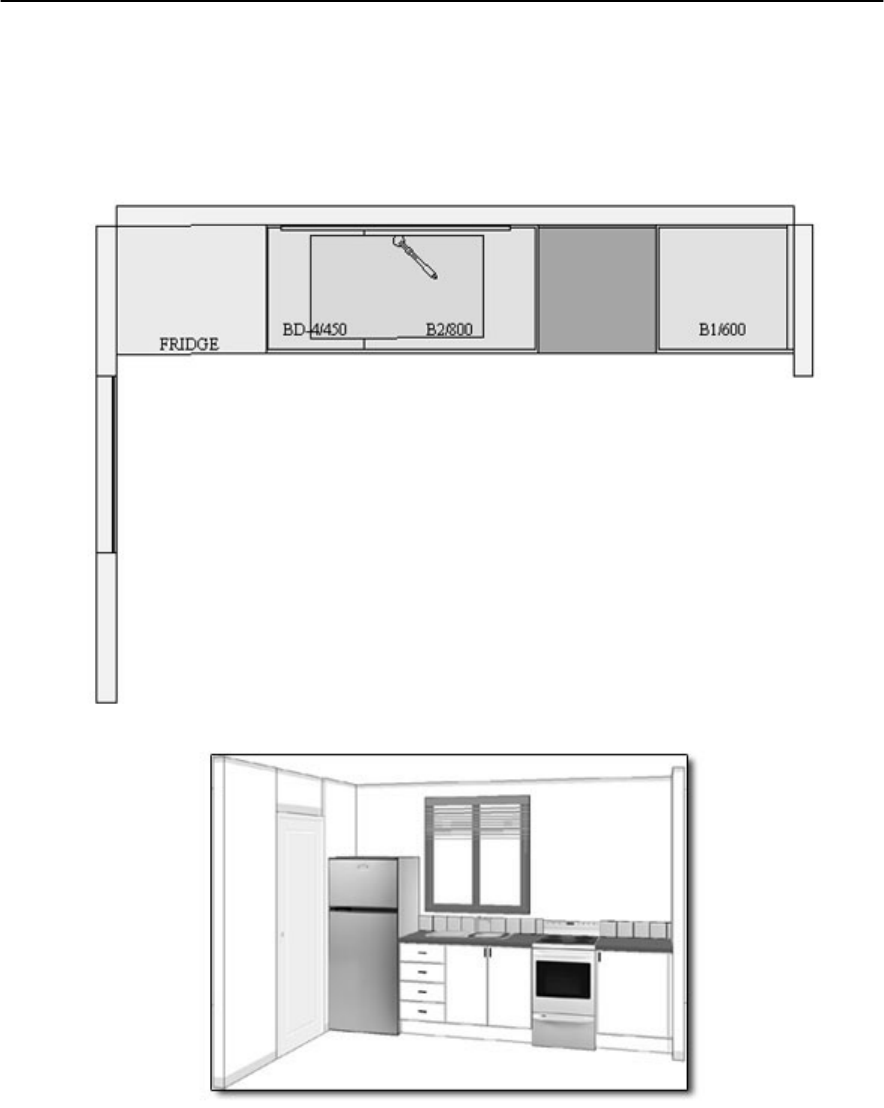

Example Plans
Straight
This is an example of a small, basic kitchen
• One line of cabinets
• suitable for narrow spaces and small houses/flats
![](asset-5.png)
4

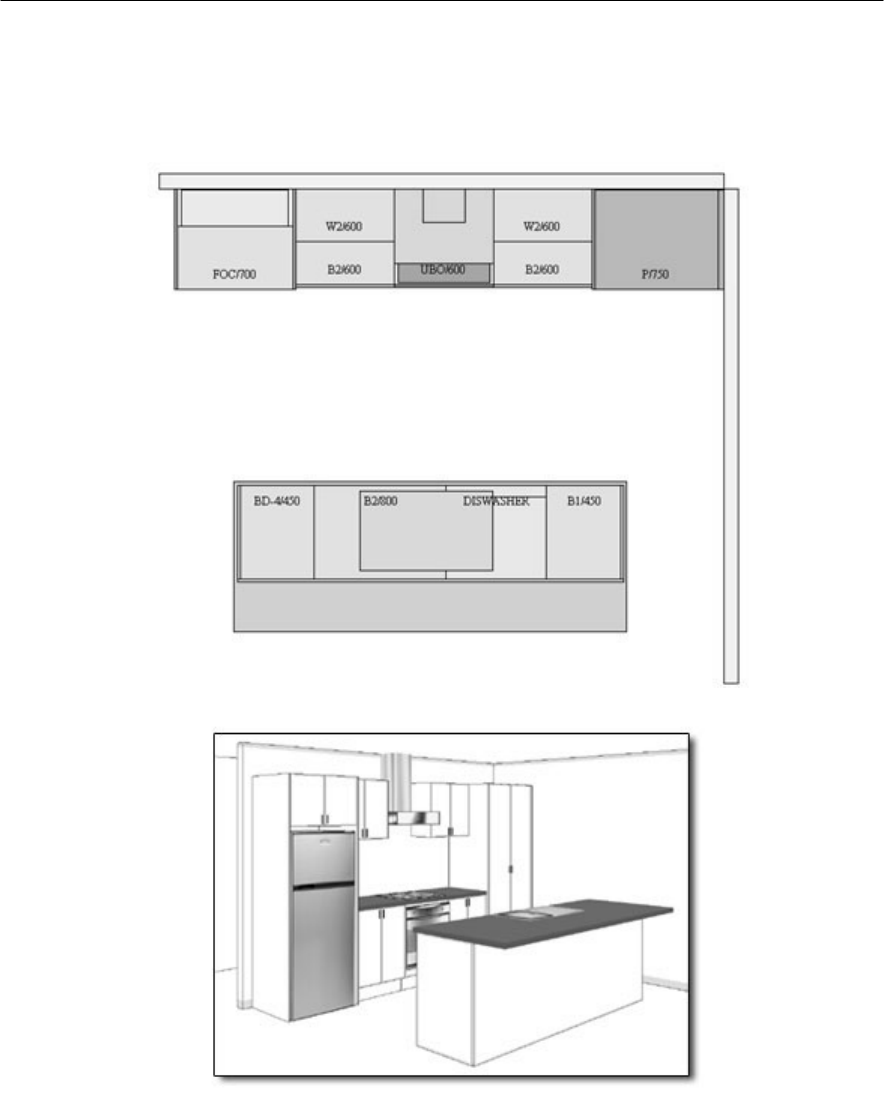

Examples Plans
Galley
A walk-through kitchen, featuring cabinets on two sides
• Suitable for kitchens with limited space
• Extended benchtop bars are also suitable for this kitchen type
![](asset-6.png)
5

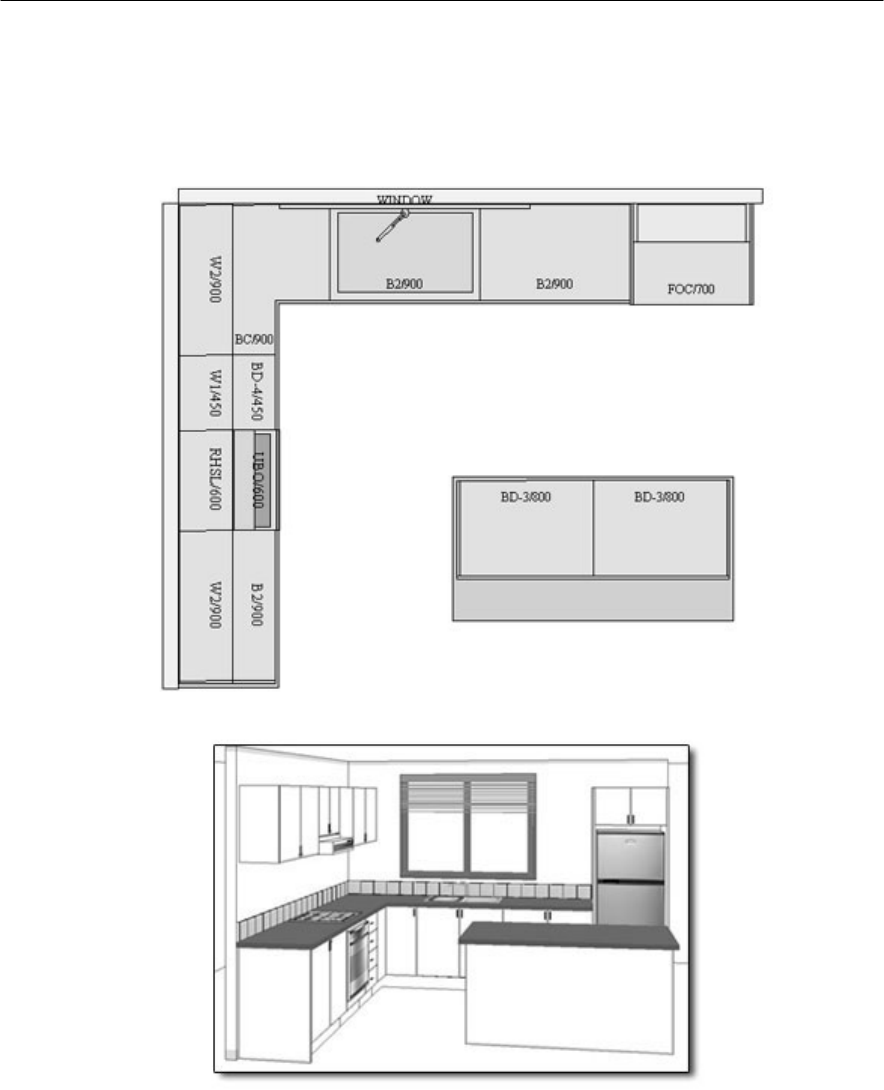

Example Plans
L-Shaped
One line of cabinets placed around a corner.
• Larger than straight or galley kitchens
• Can incorporate a dining table or an island bench
![](asset-7.png)
6

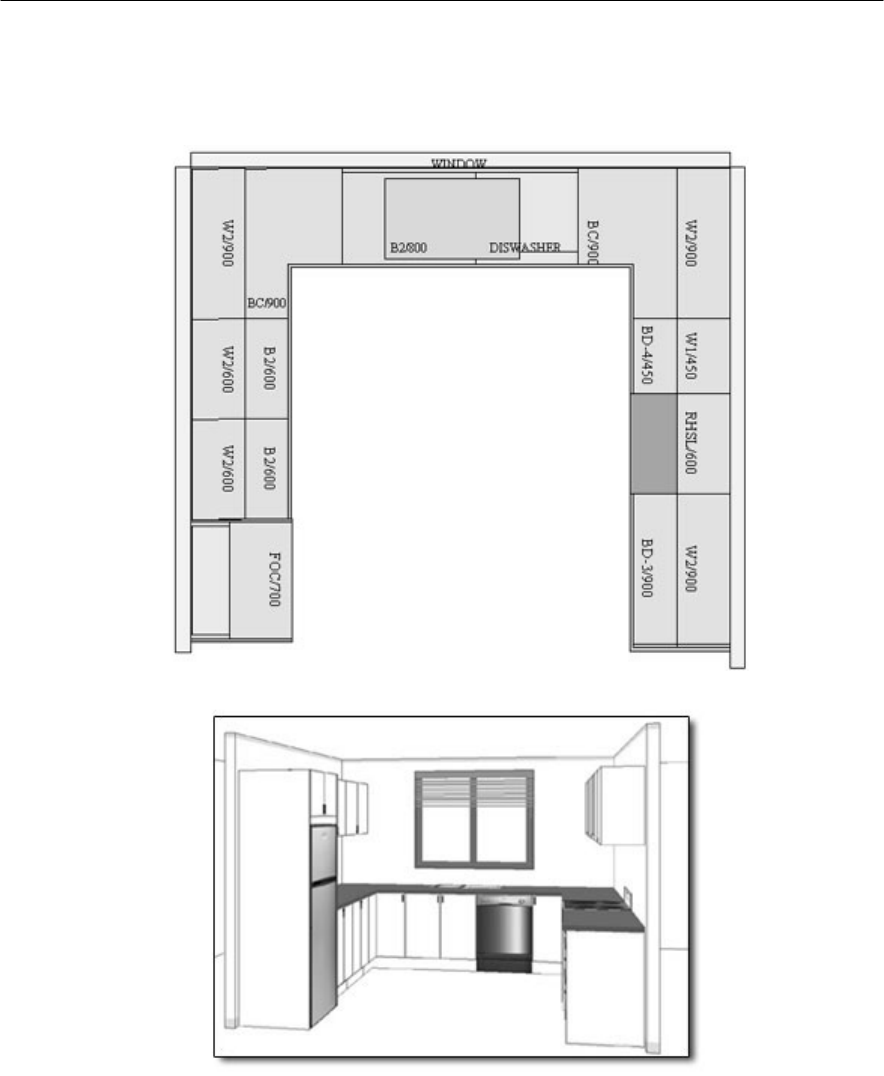

Example Plans
U-Shaped
Cabinets on three sides of the room.
• Requires a large area
• Represents the most flexible design
![](asset-8.png)
7
Example Plans
Open plan
Kitchen as part of a larger room.
• Open end bench or raised bar on two sides
![](asset-9.png)
8
Cabinet Catalogue
Base Cabinets
NOTE: 900mm Height includes Benchtop 34mm, Cabinet 720mm and Kickboard 146mm.
Base Units
B1
1 DOOR BASE
CABINET
DEPTH 580
HEIGHT 900
WIDTHS 200, 250,
300, 350, 400, 450,
500, 550, 600
B2
2 DOOR BASE
CABINET
DEPTH 580
HEIGHT 900
WIDTHS 600, 650,
700, 750, 800, 850,
900, 950, 1000, 1050,
1100, 1150, 1200
BDD1-
SINGLE
DRAWER &
DOOR
COMBINATION
DEPTH 580
HEIGHT 900
WIDTHS 400, 450,
500, 550, 600, 650,
700, 750, 800, 850,
900
DRAWER HEIGHT
180
NOTE: 2 Doors
apply if wider than
600 mm
BDD2-
DOUBLE
DRAWER &
DOOR
COMBINATION
DEPTH 580
HEIGHT 900
WIDTHS 800, 850,
900, 950, 1000, 1050,
1100, 1150, 1200
DRAWER HEIGHT 180
BD/3 . 3
EQUAL
DRAWERS
DEPTH 580
HEIGHT 900
WIDTHS 600, 650,
700, 750, 800, 850,
900
DRAWER HEIGHT 3
x 240
BD/4 . 4
EQUAL
DRAWERS
DEPTH 580
HEIGHT 900
WIDTHS 400, 450,
500, 550, 600
DRAWER HEIGHT 4 x
180
![](asset-a.png)
9

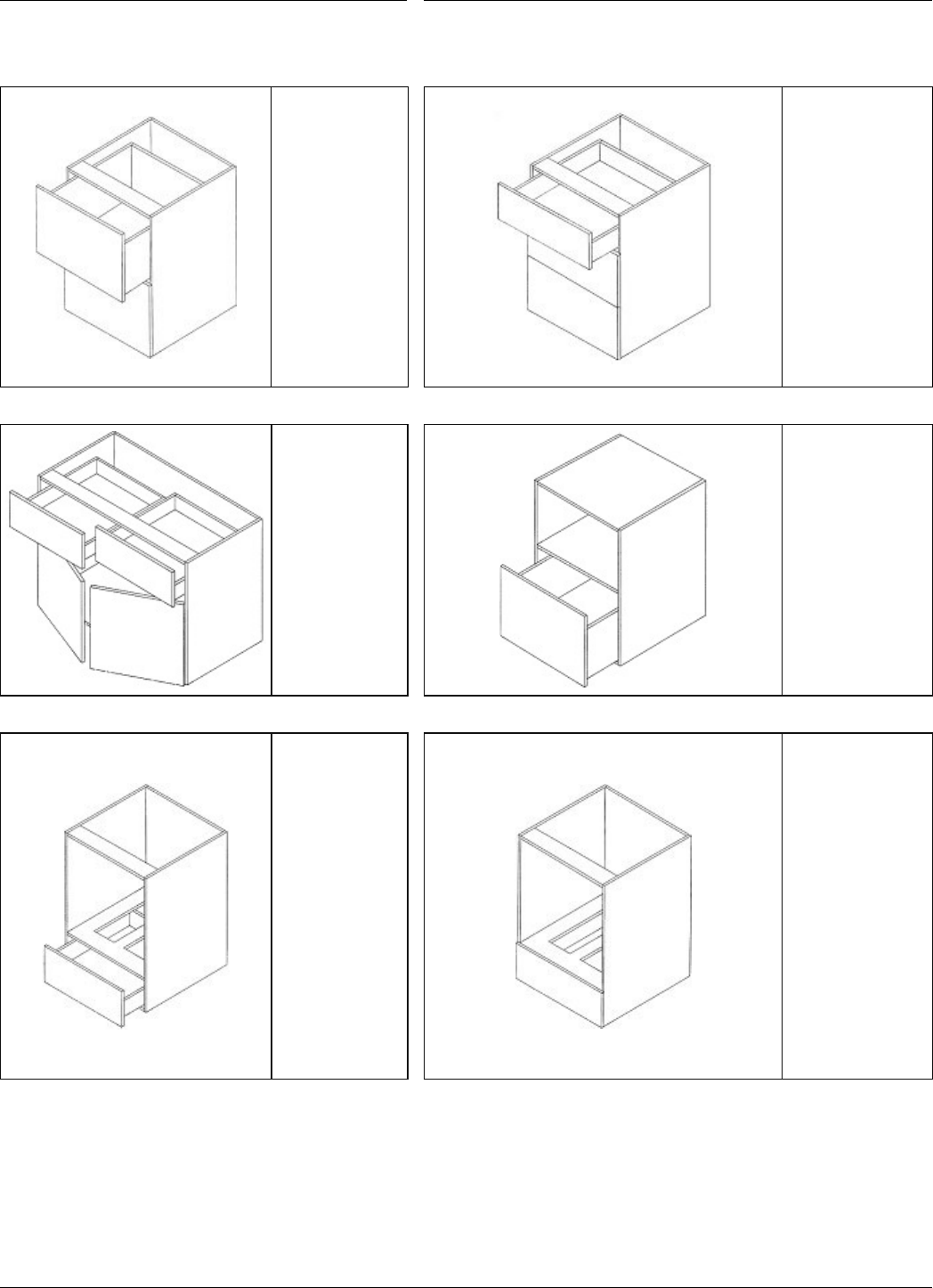

Base Units
BP2 . 2
EQUAL
DRAWERS
DEPTH 580
HEIGHT 900
WIDTHS 600, 650,
700, 750, 800, 850,
900
DRAWER HEIGHT 2
x 360
BP-3P . 1
CUTLERY
DRAWER OVER
2 POT
DRAWERS
DEPTH 580
HEIGHT 900
WIDTHS 600, 650,
700, 750, 800, 850,
900
DRAWER HEIGHT 1 x
180 2 x 270
BDD2-
DOUBLE
DRAWER &
DOOR
COMBINATION
DEPTH 580
HEIGHT 900
WIDTHS 800, 850,
900, 950, 1000,
1050, 1100, 1150,
1200
DRAWER HEIGHT
180
BMW-BASE
MICROWAVE
CABINET
DEPTH 580
HEIGHT 900
WIDTHS 600, 650 700
DRAWER HEIGHT 320
UBOD.
UNDER
BENCH OVEN
CABINET
WITH
DRAWER
DEPTH 580
HEIGHT 900
WIDTHS 600, 900
DRAWER HEIGHT
120
NOTE: Max oven
height . 595 mm
UBO. UNDER
BENCH OVEN
CABINET
DEPTH 580
HEIGHT 900
WIDTHS 600, 900
NOTE: Oven details
are required for this
cabinet
![](asset-b.png)
10

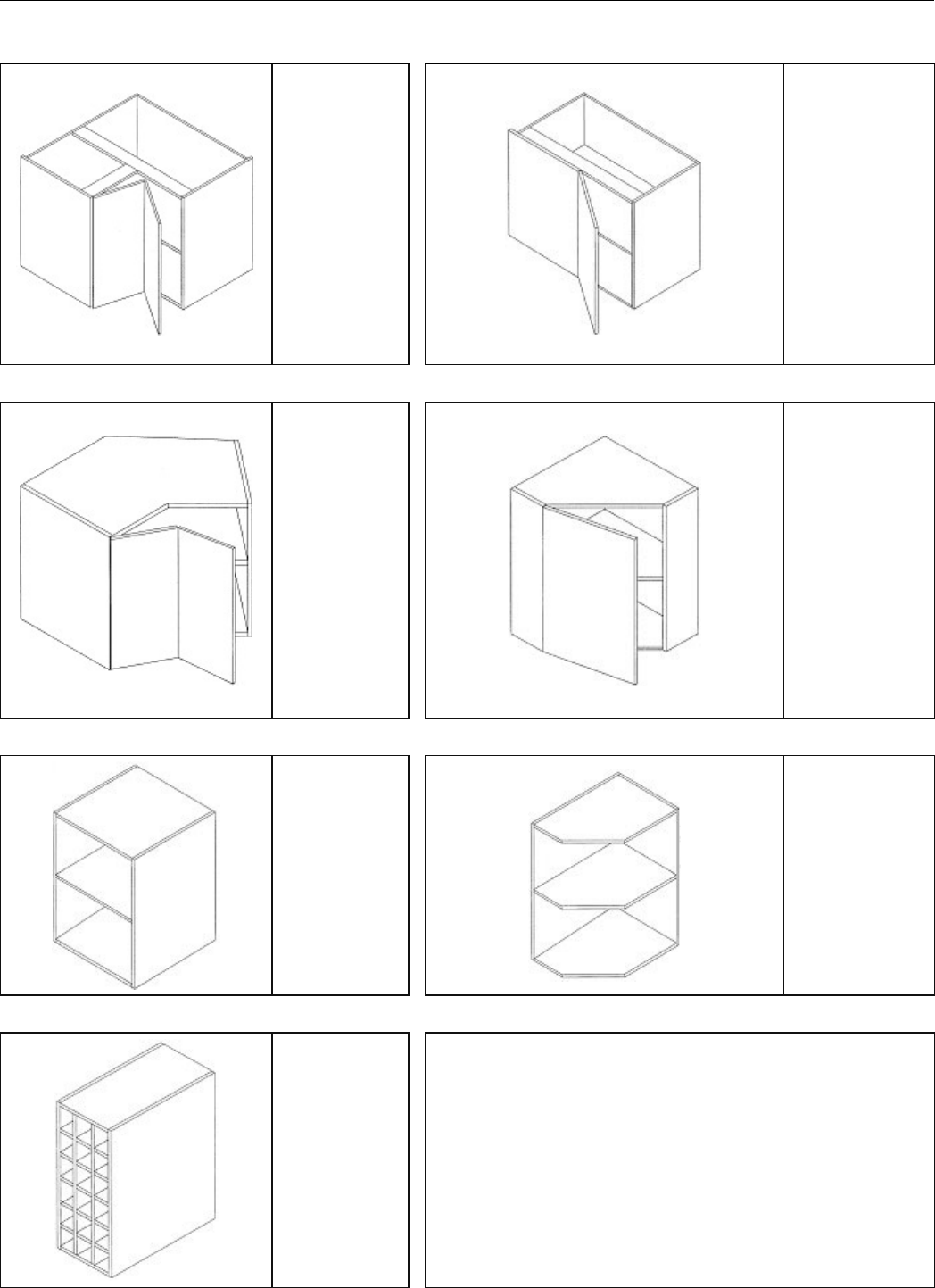

Base Units
BC . BASE
CORNER
CABINET
DEPTH 580
HEIGHT 900
WIDTHS 900/900
900/1000 900/1100
900/1200
NOTE: Available
with left or right hand
extended leg.
BL . BASE
BLIND CORNER
CABINET
DEPTH 580
HEIGHT 900
WIDTHS 1000, 1050,
1100, 1150, 1200
NOTE: Available with
left or right blind corner
B45 . BASE
CORNER
CABINET FOR
45. ANGLE
CORNER
DEPTH 580
HEIGHT 900
FRONT WIDTH
317/317
BACK WIDTH
549/549
BCA . BASE
CABNET FOR
THE OPEN END
OF ROW OF
CABINETS
ONLY
DEPTH 580
HEIGHT 900
WIDTHS 580
NOTE: Benchtop can
be cut to cabinet angle.
BOS. BASE
OPEN SHELF
CABINET
DEPTH 580
HEIGHT 900
WIDTHS 200, 250,
300, 350, 400, 450,
500, 550, 600
BAO- BASE
OPEN SHELF
CABINET
(MITRED )
DEPTH 580
HEIGHT 900
WIDTHS 200, 250,
300, 350, 400
BWR - BASE
WINE RACK
DEPTH 580
HEIGHT 900
WIDTHS
150 ( 6 bottles)
250( 12 bottles)
350( 18 bottles)
450( 25 bottles)
550 ( 30 bottles)
DISHWASHER.
DISHWASHERS DO NOT REQUIRE A CABINET. ALLOW
640 mm SPACE BETWEEN CABINETS THIS ALLOWS FOR
TWO 16mm PANELS ONE ON EACH SIDE.
![](asset-c.png)
11

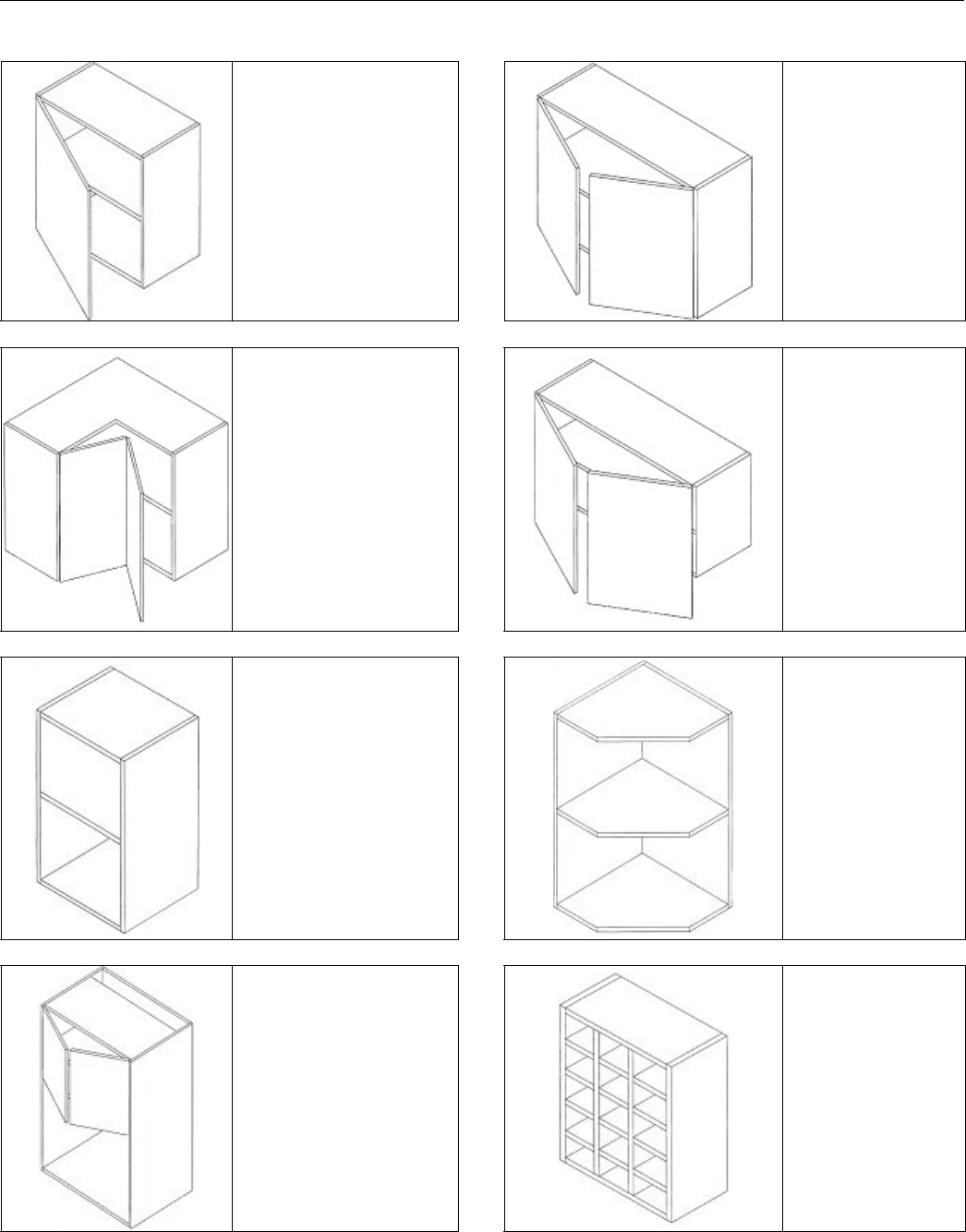

Wall Units
W-1 DOOR WALL
CABINET
DEPTH 300
HEIGHT 592, 720, 880
WIDTHS 200, 250, 300, 350,
400, 450, 500, 550, 600
W-2 DOOR WALL
CABINET
DEPTH 300
HEIGHT 592, 720, 880
WIDTHS 600, 650, 700,
750, 800, 850, 900, 950,
1000
WC . WALL CORNER
CABINET
DEPTH 300
HEIGHT 592, 720, 880
WIDTHS 600/600
RHSL .
RANGEHOOD
CABINET
DEPTH 300
HEIGHT Variable
(depending on rangehood)
WIDTHS 600, 900
NOTE: Rangehood details
are Needed for this
cabinet
WOS . WALL OPEN
SHELF
DEPTH 320
HEIGHT 592, 720, 880
WIDTHS 200, 250, 300, 350,
400, 450, 500, 550, 600, 650,
700, 750, 800
WAO(MITRED) .
WALL OPEN
SHELF MITRED As
shown
WCO(ROUNDE
D) also available
DEPTH 320
HEIGHT 592, 720, 880
WIDTHS 200, 250, 300,
350, 400
WMW . WALL
MICROWAVE CABINET
DEPTH 400, 450
HEIGHT 800, 928, 1088
WIDTHS 600, 650, 700
WWR . WALL
WINE RACK
DEPTH 320
HEIGHT 592, 720, 880
WIDTHS
150 (5,6 or7 Bottles)
250 (10,12 or14 Bottles)
350 (15,18 or 21 Bottles)
450 (20,24 or 28 Bottles)
550 (25,30 or 35 Bottles)
![](asset-d.png)
12

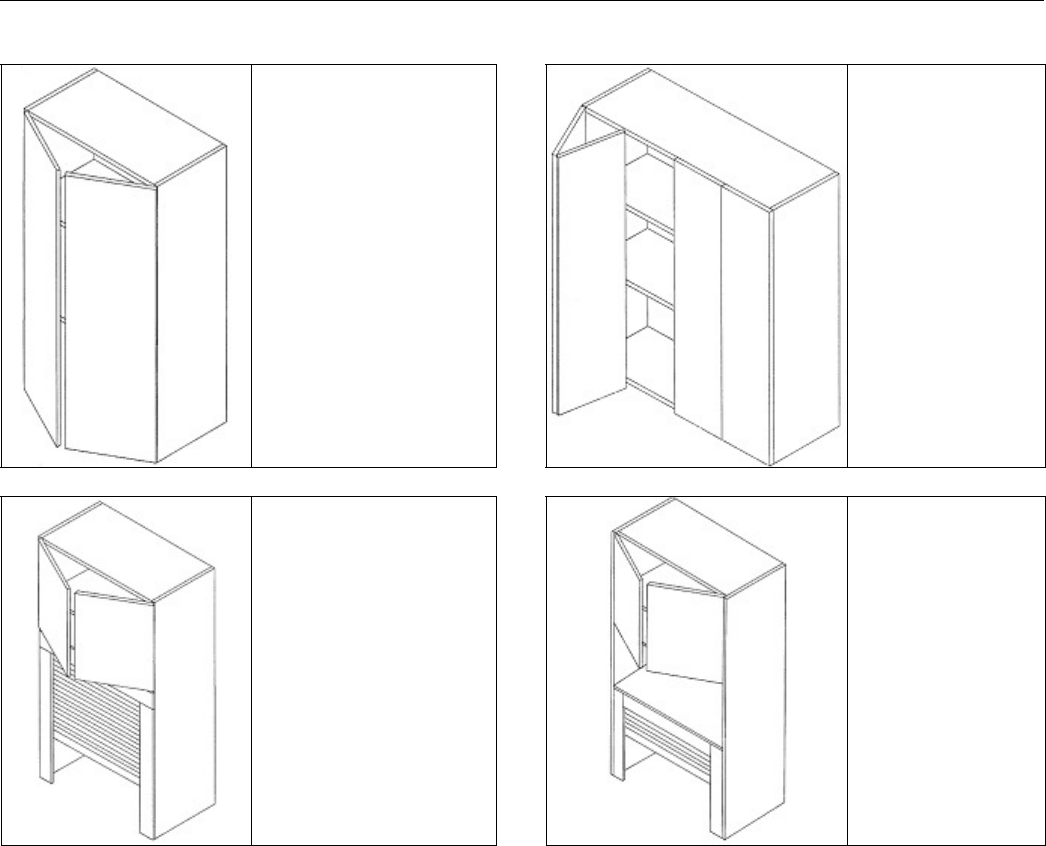

Wall Units
AP2 . APPLIANCE
CABINET
DEPTH 400, 450
HEIGHT 1197, 1325, 1485
WIDTHS 600, 650, 700, 750,
800, 850, 900, 950, 1000
AP4 . APPLIANCE
CABINET WITH BI-
FOLD DOORS
DEPTH 400, 450
HEIGHT 1197, 1325, 1485
WIDTHS 800, 850, 900,
950, 1000
APR . APPLIANCE
CABINET WITH
ROLLER DOOR
DEPTH 400, 450
HEIGHT 1197, 1325, 1485
WIDTHS 600, 700, 800, 900,
1000
APMW
.APPLIANCE
CABINET
/MICROWAVE
CABINET
DEPTH 400, 450
HEIGHT 1197, 1325, 1485
WIDTHS 600, 700, 800,
900, 1000
NOTE: Roller door section
also available open.
![](asset-e.png)
13

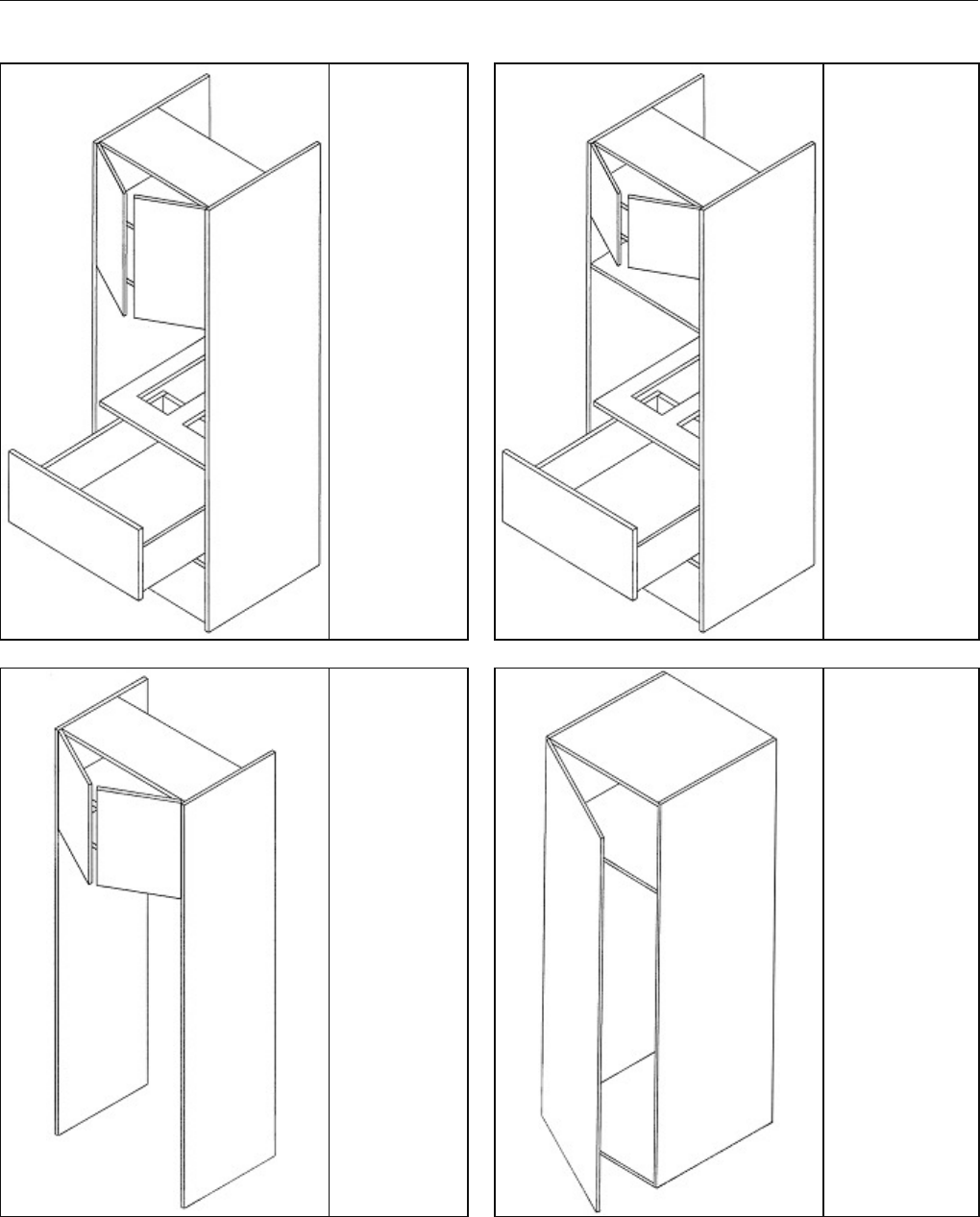

Tall Units
OVS22-
WALL OVEN
UNIT WITH 2
DRAWERS
DEPTH 600
HEIGHTS 2097,
2225, 2385
WIDTH 632
DRAWER
HEIGHTS 2 x 240
This unit maybe
changed to suit
oven size.
NOTE: Oven
details are required
for this cabinet
OVSM22-
WALL OVEN
UNIT WITH
MICROWAVE
BOX
DEPTH 600
HEIGHTS 2097,
2225, 2385
WIDTHS 632
DRAWER HEIGHTS
2 x 240
This unit maybe
changed to suit oven
size.
NOTE: Microwave
and oven details are
required for this
cabinet
FOC .
FRIDGE UNIT
OVERALL DEPTH
600
CABINET DEPTH
450
OVERALL HEIGHT
2097, 2225, 2385
CABINET
HEIGHTS TO SUIT
FRIDGE WIDTHS
600, 650, 700, 750,
800, 850, 900
NOTE: Tall panels
may not be needed
if next to wall or tall
oven cabinet.
BR . BROOM
CABINET
DEPTH 600
HEIGHT 2097, 2225,
2385
WIDTHS 350, 400,
450, 500, 550, 600
![](asset-f.png)
14

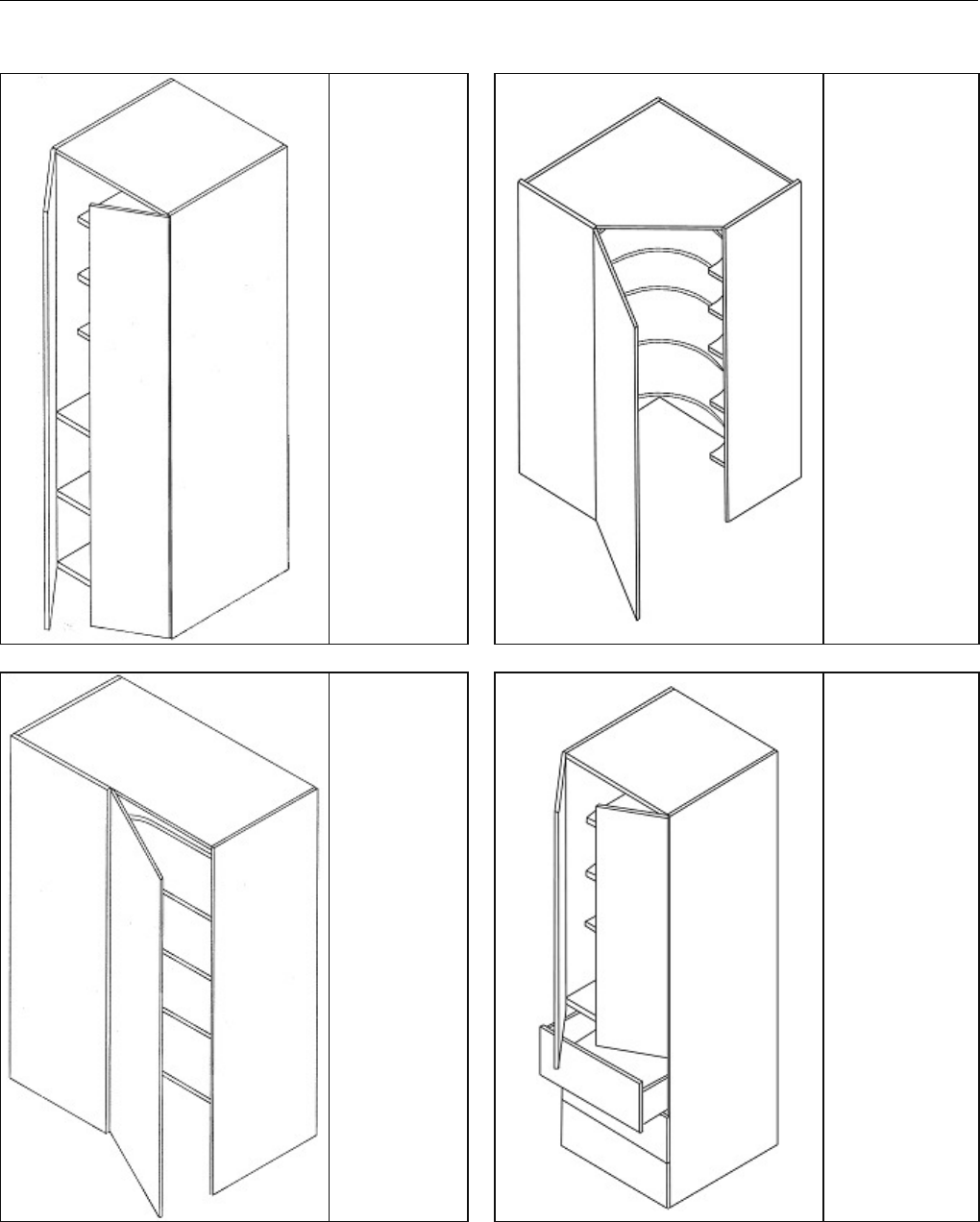

Tall Units
P.PANTRY
DEPTH 600
HEIGHTS 2097,
2225, 2385.
WIDTHS 600, 650,
700, 750, 800, 850,
900, 950, 1000,
1050, 1100, 1150,
1200
WIP-WALK-IN
PANTRY
DEPTH 600
HEIGHTS 2097,
2225, 2385
WIDTHS1000/1000
1100/1100
1200/1200
PBL . BUTT
PANTRY
WITH
HINGED
DOOR
DEPTH 600
HEIGHT 2097,
2225, 2385
WIDTHS 1000,
1050, 1100, 1150,
1200
NOTE: Available
with left or right
hand blind corner
PD . PANTRY
CABINET
WITH 3
DRAWERS
DEPTH 600
HEIGHT 2097, 2225,
2385
WIDTHS 600, 650,
700, 750, 800, 850,
900, 950, 1000
![](asset-10.png)
15
Spacers and Panels
Wall Cabinets
Spacers are used
between walls and
cabinets.
Panels are used to
cover exposed
cabinet sides.
Base cabinets
Spacers and panels
are details that are
best added when
Kitchens Direct draw
up the final plan of
the kitchen, to
ensure correct
positioning .It is not
necessary to include
scribes or panels on
your quote request
plan.
![](asset-11.png)
16
Sample of Cabinet Layout Drawing
![](asset-12.png)
17
Quote Request Form
Send to: Kitchens Direct Online
4 King Street
Timaru
P:03 684 0183
F:03 684 0184
E: info@kitchensdirect.co.nz
0800 534 732
Name: …………………………………………………………. Ph: (Home) ……………………… (Work): …………………
Address: ………………………………………… Fax: ………………………… Email: .........……….........……………..………
City/Town: ……………………………………… …… Postcode: …………… Send Quote Email Fax Post
SELECT OPTIONS FOR YOUR QUOTE
OVERALL HEIGHT TO TOP OF TALL CABINETS: 2100 mm 2200 mm 2300 mm
DOOR TYPES
DOOR COLOURS
BENCHTOP COLOURS
TUFF EDGE LAMINATE.
ROUND EDGE LAMINATE.
VINYL MURIWAI.
VINYL NELSON.
VINYL OHOPE.
VINYL THAMES.
TIMBER MURIWAI.
TIMBER NELSON.
TIMBER OHOPE.
TIMBER THAMES.
AMAZON (L).
BEIGE (L).
BRITTANY BLUE (VL).
CONCEPT OAK (L).
FROSTY WHITE (VL).
FUSION MAPLE (VL)
PLATINUM (L).
PORT (L).
SHADOW (VL).
SLATE GREY (VL).
BRONZED FUSION.
CITRINE TOPAZ.
EBONY FUSION.
EBONY STAR.
EVENING TIGRIS.
FROSTY WHITE MIRAGE.
IMPERIAL TOPAZ.
IRON LEGACY.
KALAHARI TOPAZ.
SMOKY TOPAZ.
TIMBER DOORS
HANDLE TYPE
OTHER OPTIONS
ANTIQUE KNOB.
MUSHROOM KNOB.
D-PULL HANDLE.
ROUND C-PULL.
T-BARS HANDLE
VL
L
AMERICAN OAK.
MACROCARPA.
RIMU.
RAW
Door Colours available in Vinyl & Laminate
Door Colours available in Laminate only
CORNICE CAPPING.
GLASS UPPER DOORS.
INTEGRATED PANELS.
SINGLE/DOUBLE WASTE BIN
APPLICATION TYPES AND SIZES
OVEN TYPE: Underbench Upright Wall
OVEN SIZE: Height = ……………… Width = ………………
RANGEHOOD TYPE: Fixed Slide out Canopy
R/HOOD SIZE: Width = ………………………………………
Back Height = ………………………………………………..
Slide out Height = ……………………………………………
COOKTOP: Gas Electric
FRIDGE SIZE: Height = ………………………..……
Width = ……………………………………………....
MICROWAVE: Height = …………………….……..
Width = ……………………………………….….…..
DISHWASHER: Standard Dish drawer
SINK: Overall width of bowls: ……………………..
DELIVERY REQUIRED: YES NO
DELIVERY LOCATION:…………………………………………………………………………………………………..…….…
Where did you hear about Kitchens Direct Kitchens?……………………………………………...……………………
![](asset-13.png)
18
0800 534 732 www.kitchensdirect.co.nz
1
1
2
3
2 3 4
0
4
5
6
