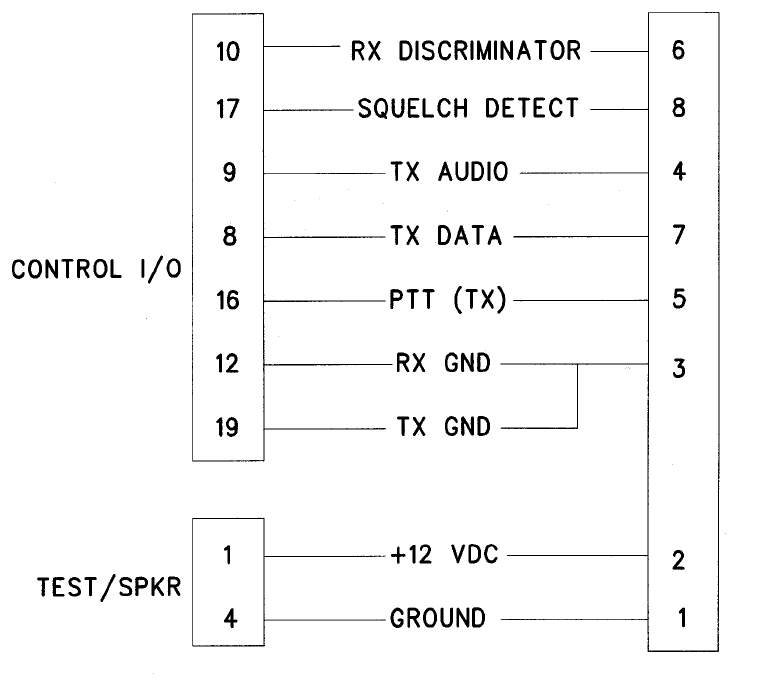

INTERFACE CABLE BETWEEN THE TKR-750 AND LT4200

TKR-750 LT4200

The Kenwood TKR-750 requires a male DB-25 Connector for the CONTROL I/O Jack

and a special connector for the TEST/SPKR Jack. The LT4200 uses a removable screw

type of terminal block and requires the bare wire from the DB-25 cable and the TEST

SPKR Cable.

Normally Pin 9 and 12 of the TEST/SPKR cable is connected together. This allows the

use of the internal speaker.
