The new dimension
of injection molding
Machines in the GX Series
Engineering Passion
Machines in the GX Series
Facts and figures
2
Consumer goods
Medical/pharmaceutical
industry
Packaging
Electrical engineering/electronics
industry
Automotive industry
Transport packaging
Facts and figures regarding the GX Series
Application areas
Clamping/injection matrix
Machine
model /
clamping
force (t)
Clearance
(h x v) mm
Injection units (screw diameter in mm)
SP 1400 SP 2000 SP 3000 SP 4300 SP 6100 SP 8100
55 60 70 60 70 75 70 80 90 80 90 100 85 95 105 95 105 115
GX 400 920 x 830
GX 450 920 x 830
GX 451 1055 x 925
GX 500 1040 x 910
GX 550 1040 x 910
GX 551 1130 x 980
GX 600 1110 x 960
GX 650 1110 x 960
GX 651 1200 x 1020
GX 750 1180 x 1000
GX 900 1180 x 1000
3
The new dimension of injection
molding
Engineering inspired by passion.
First-class machine concept.
Best results.
Use to your advantage the first-class hydromechanical
dual platen concept of the GX Series in conjunction
with the single-piston injection system. Thanks to the
modular design, the compact dual platen clamping
unit can be individually configured with all available
injection units. You also profit from the unique and
intelligent production innovations: The GearX locking
mechanism and the GuideX guide shoe.
Highlights of the GX Series at a glance:
Powerful thanks to:
– Very fast dry cycle time (2.3 seconds**)
– High precision with maximum dynamic performance
– Minimum energy consumption
User-friendly thanks to:
– Outstanding accessibility
– Fast mold set-up
– Intelligent, user-friendly control system
Value proven thanks to:
– Robust clamping and injection unit
– Low maintenance costs
– Simple retrofitting
GearX and GuideX product innovations
for fast locking and high part quality
Excellent dual platen technology
Top quality and maximum
productivity
Optimum accessibility
Short set-up times, easy
maintenance
Experience the new dimension
A fascinating tour of the GX
injection molding machine
Ideal interaction between automation and machine
Proven economical overall concept
Flexibility through modularity
Clamp, injector and drive unit
can be individually combined

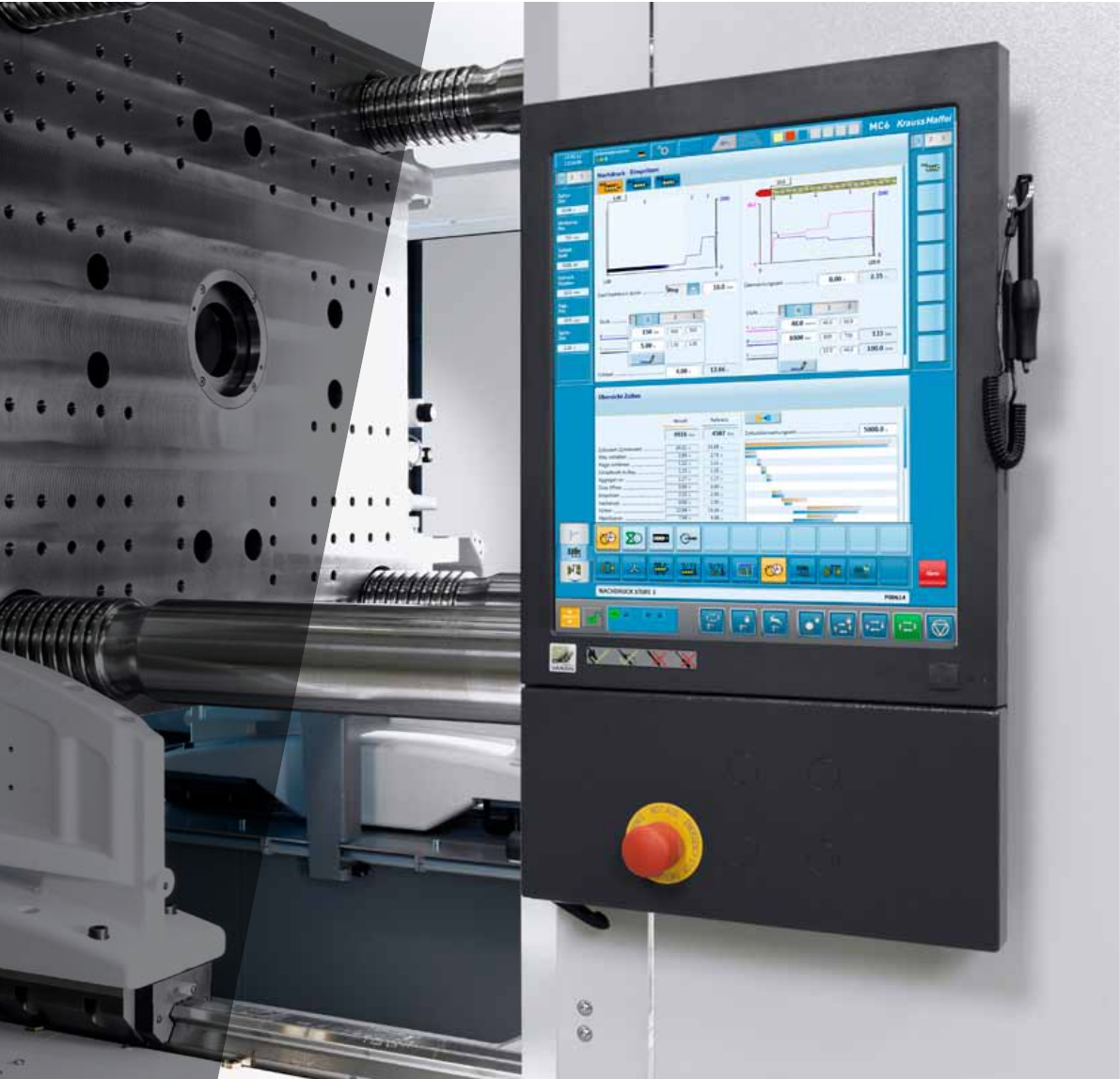

New MC6 control system
Simple and clear operation with
SplitScreen, ProcessDesigner and
Eco function
Powerful injection unit with
proven plasticizing system
Maximum reproducibility and
high melt quality
GearX locking device
Movement
cylinder
GuideX guide shoe
with linear guides
MC6 control system
The modular GX concept
At a glance
Integrative system: The perfect
symbiosis of a machine and automation
technology
As a system partner, we supply automation
technology and a machine on request as
a fully integrated overall concept. The
machine and handling system form a
functional unit in this case. The joint con-
trol system allows both functional units
to be controlled on any control panel:
Automation technology and machine.
The perfect symbiosis of a machine and
automation technology is rounded off by
a standard safety housing. The machine
can be operated via the handheld pendant
of the robot - and vice versa.
The control system: Intelligent and
integrated
The injection molding process and auto-
mation form one unit via the integrated
control system with VARAN-BUS tech-
nology. Process data are available in
real time. Programming and operation
are easy and do not call for any in-depth
programming knowledge. To permit
optimum teaching and ergonomic pro-
gramming, all LRX/LRX-S machines have
a handheld pendant with a touchscreen
display whose operating steps are identical
with the machine‘s control panel.
With the integrated solution, the entire
process can be controlled via a common
operating panel. The machine and robot
data are saved in one dataset. This also
ensures maximum data security and
excellent optimum operating convenience.
20 safety zones, of which 5 are dynamic,
increase the efficiency of the control pro-
grams.
Machine panel operates automation
Automation panel operates machine
Machine
25
Your advantages:
– Smarter programming operation with WizardX
– Integrated control system with central operating unit
– Machine and automation system as optical and functional unit
– Standardized discharge and set-up options
– CE conformity
– Wide range of automation systems from pick & place to highly
complex solutions
(Automation)
Work is made easier through mutual operation - the injection molding machine can be
controlled by the automation handheld pendant - and vice versa
Pressure
pads
In-line injection unit
Plasticizing unit
Power pack and
pump area
24 Machines in the GX Series
Ideal interaction between automation and machine
Ideal interaction between
automation and machine
Combination options
Industrial robot (floor) Industrial robot (console)
Machine
model /
clamping
force (t)
IR 300
R2430
F/K
IR 1200
R2500
F/K
IR 900
R2700
F/K
IR 1200
R2900
F/K
IR 1500
R3100
F/K
IR 300
R2230
S/K
IR 300
R2630
S/K
IR 2100
R2900
S/K
IR 1800
R3100
S/K
IR 1500
R3300
S/K
IR 1200
R3500
S/K
GX 400
GX 450
GX 451
GX 500
GX 550
GX 551
GX 600
GX 650
GX 651
GX 750
GX 900
Key for industrial robot: IR = Industrial robot 300 = payload in N R2030 = reach in mm F = Floor S = Shelf type K = KUKA
Linear robot
Machine
model /
clamping
force (t)
LRX 150 (payload: 15 kg) LRX 250 (payload: 25 kg) LRX 350 (payload: 35 kg) LRX 500 (payload: 50 kg)
X
[mm]
Y
[mm]
Z
[mm]
X
[mm]
Y
[mm]
Z
[mm]
X
[mm]
Y
[mm]
Z
[mm]
X
[mm]
Y
[mm]
Z
[mm]
GX 400 900 1800/T 2500 900 2000/T 2500 – –
GX 450 900 1800/T 2500 900 2000/T 2500 – –
GX 451 900 1800/T 2500 900 2000/T 2500 – –
GX 500 900 1800/T 2500 900 2000/T 2500 – –
GX 550 900 1800/T 2500 900 2000/T 2500 – –
GX 551 900 1800/T 2500 900 2000/T 2500 – –
GX 600 900 1800/T 2500 900 2000/T 2500 1200 2000/T 3000 –
GX 650 900 1800/T 2500 900 2000/T 2500 1200 2000/T 3000 –
GX 651 900 1800/T 2500 900 2000/T 2500 1200 2000/T 3000 –
GX 750 – 900 2000/T 3000 1200 2000/T 3000 1500 2500/T 4000
GX 900 – 900 2000/T 3000 1200 2000/T 3000 1500 2500/T 4000
10
Excellent dual platen technology
The powerful GuideX and GearX team ensures
fast locking and excellent part quality
The GuideX guide shoe absorbs forces and protects the guides.
The linear guide therefore permanently maintains its lightness and precision.
The new GearX locking device is quick and reliable.
GuideX guide shoe – the intelligent
machine element for absolute platen
parallelism with high force absorption.
As an intelligent fixed bearing joint with
an optimized FEM design, the GuideX
guide shoe is a genuine highlight in the
GX Series. Its stable design is the basis
for the machine‘s outstanding platen
parallelism.
Thanks to the innovative technology, the
greatly reduced forces are transmitted
to the linear guides. This keeps the
guides protected over the long term and
maintains their precise ease of move-
ment. The movements are optimal in
terms of energy usage and the sensitive
mold area protection can achieve its
full effect.
Fast locking thanks to GearX
GearX locks the machine within the
shortest possible time. The locking
element is positively engaged in the tie
bar notches via a short flux of force
inside the unit. The enclosed locking
unit is located behind the moving mold
fixing platen and is permanently protected.
Thanks to the optimized and no-frills
design, accessibility to the ejection area
remains habitually spacious and clear.
Depending on the need, customer-specific
ejector hole patterns, ejector plates,
unscrewing units or rotary distributors
can be placed flexibly behind the moving
platen.
The hydromechanical dual
platen clamping unit in the
GX machine sets new standards
in terms of quality and produc-
tivity. With the ingenious
GuideX guide shoe, forces
are ideally absorbed and the
service life of the molds is
increased. The innovative
GearX locking device functions
immediately and reliably.
Machines in the GX Series
Excellent dual platen technology
Long service life of the seals thanks to refined
running surfaces.
11
Clamping force - quick and energy-
efficient with the "BluePower“ optimized
clamping block
The clamping force is built up through
four pressure pads behind the permanent
mold fixing platen. The refined running
surfaces and seals in the pressure pads
are specially designed for high permanent
operation as a result of their material
pairing. One of the impressive features of
the new energy-efficient clamping block
is its speed in building up and reducing
clamping force.
Stable, permanently precise mold
platens guarantee the highest possible
part quality
Excellent stiffness is ensured through the
cast-optimized mold fixing platens with
a rib structure. The rigid central node,
the diagonal ribs and the large distances
between the tiebars permit the installation
of small, medium-sized and large molds.
Thanks to the coherent overall concept of
the GX clamping unit comprising platens,
a clamping bed and GuideX, all occurring
forces are ideally distributed. Your molds
are therefore permanently protected.
Your advantages:
– Short dry cycle time (2.3 seconds *)
– Space-saving clamping unit
– Maximum part quality
– Minimum energy consumption
- Outstanding accessibility
– Service-friendliness
Together with GearX and
GuideX, the hydromechanical
dual platen clamping unit
ensures high part quality and
productivity
Cast-optimized platens are the basis for
maximum part quality.
* Applies to the GX 450 according to the
KraussMaffei standard
Excellent dual platen technology
Mode of operation of GuideX and GearX
Open clamping unit
Thanks to the intelligent GuideX guide shoe,
absolute platen parallelism is attained even
with extremely heavy molds.
Clamping movement
In conjunction with the linear guides, GuideX
produces almost friction-less mold movements.
The roller guide impresses through its precision
and ease of movement.
Locking
Thanks to GearX, the machine is locked quickly
and reliably. When they interact with one another,
the new GuideX and GearX technologies produce
an extremely energy-efficient clamping principle,
precise mold movements and quick dry cycle
times.
Build-up of clamping force
The clamping force is built up quickly with exact
reproducibility through the pressure pads. The
intelligent design of GuideX protects the linear
guide against overloading and guarantees its long
service life.
12 Machines in the GX Series
Excellent dual platen technology
The GearX and GuideX product
innovations ensure fast locking and
high part quality with minimum
energy consumption
13
14 Machines in the GX Series
Proven plasticizing system
Powerful injection unit with proven
plasticizing system
For maximum reproducibility with
optimum melt quality
The injection unit is the core of our machines.
It ensures precision and the highest possible
process reliability
Maximum shot weight constancy with
optimum reproducibility.
Profit from unlimited precision – the
proven in-line injection unit with its
rotary piston design transmits the force
centrally via the injection piston to the
screw. This direct path ensures abso-
lute precision and maximum reproduc-
ibility. Injection regulation of pressure
and speed is a standard feature of the
GX and guarantees you maximum pro-
cess reliability.
High throughput with outstanding melt
quality.
Our plasticizing systems are character-
ized by their excellent melt quality and
cover a wide range of applications for
different plastics. The GX plasticizing
system can be exchanged with other
KraussMaffei series. Our many years of
experience and technology expertise in
coordinating complex processes during
plasticizing ensure high melt specifica-
tions with corresponding throughputs
and optimum melt quality. The right
choice of melt system leads to improved
quality of your products and higher value
retention.
The right screw for every plastic.
In order to provide an ideal solution for
the processing demands with different
polymers, we have developed material-
and processing-specific plasticizing
systems.
In addition to outstanding melt quality
and high throughputs, high-tech plastics
mostly require additional wear resistance
against adhesion, abrasion and corrosion in
order to extend their service life. Depend-
ing on the part requirement, special
plasticizing systems containing specific
screws, check valves and cylinder fittings
are available to you. Extract from our
wide range of plasticizing solutions for
processing:
– PC and PMMA materials,
– Short- and long-fiber-reinforced
plastics,
– Blends,
– Thermosets and silicones
With our core competence, i.e. plasticizing,
there are practically no limits to your
material-specific requirements.
As a plasticizing specialist, our product range
contains the right screw for you for every material
Shot weight constancy 0.042 % based on the example of box covers with a shot weight of 828 g
(polypropylene) and a cycle time of 39 seconds
15
0 8040 9080 100120 110160 120Shot Shot
600
827.7
700
828.0
800
900 828.3Grams Grams
0.042 %
Shot weight constancy
Your advantages:
– Outstanding shot weight constancy
– High process reliability
– Longer service life
– High expertise with special polymers
– Core competence with plasticizing
systems
– Fast plasticizing change
Linear force transmission ensures maximum shot weight constancy
With innovative features such as
SplitScreen technology, the MC6
control system offers you greater
convenience and usability
Usability is our top priority
The new MC6 control system with SplitScreen
technology, ProcessDesigner and Eco function
16 Machines in the GX Series
Control system
17
Whether you are working with a
KraussMaffei control system for the first
time or you are accustomed to its MC5
predecessor – MC6 technology is so intu-
itively accessible that you will work better
and more efficiently than ever before.
Everything in sight - thanks to the new
SplitScreen technology
SplitScreen technology is one of the spe-
cial highlights of the MC6: Thanks to the
split-screen display, you can see the most
important production processes simulta-
neously. In parallel with the actual value
cycles, you can control, for example, the
injection process.
Clarity thanks to the ProcessDesigner
tool
The integrated ProcessDesigner tool
provides a clear visual presentation of
all current processes and enables you
to modify them, depending on require-
ments, by means of simple drag-and-
drop movements or swiping movements.
Destination reached with just two taps –
thanks to a drop-down menu and a favor-
ites bar
To ensure that handling the control unit is
as user-friendly as possible, deeper navi-
gation levels have generally been avoided
with the MC6. Based on the credo "reach-
ing the destination as quickly as possible",
a clear overall concept with individually
configurable favorites bars is produced.
In order to guarantee optimum use, the
machine keypad only provides the keys
which can be selected in regard to the
operating states of the machine. Our user-
The new MC6 control system
meets all of your usability needs.
friendly principle is rounded off by a special
field for selecting systems. You can there-
fore directly select all components of the
machine up to automation and technology.
Go Eco! Energy efficiency at the push of
a button
In keeping with our overall energy-effi-
cient design, the MC6 control system has
an "Eco button". This allows you to con-
figure the machine in the most energy-
efficient manner at the touch of a button.
Intelligent user profiles
Thanks to standardized role profiles – from
the machine operator and mold setter
through to the production manager –
you can assign different authorizations
quickly and easily. Of course, you can
also create additional hierarchy levels
and assign individual rights to users.
Another feature of the MC6 is the resistive
dual-touch function which also allows the
screen to be operated by a person wear-
ing gloves. With the Windows7 Embed-
ded operating system, the MC6 is ideally
equipped for today's technologies and
those in future. The MC6 control system
can be ordered in more than 30 lan-
guages. And best of all: Every feature is
available not only with the control system,
but also on the handheld pendant.
Your advantages:
– User-friendly function principle
– Simple process control thanks to
SplitScreen and ProcessDesigner
– Clear structures
– Standardized user administration
– Two-way operation of automation
and machine possible
The MC6 control system impresses customers
with its clear overall concept. Here using Pro-
cessDesigner as an example.
You can operate the automation both from the
handheld pendant and from the injection molding
machine. And, with the MC6, even reverse opera-
tion of the injection molding machine is easy from
the robot's hand-operated console.
Do you get the most energy-
efficient machine setting?
Always! - Simply press the Eco
button
18
Easy access to the pump area according to the quick click principle
The new maintenance concept of the GX allows quick and easy access to the
most important hydraulic components. The standardized housing elements
can be easily removed thanks to the quick click system. Nearly all the housing
modules can be interchanged with one another.
Machines in the GX Series
Optimum accessibility
19
User-friendliness in a new dimension
The machines in the GX Series feature
easy access to the shut-off, ejector and
nozzle area, as well as to the switching
cabinets and the pump area. Thanks to
this accessible concept, you always work
in an extremely convenient and time-
saving manner.
The new dimension of accessibility has
many positive sides
Direct access to mold-related interfaces:
All cooling water connections, core puller
valves, cascade control systems and the
related interfaces for electric signals are
arranged in fixed positions on the mold
fixing platens. The interface for the hot-
runner control stations is located on the
operator's side. This extremely clear
concept ensures clear structures and
simple set-up.
Everything under control - thanks to an
easy-to-install ejector area
The ejector area offers great freedom
of movement, especially when coupling
mold ejectors. The large doors provide
easy access for set-up. The large obser-
vation windows actually allow optimum
viewing during production.
Flexible parts removal
The machines (4000 – 6500 kN) are stan-
dardized for parts transportation on the
operator's side, on the non-operator's
side and in the direction of the machine
with a chute. Depending on the produc-
tion requirements, wide conveyors can
be integrated and make non-automation
production possible.
Nozzle change and cleaning made easy
Opening the movable and transparent
safety gate creates a large space through
to the nozzle area. The nozzle is there-
fore easily accessible and can be simply
replaced or cleaned.
Fast production changeover for a
fast-moving market
Using our quick mold clamping systems,
plasticizing units can be changed quickly
and easily so that you can immediately
retool for the following process. The nozzle
area is clearly visible and extremely easy
to access. Even with lower shot weights,
we can install a smaller plasticizing unit
for you using an adaption.
Optimum accessibility
For fast set-up and easy maintenance
The spacious ejector area is also suitable for
special ejectors or turntables
All of the important interfaces for the mold can
be reached easily
Our quick mold clamping system creates ideal
conditions for a quick change of the plasticizing unit
Your advantages:
– Optimized set-up times
– Outstanding accessibility
– Easy maintenance
– Easy-to-see ejector area
– Chute for freely falling parts
Machines in the GX Series
Modular system tailored to
your individual needs
20
Profit from the flexibility,
productivity and efficiency
of our machine concept
The new modular system of the GX
Series enables us to take account of your
individual needs. Depending on which
injection unit, clamping unit or drive unit
you require, our modular machine con-
cept enables us to precisely satisfy your
requirements. Thanks to the constant
height of the machine center, the
modular system is compatible with all
clamping/injection combinations.
Flexibility through modularity
The GX machine can be individually combined
Your advantages:
– Machine built according to the customer's
requirements
– Energy-efficient drive systems
(Potential savings: up to 50%)
– Premium quality hydraulics
The height of the central axis remains identical in
the GX, thus permitting a flexible combination of
the injection and drive modules
We can combine your GX
machine precisely according
to your requirements. Injection modules
Clamping units Drive modules
450 550 650 900
21
The PowerPack concept
Energy-efficient drive units for every need
The new PowerPack concept
improves productivity and
increases energy efficiency
In the modular drive system of the GX
Series, the latest generation of the vari-
able delivery pumps is a standard feature.
Their use improves efficiency and guar-
antees you maximum cost-effectiveness.
The parallel movement of the ejector
and core pullers increases productivity
and is available as an optional extra. The
new premium quality hydraulic compo-
nents were designed with the focus on
higher availability and a long service life
to meet the latest state of the art regard-
ing energy efficiency.
Depending on the application and pro-
duction cycle, the machines can be sup-
plied with different PowerPack perfor-
mance classes for first-class economical
production.
"Blue Power“ efficiency solution –
"Servo Drive Technology“
Through the optional use of "Blue Power
Servo Drive" Technology, energy con-
sumption is further optimized compared
with variable delivery pumps. The saving
amounts to 10 and 30 percent depending
on the particular application. Compared
with conventional hydraulic concepts on
the market, savings of up to 50 percent
are actually possible. Another positive
secondary effect is the lower noise level
of servo drives.
The PowerPack drive unit contains the option
of integrating servo drives in your machine and
saving a large amount of energy
22 Machines in the GX Series
Ideal interaction between automation and machine
Ideal interaction between
automation and machine
Proven overall economic concept
Our extensive know-how in the areas of injection molding
machinery and automation is your economic advantage.
Standardized elements combined with customer-specific
solutions form the basis for high flexibility in production.
The integrated CE-approved safety concept ensures a high
safety standard and reduces the machine costs.
23
Maximum variability thanks to
standardized automation systems
The linear robots from the LRX Series
are ideally suited for simple pick & place
solutions and quick removal. They also
perform a very wide range of tasks in
the injection molding process: Insertion,
demolding, processing and much more
besides. Thanks to integration in the con-
trol unit of the machine, all work steps
can be very easily programmed and saved
with the dataset of the injection molding
machine. This automatically ensures the
right combination of dataset and program –
an advantage which also considerably
increases machine safety.
The industrial robot (IR) guarantees
maximum flexibility during complex
demolding and a wide range of other
assembly steps or production steps.
The intelligent control system concept
featuring a simplified user interface and
an extended expert mode is suitable for
every user group and helps you reach
your goal with often just two clicks. The
user interface of the handheld pendant
can also be selected in the beginner
mode or expert mode depending on the
user authorization and hierarchy.
WizardX – Smarter programming
The dialog-based programming assistant
in the MC6 control system allows even
beginners to create basic demolding
processes in the shortest possible time.
The interactive communication between
the user and control system makes
manual programming superfluous and
eliminates programming errors.
WizardX programming assistant
Easy to recognize by the „magic wand symbol“
24 Machines in the GX Series
Ideal interaction between automation and machine
Ideal interaction between
automation and machine
Combination options
Industrial robot (floor) Industrial robot (console)
Machine
model /
clamping
force (t)
IR 300
R2430
F/K
IR 1200
R2500
F/K
IR 900
R2700
F/K
IR 1200
R2900
F/K
IR 1500
R3100
F/K
IR 300
R2230
S/K
IR 300
R2630
S/K
IR 2100
R2900
S/K
IR 1800
R3100
S/K
IR 1500
R3300
S/K
IR 1200
R3500
S/K
GX 400
GX 450
GX 451
GX 500
GX 550
GX 551
GX 600
GX 650
GX 651
GX 750
GX 900
Key for industrial robot: IR = Industrial robot 300 = payload in N R2030 = reach in mm F = Floor S = Shelf type K = KUKA
Linear robot
Machine
model /
clamping
force (t)
LRX 150 (payload: 15 kg) LRX 250 (payload: 25 kg) LRX 350 (payload: 35 kg) LRX 500 (payload: 50 kg)
X
[mm]
Y
[mm]
Z
[mm]
X
[mm]
Y
[mm]
Z
[mm]
X
[mm]
Y
[mm]
Z
[mm]
X
[mm]
Y
[mm]
Z
[mm]
GX 400 900 1800/T 2500 900 2000/T 2500 – –
GX 450 900 1800/T 2500 900 2000/T 2500 – –
GX 451 900 1800/T 2500 900 2000/T 2500 – –
GX 500 900 1800/T 2500 900 2000/T 2500 – –
GX 550 900 1800/T 2500 900 2000/T 2500 – –
GX 551 900 1800/T 2500 900 2000/T 2500 – –
GX 600 900 1800/T 2500 900 2000/T 2500 1200 2000/T 3000 –
GX 650 900 1800/T 2500 900 2000/T 2500 1200 2000/T 3000 –
GX 651 900 1800/T 2500 900 2000/T 2500 1200 2000/T 3000 –
GX 750 – 900 2000/T 3000 1200 2000/T 3000 1500 2500/T 4000
GX 900 – 900 2000/T 3000 1200 2000/T 3000 1500 2500/T 4000
Integrative system: The perfect
symbiosis of a machine and automation
technology
As a system partner, we supply automation
technology and a machine on request as
a fully integrated overall concept. The
machine and handling system form a
functional unit in this case. The joint con-
trol system allows both functional units
to be controlled on any control panel:
Automation technology and machine.
The perfect symbiosis of a machine and
automation technology is rounded off by
a standard safety housing. The machine
can be operated via the handheld pendant
of the robot - and vice versa.
The control system: Intelligent and
integrated
The injection molding process and auto-
mation form one unit via the integrated
control system with VARAN-BUS tech-
nology. Process data are available in
real time. Programming and operation
are easy and do not call for any in-depth
programming knowledge. To permit
optimum teaching and ergonomic pro-
gramming, all LRX/LRX-S machines have
a handheld pendant with a touchscreen
display whose operating steps are identical
with the machine‘s control panel.
With the integrated solution, the entire
process can be controlled via a common
operating panel. The machine and robot
data are saved in one dataset. This also
ensures maximum data security and
excellent optimum operating convenience.
20 safety zones, of which 5 are dynamic,
increase the efficiency of the control pro-
grams.
Machine panel operates automation
Automation panel operates machine
Machine
25
Your advantages:
– Smarter programming operation with WizardX
– Integrated control system with central operating unit
– Machine and automation system as optical and functional unit
– Standardized discharge and set-up options
– CE conformity
– Wide range of automation systems from pick & place to highly
complex solutions
(Automation)
Work is made easier through mutual operation - the injection molding machine can be
controlled by the automation handheld pendant - and vice versa
26 Machines in the GX Series
Further information
Further information
which might also interest you
Are you looking for the appropriate automation
solution for your GX machine?
We can offer you the right robot for every
production task. You can also equip your
GX machine with a special clamping system
or various accessories.
We have also compiled extensive information
on the subject of service for you.
You therefore increase the flexibility of your
injection molding machines for constantly
new process requirements and permanently
extend their performance level. We are happy to
provide you with detailed information on this.
Ask us for information about the following
for example:
– Basis for economical production –
Linear robots in the LRX/LRX-S Series
– Flexible tools for productive automation –
Industrial robots in the IR Series
– Teleservice – the expert network
at the push of a button
– Life Cycle Service
Production partner
You can find our brochures and flyers on other
topics online at: www.kraussmaffei.com.
On request, we would also be happy to send
you the information and technical data free
of charge.
27
The KraussMaffei Group has a global presence.
Countries with subsidiaries are marked in dark blue.
In the white-colored regions, the Group is represented
by over 570 sales and service partners.
KraussMaffei
A strong brand in a unique global group
Cross-technology system and
process solutions
Whether in Injection Molding, Reaction
Process Machinery or Automation – the
KraussMaffei brand stands for pioneer-
ing and cross-technology system and
process solutions in plastics processing
worldwide. For decades, our expertise,
innovative ability and passionate commit-
ment to plastics engineering have been
your competitive edge. As a cross-indus-
try system provider, we offer you modular
and standardized systems as well as
solutions customized to your needs.
There for you around the world
With our worldwide sales and service
network, we offer our international
customers an excellent basis for a
successful business relationship. Due
to the close proximity to our customers,
we are able to answer your individual
inquiries very quickly. We work out the
best possible technical and economical
solution for your product and production
requirements together with you. Test our
machine technology for your applications
and let our experts put together an indi-
vidualized service package for you.
Individualized service
Our employees from customer service,
application technology and service help
you with your questions and needs on
every topic dealing with machines, sys-
tems and processes – around the globe,
quickly and with a high level of expertise.
We have developed an extensive custom-
ized service spectrum with our lifecycle
design, which accompanies you through-
out the entire lifecycle of your machines
and systems. Take advantage of the per-
sonal interaction and flexibility we offer
in our practically oriented seminars.
We carry out customer-specific trainings
either at your location or at our sales and
service locations.
You can find additional information about
KraussMaffei at: www.kraussmaffei.com
KraussMaffei Group
Comprehensive expertise
Unique selling proposition Technology3
The KraussMaffei Group is the only pro-
vider in the world to possess the essen-
tial machine technologies for plastics and
rubber processing with its KraussMaffei,
KraussMaffei Berstorff and Netstal
brands: Injection Molding Machinery,
Automation, Reaction Process Machinery
and Extrusion Technology.
The group is represented internationally
with more than 30 subsidiaries and over
ten production plants as well as about
570 commercial and service partners.
This is what makes us your highly skilled
and integrated partner. Use our com-
prehensive and unique expertise in the
industry.
You can find additional information at:
www.kraussmaffeigroup.com
Engineering inspired by passion.
First-class machine concept.
Best results.
The machines in our GX Series set new standards
in terms of efficiency, user-friendliness and value
retention. The excellent dual platen technology
enables you to perform a quick clamping movement
while you can substantially minimize your set-up
times thanks to extremely simple accessibility.
Absolute parallelism of the platens guarantees
maximum precision and first-class part quality.
Using our well-known powerful injection unit, you
can obtain maximum reproducibility. However, there
are even more advantages. You obtain a first-class,
modular machine concept which features unique and
intelligent product innovations: The GearX locking
mechanism and the GuideX guide shoe.
Powerful.
User-friendly.
Value proven.
Machines in the GX Series
www.kraussmaffei.com
1.0 WE. 2nd edition 08/13. IMM 002 BR 08/2013 EN ··· KraussMaffei reserves the right to make technical changes ··· Printed in the Federal Republic of Germany.
