www.koboldusa.com
measuring
•
monitoring
•
analyzing
Product Summary
KOBOLD Instruments Inc.
Manufacturer of
Innovative Instrumentation
- Flow
- Pressure
- Level
- Temperature
- Analytics
![](asset-2.png)
2
www.koboldusa.com
Product Summary
Hofheim, Germany
Cologne, Germany
KOBOLD Instruments
Sindelfingen, Germany
Pittsburgh, USA
Barcelona, Spain
Kelkheim-Fischbach, Germany
The KOBOLD Group's Production Plants Around The World
For more than 35 years, KOBOLD has been a world leader in process measurement and control solutions. We
offer one of the industry’s broadest lines of sensors, switches, and transmitters to measure and control flow,
pressure, level, and temperature. The KOBOLD brand is synonymous with quality, craftsmanship, technological
advancement, and cost effectiveness. With our in-house engineering and manufacturing, we are able to
customize products to match your application. Our people and our products will go the extra mile for you. Our
engineers and customer service representatives are ready to help you find the ideal KOBOLD solution for your
most demanding applications.
KOBOLD's product line includes:
• Flow: Flowmeters, Transmitters, and Switches Pages 4 - 19
• Pressure: Pressure Gauges, Transmitters, and Switches Pages 20 - 24
• Level: Level Gauges, Indicators, Transmitters, and Switches Pages 25 - 28
• Temperature: Temperature Gauges, Transmitters, and Switches Pages 29 - 30
• Accessories: Magnetic Filters, Needle and Regulating Valves, Control Devices, and Relays Page 31
• Analytics: ORP, pH, Conductivity, Humidity, Turbidity, and Density Page 32
• Application Showcase Pages 33 - 35
![](asset-3.png)
3
www.koboldusa.com
Product Summary
Product Table
Model Page
ACM 32
ACS 32
ADI 31
AFA 32
AFK 32
AFS 32
ANU 16
APM 32
APS 32
AUF 23, 31
BA 28
BGF 5
BGK 5
BGN 5, 6
BVB 6
DAA 19
DAB 19
DAF 19
DAG 31
DAH 19
DAK 19
DAR 19
DAT 19
DF 11
DFT 12
DIG 19
DIH 19
DKB 19
DKF 19
DMH 17
DMS 15
DOE 13
DOG 18
DON 14
DOR 13
DOT 10
DPE 9
DPL 11
DPM 10
DPT 7
DRB 9
DRG 12, 13
DRH 12
DRM 21
Model Page
DRS 8
DRZ 13
DTB 30
DTK 11
DTM 29
DTS 29
DUC 18
DUE 18
DUK 18
DUS 16
DVE 18
DVH 18
DVK 15
DVT 16
DVZ 17
DWD 7
DWF 32
DWN 7
DWS 7
DWU 7
DZR 14
EDM 10
FPS 7
HND-C 32
HND-F 7, 32
HND-P 23
HND-R 32
HND-T 30
INT 31
KAH 15
KAL 14, 15
KAS 24
KDF 4
KDG 4
KDS 5
KEL 16
KES 15
KFA 31
KFD 31
KFF 10
KFG 10
KFR 4
KMT 15
KP46 23
Model Page
KPA 23
KPF 24
KPG 23
KPH 24
KPH300 24
KPK 23
KPL 16
KPS 24
KPW 28
KRT 24
KSK 4
KSM 4
KSR 4
KSV 4
KZA 14
LCI 32
LFM 13
LNK 26
LNM 26
LNP 27
LNR 26
LNZ 26
LPS 7
LTS 30
M25
MAN 20, 21, 22
MAS 15
MFC 15
MFR 31
MIK 17
MM 27
MPT 21
MPV 21
MRT 31
MSR 31
MWD 30
MZB 22
NAB 25
NAD 31
NAE 25
NBA 25
NBE 25
NBK 28
NCG 25
Model Page
NCM 25
NCP 25
NCS 25
NCW 26
NDT 27
NE 26
NEC 25
NEH 25
NEK 25, 26
NEL 25
NEO 28
NES 25
NGM 27
NGR 27
NGS 25
NIR 27
NK-8000 26
NKP 25
NLP 26
NMC 27
NMF 27
NML 27
NMT 27
NNE 25
NQ 26
NRF 27, 28
NSC 27
NSD 26
NSE 25
NSM 25
NSP 25
NST 25
NSV 27
NTB 28
NUS 28
NV 25
NVI 27
NVM 31
NWP 26
NWS 26
NZJ 28
OEM 25
OME 14
OMG 14
Model Page
OPT 26
OVZ 13
PAD 22, 28
PAS 24
PDA 22
PDC 20
PDD 24
PDL 24
PIT 17
PLS 27
PMP 22
PNK 23
PPS 7
PS/PSE 7
PSC 24
PSR 7
PUM 21
RCD 16, 17
RCM 17
REG 18,19, 31
RFS 25
RL 31
S6
SCH 24
SCI 31
SEN 23
SFL 10
SMN 6
SMO 6
SMV 6
SMW 6
ST 29
SV 5
SVN 4
SWK 5
SZM 28
TBI 30
TDA 29
TDD 29
TED 26
TGK 30
TGL 30
TIR 30
TM 16
Model Page
TMA 29
TME 15
TMR 16
TMU 15
TNF 29
TNK 29
TNS 29
TRS 29
TSA 29
TSH 29
TSK 7
TSP 29
TSR 29
TST 29
TTD 30
TTE 30
TTL 30
TTM 30
TUR 8
TUV 8
TWA 30
TWD 30
TWL 30
TWM 30
TWR 29
UFJ 19
UMR 4
URA 4
URB 5
URK 4
URL 4
URM 4
UTR 4
UTS 5
UVR 4
UXR 4
V31 5
VKA 6
VKG 6
VKM 6
VKP 6
ZDM 14
ZED 31
ZLS 31
ZOK 31
![](asset-4.png)
www.koboldusa.com 4

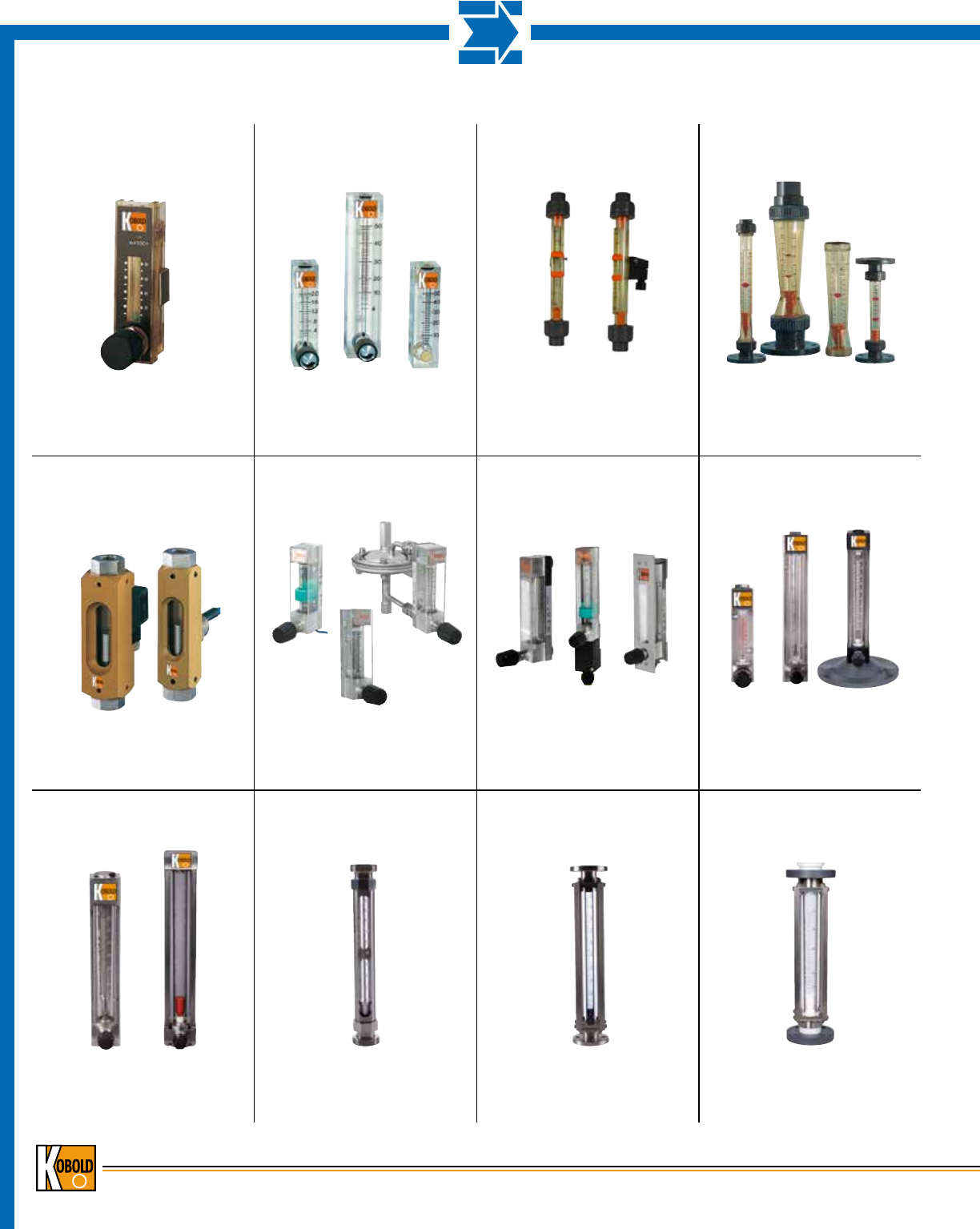

Variable Area - Low Volume
Stainless Steel
Model: KDF -9 / KDG-9
Water: 0.02...0.25l/h to 10...100l/h
Air: 2...20Nl/h to 300...3000Nl/h
tmax100 °C; pmax16bar
Connection: G 1/4,1/4" NPT
Accuracy: ± 3 % qG = 50 %
Variable Area - Plastic - Low Volume
Bodies: Polysulfone
Fittings: Stainless Steel, Brass
Model: KSV
Water: 0.04...0.4GPH to 2...20GPH
Air: 0.3...3SCFH to 10...100SCFH
tmax250°F; pmax100 PSIG
Connection: 1/8" NPT
Accuracy: ± 6% of Full Scale
Variable Area - Plastic - Low Volume
Acrylic
Model: KFR
Water: 0.2...2GPH to 2...20GPM
Air: 0.1...1SCFH to 10...100SCFM
tmax150°F; pmax100PSIG
Connection: 1/8" NPT, 1" NPT
Accuracy: ± 2–5% of Full Scale
Variable Area - Plastic- Low Volume
Polyamide, Polysulfone
Model: KSK
Water:
0.006...0.05GPM to 0.44...4.4GPM
Air: 0.06...0.27SCFM to 3.5...18.3SCFM
tmax250°F; pmax145 PSIG
Connection: 3/8"...1" NPT
or Socket Glue-in Connection
Accuracy: CI. 4 According to VDI
Variable Area - Plastic
Polyamide, Polysulfone
Model: KSM
Water: 0.06...0.66GPM to 35...264GPM
Air: 0.5...3SCFM to 60...400SCFM
tmax250°F; pmax 145PSIG
Connection: 1"...2-1/2" NPT
or Socket Glue-in Connection
Accuracy: CI. 4 According to VDI
Variable Area - Low Volume
Switch
Stainless Steel, Glass Tube
Model: KSR, SVN
Water: 0.03...4 GPH
Air: 0.1...13SCFH
tmax160°F; pmax230PSIG
Connection: 1/4" NPT
Variable Area - Glass Tube
Stainless Steel, POM-C
Model: UMR, UXR, URA
Water: 0.13...1.3GPH to 4...40GPH
Air: 0.18...1.8SCFH to 10...100SCFH
tmax 210°F; pmax 85PSIG
Connection: 1/4" NPT
Accuracy: CI. 4 According to VDI
Variable Area - Glass Tube
Thread Connection
Stainless Steel, PVC
Model: URM
Water: 0.06...0.6GPH to 11...110GPM
Air: 0.11...1.1SCFH to 30...300SCFM
tmax 210°F; pmax 270PSI
Connection: 1/4"...3" NPT, Hose Barb
Accuracy: CI. 4 According to VDI
Variable Area - Glass Tube
Stainless Steel, POM
Model: UVR, UTR
Water: 2.6...26GPH to 52.8...528GPH
Air: 3.5...35SCFH to 176...1,760SCFH
tmax 210°F; pmax 230PSI
Connection: 3/8", 1/2" NPT
Accuracy: CI. 4 According to VDI
Variable Area - Glass Tube
Flange
PVC, PTFE
Model: URL
Water: 0.26...2.6GPH to 66...660GPH
Air: 0.35...3.5SCFH to 350...3,500SCFH
tmax 212°F; pmax 85PSIG
Connection: 1/2"...1-1/2" ANSI
Accuracy: CI. 4 According to VDI
Subject to change without prior notice
Product Summary
Flow
Variable Area - Glass Tube
Fixed Flange
Stainless Steel
Model: URK
Water: 0.004...0.04GPM to 66...220GPM
Air: 0.011...0.11SCFM to 30..300SCFM
tmax210°F; pmax 210PSIG
Connection: 1/2"...3" ANSI
Accuracy: CI. 4 According to VDI
Variable Area - Low Volume
Stainless Steel
Model: KDF-2 / KDG-2
Water: 0.025...2.5l/h to 16...160l/h
Air: 0.5...5Nl/h to 500...5 000Nl/h
tmax100 °C; pmax16bar
Connection: 1/4" NPT, G 1/4
Accuracy: ± 2.5 % qG = 50 %
![](asset-5.png)
www.koboldusa.com
5

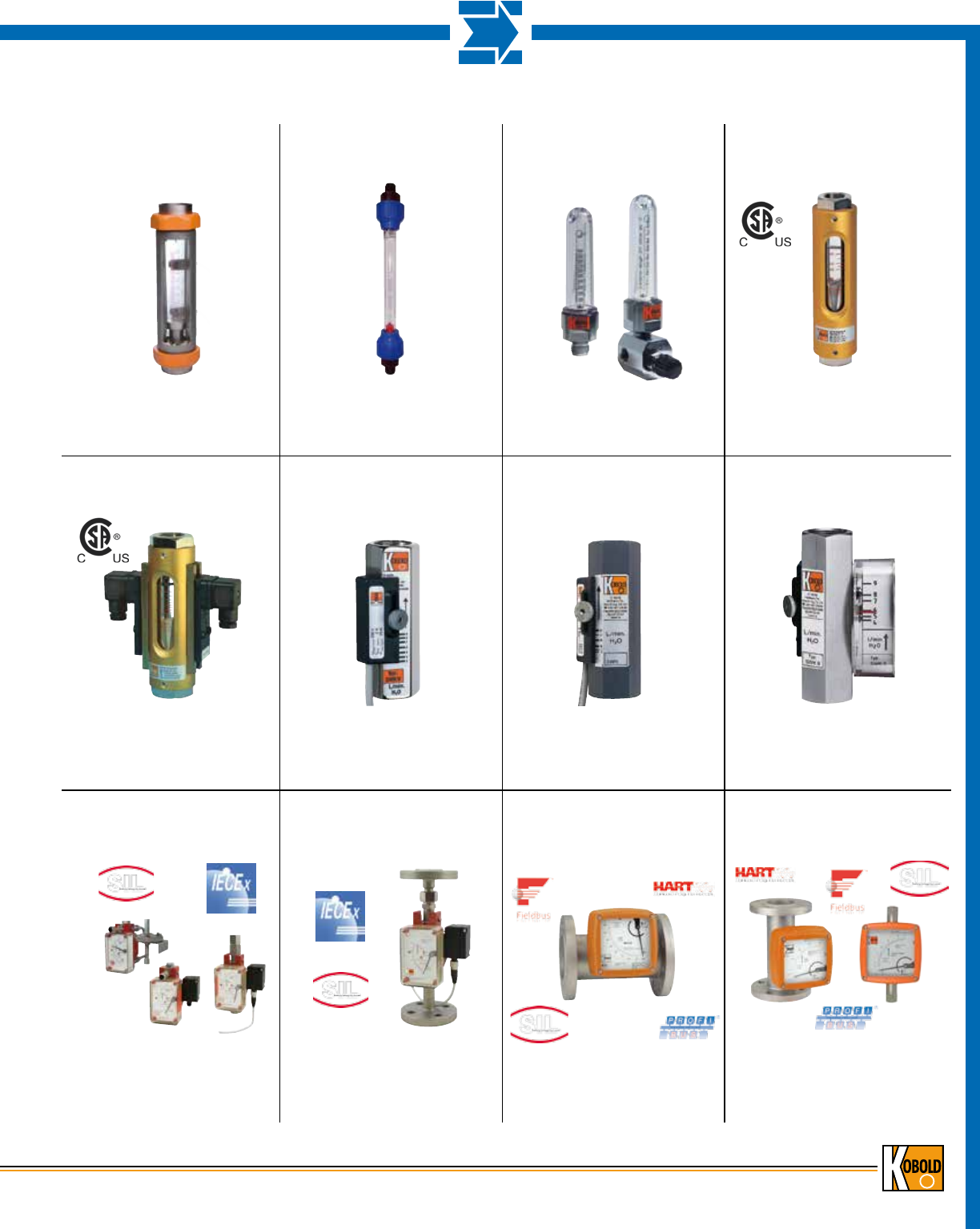

Variable Area - Glass Tube
PVC
Model: URB
Water: 2.6...26GPH to 26...260GPH
Air: 11...110SCFH to 110...1,100SCFH
tmax 130°F; pmax 85PSIG
Connection: 1/2"...1-1/4" NPT
Accuracy: CI. 4 According to VDI
Flow
Variable Area
Brass, Stainless Steel
Model: SV, DSV
Water: 0.075...0.35GPM to 2.5...40GPM
Air: 0.25...1.25 SCFM to 10...150 SCFM
tmax210°F; pmax145PSIG
Connection: 1/4"...1-1/4" NPT
Accuracy: ± 4% of Full Scale
Variable Area - Switch
Brass, Stainless Steel
Model: SV, DSV
Water: 0.075...0.35GPM to 2.5...40GPM
Air: 0.25...1.25 SCFM to 10...150 SCFM
tmax210°F; pmax145PSIG
Connection: 1/4"...1-1/4" NPT
Accuracy: ±4% of Full Scale
Variable Area - Switch
Low Volume
PVC
Model: SWK-13
Water: 0.2...0.8L/min to 13...24L/min
Air: on Request
tmax140°F; pmax85PSIG
Connection: G 1/2
Accuracy: ± 4% of Full Scale
Variable Area - Switch
Low Volume
Brass, Stainless Steel
Model: SWK-11, SWK-12
Water: 0.05...0.1L/min to 13...24L/min
Air: on Request
tmax210°F; pmax3,600PSIG
Connection: G 1/2
Accuracy: ± 4% of Full Scale
Variable Area - Low Volume
Brass, Stainless Steel
Model: SWK-21, SWK-22
Water: 0.05...0.1L/min to 13...24L/min
Air: on Request
tmax100°F; pmax250PSIG
Connection: G 1/2
Accuracy: ± 4% of Full Scale
Variable Area - All Metal
Low Volume
Stainless Steel
Model: BGK
Water: 0.026...0.26GPH to 5...50GPH
Air: 0.1...1SCFH to 20...200SCFH
tmax260°F; pmax 230 / 580 PSIG
Connection: 1/2"...1" ANSI
Accuracy: ± 3% of Full Scale
Option: Analog Output
Variable Area - Glass Tube
High Accuracy
Stainless Steel, PVC, PVDF
Model: V31
Water: 0.3...3.3GPH to 4.4...44GPM
Air: 0.088...0.88SCFM to 10.6...106SCFM
tmax176 °F; pmax 210 PSIG
Connection: 1/4"...2" NPT or ANSI
Accuracy: ±1.6% Liquids ±2.5% Gases VDI
Product Summary
Subject to change without prior notice
Variable Area - Glass Tube
for Gas Burners
Brass
Model: UTS
Water: 0.1...1.0 GPH to 1.0...10 GPH
Air: 0.25...2.5SCFH to 10...100 SCFH
tmax130°F; pmax45PSIG
Connection: 1/4" NPT, G 1/4, M18x1.5
Accuracy: CI. 4 According to VDI
Variable Area - All Metal
Stainless Steel, Special Materials on
Request
Model: BGN
Water: 0.002...0.02GPM to 60...570GPM
Air: 0.008...0.08SCFM to 140...1,400SCFM
tmax660°F; pmax580 PSIG
Connection: 1/2"... 6" ANSI
Option: Analog Output 4-20 mA
Accuracy: ±1.6 - 2.2% of Full Scale
Variable Area - All Metal
Low Volume
Stainless Steel
Model: KDS
Water: 0.026...0.26GPH to 5...50GPH
Air: 0.1...1SCFH to 20...200SCFH
tmax260°F; pmax 230 / 580 PSIG
Connection: 1/4" NPT
Accuracy: ± 3% of Full Scale
Option: Analog Output
Variable Area - All Metal
Horizontal or Vertical Flow
Stainless Steel, Special Materials on
Request
Model: BGF
Water: 0.044...0.44GPM to 18...175GPM
Air: 0.17...1.7SCFM to 65...650SCFM
tmax660°F; pmax580
Connection: 1/2"...3" ANSI
Accuracy: ±1.6% of Full Scale
![](asset-6.png)
www.koboldusa.com 6
Variable Area Switch - All Metal
Brass, Stainless Steel
Model: S, DSS
Water: 0.075...0.25GPM to 1...14GPM
Air: 0.2...1.1 SCFM to 3...70 SCFM
tmax210°F; pmax5,000 PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 5% of Full Scale
Variable Area - All Metal
Brass, Stainless Steel
Model: SMV
Water: 0.05...0.15GPM to 4...40GPM
Air: 0.05...1 SCFM to 5...130 SCFM
tmax210°F; pmax5,000PSIG
Connection: 1/4"...1-1/4" NPT
Accuracy: ± 5% of Full Scale
Variable Area - All Metal
Horizontal or Vertical Flow
Brass, Stainless Steel
Model: SMO, SMW
Water: 0.04...0.6GPM to 8...34GPM
Air: 0.2...3.5 SCFM to 30...130 SCFM
tmax210°F; pmax5,000PSIG
Connection: 1/4" ... 3/4" NPT
Accuracy: ± 5% of Full Scale
Piston Type Switch - All Metal
Horizontal or Vertical Flow
Brass, Stainless Steel
Model: SMN
Water: 0.4...13GPM
tmax210°F; pmax 5,000PSIG
Connection: 1" NPT
Accuracy: ± 5% of Full Scale
Viscosity Compensated
Brass, Stainless Steel
Model: VKP
Water: 0.5...5GPM to 5...26GPM
Oil: 0.5...4.5GPM to 3...20 GPM
tmax250°F; pmax230PSIG
Connection: 1/2", 3/4", 1" NPT,
Solder and Glue Connection Available
Accuracy: ± 5% of Full Scale
Viscosity Compensated - Plastic
Polysulfone
Model: VKG
Viscosity Range: 1...540cSt
Oil: 0.03...0.12GPM to 2...21GPM
tmax210°F; pmax175PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 4% of Full Scale
Viscosity Range: 1...540cSt
Oil: 0.03...0.12GPM to 2...20GPM
tmax210°F; pmax5,000PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 4% of Full Scale
Viscosity Range: 1...540cSt
Oil: 0.03...0.12GPM to 2...18GPM
tmax210°F; pmax5,000PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 4% of Full Scale
Viscosity Compensated
All Metal
Brass, Stainless Steel
Viscosity Compensated
All Metal
Brass, Stainless Steel
Model: VKM
Model: VKM-..C3
Viscosity Compensated
All Metal
Brass, Stainless Steel
Model: VKM with ADI-1
Viscosity Range: 1...540cSt
Oil: 0.03...0.12GPM to 2...18GPM
tmax210°F; pmax5,000PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 4% of Full Scale
Viscosity Compensated
All Metal - OEM
Brass
Model: VKA
Viscosity Range: 30...300cSt
Oil: 2...6.3GPM to 8...26GPM
tmax210°F; pmax3,600PSIG
Connection: 1/2", 3/4" NPT
Accuracy: ± 4% of Full Scale
Manifold Valves for Multiple
Installation
Aluminum
Model: BVB
tmax210°F; pmax930 PSIG
Connection: 1/2" NPT
Product Summary
Flow
Subject to change without prior notice
Variable Area - All Metal -
High Pressure
Stainless Steel, Special Materials on
Request
Model: BGN
Water: 0.002...0.02GPM to 60...570GPM
Air: 0.008...0.08SCFM to 140...1,400SCFM
tmax660°F; pmax8,700PSIG
Connection: 1/2"... 6" ANSI
Option: Analog Output, BUS-Interface, Heat
Jacket
Accuracy: ±1.6 – 2.2% of Full Scale
![](asset-7.png)
www.koboldusa.com
7
Paddle Switch
Brass, Stainless Steel
Model: PSR
Water: 0.9...1.3GPM to 9.2...15GPM
tmax230°F; pmax1,450PSIG
Connection: 1/4"...1-1/2" NPT
Paddle Switch
Brass, Stainless Steel
Model: PS / PSE
Water: 16...22GPM to 176...237GPM
tmax230°F; pmax1,450PSIG
Connection: 1/2" NPT
Paddle Switch - Plastic
Polysulfone
Model: PPS
Water: 5...9.5GPM to 19... 28.5GPM
tmax210°F; pmax145PSIG
Connection: 1" NPT
Repeatability: ± 3% of Switchpoint
Paddle Switch - HVAC
Brass
Model: LPS
Air: 400...1,800FPM
tmax185°F; pmaxAtmospheric
Connection: Flange
Paddle Bellows Switch
Brass, Stainless Steel
Model: FPS
Water: 0.9...4.4GPM to 320...730GPM
tmax210°F; pmax435PSIG
Connection: 1" NPT
Paddle Bellows Switch
Brass, Stainless Steel, PVC
Model: DWS / DWN
Water: 0.8...14.5GPM to 13.2...158GPM
tmax210°F; pmax230 PSIG
Connection: 1/2"...2" NPT, 1/2"...2" ANSI
Accuracy: ± 3 – 5% of Full Scale
Paddle Bellows Meter/Switch
Brass, Stainless Steel, PVC
Model: DWU
Liquid: 0.26...1.3GPM to
3,600...15,800GPM
tmax210°F; pmax230 PSIG
Connection: 3/8"...2" NPT, 1/2" ... 2" ANSI,
Weld-on Flange for 1-1/2"...24" Pipe
Accuracy: ± 3 – 5% of Full Scale
Paddle Torsion - Flowmeter
Brass, Stainless Steel
Model: DPT-..C3
Water: 1.5...8GPM to 225...500GPM
tmax175°F; pmax 580 PSIG
Connection: 3/8"...3" NPT
Accuracy: ± 3% of Full Scale
Paddle Torsion - Flowmeter
Brass, Stainless Steel
Model: DPT-..K
Water: 1.5...8GPM to 225...500GPM
tmax175°F; pmax580 PSIG
Connection: 3/8"...3" NPT
Accuracy: ± 3% of Full Scale
Baffle Flap - Flowmeter
Brass, Stainless Steel, PVC
Model: DWD
Water: 0.26...2.6GPM to
1,580...15,800GPM
tmax250°F; pmax360PSIG
Connection: 3/8"...2" NPT, 1/2"...2" ANSI,
Weld-on Flange 1-1/2"...20" Pipe
Accuracy: ±1.5% of Full Scale
Flap - Flowmeter
Steel, Stainless Steel, PP, PVDF,
Hastelloy®
Model: TSK
Water: 2.2...15GPM to 880...6,600GPM
tmax570°F; pmax580 PSIG
Connection: 1"...20" ANSI Wafer
Accuracy: ± 2% of Reading + 1% of FS
Flow, Humidity and Temperature
Hand-Held Measuring Unit
Model: HND-F115
Measuring Range:
Water: 0.16...16 ft/sec
Air: 1.8... 65 ft/sec
Humidity: 0 ... 100% rH
Temperature: -40...250 °F, -110...480 °F
Accuracy: from ± 0.1% of Full Scale
Flow
Product Summary
Subject to change without prior notice
![](asset-8.png)
www.koboldusa.com 8
Turbine - Pulse Output
Brass, Stainless Steel, PPO
Model: DRS-..F5
Water: 0.6...10.5GPM
tmax300°F; pmax2,900PSIG
Connection: 3/4" NPT
Accuracy: ±1.5% of Full Scale
Turbine - Pulse or Analog Output
Brass, Stainless Steel, PPO
Model: DRS-..F3, DRS-..L3
Water: 0.6...10.5GPM
tmax 175°F; pmax2,900PSIG
Connection: 3/4" NPT
Accuracy: ±1.5% of Full Scale
Turbine - Analog Output
Brass, Stainless Steel, PPO
Model: DRS-..L4 with AUF
Water: 0.6...10.5GPM
tmax175°F; pmax2,900PSIG
Connection: 3/4" NPT
Accuracy: ±1.5% of Full Scale
Turbine - Pointer Indicator
Brass, Stainless Steel, PPO
Model: DRS-..Z3
Water: 0.6...10.5GPM
tmax175°F; pmax2,900PSIG
Connection: 3/4" NPT
Accuracy: ±1.5% of Full Scale
Turbine - Compact Electronic
Brass, Stainless Steel, PPO
Model: DRS-..C3
Water: 0.6...10.5GPM
tmax175°F; pmax2,900PSIG
Connection: 3/4" NPT
Accuracy: ±1.5% of Full Scale
Turbine - Counter
Brass, Stainless Steel, PPO
Model: DRS with ZED
Water: 0.6...10.5GPM
tmax300°F; pmax2,900PSIG
Connection: 3/4" NPT
Accuracy: ±1.5% of Full Scale
Turbine - Pulse Output
PVC, PVDF
Model: TUR
Water: 5...88GPM to 11...440GPM
tmax160°F; pmax145 PSIG
Connection: 2" or 4" ANSI
Accuracy: ±1% of Full Scale
Turbine - Analog Output
PVC, PVDF
Model: TUR
Water: 5...88GPM to 11...440GPM
tmax160°F; pmax145 PSIG
Connection: 2" or 4" ANSI
Accuracy: ±1% of Full Scale
Turbine - Pointer Indicator
PVC, PVDF
Model: TUR-..Z3
Water: 5.3...88GPM to 11...440GPM
tmax160°F; pmax145PSIG
Connection: 2" or 4" ANSI
Accuracy: ±1% of Full Scale
Turbine -Compact Electronics
PVC, PVDF
Model: TUR-..C3
Water: 5.3...88GPM to 11...440GPM
tmax160°F; pmax145PSIG
Connection: 2" or 4" ANSI
Accuracy: ±1% of Full Scale
Turbine - Digital Display
PVC, PVDF
Model: TUR-..K
Water: 5.3...88GPM to 11...440GPM
tmax160°F; pmax145PSIG
Connection: 2" or 4" ANSI
Accuracy: ±1% of Full Scale
Product Summary
Flow
Subject to change without prior notice
Turbine Wheel - Pulse Output
Stainless Steel
Model: TUV
Water: 0.3...1.5l/min to 35...400l/min
tmax350 °C; pmax640bar
Connection: G 1/4...1-1/2
Accuracy: ± 1% of Reading
![](asset-9.png)
www.koboldusa.com
9
Paddle Wheel - Digital Display
Brass, Stainless Steel
Model: DPE with ADI-1
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Batch Controller
Brass, Stainless Steel
Model: DPE with ZED
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Pulse/Analog
Output
Brass, Stainless Steel
Model: DRB
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax230 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3.0% of Full Scale
Paddle Wheel - Analog Output
Brass, Stainless Steel
Model: DRB with AUF
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax230 PSIG
Connection: 1/2"....3" NPT
Accuracy: ± 3.0% of Full Scale
Paddle Wheel - Pointer Indicator
Brass, Stainless Steel
Model: DRB-..Z3
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax230 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel-Compact Electronics
Brass, Stainless Steel
Model: DRB-..C3
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax230 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel - Digital Display
Brass, Stainless Steel
Model: DRB with ADI-1
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax230 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel - Batch Controller
Brass, Stainless Steel
Model: DRB with ZED
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax230 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel - Pulse /Analog
Output
Brass, Stainless Steel
Model: DPE
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Analog Output
Brass, Stainless Steel
Model: DPE with AUF
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Pointer Indicator
Brass, Stainless Steel
Model: DPE-..Z3
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel
Compact Electronics
Brass, Stainless Steel
Model: DPE-..C3
Water: 1.5...8GPM to 15...200GPM
tmax175°F; pmax 580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 2.5% of Full Scale
Flow
Product Summary
Subject to change without prior notice
![](asset-a.png)
www.koboldusa.com 10
Paddle Wheel - Low Volume
Analog Output
Brass, Stainless Steel
Model: DPM-..L4 with AUF
Water: 0.24...11.1 GPH to 0.8...80GPH
tmax175°F; pmax230PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1 – 2.5% of Full Scale
Paddle Wheel - Low Volume
Pointer Indicator
Brass, Stainless Steel
Model: DPM-..Z3
Water: 0.24...11.1 GPH to 0.8...80GPH
tmax175°F; pmax230PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1 – 2.5% of Full Scale
Paddle Wheel - Low Volume
Compact Eletronics
Brass, Stainless Steel
Model: DPM-..C3
Water: 0.24...11.1 GPH to 0.8...80GPH
tmax175°F; pmax230PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1 – 2.5% of Full Scale
Paddle Wheel - Low Volume
Totalizer
Brass, Stainless Steel
Model: DPM with ZED
Water: 0.24...11.1 GPH to 0.8...80GPH
tmax175°F; pmax230PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1 – 2.5% of Full Scale
Turbine - Pulse Output
Ratemeter/Totalizer
Stainless Steel
Model: DOT
Water:
0.48...4.8GPM to 1760...17,600GPM
tmax250°F; pmax3,600PSIG
Connection: 1/2"...2" NPT, 1/2"...16" ANSI
Accuracy: ± 0.5% of Full Scale
Turbine Flowmeter/Totalizer
Battery Powered
Polyamide, Brass, Stainless Steel,
PVC, Aluminum, PVDF
Turbine - Flowmeter/Totalizer
Battery Powered
PVC
Turbine Wheel - Pulse Output
PVDF, Stainless Steel
Model: EDM
Model: EDM-8000
Model: SFL
Water: 0.3...3GPM to 30...300GPM
tmax175°F; pmax230PSIG
Connection: 1/2"...2" NPT
Accuracy: ±1 - 2% of Full Scale
Water: 1...10GPM to 60...600GPM
tmax140°F; pmax150PSIG
Connection: 1/2"...4" NPT, Flange, Socket
Accuracy: ± 3% of Reading
Paddle Wheel - Low Volume
Pulse Output
Brass, Stainless Steel
Model: DPM-..F5
Water: 0.24...11.1 GPH to 0.8...80GPH
tmax175°F; pmax230PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1 – 2.5% of Full Scale
Paddle Wheel - Low Volume
Pulse or Analog Output
Brass, Stainless Steel
Model: DPM-..F3, DPM-..L3
Water: 0.24...11.1 GPH to 0.8...80GPH
tmax175°F; pmax230PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1 – 2.5% of Full Scale
Product Summary
Flow
Paddle Wheel - Low Volume
Brass, PTFE, PPS
Model: KFF-1 / KFG-1
Water: 15...100mL/min to 1...10L/min
Air: 10...50mLN/min to 100...500LN/min
tmax120°F; pmax500PSIG
Connection: 1/8"...1/2" Compression
Accuracy: ± 3% of Full Scale
Paddle Wheel - Low Volume
Brass, PPS
Model: KFF-3 / KFG-3
Water: 13...100mL/min to 1...10L/min
Air: 10...50mLN/min to 100...500LN/min
tmax120°F; pmax500PSIG
Connection: 1/8"...1/2" Compression
Accuracy: ± 3% of Full Scale
Subject to change without prior notice
Water: 0.5...20l/min
tmax90 °C; pmax250bar
Connection: G 3/8
Accuracy: ±1% of Full Scale
![](asset-b.png)
www.koboldusa.com
11
Paddle Wheel - Digital Display
Polysulfone, PP, Brass, Stainless Steel
Model: DF-KL
Water: 0.02...0.14GPM to 1.5...36GPM
tmax180°F; pmax1,450PSIG
Connection: 1/8"...1-1/2" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Totalizer/Batch
Controller
Polysulfone, PP, Brass, Stainless Steel
Model: DF-ZL, -DL
Water: 0.02...0.14GPM to 1.5...36GPM
tmax180°F; pmax1,450PSIG
Connection: 1/8"...1-1/2" NPT
Accuracy: ± 2.5% of Full Scale
Water: 0.4...8GPH to 16...400GPH
tmax160°F; pmax145PSIG
Connection: 1/2" BSP, Hose Barb
Accuracy: ± 2.5% of Full Scale
Water: 0.4...8GPH to 16...400GPH
tmax160°F; pmax145PSIG
Connection: 1/2" BSP, Hose Barb
Accuracy: ± 2.5% of Full Scale
Water: 0.4...8GPH to 16...400GPH
tmax160°F; pmax145PSIG
Connection: 1/2" BSP, Hose Barb
Accuracy: ± 2.5% of Full Scale
Water: 0.4...8GPH to 16...400GPH
tmax160°F; pmax145PSIG
Connection: 1/2" BSP, Hose Barb
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Low Volume
Compact Electronic
Polypropylene
Model: DPL-..C3
Water: 0.4...8GPH to 16...400GPH
tmax160°F; pmax145PSIG
Connection: 1/2" BSP, Hose Barb
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Low Volume
Totalizer
Polypropylene
Model: DPL with ZED
Water: 0.4...8GPH to 16...400GPH
tmax160°F; pmax145PSIG
Connection: 1/2" BSP, Hose Barb
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Low Volume
Stainless Steel
Model: DTK
Water: 0.8...9.5 GPH to 16...190 GPH
tmax280°F; pmax430PSIG
Connection: 1/4" NPT
Accuracy: ± 2% of Full Scale
Paddle Wheel - Pulse Output
Polysulfone, PP, Brass, Stainless Steel
Model: DF-Sensor
Water: 0.02...0.14GPM to 1.5...36GPM
tmax180°F; pmax1,450PSIG
Connection: 1/8"...1-1/2" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Analog Output
Polysulfone, PP, Brass, Stainless Steel
Model: DF-MA
Water: 0.02...0.14GPM to 1.5...36GPM
tmax180°F; pmax1,450PSIG
Connection: 1/8"...1-1/2" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel Switch - Low Volume
Polysulfone, PP, Brass, Stainless Steel
Model: DF-WM
Water: 0.02...0.14GPM to 1.5...36GPM
tmax180°F; pmax1,450PSIG
Connection: 1/8"...1-1/2" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Low Volume
Pulse Output
Polypropylene
Model: DPL-..F5
Paddle Wheel - Low Volume
Pulse or Analog Output
Polypropylene
Model: DPL-..F3, ..L3
Paddle Wheel - Low Volume
Analog Output
Polypropylene
Model: DPL-..L4 with AUF
Paddle Wheel - Low Volume
Pointer Indicator
Polypropylene
Model: DPL-..Z3
Flow
Product Summary
Subject to change without prior notice
![](asset-c.png)
www.koboldusa.com 12
Paddle Wheel - Pulse /Analog
Output
POM, PVDF, Brass, Stainless Steel
Model: DRH-..F, DRH-..L
Water: 0.05...0.2GPM to 0.66...13.2GPM
tmax 175°F; pmax 1,450PSIG
Connection: 3/8" NPT, 1" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Analog Output
POM, PVDF, Brass, Stainless Steel
Model: DRH with AUF
Water: 0.05...0.2GPM to 0.66...13.2GPM
tmax 175°F; pmax 1,450PSIG
Connection: 3/8" NPT, 1" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Pointer Indicator
POM, PVDF, Brass, Stainless Steel
Model: DRH-..Z3
Water: 0.05...0.2GPM to 0.66...13.2GPM
tmax 175°F; pmax 1,450PSIG
Connection: 3/8" NPT, 1" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Compact
Electronics
POM, PVDF, Brass, Stainless Steel
Model: DRH-..C3
Water: 0.05...0.2GPM to 0.66...13.2GPM
tmax 175°F; pmax 1,450PSIG
Connection: 3/8" NPT, 1" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Digital Display
POM, PVDF, Brass, Stainless Steel
Model: DRH with ZED or ADI-1
Water: 0.05...0.2GPM to 0.66...13.2GPM
tmax 175°F; pmax 1,450PSIG
Connection: 3/8" NPT, 1" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Pulse Output
Brass
Model: DFT
Water: 0.02...0.14GPM to 0.5...12GPM
tmax180°F; pmax230PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Paddle Wheel - Pulse Output
PTFE
Model: DFT
Water: 0.02...0.14GPM to 0.5...12GPM
tmax180°F; pmax230PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Product Summary
Flow
Paddle Wheel - Pulse/Analog
Output
Polypropylene, Brass, Stainless Steel
Model: DRG-..F, ..L
Water: 0.15...3GPM to 3...37GPM
tmax 175°F; pmax 580PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel - Analog Output
Polypropylene, Brass, Stainless Steel
Model: DRG with AUF
Water: 0.15...3GPM to 3...37GPM
tmax 175°F; pmax 580PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel - Pointer Indicator
Polypropylene, Brass, Stainless Steel
Model: DRG-..Z3
Water: 0.15...3GPM to 3...37GPM
tmax 175°F; pmax 580PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel -
Compact Electronics
Polypropylene, Brass, Stainless Steel
Model: DRG-..C3
Water: 0.15...3GPM to 3...37GPM
tmax 175°F; pmax 580PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel - Digital Display
PTFE, Brass
Model: DFT-..KL, ..E, ..G
Water: 0.02...0.14GPM to 0.5...12GPM
tmax180°F; pmax230PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Subject to change without prior notice
![](asset-d.png)
www.koboldusa.com
13
Paddle Wheel - Digital Display
Polypropylene, Brass, Stainless Steel
Model: DRG with ZED or ADI-1
Water: 0.15...3GPM to 3...37GPM
tmax 175°F; pmax 580PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 3% of Full Scale
Paddle Wheel - Insertion Type
Stainless Steel
Model: DOR
Water: 5.5...180GPM to
25,000...800,000GPM, 1...33 ft/sec
tmax200°F; pmax1160PSIG
Connection: 1-1/2" NPT, 2" NPT
Linearity: ±1.5% of Full Scale
Positive Displacement -
Rotary Piston, Analog Output
Brass
Model: DRZ with AUF
Viscosity Range: 5...100cSt
Oil: 1.6...110GPH
tmax175°F; pmax580PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1% of Reading
Positive Displacement -
Rotary Piston, Pulse Output
Brass
Model: DRZ..F
Viscosity Range: 5...100cSt
Oil: 1.6...110GPH
tmax175°F; pmax580PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ±1% of Reading
Positive Displacement -
Rotary Piston,
Compact Electronics
Brass
Model: DRZ-..C3
Viscosity Range: 5...100cSt
Oil: 1.6...110GPH
tmax175°F; pmax580PSIG
Connection: 1/8" NPT, 1/4" NPT
Accuracy: ± 1% of Reading
Flow
Product Summary
Subject to change without prior notice
Viscosity Range: 10...800cSt
Oil: 0.08...2.1GPM to 0.5...10.6GPM
tmax 175°F; pmax580PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Positive Displacement - Oval Gear
Pulse Output
POM, Aluminum
Model: OVZ-..F, ..L
Positive Displacement - Oval Gear
Analog Output
POM, Aluminum
Model: OVZ-..L4 with AUF
Viscosity Range: 10...800cSt
Oil: 0.08...2.1GPM to 0.5...10.6GPM
tmax 175°F; pmax580PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Positive Displacement - Oval Gear
Pointer Indicator
POM, Aluminum
Model: OVZ-..Z3
Viscosity Range: 10...800cSt
Oil: 0.08...2.1GPM to 0.5...10.6GPM
tmax 175°F; pmax580PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Positive Displacement - Oval Gear
Compact Electronics
POM, Aluminum
Model: OVZ-..C3
Viscosity Range: 10...800cSt
Oil: 0.08...2.1GPM to 0.5...10.6GPM
tmax 175°F; pmax580PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Positive Displacement - Oval Gear
Batch Controller
POM, Aluminum
Model: OVZ with ZED
Viscosity Range: 10...800cSt
Oil: 0.08...2.1GPM to 0.5...10.6GPM
tmax 175°F; pmax580PSIG
Connection: 1/4"...3/4" NPT
Accuracy: ± 2.5% of Full Scale
Dual-Ring Piston - Pendulum -
Low Volume
Stainless Steel
Water: 0.005...0.25l/min
tmax70 °C; pmax100bar
Connection: G 1/8, Swagelok 6 mm
Accuracy: ± 2.5% of Reading
Model: LFM
Oval Wheel - Pulse Output
Aluminum, Stainless Steel
Model: DOE
Viscosity Range: 0...1,000,000cP
Oil: 0.5...36l/h to 2...100l/h
Connection:
G 1/8, G 1/4, 1/8" NPT, 1/4" NPT
Accuracy: ±1 % of Reading
![](asset-e.png)
www.koboldusa.com 14
Oval Gear - LCD Display
Aluminum, Stainless Steel
Model: DON-..Z..
Oval Gear - Mechanical Totalizer
Aluminum, Stainless Steel
Model: DON-..M..
Viscosity Range: 0...1,000,000cP
Oil: 0.13...9.5 GPH to 40...660 GPM
tmax 250 °F; pmax580 PSI
Connection: 1/8"...4" NPT, ANSI 1"...4"
Accuracy: ± 0.2-1% of Reading
Viscosity Range: 0...1,000,000cP
Oil: 0.13...9.5 GPH to 40...660 GPM
tmax 250 °F; pmax5800 PSI
Connection: 1/8"...4" NPT, ANSI 1"...4"
Accuracy: ± 0.2-1% of Reading
Oval Gear - Pulse Output
Aluminum, Stainless Steel
Model: DON-..F4
Viscosity Range: 0...1,000,000cP
Oil: 0.13...9.5 GPH to 40...660 GPM
tmax 300 °F; pmax5800 PSI
Connection: 1/8"...4" NPT, ANSI 1"...4"
Accuracy: ± 0.2-1% of Reading
Product Summary
Flow
Positive Displacement - Spur Gear
Pulse Output
Cast Iron, Stainless Steel
Model: ZDM
Viscosity Range: 0.3...1,000,000cSt
Oil: 0.0005...0.5GPM to 0.3...80GPM
tmax300°F; pmax6,500PSIG
Connection: 3/8"...1-1/2" NPT
Accuracy: ± 0.3% of Reading
Viscosity Range: 1...5,000 cSt
Oil: 0.026...2.6GPM to 13...1,300GPM
tmax390°F; pmax6,000PSIG
Connection: 1/2"...3" NPT, 1/2"...6" ANSI
Accuracy: ± 0.3% of Reading
Positive Displacement - Screw
Type - Pulse Output
Cast Iron, Stainless Steel
Model: OMG
Calorimetric Indicator/Switch
Stainless Steel
Model: KAL-D
Water: 0.15...6.6ft/sec
tmax 175°F; pmax580PSIG
Connection: 1/4", 1/2" NPT/BSP, M12
Calorimetric Indicator/Switch
Stainless Steel
Model: KAL-K
Water: 0.15...6.6ft/sec
tmax250°F; pmax1,450PSIG
Connection: 1/4"...3/4" NPT, Tri-Clamp®
Calorimetric Transmitter/Switch
Stainless Steel
Model: KAL-A
Water: 0.15...6.6ft/sec
tmax175°F; pmax1,450PSIG
Connection: 1/4"...3/4" NPT, Tri-Clamp®
Linearity: ±10% of Full Scale
Air: 3.3...65ft/sec
tmax250°F; pmax100PSIG
Connection: 1/2" NPT, Duct Flange
Linearity : ±10% of Full Scale
Calorimetric Indicator/Switch
for Air/HVAC
Brass
Model: KAL-L
Subject to change without prior notice
Gear Wheel - Meter
Cast Iron, Stainless Steel
Model: DZR
Viscosity Range: 20...5,000cSt
Oil: 0.008...2l/min to 3...700l/min
tmax150 °C; pmax400bar
Connection: G 3/8 ... 1
Accuracy: ± 0.3-1% of Reading
Gear Wheel - Meter
Aluminum
Model: KZA
Viscosity Range: 20...4,000cSt
Oil: 0.02...4l/min to 1...200l/min
tmax80 °C; pmax160bar
Connection: G 1/4... 1
Accuracy: ± 0.3-3% of Reading
Positive Displacement - Screw
Type - Pulse Output
Aluminum
Model: OME
Viscosity Range: 1...5,000cSt
Oil: 0.03...2.6GPM to 0.92...92GPM
tmax250°F; pmax580PSIG
Connection: 1/2"...1-1/2" NPT,
1/2"...1-1/2" ANSI
Accuracy: ± 0.3% of Reading
![](asset-f.png)
www.koboldusa.com
15
Calorimetric Flowmeter/Switch
Stainless Steel
Air: 1...10LPM to 600...12,000LPM
tmax50 °C; pmax15bar
Connection: G 1/4...G 2
Accuracy: ± 5% of Full Scale
Model: DVK
Air Velocity Transmitter
Polycarbonate
Air: 0 ... 2,000 / 3,000 / 4,000 ft/min
Output Signal: 0 ... 10 VDC or 4 ... 20 mA
Supply Voltage: 24 VAC/DC
Connection: Mounting Adapter
Accuracy: ± (0.2 m/s + 3% of Reading)
Model: KAH
Calorimetric Indicator/Switch
Brass, Stainless Steel
Model: KAL, KAL-E
Water: 0.15...6.6ft/sec
tmax250°F; pmax1,450PSIG
Connection: 1/4"...1-1/2" NPT
Thermal Mass Flowmeter
Polyamide, Stainless Steel
Model: MAS
Air: 0...10SCCM to 0...500SLPM
tmax120°F; pmax500PSIG
Connection:
1/4" NPT, 1/2" NPT; 1/4" or 1/2" Swagelok®
Accuracy: ±1.5% of Full Scale
Thermal Mass Flowmeter/
Controller
Polyamide, Stainless Steel
Model: MFC
Air: 0...10SCCM to 0...50SLPM
tmax120°F; pmax145PSIG
Connection: 1/4" NPT; 1/8" or
1/4" Swagelok®
Accuracy: ±1.5% of Full Scale
Flow
Product Summary
Thermal Mass Flowmeter/
Controller
Stainless Steel
Model: DMS
Air: 0...0.01 to 0...200 NL/min
tmax120°F; pmax500PSIG
Connection:
1/4" or 1/2" NPT, 1/8"...1/2" Compression
Accuracy: ±1% of Full Scale
Thermal Mass Flowmeter
Stainless Steel
Model: KES-1/3/4
Air: 0...15ft/sec to 0...300ft/sec
tmax175°F; pmax145PSIG
Connection: 1/2"...3" NPT, 1/2"...8" ANSI
Accuracy: ±1.0% of F/S, ±0.5% of Reading
Coriolis Mass Flowmeter
Stainless Steel
Model: TME / UMC-4
Water: 0...430lbs/hr to 0...132,000lbs/hr
tmax350°F; pmax580 PSIG
Connection: 1/2"...3" ANSI
Accuracy: ± 0.15 – 0.5% of Reading
Subject to change without prior notice
Coriolis Mass Flowmeter
Stainless Steel, Hastelloy®
Model: TMU / UMC-3
Water: 0...1,320lbs/hr to 0...2,200tons/hr
tmax500°F; pmax580 PSIG
Connection: 1/2"...12" ANSI
Accuracy: ± 0.1%– 0.5% of Reading
Air: 0.2...200Nm/s
tmax80 °C; pmax16bar
Connection: R 1/2, Male for Insertion
(DN 65 ... DN 700)
Accuracy:
±1.5% of Reading, ± 0.8% of Full Scale
Thermal Mass Flowmeter
Stainless Steel
Model: KMT-4
Installation Under Pressure
Thermal Mass Flowmeter
Stainless Steel
Model: KMT-1/-2/-3
Air: 0.5...200Nm/s
tmax176 °F; pmax230PSIG
Connection: R 1/2 ... 2 Ball Valve
Accuracy: ± 2.5% of Reading,
± 0.15% of Full Scale
Coriolis Mass Flowmeter
with Heating Jacket
Stainless Steel, Hastelloy®
Model: TMU-..AC
Water:
0...1,320lbs/hr to 0...2,200tons/hr
tmax500°F; pmax580 PSIG
Connection: 1/2"...12" ANSI
Accuracy: ± 0.1%– 0.5% of Reading
![](asset-10.png)
www.koboldusa.com 16
Product Summary
Flow
Coriolis Mass Flowmeter
Stainless Steel, Hastelloy®, Monel®,
Tantalum, Zirconium
Model: TMR / UMC-3
Viscosity Range: 0.3...50,000cSt
Water: 0...2,600lbs/hr to 0...54,500lbs/hr
tmax500°F; pmax1,440 PSIG
Connection: 1/2"...4" ANSI
Accuracy: ± 0.1 – 0.15% of Reading
Coriolis Mass Flowmeter
Stainless Steel, Hastelloy®, Monel®,
Tantalum, Nickel
Model: TM / UMC-3
Water: 0...18lbs/hr to 0...140,000 lbs/hr
tmax 500°F; pmax580 PSIG
Connection: 1/4"...1/2" NPT, 1/2"...4" ANSI
Accuracy: ± 0.1 – 0.5% of Reading
Orifice - Differential
Pressure
Brass, Stainless Steel
Model: RCD-..Z
Water: 0.2...0.88GPM to 100...600GPM
Air: 0.3...3SCFM to 250...1,650SCFM
tmax210°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3% of Full Scale
Orifice Differential Pressure
Flowmeter - Compact Electronics
Brass, Stainless Steel
Model: RCD-..C3
Water: 0.2...0.88GPM to 100...600GPM
Air: 0.3...3SCFM to 250...1,650SCFM
tmax210°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3% of Full Scale
Subject to change without prior notice
Orifice Differential Pressure
Flowmeter/Switch
Brass, Stainless Steel
Model: KEL-S, KEL-Q
Water: 0.1...0.5GPM to 400...2,000GPM
tmax250°F; pmax230 PSIG
Connection:
1/2"...1-1/2" NPT, 1/2"...8" ANSI Wafer
Accuracy: ± 5% of Full Scale
Water: 0.1...0.5GPM to 400...2,000GPM
tmax250°F; pmax230 PSIG
Connection:
1/2"...1-1/2" NPT, 1/2"...8" ANSI Wafer
Accuracy: ± 5% of Full Scale
Orifice Differential Pressure
Flowmeter/Switch/Transmitter
Brass, Stainless Steel
Model: KEL-D
Water: 0.1...0.5GPM to 400...2,000GPM
tmax250°F; pmax230 PSIG
Connection:
1/2"...1-1/2" NPT, 1/2"...8" ANSI Wafer
Accuracy: ± 5% of Full Scale
Orifice Differential Pressure
Transmitter
Brass, Stainless Steel
Model: KEL-V
Orifice Plate - Differential Pressure
Steel, Stainless Steel, Hastelloy-C®,
Titanium, Monel®, Tantalum
Model: KPL
Ranges: for Liquids, Gases, Steam
Connection: DN 50 ... 600, ANSI 2"...24"
tmax 500 °C; pmaxPN 420
Orifice Plate - Differential Pressure
Steel, Stainless Steel, Hastelloy-C®,
Titanium, Monel®, Tantalum
Model: KPL-B/-F
Ranges: for Liquids, Gases, Steam
Connection: DN 50 ... 600, ANSI 2"...24"
tmax500 °C; pmax PN 420
Pitot Tube - Differential Pressure
Stainless Steel
Model: ANU
Connection: G 1 … 2, 1" … 2" NPT,
DN 25…100, ANSI 1"…4"
Probe Length: 50…6000 mm (2"…240")
tmax900 °C; pmax PN 250
Nozzle - Differential Pressure
Steel, Stainless Steel
Model: DUS
Nominal Diameter: DN 50… 600 (2"…24")
tmax560°C; pmax 420 bar
Venturi Tube - Differential
Pressure
Steel, Stainless Steel
Model: DVT
Nominal Diameter:
DN 50…1200 (2"…48")
tmax560°C; pmax 420 bar
![](asset-11.png)
www.koboldusa.com
17
Vortex - Totalizer or Batch
Controller
PPS/Brass, PPS/Stainless Steel
Model: DVZ-..E and DVZ-..G
Water: 0.13...1.2GPM to 2.6...26.5 GPM
tmax176°F; pmax290PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 2.5% of Full Scale
Orifice Differential Pressure
Flowmeter - Digital Display
Brass, Stainless Steel
Model: RCD-..K
Water: 0.2...0.88GPM to 100...600GPM
Air: 0.3...3SCFM to 250...1,650SCFM
tmax210°F; pmax580 PSIG
Connection: 1/2"...3" NPT
Accuracy: ± 3% of Full Scale
Orifice Differential Pressure
Flowmeter
Bronze, Monel®, Stainless Steel
Model: RCM
Water: 0.3...2GPM to 400...3,000GPM
Air: 1.5...10SCFM to 3,000... 20,000SCFM
tmax350°F; pmax400 PSIG
Connection:
1/2"...3" NPT, 1/2"...8" ANSI Wafer
Accuracy: ± 3% of Full Scale
Electromagnetic - Insertion
Stainless Steel, PTFE or PFA Clad
Model: PIT
Water: 0...32 ft/sec
tmax300°F; pmax580 PSIG
Connection: Weld-on, 2" or 3" ANSI
Accuracy: ±1.5% of Reading,
± 0.5% of Full Scale
Electromagnetic In-line Flowmeter
Lining: Hard or Soft Rubber, PTFE/PFA
Model: DMH
Water: 0.29...26.4 to 431.6...43,333GPM
tmax300°F; pmax580 PSIG
Connection: 1/2"...48" ANSI
Accuracy: ± 0.3% of Full Scale
Electromagnetic - Switch/Pulse/
Analog Output
PPS/Stainless Steel, PVDF/Hastelloy®/
Tantalum
Model: MIK-..S3, ..F3, ..L3
Water: 0.18...7.8GPH to 9.5...180 GPM
tmax176°F; pmax145PSIG
Connection: 1/4"...2" NPT or Glue Socket
Accuracy: ±2% of Full Scale
Electromagnetic - Totalizer or
Batch Controller
PPS/Stainless Steel, PVDF/Hastelloy®/
Tantalum
Model: MIK-..E and MIK-..G
Water: 0.18...7.8GPH to 9.5...180 GPM
tmax176°F; pmax145PSIG
Connection: 1/4"...2" NPT or Glue Socket
Accuracy: ± 2% of Full Scale
Electromagnetic
Compact Electronics
PPS/Stainless Steel, PVDF/Hastelloy®/
Tantalum
Model: MIK-..C3
Water: 0.18...7.8GPH to 9.5...180 GPM
tmax176°F; pmax145PSIG
Connection: 1/4"...2" NPT or Glue Socket
Accuracy: ± 2% of Full Scale
Flow
Product Summary
Vortex - Switch/Pulse/Analog
Output
PPS/Brass, PPS/Stainless Steel
Model: DVZ-...S3, ..F3, ..L3
Water: 0.13...1.2GPM to 2.6...26.5 GPM
tmax176°F; pmax290PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 2.5% of Full Scale
Vortex - Analog Output
PPS/Brass, PPS/Stainless Steel
Model: DVZ-..L4 with AUF
Water: 0.13...1.2GPM to 2.6...26.5 GPM
tmax176°F; pmax290PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 2.5% of Full Scale
Vortex - Compact Electronics
PPS/Brass, PPS/Stainless Steel
Model: DVZ-..C3
Water: 0.13...1.2GPM to 2.6...26.5 GPM
tmax176°F; pmax290PSIG
Connection: 1/4"...1" NPT
Accuracy: ± 2.5% of Full Scale
Subject to change without prior notice
Water: 0...10m/s
tmax100 °C; pmaxPN 16
Connection: Weld-on Nozzle ø 40 mm,
Sensor with Union Nut M52x2
for Pipelines DN 50...400, ANSI 2"...16"
Accuracy: ± 1.5% of Full Scale
Electromagnetic - Insertion
Stainless Steel
Model: PITe
![](asset-12.png)
www.koboldusa.com 18
Vortex - Flowmeter
Stainless Steel
Model: DVH
Water: 0.89...22 GPM to 141...4270 GPM
Air: 1.8...16.4 SCFM to 1800...164911 SCFM
trange -328...750°F; pmax 1,450 PSIG
Connection: 1/2"...8" ANSI
Option: Integrated Temperature and Pressure
Sensor, Wafer Type
Accuracy: ±1% Reading for Gas & Steam,
± 0.7% Reading for Liquids
Vortex - Meter
Stainless Steel
Model: DVE
Water: 5.2 ...157 to 284...8537 m³/h
Air: 889...1463Nm³/h to
26,915...2,467,081Nm³/h
tmax 400 °C; pmax 100 bar
Connection: 2" NPT, DN 50, ANSI 2"
Mountable in NW 80 ... NW 600
Option: Integrated Temp. and Pressure
Sensor, Installation / Removal Device
Accuracy: ± 1.2% of Reading (Water),
± 1.5% of Reading (Gas / Steam)
Product Summary
Flow
Ultrasonic - Switch/Pulse/Analog
Output
Brass, Stainless Steel
Model: DUK-..S3, -..F3, -..L3
Water: 0.02...5GPM to 2.6...160GPM
tmax190°F; pmax230PSIG
Connection: 1/4"...3" NPT
Accuracy: ±1.5% of Full Scale
Model: DUK-..L4 with AUF
Water: 0.02...5GPM to 2.6...160GPM
tmax190°F; pmax230PSIG
Connection: 1/4"...3" NPT
Accuracy: ±1.5% of Full Scale
Ultrasonic - Analog Output
Brass, Stainless Steel
Model: DUK-..E, ..G
Water: 0.02...5GPM to 2.6...160GPM
tmax190°F; pmax230PSIG
Connection: 1/4"...3" NPT
Accuracy: ±1.5% of Full Scale
Ultrasonic - Totalizer/Batcher
Brass, Stainless Steel
Ultrasonic - Digital Display
Brass, Stainless Steel
Model: DUK-..K
Water: 0.02...5GPM to 2.6...160GPM
tmax190°F; pmax230PSIG
Connection: 1/4"...3" NPT
Accuracy: ±1.5% of Full Scale
Flow Regulators
Brass, Stainless Steel
Model: REG
Viscosity Range: 1...30cSt
Flow Rates: 0.25...7.93GPM
tmax572°F; pmax2,900PSIG
Connection: 3/4" NPT
Fixed orifice plate
Water flow restrictor
Subject to change without prior notice
Model: DUK-..C3
Water: 0.02...5GPM to 2.6...160GPM
tmax190°F; pmax230PSIG
Connection: 1/4"...3" NPT
Accuracy: ±1.5% of Full Scale
Ultrasonic - Compact Electronics
Brass, Stainless Steel
Oscillation - Flowmeter
Stainless Steel
Model: DOG-5
Water:
0.075...3.75m³/h to 19.6...980m³/h
tmax120 °C; pmax PN 40
Connection:
Flange DN 25 ... 200, ANSI 1" ... 8"
Accuracy: ± 0.5% of Reading
Oscillation - Flowmeter
Stainless Steel
Model: DOG-4
Air: 0.12...12Nm³/h to 60...6,000m³/h
Pressure Drop: Max. 50 mbar
tmax120 °C (for EX 60 °C); pmaxPN 40
Connection:
Flange DN 25 ... 200, ANSI 1" ... 8"
Accuracy: ± 1.5% of Reading
Media: Ultrasonic Conducting Liquids
Temperaturerange: -40...300 °F
Flow Velocities: 0...±98 ft/s
Pipe Sizes: 3/8"...20 ft
For Use with Common Pipe Materials, with
Ultrasonic Conductive Properties,
like Steel and Plastic.
Heat Quantity Measurement
Accuracy: Up to 1 %
Ultrasonic Flowmeter - Clamp On
Stationary · Portable
Model: DUC
Measuring Range: 6.7...88 to 560...8800
GPM (Water)
tmax 300 °F; pmax 580 PSIG
Connection: ANSI Flange 1-1/4"...12"
Accuracy: ± 0.5 % of Reading
Ultrasonic Flowmeter - Inline
Stainless Steel
Model: DUE
![](asset-13.png)
www.koboldusa.com
19
Flow Indicator with Rotor
Brass, Stainless Steel
Model: DAA, DAH
Water: 0.1...3GPM to 1...58GPM
tmax212°F; pmax232PSIG
Connection: 1/4"...1-1/2" NPT
Flow Indicator with Rotor
Brass, Stainless Steel, Polysulfone
Model: DAF
Water: 0.16...0.16GPH to 100...2,400GPH
tmax230°F; pmax235PSIG
Connection: 1/8"...1-1/2" NPT
Flow
Product Summary
Flow Indicator with Rotor
Brass
Model: DKF
Water: 0.04...0.5GPM to 0.5...22GPM
tmax250°F; pmax85PSIG
Connection: 1/8"...1" NPT
Flow Indicator with Rotor
PP, Brass, Stainless Steel
Model: DIG
Water: 0.13...3.2GPM to 0.79...21GPM
tmax176°F; pmax230PSIG
Connection: 1/8"...1" NPT
Flow Indicator with Flap
Grey Cast Iron, Cast Steel, Stainless
Steel
Model: DAK
tmax530°F; pmax580PSIG
Connection: 1/4"...2" NPT, 1/2"...8" ANSI
Flow Indicator with Ball
Brass
Model: DKB
Water: 0.014...4GPM to 0.047...27GPM
Air: 0.11...14 to 0.32..88 SCFM
tmax250°F; pmax85PSIG
Connection: 1/8"...1" NPT
Flow Indicator with Drip Tube
Grey Cast Iron, Cast Steel, Stainless
Steel
Model: DAT
tmax530°F; pmax580PSIG
Connection: 1/4"...2" NPT, 1/2"...8" ANSI
Subject to change without prior notice
Flow Indicator with Rotor
Brass, Stainless Steel, POM, PVDF
Water: 0.05...0.2GPM to 0.66...13.2GPM
tmax176°F; pmax230PSIG
Connection: 3/8" or 1" NPT
Model: DIH
Flow Indicator with Rotor
Grey Cast Iron, Cast Steel, Stainless
Steel
Model: DAR
tmax500°F; pmax580 PSIG
Connection: 1/4"...2" NPT, 1/2"...8" ANSI
Flow Indicator with Ball
Bronze
Model: DAB
tmax100 °C; pmax6bar
Connection: G 3/4...G 3
Flow Indicator - Sight Glass
Stainless Steel, PVC
Model: UFJ
tmax 210°F; pmax145PSIG
Connection: 1/4"...2" NPT or BSP
Viscosity Range: 1...30cSt
Flow Rates: 0.25...74GPM
tmax570°F; pmax2,900PSIG
Connection: 3/4"...2" ANSI Wafer,
1-1/2"...2-1/2" BSP
Flow Regulators - Multiple
Element
Stainless Steel
Model: REG-8, REG-9
![](asset-14.png)
20
www.kobold.com
P
S
I
PSI
P
S
I
PSI
Measuring Range:
0...30PSIG to 0...10,000PSIG
Housing Ø: 80 mm
Overload Protection:
2 Times or 14,500 PSIG Max.
Connection: 1/4" NPT
Accuracy: ± 0.5% of Full Scale, ±1 Digit
Bourdon Tube Pressure Gauges
Brass, Stainless Steel
Model: MAN-R, -Q
Measuring Range:
-30"...0"Hg to 0...14,500 PSIG
Housing Ø: 63, 100, 160 mm
Overload Protection: 1.15-1.3 Times
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ±1.0% or ±1.6% of Full Scale
All Stainless Steel Bourdon Tube
Pressure Gauges
Stainless Steel
Bourdon Tube Pressure Gauges
with Switches
Brass, Stainless Steel
Model: MAN-R Model: MAN-RF, -RG
Measuring Range:
-30"...0"Hg to 0...14,500 PSIG
Housing Ø: 63, 100, 160 mm
Overload Protection: 1.15-1.3 Times
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ±1.0% or ±1.6% of Full Scale
Measuring Range:
-30"...0"Hg to 0...23,000 PSIG
Housing Ø: 100, 160 mm
Overload Protection: 1.15-1.3 Times
Connection: 1/2" NPT
Accuracy: ±1.0% of Full Scale
Capsule Element Pressure Gauges
Brass, Stainless Steel
Model: MAN-K
Measuring Range:
-30"...0"Hg to 0...8.7 PSIG
Housing Ø: 63, 80, 100, 160 mm
Overload Protection: 0.9-1.0 Times
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ±1.6% of Full Scale
Diaphragm Pressure Gauges
Stainless Steel
Model: MAN-P
Measuring Range:
-7.5"...0"Hg to 0...580 PSIG
Housing Ø: 100, 160 mm
Overload Protection: 1.15-1.3 Times
Connection: 1/2" NPT, 3/4"...3" ANSI
Accuracy: ± 1.6% of Full Scale
Pressure Gauge with Transducer
Stainless Steel
Model: MAN-ZF
Measuring Range:
-30"...0"Hg to 0...8,700 PSIG
Housing Ø: 100 mm
Overload Protection: 0.9-1.0 Times
Connection: 1/2" NPT
2-wire 4-20 mA Output
Accuracy: ±1.0% of Full Scale
LCD Pressure Gauge with
Ceramic Sensing Element
Battery Powered
Stainless Steel/PA Fiberglass
Reinforced
Model: MAN-SD, DSD
Measuring Range:
-30"...0"Hg to 0...23,000 PSIG
Housing Ø: 80 mm
Overload Protection: 1.3-3 Times
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ± 0.5% of Full Scale
LCD Pressure Gauge with
Ceramic Sensing Element
Externally Powered
Stainless Steel/PA Fiberglass
Reinforced
Model: MAN-LD
Measuring Range:
-30"...0"Hg to 0...23,000 PSIG
Housing Ø: 80 mm
Overload Protection: 1.3-3 Times
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ± 0.5% of Full Scale
LCD Pressure Gauge with
Ceramic or Thin Film Sensing
Element - Battery Powered
Stainless Steel
Model: PDC
LED Pressure Gauge with
Ceramic Sensing Element
Stainless Steel/PA Fiberglass
Reinforced
Model: MAN-SF26, DSF26
Measuring Range:
-30"...0"Hg to 0...23,000 PSIG
Housing Ø: 100 mm
Overload Protection: 2 Times
Connection: 1/4" NPT, 1/2" NPT
4-20 mA and Relay Contacts
Accuracy: ± 0.5% of Full Scale
Product Summary
Pressure
Subject to change without prior notice
Measuring Range:
-30"...0"Hg to 0...23,000 PSID
Housing Ø: 100 mm
Overload Protection: 2 Times
Connection: 1/2" NPT
4-20 mA and Relay Contacts
Accuracy: ± 0.5% of Full Scale
LED Differential Pressure Gauge
with Ceramic Sensing Element
Stainless Steel/PA Fiberglass
Reinforced
Model: MAN-BF20
Measuring Range:
-8.5"...0"Hg to 0...8,700 PSIG
Housing Ø: 160, 250 mm
Overload Protection: 1.0 Times
Connection: 1/2" NPT
Accuracy: ± 0.25% or ± 0.6% of Full Scale
Test Pressure Gauge with
Bourdon Tube
Aluminum
Model: MAN-F
![](asset-15.png)
21
www.kobold.com
Standard Version up to 350 °C / 40 bar:
DN 25 … DN 100 , ANSI 1" … 4“
Special Version up to 400 bar:
up to DN 200, ANSI 8"
Flanges According to BS, JIS and GOST
Standard
Optional: Extended Diaphragm
Flange Diaphragm Seals
Stainless Steel, Monel®, Tantalum,
Hastelloy®, PTFE
Model: DRM
Measuring Range: 0...0.9PSID
to 0...580 PSID
Housing Ø: 100, 160 mm
Connection: 1/2" BSP (NPT with Adapter)
Accuracy: ±1.6% of Full Scale
Differential Pressure Gauge
with Diaphragm
Aluminum
Model: MAN-D..2A
Measuring Range:
0...0.4PSID to 0...360PSID
Housing Ø: 100, 160 mm
Connection: 1/4" BSP (NPT with Adapter)
Accuracy: ±1.6% of Full Scale
Differential Pressure Gauge
with Diaphragm
Stainless Steel
Model: MAN-DF2G, -DG2G
Product Summary
Pressure
Measuring Range:
-30"...0"Hg to 0...23,000 PSID
Housing Ø: 100 mm
Overload Protection: 2 Times
Connection: 1/4" NPT, 1/2" NPT
4-20 mA and Relay Contacts
Accuracy: ± 0.5% of Full Scale
LED Differential Pressure Gauge
with Ceramic Sensing Element
Stainless Steel/PA Fiberglass
Reinforced
Model: MAN-BF26
Subject to change without prior notice
Measuring Range:
-30"...0"Hg to 0...23,000 PSIG
Fill Liquids: Glycerine, Paraffin or Silicone
Connection: NPT, BSP, ANSI, Tri-Clamp® or
other Sanitary Connections
Diaphragm, Capsule, and Inline
Diaphragm Seals for Pressure
Gauges and Transmitters
Stainless Steel, Special Materials upon
Request
Model: DRM
All Stainless Steel Bourdon Tube
Pressure Gauge with Membrane
Diaphragm
Stainless Steel
Model: MAN-RD..DRM-600
Measuring Range:
0...85PSIG to 0...14,500 PSIG
Housing Ø: 63 mm
Connection: 1/2"...1-1/4" NPT
Accuracy: ±1.6% of Full Scale
Contact Pressure Gauge with
Membrane Diaphragm Seal
Stainless Steel
Model: MAN-RF..M..DRM-601
Measuring Range:
0...85PSIG to 0...14,500 PSIG
Housing Ø: 100 mm
Connection: 1/2"...1-1/4" NPT
Accuracy: ±1.6% of Full Scale
Pressure Gauge with Sanitary
Diaphragm Seal and Cooling
Element
Stainless Steel
Model: MAN-RF..MZB-711..DRM-602
Measuring Range:
0...15PSIG to 0...580 PSIG
Housing Ø: 100 mm
Connection: Tri-Clamp®, DIN 11851,
Hygienic Connection, IDF, SMS
Accuracy: ±1.6% of Full Scale
All Stainless Steel Pressure Gauge
with Membrane Diaphragm
Stainless Steel
Model: MAN-RF..M1..DRM-628
Measuring Range:
0...15PSIG to 0...580 PSIG
Housing Ø: 100, 160 mm
Connection: 1"...4" ANSI
Accuracy: ±1.6% of Full Scale
All Stainless Steel Pressure Gauge
with Membrane Diaphragm
Stainless Steel
Model: MAN-RF..M1..DRM-620
Measuring Range:
0...1.45PSIG to 0...8,700 PSIG
Housing Ø: 100, 160 mm
Connection: 3/4" NPT
Accuracy: ±1.6% of Full Scale
Measuring Range:
0...15PSIG to 0...580 PSIG
Housing Ø: 100, 160 mm
Connection: 1/2"...2" Tri-Clamp®,
ISO Hygienic Connection
Accuracy: ±1.6% of Full Scale
All Stainless Steel Pressure
Gauge with In-Line Diaphragm
Stainless Steel
Model: MAN-RF..DRM-502
Measuring Range:
0... 25mbar to 0...150mbar
Scale Division: 2 mm
Hose Connection Ø: 7 mm
Accuracy: ± 0.2 mbar
U-Pipe Pressure Gauge
Glass
Model: PUM
![](asset-16.png)
22
www.kobold.com
Pressure Gauge Accessories
Brass, Steel, Stainless Steel
Model: MZB
Block and Bleed Valves, Gauge Swivels,
Snubbers, and Steam Siphons
Differential Pressure Sensor
and Controller for Filters
Model: PMP
Measuring Range: 0...20" H2O
Power Supply: 24 VAC/DC, 110 VAC, 230 VAC
Display: 4-Digit LED
Connection: 1/4" Tube
Accuracy: ±1.6% of Full Scale
Product Summary
Pressure
Pressure Gauge with Tri-Clamp®
Diaphragm Seal
Stainless Steel
Model: MAN-RF..DRM-613
Measuring Range:
0...15PSIG to 0 ...145 PSIG
Housing Ø: 100 mm
Connection: 1"...3" Tri-Clamp®
Accuracy: ±1.6% of Full Scale
Pressure Gauges with Diaphragm
PPH
Model: MAN-..D
Measuring Range: 0...1bar to 0...25bar
Connection: 3/4" BSP
Accuracy: ±1.6% of Full Scale
Measuring Range:
0...1,450PSIG to 0...14,500 PSIG
Housing Ø: 80 mm
Connection: Homogenizer Flange
Accuracy: ±1.6% of Full Scale
LCD Pressure Gauge
with Diaphragm Seal for
Homogenizing Machines
Stainless Steel
Model: MAN-SD/DSD..DRM-189
Measuring Range:
0...1,450PSIG to 0...14,500 PSIG
Housing Ø: 100 mm
Membrane: Flush Mounted
Display: 4-digit, Green LED Display
tmax 210 °F
Connection: Homogenizer Flange
Accuracy: ±1.0% of Full Scale
LED Pressure Gauge
with Diaphragm Seals for
Homogenizing Machines
Stainless Steel
Model: MAN-SF..DRM-189
Measuring Range:
0...20PSIG to 0...145 PSIG
Housing Ø: 74 mm
Connection: 1/2" NPT
Accuracy: ±1.0% of Full Scale
Pressure Gauge or Sensor with
Membrane Diaphragm Seal
PVC or Polypropylene
Model: MAN-SD/DSD..DRM-630 and
SEN..DRM-631
Pressure Gauge with Membrane
Diaphragm Seal - Plastic
PVDF
Model: MAN-RD..DRM-632
Measuring Range:
0...20PSIG to 0...230 PSIG
Housing Ø: 63 mm
Connection: 1/2" NPT
Accuracy: ±1.6% of Full Scale
Pressure Transmitter with Ceramic
Sensing Element
Stainless Steel
Model: PDA
Measuring Range:
-30...0"Hg to 0...5,800 PSIG
Display: 3-Digit LED
Power Supply: 24 VDC
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ± 0.5% - 1.0% of Full Scale
Differential Pressure Transmitter
Stainless Steel, Monel®, Tantalum,
Hastelloy®
Model: PAD
Measuring Range:
0...0.01PSIG to 0...6,000 PSIG
Power Supply: 18-45 VDC
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ± 0.075% of Full Scale
Subject to change without prior notice
Model: PAD-..N
Measuring Range:
0 ... 250mbar to 0 ... 206.80bar
tmax:200 °C
Connection: Flange, Threaded, Clamp-on,
and In-line Diaphragm Seal (Nominal Size
15 ... 100)
Accuracy: ± 0.075% of Calibrated Span +
Influence of Diaphragm Seal
Differential Pressure Transmitter
with Diaphragm Seal
Stainless Steel, Monel®, Tantalum,
Hastelloy®, PTFE
Measuring Range:
0...15PSID to 0...870 PSID
Housing Ø: 160 mm
Connection: 1/2" NPT
Accuracy: ±1.6% of Full Scale
Differential Pressure Gauge
with Bourdon Tube
Aluminum, Steel
Model: MAN-DG12R
![](asset-17.png)
23
www.kobold.com
Hand-Held Pressure Indicator
for External Sensors
Model: HND-P105, -210, -215
Measuring Range:
-14.5...40 PSIG to 0...5,800PSIG
(Dependent on Associated Sensor)
Optional: Data Log, Alarm, Control Functions
Accuracy: ± 0.1% of Full Scale
Hand-Held Differential Pressure
Indicator with 2 Integrated
Sensors
Model: HND-P121, -123, -126
Measuring Range: -0.0145...0.36 PSID
to -1.45 ... 29 PSID
Optional: Data Log, Alarm, Control Functions
Accuracy: ± 0.2% ‒ 0.4% of Full Scale
Hand-Held Differential Pressure
Indicator with 1 Integrated Sensor
Model: HND-P129, -239
Measuring Range: 0...15 PSIG
Optional: Data Log, Alarm, Control Functions
Accuracy: ± 0.2% of Full Scale
Measuring Range:
-30“...0“Hg to 0...6,000 PSIG
Output: 4-20 mA, 0-5 VDC, 0-10 VDC
Connection: 1/4" NPT, 1/2" NPT,
G 1/4, G 1/2
Accuracy: ± 0.5 % of Full Scale
Pressure Sensor with Ceramic
Element
Stainless Steel
Model: SEN-96
Measuring Range:
-30“...0“Hgto 0...8,700PSIG
0...14.5 to 0...360PSIA
Overload Protection: 1.3 - 5 Times
Connection:
1/4“ NPT, 1/2“ NPT, G 1/4, G 1/2
Accuracy: ± 0.25 - 0.5 % of Full Scale
Pressure Sensor with Ceramic
Element
Stainless Steel
Model: SEN-98 /-99
Add-On Loop Powered Display
for Transmitters
Model: AUF
For Transmitters with DIN 43650 Plugs
Loop Powered 4-20 mA
Menu Programmable
Optional Transistor Switch
Product Summary
Pressure
Measuring Range:
-30"...0"Hg to 0...10,000 PSIG
Display: 4-Digit LED
Overload Protection: 1.5-2 Times
Connection: 1/2" NPT, 1/4“ NPT
Accuracy: ± 0.5% - 1.0% of Full Scale
Pressure Transmitter with Ceramic
Element and Add-On Display AUF
Stainless Steel
Model: SEN-86 & SEN-87 with AUF
Subject to change without prior notice
Pressure Transmitter with
Thin Film Sensing Element
Stainless Steel
Pressure Transmitter with
Thin Film Sensing Element
Stainless Steel
OEM Pressure Transmitter with
Heat-Fused Sensing Element
Stainless Steel
Explosion Proof Pressure
Transmitter CSA/US Approved
Stainless Steel
Model: KPG Model: KPK Model: KPA Model: KP46
Measuring Range:
-30"...0"Hg to 0...15,000 PSIG
Overload Protection: 1.5-2 Times
Connection: 1/4" NPT
Accuracy: ± 0.25% - 0.5% of Full Scale
Measuring Range:
-30"...0"Hg to 0...145,000 PSIG
Overload Protection: 1.5-2 Times
Connection: 1/4" NPT, 1/2" NPT; 9/16 SAE
Accuracy: ± 0.125% - 0.25% of Full Scale
Measuring Range:
0...50PSIG to 0...10,000 PSIG
Overload Protection: 2 Times
Connection: 1/4" NPT
Accuracy: ± 0.25% of Full Scale
Measuring Range:
0...50PSIG to 0...20,000 PSIG
Overload Protection: 2 Times
Connection: 1/4" NPT, 1/2“ NPT
Accuracy: ± 0.25% BFSL
Pressure Transmitter
for High Vibration
Brass
Model: PNK
Measuring Range:
-30...0"Hg to 0...1,450 PSIG
Overload Protection: 1.6 Times
Connection: M16 x 1.5 (NPT with Adapter)
Accuracy: ±1.0% of Full Scale
![](asset-18.png)
24
www.kobold.com
Pressure Transmitter with Ceramic
Sensing Element
Stainless Steel
Model: PDD
Measuring Range:
-30"...0"Hg to 0...5,800 PSIG
Display: 3-Digit LED
Power Supply: 24 VDC
Connection: 1/4" NPT,1/2" NPT
Accuracy: ± 0.5% - 1.0% of Full Scale
Pressure Transmitter
High Accuracy
Stainless Steel
Model: PAS
Measuring Range:
-30"...0"Hg to 0...8,700 PSIG
Power Supply: 12 - 45 VDC
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ± 0.075% of Full Scale
Electronic Pressure
Switch/Transmitter
Thin Film/Ceramic Sensor
Stainless Steel
Model: PSC
Measuring Range: -30‘ Hg...30PSIG
to 0...10,000 PSIG
Display: 4-Digit LED
Power Supply: 12 - 30 VDC
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ±1.0% of Full Scale, ±1 Digit
Switching Range:
0.01...0.09PSIG to 120...2,300PSIG
Switching Function: Micro Switch
Connection: 1/2" NPT Female, 1/4" NPT
Female, 1/2" NPT Male, G 1/2Male
Repeatability: < 1% of Switching Point
Pressure Switch - Mechanical
Stainless Steel
Model: SCH-27
Switching Range:
1.45...14.5PSI to 3...145PSI
Switching Function: Micro Switch
Connection: 1/2" NPT Female, 1/4" NPT
Female, 1/2" NPT Male, G 1/2Male
Repeatability: < 1% of Switching Point
Differential Pressure Switch -
Mechanical
Stainless Steel
Model: SCH-28
Product Summary
Pressure
Pressure Switch with Hall Sensor
Brass/Plastic
Model: PDL-0 / PDL-1
Switching Range:
-0.9...-0.05bar to 30...600 bar
Switching Function: 2-4 Times
Connection: 1/4" NPT
Repeatability: ±1% of Full Scale
Subject to change without prior notice
Pressure Switch - Heavy Duty
Bellows Type
Brass
Pressure Switch - Heavy Duty
Bellows Type
Brass
Pressure Switch - Industrial
Diaphragm/Piston Type
Aluminum
Pressure Switch - OEM
Diaphragm Type
Zinc-Plated Steel
Pressure Switch - OEM
Diaphragm Type
Brass, Stainless Steel
Model: KRT Model: KPS/KAS Model: KPH Model: KPH300
Model: KPF
Switching Range:
-14.5...0 PSIG to 135...435 PSIG
Overpressure: 1.5-5 Times
Repeatability: ± 0.25% of Full Scale
Switching Range:
0...35 PSIG to 87...870 PSIG
Overpressure: 5-10 Times
Connection: 1/4" NPT
Repeatability: ± 0.25% of Full Scale
Switching Range:
-14.5...0 PSIG to 580...6,100 PSIG
Overpressure: 1.4-5 Times
Connection: 1/4" NPT
Repeatability: ± 3% of Full Scale
Switching Range:
3...30 PSIG to 450...4,600 PSIG
Overpressure: 1.2-9 Times
Connection: 1/4" NPT
Repeatability: ± 4% of Setpoint
Switching Range:
4.3...13PSIG to 725...1,450 PSIG
Overpressure: 1,450 PSIG
Connection: 1/4" NPT
Repeatability: ± 5% of Full Scale
Model: PAS-..N
Measuring Range:
0 ... 250mbar to 0 ... 600bar
tmax: 350 °C
Connection:
Thread or Flange (Nominal Size 15 ... 100)
Accuracy: ± 0.075% of Calibrated Span +
Influence of Diaphragm Seal
Pressure Transmitter with
Diaphragm Seal
Stainless Steel, Monel®, Tantalum,
Hastelloy®, PTFE
![](asset-19.png)
25
www.kobold.com
Product Summary
Level
Subject to change without prior notice
Magnetic Float Switch
Stainless Steel
Magnetic Float Switch
Polypropylene
OEM Level Switches
Stainless Steel, Polypropylene, PVDF
Custom Multipoint Level Switch
Brass, PVC, Stainless Steel
Specific Gravitymin: 0.65
t max 300 °F; pmax 400 PSIG
Connection: 1/8" NPT, 1/4" NPT
Specific Gravitymin: 0.81
t max 225 °F; pmax 100 PSIG
Connection: 1/8“ NPT, 1/4" PF
Specific Gravitymin: 0.55
t max 250 °F; pmax 425 PSIG
Connection: 1/2" NPT, 1/8" PF
Specific Gravitymin: 0.55
tmax300°F; pmax400PSIG
Connection: 1/8"...2" NPT, 3" ANSI Flange,
5/16“ or 1/2" Tube
Plastic Level Switch
Polypropylene, PVDF
Model: NKP
Model: NCS Model: NCP Model: OEM
Model: NCG, NCM
Specific Gravitymin: 0.6
tmax212°F; pmax145 PSIG
Connection: 1/2" NPT, Bulkhead
Float Switch
Stainless Steel
Model: RFS
Float Switch
Brass, Stainless Steel
Model: NV
Float Switch
Polyethylene, Polypropylene
Model: NSP, NSM
Float Switch
Polypropylene, Hypalon®
Model: NEC, NNE, NAE/B
Float Switch
PTFE
Model: NST
Specific Gravitymin: 0.7
tmax248°F; pmax72PSIG
Connection: 1/2" NPT
Specific Gravitymin: 0.7
tmax 230°F; pmax230PSIG
Connection: G 3/4, M27x1.5
Specific Gravitymin: 0.6
tmax 185°F; pmax 30PSIG
Connection: Cable
Float Switch
Stainless Steel
Model: NSE
Specific Gravitymin: 0.8
tmax302°F; pmax220 PSIG
Connection: 1/2" NPT
Dual Magnet Float Switch
Stainless Steel
Model: NGS
Specific Gravitymin: 0.7
tmax480°F; pmax360 PSIG
Connection: Square Flange, DIN-Flange,
2" BSP, 2" NPT
Conductive Switch
Fitting: SS, Polypropylene, PTFE
Electrode: SS, Hastelloy®, Titanium
Electrode Coating: Polyolefin, PTFE
Model: NEK, NEL, NES
tmax 300°F; pmax440PSIG
Connection: 1/2" NPT, 1-1/2" NPT
Conductive Suspended
Electrodes
Fitting: Polypropylene, PTFE
Electrode: SS, Hastelloy®, Titanium
Electrode Coating: Neoprene, PVC
Model: NEH
tmax 300°F; pmax90 PSIG
Connection: 1/2" NPT, 1-1/2" NPT
Specific Gravitymin:0.5
tmax185°F; pmax80 PSIG
Connection: Cable
Specific Gravitymin: 0.85
tmax302°F; pmax15 PSIG
Connection: Cable
Custom Magnetic Float Switch
Brass, Stainless Steel, PVC, PPH,
PVDF
Model: M
Density: 0.5kg/dm³
tmax300 °F; pmax1,450 PSIG
Connection: NPT, DIN/ANSI Flange
Float Bypass Switch
Aluminum, Stainless Steel
Model: NBA / NBE
Density: 0.65kg/dm³
tmax90 °C; pmax10bar
Connection: G 3/8 Female, R 1/2 Male
![](asset-1a.png)
26
www.kobold.com
Product Summary
Level
Dielectric Constantmin: 20
tmax212°F; pmax145PSIG
Connection: G 1/2
Open-Collector
Microwave Switch
Stainless Steel, PEEK
Model: LNM
Capacitive Switch for Liquids
Stainless Steel, PEEK
Model: LNZ
Dielectric Constantmin: 20
tmax212°F; pmax145PSIG
Connection: G 1/2
Open-Collector
Capacitive Switch for Liquids
Stainless Steel, PVDF
Capacitive Switch Liquids -
High Temperature
Stainless Steel
Model: NCW
Model: NCW-H
Dielectric Constantmin: 1.5
tmax194°F; pmax435 PSIG
Connection: G 1, G 2
Adapter: G 1-1/4, G 1-1/2, Weld-in Sleeve
Relay
Dielectric Constantmin: 1.5
tmax257°F; pmax145 PSIG
Connection: G 1
Adapter: G 1-1/4, G 1-1/2, Weld-in Sleeve
Relay
Ultrasonic Switch for Liquids
Stainless Steel
Model: NQ
trange-40...250 °F; pmax290PSIG
Connection: 1" NPT, R 1
Optical Switch for Liquids
Stainless Steel, Polypropylene
Model: OPT
tmax176°F; pmax145 PSIG
Connection: 1/2" NPT, G 1/2,
M14 Bulkhead
Open-Collector
Vibration Switch for Liquids
Stainless Steel
Model: NWS
tmax300°F; pmax650 PSIG
Viscositymax: 5,000 cSt
Connection: 3/4" NPT, 1" NPT;
2" Tri-Clamp®; R 3/4 and R1; DIN
and ANSI Flanges
Electrode Relays for Conductive
Switches
Model: NE-104, -304
2 Limit Contacts or
2 Min/Max Control Switches
Switch Capacity: Max. 250 VAC,
5 A, 600 VA
Conductivitymin: 10 µS/cm
tmax212°F; pmax145PSIG
Connection: G 1/2
Conductive Switch
Polypropylene, PPS
Model: NEK
Conductivitymin: 72 µS/cm
tmax185°F; pmax 290PSIG
Connection: 3/4" NPT, R 3/4
Open-Collector or Relay
Conductive Switch with Head
Mounted Transmitter
Stainless Steel, PEEK
Model: LNK, LNR
Conductivitymin: 10 µS/cm
tmax212 / 176°F; pmax145PSIG
Connection: G 1/2, G 1
Open-Collector
Electrode Length: 1/8" to 59"
Conductive Switch Compact
Probe
Stainless Steel, PEEK
Model: LNK-K
Subject to change without prior notice
Hydrostatic Level Switch
Polypropylene, PVDF
Optical Switch for Liquids
Stainless Steel, Polysulfone, PFA
Vibrating Fork Switch for Liquids
Glass Filled PPS
Tube Length: up to 16 ft
tmax158°F
Connection: 1“ NPT, G 1
tmax230°F; pmax400 PSIG
Connection: 3/8" NPT, 1/2" NPT
trange-40...176 °F; pmax150PSIG
Connection: 3/4" NPT
Relay Output
Model: NLP
Model: TED
Model: NWP
OEM Optical Switch for Liquids
Stainless Steel, Polysulfone
Model: NSD
trange15...250°F; pmax140 / 550 (SS) PSIG
Connection: 3/8“ NPT
Ultrasonic Switch for Liquids
Stainless Steel
Model: NK-8000
tmax176 / 212 °F; pmax1,000PSIG
Connection: 3/4" NPT
![](asset-1b.png)
27
www.kobold.com
Rotating Vane Switch -
Bulk Materials
Stainless Steel
Model: NIR-9 / NIR-E9
Switching Range: 2.5"...390"
tmax392°F; pmax7.25 PSI
Connection: 1“ NPT, G 1 Male, Others
Output: 1 Relay, SPDT
Float Transducer - Reed Chain
Stainless Steel, PVC-U, PP, PVDF
Model: MM
Max. Measuring Length: 19.6 ft
Density: 0.4kg/dm³
tmax265 °F; pmax435 PSI
Connection: 3/8" … 2" NPT,
1-1/2" … 4" ANSI
Accuracy: ± 0.5% for L < 6.2 Feet
Product Summary
Level
Vibration Switch - Bulk Materials
Stainless Steel
Model: NSV
Switching Range: 9" ...118"
Specific Gravitymin: 0.06
tmax176°F; pmaxAtmospheric
Connection: 1-1/2“ NPT, G 1-1/2
1 Relay, SPDT
Vibration Switch - Bulk Materials
Stainless Steel
Model: NVI
Switching Range: 9.25" and Special Lengths
Specific Gravitymin: 0.05
tmax -22...320°F; pmax360 PSIG
Connection: 1-1/2“ NPT, G 1-1/2
Diaphragm Switch - Bulk Materials
Neoprene, FKM, Stainless Steel
Model: NMF
tmax392°F; pmax14.5PSI (Over-pressure
Protected)
Connection: Flange
Pendulum Level Monitor
Bulk Materials
Aluminum, EPDM
Model: PLS
Lengthmax: 78.7"
tmax176°F; pmax7PSIG
Connection: Aluminum Flange
Contact: SPDT Microswitch 250 VAC/3 A
Capacitive Switch
Bulk Materials
Stainless Steel, Polypropylene
Model: NSC
Dielectric Constantmin: 1.5
Switching Range: 10"... 49 ft
tRange-4 ...176 °F; pmax7 PSIG
Connection: 1“ NPT, 2“ NPT, G 1
Adapter: G 1-1/4, G 1-1/2; Round Flange
Liquid Level Transmitter
Polyethylene, PVC, PP, PTFE
Model: NML-308
Specific Gravitymin: 0.9
Lengthmax: 6"...48"
trange -4 ... 250 °F; pmax 25 PSIG
Connection: 1-1/4" NPT or 1-1/2" NPT
Magnetostrictive Level Transmitter
Stainless Steel
Model: NMT
Specific Gravitymin: 0.7
Measuring Range: 12"...157"
trange -4 ...158 °F; pmax 145 PSIG
Connection: 2" NPT, G 2
Output: Analog 4-20 mA, 4-wire
Liquid Level Transmitter
Polyethylene, PVC, PP, PTFE
Model: NML-310
Specific Gravitymin: 0.8
Lengthmax: 12"...108"
trange -4... 250 °F; pmax 40 PSIG
Connection: 2" NPT, 2" ... 4" ANSI
Capacitive Level Transmitter
Stainless Steel, PVDF
Model: NMC
Measuring Range: 10"...157"
Dielectric Constantmin: 1.5
tmax257°F; pmax 145 PSIG
Connection: 1“ NPT, 2“ NPT, G 1, G 2
Adapter: G 1-1/4, G 1-1/2, Weld-in Sleeve
Output: Analog 4-20 mA, 2 Wire
Conductivity: 1µS/cm
Measuring Range: 8"...78"
trange14... 248 °F (30 min. at 300 °F)
pmax145 PSIG
Connection: 1" NPT, G 1
Potentiometric Level Probe
Stainless Steel
Model: LNP
Subject to change without prior notice
Static Pressure Level Switch
Polyamide, NBR
trange: 15...185 °F; pmax: Atmospheric
Switchpoint: 4“ Above End of Pipe
Connection: Hose Clamp for 1" Sch 40 Pipe
Model: NDT
Guided Wave Radar (TDR)
Transmitter
Stainless Steel, PTFE
Model: NGM
tmax 480 °F; pmax580 PSIG
Connection: Thread, Flange
Rigid Probe, Concentric Probe, Cable
Analog Output and Switching Output
Accuracy: ± 3 mm of Measured Value
Guided Wave Radar (TDR)
for Machines/Factory Automation
Stainless Steel, PTFE
Model: NGR
Measuring Range: 4“...78“
tmax 212 °F; pmax145 PSIG
Connection: 3/4“ NPT, G 3/4 Male
Analog Output, Switching Outputs
Accuracy: ± 5 mm
Capacitive Level Transmitter
Stainless Steel, PTFE, CPVC
Rigid Probe and Suspended Cable Designs
Lengthmax: 200 ft.
trange -100...350 °F; pmax 500 PSIG
Connection: 3/4" NPT, 1-1/2" NPT;
1-1/2" ... 3" Tri-Clamp®
Model: NRF
![](asset-1c.png)
28
www.kobold.com
Measuring Range: Liquids up to 20 ft
tmax176 °F; pmax40 PSIG
Connection: G 2, 2" NPT
Analog Output
Accuracy:
± 0.2% of Reading ± 0.05% of Full Scale
Ultrasonic Measurement
PP, PVDF
Model: NUS-7
Product Summary
Level
Measuring Lengthrange 6“... 24.5 ft
trange-40 ...140°F; pmax 30 PSIG
Connection: 2“ NPT
Optional Relay
Bypass Level Indicator - Cable
Design
Polypropylene, Stainless Steel, PVC
Model: NBK-19
Measuring Lengthrange
8"...15.7 ft
Specific Gravitymin 1.0
Viscositymax 200 cPs
tmax 140 °F; pmaxAtmospheric
Displacement Level Meter
Stainless Steel, Hastelloy®
Model: BA
Measuring Lengthrange 1...19.7 ft
Specific Gravitymin 0.4 ... 2.0
trange-40...570°F; pmax580 PSIG
Connection: 2" ANSI Flange, DN 50 Flange
Ultrasonic Level Sensor
PP, PVDF
Model: NUS-4
Measuring Range: 7.87“...82‘ (Liquids)
7.87“...32‘ (Bulk Media)
tmax190°F; pmax43.5 PSIG
Connection:
1-1/2", 2" NPT; 3", 5", or 6" ANSI Flange
Ultrasonic Level Transmitter
PVDF, 2-wire or 3-wire
Model: NEO
Differential Pressure Transmitter
Stainless Steel
Model: PAD
Measuring Lengthrange 30"...13 ft
Power Supply: 18 - 45 VDC
Connection: 1/4" NPT, 1/2" NPT
Accuracy: ± 0.075% of Measuring Range
Bypass Level Roller Indicator -
Plastic
Polypropylene, PVDF
Model: NBK-16, -17
Measuring
Lengthrange:8"... 13 ft
Specific Gravitymin 0.57
Viscositymax 200 cPs
tmax176°F; pmax58 PSIG
Connection: 3/4"...2"
ANSI Flange, DN 20 ... 50
Subject to change without prior notice
Submersible Pressure Transducer
Stainless Steel
Measuring Depthmax 50" WC to 1,000 PSI)
trange14... 175°F; pmax2x Depth Range
Capacitive Level and Temperature
Transmitter
Stainless Steel, PTFE
Measuring
Lengthmax 12 ft
trange -100... 350 °F
pmax 100 PSIG
Connection: 3/4"
NPT, 1-1/2"...3"
Tri-Clamp®
Output: 4–20
mA, RTD
Model: NRF-2, -3
Model: NRF-1F
Model: KPW
Bypass Level Indicator
Stainless Steel
Model: SZM
Measuring Lengthrange 15" ...121"
tmax 212°F; pmax87 PSIG
Connection: ANSI 1/2"...1-1/4"
Measuring Depthmax 200 m (wc)
trange 14 ...140°F
Deep Well Probe
Stainless Steel
Model: NTB
Measuring Lengthrange
1ft ...18 ft (or longer)
Specific Gravitymin 0.54
Viscositymax 200 cPs
tmax -58...750 °F; pmax4,600 PSIG
Connection: 1/2"...2" NPT, G 1/2...2,
1/2"...2" ANSI Flange, DN15...50
Bypass with Roller Indicator
Stainless Steel
Model: NBK-03,-06,-07,
-10, -31, -32, -33
Tank-Top Mounted Level Indicator
Stainless Steel
Model: NBK-04
Measuring Lengthrange 1 ft ...13 ft
Specific Gravitymin 0.55
Viscositymax 200 cPs
tmax250°F; pmax230 PSIG
Connection:
2" or 2-1/2" ANSI Flange; DN50...60
Mini Bypass with Roller Indicator
Stainless Steel
Model: NBK-M
Measuring Lengthrange 8"... 9.8 ft
Specific Gravitymin 0.78
Viscositymax 200 cPs
tmax 390°F;; pmax580 PSIG
Connection: 1/2"...1" NPT, G 1/2,
1/2" ... 1" ANSI Flange, DN15 ... 25
Capacitive Level Transmitter -
with Integrated Concentric
Grounding Probe
Stainless Steel, PTFE
Max. Length: 10 ft
tmax 350°F;
pmax14.5...100 PSIG
Connection: 3/4“ or
1-1/2“ NPT
Output: 4-20 mA
Accuracy: ± 1% of
Span
Installation Length: 4"...22"
tmax 210 °F; pmax230 PSIG
Connection: 1/4" NPT
Up to Two Limit Contacts Available
Mini-Bypass - Level Gauge -
with Switch Options
Aluminum, Stainless Steel
Model: NZJ
![](asset-1d.png)
29
www.kobold.com
Product Summary
Temperature
Temperature Switch for Liquids
Brass, Stainless Steel
Model: TWR
Switching Range: 86 ...248 °F
tmax250 °F; pmax230 PSIG
Connection: 3/4" NPT
Thermal Reed Temperature Switch
Brass, Stainless Steel
Model: TRS
Switching Range: 50...248 °F
trange -40 ...250 °F; pmax360 PSIG
Connection: 1/4"...1" NPT
Digital Temperature Switch
Stainless Steel
Model: TDD
Switching Range: -58...250 °F
tmax 250 °F; pmax 1,150 PSIG
Connection:
1/2" NPT, 3/4" NPT; G 1/2, G 3/4; M25x1.5
2 Transistor Switches
Temperature Switch
Brass
Model: DTS
Measuring Range: -10...200°C
Connection: 1/2" NPT
Measuring Range: -40 ...1,100°F
pmax350 PSIG
Connection: 1/2"...1" NPT, G 1/2 ... G 1
Switch Options: Magnetic, Sliding,
Inductive, Pneumatic
Measuring Range: -40...1,100°F
pmax350 PSIG
Connection: 1/2"...1" NPT, G 1/2 ... G 1
Switch Options: Magnetic, Sliding,
Inductive, Pneumatic
Gas Filled Rigid Stem
Thermometer
Stainless Steel
Model: TNS
Gas Filled Capillary Thermometer
Stainless Steel
Model: TNF
Digital Temperature Gauge
Stainless Steel
Temperature Sensor for Pipes
Brass, Stainless Steel
RTD Temperature Probes
Stainless Steel
Model: DTM
Model: TSP Model: TSR
Measuring Range: -30...750°F
pmax 350 PSIG
Connection: 1/2"...1" NPT, G 1/2...G 1
Analog Output, Limit Switches
Measuring Range: -40...300 °F
pmax 750 PSIG
Connection: 1/4"...1-1/2" NPT,
1-1/2" Tri-Clamp®
Output: 4-20 mA, Pt 100 RTD
Measuring Range: -320 ...1,100 °F
pmax 1,450 PSIG
Connection: 1/2" or 3/4" NPT;
1-1/2" Tri-Clamp®
Output: 4-20 mA, Pt 100 RTD
Subject to change without prior notice
pmax360 PSIG
Connection: 1/2"...1" NPT, Weld Stub
Thermowells for Stem and
Capillary Thermometers
Stainless Steel
Model: TSH
Measuring Range: -58 ...250 °F
pmax1,150 PSIG
Connection: 1/2" NPT, 3/4" NPT;
G 1/2, G 3/4
Output: 4-20 mA, 3-wire, Transistor Switch
Digital Temperature Sensor
Stainless Steel
Model: TDA
RTD Temperature Meters
Brass, Bronze, Stainless Steel
Model: TNK
Measuring Range: -112...302 °F
tmax 302 °F; pmax 725 PSIG
Connection: 1/2" NPT, G 1/2, M18x1.5
Integrated Programmable
Temperature Transmitter
Stainless Steel
Model: TST
Measuring Range:
-58 ...1,100 °F
pmax: 1,500 PSIG
Connection: 1/4" or 1/2" NPT;
1-1/2“...3" Tri-Clamp®
Output: 4–20 mA, 2-wire
Temperature Transmitters
Stainless Steel
Model: TMA/MMA with AUF
Measuring Range: -358...1,112°F
pmax 1,450 PSIG
Connection: 1/4" NPT, 1/2" NPT
Output: 4–20 mA, 2-wire
Mini Infrared Thermometers
Model: ST-3000, ST-6000
Measuring Range: -76...1,400°F
Laser Sighting: Single Point and Dual Point
Power: 2 AAA Batteries
Accuracy: ± 2% of Reading
Temperature Sensor
Brass, Stainless Steel
Model: TSA
Measuring Range: -40...150°C
pmax 25bar
Connections: 1/4...1-1/2 NPT, G 1/4...1-1/2
![](asset-1e.png)
30
www.kobold.com
Infrared Fixed Thermometer
Stainless Steel
Model: TIR-FA
Measuring Range:
0 ... 120 °C to 100 ... 500 °C
10 mV/K or Voltage Model J, K
Accuracy:
± 1.5 % of Measuring Range or 2.5 °C
Infrared Fixed Thermometer
Stainless Steel
Model: TIR-SN / FS / FG
Measuring Range:
-20 ... 300 °C to 1100 ... 2500 °C
Analog Output
Accuracy: ± 1.5 % of Measuring Range / °C
0.8 ... 1 % of Reading + 1 °C
Measuring Ranges:
from -324 up to 1112 °F
pmax435 PSI
Accuracy: Cl. A or B
Industrial - Resistance
Thermometer
Stainless Steel
Model: MWD
Resistance Temperature
Measuring Unit
Stainless Steel
Model: TWL, TTL
Measuring Range: -200 ...1,600°C
pmax 3,625 PSIG
Sensor: Pt100, 2-, 3-, or 4-wire
Connection:
G 1/2...1, 1/2" ... 1" NPT, DIN15-50 Flanges
Output: Analog 4- 20 mA
Product Summary
Temperature
Subject to change without prior notice
Measuring Range:
-58..400 °F;
-50...200 °C
Display in either
°F or °C
Connection:
1/4“ ... 3/4“ NPT
Battery Powered, Life
up to 5 years
V-Form - Glass Thermometer
Aluminum or Plastic Casing, Brass
Model: TGK, TGL
Measuring Range: -76...390 °F
Connection: 1/2" NPT, G 1/2
Accuracy: ±1% of Full Scale
Digital Thermometer -
High Accuracy, Battery Powered
Stainless Steel
Model: DTB
Precision Hand-Held
Thermometer
Model: HND-T120, -125
Measuring Range: -50 ...1,150 °C
Sensor: Type K Thermocouple
Power Supply: Battery or External
Accuracy: 0.1% ‒ 1.5% of Reading
Precision Hand-Held
Thermometers
Model: HND-T110, -115, -215 and HND-
T105, -205
Measuring Range: -220...1,768°C
Sensor: Type K, N, S, J, T Thermocouples
or Pt 100, 4-wire
Power Supply: Battery or External
Accuracy: ± 0.03% of Full Scale
Measuring Range: -30...500°C
pmax360PSIG
Installed in Thermowell
Connection: G 1/2
Bimetallic Thermometer
Stainless Steel
Model: TBI
Resistance Temperature Probe
Model: LTS
Measuring Range: -50...250°C
pmax145 PSIG
Sensor: Pt100, 2-wire
Connection: G 1/2, M12 x 1.5
Measuring Range: -80...600°C
pmax 580 PSIG
Sensor: Pt100, 2-, 3-, or 4-wire
Connection: G 1/2...1, 1/2" ... 1" NPT,
DIN25 Flange, Welded
Output: Analog 4- 20 mA
Resistance Thermometers
Stainless Steel
Model: TWD
Sheath Resistance Thermometer
Stainless Steel
Model: TWM
Measuring Range: -20...600°C
Sensor: Pt100, 2-, 3-, or 4-wire
Connection: G 1/2
Weld-In and Screw-In
Thermocouples
Steel, Stainless Steel, Ceramic
Model: TTD, TTE
Measuring Range: -200...1,150 °C
Sensor: Thermocouples J or K
Connection: G 1/2, Clamp
Optional Output: 4- 20 mA
Sheath Thermocouples
Stainless Steel, Inconel®
Model: TTM
Measuring Range: -50 ...1,100 °C
Sensor: Thermocouples J or K
Connection: Cable, Flat Pin, or Round Plug
Room Thermometer
Aluminum
Model: TWL-ST
Measuring Range: -20...60 °C
pmax Atmospheric
Wall Socket
Pt 100, 4...20 mA
Accuracy: Cl. A or B
Contact Resistance
Thermometer
Aluminum, Stainless Steel
Model: TWA
Measuring Range: -20...260 °C
Accuracy: Cl. A or B
![](asset-1f.png)
31
www.kobold.com
Digital - Panel Mount - Indicators
Model: DAG-A/S/M
Input: Current, Voltage, Temperature,
Frequency, Resistance
Analog Output, Limit Contacts
Min/Max-Memory
Subject to change without prior notice
Automatic Flow Regulating Valve
Brass, Stainless Steel
Model: REG
Viscosity: Max. 30 cSt
tmax500°F; pmax2,900PSIG
Connection: 3/4" NPT, 3/4“...2“ ANSI Wafer
Stainless Steel Needle Valve
Model: NVM, NAD
tmax400°F; pmax3,600 PSIG
Connection: G 1/8...G 1-1/4,1/8“...1“ NPT
Magnetic Filter
Brass
Model: MFR
tmax392°F; pmax230 PSIG
Connection: ½"...3" BSP
Compact Local Electronic Display
Model: AUF
Input: 4-20 mA Loop Powered
Indicator: 4-Digit, Red LED
Indicating Range: -1999...1999
Accuracy Class: 0.2 % of Span ±1 Digit
Rate Meter, Totalizer and Batcher
Model: INT, MRT
Display Values: Rate, Total, Batch
Display Type: 0.55" Red LED
5 Digit Rate, 6 Digit Total, 6 Digit Batch
Power Input: 110 VAC, 220 VAC, 12 VDC
Panel Mount: NEMA 4x Front Panel
Instrinsically Safe Relay/Power
Supply
Model: KFD-2, KFA-5
For Dry Contacts or NAMUR-Type Switches
Supply Voltage: 120 VAC, +5/-15%, 45-60 Hz
Power Consumption: 3.5 VA (appx.)
Maximum Relay (SPDT) Output
Switching Frequency: 10 Hz Max.
Universal Indicator
Model: ADI-1
Frequency to Current Converter
Model: SCI
Compact DIN Rail Mounting Option
Explosion-proof Enclosure Available
Magnetic or High-level Pulse Inputs
4-20 mA Loop Powered
Electronics for Measuring
and Monitoring, Counting, or
Batch Control
Model: ZED-K. -Z, -D
Input: Frequency
Output: Analog, 2 Limit Contacts, Sensor
Supply
Multi-Channel Data Logger
Model: ZLS
Power Supply, Latching and
Isolation Relay
Model: RL
Power: 110 VAC, 230 VAC, 24 VDC
Excitation: 24 VDC, 120mA Regulated
Input: Dry Contact or NPN/PNP, 15mA Max
Output: SPDT Relay, 10A@240VAC
8A@24VDC
Product Summary
Accessories
Input: 4 - 20 mA, Pt 100, Pt 500, Pt 1000
Interface, Sensor Supply
Input: Current, Voltage, Frequency
Analog Output, 2 Limit Contacts, Sensor
Supply
Contact Protection/Latching
Model: MSR
Input: Potential-free Contacts
1 or 2 relay Outputs, SPDT
Industrial Batching, Counter and
Flow Indicator
Model: ZOK
Input: Frequency
Analog Output, Limit Contacts, Sensor
Supply, Battery Powered
Universal Panel Meter or Counter
Electronics/Batch Controller
Model: DAG-T4, DAG-Z2
DAG-T4 Input:
Current, Voltage, Pt 100, Thermocouples
DAG-Z2 Input: Frequency
Both: Limit Contacts, Sensor Supply
Universal/Process Panel Displays
Ratemeter or Dual Line Rate and
Total
Models: MPT, MPV
MPT: Accepts Current, Voltage, TC, and
RTD Inputs. Max/Min Display, Relays and
4-20 mA Options, Modbus
MPV: Pulse or Analog Outputs,
DIsplays both Rate and Total, 32 Point
Linearization, Modbus, Gate Function,
Open Channel Flow
![](asset-20.png)
32
www.koboldusa.com
Transmitter for pH-Value, ORP,
Conductivity
Model: APM-1, ACM-1
Measuring Range: 700 ...1,900 g/L
tmax150 °C
Process Connection
Flange DN 25 ... 50, ANSI 1"...2"
Accuracy: ± 1.25 ... 6 g/L
Density Meter
Stainless Steel
Model: DWF
Measuring Range:
0 ...100 % rH; -60 ... 200 °C
tmax200 °C; pmax25bar
Outputs: 2 x 4...20 mA
Accuracy: ± 2 % rH
Humidity/Temperature
Transmitter
Model: AFK-G2
Measuring Range: pH 1...12
tmax80 °C; pmax10bar
Diaphragm: PTFE-ring or Ceramic
pH-Combined Electrodes
Glass, Plastic
Model: APS
Application Showcase
Subject to change without prior notice
Measuring Range: 0.04 µS/cm ...
2,000 mS/cm
tmax150°C; pmax 16bar
Process Connection: G 1, G 3/4,
1/2“ NPT, 1“ NPT
Accuracy: ± 0.5% - 1.0% of Reading
Conductive/Inductive
Conductivity Measuring Cells
Stainless Steel, PEEK
Model: ACS
Measuring Range: 0...2,000 mS/cm
tmax150°C; pmax10bar
Integrated Pt 100
Accuracy: ± 0.5% - 1.0% of Full Scale
Inductive Conductivity
Measuring System
PEEK, PVDF, Stainless Steel
Model: LCI
Hand-Held Measuring Unit
Conductivity, pH, Redox,
Temperature
Model: HND-C, HND-R
Measuring Range: pH: 0...14
Measuring Range: 0...200 µS/cm to
0 ...200 mS/cm
Redox: -1999...2,000 mV
Temperature: -100...250 °C
Accuracy: ± 0.01 pH; ± 0.1% of Full Scale
Hand-Held Humidity Precision
Measuring Unit
Model: HND-F
Measuring Range: 0...100 % Weight
Moisture
Option: Logger, Alarm
Accuracy: 0.1% ‒ 0.2% of Reading
Humidity/Temperature
Transmitter
Model: AFK-E
Measuring Range: 0 ...100% rH; -40 ...180 °C
tmax180°C; pmax15bar
Outputs: Analog Outputs and Switches
Accuracy: ±1.6 % of Reading % rH
Measuring Range: 5 ... 95% rH; 0...60 °C
tmax80°C
Outputs: 4-20 mA
Accuracy: ± 2% rH
Humidity Transmitter with Display
Model: AFA-G with AUF
Measuring Range: 30 ...100% rH
tmax60°C
Switch Output: 1 SPDT
Accuracy: 3% rH
Hygrostat, Humidity Annex Switch
Model: AFS-G1, AFS-G2, AFS-G3
Product Summary
Analytics
Measuring Range: pH -1 up to 14
Display of pH-value and Temperature
with LEDs, Analog Actual-value Output
Scalable, 2 Relays for Control Functions,
(PID) Programmable
pH-Value Transmitter
Model: APM-Z
Measuring Range: 0...200 mS/cm
Outputs: 1 Binary Output,
2 Analog Outputs,
Switch Output:
2 Relays with Adjustable Setpoints
![](asset-21.png)
33
www.koboldusa.com
Batching skids, like the one below, are used in manufacturing abrasives and superabrasives. They must be able to provide precise batches
of high viscosity resins up to 1500 cSt.
Each skid is comprised of the following components:
1) Main Tank
2) Secondary Tank with low level alarm, to ensure there is enough product and is no air in
the circuit
3) Manual Valve to close the circuit
4) Peristaltic Pump
5) Oval Wheel Flowmeter
6) Pressure Switch (a safety measure against high pressure)
7) 3-way Valve (for manual or automated operation)
8) Outlet Pipes for manual collection of product
Task:
When there are high viscosities and temperature fluctuations, the peristaltic pump (positive
displacement pump comprised of a flexible tube and rollers that displace the media from
one end of the tube to the other) is not able to completely displace the media. Part of the media flows back through the flowmeter, which
results in errors. In addition, the operating pressure created by the small peristaltic pump is quite low.
The KOBOLD Solution: DON Oval Wheel Flowmeters
KOBOLD DON Oval Wheel Flowmeters are available with special rotors that reduce the pressure drop by 50%. The optional Quad Hall Sensor
Dual Pulse Output provides two out of phase pulse outputs "A” and "B”, so that net flow rate "A-B” may be computed correctly by the PLC.
The net flow rate can also be computed using our ZOK-Z3 electronic with a pulse discriminator in between. These features provided solutions
for all the problems associated with this application and allowed for precision batching of the resins, resulting in improved repeatability and
ultimately, increased quality of the finished abrasives.
Oval Wheel Flow Meters - Flow Measurement of High Viscosity Resins
Product Summary
Application Showcase
Monitoring Fuel Consumption in Large Diesel Engines
In this off-shore application, a fuel consumption
measurement system has been effectively
implemented on large diesel engines in small ships.
Here, a pair of DON oval wheel flowmeters and one
ZOK-Z3 are used per engine. As a potential restriction
due to the flowmeter or strainer in the main line may
result in higher differential pressure, diminishing fuel
to the engine, a pressure relief valve was used in the
bypass line. Higher inlet pressure opens the pressure
relief valve and ensures a constant supply of fuel to
the engine. With this installation, the actual real time
fuel consumption is known and the ship speed can
be adapted to optimize it. In general, the return on
investment can be realized within a short time.
![](asset-22.png)
34
www.koboldusa.com
Precision Measurement & Control in a Cooling Water Distribution System
Task: RF (Radio Frequency) and semi-conductor components require constant cooling for
proper operation and a long service life. In this application, the water based coolants circulate
from a central chiller to multiple lines. The expensive coolant's properties continually change
in both PH and conductivity during operation, needing treatment in a centralized location. The
cooling system, built entirely of 316 stainless steel and operating at a maximum pressure of
230 PSIG, required suitable products for both local and remote indication for temperature,
pressure, and flow. Minimum pressure loss, space restrictions, and a need for zero flow
leakage were major considerations for this application. Additionally, all instrumentation had to
be installed on individual branches to facilitate remote transmission for monitoring and control
by a SCADA system.
The KOBOLD Solutions: DUK, TDA, and PDA
KOBOLD offers a comprehensive range of process instrumentation that was fully able to meet
the application requirements of high accuracy, compact size, local LED indication, flexible
mounting, and nominal pressure drop.
•
KOBOLD’s DUK ultrasonic flow meters were ideal because of their high accuracy,
compact size, and ability to mount in any direction. Tri-clamp
®
couplings were used with
the flow meters in order to facilitate quick and easy maintenance. Manual preset valves
and ball valves were incorporated for finer regulation and control.
•
KOBOLD’s TDA temperature indicators/transmitters were ideal because they can be installed with a very small insertion length on pipe
lines without thermo-wells. They were installed in individual return lines to monitor and re-transmit the actual value to a remote location
for recording purposes.
•
KOBOLD’s PDA pressure indicators/transmitters were used to measure the exact pressure in the chilling lines, fully meeting the
requirement for high precision and accuracy.
Product Summary
Application Showcase Application Showcase
Waste Water Treatment: Chemical Monitoring
Dependable monitoring in the treatment of waste water is essential to everyone‘s well-being.
Iron (III) Chloride is a chemical used in waste water facilities to reduce phospate concentrations
in wastewater. This is essential to protecting our waterways from adverse effects and abnormal
algae growth. However, the level of Iron (III) Chloride in the final output must also be strictly
monitored as a high concentration is extremely hazardous to both people and the environment.
To ensure everyone‘s safety, such a task requires continuous measurement of the chemical
injection via a direct connection to the process control system. Errors must be detected during
the process, not during the sampling.
The KOBOLD MIK offered a safe and economical solution for the safe distribution of Iron (III) Chloride. This unit
was developed by KOBOLD especially for this application and has consistently proven itself in the field. The
materials of the device, a PVDF housing and tantalum electrodes have proven themselves to be completely
chemical resistant.
With a directly mounted transmitter, the MIK is compact and durable. It is an ideal fit for cramped control
cabinets. It dependably detects small flow rates, from 0.2 GPH! With a 4-20 mA signal the MIK continuously
communicates the measured values to your process control system, allowing immediate response to the latest
process conditions. The MIK increased our customer‘s efficiency, generated cost savings, and allowed them to
ensure environmental protection from process chemicals.
The KOBOLD Solution: MIK Magnetic-Inductive Flowmeter
![](asset-23.png)
35
www.koboldusa.com
Task:
Large ships have a ballast tank system to compensate for different loads, so that the ship is as balanced
as possible in the water. Water taken in for balancing the ship in one ocean cannot be expelled and mixed
with water from other oceans to reduce the risk of killing microbes and small animals, which are sucked in
with sea water. For this purpose, the amount of water taken in and recirculated must be reliably measured.
A big problem is space limitations inside the ship, where pipelines of up to 500 mm are typically installed
at the vessel wall, making an in-line flowmeter installation impossible. Inlet and outlet straight runs are
typically missing, which makes the use of ultrasound devices very difficult. Additionally, the ship's onboard
sonar may also disturb an ultrasonic signal.
The KOBOLD Solution: PIT Electromagnetic Insertion Flowmeter
•
Strong Magnetic Field Ensures Accurate and Reliable Measurements
•
Optimized for Small Inlet and Outlet Runs
•
Small Installation Length
•
Functional at 30 m Under Water via IP 68/69 Encapsulation
•
Sensor Head is Sea Water Resistant - PFA Coated with Hastelloy
®
Electrodes
•
Installation and Removal during Operation is Possible
•
Low Maintenance, Recalibration Not Required
•
Complies with the International Marine Guidelines and has the Necessary Approvals
•
ATEX Use is Possible
Chemical Injection in Oil Rigs, Sub-Sea Drilling or Fracking
Task:
High-pressure processes for chemical injection systems, for example in oil drilling rigs or offshore platforms are a challenge for any flow
measurement system. Chemicals added by injection through a bore pipe at high pressure directly at the wellhead increase water viscosity and
enable efficient detachment of oil from the reservoir rock making its transport easier. In order to control the process, the injected chemicals
must be measured accurately. Conventional volumetric systems such as gear flowmeters or turbine flowmeters cannot be used for all media
due to different liquid properties and big differences in density and viscosity, and do not provide the same results in terms of accuracy and
reliability.
The KOBOLD Solution: High Pressure Coriolis Flowmeters
•
High Accuracy, Despite Large Differences in Density and Viscosity
• High Reliability Due to No Moving Parts
• Small Measuring Ranges Possible
For more than 15 years, Heinrichs Messtechnik has been offering solutions in high-pressure
Coriolis for customers worldwide. Our experience in Coriolis Flowmeters, special forms of
measuring loops, combined with special materials (different stainless steel versions, HP
160, Duplex, etc) and heat treatment methods allow you to work with operating pressures
up to 21,700 PSI and extremely low flow rates from 1 kg/h.
Flow Measurement in Ballast Tank Systems on Ships
Product Summary
Application Showcase
Product Summary
Application Showcase
![](asset-24.png)
KOBOLD Worldwide
Measuring • Monitoring • Analyzing
For more information, please visit us at www.koboldusa.com
Argentina, KOBOLD Instruments S.A., Florida- Buenos Aires
+54 (0) 11 4760 8300, info.ar@kobold.com
Australia, KOBOLD Messring GmbH, Sydney
+61 (0) 428138232, ranjan@kobold.com
Bulgaria, KOBOLD Messring GmbH, Sofia
+359 2 9544 412, info.bg@kobold.com
Austria, KOBOLD Instruments Ges.m.b.H., Vienna
+43 (0)1-786 5353, info.at@kobold.com
Belgium, KOBOLD Instrumentatie NV/SA, Strombeek-Bever- Brussels
+32 (0)2 267 2155, info.be@kobold.com
Chile, KOBOLD Messring GmbH, Santiago
+56 (2) 665 1643, info.cl@kobold.com
China, KOBOLD Instruments Trading Co., Ltd, Pudong- Shanghai
+86 (0)21 583 645 79, info.cn@kobold.com
China, KOBOLD Manufacturing Co., Ltd, Xian
+86 (0)29 86210794/86211407, wang@kobold.com
China, KOBOLD Instruments Trading, (Shanghai) Co. Ltd, Tianjin
+86 (0)22 83719393, hou@kobold.com
China, KOBOLD Instruments Trading, (Shanghai) Co. Ltd, Guangzhou
+86 (0)20 38803380, zhentx@kobold.com
China, KOBOLD Instruments Trading, (Shanghai) Co. Ltd, Wuhan
+86 (0)27 87132425, hushilei@kobold.com
China, KOBOLD Instruments Trading, (Shanghai) Co. Ltd, An’hui
+0551 65618167, wu@kobold.com
Colombia, KOBOLD Messring GmbH, Bogota
+57 313 852 00 88, restrepo@kobold.com
Czech Republic, KOBOLD Messring GmbH, Brno
+420 541 632 216, info.cz@kobold.com
Egypt, KOBOLD Messring GmbH, Nasr City- Cairo
+202 2 273 1374, info.eg@kobold.com
France, KOBOLD Instrumentation S.A.R.L, Paris
+33 (0)1 34 21 91 15, info.fr@kobold.com
France, KOBOLD Instrumentation S.A.R.L, Dardilly- Lyon
+33 (0)4 72 16 21 94, rollin@kobold.com
Germany, KOBOLD Messring GmbH, Hofheim/Taunus
+49 (0)6192-299-0, info.de@kobold.com
Germany, KOBOLD Messring GmbH Werk II, Sindelfingen- Stuttgart
+49 (0)7031-8677-0, maier@kobold.com
Germany, Heinrichs Messtechnik GmbH, Cologne
+49 (0)221-497 08-0, info@heinrichs.eu
Hungary, KOBOLD-Unirota Kft, Nyiregyháza
+36 42 342-215, info.hu@kobold.com
India, KOBOLD Instruments Pvt Ltd, Pune
+91 93 70 221 190, info.in@kobold.com
India, KOBOLD North India, New Delhi
+ 91 95 60 028 453, delhi.in@kobold.com
Indonesia, KOBOLD Messring GmbH, Jakarta
+62 21 849 328 59, info.id@kobold.com
Italy, KOBOLD Instruments S.r.l, Settimo M.se- Milan
+39 02 33 572 101, info.it@kobold.com
Malaysia, KOBOLD Instruments SDN BHD, Puchong, Selangor
+60 (0)3 8065 5355, info.my@kobold.com
Netherlands, KOBOLD Instrumentatie BV, Arnhem
+31 (0)26-384 48 48, info.nl@kobold.com
Peru, KOBOLD Messring GmbH, Lima
+51 13307261, info@koboldperu.com
Poland, KOBOLD Instruments sp.z.o.o, Warsaw
+48 (0)22 666 18-94, info.pl@kobold.com
Poland, KOBOLD Instruments Sp. z.o.o, Gliwice
+48 730 202 100, info.pl@kobold.com
Republic of Korea, KOBOLD Instruments Co Ltd, Seoul
+82 (0)31 903521-7, info.kr@kobold.com
Romania, KOBOLD Messring GmbH, Bucharest
+40 21 456 05 60, info.ro@kobold.com
Russia, OOO KOBOLD Instruments, Moscow
+7 (499) 346-70-10, info.ru@kobold.com
Singapore, KOBOLD Messring GmbH, Singapore
+65 6227 1558-6366, info.sg@kobold.com
Slovakia, KOBOLD Messring GmbH, Brno
+420 541 632 216, info.cz@kobold.com
Spain, KOBOLD Mesura S.L.U, Badalona- Barcelona
+34 (0)934 603 883, info.es@kobold.com
Switzerland, KOBOLD Instruments AG, Dübendorf- Zurich
+41 (0) 44-801 9999, info.ch@kobold.com
Taiwan, KOBOLD Messring GmbH, Taipei City
+886 (0)2 8792 6335, info.tw@kobold.com
Thailand, KOBOLD Instruments Ltd, Bangkok
+66 (02) 565 5705-6, info.th@kobold.com
Tunisia, KOBOLD Messring GmbH, Tunis
+216 7134 1518, info.tn@kobold.com
Turkey, KOBOLD Instruments Ltd, Istanbul
+90 212 222 23 07, info.tr@kobold.com
United Kingdom, KOBOLD Instruments Ltd, Nottinghamshire
+44 (0)1623 427 701, info.uk@kobold.com
Vietnam, KOBOLD Messring GmbH, Ho Chi Minh City
+84 (0)8 3551 0677, info.vn-hcm@kobold.com
USA, KOBOLD Instruments Inc., Pittsburgh, PA
+1 800-998-1020, info@koboldusa.com
USA, KOBOLD Eastern Region, Boston, MA
+1 401-829-1407, info.e@koboldusa.com
USA, KOBOLD Mid-Atlantic Region, Medina, OH
+1 412-389-1111, info.ma@koboldusa.com
USA, KOBOLD Mid-West Region, Clinton, Twp., MI
+1 586-321-7227, info.mw@koboldusa.com
USA, KOBOLD South-East Region, Cleveland, GA
+1 843-812-1402, info.se@koboldusa.com
USA, KOBOLD Western Region, Thousand Oaks, CA
+1 310-912-2214, info.w@koboldusa.com
KOBOLD North America
Canada, KOBOLD Instruments Canada Inc, Montreal
+1 514-428-8090, info.ca@kobold.com
Canada, KOBOLD Instruments Canada Inc, Toronto
+1 416-482-8180, info.ca@kobold.com
Mexico, KOBOLD Instruments Inc, Querétaro
+52 442 295 1567, info.mx-mex@kobold.com
LIT-065:
2016 Edition
Iran, KOBOLD Messring GmbH, Tehran
+98 912 177 2642, info.ir@kobold.com
India, KOBOLD West India Region, Gujarat
+91 97 12 233 533, gujarat.in@kobold.com
