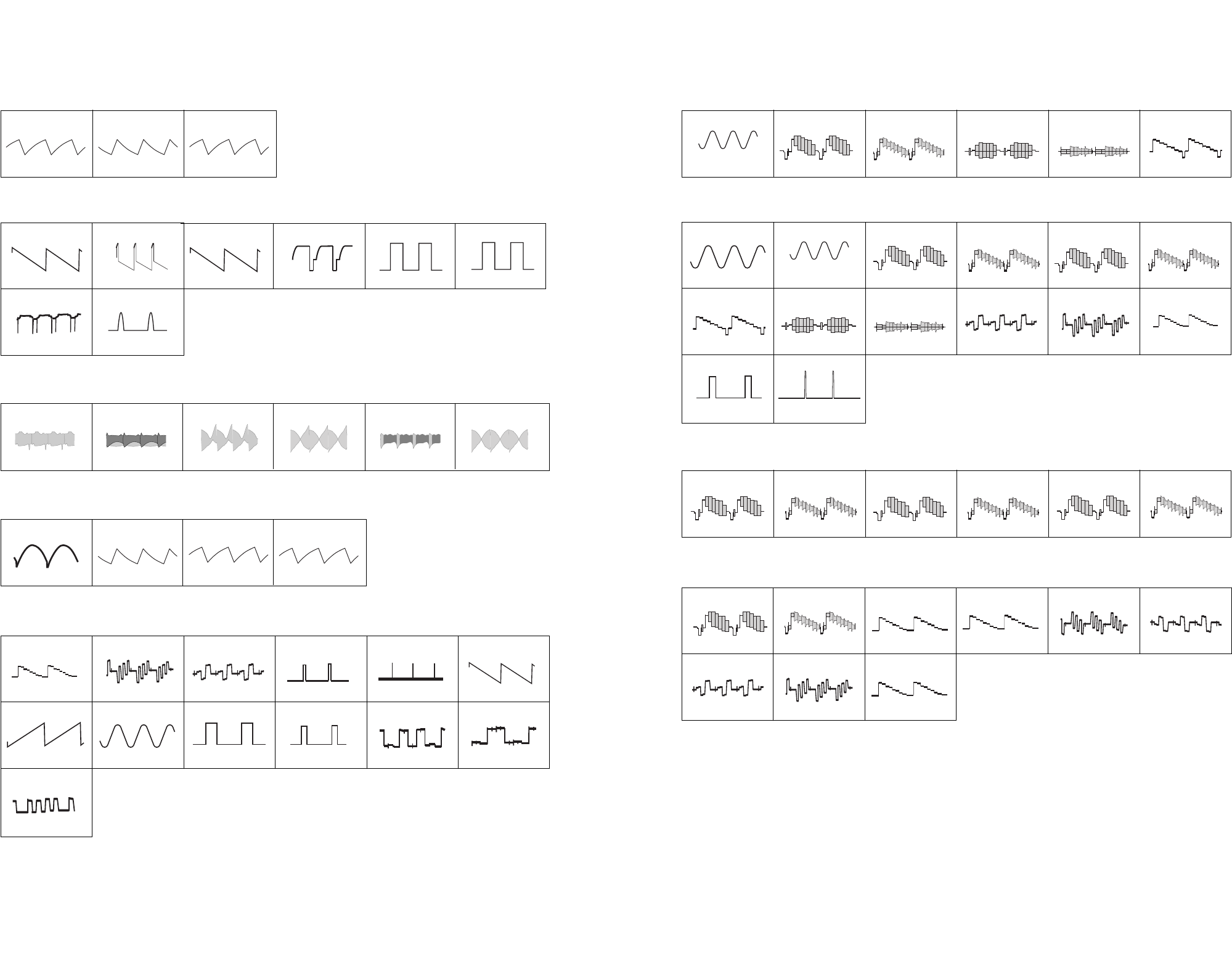

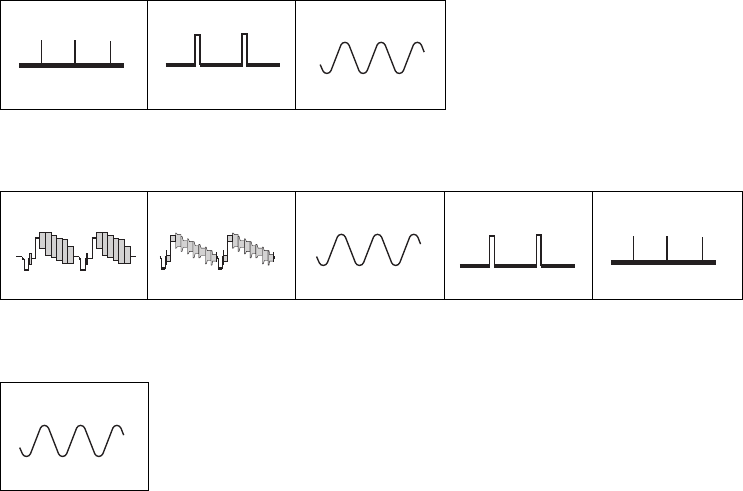

- WAVEFORMS
- IC BLOCK DIAGRAMS
- SEMICONDUCTORS
- EXPLODED VIEWS
- ELECTRICAL PARTS LIST
- Instruction Manual
- Introduction
- Table of Contents
- Safety Information
- Overview
- Installation
- First Time Operation
- Menu System
- Introducing the Menu system
- On Screen display Menus Guide
- Adjusting the Picture
- Adjusting the Sound
- Using the Features Menu
- Manually Tuning the TV
- Labelling a channel
- Skipping Programme positions
- Using the "Further Programme Preset" function
- Inputting Your Personal ID
- Using the Demo Mode
- Adjusting the picture geometry for an RGB source
- Labelling of Input Sources
- Using Multi PIP (Picture In Picture)
- Using PAP (Picture And Picture)
- Teletext
- NexTView
- Optional Connections
- Additional Information
SERVICE MANUAL
MODEL COMMANDER DEST. CHASSIS NO.
CHASSIS
RE-3
PROJECTION TV
KP-48PS2 RM-903 AEP SCC-P38G-A
KP-61PS2 RM-903 AEP SCC-P38H-A
2
0
5
8
1
4
7
3
6
9
OK
RM-903
KP-48PS2
KP-61PS2
– 2 –
KP-48PS2/61PS2
KRM-903
CAUTION
SHORT CIRCUIT THE ANODE OF HTE PICTURE TUBE
AND THE ANODE CAP TO THE METAL CHASSIS, CRT
SHIELD, OR CARBON PAINTED ON THE CRT, AFTER
REMOVING THE ANODE.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
! ON THE SCHEMATIC DIAGRAMS, EXPLODED
VIEWS AND IN THE PARTS LIST ARE CRITICAL TO
SAFE OPERATION. REPLACE THESE COMPONENTS
WITH SONY PARTS WHOSE PART NUMBERS AP-
PEAR AS SHOWN IN THIS MANUAL OR IN SUPPLE-
MENTS PUBLISHED BY SONY.
SPECIFICATIONS
Design and specifications are subject to change without notice.
TV system
B/G/H, D/K, I, L
Colour system
PAL, SECAM
NTSC 3.58, 4.43 (only Video In)
Channel coverage
VHF: E2-E12
UHF: E21-E69
CATV: S1-S20
HYPER: S21-S41
D/K: R1-R12, R21-R69
I: UHF B21-B69
L: F2-F10, B-Q, F21-F69
Projected picture size
KP-61PS2:
61 inches (approx. 154 cm measured diagonally)
KP-48PS2:
48 inches (approx. 121 cm measured diagonally)
Rear Terminals
Centre speaker input terminals (2
terminals)
(L,R) audio outputs (phono jacks)
1/ 21-pin Euro connector (CENELEC
standard) including audio/video input,
RGB input, TV audio/video output
2/ 2 21-pin Euro connector (CENELEC
(SMARTLINK)
standard) including audio/video input,
S video input, selectable audio/video
output
3/ 3 21-pin Euro connector (CENELEC
standard) including audio/video input,
S video input, audio/video output
(monitor out)
Front Terminals
AV4 inputs:
S video input - 4 pin DIN
video input - phono jack
2
audio inputs - phono jacks
Headphones jack - minijack stereo
C
Sound output
2 x 30 W (music power)
2 x 15 W (RMS)
Centre SP input
30 W (RMS) (using as the centre speaker)
Power consumption
225 W
Standby Power consumption
< 0.7 W
Dimensions (w x h x d)
KP-61PS2:
Approx. 1372 x 1528 x 658 mm
KP-48PS2:
Approx. 1091 x 1335 x 580 mm
Weight
KP-61PS2: Approx. 92 kg
KP-48PS2: Approx. 68 kg
Accessories supplied
1 Remote Control (RM-903)
2 Batteries (IEC designated)
Other features
100 Hz picture
Digital Comb filter (High resolution)
TELETEXT, Fastext, TOPtext
NexTView
NICAM
Sleep Timer
Smartlink
Digital Noise detection
Graphic Equaliser
Personal ID
– 3 –
KP-48PS2/61PS2
KRM-903
1. SELF DIAGNOSIS FUNCTION
1-1. RE-3 Serf Diagnostic Software.......................... 5
1-2. Error Detection Monitor..................................... 6
1-2-1. Error Monitor Menu....................................... 6
1-2-2. Error Reader Display ..................................... 7
2. DISASSEMBLY
2-1. Rear Board Removal ......................................... 8
2-2. Main Bracket Block Removal ........................... 8
2-3. Service Position ................................................. 8
2-4. Control Panel Block and Resistor Assembly
(Focus Pack) Removal ...................................... 9
2-5. Beznet Block Removal ...................................... 9
2-6. Chassis Block Removal...................................... 9
2-7. Terminal Board Removal ................................... 10
2-8. BD, DS, D Boards Removal .............................. 10
2-9. G Board Removal ............................................... 11
2-10. J, B3, E, M, S Boards Removal ......................... 11
2-11. A Board Removal ............................................... 12
2-12. High-Voltage Cable Removal and Installation.. 12
2-13. Picture Tube Removal ........................................ 12
3. SET-UP ADJUSTMENTS
3-1. Screen Voltage Adjustment
(Rough Alignment) ........................................... 13
3-2. Screen (G2) Adjustment .................................... 13
3-3. Focus Rough Adjustment .................................. 13
3-4. Deflection Yoke Tilt Adjustment ...................... 13
3-5. 2-Pole Magnet Adjustment ................................ 14
3-6. 4-Pole Magnet Adjustment ................................ 14
3-7. Green, Red and Blue Focus Adjustment............ 14
3-7-1. Green, Red and Blue Lens Focus
Adjustment .................................................... 14
3-7-2. Green, Red and Blue Electrical Focus
Adjustment .................................................... 14
4. SAFETY RELATED ADJUSTMENT
4-1. HV Hold Down Adjustment ............................. 15
5. ELECTRICAL ADJUSTMENTS
5-1. Adjustments with Commander .......................... 16
5-1-1. How to Select Each Mode ............................. 16
5-1-2. How to Enter TT Mode.................................. 16
5-1-3. How to Enter Service Menu .......................... 16
5-1-4. Screen Display for Service Menu .................. 17
5-1-5. Service List (Projector Engine) ..................... 21

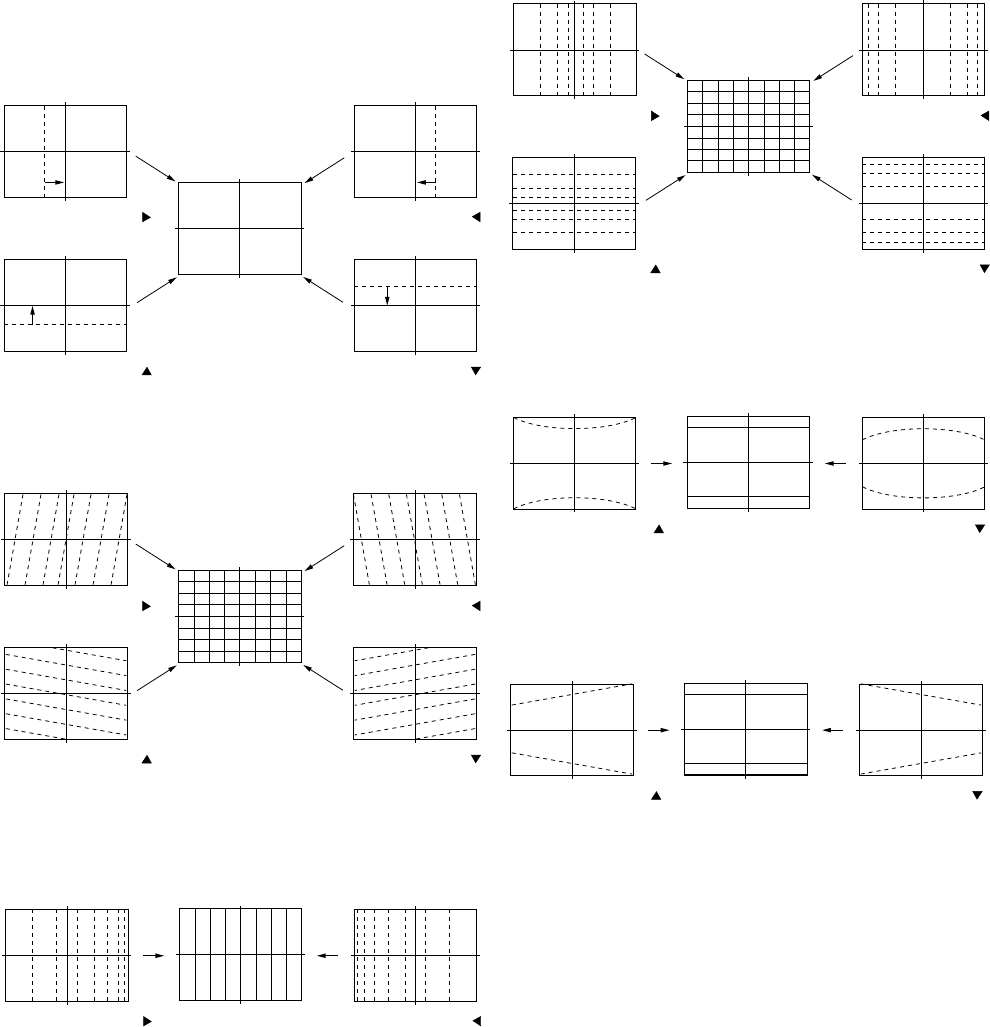

5-2. Registration Adjustment .................................... 22
5-2-1. Data Setting Before Adjustment.................... 22
5-2-2. Main Deflection Adjustment ......................... 22
TABLE OF CONTENTS
5-2-3. Operation Method for
Projector Engine Mode .................................. 23
5-2-4. Projector Engine Adjustment
(Sub Deflection Adjustment) ......................... 24
5-3. Auto Convergence Offset................................... 27
5-4. Picture Center Adjustment ................................. 27
5-5. White Balance Adjustment ................................ 27
5-6. Sub Bright Adjustment....................................... 27
5-7. Sub Color Adjustment ........................................ 28
5-8. Sub Color Offset (61 inch model only) ............. 28
5-9. Test-Test Mode................................................... 29
6. DIAGRAMS
6-1. Block Diagram (1) .............................................. 30
Block Diagram (2) .............................................. 31
Block Diagram (3) .............................................. 32
Block Diagram (4) .............................................. 33
Block Diagram (5) .............................................. 34
Block Diagram (6) .............................................. 35
Block Diagram (7) .............................................. 36
Block Diagram (8) .............................................. 37
Block Diagram (9) .............................................. 38
6-2. Frame Schematic Diagram ................................. 39
6-3. Circuit Boards Location ..................................... 40
6-4. Schematic Diagrams and Printed Wiring
Boards ................................................................. 40
(1) Schematic Diagram of A (1/3) Board ................ 41
(2) Schematic Diagram of A (2/3) Board ............... 42
(3) Schematic Diagram of A (3/3) Board ............... 43
(4) Schematic Diagram of B3 (1/5) Board .............. 44
(5) Schematic Diagram of B3 (2/5) Board .............. 45
(6) Schematic Diagram of B3 (3/5) Board .............. 46
(7) Schematic Diagram of B3 (4/5) Board .............. 47
(8) Schematic Diagram of B3 (5/5) Board .............. 48
(9) Schematic Diagram of BD (1/4) Board ............. 49
(10) Schematic Diagram of BD (2/4) Board ............. 50
(11) Schematic Diagram of BD (3/4) Board ............. 51
(12) Schematic Diagram of BD (4/4) Board ............. 52
(13) Schematic Diagrams of CB and CG Boards ...... 53
(14) Schematic Diagram of CR Board ...................... 54
(15) Schematic Diagram of D (1/4) Board ................ 55
(16) Schematic Diagram of D (2/4) Board ................ 56
(17) Schematic Diagram of D (3/4) Board ................ 57
(18) Schematic Diagram of D (4/4) Board ................ 58
(19) Schematic Diagram of DS Board....................... 59
(20) Schematic Diagram of E Board ......................... 60
(21) Schematic Diagram of G (1/2) Board ................ 61
(22) Schematic Diagram of G (2/2) Board ................ 62
(23) Schematic Diagrams of
H1, H2 and H3 Boards ....................................... 63
Section Title PageSection Title Page
– 4 –
KP-48PS2/61PS2
KRM-903
Section Title Page
(24) Schematic Diagram of J (1/5) Board ................. 64
(25) Schematic Diagram of J (2/5) Board ................. 65
(26) Schematic Diagram of J (3/5) Board ................. 66
(27) Schematic Diagram of J (4/5) Board ................. 67
(28) Schematic Diagram of J (5/5) Board ................. 68
(29) Schematic Diagram of M (1/2) Board ............... 69
(30) Schematic Diagram of M (2/2) Board ............... 70
(31) Schematic Diagram of S Board.......................... 71
(32) Schematic Diagrams of ZB and ZG Boards ...... 72
(33) Schematic Diagram of ZR Board....................... 73
Printed Wiring Boards
• A Board ............................................................ 74
• B3 Board .......................................................... 76
• BD Board ......................................................... 77
• CB, CG and CR Boards ................................... 78
• D Board ............................................................ 79
• DS and E Boards .............................................. 80
• G Board ............................................................ 81
• H1, H2 and H3 Boards..................................... 82
• J Board ............................................................. 83
• M and S Board ................................................. 84
• ZB, ZG and ZR Boards.................................... 85
6-5 Waveforms ......................................................... 86
6-6 IC Block Diagrams ............................................. 89
6-7 Semiconductors .................................................. 91
7. EXPLODED VIEWS
7-1. Screen and Cover Block (KP-48) ..................... 93
7-2. Control Panel and Cabinet Block (KP-48) ....... 94
7-3. Screen and Cover Block (KP-61) ...................... 95
7-4. Control Panel and Cabinet Block (KP-61) ........ 96
7-5. Main Bracket Block ........................................... 97
7-6. Picture Tube Block ............................................. 98
8. ELECTRICAL PARTS LIST ............................ 99
– 5 –
KP-48PS2/61PS2
KRM-903
SECTION 1
SELF DIAGNOSIS FUNCTION
1-1. RE-3 SELF DIAGNOSTIC SOFTWARE
The identification of errors within the RE-3 chassis is triggered in one of two ways : - 1: Busy or 2: Device failure to respond to IIC. In
the event of one of these situations arising the software will first try to release the bus if busy (Failure to do so will report with
continuous flashing LED) and then communicate with each device in turn to establish if a device is faulty. If a device is found to be
faulty the relevant device number will be displayed through the LED (Series of flashes which must be counted) See table 1., non fatal
errors are reported using this method.
Power cord is not plugged in Power does not come on
Power does not turn on Does not light Fuse is Burned out No power is supplied to the TV
AC power supply is faulty
H. OUT (Q5104) is shorted (D Board) Power does not come on
+B Over current (OCP) 2 times Linearity FET (Q5105) is shorted (D Board)
IC6004 Power IC is shorted (G Board) Load on power line has shorted
+15 V is not supplied R5340 open (D Board) Vertical deflection pulse has stopped
Vertical Deflection stopped 4 times –15 V is not supplied R5341 open (D Board) Power line has shorted
IC5302 is shorted (D Board)
No. of times Standby
LED Flashes Detected Symptoms
LED
ERROR ERROR
COUNT
No error 00
Not allowed (may be confused with Sircs response flash) 01
Over Current Protection 02
Over Voltage Protection 03
Vertical Protection 04
Not used 05
H-Protection 06
Speaker Protection 07
General IIC Line 0 error 08
MEGATEXT (IC9502) 09
NVM (IC9108) 10
Main colour decoder (IC8301) 11
Backend (IC4301) 14
Multi sound processor (IC4702) 15
External RAM (IC9107) 17
Diagnostic Item
Description Probable cause Location
Flash Timing Example : e.g. error number 3
ON
OFF OFF
ON ONStandby LED
– 6 –
KP-48PS2/61PS2
KRM-903
1-2. ERROR DETECTION MONITOR
Device acknowledge is used to check IIC errors. Device acknowledge is checked by sending an IIC start sequence during CRT power
on. Each device is checked three times, if there is no acknowledge after every attempt, it will be regarded as an error.
There are three step to check errors.
1. IIC line 0
If all devices except the NVM have errors, IIC line 0 error is displayed.
2. Board check
If all devices mounted on one board have errors, board error is displayed.
3. Each device check
if IIC line error and board error are not detected then the device with an error is displayed.
The detected errors can be displayed as follows:
1. Error Monitor Menu
2. Error Reader
1-2-1. Error Monitor Menu
The error monitor menu is displayed by selecting TT33. The following menu will be displayed:
Error Monitor
1
Operating Time :
Stored Errors :
1. A-Board
Current Error :
Start Error Sequence
2. B3-B CXA2100 MID
3. J-B CXA2123 Main Col Dec
4. Error Code Not Valid
5. Error Code Not Valid
Ignore Errors OFF
000021 h 40 min
ON ON
– 7 –
KP-48PS2/61PS2
KRM-903
1-2-2. Error Reader Display
The error reader display is connected to the service connector to read actual error codes. The part number for the error reader display
is S-188-900-10.
Once an error has been detected it will then be displayed on the two digit error reader. The errors displayed refer to the following table:
Send Data to Error Reader
Error Code Data High Data Low Error Type Function
00 00h –f0h no device
Gen. IIC Error
00 01h f0h 01h IIC 0 line
00 02h f0h 02h IIC 1 line not used
Board Error
01 00h f1h 00h A Board
04 00h f4h 00h B3 Board
06 00h f6h 00h E Board
07 00h f7h 00h J/S Board
08 00h f8h 00h M Board
Device Error
A Board
01 01h f1h 01h CXA1875 Port Expander
01 02h f1h 02h TU1301 Main Tuner
01 03h f1h 03h TU1302 Sub Tuner
B3 Board
04 01h f4h 01h CXD9509 MID
E Board
06 01h f6h 01h CXA2100 Backend
J Board
04 04h f4h 04h TDA9178 Picture Booster
07 03h f7h 03h CXA2123 Sub Colour
07 04h f7h 04h CXA2123 Main Colour
07 0Ah f7h 0Ah CXA2149 AV SW
S Board
07 05h f7h 05h CXA1875 Sub Sound
07 08h f7h 08h MSP3410D Sound Proc
M Board
08 01h f8h 01h ST24C32 NVM
– 8 –
KP-48PS2/61PS2
KRM-903
SECTION 2
DISASSEMBLY
2-1. REAR BOARD REMOVAL
• KP-48
• KP-61
1Twelve screws
(Hexagon head)
2Rear board
1Thirteen screws
(Hexagon head)
2Rear board
2-2. MAIN BRACKET BLOCK
REMOVAL
1Light shield
board
2Two screws
(Hexagon Head)
3Main bracket block
2-3. SERVICE POSITION
Main bracket block
– 9 –
KP-48PS2/61PS2
KRM-903
2-5. BEZNET BLOCK REMOVAL
1Ten screws (KP-48)
Thirteen screws (KP-61)
(+BVTP 4 x 16)
2Four screws (KP-48)
Six screws (KP-61)
(Hexagon head)
4Four screws
(Hexagon head)
3Mirror cover
block
5Beznet block
2-4. CONTROL PANEL BLOCK AND
RESISTOR ASSEMBLY
(FOCUS PACK) REMOVAL
5Control panel
block
4Two screws
(Hexagon head)
2Nine screws
(Hexagon head) 7Resistor
assembly
(Focus pack)
6Screw
(+BVTP 4 x 16)
3Front board
1Speaker
grille
assembly
2-6. CHASSIS BLOCK REMOVAL
(1) MAIN BRACKET REMOVAL
Two screws
(Hexagon head)
Set the main
bracket.
Pull the main bracket, and
remove each connectors
on main bracket.
1
2
3
Pay particular attention to the wires of each Printed circuit
boards when puling out the main bracket.
(2) CHASSIS BLOCK REMOVAL
Four screws
(Hexagon head)
Two screws
(Hexagon head)
Pull out the
chassis block.
1
2
1
Pull out the chassis block by gripping the handles as shown in
the diagram.
At this time, pay particular attention to the components
removed in (1).
– 10 –
KP-48PS2/61PS2
KRM-903
2-8. BD, DS, D BOARDS REMOVAL
1Five screws
(+BVTP 4 x 16)
2Two screws
(+BVTP 3 x 12)
4Terminal board
3RF cable
2-7. TERMINAL BOARD REMOVAL
1Screw
(+BVTP 3 x 12)
6Screw
(+BVTP 3 x 12)
6Screw
(+BVTP 3 x 12)
2Printed circuit
board support
3Claw
5DS board 4BD board
8D board
7Three claws
– 11 –
KP-48PS2/61PS2
KRM-903
2-9. G BOARD REMOVAL
2G board
1Five claws
2-10. J, B3, E, M, S BOARDS REMOVAL
6Claw
7B3 board
5Shied case
4Four screws
(+BVTT 3 x 8)
9E board
8Claw
0Claw
!= Claw
2Claw
1Hook
– 12 –
KP-48PS2/61PS2
KRM-903
2-12. HIGH-VOLTAGE
CABLE REMOVAL
AND INSTALLATION
2-11. A BOARD REMOVAL
1Screw
(+BVTP 3 x 12)
3A board
2Two claws
1Rubber cap
2HV cable
turn 90°
2Rubber cap
1HV cable
Hook
Gutter
(1) Removal
(2) Installation
Removing the arrow-marked screw is strictly inhibited.
If removed, it may cause liquid spill
1Four screws
(+BVTP 4 x 16)
2Lens
6Four screws
(+BVTP 4 x 16)
7Picture
tube
5Deflection
yoke
4Neck
assembly
3CR board
2-13. PICTURE TUBE REMOVAL
– 13 –
KP-48PS2/61PS2
KRM-903
SECTION 3
SET-UP ADJUSTMENTS
3-1. SCREEN VOLTAGE ADJUSTMENT
(ROUGH ALIGNMENT)
1. Receive the Monoscope signal.
2. Set 50% BRIGHTNESS and minimum PICTURE.
3. Turn the red VR on the focus pack all the way to the left and
then gradually turn it to the right until the point where you
can see the retrace line.
4. Next gradually turn it to the left to the position where the
retrace line disappears.
Fig. 3-1
3-2. SCREEN (G2) ADJUSTMENT
1. Turn on the power of the set.
2. Select VIDEO1 mode without signals.
3. Supply DC 175 ±0.5 V from external power supply to
TP7103 (KR), TP7203 (KG) or TP7303 (KB) of CR board,
CG board and CB board.
4. Adjust red, green and blue screen voltage to until retrace
line disappears with screen VR on the focus pack.
3-4. DEFLECTION YOKE TILT ADJUSTMENT
1. Receive the Monoscope signal.
2. Place the caps on the red and blue lens so that only the green
color.
3. Loosen the deflection yoke setscrew and align the tilt of the
Deflection yoke so that the bars at the center of the
monoscope pattern are horizontal.
4. After aligning the deflection yoke, fasten it securely to the
funnel-shaped portion (neck) of the CRT.
5. The tilt of the deflection yoke for red and blue is aligned the
same as was done for green.

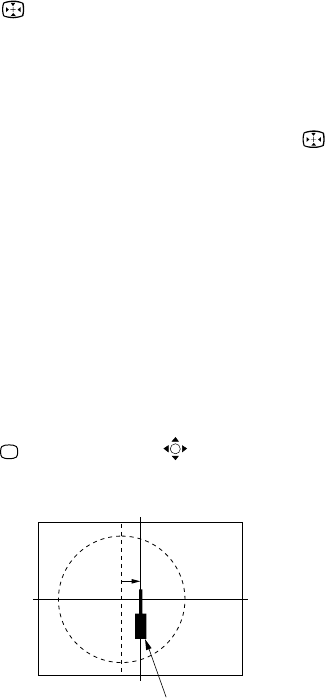

Fig. 3-5
Neck Assy
Make sure deflection yoke is
touching CRT closely.
2-pole magnet
4-pole magnet
Deflection yoke
Anode cap
RG
SCREEN
B
RG
FOCUS
Focus Pack
B

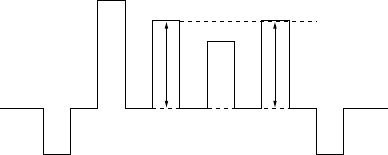

Fig. 3-4
Lens
Fig. 3-3
Fig. 3-2
Test signal
Minimize both A and B.
A
B
3-3. FOCUS ROUGH ADJUSTMENT
1. Loose the lens screw.
2. Set in the service mode. (Refer to SECTION 5.)
3. Place the caps on the red and blue lens so that only the green
color is shown.
4. Press “MENU” twice on the commander and select “Device
Register Setting” b “Projector Engine”, press “6” three
times on the Commander to display the test signal (cross-
hatch) on the screen.
5. Rotate the green lens and align to obtain the best lens focus
at the center area.
6. Rotate the green focus VR on the focus pack and align to
obtain the best electrical focus in the top right corner.
7. Perform the same alignment for red and blue lenses and elec-
tric focus.
8. Fix lens screw.
– 14 –
KP-48PS2/61PS2
KRM-903
3-5. 2-POLE MAGNET ADJUSTMENT
1. Receive the Dot signal.
2. Place the caps on the red and blue lens so that only the green
color is shown.
3. Turn the green focus VR on the focus pack to the right and
set to over focus to enlarge the spot.
4. Now align the 2-Pole Magnet so that the enlarged spot is in
the center of the just focus spot.
(center of the dot doesn't move)
5. Align the green focus VR and set for just (precise) focus.
6. Perform the same alignment for red and blue.
Fig. 3-6
3-6. 4-POLE MAGNET ADJUSTMENT
1. Receive the Dot signal.
2. Place the caps on the red and blue lens so that only the green
color is shown.
3. Turn the green focus VR on the focus pack to the left and set
to under focus to enlarge the spot.
4. Now align the 4-Pole Magnet so that the enlarged spot be-
comes a perfect circle.
5. Perform the same alignment for red and blue.
Fig. 3-7
3-7. GREEN, RED AND BLUE FOCUS
ADJUSTMENT
3-7-1. Green, Red and Blue Lens Focus Adjustment
1. Receive the Monoscope signal.
2. Place the caps on the red and blue lens so that only the green
color is shown.
3. Rotate the green lens and adjust to obtain the best lens focus
at the center area.
4. Fix lens screw.
5. Repeat above process for red and blue.
3-7-2. Green, Red and Blue Electrical Focus
Adjustment
1. Receive the Monoscope signal.
2. Place the caps on the red and blue lens so that only the green
color is shown.
3. Rotate the green focus VR on the focus pack and adjust to
obtain the best electrical focus at the center area.
4. Repeat above process for red and blue.
Fig. 3-8
Adjust Point
Use the center dot
Use the center dot OKNG NG
KP-48PS2/61PS2
KRM-903
– 15 –
SECTION 4
SAFETY RELATED ADJUSTMENT
When replacing the following components marked with ] on
the schematic diagram, always check hold-down voltage and
if necessary re-adjust.
4-1. HV HOLD-DOWN ADJUSTMENT
1. Connect HV static voltmeter to HV Block.
2. Mount a resistor (R9901 : 43 kΩ, 1/4 W, METAL
FILM) at CN5003.
3. Remove CN5002 and connect External Power Supply to
CN5002 1 pin (+135 V) and 2 pin (GND).
4. Turn on the set.
Part Replaced (])
D Board C5123, C5127, C5130, C5143, D5115,
D5204, Q5104, R5136, R5138, R5140,
R9901, T5102, T5104, T5103 (FBT)
Part Replaced ([)
R9901
5. Receive the Dot signal and set PICTURE/BRIGHTNESS
to minimum.
6. Slowly up the supply voltage from 0 V to 135 V until
hold-down circuit works (picture disappear).
7. Read the HV static voltmeter of peak HV voltage.
Spec : 33.7 ~ 35.3 kV
8. If Hold-down voltage is less than 33.7 kV then replace
R9901 of 43 kΩ with that of 39 kΩ, and check if the
voltage is within the spec.
9. If hold-down voltage is over than 35.3 kV then replace
R9901 of 43 kΩ with that of 47 kΩ, and check if the volt-
age is within the spec.
+
–
1CN5002
Power
Supply 2
D BOARD
– CONDUCTOR SIDE –
CN5002
CN5003
CN5003
R9901
Fig. 4-1
Fig. 4-2
Fig. 4-3
Fig. 4-4
Remove the cap off
from the unused
terminal and connect a
HV static voltmeter
there.
– 16 –
KP-48PS2/61PS2
KRM-903
SECTION 5
ELECTRICAL ADJUSTMENTS
5-1. ADJUSTMENTS WITH COMMANDER
Service adjustment to this model can performed with the sup-
plied remote commander RM-903.
5-1-1. How to Select Each Mode
The adjustment requires the following five modes:
•DRC100 (PAL) mode
•DRC50 (PAL) mode
•DRC100 (PAL/16 : 9) mode: V-compress mode
•DRC100 (NTSC) mode
•DRC50 (NTSC) mode
1. Selection of Mode Between PAL and NTSC
PAL mode : Enter PAL signal.
NTSC mode: Enter NTSC signal. (VIDEO input only)
2. Selection of Digital Mode
1) Press “MENU” button on the commander, and the menu
screen will appear.
2) Press B key on the joystick to enter the “Picture Adjust-
ment” menu.
3) Press v or V key on the joystick to select “Digital Mode”,
and press B key.
4) Press v or V key on the joystick to select “DRC50” or
“DRC100”, and press “ (OK)”.
5) Press “MENU” button to return to normal screen.
(In the TT mode, the menu is switched to the Service menu)
3. Selection of Screen Format
The 16 : 9 mode is selected only when the DRC100 (PAL) mode
is active.
1) Press “ (BLUE)” button on the commander.
2) Press v or V key on the joystick to select “4 : 3” or “16 : 9”,
and press “ (OK)” button. At this time, normal screen
comes back. (In the TT mode, the menu is switched to the
Service menu.)
5-1-2. How to Enter TT Mode
1. Turn on the main power switch to place this set in standby
mode. (LED will light in red.)
2. Press the buttons on commander as follows, and the TT
mode will be selected.
“TT - -” will appear in the top right corner of the screen.
Other status information will also be displayed.
3. If “ (TV MODE)” button or “-” + “-” button is pressed,
the set exits from the TT mode and returns to normal TV mode.
5-1-3. How to Enter Service Menu
1. Select TT mode.
2. Press “MENU” button on the commander once, and normal
menu screen will appear, or press it once more, and the fol-
lowing service menu screen will appear.
3. Following the screen, press v or V key on the joystick to
select the desired item, and press B key to enter the selected
item.
4. Press v or V key on the joystick to change data of each item,
and press “ (OK)” button to write changed data.
(Except Projector Engine mode)
5. To return from each item, press b key on the joystick. Or, to
return to the TT mode, press the “MENU” button.
(Except Projector Engine mode)
RM
903
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VI DEO TV
TV STANDBY
ON SCREEN
DISPLAY
SCREEN
FORMAT
4:3/16:9
MUTE
TV MODE
VOLUME +
JOYSTICK
MENU
SONY
RM-903
OK
TV
Enter the
“TT MODE”
5
(DIGIT 5) (VOLUME +) (TV MODE)ON SCREEN
DISPLAY
(
)
Service AE5(A)
Initialising
Reset Devices
Monitoring
Device Register Setting
Special Adjustment
Select : v V Next menu : B
– 17 –
KP-48PS2/61PS2
KRM-903
5-1-4. Screen Display for Service Menu
If each item of service menu is selected, the following screen is
displayed.
Initialising
Model Setting
Destination Setting
Basic Setting
Feature Setting
Select : v V Next menu : B
•Initialising
•Initialising b Destination Setting
Destination Setting
Multi
A
B
D
E
K
R
U
Select : v V Last menu : b Set Dest. : B
•Initialising b Model Setting
Model Setting
1 KV-29FX60
2 KV-29FC60
3 KV-29FS60
4 KV-28FX60
5 KV-32FX60
6 KV-32FS60
7 KV-28FC60
8 KV-32FC60
9 KV-28FC60Z
10 KV-32FC60Z
11 KV-28FS70
12 KV-32FS70
13 KV-36FS70
14 KP-48PS1
15 KP-53PS1
16 KP-61PS1
17 KP-44PS2
18 KP-51PS2
19 KF-50SX100
Select : v V Last menu : b Set Model : B
•Initialising b Basic Setting
Basic Setting
No Descr. Min Max Data
1 Sys. B/G OFF ON ON
2 Sys. D/K OFF ON ON
3 Sys. L OFF ON ON
4 Sys. I (UK) OFF ON ON
5 Sys. I (IRL) OFF ON ON
6 TXT Nat. Option 1 4 3
7 Simple PAT OFF ON OFF
8 16 : 9 CRT OFF ON OFF
9 Sub-Woofer OFF ON OFF
10 Auto Stand-By OFF ON ON
11 Comb-Filter OFF ON ON
12 Auto YC det OFF ON ON
13 Auto Comb det OFF ON ON
14 AV2 Available OFF ON ON
15 AV3 Available OFF ON ON
16 AV4 Available OFF ON ON
17 AV3 Front & Rear OFF ON OFF
18 SECAM Tape OFF ON ON
19 AV1 Sound Mute OFF ON OFF
Select : v V Last menu : bEnter Item : B
•Initialising b Feature Setting
Feature Setting
No Descr. Min Max Data
1 PAP OFF ON ON
2 PAT OFF ON ON
3 INDEX OFF ON ON
4 EPG OFF ON ON
5 Full EPG OFF ON ON
6 Pict Boost Bypass OFF ON OFF
Select : v V Last menu : bEnter Item : B
Reset Devices
Backend
Deflection
Ext. Deflection
Dynamic Convergence
Colour Decoder 1
Colour Decoder 2
Audio/Video Switch
MID-X
External PLL MID-X
Sound
Picture Booster
Select : v V Last menu : bReset Dev. : B
•Reset Devices
– 18 –
KP-48PS2/61PS2
KRM-903
• Device Register Setting b Backend
Monitoring
Device Status Monitor
Error Monitor
Production Monitor
NVM Monitor
Format Monitor
CNI Monitor
Select : v V Next menu : B
•Monitoring
Device Register Setting
Backend
Deflection
Ext. Deflection
Dynamic Convergence
Colour Decoder 1
Colour Decoder 2
Audio/Video Switch
MID-X
External PLL MID-X
Sound
Projector Engine
Picture Booster
Select : v V Next menu : B
•Device Register Setting
Backend
No Descr. Def. Min Max Data
1 D-Col OFF OFF ON OFF
2 Contrast 44 0 63 43
3 Limit-Lvl 3 0 3 3
4 Hue 32 0 63 32
5 Colour 31 0 63 31
6 CTI-Level 2 0 3 2
7 Brightness 31 0 63 3
8 Gamma 3 0 3 3
9 Sharpness 44 0 63 44
10 R-Drive 41 0 63 41
11 G-Drive 41 0 63 41
12 B-Drive 41 0 63 41
13 Sub Bright 31 0 63 31
14 VM-Level 2 0 3 2
15 R-Cutoff 31 0 63 31
16 Pre/Over 2 0 3 3
17 G-Cutoff 31 0 63 31
18 DPIC-Level 1 0 3 1
19 B-Cutoff 31 0 63 31
20 DC-Tran. 0 0 3 0
21 Sub-Cont. 7 0 15 8
22 LRGB2-Lvl 8 0 15 8
23 P-Abl 15 0 15 15
24 Sharp. F0 ON OFF ON ON
25 CB-Offset1 7 0 15 7
26 CR-Offset1 7 0 15 7
27 CB-Offset2 7 0 15 7
28 CR-Offset2 7 0 15 7
29 Sub Colour 0 –8 8 0
Select : v V Last menu : bEnter Item : B
•Device Register Setting b Deflection
Note: Prior to starting Main Deflection Adjustment, the value
displayed here (shaded portion) must be set to the Deflec-
tion data.
Deflection
No Descr. Def. Min Max Data
1 V-Size 31 0 63 50
2 V-Position 31 0 63 32
3 V-Comp 1 0 3 0
4 V-Linear 7 0 15 7
5 S-Corr 7 0 15 7
6 H-Size 31 0 63 38
7 Ew-Dc OFF OFF ON OFF
8 Pin-Amp 31 0 63 20
9 Up-CPin 31 0 63 32
10 M-Pin 2 0 3 2
11 Lo-CPin 31 0 63 32
12 Trapezium 7 0 15 7
13 H-Position 31 0 63 30
14 AFC-Bow 7 0 15 7
15 AFC-Angle 7 0 15 7
16 Up-Vlin 0 0 15 0
17 Lo-Vlin 0 0 15 0
18 MPIP PAmp –3 –10 10 0
19 MPIP UCPin 0 –10 10 0
20 MPIP LCPin 0 –10 10 0
21 MPIP Trap 0 –10 10 0
22 EPG PAmp 2 –10 10 0
23 EPG UCPin 2 –10 10 0
24 EPG LCPin 2 –10 10 0
25 EPG Trap 0 –10 10 0
Select : v V Last menu : bEnter Item : B
•Device Register Setting b EXT. Deflection
EXT. Deflection
No Descr. Def. Min Max Data
1 Linearity 127 0 255 127
2 H Centre 31 0 63 31
3 H Trap 31 0 63 31
4 Rotation 0 0 255 0
5 FocusPhase 127 0 255 127
Select : v V Last menu : bEnter Item : B
– 19 –
KP-48PS2/61PS2
KRM-903
•Device Register Setting b Dynamic Convergence
Dynamic Convergence
No Descr. Def. Min Max Data
1 Range 63 0 63 63
2 H stat 33 0 63 33
3 H amp l 37 0 63 37
4 H amp r 36 0 63 36
5 Up Y 31 0 63 31
6 Low Y 33 0 63 33
7 Y up l 30 0 63 30
8 Y up r 30 0 63 30
9 Y low l 31 0 63 31
10 Y low r 30 0 63 30
11 Mbow up l 31 0 63 31
12 Mbow up r 32 0 63 32
13 Mbow low l 32 0 63 32
14 Mbow low r 32 0 63 32
15 V stat 32 0 63 32
16 TCorPCtrl OFF OFF ON OFF
17 TopCorPin 31 0 63 31
18 BCorPCtrl OFF OFF ON OFF
19 BotCorPin 43 0 63 43
Select : v V Last menu : bEnter Item : B
•Device Register Setting b Colour Decoder 1
Colour Decoder 1
No Descr. Def. Min Max Data
1 TINT 31 0 63 31
2 SUB COLOUR 7 0 15 7
3 SUB CONTR 7 0 15 7
4 SHARP GAIN 8 0 15 8
5 Y-OUT LEV. 35 0 63 35
6 C-OUT LEV. 45 0 63 45
7 Y-DL 8 0 10 8
8 Cr OFF. 1 7 0 15 7
9 Cb OFF. 1 7 0 15 7
10 Cr OFF. 2 7 0 15 7
11 Cb OFF. 2 7 0 15 7
12 V CD FREQ 3 0 7 3
13 V CD MODE 0 0 3 0
14 MVM OFF OFF ON OFF
15 S R-Y ADJ 7 0 15 7
16 S B-Y ADJ 2 0 15 5
17 BELL/HPF 2 0 3 2
18 BELL F0 OFF OFF ON OFF
19 S GP 0 0 3 0
Select : v V Last menu : bEnter Item : B
•Device Register Setting b Colour Decoder 2
Colour Decoder 2
No Descr. Def. Min Max Data
1 TINT 31 0 63 31
2 SUB COLOUR 7 0 15 7
3 SUB CONTR 7 0 15 7
4 SHARP GAIN 8 0 15 8
5 Y-OUT LEV. 35 0 63 35
6 C-OUT LEV. 45 0 63 45
7 Y-DL 8 0 10 8
8 Cr OFF. 1 7 0 15 7
9 Cb OFF. 1 7 0 15 7
10 Cr OFF. 2 7 0 15 7
11 Cb OFF. 2 7 0 15 7
12 V CD FREQ 3 0 7 3
13 V CD MODE 0 0 3 0
14 MVM OFF OFF ON OFF
15 S R-Y ADJ 7 0 15 7
16 S B-Y ADJ 2 0 15 5
17 BELL/HPF 2 0 3 2
18 BELL F0 OFF OFF ON OFF
19 S GP 0 0 3 0
Select : v V Last menu : bEnter Item : B
•Device Register Setting b MID-X
MID-X
No Descr. Def. Min Max Data
1 M H POS 0 –31 31 0
2 S H POS 0 –8 8 0
3 D YS SEL 1 0 3 1
4 D YS DELAY 7 0 7 7
5 Text Sharp OFF OFF ON OFF
Select : v V Last menu : b Enter Item : B
– 20 –
KP-48PS2/61PS2
KRM-903
• Device Register Setting b External PLL MID-X
External PLL MID-X
No Descr. Def. Min Max Data
1 VCO7-0PAL 184 0 255 184
2 VCO7-0NTSC 172 0 255 172
3 VCO11-8 6 0 15 6
4 DIV1, 2, 4, 8 2 0 3 2
5 Fine Delay 0 0 63 0
6 Coar. Delay 0 0 3 0
7 Ch. Pump 0 0 3 0
8 PD Pol. ON OFF ON ON
9 DSync Wdth 3 0 3 3
10 Dsync Del OFF OFF ON OFF
11 Sync Pol ON OFF ON ON
12 DSync Pol ON OFF ON ON
13 Clk En ON OFF ON ON
14 NClk En OFF OFF ON OFF
15 Clk/2 En OFF OFF ON OFF
16 NClk/2 En OFF OFF ON OFF
17 DSync En ON OFF ON ON
18 Unlock En OFF OFF ON OFF
19 VCO Bypass ON OFF ON ON
20 Synth Pwr ON OFF ON ON
21 Rdout Pwr OFF OFF ON OFF
22 DIVOUT En ON OFF ON ON
23 DSync Byp OFF OFF ON OFF
24 DSync Hold OFF OFF ON OFF
Select : v V Last menu : bEnter Item : B
• Device Register Setting b Sound
Sound
No Descr. Def. Min Max Data
1 Carr.-Mute ON OFF ON ON
2 SCART1 Vol 79 0 127 79
3 SCART2 Vol 79 0 127 79
4 SCART-Pr. 27 0 127 27
5 I2S1-Pr. 16 0 127 16
6 I2S2-Pr. 16 0 127 16
7 FM Pr. 27 0 127 27
8 BG Nic. Pr. 53 0 127 53
9 L Nic. Pr. 59 0 127 59
10 DK Nic.Pr. 53 0 127 53
11 I Nic. Pr. 97 0 127 97
12 Irl NicPr. 97 0 127 97
13 SubW. Vol. 0 –127 0 0
14 Bass Offs 0 –3 3 0
15 TrebleOffs 2 –3 3 2
16 Loudn. Offs 0 0 9 0
17 HP-VolOffs –2 –5 5 –2
18 M-S Limit 30 –128 127 30
19 M-B Limit –30 –128 127 –30
20 S-M Limit 12 –128 127 12
21 S-B Limit –20 –128 127 –20
22 B-M Limit –12 –128 127 –12
23 B-S Limit 20 –128 127 20
24 Err. Max 40 0 255 40
25 Err. Min 18 0 255 18
26 Vol.Offset –3 –6 0 –3
Select : v V Last menu : bEnter Item : B
• Device Register Setting b Picture Booster
Picture Booster
No Descr. Def. Min Max Data
1 DEM OFF OFF ON OFF
Select : v V Last menu : bEnter Item : B
Special Adjustment
No Descr. Min Max Data
1 RGB Level 0 7 0
2 RGB Gain 0 31 6
3 RGB PAT Level 0 7 0
4 RGB PAT Gain 0 31 12
5 RGB H-Position -10 10 0
6 Extra FW 0 255 255
7 EPG ChkS Check OFF ON ON
8 Slicer High OFF ON ON
9 FCW Wide OFF ON OFF
10 High Pll OFF ON OFF
11 Panic Offset 0 2 2
12 Wide Mute OFF ON ON
Select : v V Last menu : bEnter Item : B
• Special Adjustment
– 21 –
KP-48PS2/61PS2
KRM-903
5-1-5. Service List (Projector Engine)
Note : Prior to starting Main Deflection Adjustment, the data (GRN, BLU, RED) must be set to the standard values of DRC100 (PAL) mode.
*1:Set correctly by the automatic registration adjustment.
*3:Prior to starting Main Deflection Adjustment, the data must be set to
the standard values of DRC100 (PAL) mode.
: Fixed data
Standard Data
DRC50
(PAL) DRC100
(NTSC) DRC50
(NTSC) DRC100
(PAL/16 : 9)
Name/Description
Item
Number Adjustment
Item Data
Range
DRC100
(PAL)
00 FDIS 00,01 00 SELECT REGI DATA DISPLAY OF FINE ADJ
01 OSDH 01 ~ 255 32 32 32 32 32 PJED SERVICE MENU H POSITION
02 OSDV 01 ~ 255 25 PJED SERVICE MENU V POSITION
03 FVST 00 ~ 255 33 54 33 54 33 LINE NUMBER OF FINE ADJUST START
04 V1ST 00 ~ 255 00 00 00 00 00 V1 START DATA
05 V1CU 00 ~ 255 50 25 58 29 50 V1 COUNT UP DATA
06 COHP 00 ~ 255 253 253 253 253 253 H-PHASE OF ROUGH ADJ
07 FIHP 00 ~ 255 203 203 203 203 203 H-PHASE OF FINE ADJ
08 TPHP 00 ~ 255 51 51 51 51 51 H-PHASE OF TEST PATTERN
09 DFHP 00 ~ 255 00 00 00 00 00 H-PHASE OF DYNAMIC FOCUS
10 DFHG –128 ~ 127 –80 –80 –80 –80 –80 H-2 GAIN OF DYNAMIC FOCUS
11 DFVG –128 ~ 127 –30 –30 –30 –30 –30 V-2 GAIN OF DYNAMIC FOCUS
12 PWM1 00 ~ 255 00 PWM1
13 PWM2 00 ~ 255 32 H-PHASE OF AUTO REGI TEST PATTERN
14 HBLD 00 ~ 255 238 H-PHASE OF RETURNED BLUE V LINE
15 HBLW 00 ~ 63 23 PULSE WIDTH OF RETURNED BLUE V LINE
16 BLKP 00 ~ 255 27 START BLANK PULSE
17 COGV –128 ~ 127 (*1) GREEN V CENT OFFSET DATA OF AUTO REGI
18 CORV –128 ~ 127 (*1) RED V CENT OFFSET DATA OF AUTO REGI
19 COBV –128 ~ 127 (*1) BLUE V CENT OFFSET DATA OF AUTO REGI
20 COGH –128 ~ 127 (*1) GREEN H CENT OFFSET DATA OF AUTO REGI
21 CORH –128 ~ 127 (*1) RED H CENT OFFSET DATA OF AUTO REGI
22 COBH –128 ~ 127 (*1) BULE H CENT OFFSET DATA OF AUTO REGI
23 SOGV –128 ~ 127 (*1) GREEN V SKEW OFFSET DATA OF AUTO REGI
24 SORV –128 ~ 127 (*1) RED V SKEW OFFSET DATA OF AUTO REGI
25 SOBV –128 ~ 127 (*1) BLUE V SKEW OFFSET DATA OF AUTO REGI
26 SOGH –128 ~ 127 (*1) GREEN H SKEW OFFSET DATA OF AUTO REGI
27 SORH –128 ~ 127 (*1) RED H SKEW OFFSET DATA OF AUTO REGI
28 SOBH –128 ~ 127 (*1) BLUE H SKEW OFFSET DATA OF AUTO REGI
29 ERR FIXED 00 AUTO REGI ERROR CODE
30 ADTM 00 ~ 255 144 TIMING TO GET A/D DATA OF AUTO REGI
31 *2 VUP 01 ~ 255 03 03 03 03 01 AUTO REGI PATTERN UPPER V POSITION
32 *2 VMID 01 ~ 255 130 138 103 112 130 AUTO REGI PATTERN MIDDLE V POSITION
33 *2 VLOW 01 ~ 255 255 270 206 224 255 AUTO REGI PATTERN LOWER V POSITION
34 *2 HPR 01 ~ 510 01 01 01 01 01 AUTO REGI PATTERN H POSITION
35 SFTF 00,01 00 SHIFT ENABLE 00 : DISABLE 01 : ENABLE
36 SFTE 00,01 00 SHIFT FAST 00 : NORMAL 01 : QUICK
37 ACTL 00 ~ 255 00 LOWER BYTE OF COUNTER VALUE
38 ACTH 00 ~ 255 00 HIGHER BYTE OF COUNTER VALUE
CENT *3–512 ~ 511 000/000 GREEN H/V CENT (H CENT *4)
SKEW *3–512 ~ 511 000/000 GREEN H/V SKEW (H SKEW *4)
SIZE *3–512 ~ 511 –70/–175 –70/–150 GREEN H/V SIZE (H/V SIZE *4)
GRN LIN *3–512 ~ 511 xxxx/xxxx GREEN H/V LIN
KEY *3–512 ~ 511 xxxx/xxxx GREEN H/V KEY
PIN *3–512 ~ 511 xxxx/271 GREEN H/V PIN
CENT *3–512 ~ 511 000/000 BLUE H/V CENT
SKEW *3–512 ~ 511 080/–130 BLUE H/V SKEW
SIZE *3–512 ~ 511 –20/–175 –20/–150 BLUE H/V SIZE
BLU LIN *3–512 ~ 511 –150/xxxx BLUE H/V LIN
KEY *3–512 ~ 511 xxxx/–100 BLUE H/V KEY
PIN *3–512 ~ 511 xxxx/270 xxxx/202 BLUE H/V PIN
CENT *3–512 ~ 511 000/000 RED H/V CENT
SKEW *3–512 ~ 511 080/–130 RED H/V SKEW
SIZE *3–512 ~ 511 –61/–175 –61/–150 RED H/V SIZE
RED LIN *3–512 ~ 511 150/xxxx RED H/V LIN
KEY *3–512 ~ 511 xxxx/100 RED H/V KEY
PIN *3–512 ~ 511 xxxx/270 xxxx/202 RED H/V PIN
*2 : It can be adjust if automatic registration adjustment doesn't work.
*4 : It can be adjust Green a little.
xxxx: Cannot change.
– 22 –
KP-48PS2/61PS2
KRM-903
5-2. REGISTRATION ADJUSTMENT
5-2-1. Data Setting Before Adjustment
Note: Prior to starting Registration Adjustment, the data must
be set by the following method. Negligence of data setting
increases the system load, causing a trouble.
1. Main Deflection Setting
1) Enter the Service menu, and select “Device Register Set-
ting” b “Deflection”.
2) Press v or V key on the joystick to set the data of each de-
flection item to the value (shaded portion) displayed on page
18, and press the “ (OK)” button.
2. Sub Deflection Setting
1) Set DRC100 (PAL) mode.
2) Enter the Service menu, and select “Device Register Set-
ting” b “Projector Engine”.
3) Press “1” or “4” button on the commander to select the
item, and press “3” button to change the adjustment colors,
then set the data of GRN, BLU, and RED items to the values
of DRC100 (PAL) mode, following “ 5-1-5. Service List ”
on page 21. (For an operation method, see “ 5-2-3. Opera-
tion Method for Projector Engine Mode ”)
4) After a setting of each item finished, press “ (MUTE)” +
“-” buttons on the commander to write the changed data.
5) Press “MENU” button on the commander to return to the
Service menu.
5-2-2. Main Deflection Adjustment
The data values are same in all five modes, and therefore the
adjustment for the DRC100 (PAL) mode only is performed here.
1. Place the caps on the red and blue lenses so that only the
green color is displayed.
2. Enter the PAL SPCB signal to set the DRC100 (PAL) mode.
3. Enter the Service menu, and select “Device Register Set-
ting” b “Deflection”.
4. Adjust “2 V-Position” and “13 H-Position” so that the pic-
ture is displayed in the center of screen.
5. Adjust “1 V-Size” and “6 H-Size” so that the picture size is
within the specification.
6. Adjust the following items so as to attain the optimum
picture.
2 V-Position
13 H-Position
6 H-Size
Input Signal H SIZE V SIZE
PAL SPCB 16.6 ± 0.15 sq. 12.5 ± 0.15 sq.
SPEC Overscan Spec. = 7.5%
1 V-Size
4 V-Linear
5 S-Corr
8 Pin Amp
9 Up-CPin
11 Lo-CPin
12 Trapezium
14 AFC-Bow
15 AFC-Angle
– 23 –
KP-48PS2/61PS2
KRM-903
5-2-3. Operation Method for Projector Engine
Mode
1. Functions of Keys on Commander
• 1: Changes adjustment item. (item No. moves up)
: Marker moves clockwise from center to out-
side. (in fine adjustment mode)
• 4: Changes adjustment item.
(item No. moves down)
: Marker moves counterclockwise from outside
to center. (in fine adjustment mode)
• v, V, b, B: Changes data value. (up or down)
: Marker moves up, down, or to the left or
right. (in fine adjustment mode)
• 3: Changes adjustment color.
(except item No. 00~38) GRN c BLU c RED
• 6: Displays or changes internal test signals.
: crosshatch + external signal c dot + external
signal c crosshatch only c dot only c off
• 9: Switches adjustment mode.
rough adjustment mode c fine adjustment
mode
• (OK): Switches marker moving method.
(in fine adjustment mode)
joystick (v, V, b, B) keys c 1 and 4 buttons
ON SCREEN
DISPLAY
Color change
Internal test signal
Mode select
TV MODE
Adjustment item
up
Adjustment item
down
JOYSTICK
Copy data to all
mode
Read data from
NVM
Write data to NVM
RM-903
Copy PAL data
to NTSC
RM
903
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VI DEO TV
TV STANDBY
SCREEN
FORMAT
4:3/16:9
MUTE
VOLUME +
MENU
SONY
OK
TV
2. Operation Method for Rough Adjustment
1) Enter the Service menu, and select “Device Register Set-
ting” b “Projector Engine”.
2) Press “1” or “4” button on the commander to select the
item, and press v, V, b, B key on the joystick to change the
data.
3) Select “GRN CENT” and confirm that the data in horizontal
direction and vertical direction are both 000. When BLU or
RED is displayed, press “3” button on the commander to
change the adjustment color in the order of GRN c BLU c
RED.
4) In the GRN, BLU, or RED mode, v, V keys on the joystick
can change the data in vertical direction, or b, B keys in
horizontal direction.
5) Before returning to the Service menu, press “ (MUTE)”
+“-” buttons on the commander to write the data.
(Omission of this operation causes the set data to be returned
to the data before adjustment)
6) Press “MENU” button on the commander to return to the
Service menu.
PJE 00 00
FDIS |
Adjustment Item
Item No. Data
v, B: Data up
V, b: Data down
GRN 000 000
CENT
Adjustment Item
Data (H) Data (V)
Color
b: Data (H) up
B: Data (H) down
v: Data (V) up
V: Data (V) down
Commander Function
Buttons Mode Description
+ -WRITE Writes data to NVM.
7 + -READ Reads data from NVM.
5 + -INIT Service data initialization. Not stored.
(Be sure not to use usually)
2 + -COPY Copies and writes data of DRC100
(PAL) mode to all other modes.
+ -WRT5060 Copies data of PAL mode to NTSC mode.
– 24 –
KP-48PS2/61PS2
KRM-903
3. Operation Method for Fine Adjustment
(in GRN, BLU, or RED Mode)
1) Select the Projector Engine mode.
2) Select FDIS so that the data at each position can be displayed
in the fine adjustment mode, and set the data to “01”.
3) Press “9” button on the commander, and the fine adjust-
ment mode will be active where a green marker appears in
the center of screen (in the case of GRN mode).
4) Press “ (OK)” button, and the marker color will be
switched between green (GRN mode) and white alternately.
5) Use “1” or “4” button on the commander, or the joystick
to move the marker to the position to be adjusted, where fine
adjustment can be made.
•When marker color is white.
(in this case, fine adjustment is disabled)
Operating the joystick can move the marker
up, down, or to the left or right freely.
•When marker color is green. (GRN mode)
1: moves the marker clockwise from center to outside.
4: moves the marker counterclockwise from outside to center.
Fine adjustment can be made on the basis of
marker position using v, V, b, B keys on the joy-
stick.
6) Press “9” button on the commander to return to the rough
adjustment mode.
CROSSHATCH
Movement when v key
on joystick is pressed.
Movement when B key
on joystick is pressed.
CROSSHATCH
5-2-4. Projector Engine Adjustment
(Sub Deflection Adjustment)
Note: Prior to starting this adjustment, make sure that the data of
GRN, BLU, and RED items in the DRC100 (PAL) mode
are same as those data given in “5-1-5. Service List” on
page 21. If not same, retry the registration adjustment
from the beginning.
: Adjustment by the projector engine adjustment only will
burden the load on the system, and therefore main deflec-
tion adjustment should be made properly.
: When exiting from the Projector Engine mode, press
“(MUTE)”+“-” buttons on the commander to write
the data. Omission of this operation causes the data to be
returned to the data before adjustment.
Adjustment X : Fixed a : Yes – : No
<Adjustment for DRC100 (PAL) Mode>
1. Green Adjustment
1) Place the caps on the red and blue lenses so that only the
green color is displayed.
2) Enter the PAL SPCB signal to set the DRC100 (PAL) mode.
3) Select the Projector Engine mode.
4) Press “6” button on the commander to display internal test
signal (crosshatch).
5) Select “GRN PIN” and adjust so that upper and lower hori-
zontal lines on the screen become straight.
6) Fix the data of other items.
7) Press “9” button on the commander to enter the fine adjust-
ment mode.
8) Make fine adjustment so that horizontal lines and vertical
lines become straight.
9) Press “9” button on the commander to return to the rough
adjustment mode.
Adjustment Type
Adjustment Item GRN RED BLU
H / V H / V H / V
CENT X / X a / aa / a
SKEW X / X a / aa / a
SIZE X / X a / aa / a
LIN – / –a / –a / –
KEY – / –– / a– / a
PIN – / a– / a– / a
Push the joystick to Push the joystick to
– 25 –
KP-48PS2/61PS2
KRM-903
2. Blue Adjustment
1) Place a cap on the red lens so that green and blue colors are
displayed.
2) Press “3” button on the commander to select BLU mode.
3) Adjust the following items so that blue lines overlap with
green lines.
•BLU CENT (horizontally/vertically)
Adjust so that the pictures coincide in the center of screen.
•BLU SKEW (horizontally/vertically)
Correct the tilt of horizontal lines and vertical lines.
•BLU LIN (horizontally)
Adjust so that each space at the right end and at the left end of
screen is equal.
Push the joystick to Push the joystick to
Push the joystick to Push the joystick to
Push the joystick to Push the joystick to
Push the joystick to Push the joystick to
•BLU SIZE (horizontally/vertically)
Adjust so that each distance from center to left end and to right
end is equal.
Adjust so that each distance from center to top and to bottom is
equal.
•BLU PIN (vertically)
Adjust so that upper and lower horizontal lines on the screen be-
come straight.
•BLU KEY (vertically)
Adjust so that upper and lower horizontal lines on the screen be-
come parallel.
4) Press “9” button on the commander to enter the fine adjust-
ment mode.
5) Make fine adjustment so that horizontal lines and vertical lines
overlap with green lines.
6) Press “9” button on the commander to return to the rough
adjustment mode.
Push the joystick to Push the joystick to
Push the joystick to Push the joystick to
Push the joystick to Push the joystick to
Push the joystick to Push the joystick to
Push the joystick to Push the joystick to
– 26 –
KP-48PS2/61PS2
KRM-903
3. Red Adjustment
1) Place a cap on the blue lens so that green and red colors are
displayed.
2) Press “3” button on the commander to select RED mode.
3) Hereinafter, use same manner as that of blue adjustment to
adjust so that the red lines overlap with green lines.
4. Registration Data Writing
1) After each adjustment of green, blue, and red for the
DRC100 (PAL) mode finished, press “ (MUTE)”+“-”
buttons on the commander to write registration data to the
NVM.
<Copy of Registration Data>
1. Make sure that the adjustment for DRC100 (PAL) mode fin-
ished and the data have already been written.
2. Select the Projector Engine mode.
3. Press “2”+“-” button on the commander.
4. The data of DRC100 (PAL) mode are copied to all other
modes.
<Adjustment for DRC50 (PAL) Mode>
1. Enter the PAL SPCB signal to set the DRC50 (PAL) mode.
2. Select the Projector Engine mode.
3. Press “6” button on the commander to display internal test
signal (crosshatch).
4. Press “9” button on the commander to enter the fine adjust-
ment mode.
5. Using the lens caps as necessary, perform a fine adjustment
so that green, blue, and red vertical lines and horizontal lines
become straight, and respective color lines overlap with
green lines.
6. Press “9” button on the commander to return to the rough
adjustment mode.
7. After each adjustment of green, blue, and red for the DRC50
(PAL) mode finished, press “ (MUTE)”+“-” buttons on
the commander to write registration data to the NVM.
DRC50
(PAL) DRC100
(PAL/16:9)
DRC100
(PAL)
DRC100
(NTSC) DRC50
(NTSC)
Copy Registration Data.
<Copy of Registration Data from PAL to NTSC>
1. Make sure that the adjustment for DRC50 (PAL) mode fin-
ished and the data have already been written.
2. Select the Projector Engine mode.
3. Press “ (ON SCREEN DISPLAY)”+“-” buttons on the
commander.
4. Respective data of DRC50 (PAL) mode and DRC100 (PAL)
mode are copied to the NTSC mode.
<Adjustment for DRC100 (PAL/16 : 9) Mode>
1. Place the caps on the red and blue lenses so that only the
green color is displayed.
2. Enter the PAL SPCB signal to set the DRC100 (PAL) mode.
3. Set the screen format to 16 : 9.
4. Select the Projector Engine mode.
5. Press “6” button on the commander to display internal test
signal (crosshatch).
6. Select “GRN SIZE”, and press v or V key on the joystick to
fix the data in vertical direction to “–150”.
7. Select “GRN PIN” and adjust so that upper and lower hori-
zontal lines on the screen become straight.
8. Fix the other item data.
9. Press “9” button on the commander to enter the fine adjust-
ment mode.
10. Make a fine adjustment so that horizontal lines and vertical
lines become straight.
11. Press “9” button on the commander to return to the rough
adjustment mode.
12. Hereinafter, use same manner as that of adjustment for
DRC100 (PAL) mode to perform the blue and red adjust-
ments.
13. After each adjustment of green, blue, and red
for the DRC100 (PAL/16 : 9) mode finished, press
“(MUTE)”+“-” buttons on the commander to write reg-
istration data to the NVM.
14. Set the screen format to 4 : 3.
DRC50
(PAL) DRC50
(NTSC)
DRC100
(PAL) DRC100
(NTSC)
Copy Registration Data from PAL to NTSC.
– 27 –
KP-48PS2/61PS2
KRM-903
5-3. AUTO CONVERGENCE OFFSET
This adjustment must be performed after the registration adjust-
ment was made or after readjustment was made by any reason.
1. Darken the periphery of this set.
2. Enter the PAL SPCB signal to set the DRC100 (PAL) mode.
3. Select the Projector Engine mode.
4. Press “ (AUTO CONVERGENCE)” button on the front
panel of the set.
5. Select “29 ERR” of Projector Engine mode and confirm
ERR data value is “00” .
6. In the same manner, select DRC50 (PAL) and DRC100
(PAL/16 : 9) modes respectively, and press the “ (AUTO
CONVERGENCE)” button in the Projector Engine mode.
7. Enter the NTSC signal, and perform the same steps in the
DRC100 (NTSC) and DRC50 (NTSC) modes respectively.
5-4. PICTURE CENTER ADJUSTMENT
1. Enter the SPCB signal.
2. Select the TT mode, and press “3”+“2” buttons on the
commander.
TT32 : Horizontal center adjustment for MID-X input
3. Pressing b or B key on the joystick, move the picture in
horizontal direction to center the picture on the OSD mark.
4. Press “ (TV MODE)” or “ (OK)” button on the com-
mander to return to normal TV mode.
Adjust picture center to
the position of this OSD mark.
5-5. WHITE BALANCE ADJUSTMENT
1. Enter the monoscope signal.
2. Press “MENU” button on the commander to enter the Picture
Adjustment menu.
3. Set the Picture Mode to “Personal”, and the Digital Mode to
“DRC100”.
4. Enter the Service menu, and select “Device Register Set-
ting” b “Backend”.
5. Adjust “13 Sub Bright” so that 10 IRE section barely grows.
6. Enter all-white pattern signal.
7. Fix “17 G-Cutoff” to “31”, and adjust “15 R-Cutoff” and “19
B-Cutoff” so as to attain the optimum white balance.
8. Adjust “13 Sub Bright” so that 100 IRE section barely
grows.
9. Adjust “10 R-Drive” and “12 B-Drive” so as to attain the
optimum white balance.
10. Repeatedly adjust the white balance for the minimum and
maximum picture setting.
5-6. SUB BRIGHT ADJUSTMENT
1. Enter the monoscope signal.
2. Press “MENU” button on the commander to enter the Picture
Adjustment menu.
3. Set respective items as follows:
• Picture Mode c Personal
• AI (Artificial Intelligence) c OFF
• Contrast c Minimum
• Brightness c 50%
4. Enter the Service menu, and select “Device Register Set-
ting” b “Backend”.
5. Adjust “13 Sub Bright” so that the border between 0 IRE and
10 IRE becomes distinct.
– 28 –
KP-48PS2/61PS2
KRM-903
5-7. SUB COLOR ADJUSTMENT
1. Enter the color bar signal.
2. Connect the oscilloscope probe to the CN4500 pin 5 on the E
board.
3. Enter the Service menu, and set respective items as follows.
However, record current set values so that they can be re-
stored later.
1) Select “Device Register Setting” b “Backend”.
• 1 D-Col c OFF
• 2 Contrast c 31
• 5 Color c 31
• 18 DPIC-Level c 0
• 20 DC-Tran. c 0
2) Select “Initializing” b “Feature Setting”.
• 6 PictBoostBypass c ON
4. Select “Device Register Setting” b “Backend”.
5. Measure waveform, and adjust “29 Sub Color” so that the
height of “a” and “b” is same as shown in figure.
6. Return the data set in step 3 to original values.
5-8. SUB COLOR OFFSET (61 inch model only)
1. Confirm the result performed in 5-7. SUB COLOR AD-
JUSTMENT.
2. Enter the Service menu, and select “Device Register Set-
ting” b “Backend”.
3. Select “29 Sub Color”, and set existing data value +2.
(61 inch model only)
ab
Same level
– 29 –
KP-48PS2/61PS2
KRM-903
5-9. TEST-TEST MODE
Is available by pressing “OSD”, “5”, “Volume minus”, “TV” button in the standby mode, OSD “TT--” appears. The functions de-
scribed below are available by pressing the two numbers. To release the Test-Test mode, Press “-” twice or switch the TV set into
standby mode. Pressing the two Local Control buttons ( + and – ) during Power ON will also switch into “TT” mode.
In “TT” mode, it is possible to remove the Menu from the screen by pressing the Speaker OFF button once. Pressing the Speaker OFF
button a second time will cause the menu to reappear. The Function is kept even when the menu is not displayed !!.
00 Switch back to normal mode - “TT” mode off
01 Set picture maximum
02 Set picture minimum
03 Set speaker/headphone Volume to 30%
04 Set speaker/headphone Volume to 50%
05 Set speaker/headphone Volume to 65%
06 Set speaker/headphone Volume to 80%
07 Ageing Mode
08 Shipping Condition
09 Enter PJ Engine service mode
10 No function
11 Sub picture adjustment
12 Sub colour adjustment
13 Displayed software version and TV set configuration
14 Production Info Display
15 Picture Rotation
16 Picture level 50%
17 Audio mute on
18 No function
19 Sub brightness adjustment
20 No function
21 Destination A includes text settings, display TV status
22 Destination L includes text settings, display TV status
23 Destination E includes text settings, display TV status
24 Destination U includes text settings, display TV status
25 Destination D includes text settings, display TV status
26 Destination B includes text settings, display TV status
27 Destination K includes text settings, display TV status
28 Destination R includes text settings, display TV status
30 No function
31 Geometry adjustment 1
32 Geometry adjustment 2
33 Error monitor
34 No function
35 CRT 4:3 <–> 16:9 ; Display TV status
36 Line 23 detection switch
37 Velocity Modulation (VM) test
38 No function
39 No function
40 No function
41 Screen mode check
42 Reinitialize geometry
43 No function
44 Screen mode DRC100
45 Screen mode DRC50
46 Reserved for dealer commander
47 Reinitialize NVM with program 99
48 Set NVM as non virgin
49 Set NVM as virgin
50 No function
51 Set Dolby volume to 90%
52 Dolby on left speaker only
53 Dolby on right speaker only
54 Dolby on left centre only
55 Dolby surround speaker only
56
ıNo function
59
60 No function
61 Service mode
62 Production mode
65 Reset error codes
68 Ignore errors on
69 Ignore errors off
70 No function
71 No function
72 No function
73 Clear programs
74
ıNo function
79
80 No function
82 PAP H adjustment left image
83
ıNo function
86
87 Personal ID reset with program 99
88 Parental Lock off
89 No function
90 No function
KP-48PS2/61PS2
RM-903
– 30 –
25
26
27
15
11
60
13
1
45
48
36
29
32
25
18
35
28
40
41
19
49
54
33
26
20
38
39
52
58
9
AV4
S VIDEO
VIDEO
L
(MONO)
R
CN8900
CN8901
CN8902
BLUE IN
GREEN IN
RED IN
VIDEO IN
RIGHT IN
RIGHT OUT
RIGHT IN
LEFT IN
LEFT OUT
MODE
VIDEO OUT
BLANKING
7
11
15
20
2
1
6
3
8
LEFT IN
C IN
VIDEO/Y IN
VIDEO OUT
LEFT OUT
RIGHT OUT
MODE
AV LINK
6
2
19
20
15
3
1
8
10
19
16
IC8451
AV SIGNAL SELECT SW
C IN
VIDEO/Y IN
RIGHT IN
RIGHT OUT
VIDEO OUT
LEFT OUT
LEFT IN
15
20
2
1
19
3
6
MODE 8
Q8811
BUFF
Q8452
BUFF
Q8451
BUFF
Q8902
BUFF
Q8501
BUFF
Q8904
BUFF
Q8903
BUFF
Q8901
BUFF
J (AV SELECT SW,VIDEO PROCESS)
AV1-V
AV1-R
AV1-L
RTV
LTV
MODE1
AV2-R
AV2-L
AV2-R OUT
AV2-L OUT
MODE2
AV4-C
AV4-V
AV4-R
AV4-L
MODE3
MAIN ROUT
MAIN LOUT
AV2-C
AV2-V
AV2-OUT
MAIN L
MAIN R
AV LINK
R-TV
L-TV
CN8903
C
Y
V
L
R
3
1
5
7
9
CN3301
J3301
C
Y
V
L
R
3
1
5
7
9
H3
L
R
Y/V
C
34
27
56
51
8
62
5
64
23
24
R
L
Y/V
C
45
47
30
37
43
MAIN
Y OUT
MAIN
C OUT
AV3-R
AV3-L
AV3-V
AV3-C
LD1
SUB TV
LD0
TV
HP LOUT3
HP ROUT3
SUB Y OUT
SUB C OUT
SUBTU-L
SUBTU-R
VIDEO OUT
B1
G1
R1
YS3
CVBS
/Y1
C1
46
3
23
37
26
2
9
7
COMB
SYS
SFC
OUT
CVBS
OUT
5
23
7
14
38
13
IC8500
DIGITAL COMB FILTER
PNR
CLOCK IN
NTPL1
A/D IN
LUMINANCE
OUT
CHROMA
OUT
Q8502,8503
BUFF
Q8302,8504
BUFF
X8301
16.2MHz
IC8301
MAIN COLOR DECODER
COMB Y
COMB C/
FORCED S
SDA
Xtal
38
X8401
16.2MHz
Xtal
SCL
1
48
13
14
23
CVBS/Y1
C1
22
21 3 7
2
1
10
9
4
Cr OUT
Cb OUT
Y OUT
SCP
HS
VS
IC8602
NOISE DET
YIN
CVIN
Y OUT
SW
Q8620,8621,8623
AMP,BUFF
Q8612,8614,8615
AMP,BUFF
Q8801,8804,8805,8807
AMP,BUFF,DL SW
Q8809,8810,8812,8813
AMP,BUFF,DL SW
Q8814,8815
AMP
Q8602,8607
BUFF
Q8639,8640
BUFF
Q8636-8638
INV
IC8401
SUB COLOR
DECODER
22
21
9
4
1
36
7
SCL
SDA
V OUT
U OUT
Y OUT
HS
VS
HP L OUT
HP R OUT
HP R OUT
HP L OUT
IC8452
HP AMP
LIN(+)
RIN(+) ROUT
LOUT
+6.5V +DIG5V
IO
IC8304
+5V REG
+6.5V +ANA5V
IO
IC8305
+5V REG
IC8601
PICTURE BOOSTER
6
8
9
14
17
16
YIN
-UIN
-VIN
19
11
SDA
-U OUT
-V OUT
Y OUT
SCL
Q8605,8610,8611
AMP,BUFF
Q8628-8631
AMP,BUFF
Q8626,8627,8633,8634
AMP,BUFF
Q8624,8625,8632,8635
AMP,BUFF
Q8604,8609
AMP,BUFF
Q8601,8603
AMP,BUFF
Q8606
BUFF
Q8616
TRAP SW
+ANA 5V 6
5
3
+ANA 5V 2
1
7
IC8302(1/2)
IC8302(1/2)
+ANA 5V 2
17
3
IC8303(2/2)
SYNC BUFF
IC8303(1/2)
SYNC BUFF
+ANA 5V 6
5
A
TO BLOCK
DIAGRAM(2)
A BOARD
CN1801
CN8101
V MAIN IN
+9V IN
+6.5V
SDA
SCL
TRAP
HP MAIN IN
VP MAIN IN
V SUB IN
U SUB IN
Y SUB IN
HP SUB IN
VP SUB IN
CVBS2 OUT
U MAIN IN
Y MAIN IN
CVBS IN
CVBS1 OUT
SUB AUDIO
HP MUTE
AV LINK
SW2(NC)
R-TV
L-TV
MAIN R OUT
MAIN L OUT
HP R OUT
HP L OUT
CENTER(-)
CENTER(+)
A2
A12
A1
A11
A3
A4
A8
A9
A10
B9
B10
B11
B12
B2
B1
A24
B3
A22
A23
A25
B25
+9V
+6.5V
A16
A17
A6
B6
A20
B20
B21
A19
B19
Q8906
MUTE SW
Q8905
MUTE SW
Q8311
MUTE SW
Q8309
MUTE SW
AV LINK
MAIN L
MAIN R
L-TV
R-TV
TB8101
VARIABLE OUT
CENTER SP IN
L
R
-
+
J8901
(AV INPUT)
1/
2/ 2
AV1
AV2
3/ 3
AV3
4
s
C
SECTION 6
DIAGRAMS
6-1. BLOCK DIAGRAM (1)
KP-48PS2/61PS2
RM-903
– 31 –
A
TO BLOCK
DIAGRAM(1)
J BOARD
CN8101
CN1801
A12
A4
B3
A6
B6
A22
A23
A24
A25
B25
A19
B19
A20
B20
B21
A16
A17
A3
B1
B2
B11
B12
A8
A11
A9
A10
B9
B10
A1
A2
CVBS IN
AV LINK
TRAP
SDA
SCL
HP MAIN IN
VP MAIN IN
V MAIN IN
U MAIN IN
Y MAIN IN
HP SUB IN
VP SUB IN
V SUB IN
U SUB IN
Y SUB IN
+9V
+6.5V
HP MUTE
CENTER(+)
CENTER(-)
HP R OUT
HP L OUT
SW2(NC)
SUB AUDIO
R-TV
L-TV
MAIN R OUT
MAIN L OUT
CVBS1 OUT
CVBS2 OUT
SIRCS
KEY2
KEY1
RESPONS
LED
CVBS IN
AV LINK
AUDIO RESET
AC ON/OFF
PROT
ST-BY
AUDIO MUTE
TXTR
TXTG
TXTB
TXTBLK
SCL
SDA
+5V
+5V
STBY +5V
VP100
HP100
RESET100
RE-R
RE-G
RE-B
RE-YS
DISABLE
HP 100 OUT
VP 100 OUT
RESET 100
Y MAIN IN
U MAIN IN
V MAIN IN
VP M IN
HP M IN
HP SUB IN
VP SUB IN
V SUB IN
U SUB IN
Y SUB IN
SDA
SCL
+5V
+2.5V
+3.3V
A5V
+9V(NC)
DPC SW
Y 100 OUT
U 100 OUT
V 100 OUT
DISABLE
RE-YS
RE-B
RE-G
RE-R
H SYN
V SYN
SDA
SCL
+5V STBY
+5V STBY
+33V
VCOMP
ABL
HP
VD(-)
VD(+)
HD
E-W
H SHIFT
VTIM
V-PROT
HV-PROT
P-CONT
STBY +5V
+5V
R.LED
KEY1
KEY2
SIRCS
DISABLE
SDA
SCL
SDA
SCL
A11
A12
B12
B13
B4
B6
A6
B15
A7
A24
A8
A18
A19
A20
A21
A16
A17
A10
B10
A13
A22
A23
B22
A1
B1
A2
B2
A25
A6
B6
A11
A21
A22
A23
A24
A25
A15
B16
A17
A18
A19
A12
B12
A13
B13
A14
B14
A16
A10
A7
A8
A9
1
7
8
9
10
12
13
2
3
17
19
15
5
14
11
1
3
5
11
13
17
20
19
18
4
10
2
5
6
8
4
3
2
B
TO BLOCK DIAGRAM(9)
H1 BOARD CN3102
D
TO BLOCK DIAGRAM(6)
D BOARD CN5016
TO BLOCK DIAGRAM(3)
B3 BOARD CN502
F
TO BLOCK DIAGRAM(6)
D BOARD CN5017
C1 C2 E1 E2
TO BLOCK DIAGRAM(7)
M BOARD CN9001
FOR CHECK
CN1302 CN1001 CN1504 CN1502 CN1201 CN1501
STBY+5V
OCP
OVP
AC ON/OFF
5
3
2
1
G
TO BLOCK DIAGRAM(9)
G BOARD CN6303
CN1606
28
27
17
16
26
25 21
24
6
720
19
1
3
4
5
YINA
UINA
VINA
HPINA
VPINA
HPINB
VPINB
GINB
BINB
RINB
HPOUT
VPOUT
YOUT
UOUT
VOUT
YSB
5
M
7
11
4
2
L+IN
R+IN
L OUT
R OUT
15
14
5
10
4
1
6
3
7
9
SCL
SDA
SPLITTER
SW
TRAP
VCOMP
TRAP
VCOMP
OC PROT
CNT SP
OV
PROT
AUDIO
PROT
QSS1
AM1
QSS2
AM2
SCL
SDA
MAIN L IN
MAIN R IN
L-TV
R-TV
SW2
SUB R
A RESET
+9V
+5V
L OUT
R OUT
AM1
QSS2
AM2
SCL
SDA
MAIN L
MAIN R
L-TV
R-TV
SW2
SUB A
VIDEO
SDA
SCL
SDA
SCL
AM AM1
QSS
VIDEO
SDA
SCL
SDA
SCL
AM AM2
QSS QSS2
B13
A14
B15
A16
A5
B5
A1
A2
A3
A4
B8
A9
A7
B2
B3
B10
A11
H2H1
TO BLOCK DIAGRAM(8)
S BOARD CN4701
HP R OUT
HP L OUT
1
4
I
TO BLOCK DIAGRAM(9)
H2 BOARD CN3202
CN1901 CN1301
SP OUT L
AUDIO GND
SP OUT R
AUDIO GND
1
2
3
4
CN1102
RY1102
RY1101
IC1101
AUDIO AMP
HP R
+5V
+9V
HP L
TU1301
MAIN TUNER
TU1302
SUB TUNER
SW2
SUB A
R-TV
L-TV
MAIN R
MAIN L
HP R
HP L
C SP +
C SP -
+9V
+6.5V
SDA
SCL
HP M
VP M
V M
U M
Y M
HP S
VP S
V S
U S
Y S
+5V
STBY
+5V
R.LED
KEY1
KEY2
SIRCS
SIRCS
KEY2
KEY1
R LED
AC ON/OFF
PROT
STBY
A MUTE
TXTR
TXTG
TXTB
TXTBLK
SCL
SDA
+5V
+5V
+5V STBY
RE-R
RE-G
RE-B
RE-YS
RE-YS
RE-B
RE-G
RE-R
HP 100
VP 100
SDA
SCL
+5V STBY
+33V
VCOMP
ABL
HP
HP 100
VP 100
Y M
U M
V M
VP M
HP M
HP SUB
VP SUB
V SUB
U SUB
Y SUB
SDA
SCL
+5V
+2.5V
+3.3V
+5V-B3
+9V
Y 100
U 100
V 100
VD-
VD+
HD
EW
HSHIFT
VTIM
VPROT
XRAY
STBY
STBY
PROT
AC ON/OFF
STBY
IC1401
I/O EXPANDER
IC1402
RGB MATRIX
HP SUB
VP SUB
Y SUB
U SUB
V SUB
Y S
U S
V S
HP S
VP S
HP 100
VP 100
TXT R
TXT G
TXT B
STBY
TRAP
A MUTE
Q1202-1204
AUDIO DET,PROT
Q1103-1105
RELAY DRV.
Q1307
SW
Q1412
BUFF
Q1402
BUFF
Q1301,1302
BUFF,CLAMP
Q1305,1306
BUFF,CLAMP
Q1404
BUFF
Q1406
BUFF
Q1303,1304
BUFF,CLAMP
Q1413
BUFF
CP1301
RF SPLITTER
Q1401,1410,1411
BUFF,CLAMP
Q1408
SW
Q1201,1206,1207
MUTE SW
Q1205
PROT SW
Q1101,1102
PROTECT
Q1409
AC ON/OFF SW
SDA
SCL
ATT SW
L
R
J
TO BLOCK
DIAGRAM(5)
E BOARD
CN4101
L
TO BLOCK
DIAGRAM(9)
G BOARD
CN6303
HD
FB PLUSE
VTIM/TEST
EW
V+
V-
VPROT
XRAY
ABL
H SHIFT
Y100
U100
V100
DPIC SW
H DEFL
V DEFL
SDA
SCL
TEXT RED
TEXT GREEN
TEXT BLK
TEXT BLUE
ABL2
+12V
DEF +9V
+6.5V
+6.5V
+6.5V
+10.5V
+10.5V
M
TO BLOCK
DIAGRAM(6)
D BOARD
CN5018
DEF +9V
D+5V
+9V
+12V
DEF +9V
+5V
+9V
+12V
K
TO BLOCK
DIAGRAM(9)
G BOARD
CN1605
+17V
-17V
+17V
-17V
CN1404
CN1605
CN1603
CN1503
A2
B2
A3
B3
A4
A5
A7
A8
B8
A15
B18
B19
B20
A20
A1
A6
A16
B16
A10
B10
A11
B11
B7
B4
B17
3
4
5
9
10
1
3
5
7
1
2
+9V +10.5V
IO
IC1602
+9V REG
+5V-TU +6.5V
IO
IC1601
+5V REG
+3.3V IO
IC1603
+3.3V REG
+2.5V IO
IC1604
+2.5V REG
+5V-B3 IO
IC1605
+5V REG
STBY +5V
HD
HP
VTIM
EW
V+
V-
VPROT
XRAY
ABL
H SHIFT
Y100
U100
V100
HP100
VP100
SDA
SCL
TXT R
TXT G
TXT BLK
TXT B
+12V
DEF +9V
+6.5V
+10.5V
+10.5V
VCOMP
+10.5V
Q1421,1422
INV,SW
A(AUDIO OUT,TUNER,AUDIO PROTECT)
VP100
HP100
Q1106
HP MUTE
BLOCK DIAGRAM (2)
KP-48PS2/61PS2
RM-903
– 32 –
BLOCK DIAGRAM (3)
IC602
16M DRAM
CN502(1/2)
U MAIN IN
A22
V MAIN IN
A23
VP M IN
A24
HP M IN
A25
SDA
A12
SCL
B12
Y SUB IN
A19
U SUB IN
A18
V SUB IN
A17
HP SUB IN
A15
VP SUB IN
B16
TO BLOCK
DIAGRAM(2)
A BOARD
CN1201
Q501,521
BUFF
Q503,523
BUFF
Q502,522
BUFF
63 VIN(A)
31 VIN(C)
50 VIN(B)
156
CLP
55
EXTCLP
Q602
BUFF
Q601
BUFF
4 3
FINA VCO OUT
5
FINB
IC603
WRITE PLL
3
VCO OUT
4
FINA
5
FINB
IC504
READ PLL
IC501
MAIN A/D CONVERTER
IC601
DRC
IC801
MID-X IC901
D/A CONVERTER
6
|
13
D(A)1
|
D(A)8
174
|
181
DIY0
|
DIY7
Y0-7
17
|
24
D(B)1
|
D(B)8
164
|
171
DIC0
|
DIC7
122
|
129
DYO2
|
DYO9
44
|
51
DSPY0
|
DSPY7
G2
|
G9
B2
|
B9
DSPCB0
|
DSPCB7
DSPCR0
|
DSPCR7
DSPCLK
C0-7
DQ0
|
DQ15
DY0-7
DB0-7
DR0-7
DRCCRIN0
|
DRCCRIN7
21
|
24
26
|
29
CRCYIN0
|
CRCYIN7
CRCCBIN0
|
CRCCBIN7
31
|
35
39
|
41
11
|
17
20
157
ADHD
58
XSYNC
161
W13I
162
IVD
160
WPLLHD
56
CLK
Q510
BUFF
Q511
BUFF
Q512
BUFF
215
ANVGIN
168
VDOYCLVL
210
ANCBIN
208
ANCRIN
97 C54I
35 CLK
96 RPLLHD
95 HREF
102
HD2
G0-7
B0-7
R0-7
100
V9O
117
C54O
XCAS
XRAS
XWE
XCS
WE
CAS
RAS
CS
14
4
SDA
DAC3
5
DAC2
IC604
I/O EXPANDER
15 SCL 6
DAC1
7
DAC0
3
DAC4
2
SW0
10
SW3
10
DOM
9
SW2
69 GAME
80 S0
81 S1
86 INSEL
93 FFSW
59 PXI
57 FV
58 FH
14 LDQM
36 UDOM
93 IICSDA
37 DRCDCLK
9
79
XDSPHS 72
XDSPVS 73
XDSPYS 74
XRESET
199
XDRCVS
10 XDRCHS
94 IICSCL
13
|
20
25
|
32
ADDR0
|
ADDR11
35
|
42
46
|
49
ADDR0
|
ADDR11
DQ0
|
DQ15
19
|
24
27
|
32
23
56
89
11 12
39 40
42 43
45 46
48 49
DQ0-15
A0-11
7
|
9
11
SCL
SDA 15
|
18
Q905
LEVEL SHIFT
59 DQM3
67 CKE
68 CLK
28 DQM2
71 DQM1
16 DQM0
3
VCO OUT
5
FINB
9
PFD INHBIT
4FINA
22
|
27
60
|
66
A0
|
A12
DQ0
|
DQ31
120
|
125
128
|
134
SDADR0
|
SDADR12
194
VDOCLKIN
202
XVDOHS
196
VDOCLKOUT
201
XVDOVS
146
SDDQM1
147
SDDQM0
142
SDCKE
137
SDCLKIN
140
SDCLK
IC313
SUB WRITE PLL
A0-12
D0-31
62
|
65
68
|
71
52
53
56
|
61
SDDAT0
|
SDDAT31
99
100
103
|
106
108
|
113
116
|
119
148
149
151
|
155
157
|
161
164
|
167
13
|
20
R2
|
R9
3
|
10
RCK
GCK
BCK
31
|
33
23
24
25
|
30
2
45
79
10 11
13 31
33 34
36 37
39 40
42 45
47 48
50 51
53 54
56 74
76 77
79 80
82 83
85
IC802
64M DRAM
Q519
INV
+4.2V
3.3VGR
A3.3V
Q517
+4.2V REG
Q516
+3.3V REG
Q524
+3.3V REG
+5V
Q901,908
BUFF
Q902,907
BUFF
Q903,909
BUFF
44
GO
46
BO
42
RO
CN502(2/2)
U 100 OUTA8
V 100 OUTA9
HP 100 OUTA6
VP 100 OUTB6
DPC SW
A10
RESET 100
A11
+5V
A13
+2.5V
B13
+3.3V
A14
A5V
B14
+9V(NC)
+5V
+2.5V
+3.3V
A5V
A16
TO BLOCK
DIAGRAM(2)
A BOARD
CN1201
24
IC506
24
IC314
42
42
IC315
IC316
24
IC505
Y MAIN IN
A21
B3
(DRC,MID-X,VIDEO PROCESS)
SDA
SCL
Y 100 OUTA7
Q304
BUFF
Q513
BUFF
Q515
BUFF
Q514
BUFF
169
VDOCBCLVL
170
VDOCRCLVL
91
88
X802
17.28MHz
E1
E2
DBO2
|
DBO9
147
|
154
133
|
140
DRO2
|
DRO9
Q904
LEVEL SHIFT
DXT1IN
DXT1OUT
KP-48PS2/61PS2
RM-903
– 33 –
BLOCK DIAGRAM (4)
CN2602(1/2)
H SHIFT
A20
DISABLE
B10
REGI MUTE B6
VP B5
-5V -5VB7
-5V A8
+5V A9
+5V B9
D+5V
A11
D+5V
B11
+9V
A19
+9V
B19
SCL 2
SDA 3
/BINT 4
PSCL 6
PSDA 7
D+5V 5
SDA
A13
SCL
B13
CN2601
TO JIG
TO BLOCK
DIAGRAM(6)
D BOARD
CN5015
HS
A10
HP A5
VS
A15
V SHIFT
B20
CN2603
IC2626(1/4)
1V CONV,
PEAK HOLD
IC2627(1/4)
LOWER 3
UPPER 1
UPPER
SENSOR -
+
6
5
7-
+
6
5
7
Q2611
18 I AREGI D0
IC2626(2/4)
1V CONV,
PEAK HOLD
IC2627(2/4)
LOWER
SENSOR -
+
2
3
1-
+
2
3
1
Q2610
15 I AREGI D3
RIGHT 5
IC2626(3/4)
1V CONV,
PEAK HOLD
IC2627(3/4)
RIGHT
SENSOR _
+
9
10
8-
+
9
10
8
Q2613
17 I AREGI D1
LEFT 7
IC2626(4/4)
1V CONV,
PEAK HOLD
IC2627(4/4)
LEFT
SENSOR -
+
13
12
14 -
+
13
12
14
Q2612
16
I AREGI D2
26
I DREG OVF
27I DREG BSY
34O B
33O G
35O I
36O YS
32O R
37O YM
28I DREG ACK
59
O NVM STOP
61O DREGI RST
55O KUMUPRT 7WP
5 PSDA
6 PSCL
8 XOFDEF
11 XBUSY
12 XACKM
2 XSTOP
10 XRESET
21ROUT
22GOUT
23BOUT
24YMOUT
25YSOUT
38DA OUT
3 XWC
57
O AREG RST
11 O OSC
12 I OSC
52 O VSHIFT
53 O HSHIFT
6 I BINT
48 MAIN SDA
50 MAIN SCL
62 O DREGI MUTE
44 I VPULSE
8 I VP
58 O IIC SW
49 DREG SCL
47 O DREG SDA
46 I DREG SDA
Q2614
SW
Q2608
INV
X2701
12MHz
+5V
D+5V
+9V
D+5V
IC2611
I2C BUS SW
7 3
6 5
2 1
BD(PJED,REGI CORRECTION)
IC2605
DIGITAL-REGI
IC2621
EEPROM
12 2A
41A
92Q
61Q
IC2618
V/H.DELAY
7I HP
39I EXLC
9 2Q
6 /1Q
21D
IC2613
16MHz PLL
12 2D
31CLK
112CLK
31CK 20 ODDEVEN
30 TEST5
29 TEST4
17 PWM2
15 HBLKIN
14 SCLS
13 SDAS
9 XMUTE
18 VBLKIN
4 SDAM
5 SCLM
21D
51Q
IC2620
EVEN/ODD
4 FINA
3VCO OUT
5FINB
IC2612
PLL
42
IC2615
CN2602(2/2)
TO BLOCK
DIAGRAM(6)
D BOARD
CN5015
44BVOUT 7 DATA
6 WCLK
5 BCLK
9VOUT
10RF
IC2614
BV DAC
2
3
1+
-
5
6
7
IC2610(1/2)
AMP
IC2610(2/2)
FILTER,AMP
VBB1
58BHOUT 7 DATA
6 WCLK
5 BCLK
9VOUT
10RF
IC2602
BH DAC
2
3
1+
-
5
6
7
IC2601(1/2)
AMP
IC2601(2/2)
FILTER,AMP
HBA2
45GVOUT 7 DATA
6 WCLK
5 BCLK
9VOUT
10RF
IC2623
GV DAC
2
3
1+
-
5
6
7
IC2616(1/2)
AMP
IC2616(2/2)
FILTER,AMP
VGB2
59GHOUT 7 DATA
6 WCLK
5 BCLK
9VOUT
10RF
IC2604
GH DAC
2
3
1+
-
5
6
7
IC2603(1/2)
AMP
IC2603(2/2)
FILTER,AMP
HGA3
46RVOUT 7 DATA
6 WCLK
5 BCLK
9VOUT
10RF
IC2625
RV DAC
2
3
1+
-
5
6
7
IC2622(1/2)
AMP
IC2622(2/2)
FILTER,AMP
VRB3
60RHOUT
27WCLK
28BCLK
7 DATA
6 WCLK
5 BCLK
9VOUT
10RF
IC2609
RH DAC
2
3
1+
-
-
+
-
+
-
+
-
+
-
+
-
+
5
6
7
IC2608(1/2)
AMP
IC2608(2/2)
FILTER,AMP
HRA4
RE-YS
B17
D FOCUSB4
RE-R
A17
RE-G
B16
RE-B
A16
D+5V+5V 4 RST 5VCC
IC2617
RESET
TO IC2621,
IC2619
1
2
3
IC2607(1/3)
OSD MIX Q2602
BUFF
4
5
6
IC2607(2/3)
OSD MIX Q2607
BUFF
Q2606
ATT
13
12
11
IC2607(3/3)
OSD MIX
Q2604
BUFF
Q2601
BUFF
Q2605
ATT
IC2619
PJED-CPU
N1
N2
KP-48PS2/61PS2
RM-903
– 34 –
BLOCK DIAGRAM (5)
J
TO BLOCK
DIAGRAM(2)
A BOARD
CN1404
CN4101
Y 100
U 100
V 100
H DEFL
V DEFL
TEXT RED
TEXT GREEN
TEXT BLUE
TEXT BLK
SDA
SCL
DPIC SW
HD
FB PULSE
VTIM/TEST
EW
V+
V-
VPROT
X RAY
ABL
ABL2
H SHIFT
+12V
DEF +9V
E
(R/G/B/VM OUT,YCJ)
CR
(R CRT DRIVE)
ZR
(DY,VM DRIVE)
CN7101
R OUT
IK
+12V
G OUT
BOUT
1
8
7
3
5
CN4500
R OUT
G OUT
B OUT
+12V
IK
1
3
5
7
8
CN4502
VM
+12V
1
2
R
TO BLOCK
DIAGRAM(6)
D BOARD
CN5010
RV SUB DEF
RV SUB RET
RH SUB DEF
RH SUB RET
1
2
4
3
CN7404
Q
TO BLOCK
DIAGRAM(6)
D BOARD
CN5009
R-H DEF
R-H RET
1
4
CN7405
G2
FV
KR
G1
G1
G1
G1
H2
H1
10
1
8
4
5
9
11
6
7
G21
J7101
CN7104
MUTE
IK
G OUT
B OUT
+12V
1
3
7
5
2
CN7102
+135V
+12V
VM
1
4
3
CN7401
V DEF
V RET
CN7403
H(+)
H(-)
RS
+200V
1
2
9
6
CN7103
B18
B19
B20
A1
A6
A10
B10
B11
A11
A16
B16
A20
A2
B2
A3
B3
A4
A5
A7
A8
B8
B7
A15
B4
B17
3
52
53
54
59
60
36
35
34
33
61
62
43
17
18
10
1
5
6
16
20
22
19
45
25
26
28
30 38
9
5
Q4320
BUFF
Q4307,4316
BUFF
Q7101
BUFF
Q7401-7407,7410
BUFF,CORE
Q7408,7409
VM AMP
Q7103
MUTE
Q7104
BUFF
Q4310,4318
BUFF
Q4301,4302,4304
AMP,BUFF
Q4308,4317
BUFF
Q4321
BUFF
Q4322
BUFF
Q4303
ABL CORRECT
IC4301
YCJ
Y1 IN
CB1 IN
CR1 IN
HS IN
VS IN
R2 IN
G2 IN
B2 IN
YS/YM2
SDA
SCL
DPIC DCTR
HD
HP IN
VIIM/TEST
EW
VDP
VDN
V PROT1
X RAY
ABL IN
L2 FIL
VM OUT
IKIN
B OUT
G OUT
R OUT
+12V
+9V
Q4601,4602
MUTE +12V
+12V
IC7101
VIDEO OUT
V IN
VOF
IK
V OUT
+12V
+12V
CG
(G CRT DRIVE)
CN7201
G OUT
IK
MUTE
B OUT
+12V
7
3
1
5
2
CN7204
+200V
H(+)
H(-)
RS
6
1
2
9
G2
FV
KG
H1
H2
G1
G1
G1
G1
10
1
8
7
6
4
5
9
11
G21
J7201
CN7205
GS1
CN7210
B OUT
MUTE
IK
+12V
5
1
3
2
CN7202
H(-)
H(+)
RS
+200V
2
1
9
6
CN7203
38
9
5
Q7201
BUFF
Q7203
MUTE
IC7201
VIDEO OUT
V IN
VOF
IK
V OUT
+12V
+12V
+12V
+135V
+12V
+135V
+12V
VM
DY7401
ZG
(DY,VM DRIVE)
T
TO BLOCK
DIAGRAM(6)
D BOARD
CN5011
U
TO BLOCK
DIAGRAM(6)
D BOARD
CN5020
S
TO BLOCK
DIAGRAM(6)
D BOARD
CN5008
GV SUB DEF
GV SUB RET
1
2
CN7603
VM
+135
+12V
3
1
4
CN7601
+12V
VM
2
1
CN7608
G-H DEF
G-H RET
1
4
CN7606
V DEF
V RET
1
3
CN7605
+135V +135V1
CN7607
+135V
+12V
VM
1
4
3
CN7602
V DEF
V RET
CN7604
1
3
Q7601-7607,7610
BUFF,CORE
Q7608,7609
VM AMP
+135V
+12V
VM
DY7601
+12V
+200V
Q7202
PEAK
+12V
O
TO BLOCK
DIAGRAM(6)
D BOARD
CN5401
+200V
CB
(B CRT DRIVE)
CN7301
B OUT
IK
MUTE
+12V
5
3
1
2
CN7302
+200V
H(+)
H(-)
RS
6
1
2
9
G2
FV
KB
H1
H2
G1
G1
G1
G1
10
1
8
7
6
4
5
9
11
G21
J730
CN7304
BS
H(+)
H(-)
RS
+200V
8
1
2
9
6
CN7303
8
9
5
Q7301
BUFF
Q7305,7306
VOLTAGE DET,MUTE DRV
Q7303
MUTE
IC7301
VIDEO OUT
V IN
VOF
IK
V OUT
+12V
TO BLOCK
DIAGRAM(6)
FOCUS PACK
+12V
+200V
Q7302
PEAK
+12V
P
TO BLOCK
DIAGRAM(6)
D BOARD
CN5006
+200V
3
+12V
+135V
ZB
(DY,VM DRIVE)
W
TO BLOCK
DIAGRAM(6)
D BOARD
CN5012
X
TO BLOCK
DIAGRAM(6)
D BOARD
CN5001
V
TO BLOCK
DIAGRAM(6)
D BOARD
CN5007
BV SUB DEF
BV SUB RET
BH SUB DEF
BH SUB RET
1
2
4
3
CN7802
+135
+12V
VM
1
4
3
CN7801
B-H DEF
B-H RET
1
4
CN7804
V DEF
V RET
1
3
CN7805
V DEF
V RET
CN7803
1
3
Q7801-7807,7810
BUFF,CORE
Q7808,7809
VM AMP
VM
DY7807
V901
PICTURE TUBE
V902
PICTURE TUBE
V903
PICTURE TUBE
TO BLOCK DIAGRAM(6)
HV BLOCK
+200V
H
V
V
SUB
H
SUB
H
V
V
SUB
H
SUB
V
H
V
SUB
H
SUB
GH SUB DEF
GH SUB RET
4
3
TO BLOCK
DIAGRAM(6)
FOCUS PACK
TO BLOCK DIAGRAM(6)
HV BLOCK
TO BLOCK
DIAGRAM(6)
FOCUS PACK
TO BLOCK DIAGRAM(6)
HV BLOCK
KP-48PS2/61PS2
RM-903
– 35 –
D
TO BLOCK
DIAGRAM(2)
A BOARD
CN1502
U
TO BLOCK
DIAGRAM(5)
ZG BOARD
CN7607
Z
TO BLOCK
DIAGRAM(9)
G BOARD
CN6304
TO BLOCK
DIAGRAM(5)
ZB BOARD
CN7803
CN5016
1
2
3
7
8
9
10
12
13
11
14
5
17
19
15
DISABLE
SDA
SCL
RE-YS
RE-B
RE-G
RE-R
H SYN
V SYN
HP
ABL
VCOMP
+5V STBY
+5V STBY
+33V
F
TO BLOCK
DIAGRAM(2)
A BOARD
CN1501
CN5017
13
17
1
3
11
19
5
20
18
H-SHIFT
VTIM
VD(-)
VD(+)
E-W
HV-PROT
HD
V-PROT
P-CONT
Y
TO BLOCK
DIAGRAM(9)
G BOARD
CN6302
CN5013
5
6
1
2
3
4
9
P.CONT
PROT
+22V
-22V
+15V
-15V
+6.5V
M
TO BLOCK
DIAGRAM(2)
A BOARD
CN1503
CN5018
1
3
5
7
DEF +9V
D+5V
+9V
+12V
DEF +9V
D+5V
+9V
+12V
CN5019
2
1
3
P-CONT
P-CONT
HV REG
DISABLE
SDA
SCL
RE-YS
RE-B
RE-G
RE-R
HS
VS
HP
H-SHIFT
VP
-5V
-5V
+5V
+5V
D+5V
D+5V
+9V
+9V
D FOCUS
VB
HB
VG
HG
VR
HR
V-SHIFT
REG1 MUTE
B10
A13
B13
B17
A16
B16
A17
A10
A15
A5
A20
B5
B7
A8
A9
B9
A11
B11
A19
B19
B4
B1
A2
B2
A3
B3
A4
B20
B6
N1 N2
TO BLOCK DIAGRAM(4)
BD BOARD CN2602
TO BLOCK DIAGRAM(5)
ZB BOARD CN7802
CN5015 CN5012
CN5011 CN5011
BV SUB RET
BH SUB RET
BH SUB DEF
BV SUB DEF
2
3
4
1
W
TO BLOCK DIAGRAM(5)
ZG BOARD CN7603
GV SUB RET
GH SUB RET
GH SUB DEF
GV SUB DEF
2
3
4
1
T
TO BLOCK DIAGRAM(5)
ZR BOARD CN7404
RV SUB RET
RH SUB RET
RH SUB DEF
RV SUB DEF
2
3
4
1
R
DF(+)
ABL(+)
VCOMP(NC)
-12V
+12V
-5V
+5V
CN5402(1/2)
15
5
1
7
9
11
13
RS(H)
BS(H)
CN3501(2/2)
3
4
DF(+)
ABL(+)
-12V
+12V
-5V
+5V
CN3501(1/2)
15
5
7
9
11
13
GS(V)(NC)
RS(H)
BS(H)
CN5402(2/2)
2
3
4
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
1
7
5
3
+
-
+
-
+
-
+
-
X
V DEF
V RET
CN5001
1
3
DF
G2
CN5014
2
1
Q5503-5506
REGI MUTE
Q5501,5502
SW
Q5401,5402
BUFF,INV
+
-
+
-
+
-
+
-
+
-
+
-
+
-
Q5104
H OUT
Q5704,5705
DF AMP
Q5706,5707
G2 MUTE
Q5710,5711
PROT
Q5102,5106
BUFF,HOUT DRV
Q5201
PROT
Q5302,5303
VDEF PROT,DELAY
Q5006,5009
HDEF PROT,DELAY
Q5709
PROT
-5V
+5V
+9V
D+5V
VB
HB
VG
HG
VR
HR
HB
VB
IC5502(2/3)
IC5502(1/3)
7
6
20
5
4
22
IC5502(3/3)
IC5501(1/3)
9
10
21
5
4
22
IC5501(3/3)
IC5501(2/3)
9
10
21
7
6
20
IC5501,5502
CONV OUT
VG
HG
VR
HR
Q5403
ABL SW
IC5703(4/4)
IC5401(1/4)
13
12
14
2
3
1
-12V
+12V
-5V
+5V
T5101
HDT
IC5302
V OUT
V+
V-
11
10
9
IC5301(2/2)
4
5
6
IC5301(1/2)
IC5303(1/2)
IC5303(2/2)
2
3
1
6
5
7
VD+
VD-
+5V STBY
+33V
VD-
VD+
HV BLOCK
TO BLOCK
DIAGRAM(5)
TUBE
V901(R)
TO BLOCK
DIAGRAM(5)
TUBE
V902(G)
TO BLOCK
DIAGRAM(5)
TUBE
V903(B)
+22V
-22V
+15V
-15V
+6.5V
IC5703(1/4)
IC5703(2/4)
IC5703(3/4)
2
3
16
5
7
9
10
8
+6.5V
FOCUS PACK
1
6
7
2
4
5
IC5201(2/4)
IC5201(1/4)
+13.5V
TO CB BOARD J7301
TO CG BOARD J7201
TO CR BOARD J7101
TO CB BOARD CN7304
TO CG BOARD CN7205
TO CR BOARD CN7104
MV
V+
V-
HV
+
-
MPY1
MPY2
DS
(SHADING)
D
(H/V-DEF,HV,DY DRIVE)
-12V
+12V
-5V
+5V
IC3505(4/4)
IC3505(1/4)
IC3504(1/3)
IC3504(3/3)
IC3504(2/3) IC3505
(3/4)
IC3505
(2/4)
IC3503(1/3)
IC3506
13
12
14
1
2
36
5
7
2
3
1
2
1
3
10
9
8
6
5
7
5
4
6
10
11
9
P
TO BLOCK
DIAGRAM(5)
CB BOARD
CN7303
TO BLOCK
DIAGRAM(5)
ZR BOARD
CN7405
TO BLOCK
DIAGRAM(5)
ZB BOARD
CN7804
TO BLOCK
DIAGRAM(5)
ZG BOARD
CN7606
RS
BS
+200V
H(-)
H(+)
9
8
6
2
1
O
TO BLOCK
DIAGRAM(5)
CG BOARD
CN7210
GS1
CN5401
CN5006
Q
R-H DEF
R-H RET
CN5009
1
4
V
B-H DEF
B-H RET
CN5007
1
4
S
G-H DEF
G-H RET
CN5008
1
4
+
-
+
-
R1(1)
R1(2)
1
2
+135V 1
+135V 1
CN5003
CN5020
CN5002
+135V
DEF+9V +12V
IO
-5V -12V
IO
+5V +12V
IO
-12V -16.5V
IO
+12V +16.5V
IO
T5104
PMT
+ +
+12V +12V 10
11
13
9
8
14
IC5201(4/4)
IC5201(3/4)
IC5103
+12V REG
IC5104
-12V REG
IC5105
+5V REG
IC5106
-5V REG
IC5107
+9V REG
Q5105
PIN AMP
1
5
6
4
2
7
9
8
10
MV
HV
11
HV
MV
H(+)
H(-)
T5103
FBT
13
12
14
IC5401(4/4)
6
5
7
IC5401(2/4)
9
10
8
IC5401(3/4)
H(-)
H(+)
+200V
+200V
+135V
+33V +135V
TO BLOCK DIAGRAM (5)
BLOCK DIAGRAM (6)
KP-48PS2/61PS2
RM-903
– 36 –
BLOCK DIAGRAM (7)
CN9001(1/2)
RE-G A2
RE-B B1
RE-YS B2
CVBS IN B4
VP 100
A22
HP 100
A23
SDA
A17
SCL
A16
PROT A7
SIRCS
A11
TO BLOCK
DIAGRAM(2)
A BOARD
CN1001
RESPONS LED
B13
DISABLE
A25
AC ON/OFF
B15
ST-BY
A24
AV LINK B6
KEY2
A12
KEY1
B12
+5V
A10
+5V
B10
STBY +5V
+5V
STBY +5V
A13
RE-R A1
CN9001(2/2)
TXTG
A19
TXTB
A20
TO BLOCK
DIAGRAM(2)
A BOARD
CN1001
TXTR
A18
M
(MICRO CONTROL,TEXT)
+
-
5
6
7
+
-
3
2
1
STBY +5V
IC9100(1/2)
KEY DET
IC9100(2/2)
KEY DET
Q9101-9103
BUFF,SW
Q9110
INV
IC9105
MICRO CONTROL
95 CS/DISABLE
6XTAL1
3VP100
4HP100
16
M3LEN
22
SCLK
17
MRST
18
MTSR
7XTAL2
31
WDT EN
32
WDT CLK
78
RSTIN
6ENABLE
7RESET
8PULSE
1RESET
30 WP
10 SDA0
9SCL0
92 PROT
89 SIRCS
86 SDA1
87 SCL1
12 RESP LED
93 AC ON/OFF
13 ST.BY
11 AV LINK OUT
90 AV LINK IN
AD0
|
AD15
40
|
47
50
|
57
A0
|
A19
26
|
29
59
|
65
68
|
75
99 AN0 KEY2
100
AN1 KEY1
94 TC INT
IC9103
I2C BUS SW
7 3
5 6
2 1
4
5
7
SCL
SDA
WP
IC9108
MAIN NVM
X9101
16MHz
6XOUT
7XIN
17 RES
X9500
20.480MHz
10 CVBS
4VS
5HS
68 IICEN
66 TXD
67 RXD
IC9104
RESET
61
R
1/STR
2DATA
3CLOCK
15 EO
14
/STR
15
DATA
23
CLOCK
79
/RSOUT
6
MTX RES
7
OSD OFF
14
RES.AUDIO
11
AUDIO MUTE
13
RES.PICTURE
IC9110
I/O EXPANDER
34
WR
33
RD
83
CS2
82
CS1
81
CS0
12
E
D0
|
D15
A0
|
A18
14
G
15-22 25-32
2-11 35-43
IC9109
EPROM
22
CS
D0
|
D7
A0
|
A18
24
RD
31
WR
13-15 17-21
1-12 23 25-30
IC9400
FLASH ROM
22
CE
D0
|
D7
A0
|
A18
24
RD
29
WR
13-15 17-21
3-12 23 25-28
IC9107
SRAM
5RES
4WE
23 CAS
38
RAS
39
WE
45
CAST
A0
|
A11
A0
|
A11
D0
|
D3
D0
|
D3
IC9502
MEGA TEXT
26
|
37
6
8
|
12
15
|
19
21
IC9501
PAGE RAM
2
3
24
25
40
|
43
Q9502
BUFF
62
GQ9501
BUFF
63
B
64
BLAN
Q9500
BUFF
Q9504 Q9503
1
27
2
13
5
63
5
46
IC9500(2/2)
BUFF
IC9500(1/2)
BLK MIX
IC9111(2/2) IC9111(1/2)
2X0 15
XC
12 Z0
5Y0
AY
AX
AZ
1X1
13 Z1
3Y1
Q9105
BUFF
4
YC
TXTBLK
A21
AUDIO RESET
A6
AUDIO MUTEA8
RESET100
B22
Q9104
BUFF
14
ZC Q9106
BUFF
I9112
RGB-SW
9 10 11
Q9100
OUTPUT
C1
C2
KP-48PS2/61PS2
RM-903
– 37 –
BLOCK DIAGRAM (8)
CN4701(1/2)
QSS-1
B13
MAIN R IN A2
AM1
A14
A RESET
A7
AM2
A16
+5V B3
TO BLOCK
DIAGRAM(2)
A BOARD
CN1901
SCL
A5
SDA
B5
QSS-2
B15
+9V B2
MAIN L IN A1
S
(AUDIO PROCESS)
Q4701
BUFF
Q4702
BUFF
TRAP
(6.5MHz)
56
AV MAIN L IN
57
37
36
AV MAIN R IN
61 IF IN1
Q4703
BIAS
69 IF IN2
IC4702
SOUND PROCESSOR
IC4704
FM DEMODULATOR
IC4705
I2C SW
60 MONO IN(AM)
72 XTAL OUT
71 XTAL IN
21 POWER ON RESET
2SCL
3SCA
X4701
18.432MHz
TV OUT L
TV OUT R
+9V
-
+
6
5
7
4Q4707
MUTE SW
DA3
3
DA4
5
DA2
6
DA1
7
DA0
-
+
9
10
8
IC4703(1/2)
OUTPUT AMP
IC4703(2/2)
OUTPUT AMP
CN4701(2/2)
R-TVA4
L-OUT
B10
R-OUT
A11
SW2B8
SUB RA9
TO BLOCK
DIAGRAM(2)
A BOARD
CN1901
L-TVA3
15 SCL
14
9
SDA
SW2
5MUTE
13
12
SW
3FM SIF
1AM IN
AF OUT
+9V
+5V
Q4706
BUFF
BPF
(5.5MHz)
Q4710
BPF
(6.0MHz)
Q4709
BPF
(6.5MHz)
Q4708
H1
H2
28
27
Q4712
LPF
Q4711
LPF
SPEAKER
OUT L
SPEAKER
OUT R
KP-48PS2/61PS2
RM-903
– 38 –
T6002
LFT
T6001
LFT
CN6004
AC(W) 1
AC IN
220-240V
50Hz AC(L) 2
CN6007
AC(L)OUT1
AC(N)OUT5
CN6006
AC(N)IN4
AC(L)IN1
PROGR + PROGR - +
-
1 2
4 3
2 1
3 4
T6003
PFT
111
IC6004
SWITCHING IC
119
15 7
17
2
16
18
14
VD
VC2
VB
VC1
VS
RT
COM
VG(H)
VG(L)
314
D6015
RECT
RY6000
D6100,D6106
RECT
D6104
RECT
STBY+5V
IC6007
MAIN SW
Q6004
MCM SW
Q6100,6102
PROTECT
T6100
SBT
5
9
6
1
IC6302
STBY 5V REG
5
4
3
4
8
IN OUT
IC6304
REF VOLTAGE
3
1
2A K
REF Q6304
VOLTAGE DET
Q6301,6302
PROTECT
STBY +5V
IC6002
FEED BACK
IC6301
+B REG
1
4
D6304
RECT
D6300
RECT
T6005
PIT
13
15
7
9
10
12
16
18
1
3
D6308
RECT
D6302
RECT
D6309
RECT
D6310
RECT
D6301
RECT
+
T6004
PIT AUDIO
2 8
IC6303
OVP
3
1
412
REF
K
G
(POWER SUPPLY)
1
CN6302
2-22V
315V
4-15V
9+6.5V
6PROT
5P.CONT
+22V
TO BLOCK DIAGRAM(2)
A BOARD CN1605
TO BLOCK DIAGRAM(6)
D BOARD CN5013
5
CN6300
2OVP
3OCP
1AC ON/OFF
STBY +5V
TO BLOCK DIAGRAM(2)
A BOARD CN1606
1
CN6301
2-17V
+17V
TO BLOCK DIAGRAM(2)
A BOARD CN1603
3
CN6303
9+10.5V
+6.5V
4+6.5V
5+6.5V
10 +10.5V
TO BLOCK DIAGRAM(6)
D BOARD CN5002
1
CN6304
+135V
F6001
5A
Q6303
OCP
K
Y
L
Z
G
CN3201
KEY22
CN3101
KEY2 2
CN3202
HP L OUT 4
TO BLOCK DIAGRAM(2)
A BOARD CN1301
HP R OUT 1
CN3103
CN3102
AC(N)IN 4
AC(L)IN 1
CN3104
AC(L)OUT 1
AC(N)OUT 5
S3205
J3201
S3101 S3102 S3103
D3001
(STANDBY)
S3106
S3104 S3105
STBY +5V
+5V
TO BLOCK
DIAGRAM(2)
A BOARD
CN1302
8
5KEY1
10 +5V
4STBY +5V
6KEY2
2R.LED
SIRCS
OUT
IC3101
IR RECEIVER
Q3101
LED SW
H1
(USER CONTROL,MAIN SW)
H2
HP OUT,
USER CONTROL
I
B
HEAD
PHONE
BLOCK DIAGRAM (9)
– 39 –
KP-48PS2/61PS2
RM-903
6-2. FRAME SCHEMATIC DIAGRAM
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
J
1
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
1
2
3
4
1
1
2
3
1
2
3
4
5
6
7
8
9
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
1
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
1
2
1
1
2
3
4
1
2
3
4
1
2
3
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
1
2
3
4
1
2
3
1
2
3
4
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
1
2
3
4
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
1
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
1
2
3
4
5
6
7
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
+
-
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
1
1
1
2
1
2
1
2
1
2
1
2
3
4
5
1
2
3
4
1
2
3
4
1
2
3
1
2
3
4
5
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
1
2
3
4
5
6
7
1
2
3
4
5
6
7
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
1
2
3
1
2
3
1
2
3
1
2
3
4
5
1
1
2
3
4
5
1
2
3
1
2
3
4
1
2
3
1
2
3
1
2
3
4
1
2
3
1
2
3
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1
2
3
4
5
1
2
3
4
5
1
2
3
4
5
1
2
3
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
1
2
3
4
4
5
6
7
8
9
10
11
12
1
GND
G1
13
G1
FV
FGND
G1
G2
G1 KR
H1
H2
4
5
6
7
8
9
10
11
12
1
G1
13
KG
H1
H2
G1
FV
FGND
GND
G1
G2
G1
4
5
6
7
8
9
10
11
12
1
GND
G1
13
H1
H2
G1
FV
FGND
G1
G2
G1 KB
12
34
R
L
V
S
CN6301
CN5010 CN5006CN5012
CN7302
CN7203
CN7201 CN7301
CN7103
CN7102
CN7307
J7101
J7201
J7301
CN7204
CN7202
CN5018
CN5019
CN1605CN1801
CN1102
CN7208CN7107
CN1666
CN5014
CN7401
CN7404
CN7303
CN7605
CN7604
CN7601
CN7603 CN7607
CN7602
CN5011 CN5020
CN7805
CN7802 CN7803
CN5004
CN5001
CN6303
CN7801
CN5002
CN6304
CN7606
CN6300
CN7101CN4500
CN1901
CN4701 CN4101
CN7205
CN7104 CN7304
CN1503
CN6007
CN6006
CN1603
CN1665
CN3101
J3301
CN5016
CN1502
CN5017
CN1501
CN6004
CN7210
CN3102
CN1302
CN502
CN1201
CN6002
CN2604
CN1606
CN1404
CN9001
CN1001
CN2602
CN1504
CN1661
CN1301
CN2601
CN7403
CN7405
CN4502
CN7608
CN7804
CN5402
CN5013
CN6302
CN3104
CN3103
CN6307
CN6306
CN6308
TB8101
CN2603
CN5008 CN5007CN5009
CN5015
CN5401
CN3501
CN8101
CN8902
CN8901CN8900
CN8903CN3301
CN3202 CN3201
J8901
3P
:MINI
4P
RED
:S-MICRO
9P
WHT
:S-MICRO
4P
YEL
:S-MICRO
9P
RED
:S-MICRO
9P
RED
:S-MICRO
7P
WHT
:S-MICRO
6P
WHT
:S-MICRO
9P
RED
:S-MICRO
7P
WHT
:S-MICRO
:FASTON
9P
RED
:S-MICRO
6P
WHT
:S-MICRO
8P
WHT
:S-MICRO
4P
WHT
:S-MICRO
3P
:MINI
50P
:B TO B
4P
WHT
:S-MICRO
:FASTON:FASTON
1P
:FASTON
4P
:MINI-LOCK
6P
WHT
:S.MICRO
4P
RED
:S.MICRO
9P
WHT
:S-MICRO
3P
BLK
:S.MICRO
3P
RED
:S.MICRO
6P
WHT
:S.MICRO
4P
BLK
:S.MICRO
3P
YEL
:S.MICRO
6P
WHT
:S.MICRO
4P
BLK
:S-MICRO
3P
YEL
:S-MICRO
3P
RED
:S-MICRO
4P
YEL
:S-MICRO
3P
BLK
:S-MICRO
1P
:FASTON
3P
BLK
:S-MICRO
10P
WHT
:S-MICRO
6P
WHT
:S-MICRO
3P
MINI-LOCK
3P
MINI-LOCK
4P
WHT
:VH
5P
WHT
:S-MICRO
9P
WHT
:S-MICRO
9P
WHIT
:S-MICRO
40P
40P 40P
:B TO B
1P
WHT
:ONE TOUCH
1P
WHT
:ONE TOUCH
1P
WHT
:ONE TOUCH
8P
WHT
:S-MICRO
5B3P
:VH
4B2P
:VH
10P
WHT
:S-MICRO
1P
:FASTON
4P
WHT-L
:S-MICRO
20P
AMP20PMAL
20P
AMP20PMAL
20P
AMP20PMAL
20P
AMP20PMAL
2P
3P
WHT
:S-MICRO
10P
WHT-L
:S-MICRO
10P
WHT
:S-MICRO
50P
:B TO B
50P
:B TO B
1P
:FASTON
1P
:FASTON
5P
WHT
:S-MICRO
40P
:B TO B
50P
:B TO B
50P
:B TO B
40P
:B TO B
5P
RED
:S-MICRO
1P
:FASTON
5P
BLK
:S-MICRO
7P
YEL-L
:S-MICRO
3P
BLK-L
:S.MICRO
4P
WHT-L
4P
WHT
:S-MICRO
4P
WHT
:S-MICRO
4P
WHT-L
15P
:B-TO-B-P
10P
RED
:S-MICRO
10P
RED
:S-MICRO
5B3PS
WHT
:VH
4B2PS
WHT
:VH
1P
:FASTON
1P
:FASTON
1P
:FASTON
8P
WHT
:S-MICRO
4P
WHT
:VH
4P
WHT
:VH
4P
WHT
:VH
40P
:BTOB-S
3P
WHT
:S-MICRO
15P
:B-TO-B
50P
:B TO B
21P(ORG)
21P(ORG)21P(BLK)
11P
RED-L
:S-MICRO
11P
RED-L
:S-MICRO
5P
BLK-L
:S-MICRO
4P
WHT-L
:S-MICRO
2P
G2
FV
FOCUS
PACK
HV BLOCK
ZR
ZG
CR
CB
FV
HV
ZB
J M
G
E
BD
D
CRT GND
G BRACKET
A
FBT
A
H3
G2
+12V
IK
GND
GND
GND
+12V
IK
MUTE
GND
GND
NC
RS
NC
GND
NC
+200V
NC
GND
GND
SCL
SDA
DISABLE
NC
CRT BRACKET(C)
CRT BRACKET(B)
CRT BRACKET(A)
H(+)
H(-)
B OUT
G OUT
B-SS624,<AEP>-KESSENZU
R
L(MONO)
S-VIDEO
VIDEO
AV4
CENTER(-)
CENTER(+)
GND
GND
GND
HP L OUT
CVBS IN
HP R OUT
MAIN L OUT
L-TV
MAIN R OUT
R-TV
SW2
GND
SCL
SDA
HP MUTE
SUB AUDIO
+6.5V
TRAP
NC
CVBS1 OUT
CVBS2 OUT
AV LINK
GND
GND
GND
HP MUTE
SDA
SCL
R-TV
MAIN R OUT
L-TV
MAIN L OUT
SUB AUDIO
HP R OUT
HP L OUT
GND
TRAP
+6.5V
Y MAIN IN
U MAIN IN
CENTER(+)
CENTER(-)
+9V OUT
HP SUB IN
VP SUB IN
V SUB IN
U SUB IN
AV LINK
3CS(NC)
3DAT(NC)
3CLK(NC)
AUDIO RESET
AUDIO MUTE
GND
+5V
SIRCS
KEY2
ST-BY
DISABLE
CVBS IN
AV LINK
+5V
KEY1
RESPONS LED
GND
GND
GND
GND
AC ON/OFF
PROT
RE-R
RE-B
RE-G
RE-YS
NC
NC
DISABLE
KEY2
KEY1
SIRCS
AV LINK
SCL0
SDA0
TXTB
PROT
TXTG
TXTR
HP100
VP100
AUDIO MUTE
AUDIO RESET
CVBS IN
RE-B
RE-R
RE-YS
RE-G
GND
GND
GND
GND
GND
TXTBLK
NC
NC
NC
+5V
+5V
RESPONS LED
AC ON/OFF
NC
NC
NC
ST-BY
VP100
HP100
3DAT(NC)
3CLK(NC)
3CS(NC)
LED 2(NC)
OCP(NC)
OVP(NC)
HS0(NC)
MID-BUSY(NC)
RESET100RESET100
SDA
SCL
VARIABLE OUT
(AV SELECT SW,VIDEO PROCESS)
V MAIN IN
EXT-Y(NC)
EXT-U(NC)
GNDGND
EXT-V(NC)
NC
NC
NC
NC
NC
NC
NC
NC
CVBS IN
Y MAIN IN
U MAIN IN
V MAIN IN
U SUB IN
V SUB IN
VP SUB IN
HP SUB IN
EXT-Y(NC)
EXT-U(NC)
+9V
EXT-V(NC)
GND
Y SUB IN
GND
Y SUB IN
HP MAIN IN
VP MAIN IN
SCP MAIN(NC)
SCP SUB(NC)
SCP MAIN(NC)
VP MAIN IN
HP MAIN IN
SCP SUB(NC)
SW2
NC
+5V(NC)+5V(NC)
3CS(NC)
3DAT(NC)
3CLK(NC)
CVBS2 OUT
CVBS1 OUT
Y
GND
C
GND
V
GND
L
GND
R
GND
NC
GND
VIDEO IN
VIDEO OUT
GND
GND
NC
C IN
GND
GND
NC
NC
NC
GND
MODE
NC
LEFT IN
GND
GND
LEFT OUT
RIGHT IN
RIGHT OUT
AV3
GND
VIDEO IN
VIDEO OUT
GND
GND
NC
C IN
GND
GND
NC
NC
GND
MODE
NC
LEFT IN
GND
GND
LEFT OUT
RIGHT IN
RIGHT OUT
AV LINK
AV2
AV1
GND
VIDEO IN
VIDEO OUT
GND
GND
GND
GND
NC
NC
GND
MODE
LEFT IN
GND
GND
LEFT OUT
RIGHT IN
RIGHT OUT
BLANKING
RED IN
GREEN IN
BLUE IN
Y
GND
C
GND
V
GND
L
GND
R
GND
NC
(AV INPUT)
(MICRO CONTROL,TEXT)
MID-BUSY(NC)
HS0(NC)
NC
TXTBLK
TXTB
TXTG
TXTR
OVP(NC)
OCP(NC)
LED 2(NC)
STBY+5V
TOP CONT LED(NC)TOP CONT LED(NC)
AUDIO PROT(NC)
3CS(NC)
3CLK(NC)
3DAT(NC)
TRAP(NC)
NC
NC
TRAP(NC)
AGC MONITOR(NC) AGC MONITOR(NC)
R.LED
+5V
NC
SIRCS
GND
KEY1
STBY +5V
GND NC
NC
NC
AC(L)OUT
AC(N)OUT
AC(N)IN
NC
NC
AC(L)IN
KEY2
KEY2
GND
NC
KEY1(NC)
+5V(NC)
MAIN SWITCH
USER CONTROL,
+17V
-17V
AUDIO GND
AC ON/OFF
GND
GND
STBY+5V
GND
GND
AC ON/OF
OVP
OCP
GND
GND(ANT)GND(ANT)
GND
GND
GND
+17V
-17V
AUDIO GND
GNDGND
GNDGND
GND(ANT)
GND
GND(ANT)
+10.5V
+10.5V
+6.5V
+6.5V
+6.5V+6.5V
+6.5V
+6.5V
+10.5V
+10.5V
STBY+5V
GND(Z)
NC
NC
NC
NC
NC
GND(Z)
AC(L)OUT
AC(N)OUT
AC(L)IN
AC(N)IN
(POWER SUPPLY)
GND
P-CONT
VTIM
GND
H SHIFT
GND
E-W
GND
GND
HD
GND
VD(+)
VD(-)
GND
GND
GND
GND
GND
+33V
ABL
HP
RE-R
RE-G
RE-B
RE-YS
VCOMP
SCL
SDA
DISABLE
GND
GND
+9V
+12V
GND
DEF +9V
-12V
H SYN
+5V STBY
+5V STBY
V SYN
RGB AFC(NC)
SCP(NC)
GND
GND
+135V
AC(L)
AC(W)
+22V
-22V
P.CONT
PROT
GND
GND
+6.5V
GND
+15V
-15V
GND
D+5V
V-PROT
HV-PROT
NC
EXT PARA(NC)
R.LED
+5V
NC
SIRCS
GND
KEY1
STBY +5V
GND
GND
GND
SP MUTE
NC
HP L OUT
HP R OUT
KEY2
GND
GND
DF(+)
+5V
-5V
+12V
BS(H)
RS(H)
ABL(+)
-12V
DF(-)(NC)
VCOMP(NC)
GS(V)(NC)
GND
GND
GND
GND
SP MUTE(NC)
HP L OUT
HP R OUT
GND
KEY2
KEY1(NC)
+5V(NC)
(SHADING)
(HP OUT,USER CONT)
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HP 100 OUT
VP 100 OUT
Y 100 OUT
U 100 OUT
GND
V 100 OUT
GND
RESET 100
SDA
SCL
+2.5V
+3.3V
+9V
V SUB IN
U SUB IN
Y SUB IN
GND
GND
Y MAIN IN
U MAIN IN
V MAIN IN
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HP 100 OUT
VP 100 OUT
Y 100 OUT
U 100 OUT
GND
V 100 OUT
GND
RESET 100
SDA
SCL
+2.5V
+3.3V
+9V
V SUB IN
U SUB IN
Y SUB IN
GND
GND
GND
GND
GND
GND
GND
GND
Y MAIN IN
U MAIN IN
V MAIN IN
GND
+5V
GND
GND
A5V
(DRC,MID-X,VIDEO PROCESS)
SENSOR
GND
GND
GND
GND
UPPER
LEFT
RIGHT
LOWER
MID BUSY(NC)
FPD(NC)
MID BUSY(NC)
FPD(NC)
DPC SW DPC SW
GND
+5V
A5V
HP SUB IN HP SUB IN
VP SUB INVP SUB IN
GND
GND
VP M IN VP M IN
HP M IN HP M IN
SP OUT L
AUDIO GND
AUDIO GND
SP OUT R
AUDIO OUT,AUDIO PROTECT,
(AUDIO PROCESS)
GND
SW2
GND
GND
+9V
L-TV
+5V
R-TV
SCL
SDA
GND
SUB-R
GND
GND
AM1
GND
AM2
NC
NC
NC
NC
NC
NC
NC
NC
NC
GND
SW2
MAIN-L IN
GND
GND
+9V
L-TV
+5V
R-TV
SCL
SDA
GND
SUB-R
L OUT
R OUT
GND
GND
AM1
GND
AM2
NC
NC
NC
NC
NC
NC
NC
NC
NC
A RESET
MAIN-R IN
L-OUT
R-OUT
QSS-1
QSS-2
MAIN-L IN
MAIN-R IN
A RESET
QSS-1
QSS-2
+3.3V(NC) +3.3V(NC)
HP-L(NC) HP-L(NC)
HP-R(NC) HP-R(NC)
NC
NC NC
NC
NC
NC
NC
NC
H DEFL H DEFL
HD
EW
V+
GND
VTIM/TEST
FB PULSE
+12V
V-
RGB AFC
V DEFL
SCP
VPROT
XRAY
ABL
GND
GND
SDA
SCL
GND
Y100
GND
U100
DPIC SW
V100
HD
EW
V+
GND
VTIM/TEST
FB PULSE
+12V
V-
RGB AFC
V DEFL
SCP
VPROT
XRAY
ABL
GND
GND
GND
SDA
SCL
DEF +9V
GND
Y100
GND
U100
DPIC SW
V100
GND
GND
GND
R 0UT
G OUT
B OUT
IK
+12V
VM
+12V
GND
GND
GND
ABL2 ABL2
TEXT RED
TEXT GREEN
TEXT BLK
TEXT BLUE
H-SHIFT H-SHIFT
TEXT RED
TEXT GREEN
TEXT BLK
TEXT BLUE
R1 IN(GND)
G1 IN(GND)
YS1 IN(GND)
GND
B1 IN(GND)
R1 IN(GND)
G1 IN(GND)
B1 IN(GND)
YS1 IN(GND)
FPD(NC)FPD(NC)
DEF+9V
SWITCH (PORT 3) SWITCH (PORT 3)
PARABOLA EXTRA PARABOLA EXTRA
(R/G/B/VM OUT,Y-C/J)
G2(R)G2(G)G2(B)
FV(R)FV(G)FV(B)
DET
G2
FV
DF
E(HV)
E
HV REG
HV(B)
HV(G)
HV(R)
HS
REGI MUTE
D FOCUS
+5V
+5V
-5V
-5V
HR
VR
HG
VG
HB
VB
GND
GND
GND
HS
+5V
+5V
-5V
-5V
HR
VR
HG
VG
HB
VB
GND
GND
GND
HP HP
VPVP
RE-YS
RE-R
RE-G
RE-B
V SHIFT
H SHIFT
+9V
+9V
GND
GND
RE-YS
RE-R
RE-G
RE-B
V SHIFT
H SHIFT
+9V
+9V
GND
GND
VS VS
DISABLE
SDA
SCL
SDA
SCL
D+5V
D+5V
REGI MUTE
D.FOCUS
D+5V
D+5V
GND
GND
INV-VP(NC)INV-VP(NC)
PJ SDA(NC)
PJ SCL(NC)
PJ SDA(NC)
PJ SCL(NC)
RIGHT
LOWER
GND
GND
GND
GND
LEFT
UPPER
GND
GND
SCL
SDA
/BINT
PSCL
PSDA
TO JIG
NC NC
GND
GND
DISABLE
PJED,
REGI CORRECTION
+135V
NC
NC
NC
G-H DEF
G-H RET
GND
G-H SUB DEF
G-V SUB DEF
G-V SUB RET
G-H SUB RET
GND
P-CONT
VTIM
GND
H SHIFT
GND
E-W
GND
GND
HD
GND
VD(+)
VD(-)
GND
GND
+9V
GND
DEF +9V
GND
GND
+5V STBY
GND
+5V STBY
GND
+33V
ABL
HP
RE-R
RE-G
RE-B
RE-YS
VCOMP
SCL
SDA
DISABLE
-12V
GND
V SYN
H SYN
RGB AFC(NC)
SCP(NC)
D+5V
V-PROT
HV-PROT
NC
EXT PARA(NC)
H(+)
H(-)
NC
GND
NC
NC
BS
RS
V RECT
NC
V DEF
NC
NC
B-H DEF
B-H RET
B-H SUB DEF
B-V SUB DEF
B-V SUB RET
B-H SUB RET
+200V
+22V
-22V
P.CONT
PROT
GND
GND
+6.5V
GND
GND
-15V
+15V
GND
GND
+135V
GND
+12V
P-CONT
GND
HV-REG
P-CONT
NC
NC
R-H DEF
R-H RET
R-H SUB DEF
R-V SUB DEF
R-V SUB RET
R-H SUB RET
GND
NC
DF
G2
DF(+)
+5V
GND
-5V
GND
+12V
GND
-12V
GND
BS(H)
RS(H)
GS(V)(NC)
VCOMP(NC)
DF(-)(NC)
ABL(+)
NC
V DEF
V RET
+12V
NC
+135V
+12V
NC
+135V
NC
V RET
V DEF
NC
V RET
V DEF
NC
+135V
GND
VM
+12V
GND
VM
GND
GND
VM
GND
GND
NC
NC
G-H DEF
G-H RET
+135V
NC
+12V
VM
GND
GND
G-H SUB DEF
G-V SUB DEF
G-V SUB RET
G-H SUB RET
GND
NC
NC
B-H DEF
B-H RET
NC
V DEF
V RET
B-H SUB DEF
B-V SUB DEF
B-V SUB RET
B-H SUB RET
NC
V RET
V DEF
+12V
NC
VM
GND
GND
+135V
NC
NC
R-H DEF
R-H RET
R-H SUB DEF
R-V SUB DEF
R-V SUB RET
R-H SUB RET
CRT GND
CRT GND
H(+)
H(-)
NC
RS
GND
NC
+200V
NC
BS
H(+)
H(-)
NC
RS
NC
GND
NC
+200V
NC
+12V
IK
MUTE
GND
GND
NC
RS
NC
GND
NC
+200V
NC
+12V
IK
MUTE
GND
GND
G2
G2
+12V
IK
MUTE
GND
GND
NC
RS
NC
GND
NC
+200V
NC
H(+)
H(-)
H(+)
H(-)
B OUT
R OUT
G OUT
B OUT
B OUT
G OUT
B OUT
(DY,VM DRIVE)
(DY,VM DRIVE)
(DY,VM DRIVE)
(B CRT DRIVE)
CG
(G CRT DRIVE)
TUNER
D+5V
DY DRIVE
OVP
OCP
STBY+5V
(R CRT DRIVE)
H/V-DEF,HV,
S
H1
H2
B3
DS
+
-
-
+
+
+
-
-
+
+
-
-
L
R
TW
TW
+
-
-
+
+
+
-
-
+
+
-
-
L
R
TO CRT(R)
TW
TW
61"MODEL 48"53"MODEL
WF
WF
WF
WF
MH
MH
SMP5P
SMR5P
GS
NC
GND
IC5501(HEAT SINK) IC5502(HEAT SINK)
FASTON FASTON
GS
NC
TO CRT(B)
TO CRT(G)
GND
15P
:B-TO-B
15P
:B-TO-B
– 40 –
KP-48PS2/61PS2
RM-903
Reference information
RESISTOR : RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW NONFLAMMABLE WIREWOUND
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
COIL : LF-8L MICRO INDUCTOR
CAPACITOR : TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
6-3. CIRCUIT BOARDS LOCATION
Note:
•The parts marked “#” on schematic diagrams are not mounted.
•All capacitors are in µF unless otherwise noted. (pF: µµF)
Capacitors without voltage indication are all 50 V.
•Indication of resistance, which does not have one for rating
electrical power, is as follows.
Pitch: 5 mm
Rating electrical power 1/4 W (CHIP : 1/10 W)
•All resistors are in ohms.
•: nonflammable resistor.
•5: fusible resistor.
•: internal component.
•: panel designation, and adjustment for repair.
•All variable and adjustable resistors have characteristic curve B,
unless otherwise noted.
•: earth-ground.
• : earth-chassis.
•All voltages are in V.
•Readings are taken with a 10 MΩ digital multimeter.
•Readings are taken with a color-bar signal input.
•Voltage variations may be noted due to normal production
tolerances.
•*: Can not be measured.
•NO MARK: Common
•< > : SECAM
•( ) : NTSC 3.58 MHz
•Circled numbers are waveform references.
•: B + bus.
•:B – bus.
•F: Signal path.
•The components identified by [ in this basic schematic diagram
have been carefully factory-selected for each set in order to
satisfy regulations regarding X-ray radiation.
Should replacement be required, replace only with the value
originally used.
•When replacing components identified by ], make the
necessary adjustments indicated. (See page 15)
•When replacing the part in below table, be sure to perform the
related adjustment.
6-4. SCHEMATIC DIAGRAMS AND
PRINTED WIRING BOARDS
V
V
•Divided schematic diagram
Schematic diagrams of A, BD, D, G, J and M boards are divided
into several pieces. Information to where the line is to be connected
is printed at the end of each line.
For example, [ TO A1/3,A2/3_1 ] means the line is connected to
Ref. No. 1 of A (1/3) and A (2/3) schematic diagrams.
TO A1/3,A2/3_1
Ref. No.
Name of divided schematic diagram
G
D
S
B1 E1
C2
B2 C1
E2
2
3
4
5
6
7
8
9
0
qa
qs
qf
qh
qj
qk
–
1
G
D
S
B2 E2
C1
B1 C2
E1
B2 E2
C1
B1 C2
E1
B2 E2
C1
B1 C2
E1
ql
B1 E1
E2
C1(B2)
C2
w;
B1
E2
C1
C2
ws
wd
(B2)
E1
(B2)
E1
E2
B1
C2
C1
wa
B1
E1
C2
B2
C1
E2
G
SS
D
G
D
B1
E1
C2
B2
C1
E2
B1
E2
C2C1(B2)
E2
B1
C1
C2E1(B2)
C2
B1
C1
E2E1(B2)
C2
B1
C1
E2
B2
E1
C2
Ver.1.5
Transistor
(FET)
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Transistor
Discrete semiconductot
(
Chi
p
semiconductors that are not actuall
y
used are included.
)
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Diode
Source
Source
Anode Anode
(NC)
(NC)
Cathode
Anode
Cathode
Common
Cathode Cathode
Common
Cathode Cathode
Common
Common
Common
Common
Cathode
Anode
Base Emitter
Collector
Base Emitter
Collector
Drain
Gate
Gate
Drain
Device Printed symbol Terminal name Circuit
Terminal name of semiconductors in silk screen
printed circuit ( )
Anode
Anode
Anode Cathode
Anode Anode
Cathode
qd
Transistor
(FET)
Transistor
(FET)
qg
Emitter
Collector
Base
Transistor
Source
Gate
Drain
Cathode
Anode
Anode Cathode
Anode
Anode
*
H3 ZG
ZR
CR
M
E
S
J
A
B3
D
BD
DS
G
CB
CG
ZB
H2
H1
Part Replaced (])
C5123, C5127, C5130, C5143, D5115,
D5204, Q5104, R5136, R5138, R5140,
R9901, T5102, T5103 (FBT), T5104,
D Board
Adjustment ([)
R9901
(HV Hold-Down)
Note: The components identified by shading and mark
0 are critical for safety. Replace only with part
number specified.
– 41 –
KP-48PS2/61PS2
RM-903
(1) Schematic Diagram of A (1/3) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
0.6
6.4
1.2
3.4
6.4
2.5
1.2
4.9
6.4
6.4
5.0
6.4
6.4
8.9
11.8
11.8
0
0
4.8
4.8
0.1
4.6
0.4
4.6
0.4
0.4
0
04.9
0.2
4.9
4.9
4.9
0
3.8
0.1
3.8
0
0
0
0
0
0
3.8
3.3
3.2
11.8
11.8
11.8
11.8
0
0
0
0
0
0
3.3
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO
AUDIO(R)
AUDIO(R)
AUDIO(L)
AUDIO(L)
AUDIO(L/R)
12345678
910 11 12 13 14 15 16
IO
G
IO
G
12
ANTIN
OUT
OUT
MAIN
SUB
ATT SW
BST +B
IO
G
1234567891011
+
-
+
-
1
2
3
4
IO
G
IO
G
RY1102
C1604
C1601
C1602
C1605
C1606 C1607
R1213
R1214
R1215
R1216 R1217
R1218
R1220
R1221
R1222
R1223
R1224
D1201
D1202 D1204
D1205
R1102
R1104
R1105
R1106
R1108
R1109
R1110
R1111
R1113 R1114 R1115
R1116 R1117
R1118
R1119
R1120 R1121
R1122
D1103
D1104
D1105
D1106
D1108
D1109
IC1101
R1124
C1114
C1102
C1103
C1104
C1105 C1106 C1107
C1108 C1109
C1110
C1219
C1220
C1221
C1222
C1223
D1101 D1102
CN1102
RY1101
C1111
D1203
C1307
C1308
C1402
IC1401
R1212
C1401
C1404
CP1301
L1303
R1326 R1327
R1405 R1406
R1407
R1408
R1410
R1411
R1413
R1414
R1328
R1457
R1458
R1459
C1409
R1608
R1610 C1610
R1611
R1613 C1615
C1612 C1611
C1617
C1616
C1603
C1619
C1608
JR1601
R1469
R1211
R1612
R1614
C1426
R1219
R1127
R1125
D1410 D1411
R1123
R1112
D1107 D1112
D1110D1111
R1107
R1103
R1201
C1115
D1206
R1130
Q1205
Q1203
Q1204
Q1202
IC1605
IC1601
IC1603
IC1604
Q1307
Q1201
Q1206
Q1101
Q1102
C1101
Q1104
Q1105
Q1103
Q1207
R1409
C1403
R1412
IC1602
10
C1106
0.1
10
10
2200 0.1
:MPS
0.1
:MPS
47
16V 47
16V 0.1
25V
B:CHIP
2200
0.1
25V 35V 35V
B:CHIP
100p
CH:CHIP
22
16V
:BP
0.01
:PT
2.2
0.1
25V
B:CHIP
0.01
B:CHIP
100
16V
0.1
63V
0.1
63V
0.1
63V
0.1
25V
B:CHIP
0.1
25V
B:CHIP
100
16V
0.1
25V
B:CHIP
100
16V 0.1
25V
B:CHIP
4P
WHT
:S-MICRO
RF SPLITTER
1SS355 1SS355
1SS355
1SS355
DAN202K
DAN202K
1SS355
1SS355
DAN202K
DAN202K
1SS355
DAN202K
1SS355
TDA7265
AUDIO AMP
CXA1875AM-T4
I/O EXPANDER
10µH
100k
:CHIP
100k
:CHIP
47k
:CHIP
47k
:CHIP
10k
:CHIP
470
:CHIP
10k
:CHIP
470
:CHIP
1k
:CHIP 47k
:CHIP 47k
:CHIP
0
:CHIP
1k
:CHIP
18k
:CHIP
18k
:CHIP
560
:CHIP 560
:CHIP 4.7
1W
:RS
4.7
1W
:RS
47k
:CHIP
47k
:CHIP
10k
:CHIP 47k
:CHIP
100k
:CHIP 100k
:CHIP
47k
:CHIP
47k
:CHIP
10k
:CHIP
22k
:CHIP
4.7k
:CHIP
22k
:CHIP
10k
:CHIP
10k
:CHIP
22k
:CHIP
100
:CHIP 10k
:CHIP
100
:CHIP
100 :CHIP
10k
:CHIP
100
:CHIP
10k
:CHIP
100
:CHIP
100
:CHIP
33K
0.1
:MPS
680
:RN-CP
390
:RN-CP 0.1
25V
B:CHIP
390
:RN-CP
390
:RN-CP 0.1
25V
B:CHIP
470
10V 1000
6.3V
470
10V
1000
6.3V
0.1
25V
B:CHIP
0.1
25V
B:CHIP
100
16V
0
:CHIP
4.7k
:CHIP
100
:CHIP
4.7k
:CHIP
10k
:CHIP
0.1
25V
F:CHIP
47k
:CHIP
R1131
47k
:CHIP
10k
:CHIP
5.6
1W
:RS
100
:CHIP
10k
:CHIP
1
:FPRD
0
:CHIP
MA3220M
MA3220MMA3220M MA3220M
MA3220M-TX MA3220M-TX
2.2k
:CHIP
1SS355
0.47
50V
100
CHIP
#
:CHIP
R1128
1k
:FRPD
22k
1/10
:CHIP
2SC2412K
PROT SW
2SA1037K
PROT
2SC2412K
AUDIO DET
2SC2412K
PROT
PQ05RF11
+5V REG
PQ05RF11
+5V REG
PQ30RV21
+3.3V REG
PQ30RV21
+2.5V REG
2SC2412K
SW
2SC2412K
MUTE
2SC2412K
MUTE
2SC2412K
PROT
2SA1037AK
PROT
Q1106
2SA1037AK
PROT
1000
16V
2SC2412K
RELAY DRV
2SC2412K
RELAY DRV
2SC2412K
RELAY DRV
2SC2412K
MUTE SW
100
:CHIP
0.1
63V
100
:CHIP
PQ09RF11
+9V REG
EU
EU
EU
EU
EU
EU
EU
EU
HP-MUTE
SCL SDA
+10.5V
+10.5V
+9V
+10.5V
+17V -17V
+9V
+5V
+10.5V
+5V
+17V
+5V
+3.3V
+6.5V
+2.5V
+5V-TU +5V-B3
+6.5V
+5V-TU
+5V
+5V STBY
+5V
R
L
CNT SP(-)
L
R
PROT
OVP
OCP
APROT
APRI-L
APRI-R
HP MUTE
OCP
APROT
A MUTE
CNT SP(+)
HP-SW
ST-BY
ST-BY
R
L
TRAP
OVP
R+IN
L-IN
L+IN
VS
M
+VCC
R-IN
GND
L OUT
-VCC
R OUT
SP OUT L
AUDIO GND
AUDIO GND
SP OUT R
A
(1/3)
(AUDIO OUT,AUDIO PROTECT)
SPLITTER SW
OV PROT
GND
AUDIO PROT
OC PROT
SAO
SA1
SA2
SCL
SDA
+5V
CNTSP
TRAP
VCOMP
L
R
SPEAKER
B-SS624.<AEP>-A..-P1-05
TO A1/3,A3/3_3
TO A1/3,A3/3_4
TO A1/3,A2/3_2
TO A1/3,A2/3_1
– 42 –
KP-48PS2/61PS2
RM-903
(2) Schematic Diagram of A (2/3) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
0.7
2.0
1.3
2.0
1.3
2.0
1.3
0
0
6.2
5.5
5.5
0.4
6.5
5.5
5.5
1.8
1.8
6.3
6.3
6.2
0.4
0.1
4.0
4.0
4.0
0.4
0.1
3.3
4.0
3.3
4.0
3.3
4.0
8.2 4.5
3.8
VIDEO
R-Y
B-Y
Y
R-Y
R-Y
B-Y
Y
Y
B-Y
AUDIO(L/R)
AUDIO
AUDIO(L/R)
AUDIO
R/G/B
Y/R-Y/B-Y
AUDIO(L/R)
B-Y
Y
R-Y
R/G/B
Y/R-Y/B-Y
Y/R-Y/B-Y
123456789101112131415
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
EMI
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
CN1001
CN1801
C1405
C1411
C1412
C1413
C1414
C1415
C1416
C1417
C1418
CN1901
R1444
R1446
R1450
R1451
C1424
FL1401
CN1404
CN1201
R1454
R1456
C1419
C1421
C1422
C1423
R1445
C1420
R1401
R1463
R1403
R1402
R1468
R1464
R1465
R1467
R1466
R1452
R1453
R1418
R1425
R1432
R1416
R1423
R1430
R1417
R1424
R1431
C1427
C1428
C1429
L1401
L1402
L1403
R1404
R1442
C1410
R1443
IC1402
Q1402
Q1404
Q1406
Q1408
Q1410
Q1401
Q1412
Q1411
Q1413
R1449
R1448
R1447
47
16V
100
16V
0.1
25V
F:CHIP
47
47
47
47
47
47
0.1
25V
F:CHIP
50P :B TO B50P :B TO B
40P :B TO B
50P
40P
EMI
100 :CHIP
100 :CHIP
47 :CHIP
47 :CHIP
22k
:CHIP
4.7k
:CHIP
0.22
25V
F:CHIP
0.22
25V
F:CHIP
0.22
25V
F:CHIP
0.22
25V
F:CHIP
1k :CHIP
0.22
25V
F:CHIP
150
:CHIP
390
:CHIP
1k
:CHIP
47
:CHIP
1k
:CHIP
47
:CHIP
1k
:CHIP
47
:CHIP
470
:CHIP
0
:CHIP
0
:CHIP
470
:CHIP
470
:CHIP
470
:CHIP
2.2k
:CHIP
2.2k
:CHIP
2.2k
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
33pF
CH:CHIP
33pF
CH:CHIP
33pF
CH:CHIP
6.8µH
:CHIP
6.8µH
:CHIP
6.8µH
:CHIP
100
:CHIP
4.7k
:CHIP
0.1
25V
F:CHIP
1k :CHIP
CXA1815S
RGB MATRIX
2SA1037K
BUFF
2SA1037K
BUFF
2SA1037AK
BUFF
2SC2412K
SW
2SA1037K
CLAMP
2SA2412K
BUFF
2SA2412K
BUFF
2SA2412K
BUFF
2SA2412K
BUFF
100
:CHIP
100
:CHIP
100
:CHIP
Y_S
U_S
V_S
HP_S
VP_S
9VBIN
EU
EU
EU
EU
EU
EU
EU
+9V
+12V
SDA
SCL
SDA
SCL
+2.5V
+3.3V
+9V
SCL
+3.3V
SDA
+5V
SCL
SDA
SDA
SCL
+5V
+9V
+9V
+5V
+5V STBY
DEF +9V
+9V
+6.5V
+5V-B3
+5V
+9V
+9V
+9V
JS(6)
JS(4)
JS(3)
JS(5)
JM(2)
JM(5)
JM(4)
JM(6)
HP MUTE
BEM(8)
BEM(9)
JB(12)
JB(11)
JB(10)
JV(1)
JV(3)
JV(4)
JM(3)
CVBS2
CVBS1
JS(1)
JS(2)
JS(3)
JS(4)
HP-L OUT
HP-R OUT
APRI-L
APRI-R
QSS1
AM1
QSS2
AM2
JV(6)
JV(5)
JV(4)
BV(6)
BV(5)
BV(1)
DE(4)
DE(6)
DE(3)
DE(7)
DE(2)
DE(8)
DE(10)
DE(15)
DE(5)
DE(9)
DE(13)
DE(14)
DE(16)
BE(1)
BE(2)
BE(4)
BE(3)
BV(1)
BV(4)
BV(5)
BV(6)
JB(12)
JB(11)
JB(10)
JS(6)
JM(3)
JM(2)
A MUTE
JM(5)
JM(6)
HM(1)
HM(2)
HM(3)
OCP
OVP
GM(1)
BEM(9)
BEM(8)
BJM(7)
BE(1)
BE(2)
BE(3)
BE(4)
BJM(7)
JV(6)
JV(5)
VO(1)
VO(2)
VO(3)
VO(1)
VO(2)
VO(3)
MEV(1)
MEV(2)
MEV(3)
MEV(1)
MEV(2)
MEV(4)
MEV(3)
MEV(1)
MEV(2)
MEV(3)
MEV(4)
DM(1)
JS(5)
PROT
HM(4)
HM(5)
JM(4)
BJM(7)
ST-BY
APROT
BV(3)
BV(3)
JV(1)
JV(3)
BEM(9)
BEM(8)
TRAP
TRAP
BJ(7)
BJ(7)
RE-R
RE-B
RE-G
RE-YS
CNT SP(-)
CNT SP(+)
HP-SW
BV(4)
ABL2
JS(2)
JS(1)
HP-R OUT
HP-L OUT
PARABOLA EXTRA
SWITCH (PORT 3)
MAIN-L IN
GND
+9V
L-TV
+5V
R-TV
SCL
SDA
GND
A RESET
GND
SUB-R
L OUT
R OUT
GND
GND
AM1
GND
GND
AM2
SW2
HD
EW
V+
V-
RGB AFC
VPROT
XRAY
ABL
GND
GND
GND
Y100
GND
U100
VTIM/TEST
SCP
+12V
FB PULSE
V DEFL
SDA
SCL
DEF +9V
DPIC SW
V100
H DEFL AUDIO RESET
AUDIO MUTE
GND
+5V
SIRCS
KEY2
SCL
SDA
ST-BY
DISABLE
CVBS IN
AV LINK
+5V
KEY1
RESPONS LED
GND
GND
GND
GND
AC ON/OFF
PROT
GND
GND
GND
GND
GND
Y MAIN IN
U MAIN IN
V MAIN IN
Y SUB IN
U SUB IN
V SUB IN
HP L OUT
GND
HP R OUT
SUB-AUDIO
L-TV
MAIN-R OUT
R-TV
NC
SCL
SDA
HP MUTE
SENTER(-)
SENTER(+)
NC
NC
NC
NC
NC
NC
NC
NC
NC
GND
GND
+6.5V
TRAP
SDA
SCL
GND
U SUB IN
GND
Y SUB IN
GND
GND
V MAIN IN
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
HP 100 OUT
VP 100 OUT
Y 100 OUT
GND
U 100 OUT
V 100 OUT
GND
DPC SW
RESET 100
+2.5V
+3.3V
Y MAIN IN
U MAIN IN
+5V
+9V(NC)
V SUB IN
GND
GND
GND
RE-R
RE-B
RE-G
RE-YS
NC
NC
ABL2
RESET100
VP100
HP100
AV LINK
HP SUB IN
VP SUB IN
HP MAIN IN
VP MAIN IN
QSS-1
QSS-2
H-SHIFT
C CLAMP
YS B
CONVB Y CLAMP
GINB YINA
RINB
UINA
BINB
VINA
HPINB HPINA
VPINB VPINA
CONVC GND
GND AMP SW
YINC YOUT
UINC UOUT
VINC VOUT
HPINC VCC
VPINC HPOUT
YS C VPOUT
TO E BOARD CN4101
TEXT RED
TEXT GREEN
TEXT BLK
TEXT BLUE
YS1 IN(GND)
R1 IN(GND)
G1 IN(GND)
B1 IN(GND)
FPD(NC)
SCP MAIN (NC)
SCP SUB (NC)
EXT-Y(NC)
EXT-U(NC)
+9V
EXT-V(NC)
NC
NC
MC
NC
CVBS IN
MAIN-L OUT
SW2(NC)
+5V(NC)
3CS(NC)
3DAT(NC)
3CLK(NC)
CVBS2 OUT
CVBS1 OUT
CN8101
TO J(2/5)BOARD
TO B3(1/5)BOARD CN502
MID-BUSY(NC)
FPD(NC)
GND
A5V
HP SUB IN
VP SUB IN
VP M IN
HP M IN
TO M(2/2)BOARD CN9001
NC
NC
AGC MONITOR(NC)
TRAP(NC)
3DAT(NC)
3CLK(NC)
3CS(NC)
TOP CONT LED(NC)
STBY +5V
LED 2(NC)
OCP(NC)
OVP(NC)
TXTR
TXTG
TXTB
AUDIO PROT(NC)
TXTBLK
NC
H50(NC)
MID-BUSY(NC)
TO S BOARD CN4701
MAIN-R IN
+3.3V(NC)
NC
NC
HP-L(NC)
HP-R(NC)
NC
NC
A(2/3)
(CONNECTOR)
B-SS624.<AEP>-A..-P2-05
TO A1/3,A2/3_2
TO A1/3,A2/3_1
TO A2/3,A3/3_5
TO A2/3,A3/3_6
TO A2/3,A3/3_7
TO A2/3,A3/3_8
TO A2/3,A3/3_9
TO A2/3,A3/3_10
TO A2/3,A3/3_11
TO A2/3,A3/3_12
TO A2/3,A3/3_13
– 43 –
KP-48PS2/61PS2
RM-903
(3) Schematic Diagram of A (3/3) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
0
8.9
4.5
8.2
8.2
3.2
2.5
2.8
4.3
4.3
2.3
1.7
3.7
1.2
-8.6
-8.0
4.6
-8.6
4.3
2.7
4.3
2.3
1.6
4.4
4.5
AUDIO(R)
VIDEO
AUDIO(L/R)
AUDIO(L)
VIDEO
VIDEO
VIDEO VIDEO
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
AGC
AS
SCL
SDA
+33V
GND
+5V
AM
QSS
VIDEO
NC
AGC
AS
SCL
SDA
+33V
GND
+5V
AM
QSS
VIDEO
NC
1
2
3
4
5
1
2
3
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
R1329
R1330
R1331
CN1606
CN1603
CN1503
CN1302 CN1502
R1301
C1301
C1302
C1304
C1306
CN1665
CN1666
L1301
L1302
R1303
R1304 R1305
R1306
R1307
R1310
R1311
R1312
R1313 R1314
R1315
R1317
R1318
R1319
R1320
R1321
R1322
R1323 R1324 R1325
R1308 R1309
C1305
TU1301
TU1302
D1401
D1404
D1403
D1402
D1406
R1461
R1462
D1405
CN1301
CN1501
CN1504
R1460
CN1661
R1233
R1234
R1231
R1232
R1332
R1333
CN1605
R1420
R1422
R1429
C1430
D1421
R1427
Q1409
R1426
Q1422
Q1421
R1428
Q1302
Q1306
Q1305
Q1301
Q1304
Q1303
Q1308
220
10V
0.01
B:CHIP
100p
CH:CHIP
220
10V
0.01
B:CHIP
10P
WHT
:S-MICRO
8P
WHT
:S-MICRO
10P
WHT
:S-MICRO
5P
WHT
:S-MICRO
1P
:FASTON
1P
:FASTON
10µH
10µH
470
:CHIP
100
:CHIP
100
:CHIP 10k
:CHIP
100
:CHIP
470
:CHIP
12k
:CHIP 470
:CHIP
470
:CHIP
10
:CHIP
100
:CHIP
6.8k
:CHIP 470
:CHIP
470
:CHIP
470
:CHIP
560
:CHIP
100
:CHIP
470
:CHIP
10k
:CHIP
100
:CHIP
100
:CHIP 10k
:CHIP 470
:CHIP
2.2k
:CHIP
2.2k
:CHIP
560
:CHIP
MAIN TUNER
SUB TUNER
DAN202K
10k
:CHIP
10k
:CHIP
UDZ-6.8B
UDZ-6.2B
UDZ-6.2B
UDZ-6.2B
UDZ-6.2B
20P
AMP20PMAL
20P
AMP20PMAL
1k
:CHIP
1P
:FASTON
5P
BLK
:S-MICRO
5P
RED
:S-MICRO
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0
:CHIP
0
:CHIP
3P
:MINI
47k
:CHIP
1k
:CHIP
4.7k
:RN-CP
1
16V
F:CHIP
UDZ-3.9B
47k
:CHIP
2SA1037AK
AC ON/OFF
SW
68k
:CHIP
2SC2412K
SW
2SA1037AK
INV.
30k
:RN-CP
2SA2412K
BUFF
2SA2412K
BUFF
2SA1037K
CLAMP
2SA1037K
CLAMP
2SA2412K
BUFF
2SA1037K
CLAMP
2SA1037K
SP MUTE
VCOMP
SDA
SCL
+6.5V
+10.5V
+12V
+33V
+5V STBY
+9V
+33V
SCL
SDA
SDASCL
+9V
+9V
+17V
-17V
+5V
DEF +9V
+5V
+5V STBY
+10.5V
+5V-TU
+5V STBY
SCL
SDA
+9V
-12V
-12V
DE(14)
DE(3)
OCP
GM(1)
OVP
ST-BY
RE-YS
RE-R
RE-B
QSS1
CVBS1
QSS2
HM(3)
HM(2)
HM(1)
HM(4)
RE-G
AM2 AM1
CVBS2
HM(5)
DM(1)
BEM(9)
BEM(8)
DE(13)
DE(7)
DE(16)
DE(2)
DE(15)
DE(4)
DE(6)
DE(8)
DE(10)
DE(9)
DE(5)
HP-L OUT
HP-R OUT
ABL2
DEF +9V
AUDIO GND
-17V
+17V
+5V
NC
SIRCS
GND
STBY+5V
KEY1
GND
R.LED
AC ON/OFF
0VP
0CP
GND
STBY+5V
GND
GND
GND
GND
+9V
GND
+12V
GND
GND
GND
GND
GND
GND(ANT)
GND(ANT)
GND
GND
+33V
RE-R
RE-G
RE-B
HP
DISABLE
RE-YS
GND
SDA
GND
V SYN
H SYN
SCL
ABL
ST-BY
OVP
OCP
APROT
ST-BY
POWER DOWN
POWER DOWN
POWER DOWN
POWER ON
POWER ON
POWER ON
POWER ON
LH
VCOMP(NC)
GND
SCL
SDA
DISABLE
NC
GND
-12V
+5V STBY
+5V STBY
+6.5V
+6.5V
+6.5V
+10.5V
+10.5V
D+5V
GND
GND
P-CONT
VTIM
H SHIFT
E-W
GND
GND
GND
HD
GND
VD(+)
GND
VD(-)
GND
V-PROT
HV-PROT
NC
SCP(NC)
RGB AFC(NC)
EXT PARA(NC)
CN5016
TO D(1/4)BOARD
FOR CHECK
TO G(2/2)BOARD
CN6301
NC
KEY2
TO H1 BOARD
CN3102
SP MUTE(NC)
HP L OUT
HP R OUT
TO G(2/2)BOARD
CN6303
TO D(1/4)BOARD
CN5018
TO D(1/4)BOARD
CN5017
TO G(1/2)BOARD
CN6300
TO H2 BOARD
CN3202
TO G(1/2)BOARD
TO G(1/2)BOARD
TO CRT BRACKET
B-SS624.<AEP>-A..-P3-05
CN6308
CN6002
TO A1/3,A3/3_3
TO A1/3,A3/3_4
TO A2/3,A3/3_5
TO A2/3,A3/3_6
TO A2/3,A3/3_7
TO A2/3,A3/3_8
TO A2/3,A3/3_9
TO A2/3,A3/3_10
TO A2/3,A3/3_11
TO A2/3,A3/3_12
TO A2/3,A3/3_13
A(3/3)
(TUNER)
– 44 –
KP-48PS2/61PS2
RM-903
(4) Schematic Diagram of B3 (1/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
3.3
0
3.0
0.3
3.3
3.3
3.3
3.0
2.4
1.8
1.2
1.8
1.2
1.4
0.8
2.7
2.7
A5V-1
7
8
9
4.9
4.9
4.2
4.7
3.3
3.93.9
3.2
2.0
3.2
2.2
2.02.0
3.3
1.6
1.9
2.7
2.1
3.3
2.7
3.3
2.6
A5V-1
2.4
1.7
2.4
1.7
1.9
2.6
A5V-1
1.7
0
1.4
0.5
1.3
1.5
1.8
1.8
1.9
1.8
1.8
1.9
2.2
2.1
1.9
2.2
2.2
2.1
2.3
2.3
2.3
1.4
1.4
2.3
3.3
2.3
2.3
1.9
3.3
1.5
1.5
3.3
2.0
3
21
1.4
1.4
1.2
0.6
0.8
0.8
1.6
1.0
1.2
0.5
1.6
1.0
1.4
1.4
1.4
1.4
1.4
1.4
1.5
1.1
1.3
2.3
1.3
1.1
0.5
1.5
1.7
1.3
1.2
2.1
1.2
1.2
0.9
1.8
1.8
2.5
1.0
0.5
1.0
1.5
1.9
1.3
1.5
1.1
1.6
2.1
3.3
4
5
6
Y/R-Y/B-Y
R-Y
Y
B-Y
R-Y
Y
B-Y
R-Y
Y
B-Y
Y/C
R-Y
Y
B-Y
12345678910111213141516
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
1 3 6
710
2 4 5
912
EMI
EMI
EMI
1 2 3
45
1 2 3
45
EMI
EMI
EMI
EMI
EMI
123456789101112
13
14
15
16
17
18
19
20
21
22
23
24
25 26 27 28 29 30 31 32 33 34 35 36
37
38
39
40
41
42
43
44
45
46
47
48
1 2 3
46
1 2 3
46
EMI
G
EMI
G
1 2 3
46
1 2 3
46
1234567
8 9 10 11 12 13 14
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
1 3 6
710
2 4 5
912
R503
R504
R505
R529
R530
R532
R548
R549
R550
R551
R552
R553
R554
R555
R558
R559
R560
R571
R572
R575
R576
R578
R579
R580
C501
C514
C515
C516
C517
C519
C520
C521
C522
C523
C526
C527
C528
C511
R577
C555
C557
R981
R982
R983
R985
R986
R987
R988
R989
R990
L503
L504
L506
FL502
FL503
L511
FL504
FL505
FL506
R597
C560
C559
IC501
R596
R506
FL508
FL509
R594
R584 R582
R513
R514
R515
R516
R517
CN502
C524
C525
FL511FL510
FL512
C540 C539
C542
C538
C554
C551
C546 C548
C550
C543
C502
C503
C505
C507
C518
C549
R993
R537
R518R520
R521
R523
R524
R526
L508
L509
R557
L502
C510
L512
C512
L501
C509
FB501
FB502
L505
D501
R956
R501
R508
R509
R994
R996
R995
C556
C545
R502
FB503
FB504
R942
R943
R512
R536
R511
R510
R561
R562
R563
R528
R533
R531
R991
R540
R984
FL501
IC901
R902
C903
C905
R906
R905
R904
C904
R901
C906
C907
FL902
FL903
R907
R908
R909
R910
R911
R912
FL904
FL905
R962
R960
R958
R957
R959
R961
R903
C902
C901
FL901
Q521
Q522
Q523
Q501
Q502
Q503
Q901
Q902
Q903
Q907
Q908
Q909
Q510
Q511
Q512
Q519
IC506
IC505
Q517
Q516 Q524
Q518
IC504
0.01
B:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
0.01
B:CHIP 0.01
B:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
5.6k
:RN-CP
5.6k
:RN-CP
5.6k
:RN-CP
47
:RN-CP
47
:RN-CP
82
:RN-CP
82
:RN-CP
47
:RN-CP
47
:RN-CP
15k
:CHIP
100
:CHIP
15k
:CHIP
47
:RN-CP
47
:RN-CP
82
:RN-CP
82
:RN-CP
47
:RN-CP
47
:RN-CP
15k
:CHIP
10k
:CHIP
330
:CHIP
330
:CHIP
47k
:CHIP
470k
:CHIP
3.3k
:CHIP
1k
:CHIP
220
:CHIP
22k
:CHIP
470k
:CHIP
0.01
B:CHIP
0.01
B:CHIP
1k :CHIP
100 :CHIP
470
:CHIP
470
:CHIP
470
:CHIP
560 :CHIP
560 :CHIP
560 :CHIP
1k :CHIP
1k :CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP 0.01
B:CHIP
0.01
B:CHIP 0.01
B:CHIP
47k
:CHIP
560
:RN-CP
560
:RN-CP
560
:RN-CP
2.2k
:RN-CP
220
:CHIP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
47
16V
10
16V
:AL-CP
10
16V
:AL-CP
0.1
25V
B:CHIP
47
16V
:AL-CP
C529
10
16V
:AL-CP
C531
10
16V
:AL-CP
C533
10
16V
:AL-CP
47
16V
:AL-CP
47
16V
:AL-CP
47
16V
:AL-CP
100
6.3V
:AL-CP
50P
:BTOB
UDZ-3.9B
BLM21B102S
BLM21B102S
BLM21B102S
BLM21B102S
LPF
LPF
TLC5733AIPM
1µH
:CHIP
1µH
:CHIP
1µH
:CHIP
1µH
:CHIP
10µH
:CHIP 1µH
:CHIP
10µH
:CHIP
10µH
:CHIP
1µH
:CHIP
1µH
:CHIP
100 :CHIP
100 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
100 :CHIP
100 :CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
1k
:CHIP
0
:CHIP
0
:CHIP
330
:CHIP
220
:CHIP
47k
:CHIP
220
:CHIP
330
:CHIP
560 :CHIP
1k
:CHIP
560 :CHIP
560 :CHIP
560
:CHIP
560
:CHIP
560
:CHIP
330
:CHIP
180
:CHIP
180
:CHIP
0 :CHIP
1k :CHIP
3.3k
:CHIP
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST CKD510JB1A105ST
CKD510JB1A105ST
LPF
CXD2309Q-T6
2.2k
:RN-CP
0.01
B:CHIP
1
10V
B:CHIP
220
:RN-CP
220 :RN-CP
220 :RN-CP
10
16V
:AL-CP
3.3k
:CHIP
10
16V
:AL-CP
0.01
B:CHIP
LPF
LPF
220
:RN-CP
220
:RN-CP
220
:RN-CP
1k
:CHIP
1k
:CHIP
1k
:CHIP
CKD510JB1A105ST
CKD510JB1A105ST
220
:RN-CP
220
:RN-CP
220
:RN-CP
220
:RN-CP
220
:RN-CP
220
:RN-CP
3.3k
:RN-CP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
LPF
2SC2412K
BUFFER
2SC2412K
BUFFER
2SC2412K
BUFFER
2SA1037K
BUFFER
2SC2412K
BUFFER
2SC2412K
BUFFER
2SA1037K
BUFFER
2SA1037K
BUFFER
2SA1037K
BUFFER
2SA1037K
BUFFER
2SA1037K
BUFFER
2SA1037K
BUFFER
2SC2412K
BUFFER
2SC2412K
BUFFER
Q515
2SC2412K
BUFFER
Q514
2SC2412K
BUFFER
Q513
2SC2412K
BUFFER
2SC2412K
BUFFER
DTC144EKA
INVERTER
TC7SET04F
INVERTER
TC7SET04F
INVERTER
2SC2412K
LEVEL SHIFT
2SC2412K
+3.3V REG 2SC2412K
+3.3V REG
2SA1037K
LIMITTER
TLC2933IPWR-12
LEAD PLL
WSYNC
W1
A5V-1
ADTB
YMCK
D3.3V-1
SDA
SCL
HP 100 OUT
VP 100 OUT
Y 100 OUT
U 100 OUT
V 100 OUT
Y MAIN IN
V MAIN IN
U MAIN IN
Y MAIN IN
VP SUB IN
VP MAIN IN
HP MAIN IN
A5V-1
A5V-1
D5V
D3.3V-1
D3.3V
3.3VGR
+5V
+2.5V
+3.3V
+3.3V
+5V
D3.3V-MID
XRST
HP SUB IN HP SUB PLL
V MAIN IN
U MAIN IN
A5V
A5V
A3.3V
+2.5V-1
DPIC SW
DSP Y/CR/CB
A5V-1
V 100 OUT
U 100 OUT
Y 100 OUT
DSPCLK
A5V-1
D5V
Y SUB IN
V SUB IN
U SUB IN
C0
C1
C2
C3
C4
C5
C6
C7
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
R0
R1
R2
R3
R4
R5
R6
R7
G0
G1
G2
G3
G4
G5
G6
G7
B0
B1
B2
B3
B4
B5
B6
B7
MAIN A/D CONVERTER
D/A CONVERTER
TO A(2/3)BOARD
CN1201
B-SS624.<AEP>-B3.-P1-05
(A/D-D/A CONVERTER)
B3
HP 100 OUT
VP 100 OUT
Y 100 OUT
GND
U 100 OUT
GND
GND
V 100 OUT
GND
GND
GND
GND
GND
GND
GND
GND
MID-BUSY(NC)
FPD(NC)
+3.3V
SCL
SDA
+2.5V
A5V
GND
RESET 100
DPC SW
GND
+5V
HP SUB IN
GND
GND
GND
GND
GND
V MAIN IN
U MAIN IN
Y MAIN IN
GND
GND
GND
Y SUB IN
U SUB IN
V SUB IN
GND
+9V(NC)
VP SUB IN
GND
GND
VP M IN
HP M IN
TO B3(1/5)
TO B3(2/5)
TO B3
(2/5,4/5)
TO B3(1/5)
TO B3(4/5)
TO B3(3/5,4/5)
TO B3(5/5)
TO B3(4/5)
(OPEN)
TO B3(4/5)
TO B3(4/5)
OUT
VCC
GND
IN
NC
OUT
VCC
GND
IN
NC
(+4.2V REG)
TO B3(2/5)
TO B3(1/5)
LOGIC VDD
TEST
VCO OUT
FINA
FINB
PFD OUT
LOGIC GND
VCO VDD
R BIAS
VCO IN
VCO INHBIT
PFD INHBIT
NC
VCO GND
TO B3(1/5)
TO B3(2/5)
TO B3
(2/5)
TO B3(4/5)
(1/5)
GND(A)
VIN(A)
VCC(A)
VRT(A)
CLPV(A)
IBIAS(A)
XSYNC
CLPEN
CLK
EXTCLP
IBIAS(B)
CLPV(B)
VRT(B)
VCC(B)
VIN(B)
GND(B)
NT/PAL
TEST
DGND(QA)
D(A)8
D(A)7
D(A)6
D(A)5
D(A)4
D(A)3
D(A)2
D(A)1
VDD(QA)
DGND(QB)
VDD(QB)
VRB(A)
OE(A)
D(B)8
D(B)7
D(B)6
D(B)5
D(B)4
D(B)3
D(B)2
D(B)1
DGND
VDD
CLPV(C)
VRT(C)
VCC(C)
VIN(C)
GND(C)
IBIAS(C)
MODE0
MODE1
DGND(QC)
D(C)1
D(C)2
D(C)3
D(C)4
D(C)5
D(C)6
D(C)7
D(C)8
VDD(QC)
VRB(C)
OE(B)
OE(C)
VRB(B)
VREF
VG
A-VDD
A-VDD
A-VDD
RO
A-VSS
GO
A-VSS
BO
A-VSS
D-VDD
B4
B5
B6
B7
B8
B9
RCK
BCK
GCK
D-VSS
VB
IREF
(CB)
G2
G3
G4
G5
G6
G7
G8
G9
B0
B1
B2
B3
(Y)
R0
R1
R2
R3
R4
R5
R6
R7
R8
R9
G0
G1
(CR)
VDOCBCLVL
VDOCRCLVL
VDOYCLVL
TO B3(4/5)
R507 100 :CHIP
CK54
HREF
R1
R566
4.7k
:CHIP
R564 4.7k :CHIP
R565 4.7k :CHIP R587
1k
:CHIP
R586
1k
:CHIP
R589
1k
:CHIP
R592
1k
:CHIP
R590
1k
:CHIP
R591
1k
:CHIP
C535
0.01
B:CHIP
C536
0.01
B:CHIP
C537
0.01
B:CHIP
R535
2.2k
:CHIP
R534
2.2k
:CHIP
– 45 –
KP-48PS2/61PS2
RM-903
(5) Schematic Diagram of B3 (2/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
2.1
1.3
D3.3V-1
+2.5V-1
0.2
0.2
1.9
0.2
1.3
1.3
14
D3.3V-1
+2.5V-1
0
0.1
0
0.4
0.3
0.4
0.3
4.8
4.8
4.9
3.2
3.3
0
0
0
0
0
0
0
0
0
0
0
1.8
1.9
0.8
1.6
1.6
1.7
2.0
2.0
1.8
1.7
1.7
1.8
1.5
1.1
0.6
3.2
3.2
3.2
0.3
1.8
1.8
0.6
1.2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0.3
0.3
0.3
0.3
0.3
3.2
3.2
3.2
0.6
0.3
1.1
1.5
1.7
1.8
1.7
1.6
1.9
1.8
0.8
1.6
2.0
2.0
1.7
1.8
1.8
1.8
3.3
3.3
3.2
3.2
3.2
0
1.8
1.6
3.3
1.6
0.2
0.5
2.2
0.5
1.1
1.0
1.0
1.3
0.5
1.2
1.4
2.1
1.6
1.4
1.8
1.8
1.8
1.6
2.1
2.7
1.8
2.3
1.9
1.9
1.6
1.9
1.9
1.8
1.6
1.8
2.2
2.1
3.3
1.3
1.9
0
2.0
2.2
1.9
1.9
2.0
2.1
1.8
1.9
1.9
1.9
1.6
1.8
1.8
1.4
1.8
0.5
13
1210
11
15
1817
16
0
Y/R-Y/B-Y
B-Y
R-Y
Y
Y/C
EMI
G
EMI
G
EMI
G
EMI
G
12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849505152
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105106 107 108 109 110 111112 113 114 115116 117 118119 120 121 122123 124 125 126127 128 129 130131 132 133 134135 136 137 138139 140 141 142143 144 145 146147 148 149 150151 152 153 154155 156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
12345678910111213141516171819202122232425
26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
1234567
8 9 10 11 12 13 14
1 2 3 4 5 6 7 8
910111213141516
R601
R602
R603
R608
R628 R631
R634
R635 R638 R642 R643 R645 R651 R655
R665
R666
R667
R670
R671
R672
R673
R674
R675
R688 R689
R692
R694
R695
R696
R697 R698
R699
R600
C603
C604
C605
C606
C607
C608
C609
C610
C611
C612 C613 C614
C615
C617
C623
C624
C625
C626
C627C628
C630
C631
C633
C634
C635
C636
C638
C639
C642
R691
C618
C620
C621
C622
C643
FL601
FL602
FL603
C645
FB601
R693
R621R622R623
R625
R626
R609
R619
R690
R687
R668
R664
C632
C644
C601
R640
C616
R676
R677
R678
R679
R680
R681
R682
R683
R684
R685
R686
R657
L604
L605
C637
C640
R659
R658
R661R660
R653
R654
C619
R610
R604
FL606
RB019
RB020
RB021
RB022
RB023
RB024
RB025
RB026
RB027
C602
C629
R616
R617
R629
R605
R639
R611
Q602
Q601
IC601
R618
RB001
RB002
RB003
RB004
RB005
RB006
R613
IC604
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP 0.01
B:CHIP 0.01
B:CHIP
0.01
B:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
10k :CHIP
10k :CHIP
10k :CHIP
270
:CHIP
620
:RN-CP
3.3k
:RN-CP
10k
:CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
3.3k
:CHIP 2.2k
:CHIP
3.3k
:CHIP
2.2k
:CHIP
820
:CHIP 1k
:CHIP 680k
:CHIP
680k
:CHIP
22
:CHIP
10k
:CHIP
10k
:CHIP
10k
:CHIP
22
:CHIP
22
:CHIP
22 :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
10k :CHIP
22
:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.1
25V
F:CHIP
10
16V
:AL-CP
10
16V
:AL-CP
47
16V
:AL-CP
100
6.3V
:AL-CP
4.7
35V
:AL-CP
BLM21B201S
NFM51R30P507
10µH
:CHIP
10µH
:CHIP
5.1k
:CHIP
220 :CHIP
0
:CHIP
220
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP 0
:CHIP
0
:CHIP
0
:CHIP 0
:CHIP
0
:CHIP 0
:CHIP 0
:CHIP
0
:CHIP
100
:CHIP
220
:CHIP
0
:CHIP
1k
:CHIP
100
:CHIP
100
:CHIP 100
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
0.01
B:CHIP
10k
:CHIP
0
:CHIP10k
:CHIP
0
:CHIP
56 :CHIP
10k
:CHIP
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST
2SC2412K
BUFFER
2SC2412K
BUFFER
CXD2090Q
DRC
0
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
10k
:CHIP
CXA1875AM
I/O EXPANDER
A9
A8
A7
A6
A5
A4
C54O
R1
C54O
3.3VGR
D5V
WSYNC
D3.3V-1
W1
HREF
D3.3V-1
CK54
ADTB
YMCK
VDMID
HDMID
D5V
VP MAIN IN
HP MAIN IN
D5V
SDA
SCL
+2.5V-1
DS OUT
78
56
56
78
78
56
56
78
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
XCAS
XRAS
XWE
DOM
XCS
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
A0
A1
A2
A3
A10
A11
A10
A11
XCS
XRAS
XCAS
XWE
DOM
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ8
DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
A3
A2
A1
A0
DSB2
DSB3
DSB4
DSB5
DSB6
DSB7
DSB8
DSB9
C0
C1
C2
C3
C4
C5
C6
C7
DSY2
DSY3
DSY4
DSY5
DSY6
DSY7
DSY8
DSY9
DSR2
DSR3
DSR4
DSR5
DSR6
DSR7
DSR8
DSR9
DAC0
DAC1
DAC2
DAC0
DAC1
DAC2
DAC4
DAC4
DQ0
DQ7
B-Y
R-Y
Y
TO B3(1/5)
TO B3(4/5)
TO B3(2/5)
TO B3(3/5,4/5)
TO B3(3/5)
TO B3(1/5)
TO B3(2/5)
VCC
SCL
SDA
SAD2
SAD1
SAD0
SW3
SW2GND
DAC0
DAC1
DAC2
DAC3
DAC4
SW0
SW1
TO B3(1/5,4/5)
LOGICVDD
SELECT
VCO OUT
FINA
FINB
PFD OUT
LOGIC GND
VCO VDD
R BIAS
VCO IN
VCO GND
VCO INHBIT
PFD INHBIT
NC
DQ0
VCC
DQ1
VSSQ
DQ2
DQ3
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
VCCQ
LDQM
WE
CAS
RAS
CS
ADDR10
ADDR11
ADDR0
ADDR1
ADDR2
ADDR3
VCC
VSS
DQ15
DQ14
VSSQ
DQ13
DQ12
VCCQ
DQ11
DQ10
VSSQ
DQ9
DQ8
VCCQ
NC
UDOM
CLK
CKE
NC
ADDR9
ADDR8
ADDR6
ADDR5
ADDR4
VSS
ADDR7
VD1
VS1
W13ID
IHDD
IVDD
MODE
XCAS
XRAS
XWE
DOM
XCS
VS2
DQ7
DQ6
DQ5
DQ4
DQ3
DQ2
DQ1
DQ0
VD2
VS3
AVD1
AVS1
DQ15
DQ14
DQ13
DQ12
DQ11
DQ10
DQ9
DQ8
TENA3
VS4
ADDR11
ADDR10
ADDR9
ADDR8
ADDR7
ADDR6
ADDR5
ADDR4
VD3
VS5
C13O
ADDR3
ADDR2
ADDR1
ADDR0
AVD2
AVS2
VD4
VS6
DVSFT
DLINIT
IFPCT
FV
FH
PXI
VSTILL1
VSTILL0
VDPR
VDCL
VDL0
VDL1
VS7
XRST
CRCT
GAME
OCKSL
M0
M1
RBSL
VD5
VS8
B2
CYD0
CYD1
FSEL
S0
S1
AVD3
AVS3
VS9
ORDER
INSEL
LEVEL
XCLH
RXI
XOC
FPO
FFSW
VD6
HREF
RPLLHD
C54I
XH9O
XV9O
V9O
VD2O
HD2
VD7
VS10
FPD
CLP
VS14
DBO9
DBO8
DBO7
DBO6
DBO5
DBO4
DBO3
DBO2
DBO1
DBO0
AVS5
AVD5
VS13
VD9
DRO9
DRO8
DRO7
DRO6
DRO5
DRO4
DRO3
DRO2
DRO1
DRO0
VS12
DYO9
DYO8
DYO7
DYO6
DYO5
DYO4
DYO3
DYO2
DYO1
DYO0
C27O
VS11
C54O
VD8
AVS4
AVD4
ABO
DAVS
DAVD
VG
ARO
VB
IRF
VRF
AYO
ADHD
RCON
BCON
WPLLHD
W13I
IVD
VS15
DIC0
DIC1
DIC2
DIC3
DIC4
DIC5
DIC6
DIC7
VD10
VS16
DIY0
DIY1
DIY2
DIY3
DIY4
DIY5
DIY6
DIY7
VD11
TCK
TDI
TMS
TDO
TRST
VS17
DICD0
DICD1
DICD2
DICD3
DICD4
DICD5
DICD6
DICD7
VD12
VS18
DIYD0
DIYD1
DIYD2
DIYD3
DIYD4
DIYD5
DIYD6
DIYD7
AVD6
AVS6
B3
TO B3
(1/5)
TO B3(1/5)
B-SS624.<AEP>-B3.-P2-05
(2/5)
(DRC)
R669
#
:CHIP
DRCDCLK
CK54 OUT1
IC603
TLC2932IPWR
WRITE PLL
IC602
MT48LC1M16A1TG-7S
16M DRAM
– 46 –
KP-48PS2/61PS2
RM-903
(6) Schematic Diagram of B3 (3/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
Y/R-Y/B-Y
Y/R-Y/B-Y
EMI
G
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43
44
45 46 47
48 49 50 51 52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156
R703
R713
C730
C706
C715
C726
#
B:CHIP
C729
#
B:CHIP
C728
#
B:CHIP
#
B:CHIP
#
B:CHIP
#
B:CHIP
#
:CHIP
R705
#
:CHIP
R704
#
:CHIP
#
:CHIP
R663
#
:CHIP
D3.3V
D OUT
C714
#
B:CHIP
TO B3(1/5,3/5,4/5)
TO B3(4/5)
DS OUT
TO B3(2/5)
TO B3(4/5)
TO B3(2/5,4/5)
TO B3(1/5,3/5,4/5)
TO B3(2/5)
SDA6
SDA5
SDA4
VSS
SDD18
SDD19
SDD110
SDD111
VDD
SDD112
SDD113
SDD114
SDD115
VSS
SDD17
SDD16
SDD15
SDD14
VDD
SDD13
SDD12
SDD11
SDD10
VSS
VIN31
VIN30
VIN29
VIN28
VIN27
VIN26
VIN25
VIN24
VDD
VIN23
VIN22
VIN21
VIN20
VIN19
VIN18
VIN17
VIN16
VSS
VIN15
VIN14
VIN13
VIN12
VIN11
VIN10
VIN9
VIN8
VDD
VIN7
VIN6
VIN5
VIN4
VIN3
VIN2
VIN1
VIN0
VSS1
I2CAD0
I2CAD1
I2CAD2
I2CSCL
I2CSDA
VDD
XRST
VSYNC0
HSYNC0
SCK0
VSS
SCK1
HSYNC1
VSYNC1
VSYNC2
HSYNC2
SCK2
VDD
SCK3
HSYNC3
VSYNC3
IGFLGC
IGFLGD
VSS
TESTMD
TESTGD
BIST
BURNIN
TESTBE
TESTAK
CKSEL
MINTEST
VDD
TDI
TMS
TCK
TRSTZ
TDO
XROMENA
VSS
PDIV2
PDIV1
PDIV0
SCANEN
B3
B-SS624.<AEP>-B3.-P3-05
(3/5)
(PANORAMA)
EMI
G
FL704
C717
#
B:CHIP
C719
#
B:CHIP
#
A3.3V
C705
#
B:CHIP
C704
#
B:CHIP
C725
#
B:CHIP
C724
#
B:CHIP
C723
#
B:CHIP
C722
#
B:CHIP
C738
#
B:CHIP
C716
#
B:CHIP
PLLRST
PLLTST
VDD
SDIV2
SDIV1
SDIV0
SVCORNG
AVSS
SLF
AVCC
SDCKREF
SDPLLPDN
VSS
SDD00
SDDO1
SDD02
SDD03
VDD
SDD04
SDD05
SDD06
SDD07
VSS
SDWE
SDCAS
SDRAS
VDD
VDDP
SDA11
SDA10
SDA0
SDA1
SDA2
SDA3
VSS
SDD015
SDD014
SDD013
SDD012
VDD
SDD011
SDD010
SDD09
SDD08
VSS
SDCK
VDD
SDCKE
SDA9
SDA8
VDD
SDA7
VSS
VOUT35
VOUT34
VOUT33
VOUT32
VDD
VOUT31
VOUT30
VOUT29
VOUT28
VSS
VOUT27
VOUT26
VOUT25
VOUT24
VDD
VOUT23
VOUT22
VOUT21
VOUT20
VSS
VOUT19
VOUT18
VOUT17
VOUT16
VDD
VOUT15
VOUT14
VOUT13
VOUT12
VSS
VOUT11
VOUT10
VOUT9
VOUT8
VDD
VOUT7
VOUT6
VOUT5
VOUT4
VSS
VOUT3
VOUT2
VOUT1
VOUT0
VDD
PPLLFDN
PCKREF
AVCC
PLF
AVSS
PVCORNG
C727
#
B:CHIP
R710
#
:CHIP
EMI
G
FL705
C708
#
B:CHIP
C709
#
16V
B:CHIP
#
A3.3V
EMI
G
FL703
#
D3.3V
XRST
DY5
DY4
DY6
DY7
DY1
DY0
DY2
DY3
DY8
O21
O20
O22
DY0
O23
O17
O16
O18
O19
C713
#
B:CHIP
DB5
DB4
DB6
DB7
DB1
DB0
DB2
DB3
C712
#
B:CHIP
C711
#
B:CHIP
DR5
DR4
DR6
DR7
DR1
DR0
DR2
DR3
R709
#
:CHIP
R714
#
:CHIP
R715
#
:CHIP
C710
#
B:CHIP
1234
5678
GND
2A
3Y
1A
IC705
#
PANORAMA
CLOCK REF
VCC
1Y
3A
2Y
C739
#
CH:CHIP
C735
#
B:CHIP
C740
#
CH:CHIP
IC701
#
PANORAMA IC
12345678910111213141516
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
VPP
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
A0
D0
D1
D2
VSS
DY1
DY3
DY2
DB7
DB6
DB5
DB4
DB3
DB2
DSB2
DSB3
DSB4
DSB5
DSB6
DSB7
DSB8
DSB9
DSR2
DSR3
DSR4
DSR5
DSR6
DSR7
DSR8
DSR9
DSY2
DSY3
DSY4
DSY5
DSY6
DSY7
DSY8
DSY9
DSY2
DSY3
DSY4
DSY5
DSY6
DSY7
DSY8
DSY9
DY5
DY6
DB1
DB0
O16
O17
O18
O19
O20
O21
O22
O23
DY4
DY7
DY8
IC704
#
EPROM
VCC
A18
A17
A14
A13
A8
A9
A11
OE
A10
CE
D6
D5
D4
D3
D7
R712
#
:CHIP
CK54 OUT1
HDMID
VDMID
XRST
SDA-MID
SCL-MID
FL701
#
C703
#
16V
:AL-CP
C707
#
16V
:AL-CP
X702
#
C718
#
16V
:AL-CP
FB702
#
FB701
#
RB701
RB702
RB703
RB704
RB705
RB706
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
DR0
DR1
DR2
DR3
DR4
DR5
DR6
DR7
DY0
DY1
DY2
DY3
DY4
DY5
DY6
DY7
DSB2
DSB3
DSB4
DSB5
DSB6
DSB7
DSB8
DSB9
DSR2
DSR3
DSR4
DSR5
DSR6
DSR7
DSR8
DSR9
DSY2
DSY3
DSY4
DSY5
DSY6
DSY7
DSY8
DSY9
– 47 –
KP-48PS2/61PS2
RM-903
(7) Schematic Diagram of B3 (4/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
0
D3.3V-MID
1.5
D3.3V-MID+2.5V
+2.5V
D3.3V-MID
+2.5V
+2.5V
*
0
0
0
0
0
1.5
1.6
1.3
1.8
0.1
2.6
2.2
0.1
3.2
1.7
3.2
3.2
3.2
1.7
2.9
0.1
1.8
2.1
0.8
2.1
2.0
1.9
2.2
1.7
4.8 3.2
3.3
4.8 3.2
3.3
2.0
2.8
1.9
0.8
1.8
1.9
1.7
1.4
2.7
1.7
1.8
2.8
2.6
2.6
0.1
0.5
2.1
1.8
2.0
2.2
1.0
2.1
0
0
0
0
0
0
0
0
0
0
0
0
1.7
1.7
1.4
1.8
1.8
1.7
1.7
1.7
1.7
2.6
2.8
1.8
1.7
2.9
3.2
1.5
1.5
3.2
1.8
3.2
2.2
2.6
*
0.1
1.8
1.3
1.6
1.5
2.0
2.8
1.9
0.8
1.8
1.9
1.6
2.1
1.5
3.3
0.3
0.1
1.1
1.0
1.1
1.1
1.1
0.2
1.8
1.9
1.9
1.9
2.5
1.8
2.2
2.1
1.9
1.5
2.0
2.0
2.1
1.8
0.6
1.1
1.4
2.1
1.6
1.4
1.4
1.6
0.5
1.1
1.3
2.7
1.2
1.2
1.5
1.5
2.2
1.3
1.3
1.3
1.2
1.2
1.2
1.5
2.2
1.1
1.5
1.5
1.3
1.8
1.5
1.4
3.0
3.3
0.9
1.3
3.3
2.0
0.2
2.0
3.2
3.2
3.3
3.3
0.5
2.2
2.1
2.0
2.2
1.0
2.1
1.7
0.6
2.2
1.9
2.0
2.1
0.8
2.1
1.8
2.6
19
20
21
22
24
25
23
3.2
Y/R-Y/B-Y
Y/B-Y
R-Y
Y/R-Y/B-Y
B-Y
B-Y
R-Y
Y
Y
Y/R-Y/B-Y
Y
B-Y
R-Y
R-Y
Y
B-Y
0.2
0.1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156157158159160161162163164165166167168169170171172173174175176177178179180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
S
S
12345678910111213141516171819202122232425262728293031323334353637383940414243
44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86
EMI
G
EMI
G
EMI
G
EMI
G
EMI
G
EMI
G
EMI
G
C802
C806
C813
C814
C815
C816
C819
C820
C821C822
C823
C824
C839
C841
C842
C843
R813
R814
R815
R817
C844
C809 C810
C811 C812
C849
FL801
FL802
FL803
FL804
R816
C848
C851
R844
R845
R846
R847
R848
R849
R850
R851
R852
R853
R854
R855
R856
R857
R858
R859
R860
R861
R862
R863
R864
R865
R866
R867
R868
R869
R870
R871
R872
R873
R874
R875
R876
R877
R878
R879
R880
R881
R882
R883
R884
R885
R886
R887
R888
R889
R898
R897
R896
R895
R894
R893
R892
R891
R890
C829
FL806 FL807
FL808
C801
C807
C840
C804
R941
R940
C803
R801
R979
R804
FB801
FB802
C817
R823
R824
R2813
R2815
R2817
R2818
R2822
R806
R807
C818
RB007 RB008
RB009 RB010
RB012
RB011
X802
IC801
R914
R916
R951
R952
R802
Q904
Q905
R917
R919
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP 0.01
B:CHIP
0.01
B:CHIP
0.01 B:CHIP
0.01
B:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
0.01
B:CHIP 0.01
B:CHIP
0.01
B:CHIP
0.01
B:CHIP
10k :CHIP
10k :CHIP
10k :CHIP
47
:RN-CP
0.01
B:CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47
:CHIP
22
:CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
22
:CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
22 :CHIP
0 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
22
:CHIP
0.01
B:CHIP
22
:CHIP
10k :CHIP
12p
CH:CHIP
10k :CHIP
10k :CHIP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
10
16V
:AL-CP
12p
CH:CHIP
100
6.3V
:AL-CP
4700p
B:CHIP
BLM21B201S
BLM21B201S
5.6k
:RN-CP
680
:RN-CP
0 :CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
17.28MHz
150
:CHIP 150
:CHIP
150
:CHIP 150
:CHIP
150
:CHIP
150
:CHIP
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST
CKD510JB1A105ST CKD510JB1A105ST
CKD510JB1A105ST
CXD9509AQ
MID-X
4.7k
:CHIP
4.7k
:CHIP 2.2k
:CHIP
2.2k
:CHIP
22 :CHIP
2SK2036
LEVEL SHIFT
2SK2036
LEVEL SHIFT
0
:CHIP
0
:CHIP
DSP Y/CR/CB
SDDQM0
SDDQM1
SDCLKIN
SDCKE
SDCLK
DSPCLK
DRCDCLK
SDDQM0
SDCLKIN
SDCLK
SDCKE
SDDQM1
VP 100 OUT
HP 100 OUT
VDMID
HDMID
VP SUB IN
VDOCLAMP
D3.3V-MID
+2.5V
D3.3V-MID
SCL-MID
SDA-MID
XRST
SUB Y/C
VDOPLLHLD
VDO CLK IN
XVDOHS
DPIC SW
SDA
SCL
D3.3V-MID
SDA-MID
SCL-MID
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
WE
CAS
RAS
CS
A8
A7
A6
A5
A4
A3A2
A1
A0
A10
A11
A12
WE
CAS
RAS
CS
CB7
CB6
CB5
CB4
CB3
CB2
CB1
CB0
CR7
CR6
CR5
CR4
CR3
CR2
CR1
CR0
Y7
Y6
Y5
Y4
Y3
Y2
Y1
D0
D1
D2
D3
D4
D5
D6
D7 D8
D9
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23 D24
D25
D26
D27
D28
D29
D30
D31
A9
R0
R1
R2
R3
R4
R5
R6
R7
B0
B1
B2
B3
B4
B5
B6
B7
G0
G1
G2
G3
G4
G5
G6
G7
Y0
C0
C1
C2
C3
C4
C5
C6
C7
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
DTVCIN2
DTVCIN1
DTVCIN0
XDRCVS
XDRCHS
DRCCBIN7
DRCCBIN6
DRCCBIN5
DRCCBIN4
VDD2
VSS
DRCCBIN3
DRCCBIN2
DRCCBIN1
DRCCBIN0
DRCCRIN7
VDD1
DRCCRIN6
DRCCRIN5
DRCCRIN4
DRCCRIN3
VSS
DRCCRIN2
DRCCRIN1
DRCCRIN0
DRCDCLK
VDD1
DRCYIN7
DRCYIN6
DRCYIN5
DRCYIN4
DRCYIN3
VDD1
VSS
DRCYIN2
DRCYIN1
DRCYIN0
DSPY7
DSPY6
DSPY5
DSPY4
DSPY3
DSPY2
DSPY1
VDD2
VSS
DSPY0
DSPCB7
DSPCB6
DSPCB5
DSPCB4
DSPCB3
DSPCB2
DSPCB1
DSPCB0
DSPCR7
VDD2
VSS
DSPCR6
DSPCR5
DSPCR4
DSPCR3
DSPCR2
DSPCR1
DSPCR0
XDSPHS
XDSPVS
VDD1
VSS
DSPCLK
XDSPYS
AVCCDSP
DSPLPFO
DSPLPFI
AVSSDSP
AVSSSD
AVCCSD
XTST
VDD1
VSS
DXT1IN
DXT1OUT
IICSDA
IICSCL
IICCKSEL
TMODENB
DXT2IN
DXT2OUT
VDD1
VSS
SDDAT31
SDDAT30
SDDAT29
SDDAT28
SDDAT27
SDDAT26
VDDSD
SDDAT25
SDDAT24
SDDAT23
SDDAT22
VDD2
VSS
SDDAT21
SDDAT20
SDDAT19
SDDAT18
SDDAT17
SDDAT16
SDADR3
SDADR4
SDADR5
SDADR6
VDD2
VSS
SDCLK
SDADR7
SDADR8
SDADR9
SDADR2
SDADR1
SDADR0
SDADR10
SDADR11
SDADR12
SDCS
VDD2
VSS
VSSSD
SDRAS
SDCKE
SDCLKIN
SDCAS
SDWE
SDDQM1
SDDQM0
VSS
SDDAT7
SDDAT6
SDDAT5
SDDAT4
SDDAT3
VDD1
SDDAT2
SDDAT1
SDDAT0
SDDAT15
SDDAT14
VDD1
VSS
SDDAT13
SDDAT12
SDDAT11
SDDAT10
SDDAT9
SDDAT8
VDOYCLVL
VDOCBCLVL
VDOCRCLVL
VDOYIN7
VDD2
VSS
VDOYIN6
VDOYIN5
VDOYIN4
VDOYIN3
VDOYIN2
VDOYIN1
VDOYIN0
VDOCIN7
VDOCIN6
VDOCIN5
VDOCIN4
VDOCIN3
VDOCIN2
VDOCIN1
VDOCIN0
VDOCLKOUT
XVDOVS
XVDOHS
XRESET
VDD1
VSS
VDOCLAMP
XOSDHS
XOSDVS
VDOCLKIN
AUXC IN6
AUXC IN5
AUXC IN4
AUXC IN7
ANCRIN
AVCCAD3
AVSSAD3
ANCBIN
ANREF2
ANREF1
ANYGIN
AVCCAD1
AVSSAD1
AUXC IN3
AUXC IN2
AUXC IN1
AUXC IN0
DTVCLKIN
DTVYIN7
DTVYIN6
DTVYIN5
DTVYIN4
DTVYIN3
DTVYIN2
DTVYIN1
DTVYIN0
DTVCIN7
DTVCIN6
DTVCIN5
DTVCIN4
DTVCIN3
VDD1
OVSS2
OVSS1
MST
OVSS3
OVDD21
OVDD22
OVDD11
VPDTEST
VDD1
VSS
AVCCAD2
AVSSAD2
XSM
TO B3(4/5)
B3
B-SS624.<AEP>-B3.-P4-05
(MID-X)
(3/5,4/5)
TO B3
TO B3
(4/5)
TO B3
TO B3
(1/5)
TO B3(2/5,3/5)
TO B3(2/5)
TO B3(3/5,4/5)TO B3(1/5,2/5)
TO B3TO B3
(4/5)(1/5)
TO B3(5/5)
TO B3(1/5)
TO B3(5/5)
TO B3(1/5,3/5)
(4/5)
VCC
DQ0
VCCQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VCCQ
DQ5
DQ6
VSSQ
DQ7
N.C.
VCC
DQM0
WE
CAS
RAS
N.C.
A12
CS
A8
A9
CKE
CLK
N.C.
N.C.
DQM1
VSS
N.C.
DQ8
VCCQ
DQ9
DQ10
VSSQ
DQ11
DQ12
VCCQ
DQ13
DQ14
VSSQ
DQ15
VSS
A1
A2
DQM2
N.C.
VCC
DQ16
VSSQ
DQ17
DQ18
VCCQ
DQ19
DQ20
VSSQ
DQ21
DQ22
VCCQ
DQ23
VCC VSS
DQ24
VSSQ
DQ25
DQ26
VCCQ
DQ27
DQ28
VSSQ
DQ29
DQ30
VCCQ
DQ31
N.C.
VSS
DQM3
A3
A4
A11
A10
A0 A5
A6
A7
DTVVSYNC
DTVPHLD
VDD2
VSS
DTVYCLVL
DTVCLKOUT
DTVCLAMP
DTVHSYNC
(1/5)
TO B3(4/5)
C827
0.01
B:CHIP
C808
0.01 B:CHIP
TO B3(5/5)
TO B3(1/5)
TO B3(5/5)
C835
C834
C850
R827
R2810
R2809
R2807
R2808
R836
R2801
R2803 R2806
R2802
R2804
R2805
R831
R832 R833
R834
R825
R826 R835
15
:RN-CP
22
:RN-CP
22
:RN-CP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
120
:RN-CP
100
:RN-CP
0
:CHIP
0
:CHIP
0
:CHIP
:CHIP
:CHIP
120
:RN-CP
75
:RN-CP
120
:RN-CP
68
:RN-CP
10
:RN-CP
120
:RN-CP
75
:RN-CP
0
0
# :CHIP
# :CHIP
Y SUB IN
U SUB IN
V SUB IN
ANREF1
ANREF2
Y SUB AD
U SUB AD
V SUB AD
A5V-1
TO B3(3/5)
RB017
RB018
RB013
RB014
RB015
RB016
22
:CHIP
22
:CHIP
22
:CHIP
22
:CHIP
22
:CHIP
22
:CHIP
D OUT
DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
DR0
DR1
DR2
DR3
DR4
DR5
DR6
DR7
DY0
DY1
DY2
DY3
DY4
DY5
DY6
DY7
CR0
CR1
CR2
CR3
CR4
CR5
CR6
CR7
Y7
Y6
Y5
Y4
Y3
Y2
Y1
Y0
VDOYCLVL
VDOCBCLVL
VDOCRCLVL
IC802
MT48LC2M32B2TG-7
64M DRAM
D5V
Q304
2SC2412K
BUFFER
R361
3.3k
:CHIP
R362
2.2k
:CHIP
R364
0
:CHIP
– 48 –
KP-48PS2/61PS2
RM-903
(8) Schematic Diagram of B3 (5/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
28
26
1.2
0.4
0.3
1.6
2.4
0
0
0
0
1.2
2.4
0.4
1.8
3.5
27
A5V-1A5V-1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
414243444546474849505152535455565758596061626364
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
EMI
G
EMI
G
EMI
G
1 2 3
45
R310
R324
R323
R321
R318
R313
R309
R311
R316
C333 R339
R350
FL306
R333
22
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
NFM51R10P107
#
SUB Y/C
VDOPLLHLD
VDO CLK IN
VDOCLAMP
U SUB AD
ANREF2
ANREF1
Y SUB AD
V SUB AD
XVDOHS
D5V
A5V-1
D3.3V-MID
C0
C1
C2
C3
C4
C5
C6
C7
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
B3 (5/5)
(PLL)
B-SS624.<AEP>-B3.-P5-05
TO B3(4/5)
TO B3(4/5)
TO B3(4/5)
TO B3(4/5)
NC
IN
GND
VCC
OUT
TO B3(4/5)
AVSS
CIN
CIO
AVDD
CRT
CRTS
DVSS
DVSS
C0
C1
C2
C3
C4
C5
C6
C7
DVDD
DVDD
B0
B1
B2
B3
B4
B5
B6
B7
DVSS
DVSS
A0
A1
A2
A3
A4
A5
A6
A7
TGR
AVSS
DVDD
DVDD
ARBS
ARB
AVSS
AIN
AIO
AVDD
ART
ARTS
BRTS
BRT
AVDD
BIO
BIN
AVSS
BRB
BRBS
AVDD
AVDD
TEST
XAOE
XBOE
XCOE
CTL0
CTL1
CTL2
SY
SEL
CLK
CLP
REF0
REF1
REF2
REF3
CLE
TEST
AVSS
AVSS
AVDD
CRBS
CRB
R351
#
IN B
IN A
GND
VCC
OUT Y
IC309
#
INVERTER
C378
0.01
B:CHIP
C306
#
R302
#
C302
#
C305
#
C309
#
RB301
#RB302
#
#
#
#
#
#
#
#
#
C330
#
C337
#
C353
#
FL305
#
Q301
#
BUFFER
R330
#
C338
#R335
#
C354
#R331
#
C346
#
Q302
#
BUFFER
R332
#
C355
#
R336
#
Q303
#
BUFFER
C339
#
FL304
#
C350
#
C340
#
C331
#
C327
#
R319
#
R305
#
C313
#
C310
#
IC302
#
SUB A/D CONVERTER
123
45
IC314
TC7SET08F
BUFFER
VCC
OUT Y
123
45
IC316
TC7SET08F
BUFFER
IN A
IN B
GND
VCC
OUT Y
123
45
IC315
TC7SET08F
BUFFER
IN A
IN B
GND
R334
0
:CHIP
C376
0.01
B:CHIP
C375
0.01
B:CHIP
C377
0.01
B:CHIP
C369
0.01
B:CHIP
C372
0.01
B:CHIP
1234567
8 9 10 11 12 13 14
IC313
TLC2932IPWR
SUB WRITE PLL
C368
0.01
B:CHIP
LOGIC VDD
SELECT
VCO OUT
FINA
FINB
PFD OUT
LOGIC GND
VCO VDD
R BIAS
VCO IN
VCO INHBIT
PFD INHBIT
NC
VCO GND
R372
22
:CHIP
R373
5.1k
:CHIP
R363
330
:CHIP
R365
820
:CHIP
R366
1k
:CHIP
R367
680k
:CHIP C373
0.01
B:CHIP
R368
680k
:CHIP
R369
0
:CHIP
R370
#
R371
2.2k
:CHIP
HP SUB PLL
TO B3(1/5)
C374
4.7
35V
:AL-CP
L304
10µH
:CHIP
L305
10µH
:CHIP
A5V-1
– 49 –
KP-48PS2/61PS2
RM-903
(9) Schematic Diagram of BD (1/4) Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
J
0
0
D+5V
D+5V
D+5V
D+5V
D+5V
D+5V
0.6
0
0.6
0
0.6
0
0
0
0
0
0
0
0
0
0
0
0
0
0
43
03.44.9
3.4
4.9
0
4.9
4.9
0
0
0
0
0
1.2
3.2
3.5
3.2
3.7(0)
4.2(0)
3.3(0)
*
4.9
4.9
4.8
4.8
4.9
4.6
4.9
4.8
4.9
4.8
4.8
0.8
0.6
0.4
2.3
2.5
3.6
3.4
1.1<1.6>(0.3)
1.2
1.6<1.3>(0.5)
3.2
2.2
1
2
00
4.8
4.8
4.8
4.8
1.1<1.9>(0.2)
123
4 5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
4142434445464748495051525354555657585960
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
1234567
8 9 10 11 12 13 14
1 2 3 4
5678
R2611
R2612
R2613
R2621
R2622
R2623
R2624
R2628
R2630
R2631
R2635
R2636
R2637
R2639
R2640R2644
R2647
R2650
R2651
R2652
R2653 R2654
R2655
R2657 R2661
R2662 R2664
R2666 R2667
R2668
R2671
R2672
R2673
R2674
R2675
R2676
R2677
R2678
R2679
R2680
R2681
R2682
R2685
R2688
R2689
R2694
R2698
R2699
R2701
R2703 R2704
R2705
R2707
R2708
R2714
R2715
C2603
C2608
C2609
C2610
C2611
C2612
C2623
C2624
C2625
C2626
C2627
C2628
C2633
C2635 C2639
C2652
C2659
C2662 C2663
C2680
C2681
L2601
L2610 L2611
L2615
L2625
L2633
Q2603
D2601
D2602
D2603
D2604
R2638
R2634
R2683
R2643
R2645
R2697
R2692
R2695
Q2602
Q2604
Q2607
Q2605
Q2601
IC2607
Q2606
IC2605
IC2606
IC2611
47
25V 47
25V
0.1 25V F:CHIP
0.1
25V
F:CHIP
47 25V
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.0022
B:CHIP
47
25V
0.1 B:CHIP
0.1
25V
F:CHIP 47
25V
0.1
B:CHIP
0.1
25V
F:CHIP
47
25V
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
47
25V
0.1
25V
F:CHIP
47 25V
1SS355
1SS355
1SS355
1SS355
Hm601 :CHIP
Hm601
:CHIP
10µH
:CHIP
Hm601
:CHIP
Hm601
:CHIP
10µH
:CHIP
DTC144EKA
INV
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
22k
:CHIP
1k :CHIP
27k :RN-CP
4.7k :CHIP
1k
:CHIP 6.8k
:RN-CP
1k
:CHIP
8.2k
:CHIP
1k
:CHIP
6.2k
:RN-CP
220
:CHIP
220 :CHIP
8.2k
:CHIP
220 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP 8.2k :CHIP
100 :CHIP
100 :CHIP
2.2k
:CHIP
100
:CHIP
1k :CHIP
220
:CHIP
1k
:CHIP
1k :CHIP
100 :CHIP
100 :CHIP
1k :CHIP
1k :CHIP
1k :CHIP
1k :CHIP
1k :CHIP
100 :CHIP
100 :CHIP
220 :CHIP
100 :CHIP
100 :CHIP
10k
:CHIP
2.2k
:CHIP
330 :CHIP
2.2k
:CHIP
2.2k
:CHIP
330
:CHIP
2.2k
:CHIP
470
:CHIP
330
:CHIP
1k
:CHIP
2.2k
:CHIP
4.7k
:CHIP
1k
:CHIP
4.7k
:CHIP
1k
:CHIP
#
:CHIP
4.7k
:CHIP
4.7k
:CHIP
2SA1037AK
BUFF
2SA1037AK
BUFF
2SA1037AK
BUFF
2SC2412K
ATT
2SC2412K
BUFF
SN74HC32ANSR
OSD MIX
2SC2412K
ATT
CM0006CF
DIGITAL-REGI
TC7SET08FU
INV
TC7W66FU
I2C BUS SW
D 5V
D 5V
D 5V
D 5V
YS
R
G
G
B
R
B
DRH
DGH
DBH
DRV
DGV
DBV
h
8C
GND
VCC
BHOUT
HDAVDD
HDOUT
XHDAOUT
BIASVSS
IREF
VCENT
BIASVDD
VOUT
XVDAOUT
VDAOUT
VDAVDD
RVOUT
GVOUT
VCOIN
PLLVSS
PDOUT
PLLVDD
TEST5
TEST4
BCLK
WCLK
YSOUT
HBLK OUT
DAVSS
DAVDD
DAOUT
DAREF
R2
R1
BVOUT
SHVDD
SHVSS
SHBIAS
TEST24
TEST25
TEST1
XSTOP
XWC
SDAM
SCLM
DVDD
DVSS
XOFDEF
XMUTE
XRESET
XBUSY
XACKM
SDAS
SCLS
HBLKIN
PWM1
YMOUT
BOUT
GOUT
ROUT
PWM2
VBLKIN
TEST3
ODDEVEN
TEST12
TEST13
TEST14
TEST15
TEST16
TEST17
TEST18
TEST19
TEST20
TEST21
TEST7
TEST8
TEST9
TEST6
TEST10
TEST11
RHOUT
GHOUT
TEST22
TEST23
VCC
GND
BPJ
GPJ
RPJ
GO6 RO6 BO6
RO
YSO
BO
GO
YSPJ
YMPJ
O/E
YS YM
V.BLK H.BLK
BD(1/4)
(DIGITAL REGI)
B-SS624.<AEP>-BD.-P1-05
TO BD1/4,BD2/4_1
TO BD1/4,BD2/4_2
TO BD1/4,BD2/4_3
TO BD1/4,BD2/4_4
TO BD1/4,BD2/4_5
TO BD1/4,BD2/4_6
TO BD1/4,BD2/4_7
TO BD1/4,BD2/4_8
TO BD1/4,BD2/4_9
TO BD1/4,BD2/4_10
TO BD1/4,BD2/4_11
TO BD1/4,BD2/4_12
TO BD1/4,BD2/4_13
TO BD1/4,BD2/4_14
TO BD1/4,BD2/4_15
TO BD1/4,BD2/4_16
TO BD1/4,BD2/4_17
TO BD1/4,BD2/4_18
TO BD1/4,BD2/4_19
TO BD1/4,BD2/4_20
TO BD1/4,BD2/4_21
TO BD1/4,BD2/4_22
TO BD1/4,BD2/4_23
TO BD1/4,BD2/4_25
TO BD1/4,BD2/4_24
TO BD1/4,BD2/4_26
TO BD1/4,BD2/4_27
TO BD1/4,BD2/4_28
TO BD1/4,BD2/4_29
TO BD1/4,BD2/4_30
TO BD1/4,BD3/4_31
TO BD1/4,BD3/4_32
TO BD1/4,BD3/4_33
TO BD1/4,BD3/4_34
– 50 –
KP-48PS2/61PS2
RM-903
(10) Schematic Diagram of BD (2/4) Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
RESET+5V
D+5V
D+5V
D+5V
D+5V
2.4
0.7
2.5
2.4
2.4
3.1
0.7
0.8
4.9
4.9 4.9
4.8
4.8
10
0
0
0
0
0.6
4.9
0
0
4.9
4.9
0.6
4.4
0.4
4.9
4.6
0.4
4.4
3.5
2.3
3.2
4.9
0.6
2.3
4.9
0.6
4.4
0
0
0
0
0
0
0
0
0
0
0
4.8
4.8
4.8
4.8
4.8
4.8
4.9
4.9
4.9
4.7
3.6
0.6
0.4
4.9
2.5
2.6
5.0
5.0
5.0
5.1
4.9
4.9
4.9
4.9
4.7
4.9
3.0
4.6
56
7
8
9
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748495051
52
53
54
55
56
57
58
59
60
61
62
63
64
123
4 5
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
1
2
3
4
5
6
7
12345678
910 11 12 13 14 15 16
1234567
8 9 10 11 12 13 14
1234
5 6 7 8
1234567
8 9 10 11 12 13 14
123
4 5
1234567
8 9 10 11 12 13 14
R2725
R2726
R2728
R2729
R2730
R2731
R2733
R2734
R2735
R2736
R2737
R2738
R2739
R2740
R2741
R2742
R2743
R2744
R2745 R2746
R2751
R2755
R2756 R2763
R2764
R2766
R2768
R2771
R2773
R2774
R2775 R2777 R2778 R2779
R2782 R2783
R2784 R2785 R2786
R2790
R2791
R2792
R2793
R2794
R2796
R2797
R2799 R2800
R2805
R2806
R2808
R2809
R2810
R2813
R2814
R2815
R2821
R2823
R2824
R2825
R2826
R2827
C2689
C2690
C2691 C2692
C2698
C2701
C2710
C2711
C2718
C2719
C2726
C2727
C2728
C2729
C2731
C2741
C2742
L2637 L2638
L2649
L2665
L2666
L2667
L2668
L2669
L2670
IC2618
IC2620
CN2601
C2757 C2758 C2759
C2760
C2781C2782
X2701
R2769
R2767
R2765
R2759
CN2602
IC2619
IC2612
IC2617
IC2621
Q2608
IC2615
IC2613
C2696
C2700
R2723
0.1
25V
F:CHIP
47
0.1
25V
F:CHIP
47
0.1
25V
F:CHIP
1
16V
F:CHIP
2.2
2.2
1
16V
F:CHIP
10
1
16V
F:CHIP
0.001
B:CHIP
0.001
B:CHIP
1
16V
F:CHIP
27p
CH:CHIP
15p
CH:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
22p
CH:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
7P
YEL-L
:S-MICRO
MC74HC4538AFEL
V/H.DELAY
MC74HC74AFEL
EVEN/0DD
Hm601
:CHIP Hm601
:CHIP
10µH
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
560
:RN-CP
2.2k
:RN-CP
100
:CHIP
220
:CHIP
100 :CHIP
680k
:RN-CP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
1k :CHIP
100 :CHIP
100 :CHIP
220 :CHIP
100 :CHIP
100 :CHIP
100
:CHIP
100
:CHIP 680k
:RN-CP
100
:CHIP
100
:CHIP
100
:CHIP 220
:CHIP
100
:CHIP 1k
:CHIP
100
:CHIP
1k
:CHIP
220
:CHIP
1k
:CHIP
100
:CHIP 220
:CHIP
100
:CHIP
10k
:CHIP
100
:CHIP 100
:CHIP 100
:CHIP 100
:CHIP
10k
:CHIP
0
:CHIP
100
:CHIP 470
:CHIP
470
:CHIP
4.7k
:RN-CP
10k
:CHIP
220 :CHIP
220 :CHIP
100 :CHIP
1k
:CHIP
4.7k
:CHIP
15k
:RN-CP 4.7k
:CHIP
10k
:CHIP
100 :CHIP
10k
:CHIP
10k
:CHIP
100 :CHIP
10k
:CHIP
100 :CHIP
10k
:CHIP
100
:CHIP
220 :CHIP
220 :CHIP
220 :CHIP
220
:CHIP 220
:CHIP
12MHz
AT-49
40P
WHT
:BTOB-P
CXP86324-027Q
PJED-CPU
0.1
25V
B:CHIP
TLC2932IPWR
PLL
PST9143NL
RESET
M24C32-WMN6T(A)
EEPROM
DTC144EKA
INV
TC7SET08FU
BUFF
SN74HC74ANSR
16MHZ PLL
0.1
25V
F:CHIP
220p
B:CHIP
3k
:RN-CP
D 5V
O/E
D 5V
D 5V
HS
SENSE 3
SENSE 2
SENSE 1
SENSE 0
+9V
AR RESET
-5V
B
G
R
YS
R
G
B
RH
RV
GH
GV
BH
BV
6
AE h
Ah
TO BD(4/4)
CN5015
TO BD(4/4)
TO JIG
GND
SCL
SDA
/BINT
PSCL
PSDA
D+5V
RE-YS
RE-R
RE-G
RE-B
HS
REGI MUTE
D FOCUS
V SHIFT
H SHIFT
+9V
+9V
+5V
+5V
-5V
-5V
HR
VR
HG
VG
HB
VB
GND
GND
GND
GND
GND
HP
VP
SDA
SCL
VS
D+5V
D+5V
NC
PJ SCL(NC)
PJ SDA(NC)
GND
GND
DISABLE
INV-VP(NC)
VCC
GND
DVDD
DGND
FIN-A
FIN-B
DGND
AVDD
RBIAS
AGND
NC
VCO OUT
VCO IN
PFD OUT
VCO INHIBIT
PFD INHIBIT
NC
E
E
VCC
RST
A0
A1
A2
E
VDD
WP
PSCL
PSDA
1CLR
1D
1CLK
1PR
1Q
GND
VCC
2CLF
2D
2CLK
2PR
2Q/1Q
/2Q
GND
ICR
IRS
1A
1B
1Q
GND
VCC
2Q
1Q
GND
2CR
2RS
2A
2B
2Q
VCC
2CLR
2D
2CK
2PR
2Q
2Q
1CLR
1D
1CK
1PR
1Q
GND
1Q
O VSHIFT
O KUMUPRT
O AREG SW
O AREG RST
O NVM STOP
O DREGI MUTE
O DREGI RST
MAIN SCL
O HSHIFT
I EXODD
O IIC SW
MAIN SDA
I DREG SDA
I VPULSE
GND
VDD
O YM
O YS
O I
O B
O G
O DREG SDA
DREG SCL
I DPJE SVA2
I DSCAN
I 5060
I WIDE
I FF
I DREG ACK
I DREG BSY
I DREG OVF
I JIG
I AREGI D4
I AREGI D3
I AREGI D2
I AREGI D1
I AREGI D0
O R
I DPJE SVA0
I DPJE SVA1
I EXLC
O XLC
I BINT
I HP
RESET
GND
O OSC
I VP
I EXPLL
I OSC
I AREGI D5
TO D(1/4)BOARD
-5V
5V
HP
HS
VS
VP
D5V
BNT
VCO
TO
BD(4/4)
TO BD(4/4)
R2828
#
:CHIP
BD
(2/4)
(PJED CPU)
B-SS624.<AEP>-BD.-P2-05
TO BD1/4,BD2/4_1
TO BD1/4,BD2/4_2
TO BD1/4,BD2/4_3
TO BD1/4,BD2/4_4
TO BD1/4,BD2/4_5
TO BD1/4,BD2/4_6
TO BD1/4,BD2/4_7
TO BD1/4,BD2/4_8
TO BD1/4,BD2/4_9
TO BD1/4,BD2/4_10
TO BD1/4,BD2/4_11
TO BD1/4,BD2/4_12
TO BD1/4,BD2/4_13
TO BD1/4,BD2/4_14
TO BD1/4,BD2/4_15
TO BD1/4,BD2/4_16
TO BD1/4,BD2/4_17
TO BD1/4,BD2/4_18
TO BD1/4,BD2/4_19
TO BD1/4,BD2/4_20
TO BD1/4,BD2/4_21
TO BD1/4,BD2/4_22
TO BD1/4,BD2/4_23
TO BD1/4,BD2/4_25
TO BD1/4,BD2/4_24
TO BD1/4,BD2/4_26
TO BD1/4,BD2/4_27
TO BD1/4,BD2/4_28
TO BD1/4,BD2/4_29
TO BD1/4,BD2/4_30
TO BD2/4,BD3/4_35
TO BD2/4,BD3/4_36
TO BD2/4,BD3/4_37
– 51 –
KP-48PS2/61PS2
RM-903
(11) Schematic Diagram of BD (3/4) Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
J
0
0.2(0)
0.2(0)
0.2(0)
0.2(0)
-5V
+5V
11
-5V
-5V
-5V
-5V
-5V
-5V
-5V
+5V
12
13
14
15
16
0
0
0
0
0
0
-0.2(0)
-0.2(0)
-0.2(0)
-0.2(0)
0
-0.1(0)
-0.1(0)
-0.1(0)
-0.1(0)
0
-0.2(0)
-0.2(0)
-0.2(0)
-0.2(0)
0
0
0
0
0
3.3
3.4
3.1(0)
0
0.1(0)
3.3
0
3.4
3.4(0)
0
0
3.3
3.4
3.1(0)
3.3
3.4
3.3
3.4
3.3
3.4
0
0
3.2(0)
0
4.1(0)
0
0
-0.2(0)
3.6(0)
-0.1(0)
-0.1(0)
-0.1(0)
1 2 3 4 5 6 7 8
910111213141516
1 2 3 4 5 6 7 8
910111213141516
1 2 3 4 5 6 7 8
910111213141516
1 2 3 4 5 6 7 8
910111213141516
1 2 3 4 5 6 7 8
910111213141516
1 2 3 4 5 6 7 8
910111213141516
1234
5 6 7 8
1234
5 6 7 8
1234
5 6 7 8
1234
5 6 7 8
1234
5 6 7 8
1234
5 6 7 8
R2601
R2602
R2603
R2606
R2607
R2608
R2609
R2610
R2625
R2629
R2632
R2641 R2646
R2648
R2649
R2658
R2659
R2663
R2665
R2669
R2684
R2690
R2691
R2693
R2706
R2709
R2710
R2712
R2716
R2717
R2719
R2720
R2721
R2732
R2747
R2750
R2752
R2753
R2758
R2760
R2761
R2762
R2781
R2787
R2789
R2803
R2804
R2807
R2811
R2812
R2818
R2831
R2832
R2834
C2601
C2602
C2604
C2607
C2613
C2615
C2616
C2617
C2618 C2619
C2620
C2621
C2622
C2631
C2636 C2637
C2640
C2641
C2643
C2644
C2645
C2647
C2648
C2649
C2650
C2651
C2655
C2656
C2658
C2660 C2661
C2666
C2667
C2668
C2670
C2673
C2674
C2675
C2678
C2679
C2683
C2685
C2686
C2693
C2694 C2695
C2697
C2699
C2705
C2706
C2707
C2708
C2709
C2713
C2714
C2715
C2716
C2717
C2720
C2721
C2724
C2725
C2730
C2733
C2737
C2738
C2739
C2740
C2744
C2745
C2746
C2747 C2748
C2749
C2753
C2754
C2755
C2756
L2602
L2605
L2606
L2608
L2609
L2612
L2616
L2617
L2618
L2619
L2621
L2622
L2626
L2627
L2628
L2629
L2634
L2635
L2636
L2639
L2640
L2643
L2645
L2646
L2647
L2648
L2652
L2653
L2654
L2657
L2658
L2659
L2661
L2663
L2664
IC2610
IC2625
IC2602
IC2604
IC2609
IC2614
IC2623
IC2601
IC2603
IC2608
IC2616
IC2622
L2656
47
25V 220p
CH:CHIP
0.1
25V
F:CHIP
0.001
CH:CHIP
47
25V
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.0022
CH:CHIP
0.1
25V
F:CHIP
47
25V
47
25V
0.001
CH:CHIP
47
25V 220p
CH:CHIP 47
25V
0.1
25V
F:CHIP 0.1
25V
F:CHIP
0.0022
CH:CHIP
0.1
25V
F:CHIP
47
25V
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
47
25V
0.001
CH:CHIP
47
25V
0.1
25V
F:CHIP
47
25V 220p
CH:CHIP
0.1
25V
F:CHIP
0.0022
CH:CHIP
0.1
25V
F:CHIP
47
25V
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.001
CH:CHIP
47
25V
47
25V
0.1
25V
F:CHIP
0.0022
CH:CHIP
0.1
25V
F:CHIP
47
25V 220p
CH:CHIP
47
25V
0.1
25V
F:CHIP
0.001
CH:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
47
25V
0.1
25V
F:CHIP
47
25V
0.0022
CH:CHIP
0.1
25V
F:CHIP
47
25V
47
25V 220p
CH:CHIP
0.001
CH:CHIP
0.1
25V
F:CHIP
47
25V
0.1
25V
F:CHIP
0.0022
CH:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
47
25V
47
25V
47
25V 220p
CH:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
47
25V
PCM56P-L
BH DAC
PCM56P-L
GH DAC
PCM56P-L
RH DAC
µPC4570G2-E2
BV FILTER & AMP
PCM56P-L
BV DAC
PCM56P-L
GV DAC
PCM56P-L
RV DAC
Hm601
:CHIP
10µH
:LB2016
Hm601
:CHIP
10µH
:LB2016
Hm601
:CHIP
Hm601 :CHIP
Hm601
:CHIP 10µH
:LB2016
10µH
:LB2016
Hm601
:CHIP
Hm601
:CHIP
Hm601 :CHIP
10µH
:LB2016
Hm601
:CHIP
10µH
:LB2016
Hm601
:CHIP
Hm601
:CHIP
Hm601 :CHIP
10µH
:LB2016
10µH
:LB2016
Hm601
:CHIP
Hm601
:CHIP
10µH
:LB2016
Hm601
:CHIP
Hm601 :CHIP
10µH
:LB2016
Hm601
:CHIP
10µH
:LB2016
Hm601
:CHIP
Hm601
:CHIP
Hm601 :CHIP
Hm601
:CHIP
Hm601
:CHIP
Hm601
:CHIP
Hm601 :CHIP
1k
:RN-CP
5.1k
:RN-CP
1k
:RN-CP
5.1k
:RN-CP
0
:CHIP
0
:CHIP
100 :CHIP
100 :CHIP
100 :CHIP
1k
:RN-CP
1k
:RN-CP
5.1k
:RN-CP 5.1k
:RN-CP
0
:CHIP
0
:CHIP
100 :CHIP
100 :CHIP
100 :CHIP
1k
:RN-CP
1k
:RN-CP
5.1k
:RN-CP
5.1k
:RN-CP
0
:CHIP
0
:CHIP
1k
:RN-CP
100 :CHIP
100 :CHIP
1k
:RN-CP
100 :CHIP
5.1k
:RN-CP
5.1k
:RN-CP
0
:CHIP
0
:CHIP
1k
:RN-CP
1k
:RN-CP
5.1k
:RN-CP
100 :CHIP
100 :CHIP
100 :CHIP
5.1k
:RN-CP
0
:CHIP
0
:CHIP
1k
:RN-CP
1k
:RN-CP
5.1k
:RN-CP
5.1k
:RN-CP
0
:CHIP
0
:CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
R2833 # :CHIP
µPC4570G2-E2
BH FILTER & AMP
µPC4570G2-E2
GH FILTER & AMP
µPC4570G2-E2
RH FILTER & AMP
µPC4570G2-E2
GV FILTER & AMP
µPC4570G2-E2
RV FILTER & AMP
10µH
:LB2016
R-5V
BCLK
R+5V
BH
GH
RH
BV
GV
RV
WCLK
RV
GV
BV
RH
GH
BH
DBH
DGH
DRH
DGV
DRV
DBV
+VCC
-VCC
-VCC
+VL
NC
BCLK
WCLK
DATA
-VL
+VCC
VPOT
IOUT
AGND
S.J
RF
VOUT
DGND
MSB AD
-VCC
+VL
NC
BCLK
WCLK
DATA
-VL
+VCC
VPOT
IOUT
AGND
S.J
RF
VOUT
DGND
MSB AD
-VCC
+VL
NC
BCLK
WCLK
DATA
-VL
+VCC
VPOT
IOUT
AGND
S.J
RF
VOUT
DGND
MSB AD
-VCC
+VL
NC
BCLK
WCLK
DATA
-VL
+VCC
VPOT
IOUT
AGND
S.J
RF
VOUT
DGND
MSB AD
-VCC
+VL
NC
BCLK
WCLK
DATA
-VL
+VCC
VPOT
IOUT
AGND
S.J
RF
VOUT
DGND
MSB AD
-VCC
+VL
NC
BCLK
WCLK
DATA
-VL
+VCC
VPOT
IOUT
AGND
S.J
RF
VOUT
DGND
MSB AD
+VCC
-VCC
+VCC
-VCC
+VCC
-VCC
+VCC
-VCC
+VCC
-VCC
BHO
GHO
RHO
GVO
RVO
RVI
GVI
BVI
RHI
GHI
BHI
DBH
BCLK
WCLK
DGH
DRH
DBV
DGV
DRV
BVO
R2757 # :CHIP
BD(3/4)
(REGI CORRECTION)
B-SS624.<AEP>-BD.-P3-05
TO BD1/4,BD3/4_31
TO BD1/4,BD3/4_32
TO BD1/4,BD3/4_33
TO BD1/4,BD3/4_34
TO BD2/4,BD3/4_35
TO BD2/4,BD3/4_36
TO BD2/4,BD3/4_37
– 52 –
KP-48PS2/61PS2
RM-903
(12) Schematic Diagram of BD (4/4) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
00.7
*
*
2.7
2.0
7.0
7.6
*
*
3.1
2.47.0
7.6
0
0
*
*
0*
0*
**
**
00
00
1234567
8 9 10 11 12 13 14
1
2
3
4
5
6
7
8
1234567
8 9 10 11 12 13 14
1
R2835
R2837
R2839
R2840
R2841 R2842
R2843
R2844
R2845
R2846
R2847
R2848
R2849
R2852
R2853
C2761
C2762
C2763 C2764
C2765
C2766
C2767
C2768 C2769
C2770
C2771
C2772
C2773
C2774
C2775
C2776
C2777
C2778
C2779
C2780
CN2604
D2610
D2611
D2615D2619
FB2601
FB2602
FB2603
FB2604
R2836
R2838
R2851
R2850
D2608
D2612
D2616
D2621
Q2614
D2613
D2620
IC2627
Q2610
Q2611
Q2612
Q2613
D2606
D2609
IC2626
D2617
D2623
D2624
D2607
D2605
D2614
D2618
D2622
CN2603
330p
CH:CHIP
0.47
16V
B:CHIP 47
16V 0.1
25V
F:CHIP
0.47
16V
B:CHIP
0.0039
B:CHIP
0.0039
B:CHIP
0.1
25V
F:CHIP 47
16V
330p
CH:CHIP
0.0039
B:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.0039
B:CHIP
47
16V
47
16V
330p
CH:CHIP
330p
CH:CHIP
0.47
16V
B:CHIP
0.47
16V
B:CHIP
1P
:FASTON
1SS355
1SS355
1SS3551SS355
0 :CHIP
0 :CHIP
0 :CHIP
0 :CHIP
100
:CHIP
1k
:CHIP
1k
:CHIP
100
:CHIP
10k
:CHIP 10k
:CHIP
0
:CHIP
10k
:CHIP
10k
:CHIP
1k
:CHIP
100
:CHIP
1k
:CHIP
100
:CHIP
2.2k
:CHIP
10k
:CHIP
750k
:CHIP
1.1M
:CHIP
1.3M
:CHIP
1.3M
:CHIP
UDZ-5.1B
PROT
UDZ-5.1B
PROT
UDZ-5.1B
PROT
UDZ-5.1B
PROT
2SC2412K
SW-1
UDZ-12B PROT
UDZ-12B
PROT
NJM2058M-TE2
BUFF
DTC144EKA
SW-2
DTC144EKA
SW-2
DTC144EKA
SW-2
DTC144EKA
SW-2
1SS355
PEAK HOLD
1SS355
PEAK HOLD
NJM2058M-TE2
1V CONV
& PEAK HOLD
UDZ-12B
PROT
1SS355
PEAK HOLD
1SS355
PEAK HOLD
UDZ-12B
PROT
UDZ-5.1B
PROT
UDZ-5.1B
PROT
UDZ-5.1B
PROT
UDZ-5.1B
PROT
8P
WHT
:S-MICRO
LOWER
UPPER
LEFT
RIGHT
-5V
+9V
SENSE 0
SENSE 1
SENSE 2
SENSE 3
+9V
AR RESET
-5V
TO BD(2/4)
TO BD(2/4)
GND
GND
GND
UPPER
LOWER
RIGHT
GND
LEFT
GND
TO SENSOR
TO CRT
BRACKET
BD
B-SS624.<AEP>-BD.-P4-05
(SENSOR SIGNAL RECEIVER)
(4/4)
VCC+VCC-
VCC+VCC-
L
R
UP
LO
RESET
9V
-5V
– 53 –
KP-48PS2/61PS2
RM-903
(13) Schematic Diagrams of CB and CG Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
3
3.9
3.8
10.7
180.5
187.8
183
2
3.8
4.5
3.8
3.9
3.2
3.2 4.1 11.6
11.1
11.1
11.7
1
B
B
B
1
1 2 3 4 5 6 7 8 9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
4
5
6
7
8
9
10
11
12
1
13
G1
G1
H2
H1
KBG1
G2
G1
GND
FGND
FV
1
2
3
4
5
6
SG7301
IC7301
C7304
R7317
R7320
R7306
R7302
R7321
C7303
C7302
R7308R7301
R7314 L7303
R7304
D7302
D7311
D7312
D7303
D7304
D7305
C7308
C7315
R7328
R7329 R7330
R7331
D7308
CN7301
R7332
C7305
D7306
D7307
R7313
L7304
L7301
CN7303
CN7302
R7310
R7311
SG7303
CN7304
C7306
C7311
NL7301
NL7303
NL7304 NL7305
TP7304
TP7303
R7318
Q7302
R7326
R7327 C7314
R7315
C7312
C7307
R7335
Q7301
R7324
R7307
C7318
TP7302
D7309
R7316
R7323 R7336
R7322
NL7302
C7313 C7309
R7309 R7319
R7312
CN7307
Q7303
Q7305
Q7306
J7301
2200
16V
MTZJ-13
BIAS
1SS83TD
PROT.4
1SS83TD
PROT.2
1SS83TD
PROT.1
MTZJ-13
BIAS
MTZJ-13
BIAS
TDA6111Q/N4
VIDEO OUT
4.7µH
:LAV35
100
1/2W
560k
1/2W
0
:CHIP
1k
1/2W
680k
1/2W
3.9k
330
1/2W
100
1/2W
33k
1/2W
47
1
6P
WHT
:S-MICRO MTZJ-13B
10k
:CHIP
56k
:CHIP 22k
:CHIP
1.8k
:CHIP
22k
:CHIP
0.1
25V
F:CHIP
1SS83TD
PROT.3
1SS355
220
:CHIP
47µH
:LAV35
470µH
:LAV35
9P
RED
:S-MICRO
330p
2kV
B
330p
2kV
B
9P
WHT
:S-MICRO
0
:CHIP
12k
:RN-CP
1P
ONE-TOUCH
0.1 25V F:CHIP
0.01
500V
E
0
:CHIP
2SA1037AK
PEAK
8.2k
:RN-CP
4.7k
:RN-CP
10
10
250V
4700p
500V
E
0
:CHIP
1k
:FPRD
2SA1037AK
BUFF
6.2k
:RN-CP
0
:CHIP
1
250V
100
:CHIP 1.5k
:CHIP
1k
:RN-CP
1SS355
100k
3W
:RS
2p
CK:CHIP
2.7k
:RN-CP
2.4k
:RN-CP
2.4k
:RN-CP
8p
CH:CHIP
:FASTON
2SC5510
MUTE
2SC2412K
VOLTAGE DET.
2SA1037AK
MUTE DRV.
G2
H(+)
H(-)
+12V
NC
IK
RS
MUTE
H(+)
H(-)
NC
NC
NC
GND
+200V
BS
RS
GND
NC
+200V
NC
NC
KB
GND
GND
6
7
H
8K
410 G4G2G1
G3 G5
1,2
(B)
V903
B-SS624.<AEP>-CB.-05
(B CRT DRIVE)
CB
TO D(2/4)BOARD
CN5006
TO CG BOARD
CN7203
B OUT
TO CG BOARD
CN7202
VB
12V
V-IN
E
IK
210V
VF
V-OUT
VOF
TO FOCUS PACK
HV BLOCK
TUBE
TO FOCUS PACK
GND
3
+200V
+12V
3.9
3.8
10.5
154.3
158.6
155.3
4.5
3.8
13.8
3.4
5.3
0
3.4
4.1
1
2
G
B
G
G
G
G
1
1 2 3 4 5 6 7 8 9
1
2
3
4
5
6
1
2
3
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
4
5
6
7
8
9
10
11
12
1
GND
G1
13
G1
H2
H1
KGG1
G2
G1
FGND
FV
C7202
C7207
SG7201
L7201
L7203
R7205
R7209
C7203
IC7201
R7216
SG7203
R7218
R7201
R7204
L7204
R7208
D7202
D7204
D7205
D7206
R7211
C7209
C7206
C7208
C7205
CN7204
CN7201
CN7202
R7225
D7208
CN7203
R7217
CN7205
D7203
R7207
R7202
NL7201
NL7202
NL7204 NL7205
R7212
TP7205
CN7210
R7226
TP7203
R7206
R7222
Q7202
R7223
C7214
R7214
C7211
C7204
R7229
Q7201
R7203
R7210
R7219
C7216
TP7202
R7213
R7220
R7235
R7215
R7224
NL7203
C7212C7213
CN7208
Q7203
J7201
2200
16V
MTZJ-13
BIAS
1SS83TD
PROT.1
1SS83TD
PROT.2
1SS83TD
PROT.3
TDA6111Q/N4
VIDEO OUT
470µH
:LAV35
4.7µH
:LAV35
47µH
:LAV35
560k
1/2W
100
1/2W
33k
1/2W
220
:CHIP
680k
1/2W
3.9k
330
1/2W
1k
1/2W
0.01
500V
E
47
0.1
25V
F:CHIP
9P RED :S-MICRO
7P
WHT
:S-MICRO
6P WHT :S-MICRO
1SS355
22k
:CHIP
9P RED :S-MICRO
330p
2kV
B
330p
2kV
B
0
:CHIP
1P
ONE-TOUCH
1SS83TD
PROT.4
12k
:RN-CP
0
:CHIP
2k
:RN-CP
3P
WHT
:S-MICRO
100
1/2W
0.1
25V
F:CHIP
6.2k
:RN-CP
0
:CHIP
2SA1037AK
PEAK
6.8k
:RN-CP
10
0
:CHIP
10
250V
4700p
500V
E
1k
:FPRD
2SA1037AK
BUFF
470k
:RN-CP
2.2k
:RN-CP
0
:CHIP
1
250V
100
:CHIP
1.5k
:CHIP
100k
3W
:RS
1k
:RN-CP
5.1k
:RN-CP
7p
CH:CHIP
2p
CK:CHIP
:FASTON
2SC5510
MUTE
G2
NC
NC
+12V
IK
+12V
IK
RS
NC
RS
NC
MUTE
MUTE
GND
NC
+200V
NC
GND
GND
GND
GND
NC
+200V
NC
GND
KG
H(+)
H(-)
B OUT
H(+)
H(-)
6
7
H
8K
410 G4G2G1
G3 G5
1,2
(G)
V902
TO HV BLOCK
TUBE
TO FOCUS PACK
TO FOCUS PACK
TO CR BOARD
CN7103
TO D(1/4)BOARD
CN5401
TO CB BOARD
CN7302
TO CB BOARD
TO CR BOARD
CN7102
CN7301
(G CRT DRIVE)
B-SS624.<AEP>-CG.-05
CG
VB
12V
V-IN
E
IK
210V
VF
V-OUT
VOF
B OUT
G OUT
GND
GS
NC
GND
– 54 –
KP-48PS2/61PS2
KRM-903
(14) Schematic Diagram of CR Board
1234567
A
B
C
D
E
F
G
H
I
0
3.9
3.8
10.7
168.2
171
169.4
10.3
4.6
0
3.8
3.1
3.9
4.5
3.8
+200V
+12V
2
3
1
R
R
R
R
R
B
G
1
1 2 3 4 5 6 7 8 9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
4
5
6
7
8
9
10
11
12
1
GND
G1
13
G1
H2
H1
KR
G1
G2
G1
FGND
FV
C7102
C7108
SG7101
R7101
R7105
R7119
R7118
R7106
R7117
L7104
L7102
R7121
CN7103
R7103
R7102
D7102
D7103
D7105
D7106
C7104
D7109
D7110
R7120
C7105 R7108 R7112 L7103
CN7102
SG7103
R7124
CN7104
C7106
C7107
D7104
IC7101
C7110
R7128
NL7104
NL7101
NL7103
NL7105
R7114
TP7105
TP7103
R7113
C7111
C7103
R7129
CN7101
R7130
R7132
R7133
R7134
R7123
R7107
R7110
D7108
Q7101
C7118 C7116
TP7102
R7116
R7122
R7135
R7115
NL7102
C7112
C7114
Q7104
CN7107
Q7103
R7111
R7109
J7101
R7131
2200
16V
47
9P
RED
:S-MICRO
MTZJ-13
BIAS
1SS83TD
PROT.4
1SS83TD
PROT.1
1SS83TD
PROT.2
MTZJ-13
BIAS
MTZJ-13
BIAS
470µH
:LAV35
47µH
:LAV35
560k
1/2W
4.7
:FPRD
0
:CHIP
33k
1/2W
100
1/2W
330
1/2W
100
1/2W
1k
1/2W
0
:CHIP
22k
:CHIP
680k
1/2W
3.9k 4.7µH
:LAV35
7P
WHT
:S-MICRO
330p
2kV
B
330p
2kV
B
10k
:CHIP
1P
ONE-TOUCH
0.1
25V
F:CHIP
0.1 25V F:CHIP
1SS83TD
PROT.3
TDA6111Q/N4
VIDEO OUT
0.01
500V
E
33k
:RN-CP 2.4k
:RN-CP
10
250V
4700p
500V
E
0
:CHIP
1k
:FPRD
9P
WHT
:S-MICRO
1SS355
2SA1037AK
BUFF
6.2k
:RN-CP
2.2k :RN-CP
0
:CHIP
6.8k
:CHIP
0
:CHIP
150k
:RN-CP
1k
:CHIP
1
250V
0.1
25V
B:CHIP
100
:CHIP
1.5k
:CHIP
1k
:RN-CP
100k
3W
:RS
7p
CH:CHIP
2p
CK:CHIP
2SA1037AK
IK BUFF
:FASTON
2SC5510
MUTE
220
:CHIP
12k
:RN-CP
1k :CHIP
G2
NC
RS
NC
+12V
IK
+12V
IK
MUTE
GND
NC
+200V
NC
GND
GND
GND
GND
GND
KR
GND
H(+)
H(-)
B OUT
G OUT
CR
B-SS624.<AEP>-CR.-05
6
7
H
8K
410 G4G2G1
G3 G5
1,2
V901
(R)
TO FOCUS PACK
TO FOCUS PACK
TO CG BOARD
CN7204
TO CG BOARD
CN7201
TO E BOARD
CN4500
VB
12V
V-IN
E
IK
210V
VF
V-OUT
VOF
(R CRT DRIVE)
TO HV BLOCK
TUBE
R OUT
G OUT
B OUT
GND
– 55 –
KP-48PS2/61PS2
KRM-903
(15) Schematic Diagram of D (1/4) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
4.6
0
9.5
1.2
1.2
0.3
0.3
1.0
-0.4
0.1
0.1
0.4
0.4
1.1
1
23
8.9 12.1
1.2
1.8
4.7
3.4
660
11.5
11.0
2.8
2.2
0
4.4
12.1
4.4
12.1
7.1
7.0
0
0
07.4
0
0
0
0
-2.2
1 2 3 4 5 6 7
891011121314
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
IO G
1
2
3
1
2
3
4
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1234567
8 9 10 11 12 13 14
R5731
C5719
R5745
R5747
R5748
Q5704
R5749
R5750
CN5018
C5713 R5726
R5725
R5729
R5734
C5716
C5717
R5738
R5723
C5712
D5008
R5751
R5762
D5002
R5048
Q5705
R5739
R5737
C5133 C5135 C5145
C5136
C5718
D5724
R5740
C5727
R5727
C5728
D5721
D5719
IC5703
R5724
R5730
D5704
Q5009
D5006
CN5016
CN5017 CN5015
C5760
C5714
C5715
R5758 R5759
C5720
R5735
R5728
R5746
R5405
R5410
R5415
C5401 NL5402
CN5401
CN5402
IC5401
R5420
R5422
C5407
SG5702
C5403
C5404
C5405
C5402
C5406
R5419
R5765
D5731
R5718
R5732
C5002
C5020
Q5006
R5023
R5013
R5004
C5217
C5218
D5701
R5764R5763
R5744
R5412
R5416
R5411
R5406
R5401
R5408
R5409
D5401
CN5019
Q5709
Q5401
Q5403
IC5107
Q5402
R5421
100
25V 0.0022
B:CHIP 0.0022
B:CHIP 100
25V
47
47
25V
4700p
B
4700p
B
4700p
B
47 25V 0.1
:PT
1
:MPS
100
25V
0.001
:PT
0.01
:PT
100
25V
100
0.0047 2kV E
100
0.022
:PT
0.01 B:CHIP
0.01
B:CHIP
3300p B:CHIP
40P
:BTOB-S
20P
AMP20PMAL
20P
AMP20PMAL
8P
WHT
:S-MICRO
3P
WHT
:S-MICRO
15P
:B-TO-B-P
1SS133T
1SS133T
CLAMP
1SS133T
PEAK.DET
1SS133T
MTZJ-15
MTZJ-15
RGP02-20EL
NJM2058D
DF/SHADING AMP
NJM2058D
DF AMP
2SA1037AK
PROT.DELAY
2SC3311A
DF AMP
2SC5022-02
DF AMP
470
:CHIP
100
1/2W
100
1/2W
5.6k
:CHIP
1k
:CHIP
15k
:CHIP
220k
:CHIP
10k
:CHIP
100
68k
:CHIP
8.2k
:CHIP
33k
:CHIP
1.2k
:CHIP
100
:CHIP
15k
10k
:CHIP
3.3k
:CHIP 2.2k :CHIP
47k
:CHIP
100
:FPRD
100
:CHIP
1k
2W
:RS
120k
:CHIP
22k
3W
:RS
22k
3W
:RS
470
:CHIP 100
:CHIP
100
:CHIP
1k
1/2W
22k
3W
:RS
22k
3W
:RS
100
1/2W
:RC
1k
:CHIP
1SS133T
4.7k
100k
4.7
4.7k
:CHIP
47k
:CHIP
47k
:CHIP
2.2
DTC144EKA
H-DEF-PROT
0.01
F
0.01
F
1SS133T
10k
:CHIP
4.7k
:CHIP
47k
:CHIP
18k
:RN-CP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
MTZJ-10B
S-TX
4P
WHT
:S-MICRO
2SC2412K
PROT
2SD601A
BUFF
DTC144EAK
ABL SW
NJM78M09FA
+9V.REG
2SB709A
INV
47k
:CHIP
+12V
-5V
-12V
H-PROT
+12V
DEF +9V
PIN
+5V
-5V
+12V
-12V
ABL
DEF +9V
+5V
GND
HD
1
2
3
6
7
8
9
2
3
6
7
8
9
HR
VR
HG
VG
VB
HB
VD+
VD-
1
HV
HV(R)
HV(G)
HV(B)
1000M
1000M
3000P
T5103
R
G
B
TO BD(2/4)BOARD
CN2602
V-SHIFT
H-SHIFT
GND
GND
RE-YS
RE-R
RE-G
RE-B
SCL
SDA
DISABLE
D+5V
D+5V
GND
-5V
-5V
D.FOCUS
GND
HR
VR
HG
VG
HB
VB
HS
GND
VP
HP
VS
+5V
+5V
GND
GND
REGI MUTE
+9V
+9V
NC
PJ SCL(NC)
PJ SDA(NC)
INV-VP(NC)
TO A(3/3)BOARD
CN1502
+5V STBY
GND
+33V
GND
ABL
HP
RE-R
RE-G
RE-B
RE-YS
GND
SCL
SDA
DISABLE
+5V STBY
GND
VCOMP
-12V
V SYN
H SYN
TO A(3/3)BOARD TO A(3/3)BOARD
CN1501CN1503
P-CONT
H-SHIFT
GND
E-W
GND
GND
GND
HD
GND
VD(+)
GND
VD(-)
GND
GND
+9V
+12V
GND
GND
DEF +9V
V-PROT
HV-PROT
GND
VTIM
D+5V
NC
SCP(NC)
RGB AFC(NC)
EXT PARA(NC)
P-CONT
P-CONT
GND
HV-REG
TO D(4/4)BOARD
(HV BLOCK)
TO PICTURE TUBE
V901(R)
TO PICTURE TUBE
V902(G)
TO PICTURE TUBE
V903(B)
TO DS BOARD
CN3501
TO CG BOARD
CN7201
DF(+)
+5V
-5V
+12V
-12V
BS(H)
RS(H)
GS
NC
GND
ABL(+)
DF(-)(NC)
GND
GND
GND
GND
GS(V)(NC)
VCOMP(NC)
D5001
1SS133T
CLAMP
C5001
47
16V
C5011
220
16V
D5402
MM3Z2V4T1
D
(1/4)
(HV,SHADING/DF AMP)
B-SS624.<AEP>-D..-P1-05
TO D1/4,D3/4_20
TO D1/4,D3/4_21
TO D1/4,D3/4_22
TO D1/4,D3/4_23
TO D1/4,D3/4_24
TO D1/4,D3/4_25
TO D1/4,D3/4_26
TO D1/4,D3/4_27
TO D1/4,D3/4_28
TO D1/4,D3/4_29
TO D1/4,D3/4_30
TO D1/4,D2/4_1
TO D1/4,D2/4_2
TO D1/4,D2/4_3
TO D1/4,D2/4_4
TO D1/4,D2/4_5
TO D1/4,D2/4_6
TO D1/4,D2/4_7
TO D1/4,D2/4_8
TO D1/4,D2/4_9
TO D1/4,D2/4_10
TO D1/4,D2/4_11
TO D1/4,D2/4_12
TO D1/4,D2/4_13
TO D1/4,D2/4_14
TO D1/4,D2/4_15
TO D1/4,D2/4_16
TO D1/4,D2/4_17
TO D1/4,D2/4_18
TO D1/4,D2/4_19
– 56 –
KP-48PS2/61PS2
KRM-903
(16) Schematic Diagram of D (2/4) Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
9.6
26.6
9.6
7
0.1
0.8 3.2 1.8 8.2 7.8
1.8
2.9
0.9
1.9
1.9
2.7
10.1
3.4
8
133.9
-1.7
9
-0.2
219
11
10
0
0.6
13.8
6.6
1.1 -12.8
0.2
13.7
1.1
4
5
6
0
0
-0.3
0
0
0
-0.3
3.5
3.5
3.5
3.4
3.4 3.4
3.7
3.3
1
2
3
4
5
S
1 2 3 4 5 6 7
1 2 3 4
5678
1
1
2
1
2
3
1
2
3
4
5
6
7
8
9
1 2 3 4 5 6 7
891011121314
13
4
5
6
7
1
2
3
4
1 2 3 4 5 6 7
891011121314
1
2
3
1
2
3
2
4
9
6
1
Q5102
D5107
C5138
C5141
D5114
C5142
C5301 R5302
C5302
D5302
R5304
C5304
R5306
IC5301
Q5302
R5307
Q5303
R5308
R5309
R5310
R5311
R5312
R5313
R5314
L5301
IC5302
R5316
C5308
R5317
C5310
C5312
R5318
D5303
R5319
C5315
R5320
C5316 C5320
C5321
C5323
IC5303
R5324
R5326
C5326
C5328
R5335
L5303
R5337
C5331
R5341
CN5004
R5122
C5311
R5303
C5307
L5101
D5108
R5101
D5101
C5115 C5158
C5137
C5130
CN5006
L5302
R5340
R5331
C5318
C5332 C5313 C5317
C5113R5112
R5171
D5304
D5115
R5330
R5338
R5321
R5323
R5328
CN5020CN5001 CN5002
C5119
D5306D5301
D5307
C5314
C5305
D5309
D5308
C5303
C5333
R5141
R5136
R5138
R5305
R5325
R5339
C5120
R5140
NL5101 NL5102
C5143
R5224
C5207
R5227
IC5201
R5211
C5204
R5219
R5210
D5205
R5213
R5212
D5207
D5201
D5204
R5203
R5201
R5214
R5217
R5205
R5204
C5206
C5205
C5211
R5215
R5209
D5203
R5220
D5202
R5222
L5201
R5226
JR5301
R5315
R5230
R5232
R5234
C5215
C5334
R5344
R5345
JR5303
R5216
R5329
R5221
R5229
C5214
R5202
L5105
R5143
R5139
D5116
T5101
C5127
C5117
R5119 R5120
R5115
D5208
R5235
R5225
C5209
R5218
R5172 C5103
C5112 C5123
R5228
R5146 R5147
FB5102 FB5103
Q5104
C5140
L5104
C5216
T5102
T5104
R5231
R5236 C5223
C5224 C5225
C5105
R5223
R5233
C5118
CN5003
C5102
C5226
C5329
C5327
R5149
C5208
PS5101
Q5105
R5206
Q5201
Q5106
0.047
250V
:MPS
100
160V 680p
2kV
B
680p 2kV B
0.82
250V
:MPP
0.0047
400V
:MPS
22
0.1
250V
:MPS
100p
500V
B
0.82
250V
:PP
100
160V
100
16V
0.1
:PT
1
22
0.1
:PT
10
47
25V
100
25V
100 16V
470p
B:CHIP 0.1
100V
:PT
0.1 25V B:CHIP
1
10
1
:MPS
0.01
B:CHIP
100
16V
220
10
0.22
100V
:PT
47
16V
0.01
B:CHIP
1000
47p
CH:CHIP
0.01
B:CHIP 1000
0.01
B:CHIP
1
0.01
B:CHIP
0.01 B:CHIP
1
3P
BLK
:S-MICRO
3P
:MINI LOCK 1P
:FASTON
9P
WHT
:S-MICRO
3P
YEL
:S-MICRO
MTZJ-36B
ERD08M-15
H-DAMP1
FMG-36S
H-DAMP2
ERC38-06
EL1Z-V1
1SS133T
HV.REF
MTZJ-5.1B
MTZJ-15
PROT
MTZJ-7.5B
HV.REF
1SS133T
HV.REF
1SS133T
PROT
MTZJ-15
1SS133T
PROT
D5305
1SS133T
PROT
GP08DPKG23
PEAK DET
GP08DPKG23
MTZJ-15 MTZJ-15
MTZJ-24
MTZJ-24
µPC339G2-T2
PROT
CA0007AM
V-SIZE COMP.
STV9379
V OUT
LM358DR
LPF
0
:CHIP
0
:CHIP
100µH
:LHL10
47µH :LAV35
8.2µH
:LHL08
JW(5)
JW(5)
2SC2688-LK
H-OUT-DRIVE
2SA1037AK
PROT DELAY
2SC2412K
V-DEF PROT
33k
3W
:RS
3.3k
10
3W
:RS
8.2k
:RN
33k
:RN
15k
:RN
100
3W
:RS
10k
2.7k
:CHIP
47k
1W
:RS
2.7k
:CHIP
2.7k
:CHIP
120
:RN-CP
470k
:CHIP
22k
:CHIP
8.2k
:CHIP
47k
:CHIP
8.2k
:CHIP
47k :CHIP
470k
8.2k
:CHIP
12k
:CHIP
220k
:CHIP
220k
:CHIP
100
:FPRD
47k
:CHIP
1M
1/2W
100k
:CHIP
47k
:CHIP
1k
:CHIP
10k
:CHIP
27k
:CHIP
22k
:CHIP
6.2k
:RN-CP
10k
:RN-CP
47k
:CHIP
2.2
1W
:RS
100k
:CHIP
2.2
1W
:RS
10k
:CHIP
10k
:CHIP
27k
:CHIP
10k
:CHIP
220
3W
:RS
47k :CHIP
1k
:CHIP
100k
:CHIP
33k
:CHIP
1.5
:FPRD
47k
:CHIP
27k
:CHIP
JW(5)
6.2k
:RN-CP
10k
:RN-CP
47k
:CHIP
100
:CHIP
0
:CHIP
10k
:CHIP
680k
:CHIP 680k
:CHIP
0
:CHIP 100
0.47
:FPRD
0.47
:FPRD
680k
:CHIP
680k
:CHIP
3.3k
:CHIP
680
:CHIP
470
16V
1k
:CHIP
1.5
3W
:RS
6.8k
3W
:RS
8.2k
3W
:RS
RGP15GPKG23
10k
:RN-CP
1k
:CHIP
1
100p
500V
B
0.022
630V
:PP
68
3W
:RS
68
3W
:RS
1.5mH
680p 2kV B 9100p
1.2kV
10
250V
0.001
CH:CHIP
1SS133T
10mH
2.7k
1W
:RS
47
1/2W
:FPRD
1k
JW(5)
15k
:RN-CP
HDT
0.01
F
4.7k
:CHIP
2SC5047-YB
H-OUT
HLC
PMT
100p
CH
1
47 0.01
B:CHIP
4.7k
:CHIP
100p
CH
0.0047
100V
:PT
2P
:LARGE
22k
:CHIP
100
100p
CH:CHIP
100p
CH:CHIP
2200p
B:CHIP
100
0.022
B:CHIP
1A
2SK2251
PIN AMP
12Ok
:CHIP
2SC2412K
PROT
2SA1309A
BUFF
+15V
-15V
ABL
V+
V-
12V
PROT
HP-IN
ABL
RS
BS
+12V
P/N OUT D
PIN OUT G
GND
HD
VD-
VD+
R
R9901
H(+)
H(-)
NC
GND
NC
NC
BS
RS
TO CB BOARD
CN7303
NC
V DEF
GND
GND
+135V
R1(2)
R1(1)
GND
+135V
GND
NC
TO CRT BRACKET
V RET
TO ZB BOARD
CN7803
TO ZG BOARD
CN7607
TO G(1/2)BOARD
CN6304
VCC
FLY
GEN
+200V
C5319
470
25V
D(2/4)
(H/V DEF)
B-SS624.<AEP>-D..-P2-05
TO D2/4,D4/4_31
TO D2/4,D4/4_32
TO D2/4,D4/4_33
TO D2/4,D4/4_34
TO D2/4,D4/4_35
TO D2/4,D3/4_36
TO D2/4,D3/4_37
TO D2/4,D4/4_38
TO D2/4,D4/4_39
TO D2/4,D4/4_40
TO D1/4,D2/4_1
TO D1/4,D2/4_2
TO D1/4,D2/4_3
TO D1/4,D2/4_4
TO D1/4,D2/4_5
TO D1/4,D2/4_6
TO D1/4,D2/4_7
TO D1/4,D2/4_8
TO D1/4,D2/4_9
TO D1/4,D2/4_10
TO D1/4,D2/4_11
TO D1/4,D2/4_12
TO D1/4,D2/4_13
TO D1/4,D2/4_14
TO D1/4,D2/4_15
TO D1/4,D2/4_16
TO D1/4,D2/4_17
TO D1/4,D2/4_18
TO D1/4,D2/4_19
– 57 –
KP-48PS2/61PS2
KRM-903
(17) Schematic Diagram of D (3/4) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
14
-18.5
0
0.2
0.2
0.1
0.1
0.2
0.5
0.1
0.6
0.6
0.6
12 13
0
0
-0.1
-0.1
-0.2
-0.2
-0.2
-0.2
0.1
15 16 17
0.7
1.3
0.7
0.6
-7.9
9.6
-5.1
5.0
-14.1 -12.0
13.8 12.1
1.3
-18.4
1
2
3
4
1
2
3
4
1
2
3
4
IO
G
IO
GIO
G
IO
G
1
2
3
4
5
6
7
8
9
10
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
R5507
R5508
R5509
R5510
R5513
R5514
R5515
R5516
R5517
R5518
R5521
R5522
R5525
R5527
R5529
R5530
R5533
R5534
R5535
R5536
R5538 R5542 R5546
R5547
R5548
R5552
R5553
R5554
R5556
R5557
R5558
L5502
R5559
R5560
R5562
R5564
R5567
R5568
L5107
L5108
C5150
C5151
C5163
C5164
C5165
C5166 C5168 C5170 C5173 C5175
CN5010
R5504
R5505
R5506
R5503
R5502
R5501
PS5501
PS5502
R5561
R5537 R5541 R5545 R5551 R5555
IC5502
IC5501
R5566
R5569
R5570
R5565
L5503
L5504
R5528
R5526
R5531
R5511
R5519 C5521
R5523
R5524
L5501
R5532
C5522
R5520
R5512
C5167 C5172 C5174 C5176
C5149
C5148
IC5104
IC5103
DP5001
PS5504
PS5503
PS5550
PS5540 PS5544
PS5549
PS5543
PS5539
C5507
C5508
C5509
C5510
C5512
C5511
C5529
C5530
CN5012
CN5011
R5772
CN5013
IC5105
IC5106
R5166 R5174
R5173 R5175
C5219 C5220
C5221 C5222
Q5504
Q5503
Q5506
R5563
Q5505
C5528
C5524
C5520C5518
Q5502
C5527
C5523
C5519C5517
Q5501
470
25V
470
25V
0.0022
B:CHIP
0.0022
B:CHIP
0.0022
B:CHIP
0.0022
B:CHIP
47
47
47
47 0.1
:MPS
0.1
:MPS
0.1
:MPS
0.1
:MPS
47
47
100p
CH
100p
CH
100p
CH
100p
CH
100p
CH
100p
CH
0.1
:PT
0.1
:PT
0.01
:PT
0.01
:PT
4P
RED
:S-MICRO
4P
BLK
:S-MICRO
4P
YEL
:S-MICRO
10P
RED
:S-MICRO
NJM7812FA
+12V.REG
NJM79M12FA
-12V.REG
STK392-020
CONV.OUT
STK392-020
CONV.OUT
47µH
:LHL08
47µH
:LHL08
47µH
:LHL08
47µH
:LHL08
47µH
:LHL08
47µH
:LHL08
5A
5A
5A
5A
3.15A
3.15A
3.15A
3.15A
3.15A
3.15A
100
100
100
100
100
100
3.3k
3.3k
3.3k
3.3k
1k
1k
3.3k
JW(5)
3.3k
JW(5)
1k
1k
10k
10k
4.7
1/2W
:RN
4.7
1/2W
:RN
100
10k
4.7
1/2W
:RN
100
4.7
1/2W
:RN
10k
4.7
1/2W
:RN
4.7
1/2W
:RN
1k
1k
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
4.7
1/2W
:RN
10k
10k
10k
10k
10k
10k
10k
10k
10
3W
:RS
10
3W
:RS
10
3W
:RS
10
3W
:RS
NJM78M05FA
+5V REG
NJM79M05FA
-5V REG
0.01
F0.01
F
0.01
F
0.01
F
2SC3311A
REGI MUTE
2SA1309A
REGI MUTE
2SC3311A
REGI MUTE
10k
2SA1309A
REGI MUTE
220
470
22022
2SC3311A
SW
220
470
22022
2SC3311A
SW
-12V
+12V
-5V
+16.5V
-16.5V
+5V
+22V
-22V
HR
VB
HB
HG
VG
VR
VB
HB
HG
+35 -35 -35 +35 +P -P -P +P -P
+35 -35 -35 +35 +P -P -P +P -P
VG
VR
HR
+22V
-22V
P.CONT
PROT
GND
GND
+6.5V
CN5009-5007
GND
+15V
-15V
R-H SUB DEF
R-V SUB DEF
R-V SUB RET
R-H SUB RET
G-H SUB DEF
G-V SUB DEF
G-V SUB RET
G-H SUB RET
B-H SUB DEF
B-V SUB DEF
B-V SUB RET
B-H SUB RET
TO ZB BOARD
CN7802
TO ZG BOARD
CN7603
TO ZR BOARD
CN7404
TO G(2/2)BOARD
CN6302
D(3/4)
(CONVERGENCE OUT)
B-SS624.<AEP>-D..-P3-05
TO D1/4,D3/4_20
TO D1/4,D3/4_21
TO D1/4,D3/4_22
TO D1/4,D3/4_23
TO D1/4,D3/4_24
TO D1/4,D3/4_25
TO D1/4,D3/4_26
TO D1/4,D3/4_27
TO D1/4,D3/4_28
TO D1/4,D3/4_29
TO D1/4,D3/4_30
TO D2/4,D3/4_36
TO D2/4,D3/4_37
TO D3/4,D4/4_41
TO D3/4,D4/4_42
TO D3/4,D4/4_43
TO D3/4,D4/4_44
– 58 –
KP-48PS2/61PS2
KRM-903
(18) Schematic Diagram of D (4/4) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
12.0
0
0
12.1
0
0
672
6.5
5.9
HV1
11
MV
4
2
9
8
10
5
6
7
3
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
R5753
R5754
Q5706
R5755
R5756
D5727
C5722
C5147
L5111
Q5707
D5726
C5146
D5117
C5721
R5156
R5155
D5118
R5163
R5148
R5153
R5154
R5757
R5768
R5164
R5769
R5770
R5771
C5759
D5732
L5109
R5152
R5162
C5711
C5171
D5122
D5121
C5160
C5159
NL5103
R5169
C5153
C5152
CN5014
CN5009
CN5008
CN5007
R5161
R5160
R5159
R5157
R5158
T5103
Q5710
Q5711
C5104
47
250V
470p
500V
B
330
16V
220
16V
10
RGP10GPKG23
200V-RECT
RGP15GPKG23
1SS133T
1SS133T
G2 MUTE
1SS133T
JW(5)
2SA1309A
G2 MUTE
2SC4634LS
G2 MUTE
0.47
:FPRD
0.68 :FPRD
220k
1/2W
68k
1/2W
:RN
JW(5)
1.8
3W
:RS
10
:FPRD
4.7k
:CHIP
10k
:CHIP
4.7k
:CHIP
4.7k
:CHIP
100k
1/2W
:RC
10k
10k
:CHIP
10k
:CHIP
100k
:CHIP
3.3µH
:LHL08
4.7 2W :RS
2.2
3W
:RS
0.1
:MPS
0.068
200V
:PT
GP08DPKG23
GP08DPKG23
470
16V
470
16V
3.9k
1000
1000
4P
:MINI LOCK
4P
WHT
:VH
4P
WHT
:VH
4P
WHT
:VH
0.47
:FPRD
0.47
:FPRD
1 1W :RS
FBT
NX-4010
2SA1037AK
PROT
2SC2412K
PROT
0.0068 100V :PT
H(+)
+B
+200V
C
NC
NC
NC
NC
NC
NC
GND
NC
DF
G2
R-H DEF
R-H RET
G-H DEF
G-H RET
B-H DEF
B-H RET
FV(G)
FV(R)
DET G2 DF FV
CN7606 CN7405
CN7304
CN7205
CN7104
J7301
J7201
J7101
TO
HV BLOCK
3W:RS
3W:RS
TO ZB BOARD
CN7804
TO ZG BOARD TO ZR BOARD
TO CB BOARD
TO CG BOARD
TO CR BOARD
FV(B) TO CB BOARD
TO CG BOARD
TO CR BOARD
(FOCUS PACK)
33:48inch model
39:61inch model
33:48inch model
39:61inch model
D(4/4)
(FBT,FOCUS PACK)
B-SS624.<AEP>-D..-P4-05
TO D3/4,D4/4_41
TO D3/4,D4/4_42
TO D3/4,D4/4_43
TO D3/4,D4/4_44
TO D2/4,D4/4_31
TO D2/4,D4/4_32
TO D2/4,D4/4_33
TO D2/4,D4/4_34
TO D2/4,D4/4_35
TO D2/4,D4/4_38
TO D2/4,D4/4_39
TO D2/4,D4/4_40
– 59 –
KP-48PS2/61PS2
KRM-903
(19) Schematic Diagram of DS Board
0
0
0
0
0 -0.6
1.6
-5V
3
2
-12V
+12V
4
00
0.8
0.8
0.8
000 0 0.9
0
-0.2
-0.1
-0.1
-0.1
+5V
1
0
0
1.6
1.6
0
0
0
0
-0.9
-0.4
-0.1
-0.1
-0.1
-0.2
-0.4
-0.2
-0.2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
12345678
910 11 12 13 14 15 16
1 2 3 4
5678
1 2 3 4 5 6 7
891011121314
1234567
8 9 10 11 12 13 14
1 2 3 4 5 6 7
891011121314
1234567
8 9 10 11 12 13 14
IC3501
IC3503
IC3505
D3501
D3502
D3503
R3501
R3502
R3506
R3507 R3508
R3509
R3514
R3519
R3520
R3521
R3526
R3530 R3532
R3533
R3535
R3537 R3538
C3501
C3502
C3503
C3504
C3505
C3506
C3507
C3509
C3510
C3511
C3512
C3513
C3515
C3519
C3520
C3525
C3526
C3508
R3503
R3511
C3527
R3504
R3518
C3523 R3531
R3529 C3524
R3523
C3528
R3541
IC3502
C3521
IC3504
IC3506
CN3501
R3524
C3517
10
0.015
0.047
DAP202K
PROT
UDZ-5.6B
PROT
UDZ-5.6B
PROT
CA0007AM
#
NJM2058D
39k
:CHIP 10k
:CHIP
10k
:CHIP
10k
:CHIP
68k
:CHIP
390
:CHIP
330
:CHIP
22k
:CHIP
10k
:CHIP
22k
:CHIP
22k
:CHIP
12k
:CHIP
180k
:CHIP
100k
:CHIP
10k
:CHIP
22k
:CHIP
2.2k
:CHIP
47
25V
47
25V
47
25V
47
25V
47
25V
47
25V
47
25V
47
25V
47
25V
47
25V
10k
:CHIP
10
16V
:BP
#
16V
7.5k
:RN-CP
39k
:CHIP
1.5k
:CHIP
15p
CH:CHIP
470
:CHIP
270k
:CHIP
220k
:CHIP
33k
:CHIP
1000p
CH:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
0.1
25V
F:CHIP
JW(5)
10
16V
:BP
CA0007AM
SCALER
JW(5)
CA0007AM
SCALER
NJM4558M-T2
DF PHASE
15P
:B-TO-B
100k
:CHIP
#
B:CHIP
+5V
-5V
-12V
+12V
ABL
MULTIPLIER
LPF/
HPF
ASPECT RATIO SWITCH
DS
MPY2
MPY1
MPY2
MPY1
MPY1
MPY2
(SHADING)
DF(+)
+5V
-5V
+12V
BS(H)
RS(H)
-12V
ABL(+)
TO D(1/4)BOARD
CN5402
DF(-)(NC)
GND
GND
GND
GND
GS(V)(NC)
VCOMP(NC)
DS
B-SS624.<AEP>-DS.-05
Y0
X1
X2
VDD
Y2
Y
Y3
Y1
INHIBIT
VEE
VSS
X
X0
X3
A
B
DF-
5V
-5V
+12V
-12V
DF+
RSH
VCOMP
BSH
ABL+
GSV
C3514
0.1
25V
F:CHIP
R3512 220 :CHIP
R3513 220 :CHIP
R3515 220 :CHIP
R3516 # :CHIP
R3517 # :CHIP
1234567
A
B
C
D
E
F
G
H
I
– 60 –
KP-48PS2/61PS2
KRM-903
(20) Schematic Diagram of E Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
0
+12V
DEF+9V
4.4
5.8
4.5
5.2
1.5
5.2
0.9
6.9
6.2
9.2
3.2
8.6
2.5
8.6
9.2
3.4
2.8
9.2
3.3
2.6
DEF+9V
1.3 1.9
1.5
2.1
1.5
2.1
5.5
4.9
3.3
0
0
0
0
0
0
0
0
6.0
5.8
5.8
5.8
5.8
5.8
0.3
4.8
4.8
3.4
3.8
4.4
4.4(5.0)
3.4
3.5
7.6
0.5
1.7
1.0
5.0
2.5
3.6
3.3
4.8
6.0
1.7
6.6<5.7>(6.8)
5.0
2.6
3.3
2.8
3.8
2.5
3.3
4.8
4.8
4.8
4.8
4.8
4.8
0.9
0
6.2
5.1
2.4
4.0
12
3
4
5
67 8910
13
12
11
8.6
R
G
B
B
R
G
R/G/B
Y
B-Y
R-Y
R/G/B
B-Y
Y
R-Y
R
G
B
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748495051
52
53
54
55
56
57
58
59
60
61
62
63
64
1
2
3
4
5
6
7
8
9
1
2
3
4
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
R4344
L4302 L4305
C4346
C4348
C4349
C4345
R4347
C4336
R4348
R4341
C4340
C4342
R4359
C4350
R4361
C4356
C4357
C4358
C4353
C4344
C4377
R4358
C4362
C4371 C4370
C4360
C4363
C4364
C4369
C4333
C4334
C4331
R4396
R4337
R4380
R4360
C4347
L4304
C4354
R4519
L4306
C4355
C4352
R4363
C4359
R4384
R4301
R4398
R4335
R4336
R4518
R4354
C4329
R4395
D4601
R4602
C4601
R4350
X4300
C4306
C4324
C4316
R4343
R4314
R4315
R4603
L4308
L4309
R4319 R4320
R4321
R4323
C4338
L4303
R4382
R4385
C4351
C4330
R4349
R4372
C4368
R4352
C4372
C4374
R4365
R4366
R4367
C4373
R4334
L4301
R4340
C4343
CN4101
R4375
R4377
C4313
C4311
C4312
R4306
FB4387
FB4388
FB4389
R4393
R4520
R4521
R4504
R4522
R4523
R4307
JR4301
C4382
C4383
C4384
R4346
R4302
R4303
R4304
R4305
C4325
R4322
C4307
R4324
CN4500
R4524
R4516
R4517
R4309
R4316
C4304
R4355
R4345
R4387
R4388
R4389
R4339
JR4302
R4317
R4318
CN4502
D4602
Q4602
Q4601
D4603
Q4316
Q4307
Q4317
Q4308
Q4318
Q4310
D4305
D4304
Q4302
Q4304
IC4301
Q4320
Q4321
Q4322
R4313
Q4303
Q4301
R4370
R4357
C4332
C4319
C4318
C4317
10
47
25V
0.1
25V
B:CHIP
4.7
0.47
0.1
25V
B:CHIP
47
47
0.1 25V B:CHIP
47
0.01 B:CHIP
0.1 25V B:CHIP
1
47
0.1 25V B:CHIP
0.1
25V
B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.0022
B:CHIP
47
0.47 16V B:CHIP
0.47 16V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.0022
B:CHIP
33
0.1
25V
B:CHIP
47
47
0.1
25V
B:CHIP
0.1
25V
B:CHIP
470.1 25V B:CHIP
2.2
16V
F:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
1
0.0022
B:CHIP
40P
:BTOB
MA3062M-TX
10µH
:CHIP
10µH
:CHIP
10µH :CHIP
10µH
:CHIP
10µH
:CHIP
10µH
:CHIP
47µH
:CHIP
47µH
:CHIP
100 :CHIP
1k
:CHIP
3.9k
:CHIP
10k
:CHIP 39k
:CHIP 220k
:CHIP
56k
:CHIP
100
:CHIP
100 :CHIP
100 :CHIP
100
:CHIP
390k :CHIP
0 :CHIP
100
:CHIP
100
:CHIP
100 :CHIP
100
:CHIP
220
:CHIP
100
:CHIP
10k
:CHIP
10k
:RN-CP
8.2k :RN-CP
470 :CHIP
3.3k
:CHIP
3.3M :CHIP
100
:CHIP
47 :CHIP
47 :CHIP
47 :CHIP
4.7k
:CHIP
220
:CHIP
220
:CHIP
10k
:CHIP
10k
:CHIP
100 :CHIP
6.8M
:CHIP
R4601
#
:CHIP
0 :CHIP
0
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
2.2k
:CHIP
4.7k
:CHIP
503.5KHz
100 :CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
0
:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
18k
:RN-CP
100
:CHIP
100 :CHIP
100
:CHIP
100 :CHIP
10p
:CHIP
680p
CH:CHIP
0
:CHIP
10k
:CHIP
100k
:RN-CP
9P
WHT
:S-MICRO
0
:CHIP
1k
:CHIP
1k
:CHIP
1k
:CHIP
330
:CHIP
0.1
25V
B:CHIP
12k
:CHIP
0 :CHIP
47
:CHIP
47
:CHIP
47
:CHIP
330
:CHIP
820
:CHIP
330
4P
WHT
:S-MICRO
0.1
100V
:MPP
220
DAN202K-T-146
MUTE
2SC2412K
MUTE-2
DTC144EKA
MUTE-1
DAN202K-T-146
MUTE
2SA1037AK
R.BUFF-1
2SA1037AK
R.BUFF-2
2SA1037AK
G.BUFF-1
2SA1037AK
G.BUFF-2
2SA1037AK
B.BUFF-1
2SA1037AK
B.BUFF-2
UDZ-9.1B
PROT
UDZ-9.1B
PROT
2SC2412K
BUFF
2SA1037AK
BUFF
CXA2100AQ-TL
Y-C/J
2SA1037AK
Y.BUFF
2SA1037AK
U.BUFF
2SA1037AK
V.BUFF
390
:CHIP
2SA1037AK
ABL CORRECT
2SC2412K
AMP
1.0k
:CHIP
22k
:RN-CP
0.1
25V
B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
R,G,B,BLK
+12V
G
R
R
G
B
BLK
B
BLK
HD
EW
V+
V-
VPROT
XRAY
ABL
GND
GND
GND
GND
Y100
GND
U100
DPIC SW
V100
+12V
H DEFL
FB PULSE
V DEFL
SDA
SCL
PARABOLA EXTRA
GND
H-SHIFT
VTIM/TEST
RGB AFC
SCP
TEXT RED
TEXT GREEN
TEXT BLK
TEXT BLUE
SWITCH (PORT 3)
ABL2
B-SS624.<AEP>-E..-05
E
(R/G/B/VM OUT,Y-C/J)
GND
GND
GND
GND
VM
R 0UT
G OUT
B OUT
IK
+12V
+12V
GND
GND
TO ZG BOARD
CN7608
TO CR BOARD
CN7101
TO A(2/3)BOARD
CN1404
R1 IN(GND)
G1 IN(GND)
B1 IN(GND)
YS1 IN(GND)
FPD(NC)
DEF +9V
XRAY
RGB_AFC
ABL_IN
ABL_FIL
PABL_FIL
IKIN
B_OUT
B_SH
G_OUT
G_SH
R_OUT
R_SH
VCC
VCC
CLP_C
IREF_SIG
BPH
NC
Y1IN
FS
Y2IN
HS_IN
VS_IN
SDA
SCL
EXTRA_PARA
DF_PARA
B2_IN
G2_IN
R2_IN
VCC
YSYM1
B1_IN
G1IN
R1_IN
GND
DPIC_DCTR
VM/SHC_OFF
VM_OUT
VM_MOD
EW
GND
V_OSC
V_AGC
VDP
VDN
REG
GND
VTIM/TEST
IREF_J
VCC(H.V)
SCP
AFC_FIL
500K
V_PROT1
HD
HP_IN
L2_FIL YS/YM2
NC
CR2IN
CB2IN
CB1IN
CR1IN
IK
VMI
T/BLKT/BT/GT/R
YS
B1
12V
HS
VPROT
VS
R1
G1
Y100
U100
V100
9V
R4332 100 :CHIP
– 61 –
KP-48PS2/61PS2
KRM-903
(21) Schematic Diagram of G (1/2) Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
+135V
STBY+5V
0
1.1
395
1.1
0.4
5.07.0
4.9
4.2
-23.2
-22.4
-25.1
0.6
0.2
7.0
0.1
7.0
0.1
9.3
2.4
134.6
-0.7
134.9
135.2
1
2
1
1
1
2
3
4
1 2 3 4
567
1
1
1
2
3
1
3
4
5
6 8
9
2
10
11
1
2
3
4
5
1
2 3
4
1
2 3
4
1
2
3
1
2
3
4
5
S
145 3
R6101
R6102
R6104
R6106
C6101
C6103
C6106
C6107
D6105
D6305
D6307
C6313
C6314
C6315
C6325
C6331
L6309
R6311
R6316
R6318
FB6301
FB6302
C6000
D6315
C6334
C6335
C6317
R6103 R6107
D6318
CN6304
CN6300
D6316
D6317
D6319
D6320
D6312
D6102
D6103
R6108
D6323
C6110
D6304
C6306
C6337
C6104
C6105
R6302
R6003
R6026
CN6004
R6300
R6301
R6304
R6305
R6306
R6307
R6308
R6309
R6310
R6312
R6313
R6317
R6319
R6001
R6000
C6003
C6009
C6010
C6011
C6018
C6017
C6015
C6013
CN6306
CN6307
CN6308
C6338
R6320
C6339
R6321
R6100
R6105
CN6002
C6044
VD6001
D6100
TH6100
R6333
R6334
R6335
D6303
C6341
R6336
C6040
D6015
R6069
R6049
R6068
R6035
F6001
C6023
C6022
RY6000
D6101
R6109
D6108
R6328
C6109
D6010
D6104
D6106
C6102 C6100
FB6103
C6342
R6329
D6311
R6327
IC6301
T6001
T6002
Q6100
T6100
IC6302
CN6007
CN6006
R6314
Q6303
Q6302
Q6301
D6306
Q6102
Q6304
IC6304
Q6300
1
470
6.3V
220
160V
2P
10k
:CHIP
10k
:CHIP
470
:CHIP
10k
:CHIP
4.7k
:CHIP
1k
:CHIP
0.47
250V
:AC
0.22
250V
:AC
0.22
250V
:AC
10
450V
470p
B:CHIP
0.01
250V
330
25V
47
1M 1/2W
8.2M
1W
680
:CHIP
4.7
1/4W
:FPRD
2.2k
:CHIP
47k
:CHIP
220k
1/4W
:RN
1k
1/4W
:FPRD
220k
1/4W
:RN
200k
1/4W
:RN
22k
1/4W
:RN
0.47
160V
10µH
:LHL08
22
:CHIP
1k
1/4W
:RD
1SS355TE-17
1SS355TE-17 1SS355TE-17
3P
:MINI LOCK
5P
WHT
:S-MICRO
1SS355TE-17
1SS355TE-17
UDZ-TE-17-4.7B
UDZ-TE-17-4.7B
1SS355TE-17
22M
1/2W
:RD
1M
1/4W
:RN
470
1/4W
100p
500V
1SS355
UDZ-TE-17-15B
D1NS6-TA2
100p
500V
0.001
B:CHIP
0.1
25V
B:CHIP
ERA22-08TP3
4.7k
:CHIP
470k
1/2W
470k
1/2W
0.0047
250V
F
0.0047
250V
F
1P
:FASTON
1P
:FASTON
1P
:FASTON
1k
1/4W
:RD
2200p
250V
:E
2200p
250V
:E
0.001
200V
:PT
470p
B:CHIP
0.001
B:CC-CP
3.3
1/2W
:FPRD
100k
:CHIP
100k
:ZZ-CP
100p
500V
:PT
10k
:RN-CP
47k
:RN-CP
10k
:CHIP
0.0047
250V
0.0047
250V
0.0047
250V
1000
100V
1000
100V
1200
250V
1200
250V
1
450V
D4SB60L
5A
1
10W 1
10W
1
10W 1
10W
470
:CHIP
470
:CHIP
6.8k
:RN-CP
22
50V
1SS355TE-17
PROTECT
0.0047
250V 0.0047
250V
0.01
ERC04-06SE
MTZJ-T-72-18B
ERC04-06SE
ERC04-06-SE
D1N20R
D4SBL20U
0.1
1P
D1NL20U-TR
ERZV14D621
1SS355TE-17
11k
:RN-CP
10k
:RN-CP
8.2k
:CHIP
1.1UH
1.1UH
1.1UH
1k
:RN-CP
15
3W
MTZJ-T-77-13B
DM-58
+B REG
LFT
LFT
2SK2663
STBY SW
SBT
MM1476AF
STBY 5V REG
5P
:VH
4P
:VH
0.47
3W
:RS
2SA1208
OCP
2SA1037AK
PROTECT
2SC2412K
PROTECT
1SS355TE-17
VOLTAGE DET
2SD2114KT146
PROTECT
2SA933AS-AT
REF VOLTAGE
TL431CLP-Z20
REF VOLTAGE
2SD2114KT146
RELAY/SW DRIVE
TO D(2/4)BOARD
GND
GND
+135V
OVP
OCP
GND
AC ON/OFF
STBY+5V
TO A(3/3)BOARD
CN1606
CN5002
GND
IN OUT
GND
RESET OVP
CD
NC
NC
NC
NC
NC
GND(ANT)
TO H1 BOARD
CN3104
AC(N)OUT
AC(L)OUT
AC(L)IN
AC(N)IN
TO H1 BOARD
CN3103
TO A(3/3)BOARD
CN1665
AC(W)
AC(L)
GND(ANT)
AC IN
220-240V
50Hz
TO A(3/3)BOARD
CN1666
GND(Z)
GND(Z)
TO G BOARD
SHIELD
TO CRT BRACKET
G
(1/2)
(POWER SUPPLY)
B-SS624.<AEP>-G..-P1-05
TO G1/2,G2/2_4
TO G1/2,G2/2_5
TO G1/2,G2/2_6
TO G1/2,G2/2_7
TO G1/2,G2/2_8
TO G1/2,G2/2_9
TO G1/2,G2/2_10
TO G1/2,G2/2_11
TO G1/2,G2/2_12
TO G1/2,G2/2_1
TO G1/2,G2/2_2
TO G1/2,G2/2_3
– 62 –
KP-48PS2/61PS2
KRM-903
(22) Schematic Diagram of G (2/2) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
+17V
-17V
1.9
9.9
+22V
+15V
-22V
-15V
+6.5V
+10.5V
3.1
2.0
4.2
17.817.8
17.1
0
0
3.4
4.7
3.7
10.8
331
342
5.0
16.7
2.2
342
3.4
11.2
10.1
318
*
1
2
4
3
6
5
4
3
2
8
10
11
12
9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
3
2
4
6
17
16
18
10
11
12
13
14
15
7
8
9
1 2 3
1
2
4
3
1
2
3
4
5
6
7
8
9
10
1
2
3
4
6
7 8
9
10
11
13
14
5
1
2
3
1
2
3
4
5
6
7
8
9
10
C6025
D6302
C6321
C6322
C6323
L6307
L6308
L6310
L6311
CN6301
C6324
C6312
D6309
D6308
C6327
C6328
C6332
C6333
L6304
CN6303
CN6302
D6301
PS6304
PS6305
C6302
C6303
C6307 C6311
L6303
L6313
L6312
D6300
FB6303
FB6304
L6314
L6315
D6310
R6043
R6054
R6055
R6056
R6057
R6058
R6059
R6060
R6061
R6065
R6067
D6017
D6019
D6021
D6022
Q6004
C6020
C6026
C6027
C6029
C6031
C6033
C6034
C6035
C6036
C6037
C6039
FB6305
FB6306
PS6300
PS6301
C6028
C6038
C6308
R6072
R6052
R6322 R6323
R6074
D6023
C6041
R6075
R6076C6042
R6324
R6326
FB6002
R6079
C6024
D6020
R6062
C6329
C6330
FB6308
FB6307
FB6309
FB6310
R6002C6030
R6325
R6053
IC6303
T6004
T6005
T6003
IC6004
PS6310
PS6311
C6032
IC6007
C6301
C6300
C6309 C6310
PS6302
PS6303
PS6306
PS6307
IC6002
470
:RN-CP
0.018
800V
220k
1/4W
:RN
220k
1/4W
:RN
220k
1/4W
:RN
4.7 100
25V
100
25V
10µH
:LHL10
10µH
:LHL08
10µH
:LHL08
10µH
:LHL08
10µH
:LHL08
0.1
1W
:RF
100
25V
UF4005PKG23
D10SC6MR
D10SC6M-4012
7.5k
:RN-CP
3300
35V
3300
35V
D1NS4
10P
WHT
:S-MICRO
100
25V
100
25V
18
:CI
8200p
:2%
100
:CI
100
:CI
2.2M
1/2W
:RD
10µH
:LHL08
D10SC6M
22
1/4W
:FPRD
2.2M
1/2W
:RD
D10SC4M-F
680p
1kV
680p
1kV
JW(5)
JW(5)
D4SBS4
2SB734-T-4
MCM SW
100
0.01
:PT
0.018
800V
0.001
B:CHIP
0.001
B:CHIP
UF4005PKG23
JW(7.5)
JW(7.5)
4.7
:FPRD
2.2k
:CHIP 470
:CHIP
1k
:CHIP
4.7k
RN-CP
10k
:CHIP
3P
:MINI
100p
B:CC
JW(5)
JW(5)
0.05
2W
:MF
3300
35V
3300
35V
MP250
MP250
10
470
25V
4700
16V
:CI
RBV-406B
10µH
:LHL08
10µH
:LHL08
10P
RED
:S-MICRO
2200
25V
2200
25V
1
450V
:CQ
D5L60
1k
1/4W
:CHIP
3.9k
:RN-CP
1k
1/4W
:CHIP
0.0082
1.25kV
0.0082
1.25kV
D1NL20U-TR
470p
470p
1.1UH
1.1UH
1.1UH
1.1UH
1.1UH
1.1UH
1.1UH
2.2k
:CHIP
0.1
250V
:MPS
36k
RN-CP
2.4k
:RN-CP
MTZJ-T-72-13B
10k
:CHIP
JW(5)
JW(5)
µPC1093J
OVP
PIT AUDIO
PIT
PFT
MCR5152
SWITCHING IC
MP250
2.5A
MP250
2.5A
0.039
1kV
ON3171-R
MAIN SW
100p
500V
100p
500V
100p
500V 100p
500V
MP400
4A
MP400
4A
MP250
2.5A
MP250
2.5A
ON3171-R
FEED BACK
+17V
-17V
AUDIO GND
TO A(3/3)BOARD
CN1605
REF
A
K
VD
RESET
SS
RT
NC
VOVP
VOCP
VC2
COM
VS
VB
VC1
COCP
GND
ROCP
CT
NC
VG(H)
VG(L)
TO D(3/4)BOARD
CN5013
GND
GND
+22V
-22V
P.CONT
PROT
GND
GND
GND
GND
+15V
-15V
GND
GND
+6.5V
+6.5V
+6.5V
+10.5V
+10.5V
+6.5V
TO A(3/3)BOARD
CN1603
C6316
100p
500V
C6336
100p
500V
C6320
100p
500V
C6319
100p
500V
G(2/2)
(POWER SUPPLY)
B-SS624.<AEP>-G..-P2-05
TO G1/2,G2/2_4
TO G1/2,G2/2_5
TO G1/2,G2/2_6
TO G1/2,G2/2_7
TO G1/2,G2/2_8
TO G1/2,G2/2_9
TO G1/2,G2/2_10
TO G1/2,G2/2_11
TO G1/2,G2/2_12
TO G1/2,G2/2_1
TO G1/2,G2/2_2
TO G1/2,G2/2_3
– 63 –
KP-48PS2/61PS2
KRM-903
(23) Schematic Diagrams of H1, H2 and H3 Boards
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
0
0.4
4.9
1
2
3
4
5
6
7
8
9
10
VCC
OUT
GND
1
2
3
4
1
2
3
4
1
2
3
4
5
CN3101 CN3102
Q3101
C3101
CN3103
CN3104
R3105
R3111
R3112
R3106
S3106
IC3101
D3001
S3105
S3104
S3103
S3102
S3101
R3116
R3117
R3103
R3102R3101
10
16V
4P
WHT-L
:S-MICRO
10P
WHT-L
:S-MICRO
4B2PS
WHT
:VH
5B3PS
WHT
:VH
2SC2412K
LED SW
470
:CHIP
2.2k
:CHIP
0
:CHIP
0
:CHIP
SBX1981-51RP
IR RECEIVER
SLA-580LT3F
LED
4.7k
:RN-CP
2.2k
:RN-CP
10k
:RN-CP
4.7k
:RN-CP
2.2k
:RN-CP
AC(N)IN
NC
NC
AC(L)IN
NC
NC
NC
AC(L)OUT
AC(N)OUT
TO G(1/2)BOARD
CN6007
TO G(1/2)BOARD
CN6006
POWER
B-SS624.<AEP>H1.-05
STANDBY
VOL+ VOL- TV/VIDEO
PROG-PROG+
GND
KEY1
STBY +5V
GND
GND
+5V
SIRCS
R.LED
KEY2
NC
KEY2
+5V(NC)
KEY1(NC)
NC
TO H2 BOARD
CN3201
TO A(3/3)BOARD
CN1302
H1
USER CONTROL,
MAIN SWITCH
AUDIO(L)
AUDIO(R)
1
2
3
4
1
2
3
4
5
CN3201
L3202
L3201
J3201
C3202
R3207 R3208
R3209
C3203
R3210
CN3202
R3211
S3205
0.022
B:CHIP 0.022
B:CHIP
4P
WHT-L
:S-MICRO
5P
BLK-L
:S-MICRO
100µH
100µH
220
:CHIP 220
:CHIP
220
:CHIP
220
:CHIP
0
:CHIP
AUTO
CONVER
GND
GND
TO A(3/3)BOARD
CN1301
SP MUTE(NC)
HP L OUT
HP R OUT
B-SS624.<AEP>-H2.-05
TO H1 BOARD
CN3101
GND
KEY2
KEY1(NC)
+5V(NC)
H2
HEAD PHONE
(HP OUT,USER CONTROL)
AUDIO(R)
C
Y
AUDIO(L)
VIDEO
1
2
3
4
5
6
7
8
9
10
11
12
34
R
L
V
S
J3301
R3301
R3302
CN3301
11P
RED-L
:S-MICRO
100
:CHIP
100
:CHIP
GND
GND
GND
GND
GND
S-VIDEO
VIDEO
AV4 INPUT
TO J(2/5)BOARD
CN8903
NC
R
L
V
C
Y
H3
(AV INPUT)
B-SS624.<AEP>-H3.-05
R
L
(MONO)
– 64 –
KP-48PS2/61PS2
KRM-903
(24) Schematic Diagram of J (1/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
1.3
1.9
2.4
1.8
+9V
2.4
1.7
1.5
0.9
0.9
0.9
1.6
1.6
2.7
3.3
2.4
3.3
7.9
1.9
1.4
0.5
0.9
0.9
2.8
1.8
1.8
1.0
5.0(0)
5.0(0)
2
3
4
1
+DIG 5V
2.6
R/G/B
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
C
VIDEO
VIDEO/Y
AUDIO
(R)
AUDIO
AUDIO
AUDIO
(R)
(L)
(L)
VIDEO
VIDEO
R/G/B
VIDEO
B
G
R
AUDIO
(R)
AUDIO
(R)
AUDIO
AUDIO
(L)
(L)
C
VIDEO
C
Y
Y
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1 2 3 4 5 6 7 8 9 10 11 12
13
14
15
16
17
18
19
20
21
22
23
24
252627282930313233343536
37
38
39
40
41
42
43
44
45
46
47
48
1 2 3
46
1 2 3
46
1 2 3
46
EMI
EMI
EMI
EMI
R8940
R8938
C8905
C8907
C8904
C8906
R8914
C8901
R8982
C8501
C8511
C8507
C8505
C8504
C8509
C8508 C8514
C8516 C8518
C8517 C8521
C8519
C8520
C8515
C8506
R8517
R8522
R8530
R8531
R8507
R8508
R8506
FL8500
FL8501
FL8502
FL8504
FL8503
C8424
C8700
FL8701
R8526
C8703
FL8700
C8503
R8943
R8929
R8930
R8931
R8932
R8949
R8942
R8935
R8934
R8936
R8933
R8945
R8944
D8907
R8909
R8900
R8901
R8902
R8925
R8922
C8900
C8902
C8903
R8907
R8919
R8903
R8905
R8904
R8918
R8910
R8913
R8912
R8921
R8923
R8924
R8915
D8901
D8902
D8903
D8904
D8905
D8906
D8908
D8909
D8910
D8911
C8512
C8513
C8510
R8510
R8521 R8529
R8527
R8528
R8520
R8523
R8519R8532
C8708 C8709
IC8500
R8906
R8300
C8502
R8502
R8512
R8941
R8916
R8911
R8917
R8920
R8926
R8927
R8928
R8937
R8939
R8946
R8951
R8533
R8514
R8534
R8509
R8981
C8916
R8983
R8503
R8501
R8505
R8504
R8995
R8309
R8994
R8978
C8524 C8525
C8921
C8922
C8923
C8924
C8925
C8926
C8927
C8928
D8922
D8923
D8924
D8925
D8926
D8927
D8928
D8929
L8919
C8914
C8915
C8526
L8552
R8979
R8984
R8535
R8536
D8900
R8908 R8524
Q8902
Q8901
Q8502
Q8302
Q8503
Q8504
Q8501
CN8900
CN8901
(SMARTLINK)
0.22
25V
B:CHIP
0.01
B:CHIP
47
16V
0.1
25V
B:CHIP
0.1
25V
B:CHIP
100
16V
0.022
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
100
16V
47
16V
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
47
16V
0.1
25V
B:CHIP
10
0.1 25V B:CHIP
C8704
# B:CHIP
C8702
# CH:CHIP
0.1
25V
B:CHIP
10
100p
CH:CHIP
0.0047
B:CHIP
0.0047
B:CHIP
100p
CH:CHIP
100p
CH:CHIP
100p
CH:CHIP
0.0047
B:CHIP
0.0047
B:CHIP
47
16V
0.1
25V
B:CHIP
100
16V
47
16V
2.2
16V
F:CHIP
47
16V
2.2
16V
F:CHIP
47
16V
2.2
16V
F:CHIP
47
16V
2.2
16V
F:CHIP
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
EMI
EMI
LPF
LPF
BPF
EMI
EMI
CXD2064Q-T6
0
:CHIP
1k
:CHIP
68k
:CHIP
27k
:CHIP
0
:CHIP
1k
:CHIP
0
:CHIP
56k
:CHIP
0
:CHIP
560
:CHIP
180
:CHIP
5.6k
:CHIP
0
:CHIP
47
:CHIP
0
:CHIP
330
:CHIP
470 :CHIP
3.3k
:CHIP
470
:CHIP
220
:CHIP
3.3k
:CHIP
820 :CHIP
820
:CHIP
1.8k
:CHIP
1.2k
:CHIP
1.5k
:CHIP
1k
:CHIP
1k
:CHIP
0
:CHIP
390
:CHIP
1k
:CHIP
390
:CHIP
47k
:CHIP
47k
:CHIP
470k
:CHIP
270
:CHIP
2.2k
:CHIP
1k
:CHIP
0
:CHIP
100
:CHIP
0
:CHIP
75
:CHIP
8.2k
:CHIP
75
:CHIP
47 :CHIP
47 :CHIP
470k
:CHIP
2.2k
:CHIP
0
:CHIP
0
:CHIP
75
:CHIP
75
:CHIP
75
:CHIP
75
:CHIP
47 :CHIP
47 :CHIP
47
:CHIP
390
:CHIP
1k
:CHIP
390
:CHIP
1k
:CHIP
47k
:CHIP
47k
:CHIP
470k
:CHIP
470k
:CHIP
270
:CHIP
2.2k
:CHIP
270
:CHIP
2.2k
:CHIP
100
:CHIP
22
:CHIP
75
:CHIP
8.2k
:CHIP
75
:CHIP
47
:CHIP
75
:CHIP
47
:CHIP
2.7k
:CHIP
47k
:CHIP
2.2k
:CHIP
18k
:CHIP
10k
:CHIP
47k
:CHIP
10µH
:LB2016
10µH
:LB2016
470
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
UDZS-8.2B
270
:CHIP 0
:CHIP
2SA1037AK
BUFF
2SC2412K
BUFF
2SC2412K
BUFF
2SC2412K
BUFF
2SA1037AK
BUFF
2SA1037AK
BUFF
2SA1037AK
BUFF
21P(BLK)
21P(ORG)
+DIG 5V
+DIG 5V
+DIG 5V
MAIN-CV
+9V
+9V
+9V
+9V
MODE-2(2)
C-IN(5)
V-OUT(6)
V/Y-IN(7)
V-IN(3)
V-OUT(2)
MODE-1(1)
BLUE-IN(1)
GREEN-IN(2)
RED-IN(3)
BLK(4)
COMB.Y
COMB.C
L-IN(4)
R-IN(2)
R-OUT(5)
L-OUT(7)
L-IN(8)
R-IN(6)
COMB.OUT
R-TV(1)
L-TV(3)
BLUE-IN(1).GREEN-IN(2).RED-IN(3).BLK(4)
MODE-1(1).V-OUT(2).V-IN(3).MODE-2(2).C-IN(5).V-OUT(6).V/Y-IN(7).MODE
DIGITAL COMB FILTER
AUTO WIDE
CLOCK IN
PLL CONTROL
GND
CLOCK OUT
CLOCK IN
PLL COMP OUT
A GND
VCO VOLTAGE IN
+5V
+5V
CLAMP ENABLE
A GND IRF
VB
GND
+5V
GND
D GND
GND
GND
GND
VEH 1
PNR
GND
CLAMP OUT
A/D IN
A/D REF VOLTAGE
A GND
+5V
A/D REF VOLTAGE
CHROMA OUT
+5V
LUMINANCE OUT
A GND
VG
VRF
D GND
GND
+5V
GND
GND
TRAP
APCN
D GND
GND
+5V
NTPL 1
GND
DIGITAL COMB FILTER
AV1
GND
VIDEO IN
VIDEO OUT
GND
GND
GND
GND
NC
NC
GND
MODE
LEFT IN
GND
GND
LEFT OUT
RIGHT IN
RIGHT OUT
BLANKING
RED IN
GREEN IN
BLUE IN
GND
VIDEO IN
VIDEO OUT
GND
GND
NC
C IN
GND
GND
NC
NC
GND
MODE
NC
LEFT IN
GND
GND
LEFT OUT
RIGHT IN
RIGHT OUT
AV LINK
TO J(5/5)
R8537
0
:CHIP
SDA
SCL
+DIG 5V
Q8700
#
BUFF
C8701
R8707
#
16V
C8710
#
16V
#
:CHIP
R8709
#
:CHIP
R8708
#
:CHIP
AV2
X8700
#
C8706
#
CH:CHIP
C8707
#
CH:CHIP
R8706
#
:CHIP
R8703
#
:CHIP
R8701
#
:CHIP
R8705
#
:CHIP
R8704
#
:CHIP
R8700
#
:CHIP
R8702
#
:CHIP
C8705
#
B:CHIP
1891011121314
15 16 17 18 19 20 21 28
NC
+5V
VRT
+5V
CIRP
A GND
ISET
TEST
234567
22 23 24 25 26 27
NC
NC
NC
VRB
AD IN
A GND
IC8700
#
AUTO WIDE
NC
+5V
+5V
+5V
RESET
ADR
SDA
SCL
NC
XI
XO
GND
GND
GND
TO J(2/5,3/5,4/5)
C8933
39p
CH:CHIP
C8934
39p
CH:CHIP
J(1/5)
(DIGI TALCOMB FILTER)
B-SS624.<AEP>-J..-P1-05
TO J1/5,J3/5_4
TO J1/5,J3/5_5
TO J1/5,J3/5_7
TO J1/5,J3/5_6
TO J1/5,J3/5_8
TO J1/5,J2/5_1
TO J1/5,J2/5_2
TO J1/5,J2/5_3
– 65 –
KP-48PS2/61PS2
KRM-903
(25) Schematic Diagram of J (2/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
+9V
4.2
3.5
2.4 1.8
3.8
1.8
1.1
1.2
5.0
1.1 1.8
1.1
1.8
1.2
8.1
1.8
+ANA5V
4.4
3.8
3.8
1.9
1.3
1.3
1.3
5.0
0
0
0
0
3.7
3.7
4.4
4.4
1.9
1.3
VIDEO
VIDEO
VIDEO
AUDIO
VIDEO
VIDEO
Y
B-Y
B-Y
Y
B-Y
R-Y
AUDIO
(R)
AUDIO
AUDIO
AUDIO
(R)
AUDIO
(L)
AUDIO(R)
AUDIO(L)
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
VIDEO
AUDIO(R)
AUDIO(L)
AUDIO(R)
AUDIO(L)
VIDEO/Y
C
AUDIO(R)
AUDIO(L)
VIDEO/Y
C
VIDEO/Y
VIDEO
AUDIO
(R)
AUDIO(R)
AUDIO
(L)
AUDIO
(L)
AUDIO(R)
AUDIO(L)
(L)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
+
-
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
G
S
D
G
S
D
1
2
3
4
5
6
7
8
9
10
11
D8913
D8914
C8909
C8911
C8908
C8910
R8965
R8954
R8950
R8952
R8958
R8963
R8947
R8948
R8955
R8956
R8961
R8959
D8915
D8912
R8968
R8962
D8451
R8475
R8470
TB8101
R8826
R8827
R8839
C8819
R8845
L8102
L8101
R8833
R8835
C8815
C8816
R8840
R8842
C8818
C8817
R8838
R8843
C8821
C8820
R8846 R8847
R8851
R8812
C8805
C8806
R8813
C8807
R8815
C8808 R8821
R8823
C8811 C8812
R8816
R8301
R8338
R8339
R8302
R8428
R8427
R8426
R8996
R8997
R8834
CN8101
R8957
R8953
R8964
R8960
R8969
R8836
R8837
R8828
R8831
R8469
R8474
R8974
R8975
R8976 R8977
C8917
C8918
C8919
C8920
D8916
D8917
R8853
C8824
C8823
R8342
C8825
C8912 R8972
R8973
R8967
R8966
C8913
D8450
R8854
R8844
R8850
C8929
C8930
C8931
C8932
D8930
D8931
D8932
D8933
D8918
D8919
D8920
D8921
L8804
L8805
L8806
R8809
R8810
R8832
R8336
R8804
R8801 R8805
C8814
R8985
R8986
R8987
R8988
CN8903
L8801
L8802
R8818
R8841
Q8815
Q8814
Q8813
Q8812
Q8810
Q8811
Q8809
Q8807
Q8805
Q8804
Q8801
Q8904 Q8903
Q8905
Q8906
CN8902
J8901
120p
CH:CHIP
82p
CH:CHIP
82p
CH:CHIP
10p
CH:CHIP
0.01
B:CHIP 47
25V
120p
CH:CHIP
82p
CH:CHIP
82p
CH:CHIP
10p CH:CHIP
0.22
25V
B:CHIP
0.01
B:CHIP
47
25V
100
16V
100
16V
100
16V
100p
CH:CHIP
0.0047
B:CHIP
100p
CH:CHIP
0.0047
B:CHIP
0.001
B:CHIP
0.001
B:CHIP
100p
CH:CHIP
100p
CH:CHIP
2.2
16V
F:CHIP
2.2 16V F:CHIP
47
16V
2.2
16V
F:CHIP
47
16V
2.2
16V
F:CHIP
50P
GRY
:BTOB-P
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-6.8B
UDZ-6.8B
UDZ-6.8B
UDZ-6.8B
UDZ-12B
UDZ-12B
UDZ-12B
UDZ-12B
100 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
0 :CHIP
47 :CHIP
47 :CHIP
47 :CHIP
47
:CHIP
75
:CHIP
47
:CHIP
75
:CHIP
330
:CHIP
330
:CHIP
1k
:CHIP
10k
:CHIP
100
:CHIP
1.2k
:CHIP
0
:CHIP
0
:CHIP
150 :CHIP
180
:CHIP
0
:CHIP
330 :CHIP
330
:CHIP
47k
:CHIP
18k
:CHIP
1k
:CHIP
2.2k
:CHIP
10k
:CHIP
100
:CHIP
1.2k
:CHIP
0
:CHIP
470
:CHIP
470
:CHIP 470 :CHIP
0 :CHIP
0
:CHIP
47k
:CHIP
33k :CHIP
390
:CHIP
1k
:CHIP
47k
:CHIP
470k
:CHIP
270
:CHIP
2.2k
:CHIP
390
:CHIP
1k
:CHIP
100
:CHIP
47k
:CHIP
75
:CHIP
47 :CHIP
75
:CHIP
8.2k
:CHIP
470k
:CHIP
270
:CHIP
2.2k
:CHIP
330
:CHIP
330
:CHIP
75
:CHIP
47 :CHIP
680
:CHIP
680
:CHIP
470k
:CHIP
2.2k
:CHIP
470k
:CHIP 2.2k :CHIP
1k
:CHIP
1k
:CHIP
33k
:CHIP
47k
:CHIP
1.8k :CHIP
10µH
:LB2016
10µH
:LB2016
10µH
:LB2016
100 :CHIP
220
:CHIP
270
:CHIP
2.7k
:CHIP
100
16V
:BP
4.7k
:CHIP
4.7k
:CHIP
47k
:CHIP
47k
:CHIP
11P
RED-L
:S-MICRO
18µH
:CHIP
18µH
:CHIP
430
:RN-CP
430
:RN-CP
2SA1037AK
AMP
2SC2412K
AMP
2SA1037AK
BUFF
BSS83
DL SW
2SC2412K
AMP
2SC2412K
BUFF
2SC2412K
BUFF
2SA1037AK
BUFF
BSS83
DL SW
2SC2412K
AMP
2SC2412K
BUFF
2SC2412K
BUFF 2SC2412K
BUFF
2SC2412K
MUTE
2SC2412K
MUTE
21P(ORG)
2P
SCL
SDA
HP-MUTE
EXT-V
EXT-U
EXT-Y
SCP.M
SUB AUDIO
HP-R-OUT
HP-L-OUT
+ANA 5V
+ANA 5V
+6.5V
VAR-R-OUT
VAR-L-OUT
+9V
+9V
MODE-4(3)
Y.M(3)
U.M(1)
V.M(2)
VP.M(5)
HP.M(6)
Y.S(7)
U.S(8)
V.S(9)
VP.S(11)
HP.S(12)
R-IN(10)
L-IN(12)
AV4(4)
AV4(3)
V-OUT(2)
SCP.S(10)
MAIN-R-OUT
MAIN-L-OUT
R-TV(1)
L-TV(3)
AV3-L
AV3-R
CENTER(-)
CENTER(+)
HP L OUT
CVBS IN
HP R OUT
MAIN L OUT
L-TV
MAIN R OUT
R-TV
SW2(NC)
GND
SCL
SDA
AV LINK
HP MUTE
SUB AUDIO
TRAP
NC
CVBS 1 OUT
CVBS 2 OUT
TO A(2/3)BOARD
CN1801
CENTER SP IN
GND
VIDEO IN
VIDEO OUT
GND
GND
NC
C IN
GND
GND
NC
NC
NC
GND
MODE
NC
LEFT IN
GND
GND
LEFT OUT
RIGHT IN
RIGHT OUT
Y
GND
C
GND
V
GND
L
GND
R
GND
NC
VARIABLE OUT
CN3001
TO H3 BOARD
TO J(4/5) TO J(3/5)
GND
+9V
GND
GND
GND
GND
+6.5V
Y MAIN IN
U MAIN IN
V MAIN IN
VP MAIN IN
SCP MAIN (NC)
HP MAIN IN
Y SUB IN
SCP SUB (NC)
U SUB IN
VP SUB IN
V SUB IN
HP SUB IN
EXT-Y(NC)
EXT-U(NC)
EXT-V(NC)
NC
NC
NC
NC
+5V(NC)
3CS(NC)
3DAT(NC)
3CLK(NC)
TO J(2/5,4/5)
TO J
(1/5,3/5,4/5)
TO J(4/5)
TO J
(4/5)
TO J(3/5)
TO J(3/5)
TO J(3/5)
AV3
R
L
C8935
39p
CH:CHIP
J(2/5)
(VIDEO BUFFER)
B-SS624.<AEP>-J..-P2-05
TO J2/5,J4/5_10
TO J2/5,J4/5_11
TO J2/5,J4/5_12
TO J2/5,J4/5_13
TO J2/5,J4/5_14
TO J2/5,J4/5_15
TO J2/5,J4/5_16
TO J2/5,J4/5_18
TO J2/5,J4/5_17
TO J2/5,J4/5_19
TO J2/5,J4/5_20
TO J2/5,J4/5_9
TO J1/5,J2/5_1
TO J1/5,J2/5_2
TO J1/5,J2/5_3
– 66 –
KP-48PS2/61PS2
KRM-903
(26) Schematic Diagram of J (3/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
+ANA5V
0.1
0.4
0.2
0.4
1.8
3.3
2.4
1.8
2.4
2.2
1.8
2.8
2.0
0.2
2.3
2.6
0.4
0.8
3.0
4.8
4.8
1.9
1.9
1.8
2.4
0.9
4.0
0.4
0.2
0.4
0.1
+ANA5V
0.4
1.7
3.3
2.1
1.7
2.2
5.0(0)
2.4
3.7
1.8
2.3
1.9
1.4
0.2
2.3
2.6
0.8
2.5
4.8
4.8
0.1
2.3
1.7
1.8
1.9
2.5
2.5
2.5
1.0
4.0
6.2 5.0
6.2
5.0
14
15
12
5
6
7
8
9
10
13
11
3.7
R-Y
B-Y
Y
Y
C
Y/C
R-Y
B-Y
Y
RG
B
R/G/B
VIDEO/Y
VIDEO Y/C
C
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15
16
17
18
19
20
21
22
23
24
2526272829303132333435363738
39
40
41
42
43
44
45
46
47
48
EMI
EMI
EMI
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15
16
17
18
19
20
21
22
23
24
2526272829303132333435363738
39
40
41
42
43
44
45
46
47
48
EMI
EMI
EMI
IO
GIO
G
1 2 3 4
5678
1 2 3 4
5678
C8321 C8323
C8325
C8336
C8338
C8337
C8335
FL8302
FL8303
C8324
C8314
C8311
C8313
C8415
C8419
C8410
C8411
R8318
R8402
R8401
C8302
R8340
R8321
R8317
R8405
FL8304
C8318
R8319
C8427C8416
C8403
FL8402
FL8401
C8406
C8405
R8412
R8413
C8414FL8403
R8406
R8409
C8418
R8329
R8328
R8323
R8326
C8322
C8331
C8329
C8417
C8345
C8327
C8306
C8401
C8437
C8346
R8410
R8414
R8415
C8308
C8319
R8407
C8309
C8301
R8403
R8404
R8307
C8348 C8349 C8350 C8351 C8352
C8305
R8315
R8316
R8416
R8417
R8418
C8347
C8404
C8408
X8301
X8401
IC8301
IC8401
R8306
C8402
R8411
R8303
R8429
R8327
D8301 D8302
IC8303
IC8305
IC8304
IC8302
0.022 B:CHIP
0.01 B:CHIP
0.01 B:CHIP
0.47
16V
B:CHIP
0.1
25V
B:CHIP
2.2
47
16V
0.01
B:CHIP
0.01
B:CHIP
47
16V
0.1
25V
B:CHIP
47
16V
10p
CH:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
10
1 16V B:CHIP
0.01 B:CHIP
0.01
B:CHIP
0.01
B:CHIP
0.1 25V B:CHIP
C8334 # 25V B:CHIP
C8333 # 25V B:CHIP
C8332 # 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
1
16V
B:CHIP
4.7
0.22
25V
B:CHIP
0.22
25V
B:CHIP
47
16V 0.22
25V
B:CHIP
0.22
25V
B:CHIP
47
16V
0.47
16V
B:CHIP
0.01
B:CHIP
2.2
47
16V
47
16V
0.1 25V B:CHIP
0.01
B:CHIP
0.01
B:CHIP
47
16V
10p
CH:CHIP
0.01
B:CHIP
1
16V
B:CHIP 0.1
25V
B:CHIP
10
0.01
B:CHIP
4.7
EMI
EMI
EMI
EMI
EMI
EMI
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
470 :CHIP
0 :CHIP
47
:CHIP
47
:CHIP
100
:CHIP
100
:CHIP
3.9k :CHIP
0
:CHIP
0
:CHIP
27k :CHIP
# :CHIP
3.9k :CHIP
47
:CHIP
8.2k
:CHIP
47
:CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
0
:CHIP
0 :CHIP
0 :CHIP
27k
:CHIP
0.022 B:CHIP
8.2k
:CHIP
0
:CHIP
0
:CHIP
16.2MHz
16.2MHz
1M
:CHIP
CXA2123BQ
MAIN
COLOR DECODER
CXA2123BQ
SUB COLOR
DECODER
UDZ-4.7B UDZ-4.7B
TC7W08F
SYNC BUFF
LF50CDT-TR
5V REG
LF50CDT-TR
5V REG
TC7W08F
SYNC BUF
SDA
SCL
SCL
SDA
EXT-Y
EXT-U
EXT-V
SCP.M
+ANA 5V
+ANA 5V
+ANA 5V
+6.5V +6.5V
+DIG 5V +ANA 5V
+ANA 5V
Y/B-Y/R-Y_M/S
VP.M(5)
HP.M(6)
SCP.S(10)
VP.S(11)
HP.S(12)
COMB.OUT
COMB.Y
COMB.C
BLK(4)
BLUE-IN(1)
GREEN-IN(2)
RED-IN(3)
Y2
U2
V2
MAIN-C
MAIN-Y
SUB-Y
SUB-C
S-R-Y
S-B-Y
S-Y
M-R-Y
M-B-Y
SDA
SCL
SCP.M
M-Y
TRAP
C3
APC-Fil
CVBS/Y3
ADD(88H)
C2
CVBS/Y2
COMB SYS
SFC OUT
AFC.Fi
C1
CVBS/Y1
SYNC IN
CVBS OUT(2VPpp)
VS
COMB Y
COMB C/FORCED S
D-GND
HS
SCP
Y FOR SYNC
SYNC-Vcc
SYNC-GND
Cr1
Cb1
Y1
Y OUT
Cb out
Cr out
YS1
B1
G1
R1
Y/C GND
Cr2
Cb2
Y2
Y/C Vcc
B2
G2
BPH-Fil
Xtal
D-VDD
SCL
SDA
YS3
APL FIL
R2
YS/YM
TO J(1/5,2/5,3/5,4/5)
SYNC-GND
Cr1
Cb1
Y1
Y OUT
YS1
B1
G1
R1
Y/C GND
Cr2
Cb2
Y2
Y/C Vcc
B2
G2
BPH-Fil
Xtal
C3
APC-Fil
CVBS/Y3
C2
CVBS/Y2
COMB SYS
SFC OUT
AFC.Fi
C1
ADD(8AH)
SYNC IN
CVBS OUT(2VPpp)
VS
COMB Y
COMB C/FORCED S
D-GND
HS
SCP
Y FOR SYNC
SYNC-Vcc
CVBS/Y1
V OUT
U OUT
D-VDD
SCL
SDA
APL Fil
YS3
R2
YS/YM
TO J(2/5)
TO J(5/5)
TO J
TO J(2/5)
C8428 # 25V B:CHIP
C8429 # 25V B:CHIP
C8430 # 25V B:CHIP
V2
U2
Y2
Y2
U2
V2
J
(3/5)
(COLOR DECODER)
B-SS624.<AEP>-J..-P3-05
TO J1/5,J3/5_4
TO J1/5,J3/5_5
TO J1/5,J3/5_7
TO J1/5,J3/5_6
TO J1/5,J3/5_8
TO J2/5,J4/5_9
TO J3/5,J4/5_21
TO J3/5,J4/5_22
TO J3/5,J4/5_23
(1/5,2/5,3/5,4/5)
– 67 –
KP-48PS2/61PS2
KRM-903
(27) Schematic Diagram of J (4/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
0
0
0
0
+9V
3.9
3.9
0.6
0.1
0.1
0.6
0
4.5
4.5
4.5
4.5
4.5
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.4
4.5
3.4
4.0
4.0
4.0
4.4
5.0
4.9
5.0
4.8
1.8
5.3
4.3
4.3
5.0
4.3
3.3
3.8
4.9
4.9
4.3
3.4
3.6
17
16
18
4.6
3.9
+9V
1.8
2.5
4.3
5.0
5.4
AUDIO(R)
R-Y
R-Y
B-Y
Y
B-Y
Y
AUDIO(R)
AUDIO(L)
AUDIO(L)
AUDIO(R)
AUDIO(R)
AUDIO(L)
AUDIO(L)
AUDIO
AUDIO(R)
AUDIO(R)
AUDIO(L)
AUDIO
AUDIO(R)
AUDIO(L)
AUDIO
AUDIO(R)
AUDIO(R)
AUDIO(L)
AUDIO(L)
VIDEO
C
C
VIDEO
C
VIDEO/Y
VIDEO/Y
VIDEO/Y
C
VIDEO/Y
AUDIO(L/R)
CY
C
VIDEO
VIDEO/Y
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748495051
52
53
54
55
56
57
58
59
60
61
62
63
64
EMI
EMI
1234
5 6 7 8
C8451
C8452
C8453
C8454
C8455
C8456
C8457
C8458
C8459
C8460
C8461
C8462
FL8451
C8463
C8466
C8470
C8465C8464
FL8452
C8497
R8459
R8458
R8468
R8453
C8495
C8494C8493
R8466
R8467
R8430
R8431
R8452R8451
C8822
R8440
R8441
C8479
R8454
C8445
C8446
C8448
C8449
R8477
R8478
R8481
C8492
C8491
C8444
C8486
C8441
C8442
R8455
R8479
R8419
C8356 C8357
C8359
C8358
C8360 C8361
C8355
C8353
C8354
R8432
R8433
R8437 R8436
R8438
R8439
R8434
R8435
C8431
R8482
R8483
R8484
R8485
C8450
L8454
IC8452
Q8309
Q8311
IC8451
Q8452
Q8451
C8447
100p
:CHIP
100p
:CHIP
100
16V
100
16V
0.1 25V B:CHIP
0.1
25V
B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
10
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1 25V B:CHIP
0.1
25V
B:CHIP
47
16V
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.01
B:CHIP
0.1 25V B:CHIP
2.2 16V F:CHIP
2.2
16V
F:CHIP
2.2
16V
F:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
10
47
16V
0.22
25V
B:CHIP
EMI
EMI
47k
:CHIP
47k
:CHIP
0
:CHIP
0
:CHIP
68k
:CHIP 68k
:CHIP
39k
:RN-CP 560
:RN-CP
220 :CHIP
220 :CHIP
100 :CHIP
100 :CHIP
2.2k
:CHIP
47k
:CHIP
18k
:CHIP
2.2k
:CHIP
0.1 25V B:CHIP
2.2 16V F:CHIP
560 :RN-CP
0
:CHIP
100
:CHIP
1
F:CHIP
1
F:CHIP
470
16V
100
16V 100
16V 100
16V
100
16V
0.1
25V
B:CHIP
0.1
25V
B:CHIP
22
25V
:BP
10p CH:CHIP
10p CH:CHIP
22k
:CHIP
22k
:CHIP
2.2k
:CHIP
2.2k
:CHIP
4.7
:CHIP
4.7
:CHIP
220
:CHIP
220
:CHIP
150
:CHIP
150
:CHIP
150
:CHIP
150
:CHIP
470
16V
47µH
TDA2822D013TR
HP AMP
2SC2412K
MUTE
2SC2412K
MUTE
CXA2149AQ-TL
AV SW
2SC2412K
BUFF
2SC2412K
BUFF
0.1
25V
B:CHIP
V.S(9)
U.S(8)
Y.S(7)
V.M(2)
U.M(1)
Y.M(3)
SDA
SCL
HP-R-OUT
HP-MUTE
HP-L-OUT
SUB AUDIO
VAR-L-OUT
VAR-R-OUT
FL+9V
+9V
YUV_M/S
AV4(3)
AV3(1)
V/Y-IN(7)
V-IN(3)
SUB-C
SUB-Y
AV4(4)
AV3(2)
MODE-1(1)
MODE-2(2)
MAIN-C
MAIN-Y
L-IN(4)
L-IN(8)
AV3-L
L-IN(12)
R-IN(10)
R-IN(2)
R-IN(6)
AV3-R
L-OUT(7)
MODE-4(3)
AV3(2)
AV3(1)
C-IN(5)
R-OUT(5)
V-OUT(6)
L-TV(3)
R-TV(1)
MAIN-L-OUT
MAIN-R-OUT V.S(9)
U.S(8)
Y.S(7)
V.M(2)
U.M(1)
Y.M(3)
V.S(9)
U.S(8)
Y.S(7)
V.M(2)
U.M(1)
Y.M(3)
TO J(5/5)
TO J(2/5)
TO J(2/5)
RTV
AGND
SUBTU-L
AV1L
AV2L
AV3L
AV4L
LTV
HP ROUT3
HP LOUT3
ABIAS
AVCC
MODE3
AV2-C
AV4-V
VBIAS
AV3-V
VGND
AV2-V
VVCC
AV1-V
TC2
SUB TV
TC1
TV
REXT
RGD4
RGD3
LD0
RGD1
LO1
TRAP1
SCL
SDA
ADR
MUTE
MODE1
MODE2
RGD2
AV4-R
AV3-R
AV2-R
AV1-R
SUBTU-R
MAIN R OUT
MAIN L OUT
DGND
DVCC
SUB-YOUT
TRAP2
SUB-CONT
GND
GND
AV4-C
AV2-L OUT
AV2-R OUT
AV3-C
VIDEO OUTAV2 OUT
MAIN-YOUT
MAIN-COUT
TV OUT
TRAP3
VCC
TO J
1/5,2/5,
3/5
ROUT
VCC
LOUT
GND
RIN(-)
RIN(+)
LIN(+)
LIN(-)
J(4/5)
(AV SELEVT SWITCH)
B-SS624.<AEP>-J..-P4-05
TO J2/5,J4/5_10
TO J2/5,J4/5_11
TO J2/5,J4/5_12
TO J2/5,J4/5_13
TO J2/5,J4/5_14
TO J2/5,J4/5_15
TO J2/5,J4/5_16
TO J2/5,J4/5_18
TO J2/5,J4/5_17
TO J2/5,J4/5_19
TO J2/5,J4/5_20
TO J3/5,J4/5_21
TO J3/5,J4/5_22
TO J3/5,J4/5_23
– 68 –
KP-48PS2/61PS2
KRM-903
(28) Schematic Diagram of J (5/5) Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
+9V
3.5
2.8
26
0.5
3.5
2.8
3.5
8.1
8.1
2.7
2.1
2.7
3.3
4.0
2.1
2.7
6.7
3.3
2.1
6.2
4.0
25
24
+9V
+9V
+9V
2.6
1.9
2.7
2.0
3.5
2.9
8.1
1.8
2.4
3.4
2.8
8.1
2.3
1.7
2.8
2.7
2.0
8.1
2.3
1.7
3.4
2.8
2.8
+9V
+9V
+9V
+9V
+9V
1.8
1.2
7.4 2.0 1.4 1.4 2.0
2.0
1.8
1.2
2.0 1.3
1.3
2.2
1.6
1.62.2
0.2
3.4
0.2
0.2
5.2 1.9
2.6
4.1
3.4
2.0
2.7
5.2
3.1
19
20
0.8
2.0
2.0
2.0
4.8
3.1
2.7
2.7
5.1
4.8
21
22
23
0.1
7.2
Y
VIDEO
B-Y
R-Y
B-Y
R-Y
Y
B-Y
R-Y
Y
B-Y
R-Y
Y
Y
B-Y
R-Y
Y
B-Y
R-Y
EMI
1 3 6
710
2 4 5
912
1234
5 6 7 8
1234567
8
10 91112
13 14 15 16 17 18 19 20 21 22 23 24
1 2 3
46
1 2 3
46
C8624
C8631
C8632
C8635
R8601
C8607
R8623
C8609
R8633
C8601
C8614 R8644 R8645 R8642
C8616
R8649
R8653
C8622 R8671
R8673
C8623
R8677
C8605 C8606
D8601
C8613
R8612
R8604
C8603
R8624
R8605
R8625
R8626
R8606 R8607 R8608
C8604
R8628
R8627 R8629 C8608 R8630
R8610 R8611
C8602
R8636
R8634 R8631
R8632
R8617
R8618
R8609
R8616
C8618
C8625
C8627
R8681
R8686
R8685
C8629
R8690
R8688
R8659
R8660
C8620
R8711
R8712
C8621
C8628
L8601
L8602
L8606
L8607
FL8602
FL8604
FL8603
FL8601
R8613
R8647 R8648
R8694
R8614
R8652
R8675
R8602
R8646
R8672
R8696
R8695
R8670
R8650
R8676
R8603
R8661
R8710
R8600
R8714
R8719
R8713
R8716
R8689
R8664
R8718
R8715
R8635
C8636
C8638
R8721
C8639
R8722
R8723
R8724
R8725
R8726
R8727
R8728
R8729
R8667
R8640
R8665
R8666
R8619 R8621
C8615
R8654
R8655
R8693
R8683
R8684
R8678 R8682
R8687
R8720
R8692
R8679
R8680
R8697 R8698
R8717
R8699
R8730
C8422
L8455
Q8606
Q8630
Q8633
Q8632
Q8611
Q8605
Q8610
Q8601
Q8603
Q8609
Q8631
Q8628
Q8629
Q8634
Q8626
Q8627
Q8635
Q8624
Q8625
Q8640
Q8639
IC8601
IC8602
Q8636
Q8637
Q8638
Q8602
Q8607
Q8615
Q8612
Q8614
Q8623
Q8621
Q8620
Q8616
Q8604
0.1
25V
B:CHIP
0.1
25V
B:CHIP
47
16V
47
16V
0.1
25V
B:CHIP
47
16V
100
16V
47
16V
0.22
25V
B:CHIP
0.1
25V
B:CHIP
0.22
25V
B:CHIP
47
16V
0.01
B:CHIP
47
16V
47
16V
0.22
25V
B:CHIP
47
16V
47
16V 0.22
25V
B:CHIP
0.22
25V
B:CHIP
47
16V
0.22
25V
B:CHIP
47
16V
47
16V
0.1
25V
F:CHIP
MA113
H35LNK-8407
H354LAI-7848
H354LAI-7848
47µH
:LAV35
56k
:CHIP
470
:CHIP
22k
:CHIP
100
:CHIP 560
:CHIP 22k
:CHIP 1k
:CHIP
47k
:CHIP 470
:CHIP
100
:CHIP
0
:CHIP
390
:RN-CP
680
:RN-CP
22k
:CHIP
470
:CHIP
22k
:CHIP 470
:CHIP
470
:CHIP
22k
:CHIP
470
:CHIP
100
:CHIP 0
:CHIP
1k
:CHIP
470
:CHIP
470
:CHIP
470
:CHIP
470
:CHIP 56k
:CHIP
18k
:CHIP
470
:CHIP
56k
:CHIP
22k
:CHIP
56k
:CHIP
18k
:CHIP
470
:CHIP
470
:CHIP
470
:CHIP
56k
:CHIP
22k
:CHIP
470
:CHIP
56k
:CHIP
22k
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
470
:CHIP
10µH
:LB2016
10µH
:LB2016
10µH
:LB2016
0
:CHIP
390
:CHIP
1.2k
:CHIP
0
:CHIP
1.2k
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
1k
:CHIP
470
:CHIP
1.2k
:CHIP
1.2k
:CHIP
1.2k
:CHIP
22k
:CHIP
1.2k
:CHIP
330
:CHIP
330
:CHIP
1k
:CHIP
1k
:CHIP
560
:CHIP
560
:CHIP
0.47
16V
B:CHIP
2.2
16V
F:CHIP
0.0022
CH:CHIP
0
:CHIP
33
:CHIP
33
:CHIP
10k
:CHIP
100k
:CHIP
47k
:CHIP
82k
:CHIP
47k
:CHIP
0
:CHIP
680
:CHIP
680
:CHIP
220
:CHIP
560
:CHIP
2.2k
:CHIP
3.3k
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
27p
CH:CHIP
0
:CHIP 100
:CHIP
5.6k
:CHIP
1.2k
:CHIP
1.8k
:CHIP
470
:CHIP
180
:CHIP
470
:CHIP
330
:CHIP
470
:CHIP
470
:CHIP
1.8k
:CHIP
180
:CHIP
3.3k
:CHIP
330
:CHIP
3.3k
:CHIP
0
:CHIP
470
16V
47µH
2SA1037AK
BUFF
2SA1037AK
BUFF
2SA1037AK
BUFF
2SA1037AK
BUFF
2SC2412K
BUFF
2SA1037AK
AMP
2SC2412K
AMP
2SC2412K
BUFF
2SC2412K
AMP
2SC2412K
AMP
2SA1037AK
BUFF
2SA1037AK
AMP
2SC2412K
AMP
2SA1037AK
BUFF
2SA1037AK
AMP
2SC2412K
AMP
2SA1037AK
BUFF
2SA1037AK
AMP
2SC2412K
AMP
2SA1037AK
BUFF
2SC2412K
BUFF
TDA9178T
PIC BOOSTER
MM1115XFBE
NOISE DET
DTC144EKA
INV
DTC144EKA
INV
2SC2412K
INV
2SA1037AK
BUFF
2SC2412K
BUFF
2SA1037AK
BUFF
2SC2412K
BUFF
2SC2412K
AMP
2SC2412K
AMP
2SC2412K
BUFF
2SA1037AK
BUFF
2SC2412K
TRAP SW
2SC2412K
BUFF
MAIN-CV
FL+9V
YUV_M/S
Y/B-Y/R-Y_M/S
P-BY
P-RY
P-Y
Y.M(3)
V.M(2)
U.M(1)
M-Y
M-B-Y
M-R-Y
SCL
SDA
SCP.M
TRAP
S-R-Y
S-B-Y
S-Y
Y.S(7)
U.S(8)
V.S(9)
P-Y
P-BY
P-RY
B-SS624.<AEP>-J..-P5-05
TO J(4/5)
TO J(3/5)
TO J(1/5)
SC
NC
ADEXT1
ADEXT2
ADEXT3
YIN
ADR
-UIN
-VIN
NC
SCL
NC
NC
NC
CF
SOUT
VCC
YOUT
VEE
-UOUT
-VOUT
DEC
SDA
NC
NC
CVIN
SW
YIN
NC
GND
YOUT
VCC
(PICTURE BOOSTER)
IN
OUT
IN
OUT
J(5/5)
– 69 –
KP-48PS2/61PS2
KRM-903
(29) Schematic Diagram of M (1/2) Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
J
4.9
4.8
4.8
STBY 5V
STBY 5V
STBY 5V
+5V
STBY 5V
STBY 5V
*
*
*
*
*
*
*
*
*
*
*
*
*
*
0.1-0.8
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
4.9
3.4
4.9
4.9
3.4
4.9
4.9
0
0
0
4.9
0
0
0
0
0
4.9
0
0.2
4.9
4.9
0.7
0.6
0.7
0.7
0.6
0.7
0.7
0.7
0.6
1.4
0.7
1.4
0.7
1.4
0.7
4.9
0
4.52.5
4.3
4.3
3.0
0
0
0
4.8
4.8 4.8
4.8
0
0.7
*
4.9
4.9
0
4.9
4.9
*
*
*
*
*
4.9
4.9
*
*
*
*
*
*
*
*
*
*
*
*
*
4.9
4.9
4.9
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
0
4.9
4.9
4.9
4.9
4.9
4.9
4.9
4.5-4.8
-0.8
0.1
4.8
4.8
0
3.6
0.4
2.4
2.4
4.8
4.8
0
0
0
0
0
0
0
2.4-4.9
4.4-4.9
0
0
1
2
3
*
*
*
*
G
RG
B
R/B
R/G/B
123456789101112131415161718192021222324252627282930
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
1 2 3 4
5678
1 2 3 4
5678
1 2 3 4 5 6 7 8
910111213141516
12345678
910 11 12 13 14 15 16
1 2 3 4
5678
1 2 3 4
5678
EMI
7891011121314151617
18
19
20
21
22
23
24
25
26
27
28
29 30 31 32 33 34 35 36 37 38 39
40
41
42
43
44
1
2
3
4
5
6
1 2 3 4
5678
R9103
R9185
R9189
R9186
R9175
C9132
R9191
R9192
R9193
R9194
R9195
R9110
R9112
R9111
R9109
R9100
R9102
R9101
R9105
R9104
C9101
C9102
D9100
D9101
D9102
D9103
C9112
C9127
R9164
R9162
C9114
C9129
C9128
C9113
R9121
R9138
C9130
C9131
R9145
R9149
R9151
R9153
R9184
R9150
R9146
C9122
C9121
R9187
R9197
R9147
R9141 R9143
R9140 R9144
R9115
R9116
R9113
R9114
R9117
R9120
R9119
R9122
D9104
R9127
C9123
C9126
C9105
R9188
R9176
R9178
C9117
C9119
C9100
R9169
R9168
R9172
R9159
R9161
X9101
D9105
C9111
C9118
R9166
C9104
R9142
FL9101
R9129
R9196
C9135
R9198
R9201
R9202
R9203
C9133
C9134
R9199
C9110
C9116
IC9108
D9111
D9109
D9110D9108
IC9105
IC9104
IC9100
IC9110
Q9110
Q9102
Q9103
Q9101
Q9100
IC9111
IC9112
IC9103
Q9104
Q9105
Q9106
0.22
25V
B:CHIP
100p
CH:CHIP
100p
CH:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
220p
CH:CHIP
100p CH:CHIP
0.22 25V B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
1SS355TE-17
1SS355TE-17
1SS355TE-17
1SS355TE-17
UDZ-TE-17-6.8B
10k
:CHIP
220
:CHIP
220
:CHIP
100
:CHIP
10k
:CHIP
10k
:CHIP
10k
:CHIP
22k
:CHIP
100
:CHIP
100
:CHIP
220
:CHIP
27k
:CHIP
22k
:CHIP
10k
:CHIP
10k
:CHIP
10k
:CHIP
10k
:CHIP
47
:CHIP
1k
:CHIP 1k
:CHIP
1k
:CHIP
2.2k
:CHIP
1k
:CHIP 1k
:CHIP
2.2k
:CHIP
1k :CHIP
1k :CHIP
1k
:CHIP
100 :CHIP
100 :CHIP
100 :CHIP
100 :CHIP
6.8k
:CHIP
6.8k
:CHIP
6.8k :CHIP
6.8k
:CHIP
6.8k :CHIP
6.8k :CHIP
6.8k
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
100 :CHIP
100
:CHIP 100
:CHIP
4.7k
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
100k
:CHIP
100k
:CHIP
100k
:CHIP
10k
:CHIP
33p
CH:CHIP
33p
CH:CHIP
33p
CH:CHIP
33p
CH:CHIP
33p CH:CHIP
33p CH:CHIP
10k
:CHIP
100
16V
16MHz
0.068
25V
B:CHIP
47
16V
1SS355TE-17
470 :CHIP
EMI
100
:CHIP
22k
:CHIP
0.22
25V
B:CHIP
390
:CHIP
390
:CHIP
47
:CHIP
47
:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
390
:CHIP
0.33
16V
B:CHIP
0.33
16V
B:CHIP
M24C32-WMN6T(A)
MAIN-NVM
MA3056M-TX
PROT-4
MA3056M-TX
PROT-3
DAN202K-T-146
PROT-2
DAP202K-T-146
PROT-1
SAB-C161PI-LM
MICRO
MB3793-42PNF-ER
RESET
LM393PS-E20
KEY DET
MC14094BF-T2
I/O EXPANDER
2SC2412K
INV
2SA1037AK
SW2
2SC2412K
SW1
2SC2412K
BUFFER
2SC2412K
OUTPUT
TC7W00F
INV
TC74HC4053AFT
RGB-SW
TC7W66FU
I2C BUS SW
2SA1037AK
TXT-B BUFF
2SA1037AK
TXT-R BUFF
2SA1037AK
TXT-G BUFF
+5VST.BY
+5VST.BY
+5VST.BY
+5VST.BY
A(0-19)
CSO.CS1.CS2
/RD./WR
A(0-19)
SDA1
SCL1
TC-INT
KEY1
KEY2
KEY2.1
KEY1.1
KEY2
KEY1
M3LEN
DATA
CLK
A(16)
A(17)
A(18)
A(19)
D(0)
D(1)
D(2)
D(3)
D(4)
D(5)
D(6)
D(7)
/RD
/WR
D(8)
D(9)
D(10)
D(11)
D(12)
D(13)
D(14)
D(15)
A(2)
A(3)
A(4)
A(5)
A(6)
A(7)
A(8)
A(9)
A(10)
A(11)
A(12)
A(13)
A(14)
A(1)
A(0)
CS0
CS1
CS2
SIRCS
PROT
ACON/OFF
DISABLE
KEY2
KEY1
AGC.M
VP100
HP100
ST.BY
SDA0
SCL0
RESP.LED
D(9)
D(2)
D(10)
D(3)
D(11)
D(4)
D(12)
D(5)
D(13)
D(0)
D(8)
D(1)
/RD
D(6)
D(14)
D(7)
D(15)
A(1)
A(2)
A(3)
A(4)
A(5)
A(17)
A(16)
A(15)
A(14)
A(13)
A(12)
A(11)
A(10)
A(9)
A(19)
A(18)
A(8)
A(7)
A(6)
A(15)
CS0
TC-INT
PIN 8
RE-R
RE-B
RE-G
RE-YS
TXTR
TXTB
TXTG
TC-INT.AGC.M
WP
OS
OS
AUDIO MUTE
TC LED
RES.PICTURE
RES.AUDIO
EO
VDD
DATA
CLOCK
00
01
MTX RES
OSD OFF
VSS
/STR
VSS SDA
SCL
WP
VCCCS0
CS1
CS2
A14
A15
A16
VSS
D7
D14
D6
VDD
D15A-1
D13
D5
D12
D4
VCC
NC
D11
D3
D10
D2
D9
A0
D1
D8
D0
VSS
A1
A2
E
G
A5
A6
A7
A17
A18
VSS
NC
A8
A9
A10
A11
A12
A13A3
A4
VCCI/O1
O/I1
CONT2
GND I/O2
O/I2
CONT1
OUT1
-1
+1
VSS +2
-2
OUT2
VDD
VDD
XC
ZC
Z1
Z0
AZ
AX
AY
X1
X0
Y1
YC
Y0
EN
VEE
GND
RESET
RESETTWO
TRST
GND VDD
ENABLE
PULSE
P2.14 CS/DISABLE
P2.15T
VAGND
VAREF
P5.14 VP100
VSS
VCC
VSS
VCC
P3.12
P3.1 SDA0
P3.2 AVLINK OUT
P3.3 RESP LED
P3.4 ST.BY
P3.5 /STR
P3.6 DATA
P3.7 M3LEN
P3.8 MRST
P3.9 MTSR
P3.10 TXDO
P3.11 RXDO
P3.12 SCLK
P3.15 CLOCK
P4.0 A16
P4.1 A17
XTAL1
XTAL2
P3.0 SCL0
P5.15 HP100
/RD
/WR
/READY
ALE
/EA
VSS
VCC
VSS
VCC
POL.0/AD0
POL.1/AD1
POL.2/AD2
POL.3/AD3
POL.4/AD4
POL.5/AD5
POL.6/AD6
POL.7/AD7
P4.2 A18
P4.3 A19
P4.4 WP
VSS
VCC
VSS
POH.3/AD11
POH.4/AD12
POH.5/AD13
POH.6/AD14
POH.7/AD15
P1L.0/A0
P1L.1/A1
P1L.2/A2
P1L.3/A3
P1L.4/A4
P1L.5/A5
P1L.6/A6
P1L.7/A7
P1H.1/A9
P1H.2/A10
P1H.3/A11
P1H.4/A12
P1H.5/A13
P1H.6/A14
P1H.7/A15
P1H.0/A8
VCC
POH.1/AD9
POH.2/AD10
P6.2 CS2
P6.3 CS3
P6.4 CS4
P6.5 SDA1
P6.6 SCL1
P6.7
SIRCS
AVLINK IN
PROT
AC ON/OFF
TC INT
PIN B
P6.0 CS0
P6.1 CS1
/RSOUT
/NMI
RSTIN
POH.0
/AD8
P4.5
WDT EN
P4.6
WDT CLK
P5.0
/AN0 KEY2
P5.2
/MID BUSY
P5.3/AN3
AGC.MON
P5.1/AN1
KEY1
IC9109
M27C800-100K1-RE202
EPROM
R9200
47
:CHIP
TXT-B
TXT-G
TXT-R
0.1
0.1
25V
25V
B:CHIP
B:CHIP
C9125
C9124
M(1/2)
(MICRO CONTROL)
B-SS624.<AEP>-M..-P1-05
TO M1/2,M2/2_3
TO M1/2,M2/2_4
TO M1/2,M2/2_5
TO M1/2,M2/2_6
TO M1/2,M2/2_7
TO M1/2,M2/2_8
TO M1/2,M2/2_9
TO M1/2,M2/2_10
TO M1/2,M2/2_11
TO M1/2,M2/2_12
TO M1/2,M2/2_13
TO M1/2,M2/2_14
TO M1/2,M2/2_15
TO M1/2,M2/2_16
TO M1/2,M2/2_17
TO M1/2,M2/2_18
TO M1/2,M2/2_19
TO M1/2,M2/2_20
TO M1/2,M2/2_21
TO M1/2,M2/2_22
TO M1/2,M2/2_23
TO M1/2,M2/2_1
TO M1/2,M2/2_2
– 70 –
KP-48PS2/61PS2
KRM-903
(30) Schematic Diagram of M (2/2) Board
12345678 9 10 11 12 13 14 15
A
B
C
D
E
F
G
H
I
J
STBY 5V
+5V
+5V
+5V 4.9
4.8
4.8
4.5-4.8
**
*
*
4.8
4.8
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
0
0
0
0
3.8
3.8
0.2
1.9
3.2
2.4
0.3
0.4
0.4
3.6
3.8
3.7
0.4
0.5
0.4
0.1
0.2
0.4
0
0
0
0
0
2.4-4.9
*
4.4-4.9
1.0
3.5
0.4
0.1
0.2
0.4
0.4
0.4
0.3
2.4
0.4
3.2
0
1.9
0.2
3.8
3.8
3.8
3.8
3.7
0.2
1.9
1.8
0.4
4
5
6
7
-1.8
0
0
0.2
0.2
0.7
0.7
0.7
VIDEO
R/G/B
G
R
B
R/G/B
VIDEO
VIDEO
G
R
B
R/G/B
0
0
0
0.2
*
*
*
*
4.9
*
*
*
*
*
*
*
*
*
*
*
*
*
*
4.9
*
*
*
*
*
*
*
*
*
*
1011121314151617181920212223242526
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60
61
62
63
64
65
66
67
68
1
2
3
4
5
6
7
8
9
1 2 3 4 5 6 7
891011121314
12345678910111213141516
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
1 2 3 4 5 6 7 8 9 10 11 12 13
14151617181920212223242526
EMI
EMI
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23
A24
B24
A25
B25
C9510
R9507
C9506
R9514
R9518
C9518
C9511
C9515C9514
X9500
R9525
R9527
R9526
R9529
R9528
R9530
R9510
R9512
R9513
C9512
C9509
R9506
C9508
R9505
R9504
C9507
R9515
R9516
R9517
R9519
R9520
R9521
R9524
R9522
R9523
C9504
C9513
R9107
R9108
R9123
L9401
R9173
D9107
R9177R9174
L9400
C9400
C9115
R9502
C9503
C9505
C9519
C9517
R9511
C9501
R9124
CN9001
FL9500
FL9501
R9509
C9516
RB9101
R9131
R9132
R9133
R9134
R9135
R9136
C9106
C9108 R9501
IC9502
Q9500
Q9501
Q9502
IC9501
IC9107
Q9504
Q9503
IC9500
0.22
25V
B:CHIP
0.22
25V
B:CHIP
0.1
25V
B:CHIP
100p
CH:CHIP
0.22
25V
B:CHIP
0.22
25V
B:CHIP
100p
CH:CHIP
0.22
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
22p
CH:CHIP 22p
CH:CHIP
0.22
25V
B:CHIP
02CZ5.6-TE85L
10µH
:CHIP
10µH
:CHIP
100
:CHIP
100
:CHIP
10k
:CHIP
0
:CHIP
100
:CHIP 100
:CHIP
0
:CHIP 470
:CHIP
1.2k
:CHIP
10k
:CHIP
100k
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
47
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
1k
:CHIP
390
:CHIP
390
:CHIP
390
:CHIP
0
:CHIP
0
:CHIP
0
:CHIP
2.2k
:CHIP
2.2k
:CHIP
2.2k
:CHIP
100
:CHIP
100
:CHIP
100
:CHIP
20.480MHz
1000p
B:CHIP
1k
:CHIP
0.1
25V
B:CHIP
10
100
16V
10
50P
GRY
:BTOB-P
EMI
EMI
10k
:CHIP
1k
:CHIP
100p
CH:CHIP
100
:CHIP
100p
CH:CHIP
100p
CH:CHIP
100
:CHIP
47
:CHIP
47
:CHIP
100
:CHIP
100 :CHIP
100 :CHIP
47
:CHIP
R9503
0
:CHIP
SDA5275-3PC02-22
MEGA TEXT
2SA1037AK
BUFFER-B
2SA1037AK
BUFFER-G
2SA1037AK
BUFFER-R
MSM5116400D-60SJR1
PAGE RAM
IS62C1024L-70Q
SRAM
DTC144EKA
BLK SW
DTC144EKA
BLK SW
TC74AC32F(EL)
BLK MIX
+5V
+5V
+5V-2
+5VST.BY_2
+5VST.BY
VP100.HP100.VIDEO
KEY.1.KEY2.1
DATA.CLK.M3LEN
RE-YS
TXT-YS
A1(7)
A1(6)
A1(5)
A1(4)
A1(3)
A1(2)
A1(1)
A1(0)
A1(9)
/RAS
/WE
D1(1)
D1(0)
D1(2)
D1(3)
CAS
A1(8)
VP100
HP100
VIDEO
CLK
DATA
M3LEN
D1(3)
D1(2)
CAS
A1(8)
A1(7)
A1(6)
A1(5)
A1(4)
D1(0)
D1(1)
/WE
/RAS
A1(0)
A1(1)
A1(2)
A1(3)
DISABLE
KEY2.1
KEY1.1
AGC.M
RESP.LED
SIRCS
SCL0
SDA0
ST.BY
PROT
ACON/OFF
/RD
/WR
PIN 8
HP100
A1(9)
VIDEO
A(14)
A(12)
A(7)
A(6)
A(5)
A(4)
A(3)
A(2)
A(1)
A(0)
A(13)
A(8)
A(9)
A(11)
A(10)
D(7)
D(6)
D(5)
D(4)
D(3)
D(2)
D(1)
D(0)
CS2
RE-G
TXT-G
TXT-B
RE-R
RE-B
RE-YS
TXT-R
VP100
TXTB
TXTG
TXTR
DISABLE
KEY2
KEY1
SIRCS
TXTB
TXTG
TXTR
HP100
VP100
NC
NC
+5V
RESPONS LED
AC ON/OFF
GND
GND
GND
GND
TXTBLK
RESET100
ST-BY
D0
D1
WE
RAS
A0
A1
A2
A3
VCC
A8
A7
A6
A5
A4
A9
VSS
VCC
N.C
A11
NC
A10
VSS
D3
D2
CAS
OE
1A
1B
1Y
2A
2B
2Y
GND 3Y
3A
3B
4Y
4A
4B
VCC
AV LINK
AUDIO MUTE
AUDIO RESET
CVBS IN
RE-B
RE-R
RE-YS
RE-G
NC
NC
NC
+5V
GND
TO A(2/3)BOARD
CN1001
TRAP(NC)
AGC MONITOR(NC)
PROT
3DAT(NC)
3CLK(NC)
3CS(NC)
TOP CONT LED(NC)
STBY+5V
LED2(NC)
OCP(NC)
OVP(NC)
SCL
SDA
HS0(NC)
MID BUSY(NC)
AUDIO PROT(NC)
A16
A14
A12
A7
A6
A5
A4
A3
A2
A1
A0
D0
D1
D2
GND
VCC
A15
A17
WR
A18
A13
A8
A9
A11
RD
A10
CE
D7
D6
D5
D4
D3
A7
A6
A5
A4
A3
A2
A1
A0
A10
A11
RAS
D1
D0
D2
D3
WE
A9
VSS
VSS
CAS+
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
VSSA
RGB GND
VSS
NC
NC
NC
NC
NC
NC
NC
A8
VDD
VREF
VDD
RES
VDD
VSSA
VDDA
VDD
CVBS
TM
GPO
X IN
X OUT
HS
VS
CLK
RXD
TXD
BLAN
B
G
R
INT
IICEN
COR
TCS
C9109
100p
CH:CHIP
A1(10)
A1(11)
A1(10)
A1(11)
R9533
0
:CHIP
R9532
0
:CHIP
5678910111213
14
15
16
17
18
19
20
21 22 23 24 25 26 27 28 29
30
31
32
1
2
3
4
D(1)
D(2)
D(3)
D(4)
D(5)
D(6)
D(7)
CS1
A(3)
A(4)
A(5)
A(6)
A(7)
D6
D5
D4
D3
GND
D2
D1
A3
D0
A0
A1
A4
A5
A2
A6
A7
A(2)
A(1)
A(0)
D(0)
IC9400
M29F040B-70K1T
FLASH ROM
A8
A9
A11
A10
CS
D7
RD
A14
A13
A(10)
A(11)
A(9)
A(8)
A(13)
A(14)
A(17)
A(18)
A(16)
A(15)
A(12)
A12
A15
A16
A18
VCC
WR
A17
M(2/2)
(MEGA TEXT)
B-SS624.<AEP>-M..-P2-05
TO M1/2,M2/2_3
TO M1/2,M2/2_4
TO M1/2,M2/2_5
TO M1/2,M2/2_6
TO M1/2,M2/2_7
TO M1/2,M2/2_8
TO M1/2,M2/2_9
TO M1/2,M2/2_10
TO M1/2,M2/2_11
TO M1/2,M2/2_12
TO M1/2,M2/2_13
TO M1/2,M2/2_14
TO M1/2,M2/2_15
TO M1/2,M2/2_16
TO M1/2,M2/2_17
TO M1/2,M2/2_18
TO M1/2,M2/2_19
TO M1/2,M2/2_20
TO M1/2,M2/2_21
TO M1/2,M2/2_22
TO M1/2,M2/2_23
TO M1/2,M2/2_1
TO M1/2,M2/2_2
– 71 –
KP-48PS2/61PS2
KRM-903
(31) Schematic Diagram of S Board
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
+9V
2.4
1.8
1.8
1.1
+5V
+5V
1
0
4.8
4.8
0
0
0
4.9
0.1
0.1
3.8
3.8
7.2
8.1
7.1
3.7
3.7
2.6
3.7
3.7
1.5
1.5
1.5
2.4
2.4
5.5
4.9
4.9
4.9
4.9
4.9
4.84.8
0.8
0.2
0.8
0.2
0
4.8
4.84.6
4.6
0.4
0.4
4.6
0
4.6
2.5
4.6
2.4
3.0
2.4
1.7
0
4.2
4.6
0
0.4
4.8
0.4
4.8
2.9
3.6
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO
AUDIO
AUDIO(R)
AUDIO(R)
AUDIO(R)
AUDIO
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(R)
AUDIO(L)
AUDIO(L)
AUDIO(L)
AUDIO(R)
AUDIO(L)
1234567
8 9 10 11 12 13 14
123
4 6
123456789101112131415161718192021222324
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
EMI
EMI
1234567
8 9 10 11 12 13 14
12345678
910 11 12 13 14 15 16
A1
B1
A2
B2
A3
B3
A4
B4
A5
B5
A6
B6
A7
B7
A8
B8
A9
B9
A10
B10
A11
B11
A12
B12
A13
B13
A14
B14
A15
B15
A16
B16
A17
B17
A18
B18
A19
B19
A20
B20
C4701
C4702
C4708
C4709
C4710
C4711
C4712 C4713
C4714
C4715
C4716
C4717 C4718 C4719
C4722 C4723
C4727 C4728
C4729
C4731 C4732
C4735
C4736
C4737
C4738
C4739 C4740
C4741 C4742
C4743
C4744
C4745
C4746
C4751 C4752
C4755
C4756
C4757
C4758
C4759
C4761
C4762
C4763 C4764
R4701 R4702
R4703 R4704 R4706
R4707
R4709
R4710
R4711
R4712 R4715
R4720
R4725
R4726
R4727
R4730 R4731
R4732 R4733
R4737
R4738
R4739
R4740
R4741
R4742
R4743
R4747
R4748
R4749
R4752
R4757
R4758 R4759
R4760 R4761
R4769
R4773
R4777
R4778
R4779 R4780
R4781
R4782 R4783 R4784
R4785
R4786
R4787
R4788
R4789 R4790 R4791
R4792
R4793
L4701
L4702
L4703
Q4706
Q4707
CN4701
D4702
D4703
D4704
D4705
D4706
D4707
FL4701
FL4704
FL4705
X4701
CF4701
CF4702
CF4703
CF4704
IC4703
R4794
IC4702
R4796
FB4701
R4797
R4798
R4799
R4800
R4801
R4802
C4747 C4748
C4766
C4768
C4767
C4769
Q4703
Q4711
Q4712
Q4701
Q4702
Q4710
Q4709
Q4708
IC4705
IC4704
0.47
16V
B:CHIP
0.47
16V
B:CHIP
100p
CH:CHIP
0.0047
B:CHIP
1
16V
B:CHIP
1
16V
B:CHIP
0.01
B:CHIP
1
16V
B:CHIP
2.2
16V
F:CHIP 0.01
B:CHIP 47
16V
47
16V
39p
CH:CHIP
0.1
25V
B:CHIP
0.1
25V
B:CHIP
4.7
16V
F:CHIP
0.1
F:CHIP
4.7
16V
F:CHIP
100p
CH:CHIP
0.1
25V
B:CHIP
47p CH:CHIP
47p CH:CHIP
4p
CH:CHIP
4p
CH:CHIP
47p CH:CHIP
100
16V
0.1
25V
B:CHIP
10
0.1
25V
B:CHIP
10
0.1
25V
B:CHIP
1000p
B:CHIP
0.001
B:CHIP
0.001
B:CHIP
0.1
25V
B:CHIP
47
16V
0.47
16V
B:CHIP
100
16V 0.01
B:CHIP
2.2
16V
F:CHIP
0.47
16V
B:CHIP
10
47
16V
0.33
16V
B:CHIP
5.5MHz
6.0MHz
6.5MHz
6.5MHz
MA73-TW
MA73-TW
UDZ-12B
UDZ-12B
2SC2412K
BUFFER
DTC144EKA
MUTE SWITCH
2.2k
:CHIP
6.8k
:CHIP 270
:CHIP
22k
:CHIP
5.6k
:CHIP
560
:CHIP
22k
:CHIP
5.6k
:CHIP
560
:CHIP
22k
:CHIP
5.6k
:CHIP
560
:CHIP
1k
:CHIP
0 :CHIP
0
:CHIP
0
:CHIP
100 :CHIP
100 :CHIP
1k
:CHIP
0
:CHIP
6.8k
:CHIP
1k
:CHIP
6.8k
:CHIP
1k
:CHIP
330
:CHIP
100
:CHIP
0 :CHIP
0 :CHIP
0 :CHIP
0
:CHIP
100 :CHIP
100 :CHIP
0
:CHIP
47k
:CHIP
47k
:CHIP
47k
:CHIP
0
:CHIP
22k
:CHIP
47k
:CHIP
47k
:CHIP
47k
:CHIP
560
:CHIP
3.9k
:CHIP
6.8k
:CHIP
18.432MHz
100
:CHIP
100
:CHIP
100
:CHIP
100 :CHIP
100 :CHIP
BAS216
MA73-TW
100
:CHIP
100 :CHIP
100 :CHIP
0
:CHIP
100
:CHIP
100µH
:LAV35
10µH
:LAV35
100µH
:LAV35
40P
GRY
:BTOB-P
FILTER
NJM3403AM
OUTPUT AMP
HM102
:CHIP
0.0022
B:CHIP
0.0022
B:CHIP
0.0022
B:CHIP
680p
B:CHIP
0.0022
B:CHIP
680p
B:CHIP
MSP3410G-B8-QA
SOUND PROCESSOR
0
:CHIP
0
:CHIP
4.7k
:CHIP
4.7k
:CHIP
4.7k
:CHIP
4.7k
:CHIP
4.7k
:CHIP
4.7k
:CHIP
2SC2412K
BIAS
2SA1037AK
LPF
2SA1037AK
LPF
2SC2412K
BUFFER1
2SC2412K
BUFFER2
DTC144EKA
SW1
DTC144EKA
SW2 DTC144EKA
SW3
CXA1875AM-T4
I2C SWITCH
µ2861B-MFP-G3
FA DEMODULATOR
MAIN-L IN
MAIN-R IN
L-TV
R-TV
SCL
SDA
L-OUT
R-OUT
SW2
SUB-R
R
L
QSS-1
AM1
+9V
ARESET
SDA
SCL
QSS-2
+9V
+5V
+5V
+5V
SCL
SDA
QSS-1
QSS-2
AM1
AM2
ARESET
AM2
+9V
+5V
+9V+9V
SUB TUNER
B-SS624.<AEP>-S..-05
S
(AUDIO PROCESS)
SW1
SW0
DA4
DA3
DA2
DA1
DA0
GND SW2
SW3
SA0
SA1
SA2
SDA
SCL
+5V
AM IN
DEC
FM SIF
GND
MUTE
REF
+5V
DEM
SW
AF OUT
VOL
MAIN-L IN
GND
MAIN-R IN
+9V
L-TV
+5V
R-TV
SCL
SDA
GND
GND
SUB-R
L-OUT
R-OUT
GND
GND
QSS-1
AM1
GND
GND
QSS-2
AM2
SW2
NC
NC
NC
NC
NC
NC
NC
NC
NC
T0 A(2/3)BOARD
CN1901
+3.3V(NC)
NC
A RESET
NC
HP-L(NC)
HP-R(NC)
NC
NC
SUR OUT
REF
SUR IN
GND
RIGHT IN
REF
RIGHT OUT
CENTER OUT
REF
CENTER IN
+9V
LEFT IN
REF
LEFT OUT
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NC
NCNC
NC
SCL
SDA
I2S CLOCK
I2S WS
I2S DATA OUT
I2S DATA IN 1
ADR DATA OUT
ADR WS
ADR CLOCK OUT
+5V
+5V
+5V
D GND
D GND
D GND
I2S DATA IN
NC
POWER ON RESET
V REF 2
SPEAKER OUT R
SPEAKER OUT L
SUBWOOFER OUT
A GND
AV4 OUT R
AV4 OUT L
V REF 1
TV OUT R
TV OUT L
HP CAP
+8V
SP CAP
A GND
A GND
REF VOLTAGE
A GND
AV L IN 4
AV R IN 4
A GND
AV L IN 3
AV R IN 3
A GND
AV L IN 2
AV R IN 2
A GND
AV MAIN L IN
AV MAIN R IN
REF VOLTAGE
MONO IN (AM)
A GND
A GND
+5V
+5V
IF IN 1
IF COMMON IN
IF IN 2
TEST
XTAL IN
XTAL OUT
AUDIO CLOCK OUT
DIGITAL CONTROL OUT 1
DIGITAL CONTROL OUT 0
ADDRESS SELECT
STANDBY Q
CENTER OUT
SURROUND
OUT
(OPEN)
– 72 –
KP-48PS2/61PS2
KRM-903
(32) Schematic Diagrams of ZB and ZG Boards
12345678 9 10 11 12 13 14
A
B
C
D
E
F
G
H
I
J
0
+135V
+12V
6.2
6.0
5.6 1.5
1.0
79.1
134
133.4
4.9
5.4
6.0 6.0
6.5
7.0
4.9
5.7
3.8
4.5
1
2
3
1
2
3
4
1
2
3
4
1
2
3
1
2
3
4
5
6
V
VM
H
H.SUB
V.SUB
C7801
C7802
R7801
R7802
R7803
R7805
R7806
C7803
L7802
R7807
R7808
C7804
Q7804
Q7805
R7809
R7811
Q7806
Q7807
R7813
C7807
R7816
R7817
R7818
D7801
D7802
R7819
R7820
C7808
C7810
C7811
R7821
R7822
D7803
R7823
Q7808
Q7809
C7812
C7814 C7816
CN7803
CN7805
CN7801
R7812
R7804
C7813
C7809
R7828
C7806
C7805
R7831
DY7801
L7801
R7832
C7815
R7833
R7834
C7818
R7815
R7814
Q7803
Q7802
R7827
R7824
R7826
R7825
CN7804
D7804
R7810
Q7810
Q7801
CN7802
0.01
B:CHIP
0.01
B:CHIP
0.1
25V
F:CHIP
47
16V
2.2
160V
0.001
:PT
0.01
B:CHIP
0.01
B:CHIP
0.01
200V
:PT
100 0.0047
500V
E
6P
WHT
:S-MICRO
3P
BLK
:S-MICRO
3P
RED
:S-MICRO
MTZJ-13
BIAS
MTZJ-13
BIAS
1SS355
47µH
:LAV35
2SA1037AK
BUFF
2SC2412K
BUFF
2SA1037AK
BUFF
2SC2412K
BUFF
10k
:RN-CP
2.2k
:RN-CP
5.6k
:RN-CP
220
:CHIP
220
:CHIP
120 3W :RS
10
:CHIP
10
:CHIP
120 3W :RS
560 560
680
:FPRD
22k
22k
680
:FPRD
1k
:FPRD
1k
:CHIP
1k
:CHIP
10k
:CHIP
10k
:RN-CP
100
0.001
:PT
2SC5511
VM.AMP
2SA2005
VM.AMP
220
3W
:RS
0.0022
200V
:PT
0.0022
200V
:PT
1k
:CHIP
1.1µH
22
200V
100
:CHIP
470
6.3V
2SA1309A
BUFF
2SC3311A
BUFF
22
:CHIP
22
:CHIP
100
:FPRD
2.2
:FPRD
2.2
:FPRD
100
:FPRD
22
:CHIP
0
:CHIP
4P
WHT-L
JW(5)
2.2
:FPRD
2SC2412K
BUFF
2SC2412K
CORE
4P
YEL
:S-MICRO
B-H SUB DEF
B-V SUB DEF
B-V SUB RET
B-H SUB RET
NC
NC
B-H DEF
B-H RET
NC
V DEF
V RET
NC
V DEF
V RET
+12V
NC
+135V
VM
GND
GND
ZB
(DY,VM DRIVE)
TO D(3/4)BOARD
CN5012
TO ZG BOARD
CN7602
B-SS624.<AEP>-ZB.-05
TO D(4/4)BOARD
CN5007
TO D(2/4)BOARD
CN5001
TO ZG BOARD
CN7604
0
+135V
+12V
5.7
6.3
6.0
134
133.4
77.5
1.5
1.0
4.5
3.8
7.0
5.7
4.9
7.0 6.5
6.06.0
5.5
4.9
1
2
3
1
2
3
4
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
1
2
3
4
1
2
3
V
VM
H
H.SUB
V.SUB
1
2
3
4
C7601
C7602
C7603
R7601
R7602
R7603
R7604
L7602
R7605
R7606
R7607
C7604 R7609
R7611
R7612
C7607
R7614
R7615
R7616
D7601
D7602
R7617
R7618
C7610
C7611
R7622
D7603
R7623
Q7608
Q7609
C7612
C7613
C7614 C7616
C7617
C7618
CN7606
R7613
R7621
C7609
C7608
CN7601
CN7602
CN7604
CN7605
CN7607
C7606
C7605
R7628
R7631
DY7601
L7601
R7632
C7615
R7633
R7634
C7620
R7620
R7619
Q7603
Q7602
R7627
R7624
R7626
R7625
CN7608
D7604
R7608
R7610
Q7610
Q7601
CN7603
Q7605
Q7607
Q7606
Q7604
2.2
160V
0.01
200V
:PT
100
0.1
100V
:PT
MTZJ-13
BIAS
MTZJ-13
BIAS
47µH
:LAV35
120 3W :RS
120 3W :RS
22k
560
680
:FPRD
560
22k
680
:FPRD
220
:CHIP
220
:CHIP
0.01
B:CHIP
0.01
B:CHIP
10
:CHIP
1k
:CHIP
0.1
25V
F:CHIP
0.01
B:CHIP
1k
:CHIP
0.01
B:CHIP
100 0.0047
500V
E
10k
:RN-CP
2.2k
:RN-CP
10k
:RN-CP
5.6k
:RN-CP
0.1
100V
47
16V
1SS355
4P
WHT
:VH
10k
:CHIP
1k
:FPRD
0.001
:PT
0.001
:PT
2SC5511
VM.AMP
2SA2005
VM.AMP
6P
WHT
:S-MICRO
6P
WHT
:S-MICRO
3P
RED
:S-MICRO
3P
BLK
:S-MICRO
3P
YEL
:S-MICRO
220
3W
:RS
0.0022
200V
:PT
0.0022
200V
:PT
1k
:CHIP
1.1µH
22
200V
100
:CHIP
22
:CHIP
22
:CHIP
100
:FPRD
100
:FPRD
2.2
:FPRD
2.2
:FPRD
470
6.3V
2SA1309A
BUFF
2SC3311A
BUFF
22
:CHIP
0
:CHIP
4P
WHT
:S-MICRO
JW(5)
10
2.2
:FPRD
2SC2412K
BUFF
2SC2412K
CORE
4P
BLK
:S-MICRO
2SC2412K
BUFF 2SC2412K
BUFF
2SA1037AK
BUFF
2SA1037AK
BUFF
G-H SUB DEF
G-V SUB DEF
G-V SUB RET
G-H SUB RET
+135V
NC
+12V
NC
+135V
VM
+12V
NC
+135V
VM
NC
NC
G-H DEF
G-H RET
NC
NC
V DEF
V RET
V RET
V DEF
GND
GND
GND
VM
+12V
GND
GND
GND
GND
TO D(4/4)BOARD
CN5008
TO ZR BOARD
CN7403
TO ZB BOARD
CN7805
(DY,VM DRIVE)
TO D(2/4)BOARD
CN5020
TO D(3/4)BOARD
CN5011
TO ZR BOARD
CN7401
TO E BOARD
CN4502
TO ZB BOARD
CN7801
B-SS624.<AEP>-ZG.-05
ZG
– 73 –
KP-48PS2/61PS2
KRM-903
(33) Schematic Diagram of ZR Board
1234567
A
B
C
D
E
F
G
H
I
+135V
+12V
0
5.6
5.6
134
133.5
83.3
83.3
1.5
1.0
5.9 5.9
6.3
6.06.0
6.5
5.5
4.9
7.0
4.9
3.8
4.5
1
2
3
1
2
3
4
1
2
3
4
5
6
V
VM
H
H.SUB
V.SUB
1
2
3
4
C7401
C7402
C7403
C7404
R7401
R7402
R7403
R7404
L7402
R7405
Q7402
Q7403
Q7404
Q7405
R7408
C7405
C7406
R7411
R7412
R7413
D7401
R7414
R7415
R7416
R7417
R7418 C7409 R7419
R7420
D7403
D7404
R7421
R7422
C7410
C7411
R7423
Q7408
Q7409
C7412
C7413
C7414
C7416
R7406
CN7401
CN7403
C7408
C7407
R7428
R7431
DY7401
L7401
R7432
C7415
R7433
R7434
C7418
R7410
R7409
Q7407
Q7406
R7427
R7426
R7425
CN7405
R7424
D7405
R7407
Q7410
Q7401
CN7404
2.2
160V
0.001
:PT
0.001
:PT 0.01
200V
:PT
100
100
0.0047
500V
E
MTZJ-13
BIAS
MTZJ-13
BIAS
47µH
:LAV35
120 3W :RS
120 3W :RS
560
22k
1k
:FPRD
560
22k
680
:FPRD
47
16V
680
:FPRD
0.01
B:CHIP
0.01
B:CHIP
1k
:CHIP
220
:CHIP
220
:CHIP
10
:CHIP
0.01
B:CHIP
0.01
B:CHIP
10
:CHIP
1k
:CHIP
0.1
25V
F:CHIP
1SS355
2SC2412K
BUFF
2SC2412K
BUFF
2SA1037AK
BUFF
2SA1037AK
BUFF
5.6k
:RN-CP
2.2k
:RN-CP
10k
:RN-CP
10k
:RN-CP
10k
:CHIP
2SC5511
VM.AMP
2SA2005
VM.AMP
6P
WHT
:S-MICRO
3P
BLK-L
:S-MICRO
220
3W
:RS
0.0022
200V
:PT
0.0022
200V
:PT
1k
:CHIP
1.1µH
22
200V
100
:CHIP
100
:FPRD
2.2
:FPRD
2.2
:FPRD
470
6.3V
2SA1309A
BUFF
2SC3311A
BUFF
22
:CHIP
22
:CHIP
22
:CHIP
0
:CHIP
4P
WHT-L
100
:FPRD
JW(5)
2.2
:FPRD
2SC2412K
BUFF
2SC2412K
CORE
4P
RED
:S-MICRO
R-H SUB DEF
R-V SUB DEF
R-V SUB RET
R-H SUB RET
+12V
+135V
NC
VM
NC
V DEF
V RET
NC
NC
R-H DEF
R-H RET
GND
GND
(DY,VM DRIVE)
TO D(4/4)BOARD
CN5009
TO ZG BOARD
CN7605
B-SS624.<AEP>-ZR.-05
ZR
TO D(3/4)BOARD
CN5010
TO ZG BOARD
CN7601
– 74 –
KP-48PS2/61PS2
RM-903
— A BOARD (Component Side) —
1
A
B
C
D
E
2345
•A BOARD SEMICONDUCTOR LOCATION
(Component Side)
IC
IC1101 C-4
IC1402 B-1
IC1601 D-5
IC1602 E-5
IC1603 C-5
IC1604 C-5
IC1605 E-4
A
AUDIO OUT, AUDIO PROTECT,
TUNER
– 75 –
KP-48PS2/61PS2
RM-903
— A BOARD (Conductor Side) —
1
A
B
C
D
E
2345
*: Refer to Terminal name of semiconductors in silk
screen printed circuit (see page 40)
•A BOARD SEMICONDUCTOR LOCATION
(Conductor Side)
Q1409 C-3 1
Q1410 B-5 1
Q1411 A-5 1
Q1412 A-5 1
Q1413 A-4 1
Q1421 A-2 1
Q1422 A-2 1
DIODE
*
D1101 D-2 3
D1102 D-2 3
D1103 D-2 3
D1104 D-1 3
D1105 C-2 6
D1106 D-2 6
D1107 C-3 4
D1108 D-2 3
D1109 D-3 3
D1110 C-3 4
D1111 C-3 4
D1112 C-3 4
D1201 B-3 8
D1202 B-1 4
D1203 C-3 3
D1204 C-1 8
D1205 C-1 3
D1206 C-2 3
D1401 C-3 3
D1402 C-3 3
D1403 C-3 3
D1404 C-3 3
D1405 C-3 3
D1406 C-3 8
D1410 C-1 4
D1411 C-1 4
D1421 A-2 3
IC
IC1101 C-2
IC1401 C-2
IC1402 B-5
IC1601 D-1
IC1602 E-1
IC1603 C-1
IC1604 C-1
IC1605 E-2
TRANSISTOR
*
Q1101 D-2 1
Q1102 D-2 1
Q1103 D-2 1
Q1104 D-2 1
Q1105 D-2 1
Q1201 D-2 1
Q1202 D-2 1
Q1203 D-2 1
Q1204 D-2 1
Q1205 C-3 1
Q1206 D-2 1
Q1207 C-2 1
Q1301 E-4 1
Q1302 E-5 1
Q1303 E-4 1
Q1304 E-4 1
Q1305 E-4 1
Q1306 E-5 1
Q1307 E-2 1
Q1308 B-1 1
Q1401 B-5 1
Q1402 C-4 1
Q1404 C-4 1
Q1406 C-4 1
Q1408 B-4 1
A
AUDIO OUT, AUDIO PROTECT,
TUNER
– 76 –
KP-48PS2/61PS2
RM-903
— B3 BOARD (Component Side) —
B3
DRC, MID-X, VIDEO
PROCESS
— B3 BOARD (Conductor Side) —
1
A
B
C
D
2
1
A
B
C
D
2
*: Refer to Terminal name of semiconductors in silk
screen printed circuit (see page 40)
•B3 BOARD SEMICONDUCTOR LOCATION
IC
IC313 D-2
IC314 D-2
IC315 D-2
IC316 D-2
IC501 A-2
IC504 B-2
IC505 C-1
IC506 B-1
IC601 A-2
IC602 A-2
IC603 A-2
IC604 B-2
IC801 C-1
IC802 D-1
IC901 B-1
TRANSISTOR
*
Q304 C-2 1
Q501 A-1 2
Q502 A-1 2
Q503 A-1 2
Q510 A-1 2
Q511 A-1 2
Q512 A-1 2
Q513 A-2 1
Q514 A-2 1
Q515 A-2 1
Q516 A-2 1
Q517 B-1 1
Q518 B-1 1
Q519 B-2 1
Q521 A-1 2
Q522 A-1 2
Q523 A-1 2
Q524 B-2 1
Q601 A-1 1
Q602 A-1 1
Q901 B-2 1
Q902 B-2 1
Q903 B-2 1
Q904 D-1 !;
Q905 D-1 !;
Q907 B-1 2
Q908 B-1 2
Q909 B-1 2
DIODE
*
D501 B-2 3
CRYSTAL
X802 C-1
Component
()
Side Conductor
()
Side
Component
()
Side Conductor
()
Side Component
()
Side Conductor
()
Side
Component
()
Side Conductor
()
Side
– 77 –
KP-48PS2/61PS2
RM-903
— BD BOARD (Component Side) —
BD
PJED,
REGI CORRECTION
*: Refer to Terminal name of semiconductors in silk
screen printed circuit (see page 40)
•BD BOARD SEMICONDUCTOR LOCATION
— BD BOARD (Conductor Side) —
1
A
B
C
D
2
1
A
B
C
D
2
IC
IC2601 C-2
IC2602 C-1 C-2
IC2603 C-2
IC2604 C-1 C-2
IC2605 A-1
IC2606 B-1
IC2607 A-2
IC2608 C-2
IC2609 B-1 B-2
IC2610 C-2
IC2611 B-2
IC2612 B-1
IC2613 B-1
IC2614 C-1 C-2
IC2615 B-1
IC2616 C-2
IC2617 A-1
IC2618 A-2
IC2619 B-2
IC2620 A-2
IC2621 A-1
IC2622 C-2
IC2623 C-1 C-2
IC2625 B-1 B-2
IC2626 D-2
IC2627 D-2
TRANSISTOR
*
Q2601 B-1 2
Q2602 A-2 2
Q2603 A-1 2
Q2604 A-2 2
Q2605 A-2 2
Q2606 A-2 2
Q2607 A-1 1
Q2608 B-1 1
Q2610 D-2 1
Q2611 D-2 2
Q2612 D-2 1
Q2613 D-2 2
Q2614 D-2 2
DIODE
*
D2601 A-1 3
D2602 A-1 3
D2603 A-1 3
D2604 A-1 3
D2605 D-2 3
D2606 D-1 3
D2607 D-2 3
D2608 D-2 3
D2609 D-1 3
D2610 D-2 3
D2611 D-2 3
D2612 D-2 3
D2613 D-1 3
D2614 D-2 3
D2615 D-2 3
D2616 D-2 3
D2617 D-2 3
D2618 D-2 3
D2619 D-2 3
D2620 D-1 3
D2621 D-2 3
D2622 D-2 3
D2623 D-2 3
D2624 D-2 3
CRYSTAL
X2701 B-2
Component
()
Side Conductor
()
Side
Component
()
Side Conductor
()
Side
Component
()
Side Conductor
()
Side
Component
()
Side Conductor
()
Side
– 78 –
KP-48PS2/61PS2
RM-903
— CB BOARD —
CB
B CRT DRIVE
CG
G CRT DRIVE
CR
R CRT DRIVE
— CG BOARD —— CR BOARD —
CR BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
*
3
1
Ref.
D7108
D7101, 7104
CG BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
*
3
1
Ref.
D7208
D7201, 7202
CB BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
*
3
1
Ref.
D7304, 7307, 7309
D7301, 7302, 7305,
7306
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
– 79 –
KP-48PS2/61PS2
RM-903
— D BOARD —
D
H/V-DEF, HV,
DY DRIVE
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
1
A
B
C
D
E
234567
IC
IC5103 C-6
IC5104 C-5
IC5105 C-5
IC5106 C-5
IC5107 C-6
IC5201 E-3
IC5301 E-6
IC5302 E-5
IC5303 E-6
IC5401 C-4
IC5501 A-6
IC5502 A-4
IC5703 D-4
TRANSISTOR
*
Q5006 D-6 1
Q5009 D-6 1
Q5102 E-1 –
Q5104 C-5 –
Q5105 E-1 –
Q5106 E-3 –
Q5201 E-4 1
Q5302 E-6 1
Q5303 E-6 1
Q5401 D-4 1
Q5402 D-5 1
Q5403
Q5501 B-6 –
Q5502 B-4 –
Q5503 A-5 –
Q5504 A-5 –
Q5505 B-5 –
Q5506 B-5 –
Q5704 E-1 –
Q5705 E-2 –
Q5706 E-3 –
Q5707 E-3 –
Q5709 E-7 1
Q5710 E-3 1
Q5711 E-3 1
•D BOARD SEMICONDUCTOR LOCATION
*: Refer to Terminal name of
semiconductors in silk screen printed
circuit (see page 40)
DIODE
*
D5001 D-6 –
D5002 D-6 –
D5006 D-6 –
D5008 D-6 –
D5101 A-1 –
D5107 C-2 –
D5108 D-2 –
D5114 D-1 –
D5115 A-2 –
D5116 D-1 –
D5117 A-1 –
D5118 A-1 –
D5121 B-3 –
D5122 B-3 –
D5201 E-4 –
D5202 E-4 –
D5203 E-4 –
D5204 E-3 –
D5205 E-3 –
D5207 E-3 –
D5208 E-3 –
D5301 E-6 –
D5302 E-6 –
D5303 E-4 –
D5304 E-4 –
D5305 –
D5306 E-6 –
D5307 E-6 –
D5308 D-4 –
D5309 E-5 –
D5401 D-4 –
D5402 D-4 3
D5701 D-7 –
D5704 E-7 –
D5719 D-4 –
D5721 D-4 –
D5724 C-3 –
D5726 E-3 –
D5727 E-3 –
D5731 E-7 –
D5732 E-3 –
– 80 –
KP-48PS2/61PS2
RM-903
— DS BOARD (Component Side) —
DS
SHADING
— E BOARD (Component Side) —
E
R/G/B/VM OUT, Y-C/J
— DS BOARD (Conductor Side) —
DS BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of semiconductors in
silk screen printed circuit (see page 40)
*
3
0
Ref.
D3501, D3503
D3502
— E BOARD (Conductor Side) —
1
A
B
2
1
A
B
2
IC
IC4301 B-1
TRANSISTOR
*
Q4301 A-2 1
Q4302 A-2 1
Q4303 B-1 1
Q4304 B-1 2
Q4307 A-1 2
Q4308 A-1 2
Q4310 A-1 2
Q4316 A-1 2
Q4317 A-1 2
Q4318 A-2 2
Q4320 B-2 1
Component
()
Side Conductor
()
Side
•E BOARD SEMICONDUCTOR LOCATION
Component
()
Side Conductor
()
Side
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
Component
()
Side Conductor
()
Side
Q4321 B-2 1
Q4322 B-1 2
Q4601 B-2 1
Q4602 A-1 1
DIODE
*
D4304 A-2 3
D4305 A-1 3
D4601 A-2 4
D4602 A-1 8
D4603 A-1 8
CRYSTAL
X4300 A-1
Component
()
Side Conductor
()
Side
– 81 –
KP-48PS2/61PS2
RM-903
G
POWER SUPPLY
— G BOARD —
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
1
A
B
C
D
E
2345
*: Refer to Terminal name of semiconductors in silk
screen printed circuit (see page 40)
•G BOARD SEMICONDUCTOR LOCATION
D6021 A-1 –
D6022 A-1 –
D6023 A-1 –
D6100 A-5 –
D6101 B-4 –
D6102 B-4 3
D6103 B-4 3
D6104 B-5 –
D6105 B-4 –
D6106 A-5 –
D6108 B-4 –
D6300 C-3 –
D6301 D-3 –
D6302 D-1 –
D6303 D-4 –
D6304 D-2 –
D6305 D-4 3
D6306 D-4 3
D6307 D-4 3
D6308 D-3 –
D6309 D-2 –
D6310 C-3 –
D6311 D-4 3
D6312 E-3 3
D6315 E-3 3
D6316 E-4 3
D6317 E-4 3
D6318 E-1 –
D6319 E-4 3
D6320 E-4 3
D6323 C-4 –
IC
IC6002 C-1
IC6004 A-1
IC6007 C-3
IC6301 D-1
IC6302 C-4
IC6303 D-1
IC6304 D-4
TRANSISTOR
*
Q6004 B-3 –
Q6100 B-4 –
Q6102 B-4 1
Q6300 D-4 1
Q6301 E-4 1
Q6302 E-4 1
Q6303 E-1 –
Q6304 D-4 –
DIODE
*
D6010 C-3 3
D6015 A-3 –
D6017 B-5 –
D6019 B-1 –
D6020 A-2 –
– 82 –
KP-48PS2/61PS2
KRM-903
— H1 BOARD —
H1
USER CONTROL,
MAIN SWITCH
H1 BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
*
1
Ref.
Q3101
— H2 BOARD —
H2
HP OUT,
USER CONT
— H3 BOARD —
H3
AV INPUT
– 83 –
KP-48PS2/61PS2
KRM-903
— J BOARD (Component Side) —
J
AV SELECT SW
VIDEO PROCESS
— J BOARD (Conductor Side) —
1
A
B
C
D
E
23
1
A
B
C
D
E
23
IC
*
IC8301 C-2
IC8302 D-2
IC8303 D-2
IC8304 D-3
IC8305 D-2
IC8401 D-2
IC8451 A-2
IC8452 A-2
IC8500 C-3
IC8601 D-1
IC8602 C-1
TRANSISTOR
*
Q8302 D-1 1
Q8309 A-1 1
Q8311 A-1 1
Q8451 A-2 1
Q8452 A-2 1
Q8501 D-1 1
Q8502 D-1 1
Q8503 D-1 1
Q8504 D-1 1
Q8601 D-1 2
Q8602 C-1 2
Q8603 D-3 1
Q8604 D-1 2
Q8605 D-3 1
Q8606 D-3 1
Q8607 C-2 1
Q8609 D-2 1
Q8610 D-1 2
Q8611 D-1 2
Q8612 C-1 2
Q8614 A-2 1
Q8615 D-1 2
Q8616 D-1 2
Q8620 C-1 2
Q8621 C-1 2
Q8623 C-3 1
Q8624 D-1 2
Q8625 D-2 1
Q8626 E-1 2
Q8627 E-3 1
Q8628 E-1 2
Q8629 D-3 1
Q8630 E-2 1
Q8631 E-3 1
Q8632 E-2 1
Q8633 E-2 1
Q8634 E-1 2
Q8635 E-1 2
Q8636 C-2 1
Q8637 C-2 1
Q8638 D-2 1
Q8639 C-2 1
Q8640 C-2 1
Q8801 A-3 1
Q8804 A-1 2
Q8805 A-1 !\
•J BOARD SEMICONDUCTOR LOCATION
*: Refer to Terminal name of semiconductors in silk
screen printed circuit (see page 40)
Q8807 A-1 2
Q8809 A-3 1
Q8810 A-1 2
Q8811 A-3 1
Q8812 A-1 2
Q8813 A-1 2
Q8814 A-3 1
Q8815 A-3 1
Q8901 E-1 1
Q8902 D-1 1
Q8903 C-1 1
Q8904 C-1 1
Q8905 C-1 1
Q8906 B-1 1
DIODE
*
D8301 D-3 3
D8302 D-2 3
D8450 A-1 3
D8451 A-1 3
D8601 D-1 3
D8900 B-3 3
D8901 B-2 3
D8902 B-3 3
D8903 B-3 3
D8904 B-2 3
D8905 B-3 3
D8906 B-2 3
D8907 B-2 3
D8908 B-2 3
D8909 B-2 3
D8910 B-2 3
D8911 B-2 3
D8912 B-1 3
D8913 B-2 3
D8914 B-2 3
D8915 B-1 3
D8916 A-2 3
D8917 A-2 3
D8918 B-1 3
D8919 B-1 3
D8920 C-1 3
D8921 C-1 3
D8922 C-3 3
D8923 C-2 3
D8924 C-3 3
D8925 B-2 3
D8926 C-2 3
D8927 C-2 3
D8928 C-2 3
D8929 B-2 3
D8930 C-2 3
D8931 C-1 3
D8932 C-2 3
D8933 B-1 3
CRYSTAL
X8301 C-1
X8401 D-1
Component
()
Side
Component
()
Side Conductor
()
Side
Component
()
Side Conductor
()
Side
Component
()
Side Conductor
()
Side
– 84 –
KP-48PS2/61PS2
KRM-903
— M BOARD (Component Side) —
M
MICRO CONTROL TEXT
— M BOARD (Conductor Side) —
— S BOARD (Component Side) —
S
AUDIO PROCESS
— S BOARD (Conductor Side) —
1
A
B
2
1
A
B
2
1
A
B
2
1
A
B
2
IC
IC9100 A-2
IC9103 A-1
IC9104 B-1
IC9105 A-2
IC9107 A-2
IC9108 A-1
IC9109 B-2
IC9110 A-1
IC9111 B-2
IC9112 B-1
IC9400 A-2
IC9500 B-2
IC9501 B-2
IC9502 B-2
TRANSISTOR
*
Q9100 B-2 1
Q9101 B-2 1
Q9102 B-2 1
Q9103 B-2 1
Q9104 B-2 1
Q9105 B-1 2
Q9106 B-1 2
Component
()
Side Conductor
()
Side
•M BOARD SEMICONDUCTOR LOCATION
Component
()
Side Conductor
()
Side
*: Refer to Terminal name of semiconductors in silk
screen printed circuit (see page 40)
Component
()
Side Conductor
()
Side
Q9110 B-1 2
Q9500 B-1 2
Q9501 B-1 2
Q9502 B-1 2
Q9503 B-2 1
Q9504 B-2 1
DIODE
*
D9100 B-2 3
D9101 A-2 3
D9102 B-2 3
D9103 B-2 3
D9104 B-2 3
D9105 B-2 3
D9107 A-1 5
D9108 A-1 9
D9109 A-1 5
D9110 A-1 9
D9111 A-1 5
CRYSTAL
X9101 A-1
X9500 B-1
Component
()
Side Conductor
()
Side
IC
IC4702 B-2
IC4703 A-1
IC4704 A-2
IC4705 A-2
TRANSISTOR
*
Q4701 A-1 2
Q4702 B-1 2
Q4703 A-1 2
Q4706 A-2 2
Q4707 A-2 2
Q4708 A-2 2
Q4709 A-1 1
Q4710 A-2 2
Component
()
Side Conductor
()
Side
•S BOARD SEMICONDUCTOR LOCATION
Component
()
Side Conductor
()
Side
*: Refer to Terminal name of semiconductors in silk
screen printed circuit (see page 40)
Component
()
Side Conductor
()
Side
Q4711 A-2 2
Q4712 A-1 2
DIODE
*
D4702 A-2 3
D4703 A-1 3
D4704 A-2 3
D4705 A-2 3
D4706 A-2 3
D4707 A-2 3
CRYSTAL
X4701 B-2
Component
()
Side Conductor
()
Side
– 85 –
KP-48PS2/61PS2
KRM-903
— ZB BOARD —
ZB
DY, VM DRIVE
ZG
DY, VM DRIVE
ZR
DY, VM DRIVE
— ZG BOARD —— ZR BOARD —
NOTE:
The circuit indicated as left contains high voltage of over
600 Vp-p. Care must be paid to prevent an electric shock in
inspection or repairing.
ZB BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
*
3
1
Ref.
D7803
Q7801, 7804 – 7807,
Q7810
ZG BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
*
3
1
Ref.
D7603
Q7601, 7604 – 7607,
Q7610
ZR BOARD
Terminal name of semiconductors
in silk screen printed circuit (*)
*: Refer to Terminal name of
semiconductors in silk screen
printed circuit (see page 40)
*
3
1
Ref.
D7401
Q7401 – 7405, 7410
KP-48PS2/61PS2
RM-903
– 86 –
6-5. WAVEFORMS
•B3 (1/5) BOARD WAVEFORMS
•B3 (2/5) BOARD WAVEFORMS
•B3 (4/5) BOARD WAVEFORMS
•B3 (5/5) BOARD WAVEFORMS
•BD (1/4) BOARD WAVEFORMS
1
•BD (2/4) BOARD WAVEFORMS
•BD (3/4) BOARD WAVEFORMS
•CB BOARD WAVEFORMS
123
•CG BOARD WAVEFORMS
564
798
123
!] !\![
!; !,!'
!/ !- !=
@[ @]@=
!. @/ @-
@\
@; @' @,
234
9!/8
567
!\ !;!]
!- !=
KP-48PS2/61PS2
RM-903
– 87 –
•D (2/4) BOARD WAVEFORMS
•D (3/4) BOARD WAVEFORMS
•E BOARD WAVEFORMS
•J (1/5) BOARD WAVEFORMS
1
•J (3/5) BOARD WAVEFORMS
223
•D (1/4) BOARD WAVEFORMS
897
!/ !-
456
•DS BOARD WAVEFORMS
564
798
123
!- !=0
![
4
123
!; !'!\
!= ![ !]
123 34
887
900
567
!= ![!-
!] !\
•J (4/5) BOARD WAVEFORMS
!; !; !' !' !, !,
•J (5/5) BOARD WAVEFORMS
@= @[@-
@] @\
!. !. @/
@;
22.8 Vp-p (V) 17.8 Vp-p (V) 38.3 Vp-p (V) 31.3 Vp-p (V) 22.3 Vp-p (V) 22.3 Vp-p (V)
0.5 Vp-p (H) 0.6 Vp-p (H) 0.6 Vp-p (H) 5.0 Vp-p (H) 4.9 Vp-p (V) 1.5 Vp-p (V)
1.5 Vp-p (V)
0.1 Vp-p (503.5 kHz)
5.7 Vp-p (H) 2.3 Vp-p (H) 2.3 Vp-p (H) 2.2 Vp-p (H)
2.3 Vp-p (H)
PAL : 0.8 Vp-p (4.43 MHz)
SECAM : 0.8 Vp-p (4.43 MHz)
NTSC : 0.9 Vp-p (3.58 MHz)
PAL/NTSC
1.6 Vp-p (H)
SECAM
1.8 Vp-p (H)
SECAM
0.7 Vp-p (H) 1.4 Vp-p (H)
0.3 Vp-p (16.2 MHz)
PAL/NTSC
1.0 Vp-p (H)
PAL : 0.8 Vp-p (4.43 MHz)
SECAM : 0.8 Vp-p (4.43 MHz)
NTSC : 0.9 Vp-p (3.58 MHz)
PAL/NTSC
1.1 Vp-p (H)
SECAM
1.1 Vp-p (H)
PAL/NTSC
2.2 Vp-p (H)
SECAM
2.4Vp-p (H)
0.8 Vp-p (H)
PAL/NTSC
0.5 Vp-p (H)
SECAM
0.3 Vp-p (H) 1.1 Vp-p (H) 1.1 Vp-p (H) 0.8 Vp-p (H)
5.1 Vp-p (H) 5.0 Vp-p (V)
PAL/NTSC
1.1 Vp-p (H)
SECAM
1.2 Vp-p (H)
PAL/NTSC
2.0 Vp-p (H)
SECAM
2.2 Vp-p (H)
PAL/NTSC
1.1 Vp-p (H)
SECAM
1.2 Vp-p (H)
PAL/NTSC
1.6 Vp-p (H)
SECAM
1.7 Vp-p (H) 0.8 Vp-p (H) 0.8 Vp-p (H) 1.3 Vp-p (H) 1.1 Vp-p (H)
1.3 Vp-p (H) 1.3 Vp-p (H) 1.6 Vp-p (H)
0.6 Vp-p (V) 2.6 Vp-p (H) 3.6 Vp-p (H)
0.5 Vp-p (V) 59.0 Vp-p (V) 0.5 Vp-p (V) 12.5 Vp-p (H) 5.2 Vp-p (H) 229.5 Vp-p (H)
8.4 Vp-p (H) 1260 Vp-p (H)
0.8 Vp-p (H) 1.8 Vp-p (H) 0.2 Vp-p (V) 2.3 Vp-p (H)
– 88 –
KP-48PS2/61PS2
KRM-903
SECAM
•M (1/2) BOARD WAVEFORMS
123
•M (2/2) BOARD WAVEFORMS
45
•S BOARD WAVEFORM
1
6 7
5.1 Vp-p (V) 5.1 Vp-p (H) 1.0 Vp-p (16 MHz)
PAL/NTSC
2.1 Vp-p (H) 2.3 Vp-p (H) 1.5 Vp-p (20.48 MHz) 5.1 Vp-p (H) 5.1 Vp-p (V)
1.6 Vp-p (18.432 MHz)
4
KP-48PS2/61PS2
RM-903
– 89 –
6-6. IC BLOCK DIAGRAMS
•J (5/5) BOARD IC8601
TDA9178T
8
6
9
17
19
21
16
SMART PEAKING
LTI
VDC OUTPUT
STAGE
Y OUT
S OUT
U OUT
V OUT
CF
ADXT1
ADXT2
ADXT3
ADEXT1(LOW FREQUENCIES)
ADEXT2(LOW FREQUENCIES)
ADEXT3(LOW FREQUENCIES)
COLOUR
PROCESSING
CDS
CTI
'CUE FLASH'
DELAY
CONTROL
INPUT
STAGE
WINDOW
GENERATION
SUPPLY
SATURATION
CORRECTION
LUMINANCE
PROCESSING
4
3
22
5
FEATUREMODE
DETECTION
I C CONTROL
I C
SC
SDA
V
V
Y
LUMINANCE VECTOR PROCESSING SPECTRAL PROCESSING
COLOUR VECTOR
PROCESSING
BLACK STRETCH
HISTOGRAM PROCESSING
GAMMA CONTROL
SKIN TONE CORRECTION
GREEN ENHANCEMENT
BLUE STRETCH
U,V
DEC
EE
CC
DIG
Y IN
U IN
V IN
2
2
NOISE
MEASURING
CALIBRATE ADC
15
20
18
1
14
SAND-
CASTLE
•A (1/3) BOARD IC1401
•B3 (2/5) BOARD IC604
•S BOARD IC4705
CXA1875AM
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
LATCH
DAC
AMP
+
–
VCC
REG
I2C DECODER
LEVEL
CONVERTER
LEVEL
CONVERTER LEVEL
CONVERTER
LATCH
POWER
ON
RESET
OPEN
COLLECTOR
3 6
25 81 4 7
SW1
SW0
DAC4
DAC3
DAC2
DAC1
DAC0
GND
14 11
15 12 916 13 10
VCC
SCL
SDA
SAD2
SAD1
SAD0
SW3
SW2
•B3 (1/5) BOARD IC504
TLC2933IPWR
Bias
Control
12
13
10
4
5
9
VCO IN
BIAS
VCO INHIBIT
FIN A
FIN B
PFD INHIBIT
VCO
Output
Detector 6 PFD OUT
2 TEST
3 VCO OUT
VDD
Charge Pump
Ring Oscillator
Phase Frequency Detector
Voltage Control Oscillator
•B3 (2/5) BOARD IC603
•B3 (5/5) BOARD IC313
•BD (2/4) BOARD IC2612
TLC2932IPW
Bias
Control
12
13
10
4
5
9
VCO IN
BIAS
VCO INHIBIT
FIN A
FIN B
PFD INHIBIT
VCO
Output
1/2
MUX
Detector 6 PFD OUT
2 SELECT
3 VCO OUT
VDD
Charge Pump
Phase Frequency Detector
Voltage Control Oscillator
Ring Oscillator
•E BOARD IC4301
CXA2100AQ
52
53
54
56
55
57
58
62
61
59
15
14
13
10
60
49 11 7 3 4
CLP SW
VM
SHP
LTI
0~–9dB
Y/Cb/Cr
•SHARPNESS
•PRE/OVER
•LTI-LEVEL
•SHP-F0
•COLOR
•HUE
•CB-OFFSET1
•CR-OFFSET1
•CB-OFFSET2
•CR-OFFSET2
•COLOR-AXIS
•NTSC-JPN
•NTSC-US
•PAL
•OTH
•H-POSITION
•AFC-BOW
•AFC-ANGLE
•DPIC-LEVEL
•AGING W
•AGING B
•PICTURE
•SUB-CON
•BRIGHT
•SUB-BRIGHT
•GAMMA
•D-COL
•DCOL-TEMP
•LIMIT-LEV
•R-DRIVE
•G-DRIVE
•B-DRIVE
•ABL-MODE
•ABL-TH
•P-ABL
•V-SIZE
•V-POSITION
•S-CORRECTION
•V-LINEARITY
•V-COMP
•V-ON
•R-CUTOFF
•G-CUTOFF
•B-CUTOFF
•BLK-BOTTOM
•PIC-ON
•R-ON
•G-ON
•B-ON
•LRGB2-LEV
SW
AFC
SCP
COUNT
MAT YS
YM YS
YM
GAM
DCOL
LIMT DRV AKB
BLK
PABL
PIC
BRT
YY
CLP DPIC
CLP
HDLOOP2
•V-SCROLL
•V-ASPECT
•UP-VLIN
•LO-VLIN
•U-SCAN
•ZOOM-SW
W-FUNC
SW
CTI
Y/Cb/Cr Cb/Cr Cb/Cr
R-Y
G-Y
B-Y
YR
G
B
COL
HUE
•LEFT-BLK
•RIGHT-BLK
CLP PULSE
BLK PULSE
•V-FREERUN
•AKB-TIM1
•AKB-TIM2
•VBLKW
•H-LOCK
PULSE
GEN
AGC
VOSC
1/16 DIV
16fHVCO
AXIS
•DL-PASS
•VM-LEVEL
•CTI-LEVEL
•DC-TRAN
V-FUNC
EW-FUNC
DF-FUNC
EXTRA
•UP-CORNERPIN
•LO-CORNERPIN
•M-PIN
•H-SIZE
•PIN-AMP •TRAPEZIUM
•EW-DC
•H-COMP
I CBUS
DECODER
2
IREF REG
63
64
1
6
5
16
17
20
18
19
21
23
22
25
27
29
31
26
28
30
24
3334353638394041504348444546
ABL
Y1-IN
Cb1-IN
Cr1-IN
Y2-IN
FS
Cb2-IN
Cr2-IN
SCL
SDA
HS-IN
500k
AFC-FIL
SCP-OUT
VTIM-OUT
VS-IN
IREF-SIG
IREF-J
REG
V-OSC
V-AGC
EXTRA-PARA
DF-PARA
EW-OUT
VDN-OUT
VDP-OUT
VPROT
HD-OUT
XRAY-IN
HP-IN
L2-FIL
PGB-AFC-OUT
ABL-FIL
ABL-IN
IK-IN
B-SH
G-SH
R-SH
B-OUT
G-OUT
R-OUT
PABL-FIL
YSYM2
B2-IN
G2-IN
R2-IN
YSYM1
B1-IN
G1-IN
R1-IN
8PF
DPIC-DCTR
CLP-C
VM/C-OFF
VM-OUT
VM-MOD
KP-48PS2/61PS2
RM-903
– 90 –
•BD (3/4) BOARD IC2602,
2604, 2609, 2614, 2623, 2625
PCM56P
5
4
3
2
1
13
12
11
10
14
15
16
6
7
BCLK
NC
+VL
DGND
–VCC
WCLK
DATA
8–VL
Control Logic
&
Level Shift
16Bit
Serial
Parallel
Converter
–
+9
IOUT
AGND
SJ
RF
MSB ADJ
VPOT
+VCC
VOUT
16Bit
Latch
16Bit
DAC
•CR BOARD IC7101
•CG BOARD IC7201
•CB BOARD IC7301
TDA6111Q
CURRENT
SOURCE
9
1
3
5
2
4
Vcc
GND
8
7
IK
VO
VF
6
VOF
MIRROR
200V
V
FOLLOWERS
7V
FOLLOWERS
MIRROR
DIFFERENTIAL
STAGE
–
+
MIRROR
MIRROR
VB
VI
•M (1/2) BOARD IC9110
MC14094BF
CLOCK CLOCK STROBE
CLOCK
CLOCK CLOCK
CLOCK
STROBE STROBE
STROBE
VDD
CLOCK CLOCK STROBE STROBE CLOCK
CLOCK CLOCK
CLOCK
CLOCK
CLOCK
STROBE
STROBE
*Input Protection Diodes
2REGISTER STAGE2 LATCH2 3–STATE BUFFER 2
REGISTER STAGE1 LATCH1 3–STATE BUFFER 1
3REGISTER STAGE3 LATCH3 3–STATE BUFFER 3
4REGISTER STAGE4 LATCH4 3–STATE BUFFER 4
5REGISTER STAGE5 LATCH5 3–STATE BUFFER 5
6REGISTER STAGE6 LATCH6 3–STATE BUFFER 6
7REGISTER STAGE7 LATCH7 3–STATE BUFFER 7
8REGISTER STAGE8 LATCH8 3–STATE BUFFER 8
2
15
3
1
9
10
11
12
13
14
7
6
5
4
SERIAL DATA
OUTPUT ENABLE
CLOCK
STROBE
Q1
Q'S
Q8
QS
Q2
Q3
Q4
Q5
Q6
Q7
*
*
*
*
•G (2/2) BOARD IC6004
MCR5152
+
–
+
–
+
–
+
–
+
–
+
–
+
–
VC2 10V
10V 10V 5V 4V 4V
+
–
5V
RQ
S
TQ
Q
Vref 5V
CUOS
5V
R
S
Q
S
RQ
Q
Vref/VC2
Level Shift
Vref/VC2
Level Shift
Refresh
One Shot
Delay
TSD Pulse
Gen.
Pulse
Gen.
Delay
TSD
10V
5V
5V
0/3V
2k
7V
14VC1
6
CT
RT
VOVP
SS
RESET
COCP
GND
7 11 5 3 12 10
13 VOCP
COM
VG(L)
VC2
VS
VG(H)
VB
VD
17
16
15
19
2
18
5k
50k
50k
50k
20p
0.2V
1
13V/8V
•S BOARD IC4704
U2861B
VCO
3FM SIF
4 2 5 14 13 11 9
8 AF OUT2
7610121
Bandgap
Reference
5kΩ
SW1
SW2
GND
DEC
MUTE
DEM
SW1
SW2
VOL +5V
REF
AF IN2
AF OUT1
AF IN1
•G (1/2) BOARD IC6301
DM-58
1 3 4
5
R1
R2
IC1
KDP-57XBR2/65XBR2
KRM-Y185
– 91 –
6-7. SEMICONDUCTORS
CA0007AM
LM339NS
MC74HC74AFEL
MM74HC32SJX
NJM2058M-TE2
NJM3403AM
SN74HC74ANS
TC74AC32F
TLC2932IPW-E20
TLC2932IPWR
TLC2933IPW-E20
TLC2933IPWR-12
U2861B-MFP-G3
UPC339G2-E2
CM0006CF
CXA1815S
CXA1875AM-T4
MC14094BF
MC14094BFEL
MC74HC4538AF
PCM56P
TC74HC4053AFT(EL)
CXA2100AQ-TL
CXA2149AQ-TL
CXP86324-027Q
CXA2123BQ-T6
CXD2064Q-T6
CXD2309Q-T6
CXD2090Q
CXD9509AQ
DM-58
IS62C1024L-70Q
LF50CDT-TR
LM358D
LM393PS
M24C32-WMN6T(A)
MB3793-42PNF
MB3793-42PNF-ER
TC7W00F
TC7W00F(TE12R)
TC7W08F
TC7W08F(TE12R)
TC7W66FU(TE12R)
TDA2822D013TR
UPC4558G2
UPC4570G2
UPC4570G2-E2
LM7912CT
NJM79M05FA
MCR5152
MM1115XFBE
MM1476AF(TP)
MSM5116400D-60S
MSM56V16160D-10
MSP3410G-B8-QA
MT48LC2M32B2TG-7
M27C800-100K1-RE202
M29F040B-70K1T
NJM2058D
NJM7812FA
NJM78M05FA
NJM78M09FA
PQ05RF11
PQ09RA1
PQ09RF11
PQ30RV21
PST9143NL
SAB-C161PI-LM
SBX1981-51RP
SDA5275-3PC02-2
STK392-020
STV9379
TC7SET04F(TE85R)
TC7SET08F(TE85L)
TC7SET08FU(TE85L
TDA6111Q/N4
TDA7265
TDA9178T/N1.118
TLC5733AIPM
TL431CLP
TL431CLP-Z20
UPC1093J-1-T
BSS83
DTC144EKA
DTC144EKA-T146
2SA1037AK-T146-QR
2SA1037AK-T146-R
2SA1162-G
2SB709A-QRS-TX
2SC1623-L5L6
2SC2412K-T-146-R
2SD2114K
2SD2114KT146
2SD601A-Q
2SA1175-HFE
2SA933AS-QT
2SC3311A-QRSTA
2SA1208
2SC2551-O
2SC2551O-TPE2
2SA2005
2SC4634LS-CB11
2SC5022-02
2SC5511
2SB733-34
2SC2688-LK
2SC5047-YB
2SK2036(TE85L)
2SK2251-01-F19
2SK2663
02CZ5.6-TE85L
MA3062M-TX
MA3220M-TX
RD5.6M-B2
BAS216
DAN202K
DAP202K
DTZ-TT11-6.8B
MA113-(TX)
UDZ-TE-17- 8.2B
UDZS-TE17-12B
UDZS-TE17-15B
UDZSTE-173.9B
UDZSTE-174.7B
UDZSTE-175.1B
UDZSTE-175.6B
UDZSTE-176.2B
UDZSTE-176.8B
UDZSTE-178.2B
UDZSTE-179.1B
1SS355TE-17
D1NL20U-TR
D1NS6
EGP20G
EL1Z
ERA22-08
GP08D
RGP02-20EL-6394
UF4005PKG23
1SS83
191
20
32
3351
52
64
TOP VIEW
141
15
24
2538
39
48
TOP VIEW
1
3
4
5
12
3
2
12
3
1
23
45
67
89
10 11
12 13
14 15
16 17 19
18
5
6
7
1234
TOP VIEW
13168
141921
26
TOP VIEW 241
25
40
4164
65
80
TOP VIEW
5
13
14
14 20
21
29
3032
123
1234
1
4
12345
301
31
50
5180
81
100
INDEX
1
2
3
1
TOP VIEW
7
1
9
1
REF
ANODECATHODE
G1 S
G2 D
E
B
C
E
LETTER SIDE
CB
ECB
BCE
ECB
LETTER SIDE
ECB
BCE
BCE
GSD
S
D
G
1
2
3
1
2
3
ANODE
CATHODE
1
2
3
1
2
3
1
2
3
1
2
3
CATHODE
ANODE
CATHODE
ANODE
1TOP VIEW
14pin SOP
1
TOP VIEW
80pin QFP
1TOP VIEW
36pin DIP
1TOP VIEW
16pin SOP
1
TOP VIEW
48pin QFP
1
TOP VIEW
208pin QFP
1TOP VIEW
32pin SOP
1
TOP VIEW
240pin QFP
1TOP VIEW
8pin SOP
MARKING SIDE VIEW
1
8pin SIP
1TOP VIEW
50pin SOP
1TOP VIEW
86pin SOP
1
TOP VIEW
44pin QFJ
1TOP VIEW
14pin DIP
68pin QFJ
1
22
n=220pin
1
5pin CHIP
1TOP VIEW
24pin SOP
1
TOP VIEW
64pin QFP
– 92 –
KP-48PS2/61PS2
KRM-903
D1N20R
D1NS4
MTZJ-13
MTZJ-13B
MTZJ-7.5B
MTZJ-T-72-18B
MTZJ-T-77-15
MTZJ-T-77-24
MTZJ-T-77-36B
MTZJ-T-77-7.5B
RD10ESB2
RD13ES-B2
RD5.1ESB2
1SS133T-77
D10SC4M
D10SC6M-4012
D10SC6MR
D4SB60L
D4SBL20U
D4SBS4-F
RBA-406B
D5L60
ERC04-06SE
ERC38-06
ERD08M-15
FMG-36S-LF024-104
MA73-TX
MM3Z2V4T1
ON3171-R
SLA-580LT3F
CATHODE
ANODE
12
3
123
12
3
123
~~
+
–
~~
+–
12
1
2
CATHODE
ANODE
CATHODE
ANODE
CATHODE
ANODE
123
12
3
CATHODE
ANODE
12
3
4
12
3
4
CATHODE
ANODE
KP-48PS2/61PS2
KRM-903
– 93 –
•Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
•Items with no part number and no
description are not stocked because they
are seldom required for routine service.
• The construction parts of an assembled
part are indicated with a collation number
in the remark column.
7-1. SCREEN AND COVER BLOCK (KP-48)
: 7-685-661-79 +BVTP 4X12
: 7-685-663-79 +BVTP 4X16
SECTION 7
EXPLODED VIEWS
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
2
2
3
6
9
13
2
12
10
14
16
8
8
6
7
9
10
7
62
2
20
2
2
2
2
17
19
18
15
6
7
7
8
8
45
1
CABINET
BLOCK
CONTROL
PANEL
BLOCK
NOTE:
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
1 X-4200-771-1 BEZNET ASSY
2 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
3 4-084-650-11 SCREEN (48), CONTRAST
4 4-075-440-11 PLATE (48L), DIFFUSION
5 4-075-504-11 PLATE (48F), DIFFUSION
6 * 4-205-155-01 COVER, SENSOR
7 1-528-864-11 BATTERY, SOLAR
8 * 4-066-132-01 HOLDER, SENSOR
9 * 4-076-698-11 HOLDER, SCREEN
10 * 4-076-698-01 HOLDER, SCREEN
12 * 4-075-234-01 HOLDER (TOP), MIRROR
13 * 4-076-705-01 HOLDER (SL), MIRROR
14 4-206-446-01 MIRROR
15 * 4-206-451-01 COVER PAINTED, MIRROR
16 * 4-076-706-01 HOLDER (SR), MIRROR
17 * 4-206-453-01 BOARD, REAR (48)
18 1-529-643-11 SPEAKER (13 CM)
19 1-529-403-11 SPEAKER (6.6 CM)
20 X-4200-773-1 GRILLE ASSY, SPEAKER
KP-48PS2/61PS2
KRM-903
– 94 –
7-2. CONTROL PANEL AND CABINET BLOCK (KP-48)
: 7-685-534-19 +BVTP 2.6X8
: 7-685-648-79 +BVTP 3X12
: 7-685-663-71 +BVTP 4X16
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
59
58
55
54
53
57
63
66
67
52
51
64
65
69
69
69
69
75
74
73
72
71
71
70
68
69
69
56 60
61
62
A
A
TUBE BLOCK
MAIN BRACKET
BLOCK
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
51 X-4037-626-2 TRAY (L) ASSY 52
52 4-072-001-03 TRAY (L)
53 4-071-999-31 PANEL (T)
54 4-072-007-31 PANEL (C)
55 X-4200-783-1 PANEL ASSY, CONTROL 56, 57
56 4-071-997-11 BUTTON, MULTI
57 4-919-393-01 DAMPER
58 4-071-995-11 BUTTON, POWER
59 * A-1372-757-A H1 BOARD, COMPLETE
60 * 4-071-998-02 BRACKET (HA)
61 X-4037-221-2 HOLDER ASSY, TRAY 62
62 4-047-464-01 CATCHER, PUSH
63 4-075-242-01 SPRING (T)
64 X-4037-625-2 TRAY (R) ASSY 65
65 4-072-000-12 TRAY (R)
66 * A-1372-758-A H2 BOARD, COMPLETE
67 * A-1372-759-A H3 BOARD, COMPLETE
68 * 4-206-444-01 SKIRT PAINTED, FRONT
69 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
70 * X-4200-770-1 CABINET (48) ASSY 69, 71-73
71 4-063-421-02 LATCH (K)
72 4-075-874-01 FOOT, PLASTIC
73 4-075-244-01 CASTER (DIA. 30)
74 01-223-925-71 RESISTOR ASSY (HIGH-VOLTAGE)
(FOCUS PACK)
75 * 4-054-825-01 BRACKET, FOCUS PACK
KP-48PS2/61PS2
KRM-903
– 95 –
7-3. SCREEN AND COVER BLOCK (KP-61)
: 7-685-661-79 +BVTP 4X12
: 7-685-663-79 +BVTP 4X16
202
203
206
209
214
212
216
208
206
208
210
207
209
207
206
202
202
221
219
218
202 220
202
202
217
202
202
215
206
207
207
213
208 208
204 205
201
CABINET
BLOCK
CONTROL
PANEL
BLOCK
210
REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK
201 X-4200-785-1 BEZNET (61) ASSY
202 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
203 4-084-652-11 SCREEN (61), CONTRAST
204 4-070-283-11 PLATE (L), DIFFUSION
205 4-084-704-11 PLATE (FV), DIFFUSION
206 * 4-205-155-01 COVER, SENSOR
207 1-528-864-11 BATTERY, SOLAR
208 * 4-066-132-01 HOLDER, SENSOR
209 4-072-006-01 HOLDER (V61), SCREEN
210 4-072-005-01 HOLDER (H61), SCREEN
212 4-075-234-11 HOLDER (TOP), MIRROR
213 * 4-069-689-01 HOLDER (L), MIRROR
214 4-070-922-01 MIRROR, REFLECTION
215 * X-4200-786-1 COVER (61), ASSY MIRROR
216 * 4-069-690-01 HOLDER (R), MIRROR
217 * 4-075-248-02 BOARD (61), REAR
218 X-4200-787-1 GRILLE (61), ASSY SPEAKER
219 1-529-759-11 SPEAKER (16 CM)
220 1-529-758-11 SPEAKER (8 CM)
221 1-529-757-11 SPEAKER (2.7 CM)
KP-48PS2/61PS2
KRM-903
– 96 –
7-4. CONTROL PANEL AND CABINET BLOCK (KP-61)
: 7-685-534-19 +BTP 2.6X8
: 7-685-648-79 +BVTP 3X12
: 7-685-663-71 +BVTP 4X16
The components identified by shading
and mark ¡ are critical for safety.
Replace only with part number specified.
259
258
255
254
253
257
263
266
267
252
251
264
265
269
269
269
269
276
275
273
274
269
272
271
270
268
269 269
256 260
261
262
A
TUBE BLOCK
MAIN BRACKET
BLOCK
A
REF.NO. PART NO. DESCRIPTION REMARK
251 X-4037-626-2 TRAY (L) ASSY 252
252 4-072-001-03 TRAY (L)
253 4-071-999-31 PANEL (T)
254 4-072-007-31 PANEL (C)
255 X-4200-783-1 PANEL ASSY, CONTROL 256, 257
256 4-071-997-11 BUTTON, MULTI
257 4-919-393-01 DAMPER
258 4-071-995-11 BUTTON, POWER
259 * A-1372-757-A H1 BOARD, COMPLETE
260 * 4-071-998-02 BRACKET (HA)
261 X-4037-221-2 HOLDER ASSY, TRAY 262
262 4-047-464-01 CATCHER, PUSH
263 4-075-242-01 SPRING (T)
264 X-4037-625-2 TRAY (R) ASSY 265
REF.NO. PART NO. DESCRIPTION REMARK
265 4-072-000-12 TRAY (R)
266 * A-1372-758-A H2 BOARD, COMPLETE
267 * A-1372-759-A H3 BOARD, COMPLETE
268 4-206-508-01 SKIRT PAINTED, FRONT
269 4-378-522-31 SCREW, TAPPING, HEXAGON HEAD
270 * X-4200-784-1 CABINET (61) ASSY 269, 271-273
271 4-063-421-02 LATCH (K)
272 4-075-874-01 FOOT, PLASTIC
273 4-030-850-01 SOCKET, CASTER
274 4-075-244-01 CASTER (30 DIA.)
275 01-223-925-71 RESISTOR ASSY (HIGH-VOLTAGE)
(FOCUS PACK)
276 * 4-054-825-01 BRACKET, FOCUS PACK
KP-48PS2/61PS2
KRM-903
– 97 –
7-5. MAIN BRACKET BLOCK
: 7-685-648-79 +BVTP 3X12
: 7-685-663-71 +BVTP 4X16
: 7-685-663-79 +BVTP 4X16
: 7-685-872-09 +BVTT 3X8
308
306
307
305
304
303 302
301
317
316 315
314
318
313 312
320
309
310 311
319
314
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
REF.NO. PART NO. DESCRIPTION REMARKREF.NO. PART NO. DESCRIPTION REMARK
301 * 4-062-537-01 BRACKET, MAIN
302 * A-1299-119-A A BOARD, COMPLETE
303 * A-1346-906-A E BOARD, COMPLETE
304 * A-1306-599-A M BOARD, COMPLETE
305 * 1-555-110-00 CABLE, PIN
306 1-543-982-11 CORE, FERRITE
307 * A-1394-969-A S BOARD, COMPLETE
308 * A-1620-144-A B3 BOARD, COMPLETE
309 * A-1394-970-A J BOARD, COMPLETE
310 * A-1136-077-A BD BOARD, COMPLETE
311 4-075-243-03 TERMINAL BOARD
312 1-790-082-11 CABLE, RF
313 * 3-657-516-11 SUPPORT, PRINTED CIRCUIT BOARD
314 * 4-316-015-00 HOLDER, WIRE
315 * A-1316-512-A G BOARD, COMPLETE
316 01-765-286-11 CORD, POWER
317 4-022-115-00 HOLDER, AC CORD
318 * A-1346-907-A D BOARD, COMPLETE 319, 320 (KP-48)
318 * A-1346-909-A D BOARD, COMPLETE 319, 320 (KP-61)
319 01-453-335-11 TRANSFORMER ASSY, FLYBACK
NX-4010//M3P4 (KP-48)
319 01-453-354-11 TRANSFORMER ASSY, FLYBACK
NX-4010//M3Q4 (KP-61)
320 * A-1343-788-A DS BOARD, COMPLETE
KP-48PS2/61PS2
KRM-903
– 98 –
7-6. PICTURE TUBE BLOCK
: 7-685-663-71 +BVTP 4X16
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
356
354
355
353
352
351
354
358
352
359
354
361
352
362
363 364
365
356
357
356
360
367
366
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
351 * A-1332-020-A CR BOARD, COMPLETE
352 01-452-790-41 NECK ASSY (NA-295)
353 * A-1390-999-A ZR BOARD, COMPLETE 354
354 01-451-465-21 DEFLECTION YOKE
355 08-733-572-35 PICTURE TUBE 07MXC3 (R)
(NEW GUN) (KP-48)
355 08-733-573-35 PICTURE TUBE 07MXC4 (R)
(NEW GUN) (KP-61)
356 4-040-131-21 LENS (LINNIT POINT 6) (KP-61)
356 4-056-258-11 LENS (DELTA 78) (48PS2)
357 0A-1501-273-A SEAL (G) ASSY, MECHANICAL
358 * A-1391-000-A ZG BOARD, COMPLETE 354
359 * A-1332-021-A CG BOARD, COMPLETE
360 08-733-575-15 PICTURE TUBE 07MAC3 (B) (C/D CPL)
(KP-48)
360 08-733-576-15 PICTURE TUBE 07MAC4 (B) (C/D CPL)
(KP-61)
361 * A-1391-001-A ZB BOARD, COMPLETE 354
362 * A-1332-022-A CB BOARD, COMPLETE
363 4-373-137-01 CAP (Z), RUBBER
364 08-598-955-13 BLOCK ASSY, HIGH-VOLTAGE
365 * 4-063-176-01 HOLDER, HVR
366 * 4-066-135-01 STAY (R), SIDE
367 * 4-066-134-01 STAY (L), SIDE
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 99 –
NOTE:
REF.NO. PART NO. DESCRIPTION REMARK
SECTION 8
ELECTRICAL PARTS LIST
REF.NO. PART NO. DESCRIPTION REMARK
The components identified by [ in this
manual have been carefully factory-
selected for each set in order to satisfy
regulations regarding X-ray radiation.
Should replacement be required, replace
only with the value originally used.
• All variable and adjustable resistors have
characteristic curve B, unless otherwise
noted.
RESISTORS
•All resistors are in ohms
•F : nonflammable
BD
•Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
•CAPACITORS
PF : µµF
•There are some cases the reference
number on one board overlaps on the
other board. Therefore, when ordering
parts by the reference number, please
include the board name.
When indicating parts by reference
number, please include the board name.
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
*
A-1136-077-A
BD BOARD, COMPLETE
******************************
< CAPACITOR >
C2601 1-126-947-11 ELECT 47µF 20% 25V
C2602 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C2603 1-126-947-11 ELECT 47µF 20% 25V
C2604 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2607 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C2608 1-126-947-11 ELECT 47µF 20% 25V
C2609 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2610 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2611 1-126-947-11 ELECT 47µF 20% 25V
C2612 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2613 1-126-947-11 ELECT 47µF 20% 25V
C2615 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2616 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2617 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2618 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2619 1-164-690-91 CERAMIC CHIP 0.0022µF 5% 50V
C2620 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2621 1-126-947-11 ELECT 47µF 20% 25V
C2622 1-126-947-11 ELECT 47µF 20% 25V
C2623 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2624 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C2625 1-126-947-11 ELECT 47µF 20% 25V
C2626 1-115-339-11 CERAMIC CHIP 0.1µF 10% 50V
C2627 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2628 1-126-947-11 ELECT 47µF 20% 25V
C2631 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C2633 1-115-339-11 CERAMIC CHIP 0.1µF 10% 50V
C2635 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2636 1-126-947-11 ELECT 47µF 20% 25V
C2637 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C2639 1-126-947-11 ELECT 47µF 20% 25V
C2640 1-126-947-11 ELECT 47µF 20% 25V
C2641 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2643 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2644 1-164-690-91 CERAMIC CHIP 0.0022µF 5% 50V
C2645 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2647 1-126-947-11 ELECT 47µF 20% 25V
C2648 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2649 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2650 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2651 1-126-947-11 ELECT 47µF 20% 25V
C2652 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2655 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C2656 1-126-947-11 ELECT 47µF 20% 25V
C2658 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2659 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2660 1-126-947-11 ELECT 47µF 20% 25V
C2661 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C2662 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2663 1-126-947-11 ELECT 47µF 20% 25V
C2666 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2667 1-164-690-91 CERAMIC CHIP 0.0022µF 5% 50V
C2668 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2670 1-126-947-11 ELECT 47µF 20% 25V
C2673 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2674 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2675 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2678 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C2679 1-126-947-11 ELECT 47µF 20% 25V
C2680 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2681 1-126-947-11 ELECT 47µF 20% 25V
C2683 1-126-947-11 ELECT 47µF 20% 25V
C2685 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2686 1-164-690-91 CERAMIC CHIP 0.0022µF 5% 50V
C2689 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2690 1-126-967-11 ELECT 47µF 20% 50V
C2691 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2692 1-126-967-11 ELECT 47µF 20% 50V
C2693 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2694 1-126-947-11 ELECT 47µF 20% 25V
C2695 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C2696 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2697 1-126-947-11 ELECT 47µF 20% 25V
C2698 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2699 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2700 1-163-001-11 CERAMIC CHIP 220pF 10% 50V
C2701 1-164-346-11 CERAMIC CHIP 1µF 16V
C2705 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C2706 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2707 1-163-038-91 CERAMIC CHIP 0.1µF 25V
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 100 –
C2708 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2709 1-126-947-11 ELECT 47µF 20% 25V
C2710 1-126-961-11 ELECT 2.2µF 20% 50V
C2711 1-126-961-11 ELECT 2.2µF 20% 50V
C2713 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2714 1-126-947-11 ELECT 47µF 20% 25V
C2715 1-164-690-91 CERAMIC CHIP 0.0022µF 5% 50V
C2716 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2717 1-126-947-11 ELECT 47µF 20% 25V
C2718 1-164-346-11 CERAMIC CHIP 1µF 16V
C2719 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C2720 1-126-947-11 ELECT 47µF 20% 25V
C2721 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C2724 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C2725 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2726 1-126-964-11 ELECT 10µF 20% 50V
C2727 1-164-346-11 CERAMIC CHIP 1µF 16V
C2728 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C2729 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C2730 1-126-947-11 ELECT 47µF 20% 25V
C2731 1-164-346-11 CERAMIC CHIP 1µF 16V
C2733 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2737 1-164-690-91 CERAMIC CHIP 0.0022µF 5% 50V
C2738 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2739 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2740 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2741 1-163-237-11 CERAMIC CHIP 27pF 5% 50V
C2742 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C2744 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2745 1-126-947-11 ELECT 47µF 20% 25V
C2746 1-126-947-11 ELECT 47µF 20% 25V
C2747 1-126-947-11 ELECT 47µF 20% 25V
C2748 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C2749 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2753 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2754 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2755 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2756 1-126-947-11 ELECT 47µF 20% 25V
C2757 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2758 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2759 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2760 1-163-235-11 CERAMIC CHIP 22pF 5% 50V
C2761 1-163-263-11 CERAMIC CHIP 330pF 5% 50V
C2762 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C2763 1-126-947-11 ELECT 47µF 20% 16V
C2764 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2765 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C2766 1-163-016-00 CERAMIC CHIP 0.0039µF 10% 50V
C2767 1-163-016-00 CERAMIC CHIP 0.0039µF 10% 50V
C2768 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2769 1-126-947-11 ELECT 47µF 20% 16V
C2770 1-163-263-11 CERAMIC CHIP 330pF 5% 50V
C2771 1-163-016-00 CERAMIC CHIP 0.0039µF 10% 50V
C2772 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2773 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2774 1-163-016-00 CERAMIC CHIP 0.0039µF 10% 50V
C2775 1-126-947-11 ELECT 47µF 20% 16V
C2776 1-126-947-11 ELECT 47µF 20% 16V
C2777 1-163-263-11 CERAMIC CHIP 330pF 5% 50V
C2778 1-163-263-11 CERAMIC CHIP 330pF 5% 50V
C2779 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C2780 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C2781 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C2782 1-163-038-91 CERAMIC CHIP 0.1µF 25V
< CONNECTOR >
CN2601 * 1-564-522-11 PLUG, CONNECTOR 7P
CN2602 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P
CN2603 * 1-564-511-11 PLUG, CONNECTOR 8P
CN2604 1-695-915-11 TAB (CONTACT)
< DIODE >
D2601 8-719-988-61 DIODE 1SS355TE-17
D2602 8-719-988-61 DIODE 1SS355TE-17
D2603 8-719-988-61 DIODE 1SS355TE-17
D2604 8-719-988-61 DIODE 1SS355TE-17
D2605 8-719-069-54 DIODE UDZSTE-175.1B
D2606 8-719-988-61 DIODE 1SS355TE-17
D2607 8-719-083-82 DIODE UDZS-TE17-12B
D2608 8-719-069-54 DIODE UDZSTE-175.1B
D2609 8-719-988-61 DIODE 1SS355TE-17
D2610 8-719-988-61 DIODE 1SS355TE-17
D2611 8-719-988-61 DIODE 1SS355TE-17
D2612 8-719-069-54 DIODE UDZSTE-175.1B
D2613 8-719-083-82 DIODE UDZS-TE17-12B
D2614 8-719-069-54 DIODE UDZSTE-175.1B
D2615 8-719-988-61 DIODE 1SS355TE-17
D2616 8-719-069-54 DIODE UDZSTE-175.1B
D2617 8-719-083-82 DIODE UDZS-TE17-12B
D2618 8-719-069-54 DIODE UDZSTE-175.1B
D2619 8-719-988-61 DIODE 1SS355TE-17
D2620 8-719-083-82 DIODE UDZS-TE17-12B
D2621 8-719-069-54 DIODE UDZSTE-175.1B
D2622 8-719-069-54 DIODE UDZSTE-175.1B
D2623 8-719-988-61 DIODE 1SS355TE-17
D2624 8-719-988-61 DIODE 1SS355TE-17
< FERRITE BEAD >
FB2601 1-216-295-91 SHORT 0
FB2602 1-216-295-91 SHORT 0
FB2603 1-216-295-91 SHORT 0
FB2604 1-216-295-91 SHORT 0
< IC >
IC2601 8-759-106-02 IC µPC4570G2
IC2602 8-759-998-22 IC PCM56P
IC2603 8-759-106-02 IC µPC4570G2
IC2604 8-759-998-22 IC PCM56P
BD
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 101 –
IC2605 8-759-589-66 IC CM0006CF
IC2606 8-759-485-79 IC TC7SET08FU(TE85L
IC2607 8-759-673-51 IC MM74HC32SJX
IC2608 8-759-106-02 IC µPC4570G2
IC2609 8-759-998-22 IC PCM56P
IC2610 8-759-106-02 IC µPC4570G2
IC2611 8-759-488-29 IC TC7W66FU(TE12R)
IC2612 8-759-669-75 IC TLC2932IPWR
IC2613 8-759-925-90 IC SN74HC74ANS
IC2614 8-759-998-22 IC PCM56P
IC2615 8-759-485-79 IC TC7SET08FU(TE85L
IC2616 8-759-106-02 IC µPC4570G2
IC2617 8-759-352-91 IC PST9143NL
IC2618 8-759-038-15 IC MC74HC4538AF
IC2619 8-752-914-81 IC CXP86324-027Q
IC2620 8-759-367-69 IC MC74HC74AFEL
IC2621 8-759-682-41 IC M24C32-WMN6T(A)
IC2622 8-759-106-02 IC µPC4570G2
IC2623 8-759-998-22 IC PCM56P
IC2625 8-759-998-22 IC PCM56P
IC2626 8-759-394-80 IC NJM2058M-TE2
IC2627 8-759-394-80 IC NJM2058M-TE2
< CHIP CONDUCTOR >
JR2605 1-216-295-91 SHORT 0
< COIL >
L2601 1-414-234-22 FERRITE 0µH
L2602 1-414-234-22 FERRITE 0µH
L2605 1-469-555-21 INDUCTOR 10µH
L2606 1-414-234-22 FERRITE 0µH
L2608 1-469-555-21 INDUCTOR 10µH
L2609 1-414-234-22 FERRITE 0µH
L2610 1-414-234-22 FERRITE 0µH
L2611 1-412-029-11 INDUCTOR 10µH
L2612 1-414-234-22 FERRITE 0µH
L2615 1-414-234-22 FERRITE 0µH
L2616 1-414-234-22 FERRITE 0µH
L2617 1-469-555-21 INDUCTOR 10µH
L2618 1-469-555-21 INDUCTOR 10µH
L2619 1-414-234-22 FERRITE 0µH
L2621 1-414-234-22 FERRITE 0µH
L2622 1-414-234-22 FERRITE 0µH
L2625 1-414-234-22 FERRITE 0µH
L2626 1-469-555-21 INDUCTOR 10µH
L2627 1-414-234-22 FERRITE 0µH
L2628 1-469-555-21 INDUCTOR 10µH
L2629 1-414-234-22 FERRITE 0µH
L2633 1-412-029-11 INDUCTOR 10µH
L2634 1-414-234-22 FERRITE 0µH
L2635 1-414-234-22 FERRITE 0µH
L2636 1-469-555-21 INDUCTOR 10µH
L2637 1-414-234-22 FERRITE 0µH
L2638 1-414-234-22 FERRITE 0µH
L2639 1-469-555-21 INDUCTOR 10µH
L2640 1-414-234-22 FERRITE 0µH
L2643 1-414-234-22 FERRITE 0µH
L2645 1-469-555-21 INDUCTOR 10µH
L2646 1-414-234-22 FERRITE 0µH
L2647 1-414-234-22 FERRITE 0µH
L2648 1-469-555-21 INDUCTOR 10µH
L2649 1-412-029-11 INDUCTOR 10µH
L2652 1-414-234-22 FERRITE 0µH
L2653 1-469-555-21 INDUCTOR 10µH
L2654 1-414-234-22 FERRITE 0µH
L2656 1-469-555-21 INDUCTOR 10µH
L2657 1-414-234-22 FERRITE 0µH
L2658 1-414-234-22 FERRITE 0µH
L2659 1-414-234-22 FERRITE 0µH
L2661 1-414-234-22 FERRITE 0µH
L2663 1-414-234-22 FERRITE 0µH
L2664 1-414-234-22 FERRITE 0µH
L2665 1-216-295-91 SHORT 0
L2666 1-216-295-91 SHORT 0
L2667 1-216-295-91 SHORT 0
L2668 1-216-295-91 SHORT 0
L2669 1-216-295-91 SHORT 0
L2670 1-216-295-91 SHORT 0
< TRANSISTOR >
Q2601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q2602 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q2603 1-801-806-11 TRANSISTOR TR DTC144EKA
Q2604 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q2605 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q2606 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q2607 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q2608 1-801-806-11 TRANSISTOR TR DTC144EKA
Q2610 1-801-806-11 TRANSISTOR TR DTC144EKA
Q2611 1-801-806-11 TRANSISTOR TR DTC144EKA
Q2612 1-801-806-11 TRANSISTOR TR DTC144EKA
Q2613 1-801-806-11 TRANSISTOR TR DTC144EKA
Q2614 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R2601 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2602 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2603 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2606 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2607 1-216-295-91 SHORT 0
R2608 1-216-295-91 SHORT 0
R2609 1-216-025-11 RES-CHIP 100 5% 1/10W
R2610 1-216-025-11 RES-CHIP 100 5% 1/10W
R2611 1-216-025-11 RES-CHIP 100 5% 1/10W
R2612 1-216-025-11 RES-CHIP 100 5% 1/10W
R2613 1-216-025-11 RES-CHIP 100 5% 1/10W
R2621 1-216-025-11 RES-CHIP 100 5% 1/10W
R2622 1-216-025-11 RES-CHIP 100 5% 1/10W
BD
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 102 –
R2623 1-216-025-11 RES-CHIP 100 5% 1/10W
R2624 1-216-081-00 RES-CHIP 22K 5% 1/10W
R2625 1-216-025-11 RES-CHIP 100 5% 1/10W
R2628 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2629 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2630 1-208-816-11 METAL CHIP 27K 0.5% 1/10W
R2631 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R2632 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2634 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2635 1-208-802-11 METAL CHIP 6.8K 0.5% 1/10W
R2636 1-216-295-91 SHORT 0
R2637 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R2638 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2639 1-208-801-11 METAL CHIP 6.2K 0.5% 1/10W
R2640 1-216-033-00 RES-CHIP 220 5% 1/10W
R2641 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2643 1-216-033-00 RES-CHIP 220 5% 1/10W
R2644 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R2645 1-216-033-00 RES-CHIP 220 5% 1/10W
R2646 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2647 1-216-025-11 RES-CHIP 100 5% 1/10W
R2648 1-216-295-91 SHORT 0
R2649 1-216-295-91 SHORT 0
R2650 1-216-025-11 RES-CHIP 100 5% 1/10W
R2651 1-216-025-11 RES-CHIP 100 5% 1/10W
R2652 1-216-025-11 RES-CHIP 100 5% 1/10W
R2653 1-216-025-11 RES-CHIP 100 5% 1/10W
R2654 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R2655 1-216-025-11 RES-CHIP 100 5% 1/10W
R2657 1-216-025-11 RES-CHIP 100 5% 1/10W
R2658 1-216-025-11 RES-CHIP 100 5% 1/10W
R2659 1-216-025-11 RES-CHIP 100 5% 1/10W
R2661 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R2662 1-216-025-11 RES-CHIP 100 5% 1/10W
R2663 1-216-025-11 RES-CHIP 100 5% 1/10W
R2664 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2665 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2666 1-216-033-00 RES-CHIP 220 5% 1/10W
R2667 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2668 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2669 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2671 1-216-025-11 RES-CHIP 100 5% 1/10W
R2672 1-216-025-11 RES-CHIP 100 5% 1/10W
R2673 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2674 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2675 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2676 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2677 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2678 1-216-025-11 RES-CHIP 100 5% 1/10W
R2679 1-216-025-11 RES-CHIP 100 5% 1/10W
R2680 1-216-033-00 RES-CHIP 220 5% 1/10W
R2681 1-216-025-11 RES-CHIP 100 5% 1/10W
R2682 1-216-025-11 RES-CHIP 100 5% 1/10W
R2683 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2684 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2685 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R2688 1-216-037-00 RES-CHIP 330 5% 1/10W
R2689 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R2690 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2691 1-216-295-91 SHORT 0
R2692 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R2693 1-216-295-91 SHORT 0
R2694 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R2695 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R2698 1-216-037-00 RES-CHIP 330 5% 1/10W
R2699 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R2701 1-216-041-00 RES-CHIP 470 5% 1/10W
R2703 1-216-037-00 RES-CHIP 330 5% 1/10W
R2704 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2705 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R2706 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2707 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R2708 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2709 1-216-025-11 RES-CHIP 100 5% 1/10W
R2710 1-216-025-11 RES-CHIP 100 5% 1/10W
R2712 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2714 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R2715 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2716 1-216-025-11 RES-CHIP 100 5% 1/10W
R2717 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2719 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2720 1-216-295-91 SHORT 0
R2721 1-216-295-91 SHORT 0
R2723 1-208-793-11 METAL CHIP 3K 0.5% 1/10W
R2725 1-208-776-11 METAL CHIP 560 0.5% 1/10W
R2726 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R2728 1-216-025-11 RES-CHIP 100 5% 1/10W
R2729 1-216-033-00 RES-CHIP 220 5% 1/10W
R2730 1-216-025-11 RES-CHIP 100 5% 1/10W
R2731 1-208-850-11 METAL CHIP 680K 0.5% 1/10W
R2732 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2733 1-216-025-11 RES-CHIP 100 5% 1/10W
R2734 1-216-025-11 RES-CHIP 100 5% 1/10W
R2735 1-216-025-11 RES-CHIP 100 5% 1/10W
R2736 1-216-025-11 RES-CHIP 100 5% 1/10W
R2737 1-216-025-11 RES-CHIP 100 5% 1/10W
R2738 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2739 1-216-025-11 RES-CHIP 100 5% 1/10W
R2740 1-216-025-11 RES-CHIP 100 5% 1/10W
R2741 1-216-033-00 RES-CHIP 220 5% 1/10W
R2742 1-216-025-11 RES-CHIP 100 5% 1/10W
R2743 1-216-025-11 RES-CHIP 100 5% 1/10W
R2744 1-216-025-11 RES-CHIP 100 5% 1/10W
R2745 1-216-025-11 RES-CHIP 100 5% 1/10W
R2746 1-208-850-11 METAL CHIP 680K 0.5% 1/10W
R2747 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2750 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2751 1-216-025-11 RES-CHIP 100 5% 1/10W
R2752 1-216-025-11 RES-CHIP 100 5% 1/10W
R2753 1-216-025-11 RES-CHIP 100 5% 1/10W
R2755 1-216-025-11 RES-CHIP 100 5% 1/10W
R2756 1-216-025-11 RES-CHIP 100 5% 1/10W
BD
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 103 –
BD A
R2758 1-216-025-11 RES-CHIP 100 5% 1/10W
R2759 1-216-033-00 RES-CHIP 220 5% 1/10W
R2760 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2761 1-216-295-91 SHORT 0
R2762 1-216-295-91 SHORT 0
R2763 1-216-025-11 RES-CHIP 100 5% 1/10W
R2764 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2765 1-216-025-11 RES-CHIP 100 5% 1/10W
R2766 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2767 1-216-033-00 RES-CHIP 220 5% 1/10W
R2768 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2769 1-216-025-11 RES-CHIP 100 5% 1/10W
R2771 1-216-033-00 RES-CHIP 220 5% 1/10W
R2773 1-216-025-11 RES-CHIP 100 5% 1/10W
R2774 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2775 1-216-025-11 RES-CHIP 100 5% 1/10W
R2777 1-216-025-11 RES-CHIP 100 5% 1/10W
R2778 1-216-025-11 RES-CHIP 100 5% 1/10W
R2779 1-216-025-11 RES-CHIP 100 5% 1/10W
R2781 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2782 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2783 1-216-295-91 SHORT 0
R2784 1-216-025-11 RES-CHIP 100 5% 1/10W
R2785 1-216-041-00 RES-CHIP 470 5% 1/10W
R2786 1-216-041-00 RES-CHIP 470 5% 1/10W
R2787 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R2789 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2790 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W
R2791 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2792 1-216-033-00 RES-CHIP 220 5% 1/10W
R2793 1-216-033-00 RES-CHIP 220 5% 1/10W
R2794 1-216-025-11 RES-CHIP 100 5% 1/10W
R2796 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2797 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R2799 1-208-810-11 METAL CHIP 15K 0.5% 1/10W
R2800 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R2803 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R2804 1-216-295-91 SHORT 0
R2805 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2806 1-216-025-11 RES-CHIP 100 5% 1/10W
R2807 1-216-295-91 SHORT 0
R2808 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2809 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2810 1-216-025-11 RES-CHIP 100 5% 1/10W
R2811 1-216-025-11 RES-CHIP 100 5% 1/10W
R2812 1-216-025-11 RES-CHIP 100 5% 1/10W
R2813 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2814 1-216-025-11 RES-CHIP 100 5% 1/10W
R2815 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2818 1-216-025-11 RES-CHIP 100 5% 1/10W
R2821 1-216-025-11 RES-CHIP 100 5% 1/10W
R2823 1-216-033-00 RES-CHIP 220 5% 1/10W
R2824 1-216-033-00 RES-CHIP 220 5% 1/10W
R2825 1-216-033-00 RES-CHIP 220 5% 1/10W
R2826 1-216-033-00 RES-CHIP 220 5% 1/10W
R2827 1-216-033-00 RES-CHIP 220 5% 1/10W
R2831 1-216-025-11 RES-CHIP 100 5% 1/10W
R2832 1-216-025-11 RES-CHIP 100 5% 1/10W
R2834 1-216-025-11 RES-CHIP 100 5% 1/10W
R2835 1-216-025-11 RES-CHIP 100 5% 1/10W
R2836 1-216-118-00 RES-CHIP 750K 5% 1/10W
R2837 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2838 1-216-122-11 RES-CHIP 1.1M 5% 1/10W
R2839 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2840 1-216-025-11 RES-CHIP 100 5% 1/10W
R2841 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2842 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2843 1-216-295-91 SHORT 0
R2844 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2845 1-216-073-91 RES-CHIP 10K 5% 1/10W
R2846 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2847 1-216-025-11 RES-CHIP 100 5% 1/10W
R2848 1-216-049-11 RES-CHIP 1K 5% 1/10W
R2849 1-216-025-11 RES-CHIP 100 5% 1/10W
R2850 1-216-124-11 RES-CHIP 1.3M 5% 1/10W
R2851 1-216-124-11 RES-CHIP 1.3M 5% 1/10W
R2852 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R2853 1-216-073-91 RES-CHIP 10K 5% 1/10W
< CRYSTAL >
X2701 1-767-925-21 VIBRATOR, CRYSTAL (12MHz)
*******************************************************************************
*
A-1299-119-A
A BOARD, COMPLETE
******************************
4-202-373-01 SPRING, IC
4-363-414-11 SPACER, MICA
4-382-854-11 SCREW (M3X10), P, SW (+)
< CAPACITOR >
C1101 1-126-767-11 ELECT 1000µF 20% 16V
C1102 1-126-964-11 ELECT 10µF 20% 50V
C1103 1-126-964-11 ELECT 10µF 20% 50V
C1104 1-126-964-11 ELECT 10µF 20% 50V
C1105 1-126-041-11 ELECT 2200µF 20% 35V
C1106 1-136-165-00 FILM 0.1µF 5% 50V
C1107 1-136-165-00 FILM 0.1µF 5% 50V
C1108 1-126-947-11 ELECT 47µF 20% 16V
C1109 1-126-947-11 ELECT 47µF 20% 16V
C1110 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1111 1-126-041-11 ELECT 2200µF 20% 35V
C1114 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1115 1-126-959-11 ELECT 0.47µF 20% 50V
C1116 1-126-933-11 ELECT 100µF 20% 16V
C1219 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C1220 1-107-715-11 ELECT 22µF 20% 16V
C1221 1-137-150-11 MYLAR 0.01µF 5% 50V
C1222 1-126-961-11 ELECT 2.2µF 20% 50V
C1223 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1301 1-126-934-11 ELECT 220µF 20% 10V
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 104 –
C1302 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C1304 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C1305 1-126-934-11 ELECT 220µF 20% 10V
C1306 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C1307 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C1308 1-126-933-11 ELECT 100µF 20% 16V
C1401 1-130-777-00 MYLAR 0.1µF 5% 63V
C1402 1-130-777-00 MYLAR 0.1µF 5% 63V
C1403 1-130-777-00 MYLAR 0.1µF 5% 63V
C1404 1-130-777-00 MYLAR 0.1µF 5% 63V
C1405 1-126-947-11 ELECT 47µF 20% 16V
C1409 1-136-165-00 FILM 0.1µF 5% 50V
C1410 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1411 1-126-933-11 ELECT 100µF 20% 16V
C1412 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1413 1-126-967-11 ELECT 47µF 20% 50V
C1414 1-126-967-11 ELECT 47µF 20% 50V
C1415 1-126-967-11 ELECT 47µF 20% 50V
C1416 1-126-967-11 ELECT 47µF 20% 50V
C1417 1-126-967-11 ELECT 47µF 20% 50V
C1418 1-126-967-11 ELECT 47µF 20% 50V
C1419 1-164-222-91 CERAMIC CHIP 0.22µF 25V
C1420 1-164-222-91 CERAMIC CHIP 0.22µF 25V
C1421 1-164-222-91 CERAMIC CHIP 0.22µF 25V
C1422 1-164-222-91 CERAMIC CHIP 0.22µF 25V
C1423 1-164-222-91 CERAMIC CHIP 0.22µF 25V
C1424 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1426 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C1427 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C1428 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C1429 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C1430 1-164-346-11 CERAMIC CHIP 1µF 16V
C1601 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1602 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1603 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1604 1-126-933-11 ELECT 100µF 20% 16V
C1605 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1606 1-126-933-11 ELECT 100µF 20% 16V
C1607 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1608 1-126-933-11 ELECT 100µF 20% 16V
C1610 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1611 1-126-916-11 ELECT 1000µF 20% 6.3V
C1612 1-126-935-11 ELECT 470µF 20% 10V
C1615 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C1616 1-126-916-11 ELECT 1000µF 20% 6.3V
C1617 1-126-935-11 ELECT 470µF 20% 10V
C1619 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
< CONNECTOR >
CN1001 1-695-299-11 CONNECTOR, BOARD TO BOARD 50P
CN1102 * 1-564-507-11 PLUG, CONNECTOR 4P
CN1201 1-695-299-11 CONNECTOR, BOARD TO BOARD 50P
CN1301 * 1-564-508-11 PLUG, CONNECTOR 5P
CN1302 * 1-764-333-11 PLUG, CONNECTOR 10P
CN1404 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P
CN1501 1-785-802-11 PIN, CONNECTOR (WITH PWB) 20P
CN1502 1-785-802-11 PIN, CONNECTOR (WITH PWB) 20P
CN1503 * 1-564-511-11 PLUG, CONNECTOR 8P
CN1504 * 1-564-508-11 PLUG, CONNECTOR 5P
CN1603 * 1-764-333-11 PLUG, CONNECTOR 10P
CN1605 1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P
CN1606 * 1-564-508-11 PLUG, CONNECTOR 5P
CN1661 1-695-915-11 TAB (CONTACT)
CN1665 1-695-915-11 TAB (CONTACT)
CN1666 1-695-915-11 TAB (CONTACT)
CN1801 1-695-299-11 CONNECTOR, BOARD TO BOARD 50P
CN1901 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P
< COMPOSITION CIRCUIT BLOCK >
CP1301 1-251-658-11 SPLITTER RF
< DIODE >
D1101 8-719-988-61 DIODE 1SS355TE-17
D1102 8-719-988-61 DIODE 1SS355TE-17
D1103 8-719-988-61 DIODE 1SS355TE-17
D1104 8-719-988-61 DIODE 1SS355TE-17
D1105 8-719-914-43 DIODE DAN202K
D1106 8-719-914-43 DIODE DAN202K
D1107 8-719-402-92 DIODE MA3220M-TX
D1108 8-719-988-61 DIODE 1SS355TE-17
D1109 8-719-988-61 DIODE 1SS355TE-17
D1110 8-719-402-92 DIODE MA3220M-TX
D1111 8-719-402-92 DIODE MA3220M-TX
D1112 8-719-402-92 DIODE MA3220M-TX
D1201 8-719-914-43 DIODE DAN202K
D1202 8-719-914-43 DIODE DAN202K
D1203 8-719-988-61 DIODE 1SS355TE-17
D1204 8-719-914-43 DIODE DAN202K
D1205 8-719-988-61 DIODE 1SS355TE-17
D1206 8-719-988-61 DIODE 1SS355TE-17
D1401 8-719-069-56 DIODE UDZSTE-176.2B
D1402 8-719-069-56 DIODE UDZSTE-176.2B
D1403 8-719-069-56 DIODE UDZSTE-176.2B
D1404 8-719-069-56 DIODE UDZSTE-176.2B
D1405 8-719-978-33 DIODE DTZ-TT11-6.8B
D1406 8-719-914-43 DIODE DAN202K
D1410 8-719-402-92 DIODE MA3220M-TX
D1411 8-719-402-92 DIODE MA3220M-TX
D1421 8-719-083-58 DIODE UDZSTE-173.9B
< FILTER >
FL1401 1-236-071-11 ENCAPSULATED COMPONENT
< IC >
IC1101 8-759-190-89 IC TDA7265
IC1401 8-752-072-94 IC CXA1875AM-T4
A
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 105 –
IC1402 8-752-067-36 IC CXA1815S
IC1601 8-759-069-28 IC PQ05RF11
IC1602 8-759-054-12 IC PQ09RA1
IC1603 8-759-520-49 IC PQ30RV21
IC1604 8-759-520-49 IC PQ30RV21
IC1605 8-759-069-28 IC PQ05RF11
< CHIP CONDUCTOR >
JR1001 1-216-295-91 SHORT 0
JR1002 1-216-295-91 SHORT 0
JR1003 1-216-295-91 SHORT 0
JR1004 1-216-295-91 SHORT 0
JR1005 1-216-295-91 SHORT 0
JR1007 1-216-295-91 SHORT 0
JR1008 1-216-295-91 SHORT 0
JR1015 1-216-295-91 SHORT 0
JR1017 1-216-295-91 SHORT 0
JR1018 1-216-295-91 SHORT 0
JR1019 1-216-295-91 SHORT 0
JR1021 1-216-295-91 SHORT 0
JR1023 1-216-295-91 SHORT 0
JR1024 1-216-295-91 SHORT 0
JR1025 1-216-295-91 SHORT 0
JR1027 1-216-295-91 SHORT 0
JR1028 1-216-295-91 SHORT 0
JR1029 1-216-295-91 SHORT 0
JR1030 1-216-295-91 SHORT 0
JR1031 1-216-295-91 SHORT 0
JR1033 1-216-295-91 SHORT 0
JR1601 1-216-295-91 SHORT 0
< COIL >
L1301 1-408-603-31 INDUCTOR 10µH
L1302 1-408-603-31 INDUCTOR 10µH
L1303 1-408-603-31 INDUCTOR 10µH
L1401 1-412-004-31 INDUCTOR 6.8µH
L1402 1-412-004-31 INDUCTOR 6.8µH
L1403 1-412-004-31 INDUCTOR 6.8µH
< TRANSISTOR >
Q1101 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1102 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1103 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1104 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1105 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1106 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1201 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1202 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1203 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1204 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1205 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1206 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1207 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1301 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1302 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1303 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1304 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1305 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1306 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1307 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1308 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1401 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1402 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1404 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1406 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1408 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1409 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1410 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1411 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1412 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1413 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1421 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q1422 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R1102 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1103 1-216-025-11 RES-CHIP 100 5% 1/10W
R1104 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1105 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1106 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1107 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1108 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1109 1-216-041-00 RES-CHIP 470 5% 1/10W
R1110 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1111 1-216-041-00 RES-CHIP 470 5% 1/10W
R1112 1-216-295-91 SHORT 0
R1113 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1114 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1115 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1116 1-216-295-91 SHORT 0
R1117 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1118 1-216-079-00 RES-CHIP 18K 5% 1/10W
R1119 1-216-079-00 RES-CHIP 18K 5% 1/10W
R1120 1-216-043-91 RES-CHIP 560 5% 1/10W
R1121 1-216-043-91 RES-CHIP 560 5% 1/10W
R1122 1-216-357-00 METAL OXIDE 4.7 5% 1W
R1123 1-249-381-11 CARBON 1 5% 1/4W
R1124 1-216-357-00 METAL OXIDE 4.7 5% 1W
R1125 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1127 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1128 1-249-417-11 CARBON 1K 5% 1/4W
R1131 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1201 1-216-081-00 RES-CHIP 22K 5% 1/10W
R1211 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1212 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1213 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1214 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1215 1-216-089-91 RES-CHIP 47K 5% 1/10W
A
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 106 –
R1216 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1217 1-216-097-11 RES-CHIP 100K 5% 1/10W
R1218 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1219 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1220 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1221 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1222 1-216-081-00 RES-CHIP 22K 5% 1/10W
R1223 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1224 1-216-081-00 RES-CHIP 22K 5% 1/10W
R1231 1-216-295-91 SHORT 0
R1232 1-216-295-91 SHORT 0
R1233 1-216-295-91 SHORT 0
R1234 1-216-295-91 SHORT 0
R1301 1-216-041-00 RES-CHIP 470 5% 1/10W
R1303 1-216-025-11 RES-CHIP 100 5% 1/10W
R1304 1-216-025-11 RES-CHIP 100 5% 1/10W
R1305 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1306 1-216-025-11 RES-CHIP 100 5% 1/10W
R1307 1-216-041-00 RES-CHIP 470 5% 1/10W
R1308 1-216-075-00 RES-CHIP 12K 5% 1/10W
R1309 1-216-041-00 RES-CHIP 470 5% 1/10W
R1310 1-216-041-00 RES-CHIP 470 5% 1/10W
R1311 1-216-001-00 RES-CHIP 10 5% 1/10W
R1312 1-216-025-11 RES-CHIP 100 5% 1/10W
R1313 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R1314 1-216-041-00 RES-CHIP 470 5% 1/10W
R1315 1-216-041-00 RES-CHIP 470 5% 1/10W
R1317 1-216-041-00 RES-CHIP 470 5% 1/10W
R1318 1-216-043-91 RES-CHIP 560 5% 1/10W
R1319 1-216-025-11 RES-CHIP 100 5% 1/10W
R1320 1-216-041-00 RES-CHIP 470 5% 1/10W
R1321 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1322 1-216-025-11 RES-CHIP 100 5% 1/10W
R1323 1-216-025-11 RES-CHIP 100 5% 1/10W
R1324 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1325 1-216-041-00 RES-CHIP 470 5% 1/10W
R1326 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1327 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1328 1-216-081-00 RES-CHIP 22K 5% 1/10W
R1329 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1330 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1331 1-216-043-91 RES-CHIP 560 5% 1/10W
R1332 1-216-295-91 SHORT 0
R1333 1-216-295-91 SHORT 0
R1401 1-216-029-00 RES-CHIP 150 5% 1/10W
R1402 1-216-039-00 RES-CHIP 390 5% 1/10W
R1403 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1404 1-216-025-11 RES-CHIP 100 5% 1/10W
R1405 1-216-025-11 RES-CHIP 100 5% 1/10W
R1406 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1407 1-216-025-11 RES-CHIP 100 5% 1/10W
R1408 1-216-025-11 RES-CHIP 100 5% 1/10W
R1409 1-216-025-11 RES-CHIP 100 5% 1/10W
R1410 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1411 1-216-025-11 RES-CHIP 100 5% 1/10W
R1412 1-216-025-11 RES-CHIP 100 5% 1/10W
R1413 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1414 1-216-025-11 RES-CHIP 100 5% 1/10W
R1416 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1417 1-216-017-91 RES-CHIP 47 5% 1/10W
R1418 1-216-041-00 RES-CHIP 470 5% 1/10W
R1420 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1422 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1423 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1424 1-216-017-91 RES-CHIP 47 5% 1/10W
R1425 1-216-041-00 RES-CHIP 470 5% 1/10W
R1426 1-216-093-91 RES-CHIP 68K 5% 1/10W
R1427 1-216-089-91 RES-CHIP 47K 5% 1/10W
R1428 1-208-817-11 METAL CHIP 30K 0.5% 1/10W
R1429 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W
R1430 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R1431 1-216-017-91 RES-CHIP 47 5% 1/10W
R1432 1-216-041-00 RES-CHIP 470 5% 1/10W
R1442 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1443 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1444 1-216-025-11 RES-CHIP 100 5% 1/10W
R1445 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1446 1-216-025-11 RES-CHIP 100 5% 1/10W
R1447 1-216-025-11 RES-CHIP 100 5% 1/10W
R1448 1-216-025-11 RES-CHIP 100 5% 1/10W
R1449 1-216-025-11 RES-CHIP 100 5% 1/10W
R1450 1-216-017-91 RES-CHIP 47 5% 1/10W
R1451 1-216-017-91 RES-CHIP 47 5% 1/10W
R1452 1-216-295-91 SHORT 0
R1453 1-216-295-91 SHORT 0
R1454 1-216-081-00 RES-CHIP 22K 5% 1/10W
R1456 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1457 1-216-025-11 RES-CHIP 100 5% 1/10W
R1458 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R1459 1-216-025-11 RES-CHIP 100 5% 1/10W
R1460 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1461 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1462 1-216-073-91 RES-CHIP 10K 5% 1/10W
R1463 1-216-017-91 RES-CHIP 47 5% 1/10W
R1464 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1465 1-216-017-91 RES-CHIP 47 5% 1/10W
R1466 1-216-049-11 RES-CHIP 1K 5% 1/10W
R1467 1-216-017-91 RES-CHIP 47 5% 1/10W
R1468 1-216-041-00 RES-CHIP 470 5% 1/10W
R1469 1-216-358-11 METAL OXIDE 5.6 5% 1W
R1608 1-208-778-11 METAL CHIP 680 0.5% 1/10W
R1610 1-208-772-11 METAL CHIP 390 0.5% 1/10W
R1611 1-208-772-11 METAL CHIP 390 0.5% 1/10W
R1612 1-216-025-11 RES-CHIP 100 5% 1/10W
R1613 1-208-772-11 METAL CHIP 390 0.5% 1/10W
R1614 1-216-073-91 RES-CHIP 10K 5% 1/10W
< RELAY >
RY1101 1-755-028-11 RELAY
RY1102 1-755-028-11 RELAY
A
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 107 –
< TUNER >
TU1301
01-693-340-23 TUNER/VIF
TU1302
01-693-340-23 TUNER/VIF
****************************************************************************************
*
A-1306-599-A
M BOARD, COMPLETE
*****************************
< CAPACITOR >
C9100 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9101 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9102 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9104 1-126-933-11 ELECT 100µF 20% 16V
C9105 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9106 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9108 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9109 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9110 1-110-501-11 CERAMIC CHIP 0.33µF 10% 16V
C9111 1-164-344-11 CERAMIC CHIP 0.068µF 10% 25V
C9112 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9113 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9114 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9115 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9116 1-110-501-11 CERAMIC CHIP 0.33µF 10% 16V
C9117 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9118 1-126-947-11 ELECT 47µF 20% 16V
C9119 1-163-259-91 CERAMIC CHIP 220pF 5% 50V
C9121 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9122 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9123 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9124 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9125 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9126 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C9127 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C9128 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C9129 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C9130 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C9131 1-163-239-11 CERAMIC CHIP 33pF 5% 50V
C9132 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9133 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9134 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9135 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9400 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9501 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9503 1-126-964-11 ELECT 10µF 20% 50V
C9504 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9505 1-126-933-11 ELECT 100µF 20% 16V
C9506 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9507 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9508 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9509 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9510 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9511 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9512 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9513 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C9514 1-163-235-11 CERAMIC CHIP 22pF 5% 50V
C9515 1-163-235-11 CERAMIC CHIP 22pF 5% 50V
C9516 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C9517 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C9518 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C9519 1-126-964-11 ELECT 10µF 20% 50V
< CONNECTOR >
CN9001 1-695-302-11 CONNECTOR, BOARD TO BOARD 50P
< DIODE >
D9100 8-719-988-61 DIODE 1SS355TE-17
D9101 8-719-988-61 DIODE 1SS355TE-17
D9102 8-719-988-61 DIODE 1SS355TE-17
D9103 8-719-988-61 DIODE 1SS355TE-17
D9104 8-719-978-33 DIODE DTZ-TT11-6.8B
D9105 8-719-988-61 DIODE 1SS355TE-17
D9107 8-719-025-31 DIODE 02CZ5.6-TE85L
D9108 8-719-914-44 DIODE DAP202K
D9109 8-719-105-91 DIODE RD5.6M-B2
D9110 8-719-914-43 DIODE DAN202K
D9111 8-719-105-91 DIODE RD5.6M-B2
< FILTER >
FL9101 1-236-071-11 ENCAPSULATED COMPONENT
FL9500 1-236-071-11 ENCAPSULATED COMPONENT
FL9501 1-236-071-11 ENCAPSULATED COMPONENT
< IC >
IC9100 8-759-988-13 IC LM393PS
IC9103 8-759-488-29 IC TC7W66FU(TE12R)
IC9104 8-759-259-18 IC MB3793-42PNF
IC9105 8-759-686-50 IC SAB-C161PI-LM
IC9107 8-759-826-53 IC IS62C1024L-70Q
IC9108 8-759-682-41 IC M24C32-WMN6T(A)
IC9109 8-759-829-48 IC M27C800-100K1-RE202
IC9110 8-759-009-22 IC MC14094BF
IC9111 8-759-242-72 IC TC7W00F
IC9112 8-759-523-02 IC TC74HC4053AFT(EL)
IC9400 8-759-692-18 IC M29F040B-70K1T
IC9500 8-759-243-62 IC TC74AC32F
IC9501 8-759-666-17 IC MSM5116400D-60S
IC9502 8-759-665-84 IC SDA5275-3PC02-2
< COIL >
L9400 1-412-029-11 INDUCTOR 10µH
L9401 1-412-029-11 INDUCTOR 10µH
A M
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 108 –
< TRANSISTOR >
Q9100 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q9101 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q9102 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q9103 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q9104 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q9105 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q9106 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q9110 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q9500 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q9501 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q9502 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q9503 1-801-806-11 TRANSISTOR DTC144EKA
Q9504 1-801-806-11 TRANSISTOR DTC144EKA
< RESISTOR >
R9100 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9101 1-216-033-00 RES-CHIP 220 5% 1/10W
R9102 1-216-033-00 RES-CHIP 220 5% 1/10W
R9103 1-216-025-11 RES-CHIP 100 5% 1/10W
R9104 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9105 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9107 1-216-025-11 RES-CHIP 100 5% 1/10W
R9108 1-216-025-11 RES-CHIP 100 5% 1/10W
R9109 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9110 1-216-081-00 RES-CHIP 22K 5% 1/10W
R9111 1-216-025-11 RES-CHIP 100 5% 1/10W
R9112 1-216-025-11 RES-CHIP 100 5% 1/10W
R9113 1-216-033-00 RES-CHIP 220 5% 1/10W
R9114 1-216-083-00 RES-CHIP 27K 5% 1/10W
R9115 1-216-081-00 RES-CHIP 22K 5% 1/10W
R9116 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9117 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9119 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9120 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9121 1-216-017-91 RES-CHIP 47 5% 1/10W
R9122 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9123 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9124 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9127 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9129 1-216-025-11 RES-CHIP 100 5% 1/10W
R9131 1-216-025-11 RES-CHIP 100 5% 1/10W
R9132 1-216-017-91 RES-CHIP 47 5% 1/10W
R9133 1-216-017-91 RES-CHIP 47 5% 1/10W
R9134 1-216-025-11 RES-CHIP 100 5% 1/10W
R9135 1-216-025-11 RES-CHIP 100 5% 1/10W
R9136 1-216-025-11 RES-CHIP 100 5% 1/10W
R9138 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9140 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R9141 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9142 1-216-041-00 RES-CHIP 470 5% 1/10W
R9143 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9144 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R9145 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9146 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9147 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9149 1-216-025-11 RES-CHIP 100 5% 1/10W
R9150 1-216-025-11 RES-CHIP 100 5% 1/10W
R9151 1-216-025-11 RES-CHIP 100 5% 1/10W
R9153 1-216-025-11 RES-CHIP 100 5% 1/10W
R9159 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R9161 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R9162 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R9164 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R9166 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9168 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R9169 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R9172 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R9173 1-216-295-91 SHORT 0
R9174 1-216-025-11 RES-CHIP 100 5% 1/10W
R9175 1-216-025-11 RES-CHIP 100 5% 1/10W
R9176 1-216-025-11 RES-CHIP 100 5% 1/10W
R9177 1-216-025-11 RES-CHIP 100 5% 1/10W
R9178 1-216-025-11 RES-CHIP 100 5% 1/10W
R9184 1-216-025-11 RES-CHIP 100 5% 1/10W
R9185 1-216-025-11 RES-CHIP 100 5% 1/10W
R9186 1-216-025-11 RES-CHIP 100 5% 1/10W
R9187 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R9188 1-216-025-11 RES-CHIP 100 5% 1/10W
R9189 1-216-025-11 RES-CHIP 100 5% 1/10W
R9191 1-216-025-11 RES-CHIP 100 5% 1/10W
R9192 1-216-025-11 RES-CHIP 100 5% 1/10W
R9193 1-216-097-11 RES-CHIP 100K 5% 1/10W
R9194 1-216-097-11 RES-CHIP 100K 5% 1/10W
R9195 1-216-097-11 RES-CHIP 100K 5% 1/10W
R9196 1-216-081-00 RES-CHIP 22K 5% 1/10W
R9197 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9198 1-216-039-00 RES-CHIP 390 5% 1/10W
R9199 1-216-039-00 RES-CHIP 390 5% 1/10W
R9200 1-216-017-91 RES-CHIP 47 5% 1/10W
R9201 1-216-039-00 RES-CHIP 390 5% 1/10W
R9202 1-216-017-91 RES-CHIP 47 5% 1/10W
R9203 1-216-017-91 RES-CHIP 47 5% 1/10W
R9501 1-216-017-91 RES-CHIP 47 5% 1/10W
R9502 1-216-295-91 SHORT 0
R9503 1-216-295-91 SHORT 0
R9504 1-216-041-00 RES-CHIP 470 5% 1/10W
R9505 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R9506 1-216-073-91 RES-CHIP 10K 5% 1/10W
R9507 1-216-097-11 RES-CHIP 100K 5% 1/10W
R9509 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9510 1-216-017-91 RES-CHIP 47 5% 1/10W
R9511 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9512 1-216-017-91 RES-CHIP 47 5% 1/10W
R9513 1-216-017-91 RES-CHIP 47 5% 1/10W
R9514 1-216-017-91 RES-CHIP 47 5% 1/10W
R9515 1-216-295-91 SHORT 0
R9516 1-216-295-91 SHORT 0
R9517 1-216-295-91 SHORT 0
R9518 1-216-049-11 RES-CHIP 1K 5% 1/10W
R9519 1-216-039-00 RES-CHIP 390 5% 1/10W
M
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 109 –
M G
R9520 1-216-039-00 RES-CHIP 390 5% 1/10W
R9521 1-216-039-00 RES-CHIP 390 5% 1/10W
R9522 1-216-295-91 SHORT 0
R9523 1-216-295-91 SHORT 0
R9524 1-216-295-91 SHORT 0
R9525 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R9526 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R9527 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R9528 1-216-025-11 RES-CHIP 100 5% 1/10W
R9529 1-216-025-11 RES-CHIP 100 5% 1/10W
R9530 1-216-025-11 RES-CHIP 100 5% 1/10W
R9532 1-216-295-91 SHORT 0
R9533 1-216-295-91 SHORT 0
< NETWORK RESISTOR >
RB9101 1-239-412-11 NETWORK RESISTOR (CHIP) 100
< CRYSTAL >
X9101 1-781-107-21 VIBRATOR, CERAMIC (16MHz)
X9500 1-760-551-21 VIBRATOR, CERAMIC (20.480MHz)
*******************************************************************************
*
A-1316-512-A
G BOARD, COMPLETE
****************************
* 1-533-725-11 HOLDER, FUSE
* 4-374-846-01 COVER, CAPACITOR, CAP TYPE
4-382-854-11 SCREW (M3X10), P, SW (+)
< CAPACITOR >
C6000 01-104-708-51 MYLAR 0.47µF 20% 250V
C6003 01-104-706-51 MYLAR 0.22µF 20% 250V
C6009 01-104-706-51 MYLAR 0.22µF 20% 250V
C6010 01-119-894-51 CERAMIC 2200pF 20% 250V
C6011 01-119-894-51 CERAMIC 2200pF 20% 250V
C6013 01-161-964-91 CERAMIC 0.0047µF 250V
C6015 01-161-964-91 CERAMIC 0.0047µF 250V
C6017 01-161-964-51 CERAMIC 0.0047µF 250V
C6018 01-161-964-51 CERAMIC 0.0047µF 250V
C6020 1-126-968-11 ELECT 100µF 20% 50V
C6022 1-131-940-11 ELECT 1200µF 20% 250V
C6023 1-131-940-11 ELECT 1200µF 20% 250V
C6024 1-117-227-11 MYLAR 1µF 10% 450V
C6025 1-115-389-11 FILM 0.018µF 3% 800V
C6026 1-125-969-91 CERAMIC 680pF 10% 1KV
C6027 1-115-824-11 ELECT 18µF 20% 50V
C6028 1-104-588-11 FILM 0.0082µF 2.50%1.25KV
C6029 1-102-106-00 CERAMIC 100pF 10% 50V
C6030 1-136-189-00 MYLAR 0.1µF 10% 250V
C6031 1-125-969-91 CERAMIC 680pF 10% 1KV
C6032 1-115-405-11 FILM 0.039µF 3% 1KV
C6033 1-126-963-11 ELECT 4.7µF 20% 50V
C6034 1-130-029-00 FILM 8200pF 2% 50V
C6035 1-104-665-11 ELECT 100µF 20% 25V
C6036 1-107-906-11 ELECT 10µF 20% 50V
C6037 1-137-150-11 MYLAR 0.01µF 5% 50V
C6038 1-104-588-11 FILM 0.0082µF 2.50%1.25KV
C6039 1-115-389-11 FILM 0.018µF 3% 800V
C6040 1-117-227-11 MYLAR 1µF 10% 450V
C6041 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C6042 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C6044 1-117-703-11 CERAMIC 0.0047µF 99% 250V
C6100 01-161-964-51 CERAMIC 0.0047µF 250V
C6101 1-107-679-91 ELECT 10µF 20% 450V
C6102 01-161-964-51 CERAMIC 0.0047µF 250V
C6103 1-163-005-91 CERAMIC CHIP 470pF 10% 50V
C6104 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C6105 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C6106 1-163-005-91 CERAMIC CHIP 470pF 10% 50V
C6107 1-137-605-11 MYLAR 0.01µF 10% 250V
C6109 1-126-965-91 ELECT 22µF 20% 50V
C6110 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C6300 1-101-810-00 CERAMIC 100pF 5% 500V
C6301 1-101-810-00 CERAMIC 100pF 5% 500V
C6302 1-102-114-00 CERAMIC 470pF 10% 50V
C6303 1-102-114-00 CERAMIC 470pF 10% 50V
C6306 1-101-810-00 CERAMIC 100pF 5% 500V
C6307 1-126-941-11 ELECT 470µF 20% 25V
C6308 1-126-937-11 ELECT 4700µF 20% 16V
C6309 1-101-810-00 CERAMIC 100pF 5% 500V
C6310 1-101-810-00 CERAMIC 100pF 5% 500V
C6311 1-104-665-11 ELECT 100µF 20% 25V
C6312 1-104-665-11 ELECT 100µF 20% 25V
C6313 1-126-960-11 ELECT 1µF 20% 50V
C6314 1-128-567-51 ELECT 1000µF 20% 100V
C6315 1-128-567-51 ELECT 1000µF 20% 100V
C6316 1-101-810-00 CERAMIC 100pF 5% 500V
C6317 1-109-954-11 ELECT 0.47µF 20% 160V
C6319 1-101-810-00 CERAMIC 100pF 5% 500V
C6320 1-101-810-00 CERAMIC 100pF 5% 500V
C6321 1-128-549-11 ELECT 3300µF 20% 35V
C6322 1-128-549-11 ELECT 3300µF 20% 35V
C6323 1-128-549-11 ELECT 3300µF 20% 35V
C6324 1-128-549-11 ELECT 3300µF 20% 35V
C6325 1-126-935-11 ELECT 470µF 20% 6.3V
C6327 1-126-968-11 ELECT 100µF 20% 50V
C6328 1-126-968-11 ELECT 100µF 20% 50V
C6329 1-126-943-11 ELECT 2200µF 20% 25V
C6330 1-126-943-11 ELECT 2200µF 20% 25V
C6331 1-107-641-11 ELECT 220µF 20% 160V
C6332 1-104-665-11 ELECT 100µF 20% 25V
C6333 1-104-665-11 ELECT 100µF 20% 25V
C6334 1-126-940-11 ELECT 330µF 20% 25V
C6335 1-126-967-11 ELECT 47µF 20% 50V
C6336 1-101-810-00 CERAMIC 100pF 5% 500V
C6337 1-101-810-00 CERAMIC 100pF 5% 500V
C6338 1-162-117-00 CERAMIC 100pF 10% 500V
C6339 1-104-987-11 MYLAR 0.001µF 10% 200V
C6341 1-137-150-11 MYLAR 0.01µF 5% 50V
C6342 1-136-165-00 FILM 0.1µF 5% 50V
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 110 –
< CONNECTOR >
CN6002 1-695-915-11 TAB (CONTACT)
CN6004 1-580-843-11 PIN, CONNECTOR (POWER)
CN6006 * 1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P
CN6007 * 1-691-291-11 PIN, CONNECTOR (PC BOARD) 5P
CN6300 * 1-564-508-11 PLUG, CONNECTOR 5P
CN6301 * 1-508-765-00 PIN, CONNECTOR (5MM PITCH) 3P
CN6302 * 1-764-333-11 PLUG, CONNECTOR 10P
CN6303 * 1-764-333-11 PLUG, CONNECTOR 10P
CN6304 * 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P
CN6306 1-695-915-11 TAB (CONTACT)
CN6307 1-695-915-11 TAB (CONTACT)
CN6308 1-695-915-11 TAB (CONTACT)
< DIODE >
D6010 8-719-988-61 DIODE 1SS355TE-17
D6015 08-719-510-53 DIODE D4SB60L
D6017 8-719-063-73 DIODE D1NL20U-TR
D6019 8-719-510-02 DIODE D1NS4
D6020 8-719-029-04 DIODE D5L60
D6021 8-719-110-36 DIODE RD13ES-B2
D6022 8-719-979-64 DIODE UF4005PKG23
D6023 8-719-979-64 DIODE UF4005PKG23
D6100 08-719-068-00 DIODE ERC04-06SE
D6101 8-719-947-69 DIODE MTZJ-T-72-18B
D6102 8-719-083-83 DIODE UDZS-TE17-15B
D6103 8-719-988-61 DIODE 1SS355TE-17
D6104 08-719-068-00 DIODE ERC04-06SE
D6105 8-719-948-45 DIODE ERA22-08
D6106 08-719-068-00 DIODE ERC04-06SE
D6108 8-719-510-48 DIODE D1N20R
D6300 8-719-057-96 DIODE D10SC6M-4012
D6301 8-719-510-12 DIODE D10SC4M
D6302 8-719-312-47 DIODE RBA-406B
D6303 8-719-063-73 DIODE D1NL20U-TR
D6304 8-719-050-18 DIODE D4SBL20U
D6305 8-719-988-61 DIODE 1SS355TE-17
D6306 8-719-988-61 DIODE 1SS355TE-17
D6307 8-719-988-61 DIODE 1SS355TE-17
D6308 8-719-988-31 DIODE D10SC6MR
D6309 8-719-057-96 DIODE D10SC6M-4012
D6310 8-719-052-91 DIODE D4SBS4-F
D6311 8-719-988-61 DIODE 1SS355TE-17
D6312 8-719-988-61 DIODE 1SS355TE-17
D6315 8-719-988-61 DIODE 1SS355TE-17
D6316 8-719-988-61 DIODE 1SS355TE-17
D6317 8-719-988-61 DIODE 1SS355TE-17
D6318 8-719-921-88 DIODE MTZJ-13B
D6319 8-719-083-60 DIODE UDZSTE-174.7B
D6320 8-719-083-60 DIODE UDZSTE-174.7B
D6323 8-719-032-12 DIODE D1NS6
< FUSE >
F6001 01-576-232-11 FUSE (H.B.C.) (5A/250V)
< FERRITE BEAD >
FB6002 1-412-911-11 FERRITE 0µH
FB6103 1-412-911-11 FERRITE 0µH
FB6301 1-412-911-11 FERRITE 0µH
FB6302 1-412-911-11 FERRITE 0µH
FB6303 1-412-911-11 FERRITE 0µH
FB6304 1-412-911-11 FERRITE 0µH
FB6305 1-412-911-11 FERRITE 0µH
FB6306 1-412-911-11 FERRITE 0µH
FB6309 1-412-911-11 FERRITE 0µH
FB6310 1-412-911-11 FERRITE 0µH
< IC >
IC6002 8-749-924-35 IC ON3171-R
IC6004 8-749-016-66 IC MCR5152
IC6007 8-749-924-35 IC ON3171-R
IC6301 8-749-012-13 IC DM-58
IC6302 8-759-663-29 IC MM1476AF(TP)
IC6303 8-759-198-31 IC µPC1093J-1-T
IC6304 8-759-908-15 IC TL431CLP
< COIL >
L6303 1-412-525-31 INDUCTOR 10µH
L6304 1-406-659-11 INDUCTOR 10µH
L6307 1-412-525-31 INDUCTOR 10µH
L6308 1-412-525-31 INDUCTOR 10µH
L6309 1-412-525-31 INDUCTOR 10µH
L6310 1-412-525-31 INDUCTOR 10µH
L6311 1-412-525-31 INDUCTOR 10µH
L6314 1-412-525-31 INDUCTOR 10µH
L6315 1-412-525-31 INDUCTOR 10µH
< IC LINK >
PS6300
01-801-549-21 PROTECTOR, MODULE (4.0A)
PS6301
01-801-549-21 PROTECTOR, MODULE (4.0A)
PS6302
01-801-549-21 PROTECTOR, MODULE (4.0A)
PS6303
01-801-549-21 PROTECTOR, MODULE (4.0A)
PS6306
01-801-550-21 PROTECTOR, MODULE (2.5A)
PS6307
01-801-550-21 PROTECTOR, MODULE (2.5A)
PS6310
01-801-550-21 PROTECTOR, MODULE (2.5A)
PS6311
01-801-550-21 PROTECTOR, MODULE (2.5A)
< TRANSISTOR >
Q6004 8-729-140-93 TRANSISTOR 2SB733-34
Q6100 8-729-046-40 TRANSISTOR 2SK2663
Q6102 8-729-023-22 TRANSISTOR 2SD2114K
Q6300 8-729-023-22 TRANSISTOR 2SD2114K
Q6301 8-729-120-28 TRANSISTOR 2SC1623-L5L6
G
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 111 –
G CR
Q6302 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q6303 8-729-820-82 TRANSISTOR 2SA1208
Q6304 8-729-026-39 TRANSISTOR 2SA933AS-QT
< RESISTOR >
R6000 1-260-131-11 CARBON 470K 5% 1/2W
R6001 1-260-131-11 CARBON 470K 5% 1/2W
R6002 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6003 01-219-759-91 CARBON 1M 5% 1/2W
R6026 01-218-265-21 METAL 8.2M 5% 1W
R6035 01-205-998-11 CEMENTED 1 5% 10W
R6043 1-216-073-91 RES-CHIP 10K 5% 1/10W
R6049 01-205-998-11 CEMENTED 1 5% 10W
R6052 1-249-417-11 CARBON 1K 5% 1/4W
R6053 1-216-660-11 METAL CHIP 2.4K 0.5% 1/10W
R6054 1-208-774-11 METAL CHIP 470 0.5% 1/10W
R6055 1-208-803-11 METAL CHIP 7.5K 0.5% 1/10W
R6056 1-217-625-00 METAL 0.05 10% 2W
R6057 1-215-477-00 METAL 220K 1% 1/4W
R6058 1-215-477-00 METAL 220K 1% 1/4W
R6059 1-215-477-00 METAL 220K 1% 1/4W
R6060 1-219-512-11 CARBON 2.2M 5% 1/2W
R6061 01-220-886-11 FUSIBLE 0.1 10% 1W
R6062 1-208-796-11 METAL CHIP 3.9K 0.5% 1/10W
R6065 1-219-512-11 CARBON 2.2M 5% 1/2W
R6067 1-249-397-11 CARBON 22 5% 1/4W
R6068 01-205-998-11 CEMENTED 1 5% 10W
R6069 01-205-998-11 CEMENTED 1 5% 10W
R6072 1-249-417-11 CARBON 1K 5% 1/4W
R6076 1-249-389-11 CARBON 4.7 5% 1/4W
R6079 1-216-073-91 RES-CHIP 10K 5% 1/10W
R6100 1-260-298-51 CARBON 3.3 5% 1/2W
R6101 1-216-045-00 RES-CHIP 680 5% 1/10W
R6102 1-249-389-11 CARBON 4.7 5% 1/4W
R6103 1-216-009-91 RES-CHIP 22 5% 1/10W
R6104 1-240-205-11 CARBON 22M 5% 1/2W
R6105 1-216-097-11 RES-CHIP 100K 5% 1/10W
R6106 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6107 1-216-089-91 RES-CHIP 47K 5% 1/10W
R6108 1-215-493-00 METAL 1M 1% 1/4W
R6109 1-216-041-00 RES-CHIP 470 5% 1/10W
R6300 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R6301 1-249-413-11 CARBON 470 5% 1/4W
R6302 1-216-073-91 RES-CHIP 10K 5% 1/10W
R6304 1-216-073-91 RES-CHIP 10K 5% 1/10W
R6305 1-216-073-91 RES-CHIP 10K 5% 1/10W
R6306 1-216-041-00 RES-CHIP 470 5% 1/10W
R6307 1-216-073-91 RES-CHIP 10K 5% 1/10W
R6308 1-216-049-11 RES-CHIP 1K 5% 1/10W
R6309 1-249-417-11 CARBON 1K 5% 1/4W
R6310 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R6311 1-215-477-00 METAL 220K 1% 1/4W
R6312 1-249-417-11 CARBON 1K 5% 1/4W
R6313 1-216-097-11 RES-CHIP 100K 5% 1/10W
R6314 1-216-385-11 METAL OXIDE 0.47 5% 3W
R6316 1-215-477-00 METAL 220K 1% 1/4W
R6317 1-249-417-11 CARBON 1K 5% 1/4W
R6318 1-215-453-00 METAL 22K 1% 1/4W
R6319 1-215-476-00 METAL 200K 1% 1/4W
R6320 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R6321 1-208-822-11 METAL CHIP 47K 0.5% 1/10W
R6322 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R6323 1-216-041-00 RES-CHIP 470 5% 1/10W
R6324 1-216-049-11 RES-CHIP 1K 5% 1/10W
R6325 1-208-819-11 METAL CHIP 36K 0.5% 1/10W
R6326 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W
R6327 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R6328 1-215-906-11 METAL OXIDE 15 5% 3W
R6329 1-208-807-11 METAL CHIP 11K 0.5% 1/10W
R6333 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R6334 1-216-041-00 RES-CHIP 470 5% 1/10W
R6335 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R6336 1-208-802-11 METAL CHIP 6.8K 0.5% 1/10W
< RELAY >
RY6000
01-755-352-11 RELAY, AC POWER
< TRANSFORMER >
T6001 01-424-436-11 TRANSFORMER, LINE FILTER
T6002 01-424-436-11 TRANSFORMER, LINE FILTER
T6003 1-431-445-11 TRANSFORMER, CONVERTER (PFT)
T6004 01-435-443-11 TRANSFORMER, CONVERTER (PIT)
T6005 01-435-445-11 TRANSFORMER, CONVERTER (PIT)
T6100 01-433-844-11 TRANSFORMER, CONVERTER
< THERMISTOR >
TH6100 1-803-586-41 THERMISTOR
< VARISTOR >
VD600101-803-830-31 VARISTOR (ERZV14D621)
*******************************************************************************
*
A-1332-020-A
CR BOARD, COMPLETE
******************************
4-382-854-01 SCREW (M3X8), P, SW (+)
< CAPACITOR >
C7102 1-162-115-00 CERAMIC 330pF 10% 2KV
C7103 1-107-652-11 ELECT 10µF 20% 250V
C7104 1-126-768-11 ELECT 2200µF 20% 16V
C7105 1-162-115-00 CERAMIC 330pF 10% 2KV
C7106 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7107 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7108 1-126-967-11 ELECT 47µF 20% 50V
C7110 1-102-050-00 CERAMIC 0.01µF 99% 500V
C7111 1-161-830-00 CERAMIC 0.0047µF 500V
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 112 –
C7112 1-163-224-11 CERAMIC CHIP 7pF 0.25pF 50V
C7114 1-163-085-00 CERAMIC CHIP 2pF 0.25pF 50V
C7116 1-107-957-11 ELECT 1µF 20% 250V
C7118 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
< CONNECTOR >
CN7101 * 1-564-512-11 PLUG, CONNECTOR 9P
CN7102 * 1-564-510-11 PLUG, CONNECTOR 7P
CN7103 * 1-564-512-11 PLUG, CONNECTOR 9P
CN7104 1-785-879-11 CONNECTOR, ONE TOUCH
CN7107 1-695-915-11 TAB (CONTACT)
< DIODE >
D7102 8-719-921-86 DIODE MTZJ-13
D7103 8-719-901-83 DIODE 1SS83
D7104 8-719-901-83 DIODE 1SS83
D7105 8-719-901-83 DIODE 1SS83
D7106 8-719-901-83 DIODE 1SS83
D7108 8-719-988-61 DIODE 1SS355TE-17
D7109 8-719-921-86 DIODE MTZJ-13
D7110 8-719-921-86 DIODE MTZJ-13
< IC >
IC7101 8-759-360-83 IC TDA6111Q/N4
< SOCKET >
J7101 01-251-182-41 SOCKET, PICTURE TUBE
< COIL >
L7102 1-414-223-11 INDUCTOR 470µH
L7103 1-414-181-11 INDUCTOR 4.7µH
L7104 1-414-187-11 INDUCTOR 47µH
< NEON LAMP >
NL7101 1-576-354-21 GAP, SPARK
NL7102 1-517-729-31 GAP, SPARK
NL7103 1-576-354-21 GAP, SPARK
NL7104 1-576-354-21 GAP, SPARK
NL7105 1-576-354-21 GAP, SPARK
< TRANSISTOR >
Q7101 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7103 8-729-255-12 TRANSISTOR 2SC2551-O
Q7104 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
< RESISTOR >
R7101 1-260-132-11 CARBON 560K 5% 1/2W
R7102 1-249-389-11 CARBON 4.7 5% 1/4W
R7103 1-216-295-91 SHORT 0
R7105 1-260-117-11 CARBON 33K 5% 1/2W
R7106 1-219-743-11 CARBON 100 5% 1/2W
R7107 1-208-801-11 METAL CHIP 6.2K 0.5% 1/10W
R7108 1-260-133-11 CARBON 680K 5% 1/2W
R7109 1-208-808-11 METAL CHIP 12K 0.5% 1/10W
R7110 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R7111 1-216-033-00 RES-CHIP 220 5% 1/10W
R7112 1-249-424-11 CARBON 3.9K 5% 1/4W
R7113 1-216-295-91 SHORT 0
R7114 1-216-660-11 METAL CHIP 2.4K 0.5% 1/10W
R7115 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R7116 1-215-929-11 METAL OXIDE 100K 5% 3W
R7117 1-260-093-11 CARBON 330 5% 1/2W
R7118 1-260-087-11 CARBON 100 5% 1/2W
R7119 1-260-328-11 CARBON 1K 5% 1/2W
R7120 1-216-081-00 RES-CHIP 22K 5% 1/10W
R7121 1-216-295-91 SHORT 0
R7122 1-216-025-11 RES-CHIP 100 5% 1/10W
R7123 1-216-295-91 SHORT 0
R7124 1-216-073-91 RES-CHIP 10K 5% 1/10W
R7128 1-208-818-11 METAL CHIP 33K 0.5% 1/10W
R7129 1-249-417-11 CARBON 1K 5% 1/4W
R7130 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R7131 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7132 1-216-295-91 SHORT 0
R7133 1-208-834-11 METAL CHIP 150K 0.5% 1/10W
R7134 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7135 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
< SPARK GAP >
SG7101 1-519-422-11 GAP, SPARK
SG7103 1-519-422-11 GAP, SPARK
*******************************************************************************
*
A-1332-021-A
CG BOARD, COMPLETE
******************************
4-382-854-01 SCREW (M3X8), P, SW (+)
< CAPACITOR >
C7202 1-162-115-00 CERAMIC 330pF 10% 2KV
C7203 1-126-768-11 ELECT 2200µF 20% 16V
C7204 1-107-652-11 ELECT 10µF 20% 250V
C7205 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7206 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7207 1-162-115-00 CERAMIC 330pF 10% 2KV
C7208 1-126-967-11 ELECT 47µF 20% 50V
C7209 1-102-050-00 CERAMIC 0.01µF 99% 500V
C7211 1-161-830-00 CERAMIC 0.0047µF 500V
C7212 1-163-224-11 CERAMIC CHIP 7pF 0.25pF 50V
C7213 1-163-085-00 CERAMIC CHIP 2pF 0.25pF 50V
C7214 1-126-964-11 ELECT 10µF 20% 50V
C7216 1-107-957-11 ELECT 1µF 20% 250V
CR CG
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 113 –
< CONNECTOR >
CN7201 * 1-564-510-11 PLUG, CONNECTOR 7P
CN7202 * 1-564-509-11 PLUG, CONNECTOR 6P
CN7203 * 1-564-512-11 PLUG, CONNECTOR 9P
CN7204 * 1-564-512-11 PLUG, CONNECTOR 9P
CN7205 1-785-879-11 CONNECTOR, ONE TOUCH
CN7208 1-695-915-11 TAB (CONTACT)
CN7210 * 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D7202 8-719-921-86 DIODE MTZJ-13
D7203 8-719-901-83 DIODE 1SS83
D7204 8-719-901-83 DIODE 1SS83
D7205 8-719-901-83 DIODE 1SS83
D7206 8-719-901-83 DIODE 1SS83
D7208 8-719-988-61 DIODE 1SS355TE-17
< IC >
IC7201 8-759-360-83 IC TDA6111Q/N4
< SOCKET >
J7201 01-251-182-41 SOCKET, PICTURE TUBE
< COIL >
L7201 1-414-223-11 INDUCTOR 470µH
L7203 1-414-181-11 INDUCTOR 4.7µH
L7204 1-414-187-11 INDUCTOR 47µH
< NEON LAMP >
NL7201 1-576-354-21 GAP, SPARK
NL7202 1-576-354-21 GAP, SPARK
NL7203 1-517-729-31 GAP, SPARK
NL7204 1-576-354-21 GAP, SPARK
NL7205 1-576-354-21 GAP, SPARK
< TRANSISTOR >
Q7201 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7202 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7203 8-729-255-12 TRANSISTOR 2SC2551-O
< RESISTOR >
R7201 1-260-132-11 CARBON 560K 5% 1/2W
R7202 1-216-295-91 SHORT 0
R7203 1-208-846-11 METAL CHIP 470K 0.5% 1/10W
R7204 1-219-743-11 CARBON 100 5% 1/2W
R7205 1-260-117-11 CARBON 33K 5% 1/2W
R7206 1-208-801-11 METAL CHIP 6.2K 0.5% 1/10W
R7207 1-208-808-11 METAL CHIP 12K 0.5% 1/10W
R7208 1-216-033-00 RES-CHIP 220 5% 1/10W
R7209 1-260-133-11 CARBON 680K 5% 1/2W
R7210 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R7211 1-249-424-11 CARBON 3.9K 5% 1/4W
R7212 1-208-789-11 METAL CHIP 2K 0.5% 1/10W
R7213 1-215-929-11 METAL OXIDE 100K 5% 3W
R7214 1-216-295-91 SHORT 0
R7215 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R7216 1-260-093-11 CARBON 330 5% 1/2W
R7217 1-216-295-91 SHORT 0
R7218 1-260-328-11 CARBON 1K 5% 1/2W
R7219 1-216-295-91 SHORT 0
R7220 1-216-025-11 RES-CHIP 100 5% 1/10W
R7222 1-216-295-91 SHORT 0
R7223 1-208-802-11 METAL CHIP 6.8K 0.5% 1/10W
R7224 1-208-799-11 METAL CHIP 5.1K 0.5% 1/10W
R7225 1-216-081-00 RES-CHIP 22K 5% 1/10W
R7226 1-260-087-11 CARBON 100 5% 1/2W
R7229 1-249-417-11 CARBON 1K 5% 1/4W
R7235 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
< SPARK GAP >
SG7201 1-519-422-11 GAP, SPARK
SG7203 1-519-422-11 GAP, SPARK
*******************************************************************************
* A-1332-022-ACB BOARD, COMPLETE
******************************
4-382-854-01 SCREW (M3X8), P, SW (+)
< CAPACITOR >
C7302 1-162-115-00 CERAMIC 330pF 10% 2KV
C7303 1-162-115-00 CERAMIC 330pF 10% 2KV
C7304 1-126-768-11 ELECT 2200µF 20% 16V
C7305 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7306 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7307 1-107-652-11 ELECT 10µF 20% 250V
C7308 1-126-967-11 ELECT 47µF 20% 50V
C7309 1-163-085-00 CERAMIC CHIP 2pF
0.25pF
50V
C7311 1-102-050-00 CERAMIC 0.01µF 99% 500V
C7312 1-161-830-00 CERAMIC 0.0047µF 500V
C7313 1-163-091-00 CERAMIC CHIP 8pF
0.25pF
50V
C7314 1-126-964-11 ELECT 10µF 20% 50V
C7315 1-126-960-11 ELECT 1µF 20% 50V
C7318 1-107-957-11 ELECT 1µF 20% 250V
< CONNECTOR >
CN7301 * 1-564-509-11 PLUG, CONNECTOR 6P
CN7302 * 1-564-512-11 PLUG, CONNECTOR 9P
CN7303 * 1-564-512-11 PLUG, CONNECTOR 9P
CN7304 1-785-879-11 CONNECTOR, ONE TOUCH
CN7307 1-695-915-11 TAB (CONTACT)
CG CB
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 114 –
< DIODE >
D7302 8-719-921-86 DIODE MTZJ-13
D7303 8-719-901-83 DIODE 1SS83
D7304 8-719-901-83 DIODE 1SS83
D7305 8-719-901-83 DIODE 1SS83
D7306 8-719-901-83 DIODE 1SS83
D7307 8-719-988-61 DIODE 1SS355TE-17
D7308 8-719-921-88 DIODE MTZJ-13B
D7309 8-719-988-61 DIODE 1SS355TE-17
D7311 8-719-921-86 DIODE MTZJ-13
D7312 8-719-921-86 DIODE MTZJ-13
< IC >
IC7301 8-759-360-83 IC TDA6111Q/N4
< SOCKET >
J7301 01-251-182-41 SOCKET, PICTURE TUBE
< COIL >
L7301 1-414-223-11 INDUCTOR 470µH
L7303 1-414-181-11 INDUCTOR 4.7µH
L7304 1-414-187-11 INDUCTOR 47µH
< NEON LAMP >
NL7301 1-576-354-21 GAP, SPARK
NL7302 1-517-729-31 GAP, SPARK
NL7303 1-576-354-21 GAP, SPARK
NL7304 1-576-354-21 GAP, SPARK
NL7305 1-576-354-21 GAP, SPARK
< TRANSISTOR >
Q7301 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7302 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7303 8-729-255-12 TRANSISTOR 2SC2551-O
Q7305 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7306 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
< RESISTOR >
R7301 1-219-743-11 CARBON 100 5% 1/2W
R7302 1-260-132-11 CARBON 560K 5% 1/2W
R7304 1-216-295-91 SHORT 0
R7306 1-260-328-11 CARBON 1K 5% 1/2W
R7307 1-208-801-11 METAL CHIP 6.2K 0.5% 1/10W
R7308 1-260-133-11 CARBON 680K 5% 1/2W
R7309 1-208-792-11 METAL CHIP 2.7K 0.5% 1/10W
R7310 1-216-295-91 SHORT 0
R7311 1-208-808-11 METAL CHIP 12K 0.5% 1/10W
R7312 1-216-660-11 METAL CHIP 2.4K 0.5% 1/10W
R7313 1-216-033-00 RES-CHIP 220 5% 1/10W
R7314 1-249-424-11 CARBON 3.9K 5% 1/4W
R7315 1-216-295-91 SHORT 0
R7316 1-215-929-11 METAL OXIDE 100K 5% 3W
R7317 1-260-093-11 CARBON 330 5% 1/2W
R7318 1-216-295-91 SHORT 0
R7319 1-216-660-11 METAL CHIP 2.4K 0.5% 1/10W
R7320 1-260-087-11 CARBON 100 5% 1/2W
R7321 1-260-117-11 CARBON 33K 5% 1/2W
R7322 1-208-782-11 METAL CHIP 1K 0.5% 1/10W
R7323 1-216-025-11 RES-CHIP 100 5% 1/10W
R7324 1-216-295-91 SHORT 0
R7326 1-208-804-11 METAL CHIP 8.2K 0.5% 1/10W
R7327 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W
R7328 1-216-073-91 RES-CHIP 10K 5% 1/10W
R7329 1-216-091-00 RES-CHIP 56K 5% 1/10W
R7330 1-216-081-00 RES-CHIP 22K 5% 1/10W
R7331 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R7332 1-216-081-00 RES-CHIP 22K 5% 1/10W
R7335 1-249-417-11 CARBON 1K 5% 1/4W
R7336 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
< SPARK GAP >
SG7301 1-519-422-11 GAP, SPARK
SG7303 1-519-422-11 GAP, SPARK
*******************************************************************************
*
A-1343-788-A
DS BOARD, COMPLETE
******************************
< CAPACITOR >
C3501 1-126-947-11 ELECT 47µF 20% 25V
C3502 1-126-947-11 ELECT 47µF 20% 25V
C3503 1-126-947-11 ELECT 47µF 20% 25V
C3504 1-126-947-11 ELECT 47µF 20% 25V
C3505 1-126-947-11 ELECT 47µF 20% 25V
C3506 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C3507 1-126-964-11 ELECT 10µF 20% 50V
C3508 1-107-714-11 ELECT 10µF 20% 16V
C3509 1-137-350-11 MYLAR 0.015µF 5% 50V
C3510 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3511 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3512 1-126-947-11 ELECT 47µF 20% 25V
C3513 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3514 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C3515 1-126-947-11 ELECT 47µF 20% 25V
C3519 1-126-947-11 ELECT 47µF 20% 25V
C3520 1-137-374-11 MYLAR 0.047µF 5% 50V
C3523 1-163-231-11 CERAMIC CHIP 15pF 5% 50V
C3525 1-126-947-11 ELECT 47µF 20% 25V
C3526 1-126-947-11 ELECT 47µF 20% 25V
C3528 1-107-714-11 ELECT 10µF 20% 16V
< CONNECTOR >
CN3501 * 1-691-632-21 CONNECTOR, BOARD TO BOARD 15P
CB DS
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 115 –
< DIODE >
D3501 8-719-069-55 DIODE UDZSTE-175.6B
D3502 8-719-914-44 DIODE DAP202K
D3503 8-719-069-55 DIODE UDZSTE-175.6B
< IC >
IC3502 8-759-251-31 IC CA0007AM
IC3503 8-759-251-31 IC CA0007AM
IC3504 8-759-251-31 IC CA0007AM
IC3505 8-759-711-28 IC NJM2058D
IC3506 8-759-100-96 IC µPC4558G2
< RESISTOR >
R3501 1-216-073-91 RES-CHIP 10K 5% 1/10W
R3502 1-216-093-91 RES-CHIP 68K 5% 1/10W
R3503 1-216-073-91 RES-CHIP 10K 5% 1/10W
R3504 1-216-689-11 RES-CHIP 39K 5% 1/10W
R3506 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R3507 1-216-689-11 RES-CHIP 39K 5% 1/10W
R3508 1-216-073-91 RES-CHIP 10K 5% 1/10W
R3509 1-216-073-91 RES-CHIP 10K 5% 1/10W
R3511 1-208-803-11 METAL CHIP 7.5K 0.5% 1/10W
R3512 1-216-033-00 RES-CHIP 220 5% 1/10W
R3513 1-216-033-00 RES-CHIP 220 5% 1/10W
R3514 1-216-073-91 RES-CHIP 10K 5% 1/10W
R3515 1-216-033-00 RES-CHIP 220 5% 1/10W
R3518 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
R3519 1-216-081-00 RES-CHIP 22K 5% 1/10W
R3520 1-216-081-00 RES-CHIP 22K 5% 1/10W
R3521 1-216-103-00 RES-CHIP 180K 5% 1/10W
R3523 1-216-105-91 RES-CHIP 220K 5% 1/10W
R3524 1-216-097-11 RES-CHIP 100K 5% 1/10W
R3526 1-216-039-00 RES-CHIP 390 5% 1/10W
R3529 1-216-107-00 RES-CHIP 270K 5% 1/10W
R3530 1-216-081-00 RES-CHIP 22K 5% 1/10W
R3531 1-216-041-00 RES-CHIP 470 5% 1/10W
R3532 1-216-037-00 RES-CHIP 330 5% 1/10W
R3533 1-216-075-00 RES-CHIP 12K 5% 1/10W
R3535 1-216-097-11 RES-CHIP 100K 5% 1/10W
R3537 1-216-081-00 RES-CHIP 22K 5% 1/10W
R3538 1-216-073-91 RES-CHIP 10K 5% 1/10W
R3541 1-216-085-91 RES-CHIP 33K 5% 1/10W
*******************************************************************************
*
A-1346-906-A
E BOARD, COMPLETE
****************************
< CAPACITOR >
C4304 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4306 1-126-964-11 ELECT 10µF 20% 50V
C4307 1-163-137-00 CERAMIC CHIP 680pF 5% 50V
C4311 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4312 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4313 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4316 1-126-947-11 ELECT 47µF 20% 25V
C4317 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4318 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4319 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4324 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4325 1-163-093-00 CERAMIC CHIP 10pF 5% 50V
C4329 1-126-963-11 ELECT 4.7µF 20% 50V
C4330 1-137-581-11 FILM 0.1µF 5% 100V
C4331 1-126-959-11 ELECT 0.47µF 20% 50V
C4332 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4333 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4334 1-126-967-11 ELECT 47µF 20% 50V
C4336 1-126-967-11 ELECT 47µF 20% 50V
C4338 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4340 1-126-967-11 ELECT 47µF 20% 50V
C4342 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C4343 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4344 1-126-960-11 ELECT 1µF 20% 50V
C4345 1-126-967-11 ELECT 47µF 20% 50V
C4346 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4347 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4348 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4349 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4350 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4351 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C4352 1-126-967-11 ELECT 47µF 20% 50V
C4353 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C4354 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C4355 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4356 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4357 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4358 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4359 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C4360 1-126-966-11 ELECT 33µF 20% 50V
C4362 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4363 1-126-967-11 ELECT 47µF 20% 50V
C4364 1-126-967-11 ELECT 47µF 20% 50V
C4368 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4369 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4370 1-126-967-11 ELECT 47µF 20% 50V
C4371 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4372 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C4373 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4374 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4377 1-126-960-11 ELECT 1µF 20% 50V
C4382 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4383 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4384 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4601 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
< CONNECTOR >
CN4101 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P
CN4500 * 1-564-512-11 PLUG, CONNECTOR 9P
DS E
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 116 –
CN4502 * 1-564-507-11 PLUG, CONNECTOR 4P
< DIODE >
D4304 8-719-069-60 DIODE UDZSTE-179.1B
D4305 8-719-069-60 DIODE UDZSTE-179.1B
D4601 8-719-401-63 DIODE MA3062M-TX
D4602 8-719-914-43 DIODE DAN202K
D4603 8-719-914-43 DIODE DAN202K
< FERRITE BEAD >
FB4387 1-216-295-91 SHORT 0
FB4388 1-216-295-91 SHORT 0
FB4389 1-216-295-91 SHORT 0
< IC >
IC4301 8-752-090-88 IC CXA2100AQ-TL
< CHIP CONDUCTOR >
JR4301 1-216-295-91 SHORT 0
JR4302 1-216-037-00 RES-CHIP 330 5% 1/10W
< COIL >
L4301 1-412-029-11 INDUCTOR 10µH
L4302 1-412-029-11 INDUCTOR 10µH
L4303 1-412-029-11 INDUCTOR 10µH
L4304 1-412-029-11 INDUCTOR 10µH
L4305 1-412-029-11 INDUCTOR 10µH
L4306 1-412-029-11 INDUCTOR 10µH
L4308 1-412-031-11 INDUCTOR 47µH
L4309 1-412-031-11 INDUCTOR 47µH
< TRANSISTOR >
Q4301 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4302 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4303 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4304 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4307 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4308 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4310 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4316 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4317 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4318 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4320 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4321 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4322 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4601 1-801-806-11 TRANSISTOR TR DTC144EKA
Q4602 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R4301 1-216-025-11 RES-CHIP 100 5% 1/10W
R4302 1-216-025-11 RES-CHIP 100 5% 1/10W
R4303 1-216-025-11 RES-CHIP 100 5% 1/10W
R4304 1-216-025-11 RES-CHIP 100 5% 1/10W
R4305 1-216-025-11 RES-CHIP 100 5% 1/10W
R4306 1-216-025-11 RES-CHIP 100 5% 1/10W
R4307 1-216-295-91 SHORT 0
R4309 1-216-295-91 SHORT 0
R4313 1-216-039-00 RES-CHIP 390 5% 1/10W
R4314 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4315 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R4316 1-216-037-00 RES-CHIP 330 5% 1/10W
R4317 1-216-047-91 RES-CHIP 820 5% 1/10W
R4318 1-249-411-11 CARBON 330 5% 1/4W
R4319 1-216-073-91 RES-CHIP 10K 5% 1/10W
R4320 1-216-689-11 RES-CHIP 39K 5% 1/10W
R4321 1-216-105-91 RES-CHIP 220K 5% 1/10W
R4322 1-216-073-91 RES-CHIP 10K 5% 1/10W
R4323 1-216-091-00 RES-CHIP 56K 5% 1/10W
R4324 1-208-830-11 METAL CHIP 100K 0.5% 1/10W
R4332 1-216-025-11 RES-CHIP 100 5% 1/10W
R4334 1-216-025-11 RES-CHIP 100 5% 1/10W
R4335 1-216-025-11 RES-CHIP 100 5% 1/10W
R4336 1-216-025-11 RES-CHIP 100 5% 1/10W
R4337 1-216-025-11 RES-CHIP 100 5% 1/10W
R4339 1-249-409-11 CARBON 220 5% 1/4W
R4340 1-216-111-00 RES-CHIP 390K 5% 1/10W
R4341 1-216-295-91 SHORT 0
R4343 1-216-025-11 RES-CHIP 100 5% 1/10W
R4344 1-216-025-11 RES-CHIP 100 5% 1/10W
R4345 1-216-075-00 RES-CHIP 12K 5% 1/10W
R4346 1-208-812-11 METAL CHIP 18K 0.5% 1/10W
R4347 1-216-025-11 RES-CHIP 100 5% 1/10W
R4348 1-216-025-11 RES-CHIP 100 5% 1/10W
R4349 1-216-033-00 RES-CHIP 220 5% 1/10W
R4350 1-216-025-11 RES-CHIP 100 5% 1/10W
R4352 1-216-073-91 RES-CHIP 10K 5% 1/10W
R4354 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R4355 1-216-295-91 SHORT 0
R4357 1-208-814-91 METAL CHIP 22K 0.5% 1/10W
R4358 1-208-804-11 METAL CHIP 8.2K 0.5% 1/10W
R4359 1-216-041-00 RES-CHIP 470 5% 1/10W
R4360 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R4361 1-216-133-91 RES-CHIP 3.3M 5% 1/10W
R4363 1-216-025-11 RES-CHIP 100 5% 1/10W
R4365 1-216-017-91 RES-CHIP 47 5% 1/10W
R4366 1-216-017-91 RES-CHIP 47 5% 1/10W
R4367 1-216-017-91 RES-CHIP 47 5% 1/10W
R4370 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4372 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R4375 1-216-033-00 RES-CHIP 220 5% 1/10W
R4377 1-216-033-00 RES-CHIP 220 5% 1/10W
R4380 1-216-073-91 RES-CHIP 10K 5% 1/10W
R4382 1-216-073-91 RES-CHIP 10K 5% 1/10W
R4384 1-216-025-11 RES-CHIP 100 5% 1/10W
R4385 1-216-129-00 RES-CHIP 2.2M 5% 1/10W
R4387 1-216-017-91 RES-CHIP 47 5% 1/10W
E
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 117 –
E D
R4388 1-216-017-91 RES-CHIP 47 5% 1/10W
R4389 1-216-017-91 RES-CHIP 47 5% 1/10W
R4393 1-216-025-11 RES-CHIP 100 5% 1/10W
R4395 1-216-295-91 SHORT 0
R4396 1-216-295-91 SHORT 0
R4398 1-216-025-11 RES-CHIP 100 5% 1/10W
R4504 1-216-025-11 RES-CHIP 100 5% 1/10W
R4516 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4517 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4518 1-216-025-11 RES-CHIP 100 5% 1/10W
R4519 1-216-025-11 RES-CHIP 100 5% 1/10W
R4520 1-216-025-11 RES-CHIP 100 5% 1/10W
R4521 1-216-025-11 RES-CHIP 100 5% 1/10W
R4522 1-216-025-11 RES-CHIP 100 5% 1/10W
R4523 1-216-025-11 RES-CHIP 100 5% 1/10W
R4524 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4602 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R4603 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
< CRYSTAL >
X4300 1-767-127-11 VIBRATOR, CERAMIC (503.5MHz)
*******************************************************************************
*
A-1346-907-A
D BOARD, COMPLETE (KP-48)
*
A-1346-909-A
D BOARD, COMPLETE (KP-61)
****************************
1-500-048-11 FERRITE 0µH
4-363-414-00 SPACER, MICA
4-382-854-11 SCREW (M3X10), P, SW (+)
* 4-393-506-01 RETAINER, TR
7-682-952-09 SCREW +PSW 3X16
< CAPACITOR >
C5001 1-126-947-11 ELECT 47µF 20% 16V
C5002 1-126-963-11 ELECT 4.7µF 20% 50V
C5011 1-126-934-11 ELECT 220µF 20% 16V
C5020 1-126-961-11 ELECT 2.2µF 20% 50V
C5102 1-102-973-00 CERAMIC 100pF 5% 50V
C5103 1-126-960-11 ELECT 1µF 20% 50V
C5104 1-137-415-11 MYLAR 0.0068µF 10% 100V
C5105 1-102-973-00 CERAMIC 100pF 5% 50V
C5112 1-162-117-00 CERAMIC 100pF 10% 500V
C5113 1-136-207-11 MYLAR 0.047µF 10% 250V
C5115 1-124-347-51 ELECT 100µF 20% 160V
C5117 1-162-116-00 CERAMIC 680pF 10% 2KV
C5118 1-137-391-11 MYLAR 0.0047µF 5% 100V
C5119 1-162-116-00 CERAMIC 680pF 10% 2KV
C5120 1-162-116-00 CERAMIC 680pF 10% 2KV
C5123 1-129-718-00 FILM 0.022µF 5% 630V
C5127 1-117-643-11 FILM 9100pF 3% 1.2KV
C5130 1-115-521-11 FILM 0.82µF 5% 250V
C5133 1-104-665-11 ELECT 100µF 20% 25V
C5135 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C5136 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C5137 1-137-043-11 MYLAR 0.0047µF 10% 400V
C5138 1-126-965-91 ELECT 22µF 20% 50V
C5140 1-107-652-11 ELECT 10µF 20% 250V
C5141 1-136-189-00 MYLAR 0.1µF 10% 250V
C5142 1-162-117-00 CERAMIC 100pF 10% 500V
C5143 1-115-521-11 FILM 0.82µF 5% 250V
C5145 1-104-665-11 ELECT 100µF 20% 25V
C5146 1-107-655-11 ELECT 47µF 20% 250V
C5147 1-102-228-00 CERAMIC 470pF 10% 500V
C5148 1-126-941-11 ELECT 470µF 20% 25V
C5149 1-126-941-11 ELECT 470µF 20% 25V
C5150 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C5151 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C5152 1-126-972-11 ELECT 1000µF 20% 50V
C5153 1-126-972-11 ELECT 1000µF 20% 50V
C5158 1-124-347-51 ELECT 100µF 20% 160V
C5159 1-126-935-11 ELECT 470µF 20% 16V
C5160 1-126-935-11 ELECT 470µF 20% 16V
C5163 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C5164 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C5165 1-126-967-11 ELECT 47µF 20% 50V
C5166 1-126-967-11 ELECT 47µF 20% 50V
C5167 1-126-967-11 ELECT 47µF 20% 50V
C5168 1-126-967-11 ELECT 47µF 20% 50V
C5170 1-136-165-00 FILM 0.1µF 5% 50V
C5171 1-106-387-00 MYLAR 0.068µF 10% 200V
C5172 1-136-165-00 FILM 0.1µF 5% 50V
C5173 1-136-165-00 FILM 0.1µF 5% 50V
C5174 1-136-165-00 FILM 0.1µF 5% 50V
C5175 1-126-967-11 ELECT 47µF 20% 50V
C5176 1-126-967-11 ELECT 47µF 20% 50V
C5204 1-126-933-11 ELECT 100µF 20% 16V
C5205 1-130-495-00 MYLAR 0.1µF 5% 50V
C5206 1-126-960-11 ELECT 1µF 20% 50V
C5207 1-126-965-91 ELECT 22µF 20% 50V
C5208 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C5209 1-163-275-11 CERAMIC CHIP 0.001µF 5% 50V
C5211 1-130-495-00 MYLAR 0.1µF 5% 50V
C5214 1-126-935-11 ELECT 470µF 20% 16V
C5215 1-126-964-11 ELECT 10µF 20% 50V
C5216 1-164-096-11 CERAMIC 0.01µF 50V
C5217 1-164-096-11 CERAMIC 0.01µF 50V
C5218 1-164-096-11 CERAMIC 0.01µF 50V
C5219 1-164-096-11 CERAMIC 0.01µF 50V
C5220 1-164-096-11 CERAMIC 0.01µF 50V
C5221 1-164-096-11 CERAMIC 0.01µF 50V
C5222 1-164-096-11 CERAMIC 0.01µF 50V
C5223 1-126-960-11 ELECT 1µF 20% 50V
C5224 1-126-967-11 ELECT 47µF 20% 50V
C5225 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5226 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C5301 1-126-947-11 ELECT 47µF 20% 25V
C5302 1-104-665-11 ELECT 100µF 20% 25V
C5303 1-126-933-11 ELECT 100µF 20% 16V
C5304 1-163-005-91 CERAMIC CHIP 470pF 10% 50V
C5305 1-137-399-11 MYLAR 0.1µF 5% 100V
C5307 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 118 –
C5308 1-126-960-11 ELECT 1µF 20% 50V
C5310 1-126-964-11 ELECT 10µF 20% 50V
C5311 1-136-177-00 FILM 1µF 5% 50V
C5312 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5313 1-126-933-11 ELECT 100µF 20% 16V
C5314 1-126-969-11 ELECT 220µF 20% 50V
C5315 1-126-964-11 ELECT 10µF 20% 50V
C5316 1-137-401-11 MYLAR 0.22µF 10% 100V
C5317 1-126-947-11 ELECT 47µF 20% 16V
C5318 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5319 1-126-941-11 ELECT 470µF 20% 25V
C5320 1-126-972-11 ELECT 1000µF 20% 50V
C5321 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C5323 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5326 1-126-972-11 ELECT 1000µF 20% 50V
C5327 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C5328 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5329 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C5331 1-126-960-11 ELECT 1µF 20% 50V
C5332 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5333 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5334 1-126-960-11 ELECT 1µF 20% 50V
C5401 1-126-967-11 ELECT 47µF 20% 50V
C5402 1-126-947-11 ELECT 47µF 20% 25V
C5403 1-102-125-00 CERAMIC 0.0047µF 10% 50V
C5404 1-102-125-00 CERAMIC 0.0047µF 10% 50V
C5405 1-102-125-00 CERAMIC 0.0047µF 10% 50V
C5406 1-126-947-11 ELECT 47µF 20% 25V
C5407 1-130-495-00 MYLAR 0.1µF 5% 50V
C5507 1-102-973-00 CERAMIC 100pF 5% 50V
C5508 1-102-973-00 CERAMIC 100pF 5% 50V
C5509 1-102-973-00 CERAMIC 100pF 5% 50V
C5510 1-102-973-00 CERAMIC 100pF 5% 50V
C5511 1-102-973-00 CERAMIC 100pF 5% 50V
C5512 1-102-973-00 CERAMIC 100pF 5% 50V
C5517 1-126-965-91 ELECT 22µF 20% 50V
C5518 1-126-965-91 ELECT 22µF 20% 50V
C5519 1-126-969-11 ELECT 220µF 20% 50V
C5520 1-126-969-11 ELECT 220µF 20% 50V
C5521 1-130-495-00 MYLAR 0.1µF 5% 50V
C5522 1-130-495-00 MYLAR 0.1µF 5% 50V
C5523 1-126-971-11 ELECT 470µF 20% 50V
C5524 1-126-971-11 ELECT 470µF 20% 50V
C5527 1-126-969-11 ELECT 220µF 20% 50V
C5528 1-126-969-11 ELECT 220µF 20% 50V
C5529 1-137-150-11 MYLAR 0.01µF 5% 50V
C5530 1-137-150-11 MYLAR 0.01µF 5% 50V
C5711 1-136-165-00 FILM 0.1µF 5% 50V
C5712 1-136-177-00 FILM 1µF 5% 50V
C5713 1-104-665-11 ELECT 100µF 20% 25V
C5714 1-130-471-00 MYLAR 0.001µF 5% 50V
C5715 1-137-150-11 MYLAR 0.01µF 5% 50V
C5716 1-104-665-11 ELECT 100µF 20% 25V
C5717 1-126-968-11 ELECT 100µF 20% 50V
C5718 1-162-114-00 CERAMIC 0.0047µF 2KV
C5719 1-126-968-11 ELECT 100µF 20% 50V
C5720 1-137-372-11 MYLAR 0.022µF 5% 50V
C5721 1-104-661-91 ELECT 330µF 20% 16V
C5722 1-126-934-11 ELECT 220µF 20% 16V
C5727 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5728 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C5759 1-126-964-11 ELECT 10µF 20% 50V
C5760 1-164-182-11 CERAMIC CHIP 0.0033µF 10% 50V
< CONNECTOR >
CN5001 * 1-564-506-11 PLUG, CONNECTOR 3P
CN5002 * 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P
CN5003 * 1-506-371-00 PIN, CONNECTOR 2P
CN5004 1-695-915-11 TAB (CONTACT)
CN5006 * 1-564-512-11 PLUG, CONNECTOR 9P
CN5007 * 1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P
CN5008 * 1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P
CN5009 * 1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P
CN5010 * 1-564-507-11 PLUG, CONNECTOR 4P
CN5011 * 1-564-507-11 PLUG, CONNECTOR 4P
CN5012 * 1-564-507-11 PLUG, CONNECTOR 4P
CN5013 * 1-764-333-11 PLUG, CONNECTOR 10P
CN5014 * 1-691-135-11 PIN, CONNECTOR (PC BOARD) 4P
CN5015 1-695-298-11 CONNECTOR, BOARD TO BOARD 40P
CN5016 1-900-903-64 CONNECTOR ASSY 20P
CN5017 1-900-903-64 CONNECTOR ASSY 20P
CN5018 * 1-564-511-11 PLUG, CONNECTOR 8P
CN5019 * 1-564-507-11 PLUG, CONNECTOR 4P
CN5020 * 1-564-506-11 PLUG, CONNECTOR 3P
CN5401 * 1-564-506-11 PLUG, CONNECTOR 3P
CN5402 * 1-691-616-21 CONNECTOR, BOARD TO BOARD 15P
< DIODE >
D5001 8-719-991-33 DIODE 1SS133T-77
D5002 8-719-991-33 DIODE 1SS133T-77
D5006 8-719-991-33 DIODE 1SS133T-77
D5008 8-719-991-33 DIODE 1SS133T-77
D5101 8-719-983-38 DIODE MTZJ-T-77-36B
D5107 8-719-979-99 DIODE ERD08M-15
D5108 8-719-052-09 DIODE FMG-36S-LF024-104
D5114 8-719-971-20 DIODE ERC38-06
D5115 8-719-302-43 DIODE EL1Z
D5116 8-719-979-85 DIODE EGP20G
D5117 8-719-302-43 DIODE EL1Z
D5118 8-719-979-85 DIODE EGP20G
D5121 8-719-908-03 DIODE GP08D
D5122 8-719-908-03 DIODE GP08D
D5201 8-719-991-33 DIODE 1SS133T-77
D5202 8-719-109-85 DIODE RD5.1ESB2
D5203 8-719-923-86 DIODE MTZJ-T-77-15
D5204 8-719-921-63 DIODE MTZJ-7.5B
D5205 8-719-991-33 DIODE 1SS133T-77
D5207 8-719-991-33 DIODE 1SS133T-77
D5208 8-719-991-33 DIODE 1SS133T-77
D
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 119 –
D
D5301 8-719-923-86 DIODE MTZJ-T-77-15
D5302 8-719-991-33 DIODE 1SS133T-77
D5303 8-719-908-03 DIODE GP08D
D5304 8-719-908-03 DIODE GP08D
D5305 8-719-991-33 DIODE 1SS133T-77
D5306 8-719-923-86 DIODE MTZJ-T-77-15
D5307 8-719-923-86 DIODE MTZJ-T-77-15
D5308 8-719-924-16 DIODE MTZJ-T-77-24
D5309 8-719-924-16 DIODE MTZJ-T-77-24
D5401 8-719-110-17 DIODE RD10ESB2
D5402 8-719-085-31 DIODE MM3Z2V4T1
D5701 8-719-991-33 DIODE 1SS133T-77
D5704 8-719-991-33 DIODE 1SS133T-77
D5719 8-719-923-86 DIODE MTZJ-T-77-15
D5721 8-719-923-86 DIODE MTZJ-T-77-15
D5724 8-719-018-82 DIODE RGP02-20EL-6394
D5726 8-719-991-33 DIODE 1SS133T-77
D5727 8-719-991-33 DIODE 1SS133T-77
D5731 8-719-991-33 DIODE 1SS133T-77
D5732 8-719-991-33 DIODE 1SS133T-77
< FERRITE BEAD >
FB5102 1-412-911-11 FERRITE 0µH
FB5103 1-412-911-11 FERRITE 0µH
< IC >
IC5103 8-759-701-79 IC NJM7812FA
IC5104 8-759-929-65 IC LM7912CT
IC5105 8-759-701-56 IC NJM78M05FA
IC5106 8-759-701-65 IC NJM79M05FA
IC5107 8-759-701-59 IC NJM78M09FA
IC5201 8-759-085-67 IC LM339NS
IC5301 8-759-251-31 IC CA0007AM
IC5302 8-759-192-71 IC STV9379
IC5303 8-759-998-98 IC LM358D
IC5401 8-759-711-28 IC NJM2058D
IC5501 8-749-014-67 IC STK392-020
IC5502 8-749-014-67 IC STK392-020
IC5703 8-759-711-28 IC NJM2058D
< CHIP CONDUCTOR >
JR5301 1-216-295-91 SHORT 0
JR5303 1-216-295-91 SHORT 0
< COIL >
L5101 1-406-665-11 INDUCTOR 100µH
L5104 1-412-551-31 INDUCTOR 1.5mH
L5105 1-459-111-00 INDUCTOR 10mH
L5107 1-412-533-21 INDUCTOR 47µH
L5108 1-412-533-21 INDUCTOR 47µH
L5109 1-412-519-11 INDUCTOR 3.3µH
L5201 1-414-187-11 INDUCTOR 47µH
L5301 1-412-524-11 INDUCTOR 8.2µH
L5501 1-412-533-21 INDUCTOR 47µH
L5502 1-412-533-21 INDUCTOR 47µH
L5503 1-412-533-21 INDUCTOR 47µH
L5504 1-412-533-21 INDUCTOR 47µH
< NEON LAMP >
NL5101 1-517-778-21 LAMP, NEON
NL5102 1-517-778-21 LAMP, NEON
NL5103 1-517-778-21 LAMP, NEON
NL5402 1-517-778-21 LAMP, NEON
< IC LINK >
PS5101
01-533-590-31 LINK, IC (1A/90V AC, 60V DC)
PS5501
01-533-597-31 LINK, IC (5A/90V AC, 60V DC)
PS5502
01-533-597-31 LINK, IC (5A/90V AC, 60V DC)
PS5503
01-533-597-31 LINK, IC (5A/90V AC, 60V DC)
PS5504
01-533-597-31 LINK, IC (5A/90V AC, 60V DC)
PS5539
01-533-595-21 LINK, IC (3.15A/90V AC, 60V DC)
PS5540
01-533-595-21 LINK, IC (3.15A/90V AC, 60V DC)
PS5543
01-533-595-21 LINK, IC (3.15A/90V AC, 60V DC)
PS5544
01-533-595-21 LINK, IC (3.15A/90V AC, 60V DC)
PS5549
01-533-595-21 LINK, IC (3.15A/90V AC, 60V DC)
PS5550
01-533-595-21 LINK, IC (3.15A/90V AC, 60V DC)
< TRANSISTOR >
Q5006 1-801-806-11 TRANSISTOR TR DTC144EKA
Q5009 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q5102 8-729-119-80 TRANSISTOR 2SC2688-LK
Q5104 8-729-051-81 TRANSISTOR 2SC5047-YB
Q5105 8-729-038-83 TRANSISTOR 2SK2251-01-F19
Q5106 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q5201 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q5302 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q5303 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q5401 8-729-422-27 TRANSISTOR 2SD601A-Q
Q5402 8-729-424-02 TRANSISTOR 2SB709A-QRS-TX
Q5403 1-801-806-11 TRANSISTOR TR DTC144EKA
Q5501 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q5502 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q5503 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q5504 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q5505 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q5506 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q5704 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q5705 8-729-032-61 TRANSISTOR 2SC5022-02
Q5706 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q5707 8-729-046-80 TRANSISTOR 2SC4634LS-CB11
Q5709 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q5710 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q5711 8-729-120-28 TRANSISTOR 2SC1623-L5L6
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 120 –
< RESISTOR >
R5004 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5013 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5023 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R5048 1-216-041-00 RES-CHIP 470 5% 1/10W
R5101 1-215-926-00 METAL OXIDE 33K 5% 3W
R5112 1-247-843-11 CARBON 3.3K 5% 1/4W
R5115 1-216-435-11 METAL OXIDE 2.7K 5% 1W
R5119 1-215-922-11 METAL OXIDE 6.8K 5% 3W
R5120 1-216-486-00 METAL OXIDE 8.2K 5% 3W
R5122 1-215-905-11 METAL OXIDE 10 5% 3W
R5136 1-215-443-00 METAL 8.2K 1% 1/4W
R5138 1-215-457-00 METAL 33K 1% 1/4W
R5139 1-216-391-11 METAL OXIDE 1.5 5% 3W
R5140 1-215-449-00 METAL 15K 1% 1/4W
R5141 1-215-911-11 METAL OXIDE 100 5% 3W
R5143 1-247-735-11 CARBON 47 5% 1/2W
R5146 1-215-910-00 METAL OXIDE 68 5% 3W
R5147 1-215-910-00 METAL OXIDE 68 5% 3W
R5148 1-249-377-11 CARBON 0.47 5% 1/4W
R5149 1-247-807-31 CARBON 100 5% 1/4W
R5152 1-216-377-11 METAL OXIDE 4.7 5% 2W
R5153 1-249-379-11 CARBON 0.68 5% 1/4W
R5154 1-260-127-11 CARBON 220K 5% 1/2W
R5155 1-214-909-00 METAL 68K 1% 1/2W
R5157 1-215-908-00 METAL OXIDE 33 5% 3W
(KP-48)
R5157 1-216-472-00 METAL OXIDE 39 5% 3W
(KP-61)
R5158 1-216-349-00 METAL OXIDE 1 5% 1W
R5159 1-215-908-00 METAL OXIDE 33 5% 3W
(KP-48)
R5159 1-216-472-00 METAL OXIDE 39 5% 3W
(KP-61)
R5160 1-249-377-11 CARBON 0.47 5% 1/4W
R5161 1-249-377-11 CARBON 0.47 5% 1/4W
R5162 1-216-393-00 METAL OXIDE 2.2 5% 3W
R5163 1-216-392-11 METAL OXIDE 1.8 5% 3W
R5164 1-249-393-11 CARBON 10 5% 1/4W
R5166 1-215-905-11 METAL OXIDE 10 5% 3W
R5169 1-249-424-11 CARBON 3.9K 5% 1/4W
R5171 1-249-429-11 CARBON 10K 5% 1/4W
R5172 1-249-417-11 CARBON 1K 5% 1/4W
R5173 1-215-905-11 METAL OXIDE 10 5% 3W
R5174 1-215-905-11 METAL OXIDE 10 5% 3W
R5175 1-215-905-11 METAL OXIDE 10 5% 3W
R5201 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R5202 1-216-049-11 RES-CHIP 1K 5% 1/10W
R5203 1-215-879-11 METAL OXIDE 47K 5% 1W
R5204 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R5205 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R5206 1-216-099-00 RES-CHIP 120K 5% 1/10W
R5209 1-208-760-11 METAL CHIP 120 0.5% 1/10W
R5210 1-216-113-00 RES-CHIP 470K 5% 1/10W
R5211 1-216-081-00 RES-CHIP 22K 5% 1/10W
R5212 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R5213 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5214 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R5215 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5216 1-247-895-91 CARBON 470K 5% 1/4W
R5217 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R5218 1-216-049-11 RES-CHIP 1K 5% 1/10W
R5219 1-216-075-00 RES-CHIP 12K 5% 1/10W
R5220 1-216-105-91 RES-CHIP 220K 5% 1/10W
R5221 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R5222 1-216-105-91 RES-CHIP 220K 5% 1/10W
R5223 1-216-081-00 RES-CHIP 22K 5% 1/10W
R5224 1-249-405-11 CARBON 100 5% 1/4W
R5225 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R5226 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5227 1-260-135-11 CARBON 1M 5% 1/2W
R5229 1-216-045-00 RES-CHIP 680 5% 1/10W
R5230 1-216-097-11 RES-CHIP 100K 5% 1/10W
R5231 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R5232 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5233 1-247-807-31 CARBON 100 5% 1/4W
R5234 1-216-049-11 RES-CHIP 1K 5% 1/10W
R5235 1-208-810-11 METAL CHIP 15K 0.5% 1/10W
R5236 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R5302 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5303 1-216-083-00 RES-CHIP 27K 5% 1/10W
R5304 1-216-081-00 RES-CHIP 22K 5% 1/10W
R5305 1-208-801-11 METAL CHIP 6.2K 0.5% 1/10W
R5306 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R5307 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5308 1-216-353-00 METAL OXIDE 2.2 5% 1W
R5309 1-216-097-11 RES-CHIP 100K 5% 1/10W
R5310 1-216-353-00 METAL OXIDE 2.2 5% 1W
R5311 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5312 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5313 1-216-083-00 RES-CHIP 27K 5% 1/10W
R5314 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5315 1-215-913-11 METAL OXIDE 220 5% 3W
R5316 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5317 1-216-049-11 RES-CHIP 1K 5% 1/10W
R5318 1-216-097-11 RES-CHIP 100K 5% 1/10W
R5319 1-216-085-91 RES-CHIP 33K 5% 1/10W
R5320 1-249-383-11 CARBON 1.5 5% 1/4W
R5321 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5323 1-216-083-00 RES-CHIP 27K 5% 1/10W
R5325 1-208-801-11 METAL CHIP 6.2K 0.5% 1/10W
R5326 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R5328 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5329 1-216-025-11 RES-CHIP 100 5% 1/10W
R5330 1-216-295-91 SHORT 0
R5331 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5335 1-216-117-00 RES-CHIP 680K 5% 1/10W
R5337 1-216-117-00 RES-CHIP 680K 5% 1/10W
R5338 1-216-295-91 SHORT 0
R5339 1-247-807-31 CARBON 100 5% 1/4W
R5340 1-249-377-11 CARBON 0.47 5% 1/4W
R5341 1-249-377-11 CARBON 0.47 5% 1/4W
D
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 121 –
D
R5344 1-216-117-00 RES-CHIP 680K 5% 1/10W
R5345 1-216-117-00 RES-CHIP 680K 5% 1/10W
R5401 1-216-295-91 SHORT 0
R5405 1-260-087-11 CARBON 100 5% 1/2W
R5406 1-216-295-91 SHORT 0
R5408 1-216-295-91 SHORT 0
R5409 1-216-295-91 SHORT 0
R5410 1-260-087-11 CARBON 100 5% 1/2W
R5411 1-216-295-91 SHORT 0
R5412 1-208-812-11 METAL CHIP 18K 0.5% 1/10W
R5415 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R5416 1-216-295-91 SHORT 0
R5419 1-216-049-11 RES-CHIP 1K 5% 1/10W
R5420 1-216-077-91 RES-CHIP 15K 5% 1/10W
R5421 1-216-081-00 RES-CHIP 22K 5% 1/10W
R5422 1-216-105-91 RES-CHIP 220K 5% 1/10W
R5501 1-247-807-31 CARBON 100 5% 1/4W
R5502 1-247-807-31 CARBON 100 5% 1/4W
R5503 1-247-807-31 CARBON 100 5% 1/4W
R5504 1-247-807-31 CARBON 100 5% 1/4W
R5505 1-247-807-31 CARBON 100 5% 1/4W
R5506 1-247-807-31 CARBON 100 5% 1/4W
R5507 1-247-843-11 CARBON 3.3K 5% 1/4W
R5508 1-247-843-11 CARBON 3.3K 5% 1/4W
R5509 1-247-843-11 CARBON 3.3K 5% 1/4W
R5510 1-247-843-11 CARBON 3.3K 5% 1/4W
R5511 1-249-417-11 CARBON 1K 5% 1/4W
R5512 1-249-417-11 CARBON 1K 5% 1/4W
R5513 1-247-843-11 CARBON 3.3K 5% 1/4W
R5515 1-247-843-11 CARBON 3.3K 5% 1/4W
R5517 1-249-417-11 CARBON 1K 5% 1/4W
R5518 1-249-417-11 CARBON 1K 5% 1/4W
R5519 1-249-429-11 CARBON 10K 5% 1/4W
R5520 1-249-429-11 CARBON 10K 5% 1/4W
R5521 1-214-808-11 METAL 4.7 1% 1/2W
R5522 1-214-808-11 METAL 4.7 1% 1/2W
R5523 1-247-807-31 CARBON 100 5% 1/4W
R5524 1-249-429-11 CARBON 10K 5% 1/4W
R5525 1-214-808-11 METAL 4.7 1% 1/2W
R5526 1-247-807-31 CARBON 100 5% 1/4W
R5527 1-214-808-11 METAL 4.7 1% 1/2W
R5528 1-249-429-11 CARBON 10K 5% 1/4W
R5529 1-214-808-11 METAL 4.7 1% 1/2W
R5530 1-214-808-11 METAL 4.7 1% 1/2W
R5531 1-249-417-11 CARBON 1K 5% 1/4W
R5532 1-249-417-11 CARBON 1K 5% 1/4W
R5533 1-214-808-11 METAL 4.7 1% 1/2W
R5534 1-214-808-11 METAL 4.7 1% 1/2W
R5535 1-214-808-11 METAL 4.7 1% 1/2W
R5536 1-214-808-11 METAL 4.7 1% 1/2W
R5537 1-214-808-11 METAL 4.7 1% 1/2W
R5538 1-214-808-11 METAL 4.7 1% 1/2W
R5541 1-214-808-11 METAL 4.7 1% 1/2W
R5542 1-214-808-11 METAL 4.7 1% 1/2W
R5545 1-214-808-11 METAL 4.7 1% 1/2W
R5546 1-214-808-11 METAL 4.7 1% 1/2W
R5547 1-214-808-11 METAL 4.7 1% 1/2W
R5548 1-214-808-11 METAL 4.7 1% 1/2W
R5551 1-214-808-11 METAL 4.7 1% 1/2W
R5552 1-214-808-11 METAL 4.7 1% 1/2W
R5553 1-214-808-11 METAL 4.7 1% 1/2W
R5554 1-214-808-11 METAL 4.7 1% 1/2W
R5555 1-214-808-11 METAL 4.7 1% 1/2W
R5556 1-214-808-11 METAL 4.7 1% 1/2W
R5557 1-214-808-11 METAL 4.7 1% 1/2W
R5558 1-214-808-11 METAL 4.7 1% 1/2W
R5559 1-214-808-11 METAL 4.7 1% 1/2W
R5560 1-214-808-11 METAL 4.7 1% 1/2W
R5561 1-214-808-11 METAL 4.7 1% 1/2W
R5562 1-214-808-11 METAL 4.7 1% 1/2W
R5563 1-249-429-11 CARBON 10K 5% 1/4W
R5564 1-249-429-11 CARBON 10K 5% 1/4W
R5565 1-249-429-11 CARBON 10K 5% 1/4W
R5566 1-249-429-11 CARBON 10K 5% 1/4W
R5567 1-249-429-11 CARBON 10K 5% 1/4W
R5568 1-249-429-11 CARBON 10K 5% 1/4W
R5569 1-249-429-11 CARBON 10K 5% 1/4W
R5570 1-249-429-11 CARBON 10K 5% 1/4W
R5718 1-249-425-11 CARBON 4.7K 5% 1/4W
R5723 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5724 1-247-807-31 CARBON 100 5% 1/4W
R5725 1-216-093-91 RES-CHIP 68K 5% 1/10W
R5726 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R5727 1-216-085-91 RES-CHIP 33K 5% 1/10W
R5728 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R5729 1-216-025-11 RES-CHIP 100 5% 1/10W
R5730 1-249-431-11 CARBON 15K 5% 1/4W
R5731 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5732 1-249-441-11 CARBON 100K 5% 1/4W
R5734 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R5735 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R5737 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5738 1-249-405-11 CARBON 100 5% 1/4W
R5739 1-216-025-11 RES-CHIP 100 5% 1/10W
R5740 1-215-892-11 METAL OXIDE 1K 5% 2W
R5744 1-216-089-91 RES-CHIP 47K 5% 1/10W
R5745 1-216-099-00 RES-CHIP 120K 5% 1/10W
R5746 1-215-925-11 METAL OXIDE 22K 5% 3W
R5747 1-215-925-11 METAL OXIDE 22K 5% 3W
R5748 1-216-041-00 RES-CHIP 470 5% 1/10W
R5749 1-216-025-11 RES-CHIP 100 5% 1/10W
R5750 1-216-025-11 RES-CHIP 100 5% 1/10W
R5751 1-260-328-11 CARBON 1K 5% 1/2W
R5753 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R5754 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5755 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R5756 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R5757 1-219-752-11 CARBON 100K 5% 1/2W
R5758 1-215-925-11 METAL OXIDE 22K 5% 3W
R5759 1-215-925-11 METAL OXIDE 22K 5% 3W
R5762 1-219-743-11 CARBON 100 5% 1/2W
R5763 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 122 –
R5764 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5765 1-216-049-11 RES-CHIP 1K 5% 1/10W
R5768 1-249-429-11 CARBON 10K 5% 1/4W
R5769 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5770 1-216-073-91 RES-CHIP 10K 5% 1/10W
R5771 1-216-097-11 RES-CHIP 100K 5% 1/10W
R5772 1-249-429-11 CARBON 10K 5% 1/4W
[
R9901
0METAL 1/4W
< SPARK GAP >
SG5702 1-519-466-11 GAP, SPARK
< TRANSFORMER >
T5101 1-437-209-11 TRANSFORMER, HORIZONTAL DRIVE
T5102 1-419-553-11 COIL,HORIZONTAL LINEARITY(HLC)
T5103 01-453-335-11 TRANSFORMER ASSY, FLY BACK
(NX4010//M3P4) (KP-48)
T5103 01-453-354-11 TRANSFORMER ASSY, FLY BACK
(NX4010//M3Q4) (KP-61)
T5104 1-435-439-11 TRANSFORMER, FERRITE (PMT)
*******************************************************************************
*
A-1372-757-A
H1 BOARD, COMPLETE
******************************
* 4-072-004-01 HOLDER, LED
< CAPACITOR >
C3101 1-126-157-11 ELECT 10µF 20% 16V
< CONNECTOR >
CN3101 * 1-564-519-11 PLUG, CONNECTOR 4P
CN3102 * 1-564-525-11 PLUG, CONNECTOR 10P
CN3103 * 1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P
CN3104 * 1-691-291-11 PIN, CONNECTOR (PC BOARD) 5P
< DIODE >
D3001 8-719-992-06 DIODE SLA-580LT3F (STANDBY)
< IC >
IC3101 8-742-134-01 HYB IC SBX1981-51RP
< TRANSISTOR >
Q3101 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R3101 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R3102 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W
R3103 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R3105 1-216-041-00 RES-CHIP 470 5% 1/10W
R3106 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R3111 1-216-295-91 SHORT 0
R3112 1-216-295-91 SHORT 0
R3116 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W
R3117 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
< SWITCH >
S3101 1-571-532-21 SWITCH, TACTIL (PROG+)
S3102 1-571-532-21 SWITCH, TACTIL (PROG–)
S3103 1-571-532-21 SWITCH, TACTIL (VOL+)
S3104 1-571-532-21 SWITCH, TACTIL (VOL–)
S3105 1-571-532-21 SWITCH, TACTIL (TV/VIDEO)
S3106 01-571-433-31 SWITCH, PUSH (AC POWER) (POWER)
*******************************************************************************
*
A-1372-758-A
H2 BOARD, COMPLETE
******************************
< CAPACITOR >
C3202 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C3203 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
< CONNECTOR >
CN3201 * 1-564-519-11 PLUG, CONNECTOR 4P
CN3202 * 1-564-520-11 PLUG, CONNECTOR 5P
< JACK >
J3201 1-691-293-11 JACK (HEAD PHONE)
< COIL >
L3201 1-414-189-31 INDUCTOR 100µH
L3202 1-414-189-31 INDUCTOR 100µH
< RESISTOR >
R3207 1-216-033-00 RES-CHIP 220 5% 1/10W
R3208 1-216-033-00 RES-CHIP 220 5% 1/10W
R3209 1-216-033-00 RES-CHIP 220 5% 1/10W
R3210 1-216-033-00 RES-CHIP 220 5% 1/10W
R3211 1-216-295-91 SHORT 0
< SWITCH >
S3205 1-572-198-11 SWITCH, KEYBOARD (AUTO CONVER)
*******************************************************************************
D H1 H2
•The components identified by [ in this manual
have been carefully factory-selected for each set
in order to satisfy regulations regarding X-ray
radiation. Should replacement be required,
replace only with the value originally used.
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 123 –
*
A-1372-759-A
H3 BOARD, COMPLETE
******************************
< CONNECTOR >
CN3301 * 1-564-526-31 PLUG, CONNECTOR 11P
< JACK >
J3301 1-568-807-21 TERMINAL BLOCK, (S) 4P (AV4)
< RESISTOR >
R3301 1-216-025-00 RES-CHIP 100 5% 1/10W
R3302 1-216-025-00 RES-CHIP 100 5% 1/10W
*******************************************************************************
*
A-1390-999-A
ZR BOARD, COMPLETE
******************************
4-382-854-11 SCREW (M3X10), P, SW (+)
< CAPACITOR >
C7401 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7402 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7403 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7404 1-126-947-11 ELECT 47µF 20% 16V
C7405 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7406 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7407 1-104-989-91 MYLAR 0.0022µF 10% 200V
C7408 1-104-989-91 MYLAR 0.0022µF 10% 200V
C7409 1-107-667-11 ELECT 2.2µF 20% 160V
C7410 1-130-471-00 MYLAR 0.001µF 5% 50V
C7411 1-130-471-00 MYLAR 0.001µF 5% 50V
C7412 1-107-364-11 MYLAR 0.01µF 10% 200V
C7413 1-126-968-11 ELECT 100µF 20% 50V
C7414 1-126-968-11 ELECT 100µF 20% 50V
C7415 1-107-645-11 ELECT 22µF 20% 200V
C7416 1-161-830-00 CERAMIC 0.0047µF 500V
C7418 1-126-935-11 ELECT 470µF 20% 6.3V
< CONNECTOR >
CN7401 * 1-564-509-11 PLUG, CONNECTOR 6P
CN7403 * 1-564-518-11 PLUG, CONNECTOR 3P
CN7404 * 1-564-507-11 PLUG, CONNECTOR 4P
CN7405 * 1-580-844-11 PIN, CONNECTOR (POWER)
< DIODE >
D7401 8-719-988-61 DIODE 1SS355TE-17
D7403 8-719-921-86 DIODE MTZJ-13
D7404 8-719-921-86 DIODE MTZJ-13
< DEFLECTION YOKE >
DY740101-451-465-21 DEFLECTION YOKE
< COIL >
L7401 1-412-911-11 FERRITE 0µH
L7402 1-414-187-11 INDUCTOR 47µH
< TRANSISTOR >
Q7401 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7402 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7403 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7404 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7405 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7406 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q7407 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q7408 8-729-045-04 TRANSISTOR 2SC5511
Q7409 8-729-045-05 TRANSISTOR 2SA2005
Q7410 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R7401 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R7402 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W
R7403 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R7404 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R7405 1-216-475-11 METAL OXIDE 120 5% 3W
R7406 1-216-073-91 RES-CHIP 10K 5% 1/10W
R7407 1-249-385-11 CARBON 2.2 5% 1/4W
R7408 1-216-475-11 METAL OXIDE 120 5% 3W
R7409 1-216-009-91 RES-CHIP 22 5% 1/10W
R7410 1-216-009-91 RES-CHIP 22 5% 1/10W
R7411 1-249-414-11 CARBON 560 5% 1/4W
R7412 1-216-033-00 RES-CHIP 220 5% 1/10W
R7413 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7414 1-216-033-00 RES-CHIP 220 5% 1/10W
R7415 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7416 1-216-001-00 RES-CHIP 10 5% 1/10W
R7417 1-249-414-11 CARBON 560 5% 1/4W
R7418 1-216-001-00 RES-CHIP 10 5% 1/10W
R7419 1-249-415-11 CARBON 680 5% 1/4W
R7420 1-249-433-11 CARBON 22K 5% 1/4W
R7421 1-249-433-11 CARBON 22K 5% 1/4W
R7422 1-249-415-11 CARBON 680 5% 1/4W
R7423 1-249-417-11 CARBON 1K 5% 1/4W
R7424 1-249-405-11 CARBON 100 5% 1/4W
R7425 1-249-385-11 CARBON 2.2 5% 1/4W
R7426 1-249-385-11 CARBON 2.2 5% 1/4W
R7427 1-249-405-11 CARBON 100 5% 1/4W
R7428 1-215-913-11 METAL OXIDE 220 5% 3W
R7431 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7432 1-216-025-11 RES-CHIP 100 5% 1/10W
R7433 1-216-009-91 RES-CHIP 22 5% 1/10W
R7434 1-216-295-91 SHORT 0
*******************************************************************************
H3 ZR
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 124 –
*
A-1391-000-A
ZG BOARD, COMPLETE
******************************
4-382-854-11 SCREW (M3X10), P, SW (+)
< CAPACITOR >
C7601 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7602 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7603 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7604 1-126-947-11 ELECT 47µF 20% 16V
C7605 1-104-989-91 MYLAR 0.0022µF 10% 200V
C7606 1-104-989-91 MYLAR 0.0022µF 10% 200V
C7607 1-107-667-11 ELECT 2.2µF 20% 160V
C7608 1-130-471-00 MYLAR 0.001µF 5% 50V
C7609 1-130-471-00 MYLAR 0.001µF 5% 50V
C7610 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7611 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7612 1-107-364-11 MYLAR 0.01µF 10% 200V
C7613 1-126-968-11 ELECT 100µF 20% 50V
C7614 1-126-968-11 ELECT 100µF 20% 50V
C7615 1-107-645-11 ELECT 22µF 20% 200V
C7616 1-161-830-00 CERAMIC 0.0047µF 500V
C7617 1-106-220-00 MYLAR 0.1µF 10% 100V
C7618 1-106-220-00 MYLAR 0.1µF 10% 100V
C7620 1-126-935-11 ELECT 470µF 20% 6.3V
< CONNECTOR >
CN7601 * 1-564-509-11 PLUG, CONNECTOR 6P
CN7602 * 1-564-509-11 PLUG, CONNECTOR 6P
CN7603 * 1-564-507-11 PLUG, CONNECTOR 4P
CN7604 * 1-564-506-11 PLUG, CONNECTOR 3P
CN7605 * 1-564-506-11 PLUG, CONNECTOR 3P
CN7606 * 1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P
CN7607 * 1-564-506-11 PLUG, CONNECTOR 3P
CN7608 * 1-564-507-11 PLUG, CONNECTOR 4P
< DIODE >
D7601 8-719-921-86 DIODE MTZJ-13
D7602 8-719-921-86 DIODE MTZJ-13
D7603 8-719-988-61 DIODE 1SS355TE-17
< DEFLECTION YOKE >
DY7601
01-451-465-21 DEFLECTION YOKE
< COIL >
L7601 1-412-911-11 FERRITE 0µH
L7602 1-414-187-11 INDUCTOR 47µH
< TRANSISTOR >
Q7601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7602 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q7603 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q7604 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7605 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7606 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7607 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7608 8-729-045-04 TRANSISTOR 2SC5511
Q7609 8-729-045-05 TRANSISTOR 2SA2005
Q7610 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R7601 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R7602 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R7603 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W
R7604 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R7605 1-216-475-11 METAL OXIDE 120 5% 3W
R7606 1-216-033-00 RES-CHIP 220 5% 1/10W
R7607 1-216-033-00 RES-CHIP 220 5% 1/10W
R7608 1-249-393-11 CARBON 10 5% 1/4W
R7609 1-216-001-00 RES-CHIP 10 5% 1/10W
R7610 1-249-385-11 CARBON 2.2 5% 1/4W
R7611 1-216-475-11 METAL OXIDE 120 5% 3W
R7612 1-249-414-11 CARBON 560 5% 1/4W
R7613 1-216-073-91 RES-CHIP 10K 5% 1/10W
R7614 1-249-414-11 CARBON 560 5% 1/4W
R7615 1-249-415-11 CARBON 680 5% 1/4W
R7616 1-249-433-11 CARBON 22K 5% 1/4W
R7617 1-249-433-11 CARBON 22K 5% 1/4W
R7618 1-249-415-11 CARBON 680 5% 1/4W
R7619 1-216-009-91 RES-CHIP 22 5% 1/10W
R7620 1-216-009-91 RES-CHIP 22 5% 1/10W
R7621 1-249-417-11 CARBON 1K 5% 1/4W
R7622 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7623 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7624 1-249-405-11 CARBON 100 5% 1/4W
R7625 1-249-385-11 CARBON 2.2 5% 1/4W
R7626 1-249-385-11 CARBON 2.2 5% 1/4W
R7627 1-249-405-11 CARBON 100 5% 1/4W
R7628 1-215-913-11 METAL OXIDE 220 5% 3W
R7631 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7632 1-216-025-11 RES-CHIP 100 5% 1/10W
R7633 1-216-009-91 RES-CHIP 22 5% 1/10W
R7634 1-216-295-91 SHORT 0
*******************************************************************************
*
A-1391-001-A
ZB BOARD, COMPLETE
******************************
4-382-854-11 SCREW (M3X10), P, SW (+)
< CAPACITOR >
C7801 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7802 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7803 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C7804 1-126-947-11 ELECT 47µF 20% 16V
C7805 1-104-989-91 MYLAR 0.0022µF 10% 200V
ZG ZB
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 125 –
C7806 1-104-989-91 MYLAR 0.0022µF 10% 200V
C7807 1-107-667-11 ELECT 2.2µF 20% 160V
C7808 1-130-471-00 MYLAR 0.001µF 5% 50V
C7809 1-130-471-00 MYLAR 0.001µF 5% 50V
C7810 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7811 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C7812 1-107-364-11 MYLAR 0.01µF 10% 200V
C7813 1-126-968-11 ELECT 100µF 20% 50V
C7814 1-126-968-11 ELECT 100µF 20% 50V
C7815 1-107-645-11 ELECT 22µF 20% 200V
C7816 1-161-830-00 CERAMIC 0.0047µF 500V
C7818 1-126-935-11 ELECT 470µF 20% 6.3V
< CONNECTOR >
CN7801 * 1-564-509-11 PLUG, CONNECTOR 6P
CN7802 * 1-564-507-11 PLUG, CONNECTOR 4P
CN7803 * 1-564-506-11 PLUG, CONNECTOR 3P
CN7804 * 1-580-844-11 PIN, CONNECTOR (POWER)
CN7805 * 1-564-506-11 PLUG, CONNECTOR 3P
< DIODE >
D7801 8-719-921-86 DIODE MTZJ-13
D7802 8-719-921-86 DIODE MTZJ-13
D7803 8-719-988-61 DIODE 1SS355TE-17
< DEFLECTION YOKE >
DY780101-451-465-21 DEFLECTION YOKE
< COIL >
L7801 1-412-911-11 FERRITE 0µH
L7802 1-414-187-11 INDUCTOR 47µH
< TRANSISTOR >
Q7801 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7802 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q7803 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA
Q7804 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7805 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7806 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q7807 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q7808 8-729-045-04 TRANSISTOR 2SC5511
Q7809 8-729-045-05 TRANSISTOR 2SA2005
Q7810 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R7801 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R7802 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R7803 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W
R7804 1-208-806-11 METAL CHIP 10K 0.5% 1/10W
R7805 1-216-033-00 RES-CHIP 220 5% 1/10W
R7806 1-216-033-00 RES-CHIP 220 5% 1/10W
R7807 1-216-475-11 METAL OXIDE 120 5% 3W
R7808 1-216-001-00 RES-CHIP 10 5% 1/10W
R7809 1-216-001-00 RES-CHIP 10 5% 1/10W
R7810 1-249-385-11 CARBON 2.2 5% 1/4W
R7811 1-216-475-11 METAL OXIDE 120 5% 3W
R7812 1-216-073-91 RES-CHIP 10K 5% 1/10W
R7813 1-249-414-11 CARBON 560 5% 1/4W
R7814 1-216-009-91 RES-CHIP 22 5% 1/10W
R7815 1-216-009-91 RES-CHIP 22 5% 1/10W
R7816 1-249-414-11 CARBON 560 5% 1/4W
R7817 1-249-415-11 CARBON 680 5% 1/4W
R7818 1-249-433-11 CARBON 22K 5% 1/4W
R7819 1-249-433-11 CARBON 22K 5% 1/4W
R7820 1-249-415-11 CARBON 680 5% 1/4W
R7821 1-249-417-11 CARBON 1K 5% 1/4W
R7822 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7823 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7824 1-249-405-11 CARBON 100 5% 1/4W
R7825 1-249-385-11 CARBON 2.2 5% 1/4W
R7826 1-249-385-11 CARBON 2.2 5% 1/4W
R7827 1-249-405-11 CARBON 100 5% 1/4W
R7828 1-215-913-11 METAL OXIDE 220 5% 3W
R7831 1-216-049-11 RES-CHIP 1K 5% 1/10W
R7832 1-216-025-11 RES-CHIP 100 5% 1/10W
R7833 1-216-009-91 RES-CHIP 22 5% 1/10W
R7834 1-216-295-91 SHORT 0
*******************************************************************************
*
A-1394-969-A
S BOARD, COMPLETE
****************************
< CAPACITOR >
C4701 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C4702 1-163-241-11 CERAMIC CHIP 39pF 5% 50V
C4708 1-163-087-00 CERAMIC CHIP 4pF 0.25pF 50V
C4709 1-163-087-00 CERAMIC CHIP 4pF 0.25pF 50V
C4710 1-126-947-11 ELECT 47µF 20% 16V
C4711 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4712 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4713 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4714 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C4715 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C4716 1-163-243-11 CERAMIC CHIP 47pF 5% 50V
C4717 1-110-501-11 CERAMIC CHIP 0.33µF 10% 16V
C4718 1-164-506-11 CERAMIC CHIP 4.7µF 16V
C4719 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4722 1-126-947-11 ELECT 47µF 20% 16V
C4723 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4727 1-164-506-11 CERAMIC CHIP 4.7µF 16V
C4728 1-165-319-11 CERAMIC CHIP 0.1µF 50V
C4729 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C4731 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C4732 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C4735 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C4736 1-126-964-11 ELECT 10µF 20% 50V
ZB S
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 126 –
C4737 1-126-964-11 ELECT 10µF 20% 50V
C4738 1-126-933-11 ELECT 100µF 20% 16V
C4739 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4740 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C4741 1-126-933-11 ELECT 100µF 20% 16V
C4742 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C4743 1-126-947-11 ELECT 47µF 20% 16V
C4744 1-126-964-11 ELECT 10µF 20% 50V
C4745 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C4746 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C4747 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C4748 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C4751 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C4752 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C4755 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C4756 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C4757 1-107-682-11 CERAMIC CHIP 1µF 10% 16V
C4758 1-107-682-11 CERAMIC CHIP 1µF 10% 16V
C4759 1-107-682-11 CERAMIC CHIP 1µF 10% 16V
C4761 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C4762 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C4763 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C4764 1-126-947-11 ELECT 47µF 20% 16V
C4766 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C4767 1-163-007-11 CERAMIC CHIP 680pF 10% 50V
C4768 1-164-161-11 CERAMIC CHIP 0.0022µF 10% 50V
C4769 1-163-007-11 CERAMIC CHIP 680pF 10% 50V
< FILTER >
CF4701 1-781-328-21 TRAP, CERAMIC (6.5MHz)
CF4702 1-760-106-11 FILTER, CERAMIC (5.5MHz)
CF4703 1-567-100-00 FILTER, CERAMIC (6.0MHz)
CF4704 1-760-450-21 FILTER, CERAMIC (6.5MHz)
< CONNECTOR >
CN4701 1-695-301-11 CONNECTOR, BOARD TO BOARD 40P
< DIODE >
D4702 8-719-083-82 DIODE UDZS-TE17-12B
D4703 8-719-083-82 DIODE UDZS-TE17-12B
D4704 8-719-047-16 DIODE BAS216
D4705 8-719-421-57 DIODE MA73-TX
D4706 8-719-421-57 DIODE MA73-TX
D4707 8-719-421-57 DIODE MA73-TX
< FERRITE BEAD >
FB4701 1-414-235-22 FERRITE 0µH
< FILTER >
FL4701 1-233-764-21 FILTER
FL4704 1-236-071-11 ENCAPSULATED COMPONENT
FL4705 1-236-071-11 ENCAPSULATED COMPONENT
< IC >
IC4702 8-759-830-05 IC MSP3410G-B8-QA
IC4703 8-759-701-36 IC NJM3403AM
IC4704 8-759-478-90 IC U2861B-MFP-G3
IC4705 8-752-072-94 IC CXA1875AM-T4
< COIL >
L4701 1-414-183-41 INDUCTOR 10µH
L4702 1-414-189-31 INDUCTOR 100µH
L4703 1-414-189-31 INDUCTOR 100µH
< TRANSISTOR >
Q4701 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4702 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4703 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4706 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4707 1-801-806-11 TRANSISTOR TR DTC144EKA
Q4708 1-801-806-11 TRANSISTOR TR DTC144EKA
Q4709 1-801-806-11 TRANSISTOR TR DTC144EKA
Q4710 1-801-806-11 TRANSISTOR TR DTC144EKA
Q4711 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q4712 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
< RESISTOR >
R4701 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R4702 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4703 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4704 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R4706 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4707 1-216-037-00 RES-CHIP 330 5% 1/10W
R4709 1-216-295-91 SHORT 0
R4710 1-216-025-11 RES-CHIP 100 5% 1/10W
R4711 1-216-025-11 RES-CHIP 100 5% 1/10W
R4712 1-216-025-11 RES-CHIP 100 5% 1/10W
R4715 1-216-025-11 RES-CHIP 100 5% 1/10W
R4720 1-216-295-91 SHORT 0
R4725 1-216-025-11 RES-CHIP 100 5% 1/10W
R4726 1-216-295-91 SHORT 0
R4727 1-216-025-11 RES-CHIP 100 5% 1/10W
R4730 1-216-081-00 RES-CHIP 22K 5% 1/10W
R4731 1-216-295-91 SHORT 0
R4732 1-216-025-11 RES-CHIP 100 5% 1/10W
R4733 1-216-025-11 RES-CHIP 100 5% 1/10W
R4734 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R4737 1-216-295-91 SHORT 0
R4738 1-216-295-91 SHORT 0
R4739 1-216-295-91 SHORT 0
R4740 1-216-295-91 SHORT 0
R4741 1-216-025-11 RES-CHIP 100 5% 1/10W
R4742 1-216-025-11 RES-CHIP 100 5% 1/10W
R4743 1-216-025-11 RES-CHIP 100 5% 1/10W
S
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 127 –
S J
R4747 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R4748 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R4749 1-216-089-91 RES-CHIP 47K 5% 1/10W
R4752 1-216-043-91 RES-CHIP 560 5% 1/10W
R4757 1-216-089-91 RES-CHIP 47K 5% 1/10W
R4758 1-216-089-91 RES-CHIP 47K 5% 1/10W
R4759 1-216-089-91 RES-CHIP 47K 5% 1/10W
R4760 1-216-089-91 RES-CHIP 47K 5% 1/10W
R4761 1-216-089-91 RES-CHIP 47K 5% 1/10W
R4769 1-216-025-11 RES-CHIP 100 5% 1/10W
R4773 1-216-295-91 SHORT 0
R4777 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R4778 1-216-049-11 RES-CHIP 1K 5% 1/10W
R4779 1-216-069-00 RES-CHIP 6.8K 5% 1/10W
R4780 1-216-295-91 SHORT 0
R4781 1-216-035-00 RES-CHIP 270 5% 1/10W
R4782 1-216-081-00 RES-CHIP 22K 5% 1/10W
R4783 1-216-081-00 RES-CHIP 22K 5% 1/10W
R4784 1-216-081-00 RES-CHIP 22K 5% 1/10W
R4785 1-216-295-91 SHORT 0
R4786 1-216-043-91 RES-CHIP 560 5% 1/10W
R4787 1-216-043-91 RES-CHIP 560 5% 1/10W
R4788 1-216-043-91 RES-CHIP 560 5% 1/10W
R4789 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R4790 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R4791 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R4792 1-216-025-11 RES-CHIP 100 5% 1/10W
R4793 1-216-025-11 RES-CHIP 100 5% 1/10W
R4794 1-216-295-91 SHORT 0
R4796 1-216-295-91 SHORT 0
R4797 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R4798 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R4799 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R4800 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R4801 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R4802 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
< CRYSTAL >
X4701 1-781-148-21 VIBRATOR, CRYSTAL (18.432MHz)
*******************************************************************************
*
A-1394-970-A
J BOARD, COMPLETE
****************************
< CAPACITOR >
C8301 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C8302 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8305 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8306 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C8308 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8309 1-126-961-11 ELECT 2.2µF 20% 50V
C8311 1-126-947-11 ELECT 47µF 20% 16V
C8313 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8314 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8318 1-126-947-11 ELECT 47µF 20% 16V
C8319 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8321 1-126-947-11 ELECT 47µF 20% 16V
C8322 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C8323 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8324 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8325 1-126-964-11 ELECT 10µF 20% 50V
C8327 1-107-682-11 CERAMIC CHIP 1µF 10% 16V
C8329 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8331 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8335 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8336 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8337 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8338 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8345 1-107-682-11 CERAMIC CHIP 1µF 10% 16V
C8346 1-126-963-11 ELECT 4.7µF 20% 50V
C8347 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8348 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8349 1-126-947-11 ELECT 47µF 20% 16V
C8350 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8351 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8352 1-126-947-11 ELECT 47µF 20% 16V
C8353 1-164-346-11 CERAMIC CHIP 1µF 16V
C8354 1-164-346-11 CERAMIC CHIP 1µF 16V
C8355 1-126-935-11 ELECT 470µF 20% 16V
C8356 1-126-933-11 ELECT 100µF 20% 16V
C8357 1-126-933-11 ELECT 100µF 20% 16V
C8358 1-126-933-11 ELECT 100µF 20% 16V
C8359 1-126-933-11 ELECT 100µF 20% 16V
C8360 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8361 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8401 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C8402 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C8403 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8404 1-126-961-11 ELECT 2.2µF 20% 50V
C8405 1-126-947-11 ELECT 47µF 20% 16V
C8406 1-126-947-11 ELECT 47µF 20% 16V
C8408 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8410 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8411 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8414 1-126-947-11 ELECT 47µF 20% 16V
C8415 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C8416 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8417 1-107-682-11 CERAMIC CHIP 1µF 10% 16V
C8418 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8419 1-126-964-11 ELECT 10µF 20% 50V
C8422 1-126-935-11 ELECT 470µF 20% 16V
C8423 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8424 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8427 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8431 1-107-715-11 ELECT 22µF 20% 25V
C8437 1-126-963-11 ELECT 4.7µF 20% 50V
C8441 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C8442 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C8444 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8445 1-163-117-00 CERAMIC CHIP 100pF 5% 50V
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 128 –
C8446 1-163-117-00 CERAMIC CHIP 100pF 5% 50V
C8447 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8448 1-126-933-11 ELECT 100µF 20% 16V
C8449 1-126-933-11 ELECT 100µF 20% 16V
C8450 1-126-935-11 ELECT 470µF 20% 16V
C8451 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8452 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8453 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8454 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8455 1-126-964-11 ELECT 10µF 20% 50V
C8456 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8457 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8458 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8459 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8460 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8461 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8462 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8463 1-126-947-11 ELECT 47µF 20% 16V
C8464 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8465 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8466 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8470 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8479 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8486 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8491 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8492 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8493 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8494 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8495 1-126-964-11 ELECT 10µF 20% 50V
C8497 1-126-947-11 ELECT 47µF 20% 16V
C8501 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8502 1-126-947-11 ELECT 47µF 20% 16V
C8503 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8504 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8505 1-126-933-11 ELECT 100µF 20% 16V
C8506 1-163-037-11 CERAMIC CHIP 0.022µF 10% 50V
C8507 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8508 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8509 1-126-933-11 ELECT 100µF 20% 16V
C8510 1-126-947-11 ELECT 47µF 20% 16V
C8511 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8512 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8513 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8514 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8515 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8516 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8517 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8518 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8519 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8520 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8521 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8524 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8525 1-126-947-11 ELECT 47µF 20% 16V
C8526 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8601 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8602 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8603 1-126-947-11 ELECT 47µF 20% 16V
C8604 1-126-947-11 ELECT 47µF 20% 16V
C8605 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8606 1-126-947-11 ELECT 47µF 20% 16V
C8607 1-126-933-11 ELECT 100µF 20% 16V
C8608 1-126-947-11 ELECT 47µF 20% 16V
C8609 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8613 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8614 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8615 1-163-237-11 CERAMIC CHIP 27pF 5% 50V
C8616 1-126-947-11 ELECT 47µF 20% 16V
C8618 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8620 1-126-947-11 ELECT 47µF 20% 16V
C8621 1-126-947-11 ELECT 47µF 20% 16V
C8622 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8623 1-126-947-11 ELECT 47µF 20% 16V
C8624 1-126-947-11 ELECT 47µF 20% 16V
C8625 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8627 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8628 1-126-947-11 ELECT 47µF 20% 16V
C8629 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8631 1-126-947-11 ELECT 47µF 20% 16V
C8632 1-126-947-11 ELECT 47µF 20% 16V
C8635 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C8636 1-107-823-11 CERAMIC CHIP 0.47µF 10% 16V
C8638 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8639 1-164-690-91 CERAMIC CHIP 0.0022µF 5% 50V
C8700 1-126-964-11 ELECT 10µF 20% 50V
C8703 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8708 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8709 1-126-964-11 ELECT 10µF 20% 50V
C8805 1-163-253-11 CERAMIC CHIP 120pF 5% 50V
C8806 1-163-249-11 CERAMIC CHIP 82pF 5% 50V
C8807 1-163-249-11 CERAMIC CHIP 82pF 5% 50V
C8808 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C8811 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8812 1-126-947-11 ELECT 47µF 20% 25V
C8814 1-126-235-11 ELECT 100µF 20% 16V
C8815 1-163-253-11 CERAMIC CHIP 120pF 5% 50V
C8816 1-163-249-11 CERAMIC CHIP 82pF 5% 50V
C8817 1-163-249-11 CERAMIC CHIP 82pF 5% 50V
C8818 1-163-227-11 CERAMIC CHIP 10pF 0.5pF 50V
C8819 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8820 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C8821 1-126-947-11 ELECT 47µF 20% 25V
C8822 1-115-340-11 CERAMIC CHIP 0.22µF 10% 25V
C8823 1-126-933-11 ELECT 100µF 20% 16V
C8824 1-126-933-11 ELECT 100µF 20% 16V
C8825 1-126-933-11 ELECT 100µF 20% 16V
C8900 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C8901 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C8902 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C8903 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C8904 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C8905 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
J
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 129 –
C8906 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C8907 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C8908 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C8909 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C8910 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C8911 1-163-017-00 CERAMIC CHIP 0.0047µF 10% 50V
C8912 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C8913 1-163-009-91 CERAMIC CHIP 0.001µF 10% 50V
C8914 1-126-947-11 ELECT 47µF 20% 16V
C8915 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C8916 1-126-933-11 ELECT 100µF 20% 16V
C8917 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C8918 1-163-251-11 CERAMIC CHIP 100pF 5% 50V
C8919 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8920 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8921 1-126-947-11 ELECT 47µF 20% 16V
C8922 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8923 1-126-947-11 ELECT 47µF 20% 16V
C8924 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8925 1-126-947-11 ELECT 47µF 20% 16V
C8926 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8927 1-126-947-11 ELECT 47µF 20% 16V
C8928 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8929 1-126-947-11 ELECT 47µF 20% 16V
C8930 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8931 1-126-947-11 ELECT 47µF 20% 16V
C8932 1-164-505-11 CERAMIC CHIP 2.2µF 16V
C8933 1-163-241-11 CERAMIC CHIP 39pF 5% 50V
C8934 1-163-241-11 CERAMIC CHIP 39pF 5% 50V
C8935 1-163-241-11 CERAMIC CHIP 39pF 5% 50V
< CONNECTOR >
CN8101 1-695-302-11 CONNECTOR, BOARD TO BOARD 50P
CN8900 1-695-549-11 SOCKET, PIN 21P (AV1)
CN8901 1-695-549-11 SOCKET, PIN 21P (AV2)
CN8902 1-695-549-11 SOCKET, PIN 21P (AV3)
CN8903 * 1-564-526-31 PLUG, CONNECTOR 11P
< DIODE >
D8301 8-719-083-60 DIODE UDZSTE-174.7B
D8302 8-719-083-60 DIODE UDZSTE-174.7B
D8450 8-719-083-82 DIODE UDZS-TE17-12B
D8451 8-719-083-82 DIODE UDZS-TE17-12B
D8601 8-719-041-97 DIODE MA113-(TX)
D8900 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8901 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8902 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8903 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8904 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8905 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8906 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8907 8-719-083-82 DIODE UDZS-TE17-12B
D8908 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8909 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8910 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8911 8-719-056-85 DIODE UDZ-TE-17- 8.2B
D8912 8-719-083-82 DIODE UDZS-TE17-12B
D8913 8-719-083-82 DIODE UDZS-TE17-12B
D8914 8-719-083-82 DIODE UDZS-TE17-12B
D8915 8-719-083-82 DIODE UDZS-TE17-12B
D8916 8-719-083-82 DIODE UDZS-TE17-12B
D8917 8-719-083-82 DIODE UDZS-TE17-12B
D8918 8-719-978-33 DIODE DTZ-TT11-6.8B
D8919 8-719-978-33 DIODE DTZ-TT11-6.8B
D8920 8-719-978-33 DIODE DTZ-TT11-6.8B
D8921 8-719-978-33 DIODE DTZ-TT11-6.8B
D8922 8-719-083-82 DIODE UDZS-TE17-12B
D8923 8-719-083-82 DIODE UDZS-TE17-12B
D8924 8-719-083-82 DIODE UDZS-TE17-12B
D8925 8-719-083-82 DIODE UDZS-TE17-12B
D8926 8-719-083-82 DIODE UDZS-TE17-12B
D8927 8-719-083-82 DIODE UDZS-TE17-12B
D8928 8-719-083-82 DIODE UDZS-TE17-12B
D8929 8-719-083-82 DIODE UDZS-TE17-12B
D8930 8-719-083-82 DIODE UDZS-TE17-12B
D8931 8-719-083-82 DIODE UDZS-TE17-12B
D8932 8-719-083-82 DIODE UDZS-TE17-12B
D8933 8-719-083-82 DIODE UDZS-TE17-12B
< FILTER >
FL8302 1-236-071-11 ENCAPSULATED COMPONENT
FL8303 1-236-071-11 ENCAPSULATED COMPONENT
FL8304 1-236-071-11 ENCAPSULATED COMPONENT
FL8401 1-236-071-11 ENCAPSULATED COMPONENT
FL8402 1-236-071-11 ENCAPSULATED COMPONENT
FL8403 1-236-071-11 ENCAPSULATED COMPONENT
FL8451 1-236-071-11 ENCAPSULATED COMPONENT
FL8452 1-236-071-11 ENCAPSULATED COMPONENT
FL8500 1-236-071-11 ENCAPSULATED COMPONENT
FL8501 1-236-071-11 ENCAPSULATED COMPONENT
FL8502 1-233-765-21 FILTER
FL8503 1-233-768-21 FILTER
FL8504 1-233-766-21 FILTER
FL8601 1-236-071-11 ENCAPSULATED COMPONENT
FL8602 1-233-877-11 FILTER, LOW PASS
FL8603 1-233-504-21 FILTER, LOW PASS
FL8604 1-233-504-21 FILTER, LOW PASS
FL8700 1-236-071-11 ENCAPSULATED COMPONENT
FL8701 1-236-071-11 ENCAPSULATED COMPONENT
< IC >
IC8301 8-752-096-08 IC CXA2123BQ-T6
IC8302 8-759-242-76 IC TC7W08F
IC8303 8-759-242-76 IC TC7W08F
IC8304 8-759-576-72 IC LF50CDT-TR
IC8305 8-759-576-72 IC LF50CDT-TR
IC8401 8-752-096-08 IC CXA2123BQ-T6
IC8451 8-752-096-83 IC CXA2149AQ-TL
IC8452 8-759-576-76 IC TDA2822D013TR
J
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 130 –
IC8500 8-752-390-37 IC CXD2064Q-T6
IC8601 8-759-572-04 IC TDA9178T/N1.118
IC8602 8-759-337-26 IC MM1115XFBE
< JACK >
J8901 1-565-838-11 JACK BLOCK, PIN 2P (VARIABLE OUT)
< COIL >
L8101 1-402-711-11 INDUCTOR 0µH
L8102 1-402-711-11 INDUCTOR 0µH
L8454 1-410-478-11 INDUCTOR 47µH
L8455 1-410-478-11 INDUCTOR 47µH
L8552 1-414-234-22 FERRITE 0µH
L8601 1-414-234-22 FERRITE 0µH
L8602 1-414-187-11 INDUCTOR 47µH
L8606 1-414-234-22 FERRITE 0µH
L8607 1-414-234-22 FERRITE 0µH
L8801 1-412-954-11 INDUCTOR 18µH
L8802 1-412-954-11 INDUCTOR 18µH
L8804 1-414-234-22 FERRITE 0µH
L8805 1-414-234-22 FERRITE 0µH
L8806 1-414-234-22 FERRITE 0µH
L8919 1-414-234-22 FERRITE 0µH
< TRANSISTOR >
Q8302 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8309 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8311 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8451 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8452 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8501 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8502 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8503 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8504 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8602 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8603 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8604 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8605 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8606 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8607 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8609 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8610 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8611 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8612 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8614 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8615 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8616 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8620 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8621 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8623 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8624 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8625 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8626 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8627 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8628 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8629 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8630 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8631 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8632 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8633 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8634 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8635 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8636 1-801-806-11 TRANSISTOR TR DTC144EKA
Q8637 1-801-806-11 TRANSISTOR TR DTC144EKA
Q8638 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8639 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8640 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8801 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8804 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8805 8-729-039-67 TRANSISTOR BSS83
Q8807 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8809 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8810 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8811 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8812 8-729-039-67 TRANSISTOR BSS83
Q8813 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8814 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8815 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8901 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8902 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q8903 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8904 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8905 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8906 8-729-120-28 TRANSISTOR 2SC1623-L5L6
< RESISTOR >
R8300 1-216-295-91 SHORT 0
R8301 1-216-025-11 RES-CHIP 100 5% 1/10W
R8302 1-216-017-91 RES-CHIP 47 5% 1/10W
R8303 1-216-295-91 SHORT 0
R8306 1-216-083-00 RES-CHIP 27K 5% 1/10W
R8307 1-216-295-91 SHORT 0
R8309 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8315 1-216-295-91 SHORT 0
R8316 1-216-295-91 SHORT 0
R8317 1-216-295-91 SHORT 0
R8318 1-216-295-91 SHORT 0
R8319 1-216-041-00 RES-CHIP 470 5% 1/10W
R8321 1-216-295-91 SHORT 0
R8323 1-216-017-91 RES-CHIP 47 5% 1/10W
R8326 1-216-017-91 RES-CHIP 47 5% 1/10W
R8327 1-216-121-11 RES-CHIP 1M 5% 1/10W
R8328 1-216-025-11 RES-CHIP 100 5% 1/10W
R8329 1-216-025-11 RES-CHIP 100 5% 1/10W
R8336 1-216-025-11 RES-CHIP 100 5% 1/10W
R8338 1-216-017-91 RES-CHIP 47 5% 1/10W
R8339 1-216-017-91 RES-CHIP 47 5% 1/10W
J
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 131 –
R8340 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R8342 1-216-295-91 SHORT 0
R8401 1-216-295-91 SHORT 0
R8402 1-216-295-91 SHORT 0
R8403 1-216-083-00 RES-CHIP 27K 5% 1/10W
R8405 1-216-063-91 RES-CHIP 3.9K 5% 1/10W
R8406 1-216-017-91 RES-CHIP 47 5% 1/10W
R8407 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8409 1-216-017-91 RES-CHIP 47 5% 1/10W
R8410 1-216-025-11 RES-CHIP 100 5% 1/10W
R8411 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8412 1-216-025-11 RES-CHIP 100 5% 1/10W
R8413 1-216-025-11 RES-CHIP 100 5% 1/10W
R8414 1-216-025-11 RES-CHIP 100 5% 1/10W
R8415 1-216-025-11 RES-CHIP 100 5% 1/10W
R8416 1-216-295-91 SHORT 0
R8417 1-216-295-91 SHORT 0
R8418 1-216-295-91 SHORT 0
R8419 1-216-025-11 RES-CHIP 100 5% 1/10W
R8426 1-216-017-91 RES-CHIP 47 5% 1/10W
R8427 1-216-017-91 RES-CHIP 47 5% 1/10W
R8428 1-216-017-91 RES-CHIP 47 5% 1/10W
R8429 1-216-295-91 SHORT 0
R8430 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8431 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8432 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8433 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8434 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8435 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8436 1-216-308-00 RES-CHIP 4.7 5% 1/10W
R8437 1-216-308-00 RES-CHIP 4.7 5% 1/10W
R8438 1-216-033-00 RES-CHIP 220 5% 1/10W
R8439 1-216-033-00 RES-CHIP 220 5% 1/10W
R8440 1-216-295-91 SHORT 0
R8441 1-216-295-91 SHORT 0
R8451 1-216-093-91 RES-CHIP 68K 5% 1/10W
R8452 1-216-093-91 RES-CHIP 68K 5% 1/10W
R8453 1-208-820-11 METAL CHIP 39K 0.5% 1/10W
R8454 1-208-776-11 METAL CHIP 560 0.5% 1/10W
R8455 1-208-776-11 METAL CHIP 560 0.5% 1/10W
R8458 1-216-033-00 RES-CHIP 220 5% 1/10W
R8459 1-216-033-00 RES-CHIP 220 5% 1/10W
R8466 1-216-025-11 RES-CHIP 100 5% 1/10W
R8467 1-216-025-11 RES-CHIP 100 5% 1/10W
R8468 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8469 1-216-017-91 RES-CHIP 47 5% 1/10W
R8470 1-216-022-00 RES-CHIP 75 5% 1/10W
R8474 1-216-017-91 RES-CHIP 47 5% 1/10W
R8475 1-216-022-00 RES-CHIP 75 5% 1/10W
R8477 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8478 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8479 1-216-295-91 SHORT 0
R8481 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8482 1-216-029-00 RES-CHIP 150 5% 1/10W
R8483 1-216-029-00 RES-CHIP 150 5% 1/10W
R8484 1-216-029-00 RES-CHIP 150 5% 1/10W
R8485 1-216-029-00 RES-CHIP 150 5% 1/10W
R8501 1-216-093-91 RES-CHIP 68K 5% 1/10W
R8502 1-216-083-00 RES-CHIP 27K 5% 1/10W
R8503 1-216-295-91 SHORT 0
R8504 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8505 1-216-295-91 SHORT 0
R8506 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8507 1-216-295-91 SHORT 0
R8508 1-216-043-91 RES-CHIP 560 5% 1/10W
R8509 1-216-031-00 RES-CHIP 180 5% 1/10W
R8510 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R8512 1-216-295-91 SHORT 0
R8514 1-216-017-91 RES-CHIP 47 5% 1/10W
R8517 1-216-295-91 SHORT 0
R8519 1-216-037-00 RES-CHIP 330 5% 1/10W
R8520 1-216-041-00 RES-CHIP 470 5% 1/10W
R8521 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R8522 1-216-041-00 RES-CHIP 470 5% 1/10W
R8523 1-216-033-00 RES-CHIP 220 5% 1/10W
R8524 1-216-295-91 SHORT 0
R8526 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R8527 1-216-047-91 RES-CHIP 820 5% 1/10W
R8528 1-216-047-91 RES-CHIP 820 5% 1/10W
R8529 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R8530 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8531 1-216-053-00 RES-CHIP 1.5K 5% 1/10W
R8532 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8533 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8534 1-216-295-91 SHORT 0
R8535 1-216-295-91 SHORT 0
R8536 1-216-295-91 SHORT 0
R8537 1-216-295-91 SHORT 0
R8600 1-216-295-91 SHORT 0
R8601 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8602 1-216-295-91 SHORT 0
R8603 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8604 1-216-041-00 RES-CHIP 470 5% 1/10W
R8605 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8606 1-216-025-11 RES-CHIP 100 5% 1/10W
R8607 1-216-043-91 RES-CHIP 560 5% 1/10W
R8608 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8609 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8610 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8611 1-216-041-00 RES-CHIP 470 5% 1/10W
R8612 1-216-025-11 RES-CHIP 100 5% 1/10W
R8613 1-216-025-11 RES-CHIP 100 5% 1/10W
R8614 1-216-295-91 SHORT 0
R8616 1-216-295-91 SHORT 0
R8617 1-208-772-11 METAL CHIP 390 0.5% 1/10W
R8618 1-208-778-11 METAL CHIP 680 0.5% 1/10W
R8619 1-216-295-91 SHORT 0
R8621 1-216-025-11 RES-CHIP 100 5% 1/10W
R8623 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8624 1-216-041-00 RES-CHIP 470 5% 1/10W
R8625 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8626 1-216-041-00 RES-CHIP 470 5% 1/10W
J
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 132 –
R8627 1-216-041-00 RES-CHIP 470 5% 1/10W
R8628 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8629 1-216-041-00 RES-CHIP 470 5% 1/10W
R8630 1-216-025-11 RES-CHIP 100 5% 1/10W
R8631 1-216-295-91 SHORT 0
R8632 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8633 1-216-041-00 RES-CHIP 470 5% 1/10W
R8634 1-216-041-00 RES-CHIP 470 5% 1/10W
R8635 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8636 1-216-041-00 RES-CHIP 470 5% 1/10W
R8640 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8642 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8644 1-216-041-00 RES-CHIP 470 5% 1/10W
R8645 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8646 1-216-295-91 SHORT 0
R8647 1-216-025-11 RES-CHIP 100 5% 1/10W
R8648 1-216-025-11 RES-CHIP 100 5% 1/10W
R8649 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8650 1-216-295-91 SHORT 0
R8652 1-216-037-00 RES-CHIP 330 5% 1/10W
R8653 1-216-041-00 RES-CHIP 470 5% 1/10W
R8654 1-216-067-00 RES-CHIP 5.6K 5% 1/10W
R8655 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8659 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8660 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8661 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8664 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8665 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R8666 1-216-295-91 SHORT 0
R8667 1-216-043-91 RES-CHIP 560 5% 1/10W
R8670 1-216-039-00 RES-CHIP 390 5% 1/10W
R8671 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8672 1-216-295-91 SHORT 0
R8673 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8675 1-216-037-00 RES-CHIP 330 5% 1/10W
R8676 1-216-295-91 SHORT 0
R8677 1-216-041-00 RES-CHIP 470 5% 1/10W
R8678 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R8679 1-216-041-00 RES-CHIP 470 5% 1/10W
R8680 1-216-295-91 SHORT 0
R8681 1-216-041-00 RES-CHIP 470 5% 1/10W
R8682 1-216-031-00 RES-CHIP 180 5% 1/10W
R8683 1-216-041-00 RES-CHIP 470 5% 1/10W
R8684 1-216-295-91 SHORT 0
R8685 1-216-041-00 RES-CHIP 470 5% 1/10W
R8686 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8687 1-216-037-00 RES-CHIP 330 5% 1/10W
R8688 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8689 1-216-041-00 RES-CHIP 470 5% 1/10W
R8690 1-216-041-00 RES-CHIP 470 5% 1/10W
R8692 1-216-041-00 RES-CHIP 470 5% 1/10W
R8693 1-216-041-00 RES-CHIP 470 5% 1/10W
R8694 1-216-041-00 RES-CHIP 470 5% 1/10W
R8695 1-216-013-00 RES-CHIP 33 5% 1/10W
R8696 1-216-013-00 RES-CHIP 33 5% 1/10W
R8697 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R8698 1-216-031-00 RES-CHIP 180 5% 1/10W
R8699 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R8710 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8711 1-216-091-00 RES-CHIP 56K 5% 1/10W
R8712 1-216-081-00 RES-CHIP 22K 5% 1/10W
R8713 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8714 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8715 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8716 1-216-043-91 RES-CHIP 560 5% 1/10W
R8717 1-216-037-00 RES-CHIP 330 5% 1/10W
R8718 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8719 1-216-043-91 RES-CHIP 560 5% 1/10W
R8720 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R8721 1-216-073-91 RES-CHIP 10K 5% 1/10W
R8722 1-216-097-11 RES-CHIP 100K 5% 1/10W
R8723 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8724 1-216-095-00 RES-CHIP 82K 5% 1/10W
R8725 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8726 1-216-295-91 SHORT 0
R8727 1-216-045-00 RES-CHIP 680 5% 1/10W
R8728 1-216-045-00 RES-CHIP 680 5% 1/10W
R8729 1-216-033-00 RES-CHIP 220 5% 1/10W
R8730 1-216-295-91 SHORT 0
R8801 1-216-035-00 RES-CHIP 270 5% 1/10W
R8804 1-216-033-00 RES-CHIP 220 5% 1/10W
R8805 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R8809 1-216-085-91 RES-CHIP 33K 5% 1/10W
R8810 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8812 1-216-037-00 RES-CHIP 330 5% 1/10W
R8813 1-216-037-00 RES-CHIP 330 5% 1/10W
R8815 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8816 1-216-073-91 RES-CHIP 10K 5% 1/10W
R8818 1-216-642-11 METAL CHIP 430 0.5% 1/10W
R8821 1-216-025-11 RES-CHIP 100 5% 1/10W
R8823 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8826 1-216-295-91 SHORT 0
R8827 1-216-295-91 SHORT 0
R8828 1-216-029-00 RES-CHIP 150 5% 1/10W
R8831 1-216-031-00 RES-CHIP 180 5% 1/10W
R8832 1-216-055-00 RES-CHIP 1.8K 5% 1/10W
R8833 1-216-295-91 SHORT 0
R8834 1-216-037-00 RES-CHIP 330 5% 1/10W
R8835 1-216-037-00 RES-CHIP 330 5% 1/10W
R8836 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8837 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8838 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8839 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8840 1-216-073-91 RES-CHIP 10K 5% 1/10W
R8841 1-216-642-11 METAL CHIP 430 0.5% 1/10W
R8842 1-216-025-11 RES-CHIP 100 5% 1/10W
R8843 1-216-051-00 RES-CHIP 1.2K 5% 1/10W
R8844 1-216-295-91 SHORT 0
R8845 1-216-041-00 RES-CHIP 470 5% 1/10W
R8846 1-216-041-00 RES-CHIP 470 5% 1/10W
R8847 1-216-041-00 RES-CHIP 470 5% 1/10W
R8850 1-216-295-91 SHORT 0
J
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 133 –
R8851 1-216-295-91 SHORT 0
R8853 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8854 1-216-085-91 RES-CHIP 33K 5% 1/10W
R8900 1-216-039-00 RES-CHIP 390 5% 1/10W
R8901 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8902 1-216-039-00 RES-CHIP 390 5% 1/10W
R8903 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8904 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8905 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8906 1-216-035-00 RES-CHIP 270 5% 1/10W
R8907 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8908 1-216-035-00 RES-CHIP 270 5% 1/10W
R8909 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8910 1-216-295-91 SHORT 0
R8911 1-216-025-11 RES-CHIP 100 5% 1/10W
R8912 1-216-295-91 SHORT 0
R8913 1-216-022-00 RES-CHIP 75 5% 1/10W
R8914 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8915 1-216-022-00 RES-CHIP 75 5% 1/10W
R8916 1-216-017-91 RES-CHIP 47 5% 1/10W
R8917 1-216-017-91 RES-CHIP 47 5% 1/10W
R8918 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8919 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8920 1-216-295-91 SHORT 0
R8921 1-216-295-91 SHORT 0
R8922 1-216-022-00 RES-CHIP 75 5% 1/10W
R8923 1-216-022-00 RES-CHIP 75 5% 1/10W
R8924 1-216-022-00 RES-CHIP 75 5% 1/10W
R8925 1-216-022-00 RES-CHIP 75 5% 1/10W
R8926 1-216-017-91 RES-CHIP 47 5% 1/10W
R8927 1-216-017-91 RES-CHIP 47 5% 1/10W
R8928 1-216-017-91 RES-CHIP 47 5% 1/10W
R8929 1-216-039-00 RES-CHIP 390 5% 1/10W
R8930 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8931 1-216-039-00 RES-CHIP 390 5% 1/10W
R8932 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8933 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8934 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8935 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8936 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8937 1-216-035-00 RES-CHIP 270 5% 1/10W
R8938 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8939 1-216-035-00 RES-CHIP 270 5% 1/10W
R8940 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8941 1-216-025-11 RES-CHIP 100 5% 1/10W
R8942 1-216-009-91 RES-CHIP 22 5% 1/10W
R8943 1-216-022-00 RES-CHIP 75 5% 1/10W
R8944 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8945 1-216-022-00 RES-CHIP 75 5% 1/10W
R8946 1-216-017-91 RES-CHIP 47 5% 1/10W
R8947 1-216-039-00 RES-CHIP 390 5% 1/10W
R8948 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8949 1-216-022-00 RES-CHIP 75 5% 1/10W
R8950 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8951 1-216-017-91 RES-CHIP 47 5% 1/10W
R8952 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8953 1-216-035-00 RES-CHIP 270 5% 1/10W
R8954 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8955 1-216-039-00 RES-CHIP 390 5% 1/10W
R8956 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8957 1-216-025-11 RES-CHIP 100 5% 1/10W
R8958 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8959 1-216-022-00 RES-CHIP 75 5% 1/10W
R8960 1-216-017-91 RES-CHIP 47 5% 1/10W
R8961 1-216-022-00 RES-CHIP 75 5% 1/10W
R8962 1-216-071-00 RES-CHIP 8.2K 5% 1/10W
R8963 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8964 1-216-035-00 RES-CHIP 270 5% 1/10W
R8965 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8966 1-216-037-00 RES-CHIP 330 5% 1/10W
R8967 1-216-037-00 RES-CHIP 330 5% 1/10W
R8968 1-216-022-00 RES-CHIP 75 5% 1/10W
R8969 1-216-017-91 RES-CHIP 47 5% 1/10W
R8972 1-216-045-00 RES-CHIP 680 5% 1/10W
R8973 1-216-045-00 RES-CHIP 680 5% 1/10W
R8974 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8975 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8976 1-216-113-00 RES-CHIP 470K 5% 1/10W
R8977 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8978 1-216-059-00 RES-CHIP 2.7K 5% 1/10W
R8979 1-216-041-00 RES-CHIP 470 5% 1/10W
R8981 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8982 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R8983 1-216-079-00 RES-CHIP 18K 5% 1/10W
R8984 1-216-295-91 SHORT 0
R8985 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R8986 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R8987 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8988 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8994 1-216-073-91 RES-CHIP 10K 5% 1/10W
R8995 1-216-089-91 RES-CHIP 47K 5% 1/10W
R8996 1-216-049-11 RES-CHIP 1K 5% 1/10W
R8997 1-216-049-11 RES-CHIP 1K 5% 1/10W
< TERMINAL BOARD >
TB8101 1-537-712-11 TERMINAL, PUSH (CENTER SP IN)
< CRYSTAL >
X8301 1-781-612-11 VIBRATOR, CRYSTAL (16.2MHz)
X8401 1-781-612-11 VIBRATOR, CRYSTAL (16.2MHz)
*******************************************************************************
*
A-1620-144-A
B3 BOARD, COMPLETE
*****************************
< CAPACITOR >
C333 1-216-295-91 SHORT 0
C368 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C369 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C372 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
J B3
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 134 –
C373 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C374 1-126-603-11 ELECT CHIP 4.7µF 20% 35V
C375 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C376 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C377 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C378 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C501 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C502 1-124-779-00 ELECT CHIP 10µF 20% 16V
C503 1-124-779-00 ELECT CHIP 10µF 20% 16V
C505 1-124-779-00 ELECT CHIP 10µF 20% 16V
C507 1-124-779-00 ELECT CHIP 10µF 20% 16V
C509 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C510 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C511 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C512 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C514 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C515 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C516 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C517 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C518 1-126-204-11 ELECT CHIP 47µF 20% 16V
C519 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C520 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C521 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C522 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C523 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C524 1-124-779-00 ELECT CHIP 10µF 20% 16V
C525 1-124-779-00 ELECT CHIP 10µF 20% 16V
C526 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C527 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C528 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C529 1-124-779-00 ELECT CHIP 10µF 20% 16V
C531 1-124-779-00 ELECT CHIP 10µF 20% 16V
C533 1-124-779-00 ELECT CHIP 10µF 20% 16V
C535 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C536 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C537 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C538 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C539 1-126-204-11 ELECT CHIP 47µF 20% 16V
C540 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C542 1-126-204-11 ELECT CHIP 47µF 20% 16V
C543 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C545 1-126-396-11 ELECT CHIP 47µF 20% 16V
C546 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C548 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C549 1-126-204-11 ELECT CHIP 47µF 20% 16V
C550 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C551 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C554 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C555 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C556 1-126-392-11 ELECT CHIP 100µF 20% 6.3V
C557 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C559 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C560 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C601 1-124-779-00 ELECT CHIP 10µF 20% 16V
C602 1-126-394-11 ELECT CHIP 10µF 20% 16V
C603 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C604 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C605 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C606 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C607 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C608 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C609 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C610 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C611 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C612 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C613 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C614 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C615 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C616 1-126-396-11 ELECT CHIP 47µF 20% 16V
C617 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C618 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C619 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C620 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C621 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C622 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C623 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C624 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C625 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C626 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C627 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C628 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C629 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C630 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C631 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C632 1-126-206-11 ELECT CHIP 100µF 20% 6.3V
C633 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C634 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C635 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C636 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C637 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C638 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C639 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C640 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C642 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C643 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C644 1-126-603-11 ELECT CHIP 4.7µF 20% 35V
C645 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C801 1-124-779-00 ELECT CHIP 10µF 20% 16V
C802 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C803 1-124-779-00 ELECT CHIP 10µF 20% 16V
C804 1-124-779-00 ELECT CHIP 10µF 20% 16V
C806 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C807 1-124-779-00 ELECT CHIP 10µF 20% 16V
C808 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C809 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C810 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C811 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C812 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C813 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C814 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C815 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
B3
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 135 –
C816 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C817 1-163-229-11 CERAMIC CHIP 12pF 5% 50V
C818 1-163-229-11 CERAMIC CHIP 12pF 5% 50V
C819 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C820 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C821 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C822 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C823 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C824 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C827 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C829 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C834 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C835 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C839 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C840 1-126-206-11 ELECT CHIP 100µF 20% 6.3V
C841 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C842 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C843 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C844 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C848 1-164-004-11 CERAMIC CHIP 0.1µF 10% 25V
C849 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C850 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C851 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C901 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C902 1-163-038-91 CERAMIC CHIP 0.1µF 25V
C903 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
C904 1-124-779-00 ELECT CHIP 10µF 20% 16V
C905 1-109-982-11 CERAMIC CHIP 1µF 10% 10V
C906 1-124-779-00 ELECT CHIP 10µF 20% 16V
C907 1-163-021-91 CERAMIC CHIP 0.01µF 10% 50V
< CONNECTOR >
CN502 1-695-302-11 CONNECTOR, BOARD TO BOARD 50P
< DIODE >
D501 8-719-083-58 DIODE UDZSTE-173.9B
< FERRITE BEAD >
FB501 1-414-235-11 FERRITE 0µH
FB502 1-414-235-11 FERRITE 0µH
FB503 1-414-235-11 FERRITE 0µH
FB504 1-414-235-11 FERRITE 0µH
FB601 1-414-766-21 FERRITE 0µH
FB801 1-414-766-21 FERRITE 0µH
FB802 1-414-766-21 FERRITE 0µH
< FILTER >
FL306 1-239-558-11 FILTER, CHIP EMI
FL501 1-233-877-11 FILTER, LOW PASS
FL502 1-233-504-21 FILTER, LOW PASS
FL503 1-233-504-21 FILTER, LOW PASS
FL504 1-234-177-21 FILTER, CHIP EMI
FL505 1-234-177-21 FILTER, CHIP EMI
FL506 1-234-177-21 FILTER, CHIP EMI
FL508 1-234-177-21 FILTER, CHIP EMI
FL509 1-234-177-21 FILTER, CHIP EMI
FL510 1-234-177-21 FILTER, CHIP EMI
FL511 1-234-177-21 FILTER, CHIP EMI
FL512 1-234-177-21 FILTER, CHIP EMI
FL601 1-234-177-21 FILTER, CHIP EMI
FL602 1-234-177-21 FILTER, CHIP EMI
FL603 1-234-177-21 FILTER, CHIP EMI
FL606 1-239-560-11 FILTER, CHIP EMI
FL801 1-234-177-21 FILTER, CHIP EMI
FL802 1-234-177-21 FILTER, CHIP EMI
FL803 1-234-177-21 FILTER, CHIP EMI
FL804 1-234-177-21 FILTER, CHIP EMI
FL806 1-234-177-21 FILTER, CHIP EMI
FL807 1-234-177-21 FILTER, CHIP EMI
FL808 1-234-177-21 FILTER, CHIP EMI
FL901 1-234-509-21 FILTER, LOW PASS
FL902 1-233-876-11 FILTER, LOW PASS
FL903 1-233-876-11 FILTER, LOW PASS
FL904 1-234-177-21 FILTER, CHIP EMI
FL905 1-234-177-21 FILTER, CHIP EMI
< IC >
IC313 8-759-669-75 IC TLC2932IPWR
IC314 8-759-525-10 IC TC7SET08F(TE85L)
IC315 8-759-525-10 IC TC7SET08F(TE85L)
IC316 8-759-525-10 IC TC7SET08F(TE85L)
IC501 8-759-447-90 IC TLC5733AIPM
IC504 8-759-669-78 IC TLC2933IPWR-12
IC505 8-759-640-16 IC TC7SET04F(TE85R)
IC506 8-759-640-16 IC TC7SET04F(TE85R)
IC601 8-752-398-47 IC CXD2090Q
IC602 8-759-573-19 IC MSM56V16160D-10
IC603 8-759-669-75 IC TLC2932IPWR
IC604 8-752-072-94 IC CXA1875AM-T4
IC801 8-759-672-57 IC CXD9509AQ
IC802 8-759-677-37 IC MT48LC2M32B2TG-7
IC901 8-752-369-84 IC CXD2309Q-T6
< COIL >
L304 1-412-029-11 INDUCTOR 10µH
L305 1-412-029-11 INDUCTOR 10µH
L501 1-412-026-11 INDUCTOR 1µH
L502 1-412-026-11 INDUCTOR 1µH
L503 1-412-026-11 INDUCTOR 1µH
L504 1-412-026-11 INDUCTOR 1µH
L505 1-412-029-11 INDUCTOR 10µH
L506 1-412-026-11 INDUCTOR 1µH
L508 1-412-029-11 INDUCTOR 10µH
L509 1-412-029-11 INDUCTOR 10µH
L511 1-412-026-11 INDUCTOR 1µH
L512 1-412-026-11 INDUCTOR 1µH
L604 1-412-029-11 INDUCTOR 10µH
B3
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 136 –
L605 1-412-029-11 INDUCTOR 10µH
< TRANSISTOR >
Q304 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q501 8-729-216-22 TRANSISTOR 2SA1162-G
Q502 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q503 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q510 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q511 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q512 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q513 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q514 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q515 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q516 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q517 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q518 8-729-216-22 TRANSISTOR 2SA1162-G
Q519 1-801-806-11 TRANSISTOR TR DTC144EKA
Q521 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q522 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q523 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q524 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q901 8-729-216-22 TRANSISTOR 2SA1162-G
Q902 8-729-216-22 TRANSISTOR 2SA1162-G
Q903 8-729-216-22 TRANSISTOR 2SA1162-G
Q904 8-729-028-28 TRANSISTOR 2SK2036(TE85L)
Q905 8-729-028-28 TRANSISTOR 2SK2036(TE85L)
Q907 8-729-216-22 TRANSISTOR 2SA1162-G
Q908 8-729-216-22 TRANSISTOR 2SA1162-G
Q909 8-729-216-22 TRANSISTOR 2SA1162-G
< RESISTOR >
R310 1-216-009-91 RES-CHIP 22 5% 1/10W
R334 1-216-295-91 SHORT 0
R339 1-216-295-91 SHORT 0
R350 1-216-295-91 SHORT 0
R361 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R362 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R363 1-216-037-00 RES-CHIP 330 5% 1/10W
R364 1-216-295-91 SHORT 0
R365 1-216-047-91 RES-CHIP 820 5% 1/10W
R366 1-216-049-11 RES-CHIP 1K 5% 1/10W
R367 1-216-117-00 RES-CHIP 680K 5% 1/10W
R368 1-216-117-00 RES-CHIP 680K 5% 1/10W
R369 1-216-295-91 SHORT 0
R371 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R372 1-216-009-91 RES-CHIP 22 5% 1/10W
R373 1-216-066-00 RES-CHIP 5.1K 5% 1/10W
R501 1-216-025-11 RES-CHIP 100 5% 1/10W
R502 1-216-025-11 RES-CHIP 100 5% 1/10W
R503 1-216-295-91 SHORT 0
R504 1-216-295-91 SHORT 0
R505 1-216-295-91 SHORT 0
R506 1-216-025-11 RES-CHIP 100 5% 1/10W
R507 1-216-025-11 RES-CHIP 100 5% 1/10W
R508 1-216-025-11 RES-CHIP 100 5% 1/10W
R509 1-216-025-11 RES-CHIP 100 5% 1/10W
R510 1-216-043-91 RES-CHIP 560 5% 1/10W
R511 1-216-043-91 RES-CHIP 560 5% 1/10W
R512 1-216-043-91 RES-CHIP 560 5% 1/10W
R513 1-216-043-91 RES-CHIP 560 5% 1/10W
R514 1-216-043-91 RES-CHIP 560 5% 1/10W
R515 1-216-043-91 RES-CHIP 560 5% 1/10W
R516 1-216-049-11 RES-CHIP 1K 5% 1/10W
R517 1-216-049-11 RES-CHIP 1K 5% 1/10W
R518 1-216-295-91 SHORT 0
R520 1-208-776-11 METAL CHIP 560 0.5% 1/10W
R521 1-216-295-91 SHORT 0
R523 1-208-776-11 METAL CHIP 560 0.5% 1/10W
R524 1-216-295-91 SHORT 0
R526 1-208-776-11 METAL CHIP 560 0.5% 1/10W
R528 1-216-037-00 RES-CHIP 330 5% 1/10W
R529 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W
R530 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W
R531 1-216-031-00 RES-CHIP 180 5% 1/10W
R532 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W
R533 1-216-031-00 RES-CHIP 180 5% 1/10W
R534 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R535 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R536 1-216-049-11 RES-CHIP 1K 5% 1/10W
R537 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R540 1-216-049-11 RES-CHIP 1K 5% 1/10W
R548 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R549 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R550 1-208-756-11 METAL CHIP 82 0.5% 1/10W
R551 1-208-756-11 METAL CHIP 82 0.5% 1/10W
R552 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R553 1-216-295-91 SHORT 0
R554 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R555 1-216-077-91 RES-CHIP 15K 5% 1/10W
R557 1-216-049-11 RES-CHIP 1K 5% 1/10W
R558 1-216-025-11 RES-CHIP 100 5% 1/10W
R559 1-216-077-91 RES-CHIP 15K 5% 1/10W
R560 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R561 1-216-043-91 RES-CHIP 560 5% 1/10W
R562 1-216-043-91 RES-CHIP 560 5% 1/10W
R563 1-216-043-91 RES-CHIP 560 5% 1/10W
R564 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R565 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R566 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R571 1-216-295-91 SHORT 0
R572 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R575 1-208-756-11 METAL CHIP 82 0.5% 1/10W
R576 1-208-756-11 METAL CHIP 82 0.5% 1/10W
R577 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R578 1-208-750-11 METAL CHIP 47 0.5% 1/10W
R579 1-216-077-91 RES-CHIP 15K 5% 1/10W
R580 1-216-295-91 SHORT 0
R582 1-216-041-00 RES-CHIP 470 5% 1/10W
B3
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 137 –
R584 1-216-041-00 RES-CHIP 470 5% 1/10W
R586 1-216-049-11 RES-CHIP 1K 5% 1/10W
R587 1-216-049-11 RES-CHIP 1K 5% 1/10W
R589 1-216-049-11 RES-CHIP 1K 5% 1/10W
R590 1-216-049-11 RES-CHIP 1K 5% 1/10W
R591 1-216-049-11 RES-CHIP 1K 5% 1/10W
R592 1-216-049-11 RES-CHIP 1K 5% 1/10W
R594 1-216-041-00 RES-CHIP 470 5% 1/10W
R596 1-216-049-11 RES-CHIP 1K 5% 1/10W
R597 1-216-073-91 RES-CHIP 10K 5% 1/10W
R600 1-216-066-00 RES-CHIP 5.1K 5% 1/10W
R601 1-216-073-91 RES-CHIP 10K 5% 1/10W
R602 1-216-073-91 RES-CHIP 10K 5% 1/10W
R603 1-216-073-91 RES-CHIP 10K 5% 1/10W
R604 1-216-033-00 RES-CHIP 220 5% 1/10W
R605 1-216-295-91 SHORT 0
R608 1-216-295-91 SHORT 0
R609 1-216-073-91 RES-CHIP 10K 5% 1/10W
R610 1-216-033-00 RES-CHIP 220 5% 1/10W
R611 1-216-073-91 RES-CHIP 10K 5% 1/10W
R613 1-216-073-91 RES-CHIP 10K 5% 1/10W
R616 1-216-073-91 RES-CHIP 10K 5% 1/10W
R617 1-216-295-91 SHORT 0
R618 1-216-295-91 SHORT 0
R619 1-216-073-91 RES-CHIP 10K 5% 1/10W
R621 1-216-295-91 SHORT 0
R622 1-216-295-91 SHORT 0
R623 1-216-295-91 SHORT 0
R625 1-216-295-91 SHORT 0
R626 1-216-073-91 RES-CHIP 10K 5% 1/10W
R628 1-216-295-91 SHORT 0
R629 1-216-073-91 RES-CHIP 10K 5% 1/10W
R631 1-216-295-91 SHORT 0
R634 1-216-295-91 SHORT 0
R635 1-216-295-91 SHORT 0
R638 1-216-295-91 SHORT 0
R639 1-216-019-00 RES-CHIP 56 5% 1/10W
R640 1-216-009-91 RES-CHIP 22 5% 1/10W
R642 1-216-295-91 SHORT 0
R643 1-216-295-91 SHORT 0
R645 1-216-295-91 SHORT 0
R651 1-216-295-91 SHORT 0
R653 1-216-025-11 RES-CHIP 100 5% 1/10W
R654 1-216-033-00 RES-CHIP 220 5% 1/10W
R655 1-216-295-91 SHORT 0
R657 1-216-009-91 RES-CHIP 22 5% 1/10W
R658 1-216-049-11 RES-CHIP 1K 5% 1/10W
R659 1-216-025-11 RES-CHIP 100 5% 1/10W
R660 1-216-025-11 RES-CHIP 100 5% 1/10W
R661 1-216-025-11 RES-CHIP 100 5% 1/10W
R664 1-216-009-91 RES-CHIP 22 5% 1/10W
R665 1-216-035-00 RES-CHIP 270 5% 1/10W
R666 1-216-646-11 METAL CHIP 620 0.5% 1/10W
R667 1-208-794-11 METAL CHIP 3.3K 0.5% 1/10W
R668 1-216-009-91 RES-CHIP 22 5% 1/10W
R670 1-216-295-91 SHORT 0
R671 1-216-073-91 RES-CHIP 10K 5% 1/10W
R672 1-216-073-91 RES-CHIP 10K 5% 1/10W
R673 1-216-073-91 RES-CHIP 10K 5% 1/10W
R674 1-216-073-91 RES-CHIP 10K 5% 1/10W
R675 1-216-073-91 RES-CHIP 10K 5% 1/10W
R676 1-216-073-91 RES-CHIP 10K 5% 1/10W
R677 1-216-073-91 RES-CHIP 10K 5% 1/10W
R678 1-216-073-91 RES-CHIP 10K 5% 1/10W
R679 1-216-073-91 RES-CHIP 10K 5% 1/10W
R680 1-216-073-91 RES-CHIP 10K 5% 1/10W
R681 1-216-073-91 RES-CHIP 10K 5% 1/10W
R682 1-216-073-91 RES-CHIP 10K 5% 1/10W
R683 1-216-073-91 RES-CHIP 10K 5% 1/10W
R684 1-216-073-91 RES-CHIP 10K 5% 1/10W
R685 1-216-073-91 RES-CHIP 10K 5% 1/10W
R686 1-216-073-91 RES-CHIP 10K 5% 1/10W
R687 1-216-295-91 SHORT 0
R688 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R689 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R690 1-216-295-91 SHORT 0
R691 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R692 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R693 1-216-009-91 RES-CHIP 22 5% 1/10W
R694 1-216-295-91 SHORT 0
R695 1-216-047-91 RES-CHIP 820 5% 1/10W
R696 1-216-049-11 RES-CHIP 1K 5% 1/10W
R697 1-216-117-00 RES-CHIP 680K 5% 1/10W
R698 1-216-117-00 RES-CHIP 680K 5% 1/10W
R699 1-216-295-91 SHORT 0
R801 1-216-009-91 RES-CHIP 22 5% 1/10W
R802 1-216-009-91 RES-CHIP 22 5% 1/10W
R804 1-216-073-91 RES-CHIP 10K 5% 1/10W
R806 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W
R807 1-208-778-11 METAL CHIP 680 0.5% 1/10W
R813 1-216-295-91 SHORT 0
R814 1-216-073-91 RES-CHIP 10K 5% 1/10W
R815 1-216-073-91 RES-CHIP 10K 5% 1/10W
R816 1-216-073-91 RES-CHIP 10K 5% 1/10W
R817 1-216-017-91 RES-CHIP 47 5% 1/10W
R823 1-216-073-91 RES-CHIP 10K 5% 1/10W
R824 1-216-073-91 RES-CHIP 10K 5% 1/10W
R825 1-208-760-11 METAL CHIP 120 0.5% 1/10W
R826 1-208-758-11 METAL CHIP 100 0.5% 1/10W
R827 1-216-607-11 METAL CHIP 15 0.5% 1/10W
R831 1-216-295-91 SHORT 0
R832 1-216-295-91 SHORT 0
R833 1-216-295-91 SHORT 0
R834 1-208-760-11 METAL CHIP 120 0.5% 1/10W
R835 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R836 1-211-960-11 METAL CHIP 22 0.5% 1/10W
R844 1-216-017-91 RES-CHIP 47 5% 1/10W
R845 1-216-017-91 RES-CHIP 47 5% 1/10W
R846 1-216-017-91 RES-CHIP 47 5% 1/10W
R847 1-216-017-91 RES-CHIP 47 5% 1/10W
R848 1-216-017-91 RES-CHIP 47 5% 1/10W
R849 1-216-017-91 RES-CHIP 47 5% 1/10W
B3
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 138 –
R850 1-216-017-91 RES-CHIP 47 5% 1/10W
R851 1-216-017-91 RES-CHIP 47 5% 1/10W
R852 1-216-009-91 RES-CHIP 22 5% 1/10W
R853 1-216-009-91 RES-CHIP 22 5% 1/10W
R854 1-216-009-91 RES-CHIP 22 5% 1/10W
R855 1-216-009-91 RES-CHIP 22 5% 1/10W
R856 1-216-009-91 RES-CHIP 22 5% 1/10W
R857 1-216-009-91 RES-CHIP 22 5% 1/10W
R858 1-216-009-91 RES-CHIP 22 5% 1/10W
R859 1-216-009-91 RES-CHIP 22 5% 1/10W
R860 1-216-009-91 RES-CHIP 22 5% 1/10W
R861 1-216-009-91 RES-CHIP 22 5% 1/10W
R862 1-216-009-91 RES-CHIP 22 5% 1/10W
R863 1-216-009-91 RES-CHIP 22 5% 1/10W
R864 1-216-017-91 RES-CHIP 47 5% 1/10W
R865 1-216-017-91 RES-CHIP 47 5% 1/10W
R866 1-216-017-91 RES-CHIP 47 5% 1/10W
R867 1-216-017-91 RES-CHIP 47 5% 1/10W
R868 1-216-017-91 RES-CHIP 47 5% 1/10W
R869 1-216-017-91 RES-CHIP 47 5% 1/10W
R870 1-216-017-91 RES-CHIP 47 5% 1/10W
R871 1-216-017-91 RES-CHIP 47 5% 1/10W
R872 1-216-017-91 RES-CHIP 47 5% 1/10W
R873 1-216-017-91 RES-CHIP 47 5% 1/10W
R874 1-216-017-91 RES-CHIP 47 5% 1/10W
R875 1-216-017-91 RES-CHIP 47 5% 1/10W
R876 1-216-017-91 RES-CHIP 47 5% 1/10W
R877 1-216-017-91 RES-CHIP 47 5% 1/10W
R878 1-216-017-91 RES-CHIP 47 5% 1/10W
R879 1-216-017-91 RES-CHIP 47 5% 1/10W
R880 1-216-009-91 RES-CHIP 22 5% 1/10W
R881 1-216-009-91 RES-CHIP 22 5% 1/10W
R882 1-216-009-91 RES-CHIP 22 5% 1/10W
R883 1-216-009-91 RES-CHIP 22 5% 1/10W
R884 1-216-009-91 RES-CHIP 22 5% 1/10W
R885 1-216-009-91 RES-CHIP 22 5% 1/10W
R886 1-216-009-91 RES-CHIP 22 5% 1/10W
R887 1-216-009-91 RES-CHIP 22 5% 1/10W
R888 1-216-009-91 RES-CHIP 22 5% 1/10W
R889 1-216-295-91 SHORT 0
R890 1-216-009-91 RES-CHIP 22 5% 1/10W
R891 1-216-017-91 RES-CHIP 47 5% 1/10W
R892 1-216-017-91 RES-CHIP 47 5% 1/10W
R893 1-216-017-91 RES-CHIP 47 5% 1/10W
R894 1-216-017-91 RES-CHIP 47 5% 1/10W
R895 1-216-017-91 RES-CHIP 47 5% 1/10W
R896 1-216-017-91 RES-CHIP 47 5% 1/10W
R897 1-216-017-91 RES-CHIP 47 5% 1/10W
R898 1-216-017-91 RES-CHIP 47 5% 1/10W
R901 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R902 1-208-790-11 METAL CHIP 2.2K 0.5% 1/10W
R903 1-208-794-11 METAL CHIP 3.3K 0.5% 1/10W
R904 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R905 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R906 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R907 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R908 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R909 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R910 1-216-049-11 RES-CHIP 1K 5% 1/10W
R911 1-216-049-11 RES-CHIP 1K 5% 1/10W
R912 1-216-049-11 RES-CHIP 1K 5% 1/10W
R914 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R916 1-216-065-91 RES-CHIP 4.7K 5% 1/10W
R917 1-216-295-91 SHORT 0
R919 1-216-295-91 SHORT 0
R940 1-216-295-91 SHORT 0
R941 1-216-295-91 SHORT 0
R942 1-216-037-00 RES-CHIP 330 5% 1/10W
R943 1-216-033-00 RES-CHIP 220 5% 1/10W
R951 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R952 1-216-057-00 RES-CHIP 2.2K 5% 1/10W
R956 1-216-089-91 RES-CHIP 47K 5% 1/10W
R957 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R958 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R959 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R960 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R961 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R962 1-216-635-11 METAL CHIP 220 0.5% 1/10W
R979 1-216-295-91 SHORT 0
R981 1-216-037-00 RES-CHIP 330 5% 1/10W
R982 1-216-037-00 RES-CHIP 330 5% 1/10W
R983 1-216-089-91 RES-CHIP 47K 5% 1/10W
R984 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R985 1-216-113-00 RES-CHIP 470K 5% 1/10W
R986 1-216-061-91 RES-CHIP 3.3K 5% 1/10W
R987 1-216-049-11 RES-CHIP 1K 5% 1/10W
R988 1-216-033-00 RES-CHIP 220 5% 1/10W
R989 1-216-081-00 RES-CHIP 22K 5% 1/10W
R990 1-216-113-00 RES-CHIP 470K 5% 1/10W
R991 1-216-295-91 SHORT 0
R993 1-216-089-91 RES-CHIP 47K 5% 1/10W
R994 1-216-033-00 RES-CHIP 220 5% 1/10W
R995 1-216-033-00 RES-CHIP 220 5% 1/10W
R996 1-216-037-00 RES-CHIP 330 5% 1/10W
R2801 1-208-760-11 METAL CHIP 120 0.5% 1/10W
R2802 1-208-754-11 METAL CHIP 68 0.5% 1/10W
R2803 1-216-603-11 METAL CHIP 10 0.5% 1/10W
R2804 1-208-760-11 METAL CHIP 120 0.5% 1/10W
R2805 1-216-624-11 METAL CHIP 75 0.5% 1/10W
R2806 1-211-960-11 METAL CHIP 22 0.5% 1/10W
R2807 1-216-295-91 SHORT 0
R2808 1-216-295-91 SHORT 0
R2813 1-216-295-91 SHORT 0
R2815 1-216-295-91 SHORT 0
R2817 1-216-295-91 SHORT 0
R2818 1-216-295-91 SHORT 0
R2822 1-216-295-91 SHORT 0
< NETWORK RESISTOR >
RB001 1-239-409-11 NETWORK RESISTOR (CHIP) 47
B3
REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK
The components identified by shading
and mark
¡
are critical for safety.
Replace only with part number specified.
KP-48PS2/61PS2
KRM-903
– 139 –
RB002 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB003 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB004 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB005 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB006 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB007 1-239-414-11 NETWORK RESISTOR (CHIP) 150
RB008 1-239-414-11 NETWORK RESISTOR (CHIP) 150
RB009 1-239-414-11 NETWORK RESISTOR (CHIP) 150
RB010 1-239-414-11 NETWORK RESISTOR (CHIP) 150
RB011 1-239-414-11 NETWORK RESISTOR (CHIP) 150
RB012 1-239-414-11 NETWORK RESISTOR (CHIP) 150
RB013 1-239-621-11 NETWORK RESISTOR (CHIP) 22
RB014 1-239-621-11 NETWORK RESISTOR (CHIP) 22
RB015 1-239-621-11 NETWORK RESISTOR (CHIP) 22
RB016 1-239-621-11 NETWORK RESISTOR (CHIP) 22
RB017 1-239-621-11 NETWORK RESISTOR (CHIP) 22
RB018 1-239-621-11 NETWORK RESISTOR (CHIP) 22
RB019 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB020 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB021 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB022 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB023 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB024 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB025 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB026 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB027 1-239-409-11 NETWORK RESISTOR (CHIP) 47
RB701 1-239-711-91 NETWORK RESISTOR (CHIP) 0
RB702 1-239-711-91 NETWORK RESISTOR (CHIP) 0
RB703 1-239-711-91 NETWORK RESISTOR (CHIP) 0
RB704 1-239-711-91 NETWORK RESISTOR (CHIP) 0
RB705 1-239-711-91 NETWORK RESISTOR (CHIP) 0
RB706 1-239-711-91 NETWORK RESISTOR (CHIP) 0
< CRYSTAL >
X802 1-795-112-21 VIBRATOR, CRYSTAL (17.28MHz)
*******************************************************************************
MISCELLANEOUS
**********************
01-223-925-71 RESISTOR ASSY (HIGH-VOLTAGE)
(FOCUS PACK)
01-452-790-41 NECK ASSY (NA-295)
1-528-864-11 BATTERY, SOLAR
1-529-403-11 SPEAKER (6.6 CM) (KP-48)
1-529-643-11 SPEAKER (13 CM) (KP-48)
1-529-757-11 SPEAKER (2.7 CM) (KP-61)
1-529-758-11 SPEAKER (8 CM) (KP-61)
1-529-759-11 SPEAKER (16 CM) (KP-61)
1-543-982-11 CORE, FERRITE
* 1-555-110-00 CABLE, PIN
01-765-286-11 CORD, POWER
08-598-955-13 BLOCK ASSY, HIGH-VOLTAGE
08-733-572-35 PICTURE TUBE 07MXC3 (R) (NEW GUN)
(KP-48)
08-733-573-35 PICTURE TUBE 07MXC4 (R) (NEW GUN)
(KP-61)
B3
08-733-575-15 PICTURE TUBE 07MAC3 (B) (C/D CPL)
(KP-48)
08-733-576-15 PICTURE TUBE 07MAC4 (B) (C/D CPL)
(KP-61)
0A-1501-273-ASEAL (G) ASSY, MECHANICAL
*******************************************************************************
ACCESSORIES AND PACKING MATERIALS
*****************************************************
* 4-030-895-01 JOINT
* 4-041-423-11 SHEET, PROTECTION (KP-48)
* 4-055-672-01 BAG, PROTCTION (KP-48)
* 4-055-673-01 SHEET, PROTECTION (KP-61)
* 4-059-461-01 BAG, PROTECTION (KP-61)
4-075-410-12 MANUAL, INSTRUCTION
(ENGLISH, GERMAN, ITALIAN, FRENCH,
DUTCH, GREEK, TURKISH)
4-075-410-22 MANUAL, INSTRUCTION
(SPANISH, PORTUGUESE, DANISH,
NORWEGIAN, SWEDISH, FINNISH)
4-075-410-41 MANUAL, INSTRUCTION (ENGLISH,
CZECH, POLISH, HUNGARIAN, RUSSIAN,
BULGARIAN)
* 4-076-594-11 INDIVIDUAL CARTON (KP-61)
* 4-076-595-01 TRAY (KP-61)
* 4-076-598-01 CUSHION (UPPER) (ASSY) (KP-61)
* 4-076-599-01 CUSHION (LOWER) (ASSY) (KP-61)
* 4-079-299-01 SHEET, OVER PROTECTION (KP-61)
* 4-206-447-01 TRAY (KP-48)
* 4-206-450-01 CUSHION UPPER (KP-48)
* 4-206-454-01 CUSHION LOWER (KP-48)
* 4-206-456-01 INDIVIDUAL CARTON (KP-48)
*******************************************************************************
REMOTE COMMANDER
*****************************
1-476-360-11 COMMANDER, STANDARD (RM-903)
– 140 –
KP-48PS2/61PS2
KRM-903
Sony Corporation
HNC. HVC. Projection Display Business Div
9-965-436-01
English
2001HA05-1
© 2001. 8
R
4-075-410-
12
(1)
100 HZ
Projection TV
Instruction Manual
KP-61PS1
KP-61PS2
KP-53PS1
KP-48PS1
KP-48PS2
©2001 by Sony Corporation
GB
Mode d’emploi
FR
Bedienungsanleitung
DE
Manuale d’Istruzioni
IT
Gebruiksaanwijzing
NL
Οδηγίες Χρήσης
GR
Kullanwm Kwlavuzu
TR
2
NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM
A moulded plug complying with BS1363 is fitted to this equipment for your safety and
convenience.
Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI
to BS 1362 (i.e. marked with
2
or
@
must be used.
When an alternative type of plug is used it should be fitted with a 5 AMP FUSE, otherwise the
circuit should be protected by a 5 AMP FUSE at the distribution board.
If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse
cover after you change the fuse. Never use the plug without the fuse cover. If you should lose
the fuse cover, please contact your nearest Sony service centre.
How to replace the fuse
Open the fuse compartment with a blade screwdriver, and replace the fuse.
•
IMPORTANT
If the plug supplied is not suitable for the socket outlets in your home, it should be cut off and
an appropriate plug fitted in accordance with the following instructions:
The wires in this mains lead are coloured in accordance with the following code:
Blue Neutral
Brown Live
As the colours of the wires in the mains lead of this apparatus may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the terminal which is marked with the
letter N or coloured black. The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red. Do not connect either wire to the
earth terminal in the plug which is marked by the letter E or by the safety earth symbol
Y
or
coloured green or green and yellow.
WARNING
• To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket
outlet. This plug cannot be used and should be destroyed.
• To prevent fire or shock hazard, do not expose the unit to rain or moisture.
• Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing
to qualified personnel only.
FUSE
3
GB
Introduction
Thank you for choosing this Sony 100Hz Projection TV.
Before operating the projection TV, please read this manual thoroughly and retain it for future reference.
• Symbols used in the manual:
• Informs you of possible hazards.
• Important information.
• Information on a feature.
•
1,2...
Sequence of instructions.
• Shaded buttons on the remote control show the
buttons you have to press to follow the sequence
of instructions.
• Informs you of the result of the instructions.
Table of Contents
Notice for Customers in the United Kingdom.............................................................................................................................................................2
Introduction.......................................................................................................................................................................................................................3
Safety Information............................................................................................................................................................................................................4
Overview
Checking the Accessories Supplied..................................................................................................................................................................5
Overview of TV Buttons.....................................................................................................................................................................................5
Overview of Remote Control Buttons..............................................................................................................................................................6
Installation
Inserting Batteries into the Remote Control....................................................................................................................................................7
Connecting the Aerial and VCR........................................................................................................................................................................7
First Time Operation
Switching on the projection TV and Automatically Tuning.........................................................................................................................8
Adjusting colour Registration (Convergence) ..............................................................................................................................................10
Menu System
Introducing the Menu System.........................................................................................................................................................................10
On Screen display Menus Guide ....................................................................................................................................................................11
Using the Menu System:
Adjusting the Picture.....................................................................................................................................................................................12
Adjusting the Sound ......................................................................................................................................................................................13
Using the Features menu...............................................................................................................................................................................15
Manually Tuning the TV...............................................................................................................................................................................16
Labelling a channel.........................................................................................................................................................................................17
Skipping programme positions....................................................................................................................................................................18
Using the “Further Programme Preset” function......................................................................................................................................19
Inputting your personal ID...........................................................................................................................................................................20
Using the Demo Mode...................................................................................................................................................................................21
Adjusting the picture geometry for an RGB source..................................................................................................................................22
Labelling of Input Sources ............................................................................................................................................................................23
Using Multi PIP (Picture In Picture)............................................................................................................................................................24
Using PAP (Picture And Picture).................................................................................................................................................................24
Teletext
......................................................................................................................................................................................................................25
NexTView
.................................................................................................................................................................................................................27
Optional Connections
Connecting Optional Equipment....................................................................................................................................................................29
Using Optional Equipment..............................................................................................................................................................................30
Smartlink............................................................................................................................................................................................................31
Remote Control of other Sony Equipment....................................................................................................................................................31
Additional Information
Optimum Viewing Area...................................................................................................................................................................................32
Specifications .....................................................................................................................................................................................................33
Troubleshooting ................................................................................................................................................................................................34
Television Channel Number Guide for United Kingdom ..........................................................................................................................35
MENU
K
4
Safety Information
Additional Safety Information
•After transporting the projection TV directly from a cold to a warm location, or if the room temperature has changed suddenly,
pictures may be blurred or show poor colour over portions of the picture. This is because moisture has condensed on the mirrors
or lenses inside the projection TV. Let the moisture evaporate before using the projection TV.
•To obtain a clear picture, do not expose the screen to direct illumination or direct sunlight. If possible, use spot lighting directed
down from the ceiling.
•Displaying a still picture for long periods of time, for instance, when operating a video game or personal computer and viewing a
programme in 16:9 mode, may damage the picture tube. To avoid this, keep the picture contrast level low.
•Avoid touching the screen, and take care not to scratch the surface with hard objects.
Do not open the cabinet and the rear
cover of the TV. Refer to qualified
service personnel only.
To prevent fire or shock hazard,
do not expose the TV to rain or
moisture.
For your own safety, do not touch
any part of the TV, power lead or
aerial lead during lightning storms.
Do not cover the
ventilation openings of the TV For
ventilation, leave a space of at least
10cm all around the set.
Never place the TV in hot, humid or
excessively dusty places. Do not
install the TV where it may be
exposed to mechanical vibrations.
To prevent fire, keep inflammable
objects or naked lights (eg candles)
away from the TV.
Clean the TV with a soft, lightly
dampened cloth. Do not use
benzine, thinner or any other
chemicals to clean the TV. Do not
scratch the TV screen. As a safety
precaution, unplug the TV before
cleaning it.
Pull out the power lead by the
plug. Do not pull on the power
lead itself.
Take care not to place heavy
objects on the power lead as this
could result in damage.
We recommend you wind any
excess lead around the holders
provided on the rear of the TV.
Place the TV on a secure stable
stand. Do not allow children to
climb on to it. Do not place the TV
on its side or face up.
Do not cover the ventilation
openings of the TV with items
such as curtains or newspapers
etc.
Never push objects of any kind into
the set as this could result in a fire or
electric shock. Never spill liquid of
any kind on the set. If any liquid or
solid object does fall through, do not
operate the TV. Have it checked
immediately by qualified personnel.
For environmental and safety
reasons, it is recommended that the
TV set is not left in standby mode
when not in use. Disconnect from
the mains.
This set is to operate on a 220-240V
AC supply only. Take care not to
connect too many appliances to the
same power socket as this could
result in fire or electric shock.
Unplug the power lead before
moving the TV. Avoid uneven
surfaces, quick steps or excessive
force. If the set has been dropped or
damaged, have it checked
immediately by qualified service
personnel.
Safety Information
5
GB
One Remote Control
(RM-892 or RM-903)
Overview of Projection TV Buttons
(conectores lado izquierdo) (conectores lado derecho)
Checking the Accessories Supplied
Overview
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Two batteries (R6 type)
On/Off Switch
Standby
indicator
Volume control
buttons
Selecting
input source
S Video
Input jack
Video Input
jack
Audio Input
jacks
Auto
Convergence
button
Headphone
jack
(left side connectors) (right side connectors)
Press on the mark , on
the front of the projection
TV to reveal the front
connectors.
Programme up
or down buttons
(selects TV channels)
Overview
s
6
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
K
VIDEO TV
VIDEO TV
VTR 1 2 3 4 DVD
CH
Overview
Overview of Remote Control Buttons
Resetting to factory set levels
Press not only to return picture and sound
settings to factory-set levels, but also to re-
install the projection TV as the first time it
was switched on.
After the "Language/Country" menu
appeared on the screen, proceed in the same
way as described in the section "Switching on
the Projection TV and automatically Tuning"
of this instruction manual.
VCR on/off
Press to switch your VCR on or off.
Muting the Sound
Press to mute TV sound.
Press again to restore the sound.
Selecting TV mode
Press to switch off Teletext or video input.
PAP (Picture And Picture)
For more details, please refer to the section
"Using PAP (Picture And Picture)".
Selecting Teletext
Press to switch on Teletext.
Displaying EPG
Press to display the Electronic Programme
Guide (EPG). Press again to switch off EPG.
Freezing the picture
Press to freeze the picture. Press again to
return to the normal picture.
Selecting channels
Press to select channels.
For double-digit programme numbers, e.g.
23, press -/-- first, then the buttons 2 and 3.
If you enter an incorrect first digit, this
should be corrected by entering another digit
(0-9) and then selecting -/-- button again to
enter the programme number of your choice.
Selecting Sound mode
Press repeatedly to change the sound mode.
Selecting Picture mode
Press repeatedly to change the picture mode.
Adjusting TV Volume
Press to adjust the volume of the TV.
Displaying the time
Press to switch the time on or off
(available only when teletext is
broadcast).
VCR operation
For more details, please refer to the
section "Remote Control of other
Sony Equipment".
To Temporarily Switch Off projection TV
Press to temporarily switch off TV (the standby
indicator
on projection TV lights up). Press
again to switch on TV from standby mode.
To save energy we recommend switching off completely
when TV is not in use.
After 15-30 minutes without a signal and
without any button being pressed, the
projection TV switches automatically into
standby mode.
Displaying On Screen Information
Press to display all on-screen indications.
Press again to cancel.
Selecting Input source
Press repeatedly until the desired input symbol of
the source appears on the screen.
Back to the channel last watched
Press to watch the last channel selected (watched for
at least 5 seconds).
Selecting Screen format
Press repeteadly to change the format of the screen
4:3 for a conventional 4:3 picture or 16:9 for a
imitation of wide screen effect. 16:9 picture is
available only if you have selected Digital Mode DRC
100 (PAL mode) in the Picture Adjustment menu.
Displaying Multi PIP (Picture In Picture)
Press to display Multi PIP mode. Press again to
cancel.
Joystick for menu selection
•
When MENU is switched on:
4
Scroll Up
$
Scroll Down
Z
Previous menu or selection
z
Next menu or selection
OK
Confirms your selection
•
When MENU is switched off:
Z
Return to the last menu screen.
OK
Shows a channel overview
Selecting channels
Press to select the next or previous channel.
Displaying the menu system
Press to display the menu on the screen. Press again
to remove the menu display from the screen.
Besides TV functions, all coloured buttons as well as green
symbols are also used for Teletext operation. For more details,
please refer to the "Teletext" section of this instruction manual.
Overview
7
GB
Installation
Make sure you insert the batteries using the correct polarities.
Always remember to dispose of used batteries in an environmental friendly way.
Inserting Batteries into the Remote Control
Connecting cables are not supplied.
Connecting the Aerial and VCR
or
OUT IN
VCR
The Scart lead is optional.
If you use this optional connection
it can improve picture and sound quality
when using a VCR.
If you do not use a SCART lead, after
automatically tuning the projection TV
refer to the "Manually Tuning the TV"
section of this instruction manual, to tune
in the projection TV to the output of your
VCR. Also refer to your VCR instruction
manual to find out how to find the output
channel of your VCR.
Installation
8
First Time Operation
The first time you switch on your TV, a sequence of menu screen appear on the TV enabling you to 1) choose the language
of the menu screen, 2) choose the country in which you wish to operate the projection TV, 3) search and stores all available
channels (TV Broadcast) and 4) change the order in which the channels (TV Broadcast) appear on the screen.
However, if you need to change the language menu, change the country, change or repeat the tuning (e.g. when you move
house) or rearrange again the order of the channels at a later date, you can do that by selecting the appropriate menu in
the (Set Up).
Switching on the Projection TV and Automatically Tuning
1Connect the Projection TV plug to the mains socket (220-240V AC,
50 Hz). Press the on/off button on your projection TV set to
switch on. The first time you press this button the Language/
Country menu displays automatically on the screen.
2Push the joystick on the remote control to $ or 4 to select the
language, then press OK to confirm your selection. From now on all
the menus will appear in the selected language.
3Push the joystick to $ or 4 to select the country in which you will
operate the projection TV set, then press OK to confirm your
selection.
Select "Off" instead of a country if you do not want your
channels (TV Broadcasts) stored in a given channel sequence
starting from programme position 1.
If you are operating the projection TV in the UK, we
reccommend you not to select "Off". Otherwise the On Screen
clock will not show the correct UK time.
4The Auto Tuning menu appears on the screen in the selected
language, then press the OK button on the remote control to select
YES.
5A new menu appears automatically on the screen asking you to
check that the aerial is connected. Confirm that the aerial is connected
and then press the OK button to start the automatic tuning.
The TV starts to automatically search and store all available
channels (TV Broadcast) for you.
This procedure could take some minutes. Please, be patient and
do not press any buttons, otherwise the automatic tuning will
not be completed.
continued...
First Time Operation
Language/Country
Language
Country
Select Language: Confirm: OK
4 Italiano
Français
Español
English
Deutsch
Dansk
Čeština
Language/Country
Language
Country
Select Language: Confirm: OK
4 Italiano
Français
Español
English
Deutsch
Dansk
Čeština
Language/Country
Language
Country
Select Language: Confirm: OK
4 Italiano
Français
Español
English
Deutsch
Dansk
Čeština
Language/Country
Language
Country
Select Country:
Confirm: OK
4
Finland
Denmark
Czech Rep.
Bulgaria
Belgium
Austria
Off
Do you want to start
automatic tuning?
Yes: OK No:
Please confirm that
aerial is connected!
Yes: OK No:
1
2
3
4
5
CO2
CO3
CO4
CO7
CO8
Searching...
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
9
GB
First Time Operation
6After all available channels are captured and stored, the
Programme Sorting menu appears automatically on the screen
enabling you to change the order in which the channels appear
on the screen.
a) If you do not wish to change the channel order, go to step 7.
b) If you wish to change the channel order:
1Push the joystick on the remote control to $ or 4 to select the
programme number with the channel (TV Broadcast) you wish to
rearrange, then push to z.
2 Push the joystick to $ or 4 to select the new programme number
position for your selected channel (TV Broadcast), then press OK.
The selected channel now moves to its new programme
position and the other channels move accordingly.
3Repeat steps b1) and b2) if you wish to change the order of the
other channels.
7 Press the MENU button to exit and return to the normal TV screen.
Your projection TV is now ready for use.
First Time Operation
Programme Sorting
Select Prog: Confirm:
PROG CH LABEL
1
2
3
4
5
6
7
8
9
10
11
C03
C05
C07
C08
C09
C11
C12
C13
C14
C15
C16
TV 5
PRO 7
EU-SP
SWF
RTL
SAT
MDR
DDI
DSF
RTL 2
KAB 1
Programme Sorting
Select Position: Move: OK
C03 TV 5
PROG CH LABEL
C03
C05
C07
C08
C09
C11
C12
C13
C14
C15
C16
TV 5
PRO 7
EU-SP
SWF
RTL
SAT
MDR
DDI
DSF
RTL 2
KAB 1
1
2
3
4
5
6
7
8
9
10
11
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
10
Auto converge the Red, Green, and
Blue Lines
1Press on the mark , on the front of the projection TV to reveal the
front connectors.
2 Press button placed on the right side of front connectors.
The Auto Convergence function works for about 10 seconds. When the white
cross disappears from the screen, your projection TV is ready for use.
Notes:
The Auto Convergence function does not work when:
• no signal is input.
• the input signal is weak.
• the screen is exposed to spotlights or direct sunlight.
• you watch the teletext broadcast.
• you watch NexTView.
First Time Operation - Menu System
Due to the earth’s magnetism, the picture might become undefined and you could see different colours on the outlines of the images.
In that case, proceed as follows.
Adjusting Colour Registration (Convergence)
1Press the MENU button to switch the first level menu on.
2•To higlight the desired menu or option, push the joystick to
4 or $.
•To enter to the selected menu or option, push to z
•To return to the last menu or option, push to Z.
•To alter settings of your selected option, push to $/4/Z or z.
•To confirm and store your selection, press OK.
3Press the MENU button to remove the menu from the screen.
Your projection TV uses an on-screen menu system to guide you through the operations. Use the following buttons on the Remote
Control to operate the menu system:
Introducing the Menu system
First Time Operation - Menu System
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
OK
push to $/4/Z or z
press OK
Joystick:
11
GB
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Audio Adjustment
Equaliser Mode
Equaliser
Adjustment
Balance
Loudness
Space
Auto Vol. Control
Dual Sound
Volume
Dual Sound
Mono
Off
Off
Off
Mono
Select: Enter Menu:
0
.
0
0
Personal
Features
Sleep Timer
Parental Lock
AV2 Output
Off
Off
TV
Select: Enter Menu:
Speaker
Main
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Enter Menu:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Enter Menu:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Enter Menu:
- - - - - - -
Picture Adjustment
Select: Enter:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Audio Adjustment
Equaliser Mode
Equaliser
Adjustment
Balance
Loudness
Space
Auto Vol. Control
Dual Sound
Volume
Dual Sound
Personal
Mono
Off
Off
Off
Mono
Select: Enter:
0
.
0
0
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Do you want to start
automatic tuning?
Yes: OK No:
Programme Sorting
Select Prog: Confirm:
PROG CH LABEL
1
2
3
4
5
6
7
8
9
10
11
C03
C05
C07
C08
C09
C11
C12
C13
C14
C15
C16
TV 5
PRO 7
EU-SP
SWF
RTL
SAT
MDR
DDI
DSF
RTL 2
KAB 1
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Teletext
Top / Bottom / Full
Text Clear
Reveal
Time Page
Page Overview
Select: Enter:
Menu System
On Screen display Menus Guide
Features
Sleep Timer
Parental Lock
AV2 Output
Off
Off
TV
Select: Enter:
Speaker Main
Refer to the section
"Adjusting the Picture”
Refer to the section
"Adjusting the Sound”
Refer to the section
"Using the features
menu”
Refer to the section
"Switching on the
projection TV and
Automatically Tuning"
Refer to the section
"Switching on the
projection TV and
Automatically Tuning"
Refer to the
section
“NexTView”
Refer to the
section
"Labelling of
Input Sources”
Refer to the
section "Teletext"
Menu System
Refer to the section
"Switching on the
projection TV and
Automatically Tuning"
Refer to the sections
"Manually Tuning the
TV", "Labelling a
channel" and "Skipping
programme positions"
Refer to the section
"Using the Further
Programme Preset
function"
Refer to the section
"Adjusting the picture
geometry for an RGB
source"
Refer to the section
"Inputting your
personal ID"
Refer to the section
"Using the Demo
Mode"
12
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to z to enter the Picture Adjustment menu.
3Push the joystick to $ or 4 to select the item you wish to change,
then push to z.
Refer to the table below to chose the item and for the effect of
each control:
Picture Mode $ Live (for live broadcast programmes)
Personal (for individual settings)
Movie (for films)
4 Game (for computer games)
Contrast Z Less z More
Brightness*Z Darker z Brighter
Colour*Z Less z More
Sharpness*Z Softer z Sharper
Hue** Z Reddish z Greenish
Reset Resets picture to the factory preset levels.
AI (Artificial 4 Off:Normal
Intelligence) $ On: Automatic optimization of contrast level
according to the TV signal
Noise 4 Off: Normal
Detection $ On: Reduces picture noise in the case of a
weak/noisy broadcast signal.
Digital Mode 4 DRC 50: improves picture resolution and is optimal
for viewing scrolling characters.
$ DRC 100: improves picture resolution creating
flicker-free pictures.
* Can only be altered if Personal Picture Mode is selected.
** Only avalaible for NTSC colour signal (e.g: USA video tapes).
4Push the joystick to 4, $, Z or z to alter the selected item, then
press the OK button to store the new adjustment.
5Repeat steps 3 and 4 to alter the other items.
6Press the MENU button to exit and return to the normal TV screen.
Changing the Picture Mode Quickly
You can quickly change the Picture Mode without entering the
Picture Control menu screen.
1Press the button on the remote control repeatedly to directly
access and select your desired picture mode (Live, Personal, Movie,
or Game).
2Press the OK button to remove the display from the screen.
Menu System
Although the picture is adjusted at the factory, you can modify it to suit your own taste.
Adjusting the Picture
Digital Mode
DRC 50
DRC 100
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Picture Adjustment
Select: Enter:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Picture Mode
Live
Personal
Movie
Game
Contrast
AI
On
Off
Noise Detection
On
Off
Picture Mode
Live
Personal
Movie
Game
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Menu System
13
GB
Menu System
Although the sound is adjusted at the factory, you can modify it to suit your own taste.
Adjusting the Sound
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter to the Audio Adjustment menu.
3Push the joystick to $ or 4 to select the item you wish to change,
then push to z.
Refer to the table below to chose the item and for the effect of
each control:
Equaliser Mode $ Personal (for individual settings)
Vocal
Jazz
Rock
Pop
4 Flat (fixed setting, cannot be adjusted)
*Equaliser Push to
z or Z to select the frequency band you
Adjustment want to alter and push to $ or 4 to adjust. Finally,
press the OK button to store the new adjustment.
Balance Z Left z Right
Loudness $ Off: normal
4 On: for music broadcasts
Space $ Off: normal
4 On: acoustic sound effect
Auto Vol. $ Off: volume level changes according to the
Control broadcast signal
4 On: volume level of the channels will stay the same
independent of the broadcast signal (e.g. in
case of advertisement)
Dual Sound • For a stereo broadcast:
$ Mono
4 Stereo
• For a bilingual broadcast:
$ Mono (for mono channel if available)
A (for channel 1)
4 B (for channel 2)
Headphones:
l Volume Z Less z More
l Dual Sound • For a stereo broadcast:
$ Mono
4 Stereo
• For a bilingual broadcast:
$ Mono (for mono channel if available)
A (for channel 1)
B (for channel 2)
4 PAP (only when PAP is switched on)
* Can only be permanently stored if Personal Equaliser Mode is selected,
the other modes (Vocal, Jazz, Rock or Pop) store until the next mode
change.
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
continued...
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Audio Adjustment
Equaliser Mode
Equaliser
Adjustment
Balance
Loudness
Space
Auto Vol. Control
Dual Sound
Volume
Dual Sound
Personal
Mono
Off
Off
Off
Mono
Select: Enter:
0
.
0
0
Audio Adjustment
Equaliser Mode
Equaliser
Adjustment
Balance
Loudness
Space
Auto Vol. Control
Dual Sound
Volume
Dual Sound
Personal
Mono
Off
Off
Off
Mono
Personal
Vocal
Jazz
Rock
Pop
Flat
Select Mode: Confirm: OK
0
.
0
0
Equaliser Adjustment
Sel: Adjust: Confirm:OK
(Personal)
+
0
–
120 500 1,5K 5 K 10 K
Balance .
Loudness
Off
On
Space
Off
On
Auto Vol. Control
Off
On
Dual Sound
Mono
A
B
Volume
Dual Sound
B
A
Menu System
14
Menu System
4Push the joystick to $, 4, Z or z to alter the selected item, then
press the OK button to store the new adjustment.
5Repeat steps 3 and 4 to alter the other items.
6Press the MENU button to exit and return to the normal TV screen.
Changing Sound Mode Quickly
You can quickly change Sound mode without entering the Sound
Control menu screen.
1Press the button on the remote control repeatedly to directly
access and select your desired sound mode (Personal, Vocal, Jazz,
Rock, Pop or Flat).
2Press the OK button to remove the display from the screen.
Equaliser Mode
Personal
Vocal
Jazz
Rock
Pop
Flat
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Menu System
15
GB
Menu System
Using the Features menu you can:
a) Select if you want to listen to the sound from the projection TV directly or through an external amplifier.
b) Select a time period after which the projection TV switches itself into standby mode.
c) Lock the buttons on the projection TV set. In this way, the projection TV only works by using the remote control buttons.
d) Select the source to be output from the Scart connector :2/q2 (SMARTLINK). In this way you can record from this scart
connector while watching another source. If your VCR supports Smartlink, this procedure is not necessary.
Using the Features Menu
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter to the Features menu.
3Push the joystick to $ or 4 to select the desired menu item, then
push to z (see the table below for the effect of each menu item).
4Push to $ or 4 to select the desired setting and press the OK button
to store.
5Press the MENU button to exit and return to the normal TV screen.
Features Effect / Operation
Speaker $Main (sound from projection TV set)
4Centre In (sound from external amplifier)
Sleep Timer
4Off
10 min.
20 min.
...
$90 min.
• One minute before the projection TV switches
into standby mode, the time remaining is
displayed on the screen automatically.
• When watching the TV, press the button on
the remote control to display the time remaining.
• To return to normal operation from standby
mode, press the TV button on the remote
control.
Parental lock $Off (Normal mode)
4On (The projection TV can only be switched on
using the remote control, the buttons on the
TV do not work)
AV2 Output $TV (audio/video signal from the aerial)
AV1
(audio/video signal from the Scart
connector :1/ ).
AV2 (audio/video signal from the Scart
connector
:
2/q2 (SMARTLINK).
AV3 (audio/video signal from the Scart
connector
:
3/q3).
4AV4 (audio/video signal from the connector … 4
placed in the front of the Projection TV).
If you have connected a decoder, please remember
to change back the AV2 Output to "TV" for correct
unscrambling.
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Features
Sleep Timer
Parental Lock
AV2 Output
Off
Off
TV
Select: Enter:
Speaker
Main
Speaker
Main
Centre In
10 min
Sleep Timer
Parental Lock
Off
On
AV2 Output
TV
AV1
AV2
AV3
AV4
Menu System
16
1 Press the MENU button on the remote control to display the
menu on the screen.
2 Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
3 Push the joystick to $ or 4 to select Manual Set Up, then push
to z.
4 Push the joystick to $ or 4 to select Manual Programme Preset,
then push to z.
5 Push the joystick to $ or 4 to select on which programme number
you want to preset a channel (for VCR select programme number
"0"), then push twice to z. The column SYS is highlighted.
6 Push the joystick to $ or 4 to select the system for TV Broadcast
and VCR channel (B/G for western european countries, L for
France, I for Great Britain or D/K for eastern european countries)
or a external input source (EXT), then push to z. The column CH
is highlighted.
7 Push the joystick to $ or 4 to select the channel tuning, "C" for
terrestrial channels (for TV Broadcast or VCR channel), "S" for
cable channels or F for, direct frequency input then push to z.
8 a) If you know the channel number of the TV Broadcast, the VCR
test signal channel or the frequency, press the number buttons
to enter directly the channel number. Then press the OK button
to store.
b) If you do not know the channel number, push the joystyck to $
to select SEARCH and the projection TV starts automatically
to search for the next available TV Broadcast channel or the
channel of the VCR signal. Then press the OK button to store
or press $ to continue searching the desired channel.
c) For external input sources (EXT), push to $ to select the input
source where you have connected your equipment (AV1, AV2,
AV3 or AV4). Then press the OK button to store.
9 Repeat steps 4 to 8 a), b) or c) if you wish to store more channels.
10 Press the MENU button to exit and return to the normal TV screen.
Your projection TV is now ready for use.
Menu System
Use this function to preset channels (TV Broadcast) or a video input source one by one to the programme order of your choice.
Manually Tuning the TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Programme Preset
Select: Enter:
PROG CHSYSSKIP LABEL
C09
C10 ARD
BBC
B/G
B/G
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
1
2
3
4
5
6
7
8
9
10
11
PROG CHSYS
Off
SKIP LABEL
1B/G
L
I
D/K
EXT
PROG SYS
Off
SKIP LABEL
1B/G
CH
C
S
F
- -
PROG SYS
Off
SKIP LABEL
1B/G
CH
03
SEARCH
C
PROG CHSYS
Off
SKIP LABEL
3 EXT AV1
AV2
AV3
AV4
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Menu System
17
GB
Menu System
Names for channels (TV Broadcasts) are usually taken automatically from Teletext if available. You can however name a channel or
an input video source using up to five characters (letters or numbers). Using this function, you can easily identify which channel
(TV Broadcasts) or video source you are watching.
Labelling a channel
1Press the MENU button on the remote control to display the
menu on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
3Push the joystick to $ or 4 to select Manual Set Up, then push
to z.
4Push the joystick to $ or 4 to select Manual Programme Preset,
then push to z.
5Push the joystick to $ or 4 to select the programme number with
the channel you wish to name.
6Push the joystick to z repeatedly until the first element of the
LABEL column is highlighted.
7Push the joystick to $ or 4 to select a letter, number, "+" or a
blank, then push to z to confirm this character. Select the other
four characters in the same way.
8After selecting all the characters, press the OK button.
9Repeat steps 5 to 8 if you wish to label other channels.
10Press the MENU button to exit and return to the normal TV
screen.
When you select a named channel, the name appears for a few seconds
on the screen.
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Programme Preset
Select: Enter:
PROG CHSYSSKIP LABEL
C09
C10 ARD
BBC
B/G
B/G
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
1
2
3
4
5
6
7
8
9
10
11
PROG SYS
Off
SKIP LABEL
1B/G
CH
C 03 A
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Menu System
18
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
3Push the joystick to $ or 4 to select Manual Set Up, then push
to z.
4Push the joystick to $ or 4 to select Manual Programme Preset,
then push to z.
5Push the joystick to $ or 4 to select the programme position you
want to skip, then push to z to enter the SKIP column.
6Push the joystick to $ to select On, then press the OK button to
store.
7Repeat steps 5 and 6 to skip other unused programme positions.
8Press the MENU button to exit and return to the normal TV screen.
When changing channels (TV Broadcasts) with the PROGR +/- buttons,
the skipped programme positions do not appear. You can, however, still
select them using the number buttons.
Menu System
You can programme this projection TV to skip any unwanted programme numbers when they are selected with the PROGR +/-
buttons. To cancel this function afterwards, proceed in the same way as described below by selecting Off instead of On in step 6.
Skipping Programme positions
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
PROG SYSSKIP LABEL
1B/G
CH
C 09 ARD
Off
On
Manual Programme Preset
Select: Enter:
PROG CHSYSSKIP LABEL
C09
C10 ARD
BBC
B/G
B/G
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
Off
1
2
3
4
5
6
7
8
9
10
11
Menu System
19
GB
Menu System
With this feature you can:
a) Individually attenuate the strength of a channel signal in case of a strong local aerial signal (striped picture).
b) Individually adjust the volume level of each channel.
c) Even normally the automatic fine tuning (AFT) is operating, however you can manually fine-tune the TV to obtain a better picture
reception if the picture is distorted.
d) Preset the AV output for the programme positions of channels with scrambled signals (eg from a pay TV decoder). In this way
a connected VCR records the unscrambled signal.
Using the "Further Programme Preset" function
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
3Push the joystick to $ or 4 to select Manual Set Up then push to z
to enter.
4Push the joystick to $ or 4 to select Further Programme Preset,
then push to z.
5Push the joystick to $ or 4 to select the relevant programme
number, then push to z repeatedly to select:
a) ATT (RF attenuator)
b) VOL (Volume Offset)
c) AFT (Automatic Fine Tuning) or
d) DECODER
The selected item changes colour.
6a) ATT
Push the joystick to $ to select On, then press the OK button.
Repeat steps 5 and 6 a) to attenuate other channels.
b) VOL
Push the joystick to $ or 4 to adjust the volume level of the channel
over a range of -7 to +7, then press the OK button. Repeat steps 5
and 6b) to adjust the volume level of the other channels.
c) AFT
Push the joystick to $ or 4 to fine tune the channel frequency over
a range of -15 to +15, then press the OK button. Repeat steps 5 and
6c) if you wish to fine tune other channels.
d) DECODER
Push the joystick to $ or 4 to select AV1 (for a decoder connected
to the Scart :1/ ) or AV2 (for a decoder connected to the Scart
:2/q 2 (SMARTLINK)), then press the OK button.
Repeat steps 5 and 6d) to select the AV1 or AV2 output for other
programme positions.
The picture from the decoder connected to the Scart connector
:1/ or :2/q 2 (SMARTLINK) on the back of the
projection TV will appear on this programme number.
7Press the MENU button to exit and return to the normal TV screen.
Your projection TV is now ready for use.
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Further Programme Preset
Select: Enter:
PROG AFTVOLATT DECODER
On
On
On
Off
Off
Off
0
0
0
Off
Off
Off
1
2
3
4
5
6
7
8
9
10
11
PROG AFTVOLATT DECODER
1Off
On
PROG AFTVOLATT DECODER
1 On -5 2
PROG AFTVOLATT DECODER
1 On -5 2Off
AV1
AV2
PROG AFTVOLATT DECODER
1On - 5
Menu System
20
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
3Push the joystick to $ or 4 to select Manual Set Up, then push to z.
4Push to $ or 4 to select Personal ID, then push to z.
5Push the joystick to $ or 4 to select a letter, number, + or a blank;
then push to z to confirm this character. Select the other ten
characters in the same way.
6After selecting all the characters, press the OK button. A new menu
appears automatically on the screen asking you to be sure that you
want to save this ID.
7a) If you do not wish to store this ID, push the joystick to Z and
repeat steps 4 to 6 to enter a new ID.
b) If you wish to store this ID, press the OK button.
Remember that this code can only be input once.
8Press the MENU button to return to the normal TV screen.
When you enter the Manual Set Up menu, in the "Personal ID" option the
code you entered above will be displayed. You will not be able to select and
change this option.
Menu System
You can programme this projection TV with a personal code, using up to eleven characters (letters and numbers). Then using this
fuction it will be possible to identify your projection TV if it was ever stolen.
This code can only be input once!
Make sure to write it down in this instruction manual.
Inputting Your Personal ID
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
Manual Set Up
Select A-Z, 0-9: Store: OK
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo A----------
Are you sure?
Save: OK Cancel:
Menu System
21
GB
Menu System
This function provides an overview of some of the features available on your projection TV.
Using the Demo Mode
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
3Push the joystick to $ or 4 to select Manual Set Up, then push to z.
4Push to $ or 4 to select Demo, then push to z to enter and start
the demonstration.
The projection TV starts the demonstration and shows most of the
available picture functions.
Note:
Press the button on the remote control to stop the Demo mode
and return to the normal TV screen.
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Menu System
22
1Press the … button repeatedly on the remote control until the
symbol …1 appears on the screen.
2Push the MENU button to display the menu on the screen.
3Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
4Push to $ or 4 to select Manual Set Up then push to z to enter.
5Push the joystick to $ or 4 to select RGB Set Up then push to z.
6Push the joystick to z to enter H Centre, then push to $ or 4 to
adjust the centre of the picture over a range of -10 to +10. Press
the OK button to store.
7Press the MENU button to exit and return to the normal TV screen.
Menu System
When connecting an RGB source, such as a DVD player, to the Scart connector :1/ you may need to readjust the geometry
of the picture.
Adjusting the picture geometry for an RGB source
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
Manual Set Up
Select: Enter:
Language/Country
Manual Programme Preset
Further Programme Preset
RGB Set Up
Personal ID
Demo
- - - - - - -
RGB Set Up
RGB Set Up
Adjust Position: Confirm: OK
H Centre O
… 1
Menu System
23
GB
Menu System
This function enables you to designate a name to the optional equipment you have connected to the sockets of this projection TV.
This name can contain up to 5 characters (letters or numbers).
Labelling of Input Sources
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to $ to select the symbol, then push to z to
enter the Set Up menu.
3Push the joystick to $ or 4 to select AV Preset, then push to z.
4Push the joystick to $ or 4 to select the input source you wish to
name (eg AV2), then push to z to highlight the first element of
the Label column.
5Push the joystick to $ or 4 to select a letter, number, "+" or blank;
then push to z to confirm this character. Select the other four
characters in the same way.
6After selecting all the characters, press the OK button.
7Repeat steps 4 to 6 if you wish to label other input sources.
8Press the MENU button to exit and return to the normal TV screen.
Whenever the equipment with the labeled input is selected for use, the
name appears for a few seconds on the screen.
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
AV Preset
Select: Enter:
INPUT LABEL
VIDEO
VIDEO
VIDEO
AV1
AV2
AV3
AV4
AV Preset
Select A-Z, 0-9: Confirm: OK
INPUT LABEL
IDEO
V
VIDEO
VIDEO
AV1
AV2
AV3
AV4
Menu System
24
1Press the button on the remote control to select the PIP mode.
Now 13 programme positions appear on the screen, with the current
channel in the centre.
2Push the joystick to $, 4, Z or z to move within the 13 displayed
channels.
3Press the OK button to select the framed channel. The selected
channel moves to the centre.
4Press to return to the normal TV mode.
Menu System
Multi PIP (Picture in Picture) mode displays a succession of 12 still pictures and a 13th that is live. You can manually select which
channel you wish to watch, either full-screen or in the PIP.
Using Multi PIP (Picture In Picture)
03 05
01 06
11 09 08
02
10
07
13
12
04
Switching PAP on and off
Press the button / on the remote control to display the two screens
in format 4:3. Press / again to switch PAP off.
Selecting PAP source
1To change the source of the left screen:
With PAP switched on, press the number buttons (to select a TV
channel) or press … (to select a video source).
2To change the source of the right screen:
With PAP switched on, press the button on the remote control.
When the symbol appears at the bottom of the right screen,
press the number buttons (to select a TV channel) or press … (to
select a video source).
Swapping screens
With PAP switched on, press the / button on the remote control to
swap the two screens.
Zooming the screens
With PAP switched on, push the joystick repeatedly to Z or z to
change the size of the two screens.
Selecting the sound of the right screen
You can select the sound of the right screen via headphones. With
PAP switched on, refer to the "Adjusting the Sound" section of this
instruction manual and set the option "l Dual Sound" to "PAP".
PAP divides the screen into two for watching two channels simultaneously. One of the pictures can be selected to come from a
video source.
The sound of the left screen comes through projection TV loudspeakers, the sound of the right screen is selectable via headphones.
Using PAP (Picture And Picture)
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Menu System
25
GB
Teletext
Most TV channels broadcast information via Teletext. The index page of the teletext service (usually page 100) gives you
information on how to use the service.
! Please use a TV channel with a strong signal, otherwise there may be Teletext errors.
Teletext
Switching Teletext on and off
1Select the TV channel which carries the teletext service you want
to view.
2Press the button once for Picture and Teletext (P&T). The screen
is divided in two, with the TV channel in the right corner and the
Teletext display on the left.
P&T mode: Press / then press PROGR +/- to change
the channel of the TV screen. Push the joystick to Z or z to
change the size of the TV screen then press / again to
resume normal teletext reception.
3Press twice to get Teletext only.
4Press three times for Mix mode.
5Press a fourth time or press to switch off Teletext.
Selecting a Teletext page
Input three digits for the page number using the numbered buttons on
the control. If you make a mistake, type in any three digits then re-enter
the correct page number.
Using Other Teletext Functions
Selecting the next or preceding page
Press the (PROG+) or (PROGR-) buttons on the remote
control to select the previous or next page.
Selecting a sub page
A teletext page may consist of several sub pages. In this case, after a
few seconds, an information line is displayed showing the number of
subpages.
Select the sub page by pressing 4 or $.
To freeze a Teletext page
Press the button to freeze the page. Press again to cancel the freeze.
Revealing the index page
Press the button to reveal the index page (normally page 100).
Fastext
(only available if the TV station broadcasts Fastext signals)
When the colour coded menu appears at the bottom of a teletext page,
press a coloured button on the remote control (red, green, yellow or blue)
to access the corresponding page.
Using the feature "Page Catching"
1Press the numbered buttons on the remote control to select a teletext
page which has several page numbers on it (eg the index page).
2Press the OK button.
3Push the joystick to 4 or $ to select the desired page number
then press the OK buttons. The requested page is displayed after
some seconds.
continued...
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
01
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
01
TELETEXT
Index
Programme
News
Sport
Weather
25
153
101
98
216-02
01 03 04 05 06 07 0802
Teletext
26
Using the Teletext menu
1With Teletext switched on, press the MENU button on the remote
control to display the teletext menu on the TV screen.
2Push the joystick to 4 or $ to select your chosen item, then push to z
to display the relevant sub menu.
3To remove the teletext menu from the screen, press the MENU
button.
Top / Bottom / Full
The Top/Bottom/Full sub menu allows you to enlarge different
sections of the Teletext page. Push the joystick 4 to enlarge the
upper half of the screen, push to $ to enlarge the lower half. Press
the OK button to restore the page to normal size.
Text Clear
After having selected this function, you can watch a TV channel while
waiting for a requested Teletext page. As soon as the page is available,
the symbol changes colour. To view the page, press .
Reveal
Some teletext pages contain hidden information (eg for a quiz),
which you can reveal. The hidden information appears on screen.
Time Page
(depending on availability of teletext service)
You can call up a time-coded page such as an alarm page at a time
specified by you. After you have displayed the Time Page sub menu:
1Press the numbered buttons on the remote control to enter the
three digits of the desired page.
2 Press the numbered buttons again to enter the four digits of the
desired time.
3 Press the OK button to store the desired time. The time is displayed
in the top left corner of the screen. At the requested time the page is
displayed.
Page Overview
(depending on availability of teletext service)
In the Page Overview menu the block and group pages of TOP- Text
are sorted into two columns, so that the customer can easily select this
page. For each block page in the first column, the corresponding
group pages are shown in the second column. Push the joystick 4 or $
to select the desired block page, then push to z to enter to the group
pages column. Push to 4 or $ to select the desired group page .
Finally, press the OK button to display the page.
Teletext
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Teletext
Top / Bottom / Full
Text Clear
Reveal
Time Page
Page Overview
Select: Enter:
Top: Bottom: Full: OK
Time Page
PAGE TIME
Select Page: 0-9 Next:
- - : - -– – –
Teletext
27
GB
NexTView
* (depending on availability of service)
NexTView is an on-screen electronic programme guide (EPG), providing you with programme information for different
broadcasters.
NexTView *
Selecting your NexTView provider
Your projection TV automatically selects the best NexTView
provider for you. This provider is available about 30 minutes
after the channel tuning. You can however change this selection
of provider if you wish.
1Press the MENU button on the remote control to display the menu
on the screen.
2Push the joystick to 4 or $ to select the symbol, then push to z
to enter the Set Up menu.
3Push to 4 or $ to highlight Select NexTView then push to z. A list
is displayed containing all available NexTView providers.
4Push to 4 or $ to select the desired provider then press the OK
button to store.
5Press the MENU button to remove the menu from the screen.
Displaying NexTView
1Press the button repeatedly on the remote control to switch
NexTView on and off.
* In some cases, you may also need to push the joystick to Z to
display the Sony electronic programme guide.
2Push the joystick to 4, $, Z or z buttons to move the cursor
around the screen.
3Press the OK button to confirm a selection.
a) If you press the OK button in the date, time or icon (themes)
columns, you change the programme list according to the
selection.
b) If you press the OK button in the programme list, you directly
display the channel if the broadcast is currently running, or,
you display the "Long Info" menu if the broadcast is running at
some future time.
Using the "Individual Setting" menu
You can make a personal list of the types of programmes you
wish to view on the programme guide.
1Push the joystick 4 or $ to select the icon then push to z to
display the "Individual Setting" menu.
2Push the joystick 4 or $ to select your chosen item on the screen
then press the OK button to confirm your choice.
3Repeat step 2 for all the items you wish to have in your list.
4When you have finished the list, push to z to select the icon.
5Press the OK button to return to the previous menu.
6Push the joystick 4 or $ to select the icon then press the OK
button again to activate your "Individual Setting" filter.
continued...
Picture Adjustment
Select: Enter Menu:
Picture Mode
Contrast
Brightness
Colour
Sharpness
Reset
AI
Noise Detection
Digital Mode
Personal
On
On
DRC 50
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
Start Auto Tuning
Start
- - - - - - -
7
Tue
07 Tue
12:38
8
Wed
10
Fri
11
Sat
12
Sun
13
Mon
9
Thu
12
SWISS
Star Wars
Super RTL
Hat der alte Hexenmeister sich doch
einmal fortbegeben, und nun sollen
seine Geister auch nach meinem Willen
leben.
Werner - Beinhart
Pro 7
Flui grüsst den Rest der Welt
Kabel 1
Once upon a time in the West
Euronews
International News
RTL Plus
10:35 - 12:45
10:20 - 12:00
10:45 - 10:50
11:00 - 11:20
11:45 - 12:50
TXT TPS / RINGIER
Tue 07. 04 .98
Index
full selection list
personal selection
news broadcasts
movies
sports
entertainment
children
return to last menu
Enter:
Set Up
Auto Tuning
Programme Sorting
Select NexTView
AV Preset
Manual Set Up
Select:
- - - - - - -
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
NexTView
28
Using the Long Info menu
With this menu screen, you can set timers or record selected
programmes.
1Push 4 or $ to select a future programme in the programme list
column.
2Press the OK button to display the Long Info menu on the TV
screen.
To set the timer
Push the joystick 4 or $ to highlight the icon then press the OK
button repeatedly to "set the timer" or "cancel the timer". If you choose
to set the timer, the programme is marked with a clock symbol and a
message appears on the screen shortly before the programme is due
to start asking whether you wish to still view this programme.
To view the timer table
Push the joystick Z or z to highlight the icon then press the OK
button repeatedly to switch on/off the timer table. This table shows the
programmes on which you have already set a timer. (You can set a timer
on up to 5 programmes).
To record programmes
(only with Smartlink VCRs)
1Connect your Smartlink VCR.
2Push the joystick to Z or z to select then press the OK button
to download the information to your VCR.
3 To set up the VCR:
VPS/PDC
Push the joystick Z or z to select VPS/PDC then press the OK
button repeatedly to select On or Off. With this setting on you have
the guaranteed recording of the whole broadcast should there be a
change in the TV programme. This only works if the selected
channel broadcasts a VPS/PDC signal.
Speed
Push the joystick to $ to select Speed then press the OK button
repeatedly to select between SP for standardplay or LP for longplay.
With longplay you can record twice as much on a videotape.
The picture quality however may suffer.
VCR Setup
Push the joystick to $ to select VCR Setup then press the OK
button repeatedly to select which VCR you wish to programme,
namely VCR1 or VCR2.
4Finally, push the joystick to z to select the icon then press the
OK button to remove the menu from the TV screen.
NexTView
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
07 Tue
12:38
Address Mapping
The position of the addresses in the
OSDA is shown in the following diagram.
The position values of the DPW are set
to '0'.
If other values are set, the complete
combination will be scrolled.
Example:
if the DPWC is set to '63', the char-
Speed
Timer Prog
VPS/PDC SP
VCR1
On
This channel has been set for a timer
First nextTView/EPG-Providers in Europe
SWISS TXT TPS / RINGIER nexTView
Tue 07. 04 .98
Speed
VCR Setup
VPS/PDC SP
VCR1
On
NexTView
29
GB
Acceptable input signal
AAudio/video and RGB signal
BAudio/video and S video signal
CAudio/video and S video signal
DCentre speaker input Set “Speaker”
on the Features menu to “Centre in”.
ENo inputs
FS Video signal
GVideo signal
HAudio signal
INo input
Rear of projection TV Front of projection TV
Available output signal
Video/audio from TV tuner.
Video/audio from selected source.
Video/audio displayed on TV screen (monitor out).
No outputs.
Audio signal.
No output.
No output.
No output.
Audio signal to headphones.
To avoid picture
distortion:
• Do not connect
equipment to
F and G
connectors at
the same time.
Optional Connections
Using the following instructions, you can connect a wide range of optional equipment to your projection TV.
Connecting Optional Equipment
B
A
D
E
C
H
I
DVD
VCR
8mm/Hi8/DVC
camcorder
S.VHS/Hi8/DVC
camcorder
Dolby
Surround
Amplifier
Hi-Fi
F
G
VCR
Optional Connections
Decoder
30
Additional Information when connecting equipment
Connecting a VCR
We recommend you connect your VCR to the B or C socket using a scart lead. If you do not have a scart lead, use the “Manually
Tuning the TV” section of this instruction manual to tune in the channel of the VCR test signal to TV programme number “0”.
Also refer to your VCR instruction manual to get the VCR test signal.
If your video supports Smartlink please refer to the "Smartlink" section of this instruction manual.
Connecting to External Audio Equipment
1 To listen to the audio of your projection TV on the Hi-Fi equipment:
Plug in your Hi-Fi equipment to the E sockets on the rear of the projection TV if you wish to amplify the audio output from
the TV.
The output level from E sockets can be varied by adjusting the volume of the headphones. Refer to the “Adjusting the sound”
section of this instruction manual to adjust the volume of the headphones.
2 To listen to the Dolby Prologic system sound on the projection TV speakers:
Plug in your Dolby Prologic system decoder amplifier to the D socket on the rear of the projection TV if you wish to listen to
the audio output from your equipment on the projection TV speaker. If you have a Dolby amplifier, connect the centre output
from your amplifier to the D socket to use the projection TV as a centre speaker. Refer to the “Using the Features menu” section
of this instruction manual and set the option “Speaker” to “Centre in”.
Remember that the maximum input level of this input is 30 W. Be careful never to over this limit.
For mono equipment
Connect the phono plug to the L/G/S/I socket on the front of the TV and select the 4 input signal using the instructions on
this page below.
Select and View the Input Signal
In order to get the input signal of a connected equipment onto the TV screen, you need to select the symbol of the
connector to which you have connected the device.
e. g. : Your VCR is connected to the connector with the symbol Y1/ 1. Press the button on the remote control
repeatedly until you see the symbol 1 on the screen.
Optional Connections
Using Optional Equipment
1Connect your equipment to the designated projection TV socket, as it is indicated on the previous
page.
2Switch on the connected equipment.
3 Press the button repeatedly on your remote control until the correct input symbol appears on the
screen.
Symbol Input signals
1 • Audio/video input signal through the Scart connector A or * RGB
through Scart connector A.
2 • Audio/Video input signal through the Scart connector B or * S Video
through Scart connector B.
3 • Audio/Video input signal through the Scart connector C or * S Video
through Scart connector C.
4• S Video input signal through the 4-pin DIN connector F or * video input
signal through phono jack G and audio input signal through phono jacks H.
* (automatic detection of the signal according to the connected equipment)
4 To return to the normal TV picture, press the button on the remote control.
S
RM
892
PROGR
MENU
1
4
7
2
5
8
0
3
6
9
VIDEO TV
Optional Connections
31
GB
Optional Connections
Smartlink is a direct link between your projection TV set and a VCR.
For Smartlink you need:
• A VCR which supports Smartlink, NextView Link, Easy Link or Megalogic.
Megalogic is a trademark of Grundig Corporation.
EasyLink is a trademark of Philips Corporation.
• A fully-wired 21 pin SCART cable to connect your VCR to the Scart connector :2/q2
(SMARTLINK) on the rear of the Projection TV.
The features of Smartlink are:
• Tuning information such as the channel overview are downloaded from the projection
TV set to the VCR.
• Direct projection TV recording: While watching TV you need to press just one button on
the VCR to record this programme.
• Automatically switching on: With the projection TV in standby mode, pressing the
“Play z” button on your VCR automatically switches the TV on.
If you have connected a decoder to a VCR which supports Smartlink feature, select
the menu Further Programme Preset in the (Manual Set Up) menu and select
DECODER AV2 to each coded channel. For more details, please refer to the section
"Using the Further Programme Preset function" of this instruction manual.
For more information on Smartlink, please refer to the Instruction Manual of your
VCR.
Smartlink
Using the buttons underneath the cover of the remote control you can
control other Sony equipment.
1 Open the cover of the Remote Control.
2Set the selector VTR 1234 DVD according to the equipment you want to control:
VTR 1 Beta VCR
VTR 2 8 mm VCR
VTR 3 VHS VCR
VTR 4 Digital Video (DCR-VX 1000/9000 E, VHR-1000)
DVD Digital Video Disk
3 Use the buttons underneath the cover on the remote control to operate the equipment.
• If your equipment has a COMMAND MODE selector, set this
selector to the same position as the VTR 1234 DVD selector on the
projection TV Remote Control.
• If the equipment does not have a certain function, the corresponding
button on the remote control will not work.
Remote Control of other Sony Equipment
Rear of projection TV
VCR
Decoder
VIDEO TV
VTR 1 2 3 4 DVD
CH
CH
VTR 1 2 3 4 DVD
Optional Connections
32
Additional Information
For the best picture quality, try to position the projection TV so that you can view the screen from within the areas shown below.
Optimum Viewing Area
Horizontal viewing area
(Optimum viewing position)
Vertical viewing area
(Optimum viewing position)
20º
20º
60º
60º
Additional Information
KP-61PS1, KP-61PS2: minimum distance 2.7 m
KP-53PS1: minimum distance 2.4 m
KP-48PS1, KP-48PS2: minimum distance 2.2 m
KP-61PS1, KP-61PS2: minimum distance 2.7 m
KP-48PS1, KP-48PS2: minimum distance 2.2 m
KP-53PS1: minimum distance 2.4 m
33
GB
Additional Information
Specifications
TV system
B/G/H, D/K, I, L
Colour system
PAL, SECAM
NTSC 3.58, 4.43 (only Video In)
Channel coverage
VHF: E2-E12
UHF: E21-E69
CATV: S1-S20
HYPER: S21-S41
D/K: R1-R12, R21-R69
I: UHF B21-B69
L: F2-F10, B-Q, F21-F69
Projected picture size
KP-61PS1, KP-61PS2:
61 inches (approx. 154 cm measured diagonally)
KP-53PS1:
53 inches (approx. 134 cm measured diagonally)
KP-48PS1, KP-48PS2:
48 inches (approx. 121 cm measured diagonally)
Rear Terminals
• Centre speaker input terminals (2 terminals)
• (L, R) audio outputs (phono jacks)
• :1/ 21-pin Euro connector (CENELEC standard)
including audio/video input, RGB input,
TV audio/video output.
• :2/q 2 21-pin Euro connector (CENELEC standard)
(SMARTLINK)
including audio/video input, S video input,
selectable audio/video output.
• :3/q 3 21-pin Euro connector (CENELEC standard)
including audio/video input, S video input,
audio/video output (monitor out).
Front Terminals
AV4 inputs:
q S video input - 4 pin DIN
… video input - phono jack
audio inputs - phono jacks
Headphones jack - minijack stereo
Sound output
2 x 30 W (music power)
2 x 15 W (RMS)
Centre SP input
30 W (RMS) (using as the centre speaker)
Power consumption
225 W
Standby Power consumption
< 0.7 W
Dimensions (w x h x d)
KP-61PS1, KP-61PS2: Approx. 1372 x 1528 x 658 mm
KP-53PS1: Approx. 1218 x 1419 x 606 mm
KP-48PS1: Approx. 1106 x 1336 x 562 mm
KP-48PS2: Approx. 1091 x 1335 x 580 mm
Weight
KP-61PS1, KP-61PS2: Approx. 92 kg
KP-53PS1: Approx. 76 kg
KP-48PS1, KP-48PS2: Approx. 68 kg
Accessories supplied
1 Remote Control (RM-892 or RM-903)
2 Batteries (IEC designated)
Other features
100 Hz picture
Digital Comb filter (High resolution)
TELETEXT, Fastext, TOPtext
NexTView
NICAM
Sleep Timer
Smartlink
Digital Noise detection
Graphic Equaliser
Personal ID
Design and specifications are subject to change without notice.
Ecological Paper - Totally Chlorine Free
Additional Information
C
34
Additional Information
Here are some simple solutions to the problems which may affect the picture and sound.
Troubleshooting
Problem
No picture (screen is dark), no sound.
Poor or no picture (screen is dark),
but good sound.
Poor picture quality when watching a
RGB video source.
Good picture, no sound
No colour on colour programmes
Distorted picture when changing
programmes or selecting teletext
Wrong characters appear when viewing
teletext
Striped picture
Noisy picture when viewing TV channel
Remote control does not function
The standby indicator on the TV
flashes.
Solution
• Plug the projection TV in.
• Press the button on the front of the projection TV.
• If the indicator is on, press TV button on the remote control.
• Check the aerial connection.
• Check that the selected video source is on.
• Turn the projection TV off for 3 or 4 seconds and then turn it on again using
the button on the front of the projection TV.
• Using the MENU system, select the Picture Adjustment menu. Adjust the
brightness, contrast and colour balance levels.
• Press the button repeatedly on the remote control until the RGB
symbol 1 is displayed on the screen.
• Press the +/- button on the remote control.
• Check that "Main" speaker is selected in the "Features" menu.
• Using the MENU system, select the Picture Adjustment menu. Adjust the
colour balance.
• Turn off any equipment connected to the Scart connectors on the rear of
the projection TV.
• Using the menu system, enter to the “Language/Country” menu and
select the country in which you operate the TV set.
• Adjust the RF Atenuator (ATT). For details, please refer to the section
"Using the Further Programme Preset function".
• Adjust Fine Tuning (AFT) to obtain better picture reception. For details,
please refer to the section "Using the Further Programme Preset function"
• Replace the batteries.
• Contact your nearest Sony service centre.
• If you continue to have these problems, have your TV serviced by qualified personnel.
• NEVER open the casing yourself.
Additional Information
35
GB
Additional Information
Only the main transmitters are listed. Information regarding the regional sub-relay channel numbers can be obtain by connecting
The BBC Engineering Information Dept. (0181) 752 5040.
Television Channel Number Guide for United Kingdom
MAIN TRANSMITTERS BBC1 BBC2 ITV CH4 CH5
London & South East
1Bluebell Hill 40 46 43 65 -
2Crystal Palace 26 33 23 30 -
3Dover 50 56 66 53 -
4Heathfield 49 52 64 67 -
5Oxford 57 63 60 53 49
South-West
6Beacon Hill 57 63 60 53 -
7Caradon Hill 22 28 25 32 -
8Huntshaw Cross 55 62 59 65 67
9Redruth 51 44 41 47 37
10 Stockland Hill 33 26 23 29 -
Channel Islands
11 Fremont Point 51 44 41 47 -
South
12 Hannington 39 45 42 66 -
13 Midhurst 61 55 58 68 -
14 Rowridge 31 24 27 21 -
West
15 Mendip 58 64 61 54 37
East
16 Sandy Heath 31 27 24 21 39
17 Sudbury 51 44 41 47 -
18 Tacolneston 62 55 59 65 52
Midlands (West)
19 Ridge Hill 22 28 25 32 -
20 Sutton Coldfield 46 40 43 50 -
21 The Wrekin 26 33 23 29 -
Midlands (East)
22 Waltham 58 64 61 54 -
Northern Ireland
23 Brougher Mountain 22 28 25 32 -
24 Divis 31 27 24 21 -
25 Limavady 55 62 59 65 -
North
26 Belmont 22 28 25 32 56
27 Emley Moor 44 51 47 41 37
North-West
28 Winter Hill 55 62 59 65 48
North-East
29 Bilsdale West Moor 33 26 29 23 -
30 Caldbeck 30 34 28 32 56
31 Chatton 39 45 49 42 -
32 Pontop Pike 58 64 61 54 -
Scotland
33 Angus 57 63 60 53 -
34 Black Hill 40 46 43 50 37
35 Sandale 22 67 - - -
36 Caldbeck - - 28 32 56
37 Craigkelly 31 27 24 21 48
38 Darvel 33 26 23 29 -
39 Durris 22 28 25 32 67
40 Eitshal (Lewis) 33 26 23 29 -
41 Keelylang Hill 40 46 43 50 -
42 Knock More 33 26 23 29 -
43 Rosemarkie 39 45 49 42 -
44 Rumster Forest 31 27 24 21 -
45 Selkirk 55 62 59 65 52
Wales
46 Blaenplwyf 31 27 24 21 56
47 Carmel 57 63 60 53 -
48 Llanddona 57 63 60 53 -
49 Moel-y-Parc 52 45 49 42 -
50 Presely 46 40 43 50 37
51 Wenvoe 44 51 41 47 -
Additional Information
Sony España, S.A.
Printed in Spain
Ecological Paper-Totally Chlorine Free
