TRINITRON
®
COLOR TV
SERVICE MANUAL CX2
CHASSIS
MODEL COMMANDER DEST. CHASSIS NO.
RM-GA002
MODEL COMMANDER DEST. CHASSIS NO.
KV-DZ29M30 RM-GA002 South Africa SCC-V77A-A
KV-DZ29M61 RM-GA002 Malaysia SCC-V78A-A
KV-DZ29M61 RM-GA002 GE SCC-V72A-A
KV-DZ29M91 RM-GA002 Russia SCC-V74A-A
– 2 –
KV-DZ29M30/M61/M91
RM-GA002
TABLE OF CONTENTS
SELF DIAGNOSTIC FUNCTION ..................................3
1. DISASSEMBLY
1-1. Rear Cover Removal .................................................. 5
1-2. Speaker Removal ....................................................... 5
1-3. Chassis Assy Removal ............................................... 5
1-4. Service Position ......................................................... 5
1-5. D and D3 Boards Removal ........................................ 5
1-6. F1 Board Removal ..................................................... 5
1-7. H1 Board Removal .................................................... 6
1-8. A1 and B1 Boards Removal ...................................... 6
1-9. Picture Tube Removal ................................................ 6
2. CIRCUIT BOARDS LOCATION ...................................8
3. ADVANCE OPERATION
3-1. "RESET" Function ..................................................... 9
4. SET-UP ADJUSTMENTS
4-1. Beam Landing Adjustment ...................................... 10
4-2. Convergence Adjustment ......................................... 11
4-3. Focus Adjustment .................................................... 13
4-4. G2 (SCREEN) Adjustments .................................... 13
4-5. Sub Brightness Adjustment ..................................... 13
4-6. White Balance Adjustment ...................................... 13
5. CIRCUIT ADJUSTMENTS
5-1. Adjustment With Commander ................................. 14
5-2. Adjustment Method ................................................. 15
5-3. Picture Quality Adjustments .................................... 48
5-4. Sub Hue/Col Adjustment ......................................... 48
5-5. Deflection Adjustments ........................................... 49
5-6. Picture Distortion Adjustment (1) ........................... 50
Section Title Page Section Title Page
6. DIAGRAMS
6-1. Block Diagram ......................................................... 51
6-2. Schematic Diagram Information ............................. 52
6-2-1. A1 Board – (Block 001) ................................ 53
6-2-2. A1 Board – (Block 002) ................................ 55
6-2-3. A1 Board – (Block 003) ................................ 57
6-2-4. A1 Board – (Block 004) ................................ 59
6-2-5. B1 Board – (Block 001) ................................ 60
6-2-6. B1 Board – (Block 002) ................................ 62
6-2-7. C Board Schematic Diagram ........................ 64
6-2-8. D Board – (Block 001) ................................. 66
6-2-9. D Board – (Block 002) ................................. 68
6-2-10. D3 Board Schematic Diagram .................... 69
6-2-11. F1 Board Schematic Diagram .................... 71
6-2-12. H1 Board Schematic Diagram .................... 72
6-2-13. VM1 Board Schematic Diagram ................ 74
6-3. Voltage Measurement and Waveform...................... 76
6-4. Printed Wiring Boards ............................................. 82
6-5. Semiconductors ........................................................ 89
7. EXPLODED VIEWS
7-1. Picture Tube and Speaker Bracket .......................... 91
8. ELECTRICAL PARTS LIST........................................ 93

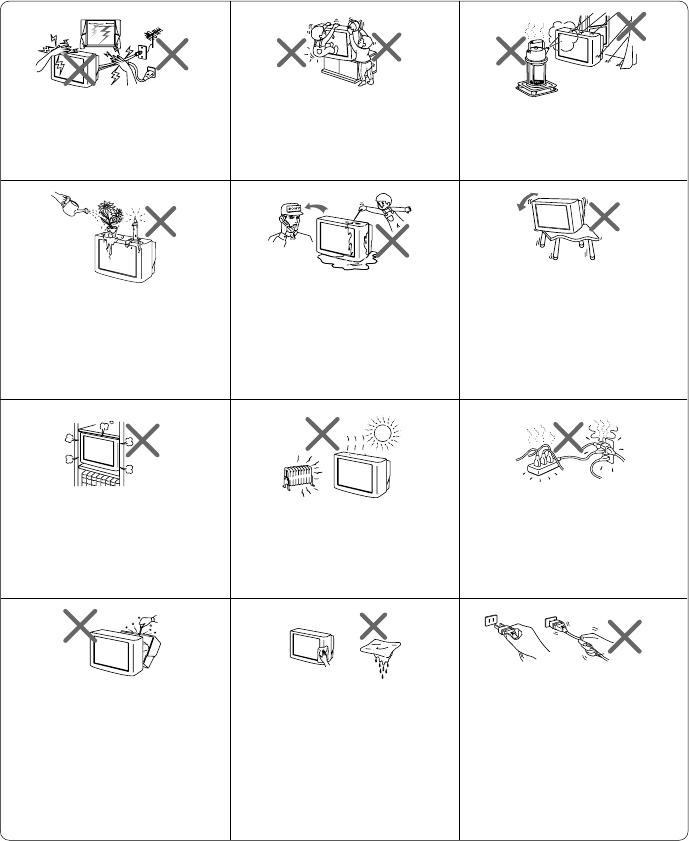

OPERATING INSTRUCTIONS
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE
SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE
THESE COMPONENTS WITH SONY PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN
SUPPLEMENTS PUBLISHED BY SONY.
CAUTION
SHORT CIRCUIT THE ANODE OF THE PICTURE TUBE AND THE
ANODE CAP TO THE METAL CHASSIS, CRT SHIELD, OR
CARBON PAINTED ON THE CRT, AFTER REMOVING THE
ANODE.
– 3 –
KV-DZ29M30/M61/M91
RM-GA002
Lamp OFF 3 seconds
Lamp ON 300ms
Lamp OFF 300ms
Standby indicator
Detected
Symptoms
•Power does not turn on.
•No power is supplied to the
TV.
•AC power supply is faulty.
•Power does not turn on.
•Load on power line is
shorted.
•H pulse output is too high.
•Power does not come on.
•Vertical deflection pulse is
stopped.
•Vertical size is too small.
•Vertical deflection stopped.
•No raster is generated.
•CRT cathode current
detection reference pulse
output is small.
•TV Blank
•No Raster
•Power is shut down shortly,
after this return back to
normal.
•Detect Micro latch up.
•TV Blank
•No Raster
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/TIMER lamp will automatically
begin to flash.
The number of times the lamp flashes translates to a probable source of the problem. If an error symptom cannot be
reproduced, the remote commander can be used to review the failure occurrence data stored in memory to reveal past
problems and how often these problems occur.

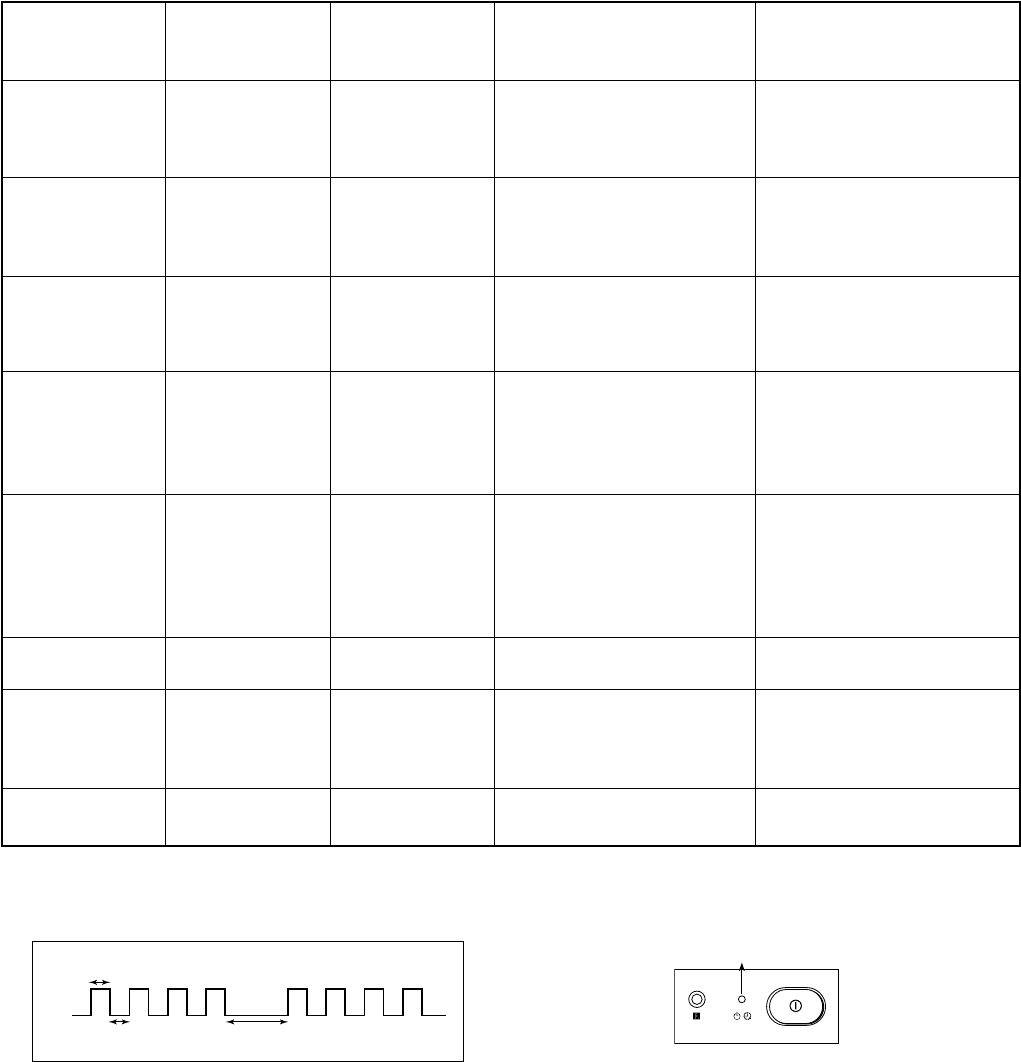

1. DIAGNOSTIC TEST INDICATORS
When an error occurs, the STANDBY/TIMER lamp will flash a number of times to indicate the possible cause of the problem.
If there is more than one error, the lamp will identify the first of the problem areas.
Result for all of the following diagnostic items are displayed on screen. No error has occured if the screen displays a “0”.
Diagnostic
Item
Description
•Power does not
turn on
•+B overcurrent
(OCP)
•Horizontal
deflection failure
•+B overvoltage
(OVP)
•Vertical deflection
failure
•White balance
failure (no
PICTURE)
•5V/9V failure
•Micro reset
•BT Power
Failure
No. of times
STANDBY/TIMER
lamp flashes
Does not light
2 times
3 times
4 times
5 times
8 times
—
9 times
Self-diagnostic
display/Diagnostic
result
—
2 OCP :000 or
2 OCP :001~255
3 OVP :000 or
3 OVP :001~255
4 VSTOP :000 or
4 VSTOP :001~255
5 AKB :000 or
5 AKB :001~255
8 SUP :0001 or
8 SUP :001~225
101 WDT :N/A
9 SUPBT:000 or
9 SUPBT :001~255
Probable
Cause
Location
•Power cord is not plugged in.
•Fuse is burned out F1601
(F1 Board)
•H.OUT Q6802 is shorted.
•PS6606 open, PS6605 open.
(D board)
•PH6602 faulty.
D6644 faulty, R6688 open.
•10.5V is not supplied.
(D board)
•V.OUT IC6800 faulty
D6827 faulty
D6817 faulty
R6850 open
R6872 open (D board)
•G2 is improperly adjusted.
•CRT problem.
•Video OUT IC9001, 9002,
9003 are faulty. (C board)
•IC4301 CXA2170Q
(A1 board) are faulty.
•5V regulator (IC2601) faulty.
•9V regulator (IC2600) faulty.
•CRT Discharge (C Board)
•Static discharge
•External noise
BT MCV Failure
SELF DIAGNOSTIC FUNCTION
2. STANDBY INDICATOR BLINKING PROCESS
The example above represents for 4 times blink
3. STANDBY INDICATOR ON TV FRONT PANEL
– 4 –
KV-DZ29M30/M61/M91
RM-GA002
2 OCP: 0
3 OVP: 0
4 VSTOP: 0
5 AKB: 0
8 SOP: 0
9 SOPBT: 0
01 WDT: N/A
Numeral "0" means that no fault has been detected.
Numeral "1" means a fault has been detected.
SELF DIAGNOSTIC
Numeral "2" means two faults have been detected.
IC4301
RGB JUNGLE
CXA2170AQ
OVP
FROM
CRT (IK)
[V] Q6808, R6910
IC001
SYSTEM
SDA
SDA
9V 5V
IC004
MEMORY
IK_IN
H PROT
RED LED
524
57
7
6
V PROT
56
[OCP] Q6804, D6821
[H] D6808, D6809
84 14,47,
82
4. SELF DIAGNOSTIC SCREEN DISPLAY
5. HANDLING SELF DIAGNOSTIC SCREEN DISPLAY

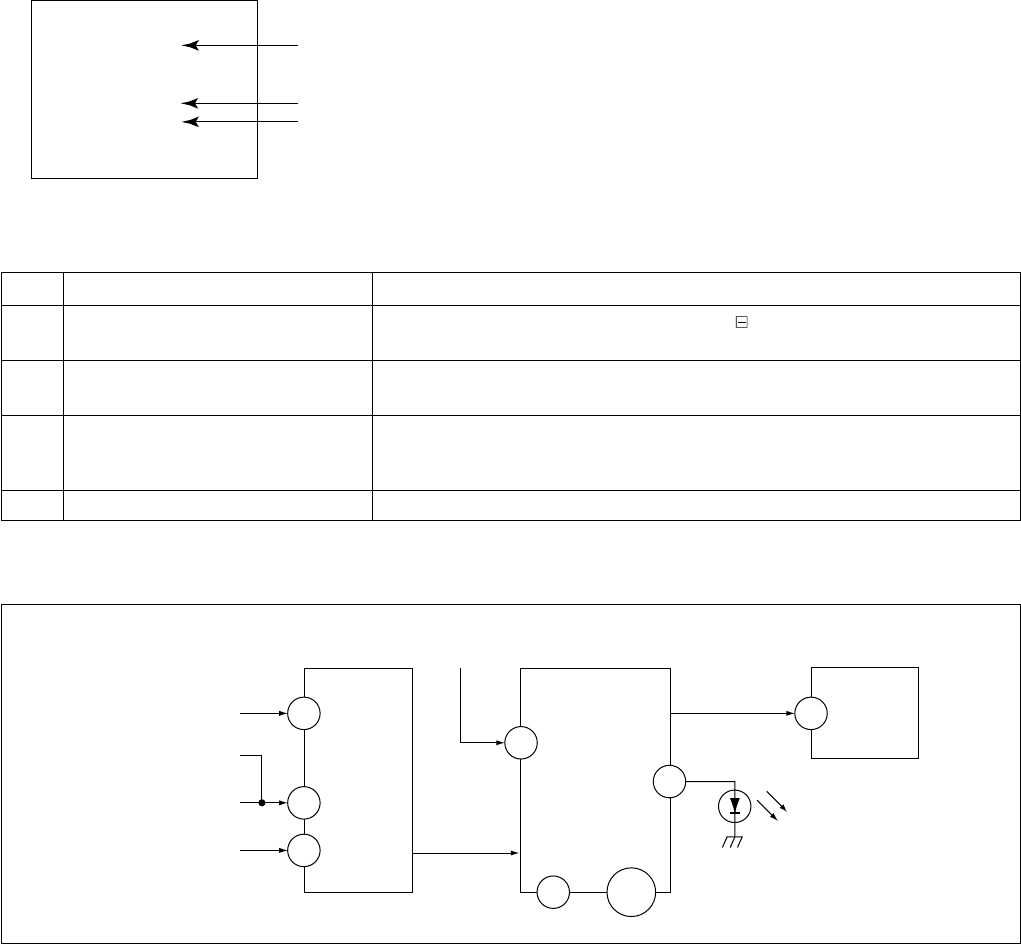

6. SELF-DIAGNOSTIC CIRCUIT
[+B overcurrent OCP ] Occurs when an overcurrent on the +B(135) line is detected by Q6804.
If Q6804 go to ON, the voltage to the pin57 of IC4301 go to "HIGH".
The unit will automatically turn off.
[High voltage protector of Horizontal Deflection] Occurs when an overvoltage of horizontal pulse is detected by D6809.
If the voltage of anode D6809 and D6843 goes to High, the voltage to pin57
of IC4301 go to "HIGH".
The unit will automatically turn off.
[+B overvoltage OVP ] Occurs when an overvoltage on the +B(135) line is detected by D6635 and
Q6606. If Q6606 go to ON, the voltage to pin6 of IC001 go to "HIGH". The
unit will automatically turn off.
[Vertical deflection failure] Occurs when an absence of the vertical deflection pulse is detected by
Q6808 and R6910. Shut down the power supply.
[White balance failure] If the RGB levels do not balance or become low level within 5 seconds. This
error will be detected by IC4301.
TV will stay on, but there will be no picture.
[5V/9V failure] Occurs when 5V/9V is not supplied to Micon (IC001).
No raster will be detected or no picture.
5
8
No. Description Method
1. Display self diagnostic screen [Display] t [Channel ] t [Volume ] t [Power / TV]
Note: The above must be performed while TV is on standby mode.
2. Stop standby flash i) Turn off power switch on main.
ii) Unplug power cord from the outlet.
3. Clear fault result In self diagnostic screen, press [Channel ] t -
Note: Diagnostic results display on screen is not automatically cleared. Therefore,
clear result after completion of repair.
4. Quit self diagnostic screen Turn off power switch of remote commander or main unit.
– 5 –
KV-DZ29M30/M61/M91
RM-GA002
SECTION 1
DISASSEMBLY

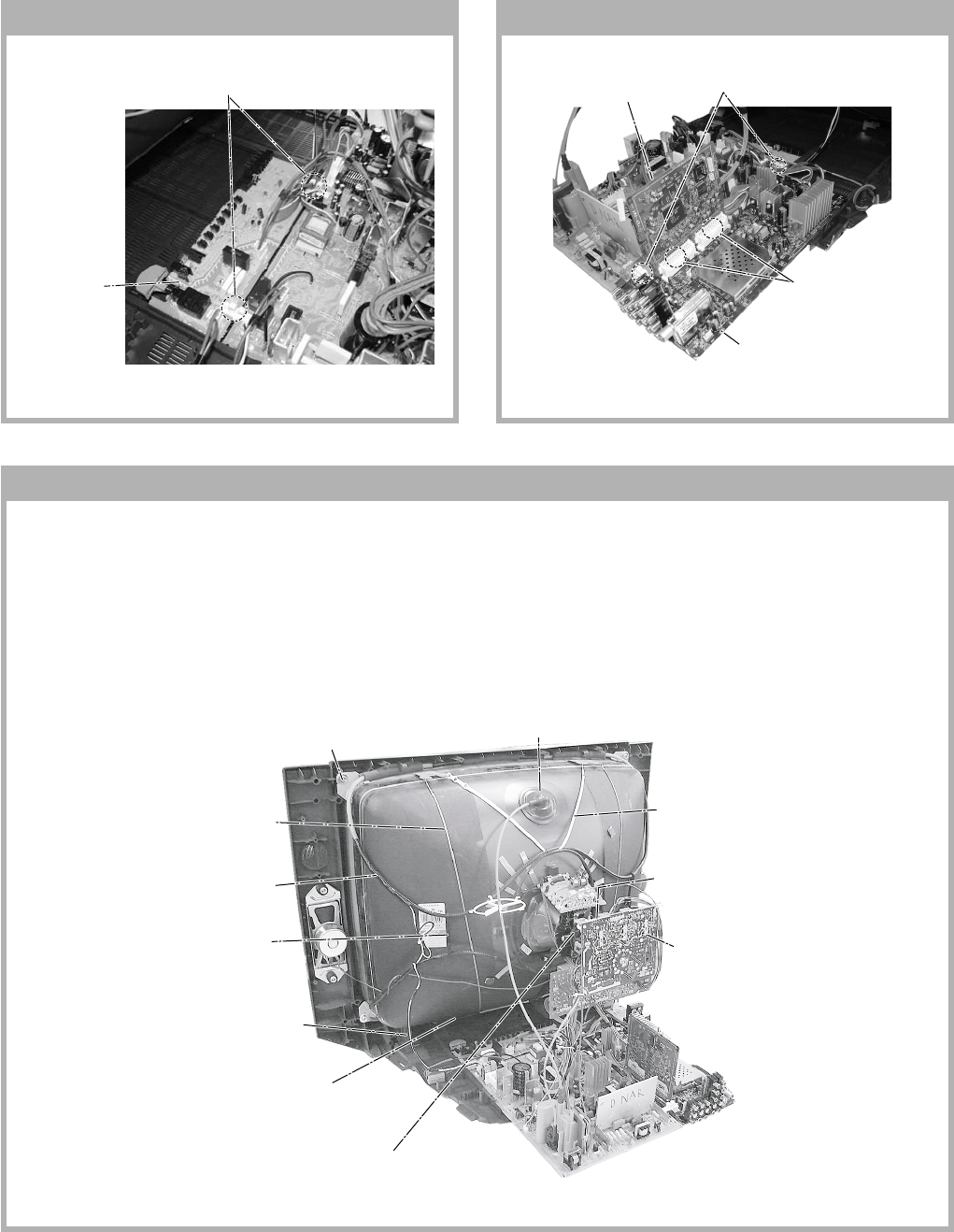

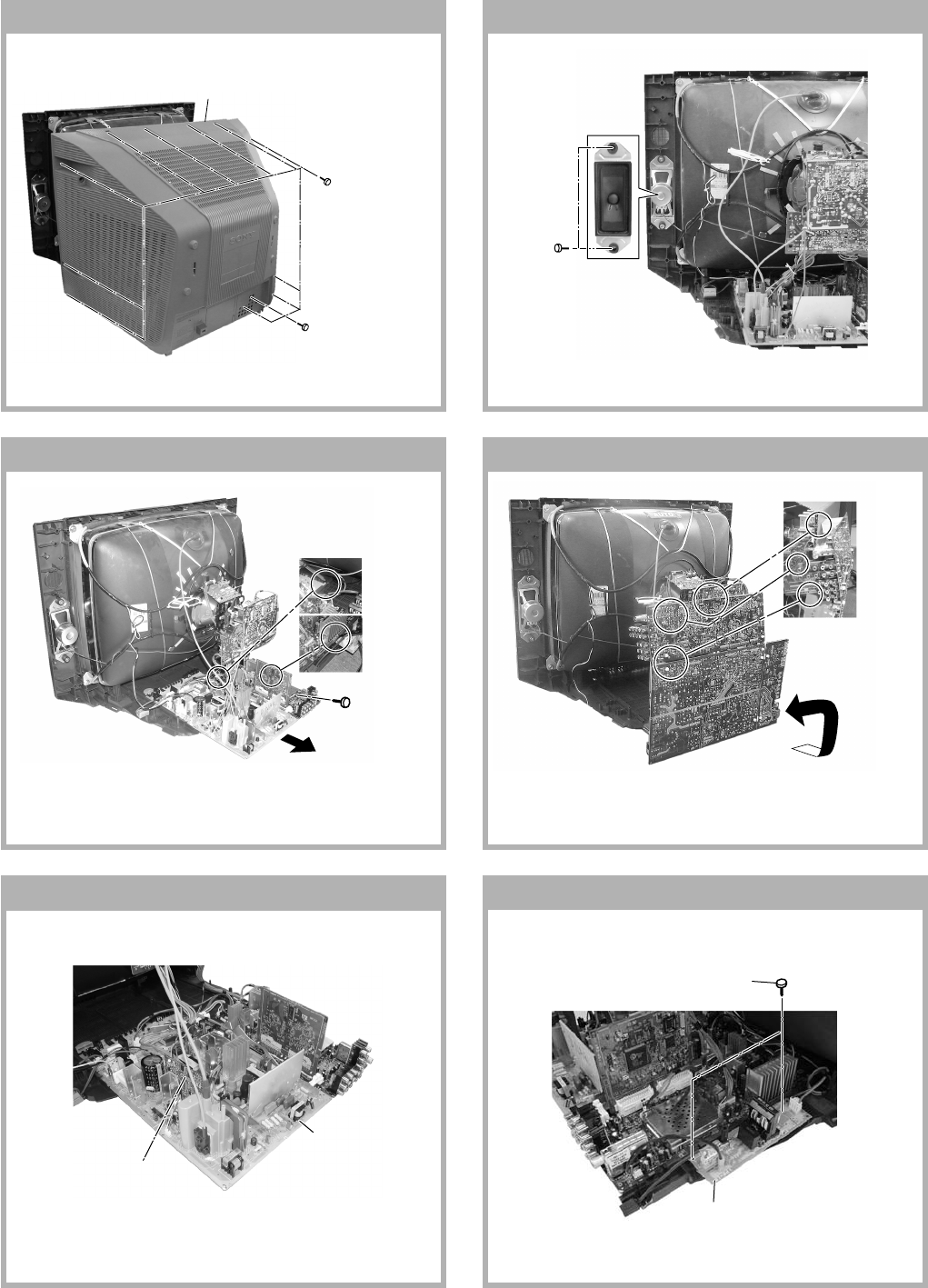

1-2. SPEAKER REMOVAL
1-3. CHASSIS ASSY REMOVAL 1-4. SERVICE POSITION
1-5. D AND D3 BOARDS REMOVAL
1-1. REAR COVER REMOVAL
1-6. F1 BOARD REMOVAL
1 Eleven screws
(+BVTP 4 × 16)
2 One screw
(+BVTP 3 × 12)
3 Rear cover
1 Two screws
(Washer Head)
(+P4x16)
1 D Board
2 D3 Board
2 F1 Board
1 Two screws
(+BVTP 3 × 12)
2
1
One stopper
One stopper
1i& 2 Make sure stopper is release & unscrew one screw
before taking out boards.
• Make sure all connector/bridge are fully inserted during
chassis installation.
3 One screw
(+BVTP 3 × 12)
3
2
1
1 Do not bend A1 board to avoid Bridge connector peel off.
2 Locate paper between A and D board to avoid heat sink touching.
3 Locate paper between A and C board to avoid heat sink touching.
• No need to connect earthing connector (F1 Board) during servicing.
– 6 –
KV-DZ29M30/M61/M91
RM-GA002
1-8. A1 AND B1 BOARDS REMOVAL1-7. H1 BOARD REMOVAL
1 Two hooks
2 H1 Board
1 Two hooks
3 Two clips
2 A1 Board
4 B1 Board
4 Anode Cap Removal
0 Degaussing Coil 6 Loosen the Neck Assembly
fixing screw and remove
Neck Assy & VM coil
7 Loosen the Deflection Yoke
fixing screw and remove
5 C Board Removal
qd Spring Tension
Removal (x2)
9 Holder, DGC
Removal (x2)
qa Earth Coating Assy
qf Srew Tapping 7+ Crown Washer (x4)
8 Band, DGC Removal
qs Supports, CRT Removal (x2)
1-9. PICTURE TUBE REMOVAL
Note:
•For KV-DZ29M30 (South Africa), the picture tube is upside down and the position for the anode cap and tension springs are
change accordingly.
•Please make sure the TV set is not in standing position before removing necessary CRT support located on bottom right
and left.
1) Remove the Rear Cover.
2) Unplug all interconnecting leads from the Deflection Yoke, Neck Assy, Degaussing Coils and CRT grounding strap. Remove
Chassis Assy.
3) Place the TV set with the CRT face down on a cushion (jig).
– 7 –
KV-DZ29M30/M61/M91
RM-GA002

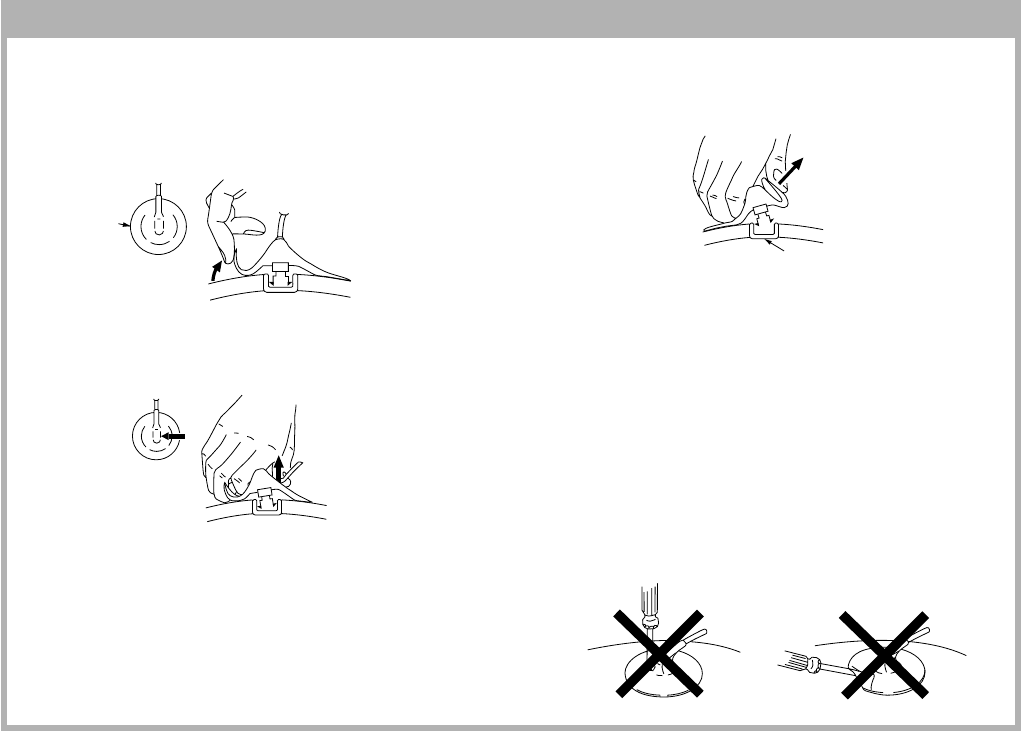

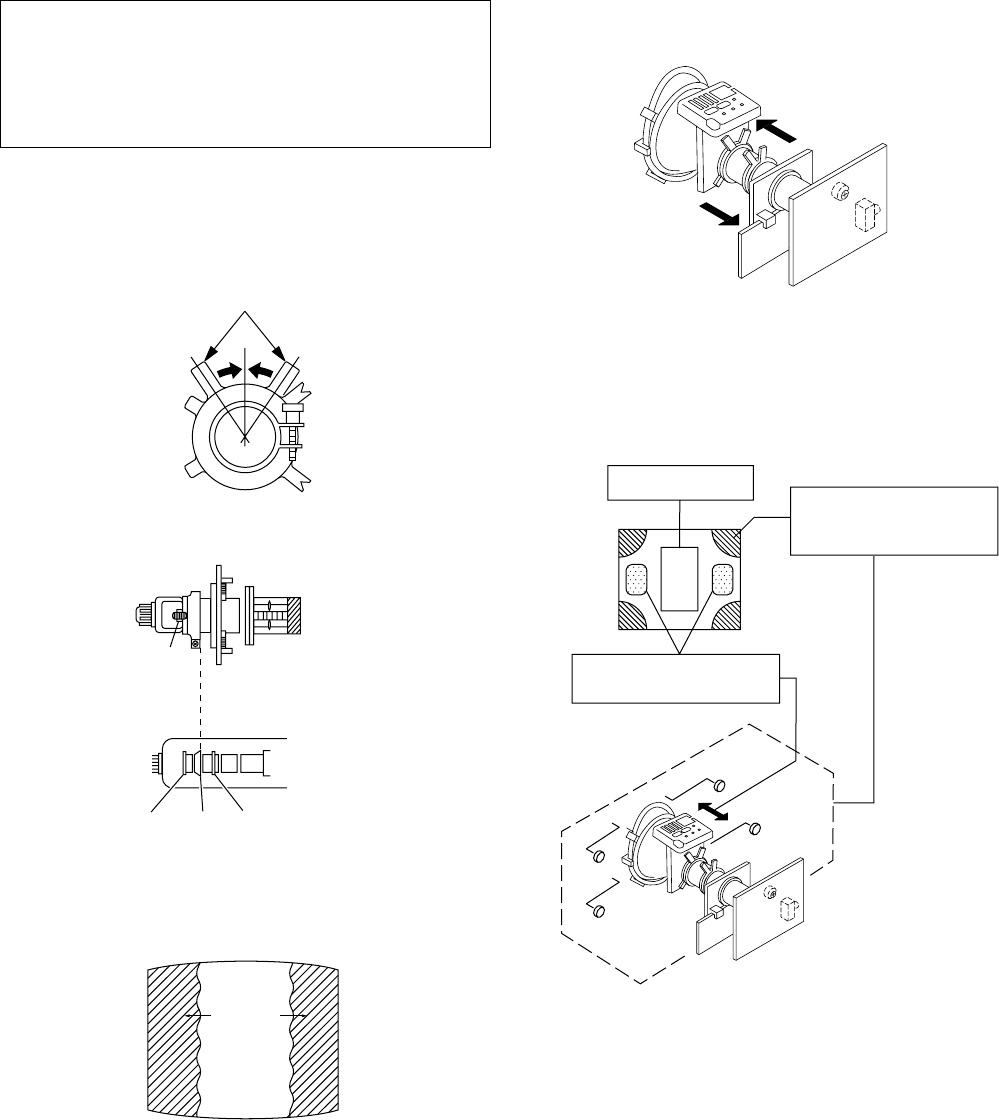

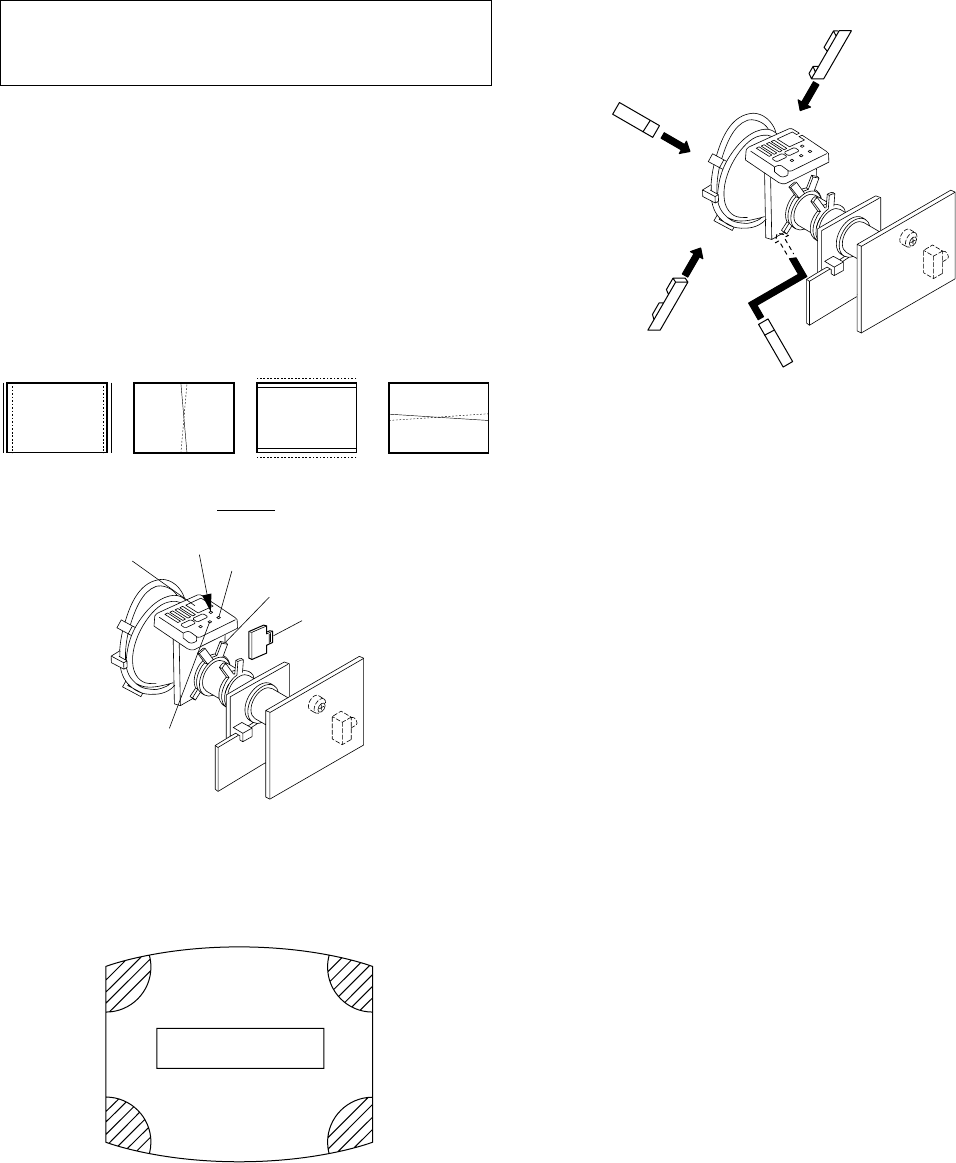

• REMOVAL OF ANODE-CAP
Note:
•After removing the anode, short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or
carbon paint on the CRT.
•REMOVING PROCEDURES
1Turn up one side of the rubber cap in the direction
indicated by the arrow a.
2Using a thumb pull up the rubber cap firmly in the direction
indicated by the arrow b.
3When one side of the rubber cap is separated from the
anode button, the anode-cap can be removed by turning
up the rubber cap and pulling it up in the direction of the
arrow c.
•HOW TO HANDLE AN ANODE-CAP
1Do not damage the surface of anode-caps with sharp
shaped objects.
2Do not press the rubber too hard so as not to damage
the inside of anode-cap.
A metal fitting called the shatter-hook terminal is built
into the rubber.
3Do not turn the foot of rubber over too hard.
The shatter-hook terminal will stick out or damage the
rubber.
a
a
b
b
c
Anode Button
– 8 –
KV-DZ29M30/M61/M91
RM-GA002
SECTION 2

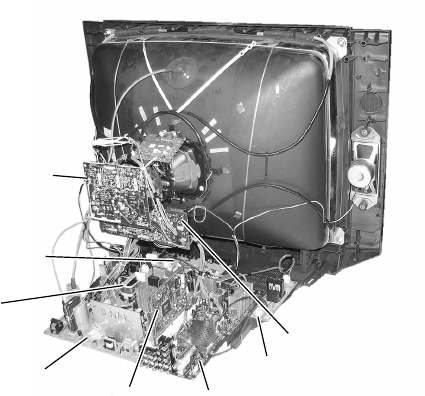

CIRCUIT BOARDS LOCATION
C Board
H1 Board
A1 Board
D Board
B1 Board
VM1 Board
F1 Board
D3 Board
– 9 –
KV-DZ29M30/M61/M91
RM-GA002
SECTION 3
ADVANCE OPERATION
3-1. "RESET" FUNCTION
1. Purpose
If a customer faces some setting problem that cannot be solved, using the "RESET" function some items will be
reset to its original setting or factory setting (shipping condition)

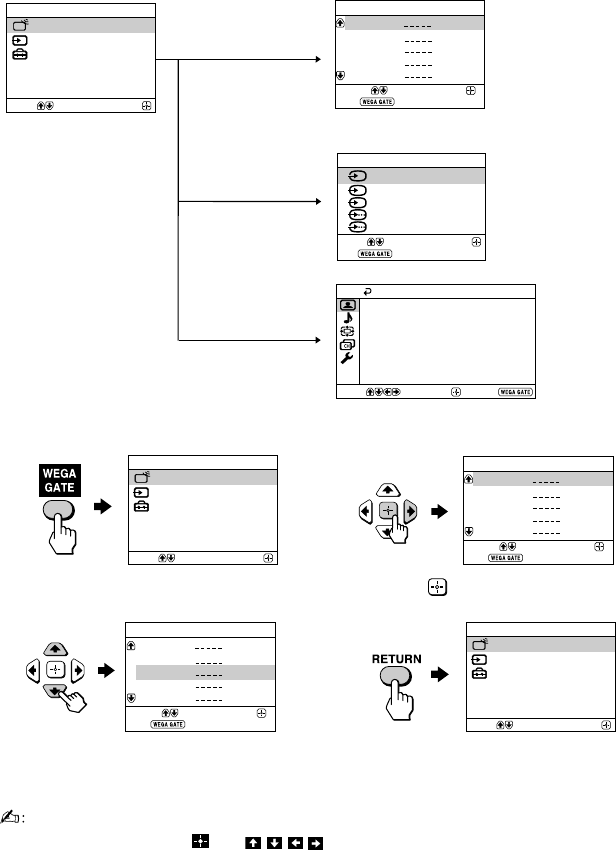

2. How to Operate
The following is to show on how to access to the "RESET" Function:-
User selection = press 'WEGA GATE' t selectt 'SETTING' t go to 'SETUP' page t select 'FACTORY
SETTINGS' t select 'YES'

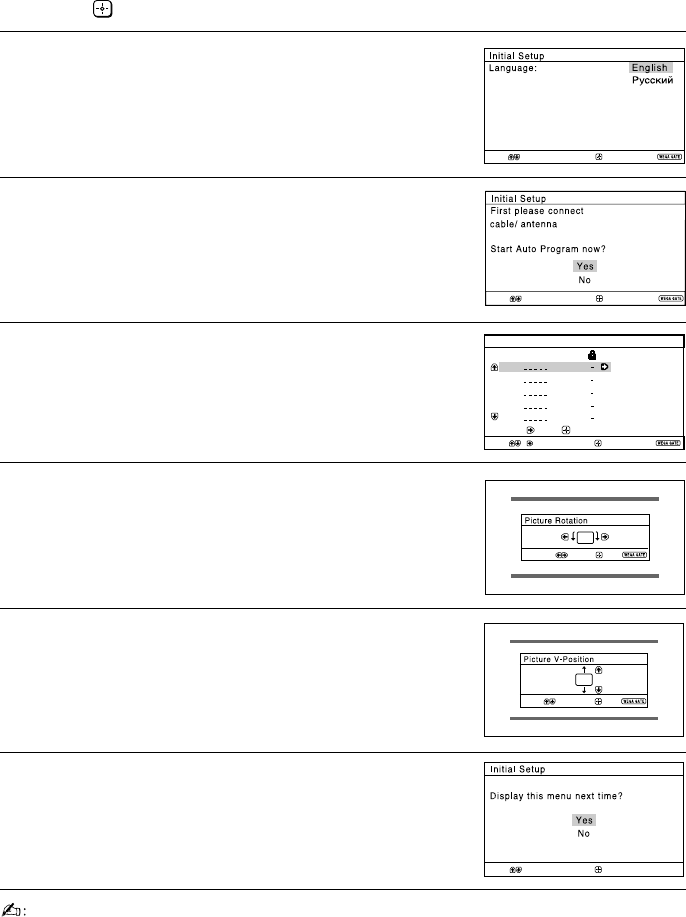

3. Subsequent of Operation
Sequential to the resetting operation, TV set would shut down once and automatically turn on again. The power-off
duration is expected to be about 500msec. Initial Setup Menu is displayed.
As a result, some items will be reset to their initial conditions (shipment condition) wheareas some others remain
at the last user selection.
Items that remain at the last user selection
Reset Items
Video input RF user last setting
Main Volume 25
Scan mode 100Hz
Picture mode VIVID
Intelligent Picture ON
Sound mode DYNAMIC
Intelligent volume OFF
Surround OFF
Wide mode 4.3
Auto wide ON
*Program Block Reset particular, displayed
channel to unblock
Game mode OFF (Video) *Not available in RF
mode
D-NR OFF
Signal level ON
indicator
*= Will reset only if watched/displayed during RESET operation
- For Multi model only
Category Default Category Default
Program No., PICTURE POSITION (included PICTURE
ROTATION and PICTURE V-POSITION), OSD Language, Fine tuning,
TV System, Skip, Program label, Program sorting, Video label,
Picture Adjustment (Picture, Brightness, Color Temperature, VM)
Setting t Custom, Sound Adjustment (100Hz,300Hz,
1KHz, 3KHz, 8KHz) setting t Custom.
* Color System RF = Reset to Auto at the particular/displayed Video
= MI Reset to Auto CH, others keep user setting
Eco mode OFF
Wide mode Wide zoom
4.3 Default Wide zoom
V Center 00
V Size 00
Mute OFF
Initial setup menu Reactivate/ON
Twin size Center
– 10 –
KV-DZ29M30/M61/M91
RM-GA002
The following adjustments should be made when a complete
realignment is required or a new picture tube is installed.
The controls and switch should be set as follows unless
otherwise noted:
Picture Control....................................."NORMAL"
Brightness Control..............................."NORMAL"
Perform the adjustments in order as follows :
1. Beam Landing
2. Convergence
3. Focus
4. G2(SCREEN)
5. White Balance
Note : Test Equipment Required.
1. Pattern Generator 5. Oscilloscope
2. Degausser 6. Landing Checker
3. DC Power Supply 7. XCV Adjuster
4. Digital Multimeter
SECTION 4
SET-UP ADJUSTMENTS
Preparation :
• Feed in the white pattern signal.
• Before starting, degauss the entire screen with the
degausser.
• In order to reduce the geomagnetism on the set's picture
tube, face it east or west.
4-1. BEAM LANDING ADJUSTMENT
1. Input a raster signal with the pattern generator.
2. Loose the deflection yoke(DY) mounting screw, and set
the purity control to the center as shown below:-
3. Position Neck Assy as shown below:-
4. Set the raster signal of the pattern generator to green.
5. Move the DY backward and adjust the purity control so
that green is in the center and blue and red are at the
sides evenly.
Red
Blue
Green
Purity control
......................................................................................................................................................................................................................
6. Then move the DY forward and adjust so that the entire
screen becomes green.
7. Now switch over raster signal to red then blue and
confirm the condition.
8. When the position of the DY is determined, tighten it with
the DY mounting screw.
9. If the beam does not land correctly in all the corners of
the screen, use magnet disc to correct it.
Neck assy
G2G1 G3
Align the edge of
the neck assy with
the edge of the G2 grid.
Purity control
corrects this area. Disk magnets or rotatable
disk magnets correct these
areas (a-d).
Deflection yoke positioning
corrects these areas.
a
b
b
c
c
d
d
a
– 11 –
KV-DZ29M30/M61/M91
RM-GA002
Moved RV9001 (H.STAT)
4-2. CONVERGENCE ADJUSTMENT
Preparation:
•Before starting, perform FOCUS adjustment.
•Receive dot/cross hatch pattern.
•Picture Mode "CUSTOM" (PIC 90%, BRT 50%,
COL 50%, HUE 50%, SHP 50%).

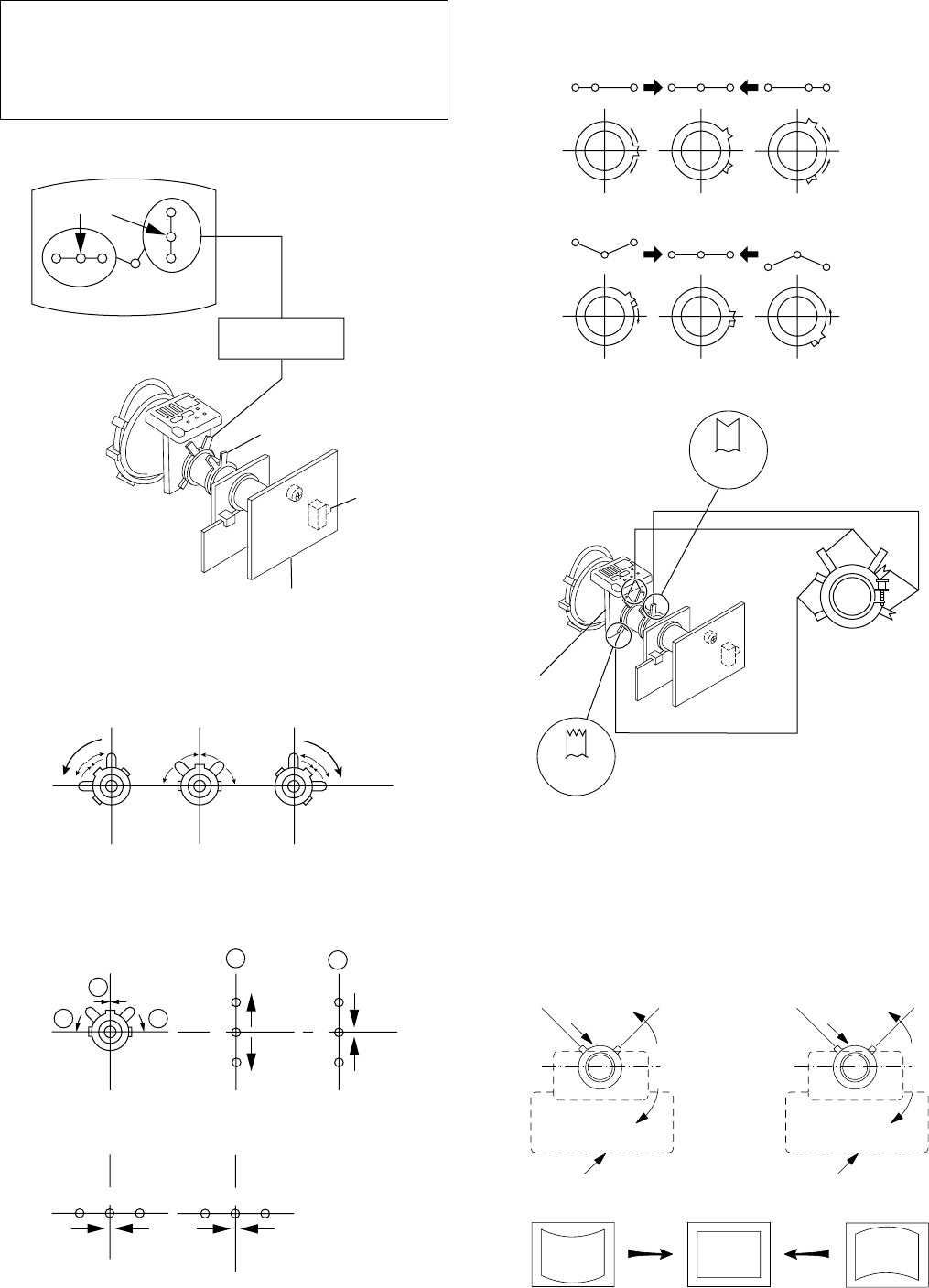

a) Vertical Static Convergence
1. (Moving vertically), adjust the 4 pole magnet to converge
red, green and blue dots in the center of the screen.
2. Tilt the 4 pole magnet and adjust static convergence to
open or close the 4 pole magnet.
3. When the 4 pole magnet is moved in the direction of
arrow A and B, the red, green and blue dots moves as
shown below:-
b) Horizontal Static Convergence
If the blue dots does not converge with the red and green
dots, use the 6 pole magnet to adjust in the manner
described below:-
c) Y Separation axis correction magnet adjustment.
1. Receive cross hatch signal.
2. Set Picture to "MINIMUM", Brightness to
"STANDARD".
3. Adjust the Y separation axis correction magnet on the
Neck Assembly so that the horizontal lines at the top
and bottom of the screen are straight.
Center dot
R G B
R
G
B
4 pole
magnet
RV9001
4-pole
Y magnet
C1 Board
RR
GG
BB
A
A
B
B B
B
RG
GR
B
RG B R G B R GB
RB
RG
GGB
RB
Neck assy Neck assy
Red
Red
VM1 Board VM1 Board
Blue Red Blue
Blue
Purity
6 Pole Magnet
4 Pole Magnet
DY pocket
6 Pole
Magnet
4 Pole
Magnet
– 12 –
KV-DZ29M30/M61/M91
RM-GA002
d) Convergence Rough Adjustment
Preparation:
•Before starting this adjustment, adjust the horizontal and
vertical static convergence.
Input cross hatch pattern.
i) TLH
Adjust the horizontal convergence of red and blue dots
by inserting TLH Correction Plate to the DY pocket (left
or right).
ii) YCH
Adjust YCH to balance Y axis.
iii) TLV
Adjust the vertical convergence of red and blue dots.
iv) XCV
Adjust XCV to balance X-axis
e) Screen Corner Convergence
Affix a Piece B(120), Convergence Correct/Permaloy
Assy Correction to the misconverged areas.
TLV
RB
YCH
R
B
XCV
B
R
TLH
B
R
TLV
DY pocket
TLH Plate
H-TRAP
YCH
XCV
ON DY:
ba
cd
a-d : screen-corner
misconvergence
a
b
c
d
Permalloy assembly
Fix a Permaloy Assy Correction to the misconverged
a to d: Piece B(120), Convergence Correct
or
Permaloy Assy Correction
– 13 –
KV-DZ29M30/M61/M91
RM-GA002
4-3. FOCUS ADJUSTMENT
FOCUS adjustment should be completed before White
Balance adjustment.
1. Receive digital monoscope pattern.
2. Set Picture Mode to "STANDARD".
3. Adjust focus VR so that the center of the screen
becomes just focus.
4. Change the receiving signal to white pattern and blue
back.
5. Confirm magenta ring is not noticeable. In case magenta
ring is obvious, then adjust FOCUS VR to balance
magenta ring and FOCUS.
4-4. G2 (SCREEN) ADJUSTMENTS
1. Set the following condition:
- Picture and Brightness to "STANDARD".
- TV to Video mode.
2. Connect R,G,B of the C board cathode to oscilloscope.
3. Adjust Brightness to obtain the cathode value to the
value stated below.
4. Adjust SCREEN VR [RV9001] on the FBT until the
scanning line disappears.

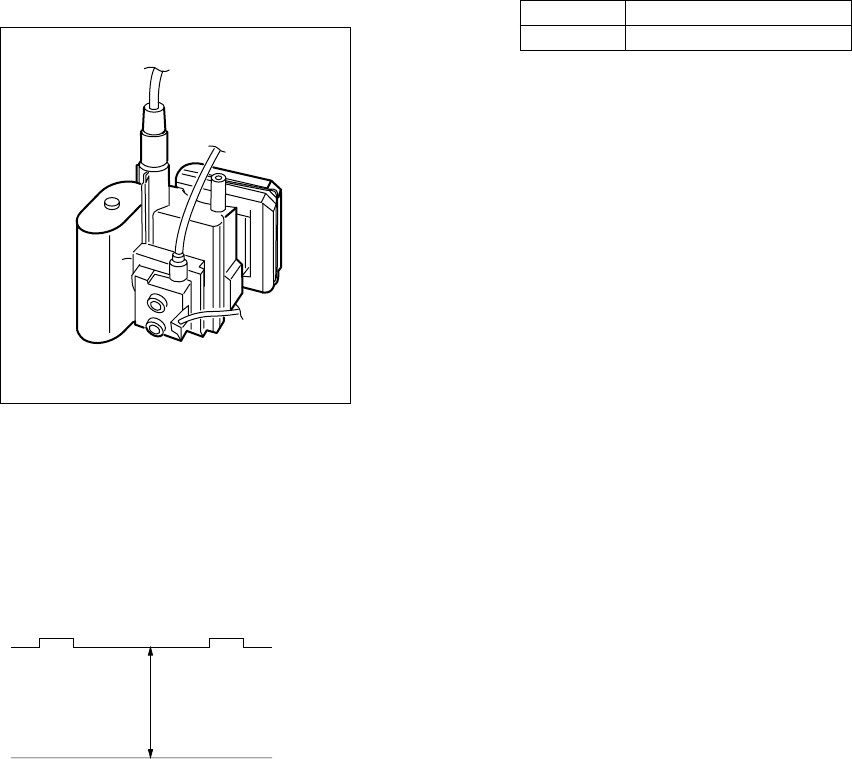

FLYBACK TRANSFORMER (T6805)
4-5. SUB BRIGHTNESS ADJUSTMENT
1. Set TV to RF Mode.
2. Input PAL monoscope to RF mode.
3. Set the following condition:
i) Receive RF PAL monoscope signal
ii) Set "PICTURE MODE" to "CUSTOM" and adjust
PICTURE to 0% and BRIGHTNESS to 50%.
iii) Adjust Sub BRT (service item COLR 006 SBRT)
to make 10 IRE Slightly glimmer.
iv) Apply the offset steps:
Sub Brightnes Offset
4-6. WHITE BALANCE ADJUSTMENT
1. Set to Service Mode.
2. Input white raster signal using signal generator to
Video 1.
3. Set picture mode to "VIVID".
4) Adjust White Balance
COLR 000 RDRV
001 GDRV
003 RCUT
004 GCUT
CA100, 100 PLUS: Adjustment Value
X = 0.2444
Y = 0.2466
Color temperature:
45,000°K + 8 MPCD
Cathode setting voltage:
170 V ± 2 (VDC)
}
High Light (100IRE)
}
Cut off (10nit)
Inch Offset
29" Adjusted + 6 Steps
– 14 –
KV-DZ29M30/M61/M91
RM-GA002
SECTION 5
CIRCUIT ADJUSTMENTS
5-1. ADJUSTMENTS WITH COMMANDER
Service adjustments to this model can be performed using the supplied remote commander RM-GA002.
a. ENTERING SERVICE MODE
With the unit on standby
This operation sequence puts the unit into service mode.
This screen display is:
b. METHOD OF CANCELLATION FROM SERVICE MODE
Set the standby condition (Press [POWER] button on the commander), then press [POWER] button again, hereupon it becomes
TV mode.
c. METHOD OF WRITE INTO MEMORY
1. Set to Service Mode.
2. Press 1 (UP) and 4 (DOWN), to select the adjustment item.
3. Change item by pressing 3, 6.
4. Press [MUTING] button to indicate WRITE on the screen.
5. Press - button to write into memory.
item no. service data NVM service field channel no./
category in decimal item name in decimal NG command frequency video input name
WHBL 000 WBP 000 xSERVICE 50 S VIDEO 1
software service data reserved power on time
release ID version in binary for factory color system (decimal)
CGA20 3.13M 0000 0000 FF FF NTSC3 00100
S_ _ : for SONY
A_ _ : for AIWA
L_ _ : BX1L Full
B_ _ : BX1L Basic
D_ _ : DVD Combo
C_ _ : CX1/CX2
Z_ _ : Sound special
_ _ _01 : Serial no. of the M/P release for each
destination
_ _ _10 ~: use for FY04 BX1
_ _SB : Sub Hercules
t [DISPLAY] t 5 t [VOL $+% ] t [POWER]
1, 4Select the adjustment item.
r
3, 6Raise/lower the data value.
r
[MUTING] Writes.
r
-Executes the writing.
For BP1 Board Version; and BT Version;
Category and release ID will be different.
The rest are the same. (Not use for this model)
BP1 Board Version
item no. item service data
category in decimal name in decimal
SUBP 000 IDXH 000
software
release ID version
CBP00 0.00
BT Version
item no. item service data
category in decimal name in decimal
9090 000 UOF 000
software
release ID version
BT 0A14/M
– 15 –
KV-DZ29M30/M61/M91
RM-GA002
d. MEMORY WRITE CONFIRMATION METHOD
1. After adjustment, pull out the plug from AC outlet, and then plug into AC outlet again.
2. Turn the power switch ON and set to Service Mode.
3. Call the adjusted items again to confirm adjustments were made.
e. OTHER FUNCTION VIA REMOTE COMMANDER
7, -All the data becomes the values in memory.
8, -All user control goes to the standard state.
Display, -Service data initialization (Be sure not to use usually.)
2, 5Select Device or Category
5-2. ADJUSTMENT METHOD
Item Number 000 HPOS
This explanation uses H POSITION as an example.
1. Select "000 HPOS" with the 1 and 4 buttons, or 2 and 5.
2. Raise/lower the data with the 3 and 6 buttons.
3. Select the optimum state. (The standard is IF for PAL reception.)
4. Write with the button. ( (mute icon))
5. Execute the writing with the - button. (The WRITE display will be changed to red color while executing, and back to
SERVICE.)
Example on screen display :-
Use the same method for all Items. Use 1 and 4 to select the adjustment item, use 3 and 6 to adjust, write with , then
execute the write with -.
Note : 1. In [WRITE], the data for all items are written into memory together.
2. For adjustment items that have different standard data between 50Hz or 60Hz, be sure to use the respective input
signal after adjustment.
Adjusted with [3] and [6] buttons.
GREEN
WHBL 000 WBP 000 SERVICE 50 VIDEO 1
write with .
GREEN
WHBL 000 WBP 000 WRITE 50 VIDEO 1
WHBL 000 WBP 000 WRITE 50 VIDEO 1
Write executed with [0].
RED
The WRITE display
then returns to green
SERVICE
– 16 –
KV-DZ29M30/M61/M91
RM-GA002
Adjustment Item Table (Main Micon)
NOTE
a) In the initial value (detailed) colomn, the data after the slash mark ("/") refers to NTSC model data.
No ("/") means data is common for Multi and NTSC model.
b) Item remarked "*", please refer page 27 for the data.
c) shaded items are no data.
d) Standard data listed on the Adjustment Item Table are reference values, therefore it may be different for each model and for each mode.
e) Note for the Different Data those are the standard data values written on the microprocessor. Therefore, the data values of the models are stored respectively in the memory.
In the case of a device replacement, adjustment by rewriting the data value is necessary for some items.
f) Multi ver3.15.
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD srehtOVUY)VT(LAP)VT(CSTN)VT(MACES)oediV(LAP)oediV(CSTN)oediV(MACESTUPNI-SMACESCSTN
CY000YLDY210510yaleD-Y TUPNI-S/VUY+)OEDIV/VT(*)MACES/CSTN/LAP(cimsoC 0011606001* 6001
100TAMC000300xirtaM)ASU/napaJ(CSTNroMACES-LAP 00
200LCA100100gnitimiLroloCcitamotuA 10
300BC000100ycneuqerFretneCssapdnaBamorhC )xif0:oediV*(VThtiwylnodilav00
400OBS100300tesffOkcalBMACES 10
500ESHC100300ytivitisneStnedICSTN/LAP 30
600OLC000100retliF)lleB(ehcolCfoycneuqerFretneC 00
700PRTC000100edoMparTamorhC srehto/MACES 00 10
800TDQ000100parTamorhCdnoceS srehto/MACES 00 00
900SPB000100eniLyaleDdnab-esaBamorhCfossapyB srehto/CSTN 00 00
010OCF000100nOroloCdecroF 00
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD pmeTloC
)rehtoHGIH(
pmeTloC
)rehtoWOL(
pmeTloC
)rehtoMRON(
pmeTloC
)VUYHGIH(
pmeTloC
)VUYWOL(
pmeTloC
)VUYLAMRON(
pmeTloC
)BGRHGIH(
pmeTloC
)BGRWOL(
pmeTloC
)BGRMRON(
0edomciP1edomciP2edomciP
LBHW000PBW000300)woL:3,2,lamroN:1,hgiH:0(gnitteSpmeTroloC edoMerutciPcimsoC 001010
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD edomciP
0
edomciP
1
edomciP
2
VToediVlamroN
)3:4(
DHxednI/niwT
paP/
rehtO
JDAS000EUHS700510euH-buS oediV/VT 6060
100FOIP000700)%57(ocE*02/)atad-02(*erutciP(tesffOerutciP REHTO/ITLUM/LAMRON/SMenignEFP 005 7 0
200CIP130721 0[lortnoCerutciP
-
])CSTN(36-0,)ITLUM(001 )ataDteseRresU=lanosreP:AG(ledoMerutciP 0010705
300LOC130721])CSTN(36-0,)ITLUM(001-0[lortnoCroloC )ataDteseRresU=lanosreP:AG(ledoMerutciP 260605
400TRB130721])CSTN(36-0,)ITLUM(001-0[lortnoCssenthgirB )ataDteseRresU=lanosreP:AG(ledoMerutciP 020505
500EUH130721])CSTN(36-0,)ITLUM(001-0[lortnoCeuH )ataDteseRresU=lanosreP:AG(ledoMerutciP 050505
600PHS130721]])CSTN(36-0,)ITLUM(001-0[lortnoCssenprahS )ataDteseRresU=lanosreP:AG(ledoMerutciP 050505
– 17 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD 0506srehtOVUYVToediVtxeteleTpi-VTlangiSoN
CNYS000SYS000100tupnICNYSYnonoitazinorhcnyS cimsoC00
100OF000300tnatsnoCemiT1esahP )FR(langisoNrogninuTotuA/txeteleT/oediV/FFOPIVT/NOPIVT 0030100000
200DIV000100edoMtnedIoediV 06/05 0000
300LSF000100cnySlacitreVrofleveLgnicilSdecroF 00
400LSS000100rotarapeScnySleveLgnicilS 06/05 0000
500DIVS100700noitacifitnedIoediVrofnoitceleSecruoS srehtO/VUY 0000
600FROF200300ycneuqerFdleiFdecroF 20
700KVM000100gniyeKnoisiVorcaM 10
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD srehtOBGReviLVT
)nyD(
VT
)srehtO(
oediV
)nyD(
oediV
)srehtO(
pmeTroloC
)HGIH(
pmeTroloC
)srehtO(
roloC
)WOL(pmeT
pmeTroloC
)LAMRON(
TCIP000AFC000300edoMretliFbmoC cimsoC00
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD VUYVToediV
WS0002VC000100noitceleSlangiStupnI2SBVC cimsoC00
100OVS10030084@niPISBVC/OVS/OVFIfonoitcnuFVUY/oediV/VT 201010
200LFD000100noitcetorPhsalF 00
300FTNI000100langisecafretniVUYfoytiraloP/edutilpmA 00
– 18 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
MEDS000SWMF000300rotaludomeDMFrofnoitceleSwodniW cimsoC20
100SSQ100100 )metsysMitlumAGrofA/N(edoMreifilpmA)SSQ(dnuoStilpSisauQ 10
200BPB000100retliFssapdnaBdnuoSfossapyB 00
300OLMA000100dnuoSMAroflangiStuptuOoiduA 00
400CVPH000100lortnoCemuloVenohPdaeH 00
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
FIV000DFIO630360rotaludomeDFItesffO cimsoC63
100TCGA130360revo-ekaTCGA 72
200MTS000100edoMgninuThcraeS 10
300DG000100langiS1SBVCnoyaleDpuorG 00
400SCGA100300deepSCGAFI 10
500IFF000100LLPFIretliFtsaF 00
600IANL100100eulavlaitinitibANLpmAFR 00
700TANL591552leveLdlohserhTpmAFR 591
800NSNL400700dlohserhTleveLNSpmAFR 40
900DSNL200700dlohserhTporDleveLNSpmAFR 10
010XENL610360gnimiTporDNSkcehcpmAFR 03
110RTHC840721edoMresUpmAFRtesotgrPotuAretfadlohserhTlennahC 52
210RENT0001001-renutGL,0-renutsplA 10
– 19 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC )deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD VTVToediVffOWOW/SRSdnuorrusurToeretsIonomIsrehtO
PSDS000LBB000510ruotnoCEBB dnuoS
PSD
4020
100HBB000510ssecorPEBB 4101
200WLBB000510tesffOruotnoCEBB 4040
300FOVS000510tesffOemuloVedoMtceffE/dnuorruS onomI/oeretsI/dnuorrusurT/)WOW/SRS(ffO 4090406040
400DAL000130tsujdAleveLredoceD 40
500MAL000130tsujdAleveLonoM 40
600NAL000130tsujdAleveLmaciN 22
700SAL000130tsujdAleveLPAS 80
800AAL000130tsujdAleveLCDA oediV/Lnon-VT/L-VTI)oruEnoN(oediV/vT 7100
900FES300700tceffEoeretS/onoMelbidercnI onomI/oeretsI 5030
010SAB000510tesffOssaBniaM 0202
110ERT000510tesffOelberTniaM 5272
2101QE000510tesffO)zH001(dnaBlennahCniaMrezilauqE 0000
3102QE000510tesffO)zH003(dnaBlennahCniaMrezilauqE 8181
4103QE000510tesffO)zH0001(dnaBlennahCniaMrezilauqE 0010
5104QE000510tesffO)zH0003(dnaBlennahCniaMrezilauqE 5060
6105QE000510tesffO)zH0008(dnaBlennahCniaMrezilauqE 1020
710TCFB500700lortnoCEBBdnaBUD,EBD 50
810NECS100510lortnoCretneCD3SRS 40
910APSS000510lortnoCecapSD3SRS 10
020WHBB000510edomWOWnitesffossecorpEBB 0000
120ERTS200700edomdnuorrusroftesffOelberT 10
220THBB000510edomVTnitesffOEBB 00
320ERTT200700edoMVTnitesffOelberT 30
4201QEC800510)zH001(ataDdnaBrezilauqEnI-retneC 60
5202QEC800510)zH003(ataDdnaBrezilauqEnI-retneC 90
6203QEC800510)zH0001(ataDdnaBrezilauqEnI-retneC 01
7204QEC800510)zH0003(ataDdnaBrezilauqEnI-retneC 01
8205QEC800510)zH0008(ataDdnaBrezilauqEnI-retneC 70
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
TXT000VXT930360spilihProfnoitisoPlacitreVtxeteleT ossaciP93
100DHT010721tfihSegdEevitcAcnys-HtxeteleT 11
200RBT820130)edomllufrof(ssenthgirBBGRtxeteleT 61
300MRBT310130)edomXIMrof(ssenthgirBBGRtxeteleT 81
400DTSN000100)edomXIMotog:1,TXTlecnac:0(langiSdradnatSnoNfoM/C 00
500QCA000100)1-LAP,0-otuA(noitisiuqcAtxeteleT 00
(only for model with teletext function)
– 20 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuF etoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
CEDS000UTPS300510noitcetedreirracPASrofdlohserhTreppU dnuoS
PSD
80
100LTPS600510noitcetedreirracPASrofdlohserhTrewoL 51
200HTPS000130PASfoetumotuarofdlohserhTesioN 00
300YHPS400510PASfoetumotuarofezissiseretsyH 30
400HTMF000130dradnats2AMFni2CSfoetumotuarofdlohserhTesioN 81
500YHMF400510dradnats2AMFni2CSfoetumotuarofezissiseretsyH 70
600ELIN001552)PEDD(timilrorrerewolMACIN 05
700EUIN002552)PEDD(timilrorrereppuMACIN 002
800DMPE100300)PEDD(gnimmargorPysaECEDMED 1=1tiB3POdna0=SDTSdna0=DMPEfI
revoekatlliwyrogetacCKDSdnaelbasiDsiyrogetacCEDS
*
900SDTS910130sedomSSSdnaDSArofdexelpitlumstiB *
010AMVO100100noitpadanoitaludomrevoMF 00
110WBLF000300htdiwdnabretlifrotaludomedMA/MF 30
210DMDI000300edomSSSnideepstnediMF 00
310TMVO100200lanimonotevitalerdlohserhtlevelnoitaludomrevO 30
410IXCD000100retrevnIlortnoCgnilacSOXCDMACIN *
510GXCD000700niaGlortnoCgnilacSOXCDMACIN *
610LLCD110510)L(timiLlortnoCgnilacSOXCDMACIN 00
710HLCD000130)H(timiLlortnoCgnilacSOXCDMACIN *
810RKDI100300DTSMnaeroKrofgnittesDOMDI 00
JVTytilanoitcnuF.tinIegnaRnoitcnuF etoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
CKDS000LLNK000552etyBrewoLdlohserhTrewoLteDesioNnaeroK 1=1tiB3POdna0=SDTSdna0=DMPEfI
revoekatlliwyrogetacCKDSdnaelbasiDsiyrogetacCEDS
100HLNK210552etyBrehgiHdlohserhTrewoLteDesioNnaeroK
200LHNK000552etyBrewoLdlohserhTreppUteDesioNnaeroK
300HHNK020552etyBrehgiHdlohserhTreppUteDesioNnaeroK
400CILK060552tnuocgniniatniamDItoliPtsoLnaeroK
500MILK100721reilpitlumtnuocgniniatniamDItoliPtsoLnaeroK
600CDSK600552tnuoCtceteDoeretSnaeroK
(only applicable for Korea model)
– 21 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF .tinIegnaRnoitcnuFetoN&elbaTeciveD
emaN
nommoC )deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD
0RN
)0elbaT(
1RN
)1elbaT(
2RN
)2elbaT(
3RN
)3elbaT(
4RN
)4elbaT(
0CSTN
)5elbaT(
1CSTN
)6elbaT(
1RN-FR
)1elbaT(
-FR
1CSTN
)6elbaT(
-VT
LAP
-VT
CSTN
OEDIV
LAP-
-OEDIV
CSTN
RN3 000TED3000700TEDD3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
bmoCD3 707070707070707070
100ROC3000100RROCRND3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
100000000010000010
200CFA000300NIAGCFA /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
303030303030303030
300GEH000300NIAGAHNEH 00
400RNC2000510MILRNCD2&KRNC-D2 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
003050509020003000
500CNY000700MILCN-Y;RELLECNACESIONY /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
003030507020103030
600RNY2000510NIAGRNYD2;KRNYD2 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
000020008010102000
700LNY2000300MILRNYD2 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
002030003020203030
800KLB000300PXEKLB 10
900RNC3000700MILRNCD3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
000030307000000000
010KNC3000300KRNCD3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
000000000000000000
110GNC3000700NIAGRNCD3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
002020207000004000
210RNY3000700MILRNYD3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
003030606000001000
310KNY3000300KRNYD3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
001020000000001030
410GNY3000700NIAGRNYD3 /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
002050606000001000
510YLDY000821YALEDTUPTUOY /LAP-DIV/CSTN-VT/LAP-VT
CSTN-S/LAP-S/CSTN-DIV
30706040
610ACI000100OTUAPMALCTNI 10
710MCI000100LAUNAMPMALCTNI 00
810HNEC000100AHNEC 10
910KCI000100YEKPMALCTUPNI 10
020KGB000100YEKETAGTSRUB 10
120LSS000100FPLPESCNYS 00
– 22 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF .tinIegnaRnoitcnuFetoN&elbaTeciveD
emaN
nommoC )deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD
0RN
)0elbaT(
1RN
)1elbaT(
2RN
)2elbaT(
3RN
)3elbaT(
4RN
)4elbaT(
0CSTN
)5elbaT(
1CSTN
)6elbaT(
1RN-FR
)1elbaT(
-FR
1CSTN
)6elbaT(
-VT
LAP
-VT
CSTN
OEDIV
LAP-
-OEDIV
CSTN
-S
LAP
-S
CSTN
lamroN
)3:4(
DHxednI/niwT
paP/
rehtO
RN3 220RCEV000300EROCAHNEV /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
bmoCD3 001010300000101010
320GEV000300NIAGAHNEV /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
000010100000100010
420NEV000300LNAHNEV /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
000010100000100010
5201PMA0007001PMADH /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
606060606060606060
620VGDH000130VNIAGDH /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
818181818181818181
7202PMA0007002PMADH /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
606060606060606060
8201GDH0001301NIAGDH /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
313131313131313131
9203PMA0007003PMADH /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
505050505050105050
0302GDH0001302NIAGDH /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
404040404040104040
130PLSC000510PLSSCA&PLSMCA /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
514101015101010101
230PLSY000510PLSSYA&PLSMYA /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
515101400141414141
330SMCA000510TESFMCA&TESEMCA /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
510101015151510151
430SSCA000510TESFSCA&TESESCA /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
510101015151010101
530SMYA000510TESFMYA&TESEMYA /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
511101015151511151
630SSYA000510TESFSYA&TESESYA /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
511141015111014101
730LSCB000510PLSSCB&PLSMCB /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
51
0101015141510151
830LSYB000510PLSSYBPLSMYB /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
510101015141310121
930SMCB000510TESFMCB&TESEMCB /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
510101015151010101
040SSCB000510TESFSCB&TESESCB /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
510101015151010101
140SMYB000510TESFMYBTESEMYB /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
515101015151515151
240SSYB000510TESFSYBTESESYB /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
515101015151015101
340MCEC000700PMCEC /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
704070704040407040
440MCSC000510PMCSC /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
510151510000005100
540VH1F000510REV1F&REH1F /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
508050505050508050
640FERM000510FERM /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
207040404010607060
740YEDC000300EYEDC /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
203020202020003000
840YEDY000300EYEDY /1tN/0TN/3RN/2RN/1RN/0RN
1CSTN-FR/1RN-FR
203020202020003000
940SAMH000700TUOKSAM-H 00
050SAMV000130TUOKSAM-V 00
– 23 –
KV-DZ29M30/M61/M91
RM-GA002
GVTytilanoitcnuF laitinIegnaRnoitcnuFetoN&elbaTeciveD
emaN
nommoC )deliateD(eulaVlaitinI
yrogetaCoNemaNceDceD ciP
0edom
ciP
1edom
ciP
2edom
FRtpecxE
0edomciP
FRtpecxE
1edomciP
FRtpecxE
2edomciP
ITL000SFC100100noitceleSretliFruotnoC 10
100CDV100100gniroCtnednepeDoediVedoMerutciP 101010
200MED000100edoMnoitartsnomeD 00
300PDC400700yaleDecnanimuL 40
400KSD000100hctiwSenoTnikSedoMerutciP 000000
500KSA000100noitceleSelgnAenoTnikS 00
600KSW000100noitceleShtdiWenoTnikS 00
700KSS000100noitceleSeziSenoTnikS 00
800RGD100100hctiwStnemecnahnEneerGedoMerutciP 101000
900TGD700700hctiwStnemecnahnEneerGfodlohserhT 70
010RGG000100niaGtnemecnahnEneerG 00
110RGW000100htdiWtnemecnahnEneerG 00
210RGS000100eziStnemecnahnEneerG 00
310SDC100100ssenprahStnednepeDroloCedoMerutciP 101000
410TSC700700ssenprahStnednepeDroloCfodlohserhT 70
510ITC100100tnemevorpmItneisnarTroloCedoMerutciP 101000
610NOB000100noitasnepmoCtesffOkcalBedoMerutciP 000000
710DTB000360htcertSkcalBevitpadAedoMerutciP 000000
810DLN120360reifilpmAytiraeniL-noNedoMerutciP 121200
910WLN700700reifilpmAytiraeniL-noNfohtdiWpetS 70
020DGV130360ammaGelbairaVedoMerutciP 137272
120WGV000700ammaGelbairaVfohtdiWpetS 00
220DKP040360edutilpmAgnikaeP)srehtO/VT(*edoMerutciP 040341550402
320WKP800510edutilpmAgnikaePfohtdiWpetS 80
320DPS000360noitcerroCssenpeetSedoMerutciP 000000
520DRC050360leveLgniroC)srehtO/VT(*edoMerutciP 050300038100
620WRC900510leveLgniroCfohtdiWpetS 90
720ORC600510edoMoediVroftesffOleveLgniroC 60
820DWL130360noitcerroChtdiWeniL 13
920ITLE100100 ITLelbasiD/elbanE
]noitpo1XC-tsoP[lortnoc 10
– 24 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD 0506
PBUS000HXDI500510noitisoplatnozirohDSOxednIataDtimsnarTossaciPbuSossaciPbuS50
100VXDI740360noitisoplacitrevDSOxednI)06/05(ataDtimsnarTossaciPbuS7474
200BXDI130130ssenthgirbDSOxednIataDtimsnarTossaciPbuS13
(only applicable for 2 tuners models)
– 25 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD 0506VUYVToediVlangiSoN
SOCS000SYS100100tupnICNYSYnonoitazinorcnyS cimsoCbuS00
100OF000300tnatsnoCemiT1esahP )FR(langisoNrogninuTotuA/VT 003000
200DIV100100edoMtnedIoediV 06/05 0000
300LSF000100cnySlacitreVrofleveLgnicilSdecroF 00
400LSS000100rotarapeScnySleveLgnicilS 06/05 0000
500DIVS000700noitacifitnedIoediVrofnoitceleSecruoS VUY/oediV/VT 000000
600FROF300300ycneuqerFdleiFdecroF 20
700OVS00030084@niPISBVC/OVS/OVFIfonoitcnuF VUY/oediV/VT 000000
800EXDV 000100dnareifilpmaFInoisivneewtebgnilpuocfolortnoC
tiucricnoitasinorhcnys
00
900XDV 000100dnareifilpmaFInoisivneewtebgnilpuoC
tiucricnoitasinorhcnys
00
010YLDY210510tnemtsujdayaled-Y 00
110DFIO630360rotaludomeDFItesffO 63
210TCGA130360revo-ekaTCGA 13
310MTS100100edoMgninuThcraeS 00
410DG000100langiS1SBVCnoyaleDpuorG 00
510SCGA100300deepSCGAFI 00
610IFF000100LLPFIretliFtsaF 00
710SSMC000100tiucrictnedioedivehtroflangistupnicnysfonoitceleS 00
810PMAO300300edutilpmAlangiStuptuOoediV 30
910IAV000100noitcerroCedutilpmAlangiStuptuOImetsyS 00
020SWMF200300rotaludomeDMFrofnoitceleSwodniW 20
120SSQ 000100edoMreifilpmA)SSQ(dnuoStilpSisauQ
)ledoMAGtpecxe(
00
220BPB000100retliFssapdnaBdnuoSfossapyB 00
3202BPB0001002retliFssapdnaBdnuoSfossapyB 00
420TPS000100edomkcirtecnamrofrepcnyS 00
520D2E000100nipMEEDUAnolangistuptuooiduafonoitceleS 00
620CVPH000100lortnoCemuloVenohPdaeH 00
720GSD000100stuptuooiduaotstupnioiduamorfniaG 00
820DSV100100elbasidnacslacitreV 00
920ESHC100300ytivitisneStnedICSTN/LAP 20
(only applicable for 2 tuners models)
– 26 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
VTH000XAMV000360)XAMV+53=XAM(leveLemuloVmumixaM leveLemuloV00
100INIV520130norewoptaleveLemuloVlaitinI leveLemuloV52
200YBTS000100 )YBTSsyawla=1,sutatsrewoptsalehtwollof=0(sutatSrewoPtsaL rewoPtsaL00
300GRPI100721)sledomitluMrofylno(norewoptarebmuNmargorPlaitinI ot0:lageL(rebmuNmargorP
)1otteserlliw,001>fi,99
10
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
MTPO000THSA600700)nim5*atad(remitffotuhsotuA 00
100ETUM000100)delbane=1(hctiwSetuMlangiSoN 00
200LUFR510510)hf0nehwelbasiD(dekcolnUretfaretnuoCegnahClangiSFR 40
300KLFR510510)hf0nehwelbasiD(dekcoLretfaretnuoCegnahClangiSFR 00
400GNAL000300noitidnocgnippihsegaugnalDSO 00
500TXTH000100wsrotarapescnyS cimsoC00
600SSMC000100wscnyS cimsoC10
700OXCD060592eulaVOXCD ossaciP*
800CSID821552cedrolocybtsujdaOXCDrofatadOCSIDtegraT 431
900LBXE000510esioNetihWetanimilEotremiTgniknalBdednetxE 01
010SYST000300 )ledoMAG(]M:3,K/D:2,I:1,G/B:0[teseRtseTtaMVNnisySVTeziromeM 00
110LBL100100noitidnoclangiSoNtAnoitcudeRssenthgirB 00
210P32100100otuA:1,FFOecroF:0edoMnwoDlluP3/2 enignEFP10
310WSNL100100)ffO:0,otuA:1(noitidnocteseRtseT/gnippihSretsooBlangiS 10
410MTSD000100)elbasid:1,elbane:0(ybdnatSniedompotselbasiD 10
510MPSC000100)elbasid:1,elbane:0(yromeMtsaLrekaepSretneCelbanE 00
610WSRN100200)HGIH-2,woL-1,FFO-0(noitidnoCgnippihSretfagnitteSRN 10
– 27 –
KV-DZ29M30/M61/M91
RM-GA002
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC)deliateD(eulaVlaitinI
yrogetaC.oNemaNceDceD srehtOVUY
SUPO000FFOS000100)noCAhtiwybdnats:1,noCAhtiwyromemtsalwollof:0(ffoyatS
100RBCC510130ssenthgirBDSOCC
200HCPS100721noitidnoCgnippihSretfarebmuNlennahC
300ACPS100100)nOelbaC=1(noitidnoCgnippihSretfanoitceleSelbaC
400VUO000100)SUrofylno(slangiStupnIVUnolortnoCtesffO VUY/srehtOcimsoC
5002AFC000100)SUrofylno(nOretliFbmoCdecroF enoncimsoC
(only applicable for NTSC models)
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoCsrehtOMACESCSTN
yrogetaC.oNemaNceDceD
PVPO000SBPB000100)SBPB(edomoeretstaretlifssapdnabdnuosfossapyB cimsoC10
100CYWB000100)CYMB(metsysroloczHM85.3rofedomCYtahtdiwdnaB 00
200BSO000100)BSO(rotaludomedamorhcfoeslupyektsrublanretnifohtdiW 00
300VUYT000100)VUYTXT(noitcelestuptuoCC/TXT 10
400DCL000100)DCL(edoMDCL 10
500CKB000100noitisoPyeKtsruB )LAP(SREHTO/MACES/CSTN 001000
JVTytilanoitcnuF.tinIegnaRnoitcnuFetoN&elbaTemaNeciveDnommoC
yrogetaC.oNemaNceDceD
BTPO000LLAI000100)MVNnideziromemton(hctiwSetirWdradnatS X
1001BPO000552)detalerlangiSoediV(1noitpO
tibnoitporoF(
otreferatad
)03~92segap
2002BPO000552)detalergnidoceDoeretS(2noitpO
3003BPO000552)suoenallecsiM(3noitpO
4004BPO000552)suoenallecsiM(4noitpO
5005BPO000552)detaleregnaugnaLDSO(5noitpO 13egaprefer
– 28 –
KV-DZ29M30/M61/M91
RM-GA002
Data Variant depend on models
Category No Name Stereo AV Stereo
SDEC 008 EPMD 02 01
009 STDS 31 13
014 DCXI 00 00
015 DCXG 03 00
017 DCLH 06 00
Category No Name Stereo AV Stereo
OPTM 007 DCXO 53 48
– 29 –
KV-DZ29M30/M61/M91
RM-GA002
ITEM INFORMATION
No. OPB1
Item WSS RF HD Front Component NR Composite SECAM Color Decoding DEC
KV-DZ29M30 0011010052
KV-DZ29M61 0011010052
(Malaysia)
KV-DZ29M61(GE) 0011010052
KV-DZ29M91 0011010052
No. OPB2
Item REV NICAM REV A2 Thai Bilingual/ US ST Korean REV DEC
Force SAP ST
KV-DZ29M30 0101000080
KV-DZ29M61 0101000080
(Malaysia)
KV-DZ29M61(GE) 0101000080
KV-DZ29M91 0101000080
WSS RF (Wide Screen Signaling in RF mode) 0 = disabled, 1 = enabled
HD Front (HD at front input) 0 = disabled, 1 = enabled
Component (Component [YCbCr] Terminals) 0 = 1 Component terminal
1 = 2 Component terminals
Composite (No. of Composite Terminals) 0 = 3 Composite terminals
1 = 4 Composite terminals
NR (Noise Reduction) 0 = NR disabled,
1 = enabled (Note: 3D Comb must be off when
NR is set to ON
SECAM (SECAM Color System) 0 = disabled,
1 = enabled (valid only if Color Decording
= 00 or 10)
Color decording (Color Crystal Selection) 00 = PAL/NTSC/SECAM (Multi)
01 = NTSC (3.58MHz)/SECAM
10 = PAL/NTSC/SECAM (4.43MHz)
11 = Reserved (Tri-Norma)
NICAM (NICAM Stereo) 0 = disabled, 1 = enabled
A2 (A2 [West German] Stereo/Bilingual) 0 = disabled, 1 = enabled
Thai Bilingual (A2 [Thai] Bilingual) 0 = disabled, 1 = enabled
Forced SAP (Force SAP mode only if US
ST is active) 0 = disabled, 1 = enabled
US ST (US Stereo) 0 = disabled, 1 = enabled
Korean ST (Korean Stereo) 0 = disabled, 1 = enabled
– 30 –
KV-DZ29M30/M61/M91
RM-GA002
No. OPB3
Item SPEED SEARCH VM Band Edge 3D Comb PAP TOP TEXT DEC
KV-DZ29M30 0110000096
KV-DZ29M61 0110000197
(Malaysia)
KV-DZ29M61(GE) 0110000197
KV-DZ29M91 0110000197
No. OPB4
Item Simple MSYS COSMIC ASD Signal WEGA Theatre Wide DEC
Surround ASD ASD Booster
KV-DZ29M30 10011000152
KV-DZ29M61 10011000152
(Malaysia)
KV-DZ29M61(GE) 10011000152
KV-DZ29M91 10011000152
SPEED SEARCH (Cycle of speed search) 00 = disabled (original cycle speed)
01 = 4 time speed from the original
10 = 6 time speed from the original
11 = 8 time speed from the original
VM (Velocity Modulation) 0 = disabled, 1 = enabled
Band Edge (VHF-H Band Limit Position) 0 = 427.25MHz 1 = 429.25MHz
3D Comb (3D Comb functions) 0 = No 3D Comb, 1 = 3D Comb available
PAP (PAP/2 tuner functions) 0 = No PAP, 1 = PAP available
TOP (Forced Top) 0 = Auto Mode(TOP/FLOF), 1 = Forced Top
TEXT (Teletext Model) 0 = Non-Teletext Model
1 = Teletext Model
Simple Surround (Surround selection) 0 = Tru Surround/WOW/Simulated/Off
1 = (Movie/Sports/Off)
MSYS ASD ASD Improvement for Msystem 0 = disabled, 1 = enabled
channels *(only applicable
when ASD = 1)
COSMIC ASD Automatic Standard Detection 0 = disabled, 1 = enabled
using COSMIC
*for AV Stereo or Mono models
ASD (Automatic Standard Detection) 0 = disabled, 1 = enabled
Signal Booster *only for Multi models 0 = disabled, 1 = enabled
WEGA Theatre (Wega Theatre with/without Center 0x = No WEGA Theatre function & No Center SP
Speaker option) 10 = WEGA Theatre function available with no
Center SP
11 = WEGA Theatre function available with
Center SP (original)
Wide (16:9 model) 0 = 4:3, 1= 16:9
– 31 –
KV-DZ29M30/M61/M91
RM-GA002
No. OPB5
Item REV China REV Russia OSD Languange Selection DEC
KV-DZ29M30 0000111014
KV-DZ29M61 0000111014
(Malaysia)
KV-DZ29M61(GE) 0000111014
KV-DZ29M91 0011000048
China (China model option) 0 = Non China Model
*only for Multi models 1 = China (SSV) models
Russian (Russian OSD option) 0 = Non Russian Models, 1 = Russian Model
*only for Multi models
OSD Language Selection US (GA NTSC) x1x1x = Complicated Chinese
x1xx1 = Korean
GA x1xxx = Simplified Chinese
xx1xx = Arabic
xxx1x = Thai
xxxx1 = Vietnamese (only Vietnam Model)
Russian 1xxxx = Russian (Only Russian Model)
– 32 –
KV-DZ29M30/M61/M91
RM-GA002

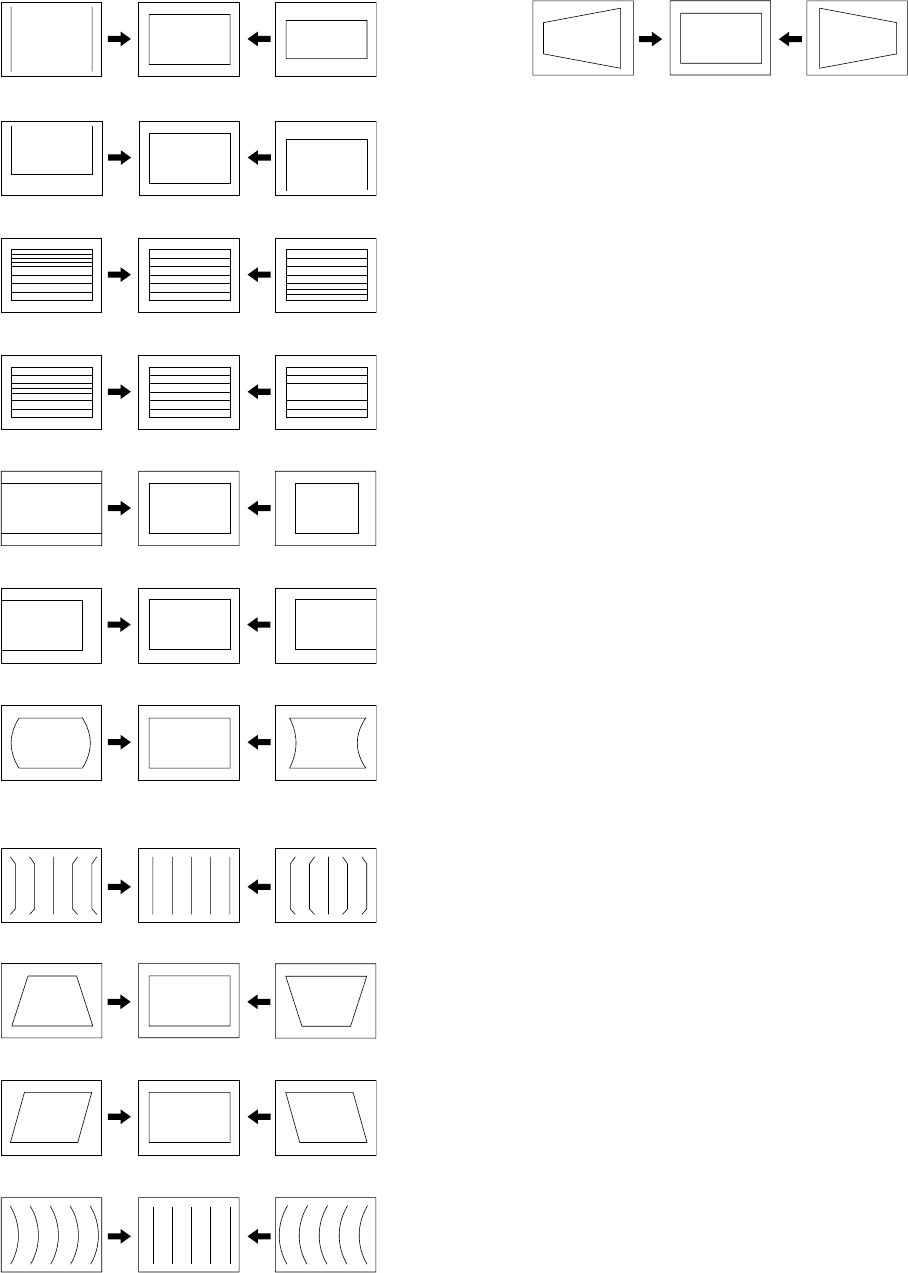

Adjustment Item Table (BT Engine)
a) Version BT V0.015
emaNeciveDytilanoitcnuF ofnItiB
etoN&elbaTnommoC
emanecived.oNemanpamtib
1FED0
SOPV00111111 NOITISOPV13
1ZISV00111111 EZISV81
2NILV11110000 YTIRAENILV8
3OCSV00001111 NOITCERROCSV8
4OCSN00111111 NOITATOR13PMOC-V
5ZPTH00011111 DIOZEPARTH51DSzH05DHzH05675
6TPSA00111111 TCEPSAV 344534
7LRCS00111111 LLORCSV 139213
8NLVU00001111 YTIRAENILVPU0
9NLVL11110000 YTIRAENILWOL0zH001zH06zH021
01 OSPV00001111 TESFFOSOPV11-0
emaNeciveDytilanoitcnuFofnItiBetoN&elbaT /sserddAMVN
)deliateD(eulaVlaitinI
emanecived.oNemanpamtibegnaR
1FED0
SOPV00111111 NOITISOPV36/0
1ZISV00111111 EZISV36/0
2NILV11110000 YTIRAENILV51/0
3OCSV00001111 NOITCERROCSV51/0
4OCSN00111111 NOITATOR36/0 srehtO
5ZPTH00011111 DIOZEPARTH13/0DSZH06DHZH06084ZH001ZH021DSzH05/DHzH05
P675
DSzH06/DHzH06
P084
zH001
6TPSA00111111 TCEPSAV36/044232444447454845474
7LRCS00111111 LLORCSV36/003827243631323137253
8NLVU00001111 YTIRAENILVPU51/0 zH021
9NLVL11110000 YTIRAENILWOL51/0 64
01 OSPV00001111 TESFFOSOPV7+/8- 73
– 33 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiB
etoN&elbaTnommoC
emanecived.oNemanpamtib
2FED0
SOPH00111111 NOITISOPH42
1ZISH00111111 EZISH24
2NIP00111111 NIP82
3PCU00111111NIPRENROCPU83
4PCL00111111 NIPRENROCWOL83
5AHPP00111111ESAHPNIP32
6GNAV00111111 ELGNAV13PMOCVSREHTODH
7WOBV00111111 WOBV13ZH05ZH06ZH001ZH021ZH05ZH06ZH001ZH021ZH05ZH06
8GCXU00110000 NIAGNIPRENROCPUEMERTXE 111100 1100
9GCXL11000000 NIAGNIPRENROCWOLEMERTXE 1113111000
01 PCXU00000011 NOITISOPNIPRENROCPUEMERTXE 12 11303211
11 PCXL00001100 NOITISOPNIPRENROCWOLEMERTXE 3223222000
21 PPCX10000000 YTIRALOPNIPRENROCEMERTXE ZH001ZH06ZH021DHZH05HDZH06 0100000000
31 OHPP00001111 TESFFOESAHPNIP 1-2-3-00 PMOCVSREHYODH
41 OZSH00111111 TESFFOEZISH 20 2-00 ZH05ZH06ZH001ZH021ZH06ZH001ZH021ZH05ZH06
51 ONIP00011111 TESFFONIP 000100012-
61 OPCU11100000 TESFFONIPRENROCPU 0 1 0 200 12-2-
71 OPCL00000111 TESFFONIPRENROCWOL 000101-2-21-
81 COAV11100000 NOITATORTANIAGELGNAVV1
emaNeciveDytilanoitcnuF ofnItiB
etoN&elbaTNOMMOC
emanecived.oNemanpamtib
3FED0
KLBH01000000 GNIKNALBH1ZH001/05ZH021/06
1KLBL00111111 GNIKNALBTFEL 3434PMOCV SREHTO
2KLBR00111111 GNIKNALBTHGIR 8242DSZH05DHZH05DSZH06DHZH06ZH001ZH021DSZH05/DHZH05
P675
DSZH06DHZH06ZH001ZH021
3KLBT00001111GNIKNALBPOT 514 51051417410 5101
4KLBB11110000 GNIKNALBMOTTOB 516 1105121866795
p05/675 p06/084
KLBT 51 8
KLBB 51 51
5MCFA11000000EDOMCFA3DHSREHTO
6PJDV10000000 PMUJEVIRDV 00
7TBKA00011111 GNIMITBKA 030351510342826102610202
– 34 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiB
etoN&elbaTNOMMOCPMOCVSREHTO
emanecived.oNemanpamtib
4FED0
CDPQ00111111 CDPQD 8282
1VDPQ00111111 ALOBARAPCDPQD 7474
2PDPQ11110000 ESAHPALOBARAPPQD 55
3MAPQ00111111PMAPQD 1313
4VAPQ00111111 PMAALOBARAPPQD 5252
5PAPQ00001111 ESAHPALOBARAPPQD 77
6HPPQ00111111 ESAHPPQD12
7YPOC01000000 ATADPQDYPOC0
emaNeciveDytilanoitcnuF ofnItiB
etoN&elbaT nommoC
emanecived.oNemanpamtib
5FED0
NOV01000000 NOFEDV -1 PMOCVSREHTODH
1SCGA01000000 EDOMCGA 1C001 ZH05ZH06ZH001ZH021ZH05ZH06ZH001ZH021ZH05ZH06
2PMCA00111000 CFAROFNOITASNEPMOCNOITAUTCULFEGATLOVHGIH 0000000000
3PMCH11110000 EZISHROFNOITASNEPMOCNOITAUTCULFEGATLOVHGIH 01010101010101010101
4PMCV00001111 EZISVROFNOITASNEPMOCNOITAUTCULFEGATLOVHGIH 8888888878
5PMCP00000111 NIPROFNOITASNEPMOCNOITAUTCULFEGATLOVHGIH 7777777767
emaNeciveDytilanoitcnuF ofnItiB
etoN&elbaT
emanecived.oNemanpamtib
AMUL0
MMAG00111000 MAGB,MAGG,MAGR,SMAGrofelbaT0MMAG1MMAG2MMAG3MMAG4MMAG5MMAG6MMAG7MMAG
1SMAG00001111 noitcerroCepahSammaG3131313131313131
2MAGR11110000 deRammaG 02345689
3MAGG00001111 neerGammaG 02345689
4MAGB11110000 eulBammaG 02345689
5KLB00000111 MLBA,RTCD,DEPArofelbaT 0KLB1KLB2KLB3KLB4KLB5KLB6KLB7KLB
6DEPA00000011 lortnoCleveLlatsedePotuA 03312113
7RTCD11110000 lortnoCnoissimsnarTCD 05 21010150151
8MLBA00001100 lortnoCedoMLBA 01100011
– 35 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT DIVIV
FR CY/VC VUY
emanecived.oNemanpamtib /85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
AMUL0
MMAG00111000 MAGB,MAGG,MAGR,SMAGrofelbaT 5 55 5 56556666 93606B3606
1SMAG00001111 noitcerroCepahSammaG
2MAGR11110000 deRammaG DVIV
3MAGG00001111 neerGammaG FR CY/VC VUY
4MAGB11110000eulBammaG/85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
5KLB00000111 MLBA,RTCD,DEPArofelbaT 2 71 2 72272222 93602B3602
6DEPA00000011 lortnoCleveLlatsedePotuA
7RTCD11110000 lortnoCnoissimsnarTCD
8MLBA00001100 lortnoCedoMLBA
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT DRADNATS
FR
CY/VCVUYFR
emanecived.oNemanpamtib /85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801 /85.3CSTN
06LAP,34.4 05LAPMACES
AMUL0
MMAG00111000 MAGB,MAGG,MAGR,SMAGrofelbaT 0 00 0 000000103 1 6 56
1SMAG00001111 noitcerroCepahSammaG
2MAGR11110000 deRammaG DRADNATS
3MAGG00001111 neerGammaG
FR
CY/VCVUYFR
4MAGB11110000eulBammaG/85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801 /85.3CSTN
06LAP,34.4 05LAPMACES
5KLB00000111 MLBA,RTCD,DEPArofelbaT 1 11 1 1111111151 3 33
6DEPA00000011 lortnoCleveLlatsedePotuA
7RTCD11110000 lortnoCnoissimsnarTCD
8MLBA00001100 lortnoCedoMLBA
– 36 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT DIVIV
FR
CY/VCVUY
emanecived.oNemanpamtib /85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
AMUL0
MMAG00111000 MAGB,MAGG,MAGR,SMAGrofelbaT 5 55 5 5655666666
1SMAG00001111 noitcerroCepahSammaG
2MAGR11110000 deRammaG DIVIV
3MAGG00001111 neerGammaG
FR
CY/VCVUY
4MAGB11110000eulBammaG/85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
5KLB00000111 MLBA,RTCD,DEPArofelbaT 2 77 2 7227222222
6DEPA00000011 lortnoCleveLlatsedePotuA
7RTCD11110000 lortnoCnoissimsnarTCD
8MLBA00001100 lortnoCedoMLBA
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT DRADNATS
FR
CY/VCVUYFR
emanecived.oNemanpamtib /85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801 /85.3CSTN
06LAP,34.4 05LAPMACES
AMUL0
MMAG00111000 MAGB,MAGG,MAGR,SMAGrofelbaT 0 00 0 000000103 1 6 66
1SMAG00001111 noitcerroCepahSammaG
2MAGR11110000 deRammaG DRADNATS
3MAGG00001111 neerGammaG
FR
CY/VCVUYFR
4MAGB11110000eulBammaG/85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801 /85.3CSTN
06LAP,34.4 05LAPMACES
5KLB00000111 MLBA,RTCD,DEPArofelbaT 1 11 1 1111111151 3 33
6DEPA00000011 lortnoCleveLlatsedePotuA
7RTCD11110000 lortnoCnoissimsnarTCD
8MLBA00001100 lortnoCedoMLBA
– 37 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT MOTSUC
FR
CY/VCVUY
emanecived.oNemanpamtib /85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
AMUL0
MMAG00111000 MAGB,MAGG,MAGR,SMAGrofelbaT 6 66 1 665666 1155
1SMAG00001111 noitcerroCepahSammaG
2MAGR11110000 deRammaG DRADNATS
3MAGG00001111 neerGammaG
FR
CY/VCVUY
4MAGB11110000eulBammaG/85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
5KLB00000111 MLBA,RTCD,DEPArofelbaT 3 33 3 3333333333
6DEPA00000011 lortnoCleveLlatsedePotuA
7RTCD11110000 lortnoCnoissimsnarTCD
8MLBA00001100 lortnoCedoMLBA
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
NOMMOC
emanecived.oNemanpamtib
RLOC0
VRDR11111100 3-FODR+VRDR=EVIRD_R 64
1VRDG00111111 13-FODG+VRDG=EVIRD_G 34
2VRDB00111111 13-FODB+VRDB=EVIRD_B 25
3TUCR00111111 13-FOCR+TUCR=FFOTUC_R 54
4TUCG0011111113-FOCG+TUCG=FFOTUC_G 44
5TUCB00111111 13-FOCB+TUCB=FFOTUC_B 13
6TRBS00111111 ssenthgriBbuS/3-FOBS+TRBS=TRB_BUS 32 LOOCMRAW/TXETELET
IARTUEN
7LOCD00000011 gnitteSedoMroloCcimanyD 200
8WSBW00000001 gnitteStesffOecnalaBetihW 000
9FOBS00000111 tesffOssenthgirBbuS/3-TRBS=TRB_BUS 223
01 FODR01111110 tesffOevirDR/13-FODR+VRDR=EVIRD_R 136363
11 FODG00111111 tesffOevirDG/13-FODG+VRDG=EVIRD_G 133373
21 FODB00111111 tesffOevirDB/13-FODB+VRDB=EVIRD_B 132213
31 FOCR00111111 tesffOffotuCR/13-FOCR+TUCR=FFOTUC_R 139303DIVIV MOTSUC&DRADNATS
41 FOCG00111111 tesffOffotuCG/13-FOCG+TUCG=FFOTUC_G 139242CY/VC/FR DSVUY GORP/DHVUY CY/VC/FRDSVUYGORP/DHVUY
51 FOCB00111111 tesffOffotuCB/13-FOCB+TUCB=FFOTUC_B 132272,85.3CSTN
06LAP
05LAPMACESCSTN
34.4
I084I675,P084:zH06
P027
,P675:zH05
P027
,85.3CSTN
06LAP
05LAPMACESCSTN
34.4
I06_084I05_675,P084:zH06
P027
,P675:zH05
P027
61 RYR00001111 sixaroloC 30014130700170013001413070017001
71 BYR11110000 sixaroloC 90515190015101519051519001510151
81 RYG00001111 sixaroloC 01501001317070700150100131707070
91 BYG11110000 sixaroloC 50303050403040205030305040304020
– 38 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT DIVIV
FR CY/VCVUY
emanecived.oNemanpamtib /85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
YTLC0
MSYS00000011 noitceleSdnaBlangiS11
11 1111112233
10FHS00000001 gnitteS0fssenprahS 0 00 0 0000001111
2VORP00000110 lortnoCoidaRtoohSrevO/erP 0 00 0 0000000000
3VL1F00011000 lortnocniagssenprahs0FHGIH/*1FY7-VL1F=1FPHS 2 22 2 2133121122
4VLTL01100000emevorpmItneisnarTecnanimuL/*ITL7-VLTL=VELITL0
00 00122 121111
5DMTL10000000 gnitteSedoMITL 0 00 1 1111111111
6VLTC00000011 emevorpmItneisnarTecnanimorhC/*ITC7-VLTC=VEL_ITC 0 00 0 0000000000
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT DIVIV
FR CY/VCVUY
emanecived.oNemanpamtib /85.3CSTN
06LAP,34.4 05LAPMACES /85.3CSTN
06LAP,34.4 05LAPMACESI084I675P084P675P06_027P05_027I06_0801I05_0801
YTLC0
MSYS00000011 noitceleSdnaBlangiS11
11 1111112233
10FHS00000001 gnitteS0fssenprahS 0 00 0 0000001111
2VORP00000110 lortnoCoidaRtoohSrevO/erP 0 00 0 0000000000
3VL1F00011000 lortnocniagssenprahs0FHGIH/*1FY7-VL1F=1FPHS 2 22 0 0000221122
4VLTL01100000emevorpmItneisnarTecnanimuL/*ITL7-VLTL=VELITL2
20 2212222 1111
5DMTL10000000 gnitteSedoMITL 1 10 1 1111111111
6VLTC00000011 emevorpmItneisnarTecnanimorhC/*ITC7-VLTC=VEL_ITC 0 00 0 0000000000
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
NOMMOC
emanecived.oNemanpamtib
PCM0
FOCT01000000 gnitteSffO/nOroloC 0
1NOP00000001 OtuptuOesluPecnerefeRBKAdnaBGR 1
2NOR00000010 ffO/nOtuptuOR 1
3NOG00000100 ffO/nOtuptuOG 1
4NOB00001000 ffO/nOtuptuOB 1
5LBGR00000011 lortnoCretimiLedutilpmABGR 0CY/VC/FR GORP/DHVUY
SREHTOTXETELET
6TMLY00001100 gnitteSleveLedutilpmAY 2/85.3CSTN
06LAP,34.4 05LAPMACES /P084
P675 P027I801
7BKLB00110000 lortnoCretimiLmottoBBGR 3
8FOY11110000 langiSrofrellecnaCtesffOCD 0 77777 7 7
9FOBC00111111 langiSbCrellecnaCtesffOCD 9393935444344393
01 FORC00111111 langiSrCrofrellecnaCtesffOCD 0493939393939393
11 CIPS00001111 lortnoCerutciPbuS 9990199 117 PMOCVSERHTO
21 TLBA00001111 egatloVdlohserhTnoitceleDtnerruCLBA 80
31 TCIP00111111 erutciP0712AXC 36
41 EUH00111111 erutciP0712AXC 0303030303030313
51 RLOC00111111 erutciP0712AXC 3424240404048336
61 TRB00111111 erutciP0712AXC 5313131312121302
71 PHS00111111 erutciP0712AXC 52
– 39 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiB
etoN&elbaT
ddAMVN
emanecived.oNemanpamtibegnaR0RNNS1RNNS2RNNS3RNNS4RNNS5RNNS6RNNS7RNNS
RNNS0
1FY711000000 leveL1fssenprahS0712AXC3/0 33333 100
1ITL700000011 leveLITL0712AXC3/0 33333300
2ITC700001100 leveLITC0712AXC3/0 33333300
3LMV711110000 leveLMV0712AXC51/011 8522200
4CMV711111111 leveLgniroCMV0712AXC552/0050101 00000
5PHS71111000 levelssenprahS0712AXC51/01313510101 500
6LOC711111000 levelroloC0712AXC51/0515151 55500
7TRB711111000 levelssenthgirB0712AXC51/0025151 55000
8GROC11111000 gnirocfoniaggniroC13/09550000000000
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
NOMMOC
DSVUY/CY/VC/FR
SREHTO
emanecived.oNemanpamtib 85.3CSTN05LAP
MCD30
DHRT11111000 eulavdlohserhtbmoC-D3 111
1CYD200000100 bmoC-D3FFO/NO 111
2MRCV01000000 detcetededomRCV1
3DTSN01000000 detceteddradnatsnoN1
– 40 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT VC/FRCYVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3 05LAPMACES CSTN
85.3 05LAPMACES /P675/P084
801/P027 I084I675
FFOC0
VLRC11111111 noitarutasRC989855065555821888836
1VLBC11111111 noitarutasBC2210213636363682130130136
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT GORP/DHVUY
SREHTO
emanecived.oNemanpamtib 801/P027/P675/P084
LVUY0
VELY11111111 mmargorpdnaVTDHroflortnocniaggolanAY 581571
1VELU11111111 nievissergorpdnaVTDHrofnoitarutasBC 011721
2VELV11111111 nievissergorpdnaVTDHrofnoitarutasRC 071721
3LCDY11111111 levelCDY 4646
4ESSA00001000 elbaneSSA 00
5GSSA00000111 niagSSA 66
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT ddAMVN
NOMMOC
emanecived.oNemanpamtibegnaR
JDA0
TNOC11111100 tnemsujdatsartnoC9836/092FRCY/VCVUY
SREHTO
1LOCS11111110 rolocbuS721/036CSTN
85.3
05LAPMACESCSTN
85.3
05LAPMACES/P675/P084
P027
I0801I084I675
2FOLC11111000 tesfforoloC13/0 1313131313131313131313
3EUHS11111111 euhbuS552/0821
4AGY11111111 niagY552/089CY/VC/FR VUY
SREHTO
5AGB11111111niagssenthgirB552/071CSTN
85.3
05LAPMACES/P675/P084
801/P027
I084I675
6EDCY11110000 yaledCY51/0 10202020202020FRCY/VCVUY
SREHTO
7NIMP11111110tesffomuminimerutciP721/002CSTN
85.3
05LAPMACESCSTN
85.3
05LAPMACES/P675/P084
P027
I0801I084I675
8FOUH11111110 tesffoeuH721/0 1313131313131313131313
– 41 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
NOMMOC
CY/VC/FRVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3
05LAPMACES/P675/P084
801/P027
I084I675
TRB0
FFOB11111111 tsartnocroftesffossenthgirB 02616104316102
1RTCB11111111 lortnocssenthgirB23
2ORBS11111110 ssenthgirbbuS63
3NIMB11111110 tesffomuminimssenthgirB46
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT GORP/DHVUY
SREHTO
emanecived.oNemanpamtib801/P027/P675/P084
2ITL0
GITL11111000 niaggnikaepITL2101
1SITL00000110 noitaluclacpetsITL3000
2RHTL11111111 dlohserhtITL0000
3ITLH11111000 niagITLrehgiH0000
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT FRCY/VCVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3
05LAPMACESCSTN
85.3
05LAPMACES/P675/P084
P027
I0801I675/I084
KAEP0
PTSP00000110 retlifssapdnabrofpetsgnikaeP00101030303030303000
1RHTP11111111 dlohserhtgnikaepnolortnocraenil-noN00000000000000000000
2PSVO00001111 noitcnufgnikaepehtnilortnoctnuomatoohs-revO20202020101020303020
3PSDU11110000 noitcnufgnikaepehtnilortnoctnuomatoohs-rednU10101010101020101010
4AGPB11111000 niagssapdnaB01010101010152010101
51CAG00000111 lortnocgnikaepraenil-nonnolortnocniag2tnemgeS00000000000000000000
62CAG00000111 lortnocgnikaepraenil-nonnolortnocniag2tnemgeS00001000000000000000
7AGPH11111000 niagssaphgiH00000000000001000100
82HTP11111111 2dlohserhtgnikaepnolortnocraenil-noN00000000000020002000
9RNS11111111 ssenprahsretfanoitcuderesionlaitapS821821821000000000000821
01 3HTP11111111 3dlohserhtgnikaepnolortnocraenil-noN23232323232300000023
11 3CAG11111100 lortnocgnikaepraenil-nonnolortnocniag1tnemgeS00000000000000000000
21 SLYB00000010 ssenprahs&ITLlatnozirohssapyB00000000000000000000
– 42 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT ddAMVNGORP/DHVUY
SREHTO
emanecived.oNemanpamtibegnaR801/P027/P675/P084
ITC0
AGTC11110000 ITCfoniaG 51/0 2170
1PTSC00001110 petsITCD 7/0 1070
2ITCD00000001 noitcnufelbaneITCD 1/0 1010
3RHTC11111111 ITCDrofdlohserhtgniroC 552/0 0020
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
NOMMOC
CY/VC/FRVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3
05LAPMACES/P675/P084
P027
i0801i675/i084
YDVU0
YLDV00001111 tnemtsujdayaledtnenopmocV 50604080807030
1YLDU11110000 tnemtsujdayaledtnenopmocU 50704080807020
2ULYB00000100 noitcnufsujdaamulssapyB00
3HCYB00000001 tnemtsujdanoitarutasdnaeuhamorhcehtssapyB00
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT CY/VC/FRVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3
05LAPMACES/P675/P084
801/P027
i084i675
NERG0
DERG01000000 basid/elbanetnemecnahneneerG 000 0 000
1NIAG11111111 niagtnemecnahneneerG05105105105105108051
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT CY/VC/FRVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3
05LAPMACES/P675/P084
801/P027
i084i675
AMAG0
DEMG00010000 elbasid/elbaneammaG00000000000000
– 43 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
NOMMOCZH05ZH001ZH06ZH021
emanecived.oNemanpamtib
PHSV0
RHTV11111111 dlohserhtssenprahslacitreV 61616161
1GENV11111000 evitagenniagssenprahslacitreV 70707070
2SOPV11111000 evitisopniagssenprahslacitreV 70707070
3DESV01000000 elbasid/elbanessenprahslacitreV 1
– 44 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT DSVUY/CY/VC/FR
SREHTO /DHVUY
GORP
I675,06/05LAP
I084,85.3CSTN
emanecived.oNemanpamtibWOLRNDDIMRNDHGIHRNDFFORNDWOLRNDDIMRNDHGIHRNDFFORNDWOLRNDDIMRNDHGIHRNDFFORND
RND0
0PA11111111 0ahplA101010552101010552101010552552
11PA11111111 1ahplA101010552101010552101010552552
22PA11111111 2ahplA717171552717171552717171552552
33PA11111111 3ahplA818181552818181552818181552552
44PA111111114ahplA535353552535353552535353552552
55PA11111111 5ahplA53535355253535355215535353552552
66PA11111111 6ahplA151515552151515552151515552552
77PA11111111 7ahplA151515552151515552861515552552
88PA11111111 8ahplA86868386868686865886868686
99PA11111111 9ahplA585858585858585820158585858
01 APA11111111 AahplA201 201201201201201201201911201201201201
11 BPA11111111 BahplA911 911911911911911911911631911911911911
21 CPA11111111 CahplA631 631631631631631631631351631631631631
31 DPA11111111 DahplA351 351351351351351351351071351351351351
41 EPA11111111 EahplA 071071071071071071071071781071071071071
51 FPA11111111 FahplA 78178178178178178178178170781781781781
61 VUYE11111111 VUYahplA 70707070707070703670707070
71 VUYS11111111 VUYrofyeketaercotecnerefeR 36363636363636363636363636
81 VUYR11111111 RNodotecnerefeR 36363636363636366036363636
91 VUYK11111111 VUYrofnoitcelesyeK 60606060606060600060606060
02 UYES11111111 UYytivitisneS 00000000000000000000000000
12 VES11111111 VytivirisneS 00000000000000000000000000
22 VUBF11111111 VUkcabdeefrorrE 00000000000000000000000000
32 ATM11111111 tsujdanoitomA1dlohserhT 00000000000000000000000000
42 BTM11111111 tsujdanoitomB1dlohserhT 00000000000000000000000000
52 CTM11111111 tsujdanoitomA2dlohserhT 00000000000000000000000000
62 DTM11111111 tsujdanoitomB2dlohserhT 00000000000000000000000000
72 FOM11111111 tesffonoitoM 21808080218080802180808080
82 VUYM11111111 VUYtsujdanoitoM 70707070707070707070707070
92 YBRN00000001 ssapyBRN 000010 000 10000 1010
– 45 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT CY/VC/FRVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3
05LAPMACES/P675/P084
P027
i0801/084
i675
MV0
1YLD00000001 1yaledMV10101010101010
1OPMV00000010 ytiralopMV00000000000000
2TSMV00011100 petsMV50404050005050
32YLD00001111 2yaledMV11111101111111
4OCMV11111111 gnirocMV00000000000000
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
DIVIVDRADNATS
MOTSUC
emanecived.oNemanpamtib FFOWOLHGIH
TCMV0
OMMV11000000 lortnoCMV302000103000102030
1VLMV11110000 lortnoCleveLtuOMV/*LMV7-VLMV=VELMV 00508011
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT ddAMVN
NOMMOC
emanecived.oNemanpamtibegnaR
DSO0
TRBO11111000 ssenthgirBDSO51+/61-AE207 I05_675I001_675P05_675I06_084I021_084P06_084 I05_0801I06_0801P05_027P06_027
1OPVO11111000 noitisoPVDSO51+/61- 0000000000
2OPHO11111000 noitisoPHDSO51+/61- 0000000000
– 46 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT CY/VC/FR
SREHTO
emanecived.oNemanpamtib 85.3CSTN05LAP
CNYS0
KCGA00001100 edomlliketagcgA000000
1AGH00100000 tesedomniagflahcgA000000
2NYSH11111111 wodniwemitdnegnisircnys-H090909
3HTSV11111100 nysvroflevelecilsehtotddaotdlohserhT545454
4TCSV00000011 edomtuptuocnysvehtteS101010
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT CY/VC/FR
SREHTO
emanecived.oNemanpamtib 85.3CSTN05LAP
LKOC0
1LIK01110000 llikamorhcroflevelteS404040
12LIK11110000 levelrellikamorhC805080
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT CY/VC/FRVUY
SREHTO
emanecived.oNemanpamtib CSTN
85.3
05LAPMACES/P675/P084
801/P027
I084I675
TSLB0
SBYB01000000 hctertskcalbssapyB 000 1 0 0000
1IAGB11110000 niaghctertskcalB 56535605
2RTSB11111111 hctertskcalbroftniopratS0010010800102129211
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT CY/VC/FR
SREHTO
emanecived.oNemanpamtib85.3CSTN05LAP
TAOC0
CGAC11111111 tegratCGAamorhC460883
– 47 –
KV-DZ29M30/M61/M91
RM-GA002
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT EVISSERGORPECALRETNI
emanecived.oNemanpamtibZH05ZH06ZH001ZH021
IDUL0
RPTS11111111 noitcelesgnicalretni-edamuL101101101101
emaNeciveDytilanoitcnuF ofnItiBetoN&elbaT
NOMMOC
emanecived.oNemanpamtib
1DI0
NCDV11111111 dlohserhtssW10
1NCDI11111111 dlohserhtsswoN34
– 48 –
KV-DZ29M30/M61/M91
RM-GA002

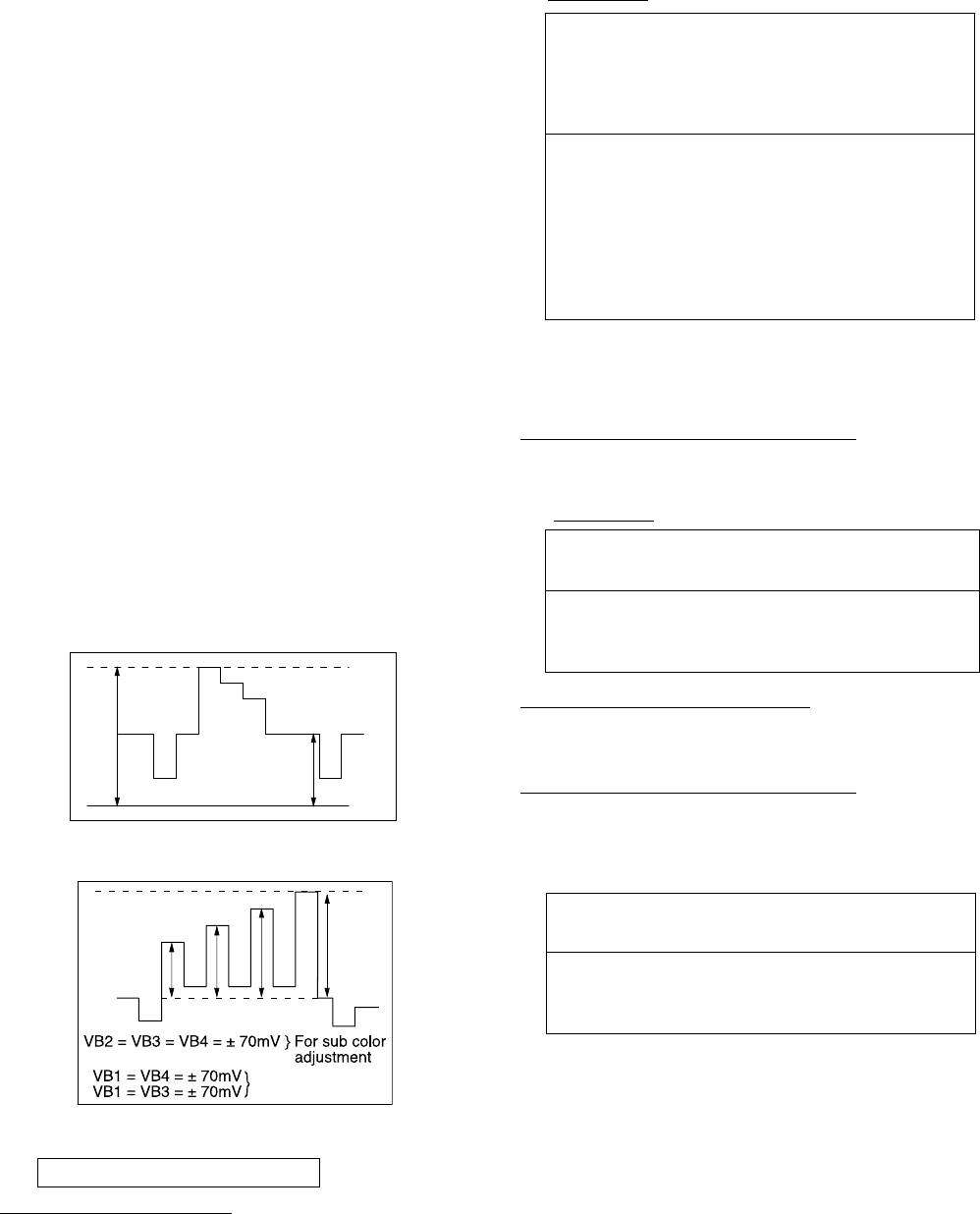

5-3. PICTURE QUALITY ADJUSTMENTS
Adjustment condition
1. Set to service mode.
2. Set picture mode to CUSTOM.
3. Set the following condition.
INTELLIGENT PICTURE : OFF
SCAN MODE : PROGRESSIVE
ECO MODE : OFF
D-NR : OFF
Input signal : PAL VIDEO COLOR BAR (White & Color 100%)
576i COLOR BAR (White & Color 100%)
OR
Input signal : NTSC VIDEO COLOR BAR
(White & Color 75%)
480i COLOR BAR (White & Color 75%)
MEASUREMENT POINT
A board CN4301
6B-OUT ➔ VB
5-3(1). DRIVE ADJUSTMENT
(i) SUB CONTRAST (PAL)
Input signal : PAL (100%) Color bar to Video 1
Picture : CUSTOM mode
Condition : MCP 002 RON 0
003 GON 0
004 BON 1
005 RGBL 3
006 YLMT 2
Under Picture Menu : Picture 100
Color 0
Adjusting parameter:
MCP 011 SPIC
* Note: Reset back adjustment conditions to original data
after adjustment.
(ii) SUB CONTRAST (NTSC)
Input signal : NTSC (75%) Color Bar to Video 1
Picture : CUSTOM mode
Condition: MCP 002 RON 0
003 GON 0
004 BON 1
005 RGBL 3
006 YLMT 2
Under Picture Menu : Picture 100
Color 0
Adjusting parameter :
MCP 011 SPIC
* Note: Reset back adjustment conditions to original data
after adjustment.
5-4. SUB HUE/COL ADJUSTMENT
5-4(1). SUB COL
Input signal : NTSC (75%) Color bar or PAL (100%)
Color Bar to Video 1.
Picture : CUSTOM mode
Condition : MCP 002 RON 1
003 GON 1
004 BON 1
005 RGBL 0
006 YLMT 3
Under Picture Menu : Picture 50
Color 50
Adjusting parameter:
MCP 015 COLR
* NTSC (75%) and PAL (100%) should be adjusted separately
because they have different table.
* Note: Reset back adjustment conditions to original data
after adjustment.
5-4(2). SUB HUE
Input signal : NTSC (75%) Color bar to Video 1
Picture : Custom mode
Condition : MCP 002 RON 1
003 GON 1
004 BON 1
005 RGBL 0
006 YLMT 3
Under Picture Menu : Picture 50 (for multi models)
Color 50 (for multi models)
Adjusting parameter:
MCP 014 HUE
* Note: Reset back adjustment conditions to original data
after adjustment.

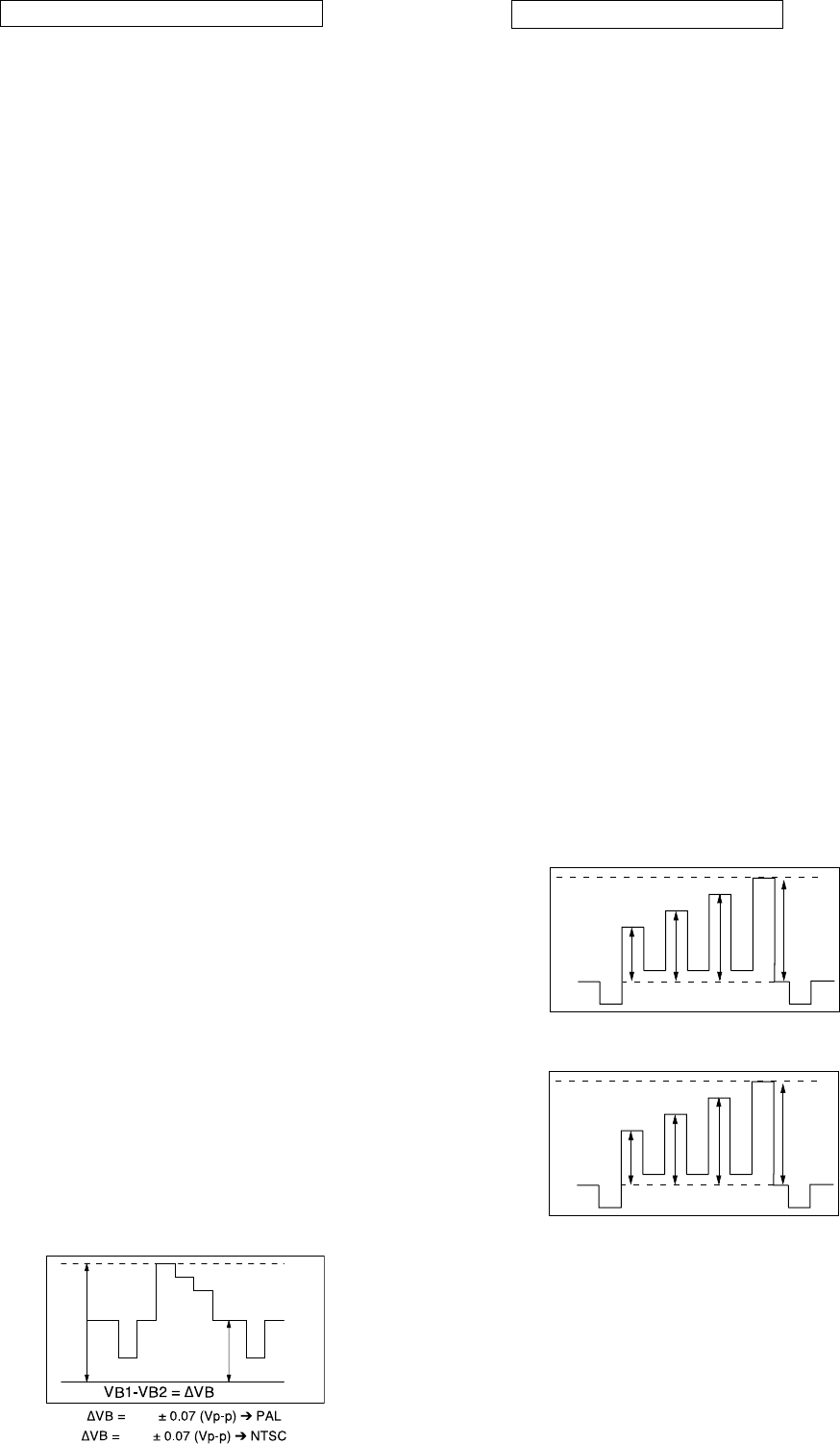

VB1 = VB3 = VB4 ± 70 mV
VB1 = VB4 ± 70 mV
VB2 = VB3 ± 70 mV
VB1
VB2
2.04
2.72
GND
VB1 VB2 VB3
VB4
PAL
VB1 VB2 VB3
VB4
NTSC
– 49 –
KV-DZ29M30/M61/M91
RM-GA002
Service Item
DEF 1 : 000 VPOS V POSITION
001 VSIZ V SIZE
002 VLN V LINEARITY
003 VSCO S CORRECTION
005 HTPZ H TRAPEZOID
DEF 2 : 000 HPOS H POSITION
001 HSIZ H SIZE
002 PIN PIN AMP
003 UCP UPPER CORNER PIN
004 LCP LOWER CORNER PIN
006 VANG AFC ANGLE
007 VBOW AFC BOW
7. Write into the memory by pressing [MUTING] then - on
the remote commander.
FOR 16:9 MODE, PROGRESSIVE (50Hz)
8. Adjust condition change to WIDE MODE : 16:9.
Service Item
DEF 1 : 006 ASPT VASPECT
007 SCRL VSCROLL
DEF 2 : 015 PINO PIN AMP OFFSET
016 UCPO UPPER CORNER PIN OFFSET
017 LCPO LOWER CORNER PIN OFFSET
FOR PROGRESSIVE (60Hz) MODE
9. Input 525/60Hz signal.
10. Set to WIDE MODE : 4:3
FOR 16:9 MODE, PROGRESSIVE (60Hz)
11. Set to WIDE MODE : 16:9
12. Adjust the following items to obtain optimum image.
Raise/lower the data with the 3 and 6 buttons.
DEF 1 : 006 ASPT VASPECT
007 SCRL VSCROLL
DEF2 : 015 PINO PIN AMP OFFSET
016 UCPO UPPER CORNER PIN OFFSET
017 LCPO LOWER CORNER PIN OFFSET
13. Input a NTSC cross hatch/dot signal and repeat all
above steps.
5-4(3).480i INPUT / 576i INPUT
(i) SUB CONTRAST
Input Signal :576i 100% Color Bar to HD / DVD1
Picture: CUSTOM mode
Condition : MCP 002 RON 0 005 RGBL 3
003 GON 0 006 YLMT 2
004 BON 1
SADJ 001 PIOF 0
Under Picture Menu : Picture 100
Color 0
Adjusting parameter : MCP 011 SPIC
(Same table for 480i/576i)
(ii) SUB COLOR & SUB HUE ADJUSTMENT
Input Signal :480i 75% Color Bar or 576i 100% Color Bar to
HD/DVD1
Picture: CUSTOM mode
Condition : MCP 002 RON 1 005 RGBL 0
003 GON 1 006 YLMT 3
004 BON 1
Under Picture Menu : Picture 50
Color 50
Adjusting parameter : MCP 012 COLR
(ADJUSTED +2STEPS)
014 HUE
(Same table for 480i/576i)
VB1- VB2 = ∆VB = 2.72 ± 0.07 Vp-p (For 576i 100% color bar)
5-5. DEFLECTION ADJUSTMENTS
FOR PROGRESSIVE (50Hz)
1. Set to Service Mode.
2. Input a PAL cross hatch/dot signal.
3. Set the following condition.
Picture Mode to [VIVID], Picture Rotation to [+/-0] and
Eco Mode to OFF.
4. Set SCAN MODE: PROGRESSIVE.
5. Using the 1 and 4 button, select category DEF 1
(Service Mode).
6. Select and adjust the following items to obtain optimum
image. Raise/lower the data using the 3 and 6 buttons.
VB1
VB2
GND
VB1 VB2 VB3
VB4
For sub Hue
adjustment
– 50 –
KV-DZ29M30/M61/M91
RM-GA002
PICTURE DISTORTION ADJUSTMENT (2)5-6. PICTURE DISTORTION ADJUSTMENT (1)
Item Number 00 – 0B
DEF2 1 HSIZ (H SIZE)
DEF2 5 PPHA (TRAPEZIUM)
DEF2 3 UCP (UPPER CORNER PIN)
DEF2 4 LCP (LOWER CORNER PIN)
DE1 1 VSIZ (V SIZE)
DEF2 0 HPOS (H POSITION)
DEF2 6 VANG (AFC.ANGLE)
DEF2 7 VBOW (AFC.BOW)
DEF2 2 PIN (PIN AMP)
DEF1 10 VPOS (V POSITION)
DEF1 2 VLIN (V LINEARITY)
DEF1 3 VSCO (VERTICAL S-Correction)
DEF1 5 HTPZ (H TRAPEZOID)
– 51 –
KV-DZ29M30/M61/M91
RM-GA002
SECTION 6
DIAGRAMS

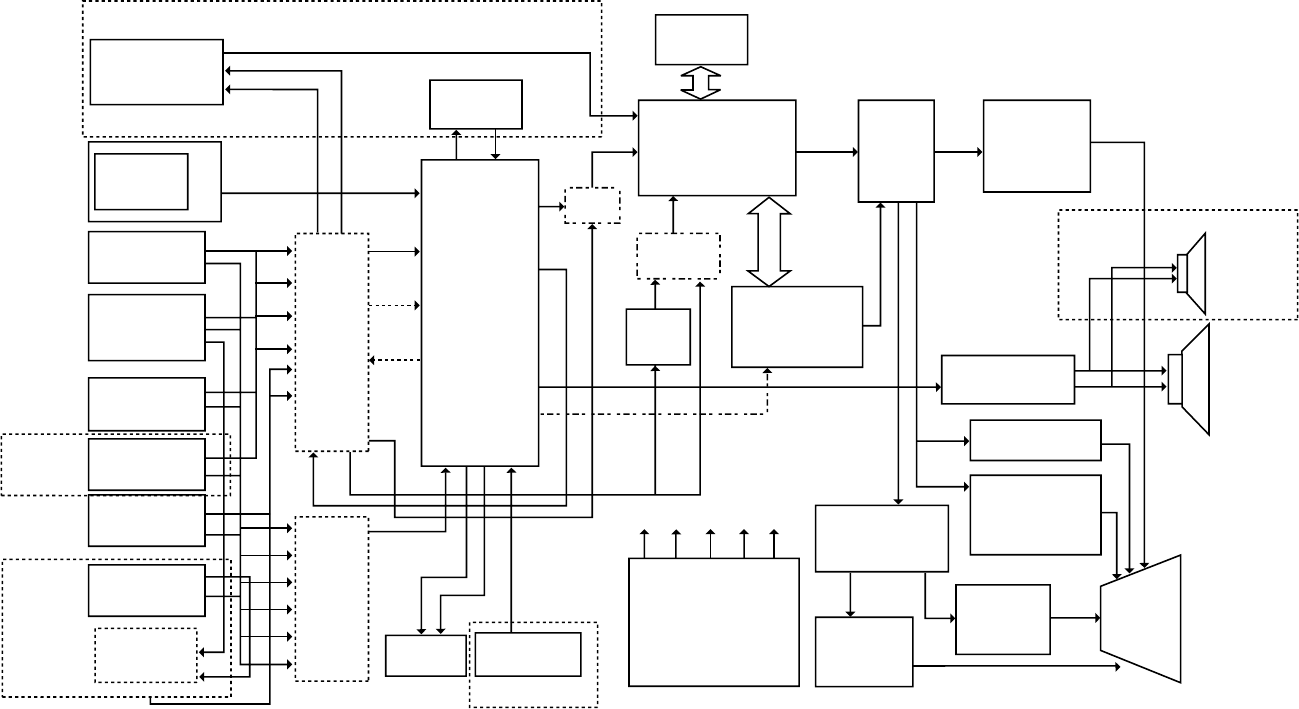

6-1. BLOCK DIAGRAM
CVBS
YC
YUV
H/V
Video
SW
PAP Model DA only
DA only
DA only
DA only DA only
Comb
Filter
PIP / PAP
TUNER
CVBS1
CVBS2
DVD &
CVBS 3
DVD1
DVD3
Audio
SW
Hercules
AV SW,
SW
Memory
RGB
Jungle
Video
AMP
2 WAY
Audio AMP
DF
VM/DQP
Landing Corr
CRT
Deflection
Deflection
Hor.
Defl
Power Supply
Center In
M OUT
Control
Helios
DRC-vol +MID-XA
Video
SW
Plct.
Boost
PF Micro
/OSD
CXA
2209
Video
SW
CVBS4
(Front)
YUV,H/V
CVBS
YC
Y
RF
OUT
YUV
L/R
L/R
CVBS
H/V
IF
Audio
Processor
(Surround)
Chroma
Decoding
2D Comb
M Micro
Vert.
27V7V
+B 12V 11V
EX-Z
– 52 –
KV-DZ29M30/M61/M91
RM-GA002
6-2. SCHEMATIC DIAGRAM INFORMATION
Note:
• All capacitors are in µF unless otherwise noted.
• All electrolytic capacitors are rated at 50V unless otherwise noted.
• All resistors are in ohms.
kΩ = 1000Ω, MΩ = 1000kΩ
• Indication of resistance which does not have rating electrical
power is as follows.
Pitch: 5 mm
Rating electrical power 1/4W (CHIP: 1/10W)
•: nonflammable resistor.
•: fusible resistor.
•¢: internal component.
• : panel designation or adjustment for repair.
• All variable and adjustable resistors have characteristic curve B
unless otherwise noted.
• Readings are taken with a color-bar signal input.
no mark : Common
(): PAL
[ ] : NTSC 3.58
• Readings are taken with a 10MΩ digital multimeter.
• Voltage are dc with respect to ground unless otherwise noted.
• Voltage variations may be noted due to normal production
tolerances.
• All voltage are in Volt.
•✽: Cannot be measured.
• Circled numbers are waveform references.
• : B +bus.
• : B –bus.
• k: signal path.
Note: The reference number which starts with Wxxx
(eg: W003) indicates a wire to wire connection.
Note: Components marked as XX are not fitted on this model.
Reference information
RESISTOR : RN METAL FILM
: RC SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RS NONFLAMMABLE METAL OXIDE
: RB NONFLAMMABLE CEMENT
: RW NONFLAMMABLE WIREWOUND
: ✽ADJUSTMENT RESISTOR
COIL : LF-8L MICRO INDUCTOR
CAPACITOR : TA TANTALUM
: PS STYROL
: PP POLYPROPYLENE
: PT MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
Note: The component identified by shading and
mark ! are critical for safety. Replace only with
part number specified.
Note: "A1" board schematic diagram is divided into 4 blocks.
"BH1" board schematic diagram is divided into 2
blocks. "D" board schematic diagram is divided into 2
blocks. Each block is named by its function and block
"number".
eg: Main Signal Processor/Audio Amp/Tuning/
Rectifier (Block 001) Joint connection between boards
can be identified using the block number followed by
the grid's guide.
eg: –< NVM_SCL
003:1I
Meaning: Block 001 joint "NVM_SCL" is connected to
Block 003 joint "NVM_SCL" located at grid 1I.
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
– 53 – – 54 –

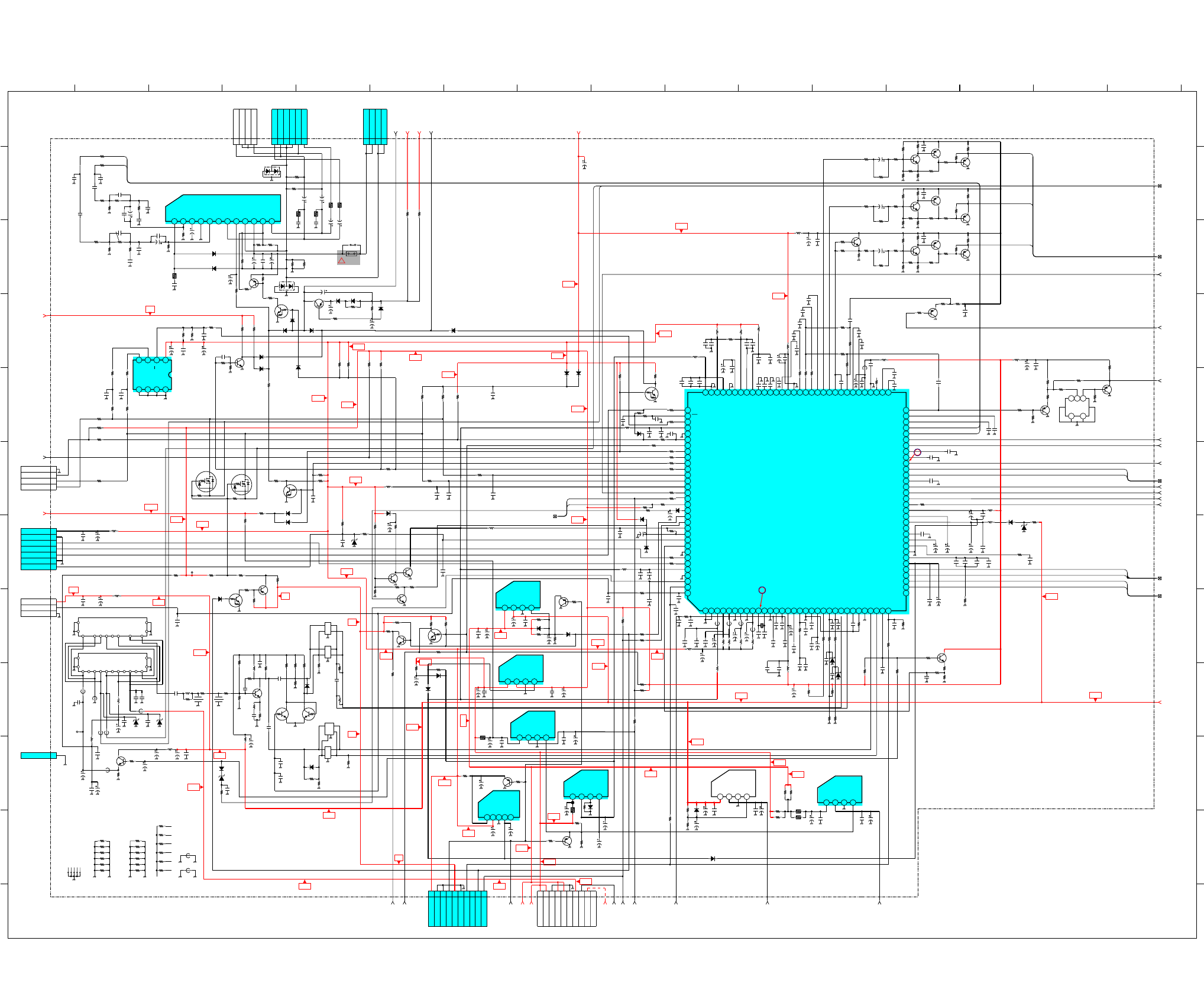

6-2-1. A1 Board – (Block 001)
2.2
C073 2.2
C064
25V
100
C036
25V
100
C056
35V
47
C026
25V
100
C304
25V
100
C305
16V
100
C006
10
C309
1
2
3
4
5
6
7
WHT
7P
CN014
3.3V STDBY
GND
LED G
LED R
SIRCS
GND
KEY
3.3
C065
10
C050
16V
100
C303
D070
XX
D069
XX
16V
100
C093
16V
470
C031
16V
470
C013
16V
100
C324
D073
XX
XX
C321
47
35V
C322
22
C024
22
C029
10uH
L003
10uH
L005
10uH
L009
10uH
L012
10uH
L031
10uH
L032
10uH
L035
10uH
L038
D1207
XX
C1206
0.22
C122147 35V
D1208
XX
100
C1211
C1210
0.22
D1209
XX D1210
XX
8910
11 127654321
IC1201
AN5277T
OUTC/NC
IN R/NC
RF
S_GND
IN L
IN C/NC
OUTL
MUTE
PW_GND
VCC
STBY
OUTR/NC
47
R1227
FPRD
47
R1226
FPRD
XX
R1225
22
C1219
1
2
3
4
5
6
6P
CN1201
PH L
SP L
GND
GND
SP R
PH R
22
C1217
C1222
XX
D109
XX
0.33uH
L103
10
C106
MA77
D100
16V
470
C108 47uH
L104
D106
XX
16V
100
C136
D105
XX
2SC3779C,D-AA
Q102
D108
XX
16V
470
C120
XX
L105
100uH
L100
100uH
L106
1
CN100
1-536-354-00
TP101
L102
0.22uH
16V
470
C107
10
C101
10
C2619
PQ018EF01SSH
IC2605
IN
OUT
GND
VCC
35V
C2618 16V
100
C2621
0.47
C2620
MA2ZD14001S0
D2601
D102
XX
16V
3300
C2613
25V
100
C2612
16V
100
C2603
16V
100
C2605
16V
100
C2602
16V
1000
C1220
JW1201
XX
35V
C092
47
1.2uH
L101
25V
22
C2622
MAIN_SCL,MAIN_SDA
003:3E
INL2,INR2
002:4C
INL1,INR1
002:4D
OUTL,OUTR
002:4C
35V
C001
47
35V
C005
47
CT139
CT131
1-767-775-221-767-774-22
TP008
1-536-354-00
1PS226-115
D1201
2SC2712-YG
Q003
S
2SK2036(TE85L)
Q031
S
2SK2036(TE85L)
Q032
Q033
XX
Q034
XX
D004
XX
D005
XX
10
C142
10uH
L010
10uH
L033
10uH
L036
10uH
L037
16V
470
C323
16V
C2614
100
C1216
2200
2SA1235-F
Q1201
D2604
XX D2605
XX
10uH
L008
10uH
L007
10uH
L011
47uH
L004
PS1201
5A
1-813-311-21
X001
1000
C1215
1000
C1218
3W
RS
1.5
R2620
Q013
XX
2SC1623-L5L6
2SC1623-L5L6
Q017
Q016
2SA1235-F
Q2601
2SA1235-F
Q2602
47uH
L023
35V
47
C332
1
2
3
CN015
XX
9V
ATT
GND
L024
XX
C334
XX
10uH
L006
10uH
L016
10uH
L013
330uH
L022
C1213
1000
0uH
FB100
0uH
FB101
0uH
FB102
0uH
FB103 10uH
L107
330
R1214
FPRD
330
R1212
FPRD
2SA1226-E4
Q025
2SA1226-E4
Q022
RN-CP
R073
56k
XX
C337
RN-CP
100
R392
RN-CP
15k
R2606
25V
0.1
B
C2606
6.3V
B
C1202
1
25V
0.1
B
C2607
XX
R359
RN-CP
3.3k
R363
XX
R362
16V
B
C009
0.1
RN-CP
10k
R2611
RN-CP
R008
100
RN-CP
R111
10k
XX
C122
R319
XX
RN-CP
470
R085
25V
0.022
B
C016
XX
R386
CHIP
0
R356
XX
R127
XX
R357
RN-CP
39k
R051
RN-CP
100
R083
16V
0.1
B
C328
RN-CP
18k
R360
XX
JR098
RN-CP
R093
470
XX
JR049 XX
JR038
0.1
B
C086
RN-CP
4.7k
R1204
XX
R1245
XX
R005
16V
0.1
B
C069
RN-CP
680
R061
RN-CP
4.7k
R315
RN-CP
R307
470
0
R043
CHIP
470p
CH
C1231
XX
JR029
0.1
C1205
PT
16V
0.1
B
C082
XX
JR001
XX
JR053
RN-CP
100
R056
PT
0.047
C1229
RN-CP
10k
R340
RN-CP
R090
100
RN-CP
R091
22k
XX
R384
R149
XX
JR1100
XX
RN-CP
1k
R350
CHIP
R128
0
RN-CP
4.7k
R395
XX
C335
25V
0.1
B
C2600
RN-CP
10k
R353
RN-CP
10k
R010
RN-CP
100
R323
CHIP
R1246
0
CHIP
0
R344
12
3
4
C133
XX
16V
0.1
B
C311
RN-CP
3.9k
R107
RN-CP
R312
100
RN-CP
220
R099
RN-CP
1.5k
R015
XX
R379
RN-CP
R078
100
RN-CP
R324
22k
RN-CP
100
R045
RN-CP
1k
R347
C333
XX
XX
C123
4700p
B
C116
0.022
B
C1209
100p
CH
C104
RN-CP
R092
22k
100p
CH
C021
JR003
XX
CH
C010
470p
RN-CP
R064
22k
RN-CP
6.8k
R1207
1000p
B
C306
RN-CP
R308
470
XX
JR056
16V
0.1
B
C308
16V
B
C329
0.1
25V
0.01
B
C057
16V
0.22
B
C011
25V
0.01
B
C072
R328
XX
16V
0.22
B
C022
RN-CP
R114
2.2k
XX
R1244
XX
R006
RN-CP
R020
100
RN-CP
100
R335
RN-CP
1k
R349
RN-CP
R011
100
RN-CP
100
R1230
1000p
B
C100
RN-CP
100
R029
RN-CP
100
R048
470p
CH
C1232
RN-CP
56
R109
RN-CP
100
R339
RN-CP
4.7k
R001
0.022
C1207
25V
25V
B
16V
0.22
B
C012
RN-CP
4.7k
R338
RN-CP
6.8k
R1208
1000p
B
C058
RN-CP
R049
22k
RN-CP
1k
R108
RN-CP
100k
R313
RN-CP
100
R026
XX
JR050
XX
C121
XX
R358
RN-CP
100
R380
16V
B
C330
0.1
XX
C097
XX
JR004
CHIP
0
JR006
C032
XX
XX
R314
XX
R018
XX
C1233
RN-CP
R326
470
R303
XX
RN-CP
1k
R110
CH
C112
100p
4700p
B
C115
XX
C316
XX
R364
CHIP
JR030
0
RN-CP
470
R337
RN-CP
R002
100
XX
R385
RN-CP
R316
6.8k
JR055
XX
RN-CP
100
R1229
16V
2.2
C137
F
CHIP
0
JR061
XX
C336
XX
R332
XX
R1252
RN-CP
R325
470
RN-CP
100
R376
XX
C023
4700p
B
C135
RN-CP
100
R074
XX
C317
16V
0.1
B
C038
RN-CP
2.2k
R1241
RN-CP
22k
R355
16V
0.22
B
C030
XX
R1213
0.15
C055
PP
250V
XX
JR2601
10k
R1210
RN-CP
RN-CP
2.2k
R012
RN-CP
3.3k
R348
XX
C083
XX
C310
25V
0.01
B
C111
XX
C1228
XX
JR048
RN-CP
100
R046
RN-CP
1k
R1216
CHIP
0
JR059
1000p
B
C081
16V
1
F
C314
100p
CH
C090
25V
0.1
B
C2615
XX
R1249
CHIP
R1250
0
0
R047
CHIP
CHIP
0
R322
XX
R082
XX
C042
RN-CP
R320
100
RN-CP
100
R075
RN-CP
100
R014
RN-CP
R087
470
XX
R023
16V
0.22
B
C048
RN-CP
100
R013
XX
JR1186
RN-CP
10k
R2607
CHIP
0
R1211
RN-CP
10k
R2609
CHIP
0
R1215
4700p
B
C061
RN-CP
12k
R044
XX
R399
RN-CP
33
R103
XX
C300
XX
JR064
6800p
25V
B
C046
100p
CH
C102
RN-CP
220
R097
16V
2.2
F
C1235
RN-CP
47k
R2610
1000p
B
C139
25V
0.022
B
C053
16V
0.22
B
C014
XX
JR099
RN-CP
10k
R354
XX
C025
XX
C066
PT
0.1
C1208
16V
0.1
B
C020
RN-CP
R112
6.8k
XX
JR005
XX
R365
RN-CP
4.7k
R080
XX
JR2604
RN-CP
10k
R2605
RN-CP
100
R025
XX
R1248
RN-CP
4.7k
R106
25V
0.022
B
C015
25V
0.01
B
C140
R310
XX
RN-CP
100
R341
R009
XX
16V
0.1
B
C054
CHIP
0
JR002
470p
CH
C301
RN-CP
4.7k
R003
1000p
B
C138
RN-CP
22k
R1242
RN-CP
100
R118
CHIP
0
R117
RN-CP
1k
R100
RN-CP
3.3k
R1205
XX
JR1109
XX
C1234
RN-CP
33
R119
1000p
C327
B
RN-CP
220
R096
RN-CP
15k
R2604
RN-CP
R076
470
51p
CH
C117
RN-CP
100
R030
XX
JR052
RN-CP
47
R086
RN-CP
R113
2.2k
RN-CP
100
R346
RN-CP
R321
22k
RN-CP
4.7k
R382
C034
XX
RN-CP
10k
R1228
0
R098
CHIP
RN-CP
10k
R336
B
C089
1000p
4700p
B
C109
16V
0.1
B
C063
100p
CH
C091
25V
0.1
B
C2601
16V
0.22
B
C019
RN-CP
68k
R388
XX
JR010
RN-CP
R318
470
25V
B
C124
0.01
16V
B
C331
0.1
PT
0.047
C1230
R007
XX
JR058
XX
4700p
B
C041
25V
0.1
B
C2616
RN-CP
4.7k
R351
CHIP
0
JR060
RN-CP
100
R004
RN-CP
R330
100
25V
0.022
B
C049
RN-CP
2.2k
R1231
RN-CP
100
R387
RN-CP
5.6k
R361
B
C080
1000p
RN-CP
R1202
3.3k
CHIP
0
R345
XX
R126
0.1
B
C1214
6.3V
1
B
C1201
CHIP
JR2603
0
1000p
B
C052
B
C125
1000p
CHIP
0
R1251
RN-CP
R131
100
RN-CP
10k
R1209
CH
C004
470p
1000p
C302
RN-CP
4.7k
R1201
0uH
FB106 0uH
FB107
1 2 4 5
BA18BCOWFP-E2
IC2604
FIN
CTL
Vcc
N.C.
OUT
N.C.
1
2
3
4
4P
CN1202
AUDIO VCC
AUDIO VCC
AUDIO GND
AUDIO GND
0uH
FB001
0uH
FB002
0uH
FB003
0uH
FB004 0uH
FB005
16V
0.1
B
C340
1
2
3
4
CN1204
XX
SP L
GND
GND
SP R
25V
33
C2617
AGC
AS
SCL
SDA
5V
30V
IF
TU102
XX
1
2
3
4
5
6
7
8
9
10
10P
CN2601
BLK
3.3V STBY
GND
GND
STBY_SW
5V STBY
GND
OVP_PROTECT
NC
STBY CTRL
DGC MUTE
SWF
I1
I2
O1
O2
G2
SWF100
1-781-040-11
SWF
I1
I2
O1
O2
G2
SWF102
XX
SWF
I1
I2
O1
O2
G2
SWF101
1-767-302-11
SWF
IO 1
O2
G1 G2
SWF103
XX
W003
3W
RS
10
R2608
2SA1226-E4
Q018
RN-CP
*
R088
XX
FB006
XX
FB007
4.7
C1212
STBY_SW
001:8L
+7V
001:6A
C_TRAP
003:16E
+11V
001:8L
+6.5V
003:1D
CV4/Y4
002:8B
SW-L
002:8K
+11V
001:6A
STBY_SW
001:10L
+12V
003:16D
CV2
002:16F
DGC-RELAY
001:1F
PIC_MUTE<FLASH>
003:16E
+9V
001:1D;003:16C
;002:8K
+5V
003:12A;002:12K
DGC-RELAY
001:9L
C4
002:7B
SW-R
002:8K
+9V
001:16I;003:16C;002:8K
DGC_MUTE
003:16F
MONMUTE_SW
002:8B
+7V
001:8L
P_MUTE
003:16E
+3.3V_B1
003:1G
XX
R390
XX
R389
Q037
XX
P_MUTE2
003:16D
XX
JR127
L002
10uH 35V
C008
47
XX
R017 46
123
FL001
RN-CP
XX
R031
0
R032
RN-CP
XX
R033
RN-CP
XX
R034
CVBS_1
003:3A
R094
XX
XX
JR128
XX
C059
CV1
002:16F
MON_OUT
002:16F
Q2603
XX
XX
R2623
XX
R2624
XX
C2623
RN-CP
100
R035
RN-CP
100
R038
XX
C060
RN-CP
10k
R1255
RN-CP
10k
R1256
RN-CP
15k
R1253
RN-CP
15k
R1254
2SA1235-F
Q1206
RN-CP
2.2k
R1257
XX
XX
R1258
XX
JR1201
MICRO_B_INT,MICRO_RESET
003:3E
25V
470
C2629
25V
470
C2630
25V
0.1
B
C2631
25V
0.1
B
C2632
CHIP
0
JR2607
CHIP
0
JR2608
XX
JR2609 XX
JR2610
+1.8V_B1
003:1G
PQ018EF01SSH
IC2608
IN
OUT
GND
VCC
1
2
3
4
4P
CN003
GND
B_INT
B_DAT
B_CLK
J
810 14
E
B
K
11 15
G
D
1
D
L
412 16
E
I
2 6
A
7
C
J
13
G
K
H
3
L
F
5
F
H
I
A
9
C
B
PQ3RD13J000H
IC2603
IN
OUT
GND
VCC
XX
R2614
Q004
XX
XX
R021
RN-CP
4.7k
R022
CHIP
JR009
0
AGC
N.C
SCL
SDA
MB
TU2
IF OUT
MB
1-693-722-11
TU101
U_UOC,V_UOC,Y_UOC
003:2B
D2606
XX
25V
0.01
B
C003
8765
CAT24WC32WI-TE13
IC002
E0
E1
E2
GND SDA
SCL
WC
VCC
XX
R027
XX
R024
220p
CH
C007
RN-CP
100
R019
220p
CH
C017
16V
0.1
B
C002
CHIP
0
R040
CHIP
0
R028
C027
1
2
3
4
5
6
7
8
9
10
CN2602
XX
-15V
+12V
DGC-RELAY
+33V
GND
+11V
NC
GND
NC
+7V
CHIP
0
R036
RN-CP
470
R037
XX
R058
CHIP
0
R057
MA111-TX
D001
MA111-TX
D002
MA111-TX
D003
D007
XX
D006
XX
MA111-TX
D066
MA111-TX
D072
MA111-TX
D1202
MA111-TX
D1204
MA111-TX
D1205
MA111-TX
D1203
MA111-TX
D1206
MA111-TX
D1216
MA111-TX
D1215 MA111-TX
D1217
MA111-TX
D1244
MA111-TX
D2603
MA111-TX
D2602
KRC102S
Q015
KRC102S
Q030
KRC102S
Q1207
DTC143TKA-T146
Q103
RT1N430C-TP-1
Q104
10V
470
C2609
WSS
002:10K
RN-CP
R333
470
RN-CP
560
R334
RN-CP
R016
100
KIA78R09API
IC2600
KIA78R05API
IC2601
3W
RS
6.8
R2625
3W
RS
6.8
R2626
2SC1623-L5L6
Q001
2SC1623-L5L6
Q023
2SC1623-L5L6
Q029
2SC1623-L5L6
Q100
2SC1623-L5L6
Q1202
2SA1235-F
Q002
2SA1235-F
Q024
2SA1235-F
Q020
2SA1235-F
Q026
XX
Q038
2SA1235-F
Q039
RN-CP
R2627
RN-CP
R2628
XX
XX
XX
D2607
C2635
16V
220
C2633
25V
0.1
B
C2634
25V
0.1
B
C2636
25V
22
C2637
+5V_BT
003:1G
XX
C098
XX
C342
W004 W005
XX
C344
XX
C346
25V
0.1
B
C078
25V
0.1
B
C075
25V
0.1
B
C074
25V
0.1
B
C071
25V
0.1
C037
B
25V
0.22
B
C096
1234
KIA78R05API
IC2609
25V
0.1
B
C018
25V
0.1
B
C343
25V
0.1
B
C068
25V
0.22
B
C347
25V
0.22
B
C345
DTZ5.6B
DTZ5.6B
D064
D065
DTZ5.6B
D068
25V
0.22
B
C348
25V
0.1
B
C341
25V
0.22
C044
B25V
0.22
B
C349
25V
0.22
B
C350
25V
0.22
B
C351
16V
0.047
B
C1203
16V
0.047
B
C1204
RN-CP
6.8k
R1203
RN-CP
6.8k
R1206
RN-CP
R311
270
RN-CP
R329
100
RN-CP
R331
470
RN-CP
R095
33
2SC2223-F13
Q019
9
8756
342
110 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
6768697071
72737475
76
77
78
79
80
81
82
83
84
858687
88
8990
91
92
93
94
9596
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
*
IC001
M-SYS-IF
OCP/OVP
AGC-MUTE
VSSC3
VDDC3(1.8V)
GREEN LED
RED LED
VSSC1/P
RF AGC
KEY
DECV1V8
VDDC(1.8V)
DGC MUTE
STBY CTRL
HARD RESET
MICRO_B_INT
MICRO_RESET
C-TRAP SW/S4
VDDP(3.3V)
SDA0
SCL0
AUDIO I/O
AUDIO MUTE
DGC RELAY
MOMUTE-AUDIO
Picture Mute
B INT
VSSC2
VDDC2
WC
INT1
SIRCS
VDDADC(1.8)
VSSADC
VDDA2
VDDA(1.8)
GNDA
VREF AD
VREFAD_PO
VREFAD_NE
VDDA(3.3V)
B OUT
G OUT
R OUT
IK
ABL
VP3
GND3
B-Y/BIN
Y/GIN
R-Y/RIN
SCARTFBL
VOUT
UOUT
YOUT
YSYNC
YIN
UIN
VIN
VDDCOMB
VSSCOMB
HOUT
AFC
VM
CVBS0
SCARTHPR
SCARTHPL
LSR
LSL
C1
CVBS1/Y1
INR1
INL1
CVBS3
INR3
INL3
C2
CVBS2/Y2
INR2
INL2
MON_OUT
VP2
AGC2SIF
VCC8V
INTC0_IF
IFVO/IF_MON_OUT
SIFAGC/SCART
PLLIF
GND
MONO_OUTL
DECSDEM
OUTR
OUTL
D1 RIN
D1 LIN
AVL/2SIF
EHTO
AGCOUT
SIFIN2
SIFIN1
GNDIF
IREF
VSC
VIFIN2
VIFIN1
VD+
VD-
EWD
DECBG
SECPLL
GND1
PH1LF
PH2LF
VP1
DECDIG
VGUARD
VSSA1
XTALOUT
XTALIN
VREF_POS_HPR
VREF_NEG_HPL+HPR
VREF_POS_LSR+HPL
VREF_NEG_LSL+LSR
VREF_POS_LSL
VDDA3(3.3V)
VDDC4(1.8)
VSSC4
VSSP2
W006
W007
25V
0.1
B
C070
25V
0.1
B
C043
25VBC3180.1 25V
B
C319
0.1
25V
0.1
B
C087
25V
0.1
B
C088
25V
0.1
B
C085
25V
0.1
B
C084
25V
0.1
B
C079
25V
0.1
B
C028
INR2
INL2
OUTR
OUTL
INR1
INL1
LSL_AUDIO
LSR_AUDIO
LSL_AUDIO
LSR_AUDIO
MAIN_SCL
MAIN_SDA
V_UOC
Y_UOC
MICRO_B_INT
MICRO_RESET
U_UOC
TO H1 BOARD
TO I2C Bus
CN3905
(RESET)
TO H1 BOARD
CN6619
CN3903
TO D BOARD
TO F1 BOARD
CN1603
TO D BOARD
CN6605
TO D BOARD
CN6606
A1
(HERCULES / TUNER / AUDIO / REGULATOR)
(Block 001)
+9V
+6.5V
9V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
3.3V
5V
5V
5V
5V
+11V
+33V
+7V
+7V
+11V +11V
+11V
+11V
+7V
+7V
+33V
+33V
+33V
+9V
+9V
+9V
+9V
+9V
+9V
+9V
+9V
+9V
+9V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
+5V
1234
1234
1234
1234
1234
B-CX2(06)13412-SAF-A..(Block 001)-DZ29M30
1
2
!
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002

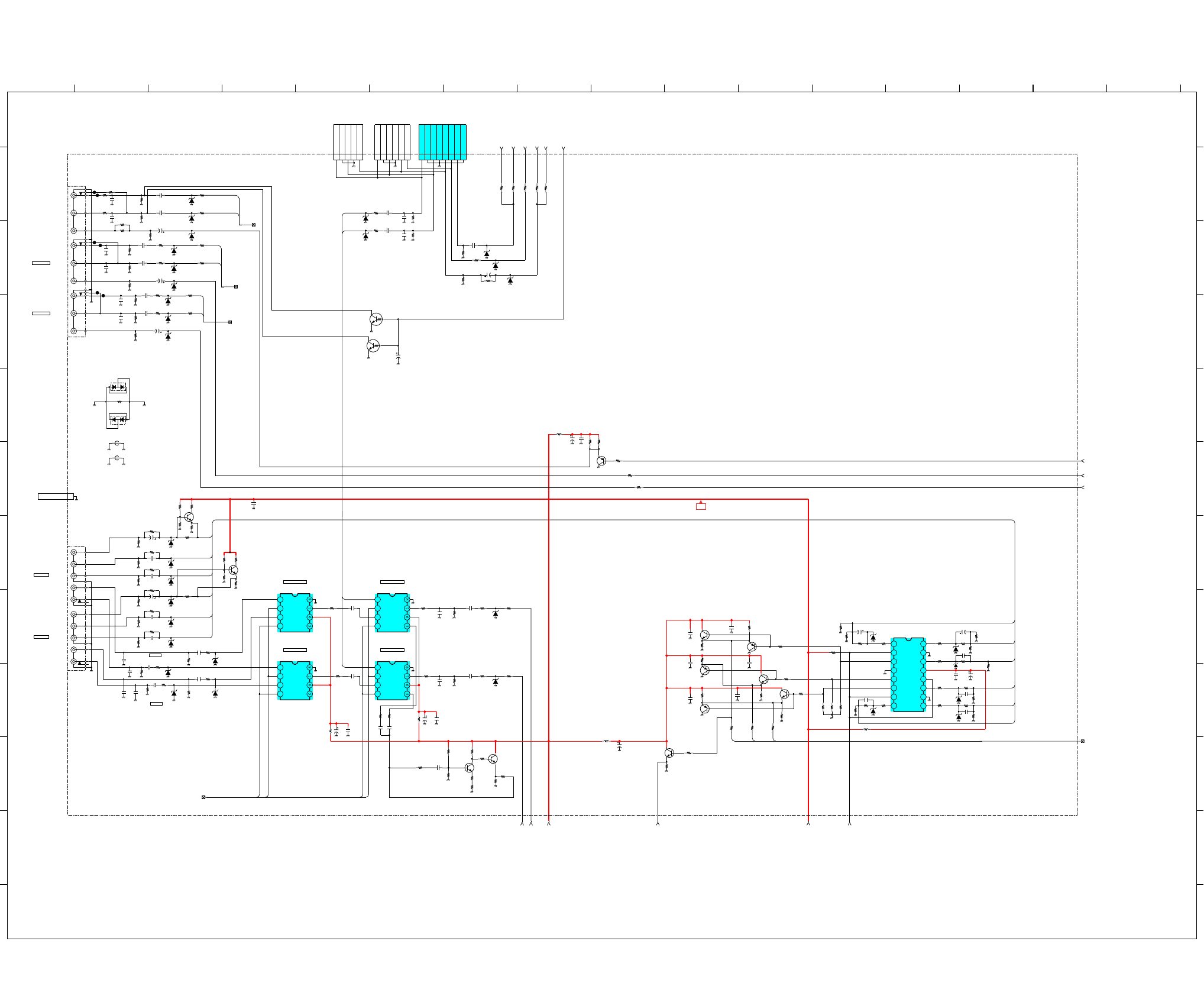

6-2-2. A1 Board – (Block 002)
– 55 – – 56 –
B-CX2(06)13412-SAF-A..(Block 002)-DZ29M30
+5V
10uH
L2201
10uH
L2202
35V
47
C2236
35V
47
C2235
1_SW1,1_SW2,2_SW1,2_SW2
003:3C
C8304
1
C8301
1
16V
470
C8303
C8308
1
10uH
L8303
16V
100
C8325
OUTL,OUTR
001:17G
INL2,INR2
001:17F
INL1,INR1
001:17H
16V
C8526
100
Y,CB,CR
003:2C
4
32
1
NJM2521V(TE2)
IC2201
IN1/DVD1-L
2-SW1
IN2/DVD2-L
2-SW2 IN3/L3
VCC
OUTL-2
GND
4
32
1
NJM2521V(TE2)
IC2202
IN1/DVD1-R
2-SW1
IN2/DVD2-R
2-SW2 IN3/R3
VCC
OUTR-2
GND
4
321
NJM2521V(TE2)
IC2203
IN1/L4
1-SW1
IN2/OUTL-2
1-SW2
IN3/TV_Sub_Sound
VCC
OUTL-1
GND
4
321
NJM2521V(TE2)
IC2204
IN1/R4
1-SW1
IN2/OUTR-2
1-SW2
IN3/TV_Sub_Sound
VCC
OUTR-1
GND
35V
C8528
47
L8503
10uH
Q2203
XX Q2204
XX
C2227
10
L8504
10uH
C8310
XX
C8321
XX
1
2
3
4
5
6
CN2204
XX
R IN
GND
L IN
GND
CV IN
DETECTOR
6.3V
1
B
C2218
RN-CP
47
R8564
470p
CH
C2206
RN-CP
220k
R2206
C2242
XX
R2247
XX
RN-CP
75
R8338
RN-CP
2.2k
R8340
RN-CP
75
R8339
RN-CP
75
R8308
RN-CP
100
R8375
470p
CH
C2201
6.3V
1
B
C2234
RN-CP
22k
R2225
CHIP
R8457
0
RN-CP
100
R2259
CHIP
R8454
0
6.3V
1
B
C2233
RN-CP
100
R2234
RN-CP
470
R2201
470p
CH
C2207
RN-CP
22k
R2209
6.3V
1
B
C2216
CHIP
R8455
0
6.3V
1
B
C2240
470p
CH
C2225
RN-CP
R8550
1k
RN-CP
1k
R2223
6.3V
1
B
C2239
RN-CP
220k
R2208
RN-CP
100
R8358
CHIP
R8453
0
RN-CP
220k
R2210
RN-CP
18k
R2238
RN-CP
470k
R2213
R2248
XX
16V
0.1
B
C2244
RN-CP
100
R2235
RN-CP
75
R8318
RN-CP
470k
R2212
RN-CP
100
R8357
CHIP
R2252
0
RN-CP
100
R2258
R2246
XX
RN-CP
220k
R2236
C8311
XX
XX
R2254
R8418
XX
RN-CP
220k
R2211
6.3V
1
B
C2215
470p
CH
C2203
C8361
XX
RN-CP
39k
R2216 470p
CH
C2226
RN-CP
R8549
1k
6.3V
1
B
C2214
R8423
XX
RN-CP
100
R2241
RN-CP
100
R2257
RN-CP
100
R2233
RN-CP
R8554
100
RN-CP
22k
R2245
RN-CP
220k
R2242
RN-CP100R8389
RN-CP
R8558
1k
RN-CP
100
R8359
470p
CH
C2231
RN-CP
220k
R2244
CHIP
R2253
0
R8312
XX
RN-CP
470k
R8303
RN-CP
100
R2230
16V
C8529
0.1
RN-CP
100
R8376
RN-CP
100
R2231
R2249
XX
RN-CP
220k
R2228
RN-CP
100
R8334
RN-CP
100
R2240
RN-CP
100
R8361
RN-CP
39k
R2217
RN-CP
22k
R2243
R8451
XX
RN-CP
R8551
1k
470p
CH
C2237
R2250
XX
470p
CH
C2232
6.3V
1
B
C2220
R2251
XX
RN-CP
R8557
1k
6.3V
1
B
C2222
RN-CP
39k
R2219
RN-CP
18k
R2239
RN-CP
100
R8360
RN-CP
R8552
10k
R8414
XX
6.3V
1B
C2211
470p
CH
C2205
6.3V
1
B
C2217
470p
CH
C2204
RN-CP
220k
R2229
CHIP
R8456
0
RN-CP
100
R2232
6.3V
1
B
C2228
470p
CH
C2238
6.3V
1
B
C2223
R8320
XX
6.3V
1
B
C2229
CHIP
R8452
0
RN-CP
1k
R2222
16V
C8527
0.1
XX
R2203
R8307
XX
RN-CP
100
R8370
RN-CP
47
R8562
RN-CP
R8555
100
RN-CP
39k
R2218
470p
CH
C2208
C8312
XX
RN-CP
100
R8362
RN-CP
22k
R2224
16V
0.1
B
C8322
RN-CP
47
R8565
RN-CP
R8553
100
RN-CP
75
R8313
16V
0.1
B
C2243
6.3V
1
B
C2230
RN-CP
100
R2260
RN-CP
470
R2202
470p
CH
C2202
C8362
XX
RN-CP
220k
R2237
6.3V
1
B
C2219
RN-CP
220k
R2207
RN-CP100R8373
16V
1
F
C8309
RN-CP
22k
R2221
6.3V
1
B
C2241
RN-CP
220k
R2220
1
CN8308
XX
GND
J8302
181960911
1
5
2
4
3
6
8
7
9
10
11
12
13
14
15
16
1
2
3
4
5
CN2206
XX
R IN
GND
L IN
GND
CV IN
1PS226-115
D8325
XX
L8309
2SA1226-E4
Q8520
RN-CP
R8566
470
16 15 14 13 12 11 10 9
87654321
TL52055DR
IC8503
Y2
CTR
Y
GND
BY
RY
CTR
RY1 RY2
GND
BY1
CTR
VDD
BY2
GND
Y1
16V
0.1
C8531
0UH
FB8303
XX
FB8304
SW-L
001:16F
+5V
001:8A;003:12B
+9V
001:1D;001:16I;003:16C
CTRL_SW
003:3B
MONMUTE_SW
001:6A
SW-R
001:16F
1
2
3
4
5
6
7
8
8P
CN2203
R IN
GND
L IN
GND
CV/Y IN
S IN
C IN
GND
16V
0.1
B
C8533
XX
R8567
XX
R8568
XXR8569
RN-CP
1k
R8368
CV1
001:16F
CV2
001:16F
MON_OUT
001:16F
CV4/Y4
001:16F
C4
001:16E
S4
003:1E
YC_Y
003:3B
YC_C
003:3B
2SC2223-F13
Q8501
2SA1226-E4
Q8502
2SA1226-E4
Q8503
XX
C8501
XX
C8502
XX
C8503
XX
R8501
XX
R8502
XX
R8503
CHIP
0
R8301
CHIP
0
R8302
J
810 14
E
B
K
11 15
G
D
1
D
L
412 16
E
I
2 6
A
7
C
J
13
G
K
H
3
L
F
5
F
H
I
A
9
C
B
181729822
J8301
Q8504
RN-CP
100
R8504
RN-CP
1k
R8505
WSS
001:16D
RN-CP
1k
R8412
XX
R8377
2SA1235-F
Q8306
Q8517
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
Q8518
XX
R8573
XX
R8574
XX
R8575
CHIP
0
R8341
CHIP
0
R8346
XX
R8342
XX
R8343
XX
R8347
XX
R8348
XX
R8344
XX
R8345
XX
R8349
XX
R8350
Q8307
XX
Q8308
XX
XX
R8506
XX
R8507
RN-CP
R8508
75 RN-CP
R8509
75
RN-CP
R8510
75
RN-CP
R8511
75
RN-CP
R8512
75
RN-CP
R8513
75
D8501
MA8100-M-TX
D8502
D8504
D8505
D8506
MA8100-M-TX
MA8100-M-TX
MA8100-M-TX
MA8100-M-TX
MA8100-M-TX
D8503
Q2201
DTC143TKA-T146
DTC143TKA-T146
Q2202
D2202
D2205
DTZ5.6B
DTZ5.6B
DTZ5.6B
DTZ5.6B
D2204
D2203
DTZ5.6B
DTZ5.6B
D2217
D2218
D8314
XX
D8322
XX
D8315
XX
D8323
XX
D8312
XX
D8313
XX
DTZ5.6B
D8309
MA8091-M
MA8091-M
MA8091-M
MA8091-M
D2201
D2206
MA8091-M
MA8091-M
MA8091-M
MA8091-M
MA8091-M
D2207
D8301
D2208
D2212
D2211
D2219 D2220
D8304
D8306
MA8091-M
D8310
MA8091-M
MA8091-M
MA8091-M
D8311
1PS226-115
D8326
16V
0.1
C8323
16V
C8539
2.2
16V
C8536
2.2
16VC8537 2.2
16V
C8538
2.2
C8534
2.2 C8535
2.2
OUTL
OUTR
R4
1_SW1
1_SW2
2_SW1
2_SW2
L4
INR2
INL2
INR1
INL1
Y
CB
CR
CR2
CB2
CR1_1
CB1_1
Y1_1
Y2
Y1_1
Y2
CB1_1
CB2
CR1_1
CR2
L3
V1
R3
L OUT
V3
R1
MON OUT
R OUT
L1
MONITOR OUT
VIDEO IN 3
VIDEO IN 1
TO H1 BOARD
AUDIO SEL-2L
AUDIO SEL-2R
AUDIO SEL-1L
AUDIO SEL-1R
DVD 1
DVD 2
CN3904
A1
(JACK/CTRL SW)
(BLOCK 002)
R
L
V
R
V
L
V
R
L
Y1
Pb1
Pr1
L
R
Y2
Pb2
Pr2
L
R
DVD IN 1
DVD IN 2
MON_OUT
CV2
CV1
TO B1 BOARD
TO B1 BOARD
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002

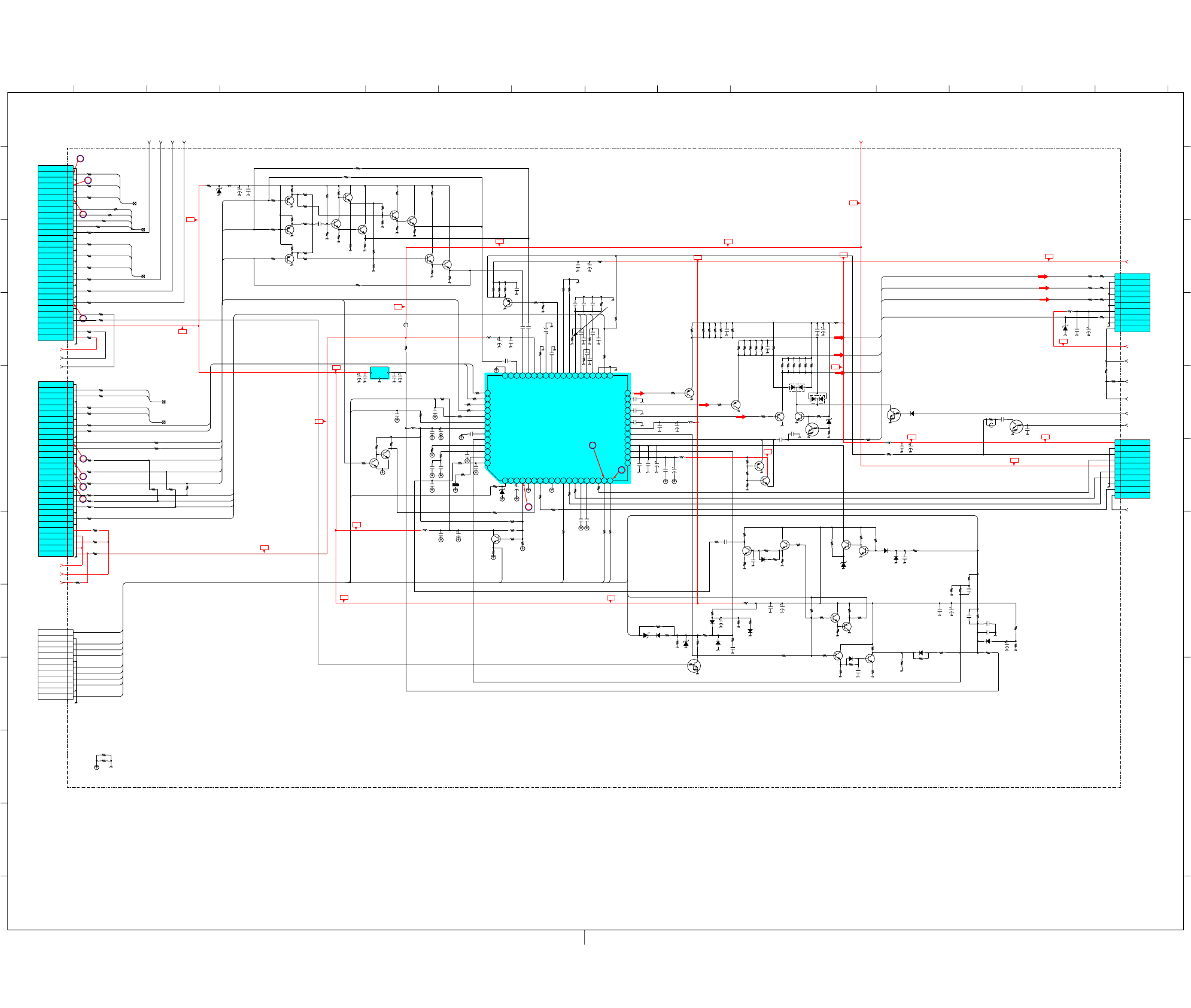

6-2-3. A1 Board – (Block 003)
– 57 – – 58 –
6
7
8
9
10
11
12
13
3
4
5
123456789
Q4304
XX
16V
100
C4312
10uH
L4306
10uH
L4304
4.7
C4333
MA3062M-TX
D4320
10uH
L4305
16V
100
C4304
10uH
L4311
D4301
XX
10uH
L4307
XX
FB4301
16V
100
C4314
16V
100
C4335
3.3
C4323
M1MA152WK-T1
D4318
16V
100
C4340
16V
100
C4336
16V
100
C4319
16V
100
C4317
XX
C4303
10uH
L4303
10 11 12 13 14 15 16 17 18 19
20
21
22
23
24
25
26
27
28
29
30
31
32
33343536373839404142434445464748495051
52
53
54
55
56
57
58
59
60
61
62
63
64
CXA2170Q
IC4301
HP_IN
V_SINE
VREG5
HD
GND_H
VS_IN
HC_PARA
MP_PARA
GND_V
DF_PARA
EW_DRV
V_APARA2
V_APARA1
V_OSC
V_AGC
VSAW0
VSAW1
V_DRV-
V_DRV+
VTIM
VCC9
ABL_IN
ABL_FIL
IK_IN
PRE_RGB
VCC_OUT
B_SH
B_OUT
G_SH
G_OUT
R_SH
R_OUT
GND_OUT
YSYM
GND_SIG
B_IN
G_IN
R_IN
PABL_FIL
DPDT_OFF
YF_OFF
VM_OUT
CLP_C
BPH
IREF_YC
VCC5S
Y_IN
CB_IN
CR_IN
F0
F1
SDA
SCL
SCP
HS_IN
V_PROT
H_PROT
VCC5H
HD_TC
HVCOMP_IN
IREF_HV
AFC_FIL
CERA
L2_FIL
M1MA152WK-T1
D4319
16V
100
C4332
10uH
L4308
16V
100
C4359
10uH
L4310
D4315
XX
35V
47
C4358
16V
100
C4361
16V
100
C4353
D4311
XX
D4310
XX D4316
XX
1
2
3
4
5
6
7
8
9
10
11
12
CN4304
XX
HD
GND
PRE RGB
V PROT
H PROT
GND
HP IN
ABL
V DRV+
V DRV-
GND
EW
D4321
XX
Q4321
XX
16V
100
C4383
1
2
3
4
5
6
7
8
9
10
RED
10P
CN4302
9V
GND
VM
ROT
5V
V_PARA2
V_PARA1
E
DQP_PH
DGC MUTE
2SC1623-L5L6
Q4303
Q4316
Q4323
Q4324
2SA1235-F
Q4315
181380021
X4301
D4322
XX
Q4331
Q4332
D4324
XX
Q4333
XX
Q4334
XX
D4325
XX
D4327
XX
D4326
XX
2SA1226-E4
Q4309
2SA1226-E4
Q4307
2SA1226-E4
Q4308
1
2
3
4
5
6
7
8
9
10
WHT
10P
CN4301
P_MUTE
GND
1K
+12V
GND
B_DRV
GND
G_DRV
GND
R_DRV
RN-CP
2.2k
R4449
RN-CP
2.7k
R4364
RN-CP
100
R4324
CHIP
0
JR017
RN-CP
2.2k
R4402
RN-CP
2.2k
R4396
XX
R4411
RN-CP
47
R4356
R4305
0
CHIP
0
R4336
RN-CP
100k
R4372
RN-CP
2.2k
R4405
RN-CP
100
R4316
CHIP
0
R4453
XX
C4385
RN-CP
100
R4426
RN-CP
100
R4351
CHIP
0
R4416
XX
C4343
25V
0.01
B
C4384
RN-CP
4.7k
R4345
R4328
XX
XX
R4352
XX
R4418
RN-CP
22k
R4436
RN-CP
47k
R4366
RN-CP
2.2k
R4347
R4427
XX
RN-CP
100
R4350
R4386
XX
RN-CP
8.2k
R4313
XX
R4384
RN-CP
22k
R4382
RN-CP
2.2k
R4391
RN-CP
2.2k
R4387
CHIP
R4461
XX
XX
R4385
CHIP
0
R4474
16V
0.1
B
C4331
RN-CP
2.2k
R4322
RN-CP
390
R4321
XX
C4355
RN-CP
2.2k
R4346
RN-CP
2.2k
R4452
RN-CP
680
R4408
RN-CP
100
R4314
RN-CP
2.2k
R4400
RN-CP
10k
R4410
RN-CP
100
R4310
RN-CP
100
R4319
RN-CP
2.2k
R4447
16V
0.1
B
C4386
R4383
XX
RN-CP
100
R4341
RN-CP
R4330
2.7k CHIP
0
R4455
RN-CP
390
R4304
RN-CP
10k
R4309
R4428
XX
16V
0.1
B
C4367
RN-CP
2.2k
R4404
XX
C4362
16V
0.1
C4360
RN-CP
100
R4327
25V
0.01
B
C4316
16V
0.22
B
C4309
RN-CP
10k
R4373
16V
0.1
C4379
RN-CP
100
R4338
CHIP
0
R4489
RN-CP
2.2k
R4389
16V
0.1
B
C4320
RN-CP
47
R4357
RN-CP
390
R4306
16V
0.1
B
C4321
25V
1000p
CH
C4381
10V
0.47
B
C4324
RN-CP
100
R4317
CHIP
0
R4465
CHIP
0
R4362
16V
0.1
B
C4310
16V
0.033
B
C4371
XX
C4322
RN-CP
100
R4344
16V
0.1
B
C4372
RN-CP
100
R4337
16V
0.1
B
C4357
RN-CP
68k
R4374
CHIP
0
R4315
25V
0.01
C4375
16V
0.1
B
C4305
RN-CP
100
R4349
RN-CP
100
R4343
RN-CP
100k
R4312
RN-CP
8.2k
R4439
RN-CP
12k
R4406
RN-CP
47
R4354
R4326
XX
RN-CP
2.2k
R4397
CHIP
0
JR016
RN-CP
10k
R4311
RN-CP
220k
R4441
RN-CP
4.7k
R4413
16V
0.1
B
C4302
RN-CP
3.3M
R4339
16V
0.1
B
C4328
RN-CP
2.2k
R4398
RN-CP
47
R4358
CHIP
0
R4473
RN-CP
12k
R4438
XX
C4341
CHIP
0
R4412
CHIP
R4494
0
RN-CP
2.2k
R4403
CHIP
0
R4361
RN-CP
2.2k
R4399
RN-CP
10k
R4307
CHIP
0
R4419
RN-CP
100
R4395
CHIP
0
R4470
RN-CP
2.2k
R4437
1000p
B
C4307
RN-CP
2.2k
R4390
RN-CP
2.2M
R4377
16V
0.1
B
C4370
16V
0.1
C4380
XX
C4356
CHIP
0
R4484
RN-CP
2.2k
R4401
RN-CP
560
R4320
25V
0.01
C4377
XX
R4342
RN-CP
2.2k
R4425
XX
R4435
XX
R4424
25V
0.01
B
C4308
XX
R4329
RN-CP
100
R4348
RN-CP
4.7k
R4451
CHIP
0
R4487
RN-CP
100
R4323
CHIP
0
R4369
25V
0.01
B
C4346
16V
0.1
B
C4318
RN-CP
1.2k
R4440
25V
0.01
B
C4382
16V
0.068
B
C4337
10V
0.47
B
C4311
0.1
C4327
16V
0.1
B
C4334
CHIP
0
R4460
XX
R4375
XX
C4306
RN-CP
R4332
100
RN-CP
100
R4318
16V
0.1
C4378
16V
0.22
B
C4374
RN-CP
4.7k
R4331
XX
R4353
CHIP
0
R4467
XX
R4325
RN-CP
2.2k
R4394 RN-CP
10k
R4420
CHIP
0
R4454
RN-CP
2.2k
R4371
RN-CP
100
R4409
2200p
B
C4338
RN-CP
2.2k
R4388
16V
0.1
B
C4313
CHIP
0
R4485
RN-CP
2.2k
R4448
4700p
B
C4315
CHIP
0
R4459
RN-CP
10k
R4308
25V
100
C4342
XX
C4391
XX
C4392
Q4335
XX
RN-CP
150
R4355
XX
R4376
XX
L4312
IO
COM
L78MO5T-FA
IC4302
33p
C4390
33p
C4389
33p
C4388
RN-CP
47k
R4368
RN-CP
68k
R4417
RN-CP
1.8k
R4421
DGC_MUTE
001:9L
P_MUTE
001:6L
PIC_MUTE<FLASH>
001:6A
+12V
001:9L
+3.3V_B1
001:9L
C_TRAP
001:16C
+5V
001:8A;002:12K
+9V
001:2D;001:16I;002:8K
CHIP
0
JR4315
CHIP
0
JR4316
P_MUTE2
001:6L
RN-CP
100
R4335
RN-CP
100
R4429
CHIP
R4430
0
XX
R4431
XX
R4432
XX
R4433
XX
R4434
XX
R4442
XX
R4443
CTRL_SW
002:12K
Y,CB,CR
002:16J
CHIP
0
R4444
CHIP
0
R4445
CHIP
0
R4446
1_SW1,1_SW2,2_SW1,2_SW2
002:4J
CHIP
0
R4450
CHIP
0
R4456
CHIP
0
R4458
CHIP
0
R4464
YC_Y
002:8B
YC_C
002:7B
CVBS_1
001:16E
CHIP
0
R4466
CHIP
0
R4468
CHIP
0
R4469
P_MUTE1
003:16E
+6.5V
001:2F
CHIP
0
R4472
CHIP
0
R4475
CHIP
0
R4476
CHIP
0
R4477
CHIP
0
R4478
CHIP
0
R4479
XX
R4480
U_UOC,V_UOC,Y_UOC
001:17C
CHIP
0
R4481
S4
002:8B
MICRO_B_INT,MICRO_RESET
001:8F
+1.8V_B1
001:12L
P_MUTE1
003:2D
XX
XX
Q4310
XX
XX
Q4311
XX
Q4312
Q4313 Q4317
Q4314
Q4318
Q4319
Q4320 XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
XX
Q4322
RN-CP
R4302
RN-CP
XX
R4303
RN-CP
XX
R4359
RN-CP
47
R4301
16V
0.1
B
C4348
35V
47
C4347
10uH
L4309
RN-CP
R4360
RN-CP
R4370
RN-CP
R4378
RN-CP
R4363
RN-CP
R4365
RN-CP
XX
R4367
RN-CP
R4379
RN-CP
XX
R4380
C4349
RN-CP
R4381 RN-CP
XX
XX
XX
XX
XX
XX
R4392
RN-CP
R4393 RN-CP
R4407
RN-CP
XX
XX
R4423
RN-CP
R4457
RN-CP
R4463
RN-CP
R4471 RN-CP
R4483
RN-CP
R4490
RN-CP
R4414
RN-CP
XX
XX
XX
XX
XX
XX
XX
R4415
RN-CP
R4482
RN-CP
XX
R4486
RN-CP
R4488
RN-CP
R4491
R4492
0
XX
R4493
XX
R4495
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30P
CN4305
+6.5V
P_MUTE1
+9V
ABL_ATT
S4
GND
CVBS_1
GND
YC_C
GND
YC_Y
GND
CR
GND
CB
GND
Y
GND
CTRL_SW
2_SW2
2_SW1
1_SW2
1_SW1
GND
V_UOC
GND
U_UOC
GND
Y_UOC
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30P
CN4306
+5V
+1.8V_B1
+3.3V1
+1.8V_B1
+3.3V
GND
OSD_BLK
GND
OSD_B
OSD_G
OSD_R
GND
R/MID_PR
GND
B/MID_PB
GND
G/MID_Y
GND
MID_HS
MID_VS
GND
MICRO_SCL
MICRO_SDA
GND
MICRO_B_INT
MICRO_RESET
GND
MAIN_SDA
MAIN_SCL
GND
J
810 14
E
B
K
11 15
G
D
1
D
L
412 16
E
I
2 6
A
7
C
J
13
G
K
H
3
L
F
5
F
H
I
A
9
C
B
MAIN_SCL,MAIN_SDA
001:16B
MA111-TX
D4309
MA111-TX
D4312
MA111-TX
D4323
DTC144EKA
Q4329
KRC102S
Q4330
CHIP
0
JR4301
Q4302
2SC1623-L5L6
2SC1623-L5L6
Q4301
Q4306
2SC1623-L5L6
Q4328
CHIP
0
R4496
+5V_BT
001:11L
DTZ5.6B
D4313
MA8091-M
D4302
2SA1235TP-1F
Q4305
10uH
L4301
10uH
L4302
XX
C4326
25V
0.22
B
C4393
25V
0.22
B
C4394
MA8082-M
D4303
25V
0.1
B
C4387
25V
0.1
B
C4329
25V
0.1
B
C4330
25V
0.1
B
C4339
PRE_RGB
EW
H_PROT
V_PROT
EW
MICRO_SCL
HP_IN
V_DRV-
B_OUT
V_DRV-
V_DRV+
G_OUT
ABL
R_OUT
MICRO_SDA
IK
H_PROT
IK
V_DRV+
V_PROT
MID_VS
MID_VS
MID_HS
BLK
ABL
ABL
B_OUT
G_OUT
R_OUT
OSD_G
OSD_B
MID_HS
R
OSD_R
G
B
Y_UOC
U_UOC
V_UOC
Y
CB
CR
1_SW1
1_SW2
2_SW1
2_SW2
MICRO_RESET
MAIN_SCL
MAIN_SDA
OSD_G
OSD_B
MICRO_SCL
MICRO_SDA
MICRO_B_INT
HD
G-Y
R-Y
B-Y
R
G
B
HD
PRE_RGB
HP_IN
OSD_R
BLK
TO B1 BOARD
TO VM1 BOARD
TO C BOARD
TO D BOARD CN6817
CN1004
CN1003
TO B1 BOARD
9V
9V
9V
9V9V
9V
5V
5V
5V
5V
5V
5V
5V
9V
9V
9V
9V
9V
9V
9V
RGBJ
A1
( BLOCK 003 )
R_OUT
G_OUT
B_OUT
R_OUT
G_OUT
B_OUT
R_OUT
G_OUT
B_OUT
B-CX2(06)13412-SAF-A..(Block 003)-DZ29M30
12V
CN5402
CN9001
2SC1623-L5L6
2SC1623-L5L6 2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
– 59 –
KV-DZ29M30/M61/M91
RM-GA002
6-2-4. A1 Board – (Block 004)
CHIP
0
JR039
Mount Mecha 406290811
A2603 IC2603
Mount Mecha 407312731
A4301 IC4301
Mount Mecha 202332603
A001 IC001
4
C
A
F
D
B
E
1
B
E
2
C
F
3
D
A
THIS DOCUMENT IS THE PROPRIETARY PROPERTY OF SONY. ITS USE IS AUTHORIZED ONLY FOR RESPONDING TO A REQUEST FOR QUOTATION,
OR FOR THE PERFORMANCE OF WORK FOR SONY. ALL QUESTIONS MUST BE REFERRED TO THE LOCAL PURCHASING DEPARTMENT OF SONY.
Mount Mecha 408401111
A1201 IC1201
Mount Mecha 407325801
A2600 IC2600
Mount Mecha 409312201
A2601 IC2601
Mount Mecha 234952301
A2608 IC2608
Mount Mecha 410268311
A4302 PIN LEAD
RN-CP
10k
R1247
A1
(Block 004)
B-CX2(06)13412-SAF-A..(Block 004)-DZ29M30
Heat Sink
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
– 60 – – 61 –

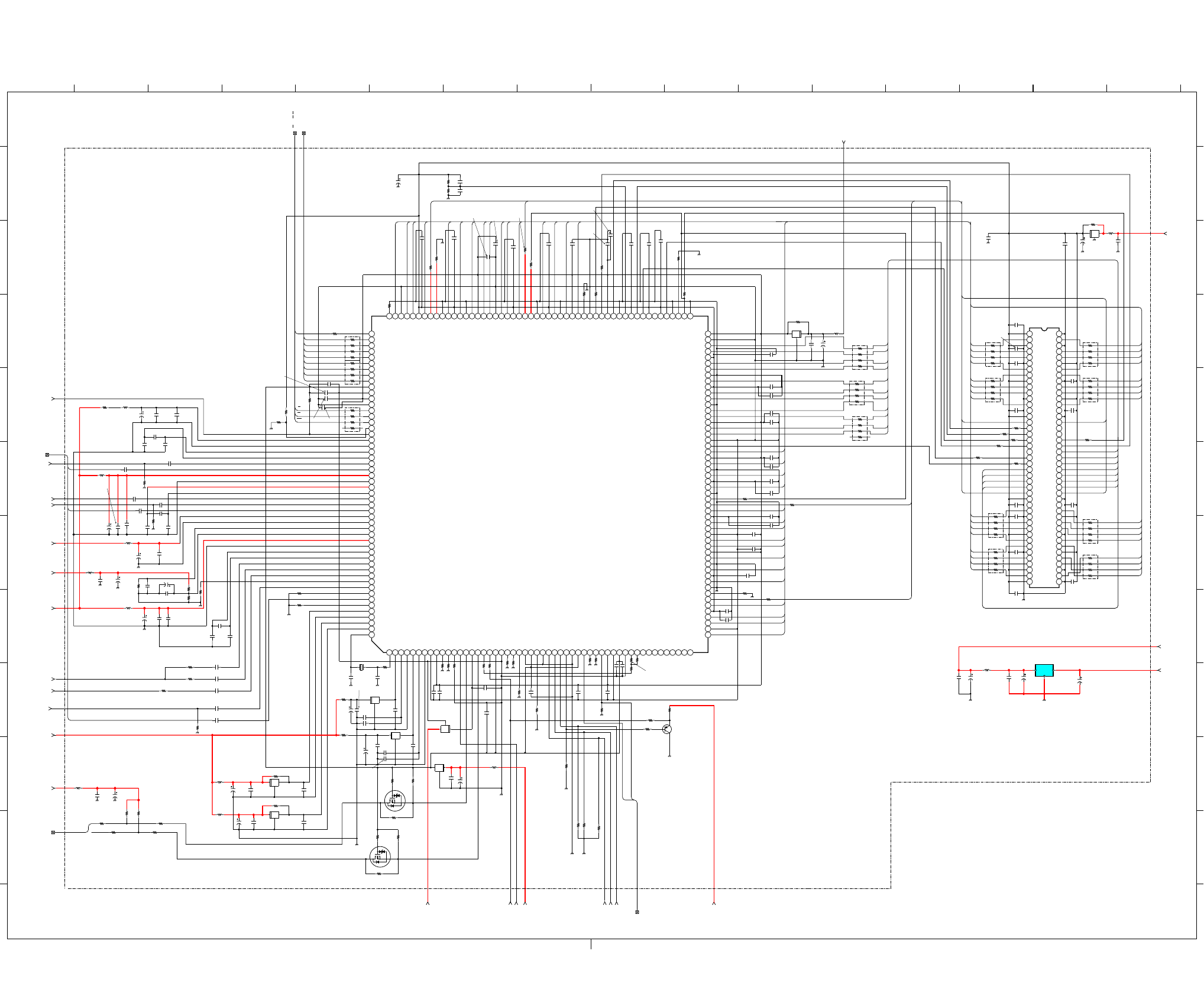

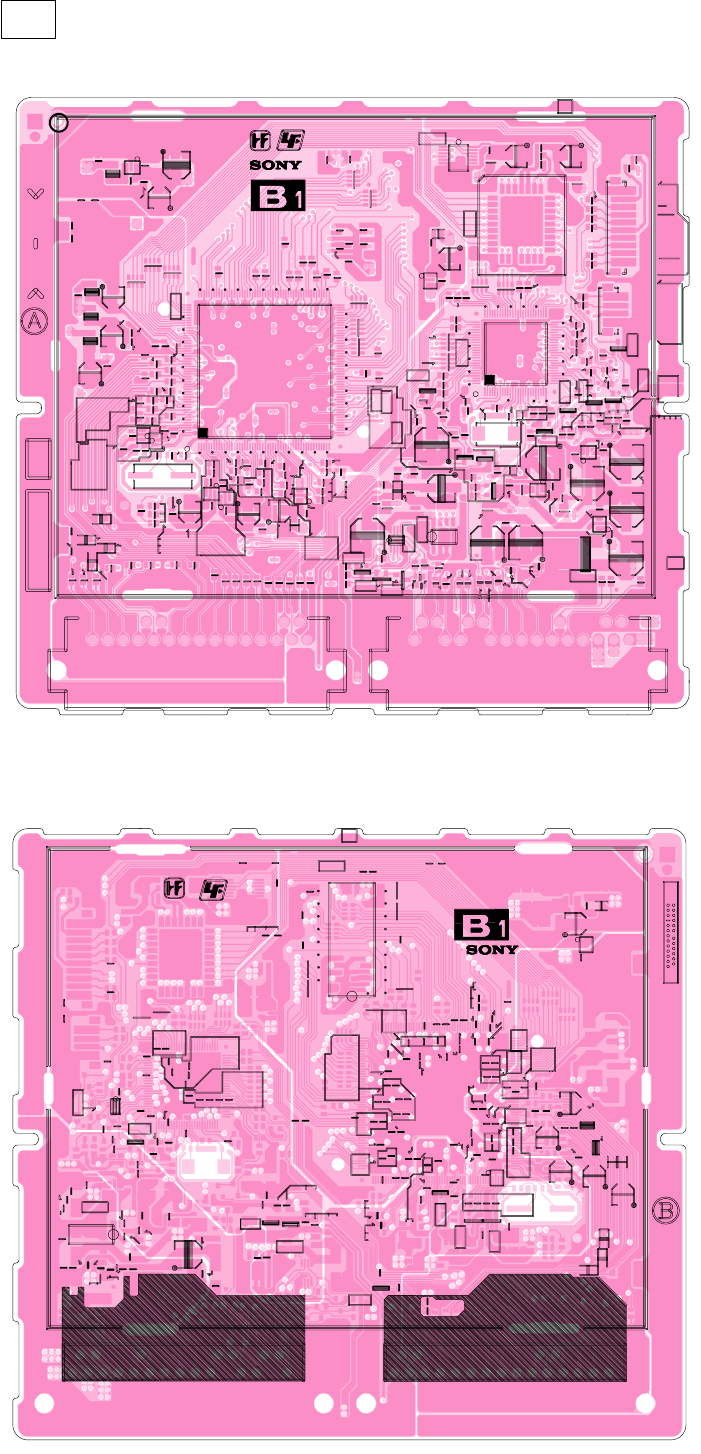

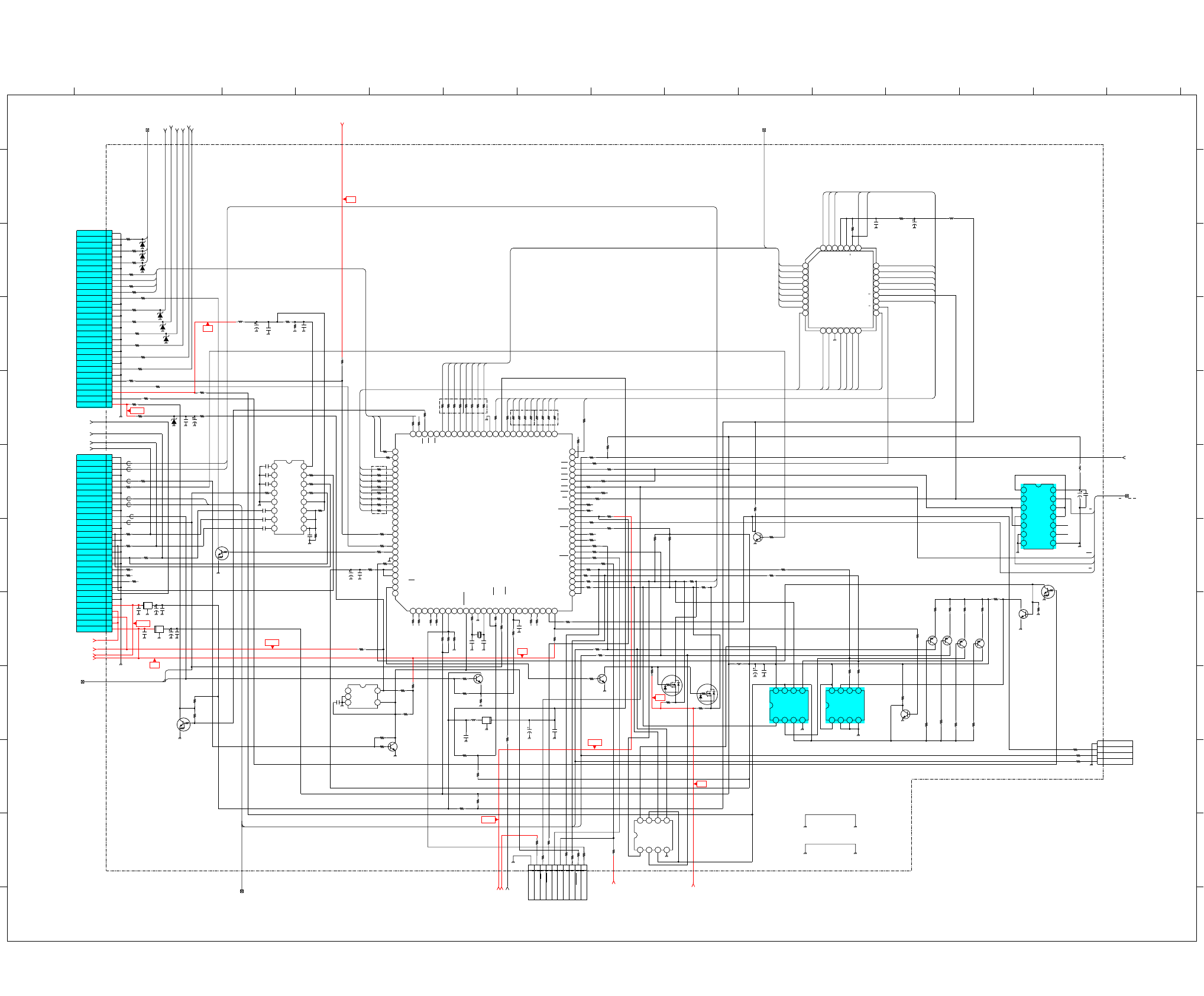

6-2-5. B1 Board – (Block 001)
CHIP
0
R3101
EMI
G
XXFL3101 0uH
L3101
1000p
C3118
25V
0.1
C3117
25V
0.1
C3103
25V
0.1
C3104
0.1
C3107
0.1C3108
0.1C3110
0.1
C3112
0.1
C3114
1000p
C3105
1000pC3106
1000p
C3109
1000p
C3111
1000p
C3113
1000p
C3115
0.1
C3116
k1 3013R
XX 2013R
XX 8013R
10k
R3115
AGND
DGND AGND
XX1213R
1000p
C3138
1.0 1
3
1
3C
1000p
C3136
V52 1.0 7313C
XX3213R
XX4213R
XX
R3120
560
R3119
DGND
DGND
X3101
179579021
16V
10
C3148
S
DGND
EMI
G
FL3103 0uH
EMI
G
FL3102
0uH
16V
10
C3143
S
2SK2158-T2B
Q3101
2SK2158-T2B
002:2H; 002:8K;
002:9K ;002:10K;
001:2J
002:2H; 002:8K;
001:2G
001:6A; 001:17C
RESET_TR
OSD_FB/VM
Q3102
R3127
22
R3134
22
EMI
G
FL3104
0uH
EMI
G
FL3105
0uH1
2
3
0uH
L3102
V
5
+
0.1
C3154
1.
0
1
5
13C
p0001 5513C
F61:200
EMI
GFL3107
XX
EMI
GFL3106
XX
L3104
0uH
L3103
0uH
2.2uH
L3105
XX 2
413R
XX
C3174 XX
C3175
XXC3176
XX
R3143
XX
R3144
AGND
2.2uHL3106
2.2uH
L3107
2.2uHL3108
XX
R3148
DGND
R
W
,D
R,S
C,E
LA
AGND
+1.8V
001:2G;001:
2I;001:17H
+1.8V
001:2H;001:
2I;001:17H
AGND
+3.3V
002:2H;002:
8K;001:6A;
001:8L;001:17C
CB
002:3A
YC_C
002:4A
CR
002:3A
1B_V8.1+
H2:200
DGND
RP_DI
M
/
R
E2:200Y_DIM/G
F2:200 BP_DIM/B
E2:200
DGND
25V
0.1
C3101
1000p
C3156
25V
0.1
C3122
0.1
C3119
0.1C3121
XX 6113R
AGND
CHIP
0
R3146
1000p BC3132
25V
0.1
B
C3133
DGND
47k
R3149
MD31
MD30
MD29
MD28
MD27
MD26
MD25
MD24
MD23
MD22
MD21
MD20
MD19
DMQ2
DMQ3
MD18
MD17
MD16
DGND
XX 6013R
DGND
X
X
2
2
1
3R
XX
C3203
XX
L3110
AGND
AGND
INT
002:8K
XX
R3153
XX
R3154
CHIP
0
R3155
CHIP
0
R3156
CHIP
0
R3157
CHIP
0
R3158
+5V
002:2H;002:8K;
002:9K;002:10K;
001:7L
84
9
3565
1
940515
2
254555
876543
74
01
445464
34245141312111 1404
93
8373635343221202918171613323423213520392827262
758595061626364656667686960717273747576777879708182838485868
MT48LC2M32B2P-6-1G
IC3100
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
NC
VDD
DQMO
WE
CAS
RAS
CS
NC
BA0
BA1
A10
A0
A1
A2
DQM2
VDD
NC
DQ16
VSSQ
DQ17
DQ18
VDDQ
DQ19
DQ20
VSSQ
DQ21
DQ22
VDDQ
DQ23
VDD VSS
DQ24
VSSQ
DQ25
DQ26
VDDQ
DQ27
DQ28
VSSQ
DQ29
DQ30
VDDQ
DQ31
NC
VSS
DQM3
A3
A4
A5
A6
A7
A8
A9
CKE
CLK
NC
NC
DQM1
VSS
NC
DQ8
VDDQ
DQ9
DQ10
VSSQ
DQ11
DQ12
VDDQ
DQ13
DQ14
VSSQ
DQ15
VSS
25V
0.1
B
C3204
25V
0.1
C3205
25V
0.1
C3206
CHIP
0
R3163
CHIP
0R3164
25V
0.01
B
C3207
25V
0.01
B
C3208
6.3V
47
C3209 100p
CH
C3210
+3.3V
002:2H;
002:8K;
001:2G;
001:6A;
001:8L
DGND
DGND
DGND
DGND
2.2uH
L3111
25V
25V
25V
25V
0.01
C3211
VCC
GND
OUT
BA18BC0FP-E2
IC3101
16V
0.1
B
C3212
16V
0.1
B
C3215
+3.3V1
002:2H
+1.8V
001:2G;
001:2H;
001:2I
C3216
C3217
XX
XX XX
L3113
DGND DGND
16V
10
C3193
47k
R3165
E
2
:2
0
0
V3.3+
Y
002:3A
YC_Y
002:4A
+1.8V
001:2G;001:
2H;001:17H
CVBS_1
002:4A
16V
10
C3102
16V
10
C3190
16V
10
C3199
XX
C3202
16V
10
C3172
16V
10
C3158
16V
10
C3159
AGND
AGND
16V
10
C3153
10k
R3166
MD31
MPUGP101
VSSC
MD30
MD29
VDDM
MD28
DQM3
DQS3
VSSM
MD27
VDDM
MD26
VSSM
MD25
VDDC
MD24
MD23
VSSC
MD22
MD21
VDDM
MD20
DQM2
DQS2
VSSM
MD19
VDDM
MD18
VSSM
MD17
VDDC
MD16
BA1
VSSC
BA0
CLKE
VDDC
WE#
VSSR
MVREF
VDDR
CAS#
RAS#
VDDM
CS1#
VDDM
CS0#
VSSM
MCK0#
MCK0
VSSM
PAVDDI
XTALO
MLFI
PAVSSI
PAVDD2
VSSC
VDDC
AIN_IIS
AIN_VS
TEST MODE
RESET
SCL
VSSF
SDA
GPIO
FLD/IO
VDDH
VSSH
DE
AVSS33_3
AVDD33
IRSET
AVSS33_2
B
G
R
VM
AVSS33_1
AVDD33_1
HS
HSD
HFLB
VS
VDDC
VSSC
VDDH
GPIO
GPIO
CLK
DIN7
DIN6
DIN5
DIN4
DIN3
DIN2
DIN1
DIN0
PLF2
PAVSS2
VSSH
1k
R3147
XX
R3107
16V
0.1
B
C3120
16V
0.1
B
C3134
RN-CP
1k
R3167
RN-CP
1k
R3168
DGND
EMI
G
0uH
FL3109
DGND
XX
R3170
SH_DIM,SV_DIM I2:200
MICRO_SCL,MICRO_SDA
002:4K
U_UOC,V_UOC,Y_UOC
002:3A
10uHL3112
25V
10
C3201
DGND
DGND
AGND
AGND
XX
R3171
XX
R3172
AGND AGND
AGND
AGND AGND
CHIP
0
R3126
CHIP0R3135
CHIP
0
R3136
CHIP
0R3137
CHIP
0R3138
J
810 14
E
B
K
11 15
G
D
1
D
L
412 16
E
I
2 6
A
7
C
J
13
G
K
H
3
L
F
5
F
H
I
A
9
C
B
DGND DGND
0.1
16V
16V
25V
C3218
0.1
C3219
16V
0.1
C3220
0.01
C3221
0.01
C3222
0.01
C3223
0.01
C3224
0.01
C3225
22
RB3116
22
RB3115
22
RB3114
CHIP
0
R3176
0
5213R
0
R3152
CHIP
0
R3173
XX 7113R
RN-CP
22
R3181
25V
25V
25V
25V
25V
25V
25V
25V
0.1
C3126
1000P
C3127
25V
0.1
B
C3147
25V
0.1
B
C3142
15p
C3139
CH
C3144
2200p
B
470p BC3145
470p
B
C3150
1000p
B
C3146
k
74 82
1
3R
XX
R3133
18p
C3140
CH
C3149
2200p
B
1000p
B
C3141
XX
R3130
47K
R3132 4.7K
R3131
25V
25V 25V
25V
0.1
B
C3152
25V
0.1
B
C3160
C3162
XX
25V
0.1
B
C3161
C3163
XX
25V
0.1
B
C3157
CHIP
0
R3140
CHIP
0
R3141
CHIP
0
R3139
25V
0.1
B
C3164
25V
0.1
B
C3165
25V
0.1
B
C3166
25V
0.1
B
C3167
25V
0.1
B
C3168
25V
0.1
B
C3169
XX
C3170
25V
0.1
B
C3171
B
C3173
1000p
CHIP
0
R3145
25V
0.1
B
C3177
25V0.1 BC3178
25V
0.1
B
C3179
25V
0.1
B
C3180
25V
0.1
B
C3198
25V
0.1
B
C3182
25V
0.1
B
C3183
XX
C3184
B
C3185
1000p
25V
0.1
B
C3186 25V
0.1 BC3187
25V
0.1
B
C3188
25V
0.1
B
C3189
XXC3181
B
C3191
1000p
25V
0.1
B
C3192
B
C3194
1000p
B
C3197
1000p
25V
0.1
B
C3195
25V
0.1
B
C3196
k
7
.4 92
1
3R
6.3V
47
C3213
6.3V
100
C3214 6.3V
100
C3226
75
R1146
47
R1147 2.2k
R1148
2SA1235TP-1EF
Q3103
GND_CPU
GND_CPU
R3110 56
R3111 56
R3112 56
V5+
XX
R3184
XX
R3185
XX
R3186
AGND
AGND
AGND
47
RB3106
47
RB3107
47
RB3108
47
RB3109
47
RB3110
47
RB3111
47
RB3112
47
RB3113
47
RB3117
47
RB3118
47
RB3119
RN-CP
47
R3159
RN-CP47
R3160
RN-CP
47
R3161
RN-CP47R3162
RN-CP
47
R3177
RN-CP
47
R3178
RN-CP
47
R3179
RN-CP
47
R3180
RN-CP
47
R3183
CHIP
0
R3182
0.1
C3130
0.1
C3129
0.1
R3128
0.1
R3125
0.1
25V
25V
C3124
0.1 25VC3123
RN-CP75R3150
RN-CP
75
R3151
R3118
100
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105106107108109110111112113114115116117118119120121122123124125126127128129130131132133134135136137138139140141142143144145146147148149150151152153154155156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
12345 6 78 9101112131415161718192021222324 31 3332 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
25 26 27 28 29 30
IC3102
H
V
MD0
VSSC
MD1
MD2
VDDM
MD3
DQM0
DQS0
VSSM
MD4
VDDM
MD5
VSSM
MD6
VDDC
MD7
MD8
VSSC
MD9
MD10
VDDM
MD11
DQM1
DQS1
VSSM
MD12
VDDM
MD13
VSSM
MD14
VDDC
MD15
MA11
VSSC
MA10
MA9
VDDC
MA8
MA7
VSSM
MA6
MA5
VDDM
MA4
VSSM
MA3
MA2
VDDM
MA1
MA0
VSSL
VDDL
MPUGPIO0
A_D0
A_D1
A_D2
A_D3
A_D4
A_D5
A_D6
A_D7
VDDH
VSSH
VDDC
VSSC
RD#
WE#
ALE
MPUCSON
INT#
AVDD_ADC3
AVSS_ADC3
VREFN_3
VREFP_3
PR_R1
PR_R2
AVDD_ADC2
AVSS_ADC2
VREFN_2
VREFP_2
C
PB_B1
PB_B2
AVDD3_AVSP2
AVSS3_BG_ASS
CVBS_OUTP
CVBS_OUTN
AVDD_ADC1
AVSS_ADC1
VREFN_1
VREFP_1
CVBS1
CVBS2
CVBS3
AIN_N1
Y_G1
AIN_N2
Y_G2
AIN_N3
PDVDD
PDVSS
PAVDD
PAVSS
XTALI
DQM2
DQM1DQM0
DQM3
MICRO_SDA
MICRO_SCL
MA[0]
MA[1]
MA[2]
MA[3]
MA[4]
MA[5]
MA[6]
MA[7]
MA[8]
MA[9]
MA[10]
A0
A1
A2
A3
A4
A5
A6
A7
ALE
WR
RD
MD0
MD1
MD2
MD3
MD4
MD5
MD6
MD7
MD8
MD9
MD10
MD11
MD12
MD13
MD14
MD15
SH_DIM
SV_DIM
V_UOC
U_UOC
Y_UOC
MD3
MD2
MD1
MD0
MD7
MD6
MD5
MD4
MD24
MD25
MD26
MD27
MD28
MD29
MD30
MD31
MD23
MD22
MD21
MD20
MD19
MD18
MD17
MD16
MD15
MD14
MD13
MD12
MD11
MD10
MD9
MD8
CS
DQM0
DQM1
MA[3]
MA[2]
MA[1]
MA[0]
MA[10]
MA[4]
MA[5]
MA[6]
MA[7]
MA[8]
MA[9]
SVP/EX12-F
B1
SCAN CONVERTER/ 3D COMB/ DNR (TRIDENT)
(BLOCK 001)
B-CX2(06)13412-SAF-B1.(Block 001)-DZ29M30
TRIDENBUS
002:11A
002:16F
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
6-2-6. B1 Board – (Block 002)
– 62 – – 63 –
5 6 7 8 9 10 11 12 13
14
15
16
17
18
19
20
212223242526272829
30
31
32
1
2
3
4
IC1001
XX
VPP
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
A0
Q0
Q1
Q2
VSS
Q3
Q4
Q5
Q6
Q7
E
A10
G
A11
A9
A8
A13
A14
A17
P
VCC
GND_CPU
GND_CPU
C1024
XX
GND_CPU
CHIP
0
R1002
D1001
MA8100-M-TX
D1002
MA8100-M-TX
D1003
MA8100-M-TX
CHIP
0
R1003
CHIP
0
R1004
CHIP
0
R1005
CHIP
0
R1006
CHIP
0
R1007
CHIP
0
R1008
CHIP
0
R1009
CHIP
0
R1010
CHIP
0
R1011
CHIP
0
R1012
CHIP
0
R1013
CHIP
0
R1014
CHIP
0
R1015
XX
R1016
CHIP
0
R1017
CHIP
0
R1018
CHIP
0
R1019
CHIP
0
R1020
CHIP
0
R1021
CHIP
0
R1022
XX
R1023
CHIP
0
R1024
XX
R1025
0uH
FB1000
0uH
FB1001
0uH
FB1002
0uH
FB1003
0uH
FB1004
0uH
FB1005
16V
0.1
B
C1001
16V
0.1
B
C1002
EMI
G
0uH
FL1000
EMI
G
0uH
FL1001
AGND
AGND
AGND
AGND
AGND
1/10W
100
R1026
1/10W
100
R1027
1/10W
100
R1028
1/10W
100
R1029
1/10W
100
R1030
XX
R1031
1/10W
100
R1032
1/10W
100
R1033
1/10W
100
R1035
1/10W
100
R1036
1/10W
10k
R1037
XX
R1039
XX
R1040
2SC1623-L5L6
Q1000
10k
R1041
10k
R1042
GND_CPU
1/10W
100
R1043
10
R1045
4321
TC7W66FU(TE12R)
IC1002
4321
CAT24WC32WI-TE13
IC1003
16V
0.1
C1006
GND_CPU
GND_CPU
GND_CPU GND_CPU
1/10W
100
R1046
1/10W
100
R1047
1/10W
10k
R1048
2SC1623-L5L6
Q1001
100k
R1049
100k
R1050
100k
R1051
100k
R1052
2.2k
R1053 2.2k
R1054
2.2k
R1055 2.2k
R1056 4.7k
R1057
2SC1623-L5L6
Q1006
4.7k
R1058
GND_CPU
GND_CPU
10k
R1059
10k
R1060
16V
0.1
B
C1007
GND_CPU
GND_CPU
1k
R1061
XX
R1062
100
R1064
4.7k
R1065
4.7k
R1066
AGND
GND_CPU
5 4
321
PST9129NL
IC1004
16V
0.1
B
C1009
1/10W
RN-CP
10k
R1067
100
R1068
XX
R1069
4.7k
R1071
XX
R1072
50V
15p
C1010
15p
C1011
1/10W
4.7k
R1074
100
R1075
100
R1076
XX
C1012
GND_CPU
GND_CPU
GND_CPU
GND_CPU
XX
R1077
CHIP
0
R1078 XX
R1079
GND_CPU
16V
0.1
C1013
EMI
G
0uH
FL1002
16V
0.1
C1015
GND_CPU
GND_CPU
GND_CPU GND_CPU
XX
R1080
OSD_FB/VM
001:7L
R/MID_PR
001:9L
B/MID_PB
001:9L
G/MID_Y
001:9L
Y001:1I
CB
001:1I
CR
001:1F
YC_Y
001:1I
YC_C
001:1F
CVBS_1
001:1F
+1.8V_B1001:12A
INT
001:1E
2SA1235TP-1EF
Q1002
2SA1235TP-1EF
Q1003
2SA1235TP-1EF
Q1004
2SA1235TP-1EF
Q1005
Q1011
XX
GND_CPU
CHIP
0
R1083
XX
R1084
CHIP
0
R1085
GND_CPU
GND_CPU
1/10W
100
R1088
RESET_TR
001:8L
GND_CPU
16V
10
C1018 0.1
25V
C1019
GND_CPU
ALE,CS,RD,WR
001:5A
U_UOC,V_UOC,Y_UOC
001:1F
GND_CPU
220
R1089
220
R1090
220
R1091
XX
L1002
+3.3V1001:16I
6.3V
100
C1020
16V
0.1
B
C1021
16V
0.1
B
C1022
16V
100
C1023
AGND AG ND
AGND
AGND
CHIP
0
R1092
16V
100
C1008
0uH
FB1006
0
R1070
10uH
L1003
10uH
L1001
16V
100
C1005
1/10W
4.7k
R1093
1/10W
4.7k
R1094
1/10W
4.7k
R1034
1/10W
22k
R1095
6.3V
100
C1014
10uH
L1000
XX
R1001 C1000
XX XX
R1000
A0,A1,A2,A3,A4,A5,A6,A7
001:5A
100
RB1002 2
1
4
3
6
5
8
7
100
RB1003
2
1
4
3
6
5
8
7
XX
RB1004
2
1
4
3
6
5
8
7
XX
RB1005
2
1
4
3
6
5
8
7
XX
R1096
XX
R1097
XX
RB1006
XX
RB1007
GND_CPU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
+6.5V
P_MUTE1
+9V
ABL_ATT
S4
GND
CVBS_1
GND
YC_C
GND
YC_Y
GND
CR
GND
CB
GND
Y
GND
CTRL_SW
2_SW2
2_SW1
1_SW2
1_SW1
GND
V_UOC
GND
U_UOC
GND
Y_UOC
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30P
CN1003
+5V
+1.8V_B1
+3.3V1
+1.8V_B1
+3.3V
GND
OSD_BLK
GND
OSD_B
OSD_G
OSD_R
GND
R/MID_PR
GND
B/MID_PB
GND
G/MID_Y
GND
MID_HS
MID_VS
GND
MICRO_SCL
MICRO_SDA
GND
MICRO_B_INT
MICRO_RESET
GND
SDA_0
SCL_0
GND
AGND
+3.3V
002:7K;001:1G;001:8L;001:16C
+5V
002:7K;002:9K;002:10K;001:1J;001:6L
MID_VS,MID_HS
001:9L
10
R1044
AGND GND_CPU
DGND
AGND
181388711
X1000
J
810 14
E
B
K
11 15
G
D
1
D
L
412 16
E
I
2 6
A
7
C
J
13
G
K
H
3
L
F
5
F
H
I
A
9
C
B
B1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51525354555657585960616263646566676869707172737475
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
IC1000
M30620 SPGP
P9_4/DA1
P9_3/DA0
P9_2/TB2IN
P9_1/TB1IN
P9_0/TB0IN
BYTE
CNVss
P8_7/XCIN
P8_6/XCOUT
RESET
XOUT
VSS
XIN
VCC1
P8_5/NIM
P8_4/HSYNC
P8_3/INT1
P8_2/VSYNC
P8_1/TA4IN
P8_0/TA4OUT
P7_7/TA3IN
P7_6/TA3OUT
P7_5/TA2IN
P7_4/TA2OUT
P7_3/TA1IN
P7_2/TA1OUT
P7_1/SCL2
P7_0/SDA2
P6_7/SDA1
P6_6/SCL1
P6_5/CLK1
P6_4/CTS1/RTS1
P6_3/SDA0
P6_2/SCL0
P6_1/CLK0
P6_0/CTS0/RTS0
P5_7/RDY
P5_6/ALE
P5_5/HOLD
P5_4/HLDA
P5_3/BCLK
P5_2/RD
P5_1/BHE
P5_0/WR
P4_7/CS3
P4_6/CS2
P4_5/CS1
P4_4/CS0
P4_3/A19
P4_2/A18
P4_1/A17
P4_0/A16
P3_7/A15
P3_6/A14
P3_5/A13
P3_4/A12
P3_3/A11
P3_2/A10
P3_1/A9
VCC2
P3_0/A8
VSS
P2_7/A7/D7
P2_6/A6/D6
P2_5/A5/D5
P2_4/A4/D4
P2_3/A3/D3
P2_2/A2/D2
P2_1/A1/D1
P2_0/A0/D0
P1_7/INT5
P1_6/INT4
P1_5/INT3
P1_4
P1_3
P1_2
P1_1
P1_0
P0_7/AN0_7
P0_6/AN0_6
P0_5/AN0_5
P0_4/AN0_4
P0_3/AN0_3
P0_2/AN0_2
P0_1/AN0_1
P0_0/AN0_0
P10_7/AN7
P10_6/AN6
P10_5/AN5
P10_4/AN4
P10_3/AN3
P10_2/AN2
P10_1/AN1
AV S S
P10_0/AN0
VREF
AV C C
P9_7/ADTRG
P9_6
P9_5
CHIP
0
R1081
CHIP
0
R1082
CHIP
0
R1086
CHIP
0
R1087
MICRO_SCL,MICRO_SDA
001:1K
CHIP
0
R1109
CHIP
0
R1099
100
R1101
100
R1102
100
R1103
100
R1104
100
R1105
100
R1111
CHIP
0
R1106
GND_CPU
+3.3V
002:2H;001:1G;001:16C;001:8L;001:17C
XX
R1107
1/10W
4.7k
R1113
1/10W
100
R1038
1
2
3
4
5
6
7
8
9
10
WHT
10P
CN1001
CNYSS
RESET
TXD
RXD
SCIK
BUSY
EPW
CE
VDD
GND
1
2
3
4
4P
CN1000
GND
MICRO_BINT
MICRO_SDA
MICRO_SCL
CHIP
0
R1114
CHIP
0
R1115
CHIP
0
R1116
CHIP
0
R1121
CHIP
0
R1122
S
Q1013
XX
S
Q1014
XX
Q1012
XX
XX
R1117
XX
R1118
XX
R1119
XX
R1120
+5V
002:2H;002:7K;002:9K;001:1J;001:6L
GND_CPU
XX
R1123
XX
R1124
XX
R1125 XX
R1126 XX
R1127
XX
R1128
XX
R1129
XX
R1130
XX
R1131
XX
R1132
XX
R1133
XX
R1134
1/10W
RN-CP
47k
R1100
CHIP
0
R1108
+5V
002:2H;002:7K;002:9K;001:1J;001:6L
1/10W
RN-CP
4.7k
R1110
+5V
002:2H;002:9K;002:10K;001:1J;001:10L
1/10W
R1073
4.7k
4321
5678
56785678
TC7W66FU(TE12R)
IC1006
GND_CPU
KRC102S
Q1008
DTC144EKA
Q1007
DTC144EKA
Q1009
XX
R1143
XX
C1030
XX
R1144
CHIP
R1145
0
+5V
XX
C1031
2SC1623-L5L6
Q1010
10uH
L3114
16V
47
C3227
16V
0.01
C3228
10k
R1150
2.2K
R1149 16V
0.01
C3232
10k
R1151
16V
16V
16V
0.1
C3229
0.1
C3230
0.1
C3231
100
R1156
CHIP
0
R1152
4.7k
R1157
0.01
C3236
C3233
C3234
0.1
16V
16V
0.1
16V
0.1
16V
C3235
XX
R1153
XX
R1154
XX
R1155
16 15 14 13 12 11 10 9
87654321
IC3103
TA1287FG(EL)
VIN
YIN
UIN
CPIN
GND
RIN
GIN
BIN YS1
YS2
YS3
VCC
VOUT
YOUT
UOUT
MC
AGND
AGND
AGNDAGND AGND AGND
CHIP
0
R1158
XX
R1159
D1000
XX
14 13 12 11 10 9 8
7654321
IC1005
PH-74HC02
1Y
1A
1B
2Y
2A
2B
GND 3D
3A
3Y
4B
4A
4Y
VCC
A9
A14
A13
A17
A15
A10
A12
A11
A16
A8
A18
Y_UOC
A0
A1
A2
A3
A4
A5
A6
A7
CS
RD
ALE
2_SW2
U_UOC
V_UOC
2_SW2
2_SW1
1_SW2
1_SW1
1_SW2
1_SW1
2_SW1
MAIN_SCL
MICRO_SDA
MICRO_SCL
MAIN_SDA
A8
A9
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
MICRO_SDA
MICRO_SCL
MID_VS
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
A17
A16
A15
A14
A13
A12
A11
A10
A0
A1
A2
A3
A4
A5
A6
A7
A18
SIGN448
MAIN_SCL
MAIN_SDA
WR
MID_HS
TRIDENT BUS
TO A1 BOARD
CN4306
B1
(Block 002)
SUB-MICRO (RENESAS)
30P
CN1004
TO A1 BOARD
CN4305
+9V
+6.5V
+5V
+3.3V
+5V
+3.3V
+3.3V
+5V
+5V
+5V
+3.3V
B-CX2(06)13412-SAF-B1.(Block 002)-DZ29M30
D1004
MA8100-M-TX
D1005
MA8100-M-TX
D1006
MA8100-M-TX
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002

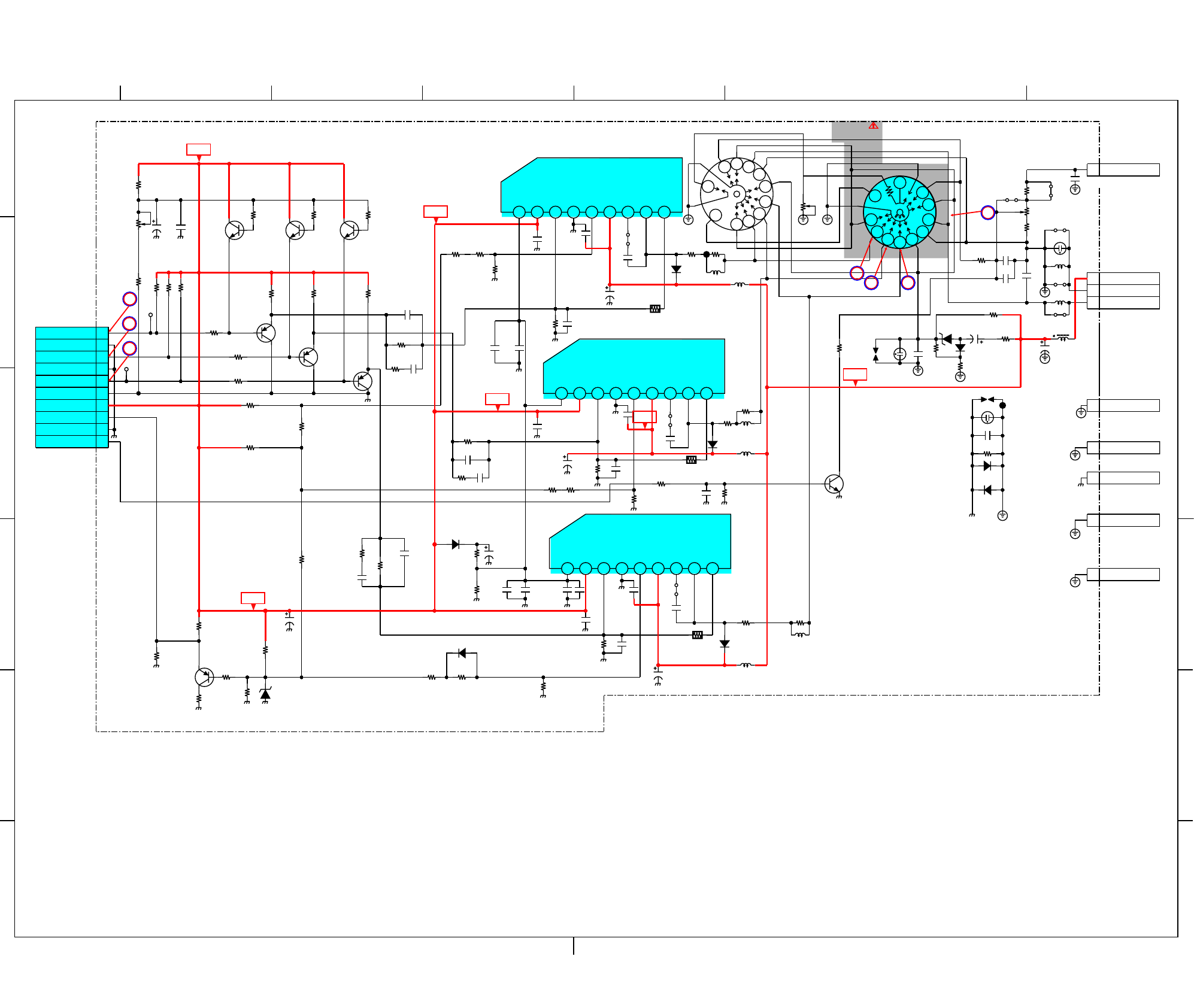

6-2-7. C Board Schematic Diagram
– 64 – – 65 –
MA3091
D9002
25V
330
C9042
12 9876543
TDA6111Q/N4
IC9001
VB
12V
VI
E
IK
200V
VF
VO
VOF
12 9876543
TDA6111Q/N4
IC9002
VB
12V
VI
E
IK
200V
VF
VO
VOF
12 9876543
TDA6111Q/N4
IC9003
VB
12V
VI
E
IK
200V
VF
VO
VOF
5.0MM
JW9040
250V
10
C9018
3W
RS
100k
R9037
HSS83TD-E
D9006
5.0MM
JW9045
3W
RS
100k
R9043
250V
10
C9021
HSS83TD-E
D9007
250V
10
C9020
3W
RS
100k
R9044
5
JW9046
HSS83TD-E
D9008
NL9003
XX
GP08DP
D9009
350V
22
C9033
250V
4.7
C9047
1
3
4
WHT
3P
CN9002
200V
E
H1
XX
L9001
NL9002
XX
XX
RV9002
1
CN9003
E
16V
220
C9025
NL9001
XX
10
JW9017
35
6
7
8
9
10
11
13
1
4
J9002
XX
35
6
14
XX
RV9003
1
2
3
4
5
6
7
8
9
10
WHT
10P
CN9001
P_MUTE
GND
1K
+12V
GND
B_DRV
GND
G_DRV
GND
R_DRV
Q9003
XX
Q9004
XX
Q9005
XX
C9046
XX
1
CN9006
XX
E
D9013
XX
MA111-TX
D9005
2SC4632LS-CB7
Q9012
TP9001
XX
TP9002
XX SG9001
151942111
15MM
JW9055
JW9006
XX
SG9002
XX
1uH
L9002
1uH
L9003
1uH
L9004
5.0MM
JW9023
5.0MM
JW9024
1SS133T-77
D9014
1SS133T-77
D9015
L9006
3.9uH
1
CN9008
XX
E
1
CN9009
XX
E
1
CN9004
E
47uH
L9007
47uH
L9008
47uH
L9009
110M
RV9001
0.1W
RN-CP
10k
R9006
XX
R9014
1/2W
220
R9052
XX
R9015
2kV
4700p
E
C9035
XX
R9016
4p
CH
C9015
2kV
4700p
E
C9031
0.1
B
C9048
R9086
XX
2kV
4700p
E
C9004
4p
CH
C9002
630V
PT
0.047
C9012
4p
CH
C9003
CHIP
0
R9021
1/2W
R9069
100
0.047
B
C9026
630V
PT
0.047
C9014
RN-CP
2.2k
R9073
0
R9028
CHIP
0
R9023
4700p
B
C9028
RN-CP
2.7k
R9018
XX
R9030
1/2W
1k
R9059
XX
R9087
2kV
680p
B
C9032
1/2W
220
R9051
1/2W
100k
R9025
XX
R9022
RN-CP
2.2k
R9049
4p
CH
C9010
RN-CP
33k
R9008
RN-CP
2k
R9007
RN-CP
12k
R9033
4700p
B
C9029
XX
R9002
CHIP
0
R9027
XX
R9020
4P
CH
C9007
RN-CP
1k
R9036
XX
R9003
630V
PT
0.047
C9011
0.047
B
C9019
RN-CP
6.8k
R9065
1/2W
22k
R9056
0.047
B
C9024
XX
R9055
RN-CP
150k
R9068
RN-CP
2k
R9026
CHIP
0
R9011
RN-CP
5.6k
R9034
4p
CH
C9005
1/2W
100k
R9029
3.9k
R9053
1/2W
100
R9061
RN-CP
2.2k
R9035
XX
R9058
RN-CP
2.2k
R9039
4p CH
C9009
4P
CH
C9006
3.9k
R9054
XX
R9004
RN-CP
1k
R9042
RN-CP
1k
R9013
RN
1/2W
560k
R9057
RN-CP
1k
R9012
XX
R9091
RN-CP
2.7k
R9001
RN-CP
10k
R9024
4700p
B
C9030
3.9k
R9050
4P
CH
C9008
XX
R9089
XX
C9013
RN-CP
1k
R9041
RN-CP
2.2k
R9048
RN-CP
2.2k
R9038
XX
R9088
XX
C9034
RN-CP
2.7k
R9019
1/2W
220
R9047
RN-CP
2k
R9031
81
E
F
2
F
43
B
5
A
E
B
D
6
C C
7
D
A
68p
CH
C9016
1
CN9007
G2
RN-CP
47
R9071
150uH
L9005
0.01
25V
B
C9022
0.01
B
C9023
0.01
25V
25V
B
C9027
XX
C9049
XX
C9050
XX
C9051
3
4
5
6
7
8
9
10
11
13
1
GND
GND
1
145154411
J9001
2SA1235TP-1EF
Q9001
2SA1235TP-1EF
Q9009
2SA1235TP-1EF
Q9010
2SA1235TP-1EF
Q9011
RN-CP
100
R9070
RN-CP100R9072
RD10ESB2
D9010
CV
G4
G2
G1-1
H1
H2
G1-2
KB
KG
KR
G1-3
TO A BOARD
CN4301
TO D BOARD
CN6811
TO G2
XX
C
(VIDEO AMP)
B-CX2(06)13412-SAF-C..-DB29M30
12V
12V
12V
12V
200V
200V
1
2 3
4
5
7
6
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
– 66 – – 67 –

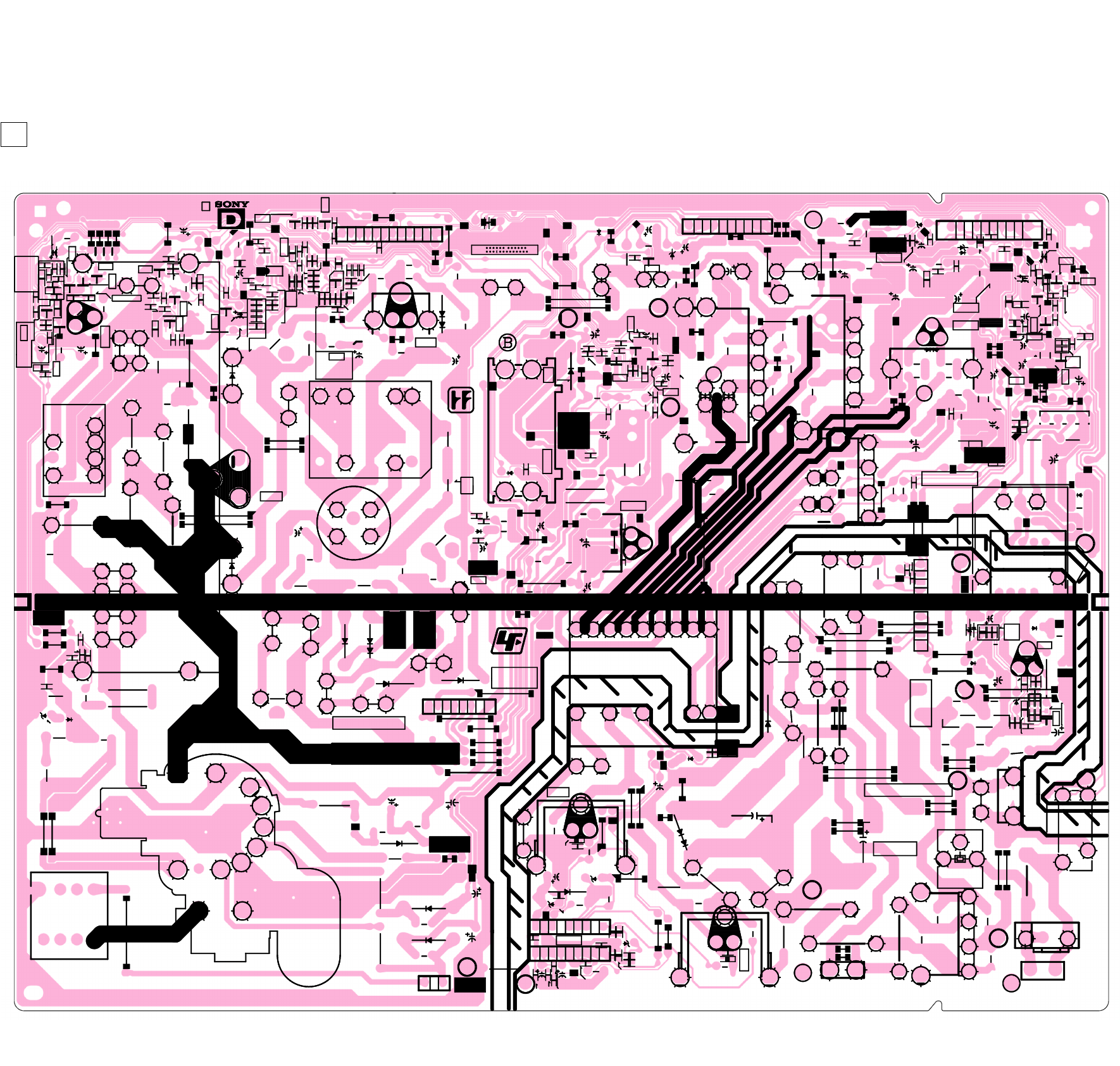

6-2-8. D Board – (Block 001)
4
5
7
6
12
‘
‘
*
D6100
1
2
3
4
TH6100
*
R6102
1
4
5
9
10
11
8
3
6
T6100
1
4
5
9
10
11
8
3
6
S
*
Q6100
*
C6101
*
R6100 2SD2114KT146
Q6102
*
C6109
*
C6113 FPRD
R6688
1k
10uH
L6608
47
C6601
16V
3300
C6654
10uH
L6606
D4SBL20UD6631 1
2
3
4
160V
330
C6652
10uH
L6604
10uH
L6605
5W
RB
0.47
R6710 35V
47
C6668
FPRD
1k
R6644
FPRD
10
R6658
FPRD
10
R6659
FPRD
R6676
10
35V
220
C6603
10
C6647
2W
RB
0.1
R6671
10C6634
4.7C6635
C6622
*
C6621
*
VD6601
XX
*
D6613
*
D6612
7.5
JW6682
7.5
JW6683
RY6601 175519811
1
2
3
4
XX
R6601
MTZJ-T-77-15
D6661
D6662
10uH
L6603
D6655
XX
D6656
XX
7.5
JW6601
16V
100
C6625
JW6607 XX
JW6604 XX
JW6608 XX
5JW6602
22uH
L6600
5JW6611
JW6676
XX
VD6604
47
C6659
81 415161 112101
987654321
MCZ3001DB
IC6600
VSENSE
F/B
CT
RT
GND
TIMER
SS
VC1
OCPVC2
P-GND
VG(L)
VB
VS
VG(H)
VD
MTZJ-T-77-15
MTZJ-T-77-15
D6622
1W
RF
0.1
R6645
KTC3199GR-TP
Q6608
35V
47
C6686
JW6609 XX
JW6610
XX
Q6615
XX Q6616
XX D6665
XX
13
12
7
6
17
1
14
16
15
25
9
18
10
11
T6602
*
35V
47
C6661
35V
47
C6662
25V
470
C6674
JW6606 XX
RF
0.1
R6704
5678
4321
EK1135
IC6607
1
2
3
4
5
6
7
8
9
10
10P
CN6605
3.3V STBY
GND
GND
STBY_SW
5V STBY
GND
OVP_PROTECT
NC
STBY CTRL
NC
XX
R6680
3W
RS
22k
R6696
0.45uH
FB6604
0.45uH
FB6605
2200
C6600
FB6602 XX
FB6603 XX
16V
220
C6604
10W
RB
0.47
R6622
10W
RB
0.47
R6646
5A
90V
PS6602
5APS6603
XX
PS6601
PS6604
5A
5A
PS6605
5APS6606
PS6607 5A 90V
90V
90V
90V
90V
XX
PS6608
XX
PS6609
5
JW6612
*
D6108
10ERB20-TB5D6620
*
D6101
2SA1235-F
Q6607
2SC3052EF-T1-LEF
Q6601
2SC1623-L5L6
Q6606
S
2SK3568(LBS2SONY,Q)
Q6600
1
2
3
S
2SK3568(LBS2SONY,Q
Q6603
1
2
3
0.45uH
FB6607
0.45uH
FB6608
1.1uH
FB6606
CN6614
CN6615
CN6616 XX
XX
XX
XX
CN6618
CN6609
XX
XX
XX
CN6610
CN6611
1
2
3
4
5
6
7
8
9
10
WHT
10P
CN6606
-15V
+12V
DGC_RELAY
+33V
GND
+11V
+11V
GND
+7V
+7V
1
2
*
CN6604
AC IN
AC IN
1
2
3
CN6603
DGC
NC
DGC
1
2
CN6601
XX
DGC
DGC
1
2
2P
CN6602
DGC CHK
DGC CHK
S2L20UF
D6639
0.45uH
FB6609
FB6610 XX
MTZJ-18B
D6635
RD18ESB2
VD6603
1
2
3
4
8
7
6
T6101
*
‘
‘
D6106
XX C6117
*
*
D6104
JW6669
XX
XXJR6682
XX
R6687
RN-CP
10k
R6660
RN-CP
56k
R6657
RN-CP12kR6631
*
C6104
R6642
*
XX
C6627
RN-CP
470
R6675
RN-CP
*
R6105
RN-CP
100
R6632
XX
C6630
CHIP0R6600
CHIP0JR6681
1.2k
R6674
RN-CP
270k
R6627
RN-CP
4.7k
R6668
1kV
680p
C6670 1kV680pC6651
250V
1000p
E
C6608
*CH
C6106
2.2k
R6685
*
R6669
XXR6661
*
C6110
250V
1000p
E
C6607
RN-CP
10k
R6653
250V
0.1
C6673
PP
100V
1000p
C6633
1kV
680p
C6650
2.2k
R6672
RN
*
R6104
C6118
*
XX
R6681
RN-CP
*
R6103
1W
RN
8.2M
R6686
500V
4700p
E
C6617
16V
0.1
B
C6626
CHIP
0
R6666
RN-CP
*
R6106
*
R6108
RN-CP
10k
R6716
*
R6101
XX
C6640
B
C6692
0.01 RN-CP
10k
R6670
XX
C6667
250V
PT
0.22
C6602
*
R6110
RN-CP
25V0.1 F
C6628
C6119
*
25V
0.1 F
C6637
RN-CP
100k
R6719
*
C6105
1000p
B
C6645
RN-CP
1k
R6677
1kV
680p
C6669
25V
0.01
B
C6620
*
C6107
800V
PP
0.047
C6672
4.7k
R6602
RN-CP
XX
C6656
RN-CP
330
R6647
1kV
470p
R
C6658
47k
R6679
RN-CP
RN-CP
220k
R6630
4.7
R6689
1/2W
R6641
470k
XX
C6685
RN-CP9.1k
R6626
RN
120k
R6694
RN-CP
270k
R6663
RN-CP
*
R6107 16V
0.1
B
C6678
*C6103
RN-CP
220k
R6629
RN
18k
R6693
4700p
C6653
B
XX
C6657
XX
R6667
XX
R6656
XX
R6652
10V
0.47
B
C6636
500V
4700p
E
C6614
*
R6638 R6662
*
JW6104
XX
JW6105 XX
JW6106
XX
JW6691
XX
JW6692
XX
D6616
XX
D6617
*
CHIP
JR6606
0
JW6100
*
JW6111
XX
500V
4700p
E
C6613
1
2
3
4
4P
CN6619
AUDIO VCC
AUDIO VCC
AUDIO GND
AUDIO GND
*
C6682
IO COM
KIA78D12PI
IC6604
RB085T-60
D6633
12
3
D6105
*
*
R6723 *
R6724
JW6617 XX
JW6618 XX
*
C6115
IOCOM
78M05T-FA
IC6602
‘
‘
D10SBS4F
D6644
1
2
3
4
XX
C6646
XX
C6632
XX
C6114
*
C6629
JR6693
XX
‘
‘
D10SBS4F
D6654
1
2
3
4
‘
‘
D3SB60
D6605
1
2
3
4
EMI
FB6611 123935821
123935821
EMI
FB6612
*
C6688
1
C6660
ER106T/B
D6618
1kV
1000p
C6648
R
1kV
1000p
C6649
R
W6803
W6802
W6804
W6801
W6806
W6805
JW6619
XX
*
C6641
CHIP
0
JR6608
*
D6664
+11V
DNG_CI
A1:009
+12V
25V
2200
C6655
J
810 14
E
B
K
11 15
G
D
1
D
L
412 16
E
I
2 6
A
7
C
J
13
G
K
H
3
L
F
5
F
H
I
A
9
C
B
V+
D6883
XX
R6810
RN820kR6807
16V
220
C6875
RN-CP
6.8k
R6813
RN-CP
5.6k
R6800
3W
47
R6861
+B
1SS133T-77
D6820 CHIP
0
R6937
0.01
25V
B
C6811
RN-CP
22k
R6888
RN-CP
10k
R6908
1
4
5
21
11
3
68
7
2
T6801
144336711
RN-CP
5.6k
R6909
3W
RS
R6915
2.2
XXC6835
Q6820
XX
RN-CP
10k
R6905
1W
RS
68
R6932
XX
R6820
1000p
CH
25V
C6812
XX
C6858
100V
4700p
C6863
200V
0.015
C6846
2SC5931001S0
Q6802
0.022
25V
B
C6802
XXL6884
250V
0.56
C6847
PP
25V
470
C6816
1234567
50V
22
C6855
500V
1000p
B
C6889
4700p
C6840
PT
100V
FPRD
1/2W
1
R6857
R6944
XX
25V
470
C6878
KTA1279
Q6804
RN-CP
3.9k
R6856
CH
C6837
100p
RN-CP
100k
R6934
RN-CP
12k
R6939
XX
R6823
R6838
XX
1
2
3
4
5
6
7
8
CN6816
8P
WHT
+135V
NC
+15V
+12V
H_PLS
DGC MUTE
GND
-15V
RN-CP
680
R6865
30PRA20
D6818
S2SK3462
Q6818
Q6821
XX
12uH
L6811
2kV
680p
B
C6839
R6943 XX
2SC1623-L5L6
2SC1623-L5L6
Q6815
LA78045
IC6801
2200p
B
C6801
1
2
3
4
5
6
7
8
9
10
11
12
12P
CN6817
HD
GND
PRE RGB
V_PROT
H_PROT
GND
HP IN
ABL
V_DRV+
V_DRV-
GND
EW
1.5kV
1000p
C6823
RN-CP
10k
R6906
RN-CP
5.6k
R6834
XX
L6801
RN-CP
4.7k
R6804
6800p
C6872
S3L20UF4
D6817
1/2W
RN
1.5
R6872
160V
47
C6803
560R6873
2SC1623-L5L6
Q6814
500V
470p
B
C6881
RN-CP
3.9k
R6830
JW6811
XX
2SA1235TP-1EF
Q6811
RN-CP47kR6925
1
3
2
4
6
5
7
8
141305900
T6802
XX
R6941
2kV
680p
B
C6838
500V
1000p
B
C6806
RN-CP
1k
R6927
S
2SK2381
Q6801
5.6k
R6801
RN-CP
2W
0.47
R6812
XX
R6832
2SC1623-L5L6
Q6817
0.33
C6825
MPS
XX
R6842
330k
R6866
RN-CP
10k
R6805
1.1uHFB6800
XX
C6824
RN-CP
100
R6922
3W
4.7
R6858
3W RS0.47R6864
1/2W
RN
27k
R6881
Q6808
XX
C6888
D6806
200V
PT
0.047
C6808
RN-CP
10k
R6936
S6801 1
2
3
4
XXR6836
30PRA20
D6819
FMQ-G5FMS
FMQ-G5FMS
D6805
V-
TH6800
180019300
2W
RS
10
R6930
1
CN6802
XX
GND
CHIP
0
R6840
RN-CP
47k
R6902
RN-CP
3.9k
R6869
25V
C6814
220
XX
C6874
2SA1235TP-1EF
Q6813
RN-CP
2.2k
R6817
H-
RN-CP
82k
R6938
1/2W
FPRD
1
R6912
RN-CP
12k
R6867
250V
0.18
C6848
PP
1500p
1.5kV
C6829
RN-CP
100k
R6917
25V
470
C6820
RN-CP
2.2k
R6897
RN-CP
150k
R6814
1.2kV
C6850
2200p
PP
PG102RPG102R D6860
0.5A
90V
PS6801
1/2W RN1.5R6850
500V
4700p
E
C6845
XX
R6849
CHIP
0
R6942
RN-CP
22k
R6819
S3L20UF4
D6827
XX
R6835
5JW6801
RF
1/2W
0.22
R6913
3W
RS
470
R6926
1
2
3
4
5
7
6
143563641
T6806
RN-CP4.7kR6825
2.2
R6845
FPRD
2SC1623-L5L6
2SC1623-L5L6
2SC1623-L5L6
Q6810
0R6809 CHIP
FPRD
10
R6924
FPRD
1.5
R6824
RN-CP
10k
R6928
XX
C6887
3W
RS
33
R6852
1.2kV
PP
C6842
1000P
500V
470p
B
C6854
500V
470p
B
C6877
RN-CP
4.7k
R6843
250V
0.056
C6852
PT
XX
R6839
H+
RN-CP
6.8k
R6896
CHIP
R6837
0
16V
0.1
B
C6807
FR104-A5
D6829
1
2
3
4
5
6
6P
DY1
H+
H+
H-
H-
V-
V+
Q6800
13
4
L6807
10mH
2SC1623-L5L6
Q6812
4.7 160VC6851
XX
R6940
RN-CP
1k
R6802
RN-CP
68k
R6935
25V
470
C6853
100V
10
C6857
XX
B
C6810
D6812 XX
0.022
B
C6805
RN-CP
180k
R6901
RN-CP
100
R6923
10mH
L6815
47uH
L6800
RN-CP
3.3k
R6887
RN-CP
6.8k
R6833
3W
RS
4.7k
R6811
1mH
L6809
RN-CP
25V
R6822
3W
RS
33
R6883
22
C6834
RN-CP
100k
R6914
100p
CH
C6833
10
C6859
CHIP
R6947
0
2SC1623-L5L6
Q6807
2SA1235TP-1EF
Q6816
0.47
250V
C6844
2W
RS
3.9k
R6870
C6873
XX
RN-CP
22k
R6818
2.2mH
L6812
1SS133T-77
D6821
RN-CP
220
R6808
2W
RS
3.3k
R6885
C6821
XX
CHIP
0
R6945
R6844
XX
RN-CP
100k
R6916
25V
0.022
C6817
B
C6836 XX
16V
0.1
B
C6800
160V
33
C6876
100
C6822
16V
100
C6860
16V
0.1
B
C6849
XX
C6862
RN-CP
100k
R6904
RN-CP
4.7k
R6863
RN-CP
4.7k
R6806
500V
470p
B
C6809
2W
RS
470
R6871
2.2mHL6806
200V
PT
0.022
C6871
RN
470k
R6828
1.5kV
PP
C6885
8200p
RN-CP
5.6k
R6903
DRV-IN
Vcc
Vee
OUTPUT
Vcc(OUT)
REF-NO
F.B.-PLS
1/2W
4.7k
R6831
220k
R6862
RN
FPRD
0.47
R6841
XX
R6827
16V
0.047
B
C6861
3W
RS
4.7k
R6920
2W0.47R6929
13
4
10mH
L6803
RN-CP
10k
R6910
1/2W
RN
22k
R6884
RN-CP
10k
R6907
RN-CP
4.7k
R6921
RN-CP
1k
R6933
D6840
XX
160V
47
C6880
FR104-A5D6800
5
JW6884
1
24
3
5
144361811
T6803
S6800
157270711 157270711
1
2
3
4
Q6809
1W
RS
R6848
150
3W
15
R6860
2W
RS
470
R6826
2SC1623-L5L6
Q6819
4321
5678
LM2903DT
IC6800
1.1uH
FB6801
RN-CP
100k
R6879
R6946
XX
D6802 PG102R
1/2W
4.7k
R6878
RN
220k
R6911
XX
C6856
3W
RS
4.7k
R6919
RN
5.6k
R6877
1
3
4
CN6811
XX
200V
GND
H1
220k
R6868
RN
-15V
15k
12 45
FIN
R6725
15k
R6726
IC6609
BA33BCOWFP-E2
RS
*
*
R6625
XX
JR6601
XX
JR6602
1
4
GRN
4P
CN6620
XX
1
2
3
4
GRN
XX
4P
CN6621
P_GND
D_H
D_L
P_VCC
PL
PH
PFC IN
PFC OUT
M_SENSE
S_SENSE
1
2
3
4
GRN
XX
4P
CN6622
220p
B
C6890
*
C6108
*
C6111
*
C6102 *
C6100
500V
4700p
E
C6619
1
3
CN6607
*
JW6804
XX
JW6802
XX
JW6803
XX
JW6805
XX
JW6684
XX
5866WJ XX
W6807
JW6103 XX
W6808
TH6601
180580811
12
3
100uH
L6804
L6607 3.3uH
MA111-TX
D6607
MA111-TX
D6600
D6103
MA111-TX
D6841
MA111-TX
D6801
MA111-TX
D6842
MA111-TXD6809
MA111-TX
D6832
MA111-TX
D6839
MA111-TX
D6843
KRC102S
Q6613
12
3
22
C6693
R6895 4.7k 3W
XXC6891
RD6.8ESB2
D6641
10
9
7
6
5
13
F
11
12
HV
2
8SC
4
1
T6805
*
MA4300-H(TA)
D6640
RY6602
1
2
3
4
175551611
*
RY6603
1
2
3
4
5
JW6694
7.5
JW6693
MA8091-M-TX
D6803
MA8047-TX
D6826
MA8150-M-TX
D6807
D6102
1SS133T-77
D6601
PH6601
1
23
4ON3171-R
PH6602 1
23
4
MA8150-M-TX
D6666
10ERB20-TB5
D6109
FPRD
0.47
R6697
25V
100
C6892
33uHL6805
1
2
3
3P
CN6818
+15_PLS
NC
DF
STANBY CIRCUIT
D
TO H1 BOARD
CN1651
DGC COIL
DGC CHECKING
TO A BOARD
CN2601
TO A BOARD
CN1202
TO A BOARD
CN2602
CHOKE COIL
DGC COIL
OVP CIRCUIT
POWER/DEFLECTION
H-DRIVE
TO A BOARD
CN4304
TO VM1 BOARD
FBT
PIN CORRECTION
FB6810
TO C BOARD
H-OUT
CN9002
HORIZONTAL DEFLECTION
TO DY
CN5400
V-DRIVE
TO D3 BOARD
CN6401
TO P_GND
TO P_VCC
TO D3 BOARD
CN6403
TO D3 BOARD
CN6402
TO VM1 BOARD
CN6500
Identity Jumpers
+15V
+15V
+15V
+15V
+15V+15V
-15V
-15V
-15V
+12V
+12V
+12V
+12V
+12V
+12V
+12V
+12V
+12V
+12V
+12V
+12V
+7V
+7V
+7V
200V 200V
+135V
+135V
+135V
+135V +135V
+135V
+135V
+135V
+135V
+135V
+135V
+135V
+135V
-15V
-15V
-15V
CTL
VCC
OUT
NC
N.C.
B-CX2(06)13412-SAF-D..(Block 001)-DZ29M30
3
!
!
!
!
!
!
!
!
!!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
*
*
*
*
!
!
!
– 68 –
KV-DZ29M30/M61/M91
RM-GA002
6-2-9. D Board – (Block 002)
1/2W
R6665
1M
Mount Mecha 410268301
A6606 PIN LEAD
XX
Mount Mecha X20248601
A6603 Q6603
Mount Mecha 406290811
A6604 IC6604
Mount Mecha 439889241
A6605 D6605
Mount Mecha X20248591
A6631 D6631
Mount Mecha 406084011
A6633 D6633
Mount Mecha X20248581
A6644 D6644
Mount Mecha 406084011
A6654 D6654
Mount Mecha X20248611
A6600 Q6600
IC_GND
001:8A
Mount Mecha 403343751
A6809 Q6801
Mount Mecha 408658121
A6801 IC6801
Mount Mecha 408847011
A6806 Q6802,D6805,D6806
Mount Mecha 410268311
A6607 PIN LEAD
XX
HEATSINK (Block 002)
D
DEFLECTION HEATSINK
B-CX2(06)13412-SAF-D..(Block 002)-DZ29M30
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
– 69 – – 70 –

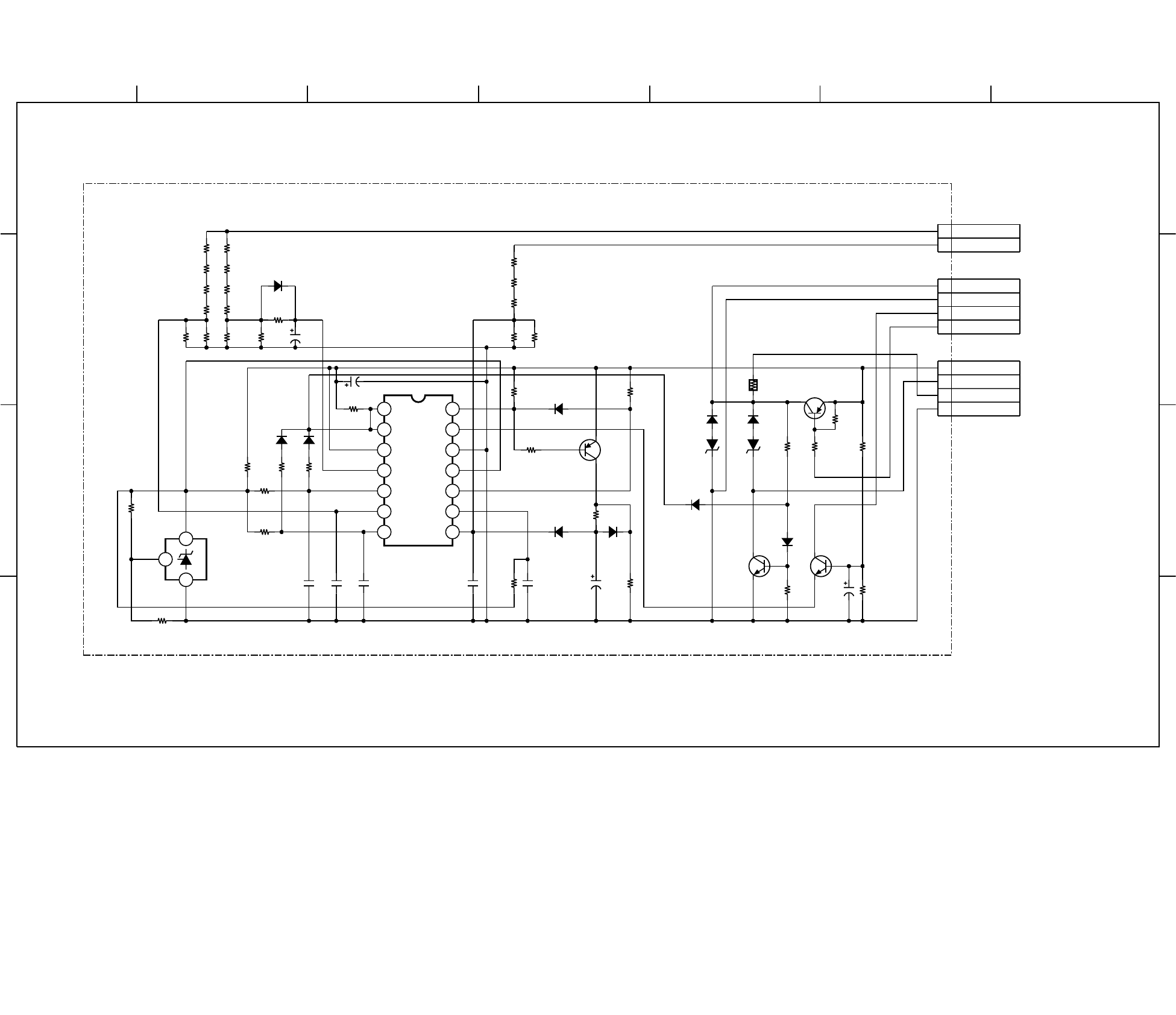

6-2-10. D3 Board Schematic Diagram
12 43
B
5
A
B
D
6
C C
7
D
A
RN-CP
4.7k
R6432
RN-CP
R6419
390k
RN-CP
R6404
510k
RN-CP
R6405
510k
RN-CP
10k
R6437
RN
36k
R6425
25V
CH
C6405
1000p
CH
C6402
100p
RN-CP
R6420
470k
RN-CP
47k
R6439
RN-CP
R6421
10k
RN-CP
100k
R6427
RN-CP
R6411
510k
RN-CP
R6403
120k
RN-CP
R6434
22k
RN-CP
R6409
510k
RN-CP
39k
R6430
10
C6404
RN
680k
R6423
RN-CP
R6435
22k
RN-CP
10k
R6401
RN-CP
R6416
100k
RN-CP
10k
R6438
RN-CP
47k
R6431
RN-CP
R6406
510k
RN-CP
510k
R6407
100p
CH
C6406
1W
RS
R6433
150
RN-CP
R6418
470k
10k
R6402
CH
C6403
100p
RN-CP
R6415
100k
25V
0.01
C6407
3.3
C6408
RN-CP
510k
R6412
RN-CP
R6413
120k
RN
680k
R6424
12
2.2
C6409
RN-CP
4.7k
R6414
C6401
1
RN-CP
R6417
75k
1
2
RN-CP
R6408
75k
RN-CP
R6410
510k
RN
56k
R6428
RN-CP
10k
R6426
RN-CP
10k
R6429
D6406
XX
RN
680k
R6422
1
2
3
4
GRN
XX
CN6402
PH_C
PH_E
PH
PL
1
2
3
4
GRN
XX
CN6403
P_VCC
DL
DH
P_GND
3
1
2
KIA431AF
IC6401
14 13 12 11 10 98
7
6
54
321
IC6402
LM339NS
OUT+2
OUT+1
VCC
IN1
IN1+
IN2-
IN2+ IN3
IN3+
IN4-
IN4+
GND
OUT4
OUT3
4.7k
R6436
2SA1235-F
Q6403
2SA1235-F
Q6401
2SC1623-L5L6
Q6402
2SC1623-L5L6
Q6404
1
4GRN
*
CN6401
M_SENSE
S_SENSE
MA111-TX
D6401
MA111-TX
D6402
MA111-TX
D6403
MA111-TX
D6404
MA111-TX
D6405
MA111-TX
D6407
MA111-TX
D6408
MA111-TX
D6410
MA111-TX
D6412
MA8120-M
D6409
MA8120-M
D6411
TO D BOARD
CN6620
TO D BOARD
CN6622
TO D BOARD
CN6621
D3
REF
ANODE
CATHODE
(SUR)
B-CX2(06)13412-SAF-D3.-DZ29M30
– 71 –
KV-DZ29M30/M61/M91
RM-GA002

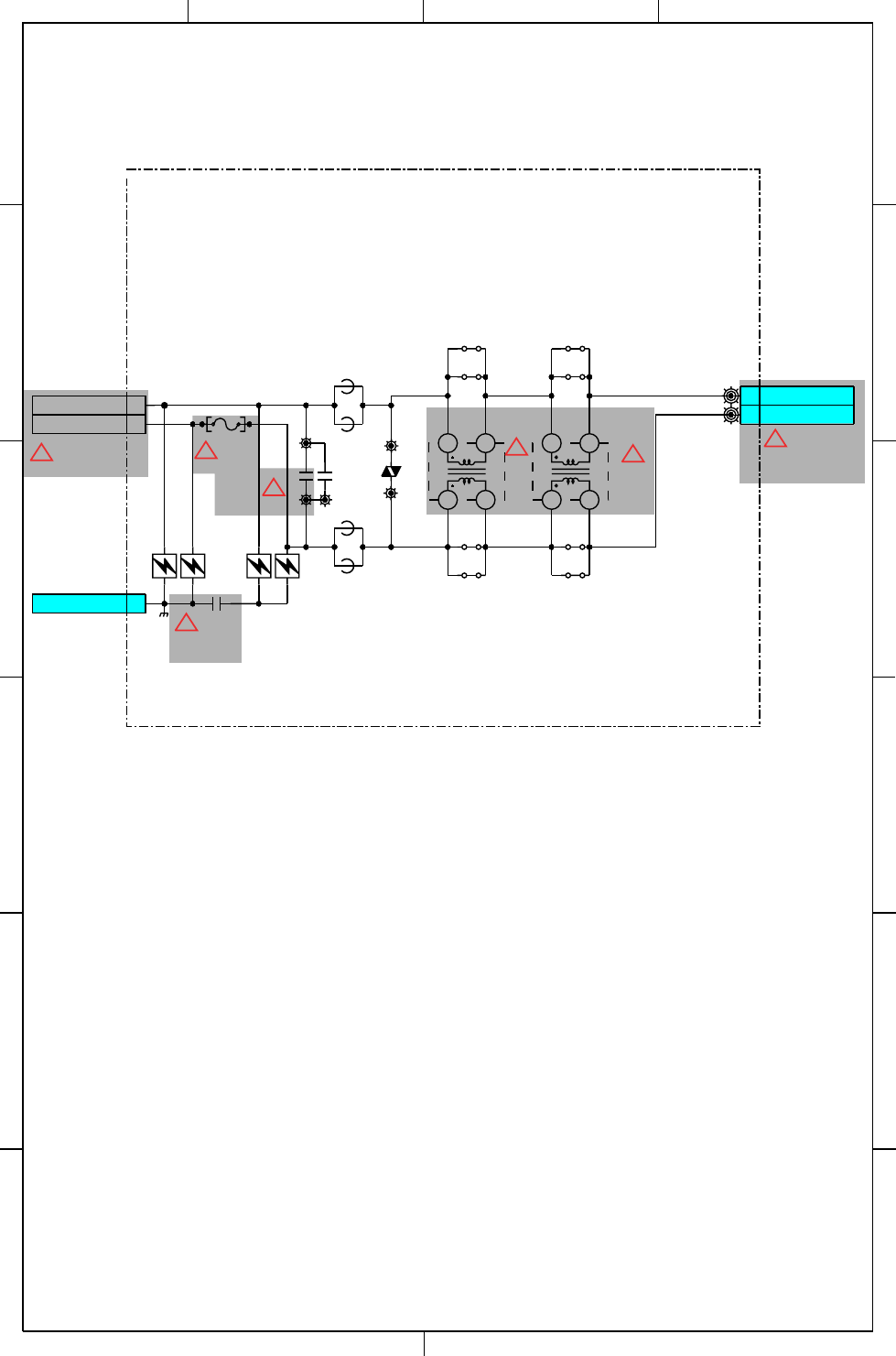

6-2-11. F1 Board Schematic Diagram
2P
CN1602
AC OUT
AC OUT
1
CN1603
1.1uH
FB1601
1.1uH
FB1602
1.1uH
FB1603
1.1uH
FB1604
CAM001 CAM002
CAM003
CAM004
JW1604
XX
JW1603
XX
JW1601
XX
JW1602
XX
JW1608
XX
JW1607
XX
JW1605
XX
JW1606
XX
1
3
2
4
143390051
T1601
1
32
4
T1602
XX
C1605
0.68
C1602
250V
4700p
B
C1603
VDR161
180499511
250V
5A
F1601
FH1601
153322311
153322311
FH1602
4
C
A
F
D
B
E
1
B
E
2
C
F
3
D
A
1
2
2P
CN1601
AC IN
AC IN
TO H1 BOARD
CN1652
TO POWER CORD
TO A BOARD
CN100
F1
CISPR/ LIGHTNING PROTECTION
B-CX2(06)13412-SAF-F1.-DZ29M30
!
!
!
!
!!
!
1
2
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
– 72 – – 73 –

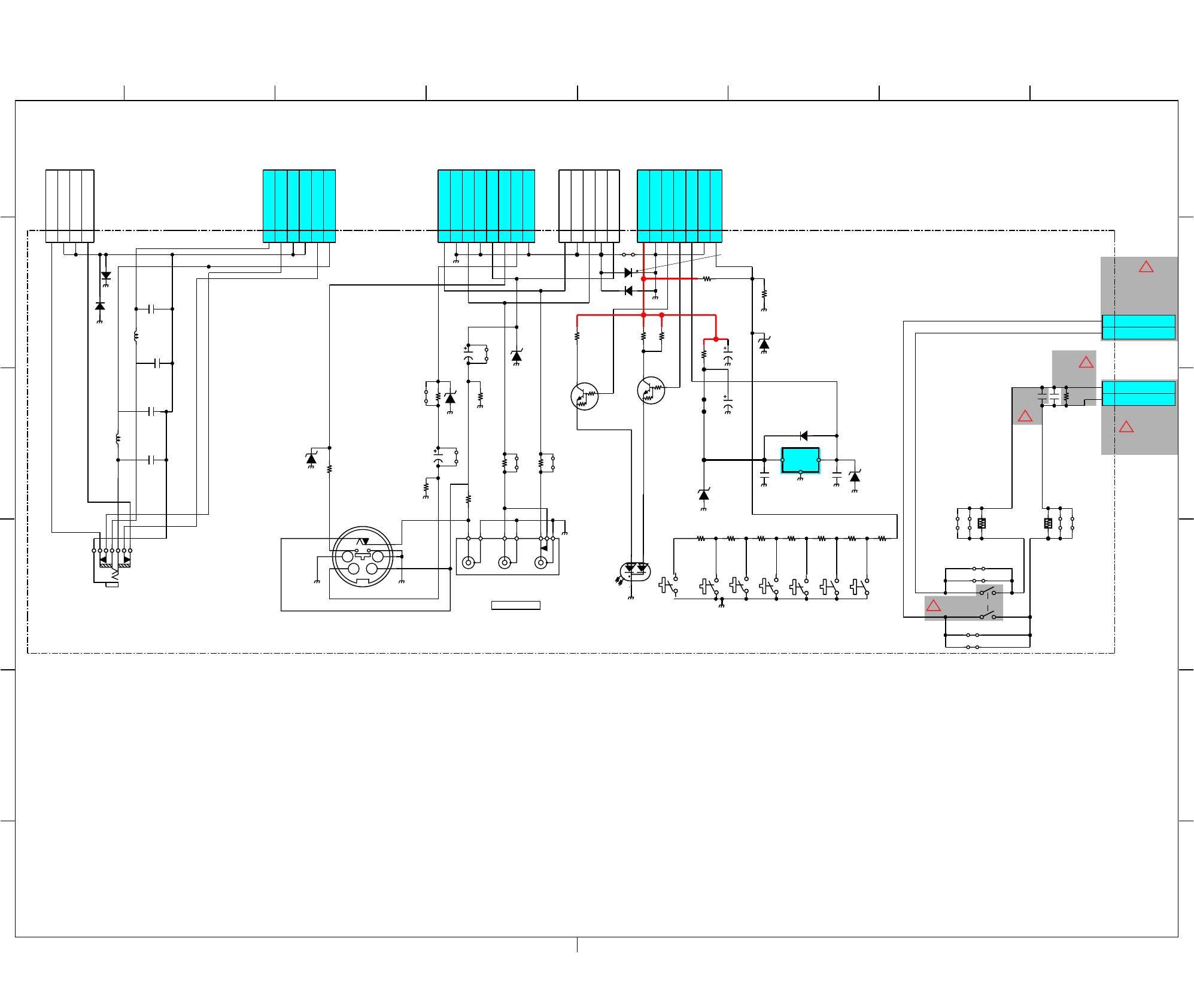

6-2-12. H1 Board Schematic Diagram
D3902
XX
D3907
XX
C3913
XX
XX
C3914
L3902
10uH
L3901
10uH
1
2
3
4
5
6
CN3903
NI L HP
N
I
L
PS
DNG PS
DN
G
P
S
NI R PS
NI R HP
1
2
3
4
5
6
7
WHT
7P
CN3905
V3.3 YBTS
DN
G
G DEL
R DEL
SCRIS
DNG
Y
EK
5
JW3904
5
JW3905
L
R
V
J3903
3P
5
JW3914
1
2
3
4
CN3901
TUO L PS
DNG PS
DNG PS
TUO R PS
D3912
1SS133T-77
1SS133T-77
D3913
35V
47
C3910
35V
47
C3911
JW3913
JW3919
S3909
169243121 169243121
169243121
169243121
169243121
169243121
169243121
2
1
S3907
2
1
S3908
2
1
S3902
2
1
S3903
2
1
S3904
2
1
S3905
2
1
KRC110M
Q3901
KRC110M
Q3902
JW3910
XX
-2
-2
-2
-2
-2
-2
1SS133T-77
D3904
1SS133T-77
D3905
470
R3908
4.7k
R3927
1k
R3907
R3917
XX
R3926
XX
330
R3911
220
R3910
C3900
0.01
100V
XX
R3904
150
R3912
47
R3916
XX
R3925
680
R3920
4.7k
R3914
R3922
2.2k
330
R3909
C3903
XX
C3902
0.01
100V
XX
R3905
R3919
XX XX
R3924
1.5k
R3915
C3901
XX
1
2
3
4
5
CN3908
XX
N
I
R
N
I
L
NI
V
C
S1650
178664912
12
34
470p
B
C1901
1SS133T-77
D1902
470p
B
C1900
VCC
GND
OUT
RPM7240-H5
IC1900
G
R
LNK0210088H
D1903
-2
-2
-2 -2 -2
XX
R3928
10W
RB
0.47
R3629
10W
RB
0.47
R3630
XX
C3604
1/2W
1M
R3601
RN
0.47
C3601
-2
J3904
177078631
81
E
F
2
F
43
B
5
A
E
B
D
6
C C
7
D
A
1
2
3
4
5
6
7
8
CN3904
8P
6P
4P
GND
GND
GND
GND
GND
N
I
R
NI L
NI VC/Y
NI
S
NI C
34
12
169424211
J3902
JW1601 XX
JW3621 XX
JW3622 XX
JW3623 XX
JW3620 XX
JW1602 XX
JW1603 XX
JW1604 XX
1
2
2P
CN1651
AC OUT
AC OUT
1
2
2P
CN1652
AC IN
AC IN
MA4056-M(QZ)
D1900
MA4056-M(QZ)
D1901
D3900
MA4056-M(QZ)
MA4056-M(QZ)
D3908
FRONT PANEL SW
H1
TO SPEAKERTO A1 BOARD
CN1203 TO A1 BOARD
CN1201
TO A1 BOARD
CN2203
TO A1 BOARD
CN014
MENUVIDEO VOL -VOL + CH -CH +
SOUND
MODE
SPEAKER
TO WOOFER
V2L2R2
VIDEO IN 2
CN6604
TO D BOARD
TO F1 BOARD
CN1602
B-CX2(06)13412-SAF-A..(Block 004)-DZ29M30
!
!
!
!
!
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
– 74 – – 75 –

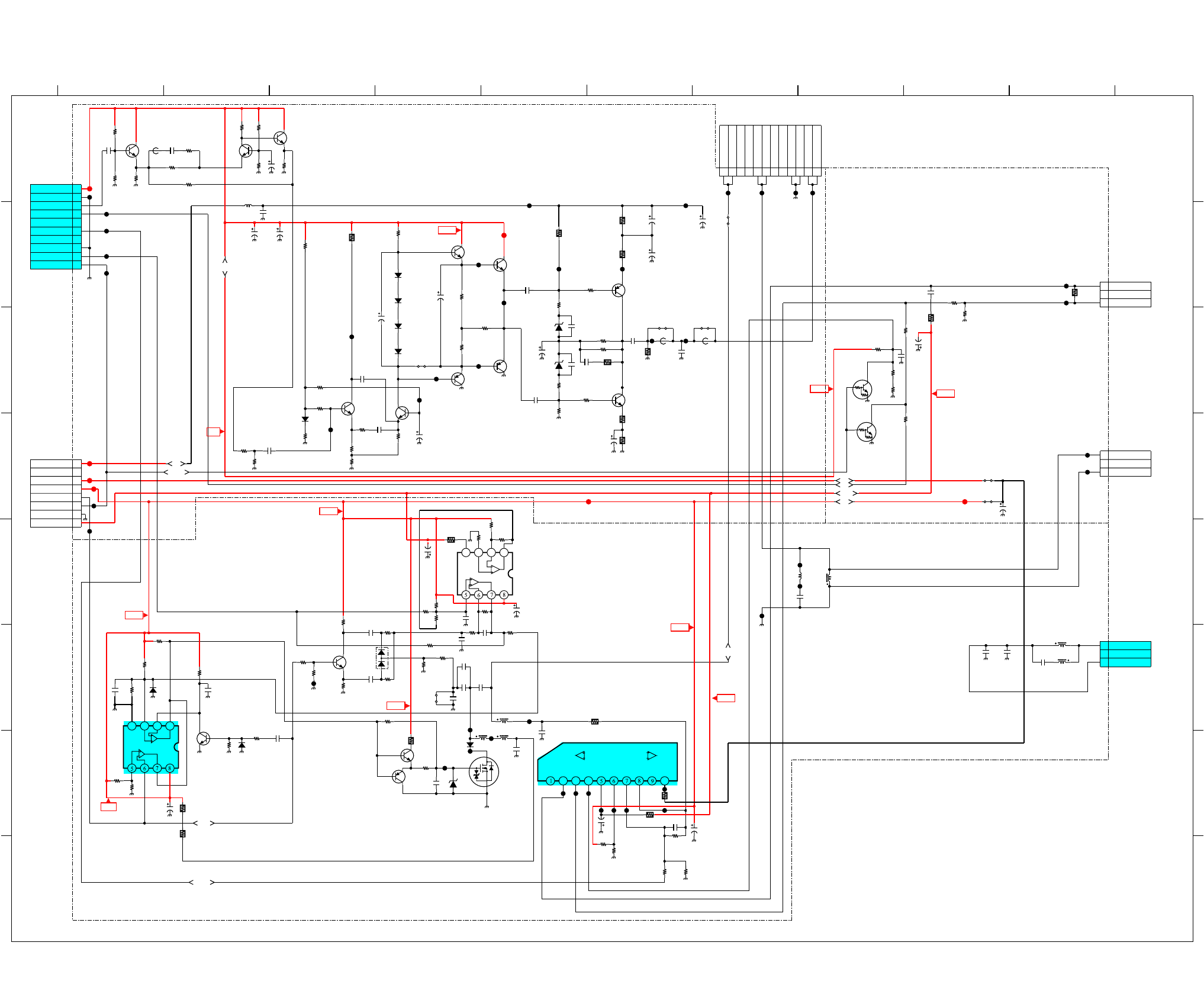

6-2-13. VM1 Board Schematic Diagram
FPRD
2.2
R5416
16V
470
C5401
2SA1175-HFE
Q5404
XX
C5400
2SC2785TP-HFE
Q5403
D1NS4
D5401
160V
33
C5418
200V
100
C5413
250V
2.2
C5409
16V
100
C5405
XX
C5414
FPRD
2.2
R5421
RD22ES-B
MA4200-H(TA)
MA4200-H(TA)
D5405
2SC5511
Q5407
2SC2785-HFE
Q5402
2SA2005
Q5406
2SC2785-HFE
Q5401
FPRD
560
R5413
2SC2785-HFE
Q5400
JW5400
XX
10uH
L5400
2SA1175-HFE
Q5405
MA111-TX
D5400
16V
470
C5412
RD22ES-B
D5406
D6200
XX
35V
47
C6202
D6202
XX
FPRD
47
R6226
432
LA6510
IC6202
VEE
VCC
1W
RS
2.2
R6229
35V
47
C6218
4321
IC6201
XX
XX
R6215
XX
C6206
XX
C6214
35V
47
C1801
FPRD
1.5
R1805
1W
RS
470
R1808
35V
47
C1803
D6203
XX
L6205
82uH
1
2
1
2
3
XX
CN5404
CY-
NC
CY+
Q1800
XX
Q1801
XX
FPRD
15
R6251
35V
47
C6226
5
JW1800
JW1801
XX
5
JW5409
1
2
3
4
5
6
7
8
9
10
11
12
12P
CN5401
QP+
QP+
NC
NC
QP-
QP-
NC
NC
E
E
VM
VM
1
2
3
4
5
6
7
8
9
10
RED
10P
CN5402
9V
E
VM
NS
5V
V_PARA2
V_PARA1
E
DQP_PH
DGC MUTE
5
JW5403 5
JW5401
4321
LM2903DT
IC6200
2SC1623-L5L6
Q6200
Q6201
XX
2SC1623-L5L6
Q6203
2SA1235-F
Q6202
1/2W
FPRD
100
R5403
16V
470
C5403 16V
470
C5406
1/2W
FPRD
47
R5415
FPRD
47
R5422
3W
RS
10
R6235
1W
RS
100
R5429
XX
R6223
RN-CP
10k
R6203
1000p
C5411
XX
C6209
XX
C5420
XX
R6221
XX
R6212
XX
R6208
XX
C6207
1
R1807
PT
0.1
C1802
25V
1000p
CH
C6201
PT
1000p
C5410
RN-CP
4.7k
R6201
XX
R6243
47
R5407
RN-CP
0.1
C6225
RN-CP
39k
R1800
RN-CP
470k
R6239
MPS
0.47
C6216
RN-CP
68k
R6237
RN-CP
47k
R6202
XX
C6205
400V
0.015
C6213
PP
RN-CP
22k
R6206
XX
R6222
25V
0.01
B
C6200
XX
C6208
47
R5411
RN-CP
R1802
270
RN-CP
5.6k
R1809
RN-CP
100
R6227
XX
R6213
200V
PT
0.01
C5407
XX
C5404
560
R5418
1.2k
R5404
CHIP
0
R5405
500V
2200p
E
C5417
2.2k
R5419
XX
R6211
XX
R5428
16V
0.047
B
C6203
2.2kR5420
XX
R6220
XX
R6209
680
R5402
18k
R5417
10k
R5412
47
R5410
XX
R6224
18k
R5414
16V
0.1
B
C1800
RN-CP
150k
R6242
200V
PT
0.01
C5421
RN-CP
4.7k
R5406
XX
R6205
RN-CP
18k
R6238
1000p
B
C6210
XX
C6204
15
R5427
XX
R5426
XX
R6210
RN-CP
47k
R6207
RN-CP
4.7k
R5401
XX
C6212
PT
0.1
C6215
RN-CP
1.8k
R1801
220
R5408
10V
0.47
F
C5402
200V
PT
0.1
C5415
200V
PT
0.01
C5408
100
R5409
XX
C6219
RN-CP
2.2k
R1803
RN-CP
1k
R1806
RN-CP
47k
R6204
XX
C5416
15
R5424
XX
R6255 XX
R6256
XX
R6257
XX
R6258
XX
R6259
RN-CP
18k
R6200
RN-CP
8.2k
R6250
1
2
3
3P
CN5403
TO ROT COIL
ROT-
NC
ROT+
FB5401
XX
FB5400
XX
3W
RS
470
R5423
CHIP
0
R5425
ER206
D6204
XX
C6211
0.015 400VC6227
+15V
9V9V
V_PARA2
DGC_MUTE
H_PLS
QP+
+B
ROT
-15V
12V
S
2SK3563(LB2SONY)
Q6204
F
5
C
2
A
D
4
A
1
H
EE
12
G
B
D
11
8
C
10
7
H
B
F
96
G
3
1
2
3
WHT
3P
CN6500
+15_PLS
NC
DF
630V
PP
2200p
C6500
400V
PP
0.022
C6501
630V
PP
2200p
C6502
L6200
4.7mH
L6201
4.7mH
L6202
1mH
L6206
4.7mH
L6500
1mH
L6501
MA111-TX
D6201
1
2
3
4
5
6
7
8
8P
CN5400
WHT
+135V
NC
+15V
12V
H_PLS
DGC MUTE
GND
-15V
RN-CP
10k
R5430
25V
0.1
B
C5422
RN-CP
10k
R5431
2SC3052EF-T1-LEF
Q6205
XX
C5423
XX
R5434
XX
R5433
CHIP
0
JR6208
XX
R5435
XX
R5436
Q6206
XX
XX
R5437
XX
C5424
XX
R5438
Q6207
XX
XX
L6502
3W
RS
39
R6260
3W
RS
39
R6261
1SS133T-77
D5402
1SS133T-77
D5403
1SS133T-77
D5404
CHIP
0
JR6210
5
JW6210
RN-CP
R6225
10k
1k
R5432
SIGN471
DQP
VM ROTATION
TO DL / DL1 BOARD CN3802
TO A / A1 BOARD CN4302
TO VM COIL
TO DY
TO D BOARD CN6818
10
VM1
(VM/DQP/ROTATION CIRCUIT)
12V
12V
12V
9V
9V
-15V
-15V
12V
12V
9V
B-CX2(06)13412-SAF-VM1-DZ29M30
– 76 –
KV-DZ29M30/M61/M91
RM-GA002

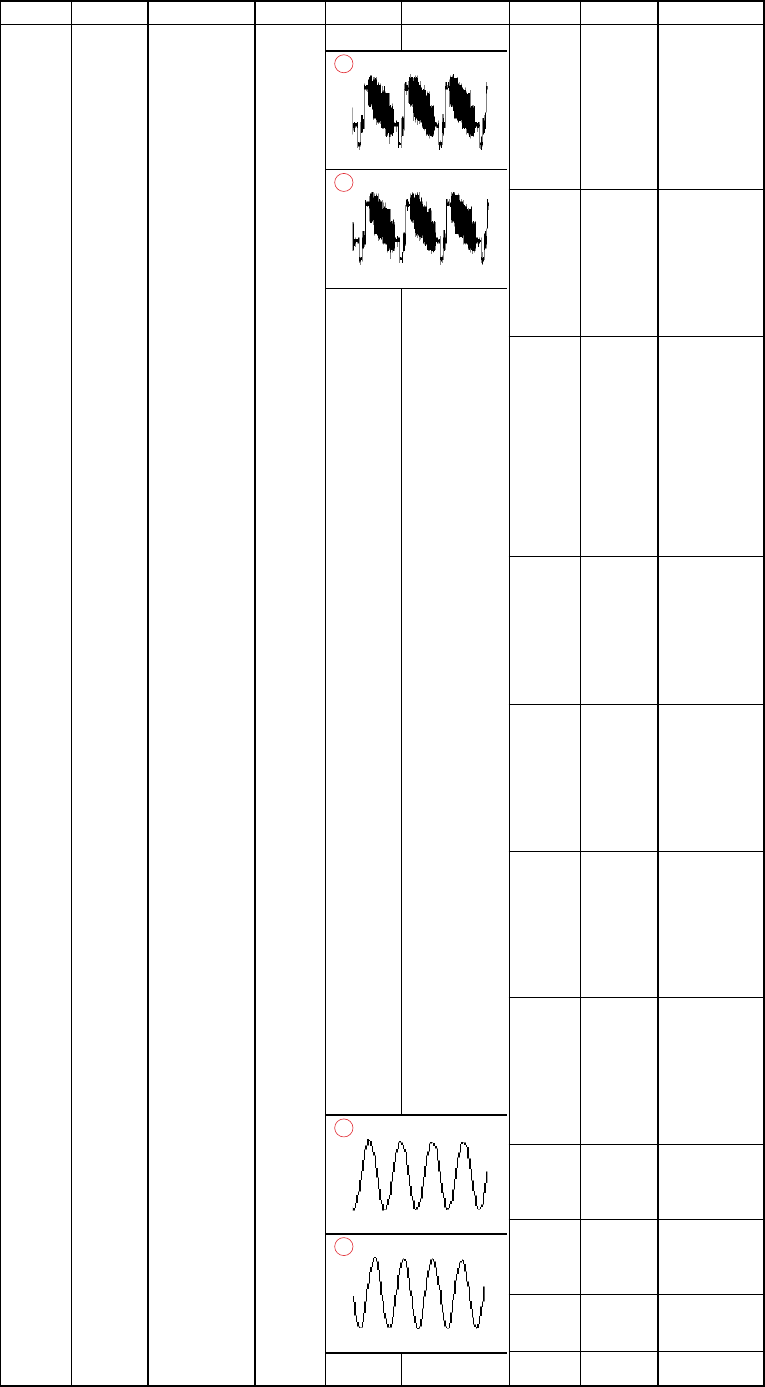

A1 BOARD VOLTAGE LIST AND WAVEFORM
6-3. VOLTAGE MEASUREMENT AND WAVEFORM
Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]Ref Pin No Voltage[v]
IC001 1 0
20
3 3.2
40
50
6 3.2
70
80
9 (2.2)[3.0]
10 3.2
11 0
12 0
13 0
14 4.9
15 0
16 0
17 3.1
18 0
19 3.2
20 3.5
21 3.3
22 0
23 2.0
24 0
25 2.0
26 0
27 3.2
28 0
29 0
30 3.2
31 2.8
32 2.9
33 0
34 0
35 3.2
36 0
37 0
38 0
39 3.2
40 0
41 3.2
42 2.6
43 2.7
44 2.6
45 2.9
46 3.5
47 4.9
48 0
49 0
50 0
51 0
52 0
53 0
54 0
55 0
56 0
57 0
58 0
59 0
60 4.9
61 0
62 4.5
63 0
64 0
65 0
66 3.5
67 3.5
68 3.5
69 3.5
70 0
71 0
72 2.1
73 2.1
74 1.6
1.120Vp-p
PAL
2
1.040Vp-p
NTSC
2
75 2.1
76 2.1
77 0
78 0
79 2.1
80 2.1
81 0
82 4.8
83 0
84 8.3
85 4.3
86 2.2
87 0
88 2.0
89 0
90 2.4
91 2.3
92 3.5
93 3.5
94 2.1
95 2.1
96 0
97 0
98 3.6
99 0
100 0
101 0
102 0
103 2.3
104 0
105 0
106 0
107 3.3
108 0
109 2.2
110 2.2
111 0
112 2.2
113 0
114 0
115 2.5
116 0
117 0
118 *
119 *
2.00Vp-p
PAL
1
2.12Vp-p
NTSC
1
120 3.2
121 0
122 3.2
123 0
124 0
125 3.2
126 0
127 0
128 0
IC002 1 0
20
30
40
5 3.6
6 3.6
7 3.1
8 3.1
IC1201 1 0
20
3 29.1
40
50
60
7 14.3
80
90
10 29.9
11 29.8
12 14.4
IC2201 1 5.9
2 3.1
3 5.8
40
5 5.9
6 8.9
7 5.1
80
IC2202 1 5.9
2 3.1
3 5.8
40
5 5.9
6 8.9
7 5.1
80
IC2203 1 5.9
2 3.1
3 5.8
40
5 5.9
6 8.9
7 5.1
80
IC2204 1 5.9
2 3.1
3 5.8
40
5 5.9
6 8.9
7 5.1
80
IC2600 I 13.3
G0
O 8.8
V 13.4
IC2601 I 6.8
G0
O 4.9
V 2.2
IC2603 I 5.9
G0
O 3.2
– 77 –
KV-DZ29M30/M61/M91
RM-GA002

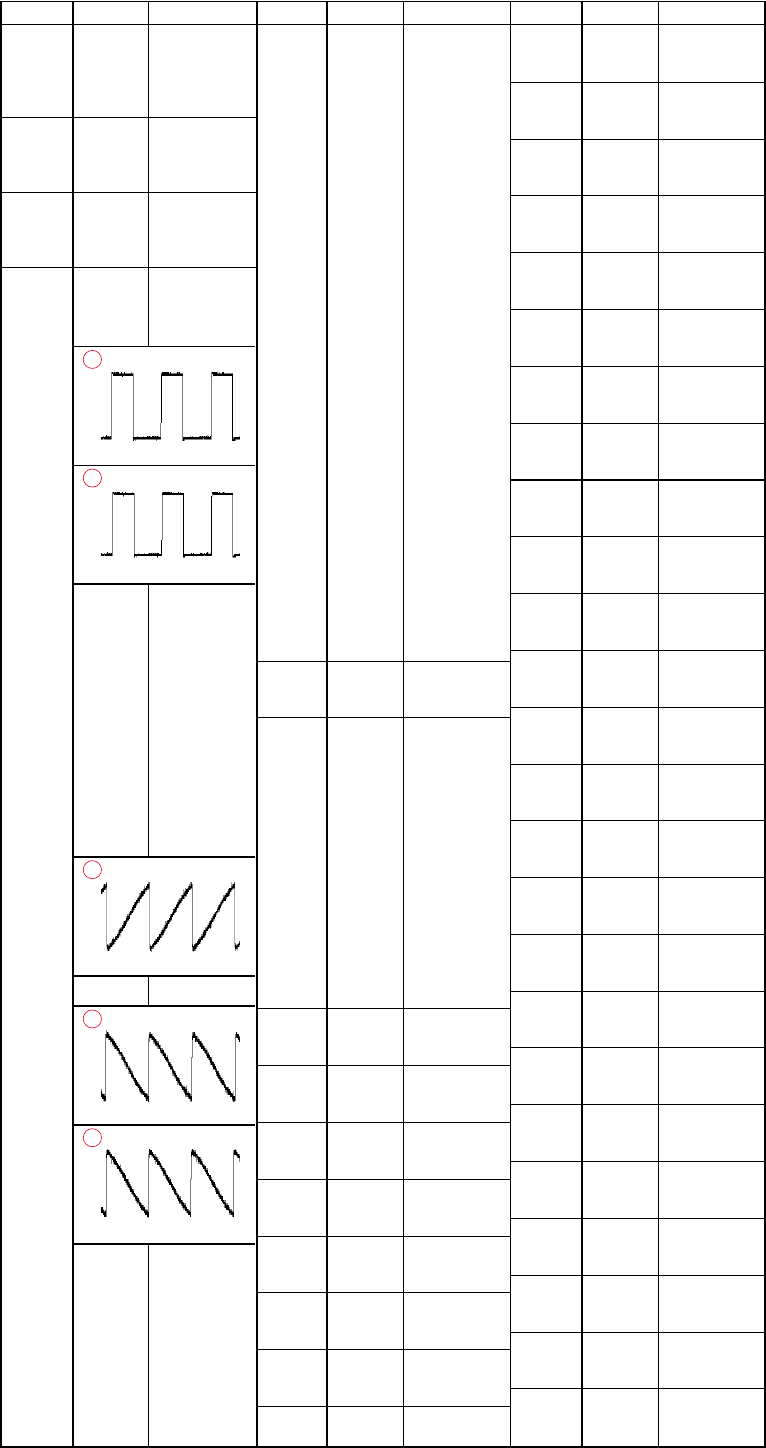

Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]
A1 BOARD VOLTAGE LIST AND WAVEFORM
IC2604 1 2.3
2 3.1
30
4 1.7
50
IC2605 I 5.9
G0
O 1.7
V 2.5
IC2608 I *
G0
O 1.7
V 2.4
IC4301 1 0
2 3.8
3 4.9
4 2.6
376.0mVp-p
PAL
3
384.0mVp-p
NTSC
3
50
60
7 3.6
8 2.8
90
10 3.4
11 3.6
12 2.8
13 3.8
14 4.4
15 4.7
16 3.8
17 3.8
18 3.4
156.0mVp-p
4
19 3.4
164.0mVp-p
PAL
5
156.0mVp-p
NTSC
5
20 0
21 8.8
22 0
23 3.7
24 4.3
25 0
26 8.8
27 3.0
28 2.5
29 3.2
30 2.6
31 3.0
32 2.6
33 0
34 0
35 0
36 3.0
37 3.1
38 3.1
39 0
40 0
41 0
42 2.0
43 2.8
44 2.5
45 0
46 4.8
47 3.8
48 3.5
49 3.5
50 1.8
51 0
52 4.6
53 4.6
54 0
55 0
56 0
57 0
58 4.8
59 0
60 2.0
61 0
62 2.9
63 *
64 2.5
IC4302 I 8.9
G0
O 4.9
IC8503 1 2.8
20
3 2.0
40
5 2.0
6 2.0
70
8 2.8
9 2.8
10 0
11 2.8
12 0
13 4.9
14 2.8
15 0
16 2.8
Q001 B 2.4
C 4.1
E0
Q002 B 4.2
C 1.7
E 4.8
Q003 B 0
C 4.8
E0
Q015 B 1.9
C0
E0
Q018 B 1.5
C0
E 2.3
Q019 B 2.3
C 4.2
E 1.5
Q020 B 4.2
C 1.5
E 4.8
Q022 B 0
C0
E 2.4
Q023 B 2.3
C 4.1
E0
Q024 B 4.2
C0
E 4.8
Q025 B 0
C0
E 2.5
Q026 B 1.3
C0
E 1.9
Q029 B 4.5
C 4.9
E 3.9
Q030 B 2.0
C0
E0
Q031 B 4.9
C 3.5
E0
Q032 B 4.9
C 3.7
E0
Q100 B 3.9
C 8.8
E 3.2
Q102 B 3.0
C 2.3
E 8.8
Q103 B 3.1
C 2.9
E0
Q104 B 3.3
C 4.8
E0
Q1201 B 13.2
C0
E 13.0
Q2601 B 2.3
C0
E 2.5
Q2602 B 2.4
C0
E 2.5
Q4301 B 0
C 0.6
E0
Q4302 B 0.5
C0
E0
Q4303 B 2.7
C 8.9
E 2.8
Q4305 B 4.3
C0
E 4.3
Q4306 B 4.2
C0
E 3.9
Q4307 B 2.6
C0
E 3.3
Q4308 B 2.6
C0
E 3.4
Q4310 B 1.6
C0
E 1.0
– 78 –
KV-DZ29M30/M61/M91
RM-GA002

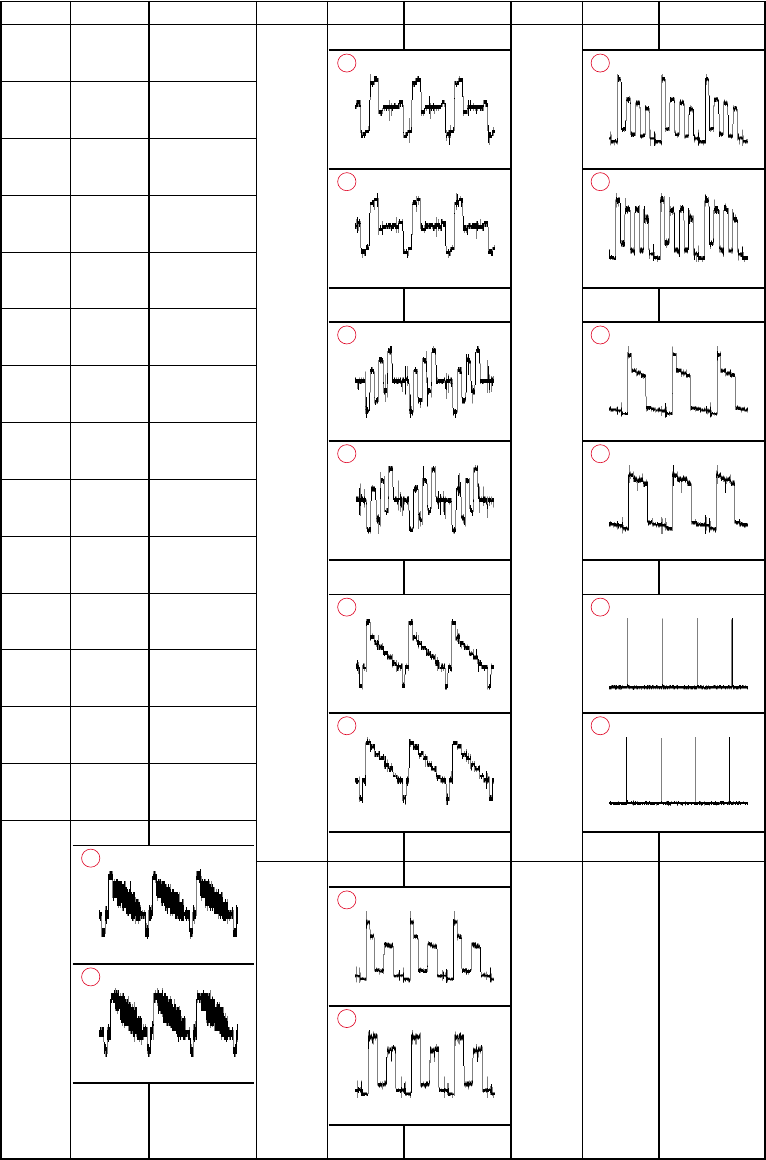

Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]

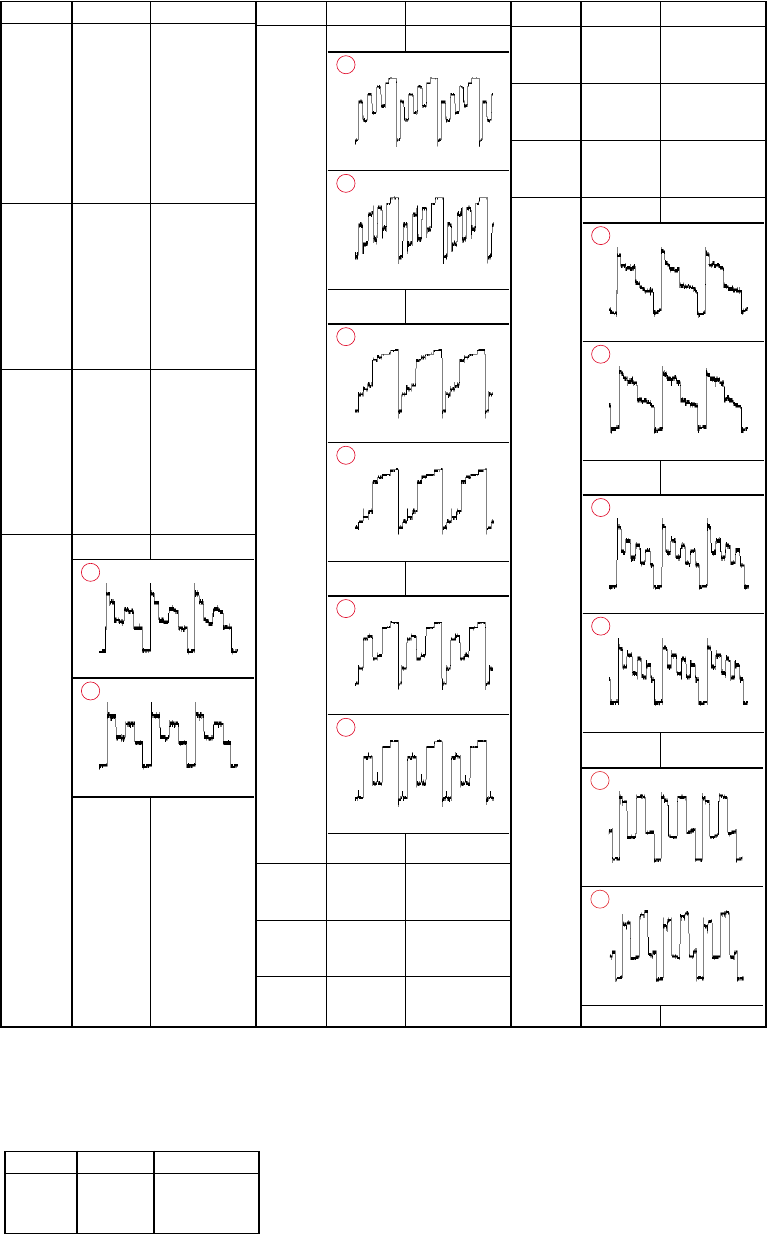

A1 BOARD VOLTAGE LIST AND WAVEFORM
Q4323 B 0
C 8.9
E0
Q4324 B 1.0
C 5.6
E 0.4
Q4328 B 0
C 4.4
E0
Q4329 B 2.6
C0
E0
Q4330 B 3.4
C (4.4)[4.7]
E 3.3
Q4331 B 0
C 8.8
E0
Q4332 B 0
C 5.1
E0
Q8306 B 2.2
C0
E 2.5
Q8501 B 2.0
C 8.9
E 2.8
Q8502 B 2.0
C0
E 1.4
Q8503 B 2.9
C 7.0
E 2.3
Q8504 B 7.0
C 8.8
E 6.5
Q8517 B 1.9
C 8.9
E 1.4
Q8518 B 3.0
C 8.8
E 2.5
CN4305 7 *
108.0mVp-p
PAL
6
96.0mVp-p
NTSC
6
25 *
60.0mVp-p
PAL
7
70.0mVp-p
NTSC
7
27 *
50.40mVp-p
PAL
8
52.80mVp-p
NTSC
8
29 *
98.0mVp-p
PAL
9
84.0mVp-p
NTSC
9
CN4306 13 *
72.0mVp-p
PAL
10
60.0mVp-p
NTSC
10
15 *
71.20mVp-p
PAL
11
60.0mVp-p
NTSC
11
17 *
65.60mVp-p
PAL
12
56.80mVp-p
NTSC
12
20 *
368.0mVp-p
PAL
13
312.0mVp-p
NTSC
13
– 79 –
KV-DZ29M30/M61/M91
RM-GA002
IC1005 1 0
2 3.1
3 3.1
40
5 3.1
60
70
80
90
10 4.8
11 0
12 0
13 4.6
14 4.8
IC1002 1 3.6
2 4.7
30
40
5 4.7
60
70
8 4.8
Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]
B1 BOARD VOLTAGE LIST
IC1003 1 4.8
20
30
40
5 4.7
6 4.7
7 4.8
8 4.8
IC3101 I 3.2
G0
O 1.7
Q1001 B 0.6
C0
E0
Q1002 B 0
C 4.6
E 4.6
Q1003 B 4.8
C 4.6
E 4.6
Q1005 B 0
C 4.7
E 4.7
Q1006 B 0
C 4.8
E0
Q1007 B 0.1
C0
E0
Q1009 B 4.7
C0
E0
Q1010 B -6.2
C 3.1
E0
Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]
IC6200 1 6.8
2 2.1
3 3.4
40
5 2.0
6 0.9
7 6.8
8 11.9
IC6201 1 -11.9
20
30
4 -15.6
5 -0.2
6 -0.2
7 -2.7
8 11.8
IC6202 1 *
2 0.1
3 0.4
4 0.4
5 -15.0
6 2.4
7 (2.9)[2.7]
80
9*
10 14.9
Q5400 B 1.5
C 8.7
E 0.7
Q5401 B 1.6
C 5.0
E 0.9
Q5402 B 7.0
C 8.9
E 6.3
Q5403 B 6.4
C 8.9
E 6.0
Q5404 B 5.0
C0
E 5.6
Q5405 B 5.6
C0
E 6.0
Q5406 B 134.5
C 67.8
E 135.0
Ref Pin No. Voltage[v]
Q5407 B 1.3
C 67.8
E 0.7
Q6200 B 0
C 2.1
E0
Q6201 B 0.4
C 11.1
E 0.6
Q6202 B 6.8
C0
E 6.8
Q6203 B 6.8
C 11.8
E 6.8
Q6205 B 4.4
C 8.9
E 4.5
VM1 BOARD VOLTAGE LIST
– 80 –
KV-DZ29M30/M61/M91
RM-GA002
C BOARD VOLTAGE LIST AND WAVEFORM
Ref Pin No. Voltage[v]
IC9001 1 3.4
2 11.8
3 3.3
40
5 (7.1)[6.9]
6 (196.5)[195.8]
7 (151.6)[153.4]
8 (159.3)[160.4]
9 (150.8)[152.8]
IC9002 1 3.4
2 11.9
3 3.3
40
5 (7.2)[6.9]
6 (196.5)[195.8]
7 (154.6)[156.4]
8 (159.6)[160.9]
9 (153.8)[155.5]
IC9003 1 3.4
2 11.9
3 3.3
40
5 (7.1)[6.9]
6 (196.5)[195.8]
7 (149.7)[152.7]
8 (156.8)[159.0]
9 (148.8)[151.8]
J9001 H1 0
3.840Vp-p
PAL
4
3.600Vp-p
NTSC
4
H2 0
Ref Pin No. Voltage[v] Ref Pin No. Voltage[v]
KB (155.2)[157.8]
124.0Vp-p
PAL
3
102.0Vp-p
NTSC
3
KG (159.2)[160.7]
112.0Vp-p
PAL
2
88.0Vp-p
NTSC
2
KR (158.7)[160.4]
110.0Vp-p
PA L
1
94.0Vp-p
NTSC
1
Q9001 B 6.9
C 0.1
E 4.0
Q9009 B 2.8
C0
E 3.4
Q9010 B 2.7
C0
E 3.4
Q9011 B 2.8
C0
E 3.5
Q9012 B 0.1
C*
E0
CN9001 10 *
3.840Vp-p
PAL
5
3.520Vp-p
NTSC
5
8*
4.000Vp-p
PAL
6
3.680Vp-p
NTSC
6
6*
4.12Vp-p
PAL
7
4.24Vp-p
NTSC
7
Ref Pin No. Voltage[v]
IC1900 V 3.2
G0
O2.9
H1 BOARD VOLTAGE LIST
– 81 –
KV-DZ29M30/M61/M91
RM-GA002
4 -15.5
5 (0.6)[0.4]
6 (16.0)[16.3]
7 0.9
58.0mVp-p
PAL
3
60.0mVp-p
NTSC
3
DY1 V+ 0
6.160Vp-p
PAL
4
6.240Vp-p
NTSC
4
V- 0
176.0mVp-p
PAL
5
172.0mVp-p
NTSC
5
H- 135.6
24.60Vp-p
6
H+ (143.6)[143.4]
42.20Vp-p
7
Ref Pin No. Voltage[v]Ref Pin No. Voltage[v]
IC6600 1 2.2
2 1.5
3 1.8
4 2.1
50
6 -0.3
7 -0.2
8 17.6
90
10 10.0
11 0
12 4.2
13 *
14 164.0
15 153.8
16 159.3
17 *
18 *
IC6602 I 6.8
G0
O 4.9
IC6604 I 14.2
G0
O 11.9
IC6607 1 135.1
20
3 -3.2
4 2.6
5 2.3
6 11.4
70
80
IC6609 1 2.1
2 6.8
30
4 3.2
50
IC6800 1 1.4
2 3.9
3 0.6
40
5 3.1
6 2.8
7 8.5
8 11.9
IC6801 1 0.9
50.40mVp-p
PA L
1
48.80mVp-p
NTSC
1
2 15.4
3 -12.6
3.080Vp-p
2

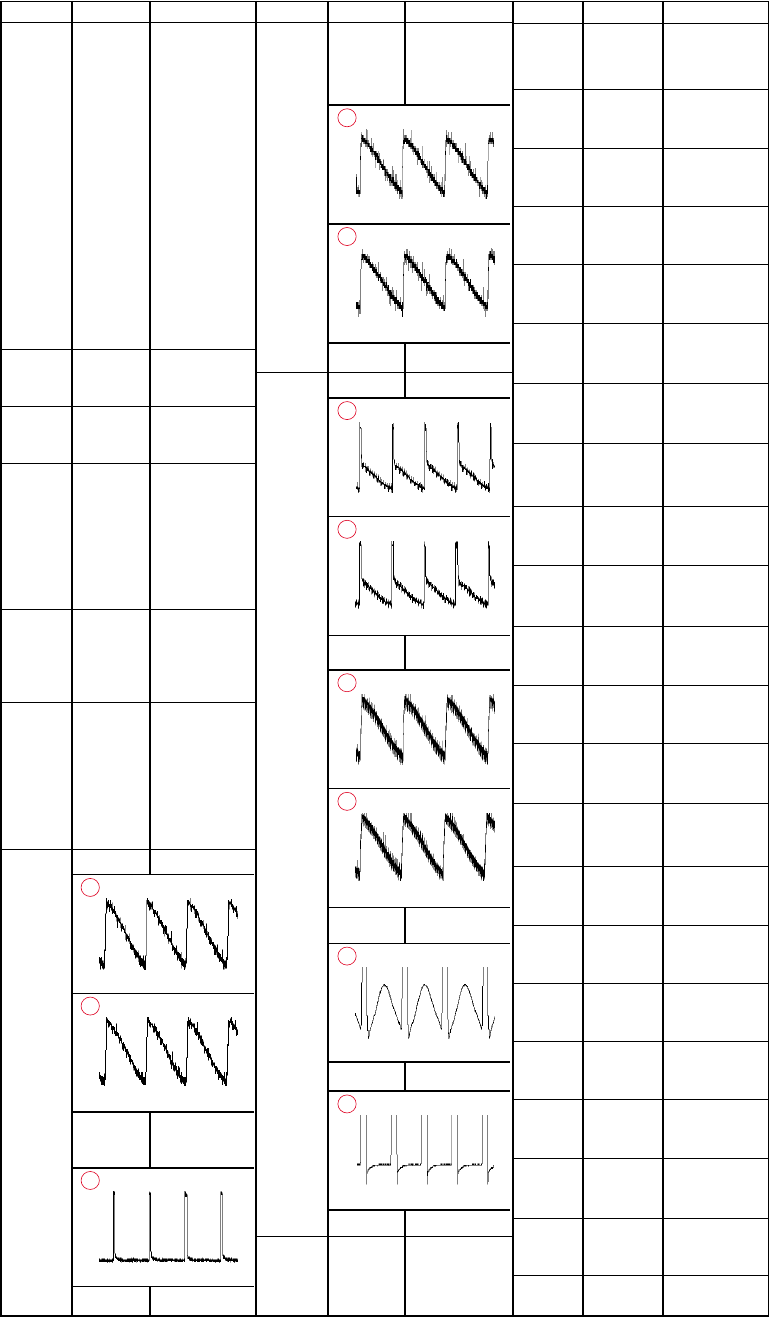

D BOARD VOLTAGE LIST AND WAVEFORM
Q6100 S (15.0)[15.3]
G (16.1)[16.3]
D*
Q6600 S (142.3)[143.2]
G (146.9)[148.0]
D*
Q6601 B 0
C 12.0
E0
Q6603 S 0
G 4.8
D (141.9)[143.5]
Q6606 B 0
C 4.9
E0
Q6607 S 4.9
G0
D 4.9
Q6608 B 0.1
C0
E0
Q6800 B 0
C 2.5
E0
Q6801 S 0
G 8.5
D 30.2
Q6802 B 0
C (143.6)[143.4]
E0
Q6804 B 135.3
C 1.3
E 135.7
Q6807 B 1.5
C 8.5
E 0.9
Q6810 B 0.5
C 15.4
E 0.1
Q6811 B 0.3
C0
E 0.9
Q6812 B 0.7
C 11.9
E 0.9
Q6813 B 0.6
C0
E 0.9
Q6814 B 0.1
C0
E0
Q6815 B 0
C 5.2
E0
Q6816 B 5.0
C0
E 4.9
Q6817 B 5.0
C 11.9
E 4.9
Q6818 S 0
G 5.2
D (67.7)[68.1]
Ref Pin No. Voltage[v]
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
[HERCULES/TUNER/AUDIO/REGULATOR, JACK/CTRL SW, RGBJ, HEAT SINK]
A1
6-4. PRINTED WIRING BOARDS
– 82 – – 83 –

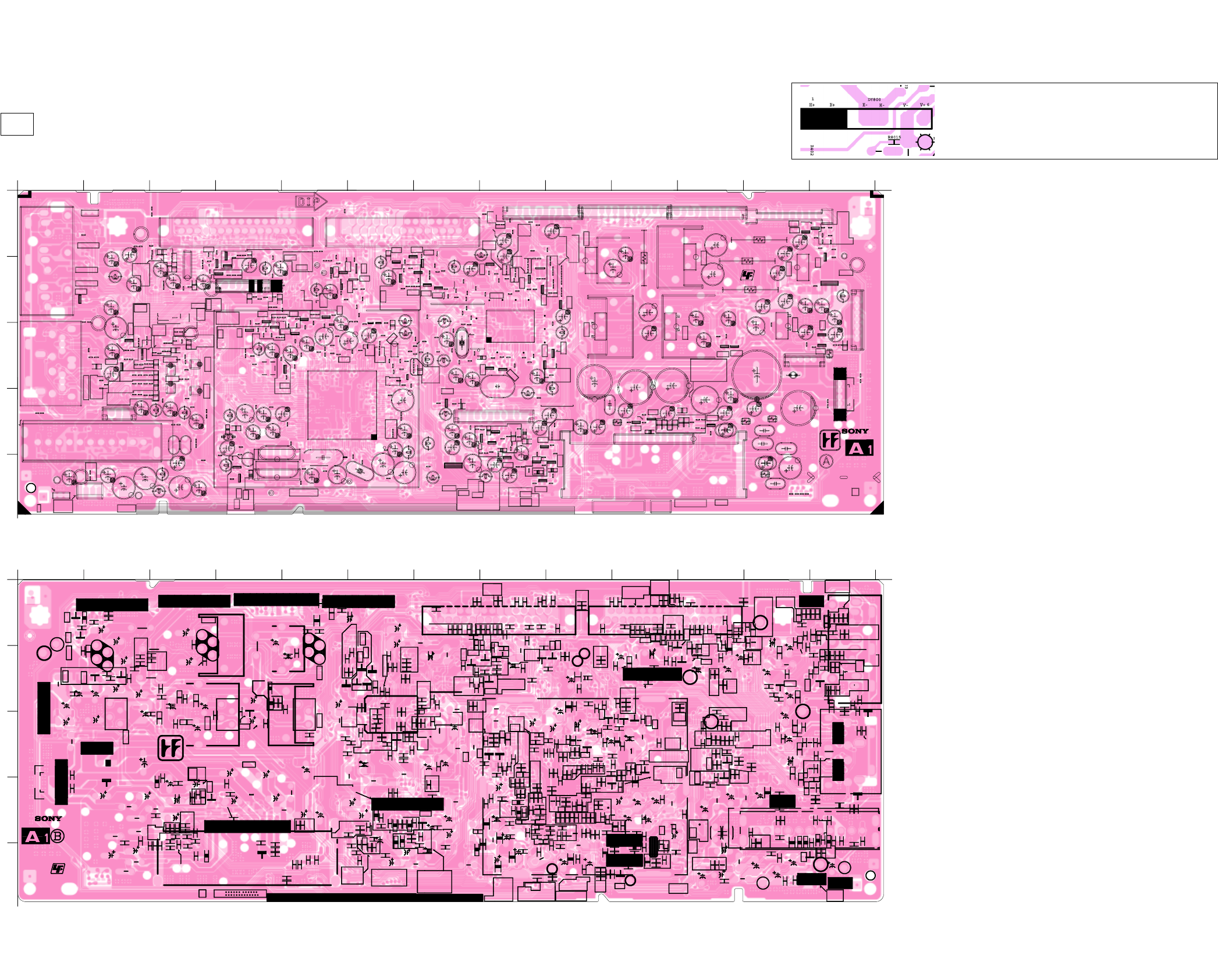

– A1 Board – (Component side)
NOTE:
The circuit indicated at left contains high voltage of over
1220 Vp-p. Please pay attention when inspecting or
repairing it to prevent an electric shock.
1
R018
R019
14
CN003
R020
R024
R025
R026
R027
R028
13
CN015
R031
R032
R034
R038
X4301
R8451
C001
C002
R8453
C003
R040
C004
C005
C007
C008
TU101
TU102
R049
C010
C012
C013
C017
FB4301
TP101
C021
C023
C024
R4400
C026
R4407
R4409
C030
C036
R073
C037
R4414
R075
R4415
R076
R078
R4419
L4301
L4302
L4303
L4304
L4305
R082
L4306
R4423
L4307
L4308
L4309
R087
L4312
C053
R090
R091
R092
C056
R093
R094
R095
R4435
R096
R098
D001
C061
D002
C064
C065
PF LP
C068
JR001
JR003
R4447
JR004
R4448
C072
C073
L2201
L2202
R4453
L100
C078
R4454
L101
R4455
R4457
C8301
L106
C8303
C8304
IC001
C082
IC002
C8308
C8309
Q8307
R4463
Q8308
C8501
C8502
C8310
JR024
C8311
Q8501
JR025
Q8502
JR027
C092
C096
C097
C098
JR035
C8321
JR036
C8323
C8325
Q8517
R8301
R8302
R4482
A4301
R4486
Q8520
R4488
C8526
D8502
D8503
D8504
C8528
JR048
D8310
C8529
R8501
JR049 D8311
R8502
D8313
R8312
R4492
R4495
JR052
R4496
JR053
C8533
IC8503
C8534
C8535
JR055
C8536
C8537
JR058
R8511
D066
R308
JR072
JR073
R8339
CN100
R310
R311
R312
1
10
CN4301
R8342
110
CN4302
R8344
R318
R8345
1
2
29
30
CN4305
R8346
1
2
29
30
CN4306
R8347
R8348
JR084
R8349
JR085
R323
C4303
R8350
C4304
Q4301
C4306
Q4302
Q4304
R8549
C4309
Q4305
Q4306
Q4307
R8358
Q4308
R8359
Q4309
R8550
R8551
C101
C4311
C4312
R8553
R333
R8554
R8360
R334
Q4310
C4314
R8555
R8361
Q4311
R335
C4315
C106
C4316
C107
R8557
Q4313
C4317
C108
C4319
Q4317
Q4318 Q4319
C303
C4320
C305
C4321
C306
C4323
R344
Q4320
C4324
R345
D4301
D4303
C4327
R8568
TP008
R8569
R8375
R4302
1
8
CN2203
6
CN2204
R4304
R4305
5
CN2206
R4307
C120
IC4301
C4332
R353
C4333
R8574
R354
C4334
D4310
C2201
C125
C4335
R356
C4336
Q4332
D4313
C4338
Q4334
Q2201
Q4335
C2206
R4313
R4314
R8389
R4315
R4317
C324
C4340
R4319
C327
D4320
C2211
A001
C329
C4346
C4347
R4321
D4326
R4324
C331
C332
C334
R4329
C142
C2220
C2222
C2223
R4330
C4358
C2225
D2201
R379
R4331
C2226
C2227
C2228
C341
C2229
D2206
R4336
C344
R4338
C346
R2206
C2230
R384
IC2201
R2209
IC2202
IC2203 IC2204
D2211
Q001
C2235
R4341
D2212
C2236
Q002
R4342
C2237
R4343
C2238
CT131
C2239
R4345
R4346
R4348
C4370
D2219
C4371
R4349
C2240
C4374
C2241
CT139
D2606
C2243
D2220
R4350
C4378
C4379
JR102
R4352
JR103
R2220
R2221
L002
R4356
L003
R4357
R2224
Q018
C4380
R4358
R2225
L005
Q019
R4359
L006
R2228
R2229
L009
C4385
C4386
C4387
Q020
C4388
J8301
J8302
Q022
R4363
R2230 R2231
R4365
L011
R2232
Q026
L012
R2233
C4390
FL001
C4391
L016
C4392
JR121
Q031
JR122
Q032
JR123
R4373
R2242
R4376
R2243
R4377
R2244
R2245
JR4301
JR131
JR132
JR133
FB8304
L031
R4387
R4388
L035
R4389
R4390
R4391
R4392
R4393
R2260
R4397
R4398
R4399
R002
R007
R008
L8303
R012
R016
L8503
R017
AUDIO AMP
PH-R
SP-R
SP-L
PH-L
(TO H1 CN3902)
(TO H1 CN3903)
GND
GND
AUDIO VCC
AUDIO VCC
AUDIO GND
AUDIO GND
(TO D CN6619)
R DRV
G DRV
B DRV
GND
GND
GND
GND
+12V
1K
P MUTE
(TO C CN9001)
(TO D CN6817)
HD
GND
GND
GND
PRE RGB
H PROT
V PROT
HP IN
ABL
V DRV+
V DRV-
EW
-15V
+12V
DGC RELAY
+33V
+11V
+7V
GND
GND
NC
NC
NC
GND
GND
GND
3.3V STBY
STDBY SW
5V STDBY
PROTECT
OVP
STDBY
CTRL
DGC MUTE
(TO D CN6605)
(TO H1 CN3905)
3.3V
STDBY
GND
GND
LED G
LED R
SIRCS
KEY
(1-727-223-11)
1-869-830-11 R1
+1.8V B1
+5V
A-1199 -548-A
+3.3V1
+1.8V B1
+3.3V
GND
OSD BLK
GND
HERCULES
97
96
65 64 33 32
1
128
OSD B
OSD G
OSD R
GND
R/MID PR
GND
B/MID PB
GND
G/MID Y
GND
MID HS
MID VS
GND
MICRO SCL
MICRO SDA
GND
MICRO B INT
MICRO RESET
GND
MAIN SDA
MAIN SCL
GND
+6.5V
P MUTE1
+9V
ABL ATT
(TO F1
CN1603)
AGC
TUNER
GND
VIDEO IN 3
MONITOR OUT
VIDEO IN 1
VIDEO IN 2
S4
GND
CVBS 1
GND
YC C
GND
YC Y
GND
CR
GND
CB
GND
Y
GND
CTRL SW
2 SW2
2 SW1
1 SW2
1 SW1
GND
GND
B-INT
B-DAT
B-CLK
9V
ATT
GND
R IN
GND
L IN
GND
CV/Y IN
S IN
C IN
GND
(1) (8)CN2206
CN2203
(5)
V UOC
GND
GND
GND
U UOC
Y UOC
CN2204
(5)
(6)
(8)
(6)
(1)
111
R4497
R4499
R4498
R068
C051
R301
IC003
R072
C033
IC004
R067
R077
R066
Q007
C035
R021
SWF100
GO1 O2
I1 I2
SWF101
IH IL GO1 O2
SWF102
IG1 G2 O1 O2
SWF103
1
7
CN014
C006
X001
C022
R4401
R4402
R4403
R4404
R4405
C029
JW1201
R4406
C031
C032
R4410
C034
R4411
R4412
C042
C048
R4425
R4426
C050
L4310
C055
R4436
R4437
R4438
R4440
R4441
B
C
Q102
Q103 Q104
R4449
JR009
JR010
L104
A1201
JR029
C093
JR031
JR032
JR037
JR038
A4302
R4494
16
CN1201
14
CN1202
14
CN1204
C1205
Q1202
C1206
JR064
C1208
Q1206
Q1207
D072
C1210
R111
C1211
R112
C1212
C1213
R114
C1215
C1216
C1217
C1218
C1219
JR075
C1220
C1221
C1222
11 2
CN4304
D1202
D1203
C1228
D1204
D1205
C1229
D1208
A2600
C1230
1
12
IC1201
A2601
A2603
C1233
C1234
C1235
A2608
D1215
D1216
R1212
D1217
R1214
Q4315
Q4316
C304
R1225
R1226
R1227
R1228
Q4321
C309
Q4323
Q4324
R1231
D4309
R350
IC4302
C123
Q4333
R357R358
D4315
D4316
R1241
R1242
C322
C323
R360
R361
110
CN2601
R362
110
CN2602
C4342
R363 R365
C136
D4325
C2602
C2603
R1254
C140
R1255
C2605
R1256
C4353
R1258
C2609
C4359
C2612
C2613
C2614
C4361
C4362
C2617
C2618
C348
C2619
C4367
R389
C2620
Q004
C2621
C2622
C2623
D100
PS1201
C4375
C2629
R2604 Q013
R2608
C2630
IC2600
IC2601
Q016
IO G
IC2603
Q017
C2633
C2634
IC2604
I
O
G
IC2605
C2636
C4383
C2637
IO G
IC2608
IC2609
R2620
R2625
R2626
R4374
JR124
JR125
L022
JR127
Q037
R4384
R4385
R4386
L032
L038
W003
JR4315JR4316
R4394
R4395
R010
R084
Q2604 Q2605
C2638
R2629
R2630
W008
W009
R065
JR1101
W011
W012
W005
W010
W004
1
6
W006
4
1
(TO D CN6606)
(TO VM1 CN5402)
9V
GND
VM
ROT
5V
V PARA2
V PARA1
E
DQP PH
DGC MUTE
110
(TO B1 CN1004)
(TO B1 CN1003)
X4302
W007
CN8308
JR138
JR139
JR140
JR141
JR142
JR143
JR146
JR147
A
123456789101112
13
B
C
D
E
– A1 Board – (Conductor side)
L8504
41
CN003
R029
R030
13
CN015
R033
R035
R036
R037
X4301
C001
R8452
R8454
R8455
C005
R8456
R8457
R043
C008
TU101
C009
TU102
R046
R047
R048
C011
C013
C014
C015
C016
C018
R056
R058
TP101
C020
C024
C025
C026
C028
R064
C036
R4413
R074
C038
C041
L4301
L4302
C043
L4303
R080
L4304
L4305
L4306
R083
L4307
L4308
R4424
L4309
R085
R086
R088
R4428
R4429
M
D
C052
C054
R4430
R4431
C056
R4432
R4433
C057
C058
R4434
C059
R097
R099
C060
C063
D003
Q100
C064
C065
D006
R4442
D007
R4443
R4444
R4445
C069
R4446
JR002
JR005
JR006
C070
C071
C073
R4450
C074
L2201
C075
R4451
L2202
R4452
L100
L101
C079
JR011
L102
R4456
JR012
JR013
R4458
C8301
R4459
L106
JR016
C8303
L107
JR017
C8304
C080
JR018
C081
C083
C084
C8308
R4460
C085
R4461
Q8306
C086
C087
JR020
R4464
C088
R4465
C089
JR021
R4466
C8503
R4467
C8310
R4468
R4469
C8312
Q8503
Q8504
C090
C091
C092
R4470
R4471
R4472
R4473
R4474
R4475
R4476
JR033
R4477
JR034
R4478
C8321
R4479
C8322
D8301
C8325
JR039
D8304
Q8518
R4480
R4481
D8306
R8303
R4483
R4484
R4485
D8309
A4301
R8307
JR043
R4487
R8308
JR044
R4489
D8501
C8526
C8527
JR047
C8528
D8505
D8506
D8312
R8503
R8504
D8314
FB100
R4490
D8315
FB101
R8505
R4491
R8506
FB102
R8313
FB103
R8507
R4493
R8508
JR050
C8531
R8509
FB106
FB107
JR054
R8318
C8534
C8535
JR056
R8510
C8538
C8539
R8512
D8322
D8323
R8513
R8320
R100
D064
D8325
D065
D8326
R103
D068
D069
D070
JR069
R307
R8334
JR070
R117
R8338
R118
JR074
C8361
R119
C8362
JR077
CN100
JR078
R313
R8340
R314
R8341
R315
1
10
CN4301
1
10
CN4302
R8343
1
2
29
30
CN4305
R319
JR082
1
2
29
30
CN4306
JR083
JR1186
JR086
R320
R321
C4302
C4303
R324
C4304
R325
C4305
R326
Q4303
C4307
R328
C4308
R329
R8357
C100
R330
C4310
C101
R331
C102
R8552
R332
C4312
C4313
C104
C4314
C106
R8362
R336
Q4312
C107
R337
C4317
R8558
C108
R338
Q4314
C4318
C109
R339
C4319
R8368
R149
C301
C303
R340
C111
R341
C305
R8562
C4322
C4323
R8564
R8370
R8565
R8566
Q4322
C4326
R8567
R8373
C4327
TP008
C4328
R4301
C4329
R8376
R8377
R4303
1
8
CN2203
6
CN2204
C310
Q4328
Q4329
5
CN2206
R4306
C120
C314
R4308
C4330
R351
C4331
R4309
C122
C316
C4332
R8573
C317
C4333
C124
C318
Q4330
R8575
C319
D4311
Q4331
C4335
C2202
C4336
C2203
C4337
C2204
R4310
C2205
C4339
R4311
Q2202
R4312
C2207
Q2203
Q2204
C2208
D4318
D4319
R4316
C324
R4318
C4340
C4341
C133
C4343
C328
A001
D4321
D4322
C137
C4347
D4323
C138
C2214
C4348
R4320
C2215
C139
C4349
C2216
R4322
C2217
R4323
C2218
C330
C2219
R4325
C332
R4326
C333
R4327
C334
R4328
C335
C142
C4358
D2202
R4332
C2227
D2203
D2204
C340
D2205
R2201
R4335
C342
R2202
R2203
D2207
R4337
D2208
R380
C345
R4339
R382
R2207 R2208
C2231
R385
C2232
R386
C2233
R387
C2234
R388
C2235
C2236
Q003
C350
R2210
R4344
C351
CT131
R2211
R2212
R2213
D2217
R4347
D2218
R2216
R392
C4372
R2217
R2218
R2219
CT139
D105
R395
D106
C2242
D108
C2244
D109
R4351
R4353
R4354
Q015
R4355
R2222
JR106
L002
JR107
R2223
L003
JR108
L004
JR109
L005
C4381
L007
L009
R4360
J8301
R4361
C4389
J8302
R4362
Q023
JR114
Q024
R4364
JR115
Q025
JR116
L012
R4367
R2234
R2235
R4369
R2236
C4393
R2237
C4394
R2238
R2239
JR120
R4370
Q030
R2240
R2241
L023
L024
R4378
JR128
Q038
JR129 Q039
R4379
R2246
R2247
R2248
JR4300
R2249
JR130
R4380
R4381
R4382
FB8303
R4383
JR134
R2250
JR135
R2251
L031
R2252
JR137
R2253
L033
R2254
L035
R2257
R2258
R2259
FB001
FB003
FB006
R4396
FB007
R8412
R8414
R001
R003
R8418
R004
R005
R006
R009
L8303
R8423
L8309
R011
R013
R014
R015
L8503
AUDIO VCC
AUDIO VCC
AUDIO GND
AUDIO GND
R DRV
G DRV
B DRV
GND
GND
GND
GND
+12V
1K
P MUTE
GND
GND
GND
HD
PRE RGB
V PROT
H PROT
HP IN
ABL
V DRV-
V DRV+
EW
-15V
+12V
DGC RELAY
+33V
+11V
+7V
GND
GND
NC
NC
NC
GND
GND
GND
3.3V STBY
STDBY SW
5V STDBY
OVP
PROTECT
STDBY CTRL
DGC MUTE
(TO D CN6605)
3.3V
STDBY
GND
GND
LED G
LED R
SIRCS
KEY
GND
GND
PH-L
SP-L
SP-R
PH-R
1-869-830-11
(1-727-223-11)
R1
(6)
(8)
AGC
AS GND
B-INT
B-DAT
B-CLK
(5)
GND
(1)
11
1
R022
JR2601
JR2603
SWF100
JR2604
G
O1O2 I1I2
SWF101
IHILGO1O2
SWF102
JR2607
I
G1
G2
O1
O2
SWF103
JR2608
17
CN014
JR2609
JR2610
C006
R044
R045
X001
R051
C019
R057
R061
C029
JW1201
R4408
C031
R4416
R4417
R4418
R4420
C044
R4421
C046
C049
R4427
C050
L4310
L4311
C055
R4439
D004
D005
C066
B
C
Q102
JR1100
JR1109
L103
L104
L105
A1201
C093
JR030
A4302
16
CN1201
14
CN1202
1
4
CN1204
JR059
C1201
C1202
C1203
JR060
C1204
Q1201
JR061
C1205
R106
C1206
C1207
R107
C1208
R108
C1209
R109
R303
C1210
R110
C1211
C1212
C1213
R113
C1214
C1215
C1216
C1217
C1218 C1219
JR076
C1220
C1221
C1222
R316
1
12
CN4304
D1201
JR081
R126
R127
R128
C1228
R1201
C1229
R1202
D1206
JR087
D1207
R1203
JR088
R1204
R1205
D1209
JR089
R1206
R322
R1207
A2600
R1208
C1230
C1231
R131
R1209
112
IC1201
A2601
C1232
A2603
C1233
C1234
D1210
A2608
R1210
R1211
R1212
R1213
R1214
R1215
R1216
C300 C302
C304
R1225
C112
R1226
R1227
C308
R1229
C115
C309
R346
D4302
C116
R347
C117
R348
R349
R1230
C311
C121
R355
D4312
R359
D1244
C322
C323
R1244
1
10
CN2601
R1245
R1246
110
CN2602
C4342
R1247
R1248
R364
C135
R1249
C136
D4324
D4327
C2600
R1250
C2601
R1251
R1252
C2602
C2603
R1253
Q2601
C2605
C336
Q2602
C2606
R1257
Q2603
C337
C2607
C4353
C2609
C4355
R376
C4356 C4357
C4359
C2612
C2613
C343
C4360
C2614
C4361
C2615
C2616
C347
C2617
C2618
C2619
C349
C2620 C2621
C2622
C2623
R390
PS1201
D2601
D102
D2602
D2603
D2604
D2605
C2629
C4377
R2605
JR1201
R399
R2606
R2607
R2608
C2630
IC2600
IC2601
C2631
R2609
C2632
IO G
IC2603
C2633
I
O
G
IC2605
C4382
C4383
C2637
R2610
C4384
IO
G
IC2608
L008
IC2609
R2611
R2614
L010
R4366
L013
R4368
Q029
R2620
R2623
R2624
R2625
R4371
R4372
R2626
Q033 Q034
R4375
L022
L032
L036
L037
L038
W003
FB002
FB004
FB005
W011
W008
C2638
W012
W009
1
1
4
6
W005
Q009
R2631
C045
D2608
Q008
R070
D2609
R1259
JR1102
R069
R1260
R071
R302
W010
W004
W006
(TO D CN6606)
(TO C CN9001)
10
1
DGC MUTE
DQP PH
E
V PARA1
V PARA2
5V
ROT
VM
GND
9V
(TO D CN6817)
(TO B1 CN1003)
X4302
W007
FB4302
CN8308
JR144
JR145
FB4303
A
123456789101112
13
B
C
D
E
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
[POWER SUPPLY, DEFLECTION, HEAT SINK]D
– 84 – – 85 –
– D Board –
PRINTED WIRING BOARDS
R6104
D6108
R6105
D6109
R6106
R6107
R6110
TH6100
FB6602
FB6603
FB6604 FB6605
FB6606
FB6607
FB6608
FB6609
JR6681
JR6682
FB6800
FB6801
R6704
FB6610
FB6611
FB6612
R6901
R6902
R6903
JR6693
R6904
R6710
R6905
R6906
R6907
R6908
R6909
R6716 R6719
L6600
R6910
R6911
R6912
L6603
R6913
L6604
R6914
L6605
R6915
L6606
R6916
R6917
R6723
L6607
1
6
8
11
T6100
L6608
R6724
T6101
R6919
R6725
R6726
L6800
L6803
L6804
R6920
L6805
R6921
L6806
R6922
L6807
R6923
R6924
L6809
R6925
R6926
R6927
R6928
R6929
L6811
L6812
R6930
L6815
R6932
R6933
R6934
R6935
R6936
R6937
R6938
R6939
R6940
R6941
R6942
R6943
R6944
R6945
R6946
R6947
A6600
A6603
A6605
A6801
JR601
JR606
A6806
JR608
A6809
JR800
JR610
JR804
JR611
A6633
CN6601
CN6602
CN6603
CN6604
1
10
CN6605
110
CN6606
CN6607
A6644
CN6609
C6600
C6601
CN6802
C6602
C6603
G
S
Q6600
C6604
Q6601
G
S
Q6603
C6607
C6608
Q6606
CN6616
Q6607
C6800
E
B
Q6608
C6801
4
CN6619
1
C6802
C6803
Q6800
G
S
Q6801
C6805
1
4
CN6811
B
E
Q6802
C6806
C6807
C6613
E
B
Q6804
C6808
C6614
14
CN6620
C6809
14
CN6621
1
8
CN6816
1
8
Q6807
C6617
1
12
CN6817
Q6808
13
CN6818
RY6601
Q6809
Q6615
C6619
Q6616
RY6603
C6810
C6811
C6812
Q6810
C6814
C6620
Q6811
C6621
Q6812
C6816
C6622
Q6813
C6817
D6600
Q6814
D6601
Q6815
C6625
Q6816
C6626
Q6817
C6627
R6600
G
S
Q6818
C6628
R6601
D6605
Q6819
C6629
R6602
D6607
C6820
C6821
C6822
C6823
1
9
10
IC6600
18
D6800
Q6820
C6824
C6630
D6801
Q6821
C6825
IC6602
D6802
C6632
C6633
R6800
IO
IC6604
C6634
R6801
D6805
C6829
C6635
R6802
D6806
D6612
C6636
5
8
14
IC6607
D6613
C6637
R6804
R6805
D6809
IC6609
R6806
D6616
R6807
D6617
IC6800
R6808
D6618
1
26
7
IC6801
R6809
C6833
C6834
C6640
TH6601
C6835
C6641
D6812
C6836
C6837
R6810
D6620
C6838
R6811
C6839
C6645
R6812
D6622 C6646
R6813
D6817
C6647
R6814
D6818
C6648
VD6601
D6819
C6649
R6622
VD6603
R6817
TH6800
VD6604
R6818
C6840
R6819
R6625
R6626
C6842
R6627
D6820
C6844
C6650
D6821
R6629
C6845
C6651
C6846
C6652
C6847
C6653
R6820
C6848
C6654
+-
D6631
C6849
C6655
R6822 C6656
R6823
D6827
D6633
C6657
S6800
R6824
R6630
C6658
S6801
R6825
D6829
R6631
D6635
C6659
R6826
R6632
R6828
C6850
D6639
C6851
C6852
C6853
R6638
C6854
C6660
C6855
C6661
D6832
C6856
C6662
C6857
R6830
D6640
C6858
R6831
C6859
R6832
R6833
C6667
R6834
+-
D6644
C6668
R6835
D6839
R6641
C6669
R6836
R6642
R6837
R6838
R6644
C6860
R6839
R6645
C6861
R6646
C6862
R6647
C6863
D6840
C6670
D6841
T6602
D6842
C6672
D6843
C6673
R6840
C6674
R6841
R6842
R6843
R6844
+-
D6654
C6678
R6845
D6655
R6652
D6656
R6653
R6848
T6801
R6849
C6871
R6656
C6872
T6802
T6803
R6657
C6873
R6658
C6874
R6659
C6875
T6805
T6806
C6876
C6682
C6877
R6850
C6878
D6661
C6685
R6852
D6662
C6686
R6660
D6664
C6688
R6661
D6665
R6856
R6662
R6857
R6663
R6858
C6880
R6665
C6881
R6666
R6667
D6860
R6668
R6669
C6885
DY1
C6692
C6887
R6860
C6888
R6861
C6889
R6862
R6863
R6864
R6670
R6865
R6671
R6866
R6672
R6867
R6868
R6674
C6890
PS6601
R6869
R6675
PS6602
R6676
PS6603
R6677
PS6604
PS6605
R6679
PS6606
PS6607
PS6608
R6870
PS6609
R6871
JR6601
R6872
JR6602
R6873
R6680
PS6801
R6681
JR6606
R6877
R6878
JR6608
R6879
R6685
R6686
R6687
R6688
R6689
D6883
R6881
R6883
R6884
R6885
R6887
R6693
R6888
R6694
R6696
R6895
R6896
R6897
C6100
C6101
C6102
C6103
S
Q6100
G
C6104
C6105
Q6102
C6106
C6107
C6108
C6109
W6801
W6802
W6803
W6804
C6110
W6805
C6111
W6806
C6113
C6114
C6115
C6117
C6118
C6119
+
D6100
D6101
R6100
D6104
R6101
D6105
R6102
PH6602
+
D6106
R6103
AC IN
AC IN
PFC IN
PFC OUT
POWER SUPPLY
PRIMARY
AUDIO GND
AUDIO VCC
3.3V STDBY
GND
GND
STDBY
SW
5V STDBY
GND
OVP
PROT
NC
STDBY CTRL
NC
SECONDARY
+7V
+7V
GND
+11V
+11V
GND
+33V
DGC RELAY
+12V
-15V
200V GND H1
GND
H-PLS
12V
15V
NC
135V
V+
V-H-
H-
EW
GND
V DRV-
V DRV+
ABL
HP IN
GND
H PROT
PRE RGB
HD
GND
DEFLECTION
GND
H+H+
5
3
4
21
123456
7 8 11 12
1-869-831-11 R1
DF
13 12
11
10
98
7
6
H1
-15V
GND
ABL 15V
GND
200V
5
4
+B
2
1
H+
GND
NC
V PROT
-15V
15V
NC
DF
R6827
D6641
C6891
C6693
A6604
A6631
R6697
A6654
JR612
M
D
C6892
W6807
Q6613
PH6601
12
3
4
12
3
4
W6600
W6601
+-
W6602
W6603
-
D6803
D6807
D6826
D6666
CN6805 GND
D6845
D6844
A6606
W6808
D6103
1 4
CN6622
R6108
D6667
D6668
C6609
RY6602
A6607 A6608
D6102
KV-DZ29M30/M61/M91
RM-GA002
KV-DZ29M30/M61/M91
RM-GA002
– H1 Board –
– VM1 Board –
– F1 Board –
– 86 – – 87 –
[FRONT PANEL SW]
H1C[VIDEO AMP]
– C Board –
PRINTED WIRING BOARDS
AC OUT
AC OUT
AC IN
AC IN
(TO A1 CN100)
R1 1-870-384-11
(1-727-447-11)
(TO H1 CN1652)
FB1601
FB1602
FB1603
FB1604
CN1601
CN1602
CN1603
FH1601
C1602
FH1602
C1603
C1605
VDR161
F1601
T1601 T1602
M
D
1
28
9
110
1
28
9
14
1
2
8
9
B
E
(TO A1 CN4301)
(TO D CN6811)
CV
G2
G1-1
H1
H2
G1-2
KB
KG
KR
G1-3
11
10
9
8
7
6
5
4
3
1
GND
GND
GND
R1
(1-727-224-11)
1-869-832-11
G DRV
R DRV
B DRV
IK
GND
+12V
P
MUTE
H1
E
200V
C9011
C9012
C9014
Q9012 C9018
C9020
C9021
C9025
D9006
D9007
D9008
D9009
C9031
IC9001
C9032
IC9002
C9033
IC9003
C9034
D9010
C9035
D9014
D9015
C9042
C9046
C9047
R9025
R9029
R9030
R9037
R9043
R9044
R9047
R9050
R9051R9052
R9053
R9054
R9055
R9056
R9057
R9058
R9059
R9061
R9069
J9001
NL9001
J9002
NL9002
NL9003
L9001
L9002
L9003
L9004
L9005
L9006
L9007
L9008
L9009
JW9006
TP9001TP9002
JW9023
JW9024
RV9001
RV9002
RV9003
JW9055
A9005
A9006
A9007
SG9001
SG9002
CN9001
CN9002
CN9003
CN9004
CN9006
CN9007
CN9008
CN9009
C9004
R9065
R9006
C9029
C9007
R9086
R9033
D9013
C9024
Q9004
R9089
R9036
C9048
Q9001
R9072
R9018
R9008
R9002
Q9011
C9005
R9071
R9049
R9016
C9030
C9015
C9009
R9091
R9020
R9004
C9026
C9006
R9073
R9031
R9019
Q9009
C9003
R9068
R9026
R9014
D9005
Q9003
R9087
R9034
R9003
C9002
R9042
R9024
R9013
C9028
C9013
R9027
R9007
Q9010
R9039
R9022
R9011
Q9005
R9038
R9021
D9002
R9070
R9048
R9028
R9015
R9001
R9041
R9023
R9012
C9008
R9088
R9035
C9019
C9010
D
C
B
A
A9002
A9003
A9001
C9016
C9023
C9022
C9027
C9049
C9050
C9051
M
D
W9001
J9003
14
13
13
15
1
BE
1
8
BE
1
12
BE
1
10
1
10
BE
13
B
E
B
E
B
E
BE
4
1
8
5
58
41
(TO ROT COIL)
(TO D BOARD CN6816)
(TO A1 CN4302)
(TO DY)
(TO VM COIL)
NC
NC
NC
NC
-15V
CY- CY+
DGC
MUTE
DQP PH
E
V-
PARA1
V-PARA2
5V
NS
VM
E
9V
GND
DGC MUTE
H-PLS
12V
+15V
NC
+135V
NC
ROT-
ROT+
VM
VM
E
E
QP-
QP-
QP+
QP+
1-870-385-11
R1
(1-727-447-11)
R6226
R5412
D5402
Q5406
C5400
D6204
R5424
R5418
R5403
C5414
Q5401
L6202
FB5401
IC6202
R5427
C5417
C5407
C1803
C6202
R5422
R5417
D5406
C5412
Q5400
L6200
C6216
R5421
R5416
C5411
C5404
L5400
C6211
C5418
Q5403
CN5400
R6235
C6218
R5423
R5402
C5413
C5405
L6201
R1807
C1801
C6214
R5413
D5403
Q5407
C5401
A5406
R6215
R5404
C5415
C5406
L6205
R1805
C6213
A1801
R5411
D5401
Q5405
R1808
R6229
C6226
R5420
R5414
D5404
A6202
JW5401
C6212
R5409
C5421
Q5404
CN5402
R5408
C5420
C5408
CN5401
C1802
C6215
Q6204
R5415
D5405C5410
C5403
A5407
JW5403
C6206
R5429
R5410
C5409
CN5403
FB5400
R6251
R5419
C5416
Q5402
L6206
R6258
R1806
R6211
C6225
C6207
R6237
Q1800
C6219
C6203
R6239
R6220
R6202
Q6200
R5406
JR6204
R6242
R6208
D6203
JR6203
R1809
R6213
C6209
C6201
R5401
R1801
R6221
R6203
R5407
JR6205
R6243
IC6200
R6259
R6227
R6206
D6201
Q6203
JR6207
R6250
R6238
R6209
R6200
R5425
R6257
R6225
C1800
R6205
Q6202
JR6201
R6212
C6208
C6200
C5402
R6255
R1803
R6223
R6204
Q6201
R1802
R6222
C6205
R5428
JR6202
R6207
D6202
R6256
R6224
R6210
D6200
D5400
R1800
Q1801
IC6201
R6201
C6210
C6204
R5426
R5405
E
C6227
GS
13
L6500
L6501
CN6500
C6500
C6501
C6502
DF
NC
+15_
PLUS
R5433
Q6205
Q6206
C5423 R5430
R5437
R5435
R5438
R5432
JR6208
L6502
Q6207
R5434
R5436
R5431
C5422
C5424
EY6202
R6260
R6261
(TO D BOARD CN6818)
JR6210
M
D
W5401W5402
(WHITE)
OVCC
EB
4
EB
16
18
1
7
5
C1900
C1901
L3901
L3902
D1902
D1903
JW3904
JW3905
IC1900
JW3913
JW3914
JW3919
A3900
CN3901
CN3903
CN3904
CN3905 CN3908
C3900
C3901
C3902
C3903
Q3901
Q3902
C3910
C3911
C3913
C3914
D3902
D3904
C3601
D3905
D3907
C3604
R3904
R3905
R3907
R3908
R3909
D3912
D3913
R3910
R3911
R3912
R3914
R3915
R3916
R3917
R3919
R3920
R3922
R3924
R3925
R3926
S3902
R3927
S3903 R3928
S3904
R3601
R3629
S3905 S3907
S3908 S3909
R3630
CN1651 CN1652
S1650
J3902
J3903
J3904
CH -CH + VOL + VOL - VIDEO MENU SOUND MODE
GND
C IN
S IN
Y/CV IN
GND
L IN
GND
R IN
PH R IN
SP R IN
SP GND
SP GND
SP L IN
PH L IN
SP R OUT
SP GND
SP GND
SP L OUT
KEY
GND
SIRCS
LED R
LED G
GND
STBY 3.3V
AC IN
AC IN
AC OUT
AC OUT
R1
(1-727-447-11)
1-870-495-11
1
D1900
D1901
D3900
D3908
(TO A1 BOARD CN2203)
(TO A1 BOARD CN1201)
(TO SPEAKER)
(TO A1 BOARD CN014)
(TO F1 BOARD CN1602)
(TO D BOARD CN6604)
M
D
R3631
R3932
– D3 Board –
1
4
1
4
CN6401
CN6402
C6401
C6404
C6408
C6409
R6422
R6423
R6424
R6425
R6428
R6433
C6402
C6403
Q6401
C6405
C6406
Q6402
C6407
Q6403
Q6404
D6401
D6402
D6403
D6404
D6405
R6401
D6406
R6402
D6407
R6403
D6408
R6404
R6405
R6406R6407
R6408
R6409
IC6401
IC6402
D6410
D6412
R6410
R6411R6412
R6413
R6414
R6415
R6416
R6417
R6418
R6419
R6420
R6421 R6426
R6427 R6429
R6430
R6431
R6432
R6434
R6435
R6436
R6437
R6438
R6439
JR6401
JR6402
JR6404
(1-727-447-11)
1-870-494-11
R1
1
4
CN6403
D6411
D6409
[SUR]
D3
[VM/DQP/ROTATION CIRCUIT]
VM1F1[CISPR, LIGHTNING PROTECTION]
– 88 –
KV-DZ29M30/M61/M91
RM-GA002
[SCAN CONVERTER/3D COMB/DNP (TRIDENT), SUB-MICRO (RENESAS)]
B1
– B1 Board – (Component side)
– B1 Board – (Conductor side)
R1101
R1111
R1113
R1114
R1115
R1116
R1123
R1124
R1125
R1126
R1127
R1128
R1129
R1130
R1131
R1132
R1133
R1134
R1149
R1150
R1151
R1153
R1154
R1155
R1156
R1157
R1159
1
2
29
30
CN1003
1
2
29
30
CN1004
IC3103
Q1004
C1009
Q1011
IC1004
IC1006
R1030
R1032
R1033
R1034
R1037
R1039
R1040
R3176
R1043
R1046
R1047
A3000
R1067
R1068
R1069
R1071
R1074
JR1002
JR1003
R1081
R1084
R1085
R1086
R1087
R1089
RB1004 RB1005
C3229
C3230
C3231
C3232
C3233
C3234
C3235
C3236 5V
1.8V B1
+3.3V1
+3.3V1
1.8V B1
GND OSD-BLK
GND
OSD-B
OSD-G
OSD-R
GND R/MID-PR
B/MID-PB
G/MID-Y
GND
GND
GND MID-HS
MID-VS
GND
MICRO-SCL
MICRO-SDA
GND
MICRO-B-INT
MICRO-RESET
SDA-0
SCL-0
GND
GND
(1-727-294-11)
1-869-994-11
R1
+6.5V
P-MUTE1
+9V
ABL-ATT
S4
GND CVBS-1
GND
YC-C
YC-Y
GND
GND
CR
GND
CB
GND
Y
GND
CTRL-SW
2-SW2 2-SW1
1-SW2 1-SW1
GND
V-UOC
GND
U-UOC
GND
Y-UOC
GND
JR1010
C3213
FB1010
FB1011
FB1012
L3110
L3115
JR3000
JR3001
R1147
R1148
R1158
M
D
C3103
C3104
Q3101
C3105
C3106
Q3102
C3107
Q3103
C3108
C3109
C3110
C3111
C3112
C3113
C3114
C3115
C3116
C3117
C3118
C3119
FB3000
FB3001
FB3002
C3120
C3121
C3122
C3123
C3124
C3125
C3126
C3127
C3128
C3129
R3107
IC3100
C3130
C3131
C3132
C3133
C3134
C3136
C3137
C3138
Q1008
R3118
R3125
R3128
R3129
C3151
C3154
C3155
C3156
C3158
R3130
D1001
R3131
C3159
D1002
R3132
R3133
D1005
R3137
R3138
C3168
C3169
R3142
R3143
R3144
R3145
R3147
C3170
R3148
C3171
R3149
C3172
C3173
C3174
C3175
C3176
R3152
C3181
C3182
C3184
C3188
C3189
R3163
R3165
R3166
R3167
R3168
FL3104
C3194
C3195 C3196
C3197
C3198
R3173
R3177
FL3110
R3187
R3188
R1065
R1066
RB3106
RB3107
RB3108RB3109
RB3112 RB3113
JR1000
JR1001
JR1004
JR1005
JR1008
JR1009
C3202
C3203
C3204
C3206
C3224
C3225
C3238
C3239
L3103
L3104
L3105
C3212
JR1015
JR1016
JR1017
JR1018
JR1019
JR1020
C3240
2
FB1000
FB1001
FB1002
FB1003
FB1004 FB1005
L3112
FB1006
FB1007
FB1008
L3114
FB1009
R1102
R1103
R1104
R1105
R1106
R1107
R1108
R1109
R1110
R1117
R1118
R1119
L1000
L1001
L1002
L1003
R1120
R1121
R1122
R1145
R1152
C3101
C3102
CN1000
CN1001
R3101
1
2
29
30
CN1003
1
2
29
30
CN1004
IC3101
C1000
C1001
C1002
Q1000
C1005
Q1001
Q1002
Q1003
C1008
Q1005
Q1006
Q1007
Q1009
C1010
C1011
C1012
C1013
Q1010
C1014
C1015
Q1012
Q1013 Q1014
C1018
C1019
C1020
C1021
C1022
C1023
D1000
C1024
R1000
R1001
C1030
IC1000
C1031
IC1001
IC1002
IC1003
IC1005
R1017
R1018
R1019
R1020
R1021
R1022
R1026
R1027
R1028
R1029
R1031
R1035
FL3101
R1036
R1038
R1041
R1042
R1044
R1045
R1048
R1049
R1050
A3000
R1051
R1052
R1053
R1054
R1055
R1056
R1057
R1058
R1059
R1060
R1061
R1062
R1064
FL1000
FL1001
FL1002
R1070
R1075
R1076
R1077
R1078
R1079
R1080
R1082
R1083
R1088
R1090 R1091
R1092
R1093
R1094
R1095
R1096
R1097
R1099
RB1002 RB1003
RB1006
RB1007
C3214
C3215
C3226
C3227
C3228
X1000
L3101
1-869-994-11
(1-727-294-11)
GND
VDD
CE
EP W
BUSY
SCIK
RXD
TXD
RESET
CNYSS
GND
MICRO
BINT
MICRO
SDA
MICRO
SCL
R1
CN1001
CN1000
A-1199- 550-A
JR1011
R1073
R1072
C3237
L3108
L3111
R1100
R1143
R1144
R1146
EP GW
R3102
R3103
R3106
R3108
IC3102
R3110
R3111
C3139
C1006
R3112
C1007
R3115
R3116
R3117
C3140
C3141
R3119
C3142
C3143
C3144
C3145
C3146
C3147
R3120
C3148
R3121
C3149
R3122
R3123
R3124
R3126
R3127
C3150
C3152
C3153
C3157
D1003
D1004
R3134
R3135
D1006
R3136
R1002
R1003
R1004
C3160
R3139
R1005
C3161
R1006
C3162
C3163
R1007
C3164
R1008
R1009
C3165
C3166
C3167
R3140
R3141
R1010
R1011
R3146
R1012
R1013
R1014
R1015
R1016
C3177
C3178
R3150
C3179
R3151
R3155
R3156
R1023
R3157
C3180
R3158
R1024
R1025 R3159
C3183
C3185
C3186
C3187
R3160
R3161
R3162
R3164
C3190
C3191
C3192
FL3102 FL3103
C3193
FL3105
FL3106
FL3107
R3170
C3199
R3171
FL3109
R3172
R3178
R3179
R3180
R3181
R3182
R3183
R3184
R3185
R3186
RB3110
RB3111
RB3114
RB3115
RB3116
RB3117
RB3118
RB3119
JR1006
JR1007
X3101
C3201
C3205
C3207
C3208
C3209
C3210
C3211
C3218
C3219
C3220
C3221
C3222
C3223
L3102
L3106
L3107
D1007
JR1012
JR1013
JR1014
– 89 –
KV-DZ29M30/M61/M91
RM-GA002
2SK3568(LBSSONY,Q
KRC110M
KTC3199GR-TP
2SC3779C,D-AA
2SK2381
DTC143TKA-T146
DTC144EKA
KRC102S
2SA1226-E4
2SA1235-F
2SC1623-L5L6
2SC2223-F13
2SC2712-YG
2SD2114K
2SC4632LS-CB7
2SK3462
E
B
C
2SK2036
ECB
TDA6111Q/N4
2SA2005
2SC5511
MA2ZD14001S0
MA77
MA8047
MA8091-M
MA8100-M-TX
MA8150-M-TX
UDZS-TE17-12B
1PS226-115
M1MA152WK-T1
MA3062M-TX
MA3091
6-5. SEMICONDUCTORS
DIODE
U05G D2SB60A-F04
KBP153G-A2
S3L20UF4 RB085T-60 LNK0210088H
D10SBS4F 1SS133T-77
D1NS4
HSS82-TJ
HSS83TD-E
MA4300-H(TA)
MA4200-H(TA)
MTZJ-T-77-15
10ERB20-TB5
30PRA20
ER106T/B
ER206
FR104-A5
GP08D
PG102R
S2L20UF
1F6G
MA111-TX
DTZ5.6B
RD10ESB2
RD18ESB2
RD6.8ESB2
CATHODE
ANODE
FMQ-G5FMS
CATHODE
ANODE
(GRN)
ANODE
(GRN)
CATHODE
ANODE
CATHODE
ANODE
ANODE
CATHODE
1
3
2
TRANSISTOR
2SK3563(LB2SONY)
– 90 –
KV-DZ29M30/M61/M91
RM-GA002
KTA1279
2SA1175-HFE
2SC2785-HFE
TRANSISTOR
ECB
LETTER SIDE
EK1135
MCZ3001DB
MT48LC2M32B2P-6:G
TL52055DR
RPM7240-H5KIA78R05API
PQ018EF01SSH
PST9129NL
KIA431AF BR24L32F-WE2
CAT24WC32WI-TE13
LM2903DT
LM339NS
NJM2521V(TE2)
TC7W66FU(TE12R)
BA18BCOWFP-E2 BA18BC0FP-E2
BA33BC0WFP-E2
L78M05T-FA
LA6510
IC
DIP
1
TOP VIEW
Dual In-line Package
Pin 6
~
98
1
9
123
Small Outline L-leaded
Package
Pin 8
~
98
SOP
1TOP VIEW
10
1
KIA78D12PI
KIA78R09API
CXA2170Q
TOP VIEW
AN5277T
– 91 –
KV-DZ29M30/M61/M91
RM-GA002
NOTE:
•Items with no part number and no
description are not stocked because
they are seldom required for routine
service.
•The construction parts of an assembled
part are indicated with a collation
number in the remark column.
7-1. PICTURE TUBE AND SPEAKER BRACKET
r
: 7-685-648-79 SCREW +BVTP 3 × 12 TYPE2 IT-3
p
: 7-685-663-71 SCREW +BVTP 4 × 16 TYPE2 IT-3
SECTION 7
EXPLODED VIEWS
•Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be
anticipated when ordering these items.
The components identified by
shading and mark ! are critical
for safety.
Replace only with part number
specified.
18
23
23
21
31
25
29
29
41
2
5
27
6
15
13
30
11
31
12
19
11
10
9
33
6
8
24
16
17
26
14
22
32
36
14
4
35
7
37
20
20
28
42
39
40
34
38
Note:
•For KV-DZ29M30 (South Africa), the picture tube is upside down and the position for the anode cap and tension springs are
change accordingly.
– 92 –
KV-DZ29M30/M61/M91
RM-GA002
REF. NO. PART NO. DESCRIPTION REMARK REF. NO. PART NO. DESCRIPTION REMARK
1 X-2149-752-1 BEZNET ASSY (KV-DZ29M91) 1~4,21,25,27
X-2109-295-1 BEZNET ASSY (except KV-DZ29M91)
2 2-677-860-01 COVER, FRONT PANEL
3 2-677-856-01 BUTTON, POWER
4 * 2-660-431-01 GUIDE, LIGHT
5!8-735-238-05 PICTURE TUBE A68LYK00X
(Except KV-DZ29M61)
!8-735-239-05 PICTURE TUBE A68LYK00X (KV-DZ29M61)
6 4-046-600-11 SPACER, DY
7 * 2-668-944-01 HOLDER, PWB
8!1-451-560-12 DEFLECTION YOKE (Y29SEC-T)
9 * A-1215-580-A MOUNTED PWB (VAR), C ( KV-DZ29M30)
* A-1199-551-A MOUNTED PWB (VAR), C
(except KV-DZ29M81)
10 !1-419-323-11 COIL, DEGAUSSING (except KV-DZ29M61(GE))
!1-419-294-11 COIL, DEGAUSSING (KV-DZ29M61(GE))
11 * 2-664-650-01 CUSHION (60X120), DGC
12 4-079-376-01 BAND, DGC
13 1-451-498-21 COIL, NA ROTATION
14 4-302-404-03 TAPPING SCREW (+PWH 4X16)
15 4-369-318-61 SPRING, TENSION
16 1-452-032-00 MAGNET,DISC
17 1-452-094-00 CIRCULAR DISC MAGNET B
18 4-077-228-02 PIECE, TLH CONVERGENCE
19 4-064-883-03 HOLDER, DGC
20 1-826-364-11 LOUDSPEAKER (6.5X15CM)
21 2-677-855-01 DOOR, CONTROL
22 * A-1199-549-A COMPLETE PWB, B1
23 4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
24 X-4387-214-3 PERMALOY ASSY, CORRECTION
25 * 2-660-427-04 COVER, BOTTOM
26 2-677-854-01 COVER, REAR (29)
27 2-668-661-01 SPRING, DOOR
28 * 2-656-888-01 HOLDER, HV CABLE COMBI
29 * 2-660-434-03 SUPPORT, CRT
30 4-022-115-00 HOLDER, AC CORD
31 !1-823-483-11 CORD, POWER (WITH NOISE FILTER)
(KV-DZ29M91)
!1-823-480-11 CORD, AC POWER (WITH CONNECTOR)
(KV-DZ29M61)
!1-831-311-12 POWER CORD (WITH CONNECTOR)
(KV-DZ29M30)
32 * A-1215-604-A COMPLETE PWB, D (KV-DZ29M30)
* A-1216-668-A COMPLETE PWB, D (KV-DZ29M61(Malaysia))
* A-1199-560-A COMPLETE PWB, D (KV-DZ29M61(GE))
* A-1215-638-A COMPLETE PWB, D (KV-DZ29M91)
33 8-453-021-21 NA2919-M2
34 * 2-668-945-01 HOLDER, PWB
35 * A-1199-557-A MOUNTED PWB, H1
36 1-453-485-11 TRANSFORMER ASSY FLYBACK
(NX-4901//M3B4) (Except KV-DZ29M30)
1-453-485-21 TRANSFORMER ASSY FLYBACK
(NX-4901//M3B4) (KV-DZ29M30)
37 * A-1215-578-A COMPLETE PWB, A1 (KV-DZ29M30)
* A-1215-088-A COMPLETE PWB, A1 (KV-DZ29M61(GE))
* A-1216-670-A COMPLETE PWB, A1 (KV-DZ29M61(Malaysia))
* A-1215-176-A COMPLETE PWB, A1 (KV-DZ29M91)
38 * A-1199-555-A MOUNTED PWB, D3 (KV-DZ29M61(GE))
39 * A-1199-556-A MOUNTED PWB, VM1
40 * 1-469-969-31 CLAMP, FERRITE
41 * A-1199-558-A MOUNTED PWB (VAR), F1
(Except KV-DZ29M91)
* A-1212-035-A MOUNTED PWB (VAR), F1 (KV-DZ29M91)
42 1-693-722-11 TUNER
– 93 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
* A-1215-578-A COMPLETE PWB, A1 (KV-DZ29M30)
A-1216-670-A COMPLETE PWB, A1 (KV-DZ29M61(Malaysia))
* A-1215-088-A COMPLETE PWB, A1 (KV-DZ29M61(GE))
* A-1215-176-A COMPLETE PWB, A1 (KV-DZ29M91)
********************************
4-382-854-01 SCREW (M3X8), P, SW (+)
<CAPACITOR>
C001 1-126-947-11 ELECT 47UF 20.00% 35V
C002 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C003 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C004 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C005 1-126-947-11 ELECT 47UF 20.00% 35V
C006 1-126-933-11 ELECT 100UF 20.00% 16V
C007 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V
C008 1-126-947-11 ELECT 47UF 20.00% 35V
C009 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C010 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C011 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C012 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C013 1-126-935-11 ELECT 470UF 20.00% 16V
C014 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C015 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C016 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C017 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V
C018 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C019 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C020 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C021 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C022 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C024 1-126-965-91 ELECT 22UF 20.00% 50V
C026 1-126-947-11 ELECT 47UF 20.00% 35V
C028 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C029 1-126-965-91 ELECT 22UF 20.00% 50V
C030 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C031 1-126-935-11 ELECT 470UF 20.00% 16V
C036 1-104-665-11 ELECT 100UF 20.00% 25V
C037 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C038 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C041 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C043 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C044 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C046 1-162-969-11 CERAMIC CHIP 0.0068UF 10.00% 25V
C048 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C049 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C050 1-126-964-11 ELECT 10UF 20.00% 50V
C052 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C053 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C054 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C055 1-100-829-31 FILM 0.15UF 5% 250V
C056 1-104-665-11 ELECT 100UF 20.00% 25V
C057 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C058 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C061 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C063 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C064 1-126-961-11 ELECT 2.2UF 20.00% 50V
C065 1-126-962-11 ELECT 3.3UF 20.00% 50V
C068 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C069 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C070 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C071 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C072 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C073 1-126-961-11 ELECT 2.2UF 20.00% 50V
C074 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C075 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C078 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C079 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C080 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C081 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C082 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C084 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C085 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C086 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V
C087 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C088 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C089 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C090 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C091 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C092 1-126-947-11 ELECT 47UF 20.00% 35V
C093 1-126-933-11 ELECT 100UF 20.00% 16V
C096 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C100 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C101 1-126-964-11 ELECT 10UF 20.00% 50V
C102 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C104 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C106 1-126-964-11 ELECT 10UF 20.00% 50V
C107 1-126-935-11 ELECT 470UF 20.00% 16V
C108 1-126-935-11 ELECT 470UF 20.00% 16V
C109 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C111 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C112 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C115 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C116 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C117 1-164-380-11 CERAMIC CHIP 51PF 5.00% 50V
C120 1-126-935-11 ELECT 470UF 20.00% 16V
C124 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C125 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C135 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
SECTION 8
ELECTRICAL PARTS LIST
NOTE:
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
When indicating parts by reference
number, please include the board name.
•Items marked " ∗ " are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
•All variable and adjustable resistors have
characteristic curve B, unless otherwise
noted.
•All resistors are in ohms
•F : nonflammable
CAPACITORS
•MF : µF, PF : µµF
COILS
• MMH : mH, UH : µH
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
– 94 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
C136 1-126-933-11 ELECT 100UF 20.00% 16V
C137 1-164-505-11 CERAMIC CHIP 2.2UF 16V
C138 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C139 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C140 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C142 1-126-964-11 ELECT 10UF 20.00% 50V
C301 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C302 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C303 1-126-933-11 ELECT 100UF 20.00% 16V
C304 1-104-665-11 ELECT 100UF 20.00% 25V
C305 1-104-665-11 ELECT 100UF 20.00% 25V
C306 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C308 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C309 1-126-964-11 ELECT 10UF 20.00% 50V
C311 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C314 1-164-346-11 CERAMIC CHIP 1UF 16V
C318 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C319 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C322 1-126-947-11 ELECT 47UF 20.00% 35V
C323 1-126-935-11 ELECT 470UF 20.00% 16V
C324 1-126-933-11 ELECT 100UF 20.00% 16V
C327 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C328 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C329 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C330 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C331 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C332 1-126-947-11 ELECT 47UF 20.00% 35V
C340 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C341 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C343 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C345 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C347 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C348 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C349 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C350 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C351 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C1201 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C1202 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C1203 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V
C1204 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V
C1205 1-130-495-00 MYLAR 0.1UF 5.00% 50V
C1206 1-126-957-11 ELECT 0.22UF 20.00% 50V
C1207 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C1208 1-130-495-00 MYLAR 0.1UF 5.00% 50V
C1209 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C1210 1-126-957-11 ELECT 0.22UF 20.00% 50V
C1211 1-126-968-11 ELECT 100UF 20.00% 50V
C1212 1-126-963-11 ELECT 4.7UF 20.00% 50V
C1213 1-126-972-11 ELECT 1000UF 20.00% 50V
C1214 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V
C1215 1-126-972-11 ELECT 1000UF 20.00% 50V
C1216 1-128-550-11 ELECT 2200UF 20.00% 50V
C1217 1-126-965-91 ELECT 22UF 20.00% 50V
C1218 1-126-972-11 ELECT 1000UF 20.00% 50V
C1219 1-126-965-91 ELECT 22UF 20.00% 50V
C1220 1-126-767-11 ELECT 1000UF 20.00% 16V
C1221 1-126-947-11 ELECT 47UF 20.00% 35V
C1229 1-137-374-11 MYLAR 0.047UF 5.00% 50V
C1230 1-137-374-11 MYLAR 0.047UF 5.00% 50V
C1231 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C1232 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C1235 1-164-505-11 CERAMIC CHIP 2.2UF 16V
C2201 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2202 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2203 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2204 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2205 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2206 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2207 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2208 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2211 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2214 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2215 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2216 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2217 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2218 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2219 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2220 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2222 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2223 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2225 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2226 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2227 1-126-964-11 ELECT 10UF 20.00% 50V
C2228 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2229 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2230 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2231 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2232 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2233 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2234 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2235 1-126-947-11 ELECT 47UF 20.00% 35V
C2236 1-126-947-11 ELECT 47UF 20.00% 35V
C2237 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2238 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C2239 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2240 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2241 1-125-837-91 CERAMIC CHIP 1UF 10% 6.3V
C2243 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C2244 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C2600 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2601 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2602 1-107-882-91 ELECT 100UF 20% 16V
C2603 1-107-882-91 ELECT 100UF 20% 16V
C2605 1-107-882-91 ELECT 100UF 20% 16V
C2606 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2607 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2609 1-104-652-11 ELECT 470UF 20% 10V
C2612 1-128-526-11 ELECT 100UF 20% 25V
C2613 1-126-936-11 ELECT 3300UF 20.00% 16V
C2614 1-126-933-11 ELECT 100UF 20.00% 16V
C2615 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2616 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2617 1-104-663-11 ELECT 33UF 20.00% 25V
C2618 1-126-947-11 ELECT 47UF 20.00% 35V
C2619 1-126-964-11 ELECT 10UF 20.00% 50V
C2620 1-126-959-11 ELECT 0.47UF 20.00% 50V
C2621 1-126-933-11 ELECT 100UF 20.00% 16V
C2622 1-104-662-91 ELECT 22UF 20.00% 25V
C2629 1-128-528-11 ELECT 470UF 20% 25V
C2630 1-128-528-11 ELECT 470UF 20% 25V
A1
– 95 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
C2631 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2632 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2633 1-126-934-11 ELECT 220UF 20.00% 16V
C2634 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2636 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C2637 1-104-662-91 ELECT 22UF 20.00% 25V
C2638 1-126-933-11 ELECT 100UF 20.00% 16V
C4302 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4304 1-126-933-11 ELECT 100UF 20.00% 16V
C4305 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4307 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C4308 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C4309 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C4310 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4311 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V
C4312 1-126-933-11 ELECT 100UF 20.00% 16V
C4313 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4314 1-126-933-11 ELECT 100UF 20.00% 16V
C4315 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C4316 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C4317 1-126-933-11 ELECT 100UF 20.00% 16V
C4318 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4319 1-126-933-11 ELECT 100UF 20.00% 16V
C4320 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4321 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4323 1-126-962-11 ELECT 3.3UF 20.00% 50V
C4324 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V
C4327 1-136-244-11 FILM 0.1UF 2.00% 50V
C4328 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4329 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C4330 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C4331 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4332 1-126-933-11 ELECT 100UF 20.00% 16V
C4333 1-126-963-11 ELECT 4.7UF 20.00% 50V
C4334 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4335 1-126-933-11 ELECT 100UF 20.00% 16V
C4336 1-126-933-11 ELECT 100UF 20.00% 16V
C4337 1-110-563-11 CERAMIC CHIP 0.068UF 10.00% 16V
C4338 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
C4339 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C4340 1-126-933-11 ELECT 100UF 20.00% 16V
C4342 1-128-526-11 ELECT 100UF 20% 25V
C4346 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C4347 1-126-947-11 ELECT 47UF 20.00% 35V
C4348 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4353 1-126-933-11 ELECT 100UF 20.00% 16V
C4357 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4358 1-126-947-11 ELECT 47UF 20.00% 35V
C4359 1-126-933-11 ELECT 100UF 20.00% 16V
C4360 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4361 1-126-933-11 ELECT 100UF 20.00% 16V
C4367 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4370 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4371 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V
C4372 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4374 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V
C4375 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C4377 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C4378 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4379 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4380 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4381 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
C4382 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C4383 1-126-933-11 ELECT 100UF 20.00% 16V
C4384 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C4386 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C4387 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C4388 1-162-921-11 CERAMIC CHIP 33PF 5.00% 50V
C4389 1-162-921-11 CERAMIC CHIP 33PF 5.00% 50V
C4390 1-162-921-11 CERAMIC CHIP 33PF 5.00% 50V
C4393 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C4394 1-115-340-11 CERAMIC CHIP 0.22UF 10.00% 25V
C8301 1-126-960-11 ELECT 1UF 20.00% 50V
C8303 1-126-935-11 ELECT 470UF 20.00% 16V
C8304 1-126-960-11 ELECT 1UF 20.00% 50V
C8308 1-126-960-11 ELECT 1UF 20.00% 50V
C8309 1-164-346-11 CERAMIC CHIP 1UF 16V
C8322 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C8323 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C8325 1-126-933-11 ELECT 100UF 20.00% 16V
C8526 1-126-933-11 ELECT 100UF 20.00% 16V
C8527 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C8528 1-126-947-11 ELECT 47UF 20.00% 35V
C8529 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C8531 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C8533 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C8534 1-126-961-11 ELECT 2.2UF 20.00% 50V
C8535 1-126-961-11 ELECT 2.2UF 20.00% 50V
C8536 1-164-505-11 CERAMIC CHIP 2.2UF 16V
C8537 1-164-505-11 CERAMIC CHIP 2.2UF 16V
C8538 1-164-505-11 CERAMIC CHIP 2.2UF 16V
C8539 1-164-505-11 CERAMIC CHIP 2.2UF 16V
<CONNECTOR>
CN003 1-508-797-00 PIN, CONNECTOR 4P
* CN014 1-564-510-11 PLUG, CONNECTOR 7P
CN100 1-695-915-11 TAB (CONTACT)
* CN1201 1-564-509-11 PLUG, CONNECTOR 6P
* CN1202 1-564-507-11 PLUG, CONNECTOR 4P
* CN2203 1-564-511-11 PLUG, CONNECTOR 8P
* CN2601 1-779-890-11 CONNECTOR, BOARD TO BOARD 10P
* CN4301 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P
* CN4302 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P
CN4305 1-783-967-11 CONNECTOR, BOARD TO BOARD 30P
CN4306 1-783-967-11 CONNECTOR, BOARD TO BOARD 30P
CT131 1-767-774-22 TRAP, CERAMIC
CT139 1-767-775-22 TRAP, CERAMIC
<DIODE>
D001 8-719-404-50 DIODE MA111-TX
D002 8-719-404-50 DIODE MA111-TX
D003 8-719-404-50 DIODE MA111-TX
D064 8-719-977-03 DIODE DTZ5.6B
D065 8-719-977-03 DIODE DTZ5.6B
D066 8-719-404-50 DIODE MA111-TX
D068 8-719-977-03 DIODE DTZ5.6B
D072 8-719-404-50 DIODE MA111-TX
D100 8-719-421-40 DIODE MA77
D1201 8-719-062-51 DIODE 1PS226-115
A1
– 96 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
D1202 8-719-404-50 DIODE MA111-TX
D1203 8-719-404-50 DIODE MA111-TX
D1204 8-719-404-50 DIODE MA111-TX
D1205 8-719-404-50 DIODE MA111-TX
D1206 8-719-404-50 DIODE MA111-TX
D1215 8-719-404-50 DIODE MA111-TX
D1216 8-719-404-50 DIODE MA111-TX
D1217 8-719-404-50 DIODE MA111-TX
D1244 8-719-404-50 DIODE MA111-TX
D2201 8-719-422-97 DIODE MA8091-M
D2202 8-719-977-03 DIODE DTZ5.6B
D2203 8-719-977-03 DIODE DTZ5.6B
D2204 8-719-977-03 DIODE DTZ5.6B
D2205 8-719-977-03 DIODE DTZ5.6B
D2206 8-719-422-97 DIODE MA8091-M
D2207 8-719-422-97 DIODE MA8091-M
D2208 8-719-422-97 DIODE MA8091-M
D2211 8-719-422-97 DIODE MA8091-M
D2212 8-719-422-97 DIODE MA8091-M
D2217 8-719-977-03 DIODE DTZ5.6B
D2218 8-719-977-03 DIODE DTZ5.6B
D2219 8-719-422-97 DIODE MA8091-M
D2220 8-719-422-97 DIODE MA8091-M
D2601 8-719-072-70 DIODE MA2ZD14001S0
D2602 8-719-404-50 DIODE MA111-TX
D2603 8-719-404-50 DIODE MA111-TX
D2608 8-719-404-50 DIODE MA111-TX
D2609 8-719-017-79 DIODE MA8033
D4302 8-719-422-97 DIODE MA8091-M
D4303 8-719-420-14 DIODE MA8082-M
D4309 8-719-404-50 DIODE MA111-TX
D4312 8-719-404-50 DIODE MA111-TX
D4313 8-719-977-03 DIODE DTZ5.6B
D4318 8-719-050-38 DIODE M1MA152WK-T1
D4319 8-719-050-38 DIODE M1MA152WK-T1
D4320 8-719-401-63 DIODE MA3062M-TX
D4323 8-719-404-50 DIODE MA111-TX
D8301 8-719-422-97 DIODE MA8091-M
D8304 8-719-422-97 DIODE MA8091-M
D8306 8-719-422-97 DIODE MA8091-M
D8309 8-719-977-03 DIODE DTZ5.6B
D8310 8-719-422-97 DIODE MA8091-M
D8311 8-719-422-97 DIODE MA8091-M
D8325 8-719-062-51 DIODE 1PS226-115
D8326 8-719-062-51 DIODE 1PS226-115
D8501 8-719-423-10 DIODE MA8100-M-TX
D8502 8-719-423-10 DIODE MA8100-M-TX
D8503 8-719-423-10 DIODE MA8100-M-TX
D8504 8-719-423-10 DIODE MA8100-M-TX
D8505 8-719-423-10 DIODE MA8100-M-TX
D8506 8-719-423-10 DIODE MA8100-M-TX
<FERRITE BEAD>
FB001 1-469-981-21 FERRITE 0UH
FB002 1-469-981-21 FERRITE 0UH
FB003 1-469-981-21 FERRITE 0UH
FB004 1-469-981-21 FERRITE 0UH
FB005 1-469-981-21 FERRITE 0UH
FB100 1-414-228-11 FERRITE 0UH
FB101 1-414-228-11 FERRITE 0UH
FB102 1-414-228-11 FERRITE 0UH
FB103 1-414-228-11 FERRITE 0UH
FB106 1-414-228-11 FERRITE 0UH
FB107 1-414-228-11 FERRITE 0UH
FB8303 1-469-981-21 FERRITE 0UH
<IC>
IC001 6-806-892-01 IC TDA12011H1/N1F0B (KV-DZ29M30)
IC001 6-806-890-01 IC TDA12021H1/N1F0B (Except KV-DZ29M30)
IC002 6-705-870-01 IC CAT24WC32WI-TE13
IC1201 6-703-477-01 IC AN5277T
IC2201 8-759-836-72 IC NJM2521V(TE2)
IC2202 8-759-836-72 IC NJM2521V(TE2)
IC2203 8-759-836-72 IC NJM2521V(TE2)
IC2204 8-759-836-72 IC NJM2521V(TE2)
IC2600 6-706-789-01 IC KIA78R09API
IC2601 6-707-344-01 IC KIA78R05API
IC2603 6-707-921-01 IC PQ3RD13J000H
IC2604 6-702-987-01 IC BA18BCOWFP-E2
IC2605 6-703-478-01 IC PQ018EF01SSH
IC2608 6-703-478-01 IC PQ018EF01SSH
IC2609 6-707-344-01 IC KIA78R05API
IC4301 8-752-102-68 IC CXA2170Q
IC4302 8-759-052-52 IC L78M05T-FA
IC8503 6-706-805-01 IC TL52055DR
<JACK>
J8301 1-817-298-22 PHONO JACK 9P
J8302 1-819-609-11 PIN JACK BLOCK 10P
<CHIP CONDUCTOR>
JR002 1-216-864-11 SHORT CHIP 0
JR006 1-216-864-11 SHORT CHIP 0
JR009 1-216-864-11 SHORT CHIP 0
JR016 1-216-864-11 SHORT CHIP 0
JR017 1-216-864-11 SHORT CHIP 0
JR021 1-216-864-11 SHORT CHIP 0
JR027 1-216-864-11 SHORT CHIP 0
JR030 1-216-864-11 SHORT CHIP 0
JR031 1-216-864-11 SHORT CHIP 0
JR032 1-216-864-11 SHORT CHIP 0
JR033 1-216-864-11 SHORT CHIP 0
JR034 1-216-864-11 SHORT CHIP 0
JR039 1-216-864-11 SHORT CHIP 0
JR047 1-216-864-11 SHORT CHIP 0
JR059 1-216-864-11 SHORT CHIP 0
JR060 1-216-864-11 SHORT CHIP 0
JR061 1-216-864-11 SHORT CHIP 0
JR075 1-216-864-11 SHORT CHIP 0
JR077 1-216-864-11 SHORT CHIP 0
JR078 1-216-864-11 SHORT CHIP 0
JR084 1-216-864-11 SHORT CHIP 0
JR085 1-216-864-11 SHORT CHIP 0
JR088 1-216-864-11 SHORT CHIP 0
JR089 1-216-864-11 SHORT CHIP 0
JR102 1-216-864-11 SHORT CHIP 0
JR103 1-216-864-11 SHORT CHIP 0
JR109 1-216-864-11 SHORT CHIP 0
A1
– 97 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
JR111 1-216-864-11 SHORT CHIP 0
JR112 1-216-864-11 SHORT CHIP 0
JR114 1-216-864-11 SHORT CHIP 0
JR115 1-216-864-11 SHORT CHIP 0
JR121 1-216-864-11 SHORT CHIP 0
JR122 1-216-864-11 SHORT CHIP 0
JR123 1-216-864-11 SHORT CHIP 0
JR124 1-216-864-11 SHORT CHIP 0
JR125 1-216-864-11 SHORT CHIP 0
JR132 1-216-864-11 SHORT CHIP 0
JR133 1-216-864-11 SHORT CHIP 0
JR2603 1-216-864-11 SHORT CHIP 0
JR2607 1-216-864-11 SHORT CHIP 0
JR2608 1-216-864-11 SHORT CHIP 0
JR4300 1-216-864-11 SHORT CHIP 0
JR4301 1-216-864-11 SHORT CHIP 0
JR4315 1-216-864-11 SHORT CHIP 0
JR4316 1-216-864-11 SHORT CHIP 0
<COIL>
L002 1-414-856-11 INDUCTOR 10UH
L003 1-414-856-11 INDUCTOR 10UH
L004 1-469-527-91 INDUCTOR 47UH
L005 1-414-856-11 INDUCTOR 10UH
L006 1-469-525-91 INDUCTOR 10UH
L007 1-469-525-91 INDUCTOR 10UH
L008 1-469-525-91 INDUCTOR 10UH
L009 1-414-856-11 INDUCTOR 10UH
L010 1-469-525-91 INDUCTOR 10UH
L011 1-469-525-91 INDUCTOR 10UH
L012 1-414-856-11 INDUCTOR 10UH
L013 1-469-525-91 INDUCTOR 10UH
L016 1-469-525-91 INDUCTOR 10UH
L022 1-414-922-51 INDUCTOR 330UH
L023 1-469-559-21 INDUCTOR 47UH
L031 1-414-856-11 INDUCTOR 10UH
L032 1-414-856-11 INDUCTOR 10UH
L033 1-469-525-91 INDUCTOR 10UH
L035 1-414-856-11 INDUCTOR 10UH
L036 1-469-525-91 INDUCTOR 10UH
L037 1-469-525-91 INDUCTOR 10UH
L038 1-414-856-11 INDUCTOR 10UH
L100 1-414-857-11 INDUCTOR 100UH
L101 1-410-498-11 INDUCTOR 1.2UH
L102 1-410-985-42 INDUCTOR 0.22UH
L103 1-410-987-42 INDUCTOR 0.33UH
L104 1-414-187-11 INDUCTOR 47UH
L106 1-414-189-31 INDUCTOR 100UH
L107 1-469-525-91 INDUCTOR 10UH
L2201 1-414-856-11 INDUCTOR 10UH
L2202 1-414-856-11 INDUCTOR 10UH
L4301 1-414-856-11 INDUCTOR 10UH
L4302 1-414-856-11 INDUCTOR 10UH
L4303 1-414-856-11 INDUCTOR 10UH
L4304 1-414-856-11 INDUCTOR 10UH
L4305 1-414-856-11 INDUCTOR 10UH
L4306 1-414-856-11 INDUCTOR 10UH
L4307 1-414-856-11 INDUCTOR 10UH
L4308 1-414-856-11 INDUCTOR 10UH
L4309 1-414-856-11 INDUCTOR 10UH
L4310 1-414-856-11 INDUCTOR 10UH
L4311 1-469-525-91 INDUCTOR 10UH
L8303 1-414-856-11 INDUCTOR 10UH
L8503 1-414-856-11 INDUCTOR 10UH
L8504 1-469-525-91 INDUCTOR 10UH
<IC LINK>
PS1201 !1-533-597-42 IC LINK 5A 90V
<TRANSISTOR>
Q001 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q002 8-729-600-22 TRANSISTOR 2SA1235-F
Q003 8-729-230-49 TRANSISTOR 2SC2712-YG
Q015 8-729-038-67 TRANSISTOR KRC102S
Q016 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q017 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q018 8-729-122-63 TRANSISTOR 2SA1226-E4
Q019 8-729-102-07 TRANSISTOR 2SC2223-F13
Q020 8-729-600-22 TRANSISTOR 2SA1235-F
Q022 8-729-122-63 TRANSISTOR 2SA1226-E4
Q023 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q024 8-729-600-22 TRANSISTOR 2SA1235-F
Q025 8-729-122-63 TRANSISTOR 2SA1226-E4
Q026 8-729-600-22 TRANSISTOR 2SA1235-F
Q029 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q030 8-729-038-67 TRANSISTOR KRC102S
Q031 8-729-028-28 TRANSISTOR 2SK2036(TE85L)
Q032 8-729-028-28 TRANSISTOR 2SK2036(TE85L)
Q039 8-729-600-22 TRANSISTOR 2SA1235-F
Q100 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q102 8-729-022-54 TRANSISTOR 2SC3779C,D-AA
Q103 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q104 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q1201 8-729-600-22 TRANSISTOR 2SA1235-F
Q1202 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1206 8-729-600-22 TRANSISTOR 2SA1235-F
Q1207 8-729-038-67 TRANSISTOR KRC102S
Q2201 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q2202 8-729-027-56 TRANSISTOR DTC143TKA-T146
Q2601 8-729-600-22 TRANSISTOR 2SA1235-F
Q2602 8-729-600-22 TRANSISTOR 2SA1235-F
Q2604 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q2605 1-801-806-11 TRANSISTOR DTC144EKA
Q4301 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4302 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4303 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4305 6-550-580-01 TRANSISTOR 2SA1235TP-1F
Q4306 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4307 8-729-122-63 TRANSISTOR 2SA1226-E4
Q4308 8-729-122-63 TRANSISTOR 2SA1226-E4
Q4309 8-729-122-63 TRANSISTOR 2SA1226-E4
Q4315 8-729-600-22 TRANSISTOR 2SA1235-F
Q4316 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4323 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4324 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4328 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4329 1-801-806-11 TRANSISTOR DTC144EKA
Q4330 8-729-038-67 TRANSISTOR KRC102S
Q4331 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q4332 8-729-120-28 TRANSISTOR 2SC1623-L5L6
A1
– 98 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
Q8306 8-729-600-22 TRANSISTOR 2SA1235-F
Q8501 8-729-102-07 TRANSISTOR 2SC2223-F13
Q8502 8-729-122-63 TRANSISTOR 2SA1226-E4
Q8503 8-729-122-63 TRANSISTOR 2SA1226-E4
Q8504 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8517 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8518 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q8520 8-729-122-63 TRANSISTOR 2SA1226-E4
<RESISTOR>
R001 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R002 1-216-809-11 METAL CHIP 100 5% 1/10W
R003 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R004 1-216-809-11 METAL CHIP 100 5% 1/10W
R008 1-216-809-11 METAL CHIP 100 5% 1/10W
R010 1-216-833-11 METAL CHIP 10K 5% 1/10W
R011 1-216-809-11 METAL CHIP 100 5% 1/10W
R012 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R013 1-216-809-11 METAL CHIP 100 5% 1/10W
R014 1-216-809-11 METAL CHIP 100 5% 1/10W
R015 1-218-851-11 METAL CHIP 1.5K 0.50% 1/10W
R016 1-216-809-11 METAL CHIP 100 5% 1/10W
R019 1-216-809-11 METAL CHIP 100 5% 1/10W
R020 1-216-809-11 METAL CHIP 100 5% 1/10W
R022 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R025 1-216-809-11 METAL CHIP 100 5% 1/10W
R026 1-216-809-11 METAL CHIP 100 5% 1/10W
R028 1-216-864-11 SHORT CHIP 0
R029 1-216-809-11 METAL CHIP 100 5% 1/10W
R030 1-216-809-11 METAL CHIP 100 5% 1/10W
R032 1-216-864-11 SHORT CHIP 0
R035 1-216-809-11 METAL CHIP 100 5% 1/10W
R036 1-216-864-11 SHORT CHIP 0
R037 1-216-817-11 METAL CHIP 470 5% 1/10W
R038 1-216-809-11 METAL CHIP 100 5% 1/10W
R040 1-216-864-11 SHORT CHIP 0
R043 1-216-864-11 SHORT CHIP 0
R044 1-216-834-11 METAL CHIP 12K 5% 1/10W
R045 1-216-809-11 METAL CHIP 100 5% 1/10W
R046 1-216-809-11 METAL CHIP 100 5% 1/10W
R047 1-216-864-11 SHORT CHIP 0
R048 1-216-809-11 METAL CHIP 100 5% 1/10W
R049 1-216-837-11 METAL CHIP 22K 5% 1/10W
R051 1-218-885-11 METAL CHIP 39K 0.50% 1/10W
R056 1-216-809-11 METAL CHIP 100 5% 1/10W
R057 1-216-864-11 SHORT CHIP 0
R061 1-216-819-11 METAL CHIP 680 5% 1/10W
R064 1-216-837-11 METAL CHIP 22K 5% 1/10W
R073 1-216-842-11 METAL CHIP 56K 5% 1/10W
R074 1-216-809-11 METAL CHIP 100 5% 1/10W
R075 1-216-809-11 METAL CHIP 100 5% 1/10W
R076 1-216-817-11 METAL CHIP 470 5% 1/10W
R078 1-216-809-11 METAL CHIP 100 5% 1/10W
R080 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R083 1-216-809-11 METAL CHIP 100 5% 1/10W
R084 1-216-864-11 SHORT CHIP 0
R085 1-216-817-11 METAL CHIP 470 5% 1/10W
R086 1-216-805-11 METAL CHIP 47 5% 1/10W
R087 1-216-817-11 METAL CHIP 470 5% 1/10W
R088 1-216-816-11 METAL CHIP 390 5% 1/10W
R088 (KV-DZ29M61(Malaysia))
R088 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R088 (Except KV-DZ29M61(Malaysia))
R090 1-216-809-11 METAL CHIP 100 5% 1/10W
R091 1-216-837-11 METAL CHIP 22K 5% 1/10W
R092 1-216-837-11 METAL CHIP 22K 5% 1/10W
R093 1-216-817-11 METAL CHIP 470 5% 1/10W
R095 1-211-981-11 METAL CHIP 33 0.50% 1/10W
R096 1-216-813-11 METAL CHIP 220 5% 1/10W
R097 1-216-813-11 METAL CHIP 220 5% 1/10W
R098 1-216-864-11 SHORT CHIP 0
R099 1-216-813-11 METAL CHIP 220 5% 1/10W
R100 1-216-821-11 METAL CHIP 1K 5% 1/10W
R103 1-211-981-11 METAL CHIP 33 0.50% 1/10W
R106 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R107 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R108 1-216-821-11 METAL CHIP 1K 5% 1/10W
R109 1-216-806-11 METAL CHIP 56 5% 1/10W
R110 1-216-821-11 METAL CHIP 1K 5% 1/10W
R111 1-216-833-11 METAL CHIP 10K 5% 1/10W
R112 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R113 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R114 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R117 1-216-864-11 SHORT CHIP 0
R118 1-216-809-11 METAL CHIP 100 5% 1/10W
R119 1-211-981-11 METAL CHIP 33 0.50% 1/10W
R128 1-216-864-11 SHORT CHIP 0
R131 1-216-809-11 METAL CHIP 100 5% 1/10W
R301 1-216-864-11 SHORT CHIP 0
R302 1-216-864-11 SHORT CHIP 0
R307 1-216-817-11 METAL CHIP 470 5% 1/10W
R308 1-216-817-11 METAL CHIP 470 5% 1/10W
R311 1-218-833-11 METAL CHIP 270 0.50% 1/10W
R312 1-216-809-11 METAL CHIP 100 5% 1/10W
R313 1-216-845-11 METAL CHIP 100K 5% 1/10W
R315 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R316 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R318 1-218-839-11 METAL CHIP 470 0.50% 1/10W
R320 1-216-809-11 METAL CHIP 100 5% 1/10W
R321 1-216-837-11 METAL CHIP 22K 5% 1/10W
R322 1-216-864-11 SHORT CHIP 0
R323 1-216-809-11 METAL CHIP 100 5% 1/10W
R324 1-216-837-11 METAL CHIP 22K 5% 1/10W
R325 1-216-817-11 METAL CHIP 470 5% 1/10W
R326 1-216-817-11 METAL CHIP 470 5% 1/10W
R329 1-218-823-11 METAL CHIP 100 0.50% 1/10W
R330 1-216-809-11 METAL CHIP 100 5% 1/10W
R331 1-218-839-11 METAL CHIP 470 0.50% 1/10W
R333 1-216-817-11 METAL CHIP 470 5% 1/10W
R334 1-218-841-11 METAL CHIP 560 0.50% 1/10W
R335 1-216-809-11 METAL CHIP 100 5% 1/10W
R336 1-216-833-11 METAL CHIP 10K 5% 1/10W
R337 1-216-817-11 METAL CHIP 470 5% 1/10W
R338 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R339 1-216-809-11 METAL CHIP 100 5% 1/10W
R340 1-216-833-11 METAL CHIP 10K 5% 1/10W
R341 1-216-809-11 METAL CHIP 100 5% 1/10W
R344 1-216-864-11 SHORT CHIP 0
R345 1-216-864-11 SHORT CHIP 0
R346 1-216-809-11 METAL CHIP 100 5% 1/10W
R347 1-216-821-11 METAL CHIP 1K 5% 1/10W
A1
– 99 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
R348 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R349 1-216-821-11 METAL CHIP 1K 5% 1/10W
R350 1-216-821-11 METAL CHIP 1K 5% 1/10W
R351 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R353 1-216-833-11 METAL CHIP 10K 5% 1/10W
R354 1-216-833-11 METAL CHIP 10K 5% 1/10W
R355 1-216-837-11 METAL CHIP 22K 5% 1/10W
R356 1-216-864-11 SHORT CHIP 0
R360 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R361 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R363 1-218-859-11 METAL CHIP 3.3K 0.50% 1/10W
R376 1-216-809-11 METAL CHIP 100 5% 1/10W
R380 1-216-809-11 METAL CHIP 100 5% 1/10W
R382 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R387 1-216-809-11 METAL CHIP 100 5% 1/10W
R388 1-216-843-11 METAL CHIP 68K 5% 1/10W
R392 1-216-809-11 METAL CHIP 100 5% 1/10W
R395 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1201 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1202 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1203 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R1204 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1205 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R1206 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R1207 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R1208 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R1209 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1210 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1211 1-216-864-11 SHORT CHIP 0
R1212 1-249-411-11 CARBON 330 5% 1/4W
R1214 1-249-411-11 CARBON 330 5% 1/4W
R1215 1-216-864-11 SHORT CHIP 0
R1216 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1226 1-249-401-11 CARBON 47 5% 1/4W
R1227 1-249-401-11 CARBON 47 5% 1/4W
R1228 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1229 1-216-809-11 METAL CHIP 100 5% 1/10W
R1230 1-216-809-11 METAL CHIP 100 5% 1/10W
R1231 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1241 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1242 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1246 1-216-864-11 SHORT CHIP 0
R1247 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1250 1-216-864-11 SHORT CHIP 0
R1251 1-216-864-11 SHORT CHIP 0
R1253 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1254 1-216-835-11 METAL CHIP 15K 5% 1/10W
R1255 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1256 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1257 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1260 1-216-864-11 SHORT CHIP 0
R2201 1-216-817-11 METAL CHIP 470 5% 1/10W
R2202 1-216-817-11 METAL CHIP 470 5% 1/10W
R2206 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2207 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2208 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2209 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2210 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2211 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2212 1-216-853-11 METAL CHIP 470K 5% 1/10W
R2213 1-216-853-11 METAL CHIP 470K 5% 1/10W
R2216 1-216-840-11 METAL CHIP 39K 5% 1/10W
R2217 1-216-840-11 METAL CHIP 39K 5% 1/10W
R2218 1-216-840-11 METAL CHIP 39K 5% 1/10W
R2219 1-216-840-11 METAL CHIP 39K 5% 1/10W
R2220 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2221 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2222 1-216-821-11 METAL CHIP 1K 5% 1/10W
R2223 1-216-821-11 METAL CHIP 1K 5% 1/10W
R2224 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2225 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2228 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2229 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2230 1-216-809-11 METAL CHIP 100 5% 1/10W
R2231 1-216-809-11 METAL CHIP 100 5% 1/10W
R2232 1-216-809-11 METAL CHIP 100 5% 1/10W
R2233 1-216-809-11 METAL CHIP 100 5% 1/10W
R2234 1-216-809-11 METAL CHIP 100 5% 1/10W
R2235 1-216-809-11 METAL CHIP 100 5% 1/10W
R2236 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2237 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2238 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R2239 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R2240 1-216-809-11 METAL CHIP 100 5% 1/10W
R2241 1-216-809-11 METAL CHIP 100 5% 1/10W
R2242 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2243 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2244 1-216-849-11 METAL CHIP 220K 5% 1/10W
R2245 1-216-837-11 METAL CHIP 22K 5% 1/10W
R2252 1-216-864-11 SHORT CHIP 0
R2253 1-216-864-11 SHORT CHIP 0
R2257 1-216-809-11 METAL CHIP 100 5% 1/10W
R2258 1-216-809-11 METAL CHIP 100 5% 1/10W
R2259 1-216-809-11 METAL CHIP 100 5% 1/10W
R2260 1-216-809-11 METAL CHIP 100 5% 1/10W
R2604 1-216-835-11 METAL CHIP 15K 5% 1/10W
R2605 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2606 1-216-835-11 METAL CHIP 15K 5% 1/10W
R2607 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2608 1-243-519-71 METAL OXIDE 10 5% 3W
R2609 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2610 1-216-841-11 METAL CHIP 47K 5% 1/10W
R2611 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2620 1-243-509-71 METAL OXIDE 1.5 5% 3W
R2625 1-243-517-71 METAL OXIDE 6.8 5% 3W
R2626 1-243-517-71 METAL OXIDE 6.8 5% 3W
R2629 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2630 1-216-821-11 METAL CHIP 1K 5% 1/10W
R2631 1-216-833-11 METAL CHIP 10K 5% 1/10W
R4301 1-216-805-11 METAL CHIP 47 5% 1/10W
R4304 1-216-816-11 METAL CHIP 390 5% 1/10W
R4305 1-216-864-11 SHORT CHIP 0
R4306 1-216-816-11 METAL CHIP 390 5% 1/10W
R4307 1-216-833-11 METAL CHIP 10K 5% 1/10W
R4308 1-216-833-11 METAL CHIP 10K 5% 1/10W
R4309 1-216-833-11 METAL CHIP 10K 5% 1/10W
R4310 1-216-809-11 METAL CHIP 100 5% 1/10W
R4311 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R4312 1-216-845-11 METAL CHIP 100K 5% 1/10W
R4313 1-216-832-11 METAL CHIP 8.2K 5% 1/10W
A1
– 100 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
R4314 1-216-809-11 METAL CHIP 100 5% 1/10W
R4315 1-216-864-11 SHORT CHIP 0
R4316 1-216-809-11 METAL CHIP 100 5% 1/10W
R4317 1-216-809-11 METAL CHIP 100 5% 1/10W
R4318 1-216-809-11 METAL CHIP 100 5% 1/10W
R4319 1-216-809-11 METAL CHIP 100 5% 1/10W
R4320 1-216-818-11 METAL CHIP 560 5% 1/10W
R4321 1-216-816-11 METAL CHIP 390 5% 1/10W
R4322 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4323 1-216-809-11 METAL CHIP 100 5% 1/10W
R4324 1-216-809-11 METAL CHIP 100 5% 1/10W
R4327 1-216-809-11 METAL CHIP 100 5% 1/10W
R4330 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R4331 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R4332 1-216-809-11 METAL CHIP 100 5% 1/10W
R4335 1-216-809-11 METAL CHIP 100 5% 1/10W
R4336 1-216-864-11 SHORT CHIP 0
R4337 1-216-809-11 METAL CHIP 100 5% 1/10W
R4338 1-216-809-11 METAL CHIP 100 5% 1/10W
R4339 1-216-863-11 METAL CHIP 3.3M 5% 1/10W
R4341 1-216-809-11 METAL CHIP 100 5% 1/10W
R4343 1-216-809-11 METAL CHIP 100 5% 1/10W
R4344 1-216-809-11 METAL CHIP 100 5% 1/10W
R4345 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R4346 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W
R4347 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W
R4348 1-216-809-11 METAL CHIP 100 5% 1/10W
R4349 1-216-809-11 METAL CHIP 100 5% 1/10W
R4350 1-216-809-11 METAL CHIP 100 5% 1/10W
R4351 1-216-809-11 METAL CHIP 100 5% 1/10W
R4354 1-216-805-11 METAL CHIP 47 5% 1/10W
R4355 1-216-811-11 METAL CHIP 150 5% 1/10W
R4356 1-216-805-11 METAL CHIP 47 5% 1/10W
R4357 1-216-805-11 METAL CHIP 47 5% 1/10W
R4358 1-216-805-11 METAL CHIP 47 5% 1/10W
R4361 1-216-864-11 SHORT CHIP 0
R4362 1-216-864-11 SHORT CHIP 0
R4364 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R4366 1-218-887-11 METAL CHIP 47K 0.50% 1/10W
R4368 1-218-887-11 METAL CHIP 47K 0.50% 1/10W
R4369 1-216-864-11 SHORT CHIP 0
R4371 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4372 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R4373 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R4374 1-218-891-11 METAL CHIP 68K 0.50% 1/10W
R4377 1-216-861-11 METAL CHIP 2.2M 5% 1/10W
R4382 1-216-837-11 METAL CHIP 22K 5% 1/10W
R4387 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4388 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4389 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4390 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4391 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4394 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4395 1-216-809-11 METAL CHIP 100 5% 1/10W
R4396 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4397 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4398 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4399 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4400 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4401 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4402 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4403 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4404 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4405 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4406 1-218-873-11 METAL CHIP 12K 0.50% 1/10W
R4408 1-216-819-11 METAL CHIP 680 5% 1/10W
R4409 1-216-809-11 METAL CHIP 100 5% 1/10W
R4410 1-216-833-11 METAL CHIP 10K 5% 1/10W
R4412 1-216-864-11 SHORT CHIP 0
R4413 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R4416 1-216-864-11 SHORT CHIP 0
R4417 1-218-891-11 METAL CHIP 68K 0.50% 1/10W
R4419 1-216-864-11 SHORT CHIP 0
R4420 1-216-833-11 METAL CHIP 10K 5% 1/10W
R4421 1-218-853-11 METAL CHIP 1.8K 0.50% 1/10W
R4425 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4426 1-216-809-11 METAL CHIP 100 5% 1/10W
R4429 1-216-809-11 METAL CHIP 100 5% 1/10W
R4430 1-216-864-11 SHORT CHIP 0
R4436 1-216-837-11 METAL CHIP 22K 5% 1/10W
R4437 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4438 1-218-873-11 METAL CHIP 12K 0.50% 1/10W
R4439 1-218-869-11 METAL CHIP 8.2K 0.50% 1/10W
R4440 1-218-849-11 METAL CHIP 1.2K 0.50% 1/10W
R4441 1-218-903-11 METAL CHIP 220K 0.50% 1/10W
R4444 1-216-864-11 SHORT CHIP 0
R4445 1-216-864-11 SHORT CHIP 0
R4446 1-216-864-11 SHORT CHIP 0
R4447 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4448 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4449 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4450 1-216-864-11 SHORT CHIP 0
R4451 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R4452 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R4453 1-216-864-11 SHORT CHIP 0
R4454 1-216-864-11 SHORT CHIP 0
R4455 1-216-864-11 SHORT CHIP 0
R4456 1-216-864-11 SHORT CHIP 0
R4458 1-216-864-11 SHORT CHIP 0
R4459 1-216-864-11 SHORT CHIP 0
R4460 1-216-864-11 SHORT CHIP 0
R4464 1-216-864-11 SHORT CHIP 0
R4465 1-216-864-11 SHORT CHIP 0
R4466 1-216-864-11 SHORT CHIP 0
R4467 1-216-864-11 SHORT CHIP 0
R4468 1-216-864-11 SHORT CHIP 0
R4469 1-216-864-11 SHORT CHIP 0
R4470 1-216-864-11 SHORT CHIP 0
R4472 1-216-864-11 SHORT CHIP 0
R4473 1-216-864-11 SHORT CHIP 0
R4474 1-216-864-11 SHORT CHIP 0
R4475 1-216-864-11 SHORT CHIP 0
R4476 1-216-864-11 SHORT CHIP 0
R4477 1-216-864-11 SHORT CHIP 0
R4478 1-216-864-11 SHORT CHIP 0
R4479 1-216-864-11 SHORT CHIP 0
R4481 1-216-864-11 SHORT CHIP 0
R4484 1-216-864-11 SHORT CHIP 0
R4485 1-216-864-11 SHORT CHIP 0
R4487 1-216-864-11 SHORT CHIP 0
A1
– 101 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
R4489 1-216-864-11 SHORT CHIP 0
R4492 1-216-864-11 SHORT CHIP 0
R4493 1-216-864-11 SHORT CHIP 0
R4494 1-216-864-11 SHORT CHIP 0
R4495 1-216-864-11 SHORT CHIP 0
R4496 1-216-864-11 SHORT CHIP 0
R8301 1-216-864-11 SHORT CHIP 0
R8302 1-216-864-11 SHORT CHIP 0
R8303 1-216-853-11 METAL CHIP 470K 5% 1/10W
R8308 1-218-285-11 METAL CHIP 75 5% 1/10W
R8313 1-218-285-11 METAL CHIP 75 5% 1/10W
R8318 1-218-285-11 METAL CHIP 75 5% 1/10W
R8334 1-216-809-11 METAL CHIP 100 5% 1/10W
R8338 1-218-285-11 METAL CHIP 75 5% 1/10W
R8339 1-218-285-11 METAL CHIP 75 5% 1/10W
R8340 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R8341 1-216-864-11 SHORT CHIP 0
R8346 1-216-864-11 SHORT CHIP 0
R8357 1-216-809-11 METAL CHIP 100 5% 1/10W
R8358 1-216-809-11 METAL CHIP 100 5% 1/10W
R8359 1-216-809-11 METAL CHIP 100 5% 1/10W
R8360 1-216-809-11 METAL CHIP 100 5% 1/10W
R8361 1-216-809-11 METAL CHIP 100 5% 1/10W
R8362 1-216-809-11 METAL CHIP 100 5% 1/10W
R8368 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8370 1-216-809-11 METAL CHIP 100 5% 1/10W
R8373 1-216-809-11 METAL CHIP 100 5% 1/10W
R8375 1-216-809-11 METAL CHIP 100 5% 1/10W
R8376 1-216-809-11 METAL CHIP 100 5% 1/10W
R8389 1-216-809-11 METAL CHIP 100 5% 1/10W
R8412 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8452 1-216-864-11 SHORT CHIP 0
R8453 1-216-864-11 SHORT CHIP 0
R8454 1-216-864-11 SHORT CHIP 0
R8455 1-216-864-11 SHORT CHIP 0
R8456 1-216-864-11 SHORT CHIP 0
R8457 1-216-864-11 SHORT CHIP 0
R8504 1-216-809-11 METAL CHIP 100 5% 1/10W
R8505 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8508 1-218-285-11 METAL CHIP 75 5% 1/10W
R8509 1-218-285-11 METAL CHIP 75 5% 1/10W
R8510 1-218-285-11 METAL CHIP 75 5% 1/10W
R8511 1-218-285-11 METAL CHIP 75 5% 1/10W
R8512 1-218-285-11 METAL CHIP 75 5% 1/10W
R8513 1-218-285-11 METAL CHIP 75 5% 1/10W
R8549 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8550 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8551 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8552 1-216-833-11 METAL CHIP 10K 5% 1/10W
R8553 1-216-809-11 METAL CHIP 100 5% 1/10W
R8554 1-216-809-11 METAL CHIP 100 5% 1/10W
R8555 1-216-809-11 METAL CHIP 100 5% 1/10W
R8557 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8558 1-216-821-11 METAL CHIP 1K 5% 1/10W
R8562 1-216-805-11 METAL CHIP 47 5% 1/10W
R8564 1-216-805-11 METAL CHIP 47 5% 1/10W
R8565 1-216-805-11 METAL CHIP 47 5% 1/10W
R8566 1-216-817-11 METAL CHIP 470 5% 1/10W
<SWITCH>
SWF100 1-781-040-11 FILTER, SURFACE WAVE
SWF101 1-767-302-11 FILTER, SURFACE WAVE
<TRANSFORMER>
TP008 1-536-354-00 POST PIN
TP101 1-536-354-00 POST PIN
<TUNER>
TU101 1-693-722-11 TUNER
<CRYSTAL>
X001 1-813-311-21 QUARTS CRYSTAL UNIT
X4301 1-813-800-21 VIBRATOR, CERAMIC
***********************************************************************
* A-1199-549-A COMPLETE PWB, B1
*******************
<CAPACITOR>
C1001 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1002 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1005 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
C1006 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1007 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1008 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
C1009 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1010 1-162-917-11 CERAMIC CHIP 15PF 5.00% 50V
C1011 1-162-917-11 CERAMIC CHIP 15PF 5.00% 50V
C1013 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1014 1-126-206-11 ELECT CHIP 100UF 20.00% 6.3V
C1015 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1018 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C1019 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C1020 1-126-206-11 ELECT CHIP 100UF 20.00% 6.3V
C1021 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1022 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1023 1-117-681-11 ELECT CHIP 100UF 20.00% 16V
C3101 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3102 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3103 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3104 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3105 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3106 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3107 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3108 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3109 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3110 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3111 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3112 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3113 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3114 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3115 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3116 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3117 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
A1B1
– 102 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
C3118 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3119 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3120 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3121 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3122 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3123 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3124 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3125 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3126 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3127 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3128 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3129 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3130 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3131 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3132 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3133 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3134 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3136 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3137 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3138 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3139 1-162-917-11 CERAMIC CHIP 15PF 5.00% 50V
C3140 1-162-918-11 CERAMIC CHIP 18PF 5.00% 50V
C3141 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3142 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3143 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3144 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
C3145 1-162-962-11 CERAMIC CHIP 470PF 10.00% 50V
C3146 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3147 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3148 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3149 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
C3150 1-162-962-11 CERAMIC CHIP 470PF 10.00% 50V
C3151 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3152 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3153 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3154 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3155 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3156 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3157 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3158 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3159 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3160 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3161 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3164 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3165 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3166 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3167 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3168 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3169 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3171 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3172 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3173 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3177 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3178 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3179 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3180 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3182 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3183 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3185 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3186 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3187 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3188 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3189 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3190 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3191 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3192 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3193 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3194 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3195 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3196 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3197 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C3198 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3199 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3201 1-124-779-00 ELECT CHIP 10UF 20.00% 16V
C3204 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3205 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3206 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C3207 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3208 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3209 1-126-205-11 ELECT CHIP 47UF 20.00% 6.3V
C3210 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C3211 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3212 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3213 1-126-205-11 ELECT CHIP 47UF 20.00% 6.3V
C3214 1-126-206-11 ELECT CHIP 100UF 20.00% 6.3V
C3215 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3218 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3219 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3220 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3221 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3222 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3223 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3224 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3225 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C3226 1-126-206-11 ELECT CHIP 100UF 20.00% 6.3V
C3227 1-126-204-11 ELECT CHIP 47UF 20.00% 16V
C3228 1-107-726-91 CERAMIC CHIP 0.01UF 10.00% 16V
C3229 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3230 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3231 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3232 1-107-726-91 CERAMIC CHIP 0.01UF 10.00% 16V
C3233 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3234 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3235 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C3236 1-107-726-91 CERAMIC CHIP 0.01UF 10.00% 16V
C3237 1-126-206-11 ELECT CHIP 100UF 20.00% 6.3V
C3240 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
<CONNECTOR>
CN1000 1-573-290-21 PIN, CONNECTOR (1.5MM) (SMD)4P
CN1001 1-766-382-21 PIN, CONNECTOR (1.5MM)(SMD)10P
CN1003 1-783-966-11 CONNECTOR, BOARD TO BOARD 30P
CN1004 1-783-966-11 CONNECTOR, BOARD TO BOARD 30P
<DIODE>
D1001 8-719-423-10 DIODE MA8100-M-TX
D1002 8-719-423-10 DIODE MA8100-M-TX
D1003 8-719-423-10 DIODE MA8100-M-TX
B1
– 103 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
D1004 8-719-423-10 DIODE MA8100-M-TX
D1005 8-719-423-10 DIODE MA8100-M-TX
D1006 8-719-423-10 DIODE MA8100-M-TX
<FERRITE BEAD>
FB1000 1-543-949-22 FERRITE 0UH
FB1001 1-543-949-22 FERRITE 0UH
FB1002 1-543-949-22 FERRITE 0UH
FB1003 1-543-949-22 FERRITE 0UH
FB1004 1-543-949-22 FERRITE 0UH
FB1005 1-543-949-22 FERRITE 0UH
FB1006 1-543-949-22 FERRITE 0UH
FB1010 1-414-229-11 FERRITE 0UH
FB1011 1-414-229-11 FERRITE 0UH
FB1012 1-414-229-11 FERRITE 0UH
<FILTER>
FL1000 1-234-177-21 FERRITE 0UH
FL1001 1-234-177-21 FERRITE 0UH
FL1002 1-234-177-21 FERRITE 0UH
FL3102 1-234-177-21 FERRITE 0UH
FL3103 1-234-177-21 FERRITE 0UH
FL3104 1-234-177-21 FERRITE 0UH
FL3105 1-234-177-21 FERRITE 0UH
FL3109 1-234-177-21 FERRITE 0UH
<IC>
IC1000 6-806-911-01 IC M30622MWP-B04GP#U0
IC1002 8-759-488-29 IC TC7W66FU(TE12R)
IC1003 6-705-870-01 IC CAT24WC32WI-TE13
IC1004 6-801-375-01 IC PST9129NL
IC1005 6-710-231-01 IC PH-74HC02
IC1006 8-759-488-29 IC TC7W66FU(TE12R)
IC3100 6-706-155-01 IC MT48LC2M32B2P-6:G
IC3101 8-759-832-05 IC BA18BC0FP-E2
IC3102 6-710-242-01 IC SVPEX12-LF
IC3103 6-706-929-01 IC TA1287FG(EL)
<CHIP CONDUCTOR>
JR3000 1-216-864-11 SHORT CHIP 0
<COIL>
L1000 1-469-555-21 INDUCTOR 10UH
L1001 1-469-555-21 INDUCTOR 10UH
L1003 1-469-555-21 INDUCTOR 10UH
L3101 1-400-179-21 FERRITE 0UH
L3102 1-400-179-21 FERRITE 0UH
L3103 1-400-179-21 FERRITE 0UH
L3104 1-400-179-21 FERRITE 0UH
L3105 1-414-394-11 INDUCTOR 2.2UH
L3106 1-414-394-11 INDUCTOR 2.2UH
L3107 1-414-394-11 INDUCTOR 2.2UH
L3108 1-414-394-11 INDUCTOR 2.2UH
L3111 1-414-394-11 INDUCTOR 2.2UH
L3112 1-469-555-21 INDUCTOR 10UH
L3114 1-469-555-21 INDUCTOR 10UH
<TRANSISTOR>
Q1000 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1001 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1002 8-729-600-22 TRANSISTOR 2SA1235-F
Q1003 8-729-600-22 TRANSISTOR 2SA1235-F
Q1004 8-729-600-22 TRANSISTOR 2SA1235-F
Q1005 8-729-600-22 TRANSISTOR 2SA1235-F
Q1006 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q1007 1-801-806-11 TRANSISTOR DTC144EKA
Q1008 8-729-038-67 TRANSISTOR KRC102S
Q1009 1-801-806-11 TRANSISTOR DTC144EKA
Q1010 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q3101 8-729-045-62 TRANSISTOR 2SK2158-T2B
Q3102 8-729-045-62 TRANSISTOR 2SK2158-T2B
Q3103 8-729-600-22 TRANSISTOR 2SA1235-F
<RESISTOR>
R1002 1-216-809-11 METAL CHIP 100 5% 1/10W
R1003 1-216-809-11 METAL CHIP 100 5% 1/10W
R1004 1-216-809-11 METAL CHIP 100 5% 1/10W
R1005 1-216-864-11 SHORT CHIP 0
R1006 1-216-864-11 SHORT CHIP 0
R1007 1-216-864-11 SHORT CHIP 0
R1008 1-216-864-11 SHORT CHIP 0
R1009 1-216-809-11 METAL CHIP 100 5% 1/10W
R1010 1-216-809-11 METAL CHIP 100 5% 1/10W
R1011 1-216-809-11 METAL CHIP 100 5% 1/10W
R1014 1-216-809-11 METAL CHIP 100 5% 1/10W
R1015 1-216-864-11 SHORT CHIP 0
R1017 1-216-864-11 SHORT CHIP 0
R1020 1-216-864-11 SHORT CHIP 0
R1021 1-216-864-11 SHORT CHIP 0
R1022 1-216-864-11 SHORT CHIP 0
R1024 1-216-864-11 SHORT CHIP 0
R1026 1-216-809-11 METAL CHIP 100 5% 1/10W
R1027 1-216-809-11 METAL CHIP 100 5% 1/10W
R1028 1-216-809-11 METAL CHIP 100 5% 1/10W
R1029 1-216-809-11 METAL CHIP 100 5% 1/10W
R1030 1-216-809-11 METAL CHIP 100 5% 1/10W
R1032 1-216-809-11 METAL CHIP 100 5% 1/10W
R1033 1-216-809-11 METAL CHIP 100 5% 1/10W
R1034 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1035 1-216-809-11 METAL CHIP 100 5% 1/10W
R1036 1-216-809-11 METAL CHIP 100 5% 1/10W
R1037 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1038 1-216-809-11 METAL CHIP 100 5% 1/10W
R1041 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1042 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1043 1-216-809-11 METAL CHIP 100 5% 1/10W
R1044 1-216-797-11 METAL CHIP 10 5% 1/10W
R1045 1-216-797-11 METAL CHIP 10 5% 1/10W
R1046 1-216-809-11 METAL CHIP 100 5% 1/10W
R1047 1-216-809-11 METAL CHIP 100 5% 1/10W
R1048 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1049 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1050 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1051 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1052 1-216-845-11 METAL CHIP 100K 5% 1/10W
R1053 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1054 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
B1
– 104 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
R1055 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1056 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1057 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1058 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1059 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1060 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1061 1-216-821-11 METAL CHIP 1K 5% 1/10W
R1064 1-216-809-11 METAL CHIP 100 5% 1/10W
R1065 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1066 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1067 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1068 1-216-809-11 METAL CHIP 100 5% 1/10W
R1070 1-216-864-11 SHORT CHIP 0
R1071 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1073 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1074 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1075 1-216-809-11 METAL CHIP 100 5% 1/10W
R1076 1-216-809-11 METAL CHIP 100 5% 1/10W
R1078 1-216-864-11 SHORT CHIP 0
R1081 1-216-864-11 SHORT CHIP 0
R1082 1-216-864-11 SHORT CHIP 0
R1083 1-216-864-11 SHORT CHIP 0
R1085 1-216-864-11 SHORT CHIP 0
R1086 1-216-864-11 SHORT CHIP 0
R1087 1-216-864-11 SHORT CHIP 0
R1088 1-216-809-11 METAL CHIP 100 5% 1/10W
R1089 1-216-813-11 METAL CHIP 220 5% 1/10W
R1090 1-216-813-11 METAL CHIP 220 5% 1/10W
R1091 1-216-813-11 METAL CHIP 220 5% 1/10W
R1092 1-216-864-11 SHORT CHIP 0
R1093 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1094 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1095 1-216-837-11 METAL CHIP 22K 5% 1/10W
R1099 1-216-864-11 SHORT CHIP 0
R1100 1-216-841-11 METAL CHIP 47K 5% 1/10W
R1101 1-216-809-11 METAL CHIP 100 5% 1/10W
R1102 1-216-809-11 METAL CHIP 100 5% 1/10W
R1103 1-216-809-11 METAL CHIP 100 5% 1/10W
R1104 1-216-809-11 METAL CHIP 100 5% 1/10W
R1105 1-216-809-11 METAL CHIP 100 5% 1/10W
R1106 1-216-864-11 SHORT CHIP 0
R1108 1-216-864-11 SHORT CHIP 0
R1109 1-216-864-11 SHORT CHIP 0
R1110 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1111 1-216-809-11 METAL CHIP 100 5% 1/10W
R1113 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R1114 1-216-864-11 SHORT CHIP 0
R1115 1-216-864-11 SHORT CHIP 0
R1116 1-216-864-11 SHORT CHIP 0
R1121 1-216-864-11 SHORT CHIP 0
R1122 1-216-864-11 SHORT CHIP 0
R1145 1-216-864-11 SHORT CHIP 0
R1146 1-218-285-11 METAL CHIP 75 5% 1/10W
R1147 1-216-805-11 METAL CHIP 47 5% 1/10W
R1148 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1149 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R1150 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1151 1-216-833-11 METAL CHIP 10K 5% 1/10W
R1156 1-216-809-11 METAL CHIP 100 5% 1/10W
R1157 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R1158 1-216-864-11 SHORT CHIP 0
R3101 1-216-864-11 SHORT CHIP 0
R3103 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3110 1-211-987-11 METAL CHIP 56 0.50% 1/10W
R3111 1-211-987-11 METAL CHIP 56 0.50% 1/10W
R3112 1-211-987-11 METAL CHIP 56 0.50% 1/10W
R3115 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3118 1-216-809-11 METAL CHIP 100 5% 1/10W
R3119 1-216-818-11 METAL CHIP 560 5% 1/10W
R3125 1-216-864-11 SHORT CHIP 0
R3126 1-216-864-11 SHORT CHIP 0
R3127 1-216-801-11 METAL CHIP 22 5% 1/10W
R3128 1-216-841-11 METAL CHIP 47K 5% 1/10W
R3129 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R3131 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R3132 1-216-841-11 METAL CHIP 47K 5% 1/10W
R3134 1-216-801-11 METAL CHIP 22 5% 1/10W
R3135 1-216-864-11 SHORT CHIP 0
R3136 1-216-864-11 SHORT CHIP 0
R3137 1-216-864-11 SHORT CHIP 0
R3138 1-216-864-11 SHORT CHIP 0
R3139 1-216-864-11 SHORT CHIP 0
R3140 1-216-864-11 SHORT CHIP 0
R3141 1-216-864-11 SHORT CHIP 0
R3145 1-216-864-11 SHORT CHIP 0
R3146 1-216-864-11 SHORT CHIP 0
R3147 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3149 1-216-841-11 METAL CHIP 47K 5% 1/10W
R3150 1-218-285-11 METAL CHIP 75 5% 1/10W
R3151 1-218-285-11 METAL CHIP 75 5% 1/10W
R3152 1-216-864-11 SHORT CHIP 0
R3155 1-216-864-11 SHORT CHIP 0
R3156 1-216-864-11 SHORT CHIP 0
R3157 1-216-864-11 SHORT CHIP 0
R3158 1-216-864-11 SHORT CHIP 0
R3159 1-216-805-11 METAL CHIP 47 5% 1/10W
R3160 1-216-805-11 METAL CHIP 47 5% 1/10W
R3161 1-216-805-11 METAL CHIP 47 5% 1/10W
R3162 1-216-805-11 METAL CHIP 47 5% 1/10W
R3163 1-216-864-11 SHORT CHIP 0
R3164 1-216-864-11 SHORT CHIP 0
R3165 1-216-841-11 METAL CHIP 47K 5% 1/10W
R3166 1-216-833-11 METAL CHIP 10K 5% 1/10W
R3167 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3168 1-216-821-11 METAL CHIP 1K 5% 1/10W
R3173 1-216-864-11 SHORT CHIP 0
R3176 1-216-864-11 SHORT CHIP 0
R3177 1-216-805-11 METAL CHIP 47 5% 1/10W
R3178 1-216-805-11 METAL CHIP 47 5% 1/10W
R3179 1-216-805-11 METAL CHIP 47 5% 1/10W
R3180 1-216-805-11 METAL CHIP 47 5% 1/10W
R3181 1-216-801-11 METAL CHIP 22 5% 1/10W
R3182 1-216-864-11 SHORT CHIP 0
R3183 1-216-805-11 METAL CHIP 47 5% 1/10W
R3187 1-216-864-11 SHORT CHIP 0
R3188 1-216-809-11 METAL CHIP 100 5% 1/10W
<RESISTOR BRIDGE>
RB1002 1-233-576-11 RES, CHIP NETWORK 100 (3216)
RB1003 1-233-576-11 RES, CHIP NETWORK 100 (3216)
B1
– 105 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
RB3106 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3107 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3108 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3109 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3110 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3111 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3112 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3113 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3114 1-233-575-11 RES, CHIP NETWORK 22 (3216)
RB3115 1-233-575-11 RES, CHIP NETWORK 22 (3216)
RB3116 1-233-575-11 RES, CHIP NETWORK 22 (3216)
RB3117 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3118 1-239-409-11 NETWORK RESISTOR(CHIP) 47
RB3119 1-239-409-11 NETWORK RESISTOR(CHIP) 47
<CRYSTAL>
X1000 1-813-887-11 VIBRATOR, CRYSTAL (SMD)
X3101 1-795-790-21 VIBRATOR, CRYSTAL
************************************************************************
* A-1215-580-A MOUNTED PWB (VAR), C (KV-DZ29M30)
* A-1199-551-A MOUNTED PWB (VAR), C (Except KV-DZ29M30)
******************************************
4-382-854-01 SCREW (M3X8), P, SW (+)
<CAPACITOR>
C9002 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9003 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9004 1-115-350-51 CERAMIC 0.0047UF 2KV
C9005 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9006 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9007 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9008 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9009 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9010 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9011 1-136-207-11 MYLAR 0.047UF 5.00% 630V
C9012 1-136-207-11 MYLAR 0.047UF 5.00% 630V
C9014 1-136-207-11 MYLAR 0.047UF 5.00% 630V
C9015 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V
C9016 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V
C9018 1-107-961-91 ELECT 10UF 20% 250V
C9019 1-100-756-91 CERAMIC CHIP 0.047UF 50V
C9020 1-107-961-91 ELECT 10UF 20% 250V
C9021 1-107-961-91 ELECT 10UF 20% 250V
C9022 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C9023 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C9024 1-100-756-91 CERAMIC CHIP 0.047UF 50V
C9025 1-126-934-11 ELECT 220UF 20.00% 16V
C9026 1-100-756-91 CERAMIC CHIP 0.047UF 50V
C9027 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C9028 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C9029 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C9030 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C9031 1-115-350-51 CERAMIC 0.0047UF 2KV
C9032 1-162-116-00 CERAMIC 680PF 10.00% 2KV
C9033 1-107-662-11 ELECT 22UF 20.00% 350V
C9035 1-115-350-51 CERAMIC 0.0047UF 2KV
C9042 1-126-940-11 ELECT 330UF 20.00% 25V
C9047 1-107-651-11 ELECT 4.7UF 20.00% 250V
C9048 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V
<CONNECTOR>
* CN9001 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P
CN9002 1-691-765-11 PLUG (MICRO CONNECTOR) 3P
CN9003 1-695-915-11 TAB (CONTACT)
CN9004 1-695-915-11 TAB (CONTACT)
<DIODE>
D9002 8-719-400-75 DIODE MA3091
D9005 8-719-404-50 DIODE MA111-TX
D9006 8-719-051-85 DIODE HSS83TD-E
D9007 8-719-051-85 DIODE HSS83TD-E
D9008 8-719-051-85 DIODE HSS83TD-E
D9009 8-719-908-03 DIODE GP08D
D9010 8-719-110-17 DIODE RD10ESB2
D9014 8-719-991-33 DIODE 1SS133T-77
D9015 8-719-991-33 DIODE 1SS133T-77
<IC>
IC9001 8-759-360-83 IC TDA6111Q/N4
IC9002 8-759-360-83 IC TDA6111Q/N4
IC9003 8-759-360-83 IC TDA6111Q/N4
<JACK>
J9001 !1-451-544-11 SOCKET, CRT
<COIL>
L9002 1-414-855-31 INDUCTOR 1UH
L9003 1-414-855-31 INDUCTOR 1UH
L9004 1-414-855-31 INDUCTOR 1UH
L9005 1-406-666-21 INDUCTOR 150UH
L9006 1-412-520-11 INDUCTOR 3.9UH
L9007 1-414-187-11 INDUCTOR 47UH
L9008 1-414-187-11 INDUCTOR 47UH
L9009 1-414-187-11 INDUCTOR 47UH
<TRANSISTOR>
Q9001 8-729-600-22 TRANSISTOR 2SA1235-F
Q9009 8-729-600-22 TRANSISTOR 2SA1235-F
Q9010 8-729-600-22 TRANSISTOR 2SA1235-F
Q9011 8-729-600-22 TRANSISTOR 2SA1235-F
Q9012 8-729-823-81 TRANSISTOR 2SC4632LS-CB7
<RESISTOR>
R9001 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R9006 1-216-833-11 METAL CHIP 10K 5% 1/10W
R9007 1-218-854-11 METAL CHIP 2K 0.50% 1/10W
R9008 1-216-839-11 METAL CHIP 33K 5% 1/10W
R9011 1-216-864-11 SHORT CHIP 0
R9012 1-216-821-11 METAL CHIP 1K 5% 1/10W
R9013 1-216-821-11 METAL CHIP 1K 5% 1/10W
B1C
– 106 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
R9018 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R9019 1-216-826-11 METAL CHIP 2.7K 5% 1/10W
R9021 1-216-864-11 SHORT CHIP 0
R9023 1-216-864-11 SHORT CHIP 0
R9024 1-216-833-11 METAL CHIP 10K 5% 1/10W
R9025 1-260-123-11 CARBON 100K 5% 1/2W
R9026 1-218-854-11 METAL CHIP 2K 0.50% 1/10W
R9027 1-216-864-11 SHORT CHIP 0
R9028 1-216-864-11 SHORT CHIP 0
R9029 1-260-123-11 CARBON 100K 5% 1/2W
R9031 1-218-854-11 METAL CHIP 2K 0.50% 1/10W
R9033 1-218-873-11 METAL CHIP 12K 0.50% 1/10W
R9034 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R9035 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W
R9036 1-216-821-11 METAL CHIP 1K 5% 1/10W
R9037 1-240-233-71 METAL OXIDE 100K 5% 3W
R9038 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W
R9039 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W
R9041 1-216-821-11 METAL CHIP 1K 5% 1/10W
R9042 1-216-821-11 METAL CHIP 1K 5% 1/10W
R9043 1-240-233-71 METAL OXIDE 100K 5% 3W
R9044 1-240-233-71 METAL OXIDE 100K 5% 3W
R9047 1-219-744-11 METAL 220 5% 1/2W
R9048 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R9049 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R9050 1-249-424-11 CARBON 3.9K 5% 1/4W
R9051 1-219-744-11 METAL 220 5% 1/2W
R9052 1-219-744-11 METAL 220 5% 1/2W
R9053 1-249-424-11 CARBON 3.9K 5% 1/4W
R9054 1-249-424-11 CARBON 3.9K 5% 1/4W
R9056 1-219-750-91 METAL 22K 5% 1/2W
R9057 1-220-827-91 METAL 560K 5% 1/2W
R9059 1-219-746-11 METAL 1K 5% 1/2W
R9061 1-219-743-11 METAL 100 5% 1/2W
R9065 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R9068 1-216-847-11 METAL CHIP 150K 5% 1/10W
R9069 1-219-743-11 METAL 100 5% 1/2W
R9070 1-218-823-11 METAL CHIP 100 0.50% 1/10W
R9071 1-216-805-11 METAL CHIP 47 5% 1/10W
R9072 1-218-823-11 METAL CHIP 100 0.50% 1/10W
R9073 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
<VARIABLE RESISTOR>
RV9001 1-241-656-21 RES, ADJ, METAL FILM 110M
<SPARK GAP>
SG9001 1-519-421-11 GAP, DISCHARGE
************************************************************************
* A-1215-604-A COMPLETE PWB, D (KV-DZ29M30)
* A-1216-668-A COMPLETE PWB, D (KV-DZ29M61(Malaysia))
* A-1199-560-A COMPLETE PWB, D (KV-DZ29M61(GE))
* A-1215-638-A COMPLETE PWB, D (KV-DZ29M91)
********************************
1-543-298-11 FERRITE 0UH
4-382-854-01 SCREW (M3X8), P, SW (+)
4-382-854-11 SCREW (M3X10), P, SW (+)
<CAPACITOR>
C6100 1-161-830-00 CERAMIC 0.0047UF 500V
C6100 (KV-DZ29M61(GE))
C6101 1-107-680-91 ELECT 22UF 20.00% 450V
C6101 (KV-DZ29M61(GE))
C6102 1-161-830-00 CERAMIC 0.0047UF 500V
C6102 (KV-DZ29M61(GE))
C6103 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C6103 (KV-DZ29M61(GE))
C6104 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C6104 (KV-DZ29M61(GE))
C6105 1-164-156-11 CERAMIC CHIP 0.1UF 25V
C6105 (KV-DZ29M61(GE))
C6106 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V
C6106 (KV-DZ29M61(GE))
C6107 1-137-605-11 MYLAR 0.01UF 10.00% 250V
C6107 (KV-DZ29M61(GE))
C6108 1-161-830-00 CERAMIC 0.0047UF 500V
C6108 (KV-DZ29M61(GE))
C6109 1-126-971-11 ELECT 470UF 20.00% 50V
C6109 (KV-DZ29M61(GE))
C6110 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C6110 (KV-DZ29M61(GE))
C6111 1-161-830-00 CERAMIC 0.0047UF 500V
C6111 (KV-DZ29M61(GE))
C6113 1-126-965-91 ELECT 22UF 20.00% 50V
C6113 (KV-DZ29M61(GE))
C6115 1-126-941-11 ELECT 470UF 20.00% 25V
C6115 (KV-DZ29M61(GE))
C6115 1-126-942-61 ELECT 1000UF 20.00% 25V
C6115 (Except KV-DZ29M61(GE))
C6117 1-126-971-11 ELECT 470UF 20.00% 50V
C6117 (Except KV-DZ29M61(GE))
C6118 1-161-964-91 CERAMIC 0.0047UF 250V
C6118 (Except KV-DZ29M61(GE))
C6119 1-161-964-91 CERAMIC 0.0047UF 250V
C6119 (Except KV-DZ29M61(GE))
C6600 1-128-550-11 ELECT 2200UF 20.00% 50V
C6601 1-126-967-11 ELECT 47UF 20.00% 50V
C6602 !1-165-529-31 MYLAR 0.22UF 10 0V
C6603 1-126-949-11 ELECT 220UF 20.00% 35V
C6604 1-126-934-11 ELECT 220UF 20.00% 16V
C6607 !1-119-893-51 CERAMIC 0.001UF 20.00% 250V
C6608 !1-119-893-51 CERAMIC 0.001UF 20.00% 250V
C6613 1-161-830-00 CERAMIC 0.0047UF 500V
C6614 1-161-830-00 CERAMIC 0.0047UF 500V
C6617 1-161-830-00 CERAMIC 0.0047UF 500V
C6619 1-161-830-00 CERAMIC 0.0047UF 500V
C6620 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C6621 1-131-940-11 ELECT 1200UF 20% 250V
C6621 (KV-DZ29M61(GE))
C6622 1-131-940-11 ELECT 1200UF 20% 250V
C6622 (KV-DZ29M61(GE))
C6625 1-126-933-11 ELECT 100UF 20.00% 16V
C6626 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C6628 1-164-156-11 CERAMIC CHIP 0.1UF 25V
C6629 1-117-753-11 ELECT(BLOCK) 470UF 20% 450V
C6629 (Except KV-DZ29M61(GE))
C6633 1-136-479-11 FILM 0.001UF 5.00% 100V
C6634 1-126-964-11 ELECT 10UF 20.00% 50V
C6635 1-126-963-11 ELECT 4.7UF 20.00% 50V
C D
– 107 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
C6636 1-125-891-11 CERAMIC CHIP 0.47UF 10.00% 10V
C6637 1-164-156-11 CERAMIC CHIP 0.1UF 25V
C6641 1-104-665-11 ELECT 100UF 20.00% 25V
C6641 (Except KV-DZ29M61(GE))
C6645 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C6647 1-126-964-11 ELECT 10UF 20.00% 50V
C6648 1-164-143-11 CERAMIC 0.001UF 10.00% 1KV
C6649 1-164-143-11 CERAMIC 0.001UF 10.00% 1KV
C6650 1-125-969-91 CERAMIC 680PF 10.00% 1KV
C6651 1-125-969-91 CERAMIC 680PF 10.00% 1KV
C6652 1-110-626-11 ELECT 330UF 20.00% 160V
C6653 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V
C6654 1-126-936-11 ELECT 3300UF 20.00% 16V
C6655 1-126-943-11 ELECT 2200UF 20.00% 25V
C6658 1-104-330-91 CERAMIC 470PF 10.00% 1KV
C6659 1-126-967-11 ELECT 47UF 20.00% 50V
C6660 1-126-960-11 ELECT 1UF 20.00% 50V
C6661 1-126-947-11 ELECT 47UF 20.00% 35V
C6662 1-126-947-11 ELECT 47UF 20.00% 35V
C6668 1-126-947-11 ELECT 47UF 20.00% 35V
C6669 1-125-969-91 CERAMIC 680PF 10.00% 1KV
C6670 1-125-969-91 CERAMIC 680PF 10.00% 1KV
C6672 1-165-953-11 FILM 47000PF 3% 800V
C6673 1-137-528-11 MYLAR 0.1UF 10.00% 250V
C6674 1-126-941-11 ELECT 470UF 20.00% 25V
C6678 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C6682 1-126-941-11 ELECT 470UF 20.00% 25V
C6682 (Except KV-DZ29M61(GE))
C6686 1-126-947-11 ELECT 47UF 20.00% 35V
C6688 1-126-965-91 ELECT 22UF 20.00% 50V
C6688 (Except KV-DZ29M61(GE))
C6692 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V
C6693 1-126-965-91 ELECT 22UF 20.00% 50V
C6800 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C6801 1-162-966-11 CERAMIC CHIP 0.0022UF 10.00% 50V
C6802 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C6803 1-107-639-11 ELECT 47UF 20.00% 160V
C6805 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C6806 1-162-318-11 CERAMIC 0.001UF 10.00% 500V
C6807 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C6808 1-106-383-00 MYLAR 0.047UF 10.00% 200V
C6809 1-102-228-00 CERAMIC 470PF 10.00% 500V
C6811 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C6812 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
C6814 1-107-889-11 ELECT 220UF 20% 25V
C6816 1-126-941-11 ELECT 470UF 20.00% 25V
C6817 1-164-227-11 CERAMIC CHIP 0.022UF 10.00% 25V
C6820 1-126-941-11 ELECT 470UF 20.00% 25V
C6822 1-126-968-11 ELECT 100UF 20.00% 50V
C6823 1-117-815-11 FILM 1000PF 3.00% 1.5KV
C6825 1-136-171-00 FILM 0.33UF 5.00% 50V
C6829 1-117-819-11 FILM 1500PF 3.00% 1.5KV
C6833 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C6834 1-107-907-11 ELECT 22UF 20% 50V
C6837 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C6838 1-162-116-00 CERAMIC 680PF 10.00% 2KV
C6839 1-162-116-00 CERAMIC 680PF 10.00% 2KV
C6840 1-106-359-00 MYLAR 0.0047UF 5.00% 100V
C6842 !1-117-644-21 FILM 10000PF 3.00% 1.2KV
C6844 !1-117-667-31 FILM 0.47UF 5% 250V
C6845 1-161-830-00 CERAMIC 0.0047UF 500V
C6846 1-106-371-00 MYLAR 0.015UF 99% 200V
C6847 !1-117-668-91 FILM 0.56UF 5% 250V
C6848 1-117-662-91 FILM 0.18UF 5% 250V
C6849 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C6850 1-117-627-21 FILM 2200PF 3.00% 1.2KV
C6851 1-107-635-11 ELECT 4.7UF 20.00% 160V
C6852 1-112-165-91 MYLAR 0.056UF 10% 250V
C6853 1-126-941-11 ELECT 470UF 20.00% 25V
C6854 1-102-228-00 CERAMIC 470PF 10.00% 500V
C6855 1-126-965-91 ELECT 22UF 20.00% 50V
C6857 1-128-582-11 ELECT 10UF 20.00% 100V
C6859 1-126-964-11 ELECT 10UF 20.00% 50V
C6860 1-126-933-11 ELECT 100UF 20.00% 16V
C6861 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V
C6863 1-106-359-00 MYLAR 0.0047UF 5.00% 100V
C6871 1-106-375-12 MYLAR 0.022UF 5.00% 200V
C6872 1-162-969-11 CERAMIC CHIP 0.0068UF 10.00% 25V
C6875 1-126-934-11 ELECT 220UF 20.00% 16V
C6876 1-165-441-81 ELECT 33UF 20% 160V
C6877 1-102-228-00 CERAMIC 470PF 10.00% 500V
C6878 1-126-941-11 ELECT 470UF 20.00% 25V
C6880 1-107-639-11 ELECT 47UF 20.00% 160V
C6881 1-102-228-00 CERAMIC 470PF 10.00% 500V
C6885 !1-117-838-11 FILM 8200PF 3.00% 1.5KV
C6889 1-162-318-11 CERAMIC 0.001UF 10.00% 500V
C6890 1-162-960-11 CERAMIC CHIP 220PF 10.00% 50V
C6892 1-104-665-11 ELECT 100UF 20.00% 25V
<CONNECTOR>
* CN6601 1-691-134-11 PIN, CONNECTOR (PC BOARD) 2P
CN6601 (Except KV-DZ29M61(GE))
* CN6602 1-508-786-00 PIN, CONNECTOR (5MM PITCH) 2P
* CN6603 1-573-963-11 PIN, CONNECTOR (PC BOARD) 3P
CN6603 (KV-DZ29M61(GE))
* CN6604!1-580-843-11 PIN, CONNECTOR (POWER)
* CN6605 1-779-892-11 CONNECTOR, BOARD TO BOARD 10P
* CN6607 1-691-960-11 PIN, CONNECTOR (PC BOARD) 3P
CN6607 (KV-DZ29M91)
* CN6606 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P
* CN6619 1-564-507-11 PLUG, CONNECTOR 4P
* CN6816 1-564-511-11 PLUG, CONNECTOR 8P
* CN6817 1-564-515-11 PLUG, CONNECTOR 12P
* CN6818 1-564-506-11 PLUG, CONNECTOR 3P
<DIODE>
D6100 8-719-077-76 DIODE D2SB60A-F04 (KV-DZ29M61(GE))
D6101 8-719-110-49 DIODE RD18ESB2 (KV-DZ29M61(GE))
D6102 8-719-057-76 DIODE MA8150-M-TX (KV-DZ29M61(GE))
D6103 8-719-404-50 DIODE MA111-TX (KV-DZ29M61(GE))
D6104 6-500-522-01 DIODE 10EDB40-TA1B2 (KV-DZ29M61(GE))
D6105 6-501-297-01 DIODE 1F6G (KV-DZ29M61(GE))
D6106 6-500-582-01 DIODE KBP153G-A2 (Except KV-DZ29M61(GE))
D6108 6-500-567-21 DIODE 10ERB20-TB5 (KV-DZ29M61(GE))
D6109 6-500-567-21 DIODE 10ERB20-TB5
D6600 8-719-404-50 DIODE MA111-TX
D6601 8-719-991-33 DIODE 1SS133T-77
D6605 8-719-510-22 DIODE D3SB60
D6607 8-719-404-50 DIODE MA111-TX
D
– 108 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
D6612 8-719-911-55 DIODE U05G (KV-DZ29M61(GE))
D6613 8-719-911-55 DIODE U05G (KV-DZ29M61(GE))
D6616 8-719-081-97 DIODE MMDL914T1 (Except KV-DZ29M61(GE))
D6617 8-719-083-82 DIODE UDZS-TE17-12B (Except KV-DZ29M61(GE))
D6618 6-500-105-01 DIODE ER106T/B
D6620 6-500-567-21 DIODE 10ERB20-TB5
D6622 8-719-923-86 DIODE MTZJ-T-77-15
D6631 8-719-050-18 DIODE D4SBL20U
D6633 6-501-303-01 DIODE RB085T-60
D6635 8-719-110-49 DIODE RD18ESB2
D6639 8-719-027-43 DIODE S2L20UF
D6640 8-719-036-43 DIODE MA4300-H(TA)
D6641 8-719-109-97 DIODE RD6.8ESB2
D6644 8-719-052-92 DIODE D10SBS4F
D6654 8-719-052-92 DIODE D10SBS4F
D6661 8-719-923-86 DIODE MTZJ-T-77-15
D6662 8-719-923-86 DIODE MTZJ-T-77-15
D6664 8-719-991-33 DIODE 1SS133T-77 (KV-DZ29M61(GE))
D6664 8-719-970-83 DIODE HSS82-TJ (Except KV-DZ29M61(GE))
D6666 8-719-057-76 DIODE MA8150-M-TX
D6800 8-719-075-05 DIODE FR104-A5
D6801 8-719-404-50 DIODE MA111-TX
D6802 8-719-083-20 DIODE PG102R
D6803 8-719-422-97 DIODE MA8091-M
D6805 8-719-061-21 DIODE FMQ-G5FMS
D6806 8-719-061-21 DIODE FMQ-G5FMS
D6807 8-719-057-76 DIODE MA8150-M-TX
D6809 8-719-404-50 DIODE MA111-TX
D6817 8-719-510-73 DIODE S3L20UF4
D6818 6-500-968-01 DIODE 30PRA20
D6819 6-500-968-01 DIODE 30PRA20
D6820 8-719-991-33 DIODE 1SS133T-77
D6821 8-719-991-33 DIODE 1SS133T-77
D6826 8-719-422-23 DIODE MA8047
D6827 8-719-510-73 DIODE S3L20UF4
D6829 8-719-075-05 DIODE FR104-A5
D6832 8-719-404-50 DIODE MA111-TX
D6839 8-719-404-50 DIODE MA111-TX
D6841 8-719-404-50 DIODE MA111-TX
D6842 8-719-404-50 DIODE MA111-TX
D6843 8-719-404-50 DIODE MA111-TX
D6860 8-719-083-20 DIODE PG102R
D6883 8-719-083-20 DIODE PG102R
<DY CONNECTOR>
* DY1 1-580-798-11 CONNECTOR PIN (DY) 6P
<FERRITE BEAD>
FB6604 1-469-579-11 FERRITE 0.45UH
FB6605 1-469-579-11 FERRITE 0.45UH
FB6606 1-469-578-11 FERRITE 1.1UH
FB6607 1-469-579-11 FERRITE 0.45UH
FB6608 1-469-579-11 FERRITE 0.45UH
FB6609 1-469-579-11 FERRITE 0.45UH
FB6611 1-239-358-21 FILTER, NOISE
FB6612 1-239-358-21 FILTER, NOISE
FB6800 1-410-397-21 FERRITE 1.1UH
FB6801 1-410-397-21 FERRITE 1.1UH
<IC>
IC6600 6-705-810-01 IC MCZ3001DB
IC6602 8-759-052-52 IC L78M05T-FA
IC6604 6-708-421-01 IC KIA78D12PI
IC6607 6-704-264-01 IC EK1135
IC6609 6-705-756-01 IC BA33BC0WFP-E2
IC6800 6-703-708-01 IC LM2903DT
IC6801 8-759-593-33 IC LA78045
<CHIP CONDUCTOR>
JR601 1-216-864-11 SHORT CHIP 0
JR606 1-216-295-91 SHORT CHIP 0
JR608 1-216-864-11 SHORT CHIP 0 (KV-DZ29M61(GE))
JR610 1-216-864-11 SHORT CHIP 0
JR611 1-216-864-11 SHORT CHIP 0 (KV-DZ29M61(GE))
JR612 1-216-295-91 SHORT CHIP 0
JR800 1-216-864-11 SHORT CHIP 0
JR803 1-216-864-11 SHORT CHIP 0
JR804 1-216-864-11 SHORT CHIP 0
JR807 1-216-864-11 SHORT CHIP 0
JR6601 1-216-864-11 SHORT CHIP 0 (Except KV-DZ29M61(GE))
JR6602 1-216-864-11 SHORT CHIP 0 (Except KV-DZ29M61(GE))
JR6606 1-216-864-11 SHORT CHIP 0 (KV-DZ29M61(GE))
JR6608 1-216-295-91 SHORT CHIP 0
JR6681 1-216-864-11 SHORT CHIP 0
<COIL>
L6600 1-412-529-11 INDUCTOR 22UH
L6603 1-414-856-11 INDUCTOR 10UH
L6604 1-412-525-31 INDUCTOR 10UH
L6605 1-412-525-31 INDUCTOR 10UH
L6606 1-412-525-31 INDUCTOR 10UH
L6607 1-406-656-21 INDUCTOR 3.3UH
L6608 1-412-525-31 INDUCTOR 10UH
L6800 1-414-187-11 INDUCTOR 47UH
L6803 1-419-633-21 INDUCTOR 10MH
L6804 1-406-665-11 INDUCTOR 100UH
L6805 1-456-939-21 INDUCTOR 33UH
L6806 1-412-552-11 INDUCTOR 2.2MH
L6807 1-419-633-21 INDUCTOR 10MH
L6809 1-406-983-11 INDUCTOR 1MH
L6811 1-412-526-11 INDUCTOR 12UH
L6812 1-412-552-11 INDUCTOR 2.2MH
L6815 1-414-496-25 INDUCTOR 10MH
<PHOTO COUPLER>
PH6601 !8-749-924-35 PHOTO COUPLER ON3171-R (KV-DZ29M61(GE))
PH6602 !8-749-924-35 PHOTO COUPLER ON3171-R
<IC LINK>
PS6602 !1-533-597-42 IC LINK 5A 90V
PS6603 !1-533-597-42 IC LINK 5A 90V
PS6604 !1-533-597-42 IC LINK 5A 90V
PS6605 1-533-597-41 IC LINK 5A 90V
PS6606 1-533-597-41 IC LINK 5A 90V
D
– 109 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
PS6607 !1-533-597-42 IC LINK 5A 90V
PS6801 1-533-588-42 IC LINK 0.5A 90V
<TRANSISTOR>
Q6100 8-729-046-40 TRANSISTOR 2SK2663 (KV-DZ29M61(GE))
Q6102 8-729-023-22 TRANSISTOR 2SD2114K (KV-DZ29M61(GE))
Q6600 6-550-882-01 TRANSISTOR 2SK3568(LBS2SONY,Q
Q6601 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6603 6-550-882-01 TRANSISTOR 2SK3568(LBS2SONY,Q
Q6606 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6607 8-729-600-22 TRANSISTOR 2SA1235-F
Q6608 8-729-016-42 TRANSISTOR KTC3199GR-TP
Q6613 8-729-038-67 TRANSISTOR KRC102S
Q6800 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6801 6-551-116-01 TRANSISTOR 2SK2381
Q6802 6-551-087-01 TRANSISTOR 2SC5931001S0
Q6804 6-550-362-01 TRANSISTOR KTA1279
Q6807 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6808 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6809 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6810 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6811 8-729-600-22 TRANSISTOR 2SA1235-F
Q6812 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6813 8-729-600-22 TRANSISTOR 2SA1235-F
Q6814 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6815 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6816 8-729-600-22 TRANSISTOR 2SA1235-F
Q6817 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6818 6-551-129-01 TRANSISTOR 2SK3462
Q6819 8-729-120-28 TRANSISTOR 2SC1623-L5L6
<RESISTOR>
R6100 1-260-298-51 CARBON 3.3 5% 1/2W
R6100 (KV-DZ29M61(GE))
R6101 1-216-819-11 METAL CHIP 680 5% 1/10W
R6101 (KV-DZ29M61(GE))
R6102 1-249-389-11 CARBON 4.7 5% 1/4W
R6102 (KV-DZ29M61(GE))
R6103 1-216-801-11 METAL CHIP 22 5% 1/10W
R6103 (KV-DZ29M61(GE))
R6104 1-240-205-91 METAL 22M 5% 1/2W
R6104 (KV-DZ29M61(GE))
R6105 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6105 (KV-DZ29M61(GE))
R6106 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R6106 (KV-DZ29M61(GE))
R6107 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6107 (KV-DZ29M61(GE))
R6108 1-215-493-00 METAL 1M 1% 1/4W
R6108 (KV-DZ29M61(GE))
R6110 1-216-817-11 METAL CHIP 470 5% 1/10W
R6110 (KV-DZ29M61(GE))
R6600 1-216-864-11 SHORT CHIP 0
R6602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6622 1-220-797-11 METAL 0.47 5% 10W
R6625 1-215-864-00 METAL OXIDE 150 5% 1W
R6625 (KV-DZ29M61(GE))
R6625 1-243-683-71 METAL OXIDE 47 5% 1W
R6625 (Except KV-DZ29M61(GE))
R6626 1-208-805-11 METAL CHIP 9.1K 0.50% 1/10W
R6627 1-208-840-11 METAL CHIP 270K 0.50% 1/10W
R6629 1-218-760-11 METAL CHIP 220K 0.50% 1/10W
R6630 1-218-760-11 METAL CHIP 220K 0.50% 1/10W
R6631 1-218-873-11 METAL CHIP 12K 0.50% 1/10W
R6632 1-218-823-11 METAL CHIP 100 0.50% 1/10W
R6638 1-220-797-11 METAL 0.47 5% 10W
R6638 (KV-DZ29M61(GE))
R6638 1-205-998-11 METAL 1 5% 10W
R6638 (Except KV-DZ29M61(GE))
R6641 1-260-131-11 CARBON 470K 5% 1/2W
R6641 (KV-DZ29M61(GE))
R6642 1-260-131-11 CARBON 470K 5% 1/2W
R6642 (KV-DZ29M61(GE))
R6644 1-249-417-11 CARBON 1K 5% 1/4W
R6645 1-242-949-11 FUSIBLE 0.1 10% 1W
R6646 1-220-797-11 METAL 0.47 5% 10W
R6647 1-218-835-11 METAL CHIP 330 0.50% 1/10W
R6653 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6657 1-216-842-11 METAL CHIP 56K 5% 1/10W
R6658 1-249-393-11 CARBON 10 5% 1/4W
R6659 1-249-393-11 CARBON 10 5% 1/4W
R6660 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6662 1-220-797-11 METAL 0.47 5% 10W
R6662 (KV-DZ29M61(GE))
R6662 1-205-998-11 METAL 1 5% 10W
R6662 (Except KV-DZ29M61(GE))
R6663 1-208-840-11 METAL CHIP 270K 0.50% 1/10W
R6665 1-260-135-11 CARBON 1M 5% 1/2W
R6666 1-216-864-11 SHORT CHIP 0
R6668 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6669 1-249-417-11 CARBON 1K 5% 1/4W
R6669 (KV-DZ29M61(GE))
R6670 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6671 1-217-611-00 METAL 0.1 10% 2W
R6672 1-249-421-11 CARBON 2.2K 5% 1/4W
R6674 1-249-418-11 CARBON 1.2K 5% 1/4W
R6675 1-218-839-11 METAL CHIP 470 0.50% 1/10W
R6676 1-249-393-11 CARBON 10 5% 1/4W
R6677 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6679 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6685 1-249-421-11 CARBON 2.2K 5% 1/4W
R6686 !1-240-917-91 METAL 8.2M 5% 1W
R6688 1-249-417-11 CARBON 1K 5% 1/4W
R6689 1-249-389-11 CARBON 4.7 5% 1/4W
R6693 1-215-451-00 METAL 18K 1% 1/4W
R6694 1-215-471-00 METAL 120K 1% 1/4W
R6696 1-215-925-11 METAL OXIDE 22K 5% 3W
R6697 1-249-377-11 CARBON 0.47 5% 1/4W
R6704 1-219-134-11 FUSIBLE 0.1 10% 1/4W
R6710 1-217-158-00 METAL 0.47 10% 5W
R6716 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6719 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6723 1-220-797-11 METAL 0.47 5% 10W
R6723 (KV-DZ29M61(GE))
R6724 1-220-797-11 METAL 0.47 5% 10W
R6724 (KV-DZ29M61(GE))
R6725 1-216-835-11 METAL CHIP 15K 5% 1/10W
R6726 1-216-835-11 METAL CHIP 15K 5% 1/10W
R6800 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R6801 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
D
– 110 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
R6802 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6804 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6805 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6806 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6807 1-245-484-21 METAL 820K 1% 1/4W
R6808 1-216-813-11 METAL CHIP 220 5% 1/10W
R6809 1-216-864-11 SHORT CHIP 0
R6811 1-243-614-71 METAL OXIDE 4.7K 5% 3W
R6812 1-243-949-71 METAL OXIDE 0.47 5% 2W
R6813 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R6814 1-218-899-11 METAL CHIP 150K 0.50% 1/16W
R6817 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R6818 1-218-879-11 METAL CHIP 22K 0.50% 1/10W
R6819 1-216-837-11 METAL CHIP 22K 5% 1/10W
R6822 1-216-834-11 METAL CHIP 12K 5% 1/10W
R6824 1-249-383-11 CARBON 1.5 5% 1/4W
R6825 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6826 1-243-572-71 METAL OXIDE 470 5% 2W
R6828 1-245-478-21 METAL 470K 1% 1/4W
R6830 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R6831 1-260-107-11 CARBON 4.7K 5% 1/2W
R6833 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R6834 1-216-830-11 METAL CHIP 5.6K 5% 1/10W
R6837 1-216-864-11 SHORT CHIP 0
R6840 1-216-864-11 SHORT CHIP 0
R6841 1-249-377-11 CARBON 0.47 5% 1/4W
R6843 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6845 1-249-385-11 CARBON 2.2 5% 1/4W
R6848 1-215-864-00 METAL OXIDE 150 5% 1W
R6850 1-214-796-00 METAL 1.5 1% 1/2W
R6852 1-243-525-71 METAL OXIDE 33 5% 3W
R6856 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R6857 1-260-292-11 CARBON 1 5% 1/2W
R6858 1-243-515-71 METAL OXIDE 4.7 5% 3W
R6860 1-243-521-71 METAL OXIDE 15 5% 3W
R6861 1-243-527-71 METAL OXIDE 47 5% 3W
R6862 1-245-470-21 METAL 220K 1% 1/4W
R6863 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6864 1-243-957-71 METAL OXIDE 0.47 5% 3W
R6865 1-218-843-11 METAL CHIP 680 0.50% 1/10W
R6866 1-247-891-00 CARBON 330K 5% 1/4W
R6867 1-216-834-11 METAL CHIP 12K 5% 1/10W
R6868 1-245-470-21 METAL 220K 1% 1/4W
R6869 1-216-828-11 METAL CHIP 3.9K 5% 1/10W
R6870 1-216-460-71 METAL OXIDE 3.9K 5% 2W
R6871 1-243-572-71 METAL OXIDE 470 5% 2W
R6872 1-214-796-00 METAL 1.5 1% 1/2W
R6873 1-249-414-11 CARBON 560 5% 1/4W
R6877 1-215-439-00 METAL 5.6K 1% 1/4W
R6878 1-260-107-11 CARBON 4.7K 5% 1/2W
R6879 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6881 1-214-899-81 METAL 27K 1% 1/2W
R6883 1-243-525-71 METAL OXIDE 33 5% 3W
R6884 1-214-897-00 METAL 22K 1% 1/2W
R6885 1-215-895-71 METAL OXIDE 3.3K 5% 2W
R6887 1-218-859-11 METAL CHIP 3.3K 0.50% 1/10W
R6888 1-218-879-11 METAL CHIP 22K 0.50% 1/10W
R6895 1-243-614-71 METAL OXIDE 4.7K 5% 3W
R6896 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W
R6897 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W
R6901 1-218-901-11 METAL CHIP 180K 0.50% 1/10W
R6902 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6903 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R6904 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6905 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6906 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6907 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6908 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6909 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R6910 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6911 1-245-470-21 METAL 220K 1% 1/4W
R6912 1-260-292-11 CARBON 1 5% 1/2W
R6913 1-211-877-21 FUSIBLE 0.22 10% 1/2W
R6914 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6915 1-243-511-71 METAL OXIDE 2.2 5% 3W
R6916 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6917 1-216-845-11 METAL CHIP 100K 5% 1/10W
R6919 1-243-614-71 METAL OXIDE 4.7K 5% 3W
R6920 1-243-614-71 METAL OXIDE 4.7K 5% 3W
R6921 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6922 1-216-809-11 METAL CHIP 100 5% 1/10W
R6923 1-216-809-11 METAL CHIP 100 5% 1/10W
R6924 1-249-393-11 CARBON 10 5% 1/4W
R6925 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6926 1-215-915-21 METAL OXIDE 470 5% 3W
R6927 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6928 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6929 1-243-949-71 METAL OXIDE 0.47 5% 2W
R6930 1-215-880-00 METAL OXIDE 10 5% 2W
R6932 1-243-685-71 METAL OXIDE 68 5% 1W
R6933 1-218-847-11 METAL CHIP 1K 0.50% 1/10W
R6934 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6935 1-218-891-11 METAL CHIP 68K 0.50% 1/10W
R6936 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6937 1-216-864-11 SHORT CHIP 0
R6938 1-218-893-11 METAL CHIP 82K 0.50% 1/10W
R6939 1-218-873-11 METAL CHIP 12K 0.50% 1/10W
R6942 1-216-864-11 SHORT CHIP 0
R6945 1-216-864-11 SHORT CHIP 0
R6947 1-216-864-11 SHORT CHIP 0
<RELAY>
RY6601 !1-755-198-12 RELAY, AC POWER
RY6602 !1-755-516-11 RELAY, AC POWER (KV-DZ29M61 (GE))
RY6603 !1-755-516-11 RELAY, AC POWER
<SWITCH>
S6800 1-572-707-11 SWITCH, LEVER
S6801 1-572-707-11 SWITCH, LEVER
<TRANSFORMER>
T6100 !1-433-844-11 TRANSFORMER, CONVERTER (KV-DZ29M61(GE))
T6101 !1-437-483-21 TRANSFORMER, STANDBY
T6101 (Except KV-DZ29M61(GE))
T6602 !1-443-368-11 TRANSFORMER, CONVERTER (PIT)
T6801 !1-443-367-11 FERRITE TRANSFORMER (PMT)
D
– 111 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
T6802 !1-413-059-21 TRANSFORMER, FERRITE (DFT)
T6803 !1-443-618-11 HORIZONTALLINEARITYTRANSFORMER
T6805 !1-453-485-11 TRANSFORMER ASSY FLYBACK (NX-4901//M3B4)
T6805 (Except KV-DZ29M30)
T6805 !1-453-485-21 TRANSFORMER ASSY FLYBACK (NX-4901//M3B4)
T6805 (KV-DZ29M30)
T6806 !1-435-636-41 TRANSFORMER, HORIZONTAL DRIVE
<THERMISTOR>
TH6100 1-803-586-11 THERMISTOR, NTC (KV-DZ29M61(GE))
TH6601 !1-805-808-11 THERMISTOR, PTC
TH6800 1-800-193-00 THERMISTOR
<VARISTOR>
VD6603 1-804-995-11 VARISTOR (KV-DZ29M61(GE))
VD6604 1-804-824-11 VARISTOR ENE271D-20A (KV-DZ29M61(GE))
************************************************************************
* A-1199-555-A MOUNTED PWB, D3 (KV-DZ29M61(GE))
************************************
<CAPASITOR>
C6401 1-126-960-11 ELECT 1UF 20.00% 50V
C6402 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C6403 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C6404 1-126-964-11 ELECT 10UF 20.00% 50V
C6405 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
C6406 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V
C6407 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C6408 1-126-962-11 ELECT 3.3UF 20.00% 50V
C6409 1-126-961-11 ELECT 2.2UF 20.00% 50V
<CONNECTOR>
CN6401 1-819-457-11 CONNECTOR PIN (FOR PCB) 4P
<DIODE>
D6401 8-719-404-50 DIODE MA111-TX
D6402 8-719-404-50 DIODE MA111-TX
D6403 8-719-404-50 DIODE MA111-TX
D6404 8-719-404-50 DIODE MA111-TX
D6405 8-719-404-50 DIODE MA111-TX
D6407 8-719-404-50 DIODE MA111-TX
D6408 8-719-404-50 DIODE MA111-TX
D6409 8-719-423-32 DIODE MA8120-M
D6410 8-719-404-50 DIODE MA111-TX
D6411 8-719-423-32 DIODE MA8120-M
D6412 8-719-404-50 DIODE MA111-TX
<IC>
IC6401 6-708-427-01 IC KIA431AF
IC6402 8-759-085-67 IC LM339NS
<CHIP CONDUCTOR>
JR6401 1-216-864-11 SHORT CHIP 0
JR6402 1-216-864-11 SHORT CHIP 0
JR6404 1-216-864-11 SHORT CHIP 0
<TRANSISTOR>
Q6401 8-729-600-22 TRANSISTOR 2SA1235-F
Q6402 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6403 8-729-600-22 TRANSISTOR 2SA1235-F
Q6404 8-729-120-28 TRANSISTOR 2SC1623-L5L6
<RESISTOR>
R6401 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6402 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6403 1-208-832-11 METAL CHIP 120K 0.50% 1/10W
R6404 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6405 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6406 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6407 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6408 1-208-827-11 METAL CHIP 75K 0.50% 1/10W
R6409 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6410 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6411 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6412 1-208-847-11 METAL CHIP 510K 0.50% 1/10W
R6413 1-208-832-11 METAL CHIP 120K 0.50% 1/10W
R6414 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R6415 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6416 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6417 1-208-827-11 METAL CHIP 75K 0.50% 1/10W
R6418 1-216-853-11 METAL CHIP 470K 5% 1/10W
R6419 1-218-909-11 METAL CHIP 390K 0.50% 1/10W
R6420 1-218-911-11 METAL CHIP 470K 0.50% 1/10W
R6421 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6422 1-215-489-00 METAL 680K 1% 1/4W
R6423 1-215-489-00 METAL 680K 1% 1/4W
R6424 1-215-489-00 METAL 680K 1% 1/4W
R6425 1-215-458-00 METAL 36K 1% 1/4W
R6426 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6427 1-218-895-11 METAL CHIP 100K 0.50% 1/10W
R6428 1-215-463-00 METAL 56K 1% 1/4W
R6429 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6430 1-216-840-11 METAL CHIP 39K 5% 1/10W
R6431 1-218-887-11 METAL CHIP 47K 0.50% 1/10W
R6432 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6433 1-215-864-00 METAL OXIDE 150 5% 1W
R6434 1-216-837-11 METAL CHIP 22K 5% 1/10W
R6435 1-216-837-11 METAL CHIP 22K 5% 1/10W
R6436 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6437 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6438 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6439 1-216-841-11 METAL CHIP 47K 5% 1/10W
***********************************************************************
D D3
– 112 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
* A-1199-558-A MOUNTED PWB (VAR), F1(Except KV-DZ21M91)
* A-1212-035-A MOUNTED PWB (VAR), F1(KV-DZ21M91)
************************
<CAPACITOR>
C1602 !1-165-533-31 MYLAR 0.68UF 10 0V
C1603 !1-117-703-11 CERAMIC 0.0047UF 99% 250V
<CONNECTOR>
* CN1601!1-580-843-11 PIN, CONNECTOR (POWER)
* CN1602!1-580-843-11 PIN, CONNECTOR (POWER)
CN1603 1-695-915-11 TAB (CONTACT)
<FUSE>
F1601 !1-576-334-41 FUSE 5A 250V
<FERRITE BEAD>
FB1601 1-410-397-21 FERRITE 1.1UH
FB1602 1-410-397-21 FERRITE 1.1UH
FB1603 1-410-397-21 FERRITE 1.1UH
FB1604 1-410-397-21 FERRITE 1.1UH
<FUSE HOLDER>
FH1601 1-533-223-11 FUSE HOLDER 0A 0V
FH1602 1-533-223-11 FUSE HOLDER 0A 0V
<TRANSFORMER>
T1601 !1-433-900-51 TRANSFORMER, LINE FILTER
T1602 !1-433-900-51 TRANSFORMER, LINE FILTER (KV-DZ21M91)
<VARISTOR>
VDR161 1-804-995-11 VARISTOR
************************************************************************
* A-1199-557-A MOUNTED PWB, H1
******************
<CAPACITOR>
C1900 1-102-114-00 CERAMIC 470PF 10.00% 50V
C1901 1-102-114-00 CERAMIC 470PF 10.00% 50V
C3601 !1-165-530-31 MYLAR 0.47UF 10 0V
C3601 (KV-DZ21M91)
C3601 1-165-530-31 MYLAR 0.47UF 10 0V
C3601 (Except KV-DZ21M91)
C3900 1-137-150-11 FILM 0.01UF 5.00% 100V
C3902 1-137-150-11 FILM 0.01UF 5.00% 100V
C3910 1-126-947-11 ELECT 47UF 20.00% 35V
C3911 1-126-947-11 ELECT 47UF 20.00% 35V
<CONNECTOR>
* CN1651!1-580-843-11 PIN, CONNECTOR (POWER)
* CN1652!1-580-843-11 PIN, CONNECTOR (POWER)
* CN3901 1-564-507-11 PLUG, CONNECTOR 4P
* CN3903 1-564-509-11 PLUG, CONNECTOR 6P
* CN3904 1-564-511-11 PLUG, CONNECTOR 8P
* CN3905 1-564-510-11 PLUG, CONNECTOR 7P
<DIODE>
D1900 8-719-034-42 DIODE MA4056-M(QZ)
D1901 8-719-034-42 DIODE MA4056-M(QZ)
D1902 8-719-991-33 DIODE 1SS133T-77
D1903 6-500-706-01 DIODE LNK0210088H
D3900 8-719-034-42 DIODE MA4056-M(QZ)
D3904 8-719-991-33 DIODE 1SS133T-77
D3905 8-719-991-33 DIODE 1SS133T-77
D3908 8-719-034-42 DIODE MA4056-M(QZ)
D3912 8-719-991-33 DIODE 1SS133T-77
D3913 8-719-991-33 DIODE 1SS133T-77
<IC>
IC1900 6-704-532-01 IC RPM7240-H5
<JACK>
J3902 1-694-242-11 TERMINAL, S
J3903 1-770-329-13 JACK, PIN 3P
J3904 1-770-786-31 JACK
<COIL>
L3901 1-414-183-41 INDUCTOR 10UH
L3902 1-414-183-41 INDUCTOR 10UH
<TRANSISTOR>
Q3901 8-729-036-80 TRANSISTOR KRC110M
Q3902 8-729-036-80 TRANSISTOR KRC110M
<RESISTOR>
R3601 !1-219-759-11 METAL 1M 5% 1/2W
R3629 1-220-797-11 METAL 0.47 5% 10W
R3630 1-220-797-11 METAL 0.47 5% 10W
R3907 1-249-417-11 CARBON 1K 5% 1/4W
R3908 1-249-413-11 CARBON 470 5% 1/4W
R3909 1-249-411-11 CARBON 330 5% 1/4W
R3910 1-249-409-11 CARBON 220 5% 1/4W
R3911 1-249-411-11 CARBON 330 5% 1/4W
R3912 1-249-407-11 CARBON 150 5% 1/4W
R3914 1-249-425-11 CARBON 4.7K 5% 1/4W
R3915 1-249-419-11 CARBON 1.5K 5% 1/4W
R3916 1-249-401-11 CARBON 47 5% 1/4W
R3920 1-249-415-11 CARBON 680 5% 1/4W
R3922 1-249-421-11 CARBON 2.2K 5% 1/4W
R3927 1-249-425-11 CARBON 4.7K 5% 1/4W
H1F1
– 113 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARK REF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
<SWITCH>
S1650 !1-786-649-12 SWITCH, AC POWER PUSH
S3902 1-692-431-21 SWITCH, TACTILE
S3903 1-692-431-21 SWITCH, TACTILE
S3904 1-692-431-21 SWITCH, TACTILE
S3905 1-692-431-21 SWITCH, TACTILE
S3907 1-692-431-21 SWITCH, TACTILE
S3908 1-692-431-21 SWITCH, TACTILE
S3909 1-692-431-21 SWITCH, TACTILE
************************************************************************
* A-1199-556-A MOUNTED PWB, VM1
********************
4-382-854-01 SCREW (M3X8), P, SW (+)
<CAPACITOR>
C1800 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V
C1801 1-126-947-11 ELECT 47UF 20.00% 35V
C1802 1-130-495-00 MYLAR 0.1UF 5.00% 50V
C1803 1-126-947-11 ELECT 47UF 20.00% 35V
C5401 1-126-935-11 ELECT 470UF 20.00% 16V
C5402 1-113-619-11 CERAMIC CHIP 0.47UF 10V
C5403 1-126-935-11 ELECT 470UF 20.00% 16V
C5405 1-126-933-11 ELECT 100UF 20.00% 16V
C5406 1-126-935-11 ELECT 470UF 20.00% 16V
C5407 1-107-364-11 MYLAR 0.01UF 10.00% 200V
C5408 1-107-364-11 MYLAR 0.01UF 10.00% 200V
C5409 1-107-649-11 ELECT 2.2UF 20.00% 250V
C5410 1-130-471-00 MYLAR 0.001UF 5.00% 50V
C5411 1-130-471-00 MYLAR 0.001UF 5.00% 50V
C5412 1-126-935-11 ELECT 470UF 20.00% 16V
C5413 1-107-648-91 ELECT 100UF 20.00% 200V
C5415 1-104-999-11 MYLAR 0.1UF 5.00% 200V
C5417 1-101-821-00 CERAMIC 0.0022UF 500V
C5418 1-107-638-11 ELECT 33UF 20.00% 160V
C5421 1-107-364-11 MYLAR 0.01UF 10.00% 200V
C5422 1-100-566-91 CERAMIC CHIP 0.1UF 10.00% 25V
C6200 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V
C6201 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V
C6202 1-126-947-11 ELECT 47UF 20.00% 35V
C6203 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V
C6210 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V
C6213 1-100-121-21 FILM 0.015UF 5% 400V
C6215 1-130-495-00 MYLAR 0.1UF 5.00% 50V
C6216 1-137-194-81 FILM 0.47UF 5.00% 50V
C6218 1-126-947-11 ELECT 47UF 20.00% 35V
C6225 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V
C6226 1-126-947-11 ELECT 47UF 20.00% 35V
C6227 1-100-121-21 FILM 0.015UF 5% 400V
C6500 1-100-141-21 FILM 0.0022UF 5% 630V
C6501 1-100-122-21 FILM 0.022UF 5% 400V
C6502 1-100-141-21 FILM 0.0022UF 5% 630V
<CONNECTOR>
* CN5400 1-564-511-11 PLUG, CONNECTOR 8P
* CN5401 1-770-747-11 CONNECTOR, BOARD TO BOARD 12P
* CN5402 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P
* CN5403 1-564-506-11 PLUG, CONNECTOR 3P
* CN6500 1-564-506-11 PLUG, CONNECTOR 3P
<DIODE>
D5400 8-719-404-50 DIODE MA111-TX
D5401 8-719-510-02 DIODE D1NS4
D5402 8-719-991-33 DIODE 1SS133T-77
D5403 8-719-991-33 DIODE 1SS133T-77
D5404 8-719-991-33 DIODE 1SS133T-77
D5405 8-719-036-27 DIODE MA4200-H(TA)
D5406 8-719-036-27 DIODE MA4200-H(TA)
D6201 8-719-404-50 DIODE MA111-TX
D6204 8-719-085-65 DIODE ER206
<IC>
IC6200 6-703-708-01 IC LM2903DT
IC6202 8-759-822-38 IC LA6510
<CHIP CONDUCTOR>
JR6201 1-216-864-11 SHORT CHIP 0
JR6202 1-216-864-11 SHORT CHIP 0
JR6203 1-216-864-11 SHORT CHIP 0
JR6204 1-216-864-11 SHORT CHIP 0
JR6205 1-216-864-11 SHORT CHIP 0
JR6207 1-216-864-11 SHORT CHIP 0
JR6208 1-216-864-11 SHORT CHIP 0
JR6210 1-216-864-11 SHORT CHIP 0
<COIL>
L5400 1-412-525-31 INDUCTOR 10UH
L6200 1-406-987-21 INDUCTOR 4.7MH
L6201 1-406-987-21 INDUCTOR 4.7MH
L6202 1-406-987-21 INDUCTOR 4.7MH
L6205 1-412-536-31 INDUCTOR 82UH
L6206 1-406-671-11 INDUCTOR 1MH
L6500 1-406-675-11 INDUCTOR 4.7MH
L6501 1-406-671-11 INDUCTOR 1MH
<TRANSISTOR>
Q5400 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5401 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5402 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5403 8-729-119-78 TRANSISTOR 2SC2785-HFE
Q5404 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q5405 8-729-119-76 TRANSISTOR 2SA1175-HFE
Q5406 8-729-045-05 TRANSISTOR 2SA2005
Q5407 8-729-045-04 TRANSISTOR 2SC5511
Q6200 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6202 8-729-600-22 TRANSISTOR 2SA1235-F
Q6203 8-729-120-28 TRANSISTOR 2SC1623-L5L6
Q6204 6-551-319-01 TRANSISTOR 2SK3563(LB2SONY)
Q6205 8-729-120-28 TRANSISTOR 2SC1623-L5L6
H1VM1
– 114 –
The components identified by shading
and mark ! are critical for safety.
Replace only with part number specified.
REF NO. PART NO. DESCRIPTION REMARKREF NO. PART NO. DESCRIPTION REMARK
KV-DZ29M30/M61/M91
RM-GA002
VM1
<RESISTOR>
R1800 1-218-885-11 METAL CHIP 39K 0.50% 1/10W
R1801 1-218-853-11 METAL CHIP 1.8K 0.50% 1/10W
R1802 1-218-833-11 METAL CHIP 270 0.50% 1/10W
R1803 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W
R1805 1-249-383-11 CARBON 1.5 5% 1/4W
R1806 1-218-847-11 METAL CHIP 1K 0.50% 1/10W
R1807 1-249-381-11 CARBON 1 5% 1/4W
R1808 1-243-696-71 METAL OXIDE 470 5% 1W
R1809 1-218-865-11 METAL CHIP 5.6K 0.50% 1/10W
R5401 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R5402 1-249-415-11 CARBON 680 5% 1/4W
R5403 1-260-316-51 CARBON 100 5% 1/2W
R5404 1-249-418-11 CARBON 1.2K 5% 1/4W
R5405 1-216-864-11 SHORT CHIP 0
R5406 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W
R5407 1-216-805-11 METAL CHIP 47 5% 1/10W
R5408 1-249-409-11 CARBON 220 5% 1/4W
R5409 1-247-807-31 CARBON 100 5% 1/4W
R5410 1-249-401-11 CARBON 47 5% 1/4W
R5411 1-249-401-11 CARBON 47 5% 1/4W
R5412 1-249-429-11 CARBON 10K 5% 1/4W
R5413 1-249-414-11 CARBON 560 5% 1/4W
R5414 1-249-432-11 CARBON 18K 5% 1/4W
R5415 1-247-735-11 CARBON 47 5% 1/2W
R5416 1-249-385-11 CARBON 2.2 5% 1/4W
R5417 1-249-432-11 CARBON 18K 5% 1/4W
R5418 1-249-414-11 CARBON 560 5% 1/4W
R5419 1-249-421-11 CARBON 2.2K 5% 1/4W
R5420 1-249-421-11 CARBON 2.2K 5% 1/4W
R5421 1-249-385-11 CARBON 2.2 5% 1/4W
R5422 1-249-401-11 CARBON 47 5% 1/4W
R5423 1-215-915-21 METAL OXIDE 470 5% 3W
R5424 1-249-395-11 CARBON 15 5% 1/4W
R5425 1-216-864-11 SHORT CHIP 0
R5427 1-249-395-11 CARBON 15 5% 1/4W
R5429 1-215-863-11 METAL OXIDE 100 5% 1W
R5430 1-216-833-11 METAL CHIP 10K 5% 1/10W
R5431 1-216-833-11 METAL CHIP 10K 5% 1/10W
R5432 1-216-821-11 METAL CHIP 1K 5% 1/10W
R6200 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R6201 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R6202 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6203 1-216-833-11 METAL CHIP 10K 5% 1/10W
R6204 1-218-887-11 METAL CHIP 47K 0.50% 1/10W
R6206 1-216-837-11 METAL CHIP 22K 5% 1/10W
R6207 1-216-841-11 METAL CHIP 47K 5% 1/10W
R6225 1-218-871-11 METAL CHIP 10K 0.50% 1/10W
R6226 1-249-401-11 CARBON 47 5% 1/4W
R6227 1-216-809-11 METAL CHIP 100 5% 1/10W
R6229 1-216-353-00 METAL OXIDE 2.2 5% 1W
R6235 1-243-519-71 METAL OXIDE 10 5% 3W
R6237 1-218-891-11 METAL CHIP 68K 0.50% 1/10W
R6238 1-218-877-11 METAL CHIP 18K 0.50% 1/10W
R6239 1-216-853-11 METAL CHIP 470K 5% 1/10W
R6242 1-218-899-11 METAL CHIP 150K 0.50% 1/16W
R6250 1-218-869-11 METAL CHIP 8.2K 0.50% 1/10W
R6251 1-249-395-11 CARBON 15 5% 1/4W
R6260 1-243-526-71 METAL OXIDE 39 5% 3W
R6261 1-243-526-71 METAL OXIDE 39 5% 3W
**********************************************************************
<ACCESSORIES AND PACKING MATERIALS>
*****************************************
2-651-491-01 SCREW, SPECIAL
2-637-162-01 BAND, HOLD
2-890-313-11 MANUAL(FOLDING), INSTRUCTION
(KV-DZ29M30)
2-889-977-11 MANUAL, INSTRUCTION (KV-DZ29M61(GE))
2-890-006-11 MANUAL(FOLDING), INSTRUCTION
(KV-DZ29M91)
2-891-295-11 MANUAL, INSTRUCTION (KV-DZ29M61(Malaysia))
* 2-677-857-01 CUSHION, UPPER
* 2-677-858-01 CUSHION, LOWER
* 2-677-859-01 INDIVIDUAL CARTON
* 4-029-168-01 BAG, PROTECTION
*********************************************************************
<REMOTE COMMANDER>
************************
1-479-379-11 REMOTE COMMANDER (RM-GA002)
4-084-290-01 REMOTE COMMANDER BATTERY COVER
Sony Corporation
Sony EMCS (Malaysia) Sdn. Bhd.
TV Operations of Pan Asia
9-872-925-01
English
2006.8
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
Trinitron Color TV
© 2006 Sony Corporation
KV-DZ29
2-889-977-11 (1)
Operating Instructions
•Before operating the unit, please read this manual thoroughly and retain
it for future reference.
GB
CT
CS
M61
使用說明書
•使用本電視機之前請先詳細閱讀此手冊﹐並妥善保存以備日後用作參考。
使用说明书
•使用本电视机之前请先详细阅读此手册，并妥善保存以备日后用作参考。
02CT01COV-SOEMMix.p65 7/28/06, 3:34 PM1
¶´ƒ
2 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 110 – 240 V AC.
•Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
•To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Clean the TV with a dry and soft
cloth. Do not use benzine, thinner,
or any other chemicals to clean the
TV. Do not attach anything (e.g.,
adhesive tape, cellophane tape,
glue) on the painted cabinet of the
TV. Do not scratch the picture
tube.
Install the TV on a stable TV stand
and floor which can support the
TV set weight. Ensure that the TV
stand surface is flat and its area is
larger than the bottom area of the
TV.
Do not plug in too many
appliances to the same power
socket. Do not damage the power
cord.
For children’s safety, do not leave
children alone with the TV. Do not
allow children to climb onto it.
For your own safety, do not touch
any part of the TV, the power cord
and the antenna cable during
lightning storms.
Do not place any objects on the TV.
The apparatus shall not be
exposed to dripping or splashing
and that no objects filled with
liquids, such as vases, shall be
placed on the apparatus.
Do not operate the TV if any liquid
or solid object falls into it. Have it
checked immediately by qualified
personnel only.
Do not block the ventilation
openings of the TV. Do not install
the TV in a confined space, such
as a bookcase or built-in cabinet.
Do not open the cabinet and the
rear cover of the TV as high
voltages and other hazards are
present inside the TV. Refer
servicing and disposal of the TV
to qualified personnel.
Pull the power cord out by the
plug. Do not pull the power cord
itself. Even if your TV is turned
off, it is still connected to the AC
power source (mains) as long as
the power cord is plugged in.
Unplug the TV before moving it
or if you are not going to use it for
several days.
To prevent fire or shock hazard, do
not expose the TV to rain or
moisture.
Your TV is recommended for
home use only. Do not use the TV
in any vehicle or where it may be
subject to excessive dust, heat,
moisture or vibrations.
01GB02WAR-SOEMMix.p65 7/28/06, 3:27 PM2
Black
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
3 GB
GB
Table of Contents
Installation
Securing the TV ............................................................................................................... 4
Getting Started ................................................................................................................ 5
Setting up your TV (“Initial Setup”) ........................................................................... 6
Connecting optional components ................................................................................ 7
Overview of Controls
TV buttons and remote control ..................................................................................... 8
Menu Adjustment
WEGA GATE navigator ............................................................................................... 10
“Settings” Adjustment ................................................................................................. 11
“Picture” setting............................................................................................................ 12
“Sound” setting ............................................................................................................. 14
“Wide Screen” setting .................................................................................................. 15
“Channel Setup” setting .............................................................................................. 16
“Setup” setting .............................................................................................................. 18
Additional Information
Troubleshooting ............................................................................................................ 20
Specifications .................................................................................................. Back cover
01GB03TOC-SOEMMix.p65 7/28/06, 3:28 PM3
Black
4 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of your
TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
• Use only the supplied screws. Use of other screws may damage the TV.
or
or
01GB04INS-SOEMMix.p65 7/28/06, 3:30 PM4
Black
5 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
Step 2
End
Select Confirm
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
• Do not use old or different types of batteries together.
Step 3
Step 4
Set up the TV by following the instructions of the
“Initial Setup” menu (see page 6).
Plug in the power cord, then press ! on the TV to
turn it on.
• The 1 (standby) indicator flashes green for a few
seconds when turning on the TV. This does not indicate
a malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
•You can also connect the TV to other optional
components (see page 7).
x Getting Started
01GB04INS-SOEMMix.p65 7/28/06, 3:30 PM5
Black
6 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
xSetting up your TV (“Initial Setup”)
When you turn on your TV for the first time, the “Initial Setup” menu will appear.
You can adjust settings below using the buttons on the remote control or TV front
panel. Press V, v, B or b to select or adjust items, then press .
1Select the desired menu language.
2Select “Yes” to preset the channels automatically.
To skip automatic channel presetting, select “No”.
3The “Program Sorting/Edit” menu enables
you to sort and edit the channels (see page 16).
4Adjust the bars on the top and bottom of the
menu if they are slanted.
5Adjust the upper and lower bars if they are not
equally positioned to the top and bottom of the
screen.
6To prevent this “Initial Setup” menu from
appearing again when you turn on the TV
by pressing !, select “No”.
To allow this menu to appear again, select “Yes”.
•
You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.
•Before adjusting “Picture Rotation” and “Picture V-Position”, keep electrical equipment
(external speakers) away from the TV to avoid magnetic disturbance.
End
Select Confirm
End
Select Confirm
Program Sorting/Edit
01
02
03
04
Off
Off
Off
Off
05 Off
Sorting: Edit:
PROG
SkipLabel
Exit
Select Confirm
Select Confirm
End
Select Confirm
End
Select Confirm
01GB04INS-SOEMMix.p65 7/28/06, 3:30 PM6
Black
7 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
1
1
3
2
C
R
P/
R
C
B
L
(MONO)
RR
L
L
P/
B
Y
L
R
(MONO)
2
L
R
(MONO)
2
xConnecting optional components
You can connect a wide range of optional components to your TV. Connecting
cables are not supplied.
S Video
cable
Connecting to the TV (rear)
Audio/
Video cable
Camcorder
Connecting to the TV (front)
Component
video
cable DVD player
Digital TV receiver
Audio
cable
Audio/Video cable
Audio/Video cableAntenna cable
VCR DVD player Audio system VCR
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 17).
• When both (S video) and (video) for t2 are connected at the same time,
(S video) is automatically selected. To view (video), disconnect the S video cable.
•The component video terminals on your DVD player are sometimes labeled Y/CB/CR,
Y/PB/PR, Y/Cb/Cr or Y/B-Y/R-Y.
• If you select “HD/DVD 1” or “HD/DVD 2” on your TV screen, the signal from the T
(monitor output) terminals will not be output properly. This does not indicate a
malfunction.
•The TV accepts the following signal formats:
Total scanning line 1125i 750p 625p 625i 525p 525i
Effective scanning line 1080i 720p 576p 576i 480p 480i
fV (Hz) 50/60 50/60 50 50 60 60
Headphones
01GB04INS-SOEMMix.p65 7/28/06, 3:30 PM7
Black
8 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
xTV buttons and remote control
1!Turn off or turn on the TV.
2Wake Up indicator.
21Standby indicator.
3Remote control sensor.
4PROG +/– Select program number.
52 +/– Adjust volume.
6tSelect TV or video input.
WEGA GATE menu operations (see page 10)
4,5
, , ,
Select or adjust items.
6Confirm selected items.
7WEGA GATE Display or cancel WEGA GATE menu.
8SOUND MODE Select sound mode options with a
5-Band Graphic Equalizer display
(see page 14).
1?/1Turn off temporarily or turn on the
TV.
2aDisplay the TV program.
3Jump to last program number that
has been watched for at least five
seconds.
4PROG +/– Select program number. To select
quickly, press and hold until the
desired program number appears.
52 +/– Adjust volume.
8Change the picture size:
“4:3”, “16:9” (16:9 wide mode).
9 Select surround mode options
(see page 14).
0 Display on-screen information.
qa Mute the sound.
qs A/B Select stereo/bilingual mode:
Broadcasting Display (selected sound)
NICAM stereo NICAM (stereo), Mono (regular)
NICAM bilingual NICAM Main (main), NICAM
Sub (sub), Mono (regular)
NICAM monaural NICAM Main (main), Mono
(regular)
A2 stereo Stereo (stereo), Mono (regular)
A2 bilingual Main (main), Sub (sub)
PROG
SOUND
MODE
12345678
PROG
SOUND
MODE
L
R
(MONO)
2
RETURN WEGA
GATE
TV
123
46
789
0
5
PROG
A/B
2
3
7
4
5
qj
qk
qa
qd
qf
qh
RETURN
6
8
9
0
w;
ql
qg
qs 1
WEGA
GATE
•If the stereo sound is noisy when receiving a
stereo program, select “Mono”. The sound
becomes monaural, but the noise is reduced.
01GB04INS-SOEMMix.p65 7/28/06, 3:30 PM8
Black
9 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
qd tSelect TV or video input.
qf 0 – 9 Input numbers. For program numbers 10 and above, enter the second
digit within two seconds.
ql Select sound mode options with a 5-Band Graphic Equalizer display:
“Dynamic”, “Standard”, “Custom”* (see page 14).
Dynamic
100 300 1k 3k 8k
Standard
100 300 1k 3k 8k
Custom
100 300 1k 3k 8k
* When the “Custom” mode is selected, you can receive the last adjusted
sound settings from the “Sound Adjustment” option in the menu.
w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see page 12).
* When the “Custom” mode is selected, you can receive the last adjusted
picture settings from the “Picture Adjustment” option in the menu.
WEGA GATE menu operations (see page 10)
6Confirm selected items.
7WEGA GATE Display or cancel WEGA GATE menu.
qj V, v, B, b Select or adjust items.
qk RETURN Return to the previous level.
Timer operations
qg Set TV to turn on automatically according to the desired period of time
(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set
the wake up timer. If no buttons or controls are pressed for more than
one hour after the TV is turned on using the wake up timer, the TV
automatically goes into standby mode.
qh Set TV to turn off automatically according to the desired period of time
(Sleep Timer) (max. of one hour and 30 min.).
Teletext operations (green icon)
Display Teletext broadcast: Teletext t Teletext and TV t TV. If there is no
Teletext broadcast, only “100” is displayed at the top left corner of the screen.
Display Teletext service contents.
0 – 9 Input three digits Teletext page number.
,
Display the next or previous page.
Stop Teletext display from scrolling.
Reveal concealed information.
Enlarge the Teletext display.
Show TV screen while waiting for Teletext page. Enter the Teletext page
number that you want to refer to, then press . When the page number is
displayed, press to show the text.
(red, green, Access the corresponding colored FASTEXT menu. The FASTEXT feature
yellow, blue) can be used only when the FASTEXT broadcast is available.
•Teletext is automatically cancelled when there is no signal or the frequency of input signal is
not within the proper range.
PIP operations
, , V, v, B, bNot function for your TV.
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and
BBE symbol are registered trademarks of BBE Sound, Inc.
01GB04INS-SOEMMix.p65 7/28/06, 3:30 PM9
Black
10 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
01
02
03
04
05
TV
Confirm
Select
End
xWEGA GATE navigator
WEGA GATE is a gateway that allows you access to preset TV channels,
connected external inputs and “Settings” menu.
watch the preset TV
channels (see page 6)
select the inputs for the
connected equipment
(see page 7)
change the
settings of your
TV (see page 11)
How to use WEGA GATE
(1) Press WEGA GATE to display or cancel
the WEGA GATE menu.
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
(3) Press V or v to select the desired item. (4) Press RETURN to move to the previous
level.
(2) Press (or b) to confirm your selection
or go to the next level.
“TV”
“External Inputs”
“Settings”
•When a feature is dimmed in the menu, it is not selectable.
• The WEGA GATE, and
, , ,
buttons on the front panel can also be used for
the operations above.
01
02
03
04
05
TV
Confirm
Select
End
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
TV
External Inputs
Confirm
Select
End
Video 1
1
2Video 2
Video 3
3
1
2HD/DVD 2
HD/DVD 1
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
01
02
03
04
05
Confirm
Select
End
01GB05AVD-SOEMMix.p65 7/28/06, 3:31 PM10
Black
11 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
“Setup” (see page 18)
“Language”: “English” “ ” (Chinese) “ ” (Arabic)
“” (Thai)
“Picture Position”: “Picture Rotation”, “Picture V-Position”
“Game Mode”: “On” “Off”
“Video Label”
“Color System”: “Auto” “PAL” “SECAM” “NTSC3.58”
“NTSC4.43”
“Eco Mode”: “On” “Off”
“Factory Settings”: “Yes” “No”
Confirm End
Setup
Select
Picture Position
Language:
Video Label
Game Mode:
Color System: Auto
Eco Mode: Off
English
Off
x“Settings” Adjustment
You are able to change the settings of your TV from “Settings” in WEGA GATE
menu (see page 10). The following is an overview of the items that can be adjusted.
“Picture” (see page 12)
“Scan Mode”: “100Hz” “Progressive”
“Picture Mode”: “Vivid” “Standard” “Custom”
“Picture Adjustment”: “Picture”, “Brightness”, “Color”, “Hue”,
“Sharpness”, “Color Temperature”, “VM”,
“Reset”
“Intelligent Picture”: “On” “Off”
“Signal Level Indicator”: “On” “Off”
“D-NR”: “On” “Off”
Confirm End
Sound
Sound Adjustment
Sound Mode: Dynamic
Select
Balance
Intelligent Volume:
Surround: Off
Off
“Sound” (see page 14)
“Sound Mode”: “Dynamic” “Standard” “Custom”
“Sound Adjustment”: “Adjust”, “Reset”
“Balance”
“Intelligent Volume”: “On” “Off”
“Surround”: “Movie” “Sports” “Off”
“Wide Screen” (see page 15)
“Wide Mode”: “16:9” “4:3”
“Auto Wide”: “On” “Off”
“Channel Setup” (see page 16)
“Auto Program”
“Manual Program”
“Program”: “00” - “99”
“TV System”: “B/G” “I” “D/K” “M”
“VHF Low”/“VHF High”/“UHF”
“Fine”: “Auto” “Manual”
“Signal Booster”: “Auto” “Off”
“Program Sorting/Edit”
Channel Setup
Manual Program
Auto Program
Program Sorting/Edit
Confirm End
Select
Auto Wide:
4:3
Wide Mode:
Wide Screen
Confirm
Select
On
End
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
01GB05AVD-SOEMMix.p65 7/28/06, 3:31 PM11
Black
12 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
x“Picture” setting
Press WEGA GATE and select “Settings”.
Make sure the “Picture” icon ( ) is
selected, then press .
“Scan Mode” Choose either “100Hz” (reduce flicker on the screen to provide a
stable picture) or “Progressive” (reduce jitter of any small areas
or scanning lines on the screen).
“Picture Mode” Choose either “Vivid” (bright, contrast and sharp), “Standard”
(normal) or “Custom”*.
“Intelligent Picture” Optimize picture quality.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Signal Level Indicator” Display the signal level when the “Intelligent Picture” is
functioning.
“Intelligent Picture Signal Level” indicator will be displayed,
followed by picture improvement when you change the
program number or the input mode.
red amber green
(weak) (average) (good)
Press V or v to select “On”, then press .
To cancel, select “Off”, then press . “Intelligent Picture” is still
functioning.
“D-NR” Reduce noise level automatically to get optimum picture.
(Digital Noise Press V or v to select “On”, then press .
Reduction) To cancel, select “Off”, then press .
*You can adjust the setting to your personal preference in the “Picture Adjustment”
option only when the “Custom” mode is selected (see page 13).
•“Scan Mode” is not selectable when “Game Mode” is turned to “On”. “Scan Mode”
is not available for HD (high-definition) and progressive input signals.
•“D-NR” is not available in HD and progressive input signals.
•“Signal Level Indicator” does not function in “HD/DVD 1” and “HD/DVD 2”
input modes.
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
01GB05AVD-SOEMMix.p65 7/28/06, 3:31 PM12
Black
13 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
Adjusting the “Picture Adjustment” items under “Custom”
mode
1Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,
“Hue” (color tones), “Sharpness”, “Color Temperature” (choose either
“Cool”, “Neutral” or “Warm”) or “VM” (choose either “High”, “Low” or
“Off”), then press .
Selecting “Reset” will set your TV to the factory settings.
2Press V,v,B or b to adjust the setting of your selected item, then press .
3Repeat the above steps to adjust other items.
The adjusted settings will be received when you select “Custom”.
•“Hue” can be adjusted for the NTSC color system only.
•Reducing “Sharpness” can also reduce picture noise.
01GB05AVD-SOEMMix.p65 7/28/06, 3:31 PM13
Black
14 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
x“Sound” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Sound”
icon ( ), then press .
“Sound Mode” Choose either “Dynamic” (low and high tones), “Standard”
(voice and high tones) or “Custom”*.
“Balance” Press v or B to emphasize the left speaker.
Press V or b to emphasize the right speaker.
“Intelligent Volume” Adjust the volume of all program numbers and video inputs
automatically.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Surround” Choose either “Movie” (cinema surround effect for stereo
sound),
“Sports” (simulated stadium effect for monaural sound)
or “Off”.
*You can adjust the setting to your personal preference in the “Sound Adjustment”
option only when the “Custom” mode is selected.
Adjusting the “Sound Adjustment” items under “Custom”
mode
The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings
of “Custom” mode in the menu.
1Make sure that “Adjust” is selected, then press .
Selecting “Reset” will set your TV to the factory settings.
2Press B or b to select the desired sound frequency, then press V or v to
adjust the setting and press .
The adjusted settings will be received when you select “Custom”.
•Adjusting higher frequency will affect higher pitched sound and adjusting lower
frequency will affect lower pitched sound.
•You may display the settings directly by using the SOUND MODE button on the TV
front panel (see page 8) or button on the remote control (see page 9).
Sound
Balance
Sound Adjustment
Sound Mode: Dynamic
Off
Off
Intelligent Volume:
Surround:
Select Confirm
End
01GB06ADJ-SOEMMix.p65 7/28/06, 3:32 PM14
Black
15 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
x“Wide Screen” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Wide Screen” icon
(), then press .
“Wide Mode” Change the size of the picture when receiving wide-mode (16:9)
picture signal.
Choose “16:9”.
To restore the normal picture size, select “4:3”, then press .
“Auto Wide” Display the picture in optimum wide screen automatically when
you choose “On”.
To cancel, select “Off”, then press .
•You can also change to wide-mode picture size by pressing the button on the
remote control (see page 8).
•“Wide Mode” is not selectable for HD (1080i, 720p) input signals. For HD (1080i,
720p) input signals, your TV will always display wide mode picture.
•“Auto Wide” is only available when receiving 576i, 480p and 480i input signals.
Auto Wide:
4:3
Wide Mode:
Wide Screen
Confirm
Select
On
End
01GB06ADJ-SOEMMix.p65 7/28/06, 3:32 PM15
Black
16 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
x“Channel Setup” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Channel Setup”
icon ( ), then press .
“Auto Program” Preset channels automatically.
“Manual Program” Manually preset desired channels and channels that cannot
be preset automatically (see Presetting channels manually
in page 17).
“Program Sorting/Edit”
Sort and edit the channels.
(a) If you wish to keep the channels in the current condition,
press WEGA GATE to exit.
(b) Press
V or v to select the program number with the
channel you wish to change. The selected channel will
appear on the screen.
(c) If you wish to store the channels in a different order:
(1) Press b to enter sorting mode.
(2) Press V or v to select the new program number
position for your selected channel, then press B.
(d) If you wish to edit the channels, press to change to
edit mode.
Press b until the mode that you wish to edit is
highlighted: Label, Skip, (block symbol). Then press
.
(1) To label, press V or v to select the alphanumeric
characters for the label. Then press .
(2) To skip the program number, press V or v to select
“On”. Then press .
You can skip this program number when using
PROG +/–.
(3) To block unwanted program number, press V or v to
select . Then press .
(e) Repeat step (b) to (d) if you wish to change other
channels.
Press WEGA GATE to exit.
• If you preset a blocked program number, that program number will be unblocked
automatically.
•If you sort a blocked program, that program will remain blocked.
Manual Program
Auto Program
Program Sorting/Edit
Channel Setup
Confirm
Select End
01GB06ADJ-SOEMMix.p65 7/28/06, 3:32 PM16
Black
17 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
Presetting channels manually
1After selecting “Manual Program”, select the program
number to which you want to preset a channel.
(1) Make sure “Program” is selected, then press .
(2) Press V or v
until the program number you want
to preset appears on the menu, then press .
2Select the desired channel.
(1) Make sure either “VHF Low”, “VHF High” or “UHF” is selected, then press
.
(2) Press V or v until the desired channel’s broadcast appears on the TV screen,
then press .
3If the sound of the desired channel is abnormal, select the appropriate TV
system.
(1) Press V or v
to select “TV System”, then press .
(2) Press V or v
until the sound becomes normal, then press .
4If you are not satisfied with the picture and sound quality, you may be able
to improve them by using the “Fine” tuning feature.
(1) Press V or v
to select “Fine”, then press .
(2) Press V or v
to select “Manual”, then press .
(3)
Press V,v,B or b until the picture and sound quality are optimal, then press .
The + or – icon on the menu flashes while tuning.
5If the TV signal is too strong (picture distorted; picture with lines; signal
interference) or weak (snowy picture), you may be able to improve the
picture quality by setting the “Signal Booster” feature.
(1) Press V or v
to select “Signal Booster”, then press .
(2) Press V or v
to select either “Off”(for picture distorted; picture with lines;
signal interference) or “Auto” (for snowy picture), then press .
VHF Low
Fine:
Signal Booster:
Auto
Auto
Select Confirm
Manual Program
Program: 01
TV System: B/G
End
01GB06ADJ-SOEMMix.p65 7/28/06, 3:32 PM17
Black
18 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
x“Setup” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Setup” icon ( ),
then press .
“Language” Change the menu language.
Press V or v to select either “English”, “” (Chinese), “ ”
(Arabic) or “ ” (Thai), then press .
“Picture Position” Adjust the picture position when it is not aligned with the TV
screen.
Press V or v to select “Picture Rotation” or “Picture V-Position”,
then press .
Press V, v, B or b to adjust the picture position, then press .
“Game Mode” Adjust the picture setting that is suitable to view video games.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Video Label” Label the connected equipment.
(1) Press V or v to select the input you want to label, then press
.
(2) Press V or v to select the label options: “Video 1”/ “Video
2”/ “Video 3”/ “HD/DVD 1”/ “HD/DVD 2”, “VCR”,
“SAT”, “Game” or “Edit”*, then press .
*You may edit the video label to your favorite name.
Press V or v to select alphanumeric characters for the label,
then press .
“Color System” Select the color system.
Press V or v to select either “Auto”, “PAL”, “SECAM”,
“NTSC3.58” or “NTSC4.43”, then press . Normally, set this to
“Auto”.
“Eco Mode” Reduce power consumption of your TV to save energy.
Press V or v to select “On”, then press .
When you press or turn on the TV, Eco Mode ( ) symbol
will appear on the screen for a while.
To cancel, select “Off”, then press .
Confirm End
Setup
Video Label
Picture Position
Game Mode:
Language: English
Color System:
Eco Mode:
Auto
Off
Off
Select
01GB06ADJ-SOEMMix.p65 7/28/06, 3:32 PM18
Black
19 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
•You cannot adjust “Picture Rotation” and “Picture V-Position” when HD (1080i,
720p) signals are input.
•“Game Mode” is available only when receiving signals through the t (video
input), (S video input) or (component video input) terminals.
•When HD or progressive signals are input, “Game Mode” does not function.
“Factory Settings” Reset your TV to factory settings.
Press and press V or v to select “Yes”, then press .
Your TV will go blank for a few seconds, then the “Initial Setup”
menu will appear.
To cancel, select “No”, then press .
01GB06ADJ-SOEMMix.p65 7/28/06, 3:32 PM19
Black
20 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
xTroubleshooting
If you find any problem while viewing your TV, you can either use the “Factory
Settings” function (see page 19) or check the Troubleshooting guide below. If the
problem persists, contact your Sony dealer.
Snowy picture, noisy sound
•Check the antenna setup and other connections.
•Preset the channel manually again (see page 17).
•Set the “Signal Booster” to “Auto” (see page 17) or try using an external booster.
Distorted picture, noisy sound
•Set the “Signal Booster” to “Off” (see page 17), or turn off or disconnect any external
booster in use.
Good picture, noisy sound
•Select the appropriate “TV System” (see page 17).
No picture, no sound
•Check the power cord, antenna setup and other connections.
•Press 4/1 (power) to turn on the TV.
•Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on
again.
Good picture, no sound
•Press 2 + to increase the volume level or press to cancel the muting.
Dotted lines or stripes
• Do not use a hair dryer or other equipment near the TV.
•Check the antenna setup.
Double images or “ghosts”
•Use the fine tuning (“Fine”) function (see page 17).
•Check the antenna setup or use a highly directional antenna.
•Turn off or disconnect any external booster in use.
No color
•Adjust the “Color” level from “Picture Adjustment” (see page 13).
• Select the appropriate “Color System” (see page 18).
•Check the antenna setup.
Picture slant
• Keep external speakers or other electrical equipment away from the TV. The magnetic
disturbance from these equipments or the direction of the earth’s magnetic field may affect
the TV.
• Adjust the “Picture Rotation” or “Picture V-Position” (see page 18).
Abnormal color patches
•Keep external speakers or other equipment away from the TV. Do not move the TV while
the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15
minutes, then turn it on again to demagnetize the TV.
TV cannot receive stereo broadcast sound or stereo broadcast sound switches on and off or is distorted.
•Check the antenna setup and other connections.
Teletext display is incomplete (snowy picture or double images).
•Check the antenna setup and other connections.
•Set the “Signal Booster” to “Auto” (see page 17) or try using an external booster.
•Use the fine tuning (“Fine”) function (see page 17).
01GB07ADV-SOEMMix.p65 7/28/06, 3:33 PM20
Black
21 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
The 1 (standby) indicator on your TV flashes red several times after every three seconds.
• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to
turn off your TV. Contact your nearest Sony service center.
The TV screen sometimes goes blank for slightly longer than usual during channel change.
• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a
malfunction.
Cannot play shooting games.
•
Some shooting games which involve pointing a light beam at the TV screen with an electronic
gun or rifle cannot be used with your TV. For details, see the instruction manual supplied with
the video game software.
TV cabinet creaks.
•Changes in room temperature sometimes make the TV cabinet expand or contract, causing
a noise. This does not indicate a malfunction.
A small “boom” sound is heard when the TV is turned on.
•The TV’s demagnetizing function is working. This does not indicate a malfunction.
Horizontal thin lines appear on the TV screen.
•The visible lines that sometimes appear on your TV screen are shadows from the damper
wires used to stabilize the aperture grille of the Trinitron picture tube. This does not
indicate a malfunction.
01GB07ADV-SOEMMix.p65 7/28/06, 3:33 PM21
Black
22 GB
Sony KV-DZ29M61 Group D2 (GB, CT)_2-889-977-11 (1)
Power requirements
Power consumption (W)
Television system
Color system
Stereo/Bilingual system
Teletext language
Channel coverage
B/G
I
D/K
M
8 (Antenna)
Audio output (Speaker)
Number of terminal
(Video)
(Audio)
(S Video)
(Component
Video)
i (Headphone)
Picture tube
Tube size (cm)
Screen size (cm)
Dimensions (w/h/d, mm)
Mass (kg)
xSpecifications
Design and specifications are subject to change without notice.
Note
110-240 V AC, 50/60 Hz
Indicated on the rear of the TV
B/G, I, D/K, M
PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43
NICAM Stereo/Bilingual B/G, I;
A2 Stereo/Bilingual B/G
English, Farsi (Persian), French
VHF : E2 to E12 /UHF : E21 to E69 /
CATV : S01 to S03, S1 to S41
UHF : B21 to B68 /CATV : S01 to S03, S1 to S41
VHF : C1 to C12, R1 to R12 /
UHF : C13 to C57, R21 to R60 /
CATV : S01 to S03, S1 to S41, Z1 to Z39
VHF : A2 to A13 /UHF : A14 to A79 /
CATV : A-8 to A-2, A to W+4, W+6 to W+84
75-ohm external terminal
10 W + 10 W
Input: 3 Output: 1 Phono jacks; 1 Vp-p, 75 ohms
Input: 5 Output: 1 Phono jacks; 500 mVrms
Input: 1 Y: 1 Vp-p, 75 ohms,
unbalanced, sync negative
C: 0.286 Vp-p, 75 ohms
Input: 2 Phono jacks;
Y: 1 Vp-p, 75 ohms,
sync negative
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
Output: 1 Stereo minijack
29 in.
72
Measured diagonally
68
Measured diagonally
794 × 590 × 507
47
KV-DZ29M61
01GB07ADV-SOEMMix.p65 7/28/06, 3:33 PM22
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
© 2006 Sony Corporation
KV-DZ29
2-890-006-11 (1)
Trinitron Color TV
GB
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain it
for future reference.
M91
01GB01COV-SOEMRus.p65 25/08/2006, 11:48 AM1
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
Power requirements
Power consumption (W)
Television system
Color system
Stereo/Bilingual system
Teletext language
Channel coverage
B/G
I
D/K
M
8 (Antenna)
Audio output (Speaker)
Number of terminal
(Video)
(Audio)
(S Video)
(Component
Video)
i (Headphone)
Picture tube
Tube size (cm)
Screen size (cm)
Dimensions (w/h/d, mm)
Mass (kg)
ASpecifications
Design and specifications are subject to change without notice.
Note
KV-DZ29M91
220-240 V AC, 50/60 Hz
Indicated on the rear of the TV
B/G, I, D/K, M
PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43
NICAM Stereo/Bilingual B/G, I, D/K;
A2 Stereo/Bilingual B/G
English, Russian
VHF : E2 to E12 /UHF : E21 to E69 /
CATV : S01 to S03, S1 to S41
UHF : B21 to B68 /CATV : S01 to S03, S1 to S41
VHF : C1 to C12, R1 to R12 /
UHF : C13 to C57, R21 to R60 /
CATV : S01 to S03, S1 to S41, Z1 to Z39
VHF : A2 to A13 /UHF : A14 to A79 /
CATV : A-8 to A-2, A to W+4, W+6 to W+84
75-ohm external terminal
10 W + 10 W
Input: 3 Output: 1 Phono jacks; 1 Vp-p, 75 ohms
Input: 5 Output: 1 Phono jacks; 500 mVrms
Input: 1 Y: 1 Vp-p, 75 ohms,
unbalanced, sync negative
C: 0.286 Vp-p, 75 ohms
Input: 2 Phono jacks;
Y: 1 Vp-p, 75 ohms,
sync negative
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
Output: 1 Stereo minijack
29 in.
72
Measured diagonally
68
Measured diagonally
794 × 590 × 507
47
Made in Malaysia.
Sony Corporation
6-7-35 Kitashinagawa,
Shinagawa-ku, Tokyo, 141-0001 Japan.
01GB02WAR-SOEMRus.p65 25/08/2006, 11:48 AM2
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
BWARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 220 – 240 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the
antenna and other terminals to ground.
• To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Clean the TV with a dry and soft
cloth. Do not use benzine, thinner,
or any other chemicals to clean the
TV. Do not attach anything (e.g.,
adhesive tape, cellophane tape,
glue) on the painted cabinet of the
TV. Do not scratch the picture
tube.
Install the TV on a stable TV stand
and floor which can support the
TV set weight. Ensure that the TV
stand surface is flat and its area is
larger than the bottom area of the
TV.
Do not plug in too many
appliances to the same power
socket. Do not damage the power
cord.
For children’s safety, do not leave
children alone with the TV. Do not
allow children to climb onto it.
For your own safety, do not touch
any part of the TV, the power cord
and the antenna cable during
lightning storms.
Do not place any objects on the TV.
The apparatus shall not be
exposed to dripping or splashing
and that no objects filled with
liquids, such as vases, shall be
placed on the apparatus.
Do not operate the TV if any liquid
or solid object falls into it. Have it
checked immediately by qualified
personnel only.
Do not block the ventilation
openings of the TV. Do not install
the TV in a confined space, such
as a bookcase or built-in cabinet.
Do not open the cabinet and the
rear cover of the TV as high
voltages and other hazards are
present inside the TV. Refer
servicing and disposal of the TV
to qualified personnel.
Pull the power cord out by the
plug. Do not pull the power cord
itself. Even if your TV is turned
off, it is still connected to the AC
power source (mains) as long as
the power cord is plugged in.
Unplug the TV before moving it
or if you are not going to use it for
several days.
To prevent fire or shock hazard, do
not expose the TV to rain or
moisture.
Your TV is recommended for
home use only. Do not use the TV
in any vehicle or where it may be
subject to excessive dust, heat,
moisture or vibrations.
01GB02WAR-SOEMRus.p65 25/08/2006, 11:48 AM3
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
CSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of your
TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
• Use only the supplied screws. Use of other screws may damage the TV.
or
or
01GB03INS-SOEMRus.p65 25/08/2006, 11:47 AM4
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
Step 2
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
• Do not use old or different types of batteries together.
Step 3
Step 4
Set up the TV by following the instructions of the
“Начальная настройкa” (“Initial Setup”) menu
(see E).
Plug in the power cord, then press ! on the TV to
turn it on.
• The 1 (standby) indicator flashes green for a few
seconds when turning on the TV. This does not indicate
a malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
• You can also connect the TV to other optional
components (see F).
DGetting Started
01GB03INS-SOEMRus.p65 25/08/2006, 11:47 AM5
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
ESetting up your TV (“Initial Setup”)
When you turn on your TV for the first time, the
“Начальная настройкa”
(“Initial
Setup”) menu will appear. You can adjust settings below using the buttons on the
remote control or TV front panel. Press V, v, B or b to select or adjust items, then
press .
1Select the desired menu language.
2Select “Yes” to preset the channels automatically.
To skip automatic channel presetting, select “No”.
3The “Program Sorting/Edit” menu enables
you to sort and edit the channels (see N).
4Adjust the bars on the top and bottom of the
menu if they are slanted.
5Adjust the upper and lower bars if they are not
equally positioned to the top and bottom of the
screen.
6To prevent this “Initial Setup” menu from
appearing again when you turn on the TV
by pressing !, select “No”.
To allow this menu to appear again, select “Yes”.
•
You can immediately go to the end of the “Initial Setup” menu by pressing WEGA GATE.
• Before adjusting “Picture Rotation” and “Picture V-Position”, keep electrical equipment
(external speakers) away from the TV to avoid magnetic disturbance.
End
Confirm
Select
End
Confirm
Select
Program Sorting/Edit
01
02
03
04
Off
Off
Off
Off
05 Off
Sorting: Edit:
PROG
SkipLabel
Exit
Select Confirm
Select Confirm
End
Select Confirm
End
Select Confirm
01GB03INS-SOEMRus.p65 25/08/2006, 11:47 AM6
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
FConnecting optional components
You can connect a wide range of optional components to your TV. Connecting
cables are not supplied.
Connecting to the TV (front)
•
If you connect a VCR to
8
(antenna input), preset the signal output from the VCR to the
program number 0 on the TV
(see N)
.
•
When both (S video) and (video) for t
2
are connected at the same time,
(S video) is automatically selected. To view (video), disconnect the S video cable.
• The component video terminals on your DVD player are sometimes labeled Y/CB/CR,
Y/PB/PR, Y/Cb/Cr or Y/B-Y/R-Y.
• If you select “HD/DVD 1” or “HD/DVD 2” on your TV screen, the signal from the T
(monitor output) terminals will not be output properly. This does not indicate a
malfunction.
• The TV accepts the following signal formats:
Total scanning line 1125i 750p 625p 625i 525p 525i
Effective scanning line 1080i 720p 576p 576i 480p 480i
fV (Hz) 50/60 50/60 50 50 60 60
Connecting to the TV (rear)
S Video cable
Audio/Video cable Camcorder
Headphones
1
1
3
2
L
C
Y
R
P/
R
CB
P/
B
R
(MONO)
L
R
Component
video cable
DVD Player
Digital TV receiver
Audio cable
Audio/Video cableAudio/Video cableAntenna cable
VCR DVD Player Audio System VCR
L(MONO) R
2
01GB03INS-SOEMRus.p65 25/08/2006, 11:47 AM7
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
GTroubleshooting
If you find any problem while viewing your TV, you can either use the “Factory
Settings” function (see O) or check the Troubleshooting guide below. If the
problem persists, contact your Sony dealer.
Snowy picture, noisy sound
• Check the antenna setup and other connections.
• Preset the channel manually again (see N).
• Set the “Signal Booster” to “Auto” (see N) or try using an external booster.
Distorted picture, noisy sound
• Set the “Signal Booster” to “Off” (see N), or turn off or disconnect any external booster in
use.
Good picture, noisy sound
• Select the appropriate “TV System” (see N).
No picture, no sound
• Check the power cord, antenna setup and other connections.
• Press 4/1 (power) to turn on the TV.
• Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on
again.
Good picture, no sound
• Press 2 + to increase the volume level or press to cancel the muting.
Dotted lines or stripes
• Do not use a hair dryer or other equipment near the TV.
• Check the antenna setup.
Double images or “ghosts”
• Use the fine tuning (“Fine”) function (see N).
• Check the antenna setup or use a highly directional antenna.
• Turn off or disconnect any external booster in use.
No color
• Adjust the “Color” level from “Picture Adjustment” (see K).
• Select the appropriate “Color System” (see O).
• Check the antenna setup.
Picture slant
• Keep external speakers or other electrical equipment away from the TV. The magnetic
disturbance from these equipments or the direction of the earth’s magnetic field may affect
the TV.
• Adjust the “Picture Rotation” or “Picture V-Position” (see O).
Abnormal color patches
• Keep external speakers or other equipment away from the TV. Do not move the TV while
the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15
minutes, then turn it on again to demagnetize the TV.
TV cannot receive stereo broadcast sound or stereo broadcast sound switches on and off or is distorted.
• Check the antenna setup and other connections.
Teletext display is incomplete (snowy picture or double images).
• Check the antenna setup and other connections.
• Set the “Signal Booster” to “Auto” (see N) or try using an external booster.
• Use the fine tuning (“Fine”) function (see N).
01GB03INS-SOEMRus.p65 25/08/2006, 11:47 AM8
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
The 1 (standby) indicator on your TV flashes red several times after every three seconds.
• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to turn
off your TV. Contact your nearest Sony service center.
The TV screen sometimes goes blank for slightly longer than usual during channel change.
• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a
malfunction.
Cannot play shooting games.
•
Some shooting games which involve pointing a light beam at the TV screen with an electronic
gun or rifle cannot be used with your TV. For details, see the instruction manual supplied with
the video game software.
TV cabinet creaks.
• Changes in room temperature sometimes make the TV cabinet expand or contract, causing
a noise. This does not indicate a malfunction.
A small “boom” sound is heard when the TV is turned on.
• The TV’s demagnetizing function is working. This does not indicate a malfunction.
Horizontal thin lines appear on the TV screen.
• The visible lines that sometimes appear on your TV screen are shadows from the damper
wires used to stabilize the aperture grille of the Trinitron picture tube. This does not
indicate a malfunction.
Troubleshooting (continued)
01GB03INS-SOEMRus.p65 25/08/2006, 11:47 AM9
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
HTV buttons and remote control
1!Turn off or turn on the TV.
2Wake Up indicator.
21Standby indicator.
3Remote control sensor.
4PROG +/– Select program number.
52 +/– Adjust volume.
6tSelect TV or video input.
WEGA GATE menu operations (see I)
4,5
, , ,
Select or adjust items.
6 Confirm selected items.
7 WEGA GATE Display or cancel WEGA GATE
menu.
8SOUND MODE Select sound mode options with a
5-Band Graphic Equalizer display
(see L).
1?/1Turn off temporarily or turn on the
TV.
2aDisplay the TV program.
3Jump to last program number that
has been watched for at least five
seconds.
4PROG +/–Select program number. To select
quickly, press and hold until the
desired program number appears.
52 +/–Adjust volume.
8Change the picture size:
“4:3”, “16:9” (16:9 wide mode).
9 Select surround mode options
(see L).
0 Display on-screen information.
qa Mute the sound.
qs A/B Select stereo/bilingual mode:
Broadcasting Display (selected sound)
NICAM stereo NICAM (stereo), Mono (regular)
NICAM bilingual NICAM Main (main), NICAM
Sub (sub), Mono (regular)
NICAM monaural NICAM Main (main), Mono
(regular)
A2 stereo
Stereo (stereo), Mono (regular)
A2 bilingual Main (main), Sub (sub)
PROG
SOUND
MODE
12345678
TV
123
46
789
0
5
PROG
A/B
1
2
3
7
4
5
qj
qk
qa
qd
qf
qh
RETURN
6
8
9
0
w;
ql
qg
qs
WEGA
GATE
• If the stereo sound is noisy when receiving a
stereo program, select “Mono”. The sound
becomes monaural, but the noise is reduced.
01GB03INS-SOEMRus.p65 25/08/2006, 11:47 AM10
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
qd tSelect TV or video input.
qf 0 – 9 Input numbers. For program numbers 10 and above, enter the second digit
within two seconds.
ql Select sound mode options with a 5-Band Graphic Equalizer display:
“Dynamic”, “Standard”, “Custom”* (see L).
Dynamic
100 300 1k 3k 8k
Standard
100 300 1k 3k 8k
Custom
100 300 1k 3k 8k
* When the “Custom” mode is selected, you can receive the last adjusted
sound settings from the “Sound Adjustment” option in the menu.
w;
Select picture mode options: “Vivid”, “Standard”, “Custom”* (see
K
).
* When the “Custom” mode is selected, you can receive the last adjusted
picture settings from the “Picture Adjustment” option in the menu.
WEGA GATE menu operations (see I)
6Confirm selected items.
7WEGA GATE Display or cancel WEGA GATE menu.
qj V, v, B, b Select or adjust items.
qk RETURN Return to the previous level.
Timer operations
qg Set TV to turn on automatically according to the desired period of time
(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set the
wake up timer. If no buttons or controls are pressed for more than one hour
after the TV is turned on using the wake up timer, the TV automatically goes
into standby mode.
qh Set TV to turn off automatically according to the desired period of time
(Sleep Timer) (max. of one hour and 30 min.).
Teletext operations (green icon)
Display Teletext broadcast: Teletext t Teletext and TV t TV. If there is no
Teletext broadcast, only “100” is displayed at the top left corner of the screen.
Display Teletext service contents.
0 – 9 Input three digits Teletext page number.
, Display the next or previous page.
Stop Teletext display from scrolling.
Reveal concealed information.
Enlarge the Teletext display.
Show TV screen while waiting for Teletext page. Enter the Teletext page
number that you want to refer to, then press . When the page number is
displayed, press to show the text.
(red, green, Access the corresponding colored FASTEXT menu. The FASTEXT feature
yellow, blue) can be used only when the FASTEXT broadcast is available.
• Teletext is automatically cancelled when there is no signal or the frequency of input signal is
not within the proper range.
PIP operations
, , V, v, B, bNot function for your TV.
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and
BBE symbol are registered trademarks of BBE Sound, Inc.
TV buttons and remote control (continued)
01GB03INS-SOEMRus.p65 25/08/2006, 11:48 AM11
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
01
02
03
04
05
TV
Confirm
Select
End
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
IWEGA GATE navigator
WEGA GATE is a gateway that allows you access to preset TV channels,
connected external inputs and “Settings” menu.
01
02
03
04
05
TV
Confirm
Select
End
External Inputs
Confirm
Select
End
Video 1
1
2Video 2
Video 3
3
1
2HD/DVD 2
HD/DVD 1
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
watch the preset TV
channels (see E)
select the inputs for the
connected equipment
(see F)
change the settings
of your TV (see J)
How to use WEGA GATE
(1) Press WEGA GATE to display or cancel
the WEGA GATE menu.
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
(3) Press V or v to select the desired item. (4) Press RETURN to move to the previous
level.
(2) Press (or b) to confirm your selection
or go to the next level.
“TV”
“External Inputs”
“Settings”
• When a feature is dimmed in the menu, it is not selectable.
• The WEGA GATE, and
, , ,
buttons on the front panel can also be used for
the operations above.
01
02
03
04
05
TV
Confirm
Select
End
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
01GB04AVD-SOEMRus.p65 25/08/2006, 11:47 AM12
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
“Setup” (see
O
)
“Language”: “English” “ ” (Russian)
“Picture Position”: “Picture Rotation”, “Picture V-Position”
“Game Mode”: “On” “Off”
“Video Label”
“Color System”: “Auto” “PAL” “SECAM” “NTSC3.58”
“NTSC4.43”
“Eco Mode”: “On” “Off”
“Factory Settings”: “Yes” “No”
Confirm End
Setup
Select
Picture Position
Language:
Video Label
Game Mode:
Color System: Auto
Eco Mode: Off
English
Off
J“Settings” Adjustment
You are able to change the settings of your TV from “Settings” in WEGA GATE
menu (see I). The following is an overview of the items that can be
adjusted.
“Picture” (see
K
)
“Scan Mode”: “100Hz” “Progressive”
“Picture Mode”: “Vivid” “Standard” “Custom”
“Picture Adjustment”: “Picture”, “Brightness”, “Color”, “Hue”,
“Sharpness”, “Color Temperature”, “VM”,
“Reset”
“Intelligent Picture”: “On” “Off”
“Signal Level Indicator”: “On” “Off”
“D-NR”: “On” “Off”
Confirm End
Sound
Sound Adjustment
Sound Mode: Dynamic
Select
Balance
Intelligent Volume:
Surround: Off
Off
“Sound” (see
L
)
“Sound Mode”: “Dynamic” “Standard” “Custom”
“Sound Adjustment”: “Adjust”, “Reset”
“Balance”
“Intelligent Volume”: “On” “Off”
“Surround”: “Movie” “Sports” “Off”
“Wide Screen” (see
M
)
“Wide Mode”: “16:9” “4:3”
“Auto Wide”: “On” “Off”
“Channel Setup” (see
N
)
“Auto Program”
“Manual Program”
“Program”: “00” - “99”
“TV System”: “B/G” “I” “D/K” “M”
“VHF Low”/”VHF High”/”UHF”
“Fine”: “Auto” “Manual”
“Signal Booster”: “Auto” “Off”
“Program Sorting/Edit”
Channel Setup
Manual Program
Auto Program
Program Sorting/Edit
Confirm End
Select
Auto Wide:
4:3
Wide Mode:
Wide Screen
Confirm
Select
On
End
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
01GB04AVD-SOEMRus.p65 25/08/2006, 11:47 AM13
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
K“Picture” setting
Press WEGA GATE and select “Settings”.
Make sure the “Picture” icon ( ) is
selected, then press .
“Scan Mode” Choose either “100Hz” (reduce flicker on the screen to provide
a stable picture) or “Progressive” (reduce jitter of any small
areas or scanning lines on the screen).
“Picture Mode” Choose either “Vivid” (bright, contrast and sharp), “Standard”
(normal) or “Custom”*.
“Intelligent Picture” Optimize picture quality.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Signal Level Indicator” Display the signal level when the “Intelligent Picture” is
functioning.
“Intelligent Picture Signal Level” indicator will be displayed,
followed by picture improvement when you change the
program number or the input mode.
red amber green
(weak) (average) (good)
Press V or v to select “On”, then press .
To cancel, select “Off”, then press . “Intelligent Picture” is
still functioning.
“D-NR” Reduce noise level automatically to get optimum picture.
(Digital Noise Press V or v to select “On”, then press .
Reduction) To cancel, select “Off”, then press .
* You can adjust the setting to your personal preference in the “Picture Adjustment”
option only when the “Custom” mode is selected.
• “Scan Mode” is not selectable when “Game Mode” is turned to “On”. “Scan
Mode” is not available for HD (high-definition) and progressive input signals.
• “D-NR” is not available in HD and progressive input signals.
• “Signal Level Indicator” does not function in “HD/DVD 1” and “HD/DVD 2”
input modes.
01GB04AVD-SOEMRus.p65 25/08/2006, 11:47 AM14
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
Adjusting the “Picture Adjustment” items under “Custom”
mode
1Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,
“Hue” (color tones), “Sharpness”, “Color Temperature” (choose either
“Cool”, “Neutral” or “Warm”) or “VM” (choose either “High”, “Low” or
“Off”), then press .
Selecting “Reset” will set your TV to the factory settings.
2Press V,v,B or b to adjust the setting of your selected item, then press .
3Repeat the above steps to adjust other items.
The adjusted settings will be received when you select “Custom”.
• “Hue” can be adjusted for the NTSC color system only.
• Reducing “Sharpness” can also reduce picture noise.
“Picture” setting (continued)
01GB04AVD-SOEMRus.p65 25/08/2006, 11:47 AM15
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
L“Sound” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Sound”
icon ( ), then press .
“Sound Mode” Choose either “Dynamic” (low and high tones), “Standard”
(voice and high tones) or “Custom”*.
“Balance” Press v or B to emphasize the left speaker.
Press V or b to emphasize the right speaker.
“Intelligent Volume” Adjust the volume of all program numbers and video inputs
automatically.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Surround” Choose either “Movie” (cinema surround effect for stereo
sound),
“Sports” (simulated stadium effect for monaural sound)
or “Off”.
* You can adjust the setting to your personal preference in the “Sound Adjustment”
option only when the “Custom” mode is selected.
Adjusting the “Sound Adjustment” items under “Custom”
mode
The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings
of “Custom” mode in the menu.
1Make sure that “Adjust” is selected, then press .
Selecting “Reset” will set your TV to the factory settings.
2Press B or b to select the desired sound frequency, then press V or v to
adjust the setting and press .
The adjusted settings will be received when you select “Custom”.
• Adjusting higher frequency will affect higher pitched sound and adjusting lower
frequency will affect lower pitched sound.
• You may display the settings directly by using the SOUND MODE button on the TV
front panel (see H) or button on the remote control (see H).
Sound
Balance
Sound Adjustment
Sound Mode: Dynamic
Off
Off
Intelligent Volume:
Surround:
Select Confirm
End
01GB05ADJ-SOEMRus.p65 25/08/2006, 11:46 AM16
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
M“Wide Screen” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Wide Screen”
icon ( ), then press .
“Wide Mode” Change the size of the picture when receiving wide-mode (16:9)
picture signal.
Choose “16:9”.
To restore the normal picture size, select “4:3”, then press .
“Auto Wide” Display the picture in optimum wide screen automatically when
you choose “On”.
To cancel, select “Off”, then press .
• You can also change to wide-mode picture size by pressing the button on the
remote control (see H).
• “Wide Mode” is not selectable for HD (1080i, 720p) input signals. For
HD (1080i, 720p) input signals, your TV will always display wide mode picture.
• “Auto Wide” is only available when receiving 576i, 480p and 480i input signals.
Auto Wide:
4:3
Wide Mode:
Wide Screen
Confirm
Select
On
End
01GB05ADJ-SOEMRus.p65 25/08/2006, 11:46 AM17
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
N
“Channel Setup” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Channel Setup”
icon ( ), then press .
“Auto Program” Preset channels automatically.
“Manual Program” Manually preset desired channels and channels that cannot
be preset automatically (see Presetting channels manually).
“Program Sorting/Edit”
Sort and edit the channels.
(a) If you wish to keep the channels in the current condition,
press WEGA GATE to exit.
(b) Press
V or v to select the program number with the
channel you wish to change. The selected channel will
appear on the screen.
(c) If you wish to store the channels in a different order:
(1) Press b to enter sorting mode.
(2) Press V or v to select the new program number
position for your selected channel, then press B.
(d) If you wish to edit the channels, press to change to
edit mode.
Press b until the mode that you wish to edit is
highlighted: Label, Skip, (block symbol). Then press
.
(1) To label, press V or v to select the alphanumeric
characters for the label. Then press .
(2) To skip the program number, press V or v to select
“On”. Then press .
You can skip this program number when using
PROG +/–.
(3) To block unwanted program number, press V or v to
select . Then press .
(e) Repeat step (b) to (d) if you wish to change other
channels.
Press WEGA GATE to exit.
• If you preset a blocked program number, that program number will be unblocked
automatically.
• If you sort a blocked program, that program will remain blocked.
Manual Program
Auto Program
Program Sorting/Edit
Channel Setup
Confirm
Select End
01GB05ADJ-SOEMRus.p65 25/08/2006, 11:46 AM18
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
Presetting channels manually
1After selecting “Manual Program”, select the program
number to which you want to preset a channel.
(1) Make sure “Program” is selected, then press .
(2) Press V or v
until the program number you want
to preset appears on the menu, then press .
2Select the desired channel.
(1) Make sure either “VHF Low”, “VHF High” or “UHF” is selected, then press
.
(2) Press V or v until the desired channel’s broadcast appears on the TV screen,
then press .
3If the sound of the desired channel is abnormal, select the appropriate TV
system.
(1) Press V or v
to select “TV System”, then press .
(2) Press V or v
until the sound becomes normal, then press .
4If you are not satisfied with the picture and sound quality, you may be able
to improve them by using the “Fine” tuning feature.
(1) Press V or v
to select “Fine”, then press .
(2) Press V or v
to select “Manual”, then press .
(3)
Press V,v,B or b until the picture and sound quality are optimal, then press .
The + or – icon on the menu flashes while tuning.
5If the TV signal is too strong (picture distorted; picture with lines; signal
interference) or weak (snowy picture), you may be able to improve the
picture quality by setting the “Signal Booster” feature.
(1) Press V or v
to select “Signal Booster”, then press .
(2) Press V or v
to select either “Off”(for picture distorted; picture with lines;
signal interference) or “Auto” (for snowy picture), then press .
VHF Low
Fine:
Signal Booster:
Auto
Auto
Select Confirm
Manual Program
Program: 01
TV System: D/K
End
“Channel Setup” setting (continued)
01GB05ADJ-SOEMRus.p65 25/08/2006, 11:46 AM19
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
O
“Setup” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Setup”
icon ( ), then press .
“Language” Change the menu language.
Press V or v to select either “English”or “” (Russian),
then press .
“Picture Position” Adjust the picture position when it is not aligned with the TV
screen.
Press V or v to select “Picture Rotation” or “Picture V-Position”,
then press .
Press V, v, B or b to adjust the picture position, then press .
“Game Mode” Adjust the picture setting that is suitable to view video games.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Video Label” Label the connected equipment.
(1)
Press V or v to select the input you want to label, then press .
(2) Press V or v to select the label options: “Video 1”/
“Video 2”/ “Video 3”/ “HD/DVD 1”/ “HD/DVD 2”,
“VCR”, “SAT”, “Game” or “Edit”*, then press .
* You may edit the video label to your favorite name.
Press V or v to select alphanumeric characters for the label,
then press .
“Color System” Select the color system.
Press V or v to select either “Auto”, “PAL”, “SECAM”,
“NTSC3.58” or “NTSC4.43”, then press . Normally, set this to
“Auto”.
“Eco Mode” Reduce power consumption of your TV to save energy.
Press V or v to select “On”, then press .
When you press or turn on the TV, Eco Mode ( ) symbol
will appear on the screen for a while.
To cancel, select “Off”, then press .
Confirm End
Setup
Video Label
Picture Position
Game Mode:
Language: English
Color System:
Eco Mode: Auto
Off
Off
Select
01GB05ADJ-SOEMRus.p65 25/08/2006, 11:46 AM20
Black
Sony KV-DZ29M91 Group D3 (GB-dummy)_2-890-006-E1 (1)
“Factory Settings” Reset your TV to factory settings.
Press and press V or v to select “Yes”, then press .
Your TV will go blank for a few seconds, then the “Initial Setup”
menu will appear.
To cancel, select “No”, then press .
• You cannot adjust “Picture Rotation” and “Picture V-Position” when HD (1080i, 720p)
signals are input.
• “Game Mode” is available only when receiving signals through the t (video input),
(S video input) or (component video input) terminals.
• When HD or progressive signals are input, “Game Mode” does not function.
“Setup” setting (continued)
01GB05ADJ-SOEMRus.p65 25/08/2006, 11:46 AM21
Black
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
Trinitron Color TV
© 2006 Sony Corporation
KV-DZ29
2-891-295-11 (1)
Operating Instructions
• Before operating the unit, please read this manual thoroughly and retain
it for future reference.
GB
CT
MY
M61
使用說明書
•使用本電視機之前請先詳細閱讀此手冊﹐並妥善保存以備日後用作參考。
Panduan Pengendalian
• Sebelum mengendalikan unit, sila baca buku panduan ini dengan teliti
dan simpan untuk rujukan masa depan.
02CT01COV-SOEMMly.p65 08/08/2006, 4:12 PM1
¶´ƒ
2 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
WARNING
• Dangerously high voltages are present inside the TV.
• TV operating voltage: 220 – 240 V AC.
• Do not plug in the power cord until you have completed making all other
connections; otherwise a minimum leakage current might flow through the antenna
and other terminals to ground.
• To avoid battery leakage and damage to the remote, remove the batteries from the
remote if you are not going to use it for several days. If any liquid leaks from the
batteries and touches your skin, immediately wash it away with water.
Clean the TV with a dry and soft
cloth. Do not use benzine, thinner,
or any other chemicals to clean the
TV. Do not attach anything (e.g.,
adhesive tape, cellophane tape,
glue) on the painted cabinet of the
TV. Do not scratch the picture
tube.
Install the TV on a stable TV stand
and floor which can support the
TV set weight. Ensure that the TV
stand surface is flat and its area is
larger than the bottom area of the
TV.
Do not plug in too many
appliances to the same power
socket. Do not damage the power
cord.
For children’s safety, do not leave
children alone with the TV. Do not
allow children to climb onto it.
For your own safety, do not touch
any part of the TV, the power cord
and the antenna cable during
lightning storms.
Do not place any objects on the TV.
The apparatus shall not be
exposed to dripping or splashing
and that no objects filled with
liquids, such as vases, shall be
placed on the apparatus.
Do not operate the TV if any liquid
or solid object falls into it. Have it
checked immediately by qualified
personnel only.
Do not block the ventilation
openings of the TV. Do not install
the TV in a confined space, such
as a bookcase or built-in cabinet.
Do not open the cabinet and the
rear cover of the TV as high
voltages and other hazards are
present inside the TV. Refer
servicing and disposal of the TV
to qualified personnel.
Pull the power cord out by the
plug. Do not pull the power cord
itself. Even if your TV is turned
off, it is still connected to the AC
power source (mains) as long as
the power cord is plugged in.
Unplug the TV before moving it
or if you are not going to use it for
several days.
To prevent fire or shock hazard, do
not expose the TV to rain or
moisture.
Your TV is recommended for
home use only. Do not use the TV
in any vehicle or where it may be
subject to excessive dust, heat,
moisture or vibrations.
01GB02WAR-SOEMMly.p65 08/08/2006, 4:02 PM2
Black
3 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
Table of Contents
Installation
Securing the TV ................................................................................................................ 4
Getting Started ..................................................................................................................5
Setting up your TV (“Initial Setup”) ............................................................................ 6
Connecting optional components ..................................................................................7
Overview of Controls
TV buttons and remote control ...................................................................................... 8
Menu Adjustment
WEGA GATE navigator ................................................................................................ 10
“Settings” Adjustment ................................................................................................... 11
“Picture” setting..............................................................................................................12
“Sound” setting.............................................................................................................. 14
“Wide Screen” setting ....................................................................................................15
“Channel Setup” setting ................................................................................................16
“Setup” setting ................................................................................................................18
Additional Information
Troubleshooting ..............................................................................................................20
Specifications ................................................................................................... Back cover
GB
01GB03TOC-SOEMMly.p65 08/08/2006, 4:02 PM3
Black
4 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
xSecuring the TV
To prevent the TV from falling, use the supplied screws, clamps and band to
secure the TV.
20 mm
3.8 mm
screws clamps band
Screw the band to the TV stand and to the
provided hole at the rear of your TV.
(1) Put a cord or chain through the clamps.
(2) Screw one clamp to a wall or pillar and
the other clamp to the provided hole at
the rear of your TV.
(1) Attach each end of a cord or chain to
the provided holders at the rear of your
TV.
(2) Securely fix the attached cord or chain
to a wall or pillar using an attachment
which can support the TV set weight.
• Use only the supplied screws. Use of other screws may damage the TV.
or
or
01GB04INS-SOEMMly.p65 08/08/2006, 4:02 PM4
Black
5 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
Step 2
End
Select Confirm
b
b
1
Step 1
Insert the batteries (supplied) into the remote.
• Do not use old or different types of batteries together.
Step 3
Step 4
Set up the TV by following the instructions of the
“Initial Setup” menu (see page 6).
Plug in the power cord, then press ! on the TV to
turn it on.
• The 1 (standby) indicator flashes green for a few
seconds when turning on the TV. This does not indicate
a malfunction.
Connect the antenna cable (not supplied) to 8
(antenna input) at the rear of the TV.
• You can also connect the TV to other optional
components (see page 7).
x Getting Started
01GB04INS-SOEMMly.p65 08/08/2006, 4:03 PM5
Black
6 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
xSetting up your TV (“Initial Setup”)
When you turn on your TV for the first time, the “Initial Setup” menu will appear.
You can adjust settings below using the buttons on the remote control or TV front
panel. Press V, v, B or b to select or adjust items, then press .
1Select the desired menu language.
2Select “Yes” to preset the channels automatically.
To skip automatic channel presetting, select “No”.
3The “Program Sorting/Edit” menu enables
you to sort and edit the channels (see page 16).
4Adjust the bars on the top and bottom of the
menu if they are slanted.
5Adjust the upper and lower bars if they are not
equally positioned to the top and bottom of the
screen.
6To prevent this “Initial Setup” menu from
appearing again when you turn on the TV
by pressing !, select “No”.
To allow this menu to appear again, select “Yes”.
•
You can immediately go to the end of the ”Initial Setup” menu by pressing WEGA GATE.
• Before adjusting “Picture Rotation” and “Picture V-Position”, keep electrical equipment
(external speakers) away from the TV to avoid magnetic disturbance.
End
Select Confirm
End
Select Confirm
Program Sorting/Edit
01
02
03
04
Off
Off
Off
Off
05 Off
Sorting: Edit:
PROG
SkipLabel
Exit
Select Confirm
Select Confirm
End
Select Confirm
End
Select Confirm
01GB04INS-SOEMMly.p65 08/08/2006, 4:03 PM6
Black
7 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
1
1
3
2
CR
P/
R
CB
L
(MONO)
RR
L
L
P/
B
Y
L
R
(MONO)
2
L
R
(MONO)
2
xConnecting optional components
You can connect a wide range of optional components to your TV. Connecting
cables are not supplied.
S Video
cable
Connecting to the TV (rear)
Audio/
Video cable
Camcorder
Connecting to the TV (front)
Component
video
cable DVD player
Digital TV receiver
Audio
cable
Audio/Video cable
Audio/Video cableAntenna cable
VCR DVD player Audio system VCR
• If you connect a VCR to 8 (antenna input), preset the signal output from the VCR to the
program number 0 on the TV (see page 17).
• When both (S video) and (video) for t2 are connected at the same time,
(S video) is automatically selected. To view (video), disconnect the S video cable.
• The component video terminals on your DVD player are sometimes labeled Y/CB/CR,
Y/PB/PR, Y/Cb/Cr or Y/B-Y/R-Y.
• If you select “HD/DVD 1” or “HD/DVD 2” on your TV screen, the signal from the T
(monitor output) terminals will not be output properly. This does not indicate a
malfunction.
• The TV accepts the following signal formats:
Total scanning line 1125i 750p 625p 625i 525p 525i
Effective scanning line 1080i 720p 576p 576i 480p 480i
fV (Hz) 50/60 50/60 50 50 60 60
Headphones
01GB04INS-SOEMMly.p65 08/08/2006, 4:03 PM7
Black
8 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
xTV buttons and remote control
1!Turn off or turn on the TV.
2Wake Up indicator.
21Standby indicator.
3Remote control sensor.
4PROG +/– Select program number.
52 +/– Adjust volume.
6tSelect TV or video input.
WEGA GATE menu operations (see page 10)
4,5
, , ,
Select or adjust items.
6Confirm selected items.
7WEGA GATE Display or cancel WEGA GATE menu.
8SOUND MODE Select sound mode options with a
5-Band Graphic Equalizer display
(see page 14).
1?/1Turn off temporarily or turn on the
TV.
2aDisplay the TV program.
3Jump to last program number that
has been watched for at least five
seconds.
4PROG +/–Select program number. To select
quickly, press and hold until the
desired program number appears.
52 +/–Adjust volume.
8Change the picture size:
“4:3”, “16:9” (16:9 wide mode).
9 Select surround mode options
(see page 14).
0 Display on-screen information.
qa Mute the sound.
qs A/B Select stereo/bilingual mode:
Broadcasting Display (selected sound)
NICAM stereo NICAM (stereo), Mono (regular)
NICAM bilingual NICAM Main (main), NICAM
Sub (sub), Mono (regular)
NICAM monaural NICAM Main (main), Mono
(regular)
A2 stereo Stereo (stereo), Mono (regular)
A2 bilingual Main (main), Sub (sub)
PROG
SOUND
MODE
12345678
PROG
SOUND
MODE
L
R
(MONO)
2
RETURN WEGA
GATE
TV
123
46
789
0
5
PROG
A/B
2
3
7
4
5
qj
qk
qa
qd
qf
qh
RETURN
6
8
9
0
w;
ql
qg
qs 1
WEGA
GATE
• If the stereo sound is noisy when receiving a
stereo program, select “Mono”. The sound
becomes monaural, but the noise is reduced.
01GB04INS-SOEMMly.p65 08/08/2006, 4:03 PM8
Black
9 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
qd tSelect TV or video input.
qf 0 – 9 Input numbers. For program numbers 10 and above, enter the second
digit within two seconds.
ql Select sound mode options with a 5-Band Graphic Equalizer display:
“Dynamic”, “Standard”, “Custom”* (see page 14).
Dynamic
100 300 1k 3k 8k
Standard
100 300 1k 3k 8k
Custom
100 300 1k 3k 8k
* When the “Custom” mode is selected, you can receive the last adjusted
sound settings from the “Sound Adjustment” option in the menu.
w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see page 12).
* When the “Custom” mode is selected, you can receive the last adjusted
picture settings from the “Picture Adjustment” option in the menu.
WEGA GATE menu operations (see page 10)
6Confirm selected items.
7WEGA GATE Display or cancel WEGA GATE menu.
qj V, v, B, b Select or adjust items.
qk RETURN Return to the previous level.
Timer operations
qg Set TV to turn on automatically according to the desired period of time
(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set
the wake up timer. If no buttons or controls are pressed for more than
one hour after the TV is turned on using the wake up timer, the TV
automatically goes into standby mode.
qh Set TV to turn off automatically according to the desired period of time
(Sleep Timer) (max. of one hour and 30 min.).
Teletext operations (green icon)
Display Teletext broadcast: Teletext t Teletext and TV t TV. If there is no
Teletext broadcast, only “100” is displayed at the top left corner of the screen.
Display Teletext service contents.
0 – 9 Input three digits Teletext page number.
,
Display the next or previous page.
Stop Teletext display from scrolling.
Reveal concealed information.
Enlarge the Teletext display.
Show TV screen while waiting for Teletext page. Enter the Teletext page
number that you want to refer to, then press . When the page number is
displayed, press to show the text.
(red, green, Access the corresponding colored FASTEXT menu. The FASTEXT feature
yellow, blue) can be used only when the FASTEXT broadcast is available.
•Teletext is automatically cancelled when there is no signal or the frequency of input signal is
not within the proper range.
PIP operations
, , V, v, B, bNot function for your TV.
Manufactured under license from BBE Sound, Inc.
Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752, 5736897. BBE and
BBE symbol are registered trademarks of BBE Sound, Inc.
01GB04INS-SOEMMly.p65 08/08/2006, 4:03 PM9
Black
10 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
01
02
03
04
05
TV
Confirm
Select
End
xWEGA GATE navigator
WEGA GATE is a gateway that allows you access to preset TV channels,
connected external inputs and “Settings” menu.
watch the preset TV
channels (see page 6)
select the inputs for the
connected equipment
(see page 7)
change the
settings of your
TV (see page 11)
How to use WEGA GATE
(1) Press WEGA GATE to display or cancel
the WEGA GATE menu.
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
(3) Press V or v to select the desired item. (4) Press RETURN to move to the previous
level.
(2) Press (or b) to confirm your selection
or go to the next level.
“TV”
“External Inputs”
“Settings”
• When a feature is dimmed in the menu, it is not selectable.
• The WEGA GATE, and
, , ,
buttons on the front panel can also be used for
the operations above.
01
02
03
04
05
TV
Confirm
Select
End
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
Confirm
Select
WEGA GATE
Settings
External Inputs
TV
TV
External Inputs
Confirm
Select
End
Video 1
1
2Video 2
Video 3
3
1
2HD/DVD 2
HD/DVD 1
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
01
02
03
04
05
Confirm
Select
End
01GB05AVD-SOEMMly.p65 08/08/2006, 4:03 PM10
Black
11 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
“Setup” (see page 18)
“Language”: “English” “ ” (Chinese) “ ” (Arabic)
“” (Thai)
“Picture Position”: “Picture Rotation”, “Picture V-Position”
“Game Mode”: “On” “Off”
“Video Label”
“Color System”: “Auto” “PAL” “SECAM” “NTSC3.58”
“NTSC4.43”
“Eco Mode”: “On” “Off”
“Factory Settings”: “Yes” “No”
Confirm End
Setup
Select
Picture Position
Language:
Video Label
Game Mode:
Color System: Auto
Eco Mode: Off
English
Off
x“Settings” Adjustment
You are able to change the settings of your TV from “Settings” in WEGA GATE
menu (see page 10). The following is an overview of the items that can be adjusted.
“Picture” (see page 12)
“Scan Mode”: “100Hz” “Progressive”
“Picture Mode”: “Vivid” “Standard” “Custom”
“Picture Adjustment”: “Picture”, “Brightness”, “Color”, “Hue”,
“Sharpness”, “Color Temperature”, “VM”,
“Reset”
“Intelligent Picture”: “On” “Off”
“Signal Level Indicator”: “On” “Off”
“D-NR”: “On” “Off”
Confirm End
Sound
Sound Adjustment
Sound Mode: Dynamic
Select
Balance
Intelligent Volume:
Surround: Off
Off
“Sound” (see page 14)
“Sound Mode”: “Dynamic” “Standard” “Custom”
“Sound Adjustment”: “Adjust”, “Reset”
“Balance”
“Intelligent Volume”: “On” “Off”
“Surround”: “Movie” “Sports” “Off”
“Wide Screen” (see page 15)
“Wide Mode”: “16:9” “4:3”
“Auto Wide”: “On” “Off”
“Channel Setup” (see page 16)
“Auto Program”
“Manual Program”
“Program”: “00” - “99”
“TV System”: “B/G” “I” “D/K” “M”
“VHF Low”/“VHF High”/“UHF”
“Fine”: “Auto” “Manual”
“Signal Booster”: “Auto” “Off”
“Program Sorting/Edit”
Channel Setup
Manual Program
Auto Program
Program Sorting/Edit
Confirm End
Select
Auto Wide:
4:3
Wide Mode:
Wide Screen
Confirm
Select
On
End
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
01GB05AVD-SOEMMly.p65 08/08/2006, 4:03 PM11
Black
12 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
x“Picture” setting
Press WEGA GATE and select “Settings”.
Make sure the “Picture” icon ( ) is
selected, then press .
“Scan Mode” Choose either “100Hz” (reduce flicker on the screen to provide a
stable picture) or “Progressive” (reduce jitter of any small areas
or scanning lines on the screen).
“Picture Mode” Choose either “Vivid” (bright, contrast and sharp), “Standard”
(normal) or “Custom”*.
“Intelligent Picture” Optimize picture quality.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Signal Level Indicator” Display the signal level when the “Intelligent Picture” is
functioning.
“Intelligent Picture Signal Level” indicator will be displayed,
followed by picture improvement when you change the
program number or the input mode.
red amber green
(weak) (average) (good)
Press V or v to select “On”, then press .
To cancel, select “Off”, then press . “Intelligent Picture” is still
functioning.
“D-NR” Reduce noise level automatically to get optimum picture.
(Digital Noise Press V or v to select “On”, then press .
Reduction) To cancel, select “Off”, then press .
* You can adjust the setting to your personal preference in the “Picture Adjustment”
option only when the “Custom” mode is selected (see page 13).
• “Scan Mode” is not selectable when “Game Mode” is turned to “On”. “Scan Mode”
is not available for HD (high-definition) and progressive input signals.
• “D-NR” is not available in HD and progressive input signals.
• “Signal Level Indicator” does not function in “HD/DVD 1” and “HD/DVD 2”
input modes.
Confirm End
Select
Picture Mode:
Scan Mode:
Intelligent Picture:
Picture Adjustment
Signal Level Indicator:
On
D-NR: On
100Hz
Vivid
On
01GB05AVD-SOEMMly.p65 08/08/2006, 4:03 PM12
Black
13 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
Adjusting the “Picture Adjustment” items under “Custom”
mode
1Press V or v to select either “Picture” (contrast), “Brightness”, “Color”,
“Hue” (color tones), “Sharpness”, “Color Temperature” (choose either
“Cool”, “Neutral” or “Warm”) or “VM” (choose either “High”, “Low” or
“Off”), then press .
Selecting “Reset” will set your TV to the factory settings.
2Press V,v,B or b to adjust the setting of your selected item, then press .
3Repeat the above steps to adjust other items.
The adjusted settings will be received when you select “Custom”.
• “Hue” can be adjusted for the NTSC color system only.
• Reducing “Sharpness” can also reduce picture noise.
01GB05AVD-SOEMMly.p65 08/08/2006, 4:03 PM13
Black
14 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
x“Sound” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Sound”
icon ( ), then press .
“Sound Mode” Choose either “Dynamic” (low and high tones), “Standard”
(voice and high tones) or “Custom”*.
“Balance” Press v or B to emphasize the left speaker.
Press V or b to emphasize the right speaker.
“Intelligent Volume” Adjust the volume of all program numbers and video inputs
automatically.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Surround” Choose either “Movie” (cinema surround effect for stereo
sound),
“Sports” (simulated stadium effect for monaural sound)
or “Off”.
* You can adjust the setting to your personal preference in the “Sound Adjustment”
option only when the “Custom” mode is selected.
Adjusting the “Sound Adjustment” items under “Custom”
mode
The 5-Band Graphic Equalizer feature allows you to adjust sound frequency settings
of “Custom” mode in the menu.
1Make sure that “Adjust” is selected, then press .
Selecting “Reset” will set your TV to the factory settings.
2Press B or b to select the desired sound frequency, then press V or v to
adjust the setting and press .
The adjusted settings will be received when you select “Custom”.
• Adjusting higher frequency will affect higher pitched sound and adjusting lower
frequency will affect lower pitched sound.
• You may display the settings directly by using the SOUND MODE button on the TV
front panel (see page 8) or button on the remote control (see page 9).
Sound
Balance
Sound Adjustment
Sound Mode: Dynamic
Off
Off
Intelligent Volume:
Surround:
Select Confirm
End
01GB06ADJ-SOEMMly.p65 08/08/2006, 4:04 PM14
Black
15 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
x“Wide Screen” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Wide Screen” icon
(), then press .
“Wide Mode” Change the size of the picture when receiving wide-mode (16:9)
picture signal.
Choose “16:9”.
To restore the normal picture size, select “4:3”, then press .
“Auto Wide” Display the picture in optimum wide screen automatically when
you choose “On”.
To cancel, select “Off”, then press .
• You can also change to wide-mode picture size by pressing the button on the
remote control (see page 8).
• “Wide Mode” is not selectable for HD (1080i, 720p) input signals. For HD (1080i,
720p) input signals, your TV will always display wide mode picture.
• “Auto Wide” is only available when receiving 576i, 480p and 480i input signals.
Auto Wide:
4:3
Wide Mode:
Wide Screen
Confirm
Select
On
End
01GB06ADJ-SOEMMly.p65 08/08/2006, 4:04 PM15
Black
16 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
x
“Channel Setup” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Channel Setup”
icon ( ), then press .
“Auto Program” Preset channels automatically.
“Manual Program” Manually preset desired channels and channels that cannot
be preset automatically (see Presetting channels manually
in page 17).
“Program Sorting/Edit”
Sort and edit the channels.
(a) If you wish to keep the channels in the current condition,
press WEGA GATE to exit.
(b) Press
V or v to select the program number with the
channel you wish to change. The selected channel will
appear on the screen.
(c) If you wish to store the channels in a different order:
(1) Press b to enter sorting mode.
(2) Press V or v to select the new program number
position for your selected channel, then press B.
(d) If you wish to edit the channels, press to change to
edit mode.
Press b until the mode that you wish to edit is
highlighted: Label, Skip, (block symbol). Then press
.
(1) To label, press V or v to select the alphanumeric
characters for the label. Then press .
(2) To skip the program number, press V or v to select
“On”. Then press .
You can skip this program number when using
PROG +/–.
(3) To block unwanted program number, press V or v to
select . Then press .
(e) Repeat step (b) to (d) if you wish to change other
channels.
Press WEGA GATE to exit.
• If you preset a blocked program number, that program number will be unblocked
automatically.
• If you sort a blocked program, that program will remain blocked.
Manual Program
Auto Program
Program Sorting/Edit
Channel Setup
Confirm
Select End
01GB06ADJ-SOEMMly.p65 08/08/2006, 4:04 PM16
Black
17 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
Presetting channels manually
1After selecting “Manual Program”, select the program
number to which you want to preset a channel.
(1) Make sure “Program” is selected, then press .
(2) Press V or v
until the program number you want
to preset appears on the menu, then press .
2Select the desired channel.
(1) Make sure either “VHF Low”, “VHF High” or “UHF” is selected, then press
.
(2) Press V or v until the desired channel’s broadcast appears on the TV screen,
then press .
3If the sound of the desired channel is abnormal, select the appropriate TV
system.
(1) Press V or v
to select “TV System”, then press .
(2) Press V or v
until the sound becomes normal, then press .
4If you are not satisfied with the picture and sound quality, you may be able
to improve them by using the “Fine” tuning feature.
(1) Press V or v
to select “Fine”, then press .
(2) Press V or v
to select “Manual”, then press .
(3)
Press V,v,B or b until the picture and sound quality are optimal, then press .
The + or – icon on the menu flashes while tuning.
5If the TV signal is too strong (picture distorted; picture with lines; signal
interference) or weak (snowy picture), you may be able to improve the
picture quality by setting the “Signal Booster” feature.
(1) Press V or v
to select “Signal Booster”, then press .
(2) Press V or v
to select either “Off”(for picture distorted; picture with lines;
signal interference) or “Auto” (for snowy picture), then press .
VHF Low
Fine:
Signal Booster:
Auto
Auto
Select Confirm
Manual Program
Program: 01
TV System: B/G
End
01GB06ADJ-SOEMMly.p65 08/08/2006, 4:04 PM17
Black
18 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
x
“Setup” setting
Press WEGA GATE and select “Settings”.
Press V or v to select the “Setup” icon ( ),
then press .
“Language” Change the menu language.
Press V or v to select either “English”, “” (Chinese), “ ”
(Arabic) or “ ” (Thai), then press .
“Picture Position” Adjust the picture position when it is not aligned with the TV
screen.
Press V or v to select “Picture Rotation” or “Picture V-Position”,
then press .
Press V, v, B or b to adjust the picture position, then press .
“Game Mode” Adjust the picture setting that is suitable to view video games.
Press V or v to select “On”, then press .
To cancel, select “Off”, then press .
“Video Label” Label the connected equipment.
(1) Press V or v to select the input you want to label, then press
.
(2) Press V or v to select the label options: “Video 1”/ “Video
2”/ “Video 3”/ “HD/DVD 1”/ “HD/DVD 2”, “VCR”,
“SAT”, “Game” or “Edit”*, then press .
* You may edit the video label to your favorite name.
Press V or v to select alphanumeric characters for the label,
then press .
“Color System” Select the color system.
Press V or v to select either “Auto”, “PAL”, “SECAM”,
“NTSC3.58” or “NTSC4.43”, then press . Normally, set this to
“Auto”.
“Eco Mode” Reduce power consumption of your TV to save energy.
Press V or v to select “On”, then press .
When you press or turn on the TV, Eco Mode ( ) symbol
will appear on the screen for a while.
To cancel, select “Off”, then press .
Confirm End
Setup
Video Label
Picture Position
Game Mode:
Language: English
Color System:
Eco Mode: Auto
Off
Off
Select
01GB06ADJ-SOEMMly.p65 08/08/2006, 4:04 PM18
Black
19 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
• You cannot adjust “Picture Rotation” and “Picture V-Position” when HD (1080i,
720p) signals are input.
• “Game Mode” is available only when receiving signals through the t (video
input), (S video input) or (component video input) terminals.
• When HD or progressive signals are input, “Game Mode” does not function.
“Factory Settings” Reset your TV to factory settings.
Press and press V or v to select “Yes”, then press .
Your TV will go blank for a few seconds, then the “Initial Setup”
menu will appear.
To cancel, select “No”, then press .
01GB06ADJ-SOEMMly.p65 08/08/2006, 4:04 PM19
Black
20 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
xTroubleshooting
If you find any problem while viewing your TV, you can either use the “Factory
Settings” function (see page 19) or check the Troubleshooting guide below. If the
problem persists, contact your Sony dealer.
Snowy picture, noisy sound
• Check the antenna setup and other connections.
• Preset the channel manually again (see page 17).
• Set the “Signal Booster” to “Auto” (see page 17) or try using an external booster.
Distorted picture, noisy sound
• Set the “Signal Booster” to “Off” (see page 17), or turn off or disconnect any external
booster in use.
Good picture, noisy sound
• Select the appropriate “TV System” (see page 17).
No picture, no sound
• Check the power cord, antenna setup and other connections.
• Press 4/1 (power) to turn on the TV.
• Press ! (main power) on the TV to turn off the TV for about five seconds, then turn it on
again.
Good picture, no sound
• Press 2 + to increase the volume level or press to cancel the muting.
Dotted lines or stripes
• Do not use a hair dryer or other equipment near the TV.
• Check the antenna setup.
Double images or “ghosts”
• Use the fine tuning (“Fine”) function (see page 17).
• Check the antenna setup or use a highly directional antenna.
• Turn off or disconnect any external booster in use.
No color
• Adjust the “Color” level from “Picture Adjustment” (see page 13).
• Select the appropriate “Color System” (see page 18).
• Check the antenna setup.
Picture slant
• Keep external speakers or other electrical equipment away from the TV. The magnetic
disturbance from these equipments or the direction of the earth’s magnetic field may affect
the TV.
• Adjust the “Picture Rotation” or “Picture V-Position” (see page 18).
Abnormal color patches
• Keep external speakers or other equipment away from the TV. Do not move the TV while
the TV is turned on. Press ! (main power) on the TV to turn off the TV for about 15
minutes, then turn it on again to demagnetize the TV.
TV cannot receive stereo broadcast sound or stereo broadcast sound switches on and off or is distorted.
• Check the antenna setup and other connections.
Teletext display is incomplete (snowy picture or double images).
• Check the antenna setup and other connections.
• Set the “Signal Booster” to “Auto” (see page 17) or try using an external booster.
• Use the fine tuning (“Fine”) function (see page 17).
01GB07ADV-SOEMMly.p65 08/08/2006, 4:05 PM20
Black
21 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
The 1 (standby) indicator on your TV flashes red several times after every three seconds.
• Count the number of times the 1 (standby) indicator flashes. Press ! (main power) to
turn off your TV. Contact your nearest Sony service center.
The TV screen sometimes goes blank for slightly longer than usual during channel change.
• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a
malfunction.
Cannot play shooting games.
•
Some shooting games which involve pointing a light beam at the TV screen with an electronic
gun or rifle cannot be used with your TV. For details, see the instruction manual supplied with
the video game software.
TV cabinet creaks.
• Changes in room temperature sometimes make the TV cabinet expand or contract, causing
a noise. This does not indicate a malfunction.
A small “boom” sound is heard when the TV is turned on.
• The TV’s demagnetizing function is working. This does not indicate a malfunction.
Horizontal thin lines appear on the TV screen.
• The visible lines that sometimes appear on your TV screen are shadows from the damper
wires used to stabilize the aperture grille of the Trinitron picture tube. This does not
indicate a malfunction.
01GB07ADV-SOEMMly.p65 08/08/2006, 4:05 PM21
Black
22 GB
Sony KV-DZ29M61 Group D5 (GB, CT, MY)_2-891-295-11 (1)
xSpecifications
Power requirements
Power consumption (W)
Television system
Color system
Stereo/Bilingual system
Teletext language
Channel coverage
B/G
I
D/K
M
8 (Antenna)
Audio output (Speaker)
Number of terminal
(Video)
(Audio)
(S Video)
(Component
Video)
i (Headphone)
Picture tube
Tube size (cm)
Screen size (cm)
Dimensions (w/h/d, mm)
Mass (kg)
Design and specifications are subject to change without notice.
Note
220-240 V AC, 50/60 Hz
Indicated on the rear of the TV
B/G, I, D/K, M
PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43
NICAM Stereo/Bilingual B/G, I;
A2 Stereo/Bilingual B/G
English, Farsi (Persian), French
VHF : E2 to E12 /UHF : E21 to E69 /
CATV : S01 to S03, S1 to S41
UHF : B21 to B68 /CATV : S01 to S03, S1 to S41
VHF : C1 to C12, R1 to R12 /
UHF : C13 to C57, R21 to R60 /
CATV : S01 to S03, S1 to S41, Z1 to Z39
VHF : A2 to A13 /UHF : A14 to A79 /
CATV : A-8 to A-2, A to W+4, W+6 to W+84
75-ohm external terminal
10 W + 10 W
Input: 3 Output: 1 Phono jacks; 1 Vp-p, 75 ohms
Input: 5 Output: 1 Phono jacks; 500 mVrms
Input: 1 Y: 1 Vp-p, 75 ohms,
unbalanced, sync negative
C: 0.286 Vp-p, 75 ohms
Input: 2 Phono jacks;
Y: 1 Vp-p, 75 ohms,
sync negative
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
Output: 1 Stereo minijack
29 in.
72
Measured diagonally
68
Measured diagonally
794 × 590 × 507
47
KV-DZ29M61
01GB07ADV-SOEMMly.p65 08/08/2006, 4:05 PM22
Black
Instruction Manual 2-890-313-11
will be inserted later

Navigation menu
