Thank you for purchasing a Panasonic Hybrid IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-TDA100/KX-TDA200: Version 2.0
Hybrid IP-PBX
Installation Manual
SD Logo is
a trademark.
2 Installation Manual
System Components
System Components Table
Model Description
Shelves KX-TDA100 Basic Shelf
KX-TDA200 Basic Shelf
Main Processing
Card
Main Processing Card (MPR)
MPR Option Card KX-TDA0105 Memory Expansion Card (MEC)
KX-TDA0196 Remote Card (RMT)
CO Line Cards KX-TDA0180 8-Port Analog Trunk Card (LCOT8)
KX-TDA0181 16-Port Analog Trunk Card (LCOT16)
KX-TDA0187 T-1 Trunk Card (T1)
KX-TDA0193 8-Port Caller ID Card (CID8)
KX-TDA0290 PRI Card (PRI23)
KX-TDA0480 4-Channel VoIP Gateway Card (IP-GW4)
KX-TDA0484 4-Channel VoIP Gateway Card (IP-GW4E)
KX-TDA0490 16-Channel VoIP Gateway Card (IP-GW16)
Extension Cards KX-TDA0143 4 Cell Station Interface Card (CSIF4)
KX-TDA0144 8 Cell Station Interface Card (CSIF8)
KX-TDA0170 8-Port Digital Hybrid Extension Card (DHLC8)
KX-TDA0171 8-Port Digital Extension Card (DLC8)
KX-TDA0172 16-Port Digital Extension Card (DLC16)
KX-TDA0173 8-Port Single Line Telephone Extension Card (SLC8)
KX-TDA0174 16-Port Single Line Telephone Extension Card (SLC16)
KX-TDA0175 16-Port Single Line Telephone Extension with Message Lamp Card
(MSLC16)
KX-TDA0470 16-Channel VoIP Extension Card (IP-EXT16)
Other Cards KX-TDA0161 4-Port Doorphone Card (DPH4)
KX-TDA0164 4-Port External Input/Output Card (EIO4)
KX-TDA0166 16-Channel Echo Canceller Card (ECHO16)
KX-TDA0168 Extension Caller ID Card (EXT-CID)
KX-TDA0190 Optional 3-Slot Base Card (OPB3)
KX-TDA0191 4-Channel Message Card (MSG4)
KX-TDA0410 CTI Link Card (CTI-LINK)
Installation Manual 3
Available Proprietary Telephones
The Hybrid IP-PBX supports all of the Panasonic KX-T7000, KX-TD7000, and KX-NT series:
• Digital/Analog/IP proprietary telephones (e.g., KX-T7625, KX-T7630, KX-T7633, KX-T7636, KX-
NT136)
• Portable stations (e.g., KX-TD7690)
• DSS consoles (e.g., KX-T7640)
Note
The Hybrid IP-PBX does not support the following telephones:
• KX-T30800 series Proprietary Telephones and DSS consoles
• KX-T61600 series Proprietary Telephones and DSS consoles
• KX-T123200 series Proprietary Telephones and DSS consoles
For the equipment (e.g., Add-on Key Module, USB Module, Headset*1) that can be connected to a particular
telephone, refer to the telephone's manual.
For other equipment that can be connected to the Hybrid IP-PBX, refer to "1.2.2 System Connection
Diagram".
Abbreviations in this manual
Proprietary telephone: PT
Digital proprietary telephone: DPT
Analog proprietary telephone: APT
IP proprietary telephone: IP-PT
Portable station: PS
Single line telephone: SLT
Notice
The power supply capacity of the Hybrid IP-PBX may differ from the values described in this manual
depending on the model number. Please consult your dealer for detailed information.
Optional SD
Memory Card
KX-TDA0920 SD Memory Card for Software Upgrade to Enhanced Version
Power Supply
Units (PSUs)
KX-TDA0103 L-Type Power Supply Unit (PSU-L)
KX-TDA0104 M-Type Power Supply Unit (PSU-M)
KX-TDA0108 S-Type Power Supply Unit (PSU-S)
Cell Stations
(CSs)
KX-TDA0142 3-Channel Cell Station Unit Using CSIF Card for 2.4 GHz Portable Station
KX-T0141 2-Channel Cell Station Unit Using DHLC/DLC Card (PT-interface CS) for
2.4 GHz Portable Station
Proprietary
Equipment
KX-A258 Blank Slot Cover
KX-T30865 Doorphone
*1 The KX-T7090 headset can be connected to the KX-T7000, KX-T7200, KX-T7300, and KX-T7400 series telephones.
System Components Table
Model Description
4 Installation Manual
Important Safety Instructions
SAFETY REQUIREMENTS
When using your telephone equipment, basic safety precautions should always be followed to reduce the
risk of fire, electric shock and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
Use a damp cloth for cleaning.
4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen sink, or laundry
tub, in a wet basement, or near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious
damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to protect it from
overheating, these openings must not be blocked or covered. The openings should never be blocked
by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed
near or over a radiator or other heat source. This product should not be placed in a built-in installation
unless proper ventilation is provided.
7. This product should be operated only from the type of power source indicated on the product label. If
you are not sure of the type of power supply to your home, consult your dealer or local power company.
8. This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin. This
plug will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the grounding type plug.
9. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be
abused by people walking on it.
10. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
11. Never push objects of any kind into this product through cabinet slots as they may touch dangerous
voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of
any kind on the product.
12. To reduce the risk of electric shock, do not disassemble this product, but take it to a qualified person
when some service or repair work is required. Opening or removing covers may expose you to
dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance
is subsequently used.
13. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the
following conditions:
a) When the power supply cord or plug is damaged or frayed.
b) If liquid has been spilled into the product.
c) If the product has been exposed to rain or water.
d) If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operating instructions because improper adjustment of other
controls may result in damage and will often require extensive work by a qualified technician to
restore the product to normal operation.
e) If the product has been dropped or the cabinet has been damaged.
f) If the product exhibits a distinct change in performance.
14. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote
risk of electric shock from lightning.
Installation Manual 5
15. Do not use the telephone to report a gas leak in the vicinity of the leak.
SAVE THESE INSTRUCTIONS
6 Installation Manual
Precaution
WARNING
DO NOT REMOVE
SD MEMORY CARD
WHILE POWER IS
SUPPLIED TO THE
HYBRID.IP-PBX
Doing so may cause the Hybrid IP-PBX
to fail to start when you try to restart
the system.
Installation Manual 7
• Keep the unit away from heating appliances and electrical noise generating devices such as fluorescent
lamps, motors and televisions. These noise sources can interfere with the performance of the Hybrid
IP-PBX.
• This unit should be kept free of dust, moisture, high temperature (more than 40 °C [104 °F]) and
vibration, and should not be exposed to direct sunlight.
• Never attempt to insert wires, pins, etc. into the vents or other holes of this unit.
• If there is any trouble, disconnect the unit from the telephone line. Plug an SLT into the telephone line.
If the telephone operates properly, do not reconnect the unit to the line until the trouble has been
repaired by an authorized Panasonic Factory Service Centre. If the telephone does not operate
properly, chances are that the trouble is in the telephone system, and not in the unit.
• Do not use benzene, thinner, or the like, or any abrasive powder to clean the cabinet. Wipe it with a soft
cloth.
WARNING
• THIS UNIT MAY ONLY BE INSTALLED AND SERVICED BY QUALIFIED SERVICE
PERSONNEL.
• WHEN A FAILURE OCCURS WHICH EXPOSES ANY INTERNAL PARTS,
DISCONNECT THE POWER SUPPLY CORD IMMEDIATELY AND RETURN THIS UNIT
TO YOUR DEALER.
• DISCONNECT THE TELECOM CONNECTION BEFORE DISCONNECTING THE
POWER CONNECTION PRIOR TO RELOCATING THE EQUIPMENT, AND
RECONNECT THE POWER FIRST.
• THIS UNIT IS EQUIPPED WITH A GROUNDING CONTACT PLUG. FOR SAFETY
REASONS, THIS PLUG MUST ONLY BE CONNECTED TO A GROUNDING CONTACT
SOCKET WHICH HAS BEEN INSTALLED ACCORDING TO REGULATIONS.
• TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
• THE POWER SUPPLY CORD IS USED AS THE MAIN DISCONNECT DEVICE.
ENSURE THAT THE SOCKET-OUTLET IS LOCATED/INSTALLED NEAR THE
EQUIPMENT AND IS EASILY ACCESSIBLE.
CAUTION
DANGER OF EXPLOSION EXISTS IF THE BATTERY IS INCORRECTLY REPLACED. REPLACE THE
BATTERY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE BATTERY
MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
8 Installation Manual
Password Security
Warning to the Administrator or Installer regarding the system password
1. Please provide all system passwords to the customer.
2. To avoid unauthorized access and possible abuse of the PBX, keep the passwords secret, and
inform the customer of the importance of the passwords, and the possible dangers if they become
known to others.
3. The PBX has default passwords preset. For security, change these passwords the first time that
you program the PBX.
4. Change the passwords periodically.
5. It is strongly recommended that passwords of 10 numbers or characters be used for maximum
protection against unauthorized access. For a list of numbers and characters that can be used in
system passwords, refer to "3.1.3 Entering Characters" in the Feature Guide.
6. If a system password is forgotten, it can be found by loading a backup of the system data into a
PC, and checking the password using the KX-TDA Maintenance Console software. If you do not
have a backup of the system data, you must reset the PBX to its factory defaults and reprogram it.
Therefore, we strongly recommend maintaining a backup of the system data. For more information
on how to back up the system data, refer to the on-line help of the Maintenance Console.
However, as system passwords can be extracted from backup copies of the system data file, do
not allow unauthorized access to these files.
Installation Manual 9
When you ship the product
Carefully pack and send it prepaid, adequately insured and preferably in the original carton. Attach a
postage-paid letter, detailing the symptom, to the outside of the carton. DO NOT send the product to the
Executive or Regional Sales offices. They are NOT equipped to make repairs.
Product Service
Panasonic Factory Servicenters for this product are listed in the servicenter directory. Consult your certified
Panasonic dealer for detailed instructions.
MODEL No.:
SERIAL No.:
The serial number of this product may be found on the label affixed to the
side of the unit. You should note the model number and the serial number
of this unit in the space provided and retain this book as a permanent
record of your purchase to aid in identification in the event of theft.
DATE OF PURCHASE
NAME OF DEALER
DEALER'S ADDRESS
DEALER'S TEL. NO.
For your future reference
10 Installation Manual
Introduction
This Installation Manual is designed to serve as an overall technical reference for the Panasonic Hybrid IP-
PBX, KX-TDA100/KX-TDA200. It provides instructions for installing the hardware, and programming the
Hybrid IP-PBX using the KX-TDA Maintenance Console.
The Structure of this Manual
This manual contains the following sections:
Section 1 System Outline
Provides general information on the Hybrid IP-PBX, including the system capacity and specifications.
Section 2 Installation
Describes the procedures to install the Hybrid IP-PBX. Detailed instructions for planning the installation
site, installing the shelves and optional service cards, and cabling of peripheral equipment are provided.
Further information on system expansion and peripheral equipment installation is included.
Section 3 Guide for the KX-TDA Maintenance Console
Explains the installation procedure, structure, and basic information of the KX-TDA Maintenance
Console.
Section 4 Troubleshooting
Provides information on the Hybrid IP-PBX and telephone troubleshooting.
About the Other Manuals
Along with this Installation Manual, the following manuals are available:
Feature Guide
Describes all basic, optional and programmable features of the Hybrid IP-PBX, and step-by-step
instruction for performing system programming using a proprietary telephone or a personal computer
(PC).
User Manual
Provides operating instructions for end users using a PT, SLT, PS, or DSS Console.
Trademarks
•Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in
the United States and/or other countries.
•Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries
in the United States and other countries.
•All other trademarks identified herein are the property of their respective owners.
•Screen shots reprinted with permission from Microsoft Corporation.
Installation Manual 11
F.C.C. REQUIREMENTS AND RELEVANT
INFORMATION
1. Notification to the Telephone Company
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On
the side of this equipment is a label that contains, among other information, a product identifier in the
format US: ACJMF03AKX-TDA100. If requested, this number must be provided to the telephone
company.
Installation must be performed by a qualified professional installer. If required, provide the telephone
company with the following technical information:
•Telephone numbers to which the system will be connected
•Make: Panasonic
•Model: KX-TDA100 and KX-TDA200
•Certification No.: found on the side of the unit
•Ringer Equivalence No.: 0.3A
•Facility Interface Code: 02LS2, 04DU9.BN/DN/1KN/1SN, METALLIC
•Service Order Code: 9.0F, 6.0P
•Required Network Interface Jack: RJ21X, RJ48C, RJ2HX
2. Ringer Equivalence Number (REN)
The REN is used to determine the number of devices that may be connected to a telephone line.
Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming
call. In most, but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the
number of devices that may be connected to a line, as determined by the total RENs, contact the local
telephone company. The REN for this product is part of the product identifier that has the format US:
ACJMF03AKX-TDA100. The digits represented by 03 are the REN without a decimal point (e.g., 03 is
a REN of 0.3). For earlier products, the REN is separately shown on the label.
3. Incidence of Harm to the Telephone Lines
If this equipment causes harm to the telephone network, the telephone company will notify you in
advance that temporary discontinuance of service may be required. But if advance notice isn't practical,
the telephone company will notify the customer as soon as possible. Also, you will be advised of your
right to file a complaint with the FCC if you believe it is necessary.
4. Changes in Telephone Company Communications Facilities, Equipment, Operations and
Procedures
The telephone company may make changes in its facilities, equipment, operations or procedures that
could affect the operation of the equipment. If this happens the telephone company will provide
advance notice in order for you to make necessary modifications to maintain uninterrupted service.
5. Trouble with this equipment
If trouble is experienced with this equipment, for repair or warranty information, please see the attached
warranty, which includes the Servicenter Directory. If the equipment is causing harm to the telephone
network, the telephone company may request that you disconnect the equipment until the problem is
resolved.
6. Connection to Party Line
Connection to party line service is subject to state tariffs. Contact the state public utility commission,
public service commission or corporation commission for information.
7. Combined Use with Alarm Equipment
12 Installation Manual
If your home has specially wired alarm equipment connected to the telephone line, ensure the
installation of this equipment does not disable your alarm equipment. If you have questions about what
will disable alarm equipment, consult your telephone company or a qualified installer.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this device.
When programming emergency numbers and/or making test calls to emergency numbers:
1. Remain on the line and briefly explain to the dispatcher the reason for the call before hanging up.
2. Perform such activities in the off-peak hours, such as early morning hours or late evenings.
WARNING
The software contained in the ARS and TRS features to allow user access to the
network must be upgraded to recognize newly established network area codes and
exchange codes as they are placed into service. Failure to upgrade the premises PBXs
or peripheral equipment to recognize the new codes as they are established will restrict
the customer and the customer's employees from gaining access to the network and
to these codes.
KEEP THE SOFTWARE UP-TO-DATE WITH THE LATEST DATA.
Installation Manual 13
For Cell Station
CAUTION
Any changes or modifications not expressly approved by the party responsible for compliance could
void user's authority to operate this device.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•Consult the dealer or an experienced radio/TV technician for help.
Some wireless telephones operate at frequencies that may cause interference to nearby TVs and
VCRs. To minimize or prevent such interference, the base of the wireless telephone should not be
placed near or on top of a TV or VCR. If interference is experienced, move the wireless telephone
further away from the TV or VCR. This will often reduce, or eliminate, interference.
Operating near 2.4 GHz electrical appliances may cause interference. Move away from the electrical
appliances.
CAUTION
To comply with FCC RF exposure requirements in uncontrolled environment:
•This equipment must be installed and operated in accordance with provided instructions and a
minimum 20 cm (8 in) spacing must be provided between antenna and all person's body (excluding
extremities of hands, wrist and feet) during wireless modes of operation.
•This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
Medical—consult the manufacturer of any personal medical devices, such as pacemakers, to
determine if they are adequately shielded from external RF (radio frequency) energy. (The unit operates
in the frequency range of 2401 MHz to 2480 MHz, and the power output level can range from 0.004 W
to 0.4 W.) Do not use the unit in health care facilities if any regulations posted in the area instruct you
not to do so. Hospitals or health care facilities may be using equipment that could be sensitive to
external RF (radio frequency) energy.
14 Installation Manual
Table of Contents
1 System Outline ..................................................................................... 17
1.1 System Highlights........................................................................................................... 18
1.1.1 System Highlights .............................................................................................................18
1.2 Basic System Construction ...........................................................................................20
1.2.1 Basic Shelf ........................................................................................................................20
1.2.2 System Connection Diagram ............................................................................................21
1.3 Options ............................................................................................................................23
1.3.1 Options..............................................................................................................................23
1.4 Specifications..................................................................................................................25
1.4.1 General Description ..........................................................................................................25
1.4.2 Characteristics ..................................................................................................................27
1.4.3 System Capacity ...............................................................................................................28
2 Installation............................................................................................. 35
2.1 Before Installation........................................................................................................... 36
2.1.1 Before Installation .............................................................................................................36
2.2 Installation of the Hybrid IP-PBX ...................................................................................38
2.2.1 Unpacking .........................................................................................................................38
2.2.2 Names and Locations .......................................................................................................39
2.2.3 Opening/Closing the Front Cover......................................................................................40
2.2.4 Installing/Replacing the Power Supply Unit.......................................................................42
2.2.5 Frame Ground Connection................................................................................................46
2.2.6 Installing/Removing the Optional Service Cards...............................................................47
2.2.7 Types of Connectors .........................................................................................................52
2.2.8 Attaching a Ferrite Core ....................................................................................................54
2.2.9 Fastening Amphenol Type Connector ...............................................................................56
2.2.10 Wall Mounting (KX-TDA200) .............................................................................................58
2.2.11 Wall Mounting (KX-TDA100) .............................................................................................60
2.2.12 Floor Standing (KX-TDA200 Only)....................................................................................62
2.2.13 Surge Protector Installation...............................................................................................65
2.3 Installation of the Main Processing Card......................................................................68
2.3.1 MPR Card .........................................................................................................................68
2.3.2 MEC Card .........................................................................................................................70
2.3.3 RMT Card..........................................................................................................................71
2.4 Installation of the CO Line Cards ..................................................................................72
2.4.1 LCOT8 and LCOT16 Cards...............................................................................................72
2.4.2 CID8 Card .........................................................................................................................74
2.4.3 T1 Card .............................................................................................................................75
2.4.4 PRI23 Card .......................................................................................................................77
2.4.5 IP-GW4 Card.....................................................................................................................79
2.4.6 IP-GW4E Card ..................................................................................................................81
2.4.7 IP-GW16 Card...................................................................................................................83
2.5 Installation of the Extension Cards ...............................................................................85
2.5.1 CSIF4 and CSIF8 Card.....................................................................................................85
2.5.2 DHLC8 Card......................................................................................................................88
2.5.3 DLC8 Card ........................................................................................................................91
2.5.4 DLC16 Card ......................................................................................................................93
Installation Manual 15
2.5.5 SLC8 Card ........................................................................................................................ 95
2.5.6 EXT-CID Card ................................................................................................................... 97
2.5.7 SLC16 and MSLC16 Cards .............................................................................................. 98
2.5.8 IP-EXT16 Card ............................................................................................................... 100
2.6 Installation of the Other Cards .................................................................................... 102
2.6.1 OPB3 Card ..................................................................................................................... 102
2.6.2 DPH4 Card ..................................................................................................................... 103
2.6.3 EIO4 Card ....................................................................................................................... 105
2.6.4 ECHO16 Card................................................................................................................. 108
2.6.5 MSG4 Card ..................................................................................................................... 109
2.6.6 CTI-LINK Card ................................................................................................................ 110
2.7 Connection of Extensions............................................................................................ 112
2.7.1 Maximum Cabling Distances of the Extension Wiring (Twisted Cable)........................... 112
2.7.2 Parallel Connection of the Extensions ............................................................................ 114
2.7.3 Digital EXtra Device Port (Digital XDP) Connection........................................................ 116
2.7.4 First Party Call Control CTI Connection.......................................................................... 118
2.8 Connection of 2.4 GHz Portable Stations ................................................................... 119
2.8.1 Overview ......................................................................................................................... 119
2.8.2 Procedure Overview ....................................................................................................... 121
2.8.3 Site Planning................................................................................................................... 123
2.8.4 Before Site Survey .......................................................................................................... 127
2.8.5 Site Survey...................................................................................................................... 129
2.8.6 After Site Survey............................................................................................................. 133
2.8.7 Connecting a Cell Station to the Hybrid IP-PBX ............................................................. 134
2.8.8 Wall Mounting ................................................................................................................. 142
2.9
Connection of Doorphones, Door Openers, External Sensors, and External Relays
... 144
2.9.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays..... 144
2.10 Connection of Peripherals ........................................................................................... 147
2.10.1 Connection of Peripherals............................................................................................... 147
2.11 Power Failure Connections.......................................................................................... 151
2.11.1 Power Failure Connections ............................................................................................. 151
2.12 Starting the Hybrid IP-PBX .......................................................................................... 153
2.12.1 Starting the Hybrid IP-PBX ............................................................................................. 153
3 Guide for the KX-TDA Maintenance Console ................................... 157
3.1 Overview ........................................................................................................................ 158
3.1.1 Overview ......................................................................................................................... 158
3.2 Connection .................................................................................................................... 159
3.2.1 Connection...................................................................................................................... 159
3.3 Installation of the KX-TDA Maintenance Console...................................................... 161
3.3.1 Installing and Starting the KX-TDA Maintenance Console ............................................. 161
4 Troubleshooting.................................................................................. 165
4.1 Troubleshooting ............................................................................................................ 166
4.1.1 Installation....................................................................................................................... 166
4.1.2 Connection...................................................................................................................... 168
4.1.3 Operation ........................................................................................................................ 170
4.1.4 Using the Reset Button ................................................................................................... 172
4.1.5 Troubleshooting by Error Log.......................................................................................... 173
5 Appendix ............................................................................................. 185
16 Installation Manual
5.1 Revision History............................................................................................................186
5.1.1 Version 1.1 ...................................................................................................................... 186
5.1.2 Version 2.0 ...................................................................................................................... 187
Index .......................................................................................................... 189
Installation Manual 17
Section 1
System Outline
This section provides general information on the Hybrid IP-
PBX, including the system capacity and specifications.
1.1 System Highlights
18 Installation Manual
1.1 System Highlights
1.1.1 System Highlights
Networking Features
The Hybrid IP-PBX supports the following private networking features:
TIE Line Service
PBXs can be connected via privately leased telephone lines forming a private network. These "TIE
lines" provide a cost-effective way to route calls and communications, and are often used to connect
corporate offices located in different cities.
QSIG Support
TIE line service can be used on a private network that implements the QSIG protocol (Q.931). QSIG
offers TIE line service as well as advanced caller and called party identification features.
Voice over Internet Protocol (VoIP) Network
The Hybrid-IP PBX can be used on a private network which implements VoIP. On this type of network,
information is sent over the private network in IP packets, which allows voice as well as data to be sent
to other devices in the private network.
Built-in Small Call Center Features
Extensions can form an incoming call distribution (ICD) group and be used as a small call center which can
take advantage of several features, some of which are highlighted below.
Queuing
When all available extensions in an ICD group are busy, additional calls can be placed in a queue as
they arrive. While calls are waiting in the queue, callers can hear background music (BGM), an outgoing
message (OGM), etc.
Log-in/Log-out
Members of an ICD group can log-in to or log-out of a group manually. Group members can log-in at
the beginning of a work shift, and log-out at the end of the day. While logged-in, ICD group members
can be allotted a specified amount of time after completing a call during which new calls will not be
received by their extensions, allowing them to finish any necessary paperwork before being eligible to
receive new calls (Wrap-up).
VIP Call
The VIP Call feature is one method of making sure that calls from preferred customers or callers are
answered quickly. When using VIP Call mode, ICD groups are assigned a priority, allowing calls in
higher-priority groups to be answered before calls in lower-priority groups.
Computer Telephony Integration (CTI) Features
Computers can be connected to the Hybrid-IP PBX to provide extension users with access to advanced
features such as pop-up display of caller information, computer-based speed dialing, etc.
PC Phone/PC Console
These Panasonic CTI applications can be used on computers connected to each extension, providing
their respective extension users with powerful and flexible call handling and display features.
1.1 System Highlights
Installation Manual 19
Third-Party CTI Applications
The Hybrid IP-PBX supports industry standard protocols, allowing third-party CTI applications to be
integrated with the PBX and its extensions.
Voice Mail Features
A Voice Processing System (VPS) can be connected to the Hybrid IP-PBX to provide Voice Mail (VM) and
Automated Attendant (AA) services. A Panasonic VPS which supports DPT (Digital) Integration can be
connected to the Hybrid IP-PBX effortlessly and with minimal setup required. Conventional DTMF (analog)
voice mail systems, including those from other manufacturers, are also supported.
Paralleled Telephone Features
By connecting telephones in parallel, you can increase the number of telephones connected to the PBX
without adding additional extension cards.
Parallel Mode
An SLT can be connected to an APT or DPT which is connected to a Super Hybrid Port of the PBX. The
SLT shares the same extension number with the APT or DPT.
EXtra Device Port (XDP) Mode
An SLT can be connected to a DPT which is connected to a Super Hybrid Port of the PBX. Unlike
parallel mode, XDP mode allows each telephone to act as an independent extension with its own
extension number.
Digital XDP
A DPT can be connected to another DPT which is connected to a DPT port or a Super Hybrid Port of
the PBX. Similarly to XDP mode, each DPT acts as an independent extension with its own extension
number.
Portable Station (PS) Features
A Panasonic PS can be used in place of a PT to provide wireless access to PBX features and call handling.
When in Wireless XDP Parallel Mode, a PS can share an extension number with a wired telephone, allowing
extension users to use their PSs when they are away from their desks to answer or make calls as if they
were using their wired telephones.
Hospitality Features
This Hybrid IP-PBX has several features that support its use in a hotel-type environment. Extensions
corresponding to guest rooms can be "checked in" or "checked out" by a designated hotel operator, who can
also check or set wake-up calls.
1.2 Basic System Construction
20 Installation Manual
1.2 Basic System Construction
1.2.1 Basic Shelf
The basic shelf contains an MPR card. For system expansion, optional service cards and a power supply
unit can be installed in the basic shelf.

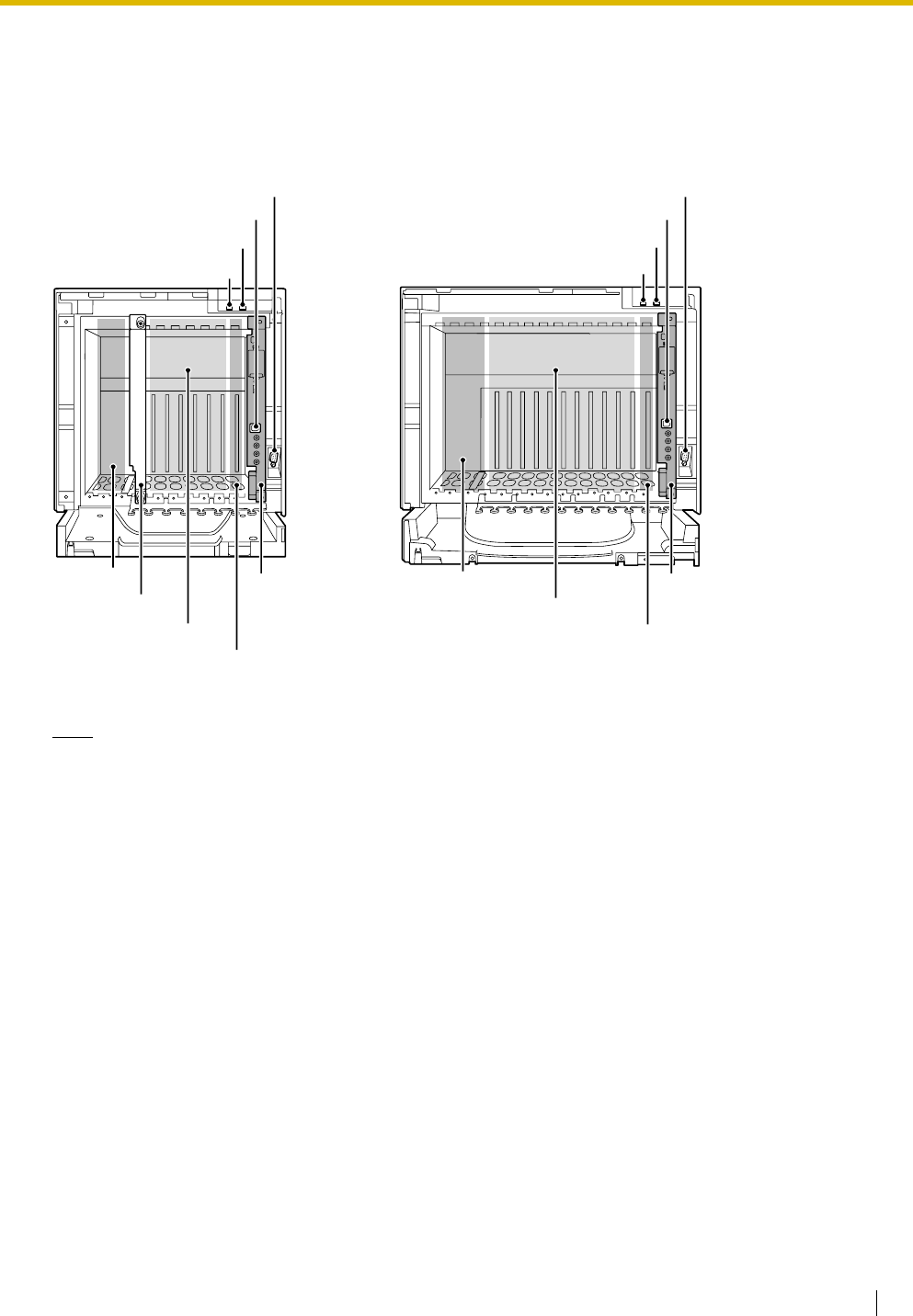

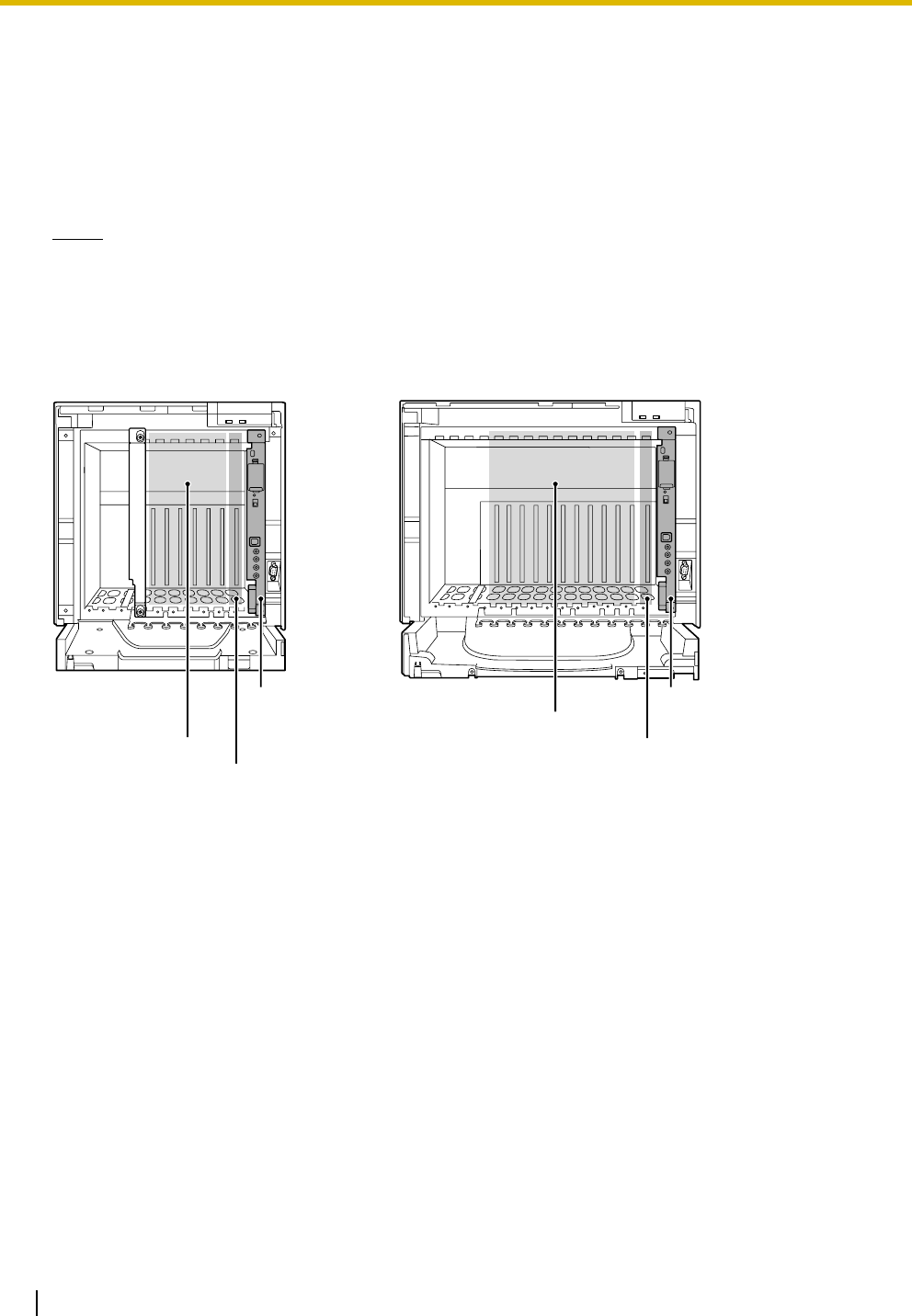

Construction of Basic Shelf
KX-TDA100 KX-TDA200
B B
A A
A: Slots for Expansion
B: MPR Card
1.2 Basic System Construction
Installation Manual 21

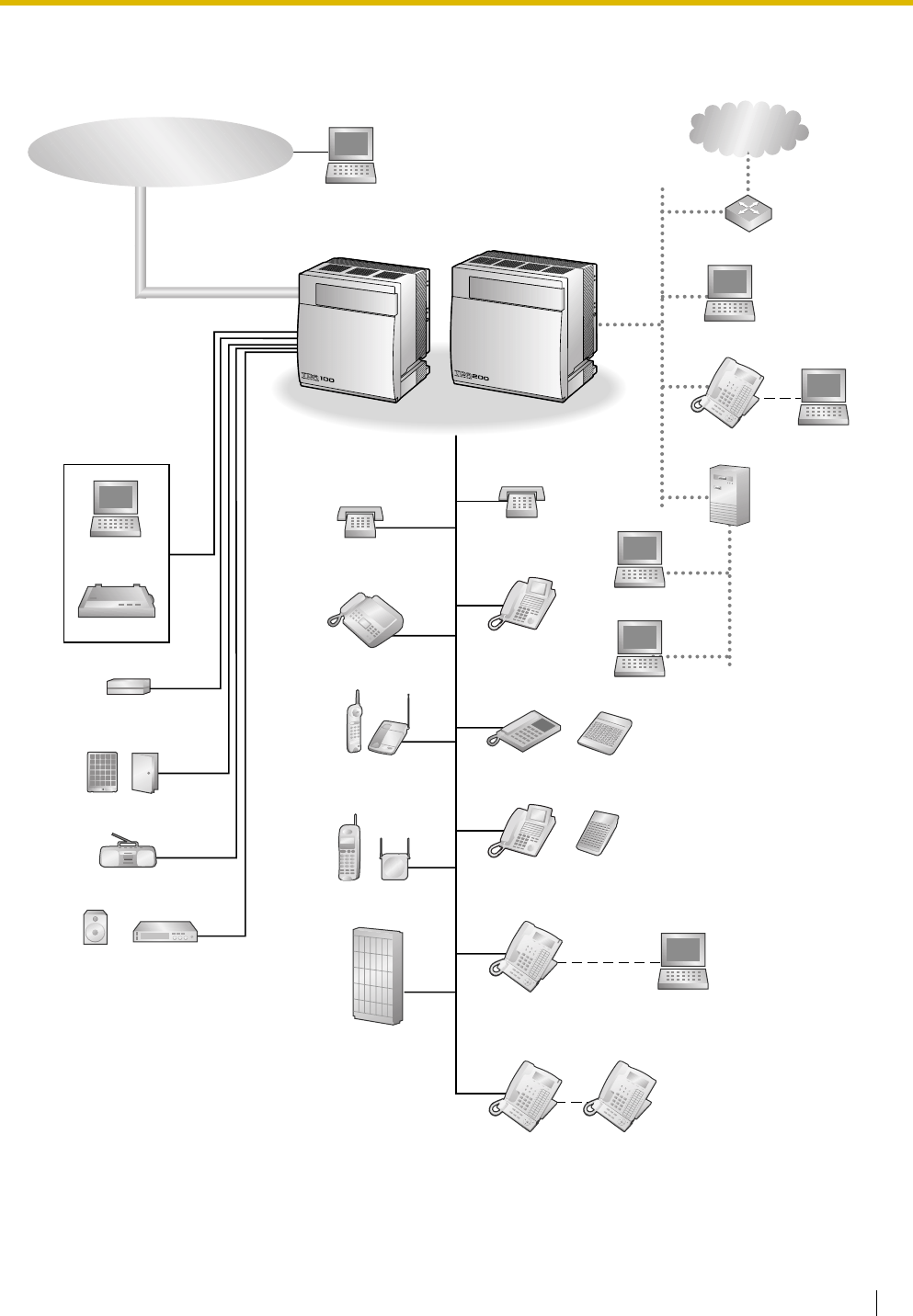

1.2.2 System Connection Diagram
PC
IP-PT
External Sensor/
External Relay Device
Doorphone & Door Opener
BGM/Music On Hold (MOH)
Pager/
Speaker
Voice Processing
System
KX-T7636/
KX-T7633
Remote PC
PC
Printer
Router
Private
IP Network
CO (Telephone Company) Lines
Analog/PRI/T1
Hybrid IP-PBX
SLT
CSPS
Wireless Phone
Fax Machine
PC
USB
APT
DPT
Amplifier
PC
Server PC
PC
PC
SLT
DPT
KX-T7600 DPT KX-T7600 DPT
DSS Console
DSS Console
1.2 Basic System Construction
22 Installation Manual
* Only 1 Server PC can be connected to the Hybrid IP-PBX. Two or more Server PCs cannot be used
simultaneously.
PS
PC
Radio
Amplifier Pager/Speaker
Doorphone & Door Opener
SLT Wireless Phone Fax Machine
Hybrid IP-PBX
LAN
Private
IP Network
Station Message
Detail Recording (SMDR)
PC
Router
T1 Line
T1 Line
(Digital CO Line)
(Digital CO Line)
T1 Line
(Digital CO Line)
DHLC8
(KX-TDA0170)
CTI-LINK
(KX-TDA0410)
T1
(KX-TDA0187)
PRI23
(KX-TDA0290)
ISDN PRI Line
ISDN PRI Line
(Digital CO Line)
(Digital CO Line)
ISDN PRI Line
(Digital CO Line)
Mountable Equipment
Server PC
*
Server PC
*
PSU-S/M/L
(KX-TDA0108/
KX-TDA0104/
KX-TDA0103)
Uninterruptible
Power Supply (UPS)
CS
LCOT16
(KX-TDA0181)
LCOT8
(KX-TDA0180)
CID8
(KX-TDA0193)
Analog
Analog
CO Line
CO Line
Analog
CO Line
Telephone
Company
CSIF4
(KX-TDA0143)
CSIF8
(KX-TDA0144)
MPR
(Installed by default)
RMT
(KX-TDA0196)
MEC
(KX-TDA0105)
DLC16
(KX-TDA0172)
DLC8
(KX-TDA0171)
MSLC16
(KX-TDA0175)
SLC8
(KX-TDA0173)
EXT-CID
(KX-TDA0168)
SLC16
(KX-TDA0174)
OPB3
(KX-TDA0190)
ECHO16
(KX-TDA0166)
MSG4
(KX-TDA0191)
EIO4
(KX-TDA0164)
DPH4
(KX-TDA0161)
IP-EXT16
(KX-TDA0470)
IP-PT
LAN
PC
PC
KX-T7636/
KX-T7633
DSS Console PT-interface CS PS
DPT
Voice
Processing
System
KX-T7600
DPT KX-T7600
DPT
SLT Wireless
Phone
Fax
Machine
APT DPT DSS
Console
PT-interface CS PS Voice
Processing
System
PC
KX-T7636/
KX-T7633
External Sensor/External Relay Device
IP-GW4
(KX-TDA0480)
IP-GW4E
(KX-TDA0484)
IP-GW16
(KX-TDA0490)
KX-T7600
DPT KX-T7600
DPT
1.3 Options
Installation Manual 23
1.3 Options
1.3.1 Options
Model No. Model Name Description
KX-TDA0105 Memory Expansion Card
(MEC)
Memory expansion card to increase system data storage
space, enable Broadcasting feature, and double the number
of DPTs, using Digital XDP connection. To be mounted on
the MPR card.
KX-TDA0143 4 Cell Station Interface Card
(CSIF4)
4-port CS interface card for 4 CSs.
KX-TDA0144 8 Cell Station Interface Card
(CSIF8)
8-port CS interface card for 8 CSs.
KX-TDA0161 4-Port Doorphone Card (DPH4) 4-port doorphone card for 4 doorphones and 4 door
openers. To be mounted on the OPB3 card.
KX-TDA0164 4-Port External Input/Output
Card (EIO4)
4-port external input/output card. To be mounted on the
OPB3 card.
KX-TDA0166 16-Channel Echo Canceller
Card (ECHO16)
16-channel card for echo cancellation during conferences.
To be mounted on the OPB3 card.
KX-TDA0168 Extension Caller ID Card (EXT-
CID)
Sends Caller ID signals to extension ports. To be mounted
on the SLC8 card.
KX-TDA0170 8-Port Digital Hybrid Extension
Card (DHLC8)
8-port digital hybrid extension card for DPTs, APTs, SLTs,
DSS consoles, and PT-interface CSs, with 2 power failure
transfer (PFT) ports.
KX-TDA0171 8-Port Digital Extension Card
(DLC8)
8-port digital extension card for DPTs, DSS consoles, and
PT-interface CSs.
KX-TDA0172 16-Port Digital Extension Card
(DLC16)
16-port digital extension card for DPTs, DSS consoles, and
PT-interface CSs.
KX-TDA0173 8-Port Single Line Telephone
Extension Card (SLC8)
8-port extension card for SLTs with 2 power failure transfer
(PFT) ports.
KX-TDA0174 16-Port Single Line Telephone
Extension Card (SLC16)
16-port extension card for SLTs with 4 power failure transfer
(PFT) ports.
KX-TDA0175 16-Port Single Line Telephone
Extension with Message Lamp
Card (MSLC16)
16-port extension card for SLTs with Message Waiting Lamp
control and 4 power failure transfer (PFT) ports. Maximum
output of 145 V/85 V for Message Waiting Lamp control.
KX-TDA0180 8-Port Analog Trunk Card
(LCOT8)
8-port analog CO line card with 2 power failure transfer (PFT)
ports.
KX-TDA0181 16-Port Analog Trunk Card
(LCOT16)
16-port analog CO line card with 4 power failure transfer
(PFT) ports.
KX-TDA0187 T-1 Trunk Card (T1) 1-port T1 CO line card. EIA/TIA standard compliant.
1.3 Options
24 Installation Manual
Note
For the maximum number of optional service cards that can be installed in the Hybrid IP-PBX, refer to
"1.4.3 System Capacity".
KX-TDA0190 Optional 3-Slot Base Card
(OPB3)
Optional 3-slot base card for mounting a maximum of 3
option cards from the following: MSG4, DPH4, or ECHO16
card.
KX-TDA0191 4-Channel Message Card
(MSG4)
4-channel message card. To be mounted on the OPB3 card.
KX-TDA0193 8-Port Caller ID Card (CID8) 8-port Caller ID signal type FSK/FSK (with Call Waiting
Caller ID [Visual Caller ID])/DTMF. To be mounted on the
LCOT8/LCOT16 cards.
KX-TDA0196 Remote Card (RMT) Analog modem card for remote communication with the
Hybrid IP-PBX. ITU-T V.90 support. To be mounted on the
MPR card.
KX-TDA0290 PRI Card (PRI23) 1-port ISDN Primary Rate Interface card (23B channels). NI
(North American standard ISDN protocol) compliant.
KX-TDA0410 CTI Link Card (CTI-LINK) Ethernet card for CTI communication via 10BASE-T port.
CSTA Phase 3 protocol compatible.
KX-TDA0470 16-Channel VoIP Extension
Card (IP-EXT16)
16-channel VoIP extension card. Compliant with Panasonic
proprietary protocol, and ITU-T G.729a and G.711 CODEC
methods.
KX-TDA0480 4-Channel VoIP Gateway Card
(IP-GW4)
4-channel VoIP gateway card. Compliant with VoIP H.323
V.2 protocol, and ITU-T G.729a, and G.723.1 CODEC
methods. G3 fax support.
KX-TDA0484 4-Channel VoIP Gateway Card
(IP-GW4E)
4-channel VoIP gateway card. Compliant with VoIP H.323
V.2 protocol, and ITU-T G.729a, G.723.1, and G.711
CODEC methods.
KX-TDA0490 16-Channel VoIP Gateway
Card (IP-GW16)
16-channel VoIP gateway card. Compliant with VoIP H.323
V.2 protocol, and ITU-T G.729a, G.723.1, and G.711
CODEC methods.
KX-TDA0103 L-Type Power Supply Unit
(PSU-L)
Power Supply Unit for KX-TDA200. Total power output of 279
W. Safety Class 1 compliant.
KX-TDA0104 M-Type Power Supply Unit
(PSU-M)
Power Supply Unit for KX-TDA100 and KX-TDA200. Total
power output of 140.4 W. Safety Class 1 compliant.
KX-TDA0108 S-Type Power Supply Unit
(PSU-S)
Power Supply Unit for KX-TDA100. Total power output of 74
W. Safety Class 1 compliant.
KX-TDA0920 SD Memory Card for Software
Upgrade to Enhanced Version
Optional SD Memory Card to upgrade the Hybrid IP-PBX
with software version 1 or 1.1 to version 2.0, and for NDSS
feature and CTI enhancement.
Model No. Model Name Description
1.4 Specifications
Installation Manual 25
1.4 Specifications
1.4.1 General Description
Control Bus Original bus (16-bit, 8 MHz, 10 megabytes per second)
Communication Bus H.100 bus conformity (1024 time slot)
Switching Non-blocking
Power Input PSU-S 100 V AC to 130 V AC, 1.4 A/200 V AC to 240 V AC, 0.8 A,
50 Hz/60 Hz
PSU-M 100 V AC to 130 V AC, 2.5 A/200 V AC to 240 V AC, 1.4 A,
50 Hz/60 Hz
PSU-L 100 V AC to 130 V AC, 5.1 A/200 V AC to 240 V AC, 2.55 A,
50 Hz/60 Hz
Maximum Power Failure Tolerance*1 300 ms
Power
Consumption
KX-TDA100
with PSU-S
140 W, 1.4 A (at 120 V AC, 60 Hz)
KX-TDA100
with PSU-M
210 W, 2.2 A (at 120 V AC, 60 Hz)
KX-TDA200
with PSU-M
240 W, 2.5 A (at 120 V AC, 60 Hz)
KX-TDA200
with PSU-L
490 W, 5.1 A (at 120 V AC, 60 Hz)
Memory Backup Duration 7 years
Dialing CO Line Dial Pulse (DP) 10 pps, 20 pps
Tone (DTMF) Dialing
Extension Dial Pulse (DP) 10 pps, 20 pps
Tone (DTMF) Dialing
Mode Conversion DP-DTMF, DTMF-DP
Ring Frequency 20 Hz/25 Hz (selectable)
Central Office Loop Limit 1600 Ω maximum
Operating
Environment
Temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 10 % to 90 % (non-condensing)
Conference Call CO Line From 10 × 3-party conference call to 4 × 8-party conference call
Music on Hold (MOH) 2 ports (Level Control: -11 dB to +11 dB in 1 dB steps)
MOH1: External Music Source port
MOH2: Selectable Internal/External Music Source port
Paging Internal Level Control: -15 dB to +6 dB in 3 dB steps
External 2 ports (Volume Control: -15 dB to +15 dB in 1 dB steps)
1.4 Specifications
26 Installation Manual
Serial Interface Port RS-232C 1 (maximum 115.2 kbps)
USB 1
Extension Connection Cable SLT 1-pair wire (T, R)
DPT 1-pair wire (D1, D2) or
2-pair wire (T, R, D1, D2)
APT 2-pair wire (T, R, D1, D2)
PT-interface CS 1-pair wire (D1, D2)
DSS Console and Add-on Key Module 1-pair wire (D1, D2)
Dimension KX-TDA100 334 mm (W) × 390 mm (H) × 270 mm (D)
(13-1/3 in × 15-3/5 in × 10-4/5 in)
KX-TDA200 430 mm (W) × 415 mm (H) × 270 mm (D)
(17-1/5 in × 16-3/5 in × 10-4/5 in)
Weight (when fully
mounted)
KX-TDA100 Under 12 kg (26.4 lb)
KX-TDA200 Under 16 kg (35.2 lb)
*1 If tolerance may be exceeded, an Uninterruptible Power Supply (UPS) is recommended.
1.4 Specifications
Installation Manual 27
1.4.2 Characteristics
Terminal Equipment Loop Limit •PT: KX-T7600 series: 90 Ω; all other DPTs/APTs: 40 Ω
•SLT: 600 Ω including set
•Doorphone: 20 Ω
•CS: 130 Ω; PT-interface CS: 65 Ω
Minimum Leakage Resistance 15 000 Ω minimum
Maximum Number of Extension
Instruments per Line
1for PT or SLT
2by Parallel or eXtra Device Port connection of an APT/DPT and an SLT
3by Digital eXtra Device Port connection of two DPTs and an SLT
Ring Voltage 75 Vrms at 20 Hz/25 Hz depending on the Ringing Load
Central Office Loop Limit 1600 Ω maximum
Hookswitch Flash Timing
Range
24 ms to 2032 ms
Door Opener Current Limit 24 V DC/30 V AC, 1 A maximum
External Relay Current Limit 24 V DC/30 V AC, 1 A maximum
External Sensor Current Limit Power to the external sensor is provided from the EIO4 card and must be
grounded through the EIO4 card. For the connection diagram, refer to "2.6.3
EIO4 Card". The Hybrid IP-PBX detects input from the sensor when the
signal is under 100 Ω.
Paging Terminal Impedance 600 Ω
MOH (Music on Hold) Terminal
Impedance
10 000 Ω
1.4 Specifications
28 Installation Manual
1.4.3 System Capacity
Maximum Optional Service Cards
There are 2 types of optional service cards for installation:
•Cards installed in the slots of the Hybrid IP-PBX
•Cards mounted on other optional service cards
Notes
•Any card that exceeds the capacity of the Hybrid IP-PBX will be ignored.
•When the Hybrid IP-PBX starts up with an invalid configuration, some cards will be ignored.
Cards Installed in the Slots of the Hybrid IP-PBX
MPR Card Slot
Free Slots 1 to 5
Free Slots 1 to 10
MPR Card Slot
Option Card Slot
Option Card Slot
KX-TDA100 KX-TDA200
1.4 Specifications
Installation Manual 29
The following number of optional service cards can be installed in the various slots of the Hybrid IP-PBX.
Card Type Maximum Number Installed in
KX-TDA100 KX-TDA200
MPR 1 1 MPR Card Slot
Trunk Card To t a l 4 *1
*1 One T1, PRI23, or IP-GW4 card counts as 2 cards. However, one IP-GW4E card counts as 1 card.
To tal 8 *1
Free Slot
LCOT4
48
LCOT8
LCOT16
T1
24
PRI23
IP-GW4
24
IP-GW4E
IP-GW16
Extension Card Total 4 Total 8
DHLC8
48
DLC8
DLC16
SLC8
SLC16
MSLC16
IP-EXT16
CSIF4
24
CSIF8
OPB3 2 4 Option Card Slot/Free Slot
CTI-LINK 1 1
1.4 Specifications
30 Installation Manual
Cards Mounted on Other Optional Service Cards
The following number of optional service cards can be mounted on the specified other optional service
cards.
Maximum Terminal Equipment
The following number of items of terminal equipment can be supported by the Hybrid IP-PBX. For how to
count the total number of items of equipment to be connected, refer to "MEC Card Calculation".
Card Type Maximum Number Mounted on
KX-TDA100 KX-TDA200
MEC 1 1 MPR Card
RMT 1 1
CID8 8 16 LCOT8 Card/LCOT16 Card
EXT-CID 4 8 SLC8 Card
DPH4 2 4
OPB3 Card
ECHO16 2*1
*1 Only 1 ECHO16 card can be mounted on each OPB3 card.
4*1
MSG4 2 4
EIO4 2 4
Terminal Equipment Type
KX-TDA100 KX-TDA200
Without MEC
Card
With MEC
Card
Without MEC
Card
With MEC
Card
Telephone*1 88 152 176 304
SLT, APT, DPT and IP-PT 64 128 128 256
SLT 64 64 128 128
KX-T7600 series DPT 64 128 128 256
Other DPT 64 64 128 128
APT 32326464
IP-PT 64 64 128 128
DSS console 8 8
CS 16 32
PS 128 128
Voice Processing System (VPS) 2 2
Doorphone 8 16
Door Opener 8 16
1.4 Specifications
Installation Manual 31
MEC Card Calculation
Calculate the MEC figure from the type and total number of items of equipment to be connected. If the MEC
figure exceeds 64 (for KX-TDA100) or 128 (for KX-TDA200), you need to install an MEC card.
MEC Card Calculation
Calculation Example (KX-TDA100)
The total MEC figure is 88. As this exceeds 64, you need to install an MEC card for this configuration.
External Sensor 8 16
External Relay 8 16
Add-on Key Module 64 128 128 256
USB Module 64 128
*1 A single "T1-OPX (Off Premise Extension) port" is counted as a wired telephone.
Equipment Type MEC Figure
PT KX-T7600 series DPT/DSS console 1
Other DPT/DSS console 1
APT 1
IP-PT 1
Extension Card*1
*1 Only the extension cards that can support SLTs count for the MEC figures.
DHLC8 8
SLC8 8
SLC16 16
MSLC16 16
CS (1 unit) 0
PT-interface CS (1 unit) 0
VPS (1 port) 1
Equipment Type MEC Figure
KX-T7600 series DPT 48 units 48
SLC16 1 card 16
MSLC16 1 card 16
VPS 8 ports 8
Tot a l 88
Terminal Equipment Type
KX-TDA100 KX-TDA200
Without MEC
Card
With MEC
Card
Without MEC
Card
With MEC
Card
1.4 Specifications
32 Installation Manual
Power Supply Unit Selection
Hybrid IP-PBX needs an optional power supply unit (PSU) suitable for its configuration. Calculate the load
figure from the type and number of items of equipment to be connected, and determine the type of PSU that
will be required.
Load Figure Calculation
PSU Capability
Each PSU supports a different amount of load figures.
Calculation Example (KX-TDA200)
Equipment Type Load Figure
PT KX-T7600 series DPT/DSS console 1
Other DPT/DSS console 4
APT 4
IP-PT 0
Extension Card*1
*1 Only the extension cards that can support SLTs count for the load figures.
DHLC8 8
SLC8 8
SLC16 16
MSLC16 16
CS (1 unit) 4
PT-interface CS (1 unit) 4
VPS (1 port) 1
PSU Type Maximum Load Figures
PSU-S*1
*1 Available for the KX-TDA100
64
PSU-M*2
*2 Available for the KX-TDA100 and KX-TDA200
128
PSU-L*3
*3 Available for the KX-TDA200
512
Equipment Type Load Figure
KX-T7600 series DPT 48 units 48
Other DPT 2 units 8
SLC16 1 card 16
MSLC16 1 card 16
VPS 8 ports 8
1.4 Specifications
Installation Manual 33
The total load figure is 96. As this is between 64 and 128, you should install the PSU-M. However, if you
expect expansion in the future, it may be better to install the PSU-L. There is no harm in installing a PSU
that is larger than is required for the current configuration.
Tot a l 96
Equipment Type Load Figure
1.4 Specifications
34 Installation Manual
Installation Manual 35
Section 2
Installation
This section describes the procedures to install the Hybrid IP-
PBX. Detailed instructions for planning the installation site,
installing the shelves and optional service cards, and cabling
of peripheral equipment are provided. Further information on
system expansion and peripheral equipment installation is
included.
2.1 Before Installation
36 Installation Manual
2.1 Before Installation
2.1.1 Before Installation
Please read the following notes concerning installation and connection before installing the Hybrid IP-PBX.
Be sure to comply with applicable local regulations (e.g., law, guidelines).
Safety Installation Instructions
When installing telephone wiring, basic safety precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the following:
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected
at the network interface.
4. Use caution when installing or modifying telephone lines.
5. Anti-static precautions should be taken during installation.
Installation Precautions
This set is made for wall mounting (KX-TDA100/KX-TDA200) or floor standing (KX-TDA200 only). Avoid
installing in the following places. (Doing so may result in malfunction, noise, or discoloration.)
1. In direct sunlight and hot, cold, or humid places.
Temperature range: 0 °C to 40 °C (32 °F to 104 °F)
2. Sulphuric gases produced in areas where there are thermal springs, etc. may damage the equipment
or contacts.
3. Places in which shocks or vibrations are frequent or strong.
4. Dusty places, or places where water or oil may come into contact with the unit.
5. Near high-frequency generating devices such as sewing machines or electric welders.
6. On or near computers, telexes, or other office equipment, as well as microwave ovens or air
conditioners. (It is preferable not to install in the same room with the above equipment.)
7. Closer than 1.8 m (6 ft) to radios and televisions (both the Hybrid IP-PBX and PTs).
8. Do not obstruct the area around the Hybrid IP-PBX (for reasons of maintenance and inspection—be
especially careful to allow space of at least 20 cm (8 in) above and 10 cm (4 in) at the sides of the Hybrid
IP-PBX for cooling).
9. Do not block the openings at top of the Hybrid IP-PBX.
10. Do not stack up the optional service cards.
Wiring Precautions
Be sure to follow these instructions when wiring.
1. Do not wire the telephone cable in parallel with an AC power source, computer, telex, etc. If the cables
are run near those wires, shield the cables with metal tubing or use shielded cables and ground the
shields.
2. If cables are run on the floor, use protectors to prevent the wires from being stepped on. Avoid wiring
under carpets.
2.1 Before Installation
Installation Manual 37
3. Avoid using the same power supply outlet for computers, telexes, and other office equipment.
Otherwise, Hybrid IP-PBX operation may be interrupted by the induction noise from such equipment.
4. Please use 1-pair telephone wire for extension connection of (telephone) equipment such as standard
telephones, data terminals, answering machines, computers, Voice Processing Systems, etc., except
PTs (e.g., KX-T7600 series).
5. The power switch of the Hybrid IP-PBX must be off during wiring. After the wiring is completed, turn the
power switch on.
6. Mis-wiring may cause the Hybrid IP-PBX to operate improperly.
7. If an extension does not operate properly, disconnect the telephone from the extension line and then
connect again, or turn the power to the Hybrid IP-PBX off and on again.
8. The Hybrid IP-PBX is equipped with a 3-wire grounding type plug. This is a safety feature. If you are
unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not
defeat the purpose of the grounding-type plug.
9. Use twisted pair cable for CO line connection.
10. CO lines should be installed with surge protectors. For details, refer to "2.2.13 Surge Protector
Installation".
11. To assure good quality telephone connection, it is recommended new and modifications to existing
installation of customer premise wiring shall use solid twisted pair copper conductors with minimum 24
gauge that comply with the electrical specifications for Category 3 wiring as detailed in ANSI/EIA/TIA-
570A Building Wiring Standards.
2.2 Installation of the Hybrid IP-PBX
38 Installation Manual
2.2 Installation of the Hybrid IP-PBX
2.2.1 Unpacking
Unpack the box and check the items below:
KX-TDA100 KX-TDA200
Main Unit 1 1
Metal Bracket 1 1
Screw A 3 4
Screw B (Black) 2 6
Anchor Plug 3 4
Mini Plug (for pager and music source) 4 4
SD Memory Card 1 1
2.2 Installation of the Hybrid IP-PBX
Installation Manual 39
2.2.2 Names and Locations
Inside View
Note
* Null slot is not available for any optional service card.
MPR Card Slot
RUN Indicator
ALARM Indicator
RS-232C Port
Free Slots 1 to 5
Free Slots 1 to 10
USB Port
RS-232C Port
USB Port
RUN Indicator
ALARM Indicator
MPR Card Slot
Null Slot*
PSU Slot PSU Slot
Option Card Slot
Option Card Slot
KX-TDA100 KX-TDA200
2.2 Installation of the Hybrid IP-PBX
40 Installation Manual
2.2.3 Opening/Closing the Front Cover
Opening the Front Cover
1. Insert a flathead screwdriver into the opening (on the left of the screw cover) and unlatch the screw
cover.
2. Turn the screw counterclockwise to loosen.
3. Slide the front cover to the right until it stops, then lift the front cover.
Screw Cover
2.2 Installation of the Hybrid IP-PBX
Installation Manual 41
Closing the Front Cover
1. Hook the front cover onto the cabinet (line up the protrusions on the cover with the receptacles on the
cabinet). Then slide the front cover to the left until it locks.
2. Turn the screw clockwise to tighten.
3. Secure the screw cover.
Notes
•For safety reasons, close the front cover and tighten the screw when the Hybrid IP-PBX is in
operation.
•Do not forget to tighten the screw before securing the screw cover.
1
2
2.2 Installation of the Hybrid IP-PBX
42 Installation Manual
2.2.4 Installing/Replacing the Power Supply Unit
Function
Accessory and User-supplied Items
Accessory (included): Screws × 4, AC power cord × 1
User-supplied (not included): grounding wire
Note
For details about frame ground connection, refer to "2.2.5 Frame Ground Connection".
Safety Instructions
Each PSU complies with Safety Class 1 of IEC60950, EN60950, UL60950,
CAN/CSA-C22.2 No.60950, and AS/NZS60950; therefore a protective earth connection exists between the
mains outlet ground and the PSU case. To ensure the PBX chassis is safely grounded, it is essential that
the PSU case be securely fastened to the PBX chassis with the 4 screws provided with each PSU.
When installing or replacing PSU, basic safety precautions should always be followed to reduce the risk of
fire, electric shock and injury to persons, including the following:
1. Never install or replace PSU during a lightning storm.
2. Never install or replace PSU in wet locations.
3. Never install or replace PSU unless at least 20 s has elapsed after the AC supply is disconnected.
PSU Type Lower/Upper Input Voltage Range Current Input Frequency
PSU-S
(for KX-TDA100)
Lower: 100 V AC to 130 V AC 1.4 A
50 Hz or 60 Hz
Upper: 200 V AC to 240 V AC 0.8 A
PSU-M
(for KX-TDA100/200)
Lower: 100 V AC to 130 V AC 2.5 A
Upper: 200 V AC to 240 V AC 1.4 A
PSU-L
(for KX-TDA200)
Lower: 100 V AC to 130 V AC 5.1 A
Upper: 200 V AC to 240 V AC 2.55 A
AC Inlet
Power Switch
AC Inlet
Power Switch
PSU-S PSU-M/PSU-L
Ground Terminal
Ground Terminal
2.2 Installation of the Hybrid IP-PBX
Installation Manual 43
4. To protect the back board from static electricity, do not touch parts on the back board in the main
unit and PSU. To discharge static electricity, touch ground or wear a grounding strap.
The following procedures are for installing or replacing a PSU only. Do not replace or remove the
PSU for any other purpose.

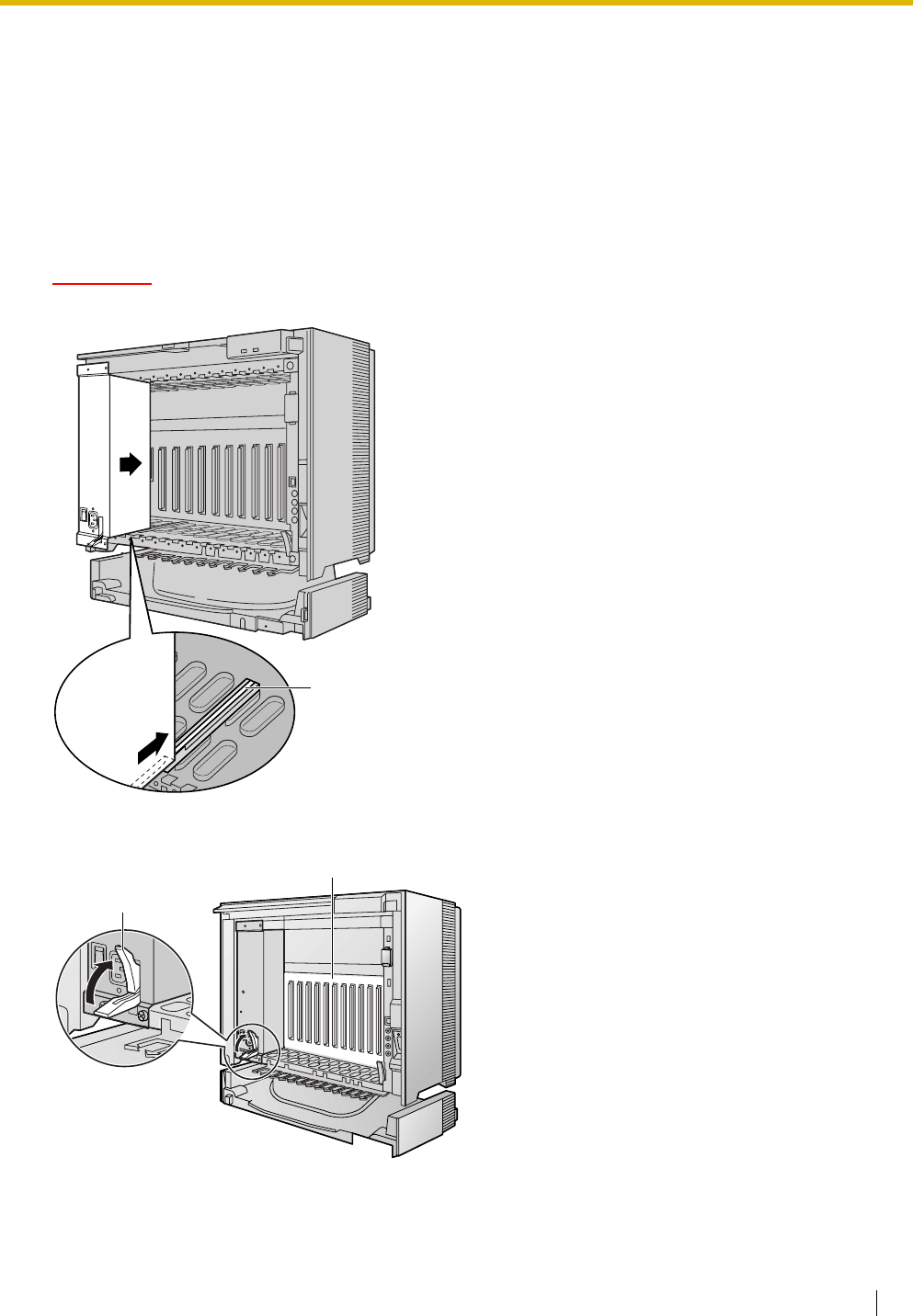

Installing the Power Supply Unit
1. Insert the PSU along the guide rails.
CAUTION
For safety reasons, do not touch parts in the PSU.
2. Push the release lever in the direction of the arrow, so that the PSU engages securely with the
connector on the back board.
Guide Rail
Release Lever
Back Board
2.2 Installation of the Hybrid IP-PBX
44 Installation Manual
3. Turn the 4 screws clockwise, in the order indicated by the numbers 1 to 4, to fix the PSU.
Replacing the Power Supply Unit
1. Unplug the AC power cord.
2. Turn the 4 screws counterclockwise to loosen them.
Screws
1
32
4
Screws
2.2 Installation of the Hybrid IP-PBX
Installation Manual 45

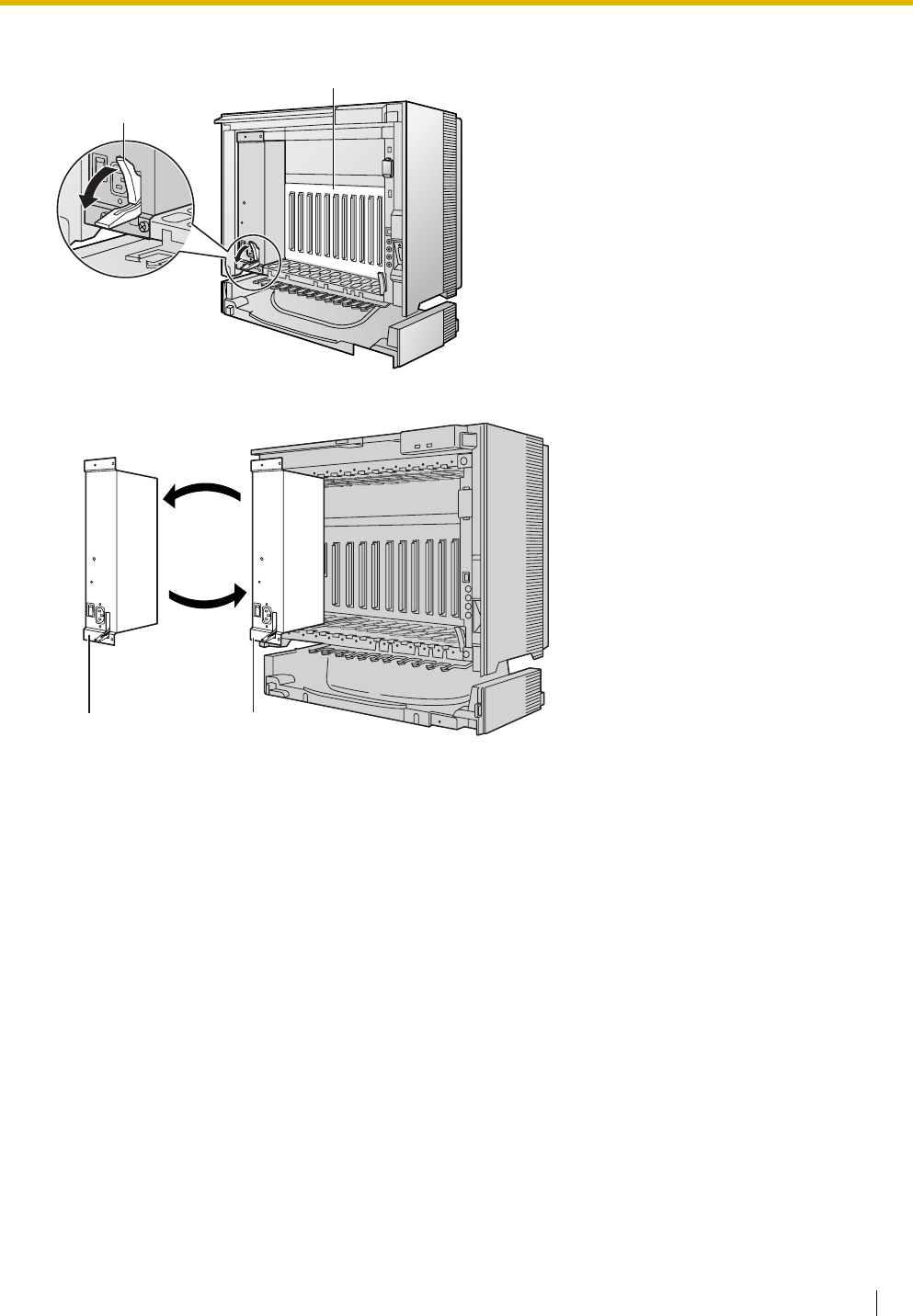

3. Pull the release lever in the direction of the arrow to disconnect the PSU from the back board.
4. Replace the PSU.
5. Follow the steps in "Installing the Power Supply Unit".
Release Lever
Back Board
Current PSU
New PSU
2.2 Installation of the Hybrid IP-PBX
46 Installation Manual
2.2.5 Frame Ground Connection
IMPORTANT
Connect the frame of the Hybrid IP-PBX to earth.
•Be sure to comply with applicable local regulations (e.g., law, guidelines).
•Proper grounding (connection to earth) is very important to protect the Hybrid IP-PBX from the bad
effects of external noise or to reduce the risk to the user of electrocution in the case of lightning strike.
•The ground wire of the AC cable has an effect against the external noise and lightning strikes, but it may
not be enough to protect the Hybrid IP-PBX. A permanent connection between earth and the ground
terminal of the Hybrid IP-PBX must be made.
In most of the continental United States, the ground provided by the "Third wire ground" at the commercial
power outlet will be satisfactory. However, in a small percentage of cases this ground may be installed
incorrectly. Therefore, the following test procedure should be performed.
Test Procedure
1. Obtain a suitable voltmeter and set it for a possible reading of up to 250 V AC.
2. Connect the meter probes between the 2 main AC voltage points on the wall outlet. The reading
obtained should be 108 V AC to 132 V AC.
3. Move one of the meter probes to the 3rd prong terminal (GND).
Either the same reading or a reading of 0 volt should be obtained.
4. If a reading of 0 volt at one terminal and a reading of 108 V AC to 132 V AC at the other terminal
is not obtained, the outlet is not properly grounded.
This condition should be corrected by a qualified electrician (per article 250 of the National
Electrical Code).
5. If a reading of 0 volt at one terminal and a reading of 108 V AC to 132 V AC at the other terminal
is obtained, then set the meter to the "OHMS/RX1" scale, place one probe at the GND Terminal
and the other probe at the terminal which gave a reading of 0 volt.
A reading of less than 1 ohm should be obtained. If the reading is not obtained, the outlet is not
adequately grounded. See qualified electrician.
1. Loosen the screw.
2. Insert a grounding wire (user-
supplied)*.
3. Tighten the screw.
4. Connect the grounding wire to
earth.
* For grounding wire, green-and-yellow insulation is required, and the cross-sectional area of the
conductor must be more than 0.75 mm2 or 18 AWG.
Screw
To Ground
Grounding
wire
2.2 Installation of the Hybrid IP-PBX
Installation Manual 47
2.2.6 Installing/Removing the Optional Service Cards
CAUTION
To protect the back board from static electricity, do not touch parts on the back board in the main unit
and on the optional service cards. To discharge static electricity, touch ground or wear a grounding
strap.
Note
The optional service cards can be installed or removed while the DC power is supplied. However, when
installing or removing the MPR card, the DC power supply must be turned off.
Installing Optional Service Cards

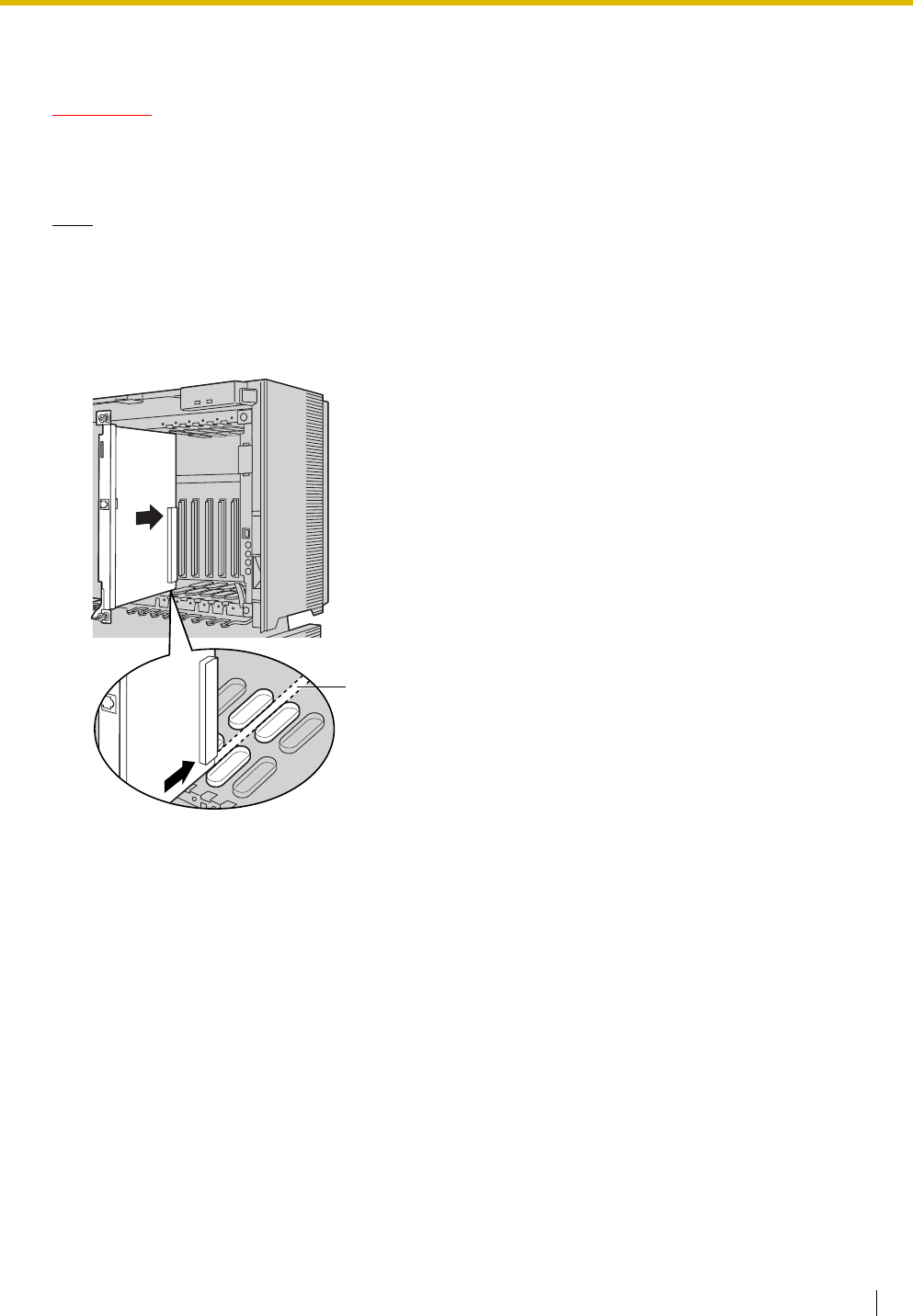

1. Insert the card along the guide rails.
Guide Rail
2.2 Installation of the Hybrid IP-PBX
48 Installation Manual

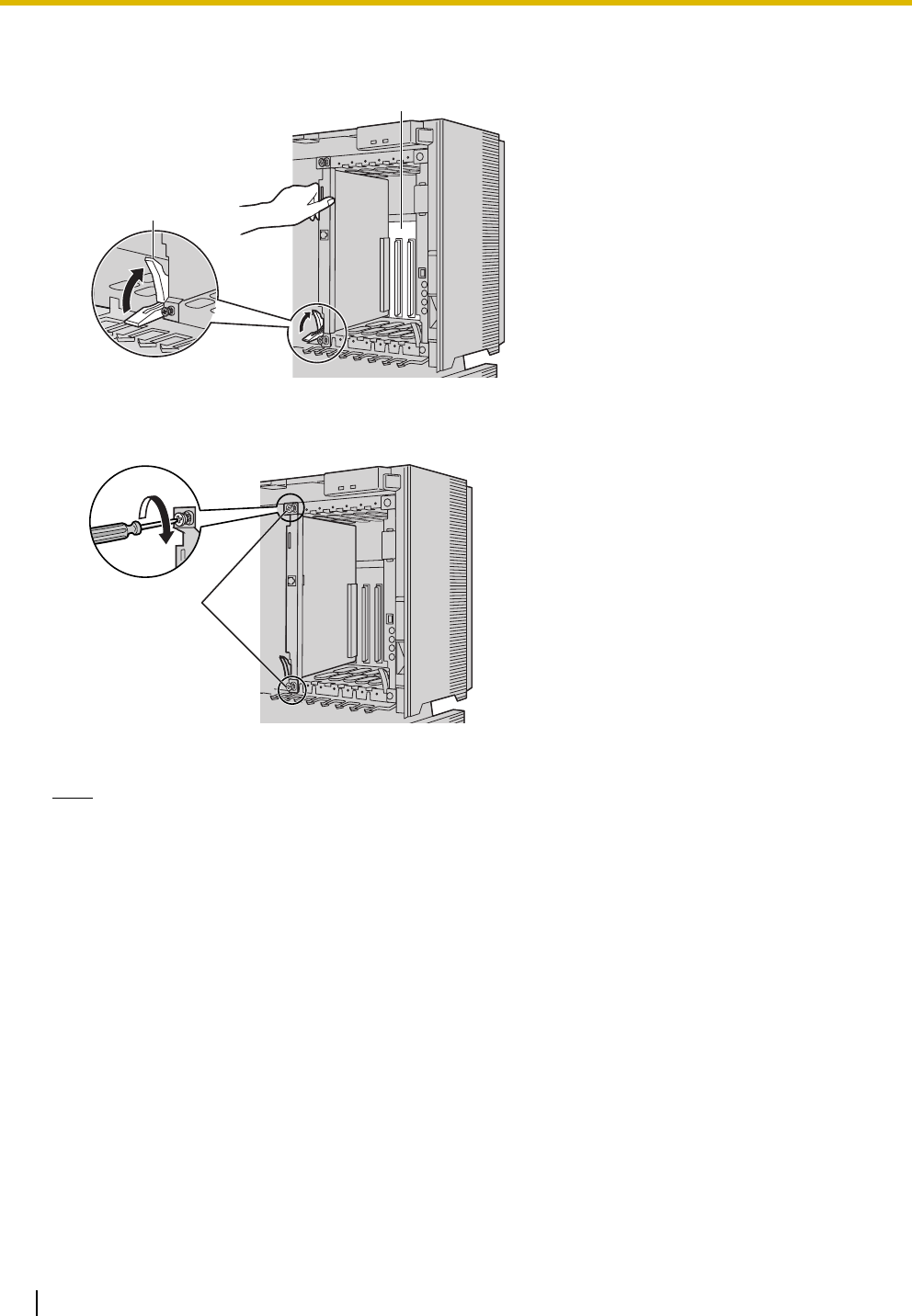

2. Holding the card as shown below, push the release lever in the direction of the arrow so that the card
engages securely with the connector on the back board.
3. Turn the 2 screws clockwise to fix the card in place.
Note
Make sure the screws are tightened to ground the card securely.
Release Lever
Back Board
Screws
2.2 Installation of the Hybrid IP-PBX
Installation Manual 49
Covering the Blank Slots
Be sure to cover each slot in which no optional service card is installed by using a Blank Slot Cover.
CAUTION
Failure to install the Blank Slot Cover may cause electromagnetic interferences.
2.2 Installation of the Hybrid IP-PBX
50 Installation Manual
Handling of the Cables
When cables are connected to the Hybrid IP-PBX, run the cables to either right or left and then towards the
backside of the cabinet as shown below.
Note
For safety reasons, do not stretch, bend, or pinch the AC power cord.
1
2
3
4
2.2 Installation of the Hybrid IP-PBX
Installation Manual 51
Removing the Optional Service Cards
1. Turn the 2 screws counterclockwise to loosen them.
2. Pull the release lever in the direction of the arrow to disconnect the card from the back board. Pull the
card from the cabinet to remove it.
Screws
Release Lever
Back Board
2.2 Installation of the Hybrid IP-PBX
52 Installation Manual
2.2.7 Types of Connectors
Connector Type Pin Number Used for
(Twisted pair cable)
•DHLC8 (KX-TDA0170)
•SLC8 (KX-TDA0173)
•SLC16 (KX-TDA0174)
•MSLC16 (KX-TDA0175)
•LCOT8 (KX-TDA0180)
•LCOT16 (KX-TDA0181)
(Twisted pair cable)
•CSIF4 (KX-TDA0143)
•CSIF8 (KX-TDA0144)
•T1 (KX-TDA0187)
•PRI23 (KX-TDA0290)
•CTI-LINK (KX-TDA0410)
•IP-EXT16 (KX-TDA0470)
•IP-GW4 (KX-TDA0480)
•IP-GW4E (KX-TDA0484)
•IP-GW16 (KX-TDA0490)
(Shielded twisted pair
cable)
•DHLC8 (KX-TDA0170)
•DLC8 (KX-TDA0171)
•DLC16 (KX-TDA0172)
•SLC8 (KX-TDA0173)
•SLC16 (KX-TDA0174)
•MSLC16 (KX-TDA0175)
•LCOT8 (KX-TDA0180)
•LCOT16 (KX-TDA0181)
•DPH4 (KX-TDA0161)
•EIO4 (KX-TDA0164)
RJ11
1
4
RJ45
8
1
Amphenol
Type A Type B
50 25
26 1
10-pin
Terminal
Block
8-pin
Terminal
Block
8
1
10
1
2.2 Installation of the Hybrid IP-PBX
Installation Manual 53
•IP-GW4 (KX-TDA0480)
•Basic Shelf
•MPR
•MPR
Connector Type Pin Number Used for
RS-232C
9 5
6 1
USB
2
1
3
4
Mini Plug
2
4
2.2 Installation of the Hybrid IP-PBX
54 Installation Manual
2.2.8 Attaching a Ferrite Core
A ferrite core must be attached when:
•connecting IP-GW16 and IP-EXT16 cards using an RJ45 connector, or
•connecting extension cards using an Amphenol connector.
The ferrite core is included with the card.

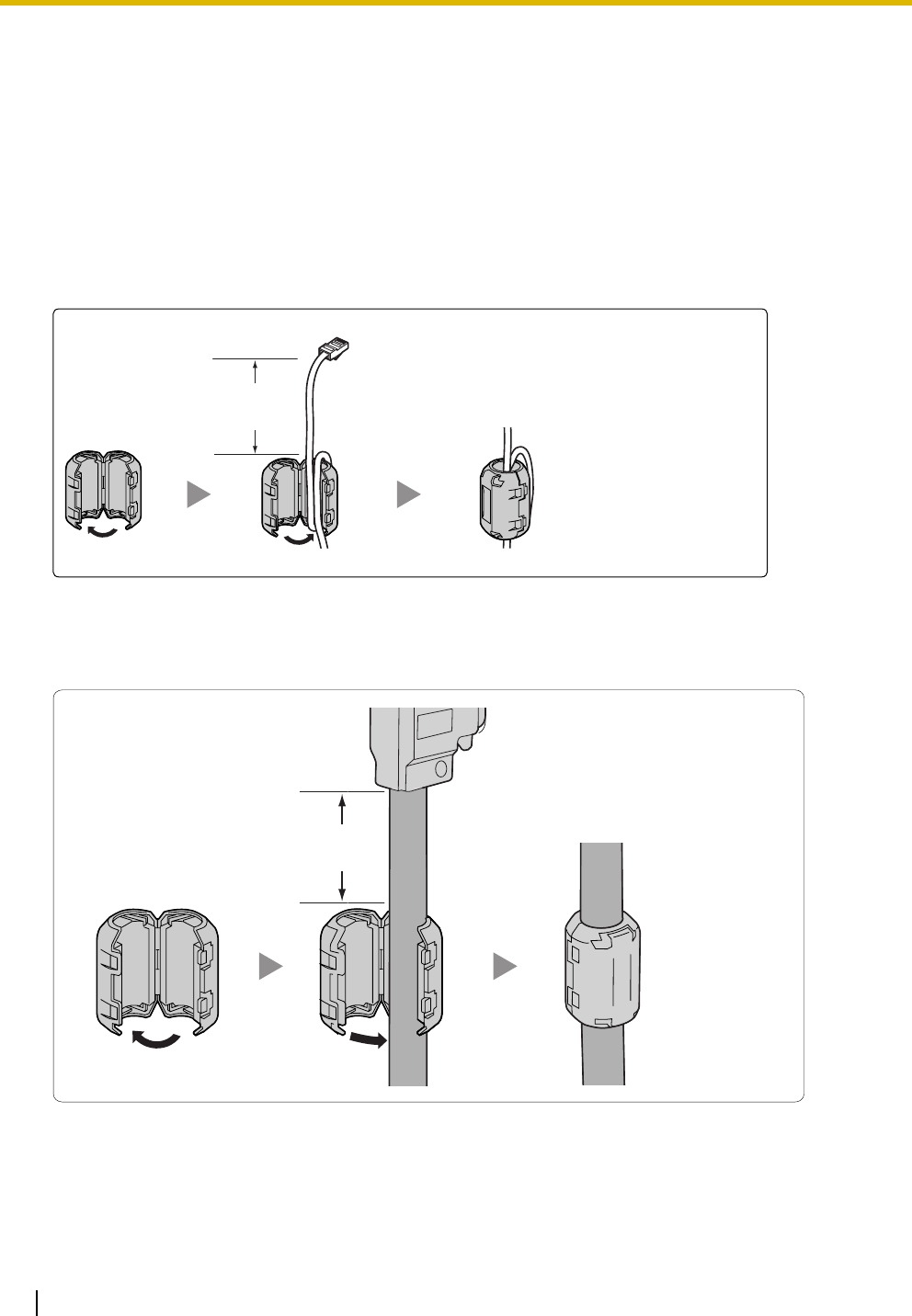

When connecting an IP-GW16/IP-EXT16 card
Wrap the cable once around the ferrite core, then close the case of the ferrite core. Attach the ferrite core 5
cm (1-15/16 in) away from the connector.
When connecting an extension card
Pass the cable through the ferrite core, then close the case of the ferrite core. Attach the ferrite core 3 cm
(1-3/16 in) away from the connector.
5 cm
(1-15/16 in)
3 cm
(1-3/16 in)
2.2 Installation of the Hybrid IP-PBX
Installation Manual 55
If you need to open the ferrite core, use a flathead screwdriver to unlatch the case of the ferrite core.
2.2 Installation of the Hybrid IP-PBX
56 Installation Manual
2.2.9 Fastening Amphenol Type Connector
An Amphenol 57JE type connector is used on some of the optional service cards.
To connect an Amphenol connector, use the spring latch or screw to fix the upper part and use Velcro® tape
to fix the lower part of the connector.
Type A (Spring Latch + Velcro Tape) Type B (Screw + Velcro Tape)
Velcro
Tape
Velcro
Tape
2
1
2
2
1
Spring
Latch
1
Spring
Latch
Remove the
screw on the
optional service
card.
Insert the screw (included
with the Amphenol or
optional service card).
2.2 Installation of the Hybrid IP-PBX
Installation Manual 57
Amphenol Connector Pin Assignment Chart
Below is an Amphenol connector pin assignment chart for all optional service cards that use the Amphenol
connector. For more details, refer to the appropriate section in "2.4 Installation of the CO Line Cards" and
"2.5 Installation of the Extension Cards".
Pin No. LCOT8 LCOT16 DHLC8 DLC8 DLC16 MSLC16 SLC16 SLC8
1RARARA D2A RA RA RA
26 TA TA TA D1A TA TA TA
2 RB RB D2A D2A D2B RB RB
27 TB TB D1A D1A D1B TB TB
3RCRC D2C RC RC
28 TC TC D1C TC TC
4RDRDRB D2D RD RD RB
29 TD TD TB D1D TD TD TB
5 RE RE D2B D2B D2E RE RE
30 TE TE D1B D1B D1E TE TE
6RFRF D2F RF RF
31 TF TF D1F TF TF
7RGRGRC D2G RG RG RC
32 TG TG TC D1G TG TG TC
8 RH RH D2C D2C D2H RH RH
33 TH TH D1C D1C D1H TH TH
9 RI D2I RI RI
34 TI D1I TI TI
10 RJ RD D2J RJ RJ RD
35 TJ TD D1J TJ TJ TD
11 RK D2D D2D D2K RK RK
36 TK D1D D1D D1K TK TK
12 RL D2L RL RL
37 TL D1L TL TL
13 RM RE D2M RM RM RE
38 TM TE D1M TM TM TE
14 RN D2E D2E D2N RN RN
39 TN D1E D1E D1N TN TN
15 RO D2O RO RO
40 TO D1O TO TO
16 RP RF D2P RP RP RF
41 TP TF D1P TP TP TF
17 D2F D2F
42 D1F D1F
18
43
19 RG RG
44 TG TG
20 D2G D2G
45 D1G D1G
21
46
22 RH RH
47 TH TH
23 D2H D2H
48 D1H D1H
24
49
25
50
2.2 Installation of the Hybrid IP-PBX
58 Installation Manual

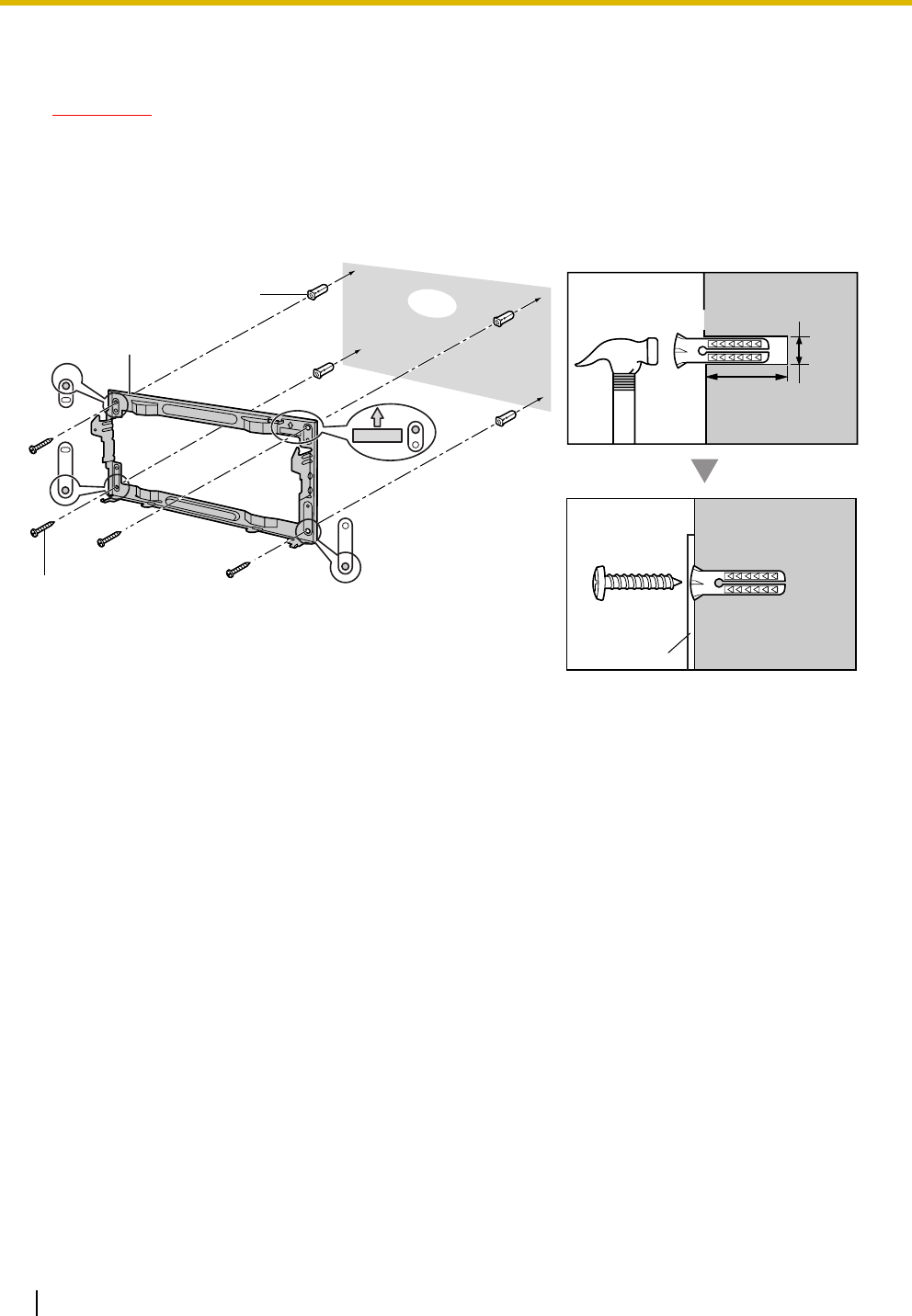

2.2.10 Wall Mounting (KX-TDA200)
CAUTION
Drive mounting screws into the wall. Be careful to avoid touching any metal laths, wire laths or metal
plates in the wall.
1. Install 4 anchor plugs in the wall, using the metal bracket as a template. Fix the metal bracket with 4
screws (A).
Screw (A)
Screw (A)
Metal Bracket
Hammer Anchor Plug
30 mm
(1-1/5 in)
6.5 mm
(1/4 in)
Wall
TOP
TOP
Anchor Plug
Metal Bracket
2.2 Installation of the Hybrid IP-PBX
Installation Manual 59

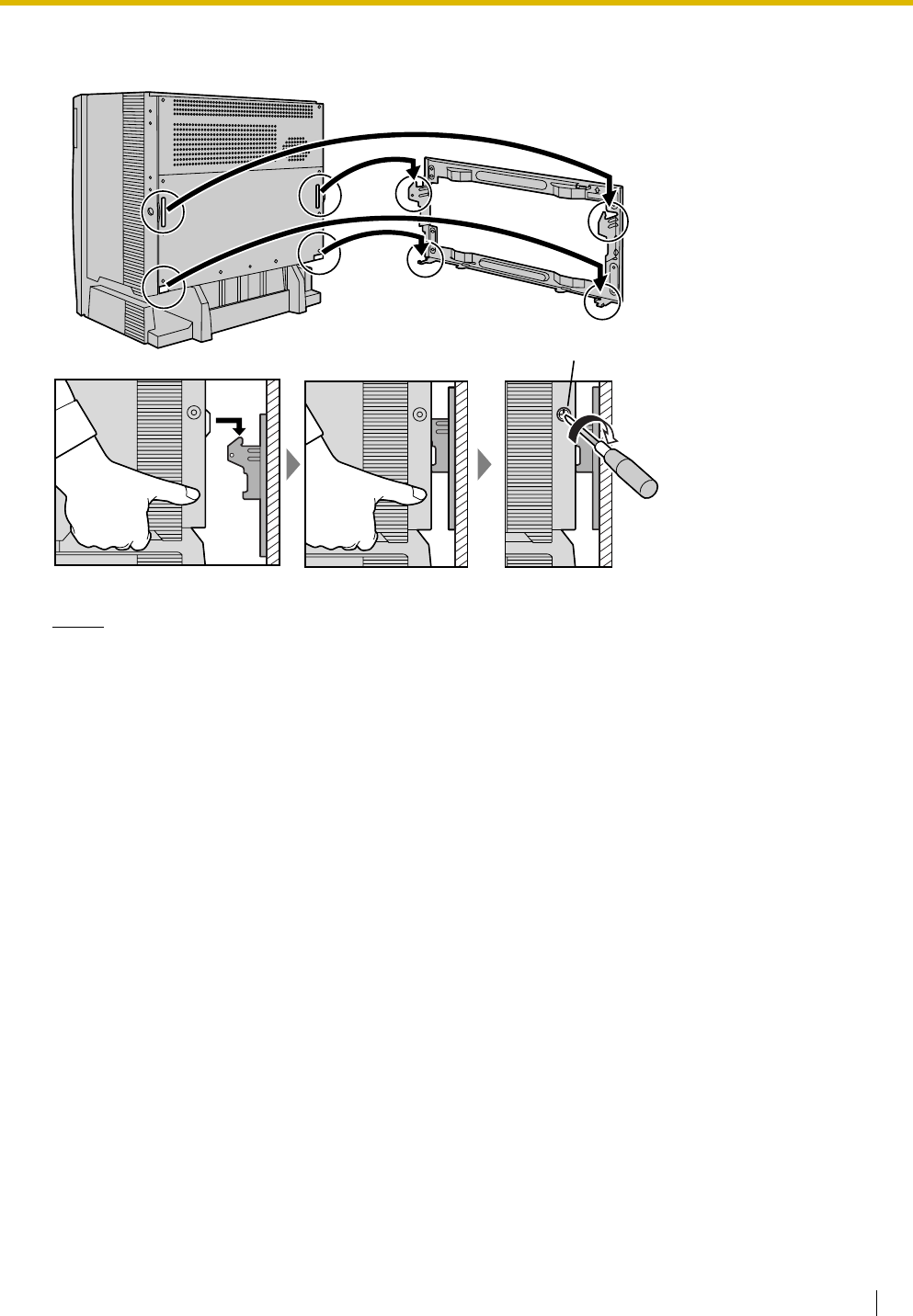

2. Hook the cabinet onto the metal bracket, making sure that the unit slides down and onto the hooked
parts of the metal bracket. Use 2 screws (B) to fix both sides of the cabinet.
Notes
•Do not block the openings of the cabinet. Allow space of at least 20 cm (8 in) above and 10 cm (4
in) at the sides of the cabinet.
•Make sure that the wall behind the cabinet is flat and free of obstacles, so that the openings on the
back of the cabinet will not be blocked.
•Make sure that the wall behind the cabinet is not made of wood.
•Be careful not to drop the cabinet.
TOP
Screw (B)
2.2 Installation of the Hybrid IP-PBX
60 Installation Manual
2.2.11 Wall Mounting (KX-TDA100)
CAUTION
Drive mounting screws into the wall. Be careful to avoid touching any metal laths, wire laths or metal
plates in the wall.
1. Install 3 anchor plugs in the wall, using the metal bracket as a template. Fix the metal bracket with 3
screws (A).
Metal Bracket
Screw (A)
Anchor Plug
Wall
TOP
TOP
Screw (A)
Hammer Anchor Plug
Metal Bracket
30 mm
(1-1/5 in)
6.5 mm
(1/4 in)
2.2 Installation of the Hybrid IP-PBX
Installation Manual 61
2. Hook the cabinet onto the metal bracket, making sure that the unit slides down and onto the hooked
parts of the metal bracket. Use 2 screws (B) to fix both sides of the cabinet.
Notes
•Do not block the openings of the cabinet. Allow space of at least 20 cm (8 in) above and 10 cm (4
in) at the sides of the cabinet.
•Make sure that the wall behind the cabinet is flat and free of obstacles, so that the openings on the
back of the cabinet will not be blocked.
•Make sure that the wall behind the cabinet is not made of wood.
•Be careful not to drop the cabinet.
TOP
Screw (B)
2.2 Installation of the Hybrid IP-PBX
62 Installation Manual
2.2.12 Floor Standing (KX-TDA200 Only)

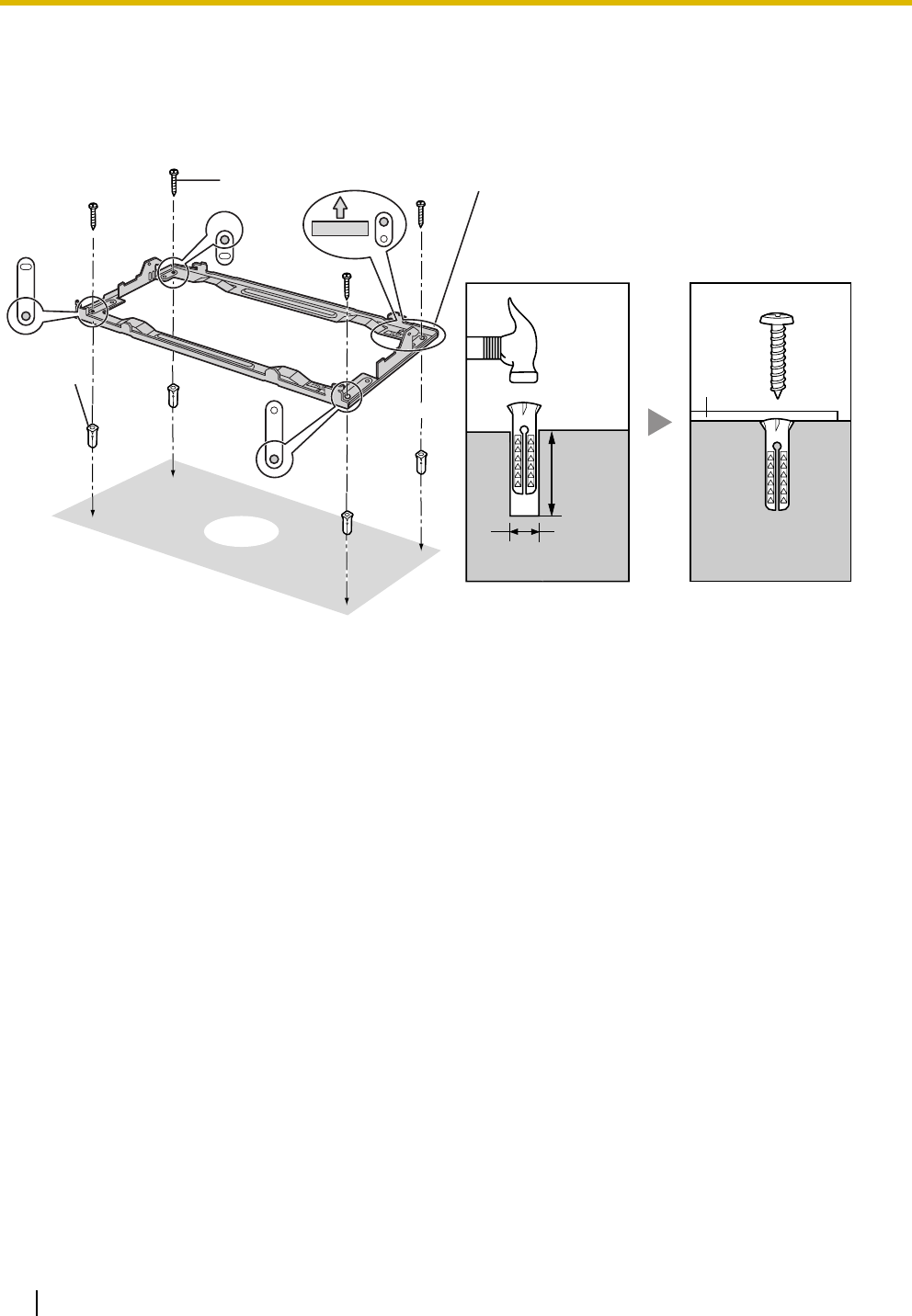

1. Install 4 anchor plugs in the floor, using the metal bracket as a template. Fix the metal bracket with 4
screws (A).
2. Remove the front cover of the cabinet (refer to "2.2.3 Opening/Closing the Front Cover").
Anchor Plug
Hammer
30 mm
(1-1/5 in)
6.5 mm
(1/4 in)
Metal
Bracket
Screw (A)
Floor
Screw (A) Metal Bracket
Anchor
Plug
TOP
2.2 Installation of the Hybrid IP-PBX
Installation Manual 63
3. Lift the cabinet, attach it to the metal bracket, slide it backwards until it locks, and retain it with 2 screws
(B).
Notes
•Do not block the openings of the cabinet. Allow space of at least 20 cm (8 in) above and 10 cm (4
in) at the sides of the cabinet.
•Make sure that the surface behind the cabinet is flat and free of obstacles, so that the openings on
the back of the cabinet will not be blocked.
Screws (B)
Metal Bracket
FRONT
TOP
1
2
2.2 Installation of the Hybrid IP-PBX
64 Installation Manual
•Make sure that the surface behind the cabinet is not made of wood.
•Be careful not to drop the cabinet.
4. Fix the front cover on the cabinet (refer to "2.2.3 Opening/Closing the Front Cover").
2.2 Installation of the Hybrid IP-PBX
Installation Manual 65
2.2.13 Surge Protector Installation
Overview
A massive electrical surge can be caused if lightning strikes a telephone cable 10 m (33 ft) above ground,
or if a telephone line comes into contact with a power line. A surge protector is a device that is connected
to a CO line to prevent potentially dangerous electrical surges from entering the building via the CO line and
damaging the Hybrid IP-PBX and connected equipment.
To protect the system from electrical surges, we strongly recommend connecting the system to a surge
protector that meets the following specifications:
•Surge arrestor type: 3-electrode arrestor
•DC spark-over voltage: 230 V
•Maximum peak current: at least 10 kA
Additionally, proper earthing is very important for the protection of the system (refer to "2.2.5 Frame Ground
Connection").
Many countries/areas have regulations requiring surge protection. Be sure to comply with all applicable
laws, regulations, and guidelines.

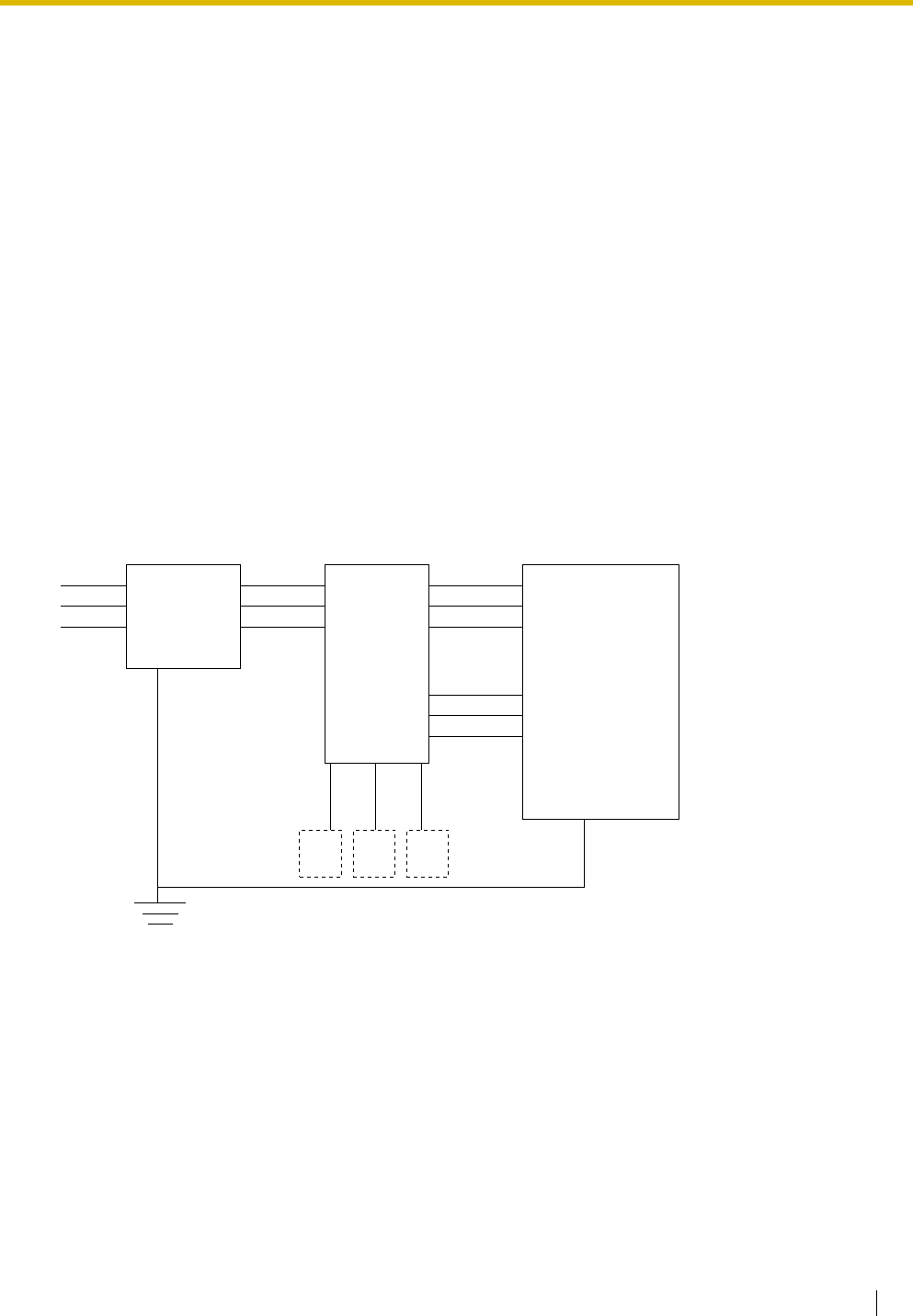

Installation
CS
Extn.
Extn. Extn.
SLT PT
CO Line CO Line CO Line
Extn.: Extension line
Surge
Protector
Terminal
Board Hybrid
IP-PBX
Frame
Ground
Earth
2.2 Installation of the Hybrid IP-PBX
66 Installation Manual
Outside Installation
If you install an extension outside of the building, the following precautions are recommended:
a. Install the extension wire underground.
b. Use a conduit to protect the wire.
Note
The surge protector for an extension and CS is different from that for a CO line.
Installation of an Earth Rod
CSSLT PT
(Main Building)
CO Line
CO Line
Extn.
Extn.
Extn.: Extension Line
Earth
(Another Building)
Extn. Extn.
Surge Protector
Terminal
Board Surge
Protector
SLT
PT
Hybrid
IP-PBX CS
CO Line
Hybrid
IP-PBX
Grounding
Wire
Earth Rod
(Underground)
Surge Protector
2.2 Installation of the Hybrid IP-PBX
Installation Manual 67
1. Connect the earth rod to the surge protector using an earthing wire with a cross-sectional area of at
least 1.3 mm2.
2. Bury the earth rod near the protector. The earthing wire should be as short as possible.
3. The earthing wire should run straight to the earth rod. Do not run the wire around other objects.
4. Bury the earth rod at least 50 cm (20 in) underground.
Notes
•The above figures are recommendations only.
•The length of earth rod and the required depth depend on the composition of the soil.
2.3 Installation of the Main Processing Card
68 Installation Manual
2.3 Installation of the Main Processing Card
2.3.1 MPR Card
Function
Contains the main processor for all processes, basic shelf main protocol, time switch (TSW) control,
detection of system clock alarm, basic shelf power down alarm, and watchdog timer overflow. An MEC card
and an RMT card can be mounted on the MPR card (refer to "2.3.2 MEC Card" and "2.3.3 RMT Card").
Notes
•For details about connecting peripherals, refer to "2.10.1 Connection of Peripherals".
•For details about System Initialize Switch, refer to "2.12.1 Starting the Hybrid IP-PBX".
•For details about Reset Button, refer to "4.1.4 Using the Reset Button".
CAUTION
•Use only the SD Memory Card included with the Hybrid IP-PBX, or a Panasonic optional upgrade
SD Memory Card.
•The SD Memory Card contains software for all processes of the Hybrid IP-PBX and all customer
data. The SD Memory Card must be inserted before startup.
•Do not remove the SD Memory Card while power is supplied to the Hybrid IP-PBX. Doing so may
cause the Hybrid IP-PBX to fail to start when you try to restart the system.
LEDs
Reset Button
SD Memory Card
Slot Cover
System Initialize
Switch
USB
BGM/MOH
Pager
SD
CARD
2
SD
CARD
4
5
SD
CARD
SD
Memory
Card
3
1
2.3 Installation of the Main Processing Card
Installation Manual 69
•A LITHIUM BATTERY IS USED IN THE MPR CARD. THERE IS A RISK OF EXPLOSION IF
BATTERY IS REPLACED WITH THE INCORRECT TYPE. DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUCTIONS.

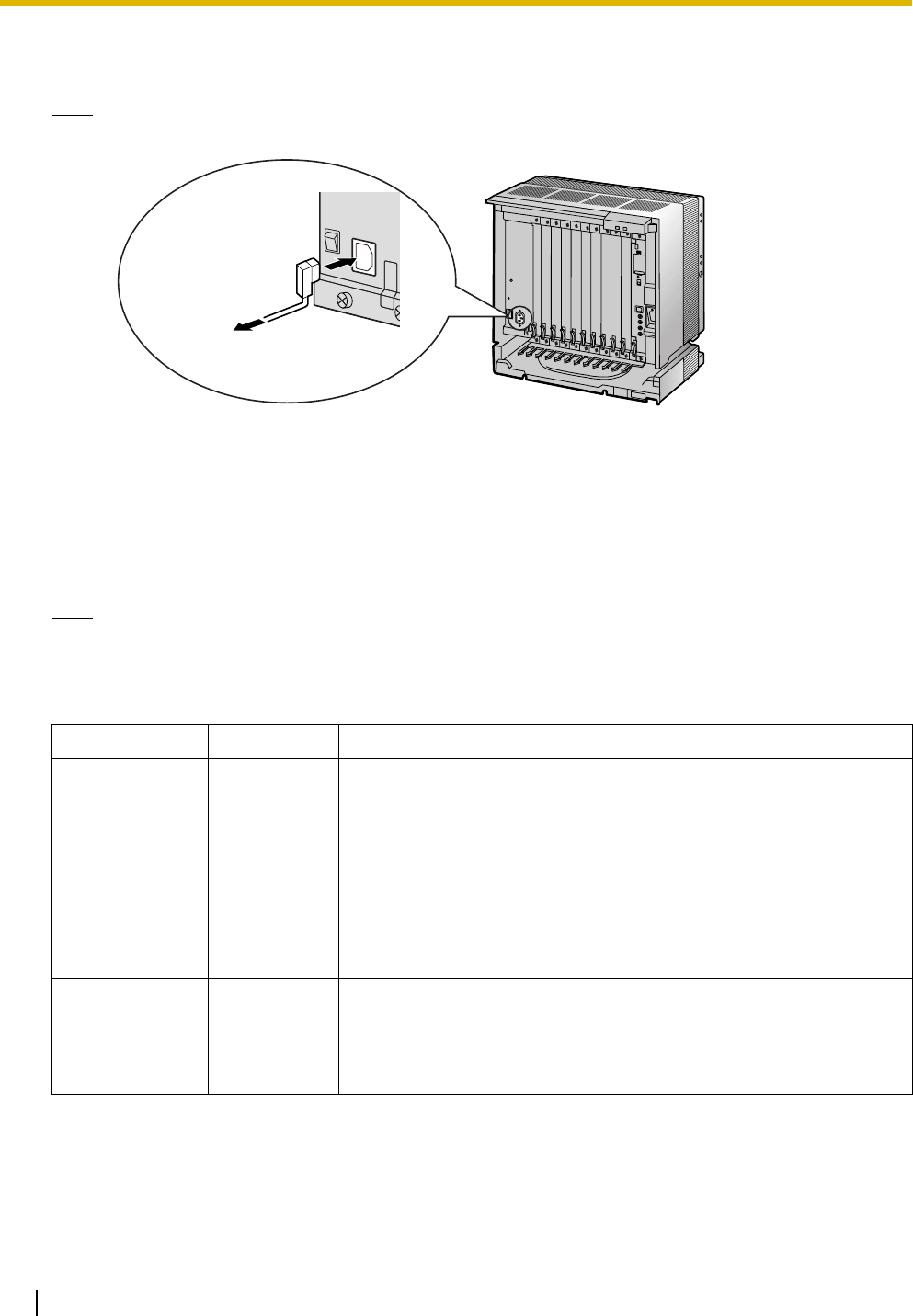

LED Indications
Indication Color Description
BATT ALARM Red Battery alarm indication
•OFF: Normal
ON: Alarm
SD ACCESS Green SD memory card status
•ON: Accessing
2.3 Installation of the Main Processing Card
70 Installation Manual
2.3.2 MEC Card
Function
Memory expansion card to increase system data storage space, enable Broadcasting feature, and double
the number of DPTs, using Digital XDP connection. To be mounted on the MPR card.
Accessory and User-supplied Items
Accessory (included): Screws × 2
User-supplied (not included): none
MEC Card
Screw
inside
2.3 Installation of the Main Processing Card
Installation Manual 71

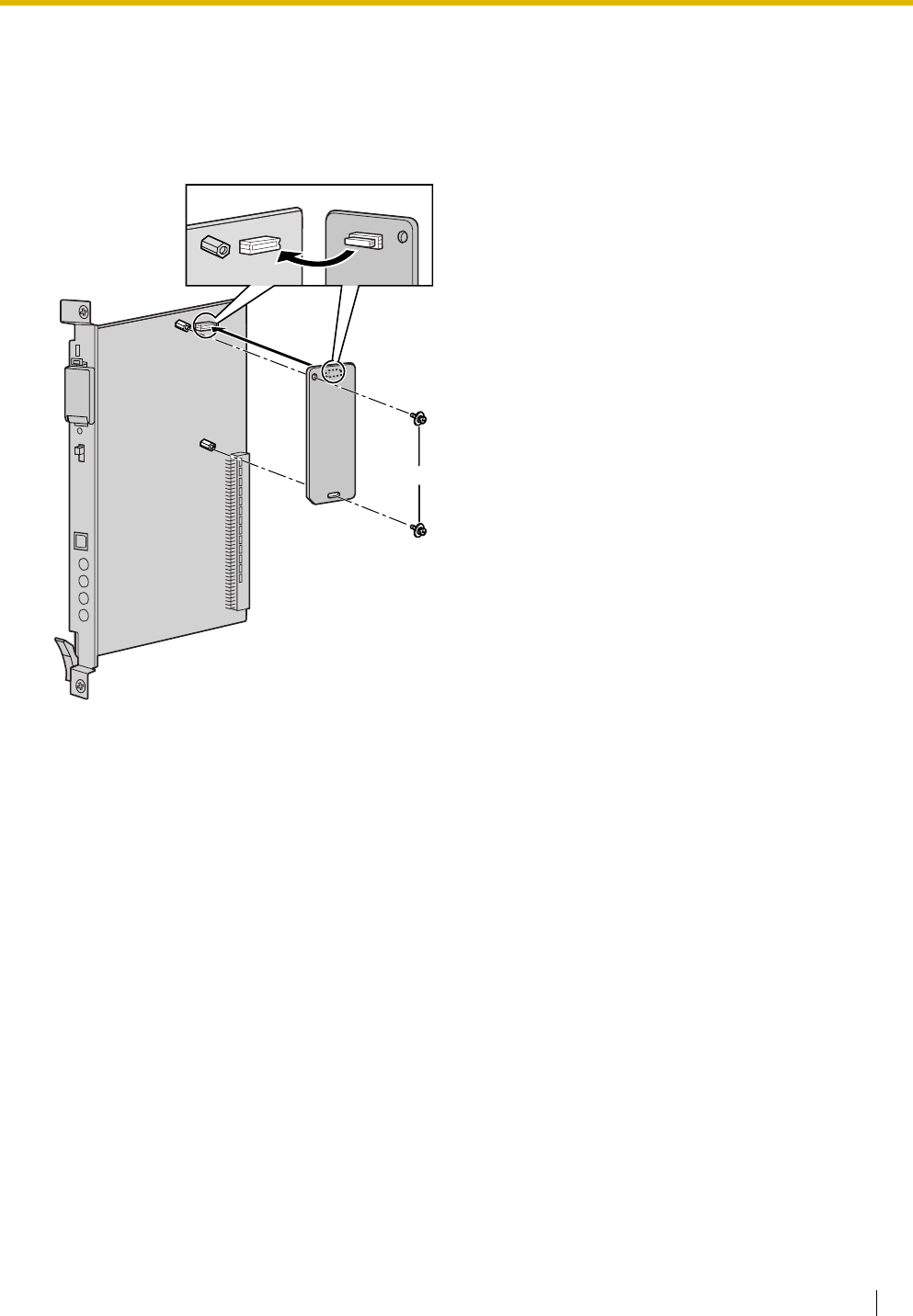

2.3.3 RMT Card
Function
Analog modem card for remote communication with the Hybrid IP-PBX. ITU-T V.90 support. To be mounted
on the MPR card.
Accessory and User-supplied Items
Accessory (included): Screws × 2
User-supplied (not included): none
RMT Card
Screw
inside
2.4 Installation of the CO Line Cards
72 Installation Manual
2.4 Installation of the CO Line Cards
2.4.1 LCOT8 and LCOT16 Cards
Function
Accessory and User-supplied Items
Accessory (included): Screws × 2
User-supplied (not included): Amphenol connector
Notes
•To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Type Connector".
•For details about power failure transfer, refer to "2.11.1 Power Failure Connections".
•To confirm the CO line connection, refer to "Confirming the CO Line Connection" in "2.12.1 Starting
the Hybrid IP-PBX".
LCOT8: 8-port analog CO line card with 2 power failure transfer (PFT) ports. One CID8 card can be
mounted on the LCOT8 card (refer to "2.4.2 CID8 Card").
LCOT16: 16-port analog CO line card with 4 power failure transfer (PFT) ports. A maximum of 2 CID8
cards can be mounted on the LCOT16 card (refer to "2.4.2 CID8 Card").
Amphenol
To CO line
LED
2.4 Installation of the CO Line Cards
Installation Manual 73
Pin Assignments
Amphenol Connector
Note
Pin assignments for the pins 9 to 16 and 34 to 41 are for the LCOT16 card only.
LED Indications
No. Signal Name Function No. Signal Name Function
1 RA Ring port 1 26 TA Tip port 1
2 RB Ring port 2 27 TB Tip port 2
3 RC Ring port 3 28 TC Tip port 3
4 RD Ring port 4 29 TD Tip port 4
5 RE Ring port 5 30 TE Tip port 5
6 RF Ring port 6 31 TF Tip port 6
7 RG Ring port 7 32 TG Tip port 7
8 RH Ring port 8 33 TH Tip port 8
9 RI Ring port 9 34 TI Tip port 9
10 RJ Ring port 10 35 TJ Tip port 10
11 RK Ring port 11 36 TK Tip port 11
12 RL Ring port 12 37 TL Tip port 12
13 RM Ring port 13 38 TM Tip port 13
14 RN Ring port 14 39 TN Tip port 14
15 RO Ring port 15 40 TO Tip port 15
16 RP Ring port 16 41 TP Tip port 16
17-25 Reserved –42-50 Reserved –
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
50 25
26 1
2.4 Installation of the CO Line Cards
74 Installation Manual
2.4.2 CID8 Card
Function
8-port Caller ID signal type FSK/FSK (with Call Waiting Caller ID [Visual Caller ID])/DTMF. To be mounted
on the LCOT8/LCOT16 cards.
Accessory and User-supplied Items
Accessory (included): Screws × 2
User-supplied (not included): none
Note
Only 1 CID8 card can be mounted on the LCOT8 card.

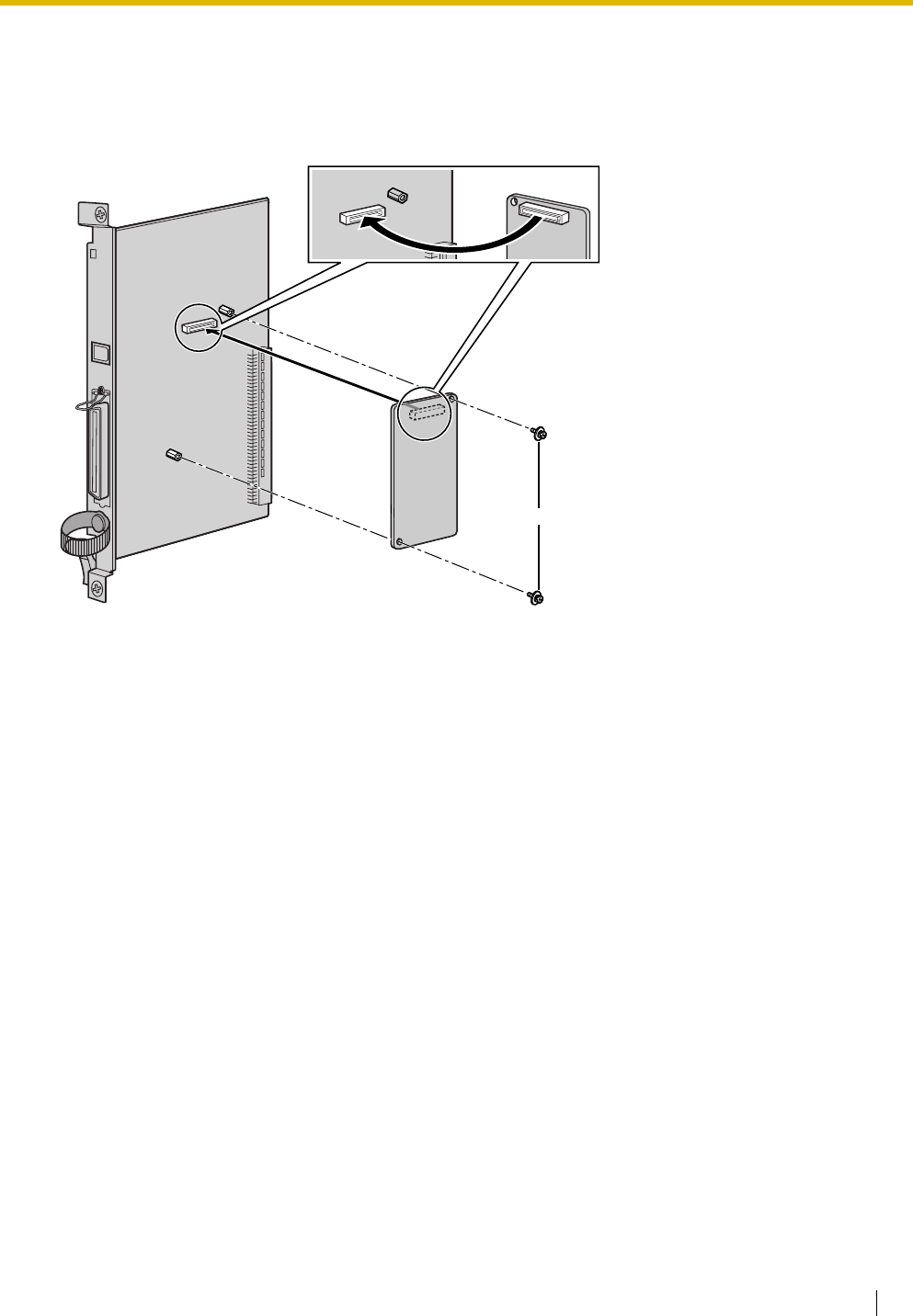

CID8 Card
inside
Screw
2.4 Installation of the CO Line Cards
Installation Manual 75

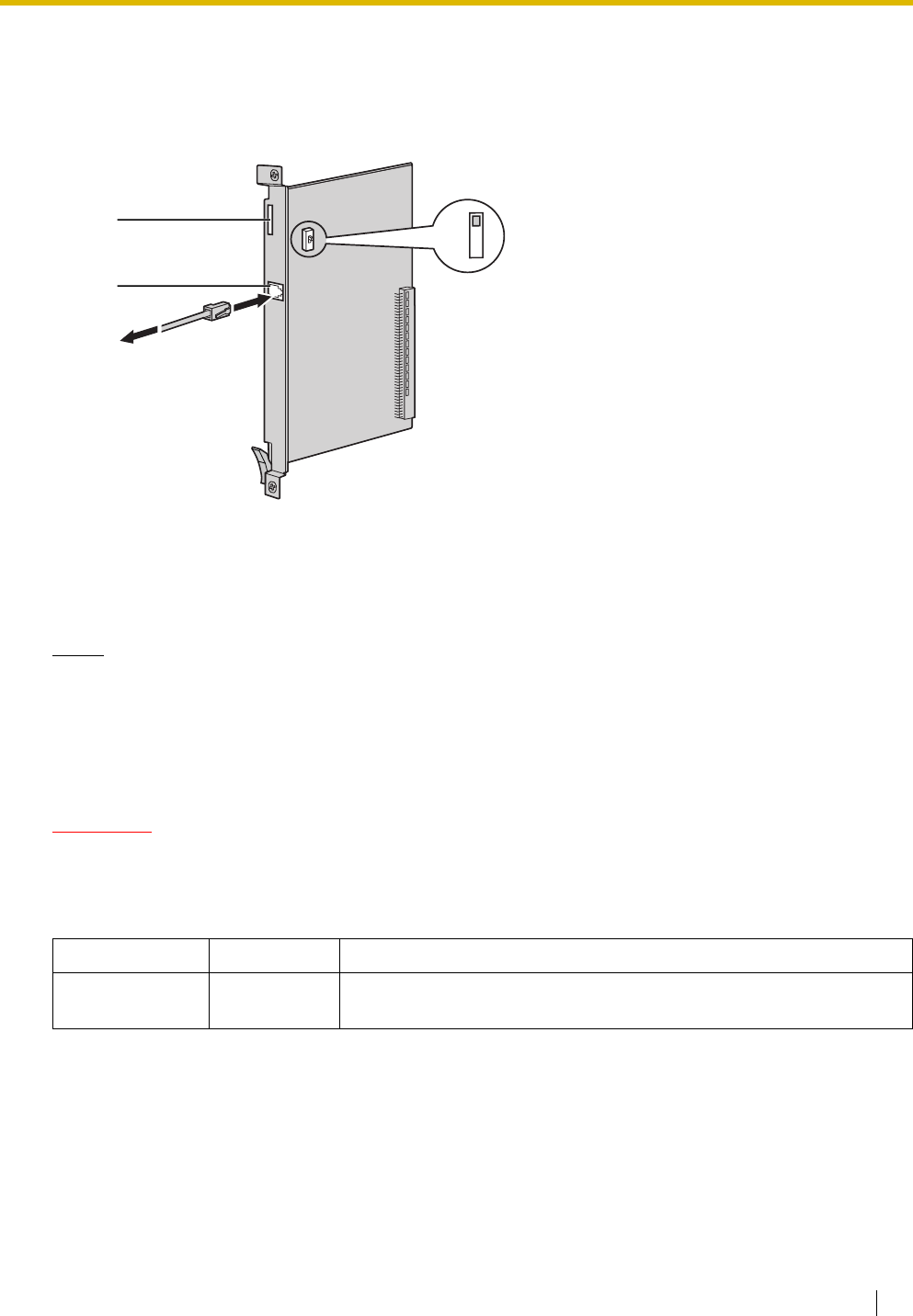

2.4.3 T1 Card
Function
1-port T1 CO line card. EIA/TIA standard compliant.
Accessory and User-supplied Items
Accessory (included): none
User-supplied (not included): RJ45 connector
Notes
•Connect this optional service card to the CO line through NT1; do not connect to the CO line
directly.
•T1 Card must be installed behind an FCC registered and UL or CSA-NRTL listed CSU.
•To confirm the CO line connection, refer to "Confirming the CO Line Connection" in "2.12.1 Starting
the Hybrid IP-PBX".
CAUTION
T1 ports are SELV ports and should only be connected to SELV services.
Switch Settings
Switch Type Usage and Status Definition
A/B Slide Keep the switch at default A position. Do not change the position of this
switch.
LEDs
RJ45
AB
To NT1
2.4 Installation of the CO Line Cards
76 Installation Manual
Pin Assignments
RJ45 Connector
LED Indications
No. Signal Name Level [V] Function
1 RX+ (+) Receive data (+)
2 RX- (-) Receive data (-)
3 Reserved ––
4 TX- (-) Transmit data (-)
5 TX+ (+) Transmit data (+)
6-8 Reserved ––
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
SYNC-ERR Red Non-synchronization status indication
•OFF: Normal
•ON: Out of synchronization
RAI Red RAI signal status indication
•OFF: Normal
•ON: Alarm (Clock Slave)
•Flashing (60 times per minute): Alarm (Clock Master)
AIS Red AIS status indication
•OFF: Normal
•ON: Alarm
SYNC Green Synchronization status indication
•OFF: Not synchronized
•ON: Synchronized
•Flashing (60 times per minute): Synchronized (Clock Master)
8
1
2.4 Installation of the CO Line Cards
Installation Manual 77
2.4.4 PRI23 Card
Function
1-port ISDN Primary Rate Interface card (23B channels). NI (North American standard ISDN protocol)
compliant.
Accessory and User-supplied Items
Accessory (included): none
User-supplied (not included): RJ45 connector
Notes
•Connect this optional service card to the CO line through an NT1; do not connect to the U interface
of the CO line directly.
•To confirm the CO line connection, refer to "Confirming the CO Line Connection" in "2.12.1 Starting
the Hybrid IP-PBX".
CAUTION
PRI ports are SELV ports and should only be connected to SELV services.
Switch Settings
Switch Type Usage and Status Definition
A/B Slide Keep the switch at default A position. Do not change the position of this
switch.
LEDs
RJ45
AB
NT1
2.4 Installation of the CO Line Cards
78 Installation Manual
Pin Assignments
RJ45 Connector
LED Indications
No. Signal Name Level [V] Function
1 RX+ (+) Receive data (+)
2 RX- (-) Receive data (-)
3 Reserved ––
4 TX- (-) Transmit data (-)
5 TX+ (+) Transmit data (+)
6-8 Reserved ––
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
SYNC-ERR Red Non-synchronization status indication
•OFF: Normal
•ON: Out of synchronization
RAI Red RAI signal status indication
•OFF: Normal
•ON: Alarm (Clock Slave)
•Flashing (60 times per minute): Alarm (Clock Master)
AIS Red AIS status indication
•OFF: Normal
•ON: Alarm
SYNC Green Synchronization status indication
•OFF: Not synchronized
•ON: Synchronized
•Flashing (60 times per minute): Synchronized (Clock Master)
D-LINK Green Data link status indication
•OFF: Not established
•ON: Established
8
1
2.4 Installation of the CO Line Cards
Installation Manual 79

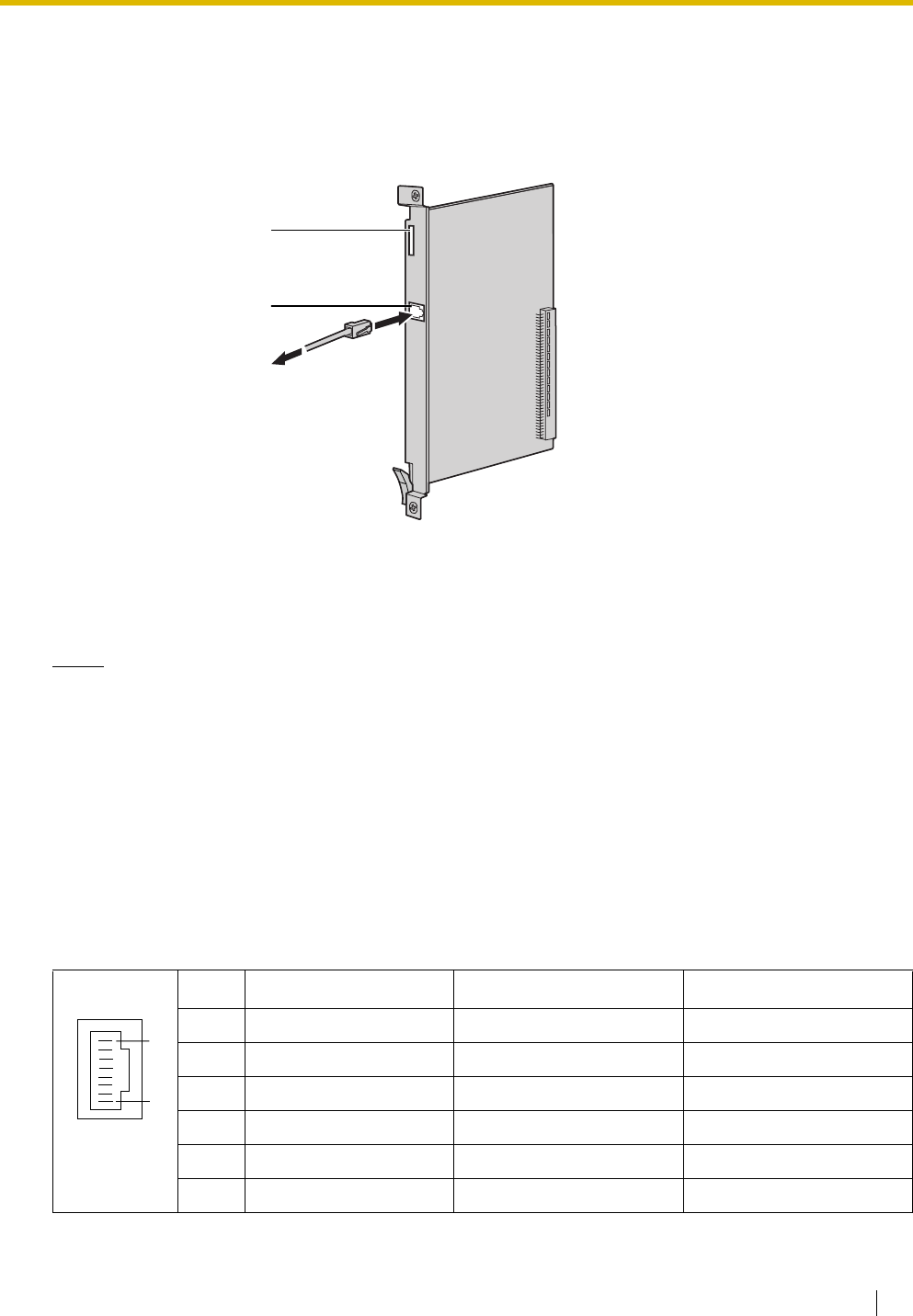

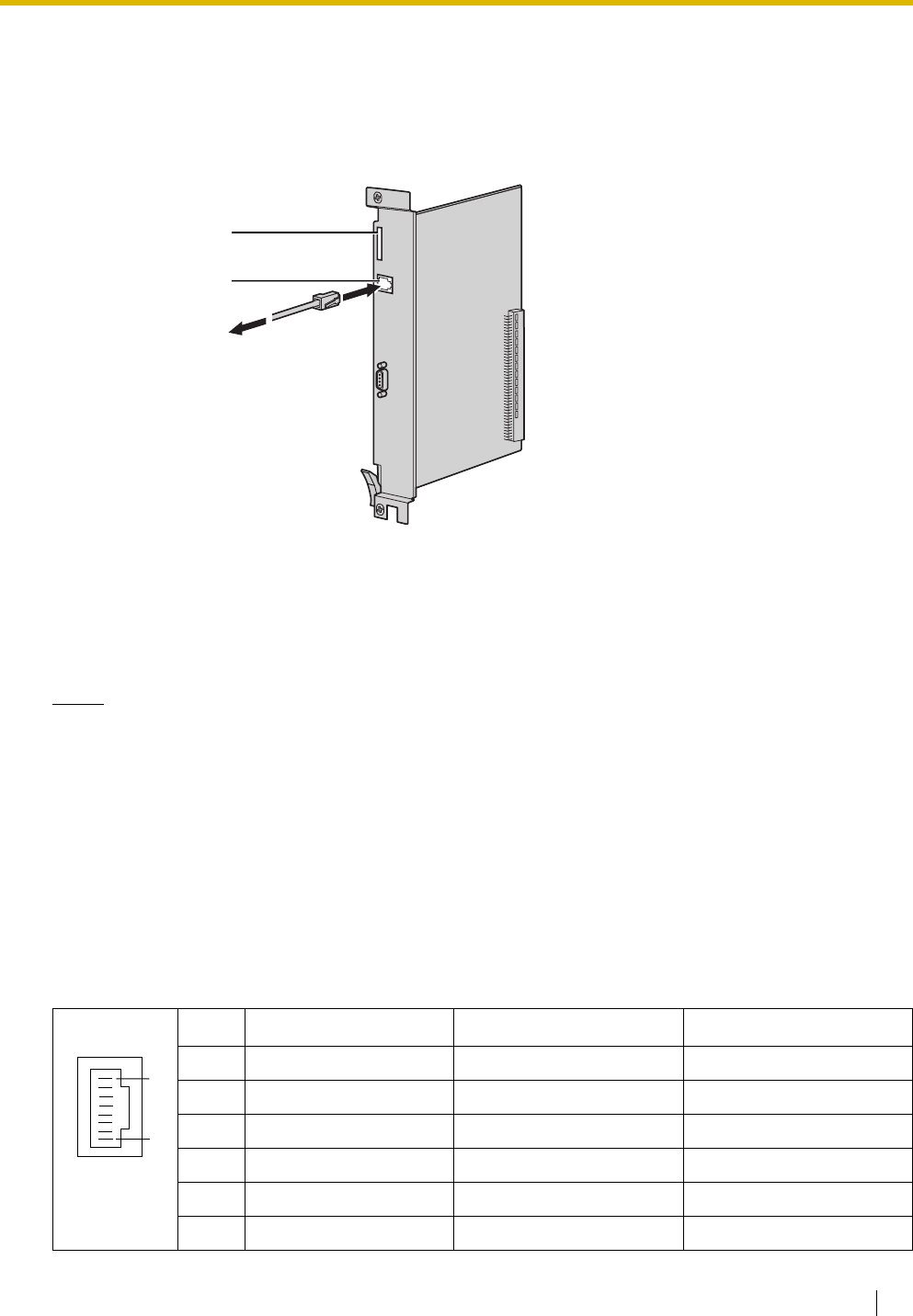

2.4.5 IP-GW4 Card
Function
4-channel VoIP gateway card. Compliant with VoIP H.323 V.2 protocol, and ITU-T G.729a, and G.723.1
CODEC methods. G3 fax support.
Accessory and User-supplied Items
Accessory (included): CD-ROM (including PC programming software and
documentation) × 1
User-supplied (not included): RJ45 connector
Notes
•The maximum length of the cable to be connected to this optional service card is 100 m (328 ft).
•The IP-GW4 card occupies the space of 2 free slots when it is installed in the Hybrid IP-PBX.
•For programming instructions and other information of the IP-GW4 card, refer to the documentation
for the IP-GW4 card. To program the IP-GW4 card, use the PC programming software designed
for the IP-GW4 card.
•To confirm the CO line connection, refer to "Confirming the CO Line Connection" in "2.12.1 Starting
the Hybrid IP-PBX".
Pin Assignments
RJ45 Connector (10BASE-T)
No. Signal Name Input (I)/Output (O) Function
1 TPO+ O Transmit data+
2 TPO- O Transmit data-
3 TPI+ I Receive data+
4-5 Reserved ––
6 TPI- I Receive data-
7-8 Reserved ––
RJ45 (10BASE-T)
LEDs
To private IP network
8
1
2.4 Installation of the CO Line Cards
80 Installation Manual
LED Indications
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
ONLINE Green On-line status indication
•ON: On-line mode
•Flashing: Emergency maintenance mode
ALARM Red Alarm indication
•OFF: Normal
•ON: Alarm
IAM BUSY Green Busy status indication
•OFF: Not used
•ON: At least one line is used
LINK Green Link status indication
•OFF: Connection error
•ON: Normal connection
DATA Green Data transmission indication
•OFF: No data transmitted
•ON: Data transmitting
COL Green Data collision indication
•OFF: No data collision
•ON: Data collision
SIOSEL Green Serial maintenance port status indication
•OFF: CPU power port used (maintenance port not available)
•ON: Maintenance port available
2.4 Installation of the CO Line Cards
Installation Manual 81
2.4.6 IP-GW4E Card
Function
4-channel VoIP gateway card. Compliant with VoIP H.323 V.2 protocol, and ITU-T G.729a, G.723.1, and
G.711 CODEC methods.
Accessory and User-supplied Items
Accessory (included): CD-ROM (including documentation for web programming) × 1
User-supplied (not included): RJ45 connector
Notes
•The maximum length of the cable to be connected to this optional service card is 100 m (328 ft).
•The IP-GW4E card occupies the space of only 1 free slot when it is installed in the Hybrid IP-PBX.
•For programming instructions and other information about the IP-GW4E card, refer to the
documentation for the IP-GW4E card. To program the IP-GW4E card, use the web programming
designed for the IP-GW4E card.
•To confirm the CO line connection, refer to "Confirming the CO Line Connection" in "2.12.1 Starting
the Hybrid IP-PBX".
Pin Assignments
RJ45 Connector (10BASE-T/100BASE-TX)
No. Signal Name Input (I)/Output (O) Function
1 TPO+ O Transmit data+
2 TPO- O Transmit data-
3 TPI+ I Receive data+
4-5 Reserved ––
6 TPI- I Receive data-
7-8 Reserved ––
LEDs
RJ45
(10BASE-T/100BASE-TX)
To private IP network
8
1
2.4 Installation of the CO Line Cards
82 Installation Manual
LED Indications
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
ONLINE Green On-line status indication
•ON: On-line mode
•OFF: Off-line mode
•Flashing: Maintenance mode
Note
If the LINK indicator is OFF, the ONLINE indicator will also be
OFF.
ALARM Red Alarm indication
•OFF: Normal
•ON: Alarm
VoIP BUSY Green VoIP (H.323) process indication
•OFF: VoIP process inactive
•ON: VoIP process active
LINK Green Link status indication
•OFF: Connection error
•ON: Normal connection
DATA Green Data transmission indication
•OFF: No data transmitted
•ON: Data transmitting
2.4 Installation of the CO Line Cards
Installation Manual 83

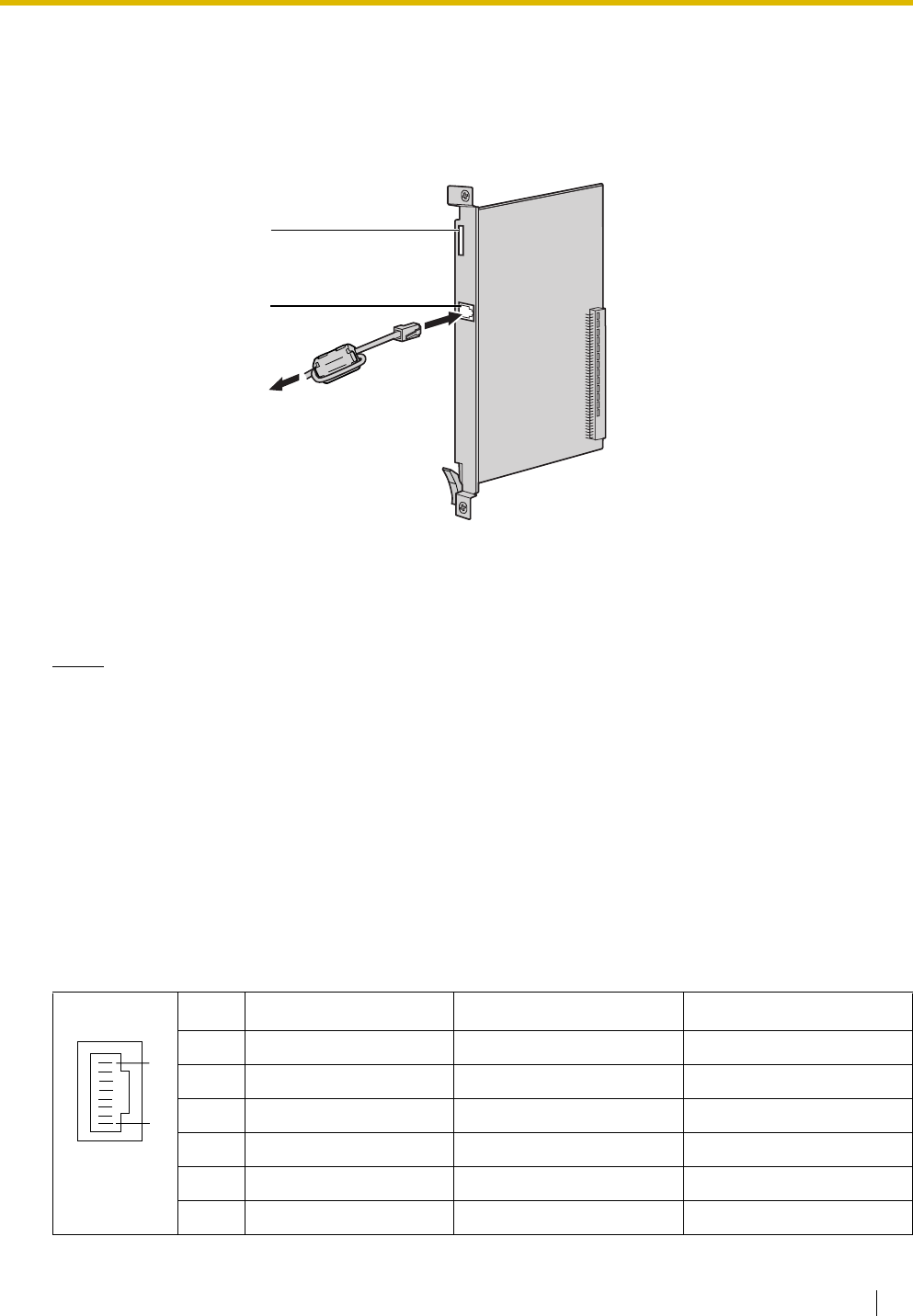

2.4.7 IP-GW16 Card
Function
16-channel VoIP gateway card. Compliant with VoIP H.323 V.2 protocol, and ITU-T G.729a, G.723.1, and
G.711 CODEC methods.
Accessory and User-supplied Items
Accessory (included): Ferrite core × 1, CD-ROM (including documentation for web programming) × 1
User-supplied (not included): RJ45 connector
Notes
•The maximum length of the cable to be connected to this optional service card is 100 m (328 ft).
•When connecting the RJ45 connector, attach the included ferrite core. Refer to "2.2.8 Attaching a
Ferrite Core".
•For programming instructions and other information about the IP-GW16 card, refer to the
documentation for the IP-GW16 card. To program the IP-GW16 card, use the web programming
designed for the IP-GW16 card.
•To confirm the CO line connection, refer to "Confirming the CO Line Connection" in "2.12.1 Starting
the Hybrid IP-PBX".
Pin Assignments
RJ45 Connector (10BASE-T/100BASE-TX)
No. Signal Name Input (I)/Output (O) Function
1 TPO+ O Transmit data+
2 TPO- O Transmit data-
3 TPI+ I Receive data+
4-5 Reserved ––
6 TPI- I Receive data-
7-8 Reserved ––
LEDs
RJ45
(10BASE-T/100BASE-TX
Full Duplex)
To private IP network
8
1
2.4 Installation of the CO Line Cards
84 Installation Manual
LED Indications
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
ONLINE Green On-line status indication
•ON: On-line mode
•OFF: Off-line mode
•Flashing: Maintenance mode
Note
If the LINK indicator is OFF, the ONLINE indicator will also be
OFF.
ALARM Red Alarm indication
•OFF: Normal
•ON: Alarm
VoIP BUSY Green VoIP (H.323) process indication
•OFF: VoIP process inactive
•ON: VoIP process active
LINK Green Link status indication
•OFF: Connection error
•ON: Normal connection
DATA Green Data transmission indication
•OFF: No data transmitted
•ON: Data transmitting
2.5 Installation of the Extension Cards
Installation Manual 85
2.5 Installation of the Extension Cards
2.5.1 CSIF4 and CSIF8 Card
Function
CSIF4: 4-port CS interface card for 4 CSs.
CSIF8: 8-port CS interface card for 8 CSs.
Accessory and User-supplied Items
Accessory (included): none
User-supplied (not included): RJ45 connector
Notes
•LINE 5 to LINE 8 are for CSIF8 card only.
•When using the CSIF4 card, please note that the Hybrid IP-PBX software will recognize the CSIF4
card as the CSIF8 card. As a result, 8 cell stations may appear to be available; however, only 4 cell
stations are supported by the CSIF4 card.
•For details about connecting the CS, refer to "2.8.7 Connecting a Cell Station to the Hybrid IP-
PBX".
RJ45
(LINE 1 to LINE 8)
LED
To C S
2.5 Installation of the Extension Cards
86 Installation Manual

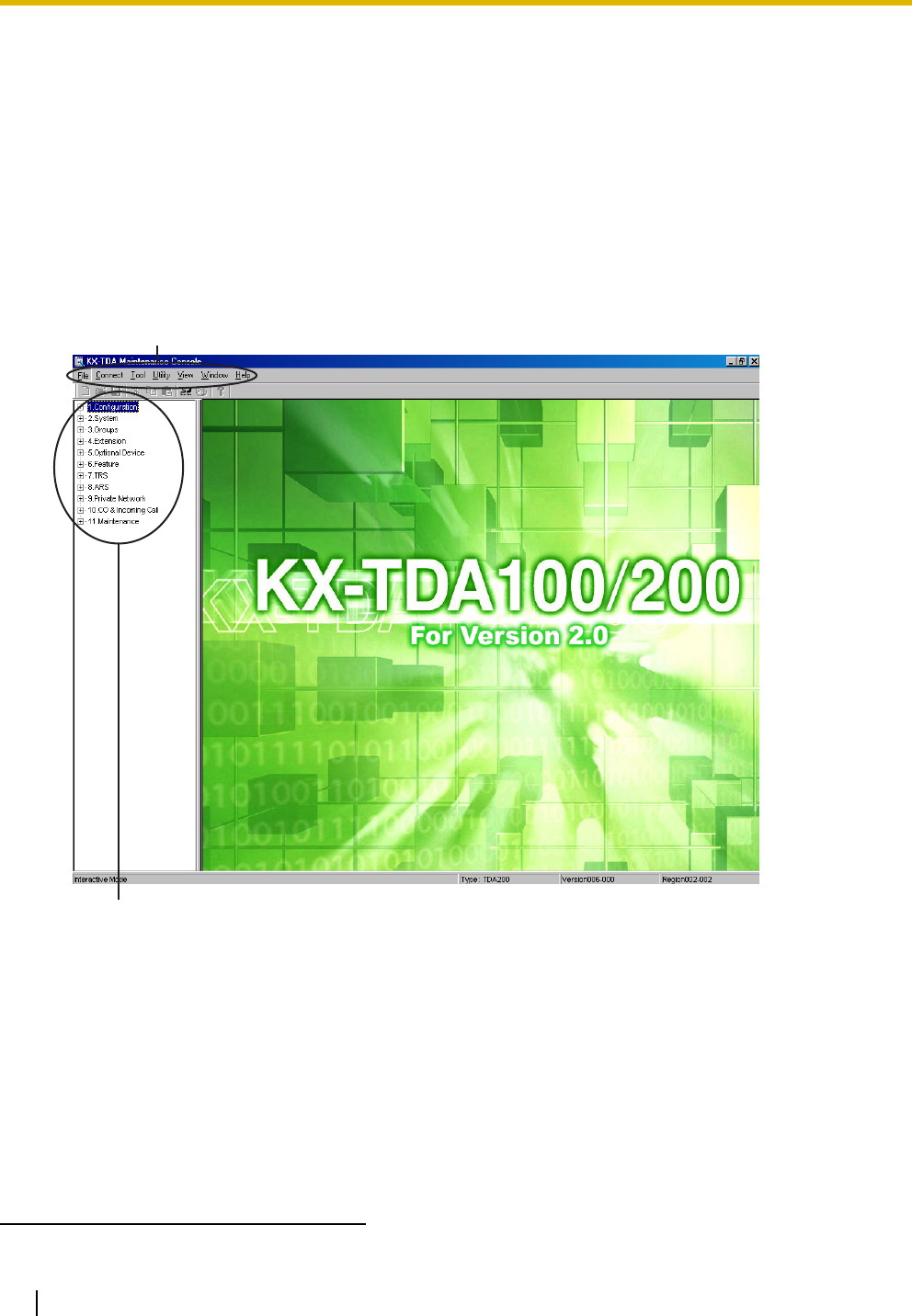

Editing the CS Name using the KX-TDA Maintenance Console
While programming the Hybrid IP-PBX, we strongly recommend that you input a unique recognizable CS
name (maximum 20 characters) for each CS port in use, and "(Reserved)" or "(Not for CSIF4)" for unused
ports or unavailable ports respectively for the following reasons:
a. you will be able to easily distinguish installed CSs.
b. you will be able to know which CSIF card has been installed; CSIF4 or CSIF8.
Example: When the CSIF4 card has been installed*1
Pin Assignments
RJ45 Connector
*1 The contents and design of the software are subject to change without notice.
No. Signal Name Function
1-2 Reserved –
3 D1 Data port (High)
4 POWH Power (High)
5 POWL Power (Low)
6 D2 Data port (Low)
7-8 Reserved –
8
1
2.5 Installation of the Extension Cards
Installation Manual 87
LED Indications
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
2.5 Installation of the Extension Cards
88 Installation Manual
2.5.2 DHLC8 Card
Function
8-port digital hybrid extension card for DPTs, APTs, SLTs, DSS consoles, and PT-interface CSs, with 2
power failure transfer (PFT) ports.
Accessory and User-supplied Items
Accessory (included): Screws × 2, Ferrite core × 1
User-supplied (not included): Amphenol connector
Notes
•Attach the included ferrite core to the cable. Refer to "2.2.8 Attaching a Ferrite Core".
•To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Type Connector".
•For details about power failure transfer, refer to "2.11.1 Power Failure Connections".
LED
Amphenol
To extensions
2.5 Installation of the Extension Cards
Installation Manual 89
Pin Assignments
Amphenol Connector
No. Signal Name Function No. Signal Name Function
1 RA SLT Ring port 1 26 TA SLT Tip port 1
2 D2A PT Data port 1 (Low) 27 D1A PT Data port 1 (High)
3 Reserved –28 Reserved –
4 RB SLT Ring port 2 29 TB SLT Tip port 2
5 D2B PT Data port 2 (Low) 30 D1B PT Data port 2 (High)
6 Reserved –31 Reserved –
7 RC SLT Ring port 3 32 TC SLT Tip port 3
8 D2C PT Data port 3 (Low) 33 D1C PT Data port 3 (High)
9 Reserved –34 Reserved –
10 RD SLT Ring port 4 35 TD SLT Tip port 4
11 D2D PT Data port 4 (Low) 36 D1D PT Data port 4 (High)
12 Reserved –37 Reserved –
13 RE SLT Ring port 5 38 TE SLT Tip port 5
14 D2E PT Data port 5 (Low) 39 D1E PT Data port 5 (High)
15 Reserved –40 Reserved –
16 RF SLT Ring port 6 41 TF SLT Tip port 6
17 D2F PT Data port 6 (Low) 42 D1F PT Data port 6 (High)
18 Reserved –43 Reserved –
19 RG SLT Ring port 7 44 TG SLT Tip port 7
20 D2G PT Data port 7 (Low) 45 D1G PT Data port 7 (High)
21 Reserved –46 Reserved –
22 RH SLT Ring port 8 47 TH SLT Tip port 8
23 D2H PT Data port 8 (Low) 48 D1H PT Data port 8 (High)
24-
25
Reserved –49-
50
Reserved –
50 25
26 1
2.5 Installation of the Extension Cards
90 Installation Manual
LED Indications
Indication Color Description
CARD STATUS Green/
Orange/Red
Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Orange Flashing: Detection of PT-interface CS connection (when
starting up the PT-interface CS)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
2.5 Installation of the Extension Cards
Installation Manual 91

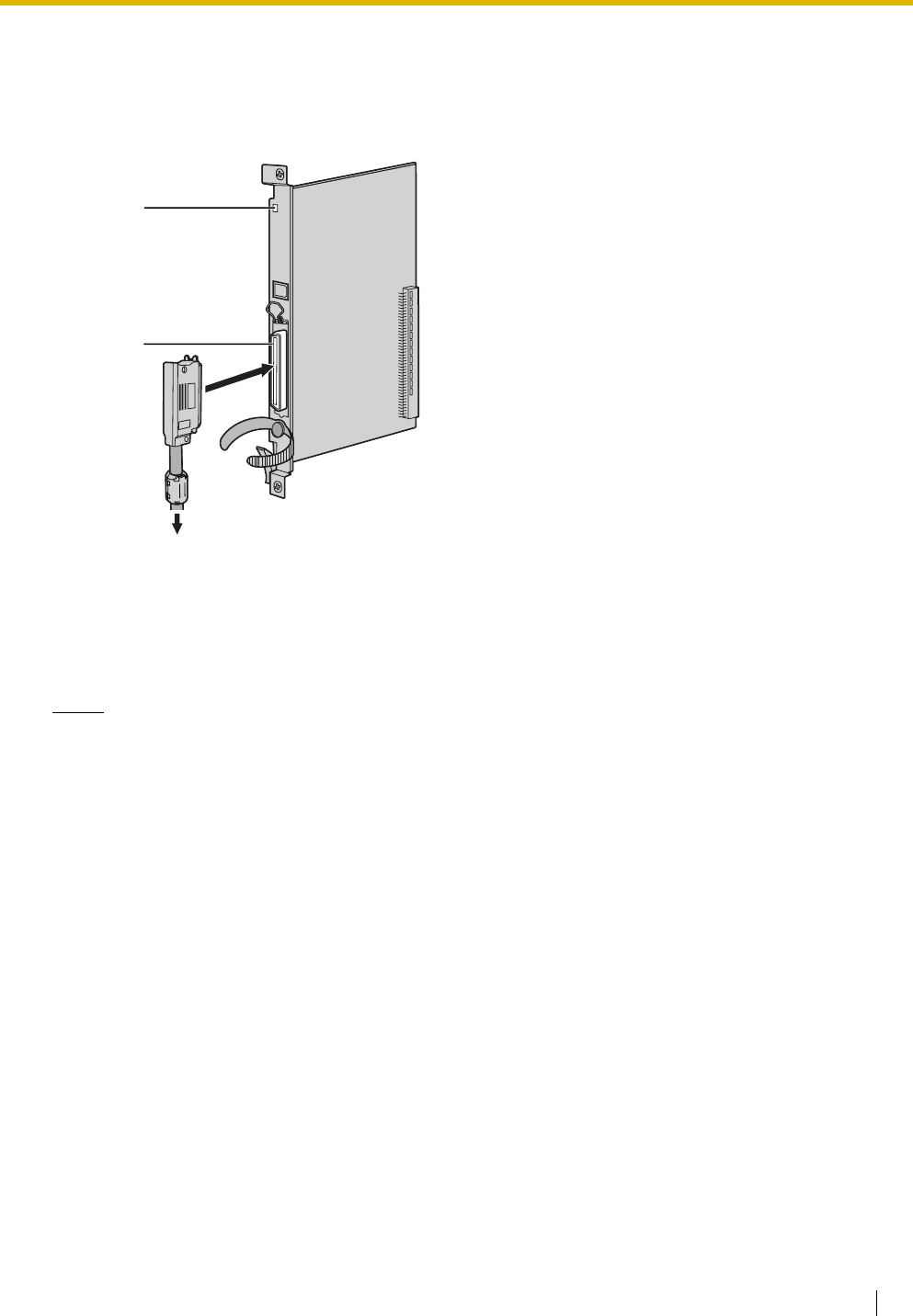

2.5.3 DLC8 Card
Function
8-port digital extension card for DPTs, DSS consoles, and PT-interface CSs.
Accessory and User-supplied Items
Accessory (included): Screws × 2, Ferrite core × 1
User-supplied (not included): Amphenol connector
Notes
•Attach the included ferrite core to the cable. Refer to "2.2.8 Attaching a Ferrite Core".
•To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Type Connector".
LED
Amphenol
To extensions
2.5 Installation of the Extension Cards
92 Installation Manual
Pin Assignments
Amphenol Connector
LED Indications
No. Signal Name Function No. Signal Name Function
1 Reserved –26 Reserved –
2 D2A Data port 1 (Low) 27 D1A Data port 1 (High)
3-4 Reserved –28-29 Reserved –
5 D2B Data port 2 (Low) 30 D1B Data port 2 (High)
6-7 Reserved –31-32 Reserved –
8 D2C Data port 3 (Low) 33 D1C Data port 3 (High)
9-10 Reserved –34-35 Reserved –
11 D2D Data port 4 (Low) 36 D1D Data port 4 (High)
12-13 Reserved –37-38 Reserved –
14 D2E Data port 5 (Low) 39 D1E Data port 5 (High)
15-16 Reserved –40-41 Reserved –
17 D2F Data port 6 (Low) 42 D1F Data port 6 (High)
18-19 Reserved –43-44 Reserved –
20 D2G Data port 7 (Low) 45 D1G Data port 7 (High)
21-22 Reserved –46-47 Reserved –
23 D2H Data port 8 (Low) 48 D1H Data port 8 (High)
24-25 Reserved –49-50 Reserved –
Indication Color Description
CARD STATUS Green/
Orange/Red
Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Orange Flashing: Detection of PT-interface CS connection (when
starting up the PT-interface CS)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
50 25
26 1
2.5 Installation of the Extension Cards
Installation Manual 93
2.5.4 DLC16 Card
Function
16-port digital extension card for DPTs, DSS consoles, and PT-interface CSs.
Accessory and User-supplied Items
Accessory (included): Screws × 2, Ferrite core × 1
User-supplied (not included): Amphenol connector
Notes
•Attach the included ferrite core to the cable. Refer to "2.2.8 Attaching a Ferrite Core".
•To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Type Connector".
LED
Amphenol
To extensions
2.5 Installation of the Extension Cards
94 Installation Manual
Pin Assignments
Amphenol Connector
LED Indications
No. Signal Name Function No. Signal Name Function
1 D2A Data port 1 (Low) 26 D1A Data port 1 (High)
2 D2B Data port 2 (Low) 27 D1B Data port 2 (High)
3 D2C Data port 3 (Low) 28 D1C Data port 3 (High)
4 D2D Data port 4 (Low) 29 D1D Data port 4 (High)
5 D2E Data port 5 (Low) 30 D1E Data port 5 (High)
6 D2F Data port 6 (Low) 31 D1F Data port 6 (High)
7 D2G Data port 7 (Low) 32 D1G Data port 7 (High)
8 D2H Data port 8 (Low) 33 D1H Data port 8 (High)
9 D2I Data port 9 (Low) 34 D1I Data port 9 (High)
10 D2J Data port 10 (Low) 35 D1J Data port 10 (High)
11 D2K Data port 11 (Low) 36 D1K Data port 11 (High)
12 D2L Data port 12 (Low) 37 D1L Data port 12 (High)
13 D2M Data port 13 (Low) 38 D1M Data port 13 (High)
14 D2N Data port 14 (Low) 39 D1N Data port 14 (High)
15 D2O Data port 15 (Low) 40 D1O Data port 15 (High)
16 D2P Data port 16 (Low) 41 D1P Data port 16 (High)
17-25 Reserved –42-50 Reserved –
Indication Color Description
CARD STATUS Green/
Orange/Red
Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Orange Flashing: Detection of PT-interface CS connection (when
starting up the PT-interface CS)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
50 25
26 1
2.5 Installation of the Extension Cards
Installation Manual 95
2.5.5 SLC8 Card
Function
8-port extension card for SLTs with 2 power failure transfer (PFT) ports.
Accessory and User-supplied Items
Accessory (included): Screws × 2, Ferrite core × 1
User-supplied (not included): Amphenol connector
Notes
•Attach the included ferrite core to the cable. Refer to "2.2.8 Attaching a Ferrite Core".
•To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Type Connector".
•For details about power failure transfer, refer to "2.11.1 Power Failure Connections".
LED
Amphenol
To extensions
2.5 Installation of the Extension Cards
96 Installation Manual
Pin Assignments
Amphenol Connector
LED Indications
No. Signal Name Function No. Signal Name Function
1 RA Ring port 1 26 TA Tip port 1
2-3 Reserved –27-28 Reserved –
4 RB Ring port 2 29 TB Tip port 2
5-6 Reserved –30-31 Reserved –
7 RC Ring port 3 32 TC Tip port 3
8-9 Reserved –33-34 Reserved –
10 RD Ring port 4 35 TD Tip port 4
11-12 Reserved –36-37 Reserved –
13 RE Ring port 5 38 TE Tip port 5
14-15 Reserved –39-40 Reserved –
16 RF Ring port 6 41 TF Tip port 6
17-18 Reserved –43-44 Reserved –
19 RG Ring port 7 44 TG Tip port 7
20-21 Reserved –45-46 Reserved –
22 RH Ring port 8 47 TH Tip port 8
23-25 Reserved –48-50 Reserved –
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
50 25
26 1
2.5 Installation of the Extension Cards
Installation Manual 97
2.5.6 EXT-CID Card
Function
Sends Caller ID signals to extension ports. To be mounted on the SLC8 card.
Accessory and User-supplied Items
Accessory (included): Screws × 2
User-supplied (not included): none
EXT-CID Card
Screw
SLC8 Card inside
2.5 Installation of the Extension Cards
98 Installation Manual
2.5.7 SLC16 and MSLC16 Cards
Function
Accessory and User-supplied Items
Accessory (included): Screws × 2, Ferrite core × 1
User-supplied (not included): Amphenol connector
Notes
•Panasonic SLT with Message Waiting Lamp (e.g., KX-T7310) is recommended for connection to
the MSLC16 card.
•Attach the included ferrite core to the cable. Refer to "2.2.8 Attaching a Ferrite Core".
•To connect the Amphenol connector, refer to "2.2.9 Fastening Amphenol Type Connector".
•For details about power failure transfer, refer to "2.11.1 Power Failure Connections".
SLC16: 16-port extension card for SLTs with 4 power failure transfer (PFT) ports.
MSLC16: 16-port extension card for SLTs with Message Waiting Lamp control and 4 power failure
transfer (PFT) ports. Maximum output of 145 V/85 V for Message Waiting Lamp control.
LED
Amphenol
To extensions
2.5 Installation of the Extension Cards
Installation Manual 99
Pin Assignments
Amphenol Connector
LED Indications
No. Signal Name Function No. Signal Name Function
1 RA Ring port 1 26 TA Tip port 1
2 RB Ring port 2 27 TB Tip port 2
3 RC Ring port 3 28 TC Tip port 3
4 RD Ring port 4 29 TD Tip port 4
5 RE Ring port 5 30 TE Tip port 5
6 RF Ring port 6 31 TF Tip port 6
7 RG Ring port 7 32 TG Tip port 7
8 RH Ring port 8 33 TH Tip port 8
9 RI Ring port 9 34 TI Tip port 9
10 RJ Ring port 10 35 TJ Tip port 10
11 RK Ring port 11 36 TK Tip port 11
12 RL Ring port 12 37 TL Tip port 12
13 RM Ring port 13 38 TM Tip port 13
14 RN Ring port 14 39 TN Tip port 14
15 RO Ring port 15 40 TO Tip port 15
16 RP Ring port 16 41 TP Tip port 16
17-25 Reserved –42-50 Reserved –
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
50 25
26 1
2.5 Installation of the Extension Cards
100 Installation Manual

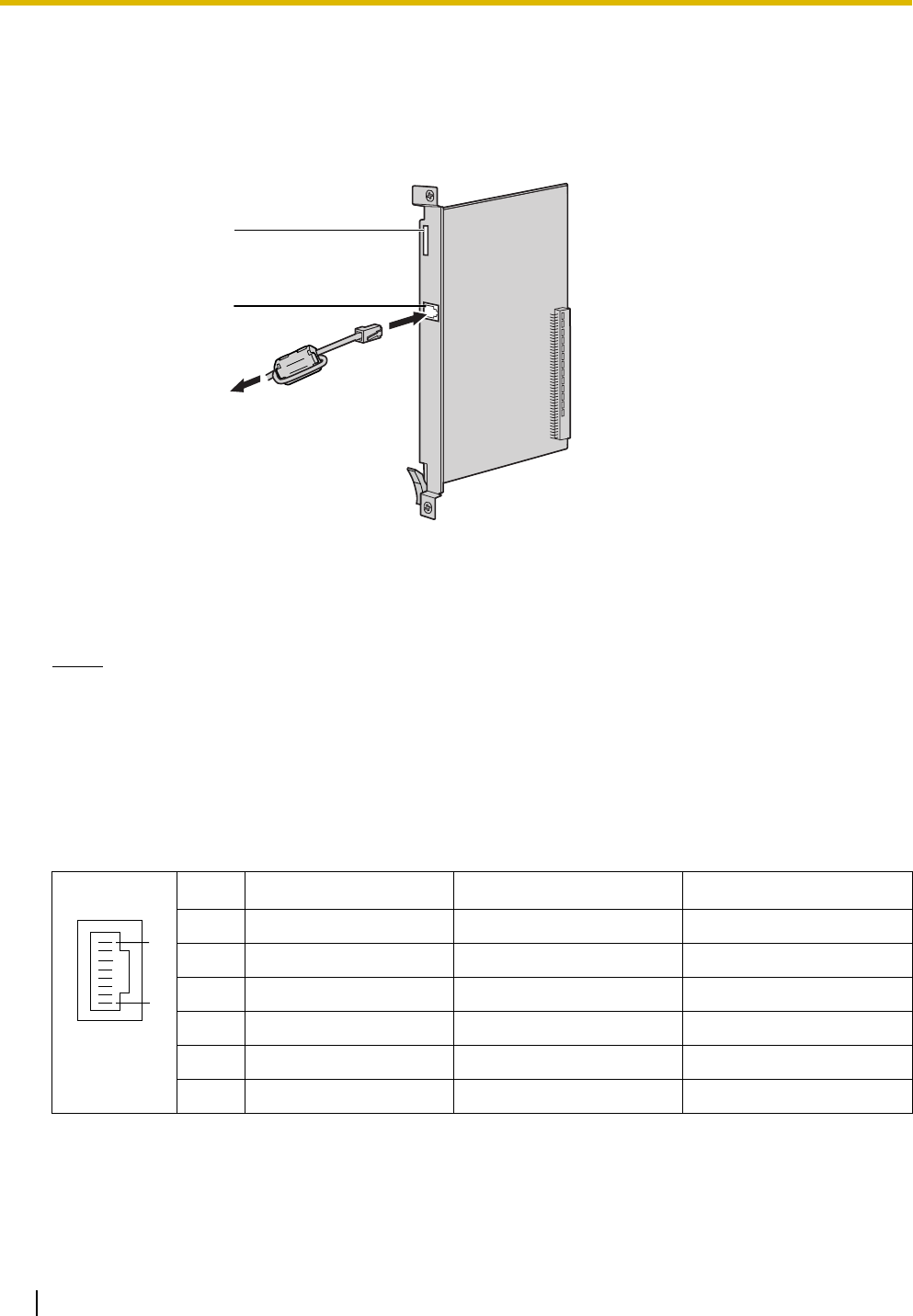

2.5.8 IP-EXT16 Card
Function
16-channel VoIP extension card. Compliant with Panasonic proprietary protocol, and ITU-T G.729a and
G.711 CODEC methods.
Accessory and User-supplied Items
Accessory (included): Ferrite core × 1
User-supplied (not included): RJ45 connector
Notes
•The maximum length of the cable to be connected to this optional service card is 100 m (328 ft).
•When connecting the RJ45 connector, attach the included ferrite core. Refer to "2.2.8 Attaching a
Ferrite Core".
Pin Assignments
RJ45 Connector (10BASE-T/100BASE-TX)
No. Signal Name Input (I)/Output (O) Function
1 TPO+ O Transmit data+
2 TPO- O Transmit data-
3TPI+ I Receive data+
4-5 Reserved ––
6TPI- I Receive data-
7-8 Reserved ––
LEDs
RJ45
(100BASE-TX
Full Duplex)
To private IP network
8
1
2.5 Installation of the Extension Cards
Installation Manual 101
LED Indications
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
ONLINE Green On-line status indication
•ON: At least one port is in use (an IP-PT is connected)
•OFF: No ports are in use (No IP-PTs are connected)
Note
If the LINK indicator is OFF, the ONLINE indicator will also be
OFF.
ALARM Red Alarm indication
•OFF: Normal
•ON: Alarm
VoIP BUSY Green Panasonic proprietary VoIP protocol process indication
•OFF: VoIP process inactive
•ON: VoIP process active
LINK Green Link status indication
•OFF: Connection error
•ON: Normal connection
DATA Green Data transmission indication
•OFF: No data transmitted
•ON: Data transmitting
2.6 Installation of the Other Cards
102 Installation Manual
2.6 Installation of the Other Cards

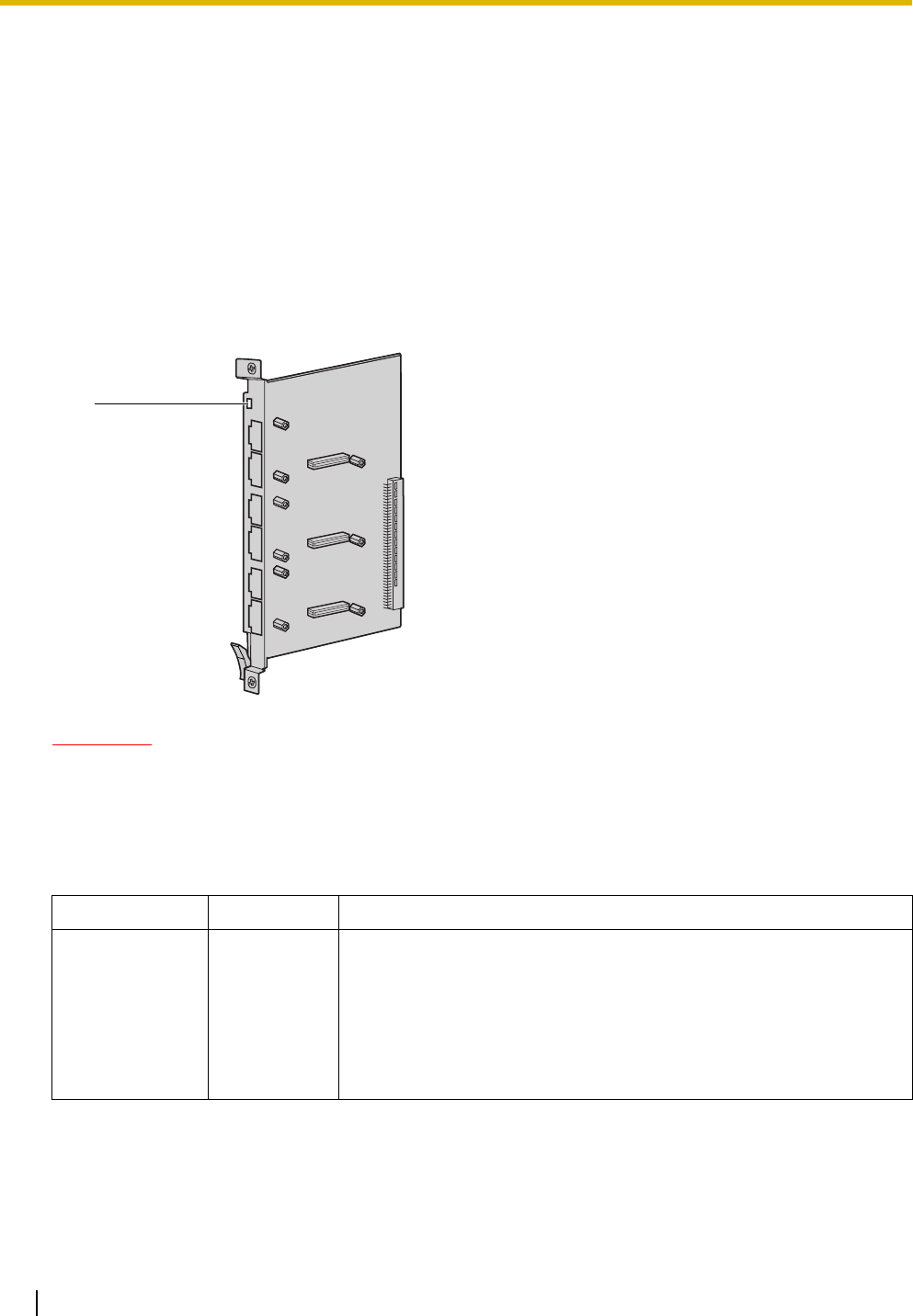

2.6.1 OPB3 Card
Function
Optional 3-slot base card for mounting a maximum of 3 option cards from the following:
•DPH4 card
•EIO4 card
•ECHO16 card
•MSG4 card
CAUTION
A LITHIUM BATTERY IS USED IN OPB3 CARD. THERE IS A RISK OF EXPLOSION IF BATTERY IS
REPLACED WITH THE INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.
LED Indications
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal (all ports are idle)
•Green Flashing (60 times per minute): Normal (a port is in use)
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
LED
2.6 Installation of the Other Cards
Installation Manual 103

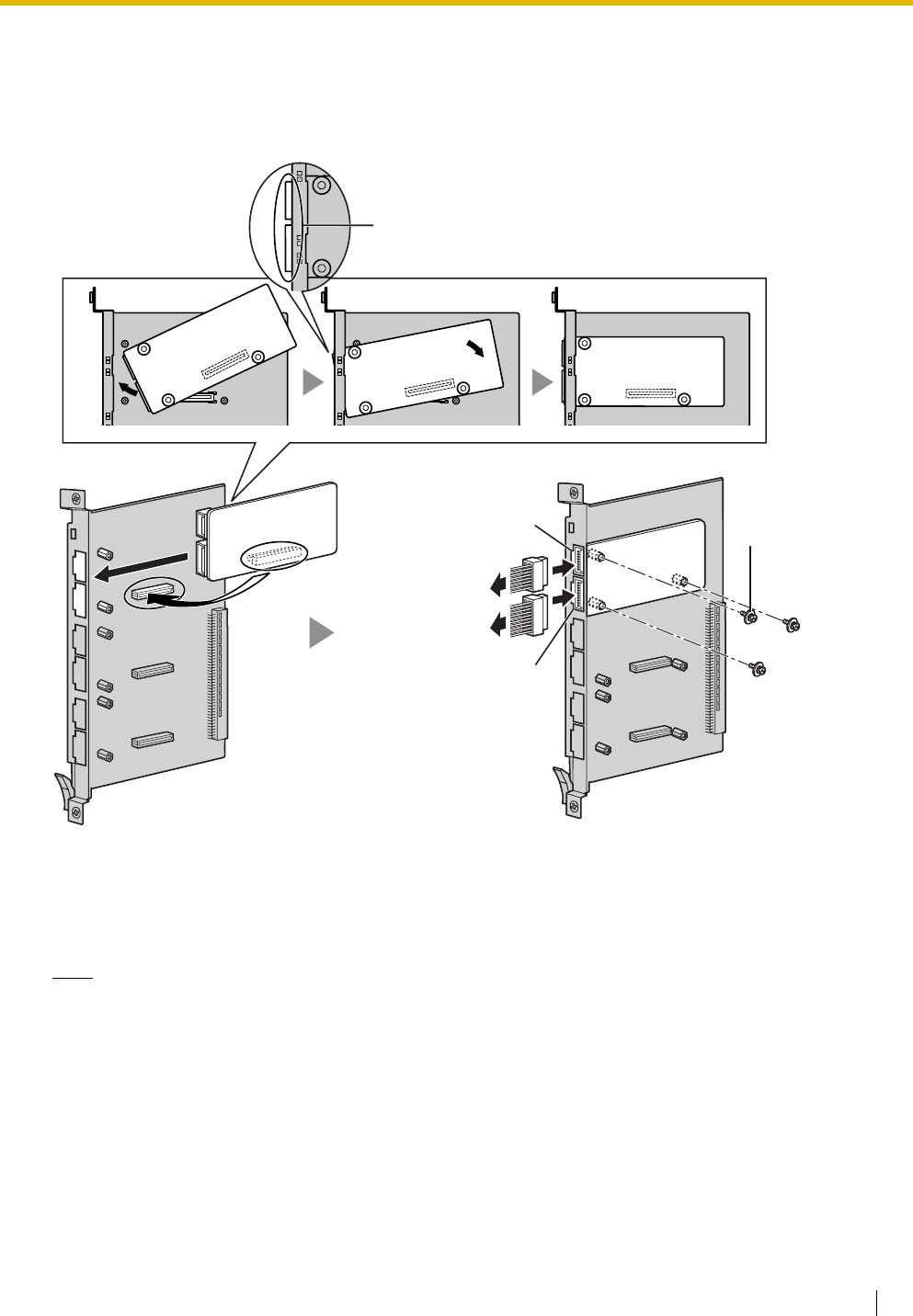

2.6.2 DPH4 Card
Function
4-port doorphone card for 4 doorphones and 4 door openers. To be mounted on the OPB3 card.
Accessory and User-supplied Items
Accessory (included): Screws × 3, 10-pin terminal block × 1, 8-pin terminal block × 1
User-supplied (not included): Copper wire
Note
For details about connection to doorphones and door openers, refer to "2.9.1 Connection of
Doorphones, Door Openers, External Sensors, and External Relays".
Screw
DPH4 Card
OPB3 Card
Fully insert the connectors through
the panel openings.
To door openers
To doorphones
10-pin
8-pin
2.6 Installation of the Other Cards
104 Installation Manual
Pin Assignments
8-pin Terminal Block
10-pin Terminal Block
No. Signal Name Function
1 DP4 Doorphone 4 transmit
2 com4 Doorphone 4 receive
3 DP3 Doorphone 3 transmit
4 com3 Doorphone 3 receive
5 DP2 Doorphone 2 transmit
6 com2 Doorphone 2 receive
7 DP1 Doorphone 1 transmit
8 com1 Doorphone 1 receive
No. Signal Name Function
1-2 Reserved –
3 OP4b Door opener 4
4 OP4a Door opener 4 com
5 OP3b Door opener 3
6 OP3a Door opener 3 com
7 OP2b Door opener 2
8 OP2a Door opener 2 com
9 OP1b Door opener 1
10 OP1a Door opener 1 com
8
1
10
1
2.6 Installation of the Other Cards
Installation Manual 105
2.6.3 EIO4 Card
Function
4-port external input/output card. To be mounted on the OPB3 card.
Accessory and User-supplied Items
Accessory (included): Screws × 3, 10-pin terminal block × 1, 8-pin terminal block × 1
User-supplied (not included): Copper wire
Note
For details about connection to external sensors and external relays, refer to "2.9.1 Connection of
Doorphones, Door Openers, External Sensors, and External Relays".
Screw
EIO4 Card
OPB3 Card
Fully insert the connectors through
the panel openings.
To external relays
To external sensors
10-pin
8-pin
2.6 Installation of the Other Cards
106 Installation Manual
Pin Assignments
8-pin Terminal Block
10-pin Terminal Block
No. Signal Name Function
1C4b Control 4
2 C4a Control 4 com
3C3b Control 3
4 C3a Control 3 com
5C2b Control 2
6 C2a Control 2 com
7C1b Control 1
8 C1a Control 1 com
No. Signal Name Function
1-2 Reserved –
3 OP4b Opener 4
4 OP4a Opener 4 com
5 OP3b Opener 3
6 OP3a Opener 3 com
7 OP2b Opener 2
8 OP2a Opener 2 com
9 OP1b Opener 1
10 OP1a Opener 1 com
8
1
10
1
2.6 Installation of the Other Cards
Installation Manual 107
Connection Diagram for External Sensor
Power to the external sensor is provided from the EIO4 card and must be grounded through the EIO4 card
as indicated in the diagram below. A pair of "sensor" and "common" lines are connected to the EIO4 card
for each external sensor. The Hybrid IP-PBX detects input from the sensor when the signal is under 100 Ω.
External Sensor
sensor
common
I/O
EIO4
OPB3
Hybrid IP-PBX
+5V +5V
10K 33
33
4.7K
4.7K
2.6 Installation of the Other Cards
108 Installation Manual

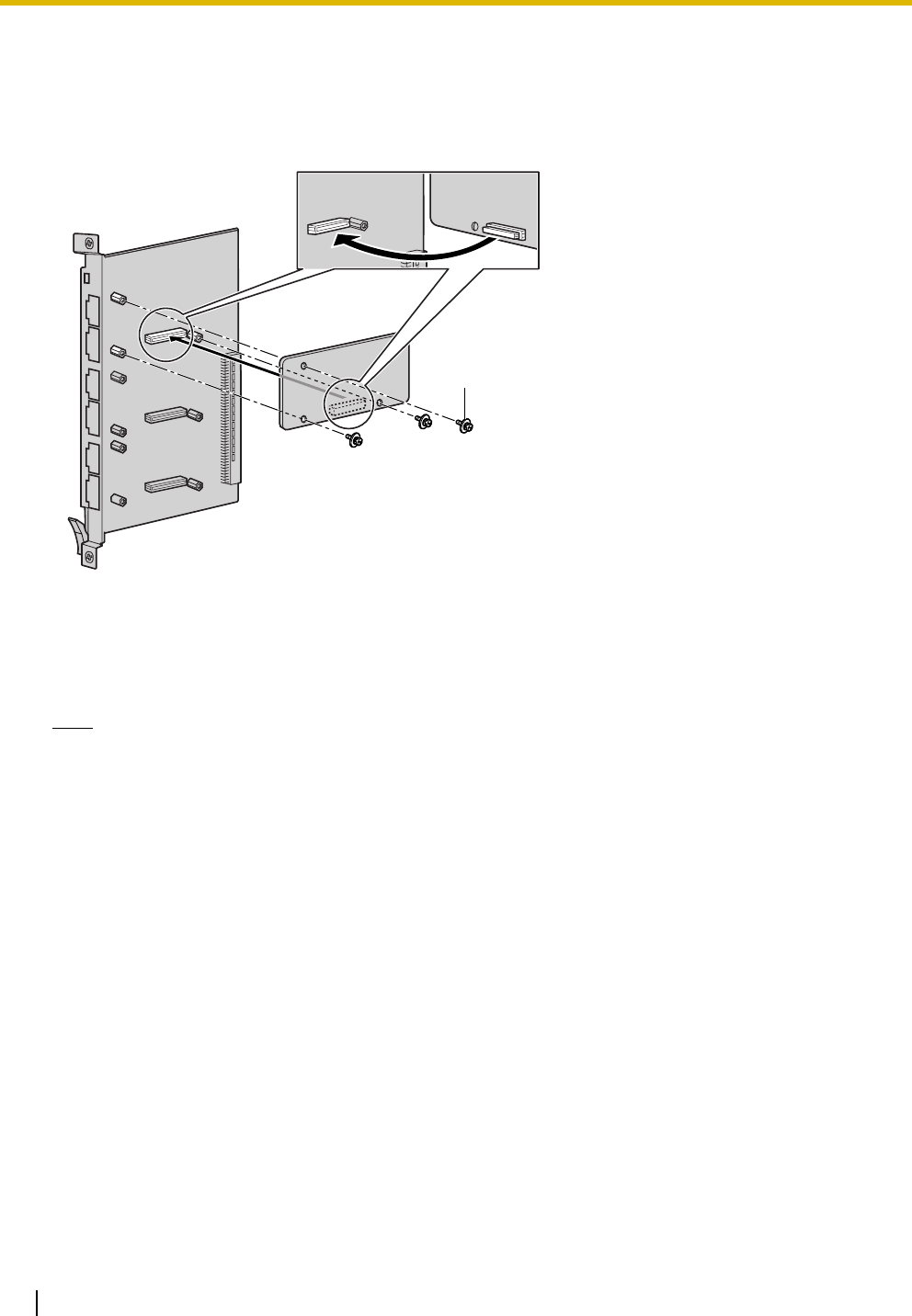

2.6.4 ECHO16 Card
Function
16-channel card for echo cancellation during conferences. To be mounted on the OPB3 card.
Accessory and User-supplied Items
Accessory (included): Screws × 3
User-supplied (not included): none
Note
To establish a conference call involving 6 to 8 parties, install an ECHO16 card and enable the echo
cancellation for conference using the KX-TDA Maintenance Console. For details, refer to the on-line
help of the KX-TDA Maintenance Console.
Screw
inside
ECHO16 Card
OPB3 Card
2.6 Installation of the Other Cards
Installation Manual 109

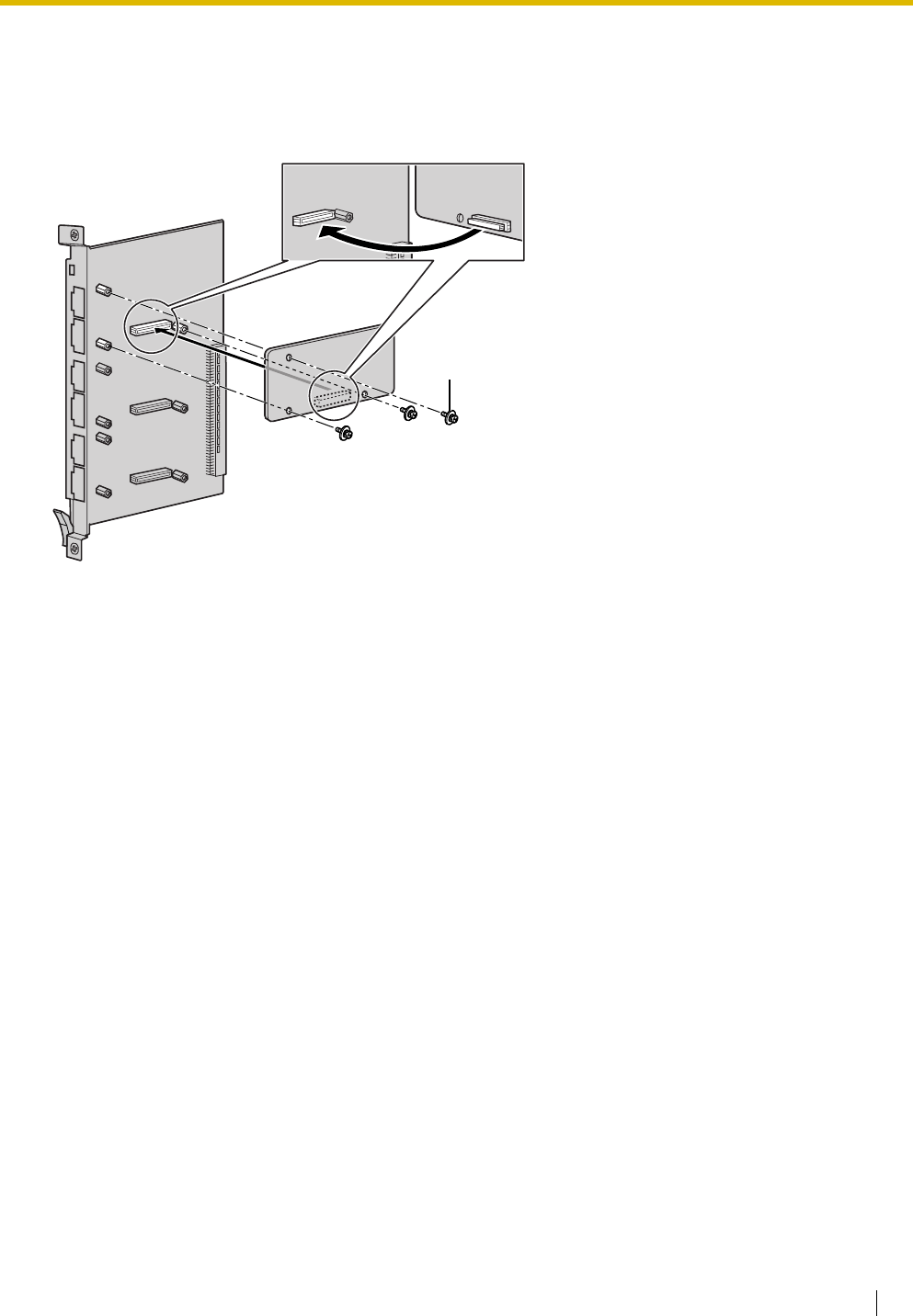

2.6.5 MSG4 Card
Function
4-channel message card. To be mounted on the OPB3 card.
Accessory and User-supplied Items
Accessory (included): Screws × 3
User-supplied (not included): none
Screw
MSG4 Card
OPB3 Card
inside
2.6 Installation of the Other Cards
110 Installation Manual
2.6.6 CTI-LINK Card
Function
Ethernet card for CTI communication via 10BASE-T port. CSTA Phase 3 protocol compatible.
Accessory and User-supplied Items
Accessory (included): none
User-supplied (not included): RJ45 connector
Notes
•The maximum length of the cable to be connected to this optional service card is 100 m (328 ft).
•This optional service card can be connected to PCs on a LAN via a Server PC to provide third party
call control CTI.
The operating system of the PC or Server PC required for third party call control depends on your
CTI application software. For details, refer to the manual for your CTI application software.
Pin Assignments
RJ45 Connector (10BASE-T)
No. Signal Name Input (I)/Output (O) Function
1 TPO+ O Transmit data+
2 TPO- O Transmit data-
3TPI+ I Receive data+
4-5 Reserved ––
6TPI- I Receive data-
7-8 Reserved ––
LEDs
RJ45 (10BASE-T)
To LAN/
Server PC
8
1
2.6 Installation of the Other Cards
Installation Manual 111
LED Indications
Indication Color Description
CARD STATUS Green/Red Card status indication
•OFF: Power Off
•Green ON: Normal
•Red ON: Fault (includes reset)
•Red Flashing (60 times per minute): Out of Service
LINK STATUS Green Link status indication
•Flashing: In communication
•ON: In normal linking
2.7 Connection of Extensions
112 Installation Manual
2.7 Connection of Extensions

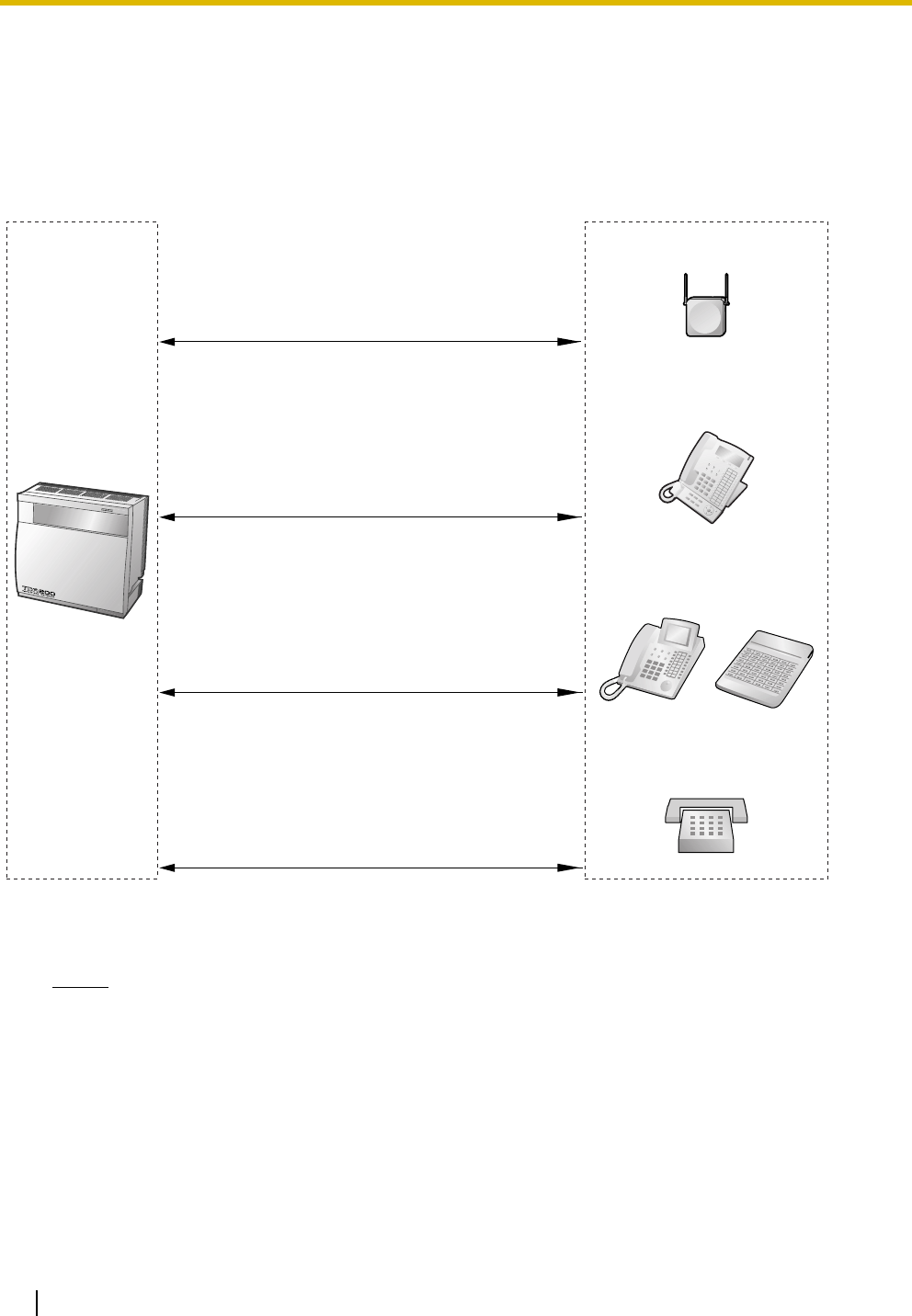

2.7.1 Maximum Cabling Distances of the Extension Wiring
(Twisted Cable)
Notice
The maximum cabling distance may vary depending on the conditions.
* The maximum cabling distance from the Hybrid IP-PBX is the same even when the KX-T7600 series
DPT is the master DPT on the Digital XDP connection.
Cable Maximum Distance
26 AWG: Under 500 m (1640 ft)
24 AWG: Under 720 m (2362 ft)
22 AWG: Under 830 m (2723 ft)
CAT 5: Under 720 m (2362 ft)
Cable Maximum Distance
26 AWG: Under 140 m (459 ft)
24 AWG: Under 229 m (751 ft)
22 AWG: Under 360 m (1181 ft)
CAT 5: Under 229 m (751 ft)
Cable Maximum Distance
26 AWG: Under 698 m (2289 ft)
24 AWG: Under 1128 m (3700 ft)
22 AWG: Under 1798 m (5897 ft)
CAT 5: Under 1128 m (3700 ft)
Cable Maximum Distance
26 AWG: Under 222 m (728 ft)
24 AWG: Under 347 m (1138 ft)
22 AWG: Under 500 m (1640 ft)
CAT 5: Under 347 m (1138 ft)
Other PT (DPT/APT)
and DSS Console
SLT
KX-T7600 Series
*
PT-interface CS
2.7 Connection of Extensions
Installation Manual 113
" " indicates that the extension card is available for the terminal.
PT-interface CS DPT APT DSS Console SLT
DHLC8 Card
MSLC16, SLC16,
SLC8 Cards
DLC16, DLC8 Cards
2.7 Connection of Extensions
114 Installation Manual

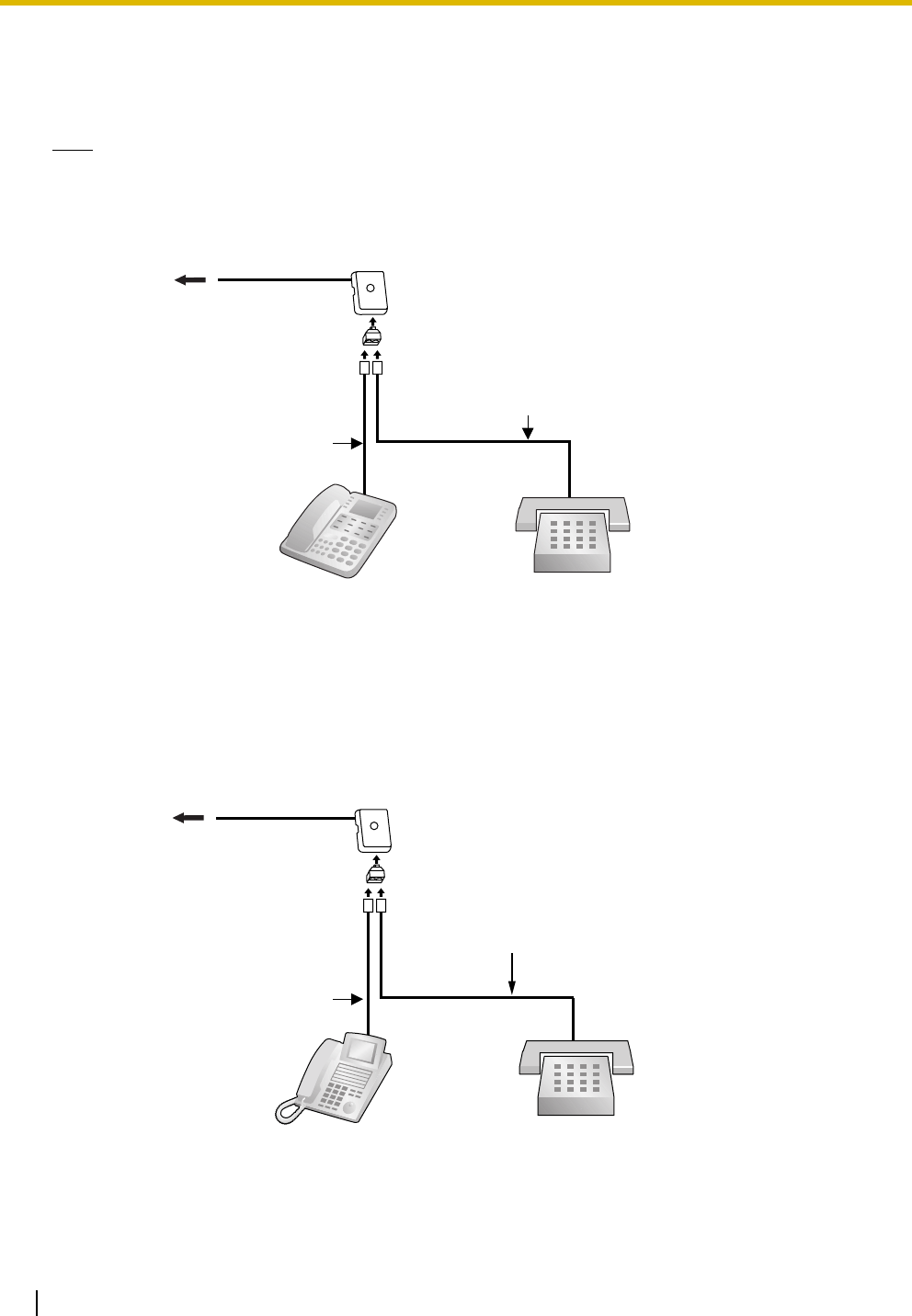

2.7.2 Parallel Connection of the Extensions
Any SLT can be connected in parallel with an APT or a DPT as follows.
Note
In addition to an SLT, an answering machine, a fax machine or a modem (PC) can be connected in
parallel with an APT or a DPT.
With APT
With DPT
Parallel mode or eXtra Device Port (XDP) mode can be selected through system programming.
If XDP mode is enabled through system programming, parallel connection is not possible. Refer to "1.10.9
Paralleled Telephone" and "2.1.1 Extension Port Configuration" in the Feature Guide for further information.
Using a Modular T-Adaptor
To DHLC8 card
4-conductor wiring cord
Connect pins "T", "R", "D1",
and "D2".
2-conductor wiring cord
Connect pins "T" and "R".
SLTAPT
Modular
T-Adaptor
To DHLC8 card
SLTDPT
Modular
T-Adaptor
4-conductor wiring cord
Connect pins "D1" and
"D2".
2-conductor wiring cord
Connect pins "T" and "R".
2.7 Connection of Extensions
Installation Manual 115
Using an EXtra Device Port
With KX-T7600 Series DPT
With Other DPT
To DHLC8 card
DPT SLT
To DHLC8 card
To S LT
2-conductor wiring cord
Connect pins "T" and "R".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
TO MAIN UNIT
/ PABX
TO TEL
To DHLC8 card
DPT SLT
To DHLC8 card To S LT
2-conductor wiring cord
Connect pins "T" and "R".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
TO TEL
TO EMSS or TO MAIN UNIT
2.7 Connection of Extensions
116 Installation Manual
2.7.3 Digital EXtra Device Port (Digital XDP) Connection
A DPT can be connected to another DPT on the Digital XDP connection. In addition, if the DPT is connected
to a DHLC8 card, it can also have an SLT connected in Parallel mode or XDP mode.
Notes
•Both DPTs must be KX-T7600 series DPTs (excluding KX-T7640).
•Parallel mode or XDP mode can be selected through system programming.
•If XDP mode is enabled through system programming, parallel connection is not possible. Refer to
"1.10.9 Paralleled Telephone" and "2.1.1 Extension Port Configuration" in the Feature Guide for
further information.
With KX-T7600 Series DPT
Using a Modular T-Adaptor
To DLC8/DLC16 card
To DHLC8 card
(for connection of SLT)
4-conductor wiring cord
Connect pins "D1" and "D2".
Slave DPT
SLT
Master DPT
Modular
T-Adaptor
4-conductor wiring cord
Connect pins "D1" and
"D2".
2-conductor wiring cord
Connect pins "T" and "R".
Slave DPTMaster DPT
TO MAIN UNIT
/ PABX
TO TEL
TO MAIN UNIT
/ PABX
Cable Maximum Distance
26 AWG: Under 30 m (98 ft)
24 AWG: Under 50 m (164 ft)
22 AWG: Under 60 m (196 ft)
CAT 5: Under 50 m (164 ft)
Back View of DPTs
To DLC8/DLC16 card
To DHLC8 card
(for connection of SLT)
2.7 Connection of Extensions
Installation Manual 117

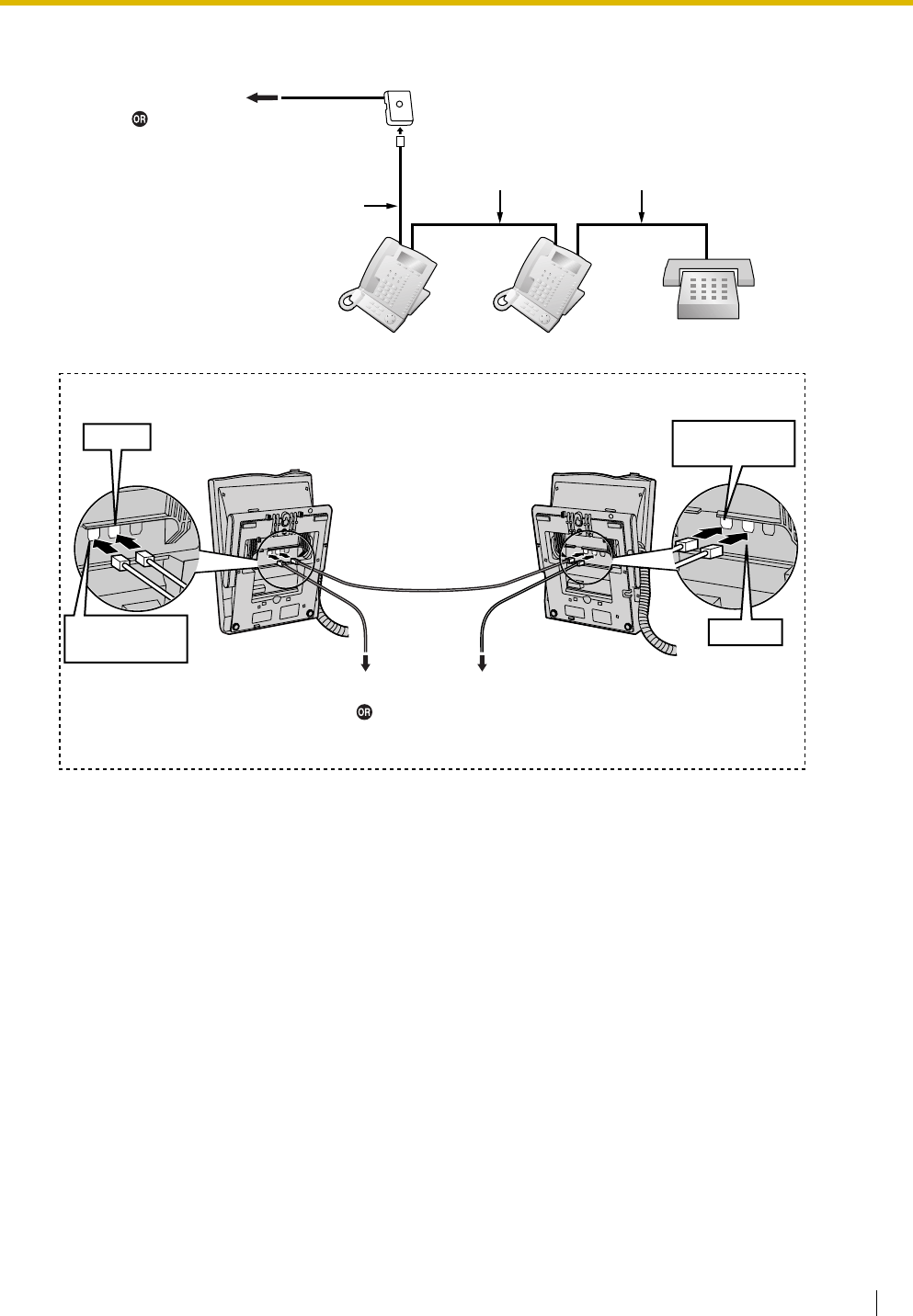

Using an EXtra Device Port
SLTMaster DPT Slave DPT
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
2-conductor wiring cord
Connect pins "T" and "R".
4-conductor wiring cord
Connect pins "T", "R",
"D1" and "D2".
Slave DPTMaster DPT
To S LT
TO MAIN UNIT
/ PABX
TO TEL
TO TEL
TO MAIN UNIT
/ PABX
Back View of DPTs
To DLC8/DLC16 card
To DHLC8 card
(for connection of SLT)
To DLC8/DLC16 card
To DHLC8 card
(for connection of SLT)
Cable Maximum Distance
26 AWG: Under 30 m (98 ft)
24 AWG: Under 50 m (164 ft)
22 AWG: Under 60 m (196 ft)
CAT 5: Under 50 m (164 ft)
2.7 Connection of Extensions
118 Installation Manual
2.7.4 First Party Call Control CTI Connection
CTI connection between a PC and a KX-T7633/T7636 DPT provides the first party call control. The CTI
connection is made via USB interface (version 1.1), and uses the TAPI 2.1 protocol.
A USB Module (KX-T7601) must be connected to the KX-T7633/T7636 DPT.
Note
The operating system of the PC required for first party call control depends on your CTI application
software. For details, refer to the manual for your CTI application software.
Notes
•The maximum length of the USB cable is 3 m (9 ft 10 in).
•USB Modules must not be connected to DPTs in the Digital XDP connection. In a Digital XDP
connection, the PC cannot be used. If a USB module is connected to a slave DPT, the DPT will not
work properly.
USB Cable
To P C
ULL
USB Port
USB Module
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 119
2.8 Connection of 2.4 GHz Portable Stations
2.8.1 Overview
The following equipment is required to connect the wireless system:
CS: Cell Station (KX-TDA0142/KX-T0141)
KX-TDA0142 Using a CSIF Card
This unit determines the area covered by the wireless system. Up to 3 calls can be made at the same
time through each CS.
•CSIF4 (KX-TDA0143)
One CSIF4 card supports up to 4 Cell Stations. Up to 2 CSIF4 cards can be installed in the KX-
TDA100, and up to 4 can be installed in the KX-TDA200.
•CSIF8 (KX-TDA0144)
One CSIF8 card supports up to 8 Cell Stations. Up to 2 CSIF8 cards can be installed in the KX-
TDA100, and up to 4 can be installed in the KX-TDA200.
KX-T0141 Using a DHLC/DLC Card
This unit determines the area covered by the wireless system. Up to 2 calls can be made at the same
time through each CS.
PS: 2.4 GHz Portable Station (KX-TD7680/KX-TD7690)
The KX-TDA100 and KX-TDA200 can support up to 128 PSs. For more details about the PS, refer to the
PS Operating Instructions.
CAUTION
•The CS should be kept free of dust, moisture, high temperature (more than 40 °C [104 °F]), low
temperature (less than 0 °C [32 °F]), vibration, and should not be exposed to direct sunlight.
•The CS should not be placed outdoors (use indoors).
•The CS should not be placed near high voltage equipment.
•The CS should not be placed on a metal object.
•Systems using 2.4 GHz ISM (Industrial, Scientific and Medical) band may interfere with the KX-
TDA wireless system. Examples of such systems are cordless telephones, wireless LAN, Home
RF, microwave ovens and other ISM devices. These systems may cause minor noise.
•Keeping some distance between the equipment listed below may prevent interference. (The
distance may vary depending on the environment.)
Equipment Distance
CS and office equipment such as a computer, telex, fax
machine, etc.
More than 2 m (6 ft 7 in)
CS and PS More than 1 m (3 ft 3 in)
Each PS More than 0.5 m (1 ft 8 in)
Hybrid IP-PBX and CS More than 2 m (6 ft 7 in)
CS and CS More than 15 m (49 ft)
2.8 Connection of 2.4 GHz Portable Stations
120 Installation Manual
Please take into consideration the distance between the CSs when site planning. Please consult
a certified dealer for details.
However, the required distance between CSs may vary depending on the environment of the
installation site and conditions in which the wireless system is used. Conduct the site survey to
determine the appropriate distance.
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 121
2.8.2 Procedure Overview
When connecting the wireless system, use extreme care to conduct a site survey. Inadvertent site survey
can result in narrow service area, frequent noise, and disconnection of calls.
1. Investigate the installation site
Refer to "2.8.3 Site Planning".
a. Obtain the map of the CS installation site.
b. Consider the service area demanded by the user on the map.
c. Plan the locations of each CS, taking account of distance, building materials and etc.
2. Prepare the CS for site survey
Refer to "2.8.4 Before Site Survey".
a. Assign a CS number to each CS by setting the DIP switches on the back of the CS.
b. Supply electricity to each CS using an AC adaptor or a battery box.
c. Install each CS temporarily as planned.
Notes
•Install at least 2 m (6 ft 7 in) above the floor.
•Keep the antennas in the upright positions.
3. Conduct the site survey
Refer to "2.8.5 Site Survey".
a. Test the radio signal strength using the PS.
Confirm that the radio signal strength level is "12" near the CS.
Using the KX-TD7680
Using the KX-TD7690
b. By walking away from the CS with the PS, check the radio signal strength. The radio signal strength
weakens as you walk away from the CS.
c. Map the CS coverage area at radio signal strength levels "3" and "8".
d. Make sure that adjacent CS coverage areas overlap where the radio signal strength level is "8" by
at least 5 m (16 ft).
e. Make sure that the radio signal strength level is greater than "3" at any location within the service
area demanded by the user.
Display example:
Press 1, 9, and POWER
for more than 2 seconds.
<< SEARCHING >>
CS NO.1 LEVEL:12
SAVE:0123456789
1 to 9
CS No.
1
9
0
Display example:
Press 1, 9, and POWER
for more than 2 seconds.
<< SEARCHING >>
CS NO.1 LEVEL:12
SAVE:0123456789
1 to 9
CS No.
19
9
2.8 Connection of 2.4 GHz Portable Stations
122 Installation Manual
4. Finish the site survey
Refer to "2.8.6 After Site Survey".
a. Return all DIP switches of each CS to the OFF position, and stop supplying electricity.
b. Turn off the PS.
5. Connect the CS and PS to the Hybrid IP-PBX and test the operation
Refer to "2.8.7 Connecting a Cell Station to the Hybrid IP-PBX".
a. Connect the CSs to the Hybrid IP-PBX.
b. Register the PSs to the Hybrid IP-PBX.
c. Walk around the service area while having a conversation using a registered PS. If noise is
frequent or conversations disconnect, relocate the CSs or install an additional CS.
6. Mount the CS on the wall
Refer to "2.8.8 Wall Mounting".
a. If everything assuredly goes as planned, mount the CS on the wall.
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 123
2.8.3 Site Planning
Choosing the best site for the CS requires careful planning and testing of essential areas. The best location
may not always be convenient for installation. Read the following information before installing the unit.
Understanding the Radio Waves
Characteristics of Radio Waves
The transmission of radio waves and the CS coverage area depend on the structure and materials of the
building.
Office equipment, such as computers and fax machines, can interfere with radio waves. Such equipment
may create noise or interfere with the performance of the PS.
The illustration below shows the special transmitting patterns of radio waves.
1. Radio waves are reflected by objects such as those made of metal.
2. Radio waves are diffracted by objects such as metallic columns.
3. Radio waves penetrate objects such as those made of glass.
Relationships Between Radio Waves and Building Structure and Materials
•The CS coverage area is affected more by the building materials and their thickness than the number
of obstacles.
•Radio waves tend to be reflected or diffracted by conductive objects and rarely penetrate them.
•Radio waves tend to penetrate insulated objects and are rarely reflected by them.
•Radio waves penetrate thin objects more than thick objects.
•The table below shows the transmission tendency of radio waves when they reach objects made from
various materials.
CS
Column
3. Penetration
2. Diffraction
1. Reflection
2.8 Connection of 2.4 GHz Portable Stations
124 Installation Manual
Object Material Transmission Tendency
Wall Concrete The thicker they are, the less radio waves penetrate them.
Ferroconcrete Radio waves can penetrate them, but the more iron there
is, the more radio waves are reflected.
Window Glass Radio waves usually penetrate them.
Glass with wire nets Radio waves can penetrate them, but tend to be
reflected.
Glass covered with
heat-resistant film
Radio waves are weakened considerably when they
penetrate windows.
Floor Ferroconcrete Radio waves can penetrate them, but the more iron there
is, the more radio waves are reflected.
Partition Steel Radio waves are reflected and rarely penetrate them.
Plywood, Glass Radio waves usually penetrate them.
Column Ferroconcrete Radio waves can penetrate them, but the more iron there
is, the more radio waves tend to be reflected or diffracted.
Metal Radio waves tend to be reflected or diffracted.
Cabinet Steel Radio waves are usually reflected or diffracted, and rarely
penetrate them.
Wood Radio waves can penetrate them, but they are weakened.
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 125

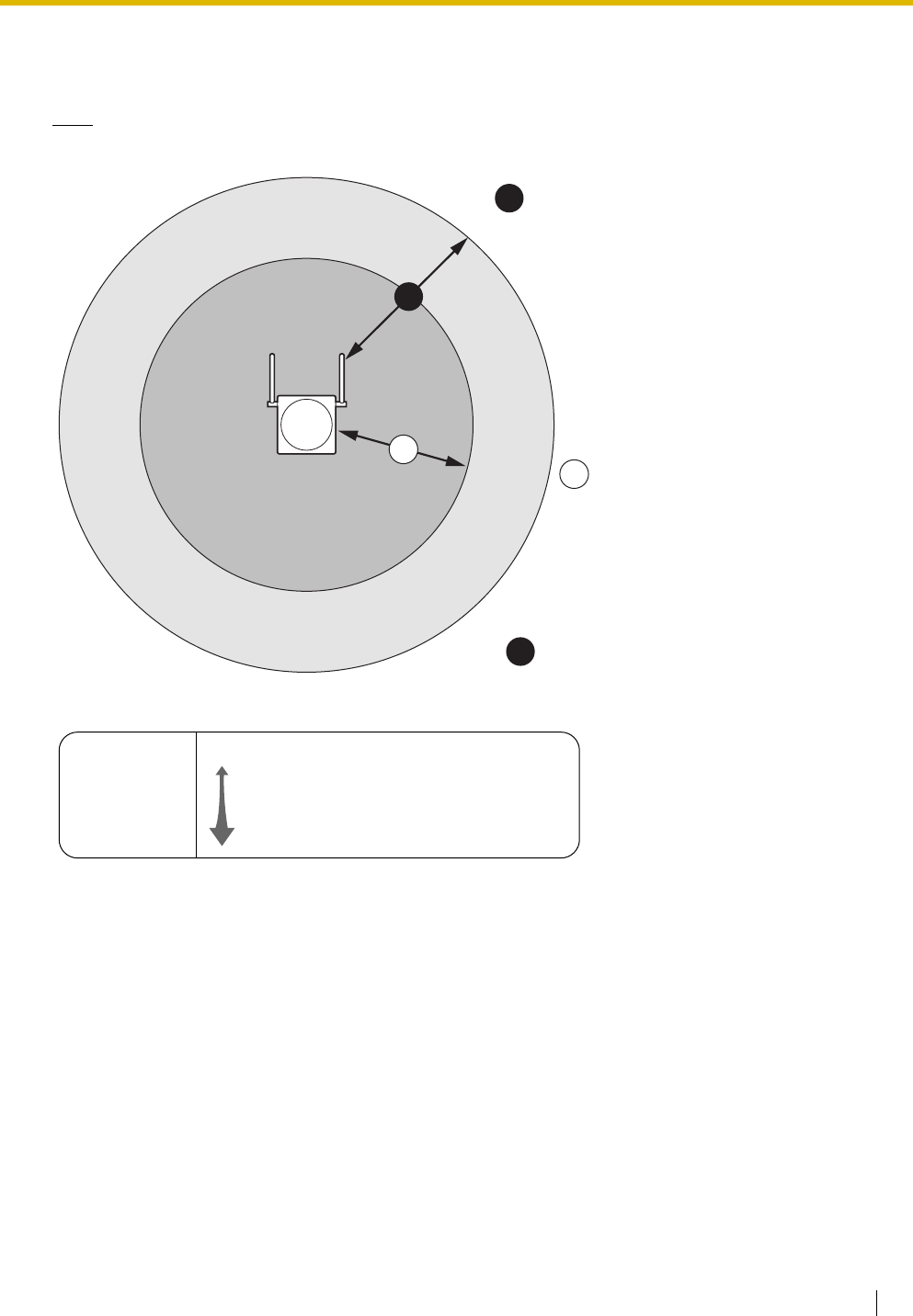

CS Coverage Area
The example below shows the size of the coverage area of 1 CS if it is installed where there is no obstacle.
Note
Radio signal strength levels are measured during the site survey (refer to "2.8.5 Site Survey").
Site Survey Preparation
1. Obtain the map and investigate the installation site.
a. Check the obstacles (e.g., shelves, columns, and partitions).
b. Check the materials of the structures (e.g., metal, concrete, and plywood).
c. Check the layout and dimensions of the room, corridor, etc.
d. Write down the above information to the map.
2. Examine the service area demanded by the user on the map, referring to the following example.
a. Draw the coverage area around a CS. Extend the coverage area to 30 to 60 meters (98 to 197 feet)
in one direction, depending on the materials of the building structures and obstacles in the
installation site. Note that a CS cannot be installed outside a building.
b. If one CS cannot cover the entire service area, install additional CSs as required. Overlap the
coverage areas of adjacent CSs.
Where CS coverage areas overlap, the PS will start call handover to the next CS if the signal from
Gray Zone:
Conversation will be
intermittent
Coverage Area
Radio signal strength level is
greater than "3".
(About 50 m to 60 m
[164 ft to 197 ft])
Good Coverage Area
Radio signal strength
level is greater than "8".
(About 30 m to 40 m
[98 ft to 131 ft])
Good conversation
will be kept.
Out of Service:
Cannot make/receive calls
A
B
A
B
Radio Signal Strength Levels
Out of range
Receives noise easily or disconnects
May receive noise
Good
Better
Level: 00
Level: 01 to 02
Level: 03 to 07
Level: 08 to 10
Level: 11 to 12
C
2.8 Connection of 2.4 GHz Portable Stations
126 Installation Manual
one CS becomes weak. However, if a PS moves away from a CS and there are no CSs available
for handover, the PS may go out of range and the call could be lost.
If the signal from the CS fades, due to the structure of the building, there may be some handover
delay. The user will hear a range warning before handover in this case. This also applies in the case
of interference from 2.4 GHz apparatus.
Example: Installing in a Room Separated by Walls
Things to take note of:
•The room is separated by walls.
•The room is surrounded by concrete walls.
CS installation plan:
•The coverage area of each CS will not extend as much it does where there is no obstacle, because
the radio signals will be weakened by separating walls. Therefore, you will need 5 CSs to cover the
entire room.
CS no. 5
CS no. 1
CS no. 2
CS no. 4
CS no. 3
70 m
(230 ft)
150 m (492 ft)
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 127
2.8.4 Before Site Survey

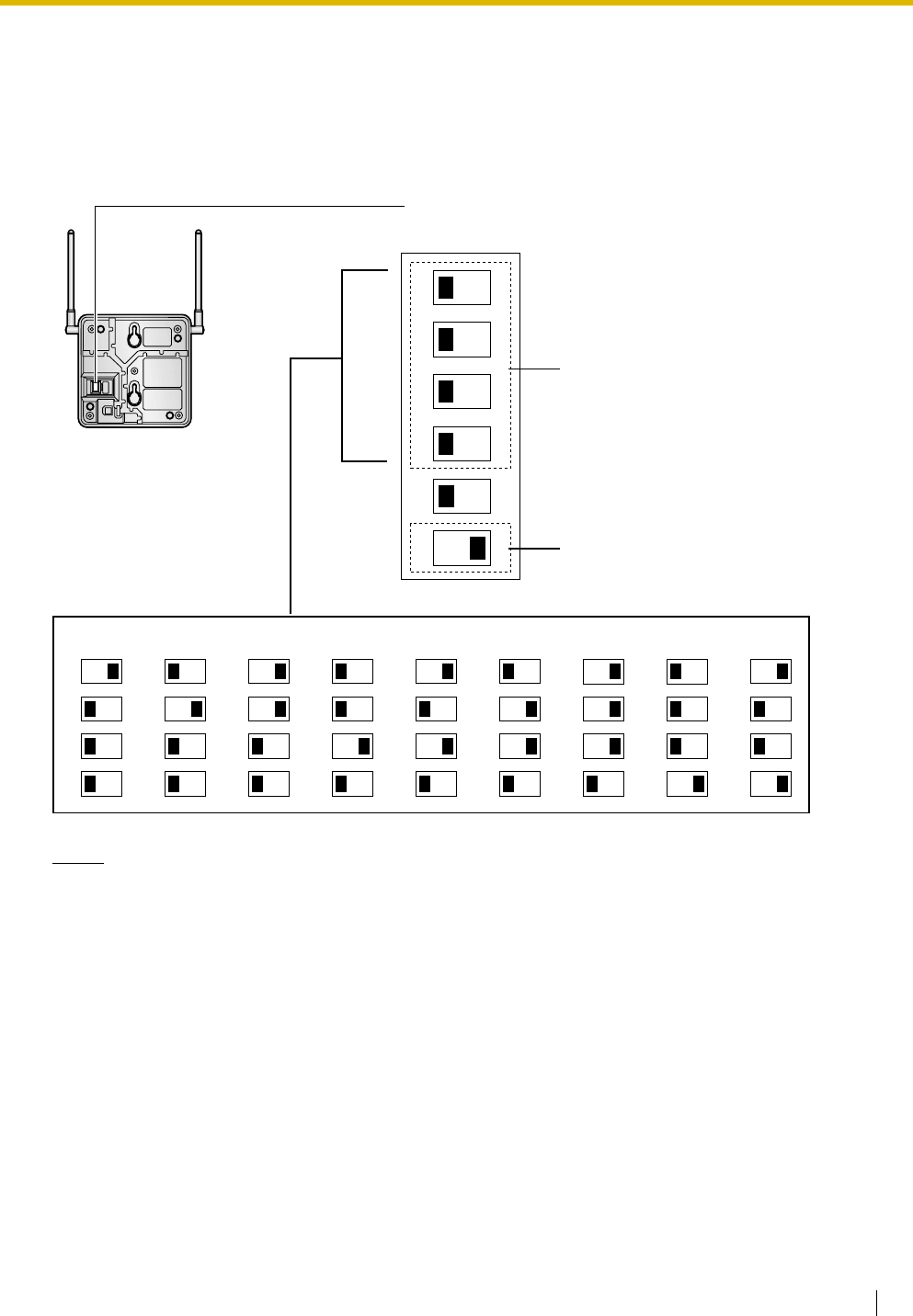

Setting and Installing the CS Temporarily for Site Survey
1. Switch the Radio Signal Test switch from OFF to ON.
2. Set the CS number switches as desired.
Notes
•To see the radio signal strength of more than 1 CS, a CS number must be set for each CS.
•If more than 1 CS is in Radio Signal Test mode, each CS must have a unique CS number.
CS Number Switch
CS no. 1 CS no. 2 CS no. 3 CS no. 4 CS no. 5 CS no. 6 CS no. 7 CS no. 8 CS no. 9
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
DIP Switch
1
2
3
4
5
6
OFF ON
Radio Signal
Test Switch
2.8 Connection of 2.4 GHz Portable Stations
128 Installation Manual
3. After setting the DIP switch, connect an AC adaptor or battery box to the CS using a power supply
adaptor.
Note
The AC adaptor should be connected to a vertically oriented or floor-mounted AC outlet. Do not connect
the AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become
disconnected.
4. Install the CS temporarily for the site survey. Install the CS at least 2 m (6 ft 7 in) above the floor, keeping
the antennas in the upright positions.
To AC Adaptor (KX-A11/KX-TCA1)/
Battery Box (PSZZTD142CE)
Power Supply Adaptor
(PSZZ1TDA0142)
Modular
Telephone Cord
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 129
2.8.5 Site Survey
The PS has a Radio Signal Test mode that monitors the state of the radio link to the CS. After installing the
CSs temporarily, set the PS to the Radio Signal Test mode and measure each CS coverage area. Then,
record the results on the map of the installation site.
Testing the Radio Signal Strength
Note
The display language for the site survey is available only in English.
1. Enter the Radio Signal Test mode.
Using the KX-TD7680
Using the KX-TD7690
Notes
*1: CS number and radio signal strength level.
*2: Scan data (test result) number. Empty memory space will be indicated by a number; stored memory
space will be indicated by a "-".
Display example:
Press 1, 9, and POWER
for more than 2 seconds.
<< SEARCHING >>
CS NO.1 LEVEL:12
*1
SAVE:0123456789
*2
1 to 9
CS No.
19
9
0 to 9
Scan Data No.
To store the scan data
0
Display example:
Press 1, 9, and POWER
for more than 2 seconds.
<< SEARCHING >>
CS NO.1 LEVEL:12
*1
SAVE:0123456789
*2
1 to 9
CS No.
19
9
0 to 9
Scan Data No.
To store the scan data
0
2.8 Connection of 2.4 GHz Portable Stations
130 Installation Manual
2. Measure the radio signal strength by moving to and away from the CS.
a. Move to the CS until the point the radio signal strength level becomes "12".
b. Move away from the CS and identify the CS coverage area within which the radio signal strength
level is greater than "8". Draw the area on the map.
c. Move away from the CS and identify the CS coverage area within which the radio signal strength
level is greater than "3". Draw the area on the map.
3. Repeat the steps 1 and 2 for other CSs, and relocate the CSs when necessary.
a. Overlap adjacent CS coverage areas where the radio signal strength level is "8" by 5 to 10 meters
(16 to 33 feet).
CS no. 1
PS
PS
PS
CS NO.1 LEVEL:3
CS NO.1 LEVEL:12
Radio Signal Strength Levels
Out of range
Receives noise easily or disconnects
May receive noise
Good
Better
Level: 00
Level: 01 to 02
Level: 03 to 07
Level: 08 to 10
Level: 11 to 12
CS NO.1 LEVEL:8
5 m to 10 m
(16 ft to 33 ft)
CS no. 1 CS no. 2
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 131
b. Overlap the CS coverage areas of at least 2 CSs at any location in the installation site.
c. Make sure that the radio signal strength level is greater than "3" at any location in the service area
demanded by the user.
Referring the Stored Scan Data
Using the KX-TD7680
Using the KX-TD7690
CS no. 1 CS no. 2
CS no. 3 CS no. 4
Press 1, 9, and POWER
for more than 2 seconds. 0 to 9
Scan Data No.
19
1
Display example:
When there is scan data
When there is no scan data
NO.1
CS No.2 LEVEL: 9
NO.0
NOT SAVED
To the Desired Scan Data No.
Press 1, 9, and POWER
for more than 2 seconds. 0 to 9
Scan Data No.
19
1
Display example:
When there is scan data
When there is no scan data
NO.1
CS No.2 LEVEL: 9
NO.0
NOT SAVED
To the Desired Scan Data No.
2.8 Connection of 2.4 GHz Portable Stations
132 Installation Manual
Deleting the Stored Scan Data
Using the KX-TD7680
Using the KX-TD7690
Press 1, 9, and POWER
for more than 2 seconds. 0 to 9, or # for all data
Scan Data No.
19
To the Desired Scan Data No.
2
Press 1, 9, and POWER
for more than 2 seconds. 0 to 9, or # for all data
Scan Data No.
19
To the Desired Scan Data No.
2
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 133
2.8.6 After Site Survey
After obtaining the proper measurement results, exit the Radio Signal Test mode before connecting the CS
to the Hybrid IP-PBX.
1. Keep pressing POWER button on the PS until the PS is turned OFF.
2. Disconnect the AC adaptor or battery box from the CS and stop supplying electricity.
3. Switch all DIP switches on the CS from ON to OFF.
1
2
3
4
5
6
OFF ON
2.8 Connection of 2.4 GHz Portable Stations
134 Installation Manual

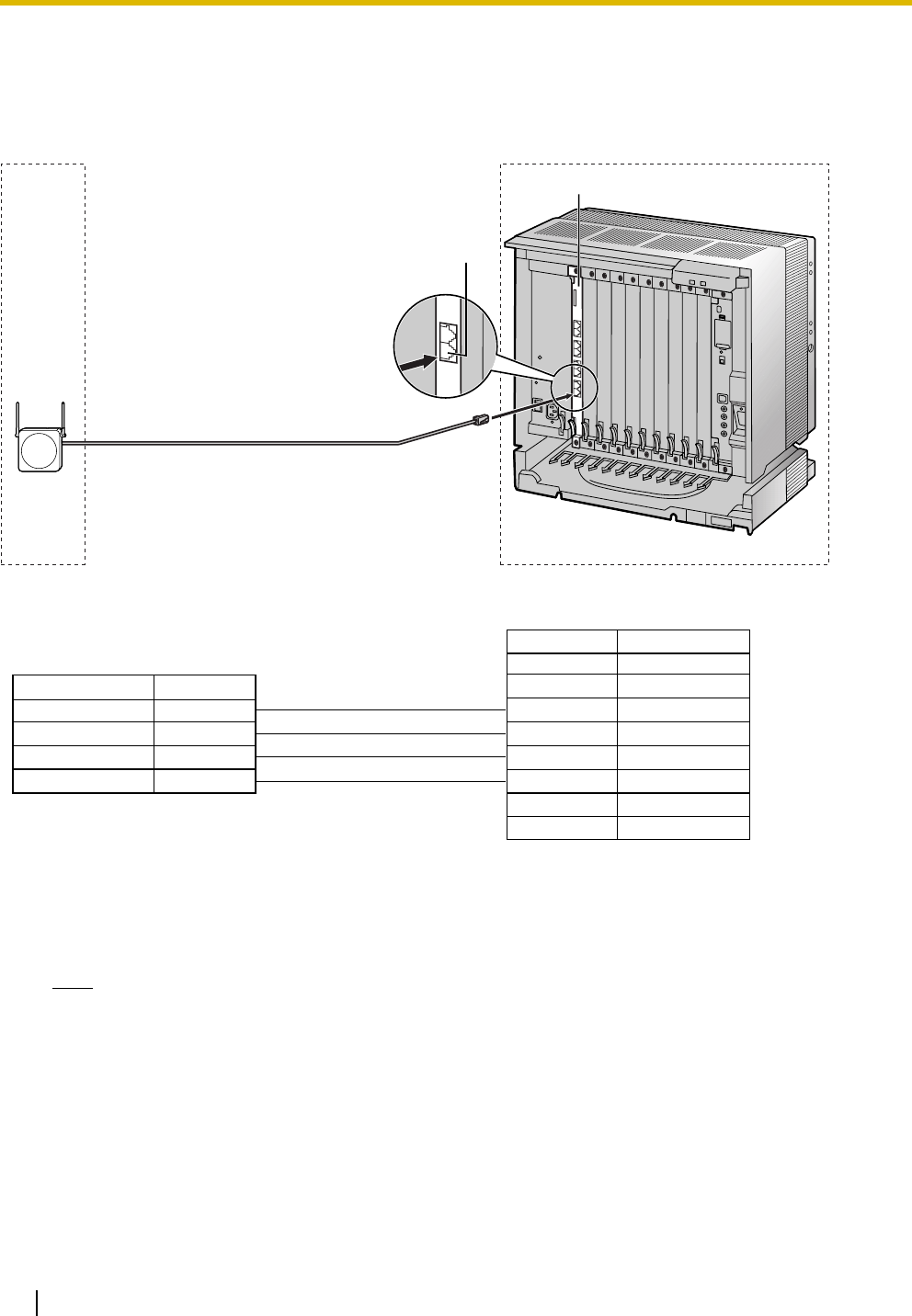

2.8.7 Connecting a Cell Station to the Hybrid IP-PBX
Using a CSIF Card
Refer to the following example to connect a CS to the Hybrid IP-PBX.
Accessory and User-supplied Items for the CS
Accessory (included): Screws × 2, Washers × 2
User-supplied (not included): RJ11 connector
Note
For details about CSIF card, refer to "2.5.1 CSIF4 and CSIF8 Card".
Signal Name
Signal Name Pin No.
1
2
3
4
D1
POWH
POWL
D2
D1
POWH
POWL
D2
Pin No.
1
2
3
4
5
6
7
8
CSIF card (RJ45)
CS (RJ11)
Port 1
Cable Maximum Distance
26 AWG: Under 444 m (1457 ft)
24 AWG: Under 694 m (2277 ft)
22 AWG: Under 1000 m (3281 ft)
CAT 5: Under 694 m (2277 ft)
CSIF8 Card
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 135

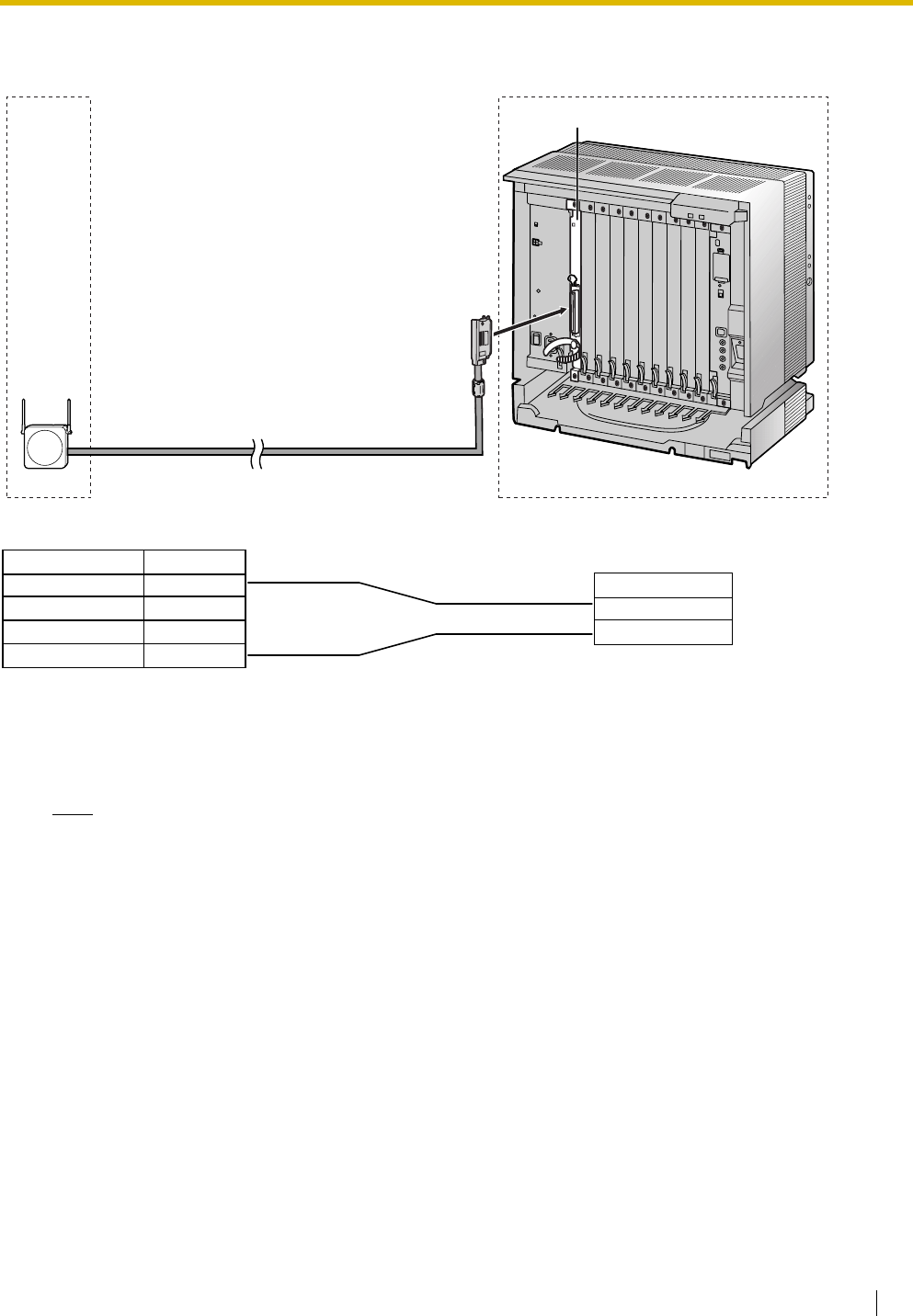

Using a DHLC/DLC Card
Refer to the following example to connect a CS to the Hybrid IP-PBX.
Accessory and User-supplied Items for the CS
Accessory (included): Screws × 2, Washers × 2
User-supplied (not included): RJ11 connector
Note
For details about DHLC card or DLC card, refer to "2.5.2 DHLC8 Card", "2.5.3 DLC8 Card", or "2.5.4
DLC16 Card".
Signal Name
D1
D2
DHLC/DLC card
(Amphenol)
Signal Name Pin No.
1
2
3
4
D1
D2
CS (RJ11)
Cable Maximum Distance
26 AWG: Under 222 m (728 ft)
24 AWG: Under 347 m (1138 ft)
22 AWG: Under 500 m (1640 ft)
CAT 5: Under 347 m (1138 ft)
DHLC8 Card
2.8 Connection of 2.4 GHz Portable Stations
136 Installation Manual
Connecting the CS
1. Connect the cable from the CSIF/DHLC/DLC card to the CS.
2. Pass the cable through the groove of the CS (in any direction depending on your convenience).
Modular
To CSIF/DHLC/DLC card
To CSIF/DHLC/DLC card
TO MAIN UNIT
/ PABX
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 137
Registering the PS
The PS must be registered to the Hybrid IP-PBX before it can be used. Programming of both the PS and
Hybrid IP-PBX is required. A PT with multiline display (e.g., KX-T7636 6-line display) is required for the
Hybrid IP-PBX system programming.
Note
For details about system programming using a PT, refer to "2.3.2 PT Programming" and "3.3 PT
Programming" in the Feature Guide.

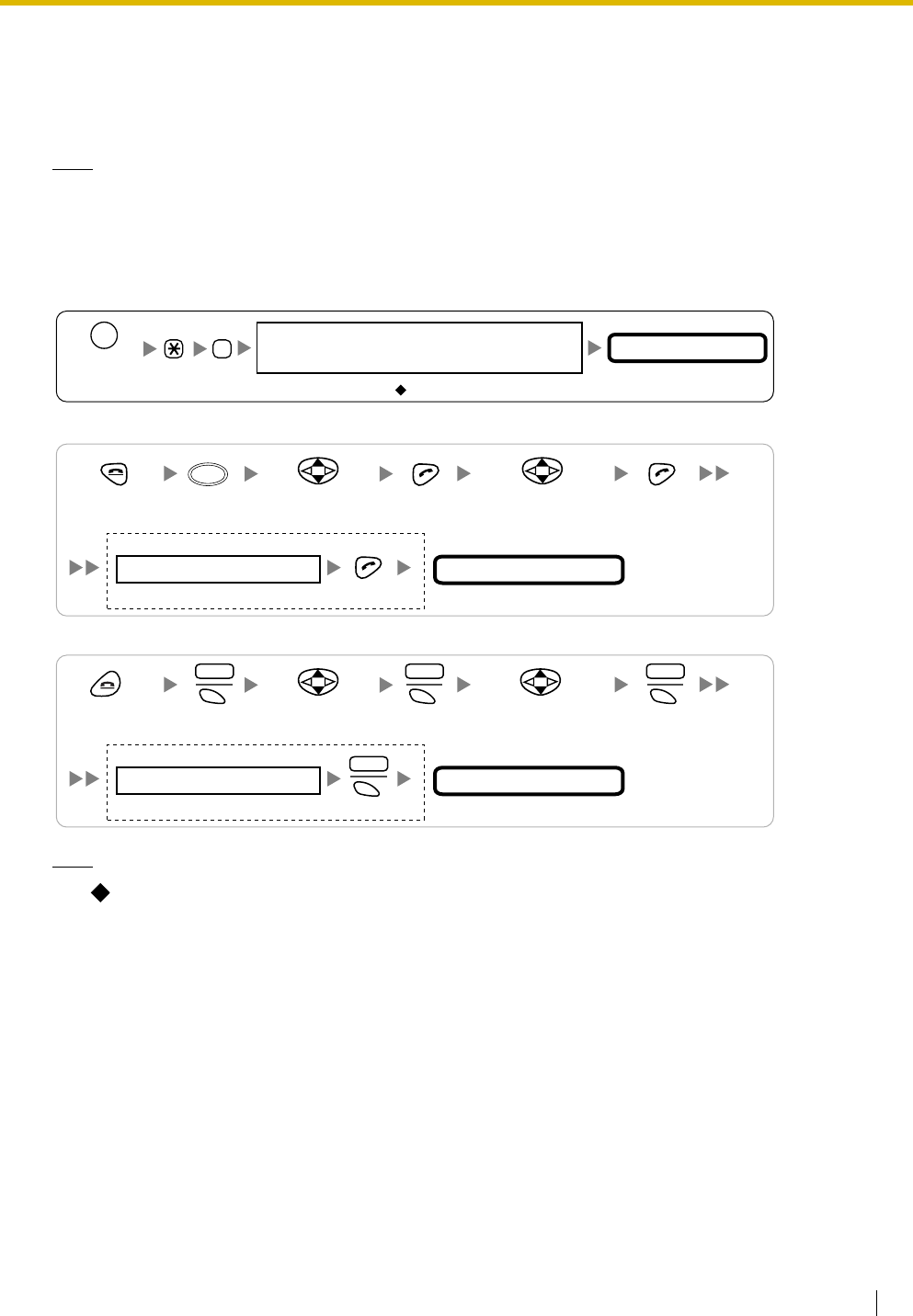

Entering the System Programming Mode
PT (Administrator Level)
PS (Using the KX-TD7680)
PS (Using the KX-TD7690)
Note
means default value throughout this section.
#
= 1234
System Password for Administrator—
for PT Programming Programming No.
3 digits
PROGRAM/
PAUSE
System Setting Menu
Select
"SYSTEM SET".
Press POWER
for 2 seconds.
Select
"PS PROGRAM".
4 digits
System Lock Password
If required
FUNC
System Setting Menu
Select
"SYSTEM SETTING".
Press POWER
for 2 seconds. S1 S1
MENU SEL
S1
SEL
Select
"PS PROGRAM".
4 digits
System Lock Password
If required
ENTR
S1
2.8 Connection of 2.4 GHz Portable Stations
138 Installation Manual
PS Registration
When the PS has not been registered yet
When registering the PS for the first time, it is possible to select the desired language for the display.
(You do not need to enter the PS system programming mode when registering for the first time.)
Using the KX-TD7680
Using the KX-TD7690
When the PS has already been registered to another Hybrid IP-PBX
One PS can be registered to a maximum of 4 different Hybrid IP-PBXs.
Using the KX-TD7680
Using the KX-TD7690
[690]
001 to 128
PS No.
1 to 4 digits END
ENTER ENTER
To the PS
operation
below
Extn. No.
Press
POWER for
2 seconds.
Press S3
for 2
seconds.
C.Tone
Press S2 repeatedly
to select the desired
language.
[
F2
][
F3
]
Press
POWER for
2 seconds.
Press S3
for 2
seconds.
C.Tone
Press S2 repeatedly
to select the desired
language.
F2 F3
Choose
"SYSTEM 1–4".
Select
"REGISTRATION".
C.Tone
Choose
"SYSTEM 1–4".
Select
"REGISTRATION".
S1S1
SEL SEL
C.Tone
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 139
Setting the System Lock
When a system lock has been set, the system lock password will be required for PS system setting.
Using the KX-TD7680
Using the KX-TD7690
Choose
"Enable/Disable".
Select
"SYSTEM LOCK".
C.Tone
4 digits 4 digits
ENABLE
DISABLE
System Lock Password System Lock Password
S1 Choose
"Enable/Disable".
SEL
ENTR
S1
S1
S1
S1
CHNG
SEL
ENTR
Select
"SYSTEM LOCK".
C.Tone
System Lock Password System Lock Password
4 digits 4 digits
ENABLE
DISABLE
2.8 Connection of 2.4 GHz Portable Stations
140 Installation Manual
Setting the Personal Identification Number (PIN) for PS Registration
To prevent registering the PS to a wrong Hybrid IP-PBX, a PIN for PS registration can be set to the Hybrid
IP-PBX. Before registering the PS to the Hybrid IP-PBX, register the PIN set to the Hybrid IP-PBX into the
PS. By doing so, the PS will only be registered to the Hybrid IP-PBX with the matching PIN.
Notes
•By default, the PIN for PS registration is "1234" for both the Hybrid IP-PBX and PS. Therefore, the
PS can be registered to the Hybrid IP-PBX without setting the PIN.
•The PIN for PS registration will only be used when registering the PS to the Hybrid IP-PBX.
Therefore, even when there is more than 1 Hybrid IP-PBX with the same PIN near the PS, the PS
will not be linked to a different Hybrid IP-PBX during normal operation after registration.
Setting the PIN for Hybrid IP-PBX
Setting the PIN for PS
Using the KX-TD7680
Using the KX-TD7690
[692]
1 to 4 digits
PIN for PS Registration
END
ENTER ENTER
1234
Select
"CHANGE PIN"
C.Tone
1 to 4 digits
1234
PIN for PS Registration
Select
"CHANGE PIN"
S1
ENTR
S1
SEL
C.Tone
1 to 4 digits
1234
PIN for PS Registration
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 141
PS Termination
Confirm the following before canceling the PS registration:
•PS is turned on.
•PS is within the range.
If the registration information is still stored in the PS
Using the KX-TD7680
Using the KX-TD7690
Testing the Operation
Walk around the service area while having a conversation using a registered PS. If noise is frequent or
conversations disconnect, relocate the CSs or install an additional CS.
[691]
001 to 128
PS No.
ENTER ENTER
END
To the PS
operation
below
If "Rejected" or "Time out" is displayed
CLEAR YES
Press "YES".Press "CLEAR".
Select the
desired item.
Select "DELETE
SYSTEM".
Select "YES".
C.Tone
Select the
desired item.
Select "DELETE
SYSTEM".
S1S1
SEL SEL
Select "YES".
C.Tone
S1
SEL
2.8 Connection of 2.4 GHz Portable Stations
142 Installation Manual
2.8.8 Wall Mounting
1. Place the reference for wall mounting (on the following page) on the wall to mark the 2 screw positions.
2. Install the 2 screws and washers (included) into the wall.
Notes
•Make sure that the screw heads are at the same distance from the wall.
•Install the screws perpendicular to the wall.
3. Hook the CS on the screw heads.
2.8 Connection of 2.4 GHz Portable Stations
Installation Manual 143

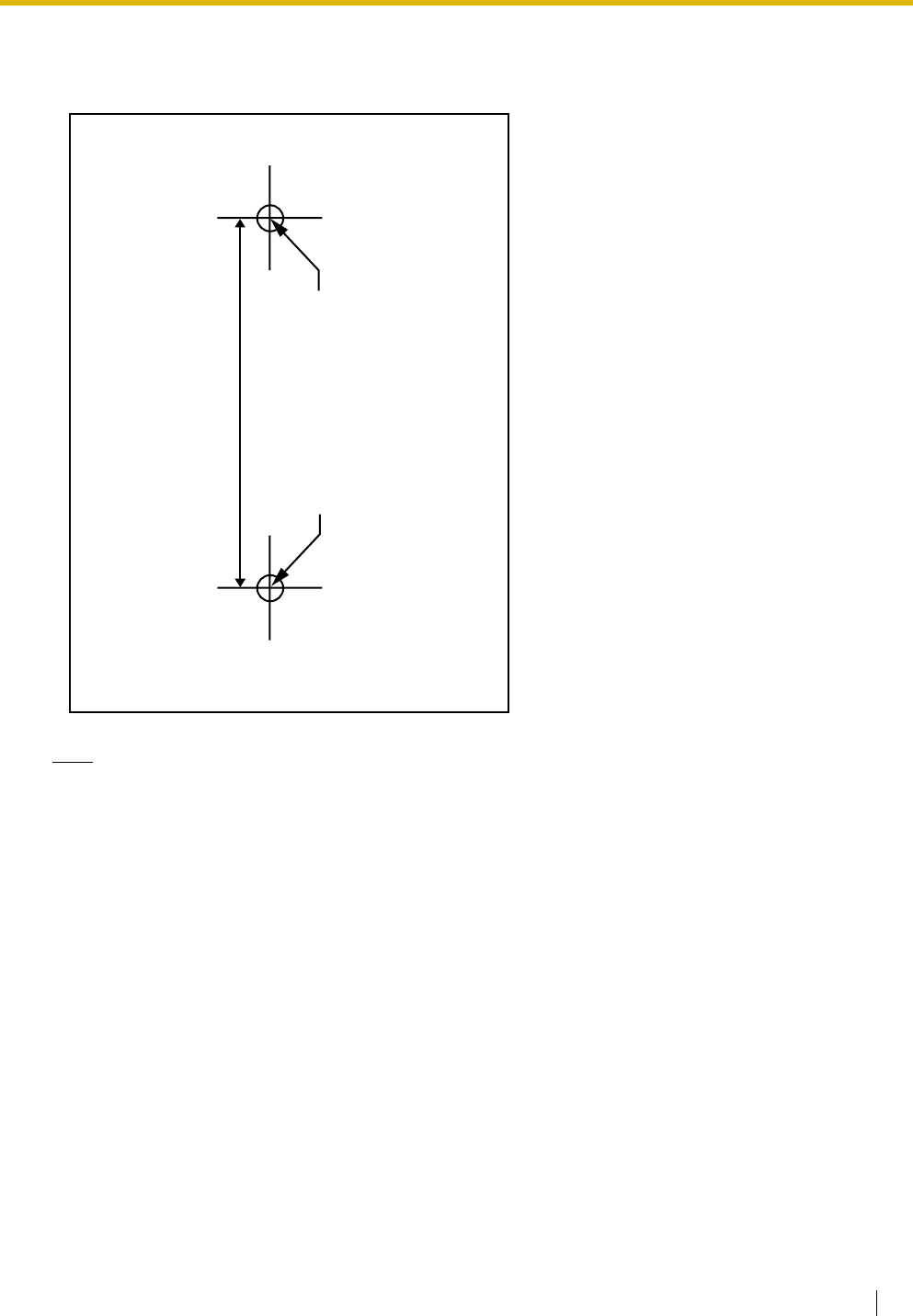

Reference for Wall Mounting
Please copy this page and use as a reference for wall mounting.
Note
Make sure to set the print size to correspond with the size of this page. If the dimension of the paper
output still deviates slightly from the measurement indicated here, use the measurement indicated
here.
Install a screw here.
Install a screw here.
71 mm
(2-13/16 in)
2.9 Connection of Doorphones, Door Openers, External Sensors, and External Relays
144 Installation Manual
2.9 Connection of Doorphones, Door Openers,
External Sensors, and External Relays
2.9.1 Connection of Doorphones, Door Openers, External
Sensors, and External Relays
The KX-TDA100 supports a maximum of 8 doorphones, 8 door openers, 8 external sensors, and 8 external
relays.
The KX-TDA200 supports a maximum of 16 doorphones, 16 door openers, 16 external sensors, and 16
external relays.
Note
Doorphones, door openers, external sensors, and external relays are user-supplied.
Maximum Cabling Distance
Installing the Doorphone (KX-T30865)
1. Loosen the screw to separate the doorphone into 2 halves.
Cable Maximum Distance
26 AWG: Under 70 m (230 ft)
24 AWG: Under 113 m (371 ft)
22 AWG: Under 180 m (590 ft)
CAT 5: Under 113 m (371 ft)
Doorphone
Door Opener
External Sensor/
External Relay Device
Panasonic
Screw
2.9 Connection of Doorphones, Door Openers, External Sensors, and External Relays
Installation Manual 145

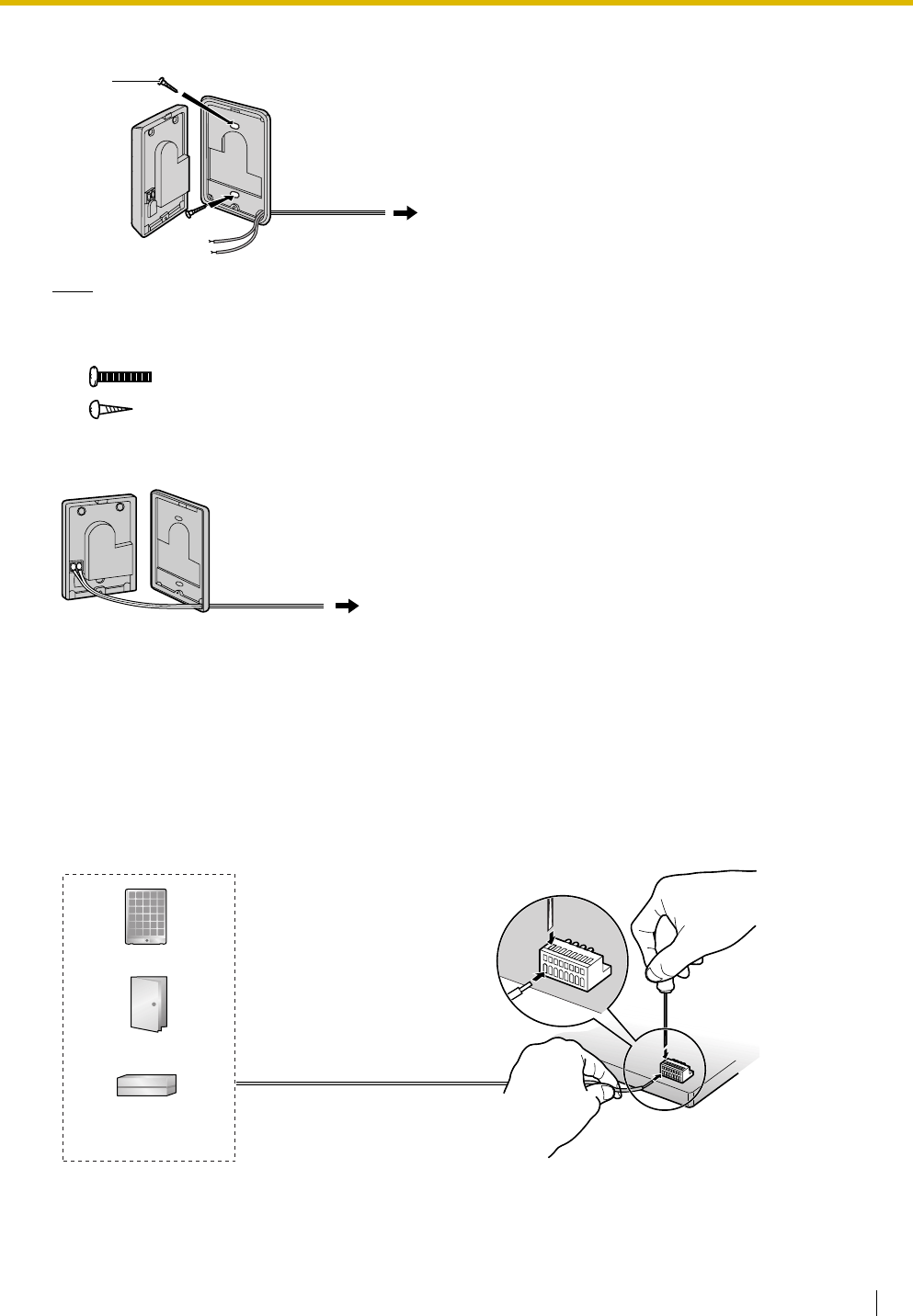

2. Pass the wires through the hole in the base cover, and attach the base cover to a wall using 2 screws.
Note
Two kinds of screws are included with KX-T30865. Please choose the appropriate kind for your wall
type.
3. Connect the wires to the screws located in the front cover.
4. Re-attach the 2 halves and re-insert the screw.
Connection
Use 8-pin and 10-pin terminal blocks (included with the card) for connection.
1. While pressing down on the hole at the top of the terminal block using a screwdriver, insert the wire into
the side hole as shown below. Repeat this procedure for other doorphones, door openers, external
sensors, and external relays.
Refer to "2.6.2 DPH4 Card" and "2.6.3 EIO4 Card" for pin assignments.
: when a doorphone plate has been fixed to the wall
: when you wish to install the doorphone directly to the wall
Screw
To 8-pin terminal block
To 8-pin terminal block
Doorphone
Door Opener
External Sensor/
External Relay Device
2.9 Connection of Doorphones, Door Openers, External Sensors, and External Relays
146 Installation Manual
2. Attach the terminal blocks to the connectors of the DPH4/EIO4 card on the Hybrid IP-PBX.
To doorphones/
door openers/
external sensors/
external relays
2.10 Connection of Peripherals
Installation Manual 147
2.10 Connection of Peripherals
2.10.1 Connection of Peripherals
BGM/MOH
The Hybrid IP-PBX provides Background Music and Music on Hold. Up to 2 external music sources (e.g.,
user-supplied radios) can be connected to the Hybrid IP-PBX.
CAUTION
•Wiring should be done carefully to prevent undue force being exerted on the plug. Otherwise,
music may intermittent.
•External Music Jacks are SELV ports and should only be connected to approved SELV devices.
Note
When the Hybrid IP-PBX and external music sources are not connected to the same ground, hum noise
may be induced into Background Music and Music on Hold.
BGM/
Music on Hold
Pager:
Amplifier/Speaker
PC Printer
PC
Maximum Distance
Under 5 m (16 ft)
Maximum Distance
Under 2 m (6 ft)
USB
RS-232C
Server PC
Cable Maximum Distance
26 AWG to 22 AWG: Under 10 m (32 ft)
CAT 5: Under 10 m (32 ft)
Cable Maximum Distance
26 AWG to 22 AWG: Under 10 m (32 ft)
CAT 5: Under 10 m (32 ft)
2.10 Connection of Peripherals
148 Installation Manual
Pager
Up to 2 paging devices (user-supplied) can be connected to the Hybrid IP-PBX.
CAUTION
External Paging Jacks are SELV ports and should only be connected to approved SELV devices.
PC/Printer (via RS-232C)
The Hybrid IP-PBX is equipped with an RS-232C interface. This interface provides communication between
the Hybrid IP-PBX and the user-supplied devices such as PC or line printers. The RS-232C port is used for
system programming, SMDR, diagnostics and external system database storage (save/load) functions.
When using special accessories such as cable, the user should use those specified in this installation
manual to comply with the limits for a Class B digital device pursuant to the FCC Rules.
Note
Use an RS-232C cross cable for connection between the Hybrid IP-PBX and PC.
Pin Assignments
Connection Charts
For connecting printer/PC with a 9-pin RS-232C connector
No. Signal Name Function Circuit Type
EIA CCITT
2 RD (RXD) Receive Data BB 104
3
4
SD (TXD)
ER (DTR)
Transmit Data
Data Terminal Ready
BA
CD
103
108.2
5
6
SG
DR (DSR)
Signal Ground
Data Set Ready
AB
CC
102
107
7
8
RS (RTS)
CS (CTS)
Request To Send
Clear To Send
CA
CB
105
106
9 5
6 1
Hybrid IP-PBX Printer/PC
Circuit Type
(EIA)
Signal
Name Pin No. Pin No. Signal
Name
Circuit Type
(EIA)
BB RD (RXD) 2
BA SD (TXD) 3
CD ER (DTR) 4
AB SG 5
CC DR (DSR) 6
CA RS (RTS) 7
CB CS (CTS) 8
2 RD (RXD) BB
3 SD (TXD) BA
4 ER (DTR) CD
5SG AB
6 DR (DSR) CC
7 RS (RTS) CA
8 CS (CTS) CB
2.10 Connection of Peripherals
Installation Manual 149

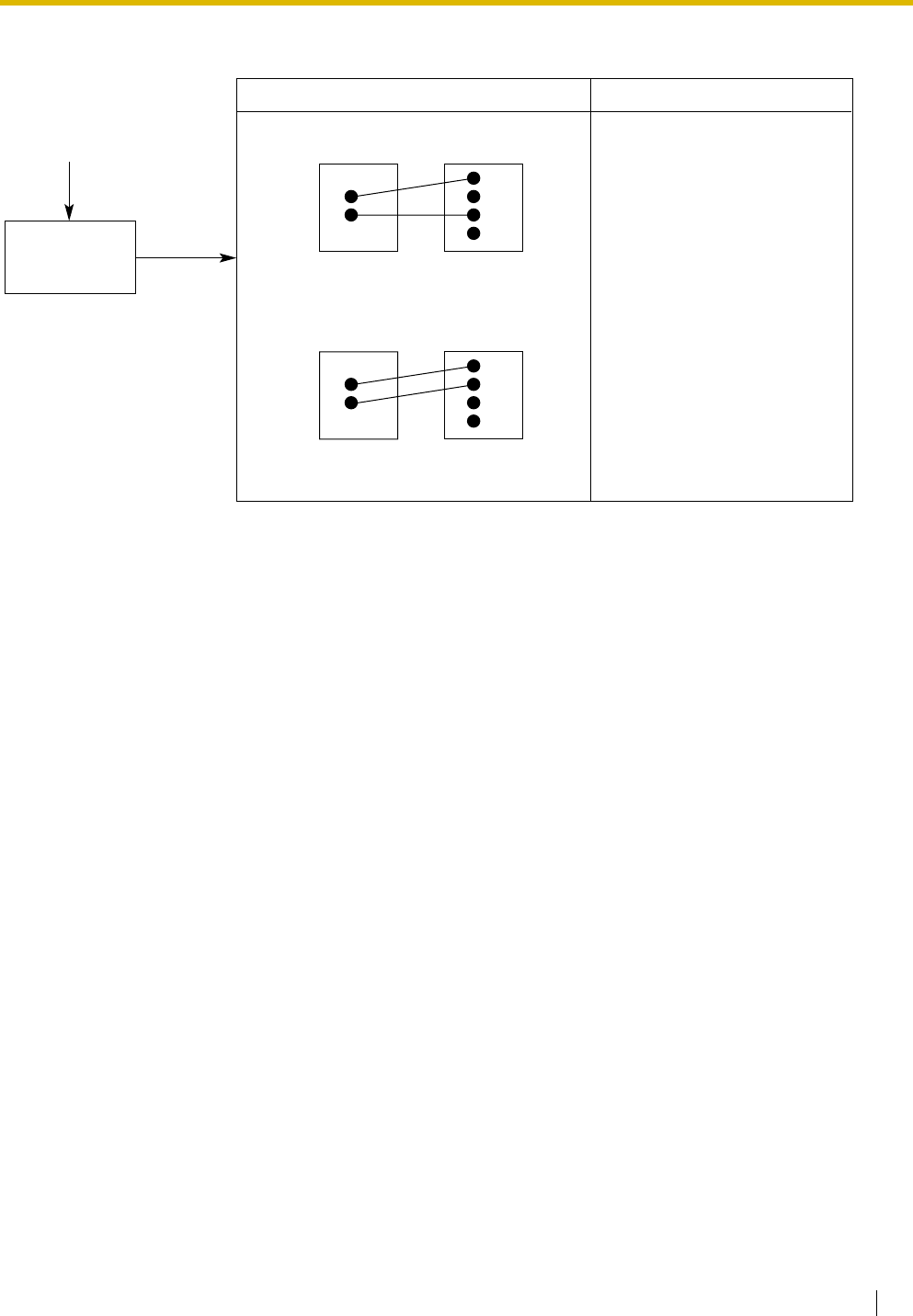

For connecting printer/PC with a 25-pin RS-232C connector
RS-232C Signals
•Receive Data (RXD):…(input)
Conveys signals from the printer or the PC.
•Transmit Data (TXD):…(output)
Conveys signals from the unit to the printer or the PC. A "Mark" condition is held unless data or
BREAK signals are being transmitted.
•Data Terminal Ready (DTR):…(output)
This signal line is turned ON by the unit to indicate that it is ON LINE. Circuit ER (DTR) ON does
not indicate that communication has been established with the printer or the PC. It is switched OFF
when the unit is OFF LINE.
•Signal Ground (SG)
Connects to the DC ground of the unit for all interface signals.
•Data Set Ready (DSR):…(input)
An ON condition of circuit DR (DSR) indicates the printer or the PC is ready. Circuit DR (DSR) ON
does not indicate that communication has been established with the printer or the PC.
•Request To Send (RTS):…(output)
This lead is held ON whenever DR (DSR) is ON.
•Clear To Send (CTS):…(input)
An ON condition of circuit CS (CTS) indicates that the printer or the PC is ready to receive data
from the unit. The unit does not attempt to transfer data or receive data when circuit CS (CTS) is
OFF.
•Frame Ground (FG)
Connects to the unit frame and the earth ground conductor of the AC power cord.
Hybrid IP-PBX Printer/PC
Circuit Type
(EIA)
Signal
Name Pin No. Signal
Name
Circuit Type
(EIA)
BB RD (RXD) 2
BA SD (TXD) 3
CD ER (DTR) 4
AB SG 5
CC DR (DSR) 6
CA RS (RTS) 7
CB CS (CTS) 8
1FG AA
3 RD (RXD) BB
2 SD (TXD) BA
20 ER (DTR) CD
7SG AB
5 CS (CTS) CB
6DR (DSR) CC
CF4 RS (RTS)
Pin No.
2.10 Connection of Peripherals
150 Installation Manual
PC/Server PC (via USB version 1.1)
The Hybrid IP-PBX is equipped with a USB interface. This interface provides communication between the
Hybrid IP-PBX and a PC or a Server PC.
The PC is used for system programming, diagnostics and external system database storage (save/load)
functions.
The Server PC is used for connecting PCs on a LAN to provide third party call control CTI. The CTI
connection uses the CSTA Phase 3 protocol.
Note
The operating system of the PC or Server PC required for third party call control depends on your CTI
application software. For details, refer to the manual for your CTI application software.
Pin Assignments
No. Signal Name
1VBUS
2USB D-
3USB D+
4GND
2
1
3
4
2.11 Power Failure Connections
Installation Manual 151
2.11 Power Failure Connections
2.11.1 Power Failure Connections
When the power supply to the Hybrid IP-PBX fails, power failure transfer (PFT) will switch from the current
connection to the Power Failure Connection. Refer to "2.4.1 Power Failure Transfer" in the Feature Guide
for further information.
Power Failure Connection is required to implement this feature.
Connection
Power Failure Connection connects a specific SLT and a CO line in the event of power failure. The following
CO line and extension cards can be used for Power Failure Connections:
•Analog CO line cards: LCOT16 (4 PFT ports), and LCOT8 (2 PFT port), port)
•Extension cards: MSLC16 (4 PFT ports), SLC16 (4 PFT ports), DHLC8 (2 PFT port) and SLC8
(2 PFT port)
To 1 analog CO line card, connect only 1 extension card.
Note
By programming the Hybrid IP-PBX, a CO line conversation established during power failure can be
maintained even when the power returns and the connection is switched back to the normal
configuration from the Power Failure Connection. However, if no special programming is performed, the
connection will be dropped when power returns.
Accessory and User-supplied Items
Accessory (included): none
User-supplied (not included): RJ11 connectors
R2
R1
T1
T2
T2
T1
R1
R2
RJ11
CO Line Card
(e.g., LCOT8)
Extension Card
(e.g., SLC8)
To CO line To SLT
2.11 Power Failure Connections
152 Installation Manual
RJ11 Connector Pin Assignments for CO line Card
PFT Ports 1 and 2
PFT Ports 3 and 4 (for LCOT16 card only)
RJ11 Connector Pin Assignments for Extension Card
PFT Ports 1 and 2
PFT Ports 3 and 4 (for MSLC16/SLC16 card only)
No. Signal Name Function
1 R2 Ring port 2
2 R1 Ring port 1
3 T1 Tip port 1
4 T2 Tip port 2
No. Signal Name Function
1 R4 Ring port 4
2 R3 Ring port 3
3 T3 Tip port 3
4 T4 Tip port 4
No. Signal Name Function
1 T2 Tip port 2
2 T1 Tip port 1
3 R1 Ring port 1
4 R2 Ring port 2
No. Signal Name Function
1 T4 Tip port 4
2 T3 Tip port 3
3 R3 Ring port 3
4 R4 Ring port 4
1
4
1
4
1
4
1
4
2.12 Starting the Hybrid IP-PBX
Installation Manual 153
2.12 Starting the Hybrid IP-PBX
2.12.1 Starting the Hybrid IP-PBX
CAUTION
•SD Memory Card must be inserted in the SD Memory Card slot of the MPR card before startup.
•Before touching the System Initialize Switch, discharge static electricity by touching ground or
wearing a grounding strap.
•Once you have started the Hybrid IP-PBX and if you unplug the Hybrid IP-PBX, do not perform the
following procedures to start the Hybrid IP-PBX again. Otherwise, your programmed data is
cleared. To restart the Hybrid IP-PBX, refer to "4.1.4 Using the Reset Button".
•The Hybrid IP-PBX will continue to be powered even if the power switch is turned "OFF".
•The power supply cord is used as the main disconnect device, ensure that the socket-outlet is
located/installed near the equipment and is easily accessible.
1. Set the System Initialize Switch to the "SYSTEM INITIALIZE" position.
System Initialize Switch
Reset Button
SYSTEM
INITIALIZE
RESET
NORMAL
RUN Indicator
2.12 Starting the Hybrid IP-PBX
154 Installation Manual
2. Plug the AC power cord into the Hybrid IP-PBX and an AC outlet, and turn on the Hybrid IP-PBX. The
RUN indicator will flash.
Note
For safety reasons, do not stretch, bend, or pinch the AC power cord.
3. While the RUN indicator is flashing, return the System Initialize Switch to the "NORMAL" position.
Depending on the configuration, initialization takes about 1 min to 3 min. If successfully executed, the
RUN indicator will stop flashing and be kept lit.
All data will be cleared, and the Hybrid IP-PBX as well as all optional service cards (except for the IP-GW
card) will be initialized to the default values. The DPTs should show the time as 01:00.
The data of the IP-GW card will not be initialized.
Note
Use only the AC power cord included with the PSU.
LED Indications
Indication Color Description
RUN Green PBX status indication
•OFF: Power off (includes normal reset)
•ON: Power on and running (on-line)
•Flashing (60 times per minute): Starting up
•Flashing (120 times per minute): Starting up or resetting with:
•the System Initialize Switch in "SYSTEM INITIALIZE"
position
•the SD Memory Card not inserted
ALARM Red Alarm indication
•OFF: Normal
•ON: Alarm (CPU stop, alarm for each card)
•Flashing: Alarm (MPR file error in restarting)
To AC Outlet
2.12 Starting the Hybrid IP-PBX
Installation Manual 155
Confirming the CO Line Connection
After initialization, program the Hybrid IP-PBX and establish CO line connection, and then use a PT to
confirm it.
To confirm, dial [ ] [3] [7] + CO line number (3 digits) or press an S-CO button. You will hear a dial tone if
CO line is available and connected.
2.12 Starting the Hybrid IP-PBX
156 Installation Manual
Installation Manual 157
Section 3
Guide for the KX-TDA Maintenance Console
Explains the installation procedure, structure, and basic
information of the KX-TDA Maintenance Console.
3.1 Overview
158 Installation Manual
3.1 Overview
3.1.1 Overview
KX-TDA Maintenance Console is designed to serve as an overall system programming reference for the
Hybrid IP-PBX. To program and administer the Hybrid IP-PBX by PC, you need to install the KX-TDA
Maintenance Console onto the PC.
This manual describes overview and installation of the KX-TDA Maintenance Console only.
KX-TDA Maintenance Console*1
*1 The contents and design of the software are subject to change without notice.
Menu Bar
Program Menu
3.2 Connection
Installation Manual 159
3.2 Connection
3.2.1 Connection
Serial Interface Connection
Note
For pin assignments and maximum cabling distance, refer to "2.10.1 Connection of Peripherals".
LAN Connection via CTI-LINK Card
Note
For pin assignments and maximum cabling distance, refer to "2.6.6 CTI-LINK Card".
PC
USB Port
To USB Port
To COM Port
RS-232C Port
PC
PC
Switching Hub
To network port
RJ45
3.2 Connection
160 Installation Manual
External Modem Connection
After connecting the Hybrid IP-PBX and the external modem, set the power switch of the external modem
to "ON", then the external modem will be initialized with the default values.
The following AT command settings may be required for the modem:
•The Data Terminal Ready (DTR) signal should be ignored.
•The Data Terminal Equipment (DTE)/Modem flow control should be turned off.
•The data compression should be disabled.
•Error Correction is not necessary.
Notes
•Use an RS-232C straight cable for connection between the Hybrid IP-PBX and external modem.
•An AT command (for initialization, enabling automatic answer, etc.) can only be programmed by
KX-TDA Maintenance Console. "AT&F0Q0E0V1S0=1X0&D0" is stored as the default value.
•For more information about the AT command, refer to the external modem's instructions.
To RS-232C port (25-pin)
RS-232C Port
(9-pin)
To CO line/Hybrid IP-PBX extension
port assigned as the CO line destination
Modem
External Modem Hybrid IP-PBX
Signal Name Pin No. Signal Name
SD (TXD) 2
RD (RXD) 3
DR (DSR) 6
ER (DTR) 20
2 RD (RXD)
3 SD (TXD)
4 ER (DTR)
6 DR (DSR)
Pin No.
3.3 Installation of the KX-TDA Maintenance Console
Installation Manual 161
3.3 Installation of the KX-TDA Maintenance
Console
3.3.1 Installing and Starting the KX-TDA Maintenance Console
System Requirements
Operating System
•Microsoft® Windows® 98 SE, Windows Me, Windows 2000, or Windows XP
Hardware
•CPU: Intel® Pentium® 133 MHz or better microprocessor
•RAM: at least 64 megabytes (MB) of free RAM (128 MB recommended)
•HDD: at least 100 MB of hard disc space
Installing the KX-TDA Maintenance Console
Notes
•Make sure to install and use the KX-TDA Maintenance Console for version 2.0.
•To install or uninstall the software on a PC running Windows 2000 Professional or Windows XP
Professional, you must be logged in as a user in either the "Administrators" or "Power Users" group.
•When the Hybrid IP-PBX is first connected to the PC via USB, a wizard should appear and ask you
to select the appropriate USB driver. Browse for and select the KX-TDA USB driver, which is copied
to the local drive during installation.
1. Copy the KX-TDA Maintenance Console setup file to a
local drive on the PC. (Its icon is shown here, on the left.)
2. Double-click the setup file to run the installer.
3. Follow the on-screen instructions provided by the
installation wizard.
3.3 Installation of the KX-TDA Maintenance Console
162 Installation Manual
Starting the KX-TDA Maintenance Console and Assigning the Basic
Items (Quick Setup)
When you start the KX-TDA Maintenance Console with the Installer Level Programmer Code and connect
to the Hybrid IP-PBX for the first time after initialization (with the factory default setting), Quick Setup will
launch automatically. During Quick Setup, you will setup the following basic items:
•Date and Time of the Hybrid IP-PBX. The date and time set on the PC will be used.
•System Password for installer for PC programming.
•Operator extension numbers. Operator extensions for all time modes (day/lunch/break/night) can
be assigned.
•Flexible Numbering type to pattern 1 or pattern 2. If pattern 1 (with ) is selected, " " must prefix
all feature numbers (except access numbers) when an extension user wants to use a feature.
•Operator call and Idle Line Access/ARS numbers (0 or 9). The feature numbers for operator call
and Idle Line Access/ARS can be selected.
•Remote Maintenance Dial Number. Enter the complete telephone number of the Hybrid IP-PBX
(including the country code). When necessary, this number will be used to access the Hybrid IP-
PBX from a remote location for maintenance purposes.
1. Connect the PC to the Hybrid IP-PBX with a USB cable.
2. Start the KX-TDA Maintenance Console from the Start
menu.
3. Type the Installer Level Programmer Code (default:
INSTALLER), then click [OK].
The Programmer Code authorizes different programming
levels, and the Quick Setup is only available when you start
the KX-TDA Maintenance Console with the Installer Level
Programmer Code.
Note
There are 2 other Programmer Codes with limited
authorization: Administrator Level (default: ADMIN),
and User Level (default: USER).
4. Click "Connect" → "USB" from the menu bar.
3.3 Installation of the KX-TDA Maintenance Console
Installation Manual 163

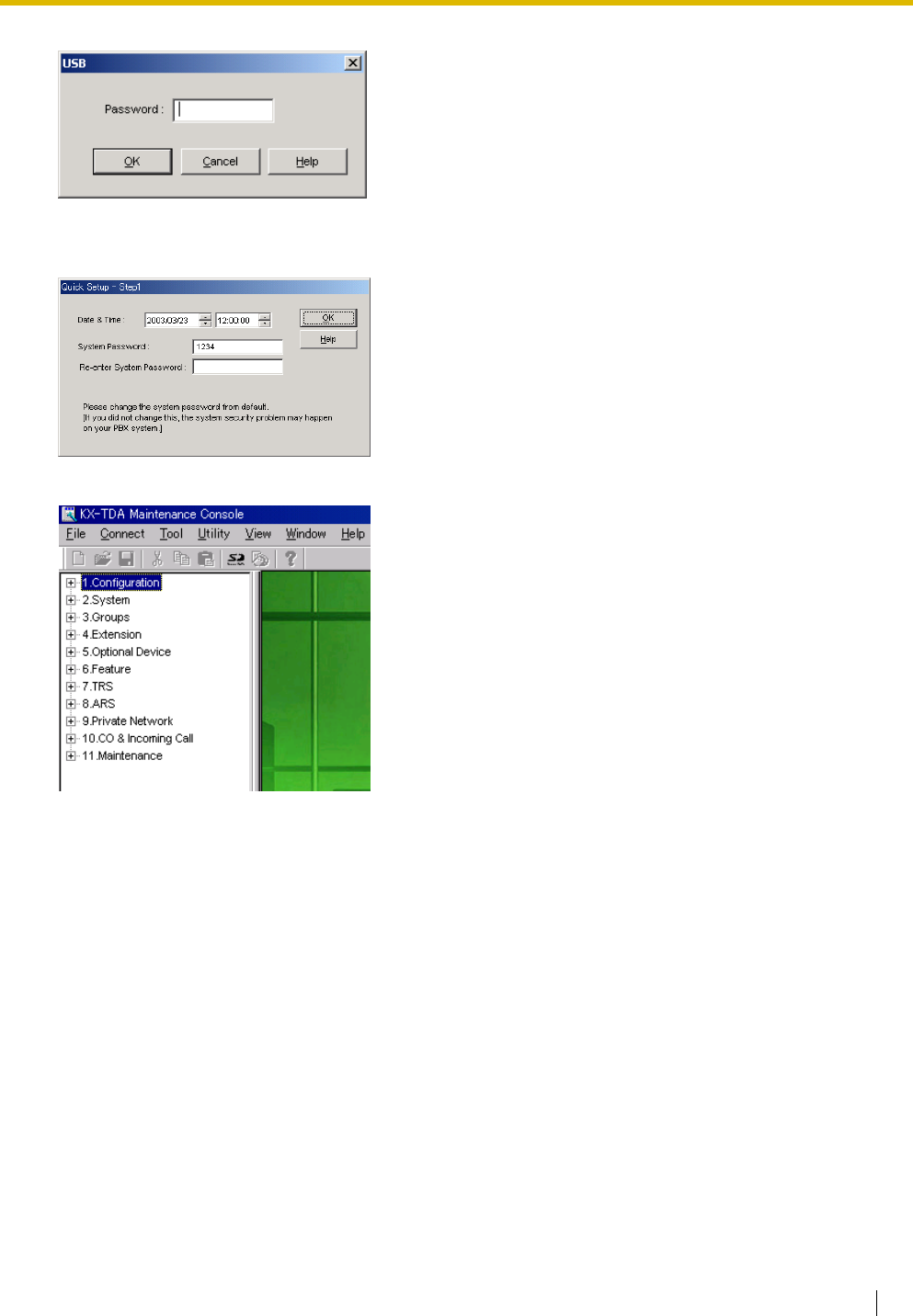

5. Type the system password for installer (default: 1234), then
click [OK] to log-in.
6. Follow the instructions of the wizard and assign the basic
items (Quick Setup).
7. The program menu appears. You may now begin
programming the Hybrid IP-PBX.
3.3 Installation of the KX-TDA Maintenance Console
164 Installation Manual
Notes
•During long programming sessions, it is highly recommended that you periodically save the system
data to the SD Memory Card. If the Hybrid IP-PBX suffers a sudden power failure or if the system
is reset for some reason and all system data is lost, it can be restored from the SD Memory Card.
To save the system data to the SD Memory Card, either click the "SD Memory Backup" icon, or
exit KX-TDA Maintenance Console and click "Yes" to save when prompted.
•When programming Hybrid IP-PBX data which can be displayed on a proprietary telephone (PT)
(extension names, group names, System Speed Dialing names, etc.), it is possible to enter
characters which cannot be displayed on a KX-T7600 series PT.
Characters which can be displayed on a KX-T7600 series PT are shown below in the white cells.
•The PC will not perform any shutdown operation, or enter the power-saving system standby mode
while the KX-TDA Maintenance Console is connected to the Hybrid IP-PBX. To perform either of
the operations above, first close the connection to the Hybrid IP-PBX.
CAUTION
Do not remove the SD Memory Card while power is supplied to the Hybrid IP-PBX. Doing so may cause
the Hybrid IP-PBX to fail to start when you try to restart the system.
Installation Manual 165
Section 4
Troubleshooting
This section provides information on the Hybrid IP-PBX and
telephone troubleshooting.
4.1 Troubleshooting
166 Installation Manual
4.1 Troubleshooting
4.1.1 Installation
PROBLEM PROBABLE CAUSE SOLUTION
Extension does not operate. Bad extension card. •Exchange the card for a known working
one.
Bad connection between the
Hybrid IP-PBX and telephone.
•Take the telephone and plug it into the
same extension port using a short
telephone cord. If the telephone works,
then the connection between the Hybrid
IP-PBX and the telephone must be
repaired.
A telephone with an A-A1 relay
is connected.
•Use a 2-wire cord.
•Set the A-A1 relay switch of the
telephone to the "OUT" or "OFF"
position.
Bad telephone. •Take the telephone and plug it into
another extension port that is working.
If the telephone does not work, replace
the telephone.
Wrong type of PSU. •Replace the PSU with the appropriate
type.
The Hybrid IP-PBX does not
operate properly.
•Press the Reset Button (refer to "4.1.4
Using the Reset Button").
•Turn off the power switch, and then turn
it back on.
•Turn off the power switch, and then
unplug the Hybrid IP-PBX. After 5
minutes, plug the Hybrid IP-PBX back
in, and turn the power switch back on.
Noise on external paging. Induced noise on the wire
between the Hybrid IP-PBX and
the amplifier.
•Use a shielded cable as the connection
wire between the Hybrid IP-PBX and
amplifier. A short shielded cable is
recommended.
Distorted external music. Excessive input level from
external music source.
•Decrease the output level of the
external music source by using the
volume control on the music source.
Alternate Calling—Ring/Voice
and Live Call Screening (LCS)
do not function as set when using
a Wireless Phone (KX-T7880/
KX-T7885/KX-TD7894/KX-
TD7895).
Voice-calling mode and Hands-
free mode with LCS are not
available with Wireless Phones.
•Switch the calling mode to ring-calling.
•Set the LCS mode to "Private".
4.1 Troubleshooting
Installation Manual 167
The ALARM indicator on the
front of the cabinet turns on red.
A major system error occurs in
the Hybrid IP-PBX.
•See the error log using the KX-TDA
Maintenance Console (refer to "4.1.5
Troubleshooting by Error Log").
PROBLEM PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
168 Installation Manual
4.1.2 Connection
Connection between the Hybrid IP-PBX and a PT:
Connection between the Hybrid IP-PBX and an SLT:
Connection between the Hybrid IP-PBX and an SLT that is polarity-sensitive:
CAUSE
The T/R is connected to the D1/D2.
SOLUTION
Use the correct cord (the
inner 2 wires are for T/R and
the outer 2 wires are for
D1/D2).
D1
T
R
D2
D1
T
R
D2
Hybrid IP-PBX
Hybrid IP-PBX
Hybrid IP-PBX
Extension
CAUSE
The T/R is connected to the D1/D2.
SOLUTION
Use the correct cord (the
inner 2 wires are for T/R).
•
D1
T
R
D2
T
R
Extension
CAUSE
The "T" is connected to the "R".
SOLUTION
Reverse the connections of
the T/R.
D1
T
R
D2
T
R
Extension
Can you dial
an extension?
(Continued on the next page.)
No
Ye s
If a telephone equipped
with an A-A1 relay is
connected to the Hybrid
IP-PBX, set the A-A1
relay switch of the
telephone to "OFF".
4.1 Troubleshooting
Installation Manual 169
Connection between the central office and the Hybrid IP-PBX:
CAUSE
CO line is connected to the T2/T1.
CO line is connected to the T2/R1.
SOLUTION
Reconnect the CO line to
the T1/R1 or T2/R2 of the
telephone jack using
2-conductor wiring.
T2
R1
T1
R2
CO line Hybrid IP-PBX
Hybrid IP-PBX
CO line
T2
R1
T1
R2
(Continued from the
previous page.)
Can you dial
out on a
CO line?
No
4.1 Troubleshooting
170 Installation Manual
4.1.3 Operation
PROBLEM PROBABLE CAUSE SOLUTION
•When using the
speakerphone on an APT,
nothing is audible.
•The HANDSET/HEADSET
selector is set to the
"HEADSET" position.
•When the headset is not used, set the
HANDSET/HEADSET selector to the
"HANDSET" position.
•When using the
speakerphone/monitor
mode with a DPT, nothing is
audible.
•The "HEADSET" mode is
selected by Personal
Programming, "Handset/
Headset Selection".
•When the headset is not used, select
the "HANDSET" mode by Personal
Programming.
•The PT does not ring. •The ringer volume is off. •Turn on the ringer volume.
•During a power failure,
extensions connected to
ports 1 to 4 of MSLC16/
SLC16 and ports 1 to 2 of
DHLC8/SLC8 cards do not
operate.
•A DPT or APT is connected
to the extension port.
•The dialing mode (tone or
pulse) is incorrect.
•Disconnect the DPT or APT and
connect an SLT.
•Set the Tone/Pulse switch to the other
position.
•Originating an outside call,
call transfer, or conference
cannot be performed.
•The corresponding CO
button does not exist on the
PT.
•Program the CO button. Refer to
"1.18.2 Flexible Buttons" in the Feature
Guide.
•Cannot register the PS. •Wrong Personal
Identification Number (PIN)
is registered to the PS.
•Register the PIN set to the Hybrid IP-
PBX into the PS.
•CS is not connected
properly.
•Make sure that the cable is connected
properly with correct pin assignments.
Also, make sure that the cable does not
make short circuits.
•Switch all DIP switches off.
•PS becomes out of range. •CSIF card is not working. •Install the CSIF card properly.
•Cannot make calls using the
PS.
•CS is not working. •Make sure that the cable is connected
properly with correct pin assignments.
Also, make sure that the cable does not
make short circuits.
•Switch all DIP switches off.
•Location of CS is not good. •Locate the CS properly (refer to "2.8.5
Site Survey" ).
•Access system of the PS is
not properly set.
•Change the access system setting of
the PS to the appropriate system or
automatic.
•Noise is frequent while using
the PS.
•Conversations disconnect
while using the PS.
•Call handover is not
working while using the PS.
•PS is out of CS coverage
area.
•Locate the CS properly (refer to "2.8.5
Site Survey" ).
4.1 Troubleshooting
Installation Manual 171
•PS stays out of service
when the CS status is
changed from Out of
Service to In Service.
•It may take about 20 s for
CS to startup after the
status has been changed to
In Service.
•Wait until the CS starts up.
PROBLEM PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
172 Installation Manual
4.1.4 Using the Reset Button
If the Hybrid IP-PBX does not operate properly, use the Reset Button. Before using the Reset Button, try
the system feature again to confirm whether there definitely is a problem or not.
CAUTION
In order to avoid possible corruption of data on the SD Memory Card, please ensure that the "SD
ACCESS" LED is off before pressing the Reset Button.
Notes
•When the System Initialize Switch is set to "NORMAL", pressing the Reset Button causes the
following:
–Camp-on is cleared.
–Calls on hold are terminated.
–Calls on exclusive hold are terminated.
–Calls in progress are terminated.
–Call park is cleared.
Other data stored in memory, except the above, are not cleared.
•When the Reset Button is pressed with the System Initialize Switch in the "SYSTEM INITIALIZE"
position, all data stored in memory are cleared.
Operation
If the Hybrid IP-PBX does not operate properly:
1. Set the System Initialize Switch to the "NORMAL" position.
2. Press the Reset Button.
System Initialize Switch
Reset Button
SYSTEM
INITIALIZE
RESET
NORMAL
RUN Indicator
BATT
ALARM
SD
ACCESS
LED
4.1 Troubleshooting
Installation Manual 173
4.1.5 Troubleshooting by Error Log
When a major system error occurs in the Hybrid IP-PBX, the ALARM indicator on the front of the cabinet
turns on red, and the system logs the error information.
Error Log Display Format
Below is the display format of the error log. To see the error log using the KX-TDA Maintenance Console,
refer to the on-line help of the KX-TDA Maintenance Console.
Example: KX-TDA Maintenance Console
Example: Station Message Detail Recording (SMDR)
Description
Item Description
1 Date Date of the error detection
2 Time Time of the error detection
3 Level Major Alarm (MJ ALM):
Errors that affect the whole system operation, or result in system
failure
Minor Alarm (MN ALM):
Errors that affect certain part of system operation
4 Error Code Three-digit error code
124 5 6
3
04/01/01 10:37AM MJ ALM #000 10000 MPR WDT overflow
04/01/01 11:07AM MN ALM #010 10000 AC power down
04/01/01 03:55PM MN ALM #301 10501 Digital trunk RAI reception
12 345 6
4.1 Troubleshooting
174 Installation Manual
5 Sub Code Five-digit sub code (1XXYY)
1: Cabinet number
XX: Slot number
KX-TDA100: 00 to 06 (00: MPR slot; 01 to 05: Free slot; 06: Option
slot)
KX-TDA200: 00 to 11 (00: MPR slot; 01 to 10: Free slot; 11: Option
slot)
YY: Physical port number (01 to 16)
For OPB3 card, sub slot number + port number will be displayed.
Sub slot 1: 11 to 14
Sub slot 2: 21 to 24
Sub slot 3: 31 to 34
Note
When there is no parameter for slot and physical port number, XX
and YY will be displayed as "00".
Example: Sub code for MPR card = 10000
6 Error Message Error description
Item Description
4.1 Troubleshooting
Installation Manual 175
List of Errors and Solutions
The tables below list the errors and their solutions.
When an error whose error code is indicated with "*" occurs in the Hybrid IP-PBX, the ALARM indicator on
the front of the cabinet turns on red, and the system logs the error information.
When the error conditions indicated by the error codes "021", "091", "092", "230", and "510" are recovered,
the ALARM indicator will turn off automatically, indicating successful troubleshooting. When other errors are
logged, the ALARM indicator will turn off only when the log for major or minor errors is cleared from the KX-
TDA Maintenance Console.
In other words, the ALARM indicator will turn off under the following conditions:
•When the errors "021", "091", "092", "230", and "510" are logged: when the error conditions
are recovered
•When other errors are logged: when the log for major or minor errors is cleared from the KX-TDA
Maintenance Console
LPR (Optional Service Card with Local Processor) Initial Self Diagnosis
Error Code Error Message PROBABLE CAUSE SOLUTION
211 Speech path
loop-back check
error
•Optional service card
malfunction: DHLC, DLC,
SLC, CSIF, LCOT, T1, PRI,
OPB3, IP-GW
•See if the corresponding optional
service card is installed properly
•Pull out and re-insert the
corresponding optional service card
•Press the Reset Button
•Replace the corresponding optional
service card
212 Echo canceller
access error
•Optional service card
malfunction: CSIF, ECHO
214 DSP Boot check
error
•Optional service card
malfunction: T1
215 Framer IC access
error
•Optional service card
malfunction: T1, PRI
216 MSG card DSP
error
•Optional service card
malfunction: MSG, OPB3
217 MSG card data
error
•Optional service card
malfunction: MSG, OPB3
•Erroneous recording of
messages
•See if the corresponding optional
service card is installed properly
•Pull out and re-insert the
corresponding optional service card
•Press the Reset Button
•Re-record the messages
•Replace the corresponding optional
service card
4.1 Troubleshooting
176 Installation Manual
System Start-up and On-line Operation
Error Code Error Message PROBABLE CAUSE SOLUTION
000* MPR WDT
overflow
•MPR card malfunction
•Optional service card
malfunction: CTI-LINK
•Erroneous processing of
MPR card software
•Software error due to external
factors
•Press the Reset Button
•Reprogram the Hybrid IP-PBX
•Replace the MPR card (be sure to turn
off the Hybrid IP-PBX when replacing)
001 SDRAM bit error
002 System Reset •Reset Button is pressed
•Power failure
•MPR card malfunction
•Erroneous processing of
MPR card software
•Software error due to external
factors
•Ignore if not frequent
•Press the Reset Button
•Reprogram the Hybrid IP-PBX
•Replace the MPR card (be sure to turn
off the Hybrid IP-PBX when replacing)
010* AC power down •Power supply system
malfunction (e.g., power
failure, power noise, trouble
with UPS)
•Bad connection or breaking of
AC cord
•Power supply circuit (PSU,
back board) malfunction
•Check the power supply system
•See if the AC cord is connected
properly
•Check the AC cord
•Replace the AC cord (be sure to turn
off the Hybrid IP-PBX when replacing)
•Replace the PSU (be sure to turn off
the Hybrid IP-PBX when replacing)
•Replace the back board (be sure to
turn off the Hybrid IP-PBX when
replacing)
011* DC power down •AC power down
•Power supply circuit (PSU,
back board) malfunction
•Detection of over current
(short circuit on optional
service cards)
•Check the power supply system
•See if the AC cord is connected
properly
•Check the AC cord
•Replace the AC cord (be sure to turn
off the Hybrid IP-PBX when replacing)
•Replace the PSU (be sure to turn off
the Hybrid IP-PBX when replacing)
•Replace the back board (be sure to
turn off the Hybrid IP-PBX when
replacing)
•Remove the optional service cards and
restart the Hybrid IP-PBX
012* MPR RAM
battery low
•Battery out
•MPR card malfunction
•Replace the MPR card (be sure to turn
off the Hybrid IP-PBX when replacing)
014* FAN Alarm •PSU-L malfunction •See if anything is jammed in the fan
•Replace the PSU (be sure to turn off
the Hybrid IP-PBX when replacing)
4.1 Troubleshooting
Installation Manual 177
016 CS overload •Defective cable
•CS malfunction
•Optional service card
malfunction: CSIF
•Check the cable diameter and length
•Replace the CS
•Replace the corresponding optional
service card
020* SD file access
error
•SD Memory Card malfunction
•Bad connection of SD
Memory Card
•MPR card malfunction
•Press the Reset Button
•Reprogram the Hybrid IP-PBX
•Replace the SD Memory Card
•Replace the MPR card (be sure to turn
off the Hybrid IP-PBX when replacing)
021* SD Memory Card
disconnected
•SD Memory Card not
installed
•Bad connection of SD
Memory Card
•SD Memory Card malfunction
•MPR card malfunction
022 Not enough free
space on SD card
•Not enough memory space
available to save the system
data, or to upload system files
from the KX-TDA
Maintenance Console
•Delete the files whose file names start
with "$" from SD Memory Card
•Delete the "Pxxx" files (old program
files of optional service cards) from SD
Memory Card. "xxx" indicates the card
type (e.g., "PDHLC" for DHLC card)
Note
Do not delete the "PMPR" file; it is the
program file of the MPR card.
023 System data file
version error
•Old system files on SD
Memory Card
•Defective system files on SD
Memory Card
•Restore the backup files
•Re-install the software
024 System
initialization file
version error
025 Card initialization
file version error
026 LCD file version
error
027 System data file
checksum error
028 System
initialization file
checksum error
029 Card initialization
file checksum
error
030 LCD file
checksum error
Error Code Error Message PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
178 Installation Manual
031* System data file
not found
•SD Memory Card not
installed
•Bad connection of SD
Memory Card
•SD Memory Card malfunction
•MPR card malfunction
•Press the Reset Button
•Reprogram the Hybrid IP-PBX
•Replace the SD Memory Card
•Replace the MPR card (be sure to turn
off the Hybrid IP-PBX when replacing)
032* System
initialization file
not found
033* Card initialization
file not found
034* LCD file not found
035 System data file
access error
036* System
initialization file
access error
037* Card initialization
file access error
038* LCD file access
error
039* SD file access
error
041* Expansion
Memory Card
Failure
090 Over Card
Limitation
•Too many optional service
cards installed
•Reduce the number of optional service
cards
091* PT connection
over
•Too many PTs connected •Reduce the number of PTs
092* CS connection
over
•Too many CSs connected •Reduce the number of CSs
200 LPR start up error
(ROM NG)
•Optional service card
malfunction: DHLC, DLC,
CSIF, T1, PRI, OPB3, CTI-
LINK, IP-GW, SLC8
•Pull out and re-insert the
corresponding optional service card
•Press the Reset Button
•Replace the corresponding optional
service card
201* LPR start up error
(RAM NG)
Error Code Error Message PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
Installation Manual 179
202* LPR start up error
(No Program)
•Optional service card
malfunction: DHLC, DLC,
CSIF, T1, PRI, OPB3, CTI-
LINK, IP-GW, SLC8
•Pull out and re-insert the
corresponding optional service card
•Press the Reset Button
•Update the software of the
corresponding optional service card
•Replace the corresponding optional
service card
203* LPR start up error
(Version NG)
204* LPR start up error
(Download NG)
205* LPR start up error
(No response)
206 LPR start up error
(Card type NG)
207 LPR start up error
(Check SUM NG)
230* Card
disconnected
•Optional service card not
installed properly
•Optional service card
malfunction
•Back board malfunction
•See if the corresponding optional
service card is installed properly
•Pull out and re-insert the
corresponding optional service card
•Press the Reset Button
•Replace the corresponding optional
service card
•Replace the back board (be sure to
turn off the Hybrid IP-PBX when
replacing)
231 LPR alive check
error
•Optional service card
malfunction: DHLC, DLC,
CSIF, T1, PRI, OPB3, CTI-
LINK, IP-GW, SLC8
•Back board malfunction
•MPR card malfunction
•See if the corresponding optional
service card is installed properly
•Pull out and re-insert the
corresponding optional service card
•Press the Reset Button
•Replace the corresponding optional
service card
•Replace the back board (be sure to
turn off the Hybrid IP-PBX when
replacing)
•Replace the MPR card (be sure to turn
off the Hybrid IP-PBX when replacing)
232 MPR-LPR
communication
error
233 LPR data check
error
234 DPLL clock failure
235* CS clock failure •Optional service card
malfunction: CSIF
•Replace the corresponding optional
service card
250* T1 DSP failure •Optional service card
malfunction: T1
•See if the corresponding optional
service card is installed properly
•Replace the corresponding optional
service card
251 MSG DSP failure •Optional service card
malfunction: MSG
Error Code Error Message PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
180 Installation Manual
300* Digital trunk out of
synchronization
•Network (digital CO line)
malfunction
•Optional service card
malfunction: PRI, T1
•Wrong A/B switch setting:
PRI, T1
•Check the signals from the network
•Check the cable
•See if the A/B switch is set to A on the
corresponding optional service card
•See if the corresponding optional
service card is installed properly
•Replace the corresponding optional
service card
301* Digital trunk RAI
reception
302* Digital trunk AIS
reception
303* Multiframe out of
synchronization
304* Frame error
305* Data Link failure •Data link between the CS and
CSIF card or DHLC/DLC card
failed
•Data link between the
network and PRI card failed
•Data link between the
network and IP-GW card
failed
•Check the connection between the CS
and CSIF card or DHLC/DLC card
•Check the connection between the
network and PRI card
•Check the connection between the
network and IP-GW card
307 LAN No Carrier •IP-GW card not connected to
the LAN
•Check the connection between the
LAN and IP-GW card
308 IP-GW LAN Loop
back Error
•Detection of IP-GW LAN
Loop back Test error
•Replace the corresponding optional
service card
•Collect the log data of IP-GW (refer to
the documentation for the IP-GW card)
309 IP-GW Core Data
Link Error
•Detection of IP-GW Core data
Link error
•Press the Reset Button
•Collect the log data of IP-GW (refer to
the documentation for the IP-GW card)
310* Port Link Failure •Voice Processing System
malfunction
•Ports defective on optional
service card: DHLC, DLC
•Check the Voice Processing System
•See if the corresponding optional
service card is installed properly
•Replace the corresponding optional
service card
320 IP-GW H.323
Dummy Call Test
Error
•Detection of IP-GW H.323
Dummy Call Test error
•Replace the corresponding optional
service card
•Collect the log data of IP-GW (refer to
the documentation for the IP-GW card)
321 IP-GW
Gatekeeper Error
•Detection of Gatekeeper
access error
•Check the IP address setting of the
Gatekeeper
•Check whether the Gatekeeper is
connected to the network and work
properly
•Check the route to the Gatekeeper
322 IP-GW
Gatekeeper
Registration Error
•Gatekeeper Registration is
failed
•Check the Gatekeeper setting
Error Code Error Message PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
Installation Manual 181
323 IP-GW SDRAM
Failure
•Detection of IP-GW SDRAM
error
•Replace the corresponding optional
service card
324 IP-GW DPRAM
Failure
•Detection of IP-GW DPRAM
error
•Replace the corresponding optional
service card
325 IP-GW LAN Chip
Failure
•Detection of IP-GW LAN Chip
failure
•Replace the corresponding optional
service card
•Collect the log data of IP-GW (refer to
the documentation for the IP-GW card)
326 IP-GW Stop •IP-GW is stopped from a
remote maintenance PC
•This information is logged when IP-GW
is stopped from a remote maintenance
PC
350 IP-unit SDRAM
bit error
•Optional service card
malfunction: IP-EXT
•The IP-EXT card will be rebooted
automatically if the error is temporary
•Replace the corresponding IP-EXT
card if the card is not started up
correctly
351 IP-unit download
data check-sum
error
352 IP-unit DSP
failure
•Optional service card
malfunction: IP-EXT
•Replace the corresponding optional
service card
353 IP-PT DSP failure •IP-PT malfunction •The IP-PT will be rebooted
automatically if the error is temporary
•Replace the corresponding IP-PT if the
IP-PT is not started up correctly
355 IP-unit alive check
error
•Optional service card
malfunction: IP-EXT
•The IP-EXT card will be rebooted
automatically if the error is temporary
•Replace the corresponding IP-EXT
card if the card is not started up
correctly
356 IP/TEL-unit
communication
error
357 IP-unit FLASH
access error
•Optional service card
malfunction: IP-EXT
•Replace the corresponding optional
service card
358 IP-unit boot error
359 IP-unit DSP
failure (boot
diagnosis)
360 IP-PT SUB-CPU
failure
•IP-PT malfunction •The IP-PT will be rebooted
automatically if the error is temporary
•Replace the corresponding IP-PT if the
IP-PT is not started up correctly
361 IP-PT DHCP
server no
response
•DHCP server is not active
•Network malfunction
•Consult your network administrator
Error Code Error Message PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
182 Installation Manual
362 IP-PT Rebooted
(cause DHCP
server)
•DHCP server is not active
•Network malfunction
•Network configuration has
been changed
•Consult your network administrator
370 IP-GW Rebooted
by Maintenance
Console
•IP-GW is rebooted from a
remote maintenance PC
•This information is logged when IP-GW
is rebooted from a remote
maintenance PC
371 IP-GW Rebooted •Optional service card
malfunction: IP-GW
•Check whether the software version of
the IP-GW card is correct
•Replace the corresponding optional
service card
372 NDSS message
over IPGW
notification -
caused by IPGW
Tx resource
limitation
•Optional service card
malfunction: IP-GW
•Ignore if not frequent
•Change the IP-GW card status to Out
of Service, and then back to In Service
373 NDSS message
over IPGW
notification -
caused by IPGW
Rx resource
limitation
374 NDSS message
over IPGW
notification -
caused by
shortage of IPGW
resource
375 NDSS message
over IPGW
notification -
caused by
Network side
•Network malfunction •Ignore if not frequent
•Consult your network administrator
390 Digital signal
synchronization
established
•Synchronization of digital line
established or restored
•This information is logged when
synchronization of digital line is
established, and does not indicate an
error condition that needs to be solved
Error Code Error Message PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
Installation Manual 183
391 Data Link
established
•Connection with PC Phone/
PC Console or Voice
Processing System (DPT
Integration) established or
restored
•This information is logged when
connection with PC Phone/PC
Console or Voice Processing System
(DPT Integration) is established, and
does not indicate an error condition
that needs to be solved.
However, if this is logged frequently
(with "305 Data Link failure"), check the
connection as it may not be done
properly.
392 Clock master card
selected
•Clock master card has been
changed to the one indicated
by the sub code
•Check if the proper card is selected as
the new clock master card
393 LAN Carrier
detected
•IP-GW card connected to the
LAN
•This information is logged when
synchronization of LAN is established
394 IP-GW Core Data
Link established
•IP-GW Core Data Link
established
•This information is logged when IP-GW
Core Data Link is recovered
395 IP-GW
Gatekeeper Error
Cleared
•Connection to the
Gatekeeper is recovered
•This information is logged when
connection to the Gatekeeper is
recovered
396 IP-GW Run •IP-GW is started from a
remote maintenance PC
•This information is logged when IP-GW
is started from a remote maintenance
PC
510* SMDR disconnect •RS-232C cable not
connected
•Breaking of RS-232C cable
•Printer (terminal equipment)
malfunction
•Check the RS-232C cable
•Check the terminal equipment
Error Code Error Message PROBABLE CAUSE SOLUTION
4.1 Troubleshooting
184 Installation Manual
Installation Manual 185
Section 5
Appendix
5.1 Revision History
186 Installation Manual
5.1 Revision History
5.1.1 Version 1.1
New Options
•System Components Table
New Contents
•2.7.3 Digital EXtra Device Port (Digital XDP) Connection
Changed Contents
•1.4.3 System Capacity
•KX-TDA0105 Memory Expansion Card (MEC)
•KX-TDA0484 4-Channel VoIP Gateway Card (IP-GW4E)
•KX-TDA0143 4 Cell Station Interface Card (CSIF4)
•KX-T0141 2-Channel Cell Station Unit Using DHLC/DLC Card (PT-interface CS) for 2.4
GHz Portable Station
5.1 Revision History
Installation Manual 187
5.1.2 Version 2.0
New Options
•System Components Table
Changed Contents
•1.4.3 System Capacity
•2.9.1 Connection of Doorphones, Door Openers, External Sensors, and External Relays
•KX-TDA0490 16-Channel VoIP Gateway Card (IP-GW16)
•KX-TDA0470 16-Channel VoIP Extension Card (IP-EXT16)
•KX-TDA0164 4-Port External Input/Output Card (EIO4)
•KX-TDA0168 Extension Caller ID Card (EXT-CID)
•KX-TDA0920 SD Memory Card for Software Upgrade to Enhanced Version
5.1 Revision History
188 Installation Manual
Installation Manual 189
Index
Index
190 Installation Manual
Numerics
16-Channel Echo Canceller Card (KX-TDA0166)
23
,
108
16-Channel VoIP Extension Card (KX-TDA0470)
24
,
100
16-Channel VoIP Gateway Card (KX-TDA0490)
24
,
83
16-Port Analog Trunk Card (KX-TDA0181)
23
,
72
16-Port Digital Extension Card (KX-TDA0172)
23
,
93
16-Port Single Line Telephone Extension Card (KX-TDA0174)
23
,
98
16-Port Single Line Telephone Extension with Message Lamp Card (KX-
TDA0175)
23
,
98
4 Cell Station Interface Card (KX-TDA0143)
23
,
85
4-Channel Message Card (KX-TDA0191)
24
,
109
4-Channel VoIP Gateway Card (KX-TDA0480)
24
,
79
4-Channel VoIP Gateway Card (KX-TDA0484)
24
,
81
4-Port Doorphone Card (KX-TDA0161)
23
,
103
4-Port External Input/Output Card (KX-TDA0164)
23
,
105
8 Cell Station Interface Card (KX-TDA0144)
23
,
85
8-Port Analog Trunk Card (KX-TDA0180)
23
,
72
8-Port Caller ID Card (KX-TDA0193)
24
,
74
8-Port Digital Extension Card (KX-TDA0171)
23
,
91
8-Port Digital Hybrid Extension Card (KX-TDA0170)
23
,
88
8-Port Single Line Telephone Extension Card (KX-TDA0173)
23
,
95
A
About the Other Manuals
10
After Site Survey
133
Amphenol Connector Pin Assignment Chart
57
Appendix
185
Attaching a Ferrite Core
54
B
Basic Shelf
20
Basic System Construction
20
Before Installation
36
Before Site Survey
127
Built-in Small Call Center Features
18
C
Calculation Example (KX-TDA100)
31
Calculation Example (KX-TDA200)
32
Cards Installed in the Slots of the Hybrid IP-PBX
28
Cards Mounted on Other Optional Service Cards
30
Changed Contents
186
,
187
Characteristics
27
CID8 Card
74
Computer Telephony Integration (CTI) Features
18
Confirming the CO Line Connection
155
Connecting a Cell Station to the Hybrid IP-PBX
134
Connection
159
,
168
Connection Diagram for External Sensor
107
Connection of 2.4 GHz Portable Stations
119
Connection of Doorphones, Door Openers, External Sensors, and External
Relays
144
Connection of Extensions
112
Connection of Peripherals
147
Construction of Basic Shelf
20
Covering the Blank Slots
49
CSIF4 and CSIF8 Card
85
CTI Link Card (KX-TDA0410)
24
,
110
CTI—First Party Call Control
118
CTI-LINK Card
110
CTI—Third Party Call Control
110
,
150
D
DHLC8 Card
88
Digital EXtra Device Port (Digital XDP) Connection
116
Digital XDP
116
DLC16 Card
93
DLC8 Card
91
Door Opener
103
,
144
Doorphone
103
,
144
DPH4 Card
103
E
ECHO16 Card
108
Editing the CS Name using the KX-TDA Maintenance Console
86
EIO4 Card
105
EXT-CID Card
97
Extension Caller ID Card (KX-TDA0168)
23
,
97
External Relay
105
,
144
External Sensor
105
,
144
EXtra Device Port (XDP) Mode
114
,
116
F
Fastening Amphenol Type Connector
56
First Party Call Control CTI Connection
118
Floor Standing (KX-TDA200 Only)
62
Frame Ground Connection
46
G
General Description
25
Guide for the KX-TDA Maintenance Console
157
H
Handling of the Cables
50
Hospitality Features
19
I
Installation
35
Installation of the CO Line Cards
72
Installation of the Extension Cards
85
Installation of the Hybrid IP-PBX
38
Installation of the KX-TDA Maintenance Console
161
Installation of the Main Processing Card
68
Installation of the Other Cards
102
Installation Precautions
36
Installing and Starting the KX-TDA Maintenance Console
161
Installing the KX-TDA Maintenance Console
161
Installing/Removing the Optional Service Cards
47
Installing/Replacing the Power Supply Unit
42
IP-EXT16 Card
100
IP-GW16 Card
83
IP-GW4 Card
79
IP-GW4E Card
81
Index
Installation Manual 191
K
KX-TDA0103 (L-Type Power Supply Unit)
24
,
42
KX-TDA0104 (M-Type Power Supply Unit)
24
,
42
KX-TDA0105 (Memory Expansion Card)
23
,
70
KX-TDA0108 (S-Type Power Supply Unit)
24
,
42
KX-TDA0143 (4 Cell Station Interface Card)
23
,
85
KX-TDA0144 (8 Cell Station Interface Card)
23
,
85
KX-TDA0161 (4-Port Doorphone Card)
23
,
103
KX-TDA0164 (4-Port External Input/Output Card)
23
,
105
KX-TDA0166 (16-Channel Echo Canceller Card)
23
,
108
KX-TDA0168 (Extension Caller ID Card)
23
,
97
KX-TDA0170 (8-Port Digital Hybrid Extension Card)
23
,
88
KX-TDA0171 (8-Port Digital Extension Card)
23
,
91
KX-TDA0172 (16-Port Digital Extension Card)
23
,
93
KX-TDA0173 (8-Port Single Line Telephone Extension Card)
23
,
95
KX-TDA0174 (16-Port Single Line Telephone Extension Card)
23
,
98
KX-TDA0175 (16-Port Single Line Telephone Extension with Message Lamp
Card)
23
,
98
KX-TDA0180 (8-Port Analog Trunk Card)
23
,
72
KX-TDA0181 (16-Port Analog Trunk Card)
23
,
72
KX-TDA0187 (T-1 Trunk Card)
23
,
75
KX-TDA0190 (Optional 3-Slot Base Card)
24
,
102
KX-TDA0191 (4-Channel Message Card)
24
,
109
KX-TDA0193 (8-Port Caller ID Card)
24
,
74
KX-TDA0196 (Remote Card)
24
,
71
KX-TDA0290 (PRI Card [PRI23])
24
,
77
KX-TDA0410 (CTI Link Card)
24
,
110
KX-TDA0470 (16-Channel VoIP Extension Card)
24
,
100
KX-TDA0480 (4-Channel VoIP Gateway Card)
24
,
79
KX-TDA0484 (4-Channel VoIP Gateway Card)
24
,
81
KX-TDA0490 (16-Channel VoIP Gateway Card)
24
,
83
KX-TDA0920 (SD Memory Card for Software Upgrade to Enhanced
Version)
24
,
68
L
LCOT8 and LCOT16 Cards
72
L-Type Power Supply Unit (KX-TDA0103)
24
,
42
M
Maximum Cabling Distances of the Extension Wiring (Twisted Cable)
112
Maximum Terminal Equipment
30
MEC Card
70
MEC Card Calculation
31
Memory Expansion Card (KX-TDA0105)
23
,
70
MPR Card
68
MSG4 Card
109
M-Type Power Supply Unit (KX-TDA0104)
24
,
42
N
Names and Locations
39
Networking Features
18
New Contents
186
New Options
186
,
187
O
OPB3 Card
102
Opening/Closing the Front Cover
40
Operation
170
Optional 3-Slot Base Card (KX-TDA0190)
24
,
102
Options
23
Overview
119
,
158
P
Parallel Connection of the Extensions
114
Parallel Mode
114
,
116
Paralleled Telephone Features
19
Password Security
8
Portable Station (PS) Features
19
Power Failure Connections
151
Power Supply Unit Selection
32
PRI Card (PRI23) (KX-TDA0290)
24
,
77
PRI23 Card
77
Procedure Overview
121
R
Remote Card (KX-TDA0196)
24
,
71
Revision History
186
RMT Card
71
S
Safety Installation Instructions
36
Safety Instructions
42
SAFETY REQUIREMENTS
4
SD Memory Card
68
SD Memory Card for Software Upgrade to Enhanced Version
24
,
68
Site Planning
123
Site Survey
129
SLC16 and MSLC16 Cards
98
SLC8 Card
95
Specifications
25
Starting the Hybrid IP-PBX
153
Starting the KX-TDA Maintenance Console and Assigning the Basic Items
(Quick Setup)
162
S-Type Power Supply Unit (KX-TDA0108)
24
,
42
Surge Protector Installation
65
System Capacity
28
System Components Table
2
System Connection Diagram
21
System Highlights
18
System Outline
17
T
T1 Card
75
T-1 Trunk Card (KX-TDA0187)
23
,
75
The Structure of this Manual
10
Troubleshooting
165
,
166
Troubleshooting by Error Log
173
Types of Connectors
52
U
Unpacking
38
Using a CSIF Card
134
Using a DHLC/DLC Card
135
Using a Modular T-Adaptor
114
,
116
Using an EXtra Device Port
115
Index
192 Installation Manual
Using the Reset Button
172
V
Version 1.1
186
Version 2.0
187
Voice Mail Features
19
W
Wall Mounting (CS)
142
Wall Mounting (KX-TDA100)
60
Wall Mounting (KX-TDA200)
58
Wiring Precautions
36
Index
Installation Manual 193
Panasonic Consumer Electronics Company
Division of Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Panasonic Puerto Rico, Inc.
Ave. 65 de Infantería, Km. 9.5
San Gabriel Industrial Park
Carolina, Puerto Rico 00985
http://www.panasonic.com/csd
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal
use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic
Communications Co., Ltd.
© 2003 Panasonic Communications Co., Ltd. All Rights Reserved.
PSQX2228XA KK0703AH2015

Navigation menu
