105

Kaba Simplex

1000 Series Knob Pushbutton Locks

This series is ideal for limiting access in high-traﬃc areas. Two access control functions are available in

addition to standard combination access control:

• Key Override: Allows a facility to maintain or initiate a keyed-alike security system with the same key

system already in use. The key is normally only in the hands of security or management personnel and

will override the lock’s combination to gain entry.

• Passage Feature: Allows access without using the entry code (keeps the door unlocked even while closed).

This function is on the inside of the door, and can be activated by either a thumbturn or a key (Thumb-

turn and key included with all passage feature models).

SPECIFICATIONS:

• Heavy duty cylindrical lock housing conforms to ANSI 156.2 Grade 1 & DOD 5220.22M.

• Door thickness: 1-3/8" to 2-1/4".

• Handing: all 1000 Series locksets are factory prepared for left hand doors. Hand is ﬁeld reversible.

• Minimum stile required for mounting: 5" (127mm).

• Dimensions: front housing - 7-3/8"L x 3-1/8"W x 3-13/16"D.

• Latch/Backset: UL/ULC 3-hour rated 1/2" (16mm) throw latch bolt with 2-3/4" backset and ﬂoating face-

plate.

1031 & 1041

Thumbturn or Key Oper-

ated Passage Adapter

EE1011/EE1011

Combination entry both sides

Combination Entry Only

Mfg # Function Finish EZ #

1011 03 41 Standard Polished Brass 064122

1011 26D 41 Standard Satin Chrome 013258

EE1011/EE1011 26D 41 Combination Both Sides Satin Chrome 037150

1031 26D 41 With Passage Satin Chrome 013267

Combination Entry with Key Override (Cores not Included)

(All Stocked in Satin Chrome)

Mfg # Core Type Function EZ #

1021B 26D 41 Best TypeL Key Override 013265

1021C 26D 41 Corbin Key Override 030290

1021M 26D 41 Medeco/Assa/Yale Key Override 027603

1021R 26D 41 Sargent Key Override 028244

1021S 26D 41 Schlage Key Override 013263

1041S26D41 Schlage Key Override with Passage 071922 1021

1011

ORDERING INFORMATION

Key override models accept removable core cylinders. Removable core cylinders not supplied with lock.

Model Description Product # Key Override

1011 Exterior access by

combination. Egress

by interior knob.

1011-*-41 N/A

1021 Exterior access by

combination or key

override. Egress by

interior knob.

1021B-*-41

1021C-*-41

1021M-*-41

1021R-*-41

1021S-*-41

Best & Compatible

Corbin/Russwin

Medeco/Yale

Sargent

Schlage

Model Description Product # Key Override

1031 Exterior access by combination

or passage feature.Interior has

passage feature (thumbturn &

key). Egress by interior knob.

1031-*-41 N/A

1041 Exterior access by key combina-

tion, key override, or passage

feature. Interior has passage fea-

ture. (thumbturn & key) Egress

by interior knob.

1021S-*-41 Schlage

* Substitute the -*- with one of the following ﬁnishes; 03-Polished Brass, 26D-Satin chrome

106

Kaba Simplex

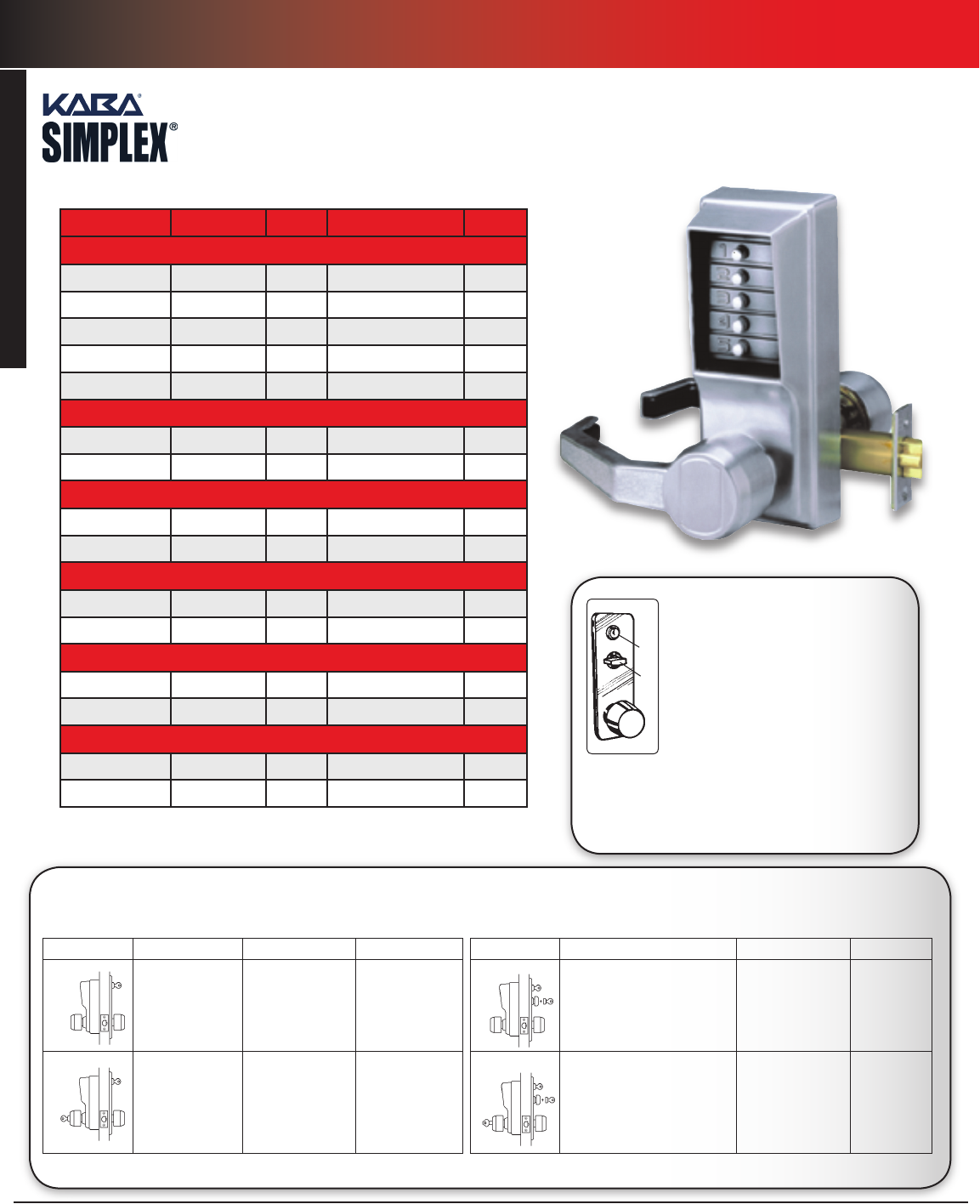

Kaba Simplex L1000 Series Lever Pushbutton

• Designed for high frequency use, wherever limited access is re-

quired.

• Complies with handicapped and ﬁre codes.

• Easy installation: new inside trim plate adds to the ease of instal-

lation and aesthetic appeal.

• One Hand Operation: Depress the correct buttons in the proper

sequence and push the lever downwards to retract the ﬁre-rated,

UL listed deadlocking latch.

Passage Set Option

The key cylinder (A) shown is the standard

control for changing combinations on the

Unican Series 1000 & L1000. The optional

passage set (B) shown below the key

cylinder, allows the lock to be opened

without using the push-button combina-

tion. This is valuable when a door is to be

left unlocked for extended periods. The

optional passage set comes ordered with

a thumbturn activator, as shown, or with

a key cylinder activator.

Mfg # Finish Hand Function EZ #

Standard Lever Access Control

LL1011 03 41 Polished Brass Left Standard 064124

LL1011 26D41 Satin Chrome Left Standard 013228

LR1011 26D41 Satin Chrome Right Standard 013229

LL1031 26D Satin Chrome Left Passage 069024

LR1031 26D Satin Chrome Right Passage 069025

Best Interchangeable Core Key Override

LL1021B26D Satin Chrome Left Key Override 013234

LR1021B26D Satin Chrome Right Key Override 013235

Corbin Interchangeable CoreKey Override

LL1021C26D41 Satin Chrome Left Key Override 029405

LR1021C26D41 Satin Chrome Right Key Override 029406

Medeco/Assa/Yale Interchangeable Core Key Override

LL1021M26D41 Satin Chrome Left Key Override 046296

LR1021M26D41 Satin Chrome Right Key Override 046297

Sargent Interchangeable Core Key Override

LL1021R26D41 Satin Chrome Left Key Override 029528

LR1021R26D41 Satin Chrome Right Key Override 064274

Schlage Interchangeable Core Override

LL1021S26D Satin Chrome Left Key Override 013230

LR1021S26D Satin Chrome Right Key Override 013231

ORDERING INFORMATION

Key override models accept removable core cylinders. Removable core cylinders not supplied with lock.

Model Description Product No. Key Override

L1011 Exterior access

by combination.

Egress by interior

lever.

(LR/LL)1011-*-41 N/A

L1021 Exterior access by

combination or key

override. Egress by

interior lever.

(LR/LL)1021B-*-41

(LR/LL)1021C-*-41

(LR/LL)1021M-*-41

(LR/LL)1021R-*-41

(LR/LL)1021S-*-41

Best & Compatible

Corbin/Russwin

Medeco/Yale

Sargent

Schlage

Model Description Product # Key Override

L1031 Exterior access by combination

or passage feature. Interior has

passage feature (thumbturn &

key). Egress by interior lever.

(LR/LL)1031-*-41 N/A

L1041 Exterior access by key com-

bination, key override, or

passage feature. Interior has

passage feature. (thumbturn

& key) Egress by interior lever.

(LR/LL)1021M-*-41 Medeco

&Yale

* Substitute the -*- with one of the following ﬁnishes; 03-Polished Brass, 26D-Satin Chrome

LL1011 26D41

107

Kaba Simplex

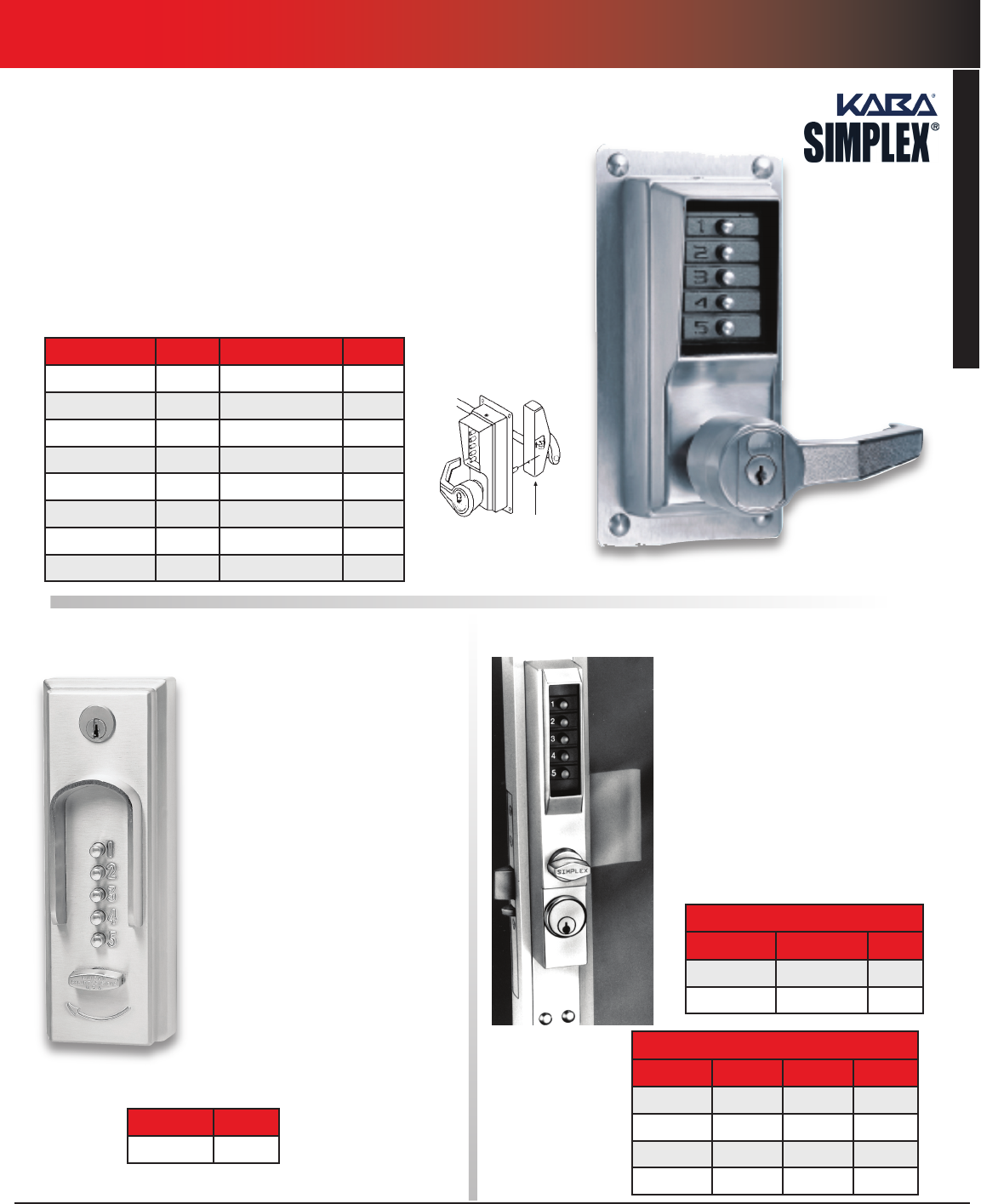

Exit Device & Narrow Stile

LP1000 Series Push Button Lever Exit Device Control

• Replaces key cylinder on new or existing sur-

face mounted exit devices.

• Can be used with a variety of manufacturer’s

rim mounted exit devices (See Kaba web

site).

• Exit device not included with unit.

• 2-3/4" long tailpiece to operate exit device

from the outside.

• Installation may require recessing LP1000

thru-bolts.

• Up to 60° hub rotation, counterclockwise for

left hand and clockwise for right hand

• Exit device may be “dogged”.

• Door thickness: 1-3/8" to 2-1/4"

• Front housing: 7-1/2" x 3-1/8"

• All stocked in Satin Chrome.

• Designed to operate surface-mounted exit

devices from the outside.

• Replaces the key cylinder on a new or exist-

ing exit device.

• Exit device and handle not included.

• Key is used for access to change combination

only.

• Door thickness: 1-3/8" to 2-1/2".

• Minimum backset required: 1-9/16".

• Dimensions: 8-3/4" x 3-1/8".

• 2-3/4" long tailpiece to operate surface

mounted exit devices from the outside.

• Exit device can have up to 90° clockwise rota-

tion.

• Cannot be used with surface-mounted Exit

Devices with counterclockwise rotating

hubs, with thumb-operated Mortise design

Exit Devices, or most vertical rod Exit Devices

devices.

2015 Exit Device Control

Mfg # EZ #

2015 26D41 013278

Mfg # Hand Core Type EZ #

LLP1010 26D41 LH None 075801

LRP1010 26D41 RH None 075802

LLP1020B26D41 LH Best 013226

LRP1020B26D41 RH Best 029111

LLP1020M26D41 LH Medeco/Assa/Yale 067568

LRP1020M26D41 RH Medeco/Assa/Yale 071969

LLP1020S26D41 LH Schlage 067032

LRP1020S26D41 RH Schlage 067028 LRP1010 26D41

Lock Housing

Mfg # Finish EZ #

3002 55 41 Duronodic 037160

3002 26D 41 Satin Chrome 037159

Operates with Adams Rite 4500 and 4900 series

latches. As a true Day/Night control, the Series

3000 integrates with the existing key cylinder.

The Series 3000 consists of a lock housing and

one of four drive assemblies (sold separately).

• Allows key bypass for management.

• Latch hold-back function allows pedestrian en-

try as required.

• Combination code can be locked out preventing

all entry except by key.

• Supplied with cylinder guard.

3000 SeriesNarrow Stile

Drive Assemblies

Mfg # Hand Backset EZ #

3010 19 41 RH/RHRB 31/32" 013295

3020 19 41 LH/LHRB 31/32" 013298

3030 19 41 RH/RHRB 1-1/8" 013301

3040 19 41 LH/LHRB 1-1/8" 013304

Right Hand

Reverse

Shown

108

Kaba Simplex

Mfg # Keyway EZ #

5021XK WL26D41 Kaba 90 076741

5021XS WL26D41 Schlage SC1 084225

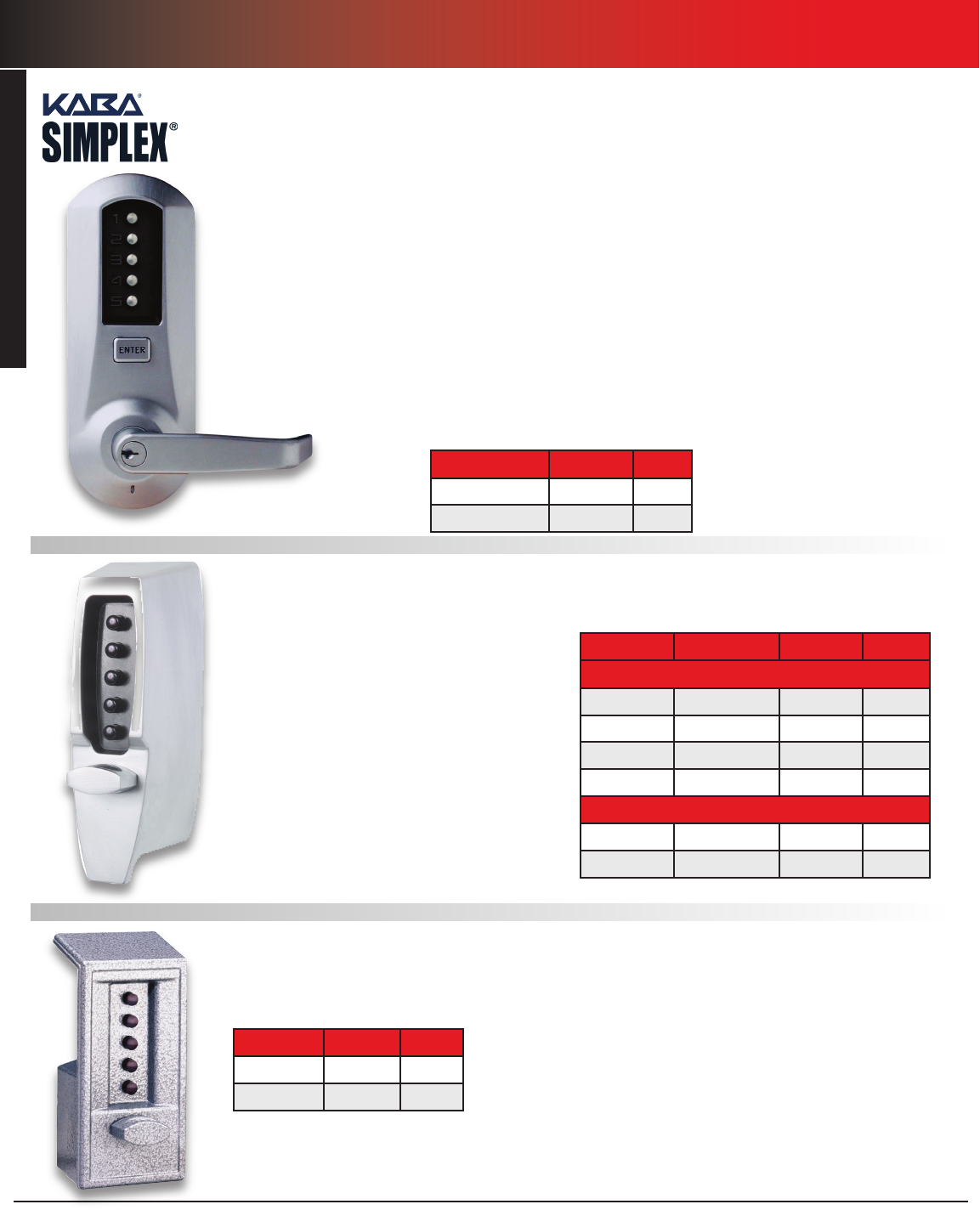

The 5000 series lock provides fully

mechanical pushbutton access con-

trol without any wiring, electronics

or batteries. Exterior access is by

combination. Egress is by interior

lever and is free at all times. Lock is

Handicap compliant. The 5000 is

ideal for controlling access to high

traﬃc, security sensitive areas in a

commercial, industrial, educational,

governmental, lodging, and multi

unit residential setting. Perfect for

locations with a high user turnover

rate such as data processing centers,

employee entrances, R&D labs, apart-

ments, dormitories, and restricted

areas in hospitals and airports.

Features

• Keyless Convenience; thousands of

possible combinations

• Non-handed lever: for both left and

right hand applications.

• One handed operation. Short lever

travel distance with an ergonomi-

cally correct design. Latch retracts

when lever is turned in either di-

rection

• Mechanical key override: Allows

facility to maintain existing key-

ing system, cylinder included.

Tailpieces included for compatibil-

ity with Abloy 5277, Abloy 5477,

Arrow C 100, ASSA 65611, ASSA

65691, Kaba Ilco 15995, Kaba Ilco

15395, LSDA C500, Marks, Medeco

20W200H1, Sargent 10 Line,

Schlage 23-001, Schlage Primus

20-760, & others

• Direct drive design results in fewer

moving internal parts

• Door Thickness: 1-3/8” to 2-1/4”.

Preset for 1-5/8” to 2”

• Stocked in Satin Chrome

5000 Series Extra Heavy Duty Pushbutton Lock

Mfg # Finish Backset EZ #

Deadbolt

7102 03 41 Polished Brass 2-3/4” 085075

7102 26D 41 Satin Chrome 2-3/4” 085076

7108 03 41 Polished Brass 2-3/8 085079

7108 26D 41 Satin Chrome 2-3/8 085080

Deadlatch

7104 03 41 Polished Brass Adjustable 085077

7104 26D 41 Satin Chrome Adjustable 085078

7100 Series Auxiliary Locks

• Compact, stylish, secure.

• Convenient auxiliary lock protection for both residential

and commercial applications.

• New 7100 series now cover 2-1/8” holes

• For doors 1-3/8 to 2-1/4”.

MODEL 7102 & 7108

1" Tubular Deadbolt

• Saw-resistant hardened steel insert.

• Ideal for front and rear residential/commercial doors.

MODEL 7104

1/2" Deadlocking Latch

• Automatically relocks each time door closes.

• Perfect for storage areas, oﬃces, etc.

Mfg # Finish EZ #

6204 60 41 Gold 073808

6204 86 41 Grey 074195

6204 Series Latch Locks

• All metal construction; cast front housing; cast or wrought brass knobs.

• Front housing: 5-7/8”L x 2-3/4”W x 2-9/16”D.

• Door thickness: 1-3/8” to 2-1/4”

• Backset: 2 3/4”

• ASA 160 & 161 door preparation.

• Textured powder coat ﬁnishes provide increased weather resistance.

5000, 7100, & 6204 Pushbutton Locks

109

Kaba Simplex

Mfg # Type Finish Backset EZ #

LD451 3 5 03 41 Knob Polished Brass 2-3/8” 091459

LD451 3 5 32D41 Knob Satin Stainless 2-3/8” 091458

LD452 3 5 03 41 Knob Polished Brass 2-3/4” 091462

LD452 3 5 32D41 Knob Satin Stainless 2-3/4” 091461

LD471 4 8 03 41 Lever Polished Brass 2-3/8” 091465

LD471 4 8 32D41 Lever Satin Stainless 2-3/8” 091464

LD472 4 8 03 41 Lever Polished Brass 2-3/4” 091468

LD472 4 8 32D41 Lever Satin Stainless 2-3/4” 091467

LD450 & LD470 Series Residential Latch Locks

LD451 & LD452 LD471 & LD472

• Cost eﬀective access control solution for

a single code

• Constructed with a solid cast housing

with cast knob or lever.

• Minimum stile required is 3-1/2”

• Supplied with 1/2” latch

• Lever is easily reversed in the ﬁeld from

supplied RH to LH

• Vandal resistant metal push buttons

Mfg # Type EZ #

9040000 26D41 Deadlock with 1” Bolt 013272

9190000 26D41 Deadlocking Spring Latch 013276

904 Deadlock

Stocked in Satin Chrome

• For wood or metal doors

• Non handed

• Wear-tested for equivalent of 30

years of intensive use.

• Dimensions: 4"W x 5"H

• For doors 1-3/4 to 2-1/8”

• Stocked in Satin Chrome

Rim Mounted Deadlock & Deadlatch

Mfg # Finish EZ #

C9602 26D 41 Satin Chrome 037163

C9602 Latch Mechanism

9602 Cabinet Lock

Pushbutton cabinet locks oﬀer convenience, security and safety for a va-

riety of applications including, but not limited to cabinets, lockers, desk

drawers, gun safes, wall safes, liquor cabinets, tool boxes and anywhere

a cam lock is used.

• For wood doors.

• For 5/8” to 7/8” door thickness.

• For cabinet doors, desk drawers, and many other uses.

• End-throw spring latch with automatic re-lock

• Supplied with Elbow catch

Residential, Rim, & Cabinet Locks

110

Kaba Simplex

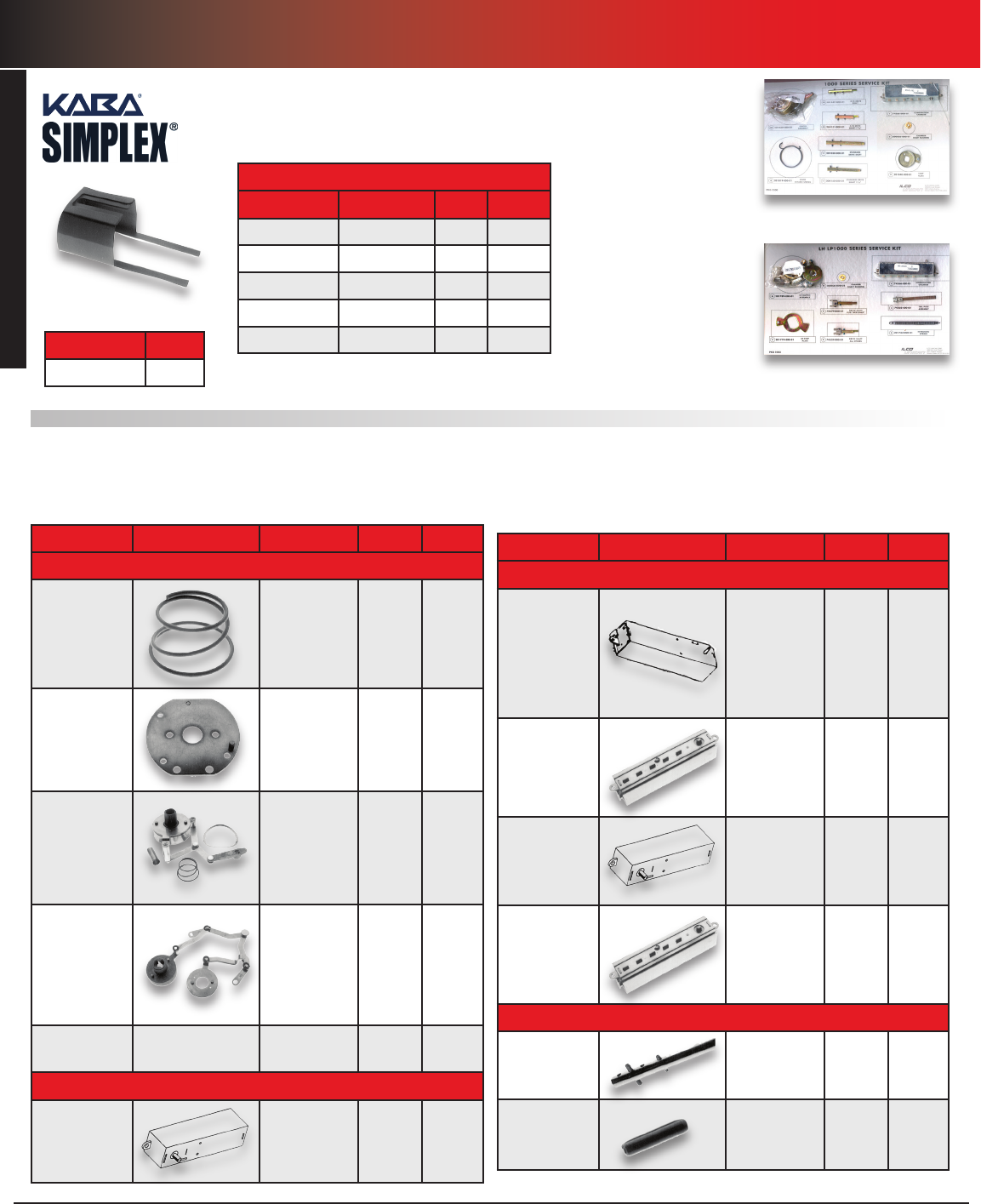

Kaba Simplex Service Parts & Spy Shield

Mfg # EZ #

201600 19 41 037156

These repair kits have almost

everything you need to

completely repair a Unican

mechanical lockset in the

ﬁeld, including chamber,

springs, and other parts.

Service Repair Kits & Spy Shield

Service Kits

Mfg # Series Hand EZ #

203035 000 01 1000 Knobs N/A 075500

203037 000 01 L1000 Levers RH 075501

203038 000 01 L1000 Levers LH 075502

203039 000 01 LP1000 Levers RH 075503

203040 000 01 LP1000 Levers LH 075504

L1000 Series

1000 Series

For 1000 & EE1000 Units

Mfg # Illustration Description Series EZ #

Clutch Assemblies & Parts

201016 000 01 Clutch Balance

& Double Wave

Spring (Not

Shown)

1000,

EE1000

037174

201304 045 01 Clutch Backing

Plate

1000 037193

201430 000 01 Clutch

Assembly

1000 not

EE1000

013285

201788 000 01 Clutch

Assembly

L1000

050153

201789 000 01 As Above Clutch

Assembly

L1000

046318

Combination Chambers

74660 000 01 Chamber 7000,

7100

037232

Mfg # Illustration Description Series EZ #

Combination Chambers (Continued)

74241 000 01 Chamber

includes lock in

plate, stop arm,

control shaft

sleev, drive hub,

& set screws

2015 061872

74366 000 01 Chamber 1000,

L1000,

EE1000,

3000

013310

74459 000 01 Chamber

includes stop

arm & sleeve

control shaft

2000 037207

74832 000 01 Chamber 5000 084666

Drive & Shaft Assemblies

201050 045 01 Inside Shaft

Assembly (Not

Override)

1000 037179

201436 000 10 Cross Pin Shaft

(Obsolete)

037210

Pushbutton Service Parts

111

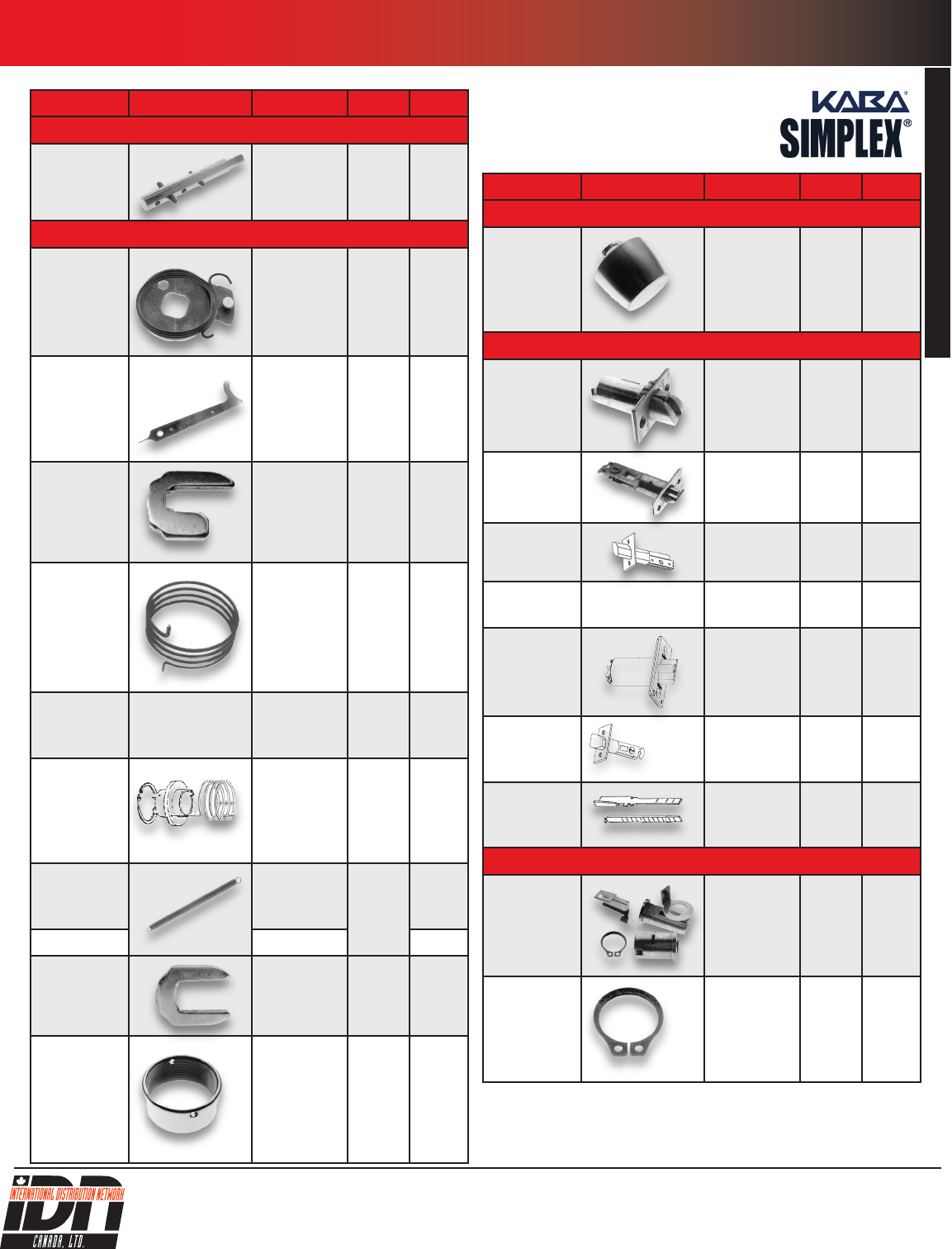

Kaba Simplex

Service Parts

Mfg # Illustration Description Series EZ #

Drive & Shaft Assemblies (Continued)

201547 045 01 Key Override

Shaft Assembly

1000 037183

Knob/Lever & Parts

20104000001 Outisde Knob

Return Spring

& Stop Plate

Assembly

1000 090922

201278 018 01 Installation

Spanner

Wrench with

DF59 Change

Key

1000,

L1000,

3000,

6200,

037187

201343 045 15 Front Knob &

Lever Retainer

Clip

1000,

L1000

037196

201730 000 01 Inside Lever

Coil Return

Spring

LR1000

(Right

Hand)

013289

201732 000 01 As Above Inside Lever

Coil Return

Spring

LL1000

(Left

Hand)

013290

201733 000 01 Inside Lever

Fixed Sleeve,

Includes Re-

turn Spring &

Retainer Clip

LL1000

(Left

Hand)

090357

201773 000 01 RH Outside

Lever Return

Spring

L1000 087369

201774 000 01 LH Version 087370

74 1 Inside Knob

Retainer Clip

1000,

L1000,

6200

077884

204169 26D 01 Inside Knob

Threaded Ring

1000,

L1000,

6200

037188

Mfg # Illustration Description Series EZ #

Knob/Lever & Parts (Continued)

34264 26D 01 Standard Knob

(Not Override),

Includes spacer

1000

Inside &

Outside,

6200

Inside

037190

Latches & Bolts, & Tailpieces

201144 26D01 2-3/4” Backset

3/4” Throw Anti

Friction Latch

1000,

L1000,

5000

013283

202003 03 41 2-3/4” Backset

Latch

7004 037233

202052 03 41 2-3/4” Bolt 7002,

7102

065422

202064 03 41 As above but 2-3/8” 2-3/8” Bolt 7008,

7108

037234

204168 26D01 2-3/4” Backset

1/2” Throw

Standard Latch

1000,

L1000,

5000

077341

54444 26D01 Adjustable 2-

3/8 & 2-3.4”

Latch

7104 084224

64769 000 01 Tailpiece Kit

for Latch &

Deadbolt

7000 &

7100

066333

Passage

201825 000 01 Passage Cham-

ber Release Kit

037198

201440 000 15 Retainer Ring

for Chamber

Release Kit &

Combination

Change Sleeve

1000,

L1000,

2000,

5000

037213

Parts Continued

1000 Series Kaba Simplex Formerly Unican

Navigation menu

Versions of this User Manual:

Views

Navigation
