Kartell UK Ltd was established in 2008

and developed in association with Coşkunöz

Radyator to become the sales, marketing

and distribution arm in the UK, Ireland and

France. With a focus on an innovative and

forward thinking approach to radiator supply,

Kartell UK Ltd is fast becoming one of the key

suppliers and leading brands to the UK, Irish

and French heating markets.

The route to market is via independent

plumbing merchants with a focus and

commitment to service and continuous

improvement. Based in Bedford the company

works from a modern dedicated heating

warehouse which is spread over 70,000 sq ft.

Kartell UK Ltd and Co

kunöz

have a shared vision

• Tobealeadingbrandinthe

HVAC sector.

• Tocreateapositiveimpactonsociety

and to the environment as a company.

• Toexceedcustomerexpectationswith

continuous improvement.

• Tofindinnovativeandunique 

solutions.

• Toadoptlatesttechnologies

very quickly.

• Toadoptcreativethinkingand

a fresh approach.

Coşkunöz Radyator A.S. is a leading

company in the HVAC sector. Coşkunöz has

a future orientated vision with continuous

improvements with an aim to ‘spread

warmth around the world’ The manufacturing

base is in Bursa, Turkey, on a site which is

ultra modern utilises the latest technologies

and is spread across 300,000 sq ft.

Withannualcapacitiesexceeding2.5m

radiators the company is a global force in

the markets in which it operates with the

products reaching over 30 countries in four

different continents across the world

A strategic alliance between manufacturing and sales.

Offering additional value to our brand, customers and

stakeholders by an innovative approach to production, using

the latest technologies, and service with creative thinking

and a fresh approach.

materials:

AL = aluminium

CI = cast iron

S = steel

SS = stainless steel

finishes/colours:

A = anthracite

BR = brushed

CHR = chrome

GM = grey metallic

MS = metallic silver

POL = polished

SAT = satin

WH = white

Product Features

SIZES

1 SS CHR 6

BAR 5

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

This publication is issued subject to alteration or withdrawal without notice. The illustrations

and speciﬁcations are not binding in detail. All offers and sales are subject to the company’s

current terms and conditions of sale.

Kartell UK Ltd

16-19 The Manton Centre, Manton Lane, Bedford, MK41 7PX

Tel:01234363393Fax01234363488www.kartelluk.com

Legacy p.34

Correction factor table

Factors for differences between mean water temperatures and room temperature

in ºC and ºF other than 50ºC (90ºF)

ºC (Δt) CF ºF (Δt) CF

5 0.050 10 0.057

10 0.123 20 0.142

15 0.209 30 0.240

20 0.304 40 0.348

25 0.406 50 0.466

30 0.515 60 0.590

35 0.629 70 0.721

40 0.748 80 0.858

45 0.872 90 1.000

50 1.000 100 1.147

51 1.026 110 1.298

52 1.052 120 1.454

53 1.079 130 1.613

54 1.105 140 1.776

55 1.132

55.5 1.145

56 1.159

57 1.186

58 1.213

59 1.240

60 1.267

65 1.406

70 1.549

75 1.694

Order hotline 01234 363 393 Online www.kartelluk.com

Withover200yearsofcombinedexperiencesupplyingtheworldwithradiatorproductsour

team ensured the Kartell radiator products are supplied with packaging which is robust and

effective ensuring the product reaches our customers and in turn the users in the best possible

condition. The measures taken conﬁrm our commitment to continuous improvement and

customer satisfaction is at the forefront of our thinking and ideologies.

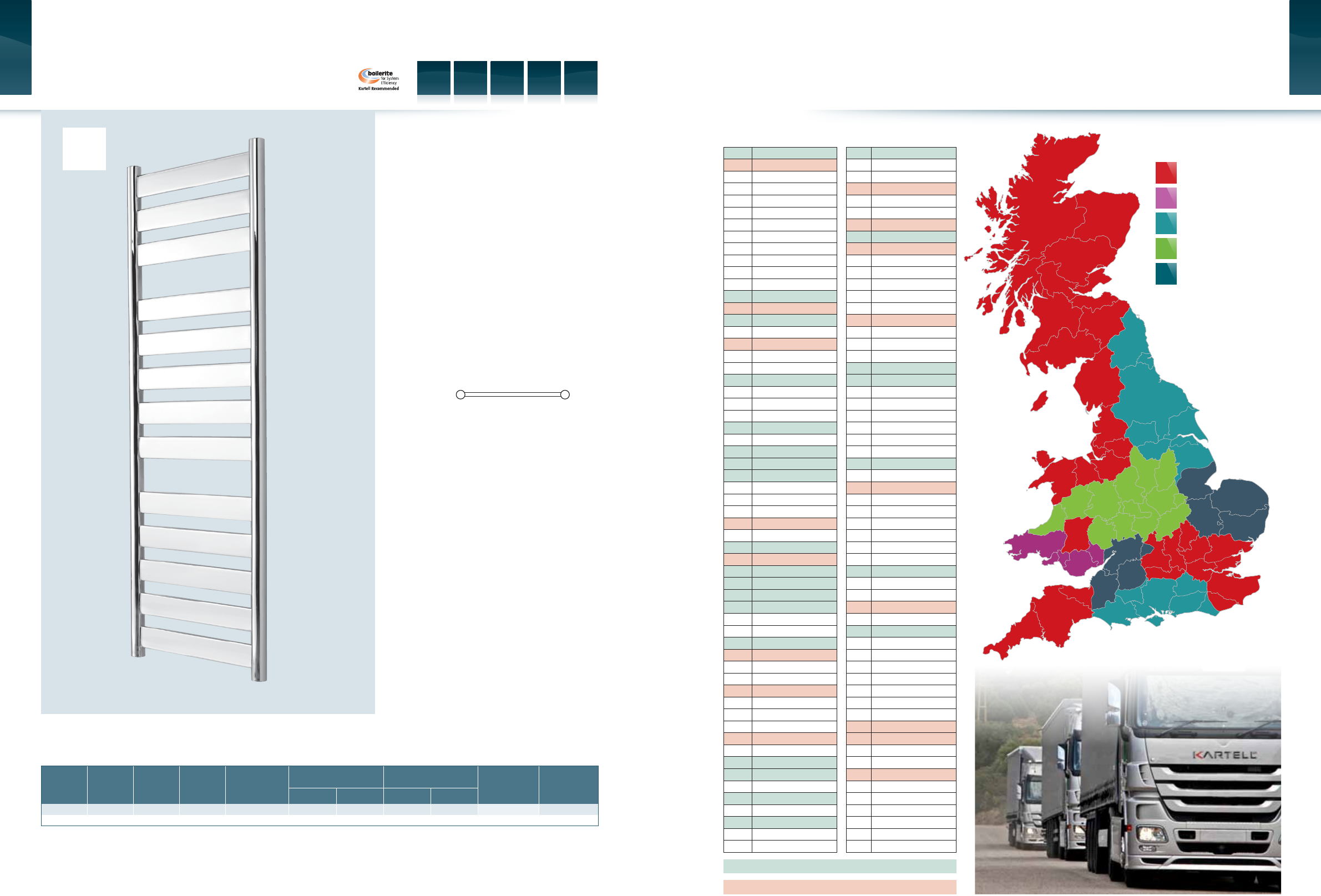

Allproductslinesareavailableex-stockandweaimtomaintain100%service

levels based on a 2/3 day lead time. We deliver to the UK, Ireland and France from

Bedford.WedelivernextdaytoGreaterLondon,EssexandHertfordshire,allother

areas of the UK have 2 / 3 set delivery days each week. Please note the delivery

key which is specific to individual products, lead-times can vary should they require

any specific preparation.

Our warehousing is dedicated to radiator

and heating products. It is fully racked

and runs as a 24 hour operation:

Colour coded side carton

for ease of identiﬁcation

• Red - K-RAD Kompact

• Green - K-FLAT standard

• Yellow - K-FLAT premium

PACKAGING DISTRIBUTION

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

4-6 WEEKS OF ORDER

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

7-10 DAYS OF ORDER

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

3-5 DAYS OF ORDER

Bubble Wrapped

Polythene sealed

Robust plastic corner protection

Identiﬁcation label on front

and side of the product

4 5

KEY INFORMATION

CAUTION

When designing for domestic systems we recommend

that the K-RAD Kompact be used only in heating systems

complying with British Standard Code of Practice for Central

HeatingforDomesticPremisesBS5449Part1.

WATER TREATMENT

On completion of the installation the system should be

properly flushed and filled in accordance with the British

Standard Code of Practice for the Treatment of Water in

DomesticHotWaterCentralHeatingSystemsBS7593.

Thiswillremovefluxresiduesandinstallationdebris,which

might promote corrosion and damage within the system.

Ifitisdecidedtoapplyacorrosioninhibitortomaximizethe

working life of the system, it should be applied in accordance

with the manufacturers instructions and should be suitable

for the particular metals within the system. The outputs shown within this brochure

arebasedonBSEN442,75-65-20oC

operating conditions, giving a ∆tof50ºC,

for ∆t’s other than these, a correction

factor must be applied.

Example:Outputrequired@82-71-21ºC

∆t55.5theCF=1.145,thereforemultiply

the listed output by the correction factor

to give actual radiator output under these

operating conditions.

6 7

The Kartell K-Rad Kollection of radiators

will enhance any home with space

saving classic elegance and efficiency.

Comprising over 210 sizes, they

are manufactured using the latest

state-of-the art technology ensuring

maximumefficiency.

Internally welded with a final coating of

white enamel (RAL9016) each radiator

is degreased and zinc phosphated

before being coated with water-based

cathophoratic paint. The final coat

isappliedusinganepoxypolyester

electrostatic powder coating system that

is baked to a hard finish.

You also have the protection of our

‘Kartell No Quibble Guarantee’ against

faulty manufacture which lasts for 10

years. All radiators come complete with

factory fitted top grille and side panels.

CONNECTIONS

EachK-RADKompactradiatorhas4x½”

connections as standard. ¾” valve adaptors

are available, which provides a ¾” inch

connector option to the valve without

reducing performance.

APPLICATIONS

K-RAD radiators are suitable for two pipe

installations. For single pipe applications,

it is advisable to use diversion tees in the

pipework, as this will assist in obtaining

design performance from the radiators.

INSTALLATION

Everything required for installation can

be found within the robust packaging.

Brackets are of a strong design, with open

top and deep slots, which facilitates easy and

secure installation. Plastic inserts seat the

radiator precisely on the bracket minimizing

expansionandcontractionnoise.

The neat nickel-plated plug and vent provide

a watertight joint, whilst complementing the

superior finish.

Extendedrangeofsizestofitapplication

Completewithfixingkit

Double panelSecurely fitted top grille Single panel

KOMPACT PANEL RADIATORS

SIZES

210+S

9016

BAR 10

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

Product Features

RAL

Order hotline 01234 363 393 Online www.kartelluk.com

6 7

8 9

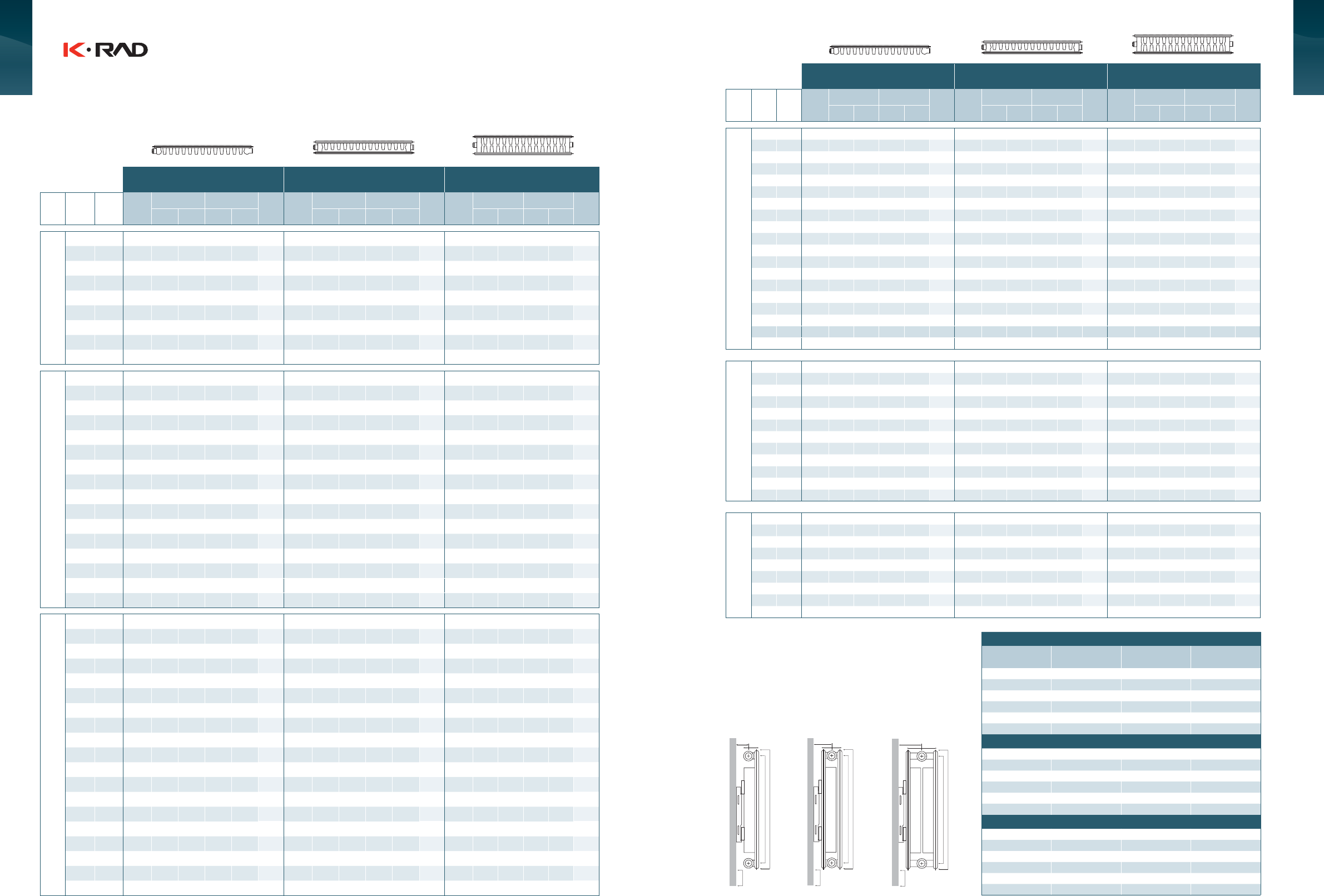

Type 11 Type 21 Type 22

Height

Width

mm inches Code

Output ∆T50ºC Output ∆T60ºC

Del.

Code Code

Output ∆T50ºC Output ∆T60ºC

Del.

Code Code

Output ∆T50ºC Output ∆T60ºC

Del.

Code

Watts BTUs Watts BTUs Watts BTUs Watts BTUs Watts BTUs Watts BTUs

600

24”

400 16 S604K 380 1296 487 1661 A P604K 566 1932 725 2474 A D604K 734 2504 940 3208 A

500 20 S605K 475 1620 608 2076 A P605K 708 2414 907 3093 A D605K 917 3130 1175 4010 A

600 24 S606K 570 1944 730 2491 A P606K 849 2897 1088 3712 A D606K 1101 3756 1410 4812 A

700 28 S607K 665 2268 852 2906 A P607K 991 3380 1269 4330 A D607K 1284 4382 1645 5614 A

800 32 S608K 760 2592 973 3321 A P608K 1132 3863 1450 4949 A D608K 1468 5008 1880 6416 A

900 36 S609K 855 2917 1095 3736 A P609K 1274 4346 1632 5568 AD609K 1651 5634 2115 7218 A

1000 39 S610K 950 3241 1217 4152 AP610K 1415 4829 1813 6186 A D610K 1835 6260 2350 8020 A

1100 43 S611K 1045 3565 1338 4567 AP611K 1557 5312 1994 6805 AD611K 2018 6886 2585 8822 A

1200 47 S612K 1140 3889 1460 4982 A P612K 1698 5795 2176 7423 A D612K 2202 7512 2820 9624 A

1300 51 S613K 1235 4213 1582 5397 AP613K 1840 6277 2357 8042 A D613K 2385 8138 3056 10425 A

1400 55 S614K 1330 4537 1703 5812 AP614K 1981 6760 2538 8661 A D614K 2569 8764 3291 11227 A

1500 59 S615K 1425 4861 1825 6227 A P615K 2123 7243 2720 9279 A D615K 2752 9390 3526 12029 A

1600 63 S616K 1520 5185 1947 6642 A P616K 2264 7726 2901 9898 A D616K 2935 10016 3761 12831 A

1800 71 S618K 1710 5833 2190 7473 A P618K 2547 8692 3264 11135 AD618K 3302 11268 4231 14435 A

2000 79 S620K 1900 6481 2433 8303 A P620K 2830 9658 3626 12372 A D620K 3669 12520 4701 16039 A

2200 87 S622K 2089 7129 2677 9133 A P622K 3114 10623 3989 13610 A D622K 4036 13772 5171 17643 A

2400 95 S624K 2280 7778 2921 9965 A—–––––D624K 4404 15240 5640 19248 A

2700 107 S627K 2564 8750 3285 11209 A –– – –––D627K 4954 16902 6346 21653 A

3000 118 S630K 2849 9722 3650 12455 A––––––D630K 5504 18780 7051 24059 A

750

30”

400 16 S704K 430 1468 551 1880 A P704K 650 2216 832 2839 A D704K 830 2832 1063 3628 A

500 20 S705K 538 1834 689 2350 –P705K 812 2771 1040 3549 AD705K 1038 3540 1329 4536

600 24 S706K 645 2201 827 2820 A P706K 974 3325 1248 4259 AD706K 1245 4248 1595 5443 A

700 28 —————–P707K 1137 3879 1456 4969 A D707K 1453 4957 1861 6350

800 32 S708K 860 2935 1102 3760 A P708K 1299 4433 1664 5679 AD708K 1660 5665 2127 7257 A

900 36 —————–P709K 1462 4987 1872 6389 A D709K 1868 6373 2393 8164

1000 39 S710K 1075 3669 1378 4700 A P710K 1624 5541 2081 7099 A D710K 2075 7081 2659 9071 A

1100 43 —————– — D711K 2283 7789 2924 9978

1200 47 S712K 1290 4403 1653 5640 A—————–D712K 2490 8497 3190 10885 A

1400 55 S714K 1505 5136 1929 6580 A—————–D714K 2905 9913 3722 12700 A

1600 63 S716K 1720 5870 2204 7520 A—————–D716K 3320 11329 4254 14514 A

1800 71 S718K 1936 6604 2480 8460 A —————– —————–

900

30”

400 16 S904K 520 1773 666 2271 A P904K 752 2567 964 3289 A D904K 908 3344 1255 4284 A

500 20 S905K 649 2216 832 2839 A P905K 941 3209 1205 4111 A D905K 1225 4180 1569 5355 A

600 24 S906K 779 2659 998 3407 A P906K 1129 3851 1446 4934 A D906K 1470 5016 1883 6426 A

700 28 S907K 909 3102 1165 3974 A P907K 1317 4493 1687 5756 AD907K 1715 5852 2197 7496 A

800 32 S908K 1039 3545 1331 4542 AP908K 1505 5135 1928 6578 AD908K 1960 6688 2511 8567 A

900 36 S909K 1169 3989 1498 5110 AP909K 1693 5777 2169 7400 A D909K 2205 7523 2825 9638 A

1000 39 ––––––––––––D910K 2450 8359 3139 10709 A

1100 43 ––––––––––––D911K 2695 9195 3453 11780 A

1200 47 ––––––––––––D912K 2940 10031 3766 12851 A

Double Convector

Type 22

Single Convector

Type 11

Double Panel Single

Convector

Type 21

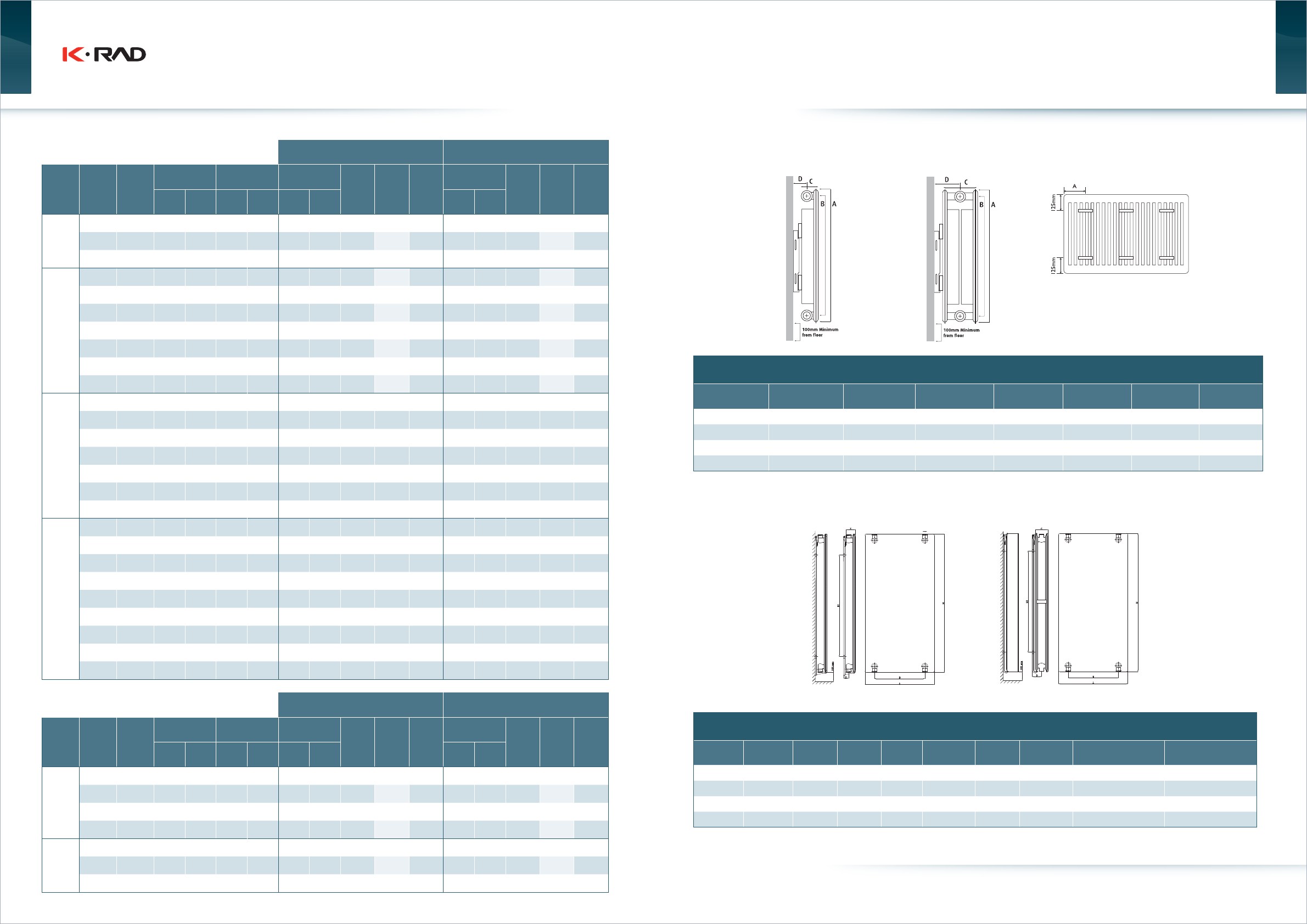

Sizes indicated may vary by + or - 2mm.

Type: Single 11

A =125mm

Type: Double 21 and 22

A =137mm

125mm125mm

100mm Minimum

from floor

100mm Minimum

from floor

100mm Minimum

from floor

ype 11 Type 21 Type 22

FITTING INSTRUCTIONS

Type 11

Nominal Size mm

Centre Distance mm

Width mm

Wall to Centre mm

300 245 56 40or55

400 345 56 40or55

500 445 56 40or55

600 545 56 40or55

750 695 56 40or55

900 845 56 40or55

Type 21

300 245 70 65or80

400 345 70 65or80

500 445 70 65or80

600 545 70 65or80

750 695 70 65or80

900 845 70 65or80

Type 22

300 245 105 82.5or97.5

400 345 105 82.5or97.5

500 445 105 82.5or97.5

600 545 105 82.5or97.5

750 695 105 82.5or97.5

900 845 105 82.5or97.5

Type 11 Type 21 Type 22

Height

Width

inches Code

Output ∆T50ºC Output ∆T60ºC

Del.

Code Code

Output ∆T50ºC Output ∆T60ºC

Del.

Code Code

Output ∆T50ºC Output ∆T60ºC

Del.

Code

Watts BTUs Watts BTUs Watts BTUs Watts BTUs Watts BTUs Watts BTUs

300

12”

400 16 S304K 209 714 268 914 A ————— D304K 420 1432 538 1834 A

500 20 S305K 262 892 335 1143 A ————— —————A

600 24 S306K 314 1071 402 1372 A ————— D306K 629 2148 806 2752 A

800 32 S308K 366 1249 469 1600 A ————— D308K 839 2864 1075 3669 A

1000 39 S310K 523 1784 670 2286 A ————— D310K 1049 3580 1344 4586 A

1200 47 S312K 628 2141 804 2743 A ————— D312K 1259 4296 1613 5503 A

1400 55 S314K 732 2498 938 3201 A ————— D314K 1469 5012 1882 6420 A

1600 63 S316K 837 2855 1072 3658 A————— D316K 1679 5727 2150 7337 A

2000 79 S320K 1046 3569 1340 4572 A————— D320K 2098 7159 2688 9172 A

400

16”

400 16 S404K 270 921 346 1180 A P404K 413 1408 529 1803 A D404K 533 1819 683 2330 A

500 20 S405K 337 1151 432 1475 AP405K 516 1759 661 2254 AD405K 666 2273 854 2912 A

600 24 S406K 405 1381 519 1769 A P406K 619 2111 793 2705 AD406K 800 2728 1024 3495 A

700 28 S407K 472 1611 605 2064 A P407K 722 2463 925 3156 AD407K 933 3183 1195 4077 A

800 32 S408K 540 1842 691 2359 AP408K 825 2815 1057 3607 A D408K 1066 3637 1366 4660 A

900 36 S409K 607 2072 778 2654 AP409K 928 3167 1189 4057 AD409K 1199 4092 1536 5242 A

1000 39 S410K 675 2302 864 2949 A P410K 1031 3519 1321 4508 AD410K 1333 4547 1707 5825 A

1100 43 S411K 742 2532 951 3244 A P411K 1134 3871 1453 4959 AD411K 1466 5002 1878 6407 A

1200 47 S412K 810 2762 1037 3539 AP412K 1238 4223 1586 5410 AD412K 1599 5456 2049 6990 A

1400 55 S414K 945 3223 1210 4129 A P414K 1444 4927 1850 6311 A D414K 1866 6366 2390 8155 A

1600 63 S416K 1079 3683 1383 4718 A P416K 1650 5630 2114 7213 A D416K 2132 7275 2732 9320 A

1800 71 S418K 1214 4144 1556 5308 AP418K 1856 6334 2378 8115 AD418K 2399 8184 3070 10485 A

2000 79 S420K 1349 4604 1729 5898 AP420K 2063 7038 2643 9016 A D420K 2665 9094 3414 11650 A

2200 87 S422K 1484 5064 1902 6488 A P422K 2269 7742 2907 9918 A D422K 2932 10003 3756 12815 A

2700 107 S427K 1822 6215 2334 7962 A ––––––––––––

3000 118 S430K 2024 6906 2593 8847 A ––––––––––––

500

20”

400 16 S504K 326 1114 418 1427 A P504K 493 1682 631 2154 AD504K 638 2176 817 2787 A

500 20 S505K 408 1392 523 1783 A P505K 616 2102 789 2693 A D505K 797 2720 1021 3484 A

600 24 S506K 490 1670 627 2140 A P506K 739 2523 947 3232 A D506K 956 3263 1225 4181 A

700 28 S507K 571 1949 732 2496 A P507K 863 2943 1105 3770 A D507K 1116 3807 1430 4878 A

800 32 S508K 653 2227 836 2853 AP508K 986 3363 1263 4309 A D508K 1275 4351 1634 5574 A

900 36 S509K 734 2505 941 3210 A P509K 1109 3784 1421 4847 A D509K 1435 4895 1838 6271 A

1000 39 S510K 816 2784 1045 3566 AP510K 1232 4204 1579 5386 AD510K 1594 5439 2042 6968 A

1100 43 S511K 897 3062 1150 3923 A P511K 1355 4625 1736 5925 AD511K 1754 5983 2246 7665 A

1200 47 S512K 979 3341 1254 4280 A P512K 1479 5045 1894 6463 A D512K 1913 6527 2451 8362 A

1300 51 S513K 1061 3619 1359 4636 A —————AD513K 2072 7071 2655 9058 A

1400 55 S514K 1142 3897 1463 4993 A P514K 1725 5886 2210 7540 AD514K 2232 7615 2859 9755 A

1500 59 S515K 1224 4176 1568 5349 A—————AD515K 2391 8159 3063 10452 A

1600 63 S516K 1305 4454 1672 5706 AP516K 1972 6727 2526 8618 A D516K 2551 8703 3268 11149 A

1800 71 S518K 1469 5011 1881 6419 AP518K 2218 7568 2841 9695 AD518K 2869 9790 3676 12542 A

2000 79 S520K 1632 5568 2090 7133 A P520K 2464 8408 3157 10772 A D520K 3188 10878 4084 13936 A

2200 87 S522K 1795 6124 2099 7846 AP522K 2711 9249 3473 11849 AD522K 3507 11966 4493 15330 A

2400 95 S524K 1958 6682 2508 8558 A—————–D524K 3826 13540 4901 16723 A

2700 107 S527K 2203 7516 2822 9629 A ––––––––––––

3000 117 S530K 2448 8351 3136 10699 A ––––––––––––

KOMPACT

Heat output ∆T50ºC=meanwatertemperatureof70ºCandroomtemperatureof20ºC.

Heat output ∆T60ºC=meanwatertemperatureof80ºCandroomtemperature20ºC.

*Other sizes are available in 100mm increments - special order only.

TECHNICAL INFORMATION

8 9

KOMPACT PANEL RADIATORS

TYPE

300 400 500 600 750 900

245 345 445 545 695 845

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

30 55/45/20 272 234 929 351 302 1198 425 366 1449 495 426 1688 616 530 2102 676 582 2308

42.5 70/55/20 427 367 1456 550 474 1878 666 573 2271 775 667 2645 711 612 2426 1060 912 3616

50 75/65/20 523 450 1784 675 581 2303 816 702 2784 950 818 3241 1075 925 3668 1298 1117 4429

60 90/70/20 670 577 2286 864 744 2948 1045 899 3566 1217 1047 4152 1378 1186 4702 1664 1432 5678

1000mm radiator length

TYPE

11-PK

HEIGHT

300 400 500 600 750 900

(*)

HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT

LENGTH

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

400

30 55/45/20 109 94 372 140 121 479 170 146 580 19 8 17 0 675 246 212 8 41 271 233 923

42.5 70/55/20 171 147 582 220 189 751 266 229 908 310 267 105 8 284 245 970 424 365 14 47

50 75/65/20 209 180 714 270 232 921 326 281 1114 380 327 1297 430 370 1467 519 447 177 2

60 90/70/20 268 231 914 346 297 1179 418 360 1426 487 419 16 61 551 474 1881 666 573 2271

500

30 55/45/20 136 117 465 176 151 599 212 183 725 247 213 844 308 265 1051 338 291 1154

42.5 70/55/20 213 184 728 275 237 939 333 286 1136 388 334 1322 356 306 1213 530 456 1808

50 75/65/20 262 225 892 338 290 1152 408 351 1392 475 409 1621 538 463 1834 649 559 2214

60 90/70/20 335 288 1143 432 372 1474 523 450 1783 609 524 2076 689 593 2351 832 716 2839

600

30 55/45/20 163 141 558 211 181 719 255 219 870 297 255 1013 370 318 1261 406 349 1385

42.5 70/55/20 256 220 874 330 284 1127 399 344 1363 465 400 1587 427 367 1456 636 547 2170

50 75/65/20 314 270 1071 405 349 1382 490 421 1671 570 491 1945 645 555 2201 779 670 2657

60 90/70/20 402 346 1372 518 446 176 9 627 540 2139 730 628 2491 827 712 2821 998 859 3407

700

30 55/45/20 191 164 650 246 212 839 297 256 1015 346 298 118 2 431 371 1471 473 407 1616

42.5 70/55/20 299 257 1019 385 332 1314 466 401 1590 543 467 1851 498 428 1698 742 638 2531

50 75/65/20 366 315 1249 473 407 1612 571 492 19 49 665 572 2269 753 648 2568 909 782 3100

60 90/70/20 469 404 160 0 605 520 2064 732 630 2496 852 733 2907 965 830 3291 1165 1002 3974

800

30 55/45/20 218 188 743 281 242 959 340 292 1160 396 341 1350 493 424 1681 541 466 18 4 6

42.5 70/55/20 341 294 1165 440 379 15 02 532 458 1817 620 534 2116 569 490 1941 848 730 2893

50 75/65/20 418 360 1428 540 465 1842 653 562 2227 760 654 2593 860 740 2934 1038 894 3543

60 90/70/20 536 461 1829 691 595 2358 836 719 2852 974 838 3322 1102 949 3761 1331 1146 4542

900

30 55/45/20 245 211 836 316 272 1079 382 329 1304 445 383 1519 554 477 1892 609 524 2077

42.5 70/55/20 384 331 1310 495 426 1690 599 516 2044 698 600 2380 640 551 2183 954 821 3255

50 75/65/20 471 405 1606 608 523 2073 734 632 2506 855 736 2917 968 833 3301 116 8 1005 3986

60 90/70/20 603 519 2057 778 669 2653 941 809 3209 1095 943 3737 1240 1067 4232 149 8 1289 5110

1000

30 55/45/20 272 234 929 351 302 119 8 425 366 1449 495 426 1688 616 530 2102 676 582 2308

42.5 70/55/20 427 367 1456 550 474 1878 666 573 2271 775 667 2645 711 612 2426 1060 912 3616

50 75/65/20 523 450 178 4 675 581 2303 816 702 2784 950 818 3241 1103 949 3763 1298 1117 4429

60 90/70/20 670 577 2286 864 744 2948 10 45 899 3566 1217 1047 4152 1414 1217 4825 1664 1432 5678

1100

30 55/45/20 300 258 1022 386 332 1318 467 402 1594 544 468 1857 678 583 2312 744 640 2539

42.5 70/55/20 469 404 160 2 605 521 2065 732 630 2498 853 734 2909 782 673 2669 1166 1003 3978

50 75/65/20 575 495 19 63 743 639 2533 898 772 3063 1045 899 3566 1183 1018 4035 1428 1229 4872

60 90/70/20 737 634 2515 950 818 3243 1150 989 3922 1339 1152 4568 1516 1304 5172 1830 1575 6245

1200

30 55/45/20 327 281 1115 421 363 1438 510 439 1739 594 511 2026 739 636 2522 812 699 2770

42.5 70/55/20 512 441 1747 660 568 2253 799 687 2725 930 801 3174 853 734 2911 1272 1095 4340

50 75/65/20 628 540 2141 810 697 2764 979 843 3341 114 0 981 3890 1290 1110 4401 1558 1340 5315

60 90/70/20 804 692 2743 1037 892 3538 1254 1079 4279 146 0 1257 4983 1654 1423 5642 1997 1718 6813

1300

30 55/45/20 354 305 1208 457 393 1558 552 475 1884 643 553 219 4 801 689 2732 879 757 3000

42.5 70/55/20 555 477 18 9 3 715 616 2441 865 745 2952 1008 867 3438 924 795 3154 1378 1186 4701

50 75/65/20 680 585 2320 878 755 2994 10 61 913 3619 1235 10 63 4214 1398 1203 4768 1687 1452 5757

60 90/70/20 871 750 2972 1123 967 3832 135 9 116 9 4635 1582 1362 5398 1791 1542 6112 2163 1862 7381

1400

30 55/45/20 381 328 1301 492 423 1678 595 512 2029 693 596 2363 862 742 2943 947 815 3231

42.5 70/55/20 597 514 2039 770 663 2629 932 802 3179 1085 934 3703 995 857 3396 1484 1277 5063

50 75/65/20 732 630 2498 945 813 3224 1142 983 3898 1330 1145 4538 1505 1295 5135 1817 1564 6200

60 90/70/20 938 807 3200 1210 1041 4127 14 63 1259 4992 170 4 1466 5813 1929 1660 6582 2330 2005 7949

1500

30 55/45/20 409 352 1394 527 453 17 9 8 637 548 2174 742 639 2532 924 795 3153 1015 873 3462

42.5 70/55/20 640 551 218 4 825 710 2817 998 859 3407 1163 1001 3967 10 67 918 3639 1590 136 8 5424

50 75/65/20 785 675 2677 1013 871 3455 1224 1053 4176 1425 1226 4862 1613 1388 5502 19 47 1676 6643

60 90/70/20 1005 865 3429 1296 1115 4422 1568 1349 5348 1826 1571 6229 2067 1779 7053 2496 2148 8516

1600

30 55/45/20 436 375 1487 562 484 1917 680 585 2319 792 681 2701 986 848 3363 10 82 931 3693

42.5 70/55/20 683 588 2330 881 758 3004 1065 916 3634 1240 10 67 4232 1138 979 3881 1696 1459 5786

50 75/65/20 837 720 2855 1080 929 3685 1306 112 4 4455 1520 1308 518 6 1720 148 0 5869 2077 1787 7086

60 90/70/20 1072 923 3658 1382 119 0 4717 1672 1439 5705 19 47 1676 6644 2205 1897 7523 2662 2291 9084

1800

30 55/45/20 490 422 1673 632 544 2157 765 658 2609 890 766 3038 1109 954 3783 1218 1048 415 4

42.5 70/55/20 768 661 2621 991 852 3380 1198 1031 4088 1395 1201 4761 1280 1101 4367 1908 16 42 6509

50 75/65/20 941 810 3212 1215 1046 4146 1469 1264 5012 1710 1472 5835 1935 1665 6602 2336 2011 7972

60 90/70/20 1206 1038 4115 1555 1338 5306 1881 1619 6418 2191 1885 7474 2480 2135 8463 2995 2578 10220

2000

30 55/45/20 545 469 185 9 702 605 2397 850 731 2899 989 851 3376 1232 1060 4204 1353 116 4 4 616

42.5 70/55/20 854 735 2912 1101 947 3755 1331 114 6 4542 1550 1334 5290 1422 1224 4852 2120 1824 7233

50 75/65/20 1046 900 3569 1350 1162 4606 1632 1404 5568 1900 1635 6483 2150 185 0 7336 2596 2234 8858

60 90/70/20 1340 1153 4572 1728 1487 5896 2090 17 9 9 7131 2434 2095 8305 2756 2372 9403 3328 2864 11355

2200

30 55/45/20 599 516 2044 773 665 2636 935 804 318 9 1088 937 3714 1355 1166 4624 148 8 1281 5077

42.5 70/55/20 939 808 3203 1211 1042 4131 14 6 4 1260 4996 1705 1468 5 819 1564 1346 5337 2332 2007 7956

50 75/65/20 1151 990 3926 1485 1278 5067 1795 1545 6125 2090 17 9 9 7131 2365 2035 8069 2856 2457 9743

60 90/70/20 1474 1269 5029 1901 1636 6486 2299 1978 7844 2677 2304 9135 3032 2609 10344 3661 3150 12491

2400

30 55/45/20 654 563 2230 843 725 2876 1020 877 3479 1187 1022 4051 1478 1272 5044 1623 1397 5539

42.5 70/55/20 1024 881 3495 1321 1137 4506 1597 1375 5451 1860 1601 6348 17 0 6 14 6 9 5822 2544 218 9 8679

50 75/65/20 1255 1080 4283 1620 1394 5527 195 8 1685 6682 2280 1962 7779 2580 2220 8803 3115 2681 10629

60 90/70/20 1608 1384 5486 2074 1785 7075 2508 2158 8557 2921 2514 9966 3307 2846 11284 3994 3437 13626

2700

30 55/45/20 735 633 2509 948 816 3236 1147 987 3913 1336 115 0 4558 1663 1431 5675 1826 1572 6231

42.5 70/55/20 1152 992 3931 1486 1279 5070 1797 1547 6132 2093 1801 7141 1920 1652 6550 2862 2463 9764

50 75/65/20 1412 1215 4818 1823 1568 6218 2203 1896 7517 2565 2207 8752 2903 2498 9903 3505 3016 11958

60 90/70/20 1809 1557 6172 2333 2008 7960 2822 2428 9627 3286 2828 11211 3721 3202 12695 4493 3866 15329

3000

30 55/45/20 817 703 2788 1054 907 3595 1274 10 97 4348 148 4 1277 5064 1848 1590 6305 2029 174 6 6924

42.5 70/55/20 1280 1102 4368 1651 1421 5633 1997 1718 6813 2325 2001 7935 2133 1836 7278 3180 2736 10849

50 75/65/20 1569 1350 5353 2025 1743 6909 2448 2107 8353 2850 2453 9724 3225 2775 1100 4 3894 3351 13286

60 90/70/20 2010 1730 6858 2592 2231 8844 3135 2698 10697 3651 3142 12457 4134 3558 14105 4992 4296 17033

56 35-50 56

T Y P E 11- P K- K1

For all lengths and 20°C room temperature. (*) Mean temperature as the water inlet and outlet temperatures

Heat output

T30ºC –TheseoutputsindicateradiatorperformancewhenusingaGeo-Thermappliance(FlowTemperature55ºC/ReturnTemperature45ºC/RoomTemperature20ºC)

Heat output

T42.5ºC–TheseoutputsindicateradiatorperformancewhenusingaGeo-Thermappliance(FlowTemperature70ºC/ReturnTemperature55ºC/RoomTemperature20ºC)

Heat output

T50ºC –Theseoutputsindicateradiatorperformancewhenusingacondensing/HEappliance(FlowTemperature75ºC/ReturnTemperature65ºC/RoomTemperature20ºC)

Heat output

T60ºC –Theseoutputsindicateradiatorperformancewhenusinganon-condensing/SEappliance(FlowTemperature90ºC/ReturnTemperature70ºC/RoomTemperature20ºC)

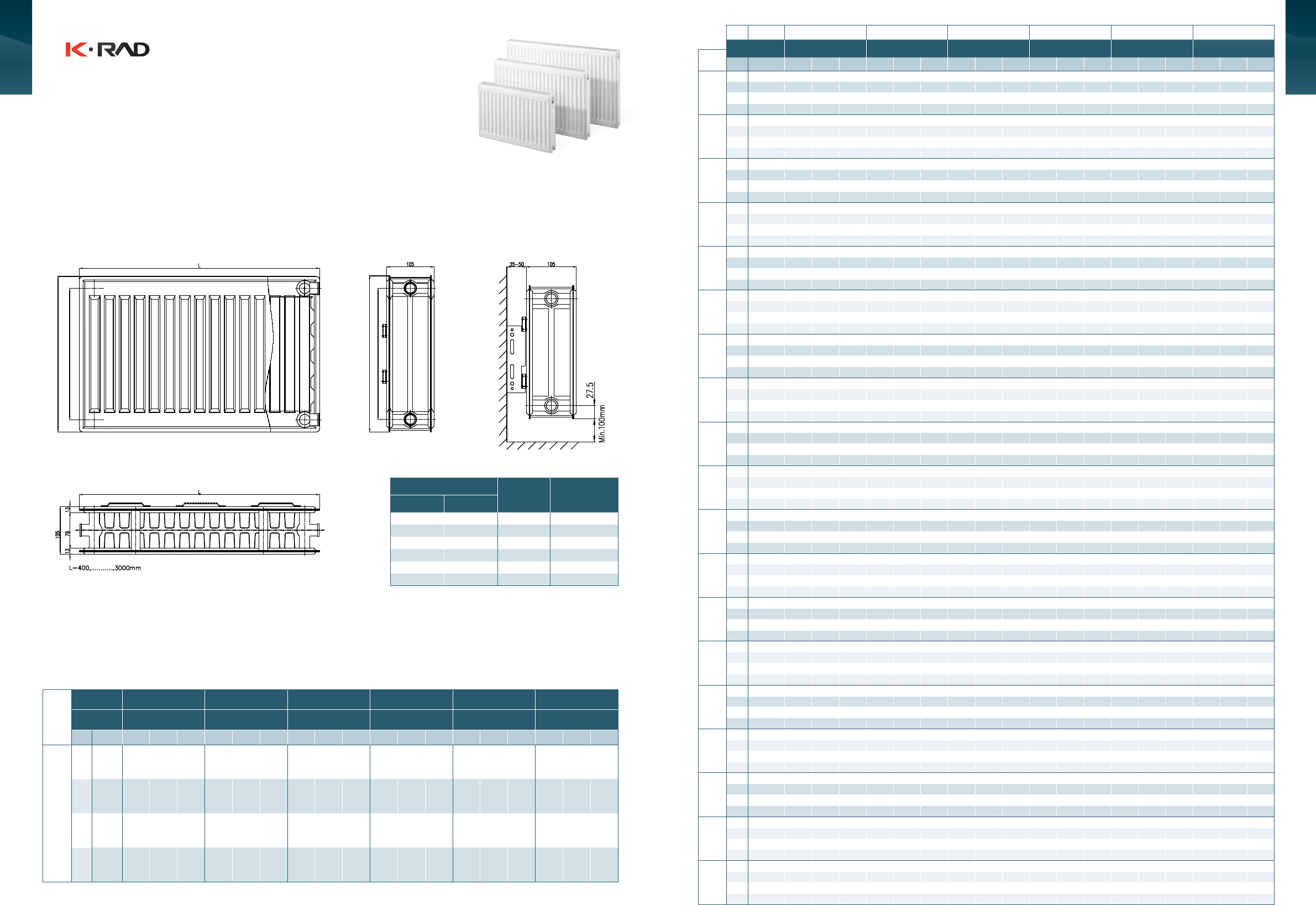

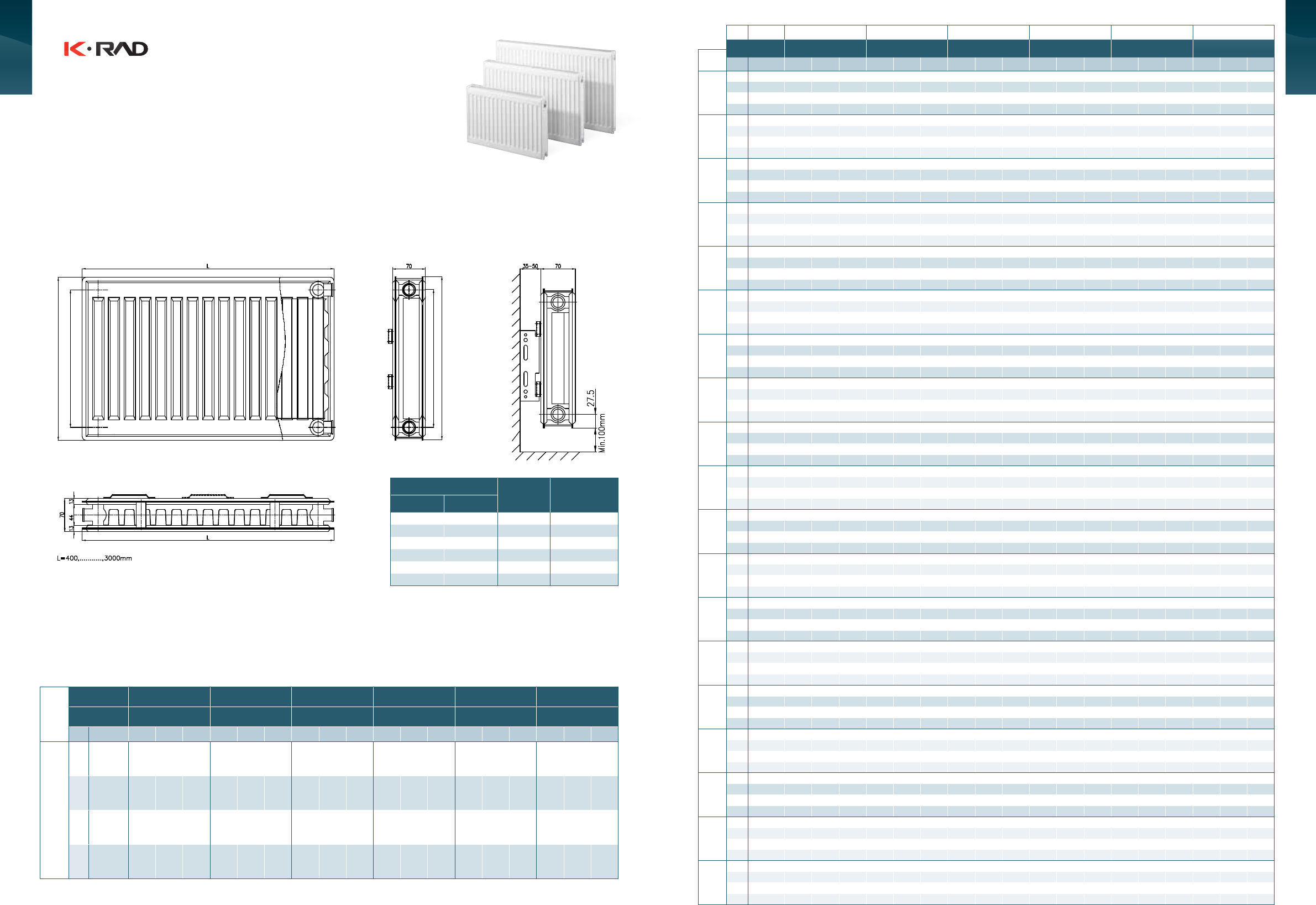

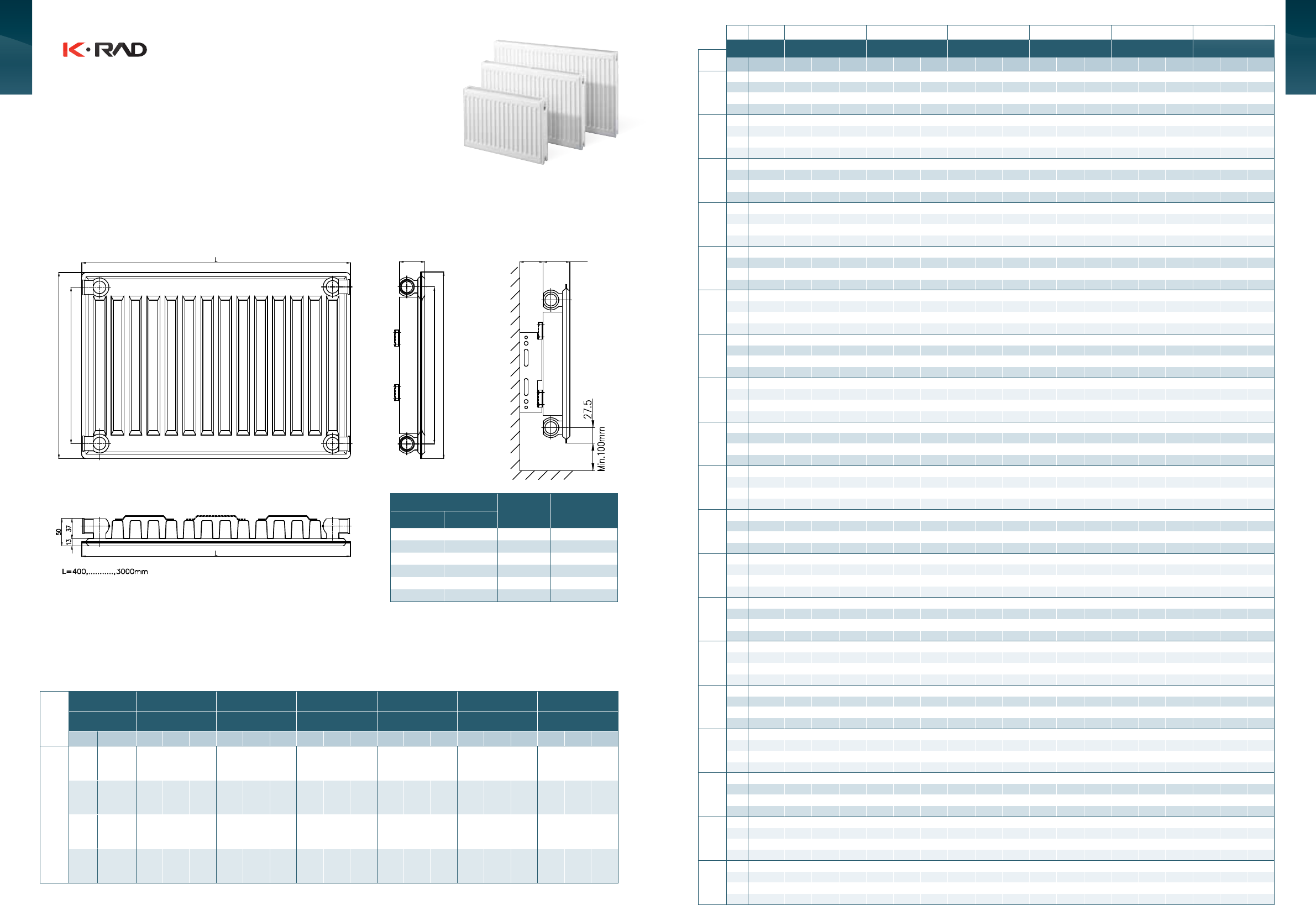

11 - PK - K1

Front View

Top View

Side View

Dimensions (mm) Weight

Kg/M

Water Content

Lt/M

300 245 8.60 1.70

400 345 11.31 2.10

500 445 14.42 2.50

600 545 17.33 2.90

750 695 21.56 3.00

900 845 25.80 3.50

10 11

KOMPACT PANEL RADIATORS

1000mm radiator length

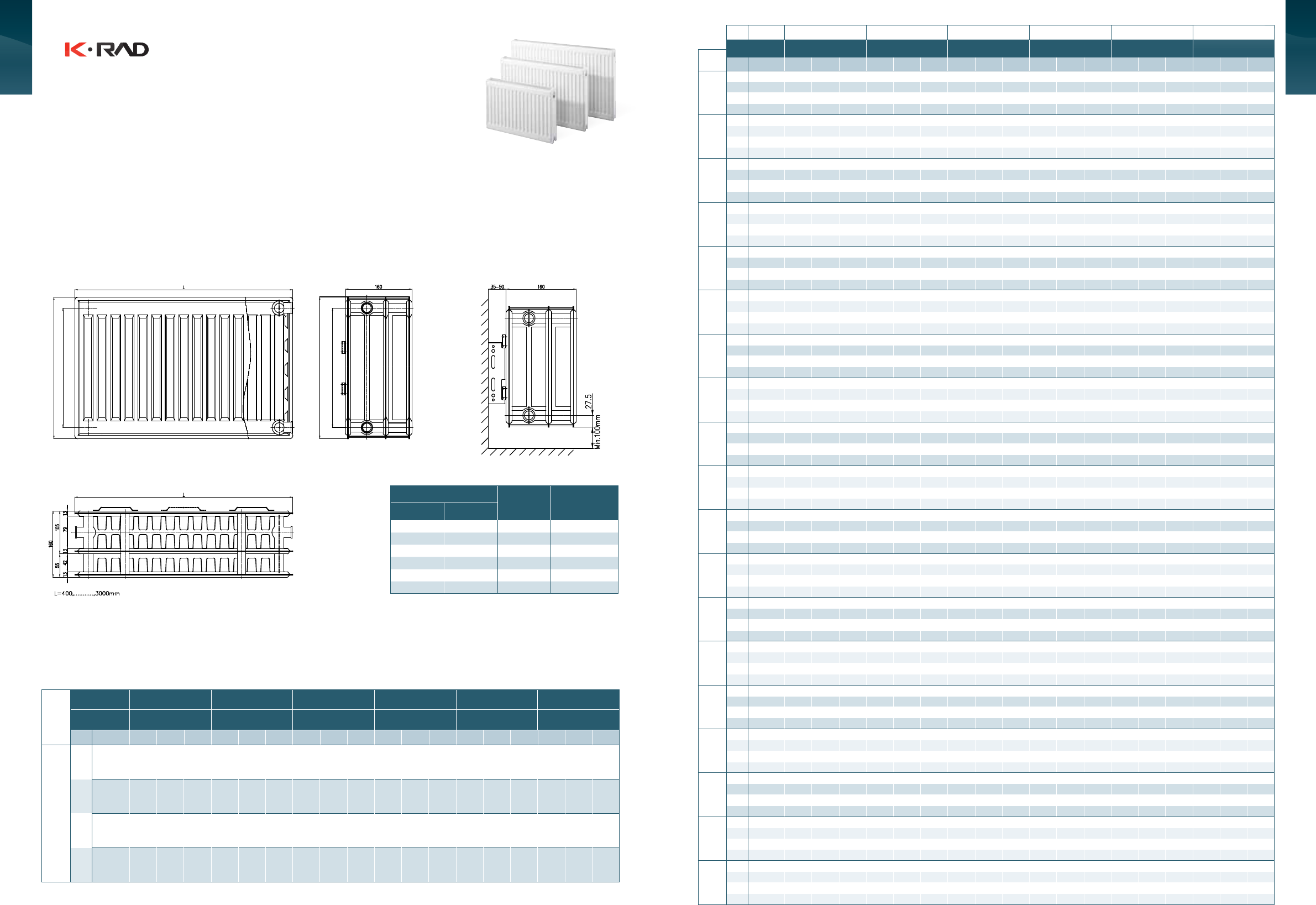

TYPE 21-PKP-P+

For all lengths. (*) Mean temperature as the water inlet and outlet temperatures

Front View

Top View

Side View

TYPE

300 400 500 600 750 900

245 345 445 545 695 845

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

30 55/45/20 400 344 1365 537 462 1832 642 552 2190 737 634 2515 888 764 3030 980 843 3343

42.5 70/55/20 627 539 2138 841 724 2871 1006 866 3432 1155 994 3940 1024 881 3494 1535 1321 5238

50 75/65/20 777 669 2651 1031 887 3518 1232 1060 4204 1415 1218 4828 1624 1398 5541 1882 1620 6421

60 90/70/20 984 847 3357 1321 1137 4507 1579 1359 5388 1813 1560 6186 2081 1791 7100 2410 2074 8223

21 - PKP - P+

TYPE

21-PKP

HEIGHT

300 400 500 600 750 900

(*)

HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT

LENGTH

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

400

30 55/45/20 160 138 546 215 185 733 257 221 876 295 254 1006 355 306 1212 392 337 1337

42.5 70/55/20 251 216 855 337 290 1148 402 346 1373 462 398 1576 410 352 1398 614 528 2095

50 75/65/20 311 267 1060 412 355 14 07 493 424 16 81 566 487 1931 650 559 2216 753 648 2569

60 90/70/20 394 339 1343 528 455 1803 632 544 2155 725 624 2474 832 716 2840 964 830 3289

500

30 55/45/20 200 17 2 682 268 231 916 321 276 1095 368 317 1257 444 382 1515 490 422 1671

42.5 70/55/20 313 270 1069 421 362 1435 503 433 1716 577 497 1970 512 441 1747 768 661 2619

50 75/65/20 389 334 1326 516 444 17 5 9 616 530 2102 708 609 2414 812 699 2771 941 810 3211

60 90/70/20 492 423 1679 661 568 2254 790 679 2694 907 780 3093 10 41 895 3550 1205 1037 4111

600

30 55/45/20 240 207 819 322 277 1099 385 331 1314 442 381 1509 533 459 1818 588 506 2006

42.5 70/55/20 376 324 1283 505 434 1723 603 519 2059 693 596 2364 614 529 2096 921 793 3143

50 75/65/20 466 401 1591 619 532 2111 739 636 2522 849 731 2897 974 839 3325 1129 972 3853

60 90/70/20 590 508 2014 793 682 2704 947 815 3233 1088 936 3712 1249 1075 4260 1446 1244 4934

700

30 55/45/20 280 241 955 376 323 1283 449 387 1533 516 444 17 6 0 622 535 2121 686 590 2340

42.5 70/55/20 439 378 1497 589 507 2010 704 606 2402 808 696 2758 717 617 2446 1075 925 3666

50 75/65/20 544 468 185 6 722 621 2462 862 742 2943 991 852 3380 1137 978 3879 1317 1134 4495

60 90/70/20 689 593 2350 925 796 3155 1105 951 3771 1269 10 92 4330 1457 1254 4970 16 87 1452 5756

800

30 55/45/20 320 275 10 92 430 370 1466 513 442 1752 590 507 2012 710 611 2424 784 674 2674

42.5 70/55/20 501 431 1711 673 579 2297 805 692 2745 924 795 3152 819 705 2795 1228 1057 419 0

50 75/65/20 622 535 2121 825 710 2814 986 848 3363 1132 974 3862 129 9 1118 4433 1506 1296 5137

60 90/70/20 787 677 2686 1057 909 3606 1263 10 87 4310 1450 1248 4949 1665 1433 5680 1928 165 9 6578

900

30 55/45/20 360 310 1228 483 416 16 49 578 497 1971 663 571 2263 799 688 2727 882 759 3008

42.5 70/55/20 564 485 1925 757 652 2584 905 779 3088 1039 894 3546 922 793 3144 1382 1189 4714

50 75/65/20 699 602 2386 928 799 3166 1109 954 3783 1274 1096 4345 1462 1258 4987 1694 1458 5779

60 90/70/20 886 762 3022 1189 1023 4057 1421 1223 4849 1632 1404 5567 1873 1612 6390 2169 1867 7401

1000

30 55/45/20 400 344 1365 537 462 1832 642 552 2190 737 634 2515 888 764 3030 980 843 3343

42.5 70/55/20 627 539 2138 841 724 2871 100 6 866 3432 1155 994 3940 1024 881 3494 1535 1321 5238

50 75/65/20 777 669 2651 1031 887 3518 1232 1060 4204 1415 1218 4828 1590 1368 5425 1882 1620 6421

60 90/70/20 984 847 3357 1321 1137 4507 1579 1359 5388 1813 1560 618 6 2038 17 5 4 6954 2410 2074 8223

1100

30 55/45/20 440 379 1501 591 508 2015 706 608 2409 811 698 2766 977 841 3333 1078 927 3677

42.5 70/55/20 689 593 2352 926 797 3158 110 6 952 3775 1270 10 9 3 4334 1126 969 3843 1689 1453 5761

50 75/65/20 855 736 2916 1134 976 3870 1355 116 6 4624 1557 1340 5311 17 8 6 1537 6095 2070 1782 7064

60 90/70/20 1082 931 3693 1453 1251 4958 1737 1495 5926 1994 1716 6805 2289 1970 7810 2651 2281 9045

1200

30 55/45/20 480 413 1638 644 555 2199 770 663 2628 884 761 3018 1066 917 3636 1176 1012 4011

42.5 70/55/20 752 647 2566 1010 869 3445 1207 1039 4118 1386 119 3 4728 1229 1057 4193 1842 1585 6285

50 75/65/20 932 802 3181 1237 1065 4221 1478 1272 5044 1698 1461 5794 19 49 1677 6649 2258 19 44 7706

60 90/70/20 1181 1016 4029 1585 1364 5409 18 95 1631 6465 2176 1872 7423 2497 2149 8520 2892 2489 9868

1300

30 55/45/20 520 448 1774 698 601 2382 834 718 2847 958 825 3269 1154 993 3939 1274 1096 4345

42.5 70/55/20 815 701 2780 1094 941 3732 1307 1125 4461 1501 1292 5122 1331 1146 4542 1996 1717 6809

50 75/65/20 1010 869 3446 1340 1153 4573 160 2 1378 5465 1840 1583 6276 2111 1817 7203 2447 2106 8348

60 90/70/20 1279 1101 4365 1717 1478 5859 2053 1767 7004 2357 2028 8042 2705 2328 9230 3133 2696 10690

1400

30 55/45/20 560 482 1911 752 647 2565 899 773 3066 1032 888 3520 1243 1070 4242 1372 1180 4680

42.5 70/55/20 877 755 2994 1178 1014 4 019 1408 1212 4804 1617 1391 5516 1434 1234 4891 2149 1849 7333

50 75/65/20 1088 936 3712 1443 1242 4925 1725 1484 5885 1981 1705 6759 2274 1957 7758 2635 2267 8990

60 90/70/20 1378 1186 4700 1849 1592 6310 2211 19 0 2 7543 2538 2184 8660 2913 2507 9941 3374 2904 11512

1500

30 55/45/20 600 516 2047 805 693 2748 963 829 3285 1105 951 3772 1332 1146 4545 1470 1265 5014

42.5 70/55/20 940 809 3208 1262 1086 4306 1509 1298 5147 1732 1491 5910 1536 1322 5241 2303 1982 7856

50 75/65/20 1166 1003 3977 1547 1331 5277 1848 1590 6305 2123 1827 7242 2436 2096 8312 2823 2429 9632

60 90/70/20 1476 1270 5036 19 82 170 5 6761 2369 2038 8081 2720 2340 9279 3122 2686 10651 3615 3111 12334

1600

30 55/45/20 640 551 218 4 859 739 2932 1027 884 3504 1179 1015 4023 1421 1223 4848 1567 1349 5348

42.5 70/55/20 1003 863 3422 1346 115 9 4593 1609 1385 5490 1848 1590 6304 1638 1410 5590 2456 2114 8380

50 75/65/20 1243 1070 4242 165 0 1420 5628 1971 1696 6726 2264 19 48 7725 2598 2236 8866 3011 2591 10274

60 90/70/20 1574 1355 5372 2114 1819 7212 2526 2174 8620 2901 2496 9898 3330 2865 11361 3856 3318 13157

1800

30 55/45/20 720 620 2457 967 832 3298 1155 994 3942 1327 1142 4526 1598 1376 5454 1763 1518 6 017

42.5 70/55/20 1128 971 3849 1515 1303 5168 1810 1558 6177 2079 17 8 9 7092 1843 1586 6289 2763 2378 9428

50 75/65/20 1399 1204 4772 185 6 15 97 6332 2218 1908 7566 2547 2192 8690 2923 2516 9974 3388 2915 11558

60 90/70/20 1771 1524 6043 2378 2046 8113 2842 2446 9698 3263 2808 11135 3746 3224 12781 4338 3733 14801

2000

30 55/45/20 800 688 2730 1074 924 3664 1284 1105 4380 1474 1268 5029 1776 1528 6060 1959 1686 6685

42.5 70/55/20 1254 1079 4277 16 83 1448 5742 2011 17 31 6863 2310 1988 7880 2048 1762 6988 3070 2642 10475

50 75/65/20 1554 1337 5302 2062 1775 7036 2464 2120 8407 2830 2435 9656 3248 2795 11082 3764 3239 12843

60 90/70/20 1968 1694 6715 2642 2274 9015 3158 2718 10775 3626 3120 12372 416 2 3582 14201 4820 4148 1644 6

2200

30 55/45/20 880 757 3003 1181 1017 4031 1412 1215 4818 1621 1395 5532 195 4 1681 6666 2155 1855 7354

42.5 70/55/20 1379 1187 4705 1851 1593 6316 2213 1904 7549 2541 2186 8668 2253 1939 7687 3377 2906 11523

50 75/65/20 1709 1471 5832 2268 1952 7739 2710 2333 9248 3113 2679 10622 3573 3075 12190 414 0 3563 14127

60 90/70/20 2165 1863 7386 2906 2501 9916 3474 2990 11853 3989 3433 13609 4578 3940 15621 5302 4563 18090

2400

30 55/45/20 960 826 3276 1289 110 9 4397 1540 1326 5256 17 6 9 1522 6035 2131 1834 7272 2351 2023 8022

42.5 70/55/20 1504 1294 5132 2019 1738 6890 2414 2077 8236 2771 2385 9456 2458 2115 8385 3684 3170 12570

50 75/65/20 1865 1605 6363 2474 2129 8443 2957 2545 10089 3396 2923 11587 3898 3354 13299 4517 3887 15411

60 90/70/20 2362 2032 8058 3170 2728 10 817 3790 3261 12930 4351 3745 14846 4994 4298 170 41 5784 4978 19735

2700

30 55/45/20 1080 929 3685 145 0 1248 4947 1733 1491 5913 1990 1712 6789 2398 2063 8181 2645 2276 9025

42.5 70/55/20 1692 14 5 6 5774 2272 1955 7751 2715 2337 9265 3118 2683 10638 2765 2379 9433 4145 3567 14141

50 75/65/20 2098 1805 7158 2784 2396 9498 3326 2863 11350 3821 3288 13036 4385 3773 14961 5081 4373 17338

60 90/70/20 2657 2286 9065 3567 3069 12170 4263 3669 14546 4895 4213 16702 5 619 4835 19171 6507 5600 22202

3000

30 55/45/20 1200 1033 4094 1611 1386 5497 1926 1657 6570 2 211 19 03 7544 2664 2293 9090 2939 2529 10028

42.5 70/55/20 1880 1618 6415 2524 217 2 8613 3 017 2597 10295 3464 2981 11820 3072 2644 10482 4605 3963 15713

50 75/65/20 2331 2006 7953 3093 2662 10553 3696 3181 12611 4245 3653 14484 4872 419 3 16623 5646 4859 19264

60 90/70/20 2952 2540 10072 3963 3410 13522 4737 4077 16163 5439 4681 18558 6243 5373 21301 7230 6222 24669

Heat output

Dimensions (mm) Weight

Kg/M

Water Content

Lt/M

300 245 14.90 3.40

400 345 19.67 4.17

500 445 24.43 4.93

600 545 29.20 5.70

750 695 36.50 6.70

900 845 43.70 7.70

12 13

KOMPACT PANEL RADIATORS

TYPE

300 400 500 600 750 900

245 345 445 545 695 845

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

30 55/45/20 546 470 1864 694 597 2368 830 714 2832 955 822 3259 1171 1008 3995 1276 1098 4354

42.5 70/55/20 856 737 2921 1087 936 3710 1301 1119 4438 1497 1288 5107 1351 1163 4610 1999 1721 6822

50 75/65/20 1049 903 3579 1333 1147 4548 1594 1372 5439 1835 1579 6261 2075 178 6 7080 2450 2108 8359

60 90/70/20 1344 1157 4586 1707 1469 5824 2042 1757 6967 2350 2022 8018 2659 2288 9073 3139 2701 10710

1000mm radiator length

TYPE 22-PKKP-K2

For all lengths. (*) Mean temperature as the water inlet and outlet temperatures

Front View

Top View

Side View

22 - PKKP - K2

TYPE

22-PKKP

HEIGHT

300 400 500 600 750 900

(*)

HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT

LENGTH

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

400

30 55/45/20 219 188 746 278 239 947 332 286 1133 382 329 1304 468 403 1598 510 439 1742

42.5 70/55/20 342 295 1168 435 374 1484 520 448 1775 599 515 2043 540 465 1844 800 688 2729

50 75/65/20 420 361 1432 533 459 1819 638 549 2175 734 632 2504 830 714 2832 980 843 3344

60 90/70/20 538 463 1834 683 588 2330 817 703 2787 940 809 3207 1064 915 3629 1256 10 81 4284

500

30 55/45/20 273 235 932 347 299 118 4 415 357 1416 478 411 1630 586 504 1998 638 549 2177

42.5 70/55/20 428 368 1460 544 468 1855 650 560 2219 748 644 2554 676 581 2305 1000 860 3411

50 75/65/20 525 451 17 9 0 667 574 2274 797 686 2719 918 790 3131 1038 893 3540 1225 1054 418 0

60 90/70/20 672 578 2293 854 735 2912 1021 879 3484 1175 1011 4009 1330 1144 4536 1570 1351 5355

600

30 55/45/20 328 282 1118 416 358 1421 498 429 1699 573 493 1956 703 605 2397 766 659 2612

42.5 70/55/20 514 442 1753 652 561 2226 780 672 2663 898 773 3064 811 698 2766 1200 1032 4093

50 75/65/20 629 542 2148 800 688 2729 956 823 3263 1101 948 3757 1245 1071 4248 1470 1265 5016

60 90/70/20 806 694 2751 1024 881 3495 1225 105 4 4180 1410 1213 4811 1595 1373 5444 1883 1621 6426

700

30 55/45/20 382 329 1305 486 418 1657 581 500 1983 669 575 2282 820 705 2797 893 769 3048

42.5 70/55/20 599 516 2045 761 655 2597 910 784 3106 10 48 902 3575 946 814 3227 1400 1204 4775

50 75/65/20 734 632 2505 933 803 318 4 1116 960 3807 1285 1105 4383 1453 1250 4956 1715 1476 5852

60 90/70/20 941 810 3210 1195 1028 4077 1429 1230 4877 1645 1416 5613 1861 1602 6351 2197 18 91 7497

800

30 55/45/20 437 376 1491 555 478 1894 664 571 2266 764 658 2608 937 806 319 6 1021 878 3483

42.5 70/55/20 685 589 2337 870 749 2968 1041 895 3550 1197 10 31 4086 1081 930 3688 1599 1376 5457

50 75/65/20 839 722 2863 1066 918 3639 1275 10 97 4351 1468 1263 5009 1660 1429 5664 1960 1687 6688

60 90/70/20 1075 925 3669 1366 117 5 4659 1634 1406 5574 1880 1618 6415 2127 1831 7258 2511 2161 8568

900

30 55/45/20 492 423 1678 625 537 2131 747 643 2549 860 740 2933 1054 907 3596 1148 988 3918

42.5 70/55/20 770 663 2629 979 842 3339 1171 1007 3994 1347 115 9 4596 1216 10 4 6 4149 17 9 9 1549 614 0

50 75/65/20 944 812 3221 1200 1032 4093 1435 1235 4895 1652 1421 5635 1868 16 07 6372 2205 1898 7523

60 90/70/20 1210 1041 4127 1536 1322 5242 1838 1582 6271 2115 1820 7 216 2393 2059 8165 2825 2431 9639

1000

30 55/45/20 546 470 1864 694 597 2368 830 714 2832 955 822 3259 1171 100 8 3995 1276 1098 4354

42.5 70/55/20 856 737 2921 1087 936 3710 1301 1119 4438 1497 1288 5107 1351 1163 4610 1999 17 21 6822

50 75/65/20 1049 903 3579 1333 1147 4548 1594 1372 5439 1835 1579 6261 2096 1804 7152 2450 2108 8359

60 90/70/20 1344 1157 4586 1707 146 9 5824 2042 1757 6967 2350 2022 8018 2687 2312 9168 3139 2701 10710

1100

30 55/45/20 601 517 2051 763 657 2604 913 786 3115 1051 904 3585 1288 1109 4395 1404 1208 4789

42.5 70/55/20 942 810 3213 119 6 1029 4081 1431 1231 4882 1646 1417 5618 148 6 1279 5071 2199 189 3 7504

50 75/65/20 1154 993 3937 14 6 6 1262 5003 1753 1509 5983 2019 17 37 6887 2283 1964 7788 2695 2319 9195

60 90/70/20 1478 1272 5044 1878 1616 6407 2246 1933 7664 2585 2225 8820 2925 2517 9980 3453 2972 11781

1200

30 55/45/20 656 564 2237 833 717 2841 996 857 3399 1146 987 3911 1405 1209 4795 1531 1318 5225

42.5 70/55/20 1027 884 3505 1305 1123 4452 1561 1343 5325 179 6 1546 6129 1621 1395 5532 2399 2065 818 6

50 75/65/20 1259 1083 4295 16 00 1377 5458 1913 1646 6526 2202 1895 7513 2490 2143 8496 2940 2530 10031

60 90/70/20 1613 1388 5503 2048 176 3 6989 2450 2109 8361 2820 2427 9622 3191 2746 10887 3767 3242 12852

1300

30 55/45/20 710 611 2423 902 776 3078 1079 929 3682 1242 1069 4237 1522 1310 519 4 165 9 1428 5660

42.5 70/55/20 1113 958 3797 1413 1216 4823 1691 1455 5769 1946 1675 6639 17 5 6 1511 5992 2599 2237 8868

50 75/65/20 1364 1174 4653 1733 1491 5913 2072 1783 7070 2386 2053 8139 2698 2321 9204 3185 2741 10867

60 90/70/20 1747 1504 5961 2219 1910 7572 2655 2285 9057 3055 2629 10424 3457 2975 1179 4 4081 3512 13923

1400

30 55/45/20 765 658 2610 971 836 3315 1162 1000 3965 1337 1151 4563 1639 1411 5594 178 6 1537 6095

42.5 70/55/20 1198 1031 4089 1522 1310 5194 1821 15 67 6213 2096 1803 7150 18 91 1628 6453 2799 2409 9551

50 75/65/20 1469 1264 5 011 1866 1606 6367 2232 1920 7614 2569 2211 8765 2905 2500 9912 3430 2952 11703

60 90/70/20 1882 1619 6420 2390 2057 8154 2859 2460 9754 3290 2831 11225 3723 3204 12702 4395 3782 14994

1500

30 55/45/20 820 705 2796 10 41 896 3551 1245 1072 4248 1433 1233 4889 1757 1512 5993 1914 16 47 6531

42.5 70/55/20 1284 1105 4381 1631 1404 5565 1951 1679 6657 2245 1932 7661 2027 174 4 6 914 2999 2581 10233

50 75/65/20 1574 1354 5369 2000 1721 6822 2391 2058 8158 2753 2369 9392 3113 2679 10620 3675 3163 12539

60 90/70/20 2016 1735 6879 2561 2204 8736 3063 2636 10451 3525 3034 12027 3989 3432 13609 4709 4052 16065

1600

30 55/45/20 874 752 2983 1110 955 3788 1328 1143 4532 1528 1315 5215 1874 1612 6393 2042 175 7 6966

42.5 70/55/20 1370 1179 4673 174 0 1497 5936 2081 1791 7100 2395 2061 8171 2162 1860 7375 319 9 2753 10915

50 75/65/20 1678 1444 5727 2133 1835 7277 2550 2195 8702 2936 2527 10018 3320 2857 11328 3920 3373 13375

60 90/70/20 2150 1851 7337 2731 2350 9319 3267 2812 11148 3760 3236 12829 4254 3661 14516 5022 4322 17136

1800

30 55/45/20 983 846 3355 1249 1075 4262 14 9 4 1286 5098 1720 14 8 0 5867 2108 1814 7192 2297 1977 7837

42.5 70/55/20 1541 1326 5258 19 57 1684 6678 2341 2015 7988 2694 2319 9193 2432 2093 8297 3599 3097 12279

50 75/65/20 1888 1625 6443 2399 2065 8187 2869 2469 9790 3303 2843 11270 3735 3214 12744 4410 3795 15047

60 90/70/20 2419 2082 8254 3073 2644 10484 3676 3163 12541 4230 3640 14433 4786 4119 16331 5650 4862 19278

2000

30 55/45/20 1093 940 3728 1388 119 4 4735 1660 1429 5664 1911 16 44 6519 2342 2015 7991 2552 219 6 8708

42.5 70/55/20 1712 1473 5842 217 5 1871 7419 2601 2239 8876 2994 2576 10214 2702 2325 9219 3999 3441 13644

50 75/65/20 2098 1806 7158 2666 2294 9096 318 8 2744 10877 3670 3158 12522 4150 3571 1416 0 4900 4217 16719

60 90/70/20 2688 2313 9171 3414 2938 116 49 4084 3515 13935 4700 4045 16036 5318 4577 18145 6278 5403 21421

2200

30 55/45/20 1202 1034 4101 1527 1314 5209 1826 1572 6231 2102 1809 7171 2576 2217 8790 2807 2416 9578

42.5 70/55/20 1883 1621 6426 2392 2058 8161 28 61 2462 9763 3293 2834 11236 2972 2558 10141 4399 3785 15008

50 75/65/20 2308 1986 7874 2933 2524 10006 3507 3018 1196 5 4037 3474 13774 4565 3929 15576 5390 4639 18391

60 90/70/20 2957 2545 10089 3755 3232 12813 4492 3866 15328 5170 4449 17640 5850 5034 19960 6906 5943 23563

2400

30 55/45/20 1311 1128 4474 1665 1433 5682 1992 1714 6797 2293 1973 7823 2810 2419 9589 3062 2635 10449

42.5 70/55/20 2055 17 6 8 7010 2609 2246 8903 3122 2686 10651 3592 3092 12257 3242 2790 110 63 4798 4129 16372

50 75/65/20 2518 2167 8590 319 9 2753 10 916 3826 3292 13053 4404 3790 15026 4980 4286 16992 5880 5060 20063

60 90/70/20 3226 2776 11006 4097 3526 13978 4901 4218 16722 5640 4854 19244 6382 5492 217 74 7534 6483 25705

2700

30 55/45/20 1475 1269 5033 1874 1612 6393 2241 1929 7647 2579 2220 8800 3162 2721 10788 3445 2965 11755

42.5 70/55/20 2311 1989 7886 2936 2526 10016 3512 3022 119 82 4041 3478 13789 3648 3139 12446 5398 4646 18419

50 75/65/20 2832 2437 9664 3599 3097 12280 4304 3704 146 85 4955 4264 16905 5603 4821 19116 6615 5693 22570

60 90/70/20 3629 3123 12381 4609 3966 15726 5513 4745 18812 6345 5460 216 49 7179 6178 24496 8475 7294 28918

3000

30 55/45/20 1639 1411 5592 2082 1791 7103 2490 2143 8497 2866 2466 9778 3513 3023 119 8 6 3828 3294 13061

42.5 70/55/20 2568 2210 8763 3262 2807 11129 3902 3358 13313 4490 3864 15321 4053 3488 13829 5998 5162 20465

50 75/65/20 3147 2708 10738 3999 3441 13645 4782 4115 16316 5505 4738 18783 6225 5357 21240 7350 6325 25078

60 90/70/20 4032 3470 13757 5121 4407 17473 6126 5272 20902 7050 6067 24055 7977 6865 27218 9 417 8104 32131

Heat output

Dimensions (mm) Weight

Kg/M

Water Content

Lt/M

300 245 17.40 3.20

400 345 22.87 4.10

500 445 28.33 5.00

600 545 33.80 5.90

750 695 42.00 6.75

900 845 51.20 7.60

14 15

KOMPACT PANEL RADIATORS

TYPE

300 400 500 600 750 900

245 345 445 545 695 845

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

30 55/45/20 736 634 2512 935 804 3189 1120 963 3820 1293 1113 4413 1666 1434 5684 1758 1513 5999

42.5 70/55/20 1154 993 3936 1464 1260 4996 1754 1510 5985 2027 1744 6915 1923 1655 6561 2755 2371 9399

50 75/65/20 1431 1231 4883 1816 1563 6196 2176 1873 7425 2514 2164 8578 2984 2568 10181 3417 2941 11659

60 90/70/20 1811 1559 6179 2299 1978 7844 2754 2370 9397 3182 2738 10857 3825 3292 13051 4325 3722 14757

1000mm radiator length

For all lengths. (*) Mean temperature as the water inlet and outlet temperatures. Not a stock item, available via special order only.

Front View

Top View

Side View

TYPE 33-DKEK-TRIPLE

33 - DKEK - TRIPLE

TYPE

33-DKEK

HEIGHT

300 400 500 600 750 900

(*)

HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT HEAT OUTPUT

LENGTH

ΔT °C Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU Watt Kcal/h BTU

400

30 55/45/20 294 253 1005 374 322 1275 448 385 1528 517 445 1765 666 573 2274 703 605 2399

42.5 70/55/20 461 397 1574 586 504 1999 702 604 2394 811 698 2766 769 662 2625 1102 948 3760

50 75/65/20 572 493 1953 726 625 2478 870 749 2970 100 6 865 3431 1194 1027 4073 1367 1176 4664

60 90/70/20 724 623 2472 920 791 3138 1102 948 3759 1273 1095 4343 1530 1317 5220 1730 148 9 5903

500

30 55/45/20 368 317 1256 467 402 1594 560 482 1910 647 557 2207 833 717 2842 879 757 2999

42.5 70/55/20 577 496 1968 732 630 2498 877 755 2993 1013 872 3458 962 827 3281 1377 1185 4700

50 75/65/20 716 616 2441 908 781 3098 1088 936 3712 1257 1082 4289 1492 1284 5091 17 0 9 1470 5829

60 90/70/20 906 779 3090 1150 989 3922 1377 1185 4698 1591 1369 5428 1913 1646 6525 2163 18 61 7378

600

30 55/45/20 442 380 1507 561 483 1913 672 578 2292 776 668 2648 1000 860 3411 1055 908 3599

42.5 70/55/20 692 596 2361 879 756 2998 1052 906 3591 1216 10 47 4149 1154 993 3937 1653 1422 5640

50 75/65/20 859 739 2930 1090 938 3718 1306 1124 4455 1508 1298 5147 17 9 0 1541 610 9 2050 176 4 6995

60 90/70/20 1087 935 3707 1379 1187 4707 1652 1422 5638 1909 1643 6514 2295 1975 7831 2595 2233 8854

700

30 55/45/20 515 443 17 5 8 654 563 2232 784 674 2674 905 779 3089 1166 1004 3979 1231 105 9 4199

42.5 70/55/20 807 695 2755 1025 882 3497 1228 10 57 419 0 1419 1221 4841 1346 1158 4593 1928 1660 6580

50 75/65/20 1002 862 3418 1271 1094 4337 1523 1311 5197 176 0 1514 6004 2089 17 9 8 7127 2392 2058 8161

60 90/70/20 1268 1091 4325 1609 1385 5491 1928 165 9 6578 2227 1917 7600 2678 2304 9136 3028 2605 10330

800

30 55/45/20 589 507 2009 748 643 2551 896 771 3056 1035 891 3531 1333 1147 4548 1407 1210 4799

42.5 70/55/20 923 794 3149 1171 1008 3997 1403 1208 4788 1621 1395 5532 1538 1324 5249 2204 1897 7519

50 75/65/20 1145 985 3906 1453 1250 4957 1741 1498 5940 2011 17 31 6862 2387 2054 8145 2734 2352 9327

60 90/70/20 1449 1247 4943 1839 15 83 6275 2203 1896 7 517 2546 2191 8686 3060 2633 10441 3460 2978 1180 6

900

30 55/45/20 663 570 2261 841 724 2870 1008 867 3438 1164 1002 3972 149 9 1290 5116 1582 1362 5399

42.5 70/55/20 1038 893 3542 1318 1134 4497 1579 1359 5387 1824 1570 6224 1731 148 9 5905 2479 2134 8459

50 75/65/20 1288 1108 4394 1634 1407 5577 195 8 16 85 6682 2263 1947 7720 2686 2311 9163 3075 2647 10493

60 90/70/20 1630 1403 5561 2069 1781 7060 2479 2133 8457 2864 2465 9771 3443 2963 11746 3893 3350 13281

1000

30 55/45/20 736 634 2512 935 804 318 9 1120 963 3820 1293 1113 4413 1666 1434 5684 17 5 8 1513 5999

42.5 70/55/20 1154 993 3936 1464 1260 4996 17 5 4 1510 5985 2027 1744 6915 1923 1655 6561 2755 2371 9399

50 75/65/20 1431 1231 4883 1816 1563 619 6 2176 1873 7425 2514 2164 8578 2984 2568 10181 3 417 2941 11659

60 90/70/20 1811 1559 6179 2299 1978 7844 2754 2370 9397 3182 2738 10857 3825 3292 13051 4325 3722 14757

1100

30 55/45/20 810 697 2763 1028 885 3508 1231 1060 4202 1423 1224 4855 1833 1577 6253 1934 1664 6599

42.5 70/55/20 1269 10 92 4329 1611 1386 5496 1930 1661 6584 2229 1919 7607 2115 1820 7217 3030 2608 10339

50 75/65/20 1574 1355 5371 1998 1719 6816 2394 2060 8167 2765 2380 9436 3282 2825 11200 3759 3235 12825

60 90/70/20 1992 1714 6797 2529 2176 8629 3029 2607 10336 3500 3012 11943 4208 3621 14356 4758 4094 16233

1200

30 55/45/20 883 760 3014 1121 965 3826 1343 115 6 4584 1552 1336 5296 1999 1720 6 821 2110 1816 7198

42.5 70/55/20 1384 1191 4723 17 57 1512 5996 2105 1812 7182 2432 2093 8298 2308 1986 7874 3306 2845 11279

50 75/65/20 1717 1478 5859 2179 1875 7435 2611 2247 8909 3017 2596 10293 3581 3082 12218 4100 3529 13991

60 90/70/20 2173 1870 7415 2759 2374 9413 3305 2844 11276 3818 3286 13028 4590 3950 15661 5190 4466 17708

1300

30 55/45/20 957 824 3265 1215 104 6 4145 1455 1252 4966 1682 1447 5737 2166 1864 7390 2286 19 67 7798

42.5 70/55/20 1500 1290 5116 1904 1638 6495 2280 19 62 7781 2635 2267 8990 2500 2151 8530 3581 3082 12219

50 75/65/20 1860 1601 6347 2361 2032 8055 2829 2434 9652 3268 2813 11151 3879 3338 13236 4442 3823 15156

60 90/70/20 2354 2026 8033 2989 2572 10197 3580 3081 12216 4137 3560 14114 4973 4279 16966 5623 4839 1918 4

1400

30 55/45/20 1031 887 3517 1308 1126 4464 1567 1349 5348 1811 1558 6179 2332 2007 7958 2461 2118 8398

42.5 70/55/20 1615 1390 5510 2050 176 4 6995 2456 2113 8379 2837 2442 9681 2692 2 317 918 6 3857 3319 13159

50 75/65/20 2003 1724 6836 2542 2188 8675 3046 2622 10394 3520 3029 12009 4178 3595 14254 4784 4117 16322

60 90/70/20 2535 2182 8651 3219 2770 10982 3856 3318 13155 4455 3834 15200 5355 4608 18271 6055 5211 20660

1500

30 55/45/20 1104 950 3768 1402 1206 4783 1679 1445 5730 1940 1670 6620 2499 2151 8527 2637 2270 8998

42.5 70/55/20 1730 14 8 9 5904 2196 1890 7494 2631 2264 8978 3040 2616 10373 2885 2482 9842 4132 3556 14099

50 75/65/20 2147 18 47 7324 2724 2344 9294 3264 2809 11137 3771 3245 12867 4476 3852 15272 5126 4411 17 48 8

60 90/70/20 2717 2338 9269 3449 2968 117 6 6 4131 3555 14095 4773 410 8 16285 5738 4938 19576 6488 5583 22135

1600

30 55/45/20 1178 1014 4019 1495 1287 5102 1791 1541 6112 2070 1781 7061 2666 2294 9095 2813 2421 9598

42.5 70/55/20 1846 1588 6297 2343 2016 7994 2807 2415 9576 3243 2791 110 6 4 3077 2648 10498 4408 3793 15039

50 75/65/20 2290 1970 7812 2906 2501 9914 3482 2996 11879 4022 3462 13724 4774 4109 16290 5467 4705 18654

60 90/70/20 2898 2494 9887 3678 3166 12551 4406 3792 15035 5091 4381 17371 6120 5267 20881 6920 5955 23611

1800

30 55/45/20 1325 1140 4521 16 82 1448 5740 2015 1734 6876 2328 2004 7944 2999 2581 10232 3165 2723 10798

42.5 70/55/20 2076 1787 7084 2636 2268 8993 3157 2717 10773 3648 314 0 12447 3461 2979 11810 4959 4267 16919

50 75/65/20 2576 2217 8789 3269 2813 11153 3 917 3371 13364 4525 3894 15440 5371 4622 18327 6151 5293 20986

60 90/70/20 3260 2805 11122 4138 3561 14120 4957 4266 16914 5728 4929 19543 6885 5925 23492 7785 6700 26562

2000

30 55/45/20 1472 1267 5024 1869 1609 6377 2239 1927 7640 2587 2226 8827 3332 2867 1136 9 3516 3026 11997

42.5 70/55/20 2307 19 85 7872 2929 2520 9993 3508 3019 11970 4054 3488 13831 3846 3310 13123 5510 4741 18799

50 75/65/20 2862 2463 9765 3632 3126 12392 4352 3745 14849 5028 4327 17156 5968 5136 20363 6834 5881 23318

60 90/70/20 3622 3117 12358 4598 3957 15688 5508 4740 18793 6364 5477 21714 7650 6583 26102 8650 7444 29514

2200

30 55/45/20 1620 1394 5526 2056 17 6 9 7015 2463 2120 8404 2846 2449 9709 3665 3154 12506 3868 3329 13197

42.5 70/55/20 2538 2184 8659 3222 2772 10992 3859 3321 13167 4459 3837 15214 4231 3641 14435 6061 5216 20678

50 75/65/20 3148 2709 10742 3995 3438 13632 4787 4120 16334 5531 4760 18871 6565 5650 22399 7517 6469 25649

60 90/70/20 3984 3429 13594 5058 4353 17257 6059 5214 20673 7000 6024 23885 8415 7242 28712 9515 8188 32465

2400

30 55/45/20 1767 1521 6028 2243 1930 7653 2687 2312 9167 310 4 2672 10592 3998 3441 13643 4220 3631 14397

42.5 70/55/20 2768 2382 9446 3514 3024 11991 4210 3623 14364 4864 4186 165 97 4615 3972 15747 6 611 5690 22558

50 75/65/20 3434 2956 11718 4358 3751 14871 5222 4494 17819 6034 5192 20587 7162 616 3 24435 8201 7057 27981

60 90/70/20 4346 3740 14830 5518 4748 18826 6610 5688 22552 7637 6572 26057 9180 7900 31322 10380 8933 3 5 417

2700

30 55/45/20 1988 1711 6782 2523 2172 8609 3023 2601 10313 3492 3006 11916 4498 3871 15348 4747 4085 16197

42.5 70/55/20 3114 2680 10627 3954 3402 13490 4736 4076 16160 5472 4709 18 671 5192 4468 17715 7438 6401 25378

50 75/65/20 3864 3325 13183 4903 4220 16730 5875 5056 20046 6788 5841 2316 0 8057 6934 27490 9226 7940 31479

60 90/70/20 4890 4208 16684 6207 5342 21179 7436 6399 25371 8591 7394 29314 10328 8888 35237 11678 10049 39844

3000

30 55/45/20 2209 1901 7536 2804 2413 9566 3359 2890 1145 9 3880 3339 13240 4998 4301 17053 5274 4539 17996

42.5 70/55/20 3461 2978 11807 4393 3781 14989 5262 4529 17955 6080 5233 20746 5769 4965 19684 8264 7112 28198

50 75/65/20 4293 3694 146 48 5448 4688 18589 6528 5 618 22274 7542 6491 25733 8952 7704 30544 10251 8822 34976

60 90/70/20 5433 4676 18537 6897 5935 23533 8262 7110 2819 0 9546 8215 32571 11475 9875 39153 12975 11166 44271

Heat output

Dimensions (mm) Weight

Kg/M

Water Content

Lt/M

300 245 25.70 5.00

400 345 34.07 6.10

500 445 42.43 7.20

600 545 50.80 8.30

750 695 63.50 9.75

900 845 76.50 11.25

16 17

12 13

• Valveinstalledusinga‘cut-out’*

in the cover.

• Valveinstalledwithincasing,temperature

controlled by use of remote sensor.

• Valveinstalledwithincasing,temperature

controlled centrally by use of room stat.

• RemotecontrolTRVmechanism

 externalofcasing.

* Chosen valve brand, model and position must be provided

at point of order

LST VALVE

OPTIONS

PRODUCT

FEATURES

LST COVERS

SIZES

30+S

9016

BAR 10

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

4-6 WEEKS OF ORDER

Optional kick grille plinths

Height mm Width mm Depth Code Delivery Code Price (£) Depth Code Delivery Code Price (£)

100 700 135 KKG0700P D77.89 160 KKG0700D D81.73

100 1000 135 KKG1000P D96.04 160 KKG1000D D96.04

100 1200 135 KKG1200P D100.29 160 KKG1200D D106.33

100 1600 135 KKG1600P D120.71 160 KKG1600D D120.71

100 2200 135 KKG2200P D156.24 160 KKG2200D D162.53

Type 21

Product Code

(Heating Only)

Height

(mm)

(h)

Width

(mm)

(w)

Depth

(mm)

(d)

Rad Size Heat Output ∆t50ºC Heat Output ∆t60ºC Delivery

Code

Price

(£)

Watts BTUs Watts BTUs

KLST507P 525 700 135 P405K 484 1652 620 2116 D341.09

KLST510P 525 1000 135 P408K 775 2643 992 3386 D421.56

KLST512P 525 1200 135 P410K 968 3304 1241 4233 D444.52

KLST516P 525 1600 135 P414K 1356 4625 1737 8926 D493.51

KLST522P 525 2200 135 P420K 1936 6607 2481 8465 D542.52

KLST607P 625 700 135 P505K 578 1973 741 2528 D687.13

KLST610P 625 1000 135 P508K 925 3158 1186 4046 D357.20

KLST612P 625 1200 135 P510K 1157 3947 1482 5057 D442.38

KLST616P 625 1600 135 P514K 1619 5526 2075 7080 D468.17

KLST622P 625 2200 135 P520K 2314 7894 2964 10114 D573.01

KLST707P 725 700 135 P605K 664 2267 851 2904 D727.37

KLST710P 725 1000 135 P608K 1063 3627 1362 4647 D373.22

KLST712P 725 1200 135 P610K 1329 4533 1702 5808 D403.28

KLST716P 725 1600 135 P614K 1860 6347 2383 8131 D463.37

KLST722P 725 2200 135 P620K 2657 9067 3405 11616 D492.29

Type 22

Product Code

(Heating Only)

Height

(mm)

(h)

Width

(mm)

(w)

Depth

(mm)

(d)

Rad Size Heat Output ∆t50ºC Heat Output ∆t60ºC Delivery

Code

Price

(£)

Watts BTUs Watts BTUs

KLST507D 700 160 525 D405K 626 2134 801 2735 D369.30

KLST510D 1000 160 525 D408K 1001 3415 1282 4375 D427.93

KLST512D 1200 160 525 D410K 1251 4269 1603 5469 D490.41

KLST516D 1600 160 525 D414K 1751 5976 2244 7657 D548.88

KLST522D 2200 160 525 D420K 2502 8537 3206 10938 D729.88

KLST607D 700 160 625 D505K 748 2553 959 3271 D385.41

KLST610D 1000 160 625 D508K 1197 4085 1534 5234 D448.92

KLST612D 1200 160 625 D510K 1497 5106 1917 6542 D514.54

KLST616D 1600 160 625 D514K 2095 7149 2684 9159 D579.46

KLST622D 2200 160 625 D520K 2993 10212 3835 13085 D 770.12

KLST707D 700 160 725 D605K 861 2938 1103 3765 A401.45

KLST710D 1000 160 725 D608K 1378 4701 1765 6024 D469.74

KLST712D 1200 160 725 D610K 1722 5877 2207 7530 D538.75

KLST716D 1600 160 725 D614K 2411 8228 3090 10541 D610.11

KLST722D 2200 160 725 D620K 3445 11754 4414 15059 D810.36

Product Features

TECHNICAL INFORMATION

• Idealforhospitals,retirementhomes, 

nurseries, schools and public buildings.

• Maxsurfacetemperatureof43ºCfully 

conforms to NHS Estates specification.

• Comprehensiverangeofover30sizes-

additional sizes made to order.

• LSTCoversareproducedusing

 1.5mmsteel.

• HighQualityFinish–whiteenamel

(RAL 9016 Traffic White).

• Coversmaintain190mmofspacebetween

the radiator to accommodate valves.

• Coveredtothefloorusinganoptional

kick grille.

Prices are for covers only, they do not include the price of the radiator.

Order hotline 01234 363 393 Online www.kartelluk.com

18 19

14 15

RAL

• K-Flatissuitableforanydomestic

or commercial new built or

refurbishment project.

• Availableinsingleanddouble 

panel designs, the K-Flat radiators

offer an economical, fast and

efficient performance.

• K-Flatarefittedwithintegrated 

side panels on the Type 20 version only.

All radiators are supplied ready to install.

• Verticalradiatorsaresuppliedwith

an optional retaining stay for

enhanced safety.

• ManufacturedunderBSENISO

9000 quality standards.

• Completewithinstallationpackage 

including brackets, bolts , vents and plugs.

• 4fixingpoints,0.5”tappings.

• Pressuretestedto13bars.

• 10yearguarantee.

• Brightwhitefinish(RAL9016)

FLAT

RADIATORS

HORIZONTAL / VERTICAL

SIZES

50+S

9016

BAR 10

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

Product Features

Order hotline 01234 363 393 Online www.kartelluk.com

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

20 21

16 17

FLAT RADIATORS TECHNICAL INFORMATION

Fitting Dimensions

Type 22 Double ConvectorType 11 Single Convector

Type 11 Single Type 22 Double

A=125mm  A=137mm

Sizes indicated may vary by + or - 2mm.

Type 20 Vertical Flat radiatorType 10 Vertical Flat Radiator

Vertical Radiators

TYPE 10 Single Panel No Side Panels TYPE 20 Single Panel No Side Panels

Height

(mm)

Width

(mm)

Width

(inches)

Weight per metre

metre-litre

Water content per

metre-litre Output ∆T60º

Code Delivery

Code

Price

(£)

Output ∆T60º

Code Delivery

Code

Price

(£)

Single Double Single Double Watts BTUs Watts BTUs

1800

70”

300 12 11.6 23.3 3.1 6.1 490 1672 SV318F A 313.21 813 2774 DV318F A449.88

400 16 16.1 32.3 3.6 7.2 655 2235 SV418F A 356.50 1087 3709 DV418F A513.18

500 20 26.1 44.8 4.3 8.6 818 2791 SV518F A 400.66 1349 4603 DV518F A580.66

600 24 31.1 53.5 5 10.1 988 3371 SV618F A 449.85 1618 5521 DV618F A643.16

200

78”

400 16 — 36.1 — 8 — — — A — 1219 4159 DV420F A549.89

500 20 28.8 49.8 4.8 9.6 907 3095 SV520F A 424.92 1527 5210 DV520F A624.90

600 24 34.4 59.4 5.6 11.2 1091 3722 SV620F A 481.54 1828 6237 DV620 A694.86

Horizontal Radiators

TYPE 11 Single Convector TYPE 22 Double Convector

Height

(mm)

Width

(mm)

Width

(inches)

Weight per metre

metre-litre

Water content per

metre-litre Output ∆T60º

Code Delivery

Code

Price

(£)

Output ∆T60º

Code Delivery

Code

Price

(£)

Single Double Single Double Watts BTUs Watts BTUs

300

12’’

600 20 10 20 1.7 3.4 360 1230 KS306F A178.65 723 2467 KD306F A232.99

1000 39 10 20 1.7 3.4 601 601 KS310F A218.75 1205 4111 KD310F A307.38

1400 55 10 20 1.7 3.4 841 841 KS314F A276.17 1687 5756 KD314F A404.28

400

16’’

400 16 14 27 2 4 310 1058 KS404F A148.63 612 2089 KD404F A192.04

600 24 14 27 2 4 465 1586 KS406F A173.07 918 3133 KD406F A233.43

800 32 14 27 2 4 620 2115 KS408F A204.96 1224 4178 KD408F A285.51

1000 39 14 27 2 4 775 2644 KS410F A237.17 1531 5222 KD410F A337.72

1200 47 14 27 2 4 930 3173 KS412F A275.14 1837 6266 KD412F A396.20

1400 55 14 27 2 4 1085 3701 KS414F A304.57 2143 7311 KD414F A445.47

1600 63 14 27 2 4 1240 4230 KS416F A338.95 2449 8355 KD416F A500.05

500

20’’

400 16 18 34.5 2.4 4.8 375 1279 KS504F A163.35 732 2499 KD504F A216.83

600 24 18 34.5 2.4 4.8 562 1918 KS506F A192.46 1099 3748 KD506F A267.01

800 32 18 34.5 2.4 4.8 750 2558 KS508F A231.03 1465 4997 KD508F A330.73

1000 39 18 34.5 2.4 4.8 937 3197 KS510F A270.37 1831 6247 KD510F A394.94

1200 47 18 34.5 2.4 4.8 1124 3837 KS512F A316.18 2197 7496 KD512F A465.31

1400 55 18 34.5 2.4 4.8 1312 4476 KS514F A351.24 2563 8746 KD514F A525.22

1600 63 18 34.5 2.4 4.8 1499 5116 KS516F A385.25 2929 9995 KD516F A584.32

600

24’’

400 16 21.5 41.5 2.8 5.6 436 1489 KS604F A174.62 843 2876 KD604F A239.54

600 24 21.5 41.5 2.8 5.6 654 2233 KS606F A209.10 1264 4314 KD606F A299.37

800 32 21.5 41.5 2.8 5.6 873 2977 KS608F A254.17 1686 5752 KD608F A375.07

1000 39 21.5 41.5 2.8 5.6 1091 3722 KS610F A299.30 2107 7190 KD610F A450.38

1200 47 21.5 41.5 2.8 5.6 1309 4466 KS612F A336.57 2529 8627 KD612F A532.26

1400 55 21.5 41.5 2.8 5.6 1527 5211 KS614F A391.85 2950 10065 KD614F A603.29

1600 63 21.5 41.5 2.8 5.6 1745 5955 KS616F A431.42 3371 11503 KD616F A673.17

1800 71 21.5 41.5 2.8 5.6 1963 6699 KS618F A469.49 3793 12941 KD618F A741.52

2000 7 21.5 41.5 2.8 5.6 2182 7444 KS620F A508.22 4214 14379 KD620F A810.61

Type 11 Horizontal Flat Radiator Type 22 Horizontal Flat radiator

Nominal Size mm

Centre Distance

Width mm

Wall to Centre mm

Nominal Size mm

Centre Distance

Width mm

Wall to Centre mm

300 245 56 40or55 300 245 105 82.5or97.5

400 345 56 40or55 400 345 105 82.5or97.5

500 445 56 40or55 500 445 105 82.5or97.5

600 545 56 40or55 600 545 105 82.5or97.5

K-FLAT Vertical radiators are supplied with an optional retaining stay for enhanced safety. We strongly recommend the implementation of the safety equipment and will not accept

responsibility for issues or damage caused by not using the retaining stay.

Type 10 Vertical Flat Radiator Type 20 Vertical Flat Radiator Type 10 and 20

Nominal

Size mm

Centre

Distance

Width

Wall to

Centre mm

Nominal

Size mm

Wall to

Centre mm

Width

Wall to

Centre mm

Height

Bracket fitting

dimension

300 245 52.5 42 300 245 72.5 59 1600 1425

400 345 52.5 42 400 345 72.5 59 1800 1625

500 445 52.5 42 500 445 72.5 59 2000 1825

600 545 52.5 42 600 545 72.5 59

Order hotline 01234 363 393 Online www.kartelluk.com

22 23

18 19

Lorem ipsum dolor sit amet, consectetur

adipisicing elit, sed do eiusmod tempor

incididunt ut labore et dolore magna aliqua.

Ut enim ad minim veniam, quis nostrud

exercitationullamcolaborisnisiutaliquip

exeacommodoconsequat.

Lorem ipsum dolor sit amet, consectetur

adipisicing elit, sed do eiusmod tempor

incididunt ut labore et dolore magna aliqua.

Lorem ipsum dolor sit amet, consectetur

adipisicing elit, sed do eiusmod tempor

incididunt ut labore magna aliqua.

• Amoderntwistonatraditionaltubulardesign

• Availableintexturedwhite

or anthracite finishes

• 4sizesavailable

• 5yearguarantee

HORIZONTAL

RAL

FLAT PREMIUM RADIATORS

SIZES

50+S

9016

BAR 10

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

Product Features

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

Order hotline 01234 363 393 Online www.kartelluk.com

24 25

• K-FlatPremiumissuitableforany

domestic or commercial new built or

refurbishment project.

• Availableinsingleanddouble

panel designs, the K-Flat Premium

radiators offer an economical, fast and

efficient performance.

• K-FlatPremiumarefittedwithintegrated

side panels on the Type 20 version only.

All radiators are supplied ready to install.

• VerticalPremiumradiatorsaresupplied

with an optional retaining stay for

enhanced safety.

• ManufacturedunderBSENISO

9000 quality standards.

• Completewithinstallationpackage 

including brackets, bolts , vents and plugs.

• 4fixingpoints,0.5”tappings.

• Pressuretestedto13bars.

• 10yearguarantee.

• Brightwhitefinish(RAL9016)

HORIZONTAL / VERTICAL

PREMIUM

20 21

K-FLAT Vertical radiators are supplied with an optional retaining stay for enhanced safety. We strongly recommend the implementation of the safety equipment and will not accept

responsibility for issues or damage caused by not using the retaining stay.

Fitting Dimensions

Type 22 Double ConvectorType 11 Single Convector

Type 11 Single Type 22 Double

A=125mm  A=137mm

Sizes indicated may vary by + or - 2mm.

Type 20 Vertical Flat radiatorType 10 Vertical Flat Radiator

FLAT PREMIUM RADIATORS TECHNICAL INFORMATION

Vertical Radiators

TYPE 10 Single Panel No Side Panels TYPE 20 Single Panel No Side Panels

Height

(mm)

Width

(mm)

Width

(inches)

Weight per metre

metre-litre

Water content per

metre-litre Output ∆T60º

Code Delivery

Code

Price

(£)

Output ∆T60º

Code Delivery

Code

Price

(£)

Single Double Single Double Watts BTUs Watts BTUs

1800

70”

300 12 11.6 23.3 3.1 6.1 490 1672 SV318FP A375.85 813 2774 DV318FP A539.85

400 16 16.1 32.3 3.6 7.2 655 2235 SV418FP A427.81 1087 3709 DV418FP A615.82

500 20 26.1 44.8 4.3 8.6 818 2791 SV518FP A480.79 1349 4603 DV518FP A696.79

600 24 31.1 53.5 5 10.1 988 3371 SV618FP A539.81 1618 5521 DV618FP A771.79

200

78”

400 16 — 36.1 — 8 — — —A–1219 4159 DV420FP A659.87

500 20 28.8 49.8 4.8 9.6 907 3095 SV520FP A509.91 1527 5210 DV520FP A749.89

600 24 34.4 59.4 5.6 11.2 1091 3722 SV620FP A577.85 1828 6237 DV620P A833.83

Horizontal Radiators

TYPE 11 Single Convector TYPE 22 Double Convector

Height

(mm)

Width

(mm)

Width

(inches)

Weight per metre

metre-litre

Water content per

metre-litre Output ∆T60º

Code Delivery

Code

Price

(£)

Output ∆T60º

Code Delivery

Code

Price

(£)

Single Double Single Double Watts BTUs Watts BTUs

300

12’’

600 20 10 20 1.7 3.4 360 1230 KS306FP A214.38 723 2467 KD306FP A279.59

1000 39 10 20 1.7 3.4 601 601 KS310FP A262.50 1205 4111 KD310FP A368.86

1400 55 10 20 1.7 3.4 841 841 KS314FP A331.41 1687 5756 KD314FP A485.13

400

16’’

400 16 14 27 2 4 310 1058 KS404FP A178.35 612 2089 KD404FP A230.45

600 24 14 27 2 4 465 1586 KS406FP A207.68 918 3133 KD406FP A280.11

800 32 14 27 2 4 620 2115 KS408FP A245.95 1224 4178 KD408FP A342.62

1000 39 14 27 2 4 775 2644 KS410FP A284.61 1531 5222 KD410FP A405.27

1200 47 14 27 2 4 930 3173 KS412FP A330.17 1837 6266 KD412FP A475.44

1400 55 14 27 2 4 1085 3701 KS414FP A365.49 2143 7311 KD414FP A534.56

1600 63 14 27 2 4 1240 4230 KS416FP A406.74 2449 8355 KD416FP A600.06

500

20’’

400 16 18 34.5 2.4 4.8 375 1279 KS504FP A196.02 732 2499 KD504FP A260.19

600 24 18 34.5 2.4 4.8 562 1918 KS506FP A230.95 1099 3748 KD506FP A320.41

800 32 18 34.5 2.4 4.8 750 2558 KS508FP A277.23 1465 4997 KD508FP A396.88

1000 39 18 34.5 2.4 4.8 937 3197 KS510FP A324.45 1831 6247 KD510FP A473.93

1200 47 18 34.5 2.4 4.8 1124 3837 KS512FP A379.42 2197 7496 KD512FP A558.38

1400 55 18 34.5 2.4 4.8 1312 4476 KS514FP A421.49 2563 8746 KD514FP A630.26

1600 63 18 34.5 2.4 4.8 1499 5116 KS516FP A 462.30 2929 9995 KD516FP A 701.29

600

24’’

400 16 21.5 41.5 2.8 5.6 436 1489 KS604FP A209.54 843 2876 KD604FP A287.45

600 24 21.5 41.5 2.8 5.6 654 2233 KS606FP A250.93 1264 4314 KD606FP A359.25

800 32 21.5 41.5 2.8 5.6 873 2977 KS608FP A305.01 1686 5752 KD608FP A450.08

1000 39 21.5 41.5 2.8 5.6 1091 3722 KS610FP A359.17 2107 7190 KD610FP A540.46

1200 47 21.5 41.5 2.8 5.6 1309 4466 KS612FP A403.89 2529 8627 KD612FP A638.71

1400 55 21.5 41.5 2.8 5.6 1527 5211 KS614FP A470.22 2950 10065 KD614FP A723.94

1600 63 21.5 41.5 2.8 5.6 1745 5955 KS616FP A517.70 3371 11503 KD616FP A807.81

1800 71 21.5 41.5 2.8 5.6 1963 6699 KS618FP A563.38 3793 12941 KD618FP A889.83

2000 7 21.5 41.5 2.8 5.6 2182 7444 KS620FP A609.86 4214 14379 KD620FP A972.73

Type 11 Horizontal Flat Radiator Type 22 Horizontal Flat radiator

Nominal Size mm

Centre Distance

Width mm

Wall to Centre mm

Nominal Size mm

Centre Distance

Width mm

Wall to Centre mm

300 245 56 40or55 300 245 105 82.5or97.5

400 345 56 40or55 400 345 105 82.5or97.5

500 445 56 40or55 500 445 105 82.5or97.5

400 545 56 40or55 600 545 105 82.5or97.5

Type 10 Vertical Flat Radiator Type 20 Vertical Flat Radiator Type 10 and 20

Nominal

Size mm

Centre

Distance

Width

Wall to

Centre mm

Nominal

Size mm

Wall to

Centre mm

Width

Wall to

Centre mm

Height

Bracket fitting

dimension

300 245 52.5 42 300 245 72.5 59 1600 1425

400 345 52.5 42 400 345 72.5 59 1800 1625

500 445 52.5 42 500 445 72.5 59 2000 1825

600 545 52.5 42 600 545 72.5 59

Order hotline 01234 363 393 Online www.kartelluk.com

26 27

*This price addition for painting is only appicable to Laser Klassic radiators for other products where the RAL symbol appears in the catalogue price is on application if not detailed.

Since 1927, RAL has created a uniform

language when it comes to colour.

RAL have standardised, numbered and

named the abundance of colours. These

standards are easily understandable and

applicable - worldwide.

Printed colours in this publication, whilst a

goodreectiontheymaynotbeanexact

match to the ﬁnished products.

COLOUR YOUR WORLD

NEUTRAL COLOURS

COOL COLOURS

VIVID COLOURS

PASTEL COLOURS

RAL 6034

RAL3015

RAL 9010

plus50%RRP*

plus75%RRP*

RAL5004

RAL5024

RAL 1016

RAL 4004

RAL9005

RAL5021

RAL 6027

RAL5024

RAL 1013

RAL 6013

RAL5023

RAL 1018

RAL 4007

RAL 3004

RAL 8014

RAL5018

RAL 1000

RAL1015

RAL5017

RAL5012

RAL 1021

RAL3005

RAL 6009

RAL 7043

RAL5020

RAL 6019

RAL 7032

RAL4005

RAL5019

RAL 1028

RAL 3007

RAL5022

WARM COLOURS

RICH COLOURS

RAL 2002 RAL 3020 RAL 3027 RAL 3004

RAL 8012 RAL 8004 RAL 8023 RAL 8012

RAL 6000

RAL 9002

RAL 7040

RAL 4006

RAL5013

RAL 1007

RAL 4006

RAL 2002

RAL 6026

RAL 6034

RAL5001 RAL 9016 RAL 7016 RAL 6014

RAL 7006

RAL 3020

RAL 7032

RAL 2004

RAL 9002

RAL 1016

RAL 3022

RAL 6018

RAL 6021

RAL 6002

RAL 1017 RAL 3012 RAL 6021 RAL 1020

RAL5000

RAL6005 RAL5002 RAL 7001 RAL6005

RAL 2010

RAL 4001

RAL

The human eye distinguishes about ten million colour shades.

Thanks to the RAL colour classiﬁcation system it is possible to

bring some of these shades to your interior design.

plus75%RRP*

plus85%RRP*

RAL

2 Columns 3 Columns 4 Columns 5 Columns 6 Columns

Depth = 66mm Depth = 107mm Depth = 148mm Depth = 189mm Depth = 230mm

Width = 46mm

Height

H=(mm)

Center

Distance

I=[mm]

Delivery

Code

Water

Content

[l/sct]

Section

Weight

[Kg]

Heat

Output

∆T = 50°

Qn=[W]

Water

Content

[l/sct]

Section

Weight

[Kg]

Heat

Output

∆T = 50°

Qn=[W]

Water

Content

[l/sct]

Section

Weight

[Kg]

Heat

Output

∆T = 50°

Qn=[W]

Water

Content

[l/sct]

Section

Weight

[Kg]

Heat

Output

∆T = 50°

Qn=[W]

Water

Content

[l/sct]

Section

Weight

[Kg]

Heat

Output

∆T = 50°

Qn=[W]

300 230 D 0.40 0.50 24.30 0.56 0.78 33.60 0.72 1.05 43.60 0.90 1.36 54.20 1.09 1.55 63.90

400 330 D0.50 0.60 31.10 0.68 1.00 43.20 0.88 1.33 55.90 1.10 1.70 69.80 1.33 1.97 81.90

500 430 D 0.60 0.80 38.00 0.80 1.21 52.50 1.04 1.61 68.00 1.30 2.05 85.00 1.57 2.40 99.40

570 500 D 0.60 0.90 42.80 0.85 1.30 58.50 1.14 1.80 75.60 1.42 2.29 94.60 1.75 2.70 111.00

600 530 D 0.70 0.90 44.80 0.91 1.41 61.70 1.20 1.88 79.70 1.51 2.42 99.80 1.82 2.83 116.00

670 600 D 0.70 1.00 49.60 1.01 1.58 67.60 1.30 2.00 87.3 0 1.62 2.63 109.00 1.92 3.05 127.00

685 615 D 0.70 1.10 50.60 1.02 1.60 69.40 1.34 2.13 89.60 1.66 2.70 112.00 1.96 3.20 131.00

750 680 D 0.80 1.10 55.00 1.10 1.73 75.20 1.44 2.31 97.00 1.80 2.93 121.00 2.18 3.46 142.00

770 700 D 0.80 1.20 56.30 1.14 1.79 76.60 1.45 2.34 98.70 1.83 2.99 124.00 2.22 3.55 144.00

865 795 D 0.90 1.30 62.70 1.25 1.99 85.50 1.62 2.64 110.00 2.02 3.32 138.00 2.46 3.96 160.00

885 815 D 0.90 1.40 64.10 1.26 2.01 87. 20 1.67 2.70 112.00 2.07 3.42 140.00 2.50 4.02 164.00

900 830 D 0.90 1.40 65.10 1.27 2.03 88.60 1.69 2.73 114.00 2.10 3.47 142.00 2.54 4.10 166.00

1000 930 D 1.00 1.50 72.10 1.40 2.26 97.40 1.84 3.02 125.00 2.30 3.81 156.00 2.79 4.52 182.00

1200 1130 D 1.10 1.80 85.60 1.65 2.70 115.00 2.15 3.57 147.00 2.70 4.52 183.00 3.27 5.36 215.00

1500 1430 D 1.40 2.20 106.40 2.00 3.31 141.00 2.63 4.42 180.00 3.31 5.58 223.00 3.99 6.63 262.00

1800 1730 D 1.60 2.60 127.70 2.37 3.94 168.00 3.12 5.27 213.00 3.91 6.64 261.00 4.70 7.98 309.00

2000 1930 D 1.70 2.90 142.30 2.61 4.36 186.00 3.43 5.82 234.00 4.29 7.32 287.00 5.18 8.73 341.00

2200 2130 D 1.90 3.20 157.20 2.92 4.91 204.00 3.75 6.37 256.00 4.69 8.03 311.00 6.66 9.51 372.00

2500 2430 D 2.10 3.60 180.10 3.20 5.42 231.00 7.22 7. 2 2 288.00 5.32 9.10 348.00 7.10 10.85 419.00

Optional insertable feet in pairs

adds 120mm to the height

Code Description Price

T2F 2 column £60 per pair

T3F 3 column £60 per pair

T4F 4 column £60 per pair

T6F 6 column £60 per pair

Order hotline 01234 363 393 Online www.kartelluk.com

30 31

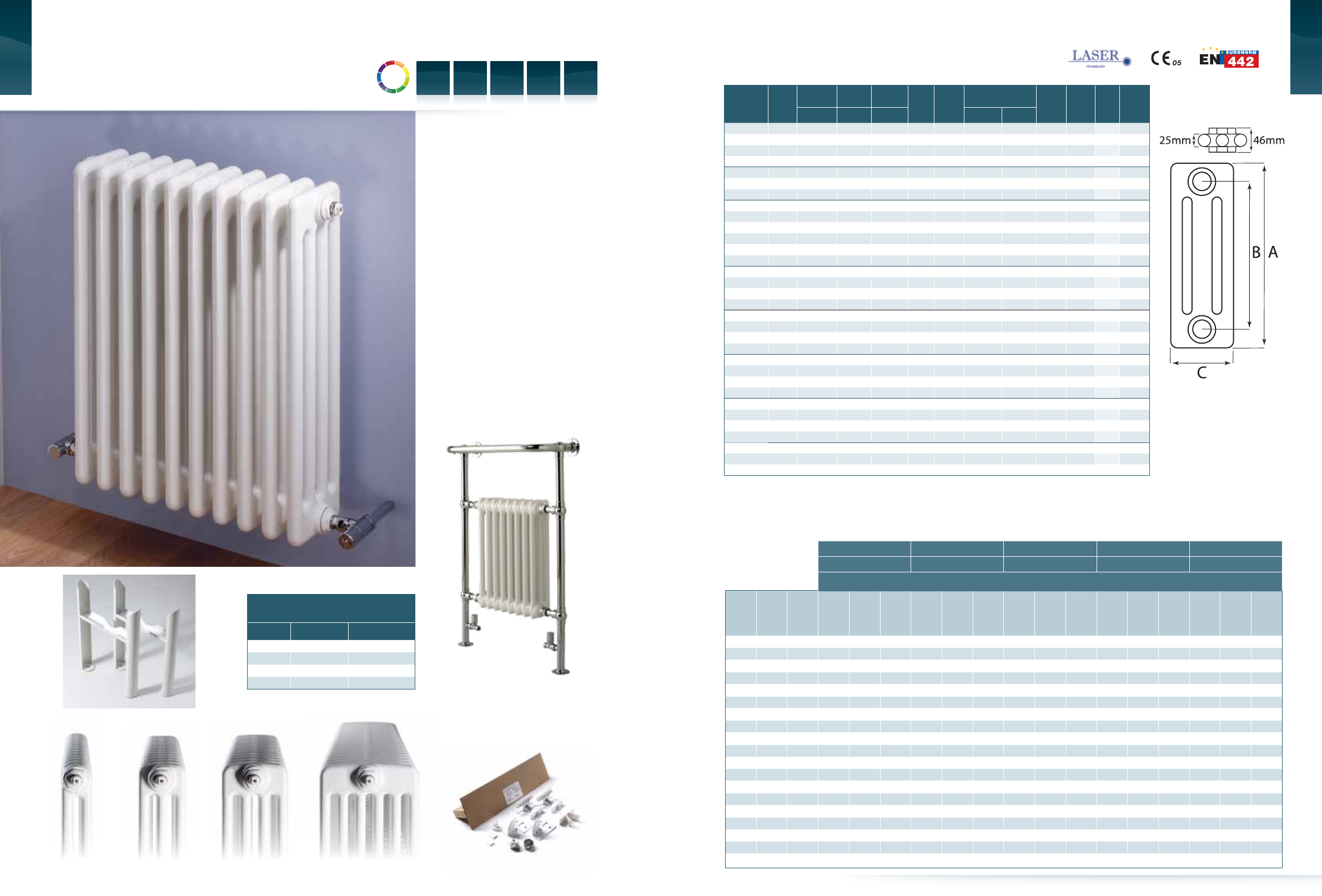

LASER KLASSIC

Product Features

SIZES

32 S

& COL

BAR 10

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

• KartellTubularSteelRadiatorsare 

designed with clean lines and

perfectly assembled using laser

welding technology.

• Aexibleandbroadrangeofsizesand

colours ensure their adaptability to any

housing needs.

• Theperfectlyroundedheadsmake

them ideal where the safety of children

is a key requirement.

• Aversatileradiator,harmoniousin

any location.

• Availableindifferentcolourstosuit

your needs, taste and furnishings.

• Aninnovativeandstylishradiator, 

manufactured using laser welding

techniques that produce an invisible

weld with hard wearing and high

quality paint ﬁnish.

Two column Three column Four column Sixcolumn Completewithxings

Las Vegas (with Laser Klassic column

radiator) see page 7 of the design side

for technical speciﬁcations.

Optional feet

RRP £60 per pair.

Code No. of

columns

Height (mm) C/C Tappings

(mm) Depth (mm) Width

(mm)

No. of

Sections

Heat Output ∆T50° Total

Weight

(Kg)

Water

Content

(Litre)

Delivery

Code

Price

(£)

A B C Watts BTUs

LCL206014 2 600 530 66 644 14 627 2140 12.6 12.6 A 231.91

LCL206018 2 600 530 66 828 18 806 2751 16.2 16.2 A 295.74

LCL206022 2 600 530 66 1012 22 986 3363 19.8 19.8 A 359.57

LCL206026 2 600 530 66 1196 26 1165 3974 23.4 23.4 A 487.23

LCL215007 21500 1430 66 322 7 745 2541 15.4 15.4 A272.09

LCL215009 21500 1430 66 414 9 958 3267 19.8 19.8 A 311.23

LCL215011 21500 1430 66 506 11 1170 3993 24.2 24.2 A 389.53

LCL218007 2 1800 1730 66 322 7 894 3050 18.2 18.2 A 295.74

LCL218009 2 1800 1730 66 414 9 1149 3921 23.4 23.4 A 338.30

LCL218011 2 1800 1730 66 506 11 1405 4793 28.6 28.6 A 423.40

LCL318007 3 1800 1730 107 322 7 1215 4146 28.0 28.0 A 473.19

LCL318009 3 1800 1730 107 414 9 1562 5331 36.0 36.0 A 541.28

LCL318011 3 1800 1730 107 506 11 1910 6516 44.0 44.0 A 677.45

LCL306014 3 600 530 107 644 14 851 2904 19.6 19.6 A 253.19

LCL306018 3 600 530 107 828 18 1094 3734 25.2 25.2 A317.02

LCL306022 3 600 530 107 1012 22 1338 4564 30.8 30.8 A 402.13

LCL306026 3 600 530 107 1196 26 1581 5394 36.4 36.4 A 551.06

LCL404014 4 400 330 148 644 14 777 2651 16.8 16.8 A 361.22

LCL404018 4 400 330 148 828 18 999 3409 21.6 21.6 A 455.88

LCL404022 4 400 330 148 1012 22 1221 4166 26.4 26.4 A 556.77

LCL404026 4 400 330 148 1196 26 1443 4924 31.2 31.2 A 660.10

LCL406014 4 600 530 148 644 14 1135 3874 25.2 25.2 A274.47

LCL406018 4 600 530 148 828 18 1460 4981 32.4 32.4 A 359.57

LCL406022 4 600 530 148 1012 22 1784 6088 39.6 39.6 A 465.96

LCL406026 4 600 530 148 1196 26 2109 7195 46.8 46.8 A 593.62

LCL407514 4750 680 148 644 14 1400 4777 30.8 30.8 A 315.64

LCL407518 4750 680 148 828 18 1800 6142 39.6 39.6 A 413.51

LCL407522 4750 680 148 1012 22 2200 7506 48.4 48.4 A 535.85

LCL407526 4750 680 148 1196 26 2600 8871 57.2 57.2 A682.66

LCL603022 6 300 230 230 1012 22 1371 4676 33.0 33.0 A 748.09

LCL603026 6 300 230 230 1196 26 1620 5527 39.0 39.0 A 877.32

LCL603030 6 300 230 230 1380 30 1869 6377 45.0 45.0 A997.65

Radiatorswithaheightof1500mmand1800mmaresuppliedwithafactoryfittedwaterdiverter.AllpricesexcludeVATandaresubjecttoourstandardtermsandconditionsofsale.

Radiators available from stock.

Bespoke manufactured radiators – sectional details. Price on application.

Divide your required radiator length by 46mm (section width) to determine the number of sections, round up or down as applicable as the radiator can only compromise complete

sections and then choose your required height and depth.

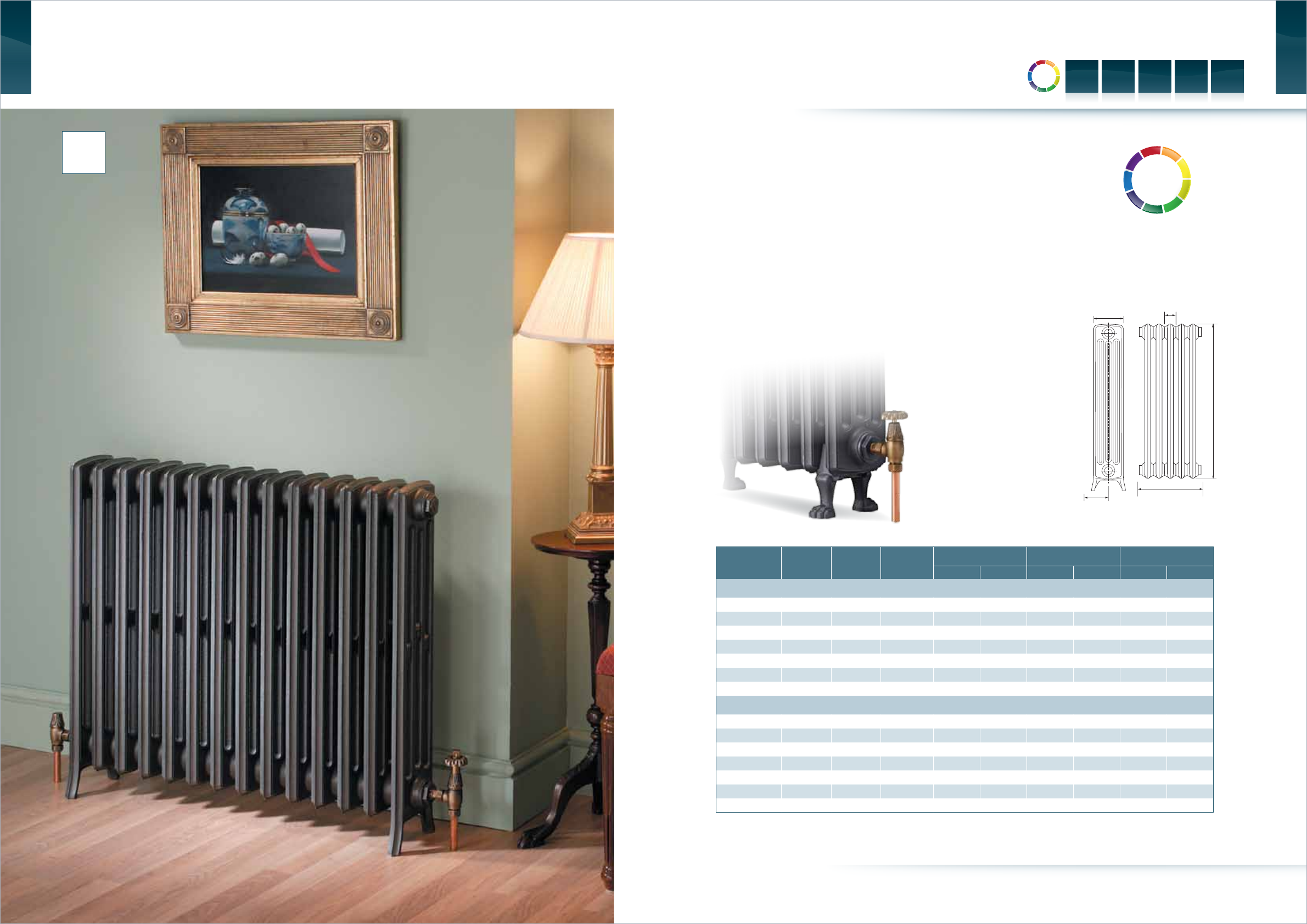

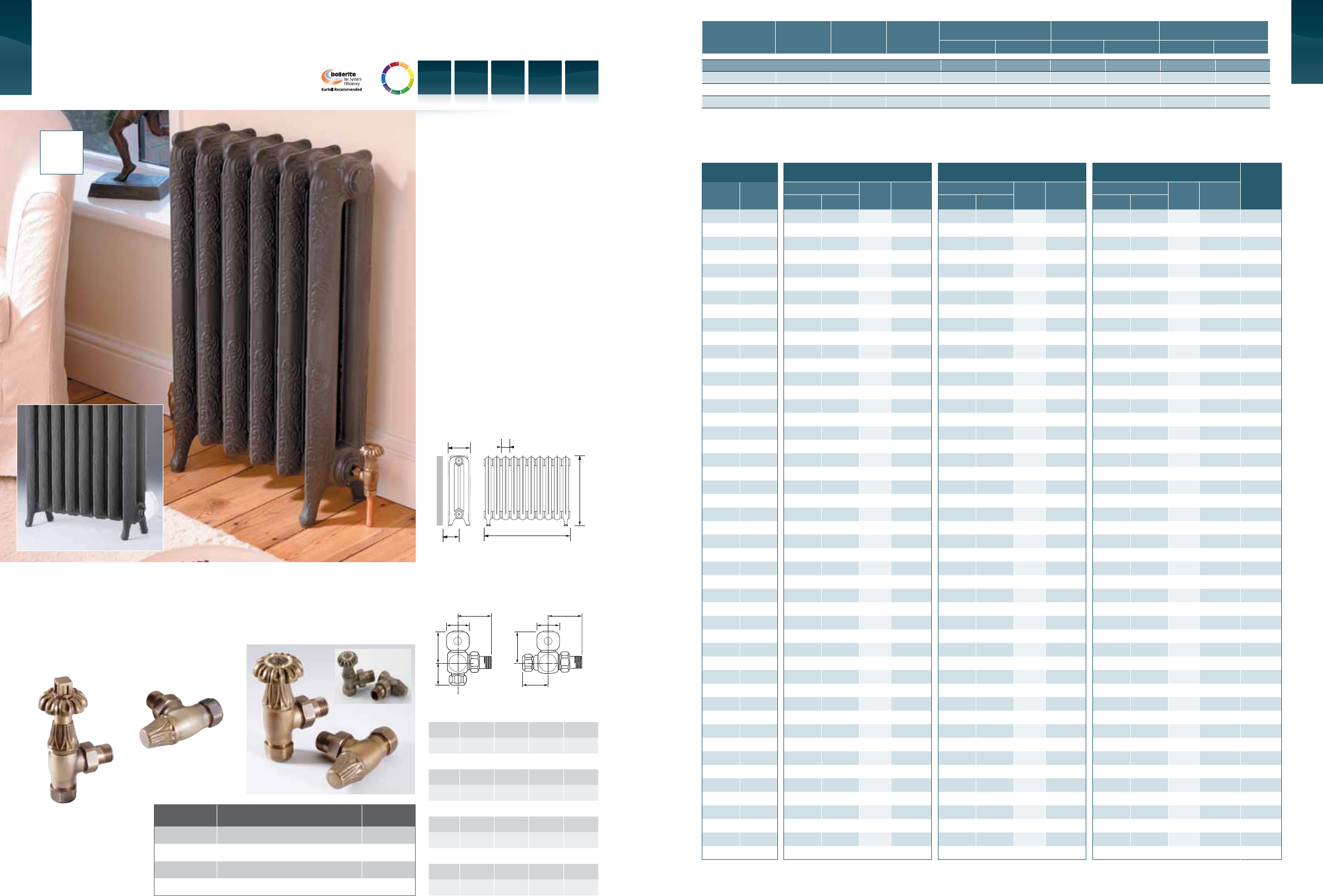

NOSTALGIA

SIZES

60 I 10

BAR 10

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

• Threeheightsavailablein

2 column pattern

• PrimerpaintRAL7022–suitable

for re-painting

• Pressuretestedto10bar/maximum 

working pressure 6 bar

• BuiltinFeetasstandard

• Canbewallmountedifrequired

• Fittingpackageavailablewhichcontains

- retaining stays, vents, plugs and joining

key tool (when required). Please see

costs table for details.

• Electriconlyoption

• 10yearguarantee

• 2yearelementguarantee

Depth (d)

Height

(h)

Width (w)

Centres

(c2)

Centres (c3)

UMBER GREY

RAL 7022

PRIMER

Product Features

RAL

The Nostalgia is the perfect accompaniment to the traditional radiator. Made in solid brass,

it combines modern efficiency with a period design.

Nostalgia ¾"

Nostalgia valves

Nostalgia

TRV15mm Nostalgia

manual15mm

Typical valve dimensions

Angled

Valve

Straight

Valve

Product Code Description Price £

excl. VAT

VLVCHA-AB1 15mmAngledManual 84.00

VLVCHA-TRV 15mmAngledTRV 139.00

VLVCHA-AB2 ½"BSP-F 84.00

VLVCHA-AB3 ¾" BSP-F 91.00

Nostalgia 15mm Angle

WH 55 49 67 40

LS 55 32 48 40

Nostalgia 15mm Angle TRV

WH 55 49 100 40

LS 55 32 48 40

Nostalgia

½"

BSP Angle

WH 62 49 68 25

LS 62 32 68 25

Nostalgia ¾" BSP Angle

WH 63 49 65 30

LS 63 32 45 30

A B C D

Electric only option

Notes: Retaining stay (RS) - £6.50 ea. Joining key - £99.99 ea. Wall bracket - £9.50 ea. Brass air vent - £3.99 ea.

•

 Thefollowingmodelsareavailableasfullyelectric:500-180:6,8&10section,600-180:8section,800-180:6&8section(Pleaseadd‘EP’totheheatingonlycodeabove)

Suppliedindarkgreyprimerforoverpainting.RALcolourfinishingavailable@£16.00 per section. Maximumfactoryassembledsections=15onsiteassemblyrequiredthereafter.

Special Note: Cast Iron radiators are not a finished product, it is advised all sections should be tightened on site prior to installation

Nostalgia - Floor Standing - details per section

 500-180 660 76 180 122 / 132 *111 379 141 480

600-180 760 76 180 122 / 132 *121 413 153 523

800-180 954 76 180 122 / 132 *151 515 191 653

Product Code

(Heating Only)

Height

(mm)

(h)

Width

(mm)

(w)

Depth

(mm)

(d)

Tapping Centres (mm) Heat Output ∆t50ºC Heat Output ∆t60ºC

(C2) (C3) Watts BTUs Watts BTUs

Notes: *Centres(C3)=numberofsectionsx76mm+20mm,seepricelistforadditionalsizingandselectioninformation.

• Thefollowingmodelsareavailableasfullyelectric:NOS500-180:6,8&10section,NOS600-180:8section,NOS800-180:6&8section(Pleaseadd‘EP’totheheatingonlycodeabove)

Special Note: Cast Iron radiators are not a finished product, it is advised all sections should be tightened on site prior to installation

Model 500-180 600-180 800-180 No. of

stays

needed

Length

No. of

sections

∆T50ºC

Delivery

Code

Price £

excl. VAT

∆T50ºC

Delivery

Code

Price £

excl. VAT

∆T50ºC

Delivery

Code

Price £

excl. VAT

Watts BTU’s Watts BTU’s Watts BTU’s

228 3333 1137 B 153.78 363 1239 B 165.81 453 1545 B226.11 2

304 4444 1516 B205.04 484 1652 B221.08 604 2060 B 301.48 2

380 5555 1895 B256.30 605 2065 B276.35 755 2575 B376.85 2

456 6666 2274 B 307.56 726 2478 B 331.62 906 3090 B 452.22 2

532 7777 2653 B358.82 847 2891 B 386.89 1057 3605 B527.59 2

608 8888 3032 B 410.08 968 3304 B 442.16 1208 4120 B 602.96 2

684 9999 3411 B 461.34 1089 3717 B 497.43 1359 4635 B678.33 2

760 10 1110 3790 B 512.60 1210 4130 B 552.70 1510 5150 B753.70 2

836 11 1221 4169 B 563.86 1331 4543 B607.97 1661 5665 B829.07 2

912 12 1332 4548 B615.12 1452 4956 B663.24 1812 6180 B 904.44 3

988 13 1443 4927 B 666.38 1573 5369 B718.51 1963 6695 B979.81 3

1064 14 1554 5306 B717.64 1694 5782 B773.78 2114 7210 B 1,055.18 3

1140 15 1665 5685 B768.90 1815 6195 B829.05 2265 7725 B1,130.55 3

1216 16 1776 6064 B 820.16 1936 6608 B 884.32 2416 8240 B 1,205.92 3

1292 17 1887 6443 B 871.42 2057 7021 B 939.59 2567 8755 B1,281.29 3

1368 18 1998 6822 B 922.68 2178 7434 B 994.86 2718 9270 B 1,356.66 3

1444 19 2109 7201 B 973.94 2299 7847 B 1,050.13 2869 9785 B1,432.03 3

1520 20 2220 7580 B1,025.20 2420 8260 B 1,105.40 3020 10300 B 1,507.40 3

1596 21 2331 7959 B1,076.46 2541 8673 B 1,160.67 3171 10815 B1,582.77 3

1672 22 2442 8338 B 1,127.72 2662 9086 B 1,215.94 3322 11330 B 1,658.14 3

1748 23 2553 8717 B 1,178.98 2783 9499 B 1,271.21 3473 11845 B1,733.51 3

1824 24 2664 9096 B 1,230.24 2904 9912 B 1,326.48 3624 12360 B 1,808.88 3

1900 25 2775 9475 B1,281.50 3025 10325 B1,381.75 3775 12875 B1,884.25 3

1976 26 2886 9854 B1,332.76 3146 10738 B 1,437.02 3926 13390 B 1,959.62 3

2052 27 2997 10233 B1,384.02 3267 11151 B1,492.29 4077 13905 B2,034.99 3

2128 28 3108 10612 B 1,435.28 3388 11564 B1,547.56 4228 14420 B 2,110.36 3

2204 29 3219 10991 B 1,486.54 3509 11977 B 1,602.83 4379 14935 B2,185.73 3

2280 30 3330 11370 B 1,537.80 3630 12390 B 1,658.10 4530 15450 B2,261.10 3

2356 31 3441 11749 B 1,589.06 3751 12803 B 1,713.37 4681 15965 B2,336.47 3

2432 32 3552 12128 B 1,640.32 3872 13216 B 1,768.64 4832 16480 B 2,411.84 3

2508 33 3663 12507 B1,691.58 3993 13629 B 1,823.91 4983 16995 B2,487.21 3

2584 34 3774 12886 B 1,742.84 4114 14042 B 1,879.18 5134 17510 B2,562.58 3

2660 35 3885 13265 B1,794.10 4235 14455 B1,934.45 5285 18025 B2,637.95 4

2736 36 3996 13644 B 1,845.36 4356 14868 B 1,989.72 5436 18540 B2,713.32 4

2812 37 4107 14023 B 1,896.62 4477 15281 B2,044.99 5587 19055 B2,788.69 4

2888 38 4218 14402 B 1,947.88 4598 15694 B2,100.26 5738 19570 B2,864.06 4

2964 39 4329 14781 B 1,999.14 4719 16107 B 2,155.53 5889 20085 B2,939.43 4

3040 40 4440 15160 B2,050.40 4840 16520 B2,210.80 6040 20600 B 3,014.80 4

3116 41 4551 15539 B2,101.66 4961 16933 B 2,266.07 6191 21115 B3,090.17 4

3192 42 4662 15918 B2,152.92 5082 17346 B 2,321.34 6342 21630 B 3,165.54 4

3268 43 4773 16297 B 2,204.18 5203 17759 B2,376.61 6493 22145 B3,240.91 4

3344 44 4884 16676 B 2,255.44 5324 18172 B 2,431.88 6644 22660 B 3,316.28 5

3420 45 4995 17055 B2,306.70 5445 18585 B2,487.15 6795 23175 B3,391.65 5

3496 46 5106 17434 B 2,357.96 5566 18998 B 2,542.42 6946 23690 B 3,467.02 5

3572 47 5217 17813 B 2,409.22 5687 19411 B 2,597.69 7097 24205 B3,542.39 5

3648 48 5328 18192 B 2,460.48 5808 19824 B 2,652.96 7248 24720 B 3,617.76 5

3724 49 5439 18571 B2,511.74 5929 20237 B 2,708.23 7399 25235 B3,693.13 5

3800 50 5550 18950 B2,563.00 6050 20650 B2,763.50 7550 25750 B3,768.50 5

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

3-5 DAYS OF ORDER

28 29

RAL

Product Code

(Heating Only)

Height

(mm) (h)

Width

(mm) (w)

Depth (mm) /

No. of Columns

(d)

Tapping Centres (mm) Heat Output ∆t50ºC Heat Output ∆t60ºC

(C2) (C3) Watts BTUs Watts BTUs

Legacy - Floor Standing - details per section

4-28F 360 60 144 / 4 102 / 112 *44 149 55 188

 4-45F 475 60 144 / 4 102 / 112 *65 222 82 281

 4-65F 660 60 144 / 4 102 / 112 *93 317 118 402

 4-75F 760 60 144 / 4 102 / 112 *108 368 137 466

 4-95F 960 60 144 / 4 102 / 112 *139 473 176 600

6-48F 475 60 221 / 6 142/152 *95 325 121 412

 6-65F 660 60 221 / 6 142/152 *133 454 168 575

Legacy - Wall Mounted - details per section

4-28 300 60 144 / 4 102 / 112 *44 149 55 188

 4-45 415 60 144 / 4 102 / 112 *65 222 82 281

 4-65 600 60 144 / 4 102 / 112 *93 317 118 402

 4-75 700 60 144 / 4 102 / 112 *108 368 137 466

 4-95 900 60 144 / 4 102 / 112 *139 473 176 600

6-48 415 60 221 / 6 142/152 *95 325 121 412

 6-65 600 60 221 / 6 142/152 *133 454 168 575

Notes: * Centres(C3)=numberofsectionsx60mm+20mm,seepricelistforadditionalsizingandselectioninformation.• OptionalinsertablePawFoot(ZXTIG-01),usewithwallmounted

versions Special Note: Cast Iron radiators are not a finished product, it is advised all sections should be tightened on site prior to installation

LEGACY

• Fiveheightsavailablein4columnpattern/twoheightsavailableina6columnpattern

• PrimerpaintRAL7022–suitableforre-painting

• Pressuretestedto10bar/maximumworkingpressure6bar

• Intergratedfeetsuppliedasstandard

• Optional‘Paw’feetavailable,mustbespecifiedatpointoforder

• Fittingpackageavailablewhichcontains-retainingstays,vents,

plugs and joining key tool (when required). Please see costs table for details.

• 10yearguarantee

SIZES

250+CL 10

BAR 10

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

UMBER GREY

RAL 7022

PRIMER

Product Features

Width (w)

Depth (d)

Height

(h)

Centres

(c2)

Centres (c3)

Optional Paw Foot

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

7-10 DAYS OF ORDER

Order hotline 01234 363 393 Online www.kartelluk.com

34 35

Order hotline 01234 363 393 Online www.kartelluk.com

Model 4-28 4-45 4-65 4-75 No. of

stays

needed

No. of

optional

paw feet

needed

Length

No. of

Sections

∆T50ºC Del.

Code

Price £

excl. VAT

∆T50ºC Del.

Code

Price £

excl. VAT

∆T50ºC Del.

Code

Price £

excl. VAT

∆T50ºC Del.

Code

Price £

excl. VAT

Watts CTU’s Watts CTU’s Code CTU’s Watts CTU’s

180 3132 447 (Δt) 89.40 195 666 C 93.72 279 951 C103.83 324 1104 C 115.59 2 2

240 4176 596 C119.20 260 888 C 124.96 372 1268 C 138.44 432 1472 C 154.12 2 2

300 5220 745 C149.00 325 1110 C 156.20 465 1585 C173.05 540 1840 C 192.65 2 2

360 6264 894 C 178.80 390 1332 C 187.44 558 1902 C 207.66 648 2208 C 231.18 2 2

420 7308 1043 C 208.60 455 1554 C218.68 651 2219 C 242.27 756 2576 C269.71 2 2

480 8352 1192 C 238.40 520 1776 C 249.92 744 2536 C276.88 864 2944 C 308.24 2 2

540 9396 1341 C 268.20 585 1998 C 281.16 837 2853 C311.49 972 3312 C 346.77 2 2

600 10 440 1490 C 298.00 650 2220 C 312.40 930 3170 C 346.10 1080 3680 C 385.30 2 2

660 11 484 1639 C 327.80 715 2442 C 343.64 1023 3487 C 380.71 1188 4048 C 423.83 2 2

720 12 528 1788 C 357.60 780 2664 C 374.88 1116 3804 C 415.32 1296 4416 C 462.36 3 3

780 13 572 1937 C 387.40 845 2886 C 406.12 1209 4121 C 449.93 1404 4784 C 500.89 3 3

840 14 616 2086 C 417.20 910 3108 C 437.36 1302 4438 C 484.54 1512 5152 C539.42 3 3

900 15 660 2235 C447.00 975 3330 C 468.60 1395 4755 C519.15 1620 5520 C577.95 3 3

960 16 704 2384 C 476.80 1040 3552 C499.84 1488 5072 C553.76 1728 5888 C616.48 3 3

1020 17 748 2533 C506.60 1105 3774 C 531.08 1581 5389 C588.37 1836 6256 C655.01 3 3

1080 18 792 2682 C 536.40 1170 3996 C 562.32 1674 5706 C622.98 1944 6624 C 693.54 3 3

1140 19 836 2831 C 566.20 1235 4218 C 593.56 1767 6023 C 657.59 2052 6992 C 732.07 3 3

1200 20 880 2980 C 596.00 1300 4440 C 624.80 1860 6340 C 692.20 2160 7360 C 770.60 3 3

1260 21 924 3129 C 625.80 1365 4662 C 656.04 1953 6657 C726.81 2268 7728 C 809.13 3 3

1320 22 968 3278 C 655.60 1430 4884 C 687.28 2046 6974 C 761.42 2376 8096 C 847.66 3 3

1380 23 1012 3427 C 685.40 1495 5106 C718.52 2139 7291 C 796.03 2484 8464 C 886.19 3 3

1440 24 1056 3576 C715.20 1560 5328 C749.76 2232 7608 C 830.64 2592 8832 C 924.72 3 4

1500 25 1100 3725 C745.00 1625 5550 C781.00 2325 7925 C865.25 2700 9200 C 963.25 3 4

1560 26 1144 3874 C 774.80 1690 5772 C812.24 2418 8242 C 899.86 2808 9568 C1,001.78 3 4

1620 27 1188 4023 C 804.60 1755 5994 C843.48 2511 8559 C934.47 2916 9936 C 1,040.31 3 4

1680 28 1232 4172 C 834.40 1820 6216 C 874.72 2604 8876 C 969.08 3024 10304 C 1,078.84 3 4

1740 29 1276 4321 C 864.20 1885 6438 C 905.96 2697 9193 C 1,003.69 3132 10672 C 1,117.37 3 4

1800 30 1320 4470 C 894.00 1950 6660 C 937.20 2790 9510 C1,038.30 3240 11040 C 1,155.90 3 4

1860 31 1364 4619 C 923.80 2015 6882 C 968.44 2883 9827 C 1,072.91 3348 11408 C 1,194.43 3 4

1920 32 1408 4768 C 953.60 2080 7104 C 999.68 2976 10144 C 1,107.52 3456 11776 C 1,232.96 3 4

1980 33 1452 4917 C 983.40 2145 7326 C 1,030.92 3069 10461 C 1,142.13 3564 12144 C 1,271.49 3 4

2040 34 1496 5066 C1,013.20 2210 7548 C1,062.16 3162 10778 C 1,176.74 3672 12512 C1,310.02 3 4

2100 35 1540 5215 C1,043.00 2275 7770 C 1,093.40 3255 11095 C1,211.35 3780 12880 C 1,348.55 45

2160 36 1584 5364 C1,072.80 2340 7992 C 1,124.64 3348 11412 C 1,245.96 3888 13248 C 1,387.08 45

2220 37 1628 5513 C1,102.60 2405 8214 C 1,155.88 3441 11729 C 1,280.57 3996 13616 C 1,425.61 45

2280 38 1672 5662 C1,132.40 2470 8436 C 1,187.12 3534 12046 C 1,315.18 4104 13984 C 1,464.14 45

2340 39 1716 5811 C1,162.20 2535 8658 C1,218.36 3627 12363 C 1,349.79 4212 14352 C1,502.67 45

2400 40 1760 5960 C1,192.00 2600 8880 C 1,249.60 3720 12680 C 1,384.40 4320 14720 C 1,541.20 45

2460 41 1804 6109 C 1,221.80 2665 9102 C 1,280.84 3813 12997 C 1,419.01 4428 15088 C1,579.73 45

2520 42 1848 6258 C1,251.60 2730 9324 C 1,312.08 3906 13314 C 1,453.62 4536 15456 C1,618.26 45

2580 43 1892 6407 C 1,281.40 2795 9546 C1,343.32 3999 13631 C 1,488.23 4644 15824 C1,656.79 45

2640 44 1936 6556 C1,311.20 2860 9768 C 1,374.56 4092 13948 C 1,522.84 4752 16192 C 1,695.32 56

2700 45 1980 6705 C1,341.00 2925 9990 C 1,405.80 4185 14265 C1,557.45 4860 16560 C1,733.85 56

2760 46 2024 6854 C1,370.80 2990 10212 C 1,437.04 4278 14582 C1,592.06 4968 16928 C 1,772.38 56

2820 47 2068 7003 C 1,400.60 3055 10434 C 1,468.28 4371 14899 C 1,626.67 5076 17296 C 1,810.91 56

2880 48 2112 7152 C1,430.40 3120 10656 C1,499.52 4464 15216 C1,661.28 5184 17664 C 1,849.44 56

2940 49 2156 7301 C1,460.20 3185 10878 C1,530.76 4557 15533 C1,695.89 5292 18032 C1,887.97 56

3000 50 2200 7450 C1,490.00 3250 11100 C1,562.00 4650 15850 C1,730.50 5400 18400 C1,926.50 56

Model 4-95 6-48 6-65 No. of

stays

needed

No. of

optional

paw feet

needed

Length

No. of

Sections

∆T50ºC Del.

Code

Price £

excl. VAT

∆T50ºC Del.

Code

Price £

excl. VAT

∆T50ºC Del.

Code

Price £

excl. VAT

Watts CTU’s Watts CTU’s Code CTU’s

180 3417 1419 C146.94 285 975 C113.64 399 1362 C150.84 2 2

240 4556 1892 C 195.92 380 1300 C 151.52 532 1816 C 201.12 2 2

300 5695 2365 C244.90 475 1625 C189.40 665 2270 C 251.40 2 2

360 6834 2838 C 293.88 570 1950 C227.28 798 2724 C 301.68 2 2

420 7973 3311 C 342.86 665 2275 C265.16 931 3178 C 351.96 2 2

480 81112 3784 C 391.84 760 2600 C 303.04 1064 3632 C 402.24 2 2

540 91251 4257 C440.82 855 2925 C340.92 1197 4086 C 452.52 2 2

600 10 1390 4730 C 489.80 950 3250 C378.80 1330 4540 C502.80 2 2

660 11 1529 5203 C538.78 1045 3575 C416.68 1463 4994 C 553.08 2 2

720 12 1668 5676 C587.76 1140 3900 C 454.56 1596 5448 C603.36 3 3

780 13 1807 6149 C 636.74 1235 4225 C492.44 1729 5902 C653.64 3 3

840 14 1946 6622 C 685.72 1330 4550 C530.32 1862 6356 C703.92 3 3

900 15 2085 7095 C734.70 1425 4875 C568.20 1995 6810 C 754.20 3 3

960 16 2224 7568 C783.68 1520 5200 C606.08 2128 7264 C 804.48 3 3

1020 17 2363 8041 C 832.66 1615 5525 C643.96 2261 7718 C 854.76 3 3

1080 18 2502 8514 C881.64 1710 5850 C681.84 2394 8172 C 905.04 3 3

1140 19 2641 8987 C 930.62 1805 6175 C719.72 2527 8626 C 955.32 3 3

1200 20 2780 9460 C 979.60 1900 6500 C757.60 2660 9080 C 1,005.60 3 3

1260 21 2919 9933 C 1,028.58 1995 6825 C795.48 2793 9534 C1,055.88 3 3

1320 22 3058 10406 C 1,077.56 2090 7150 C833.36 2926 9988 C 1,106.16 3 3

1380 23 3197 10879 C 1,126.54 2185 7475 C871.24 3059 10442 C 1,156.44 3 3

1440 24 3336 11352 C1,175.52 2280 7800 C 909.12 3192 10896 C 1,206.72 3 4

1500 25 3475 11825 C1,224.50 2375 8125 C947.00 3325 11350 C1,257.00 3 4

1560 26 3614 12298 C 1,273.48 2470 8450 C984.88 3458 11804 C 1,307.28 3 4

1620 27 3753 12771 C 1,322.46 2565 8775 C1,022.76 3591 12258 C1,357.56 3 4

1680 28 3892 13244 C 1,371.44 2660 9100 C 1,060.64 3724 12712 C 1,407.84 3 4

1740 29 4031 13717 C 1,420.42 2755 9425 C1,098.52 3857 13166 C 1,458.12 3 4

1800 30 4170 14190 C 1,469.40 2850 9750 C1,136.40 3990 13620 C 1,508.40 3 4

1860 31 4309 14663 C 1,518.38 2945 10075 C1,174.28 4123 14074 C 1,558.68 3 4

1920 32 4448 15136 C1,567.36 3040 10400 C 1,212.16 4256 14528 C1,608.96 3 4

1980 33 4587 15609 C1,616.34 3135 10725 C1,250.04 4389 14982 C 1,659.24 3 4

2040 34 4726 16082 C 1,665.32 3230 11050 C1,287.92 4522 15436 C1,709.52 3 4

2100 35 4865 16555 C1,714.30 3325 11375 C1,325.80 4655 15890 C1,759.80 45

2160 36 5004 17028 C 1,763.28 3420 11700 C 1,363.68 4788 16344 C 1,810.08 45

2220 37 5143 17501 C1,812.26 3515 12025 C1,401.56 4921 16798 C 1,860.36 45

2280 38 5282 17974 C 1,861.24 3610 12350 C1,439.44 5054 17252 C1,910.64 45

2340 39 5421 18447 C 1,910.22 3705 12675 C1,477.32 5187 17706 C 1,960.92 45

2400 40 5560 18920 C 1,959.20 3800 13000 C 1,515.20 5320 18160 C 2,011.20 45

2460 41 5699 19393 C 2,008.18 3895 13325 C1,553.08 5453 18614 C 2,061.48 45

2520 42 5838 19866 C 2,057.16 3990 13650 C1,590.96 5586 19068 C 2,111.76 45

2580 43 5977 20339 C 2,106.14 4085 13975 C1,628.84 5719 19522 C2,162.04 45

2640 44 6116 20812 C 2,155.12 4180 14300 C 1,666.72 5852 19976 C 2,212.32 56

2700 45 6255 21285 C2,204.10 4275 14625 C1,704.60 5985 20430 C 2,262.60 56

2760 46 6394 21758 C2,253.08 4370 14950 C1,742.48 6118 20884 C 2,312.88 56

2820 47 6533 22231 C 2,302.06 4465 15275 C1,780.36 6251 21338 C 2,363.16 56

2880 48 6672 22704 C 2,351.04 4560 15600 C1,818.24 6384 21792 C 2,413.44 56

2940 49 6811 23177 C2,400.02 4655 15925 C1,856.12 6517 22246 C2,463.72 56

3000 50 6950 23650 C2,449.00 4750 16250 C1,894.00 6650 22700 C 2,514.00 56

LEGACY TECHNICAL INFORMATION

Notes: Standardsupplyiswithintergratedfeet(seecataloguep15mainimage)Retainingstays(RS)alsorequired.Retainingstay(RS)-£6.50 ea. Optional Paw Foot (ZXTIG-01) - £22.50 ea.

Joining key - £99.99 ea. Wall bracket 4 column - £9.00 ea. Wall bracket 6 column - £9.50 ea. Brass air vent - £3.99 ea. Maxfactoryassembledsections20,20,17allothermodels.

Suppliedindarkgreyprimerforoverpainting.RALcolourfinishingavailable@£16.00 per section.

Special Note: Cast Iron radiators are not a finished product, it is advised all sections should be tightened on site prior to installation

36 37

30 31

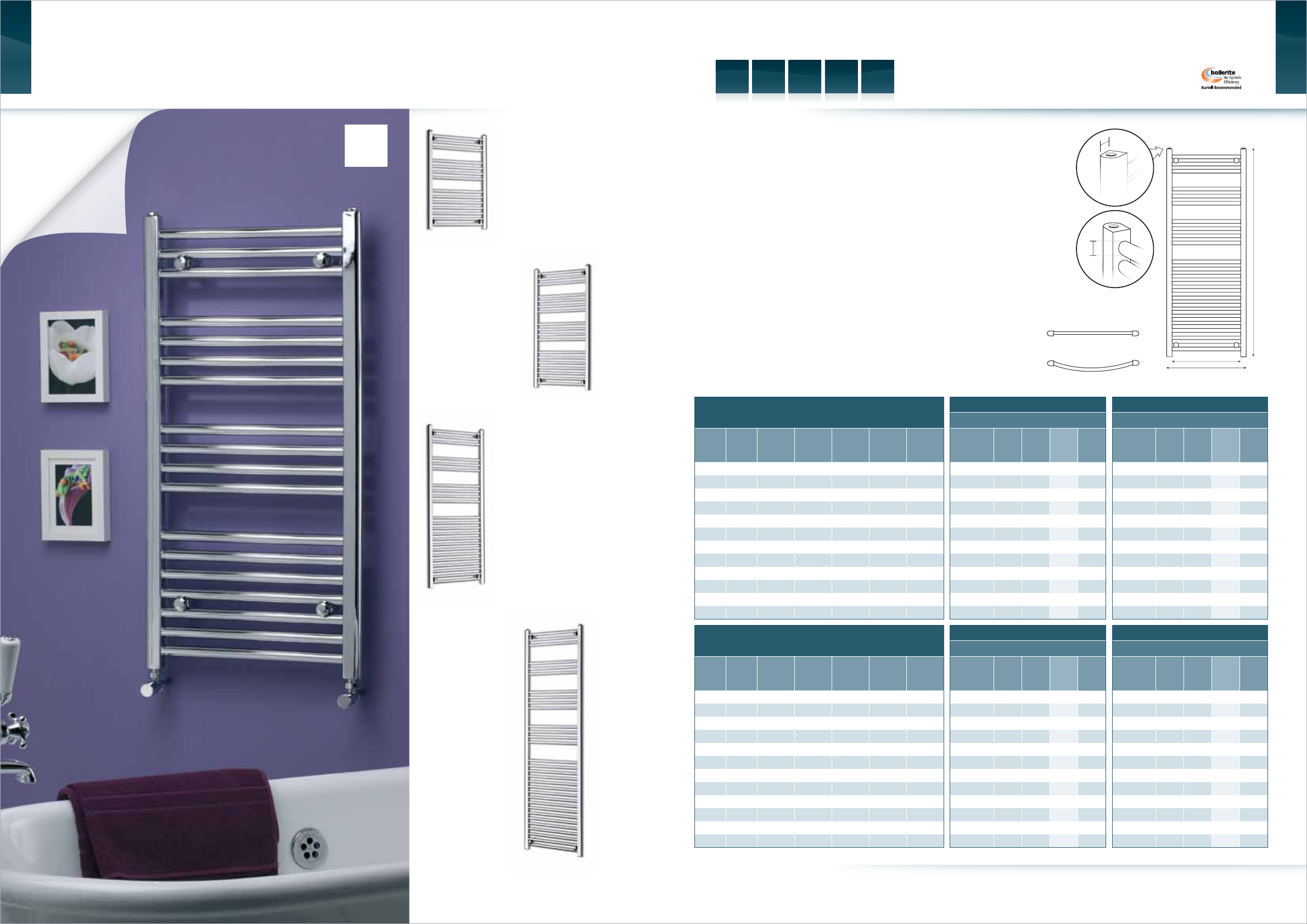

Ø25mm Straight CHROME WHITE

Output ∆T50ºC Output ∆T50ºC

Width

Height

C/C

Tappings

Headers

Dimensions

(mm)

Quantity

of Cross

Rails

Tube

Ø (mm)

Summer

Element

Watts

Code Watts BTUs Delivery

Code

Price

(£)

Code Watts BTUs Delivery

Code

Price

(£)

400 750 355 32/42/1.5 14 25 300 PTR407SC 317 1082 A 175.00 PTR407SW 452 1542 A122.50

400 1000 355 32/42/1.5 18 25 300 PTR410SC 378 1290 A 195.00 PTR410SW 539 1,839 A 136.50

400 1300 355 32/42/1.5 23 25 500 PTR413SC 460 1570 A255.00 PTR413SW 656 2238 A 150.50

400 1800 355 32/42/1.5 31 25 500 PTR418SC 608 2076 A 350.00 PTR418SW 867 2958 A245.00

500 750 455 32/42/1.5 14 25 300 PTR507SC 376 1282 A 210.00 PTR507SW 535 1827 A 147.00

500 1000 455 32/42/1.5 18 25 300 PTR510SC 444 1515 A230.00 PTR510SW 633 2159 A161.00

500 1300 455 32/42/1.5 23 25 500 PTR513SC 542 1851 A290.00 PTR513SW 773 2637 A 175.00

500 1800 455 32/42/1.5 31 25 500 PTR518SC 717 2445 A420.00 PTR518SW 1,021 3484 A 294.00

600 750 555 32/42/1.5 14 25 300 PTR607SC 435 1486 A 245.00 PTR607SW 620 2117 A 171.50

600 1000 555 32/42/1.5 18 25 300 PTR610SC 514 1753 A265.00 PTR610SW 732 2498 A 185.50

600 1300 555 32/42/1.5 23 25 500 PTR613SC 629 2148 A 325.00 PTR613SW 897 3061 A 199.50

600 1800 555 32/42/1.5 31 25 800 PTR618SC 831 2835 A455.00 PTR618SW 1184 4040 A 318.50

Ø25mm Curved CHROME WHITE

Output ∆T50ºC Output ∆T50ºC

Width

Height

C/C

Tappings

Headers

Dimensions

(mm)

Quantity

of Cross

Rails

Tube

Ø (mm)

Summer

Element

Watts

Code Watts BTUs Delivery

Code

Price

(£)

Code Watts BTUs Delivery

Code

Price

(£)

400 750 355 32/42/1.5 14 25 300 PTR407CC 317 1082 A 195.00 PTR407CW 452 1542 A136.50

400 1000 355 32/42/1.5 18 25 300 PTR410CC 378 1290 A 215.00 PTR410CW 539 1839 A 150.50

400 1300 355 32/42/1.5 23 25 500 PTR413CC 460 1570 A275.00 PTR413CW 656 2238 A 164.50

400 1800 355 32/42/1.5 31 25 500 PTR418CC 608 2076 A 370.00 PTR418CW 867 2958 A259.00

500 750 455 32/42/1.5 14 25 300 PTR507CC 376 1282 A 230.00 PTR507CW 535 1827 A 161.00

500 1000 455 32/42/1.5 18 25 300 PTR510CC 444 1515 A250.00 PTR510CW 633 2159 A175.00

500 1300 455 32/42/1.5 23 25 500 PTR513CC 542 1851 A310.00 PTR513CW 773 2637 A 189.00

500 1800 455 32/42/1.5 31 25 500 PTR518CC 717 2445 A440.00 PTR518CW 1,021 3484 A 308.00

600 750 555 32/42/1.5 14 25 300 PTR607CC 435 1486 A 265.00 PTR607CW 620 2117 A 185.50

600 1000 555 32/42/1.5 18 25 300 PTR610CC 514 1753 A285.00 PTR610CW 732 2498 A 199.50

600 1300 555 32/42/1.5 23 25 500 PTR613CC 629 2148 A 345.00 PTR613CW 897 3061 A 213.50

600 1800 555 32/42/1.5 31 25 800 PTR618CC 831 2835 A475.00 PTR618CW 1,184 4,040 A 332.50

Notes: • C/C Tappings = Distance between tapping centre • Outputs quoted are based on a mean water temperature of 70ºC and a room temperature of 20ºC

Wall to C/C tappings; Straight = 64-86mm adjustable. Curved = 52-74mm adjustable.

Premium

high outPut

K RAIL 25

Product Features

SIZES

67 S13

BAR 5

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

CHR &

• Premiumrails25mmtubediameter

• Availableasstraightorcurved

• Sparklinghighlypolishedchromefinishoraclassicbrillianticewhite

• Suppliedcompletewithfixingkit,includingplugsandvents

• ManufacturedunderBSENISO9001qualitystandards

• Pressuretestedto10bar/maximumworkingpressure7bar

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

Plan profile straight

Header dimension

Tube diameter

Plan profile curved

K RAILS Premium Product Range

Order hotline 01234 363 393 Online www.kartelluk.com

38 39

Height: 750mm

Tubediameter:25mm

Width:400,500,600mm

No. of Crossrails: 14

Style: Straight, Curved

Finish: Chrome, White

Height: 1000mm

Tubediameter:25mm

Width:400,500,600mm

No. of Crossrails: 18

Style: Straight, Curved

Finish: Chrome, White

Height: 1300mm

Tubediameter:25mm

Width:400,500,600mm

No. of Crossrails: 23

Style: Straight, Curved

Finish: Chrome, White

Height: 1800mm

Tubediameter:25mm

Width:400,500,600mm

No. of Crossrails: 31

Style: Straight, Curved

Finish: Chrome, White

32 33

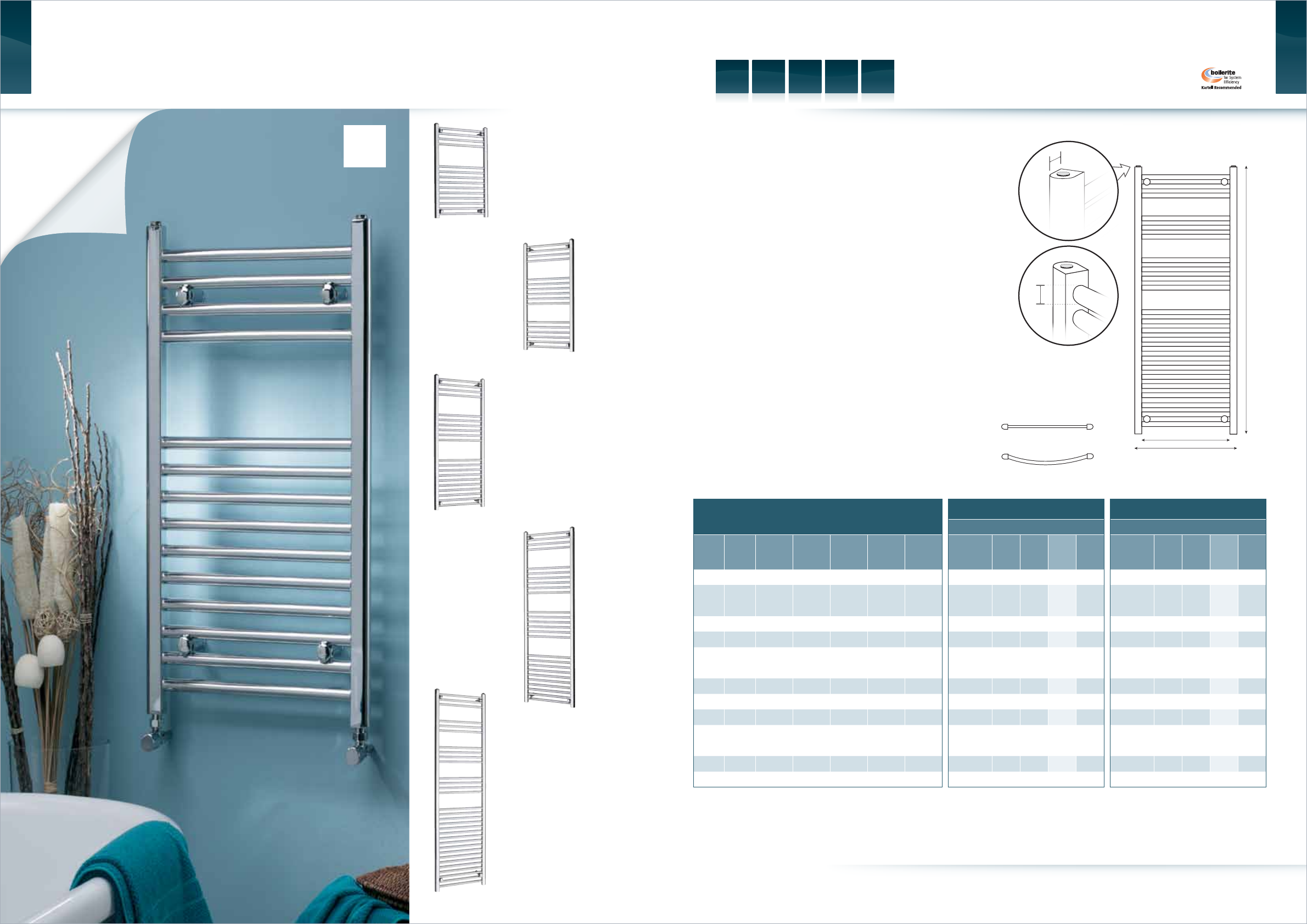

Product Features

SIZES

4 S 10

BAR 5

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

CHR &

K RAIL 22

• Standardrails22mmtubediameter

• Availableasstraightorcurved

• Sparklinghighlypolishedchromefinish

• Suppliedcompletewithfixingkit,includingplugsandvents

• ManufacturedunderBSENISO9001qualitystandards

• Pressuretestedto10bar/maximumworkingpressure7bar

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

K RAILS Standard Product Range

Ø 22mm Chrome STRAIGHT CURVED

Output ∆T50ºC Output ∆T50ºC

Width

Height

C/C

Tappings

Headers

Dimensions

(mm)

Quantity

of Cross

Rails

Tube

Ø (mm)

Summer

Element

Watts

Code Watts BTUs Delivery

Code

Price

(£)

Code Watts BTUs Delivery

Code

Price

(£)

400 800 355 30/40/1.5 14 22 300 STR408C 255 870 A 112.61 CTR408C 255 870 A 119.84

400 1000 355 30/40/1.5 16 22 300 STR410C 304 1037 A 132.15 CTR410C 304 1037 A 140.08

400 1200 355 30/40/1.5 20 22 500 STR412C 370 1262 A 147.26 CTR412C 370 1262 A 156.10

400 1600 355 30/40/1.5 26 22 500 STR416C 489 1668 A 180.62 CTR416C 489 1668 A 187.85

500 800 455 30/40/1.5 14 22 300 STR508C 302 1030 A 121.10 CTR508C 302 1030 A 128.33

500 1000 455 30/40/1.5 16 22 300 STR510C 357 1218 A 144.05 CTR510C 357 1218 A 152.69

500 1200 455 30/40/1.5 20 22 500 STR512C 436 1488 A 161.80 CTR512C 436 1488 A 171.51

500 1600 455 30/40/1.5 26 22 500 STR516C 576 1965 A197.60 CTR516C 576 1965 A204.83

500 1800 455 30/40/1.5 31 22 500 STR518C 662 2259 A248.63 CTR518C 662 2259 A263.54

600 800 555 30/40/1.5 14 22 300 STR608C 350 1194 A 129.63 CTR608C 350 1194 A 136.82

600 1000 555 30/40/1.5 16 22 300 STR610C 413 1409 A 149.21 CTR610C 413 1409 A 158.17

600 1200 555 30/40/1.5 20 22 500 STR612C 506 1726 A 172.13 CTR612C 506 1726 A 182.45

600 1600 555 30/40/1.5 26 22 500 STR616C 668 2279 A 210.34 CTR616C 668 2279 A 217.57

600 1800 555 30/40/1.5 31 22 800 STR618C 768 2620 A 271.58 CTR618C 768 2620 A 287.87

Notes: • C/C Tappings = Distance between tapping centre • Outputs quoted are based on a mean water temperature of 70ºC and a room temperature of 20ºC

Wall to C/C tappings; Straight = 64-86mm adjustable. Curved = 52-74mm adjustable.

Plan profile straight

Plan profile curved

Header dimension

Tube diameter

modern

ContemPorary

design

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

Order hotline 01234 363 393 Online www.kartelluk.com

40 41

Height: 800mm

Tube diameter: 22mm

Width:400,500,600mm

No. of Crossrails: 14

Style: Straight, Curved

Finish: Chrome

Height: 1200mm

Tube diameter: 22mm

Width:400,500,600mm

No. of Crossrails: 20

Style: Straight, Curved

Finish: Chrome

Height: 1800mm

Tube diameter: 22mm

Width:500,600mm

No. of Crossrails: 31

Style: Straight, Curved

Finish: Chrome

Height: 1000mm

Tube diameter: 22mm

Width:400,500,600mm

No. of Crossrails: 16

Style: Straight, Curved

Finish: Chrome

Height: 1600mm

Tube diameter: 22mm

Width:400,500,600mm

No. of Crossrails: 26

Style: Straight, Curved

Finish: Chrome

34 35

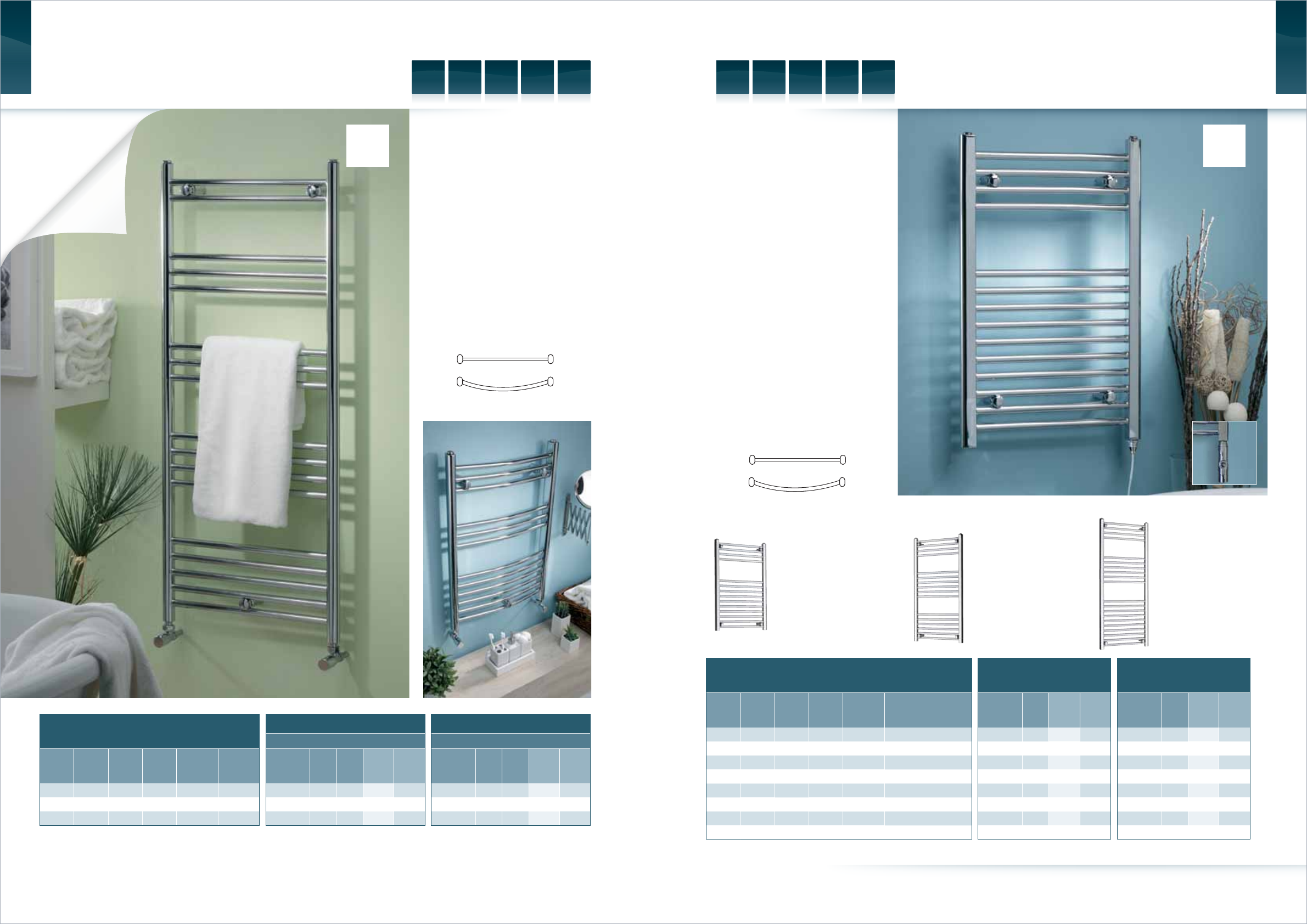

FAMILY RAIL Ø 19mm Chrome STRAIGHT CURVED

Output ∆T50ºC Output ∆T50ºC

Width

Height

C/C

Tappings

Quantity

of Cross

Rails

Tube

Ø (mm)

Summer

Element

Watts

Code Watts BTUs Delivery

Code

Price

(£)

Code Watts BTUs Delivery

Code

Price

(£)

500 750 455 12 Ø19 150 STR507CK 218 744 A 90.00 CTR507CK 218 744 A 94.00

500 1200 455 17 Ø19 150 STR512CK 258 880 A 108.00 CTR512CK 258 880 A 112.00

600 1200 555 17 Ø19 150 STR612CK 303 1034 A 124.00 CTR612CK 303 1034 A 128.00

Ø 22mm Chrome STRAIGHT CURVED

Width

Height

C/C

Tappings

Quantity

of Cross

Rails

Tube

Ø (mm)

Element

Type Code

Heating

Element

Power

(W)

Delivery

Code

Price

(£)

Code

Heating

Element

Power

(W)

Delivery

Code

Price

(£)

500 800 405 14 Ø22 ON/OFF * ESTR508C 150 A258.30 ECTR508C 150 A266.26

500 1000 405 16 Ø22 ON/OFF * ESTR510C 200 A 297.10 ECTR510C 200 A305.06

500 1200 455 20 Ø22 ON/OFF * ESTR512C 300 A336.38 ECTR512C 300 A344.33

600 1200 555 20 Ø22 ON/OFF * ESTR612C 400 A355.79 ECTR612C 400 A363.74

500 800 405 14 Ø22 Thermostatic/Adjustable ETSTR508C 150 A326.48 ETCTR508C 150 A334.44

500 1000 405 16 Ø22 Thermostatic/Adjustable ETSTR510C 150 A365.28 ETCTR510C 150 A373.24

500 1200 455 20 Ø22 Thermostatic/Adjustable ETSTR512C 300 A404.56 ETCTR512C 300 A412.52

600 1200 555 20 Ø22 Thermostatic/Adjustable ETSTR612C 600 A423.97 ETCTR612C 400 A431.92

Plan profiles:

Notes: • C/C Tappings - Distance between pipe centre • The outputs quoted are based on a mean water temperature of 70ºC and a room temperature of 20ºC

Wall to C/C tappings; Straight = 64-86mm adjustable. Curved = 52-74mm adjustable.

Product Features

SIZES

6 S 13

BAR 5

YEARS

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

CHR

Plan profiles:

Notes: • Chemical Mixture - Monoetilen Glycol • C/C Tappings = Distance between tapping centre * Element complete with thermostatic cut-out

Wall to C/C tappings; Straight = 64-86mm adjustable. Curved = 52-74mm adjustable.

ELECTRIC RAILS

Product Features

SIZES

60 10

BAR

COLOUR PRESSURE

TESTED TO

GUARANTEE

MATERIAL

• Standardrails22mmtubediameter

• Availableasstraightorcurved

• Sparklinghighlypolished

chrome finish

• Suppliedcompletewithfixingkit, 

including plugs and vents

• ManufacturedunderBSENISO9001 

quality standards

• Pressuretestedto10bar/maximum 

working pressure 7 bar

• Insulationclass1

• ON/OFF–IP55rated

Thermostatically Adjustable – IP 4 rated

• Elementiscompletewith1.5mfly-lead

• Recommendedinstallationiscarriedout

by a qualified electrician

• Standardrails19mmtubediameter

• Availableasstraightorcurved

• Sparklinghighlypolished

chrome finish

• Suppliedcompletewithfixingkit, 

including plugs and vents

• ManufacturedunderBSENISO9001 

quality standards

• Pressuretestedto10bar/maximum 

working pressure 7 bar

Height: 800mm

Tube diameter: 22mm

Width:400,500,600mm

No. of Crossrails: 14

Style: Straight, Curved

Finish: Chrome

Height: 1200mm

Tube diameter: 22mm

Width:400,500,600mm

No. of Crossrails: 20

Style: Straight, Curved

Finish: Chrome

Height: 1000mm

Tube diameter: 22mm

Width:400,500,600mm

No. of Crossrails: 16

Style: Straight, Curved

Finish: Chrome

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

ON/OFF element type. Inset; Thermostatically Adjustable element type.

S CHR 10

YEARS

K RAIL 19

ideal

for family

bathrooms

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

Order hotline 01234 363 393 Online www.kartelluk.com

42 43

• Steelflatfrontedradiator

• Flatprofiletubes

• Chromefinish

• 5yearguarantee

Plan profile

NEWARK

Product Features

SIZES

2 S 13

BAR

COLOUR PRESSURE

TESTED TO

MATERIAL

CHR 5

YEARS

GUARANTEE

DELIVERY

CODE

THIS ITEM NORMALLY

DISPATCHED WITHIN

48 HOURS OF ORDER

44 45

GEH TD

DY CV

BA SN

SO GU

DT BH

DY WS

LU SG

BL BD

GLASGOW

EDINBURGH

NEWCASTLE

UPON TYNE

LEEDS

MANCHESTER

BIRMINGHAM

LONDON

NORWICH

NORTHAMPTON

SWANSEA

PLYMOUTH

CARDIFF

LEICESTER

HIGHLIGHTED SIGNIFIES 2 DAY DELIVERY RUN

NEXT DAY DELIVERY AVAILABLE

Code Height

(mm)

Width

(mm)

Depth

(mm)

C/C

Tappings (mm)

Heat Output ∆T50° Heat Output ∆T60° Delivery Code Price

(£)

Watts BTUs Watts BTUs

EWR 952 500 86 462 278 948 352 1201 A 195.35

EWR-1 1306 500 86 462 394 1344 499 1703 A 221.40

NATIONWIDE DELIVERY

Delivery Days

MONDAY & THURSDAY

MONDAY & WEDNESDAY

TUESDAY & THURSDAY

TUESDAY & FRIDAY

WEDNESDAY & FRIDAY

POST

CODE DELIVERY DAYS POST

CODE DELIVERY DAYS

AB MONDAY AND THURSDAY LL MONDAY AND THURSDAY

AL MONDAY AND THURSDAY LN TUESDAY AND FRIDAY

BTUESDAY AND FRIDAY LS TUESDAY AND THURSDAY

BA WEDNESDAY AND FRIDAY LU MONDAY AND THURSDAY

BB MONDAY AND THURSDAY MMONDAY AND THURSDAY

BD TUESDAY AND THURSDAY ME MONDAY AND THURSDAY

BH TUESDAY AND THURSDAY MK TUESDAY AND FRIDAY

BL MONDAY AND THURSDAY ML MONDAY AND THURSDAY

BN TUESDAY AND THURSDAY NMONDAY AND THURSDAY

BR MONDAY AND THURSDAY NE TUESDAY AND THURSDAY

BS WEDNESDAY AND FRIDAY NG TUESDAY AND FRIDAY

BT IRELAND NN TUESDAY AND FRIDAY

CA MONDAY AND THURSDAY NP MONDAY AND WEDNESDAY

CB WEDNESDAY AND FRIDAY NR WEDNESDAY AND FRIDAY

CF MONDAY AND WEDNESDAY NW MONDAY AND THURSDAY

CH MONDAY AND THURSDAY OL MONDAY AND THURSDAY

CM MONDAY AND THURSDAY OX WEDNESDAY AND FRIDAY

CO MONDAY AND THURSDAY PE WEDNESDAY AND FRIDAY

CR MONDAY AND THURSDAY PH MONDAY AND THURSDAY

CT MONDAY AND THURSDAY PL MONDAY AND THURSDAY

CV TUESDAY AND FRIDAY PO TUESDAY AND THURSDAY

CW MONDAY AND THURSDAY PR MONDAY AND THURSDAY

DA MONDAY AND THURSDAY RG MONDAY AND THURSDAY

DD MON AND THURSDAY RH TUESDAY AND THURSDAY

DE TUESDAY AND FRIDAY RM MONDAY AND THURSDAY

DG MONDAY AND THURSDAY STUESDAY AND THURSDAY

DH TUESDAY AND THURSDAY SA MONDAY AND WEDNESDAY

DL TUESDAY AND THURSDAY SE MONDAY AND THURSDAY

DN TUESDAY AND THURSDAY SG MONDAY AND THURSDAY

DT TUESDAY AND THURSDAY SK MONDAY AND THURSDAY

DY TUESDAY AND FRIDAY SL MONDAY AND THURSDAY

EMONDAY AND THURSDAY SM MONDAY AND THURSDAY

EC MONDAY AND THURSDAY SN WEDNESDAY AND FRIDAY

EH MON AND THURSDAY SO TUESDAY AND THURSDAY

EN MONDAY AND THURSDAY SP TUESDAY AND THURSDAY

EX MON AND THURSDAY SR TUESDAY AND THURSDAY

FK MON AND THURSDAY SS MONDAY AND THURSDAY

FY MONDAY AND THURSDAY ST TUESDAY AND FRIDAY

GMON AND THURSDAY SW MONDAY AND THURSDAY

GL WEDNESDAY AND FRIDAY SY TUESDAY AND FRIDAY

GU TUESDAY AND THURSDAY TA MONDAY AND THURSDAY

GY GUERNSEY TD MONDAY AND THURSDAY

HA MONDAY AND THURSDAY TF TUESDAY AND FRIDAY

HD TUESDAY AND THURSDAY TN MONDAY AND THURSDAY

HG TUESDAY AND THURSDAY TQ MONDAY AND THURSDAY

HP MONDAY AND THURSDAY TR MONDAY AND THURSDAY

HR TUESDAY AND FRIDAY TS TUESDAY AND THURSDAY

HU TUESDAY AND THURSDAY TW MONDAY AND THURSDAY

HX TUESDAY AND THURSDAY UB MONDAY AND THURSDAY

IG MONDAY AND THURSDAY WMONDAY AND THURSDAY

IP WEDNESDAY AND FRIDAY WA MONDAY AND THURSDAY

IV MON AND THURSDAY WC MONDAY AND THURSDAY

JE JERSEY WD MONDAY AND THURSDAY

KT MONDAY AND THURSDAY WF TUESDAY AND THURSDAY

KY MON AND THURSDAY WN MONDAY AND THURSDAY

LMONDAY AND THURSDAY WR TUESDAY AND FRIDAY

LA MONDAY AND THURSDAY WS TUESDAY AND FRIDAY

LD MONDAY AND THURSDAY WV TUESDAY AND FRIDAY

LE TUESDAY AND FRIDAY YO TUESDAY AND THURSDAY

Kartell Trade Brocher August 2011

Navigation menu

Versions of this User Manual:

Views

Navigation
