Keysight N1046A

75/85/>100 GHz 1/2/4

Channel Remote Head Module

For 86100D Infiniium DCA-X Oscilloscope Mainframe

Data Sheet

For more information:

Contact your NSCA & Tra-Cal Small Business Partner:

Email info@nscainc.com or call your local sales rep today at 301-527-9200.

02 | Keysight | N1046A 75/85/>100 GHz 1/2/4 Channel Remote Head Module - Data Sheet

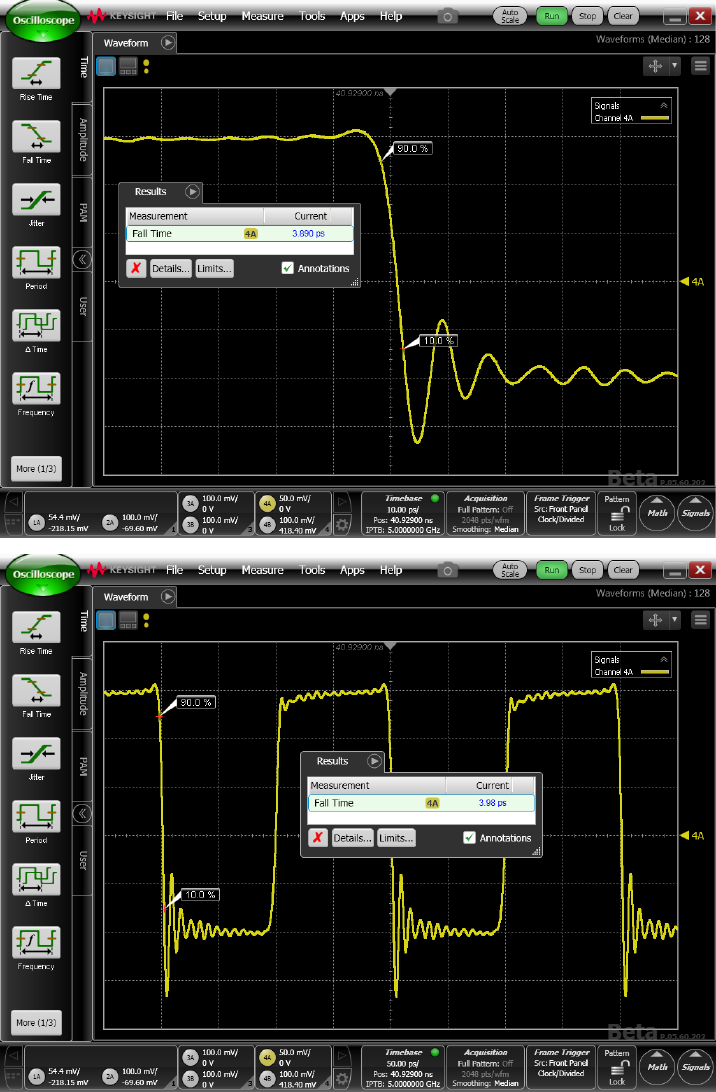

Engineered for Uncompromised Performance to 100 GHz and Beyond

Characterize your highest-performance designs for 56 GBaud and

beyond

Unprecedented performance

– World’s highest-bandwidth equivalent time sampling oscilloscope.

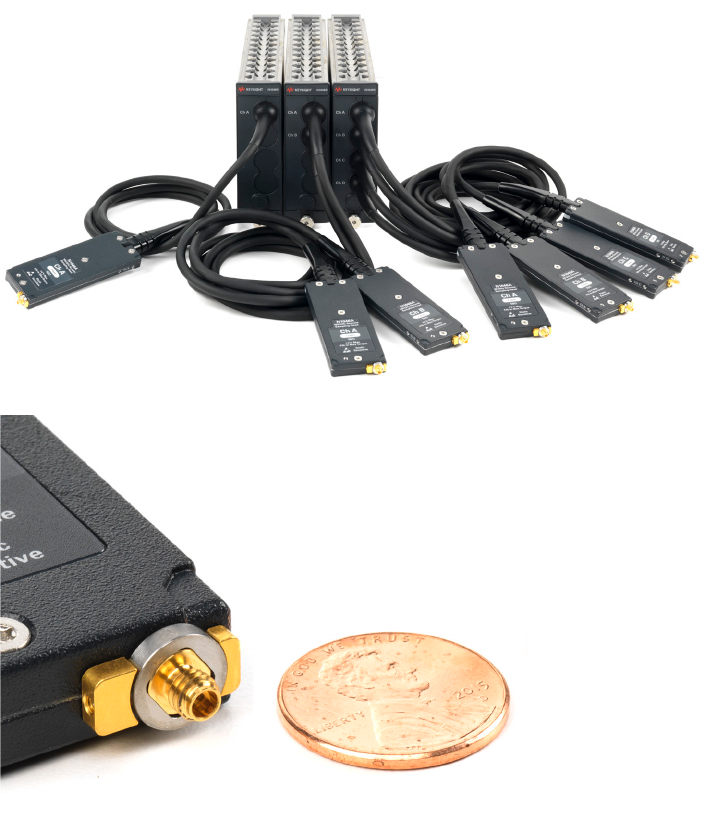

– World’s smallest oscilloscope remote heads enable direct or near-direct connection from

the instrument to your DUT, maximizing signal integrity.

– When paired with an 86100D with option 86100D-PTB, the N1046A module has intrinsic

jitter as low as 100 fs to enable accurate characterization of your device.

03 | Keysight | N1046A 75/85/>100 GHz 1/2/4 Channel Remote Head Module - Data Sheet

Unmatched value

– Lowest cost > 100 GHz oscilloscope solution.

– Bandwidth upgradable – Buy what you need today and upgrade to more performance as

you need it.

– Modular – N1046A modules are available with 1, 2 or 4 channels. Configure your system

to meet your specific needs, from 1 to 16 channels with bandwidths of 75 GHz, 85 GHz

or > 100 GHz. Or use the N1046A in combination with TDR and/or optical measurement

modules.

Configure each module with 1, 2 or 4

channels

Choose the maximum available bandwidth

to meet your current needs: 75 GHz,

85 GHz or > 100 GHz (Return-to-Keysight

bandwidth upgrades are available.)

Engineered for Uncompromised Performance to 100 GHz and Beyond (Continued)

All channels come with a 1 mm (f)

connector

04 | Keysight | N1046A 75/85/>100 GHz 1/2/4 Channel Remote Head Module - Data Sheet

Configuration Guide

Model option number Description

N1046A 100 GHz, 1/2/4 port electrical remote sampling head

N1046A-71F 1 channel, 75 GHz remote head, 1 mm, female

N1046A-81F 1 channel, 85 GHz remote head, 1 mm, female

N1046A-11F 1 channel, 100 GHz remote head, 1 mm, female

N1046A-72F 2 channel, 75 GHz remote head, 1 mm, female

N1046A-82F 2 channel, 85 GHz remote head, 1 mm, female

N1046A-12F 2 channel, 100 GHz remote head, 1 mm, female

N1046A-74F 4 channel, 75 GHz remote head, 1 mm, female

N1046A-84F 4 channel, 85 GHz remote head, 1 mm, female

N1046A-14F 4 channel, 100 GHz remote head, 1 mm, female

Other accessories you may need

Model Description

11920A 1 mm (m) to 1 mm (f)

11920B 1 mm (f) to 1 mm (f)

11920C 1 mm (m) to 1 mm (f)

11921E 1 mm (m) to 1.85 mm (m)

11921F 1 mm (f) to 1.85 mm (f)

11921G 1 mm (m) to 1.85 mm (f)

11921H 1 mm (f) to 1.85 mm (m)

What comes in the box?

To help you get your new high-performance scope module to work as quickly as possible,

Keysight provides a long list of “standard” accessories with every N1046A:

– 1 mm (m) to 1.85 mm (f) adapters for every channel

– A torque wrench for 1 mm connectors

– A torque wrench for 1.85 mm connectors

– Cable management clips to manage/dress the remote head cables

– For modules with > 1 channel, clips to hold two heads together

– A case to hold all of the above

05 | Keysight | N1046A 75/85/>100 GHz 1/2/4 Channel Remote Head Module - Data Sheet

Specifications

Specifications describe warranted performance while characteristics provide useful, nonwarranted information and performance.

Characteristics are listed below in italics.

Multiple electrical channel modules N1046A

Channel options 71F/72F/74F 81F/82F/84F 11F/12F/14F

Number of channels 1/2/4 1/2/4 1/2/4

Electrical channel bandwidth

(maximum) 1

75 GHz 85 GHz 100 GHz

Electrical channel bandwidth settings

(user-selectable)

45, 60, 75 GHz 45, 60, 75, 85 GHz 45, 50, 75, 85, 100, 122 GHz

(characteristic)

Transmision time (10 to 90% calculated

from TR = 0.35/bandwidth)

7.8, 5.9, 4.7 ps 7.8, 5.9, 4.7, 4.2 ps 7.8, 5.9, 4.7, 4.2, 3.5, < 3.2 ps

Channel-to-channel skew range ± 100 ps ± 100 ps ± 100 ps

RMS noise

Characteristic 400, 580, 740 μV 400, 580, 740, 860 μV 400, 580, 740, 860, 1005,

2000 μV

Maximum 550, 700, 950 μV 550, 700, 950, 1150 μV 550, 700, 950, 1150, 1350, 2000

(characteristic) μV

Scale factor (per division)

–Minimum 1 mV/division 1 mV/division 1 mV/division

–Maximum 100 mV/division 100 mV/division 100 mV/division

DC accuracy (VAVG measurement)

–Specified at calibration

temperature ± 0.5 °C. (Perform

a new module calibration

if hardware skew has been

applied.)

± 2 mV (characteristic)

–Specified at calibration

temperature ± 5 °C

± 2 mV ± 4% of (reading – channel offset)

DC offset range (referenced from

center of screen)

± 500 mV ± 500 mV ± 500 mV

Input dynamic range (relative to

channel offset)

± 400 mV ± 400 mV ± 400 mV

Maximum input signal ± 2V (+16 dBm) ± 2V (+16 dBm) ± 2V (+16 dBm)

Nominal impedance (characteristic)50 Ω 50 Ω 50 Ω

How Does Keysight Test and Setup your Module?

The N1046A bandwidth is tested using a very fast electrical impulse that is generated by a photodiode driven by a femtosecond optical

impulse source. The high bandwidth photodiode is calibrated and NIST traceable through 110 GHz. For frequencies beyond 110 GHz,

photodiode performance is based on a linear extrapolation of the photodiode response through 110 GHz but test data beyond 110 GHz

is not provided.

User note:

For customers needing the maximum possible bandwidth, the 122 GHz setting is recommended. For customers needing high

bandwidth with “matched” performance across channels, the 100 GHz setting is recommended.

1. Tuned to be —3 dB (± measurement uncertainty) at stated bandwidth(s) EXCEPT for the 122 GHz setting which is tuned for maximum bandwidth while

keeping channel noise ≤ 2.5 mV RMS.
