FEATURES

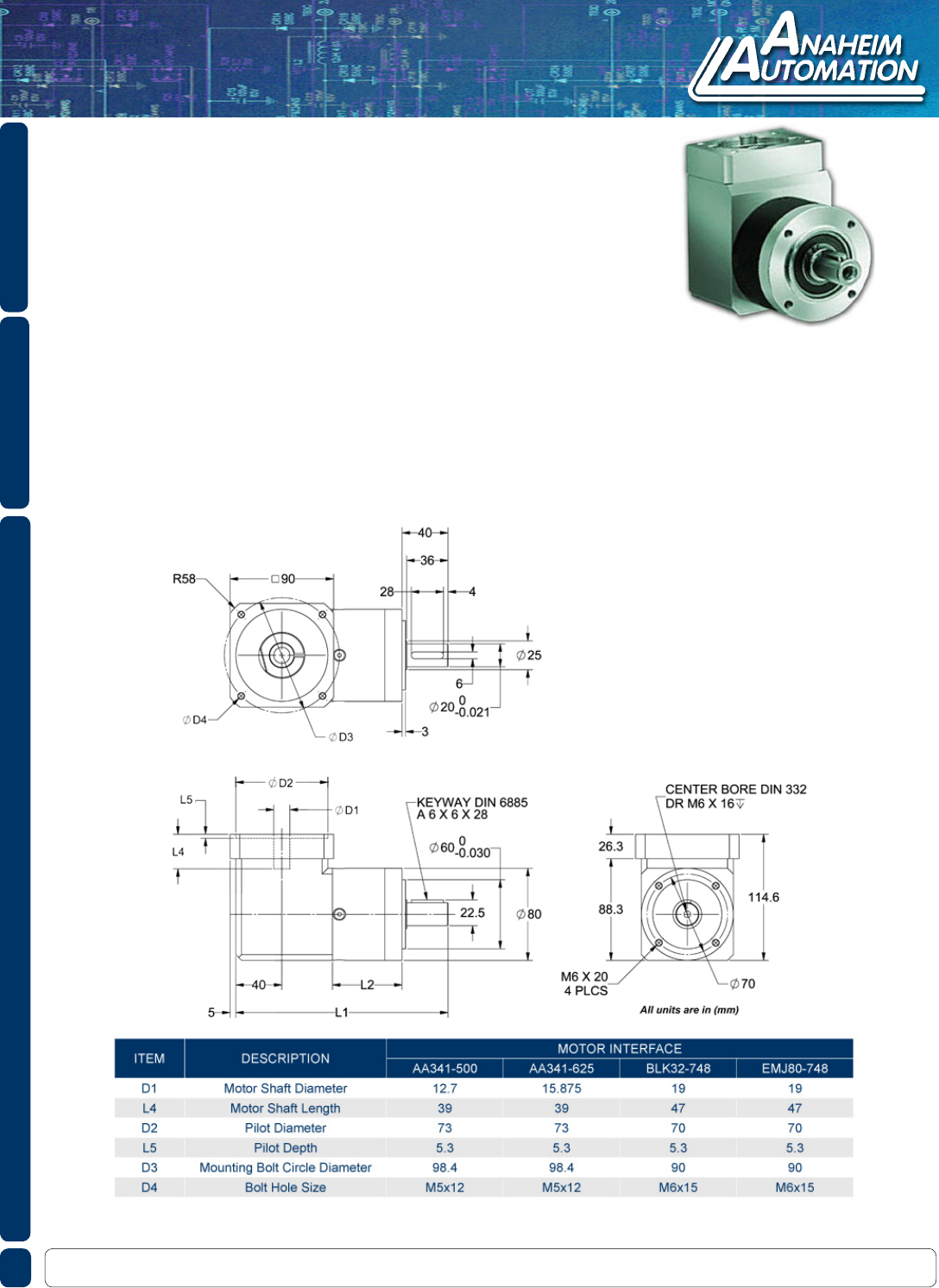

DIMENSIONS
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
DESCRIPTION
The GBPNR-080x-CS Series right angle planetary gearbox offers you the precision you
need at the prices you want! This right angle planetary gearbox is designed with very low
backlash for motion control, automation, and robotic applications requiring precise position
requirements. This right angle planetary gearbox will match your servo or stepping motor. It
comes in 22 different gear ratios. Built with the design goal of offering a cost-effective prod-
uct without sacricing quality, you will nd that this right angle planetary gearbox offers you
an extraordinary value.
L010522
GBPNR-080x-CS Series
GBPNR-080x-CS Series
• Gear Ratios From 3 to 512
• Backlash Lower Than 21 arc-min
• Available in 1, 2 and 3 Stage Models
• Lifetime Lubrication
• High Durability
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
SPECIFICATIONS
Model # Gear
Ratio
Nominal
Rated
Torque
(oz-in)
Max
Torque
(oz-in)
Stages
Backlash
Maximum
(arcmin)
L1
Length
(mm)
L2
Length
(mm)
Weight
(lbs)
GBPNR-0801-CS-003-AA341-500 3 5664 9056 1 <15 184 60.5 9.7
GBPNR-0801-CS-004-AA341-500 4 7504 12032 1 <15 184 60.5 9.7
GBPNR-0801-CS-005-AA341-500 5 9472 15136 1 <15 184 60.5 9.7
GBPNR-0801-CS-008-AA341-500 8 7072 11328 1 <15 184 60.5 9.7
GBPNR-0802-CS-009-AA341-500 9 18400 29440 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-012-AA341-500 12 16992 27184 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-015-AA341-500 15 15568 24928 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-016-AA341-500 16 16992 27184 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-020-AA341-500 20 16992 27184 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-025-AA341-500 25 15568 24928 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-032-AA341-500 32 16992 27184 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-040-AA341-500 40 15568 24928 2 <19 201.5 77.5 11.2
GBPNR-0802-CS-064-AA341-500 64 7072 11328 2 <19 201.5 77.5 11.2
GBPNR-0803-CS-060-AA341-500 60 15568 24928 3 <21 219 95 12.1
GBPNR-0803-CS-080-AA341-500 80 16992 27184 3 <21 219 95 12.1
GBPNR-0803-CS-100-AA341-500 100 16992 27184 3 <21 219 95 12.1
GBPNR-0803-CS-120-AA341-500 120 15568 24928 3 <21 219 95 12.1
GBPNR-0803-CS-160-AA341-500 160 16992 27184 3 <21 219 95 12.1
GBPNR-0803-CS-200-AA341-500 200 15568 24928 3 <21 219 95 12.1
GBPNR-0803-CS-256-AA341-500 256 16992 27184 3 <21 219 95 12.1
GBPNR-0803-CS-320-AA341-500 320 15568 15568 3 <21 219 95 12.1
GBPNR-0803-CS-512-AA341-500 512 7072 7072 3 <21 219 95 12.1
Radial Load: 213 lbs - Force Axial Load: 269 lbs - Force
Operating Temperature: -25° C - 90°C Noise Level: 73 dB
Maximum Input Speed: 7,000 RPM Design Life: 20,000 hours
Efciency: 88% - 94% IP Rating: IP 54 / 55
