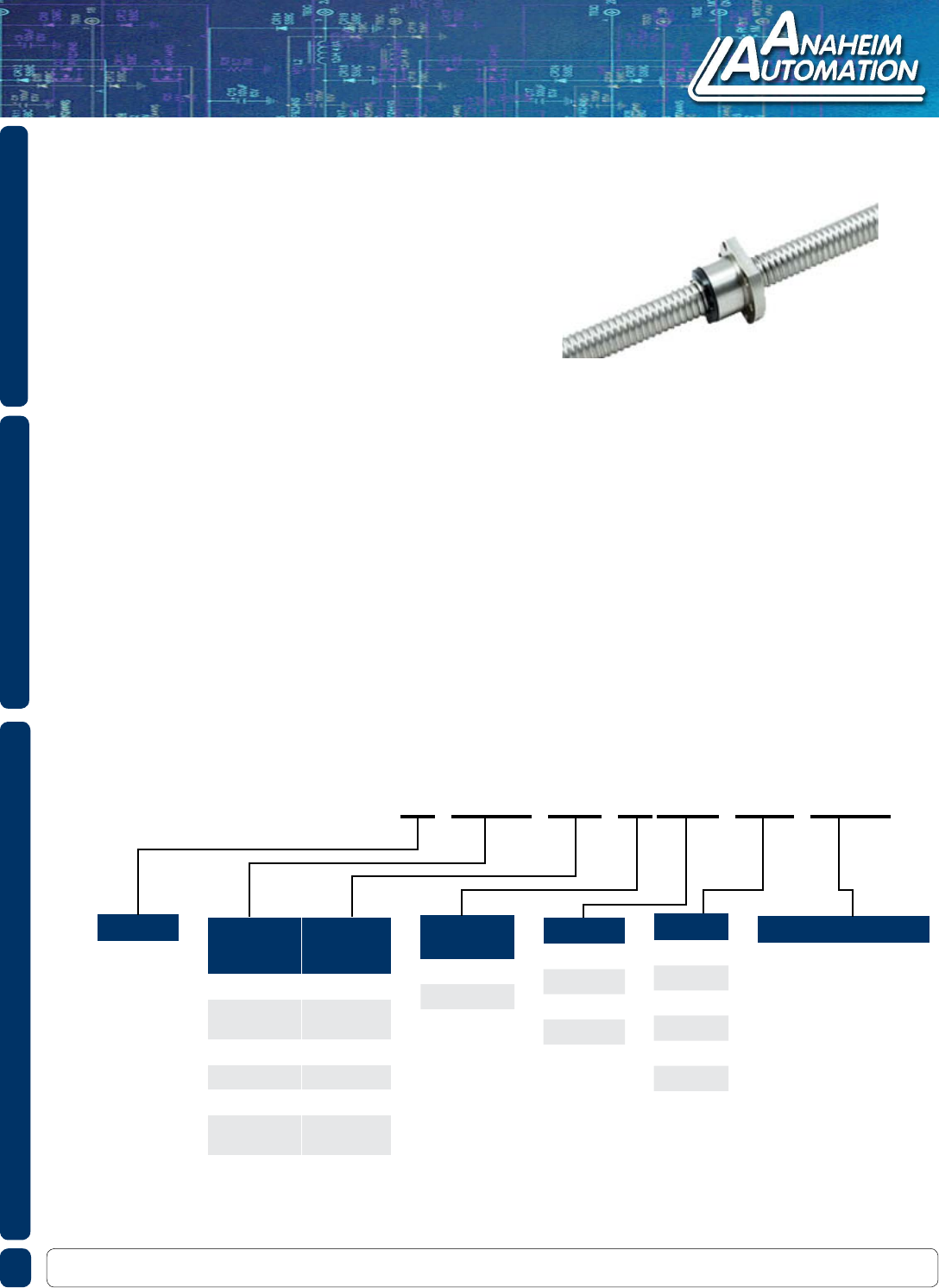

FEATURES
PART NUMBER LAYOUT
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
DESCRIPTION
The SFS Series screw has a diameter of 12-50mm with a 5-50mm lead. This assembly
provides a dynamic force of 5,749 kgf and a static forces up to 18,485 kgf. The maximum
screw length is 6,000mm. The ends of the screw can be customized per your drawing.
Please contact Anaheim Automation to discuss your specic requirements.
L010973
• 12mm to 50mm Screw Diameters
• 5mm to 50mm Leads
• Dynamic Loads to to 5,749 kgf
• Static Loads up to 18,485 kgf
• Available in Right helix
• C7 and C5 Standard Accuracy
• P1 and P0 Standard Preload
• Other Accuracies and
Preloads Available Upon Request
BSC-AAM-SFSR-012-05-R C7-P1-375
Motion Ballscrews
SFS Series
Motion Ballscrews
SFS Series
Helix
R Right
Rolled or
Ground
R Rolled
G Ground
Accuracy
C7
C5
C3
C1
C0
Preload
P0
P1
P2
P3
P4
P5
Screw Length
Custom for application
Ball Screw
Diameter
(mm)
Lead
(mm)
12 05, 10
15 05, 10, 16,
20
20 05, 10, 20
25 05, 10, 25
31, 32 05, 10, 32
38, 40 05, 10, 20,
40
48, 50 05, 10, 20,
50
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

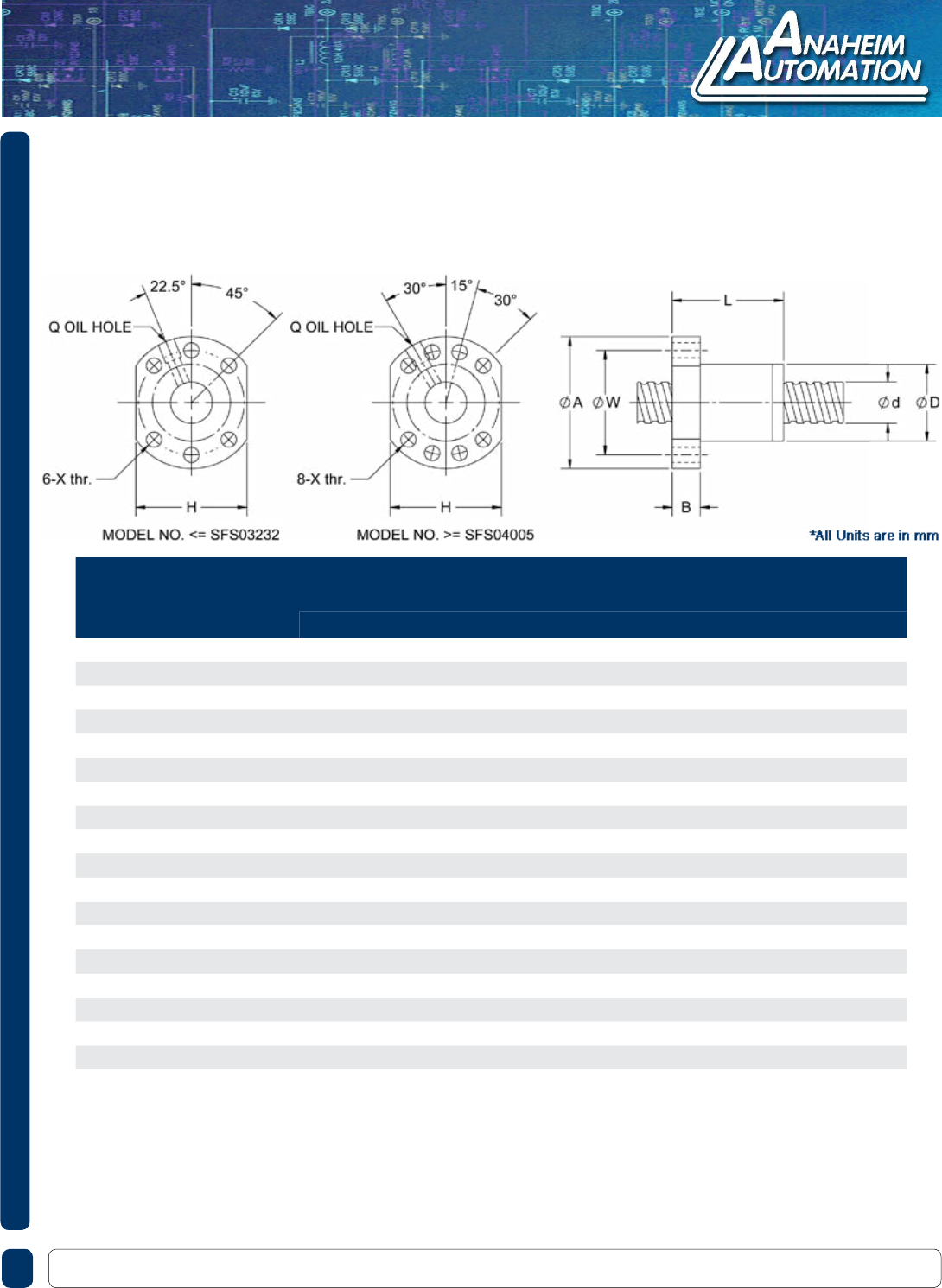

DIMENSIONS AND SPECIFICATIONS
l: Lead Da: Ball Dia. n: Number of Circuits K: Stiffness (kgf) H*: Helix
Ca: Basic Dynamic Rating Load (kgf) Coa: Basic Static Rating Load (kgf)
Model No. d l Da D A B L W H X Q n Ca Coa K H*
BSC-AAM-SFSR-012-05 12 5 2.5 24 40 10 31 32 30 4.5 - 2.8x1 661 1316 19 R
BSC-AAM-SFSR-012-10 12 10 2.5 24 40 10 48.5 32 30 4.5 - 2.8x1 642 1287 19 R
BSC-AAM-SFSR-016-05 15 5 2.778 28 48 10 38 38 40 5.5 M6 3.8x1 1112 2507 30 R
BSC-AAM-SFSR-016-16 15 16 2.778 28 48 10 61 38 40 5.5 M6 2.8x1 808 1769 22 R
BSC-AAM-SFSR-016-20 15 20 2.778 28 48 10 57 38 40 5.5 M6 1.8x1 554 1170 14 R
BSC-AAM-SFSR-025-05 25 5 3.175 40 62 10 40 51 48 6.6 M6 3.8x1 1650 4658 43 R
BSC-AAM-SFSR-025-10 25 10 3.175 40 62 12 62 51 48 6.6 M6 3.8x1 1638 4633 45 R
BSC-AAM-SFSR-025-25 25 25 3.175 40 62 12 70 51 48 6.6 M6 1.8x1 843 2199 22 R
BSC-AAM-SFSR-032-05 32 5 3.175 50 80 12 42 65 62 9 M6 3.8x1 1839 6026 51 R
BSC-AAM-SFSR-032-10 31 10 3.969 50 80 13 62 65 62 9 M6 3.8x1 2460 7255 55 R
BSC-AAM-SFSR-032-32 31 32 3.969 50 80 13 84 65 62 9 M6 1.8x1 1257 3462 27 R
BSC-AAM-SFSR-040-05 40 6 3.175 63 93 14 50 78 70 9 M8 4.8x1 2467 9583 77 R
BSC-AAM-SFSR-040-10 38 10 6.35 63 93 14 63 78 70 9 M8 3.8x1 5035 13943 67 R
BSC-AAM-SFSR-040-40 38 40 6.35 63 93 15 105 78 70 9 M8 1.8x1 2585 6648 34 R
BSC-AAM-SFSR-050-05 50 5 3.175 75 110 15 45 93 85 11 M8 3.8x1 2207 9542 68 R
BSC-AAM-SFSR-050-10 48 10 6.35 75 110 18 68 93 85 11 M8 3.8x1 5638 17852 79 R
BSC-AAM-SFSR-050-20 48 20 6.35 75 110 18 108 93 85 11 M8 3.8x1 5749 18485 87 R
BSC-AAM-SFSR-050-50 48 50 6.35 75 110 18 125 93 85 11 M8 1.8x1 2946 8749 42 R
BSC-AAM-SFSR-050-50 48 50 6.35 75 110 18 175 93 85 11 M8 2.8x1 4308 13610 65 R
Units are in mm
*PLEASE NOTE - Each standard ball screw includes one nut. Additional nuts will be
considered a custom request, and will require creation of a special part
number.
