FEATURES
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
L011053
CIMON - SCADA HMICIMON - SCADA HMI
• Integrated CIMON-SCADA Software
• Run Powerful Visual Basic Scripts
• Various Built-In Graphic Libraries
• Variety of Network Solutions
• Convenient Report Writing
• Open-Type Software Using OLE Automation
• Zoom and Pan Function for Online Surveillance
• Exchange Data with Database Management Systems
• Simultaneously Communicate with PLCs and Other
Measuring Devices
FEATURES
Live Database Management
The database manager is similar to Windows Explorer and can be used interchangeably with Excel.
The database can also be edited online by using Tag variables.
Alarms
When an alarm occurs, the user can choose various alert methods such as Summary, File, Print, Voice,
and Character. The user can set specic functions to trigger when the alarm is either ON or OFF.
Monitoring history is possible through the control screen.
Trends
Users are able to analyze live or past trends and select various types of trend graphs: Y-T/Multiple/X-
Y/S-T. The past trend can be analyzed by expansion, reduction and ltering through time value.
Reports
A report can be retrieved periodically, or when a specic event occurs, users can open the le by using
Excel or Word. User can also open any types of reports by using Visual Basic script.
Data Logging
SCADA HMIs collect data at xed cycles, xed time, or whenever a certain event occurs. The user
can monitor the data through a trend function or read data with a Visual Basic script that can also be
printed.
Network
Peer to peer/1 Server + N Clients/N Server + N Clients can be congured with the SCADA HMI.
CIMON-NET protocol enables the current SCADA HMI to connect with other SCADA HMIs.
Macro Function Usage
Supports strong Visual Basic script language which includes more than 500 built-in functions.
ITEM SPECIFICATIONS
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
Type HMI-CM-T12FS HMI-CM-T15FS HMI-CM-T15FP HMI-CM-T19FP
Panel Size 12.1” 15” 19”
Resolution 1,024 x 768 pixels 1280 x 1024 pixels
LCD Color TFT
Display Out CRT Output (15 pin DSUB)
Color 262K Colors 16.7M Colors
Graphic Chip Intel GMA 3150
CPU 1.6 GHz Intel ATOM Processor N450
Memory 1 GB DDR2 SDRAM
Storage 64 GB SSD
Operating System Windows XP Embedded
Programming Tool (HMI) XPanel Designer
Interface
Ethernet 2 Gigabit Ethernet Ports
Serial (COM 1) RS232C/422/485
Serial (COM 2-4) RS232C
Parallel 1 Port
USB 4 USB 2.0 Ports 6 USB 2.0 Ports
PS/2 Keyboard & Mouse
Audio 1 Port
CD-ROM None 1 Slot
PCI Slot None 1 Slot
Tool Port 1 Port (for Loader)
SD Card Slot None
Input Power 100 ~ 240 VAC
Dimensions (mm) 330 x 250 x 82 395 x 310 x 89 395 x 310 x 143 480 x 390 x 371
Panel Cut Out (mm) 319 x 239 382 x 297 382 x 297 463 x 372
L011053
Item Description
Energy Consumption 60 Watts or Less
Ambient Temperature 0° ~ 50°C
Storage Temperature -20° ~ 60°C
Ambient Humidity 10% ~ 85%RH (Below 29°C, No Dew Condensation)
Storage Humidity 10% ~ 85%RH (Below 39°C, No Dew Condensation)
Air Pressure Vibration Resistance
(Availment Altitude) 800 ~ 1,114hPa (2,000m or Less)
Dust 0.1mg/m3 or Less
Pollution Degree Pollution Degree 2
Corrosive Gases Free from Corrosive Gases
Vibration Resistance
HDD Storage Type 4.9m/S2, 10 ~ 25 Hz in X,Y,Z (80 Minutes)
CF Storage Type 9.8m/S2, 10 ~ 25 Hz in X,Y,Z (80 Minutes)
SSD Storage Type 9.8m/S2, 10 ~ 25 Hz in X,Y,Z (80 Minutes)
Noise Resistance Impulse, EFT/Burst, Surge, ±2kV, 1μS
Static Discharge Resistance 4kV (IEC61000-4-2 Level 3)
GENERAL SPECIFICATIONS
CIMON - SCADA HMICIMON - SCADA HMI

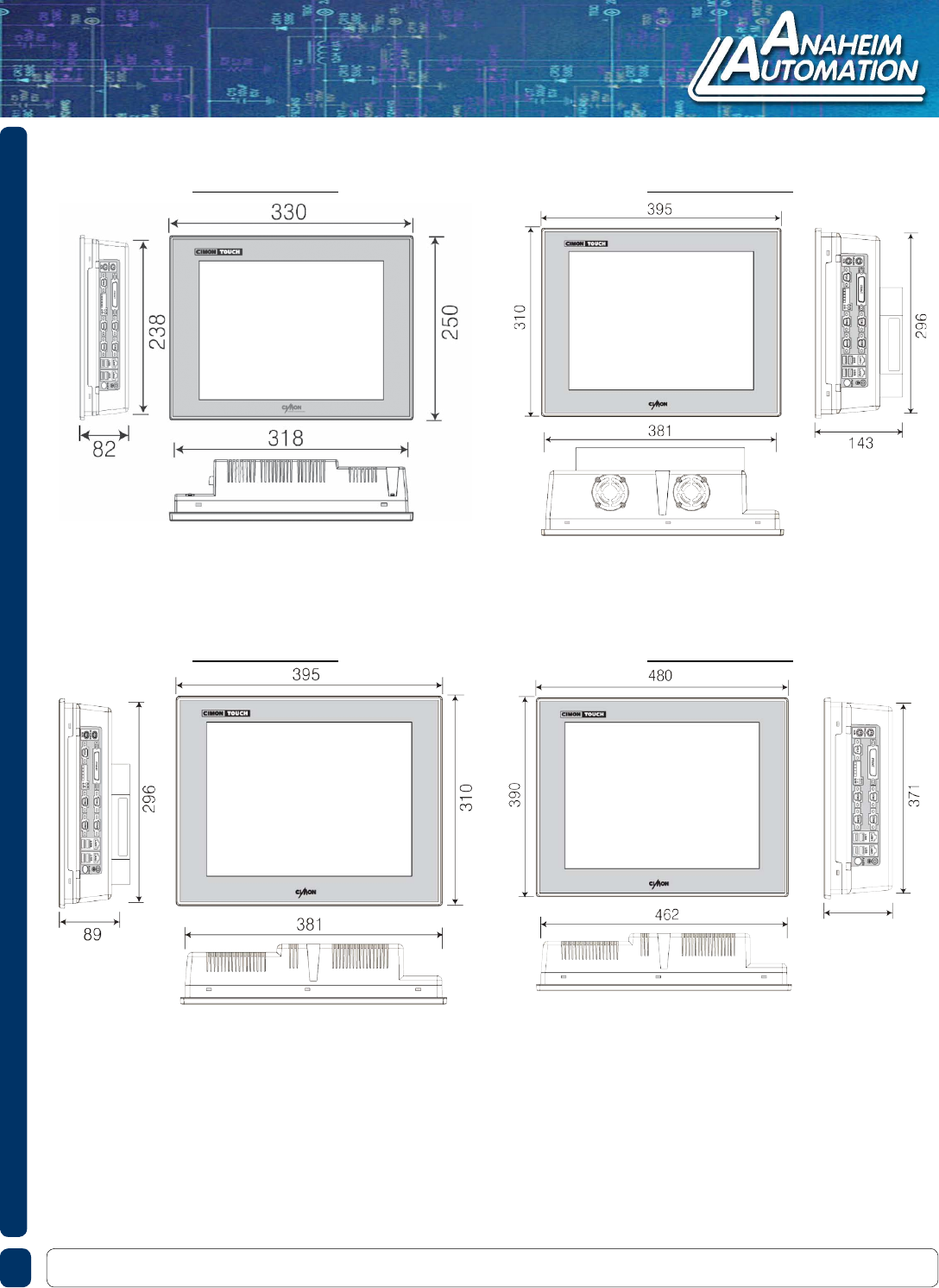

DIMENSIONS
HMI-CM-T12FS HMI-CM-T15FP
HMI-CM-T15FS HMI-CM-T19FP
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
L011053
CIMON - SCADA HMICIMON - SCADA HMI
*All units are in mm

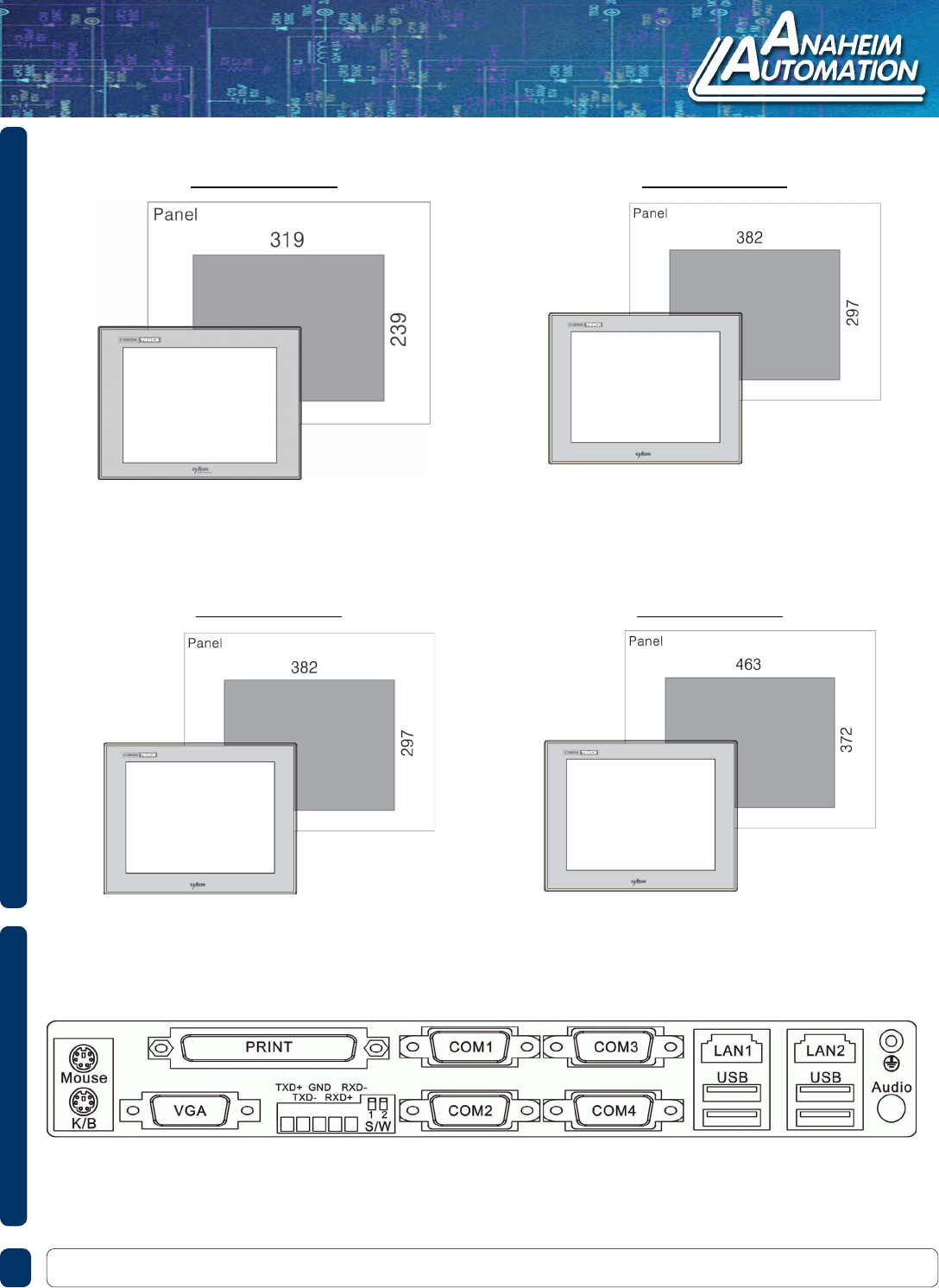

PANEL CUTOUT DIMENSIONS
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
L011053
HMI-CM-T15FS HMI-CM-T19FP
HMI-CM-T12FS HMI-CM-T15FP
INTERFACES
CIMON - SCADA HMICIMON - SCADA HMI
*All units are in mm
HOOK UP DIAGRAMS
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
L011053

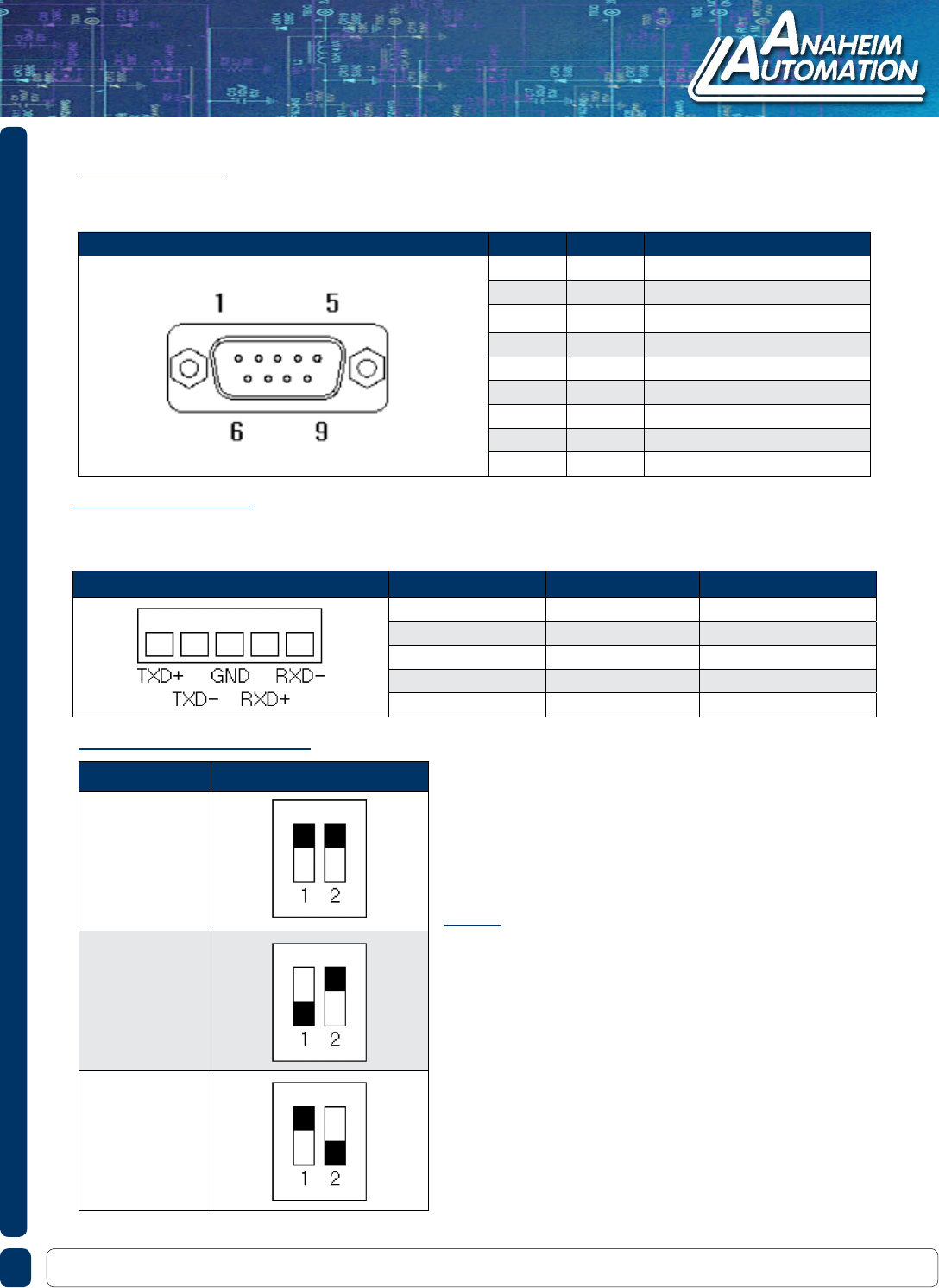

Connector Pin # Name Description
1 DCD Data Carrier Detect
2 RD Receive Data
3 TD Transmit Data
4 DTR Data Terminal Ready
5 SG Signal Ground
6 DSR Data Set Ready
7RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicator
COM1: RS232C
This interface is used to connect the SCADA HMI to the host (PLC), via an RS-232C cable.
When you use COM1 RS-232C port, you must not use COM1 RS-485-422 port.
Connector Pin No. Name Description
1 TXD+ Transmit Data +
2 TXD- Transmit Data -
3GND Ground
4 RXD+ Recieve Data +
5 RXD- Receive Data -
COM1: RS-422/485
This interface is used to connect the SCADA HMI to the host (PLC), via an RS-422/485 cable.
When you use COM1 RS-422/485 port, you must not use COM1 RS-232C port.
Type Switch
RS-232 (Default)
RS-485
RS-422
Communication Switches
• If you connect the SCADA HMI to the host via an
RS-485 cable (2 wire), you must connect the TXD+
and TXD- lines.
• The RS-485 of the SCADA HMI runs under auto
toggle mode.
• To reduce the risk of damaging the RS-422 circuit, be
sure to connect the SG terminal.
NOTE
CIMON - SCADA HMICIMON - SCADA HMI
HOOK UP DIAGRAMS

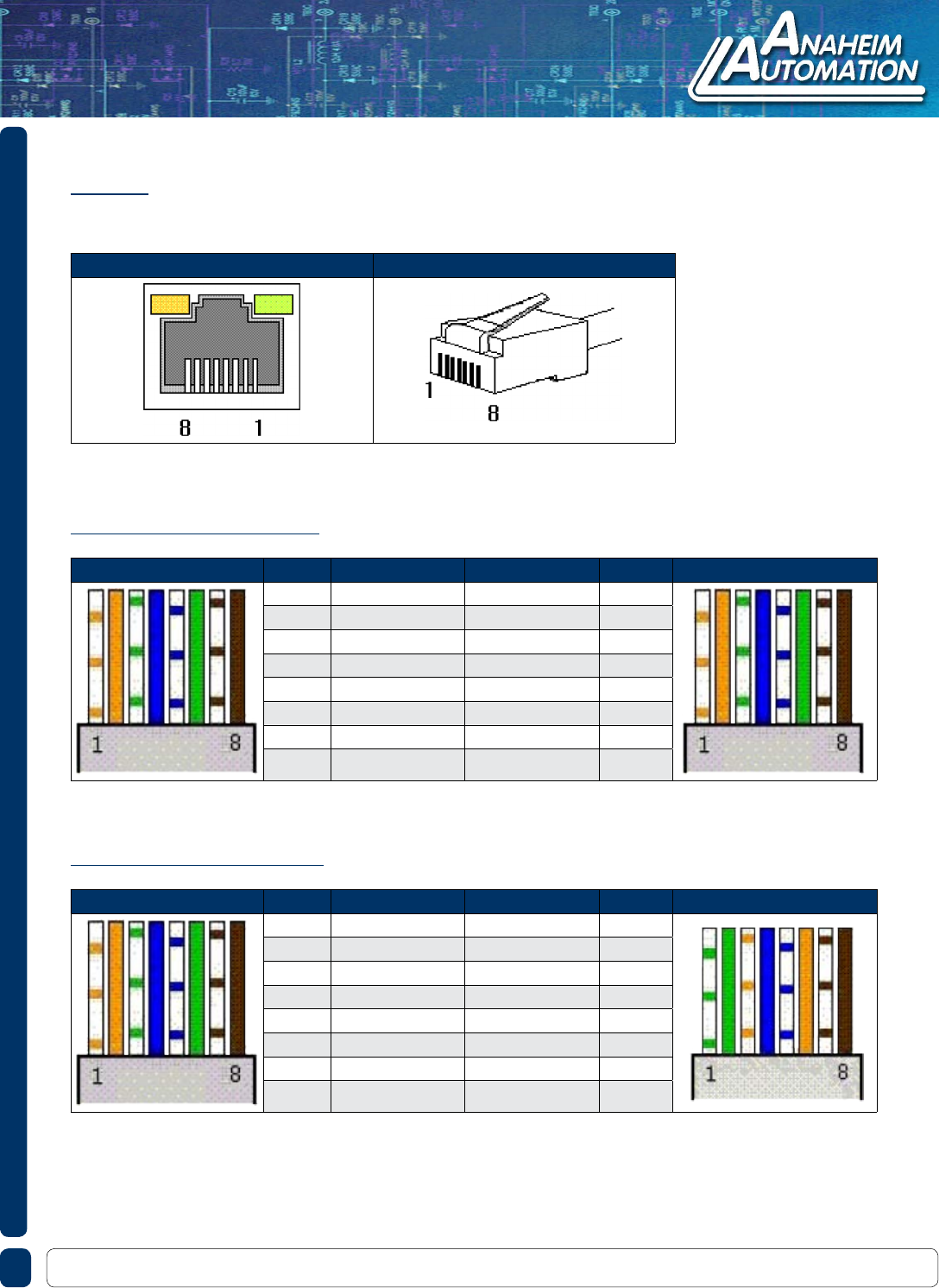

Ethernet
This interface complies with the IEEE802.3 for Ethernet (10 Base-T / 100 Base-TX).
RJ45 Front View RJ45 Side View
Host Cable Pin # Color Color Pin # Hub Cable
1 Orange/W Orange/W 1
2 Orange Orange 2
3 Green/W Green/W 3
4 Blue Blue 4
5 Blue/W Blue/W 5
6 Green Green 6
7 Brown/W Brown/W 7
8 Brown Brown 8
Host Cable Pin # Color Color Pin # Host Cable
1 Orange/W Green/W 1
2 Orange Green 2
3 Green/W Orange/W 3
4 Blue Blue 4
5 Blue/W Blue/W 5
6 Green Orange 6
7 Brown/W Brown/W 7
8 Brown Brown 8
Direct Cable: Host <-> Hub
Direct Cable: Host <-> Host
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
L011053
CIMON - SCADA HMICIMON - SCADA HMI
ESSENTIAL SAFETY PRECAUTIONS
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
L011053
• Do not create SCADA HMI graphic objects that could possibly endanger the safety of the
equipment and personnel. Damage to the SCADA HMI can cause an output signal to remain ON
or OFF continuously and can cause a major accident. Therefore, design all monitoring circuits
using a limit switch to detect incorrect device movement.
• Do not create SCADA HMI graphic objects that control machine safety operations, such as an
emergency stop. Switches to control machine safety operations must be installed as separated
hardware switches.
• Design your system so that the communication fault between the SCADA HMI and the controller
of the equipment can not make the equipment malfunction.
• Do not use the SCADA HMI as a warning device for critical alarms that can cause serious
operator injury, machine damage, or production stoppage.
• The SCADA HMI is not appropriate for use with aircraft control devices, aerospace equipment,
central trunk data transmission (communication) devices, nuclear power control devices, or
medical life support equipment, due to these devices’ inherent requirement of extremely high
levels of safety and reliability.
• When using the SCADA HMI with transportation vehicles (trains, cars and ships), disaster and
crime prevention devices, various type of safety equipment, non life support-related medical
devices, etc., redundant and/or fail-safe system designs should be used to ensure the proper
degree of reliability and safety.
• After the backlight of the SCADA HMI burns out, the touch panel of the SCADA HMI is still active.
If an operator does not notice that the backlight burned out and touches the panel, a potentially
dangerous machine missoperation can occur. Therefore, do not use the SCADA HMI graphic
objects for the control of any equipment safety mechanisms such as emergency stop switches;
that protect humans and equipment from injury and damage.
CIMON - SCADA HMICIMON - SCADA HMI
WARNINGS:
INSTALLATION
910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com
L011053
• Be sure to securely connect all cable connectors to the SCADA HMI. A loose connection may cause
incorrect input or output.
• High voltage runs through the SCADA HMI do not disassemble the SCADA HMI, otherwise an
electric shock can occur.
• Do not modify the SCADA HMI unit; a modied SCADA HMI can cause a re or an electric shock.
• Do not use the SCADA HMI near ammable gasses because an explosion can occur.
• The SCADA HMI uses a lithium battery to back up its internal clock data. If the battery is incorrectly
replaced, the battery may explode. To prevent this, please do not replace the battery yourself. When
the battery needs to be replaced, please contact Anaheim Automation.
• The LCD contains a powerful irritant and if for any reason the panel is damaged and this liquid
contacts any part of your body, be sure to wash that area with running water for 15 minutes. If any of
this liquid enters your eye, ush your eye for 15 minutes with running water and contact a physician.
• To prevent an electric shcok, be sure to conrm that the power cord of the SCADA HMI is not
connected to the main power before connecting any cord, cables, or line to the SCADA HMI.
• Do not use power beyond the specied voltage range of the SCADA HMI. Doing so may cause a re
or an electric shock.
• Ground the eld ground line of the SCADA HMI separately from eld ground lines of other units.
Putting these eld ground lines too close may cause an electric shock or unit malfunction. Be sure
to use a grounding resistance of 100Ω or less and a 2 mm2 or thicker wire (or applicable standard in
your country).
• Correctly wire the SCADA HMI; be sure that the rated voltage and terminal layout are within
the designated range. If the voltage supplied differs from the rated voltage, or incorrect wiring or
grounding is performed, it may cause a re or unit malfunction.
• Use only the designated torque to tighten terminal block screws of the SCADA HMI . If these screws
are not tightened rmly, it may cause a short circuit, re or SCADA HMI malfunction.
• Be careful that the metal lings and wiring debris do not fall into the SCADA HMI, since they can
cause a re, SCADA HMI malfunction, or incorrect operation.
WIRING
