CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
76

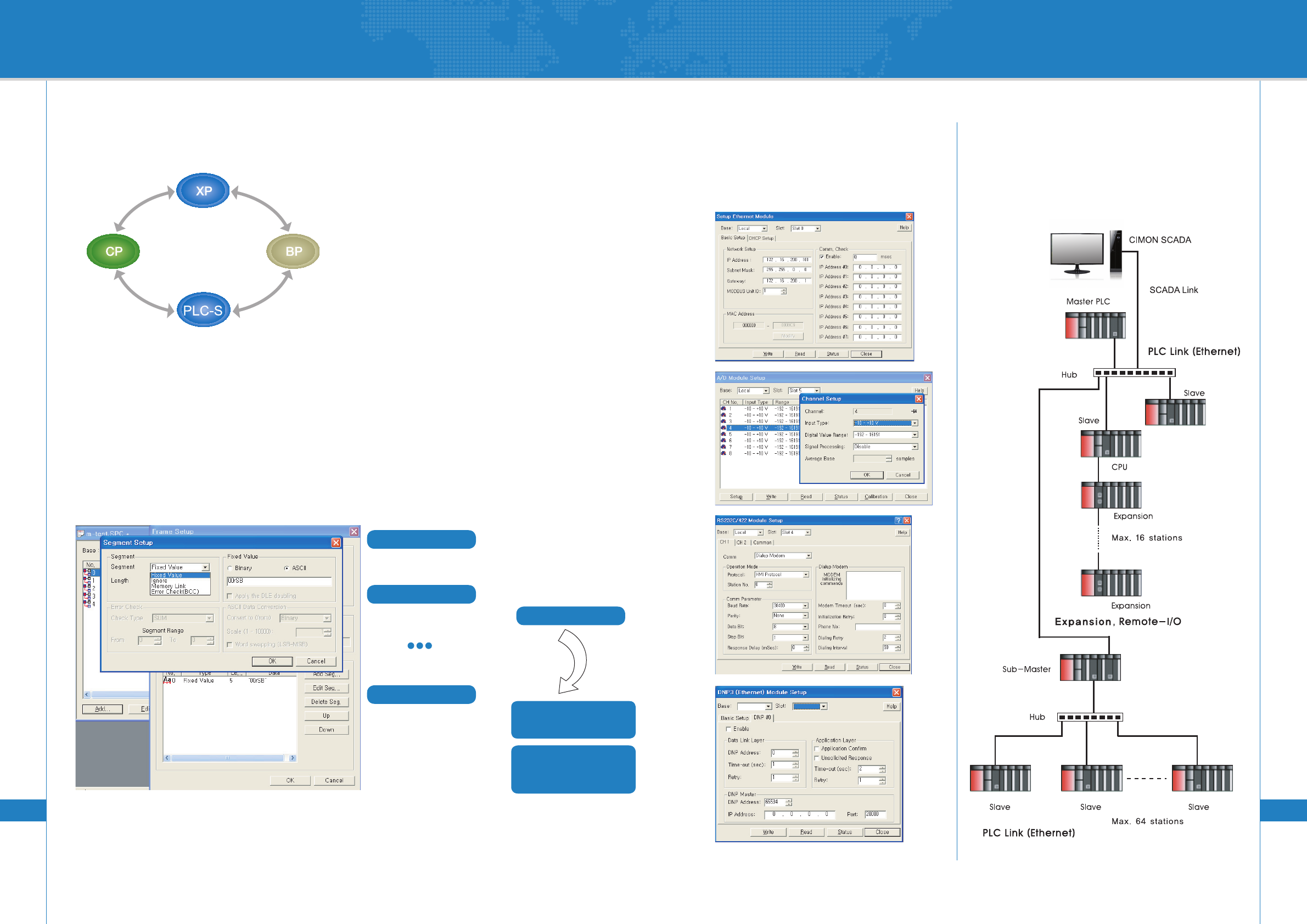

Simple and easy set-up of communication
and analog modules
▪
Excellent expansibility and compatibility
(Ethernet standard)
▪

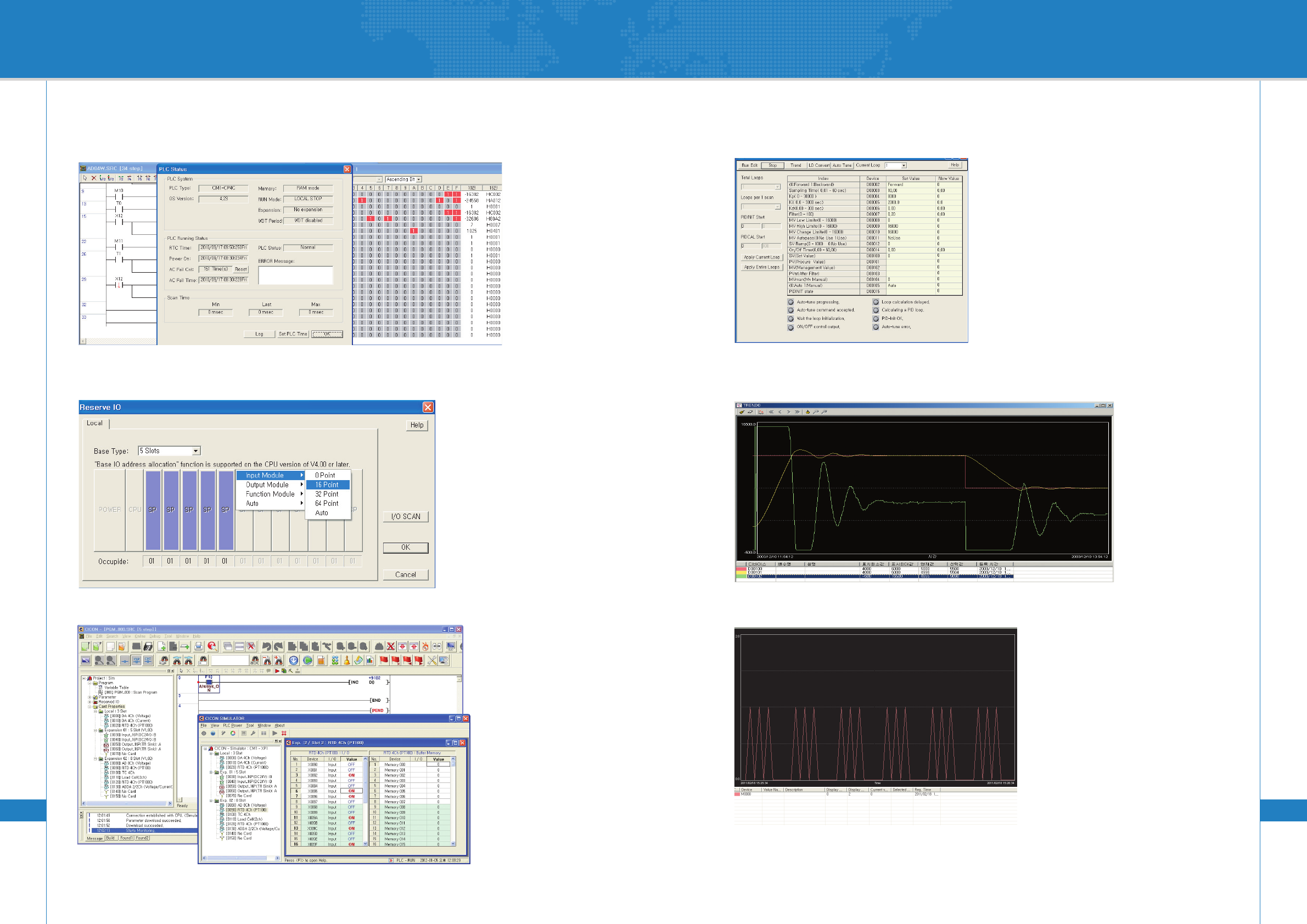

Special Module Set-Up
»Network Conguration
»
Feature of CIMON-PLC
High-speed CPU process : MPU(ASIC)-(75ns/step)
Remote I/O through expansion feature
High compatibility with other PLC series
One loader program covers all PLC types
▪
▪
▪
▪
Sequence program(CICON) is compatible with XP, CP BP and PLC-S types of PLC
Operator can choose RAM or ROM mode through the integrated ash memory
Analog modules provide high-resolution signal conversion range (1/16000 or 1/64000)
Simple and user-friendly ladder program (PID program, Protocol program, PLC link program, etc.)
Various protocols
▪
▪
▪
▪
▪
CIMON-PLC
Segment
Segment
Register a frame
Transmit the registered
frame using SEND,
RECV instructions
Segment
}
Transmit the registered
frame automatically
Protocol Program
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
98

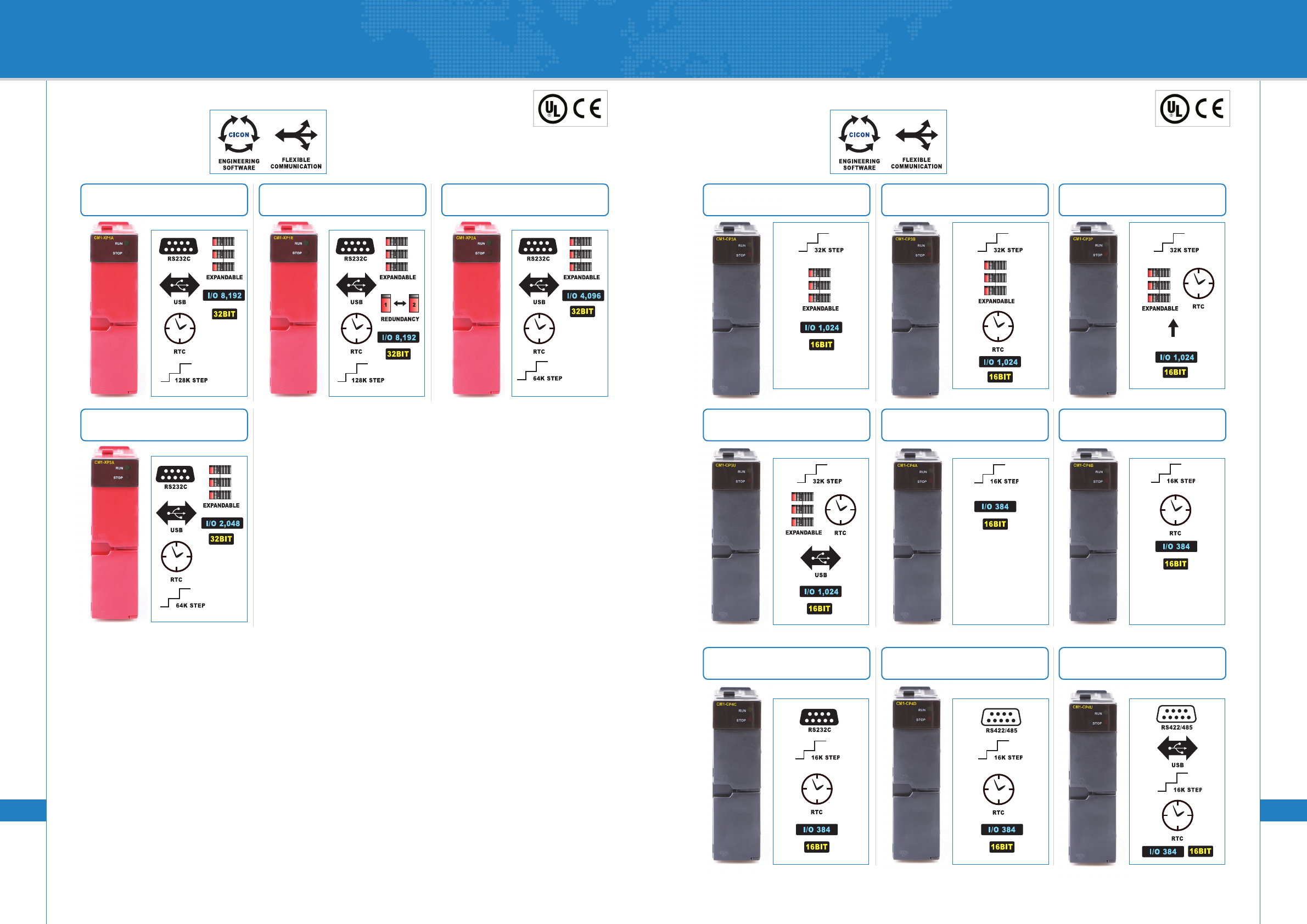

FLASH ROM PACK
FLASH ROM PACK
CM1-CP3A
CM1-CP3U
CM1-CP4C
CM1-CP3B
CM1-CP4A
CM1-CP4D
CM1-CP3P
CM1-CP4B
CM1-CP4U
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
CP Series
FLASH ROM PACK
FLASH ROM PACK
XP Series
FLASH ROM PACK
FLASH ROM PACK
XP/CP Series
CM1-XP3A
FLASH ROM PACK
CM1-XP1A CM1-XP1R CM1-XP2A
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
FLASH ROM PACK
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
1110

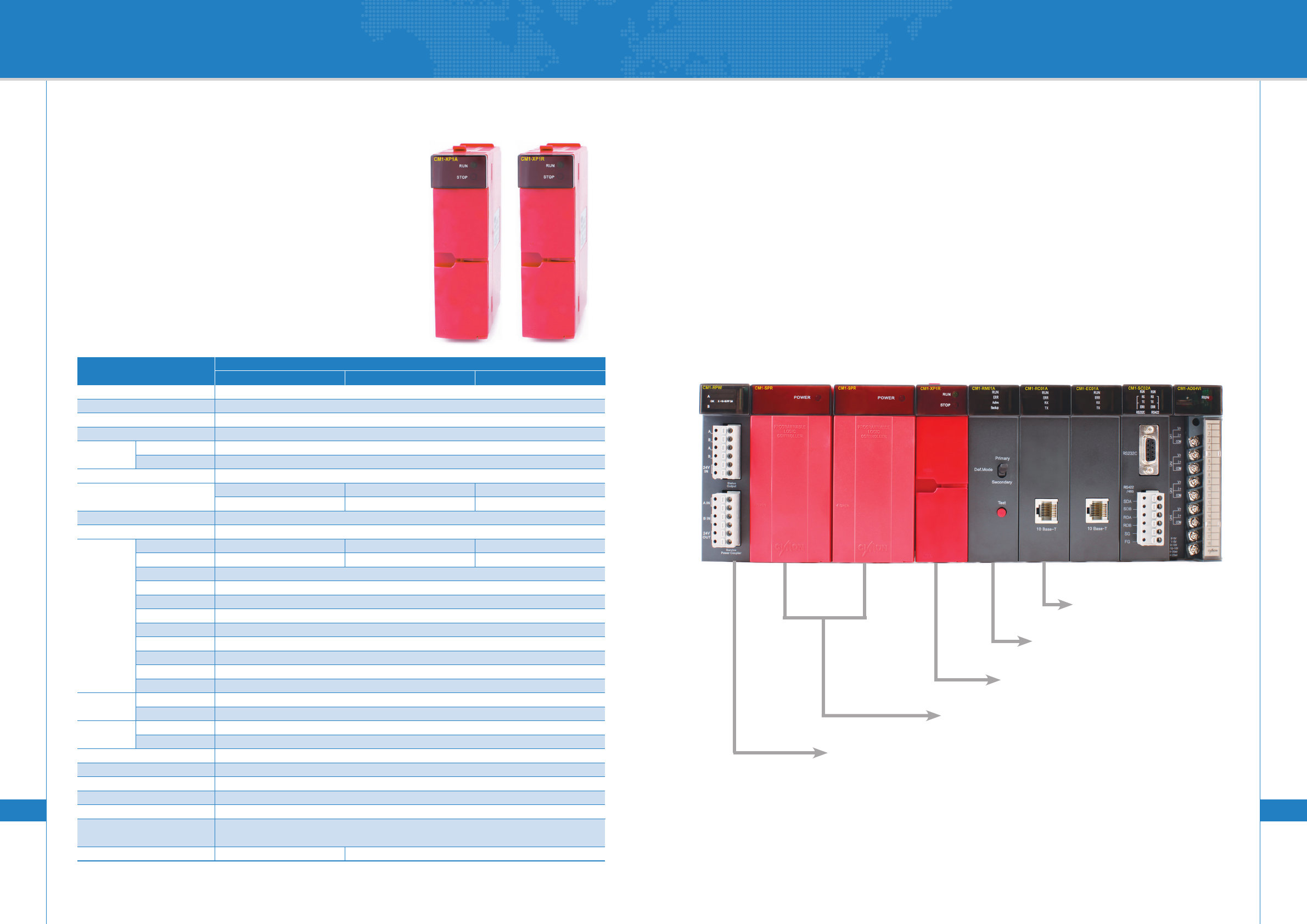

Redundancy Comm. Module(CM1-RC01A)
Redundancy CPU(CM1-XP1R)
Power(CM1-SPR)
Power Monitoring Module(CM1-RPW)
Redundancy Interface(CM1-RM01A)
Redundancy System
CPU, power, base and communication redundancy available
Perfect redundancy conguration derived from the base structure
In case an errors in the active CPU, the back-up CPU will switch to active status automatically
Test button to easily check and maintain the system
Less than 50ms to switch to back-up CPU
▪
▪
▪
▪
▪
Redundancy Conguration
»
XP CPU
XP/CP Series
MPU (ASIC) - hgh speed processing speed (75ns/step)
Provides Over 400 instructions
Abundant device capacity: I/O - maximum 8,192 points /
Data - 32,000 word / (M,K,L) 16,000 points
Compact size with exceptional performance
Built-in USB 2.0 port
Built-in loader port for downloading/uploading programs
Maximum base expansion: 16
Maximum number of slots in one base is 12
XP series include all the functions and features of CP series and more
▪
▪
▪
▪
▪
▪
▪
▪
▪
32,000
Specification
CM1-XP2A CM1-XP3A
Operation Method
I/O Control Method
Program Language
Data Processing Method
No. of
Instruction
Sequence
Application
Processing Speed
Program Memory Capacity
Base Expansion
Data Memory Capacity
X
Y
M
K
L
F
T
C
S
D
Z
Data
Memory
Capacity
Timer Type
Time Range
Type
Coefficient Range
Counter
No. of Program Blocks
Operation Mode
Self Diagnosis
Restart Mode
Battery Back-up
Built-in Function
Redundancy
Stored Program, Cyclic Operation, Time Driven Interrupt
Interrupt system, Direct by Instructions, Scan Synchronous Batch Processing System.
LD (ladder diagram), IL (instruction list)
32 bits
55 instructions
389 instructions
75 ns/step
128K steps
2M bytes
64K steps
2M bytes
64K steps
2M bytes
1M bytes
16,000
16,000
16,000
2,048
8,192 4,096
8,192 4,096
Maximum 16
2,048
2,048
4,096 (10 ms,100 ms option)
4,096
100 card * 100 step
1,024
On Delay, Off Delay, Integration, Monostable, Retriggerable
0.01 sec ~ 6,553.5 sec
Up Counter, Down Counter, Up-Down Counter, Ring Counter
-32,768 ~ +32,767
Cold, Warm
Over 3 years
Watch-Dog Timer, Memory Error, I/O Error, Battery Error, Power Error, etc.
RUN, STOP, PAUSE, REMOTE
128
- Computer Link (RS232C) - Clock (RTC) - Program Editable on Run Mode
- PID Control (32 Loops) - I/O Reservation - USB 2.0 Port
Yes (CM1-XP1R) N/A
Item CM1-XP1A/R
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
1312
System Conguration
»
Redundancy
Communication
Expansion 1.
Expansion 2.
Expansion 3.
Model No. of slots Size(mm)
CM1-BS05R 5 slots 314.7 x 108
CM1-BS08R 8 slots 411.7 x 108
CM1-BS10R 10 slots 475.7 x 108
Base for Redundancy
Required Items For Redundancy
»
»
Base Unit Applicable Module
CPU
Expansion
Base CM1-BS03A and etc.
Power CM1-SPC and etc.
CPU CM1-XP1R
Redundancy Interface CM1-RM01A
Redundancy Comm. Module CM1-RC01A
Redundancy Cable CM0-CBE
Comm. Module CM1-EC01A and etc.
Expansion Cable CM0-CBE
Expansion 1 CM1-EP03A or CM1-EP02A
Expansion 2 or More CM1-EP02A or CM1-EP01A
Base CM1-BS05R and etc.
Power CM1-SPR and etc.
I/O Modules of all kinds
BS05R 314.7mm
BS08R 411.7mm
BS10R 475.7mm
Redundancy Power Monitoring Module
Dimensions
»
LED display to monitor operations
Digital output (DC24V, Transistor, Sink)
▪
▪
108mm
LED Status window
A Line = Status LEDs for Power “A”
B Line = Status LEDs for Power “B”
OK = ON when all powers are ok
5 = ON when main power output is ok
+15 = ON when analog power (+15V) is ok
-15 = ON when analog power (-15V) is ok
PF = ON when external power fails
24 = ON when service power(24V) is ok
(If there is any failure on each power the LED will blink)
Status output (1point 0.5A, 24V, TR Sink)
A_OK = ON when power_A is ok
B_OK = ON when power_B is ok
A_NG = ON when power_A fails
B_NG = ON when power_B fails
Service power coupler for 24V Redundancy
XP/CP Series
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
1514

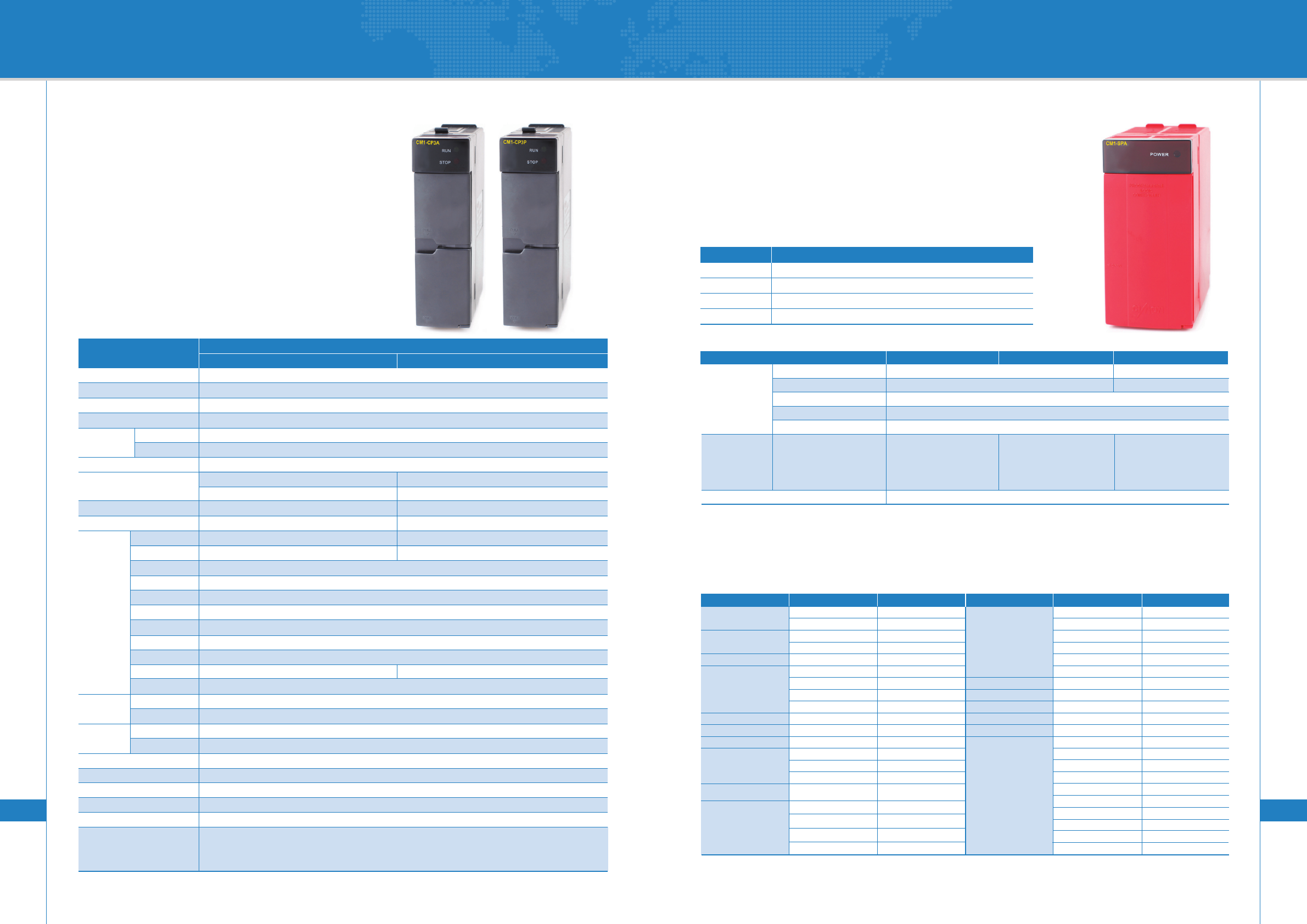

Power
Output voltage Function
+5V Operating Power for All PLC Modules
+24V Sensor and Switch Power, Analog Current Output Module
+15V Operating Power for Analog Module (except current output)
-15V Operating Power for Analog Module (except current output)
※ Use CM1-SPC for Analog Input/output module
Items CM1-SPA CM1-SPC CM1-SP2B
Voltage Indicator
Input Voltage
Input Current
Inrush Current
Efficiency
Power Disturbance Susceptabitity
Output Voltage/
(Output Current)
AC100-240V, 50/60Hz
0.25A MAX. For 220VAC
30A or less
+5V(3.5A)
+24V(0.3A)
LED ON When Output Voltage Is OK
DC19-28V
+5V(3.5A)
+15V(0.5A)
-15V(0.3A)
70% or more (rated input / load)
20ms or less
1.8A MAX. For 24VAC
+5V(3.5A)
+24V(0.3A)
+15V(0.5A)
-15V(0.3A)
Input
Output
Current Consumption
»
Item
CPU Module
Redundancy
Module
Expansion Module
DC Input Module
AC Input Module
Relay Module
Transistor Module
Model
Current Consumption
Item
Current Consumption
Model
I/O Module
Load Cell Module
CM1-CP**
CM1-XP**
CM1-RM01A
CM1-RC01A
CM1-EP***
CM1-XD16*
CM1-XD32*
CM1-XD64C
CM1-XD16W
CM1-XA08*
CM1-XY16DR
CM1-YR16A
CM1-YT16*
CM1-YT32*
CM1-YT64*
CM1-HS02*
CM1-AD04VI
CM1-AD08V
CM1-AD08I
CM1-AD04W
130mA
170mA
70mA
290mA
270mA
60mA
100mA
220mA
32mA
30mA
180mA
250mA
110mA
130mA
260mA
290mA
50mA
50mA
55mA
430mA
CM1-DA04V
CM1-DA04VA
CM1-DA08V
CM1-DA08VA
CM1-DA04I
CM1-DA08I
CM1-RD04*
CM1-TC04A
CM1-TH08A
CM1-WG0**
CM1-PS02A
CM1-SC02A
CM1-SC01A
CM1-SC01B
CM1-SC01DNP
CM1-EC01A
CM1-EC10*
CM1-BN01A
CM1-EC0*DNP
CM1-C*01*
CM1-LG32A
40mA
40mA
50mA
50mA
40mA
50mA
50mA
60mA
60mA
170mA
240mA
190mA
170mA
170mA
170mA
290mA
290mA
290mA
290mA
60mA
170mA
High-Speed
Counter Module
A/D Convert Module
D/A Convert Module
RTD Module
TC Module
Thermistor Module
Positioning Module
Communication
Module
▪
▪
▪
The power supply for CIMON PLC XP/CP Series
(AC100-240V convert to DC +5V, +24V, +15V, -15V)
Internal power disturbance monitoring function prevents data damage
or system malfunctions
Capacity of the power module must be checked before using the following table
XP/CP Series
CP CPU
Data
Memory
Capacity
- Computer Link (RS232C) - PID Control (32 Loops) - I/O Reservation
- Program Editable on Run Mode - USB 2.0 Port (CM1-CP*U) - Clock (except CP*A type)
Timer
Built-in Function
Counter
Program Memory
Capacity
Base Expansion
Data Memory Capacity
No. of Program Blocks
Operation Mode
Self Diagnosis
Restart Mode
Battery Back-up
Processing Speed
No. of
Instructions
Sequence
Application
Operation Method
I/O Control Method
Program Language
Data Processing Method
8,192
2,048
2,048
2,048
1,024 (10 ms or 100 ms)
1,024
100 card * 100 step
1,024
On Delay, Off Delay, Integration, Monostable, Retriggerable
0.01 ~ 6,553.5 sec
Up Counter, Down Counter, Up-Down Counter, Ring Counter
-32,768 ~ +32,767
128
RUN, STOP, PAUSE, REMOTE
Watch-Dog Timer, Memory Error, I/O Error, Battery Error, Power Error, etc
Cold, Warm
Over 3 years
32K step
512K byte
Maximum 16
512K byte
1,024
1,024
10,000
16K step
256K byte
N/A
256K byte
384
384
5,000
Specification
CM1-CP4A/B/C/D/U
Item CM1-CP3A/B/P/U
X
Y
M
K
L
F
T
C
S
D
Z
Type
Time Range
Type
Coefficient Range
Stored Program, Cyclic Operation, Time Driven Interrupt
Indirect, Direct by Instructions
IL (Instruction List) , LD (ladder diagram)
16 bits
55 instructions
389 instructions
200 ns/step
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
Easily nd errors with the self-diagnosis program
Maximum base expansion: 16 (except CP4)
Additional integrated communication port
(CM1-CP4C:RS232C, CM1-CP4D/U:RS422/485)
In the event that the CPU is replaced,
I/O and base specications are still maintained
Various program types
Supports over 300 instructions
Built-in USB 2.0 port (CP4U / CP3U only)
Attachable ash memory for exibility (CP3P only)
Built-in loader port for downloading/uploading programs
Maximum number of slots in one base is 12
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
1716

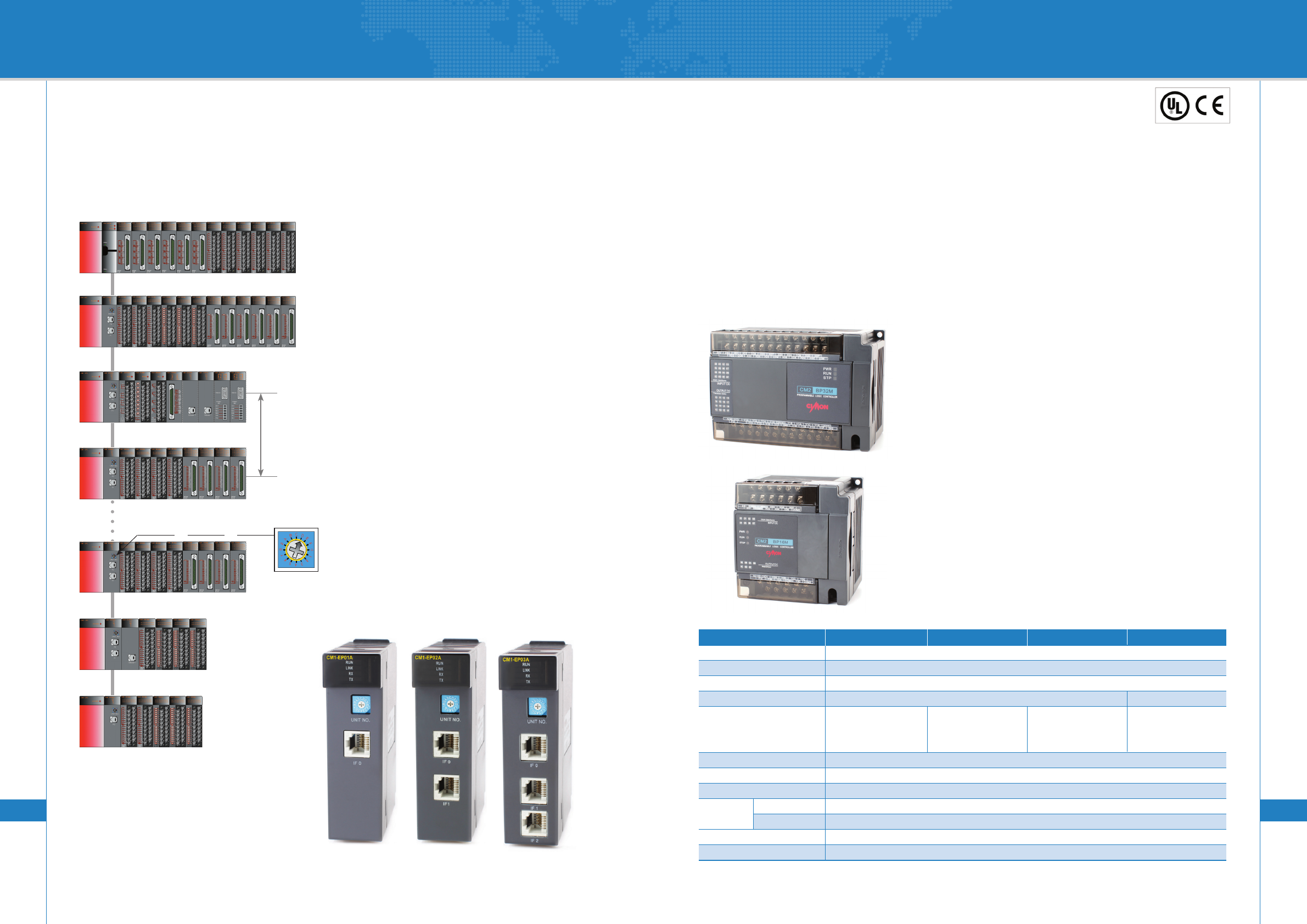

Ethernet Network
PLC Link RS422/485
Base Expansion
Serial Network
CIMON - Dynamic IP SYSTEM
»
CIMON Total Network
»
CIMON-DDNS is integrated within
CIMON-SCADA
CIMON SCADA and DDNS can be run
on the same PC
EC10C has to be installed in order to
run the CIMON PLC in dynamic IP
EC10C can be run under the IP sharer
▪
▪
▪
▪
CIMON PLC(Dynamic IP) CIMON PLC(Dynamic IP) CIMON PLC(Dynamic IP)
XP/CP Series
Ethernet Module
IEEE 802.3
Various protocols (ARP, ICMP, IP, TCP, UDP)
Ethernet communication modules can be installed in one
base with no limitation
High-speed linkage to simultaneously communicate
along CIMON PLC’s and up to 64 stations
DNP 3.0 protocol (CM1-EC01DNP, CM1-EC04DNP)
▪
▪
▪
▪
▪
Ethernet
»

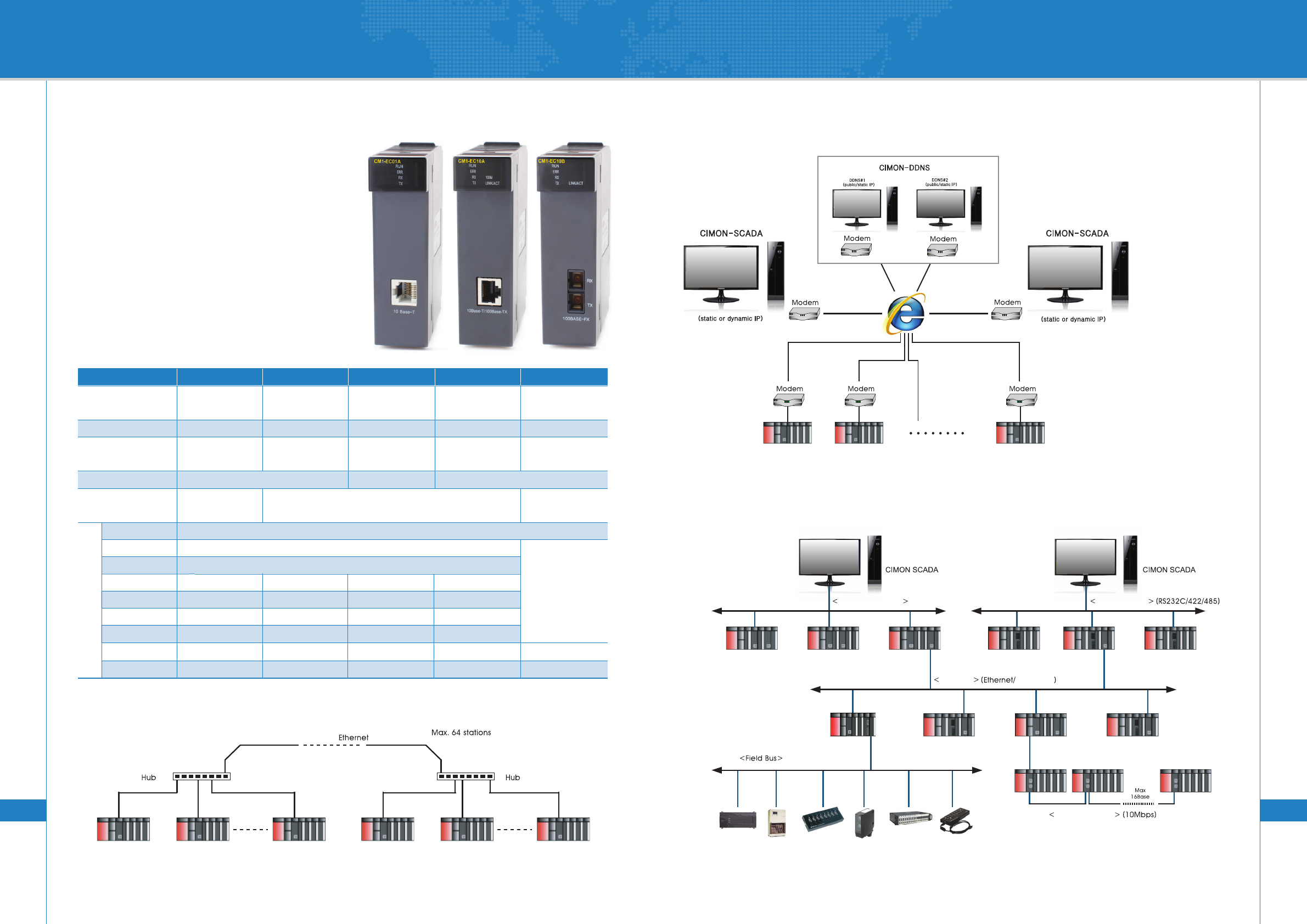

System Conguration
»
Model CM1-EC01A CM1-EC10A CM1-EC10B
CM1-EC01DNP/EC04DNP
Media interface
Transmission speed
Transmission Media
Max. Distance
(Node to Node)
Service Capacity
10BASE-T 10BASE-T
100BASE-TX 100BASE-FX 10BASE-T
10Mbps 10/100Mbps 100Mbps 10Mbps
UTP/STP
Category5
UTP/STP Category5
Auto MDIX
SC, Multi-Mode
(1310mm)
UTP/STP
Category5
100m 2Km 100m
UDP 9 Services
TCP 9 Services
UDP 16 Services
TCP 16 Services
EC01DNP : Single Host
EC04DNP : 4 Hosts
Loader
HMI Protocol
MODBUS/TCP SL.
MODBUS/TCP MS.
PLC Link
PLC Link
High-Speed Link
DHCP
S
E
R
V
I
C
E
Yes(UDP)
Yes(TCP,UDP)
Yes
No
Yes
No
No
No
CM1-EC10C
10BASE-T
100BASE-TX
10/100Mbps
Yes
No
No
Yes
Yes
No
Yes
No
Yes
Yes
No
Yes
No
No
No
Yes
No
UTP/STP Category5
Auto MDIX
DNP3 No Yes
No No No
(Private Net)
(Public Net)
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
1918

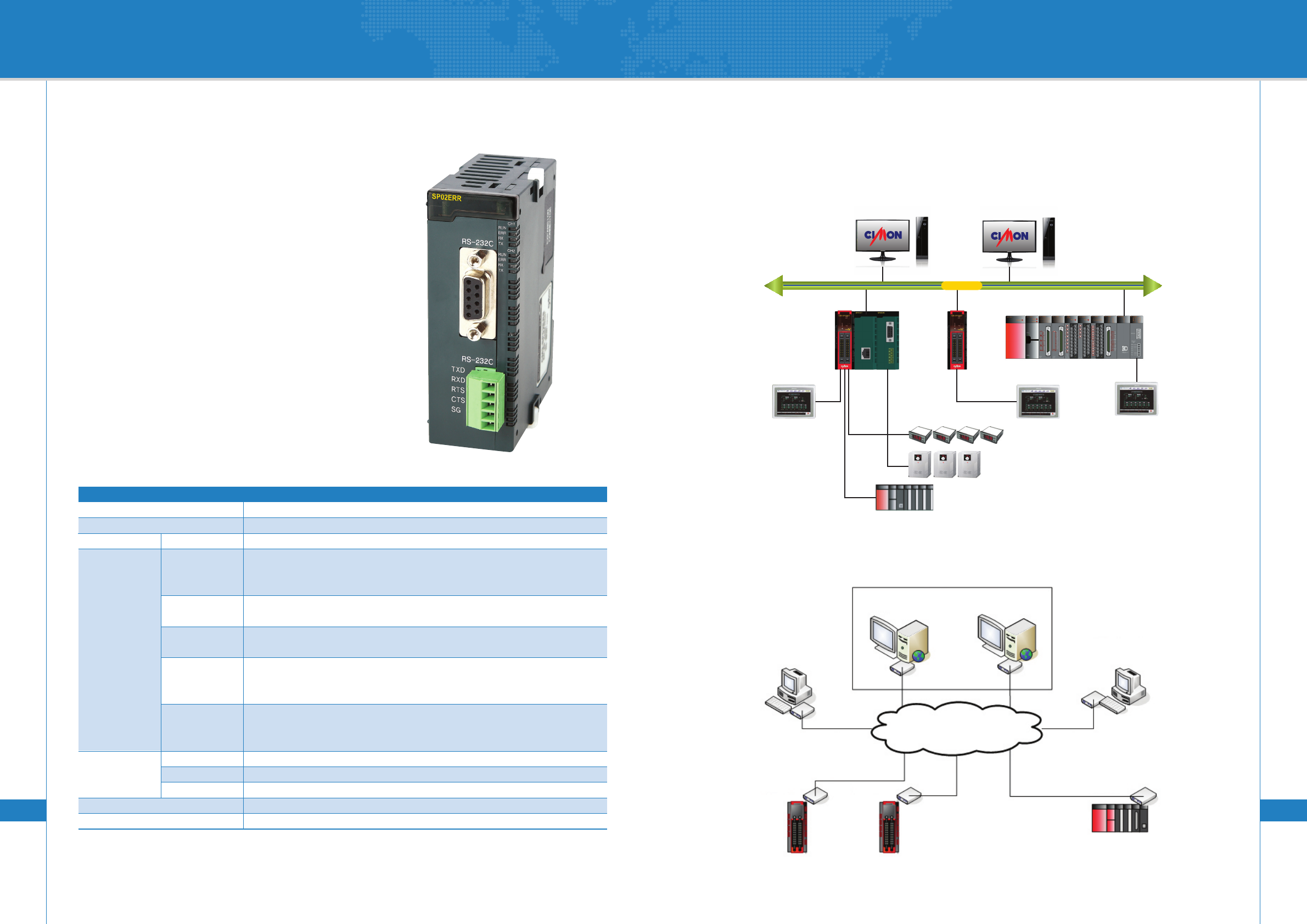

CDMA Module
CDMA Packet / Circuit communication
Flexible choices for communication
Easy parameter setup
Communication connection management by user program
Possible to read and write data by HMI protocol
Maximum 32 communication
Flexible communication speed set-up (300~76800bps)
1:1 / 1:N / N:M communication (with RS422 channel)
Various diagnostic functions with Loop-Back feature make for
an easy error check
▪
▪
▪
▪
▪
▪
▪
▪
▪
Item CM1-SC02CDMA
Interface RS232C / RS422 / RS485
CICON Communication
CIMON Protocol (1 : n)
MODBUS RTU Mode (Slave and Master)
HMI Mode
Loader Mode
Modbus
User defined mode
Data Bit
Stop Bit
Parity
Transmission Speed
Synchronization
Communication between Different Kinds of Systems
7 or 8 bit
1 or 2 bit
Even / Odd / None
Asynchronous
300 ~ 76800 bps
Comm
Mode
Data
Type
XP/CP Series
Serial Module
Possible to read and write Data by HMI protocol
Maximum 32 unit communications available for multi-drop conguration
Long distance communication via modem connection
Various communication speeds (300bps~76800bps)
Various diagnostic functions with Loop-Back feature makes for an easy error check
RS232C / RS422(RS485) communication port by setting up independent channel or linked channel
1:1 / 1:N / N:M communication (RS422 only)
Full-Duplex (RS422) and Half-Duplex (RS485)
RS485 Multi-Drop communication is available by using parameters
Various diagnostic function and loop-back function make easy error check
DNP 3.0 protocol (CM1-SC01DNP)
Simultaneously link high-speed communication between CIMON PLCs and up to 32 stations
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
Model CM1-SC02A CM1-SC01A CM1-SC01B CM1-SC01DNP
Interface RS232C / RS422 / RS485 RS232C RS422 / RS485 RS232C
HMI Mode CIMON Protocol (1 : n) -
Loader Mode CICON Communication -
Comm. MODBUS MODBUS RTU Mode (Master / Slave) -
Mode PLC LINK Communication between CIMON PLC's
DNP - DNP 3.0 Protocol
User defined mode Protocol Program -
Data Data Bit 7 or 8 bit
Type Stop Bit 1 or 2 bit
Parity Even / Odd / None
Synchronization Asynchronous
Transmission Speed 300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 76800
Modem Long Distance Communication by External Modem
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
2120
CIMON-NET Module
CIMON-NET exchanges real time data with Remote I/O through
the CANbus hardware which provides exceptional reliability.
▪
About CIMON-NET
»
Features of CIMON-NET
»
▪
▪
▪
Advantages of CIMON-NET
»
User can enjoy a simple installation of CIMON-NET system
conguration with easy maintenance
Provides exibility during processing by elevating the main func-
tions which reduces malfunctions, increase accurate data with reli-
able digital transmitting technology
Reduces installation cost of I/O hardware by using one twisted pair
cable which reduces the number of I/O cards required
Maximum 63 slave stations available
Maximum 1,400 bytes for each I/O data
I/O Comm. Block: Maximum 16 modules
Flexible communication speed set-up (10K,20K,50K,100K,125K,150K,500K,1000Kbps)
Auto Scan: easy to nd slave modules
Built-in indicator LED to easily monitor network conditions
Scan program: conveniently diagnose, monitor network condition and control communication ow (Start / Stop)
Communication conguring software is integrated with CICON
▪
▪
▪
▪
▪
▪
▪
▪
NET
422/485 422/485 422/485
RS232C
RS422/485 RS422/485
XP/CP Series

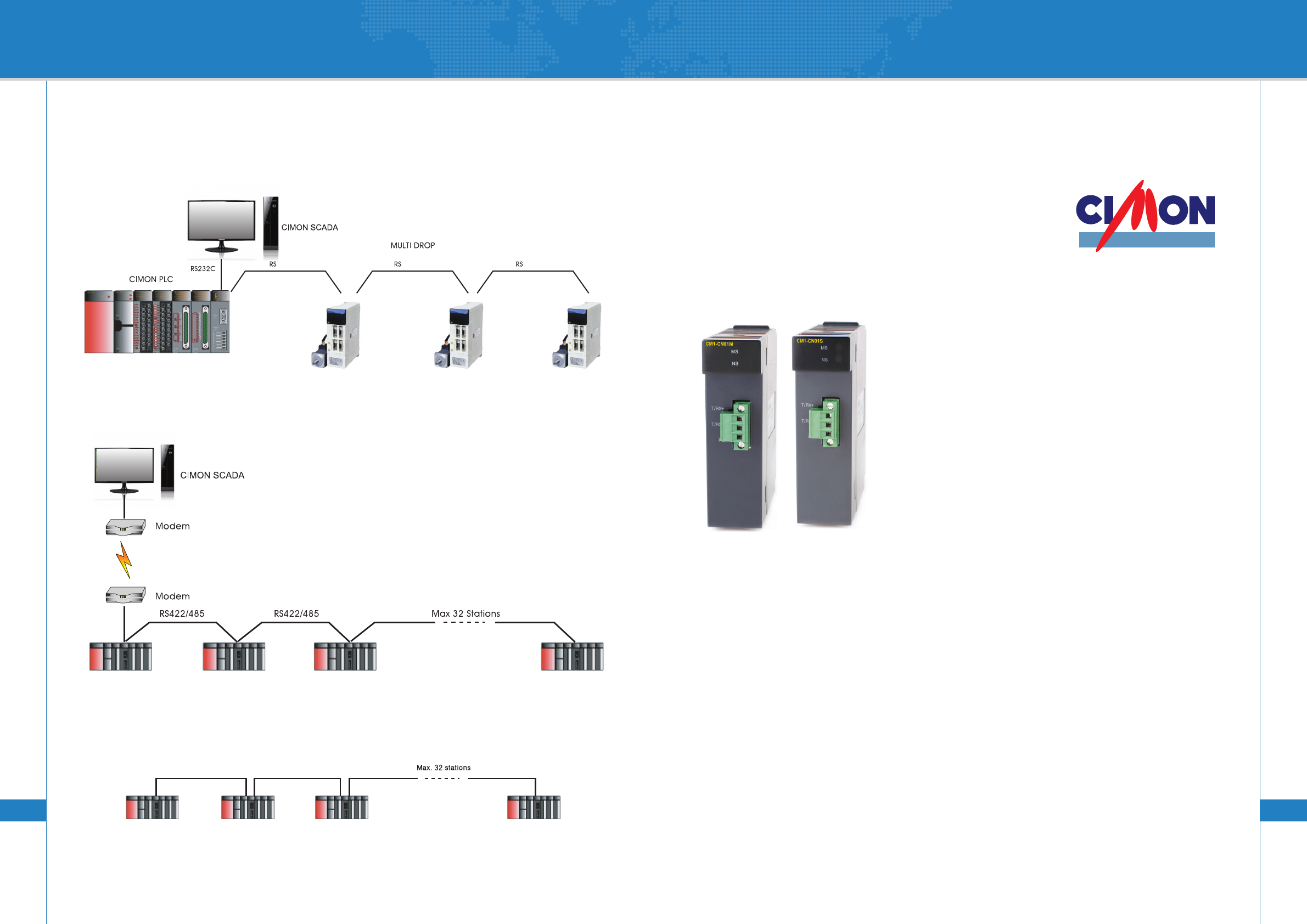

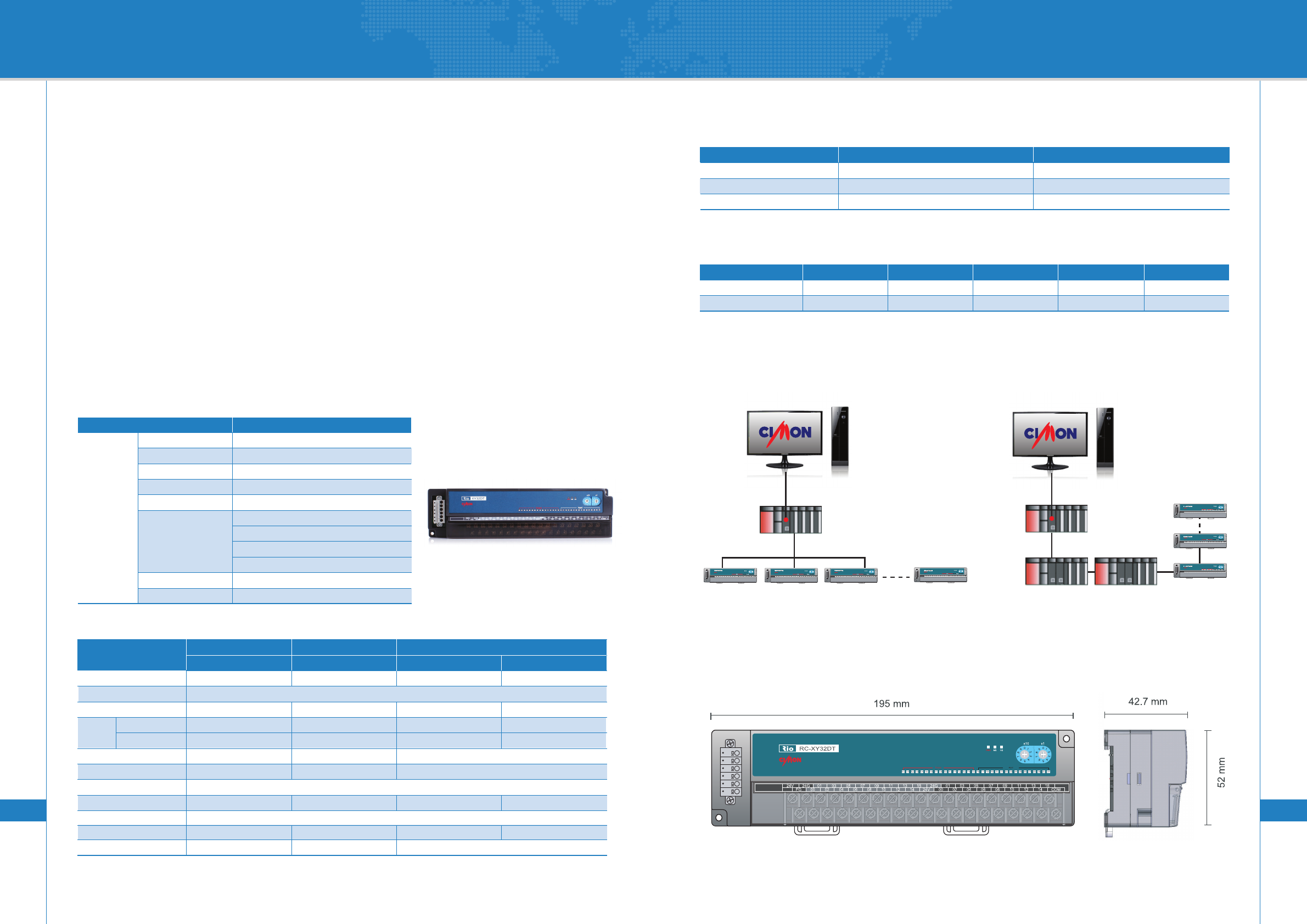

System Conguration
»
Connecting the Application by protocol programs
▪

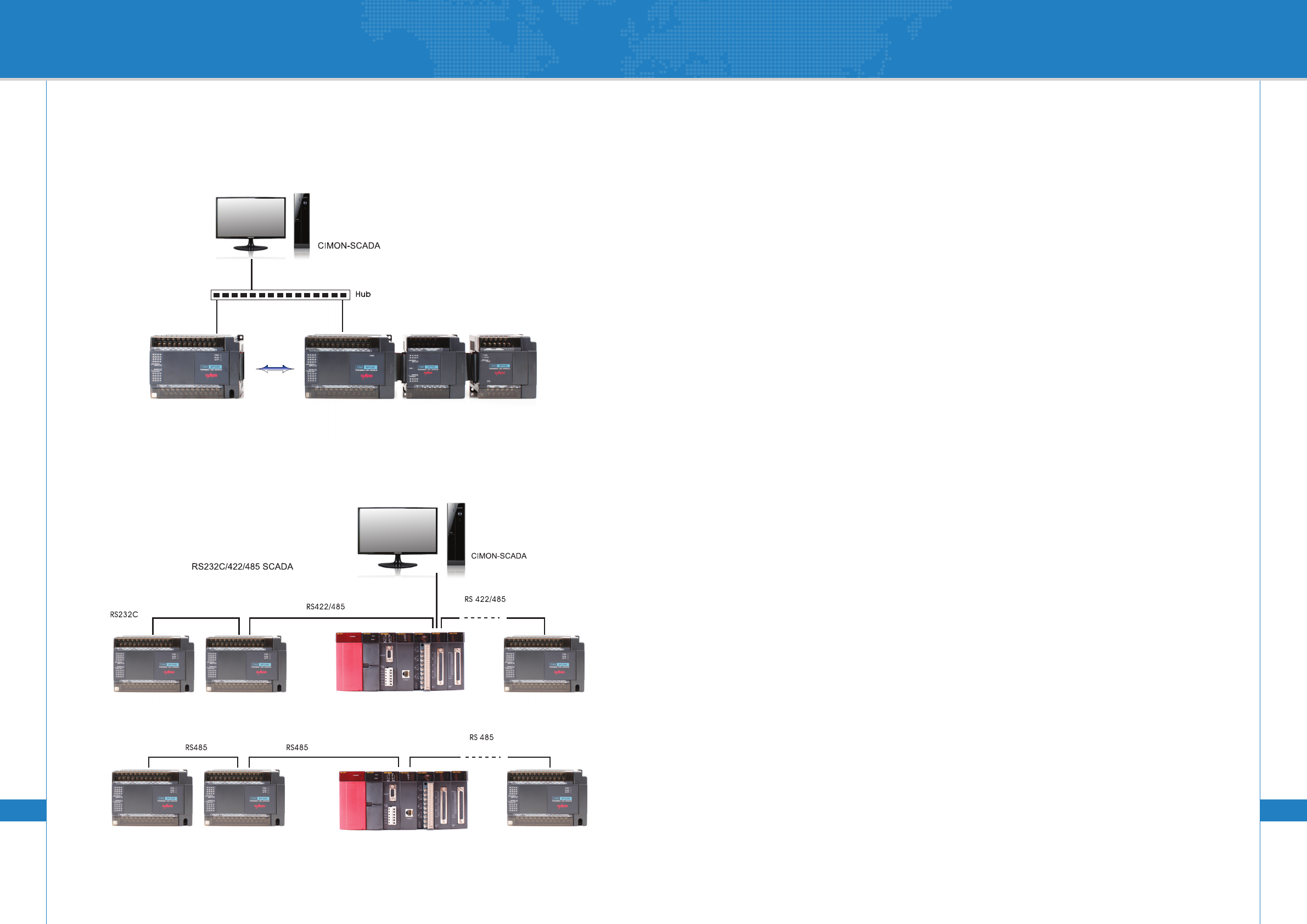

RS232C/422/485 SCADA Link (Using Modem)
▪
PLC Link : RS422/485
▪
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
2322
PROFIBUS Module
Probus is an open-type eldbus which is used universally for automation
and enables seamless communication between different manufacturer’s
devices. As technology advances, Probus is the industrial communication
system that will be ready for the future.
▪
▪
▪
▪
Advantages of Probus
»
Features of Probus DP Module
»
Minimal hardware structure is required (I/O, terminal blocks, barriers).
Easy and fast installation reduces cost
Simple structure (device is constructed as one tool) with easy repairing
and maintenance
Provides maximum exibility for work progress by powering up the main
functions which reduces malfunctions while increasing accurate data log
with reliable digital transmitting technology
Further cost saving by using a twisted pair cable which minimizes
the amount of analog I/O card required
Suitable to communicate between master automation device and the slave I/O device
Flexible communication speed (9.6Kbps~12Mbps)
RS485 interface
Easy installation by using the twisted pair cable
Maximum 127 slave stations available (32 stations per segment)
Network setup via Sycon-PB conguration tool
1 Kbyte transferred in 2ms
Data transferred with an order or without an order
Single or multi-master network function
▪
▪
▪
▪
▪
▪
▪
▪
▪
About Probus
»
XP/CP Series
CIMON-NET Specication
»
Cable Specication
»
Transmission Distance per Speed
»

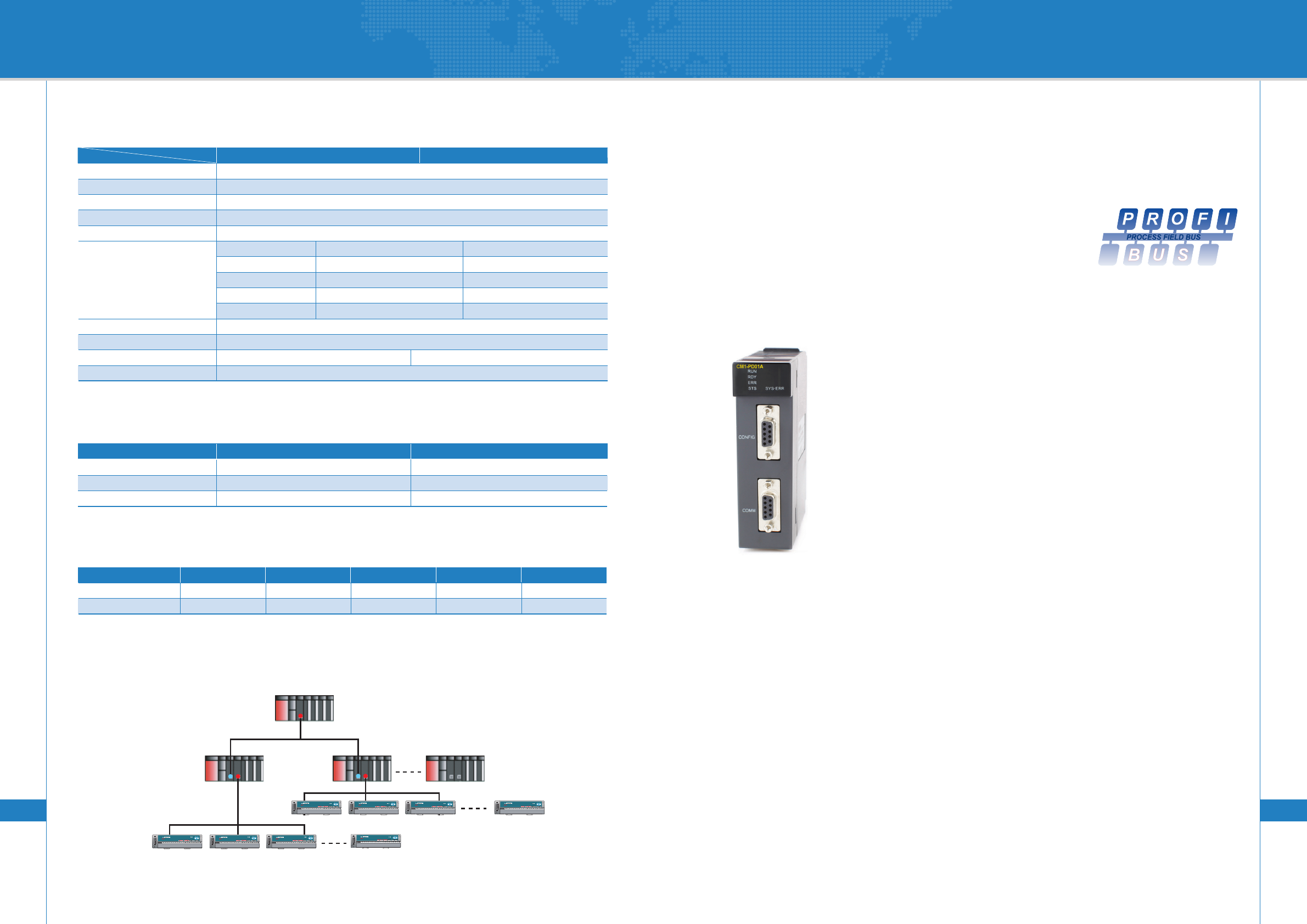

System Conguration
»
Network Type
Interface
Standard
Comm. Method
Media Access
Transmission
Distance & Speed
Max. Number of Slave per Segment
Cable
Max. I/O data
Parameter Set-up
CIMON-NET
CANbus
ISO11898
Bus
POLL
BUS Length (m)
0 ~ 40
40 ~ 300
300 ~ 600
600 ~ 1000
Cross Section (mm2)
0.25 ~ 0.34
0.34 ~ 0.6
0.5 ~ 0.6
0.75 ~ 0.8
Bit Rate (kbps/s)
1000 kbps / 40m
500 kbps / 200m
100 kbps / 500m
10 kbps / 1km
63 stations
Twisted Pair Electric Cable
Graphical Loader Program Only for CIMON
2800 byte 512 byte
Model Item CM1-CN01M CM1-CN01S
Impedance
Electrostatic capacity
Conductor cross section
108 ~ 132 Ω (f=3 to 20MHz)
< 30 nF/Km2
≥ 0.34 mm2 (22AWG)
cable 1 cable 2
68 ~ 102 Ω (f>800KHz)
< 70 nF/Km2
≥ 0.34 mm2 (22AWG)
Model
Cable 1
Cable 2
1000
10Baud (kbps)
700
500
100
350
400
250
250
200
500
100
50
1000
40
Master
Master Master
Master
Slave Slave
Max. 64
Max. 64
Max. 64
Max. 64
Master
Slave Slave
Max. 64
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
2524
Model CM1-BN01A
Size of Protocol ANSI / ASHRAE 135-1995 (KS X 6909)
Stack of Protocol UDP / IP
Standard of Physical Layer ISO / IEC8802-3 (IEEE 802.3, CSMA / CD, 10Base-T)
Speed of Data Transmitting 10 Mbps
Transmitting Method Base Band
Max. Length of Segment 100 m
Max. I/O Data Slave 244 byte
Support Service Loader, BACnet / IP, PLC Link (public Net)
BACnet Module
BACnet stands for Building Automation and Control Network.
BACnet is applicable to various building utilities such as HVAC control system,
lighting control system, security system, elevator control system etc.
▪
▪
Easy to modify and expand due to use of standard protocol
Supports BACnet which is the standard of building automation system
Supports functionality of BACnet class 3 servers
Uses Ethernet for communication physical layer (BACnet IP)
▪
▪
▪
▪
About BACnet
»
Features of BACnet Module
»
System Conguration
»
BACnet
XP/CP Series
System Conguration
»
Model CM1-PD01A
Interface RS-485
Network Profibus DP
Media Access Token Passing & Polling
Cable Two Wire Shielded Twisted Pair Cable
Max. No. of Slave per Network / Network 127 stations
Max. No. of Slave per Segment/ Network 32 stations
Max. I/O Data Slave 244 byte
Max. I/O Data I/O 3,584 each
Configuration Tool Sycon-PB
Configuration Port RS-232C
Comm. Parameter Setting High-speed Linked Parameter Communication Setting
9.6K(bps) 19.2K 93.75K 187.5K 500K 1,500K 12,000K
1200m 1200m 1200m 1000m 400m 200m 100m
Transmission
Distance
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
2726

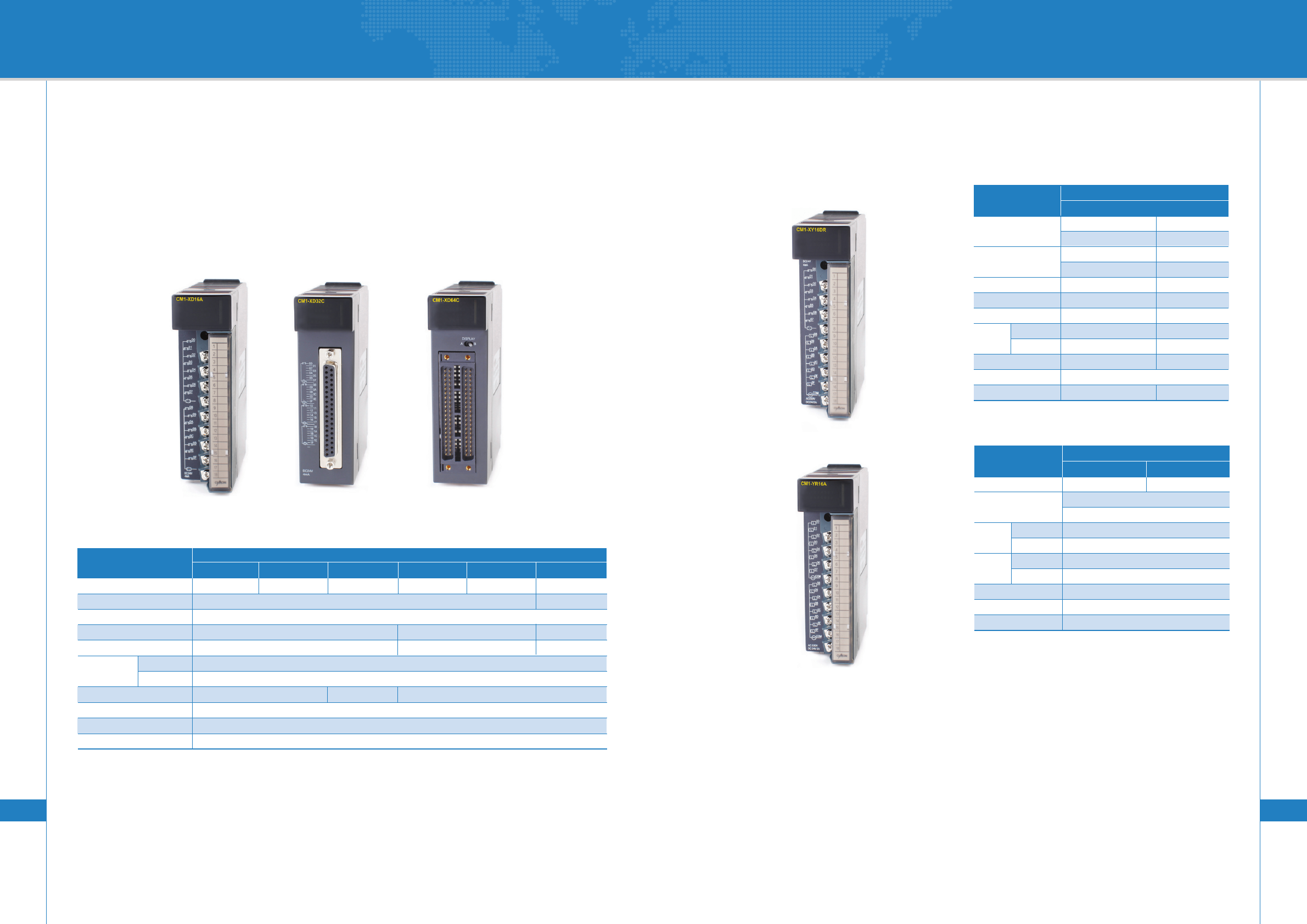

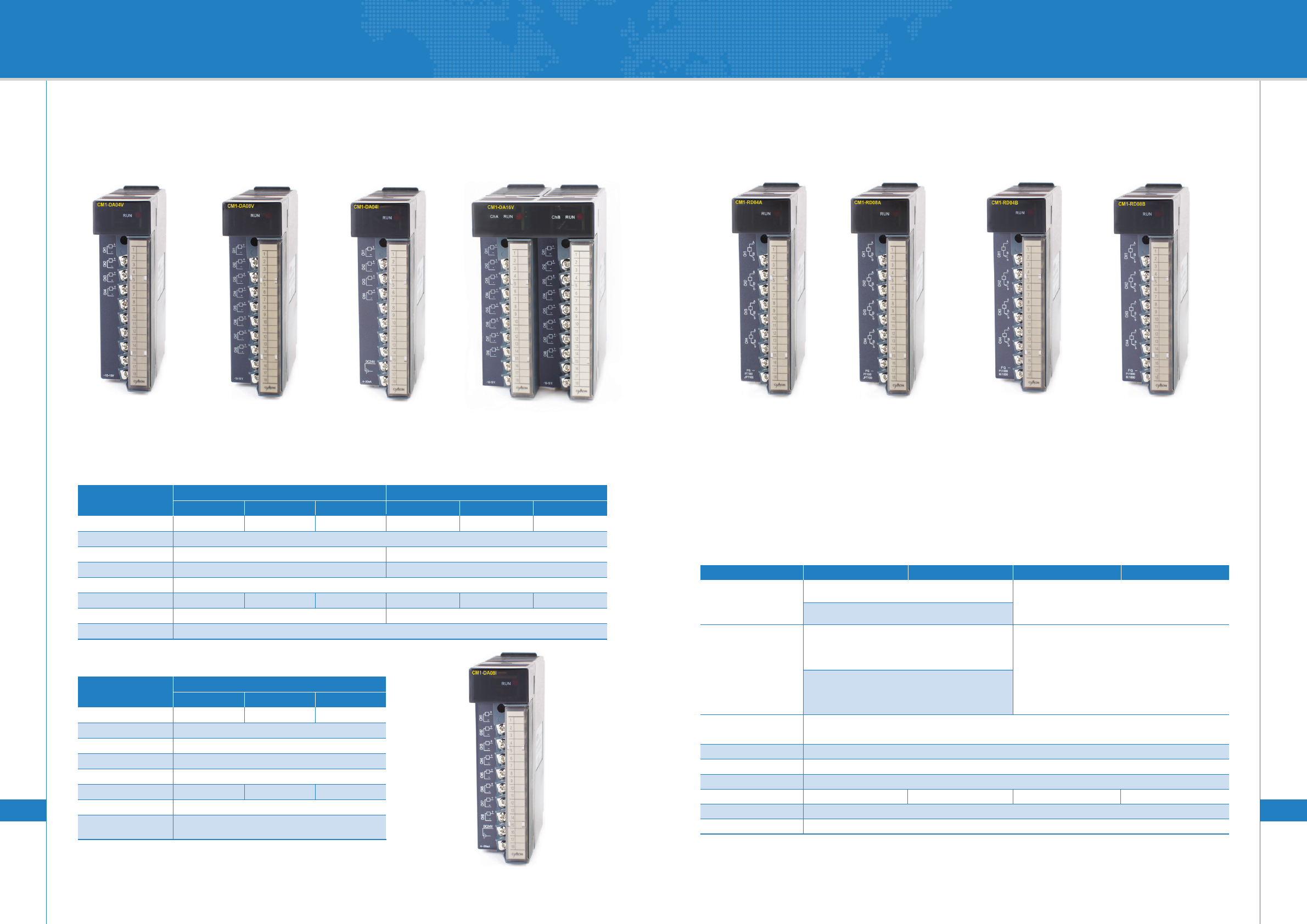

I/O Mixed Module
»
Relay Output Module
»
※ If this module is used as an inductive load switch, it will shorten the
life of the module. please use transistor output module for this purpose
Model Relay Output
CM1-YR16A CM1-YR32A
No. of Output Points 16 point s 32 points
Rated Load Voltage DC 12 / 24 V
AC 220 V
1 Point 2 A
1 Com 5 A
Off -> On 10 ms or less
On -> Off 5 ms or less
Common Type 8 points
Operation Indication LED will be ON when the Input is ON
Insulation Type Relay Insulation
Response
Time
Rated Load
Current
Response
Time
No. of I/O points
Rated I/O Voltage
Model
I/O Mixed
CM1-XY16DR
8 points 8 points
SINK / SRC Relay
DC 24 V DC 12 / 24 V
N/A AC 220 V
Rated I/O Current 4 mA 2 A
On Voltage / On Current
DC 19 V / 4 mA -
Off Voltage / Off Current
DC 11 V / 1 mA -
Off -> On 5 ms or less 5 ms or less
On -> Off 5 ms or less 5 ms or less
Common Type 8 points 8 points
Operation Indication LED will be ON when the Input is ON
Insulation Type Photo Coupler Insulation Relay Insulation

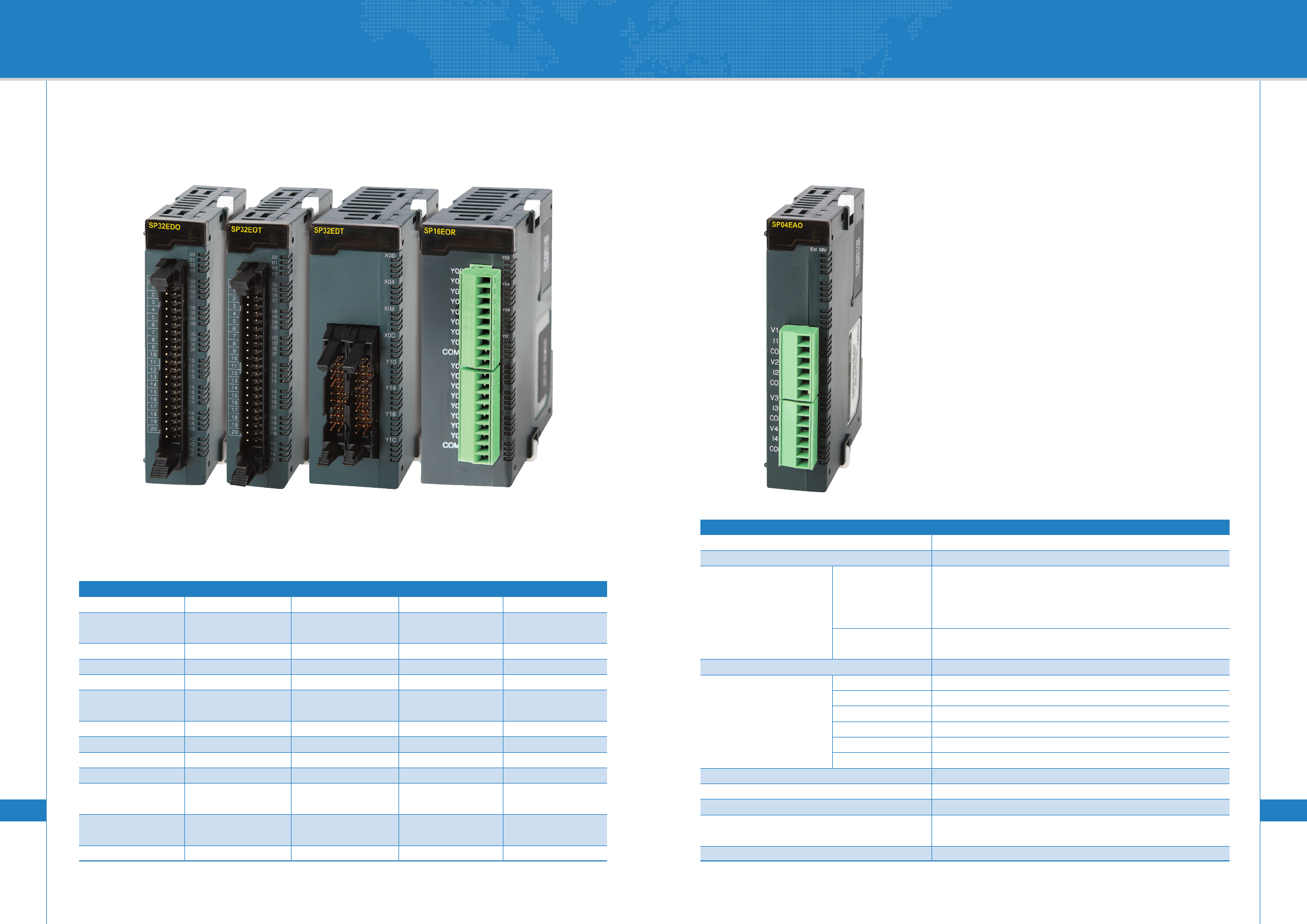

XP/CP Series
Digital I/O Module
Photo-coupler insulation and relay insulation
LED display to monitor running conditions
Terminal block type: Easy maintenance and installation
▪
▪
▪
DC Input Module
»
CM1-XD16A CM1-XD32C CM1-XD64C CM1-XD16B CM1-XD32B CM1-XD16W
DC Input
Model
16 points 32 points 64 points 16 points 32 points 16 points
Input Points
Rated Input Voltage
Rated Input Current
On Voltage / On Current
Off Voltage / Off Current
Common Type
Operation Indication
Insulation Type
Input Type
DC 24 V
DC 19 V / 4 mA
DC 11 V / 1 mA
DC 15 V / 4 mA
DC 12 V / 1 mA
DC 100 V
60 V / 4 mA
40 V / 1 mA
4 mA
5 ms or less
5 ms or less
LED will be ON when the Input is ON
Photo Coupler Insulation
Sink / Source
8 points / 1com 32 points / com 8 points / com
Response
Time
Off -> On
On -> Off
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
2928
AD Module
4, 8, or 16 channels of A/D conversion with one module
Voltage or current input can be selected from each channel (CM1-AD04VI only)
High resolution of 1/64000 (CM1-AD04W only) and 1/16000
▪
▪
▪
A/D Converter Module
»
Model
AD16bit / Voltage-Current Input AD14bit / Voltage-Current Input AD14bit / Voltage Input AD14bit / Current Input
CM1-AD04W CM1-AD04VI CM1-AD08V CM1-AD16V CM1-AD08I CM1-AD16I
Analog Input point
Rated Load
Current
16 bit Binary Value
0 ~ 64000), Measured Value,
Percentage Value (0 ~ 10000)
Digital Output (-32000 ~ 32000 or
0 ~ 5 V
1 ~ 5 V
0 ~ 10 V
-10 ~ +10 V
0 ~ 20 mA
4 ~ 20 mA
Voltage
Current
14 bit Binary Value (0~16000 or -8000~8000)
0 ~ 5 V
1 ~ 5 V
0 ~ 10 V
-10 ~ +10 V
0 ~ 20 mA
4 ~ 20 mA
0 ~ 5 V
1~5V
0~10V
-10~+10V
0~20mA
4~20mA
Max.
Resolu
tion
78.1 µV
62.5 µV
156.3 µV
312.5 µV
312.5 nA
250 nA
0.3125 mV
0.25 mV
0.625 mV
1.25 mV
1.25 µA
1.0n µA
±0.1 %
Accuracy
Max. Conversion Rate
Voltage
Current
Absolute
Max.
Input
Insulation Type
±0.05 % or less (25℃)
2.1 ms / 4 ch
5 ms / 1 ch
±21 mA
±12 V
Photo Coupler Insulation between an Input Port and PLC.
4 channels 8 channels 8 channels16 channels 16 channels
Insulation between
Photo Coupler and Channel Non-Insulation between Channels
XP/CP Series

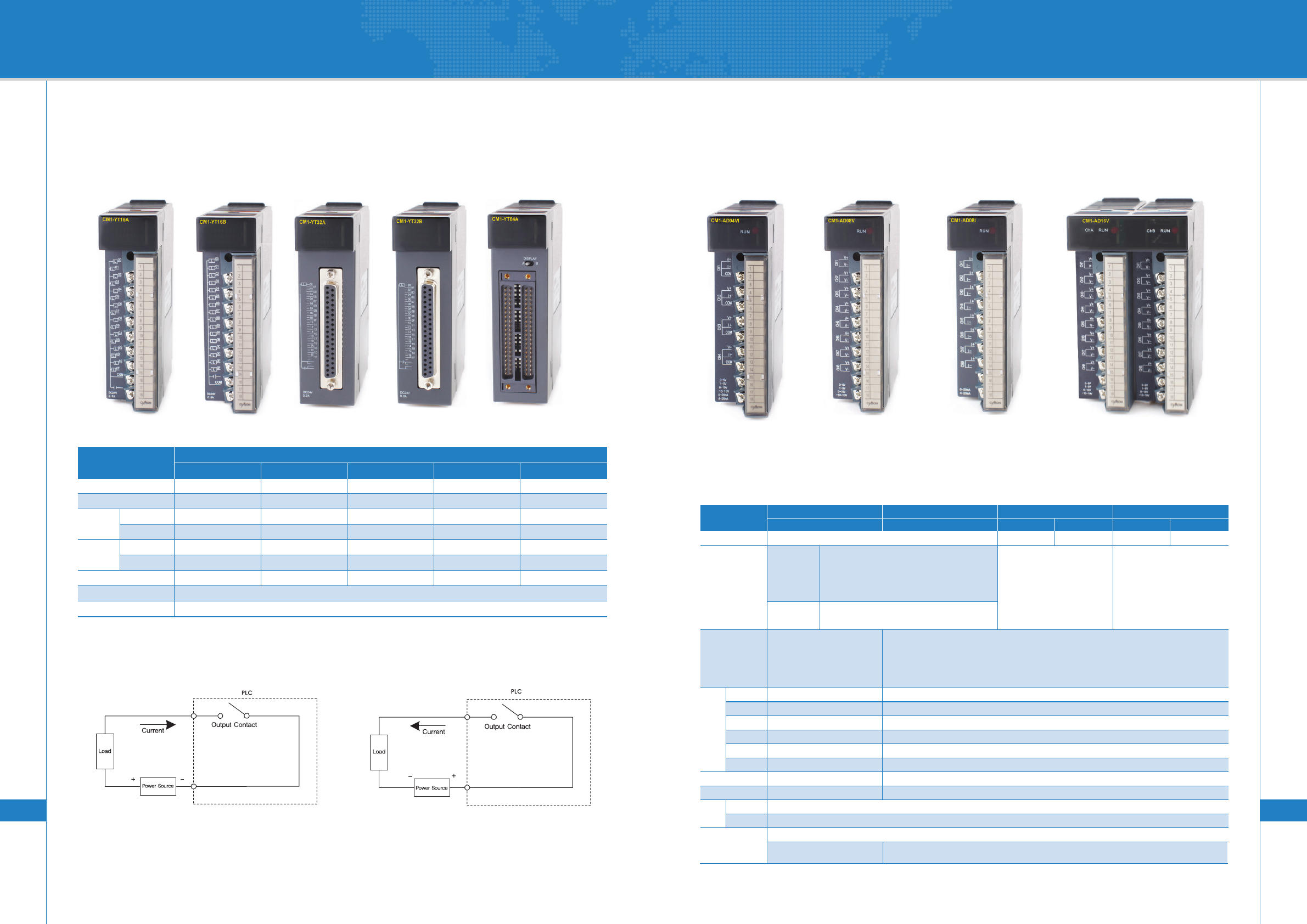

Transistor Output Module
»
Sink Type
»Source Type
»
Model Transistor Output
CM1-YT16A CM1 - YT16B CM1 - YT32A CM1 - YT32B CM1-YT64A
No. of Output Points 16 points Sink 16 points Source 32 points Sink 32 points source 64 points Sink
Rated Load Voltage DC 12 ~ 24 V DC 12 ~ 24 V DC 12 ~ 24 V DC 12 ~ 24 V DC 12 ~ 24 V
1 Points 0.5 A 0.5 A 0.2 A 0.2 A 0.2 A
1 Com 4 A 4 A 4 A 4 A 4 A
Off -> On 1 ms or less 1 ms or less 1 ms or less 1 ms or less 1 ms or less
On -> Off 1 ms or less 1 ms or less 1 ms or less 1 ms or less 1 ms or less
Common Type 16 points 16 points 32 points 32 points 32 points
Operation Indication LED will be ON when the Input is ON
Insulation Type Photo Coupler Insulation
Response
Time
Rated Load
Current
※ CM1-YT16A, CM1-YT32A, CM1-YT64A are Sink Type ※ CM1-YT16B, CM1-YT32B are Source Type
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
3130
RTD Module
By using a platinum-coated thermometer Pt100, JPt100 or Pt1000, Ni1000, it can convert the inputted
temperature data to process as a digital value.
It can process inputted temperature data to digital value down to the rst decimal place
One module can connect with Pt100, JPt100 or Pt1000, Ni1000 with 4 point and 8 point to use respectively
Can detect a wire disconnection from each channel and detect the excess range of input temperature
▪
▪
▪
▪
RTD Type
Range of
Input Temperatures
Digital Output
Breakdown Detection
Accuracy
Max. Conversion Rate
No. of input Channels
Insulation Type
Connection Terminal
Pt100 (JIS C1640-1989, DIN 43760-1980)
JPt100 (KS C1603-1991, JIS C1604-1981)
Pt100 : -200.0
℃
to 600
℃
(18.48 to 313.59 Ohm)
Digital Converted Value : 0 ~ 16,000
Detected Temperature Value (first decimal point value X 10)
Insulation between Input Port and PLC, No Insulation between Channels
18 points Terminal
Pt1000 (DIN EN 60751)
Ni1000 (DIN 43760)
Ni1000 (TCR 5000)
Pt1000 : -200.0
℃
to 600
℃
(18.43 to 313.59 Ω)
Ni1000(DIN 43760) : -50
℃
to 160
℃
(742.6 to 1986.3 Ω)
Ni1000(TCR 5000) : -50
℃
to 160
℃
(790.9 to 1799.3 Ω)
Model CM1-RD04A CM1-RD08A CM1-RD04B CM1-RD08B
JPt100 : -200.0
℃
to 600
℃
(17.14 to 317.28 Ohm)
3 wires for Each Channels
±0.1 % [full scale]
400 ms / 1 channel
4 channels 8 channels 4 channels 8 channels
D/A converting module is used to convert a digital value to an analog signal
D/A converting of 4 to 16 channels is possible with one module
No quantity restrictions within a base
▪
▪
▪
Model DA14bit / Voltage Output DA14bit / Voltage Output
CM1-DA04V CM1-DA08V CM1-DA16V CM1-DA04VA CM1-DA08VA CM1-DA16VA
No. of Input Channel 4 channels 8 channels 16 channels 4 channels 8 channels 16 channels
Digital Input 14 bit Binary Value (0~16000 or -8000~8000)
Analog Output -10 ~ 10 V 0 ~ 10 V
Max. Resolution 1.25 mV 0.625 mV
Accuracy Within ±0.1 %
Max. Conversion Rate 10 ms 16 ms 28 ms 10 ms 16 ms 28 ms
Absolute Max. Output ±12 V -0.5 ~ 10.5 V
Insulation Type Insulation between Photo Coupler and Channel , Non-Insulation between Channels
XP/CP Series
DA Module
Model DA14Bit / Current Output
CM1-DA04I CM1-DA08I CM1-DA16I
No. of Input Channel 4 channels 8 channels 16 channels
Digital Input 14 bit Binary Value (0~16000 or -8000~8000)
Analog Output 4 ~ 20 mA
Max. Resolution 1.0 µA
Accuracy Within ±0.1 %
Max. Conversion Rate 10 ms 16 ms 28 ms
Absolute Max. Output +21 mA
Insulation between Photo Coupler and Channel,
Non-Insulation between Channels
Insulation Type
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
3332
Maximum of 8 channels NTC (Negative Temperature Coefcient) measuring
thermistor with one module
Temperature data (°C) is accurately measured down to the rst decimal place
Can detect disconnection with each channel and also adjust if the temperature
exceeds the measuring range
If using the thermistor temperature-resistance table, the module is able to input desired
minimum, medium, maximum temperature point (°C) and resistance (Ω) to measure.
▪
▪
▪
▪
Thermistor Module
Model CM1-TH08A
Range of Thermistor Input NTC Type
Range of Thermistor Input Resistance
0 ~ 1MΩ
Resolving Power of 0 Ω ~ 40 kΩ : 1 Ω
Thermistor Input 40 kΩ ~ 400 kΩ : 10 Ω
Resistance 400 kΩ ~ 1 MΩ : 30 Ω
℃, ℉
(0.1
℃
Resolution)
Digital Value 0 ~ 16000, -8000 ~ 8000
Resistance - Temperature Calculation
Steinhart-Hart Thermistor Polynomial
Accuracy ±0.3 % (full scale)
Max. Conversion Rate 1 sec (8 channel)
Temperature Input Point 8 points
Insulation Method CPU and Analog Arithmetic Operation Photo Coupler Insulation
Connection Terminal 18 points Terminal
Cover
Range
Temperature
Convert Value
XP/CP Series
Convert the temperature data (°C, °F) to a digital value for processing by
directly connecting to various temperature sensors
Inputted data can be processed to the rst decimal point as a digital value
One module can connect with 4 points of temperature sensors
Can detect if the temperature exceeds the measuring range and adjust automatically
Automatic compensation for error caused by the temperature sensor
▪
▪
▪
▪
▪
Model CM1-TC04A
Available TC Type K, J, E, T, B, R, S, N
Digital Output Digitally Converted Value : 0 ~ 16,000 (-8000 ~ 8000)
Converted Temperature Value :
℃, ℉
(0.1
℃
Resolution)
Compensation Type Automatic Compensation
Breakdown Detection Detection by Channels
Accuracy ±0.3 % (full scale), ±1
℃
(error for base contact compensation)
Max. Conversion Rate 50 ms / 1 channels
No. of Input Channel 4 channels / module
Connection Terminal 18 point Terminal
+5 V 60 mA
+15 V 30 mA
-15 V 10 mA
Range of
Input
Temperature
Type of TC Standard Range of measured temperature(
℃
) Range of measured voltage(µV)
K -200.0 ~ 1200.0 -5891 ~ 48828
J -200.0 ~ 800.0 -7890 ~ 45498
E -200.0 ~ 600.0 -8824 ~ 45085
T ITS-90 -200.0 ~ 400.0 -5602 ~ 20869
B 400.0 ~ 1800.0 786 ~ 13585
R 0.0 ~ 1750.0 0 ~ 21006
S 0.0 ~ 1750.0 0 ~ 21006
N -200.0 ~ 1250.0 -3990 ~ 43846
Internal
Current
Consumption
(mA)
TC Module
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
3534

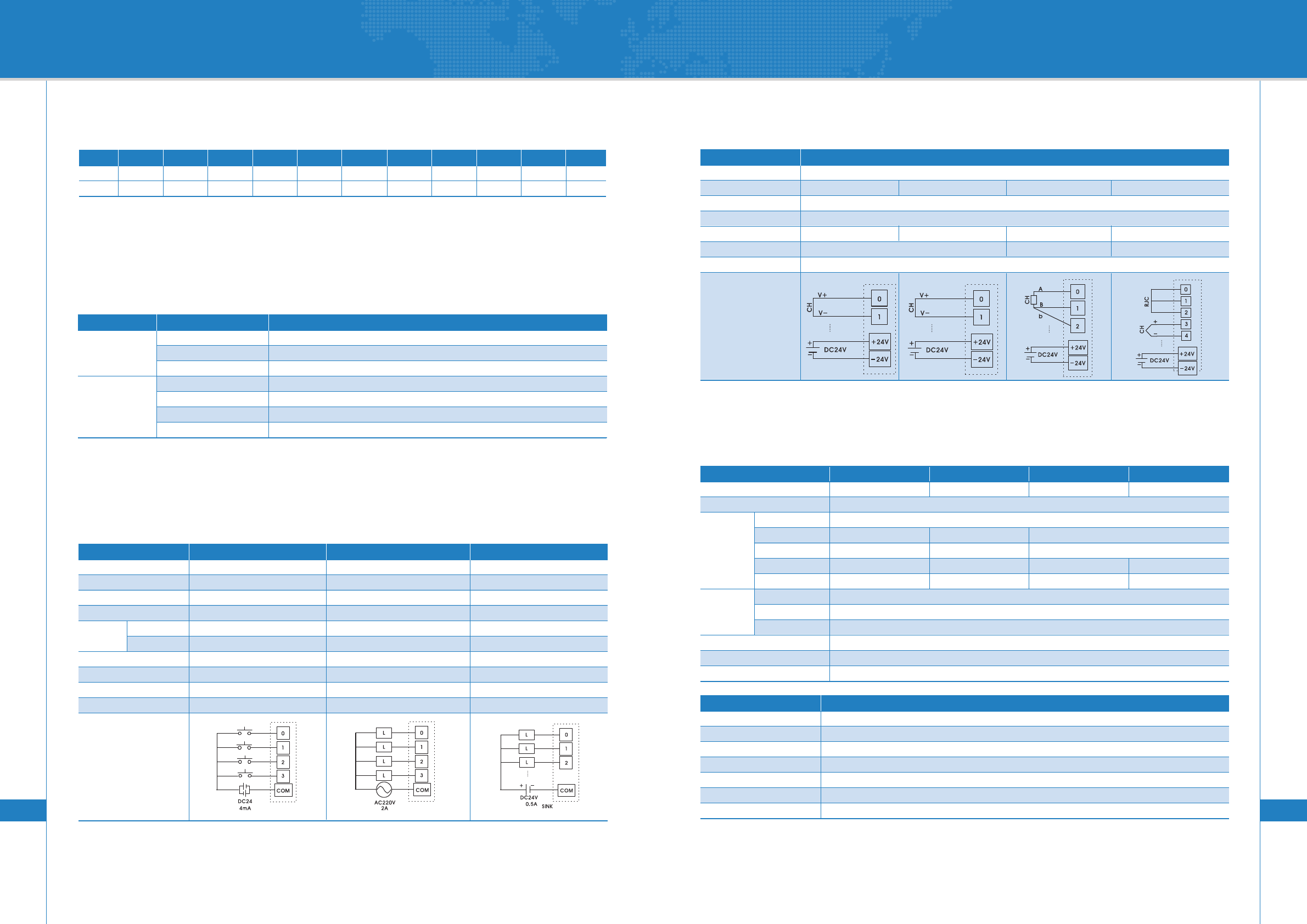

High-Speed Counter Module
1-Phase input: Up / Down count by a program or B-phase
2-Phase input: Up / Down count by Phase difference
Adding and subtracting functions for 2-phase difference
1-multiple, 2-multiple, 4-multiple functions for 2-phase input
Preset function by external input signal or a program
Outputs comparison signal by comparing the base value and the current value through the built-in transistor
Enables ring counting, sampling counting, periodic pulse counting and latch function
▪
▪
▪
▪
▪
▪
▪
Operation Outline
»
Model CM1-HS02C CM1-HS02E
Channel 2 channels
Signal 1 phase Input / 2 phase Input Line Drive Input
Level of Signal
DC 5 / 12 / 24V, 10 ~ 12mA RS-422A (Line Drive)
Range of Counting 32 bit (-2,147,483,648 ~ 2,147,483,647)
Counting rate 300 kpps
Form UP / DOWN Linear Counting + Ring Counting
Type Comparison ( > , = , < )
Form of Signal
Open Collector Output
Counting Input
Signal
External
Output
XP/CP Series
Load Cell Module
2 or 4 channels per module
The unit is compatible with various applicable elds such as
Unload Scale, Bin Scale, Mixing Scale, Filling Scale (packaging) etc
24 bit sigma delta AD conversion provides high resolution
digital values
Supports built-in programs such as input and discharge
measurements
WG02C model can be in dynamic measurements by getting
external 24V DI input.
▪
▪
▪
▪
▪
Model CM1-WG04A CM1-WG02C CM1-WG02D CM1-WG02E
Channel 4 channels 2 channels 2 channels 2 channels
Load Cell Strain Gage Method
Insulation Type Photo-Coupler
External Power DC24V
Load Cell Approval Voltage Maximum 350 Ω Cell of 4 Parallel Connection is Possible per Channel
A/D Conversion Method Sigma Delta
Max. Output of Load Cell 3.6 mV / V 2 mV / V 2 mV / V 2 mV / V
Max. Resolving Power 1 / 10,000 1 / 40,000 1 / 40,000 1 / 40,000
A/D Conversion Speed
(each channel) 10 times / sec 1,000 times / sec
(standard form)
1,000 times / sec
(dynamic measurement form)
1,000 times / sec
(wide range)
CM1-WG04A
CM1-WG02C
CM1-WG02D
CM1-WG02E
Operating Introduction
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
3736

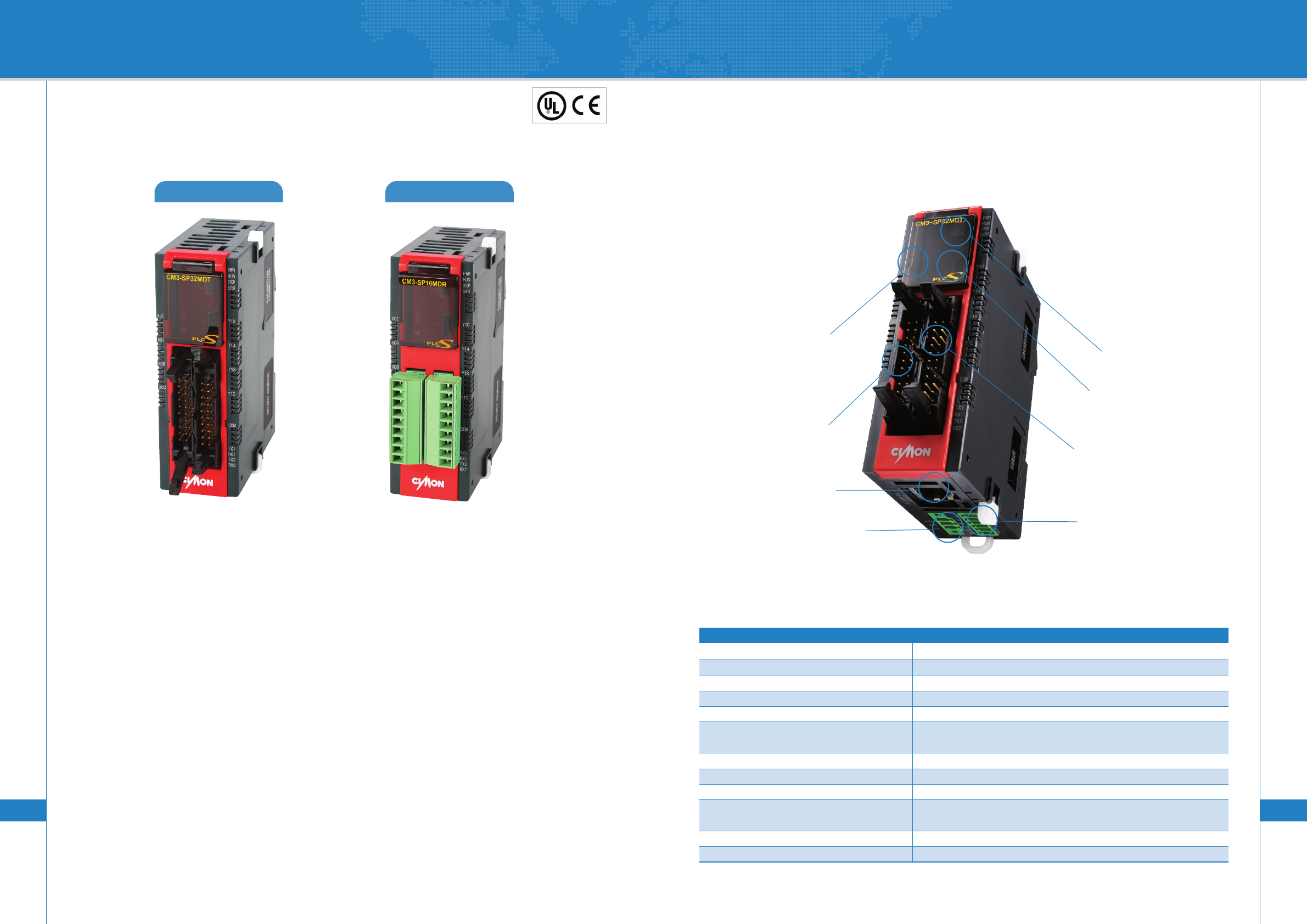

Positioning Module
Enable to set a maximum of 600 positioning data
Features position control and speed control
Positioning control of one axis: linear interpolation,
separate/synchronous operation
Positioning control of two axes: speed control, arc/linear interpolation,
separate/synchronous operation
Origin point return method
- Search origin point after near zero point is off
- Search origin point after reducing speed when near zero point is on
- Search origin point by detecting the origin point and upper/lower limit
- Enable to set an absolute origin point
▪
▪
▪
▪
▪
Operation Outline
»
XP/CP Series
Large capacity with non-combustible log memory (32MB)
Real time data sampling & saving
Acquires the stored data anytime from SCADA when the communication
status returns to normal
Simultaneously samples data with a maximum of 32 word
and a maximum period of 10ms
Built in HMI protocol: no optional communication card needed
Self-diagnostic function: communication error, memory error, capacity check, etc.
Triggers logging by sequence program
Provides event logging (COS, VOC)
Includes special program for downloading the collected data
▪
▪
▪
▪
▪
▪
▪
▪
▪
Data Logger Module
Model CM1-LG32A
Comm. Mode HMI Mode CIMON SCADA Protocol (HMI protocol)
Terminal Mode Text Transmission
Data Bit 7 / 8
Data Type Stop Bit 1 / 2
Parity Even / Odd / None
Synchronous Asynchronous
Transmission Speed 300 / 600 / 1200 / 4800 / 9600 / 19200 / 38400
Comm. Method RS232C
Modem Connection Cable Modem or Dial Up Modem
Log Memory Capacity 32 Mbytes
Sampling Interval 10 msec ~ 327,670 msec
Max. Logging Data Size 32 words
Log Data Block Sampling or Event Data
Logging Method Periodic, Trigger, Event (COS / VOC)
Built-in Function Memory Condition Check, Communication Error Check, Memory Capacity Check
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
3938

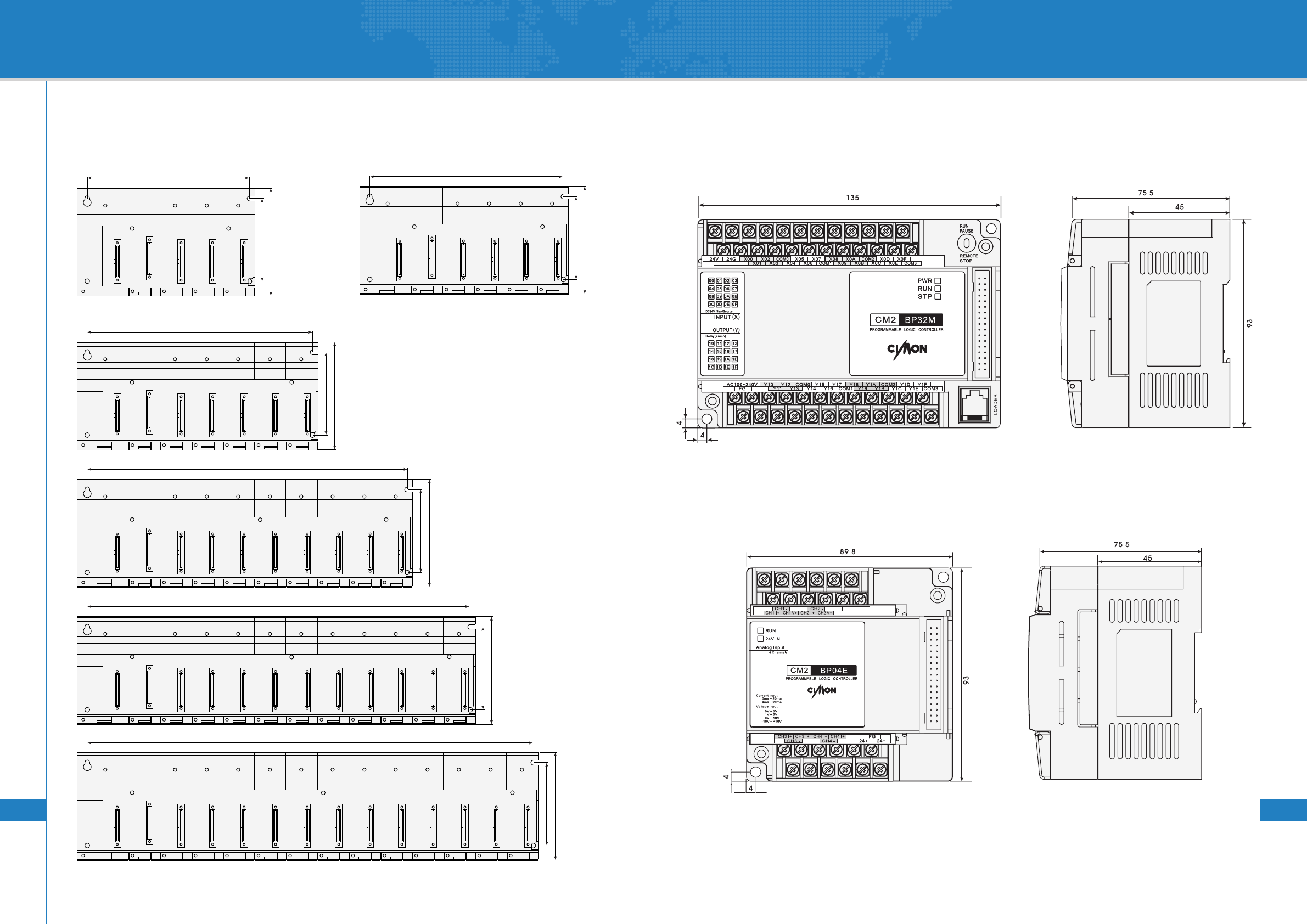

Base

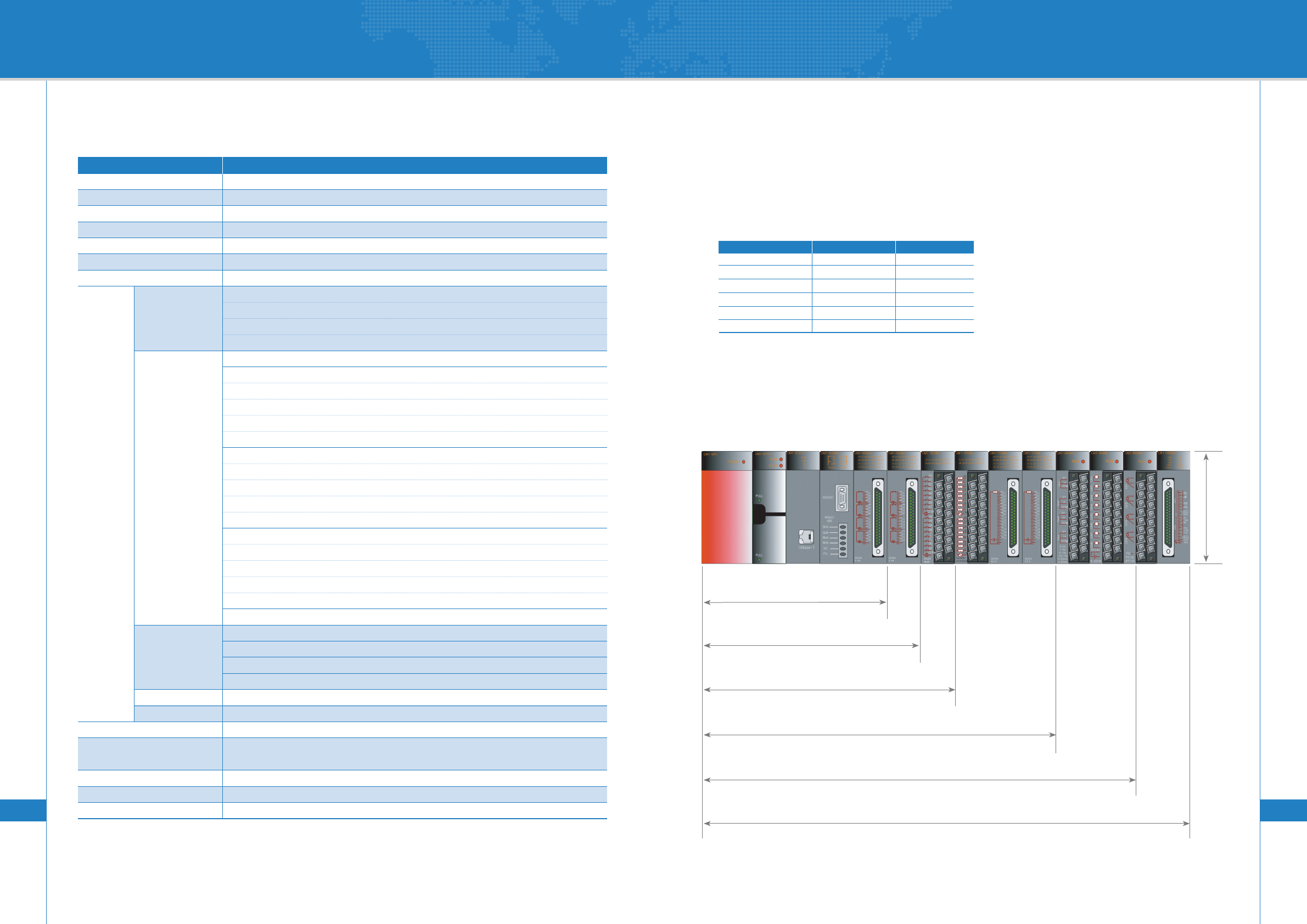

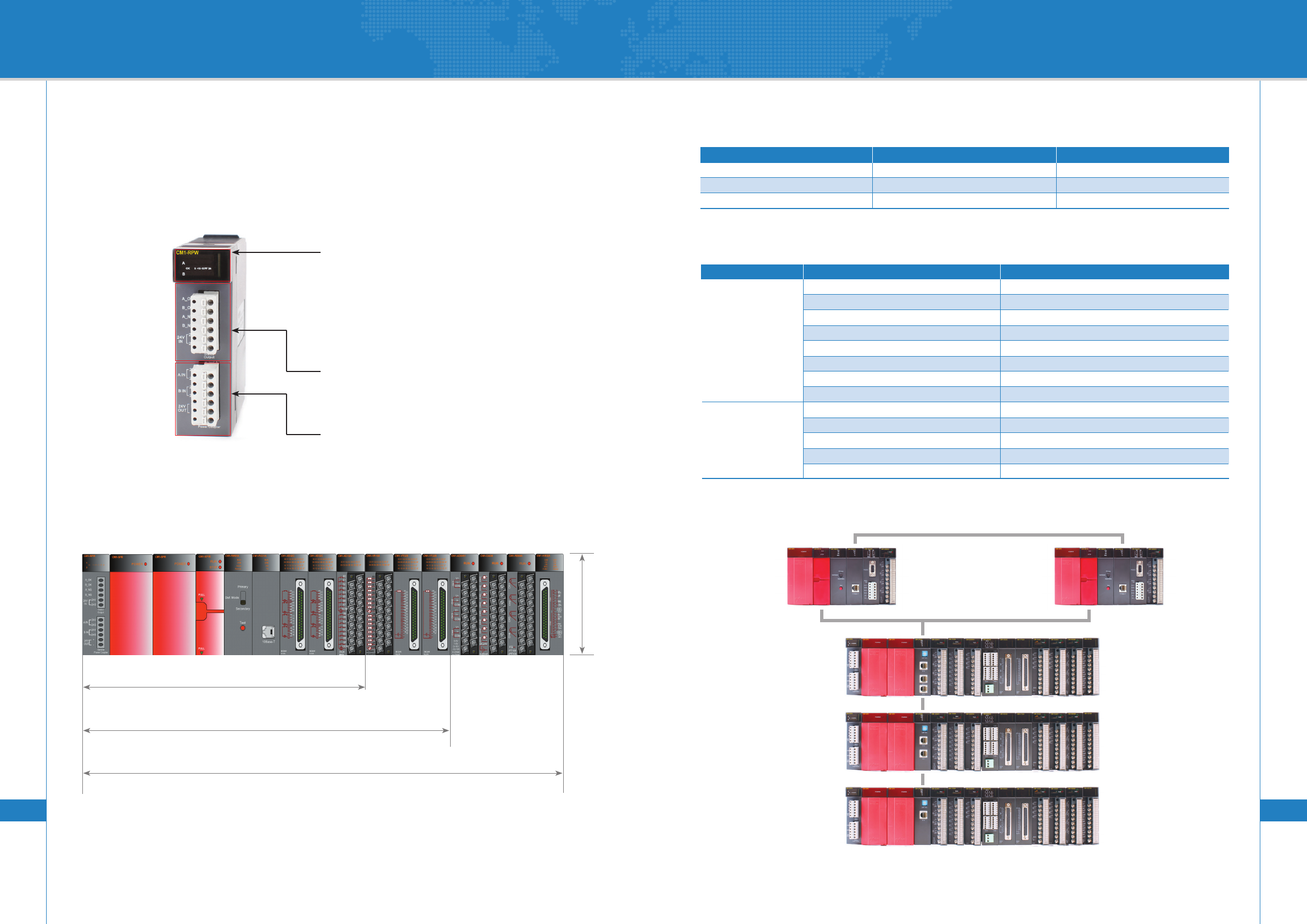

The CIMON PLC is made up of six kinds of slot bases such as 3/4/5/8/10/12 so that
the suitable conguration is available according to the capacities
Base Model
»
Minimize the Mounting Space
»
(Unit:mm)
CM1-BS03A 3 slot 183x108
CM1-BS04A 4 slot 216x108
CM1-BS05A 5 slot 247x108
CM1-BS08A 8 slot 344x108
CM1-BS10A 10 slot 408x108
CM1-BS12A 12 slot 473x108
Model name Slot no. of IO Size
CIMON PLC minimalistic design efciently uses space to maximize productivity
3-slot Base 183mm
108mm
4-slot Base 216mm
5-slot Base 247mm
8-slot Base 344mm
10-slot Base 408mm
12-slot Base 473mm
XP/CP Series

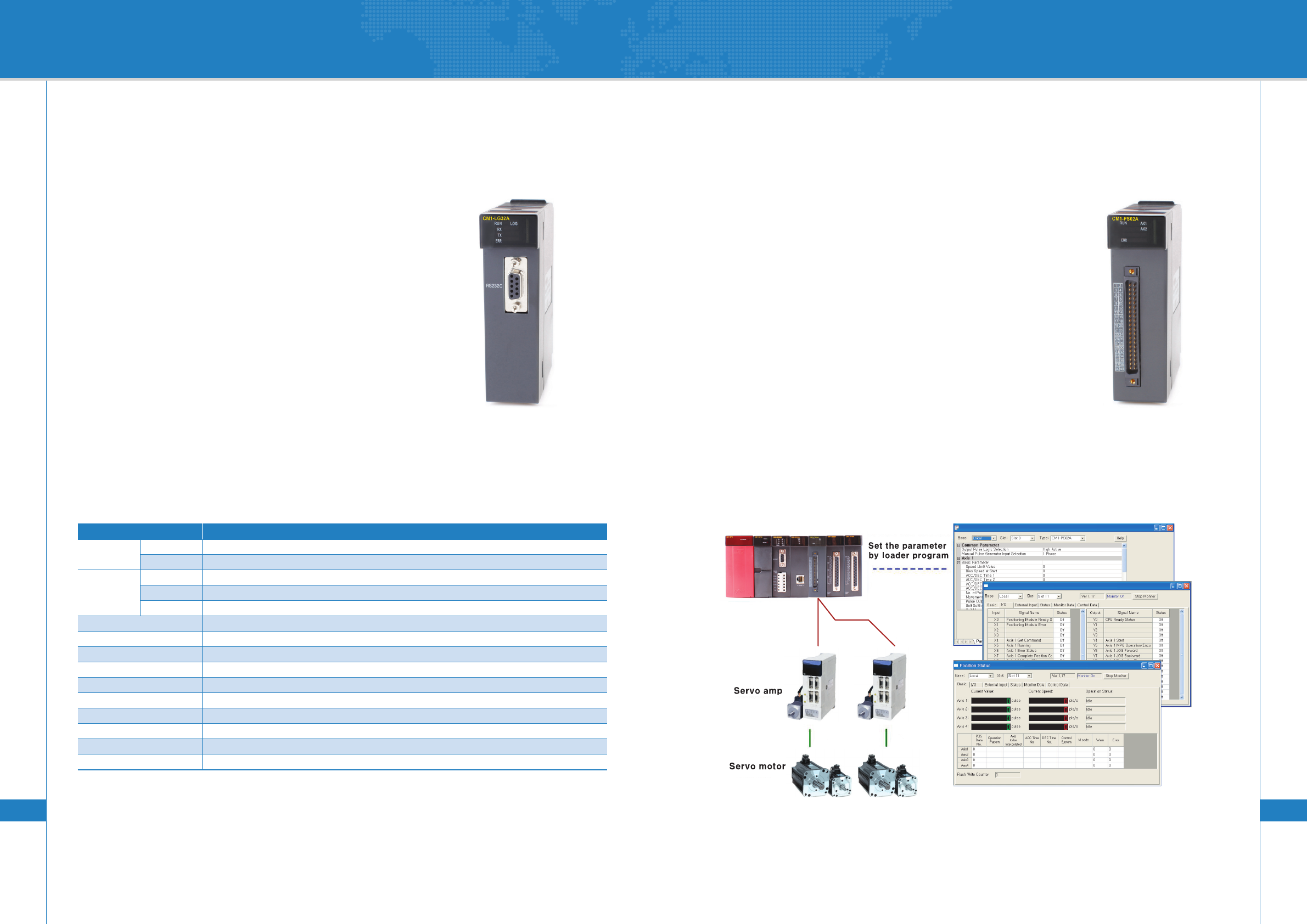

Model CM1-PS02A
Number of Axis 2 axis
Interpolation 2-axis Linear Interpolation, 2-axis Circular Interpolation
Control Method Position, Locus, Speed, Speed / Position, Position / Speed Control
Control Unit pulse, mm, inch, degree
Positioning Data 600 ea / axis
Positioning Method Absolute or Relative Method
Backup Flash Rom Backup (parameter, positioning data, block data, condition data)
Position Control Absolute / Relative Coordinate Method
Positioning Position / Speed Switching Control - Relative Coordinate Method
Method Speed / Position Switching Control - Absolute / Relative Coordinate Method
Locus Control - Absolute / Relative Coordinate Method
▪ Absolute Coordinate Method
-214748364.8 ~ 214748364.7 µm
-21474.83648 ~ 21474.83647 inch
0 ~ 359.9999 degree
-2147483648 ~ 2147483647 pulse
▪ Relative Coordinate Method
-214748364.8 ~ 214748364.7 µm
Positioning -21474.83648 ~ 21474.83647 inch
Range -21474.83648 ~ 21474.83647 degree
-2147483648 ~ 2147483647 pulse
▪ Speed / Position Switching Control (relative coordinate method), Position / Speed Switching Control
0 ~ 214748364.7 µm
0 ~ 21474.83647 inch
0 ~ 21474.83647 degree
0 ~ 2147483647 pulse
▪ Speed / Position Switching Control (absolute coordinate method)
0 ~ 359.9999 degree
0.01 ~ 20,000,000.00 (mm / min)
Control Speed 0.001 ~ 2,000,000.000 (inch / min)
0.001 ~ 2,000,000.000 (degree / min)
1 ~ 1,000,000 (pulse / sec)
Acceleration/Deceleration Pattern
Trapezoidal / S-curve
Acceleration/Deceleration Time
125 ~ 1x106 PPS/sec
External Disconnection Method 40 pin Connector
Connector 40 pin Male
for External
Max. Output Pulse 1 MPPS (line driver pulse output)
Max. Distance 10 m
Number of Flash Rom Saving 25 times After Power ON
Positioning
Specications
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
4140
Main Block
BP series are suitable for small scale control
High speed process. Various commands can be applied to control site.
Easy expansion of IO points for analog or comm.
Network is available by using Ethernet
Extra communication block is unnecessary (Ethernet and various options are built in)
Extra module is unnecessary: power module, CPU, and I/O modules are integrated.
High speed MPU is built in. Process speed is 200ns/step
Contains 300 instructions (sequence : 62 instructions, application 289 instructions
▪
▪
▪
▪
▪
▪
▪
▪
Model BP32A BP32B BP32M BP16M
Power AC 100 - 240 V / DC 24 V
Digital Input DC 24 V
Digital Output Relay / TR Sink / TR Source
Expansion Option DA / DA / AD+DA / TC / IO (Maximum 3 steps) Not Expandable
DI : 8, DO : 8 DI : 8, DO : 8
Standard I/O AI (Voltage / Current) : 2 AI (RTD) : 2
DI : 16 DI : 8
AO (Voltage / Current) : 2 AO (Voltage / Current) : 2 DO : 16 DO : 7
Program Control Type Stored Program, Cyclic Operation, Time Driven Interrupt
I/O Control Type Indirect, Direct by Instructions
Program language IL (Instruction List), LD (Ladder Diagram)
Sequence 62 Instructions
Instruction
Application 308 Instructions
Processing Rate 200 ns / step
Program Memory Capacity 8k step
1. Abundant program capacity - 8000 steps
2. Device range:
- internal relay: 4,096 points
- data memory: 5,000 words
3. Easy expansion
- Max. 3 block expansion
1. Abundant program capacity - 8,000 steps
2. Device range
- internal relay: 4,096 points
- data memory: 5,000 words
BP Series
XP/CP Series
Expansion
Maximum number of base expansion is 16
High-speed expansion communication of 10BASE-T (10 Mbps)
Maximum length between the segments is 100m
▪
▪
Built-in network repeater
Extension of remote I/O function setting available
Maximum distance between the expanded segments is 100m
Maximum total extension length is 1600m
▪
▪
▪
▪
Expansion rank of each base can be differentiated
by rotary switches
▪
▪
Local
Expansion #1
Expansion #2
Expansion #3
Expansion #14
Expansion #15
Expansion #16
100m
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
4342

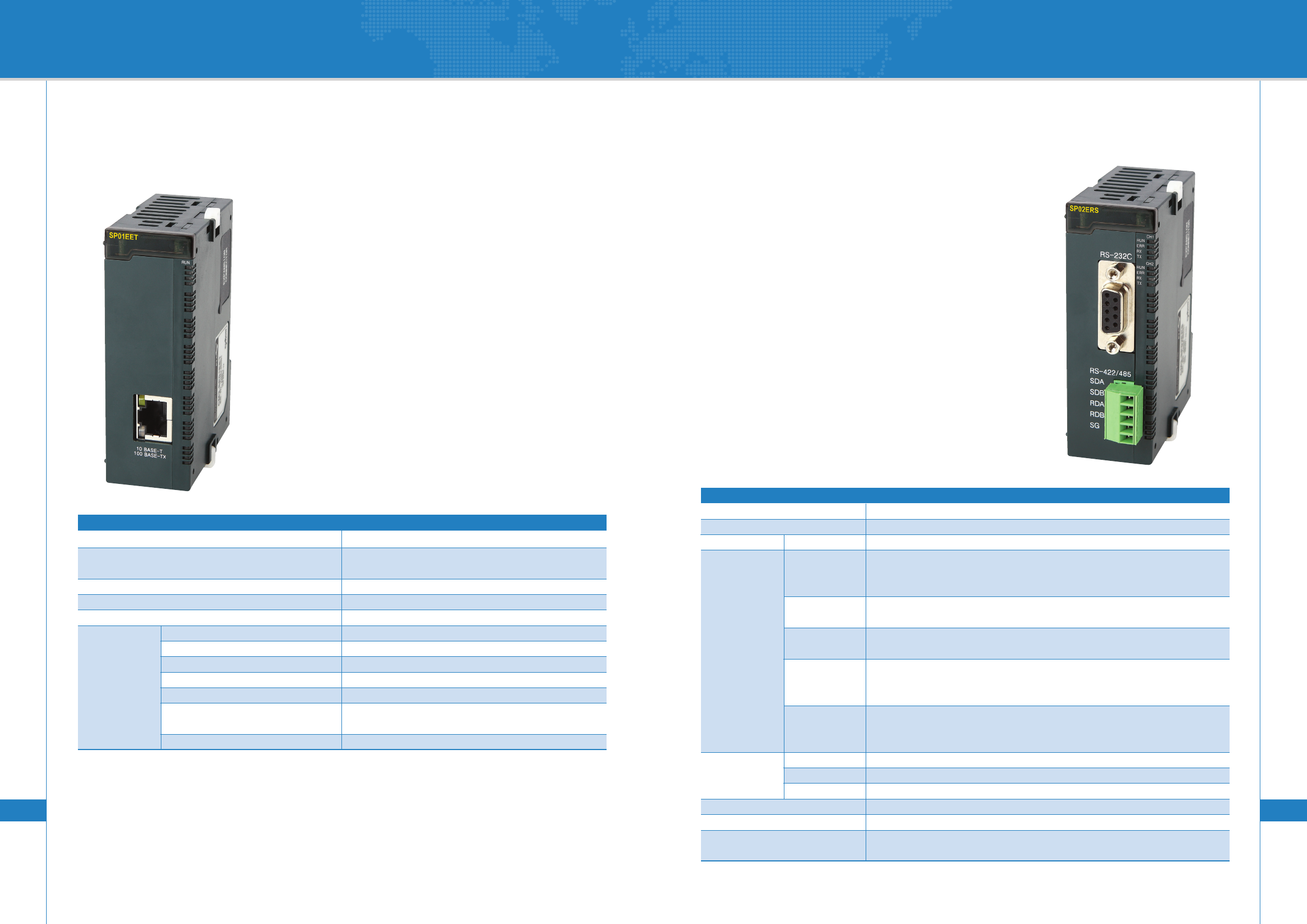

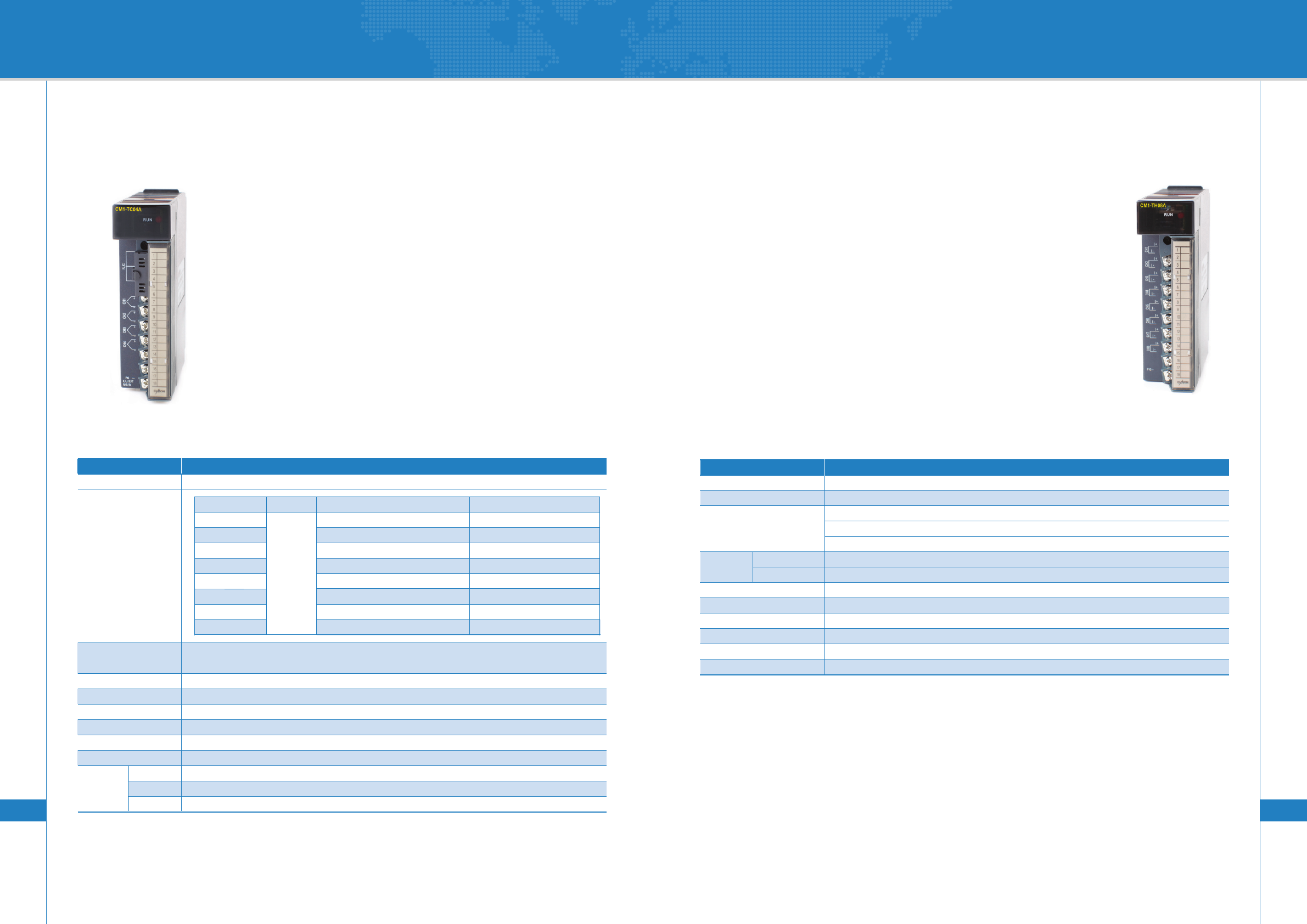

Analog Expansion Block Specications
»
Built-In Communication Block Specictions
»
Item Specification
Power DC 24 V External Input
Type A / D D / A RTD TC
Digital Data Signed 16 bit Binary Value (data : 14 bit)
Accuracy Within ±0.3 %
Max. Conversion Speed 5 ms / 1 ch 15 ms / 4 ch 400 ms / 1 ch 400 ms / 1 ch
Absolute Max. I/O ±12V / +21mA
Insulation Type Photo Coupler Insulation between I/O Port and PLC
Circuit
※ Maximum 2 analog blocks can be expanded
Item Ethernet
Power Supplied from CPU Module
Standard 10BASE - T
Transmission Speed 10 Mbps
Max. Segment Length 100 m (node - hub)
No. of Max. Nodes Enables to Link with 4-Line Hub
Max. Protocol Size 1500 byte
Comm. Access Method CSMA / CD
Item RS232C RS422/485 RS422/485 2CH RS232C 1CH
Model *R *S *U *T
Power Supplied from CPU Module
Exclusive HMI Protocol (1: n support communication)
Loader x x Loader Communication
User x x Protocol Program
MODBUS x x Master & Slave Master & Slave
PLC Link x x Supported Supported
Data Bit 7 or 8 bit
Spot Bit 1 or 2 bit
Parity Even / Odd / None
Synchronous Type Asynchronous
Transmission Speed 300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400 /76800
Modem Connection Function Communication with an External Modem Unit
Comm.
mode
Data
Type
BP Series
I/O Points
»
Self-Diagnosis and Built-In Functions
»
I/O Specications
»
Model X Y M L K F T C S D Z
BP32M 128 128 4,096 1,024 1,024 2,048 256 256 100*100 5,000 1,024
BP16M 8 7 4,096 1,024 1,024 2,048 256 256 100*100 5,000 1,024
Model DC Input Relay Output Transistor Output
Rated I/O Voltage DC 24 V AC 220 V / DC 24 V DC 12 / 24 V
Rated I/O Current 4 mA 1
point
2 A / COM 5 A 1
point
0.5 A / COM 4 A
On Voltage / On Current DC 19 V / 4 mA - -
Off Voltage / Off Current DC 11 V / 1 mA - -
Off -> On 5 ms or less 10 ms or less 1 ms or less
On -> Off 5 ms or less 5 ms or less 1 ms or less
Common Type 4 points 4 points 8 points
Operation Indication LED LED LED
Insulation Type Photo Coupler Relay Photo Coupler
Input Type Sink / Source - -
Circuit
Response
Time
Type Function
Operation Delay Monitoring Stops PLC Operation in case the Detected Time is Over the Set Time
Self-Diagnosis Error in Memory Detected Errors in Flash Memory in a CPU or DRAM of Each Specialty Card
Power Trouble Detects Temporary Breakdown in case Input Voltage is Lower
High-Speed Counter 3 kpps
Built-in Functions PID Auto Tuning Executes Automatic PID Operation (Max. 32 loops)
Password Programs Can be Protected
DC 24 V Power Output Allows Controlling Sensors, Switches, etc (300mA)
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
4544
BP Series Product Lineup
BP Series Model Name
»

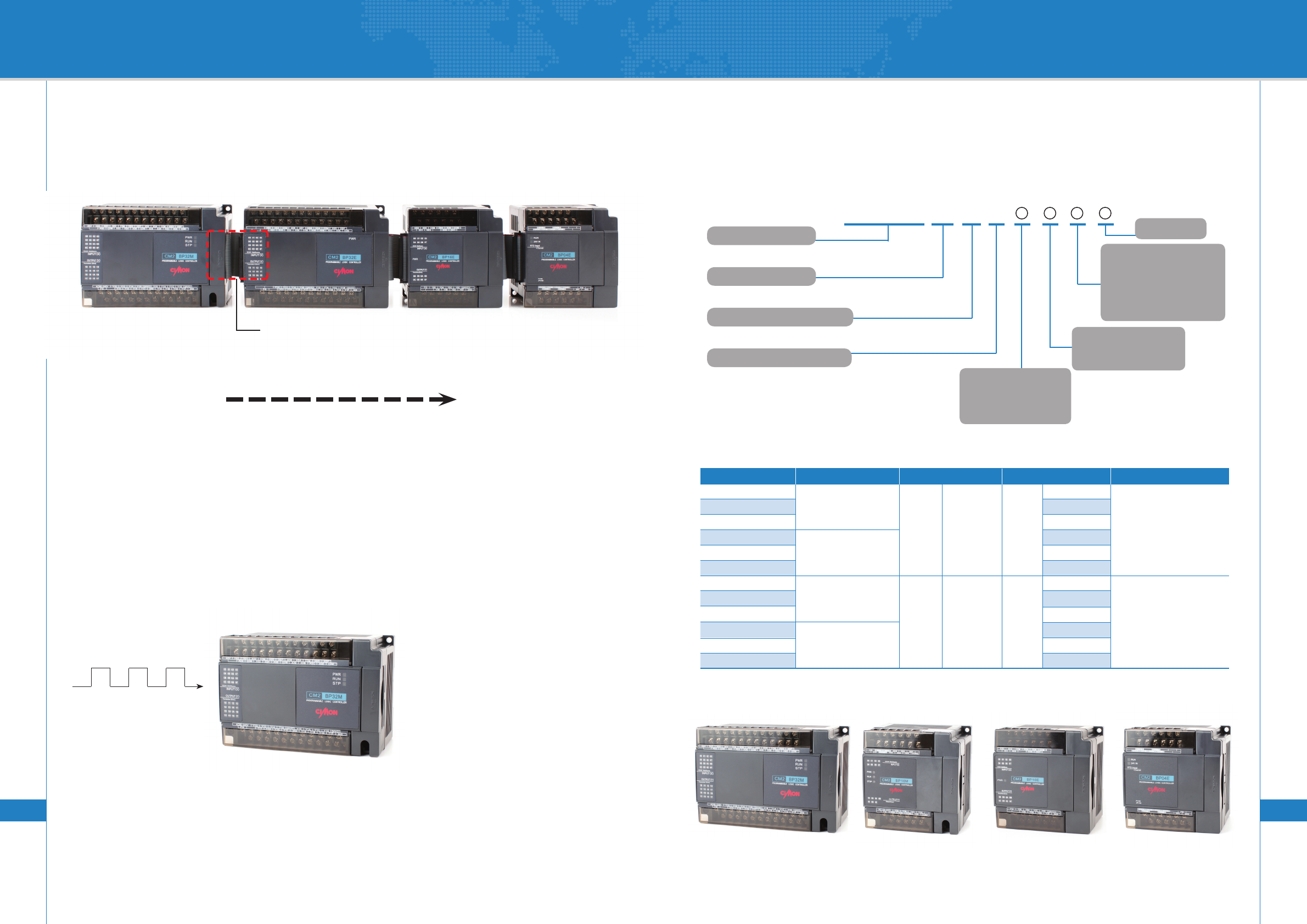

CM2 - BP DM32
Series Name
I/O Points
Module Type M : Main
Input Type D : Input
Option
R : RS232C
S : RS422 / 485
U : RS422 / 485 2 ch
E : Ethernet (10M)
T : RS232C 1 ch
Power Type
A : AC100 - 240V
D : DC24V
Output Type
T : TR Output (Sink)
C : TR Output (Source)
R : Relay Output
C : RTC
2 41 3
Model Power Input Output Option
CM2-BP32MDTA* TR (Sink) *indication (option)
CM2-BP32MDCA* AC 100 - 240 V TR (Source) R : RS232C
CM2-BP32MDRA* 16 DC 24 V 16 Relay S : RS422 / 485
CM2-BP32MDTD* TR (Sink) E : Ethernet (10M)
CM2-BP32MDCD* DC 24 V TR (Source) U : RS422 / 485 2Ch
CM2-BP32MDRD* Relay
T : RS232C 1CH
CM2-BP16MDTA* TR (Sink)
CM2-BP16MDCA* AC 100 - 240 V TR (Source) *indication (option)
CM2-BP16MDRA* 8 DC 24 V 7 Relay R : RS232C
CM2-BP16MDTD* TR (Sink) S : RS422 / 485
CM2-BP16MDCD* DC 24 V TR (Source)
CM2-BP16MDRD* Relay
Main Block(BP32M) Expansion(DIO)Main Block(BP16M) Expansion(Analog)
BP Series
Main function
There is no need for an external power supply since the power is
supplied from a main block (except analog block)
Up to 3 expansion blocks can be added (except BP16M series)
Analog blocks can be expanded up to 2 modules
▪
▪
▪
Expansion
»
Built-in High Speed Counter
»
8 types of pulse input methods
Linear, Ring Counter Mode
Coincidence comparison function
Up to 3 kpps
▪
▪
▪
▪
Main block Expansion
Expansion cable connection
(Connecter Type)
power supply
High speed input
Max. 3 blocks
IO 128 Point
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
4746
BP Series Model Name (Expansion Block)
»

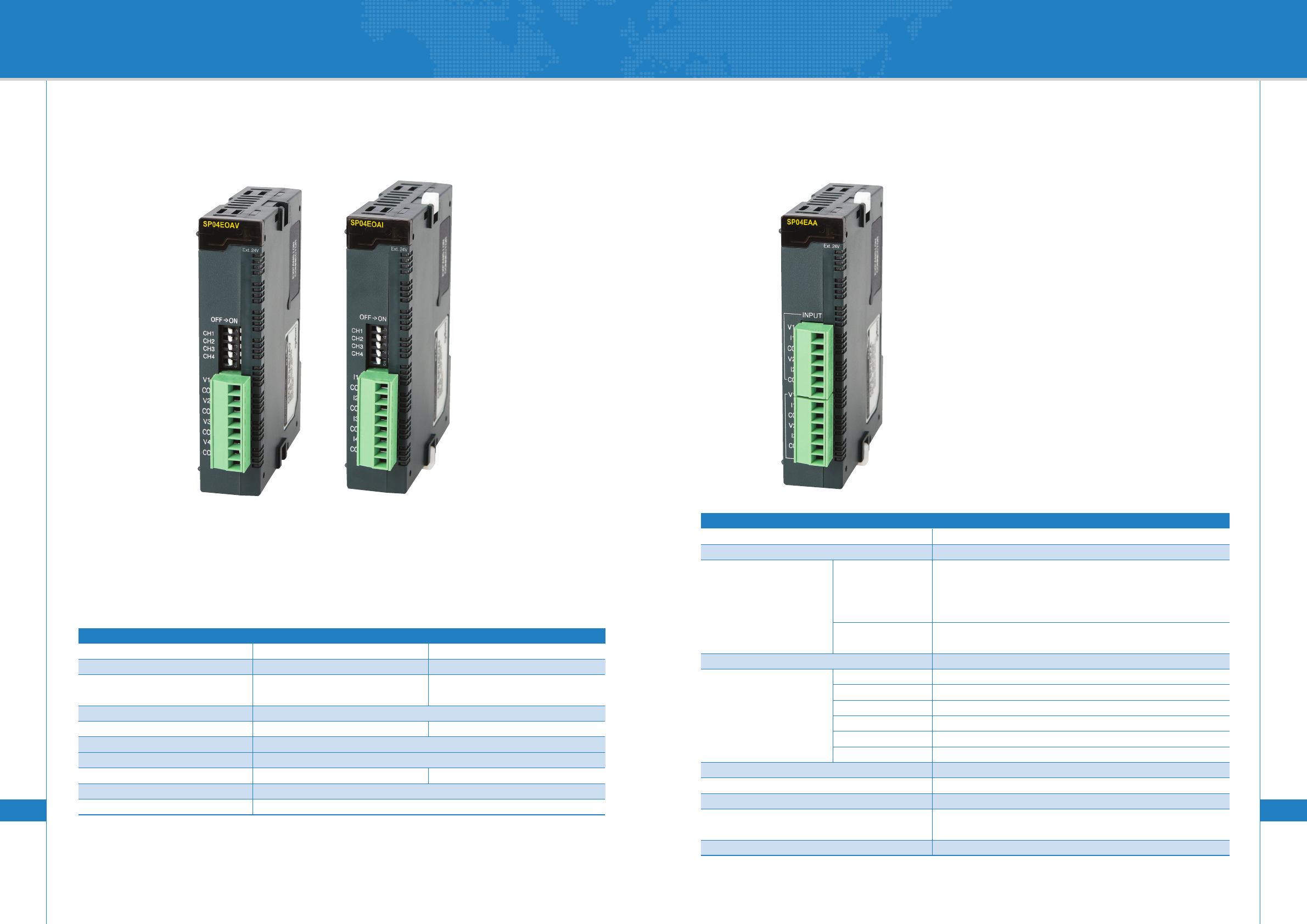

Analog Expansion Unit
»
Model Input Output Remarks
CM2-BP04EAO 4
AD Voltage / Current Input
0
CM2-BP04EAA 2 2
DA Voltage / Current Output
CM2-BP04EOA 0 4 Power Source : 24 V External
CM2-BP04ERO 4 RTD Input 0
CM2-BP04ETO 4 TC Input 0
I/O Expansion Unit
»
Model Input Output Remarks
CM2-BP16EDT TR (Sink)
CM2-BP16EDC 8 8 TR (Source)
CM2-BP16EDR Relay
CM2-BP32EDT DC 24 V TR (Sink)
CM2-BP32EDC 16 16 TR (Source)
CM2-BP32EDR Relay
CM2-BP16EDO 16 0
CM2-BP16EOR Relay
CM2-BP16EOT 0 16 TR (Sink)
CM2-BP16EOC TR (Source)
Power Source :
supplied from a main unit
CM2 - BP E
Series Name
I/O Points 04/16/32
Module Type E : xpansion
Output Type
T : Digital TR Output (Sink)
C : Digital TR Output
(Source)
R : Digital Relay Output
A : Analog Output
O : No Output
Input Type
D : Digital DC Input
(Sink / Source)
A : Analog Input
O : No Input
※ BP16M is not expandable
21 3
BP Series
BP Series Mixed Product Line
»
※ Built in 1ch RS485 (HMI Protocol)
Model Power Input (D1) Output (D0) Analog Option
CM2-BP32ADRA* Relay
AI 2 ch
CM2-BP32ADTA* Power TR (Sink) (Voltage / Current)
CM2-BP32ADCA*
AC100 - 240 V
TR (Source)
CM2-BP32ADRD* Relay
AO 2 ch
CM2-BP32ADTD* Power TR (Sink) (Voltage / Current)
CM2-BP32ADCD* DC 24 V 8 DC 24 V 8 TR (Source)
CM2-BP32BDRA* Relay
CM2-BP32BDTA* Power TR (Sink) RTD 2 ch
CM2-BP32BDCA*
AC 100 - 240 V
TR (Source)
CM2-BP32BDRD* Relay AO 2 ch
CM2-BP32BDTD* Power TR (Sink) (Voltage / Current)
CM2-BP32BDCD*
DC 24 V
TR (Source)
*Indication (option)
R : RS232C
S : RS422 / 485
E : Ethernet
U : RS422 / 485 2 ch
T : RS232C 1 ch
CM2 - BP D32
Series Name
Input Type D : Input
Option
R : RS232C
S : RS422 / 485
U : RS422 / 485 2 ch
E : Ethernet (10M)
T : RS232C 1 ch
Power Type
A : AC 100 - 240 V
D : DC 24 V
Output Type
R : Relay
T : TR (Sink)
C : TR (Source)
Analog Type
A : AI 2 ch, AO 2 ch
B : RTD 2 ch, AO 2 ch
C : RTC
2 4 51 3
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
4948
SCADA Network
PLC Link
Network
Max. 32 Stations
BP Series
System Conguration
Ethernet
»
Serial Communication
»
Max. 32 Stations
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
5150
SD/MMC
16 points Input
Ethernet Port
Power : DC 12~24 V Serial Port
16 points Output
USB Port
Mode Switch
COMPACT BUT POWERFUL ALL-
IN-
ONE PLC
Specification
Maximum Expansion 11
Program Capacity 10k steps
Operation Rate 200 ns/step
I/O Points Maximum 384 points
High Speed Counter 2 Phase 2 channels
Pulse Output Maximum 100 kpps
2 axis, Linear Interpolation
Programming Tool CICON Software
PID 32 channels, Auto-Tuning
RTC Built-In (battery : CR2032)
ETC. Floating Point Arithmetic
Run Time Editing
Power DC 24 V
Size & Weight 30 X 90 X 61 mm / 120 g
PLC-S Series
CPU Module
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
CPU Features
»
TR Output(DC 24V) / Relay Output
200 nsec/step
32 pts. digital I/O (16 inputs and 16 outputs)
Abundant memory of 10K Step
Data memory 10,000 word
Expansion: Max. 11 modules (max. 384 pts.)
Compact size of 30X90X61mm / 120g
3 built-in Comm. Ports
(RS232C, RS422/485, Ethernet)
USB loader port and SD card slot
Built-in 20Kpps High Speed Counter (2ch)
Built-in 100Kpps 2 axis Pulse Output
(positioning)
Built-in PID 32 loop
Floating point arithmetic
Run time editing, LD/IL language
Built-in flash memory
PLC-S delivers high and fast performance and provides
reliable environment for industrial systems without
compromising the size and the cost. This is the smallest
sized PLC and yet it has the ability of those bigger
PLCʼs and more. This ensures to occupy less space in
the equipment but still maintain the high performance at
the same time.
PLC-S is very cost-effective since the CPU module
already has several functions built in such as high-
speed counter, positioning control function, floating point
arithmetic, 3 way simultaneous communications, PID
auto-tuning and etc. Addition of expensive modules for
these functions is not needed for this reason.
This unit can also be configured with other special
expansion modules up to 11 modules to provide wide
variety of functions. In addition, thereʼs an USB port and
a slot for SD cards for convenient program downloads.
This PLC is especially suitable for small to medium
performance tasks. PLC-S is one of the most flexible, reliable,
powerful but simplest Micro-PLC in the industrial world.
TR TYPE RELAY TYPE
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
5352

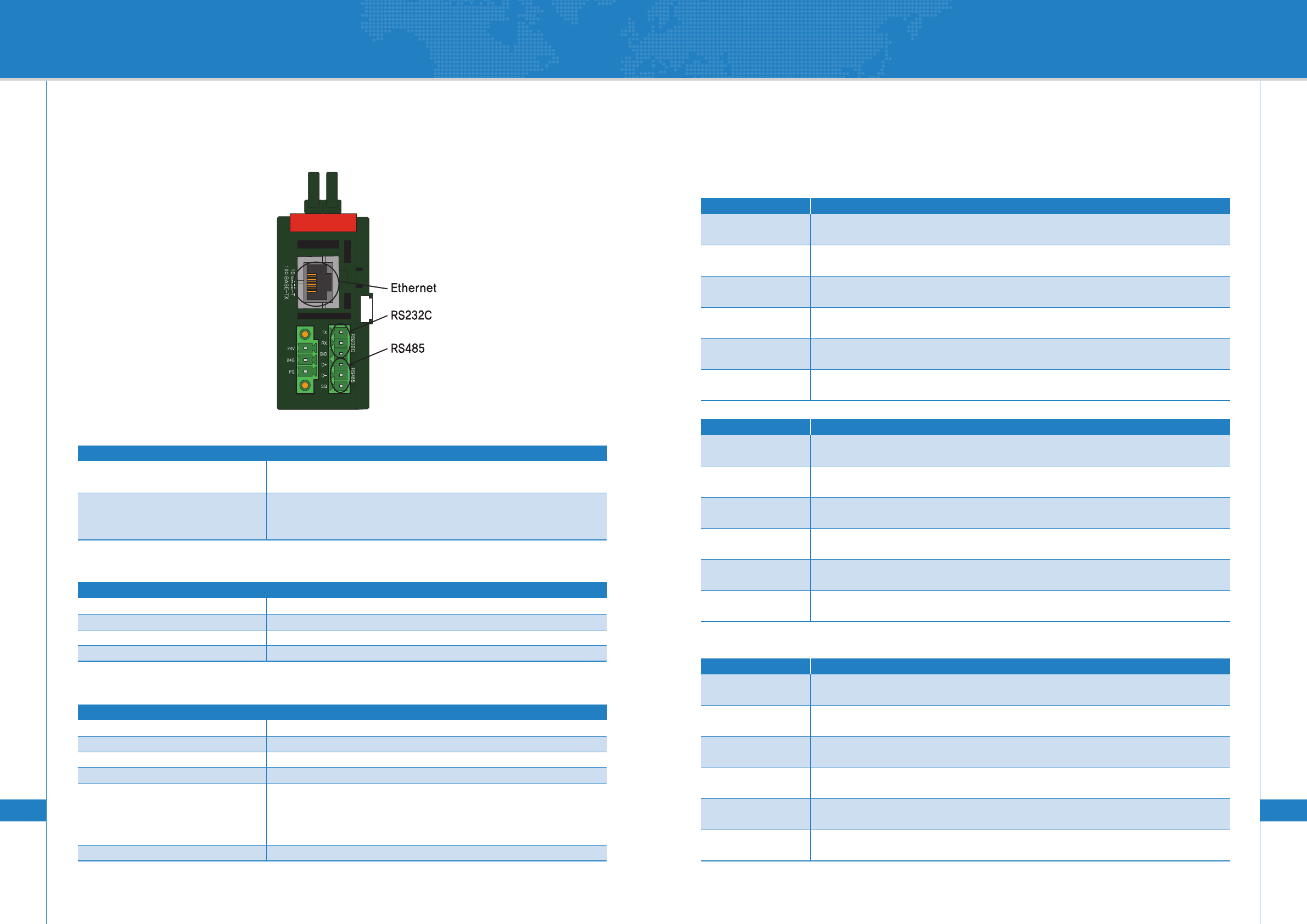

PLC-S Main-Block Options
Relay Output (DC Power)
Model CM3-SP32MDT CM3-SP32MDT-SD CM3-SP32MDTV CM3-SP32MDTV-SD
Digital
Input/Output
USB Loader
SD/MMC
Card Slot
RS232C
1ch
RS485
1ch
Ethernet
1ch
16 Digital Input
16 Digital Output
▪
N/A
▪
N/A
N/A
16 Digital Input
16 Digital Output
▪
▪
▪
N/A
N/A
16 Digital Input
16 Digital Output
▪
N/A
▪
▪
N/A
16 Digital Input
16 Digital Output
▪
▪
▪
▪
N/A
Model CM3-SP32MDTE CM3-SP32MDTE-SD CM3-SP32MDTF CM3-SP32MDTF-SD
Digital
Input/Output
USB Loader
SD/MMC
Card Slot
RS232C
1ch
RS485
1ch
Ethernet
1ch
16 Digital Input
16 Digital Output
▪
N/A
▪
N/A
▪
16 Digital Input
16 Digital Output
▪
▪
▪
N/A
▪
16 Digital Input
16 Digital Output
▪
N/A
▪
▪
▪
16 Digital Input
16 Digital Output
▪
▪
▪
▪
▪
Model CM3-SP32MDR CM3-SP32MDRV CM3-SP32MDRE CM3-SP32MDRF
Digital
Input/Output
USB Loader
SD/MMC
Card Slot
RS232C
1ch
RS485
1ch
Ethernet
1ch
8 Digital Input
8 Digital Output
▪
N/A
▪
N/A
N/A
8 Digital Input
8 Digital Output
▪
N/A
▪
▪
N/A
8 Digital Input
6 Digital Output
▪
N/A
▪
N/A
▪
8 Digital Input
6 Digital Output
▪
N/A
▪
▪
▪
TR Output (DC Power) - Sink Type
»
»
PLC-S Series
Specification
Communication Protocol
Built-In Functions (Positioning)
Built-In Functions (High-Speed Counter)
Ethernet
RS232C/485
MODBUS TCP, CICON (loader)
CIMON-HMI (TCP,UDP), High Speed PLC Link
MODBUS RTU Master,
MODBUS RTU Slave,
CICON (loader), CIMON-HMI, Protocol Program
Counter Input Signal
Maximum Counting Speed
Number of Channels
Counting Range
Voltage Input (open collector)
20 kpps
2 channels (10 kkps)
Signed 32 bit (-2,147,483,648 ~ 2,147,483,647)
Number of Control Axis
Interpolation
Pulse Output Type
Pulse Output
Control Mode
Maximum Output Speed
2 axis
2 axis Linear Interpolation
Open Collector (DC 24 V)
Pulse + Direction
Position Control
Speed Control
Speed / Position Switching Control,
Position / Speed Switching Control
100 kpps
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
5554
AD Module
Provides wide input range
Very reliable with less than ±0.05% of error
Protected from interference by the photo coupler
insulation between input ports and the PLC
Features
Specification
Model
Analog Input Point
Digital Conversion
Accuracy
Maximum Conversion Rate
Absolute Maximum Input
Insulation Type
Access Terminal
Analog Input
Voltage
Current
Maximum Resolution
0V ~ 5 V
1V ~ 5 V
0V ~ 10 V
-10V ~ 10 V
0mA ~ 20 mA
4mA ~ 20 mA
4 channels
0 ~ 5 V
1 ~ 5 V
0 ~ 10 V
-10 ~ 10 V
0 ~ 20 mA
4 ~ 20 mA
14 bit (0 ~ 16000)
312.5 mV
250 mV
625 mV
1250 mV
1.25 nA
2 nA
±0.1% (full scale)
2.1 ms / 4 channels
Voltage: ± 15 V, Current: ± 30 mA
Photo Coupler Insulation between Input Ports and PLC
(non-insulation between channels)
12 points
CM3-SP04EAO
▪
▪
▪
▪
»
Digital I/O Module
Specification
Type
Input Voltage
Output Voltage
Input Current
Output Current
On Voltage / Current
Off Voltage / Current
Response Time
Indication Lamp
Insulation Type
Input Method
Output Method
32 points Input
DC24 V
N/A
4 mA
N/A
DC 19 V / 3 mA
DC 6 V / 1 mA
Less than 3 ms
LED On
Photo Coupler Insulation
SINK/SRC
Compatible
N/A
32 points TR Output
N/A
DC 12 V / 24 V
N/A
1 point 0.2A
COM 2A
N/A
N/A
Less than 1 ms
LED On
Photo Coupler Insulation
N/A
Sink
16 points Input
16 points TR Output
DC24 V
DC 12 V / 24 V
4 mA
1 point 0.2A
COM 2A
N/A
N/A
Less than 1 ms
LED On
Photo Coupler
Insulation
SINK/SRC
Compatible
Sink
16 points Relay Output
N/A
AC 220 V / DC 24 V
N/A
1 point 2A
COM 5A
N/A
N/A
Less than 10 ms
LED On
Relay Insulation
N/A
Relay
Model CM3-SP32EDO CM3-SP32EOT CM3-SP32EDT CM3-SP16EOR
PLC-S Series
External terminal block for easy installation and maintenance
Insulated photo-coupler and relays block interference
Features
»
▪
▪
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
5756
Provides wide input/output range
16 bit conversion for high resolution measurement
Very reliable with less than ±0.05% of error
Protected from interference by the photo coupler
insulation between input ports and the PLC
Features
Specification
Model
Number of Analog Channel
Digital Conversion
Accuracy
Maximum Conversion Rate
Absolute Maximum Input
Insulation Type
Access Terminal
Analog Input / Output
Voltage
Current
Maximum Resolution
0 V ~ 5 V
1 V ~ 5 V
0 V ~ 10 V
-10 V ~ 10 V
0 mA ~ 20 mA
4 mA ~ 20 mA
Input: 2 channels, Output: 2 channels
0 ~ 5 V
1 ~ 5 V
0 ~ 10 V
-10 ~ 10 V
0 ~ 20 mA
4 ~ 20 mA
14 bit (0 ~ 16000) / 16 bit (0 ~ 64000)
78.1 µV
62.5 µV
156.3 µV
312.5 µV
312.5nA
250nA
± 0.05 % (full scale)
2.1 ms / 4 channels
Voltage: ± 15 V, Current: ± 30 mA
Photo Coupler Insulation Between Input Ports and PLC
(non-insulation between channels)
12 points
CM3-SP04EAA
AD/DA Module
▪
▪
▪
▪
»
DA Module
Provides wide output range
Very reliable with less than ±0.1% of error
Protected from interference by the photo coupler insulation between input ports and the PLC
Features
Specification
4 channels
-10 V ~ 10 V / 0 V ~ 10 V
(selected by DIP switch)
14 bit (0 ~ 16000)
±0.1 %
10ms
Photo Coupler Insulation between Input Ports and PLC
8 points
1.25 mV 1.25 µA
Voltage: ± 15 V Current: ± 24 mA
4 channels
4 mA ~ 20 mA
Model CM3-SP04EOAV
Number of Analog Output Channel
Analog Output
Digital Conversion
Max. Resolution
Accuracy
Maximum Conversion Rate
Absolute Maximum Output
Insulation Type
Access Terminal
CM3-SP04EOAI
PLC-S Series
▪
▪
▪
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
5958

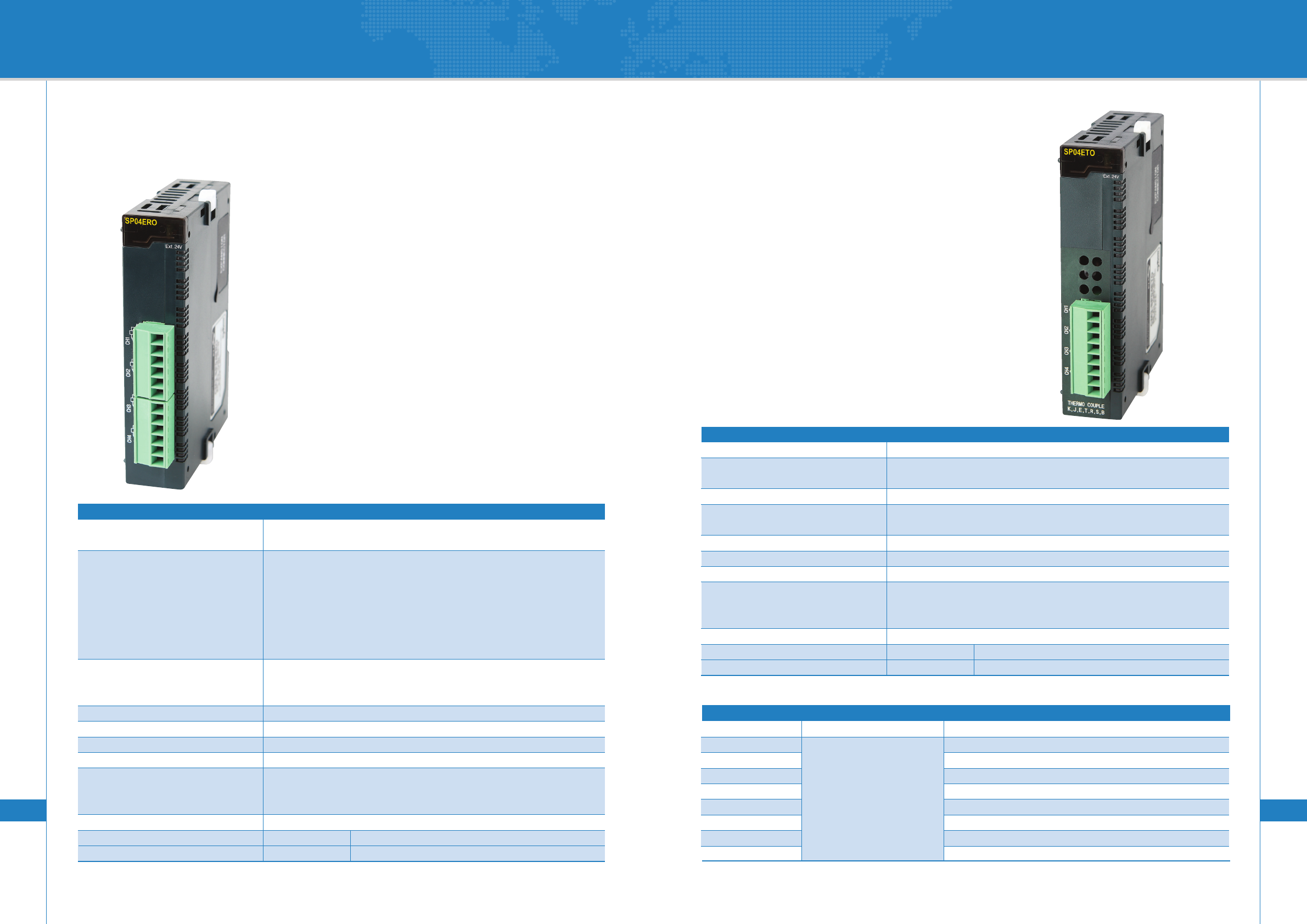

TC Module
Measures wide range of temperature
Supports many different types of TC’s
Supports 4 channels and ±0.3% accuracy
This module converts analog temperature to digital data
Input data can be processed to first decimal point as digital value
Detects cable disconnection and values out of range
Features
Specification
Available TC
Digital Output
Disconnection Detection
Accuracy
Maximum Conversion Rate
Compensation Type
Number of Input Channels
Insulation Method
Connection Terminal
Internal Current Consumption (mA)
External Current Consumption (mA)
Type K,J,E,T,B,R,S,N
Digital Value : 0 ~ 16,000 (-8000 ~ 8000)
Temp Value :℃, ℉ (0.1 ℃ Resolution)
3 points Indication for Each Channel
±0.3 %(Full Scale)
±1 ℃ (error for base contact compensation)
50ms / 4 Channels
Automatic Compensation
4 channels / 1 module
Photo Coupler Insulation between Input Ports and PLC
(non-insulation between channels)
8 points
60 mA
30 mA
Range of Temperature
Type
K
J
E
T
B
R
S
N
Range of Temp (℃)
-200.0 ~ 1200.0
-200.0 ~ 800.0
-200.0 ~ 600.0
-200.0 ~ 400.0
400.0 ~ 1800.0
0.0 ~ 1750.0
0.0 ~ 1750.0
-200.0 ~ 1250.0
Range of Voltage (µV )
-5891 ~ 48828
-7890 ~ 45498
-8824 ~ 45085
-5602 ~ 20869
786 ~ 13585
0 ~ 21006
0 ~ 18612
-3990 ~ 43846
Standard
ITS-90
+5 V
+24 V
▪
▪
▪
▪
▪
▪
»
RTD Module
Specification
RTD Type
Range of Temperature
Digital / Temp Output
Disconnection Detection
Accuracy
Maximum Conversion Rate
Number of Input Channels
Insulation Method
Connection Terminal
PT100,JPT100,PT1000,
NI1000 (DIN 43760), NI1000 (TCR 5000)
PT100 : -200.0 ℃ to 600 ℃ (18.48 to 313.59 Ω)
JPT100 : -200.0 ℃ to 600 ℃ (17.14 to 317.28 Ω)
PT1000 : -200.0 ℃ to 600 ℃ (184.8 to 3135.9 Ω)
NI1000 (DIN 43760):
-50.0 ℃ to 160 ℃ (742.6 to 1986.3 Ω)
NI1000 (TCR 5000):
-50.0 ℃ to 160 ℃ (790.9 to 1799.3 Ω)
Digital Value : 0 ~ 16,000 (-8000 ~ 8000)
Temp : -200.0℃ ~ 600.0℃
(floating point x 10)
3 points Indication for Each Channel
± 0.1 %(full scale)
50 ms / 4 Channels
4 channels / 1 module
Photo Coupler Insulation between Input Ports and PLC
(Non-insulation between channels)
12 points
60 mA
30 mA
Internal Current Consumption (mA)
External Current Consumption (mA)
+5 V
+24 V
PLC-S Series
Detects disconnected cables from each channel
Supports most RTD’s
4 channels and ±0.1% accuracy
Ability to detect the values out of range
Digital temperature measurements in 0.1 degree increments
Converts input data to 16 bit digital value
Features
▪
▪
▪
▪
▪
▪
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
6160

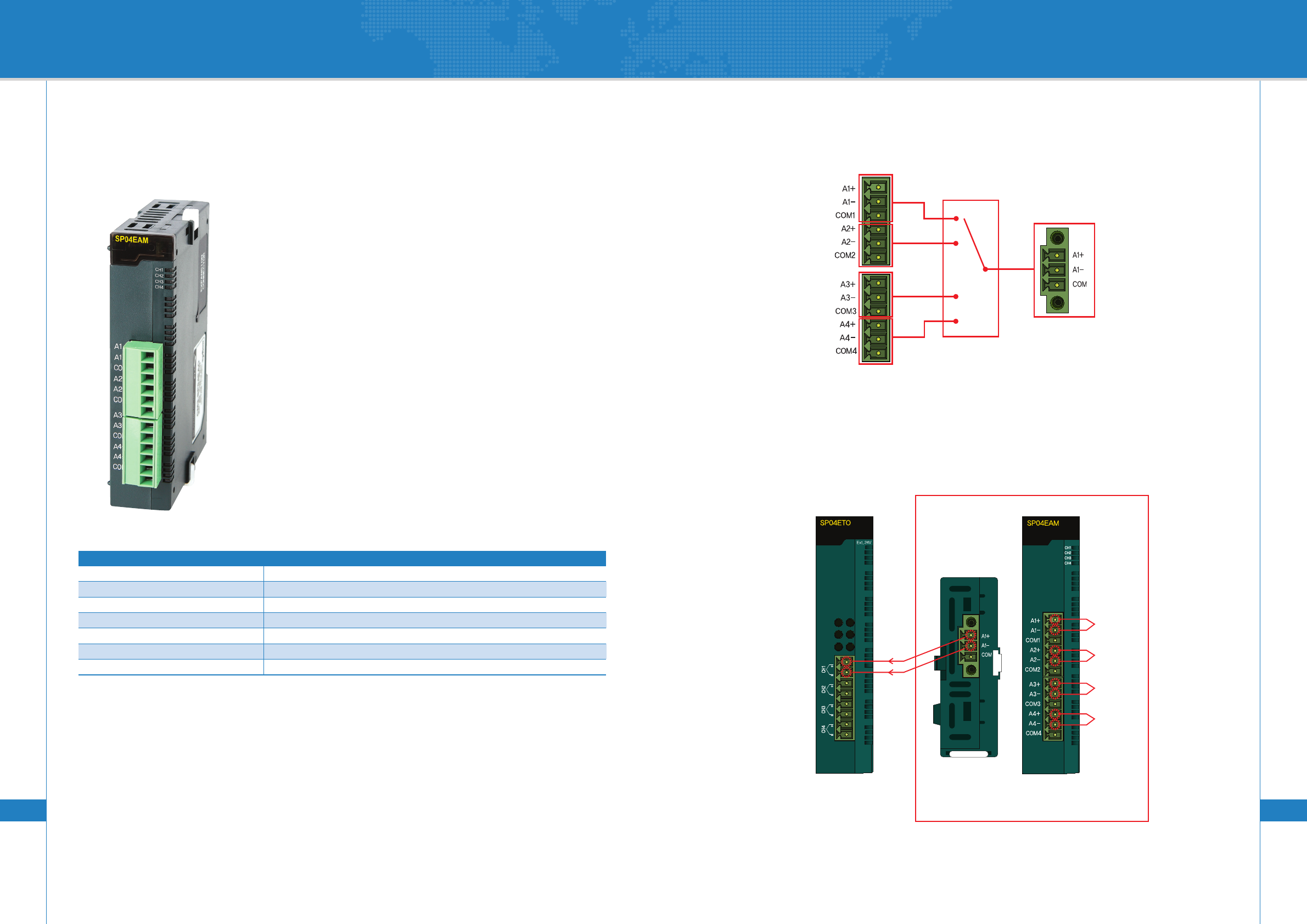

Concept Diagram
»
Wiring Example
»
TC Module
Ex) SP04ETO Module and SP04EAM Module Wiring Diagram
Bottom
Analog Output Port
MUX Module
Front
Analog Input Port
TC Sensor
+
-
+
-
+
-
+
-
<SP04EAM Concept Diagram>
Front Port
CH1
CH2
CH3
CH4
Bottom Port
Analog Input Ports
Analog Output Ports
MUXING
TC Module
Ex) SP04ETO Module and SP04EAM Module Wiring Diagram
Bottom
Analog Output Port
MUX Module
Front
Analog Input Port
TC Sensor
+
-
+
-
+
-
+
-
<SP04EAM Concept Diagram>
Front Port
CH1
CH2
CH3
CH4
Bottom Port
Analog Input Ports
Analog Output Ports
MUXING
Analog Mux Module
PLC-S Series
Analog Mux Module receives 4 channel analog signals and switches them
sequentially to an output port by a set time interval. By connecting up to
4 mux modules with 1 analog module (AD, RTD, TC, etc.), maximum 16
channels of analog expansions can be achieved.
Specification
Number of Analog Channel
Analog Input
Relay Min/Max ON TIME
Insulation Type
Capacity
Access Terminal
Relay Life-Expectancy
3-wire, 4 channels
Voltage, RTD, TC
Minimum : 0.1 sec, Maximum : 1000 sec
Relay
16 points
12 points
Number of Operation of 108
Channels can be enabled/disabled and easy channel information check
Relay ON time can be selected by 0.1~1000.0 sec interval
Relay life expectancy can be checked through the relay counter function
Auto/Manual mode selectable
Not suitable for current signal use since this module only switches analog
signals repeatedly
▪
▪
▪
▪
▪
Features
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
6362
Serial Module
Read and write data by HMI protocol
Up to 32 units communication available for Multi-Drop
configuration (RS422/485)
Supports wide range of communication speed
(300 bps ~ 38400 bps)
Full-Duplex (RS422) and Half-Duplex (RS485)
Supports 1:1 / 1:N / 1:M communication for RS422 and R485
RS232C/422/485 communication ports are available by
setting up independent channel or linked channel
RS422 and RS485 channels are properly insulated to
prevent any outer interference
Supports universal protocol
MODBUS RTU Master function is built-in for an easy
acquisition of data from third-party devices
(MODBUS RTU Slave)
Features
Specification
Comm. Method
Operation Mode
Data Type
Null Modem
Protocol
Special
Program
HMI
Protocol
MODBUS
Protocol
Graphic
Loader
Protocol
MODBUS
Master
Program
Data Bit
Stop Bit
Parity
Model
Interface
Synchronization
Transmission Speed (bps)
Insulation Type
CM3-SP02ERS
RS232C/422/485
Direct Communication between Each Ports (RS-232C/RS422)
Use Protocol Special Program to Communicate
Use CIMON-PLC HMI Protocol to Communicate
Use MODBUS RTU Protocol to Communicate
Use Connect Function in CICON to Control PLC
Communicate with Slave Devices that Uses MODBUS RTU Protocol
8 bits
1 or 2 bit
Even / Odd / None
Asynchronous
300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400
RS232C : N/A
RS422/485 : Photo Coupler Insulation
▪
▪
▪
▪
▪
▪
▪
▪
▪
»
Ethernet Module
Specification
Service
Loader
HMI Protocol
MODBUS TCP Slave
MODBUS TCP Master
Protocol Special Program
High-Speed
PLC Link
DHCP
Model
Media Interface
Transmission Speed
Max. Distance (Node to Node)
Service Capacity
CM3-SP01EET
10BASE-T
100BASE-TX
10/100 M
100 m
UDP, TCP : 12 Service
Yes (UDP)
Yes (TCP, UDP)
Yes
Yes
Yes (TCP, UDP)
Yes
Yes
PLC-S Series
Follows IEEE802.3 standard and supports ARP, ICMP, IP, TCP,
UDP protocols
Operates with CIMON-SCADA to support DHCP
Supports MODBUS TCP Master function to communicate with
third-party devices
High-speed linkage to communicate along CIMON PLC’s and
supports up to 64 simultaneous communications
Features
▪
▪
▪
▪
▪
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
6564
RS232 RS485
Protocol Program
RS485
High Speed Link
MODBUS Protocol
Ethernet
DDNS Server : Static IP
CIMON SCADA
(Dynamic/Static IP)
CIMON PLC
(Dynamic IP)
CIMON PLC
(Dynamic IP)
DHCP Server DHCP Server DHCP Server
CIMON PLC
(Dynamic IP)
CIMON SCADA
(Dynamic/Static IP)
DDNS Server : Static IP
DDNS Server Redundancy
Internet
System Configuration
Total Network Solution
Dynamic IP System
»
»
Serial Module
2 Channels of RS-232C
Read and write data by HMI protocol
Supports wide range of communication speed
(300 bps ~ 38400 bps)
RS232C communication ports are available by setting up
independent channel or linked channel
Supports universal protocol
MODBUS RTU Master function is built-in for an easy
acquisition of data from third-party devices
(MODBUS RTU Slave)
Features
Specification
Comm. Method
Operation Mode
Data Type
Null Modem
Protocol
Special
Program
HMI
Protocol
MODBUS
Protocol
Graphic
Loader
Protocol
MODBUS
Master
Program
Data Bit
Stop Bit
Parity
Model
Interface
Synchronization
Transmission Speed (bps)
CM3-SP02ERR
RS232C 2 channels
Direct Communication between Each Ports
Use Protocol Special Program to Communicate
Use CIMON-PLC HMI Protocol to Communicate
Use MODBUS RTU Protocol to Communicate
Use Connect Function in CICON to Control PLC
Communicate with Slave Devices that Uses MODBUS RTU Protocol
8 bits
1 or 2 bit
Even / Odd / None
Asynchronous
300 / 600 / 1200 / 2400 / 4800 / 9600 / 19200 / 38400
▪
▪
▪
▪
▪
▪
»
PLC-S Series
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
6766
»
»
Cable Standard
Impedance
Electrostatic capacity
Conductor sectional area
108 ~ 132 Ω (f = 3 to 20 MHz)
< 30 nF/Km2
≥ 0.34 mm2 (22 AWG)
Cable #1 Cable #2
68 ~ 102 Ω (f > 800 KHz)
< 70 nF/Km2
≥ 0.34 mm2 (22 AWG)
Features of Cable
Transmission Distance
»Dimensions
Cable #1
Cable #2
1000
10
Baud (Kbps)
700
500
100
350
400
250
250
200
500
100
50
1000
40
Master
Master Master
Master
Slave Slave
Max. 64
Max. 64
Max. 64
Max. 64
Master
Slave Slave
Max. 64
»System Conguration
Remote I/O
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
About CIMON-NET
Specication
»
»
Real time control of diffused I/O
Supports various I/O of 16 point and 32 point units
Available to install up to a maximum of 64 devices
Save on installation and maintenance costs
Easy system set-up with a convenient system, repair and maintenance configurations
Simple communication programming – special program of dialog form –Autoscan function is offered through CICON
Integration of CPU, power, I/O, communication function in one module provides a convenient all-in-one solution
Checks communication condition of long distance module through monitor
Built-in Auto Baud Rate function so that an extra settings for communication speed is unnecessary
Supports various communication speed (10K/20K/50K/80K/100K/125K/250K/500K/1000Kbps)
Prevents noise from the communication line through insulation of communication diagnostic
Built-in LED for diagnostic functions (Power, Module, Line condition)
»Communication Specication
Standard
Transmission
Standard
Interface
Media Access
Topology
Cable
Comm. Distance
Max. Number of Node
Max. I/O Data
Model Performance Standard
ISO11898
CAN BUS
POLL
Bus method
Twisted Pair Shielded Cable
1000 m (10 kbps)
500 m (100 kbps)
200 m (500 kbps)
40 m (1000 kbps)
63
8 byte
Exchange real time data with CN01M module through the highly reliable CANbus
I/O Specication
Item Input Output Mixed Module
DC (Sink/Source) Transistor (Sink) DC (Sink / Source) Transistor (Sink)
Point
Power
I/O Voltage / Current
Response
Time
Off -> On
On -> Off
Common Method
Current Consumption
External Connection Method
Movement Signal
Inner Circuit
Model
Insulation
32 points 32 points 16 points 16 points
DC24V
DC 24 V / 7 mA DC 24 V / 0.5 A DC 24 V / 7 mA DC 24 V / 0.5 A
3 ms or less
3 ms or less
2 ms or less
2 ms or less
3 ms or less
3 ms or less
2 ms or less
2 ms or less
16 points / COM
300 mA
32 points / COM
350 mA
16 points / COM
400 mA
Terminal Connertor
LED LED LED LED
Photo Coupler Insulation
Sink / Source Sink Sink / Source Sink
RC-XD32A RC-YT32A RC-XY32DT
※ RC-XD32A and RC-YT32A modules are custom-built modules
»
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
6968
Stress-free programming by simply setting up a dialog box for special functions instead of writing a complicated
ladder program. (communication set-up, positioning, PID, protocol program, etc.)
▪
①
Easy management of project files
②
Automatically detects special cards info
③
Present processing condition shown in the
message window
④
Convenient editing by keyboard shortcuts
①
②
③
④
Program conversion
between IL-LD
User-friendly interface for editing and modifying the program
Supports various types of communication methods such as CPU Loader, RS232C/422/485 and Ethernet
Debugging function and system diagnosis
CICON Engineering Software
▪
▪
▪
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
7170
PID operation condition shows as a trend type.
PID tuning is available by controlling ON-OFF.
PID auto tuning
Check PID input and current values constantly in dialog box.
▪
▪
▪
Constant monitoring of the PLC status
Fast and accurate error dectection for each cards
Reserving the I/O
Compares and detects a card and checks if the card is inserted or not
Testing functions and programs is possible without connecting to a physical PLC by CICON Simulator
CICON Engineering Software
▪
▪
▪
▪
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
7372
Included Accessories (PEK- 408)
»Included Accessories (PEK- 308)
»
Power Cable
CM0-CBL15 1.5m Loader Cable
User Manual
RS 232C Cable, Cross Cable
Installation CD
(CICON, XpanelDesigner, Sample Programs)
▪
▪
▪
▪
▪
Power Cable
USB Loader Cable
CM0-TB32M PLC-S Terminal Block
CM0-SBC15M Main Block I/O Cable
User Manual
Installation CD
(CICON, XpanelDesigner, Sample Programs)
▪
▪
▪
▪
▪
▪
MODULE Model Function
CPU CM1-CP4A 16k step Program Memory Capacity
Power CM1-SPC Voltage Output 5 V / 24 V / +15 V / -15 V
Base CM1-BS08A 8 slot Base
Digital Input CM1-XD32C 32 point Input
Digital Output CM1-YT32B 32 point Source Output
CM1-YR16A 16 point Relay Output
Analog Input CM1-AD08V 14 bit 8 ch Voltage Analog Input
Analog Output CM1-DA04V 14 bit 4 ch Votage Analog Output
Communication CM1-SC02A RS232C / RS422 / RS485
CM1-EC01A 10 Mbps Ethernet
High-Speed Counter CM1-HS02B 200 kpps 2 ch
PEK- 408 Training Kit Conguration
»
MODULE Model Function
CPU CM3-SP32MDF
10K step Program Memory Capacity with Built-in Functions (HSC, Positioning, etc)
Digital Input/Output CM3-SP32EDT 16 points Input, 16 points TR Output
Digital Input/Output CM3-SP32EDT 16 points Input, 16 points TR Output
Analog Input/Output CM3-SP04EAA 16 bit 2 ch Voltage / Current Input, 16 bit 2 ch Voltage / Current Output
RTD CM3-SP04ERO 16 bit 4 ch RTD
PEK-308 Training Kit Conguration
»
Training Kit
To learn the basics of a PLC
To train the user’s ability to operate a PLC used in an actual setting
To learn the data link system usage between PLC to PLC
To train the user’s ability to apply PLC instructions
To learn controlling ability of analog signals
Understand different conguration methods
(RS232C / RS422 / RS485 / Ethernet)
Trains the user’s ability to congure eld surveillance control and
management
features
▪
▪
▪
▪
▪
▪
▪
Training Kit Purpose
»
Features
»
PEK-408 uses CP-series PLC modules and PEK-308 uses PLC-S series PLC modules
Can experiment with different types of high performance modules
Using CICON, user can practice various functions
Extra devices are not needed to operate the training kit
PEK-408 includes toggle switches, push buttons, output lamps and a simulation load display
PEK-308 includes 4” Xpanel HMI, toggle switches, output lamps and servo motor
PID control exercise available
Remote control and monitoring through the HMI software
Comes with a handbook and practice exercises
Understand different conguration methods (RS232C / RS422 / RS485 / Ethernet)
Trains the user’s ability to congure eld surveillance control and management features
Built-in level meter to check the input and output of analog signals (PEK-408)
High-speed counter to control the RPM detection (PEK-408)
Can experiement with temperature measurement functions with a built-in RTD module (PEK-308)
Servo motor for practicing positioning function of the PLC (PEK-308)
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
▪
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
7574

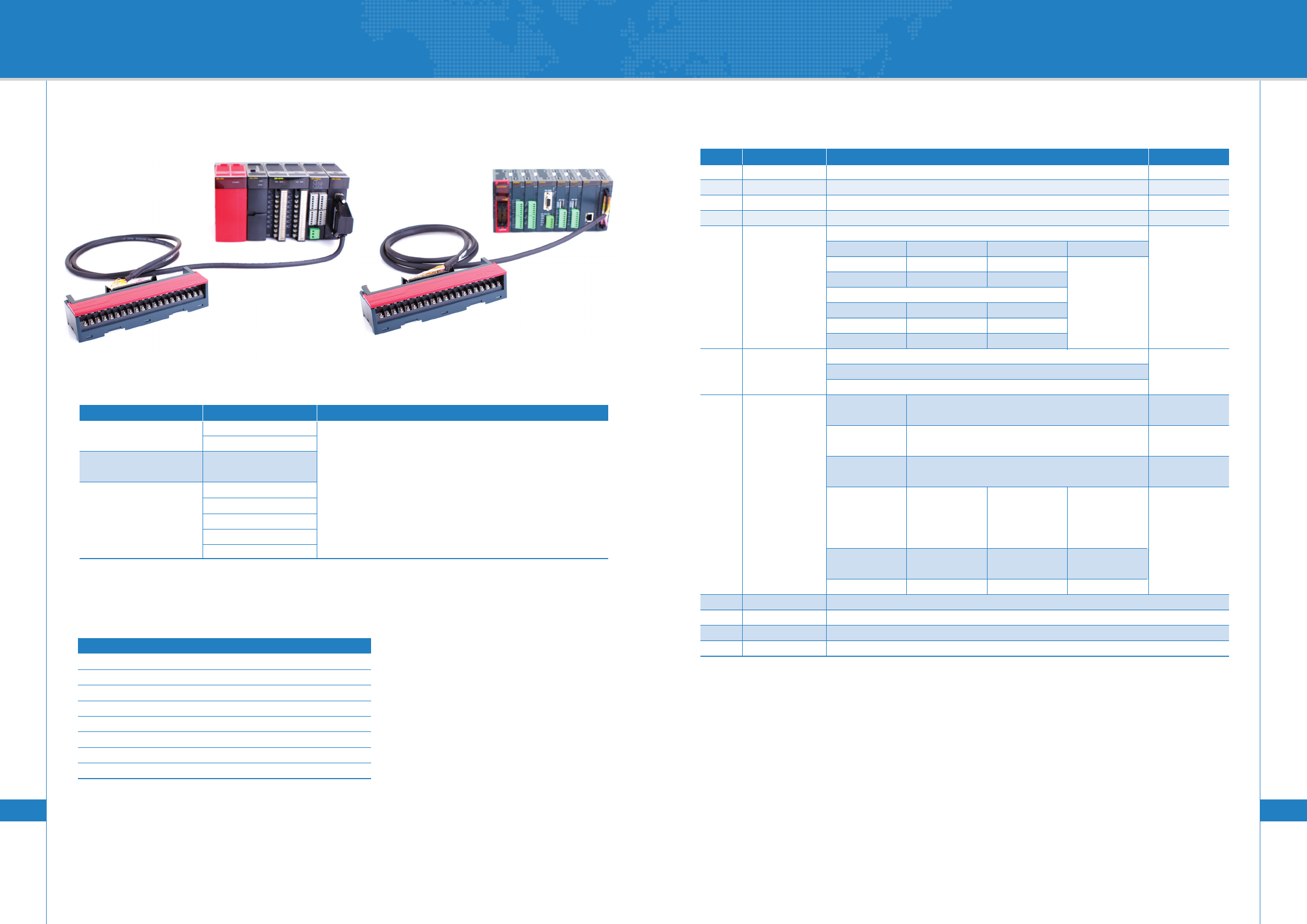

PLC Specifications
IEC(International Electrotechnical Commission): The IEC is the world’s leading organization that publishes international
standards for all electrotechnical and related technologies
Pollution degree 2 is nonconductive pollution of the sort where occasionally a temporary conductivity caused
by condensation must be expected.
▪
▪
CIMON PLC General Specication
»
Reference
»
No. Item Description Standard
1 Ambient Temp -10
℃
~ 65
℃
2 Storage Temp -25
℃
~ 80
℃
3 Ambient Humidity 5 ~ 95 % RH, Non-Condensing
4 Storage Humidity 5 ~ 95 % RH, Non-Condensing
Occasional Vibration
Frequency Acceleration Pulse Width Time
10 ≤ f < 57 Hz - 0.075 mm
5 57 ≤ f ≤ 150 Hz 9.8 m/s2 {1G} - IEC 61131-2
Continuous Vibration
Frequency Acceleration Pulse Width
10 ≤ f < 57 Hz - 0.035 mm
57 ≤ f ≤ 150 Hz 4.9m/s2 {0.5G} -
■ Peak acceleration : 147m/s2 {15G}
6 Impact Resistance ■ Duration : 11 ms IEC 61131-2
■ Pulse waveform : half-sine 3 times each direction X,Y,Z
± 2,000 V
±4 KV IEC 61131-2,
IEC 1000-4-2
27 ~ 500 MHz, 10 V / m IEC 61131-2,
IEC 1000-4-2
7 Noise Resistance
Digital I/O
Division Power Module Digital I/O (less than 24V)
(more than 24V) Analog I/O IEC 61131-2,
Comm. Interface IEC 1000-4-2
Fast transient 2 kV 2 kV 0.25 kV
/ burst noise
Isolation 2 kV / min 2 kV / min 0.5 kV / min
8 Operating Ambience Free from Corrosive Gases and Excessive Dust
9 Altitude Up to 2000m
10 Pollution Level Less than Equal to 2
11 Cooling Air Cooling
Vibration
Resistance
Radiated
Electromagnetic
Field Noise
Electrostatic
Discharge
Square Wave
Impulse Noise
10 times each
direction X,Y,Z
KDT standard
Accessories
Cable Applications
»
Cable Model Applied Module Terminal Block
CM3-SP32MDT
CM3-SP32EDT
CM3-SP32EDO
CM3-SP32EOT
CM1-XD32C
CM1-YT32A
CM1-YT32B
CM1-HS02C
CM1-HS02S
CM0-SCB15M
CM0-SCB15E
CM0-SCB15I
CM0-TB32M
Accessories
»
Model
Dummy Module for empty slot (CM0-DM)
ROM-pack type CPU Flash Memory (CM1-FM512)
Connector cover for empty slot (CM0-BSCVR)
CPU batter for data back up (CM0-BAT)
Remote I/O connector (RP-DPC01A)
Loader cable (CM0-CBL15/30)
Expansion Cable for XP/CP cable (CM0-CBE05/10/15)
Expansion cable for BP series (CM2-CBE05)
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
7776

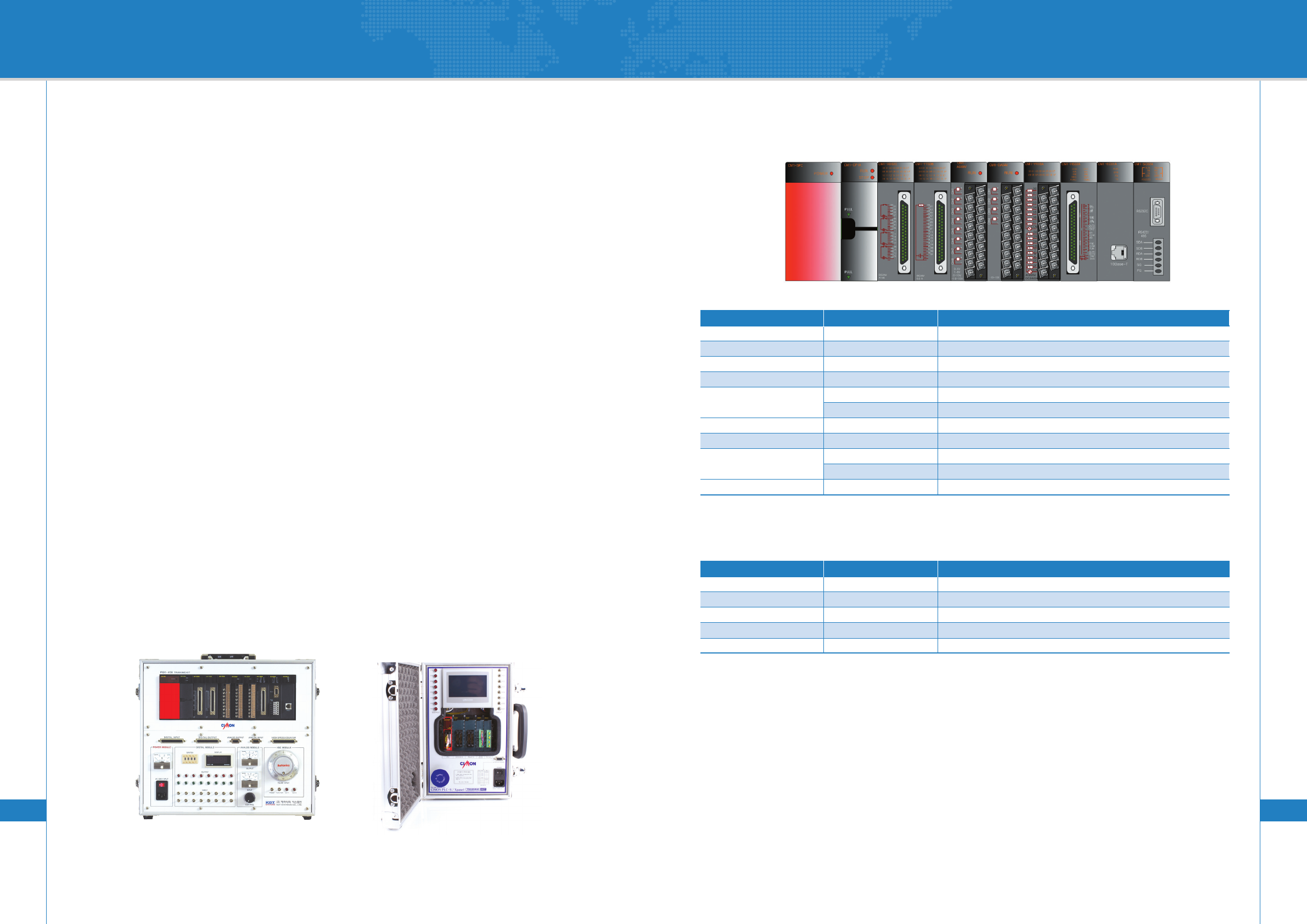

Base
»
Type Model Description
Base
CM1-BS03A
CM1-BS04A
CM1-BS05A
CM1-BS08A
CM1-BS10A
CM1-BS12A
3 slot Base
4 slot Base
5 slot Base
8 slot Base
10 slot Base
12 slot Base
Type Model Description
AI
AO
CM1-AD04VI
CM1-AD08V
CM1-AD08I
CM1-AD04W
CM1-DA04V
CM1-DA04VA
CM1-DA08V
CM1-DA08VA
CM1-DA04I
CM1-DA08I
AD 14 bit/ 4 ch/ Current & Voltage Input
AD 14 bit/ 8 ch/ Voltage Input
AD 14 bit/ 8 ch/ Current Input
AD 16 bit/ 2.1 ms Sampling / 4 ch/ Current & Voltage Input
DA 14 bit/ 4 ch/ Voltage Output -10~+10V
DA 14 bit/ 4 ch/ Voltage Output 0~+10V
DA 14 bit/ 8 ch/ Voltage Output -10~+10V
DA 14 bit/ 8 ch/ Voltage Output 0~+10V
DA 14 bit/ 4 ch/ Current Output
DA 14 bit/ 8 ch/ Current Output
Analog I/O Module
»
Type Model Description
DI-DO
DO-R
DO-TR
DI/O
CM1-XD16A
CM1-XD16B
CM1-XD16W
CM1-XD32B
CM1-XD32C
CM1-XD64C
CM1-YR16A
CM1-YT16A
CM1-YT16B
CM1-YT32A
CM1-YT32B
CM1-YT64A
CM1-XY16DR
DC 24V Input/ 16 pts/ Sink & Source/ ON Voltage 19V/ OFF Voltage 11V
DC 24V Input/ 16 pts/Sink & Source/ ON Voltage 15V/ OFF Voltage 12V
DC 100V Input/ 16 pts/Sink & Source/ On Voltage 80V/ OFF Voltage 50V
DC 24V Input/ 32pts/ Sing & Source/ ON voltage 15V/ OFF Voltage 12V
DC 24V Input/ 32pts/ Sing & Source/ ON voltage 19V/ OFF Voltage 11V
DC 24V Input/ 64pts/ Sing & Source/ ON voltage 19V/ OFF Voltage 11V
Relay Output/ 16 pts/ 2A
TR Output/ 16 pts/ 0.5A SINK
TR Output/ 16 pts/ 0.5A SOURCE
TR Output/ 32 pts/ 0.2A SINK
TR Output/ 32 pts/ 0.2A SOURCE
TR Output/ 64 pts/ 0.2A SINK
DC 24V Input 8 pts/ Relay Output 8 pts
Digital I/O Module
»
CIMON-PLC Line-up
Power Module
»
Type Model Description
Power supply
CM1-SPA
CM1-SPC
CM1-SP2B
CM1-SPW
5V 3.5A/ 24V 0.5A AC100V~240V
5V 3A/ +15V 0.5A/ -15V 0.2A/ 24V 0.2A AC100V~240V
5V 3.5A/ +15V 0.5A/ -15V 0.3A DC24V
5V 3A/ +15V 0.5A/ -15V 0.2A/ 24V 0.2A DC70V~110V
Redundancy
»
Type Model Description
CPU
Comm.
I/F
Exp.
Redundancy Base
Redundancy
Power Supply
CM1-XP1R
CM1-RC01A
CM1-RM01A
CM1-EP03A
CM1-BS05R
CM1-BS08R
CM1-BS10R
CM1-SPR
CM1-RPW
128K step/ 32 bit/ 75 ns/ 8192 pts/ Expandable/ RTC/ Floating Point Calculation/ Redundancy
10 Mbps Redundancy Communication Module
Dual I/F Master/Standby Setting - Redundancy Interface Module
10 Mbps 3 ports Expansion Module
5 slot Dual Power Base
8 slot Dual Power Base
10 Slot Dual power Base
Redundancy Power Supply 5V 3A/ +15V 0.5A/ -15V 0.2A/ 24V 0.2A AC100V~240V
Redundancy Power Supply Status Monitoring Module
CPU Module
»
Type Model Description
High Speed CPU
CPU
+ Comm.
+ Comm.
+ Comm.
CM1-XP1A
CM1-XP2A
CM1-XP3A
CM1-CP3A
CM1-CP3B
CM1-CP3U
CM1-CP3P
CM1-CP4A
CM1-CP4B
CM1-CP4C
CM1-CP4D
CM1-CP4U
128K step/ 32bit/ 75 ns/ 8192 pts/ Expandable/ RTC/ USB Port/ Floating Point Calculation
64K step/ 32 bit/ 75 ns/ 4096 pts/ Expandable/ RTC/ USB Port/ Floating Point Calculation
64K step/ 32 bit/ 75 ns/ 2048 pts/ Expandable/ RTC/ USB Port/ Floating Point Calculation
32K step/ 16 bit/ 1024 pts/ Expandable
32K step/ 16 bit/ 1024 pts/ Expandable/ RTC
32K step/ 16 bit/ 1024 pts/ Expandable/ RTC/ USB Port
32K step/ 16 bit/ 1024 pts/ Expandable/ RTC/ Flash ROM Pack
16K step/ 16 bit/ 384 pts
16K step/ 16 bit/ 384 pts/ RTC
16K step/ 16 bit/ 384 pts/ RTC/ RS232C Port
16K step/ 16 bit/ 384 pts/ RTC/ RS422/485 Port
16K step/ 16 bit/ 384 pts/ RTC/ RS422/485 Port/ USB Port
Type Model Description
Expansion CM1-EP01A
CM1-EP02A
10 Mbps 1 port - Single-Expansion Module
10 Mbps 2 port - Multi-Expansion Module
Expansion Module
»
CIMON-XP/CP Series
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
7978
CIMON-PLC-S Series
No. Model Type Description
1
2
3
4
5
6
7
8
9
10
11
12
CM3-SP32MDT
CM3-SP32MDT-SD
CM3-SP32MDTV
CM3-SP32MDTV-SD
CM3-SP32MDTE
CM3-SP32MDTE-SD
CM3-SP32MDTF
CM3-SP32MDTF-SD
CM3-SP16MDR
CM3-SP16MDRV
CM3-SP16MDRE
CM3-SP16MDRF
TR Output
(DC Power)
Relay Output
(DC power)
DI16/DO16, USB Loader, RS232C 1ch
DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch
DI16/DO16, USB Loader, RS232C 1Ch, RS485 1ch
DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch, RS485 1ch
DI16/DO16, USB Loader, RS232C 1Ch, Ethernet 1ch
DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch, Ethernet 1ch
DI16/DO16, USB Loader, RS232C 1ch, Ethernet 1ch, RS485 1ch
DI16/DO16, USB Loader, SD/MMC Card Slot, RS232C 1ch, Ethernet 1ch, RS485 1ch
DI 8/DO 8(Relay), USB Loder/RS232 1ch
DI 8/DO 8, USB Loder, RS232 1ch, RS485 1ch
DI 8/DO 6, USB Loader, RS232C 1ch, Ethernet 1ch
DI 8/DO 6, USB Loader, RS232C 1ch, Ethernet1ch, RS485 1ch
Main-Block
»
1
2
3
4
CM3-SP32EDO
CM3-SP32EOT
CM3-SP32EDT
CM3-SP16EOR
DI-32
DO-32
DI-16/DO-16
DO-16
DI 32pts, DC 24V
DO 32pts. DC 24V (TR)sink
DI 16pts, DO 16pts, (TR)sink
DO 16pts, Relay Output
Digital Expansion-Block
»
No. Model Type Description
1
2
3
4
5
6
7
AI-4
AIO-4
AI-4
AO-4
MUX
AI 4ch Current Voltage
AI 2ch Current Voltage/AO 2ch Current Voltage
AI 4ch RTD
AI 4ch TC
AO 4ch Current Output
AO 4ch Voltage Output
4ch MUX
Analog Expansion-Block
CM3-SP04EAO
CM3-SP04EAA
CM3-SP04ERO
CM3-SP04ETO
CM3-SP04EOAI
CM3-SP04EOAV
CM3-SP04EAM
»
No. Model Type Description
1
2
3
CM3-SP02ERS
CM3-SP01EET
CM3-SP02ERR
Comm.
Comm.
Comm.
RS232C 1ch, RS422/485 1ch
Ethernet 1ch
RS232C 2ch
Comm. Expansion-Block
»
No. Model Type Description
1
2
3
CM0-TB32M
CM0-SCB15M
CM0-SCB15E
SP32MDT
SP32MDT
SP32EDO
SP32EOT
Multi-Terminal
Main Block 1.5M Cable
I/O 32pts. 1.5M Cable
Accessories
»
No. Model Type Description
Type Model Description
RTD
TC
CM1-RD04A
CM1-RD04B
CM1-TC04A
4 ch (PT100, JPT100)
4 ch (PT1000)
4 ch (Thermocoupler)
RTD & TC Module
»
Type Model Description
HSC
Load Cell
Data Logger
Positioning
Communication
CM1-HS02C
CM1-HS02E
CM1-WG04A
CM1-WG02C
CM1-WG02D
CM1-WG02E
CM1-LG32A
CM1-PS02A
CM1-SC02A
CM1-SC01A
CM1-SC01B
CM1-SC01DNP
CM1-EC01A
CM1-EC10A
CM1-EC10B
CM1-EC10C
CM1-EC01DNP
CM1-PD01A
CM1-BN01A
2 ch High-Speed Counter Module (pulse in)/ 2 output/ch 200kpps
2 ch High-Speed Counter Module (pulse in)/ 2 output/ch 500kpps
4 ch Load Cell Module/ Strainguag/ 1/10000 Resolution/ 3.6mV/V
2 ch Load Cell Module/ Strainguage/ 1/40000 Resolution/ 2mV/V (Standard)
2 ch Load Cell Module/ Strainguage/ 1/40000 Resolution/ 2mV/V (High Speed Weighing)
2 ch Load Cell Module/ Strainguage/ 1/40000 Resolution/ 3.6mV/V (Wide Range)
32 Mbytes Data Logging Module
2 axis Positioning Module/ Open Collector Type
Serial Module (RS232C, RS422/485)
Serial Module (RS232C)
Serial Module (RS422/485)
Serial Module (RS232C, DNP 3.0)
Ethernet Module/ 10 Mbps/ UDP/IP/ TCP/IP(Slave)/ 10BaseT
Ethernet Module/ 10/100 Mbps/ UDP/IP/ TCP/IP(Master)/ 100BaseT
Ethernet Module/ 100 Mbps/ UDP/IP/ TCP/IP/ Fiber Optic
Ethernet Module/ 100 Mbps/ UDP/IP/ TCP/IP/ 100BaseT/ DHCP Supported
Ethernet Module/ 10 Mbps/ DNP3.0 Single Host
(Fieldbus) Profibus Communication Module
Bacnet I/F Module/ 10base-T
Special Module
»
Type Model Description
Dummy
Memory
Loader Cable
I/O Cable
Expansion Cable
Base Slot Cover
Battery
Profibus Comm. I/O Connector
CM0-DM
CM1-FM512
CM0-CBL15
CM0-CBL30
CM0-SCB15I
CM0-CBE05
CM0-CBE10
CM0-CBE15
CM0-BSCVR
CM0-BAT
RP-DPC01A
Dummy
Flash Memory Pack for CM1-CP3P (512 kbytes)
1.5 m Graphic Loader PC Connection Cable
3 m Graphic Loader PC Connection Cable
1.5 m I/O Cable
0.5 m, CP Expansion Module Connection Cable
1 m, CP Expansion Module Connection Cable
1.5 m, CP Expansion Module Connection Cable
Base Slot Cover
Battery
Profibus Comm. I/O connector for connection
Accessories
»
CIMON-PLC Line-up
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
8180
Type Model Description
AI-4
AIO-4
AO-4
AI-4
CM2-BP04EAO
CM2-BP04EAA
CM2-BP04EOA
CM2-BP04ERO
CM2-BP04ETO
AI 4 ch Current Voltage
AI 2 ch Current Voltage / AO 2 ch Current Voltage
AO 4 ch Current Voltage
AI 4 ch RTD
AO 4 ch TC
Analog Expansion-Block
»
Type Model Description
RS232
RS422
RS422x2
RS232
Ethernet
CM2-BP32MDxx-R
CM2-BP32MDxx-S
CM2-BP32MDxx-U
CM2-BP32MDxx-T
CM2-BP32MDxx-E
HMI Protocol only
HMI/ User/ Loader/ PLC Link/ Modbus Master & Slave
HMI/ User/ Loader/ PLC Link/ Modbus Master & Slave
HMI/ User/ Loader/ PLC Link/ Modbus TCP (Slave)
Communication Protocol Option Guideline
»
Training Kit
Type Model Description
Kit PEK-408
PEK-308
CP type PLC Training Kit
PLC-S + Xpanel Training Kit
Remote I/O (CIMON-NET)
Model Distribution Standard
Input
Output
Mixed
Input, DC24V 32points(Sink/Source combined). photo coupler insulation(custom-built module)
Output, TR Sink 32points, 0.5Amp, Photo coupler insulation(custom-built module)
I/O, DC24V 16points(Sink/Source combined), 0.5Amp, TR Sink 16points
RC-XD32A
RC-YT32A
RC-XY32DT
CIMON-PLC Line-up
Type Model Description
DI/DO
DI-16
DO-16
CM2-BP16EDC
CM2-BP16EDR
CM2-BP32EDC
CM2-BP32EDR
CM2-BP16EDO
CM2-BP16EOR
CM2-BP16EOT
CM2-BP16EOC
DI 8 pts DC 24V/ DO 8 pts TR (Source)
DI 8 pts DC 24V/ DO 8 pts Relay
DI 16 pts DC 24V/ DO 16 pts TR (Source)
DI 16 pts DC 24V/ DO 16 pts Relay
DI 16 pts DC 24V
DO 16 pts Relay
DO 16 pts TR (Sink)
DO 16 pts TR (Source)
Digital Expansion-Block
»
Type Model Description Option
Main Block
(AC90~240V)
Main Block
(DC24V)
CM2-BP32MDTA
CM2-BP32ADTA
CM2-BP32BDTA
CM2-BP32MDCA
CM2-BP32ADCA
CM2-BP32BDCA
CM2-BP32MDRA
CM2-BP32ADRA
CM2-BP32MDTD
CM2-BP32ADTD
CM2-BP32BDTD
CM2-BP32MDCD
CM2-BP32ADCD
CM2-BP32MDRD
CM2-BP32BDRD
DI 16 pts DC 24V/ DO 16 pts TR(Sink)
AI 2 ch / AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)
AI 2 ch RTD /AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)
DI 16 pts DC 24V / DO 16 pts TR (Source)
AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Source)
AI 2 ch RTD/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Source)
DI 16 pts DC 24V/ DO 16 pts Relay
AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts Relay
DI 16 pts DC 24V/ DO 16 pts TR (Sink)
AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)
AI 2 ch RTD/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Sink)
DI 16 pts DC 24V/ DO 16 pts TR (Source)
AI 2 ch/ AO 2 ch/ DI 8 pts DC 24V/ DO 8 pts TR (Source)
DI 16 pts DC 24V/ DO 16 pts Relay
AI 2 ch RTD/ AO 2ch/ DI 8 pts DC 24V/ DO 8 pts Relay
R: RS232C 1ch
S: RS422/485 1ch
E: Ethernet 1ch
U: RS422/485 2ch
T: RS232C 1ch
C: RTC
Main-Block
»
Type Model Option
Description
Main Block
(AC90~240V)
Main Block
(DC24V)
CM2-BP16MDRA
CM2-BP16MDTA
CM2-BP16MDCA
CM2-BP16MDRD
CM2-BP16MDTD
CM2-BP16MDCD
R: RS232C 1 ch
S: RS422/285 1 ch
DI 8 pts DC 24V/ DO 7 pts Relay
DI 8 pts DC 24V/ DO 7 pts TR Sink
DI 8 pts DC 24V / DO 7 pts TR Source
DI 8 pts DC 24V / DO 7 pts Relay
DI 8 pts DC 24V / DO 7 pts TR Sink
DI 8 pts DC 24V / DO 7 pts TR Source
Micro Main-Block
»
CIMON-BP Series
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
8382
110
110-240VAC
Unit : mm
Power Module
CPU Module
I/O Module
Model Weight Model Weight
CM1-XD16A 158g CM1-AD04VI 193.5g
CM1-XD32C 121g CM1-AD08I 195.5g
CM1-XA08* 168.5g CM1-AD08V 194.5g
CM1-YR16A 202g CM1-DA08I 219g
CM1-YS08A 202.5g CM1-DA08V 197.5g
CM1-YT16* 159.5g CM1-RD04A 194.5g
CM1-YT32* 122g CM1-TC04A 200.5g
CM1-EC01* 111.5g CM1-SC*** 118.5g
Model Weight
CM1-SP* 278.3g
CM1-SP2B 270.5g
Model Weight
CM1-CP* 132g
PAUSE
Unit : mm
Unit : mm
XP/CP
※
Comm. module and other module's dimension is same as IO module.
CIMON-PLC Dimensions
PLC-S
plc
plc
CIMON Total Solution for Industrial Automation CIMON Total Solution for Industrial Automation
8584
»
»
BP
CH1 -
CH1 I+
CH1 V+
CH2 -
CH2 I+
CH2 V+
BP04E
CH3 I+ CH4 I+
CH3 -CH4 -
CH3 I+ CH4 I+
BP32M
LOADER
Main Block, 32 Points Expansion Block
Main Block (BP 16M), 16 Points Expansion Block, Analog Block
CIMON-PLC Dimensions
CM1-BS03A Weight : 298.5g CM1-BS04A Weight : 353.5g
CM1-BS05A
Weight : 412g
CM1-BS08A
Weight : 573.5g
CM1-BS10A
Weight : 685g
CM1-BS12A
Weight : 802.5g
85
85
85
85
85
85
110.5
110.5
110.5
110.5
110.5
110.5
165.65 197.85
230.05
326.65
391.05
455.45
Unit : mm
XP/CP Base
Distributed by Anaheim Automaon, Inc.
USA Stock in Anaheim, CA
1-800-345-9401
www.anaheimautomaon.com
CIMON
CIMON
PLC
