CIMON
CIMON
XPANEL
Durable Reinforced Plastic Applied
The improved heat resistant and shock resistant properties of the case safely
protects the electrical components of the product.
High Quality LED Display
Low-power, low-heat and full-brightness make it the most powerful and
vivid high-definition HMI in the market.
Variety of Interfaces
Ethernet, Serial (RS232/485), USB Host/Tool, SD card slot included.
(except for some models)
Convenient and Powerful Designing Tool
powerful features, such as infinite tag database, various communication drivers,
more than 20,000 graphic library objects, and user-friendly interface make
it very suitable for industrial applications.
Auto Page Resize
Same projects can be used on all XPANEL
with different resolution and size.
Easy-to-use Script Editor
Excellent applicability with a C language
based macro editor.
Project Protection Function
Non-authorized personnel cannot extract
the project from an XPANEL.
Real-time Data Logging
The reports can be saved as CSV files
onto the internal memory, SD card, or
USB memory card, and it can be viewed
in Microsoft EXCEL.
Unbreakable
Security Control
Protects the system safely from
unauthorized access with
10 security levels.
Intelligent Self-Diagnosis
Function
Easy monitoring of the current status
of XPANEL with system status logging
capabilities and communication frame
monitoring function.
Resistive touchscreen
panel for durability
and accuracy
Powerful and Versatile Communication
Supports Serial communication (RS232, RS485/422)
and Ethernet communication as standard, and Provides
more than 200 communication drivers of major equipment
used all around the world for an easy and flexible network
solution.
Easy Connection
with Peripherals
Multi-Language
Supported
Supports every language from
around the world to be able to
easily integrate the project
anywhere in the world.
USB Scanner USB Keyboard USB Printer
Variety of Graphic Object Library
Provides more than 20000 kinds of graphic objects
for visually pleasing projects.
State-of-the-art
High-Definition Display
Supports 262,000 FULL COLOR SVGA for
delicate graphic tasks and the full-brightness
and high-definition LED display that brings
the pictures to life.
Painless Project Download/Upload
Ultrafast CPU Processor
Equipped with high-speed industrial
CPU which has low-power consumption
and low-temperature operation for
complex operations and fancy graphic
processing.
Operating Temperature of 0℃~60℃
Reliable operation even in extreme conditions of industrial environment.
A
B
C
XPANEL
200MHZ
400MHZ
500MHZ
Max 800MHZ
SD Card USB USB Cable Ethernet
CIMON-XPANEL
Experience Ultimate Performance Beyond the Norm
Easy Operating Environment
Convenient Project Download
Flexible
High-speed CPU embedded
Large memory size and user storage
- XT04/07 128MB, XT10/12 256MB DDR2 SDRAM
- 128MB SLC NAND Flash
- Multiple page components and objects
High-quality color expression up to 16.7M colors
High-resolution display up to Max 1024 x 768
▪
▪
▪
▪
Based on Windows CE /
Windows Embedded Compact 7
Manages the project data by Activesync or Mobile Device Center
▪
▪
Project les downloadable through XpanelDesigner
Easy project downloading through USB cable /
Ethernet cable / SD memory card / USB memory
▪
▪
Supports SD memory card
Provides various communication drivers and if requested,
wanted drivers can be developed for free
Enables to connect to various external deices through USB
Easy to manage by built-in maintenance functions
▪
▪
▪
▪
SD Card USB USB Cable Ethernet
Comfortable Network Environment
Supports various communication interface
- Built-in 10/100M Ethernet port (except XT04CD-DN, XT07CD-AN/DN)
- Two built-in serial ports
Excellent Scalability
- Built-in USB(Host) port which enables to connect to USB devices such as keyboard, mouse, USB storage, etc.
- Built-in SDHC card slot (except XT04CD, XT07CD-AN/DN)
Integrated Networking Solutions
- Operates up to 3 communication ports concurrently (2 serial, 1 ethernet)
- All models support multi-drop networking : RS485 port, 10/100M Ethernet port
- Easy communication with other CIMON-Xpanels or CIMON-SCADA
- Convenient communication with other monitoring devices or software by MODBUS RTU/TCP slave
- Various drivers supported
▪
▪
▪
Item Description
Permitted Voltage DC24V or AC100-240V
Ambient Temperature 0
℃
~ 60
℃
Storage Temperature -10
℃
~ 60
℃
Ambient Humidity 10%RH ~ 90%RH(Non-condensing, wet bulb temperature: 39oC max.
Storage Humidity 10%RH ~ 90%RH (Non-condensing, wet bulb temperature: 39oC max
800hPa ~ 1114hPa(Up to 2000m/6,500ft)
Dust 0.1mg/m3 or less
Pollution Degree Less than equal to Pollution degree 2
Corrosive gases Free from corrosive gases
IEC61131-2 Compliant
Occasional Vibration
Vibration Resistance 10Hz to 75Hz 0.075mm, 57Hz to 150Hz 9.8m/s2
Continuous Vibration
10Hz to 57Hz 0.035mm, 57Hz to 150Hz 4.9m/s2
X,Y,Z directions for 10 cycle (80min.)
Noise resistance ± 2kV, 1uS
Contact Discharge 4kV (IEC61000-4-2)
Air Discharge 8kV
Electrostatic Discharge
Immunity
Air Pressure Vibration Resistance
(Availment altitude)
General Specication
»
CIMON-XPANEL
User-Friendly Workspace
Designing tool for Xpanel is called Xpanel Designer
Development environment is similar to CIMON-SCADA.
Various ways to download / update the project ( USB, Ethernet Loader, Removable Disk)
▪
▪
▪
Easy to insert images using the Clipboard
▪
Animation Editor
▪
- External graphic images can be imported/
exported by using windows clipboard.
- Supports transparent color function
- Supports image compression
- Supports 24bit bitmap image
- User can create his own animation object
- Provides the simulator for animation object
- Newly made animation can be added to
the library
- Supports 24bit bitmap image
Convenient Switch/Lamp Object
▪
- Simple mouse operations provide the switch
and lamp functions
- Up/down action is divided in the switch function
- Up to 256 steps can be dened in the lamp function
- Provides 8000 part palette
- All the address data can be identied and
modied in the database
- Database compatible with Excel
-
Easy to exchange the project to other devices
Simple and Easy Database Manager
▪
CIMON-XPANEL

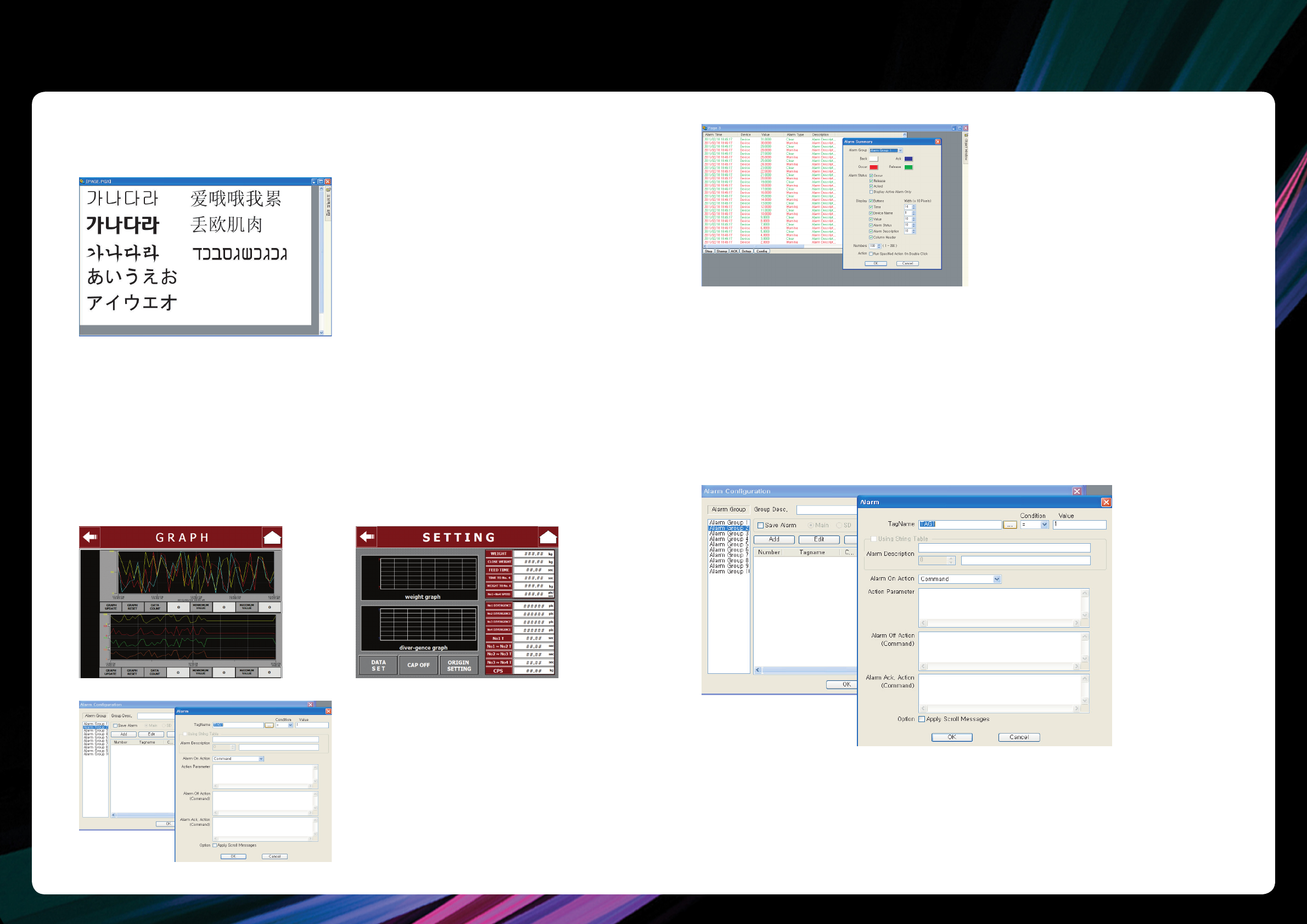

Supports a Variety of Special Function
Supports multi-language and various fonts
- Enables the use of installed fonts from Windows
- Supports unicode
▪
Provides various forms of trend
- YT, XY, Log, ST, SPC, Scope
- Enables to set a sampling period up to 100 ms
- Provides historical trend (YT, XY)
- Supports zoom feature (YT, XY)
- Save as a CSV le (YT, Log)
- Enables to display a data log (Scope)
- Supports special purpose trend (ST, SPC)
▪
Alarm
▪
- Supports 10 alarm groups
- Each alarm group stores up to 200 alarms
-
Depending on the set, the alarm will be saved at power-off
- Alarm summary displays alarm history on the screen
- desired status can be displayed on the screen
- Alarm on/off action can be specied
(supports open page/command expression)
-
Enables to change font and size of alarm summary object
- Provides alarm recognition functionalities
- Supports customized alarm summary control button
Script
- Scripts are activated to execute by event, time period or function call
- Supports script language of C syntax
- Internal script function can control the advanced features of Xpanel
- Enables to call user-dened function
▪
Data Log
▪
- Enables to create up to 32 data blocks (each data block can store up to 2048)
- Collected data through data collect object can be displayed on table
- Collected data through scope trend can be displayed on graph
CIMON-XPANEL

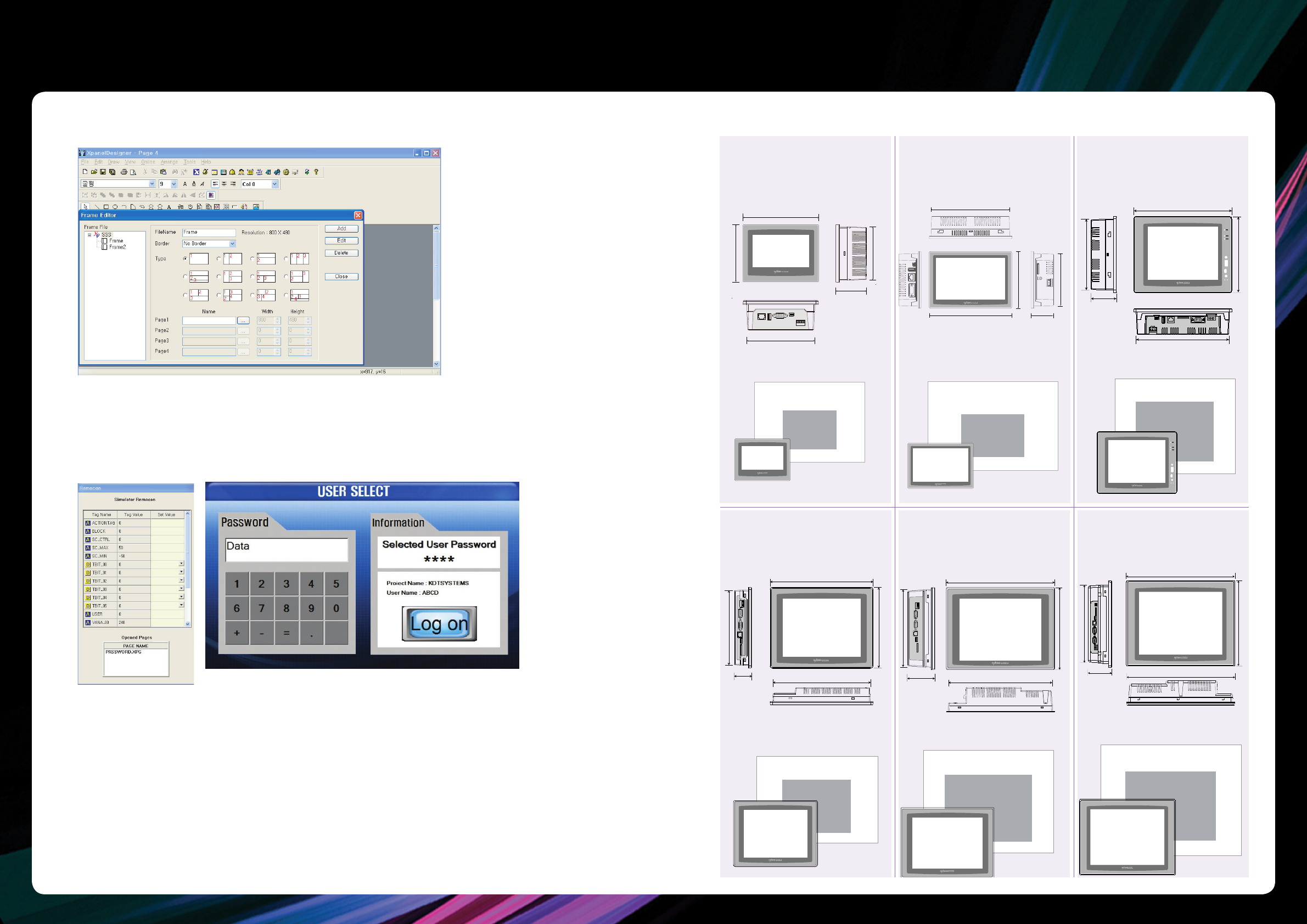

Frame Editor
▪
Simulator
▪
Frame Editor
- Provides split-screen
- The structure and the size of the frame can be edited
- Provides various forms of frame
▪
- Provides split-screen
- The structure and the size of the frame can be edited
- Provides various forms of frame
- Enables to precheck the project on the PC without the Xpanel
- Enables to modify the tag value on the simulator remote control window
- Runs on the PC with the same resolution as the real screen
- Enables to check the scripts and the alarm
Unit : mm
Dimension
XT10CD
Dimensions
▪
Panel cut
▪
XT08CD
Dimensions
▪
Panel cut
▪
Panel cut
▪
XT07CD
Dimensions
▪
XT04CD
Dimensions
▪
Panel cut
▪
XT12CD
Dimensions
▪
Panel cut
▪
XT15CD
Dimensions
▪
Panel cut
▪
176
185 50
127
119
177
Panel
59.5
215
227.5
118
176.5
166
217
Panel
128
94
120
Panel
118
50
92
102
310
381
395
382
297
Panel
250
238
330
318
319
239
83
Panel
206
280
266
267
207
47
Panel
118
220
89
296
CIMON-XPANEL
Specication
»
XT04CD-DN XT07CD-AN
XT07CD-AEXT04CD-DE
XT07CD-DN
XT07CD-DE
Type XT04CD-DN XT04CD-DE XT07CD-DN XT07CD-AN XT07CD-DE XT07CD-AE
Panel Size 4.3" 7"
Resolution 480 x 272 800 x 480
LCD Color TFT
Color 262K Colors
Luminance 400 cd/m2
Memory 128MByte DDR2 SDRAM
Storage 128MByte SLC NAND Flash
Operating System Windows CE 6.0
Programming Tool (HMI) Xpanel Designer
Audio None 1 Port
Interface
Ethernet None
10/100 BaseT
None 10/100 BaseT
Serial (COM1) RS232C
Serial (COM2) RS422/485
Serial (COM3) None
USB Host 1 Port
Tool Port 1 Port (for Loader)
SD Card Slot None 1 Slot
Input Power DC24V DC24V
AC100-240V
DC24V
AC100-240V
Dimension(mm) 128 X 102 X 50 185 X 127 X 50
Panel Cut(mm) 120 X 94 177 X 119
XT08CD-A
XT08CD-D
XT10CD-A
XT12CD-A
XT15CD-A
XT10-CD-D
Type XT08CD-A XT08CD-D XT10CD-D XT10-CD-A XT12CD-A XT15CD-A
Panel Size 8" 10.4" 12.1" 15"
Resolution 800 x 600 1024 x 768
LCD Color TFT
Color 262K Colors 16.7M Colors
Luminance 350cd/m2400 cd/m2450 cd/m2400 cd/m2
Memory 128MByte DDR2 SDRAM 256MByte DDR2 SDRAM
Storage 128MByte SLC NAND Flash
Operating System
Windows CE 6.0 Windows Embedded Compact 7
Programming Tool (HMI) Xpanel Designer
Audio None
Interface
Ethernet 10/100 BaseT
Serial (COM1) RS232 RS422/485
Serial (COM2) RS422/485 RS232C
Serial (COM3) None RS232C
USB Host 1 Port
Tool Port 1 Port (for Loader)
SD Card Slot 1 Slot
Input Power AC100-220V DC24V AC100-240V
Dimension(mm) 227.5 X 176.5 X 59.5 280 X 220 X 47 330 X 250 X 83
395 X 310 X 89
Panel Cut(mm) 217 X 166 267 X 207 319 X 239 382 X 297

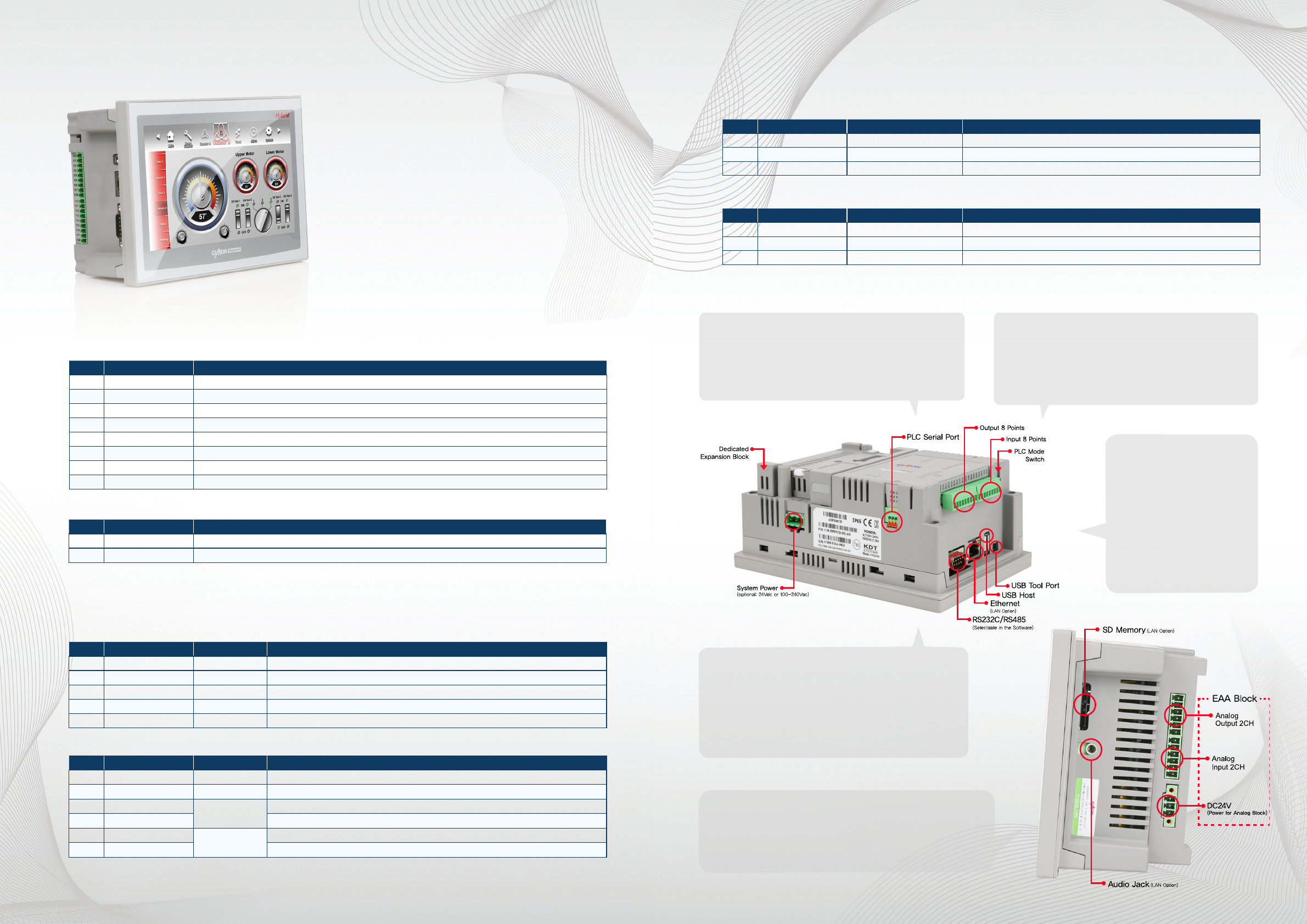

CIMON HYBRID XPANEL (HMI+PLC)
Cost effective solution with high performance
Reduce wiring and programming time
7” touch screen with Relay DI8/DO8
Ethernet & Serial (RS232/RS485) option
Modbus TCP, Modbus RTU
VNC Server
Maximum 3 PLC-S modules expansion
More than 2,000 images for application
HYBRID XPANEL LINE UP
No. Model Type
Specification
1CM3-SP32EDO DI-32 DI 32 pts, DC 24V
2CM3-SP32EOT DO-32 DO 32 pts. DC 24V TR (Sink)
3CM3-SP32EOC DO-32 DO 32 pts. DC 24V TR (Source)
4CM3-SP16EOR DO-16 DO 16 pts, Relay Output
5CM3-SP32EDT DI-16 / DO-16 DI 16 pts, DO 16 pts, TR (Sink)
Digital I/O
»
No. Model Type
Specification
1 CM3-SP04EAO AI-4 AI 4ch (0-5V, 1-5V, 0-10V, -10-10V, 0-20mA, 4-20mA)
2 CM3-SP04EAA AIO-4 AI 2ch / AO 2ch (0-5V, 1-5V, 0-10V, -10-10V, 0-20mA, 4-20mA)
3 CM3-SP04EOAI AO 4ch Current Output (4-20mA)
4 CM3-SP04EOAV AO 4ch Voltage Output (-10-10V, 0-10V)
5 CM3-SP04ERO 4ch RTD (PT100, JPT100, PT1000, NI1000)
6 CM3-SP04ETO 4ch TC (K, J, E, T, B, R, S, N)
»
Analog I/O & Temp. Measuring
No. Model Type
1CM-HP07CD-DNR XT07 + No LAN + PLC(CPU, RS232C), DC Type
2CM-HP07CD-ANR XT07 + No LAN + PLC(CPU, RS232C), AC Type
3CM-HP07CD-DNS XT07 + No LAN + PLC(CPU, RS485), DC Type
4CM-HP07CD-ANS XT07 + No LAN + PLC(CPU, RS485), AC Type
5CM-HP07CD-DER XT07 + LAN + PLC(CPU, RS232C), DC Type
6CM-HP07CD-AER XT07 + LAN + PLC(CPU, RS232C), AC Type
7CM-HP07CD-DES XT07 + LAN + PLC(CPU, RS485), DC Type
8CM-HP07CD-AES XT07 + LAN + PLC(CPU, RS485), AC Type
Option
»
No. Model Type
1CM-HP-DM Expansion dummy for Xpanel-Hybrid
2CM-HP-EAA Analog module (AI 2ch, AO 2ch) for Xpanel-Hybrid
AO-4
Temp.
VESA Wall Mount Ready
100X100mm standard VESA Wall Mount Hole is
equipped on the back for easy attachment to a
VESA mounting arm.
Expandible with PLC-S Modules
Existing PLC-S expansion modules work with
Xpanel Hybrid. (Maximum 2 PLC-S expansion
modules can be used)
The reliability required in the
PLC is equally applied to
Xpanel Hybrid.
Highly reliable vibration
resistance, temperature
resistance, surge resistance,
etc
High Reliability
USB Hub is built-in for simultaneous connection
with XpanelDesigner and CICON.
Every connection terminal is detachable for
convenient installation and maintenance.
Detachable PLC Terminal
Genuine PLC Integrated
A true PLC is integrated with HMI to support the full
functionalities of PLC-S and Xpanel.
»Communication
No. Model Type Protocol
1
CM3-SP02ERS RS232C 1ch, RS422/485 1ch CICON, CIMON HMI, MODBUS/RTU Slave & Master, Protocol Program
2
CM3-SP02ERR RS232C 2ch CICON, CIMON HMI, MODBUS/RTU Slave & Master, Protocol Program
3
CM3-SP01EET Ethernet (10BaseT, 100BaseTX) CICON, CIMON HMI, MODBUS/TCP Slave & Master, Protocol Program, DHCP
»Accessories
No. Model Type Protocol
1
CM0-TM32M SP32MDT Multi-Terminal
2
CM0-SCB15M SP32MDT Main Block 1.5M Cable
3
CM0-SCB15E SP32EDO, SP32EOT I/O 32pts. 1.5M Cable
PLC-S LINE UP
Distributed by Anaheim Automaon, Inc.
USA Stock in Anaheim, CA
1-800-345-9401
www.anaheimautomaon.com
CIMON
CIMON
XPANEL
