FEATURES

GENERAL SPECIFICATIONS

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

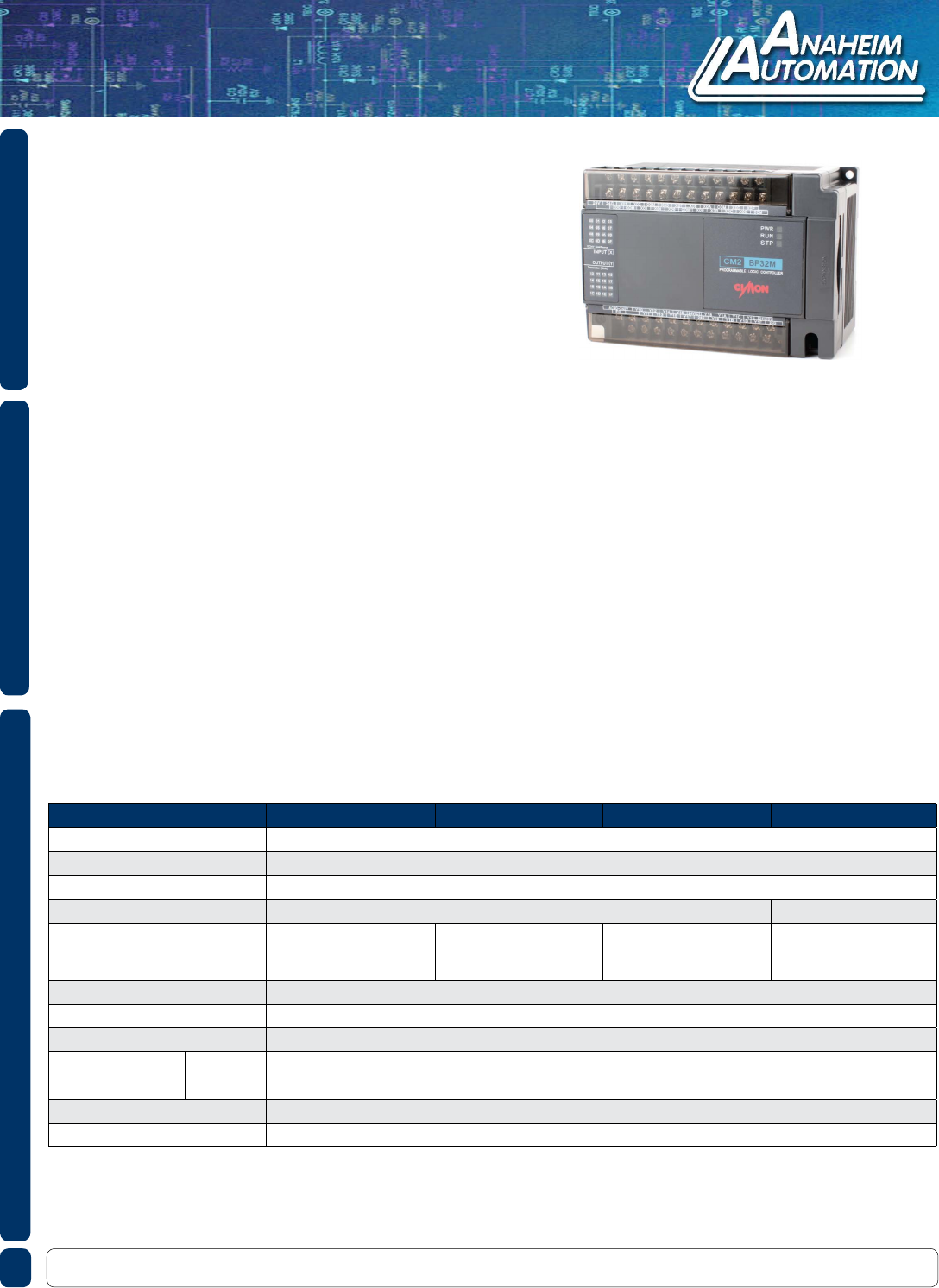

DESCRIPTION

The PLC-CPU-CM2-BP series is ideal for small applications requiring high processing speeds. The

CPU runs up to 200 ns/step and comes with the ability to connect up to 128 I/O expansion modules.

Built-in power, communication, and I/O points eliminate the need for any external units, simplifying

the set up process. The PLC-CPU-CM2-BP unit is available with 1 or 2 RS232C channels, 1 or 2

RS422/485 channels, and the option of Ethernet. This CPU also provides the option of adding up to

2 additional analog blocks. Choose between an all digital I/O and all analog I/O. Additional features

include password protection for software infringement prevention, and self-diagnosis to detect errors

in Flash Memory, CPU or DRAM.

L011062

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP Series

• ProcessorSpeed:200ns/Step

• 8KStepsofProgramMemory

• SuitableforSmallScaleControl

• Built-inCommunicationOptions

 1or2RS232CChannels

 1or2RS422/485Channels

• Ethernet

• Upto2AnalogBlocksCanbeAdded(8Channels)

• Built-inHigh-SpeedCounter

• Upto3ExpansionBlocksCanbeAdded(Except

PLC-CPU-CM2-BP16MSeries)

Model PLC-CPU-CM2-BP32A PLC-CPU-CM2-BP32B PLC-CPU-CM2-BP32M PLC-CPU-CM2-BP16M

Power 100 ~ 240 VAC / 24 VDC

Digital Input 24 VDC

Digital Output Relay / Transistor Sink / Transistor Source

Expansion Option AD / DA / AD+DA / TC / IO (Max 3 Steps) Not Expandable

Standard I/O

DI: 8, DO: 8

AI (Voltage/Current): 2

AO (Voltage/Current): 2

DI: 8, DO: 8

AI (RTD): 2

AO (Voltage/Current): 2

DI: 16

DO: 16

DI: 8

DI: 7

Program Control Type Stored Program, Cyclic Operation, Time Driven Interrupt

I/O Control Type Indirect, Direct by Instructions

Program Language IL (Instruction List), LD (Ladder Diagram)

Instruction Sequence 62 Instructions

Application 308 Instructions

Processing Rate 200 ns/Step

Program Memory Capacity 8k Steps

PLC-S CPU PERFORMANCE SPECIFICATIONS

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

Key Description

X Input

M Sub Relay

T Timer

D Data Device

L Link Relay

F Special Relay

Y Output

K Keep Relay

C Counter

D Sub Data Device

S Step Control Relay

•BitData:[Device]+[CardNo.]+[BitNo.]

 -Device:X,Y,M,K,L,F,CardNo.:10Dec(Decimal).3Characters

 -BitNo.:16Hex.1Character

 -Ex)X0100->10Dec.(Word)+16Hex(LastBit)

 -:[10thAddressand0thbit

•WordData:[Device]+[CardNo.]

 -Device:D,Z,T,C,CardNo.:10Dec.4Characters

 -Ex)D0100->10Dec.(Word):[100thwordAddress]

•Timer,CounterOutput:[Device]+[CardNo.]

 -Device:T,C,BitNo.:10Dec.4Characters

 -Ex)T0100->10Dec.(Word):[T100thBitAddress]

•StepControllerI/O:[Device]+[CardNo.]+[.]+[StepNo.]

 -Device:S

 -CardNo.:10Dec.2Characters,StepNo.:10Dec.2Characters

 -Sxx.xx->xxis10Dec.(0~99)

•AssignBitDevicetoWord:[Device]+[CardNo.]+[0]

 -Device:X,Y,M,K,L,F,CardNo.:10Dec.3Characters

 -Ex)X010->10Dec.(Word),[X10thAddress]

L011062

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP Series

Self-Diagnosis and Built-In Functions

Type Function

Self-Diagnosis

Operation Delay Monitoring Stops PLC Operation in Case the Detected Time is Over the Set Time

Error in Memory Detected Errors in Flash Memory in a CPU or DRAM of Each Specialty Card

Power Trouble Detects Temporary Breakdown in Case Input Voltage is too Low

Built-In

Functions

High-Speed Counter 3 Kpps

PID Auto Tuning Executes Automatic PID Operation (Max. 32 Loops)

Password Programs Can be Password Protected

24 VDC Power Output Allows Controlling Sensors, Switches (300 mA), etc.

I/O Points

Model X Y M L K F T C S D Z

PLC-CPU-CM2-BP32M 128 128 4,096 1,024 1,024 2,048 256 256 100*100 5,000 1,024

PLC-CPU-CM2-BP16M 8 7 4,096 1,024 1,024 2,048 256 256 100*100 5,000 1,024

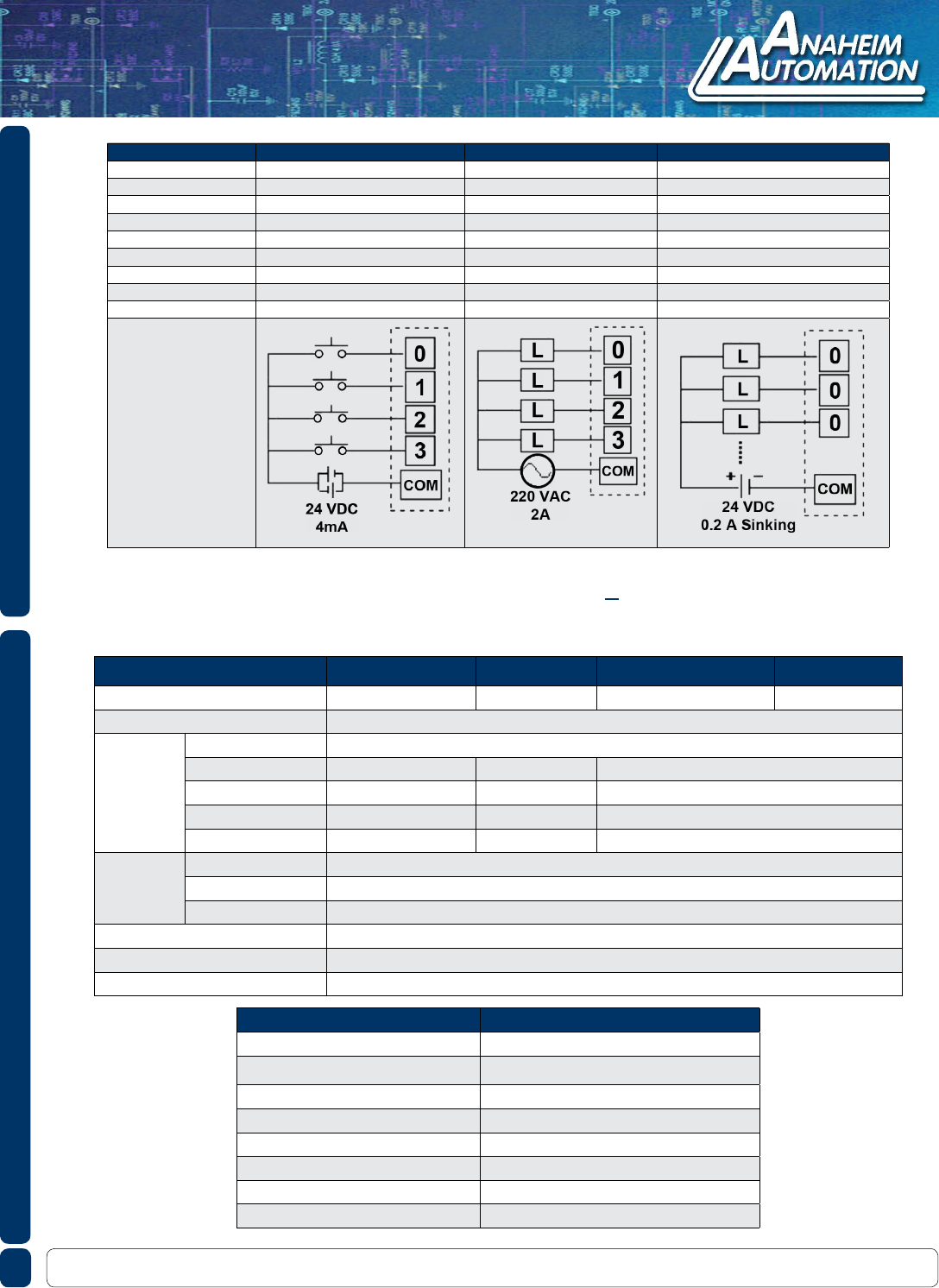

I/O SPECIFICATION

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

Items DC Input Relay Output TR Output

Rated Voltage I/O DC 24V AC 220V/ DC 24V DC 12V / 24V

Rated Current I/O 4mA 1 point 2A / COM 5A 1 point 0.2A, COM 2A

On V/A DC19V/3mA - -

Off V/A DC6V/1mA - -

Response Time 3ms or less 10ms or less 1ms or less

Operation Indicator Input ON, LED ON Input ON, LED ON Input ON, LED ON

Insulation Method Photo Coupler Insulation Relay Insulation Photo Coupler Insulation

Input Method Sink/SRC - -

Output Method - Relay Sink

Circuit Diagram

COMPONENTS

L011062

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP Series

Item RS232C 2 Ch. RS422/485 RS422/485 2 Ch. RS232C

Model *R *S *U *T

Power Supplied from CPU module

Comm.

mode

Exclusive HMI Protocol (1:n Support Communication)

Loader x x Loader Communication

User x x Protocol Program

MODBUS x x Master & Slave

PLC Link x x Supported

Data Type

Data Bit 7 or 8 bits

Spot Bit 1 or 2 bits

Parity Even / Odd / None

Synchronous Type Asynchronous

Transmission Speed 300 / 600 / 1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 38,400 / 76,800

Modem Connection Function Communication with an External Modem Unit

Item Ethernet

Model *E

Power Supplied from CPU Module

Standard 10 Base-T

Trasmission Speed 10 Mbps

Max. Segment Length 100 m (Node - Hub)

No. of Max. Nodes Enables to Link with 4-Line Hub

Max Protocol Size 1,500 Bytes

Comm. Access Method CSMA/CD

*Each module has the communication options listed below, just append the model letter to

the existing part number. E.G. PLC-CPU-CM2-BP32MDTA-R

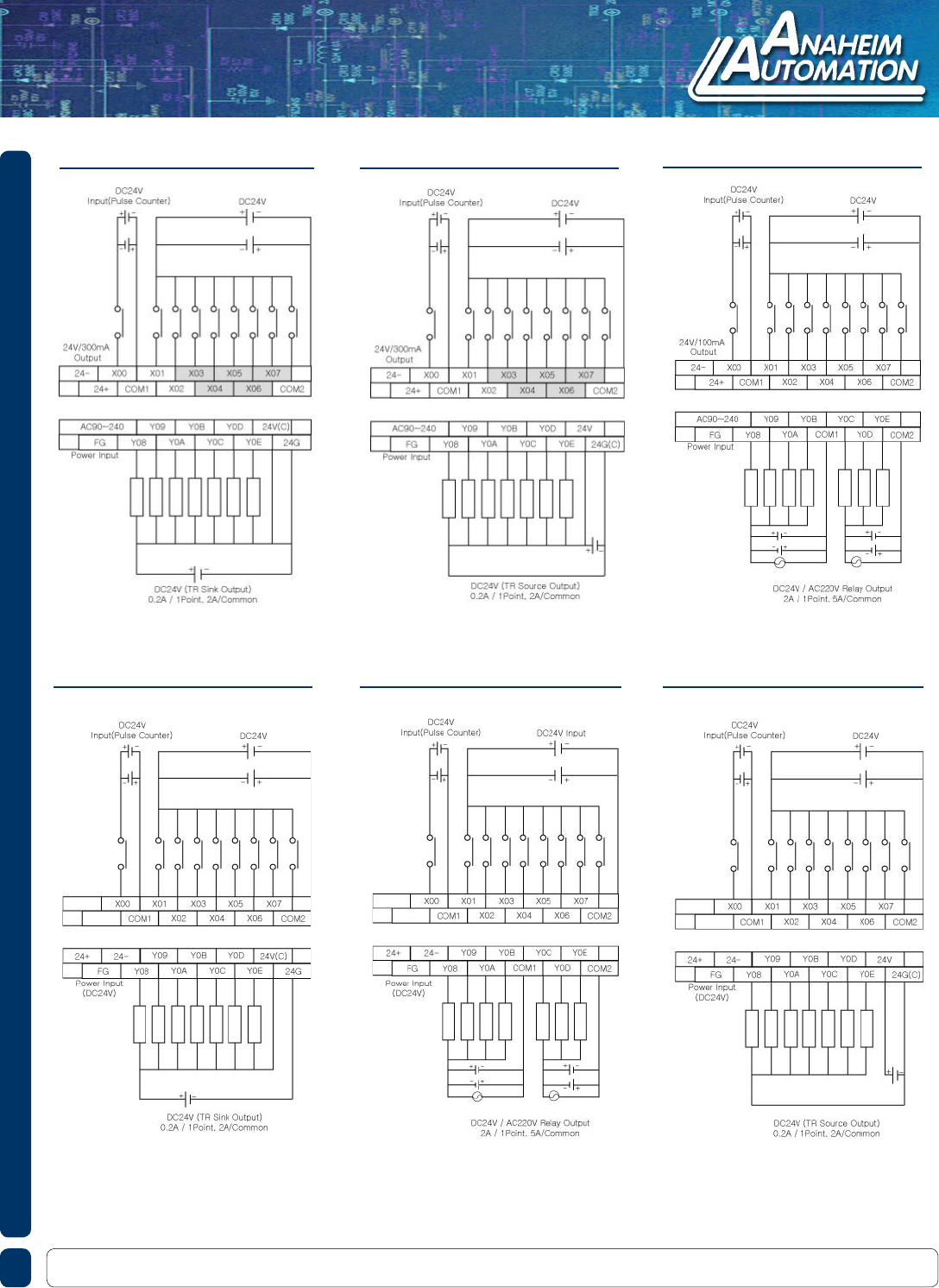

CPU EXTERNAL WIRING

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

L011062

PLC-CPU-CM2-BP32MDTA

PLC-CPU-CM2-BP32MDRA PLC-CPU-CM2-BP32MDTD

PLC-CPU-CM2-BP32MDCD PLC-CPU-CM2-BP32MDRD

PLC-CPU-CM2-BP32MDCA

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

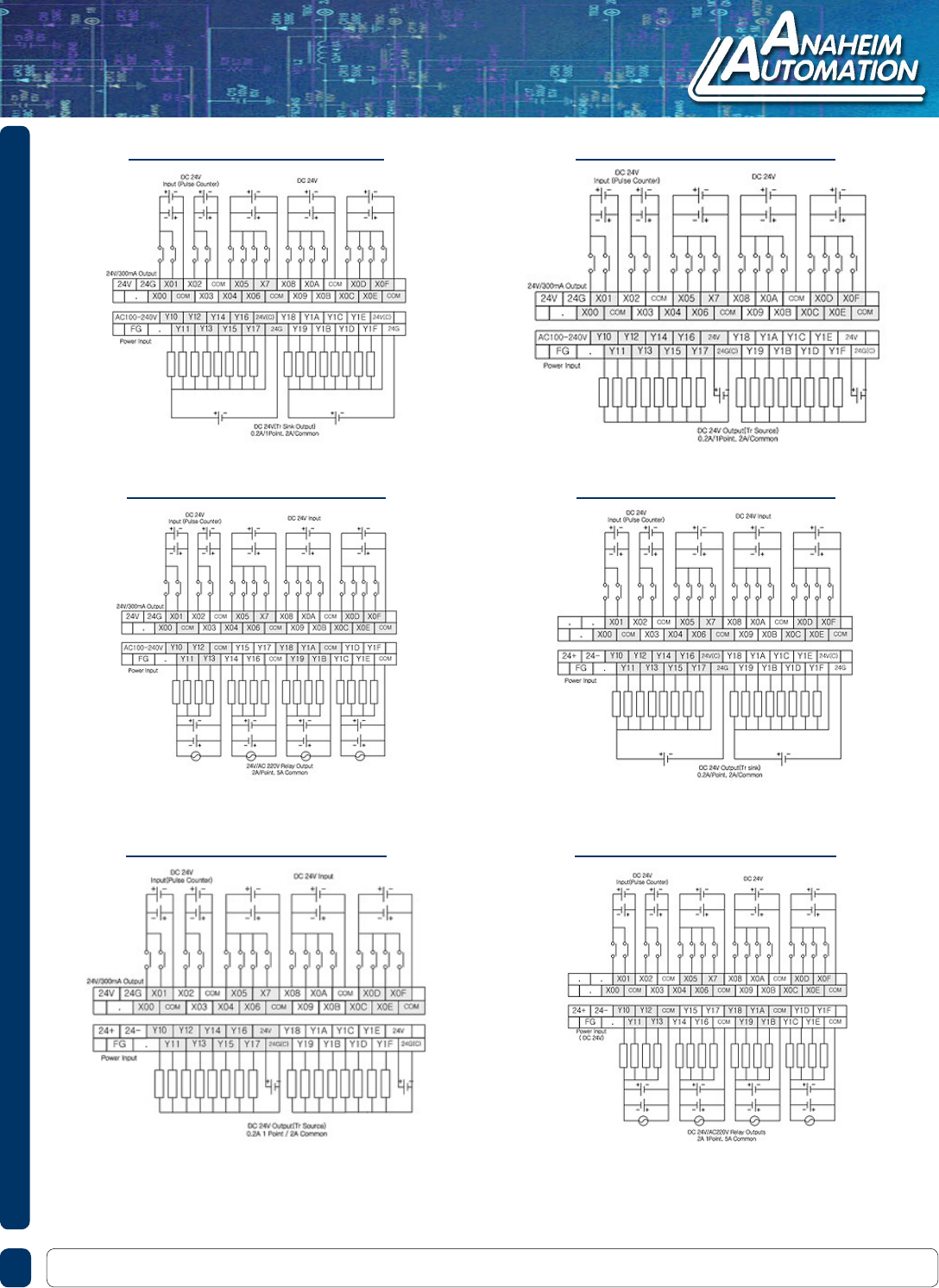

CPU EXTERNAL WIRING

L011062

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP16MDTA PLC-CPU-CM2-BP16MDCA PLC-CPU-CM2-BP16MDRA

PLC-CPU-CM2-BP16MDTD PLC-CPU-CM2-BP16MDRD PLC-CPU-CM2-BP16MDCD

ORDERING INFORMATION

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

L011062

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP Series

Model Power Input Output Comm. Option

PLC-CPU-CM2-BP32MDTA

100 ~ 240 VAC

16 24 VDC 16

TR (Sink)

R: RS232C

S: RS422/485

E: Ethernet (10M)

U: RS422/485 2 Ch.

T: RS232C 1 Ch.

PLC-CPU-CM2-BP32MDCA TR (Source)

PLC-CPU-CM2-BP32MDRA Relay

PLC-CPU-CM2-BP32MDTD

24 VDC

TR (Sink)

PLC-CPU-CM2-BP32MDCD TR (Source)

PLC-CPU-CM2-BP32MDRD Relay

PLC-CPU-CM2-BP16MDTA

100 ~ 240 VAC

8 24 VDC 7

TR (Sink)

R: RS232C

S: RS422/485

PLC-CPU-CM2-BP16MDCA TR (Source)

PLC-CPU-CM2-BP16MDRA Relay

PLC-CPU-CM2-BP16MDTD

24 VDC

TR (Sink)

PLC-CPU-CM2-BP16MDCD TR (Source)

PLC-CPU-CM2-BP16MDRD Relay

Model Power Input Output Analog Comm. Option

PLC-CPU-CM2-BP32ADRA

100 ~ 240 VAC

8 24 VDC 8

Relay 2 AI Ch.

(Voltage/

Current)

R: RS232C

S: RS422/485

E: Ethernet (10M)

U: RS422/485 2 Ch.

T: RS232C 1 Ch.

PLC-CPU-CM2-BP32ADTA TR (Sink)

PLC-CPU-CM2-BP32ADCA TR (Source)

PLC-CPU-CM2-BP32ADRD

24 VDC

Relay 2 AO CH.

(Voltage/

Current)

PLC-CPU-CM2-BP32ADTD TR (Sink)

PLC-CPU-CM2-BP32ADCD TR (Source)

PLC-CPU-CM2-BP32BDRA

100 ~ 240 VAC

Relay

2 RTD Ch.PLC-CPU-CM2-BP32BDTA TR (Sink)

PLC-CPU-CM2-BP32BDCA TR (Source)

PLC-CPU-CM2-BP32BDRD

24 VDC

Relay 2 AO Ch.

(Voltage/

Current)

PLC-CPU-CM2-BP32BDTD TR (Sink)

PLC-CPU-CM2-BP32BDCD TR (Source)

PLC-CPU-CM2-BP 32 M DTARC

I/O

Points

16

32

Module

Type

M Main

A Mixed

Input Type

D Digital

Output Type

TTransistor

(Sinking)

CTransistor

(Sourcing)

R Relay

Power Type

A100 ~

240 VAC

D 24 VDC

Communication Type

R RS232C

S RS422/485

U 2 RS422/485 Ch.

E Ethernet (10M)

T 1 RS232C Ch.

Real Time

Clock

CRTC

PLC-CPU-CM2-BP 32 A D R A R C

I/O

Points

16

32

Module

Type

M Main

A Mixed

Input Type

D Digital

Output Type

TTransistor

(Sinking)

CTransistor

(Sourcing)

R Relay

Power Type

A100 ~

240 VAC

D 24 VDC

Communication Type

R RS232C

S RS422/485

U 2 RS422/485 Ch.

E Ethernet (10M)

T 1 RS232C Ch.

Real Time

Clock

CRTC

Mixed Block Options

Main Block Options

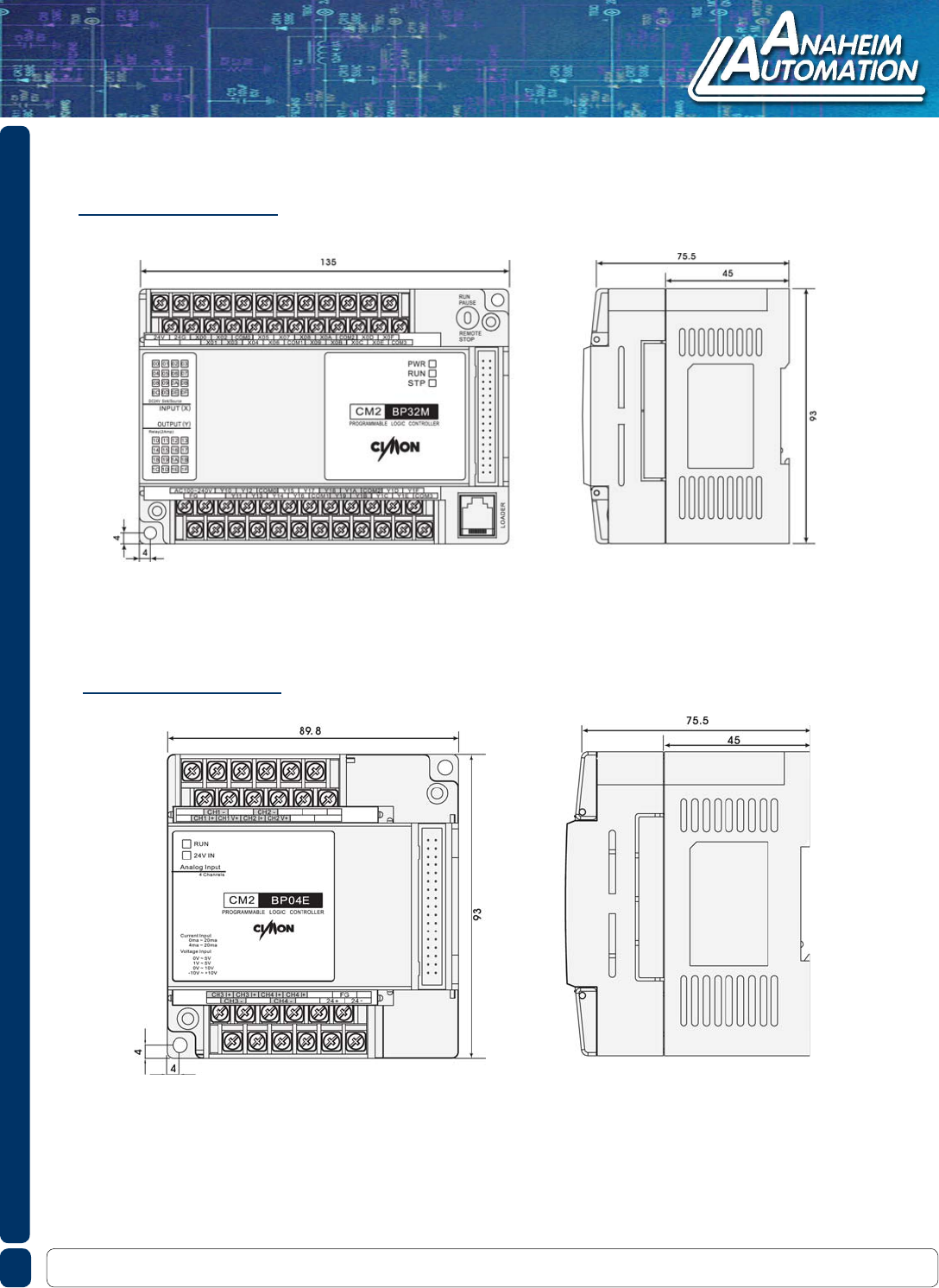

DIMENSIONS

910 East Orangefair Ln. Anaheim, CA 92801 Tel. (714) 992-6990 Fax. (714) 992-0471 www.anaheimautomation.com

L011062

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP Series

PLC-CPU-CM2-BP32

PLC-CPU-CM2-BP16

*All units are in mm
