L2650

SERVICEANLEITUNG

Service Manual. Manuel de Service. Manuale di Servizio.

Instrucciones de servicio. Service-instructies.

Concept L 26

Art.-Nr. 65421

Concept L 26 Basic

Art.-Nr. 65433

Concept L 32

Art.-Nr. 65422

Concept L 32

Art.-Nr. 65442

Concept L 32 Basic

Art.-Nr. 65434

230-90434.935

L 2650

Concept L 26 65421

2

Inhaltsverzeichnis

Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . 5

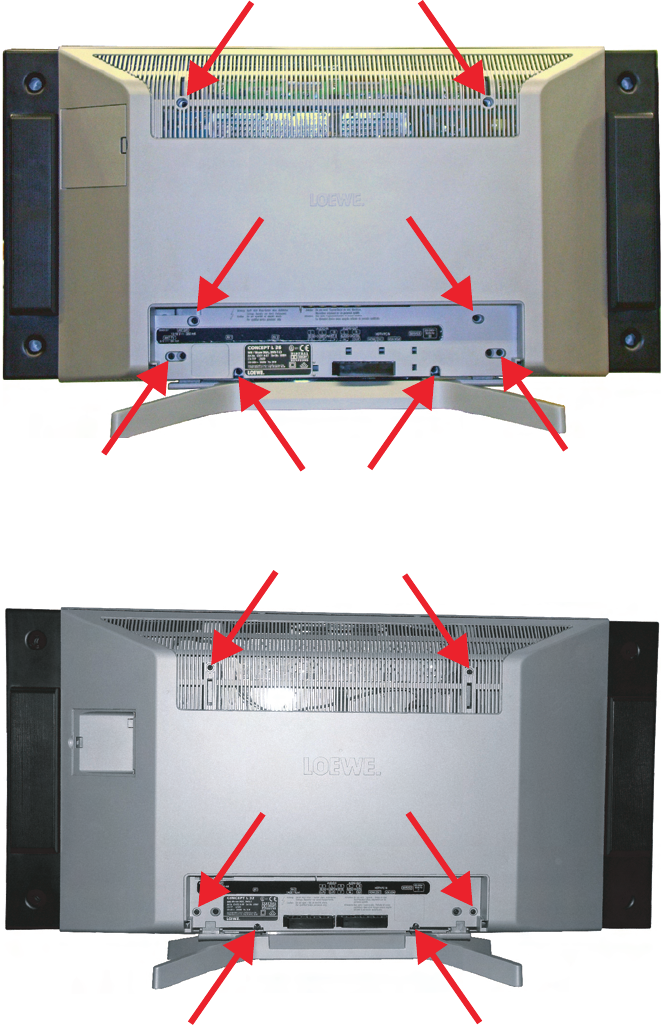

Demontage der Rückwand . . . . . . . . . . . . . . . . . . 8

Verkabelung Concept L 32 . . . . . . . . . . . . . . . . . . 9

Service Mode Befehle . . . . . . . . . . . . . . . . . . . 10

Option Bytes Tabelle . . . . . . . . . . . . . . . . . . . . 11

TV/Service Menü L2650 . . . . . . . . . . . . . . . . . . 13

Baugruppenübersicht . . . . . . . . . . . . . . . . . . . 17

Technische Daten Concept L 26 - L 32 . . . . . . . . . . 18

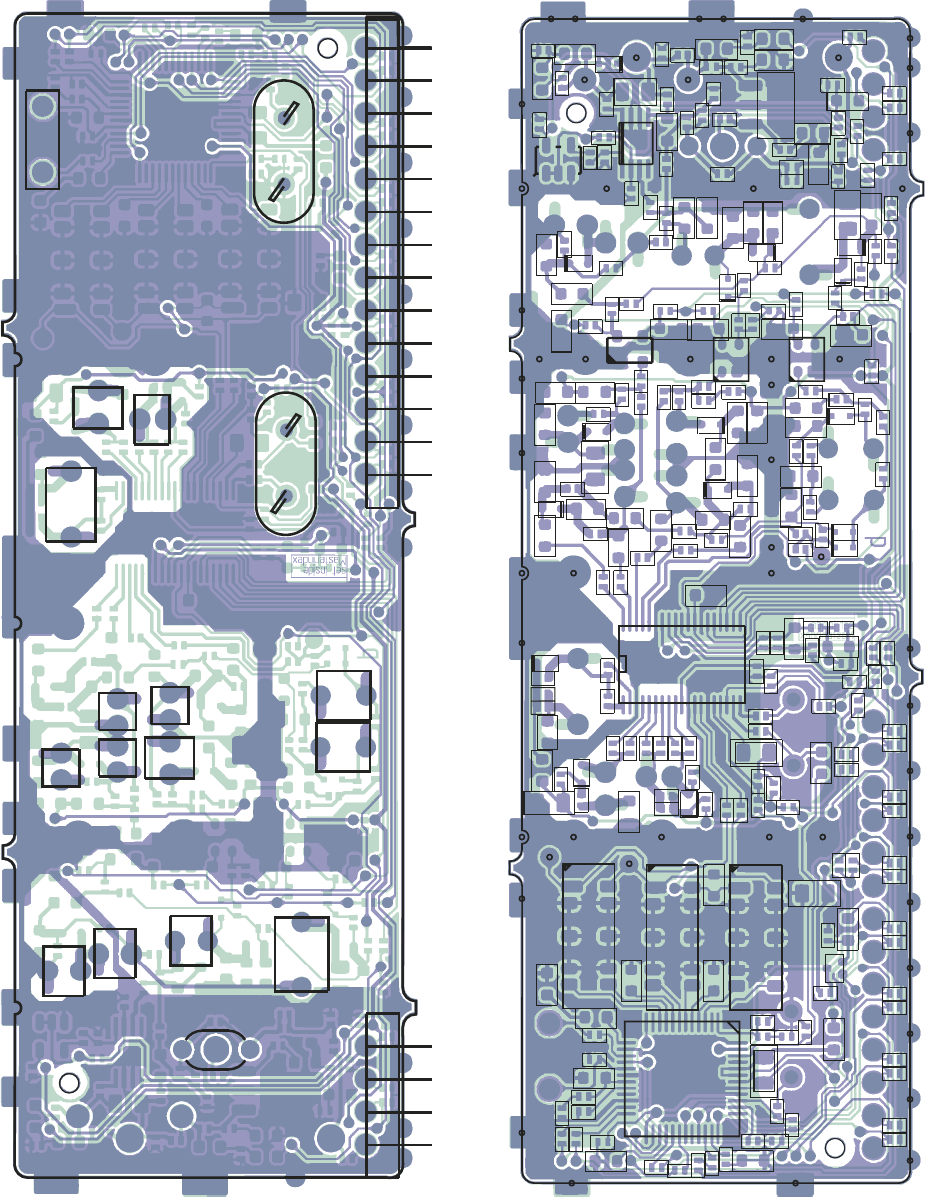

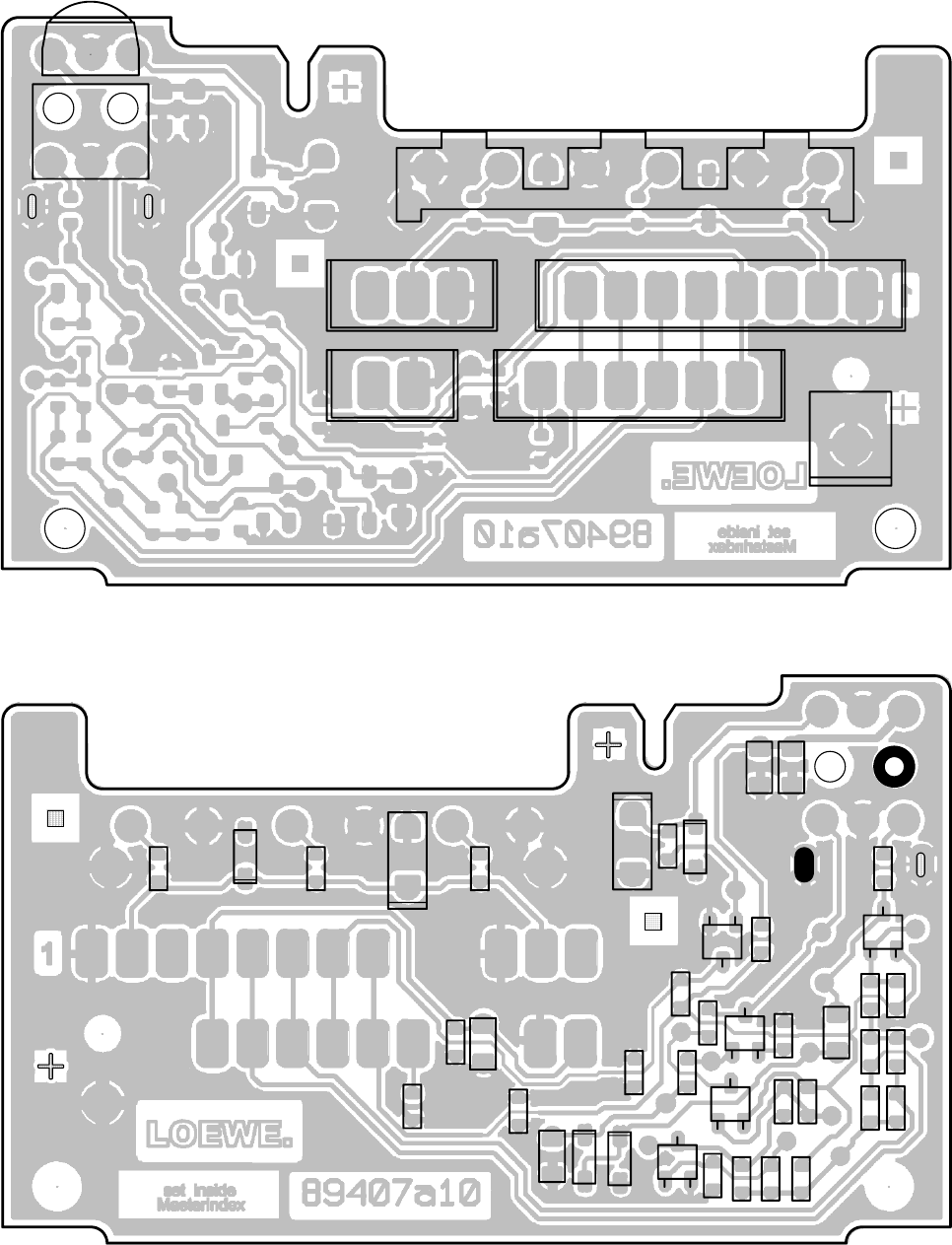

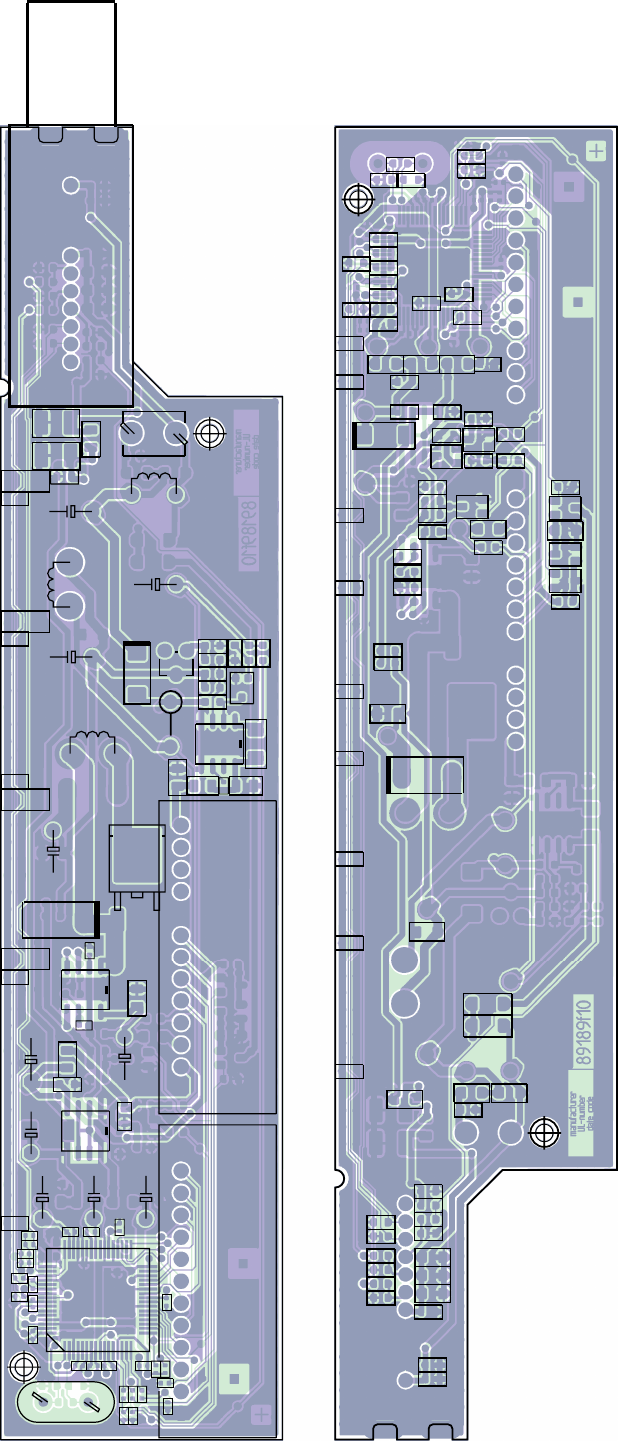

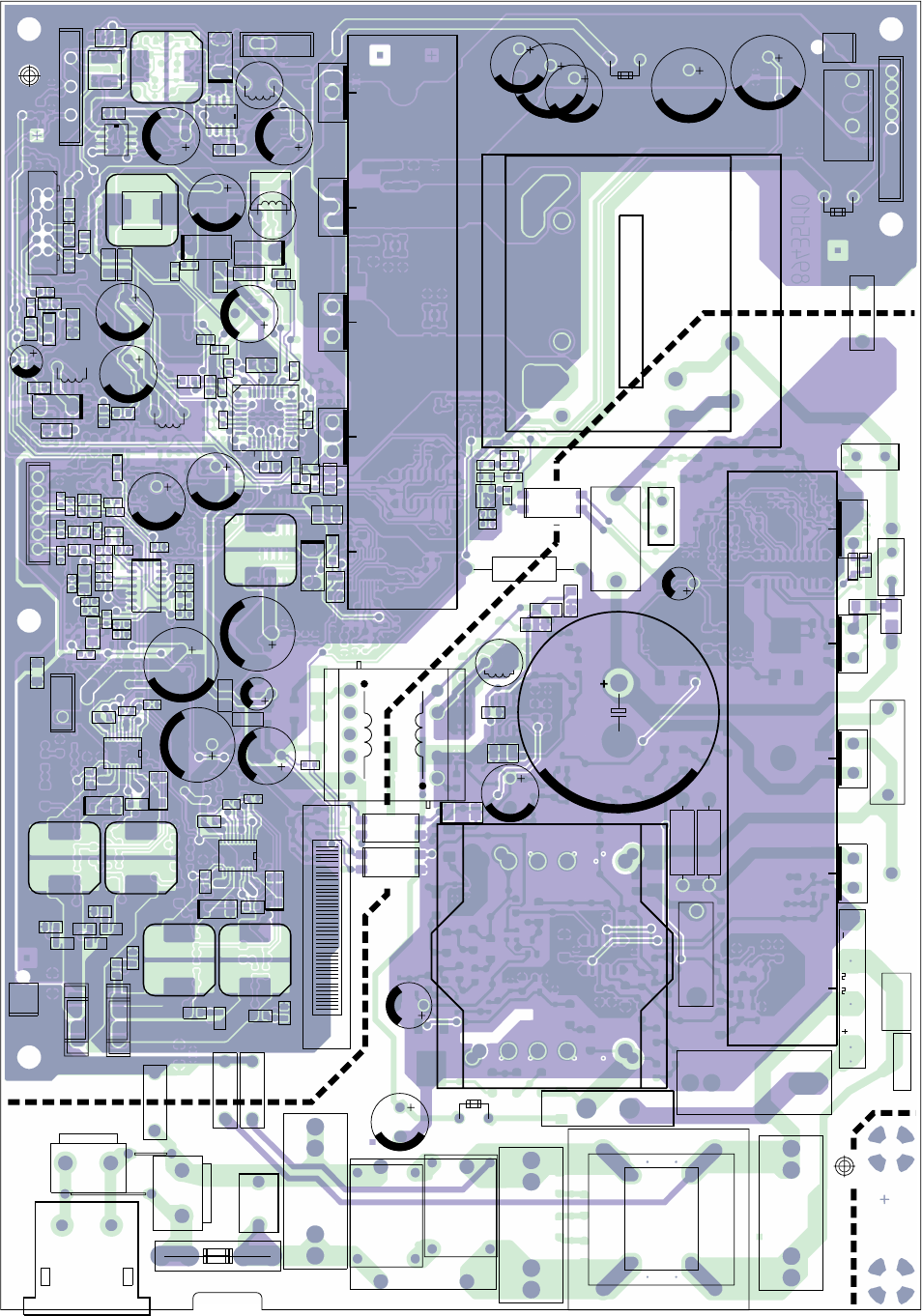

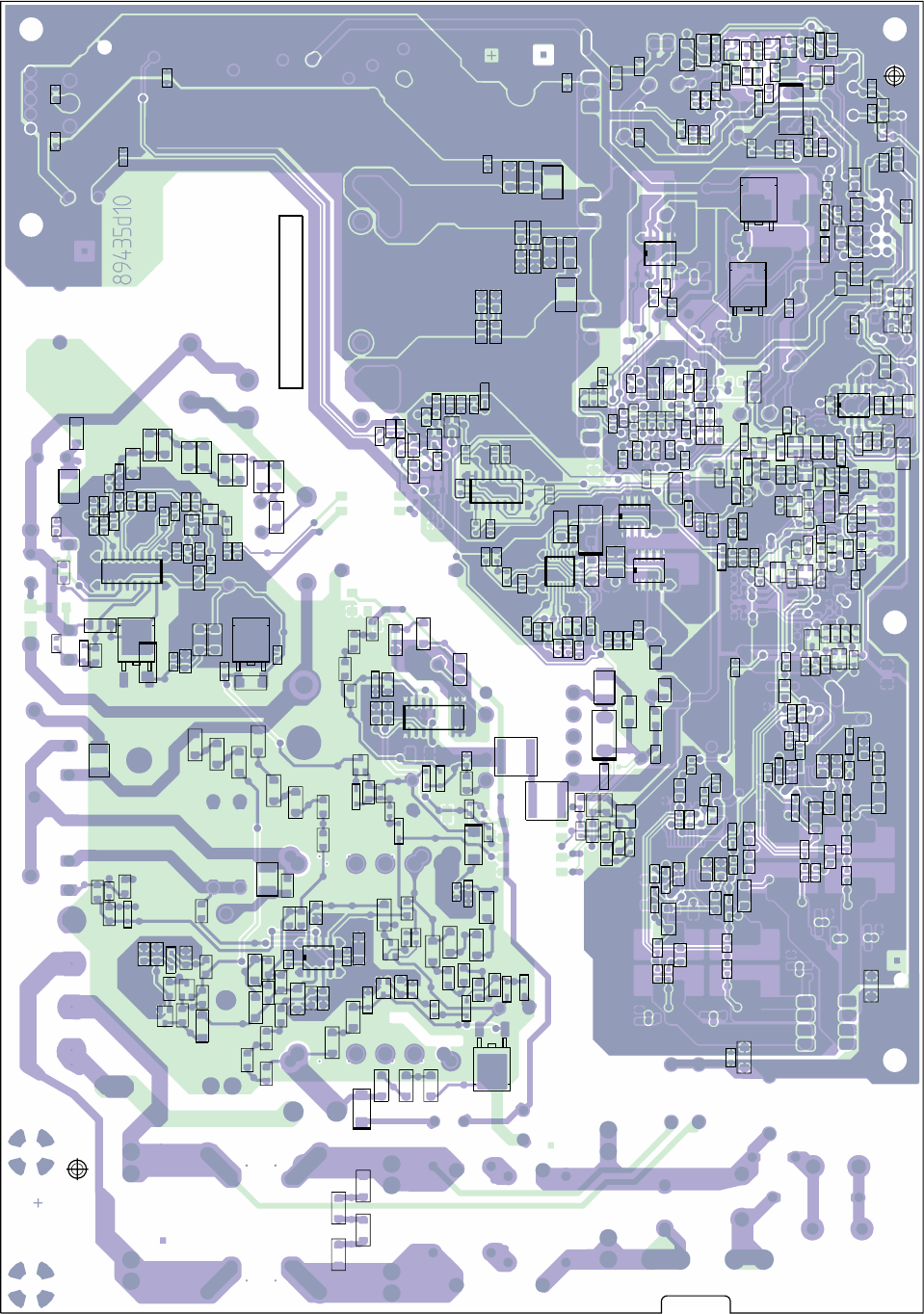

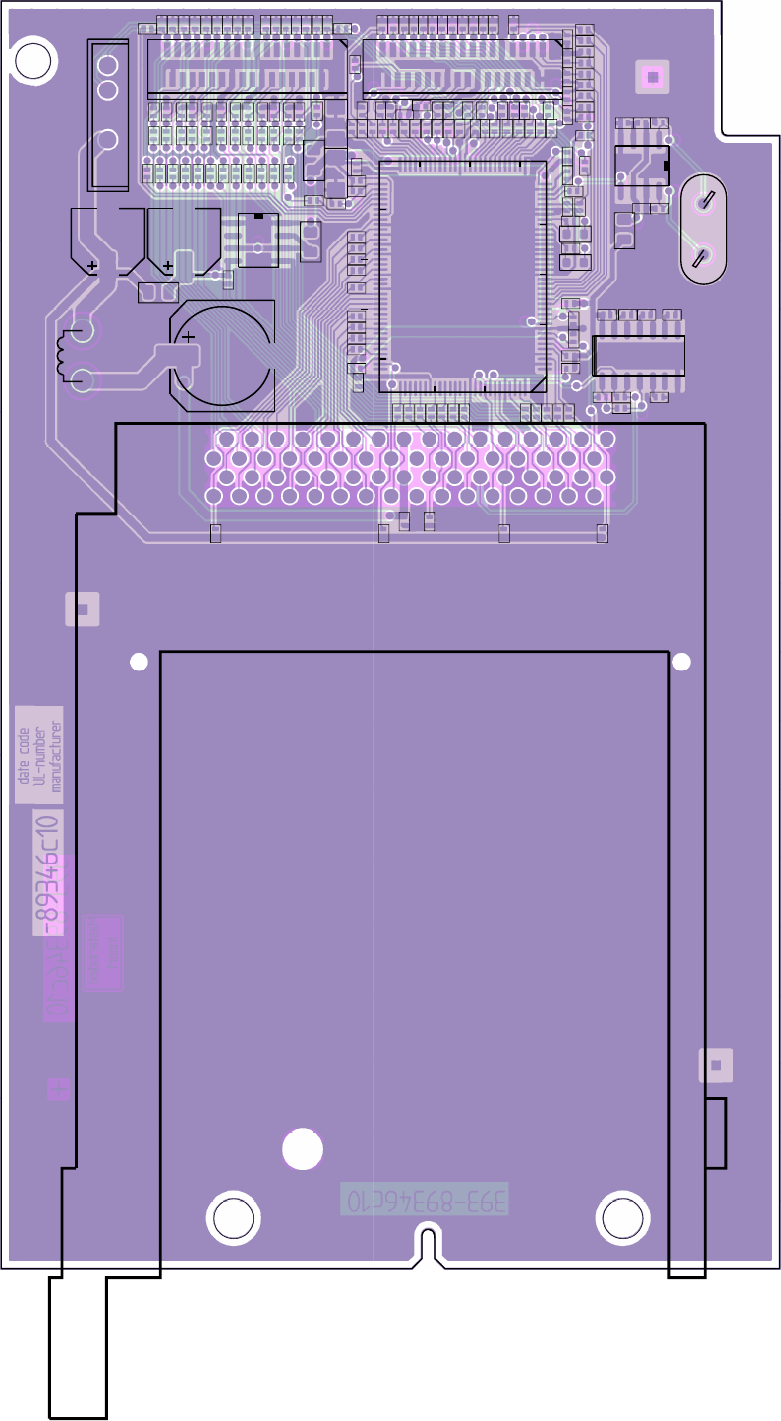

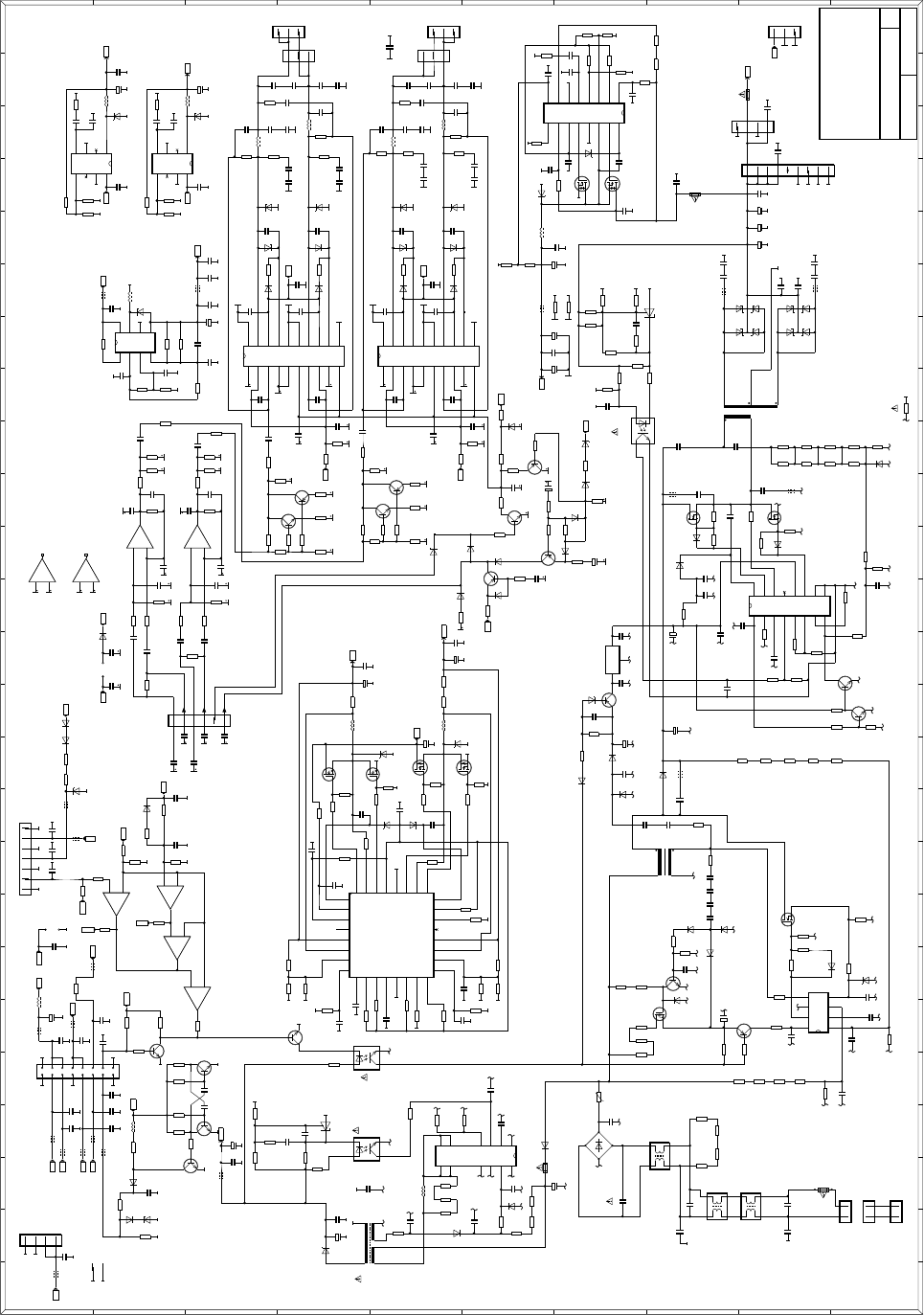

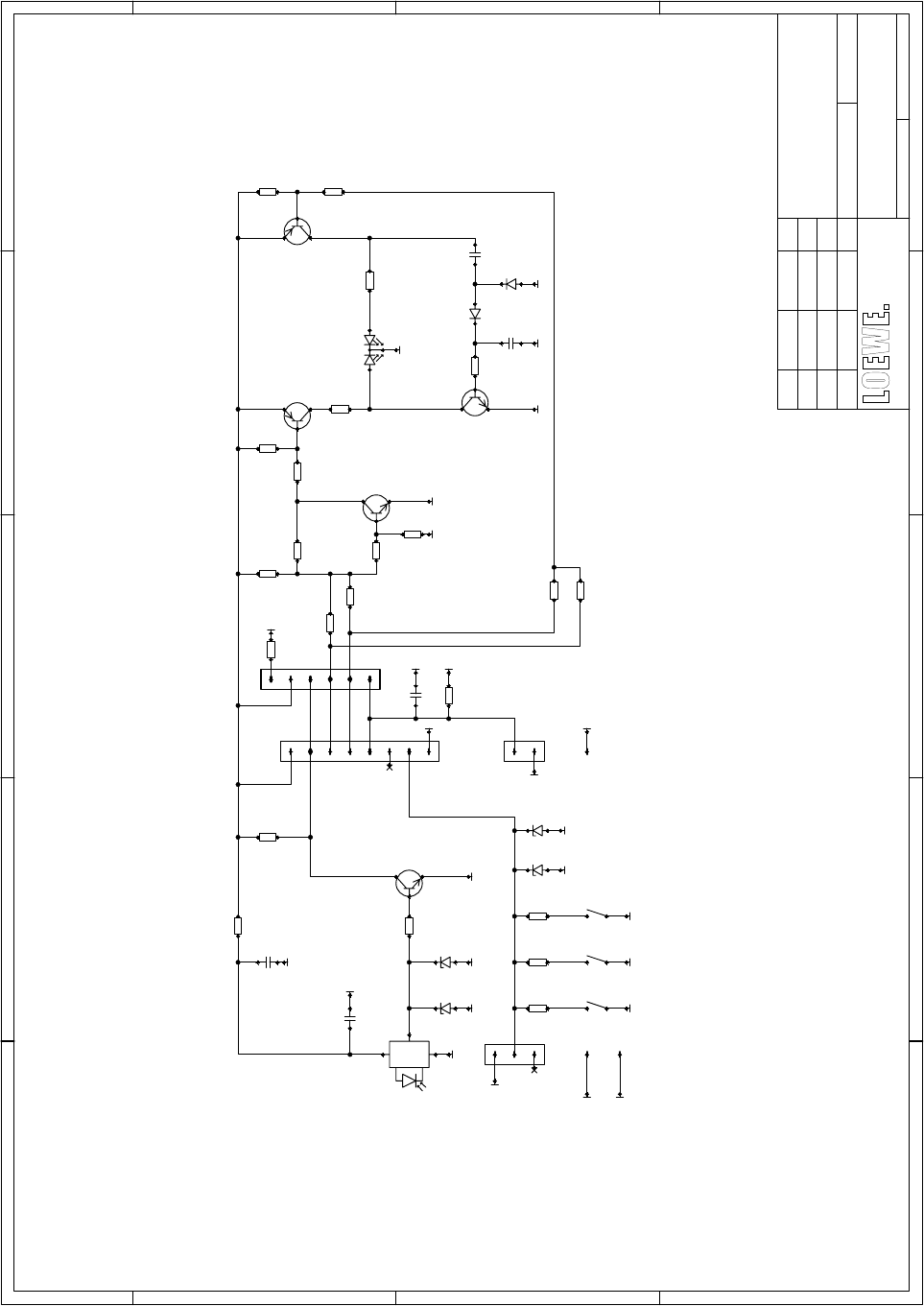

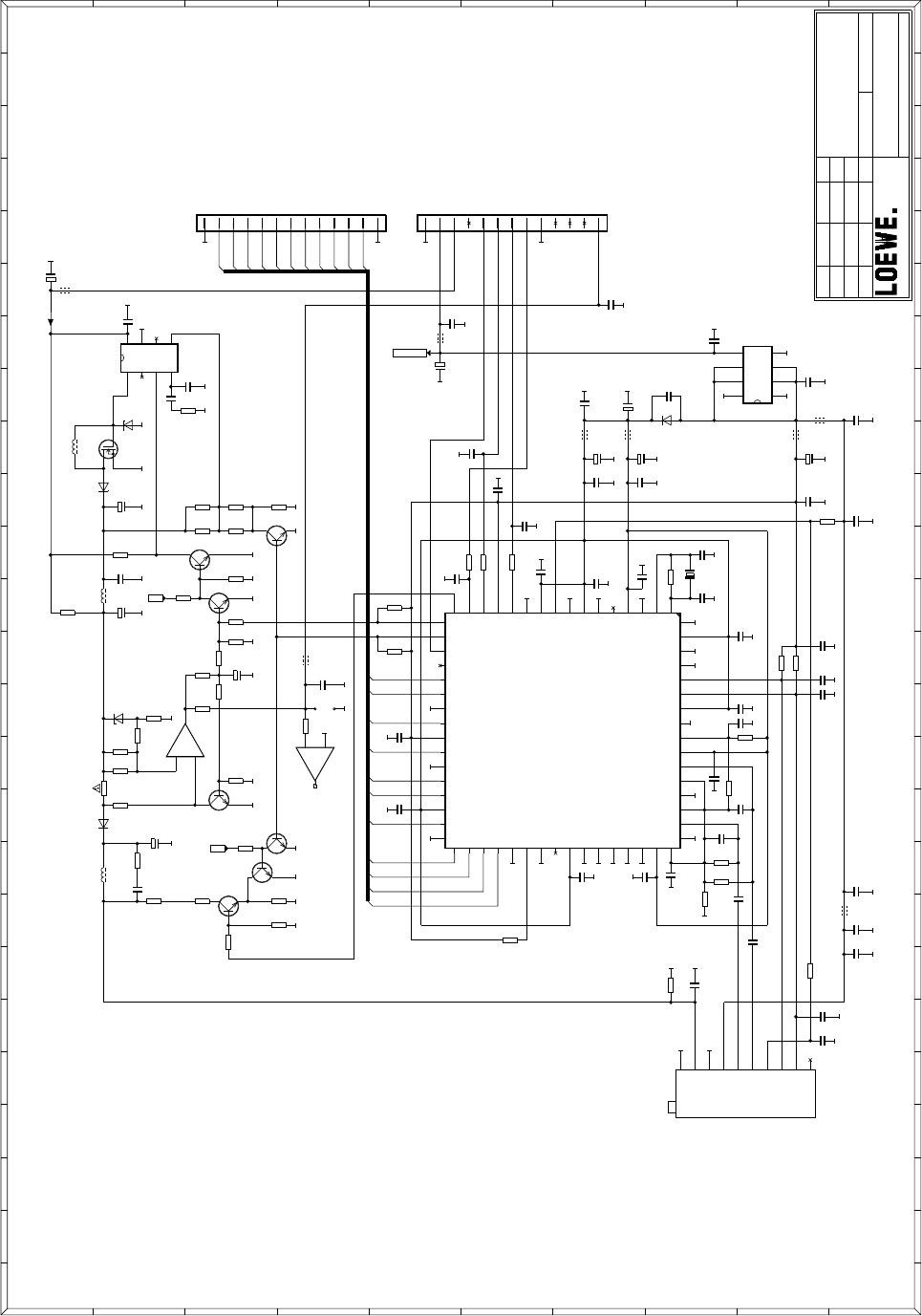

Schaltpläne & Leiterplatten . . . . . . . . . . . . . . . . 24

LOEWE-Niederlassungen & Auslandsvertretungen . . . 42

Table of Contents

Safety precautions . . . . . . . . . . . . . . . . . . . . . . 5

Rear panel removal . . . . . . . . . . . . . . . . . . . . . . 8

Wiring diagram Concept L 32 . . . . . . . . . . . . . . . . 9

Service Mode commands . . . . . . . . . . . . . . . . . 10

Option Bytes table . . . . . . . . . . . . . . . . . . . . . 11

TV/Service Menu L2650 . . . . . . . . . . . . . . . . . . 15

Components chart . . . . . . . . . . . . . . . . . . . . . 17

Technical speciﬁcations Concept L 26 - L 32 . . . . . . . 19

Schematics & P.C.B‘s. . . . . . . . . . . . . . . . . . . . 24

LOEWE establishments & foreign representations . . . 37

3

Table des matières

Consignes de sécurité . . . . . . . . . . . . . . . . . . . . 6

Démontage du panneau arrière . . . . . . . . . . . . . . . 8

Plan de Câblage Concept L 32 . . . . . . . . . . . . . . . 9

Instructions du mode service . . . . . . . . . . . . . . . 10

Tableau Option Byte . . . . . . . . . . . . . . . . . . . . 11

Menu TV/Service L2650 . . . . . . . . . . . . . . . . . . 15

Correspondances des modules . . . . . . . . . . . . . . 17

Caractéristiques techniques Concept L 26 - L 32 . . . . 20

Schéma et Platine. . . . . . . . . . . . . . . . . . . . . . 24

Succursale LOEWE & représentation à l‘étranger . . . . 42

Indice

Norme di sicurezza . . . . . . . . . . . . . . . . . . . . . . 6

Smontaggio del pannello posteriore . . . . . . . . . . . . 8

Schema connessioni Concept L 32 . . . . . . . . . . . . . 9

Comandi dell modo di servizio. . . . . . . . . . . . . . . 10

Tabella byte delle opzioni . . . . . . . . . . . . . . . . . 11

Menu TV/Service L2650 . . . . . . . . . . . . . . . . . . 15

Ordinamento dei gruppi . . . . . . . . . . . . . . . . . . 17

Dati tecnici Concept L 26 - L 32 . . . . . . . . . . . . . . 21

Scheme e piastre . . . . . . . . . . . . . . . . . . . . . . 24

Succursale LOEWE & rappresentanza all‘estero . . . . . 42

4

Tabla de contenido

Normas de seguridad. . . . . . . . . . . . . . . . . . . . . 7

Desmontaje del panel posterior . . . . . . . . . . . . . . . 8

Esquema de conexiones Concept L 32 . . . . . . . . . . . 9

Menú Service . . . . . . . . . . . . . . . . . . . . . . . . 15

Tabla de bytes de opciones . . . . . . . . . . . . . . . . 11

Menú de televisión/Service L2650 . . . . . . . . . . . . . 15

Vista general de módulos . . . . . . . . . . . . . . . . . 17

Datos técnicos Concept L 26 - L 32 . . . . . . . . . . . . 22

Esqueme de conexiones y placas de circuito impreso . 24

Delegaciones LOEWE & delegaciones en el extranjero . 42

Inhoudsopgave

Veiligheidsmaatregelen . . . . . . . . . . . . . . . . . . . 7

Demontage van de achterwand . . . . . . . . . . . . . . . 8

Bedradingsschema Concept L 32 . . . . . . . . . . . . . . 9

Service-mode functie’s . . . . . . . . . . . . . . . . . . . 15

Option Bytes-tabel . . . . . . . . . . . . . . . . . . . . . 11

Menu TV/Service L2650 . . . . . . . . . . . . . . . . . . 15

Overzicht van de modules . . . . . . . . . . . . . . . . . 17

Technische gegevens Concept L 26 - L 32 . . . . . . . . 23

Schakelschema‘s en printplaten. . . . . . . . . . . . . . 24

LOEWE-vestigingen & vertegenwoordigingen in het

buitenland . . . . . . . . . . . . . . . . . . . . . . . . . . 42

5

D

Hinweis zum Schutz gegen Elektrostatik

1. Elektrostatisch gesicherte MOS-Arbeitsplätze.

Der Umgang mit gegen Elektrostatik empﬁndlichen Bauteilen

muß an einem elektrostatisch gesicherten MOS-Arbeitsplatz

erfolgen. Ein elektrostatisch gesicherter MOS-Arbeitsplatz

erdet über Entladungswiderstände sämtliche leitende Ma-

terialien einschließlich der Person. Nichtleiter werden durch

Luftionisation entladen. Die Integration von Lötkolben und

Meßgeräten in den gesicherten MOS-Arbeitsplatz ist nur

mit Trenntrafo in jedem der verwendeten Geräte möglich.

Die Meßgeräte-Massen werden ebenfalls mit Entladungs-

widerständen geerdet.

2. Gesicherte Verpackung durch leitfähige Materialien.

Zum Schutz gegen Elektrostatik werden elektrisch leitende

Kunststoffe für Verpackung und Transportmittel verwendet.

Leitende Kunststoffe gibt es als schwarze oder transparente

Schutzbeutel, Schaumstoff, Folien und als Behälter. Empﬁnd-

liche Bauteile dürfen nur am gesicherten MOS-Arbeits-platz

aus der Verpackung entfernt bzw. verpackt werden.

Sicherheitshinweise/Vorschriften

1. Instandsetzungen, Änderungen und Prüfung netzbetriebe-

ner elektronischer Geräte und deren Zubehör dürfen nur von

fachkundigen Personen ausgeführt werden.

2. Es gelten die Vorschriften und Sicherheitshinweise nach VDE

0701, Teil 200, und die Vorschriften und Sicherheitshinweise

des jeweiligen Landes!

3. VDE 0701, Teil 200, beinhaltet Vorschriften zur Instandset-

zung, Änderung und Prüfung netzbetriebener elektronischer

Geräte und deren Zubehör.

4. Vor der Auslieferung des Geräts muß eine Sichtprüfung des

Geräts und der Anschlußleitungen (und soweit vorhanden,

des Schutzleiters), und die Messung des Isolationswider-

standes und des Ersatz-Ableitstromes nach VDE 0701, Teil

200, durchgeführt werden. Der niederohmige Durchgang des

Schutzleiters ist durch Messung laut Vorschrift VDE 0701,

Teil 1, nachzuweisen.

5. Die Vorschriften des jeweiligen Landes sind zusätzlich zu be-

achten.

6. Bauteile mit dem Symbol gekennzeichnet, dürfen nur

durch Originalteile ersetzt werden.

GB

Note on electrostatic shielding

1. Electrostatically shielded MOS workstations

Components sensitive to electrostatic discharge must be han-

dled at workstation with electrostatic shielding. An electrostati-

cally shielded MOS workstation is ﬁtted with discharge resistor

which earth all conductive materials, including the technician

working there. Dielectrics are discharged by air ionisation. The

use of soldering irons and measuring equipment at shielded

workstation is only possible in conjunction with isolating trans-

former in each of the devices used. Measuring equipment

chassis are also earthed with discharge resistors.

2. Shielded packaging using conductive materials

To protect against electrostatic charges, electrically conductive

plastics are used for packaging and transport purposes. Con-

ductive plastics are available in the form of transparent protec-

tive bags, foam plastic, ﬁlm sheeting or containers. Sensitive

components requiring the use of protective packaging must

only be packed and unpacked at shielded workstations.

Safety warnings/regulations

1. The repair, modiﬁcation and testing of mains-operated elec-

tronic devices and their accessories must only be performed

by qualiﬁed persons.

2. It is necessary to follow the regulations and safety warnings

to VDE 0701, part 200, as well as the regulations and safety

warnings applicable in the country concerned.

3. VDE 0701, Part 2, contains regulations on the repair, modiﬁca-

tion and testing of mains-operated electronic devices and their

accessories.

4. Before delivery, the device and the connecting leads (includ-

ing any protective earth conductor ﬁtted) must undergo visual

inspection, and the insulation resistance and the equivalent

leakage current must be measured according to VDE 0701,

part 200. The low-resistance continuity of the protective earth

conductor must be veriﬁed by measurement to VDE regula-

tion 0701, part 1.

5. The regulations of the country concerned must also be ob-

served.

6. Only genuine parts must be used for replacing components

marked with the symbol .

6

F

Recommandations pour la protection con

tre les charges électrostatiques

1. Postes de travail MOS protégés électrostatiquement

La manipulation de composants sensibles aux charges élec-

trostatiques doit impérativement se faire a un poste de tra-

vail MOS protégé électrostatiquement. Un tel poste de tra-

vail MOS protégé électrostatiquement met tous les matéraux

conducteurs à la masse par l’intermédiaire de résistances de

décharge, y compris la personne qui y travaille. Les noncon-

ducteurs sont déchargés par ionisation de l’air. L’intégration

de fers 3 souder et d’appareils de mesure dans le poste de

travail MOS protégé électrostatiquement n’est admissible que

par l’intermédiaire de transformateurs de séparation intégrés

à chacun des appareils. Les terres des appareils de mesure

sont également mises 3 la masse par l’intermédiaire de résis-

tance de décharge.

2. Emballages de sécurité faits de matériaux conducteurs

Pou les protéger contre les charges électrostatiques, les com-

posants sensibles sont emballes et transportes dans des ma-

tières plastiques conductrices d’électricité. Les matières plas-

tiques conductrises existent en tant que sachets de protection

noirs ou transparents, mousses, feuilles et aussi en tant que

conteneurs. Les composants sensibles ne doivent être sortis

de leu emballage conducteur ou y être emballes qu’au poste

de travail MOS électrostatiquement protégé.

Consignes et prescriptions de sécurité

1. Les remises en état, modiﬁcations et examen d’appareils

électroniques exploités sur réseau, et leurs accessoires, ne

doivent être exécutés que par des professionnels.

2. On appliquera les prescriptions et consignes de sécurité selon

VDE 0701, partie 200, et les prescriptions et consignes de

sécurité du pays respectif!

3. VDE 0701, partie 200, comporte des prescriptions sur la remi-

se en état, modiﬁcation et examen d’appareils électroniques

exploités sur réseau, et leurs accessoires.

4. Avant la livraison de l’appareil, il faut effectuer un examen vi-

suel de l’appareil et câbles de branchement (et si existant de

la terre), et la mesure de la résistance d’isolation et du cou-

rant de fuite de remplacement selon VDE 0701, partie 200. Le

passage de basse impédance de la terre doit être démontré

par une mesure conformément à la prescription VDE 0701,

partie 1.

5. Les prescriptions du pays respectif doivent être également

observées.

6. Les éléments caractérisés avec le symbole ne doivent

être remplacés que par des pièces originales.

I

Nota per la protezione da scariche elettro-

statiche

1. Posti di lavoro MOS protetti elettrostaticamente

La manipolazione di componenti sensibili alle scariche elettro-

statiche deve essere eseguita a posti di lavoro MOS protetti

da queste scariche. Un posto di lavoro MOS protetto dalle

scariche elettrostatiche convoglia a terra tutti i materiali con-

duttori compresa la persona mediante resistenze di scarica.

Gli isolatori vengono scaricati mediante ionizzazione dell’aria.

L’integrazione di saldatoi e apparecchi di misura nel posto di

lavoro MOS protetto é possibile solo attraverso trasformatori

di separazione in ogni apparecchio usato. Anche le massa de-

gli apparecchi di misura vengono scaricate a terra mediante

resistente di scarica.

2. Imballaggio protetto mediante materiali conduttori

Per proteggere le componenti dalle scariche elettrostatiche

vengono usati degli imballaggi e dei mezzi di trasporto di

materiale sintetico conduttore. Esistono imballaggi di mate-

riale sintetico conduttore sottoforma di sacchetti di protezione

trasparenti o neri, materiale schiumoso, fogli e contenitori.

Componenti sensibili devono essere tolti, risp. messi negli

imballaggi di materiale conduttore solo in un posto di lavoro

MOS protetto.

Note per la sicurezza/disposizioni

1. Riparazioni, modiﬁche e controlli su apparecchiature elettro-

niche ed accessori collegati alla rete elettrica devono essere

eseguiti esclusivamente da personale esperto.

2. Si applicano le disposizioni e le note per la sicurezza della

norma VDE 0701, parte 200, e quelle del Paese di installazio-

ne.

3. VDE 0701, parte 200, riporta le disposizioni per le riparazioni,

modiﬁche e controlli su apparecchiature elettroniche ed ac-

cessori collegati alla rete elettrica.

4. Prima della consegna, si deve effettuare un controllo visivo

dell’apparecchio e dei cavi di collegamento (anche del con-

duttore di protezione, se presente) nonchè la misurazione del-

la resistenza di isolamento e della corrente deviata sostitutiva

secondo la norma VDE 0701, parte 200. La continuità a basso

valore ohmico del conduttore di protezione va dimostrata se-

condo la norma VDE 0701, parte 1.

5. Si devono rispettare anche le disposizioni relative in vigore nel

Paese di installazione.

6. Componenti contrassegnati con il simbolo devono essere

sostituiti solo con ricambi originali.

7

E

Advertencia para la protección contra car-

gas electrostáticas

1. Protección contra cargas electrostáticas en puestos de

manipulación de módulos MOS

La manipulación de piezas sensibles contra cargas electros-

táticas debe realizarse en puestos de manipulación de módu-

los MOS protegidos contra dichas cargas. Para que un pues-

to de manipulación de módulos MOS esté protegido contra

descargas electrostáticas, todos los materiales conductores,

incluído el operario, deben conectarse a tierra mediante re-

sistencias de descarga. Los elementos no conductores deben

descargarse mediante un ionizador de aire. La integración de

soldadores y aparatos de medición en los puestos de mani-

pulación de módulos MOS sólo se puede realizar con trans-

formadores separadores en cada aparato utilizado. También

deben conectarse a tierra las masas de los aparatos de medi-

ción utilizando resistencias de descarga.

2. Embalaje protegido con materiales conductores

Para la protección contra las cargas electrostáticas se utilizan

materiales sintéticos conductores para el embalaje y el trans-

porte. Los materiales sintéticos conductores están disponi-

bles en forma de bolsas protectoras negras o transparentes,

gomaespuma, películas y envases. Las piezas electrostáti-

camente sensibles deben embalarse y/o desembalarse sola-

mente en puestos de manipulación de módulos MOS.

Advertencias y normas de seguridad

1. Las puestas a punto, cambios y revisiones de aparatos elec-

trónicos alimentados por la red y sus accesorios, sólo deben

realizarse por personas especializadas.

2. Son aplicables las advertencias y normas de seguridad detal-

ladas en la norma VDE 0701, apartado 200 y las correspon-

dientes de cada país.

3. El apartado 200 de la norma VDE 0701 describe las puestas a

punto, cambios y revisiones de aparatos electrónicos alimen-

tados por la red y sus accesorios.

4. Antes de efectuar el suministro del aparato debe realizarse

una comprobación visual del mismo y de las líneas de co-

nexión (y, en su caso, de la línea protectora), así como una

medición de la resistencia de aislamiento y de la corriente

sustitutiva de escape según VDE 0701, apartado 200. Debe

veriﬁcarse la baja resistencia de la línea protectora recogida

en la norma VDE 0701, apartado 1.

5. Se han de tener en cuenta además las normas de los países

correspondientes.

6. Las piezas marcadas con el símbolo

sólo podrán reemp-

lazarse por piezas originales.

NL

Aanwijzing ter bescherming tegen elektro-

statica

1. Elektrostatisch beveiligde MOS-werkplekken.

De omgang met voor elektrostatica gevoelige componen-

ten moet op een elektrostatisch beveiligde MOS-werkplek

plaatsvinden. Bij een elektrostatisch beveiligde MOS-werk-

plek worden alle geleidende materialen en de persoon zelf

via ontladingsweerstanden geaard. Niet-geleiders worden

door luchtionisatie ontladen. De integratie van soldeerbouten

en meetapparaten in de beveiligde MOSwerkplek is alleen

met een scheidingstransformator in elk van de gebruikte ap-

paraten mogelijk. De massa’s van de meetapparaten worden

eveneens met ontladingsweerstanden geaard.

2. Veilige verpakking door geleidende materialen.

Ter bescherming tegen elektrostatica worden elektrisch ge-

leidende kunststoffen voor de verpakking en de transport-

middelen gebruikt. Geleidende kunststoffen zijn als zwarte of

transparante beschermzakjes, schuimstof, folie en als contai-

ner verkrijgbaar. Gevoelige componenten mogen alleen op de

beveiligde MOSwerkplek uit de verpakking worden gehaald

resp.worden verpakt.

Veiligheidsinstructies/voorschriften

1. Elektronische apparaten met netvoeding en hun toebehoren

mogenuitsluitend door vakkundige personen worden gerepa-

reerd, gewijzigd en gecontroleerd.

2. De voorschriften en veiligheidsinstructies volgens VDE 0701,

deel200, en de voorschriften en veiligheidsinstructies van het

desbetreffende land zijn van kracht!

3. VDE 0701, deel 200, bevat de voorschriften voor de reparatie,

dewijziging en de controle van elektronische apparaten met

netvoeding en hun toebehoren.

4. Voordat het toestel wordt afgeleverd, moeten het toestel en de

aansluitleidingen (en voor zover aanwezig, de aarddraad) aan

een visuele controle worden onderworpen en de isolatieweer-

stand en de reserve-lekstroom conform VDE 0701, deel 200,

worden gemeten. De laagohmige doorgang van de aarddraad

moet door meting volgens voorschrift VDE 0701, deel 1, wor-

den aangetoond.

5. Tevens dienen de voorschriften van het desbetreffende land

in acht te worden genomen.

6. Componenten die gekenmerkt zijn met het symbool , mo-

gen uitsluitend door originele reserveonderdelen worden ver-

vangen.

8

GB

Rear panel removal

Unscrew the rear panel screws to remove the rear panel.

D

Demontage der Rückwand

Zum Abnehmen der Rückwand werden die Rückwandschrauben

herausgedreht.

Concept L 26

F

Démontage du panneau arrière

Pour enlever la paroi arrière, dévissez les vis.

I

Smontaggio del pannello posteriore

Per togliere il pannello si svitano le viti del pannello posteriore.

E

Desmontaje del panel posterior

Para retirar el panel posterior deben extraerse los tornillos que

lo ﬁjan al aparato.

NL

Demontage van de achterwand

Om de achterwand te verwijderen, moeten de schroeven uit de

achterwand worden gedraaid.

Concept L 32

9

BL

Control - Board (SC)

Back -

Light -

Inverter

(SC)

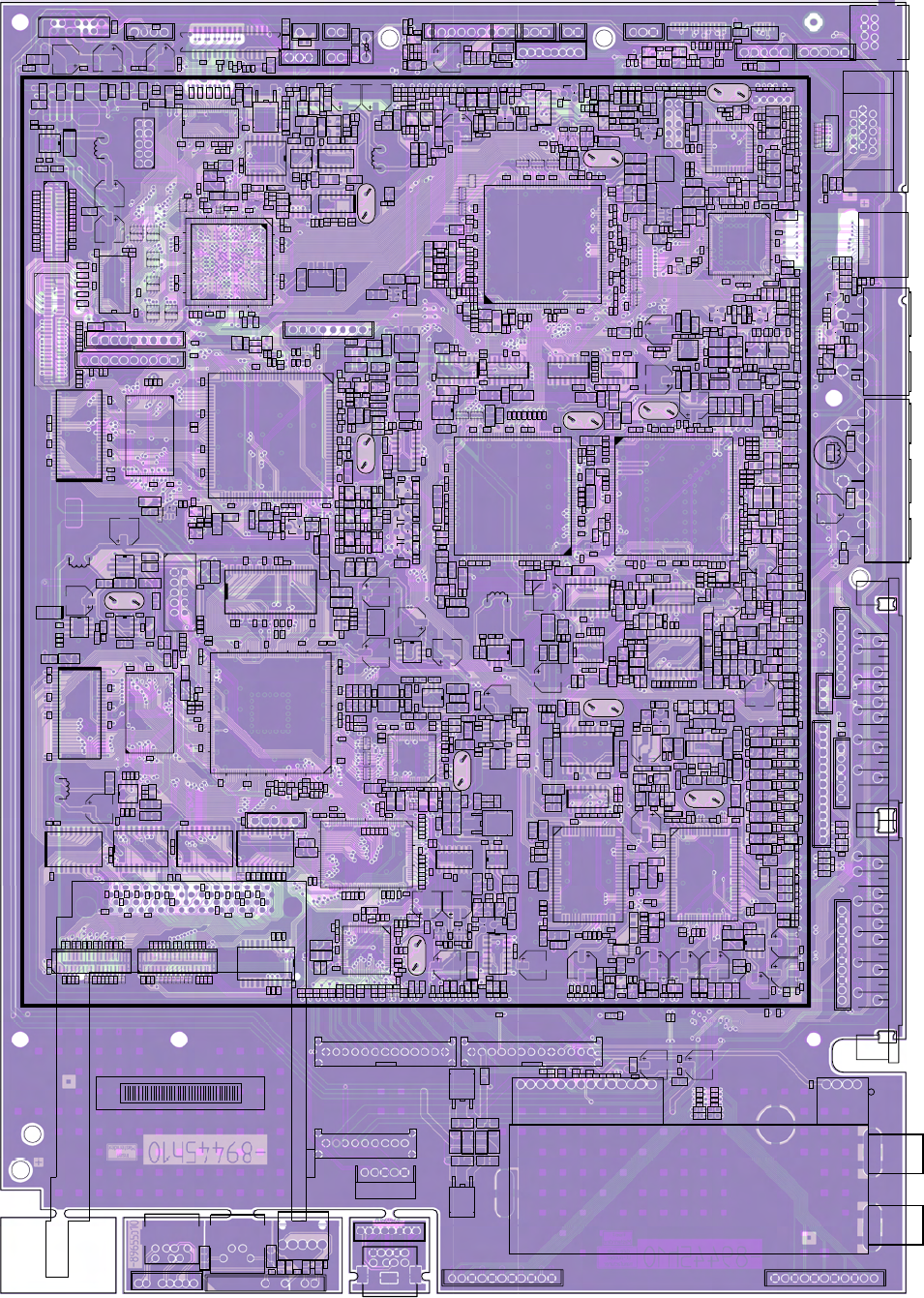

Basic - Board (LO)

89435.var

Signal - Board (LO)

89445.var

Front -

Audio-

Video /

Head-

Phone

W691

W811

W898

W889

W101

CI- Interface

ARS

extern

Verdrahtungsplan L2650

Concept L 32

Art.No.65422(x)89

LOEWE. Oktober 2005

(ET-Nr. für andere Gerätevarianten

siehe ET-Listen)

LC-xxGS7L

W101

Micom - Board (SC)

LC-xxGS7L

l r

CN7501

CN7502

CN7503

CN7504CN7505

CN7506

CN7507

CN7508

CN7401

CN7402

CN7403

CN7404

CN7405

CN7406

W661

P3200

P3201

P3202

P2303

P5702

P5701

SC3202 P2302

P7701

P7703

SC4601

CN7601

CN7602

CN7603

CN7604

CN7605CN7606

CN7607CN7608

CN7609

CN7610

W2231

W4601 W4611

W2101

W2132

W2021

W2011

W651

W2181

W5971

W5911

W2601

W2641

W2611

W2051

W8001

W521

89384.051

89207.002

89441.001

89188.001

89456.002

89542.002

89541.002

89542.00489542.004

87534.061

87791.002

88769.003 86185.011

85855.064

IR-Empfänger/

Bedienung

Main in

W101

W102 W103

to switch

from switch

46655.002

Netzschalter kpl.

32425.051

PIP Tuner

ARS

LCD Panel

90433.970 90433.970

90433.968

90433965

90433.967

90433.969

10

abc def

RADIO

-Set

REC-MENU

ghi jkl mno

pqrs tuv wxyz

EPG AV

DVD-AV

PIP

P+

OK

P-

V- V+

-List

Abgleich der angewählten Funktionen

Alignment of the function called

Réglage de la fonction selectionée

Regolazione della funzione selezionata

Comprobación de las funciones seleccionadas

Geselecteerde funties afstemmen

Service-Mode AUS/Off/Arrêt/Spento/Apagado/Uit

Zurück in den TV-Betrieb

Return to TV operation mode

Retour au mode TV

Ritorna su TV

Vuelta al funcionamento como televisor

Terug naar TV-weergave

Auswahl der Abgleichfunktionen

Calling of the alignment functions

Selection des fontions de réglage

Selezione delle funzioni di taratura

Selección de las funciones de ajuste

Afstemmingsfunties kiezen

Abgleichwert abspeichern

Storing of alignment value in memory

Memorisation de la valeur reglée

Memorizzazione dei valori di taratura

Memorización del valor de ajuste

Afstemmingswaarde opslaan

Einschalten TV-Service-Mode *)

Switching to TV Service mode *)

Enclenchement du mode Service TV *)

Inserimento modi di servizio TV *)

Modo SERVICE de encendido del televisor *)

TV service mode inschakelen *)

Anordnung der SERVICE-Mode-Befehle auf der Fernbedienung

Arrangement of the SERVICE mode commands on the remote control

Arrangement des instructions du mode SERVICE sur la télécommande

Ordine dei comandi nel "modo di SERVIZIO" sul telecomando

Disposición de los comandos del modo SERVICIO en el mando a distancia

Rangschikking van de SERVICE-mode-functie's op de afstandsbediening

*) Einstieg in den Service-Mode

Funktionstaste "M" oder auf der Ortsbedienung 1 mal

drücken, anschließend auf der Fernbedienung

wiederholt die Pfeil-Rechts-Taste (innerer Ring)

drücken, bis Anzeige "Service" markiert ist und innerhalb

von 1 Sekunde Taste "Menu" auf der Fernbedienung.

*) Entering Service Mode

On the local control press funtion key "M" or 1 times,

afterwards press repeated the Right-Arrow-Button

(inner ring) on the remote control, until indication

"Service" will be marked and within a second press

button "Menu" on the remote control.

*) Appel du Mode Service

Appuyer une fois sur la Touche "M" ou du panneau de

commande du téléviseur. Puis appuyer plusieurs fois sur le curseur

vers la droite (bouton intérieure à l'anneau), afin de faire apparaitre

l'indication "Service", et, dans la seconde, sur la touche "Menu" de la

télécommande.

*) Entrare nella modalità "Service-Mode"

Premere di seguito il tasto "M" o della ghiera posta

sul televisore. A questo punto togliere le dita dai

pulsanti e attendere che il diodo led diventi verde, di

seguito comparirà sul televisore il menu del "Service-

Mode", e il tasto del telecomando per circa 1 secondo

finche il diodo led della ghiera non diventa arancione.

*) Acceso a modo de Servicio

Pulse una vez el botón "M" o del panel frontal.

Luego pulse la flecha derecha del cursor en el mando

a distancia (anillo interno) hasta que la palabra

"Servicio" se muestre en pantalla y dentro del

siguiente segundo pulse "Menu" en el mando a

distancia.

*) Overschakelen op de service-mode

Functietoets "M" of op de tv-bediening één maal

indrukken. Aansluitend op de afstandsbediening de pijl

naar rechts toets (binnenste ring) drukken, tot de

aanduiding "service" op het scherm staat. Aansluitend

binnen de seconde op de "menu" toets op de

afstandsbediening drukken.

TV VCR DVD

11

Option Bytes Tabelle mit den Service relevanten Option Bits • Option Bytes table with service rele-

vant option bits • Tableau des Option Bytes avec les Option bits nécessaires pour la maintenance •

Tabella opzioni Bytes con i dati rilevanti per il Service • Cuadro de bits de opción con los mas impor-

tantes para el servicio • Option bytes lijst met voor service relevante Option Bits

Bitte keine anderen verändern! • Please do not change others! • Prière de ne pas modiﬁer les autres bits! • Prego non fare

nessuna operazione! • Gelieve geen wijzigingen in deze lijst uit te voeren!

Abgleichfunktion

Alignement function

Fonction d’alignement

Funzione di comp

Funciòn de adjuste

Afstemmingsfuncties

Bit-Nr.

No.

Nr.

Bedeutung

Meaning

Signiﬁcation

Signiﬁcato

Signiﬁcatiòn

Betekenis

“0” “1”

Einstellung ab Werk

Adjusted in the factory

Règlage en usine

Registrazione in fabbrica

Adjuste en fàbrica

Instelling af fabriek

Byte 0

1EPG Programmﬁlter

EPG Program ﬁlter

Ein

On

Aus

Off 0

5Blaubild ohne Signal

Blue picture w/o signal

Ja

Yes

Nein

No 0

Byte 1

1Hintergrundbeleuchtung

Effect lights for background

Aus

Off

Ein

On 0

2WSS-Auswertung im VCR-Mode

WSS detection in VCR mode

Nein

No

Ja

Yes 1

3AMD (autom. Film-erkennung)

AMD (Autom. movie detection)

Ein

On

Aus

Off 0

7Bei VGA-Synch-Ausfall

At VGA mode sync failure

Umschalten auf TV-Mode

Change to TV mode

VGA-Mode beibehalten

Keep VGA mode 1

Byte 2

6Reaktionszeit auf FB-Befehle

Reaction time of remote commands

Schnell

Fast

Langsam

Slow 0

7WSS (Wide Screen Signalling Bits) Ausgewertet

Evaluated

Nicht ausgewertet

Not evaluated 0

Byte 3

0Bildformat (Standardwerte)

Picture ratio (standard values)

Zugelassen

Evaluated

Gesperrt

Blocked 0

2Analoges EPG Nachtaktualisierung

Analogue EPG night update

Aus

Off

Ein

On 1

4Abschalten nach Programmschluß

Switching off after channel closes

Ja

Yes

Nein

No 0

5Fabrikmodus

Factory mode

Aus

Off

Ein

On 0

Byte 4

2Abschaltvorhang

Power down cycle

Ja

Yes

Nein

No 0

4Autom. Filmerkennung AMD

AMD switch over

Schnell

Fast

Langsam

Slow 1

5Warmlaufmodus

Warm up mode

Ein

On

Aus

Off 1

Byte 5

2PIP im EPG

PIP within EPG

Letztes Programm

Last program

Angewähltes Programm “jetzt”

Selected program “now” 0

3Tonwiedergabe AURO

Sound AURO SPDIF-out TV Analogton von SCART 2

Analogue sound from SCART 2 0

12

Option Bytes Tabelle mit den Service relevanten Option Bits • Option Bytes table with service rele-

vant option bits • Tableau des Option Bytes avec les Option bits nécessaires pour la maintenance •

Tabella opzioni Bytes con i dati rilevanti per il Service • Cuadro de bits de opción con los mas impor-

tantes para el servicio • Option bytes lijst met voor service relevante Option Bits

Bitte keine anderen verändern! • Please do not change others! • Prière de ne pas modiﬁer les autres bits! • Prego non fare

nessuna operazione! • Gelieve geen wijzigingen in deze lijst uit te voeren!

Abgleichfunktion

Alignement function

Fonction d’alignement

Funzione di comp

Funciòn de adjuste

Afstemmingsfuncties

Bit-Nr.

No.

Nr.

Bedeutung

Meaning

Signiﬁcation

Signiﬁcato

Signiﬁcatiòn

Betekenis

“0” “1”

Einstellung ab Werk

Adjusted in the factory

Règlage en usine

Registrazione in fabbrica

Adjuste en fàbrica

Instelling af fabriek

Byte 6

6Indikation des Film-Modus

Indication of movie mode

Nein

No

Ja (durch Farbe der Side-Panels)

Yes (with colour of Side Panels) 0

7VT-Unterseitenmodus

VT subpages mode

Normal

Aus

Off 0

Byte 7 4 Auswertung 16:9 Schaltspannung

Assessing the 16:9 switching voltage

Ja

Yes

Nein

No 0

Byte 8

0Fabrikmodus

Factory mode

Nein

No

Ja

Yes 0

7Autom. Wiedereinschalten (Warm up)

Auto on (warm up)

Aus

Off

Ein

On 0

Byte 9

0Chroma-Ausgang an SCART 1

Chroma output at SCART 1 Pin 7 Pin 15 0

1Ext. Receiver im VT-Modus

Ext. receiver in VT mode

Autom. Kanalkennung

Autom. channel recognition

Keine autom. Kennung

No autom. recognition 0

4DISEqC Telegramm Auch für unben. Schalter

Also for not used switch

Nicht für unben. Schalter

Only for not used switch 0

7Drehfußsteuerung via RC5

Rotation control via RC5

Nein

No

Ja

Yes 1

Byte 10

0Signalüberschwinger (nur LCD)

Signal peaks (only LCD)

Ja

Yes

Nein

No 0

1Programmwechsel in Übersicht

Program change in overview

Möglich

Possible

Nicht möglich

Not possible 0

4Korrektur des MSP-Registers

Correction of MSP registers

Nein

No

Ja (Tonproblem Luxemburg)

Yes (Sound problem Luxembourg) 0

13

| AV-Norm manuell einstellen | Audio Digital zuordnen | Schaltspannung zulassen | RGB-Einbl. an AV2

| Übertragung starten

| Neue Geräte/Änderungen | Digital Link Plus | Sonstiges

| Sucheinstellungen ändern | Suche durchführen

TV-Menü

| Einblendungen | Zeit und Datum

| Ab jetzt sperren | Täglich sperren | Geheimnummer ändern

| Automatische Suche | Manuell einstellen | Programme ändern

0 VIDEO 12 WDR 3

1 ARD 13 BR

2 ZDF 14 HR

3 SAT.1 15 MDR 3

4 RTL 16 KIKA

5 VOX 17 PHOENIX

6 S-RTL 18 BR-ALPHA

7 N-TV 19 3SAT

8 DSF 20 EUROSPRT

9 9LIVE 21 KABEL 1

10 PRO7 22 MTV

11 RTL 2 23 CNN INT.

Bereich VHF

Kanal E 08

Frequenz 196.25 MHz

Name ARD

TV-Norm B/G

Farbnorm PAL

Schließen Sie die Satellitenantennen bzw. Kabel-/terrestrischen Antennen Ihrer

AV-Geräte (Recorder, Decoder, ...) gemäß den beiliegenden Bedienungsanleitungen

an das TV-Gerät an. Im weiteren Verlauf unterstützt Sie der Anschluss-

assistent, wenn Sie Ihre Geräte über die AV-Buchsen AV1, AV2 und AVS oder

speziell über die Buchsen COMPONENT IN bzw. HDMI(DVI) an das TV-Gerät an-

schließen.

AVS AV1 HDMI(DVI)AV2 COMP.IN

Camera VCR Dec. DVD COMP.IN HDMI/DVI

DVD-Recorder nein

DVD-Spieler ja

Videorecorder 1 ja

Videorecorder 2 nein

Sat-Reciever nein

SetTopBox/dBox nein

Decoder ja

CamCorder ja

Anderes Gerät nein

ja

Camera

VCR

Dec.

DVD

COMP.IN

HDMI/DVI

SAT

STB

AV

DVD

VCR

OK OK

| Neue Aufnahme | Timerübersicht | Aufnahme-Vorlaufzeit | Aufnahme-Nachlaufzeit

| Über EPG | Über Teletext (VPT) | Von Hand

| Ton über | Höhen | Tiefen | weitere ...

Sprache

Sprache D Kieli SF

Language GB Jazyk CZ

Langue F Jézyk PL

Lingua I Jazyk

SK

Idioma E Jezik

SLN

Idioma P Nyelv

HU

Taal NL Lisan TR

Sprog DK GR

Språk S RS

| Neue Nachr. | Aufdecken | Aufnahme | Einstellungen

Teletext-Menü

| ja | nein

Vorschauseiten

0 VIDEO 301 12 WDR 3 301

1 ARD 301 13 BR 301

2 ZDF 301 14 HR 301

3 SAT.1 301 15 MDR 3 301

4 RTL 301 16 KIKA 301

5 VOX 301 17 PHOENIX 301

6 S-RTL 301 18 BR-ALPHA 301

7 N-TV 301 19 3SAT 301

8 DSF 301 20 EUROSPRT 301

9 9LIVE 301 21 KABEL 1 301

10 PRO7 301 22 MTV 301

11 RTL 2 301 23 CNN INT. 301

Untertitelseiten

0 VIDEO 150 12 WDR 3 150

1 ARD 150 13 BR 150

2 ZDF 150 14 HR 150

3 SAT.1 150 15 MDR 3 150

4 RTL 150 16 KIKA 150

5 VOX 150 17 PHOENIX 150

6 S-RTL 150 18 BR-ALPHA 150

7 N-TV 150 19 3SAT 150

8 DSF 150 20 EUROSPRT 150

9 9LIVE 150 21 KABEL 1 150

10 PRO7 150 22 MTV 150

11 RTL 2 150 23 CNN INT. 150

Persönliche Teletext-Seiten

ARD 100 _

- - - - - - - - - - - - - - - - - - - - -

TV-Menü L2650 (LCD)

14

| 0099 (Programm)

Service

| mode | Welcome screen | Info station

| aus | ein

System data

Chassis L2650

TV application software version V1.2 ACQ_V02.08.00 TDC_V01.05.00

TV application software code 15.12.04

TV EAROM code P01412

Operating time D: 53h P: 235h L: 34h

Firmware FPGA version V1.1

EDID-HDMI date version B400

Firmware I2CUART version V03.01

50

OK

10

OK

-3

OK

0

OK

-68

OK

15

OK

0

OK

| Y delay | UV delay

93

OK

91

OK

-6

OK

| General V | General H | Station table V | Station table H

0

OK

0

OK

| Red | Green | Blue

0

OK

| Red | Green | Blue

0

OK

| Adjust

| Stop | Start

| Bit 0 | Bit 1 Bit 2 | Bit 3 | Bit 4 | Bit 5 | Bit 6 | Bit 7

| Panel service

Service-Menü L2650 (LCD)

15

| Manual adjustment of AV standard | Assign audio digital | Allow switching voltage | RGB insertion at AV2

| Start transmission

| New devices/modifications | Digital Link Plus | Miscellaneous

| Change search settings | Start search

TV Menu

| Lock immediately | Lock daily | Change access code

| Automatic search | Manual adjustment | Change stations

0 VIDEO 12 WDR 3

1 ARD 13 BR

2 ZDF 14 HR

3 SAT.1 15 MDR 3

4 RTL 16 KIKA

5 VOX 17 PHOENIX

6 S-RTL 18 BR-ALPHA

7 N-TV 19 3SAT

8 DSF 20 EUROSPRT

9 9LIVE 21 KABEL 1

10 PRO7 22 MTV

11 RTL 2 23 CNN INT.

Range VHF

Channel E 08

Frequency 196.25 MHz

Name ARD

TV Standard B/G

Colour Standard PAL

Connect the satellite dishes or cable/terrestrial antennas of your AV equipment

(VCR, decoder, ...) to the TV set according to the enclosed operating manual.

The connection assistant assists you when you connect your equipment to the TV set

via the AV-sockets AV1, AV2 and AVS or via the COMPONENT IN or HDMI (DVI)

socket.

AVS AV1 HDMI(DVI)AV2 COMP.IN

Camera VCR Dec. DVD COMP.IN HDMI/DVI

DVD Recorder no

DVD Player yes

VTR 1 yes

VTR 2 no

Sat Receiver no

SetTopBox/dBox no

Decoder yes

CamCorder yes

Other Set no

yes

Camera

VCR

Dec.

DVD

COMP.IN

HDMI/DVI

SAT

STB

AV

DVD

VCR

OK OK

| New recording | Timer overview | Pre-record time | Post record time

| Via EPG | Via teletext (VPS) | Manual

| Sound via | Treble | Bass | more ...

| Newsflash | Reveal | Recording | Settings

Teletext Menu

Preview pages

0 VIDEO 301 12 WDR 3 301

1 ARD 301 13 BR 301

2 ZDF 301 14 HR 301

3 SAT.1 301 15 MDR 3 301

4 RTL 301 16 KIKA 301

5 VOX 301 17 PHOENIX 301

6 S-RTL 301 18 BR-ALPHA 301

7 N-TV 301 19 3SAT 301

8 DSF 301 20 EUROSPRT 301

9 9LIVE 301 21 KABEL 1 301

10 PRO7 301 22 MTV 301

11 RTL 2 301 23 CNN INT. 301

Sub-title pages

0 VIDEO 150 12 WDR 3 150

1 ARD 150 13 BR 150

2 ZDF 150 14 HR 150

3 SAT.1 150 15 MDR 3 150

4 RTL 150 16 KIKA 150

5 VOX 150 17 PHOENIX 150

6 S-RTL 150 18 BR-ALPHA 150

7 N-TV 150 19 3SAT 150

8 DSF 150 20 EUROSPRT 150

9 9LIVE 150 21 KABEL 1 150

10 PRO7 150 22 MTV 150

11 RTL 2 150 23 CNN INT. 150

| yes | no

Personal teletext pages

ARD 100 _

- - - - - - - - - - - - - - - - - - - - -

TV Menu L2650 (LCD)

Language

Sprache D Kieli

SF

Language GB

Jazyk CZ

Langue F

Jézyk

PL

Lingua I Jazyk SK

Idioma E Jezik SLN

Idioma P Nyelv

HU

Taal NL Lisan

TR

Sprog DK

GR

Språk

S

RS

| On-screen displays | Time and date DVB software|

16

| 0099 (Program)

Service

| mode | Welcome screen | Info station

| off | on

System data

Chassis L2650

TV application software version V1.2 ACQ_V02.08.00 TDC_V01.05.00

TV application software code 15.12.04

TV EAROM code P01412

Operating time D: 53h P: 235h L: 34h

Firmware FPGA version V1.1

EDID-HDMI date version B400

Firmware I2CUART version V03.01

50

OK

10

OK

-3

OK

0

OK

-68

OK

15

OK

0

OK

| Y delay | UV delay

93

OK

91

OK

-6

OK

| General V | General H | Station table V | Station table H

0

OK

0

OK

| Red | Green | Blue

0

OK

| Red | Green | Blue

0

OK

| Adjust

| Stop | Start

| Bit 0 | Bit 1 Bit 2 | Bit 3 | Bit 4 | Bit 5 | Bit 6 | Bit 7

| Panel service

Service Menu L2650 (LCD)

17

L2650

Art.-Nr.

Art. No.

65433.Y60

65433.Y50

65421.Y27

65421.Y87

65421.Y17

65421.Y77

65434.Y60

65434.Y50

65422.P27

65422.

A/P/T89

65442.

Y/D(T)27

65442.

Y/D(T)89

65442.

T/W17

65442.

T/W79

Geräte-Typ

TV set type

Concept L26

BASIC

Concept L26

BASIC

Concept L26

DVB-T CI

Concept L26

DVB-T/C CI

Concept L26

DVB-T CI

Concept L26

DVB-T/C CI

Concept L32

BASIC

Concept L32

BASIC

Concept L32

DVB-T CI

Concept L32

DVB-T/C

Concept

L32DVB-T CI

Concept

L32DVB-T/C

Concept

L32DVB-T CI

Concept

L32DVB-T/C

Baugruppen • Components

Signal Board

89445

060 x

061 x

062 x

064 x

067 x

362 x x

364 x x

367 x x

460 x

461 x

464 x

Basic Board

89435

050 x x x x x

350 x x x x x x x x x

Buchsenplatte

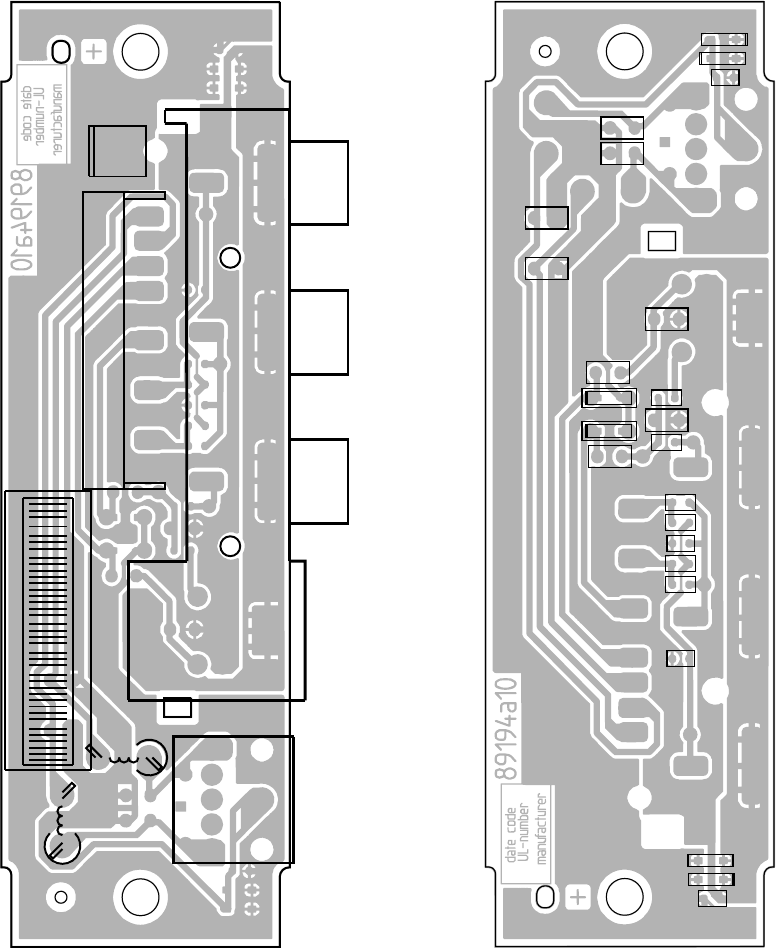

Connector Board 89194 051 x x x x x x x x x x x x x x

Bedienteil+IR

Control Unit+IR 89407 050 x x x x x x x x x x x x x x

LCD Display 26”

Sharp GA7L

(89446)

90433

(001)

966 x x x

LCD Control Unit 90433 971 x x x

Inverter Unit 90433 973 x x x

Inverter GND Unit 90433 974 x x x

Microprocessor Unit 90433 972 x x x

LCD Display 26“

Sharp ASV 2.3 89683 001 x x x

LCD Display 32“

Samsung L03 32575 x x x

LCD Display 32“

Samsung L14 89571 001 x x x

LCD Display 32”

Sharp GA7L

(89438)

90433

(001)

932 x x

Inverter-A Unit 90433 962 x x

Inverter-B Unit 90433 963 x x

Inverter GND Unit 90433 964 x x

LCD Control Unit 90433 960 x x

Microprocessor Unit 90433 961 x x

Tuner 04 89222 063 x x x x

Tuner H04 89222 064 x x x x x x x x x x

Fernbedienung RC4

Remote Control 89800 A01 x x x x x x x x x x x x

Fernbedienung RC5

Remote Control 89665 A00 x x

CI onboard 89346 050 x x x x

NRS • Retroﬁt Kit

DVB-S

enthält/contains

89189.056

89361 056 x x x x x

CI ext. 89346 080

(=050) xxxxxx

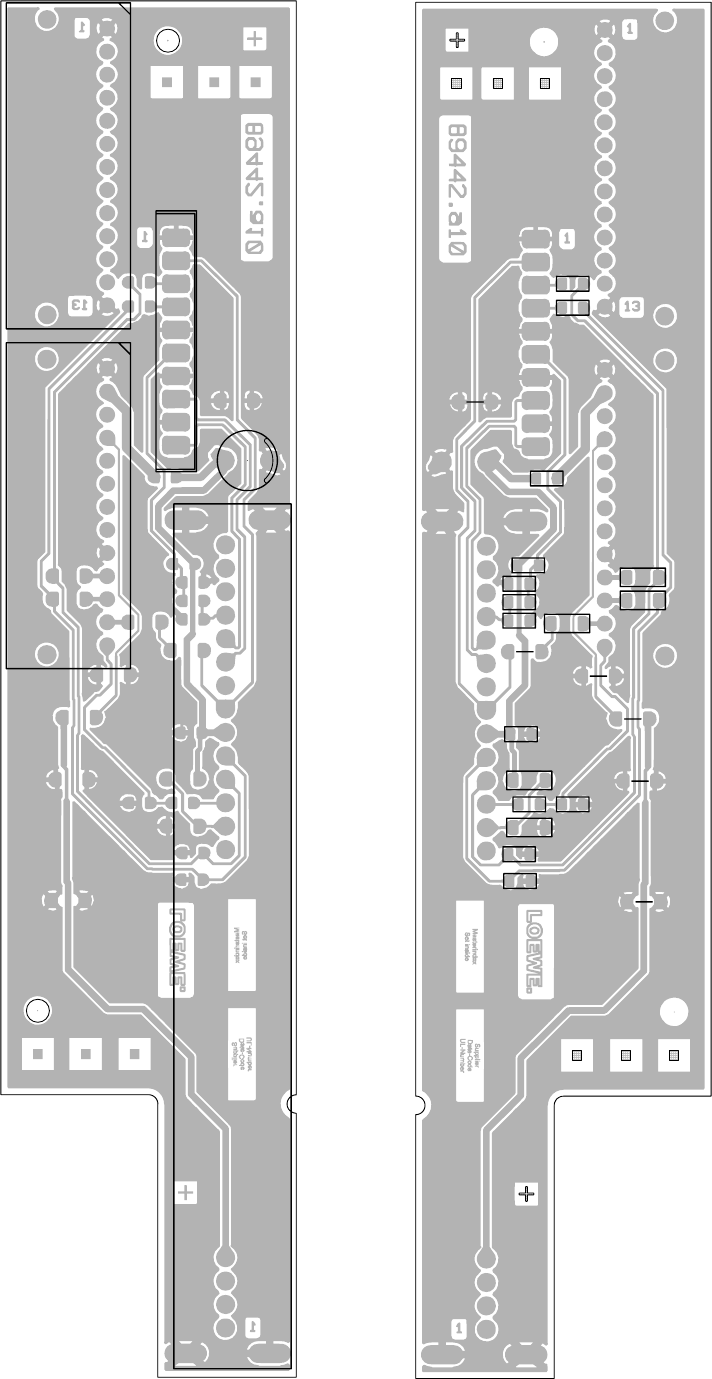

PiP T/C 89442 080

(=050) x x x

Baugruppenübersicht • Components chart • Correspondances des modules • Ordinamento dei gruppi

Vista general de módulos • Overzicht van de modules

18

TECHNISCHE DATEN

Allgemeine Daten

23LtpecnoCcisaB23LtpecnoC62LtpecnoCcisaB62LtpecnoCpyT

xxx24456xxx43456xxx12456xxx33456.rNlekitrA

Varianten TV terr. (Analog)

Varianten DVB-T/C

Varianten DVB-T CI (UK)

Varianten DVB-T/C CI

•

–

•

–

•

–

Maße Gerät ohne Fuß (ca. cm BxHxT)

Maße mit Fuß (ca. cm BxHxT)

81,0x41,0x10,0

81,0x47,5x23,2

81,0x41,0x10,0

81,0x47,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

Gewicht Gerät ohne Fuß (ca. kg)

Gewicht Gerät mit Fuß (ca. kg)

11,8

13,8

11,8

13,8

14,7

16,7

14,7

16,7

Display

Bilddiagonale (cm)/Bildformat

Au?ösung

Kontrastverhältnis

HD-LCD Technologie

66/16:9

1366x768

800:1

HD-LCD Technologie

66/16:9

1366x768

800:1

HD-LCD Technologie

80/16:9

1366x768

800:1

HD-LCD Technologie

80/16:9

1366x768

800:1

Betrachtungswinkel horizontal/vertikal 170° 170° 170° 170°

Leistungsaufnahme (IEC 62087)

in Betrieb (Watt)

in Standby (Watt)

65

< 3

70

< 3

80

< 3

85

< 3

º53–º5)suisleC(rutarepmetsgnubegmU

%08–02)dnereisnednokthcin(ethcueftfuLevitaleR

)NNrebüm0002–0(aPh4111–008kcurdtfuL

Elektrische Daten

0562LgnunhciezebsissahC

zH06–05/V042–V022gnugrosrevmortS

Tuner VHF/UHF/ Kabel

zHM068sibzHM14zHM8dnabrepyH

0861BVDieb/034eztälprehciepS-redneS

N,M,K/D,L,I,G/BnemroN-VT

DVB-T, DVB-C , DVB-S

,CSTN,LAP,MACESmronbraF

NTSC-V, PAL-V (60Hz)

noT-2/oeretS/onoMmroN-noT

Nicam B/G, I, L

Virtual Dolby

ttaW02x2gnutsielnneN-oiduA

5.2leveLFOLF/POTtxeteleTregolanA

0051)23L/62LtpecnoC(rehciepsnetieS

Seitenspeicher (Concept L 26 Basic / L 32 Basic) 1000

5-GEHM)etnairaV-BGiebrun(txeteleTrelatigiD

Anschlüsse

mhO0002–23reröhfpoKmm5,3eknilK

)8iH/SHV-S(C/YNIoediV)SVA(NID-iniM

FBAS (VHS/8 mm)

)mm8/SHV(SABFNIoediV)bleg(hcniC

R/LNIoiduA)tor/ßiew(hcniC

IEC-Buchse 75 Ohm/5 V/80 mA Antenne/Kabel/analog PIP (1 /DVB-T/C

F-Buchse 75 Ohm 13/18 V/350 mA (2 TAS-TNA

)8iH/SHV-S(C/YNIoediV1VAORUE

FBAS (VHS/8 mm)

)mm8/SHV(SABFTUOoediV

Y/C (S-VHS/Hi 8)

R/LNIoiduA

R/LTUOoiduA

)8iH/SHV-S(C/YNIoediV2VAORUE

FBAS (VHS/8 mm)

RGB, YUV

SABFTUOoediV

Y/C (nur bei SVHS Link Plus)

R/LNIoiduA

R/LTUOoiduA

retneCsmrV2.xamNIoiduAhcniC

R/LNIoiduAhcniCx2

2 x Cinch Audio OUT Pegel einstellbar bei Aktivlautsprechern L/R

langiS-bP/bCNITNENOPMOChcniC

langiS-rP/rCNITNENOPMOChcniC

langiS-YNITNENOPMOChcniC

noTlatigiD)FIDPS(NIoiduAlatigiDhcniC

noTlatigiD)FIDPS(TUOoiduAlatigiDhcniC

HDMI/DVI Digital Video/Audio IN Typ A 19pol. Digtal Bild und Ton

langisdliB-BTS/CPNIAGX/AGVAGX/AGV

kniL-L/ecivreSECIVRESNID-iniM

(1 Analog PIP-Tuner nachrüstbar bei Concept L 32.

(2 Digital Satelliten Tuner bei Geräten mit DVB-T/C nachrüstbar.

19

TECHNICAL SPECIFICATIONS

Electrical data

0562LemansissahC

zH06-05/V042-V022ylppusrewoP

Tuner VHF/UHF/ cable

zHM068otzHM14zHM8dnabrepyH

0861BVDrof/034snoitacolegarotsnoitatS

N,M,K/D,L,I,G/BsdradnatsVT

DVB-T, DVB-C , DVB-S

,CSTN,LAP,MACESdradnatsruoloC

NTSC-V, PAL-V (60Hz)

lennahc-lauD/oeretS/onoMdradnatsdnuoS

Nicam B/G, I, L,

Virtual Dolby

ttaw02x2rewopoiduadetaR

5.2leveLFOLF/POTtxeteleTeugolanA

0051)23L/62LtpecnoC(yromeMegaP

Page Memory (Concept L 26 Basic / L 32 Basic) 1000

5-GEHM)ylnoKUni(txeteleTlatigiD

Connections

mho0002-23senohpdaeHmm5.3kcaJ

)8iH/SHV-S(C/YNIoediV)SVA(NID-iniM

CVBS (VHS/8 mm)

)mm8/SHV(SBVCNIoediV)wolley(hcniC

R/LNIoiduA)der/etihw(hcniC

IEC socket 75 Ohm/5 V/80 mA Antenna/cable/analogue PIP (1 /DVB-T/C

F socket 75 Ohm 13/18 V/350 mA (2 TAS-TNA

)8iH/SHV-S(C/YNIoediV1VA-ORUE

CVBS (VHS/8 mm)

)mm8/SHV(SBVCTUOoediV

Y/C (S-VHS/Hi 8)

R/LNIoiduA

R/LTUOoiduA

)8iH/SHV-S(C/YNIoediV2VA-ORUE

CVBS (VHS/8 mm)

RGB, YUV

SBVCTUOoediV

Y/C, (only with SVHS Link Plus)

R/LNIoiduA

R/LTUOoiduA

ertneCsmrV2.xamNIoiduAhcniC

R/LNIoiduAhcniCx2

2 x Cinch Audio OUT (level adjustable in active loud speakers) L/R

langisbP/bC:NITNENOPMOChcniC

langisrP/rC:NITNENOPMOChcniC

langisY:NITNENOPMOChcniC

oidualatigiD)FIDPS(NIoiduAlatigiDhcniC

oidualatigiD)FIDPS(TUOoiduAlatigiDhcniC

HDMI/DVI Digital Video/Audio IN type A 19pin Digital video and audio

langisoedivBTS/CPNIAGX/AGVAGX/AGV

kniL-L/ecivreSECIVRESNID-iniM

(1 Analogue PIP tuner can be retro?tted in Concept L32.

(2 Digital satellite tuner reto?ttable in units with DVB-T/C.

General data

23LtpecnoCcisaB23LtpecnoC62LtpecnoCcisaB62LtpecnoCepyT

xxx24456xxx43456xxx12456xxx33456.onmetI

Versions TV terr. (analogue)

Versions DVB-T/C

Versions DVB-T CI (UK)

Versions DVB-T/C CI

•

–

•

–

•

–

Set dimensions without stand (ca. cm WxHxD)

Dimensions with stand (ca. cm WxHxD)

81,0x41,0x10,0

81,0x47,5x23,2

81,0x41,0x10,0

81,0x47,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

Set weight without stand (ca. kg)

Set weight with stand (ca. kg)

11,8

13,8

11,8

13,8

14,7

16,7

14,7

16,7

Display

Picture diagonal (cm)/picture format

Resolution

Contrast ratio

HD-LCD technology

66/16:9

1366x768

800:1

HD-LCD technology

66/16:9

1366x768

800:1

HD-LCD technology

80/16:9

1366x768

800:1

HD-LCD technology

80/16:9

1366x768

800:1

Angle of viewing horizontally/vertically 170° 170° 170° 170°

Power consumption (IEC 62087)

in operation (watt)

in standby (watt)

65

< 3

70

< 3

80

< 3

85

< 3

º53–º5)suisleC(erutarepmettneibmA

%08–02)gnisnednocton(ytidimuhevitaleR

)NNrevom0002–0(aPh4111–008erusserpcirtemoraB

20

CARACTÉRISTIQUES TECHNIQUES

Caractéristiques générales

23LtpecnoCcisaB23LtpecnoC62LtpecnoCcisaB62LtpecnoCepyT

xxx24456xxx43456xxx12456xxx33456elcitra’decneréféR

Variantes TV terr. (analogue)

Variantes DVB-T/C

Variantes DVB-T CI (UK)

Variantes DVB-T/C CI

•

–

•

–

•

–

Dimensions de l‘appareil sans pied

(environ cm LgxHtxProf.)

Dimensions avec pied (env. cm LgxHtxProf.)

81,0x41,0x10,0

81,0x47,5x23,2

81,0x41,0x10,0

81,0x47,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

Poids de l‘appareil sans pied (env. kg)

Poids de l‘appareil avec pied (env. kg)

11,8

13,8

11,8

13,8

14,7

16,7

14,7

16,7

Af?chage

Diagonale d‘image (cm)/format d‘image

Résolution

Rapport de contraste

Technologie HD-LCD

66/16:9

1366x768

800:1

Technologie HD-LCD

66/16:9

1366x768

800:1

Technologie HD-LCD

80/16:9

1366x768

800:1

Technologie HD-LCD

80/16:9

1366x768

800:1

Angle de vision horizontal/vertical 170° 170° 170° 170°

Puissance (IEC 62087)

en fonctionnement (Watt)

en mode veille (Watt)

65

< 3

70

< 3

80

< 3

85

< 3

º53–º5)suisleC(etnaibmaerutarépmeT

Taux d‘humidité relative de l‘air

%08–02)noitasnednocsnas(

)remaleduaevinuam0002–0(aPh4111–008euqiréhpsomtanoisserP

0562LsissâhcudorémuN

zH06-05/V042-V022tnaruocnenoitatnemilA

Récepteur VHF/UHF/ Câble

zHM068àzHM14zHM8dnabrepyH

Emplacements de mémorisation de chaînes 430/1680 pour le DVB

N,M,K/D,L,I,G/BVTsemroN

DVB-T, DVB-C , DVB-S

,CSTN,LAP,MACESrueluocedsemroN

NTSC-V, PAL-V (60Hz)

lanac-iB/oérétS/onoMnossemroN

Nicam B/G, I, L

Dolby virtuel

ttaW02x2elanimonoiduaecnassiuP

5.2uaeviNFOLF/POTeuqigolanaetxetéléT

0051)23L/62LtpecnoC(segapsederioméM

Mémoire des pages (Concept L 26 Basic / L 32 Basic) 1000

5-GEHM)BGnetnemelues(euqirémunetxetéléT

Raccordements

mhO0002-23euqsaCmm5,3kcaJ

)8iH/SHV-S(C/YNIoediV)SVA(NID-iniM

CVBS (VHS/8 mm)

)mm8/SHV(SBVCNIoediV)enuaj(hcniC

)R/L(D/GNIoiduA)eguor/cnalb(hcniC

Prise IEC 75 Ohm/5 V/80 mA Antenne/câble/PIP analogique (1 /DVB-T/C

Prise F 75 Ohm 13/18 V/350 mA (2 TAS-TNA

)8iH/SHV-S(C/YNIoediV1VAORUE

CVBS (VHS/8 mm)

)mm8/SHV(SBVCTUOoediV

Y/C (S-VHS/Hi 8)

)R/L(D/GNIoiduA

Audio OUT G/D (L/R)

)8iH/SHV-S(C/YNIoediV2VAORUE

CVBS (VHS/8 mm)

RGB, YUV

SBVCTUOoediV

Y/C (uniquement pour S-VHS Link Plus)

)R/L(D/GNIoiduA

Audio OUT G/D (L/R)

lartneCsmrV2.xamNIoiduAhcniC

)R/L(D/GNIoiduAhcniCx2

2 x Cinch Audio OUT (niveau sonore réglable pour haut-parleurs actifs)

G/D (L/R)

bP/bClangiSNITNENOPMOChcniC

rP/rClangiSNITNENOPMOChcniC

YlangiSNITNENOPMOChcniC

Cinch Digital Audio IN (SPDIF) Son numérique

Cinch Digital Audio OUT (SPDIF) Son numérique

HDMI/DVI Digital Video/Audio IN Typ A 19 pôles Image et son numériques

BTS/CPegami’dlangiSNIAGX/AGVAGX/AGV

kniL-L/ecivreSECIVRESNID-iniM

(1 Récepteur PIP analogue en complément pour les Concept L32.

(2 Un récepteur satellite numérique peut être équipé ultérieurement

(uniquement pour les versions d’appareil équipés de DVB-T/C)

21

DATI TECNICI

Dati generali

23LtpecnoCcisaB23LtpecnoC62LtpecnoCcisaB62LtpecnoColledoM

xxx24456xxx43456xxx12456xxx33456olocitraoremuN

Versioni TV terr. (analogico)

Versioni DVB-T/C

Versioni DVB-T CI (UK)

Versioni DVB-T/C CI

•

–

•

–

•

–

Dimensioni dell‘apparecchio senza piedistallo

(in cm ca. larg. x alt. x prof.)

Dimensioni con piedistallo

(in cm ca. larg. x alt. x prof.)

81,0x41,0x10,0

81,0x47,5x23,2

81,0x41,0x10,0

81,0x47,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

Peso dell‘apparecchio senza piedistallo (ca. kg)

Peso dell‘apparecchio con piedistallo (ca. kg)

11,8

13,8

11,8

13,8

14,7

16,7

14,7

16,7

Schermo

Diagonale immagine (cm)/formato immagine

Risoluzione

Kontrastverhältnis

Tecnologia HD-LCD

66/16:9

1366x768

800:1

Tecnologia HD-LCD

66/16:9

1366x768

800:1

Tecnologia HD-LCD

80/16:9

1366x768

800:1

Tecnologia HD-LCD

80/16:9

1366x768

800:1

Angolo visivo orizzontale/verticale 170° 170° 170° 170°

Potenza assorbita (IEC 62087)

durante il funzionamento (watt)

in standby (watt)

65

< 3

70

< 3

80

< 3

85

< 3

º53–º5)suisleC(etneibmaarutarepmeT

%08–02)etnasnednocnon(evitaleràtidimU

)mlsm0002–0(aPh4111–008acirefsomtaenoisserP

Dati elettrici

Identi? 0562Loialetenoizac

zH06–05/V042–V022acirtteleenoizatnemilA

Sintonizzatore VHF/UHF/ cavo

zHM068azHM14adzHM8adnabrepI

0861BVDrep/034ammargorpidinoizisoP

N,M,K/D,L,I,G/BVTdradnatS

DVB-T, DVB-C , DVB-S

,CSTN,LAP,MACES.locamroN

NTSC-V, PAL-V (60Hz)

oidua.dom2/oeretS/onoMoiduadradnatS

Nicam B/G, I, L

Virtual Dolby

ttaw02x2oiduaelanimonaznetoP

5,2olleviLFOLF/POTacigolanaoediveleT

Memoria pagine (Concept L 26 / Concept L 32) 1500

Memoria pagine (Concept L 26 Basic / Concept L 32 Basic) 1000

5-GEHM)BGniolos(elatigidoediveleT

Collegamenti

fuCmm5,3adkcaJ ?e 32–2000 Ohm

)8iH/SHV-S(C/YNIoediV)SVA(NID-iniM

SVC (VHS/8 mm)

)mm8/SHV(CVSNIoediV)ollaig(hcniC

)R/L(xd/xsNIoiduA)ossor/ocnaib(hcniC

Presa IEC 75 ohm/5 V/80 mA Antenna/cavo/analogico PIP (1 /DVB-T/C

Presa F 75 ohm 13/18 V/350 mA (2 TAS-TNA

)8iH/SHV-S(C/YNIoediV1VAORUE

SVC (VHS/8 mm)

)mm8/SHV(CVSTUOoediV

Y/C (S-VHS/Hi 8)

)R/L(xd/xsNIoiduA

Audio OUT sx/dx (L/R)

)8iH/SHV-S(C/YNIoediV2VAORUE

SVC (VHS/8 mm)

RGB, YUV

CVSTUOoediV

Y/C (solo in caso di S-VHS Link Plus)

)R/L(xd/xsNIoiduA

Audio OUT sx/dx (L/R)

retneCsmrV2.xamNIoiduAhcniC

)R/L(xd/xsNIoiduAhcniC2.n

n. 2 Cinch Audio OUT (livello regolabile per gli altoparlanti attivi) sx/dx (L/R)

bP/bCelangeSNITNENOPMOChcniC

rP/rCelangeSNITNENOPMOChcniC

YelangeSNITNENOPMOChcniC

elatigidoiduA)FIDPS(NIoiduAlatigiDhcniC

Cinch Digital Audio OUT (SPDIF) Audio digitale

HDMI/DVI Digital Video/Audio IN tipo A 19 poli Immagine e audio digitali

VGA/XGA VGA/XGA IN Segnale immagine PC/STB

kniL-L/ecivreSECIVRESNID-iniM

(1 Possibilità d‘integrazione di un sintonizzatore PIP analogico nei

modello Concept L32.

(2 Possibilità d'integrazione di un sintonizzatore digitale per apparecchi

con DVB-T/V.

22

DATOS TÉCNICOS

Datos generales

23LtpecnoCcisaB23LtpecnoC62LtpecnoCcisaB62LtpecnoCopiT

xxx24456xxx43456xxx12456xxx33456aicnereferedoremúN

Variantes TV terr. (analógico)

Variantes DVB-T/C

Variantes DVB-T CI (UK)

Variantes DVB-T/C CI

•

–

•

–

•

–

Dimensiones del aparato sin pie de apoyo

(aprox. AnxAlxL)

Dimensiones con pie de apoyo (aprox. cm AnxAlxL)

81,0x41,0x10,0

81,0x47,5x23,2

81,0x41,0x10,0

81,0x47,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

Peso aparato sin pie de apoyo (aprox. kg)

Peso aparato con pie de apoyo (aprox. kg)

11,8

13,8

11,8

13,8

14,7

16,7

14,7

16,7

Pantalla

Diagonal de imagen (cm)/Formato de imagen

Resolución

Contraste (aproxim.)

Tecnología HD-LCD

66/16:9

1366x768

800:1

Tecnología HD-LCD

66/16:9

1366x768

800:1

Tecnología HD-LCD

80/16:9

1366x768

800:1

Tecnología HD-LCD

80/16:9

1366x768

800:1

Ángulo de visión horizontal/vertical 170° 170° 170° 170°

Entrada de potencia (IEC 62087)

en funcionamiento (Watt)

en espera (Watt)

65

< 3

70

< 3

80

< 3

85

<3

º53–º5)suisleC(etneibmaarutarepmeT

%08–02)nóicasnednocnis(avitalererialeddademuH

)NNerbosm0002–0(aPh4111–008erialednóiserP

Datos eléctricos

0562LsisahclednóicanimoneD

zH06–05/V042–V022etneirrocedortsinimuS

Sintonizador VHF/UHF/ cable

zHM068azHM14edzHM8adnabrepiH

Posiciones de memorización de canales 430 / en DVB 1680

N,M,K/D,L,I,G/BVTsamroN

DVB-T, DVB-C , DVB-S

,CSTN,LAP,MACESrolocledamroN

NTSC-V, PAL-V (60Hz)

eügniliB/oerétsE/onoModinosedamroN

Nicam B/G, I, L

Virtual Dolby

soitav02x2oiduaaraplanimonaicnetoP

5.2leviNFOLF/POTacigólanaotxeteleT

0051)23L/62LtpecnoC(sanigáprodabarG

Grabador páginas (Concept L26 Basic / L 32 Basic) 1000

5-GEHM)URolós(latigidotxeleT

Conexiones

mho0002-23seraluciruAmm5.3kcaJ

)8iH/SHV-S(C/YNIoedíV)SVA(NID-iniM

CVBS (VHS/8 mm)

)mm8/SHV(SBVCNIoedíV)ollirama(hcniC

)D/I(R/LNIoiduA)ojor/ocnalb(hcniC

Clavijas IEC 75 Ohm/5 V/80 mA Antena/cable/PIP analógico (1 /DVB-T/C

Clavija F 75 Ohm 13/18 V/350 mA (2 TAS-TNA

)8iH/SHV-S(C/YNIoedíV1VAORUE

CVBS (VHS/8 mm)

)mm8/SHV(SBVCTUOoediV

Y/C (S-VHS/Hi 8)

)D/I(R/LNIoiduA

Audio OUT L/R (I/D)

)8iH/SHV-S(C/YNIoediV2VAORUE

CVBS (VHS/8 mm)

RGB, YUV

SBVCTUOoediV

Y/C (sólo con S-VHS Link Plus)

)D/I(R/LNIoiduA

Audio OUT L/R (I/D)

retneCsmrV2.xámNIoiduAhcniC

)D/I(R/LNIoiduAhcniCx2

2 x Cinch Nivel de sonido OUT ajustable en altavoces activos L/R (I/D)

bP/bClañeSNITNENOPMOChcniC

rP/rClañeSNITNENOPMOChcniC

YlañeSNITNENOPMOChcniC

latigidodinoS)FIDPS(NIoiduAlatigiDhcniC

Cinch Digital Audio OUT (SPDIF) Sonido digital

HDMI/DVI Digital Video/Audio IN Tipo A 19 pol. Imagen y sonido digital

BTS/CPnegamiedlañeSNIAGX/AGVAGX/AGV

kniL-L/ecivreSECIVRESNID-iniM

(1 Se puede montar un sintonizador analógico PIP posteriormente en el

Concept L32.

(2 Possible montaje posterior de un sintonizador digital de satélite en televisores

con DVB-T/C.

23

TECHNISCHE GEGEVENS

Elektrische gegevens

0562LremmunsissahC

zH06–05/V042–V022gnideoV

Tuner VHF/UHF kabel

zHM068totzHM14zHM8dnabrepyH

0861BVDroov/034nestaalpgalsporedneZ

N,M,K/D,L,I,G/Bnemron-VT

DVB-T, DVB-C , DVB-S

,CSTN,LAP,MACESmronneruelK

NTSC-V, PAL-V (60Hz)

gilat-2/oeretS/onoMmronsdiuleG

Nicam B/G, I, L,

Virtual Dolby

ttaW02x2oiduagnitsalebelanimoN

5.2leveLFOLF/POTgoolanatsketeleT

0051)23L/62LtpecnoC(galspos´anigaP

Pagina´s opslag (Concept L 26 Basic / L 32 Basic) 1000

5-GEHM)BGnineella(laatigidtsketeleT

Aansluitingen

mhO0002–23noofeletdfooHmm5,3knilK

)8iH/SHV-S(C/YNIoediV)SVA(NID-iniM

FBAS (VHS/8 mm)

)mm8/SHV(SABFNIoediV)leeg(hcniC

R/LNIoiduA)door/tiw(hcniC

IEC-aansluiting 75 Ohm/5 V/80 mA Antenne/Kabel/analoge PIP (1 /DVB-T/C

F-aansluiting 75 Ohm 13/18 V/350 mA (2 TAS-TNA

)8iH/SHV-S(C/YNIoediV1VAORUE

FBAS (VHS/8 mm)

)mm8/SHV(SABFTUOoediV

Y/C (S-VHS/Hi 8)

R/LNIoiduA

R/LTUOoiduA

)8iH/SHV-S(C/YNIoediV2VAORUE

FBAS (VHS/8 mm)

RGB, YUV

SABFTUOoediV

Y/C (uitsluitend bij S-VHS Link Plus)

R/LNIoiduA

R/LTUOoiduA

retneCsmrV2.xamNIoiduAhcniC

R/LNIoiduAhcniCx2

2 x Cinch Audio OUT (niveau instelbaar bij actieve luidsprekers) L/R

laangis-bP/bCNITNENOPMOChcniC

laangis-rP/rCNITNENOPMOChcniC

laangis-YNITNENOPMOChcniC

Cinch Digital Audio IN (SPDIF) Digitaal geluid

diuleglaatigiD)FIDPS(NIoiduAlatigiDhcniC

HDMI/DVI Digital Video/Audio IN type A 19-pol. Digitaal beeld en geluid

laangisoedivBTS/CPNIAGX/AGVAGX/AGV

kniL-L/ecivreSECIVRESNID-iniM

(1 Analoge PIP-tuner achteraf toevoegbaar bij de Concept L32.

(2 Digitale satelliet-tuner achteraf installeerbar op toestellen met DVB-T/C.

Algemene gegevens

23LtpecnoCcisaB23LtpecnoC62LtpecnoCcisaB62LtpecnoCepyT

xxx24456xxx43456xxx12456xxx33456.rn-lekitrA

Variant TV terr. (Analoge)

Variant DVB-T/C

Variant DVB-T CI (UK)

Variant DVB-T/C CI

•

–

•

–

•

–

Afmetingen toestel zonder voet (ongev. cm BxHxD)

Afmetingen met voet (ongev. cm BxHxD)

81,0x41,0x10,0

81,0x47,5x23,2

81,0x41,0x10,0

81,0x47,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

97,0x48,0x10,9

97,0x54,5x23,2

Gewicht toestel zonder voet (ongev. kg)

Gewicht toestel met voet (ongev. kg)

11,8

13,8

11,8

13,8

14,7

16,7

14,7

16,7

Beeldscherm

Beelddiameter (cm)/Beeldformaat

Resolutie

Contrastverhouding

HD-LCD Technologie

66/16:9

1366x768

800:1

HD-LCD Technologie

66/16:9

1366x768

800:1

HD-LCD Technologie

80/16:9

1366x768

800:1

HD-LCD Technologie

80/16:9

1366x768

800:1

Kijkhoek horizontaal/verticaal 170° 170° 170° 170°

Opgenomen vermogen (IEC 62087)

in werking (Watt)

in standby (Watt)

65

< 3

70

< 3

80

< 3

85

< 3

º53–º5)suisleC(ruutarepmetsgnivegmO

%08–02)dneresnednoctein(diehgithcovthculeveitaleR

)PANnevobm0002–0(aPh4111–008kurdthcuL

24

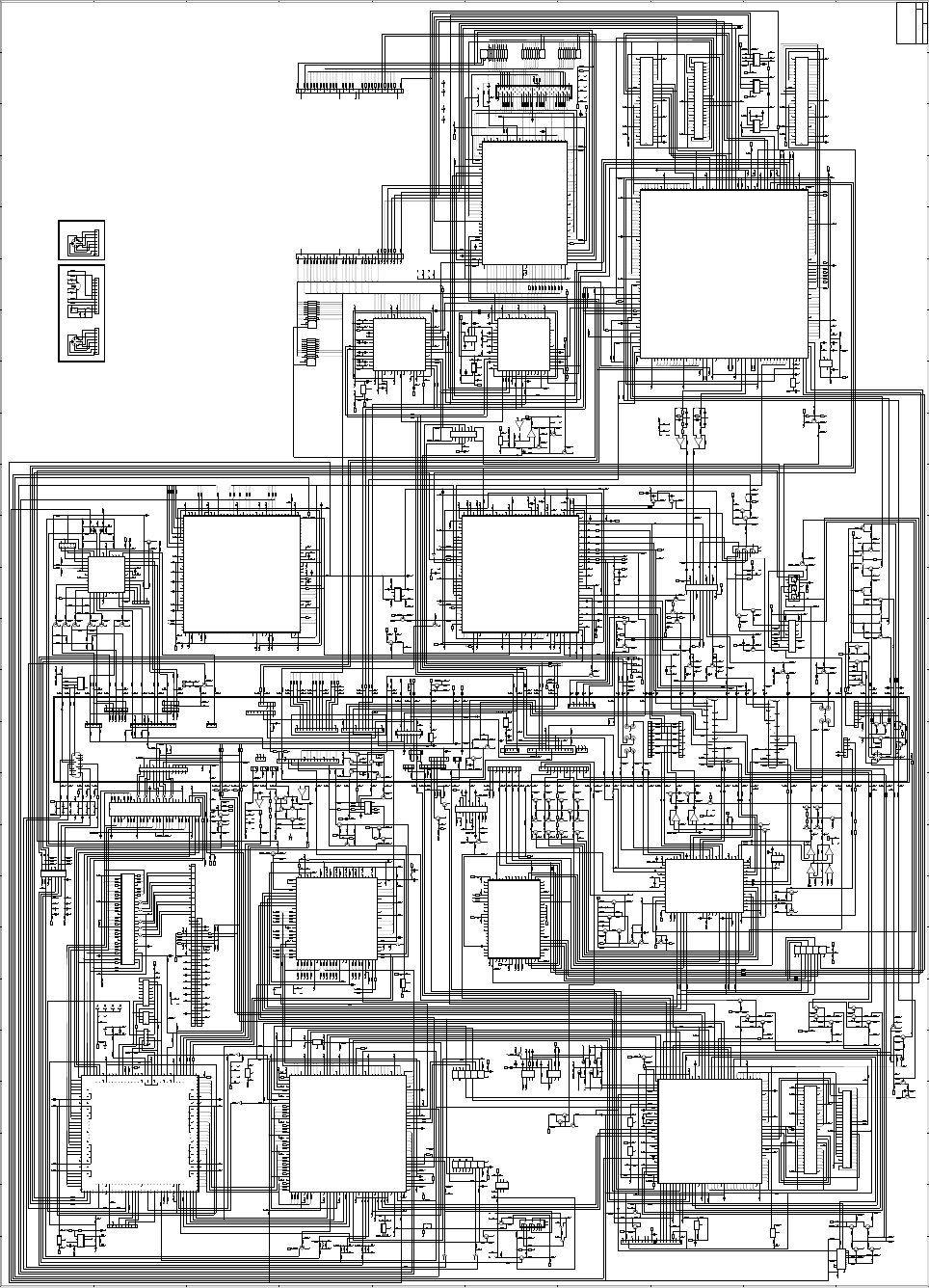

Signal Board 89445

R3627-B

R3627-C

R3626-D

R3627-A

R3627-D

0RR5948

R3292

1k

0A1

D5078

C3735

220p

C3734

470p

L3736

1u5

470p

C3739

4k7

R4230

4k7

R3886

0R

R4529

R2030

2k7

R3484

10k

R3486

R3487

10k

R3488

10k

R3489

10k

R4691

R4685

10k

R3471R3473

10k10k

R3476R3478

10k10k

R3491

10k

R3482

R3474

10k

R3479

10k

R3472

R3477

10k

R3455

0R

BC847BW

Q3456

2k7

R2039

R2038

2k7

R2037

2k7

R2036

2k7

R2034

R2033

2k7

R5772

10k

D2859

BAS316

JSTws s

W2034

5

4

3

1

2

C3738

100n

C3737

100n

C4841

C4824

100n

C4843

100n

C4822

1k5

R3496

R3497

1k5

Q3497

BC847BW

L3499

L3498

C3498

10u

1k5

R3498

C2031

10u

R3450

1k5

C3450

100p

1u

C4330

330R

R4332

R4333

100R

R4334

100R

100n

C4331

L78L05

I4331

8

7

4

6

5

3

2

1

100n

C4333

L4681

L4682

R2208

100R

W2152

JSTws s T2

1

2

3

4

5

6

7

8L3756

L3754

L3834

L3844

BAS316

D2241

1k

R2241

D2242

BAS316

C2242

100p

1k

R2242

R2243

1k

R2244

1k1k

R2245

100p

C2246

R2246

1k

R2247

1k

R2248

R2249

1k

Q2242

BC847BW

Q2246

0R

R2137

R2156

47R

4n7

C2156

R3828

150R

Q3828

BC847BW

D3828

C5V6

75R

R3829

C3874

220p

220R

R3875 R3872

220R

33p

C3875

R3825

220R

R3826

C3825

33p

220p

C3828

C3882

100n

R3888

270R

BC847BW

Q3887

R3882

100R

100n

C3887

C3881

10u

L3881

R3881

4k7

100R

R3887

270R

R3883

Q3882

BC847BW

D3732

BAV99W

2 1

3

BAV99W

D3733

2 1

3

BAV99W

D3731

2 1

3

C2658

1u/16V

1_4

1_3

1_1

1_2

U2141

TU-HR04

2_14

2_13

2_12

2_11

2_10

2_9

2_1

2_2

2_3

2_4

2_5

2_6

2_7

2_8

R2631

75R

C2622

1n

C2623

L2623

3u3

L2622

C12V

D2633 D2631

C12V

75R

R2633

100R

R2632

R2634

100R

M-DIN9pol + Schirm

W2611

9

8 76

5 4 3

2 1

W2612

PH8pol nat

1

2

3

4

5

6

7

8

W2632

11

10

9

1

2

3

4

5

6

7

8

W2621

Kl.3.5

3

1

2

M-Din4pol. + Flansch

W2631

4 3

2 1

1k

R2651

R2659

0R

4k7

R2657

STD17NE03LT4

Q4686

10k

R4688

R4234

39R

0R

R4238

1k

R4524

R4528

1k

R4686

10k

R4682

10k BC847BW

Q4682

R4684

10k

Q4684

BC847BW

100n

C4686

C4684

10n

R4683

10k

R4687

100n

C4689

47p

C4674

47R

R4673

0R

R4674

C2973

10n

C2651

100n

R4689

100R

0R

R2672

10k/1%

R4739

BC847BW

Q4738

R4733

10k/1%

100p

C4733

Q4733

BC847BW

R4737

6k8

R4741

2R2

R4732

3k9

C4731

100n

R4731

1k/1%

HEF4093BT

I4701

10

9

8

Q4744

BC847BW

Q4743

L4734

L4744

100n

C4734

100n

C4744

C4741

10u

L4741

100n

C4736

R4736

1k

R4738

4k7/1%

C4738

1n

Q4742

BC847BW

HEF4093BT

I4701

4

6

5

0R

R4681

10u

C4687

15k

R2212

R3111

10k

1n

C3092

1n

C3082

C3093

10u

C3083

C3081

2u2 2u2

C3091

10k

R3081 R3091

10k

Q3093

BC847BW

Q3083

R3083

1k

R3093

1k

56k

R3082 R3092

56k

470p

C3034

R2658

0R

W2032

JSTws s

5

4

3

1

2

100n

C2232C2231

100n

C3066

R2199

0R

R2189

0R

R2198

R2197

0R

R2196

R2192

100R

R2194

R2188

0R

R2187

R2186

0R

W2181

11

10

9

1

2

3

4

5

6

7

8

W2191

11

10

9

1

2

3

4

5

6

7

8

R4554

100R

0R

R2652

C2656

1n

10k

R3459

10k

R5771

4k7

R3418

100n

C2021

L2906

4k7

R2011

L2062

100k

R4084

BAS316

D4096

100n

C4071

4k7R4076

R4073 150k

L4096

C4096

10u

10k

R4086

R4087

10k

100n

C2073

2k7

R2031

C3453

100n

100p

C3454 C3436

100n

C3438

C3439

100n

R2032

2k7

R3454

1k5

R3453

100R

R3439

R3438

100R

R3436

100R

W2011

5pol.BM14B

5

4

3

1

2

L2011

FE_6A

W2033

7pol.BM07B

7

6

5

4

3

1

2

C3444

100n

100R

R3452

100R

R3458

R3444 100R

100n

C3458

100n

C3452

R2653

4k7

R4677

0R

1k

R2656

R2654

100R

4k7

R2677

C2072

10u

0R

R4672

R2674

4k7

L2651

C4672

100p

R4676

47R

C4677

47p

1k

R4671

W4601

FH12-50

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

9

10

11

12

13

14

15

16

5

6

7

8

3

4

2

1

W2651

DF13-30DP

3029

2827

2625

2423

21 22

2019

1817

1615

1413

1211

109

87

65

43

21

0R

R4658

R4656

0R

R4657-D

R4657-C

R4657-B

R4657-A

R4667-D

R4667-C

R4667-B

R4667-A

R4666-D

R4666-C

R4666-B

R4666-A

R4664-D

R4664-C

R4664-B

R4664-A

R4663-D

R4663-C

R4663-B

R4663-A

R4662-D

R4662-C

R4662-B

R4662-A

R4661-D

R4661-C

R4661-B

R4661-A

C4653

100n

C4654

0R

R4652 R4651

4k7

1p5

C4658

10u

C4651

C4657

100n

C4656

100n

C4652

L4651

L4659

1

2

3

4

L4658

1

2

3

4

L4657

1

2

3

4

L4656

1

2

3

4

L4654

1

2

3

4

C4817 10u

+

-

LM358

I4711-B

5

6

7

2k2

R4713

I4711-C

LM358

8+

4-

I4701

HEF4093BT

14+

7-

220R

R4712 D4712

BAS316

10k

R4711

C4711

100n

C4701

L4701

I4701

HEF4093BT

32

1

C4706

100p

3k3

R4707

W2041

JSTsw s

1

2

100p

C4709

R4709

47R R2041

10k

R5424

1k

C5424

100p

R2095

1M

R2098

1k

W2081

HDMI19pol. o.F.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

DS90C385MTD

I4651

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

2928

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

R4516-C

R4516-B

R4511-D

R4511-C

R4511-B

R4511-A

R4512-D

R4512-A

R4513-D

R4513-C

R4513-B

R4514-A

R4514-D

R4513-A

R4516-D

L4604

1

2

23

3

4

L4606

1

2

23

3

4

L4607

1

2

23

3

4

L4608 1

1

2

23

3

4

L4609 1

1

2

23

3

4

L4601

100n

C4603

C4602

100n

C4606

100n

C4607

C4604

100n

4k7

R4601

C4601

10u

DS90C385MTD

I4601

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29 28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

R4512-B

R4512-C

R4514-C

R4514-BR4516-A

R4517-A

R4517-B

R4517-C

R4517-D

R4607-A

R4607-B

R4607-C

R4607-D

0R

R4606

C4641

22p

C4649

1n

C4648

0R

R4636

22p

C4647

C4644

22p

1n

C4636

1n

C4634

1n

C4632

C4633

22p

1n

C4624 C4627

1n

C4629

1n

C4616

1n 1n

C4618

1n

C4619 C4622

1n

C4612

1n

C4631C4628

1n1n

C4626

1n

C4623C4621

1n

C4617

C4614

1n

C4613

1n

C4611

R4642

1k

R4641

0R

4k7

R4634

4k7

R4637

R4638

0R

R4643

R4647

4k7

R4644

4k7

R4631

1k

47R

R4648

47R

R4646

R4608

0R

10k

R4078

R3225

10R

R3227

R3226

10R

R3224

R3223

10R

C3225

10p 10p

C3227 C3226

10p

C3224

10p 10p

C3223

L4293

330nH

100R

R4293

C4293

22p

ZXCL3003V30 G

I4281

3EN

2

GND

1IN 5

OUT

10u

C4282

C4281

10u

C4283

100n

W2151

JSTsw s

10

9

1

2

3

4

5

6

7

8

C4608

1p5

L3042

R2855

100k

R2845

14pol.BM14B

W2021

14

13

12

11

10

9

1

2

3

4

5

6

7

8

330R

R2027

R2021

4k7

1k

R2023

4k7

R2024

R2028

330R

W2031

JSTsw s

3

1

2

C2023

100p

4k7

R2022

R2026

4k7

L2061

C2061

220u

L2043 W2043

JSTws s

1

2

JSTws s

W2042

1

2

L2042

1k5

R4702 C4702

100n

W2061

9pol

9

1

2

3

4

5

6

7

8

W2051

JSTsw l

5

4

3

1

2

W2044

JSTws s

3

1

2

47R

R4519

100n

C4501

R4552 47R

74AC04

I4531-E

1011

W4611

FH12-33S

32

33

31

17

18

19

20

21

22

23

24

25

26

27

28

29

30

9

10

11

12

13

14

15

16

5

6

7

8

3

4

2

1

47RR4518

Q4093

BF799LK

R4093

47k

BAS316

D4093

100k

R4083

100k

R4092

R4082

100k

D4083

BAS316

R4596

10k

Q4594

BC857BW

R4594

10k

R4593

BC847BW

Q4591

R4591

10k

R4592

D2102

0A1

R3607

10R

W2162

JSTws s

3

1

2

1k

R4069

R4068 1k

1k

R4067

R4066 1k

1kR4065

R4064 1k

1k

R4063

1k

R4062

R4061 1k

R4060 1k

1k

R4059

R4058 1k

R4057 1k

1k

R4056

1k

R4055

1k

R4054

R4053

1k

R4052

1k

R4051

1k

R4050

R4011

1k

R4009

1k

R4008

R4007

1k

W2161

PH15pol

15

14

13

12

11

10

9

1

2

3

4

5

6

7

8

I2111

L78M05ACDT

3

GND

1OUT 2

IN

C2111

10u

W2511

M-DIN9pol + Schirm

9

8 7 6

5 4 3

2 1

PH8pol nat

W2512

1

2

3

4

5

6

7

8

Q2756

BC847BW

Q2754

BC857BW

Q2757

4k7

R2754

R2756

1k5

R2757

100R

R2296

100R

R2294

10k

BC857BW

Q2297

4k7

R2298

R2297

4k7

Q2298

BC857BW

R2284

100k

R2151

2k2

R2153

10k

2k2

R2147

R4505

22R

R4510

R4531

0R

L4506

10u

C4506

C4507

100n

PFO10pol

W4506

10 9

8 7

6 5

4 3

2 1

R4506

10k

R4507

R4603

4k7

I4507

FMS6418M16X

16

15

14

13

7

12

116

10

9

5

8

4

3

2

1

C4017

220u

L4017

33u

220u

C4018

R4216

0R

R3032

R4224

0R

82k

R2091

C4094

100p

Q4083

BF799LK

100R

R2758

R3943

100R

R2759

22k

470p

C2759

Q2733

BC847BW

R2734

3k3

100k

R2735

R3041 0R

R3043 0R

R3046 0R

C3041

10u

L3041

MUX

I3041

74AC157

8-

16 +

21A

31B 4

1Y

52A

62B 7

2Y

11 3A

10 3B 9

3Y

14 4A

13 4B 12

4Y

1A/B

15 G

0RR3047

0RR3044

R3042 0R

100R

R2832

100R

R2286

D2286

C5V6

W2281

MiniDin 8pol

8 7 6

5 4 3

2 1

D2287

BAS316

100n

C4016

100n

C4006

330R

R4004

R4006

75R

R4003

R4002

75R

I5541

ZXCL3003V30 G

3EN

2

GND

1IN 5

OUT

C5544

100n

R5544

1k

220u

C5541

100n

C5543

C5542

100n

1k

R5543

100n

C5532

R5537

1R5

R5548

10u

C5537

C5548

10u

C5538

10u10u

C5546

C5547

10u

1R5

R5538

R5546

1R5

R5547

10n

C5528

C5503

56p

X5502

16,0MHz

1M

R5502

1

2

74LVT245

I5901

2

1A

18 1B

3

2A

17 2B

4

3A

16 3B

5

4A

15 4B

6

5A

14 5B

7

6A

13 6B

8

7A

12 7B

9

8A

11 8B

19

/G

1

DIR

1

2

I5902

74LVT245

2

1A

18 1B

3

2A

17 2B

4

3A

16 3B

5

4A

15 4B

6

5A

14 5B

7

6A

13 6B

8

7A

12 7B

9

8A

11 8B

19

/G

1

DIR

R5549

1R5

22u/35V

C2107

L78M05ACDT

I2072

3

GND

1OUT 2

IN

D1F60

D2071

10u

C2071

D1F60

D2072

D2109

D1F60

10u

C2112

10k

R5096

R5087

2k2

10k

R5088

0R

R5099

10k

R5089

R5090

0R

C5186

4u7

C3012

4u7

22p

C3022

Br.0R

C3019 L3019

3u3

R2149

100R

C2736

10u

R5532

0R

R5531

0R

TDA10023HT

I5501

64

63

62

61

60

59

58

57

56

55

54

53

49

50

51

40

41

42

43

44

45

46

47

48

32

31

30

29

28

27

16

15

14

52

39

38

37

36

35

34

33

26

25

24

23

22

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

R5707

56R

74LVC1G04

I4233-A

42

22p

C4536 C4534

22p

29,491200nMHz

X4534

R4536

0R

R4534

1M

0R

R4533

R4538

0R

C4531

100n

74AC04

I4531-D

89

74AC04

I4531-G

14 +

7 -

74AC04

I4531-F

12 13

I4501

CYCLONE-FPGA

1

2

3

4

5

6

7

8

9

10

11

12

13

17

18

19

20

21

25

14

15

16

33

34

35

36

37

38

39

40

24

23

22

32

31

26

41

42

43

44

45

46

47

48

49

50

27

28

29

30

51

52

53

54

55

56

57

58

59

60

117

118

119

120

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

100

99

98

97

96

95

94

93

92

91

72

71

70

69

68

67

66

65

64

63

62

61

76

77

78

79

80

75

74

73

81

82

83

84

85

86

87

88

89

90

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

D5

C2

K11

P10

P9

M10

K10

H8

H10

N10

N9

N12

M9

J10

J11

H11

H9

T9

R9

K1

L7

L9

K8

K9

K6

K7

P7

P8

M7

M8

G7

C8

C7

E8

G6

L6

L5

J9

J7

A8

E7

H6

H7

J8

J6

B8

F8

F10

F12

F11

G8

G9

G10

G11

C9

C10

E9

E10

D10

A9

B9

G14

D11

D13

D14

J15

D12

F13

H14

D9

E14

E13

H15

G13

G12

H13

H12

J12

K13

N13

K15

K14

J14

J4

K2

K4

M4

R3

P4

N5

N4

N6

N8

K5

J2

E11

K3

M3

L4

L3

L2

E12

F5

M5

M6

L11

H2

L12

D4

G3

D8

G4

E4

B3

C1

D2

D3

D1

E3

E2

B1

B2

E1

F3

F4

F1

J1

J3

H3

N14

C3

J5

F6

H1

N1

N2

P1

P2

H4

K12

J13

P3

N3

L1

M2

M1

R1

R2

G5

A3

B4

C4

A4

B5

A1

A2

E6

E5

A5

D6

B6

C5

A6

C6

B7

A7

D7

B10

A10

B11

A11

C11

G2

G1

F2

M13

L13

L15

L16

L14

M16

R16

P15

P14

P16

R15

M15

N16

M14

N15

P12

T12

M11

M12

T16

T15

R12

T13

P13

R13

T14

R14

K16

J16

H16

G15

H5

G16

F15

F16

F14

D16

B15

B16

E16

E15

C14

D15

C16

C15

B14

A14

C13

B13

A13

C12

A15

A16

B12

A12

F7

F9

T11

N11

R11

P11

T10

R10

R8

T8

N7

R7

P5

T7

P6

T6

L8

L10

T2

T1

R6

T5

R5

T4

R4

T3

10k

R5412

R5495

10k

C2102

100n

C5064

100n

C4233

I4233-B

5+

3-

R4253

10k

Q5291

BC847BW

R2898

100R

R5068

10k

0R

R5413

R5414

10k

L5413

L5522

L5519

L5409

L5411

L5419

R5444

1k

0R

R5404

R5406

0R

100p

C5407

R5407

1k

0R

R5516

10k

R5709

BF799LK

Q2081

Q2091

BF799LK

R5477

10k

100n

C5442

R3719

22R

10k

R5291

1k

R2099

C4081

10p

C4107

R4111

27k

68k

R4112

C2106

10n

R3917

47k

R3921

C3917

1n

47R

R3918

R4042

0R

R4038

100R

R2131

C5441

220u

C5443

100n

56p

C5502

I5441

ZXCL3003V30 G

3EN

2

GND

1IN 5

OUT

1k

R5446

100n

C5446

R3711

3k3

R3713

470R

4k7

R3712

Q3711

BC857BW

10p

C3229

R3229

10R

C3228

10p

10R

R3228

L2113

R2722

0R

C4036

10n

C4011

L4037

L4009

R2111

0R

R2112

W2111

JSTge s

4

3

1

2

I4701

HEF4093BT

11

13

12

100n

C4553

W5911

FH12-33S

32

33

31

17

18

19

20

21

22

23

24

25

26

27

28

29

30

9

10

11

12

13

14

15

16

5

6

7

8

3

4

2

1

47R

R5964

R5929

47R

L4502

C4502

100n

39R

R4503

R4501 47R

R4502

47R

100n

C4509

EPCS1

I4506

8

7

4

6

5

3

2

1

R4508

0R

0RR4509

+

-

LM2903D

I5471-B

5

6

7

JSTws s

W4501

9

1

2

3

4

5

6

7

8

10k

R4526

R4527

10k

I4226-A

74LVC1G04

42 39R

R4227

+

-

I4711-A

LM358

3

2

1

D4841

BAV99W

21

3

47R

R4841

18p

C4842

R4856 4k7

4k7R4857

4k7R4858

C4854

100p

C4857

100p 100p

C4856

I4851

24LC02BT

8

7

4

6

5

3

2

1

47R

R2003

100n

C4852

L4851

C4851

10u

D4851

BAS316

10R

R2001

R2002

47R

BAS316

D2001

L5973D

I4541

8

7

4

6

5

3

2

1

5k6/1%

R4544

22n

C4547

R4546

1k2/1%

L4544

220p

C4546

4k7

R4547

STPS340U

D4543

33u

L4543

C4543

220u

C4541

220u

L4541

100n

C4551

47R

R4232

R2283 100k

22p

C5257

C5263

22p R5257

47R D5256

BAS316

100R

R2293

100k

R2282

47R

R5294

47R

R5296

100R

R2272

22p

C5277

BC857BW

Q3973

1n

C5296

R2271

PFRA050

4k7

R2289

C2294

100n

Q2294

BC857BW

R2281

100k

4k7

R2836

R2822

5k6

4k7

R22914k7

R2288

BC857BW

Q2287

Q2292

BC857BW

R2292

100k

R2287

W2271

PH8pol nat

1

2

3

4

5

6

7

8

10k

R3131

MSP4411K

I3001

22

23

24

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

63

62

61

40

39

38

37

36

35

34

33

64

60

59

58

57

56

55

54

53

49

50

51

41

42

43

44

45

46

47

48

32

31

30

29

28

27

16

15

14

52

26

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

M29W320

I5301

48

47

46

45

44

43

42

41

40

39

38

32

31

30

29

21

22

23

24 25

26

27

28

33

34

35

36

37

18

20

19

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

100p

C5003

C5004

100p

R5081

10k

22p

C5036

C5037

22p

R5037

47R

R5036

100n

C5901

C5902

100n

74LVT245

I5902

20+

10-

74LVT245

I5901

20+

10-

R5911

47R

0RR5941

C5924

22p

47R

R5924

22p

C5926 R5926 47R

22p

C5927 R5927 47R

22p

C5928 R5928 47R

C5964

22p

C5929

R5912 47R

R5942 0R

47RR5913

R5943 0R

47RR5914

0RR5944

R5916 47R

R5946 0R

R5917 47R

0RR5947

47RR5918

0RR5949

R5919 47R

0RR5961

R5962

0R

R5921 47R

0RR5963

R5922

47R C5923

22p

47R

R5923

47R

R5999

R5998

47R

R5997

47R

R5996

47R

R5994

47R

R5993

R5992 47R

47R

R5991

R5989 47R

47R

R5988

47R

R5987

47R

R5986

R5984

47R

R5983 47R

47R

R5982

R5981 47R

47R

R5979

47R

R5978

R5977 47R

47R

R5976

R5974 47R

R5973 47R

47R

R5972

R5971 47R

47R

R5969

47R

R5968

R5967 47R

47R

R5966

74LVT373

I5781

19 Q8

16 Q7

15 Q6

12 Q5

9Q4

6Q3

5Q2

2Q1

1

/OC

11

C

3

D1

4

D2

7

D3

8

D4

13

D5

14

D6

17

D7

18

D8

FH12-33S

W5971

32

33

31

17

18

19

20

21

22

23

24

25

26

27

28

29

30

9

10

11

12

13

14

15

16

5

6

7

8

3

4

2

1

I4201

DPS9455B-XZ-A2

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

90

89

88

87

86

85

84

83

82

81

73

74

75

80

79

78

77

76

61

62

63

64

65

66

67

68

69

70

71

72

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

120

119

118

117

60

59

58

57

56

55

54

53

52

51

30

29

28

27

50

49

48

47

46

45

44

43

42

41

26

31

32

22

23

24

40

39

38

37

36

35

34

33

16

15

14

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

R3269

47k 47k

R3279 R3289

47k 47k

R3299

47k

R2222 R2221

47k

R4313

0R

R4314

0R

STI5518BQC

I5001

208

207

206

205

204

203

202

201

200

199

198

197

196

195

194

193

192

191

190

189

188

187

186

185

184

183

182

181

180

179

178

177

176

175

174

173

172

171

170

169

168

167

166

165

164

163

162

161

104

103

102

101

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

160

159

158

157

156

155

154

153

152

151

150

149

148

147

146

145

134

135

136

137

138

139

140

141

142

143

108

107

106

105

80

79

78

77

76

75

74

73

144

133

132

131

130

129

128

127

126

125

124

123

122

121

61

62

63

64

65

66

67

68

69

70

71

72

109

110

111

112

113

114

115

116

120

119

118

117

60

59

58

57

56

55

54

53

52

51

30

29

28

27

50

49

48

47

46

45

44

43

42

41

26

31

32

22

23

24

40

39

38

37

36

35

34

33

16

15

14

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

R2748

0R

R2749

3k3

R4204

HCF4053BM1

I4336

7VEE

6E

1

2

34

5

9

10

11

12

13 14

15

HCF4053BM1

I4336

16 +

8 -

I4301-E

74HCT86

14 +

7 -

BC847BW

Q4336

100p

C4341

1k

R4343

I4301-A

74HCT86

1

2

3

100n

C4301

C4336

100n

100R

R4336

47RR4339

R4321

10k

10u

C4328

R4326

100R

Q4327

BC847BW

R4328

1k

R4329

18k

R4331

10k

R4337

1k

C4334

10u

L4301

10u

C4332

74HCT86

I4301-D

12

13

11

22n

C4343

10u

C4342

L4337

C4337

100p

R4322

10k

R4323

Q4322

BC847BW

74HCT86

I4301-C

9

10 8

1k2

R4304

100p

C4304

100n

C4276

R4217

220R

100n

C4219

LD2982AM18R

I4219

51

2

3 4

10n

C4221

10u

C4218

R4218

1k5

4k7

R4219

47p

C3769

C3772

47p

R4316

2k2

1k

R4317

C4317

1n 100R

R4318

C4311

10u

L4311

MUX

I4311

74AC157

8-

16 +

21A

31B 4

1Y

52A

62B 7

2Y

11 3A

10 3B 9

3Y

14 4A

13 4B 12

4Y

1A/B

15 G

C2142

10n C2146

100n

C2141

10n

C2153

C2151

22p

10k

R2753

L2072

D2108

D1F60

R3971

10R

C3727

100n

C3726

C3722

47p

1k

R3723

2k2

R3727

R3726

100R

Q3724

BC847BW

100R

R3724

C2118

220u

C2116

R3707

100R

R3603

22R

R3608

C4803

10n

C4808

4k7

R2154

R3401

0R

C2101

220u

2k2

R4207

100p

C4302

BAS316

D2857

D2847

BAS316

22k

R2844

0R

R3637

24LC02BT

I4071

8

7

4

6

5

3

2

1

470p

C3249

4k7

R3311

C4292

100n

470p

C4291

10p

C2076

R2709

10k

R2843

L2754

C2751

10u

I2736

MC33275ST-3,3T3

3,4

GND

1

OUT

2IN

C2753

10u

L2753

I2751

MC33275ST-2,5T3

3,4

GND

1OUT 2

IN

C2752

10u

C2754

100R

R2842

1k5R2977

1k5

R2976

15k

R3748

L3781

C3781

10u

47R

R3746

R3739

75R

R3738

75R

C2154

10p

1u5

L3762

220p

C3757

R3773

10R

R3776

10R

R3736

75R

C3758

100n

L3737

L3738

L3739

L3766

C3742

100n

L3741

10u

C3741

10R

R3768

10R

R3766R3767

75R

R3756

10R

75R

R3757

10R

R3753

R3754

75R

C3759

330p

C3761

1u5

L3759

120R

R3758

C3762

150p

10R

R3778

R3771

10R

C3749

100n

BC847BW

Q3832

L3836 R3836

33R

C3836

100n

R3834

68R 100n

C3834

R3832

100R

L3846

100n

C3846

Q3842

BC847BW

33R

R3846

75R

R3844

R3843

560R 560R

R3833

R3737

75R

10R

R3743

R3817

22k

100R

R3842

R3769

75R

R3813

4k7

R3814

10k

R3816

22k

Q3816

BC847BW

BC857BW

Q3818

10k

R3819

Q3811

BC857BW

L3821

R3818

22k

R3821

68R

C3821

47u

C3811

10n

R3823

0R

R3747

75R

10u

C3786

L3786

R3797

100k

R3798

R3701

100k

10u

C4284

8p2

C4268 27p

C4267

27p

C4269

270nH

L4268

560R

R4268 75R

R4267

R4269

75R

L3827

10R

R3827

4k7

R3824

C3827

47u C3801

10u

C3808 C3802

1u

C3803

1u

47R

R3802

R3801

47R

L3808

L3801

1n

C3804

1n

C3806

R3808

4k7

R3831

4k7

R3841

4k7

R3811

I3801

TEA6425

20

19

18

17

16

15

14

13

7

12

11

6

10

9

5

8

4

3

2

1

C3807

1u

R3807

150R

R5039

150R

R5049

150R

R3806

L3864

100n

C3862

R3862

100R

10u

C3864

10k

R3864

Q3862

BC857BW I3901

HCF4053BM1

16+

8-

L3901

C3901

1u

Q3927

BC847BW

10k

R3928

BC847BW

Q3923

R3924

10k

HCF4053BM1

I3901

7VEE

6E

1

2

34

5

9

10

11

12

13 14

15

4k7

R3861

22k

R3863

R3866

68R

R3922

10k

R3923

10k

R3926

10k

R3927

R3908

220R

R3913

390R

R3912

470R

100R

R3911

R3909

470R

R3906

560R

R3907

100R

R3904

27k

C3914

150p

L3909

10u

C3909

R3914

10k

Q3906

BC857BW

Q3904

BC847BW

R3903

5k6

L3913

8u2

R3902

100R

C3902

10u

W2211

14

13

12

11 10

9

8

7

6

5

4

3

2

1

15

16

17

18

19

20

21

100R

R2217

R2211

47k

R2214

C3104

470p470p

C3102

C3032

470p

R2213

100R

R2216

15k

270R

R3102

R3104

270R

C3031

1u

C3033

1u

100n

C3856 Q3852

BC847BW

100R

R3852

R3854

560R

R3851

4k7

R3856

68R

L3856

rot

grau

AV4

W2221

5

6

4

rot

grau

2

3

1

C3317

1u

C3316

1u

10k

R5702

R5411

0R

R5408

10k

R3036

0R

R3033

R3031

0R

47R

R4074

R4072

47R

R4071 150k

R4077

10k

BC847BW

Q4077

R3034

0R

R3037

R2133 0R

R2136

100R

W2136

JSTws s

1

2

W2131

JSTws s

3

1

2

W2134

JSTws s

6

5

4

3

1

2

C3141

1u

C3143

220R

R3956

R3953

47k

R5021

150R

100R

R5022

L3788

C3788

220u

L3426

C3719

100p

Q3709

BC847BW R3709

47k

10k

R3708

100p

C4078

100R

R2087

C4074

100p

470p

C2091

470p

C2086

C2084

470p

4k7

R2086

R2084

4k7

Q2086

BC847BW

Q2084

22k

R2088

BC857BW

Q2088

R2089

470R

10k

R3751

4k7

R3749

C3752

22p

47R

R3752

R5493

0R

R5492

C5492

22p

C5493

22p

C5491

10R

R5491

BC847BW

Q3751

C2081

470p

R2081

150k

10p

C2083

C2093

10p

R2083

47R47R

R2093

R2094

47R

100p

C4084

47R

R2096

L3402

BAS316

D2097

10R

R2097

100p

C4072 C4097

100p

1k

R4017

R4016

1k

rot

grau

AV6

W2171 8

9

7

rot

grau

AV6

W2171 5

6

4

rot

grau

AV6

W2171

2

3

1

R2142

22k

I4503-B

5+

3-

C4503

100n

74LVC1G04

I4226-B

5+

3-

100n

C4226

4k7

R5749

I5721-F

74LVC14

12

13

I5721-E

74LVC14

10

11

I5721-D

74LVC14

8

9

I5721-C

74LVC14

6

5

100n

C5721

L5704

33u

C5704

220u

C5706

100p

10k

R5711

R5712

10k

R5066

10k

R5701

10k

1k

R5706

0R

R5703

0R

R5704

100n

C5701

0R

R5708

R5741 56R

C5722

10p

R5722

220R

I5721-B

74LVC14

4 3

74LVC14

I5721-G

14+

7-

I5721-A

74LVC14

2 1

L5702

C5702

10u

16,0MHz

X5414

220u

C5431

C5432

220u

C5444

10k

R5483

10n

C5421

C5422

10n

C5414

56p

C5418

100n

C5417

C5413

100n

C5412

C5423

100n

C5403

100n

C5402

100n

C5404

TDA10046

I5401

64

63

62

61

60

59

58

57

56

55

54

53

49

50

51

40

41

42

43

44

45

46

47

48

32

31

30

29

28

27

16

15

14

52

39

38

37

36

35

34

33

26

25

24

23

22

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

C5406

100n

C5408

C5416

56p

10u

C5409

C5411

10u

LP2989IM-1,8

I5431

8

7

4

6

5

3

2

1

C5419

100n

C5433

10n

220R

R5403

R5402 220R

0R

R5401

C5401

100n

R5431

330k

C5509

100p

10u

C5549

10u

C5522

C5519

10u

R5511

47R

C5506

100n

C5508

C5507

10u

L5507

100n

C5517

C5504

100n

C5516

100n

C5518

C5521

100n

C5526

100n

C5501

100n

10n

C5536

C5531

100n

C5534

10n

C5533

10n

C5523

10n

C5524

100n

C5527

R5518

0R

R5517

R5514

0R

R5513

47R

R5512

1k

R5509

R5503

0R

I5471-C

LM2903D

8 +

4 -

BC847BW

Q5471

R5471

1k

3k9

R5472

+

-

I5471-A

LM2903D

3

2

1

47k

R5469

R5474

100R

220k

R5468

3k9

R5473

1u

C5466

C5472

10u

150k/1%

R5466

Q5479

BC847BW

R5479

1k

47k

R5478

D1F60

D5467

Q5467

SI2302DS

2k2/1%

R5464

1R

R5467

470R/1%

R5461

4k7/1%

R5462

1k5/1%

R5463

LM317M

I5461

2

Adj

3OUT 1

IN

10u

C5461

100n

C5463

R5423-A

R5423-C

R5423-B

R5422-D

R5422-C

R5422-B

R5422-A

R5421-D

R5421-C

R5421-B

R5421-A

BC847BW

Q5481

R5091

10k

L5719

R5482

2k2

R5476

5k6

C5471

100n

220u

C5551

C5552

100n

MAX4546CSE

I5551

16

15

14

13

7

12

11 6

10

9

5

8

4

3

2

1

2k2

R5551

R5552

2k2

C3943

1n

C3099

470p

C3089

100R

R3096

R3086

100R1k

R3084

R3094

1k

100R

R3099

R3089

100R

R5277

47R

R5278

R4251

0R

27p

C4262

27p

C4264 C4263

8p2

L4263

270nH

R4263

560R

R4262

75R

R4273

560R

L4273

270nH

C4273

8p2

C4274

27p

C4272

27p

75R

R4274

C4279

100n

R2837

6k8

10k

R2791

22k

R2981

R4094

150k

C4831

10u

C4821

C4826

10u

R4831 10k

10kR4826

R4821 10k

10kR4818

R4817 10k

10kR4816

LT1675CGN

I4801

16

15

14

13

7

12

11 6

10

9

5

8

4

3

2

1

R4812

1k

47p

C4811

L4806

D4806

CMHSH5-2L

D4807

C5V6

L4801

D4802

C5V6

CMHSH5-2L

D4801

100n

C4802

C4807

100n

R4811

100R

220u

C4806

C4801

220u

10u

C4816

10u

C4818

0R

R3433 R3431

0R

R3432R3434

0R

47R

R3464

R3463

47R

C3411

10n

10k

R3411

L3651

220u

C3651

L5022

C5022

220u

0R

R3794

22n

C3654

220p

C3653

4k7

R3654

I3651

L5973D

8

7

4

6

5

3

2

1

STPS340U

D3656

33u

L3656

220u

C3656

3k3/1%

R3652

R3653

1k5/1%

W2231

JSTsw s

6

5

4

3

1

2

SiI9993

I4001

100

99

98

97

96

95

94

93

92

91

90

89

88

87

86

85

84

83

82

81

76

77

78

79

50

49

48

47

46

45

44

43

42

41

26

27

28

29

30

31

32

22

23

24

80

75

74

73

72

71

70

69

68

67

66

65

63

62

61

40

39

38

37

36

35

34

33

64

60

59

58

57

56

55

54

53

51

16

15

14

52

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

10u

C4101

L4101

180p

C4103

R4113

27k

56k

R4104

100k

R4102

100R

R4106

22n

C4102

33k

R4103

Q4113

BC847BW

10k

R4109

27R

R4108

BC847BW

Q4107

R4107

1k

Q4103

BC847BW

39k

R4101

R2733

100k

C2871

10u

L2871

100R

R4301

SubD15

W2001

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

100n

C2982

R2982

10k

Q2978

BC847BW

1k

R3467

100p

C3467

R3442

8k2

Q3446

BC847BW

PA5pol S nat

W3401

5

4

3

1

2

4k7

R3402

R3633

10k

R3632

R3631

10k

R3626-C

R3626-B

R3626-A

C3609

100n

C3601

0R

R3623

R3622

0R

R3621

C3631

10u

R3628

47R

R3629

47R

R3614

0R

R3616

R3617

0R

R3618

R3619

0R

R3601

10k

R3602 C3603

10u

R3604

10k

R3609

22R

100n

C3606C3604

100n

C3633

C3636

100n

C3637

C3639

100n

C3612

100n

C3614

C3618

100n

C3619

C3622

100n

C3623

C3624

100n100n

C3626C3627

100n

C3628

L3631

L3603

L3632

L3611

1n

C3613

1k

R3613

10u

C3611

20,25MHz

X3607

22p

C3607

22p

C3608

10u

C3632

C3617

100n

C3616

100n

C3621

C3629

100n

C3602

100n

C3634

R3638

0R

C3638

100n

FRC9428-XX-B2

I3601

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

90

89

88

87

86

85

84

83

82

81

73

74

75

80

79

78

77

76

61

62

63

64

65

66

67

68

69

70

71

72

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

120

119

118

117

60

59

58

57

56

55

54

53

52

51

30

29

28

27

50

49

48

47

46

45

44

43

42

41

26

31

32

22

23

24

40

39

38

37

36

35

34

33

16

15

14

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

C3463

100p

C3464

C3462

100p

C3466

R3466

1k

R3462

R3461

1k

C3461

100p

I5251-C

8

10

9

I5251-A

3

1

2

12k

R3447

8k2

R3449

4k7

R3456

R3457

10k

R3451

4k7

R3448

R3446

4k7

R3443

4k7

R3441

C3404

100n

C3406

100n

C3407

R3423

0R

R3426

R3416

0R

R3413

C3416

100n

R3414

47R

R3424

R3422

3k3

100n

C3403

3k3

R3412

C3409

22p

C3408

R3403

4k7

C3402

100n

ATmega16

I3401

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

W3411

PFO10pol

109

87

65

43

21

11,05920MHz

X3408

Q3403

BC847BW

SN7002

Q3426

SN7002

Q3416

C3401

10u

L3401

BC847BW

Q3448

Q3451

BC847BW

Q3441

Q3443

BC847BW

L3416

M24256

I2771

8

7

4

6

5

3

2

1

I3701

VSP9427B-XZ-C4

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

90

89

88

87

86

85

84

83

82

81

73

74

75

80

79

78

77

76

61

62

63

64

65

66

67

68

69

70

71

72

91

92

93

94

95

96

97

98

99

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

120

119

118

117

60

59

58

57

56

55

54

53

52

51

30

29

28

27

50

49

48

47

46

45

44

43

42

41

26

31

32

22

23

24

40

39

38

37

36

35

34

33

16

15

14

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

L4043

R2999 2k7

R2998

2k7

R5498

0R

R5499

1k2

R4302

R3123

47k

100n

C3002

C3014

100n

C5024

220u

C5012

220u

C5011

74HCT86

I4301-B

4

56

0R

R4553

C3746

100n

C3744

C3743

100n

C3733

100n

C3732

C3721

100n

C3731

47u

C3073

C3053

47u

C3873

47u

I3201

MSP4411K-B2

22

23

24

80

79

78

77

76

75

74

73

72

71

70

69

68

67

66

65

63

62

61

40

39

38

37

36

35

34

33

64

60

59

58

57

56

55

54

53

49

50

51

41

42

43

44

45

46

47

48

32

31

30

29

28

27

16

15

14

52

26

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

R3222

220R

R3221

220R

10k

R5071

Q2891

Q2883

BC847BW

33k

R2883

470p

C2882

R2881

47k

100k

R2882

56k

R2884

R2891

56k

180p

C2883

100R

R2886

100p

C2887

R2887

1k

BC847BW

Q2887

1k

R2888

2k2

R2889

R2978

1k5

C2986

100p

C2978

10n

R2986

10k

R2132

100R

10n

C2974

10n

C2972

100R

R4081

100R

R2134

C2134

47u

W2132

JSTsw s T2

1

2

3

4

5

6

7

8

R2974 1k5

BC847BW

Q2982

10n

C2971

R2971

1k

L2901

L2902

L2903

C2104

100n

L2106

100n

C2103

W2101

1516

1314

1112

910

78

56

34

12

13polDS

W2072

13

12

11

10

9

1

2

3

4

5

6

7

8

C3313

100p

4k7

R3307

C3704

100n

74LVC1G04

I3704-B

5+

3- 74LVC1G04

I3704-A

4 2

R4209

0R

R4208

R4231

0R

R2839

330R

47u

C3103

C3101

47u

C3007

100n

C3011

47u

C3106

C3108

47u

MC33275ST-3,3T3

I4222

3,4

GND

1

OUT

2IN

MC33275ST-3,3T3

I4516

3,4

GND

1

OUT

2IN

10k

R3936

R3937

10k

R3876

75R

L3873

C5V6

D3874

BC847BW

Q3872

33R

R3873

150R

R3874

1u

C3956

R3942

4k7

R3933

10k

L3954 C3954

10u

R3952

100R

R3954

22k

BC847BW

Q3962

R3964

4k7

R3962

1k

R3961

1k

33R

R3963

Q3952

BC847BW

0RR2072

13polDS

W2071

13

12

11

10

9

1

2

3

4

5

6

7

8

100n

C3426

4k7

R3427 R3428

4k7

10p

C5448

R5458 10R

10p

C5453

C5454

10p10p

C5451

C5452

10p

R5451 10R

10RR5452

10RR5453

R5454 10R

100n

C2117

L2911

L2907

C2911

100n

L2904

C2108

10u

BC847BW

Q2904

10k

R2906

4k7

R2904

100n

C2906

STPS340U

D2904

R2732 10k

10k

R2729

100R

R2148

C2728

100n

R2728

4k7

C3308

100n

L3301

100n

C3301

C3303

100n

R3308

4k7

Q3307

BC847BW

1n

C3307

4,433619MHz

X3304

R3303

470k

R3309

4k7

R3306 4k7

R3304

1k

C3304

82p

C3306

47p

L3302

47R

R3312

R3313

47R

C3311

1n

10u

C3302

C3314

560p

C3312

330p

I3301

SAA6588T

20

19

18

17

16

15

14

13

7

12

11

6

10

9

5

8

4

3

2

1

0R

R3219

0R

R3217

R3218

0R

C2113

220u

47R

R2997

10p

C2997

C2996

10p

47RR2996

C3753

100n

C3756

100n

C2711

100n

C3799

100n

C3797

C3798

100n

C3796

C3791

100n

C3713

C3712

100n

C3707

100n

C3703

100n

C3748

100n

C3782

C3751

100n

C3747

R4382

1k

1n

C4382

R4381

100R

10u

C4381

L4381

MUX

74AC157

I4381

8-

16 +

2

1A

3

1B

41Y

5

2A

6

2B

72Y

11

3A

10

3B

93Y

14

4A

13

4B

124Y

1

A/B

15

G

Q2831

BC857BW

R2827

4k7

R2828

6k8

R2829

3k3

R2831

180R

Q2826

SN7002

C2826

100n

10k

R2826

R2731

47R

D2831

BAS316

R2838

680R

BAS316

D2838

Q2838

BC847BW

C3216

10n

10u

C5039

L5039

C5038

10u

TSH72CD

I5039 8+

4-

C3241

47u

C3232

47u

4k7

R3232

Q3232

BC847BW

R3233

4k7

BC847BW

Q3233

220k

R3236

D3231

BAS316

100n

C3247

C3111

1u

C3131

1u

L78L08

I3006

8

7

4

6

5

3

2

1

+

-

MC33079

I3121-D

12

13

14

+

-

MC33079

I3121-C

10

9

8

D3122

BAS316

R3122

47k

R3124

R3121

47k

C3122

10u 18p

C3132

C3013

10u

C3008

C3009

10u

C3001

18,432MHz

X3026

47R

R3002

L3001

10u

C3016

L3016

R3001

47R

C3017

56p

C3021

56p

C3023

1n

C3003

1n

C3071

1p

C3026

C3027

1p

R3003

1k

R3026

10k

C3051

1n

470p

C3299

R3298

100R

C3289

470p

100R

R3288

470p

C3279

R3278

100R

R3249

100R

1k

R3296

Q3296

BC847BW

R3294

1k

R3293

1k

BC847BW

Q3294

BC847BW

Q3264 Q3266

BC847BW

0RR5747

R5748

56R

R5729

R5721

56R

R5742

56R

R5746

R5744

R5743

R5728

56R

R5727

R5726

R5724

R5723 56R

R5739

R5738

R5737

R5736 56R

56R

R5734

R5733

R5732

R5731

R5718

10k

100n

C5708

R5017

4k7

R5019

1k

R5014

100R

C5014

100n

C3973

47u

C2791

47u

R4557

1k

1n

C4557

L5024

33u

C3766

100n

C3702

100n

R3704

0R

10u

C5719

C5771

100n

C5781

C5791

100n

I5701

STV0700

121

122

123

124

125

126

127

128

107

108

105

106

104

103

70

71

72

68

69

67

66

65

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

55

56

57

58

59

60

64

63

62

61

37

38

90

89

88

87

86

85

84

83

82

81

73

74

75

80

79

78

77

76

91

92

93

94

95

96

97

98

99

100

101

102

109

110

111

112

113

114

115

116

120

119

118

117

30

29

28

27

26

31

32

22

23

24

36

35

34

33

16

15

14

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

L5054

I5791

74LVT373

20+

10-

PCMCIAr

W5721

A36

A38

A40

A42

A44

A46

A48

A50

A52

A54

A56

A58

A60

A62

A64

A66

A68

A35

A37

A39

A41

A43

A45

A47

A49

A51

A53

A55

A57

A59

A61

A63

A65

A67 A33

A34

A31

A32

A29

A30

A27

A28

A25

A26

A23

A24

A21

A22

A19

A20

A17

A18

A15

A16

A13

A14

A11

A12

A9

A10

A7

A8

A5

A6

A3

A4

A1

A2

I5791

74LVT373

19 Q8

16 Q7

15 Q6

12 Q5

9Q4

6Q3

5Q2

2Q1

1

/OC

11

C

3

D1

4

D2

7

D3

8

D4

13

D5

14

D6

17

D7

18

D8

74LVT245

I5771

20+

10-

1

2

I5771

74LVT245

21A 18

1B

32A 17

2B

43A 16

3B

54A 15

4B

65A 14

5B

76A 13

6B

87A 12

7B

98A 11

8B

19 /G

1DIR

74LVT373

I5781

20+

10-

R5083

0R

0RR5086

10k/1%

R5007

R5008 10k/1%

10k

R5094

100n

C5074

C5073

100n

C5072

10u

C5054

L5201

C5201

10u

L5101

10u

C5101

L5151

330n

C5156

C5154

1p5

8p2

C5153

X5154

13,5MHz

I5151

MK3727D

8

7

4

6

5

3

2

1

R5074

56R

L5027

10u

C5026

10u

C5027

L5061

C5061

10u

R5079

10k

C5071

100n

C5301

100n 100n

C5302

100n

C5063

10k

R5072

C5058

100n

C5056

100n

C5053

C5051

100n

C5052

R5059

10k

10kR5058

R5057 10k

10kR5056

R5054 10k

10kR5053

R5052

10k

R5063

1k

R5061

10k

R5062

10k

100n

C5209

C5208

100n

C5202

C5203

100n

C5204

C5206

100n

C5207

10k

R5201

K4S641632D

I5201

28

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

C5109

100n

C5108

C5102

100n

C5103

C5104

100n

C5106

C5107

100n

R5101

10k

K4S641632D

I5101

28

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

R5011

10k/1%

10k/1%R5012

100n

C5001

C5002

100n

C5006

C5007

100n

C5008

I5011

TC1262-2,5VDBTR

3,4

GND

1

OUT

2IN

C5013

100n

TL7702ACD

I5181

8

7

4

6

5

3

2

1

C5182

100n

C5184

100n

C5152

C5151

10u

C5171

MC33269

I5171

8

7

4

6

5

3

2

1

10u

C5172

10u

C5181

R5189

220R

R5026

3k3/1%

10k

R5077

R5097

10k

100n

C5734

C5703

100n

10k

R5713

10k

R5716

R5151

56R

100n

C5059

C5303

100p

C5062

10k

R5714

R5717

10k

R5093

10k

2k2

R5003

R5004

2k2

100n

C5009

R5076

10k

R5073

10k

R5082

10k

R5092

3k3/1%

R5027

C5029

22n

C5028

220p

22p

C5057

C5189

1n

C5188

C5187

1n

C5183

1n

R5024

100k

R5029

4k7

R5001

R5002

4k7

3k3

R5156

4k7

R5183

1k

R5187R5188

4k7

2k2

R5084

L5973D

I5022

8

7

4

6

5

3

2

1

D5024

STPS340U

R3216

4k7

L3214 C3214

10u

4k7

R3213

Q3028

BC857BW C3028

100n

47k

R3028

47k

R3029

10k

R3027

R3212

4k7

R3211

R3208

4k7

R3207

R3206 4k7

L3211

C3211

10u

47n

C3208

75R

R3209 C3209

47n

C3222

L3206

10u

C3206 1k

R3202

C3202

1n

L3201

C3201

10u

47R

R3203

R3204

47R

R5427 10R

R5459 10R

R5457 10R

10R

R5456

10RR5449

10RR5448

R5447 10R

C5429

22p 22p

C5428

0R

R5429

0R

R5428

R4523

0R

R4522

R4521

0R

47R

R4551

I4531-C

74AC04

6

5

R4018

33R

R4013

33R

R4012

3k9

4k7

R4019

C4013

47n

L2908

10p

C5449

C5447

10p

C5458

C5459

10p10p

C5456

C5457

10p

C5427

D4831

BAV99W

21

3

47R

R4832

R4833

75R

18p

C4833

BAV99W

D4826

21

3

R4827

47R

75R

R4828

C4828

18p 18p

C4844

47R

R4843

BAV99W

D4843

21

3

18p

C4823

R4823

75R

47R

R4822

D4821

BAV99W

21

3

100n

C2119

Q4017

BC847BW

C4019

100n

10u

C4517

10u

C4544

C4516

10u

100n

C4513

C4514

100n 100n

C4511

100n

C4526

C4007

100n

0R

R4001

100n

C4008

100n

C4052

100n

C4048

L4049

C4049

10u

L4001

C4004

100n

C4003

C4002

100n

L4051

10u

C4051

C4001

10u

C4009

10u

C4012

10u

C4042 C4043

10u

I4042

ZXCL3003V30 G

3EN

2

GND

1IN 5

OUT

47R

R4032

I4031-A

74LVC1G04

4 2

10u

C4246

R4201

1k

47R

R4202

R4206

47R

100n

C4204C4203

100n

C4202

C4207

100n

C4208

C4209

100n

C4211

C4212

100n

C4213

C4217

100n

C4231

C4247

100n

C4248

C4249

100n

C4278

100n

R4236

47R

100n

C4251

100p

C4206

L4246

100n

C4244

C4243

100n

C4242

C4241

100n

C4222

10u

C4224

10u

C4037

100n

C4026

C4024

100n

C4023

22R

R4028

100R

R4033

47R

R4046

R4047

47R

100n

C4046

C4047

100n

C4022

100n

C4021

R4036

0R

R4041

47R

R4037

R4034

1k

R4027-D

R4027-C

R4027-B

R4027-A

R4026-D

R4026-C

R4026-B

R4026-A

R4024-D

R4024-C

R4024-B

R4024-A

R4023-D

R4023-C

R4023-B

R4023-A

R4022-D

R4022-C

R4022-B

R4022-A

R4021-D

R4021-C

R4021-B

R4021-A

10u

C4223

L4224

R4241-A

R4241-B

R4241-C

R4241-D

R4242-A

R4242-B

R4242-C

R4242-D

R4243-A

R4243-B

R4243-C

R4243-D

R4244-A

R4244-B

R4244-C

R4244-D

R4246-A

R4246-B

R4246-C

R4246-D

R4247-A

R4247-B

R4247-C

R4247-D

C4552

100n 100n

C4554 C4556

100n

C4512

L4284

L4277

C4277

10u

R4272

75R

R4264

75R

1n

C4034

1n

C4201

100n

C4261

100n

C4266

C4271 100n

100n

C4286

C4287 100n

100n

C4288

0R

R4211

1M

R4214

R4048

390R

74LVC1G04

I4031-B

5+

3-

C4031

100n

74AC04

I4531-A

2

1

R4237

22R

74AC04

I4531-B

4

3

1k

R4278

R4256

4k7

R4254

10k

Q4254

BC847BW

18pC4214

C4216

18p

20,25MHz

X4214

R4279

3k3

R2776

47R

C2787

10p

100n

C2771

47R

R2777

R2786 47R

47R

R2787

C2781

100n

220R

R2774

R2771

0R

R2781

0R

R2782

BC847BW

Q2788

L2791

10p

C2786

D2771

C5V6

C2761

100n

L2761

R2778

2k2

R2779

2k2

0R

R3716

R3796

0R

R3703

X3792

20,25MHz

R3717

1k

47R

R3706

R3702

47R

L3783

C3783

10u

100n

C3718

10u

C3701

C3716

100n

C3714

C3711

100n

C3706

100n

C3794

C3789

100n

C3784

100n

C3736

C3709

10u

R3733

10R

R3732

10R

R3731

10R

R3729

C3792

12p

C3793

22p

C3717

1n

C2788

1n

R2788

27k

R2789

L3709

L3701

C3787

100n

I2781

M24256

8

7

4

6

5

3

2

1

R3267 47k Q3267

BC857BW

1k

R3286

BC857BW

Q3281

1k

R3282

Q3284

BC847BW

R3284

1k

R3283

1k

BC847BW

Q3286

R3281

4k7

1n

C3281

10u

C3282

4k7

R3271

C3271

1n BC847BW

Q3274

R3273

1k

R3274

1k

Q3276

BC847BW

1k

R3272

10u

C3272

BC857BW

Q3271 1k

R3276

4k7

R3291

C3291

1n

10u

C3292

BC857BW

Q3291

C3238

100n

22R

R3246

1u

C3151

C3153

1u

R3241

4k7

27k

R3237

470p

C3231

R3231

33k

R3234

10k

2k2

R3242

2k2

R3243

10k

R3247

BC857BW

Q3236

10k

R3239 R3238

10k

Q3238

BC857BW

BC807-25

Q3246

BC857BW

Q3241

10k

R3244

BAS316

D3244D3243

BAS316

1k

R3058

R3062

100k

4k7

R3071

22p

C3976

+

-

TS482IST

I3061

3

2

1

+

-

TS482IST

I3061

5

6

7

TS482IST

I3061

8+

4-

NJM2293

I3951

16

15

14

13

7

12

116

10

9

5

8

4

3

2

1

100n

C2714

L3066

L3956

L3957

L3771

L3768

L3746

L3744

L3743

L3829

L3774

L3876

L3776

L3778

C3006

100n

C3121

100n

SDA6000M2

I2701

128

127

126

125

124

123

122

121

96

95

94

93

92

91

61

62

63

64

57

58

59

60

32

31

120

119

118

117

116

115

114

113

112

111

110

109

108

107

106

105

104

103

102

101

90

89

88

87

86

85

84

83

82

81

65

66

67

68

69

70

71

72

73

74

75

80

79

78

77

76

56

55

54

53

52

51

30

29

28

27

100

99

98

97

50

49

48

47

46

45

44

43

42

41

26

22

23

24

40

39

38

37

36

35

34

33

16

15

14

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

4k7

R2718

10k

R2712

1n

C2713

1k

R2713

C2721

1n

R2721

1k

R2801

4k7

R3976

5k6

R5044

47R

R5034

R5048

470R

390R

R5038

R5018

33R

R2706

330R

R3116

330R

R3136

330R

R5287R5269

330R

270R

R5043

270R

R5033

100R

R3133

R3113

100R

R2737

R2738 100R

R2741

100R

R2742

R2743

100R

R5276

270R

R3109

270R

R3107

R5274

120R

R2802

10k

68R

R3853

C2176

1u

C2173

C2171

1u

R2813

4k7

R2812

R2821

5k6

R2816

4k7

R5016

4k7

3k9

R2764

R2762

3k9

R3871

4k7

1k

R3118

R3117

1k

R3138

1k

R3137

R3068

47k

R3066

R3112

22k

R3132

22k

4k7

R3261

R3073

56k

R3053

56k

100k

R3061

12k

R3072

R3052

12k

R3051

4k7

R5289

R5288

100k

R5266

4k7

R5267

100k

R5283

4k7

R5282

680R

R5281

4k7

R5273

R5272

4k7

R5271

680R

3k3

R5259

6k8

R5258

R5252

3k3

R5251

6k8

R5253

6k8

4k7

R5292

R3973

4k7

R3974

1k5

R2176

47k 47k

R2173 R2171

47k

15k

R2206

15k

R2202

R2736

4k7

C2863

180p

56k

R2871

R2864

56k

R2862

100k

C3778

100n

C3776

100n

C3773

C3771

100n

C3768

C3309

1n

C3112

18p

C3261

1n

47n

C3076

C3056

47n

22p

C5497

22p

C5496

22p

C5494

R2704

3k3

R2703 3k3

C2703

220p

R2707

10k

R2708

3k3

R2866

100R

22p

C3018

C3269

470p100p

C2898

C2899

100p

47p

C2892

C2872

47p

D2732

CMHSH5-2L

Q5281

BSV52

Q5271

BSV52

C3061

100n

100R

R2203

R3139

100R

R3119

100R

470p

C3119C3139

470p

100R

R3268

1k

R3263

1k

R3264

R3262

1k

C3262

10u

Q3261

BC857BW

R3266

1k

R5497

0R

R5496

R5494

0R

MC33079

I3121-E

4+

11-

+

-

MC33079

I3121-A

3

2

1

+

-

I3121-B

MC33079

5

6

7D3133

C12V0

D3113

C12V0

10u

C3133

C3113

10u

Q3071

BC857BW

Q3051

100n

C3964

C3062

1u

10k

R3941

C2707

100n

W2707

10

9

1

2

3

4

5

6

7

8

W2711

1

2

3

4

5

6

7

8

C5278

22p

C2832

C2839

22p

C5268

22p

C3977

22p

470p

C3147

C3146

470p

C3149

470p470p

C3148

470p

C3144

470p

C3142

470p

C3077

C3057

470p

C3107 C3109

470p 470p

C3152

470p

C3154

C5252

100p

R3934

10k

100n

C2807

Q5016

BC847BW

10u

C5018

C5021

100n

Q2702

BC847BW

Q2707

BC847BW

Q3971

BC807-25

10u

C3971

10k

R3972 BAS316

D3972

D3971

BAS316

R3977 47R

47R

R5268

47R

R5263

L3971

47k

R2204

R2201

47k

L2821

10u

C2821

R2174

100R

R2182

100R

W2201

14

13

12

11 10

9

8

7

6

5

4

3

2

1

15

16

17

18

19

20

21

C3774

100n

BC857BW

Q3068

Q3138

BC847BW

Q3137

Q3117

BC847BW

Q3118

BC857BW

Q3066

47R

R3076

47R

R3056

1u

C3072

750R

R3074

C3052

1u

R3054

750R

Q3057

BC847BW

R3078

1k

BC847BW

Q3078

100R

R2152

R2178

100R

R2179

100R

R2172

I3931

PCF8574TS

20

19

18

17

16

15

14

13

7

12

11

6

10

9

5

8

4

3

2

1

L3931

10k

R3939

R3919

75R

R3932

47R

R3931

C2822

56p

R2892 47R

R2872

47R

BC847BW

Q2817

C2817

100p

R2817

10k

R2818

10k

100R

R2819

BC857BW

Q2821

10u

C2811

100n

C2813

C2812

100n

C2806

C2804

100n

C2803 C2802

100n 100n

C2801

C2809

100n100n

C2808

K4S641632D

I2801

28

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

32

31

30

29

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

M29W320

I2811

48

47

46

45

44

43

42

41

40

39

38

32

31

30

29

21

22

23

24 25

26

27

28

33

34

35

36

37

18

20

19

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

100R

R2899

10u

C3951

L3951

R3938

10k

10n

C3952

C3957

100n

75R

R3957

+

-

TSH72CD

I5039

3

2

1

+

-

TSH72CD

I5039

5

6

7

R5041

549R/1%

C5041

47p

C5043

68p

L5041

15u0

47p

C5042

549R/1%

R5042

549R/1%

R5031

47p

C5031

68p

C5033

15u0

L5031

C5032

47p

R5032

549R/1%

BAS316

D5262

74HCT125

I5251-E

14+

7-

BAS316

D5271

D5281

BAS316

Q5267

BC857BW BC857BW

Q5288

R5261

100R100R

R5262

BC857BW

Q5262

I5251-D

11

13

12

I5251-B

6

4

5

100R

R5254R5256

100R

Q5256

BC857BW

R5293

22k

100n

C5251

10u

C3931

100R

R3077

100R

R3057

2k2

R2768

D2762

C6V2

Q2768

SN7002

47R

R2769

SN7002

Q2766

R2766

2k2

R2767

47R

100R

R2207

R2184

100R

L3853 C3853

100n

C2723

C2722

100n

C2719

R2726

27R

L2811

C2724

100n

C2726

C2727

100n

C2737

C2716

100n

C2717

C2718

100n

SN7002

Q2762

R2761

47R

Q2764

SN7002

47R

R2763

C2739

33p

6,0MHz

X2738

33p

C2738

C2741

100n

C2742C2743

100n100n

C2744

R2744

0R

R2746

C2746

330n

R2747

10k

I2721

S-80127ANMC-JCM-T2

5

VDD

2

GND 1

DS

4OUT

R2719

47k

S-80127ANMC-JCM-T2

I2714

5VDD

2

GND

1DS 4

OUT

R2717

47k

R2714

C2702

100p

100R

R2702

BAS316

D2709

R2852

2k7

R2854

C2862

470p

R2863

33k

BC847BW

Q2871

R2869

2k2

R2868

1k

Q2867

BC847BW

1k

R2867

BC847BW

Q2863

R2861

47k

C2867

100p

R2841

1k

C2841

1u

BAS316

D2849

Q2859

BC847BW

Q2847

47k

R2846

R2847

47k

10k

R2858

R2848

10k

R2851

R2849

47k

R2853

10k

47k

R2859

47k

R2857R2856

47k

Q2857

BC847BW

74HCT4052D

I2841

8-

16 +

10

A

9

B

6

INH

13

OIX

3

OIY

7

VEE

12 X0

14 X1

15 X2

11 X3

1Y0

5Y1

2Y2

4Y3

BC847BW

Q2849

R2711

100R

75R

R3772

75R

R3745

R3744

47R

75R

R3774

U9

2B5

2B4

2B3

2B2

2B1

2B7

2B6

2B0

2G5

2G4

2G3

2G7

2G6

2G2

2G1

2G0

2R5

2R7

2R4

2R3

2R2

2R1

2R0

2R6

P2_Tx0-

P2_Tx0+

P2_Tx1-

P2_Tx1+

P2_Tx2-

P2_Tx2+

P2_TxClk-

P2_TxClk+

P2_Tx3-

P2_Tx3+

CONE_DONE

ASDO

DCLK

nCE

nCONFIG

DATAO

nCSO

U3,3SB

U2,5SB_ana

U2,5SB_dig

DVB/TRST

MOCLKA

RXD_UART

TXD_UART

SDA4_3.3

SCL4_3.3

SMPOW

RESET

Recovery_Sequence

RESET_PANEL

SCL

SDA

POWER_LED

HDMI_INT

I2S-WS1

I2S-CL1

I2S-WS3

I2S-CL3

N1080

I2S_DA-In1

I2S_WS1

I2S_CL

DVB_TDI

DVB_TRST

DVB_TMS

DVB_TDO

DVB_TCK

DVB-BS

F-TDO

U-5

U15

U1.2V/1.5V_PGA U1.2V/1.5V_PGA

U1.2V/1.5V_PGA

U3.3V_PGA

1R7

1R6

1R5

1R4

1R3

1R2

1R1

1R0

1G7

1G6

1G5

1G4

1G3

1G2

1G1

1G0

1B7

1B6

1B5

1B4

1B3

1B2

1B1

1B0

P1_Tx3+

P1_Tx3-

P1_TxClk+

P1_TxClk-

P1_Tx2+

P1_Tx2-

P1_Tx1+

P1_Tx1-

P1_Tx0+

P1_Tx0-

U2.5ana

DVB_SCL0

DVB_SDA0

DVB_SCL2

DVB_SDA2

RES-DVB

/RES-DVB

MICLKA

VSYNCH_DVB

HSYNCH_DVB

AVLOUT_HDMI

AVLIN_HDMI

LOCK_SAT

SPDIF_DIG

AKT_TERR

U1.8

OSD_HCS.1

HDMICLK

U8

VSYNCH

VIM

VIP

SDA_TUN

SCL_TUN

AGC_IF

DATOE

DATDIR

ADOE

ADLE

DVB-NCE2

DVB-CI_IRQ

MDOA3

MDOA4

MDOA5

MDOA6

MDOA7

MDIA0

MDIA1

MDIA2

MDIA3

MDIA4

MDIA5

MDIA6

MDIA7

MDOA0

MDOA1

MDOA2

CD1A

CE2A

IORD

IOWR

MISTRTA

RSTA

WAITA

REG

MOVALA

MOSTRTA

CD2A

CE1A

C_DE

C_WE

RDY/IRQA

MIVALA

CA0

CD7

CD6

CD5

CD4

CD3

CD2

CD1

CD0

CA14

CA13

CA12

CA11

CA10

CA9

CA8

CA7

CA6

CA5

CA4

CA3

CA2

CA1

PCLK

PSTRT

PVIAL

PD7

PD6

PD5

PD4

PD3

PD2

PD1

PD0

MICLK

MISTRT

MIVAL

MDIO7

MDIO6

MDIO5

MDIO4

MDIO3

MDIO2

MDIO1

MDIO0

DVB-ECS0

DVB-ECAS

DVB-ERAS

DVB-WAIT

DVB-NCE3

DVB-NWE

DVB-UDQM

DVB-LDQM

DVB-EDCLK

DVB-NOE

TDO

TCL

TDI

TMS

OSD_V

H_OUT

V_OUT

SDA1_3.3

SCL1_3.3

OSD_G5

OSD_G4

AVLOUT2

UEB

AVLOUT1

PSUOn/OFF

OSD_R5

OSD_R4

RCSW0

OSD_CLK

WR/

CSDRAMCSDRAM

Conn

U3,3digi

U2,5digi

U3,3D

U2,5D

DVB-A16

DVB-A15

DVB-A14

DVB-A13

DVB-A12

DVB-A11

DVB-A10

DVB-A9

DVB-A20

DVB-A21

DVB-A4

DVB-A5

DVB-A6

DVB-A7

DVB-A8

DVB-A18

DVB-A19

DVB-A3

DVB-A2

DVB-A17

DVB-A1

DVB-D15

DVB-D14

DVB-D13

DVB-D12

DVB-D11

DVB-D10

DVB-D9

DVB-D8

DVB-D7

DVB-D6

DVB-D5

DVB-D4

DVB-D3

DVB-D2

DVB-D1

DVB-D0

MSDCLK

MDQMU

MDQML

MWEB

MCASB

MRASB

MCS0

MA13

MA12

MA11

MA10

MA0

MA1

MA2

MA3

MA9

MA8

MA7

MA6

MA5

MA4

MD0

MD1

MD2

MD3

MD4

MD5

MD6

MD7

MD8

MD9

MD10

MD11

MD12

MD13

MD14

MD15

RX2+_HDMI

RX2-_HDMI

RX1+_HDMI

RX1-_HDMI

RX0+_HDMI

RX0-_HDMI

RXC+_HDMI

RXC-_HDMI

Cin0

Cin1

Cin2

Cin3

Cin4

Cin5

Cin6

Cin7

DIG_G0

DIG_G1

DIG_G2

DIG_G3

DIG_G4

DIG_G5

DIG_G6

DIG_G7

GPio0

GPio1

GPio2

GPio3

GPio4

GPio5

GPio6

GPio7

PBR0

PBR4

PBR5

PBR6

PBR7

PBB7

PBB6

PBB5

PBB4

PBB3

PBB2

PBB1

PBB0

PBG7

PBG6

PBG5

PBG4

PBG3

PBG2

PBG1

PBG0

PBR3

PBR2

PBR1

SDA33

SCL33

Yin.0

Yin.1

Yin.2

Yin.3

Yin.4

Yin.5

Yin.6

Yin.7

OSD_B4

OSD_B5

U5SB

RES

SDA1

RESIN

RD/

CSROM

UDOH

CLKEN

LDOH

MEMCLK

A20

A19

A18

A17

A16

A8

A7

A9

A6

A5

A10

A11

A12

A4

A3

A2

A1

A0

A13

A14 A14

A14

A15

D15

D7

D0

D14

D8

D6

D1

D13

D9

D5

D2

D12

D10

D4

D3

D11

SCL1

i7

i6

i5

i4

i3

i2

i1

i0

IO7

IO0

IO5

IO4

IO3

IO2

IO1

IO6

U3.3

SDA0

SCL0

RES

U12

U5

67Ohm

2x100MHz/

67Ohm

2x100MHz/

2x100MHz/67Ohm

18.4.06Ex / 26.4.06 (Ri)

GD7

Frame

OSSet

Test

Temp3

Temp2

Temp1

Y_DVB

Y_HDR

Chroma_HDR

Chroma_DVB

HDR

-89655.050

GND

NF-GND

KH-L

KH-R

Chroma

Y

Frontbuchse ChromaCVBS/Y KH-LKH-RLR

FASTBLANK

PDWN

IRQ

PDPGO

CPUGO

SDA

SCL

Tx3+

Tx3-

Tx2+

Tx2-

Tx1+

Tx1-

Tx0+

Tx0-

TxClk-

TxClk+

PWRDwn

Clock

DataEnable

V

H

parity

FANCONTROL

MDIO7

MDIO6

MDIO5

MDIO4

MDIO3

MDIO2

MDIO1

MDIO0

MICLK

MIVAL

MISTRT

SAT-Modul

CEC

FAN2

FAN1

33V

15V

5V

-89459.050

DCLK

DATAO

V

H

iQCLK

RC5/6

AGC_IF

47R

R4701

ECAS

I/O

oDVBV

iDVBH

iDVBEO

I/O

CONF_DONE

nSTATUS

TCK

TMS

TDO

I/O

CLK

I/O

TDI

I/O

SCL

SDA

iDEv

oFBS

iDE

iVsync

iHsync

iParity

I/O

DEV_CLR

I/O

SDA_HDMI

SCL_HDMI

oFan

oTemp

iTemp

oLVDSoption

I/O

nCS0

DATA0

VCCA_PLL1

nCONFIG

nCE0

nCE

MSEL0

MSEL1

DCLK

ASDO

I/O

oEDIDpointer

oPanelDown

oVsync

oHsync

oDE

oPwrDown

oParity

iPixelCLK2 iPixelCLK

oPixelCLK

DPCLK2

DPCLK3

DPCLK4

DPCLK5

DPCLK6

DPCLK7

DPCLK0

FAN

parity

H

V

DataEnable

Clock

PWRDwn

TxClk+

TxClk-

Tx0-

Tx0+

Tx1-

Tx1+

Tx2-

Tx2+

Tx3-

Tx3+

BGR

VH

U12_Eing.

U5SB_Eing.

Frontin

Centerin

W.Schelder,H. Stumpf

DVB_OE

H

HSO/IRQ

27MHz

DVB_OE

DVB_V

AV_LINKHDMI

AV_LINK2

AV_LINK1

GP2

GP1

GP0

TRST

SC2_CVBS/Y_out

SC2_Chroma_out

SC1/7_Chroma_out

SC1/15_Chroma_out

SC1_CVBS/Y_out

Y_DVB_in

Chroma_DVB_in

Chroma_SC1_SC2_in

Chroma_Front_in

CVBS_03_in

CVBS_02_in

CVBS_01

SCART1

NF_R

NF_L

AV-1

AV-Link1

Chroma

CVBS

SPDIFout

SPDIFin

L R

Audioout

U5

CI-Controller

CD1B

T-Frontend

C-Frontend

RDS_INT

TxD

RxD

UVout5

UVout6

UVout7

NC

Yin0

Yin1

Yin2

Yin3

Yin4

NC

Yin5

Yin6

Yin7

NC

RESET

IO7

IO6

IO5

IO4

IO3

IO2

IO1

IO0

CLKout

Hout

Vout

AVO/ITR

NC

Xout

Xin

AVI

CLKin

Hin

Vin

NC

UVin7

UVin6

UVin5

UVin4

UVin3

UVin2

UVin1

UVin0

NC

AVout

AYout

AUout

ASVMout

UVout0

UVout1

UVout2

UVout3

UVout4

NC

I2S-DAout 3

I2S-D1out

I2S-D4out

I2S-D2out

I2S-MCL

I2S-Datain

I2S-WS

I2S-CL

AudioErweiterung

CENTER

SUR_R

SUR_L

SUB

ON/OFF

RDS

DVB_SCL

DVB_RES

AKT_TERR

33V

CVBS_PiP-Tuner

SDA1

SCL1

LOCK_SAT

DVB_SDA

5V

15V

3,3V 12V

15V

5V

3,3V

5V_SB

ON/OFF

Basicboard

9V

U33

Chroma_HDR

Y_HDR

U5SB

HDR-Audioin/out

I2S-D0

I2S-D1

I2S-WS

I2S-CL

SDA1

SCL1

uP_L

uP_R

C

SR

SL

I2S_DAin4

ResetQ

I2S_DAin2

I2S_DAout

CLout

SPDIF_L

SPDIF/

R

L

LA

R L R L

Scout1

R L

Cinchout

Scout2 R

L

R

L

R

L

Cinchin

Scin2

Scin1

R

L

Port0

Port1

Sound Processor

SPDIF

SUB

ICLK

IOCLK

Variante:

Code-Teile-Nr.:

Datum:

gepr.:

Datum:

erst.:

Index:

LOEWE.Benennung:

001_alle_Werte

18.04.2006

D.Simon

H

UDQM

EDCLK

A12

A10

A9

A8

A7

A6

A5A4

A3

A2

A1

A11

A16

A15

ECS0

ERAS

ECAS

NWE

LDQM

D8

D9

D10

D11

D12

D13

D14

D15

D7

D6

D5

D4

D3

D2

D1

D0

A17

D15

D7

D14

D6

D13

D5

D12

D4

D11

D3

D10

D2

D9

D8

D1

D0

NOE

NCE3

A1A2

A3

A4

A5

A6

A7

A8

A18

A19

NWP

LDQM

A21

A20

A9

A10

A11

A12

A13

A14

A15

A16

D7

D6

D5

D4

D3

D2

D1

D0

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

64 MBit SDRAM

32 MBit FLASH

64 MBit SDRAM

Demultiplexer

RXD1

TXD1

BOOTLOAD

SCL0

SDA0

LOCK_TERR

DVB-NCE2

89445

Signalboard

L2650

27MHZ

CI_IRQ

TR_TXD

TR_RXD

RES

/RES

NWP

LOCK_CAB

Y_DVB_out

Chroma_DVB_out Controller

Video / Audio-Decoder

Bedienteil

DE

VSynch

HSynch

SCK

WS

SD0

SPDIF

MCLKin

MCLKout

PLLIN

PVCC2

RSVD0

RSVDL

AnBPb

AnGy

Reset

AnRpr

Key

UEB

LEDgrün

LEDrot

RSIG

-5V

33V

TDO

TDJ

TCK

TMS

3,3V

OSD_CLK

PCK1

VSYNCH

HSYNCH

DSDA

DSCL

RES

SCL

SDA

FBL1

FBL2

Bin2

Gin2

Rin2

Bin1

Gin1

Rin1

REV

PCS4

PCS3_DE

PCS2_V

PCS1_H

PMP2

PMP1

PDE2

PDE1

Xout Xin

OSD_FB

ITUCLK_IN

1010

99

88

77

66

55

44

33

22

11

Y

X

W

V

U

T

S

R

Q

P

O

N

M

L

K

J

I

H

G

F

E

D

C

B

A

SDA4_3.3

SCL4_3.3

Bootload

ChromaCVBS/Y KH-LKH-RLR

Panel

LEDrot

Chroma_SC1

Chroma_SC2

TXTCVBS

CVBS

FBL

R_Chroma

G

AV-Link2

AV-2

B

NF_L

NF_R

NF_L

NF_R

RSIG

Vout

Hout

FAST_BLANK

R

G

B

AV2_IN

AV1_IN

F_KEY

Synch

FBL

V

Y

U

R_ChromaSC2

G

B

CVBSTuner

CVBSPiP-Tuner

CVBS/YSC2

CVBS/YSC1

ChromaSC1

CVBS/YFront

ChromaFront

CVBS03

CVBS02

CVBS01

Color Decoder

Basicboard

Frontbuchse

LR

SCART2

Audioin L Centerin

Cr Y Cb

Audioin R

CVBS

64 MBit SDRAM

32 MBit FLASH

CCU

Mute

AVLIN2

RES-On

OSD_B5

OSD_B4

IR-SW

AVLIN1

RSIG_IN

TD0

TD1

TMS

TCK

ServiceStecker

25

Signal Board 89445 Bestückungsseite • Components side

W051

W052

C3735

C3734

L3736

C3739

R4230

D5078

R4529

R2030

R3484

R3486R3487

R3488 R3489

R4691

R3471 R3473R3476 R3478

R3491

R3482

R3474R3479 R3472R3477

R2039

R2038

R2037

R2036

R2034

R2033

R5772

D2859

W2034

1 5

C3738

C3737

C4841 C4843

C4822

C4824

R3496

R3497

Q3497

L3499 L3498

C3498

R3498

C4330

R4332 R4333

R4334

I4331

R4685

L4681 L4682

R2208

D2241

R2241

D2242

C2242

R2242

R2243

R2244

R2245 C2246

R2246

R2248

R2247

R2249

Q2242

Q2246

R2137

R2156

C2156

C3874

R3875

R3872

C3875

R3825

R3826

C3825

C3828

C3450

R3450

C3882

R3888

C

B

E

Q3887

R3882

R3886

C3887

C3881

L3881

R3881

R3887

R3883

C

B

E

Q3882

AK

A

K

D3733

AK

A

K

D3732

AK

A

K

D3731

C2658

W4601

W2081

W5971

W5911

W4611

C5999

C5998 C5997

C5996 C5994

C5993 C5992

C5991 C5989

C5988

C5987

C5986

C5984

C5983

C5982

C5981

C5979

C5978

C5977 C5976

C5974 C5973

C5972 C5971

C5969 C5968

C5967C5966

C5964

C5963

C5962

C5961

C5949

C5948

C5947

C5946

C5944

C5943

C5942

C5941

C5929

C5928

C5927

C5926

C5924

C5923

C5922

C5921

C5919

C5918

C5917

C5916

C5914

C5913

C5912

C5911

C5902

C5901

C5791

C5781

C5771

C5734

C5722

C5721

C5708

C5706

C5703

C5701

C5552

C5544

C5543

C5542

C5536 C5534 C5533

C5532

C5531

C5528

C5527

C5526

C5524

C5523

C5521

C5518

C5517

C5516

C5509

C5508

C5506

C5504

C5503C5502

C5501

C5497 C5496 C5494 C5493 C5492C5491

C5471

C5459 C5458 C5457 C5456 C5454 C5453 C5452 C5451 C5449 C5448 C5447

C5446

C5443

C5442

C5433

C5429 C5428 C5427C5424

C5423

C5422

C5421

C5419

C5418

C5417

C5416

C5414

C5413

C5412

C5408

C5407

C5406

C5404

C5403 C5402

C5401

C5303

C5302 C5301

C5296 C5278

C5277 C5268C5263 C5257

C5252

C5251

C5209C5208

C5207 C5206 C5204 C5203 C5202

C5189

C5188

C5187

C5184

C5183

C5182

C5154C5153

C5152

C5109

C5108

C5107

C5106

C5104

C5103

C5102

C5074

C5073 C5072

C5071

C5064 C5063

C5062

C5059

C5058

C5057

C5056

C5053

C5052

C5051

C5043

C5042

C5041

C5037 C5036

C5033

C5032

C5031

C5029

C5028

C5021

C5014

C5013C5009C5008

C5007

C5006

C5004

C5003

C5002

C5001

C4857C4856 C4854

C4852

C4844 C4842

C4833C4828C4823

C4811

C4808 C4807

C4803 C4802

C4744

C4738

C4736

C4734

C4733

C4731

C4711

C4709

C4706

C4702

C4701

C4689

C4686

C4684

C4677 C4674

C4672

C4658

C4657

C4656

C4654 C4653 C4652

C4649

C4648

C4647

C4644

C4641

C4636

C4634

C4633

C4632

C4631

C4629

C4628

C4627

C4626

C4624

C4623

C4622

C4621

C4619

C4618 C4617

C4616 C4614

C4613

C4612

C4611

C4608

C4607 C4606

C4604

C4603

C4602

C4557

C4556

C4554 C4553

C4552

C4551

C4547

C4546

C4536

C4534

C4531

C4526

C4514

C4513C4512 C4511

C4509

C4507

C4503

C4502

C4501

C4382

C4343

C4341

C4337

C4336

C4333

C4331

C4317

C4304

C4302

C4301

C4294

C4293

C4292

C4288

C4287

C4286

C4283

C4279C4278 C4276

C4274

C4273

C4272

C4271

C4269

C4268

C4267

C4266

C4264

C4263

C4262

C4261

C4251 C4249 C4248 C4247

C4244C4243C4242C4241

C4233

C4231

C4226

C4221

C4219

C4217

C4216

C4214

C4213C4212C4211C4209C4208

C4207 C4206 C4204 C4203 C4202

C4201

C4107

C4103C4102

C4097 C4094 C4084 C4081C4078

C4074

C4072

C4071

C4052

C4048

C4047C4046

C4036

C4034

C4031

C4026 C4024

C4023

C4022

C4021

C4019

C4016

C4014

C4013

C4011

C4008

C4007C4006

C4004

C4003

C4002

C3977C3976

C3964

C3957 C3952

C3943

C3917

C3914

C3862

C3856

C3853

C3846C3836

C3834

C3811

C3806

C3804

C3799

C3798 C3797C3796C3794

C3793

C3792

C3791

C3789

C3787C3784

C3782

C3778

C3776

C3774

C3773

C3772

C3771

C3769

C3768

C3766

C3762 C3761

C3759 C3758

C3757

C3756

C3753

C3752

C3751

C3749

C3748C3747

C3746

C3744

C3743

C3742C3736

C3733

C3732

C3731

C3727C3726

C3722

C3721

C3719

C3718

C3717

C3716 C3714 C3713 C3712

C3711

C3707 C3706

C3704

C3703

C3702

C3654

C3653

C3639 C3638

C3637

C3636 C3634 C3633

C3629 C3628 C3627 C3626 C3624 C3623 C3622 C3621

C3619C3618C3617C3616C3614

C3613

C3612

C3609

C3608

C3607

C3606

C3604

C3602

C3601

C3467C3466C3464 C3463

C3462

C3461

C3458

C3454

C3453

C3452

C3444

C3439

C3438

C3436

C3426

C3416

C3411

C3409

C3408

C3407

C3406 C3404

C3403

C3402

C3313

C3312

C3311

C3309

C3308

C3307

C3306

C3303

C3301

C3299

C3291

C3289

C3281

C3279

C3271

C3269

C3261

C3249

C3231

C3229

C3228

C3227 C3226C3225 C3224 C3223

C3222

C3216

C3209

C3208 C3202

C3154C3152 C3149C3148C3147C3146

C3144 C3142

C3139

C3132

C3119

C3112

C3109C3107

C3104 C3102

C3099

C3092

C3089

C3082

C3077

C3076

C3071

C3066

C3061

C3057

C3056

C3051

C3034 C3032

C3028

C3027C3026C3023

C3022

C3021

C3019

C3018

C3017C3014

C3011

C3003

C3002

C2997 C2996

C2986

C2982

C2978C2974C2973C2972

C2971

C2911

C2906

C2899C2898 C2892

C2887

C2883

C2882

C2872

C2867

C2863

C2862

C2839C2832

C2826

C2822

C2817

C2813C2812

C2809 C2808 C2807

C2806C2804C2803

C2802

C2801

C2788

C2787C2786

C2781

C2771

C2761

C2759

C2744C2743C2742C2741

C2739 C2738

C2737

C2728

C2727 C2726 C2724

C2723 C2722

C2721

C2719 C2718

C2717C2716

C2714C2713

C2711

C2707

C2703

C2702

C2656

C2651

C2623

C2622

C2294

C2232

C2231

C2154

C2153C2152

C2151

C2149

C2148C2147C2146C2144C2143

C2142

C2141

C2119 C2117

C2102

C2093

C2091C2086

C2084

C2083

C2081

C2076

C2073

C2023

C2021

R5999

R5998

R5997

R5996

R5994

R5993

R5992

R5991

R5989

R5988

R5987

R5986 R5984

R5983

R5982

R5981

R5979

R5978

R5977

R5976

R5974

R5973

R5972

R5971

R5969

R5968

R5967

R5966

R5964

R5963R5962R5961R5949R5948R5947R5946

R5944

R5943

R5942

R5941

R5929

R5928

R5927

R5926

R5924

R5923

R5922

R5921

R5919

R5918

R5917

R5916

R5914

R5913

R5912

R5911

R5771

R5749

R5748

R5747

R5746

R5744

R5743

R5742

R5741

R5739

R5738

R5737

R5736

R5734

R5733

R5732

R5731

R5729

R5728

R5727

R5726

R5724

R5723

R5722

R5721

R5718

R5717

R5716

R5714

R5713

R5712

R5711

R5709

R5708

R5706

R5702

R5701

R5552

R5551

R5549

R5548

R5547

R5546

R5544R5543

R5538

R5537

R5532

R5531

R5518

R5517

R5516

R5514

R5513

R5509

R5503

R5502

R5499

R5498

R5495

R5491

R5483

R5482R5479

R5478

R5477

R5476

R5473R5472

R5471

R5469

R5468

R5459 R5458 R5457 R5456 R5454 R5453 R5452 R5451 R5449 R5448 R5447

R5446R5444

R5431

R5427

R5424

R5414

R5413

R5412

R5411

R5409

R5408

R5407

R5403

R5402

R5401

R5296

R5294

R5293

R5292

R5291

R5289

R5288

R5283

R5282

R5281

R5273

R5272

R5271

R5267

R5266

R5259

R5258

R5253

R5252

R5251

R5201

R5189

R5188

R5187

R5183

R5156

R5101

R5099

R5098

R5097

R5096

R5095

R5094

R5093

R5092

R5091

R5090

R5089

R5088

R5087

R5084

R5082

R5081

R5079

R5078R5077

R5076

R5073

R5072

R5071

R5069

R5068

R5067

R5066

R5064

R5063

R5062

R5061

R5059

R5058R5057R5056

R5054R5053

R5052

R5037 R5036

R5029

R5028

R5024

R5023

R5022

R5021

R5019

R5017

R5016

R5014

R5004

R5003

R5002

R5001

R4858

R4857

R4856

R4852R4851

R4831

R4826

R4821

R4818

R4817

R4816

R4812

R4737

R4736

R4732

R4713

R4712

R4711

R4709

R4708

R4707

R4702

R4688

R4687

R4686

R4684

R4683

R4682

R4681

R4677

R4676

R4674

R4673

R4672

R4671

R4658

R4656

R4652 R4651

R4648

R4647

R4646

R4644

R4643

R4642

R4641

R4638

R4637

R4636

R4634

R4632

R4631

R4608

R4606

R4603

R4602

R4601

R4596

R4594

R4593

R4592 R4591

R4557

R4554

R4553

R4547

R4543R4542

R4541

R4538 R4537

R4536

R4534

R4533

R4532

R4531

R4528

R4527

R4526

R4524

R4523

R4522

R4521

R4510

R4509

R4508

R4507

R4506

R4505

R4503

R4382

R4343

R4339

R4338

R4337

R4336

R4331

R4329

R4328

R4327

R4326

R4323

R4322

R4321

R4317

R4316

R4314

R4313R4312

R4304

R4302

R4301

R4293

R4279

R4278

R4273

R4268

R4263

R4256

R4254

R4253

R4252

R4251

R4249

R4248

R4238

R4234

R4233

R4231

R4229

R4228

R4227

R4226

R4224

R4219

R4218

R4217

R4216

R4214

R4213

R4212

R4211

R4209

R4208

R4207

R4204

R4203

R4201

R4113

R4112

R4111

R4109

R4108

R4107

R4104

R4103

R4102 R4101

R4094

R4093

R4092

R4087

R4086

R4084

R4083R4082

R4078

R4077

R4076

R4073

R4071

R4069

R4068

R4067

R4066 R4065

R4064

R4063

R4062

R4061

R4060 R4059 R4058

R4057 R4056 R4055

R4054

R4053

R4052

R4051

R4050

R4043

R4042

R4039

R4038

R4036

R4034

R4032

R4031

R4029

R4028

R4019

R4017

R4016

R4012

R4011

R4009

R4008

R4007

R4004

R4001

R3976

R3974

R3973

R3972

R3964

R3962

R3961

R3956

R3954R3953

R3942

R3941

R3939

R3938

R3937

R3936

R3934

R3933

R3928

R3927

R3926

R3924

R3923

R3922

R3921R3917

R3914

R3904

R3903

R3902

R3871

R3864

R3863

R3861

R3854

R3851

R3843

R3842

R3841

R3833

R3832

R3831

R3824

R3823R3822

R3819 R3818R3817

R3816

R3814

R3813

R3812

R3811

R3808

R3798

R3797

R3796

R3794

R3778

R3776

R3773

R3771

R3768

R3766

R3756

R3753

R3751

R3749

R3748

R3743

R3733R3732R3731

R3729

R3727R3726

R3724

R3723 R3722

R3721

R3719

R3717

R3713

R3712

R3711

R3709R3708

R3707

R3704

R3703

R3701

R3656 R3654

R3651

R3638

R3637

R3633 R3632 R3631

R3623

R3622

R3621

R3619

R3618

R3617

R3616

R3614

R3613

R3609 R3608

R3607

R3604

R3603

R3602

R3601

R3467R3466R3464 R3463

R3462

R3461

R3459

R3458

R3457

R3456

R3455

R3454

R3453

R3452

R3451

R3449

R3448

R3447

R3446

R3444

R3443

R3442

R3441

R3439R3438 R3436

R3434

R3433

R3432

R3431

R3428

R3427

R3426

R3424

R3423

R3422

R3418

R3416

R3414

R3413

R3412

R3411

R3403

R3402

R3401

R3311

R3309

R3308

R3307

R3306

R3304

R3303

R3299

R3296

R3294

R3293

R3292

R3291

R3289

R3286

R3284

R3283

R3282

R3281

R3279

R3276

R3274

R3273

R3272

R3271

R3269

R3267

R3266

R3264

R3263

R3262

R3261

R3247

R3244

R3243

R3242

R3241

R3239

R3238

R3237

R3236

R3234

R3233R3232

R3231

R3229

R3228

R3227

R3226

R3225

R3224

R3223

R3222

R3221

R3219

R3218

R3217

R3216

R3213R3212

R3211

R3208

R3207

R3206

R3202

R3138

R3137

R3132

R3131

R3124R3123

R3122

R3121

R3118

R3117

R3112

R3111

R3108

R3106

R3098

R3097

R3096

R3094

R3093 R3092

R3091

R3088

R3087

R3086

R3084

R3083 R3082

R3081

R3078

R3073

R3072

R3071

R3068

R3066

R3062R3061

R3058

R3053

R3052

R3051

R3047R3046

R3044

R3043

R3042R3041 R3037

R3036 R3034

R3033

R3032

R3031

R3029

R3028

R3027

R3026

R3003

R2999

R2998

R2986

R2982

R2981 R2978

R2977

R2976

R2974

R2971

R2906

R2904

R2891

R2889

R2888

R2887

R2884

R2883R2882

R2881

R2871

R2869

R2868

R2867

R2864

R2863R2862

R2861

R2859

R2858

R2857

R2856

R2855

R2854

R2853

R2852

R2851

R2849R2848

R2847

R2846

R2845

R2844

R2843

R2842

R2841

R2839

R2838 R2837

R2836

R2829

R2828R2827

R2826

R2822

R2821 R2818

R2817 R2816

R2813

R2812

R2811

R2802

R2801

R2791

R2789 R2788

R2784 R2783

R2782

R2781

R2779

R2778

R2774

R2773

R2772

R2771

R2768

R2766

R2764

R2762

R2759

R2758

R2757R2756 R2754

R2753

R2749

R2747

R2746

R2744

R2736

R2735

R2734

R2733

R2732

R2729

R2728

R2727

R2726

R2723R2722

R2721

R2719

R2718

R2717 R2716

R2714R2713

R2712

R2709

R2708

R2707

R2704 R2703

R2677

R2674

R2672

R2659

R2657

R2656

R2654

R2653

R2652

R2651

R2634 R2632

R2298R2297

R2296

R2294

R2293

R2292

R2291

R2289

R2288

R2287

R2284

R2283

R2282

R2281

R2272

R2222

R2221

R2216

R2214

R2212

R2211

R2206

R2204

R2202

R2201

R2199

R2198

R2197

R2196

R2189

R2188

R2187

R2186

R2176

R2173

R2171

R2154R2153

R2152

R2151

R2149

R2147

R2142

R2133

R2112

R2111

R2099

R2098R2097

R2095

R2091

R2089

R2088

R2087

R2086

R2084

R2081

R2072

R2032

R2031

R2028

R2027

R2026

R2024

R2023

R2022

R2021

R2011

R2001

U2141

L2623

L2622

D2633

D2631

R2633

R2631

W2611

W2612 8

1

11 1

W2632

W2621

W2631

R3626 R3627

R4021R4022 R4023R4024R4026R4027

R4241 R4242 R4243

R4244

R4246R4247

R4511

R4512

R4513

R4514

R4516R4517

R4607

R4657

R4661

R4662

R4663

R4664

R4666

R4667

R5421 R5422 R5423

Q4684

R4689

Q4682

C4687

Q4686

R2658

C2031

W2032

1 5

R2192

R2194

11 1

W2191

L2906

L2062 W2033

7 1

C2072

L2651

30 2

29 1

W2651

I4651

C4651

L4651

L4659

L4658

L4657

L4656

L4654

W2151

10

1W2152 8

1

L3042

R4519

R4518

Q4594

Q4591

D2102

W2044

1 3

W2162

1 3

W2161

15 1

W2511

W2512

81

Q2756

Q2754

Q2298Q2297

I4507

C4017

L4017

C4018

W2281

Q2757

R4006

R4003

R4002

C5537

C5548

C5538

C5546

C5547

C2107

I2072

D2071

C2071

D2072

C5186

C3012

I5501

I4501

216 12 10 8 4614

1315 13 11 9 57

T

R

P

N

M

L

K

J

H

G

F

E

D

C

B

A

L5413

L5522

L5519

L5409

L5411

L5419

D4093

D4083

Q4093

Q4083

Q2081

Q2091

W2051

1 5

C2106

R3918

R2131

C5541

I5441

I5541

Q3711

W2061

L4009

L4037

W2111

4

1

W2011

1 5

L4604

L4606

L4607

L4608

L4609

L4502

L4506 C4506

W4506

I4506

D4841

R4841

R4842

R2271

Q2294 Q2287 Q2292 W2271

8

1

I5301

24

1

I5902

I5901

I4201

108

72

36

109

37

1

I5001

156

104

1

I3401

1

I5701

65

39

1

I5401

33

R4318

C4311

L4311

I4311

W2141

L2072

I2111

D2108

D2109

C2112

C2111

R3971

L4337

Q3724

C2118

C2116

C2061

L2061

R2041

C4332

L4301 C4334

C2101

D2857

D2847

I4601

I2811

25 24

1

I4851 I4071

I5471

I5431

I5181

I5171I5151

I5039

I2781 I2771

I3006

I4711

I3001

I3201

I2701

I4531

I3121

I5251

I5721

I4301

I4701

I2841

I5551

I3901

I3041

I4336

I4381

I5791 I5781 I5771

I3801

I3301

C4218

C4291

L3781

C3781

C3786

L3786

I4219

5 1

Q4327

C4328

Q3093

Q3083

C3091C3081

C3041

L3041

C3317 C3316

R4074

R4072

R2136

W2136

1 2

W2131

1 3

W2134

61

R3844

R3846 L3846

Q3842

R3834

R3836 L3836

Q3832

C3141

C3143

L3788

C3788

L3426

Q3709

Q2086

Q2084

Q2088

R3752

Q3751

R2083

R2093

L3402

W2221

W2171

L5702

C5702

Q4322

L4268

L4263

L4293

L4273

C4281

C4282

I4281

C4831

C4821

C4826

C4816

C4817

C4818

W2041

1 2

L4541

C4541

L3651

C3651

C3902

L5022

C5022

I3651

D3656

L3656

C3656

R3652

R3653

108

144

36

I3601

72

73

37

1

I3701

108

72

36

144

109

73

37

1

I4001

Q4103

Q4107

Q4113

R4106

L4101

C4101

X5502

X5414

W3411

W3401

51

W2021

114

X3408

Q3403

Q3426

Q3416

C3401

L3401

Q3456

Q3446

Q3448

Q3451

Q3441

Q3443

L3416

L2011

W2031

1 3

L4043

W5721

A35

A34A68

A1

C4543

C5551

C5431

C5432

C5441

C5444

C5704

C5024

C5012 C5011

C4801 C4806

C4342

Q4336

I4226

W2072

I3704

R3806

R5049

R5039

R3807 I4222

I4516

C3956

R3943

R3099

Q3952

L4741

C4741

R4741

R4739R4738

Q4738

Q4742

Q4733

Q4744

Q4743

R4733

R4731 L2042L2043

W2042

1 2

L4744

L4734

L4701

R4706

D4712

R4502

R4701

R4501

W2043

1 2

W4501

9

1

W2101

16

15

2

1

Q2733

R2148

Q2982

L3301

Q3307

X3304

C3304

L3302

R3312

R3313

C3302

C3314

W2132

8

1

L2106

L3756

L3754

L3834

L3844

R3754

R3757

R4381

C4381

L4381

Q2826

R2831

Q2831

R2731

D2831

D2838

Q2838

R4014

R3298

R3288

R3278

R3249

C3821

C3873 C3827

C3973

C3232 C3241

C3007

C3103

C3101

C3106

C3073

C3053

C2113

C2134

C2791

L5704

L5024

L4543

C3108

L3214

C3214

L3211

C3211

R3209

L3206

C3206

L3201

C3201

R3203

R3204

Q3267

Q3286 Q3284

C3282

Q3281

Q3274

Q3276

C3272

Q3271

Q3294

Q3296

C3292

Q3291

I3061

I3951

D4543

D5024

D2904

W5001

15

R4223

L3066

L3956

L3957

L3771

L3768

L3766

L3746

L3744

L3743

L3739

L3738

L3737

L3829

L3856

L3774

L3876

L3776

L3778

C5463

C3238

C3247

C3006

C3121

C2104

C2103

W2001

X4214

R2748

I5022

C2752

C2736

C3632

X3607

C3611

R4552

R4551

R4232

R4237

X4534

Q2904

W2231 61

R5044

R5034

R5048

R5038

R4048

R4018

R4013

R5018

R3963

R2706

R3116

R3136

R5287

R5269

R5043

R5033

R3246

R3908

R4811

R5474

R3133

R3113

R3828

R3874

R2737

R2738

R2741

R2742

R2743

R5276

R3109

R3107

R3104

R3102

R5274

R3821

R3866

R3853

R3856

R3913

R3912

R3911

R3909

R3906

R3907

C2108

C2176

C2173 C2171

C3151

C3153

C3033

C3031

R2886

R2866

C5466

R5429

R5428

W2071

L2903

C5472

C5549

Q5281

Q5271

C5461

R4264R4269R4274

R4262R4267R4272

Q4254

R4504

I4503

C4601 L4601

R2134

Q4017

D3231

Q3233

Q3232

Q3236

Q3238

Q3246

Q3241

D3244D3243

R2203

R3268

Q3266 Q3264

C3262

Q3261

C4544

L4544

R4546 R4544

C4516

C4517

I4541

C3062

C4223

L4224

C4224

C4277

C4246

C4284

L4284

L4277

L4246

R4236

R4206

R4202

W2707

10

1

W2711

8

1

R5493

R5492

R5494

R5496

R5497

L4801

D4801

D4802 D4807

D4806

R4081

L4806

R5151

C5522

C5519

R5027

R5026

C5181

I5011

I4801

C5507

L5507

C5409

R5512

R5511

R5012

R5009

R5011

Q2707

L2907

L2911

L2901

L2908

L2902

L2904

L2821

C2821

R2132

L2113

W2181

11

1

W2201

21

20 2

1

W2211

21

20 2

1

C4042

C4043

C4009

C4037

I4042

C4001

C4051

L4051

L4001

C4222

R2094

R2096

Q3078

Q3057

I3931

I4031

I4233

R3952

R3716

R3714

R3932

R3931

R3801

R3802

R2892

R2872

C2871

L2871

Q2817

R2819

Q2821

C3951 L3951

Q3962

R3957

C5018

Q5016

D5467

I5461

Q5467

R5461

R5466

R5462

R5464

R5463

R5467

Q5471

Q5479

Q5481

C5719

L5719

C5411

R5404

R5406

R5707

R5703

R5704

Q3811

Q3818Q3816

L3931

C3931

R3077

R3057

R5083

R5086

R5032

L5031

R5031

R2997

R2996

R4033

L3913

D2771

L2791

Q2788

R2787

R2786

R2777

R2776

Q2978

Q5291

Q5288

Q5267

D5281

D5271

R5261 R5262

Q5262

R5254 R5256

Q5256

D5256

D5262

R5278

R5277

R5263

R5257

R5268

R3977

D2287

D2286

R2286

L3971

C3971

Q3973

D3972

D3971

Q3971

Q3071

L3016

C3016

L3019

L3001

R3002

R3001

Q3028

X3026

C3001

C3131 C3111

C3009

C3008

Q3098

Q3087

C3093

C3083

R3089

Q3088

Q3097

R2213

R2207

C3113

C3133

R3139

R3119

R2182

R2184

R2217

D3113

D3133

D3122

C3122

Q3051

C3013

R3054

R3056

C3052

R3074

R3076

C3072

R2832

L3801

C3801

L3808

C3808

C3807

Q3923

Q3927

C3901L3901

R2711

C3631

R3628

R3629

C3603

R3876

L3853

L3864

R3777

C2841

Q2863

Q2867

Q2871

Q2857

Q2847

D2732

D2709

R2702

Q2702

D2849

Q2849

Q2859

C5039

L5039

C5038

R5042

L5041

R5041

R5007

R5006

R5008

C5172 C5171

L5054

C5054

L5201

C5201

L5101

C5101

L5151

C5151

C5156

X5154

R5074

L5027

C5026

C5027

L5061

C5061

Q2891

Q2887

Q2883

W5401

I5201

5428

I5101

54

28

1

I2714

C2751

I2736

I2751

I2721

C2754

L2754 C2753

L2753

C2746

X2738

L2761

D2762

R2763

Q2764 Q2762

R2761

Q2768

R2769

Q2766

R2767

C2811

L2811

I2801

54 28

L3909

C3909

Q3906

Q3904

C3864

R3862

R3852

Q3852

R2082

L4096

C4096

D4096

D2097

Q4077

R2092

C4049

L4049

R4047

R4046

C4012

R4041

R4037

L4851

C4851

D4851

R2002

D2001

R2003

D4831

R4832

R4833

D4821

R4822

R4823

D4826

R4827

R4828

D4843

R4843

R4844

Q3862

Q3068

R2898

R2899

L3954

C3954

Q3872

R3873

L3873

D3874

L3821

C3802

C3803

L3827

R3827

D3828

R3829

Q3828

R3758

L3759

L3762

R3772

R3769

R3767

R3747

R3746

R3745

R3744

R3919

R3736

X3792

L3631

L3603

L3632

L3611

R3706

R3702

C3741

L3741

L3783

C3783

L3709

L3701

C3701

C3709

R3779

R3774

R3739

R3738

R3737

R2172

R2174

R2179

R2178

Q3138

Q3066

Q3137

Q3117

Q3118

Lpl. Signal Board 89445H & Lpl. 89459 & Lpl. 89655 Bestückungsseite • Signal Board P.C.B 89445H & P.C.B 89459 & P.C.B 89655 Components side

26

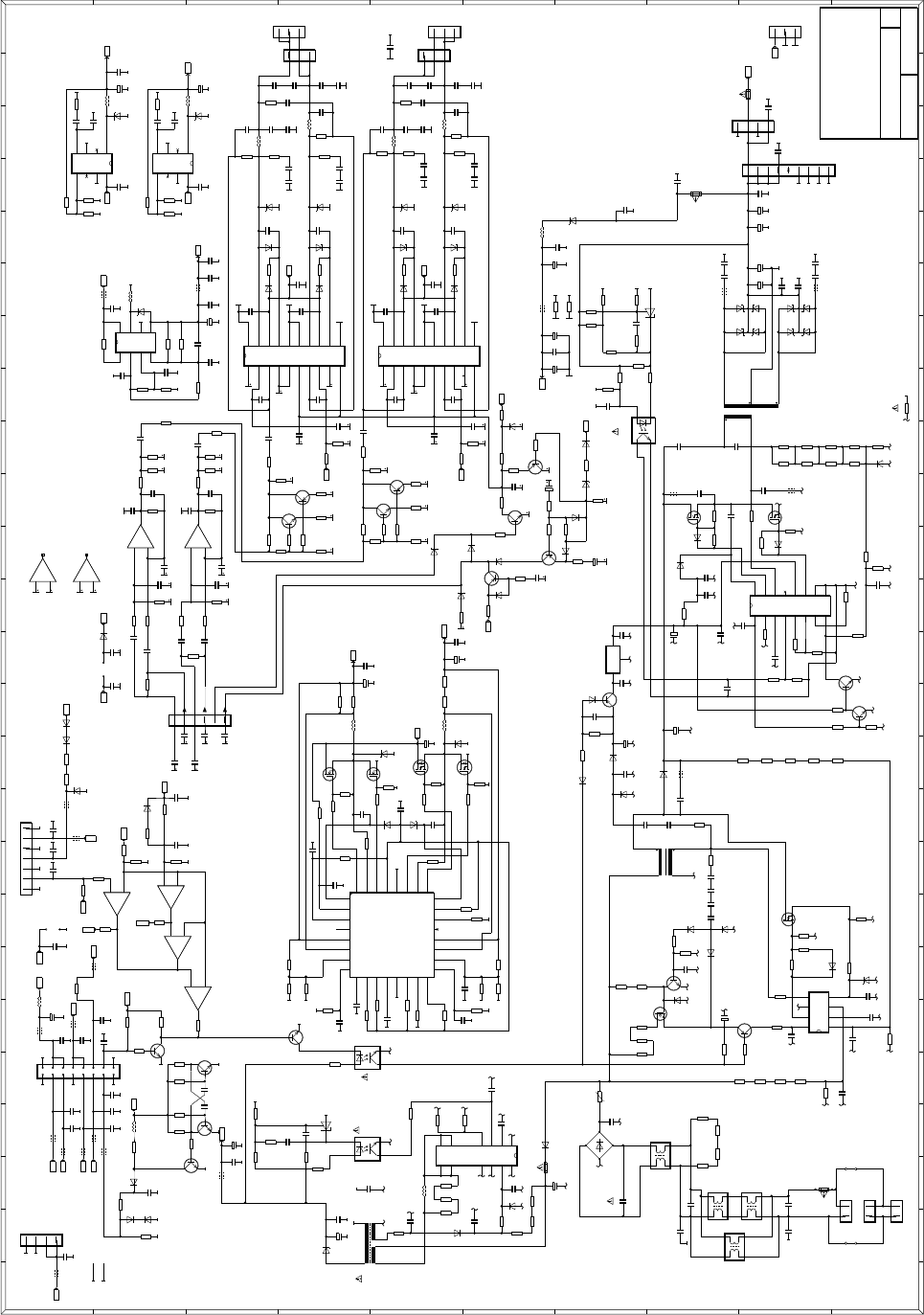

Basic Board 89435

R352

R340

10M

R935

82k 82k

R915

390R

R916

220u

C316

C865

1n

C825

90k9/1%

R862

R861

90k9/1%

R822

90k9/1%

R821

BAS316

D941

Q537

STD17NE03LT4

Q536

C452

10u

2R2

R546

R544

10k

R673

D673

BAS316

R674

470k

100n

C673

22u

L432

D431

STPS340U

1n

C924

C927

1n

C904

1n

C907

33p

C932

R931

82k

C931

22p

R927

82k

R914

10k

R913

5k6

R933

5k6

R934

10k

R907

82k

R906

27k

C912

33p

22p

C911

R911

82k

R903

27k

R926

27k

R923

27k

C926

1u

C923

1u

1n

C921

C903

1u

C906

1u

C901

1n

C811

C851

1n

C420

100n

C419

T342

PULSE

15,16

11,12,13,14

9,10

*nicht bestückt*

D412

13

2

*nicht bestückt*

D414

1 3

2

D413

STPS20L45CF

1 3

2

D411

STPS20L45CF

13

2

BAS316

D380

R902

5k6

R922

0R

R436

R435

0R

100n

C941

C942

100n

C936

10u

C916

10u

4n7

C798

W811

JST sw s

6

5

4

3

1

2

+

-MC33079

I941-B

5

6

7

+

-

MC33079

I941-C

10

9

8

MC33079

I941-E

4+

11-

+

-

MC33079

I941-A

3

2

1

+

-

MC33079

I941-D

12

13

14

*nicht bestückt*

W672

*nicht bestückt*

W671

W656

JST ws s

4

3

1

2

C656

100n

L656

FE_6A

R857

18k

R146

680R

R147

680R

R148

680R

Q304

BC847BW

R303

120k

BC847BW

Q301

R302

4k7

R301

220k

R380

5k6

220k

R388

R389

220k

R386

220k

R387

R383

220k

R384

220k

R381

R382

220k

F4A

F451

C381

150p/1000V

C334

1u/25V

C601C591

1u/25V

C638

10u

R547

10k

18u

L541

R7.5 H

B102

FDS8936A

Q541-2

1

7,8

2

FDS8936A

Q541-1

3

6,5

4

R15 H

B101

27k

R195

1000u/16V

C606

D540

STPS340U

D535

I321

L6598

16

15

14

13

7

12

116

10

9

5

8

4

3

2

1

L120

2x15m

4

85

1

10k

R321

R314

10k

R325

R558

100k

BAS316

D557

R351

3k3/1%

R350

2k2

R357

C538

10n

1k

R359

C416

1000u/35V

C417

D664

BAS316BAS316

D663

R663

33R

R662

33R

D662

C5V6

FE_6A

L662

2M2

R507

R528

2M2

BAS316

D203

C415

150u OSCON

C414

1n

C422

C424

1n

T342

PULSE

3

1

R329

0R

FE_PE

L251

R197

470k

27k

R199

D200

C20V0

STD4NB40

Q199

10k

R192

R193

10k

C193

1u/25V

BC847BW

Q192

BAS316

D192

R198

27k

R535

10k

R263

120k/1%

R262

10k/1%

R266

470k/1%

18u

L606

L5973D

I601

8

7

4

6

5

3

2

1

10k/1%

R608

R609

1k2/1%

6k8

R607

R604

4k7

C604

22n

C603

220p

D606

STPS340U 100n

C600

C142

4u7

C552

R326

100k

I861

MP7731

20

19

18

17

16

15

14

13

7

12

11

6

10

9

5

8

4

3

2

1

I821

MP7731

20

19

18

17

16

15

14

13

7

12

11

6

10

9

5

8

4

3

2

1

1u

C888C889

1u

C898

1u1u

C899

FE_PE

L336

FE_PE

L334

C881

680p680p

C882

680p

C871C872

680p

C841C842

680p

C831

680p680p

C832

R780

100R

D780

C12V0

FE_6A

L431

R874

169K/1%

R834

169K/1%

C819

1n5

C861

100n

C821

10u

C822

1n5

C818

C823

1u 1u

C826

BAS316

D823

D826

BAS316

R866

22k

R863

22k

R823

R826

22k

D827

C6V2

D824

C827

1u

C824

10R

R831 R841

10R

C844

15p

C846

1u1u

C847

10u

L846

10u

L836

15p

C834

1u

C835

C836

1u

C837 C877

1u 1u

C876

C874

15p C875

1u

169K/1%

R884

R875

174K/1%

R835

R844

169K/1%

C887

1u 1u

C886

15p

C884

L886

10u

L876

10u

10R

R881

10R

R871

C864

1u 1u

C867

D864

C6V2

D867

D863

BAS316

D866

1u

C863 C866

1u

10k/1%

R819

1u

C817

C862

10u

C859

1n5

C858

1n5

R859

10k/1%

C857

1u

C451

100n

C432

1000u/35V

C431

C437

1000u/35V

C438

100n

C436

D868

STPS340U

D865

STPS340U

D828

STPS340U

D825

D793

CMHSH5-2L

C787

1u/25V

R786

270R

R787

47k

D786

BAS316

BC857BW

Q786

220n

C792

C6V2

D791

R792

10k

R791

10k

R492

100R

R796

2k2

Q796

BC857BW

100R

R797

D492

C5V6

R493

470R

C3V0

D491

PS2561L2-1-E3

I311

1

23

4

R356

1k

5k6

R358

C336

150p/1000V

C418

100n

C651

100n

W652

JST ws s

9

1

2

3

4

5

6

7

8

R554

2k2

1n5

C550 C553

1n

10k

R552

R551

10k

2k2

R550

R553

2k2

Q552

BC847BW BC847BW

Q551

R555

1R5

L555

4m7

D332

BYG21K

10n

C331

C330

1u/25V

C329

100p

100n

C326

10R

R530

C536

100n

R540

10R

FE_PE

L411 C421

1n

C201

47u

D316

BYG20D

R667

47k

Q813

BC857BW

22R

R814

L690

3u8

1000u/16V

C690

D551

BAS316

L78M12

I307

3

GND

1

OUT

2IN

R370

4k7

Q370

BC847BW

10k

R369

R368

22k

BAS316

D781

47n

C202 C205

47n

C204

47n

C203

47n

R817

18k

R816

3k3

R856

3k3

F418

F4A

I351

TS2431

R335

68R

R511

4R7

R145

10R

R143

4R7

*Best-Var*

R537

R542

0R0050R005

R541

R536

0R005

10u

C672

C626

10u

C532

10u

100n

C686

100n

C684

100n

C696

C531

1u/25V

C622

1u/25V

C637

C509

4u7

L620

FE_6A

L696

FE_6A

L686

FE_6A

L684

100n

C511

0R

R696

R543

2R2

R532

10k

R533

R534

2R2

1k

R371

R353

33k

R349

D181

BYG21K

D335

BAS316

33n

C353

47n

C367

10n

C697

L146

150u

R628

8K2/1%

R631

39k/1%

R627

270k

R626

120k

C627

1n

47p

C628

R622

10k

L634

18u

C631

47p

100n

C639

ST755

I621

8

7

4

6

5

3

2

1

R632 330k

100u

C636

D634

STPS340U

L638

FE_6A

220u

C782

C305

22u

L121

2x570u

1

5 4

8

F1.0A

F181

I201

PS2561L2-1-E3

1

23

4

I151

PS2561L2-1-E3

1

23

4

C181

4u7/400V

22u

L596

BAS316

D315

JST or s

W889

3

1

2

*nicht bestückt*

W899

3

1

2

1n

C423

T251

12

1

T251

6

5

C311

100n

C312

100n

R315

1R

C671

100n

R129

220k

R128

220k

R127

220k

R126

220k

10R

R679

R672

1M

R668

10k

R669

1n

C666

R666

10k

+

-

LM2901

I671-B

9

8

14

R676

10k

R677

LM2901

I671-E

3+

12-

+

-

LM2901

I671-D

11

10

13

+

-

LM2901

I671-C

5

4

2

+

-

I671-A

LM2901

7

6

1

C308

100n

C307

C402

100n

470n/310V

C131

2x570u

L123

1

5 4

8

470n/310V

C126

C111

470n/310V

C113

330p/400V

T3,15A

F101

W101

JT-0465

1

2

W102

VH sw S

1

2

W103

VH ws S

1

2

2x28m

L126

4

23

1

1n5/400V

C128

C535

100n

C540

R191

NTC-2R5

W651

VH ws S

4

3

1

2

1000u/16V

C784

C342

10n/1000V

R338

10R

22R

R812

10k

R811

22k

R813

Q811

BC847BW

R851

10k

R853

22k

R852

22R

R854

22R

BC847BW

Q851

BC857BW

Q853

W661

JST ws s

7

6

5

4

3

1

2

W450

*nicht bestückt*

3

1

2

2n2

C801

R815

1k/1%

3k9

R818

390R

R936

1k/1%

R855

R858

3k9

W898

JST gry s

3

1

2

W888

*nicht bestückt*

3

1

2

100k

R322

STP8NM50

Q334

STP8NM50

Q336

D794

BAS316

100k

R515

R517

3k3/1%

R516

5k6/1%

R525

180k

C596

1000u/16V

470u

C510

C537

1000u/16V

C542

BAS316

D337

56R

R337

C252

220u/450V

100k

R306

R333

2R2

27k

R328

1u/25V

C321

100k

R323

C323

100n

R320

39k

C327

330p

W691

PHDSS

15 16

13 14

11 12

9 10

7 8

5 6

3 4

1 2

C687

100n

220R

R556

D556

C30V

Q556

BC847BW

R336

10k

R334

10k

FE_PE

L413

330p/400V

C161

C20V0

D141

1u/25V

C141

R141

10R

D142

BAS321

D401

STPS340U

C681

100n

I141

ICE2A0565G

12

11

10

9

58

7 6

4

3

2

1

C332

100n

10u

L536

R557

22k

R204

56R

BAS316

D308 R308

10k

C306

4u7

D306

C5V6

BC857BW

Q306

10k

R508

R509

10k

R501

10k

R503

R502

10k

D541

CMHSH5-2L

D536

100n

C541

4R7

R531

C518

47n

22n

C528

3k3/1%

R526

22n

C526

3k3/1%

R527

L5994

I511

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

22n

C508

R505

10k

R504

C211

1u/25V

1n

C315

100p/2000V

C251

R782

270R

BAS316

D783

R783

10k

D784

BAS316

Q781

BC857BW

47R

R784

4k7

R781

R232

0R22

I591

L5973D

8

7

4

6

5

3

2

1

L691

FE_6A

L687

FE_6A

L682

FE_6A

L681

D191

FBI5L1M1 900V/5A

270k

R139

C140

100p

C191

470n/275V

C663

100n 100n

C661

FE_6A

L661

100n

C652

BC847BW

Q371

L693

FE_6A

R201

180k

47k

R207

10R

R206

47n

C143

R137

270k

R138

270k

BC857BW

Q207

C214

10n

MC33262

I211

8

7

4

6

5

3

2

1

R241

330R

R212

22k

R221

22R

R224

22k

D222

BAS316

D241

CMHSH5-2L

C241

1n

R223

10R

C271

680n

Q224

STP20NM50

C261

100p

D251

STTA506F

D201

BAS316

R196

470k

R267

470k/1%

R268

470k/1%

C152

2n2

R261

10k/1%

R219

330k

R218

330k

R217

330k

R216

330k

R214

10k

R598

22k

1k2/1%

R599

R597

10k/1%

4k7

R594

22n

C594

220p

C593

STPS340U

D596

Q798

BC847BW

10k

R798

100R

R799

C693

100n 100n

C691

100n

C682

FE_6A

L406

C407

100u

C403

220u

R363

220R

R364

1k

R140

33R

R151

10R

TS2431

I361

C361

3n3

C406

100n

T161

Trafo Standby

53

4

1

28

1k/1%

R366

1k/1%

R362

10k

R367

UNF

prot

NF_L+

NF_R+

Mute

MODE

U5

U12

U-5

U5SB

UB

U9

U3.3

U33

8k2

330R

060/061

entfällt in Var.

080/081

entfällt in Var.

nur in Var.050

080/081

nur in Var.

080/081

nur in Var.

080/081

entfällt in Var.

080/081

entfällt in Var.

080/081

nur in Var.

(ohne Var.350)

Var.050-081:

ab 12.10.05 bestückt

/5.8.05

30.9.05 / 12.10.05 Ri

Set potential (off ground)

Geräte-Potential (erdfrei)

Audio in

NC

PIN1

NIN1

AGND1

NC

EN1

NIN2

PIN2

AGND2

EN2

PGND1

SW1

VDD1

BS1

NC

PGND2

SW2

VDD2

BS2

NC

PIN1

NIN1

AGND1

NC

EN1

NIN2

PIN2

AGND2

EN2

PGND1

SW1

VDD1

BS1

NC

PGND2

SW2

VDD2

BS2

NC

on/off

Panel Control Board

Backlight

from switchto switch

main in

HDR

Signal-Board

V5SWVDRLIN

VFBLIN

RUN1

NOSKIP

RUN2

OSC

PWRCK1

PWRCK2

SOFT1

SOFT2

CRST

VREF

SREG5

R1GATE

L2650

I2SNS

V2SNS

COMP2

SGND

COMP1

V1SNS

I1SNS

H2GATE

H2SRC

H2STRAP

R2GATE

PGND

PREG5

Vin

H1STRAP

H1SRC

H1GATE

Supply voltage potential

Netzspannungs-Potential

250V

Basic-Board

D

Kestel

391 - 89435

L

R

Variante:

Code-Teile-Nr.:

Datum:

gepr.:

Datum:

erst.:

Index:

LOEWE.Benennung:

alle Varianten

30.09.2005

1010

99

88

77

66

55

44

33

22

11

Y

X

W

V

U

T

S

R

Q

P

O

N

M

L

K

J

I

H

G

F

E

D

C

B

A

27

Basic Board 89435

I451

LTC1778

16

15

14

13

7

12

11 6

10

9

5

8

4

3

2

1

R340

10M

R935

82k

R915

390R

R916

220u

C316

1000u/35V

C425

C865

1n

C825

90k9/1%

R862

R861

90k9/1%

R822

90k9/1%

R821

BAS316

D941

Q537

STD17NE03LT4

Q536

1R

R474

R736

1R

R456

82k

C452

10u

2R2

R546

R544

10k

R673 D673

BAS316

R674

470k

100n

C673

C466

4u7

22u

L432

C475

220n

R469

10k

R468

39k

C476

100p

R461

56k

100n

C461

R472

0R

R466

100k

R471

100k

100n

C474

R477

22k

C477

470p

100p

C458

R464

4M7

R463

330k

R457

4k7/1%

STPS340U

D476

D466

STPS50540ZBSO4822

Q476

Q478

BSO4822

1n

C924

C927

1n

C904

1n

C907

33p

C932

R931

82k

C931

22p

R927

82k

R914

10k

R913

5k6

R933

5k6

R934

10k

R907

82k

R906

27k

C912

33p

22p

C911

R911

82k

R903

27k

R926

27k

R923

27k

C926

1u

C923

1u

1n

C921

C903

1u

C906

1u

C901

1n

C811

C851

1n

C420

100n

C419

T342

PULSE

15,16

11,12,13,14

9,10

D412

13

2

D414

1 3

2

D413

STPS20H100CG

1 3

2

D411

STPS20H100CG

13

2

BAS316

D380

R902

5k6

R922

0R

R436

R435

0R

100n

C941

C942

100n

C936

10u

C916

10u

4n7

C798

W811

JST sw s

6

5

4

3

1

2

+

-MC33079

I941-B

5

6

7

+

-

MC33079

I941-C

10

9

8

MC33079

I941-E

4+

11-

+

-

MC33079

I941-A

3

2

1

+

-

MC33079

I941-D

12

13

14

W672

W671

W656

JST ws s

4

3

1

2

C656

100n

L656

FE_6A

R857

18k

R146

680R

R147

680R

R148

680R

Q304

BC847BW

R303

120k

BC847BW

Q301

R302

4k7

R301

220k

R380

5k6

220k

R388

R389

220k

R386

220k

R387

R383

220k

R384

220k

R381

R382

220k

F4A

F451

C381

150p/1000V

C334

1u/25V

C601C591

1u/25V

C638

10u

R547

10k

18u

L541

FDS8936A

Q541-2

1

7,8

2

FDS8936A

Q541-1

3

6,5

4

27k

R195

1000u/16V

C606

D540

STPS340U

D535

I321

L6598

16

15

14

13

7

12

116

10

9

5

8

4

3

2

1

10k

R321

R314

10k

R325

R558

100k

BAS316

D557

R351

3k3/1%

R350

2k2

R357

C538

10n

1k

R359

C416

1000u/35V

C417

D664

BAS316BAS316

D663

R663

33R

R662

33R

D662

C5V6

FE_6A

L662

2M2

R507

R528

2M2

BAS316

D203

1n

C422

C424

1n

T342

PULSE

3

1

R329

0R

FE_PE

L251

R197

470k

27k

R199

D200

C20V0

STD4NB40

Q199

10k

R192

R193

10k

C193

1u/25V

BC847BW

Q192

BAS316

D192

R198

27k

R535

10k

R263

120k/1%

R262

10k/1%

R266

470k/1%

18u

L606

L5973D

I601

8

7

4

6

5

3

2

1

10k/1%

R608

R609

1k2/1%

6k8

R607

R604

4k7

C604

22n

C603

220p

D606

STPS340U

100n

C600

C142

4u7

C552

R326

100k

I861

MP7731

20

19

18

17

16

15

14

13

7

12

11

6

10

9

5

8

4

3

2

1

I821

MP7731

20

19

18

17

16

15

14

13

7

12

11

6

10

9

5

8

4

3

2

1

1u

C888C889

1u

C898

1u1u

C899

FE_PE

L336

FE_PE

L334

C881

680p680p

C882

680p

C871C872

680p

C841C842

680p

C831

680p680p

C832

R780

100R

D780

C12V0

FE_6A

L431

R874

169K/1%

R834

169K/1%

C819

1n5

C861

100n

C821

10u

C822

1n5

C818

C823

1u 1u

C826

BAS316

D823

D826

BAS316

R866

22k

R863

22k

R823

R826

22k

D827

C6V2

D824

C827

1u

C824

10R

R831 R841

10R

C844

15p

C846

1u1u

C847

10u

L846

10u

L836

15p

C834

1u

C835

C836

1u1u

C837 C877

1u 1u

C876

C874

15p C875

1u

169K/1%

R884

R875

174K/1%174K/1%

R835

R844

169K/1%

C887

1u 1u

C886

15p

C884

L886

10u

L876

10u

10R

R881

10R

R871

C864

1u 1u

C867

D864

C6V2

D867

D863

BAS316

D866

1u

C863 C866

1u

10k/1%

R819

1u

C817

C862

10u

C859

1n5

C858

1n5

R859

10k/1%

C857

1u

C451

100n

C432

1000u/35V

C431

C437

1000u/35V

C438

100n

C436

D868

STPS340U

D865

STPS340U

D828

STPS340U

D825

D793

CMHSH5-2L

C787

1u/25V

R786

270R

R787

47k

D786

BAS316

BC857BW

Q786

220n

C792

C6V2

D791

R792

10k

R791

10k

R492

100R

R796

2k2

Q796

BC857BW

100R

R797

D492

C5V6

R493

470R

C3V0

D491

PS2561L2-1-E3

I311

1

23

4

R356

1k

5k6

R358

C336

150p/1000V

C418

100n

C651

100n

W652

JST ws s

9

1

2

3

4

5

6

7

8

R554

2k2

1n5

C550 C553

1n

10k

R552

R551

10k

2k2

R550

R553

2k2

Q552

BC847BW BC847BW

Q551

R555

1R5

L555

4m7

D332

BYG21K

10n

C331

C330

1u/25V

C329

100p

100n

C326

10R

R530

C536

100n

R540

10R

FE_PE

L411

C421

1n

C201

47u

D316

BYG20D

R667

47k

Q813

BC857BW

22R

R814

L690

3u8

1000u/16V

C690

D551

BAS316

L78M12

I307

3

GND

1

OUT

2IN

R370

4k7

Q370

BC847BW

10k

R369

R368

22k

BAS316

D781

47n

C202 C205

47n

C204

47n

C203

47n

R817

18k

R816

3k3

R856

3k3

F418

F4A

I351

TS2431

R335

68R

R511

4R7

R145

10R

R143

4R7

R542

0R0050R005

R541

R536

0R005

10u

C672

C626

10u

C532

10u

100n

C686

100n

C684

100n

C696

C531

1u/25V

C622

1u/25V

C637

C509

4u7

L620

FE_6AFE_6A

L696

FE_6A

L686

FE_6A

L684

100n

C511

0R

R696

R543

2R2

R532

10k

R533

R534

2R2

1k

R371

R353

33k

220R

R349

R352

1k5/1%

D181

BYG21K

D335

BAS316

33n

C353

47n

C367

10n

C697

L146

150u

R628

8K2/1%

R631

39k/1%

R627

270k

R626

120k

C627

1n

47p

C628

R622

10k

L634

18u

C631

47p

100n

C639

ST755

I621

8

7

4

6

5

3

2

1

R632

330k

100u

C636

D634

STPS340U

L638

FE_6A

220u

C782

C305

22u

L121

2x570u

1

5 4

8

F1.0A

F181

I201

PS2561L2-1-E3

1

23

4

I151

PS2561L2-1-E3

1

23

4

C181

4u7/400V

22u

L596

BAS316

D315

JST or s

W889

3

1

2

W899

3

1

2

1n

C423

T251

12

1

T251

6

5

C311

100n

C312

100n

R315

1R

C671

100n

R129

220k

R128

220k

R127

220k

R126

220k

10R

R679

R672

1M

R668

10k

R669

1n

C666

R666

10k

+

-

LM2901

I671-B

9

8

14

R676

10k

R677

LM2901

I671-E

3+

12-

+

-

LM2901

I671-D

11

10

13

+

-

LM2901

I671-C

5

4

2

+

-

I671-A

LM2901

7

6

1

C308

100n

C307

C402

100n

470n/310V

C131

2x570u

L123

1

5 4

8

470n/310V

C126

C111

470n/310V

C113

330p/400V

T3,15A

F101

W101

JT-0465

1

2

W102

VH sw S

1

2

W103

VH ws S

1

2

2x28m

L126

4

23

1

1n5/400V

C128

C535

100n

C540

R191

NTC-2R5

W651

VH ws S

4

3

1

2

1000u/16V

C784

C342

10n/1000V

R338

10R

22R

R812

10k

R811

22k

R813

Q811

BC847BW

R851

10k

R853

22k

R852

22R

R854

22R

BC847BW

Q851

BC857BW

Q853

W661

JST ws s

7

6

5

4

3

1

2

W450

3

1

2

2n2

C801

R815

1k/1%

3k9

R818

390R

R936

1k/1%

R855

R858

3k9

W898

JST gry s

3

1

2

W888

3

1

2

100k

R322

STP8NM50

Q334

STP8NM50

Q336

D794

BAS316

100k

R515

R517

3k3/1%

R516

5k6/1%

R525

180k

C596

1000u/16V

470u

C510

C537

1000u/16V

C542

BAS316

D337

56R

R337

C252

180u/450V

100k

R306

R333

2R2

27k

R328

1u/25V

C321

100k

R323

C323

100n

R320

39k

C327

330p

W691

PHDSS

15 16

13 14

11 12

9 10

7 8

5 6

3 4

1 2

C687

100n

220R

R556

D556

C30V

Q556

BC847BW

R336

10k

R334

10k

FE_PE

L413

330p/400V

C161

C20V0

D141

1u/25V

C141

R141

10R

D142

BAS321

D401

STPS340U

C681

100n

I141

ICE2A0565G

12

11

10

9

58

7 6

4

3

2

1

C332

100n

10u

L536

R557

22k

R204

56R

BAS316

D308 R308

10k

C306

4u7

D306

C5V6

BC857BW

Q306

10k

R508

R509

10k

R501

10k

R503

R502

10k

D541

CMHSH5-2L CMHSH5-2L

D536

100n

C541

4R7

R531

C518

47n

22n

C528

3k3/1%

R526

22n

C526

3k3/1%

R527

L5994

I511

32

31

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

22n

C508

R505

10k

R504

C211

1u/25V

1n

C315

100p/2000V

C251

R782

270R

BAS316

D783

R783

10k

D784

BAS316

Q781

BC857BW

47R

R784

4k7

R781

R232

0R22

I591

L5973D

8

7

4

6

5

3

2

1

L691

FE_6A

L687

FE_6A

L682

FE_6A

L681

D191

FBI5L1M1 900V/5A

270k

R139

C140

100p

C191

470n/275V

C663

100n 100n

C661

FE_6A

L661

100n

C652

BC847BW

Q371

L693

FE_6A

R201

180k

47k

R207

10R

R206

47n

C143

R137

270k

R138

270k

BC857BW

Q207

C214

10n

MC33262

I211

8

7

4

6

5

3

2

1

R241

330R

R212

22k

R221

22R

R224

22k

D222

BAS316

D241

CMHSH5-2L

C241

1n

R223

10R

C271

680n

Q224

STP20NM50

C261

100p

D251

STTA506F

D201

BAS316

R196

470k

R267

470k/1%

R268

470k/1%

C152

2n2

R261

10k/1%

R219

330k

R218

330k

R217

330k

R216

330k

R214

10k

R598

22k

1k2/1%

R599

R597

10k/1%

4k7

R594

22n

C594

220p

C593

STPS340U

D596

Q798

BC847BW

10k

R798

100R

R799

C693

100n 100n

C691

100n

C682

FE_6A

L406

C407

100u

C403

220u

R363

220R

R364

1k

R140

33R

R151

10R

TS2431

I361

C361

3n3

C406

100n

T161

Trafo Standby

53

4

1

28

1k/1%

R366

1k/1%

R362

10k

R367

UNF

prot

NF_L+

NF_R+

Mute

MODE

U5

U12

U-5

U5SB

UB

U9

U3.3

U33

nicht bestückt

Var.050-081:

ab 12.10.05 bestückt

/5.8.05

28.9.05 Ex / 12.10.05 Ri

Set potential (off ground)

Geräte-Potential (erdfrei)

VFB

SW

TG

BOOST

Vin

PGND

BG

INTVcc

EXTVcc

Ion

SGND

ITH

FCB

VRNG

PGOOD

RUN/SS

Audio in

NC

PIN1

NIN1

AGND1

NC

EN1

NIN2

PIN2

AGND2

EN2

PGND1

SW1

VDD1

BS1

NC

PGND2

SW2

VDD2

BS2

NC

PIN1

NIN1

AGND1

NC

EN1

NIN2

PIN2

AGND2

EN2

PGND1

SW1

VDD1

BS1

NC

PGND2

SW2

VDD2

BS2

NC

on/off

Panel Control Board

Backlight

from switch

to switch

main in

HDR

Signal-Board

V5SWVDRLIN

VFBLIN

RUN1

NOSKIP

RUN2

OSC

PWRCK1

PWRCK2

SOFT1

SOFT2

CRST

VREF

SREG5

R1GATE

L2650

I2SNS

V2SNS

COMP2

SGND

COMP1

V1SNS

I1SNS

H2GATE

H2SRC

H2STRAP

R2GATE

PGND

PREG5

Vin

H1STRAP

H1SRC

H1GATE

Supply voltage potential

Netzspannungs-Potential

250V

Basic-Board

D

Kestel

391 - 89435

L

R

Variante:

Code-Teile-Nr.:

Datum:

gepr.:

Datum:

erst.:

Index:

LOEWE.Benennung:

350_24V

28.09.2005

1010

99

88

77

66

55

44

33

22

11

Y

X

W

V

U

T

S

R

Q

P

O

N

M

L

K

J

I

H

G

F

E

D

C

B

A

28

Basic Board 89435 Bestückungsseite • Components side

89435d10

F4,0A L

T3.15A H

F4,0A L

F 1,0A L

R232

R231

R340

C335

C352

R935

R915

R820

R860

C316

C425

C865

C825

D941

C452

R544

R673

L540

C466

L432

D476

D466

L535

C924

C927

C904

C907

R916

C932

R931

C931

R927

R914

R913

R933

R934

R907

R906

C912

C911

R911

R903

R926

R923

C926

C923

C921

C903

C906

C901 C811 C851

R436

R435

C941

C942

C936

C916

I941

T342

L555

T341

F451

C381

C601

C591

C638

L541

B102

B101

D540

D535

D412

D414

L125

L120

R558

L886

L876

L846

L836

L596

L536

C414

C415

Masterindex

inside

set

A24

R535

L606

C606

I601

D606

C142

C552

A23

I861

I821

C888

C889

C898

C899

L336

C822

C827

C824

C846

C847

C836

C837

C877

C876

C887

C886

C864

C867

C862

C431

C437

C438

D825

D828

D868

D865

C334

C336

R530

R540

A2

A3

A5

A6

UL-number

manufacturer

date code

A17

C111

C113

C126

C127

C128

C131

C144

C161

C181

C191

C201

C247

C251

C252

C305

C342

C353

C403

C407

C416

C417

C509

C510

C511

C514

C524

C531

C532

C537

C542

C596

C622

C626

C636

C637

C672

C673

C684C686

C690

C696

C697

C782

C784

D151

D191 D251

K A

D335

D411

D413

D634

D673

D696

F101

F181

F418

I151

I201

I311

I351

I511

1

I591

L121 L123

L126

L129

L146

L620

L634

L684

L686

L690

L696

Q224

S

D

G

Q334

S

D

G

Q336

S

D

G

R102

R143

R144

R145

R191

R335

R349

R352

R353

R356

R358

R371

R511

R532

R533

R534

R536

R537

R541

R542

R543

R674

R696

R803

T161

T251

T252

W101

21

W102

2 1

W103

W450 1

3

W651

4 1

W652

91

W656

4

1

W661

17

W671

W672

16

12

W691

15

W811

6

1

W888

1 3

W889

1

3

W898

1

3

W899

1 3

Lpl. Basic Board L2650 89435D Bestückungsseite • Basic Board L2650 P.C.B 89435D Components side

29

Basic Board 89435 Lötseite • Solder side

I451

C380

C333

R862

R861

R822

R821

Q537 Q536

R474

R736

R456

R458

R546

C475

R469

R468

C476

R461

C461

R472

R466

R471

C474

R477 C477

C458

R464

R463

R457

Q476

Q478

D431

R920

R900

R901

R921

C420

C419

D380

R902 R922

R857

R146

R147

R148

Q304 C

B

E

R303

Q301C

B

E

R302

R301

R380

R388

R389

R386

R387

R383

R384

R381

R382

R547

Q541

R195

I321

C325

R318

R321

R314

R325

R324

D557

R351

C351

R350

R357

C538

R359

R663

R662

D662

L662

R507

R528

D203

C422

C424

R329

L251

L247

R192

R193

Q192

C

B

E

C193

D192

Q199

R608

R609

R607

R604

C604

C603

R326

L334

C881

C882

C871

C872

C841 C842

C831 C832

D490

R780

D780

R348

R347

R344

L431

R874

R834

C819

C861

C821

C818

C823

C826

D823

D826

R866

R863

R823

R826

D827

D824

R831

R841

C844

C834

C835

C874

C875

R884

R875

R835

R844

C884

R881

R871

D864

D867

D863

D866

C863

C866

R819

C817

C859

C858

R859

C857

C451

C432

C436

R554

C550

C553

R552

R551

R550

R553 Q552

C

B

E

Q551

CB

E

R555

Q347 D347

R346

C346

D344

C330

C331

C329

C326

C408 C404

C409 C405

C410 C411

C412 C413

C140

C141

C143

C152

C162

C163

C202

C203

C204

C205

C211

C214

C241

C261

C270

C271

C272 C273

C281

C306

C307

C308

C311

C312

C315

C321

C328

C320

C327

C323

C332

C361

C367

C401

C402

C406

C421

C423

C418

C493

C508

C515

C516

C518

C525

C526

C528

C535

C536

C540

C541

C593

C594

C600

C627

C628

C631

C639

C651C652

C656

C661

C663C666

C671

C681

C682

C687

C691

C693

C787

C791

C792

C796

C798

C801

D141

D142

D181 D200

D201

D222

D241

D276

D281

D306

D308

D309

D315 D316

D331

D332

D337

D401

D403

D491

D492

D511

D536

D541

D551

D556

D596

D781

D783

D784

D786

D791

D793

D794

I141

I211

GI O

I307

I361

G

K

A

I621

I671

L401

L406

L411

L413

L638

L656

L661

L663

L681

L682

L687

L691

L693

Q207 C

B

E

Q276

Q277

Q306 C

B

E

Q370

C

B

E

Q371

C

B

E

Q556 C

B

E

Q781 C

B

E

Q786

C

B

E

Q796 C

B

E

Q798

C

B

E

Q811

C

B

E

Q813

C

B

E

Q851

C

B

E

Q853

C

B

E

R126

R127

R128

R129 R137

R138

R139

R140

R141

R151

R152

R196

R198

R197

R199

R201

R204

R206

R207 R212

R214

R216

R217

R218

R219

R221

R222 R223

R224

R241

R247

R260

R261

R262 R263

R266

R267

R268

R270

R273

R276

R277

R279

R281

R282

R283

R286

R287

R288

R305

R306

R308

R315

R328

R320

R322

R323

R332

R333

R334

R336

R337

R338

R361

R362

R363

R364

R365

R366

R367

R368

R369

R370

R492

R493

R500

R501

R502

R503

R504

R505

R508

R509

R515

R516

R517

R525

R526

R527

R531

R556

R557

R594

R597

R598

R599

R622

R626

R627

R628

R631

R632

R666

R667

R668

R669

R672

R676

R677

R679

R781

R782

R783

R784

R786

R787

R791

R792

R793

R794

R795

R796

R797

R798

R799

R801

R802

R804

R811

R812

R813

R814

R815

R818

R816

R817

R936

R851

R852

R853

R854

R855

R858

R856

Lpl. Basic Board L2650 89435D Lötseite • Basic Board L2650 P.C.B 89435D Solder side

30

Connector Board 89194

Kl.3.5

W451 3

1

2

L417

6u8

75R

R417 R447

75R

C418

10n 10n

C448

6u8

L447

270p

C491

D491

BAS316

D492

Kombi-Buchse

W351

5

6

7

8

C12V

D333

C12V

D334

D392

BAS316

D391

BAS316

D332

C12V0

D331

C12V0

0R

R330

47R

R331

75R

R332

R337

75R

R336

47R

R314

47R

R315

47R

R313

47R

R316

C391

270p

C311

270p

C321

0R

R328

JST ws l

W521

11

10

9

1

2

3

4

5

6

7

8

14.4.05 Ex / 23.2.06 Ri

unbestückt

nur in Var.051

Var.051:

Var.051: unbestückt

Var.051:9311F

Var.050:9311A

:050/051

/14.9.04

R

L

Buchsenplatine L2600

55

44

33

22

11

U

T

S

R

Q

P

O

N

M

L

K

J

I

H

G

F

E

D

C

B

A

Variante:

Code-Teile-Nr.:

Datum:

gepr.:

Datum:

erst.:

Index:

LOEWE.Benennung:

alle Varianten

14.04.2005

Sabew

A

89194

31

Connector Board 89194

W451

W351

L447

L417

W212

1 11

W521

Lpl. Buchsenplatte 89194A Bestückungsseite • Connector Board P.C.B 89194A Components side

D334

D333

D392

D391

D492

D332

D491

D331

R331

R332

R337

R336

C448

C418

R314

R315

R447

R417

R313

R316

C491

C391

C311

C321

R328

R330

Lpl. Buchsenplatte 89194A Lötseite • Connector Board P.C.B 89194A Solder side

32

Tuner 89222

L081

270nH

L305

FE-Perle 1k / 100MHz

C064

4n7

L133 L132

100n

4n7

C133

C075

4n7

BB565C-02V

D373

BB659C-02V

D273

BB689

D173

BB565C-02V

D105

BB565C-02V

D305

BB565C-02V

D347

D353

BB565C-02V

D205

BB565C-02V

D204

BB659C-02V

D104

BB689

BB659C-02V

D247

D253

BB659C-02V

D147

BB689

D154

BB565C-02V

D153

BB689

C357

27p

C358

R306

10k

R573

22R

R574

220R

C577

22p

C521

22p

C527

22p

R501

2k7

C500

22p

C501

4n7

C526

22p

C536

1n

R539

3k3

R538

100n

C538

R534

0R

C534

4n7

R524

100R R523

100R

C519

10n

4n7

C520

R519

5k6

R377

1k8

R379

1k8

C378

12p

C377

2p2

R279

2k7

C178

68p

C179

8p2

C176

0p82

C278

68p

C172

2p2

C171

2p7

C271

1p2 C272

1p2

C371

1p2

C372

1p2

C373

C374

1p2

C502

4n7

C503

R413

220R

C414

180p

R415

10k

R515

0R

R521

47k

C603

4n7

C601

22p

C602

22p

C604

4n7

R626

4k7

R627

C625

4n7

C647

100n

R547

1k

C418

68p

C419

C417

4n7

100n

C410

R431

3k3

C431

33p

C432

22p

C433

C435

33p

C434

2p7

0R

R410

R426

1k

R425

100R

R424

C347

56p

C353

68p

8p2

C354

R156

10k

R158

C159

4n7

10k

R144

R148

1R5

R151

C141

0p33

C142

0p47 C143

3p3

68R

R131

4n7

C259

C257

4n7

10k

R351

C255

1p2

12R

R232 L231

270n

R231

1R5

C243

3p3

0p47

C241

R331

1R5

C341

0p33

1p2

C343

C209

4n7

R211

150k

C212

4n7

R307

10k

R102

R108

150k

C109

4n7

10k

R106

R202

10k

R321

R221

10k

R206

10k

C094

82p

C096

47p

C301

2p7

R304

10k

C309

47p

R308

100k

C304

1p

R070

0R

R417

1k

C066

C067

4n7

R072

0R

C082

10n

Z1

R177

12R

R179

2k2

R344

10k

C505

470n

150p

C254

4n7

C220

27n

L150

L304

L332

68n

L093

270nH

L300

28082

BF1202

Q300

L349

27546

L301

27548

L345

27559

L352

27683

L174

27564

L374

32065

L274

27561

L249

27561

L252

27683

L200

27562

L149

27569

L152

27569

L100

27571

270nH

L092

L354

22n

15n

L350

L251

27n

15n

L250

L356

15n

L359

15n

FE_PE

L544

C545

10u

C312

4n7

C320

470p

Q200

BF2030W

TDA9898

I500

48

47

46

45

36

35

34

24

23

12

44

43

42

41

40

39

38

37

33

32

31

30

29

28

27

26

25

22

21

20

19

18

17

16

15

14

13

11

10

9

8

7

6

5

4

3

2

1

4n7

C146

4n7

C157

BF2030W

Q100

C573

4u7

Q571

BC847BT

Z3

Z2

K7356P

X510

14

13

7

11

69

8

4

2

1

K7355P

X507

14

13

7

11

69

8

4

2

1

K9263P

X504

14

13

7

11

69

8

4

2

1

4,0MHz

X420

C420

5p6

10k

R244

R355

10k

L435

#value#

C413

22n

10n

C416

470n

L501

L431

390n

L256

47n

C508

100n

L258

47n

I400

TUA6034-T

38

37

18

36

35

34

33

28

27

26

25

24

23

22

21

2019

29

30

31

32

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

C346

8p2

C246

150p

C513

220n

R576

68R

R277

8R2

C427

100n

FE_PE

L082

C518

390p

R513

390R

C103

820p

C107

4n7

C120

4n7

C204

0p47

150p

C203

C205

4n7

C333

C303

8p2

R071

0R

C073

220p

C528

470n

L101

330n

U5

U5 U5

U5

U5U5

Var.062/063/064

nicht bestückt

nur in 064

unbestückt

nur in 064

in Var.062 unbestückt

in 062/063 unbestückt

nur in 064

Vorziffer 4...

470R

11.10.05 Ex / 7.11.05 Ri

/15.9.05

1u5

8n7

AS-Master-ZF

P4

Anlg. GND

Diversity

VP=5V

VIF-AGC

4 MHz ref. in

Tuner AGC

DCS-LF

SIF-SAW

IFAGC-L

6M-SAW

8M-SAW

IFAGC-L

6M-SAW

8M-SAW

VIF-AGC

Monitor

RSSI /

L-TOP

VIF-LF

D/S AGC/AFC

EXT. FM-IN

Dig.-GND

SDA

SCL

CDEMP

FM-LF

GND

AS

2nd sound IF

LIF or ZIF "I"

ZIF "Q"

C AF

LIF or ZIF "I"

AUDIO

BVS

2V CVBS

HICUT

LOCUT

DIF AGC

DIV S&H.

AGC ctr.

TS-LF

Ext.Ref.-Input

AS-TUA

AS

SMB-FAKRA

IEC-female

TV-in

RF1

1010

99

88

77

66

55

44

33

22

11

10

9

8

7

6

5

4

3

2

1

W010

Tuner-ZF-04

LOEWE.

Index:

erst.:

Datum:

gepr.:

Datum:

Benennung:

Code-Teile-Nr.:

11.10.2005

Thomale Müller / Ziska

391-89222

W030

D

33

Tuner 89222

W015

W020

W010

W030

14

W500

1

W065 41

L300 L349

L301 L345

L352

L174

L374

L274

L249

L252

L200

L149

L152

L100

X539

X420

X514

L050

Lpl. Tuner/ZF 89222D Bestückungsseite • Tuner/IF P.C.B 89222D Components side

R305

L305

C064

C647

C642

C625

C616

C610

C604

C603

C602

C601

C577

C539

C538

C536

C535

C534

C527

C526

C521

C520

C519

C503

C502

C501

C500

C435

C434

C433

C432

C431

C419

C418

C417

C414 C410

C378

C377

C374

C373

C372

C371

C358

C357

C354

C353

C347

C343

C341

C309

C304

C301

C278

C272

C271

C259

C257

C255

C243

C241

C212

C209

C179

C178

C176

C172

C171

C159

C143

C142

C141

C133

C109

C096

C094

C091

C087

C082

C076

C075

C074

C072

C071

C068

C067

C066

C063

C057

C054

C053

C052 C051

C015

L231

L132

R627

R626

R574

R573

R547

R546

R539

R538

R534

R530 R529

R525

R524

R523

R522

R521

R519

R517

R516

R515

R501

R431

R426 R425

R424

R417

R415

R413

R410

R379

R377

R351

R331

R321

R308

R307

R306

R304

R279

R232 R231

R221

R211

R206

R202

R158

R156

R151 R148

R144

R132 R131

R108

R106

R102

R082

R079

R078

R076

R074

R073

R072

R070

R069

R068

R063

R061

R058

R056

R055

R053

R052

R015

L133

D010

D373

D273

D173

D105

D305

D347

D353

D205

D204

D104

D247

D253

D147

D154

D153

I070

I500

I400

R177

R179

R344

C505

C254

C220

L150

L304

L332

L051

L093

C415

Q300

L092

L354

L350

L251

L250

L356

L359

B535

L544

C545

C312

Q200

Q100

Z1

C573

Q571

C

B

E

Z3

Z2

X504

X507

X510

C420

R244

R355

L435

C413

C416

L501

L431

L256

C508

L258

C346

C246

C157

C513

C544

R576

R277

C427

L064

L082

L087

L081

L062

L086

C518

R513

C103

C107 C120

C146

C204

C203

C205

C333

C320

C303

R071

I075

C073

C528

C062

I050

L101

Lpl. Tuner/ZF 89222D Lötseite • Tuner/IF P.C.B 89222D Solder side

34

PIP Module 89442

U5

UI33_IN

CVS

U33

DIFAGC

RF_OUT_IN

LDIF1

LDIF2

SCL

SDA

U5_IN L6001

2A

C6003

47n

R6005

22K

HDR

10

9

8

7

6

5

4

3

2

1

10pol_JST_nat_s

W6004

NCNC

NC

W6002

Chassis

1

2

3

4

5

6

7

8

9

10

11

12

13

13pol_JST_JL_gry

Date:18.10.2005of 01

Page: 01

Var.:050_HDR

Alle Rechte, Änderungen vorbehalten

LOEWE AG

Industriestr.11

96317 Kronach

Zei.-Nr.:

Bez:Index:gepr.:Name:Datum:

LOEWE.

0

1

3

22

3

1

0

ED

C

B

A

ED

C

B

A

Chassis

13

12

11

10

9

8

7

6

5

4

3

2

1

13pol_JST_JL_gry

W6003

R6009

0R

NC

U6004

MNT1

MNT2

MNT3

MNT4

1_1

1_2

1_3

1_4

2_1

2_2

2_3

2_4

2_5

2_6

2_7

2_8

2_9

2_10

2_11

2_12

2_13

2_14

TU-ZF04

VAGC

DSAGC

SSIF/LDIF1

DIVERS

DIFAGC

CVS

AUDIO

U5

SDA

DTAGC

AS

SCL

VT

CONTR_AB

VANT1

UANT2

UANT1/RF-IN

C6007

220u/10V

C6005

10n

C6006

10n

R6011

0R

R6010

0R

18.10.05 Ex / 18.10.05 Ri

O. Baier

O. Baier aM. Thomale

08.06.05

0elam

o

hT.M50.

3

0

.

9

0

PIP-Modul L2650

89442

35

PIP Module 89442

110

U6004

C6007

W6004

300

6

W

2

0

06W

Lpl. PIP-Modul 89442A Bestückungsseite

PIP Module P.C.B 89442A Components side

R6006

R6007

L6001

R6008

R6001

C6003

R6005

R6002

R6003

B6003

B6001

R6009

C6008

C6004

C6005

C6006

C6009

R6011

R6010

B6006

B6002

B6005

B6004

Lpl. PIP-Modul 89442A Lötseite

PIP Module P.C.B 89442A Solder side

36

DVB-S Frontend 89189

100u

C28

10n

C48

C20

100u/6V3

C21

C06

100n

1n

C50

100n

C66

C65

100n22p

C63

C64

22p

C07

47n

C62

47n

5k6

R31

R30 5k6

47n

C23

C42

47n

C30

47n

C32

100n

C45

C39

47n 47n

C27

47n

C26

C29

47n

L03

FE_2A

C61

22p

C09

22p

120R

R25

120R

R26

C01

100n

R02

33R

Q04

BC847BW R07

10k

270u

L04

4k7

R08

15R

R19

C18

10u

R28

8k2

27k

R35

R42

100R

6k8

R48

C17

1u

BC847BW

Q08

47k

R41

R10

150R

1k

R38

R09

120R

BC847BW

Q05

Q03

BCR148W

-

+

I04

LM2903D

7

6

5

I04

LM2903D 4-

8+ C46

47n/50V

R21

100k

-

+

I04

LM2903D

1

2

3

12k

R56

R55

150k

C6V2

D04

23

6k8

R58

150k

R57

R44

1R

R29

39k

D05

D1F60

47n/50V

C55

47n/50V

C35

STPS340U

D01

STD17NE03LT4

Q01

L5973D

I02

8

7

4

6

5

3

2

1

33u

L11

STPS340U

D03

220u

C36

R11

4k7

C04

22n C03

220p

470R

R04

12k

R05

1k2

R06

Q02

BCR148W

R13

18k

270k

R12

FE_6A

L01

W81

13pol

13

12

11

10

9

1

2

3

4

5

6

7

8

C10

100n

47n/50V

C33

13pol

W82

13

12

11

10

9

1

2

3

4

5

6

7

8

100n

C02

C51

100n

100u

C14

FE_2A

L02

FE_2A

L10

22p

C16

STV0299B

I03

64

63

62

61

60

59

58

57

56

55

54

53

49

50

51

40

41

42

43

44

45

46

47

48

32

31

30

29

28

27

16

15

14

52

39

38

37

36

35

34

33

26

25

24

23

22

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

C34

220u

L09

FE_6A

R16

10k

27k

R22

1k5

R47

R32

8k2

Q06

BC847BW

3k3

R24

BC847BW

Q07

4k7

R23

L12

22u

47k

R39

C37

100u

100n

C40

100u

C38

FE_2A

L07

1k

R14

C05

100p

56p

C25

56p

C41

C31

100n

1M

R45

X01

4,0MHz

R37

0R

MC33269

I01

1

2

3

5

6

4

7

8

100u

C11

D1F60

D02

C13

100u

C12

100n

C15

L06

FE_2A

C24

100u

C08

100n

R43

2k2

10k

R60

100n

C47

C49

100n

4k7

R61

NC

Clock Out

SCL

SDA

AGC(0-3.3V)

I Out

Q Out

B2(3.3V)

B1

NC

TU SAT

U01

10

9

8

7

6

5

4

3

2

1

100n

C19

100n

C22

L05

FE_PE

1k

R49

1k

R50

4p7

C44

4p7

C43

120R

R27

2k2

R15

R18

10R

R17

U-LNC

DISEQC

U33

U3.3_reg

UB

5V_in

U3V3_TUN_krit

SDAT

SCLT

U5

13_18V_on_off

U_LNC_on_off

AGC

AGC_A

U2.5D_FRONT

U2.5A_FRONT

Q

I

SDA0SDA0

SCL0

RES

LOCK_SAT

MDI0

MDI1

MDI2

MDI3

MDI4

MDI5

MDI6

MDI7

MIVAL

MISTRT

MICLK

U3.3A_FU3.3A_F

U3.3D_F

17.10.05 Ex / 18.10.05 Ri

"f"A. ArmSimon29.07.05

FB

Out

Comp.

U33_in

"e"A. ArmSimon20.10.04

"d"A. ArmSimon30.09.04

SAT-FRONTEND

SCL1

SDA1

CVBS_PIP_TUNER

Alle Rechte, Änderungen vorbehalten!

96305 Kronach

Industriestr.11

Bl.

Zei.-Nr:

Bez.:

Name:Datum: Index:

gepr.:

LOEWE AG

Stand:

Variante:

von 1

056_DVB-S_Frontend_L2650

17.10.2005

1

DVB-S Frontend L2600

644/391-89189

Vorziffer 70..

1010

99

88

77

66

55

44

33

22

11

Y

X

W

V

U

T

S

R

Q

P

O

N

M

L

K

J

I

H

G

F

E

D

C

B

A

37

DVB-S Frontend 89189

C28

C20

C21

C06

R63

R62

R59

R53

R52

R46

R40

R36

R34

C62

C23

C42 C30

C32

C45

C39

C27

C26 C29

C61

C60

C09

C59

L12

I01

I04

R38

R54

R01

R03

R21

R17

R18

R15

R16

C17

C37

R27

C43

C44

R50

R49

R56

D05

C46 L03

C33

C35 U1

D04

K

A

W82

L11

L04

C19

W81

X01

C18

C24

C38

C14

C13 C11

C36

C34

R44

C10

C01

R42

R35

R28

R29

R58

R57

R55

L05

L01

R41

Q01

I03

17

33

1

D10

I02

Q08

CB

E

Lpl. DVB-S Frontend L2600 89189F Bestückungsseite • DVB-S Frontend L2600 P.C.B 89189F Components side

C48

R71

R70

R69

R68

R67

R66

R65

R64

R51

C50

C66

C65

C63

C64

C07

R31

R30

C16

C56

C58

C57

R12

R13

Q02

C

B

E

R06

R05

R04

C03

C04

R11

R14

C05

R33

R20

C55

C54

C53

C52

L08

C51

C22

D02

C49

C25 C41

C31

C47

C08

C40

C15

C12

C02

R07

R08

R37

R39

R22

R32

R47

R24

R23

R48

R61

R60

R43

R26

R25

R45

L09

L07

L06

L02

L10

R02

R19

R10

R09

D03

Q03

CB

E

Q04

C

B

E

Q05

CB

E

Q06

C

B

E

Q07

C

B

E

Lpl. DVB-S Frontend L2600 89189F Lötseite • DVB-S Frontend L2600 P.C.B 89189F Solder side

38

CI Interface 89346

77

66

55

44

33

22

11

U

T

S

R

Q

P

O

N

M

L

K

J

I

H

G

F

E

D

C

B

A

A18A17A15

A14A13A12

R2230

47R

R2672

10k

R2213

R2615 47R

R2616

47R

C2682

100p

C2681

100p

100n

C2610

10k

R2681

R2682

10k

R2684

R2683

10k

R2609

10k

1k

R2608

C2822

100n

220u

C2821

L2821

MC33269

I2821

8

7

4

6

5

3

2

1

C2601

470u/16V

L2601

33u

JST sw s

W2601

5

4

3

1

2

L2001

47R

R2664

47R

R2662

C2661

10p

R2661 47R

10p

C2662

R2660 47R

47R

R2659

C2659

10p

47R

R2656

R2655 47R

C2656

10p

C2655

R2647 47R

C2638

22p

100R

R2638

R2001

10k

R2002

47R C2004

100n

R2003

10k

C2002

8p2

C2001

8p2

13,5MHz

X2001

MK3727D

I2001

8

7

4

6

5

3

2

1

10p

C2643

C2641

10p

C2642

R2641 47R

47R

R2642

47R

R2643

C2651

10p

C2652

C2653

10p

C2654

10p

C2657

C2658

10p

C2660

10p

C2663

10p

C2664

10p

C2665

47R

R2651

R2652 47R

R2653 47R

47R

R2654

47R

R2657

R2658 47R

R2663 47R

47R

R2665

10p

C2666 47R

R2666

10p

C2649 R2649 47R

C2670

10p

R2670

47R

C2611

10p

C2612

10p

C2613

10p

C2614

10p

C2615

10p

C2616

R2611 47R

47R

R2612

R2613 47R

47R

R2614

100R

R2628

100R

R2619

22p

C2619

C2618

22p 100R

R2618

22p

C2620 R2620

100R

R2621 C2621

22p

R2623

100R

C2624

22p

C2622

22p

R2622

100R

22p

C2623 R2624

100R

R2625

22p

C2625

22p

C2626

C2627

22p

C2628

C2629

22p

C2630

22p

C2631

R2626

100R

R2627

R2629

100R

R2630

R2631

100R

W2611

FH12-33S

32

33

31

17

18

19

20

21

22

23

24

25

26

27

28

29

30

9

10

11

12

13

14

15

16

5

6

7

8

3

4

2

1

100R

R2635

100R

R2637

R2636

100R

R2634

R2633

100R

R2632

100R

R2617

100R

C2633

22p

C2634

22p

C2635

C2636

22p

C2637

C2632

22p

C2617

22p

R2667 47R

47R

R2650

47R

R2648

R2646 47R

47R

R2645

R2644 47R

C2667

10p

C2650

10p

C2648

C2647

10p

C2646

10p

C2645

C2644

10p

FH12-33S

W2641

32

33

31

17

18

19

20

21

22

23

24

25

26

27

28

29

30

9

10

11

12

13

14

15

16

5

6

7

8

3

4

2

1

4k7

R2817

C2604

220u

C2608

100p

10k

R2673

R2674

10k

R2601

10k

0R

R2604

0R

R2605

100n

C2605

R2237 47R

10k

R2607

L2609

C2609

10u

L2607

0R

R2240

R2239

47R

R2238

R2235

47R

R2229

R2228

R2227

R2225

47R

R2215

R2205

R2200 47R

R2199

R2198

R2195

R2190

47R

R2185

R2180

R2175

R2170

R2677

10k

100n

C2602

10u

C2607

I2604

STV0700

121

122

123

124

125

126

127

128

107

108

105

106

104

103

70

71

72

68

69

67

66

65

54

53

52

51

50

49

48

47

46

45

44

43

42

41

40

39

55

56

57

58

59

60

64

63

62

61

37

38

90

89

88

87

86

85

84

83

82

81

73

74

75

80

79

78

77

76

91

92

93

94

95

96

97

98

99

100

101

102

109

110

111

112

113

114

115

116

120

119

118

117

30

29

28

27

26

31

32

22

23

24

36

35

34

33

16

15

14

25

21

20

19

18

17

13

12

11

10

9

8

7

6

5

4

3

2

1

PCMCIA r

A36

A38

A40

A42

A44

A46

A48

A50

A52

A54

A56

A58

A60

A62

A64

A66

A68

A35

A37

A39

A41

A43

A45

A47

A49

A51

A53

A55

A57

A59

A61

A63

A65

A67 A33

A34

A31

A32

A29

A30

A27

A28

A25

A26

A23

A24

A21

A22

A19

A20

A17

A18

A15

A16

A13

A14

A11

A12

A9

A10

A7

A8

A5

A6

A3

A4

A1

A2

100n

C2606

C2603

100n

10k

R2675

10k

R2678

10k

R2676

R2679

10k

ADLE

ADOE

CA0

CA1

CA2

CA3

CA4

CA5

CA6

CA7

CA8

CA9

CA10

CA11

CA12

CA13

CA14

CD0

CD1

CD1A

CD2

CD2A

CD3

CD4

CD5

CD6

CD7

CE1A

CE2A

C_DE

C_WE

DATDIR

DATOE

DVB-A16

DVB-CI_IRQ

DVB-LDQM

DVB-NCE2

DVB-NOE

DVB-WAIT

IORD

IOWR

MDIA0

MDIA1

MDIA2

MDIA3

MDIA4

MDIA5

MDIA6

MDIA7

MDIO0

MDIO1

MDIO2

MDIO3

MDIO4

MDIO5

MDIO6

MDIO7

MDOA0

MDOA1

MDOA2

MDOA3

MDOA4

MDOA5

MDOA6

MDOA7

MICLK

MICLKA

MISTRT

MISTRTA

MIVAL

MIVALA

MOCLKA

MOSTRTA

MOVALA

PCLK

PD0

PD1

PD2

PD3

PD4

PD5

PD6

PD7

PSTRT

PVIAL

RDY/IRQA

REG

RES-DVB

RSTA

WAITA

W2604

CI-Controller

CD1B

MOCLKA

27.7.05 Ex / 3.8.05 Ri

/14.6.05

L2650

Variante:

Code-Teile-Nr.:

Datum:

gepr.:

Datum:

erst.:

Index:

LOEWE.

Benennung:

050

27.07.2005

D.Simon

C

89346

CI_Interface

39

CI Interface 89346

A19

C2822

C2682

C2681

C2670

C2667

C2666

C2665

C2664

C2663

C2662

C2661

C2660

C2659

C2658

C2657

C2656

C2655

C2654

C2653

C2652

C2651

C2650

C2649

C2648

C2647

C2646

C2645

C2644

C2643

C2642

C2641

C2638

C2637 C2636

C2635

C2634

C2633

C2632

C2631

C2630

C2629

C2628

C2627

C2626

C2625

C2624

C2623

C2622

C2621

C2620

C2619

C2618

C2617

C2616C2615 C2614C2613

C2612

C2611

C2610

C2608

C2606

C2605

C2603

C2602

C2004

C2002

C2001

R2817

R2684

R2683

R2682

R2681

R2679

R2678

R2677

R2676

R2675

R2674

R2673

R2671

R2670

R2667

R2666

R2665

R2664

R2663

R2662

R2661

R2660 R2659

R2658 R2657

R2656 R2655

R2654 R2653

R2652 R2651

R2650

R2649

R2648

R2647

R2646

R2645

R2644

R2643

R2642

R2641

R2638

R2637

R2636

R2635

R2634

R2633

R2632

R2631

R2630

R2629

R2628

R2627

R2626

R2625

R2624

R2623

R2622

R2621

R2620

R2619

R2618

R2617

R2616

R2615

R2614

R2613

R2612

R2611

R2609

R2608

R2607

R2601

R2240

R2239

R2238

R2237

R2235

R2230

R2229

R2228

R2227

R2225

R2215

R2213

R2205

R2200

R2199

R2198

R2195

R2190

R2185

R2180

R2175

R2170

R2160

R2137

R2003

R2002

R2001

64

38

I2604

103

65

39

1

C2821

L2821

I2821

C2601

L2601

W2601

1 5

L2001

X2001

I2001

W2611 W2641

L2609

C2609

W2604

A34

A35

A68

A1

C2604

C2607

L2607

R2604

R2605

Lpl. CI-Interface 89346C Bestückungsseite • CI-Interface P.C.B 89346C Components side

40

Bedienteil • Control Unit 89407

I8001

1

2

3

VS

GND

OUT

ZD 6V2

D8001

ZD 6V2

D8002

BAS316

D8003

BAS316

D8004

ZD 6V2

D8005

ZD 6V2

D8006

LED gn/rt_H

D8007

R

G

K

A1A2

GND-Kontakt_s_XH

W8005

BC847BW

Q8001

BC847BW

Q8002

BC847BW

Q8003

BC857BW

Q8004 BC857BW

Q8005

33K

R8001

10K

R8002

3K3

R8003

100R

R8004

10K

R8005

47K

R8006

560R

R8007

470R

R8008

0R

R8009

0R

R8010

47K

R8012

10K

R8013

33K

R8014

10K

R8015

0R

R8016

0R

R8017

2K7

R8018

Taster_3fach

W8006

Taster_3fach

W8006

Taster_3fach

W8006

Taster_3fach

W8006

Taster_3fach

W8006

100n

C8001

100n

C8002

10u/10V

C8005

10u/10V

C8006

10u/10V

C8007

NC

33K

R8019

W8003

2pol_JST_nat_s

1

2

W8001

8pol_JST_sw_s

1

2

3

4

5

6

7

8

W8002

6pol_JST_nat_s

1

2

3

4

5

6

W8004

3pol_JST_nat_s

1

2

3

R8024

0R

R8021

0R R8020

0R

R8022

0R

R8023

0R

Var.:89407a

Page: 01 of 01 Date:15.03.2005

@SaveCurrFile

ED

C

B

A

E

DCBA

0

1

3

2

3

1

0

LOEWE.

Datum: Name: gepr.: Index: Bez:

Zei.-Nr.:

LOEWE AG

Industriestr.11

96317 Kronach

Alle Rechte, Änderungen vorbehalten

89407

0J.Heidenreich11.03.05

11.03.05 St. Süßmann a Concept L26/32

Bedienteil

"Function" "-" "+"

Thomale

41

Bedienteil • Control Unit 89407

1

81

6

3

2

G

R

W8002

W8006

W8005

W8001

W8004

W8003

I8001

D8007

Lpl. Bedienteil Concept 89407A Bestückungsseite • Control Unit Concept P.C.B 89407A Components side

D8003

C8007

R8006

Q8002

Q8003

C8005

R8001

D8002

R8002

D8006 R8022

C8001

R8003

R8023

B8002

C8006

D8005 B8001

D8004

D8001

R8008

Q8001

Q8004

R8017

R8010

R8005 R8018

C8002

R8004

B8000

R8013

R8012

R8014

R8009

R8007

R8020

R8021

Q8005

R8015

R8019 R8024

R8016

Lpl. Bedienteil Concept 89407A Lötseite • Control Unit Concept P.C.B 89407A Solder side

42

Berlin

VHF

Steglitzer Damm 39

12169 Berlin

Tel. 0 30 / 21 33 006

Fax 0 30 / 79 40 36 34

loewe.vertragskundendienst.berlin

@arcor.de

Hamburg

Michael Hinz GmbH

Audio-Video-TV-Service

Antonie-Möbis-Weg 5

22523 Hamburg

Tel. 0 40 / 57 08 010

Fax 0 40 / 57 08 017

Hinz@Hinz-GmbH.de

Niedersachsen

Video Electronic Service Stelter

Kastanienallee 2

21337 Lüneburg

Tel. 041 31 / 85 58 83

Fax 041 31 / 85 58 84

videlse@compuserve.de

Niedersachsen

Wolfgang Schütte GmbH

TV-HiFi-Meisterwerkstatt

Bernhardstr. 36

26122 Oldenburg

Tel. 04 41 / 50 20 35

Fax 04 41 / 50 84 87

Service-Center@t-online.de

Niedersachsen

DW-Service GmbH

Haltenhoffstraße 52-54

30167 Hannover

Tel. 05 11 / 714 073

Fax 05 11 / 700 09 97

Doering@DW-Service.com

Niedersachsen

Petsch Kundendienst GmbH

Pagenstecherstr. 14

49090 osnabrück

Tel. 0541 / 6 80 35

Fax 0541 / 6 45 94

info@petsch-kundendienst.de

Nordrhein-Westfalen

TSW - Techn. Service Wenzel

Am Hessentuch 4

32758 Detmold

Tel. 052 31 / 39 513

Fax 052 31 / 39 613

mail@TSW-online.de

Nordrhein-Westfalen

Jürgen Wolber

Electronic - Service

Weißenburgstraße 52

40476 Düsseldorf

Tel. 02 11 / 443 456

Fax 02 11 / 464 433

Wolber@arcormail.de

Nordrhein-Westfalen

HVS Lösbar GmbH

Hauert 16

44227 Dortmund

Tel. 02 31 / 97 53 333

Fax 02 31 / 97 53 33 50

info@Loesbar.de

Nordrhein-Westfalen

SSC Kirchhoff GmbH

Am Förderturm 9

44575 Castrop-Rauxel

Tel. 023 05 / 97 740

Fax 023 05 / 97 74 99

info@SSC-kirchhoff.de

Nordrhein-Westfalen

ESW GmbH

Berg. Gladbacher Str. 829

51069 Köln

Tel. 02 21 / 68 01 585

Fax 02 21 / 68 01 588

ESW-Elektronik@arcor.de

Rheinland-Pfalz

Hans Krempl Haustechnik GmbH

August-Horch-Straße 14

56070 Koblenz

Tel. 02 61 / 89 09-0

Fax 02 61 / 83 074

Rainer.Hartenfels@Krempl.de

Hessen

Fernseh-Kessler

Veckerhagener Straße 58

34233 Fuldatal

Tel. 05 61 / 81 30 01

Fax 05 61 / 81 91 85

info@Fernseh-Kessler.de

Hessen

Häßler & Co. Servicecenter GmbH

Hanauer Landstr. 204-206

60314 Frankfurt

Tel. 069 / 49 80 591, Fax 069 / 43 11 92

info@reparaturpoint.de

Hessen

Schwalbe GmbH

Max-Planck-Str. 20

63303 Dreieich

Tel. 0 61 03 / 39 99 80

Fax 0 61 03 / 39 99 79

Schwalbe-@t-online.de

Hessen

J. Hemmerling VAD GmbH

Ostring 7

65205 Wiesbaden-Nordenstadt

Tel. 061 22 / 90 91 80

Fax 061 22 / 90 91 50

Loewe@Hemmerling-Service.de

Baden-Württemberg

Autronic Electronic-Service GmbH

An der Rossweide 9

76229 Karlsruhe

Tel. 07 21 / 62 99 132

Fax 07 21 / 62 99 195

emanuel.werner@autronic-service.de

Baden-Württemberg

Ried GmbH

Kölner Str. 34

70376 Stuttgart

Tel. 0711 / 55 04 930, Fax 0711 / 56 04 58

service@riedservice.de

Bayern

Jürgen Drössler Fernseh-Video-Service

Lerchenstraße 8

80995 München

Tel. 0 89 / 35 71 68 31

Fax 0 89 / 35 71 68 38

Juergen.Droessler@arcor.de

Bayern

Dürtler Service GmbH

Kreuzburger Str. 1

90471 Nürnberg

Tel. 0911 / 8 00 11 25

Fax 0911 / 80 79 21

duertler-service@t-online.de

Bayern

ESW Electronic Service GmbH

A.-Nobel-Str. 5a

97080 Würzburg

Tel. 0931 / 9 70 83 50

Fax 0931 / 9 70 83 59

b.laschimke@eswue.de

Mecklenburg-Vorpommern

TV-Hiﬁ-Video-SAT-Elektronik

Inh. Wolfgang Schubert

Lange Reihe 38 b

17121 Loitz

Tel. 03 99 98 / 10 577

Fax 03 99 98 / 10 566

TV_Schubert@t-online.de

Loewe-Vertragswerkstätten • Loewe establishments

Mecklenburg-Vorpommern

Meissner Electronic GmbH

Dorfstraße 1a

18107 Lichtenhagen-Dorf

Tel. 03 81 / 76 000 62

Fax 03 81 / 76 000 63

Service@EP-Meissner.com

Mecklenburg-Vorpommern

Service-Center Baumeister

Neue Reihe 14

18190 Sanitz

Tel. 03 82 09 / 81 950

Fax 03 82 09 / 81 951

SCB@SCBaumeister.de

Mecklenburg-Vorpommern

Elektro Blitz GmbH & Co.KG

Lessingstraße 31

19059 Schwerin

Tel. 03 85 / 75 82 080

Fax 03 85 / 75 82 08 50

Service@EP-Elektro-Blitz.de

Brandenburg

Ihlefeldt OHG

Berliner Str. 8

14532 Stahnsdorf

OT Güterfelde

Tel. 033 29 / 62 192

Fax 033 29 / 62 296

contact@ihlefeldt.com

Sachsen-Anhalt

Schwanbeck & Gall GmbH

Weißenfelser Str. 1

06712 Zeitz

Tel. 03 441 / 8 62 10

Fax 03 441 / 8 62 11

Schwanbeck-Gall@t-online.de

Sachsen

SMV Elektronic Service GmbH

Räcknitzhöhe 50

01217 Dresden

Tel. 0351 / 2 81 60 16

Fax 0351 / 2 81 60 17

service@elesco-dresden.de

Sachsen

HVS Lösbar GmbH

Landsberger Straße 23

04157 Leipzig

Tel. 03 41 / 9 12 60 70

Fax 03 41 / 9 12 60 71

Leipzig@Loesbar.de

Sachsen

Fa Röhlig

Innere Zwickauer Str. 106

08062 Zwickau

Tel. 0375 / 78 04 03

Fax 0375 / 78 04 13

Service@vision-sound.de

Sachsen

Semmler GmbH

Goldbachstr. 17 a

09353 Oberlungwitz

Tel. 037 23 / 65 200

Fax 037 23 / 65 20 28

ep.werkstatt@web.de

Thüringen

Gärtner-Elektronik-GmbH & Co.KG

Oßmaritzer Str. 4c

07745 Jena

Tel. 0 36 41 / 40 840

Fax 036 41 / 40 84 29

0364140840@t-online.de

Thüringen

Audio-Video-Elekt.-Service GmbH

Lange Brücke 35

99084 Erfurt

Tel. 03 61 / 56 26 285

Fax 03 61 / 64 30 871

au-vi-el-erfurt@t-online.de

43

Australien

International Dynamics

Australasia Pty Ltd.

129 Palmer Street

AUS -Richmond, Victoria 3121

Tel. 00 61 / 3 - 94 29 08 22

Fax 00 61 / 3 - 94 29 08 33

aencel@internationaldynamics.com.au

mthorntonsmith@internationaldynamics.com.au

Französisch Polynesien

Sonexport

P.O. Box 2334

Avenue Prince Hinoi

98713 Papeete - Tahiti

French Polynesia

Tel. 00 689 / 50 66 50

Fax 00 689 / 50 66 55

sonex@mail.pf

Israel

PL TRADING LTD

29, Izhak Sade Street

IRS -Tel Aviv 67213

Tel. 00 972 / 3 62 40 555

Fax 00 972 / 3 62 40 303

loewe@loewe.co.il

Kanada

Evolution Audio Video Inc.

250 The Esplanade

Suite 302

Toronto, Ontario M5A 1J2

Tel. 00 1 / 416-603-9090

Fax 00 1 / 416-603-9083

dave@evolutionaudiovideo.com

Korea

CIS Corporation

3rd Fl. Jijin Bldg. 80-3

Cheongdam-Dong

Kangnam-Ku, 135-100

Seoul, Korea

Tel. 02 3446 35 11

Fax 02 3446 35 15

hjkim@csico.co.kr

Kuwait

Naser Mohd. Al-Sayer

Electronics Co W.L.L.

P.O. Box 522

KTW -Safat 13006

Tel. 00 9 65 / 4 73 73 99

Fax 00 9 65 / 4 72 08 62

Libanon

Obergi Audiovise S.A.L.

Dora high-way, sea side Obegi Bldg.

B.P. 11-2652

RL -Beyrouth

Tel. 00 9 61 / 1 90 07 71

Fax 00 9 61 / 1 90 07 74

obegi.audiovise@tmi.com.lb

Saudi Arabien

Salem Agencies & Services Co.

P.O. Box 9720

SA -Jeddah 21413

Tel. 00 9 66 / 2 - 6 65 46 16

Fax 00 9 66 / 2 6 60 78 64

Singapur

Atlas Hi-Fi PTE LTD

# 03-19/21 Plaza Singapura

68 Orchard Road

Singapore 238839

Tel. (65) 339 0966

Fax (65) 336 4678

miketien@atlas-hiﬁ.com

Südafrika

The Soundlab (PTY) LTD

P.O. Box 757

Parklands 2121

Republik of South Africa

Tel. 0027 / 11 - 447 65 75

Fax 0027 / 11 - 447 66 62

loewe@mad.co.za

Vereinigte Staaten

PANURGY OEM

100 Ford Road

Denville, NJ 07834

Tel. 001-508 / 830 0025

Fax 001-508 / 830 9414

loewe@PanurgyOEM.com

Zypern

HADJIKYRIAKOS & SONS LTD.

Hadjikyriakos Building, Prodromou 121

P.O.Box 21587

Nicosia 1511

Cyprus

Tel. +357 22 872111

Fax +357 22 663391

constant@hadjikyriakos.com.cy

www.hadjikyriakos.com

Loewe-Service und Logistik

LOEWE OPTA GmbH

Service + Logistik Zentrale Kronach

96305 Kronach • Postfach 1554

96317 Kronach • Industriestraße 11

Die wichtigsten Rufnummern der Zentrale Kronach:

The most important phone numbers of the Kronach headquarters:

Telefon Fax

Ersatzteilbestellungen: (0180) 522 1800 (0180) 522 1806

Status von Reparaturen: (0180) 522 1805 (09261) 99 412

Support TV Röhre: (0180) 522 1801 (09261) 99 730

Support Video/DVD: (0180) 522 1802 (09261) 99 730

Support Telekommunikation: (0180) 522 1803 (092261) 99 730

Support HiFi: (0180) 522 1804 (09261) 99 730

Support TV Plasma, LCD, Rückprojektion: (0180) 522 1807 (09261) 99 730

Hinweis! Ersatzteilbestellung nur über Service + Logistik / Zentrale 96317 Kronach

Note! Spare parts orders only through Service + Logistics / Headquarters in Kronach

Loewe Service Übersee • Overseas

44

Benelux

Loewe Opta Benelux NV / SA

Uilenbaan 84

B - 2160 Antwerpen

Tel. 00 32 / 3-2 70 99 30

Fax 00 32 / 3-2 71 01 08

loewe@loewe.be

Tel. 00 30 / 2 80 33 94

Fax 00 32 / 32 71 01 08

Bulgarien

MSM 02 LTD.

45, Tzar Asen STR.

BG - 1000 Soﬁa

00 359 - 29 202 277

00 359 - 29 631 606

daraluck7@yahoo.com

Dänemark

Kjaerulff1 A/B

C.F. Tietgens Boulevard 19

DK -5220 Odense SØ

Tel. 00 45 /6613480

Fax 00 45 / 66135410

per@kjaerulff1.com

Estland

Tedra Trading Oy

Kuusemetsa 3

Saue 76506

Estland

Tel. 00 372 / 50 14 817

Fax 00 372 / 67 09 911

raivo@futurehiﬁ.com

Frankreich

LO France

13 rue du Dépôt

Parc del l‘Europe

BP 10010

67014 Strasbourg Cédex

Tel. 00 33 / 3 - 88 79 72 50

Fax 00 33 / 3 - 88 79 72 59

Loewe.france@wanadoo.fr

Griechenland

G. E. Dimitriou S.A.

6 Kiﬁssou Str.

GR - 12242 Egaleo

Tel.: 00 30 - 21 05 31 99 90

Fax: 00 30 - 21 05 91 36 64

yannis.tzavellas@gedsa.gr

Grossbritannien

Linn Products Limited

P.O. Box 8465

Prestwick

UK - KA 7 2YF

Tel. 00 44 / 12 92 - 47 15 57

Fax 00 44 /12 92 - 47 15 54

helpline@linnsight.co.uk

GUS

Geschl. Aktiengesellschaft der Finanz

und Industrie-Gruppe Kreml

Zweigniederlassung Berlin

Friedrichstr. 200

10117 Berlin

Tel. 0 30 / 22 33 38 88

Fax 0 30 / 22 33 38 89

kreml@loewe-cis.com

Büro Moskau:

Petrovsky per., d. 5, str. 2of. 10

RUS - 103031 Moscow

Tel. 095 / 929 99 28 oder 929 99 31

Fax 095 / 921 64 07

loewerus@online.ru

Italien

Assistenza Tecnica

aerre DIGIT S.r.l.

Via T.Mabellini, 10/12

50127 FIRENZE

Tel. 055 - 410874 oder 434872

Fax 055 - 410874

aerredigit@laerredigit.it

www.aerredigit.it

Island

Braedurnir Ormsson HF

Lagmula, 8

128 Reykjavik, Iceland

Tel. 00 354 - 5 - 302 800 oder 302 825

Fax 00 354 - 5 - 302 810

andres@ormsson.is

Kroatien

Caspian Ltd.

Savska 9

10 000 Zagreb

Croatia

Tel. 00 385 - 1 4929 682

Fax 00 385 - 1 4929 682

andrej.andrlic@loewe.hr

Lettland

Elcor

37, Kr. Valdemara str.

Riga, Latvia, LV-1010

Tel. 00 371 / 7 070 707

Fax 00 371 / 7 070 22

zinkin@elcor.lv

domotehnika@elcor.lv

Litauen

Leotekus Uab

Vilniaus 12

LT - 2001 Vilnius

Tel. 00370 - 523 12 917

Fax 00370 - 523 12 804

mailto:info@loewe.lt

http://www.loewe.lt/

Malta

Mirage Holdings LTD

Flamingo Complex

Cannon Road

M -Qormi

Tel. 00 3 56 21 / 49 71 82 / 3

Fax 00 3 56 21 / 44 59 83

Mazedonien

D. T. Kodi

Cedomir Kantargiev 21 a

91 000 Skopje

Macedonia

Tel. 00 389 / 2 31 33 104

Fax 00 389 / 2 32 38 922

nikola@alternet.sk

itasevski@kodi.com.mk

Norwegen

CableCom AS

Østre Kullerod 5

N - 3214 Sandefjord

Tel. 00 47 / 33 - 48 33 48

Fax. 00 47 / 33 - 45 22 77

soren@cablecom.no

Österreich

Pirngruber

Elektronik Service & Vertriebsges. m.b.H.

Dauphinestr. 226

A - 4030 Linz

Tel. 00 43 / 07 32 - 38 72 82-0

Fax 00 43 / 07 32 - 38 72 82-20

Polen

DSV Trading SA

Chrzanowskiego 10

80-278 Gdansk

Tel. 0048 58 / 341 00 14

Fax 0048 58 / 341 27 89

market@dsv.com.pl

Portugal

Videoacustica

Comercio e Representacoes de

Equipamentos Electronicos S.A.

Estrada Circunvalacao

Quinto do Paizinho, Arm 5

P - 2795-632 Carnaxide

Tel. 00 3 51 / 21 - 4 24 17 70

Fax 00 3 51 / 21 - 4 18 80 93

ofﬁce@videoacustica.pt

Schweden

Kjaerulff 1 AB

Ridbanegatan 4

Box 9076

S-200 39 Malmø

Tel. +46 406797400

Fax +46 406797401

mail: sverige@kjaerulff1.com

Schweiz

Telion AG

Rütistrasse 26

CH - 8952 Schlieren

Tel. 00 41 / 1 - 7 32 15 11

Fax 00 41 / 1 - 7 30 15 02

Igelpke@telion.ch

Slowakei

Basys Czech & Slovak S.R.O.

Trnavská cesta 84

SK - 821 02 Bratislava

Tel. 00 421 / 2 44 45 57 90

Fax 00 421 / 2 44 45 57 92

lelovsky@basys.sk

partl@basys.sk

Slowenien

Jadran Trgovsko Podjetje

Partizanska cesta 69

SL - 6210 Sežana

Tel. 00 3 86 / 57 - 31 04 40

Fax. 00 3 86 / 57 - 31 04 42

ramon.gomezel@jadran.si

Spanien & Kanarische Inseln

Gaplasa S.A.

Conde de Torroja,25

E - 28022 Madrid

Tel. 00 349 / 1 - 7 48 29 60

Fax 00 349 / 1 - 3 29 16 75

loewe@maygap.com

Tschechische Republik

K + B Expert Spol. SR.O.

U. Expertu 91

CZ - 2 50 69 Klicany u Prahy

Tel. 00 42 0 / 2 - 72 122 111 (222)

Fax 00 42 0 / 2 - 72 122 199 (239)

loewe@kbexpert.cz

Türkei

Enkay Elektronik SAN. ve TiC. LTD. Sti

Levent. Cad. No: 46

1. Levent 80600 Istanbul

Tel. 00 90 / 216 - 523 00 10

Fax 00 90 / 216 - 523 18 99

tgunesen@emkaygroup.com

Ungarn

Basys Magyarorszagi KFT.

Epitok utja 2 - 4

H - 2040 Budaörs

Tel. 00 36 - 23 - 415 637 / 121

Fax 00 36 - 23 - 415 182

basys@mail.basys.hu

Loewe Service / Europa • Europe

Änderungen vorbehalten.

Subject to modiﬁcation.

Modiﬁcation réserves.

Con riserva di modiﬁche.

Reservado el derecho a introducir modiﬁcaciones.

Wijzigingen voorbehouden.

05-2006

L2650

Navigation menu

Versions of this User Manual:

Views

Navigation
