SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRE-
CAUTION ............................................................i
PRECAUTIONS A PRENDRE LORS DE
LA REPARATION ...............................................ii
PRECAUTIONS FOR USING LEAD-FREE
SOLDER ........................................................... iii
CHAPTER 1. OPERATION MANUAL
[1] SPECIFICATIONS ......................................... 1-1

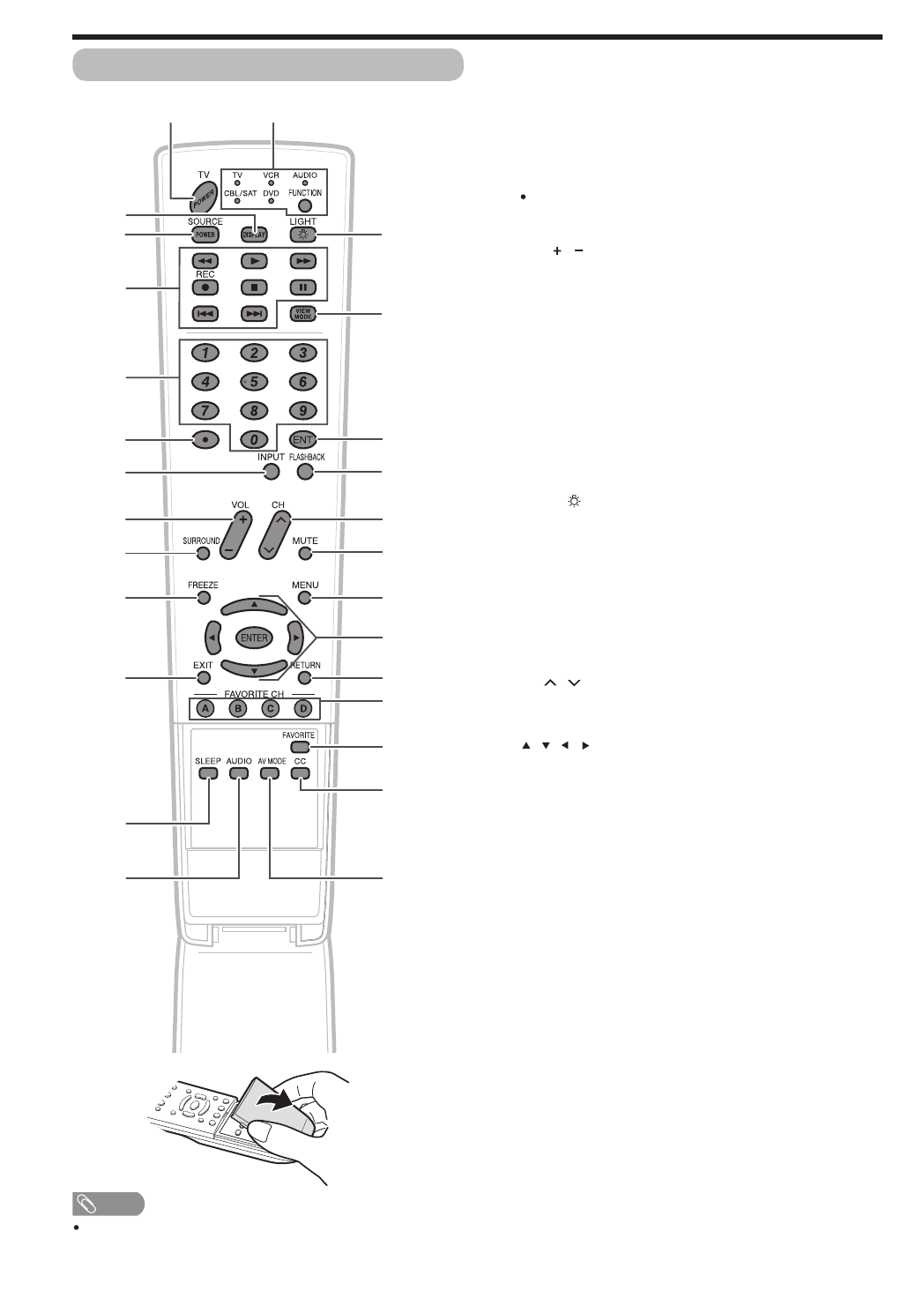

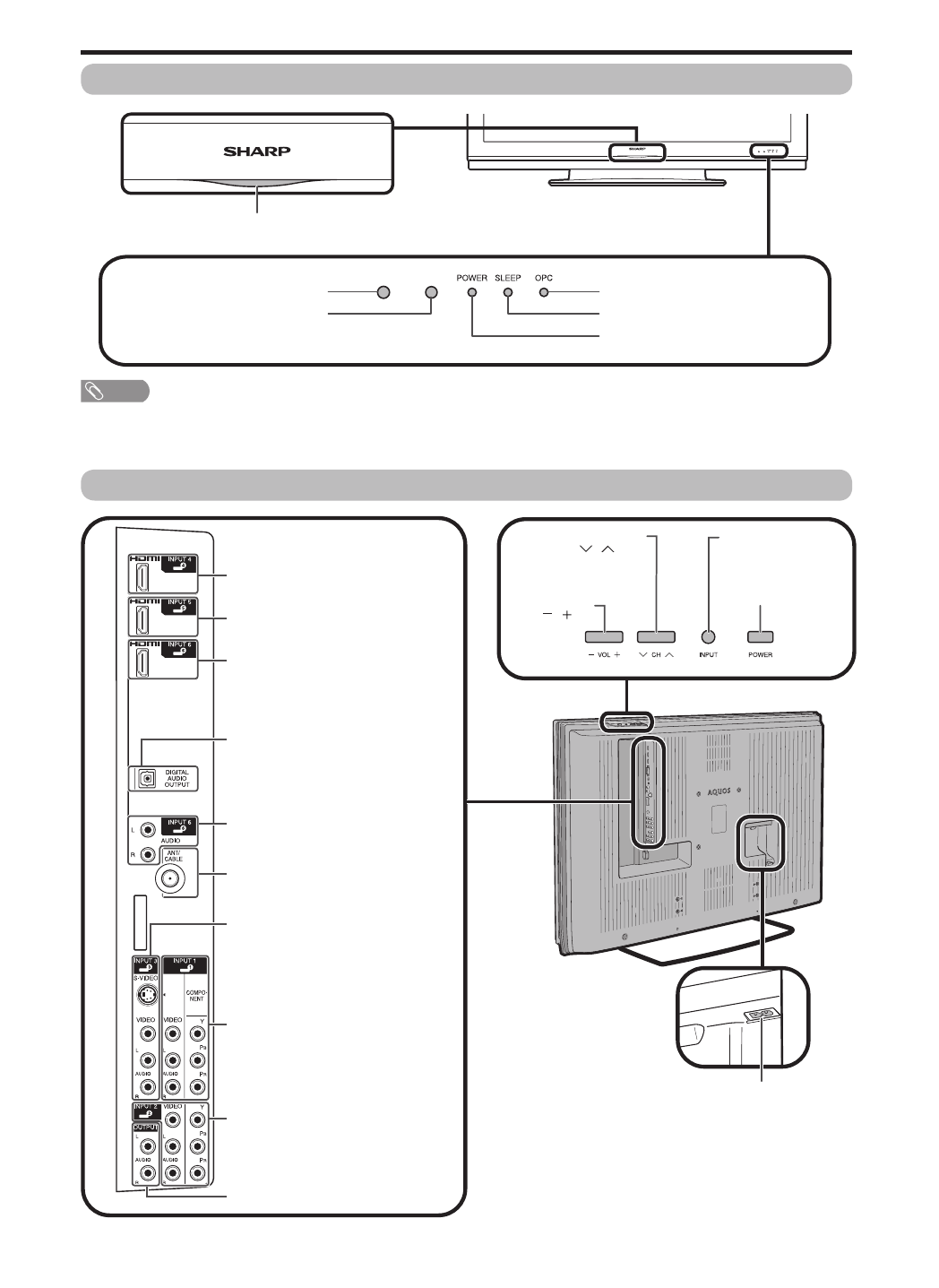

[2] OPERATION MANUAL .................................. 1-2

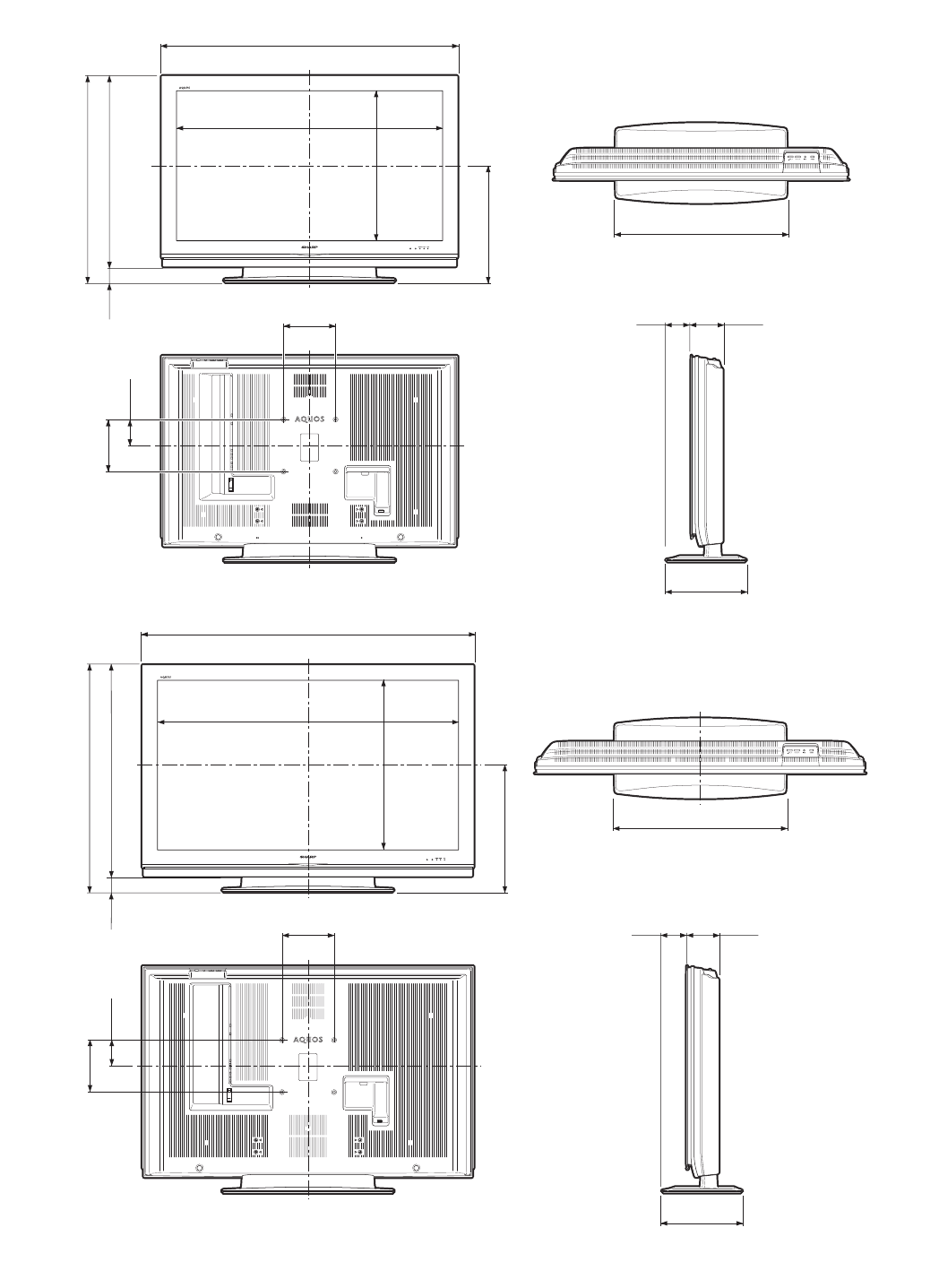

[3] DIMENSIONS ................................................ 1-8

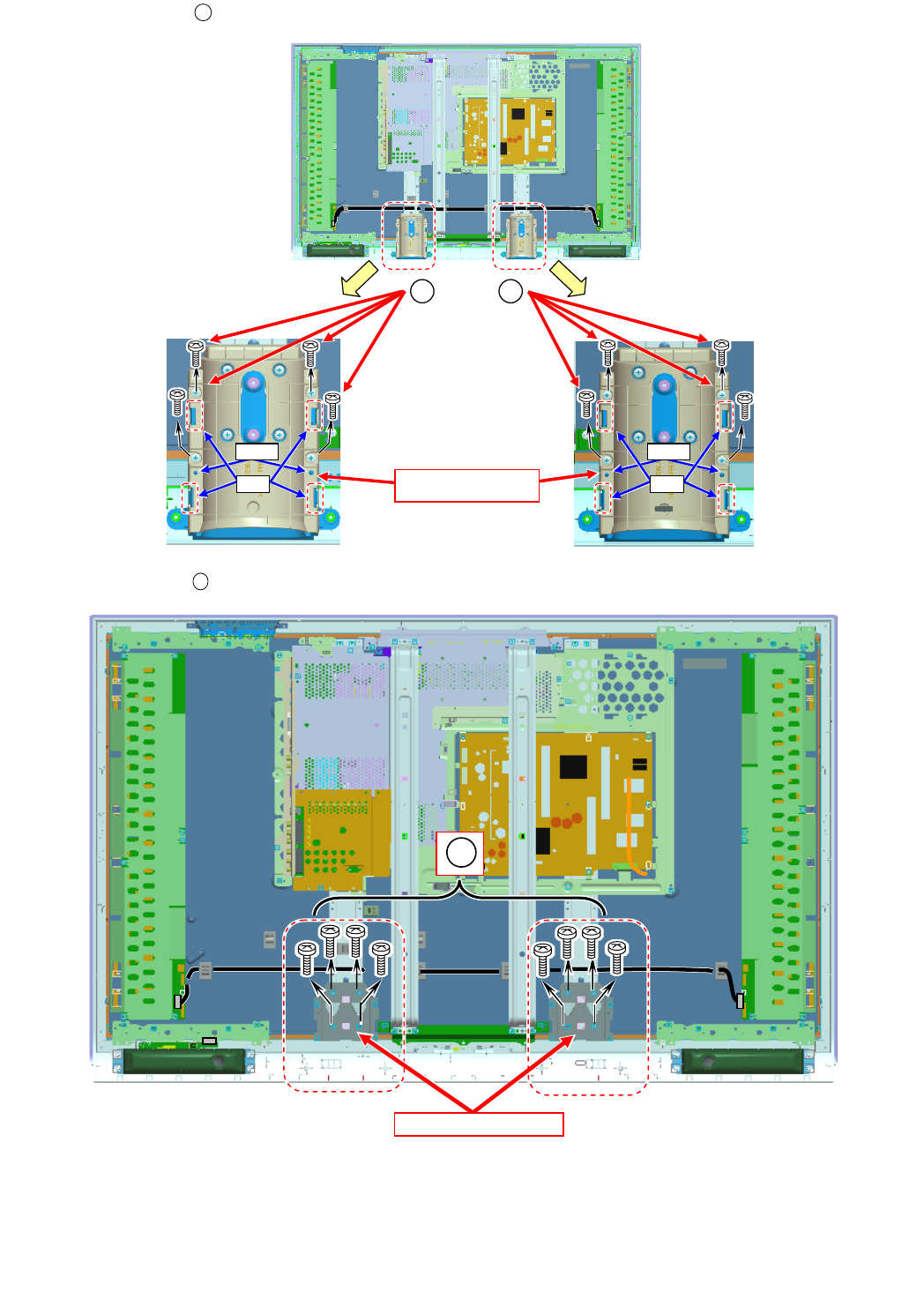

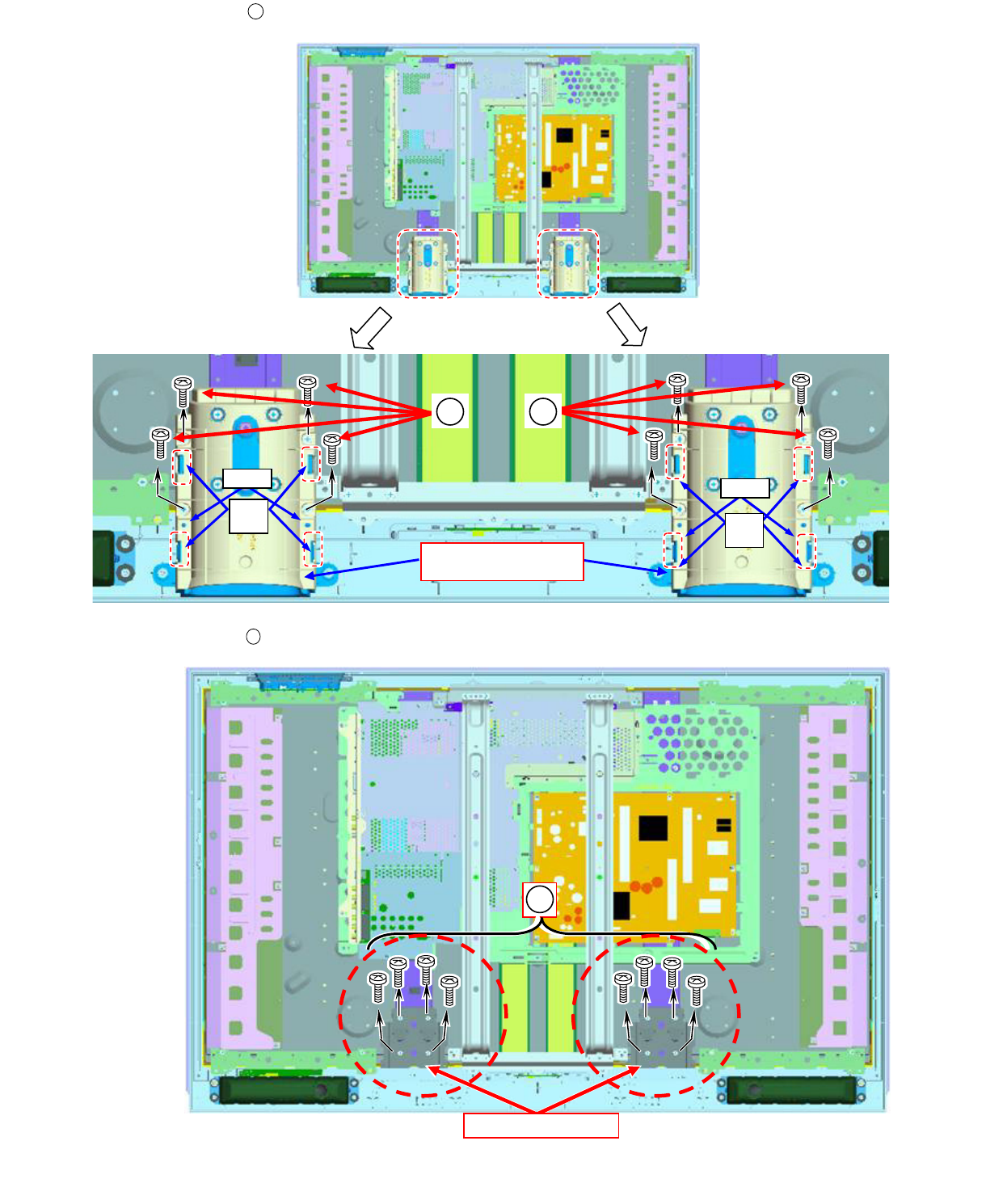

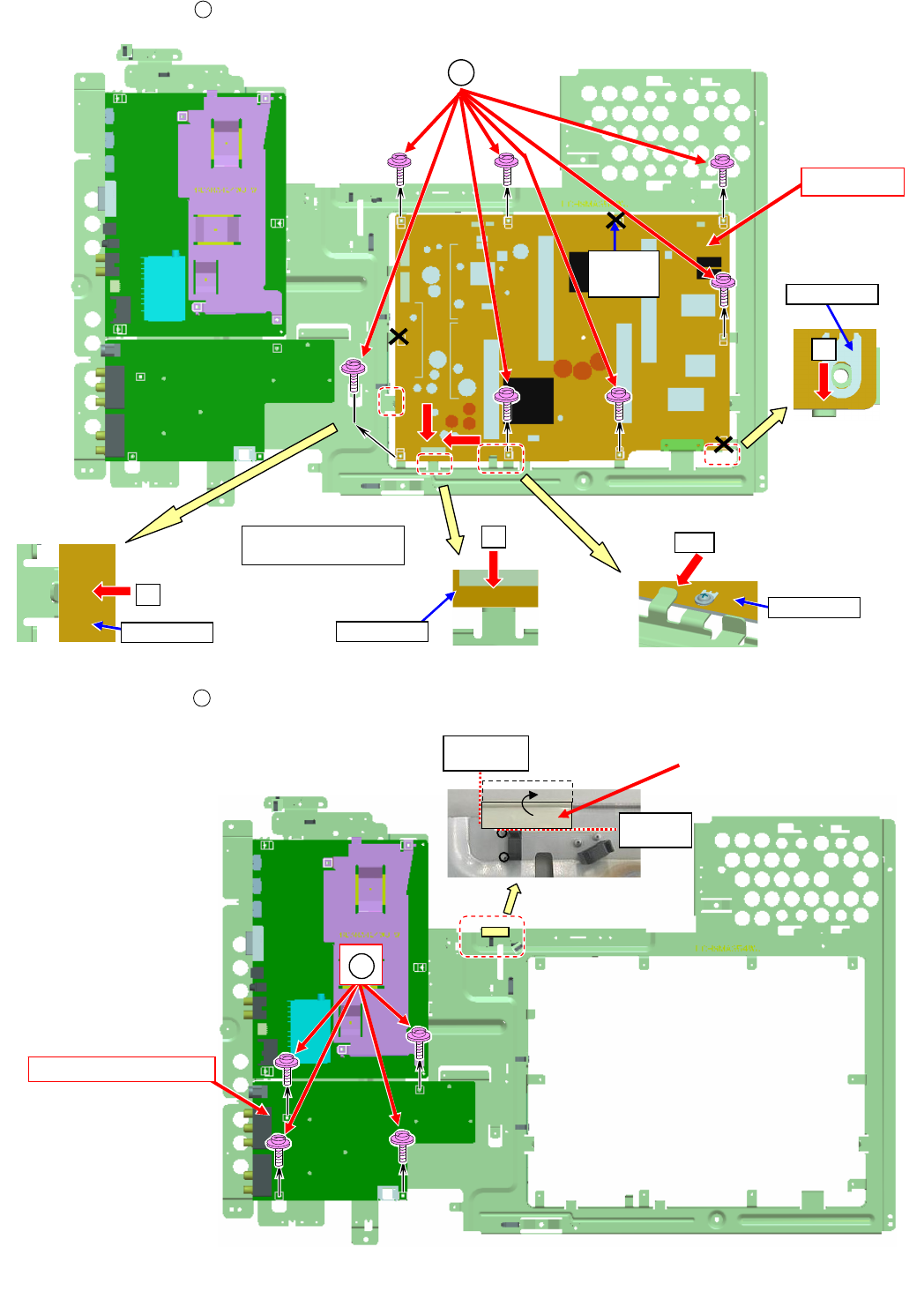

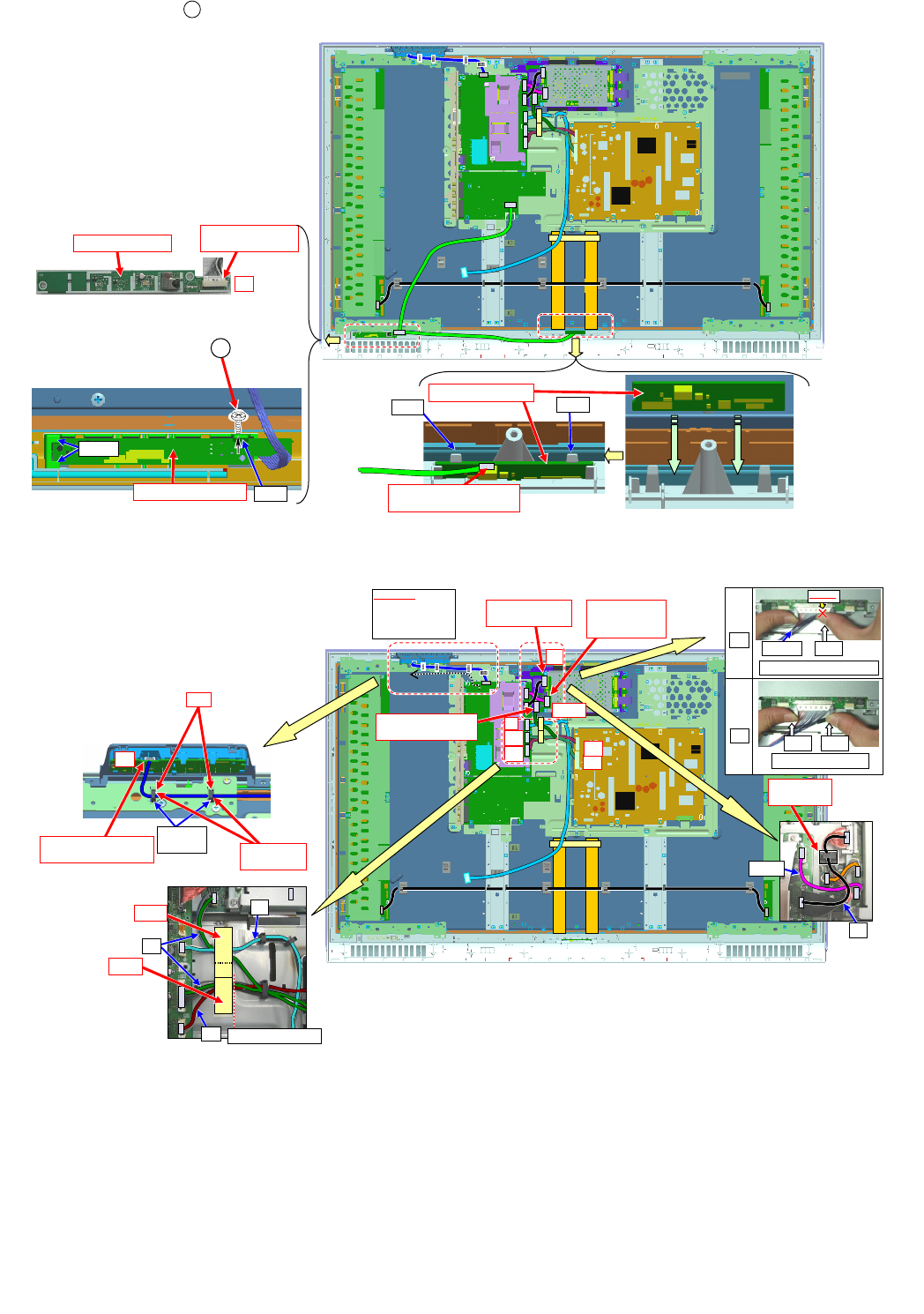

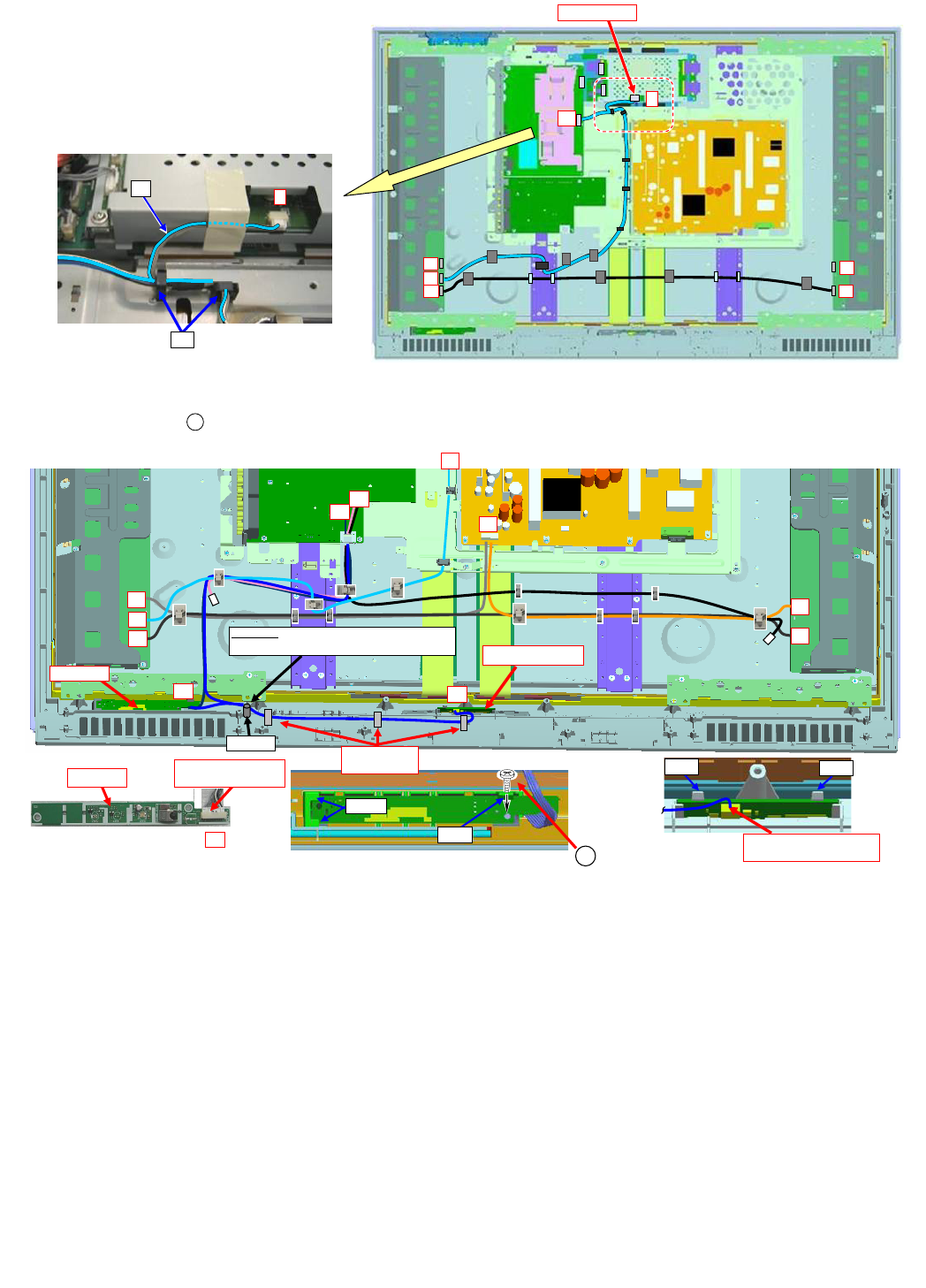

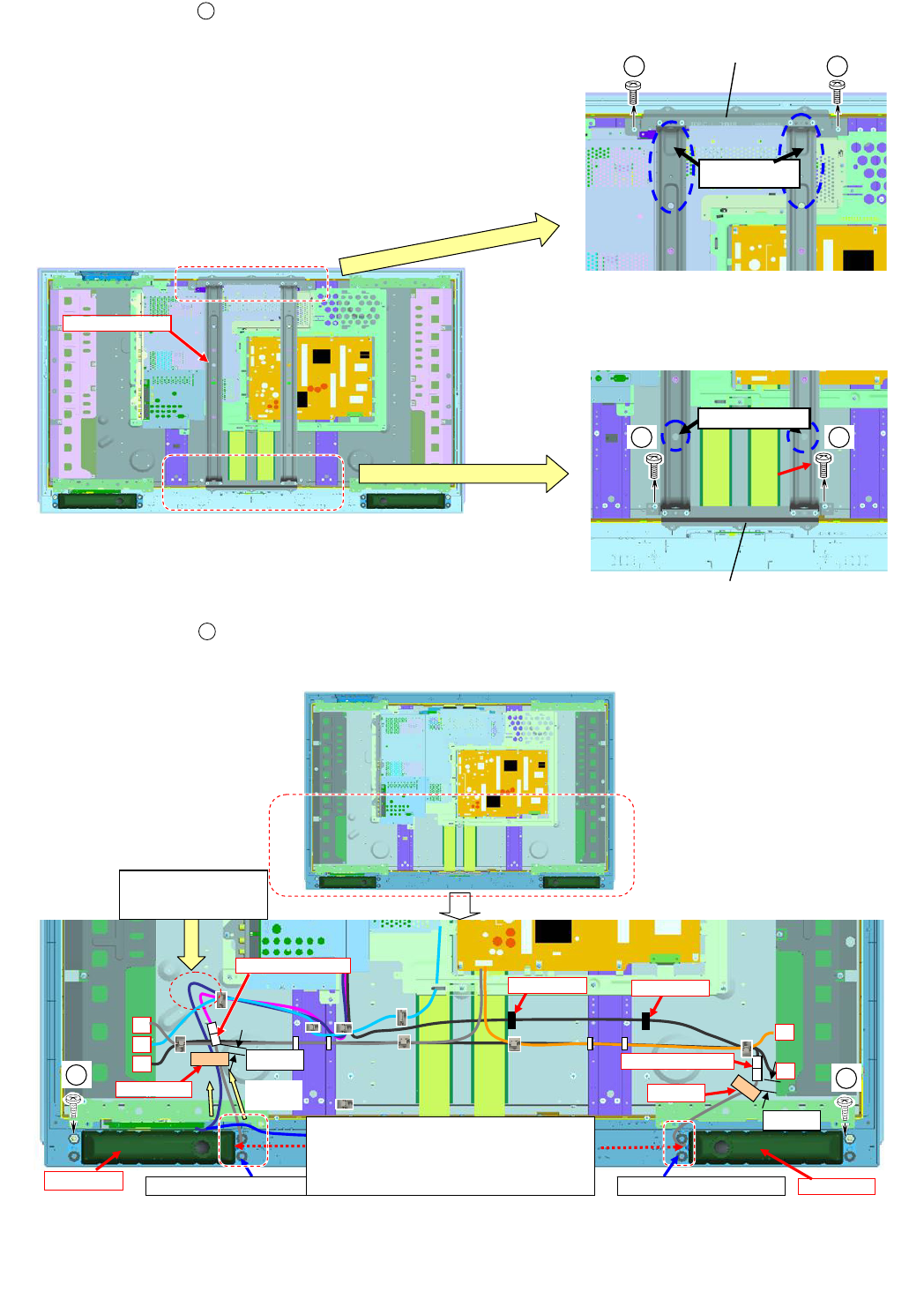

CHAPTER 2. REMOVING OF MAJOR PARTS

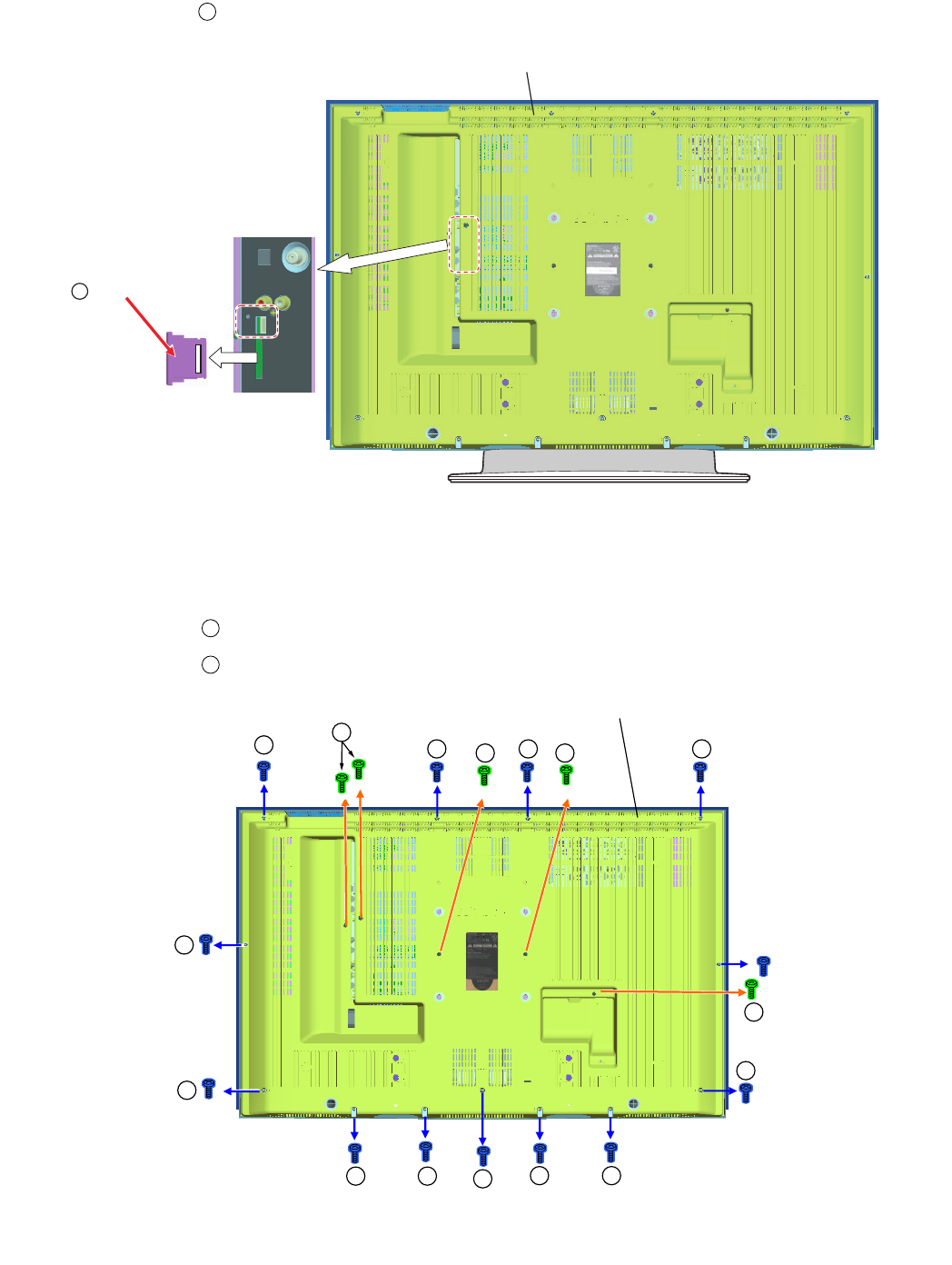

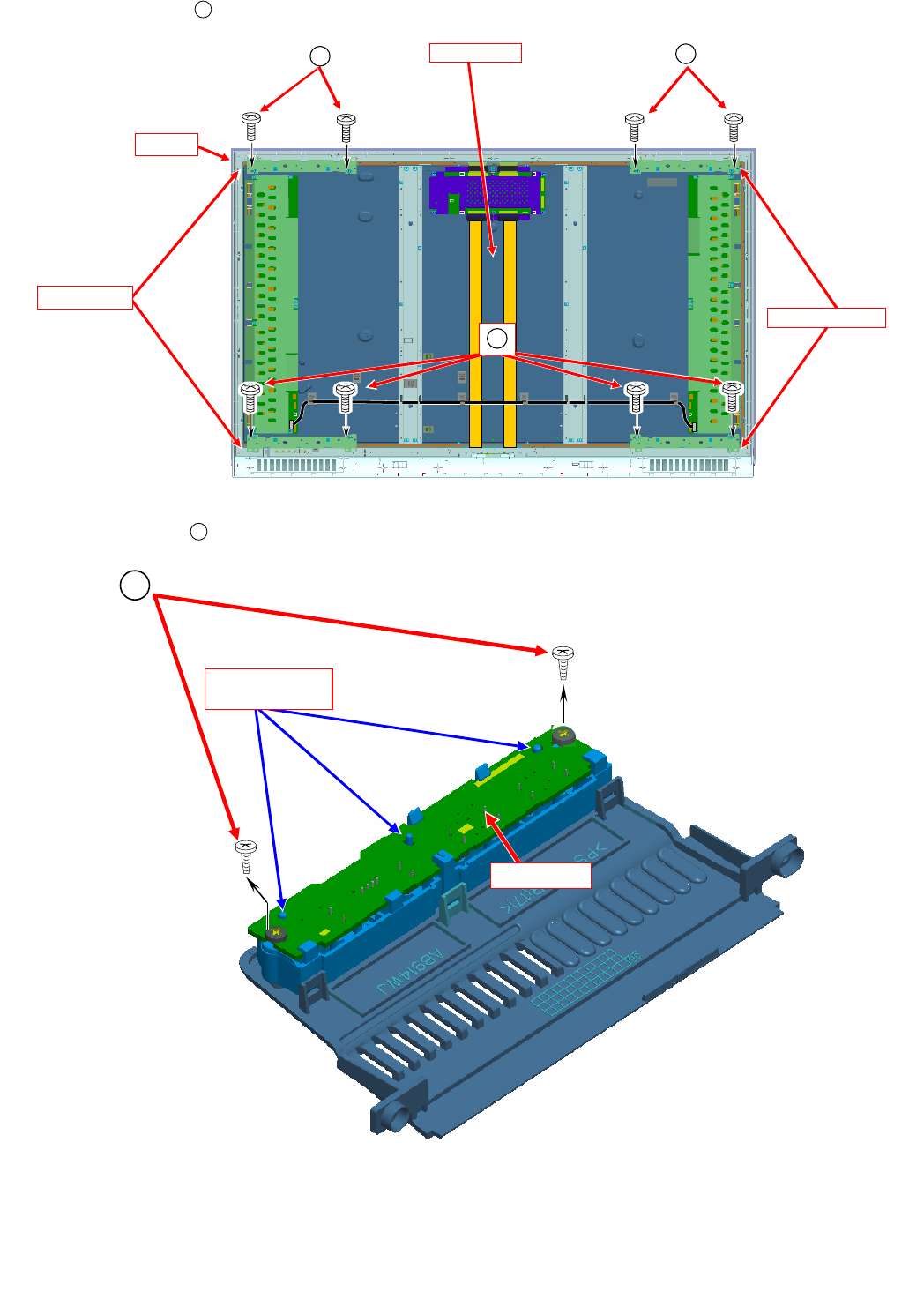

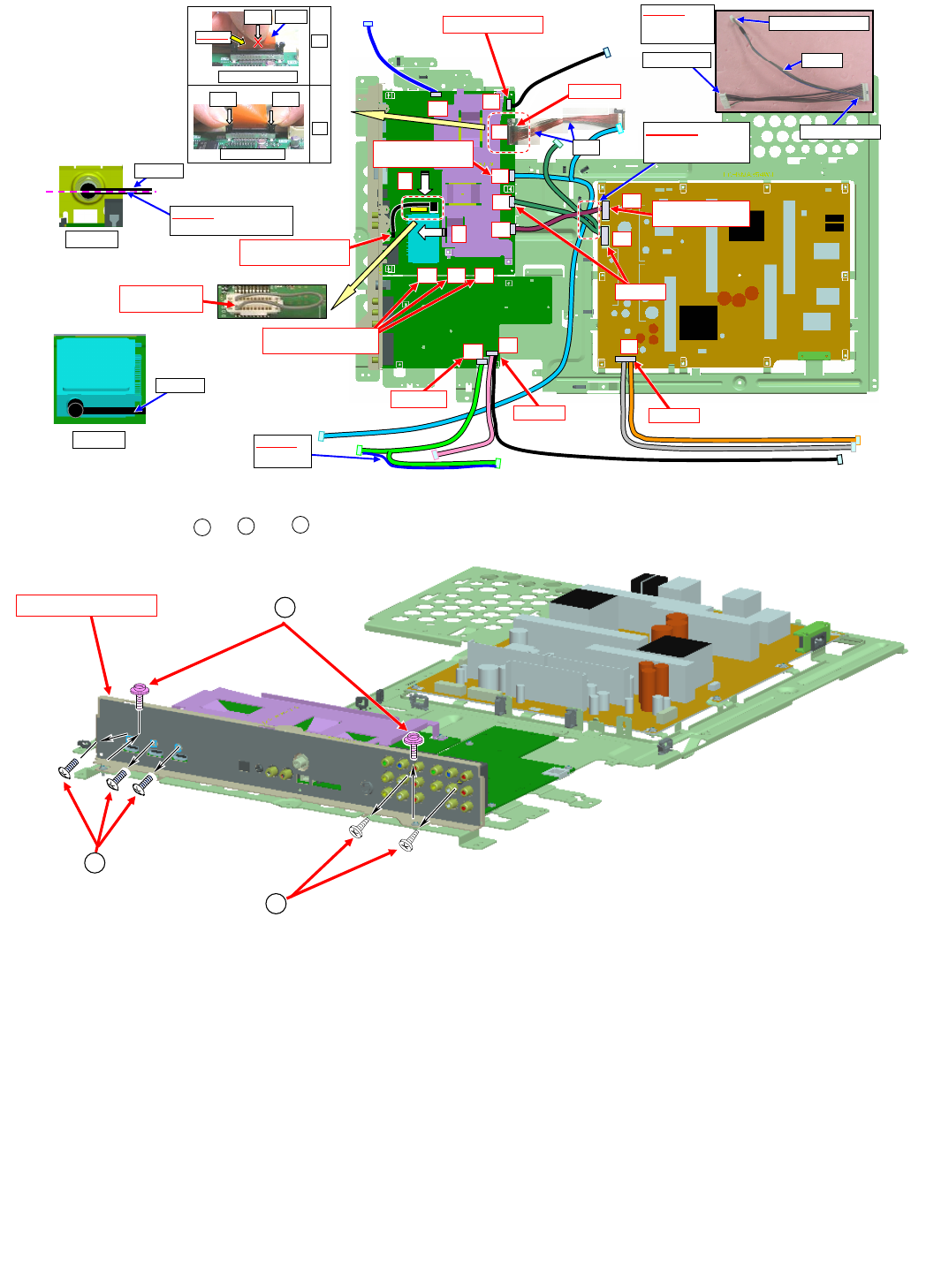

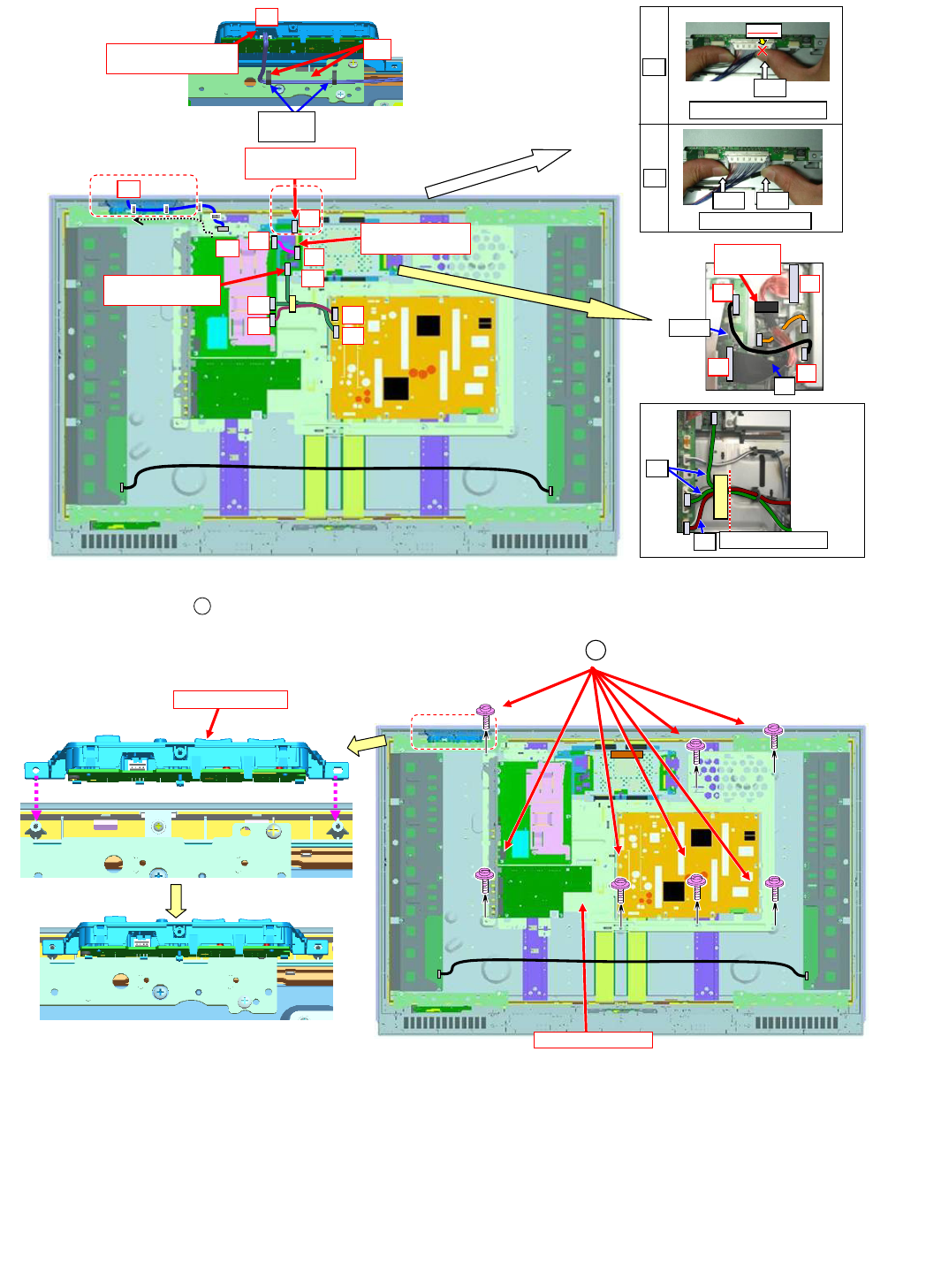

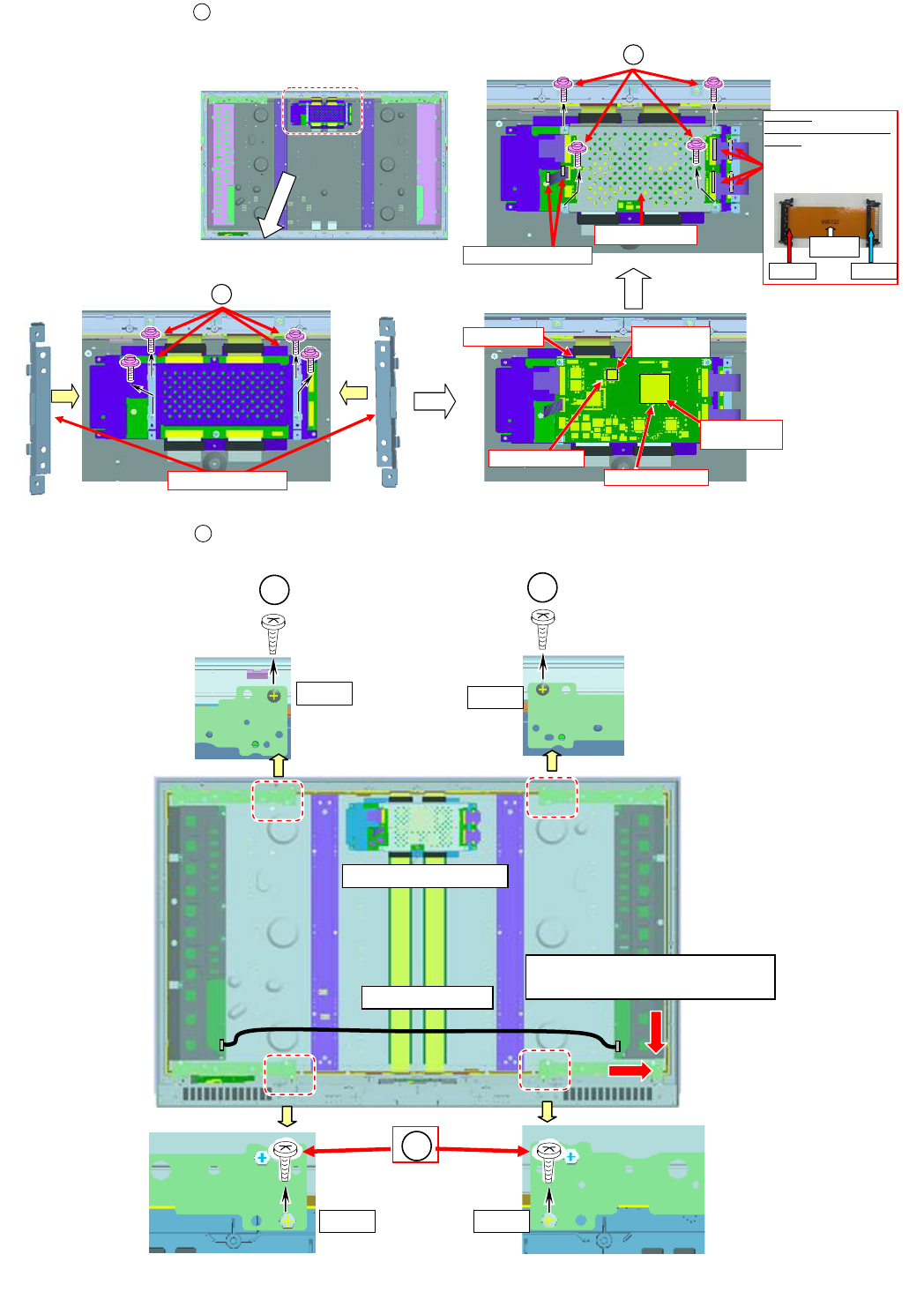

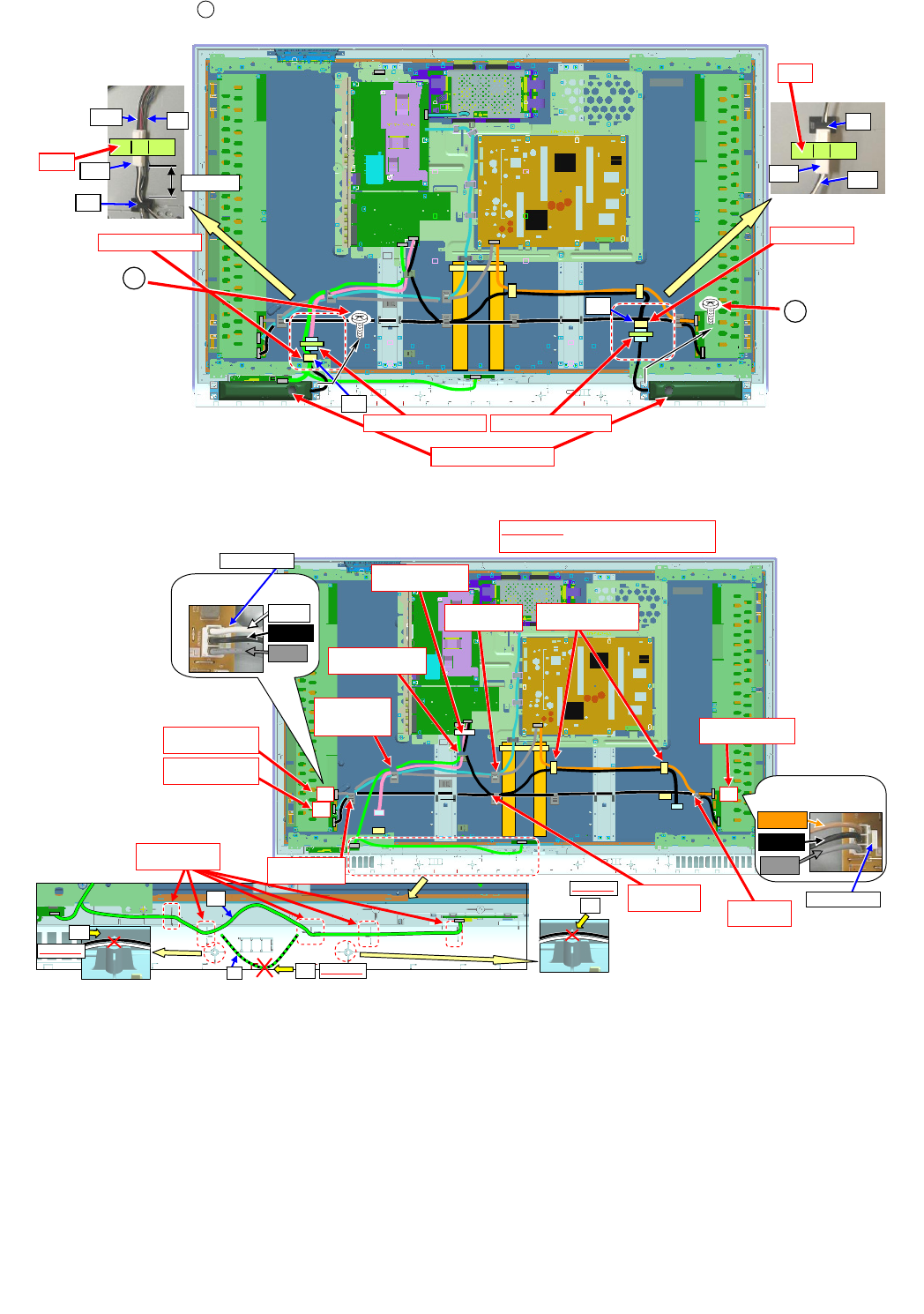

[1] REMOVING OF MAJOR PARTS (LC-
46D82U)......................................................... 2-1
[2] REMOVING OF MAJOR PARTS (LC-
52D82U)....................................................... 2-12
CHAPTER 3. ADJUSTMENT

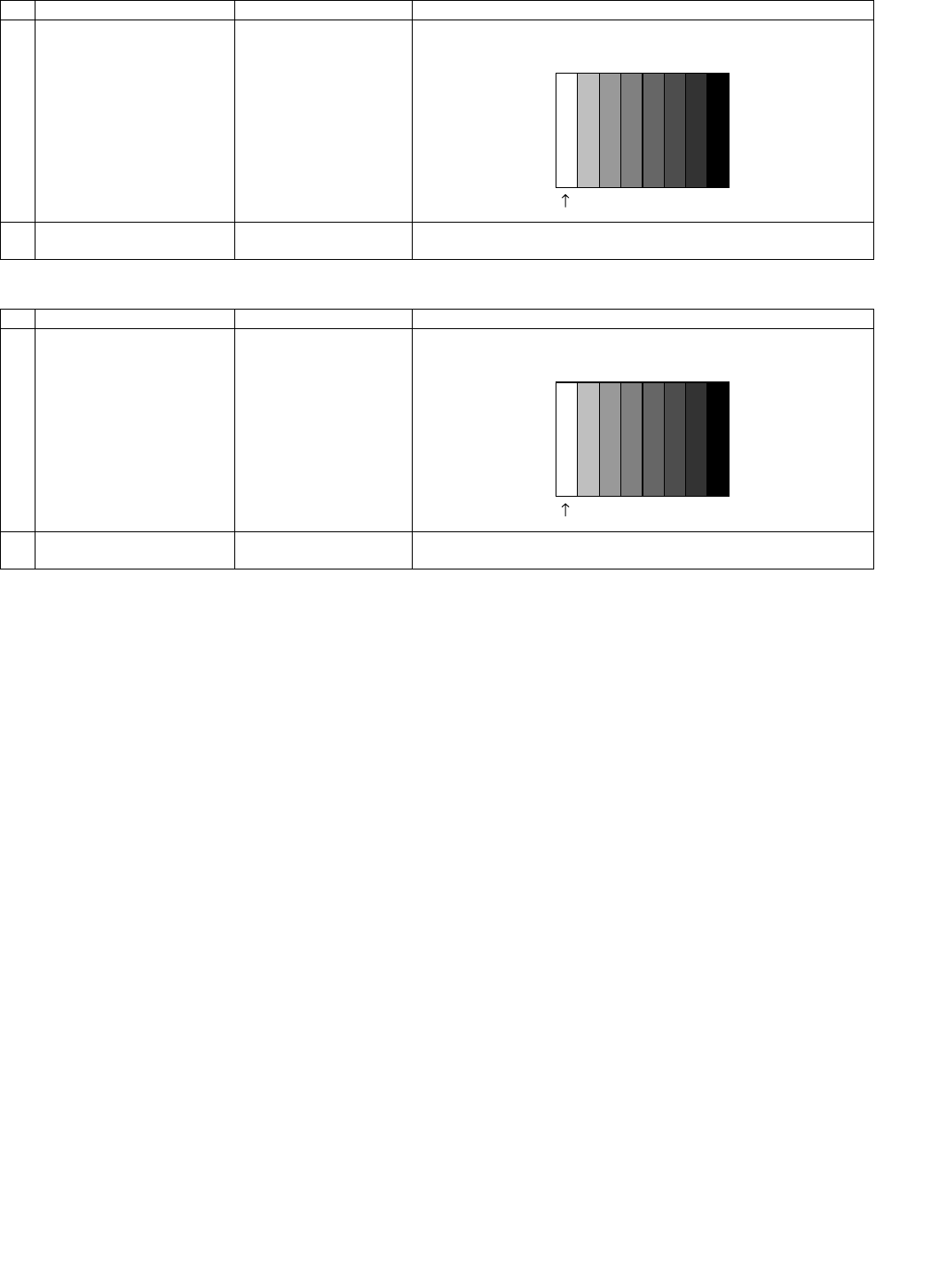

[1] ADJUSTMENT PROCEDURE ....................... 3-1
CHAPTER 4. TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE....................... 4-1
CHAPTER 5. MAJOR IC INFORMATIONS
[1] MAJOR IC INFORMATIONS .........................5-1
CHAPTER 6. OVERALL WIRING DIAGRAM/BLOCK
DIAGRAM

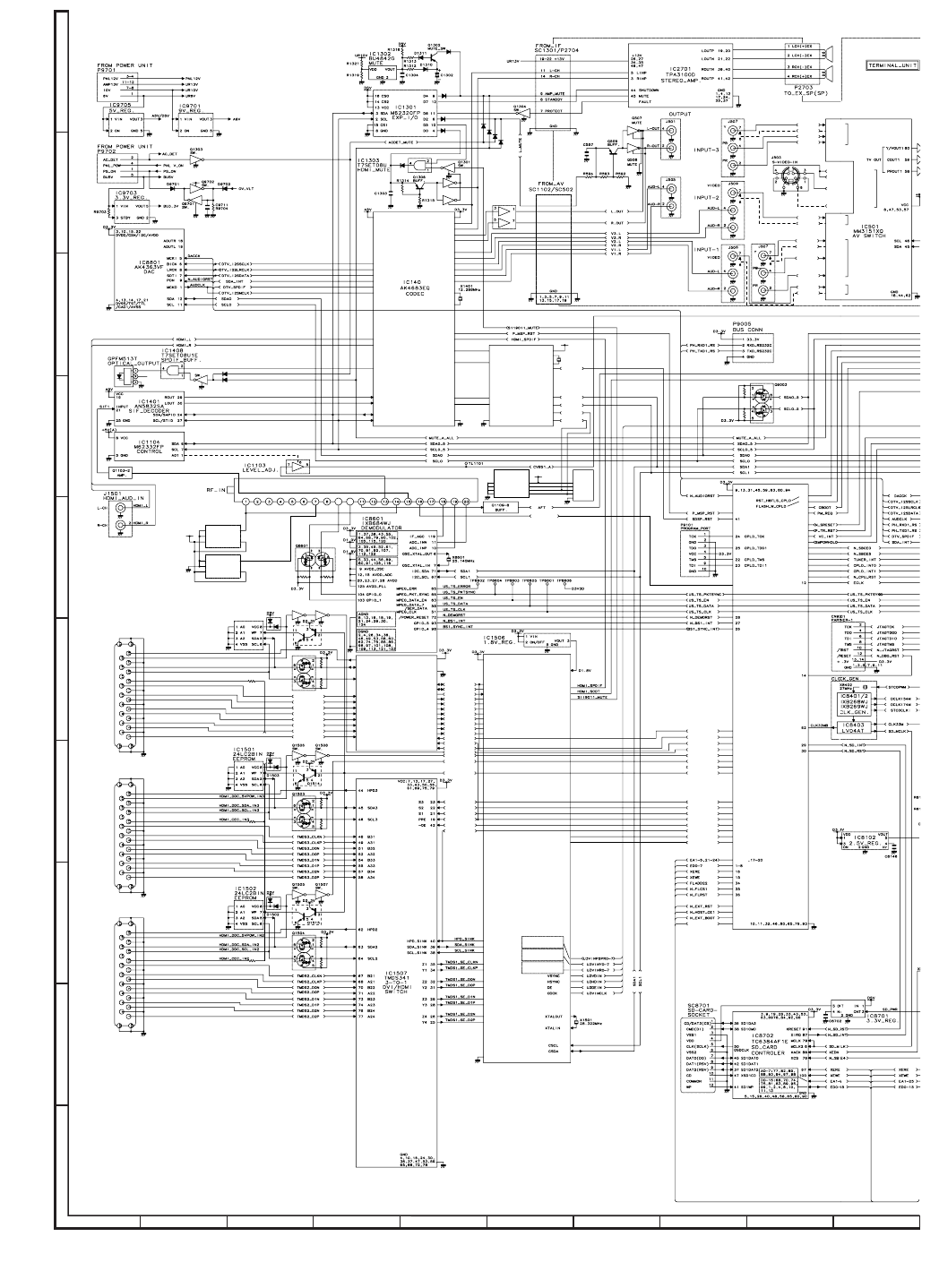

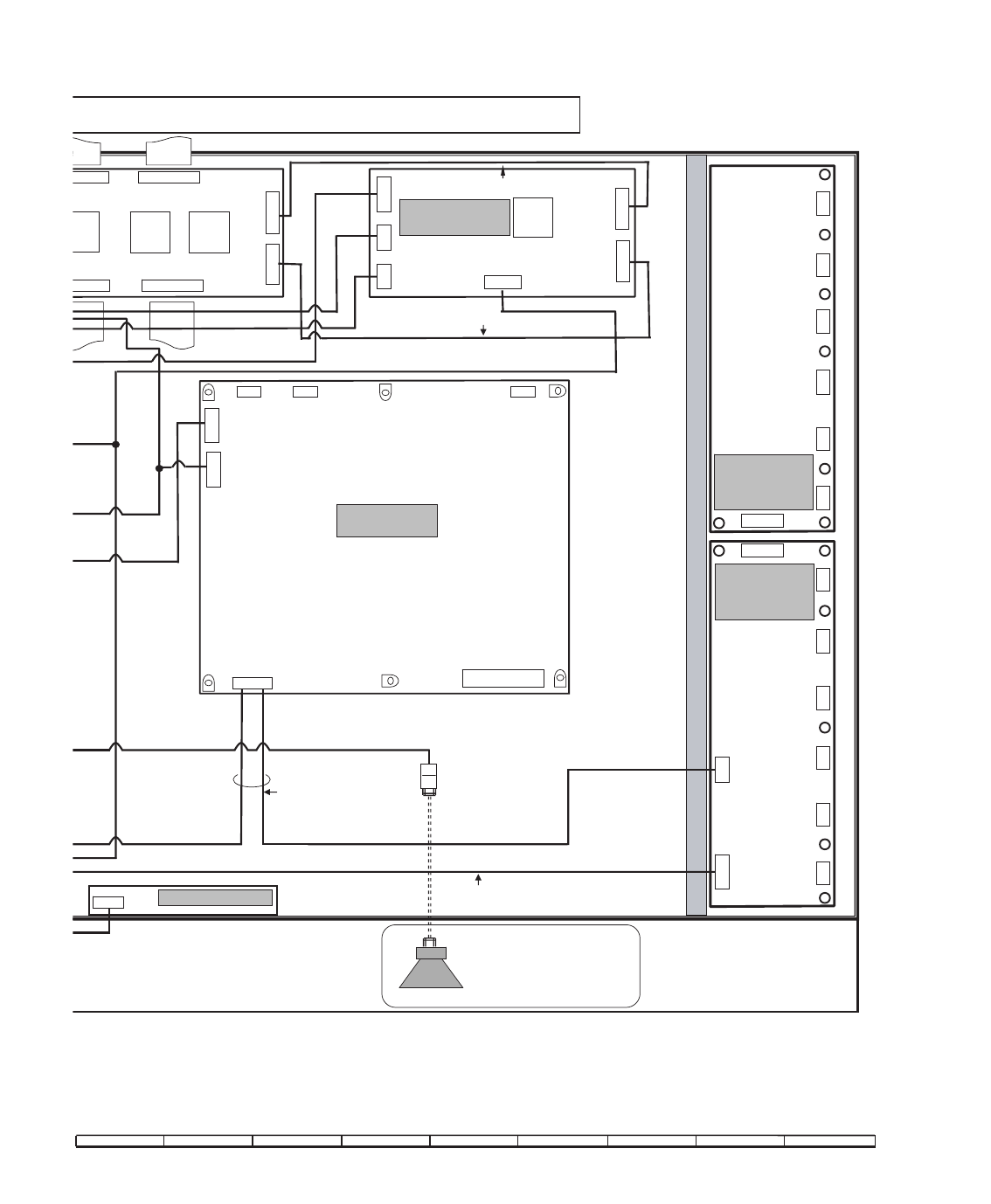

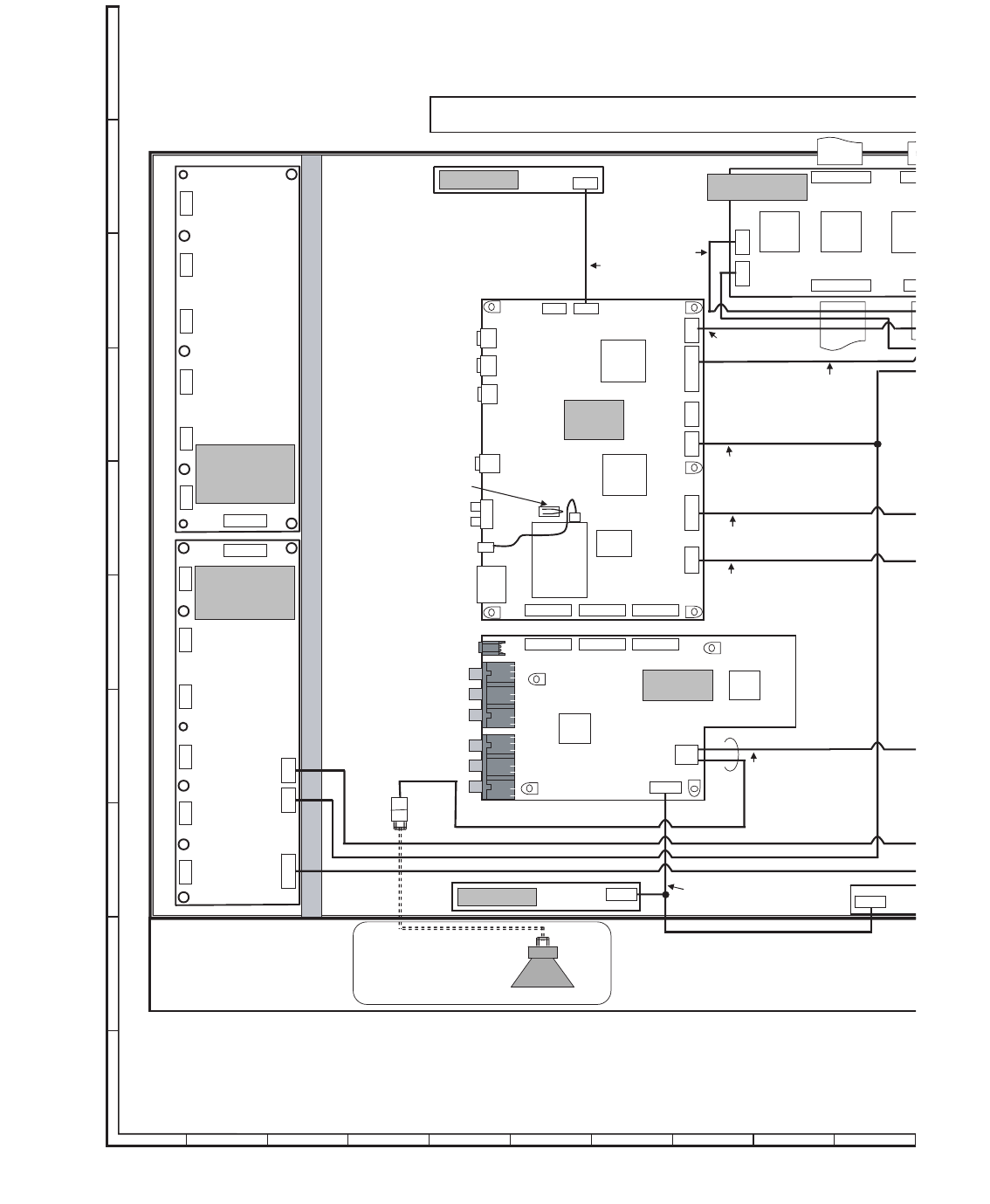

[1] OVERALL WIRING DIAGRAM......................6-1

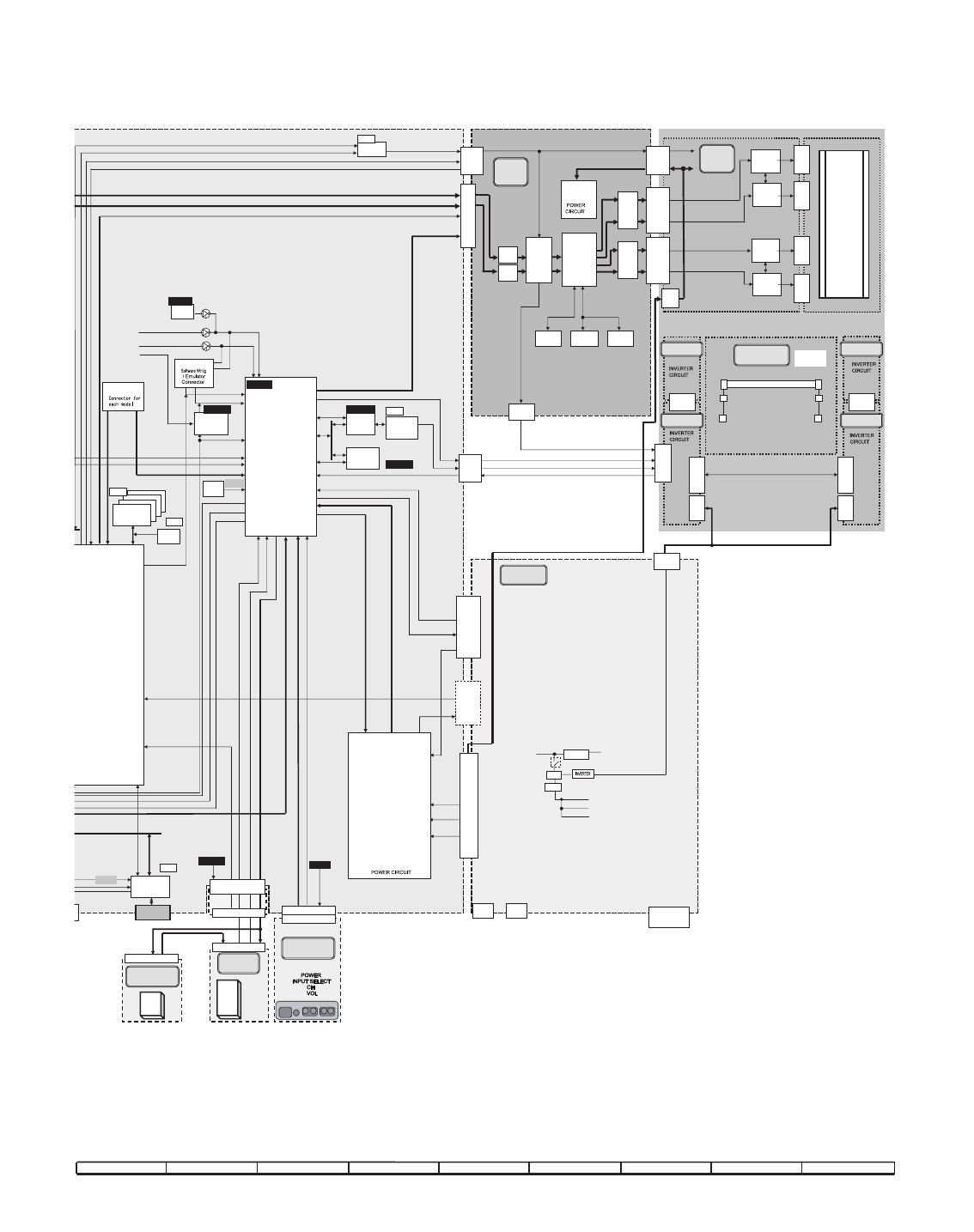

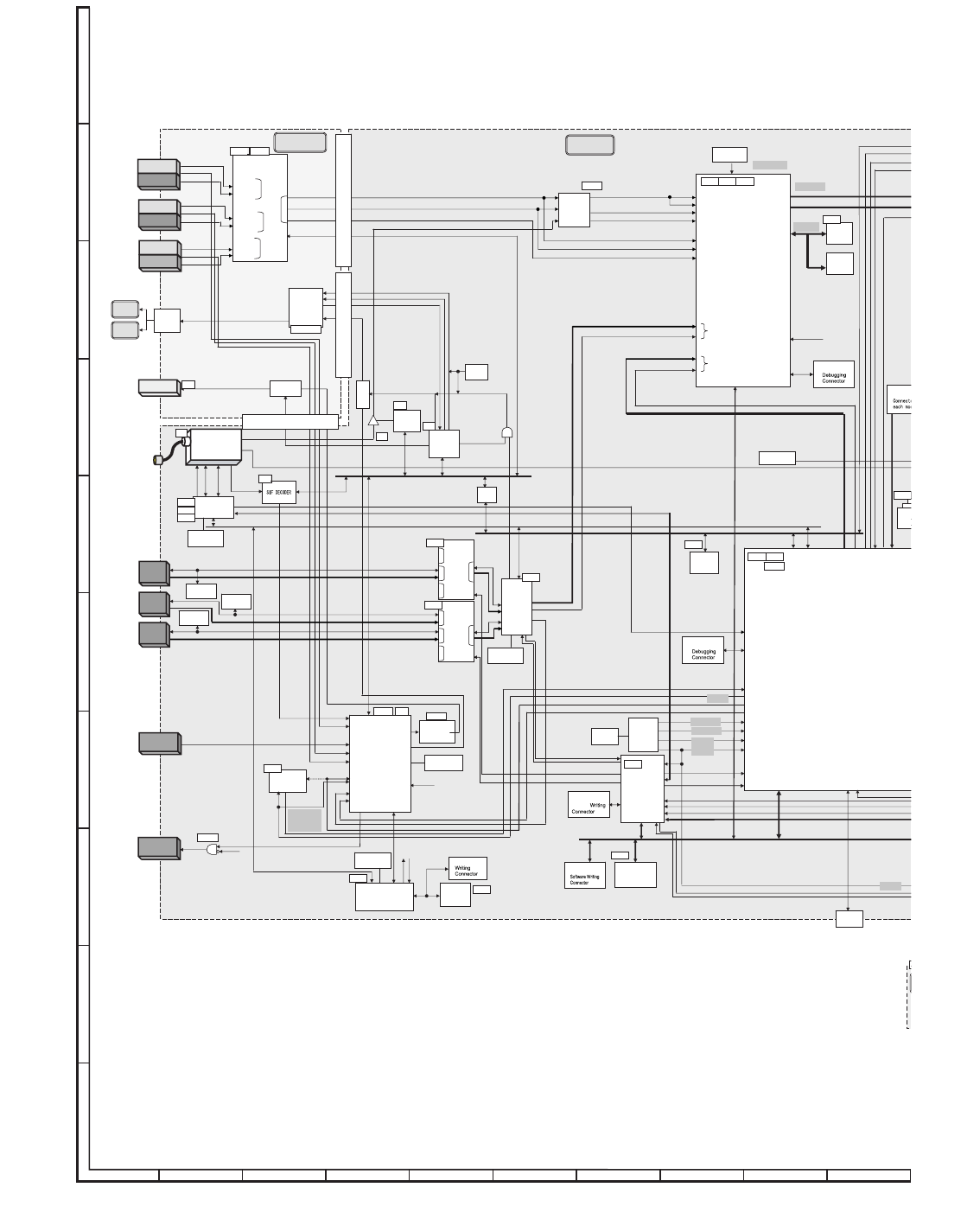

[2] SYSTEM BLOCK DIAGRAM.........................6-3
[3] MAIN BLOCK DIAGRAM...............................6-5

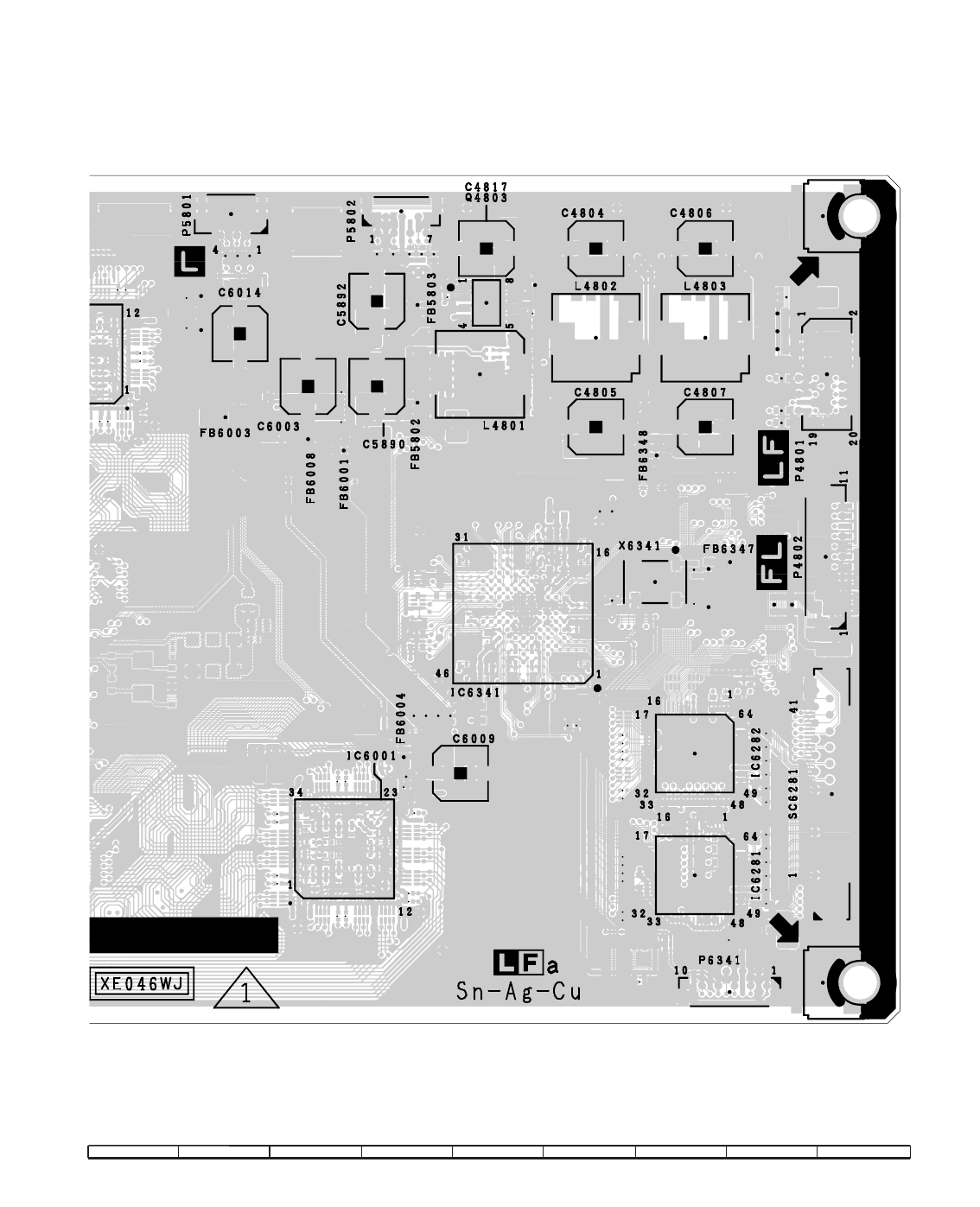

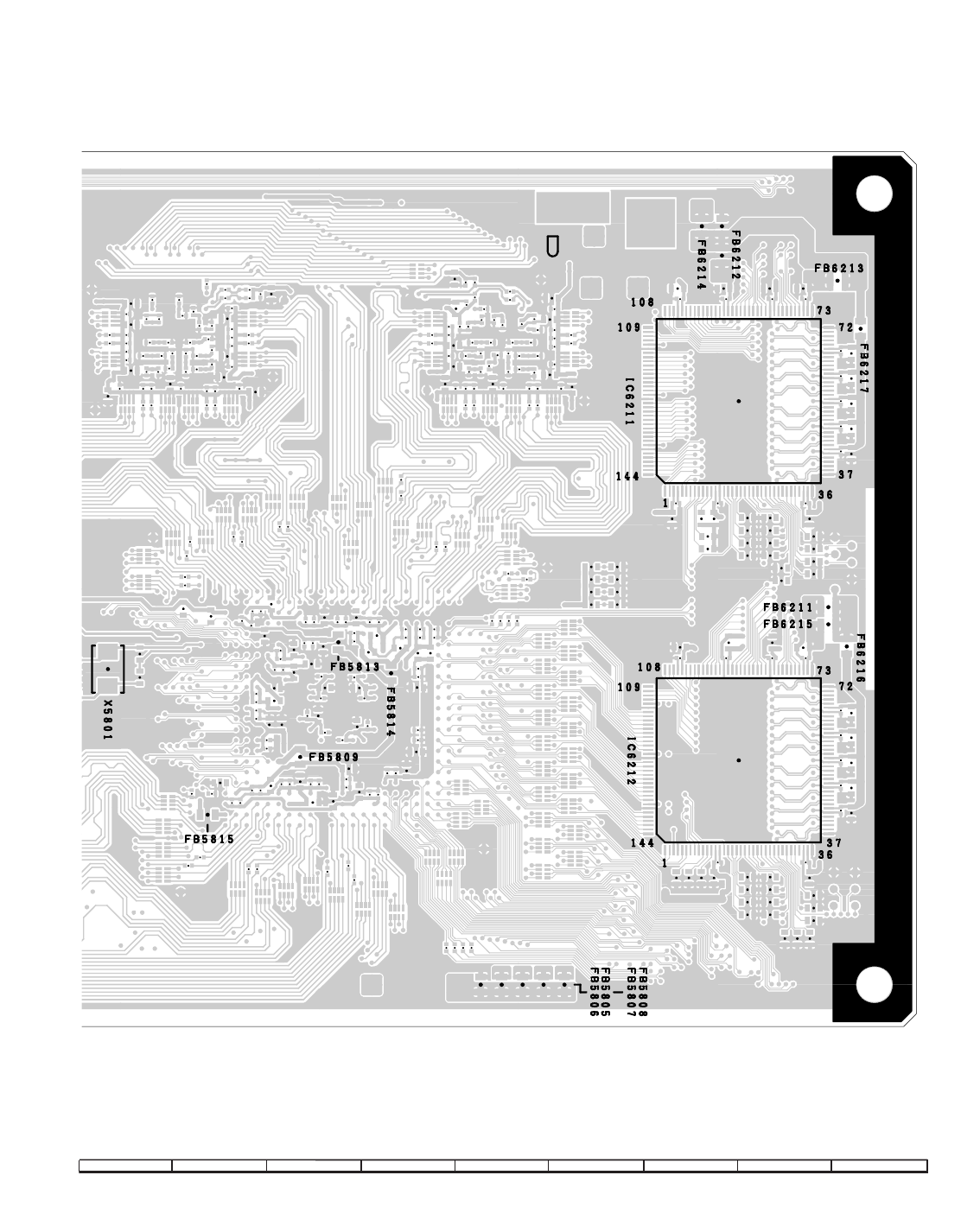

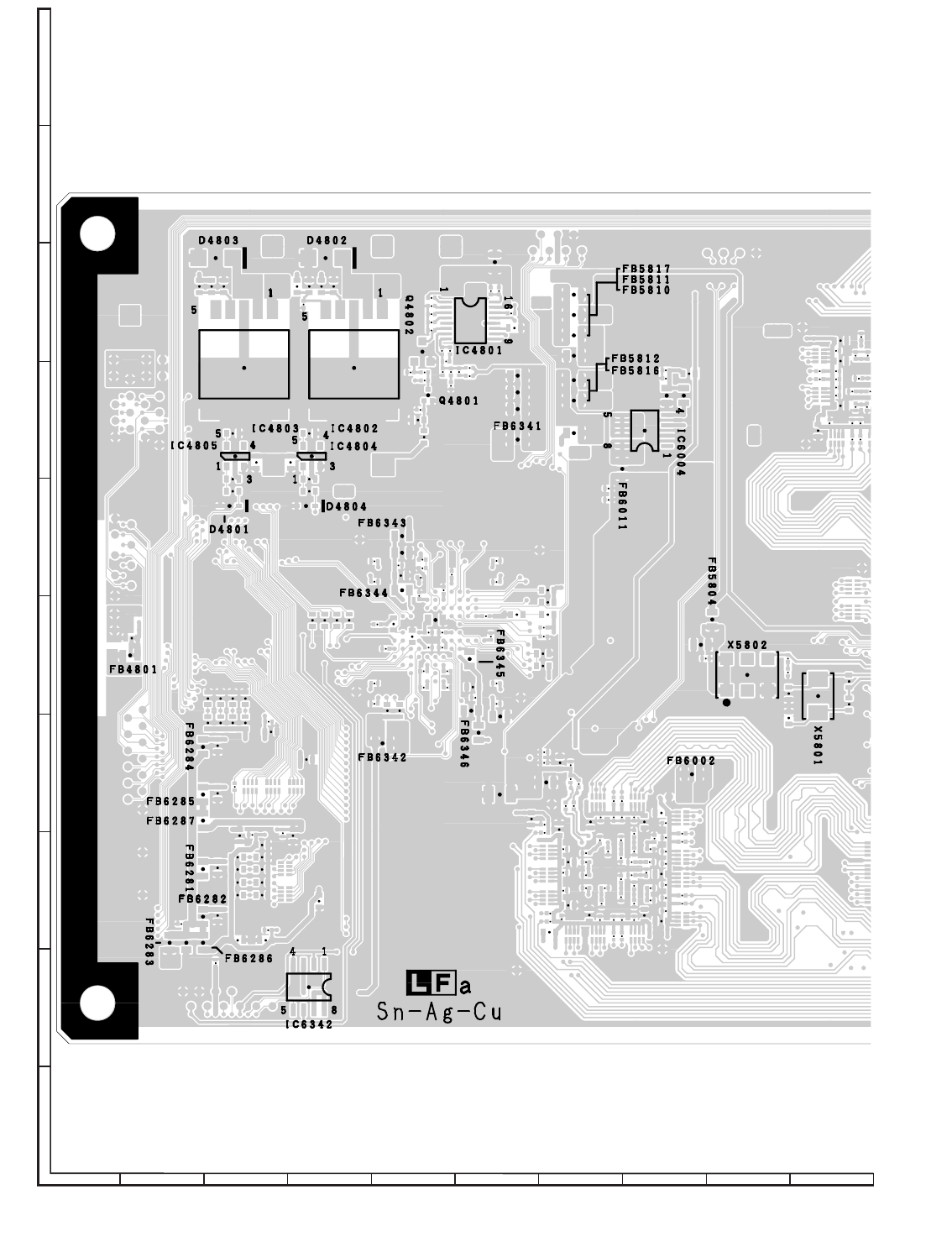

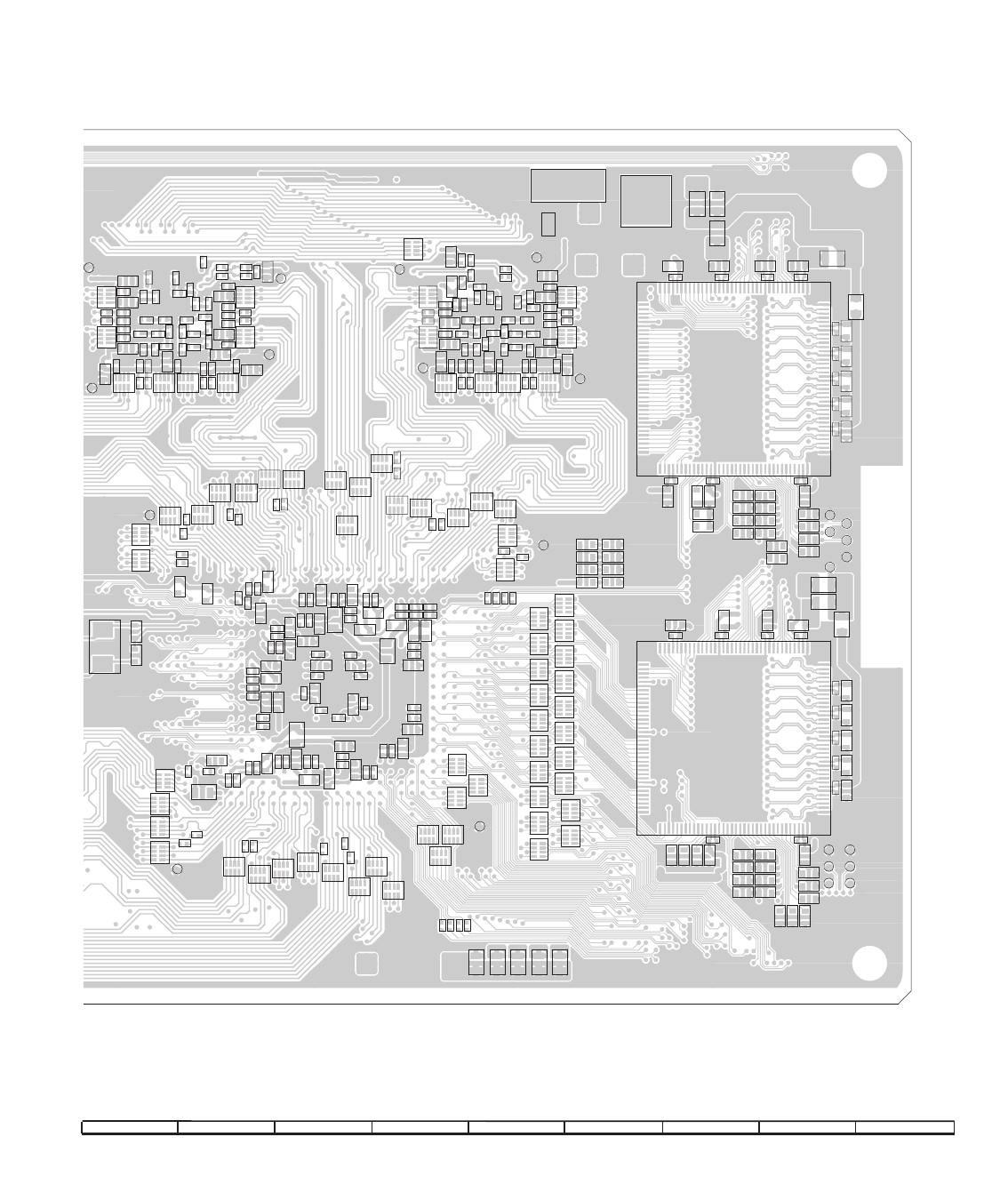

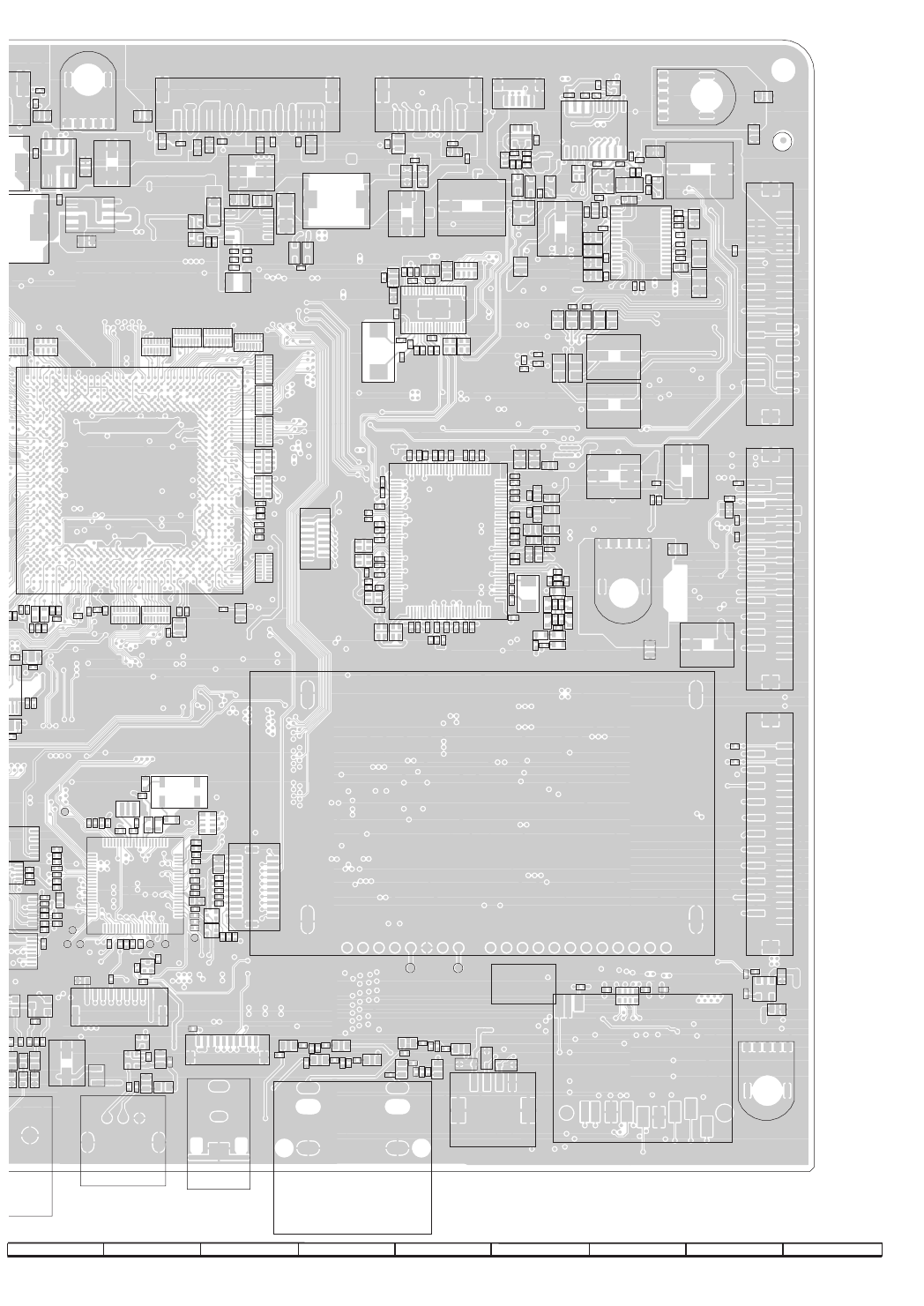

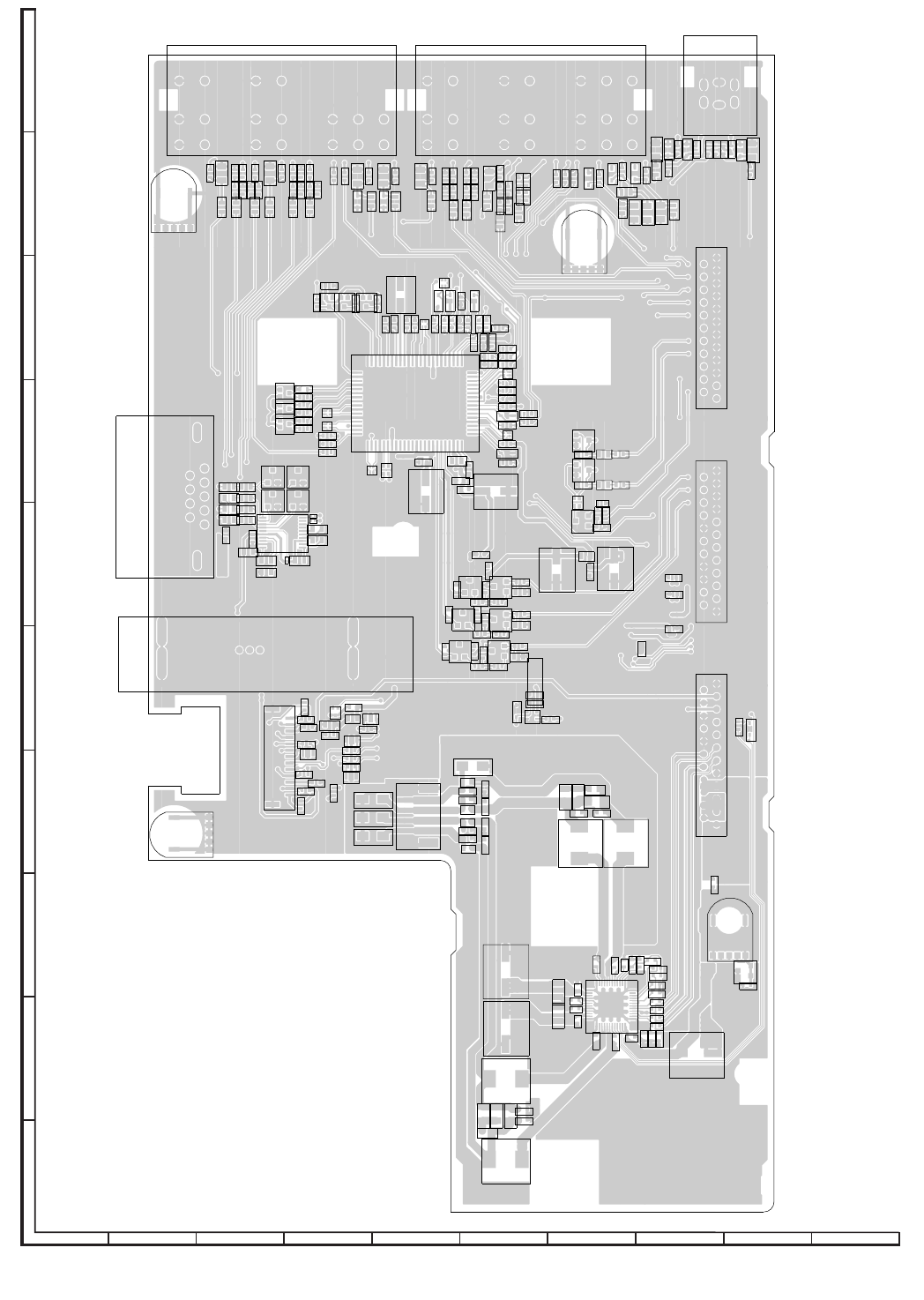

CHAPTER 7. PRINTED WIRING BOARD

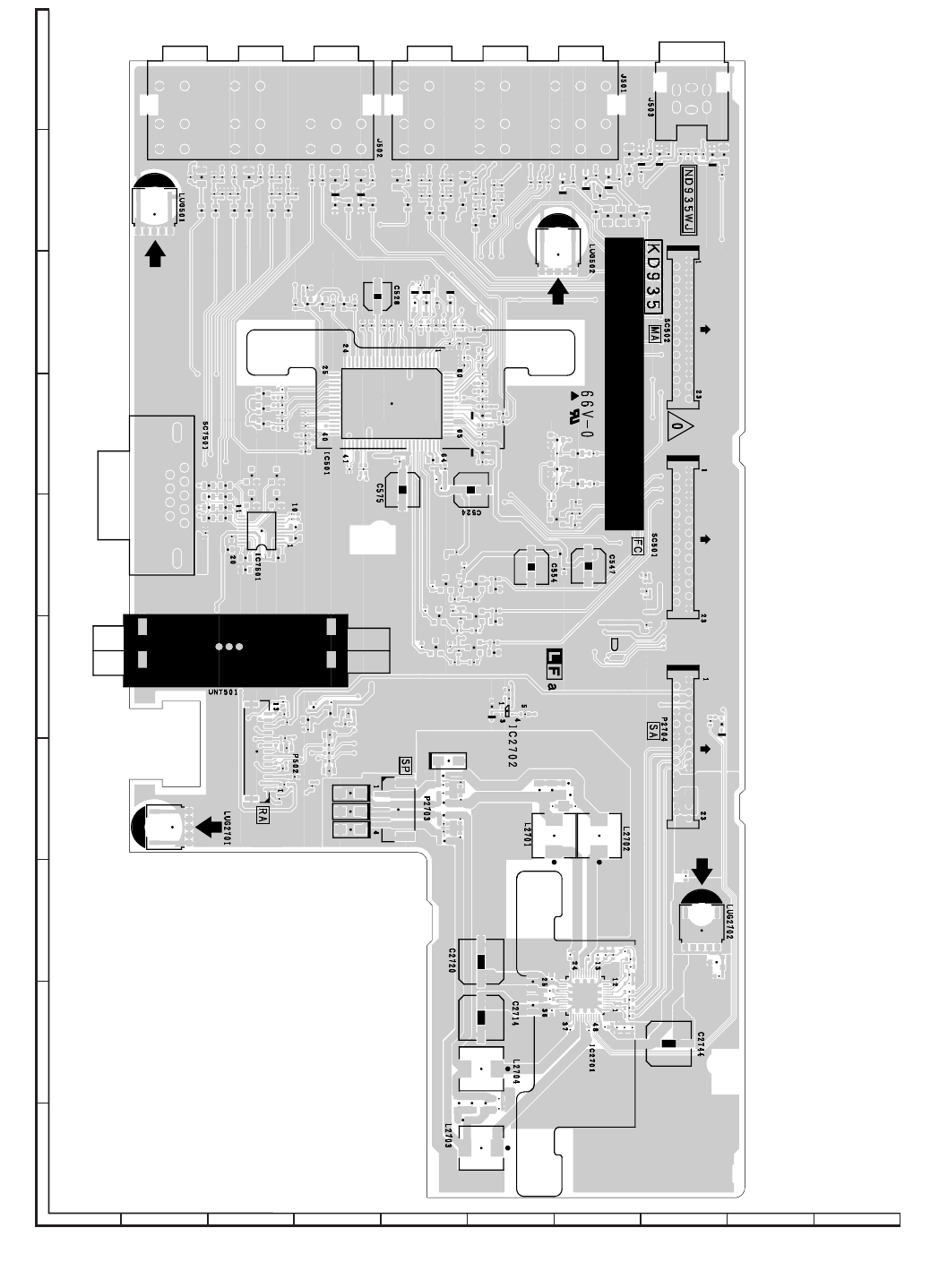

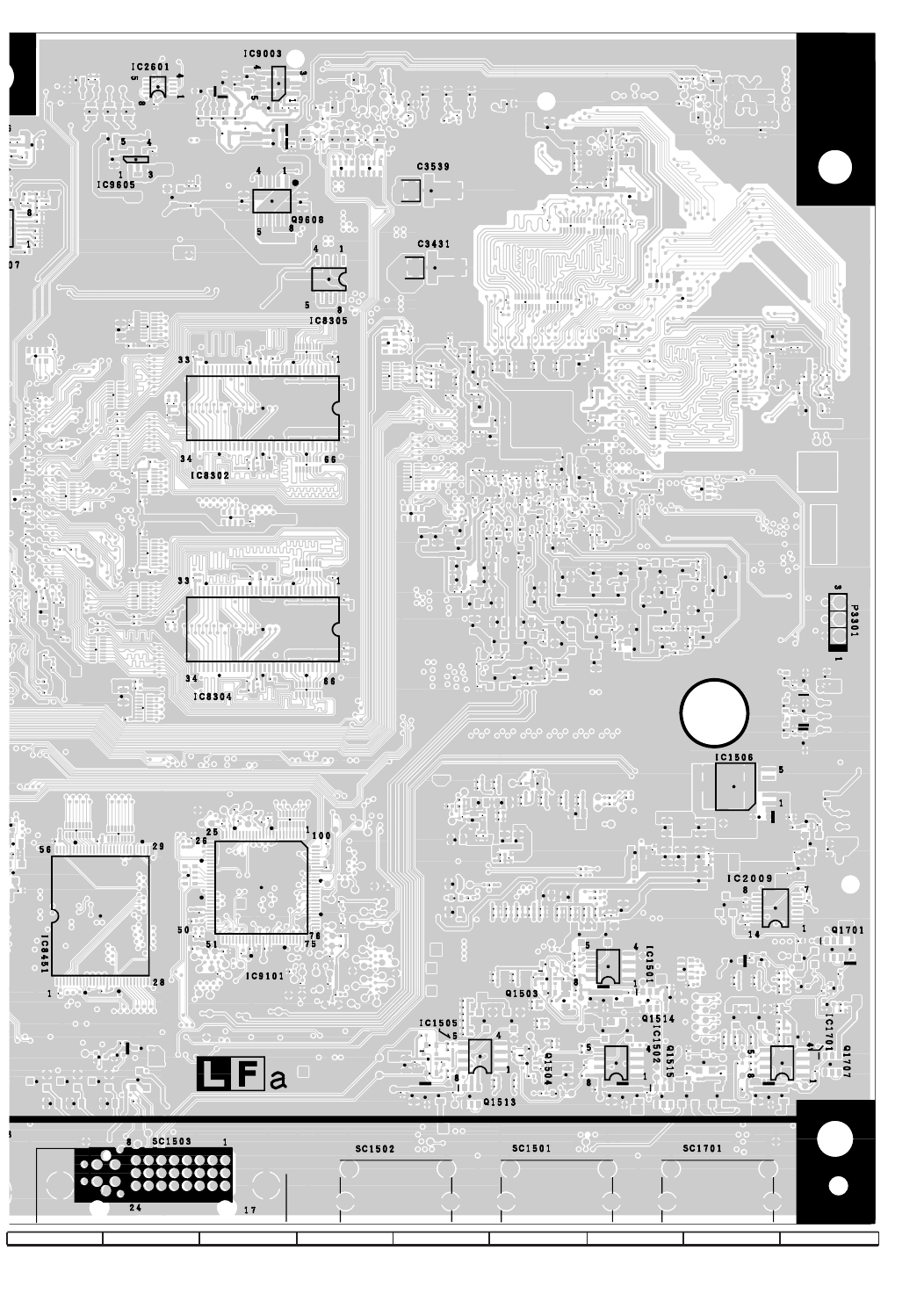

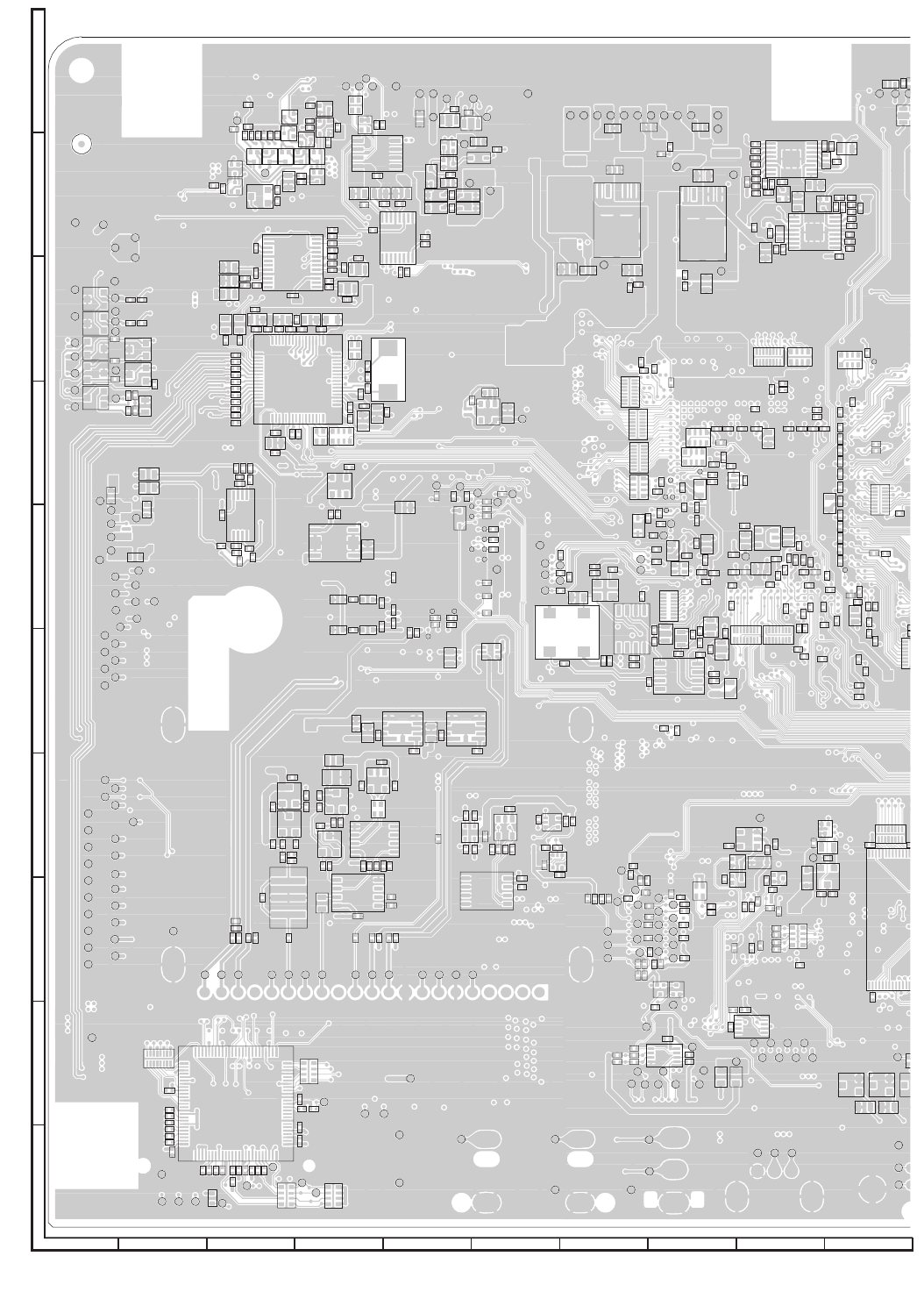

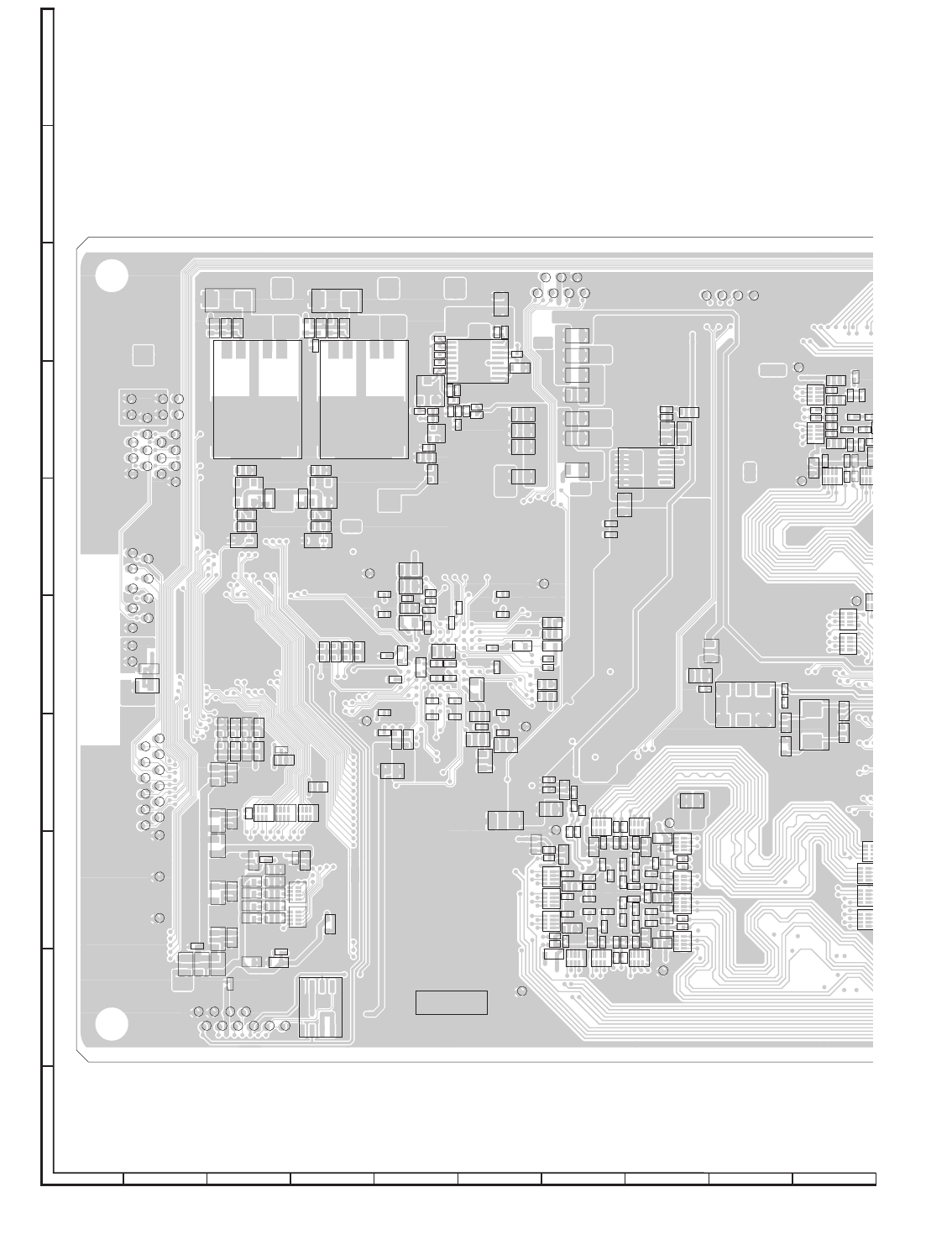

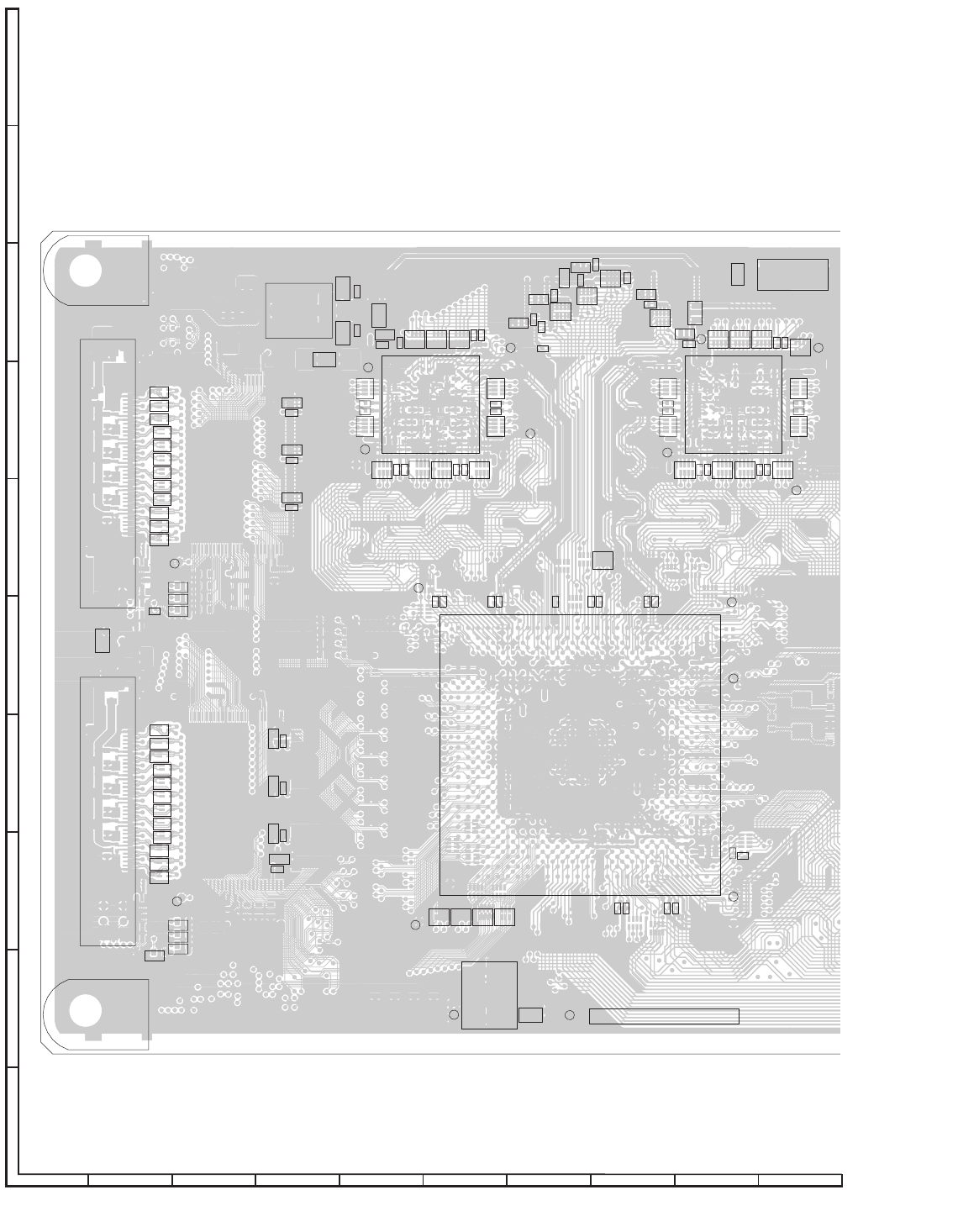

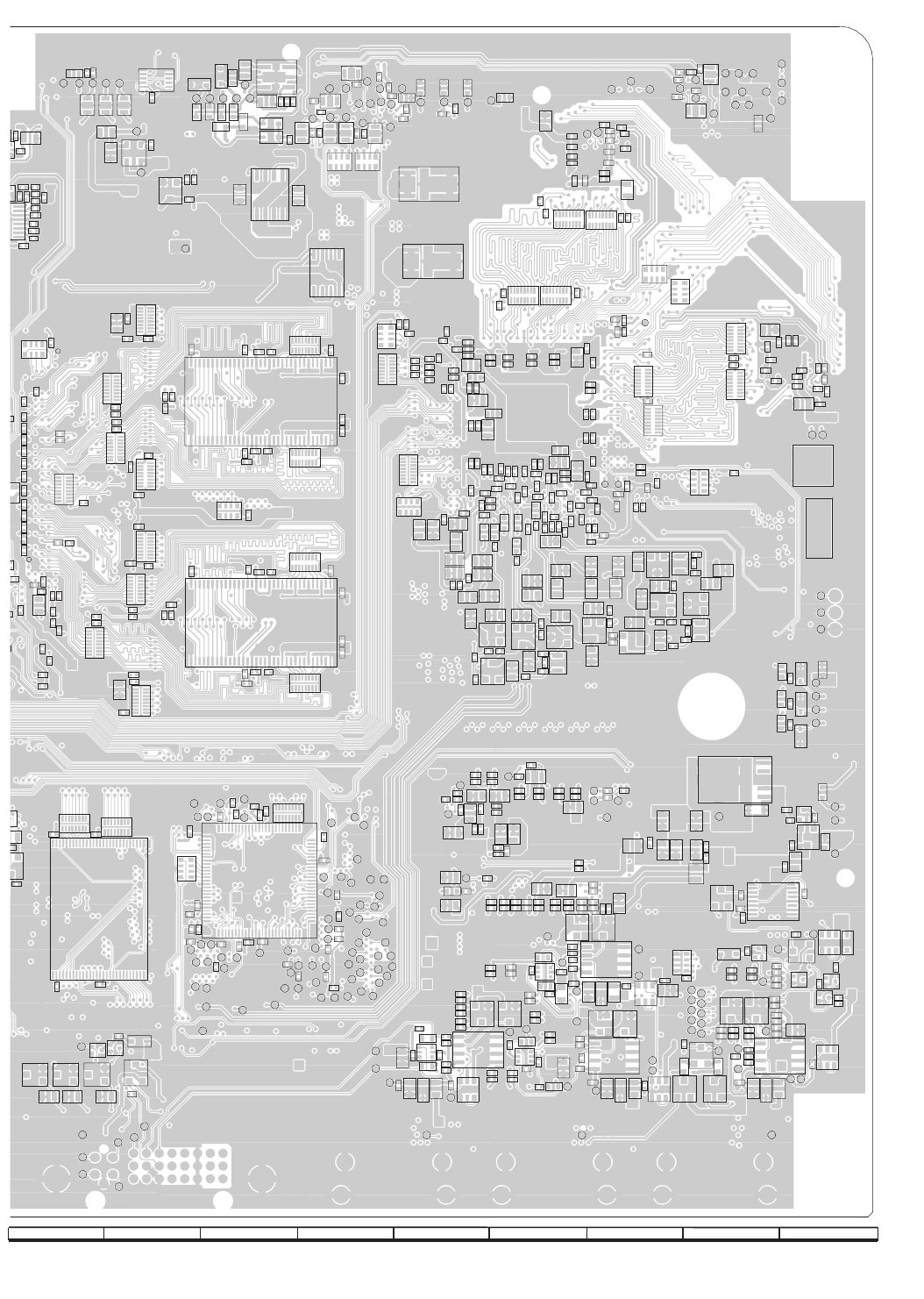

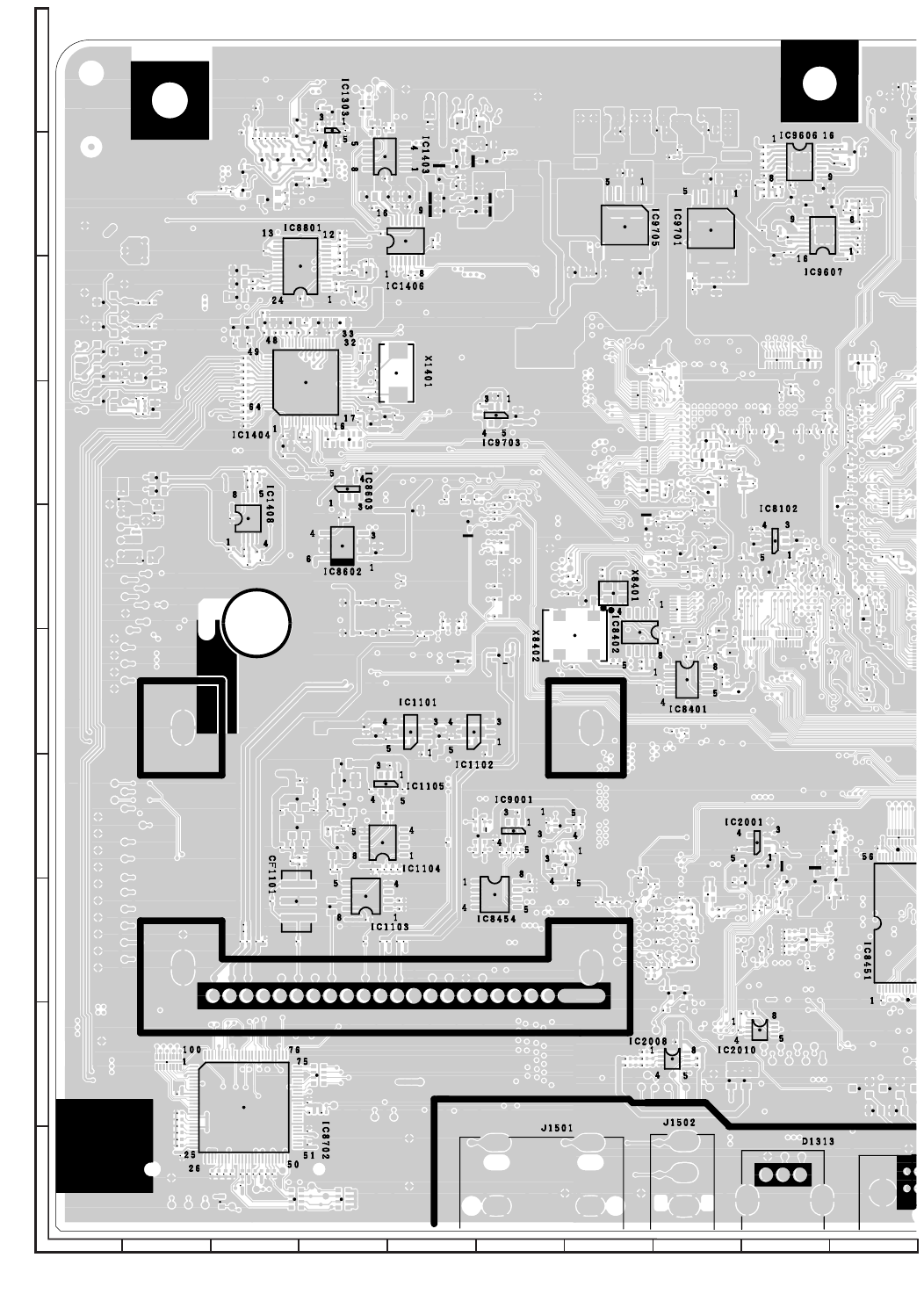

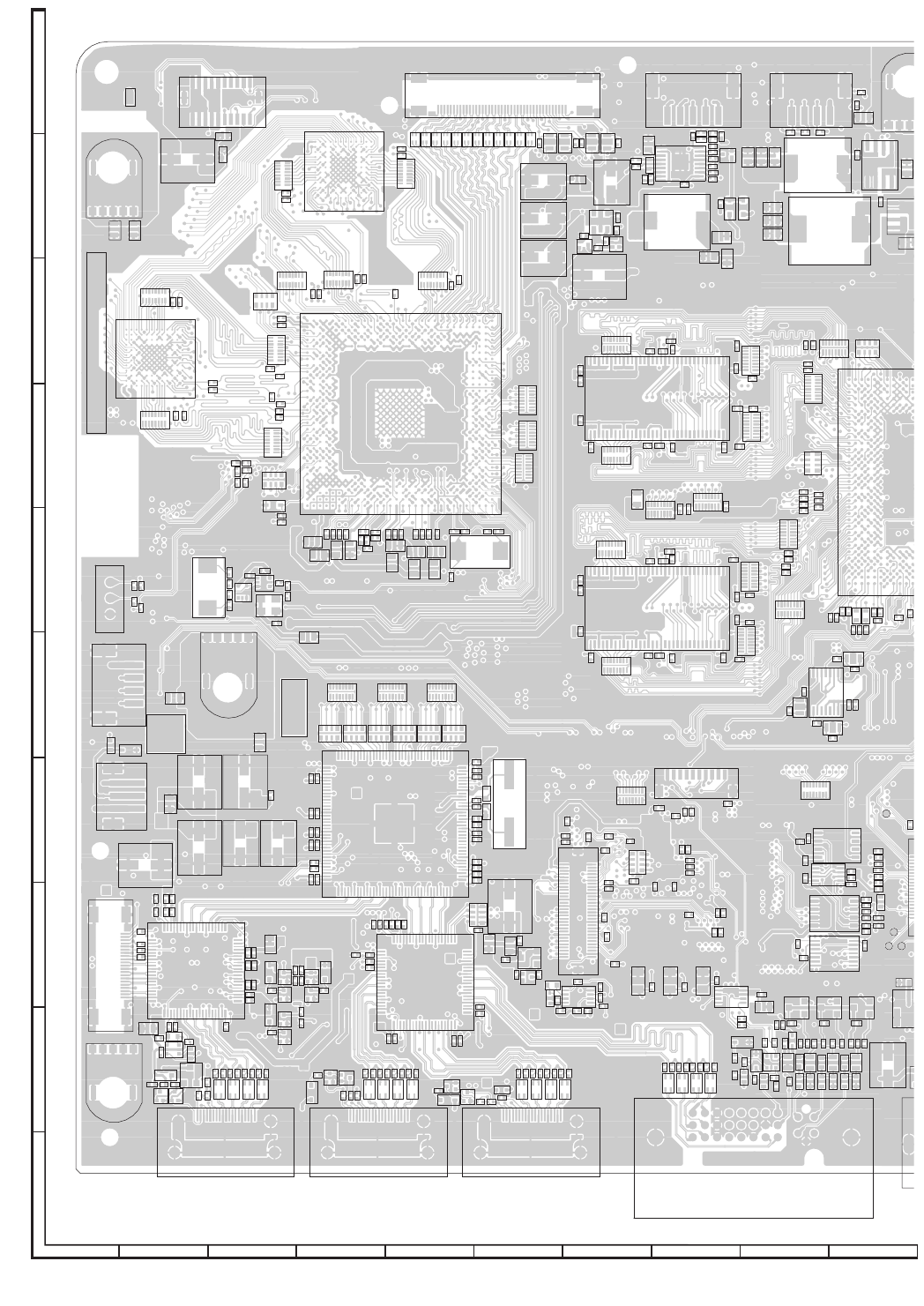

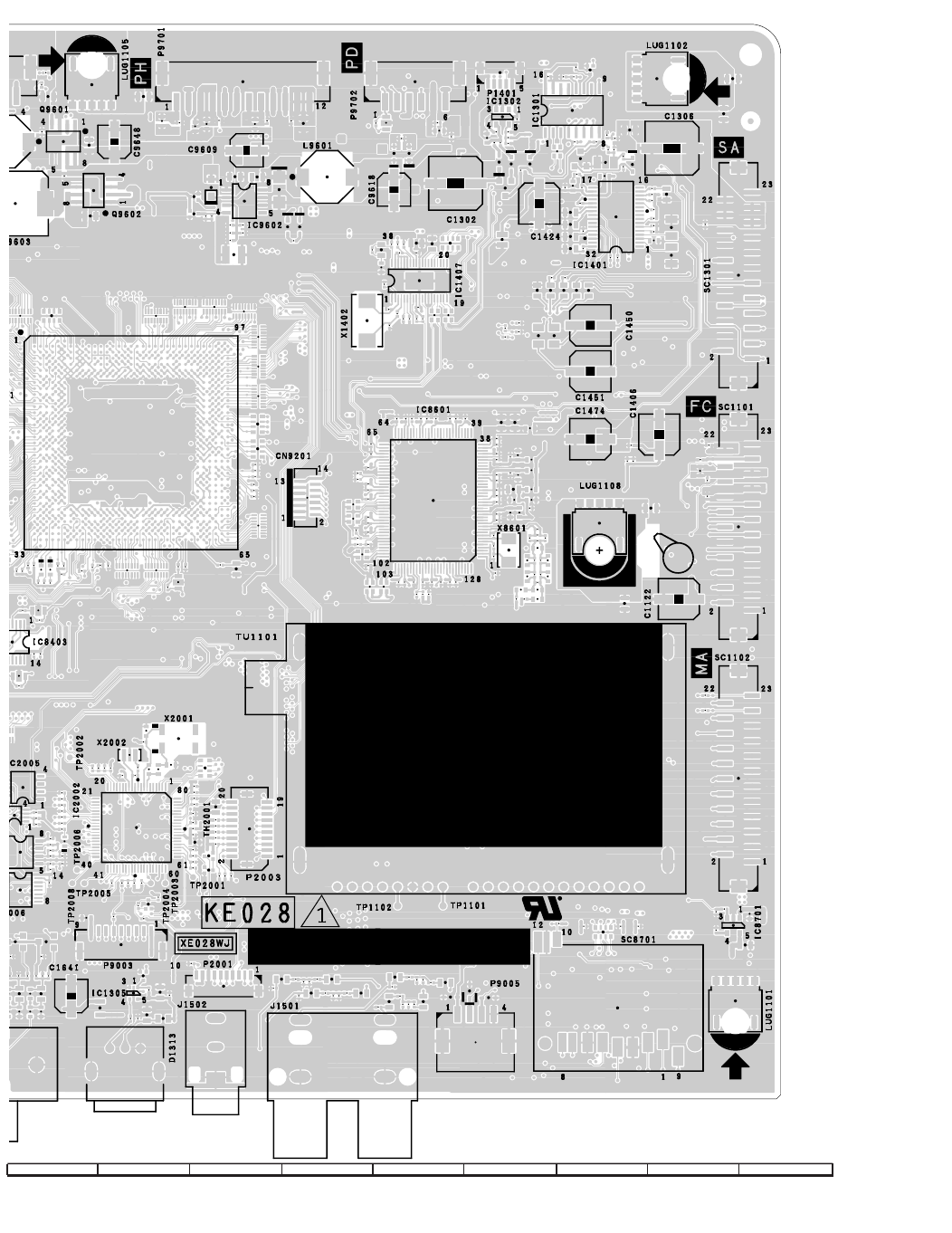

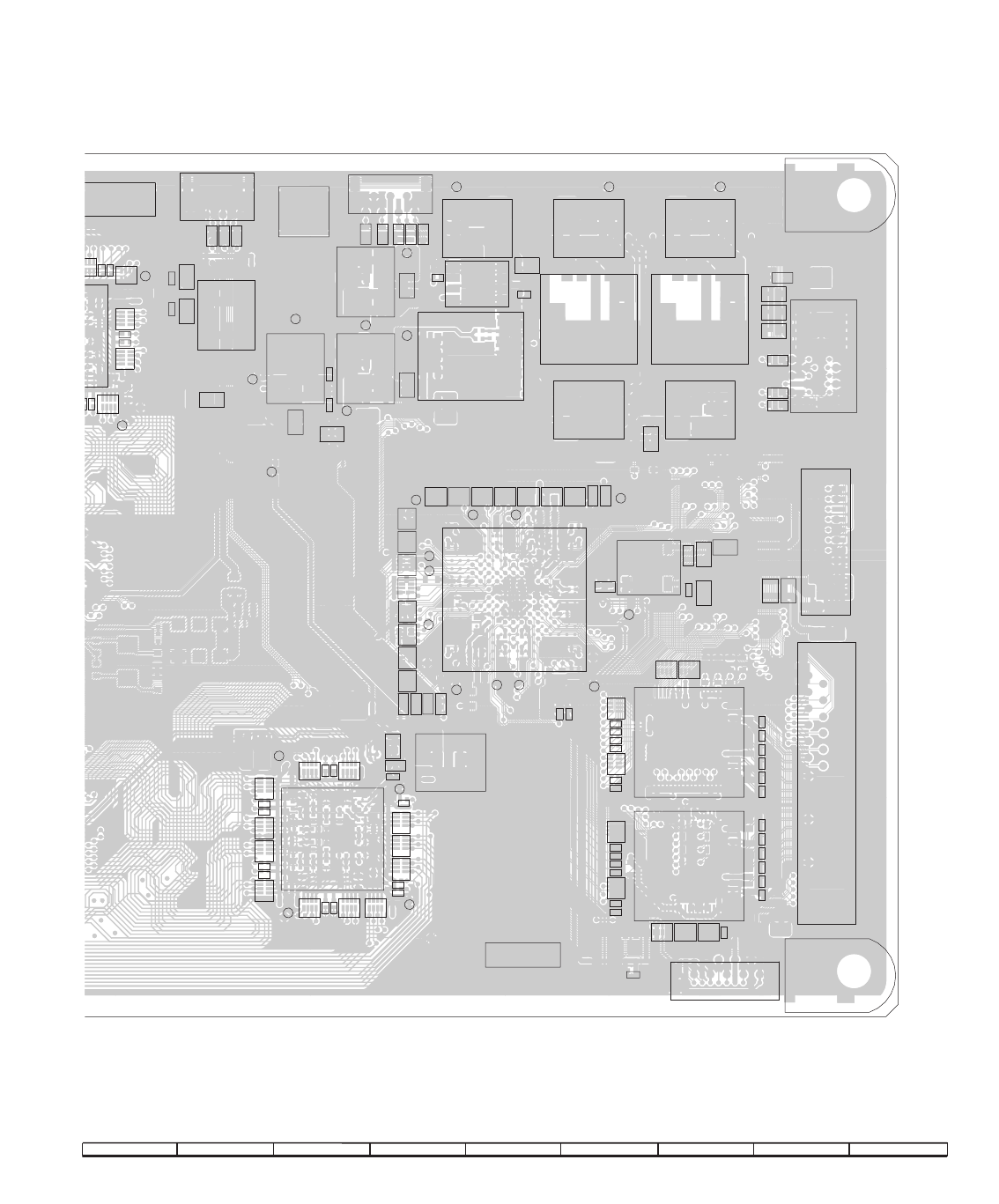

[1] MAIN UNIT PRINTED WIRING BOARD........7-1
[2] TERMINAL UNIT PRINTED WIRING
BOARD..........................................................7-9

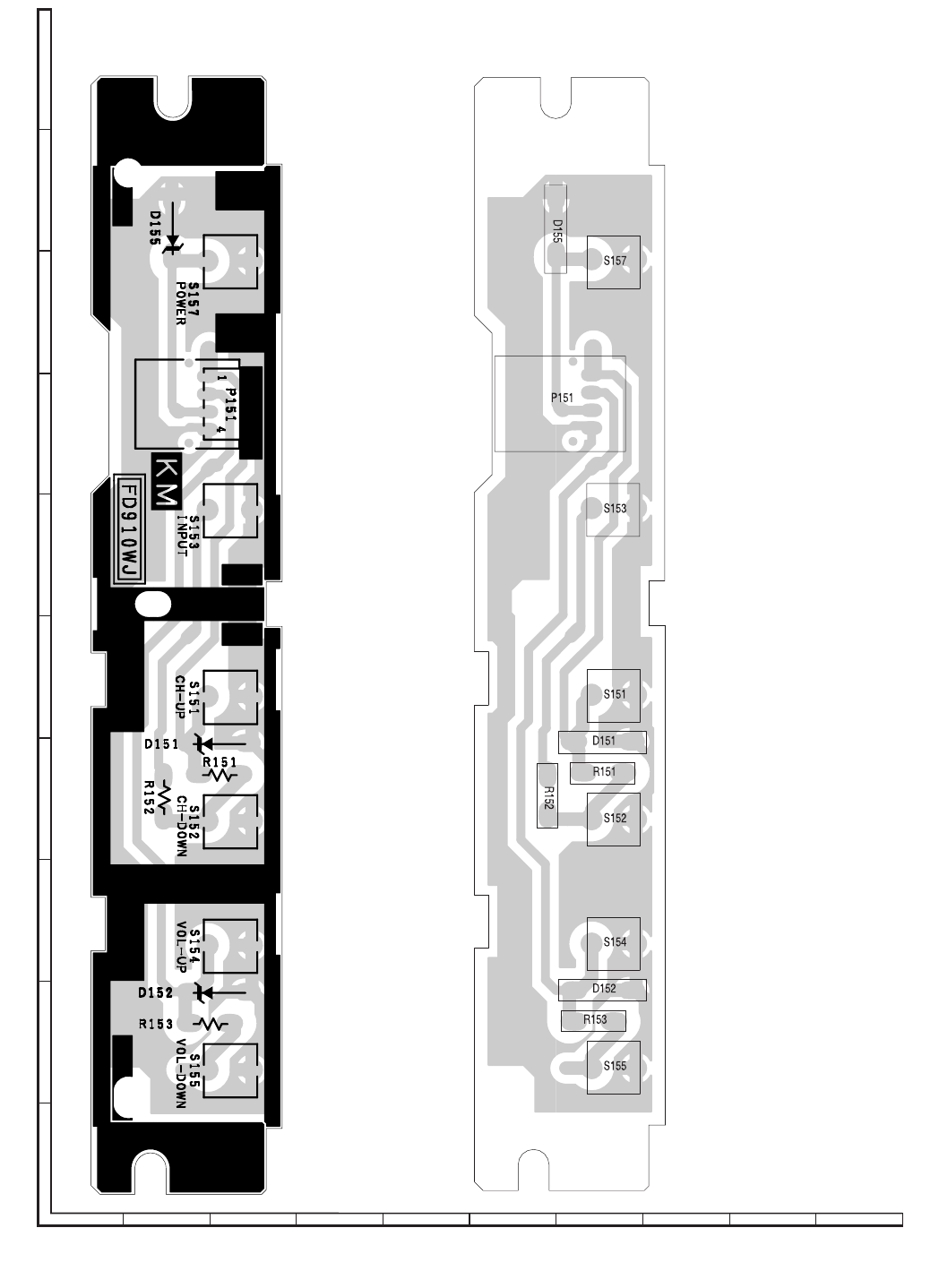

[3] KEY UNIT PRINTED WIRING BOARD ....... 7-11

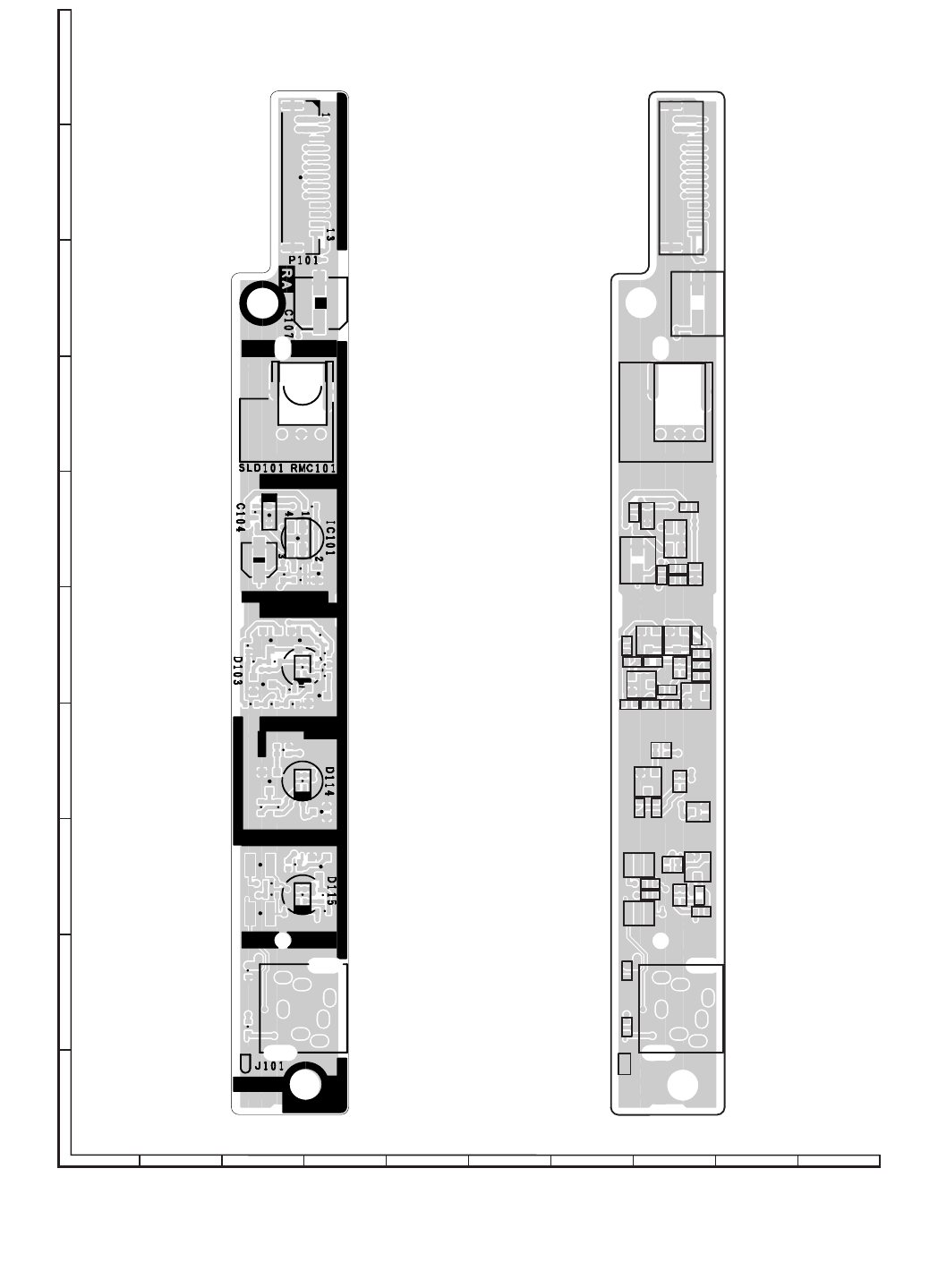

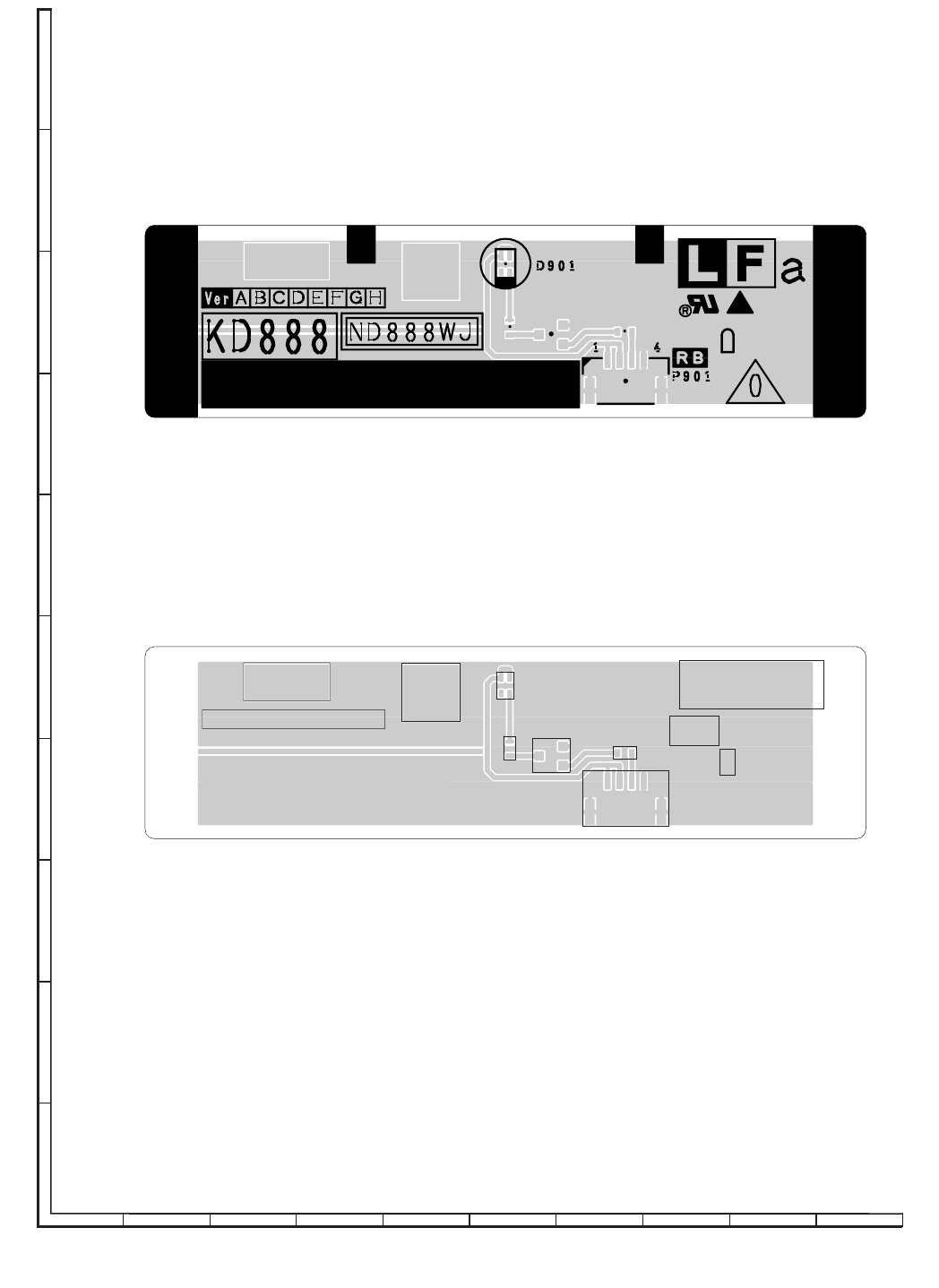

[4] R/C, LED UNIT PRINTED WIRING
BOARD........................................................7-12

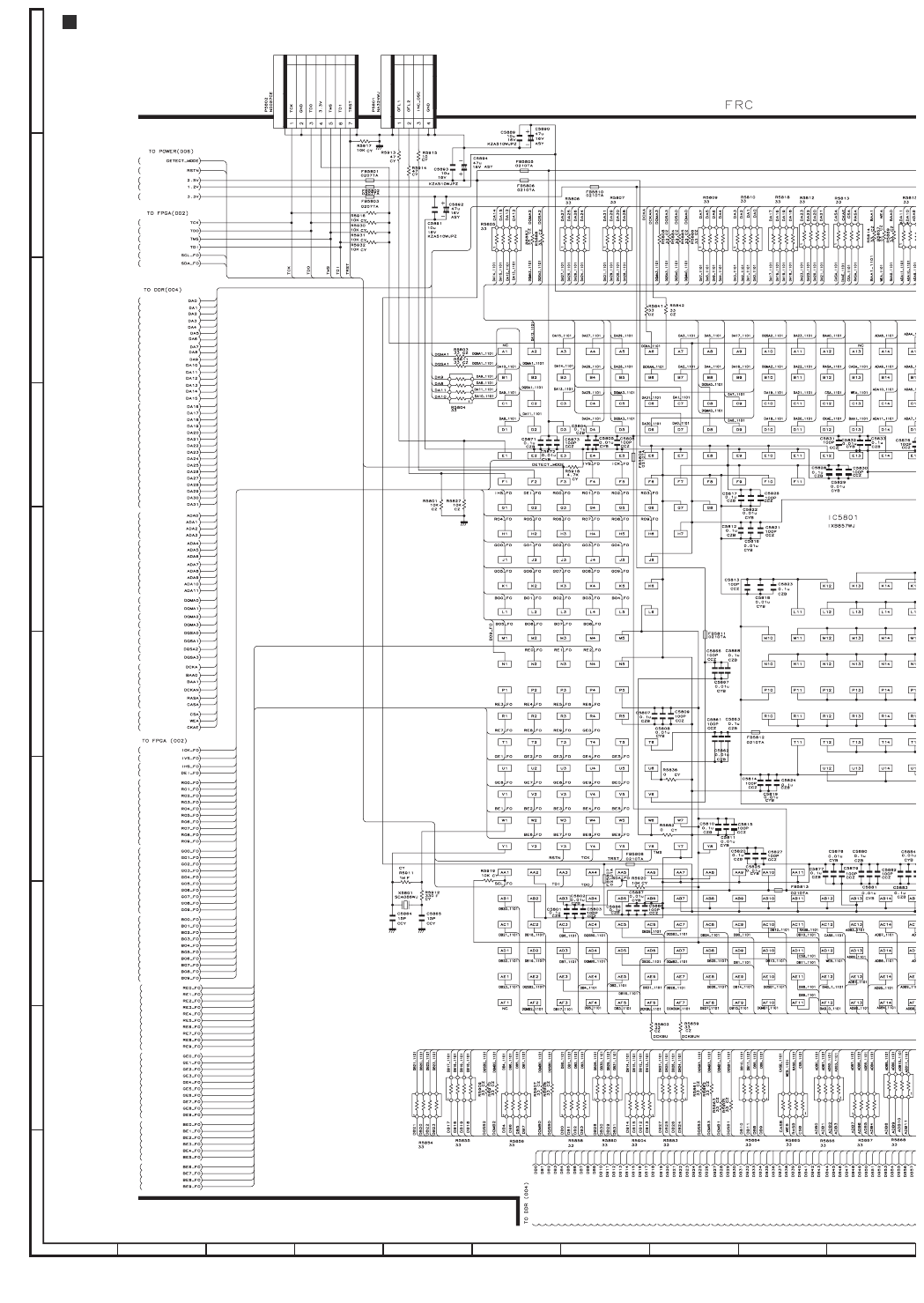

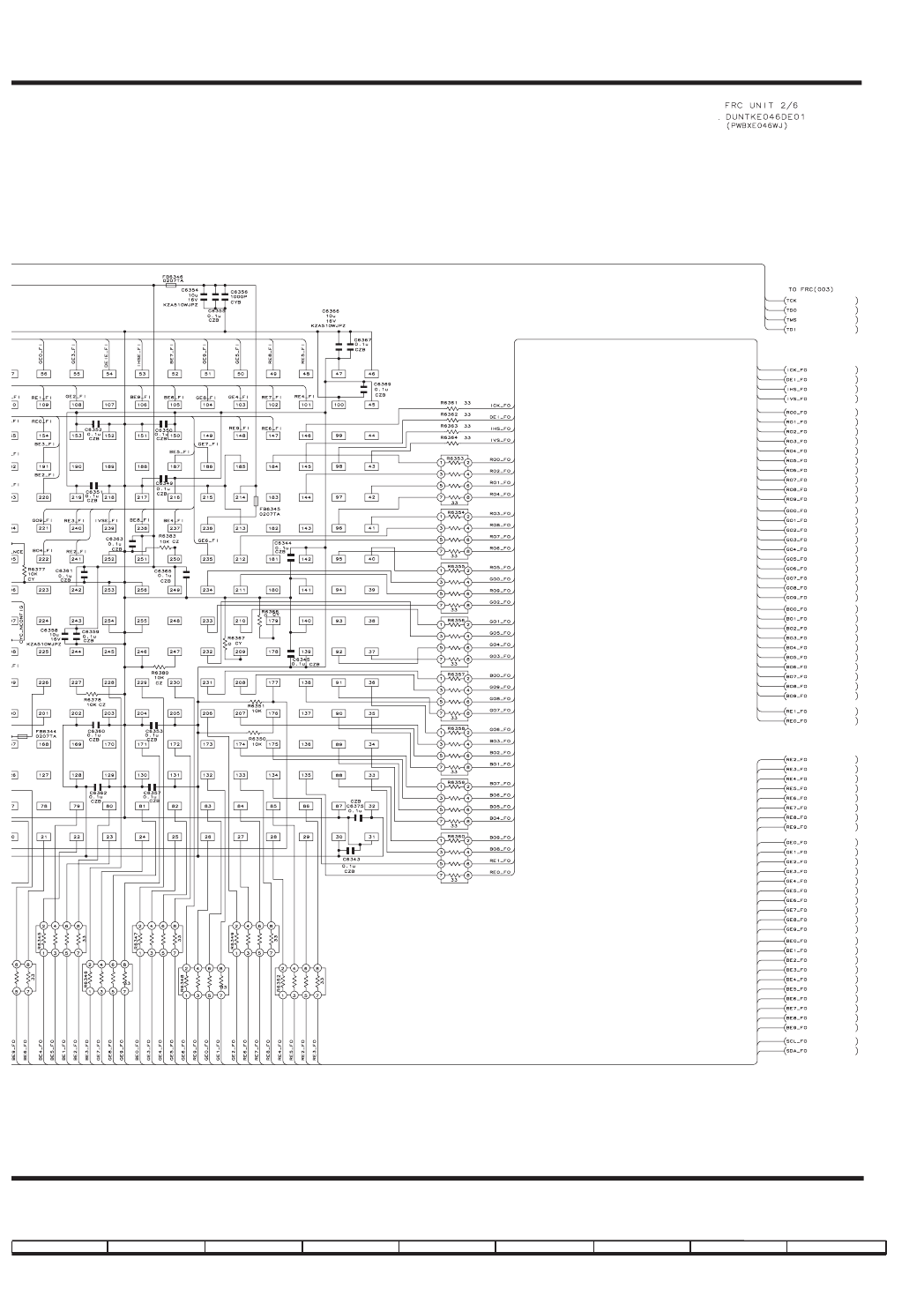

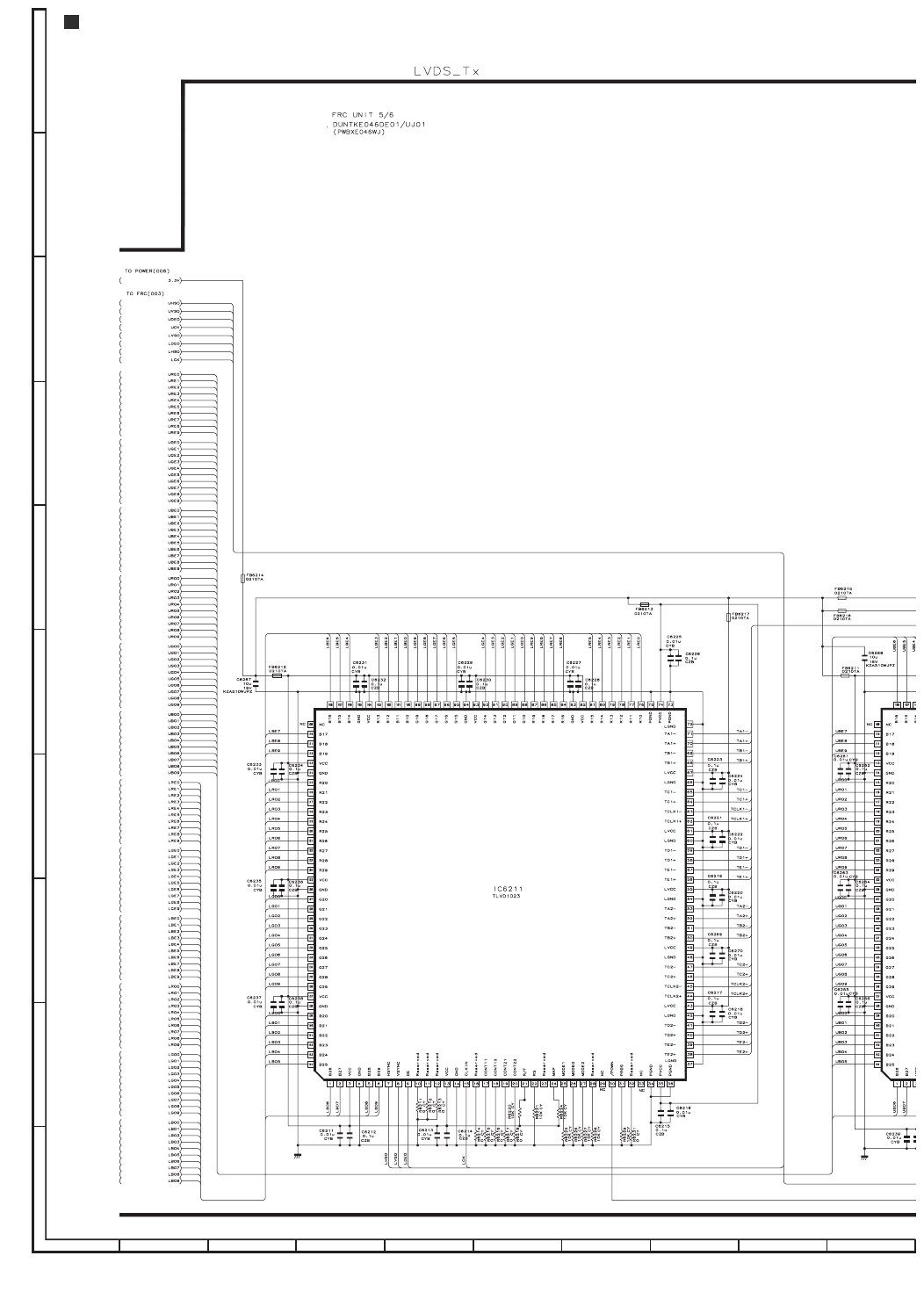

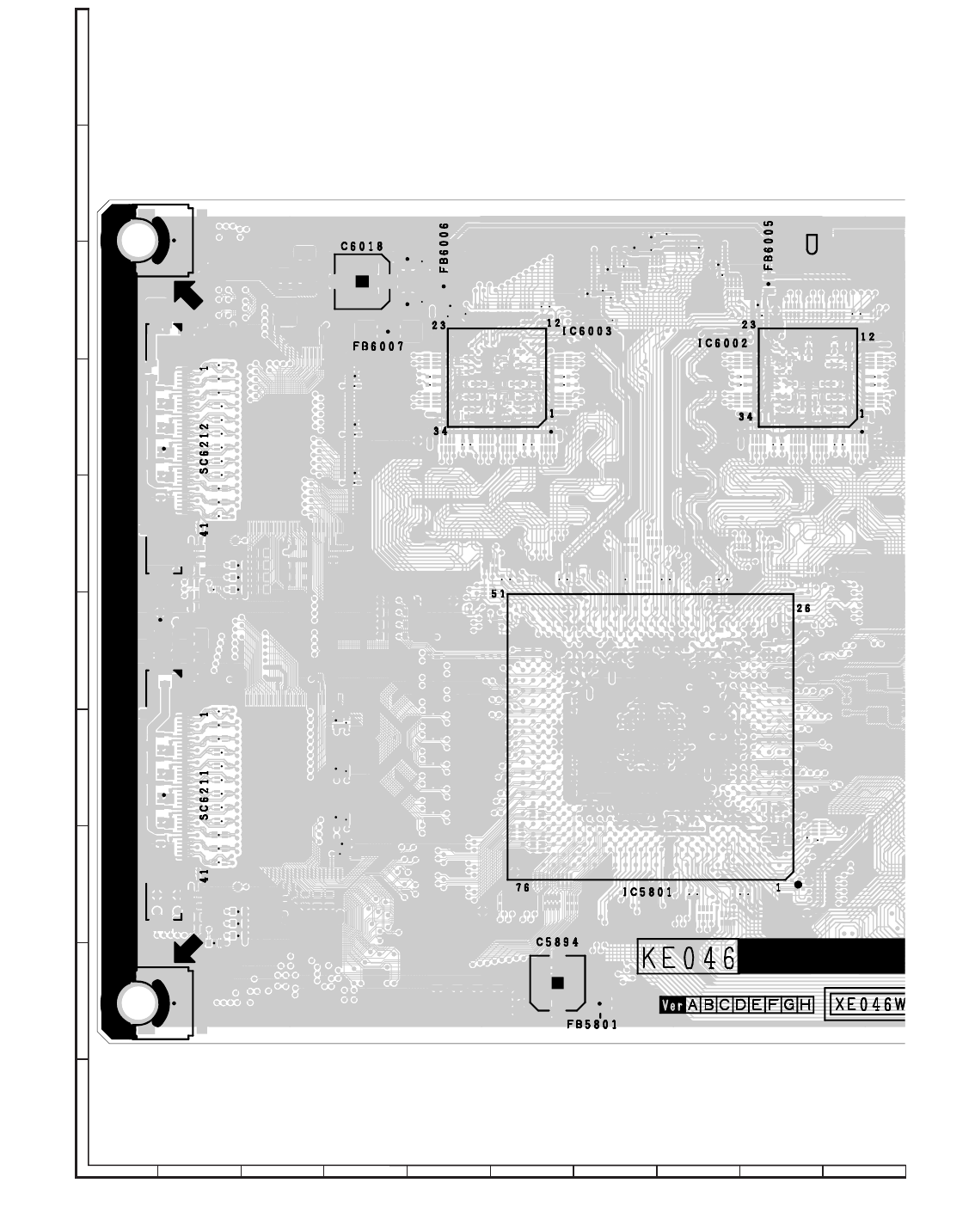

[5] FRC Unit......................................................7-13

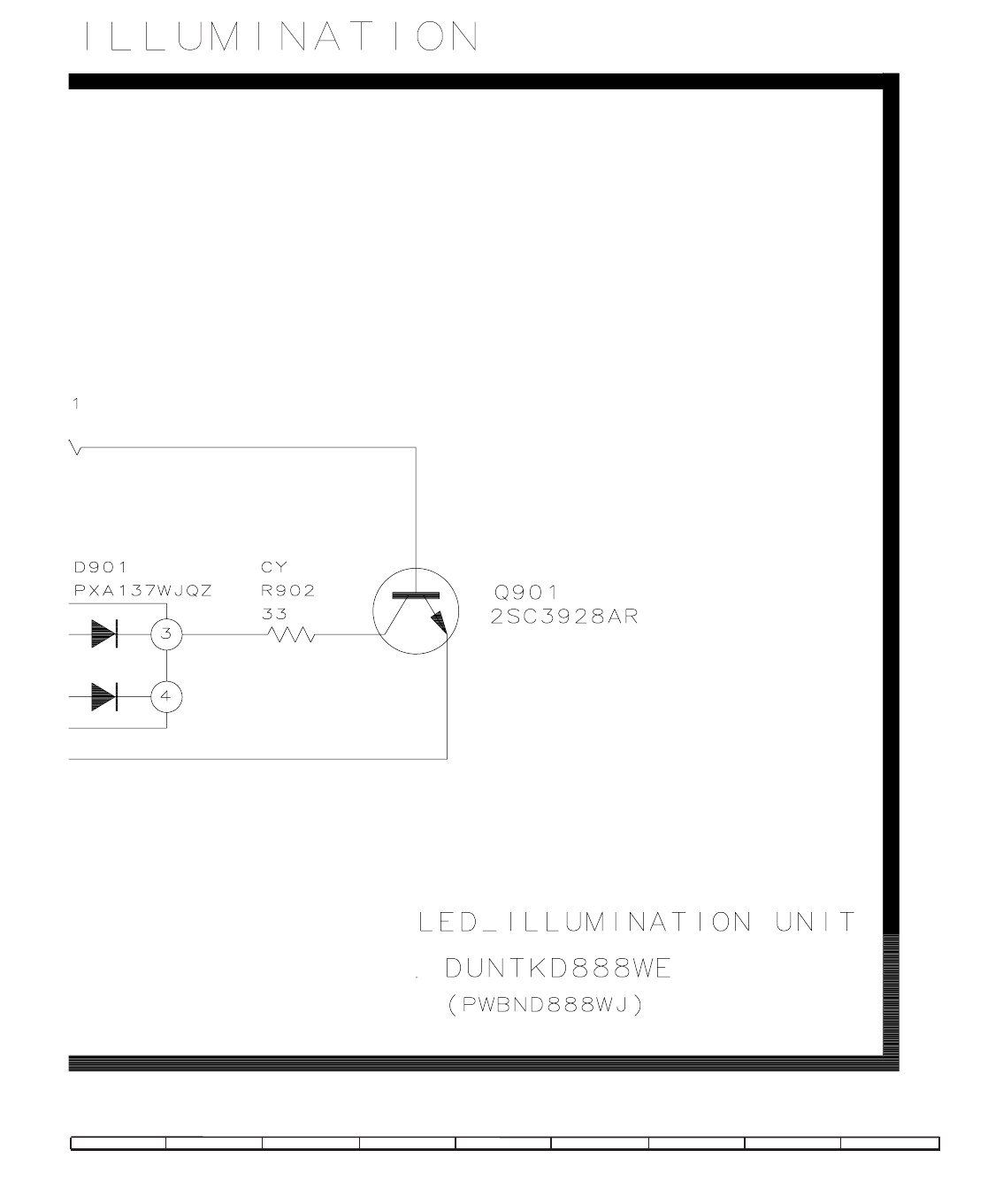

[6] ILLUMINATION Unit ....................................7-21

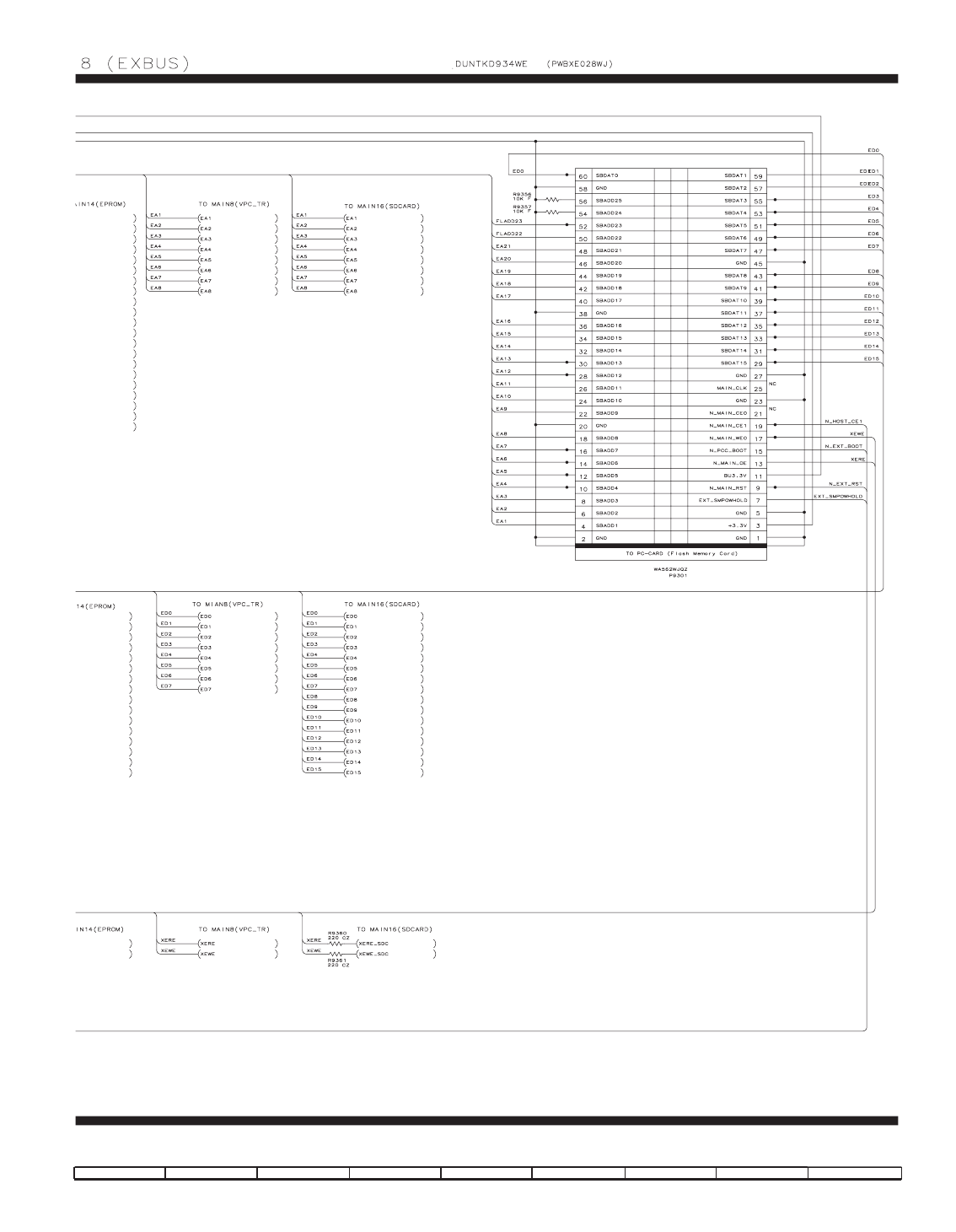

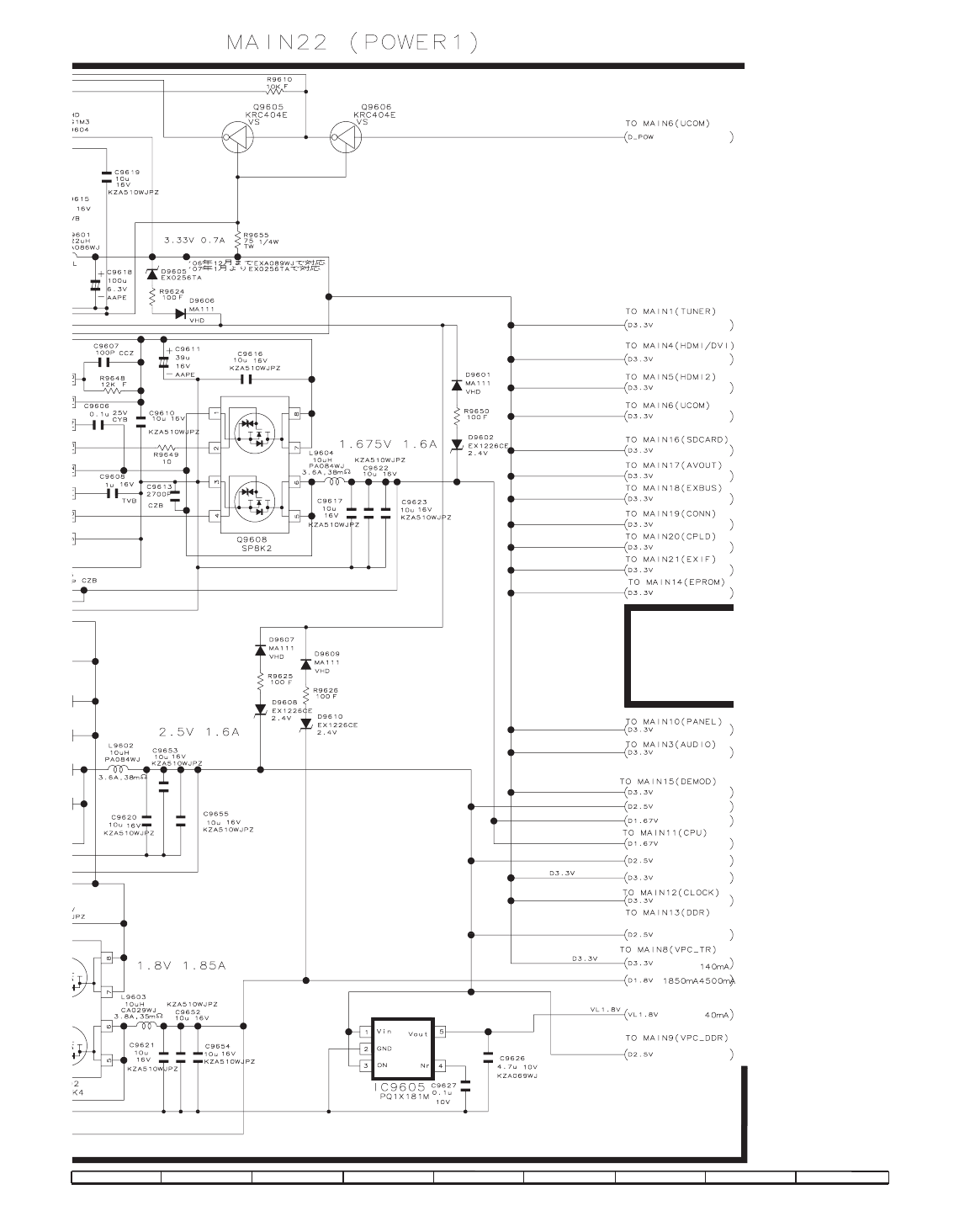

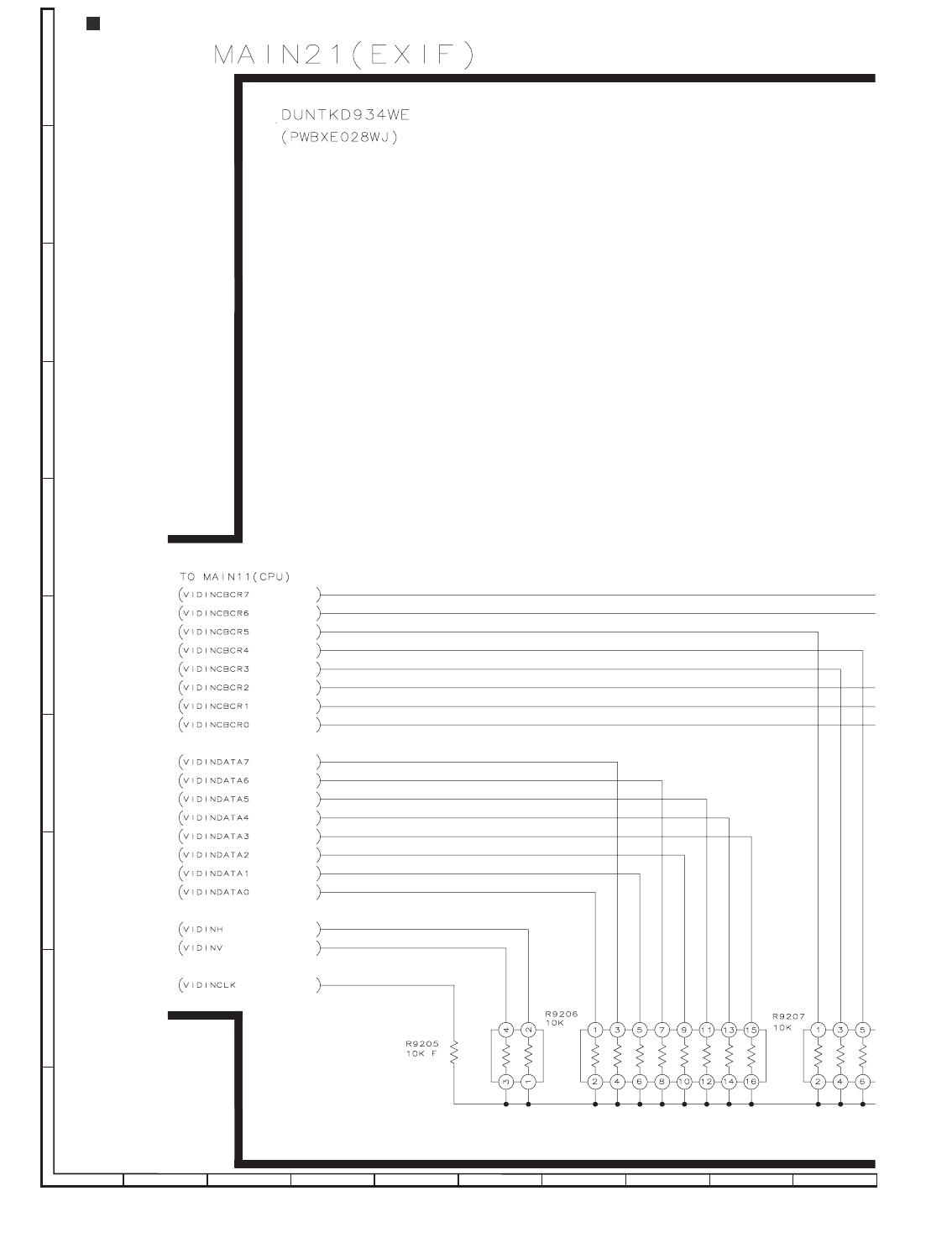

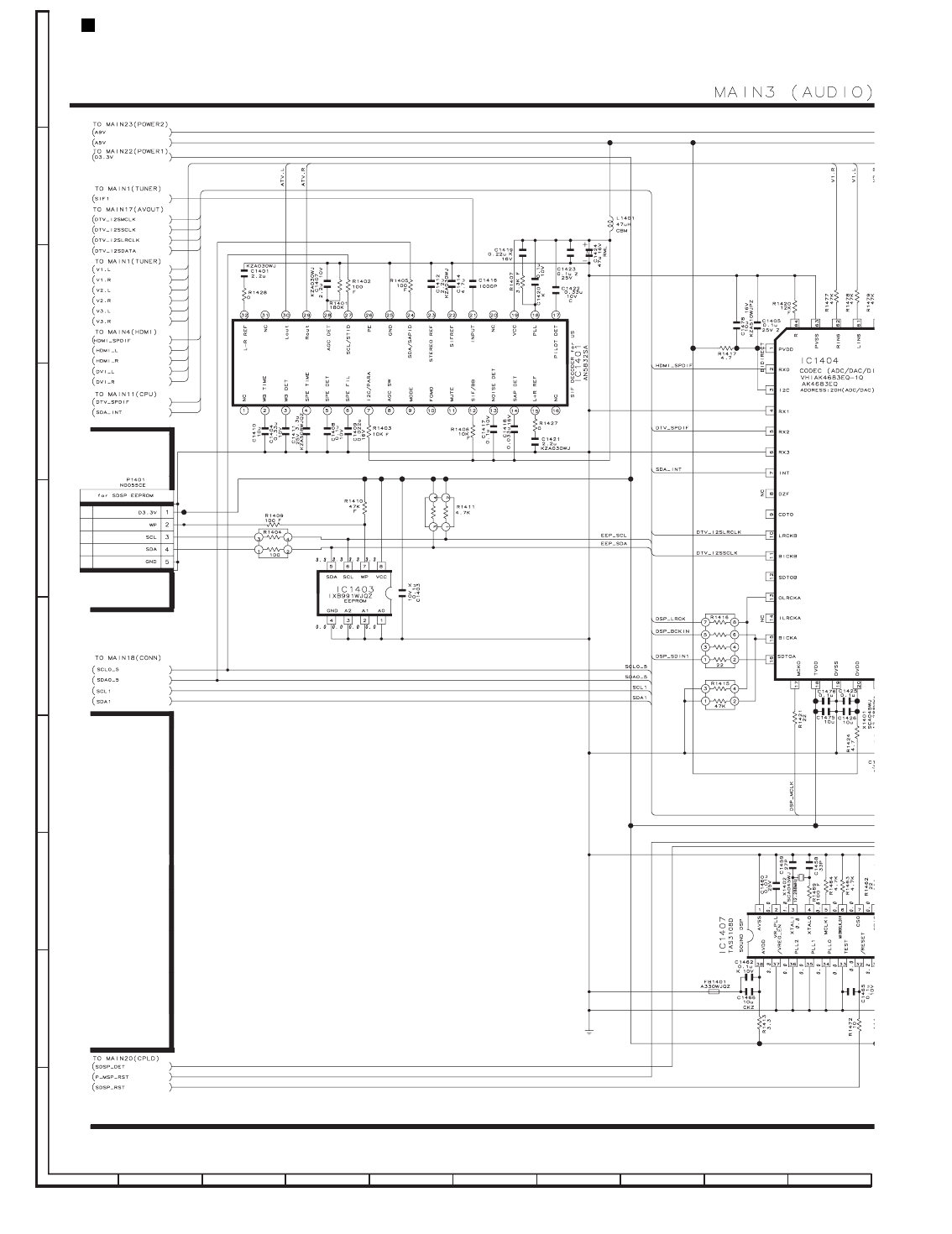

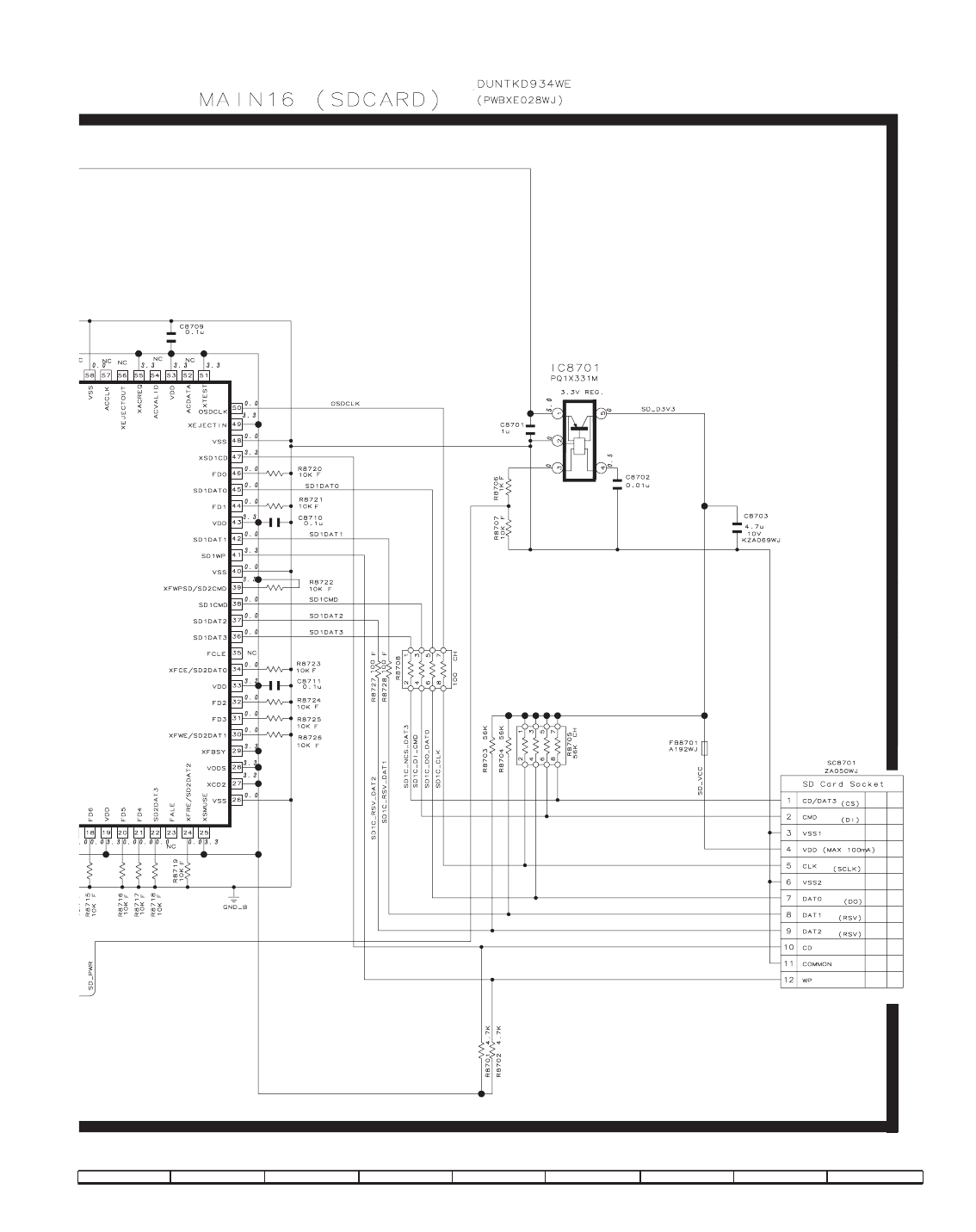

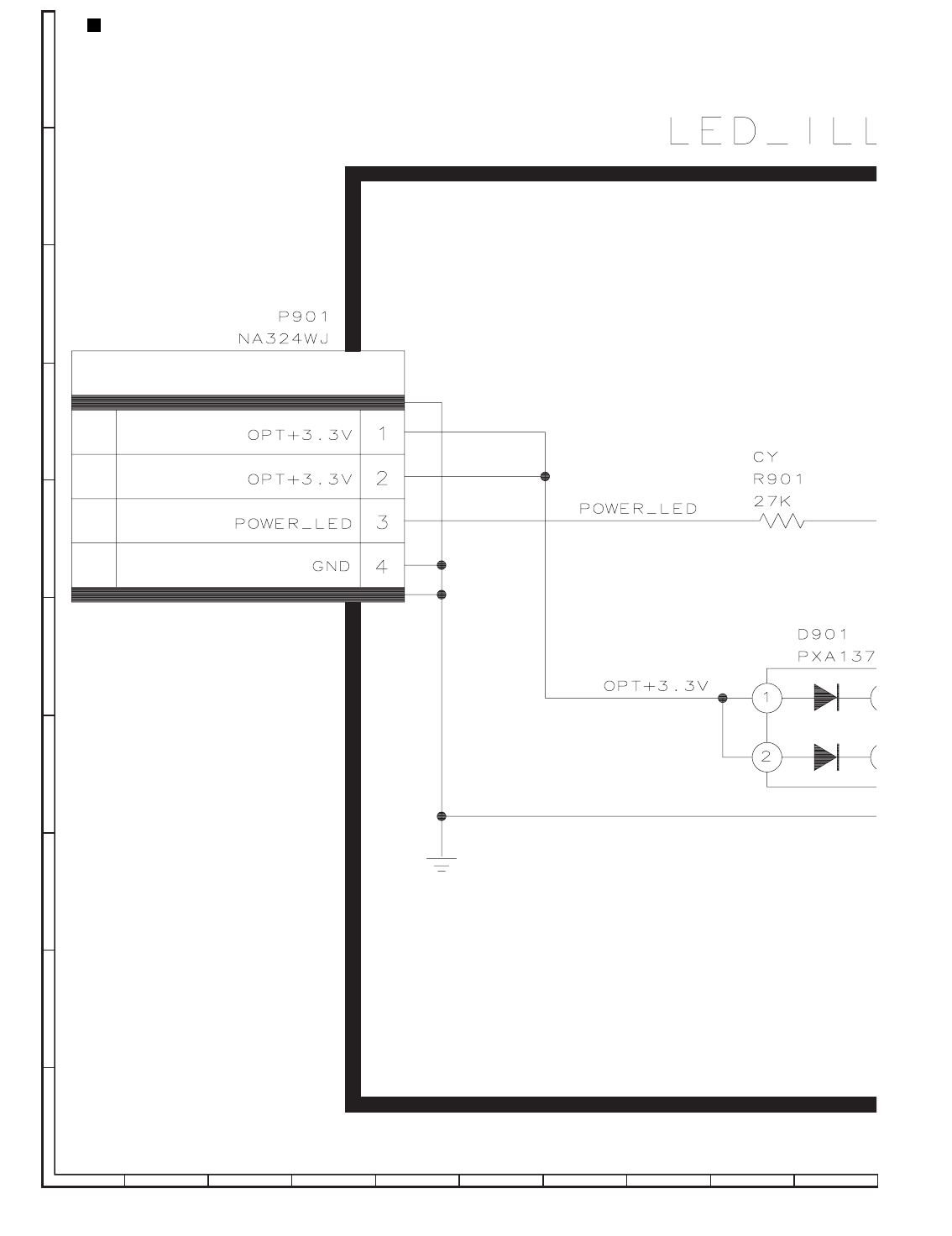

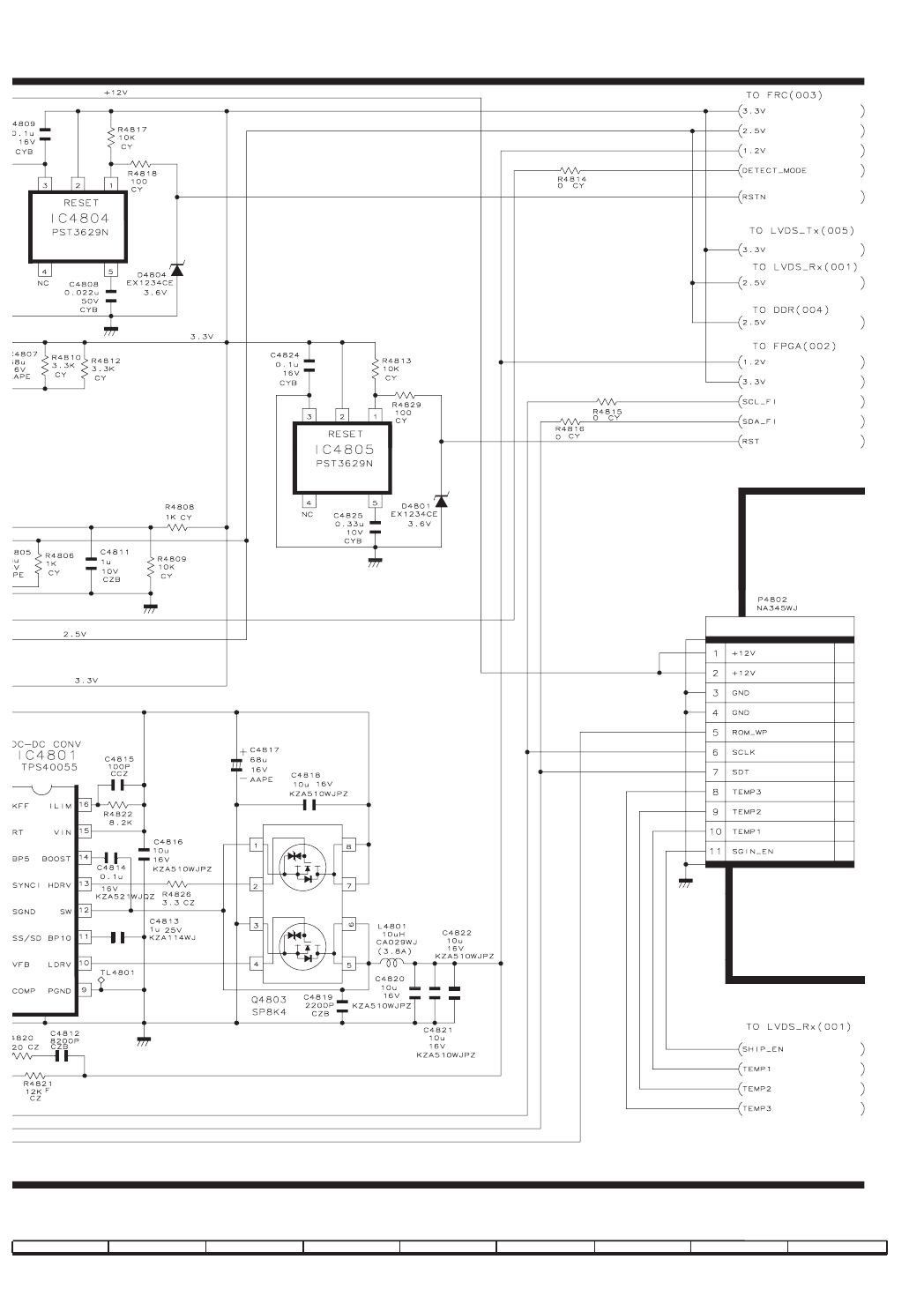

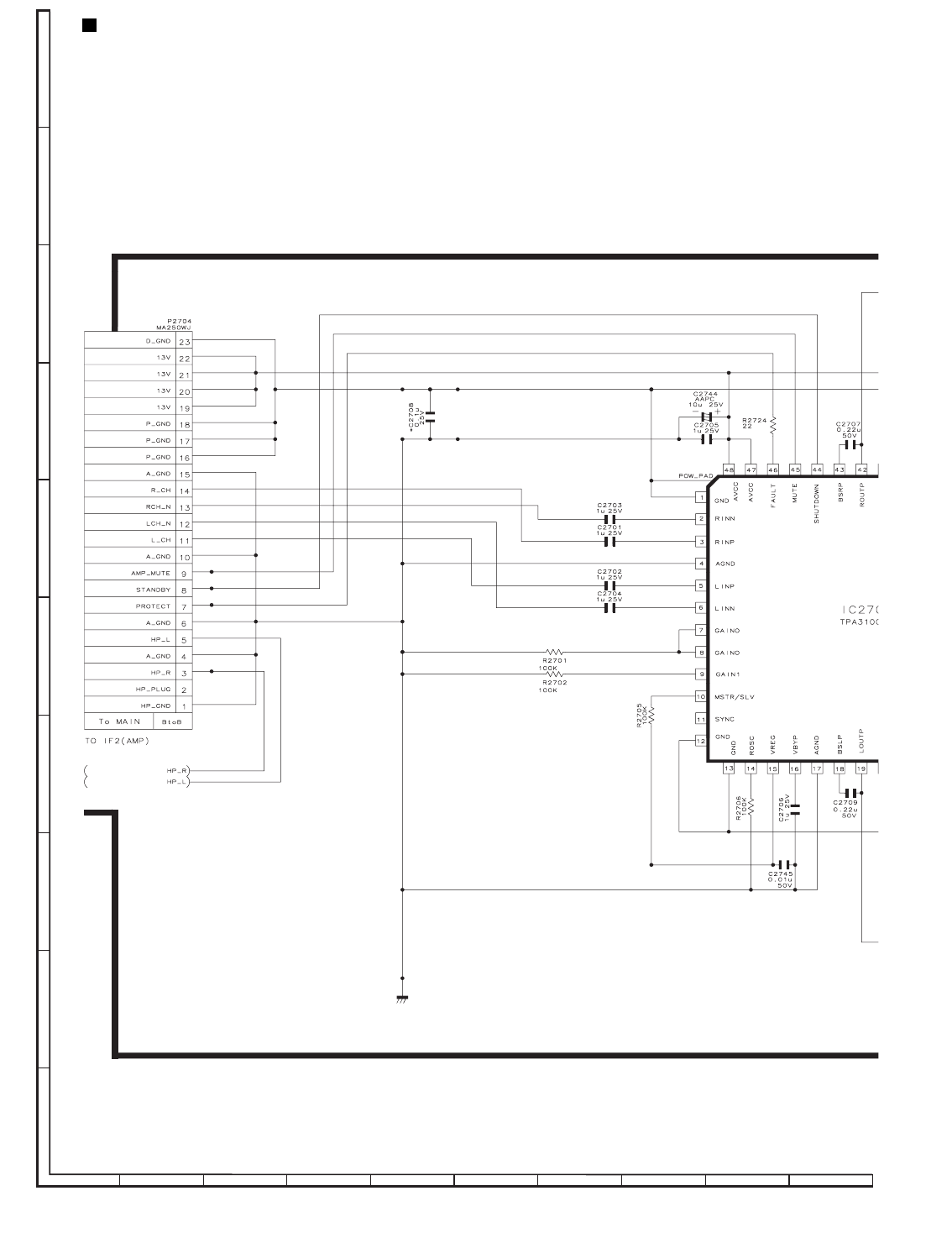

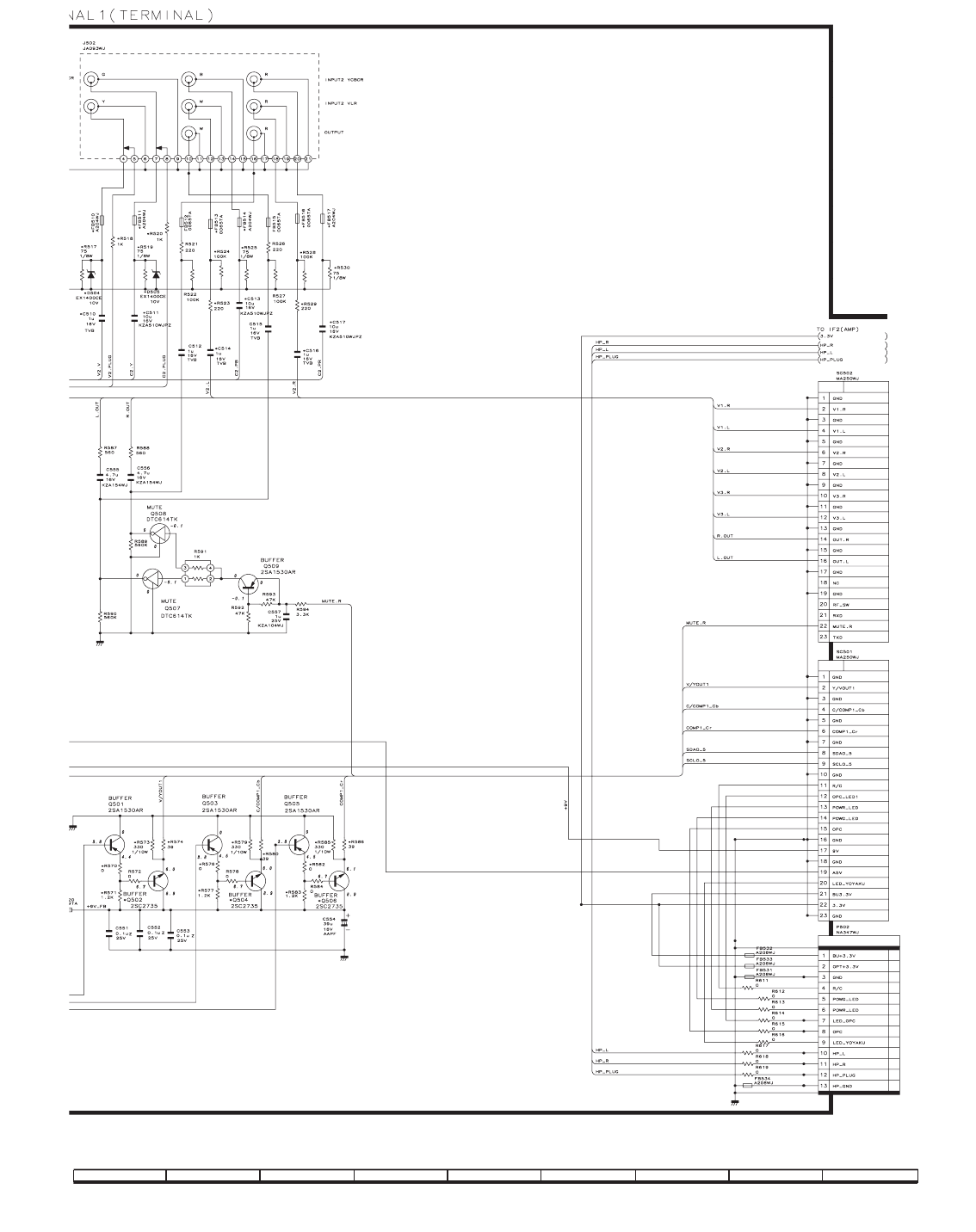

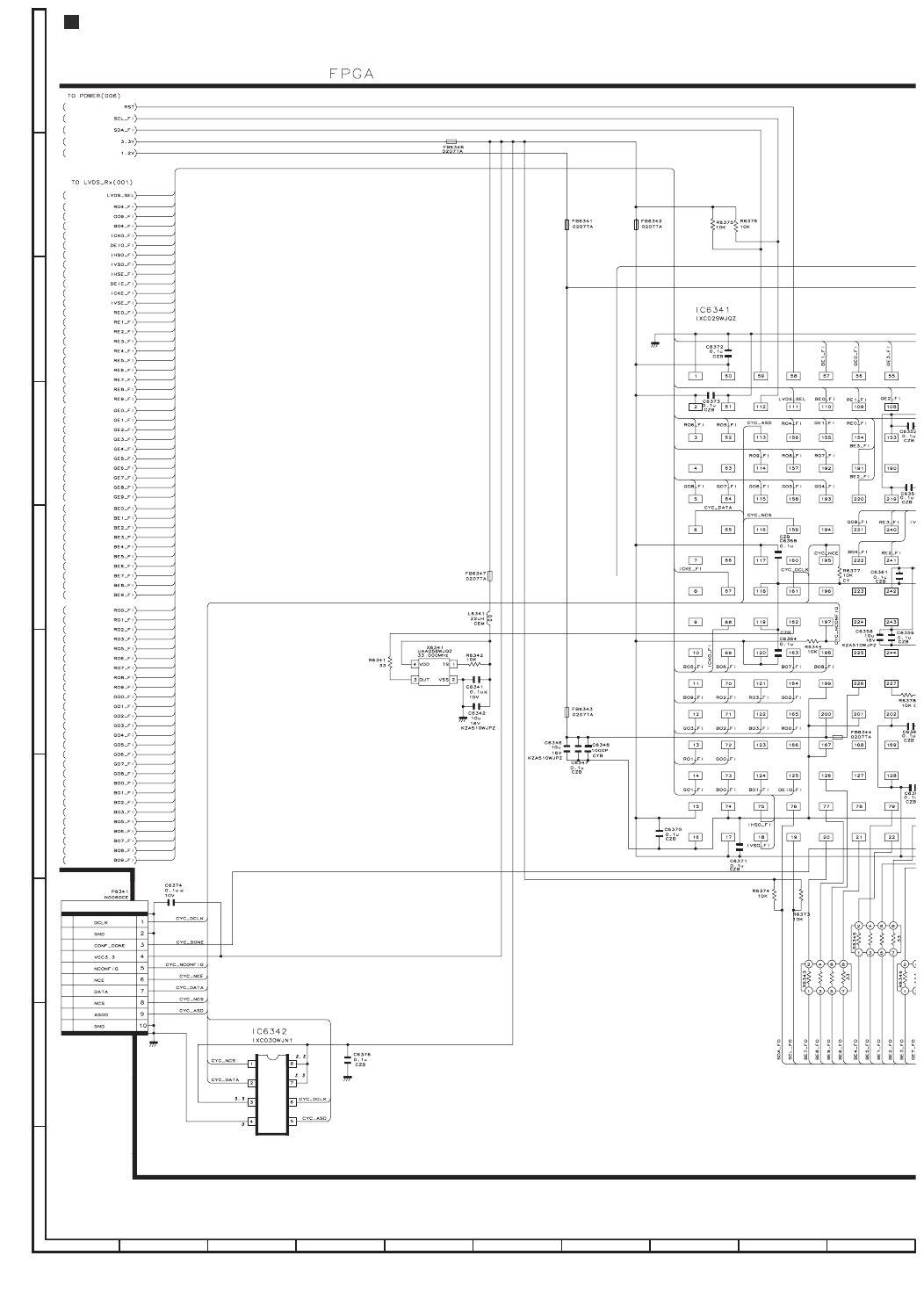

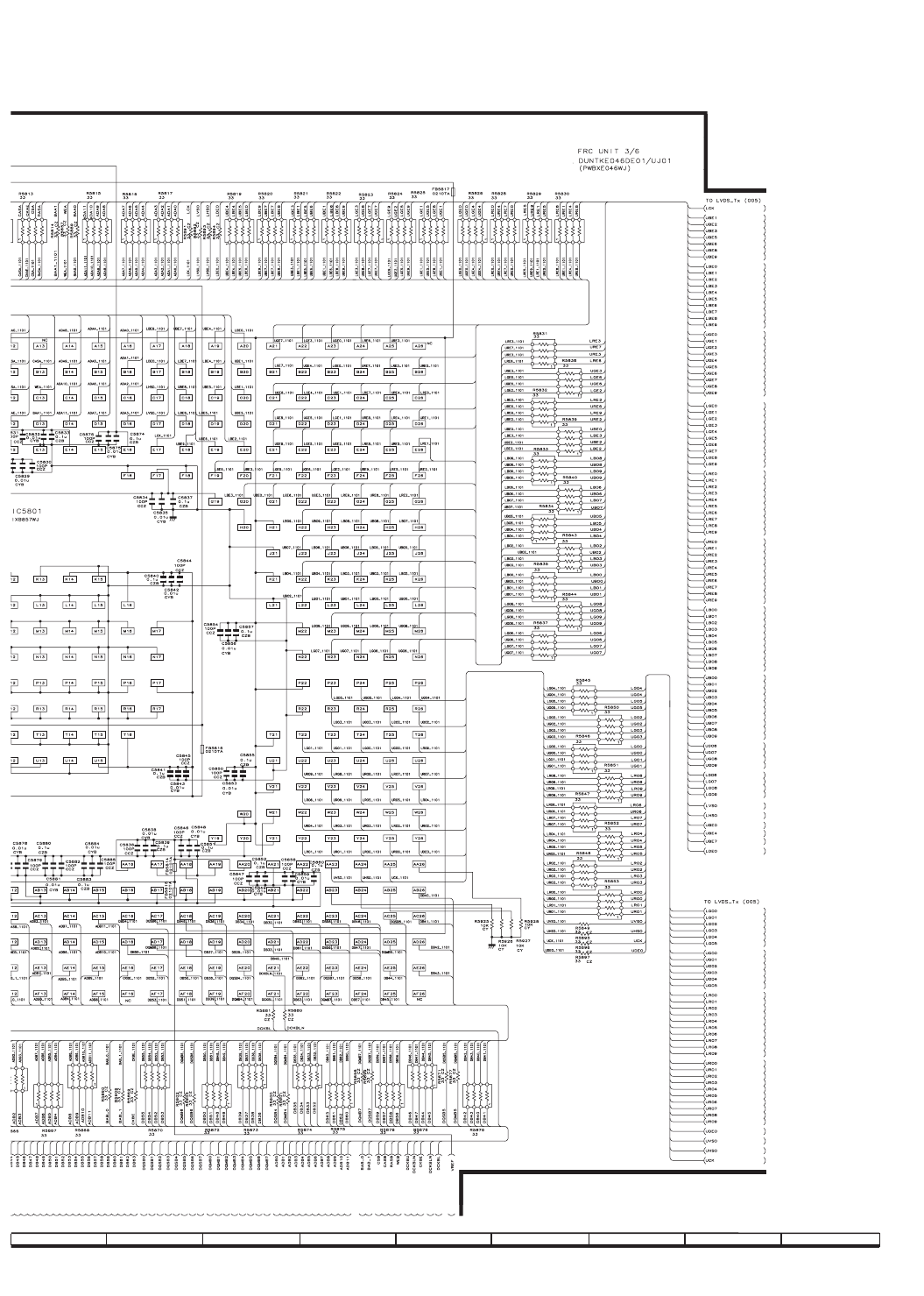

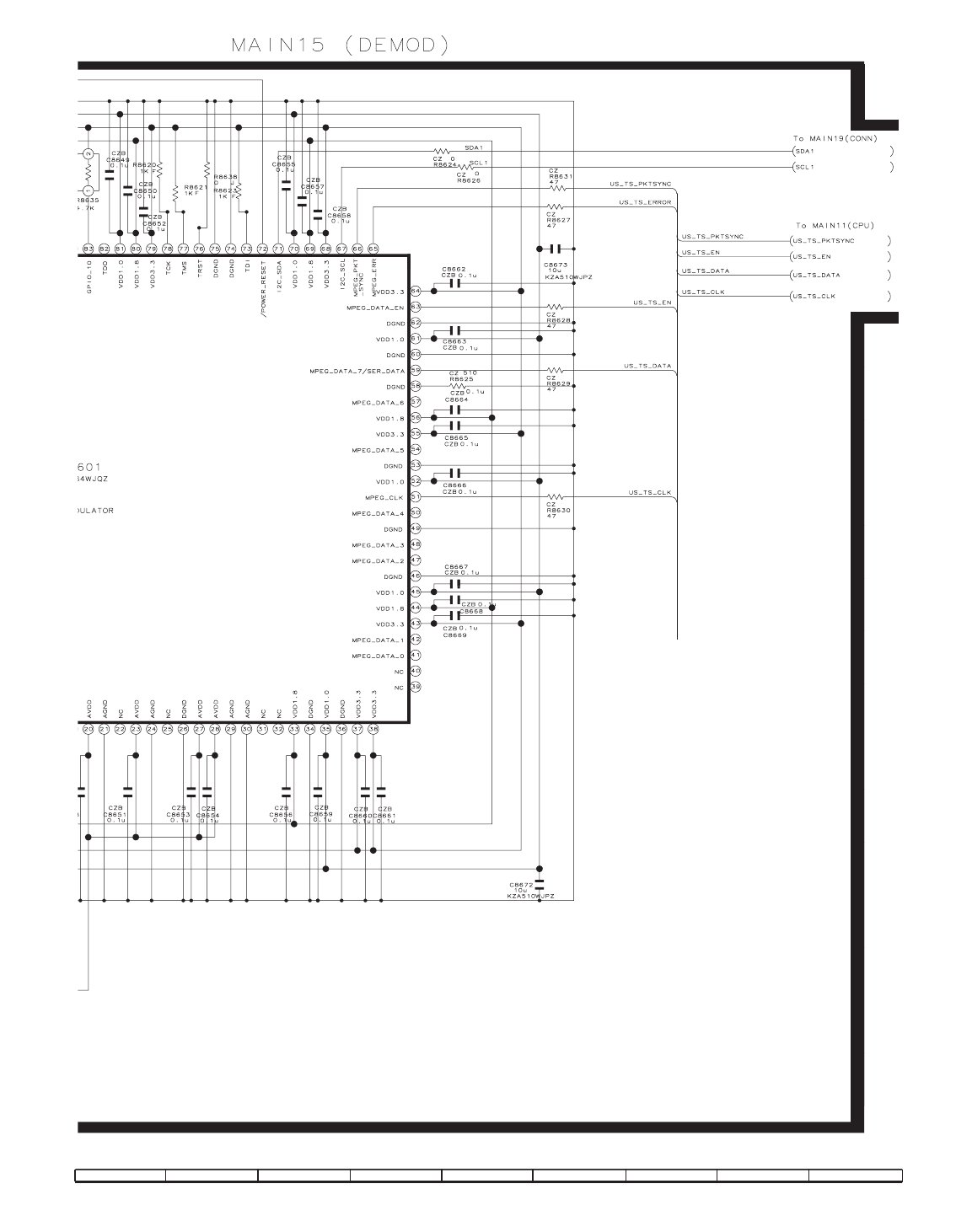

CHAPTER 8. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIA-
GRAM............................................................8-1

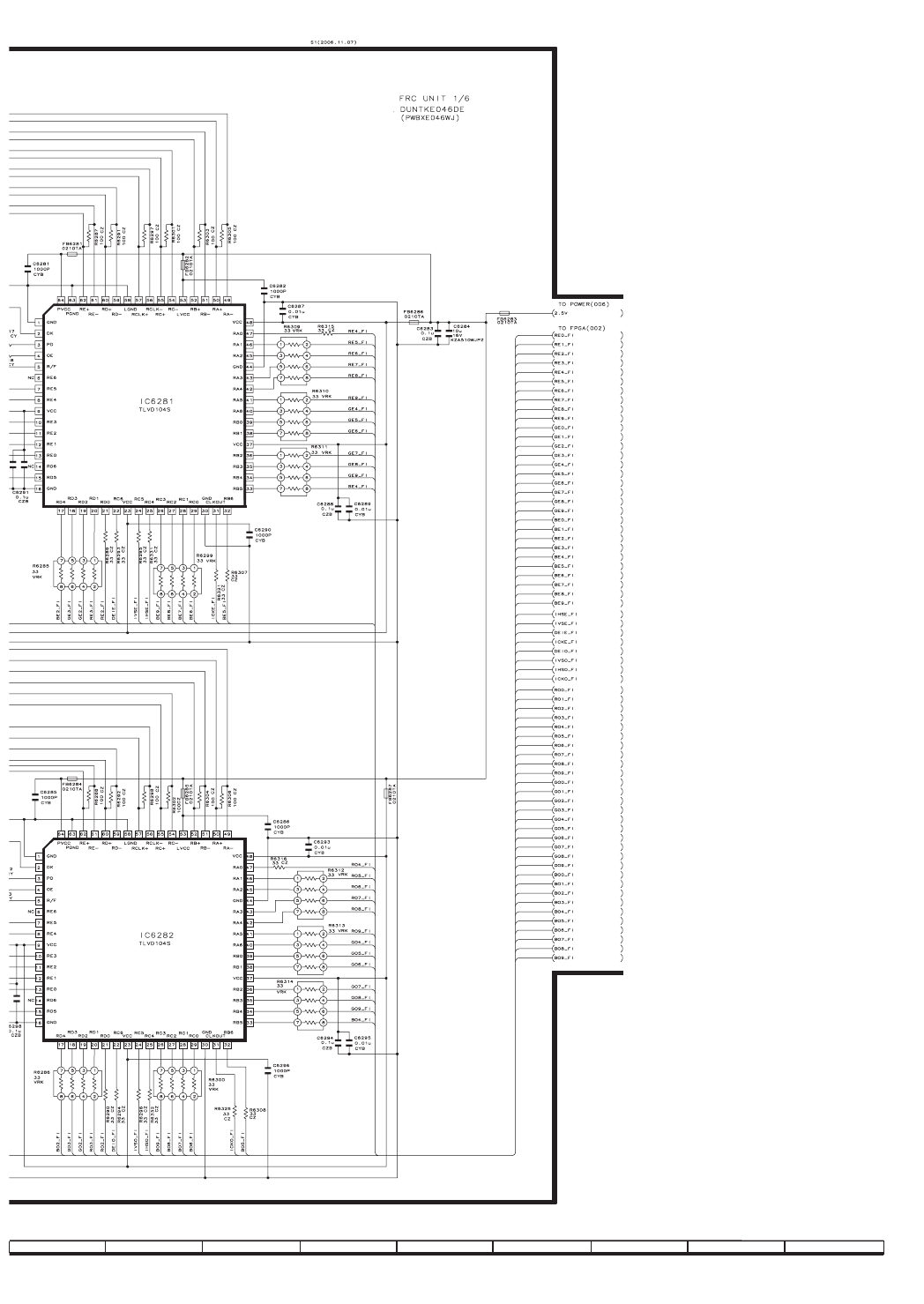

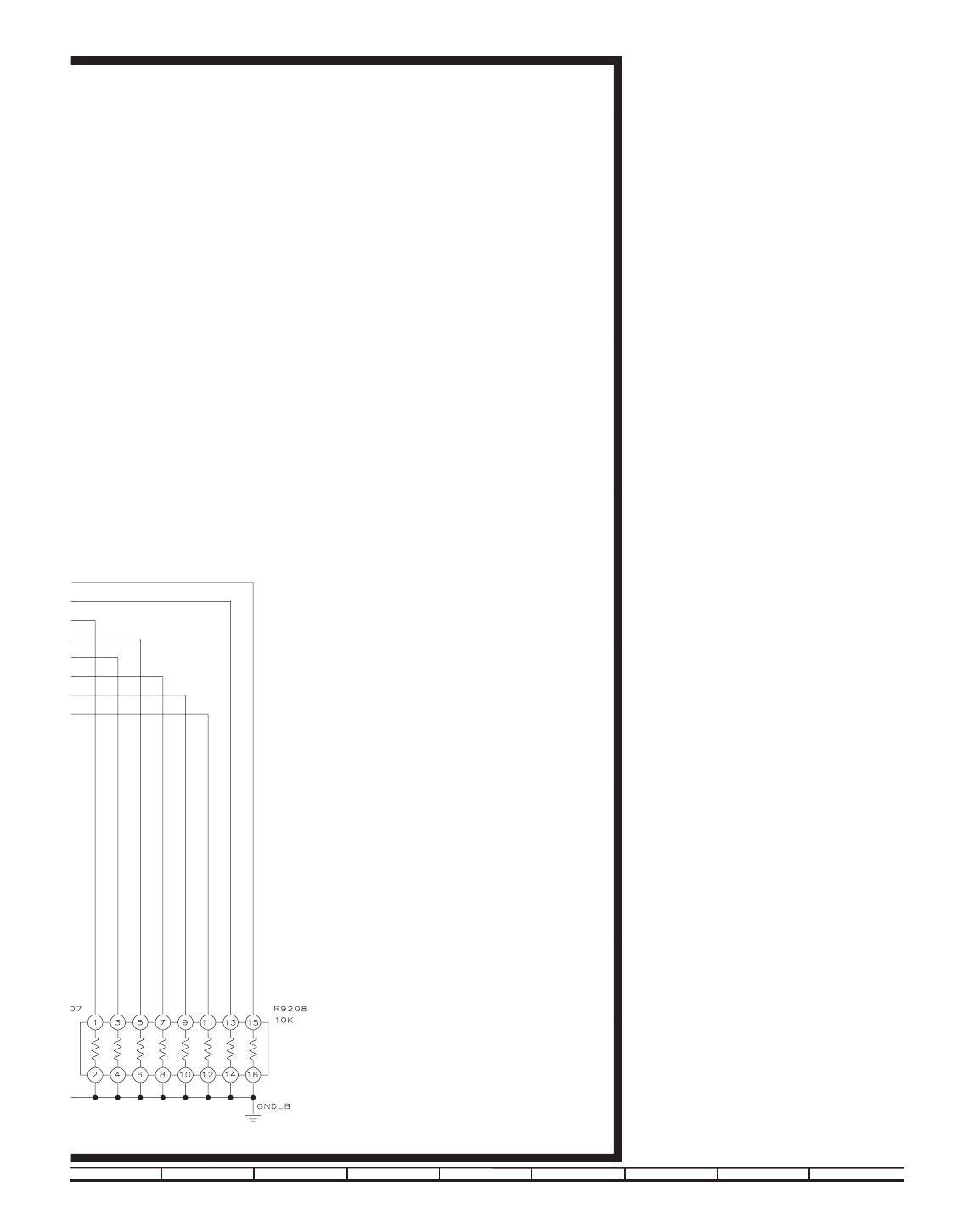

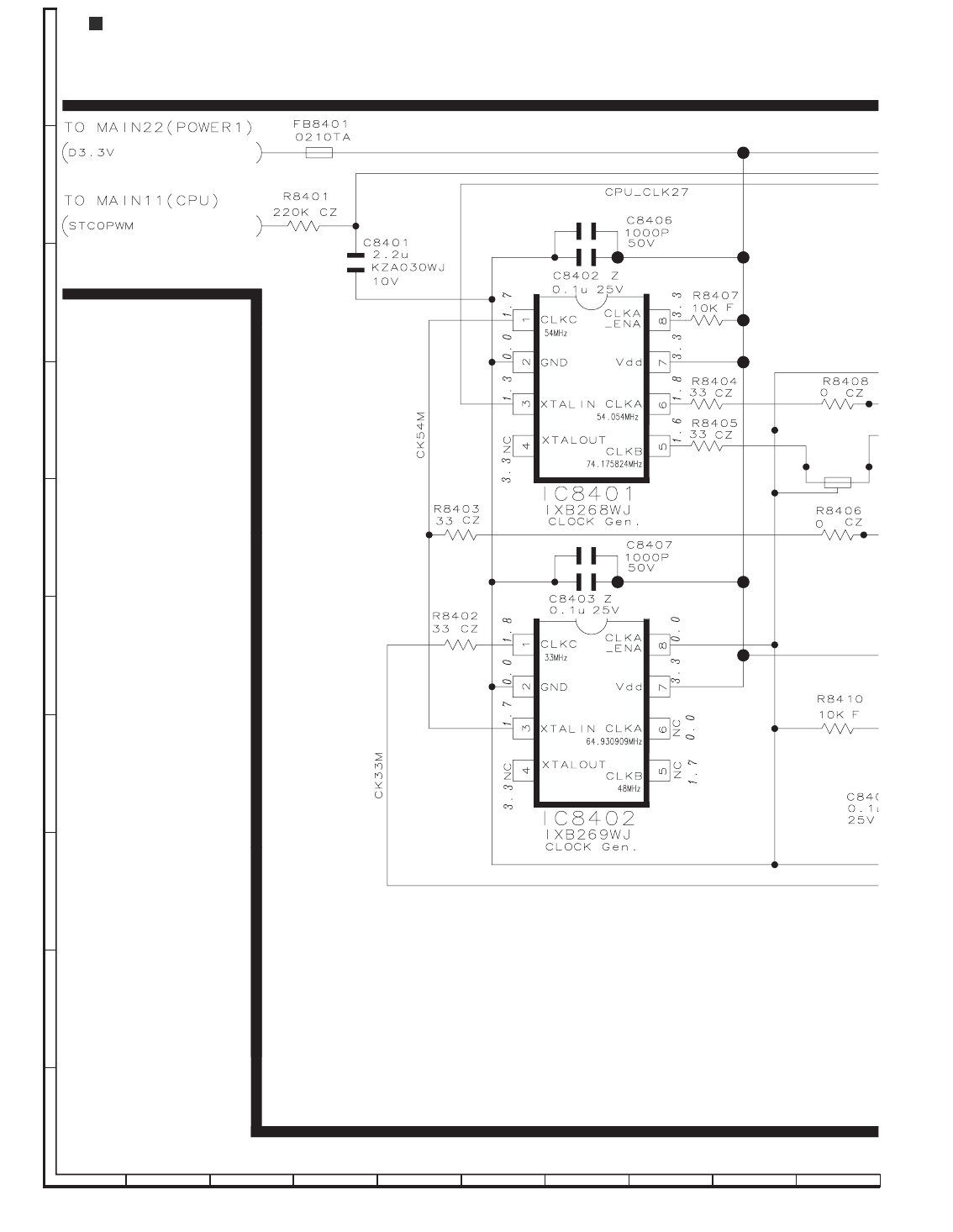

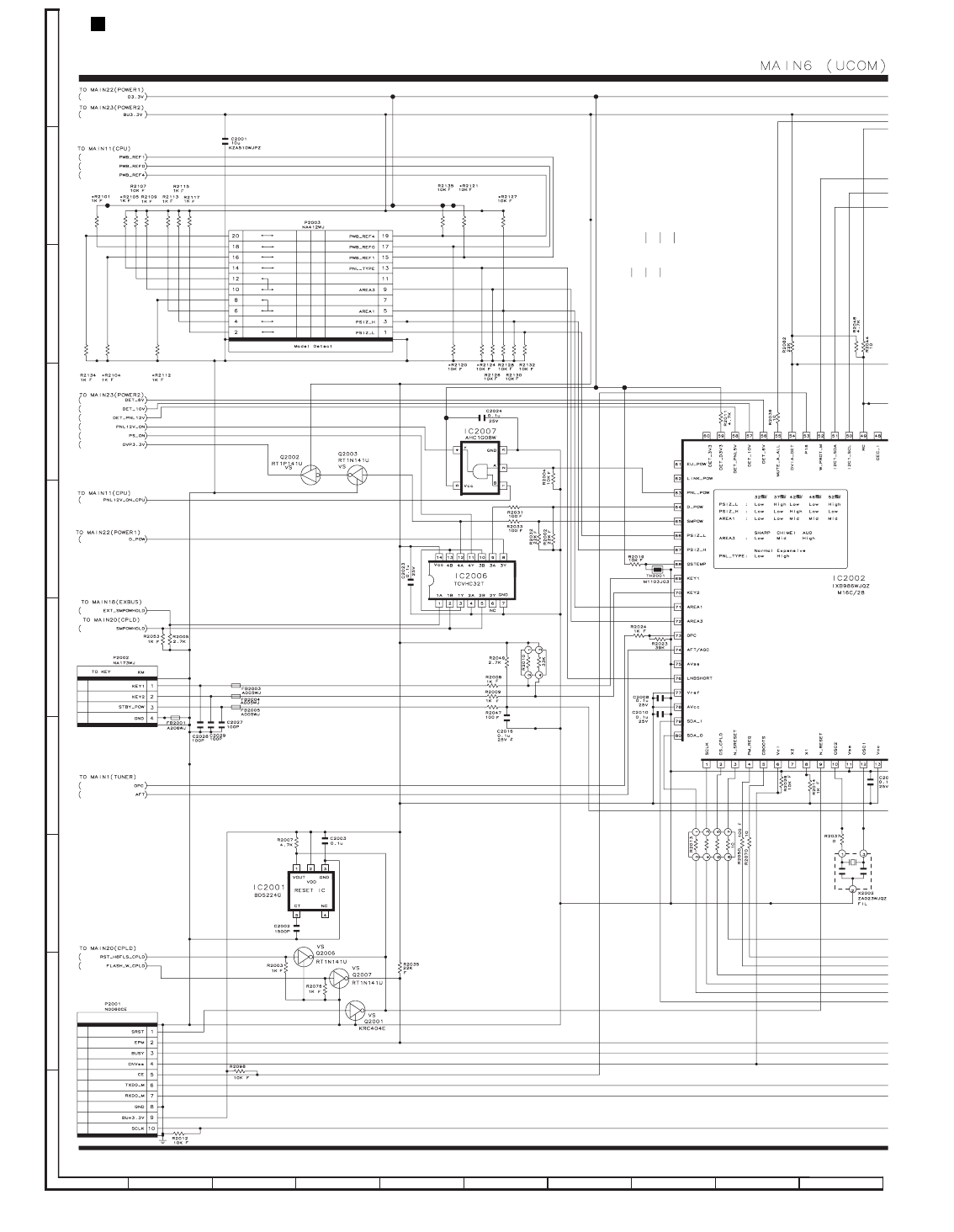

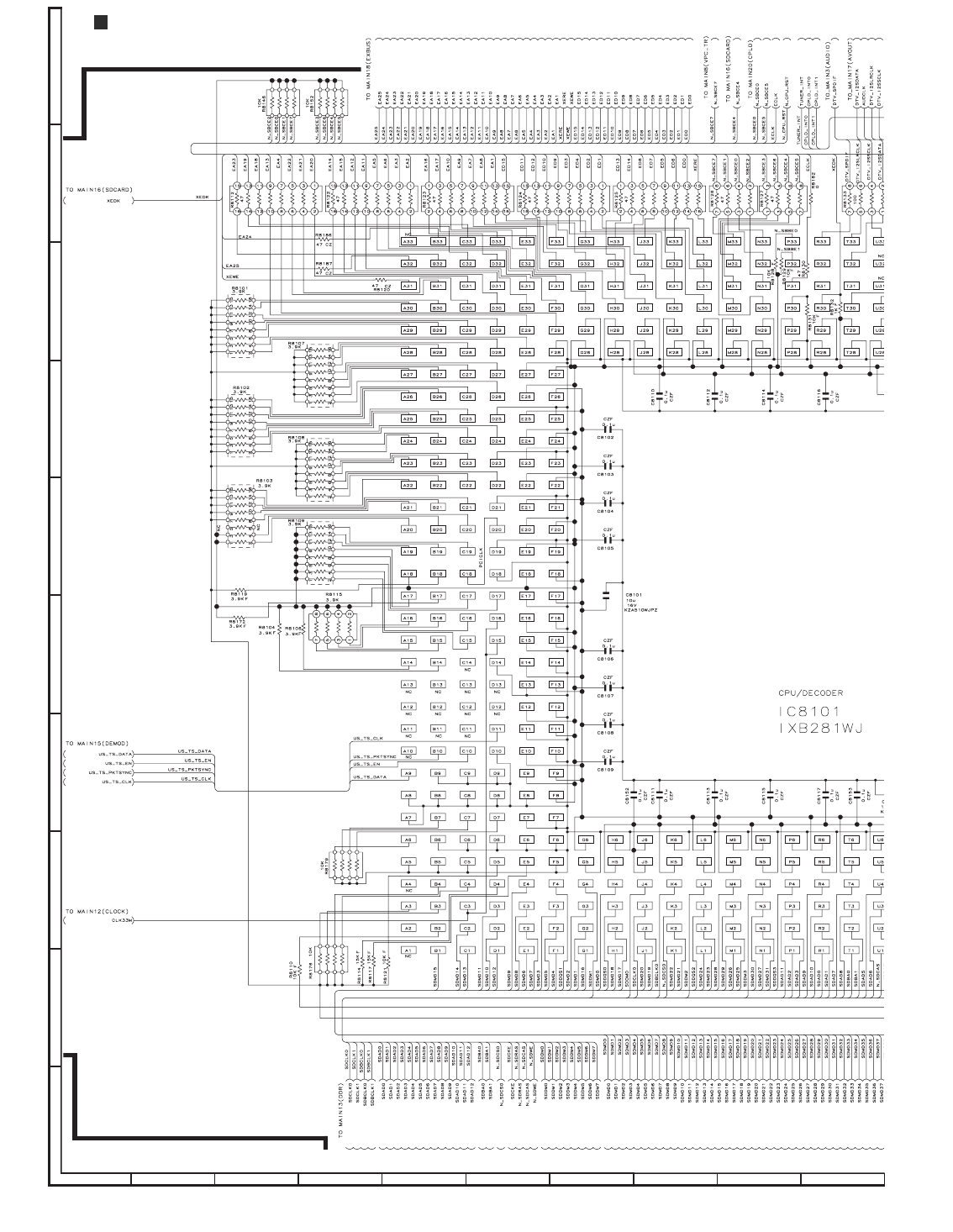

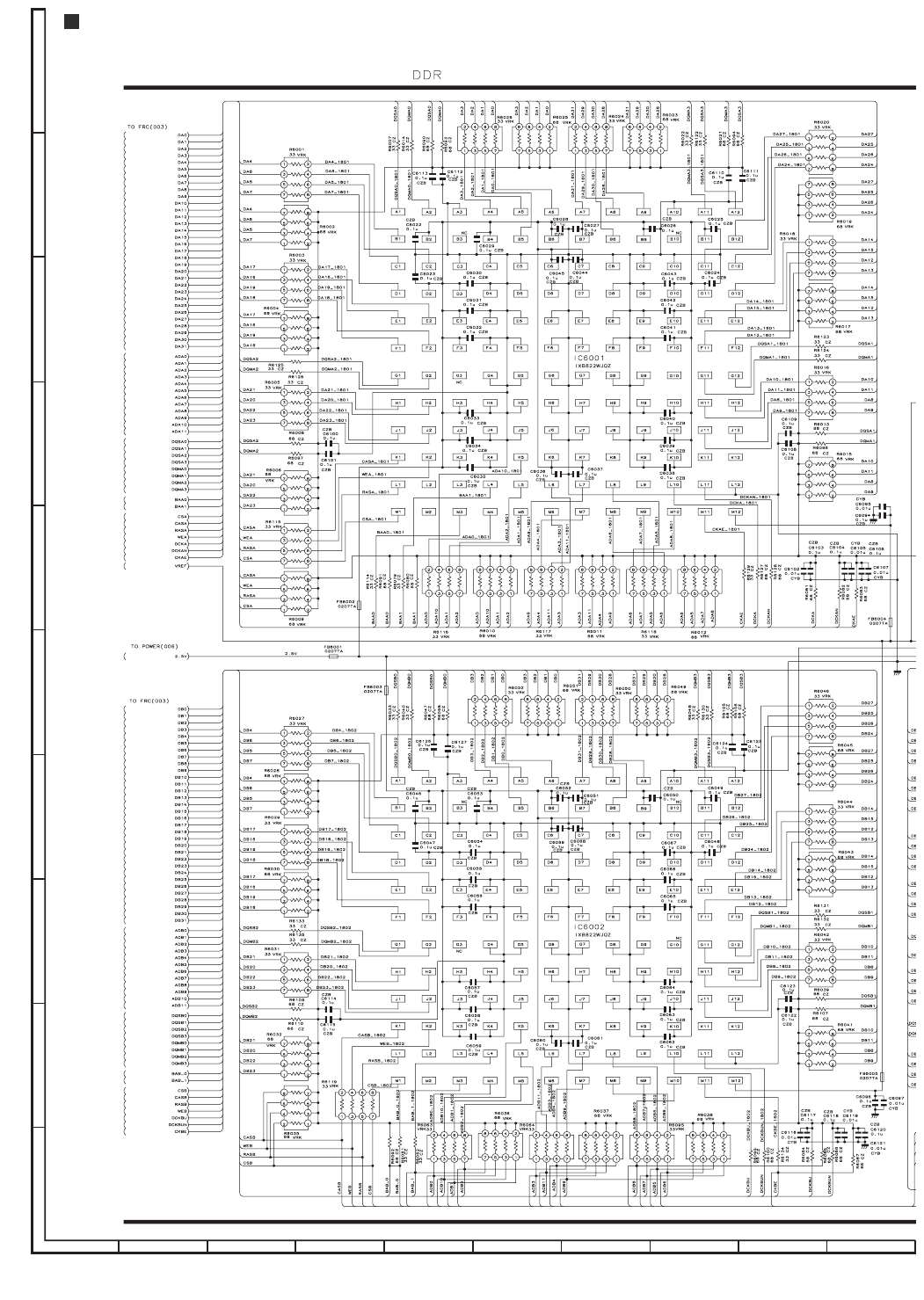

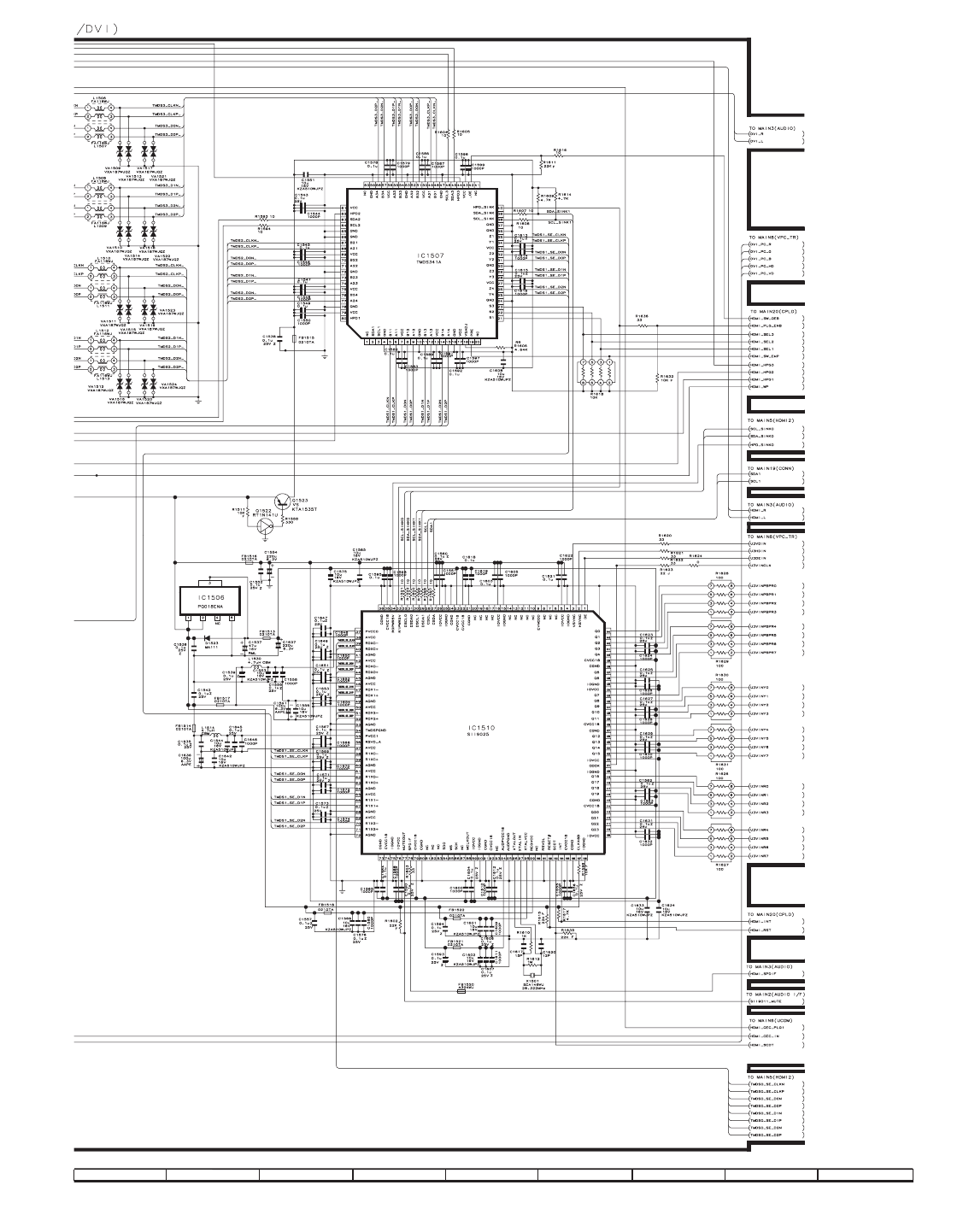

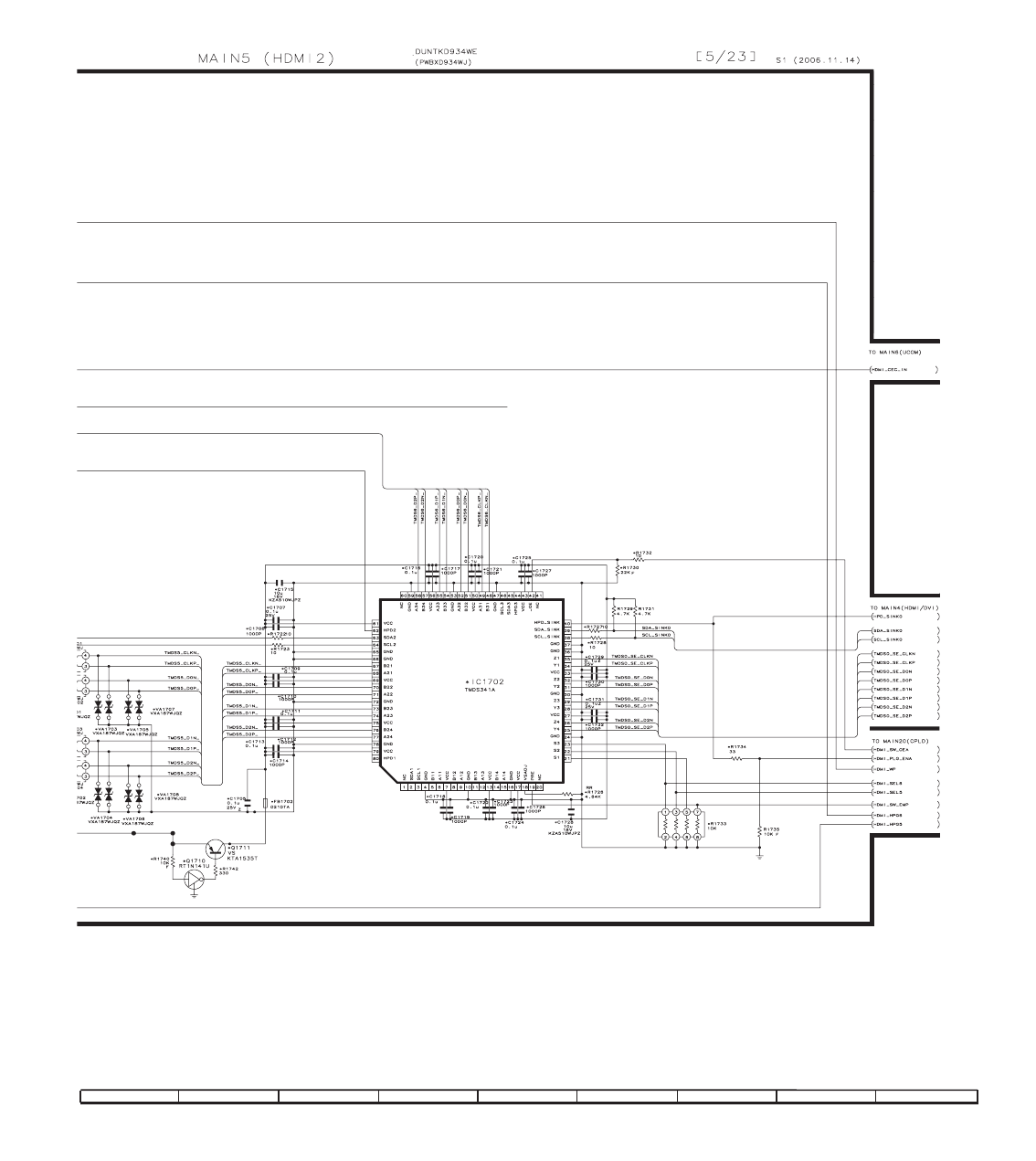

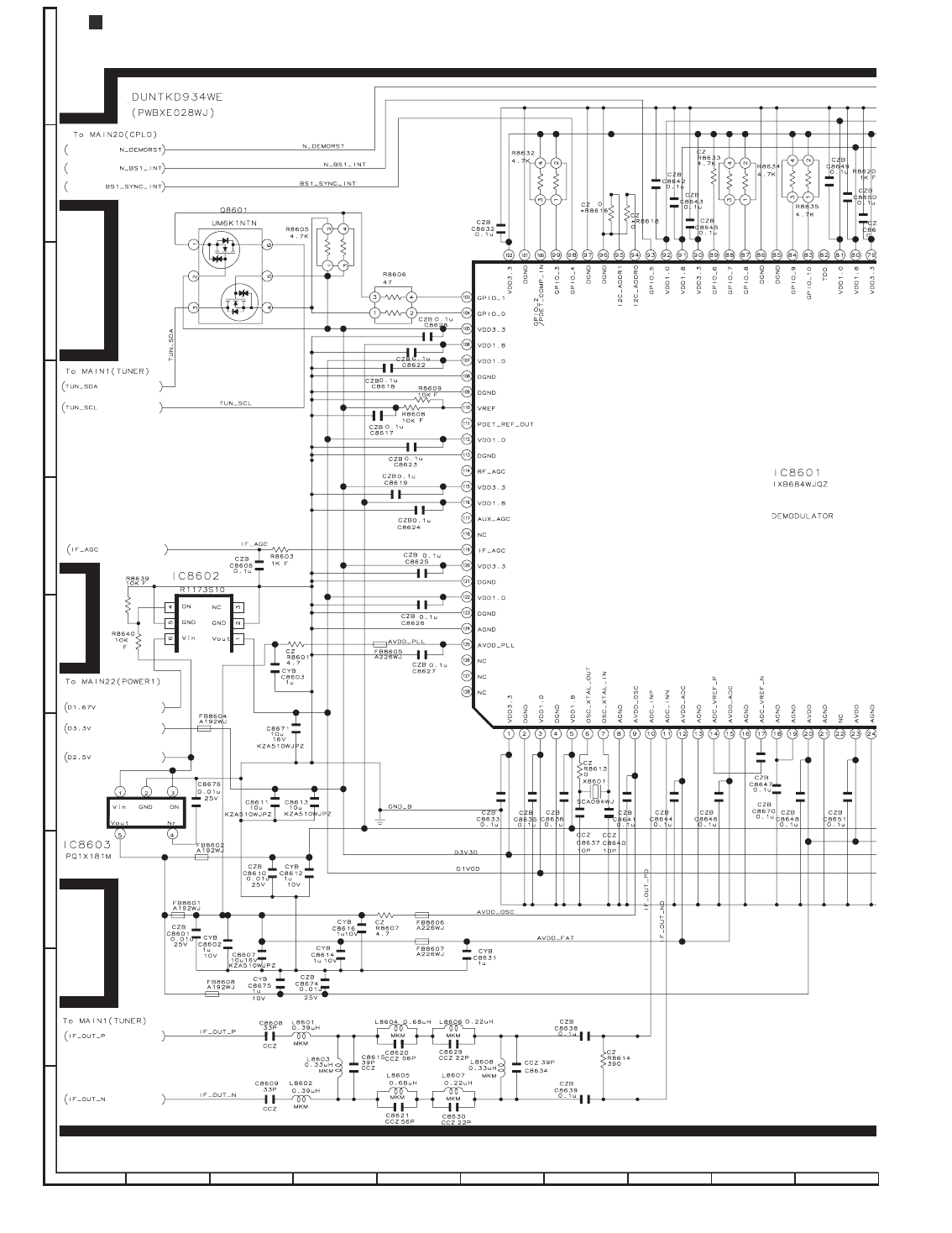

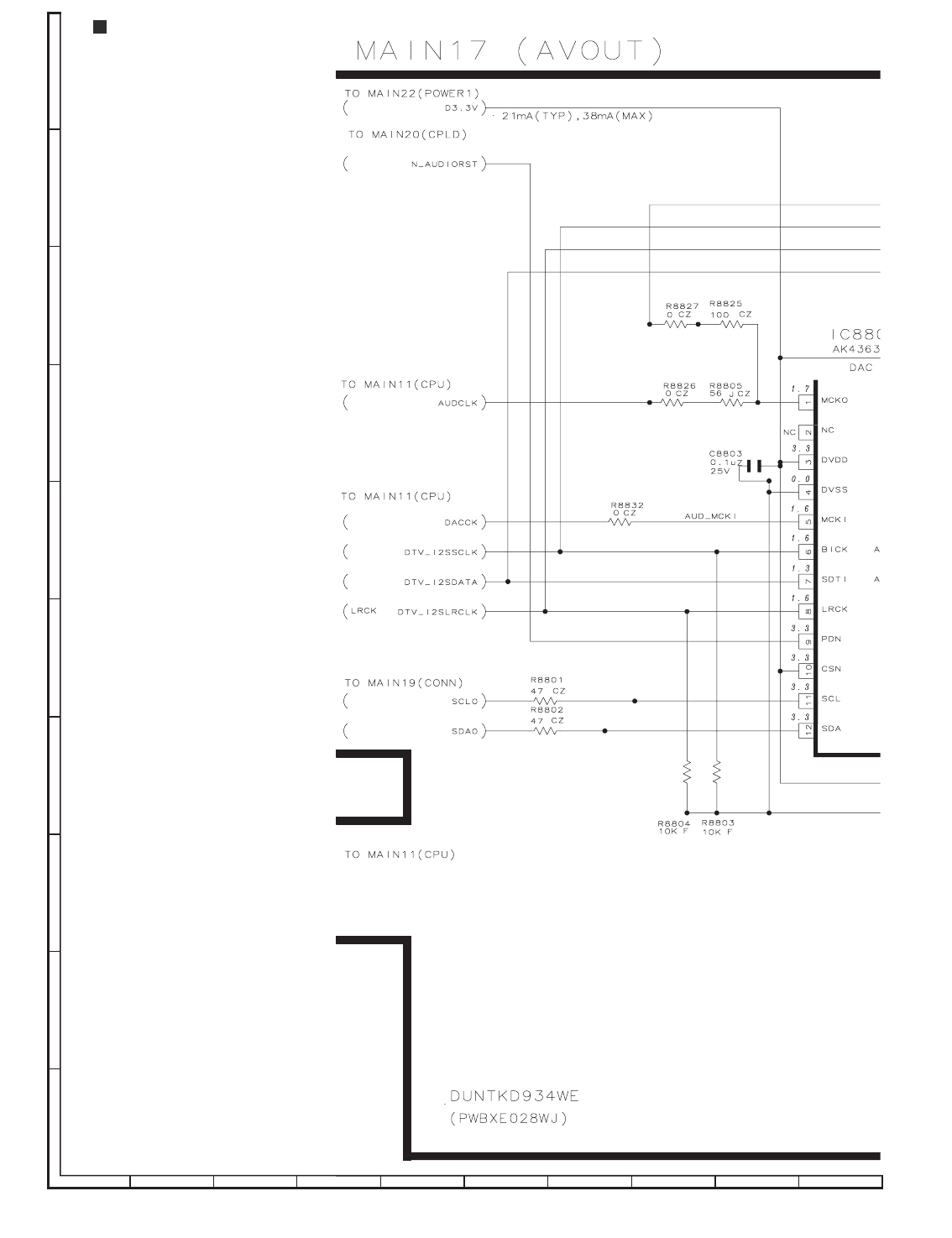

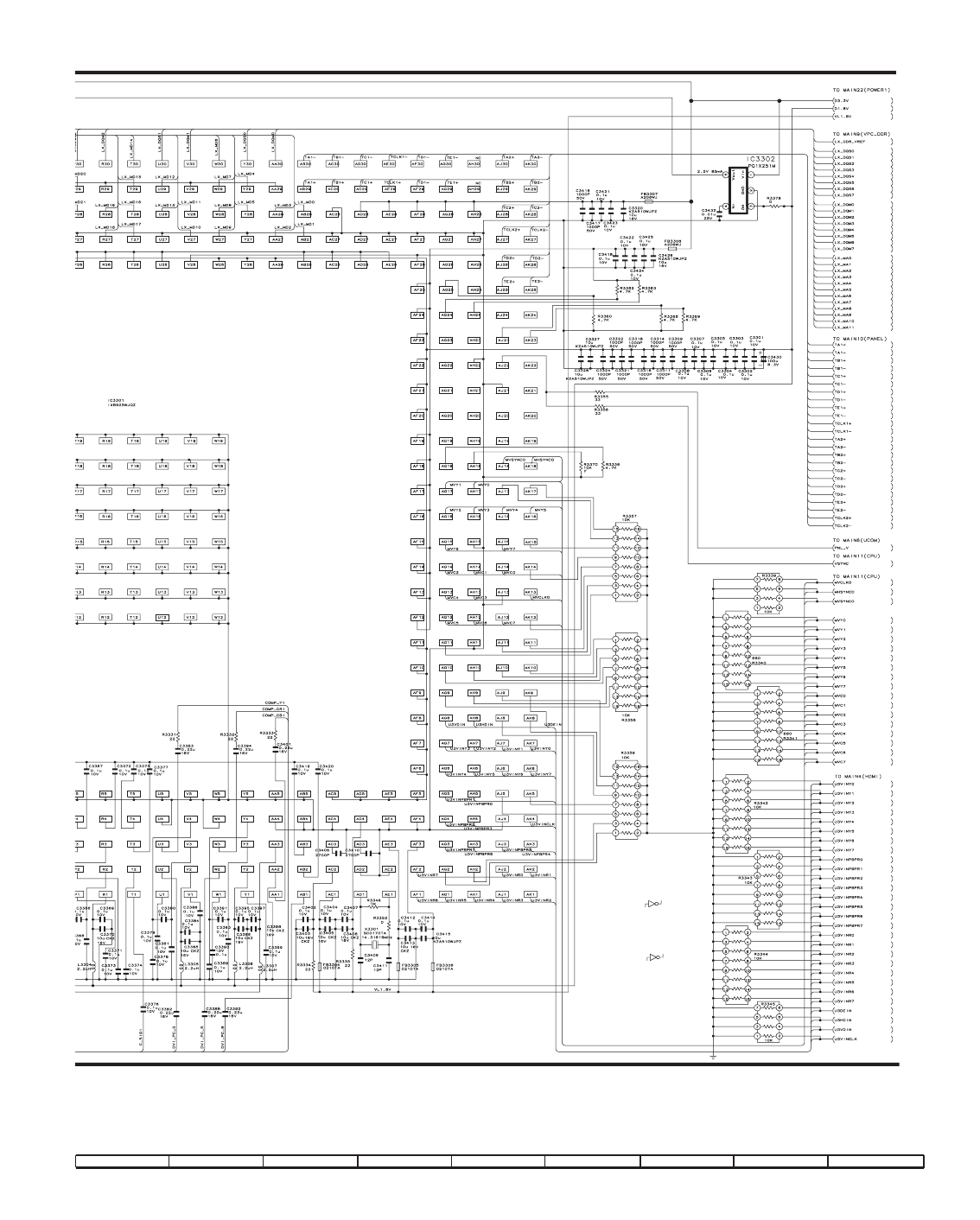

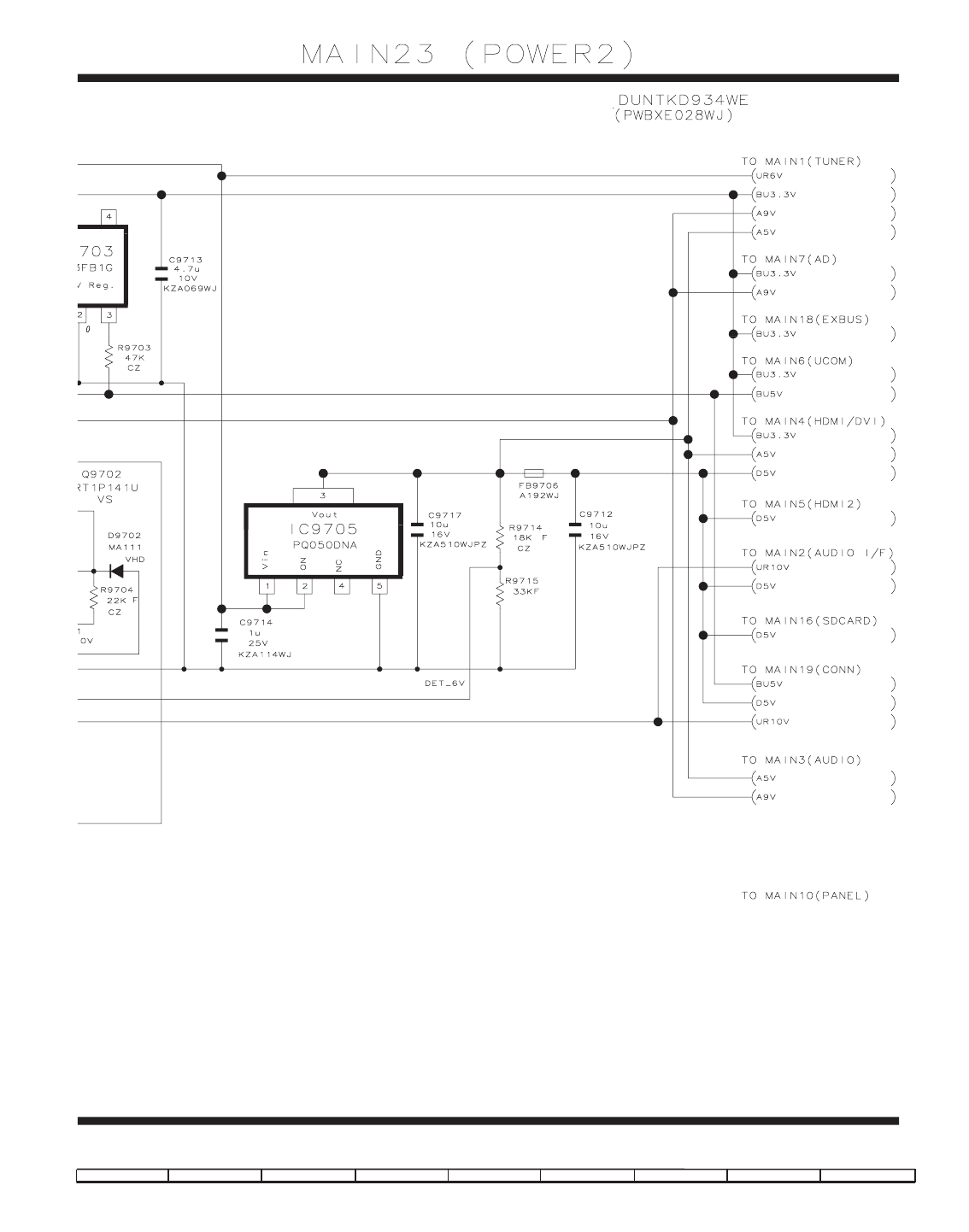

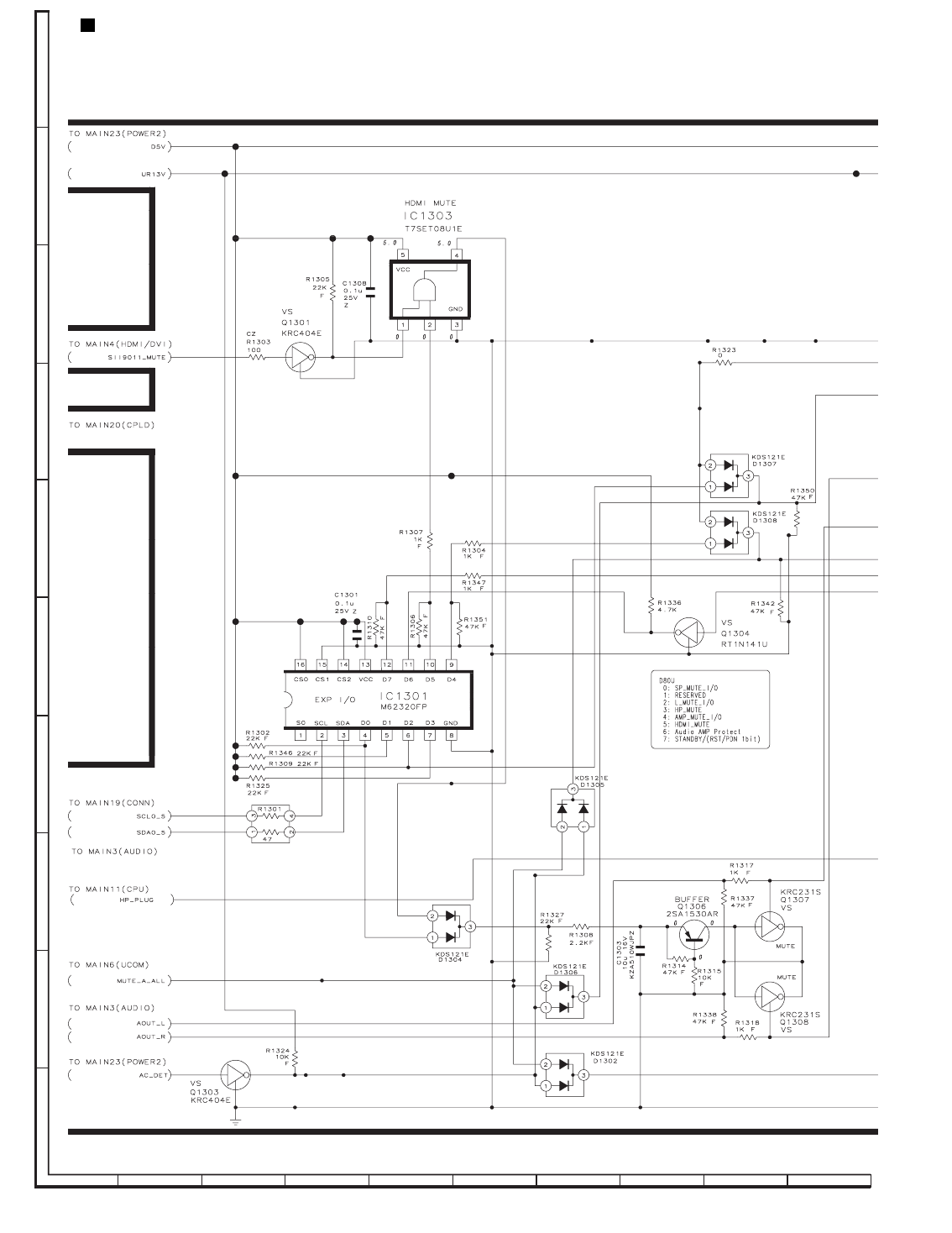

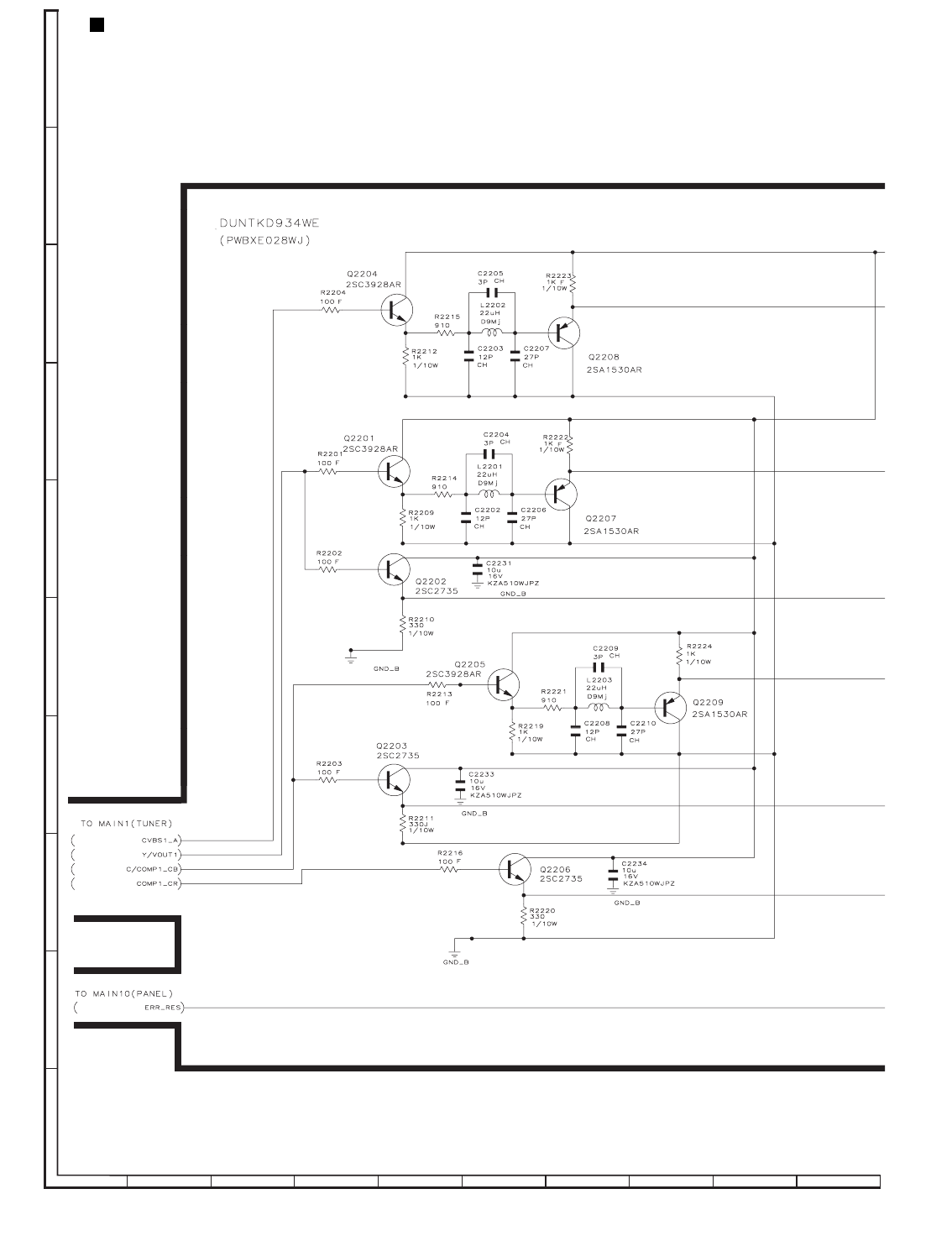

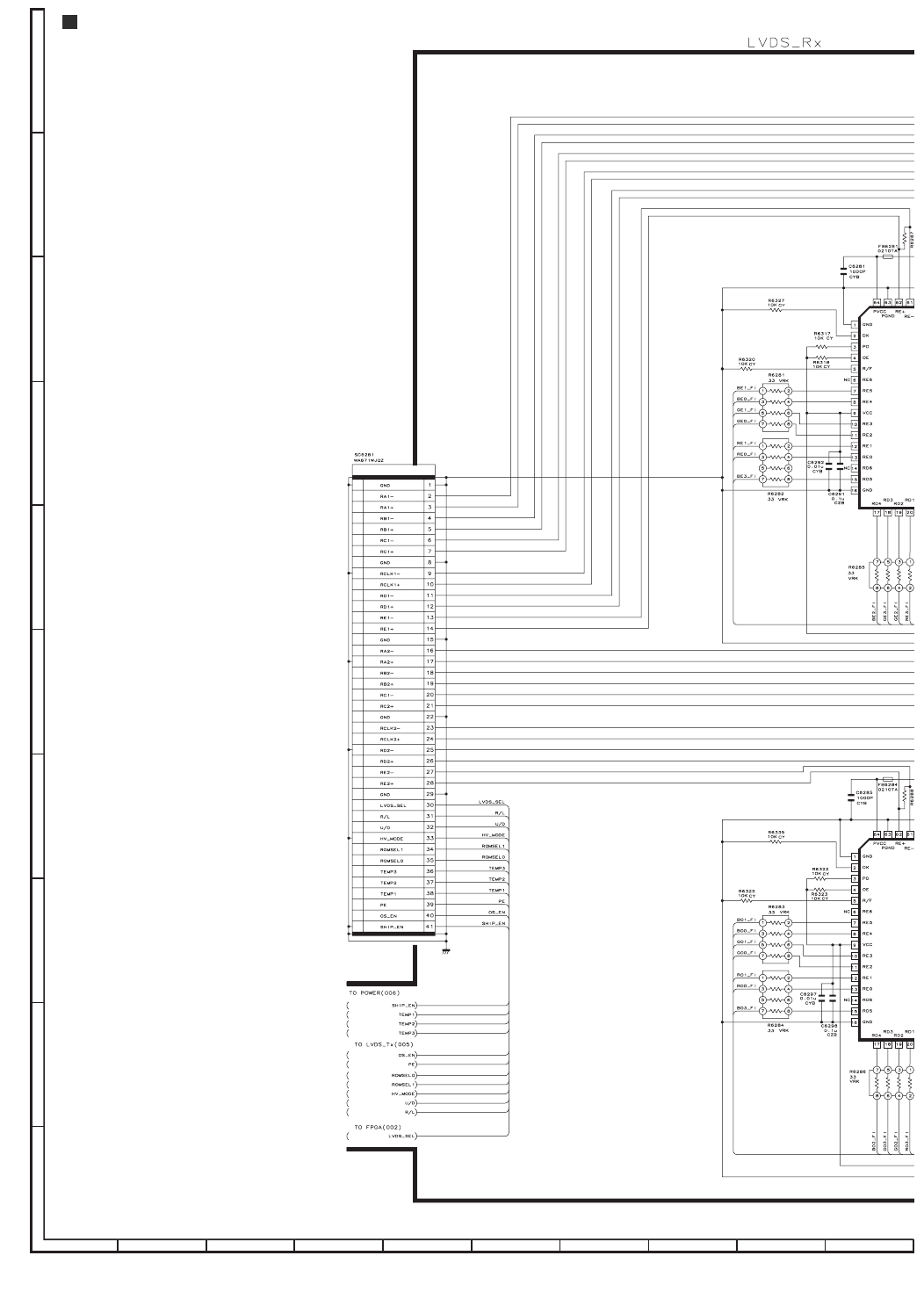

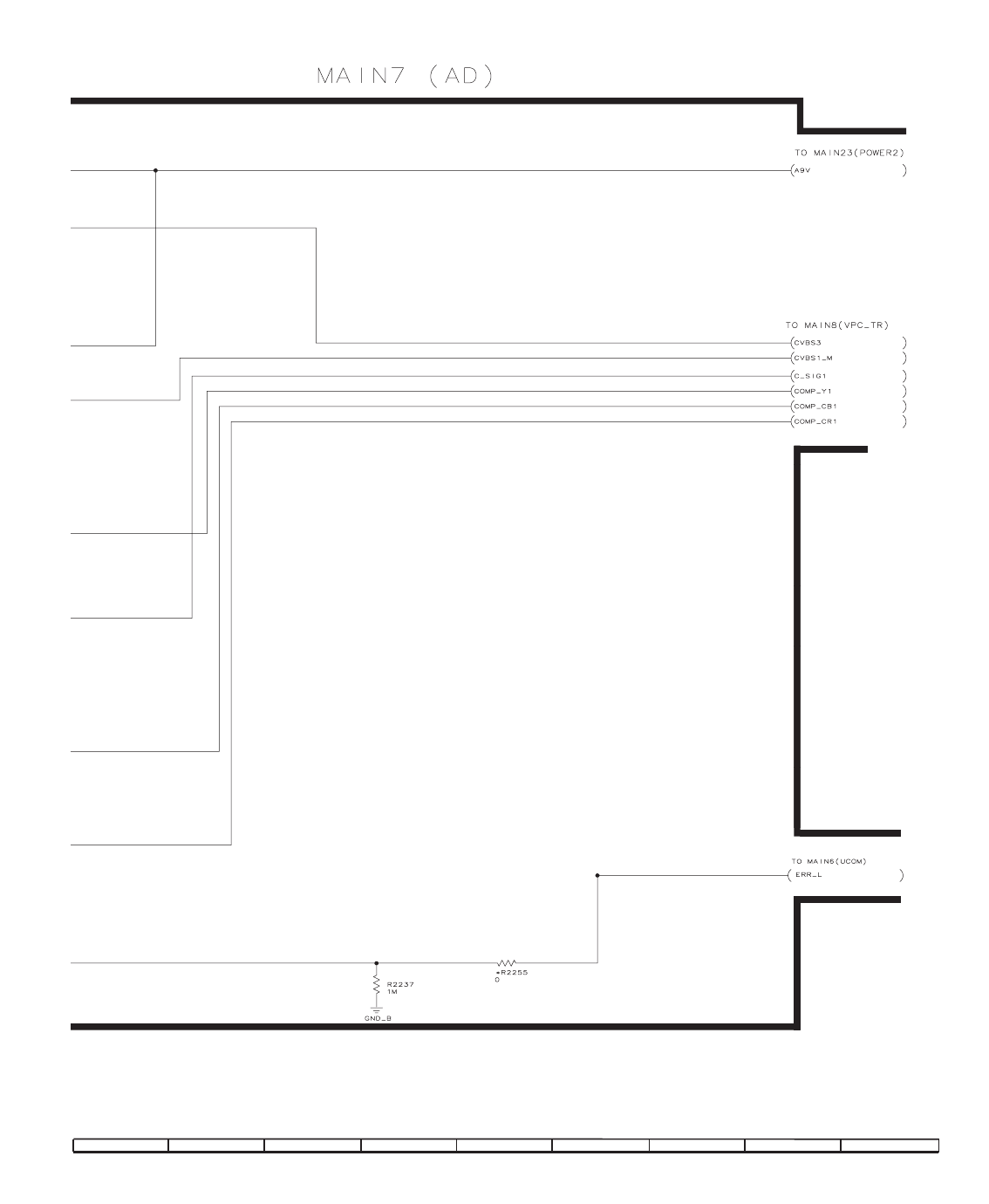

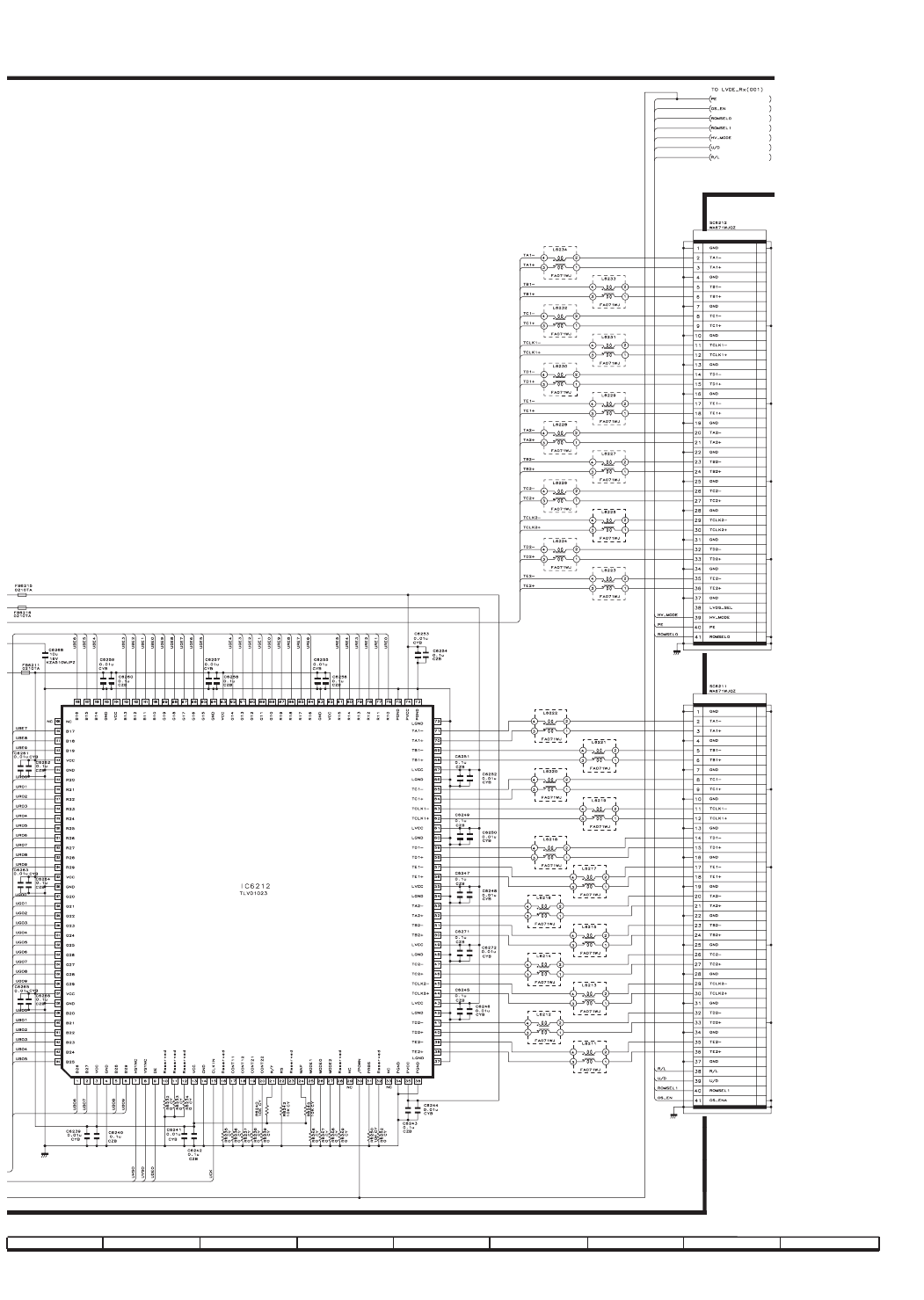

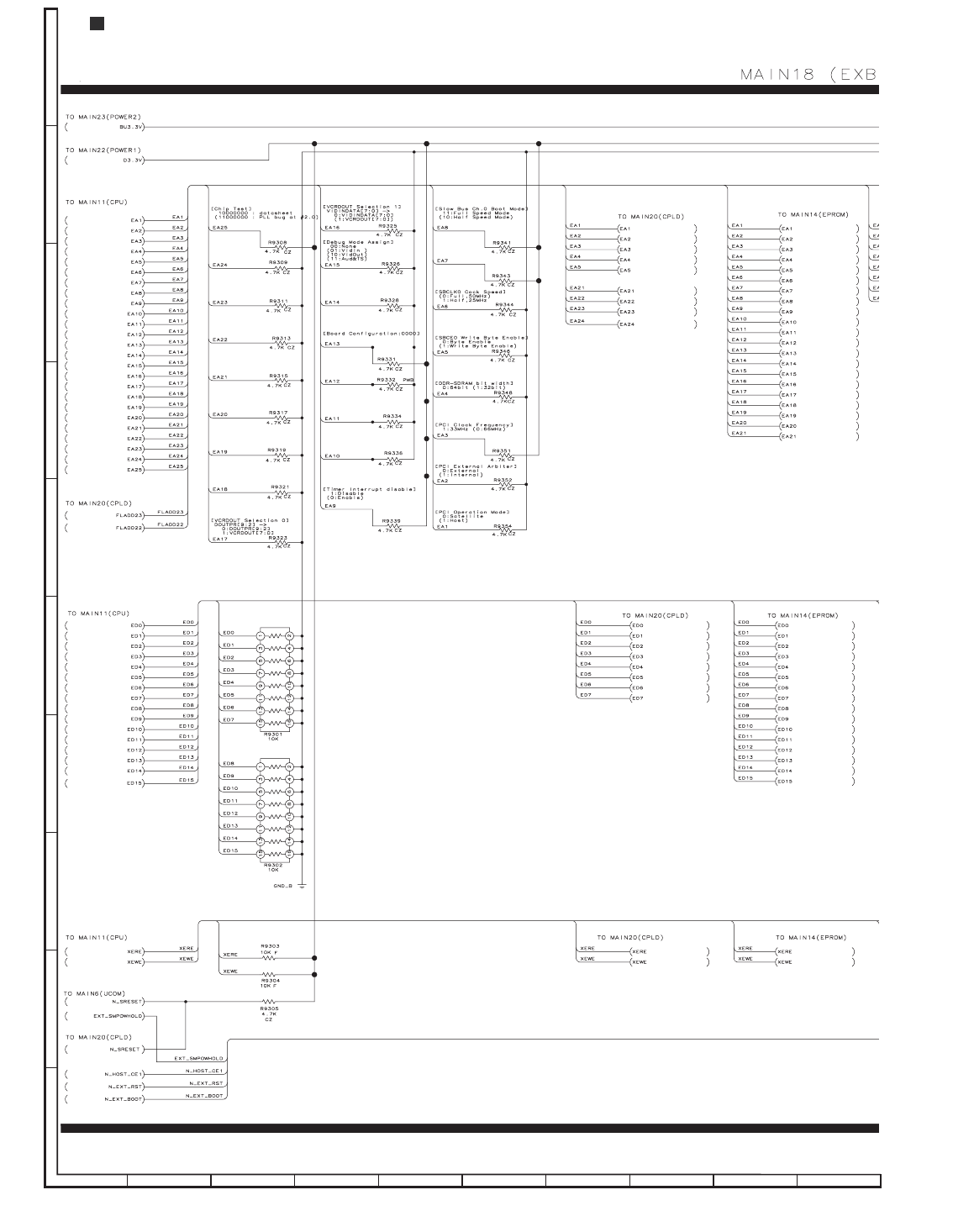

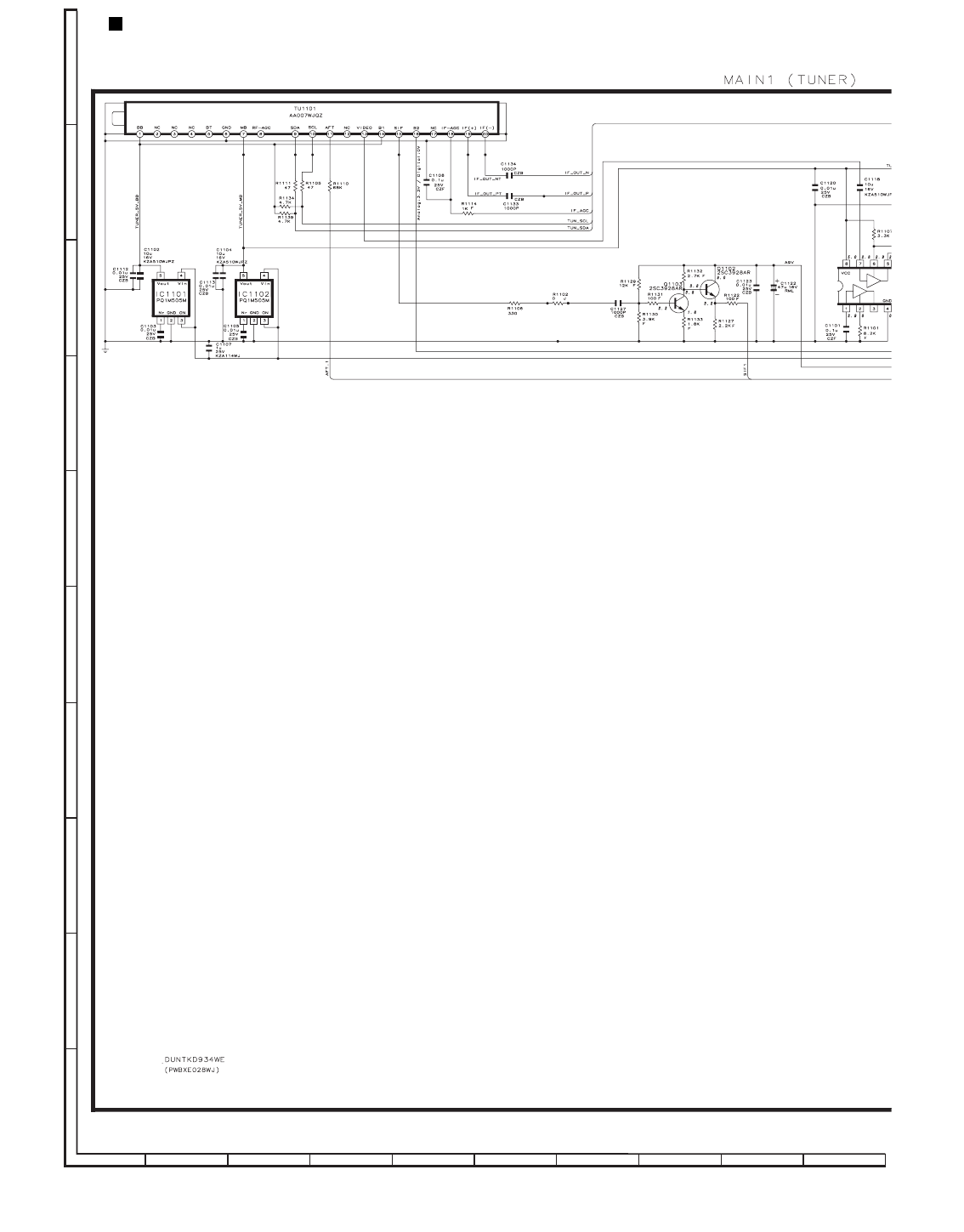

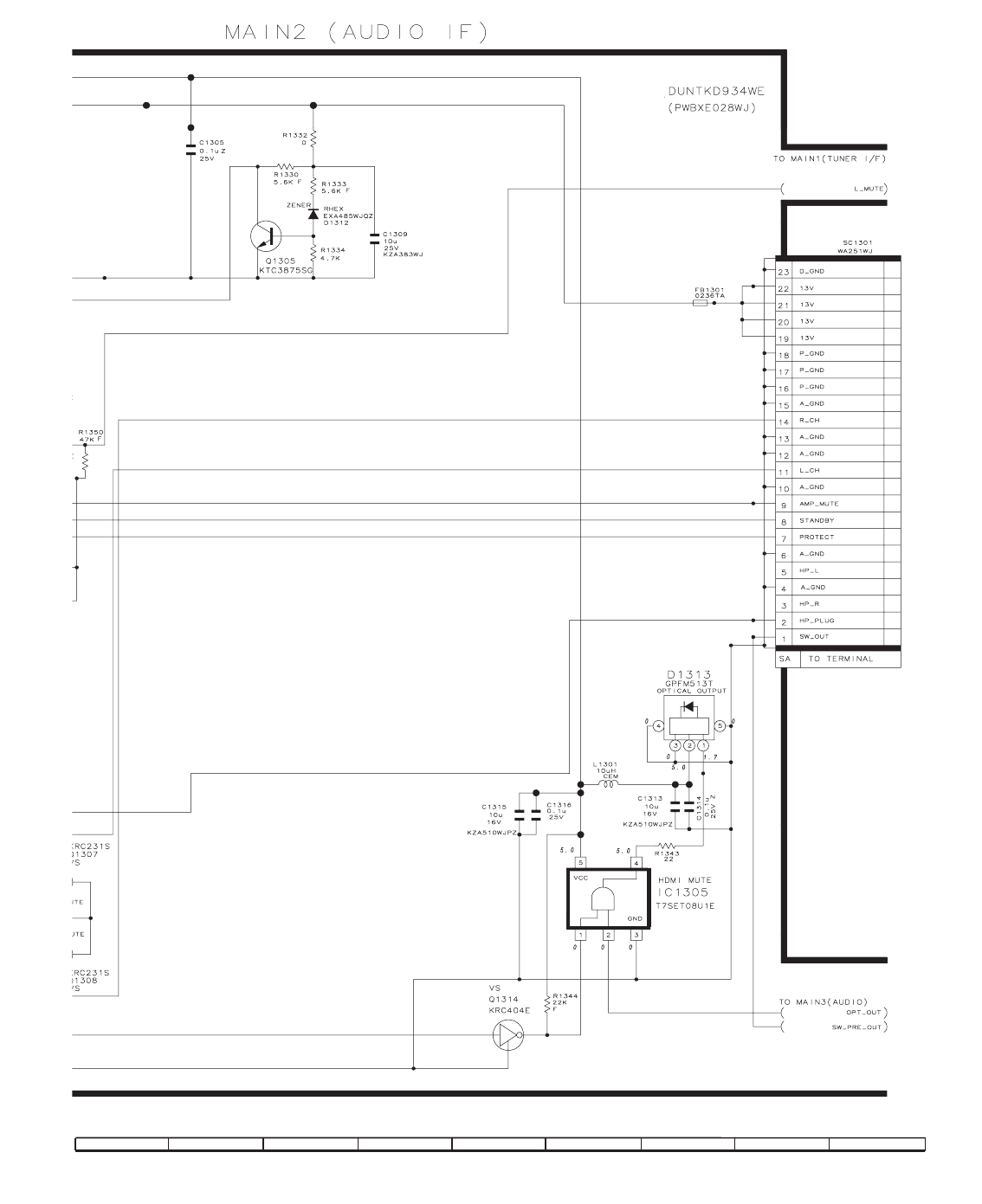

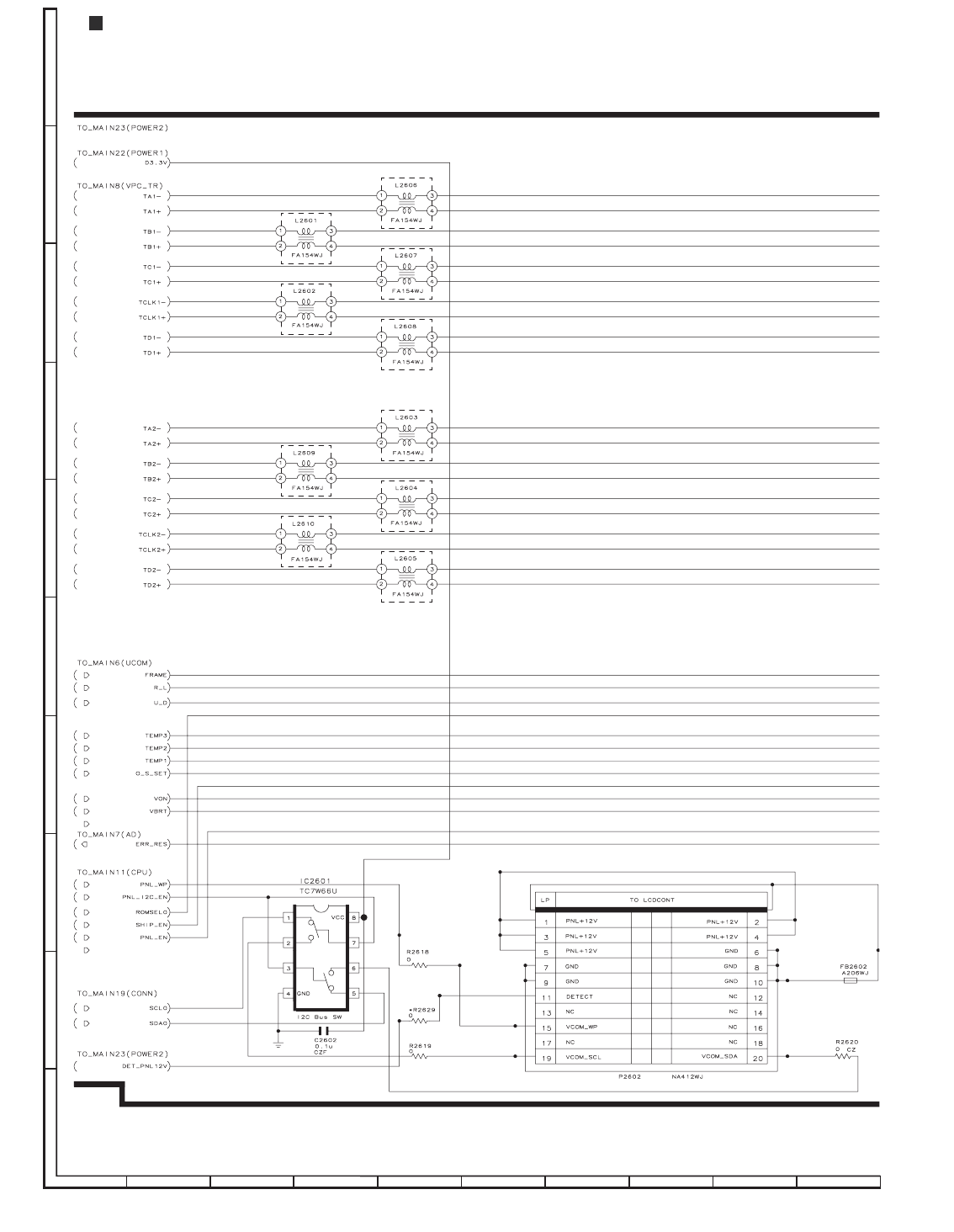

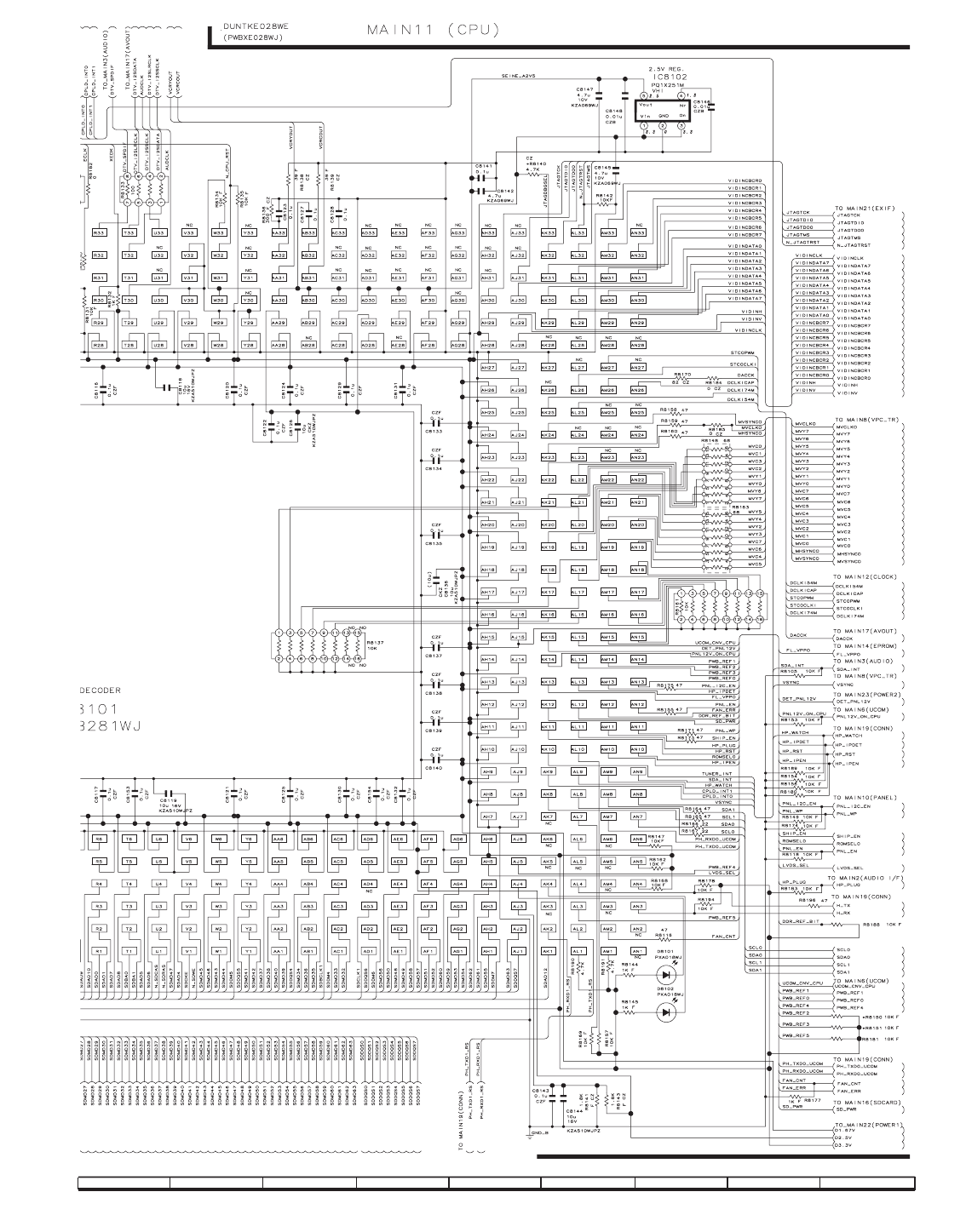

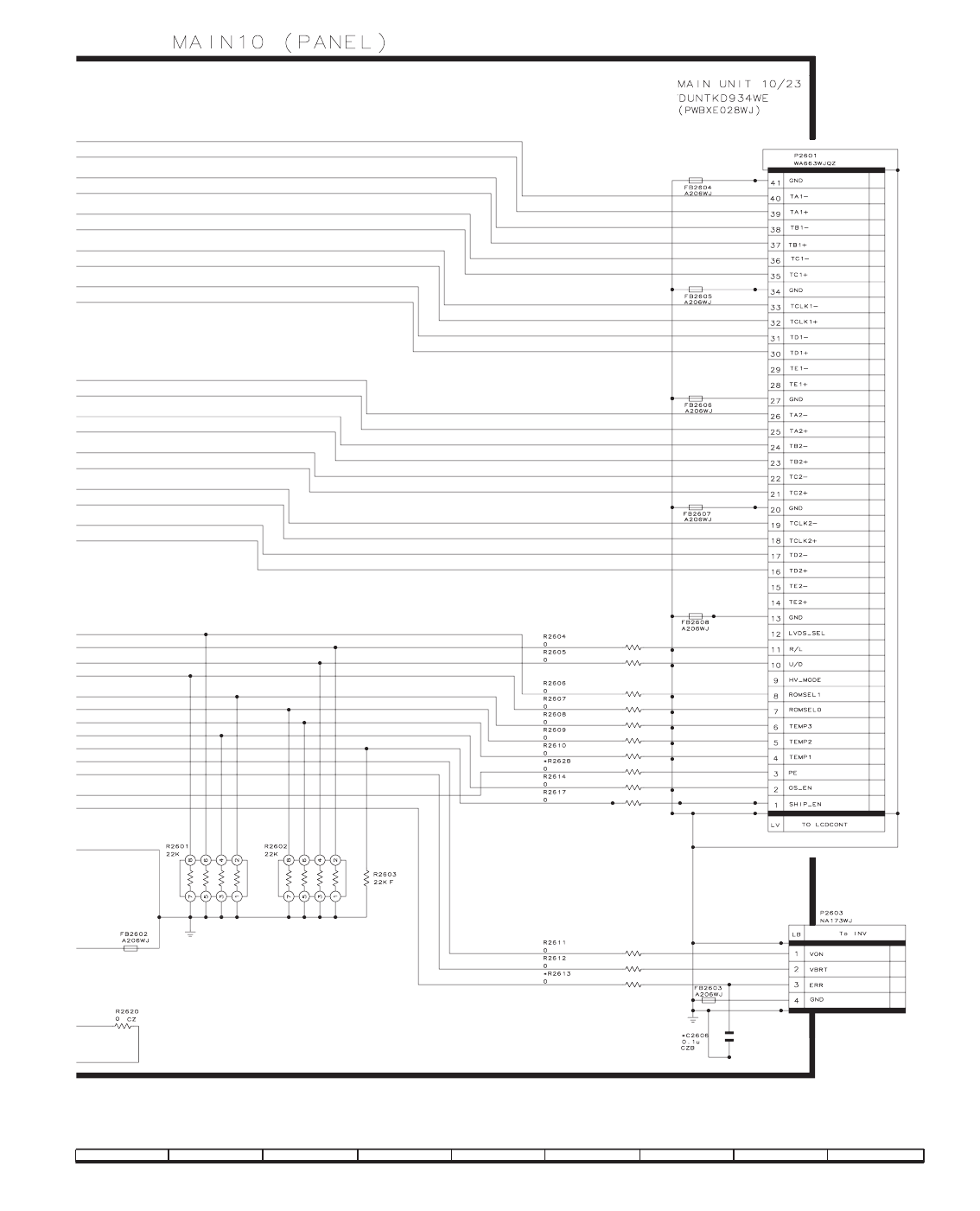

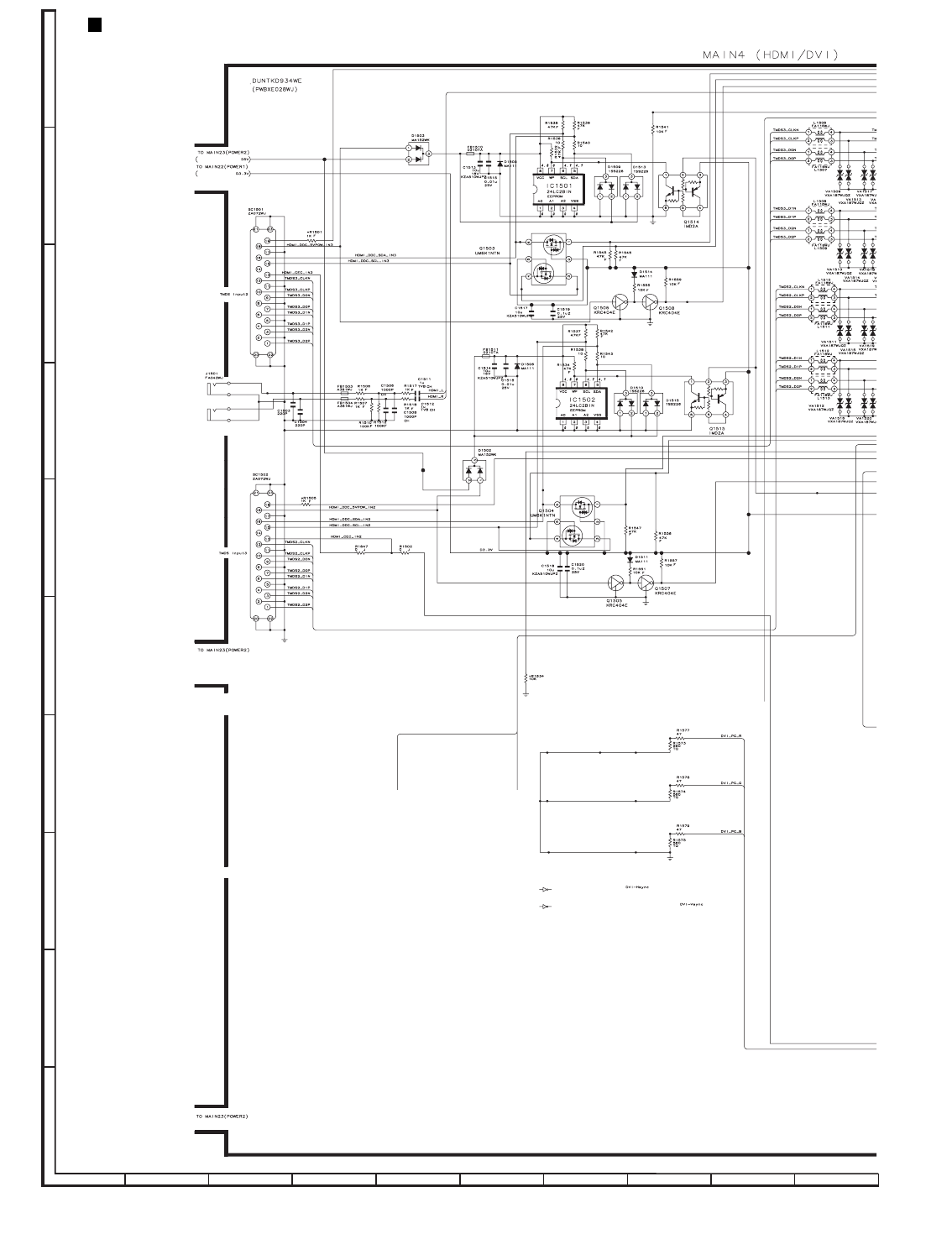

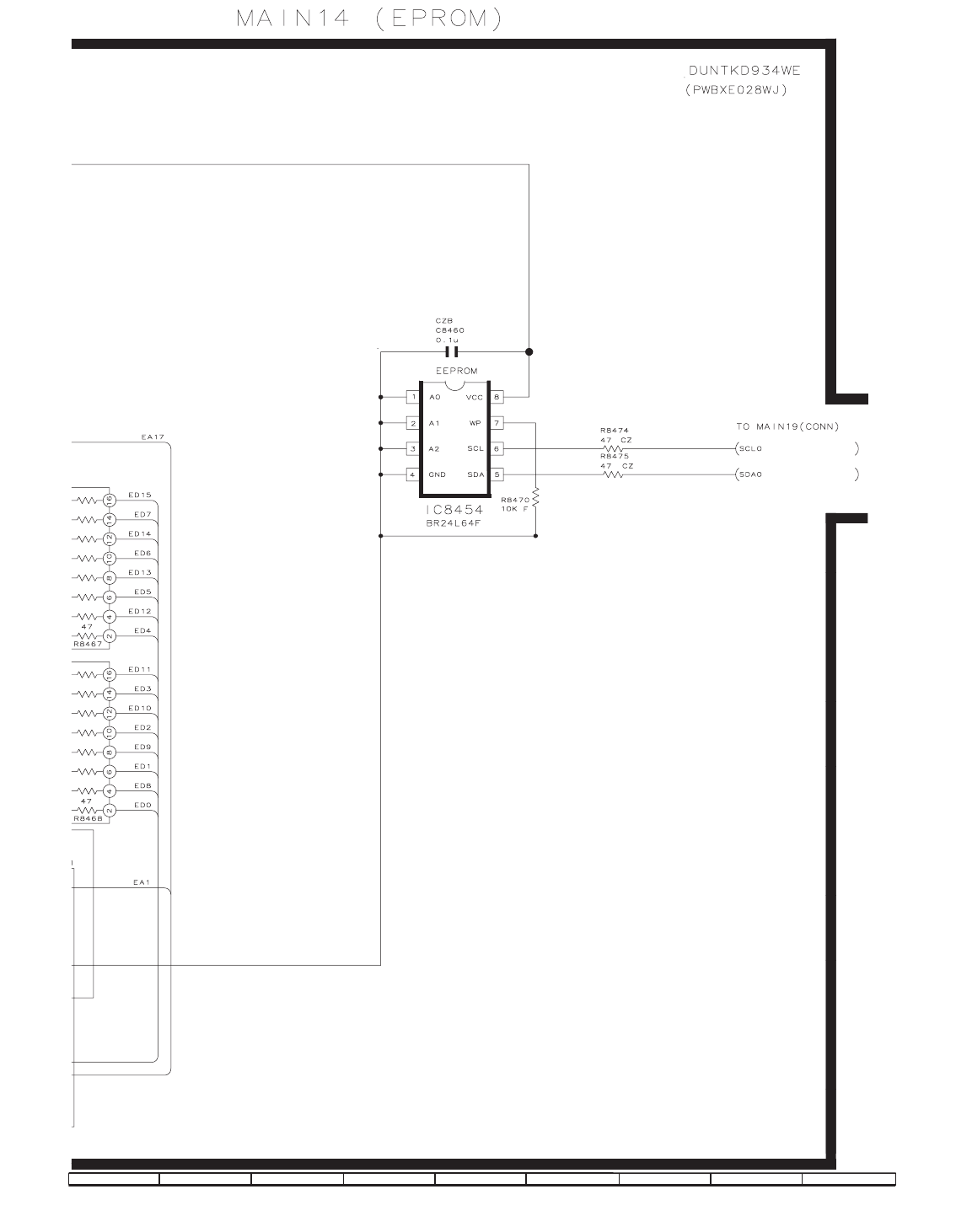

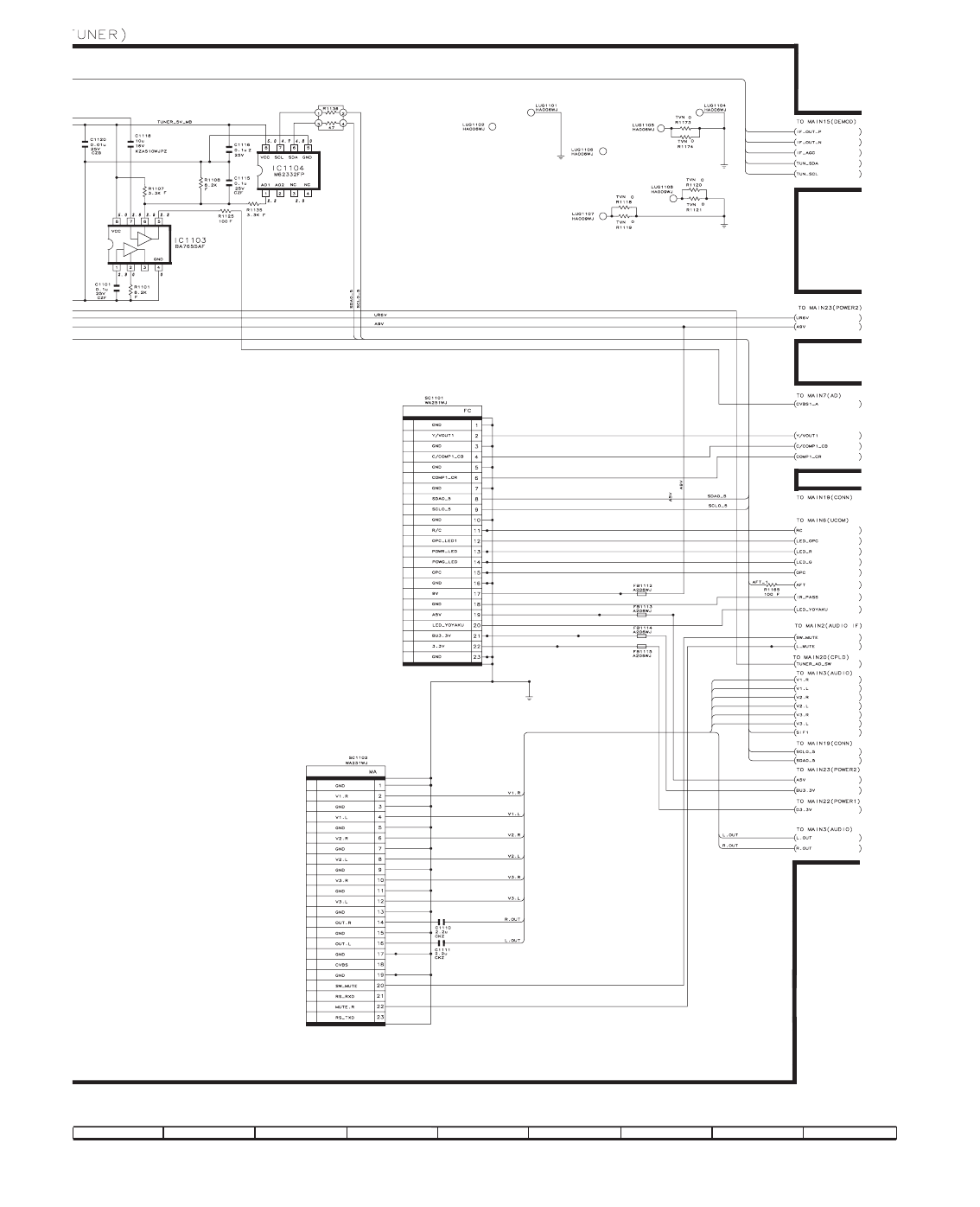

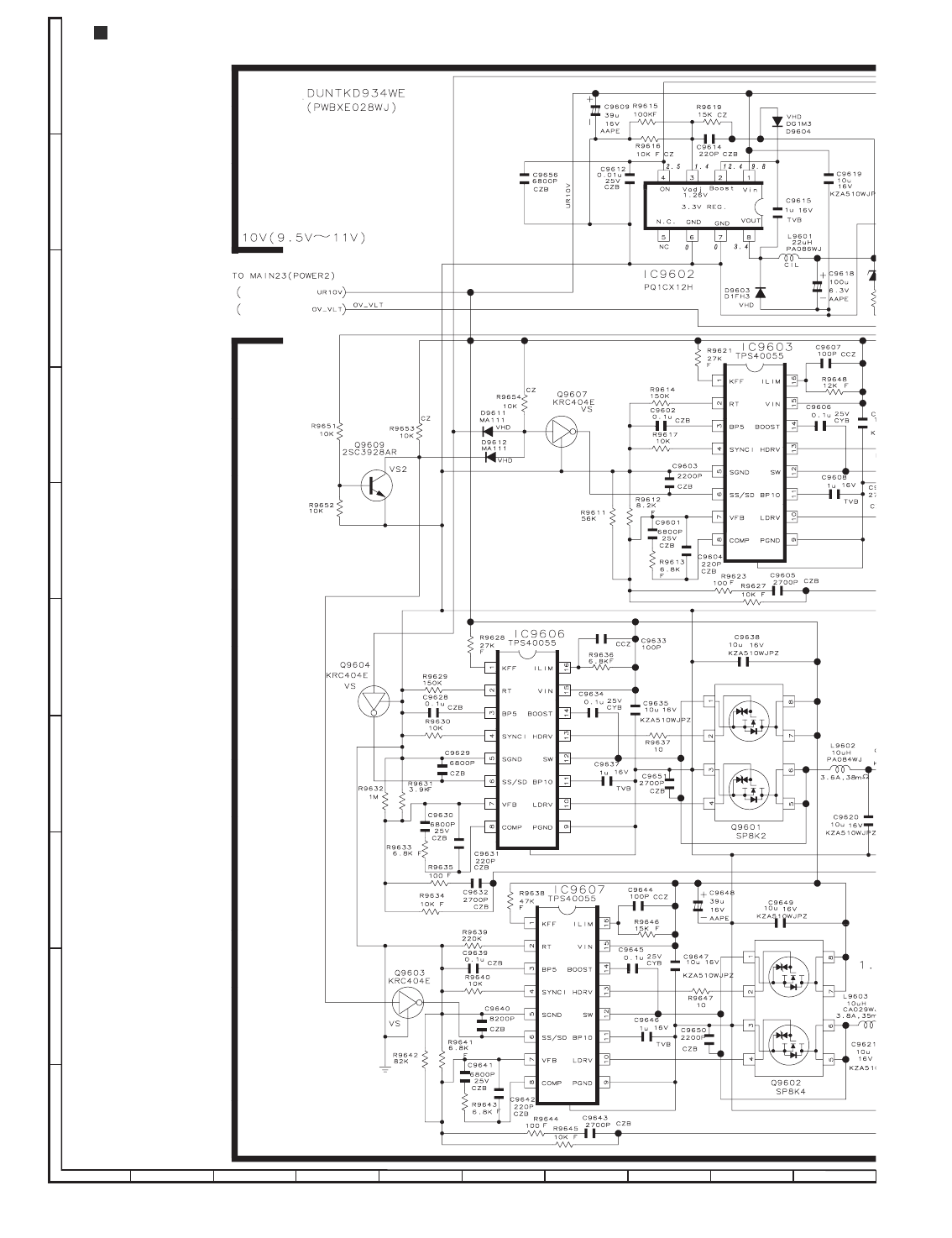

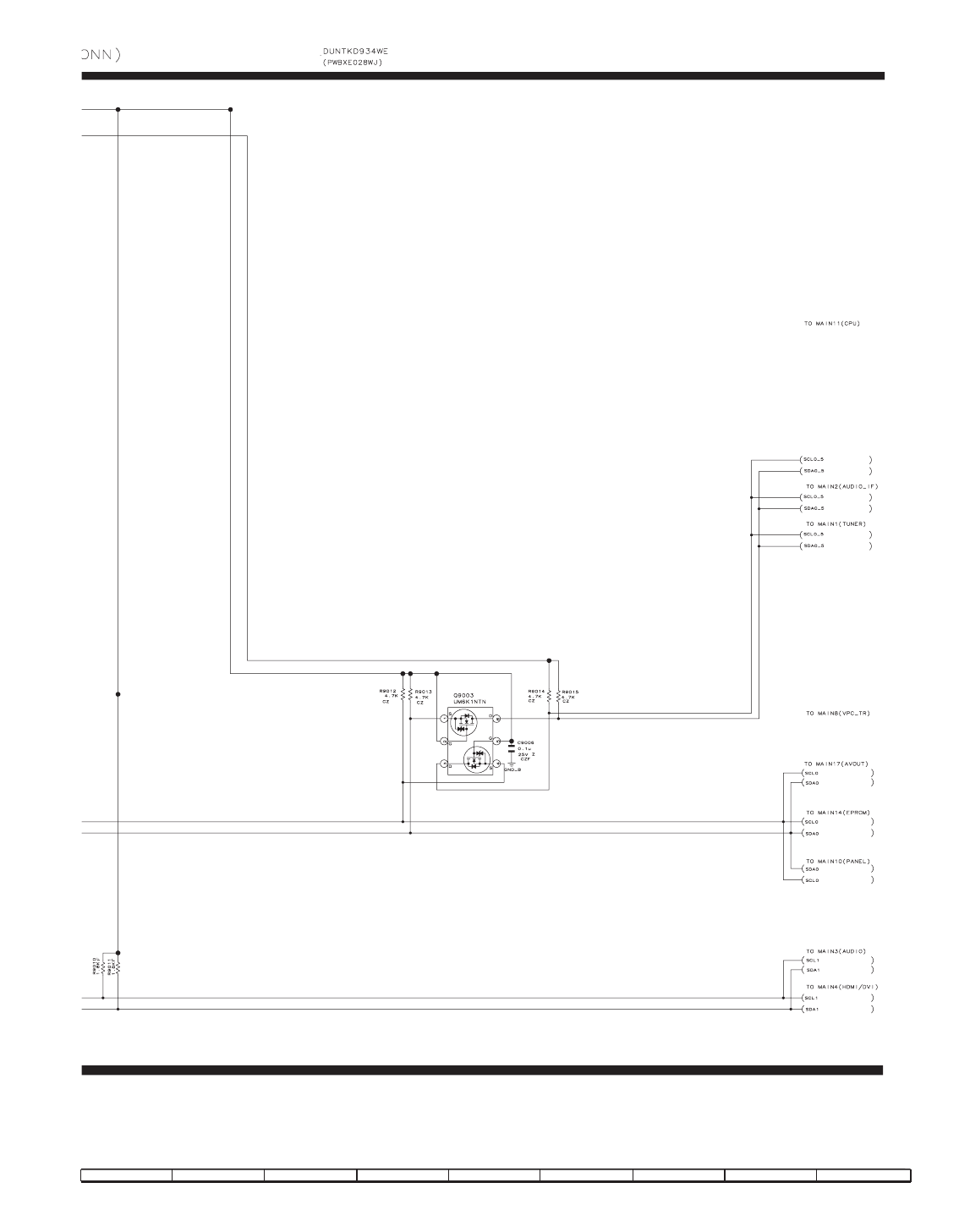

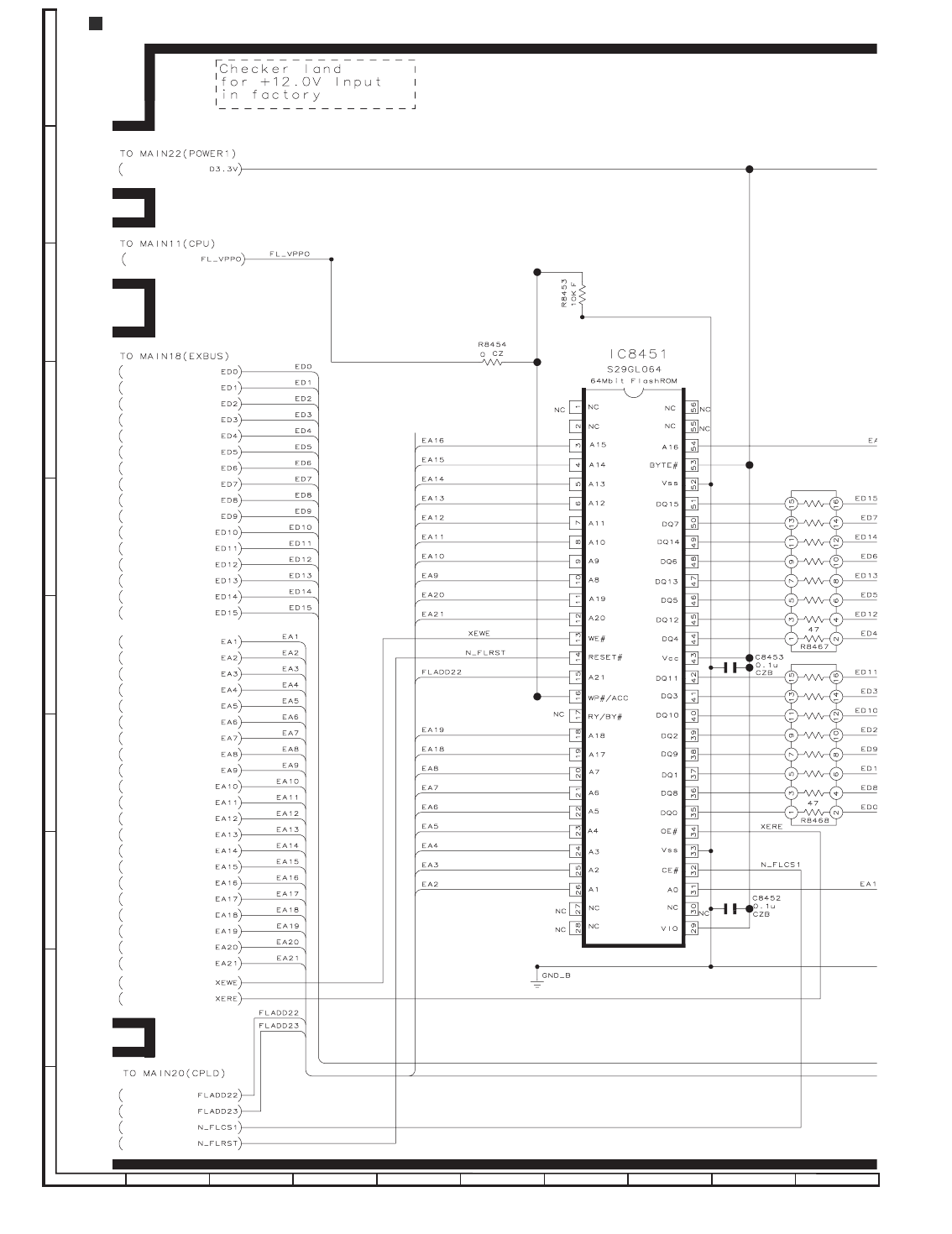

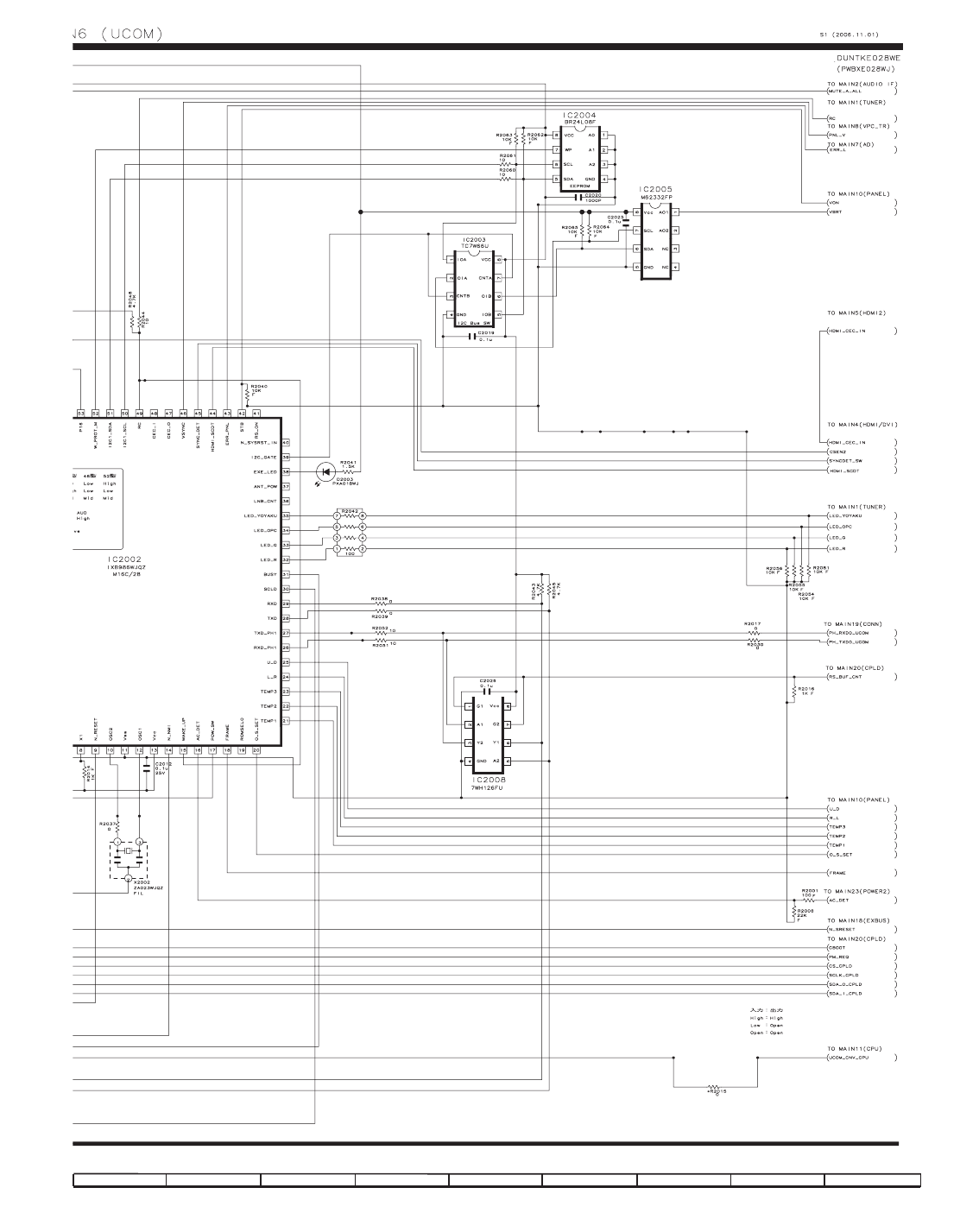

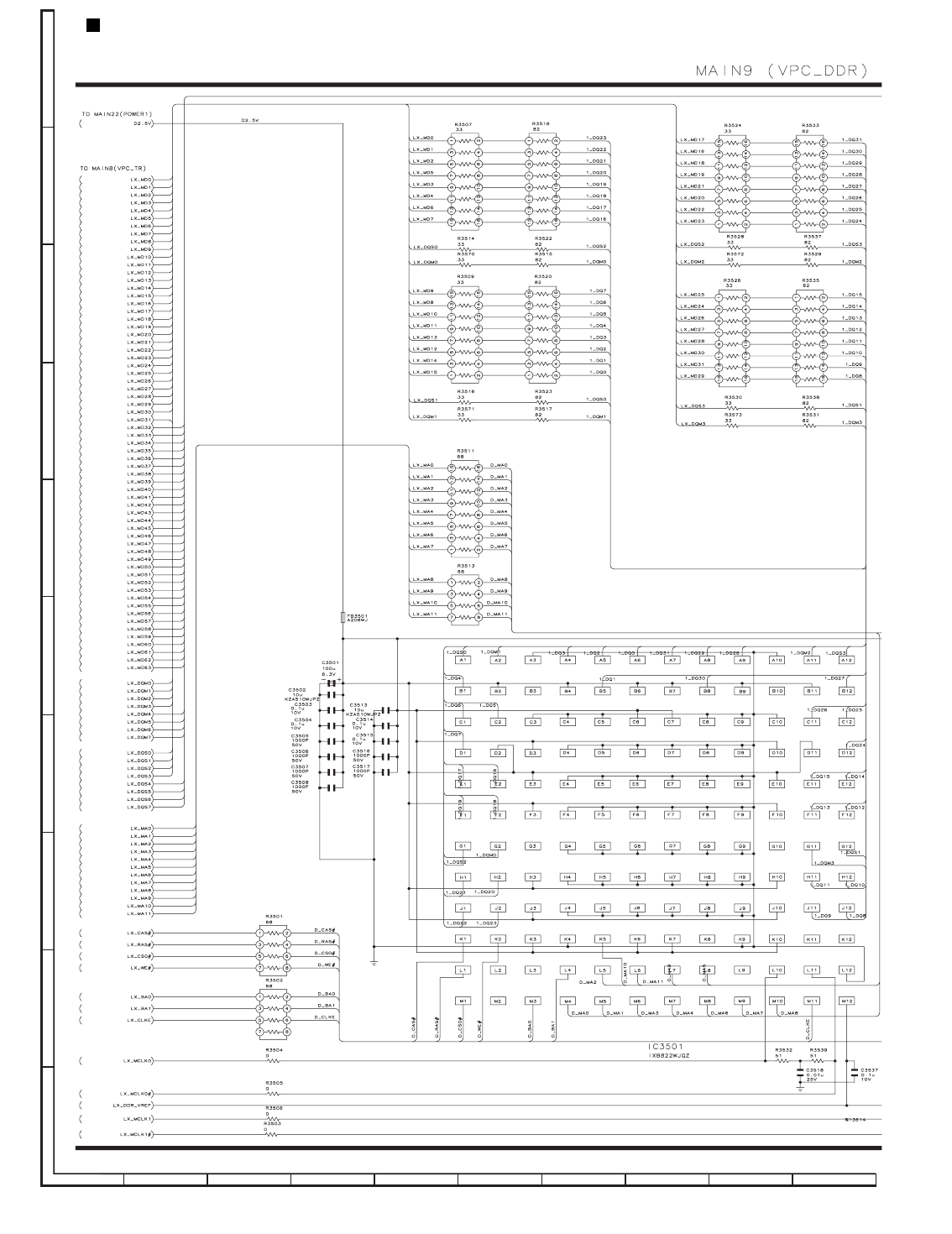

[2] SCHEMATIC DIAGRAM ................................8-2

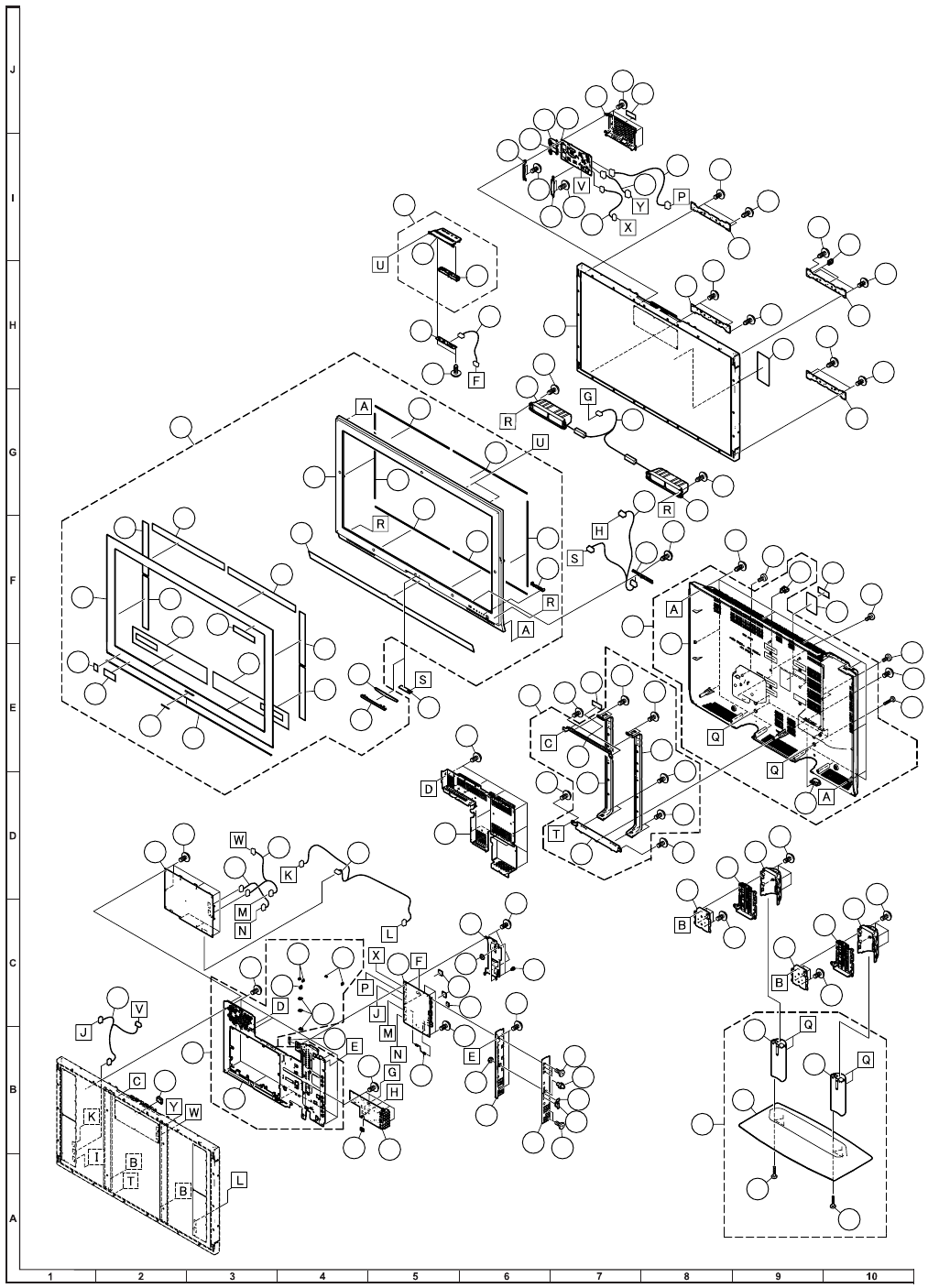

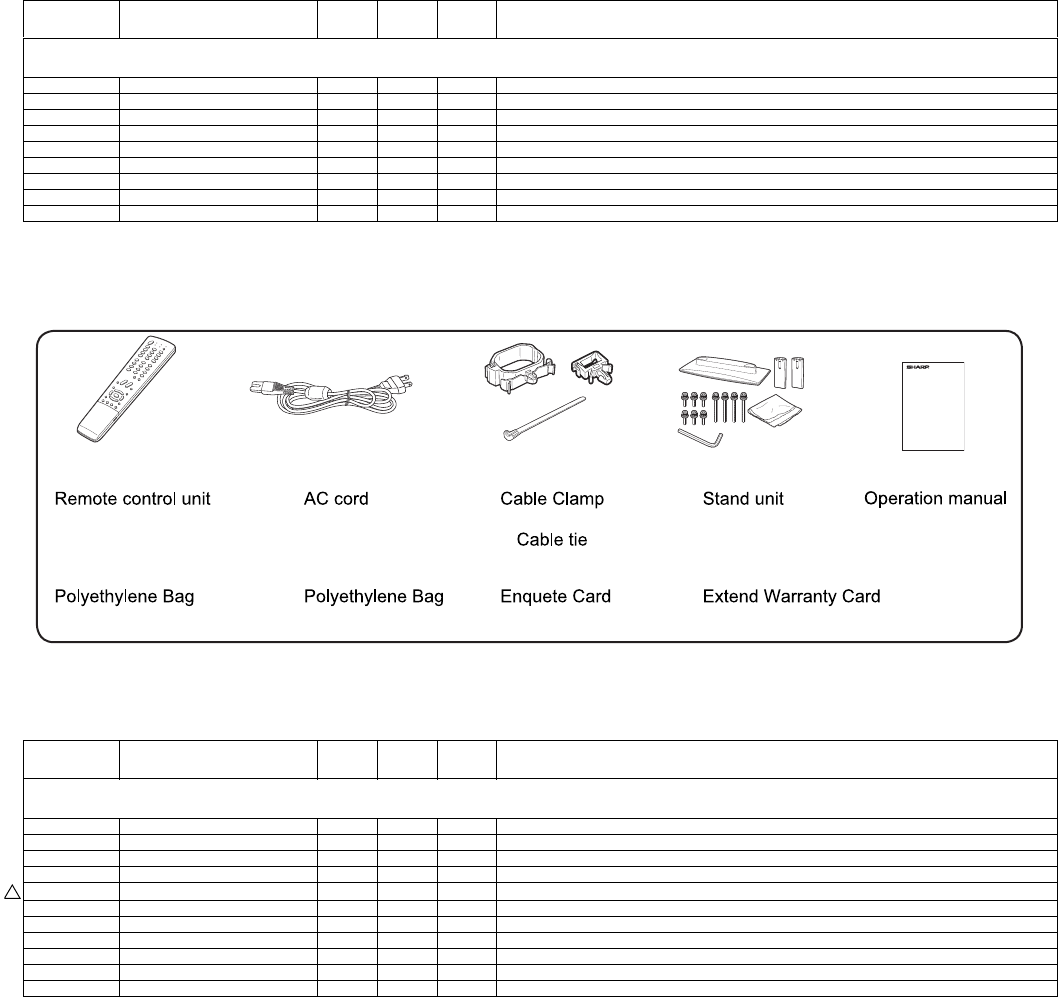

Parts Guide
SERVICE MANUAL
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
LC-46D82U/LC-52D82U
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
No. S37C3LC46D82U
LCD COLOR TELEVISION
LC-52D82U
LC-46D82U
MODELS
LC-46D82U/LC-52D82U
i
LC46D82U Service Manual
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER (Fire &
Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.

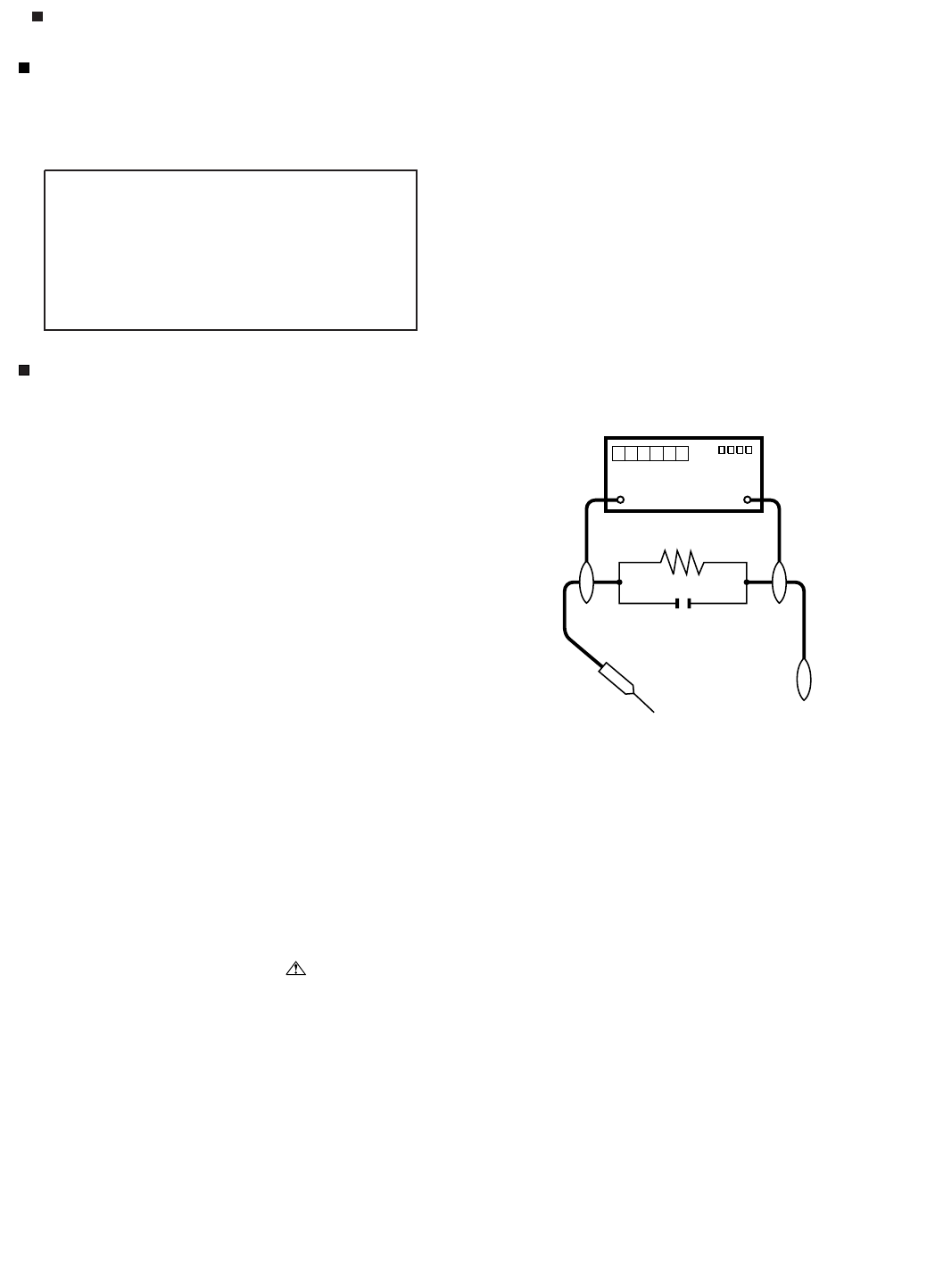

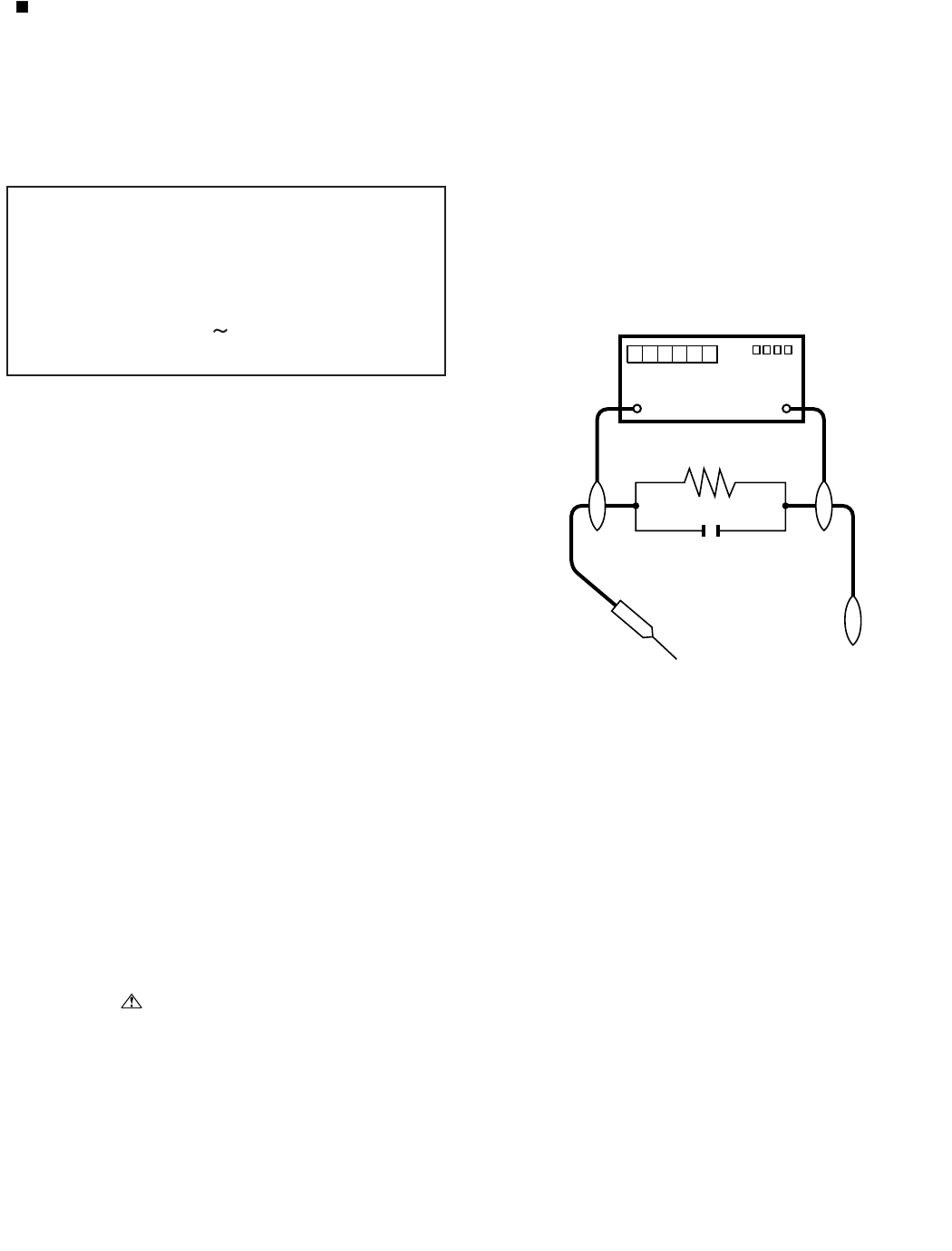

5. To be sure that no shock hazard exists, check for leakage current in
the following manner.
• Plug the AC cord directly into a 120 volt AC outlet.
• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-
leled by a 0.15µF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or elec-
trical ground connected to an earth ground.
• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-
sitivity or measure the AC voltage drop across the resistor.
• Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
SAFETY NOTICE
Many electrical and mechanical parts in LCD color television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " " and shaded areas in the Replacement Parts
List and Schematic Diagrams.
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
CAUTION: FOR CONTINUED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
F701 (250V 8A), F702 (250V 2A)
F4702 (250V 4A),
F4701/F4703 (250V 3A 127
O
C)
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS
CONNECT TO
KNOWN EARTH
GROUND
0.15
µ
F
TEST PROBE
LC-46D82U/LC-52D82U
ii
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
De nombreuses pièces, électriques et mécaniques, dans les télévi-
seur ACL présentent des caractéristiques spéciales relatives à la sé-
curité, qui ne sont souvent pas évidentes à vue. Le degré de protec-
tion ne peut pas être nécessairement augmentée en utilisant des
pièces de remplacement étalonnées pour haute tension, puissance,
etc.
Les pièces de remplacement qui présentent ces caractéristiques sont
identifiées dans ce manuel; les pièces électriques qui présentent ces
particularités sont identifiées par la marque " " et hachurées dans la
liste des pièces de remplacement et les diagrammes schématiques.
Pour assurer la protection, ces pièces doivent être identiques à celles
utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas
les mêmes caractéristiques que les pièces recommandées par l'usine,
indiquées dans ce manuel, peut provoquer des électrocutions, incen-
dies, radiations X ou autres accidents.
AVERTISSEMENT
1.
2.
3.
4.
5.
•
•
•
•
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux
conseils suivants.
N'entreprendre aucune modification de tout circuit. C'est danger-
eux.
Débrancher le récepteur avant toute réparation.
Inspecter tous les faisceaux de câbles pour s'assurer que les fils
ne soient pas pincés ou qu'un outil ne soit pas placé entre le châs-
sis et les autres pièces métalliques du récepteur.
Inspecter tous les dispositifs de protection comme les boutons de
commande non-métalliques, les isolants, le dos du coffret, les cou-
vercles ou blindages de réglage et de compartiment, les réseaux
de résistancecapacité, les isolateurs mécaniques, etc.
S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la
fuite de courant, de la facon suivante:
Brancher le cordon d'alimentation directem-ent à une prise de cou-
rant de 120V. (Ne pas utiliser de transformateur d'isolation pour
cet essai).
A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ
10 watts en parallèle avec un condensateur de 0.15µF en série
avec toutes les pièces métalliques exposées du coffret et une terre
connue comme une conduite électrique ou une prise de terre
branchée à la terre.
Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour
mesurer la chute de tension en travers de la résistance.
Toucher avec la sonde d'essai les pièces métalliques exposées qui
présentent une voie de retour au châssis (antenne, coffret métalli-
que, tête des vis, arbres de commande et des boutons, écusson,
etc.) et mesurer la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir inversé la
fiche du cordon d'alimentation. (Si nécessaire, une prise
d'adpatation non polarisée peut être utilisée dans le but de termin-
er ces vérifications.)
La tension de pointe mesurèe ne doit pas dépasser 0.75V (corre-
spondante au courant CA de pointe de 0.5mA).
Dans le cas contraire, il y a une possibilité de choc électrique qui
doit être supprimée avant de rendre le récepteur au client.
PRECAUTION: POUR LA PROTECTION CON-
TINUE CONTRE LES RISQUES D'INCENDIE,
REMPLACER LE FUSIBLE
F701 (250V 8A), F702 (250V 2A)
F4702 (250V 4A),
F4701/F4703 (250V 3A ~ 127OC)
VERIFICATIONS CONTRE L'INCEN-DIE ET LE
CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer les vérifica-
tions suivantes.
DVM
ECHELLE CA
1.5k ohm
10W
0.15
µ
F
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
AVIS POUR LA SECURITE
LC-46D82U/LC-52D82U
iii
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-
age or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.
PARTS CODE PRICE
RANK
PART
DELIVERY DESCRIPTION
ZHNDAi123250E BL J φ0.3mm 250g (1roll)
ZHNDAi126500E BK J φ0.6mm 500g (1roll)
ZHNDAi12801KE BM J φ1.0mm 1kg (1roll)
LC-46D82U/LC-52D82U
1 – 1
LC46D82U Service Manual
CHAPTER 1. OPERATION MANUAL
[1] SPECIFICATIONS
Digital cable
*1
(64/256 QAM)
1-135ch (non-scrambled channel only)
LCD panel
Number of dots
TV
Function
TV-standard (CCIR)
Receiving
Channel
VHF/UHF
CATV
Digital Terrestrial
Broadcast (8VSB)
Audio multiplex
Audio out
Terminals Rear INPUT 1
INPUT 2
INPUT 3
INPUT 4
INPUT 5
6,220,800 dots (1920 X 1080 X 3 dots)
American TV Standard ATSC/NTSC System
VHF 2-13ch, UHF 14-69ch
1-135ch (non-scrambled channel only)
2-69ch
BTSC System
15W X 2
AV in, COMPONENT in
AV in, COMPONENT in
S-VIDEO in, AV in
HDMI in with HDCP
HDMI in with HDCP
Item Model: LC-46D82U Model: LC-52D82U
46" Advanced Super View & BLACK TFT
LCD
52" Advanced Super View & BLACK TFT
LCD
*1Emergency alert messages via Cable are unreceivable.
*2The dimensional drawings are shown on the inside back cover.
As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
Optional accessory
The listed optional accessory is available for the Liquid
Crystal Television. Please purchase it at your nearest shop.
Additional optional accessories may be available in the near
future. When purchasing, please read the newest catalogue for
compatibility and check the availability.
Model number
AN-52AG1
Part name
Wall mount bracket
ANTENNA
DIGITAL AUDIO OUTPUT
OUTPUT
OSD language
Power Requirement
Power Consumption
Weight
Dimension*2
(W XHXD)
Operating temperature
75 Unbalance, F Type X 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
Optical Digital audio output X 1 (PCM/Dolby Digital)
Audio out
English/French/Spanish
AC 120 V, 60 Hz (FOR NORTH AMERICA)
AC 110-240 V, 50/60 Hz (FOR OTHERS)
+32°F to +104°F (0°C to+40°C)
TV +stand
TV +stand
285 W (0.7 W Standby with AC 120V) 322 W (0.7 W Standby with AC 120V)
78.3 lbs./35.5 kg
4449/64 X3111/32 X1211/64 inch
92.6 lbs./42.0 kg
501/8X3429/64 X1211/64 inch
INPUT 6 Audio in, HDMI in with HDCP
TV only 68.3 lbs./31.0 kg 82.7 lbs./37.5 kg
TV only 4449/64 X287/8X457/64 inch 501/8X3163/64 X431/32 inch
LC-46D82U/LC-52D82U
1 – 2
[2] OPERATION MANUAL
Part names
TV (Front)
OPC indicator*
POWER indicator**
OPC sensor*
Remote control sensor
NOTE
*OPC: Optical Picture Control
**TV status indicator.
***for Blue Illumination LED.
SLEEP indicator**
TV (Rear)
HDMI terminal (INPUT 4)
AC INPUT
terminal
HDMI terminal (INPUT 5)
DIGITAL AUDIO OUTPUT terminal
Antenna/Cable in
HDMI terminal (INPUT 6)
AUDIO terminals (INPUT 6)
INPUT 3 terminals
INPUT 2 terminals
INPUT 1 terminals
AUDIO OUTPUT terminals
POWER button
Channel buttons
(CH /)
Volume
buttons
(VOL /)
INPUT button
Blue Illumination LED***
LC-46D82U/LC-52D82U
1 – 3
3
2
114
5
6
4
8
17
15
16
18
19
7
20
10
9
21
11 23
24
25
12
13 27
22
26
Part names
1 TV POWER: Switch the TV power on or enters standby.
2 DISPLAY: Display the channel information.
3 SOURCE POWER: Turns the power of the external
equipment on and off.
4 External equipment operational buttons: Operate the
external equipment.
50…9:Set the channel.
6 (DOT):
7INPUT:Select a TV input source. (TV, INPUT 1, INPUT
2, INPUT 3, INPUT 4, INPUT 5, INPUT 6)
8VOL/:Set the volume.
9 SURROUND: Select Surround settings.
10 FREEZE: Set the still image. Press again to return to
normal screen.
11 EXIT: Turn off the menu screen.
12 SLEEP: Set the sleep timer.
13 AUDIO: Selects the MTS/SAP or the audio mode during
multi-channel audio broadcasts.
14 FUNCTION: Switches the remote control for TV, CBL/
SAT, VCR, DVD and AUDIO operation. Indicator lights up
for the current mode.
* To enter the code registration mode, you need to press
FUNCTION and DISPLAY at the same time.
15 LIGHT : When pressed all buttons on the remote
control unit will light. The lighting will turn off if no
operations are performed within about 5 seconds. This
button is used for performing operations in low-light
situations.
16 VIEW MODE: Select the screen size.
17 ENT: Jumps to a channel after selecting with the 0…9
buttons.
18 FLASHBACK:Return to the previous channel or external
input mode.
19 CH / : Select the channel.
20 MUTE: Mute the sound.
21 MENU: Display the menu screen.
22 ////ENTER: Select a desired item on the
screen.
23 RETURN: Return to the previous menu screen.
24 FAVORITE CH
A, B, C, D: Select 4 preset favorite channels in 4 different
categories.
While watching, you can toggle the selected channels by
pressing A, B, C and D.
25 FAVORITE: Set the favorite channels.
26 CC: Display captions from a closed-caption source.
27 AV MODE: Select an audio or video setting. (When the
input source is TV, INPUT 1, 2 or 3: STANDARD, MOVIE,
GAME, USER, DYNAMIC (Fixed), DYNAMIC. When the
input source is INPUT 4, 5 or 6: STANDARD, MOVIE,
GAME, PC, USER, DYNAMIC (Fixed), DYNAMIC)
Remote control unit
NOTE
When using the remote control unit, point it at the TV.
LC-46D82U/LC-52D82U
1 – 4

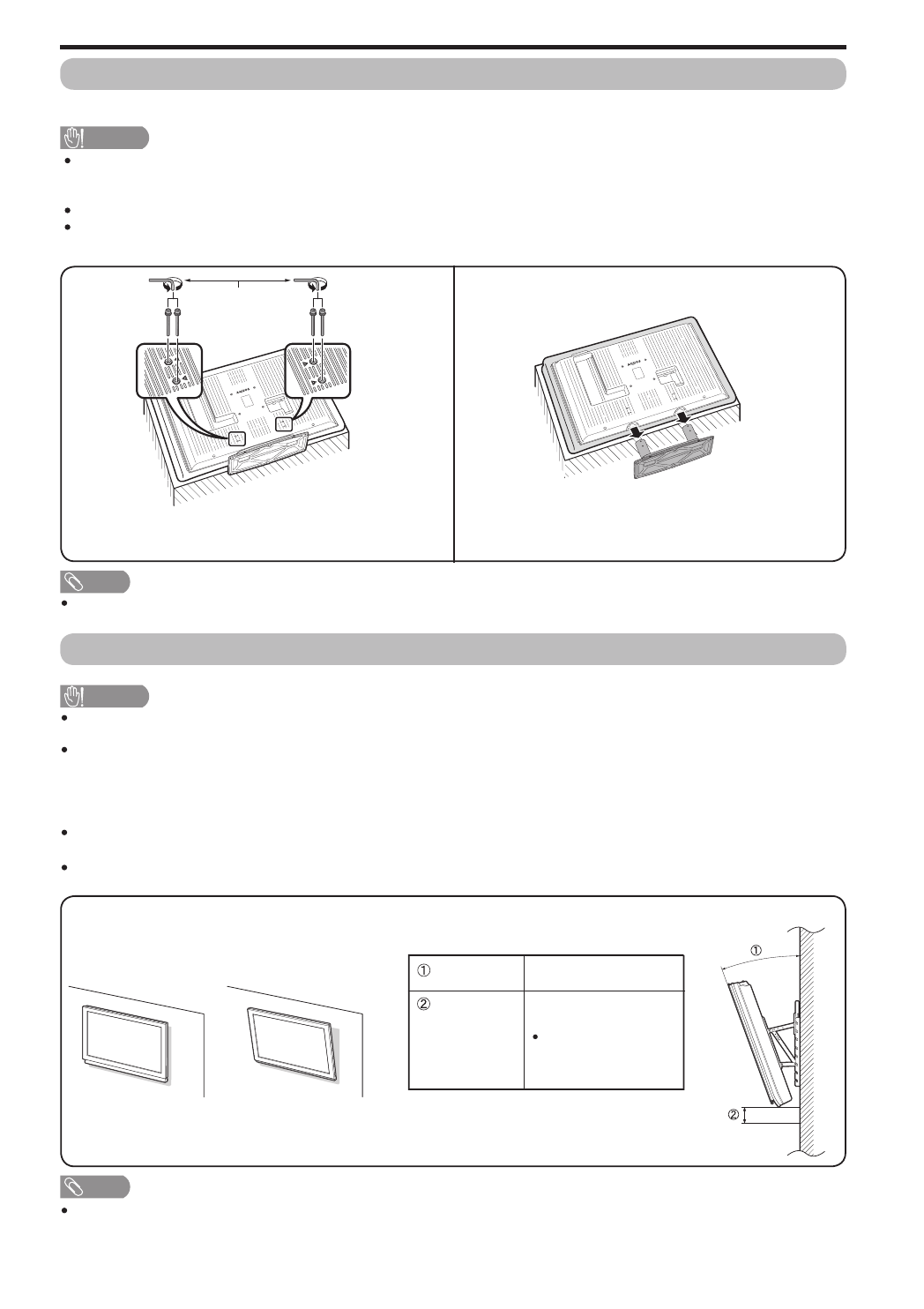

Removing the stand
Before detaching (or attaching) stand, unplug the AC cord from the AC INPUT terminal.
CAUTION
Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
Before attaching/detaching stand
Before performing work make sure to turn off the TV.
Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
Setting the TV on the wall
CAUTION
This TV should be mounted on the wall only with the AN-52AG1 (SHARP) wall mount bracket. The use of other
wall mount brackets may result in an unstable installation and may cause serious injuries.
Installing the TV requires special skill that should only be performed by qualified service personnel. Customers
should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
Using an optional bracket to mount the TV
You can ask a qualified service professional about using an optional AN-52AG1 bracket to mount the TV to the
wall.
Carefully read the instructions that come with the bracket before beginning work.
Hanging on the wall
AN-52AG1 wall mount bracket.
(See the bracket instructions for details.)
Vertical mounting
About setting the TV angle and height adjustment
Unfasten the four screws used to secure the stand in
place.
Detach the stand from the TV.
(Hold the stand so it will not drop from the edge of the
base area.)
Appendix
NOTE
To attach the stand, perform the above steps in reverse order.
Angular mounting
12
−
++
163/64 (−5)/0/
163/64 (5)
can be moved 1 63/64
(5)upordown
Unit: inch (cm)
0/5/10/15/20°
Hex key
NOTE
Detach the cable clamps on the rear of the TV when using the optional mount bracket.
Angle of TV
Height
Adjustment
LC-46D82U/LC-52D82U
1 – 5
Troubleshooting
Possible Solution
Is the volume too low?
Is "Variable" selected in "Output Select"?
Have you pressed MUTE on the remote control unit?
Cautions regarding use in high and low temperature environments
Appendix
Problem
No power
Unit cannot be operated.
Remote control unit does not
operate.
Picture is cut off/with sidebar
screen.
Strange color, light color, or color
misalignment
Power is suddenly turned off.
No picture
No sound
Check if you pressed TV POWER on the remote control unit. If the
indicator on the TV does not light up, press POWER on the TV.
IstheACcorddisconnected?
Has the power been turned on?
External influences such as lightning, static electricity, may cause improper
operation. In this case, operate the unit after first turning on the power of the TV or
unplugging the AC cord and replugging it in after 1 or 2 minutes.
Is the FUNCTION set correctly? Set it to the TV setting position.
Are batteries inserted with polarity (+,−) aligned?
Are batteries worn out? (Replace with new batteries.)
Are you using it under strong or fluorescent lighting?
Is a fluorescent light illuminated near the remote control sensor?
Is the image position correct?
Are screen mode adjustments such as picture size made correctly?
Adjust the picture tone.
Is the room too bright? The picture may look dark in a room that is too bright.
Check the input signal setting.
Is the sleep timer set?
Check the power control settings.
The unit's internal temperature has increased. Remove any objects blocking vent
or clean.
Is connection to other components correct?
Is correct input signal source selected after connection?
Is the correct input selected?
Is picture adjustment correct?
Is "On" selected in "Audio Only"?
Is a non-compatible signal being input?
When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.
Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.
Storage temperature: − 4°F to + 140°F (−20°C to + 60°C)
Troubleshooting-Digital broadcasting
The error message about reception of broadcast
Failed to receive broadcast.
E203 Check the broadcast time in the program guide.
The example of an error
message displayed on a screen
No broadcast now.
Error code
E202
Possible Solution
Check the antenna cable. Check that the antenna is correctly
setup.
LC-46D82U/LC-52D82U
1 – 6
Preparation
NOTE
The HDMI terminals only support digital signal.
PC
It is necessary to set the PC format correctly to display XGA and WXGA signal.

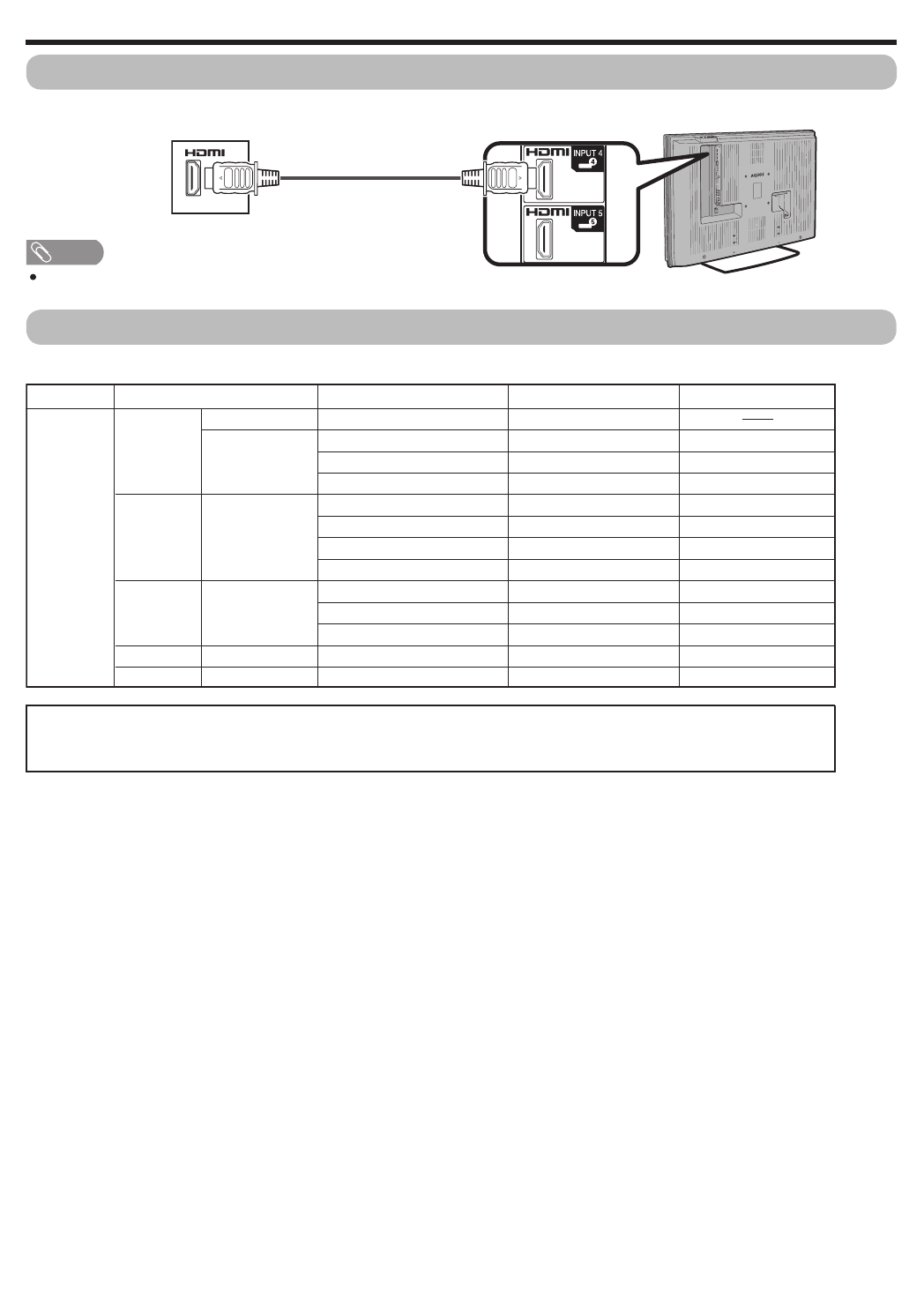

Connecting a PC
When connecting to a PC with an HDMI terminal. (INPUT 4, 5 or 6)
HDMI cable
(commercially available)
PC compatibility chart
PC
31.5 kHz
31.5 kHz
37.9 kHz
37.5 kHz
35.1 kHz
37.9 kHz
48.1 kHz
46.9 kHz
48.4 kHz
56.5 kHz
60.0 kHz
47.7 kHz
64.0 kHz
640 x 480
720 x 400
VGA
800 x 600SVGA
XGA 1024 x 768
WXGA 1360 x 768
SXGA 1280 x 1024
70 Hz
60 Hz
72 Hz
75 Hz
56 Hz
60 Hz
72 Hz
75 Hz
60 Hz
70 Hz
75 Hz
60 Hz
60 Hz
O
O
O
O
O
O
O
O
O
O
O
O
DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Co., Inc.
PC Horizontal Frequency VESA StandardResolution Vertical Frequency
LC-46D82U/LC-52D82U
1 – 7
Audio
Option
Power Control
Digital Setup
Audio
Option
Power Control
Menu items for TV/INPUT 1/2/3 Menu items for HDMI
Basic adjustment settings
OPC
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced
Color Temp.
Black
Fine Motion Advanced
3D-Y/C
Monochrome
Film Mode
Range of OPC
Reset
Treble
Bass
Balance
Surround
Reset
No Signal Off
No Operation Off
OPC
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced
Color Temp.
Black
Fine Motion Advanced
Monochrome
Film Mode
Range of OPC
Reset
Treble
Bass
Balance
Surround
Reset
No Signal Off
No Operation Off
EZ Setup
CH Setup
Antenna Setup-DIGITAL
Input Skip
Input Label
Parental CTRL
Position
Language
Blue Illumination
Reset
Audio Only
Digital Noise Reduction
Input Select
Output Select
Color System
Caption Setup
Program Title Display
Favorite CH
Audio Setup
Input Skip
Input Signal
Input Label
Position
Language
Blue Illumination
Reset
Audio Only
Digital Noise Reduction
HDMI Setup
Output Select
Some menu items may not be displayed depending on the
selected input source.
Setup
Setup
NOTE
LC-46D82U/LC-52D82U
1 – 8
[3] DIMENSIONS
4
57
/
64
(124)
12
11
/
64
(309)
3
25
/
32
(96)
17
47
/
64
(450)
25
63
/
64
(660)
44
49
/
64
(1137)
31
11
/
32
(796)
28
7
/
8
(733)2
31
/
64
(63)
40
7
/
32
(1021.4)
22
21
/
32
(575.4)
7
7
/
8
(200)
7
7
/
8
(200)
3
61
/
64
(100)
45
31
/
64
(1155.0)
25
63
/
64
(660)
50
1
/
8
(1273)
4
31
/
32
(126)
12
11
/
64
(309)
3
3
/
4
(95)
25
41
/
64
(651.0)
19
19
/
64
(490)
34
29
/
64
(875)
31
63
/
64
(812)
2
31
/
64
(63)
7
7
/
8
(200)
7
7
/
8
(200)
3
61
/
64
(100)
Unit: inch/(mm)
LC-46D82U
LC-52D82U
LC-46D82U/LC-52D82U
2 – 1
LC46D82U Service Manual
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-46D82U)
1. Detach the SD Card Cover
.
2. Remove the 13 lock screws .
3. Remove the 5 lock screws and detach the Rear Cabinet.
1
SD CARD COVER
1
Rear Cabinet
2
3
22 2 2
2
22
2
22
2
2
3
3 3
3
Rear Cabinet
LC-46D82U/LC-52D82U
2 – 2
4. Remove the 8 lock screws and detach the Stand Set Cover.
5. Remove the 8 lock screws and detach the Stand Fix Angle.
4
INSERT
LOCK
x4
LOCK
x4
INSERT
4 4
STAND ST COV-R
5
STAND FIX ANG
5
LC-46D82U/LC-52D82U
2 – 3
6. Remove the 4 lock screws and detach the Bridge Angle Ass’y.
7. Remove the 2 lock screws and detach the Speaker-L/R.
8. Remove all the connectors from PWBs.
6
BOTTOM SIDE
KS BRIDGE ANGLE
"TOP" SIDE
6
6 6
6
Chassis Fix Angle
Chassis Fix Angle
7
SP wire safety line (SP wire is the thing which is not in the bottom side from the center of the body of SP.)
LA
LC
LB
Connect Wire(SP-L)
LA
LC
Connect Wire(SP-R)
SPEAKER-R/L SPEAKER-R/L
Shape(SP-L)
Shape(SP-L)
㪪㪧㩷㪽㫀㫏㪼㪻㩷㪹㫆㫋㫋㫆㫄㩷㫊㫀㪻㪼㩷㪿㫆㫃㪻㪼㫉㪅 㪪㪧㩷㪽㫀㫏㪼㪻㩷㪹㫆㫋㫋㫆㫄㩷㫊㫀㪻㪼㩷㪿㫆㫃㪻㪼㫉㪅
(SP Wire)
(RA,SP-Wires)
5-10mm
5-10mm
㪦㫅㪼㩷㪽㫆㫉㩷㫉㫆㫆㫄㩷㫆㪽㩷㫋㪿㪼㩷㫎㫀㫉㪼
㩹㪩㪘㩷㪸㫅㪻㩷㪪㪧㪄㪩㩹
㫀㫊㩷㪸㪹㫊㫆㫉㪹㪼㪻㩷㪿㪼㫉㪼㪅
A
djustment
(upside.)
㪁㪪㪧㩷㫎㫀㫉㪼㩷㫊㪸㪽㪼㫋㫐㩷㫃㫀㫅㪼
㩷㩿㪪㪧㩷㫎㫀㫉㪼㩷㫀㫊㩷㫋㪿㪼㩷㫋㪿㫀㫅㪾㩷㫎㪿㫀㪺㪿㩷㫀㫊㩷㫅㫆㫋㩷㫀㫅㩷㫋㪿㪼
㩷㩷㪹㫆㫋㫋㫆㫄㩷㫊㫀㪻㪼㩷㪽㫉㫆㫄㩷㫋㪿㪼㩷㪺㪼㫅㫋㪼㫉㩷㫆㪽㩷㫋㪿㪼㩷㪹㫆㪻㫐㩷㫆㪽㩷㪪㪧㪅㪀
㩷㩿㪛㫆㫅㩾㫋㩷㪹㪼㪺㫆㫄㪼㩷㪺㫆㫍㪼㫉㪼㪻㩷㫎㫀㫋㪿㩷㫋㪿㪼
㩷㩷㩷㪪㪧㩷㫎㫀㫉㪼㩷㫆㫅㩷㫋㪿㪼㩷㪪㪧㩷㪽㫀㫏㪼㪻㩷㪹㫆㫋㫋㫆㫄㩷㫊㫀㪻㪼㩷㪿㫆㫃㪻㪼㫉㪅㪀
77
LC-46D82U/LC-52D82U
2 – 4
9. Remove the 3 lock screws and detach the Sub Shield.
10.Remove the 6 lock screws and detach the Main Shield.
8
㪤㪸㫀㫅㩷㪪㪿㫀㪼㫃㪻
SUB SHIELD
8
9
MAIN-SHIELD
9 9
9
9
9
9
LC-46D82U/LC-52D82U
2 – 5
11.Remove all the connectors from PWBs.
12.Remove the 1 lock screw , and detach the LED Unit.
LB
L
Connect Wire(L)
LA
LC
LA
LC
LB
L
㪣㪙
WH
10
LA
LC
LA
LC
㵘ILLUMINATIN UNIT
RA
㵘LED UNIT
LED UNIT
RA
SP
LA
LB
RA RA
HANG
HANG
Connect Wire(RA)
TERMINAL-ILLUMINATION
LB
RIB-CAB
*CAUTION
"RA" wire should pass on the right of CAB-RIV.
HANG
INSERT
ShapeRAx3
For RIB-CAB
Connect Wire(RA)
TERMINAL䋭LED
10
LC-46D82U/LC-52D82U
2 – 6
13.Remove all the connectors from PWBs.
14.Remove the 7 lock screws and PWB Ass’y unit.
KM
LV
LP
Connect Wire(LV)
MAIN-LCD CONT
Open Side
(WH)
WH
Connect Wire(KM)
MAIN䋭TOPCOVER ASS’Y
Connect Wire(LF)
MAIN-LCD CONT
OK
NG
㪧㫌㫊㪿㪧㫌㫊㪿
㪧㫌㫊㪿㩷㫋㪿㪼㩷㪿㫆㫃㪻㪼㫉㩷㫇㪸㫉㫋㪅
No good
㪧㫌㫊㪿
㪛㫆㩷㫅㫆㫋㩷㫇㫌㫊㪿㩷㫋㪿㪼㩷㫎㫀㫉㪼㩷㫇㪸㫉㫋㪅
KM
Connect Wire(PH)
POWER-LCD CONT
LF
Base line(Edge of ಳ)
㪧㪟
㪧㪛
Shape(LV)
WH
㪣㪧㩿㪣㪝㪀
LV
LV
LP
LF
㪣㪭
PH
PH
PH
PD
PD
KM
11
㵘㵘㪢㪪㩷㪫㪦㪧㩷㪚㪦㪭㪜㪩㩷㪘㪪㪪㩾㪰
㵘㵘TRAY ASEMBLY UNIT
11
LC-46D82U/LC-52D82U
2 – 7
15.Remove the 8 lock screws and detach the FRC PWB Angle.
16.Remove the 4 lock screws and detach the Panel Module Ass’y.
12
FRC_UNIT
FRC_PWB_ANG
LCDCON-FRC(11P) WIRE
IC6001 COOL
㵘㵘㵘㵘㵘䋨10x10x2)
IC5801 COOLL
㵘㵘㵘㵘㵘䋨20x20x2)
FRC PWB SET ANG
SILICON GREASE
SILICON GREASE
*CAUTION
Designation in the installation
direction
(9) QPWBHE107WJQZ ×2
FRC-LCDCON(FPC)
(Both side)
FRC side
䋨㪇㪇㪌㪎㪉㪉䋩
㪧㪸㫉㫋㩷㫀㫅㪻㫀㪺㪸㫋㫀㫆㫅
LCD side
12
12
13
Panel Module Ass’y is fitted to the
bottom right side.
INSIDE
PANEL MODULE ASS’Y
INSIDE
PANEL BACK Side
INSIDE
INSIDE
13
13
13
LC-46D82U/LC-52D82U
2 – 8
17.Remove the 8 lock screws , and detach the Chassis Fix Angles.
18.Remove the 1 lock screw , and detach the Barrier sheet.
19.Remove the 2 lock screws , and detach the Key Unit.
14
15
㪧㪸㫅㪼㫃㪄㫊㫀㪻㪼
Passes through the
protruding portion.
㪝㫀㪾㪄㪈
Barrier seet
Fitted the hole in protruding portion.
㪘㹢
Screw
PANEL_MODULE
KS CAB-A
118mm
Fitted on the left of WH
Barrier sheet
Fitted to the panel tightness.
Tape is torn off..
Fitted to the screw hole
Fitted to the protruding portion.
Open side
WH WH
WH
Line of the angle
118mm
CH FIX ANG U-RL CH FIX ANG U-RL
CH FIX ANG U-RL
CH FIX ANG U-RL
Open side
14
14
14 14
15
15
㪘㹢
16
KEY UNIT
The guidepin 㵘
of positioning x3
KS TOP COV
16
LC-46D82U/LC-52D82U
2 – 9

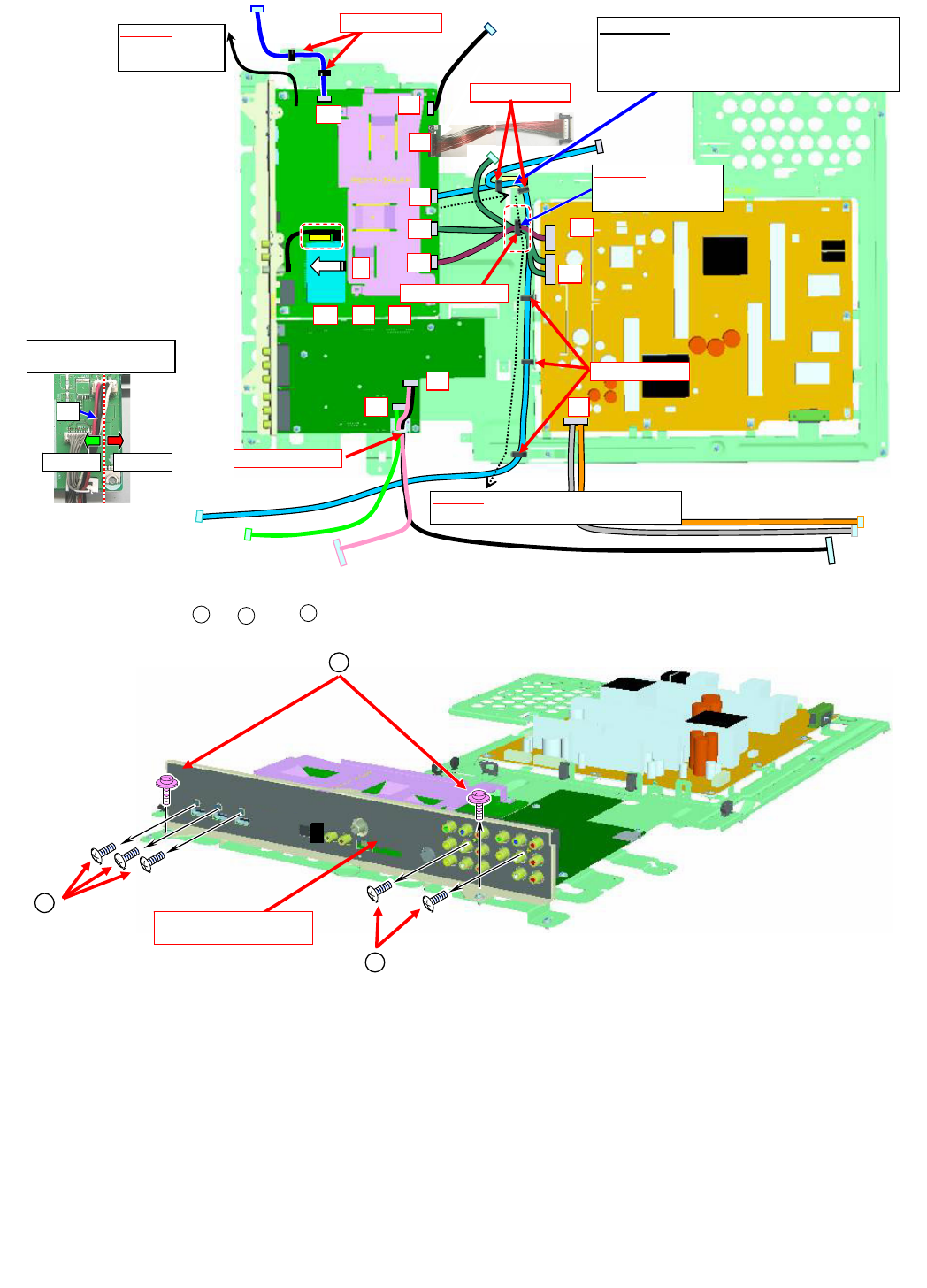

20.Remove all the connectors from PWBs.
21.Remove the 7 lock screws , and , and detach the AV Terminal Angle Ass’y.
LV
LB
SP
SAFCMA
PH
PD
A
LA
PH PD
KM
RA
LP
㩷
SHAPE(LB) x2
SHAPE(LB) x3
SHAPE(KM) x2
SHAPE (RA.SP)
NG AREAOK AREA
SP
NG AREAOK AREA
SP
TURN
TRN
Base line of Shape SP Wire
(The center of socket)
*CAUTION
Wire-tape tab control specification
(Prevention of a wound with the shielding case)
Tape Position is between WH and WH.
CAUTION
The LB wire is under the
PD wire and PH wire.
CAUTION
Shape without play.
(KM Wire)
CAUTION
Straight line(Don't make a wire have looseness.)
SHAPE (PH,PD)
17 18 19
+
㩷㩷㪫㪜㪩㪤㪄㪘㪥㪞㪄㪣㪦㪥㪞㩷㪘㪪㪪㵭㪰
㩷㩿㪧㫉㪼㫇㪸㫉㪼㪻㪀
18
17
19
LC-46D82U/LC-52D82U
2 – 10

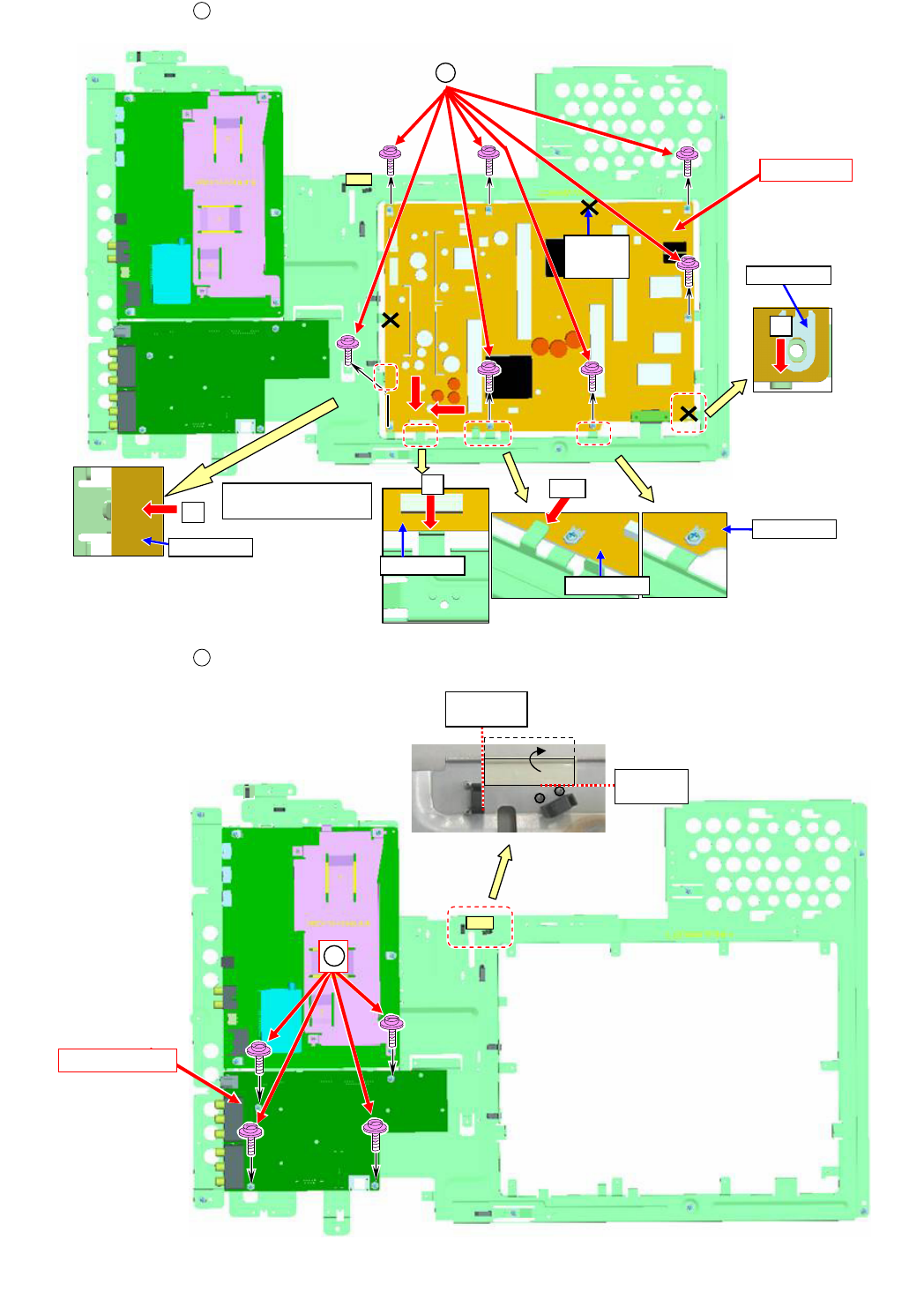

22.Remove the 7 lock screws and detach the Power unit.
23.Remove the 4 lock screws and detach the Terminal unit.
20
㵘㵘
POWER UNIT
Power unit is fitted to the
bottom left side.
Fit
POWER UNIT
Fit
POWER UNIT
Insert
Fit
POWER UNIT
The screw is
unnecessary.
(×3)
POWER UNIT
POWER UNIT
20
21
TERMINAL UNIT
㵘
Base line
(Edge of WH)
Base line
(Edge of ಲ)
21
LC-46D82U/LC-52D82U
2 – 11

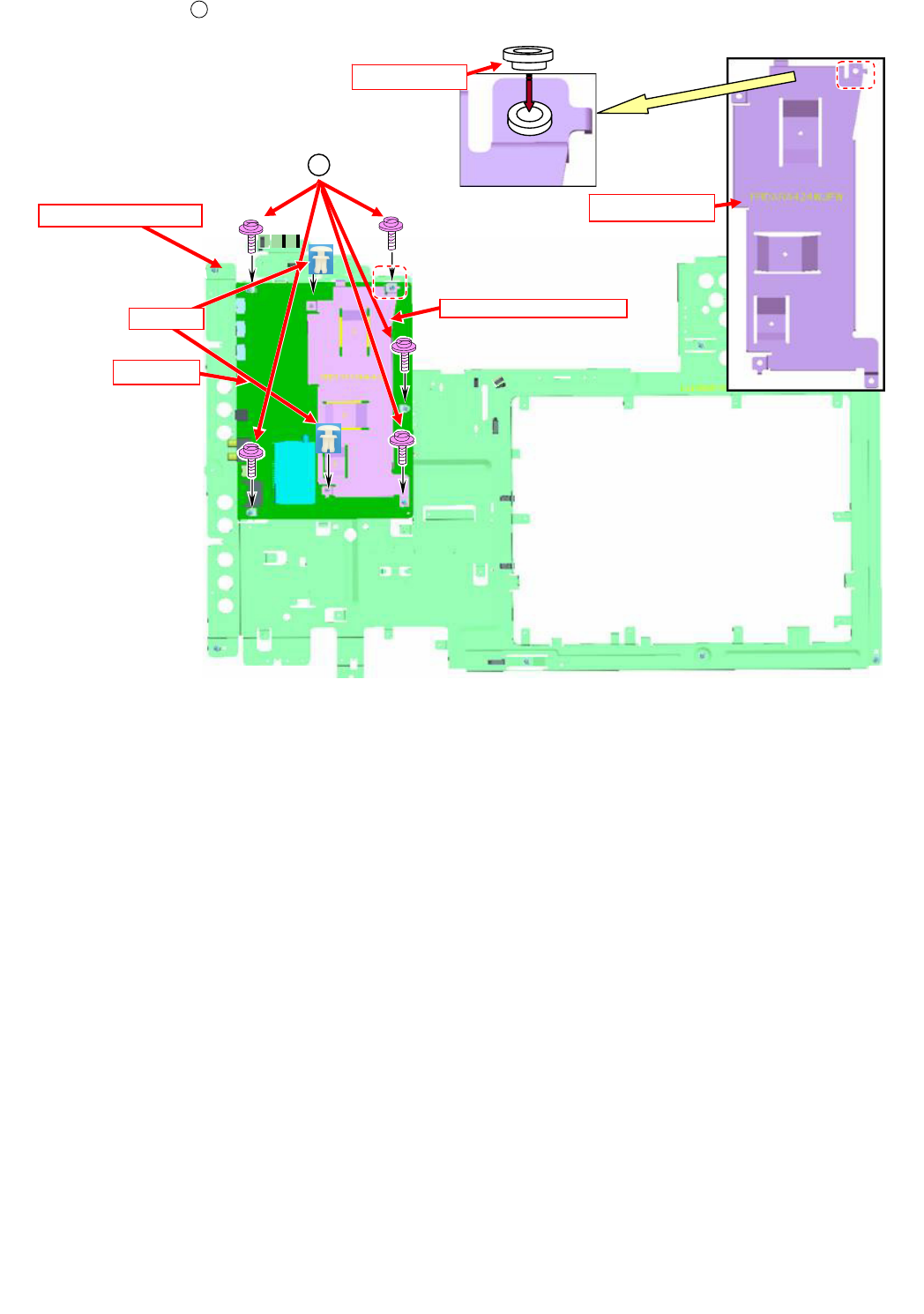

24.Remove the 5 lock screws and 2 lock rivets detach the Main unit and Radiator A Main.
22
MAIN UNIT
KS TRAY CHASSIS ASS'Y
RIVET
RADIATOR-A-MAIN ASS'Y
㵘
RESIN WASHER
RADIATOR-A-MAIN
22
LC-46D82U/LC-52D82U
2 – 12
[2] REMOVING OF MAJOR PARTS (LC-52D82U)
1. Detach the SD Card Cover
.
2. Remove the 18 lock screws .
3. Remove the 5 lock screws and detach the Rear Cabinet.
1
SD CARD COVER
1
2
3
3
3
3
33
2 2 2 2
2
2
2
2
2
2
2
2
22
2
2
2
2
Rear Cabinet
LC-46D82U/LC-52D82U
2 – 13
4. Remove the 8 lock screws and detach the Stand Set Cover.
5. Remove the 8 lock screws and detach the Stand Fix Angle.
4
STAND ST COV-R
INSERT
LOCK
INSERT
LOCK
4 4
5
STAND FIX ANG
5
LC-46D82U/LC-52D82U
2 – 14

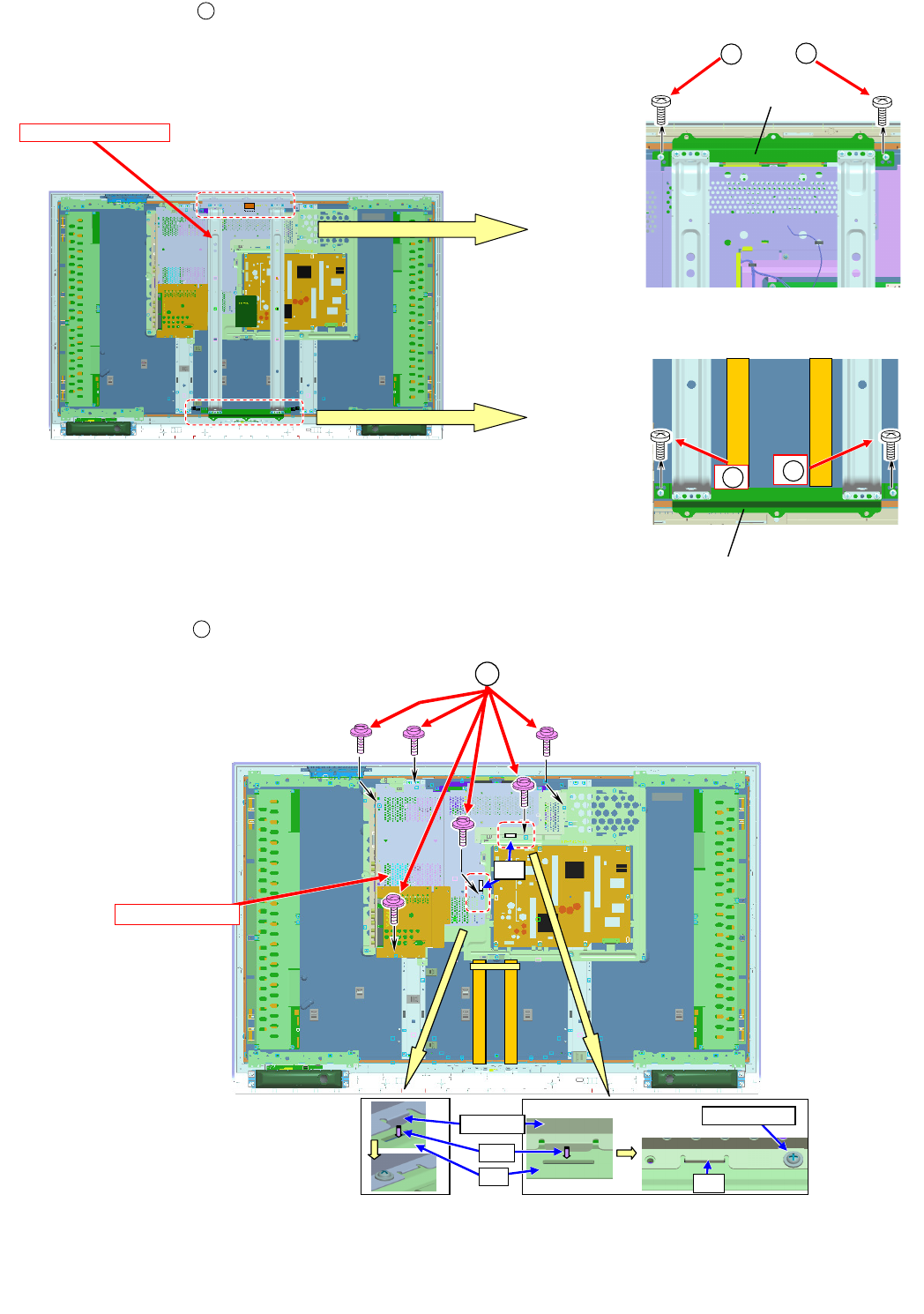

6. Remove the 4 lock screws and detach the Bridge Angle Ass’y.
7. Remove the 6 lock screws and detach the Main Shield.
6
PREPARED BRIDGE ANGLE
6
66
6
Prepared Bridge Angle
Prepared Bridge Angle
7
MAIN-SHIELD
Tray
Insert
Main shield
Hole
Position of screw
Hole
7
LC-46D82U/LC-52D82U
2 – 15
8. Remove the 2 lock screws and detach the Speaker-L/R.
9. Remove all the connectors from PWBs.
8
SPEAKER-䌌䍂㪩
Connect Wire(SP-L)
Connect Wire(SP-R)
Shape(SP-L)
WH
(6) Shape(SP-R,RA)
WH
WH
WH
SP-R RA
TAPE
TAPE
SP-L
A
bout 40mm Joint
Joint
8
8
LA
Connect Wire(LB)
MAIN-INV
Connect Wire(LA)
POWER-INV
Connect Wire(LA)
POWER-INV
LA 㪙㫉㫆㫎㫅㩷㫎㫀㫉㪼㩷㫊㫀㪻㪼
㩿㪣㪘㩷㫎㫀㫉㪼㪀
㪙㫃㪸㪺㫂㩷㫎㫀㫉㪼㩷㫊㫀㪻㪼
㩿㪣㪘㩷㫎㫀㫉㪼㪀
LB
㪮㪟㪠㪫㪜
㪙㪣㪘㪚㪢
㪞㪩㪘㪰
㪙㪩㪦㪮㪥
㪙㪣㪘㪚㪢
㪞㪩㪘㪰
Lock socket side
Lock socket side
Shape(RA,SP-L-R)
WH
Shape(LA,LB)
WH
Shape(LA)
WH
Shape(LA,SP-L) ×2
WH
Shape(LA,LB,
SP-R,RA)
WH
Shape(LA,LB)
WH
*CAUTION
Wire LA is to spread the right and left equally .
Shape(SP-L)
WH
Shape(RA) ×5
WH
㪩㪘
NG CAUTION
㪩㪘
NG
CAUTION
NG
CAUTION
Shape(RA,SP-L-R)
WH
LC-46D82U/LC-52D82U
2 – 16
10.Remove the 1 lock screw and detach the LED Unit.
11.Remove all the connectors from PWBs.
9
RA
Connect Wire(RA)
TERMINAL-LED
㵘㵘LED UNIT
PREPARED LED UNIT HANG
INSERT
HANG
HANG
ILLUMINATION ADJ
(5) Connect Wire(RA)
TERMINAL-ILLUMINATION
9
LV
OK
NG
Connect Wire(LP)
MAIN-FRC
(Silk print is LF)
CAUTION
Straight line
(Don't make a wire
have looseness.)
㪧㫌㫊㪿㪧㫌㫊㪿
㪧㫌㫊㪿㩷㫋㪿㪼㩷㪿㫆㫃㪻㪼㫉㩷㫇㪸㫉㫋㪅
No good
㪧㫌㫊㪿
㪛㫆㩷㫅㫆㫋㩷㫇㫌㫊㪿㩷㫋㪿㪼㩷㫎㫀㫉㪼㩷㫇㪸㫉㫋㪅
KM
PH
PH
Connect Wire(KM)
MAIN䋭TOPCOVER ASS’Y
WH
Open Side
(WH)
Connect Wire(LV)
MAIN-FRC
LV Wire
Shape(LV)
WH
LP(LF)
Connect Wire(PH)
POWER-LCD CONT
PD
PD
㪣㪭
㪣㪧㩿㪣㪝㪀
LB
㪧㪛
㪧㪟
㪣㪙
Base line(Edge of ಳ)
TAPE
TAPE
Shape(KM)
WH
LC-46D82U/LC-52D82U
2 – 17

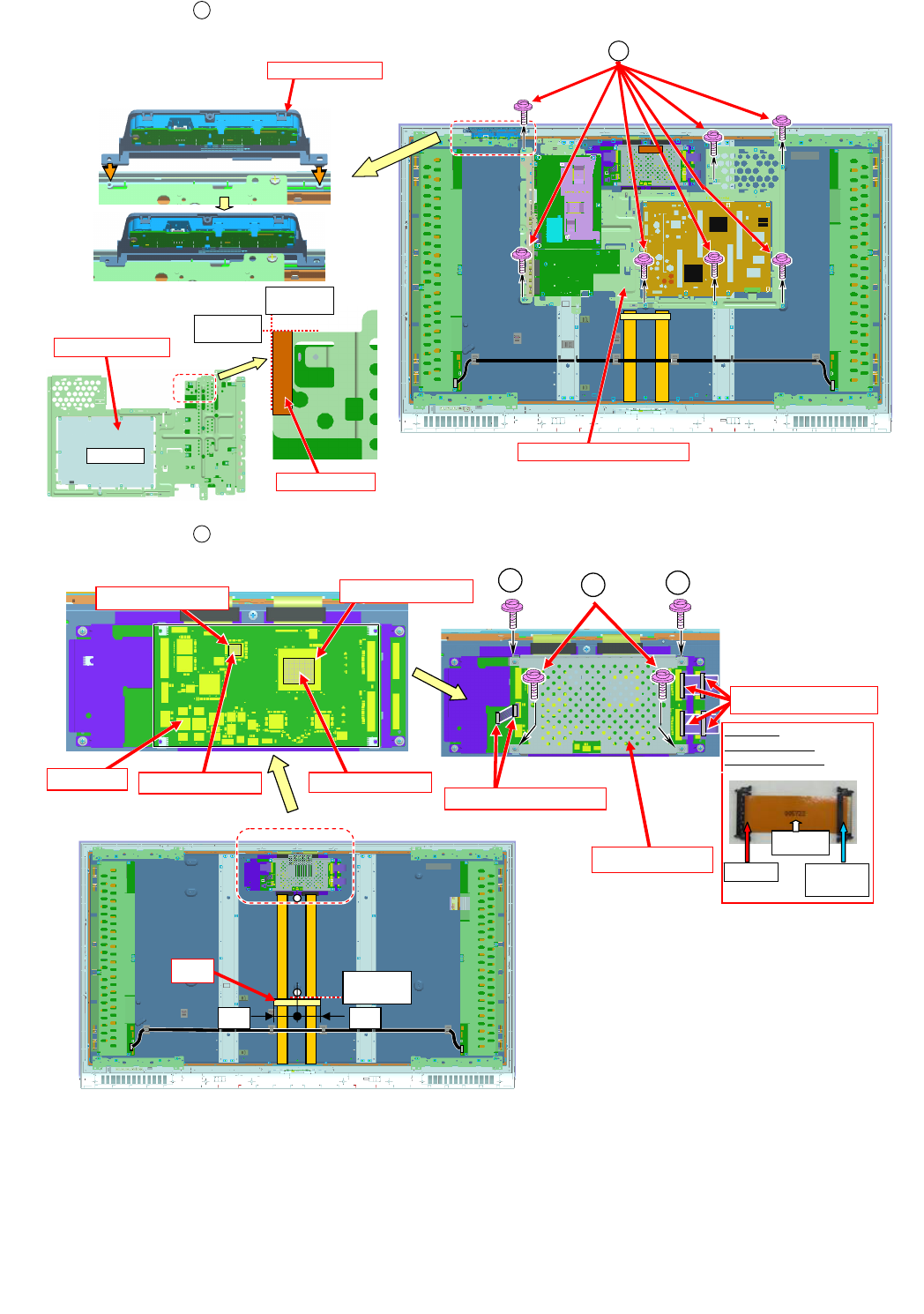

12.Remove the 7 lock screws and PWB Ass’y unit.
13.Remove the 4 lock screws and detach the FRC PWB Angle.
10
㵘㪧㪩㪜㪧㪘㪩㪜㪛㩷㪫㪦㪧㩷㪚㪦㪭㪜㪩
㵘㵘
㵘㵘
PREPARED PWB ASEMBLY UNIT
Base line
(Edge of Tray)
Base line
(Edge of Tray)
㵘㵘
GASKET 13×7×50
㵘㵘PWB ASEMBLY UNIT
BACK SIDE
10
11
FRC_PWB_ANG
FL: WIRE (LCDCON-FRC)
FRC-LCDCONT(FPC)
FRC_UNIT
COOL SHEET IC6001
SILICON GREASE
COOL SHEET IC5801
SILICON GREASE
*CAUTION
Designation in the
installation direction
(Both side)
FRC side
䋨㪇㪇㪌㪎㪉㪉䋩
㪧㪸㫉㫋㩷㫀㫅㪻㫀㪺㪸㫋㫀㫆㫅
LCD
CONT side
TAPE
Base line
(Edge of ಲ)
㪈㪆㪉㪈㪆㪉
11 11 11
LC-46D82U/LC-52D82U
2 – 18
14.Remove the 4 lock screws and detach the FRC PWB Set Angle.
15.Remove the 4 lock screws and detach the Panel Module Ass’y.
12
PANEL MODULE ASS’Y
FRC PWB SET ANG
㪘
㪙
㪘㪔㪙
㪝㪠㪫㩿㪚㪦㪩㪥㪜㪩㪀
㪝㪠㪫㩿㪚㪦㪩㪥㪜㪩㪀
ARRIER SHEET
Put pastes
12
13
INSIDE
INSIDE
INSIDEINSIDE
13
LC-46D82U/LC-52D82U
2 – 19
16.Remove the 8 lock screws and detach the Chassis Fix Angle Top/Bottom.
17.Remove the 2 lock screws , and detach the Key Unit.
14
PANEL_MODULE
KS CAB-A
CHS FIX ANG T/B
CHS FIX ANG T/B
14 14
14
15
KEY UNIT
The guidepin
㵘
of positioning x3
15
LC-46D82U/LC-52D82U
2 – 20
18.Remove all the connectors from PWBs.
19.Remove the 7 lock screws , and , and detach the AV Terminal Angle Ass’y.
LV
LB
SP
SAFCMA
PH
PD
LB Wire
A
Connect (SA)(FC)(MA)
MAIN-TERMINAL
Connect Wire(PD)
MAIN-POWER
LA Wire
LA
PH PD
KM
RA
㪘㩷㪅㩷㪭㪠㪜㪮
CAUTION
A
direction for the Horizontal
Connect(TUNER)
MAIN䊷AV_TERMINAL
㪛㫆㩷㫅㫆㫋㩷㫇㫌㫊㪿㩷㫋㪿㪼㩷㫎㫀㫉㪼㩷㫇㪸㫉㫋
㪧㫌㫊㪿㩷㫋㪿㪼㩷㪿㫆㫃㪻㪼㫉㩷㫇㪸㫉㫋
Push
OK
NG
CAUTION
LP
52-DISTINCTION
CAUTION
Note connected
position.
㪚㪘㪬㪫㪠㪦㪥
The LB wire is under the
PD wire and PH wire.
LP Wire
LV Wire
PH Wire
RA Wire
SP Wire
Tuner wire
TO LCD COONT UNIT
PH Wire
TO POWER UNIT
TO MAIN UNIT
PushPush
LV wire
㪙㩷㪅㩷㪭㪠㪜㪮
Tuner wire
B
Tape
CAUTION
Bleu wire
16 17 18
㩷㩷㪧㪩㪜㪧㪘㪩㪜㪛㩷㪘㪭㪶㪫㪜㪩㪤㪶㪘㪥㪞 16
18
17
LC-46D82U/LC-52D82U
2 – 21
20.Remove the 7 lock screws and detach the Power unit.
21.Remove the 4 lock screws and detach the Terminal unit.
19
㵘㵘
POWER UNIT
Power unit is fitted to the
bottom left side.
Fit
POWER UNIT
Fit
POWER UNIT
Insert
POWER UNIT
Fit
POWER UNIT
The screw is
unnecessary.
(×3)
19
20
PREPARED TERMINAL UNIT
㵘
Base line
(Side of㵘Tray)
Base line
(Edge of ಲ)
TAPE
20
LC-46D82U/LC-52D82U
2 – 22
22.Remove the 5 lock screws and 2 lock rivets detach the Main unit and Radiator A Main.
21
CHA
MAIN UNIT
KS TRAY CHASSIS
PREPARED RADIATOR-A-MAIN
RIVET
RADIATOR-A-MAIN
RESIN WASHER
21
LC-46D82U/LC-52D82U
3 – 1
LC46D82U Service Manual
CHAPTER 3. ADJUSTMENT
[1] ADJUSTMENT PROCEDURE
The adjustment values are set to the optimum conditions at the factory before shipping. If a value should become improper or an adjustment is
required due to part replacement, make an adjustment according to the following procedure.
1. After replacement of any PWB unit and/or IC for repair, please note the following.
When replacing the MAIN unit, make sure to prepare the new units loaded with updated software.
2. Upgrading of each microprocessor software
CAUTION: Never “POWER OFF” the unit when software upgrade is ongoing.
Otherwise the system may be damaged beyond recovery.
2.1. Software version upgrade
The model employs the following software.
•Main software
• Monitor microprocessor software
The main software and the monitor microprocessor software can be upgraded by using a general-purpose SD memory card.
The followings are the procedures for upgrading, explained separately for each of the main software, the monitor microprocessor software.
2.2. Main software version upgrade
2.2.1 Get ready before you start
• SD memory card of 32MB or higher capacity
• PC running on Windows 98/98SE/ME/2000/XP operating system
• SD memory card reader/writer with USB connectivity
• SD memory card formatting software
(Downloadable at http://panasonic.jp/support/audio/sd/download/sd_formatter_e.html)
2.2.2 Preparations
To upgrade the main software, it is necessary to get ready the SD card for version upgrade before you start. Follow the steps below and create the SD
card for version upgrade.

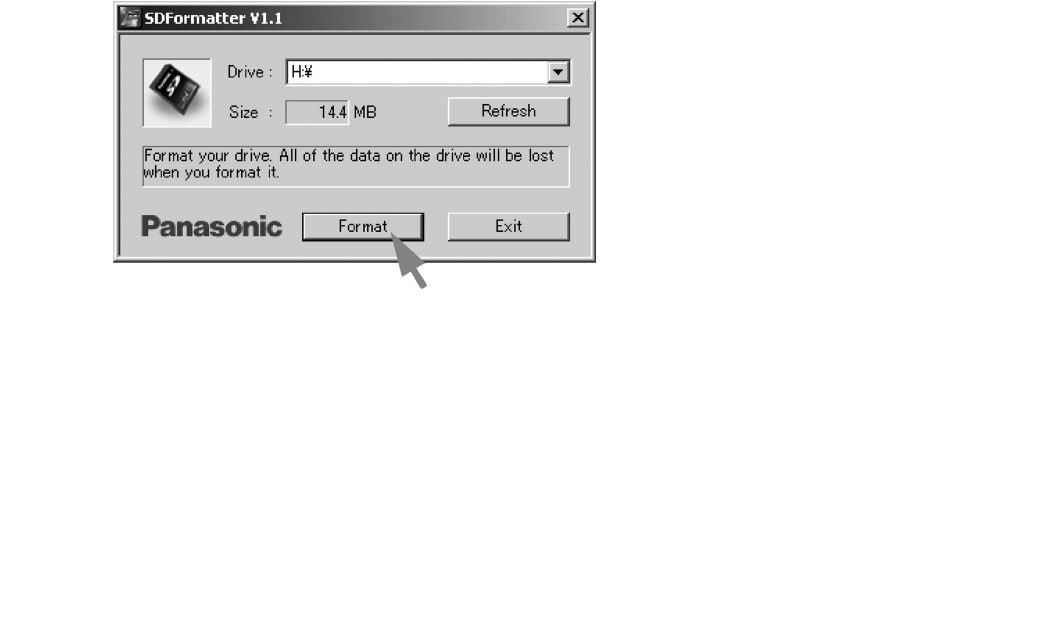

1. Insert the SD card into the SD card reader/writer. Start the SD card formatting software. Click [Format]. (When you have the drive options, select
the drive where the SD card is inserted before you proceed.)
LC-46D82U/LC-52D82U
3 – 2

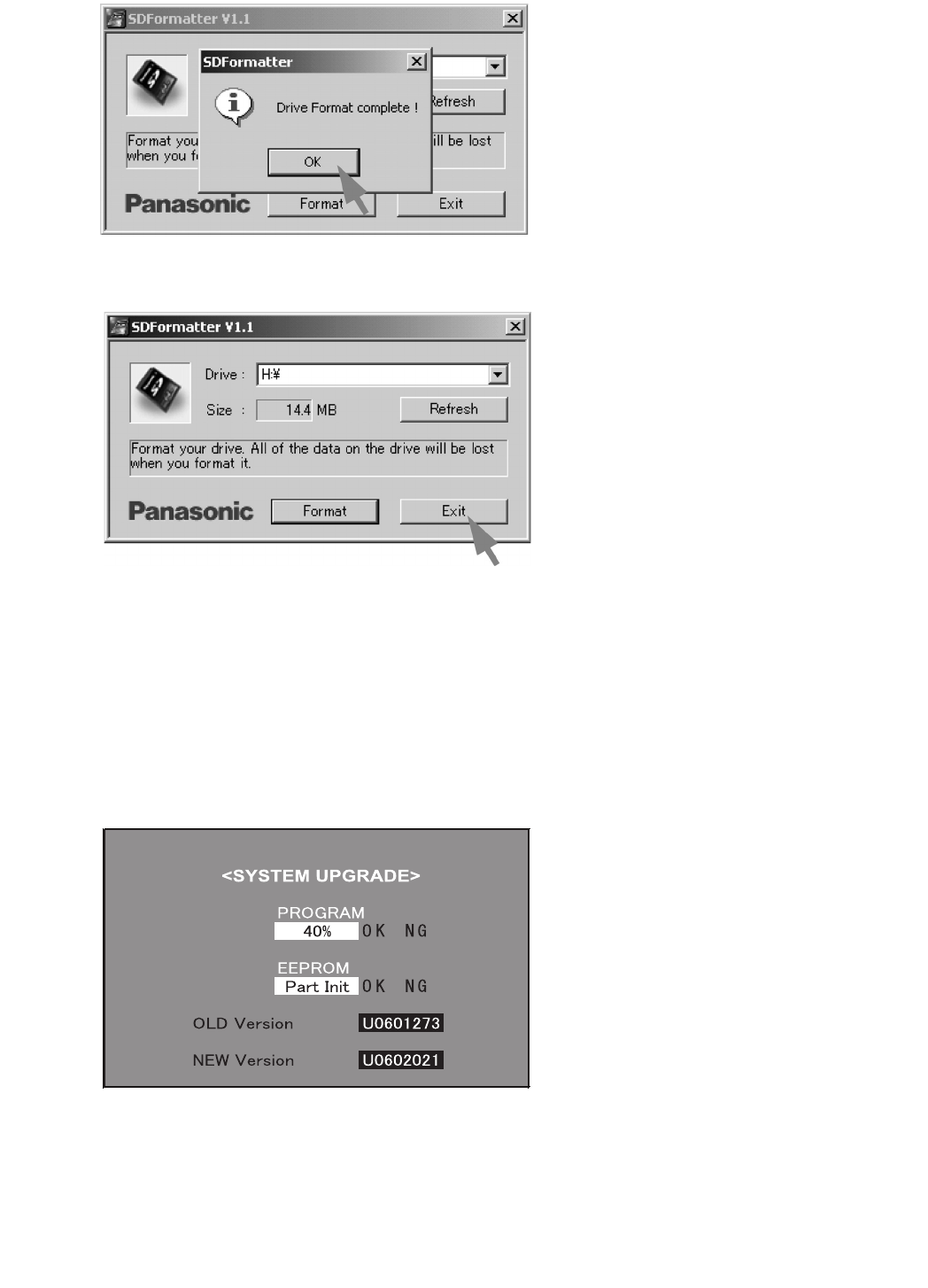

2. When the formatting is over, the following window appears. Click [OK].
3. Click [Exit] to finish the formatting.
NOTE: When you are done, take out the SD card once to make sure it is finished, and then insert it again.
4. Copy the binary image file D82UAxxx.SDC (named temporarily) for version upgrade to the root directory (folder) of the SD card drive.
NOTE: In the SD card drive, do not store other folders or unrelated files, or more than one binary image files for version upgrade.
Now the SD card for version upgrade is ready.
2.2.3 Upgrading the software
1. Turn off the AC power (Unplug the AC power cord).
2. Insert the upgrading SD card (prepared as instructed above) into the service slot.
NOTE: Be careful not to insert the SD card in the wrong way. Otherwise the card may come into the set and fail to come out.
3. Turn on the AC power (Plug in the AC power cord).
4. A couple to dozen seconds after the set starts, the upgrade screen below shows up.
LC-46D82U/LC-52D82U
3 – 3

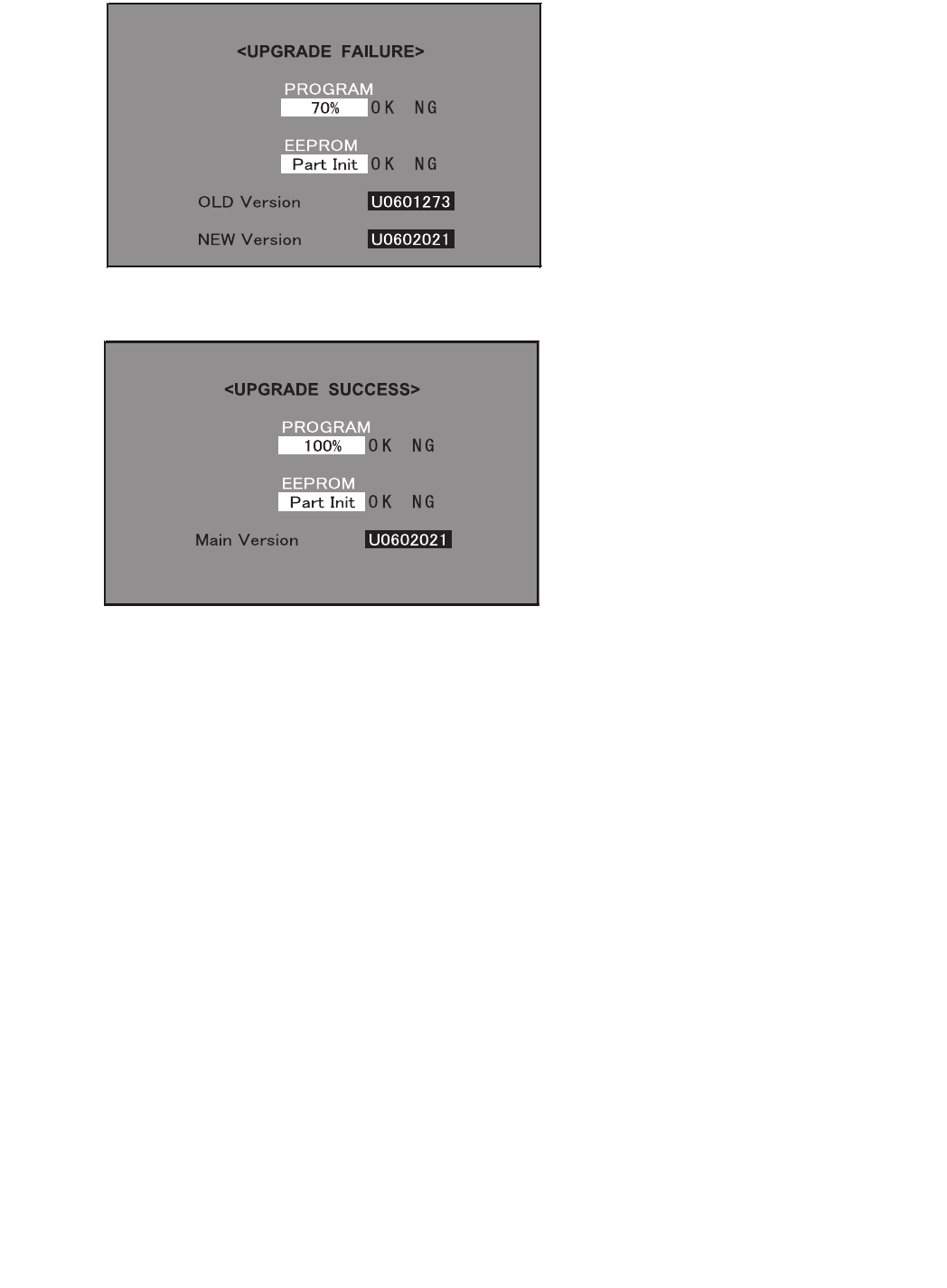

5. If any of the procedures fails, the following upgrade failure screen shows up. For the failing procedure, the “NG” marking turns red.
NOTE: In such case, try to upgrade the software again. If it still fails, the hardware may be in trouble.
6. When all the procedures are complete, the following upgrade success screen shows up. The new software version can be confirmed on screen.
The version number appears when each item has been successfully upgraded. Finally the main version number appears on screen.
7. Turn off the AC power (Unplug the AC power cord). Take out the upgrading SD card.
8. Now the software has been upgraded.
NOTE: Then get the set started and call the process adjustment screen 1/27 to check the main software version.
CAUTION: 1) Do not take out and put in the SD memory card during formatting.
2) With the SD formatted, all the data stored on the medium will be deleted.
3) Do not start the SD formatting with the memory card’s WRITE PROTECT switch still on.
4) If the SD memory card format software does not recognize the SD memory card, take out and put in the SD memory card again, and
click the “UPDATE” button.
5) After checking the performance, use the set under its interface environment.
6) The SD formatting is impossible on drives that are not recognized “REMOVABLE”.
2.3. Upgrading the monitor microprocessor software
2.3.1 Kit
Have the above “Upgrading the main software” kit or equivalent at hand.
2.3.2 Preparations
As discussed in “Upgrading the main software” earlier, create the SD card for upgrading the monitor microprocessor software. For this SD card, use
the monitor microprocessor upgrading binary image file.
2.3.3 Upgrading procedure
To follow the monitor microprocessor software upgrading, the monitor screen upgrade progress indicator and the flashing power LED indicator can be
used.
1. Turn off the AC power (Unplug the AC power cord).
2. Insert the upgrading SD card (prepared as instructed above) into the service slot at the back of the set. Insert the SD card with its logo-printed face
upward (visible). Be careful not to insert the SD card in the wrong way. Otherwise the card may come into the set and fail to come out.
3. Turn on the AC power (Plug in the AC power cord).
CAUTION: Now the monitor microprocessor software starts getting upgraded. Be very careful not to turn off the power while the software is being
upgraded. Otherwise the software will fail to upgrade itself and the set will fail to get started.
LC-46D82U/LC-52D82U
3 – 4

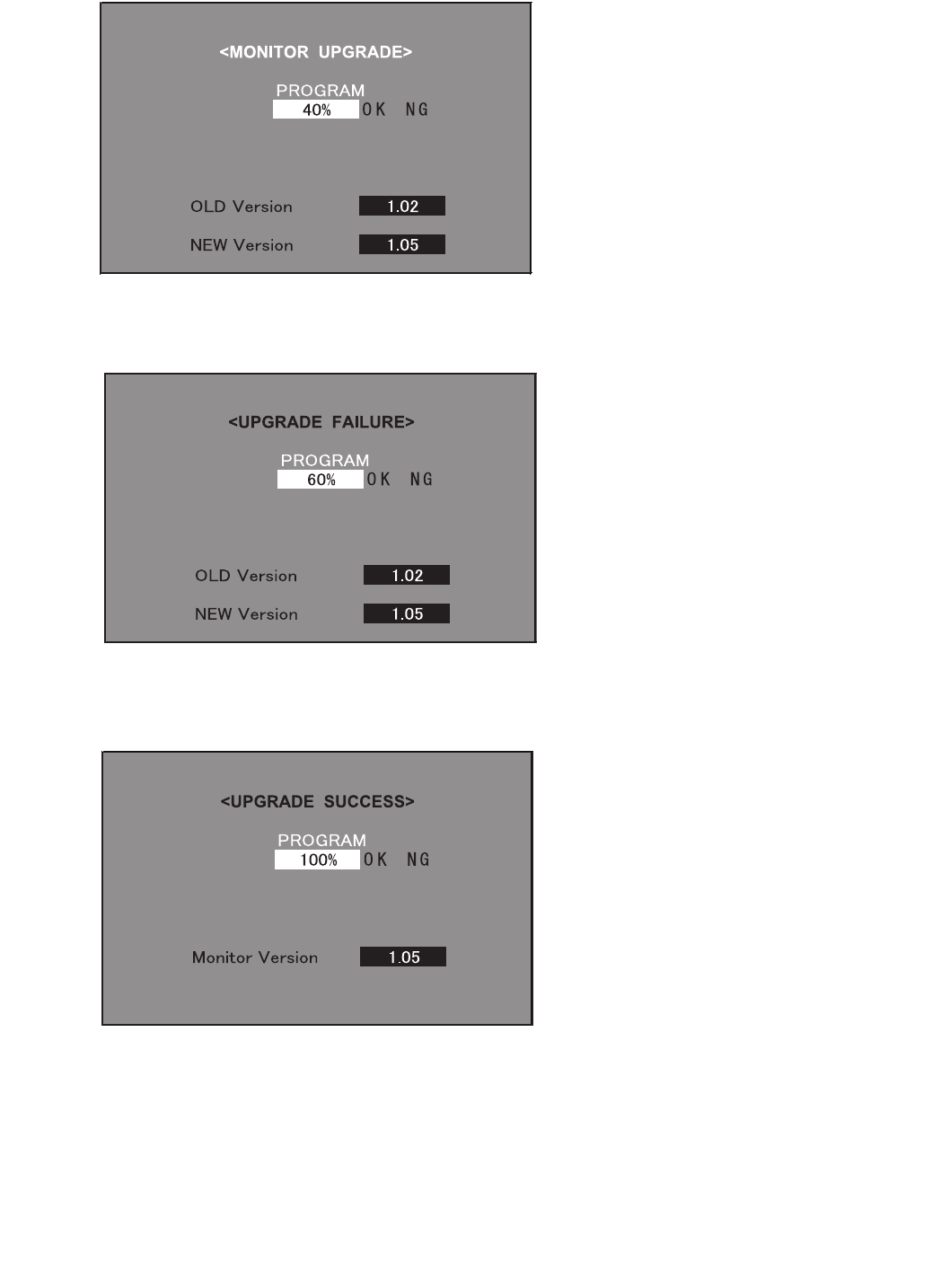

4. A couple to dozen seconds after the set starts, the upgrade screen below shows up. The upgrade progress is indicated on screen. The power LED
indicator goes out once and then starts flashing in blue. (It takes 2-3 minutes to get the monitor microprocessor software upgraded.)
5. If the procedure fails, the following upgrade failure screen shows up and the “NG” marking turns red. The power LED indicator fails to start flashing
in blue. Even if the usual screen reappears in several seconds, do the procedure from Step “1” again.
NOTE: In case of failure, try to upgrade the software again. If it still fails, the hardware may be in trouble.
6. When the procedure is complete, the following upgrade success screen shows up. The new software version can be confirmed on screen. The
upgrade success can also be confirmed when the power LED indicator and the OPC LED indicator start flashing alternately in blue and green,
respectively. Double-check the upgrading and turn off the AC power (Unplug the AC power cord). Take out the upgrading SD card. Now the soft-
ware has been upgraded.
Finally get the set started and call the process adjustment screen 1/27 to check the monitor microprocessor software version.
LC-46D82U/LC-52D82U
3 – 5
3. Entering and exiting the adjustment process mode
1) Before entering the adjustment process mode, the AV position RESET in the video adjustment menu.
2) While holding down the “VOL (–)” and “INPUT” keys at a time, plug in the AC cord of the main unit to turn on the power.
The letter “<K>” appears on the screen.
3) Next, hold down the “VOL (–)” and “CH ( )” keys at a time.
(The “VOL (–)” and “CH ( )” keys should be pressed and held until the display appears.)
Multiple lines of blue characters appearing on the display indicate that the unit is now in the adjustment process mode.
When you fail to enter the adjustment process mode (the display is the same as normal startup), retry the procedure.
4) To exit the adjustment process mode after the adjustment is done, unplug the AC cord from the outlet to make a forced shutdown. (When the
power was turned off with the remote controller, once unplug the AC cord and plug it again. In this case, wait 10 seconds or so before plugging.)
CAUTION: Use due care in handling the information described here lest your users should know how to enter the adjustment process mode. If the
settings are tampered in this mode, unrecoverable system damage may result.
4. Remote controller key operation and description of display in adjustment process mode
1) Key operation
*Input mode is switched automatically when relevant adjustment is started so far as the necessary input signal is available.
2) Description of display
Remote controller key Main unit key Function
CH ( / ) CH ( / ) Moving an item (line) by one (UP/DOWN)
VOL (+/–) VOL (+/–) Changing a selected item setting (+1/ –1)
Cursor ( / ) ————— Turing a page (PREVIOUS/NEXT)
Cursor ( / ) ————— Changing a selected line setting (+10/ –10)
INPUT ————— Input switching (toggle switching)
(TUNER→INPUT1→INPUT2→INPUT3→INPUT4→INPUT5→INPUT6)
ENTER ————— Executing a function
(3) Current selected input
(2) Current page title
(4) Current color system
(1) Current page/ (5) Destination (6) LCD Panel size/Speaker type
Total pages
1/27 [INFO] INPUT5 AUTO USA 46_UNDER
MAIN Version 0.90 ( U 2006/11/21 1A)
BOOT Version D82U B 1.01
Monitor Version 0.9
EQ DATA CHECKSUM ROM (8) Parameters
TEMPERATURE 7B
LAMP ERROR 0
NORMAL STANDBY CAUSE
0
ERROR STANDBY CAUSE 1) 0 2) 0 3) 0
0H 0M 0H 0M 0H 0M
4) 0 5) 0
0H 0M 0H 0M
(7) Adjustment
process menu
header
(LC-46D82U: 46_UNDER)
(LC-52D82U: 52_UNDER)
LC-46D82U/LC-52D82U
3 – 6
5. List of adjustment process mode menu
The character string in brackets [ ] will appear as a page title in the adjustment process menu header.
Page Line Item Description Remarks (adjustment detail, etc.)
1 [INFO]
1 MAIN Version Main software version
2BOOT Version
3 Monitor Version Monitor software version
4 EQ DATA CHECKSUM Audio data checksum
5 TEMPERATURE CPU temperature
6 LAMP ERROR Number of termination due to lamp error
7 NORMAL STANDBY CAUSE Refer to *1 under the list for details
8 ERROR STANDBY CAUSE Refer to *2 under the list for details
2 [INIT]
1 INDUSTRY INIT (Cause)
2 INDUSTRY INIT Initialization to factory settings .
3 HOTELMODE Hotel mode
4 Center Acutime Accumulated main operation time
5 RESET Reset
6 BacklightAcutime Accumulated monitor operation time
7 RESET Reset
8 LAMP ERROR RESET Reset LAMP ERROR
9 VIC XPOS X-coordinate setting for VIC READ
10 VIC YPOS Y-coordinate setting for VIC READ
11 VIC COLOR Collected color data setting for VIC READ
12 VIC SIGNAL TYPE Signal type setting for VIC READ
13 VIC READ Picture level acquisition function Level appears in green on the upper right.
3 [N358MAIN]
1 N358 ALL ADJ (INPUT1) CVBS and TUNER signal level adjustment
2 N358 ALL ADJ (INPUT2) CVBS and TUNER signal level adjustment
3 N358 MAIN ADJ (INPUT1) CVBS signal level adjustment
4 N358 MAIN ADJ (INPUT2) CVBS signal level adjustment
5 TUNER DAC ADJ TUNER signal level adjustment
6VCOM ADJ
7 N358 MAIN CONTRAST CVBS and TUNER contrast adjustment values
8 TUNER A DAC TUNER adjustment value
4 [TUNER TEST]
1 TUNER VCHIP TEST(69ch) Tuning test and VCHIP test (69 ch)
2 TUNER VCHIP TEST(7ch) Tuning test and VCHIP test (7 ch)
3 TUNER VCHIP TEST(10ch) Tuning test and VCHIP test (10 ch)
4 TUNER VCHIP TEST(15ch) Tuning test and VCHIP test (15 ch)
5 [COMP15KMAIN]
1 COMP15K MAIN ADJ(INPUT1) Component 15K picture level adjustment (main)
2 COMP15K MAIN ADJ(INPUT2) Component 15K picture level adjustment (main)
3 COMP15K CONTRAST Contrast adjustment value
4 COMP15K MAIN Cb GAIN Cb GAIN adjustment value
5 COMP15K MAIN Cr GAIN Cr GAIN adjustment value
6 COMP15K Y OFFSET Y OFFSET adjustment value
7 COMP15K Cb OFFSET Cb OFFSET adjustment value
8 COMP15K Cr OFFSET Cr OFFSET adjustment value
6 [HDTV]
1 HDTV ADJ(INPUT1) Component Hi-Vision picture level adjustment
2 HDTV ADJ(INPUT2) Component Hi-Vision picture level adjustment
3 HDTV CONTRAST Contrast adjustment value
4 HDTV Cb GAIN Cb GAIN adjustment value
5 HDTV Cr GAIN Cr GAIN adjustment value
6 HDTV Y OFFSET Y OFFSET adjustment value
7 HDTV Cb OFFSET Cb OFFSET adjustment value
8 HDTV Cr OFFSET Cr OFFSET adjustment value
7 [FR DDRTEST]
1 DDRA TEST1
2 DDRA TEST2
3 DDRB TEST1
4 DDRB TEST2
5 DDRB TEST3
6FRC ON/OFF
LC-46D82U/LC-52D82U
3 – 7
8 [M GAMMA IN]
1 MONITOR GAMMA IN 1 Standard value 1(WBI10184) Adjustment gradation setting.
2 MONITOR GAMMA IN 2 Standard value 2(WBI20352)
3 MONITOR GAMMA IN 3 Standard value 3(WBI30528)
4 MONITOR GAMMA IN 4 Standard value 4(WBI40656)
5 MONITOR GAMMA IN 5 Standard value 5(WBI50800)
6 MONITOR GAMMA IN 6 Standard value 6(WBI60928)
7 GAMMA WRITE WB adjustment data writing
8 GAMMA RESET WB adjustment data reading
9 [M GAMMA R1]
1 MONITOR GAMMA R 1 WB adjustment Point 1, R adjustment value Parameter for six-point adjustment
2 MONITOR GAMMA G 1 WB adjustment Point 1, G adjustment value
3 MONITOR GAMMA B 1 WB adjustment Point 1, B adjustment value
4 MONITOR GAMMA R 2 WB adjustment Point 2, R adjustment value
5 MONITOR GAMMA G 2 WB adjustment Point 2, G adjustment value
6 MONITOR GAMMA B 2 WB adjustment Point 2, B adjustment value
7 MONITOR GAMMA R 3 WB adjustment Point 3, R adjustment value
8 MONITOR GAMMA G 3 WB adjustment Point 3, G adjustment value
9 MONITOR GAMMA B 3 WB adjustment Point 3, B adjustment value
10 GAMMA WRITE WB adjustment data writing
11 GAMMA RESET WB adjustment data reading
10 [M GAMMA R4]
1 MONITOR GAMMA R 4 WB adjustment Point 4, R adjustment value Parameter for six-point adjustment
2 MONITOR GAMMA G 4 WB adjustment Point 4, G adjustment value
3 MONITOR GAMMA B 4 WB adjustment Point 4, B adjustment value
4 MONITOR GAMMA R 5 WB adjustment Point 5, R adjustment value
5 MONITOR GAMMA G 5 WB adjustment Point 5, G adjustment value
6 MONITOR GAMMA B 5 WB adjustment Point 5, B adjustment value
7 MONITOR GAMMA R 6 WB adjustment Point 6, R adjustment value
8 MONITOR GAMMA G 6 WB adjustment Point 6, G adjustment value
9 MONITOR GAMMA B 6 WB adjustment Point 6, B adjustment value
10 GAMMA WRITE WB adjustment data writing
11 GAMMA RESET WB adjustment data reading
11 [SOUND 1]
1 AUDIO SWITCH
2 FORCED FLAT MODE
3 AIN1_ADC_VOLUME
4 AIN2_ADC_VOLUME
5 AIN3_ADC_VOLUME
6 AIN4_ADC_VOLUME
7 AIN5_ADC_VOLUME
8 AIN6_ADC_VOLUME
12 [SOUND 2]
1 INPUT_MIXER_GAIN_SP
2 INPUT_MIXER_GAIN_HP
3 INPUT_MIXER_GAIN_EXT
4 INPUT_MIXER_GAIN_EXT_HP
5 OUTPUT_MIXER_GAIN
6SUB_VOLUME_FLAT
7 SUB_VOLUME_EQ
8 SUB_VOLUME_AUDYSSEY
13 [SOUND 3]
1 PEQ1_F0
2 PEQ1_Q
3 PEQ1_GAIN
4 PEQ2_F0
5 PEQ2_Q
6 PEQ2_GAIN
7 PEQ3_F0
8 PEQ3_Q
9 PEQ3_GAIN
10 PEQ4_F0
11 PEQ4_Q
12 PEQ4_GAIN
Page Line Item Description Remarks (adjustment detail, etc.)
LC-46D82U/LC-52D82U
3 – 8
14 [SOUND 4]
1 PEQ5_F0
2 PEQ5_Q
3 PEQ5_GAIN
4 VIRTUALIZER_LEVEL
5 BASS_BOOST_LEVEL
6 SLICER_LEVEL
7HPF_SW
8 HPF_LR
9LPF_SW
10 SW_MIXING_LEVEL
15 [M OPC1]
1 BRIGHTNESS DA0
2 BRIGHTNESS DA1
3 BRIGHTNESS DA2
4 BRIGHTNESS DA3
5 BRIGHTNESS DA4
6 BRIGHTNESS DA5
7 BRIGHTNESS DA6
8 BRIGHTNESS DA7
9 BRIGHTNESS DA8
10 BRIGHTNESS DA9
11 BRIGHTNESS DA10
12 BRIGHTNESS DA11
16 [M OPC2]
1 BRIGHTNESS DA12
2 BRIGHTNESS DA13
3 BRIGHTNESS DA14
4 BRIGHTNESS DA15
5 BRIGHTNESS DA16
6 BRIGHTNESS DA17
7 BRIGHTNESS DA18
8 BRIGHTNESS DA19
9 BRIGHTNESS DA20
10 BRIGHTNESS DA21
11 BRIGHTNESS DA22
17 [M OPC3]
1 BRIGHTNESS DA23
2 BRIGHTNESS DA24
3 BRIGHTNESS DA25
4 BRIGHTNESS DA26
5 BRIGHTNESS DA27
6 BRIGHTNESS DA28
7 BRIGHTNESS DA29
8 BRIGHTNESS DA30
9 BRIGHTNESS DA31
10 BRIGHTNESS DA32
18 [M ADL1]
1 OPC33 ADLEVEL 0
2 OPC33 ADLEVEL 1
3 OPC33 ADLEVEL 2
4 OPC33 ADLEVEL 3
5 OPC33 ADLEVEL 4
6 OPC33 ADLEVEL 5
7 OPC33 ADLEVEL 6
8 OPC33 ADLEVEL 7
9 OPC33 ADLEVEL 8
10 OPC33 ADLEVEL 9
11 OPC33 ADLEVEL 10
12 OPC33 ADLEVEL 11
Page Line Item Description Remarks (adjustment detail, etc.)
LC-46D82U/LC-52D82U
3 – 9
19 [M ADL2]
1 OPC33 ADLEVEL 12
2 OPC33 ADLEVEL 13
3 OPC33 ADLEVEL 14
4 OPC33 ADLEVEL 15
5 OPC33 ADLEVEL 16
6 OPC33 ADLEVEL 17
7 OPC33 ADLEVEL 18
8 OPC33 ADLEVEL 19
9 OPC33 ADLEVEL 20
10 OPC33 ADLEVEL 21
11 OPC33 ADLEVEL 22
20 [M ADL3]
1 OPC33 ADLEVEL 23
2 OPC33 ADLEVEL 24
3 OPC33 ADLEVEL 25
4 OPC33 ADLEVEL 26
5 OPC33 ADLEVEL 27
6 OPC33 ADLEVEL 28
7 OPC33 ADLEVEL 29
8 OPC33 ADLEVEL 30
9 OPC33 ADLEVEL 31
21 [M V6THE]
1V6 OS THERMO 1
2V6 OS THERMO 2
3V6 OS THERMO 3
4V6 OS THERMO 4
5V6 OS THERMO 5
6V6 OS THERMO 6
7V6 OS THERMO 7
22 [M V5THE]
1V5 OS THERMO 1
2V5 OS THERMO 2
3V5 OS THERMO 3
4V5 OS THERMO 4
5V5 OS THERMO 5
6V5 OS THERMO 6
7V5 OS THERMO 7
23 [M EEP SET]
1 MONITOR TIME OUT
2 MONITOR MAX TEMP
3 MONITOR STANDBY CAUSE
24 [M TESTPTRN]
1 LCD TEST PATTERN
25 [FR REGI]
1 READ/WRITE
2 SLAVE ADDRESS
3 REGISTOR ADDRESS
4WRITE DATA
5 READ DATA
26 [MEMORY CLR]
1 KEY LOCK(1217)
2 KOUTEI AREA ALL CLEAR
3 A MODE AREA CLEAR
4 BACKUP AREA CLEAR
5 B MODE AREA CLEAR
6EXECUTION
27 [ETC]
1 EEP SAVE Writing setting values to EEPROM.
2 EEP RECOVER Reading setting values from EEPROM.
3 STANDBY CAUSE RESET Reset stand by cause.
4 SETTING FOR ADJ
Page Line Item Description Remarks (adjustment detail, etc.)
LC-46D82U/LC-52D82U
3 – 10
6. Special features
* STANDBY CAUSE (Page 1/27)
Display of a cause (code) of the last standby
The cause of the last standby is recorded in EEPROM whenever possible.
Checking this code will be useful in finding a problem when you repair the troubled set.
* EEP SAVE (Page 27/27)
Storage of EEP adjustment value
* EEP RECOVER (Page 27/27)
Retrieval of EEP adjustment value from storage area
7. Video signal adjustment procedure
*Adjustment process mode menu is listed in section 5.
7.1. Signal check
Signal generator level adjustment check (Adjustment to the specified level)
7.2. Entering the adjustment process mode
Enter the adjustment process mode according to the steps described in section 3.
7.3. N358 composite signal adjustment (Tuner)

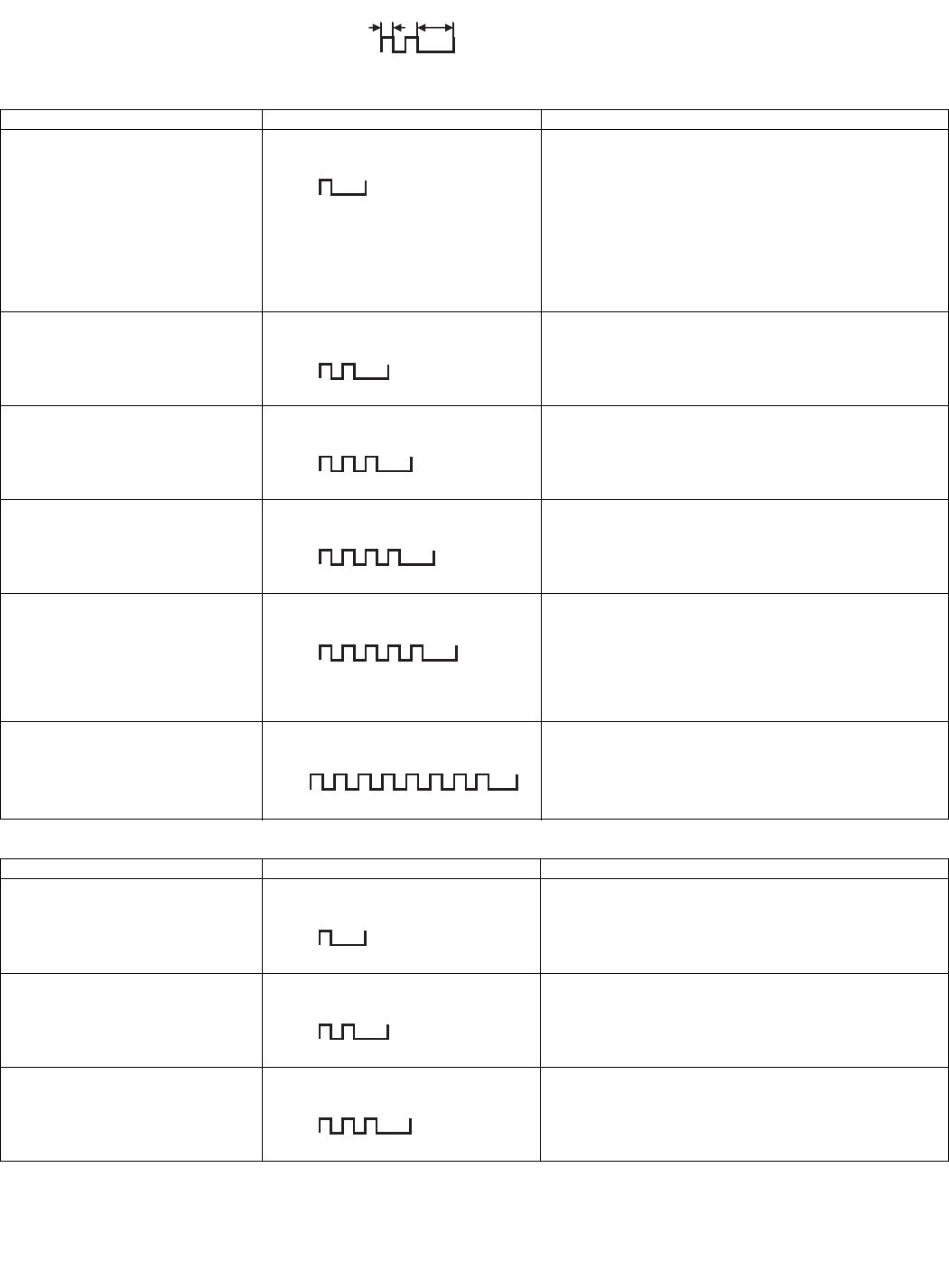

*1 Details of P1.7(NORMAL STANDBY CAUSE)
6 No operation off in the cause of “no operation off”
7 No signal off in the cause of “no signal off”
8 PC power management mode 1 in the cause of “Standby mode MODE1”
9 PC power management mode 2 in the cause of “Standby mode MODE2”
A Off timer in the cause of “SLEEP timer”
C Command from RS232C in the cause of command by RS-232C
*2 Details of P1.8(ERROR STANDBY CAUSE)
5 Prolonged unspecified-signal input in PC mode in the cause of continuous “out of range”, PC input mode
13 Temperature error in the cause of abnormal temperature
16 Monitor trouble detected in the cause of abnormal monitor mode
17 Fan lock in the cause of fan lock
•Composite signal : 0.714Vp-p ± 0.02Vp-p (Pedestal to white level)
•15K component signal : Y level : 0.714Vp-p ± 0.02Vp-p (Pedestal to white level)
PB, PR level : 0.7Vp-p ± 0.02Vp-p
•33K component signal : Y level : 0.7Vp-p ± 0.02Vp-p (Pedestal to white level)
PB, PR level : 0.7Vp-p ± 0.02Vp-p
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment N358 signal Feed the PAL split field color bar signal (75% color saturation) to VIDEO
1 input. Feed the RF signal (by use of US-10ch) to TUNER-A.
2 Auto adjustment
performance
Page 3/27 Bring the cursor on [•N358 ALL ADJ] and press [ENTER].
[•N358 ALL ADJ FINISH] appears when finished.
[Video input signal] [US-10CH]
100% white 100% white
LC-46D82U/LC-52D82U
3 – 11
7.4. Component 15K signal adjustment
7.5. Component 33K signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 480i signal Feed the 100% color bar signal to INPUT 1 component input.
2 Auto adjustment
performance
Page 5/27 Bring the cursor on [•COMP 15K MAIN ADJ] and press [ENTER].
[•COMP 15K ALL ADJ FINISH] appears when finished.
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 1080i signal Feed the 100% color bar signal to INPUT 1 component input.
2 Auto adjustment
performance
Page 6/27 Bring the cursor on [•HDTV ADJ] and press [ENTER].
[•HDTV ADJ FINISH] appears when finished.
100% white
100% white
LC-46D82U/LC-52D82U
3 – 12

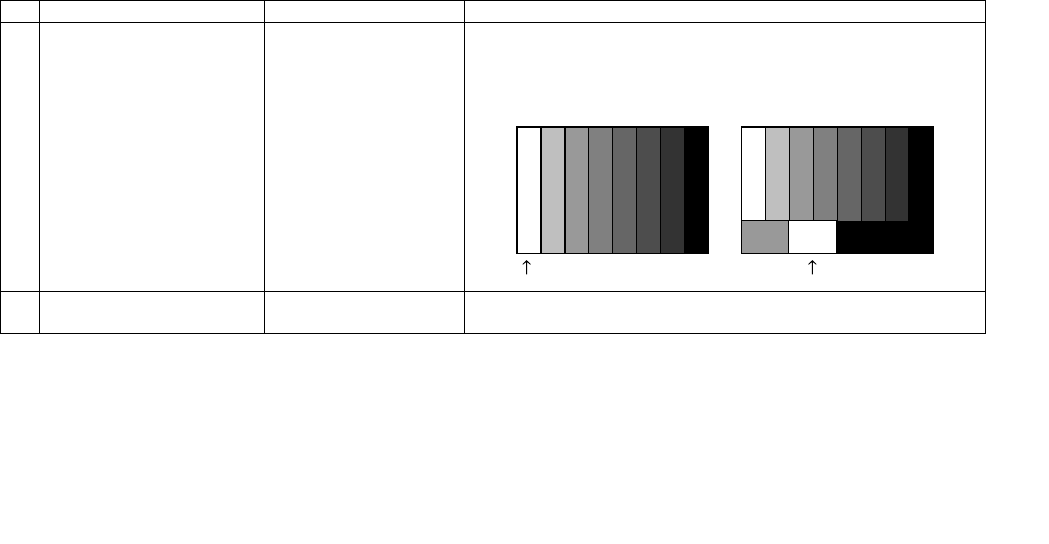

8. Adjustment of white balance
8.1. White balance adjustment
[Adjustment values]
Optical measuring machine: [Minolta CA-210] (Focus on the center of the screen.)
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 1) Apply the following settings to the set.
AV MODE: [DYNAMIC]
Aging Time: 60 Min.
Backlight: +16
2) Connect a white balance jig and the set.
Optical measuring machine: [Minolta CA-210]
PC
RS-232C communication cable
3) Use an RS-232C command to display the screen for multipoint adjust-
ment.
•Multipoint adjustment mode (MSET0001)
•Adjustment value initialization (MSET0004)
•Standard value 6 (WBI60928)
•Standard value 5 (WBI50800)
•Standard value 4 (WBI40656)
•Standard value 3 (WBI30528)
•Standard value 2 (WBI20352)
•Standard value 1 (WBI10176)
•Write setting (MSET0003)
2 Auto adjustment
performance
[Adjustment]
1) Enter the monitor adjustment process mode.
2) Set the specified gradation for standard value 6. Set the strongest
color as the fixed color and adjust RGB by reducing to the standard
value.
3) Set the specified gradation for standard value 5. Set the correction
value of G [(default of standard value 5) x (G of standard value 6) /
(default of standard value 6)] and adjust RB to the standard value.
4) Set the specified gradation for standard value 4. Set the correction
value of G [(default of standard value 4) x (G of standard value 6) /
(default of standard value 6)] and adjust RB to the standard value.
5) Set the specified gradation for standard value 3. Set the correction
value of G [(default of standard value 3) x (G of standard value 6) /
(default of standard value 6)] and adjust RB to the standard value.
6) Set the specified gradation for standard value 2. Set the correction
value of G [(default of standard value 2) x (G of standard value 6) /
(default of standard value 6)] and adjust RB to the standard value.
7) Set the specified gradation for standard value 1. Set the correction
value of G [(default of standard value 1) x (G of standard value 6) /
(default of standard value 6)] and adjust RB to the standard value.
8) Write the adjustment values with MSET0003 command and turn off
AC power.
Level Standard value Adjustment value Tolerance
Standard value 6 232 x = 0.272 ±0.0025 ±0.005
y = 0.277 ±0.0025 ±0.005
Standard value 5 200 x = 0.272 ±0.0025 ±0.005
y = 0.277 ±0.0025 ±0.005
Standard value 4 164 x = 0.272 ±0.004 ±0.008
y = 0.277 ±0.004 ±0.008
Standard value 3 132 x = 0.272 ±0.006 ±0.010
y = 0.277 ±0.006 ±0.010
Standard value 2 88 x = 0.272 ±0.006 ±0.010
y = 0.277 ±0.006 ±0.010
Standard value 1 44 x = 0.272 ±0.011 ±0.020
y = 0.277 ±0.011 ±0.020
Note Set the following before adjustment.
AV MODE: [DYNAMIC]
Monochrome: ON
Aging Time: 60 Min.
LC-46D82U/LC-52D82U
3 – 13
8.2. Adjusting procedure by use of [RS-232C]
1. Get ready the PC with COM port (RS-232C) running on Windows 95/98/ME/2000/XP operating system, as well as the RS-232C cross cable.
2. Start the unit with the RS-232C cable connected.
3. Start the terminal software. (The freeware readily available on the Internet will do.)
4. Make the following settings.
5. If the settings are correct, the terminal software indicates “ERR” against pressing of the “ENTER” key.
6. After the settings are done correctly, it is possible to make an adjustment by typing in the command shown in the table below and pressing the
“ENTER” key on the keyboard.
7. Command entry is successful if the terminal software indicates “OK” when the “ENTER” is pressed. If “ERR” is shown, retry to enter the command.
8. Send the process mode switching command to switch from the RS232C operation mode to the process mode.
KRSW0001: “ERR” is returned.
KKT10037: When “OK” is returned, the process mode becomes active. When “ERR”, start over from KRSW0001.
9. Send each adjustment command.
Baud rate 9,600 bps
Data LENGTH 8 bit
Parity bit None
Stop bit 1 bit
Flow control None
LC-46D82U/LC-52D82U
3 – 14
9. Initialization to factory settings
CAUTION: When initialization is performed, all user setting data including the channel settings are initialized. Be cautious when making this adjust-
ment.
(The adjustments done in the adjustment process mode are not initialized.)
Adjustment item Adjustment conditions Adjustment procedure
1 Initialization It turns off with AC power
supply.
Enter the adjustment process mode.
Bring the cursor on to [INDUSTRY INIT] in page 2/27.
Set to [ON] using [VOL] key, and press [ENTER] to execute the initialization.
When the version number screen shows up on the green background and “SUCCESS”
gets displayed at the top on screen, it means the procedure has been successfully car-
ried out.
(If an error occurs, “ERROR” is displayed on the red background.)
•Turn off the AC power.
*Never shut off the power during the initialization process.
The following settings are initialized in this adjustment.
1) User setting
2) Channel data (e.g. broadcast frequencies)
3) Password data
4) Operation time
5) Stand-by Cause
6) EZ SETUP flag
7) V-CHIP block setting
After the adjustment, cancel the adjustment process mode.
To exit the adjustment process mode, unplug the AC power cable from the outlet to make a
forced shutdown. (When the power was turned off with the remote controller, once unplug the
power cable and plug it again. In this case, wait 10 seconds or so before plugging.)
LC-46D82U/LC-52D82U
4 – 1
LC46D82U Service Manual
CHAPTER 4. TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE
No video (1)
COMPOSITE: No external input video
[INPUT-1]
COMPOSITE: No external input video
[INPUT-2]
COMPOSITE: No external input video [INPUT-3]
Is INPUT-1 selected on the input select
menu screen? Is the INPUT-SELECT for
the input signal?
Is INPUT-2 selected on the input select
menu screen?
Is INPUT-3 selected on the input select menu
screen?
YES NO YES NO YES NO
Select INPUT-1 on the input
select menu screen for the
right input signal.
Select INPUT-2 on the
input select menu
screen.
Select INPUT-3 on the input
select menu screen.
Does the INPUT-1
V1.PLUG detection func-
tion?
Does the INPUT-2
V2PLUG detection func-
tion?
Does the INPUT-3 V3.PLUG
detection function?
Check the line between pin
(5) of input terminal (J501)
and pin (70) of IC501
(AV_SWITCH).
Check the line between
pin (5) of input terminal
(J502) and pin (76) of
IC501 (AV_SWITCH).
Check the line between pin (2) of
input terminal (J501) and pin (2)
of IC501 (AV_SWITCH).
Is there the COMPOSITE video signal input
at pin (65) of IC501 (AV_SWITCH)?
Is there the COMPOSITE video signal
input at pin (71) of IC501 (AV_SWITCH)?
Is there the COMPOSITE Video signal input at
pins (3) of IC501 (AV_SWITCH)?
YES
NO
YES
NO
YES
NO
Check the line between pin
(4) of J501 and pin (65) of
IC501.
Check the line between
pin (4) of J502 and pin
(71) of IC501.
Check the line between pins (1)
of J501 and pins (3) of IC501.
Is there the COMPOSITE video signal output at pin (60) of IC501? Check IC501 and
its peripheral cir-
cuits.
NO
YES
Is there the COMPOSITE video signal output at pin (2) of connector (SC501) on the TERMINAL unit? Check the line
between IC501 and
SC501 (Q501 thru
Q504, etc.).
NO
YES
Is there the COMPOSITE video signal input at pin (2) of connector (SC1101) on the main unit?
NO
Check the SC501
and SC1101 con-
nectors.
YES
LC-46D82U/LC-52D82U
4 – 2
Is there the COMPOSITE video signal input at pins (M4, N4) of IC3301 (VPC)? Check the line
between SC1101
and IC3301 (Q2201
thru Q2203,
Q2205, Q2207.
Q2209, etc.).
NO
YES
Is there the LVDS signal output at the LVDS 1st channel and 2nd channel of IC3301?
TA2_P/M(AJ30/AK30), TB2_P/M(AJ29/AK29), TC2_P/M(AJ28/AK28), TD2_P/M(AJ26/AK26), TE2_P/M(AJ25/
AK25), TCLK2_P/M(AJ27/AK27), TA1_P/M(AB29/AB30), TB1_P/M(AC29/AC30), TC1_P/M(AD29/AD30),
TD1_P/M(AF29/AF30), TE1_P/M(AG29/AG30), TCLK1__P/M(AE29/AE30),
Check IC3301 and
its peripheral con-
trol circuits
(IC3501, IC3502,
IC8101, etc.).
NO
YES
Check the panel module.
LC-46D82U/LC-52D82U
4 – 3
No video (2)
COMPONENT: No external input video
[INPUT-1]
COMPONENT: No external input video
[INPUT-2]
S-VIDEO: No external input video [INPUT-3]
Is INPUT-1 selected on the input select
menu screen? Is the INPUT-SELECT for
the input signal?
Is INPUT-2 selected on the input select
menu screen ? Is the INPUT-SELECT for
the input signal?
Is INPUT-3 selected on the input select menu
screen?
YES NO YES NO YES NO
Select INPUT-1 on the input
select menu screen for the
right input signal.
Select INPUT-2 on the
input select menu screen
for the right input signal.
Does the INPUT-1
C1.PLUG detection func-
tion?
Does the INPUT-2
C2.PLUG detection func-
tion?
Does the INPUT-3
S3.PLUG detection function?
Check the line between pin
(8) of input terminal (J501)
and pin (38) of IC501
(AV_SWITCH).
Check the line between
pin (8) of input terminal
(J502) and pin (40) of
IC501 (AV_SWITCH).
Check the line between pin (6) of
input terminal (J503) and pin
(42) of IC501 (AV_SWITCH).
Is there the COMPONENT video signal
input at pins (21) (Y)/ (23) (Pb) and (25) (Pr)
of IC501 (AV_SWITCH)?
Is there the COMPONENT video signal
input at pins (27) (Y)/ (29) (Pb) and (31)
(Pr) of IC501 (AV_SWITCH)?
Is there the S-VIDEO signal input at pins (5)(Y)
and (7)(C) of IC501 (AV_SWITCH)?
YES
NO
YES
NO
YES
NO
Check the line between the
input terminals of J501 and
IC501
Check the line between
the input terminals of
J501 and IC501
Check the line between pins
(3)(Y)/(4)(C) of J503 and pins
(5)/(7) of IC501.
Is there the COMPONENT video signal output at pins (60) (Y) /
(59) (Pb) snd (58) (Pr) of IC501?
NO
Check IC501 and
its peripheral cir-
cuits.
YES
[COMPOSITE signal input] Is there the COMPONENT video signal output at pins (2), (4) and (6) of connector
(SC501) on the TERMINAL unit?
NO
Check the line
between IC501 and
SC501 (Q501 thru
Q506, etc.).
[S-VIDEO signal input] Is there the video signal output at pins (2)(Y) and (4)(C) of connector (SC501) on the
TERMINAL unit?
YES
[COMPOSITE signal input] Is there the COMPONENT video signal input at pins (2), (4) and (6) of connector
(SC1101) on the main unit? NO
Check the SC501
and SC1101 con-
nectors.
[S-VIDEO signal input] Is there the video signal input at pins (2)(Y) and (4)(C) of connector (SC1101) on the
main unit?
YES
LC-46D82U/LC-52D82U
4 – 4
[COMPOSITE signal input] Is there the COMPONENT video signal input at pins (U3) (Y) / (AA1) (Pb) and (W3)
(Pr) of IC3301 (VPC)?
NO
Check the line
between
SC1101 nad
IC3301 and its
periphen cir-
cuits.
[S-VIDEO signal input] Is there the video signal input at pins (M4, N4)(Y) and (T1)(C) of IC3301 (VPC)?
NO
Check the line
between SC1101
and IC3301 (Q2201
thru Q2203,
Q2205, Q2207.
Q2209, etc.).
YES
Is there the LVDS signal output at the LVDS 1st channel and 2nd channel of IC3301?
TA2_P/M(AJ30/AK30), TB2_P/M(AJ29/AK29), TC2_P/M(AJ28/AK28), TD2_P/M(AJ26/AK26), TE2_P/M(AJ25/
AK25), TCLK2_P/M(AJ27/AK27), TA1_P/M(AB29/AB30), TB1_P/M(AC29/AC30), TC1_P/M(AD29/AD30),
TD1_P/M(AF29/AF30), TE1_P/M(AG29/AG30), TCLK1_P/M(AE29/AE30)
Check IC3301 and
its peripheral con-
trol circuits
(IC3501, IC3502,
IC8101, etc.).
NO
YES
Check the panel module.
LC-46D82U/LC-52D82U
4 – 5
No video (3)
No video at UHF/VHF broadcast signal recep-
tion No video at digital broadcast signal reception
Is the specified TV signal selected on the input select menu screen?
Is there the analog video signal output at the
output pin (13) of tuner (TU1101)?
Is there the video signal output at the output pins
(20) and (21) of tuner (TU1101)?
YES NO YES NO
Check the tuner, IC8601 (DE-
MODULATOR) and their periph-
eral circuits (TUN_SDA/SCL,
Q8601).
Check the tuner, IC8601 (DE-MOD-
ULATOR) and their peripheral cir-
cuits (TUN_SDA/SCL, Q8601).
NO NO
Is there the video signal output at pin (5) of
IC1103 (LEVEL_ADJ)?
Are there the MPEG signal outputs
(US_TS_PKTSYNC, US_TS_EN,
US_TS_DATA, US_TS_CLK) from IC8601?
YES
NO
YES
NO
Does the level adjustment con-
trol signal come from pin (6) of
IC1103 to pin (1) of IC1104?
Check IC8601 and its peripheral
control circuits.
NO
Check IC1104 and its peripheral
circuits. Replace as required.
Are there the MPEG signal inputs
(US_TS_PKTSYNC, US_TS_EN,
US_TS_DATA, US_TS_CLK) at IC8101 (CPU/
DECODER)?
Is there the CVBS3 signal input at pin (N3) of
IC3301 (VPC)?
YES
NO
Check the line between IC8601 and
IC8101.
YES
NO
Check the line between IC1103
and IC3301 (Q2204, Q2208,
etc.).
Are there the MVY[7:0], MVC[7:0] and
MVCLKO/MNSYNCO/MVSYNCO signal outputs
from IC8101?
YES NO
Check IC8101 and its peripheral
circuits.
LC-46D82U/LC-52D82U
4 – 6
Are there the MVY[7:0], MVC[7:0] and MVCLK0/
MNSYNCO/MVSYNCO signal inputs at IC3301?
YES
NO
Check the line between IC8101 and
IC3301.
Is there the LVDS signal output at the LVDS 1st channel and 2nd channel of IC3301?
TA2_P/M(AJ30/AK30), TB2_P/M(AJ29/AK29), TC2_P/M(AJ28/AK28), TD2_P/M(AJ26/AK26), TE2_P/M(AJ25/AK25), TCLK2_P/M(AJ27/AK27),
TA1_P/M(AB29/AB30), TB1_P/M(AC29/AC30), TC1_P/M(AD29/AD30), TD1_P/M(AF29/AF30), TE1_P/M(AG29/AG30), TCLK1_P/M(AE29/AE30)
YES NO
Check the panel module. Check IC3301 and its peripheral control cir-
cuits (IC3501, IC3502, IC8101, etc.).
LC-46D82U/LC-52D82U
4 – 7
<HDMI/DVI signal input> No video (4)
No external input video [INPUT-4] No external input video [INPUT-5]
Is INPUT-4 selected on the input select menu screen? Is INPUT-5 selected on the input select menu screen?
YES NO YES NO
Select INPUT-4 on the input select menu screen for the
right input signal.
Select INPUT-5 on the input select menu screen for the
right input signal.
NO NO
Does the HOT PLUG detection function? Does the HOT PLUG detection function?
Does the HDMI_HPG5 signal come from pin (18) of con-
nector (SC1701) to pin (67) of IC9101 (CPLD)?
Does the HDMI_HPG3 signal come from pin (18) of con-
nector (SC1501) to pin (66) of IC9101 (CPLD)?
YES
NO
YES
NO
Check the line between SC1701 and IC9101
(CPLD) (Q1704, Q1706, etc.).
Check the line between SC1501 and
IC9101 (CPLD) (Q1506, Q1508, etc.).
Does the HDMI_PLG_ENA signal come from pin (82) of
IC9101 to pin (34) of IC1510 (HDMI/HDCP/DVI COMPLI-
ANT RECEIVER) and pin (40) of IC1702 (DVI/HDMI
SWITCH)?
Does the HDMI_PLG_ENB signal come from pin (81) of
IC9101 to pin (33) of IC1510 (HDMI/HDCP/DVI COMPLI-
ANT RECEIVER) and pin (40) of IC1507 (DVI/HDMI
SWITCH)?
YES
NO
YES
NO
Check the line between IC9101 and IC1702/
IC1510.
Check the line between IC9101 and
IC1507/IC1510.
Does the HDP2 signal come from pin (62) of IC1702 to pin
(19) of SC1701?
Does the HDP3 signal come from pin (44) of IC1507 to
pin (19) of SC1501?
NO NO
Check the line between IC1702 and SC1701. Check the line between IC1507 and
SC1501.
Does the signal come from connector (SC1701) to the input pins (67 and
68) (CLK±), (70 and 71) (D0±), (73 and 74) (D1±), and (76 and 77)
(D2±), all of IC1702?
Does the signal come from connector (SC1501) to the input pins (48
and 49) (CLK±), (51 and 52) (D0±), (54 and 55) (D1±), and (57 and 58)
(D2±), all of IC1507?
YES NO YES NO
Is IC1701 (EEPROM) accessed by I2C, with HDMI con-
nected, to read the DDC_I2C CLOCK/DATA data?
Is IC1501 (EEPROM) accessed by I2C, with HDMI con-
nected, to read the DDC_I2C CLOCK/DATA data?
NO NO
LC-46D82U/LC-52D82U
4 – 8
Check the DDC line and its peripheral circuits
(IC1701 (EEPROM) and its peripherals).
Check the DDC line and its peripheral cir-
cuits (IC1501 (EEPROM) and its
peripherals).
Does the signal come from pins (34 and 35) (CLK±), (31 and 32) (D0±),
(28 and 29) (D1±), and (25 and 26) (D2±) of IC1702 to pins (39 and 40),
(43 and 44), (47 and 48), and (51 and 52) of IC1510?
Does the signal come from pins (34 and 35) (CLK±), (31 and 32)
(D0±), (28 and 29) (D1±), and (25 and 26) (D2±) of IC1507 to pins
(58 and 59), (62 and 63), (66 and 67), and (70 and 71) of IC1510?
YES
NO
YES
NO
Check IC1702, IC1510 and their peripheral
circuits.
Check IC1507, IC1510 and their periph-
eral circuits.
Are there the U3VINY[7:0], U3VINR[7:0], U3VINPBPR[7:0], U3VDIN, U3HDIN, U3DEIN
and U3VINCLK signal outputs from IC1510?
NO
Check IC1510 and its peripheral circuits.
YES
Are there the U3VINY[7:0], U3VINR[7:0], U3VINPBPR[7:0], U3VDIN, U3HDIN, U3DEIN
and U3VINCLK signal inputs at IC3301 (VPC)?
NO
Check the line between IC1510 and
IC3301.
YES
Is there the LVDS signal output at the LVDS 1st channel and 2nd channel of IC3301?
TA2_P/M(AJ30/AK30), TB2_P/M(AJ29/AK29), TC2_P/M(AJ28/AK28), TD2_P/M(AJ26/
AK26), TE2_P/M(AJ25/AK25), TCLK2_P/M(AJ27/AK27), TA1_P/M(AB29/AB30), TB1_P/
M(AC29/AC30), TC1_P/M(AD29/AD30), TD1_P/M(AF29/AF30), TE1_P/M(AG29/AG30),
TCLK1_P/M(AE29/AE30)
NO
Check IC3301 and its peripheral control
circuits (IC3501, IC3502, IC8101, etc.).
YES
Check the panel module.
LC-46D82U/LC-52D82U
4 – 9
<HDMI/DVI signal input> No video (4)
No external input video [INPUT-6]
Is INPUT-6 selected on the input select menu screen?
YES NO
Select INPUT-6 on the input select menu screen for the
right input signal.
NO
Does the HOT PLUG detection function?
Does the HDMI_HPG2 signal come from pin (18) of con-
nector (SC1502) to pin (61) of IC9101 (CPLD)?
YES
NO
Check the line between SC1502 and IC9101
(CPLD) (Q1505, Q1507, etc.).
Does the HDMI_PLG_ENB signal come from pin (81) of
IC9101 to pin (33) of IC1510 (HDMI/HDCP/DVI COMPLI-
ANT RECEIVER) and pin (40) of IC1507 (DVI/HDMI
SWITCH)?
YES
NO
Check the line between IC9101 and IC1507/
IC1510.
Does the HDP2 signal come from pin (62) of IC1507 to pin
(19) of SC1502?
NO
Check the line between IC1507 and SC1502.
Does the signal come from connector (SC1502) to the input pins (67 and
68) (CLK±), (70 and 71) (D0±), (73 and 74) (D1±), and (76 and 77)
(D2±), all of IC1507?
YES NO
Is IC1502 (EEPROM) accessed by I2C, with HDMI con-
nected, to read the DDC_I2C CLOCK/DATA data?
NO
LC-46D82U/LC-52D82U
4 – 10
Check the DDC line and its peripheral circuits
(IC1502 (EEPROM) and its peripherals).
Does the signal come from pins (34 and 35) (CLK±), (31 and 32) (D0±), (28 and 29)
(D1±), and (25 and 26) (D2±) of IC1507 to pins (57 and 58), (62 and 63), (66 and 67), and
(70 and 71) of IC1510? NO
Check IC1507, IC1510 and their
peripheral circuits.
YES
Are there the U3VINY[7:0], U3VINR[7:0], U3VINPBPR[7:0], U3VDIN, U3HDIN, U3DEIN
and U3VINCLK signal outputs from IC1510?
NO
Check IC1510 and its peripheral cir-
cuits.
YES
Are there the U3VINY[7:0], U3VINR[7:0], U3VINPBPR[7:0], U3VDIN, U3HDIN, U3DEIN
and U3VINCLK signal inputs at IC3301 (VPC)?
NO
Check the line between IC1510 and
IC3301.
YES
Is there the LVDS signal output at the LVDS 1st channel and 2nd channel of IC3301?
TA2_P/M(AJ30/AK30), TB2_P/M(AJ29/AK29), TC2_P/M(AJ28/AK28), TD2_P/M(AJ26/
AK26), TE2_P/M(AJ25/AK25), TCLK2_P/M(AJ27/AK27), TA1_P/M(AB29/AB30), TB1_P/
M(AC29/AC30), TC1_P/M(AD29/AD30), TD1_P/M(AF29/AF30), TE1_P/M(AG29/AG30),
TCLK1_P/M(AE29/AE30)
NO
Check IC3301 and its peripheral control
circuits (IC3501, IC3502, IC8101, etc.).
YES
Check the panel module.
LC-46D82U/LC-52D82U
4 – 11
No audio (1)
[Audio signal] INPUT-1 No audio [Audio signal] INPUT-2 No audio [Audio signal] INPUT-3 No audio
[INPUT-1 input]
Is INPUT-1 selected on the input select menu
screen?
[INPUT-2 input]
Is INPUT-2 selected on the input select menu
screen?
[INPUT-3 input]
Is INPUT-3 selected on the input select
menu screen?
YES
NO
YES
NO
YES
NO
Is the audio output selected for
“VARIABLE” on the menu
screen?
Is the audio output selected for
"VARIABLE" on the menu screen?
Is the audio output selected for
"VARIABLE" on the menu
screen?
YES YES YES
Set the audio output to “FIXED”. Set the audio output to "FIXED". Set the audio output to
"FIXED".
[INPUT-1] Does the audio signal come from
pins (12) (L) and (18) (R) of input terminal
(J501) to pins (4) (L) and (2) (R) of connector
(SC502) on the TERMINAL unit?
[INPUT-2] Does the audio signal come from pins
(12) (L) and (18) (R) of input terminal (J502) to
pins (12) (L) and (10) (R) of connector (SC502)
on the TERMINAL unit?
[INPUT-3] Does the audio signal come
from pins (10) (L) and (16) (R) of input ter-
minal (J501) to pins (12) (L) and (10) (R) of
connector (SC502) on the TERMINAL unit?
YES
NO
YES
NO
YES
NO
Check the audio signal from
J501 to SC502, and their
peripheral circuits.
Check the audio signal from J502 to
SC502, and their peripheral circuits.
Check the audio signal from
J501 to SC502, and their
peripheral circuits.
[INPUT-1] Is there the audio signal input at
pins (4) (L) and (2) (R) of connector (SC1102)
on the MAIN unit?
[INPUT-2] Is there the audio signal input at pins
(8) (L) and (6) (R) of connector (SC1102) on the
MAIN unit?
[INPUT-3] Is there the audio signal input at
pins (12) (L) and (10) (R) of connector
(SC1102) on the MAIN unit?
YES
NO
YES
NO
YES
NO
Check the SC502 and SC1102
connectors
Check the SC502 and SC1102 con-
nectors
Check the SC502 and SC1102
connectors
[INPUT-1] Does the audio signal come from
pins (2) and (4) of SC1102 to pins (61)(L) and
(62)(R) of IC1404 (CODEC)?
[INPUT-2] Does the audio signal come from pins
(6) and (8) of SC1102 to pins (59)(L) and (60)(R)
of IC1404 (CODEC)?
[INPUT-3] Does the audio signal come
from pins (10) and (12) of SC1102 to pins
(53)(L) and (54)(R) of IC1404 (CODEC)?
YES
NO
YES
NO
YES
NO
Check the line between SC1102
and IC1404 and their periph-
eral circuits.
Check the line between SC1102 and
IC1404 and their peripheral circuits.
Check the line between
SC1102 and IC1404 and their
peripheral circuits.
Is there the audio signal output at pins (38)(L) and (39)(R) of IC1404?
NO
Check IC1404 and its
peripheral circuits.
YES
Is there the audio signal output at pins (11)(L) and (14)(R) of connec-
tor (SC1301) on the main unit?
NO
Check the line between IC1404 and SC1301.
YES
LC-46D82U/LC-52D82U
4 – 12
Is there the audio signal input at pins (11)(L) and (14)(R) of connector
(P2704) on the TERMINAL unit?
NO
Check the SC1301 and P2704 connectors.
YES
Is there the audio signal input at pins (5)(L) and (3)(R) of IC2701
(STEREO_AMP)?
NO
Check the line between P2704 and IC2701, and their periph-
eral circuits (AMP_MUTE line)
YES
Is the audio output from IC2701 as specified?
NO
Check IC2701 and its peripheral circuits.
YES
Check the connector (P2703), speakers and their peripheral circuits.
LC-46D82U/LC-52D82U
4 – 13
No Audio (1)
[Audio signal] INPUT-6 No audio (HDMI analog input)
[HDMI analog input]
Is INPUT-6 selected on the input select menu screen?
YES
NO
Is the audio output selected for “VARIABLE” on the menu
screen?
YES
Set the audio output to “FIXED”
[HDMI analog input]
Does the audio signal come from pins (4) (L) and (2) (R) of input termi-
nal (J1501) to pins (57) (L) and (58) (R) of IC1404?
YES
NO
[HDMI analog input]
Check the line between J1501 and IC1404, and their
peripheral circuits.
Is ther the audio signal output at pins (38) (L) and (39) (R) of IC1404?
NO
Check IC1404 and its peripheral circuits.
YES
Is there the audio signal output at pins (11) (L) and (14) (R) of connector (SC1301) on the
MAIN unit?
NO
Check the line between IC1404 and
SC1301.
YES
Is there the audio signal input at pins (11) (L) and (14) (R) of connector (P2704) on the
TERMINAL unit?
NO
Check the IC1301and P2704 connectors.
YES
Is there the audio signal input at pins (5) (L) and (3) (R) of IC2701 (STEREO_AMP)?
NO
Check the line between P2704 and
IC2701, and their peripheral circuits
(AMP_MUTE line).
YES
Is the audio output from IC2701 as specified?
NO
Check IC2701 and its peripheral circuit.
YES
Check the connector (P2703), speakers and their peripheral circuits.
LC-46D82U/LC-52D82U
4 – 14
[with HDMI connected] No audio (2) No audio in all modes (3)
YES
[Audio signal] [INPUT-4] No audio (HDMI connected)
[Audio signal] [INPUT-5] No audio (HDMI connected)
[Audio signal] [INPUT-6] No audio (HDMI connected)
[INPUT-4 input] Is INPUT-4 selected on the input select menu screen?
[INPUT-5 input] Is INPUT-5 selected on the input select menu screen?
[INPUT-6 input] Is INPUT-6 selected on the input select menu screen?
YES
NO
Is the audio output selected for “VARIABLE” on the menu
screen?
YES
Set the audio output to “FIXED”
[INPUT-4] If no video appears, refer to “No external input video (HDMI)
[INPUT-4]”
[INPUT-5] If no video appears, refer to “No external input video (HDMI)
[INPUT-5]”
[INPUT-6] If no video appears, refer to “No external input video (HDMI)
[INPUT-6]”
YES
Is the SII9011_MUTE line as specified?
YES
NO
Check Q1301, IC1303 and their peripheral circuits.
Does the HDMI_SPDIF signal come from pins (78) of IC1510 to pin (2)
of IC1404 (CODEC)?
YES
NO
Check the line between IC1510 and IC1404 and their
peripheral circuit.
Is there the audio signal output at pins (38) (L) and (39) (R) of IC1404?
NO
Check IC1404 and its peripheral circuits.
YES
Is there the audio signal output at pins (11) (L) and (14) (R) of connector (SC1301) on the
MAIN unit?
NO
Check the line between IC1404 and
SC1301.
YES
Is there the audio signal input at pins (11) (L) and (14) (R) of connector (P2704) on the
TERMINAL unit?
NO
Check the SC1301 and P2704 connec-
tors.
YES
LC-46D82U/LC-52D82U
4 – 15
Is there the audio signal input at pins (5) (L) and (3) (R) of IC2701 (STEREO_AMP)?
NO
Check the line between P2704 and
IC2701, and their peripheral circuits
(AMP_MUTE line).
YES
Is there the audio output from IC2701 as specified?
NO
Check IC2701 and its peripheral circuit.
YES
Check the connector (P2703), speakers and their peripheral circuits.
LC-46D82U/LC-52D82U
4 – 16
No audio (4)
No audio at digital broadcast
signal reception
No audio at UHF/VHF broad-
cast signal reception
YES
Move the sound volume key.
Does the volume icon indicate
the speakers? YES
Set the audio output to
“FIXED”.
Is the audio output selected for
“VARIABLE” on the menu
screen? YES
Set the audio output to
“FIXED”.
NO NO
Are there the IF_OUT_N and
IF_OUT_P signal outputs at
pins (20) and (19) of tuner
(TU1101)?
NO
Check the tuner (TU1101)
and its peripheral circuits.
Replace as required.
Is there the SIF signal output
at pin (15) of tuner (TU1101)?
NO
Check the tuner
(TU1101) and its
peripheral circuits.
Replace as required.
YES YES
Are there the IF_OUT_N and
IF_OUT_P signal inputs at
pins (11) and (10) of IC8601
(DEMODULATOR)?
NO
Check the line between
tuner (TU1101) and
IC8601, and their periph-
eral circuits (filter circuit,
etc.).
Is there the SIF signal input at
pins (21) of IC1401
(SIF_DECODER)? NO
Check the line
between tuner
(TU1101) and IC1401,
and their peripheral
circuits (Q1102,
Q1103, etc.).
YES YES
Do the US_TS_CLK/DATA/
EN/PKTSYNC signals come
from pins (51, 59, 63 and 66)
of IC8601 to pins (D11, A9,
C10, B10) of IC8101 (CPU/
DECODER)?
NO
Check the line between
IC8601 and IC8101, and
their peripheral circuits.
Are the audio signal outputs at
pins (30)(L) and (29)(R) of
IC1401? NO
Check IC1401
(SIF_DECODER) and
its peripheral circuits.
Replace as required.
YES
Are the audio signal inputs at
pins (51)(L) and (52)(R) of
IC1404? NO
Check the line
between IC1401 and
IC1404, and their
peripheral circuits.
YES
Is the communication
between IC8101 and IC1404
(DAC) as specified?
(DTV_I2SMCLK/
DTV_I2SSCLK/
DTV_I2SLRCLK)?
NO
Check the line between
IC8101 and IC1404, and
their peripheral circuits. YES
YES
LC-46D82U/LC-52D82U
4 – 17
Are the audio signal outputs
at pins (38)(L) and (39)(R) of
IC1404? NO
Check IC1404 and its
peripheral circuits.
YES
Are the audio signal outputs
at pins (11)(L) and (14)(R) of
connector (SC1301) on the
main unit?
NO
Check the line between
IC1404 and SC1301, and
their peripheral circuits.
YES
Are the audio signal inputs at
pins (11)(L) and (14)(R) of
connector (P2704) on the
TERMINAL unit?
NO
Check the SC1301 and
P2704 connectors.
YES
Are the audio signal inputs at
pins (5)(L) and (3)(R) of
IC2701 (STEREO_AMP)? NO
Check the line between
P2704 and IC2701, and
their peripheral circuits
(AMP_MUTE line).
YES
Is the audio output from
IC2701 as specified?
NO
Check IC2701 and its
peripheral circuits.
YES
Check the P2703 connector,
speakers and their peripheral
circuits.
LC-46D82U/LC-52D82U
4 – 18
No audio signal at DIGITAL AUDIO OUTPUT terminal (Analog sound heard)
No INPUT-4/5/6 (HDMI) audio No audio at digital broadcast signal reception
If no video appears, refer
to “No external input video
(HDMI) [INPUT-4/5/6]”.
Are there the IF_OUT_N
and IF_OUT_P signal out-
puts at pins (20) and (19) of
tuner (TU1101)?
NO
Check the tuner
(TU1101) and its
peripheral circuits.
Replace as required.
YES
Is the SII9011_MUTE line
as specified?
NO
Check Q1301, IC1303
and their peripheral cir-
cuits.
Are there the IF_OUT_N
and IF_OUT_P signal
inputs at pins (11) and (10)
of IC8601 (DEMODULA-
TOR)?
NO
Check the line
between tuner
(TU1101) and IC8601,
and their peripheral
circuits (filter circuit,
etc.).
YES YES
Does the HDMI_SPDIF
signal come from pin (78)
of IC1510 to pin (2) of
IC1404 (CODEC)?
NO
Check the line between
IC1510 and IC1404 and
their peripheral circuits.
Do the US_TS_CLK/DATA/
EN/PKTSYNC signals
come from pins (51, 59, 63
and 66) of IC8601 to pins
(D11, A9, C10, B10) of
IC8101 (CPU/DECODER),
respectively?
NO
Check the line
between IC8601 and
IC8101, and their
peripheral circuits.
YES
YES
Is the DTV_SPDIF signal
output at pin (R33) of
IC8101? NO
Check IC8101 and its
peripheral circuits.
YES
YES Is the DTV_SPDIF signal
input at pin (5) of IC1404?
NO
Check the line
between IC8101 and
IC1404, and their
peripheral circuits.
Is there the SPDIF signal
output at pin (23) of
IC1404(CODEC)? NO
Check IC1404 and its
peripheral circuits.
YES
Is there the SPDIF signal
input at pin (2) of IC1305
(SPDIF_BUFF.)? NO
Check the line between
IC1404 and IC1305 and
their peripheral circuits.
LC-46D82U/LC-52D82U
4 – 19
YES
No monitor audio
YES
Is there the MUTE signal
input at pin (1) of IC1305?
NO
Check the
MUTE_A_ALL and
ACDET_MUTE signals.
Is the audio output from the
monitor set at “VARIABLE”
or “FIXED” on the menu
screen?
NO
Check the bus line
(SCL0_5/SDA0_5)
and IC1404. Replace
as required.
YES YES
Are the audio signal outputs
at pins (40)(L) and (41)(R)
of IC1404? NO
Check IC1404 and its
peripheral circuits.
Replace as required.
Is there the SPDIF signal
input at pin (1) of DIGITAL
AUDIO OUTPUT terminal
(D1313)?
NO
Check D1313 and its
peripheral circuits.
Replace as required.
YES
Are the audio signal inputs
at pins (3)(L) and (5)(R) of
IC1408 (BUFF_AMP.)? NO
Check the line
between IC1404 and
IC1408, and their
peripheral circuits.
No optical output under
the following conditions
as per HDMI require-
ments.
* Audio contents pro-
tected
* Audio frequency
beyond 48 KHz
* Audio bit length
beyond 16 bits
YES
Are the audio signal outputs
at pins (1)(L) and (7)(R) of
IC1408? NO
Check IC1408 and its
peripheral circuits.
Replace as required.
YES
Are the audio signal outputs
at pins (16)(L) and (14)(R)
of connector (SC1102) on
the main unit?
NO
Check the line
between IC1408 and
SC1102, and their
peripheral circuits.
YES
Are the audio signal inputs
at pins (10)(L) and (16)(R)
of connector (SC502) on
the TERMINAL unit?
NO
Check the SC1102
and SC502 connec-
tors.
YES
Check the signal up to the
monitor audio output termi-
nal (J502). NO
Check the MUTE.R
line (Q507 thru Q509,
etc.)
LC-46D82U/LC-52D82U
4 – 20
1) Power LED (The power LED (Green) which lights during TV reception flashes.)
2) Power failure details (Power LED flashes twice and OPC LED flashes)

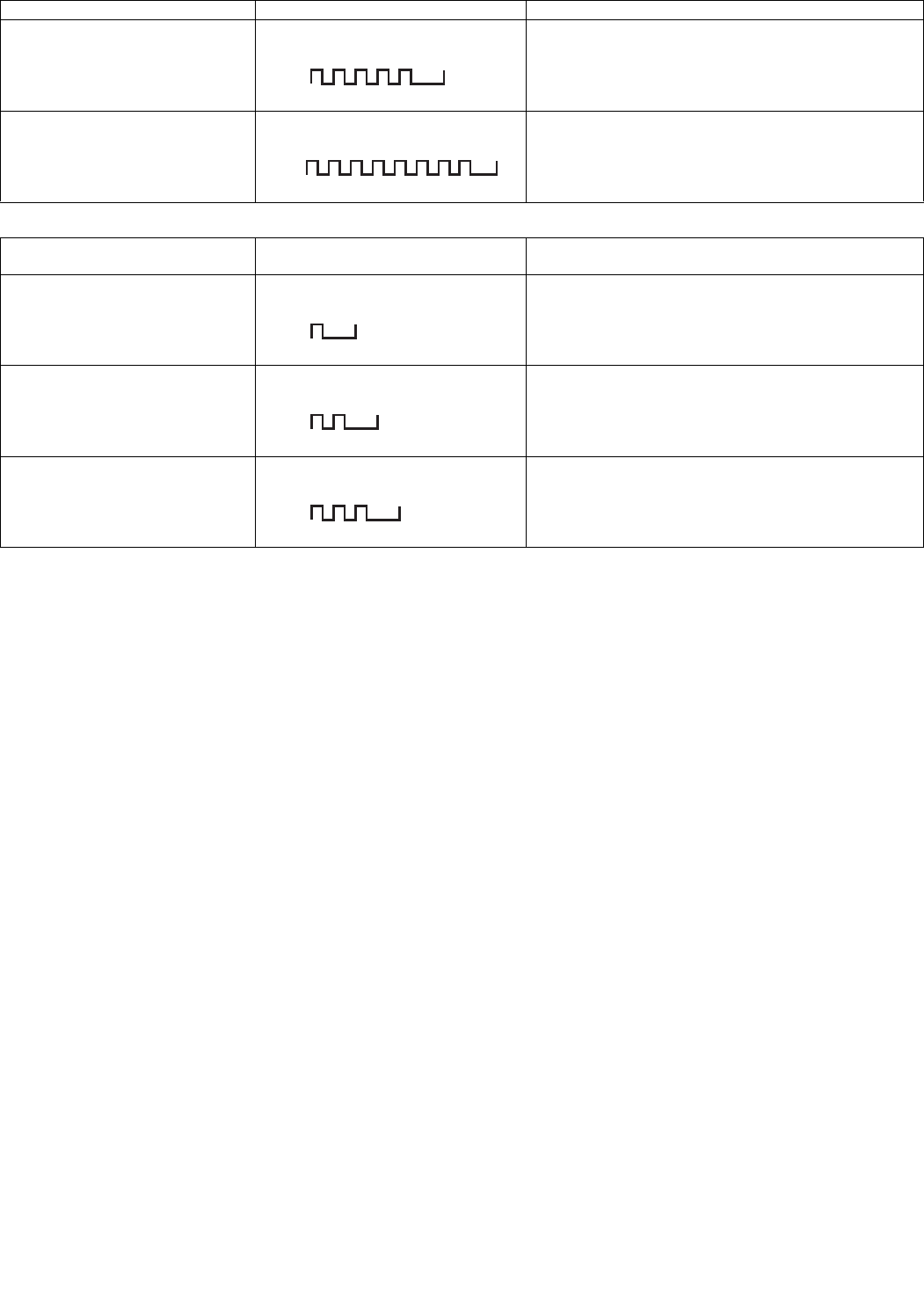

LED flashing timing chart for error notification.
Error type Power red LED operation (1 cycle) Pins are microprocessor pins.
Lamp failure
Flashes once: Fast
ERR_PNL (pin 43): L failure. Confirmed after 10 consecutive
matches at 500 ms intervals (detected only when the back-
light is on).
Note that after five match counts, the lamp cannot be acti-
vated except in the monitoring process. (For the first time,
only the inverter is reset, and error OFF is not activated)
Accumulated counts are cleared to 0 when the corresponding
setting in the process A is made or when the power is turned
on with [CH_DOWN] and [VOL_UP] on the unit down or after
continuous illumination for 3 minutes.
Power failure
Flashes twice
Refer to “Power failure details”.
Communication failure with main CPU
Flashes 3 times
Refer to "Communication failure details".
Communication line failure or main CPU communication fail-
ure. -> Check debug statements for the main CPU.
Vsync
Trident failure
Flashes 4 times
VSYNC (pin 46) failure (uninput). Trident_IC operation failure.
Detected during operation (interruption).
Detected during operation (interruption).
Monitor temperature failure
Flashes 5 times
If the panel temperature is 60?C or more for 15 seconds or
more in a row, CAUTION appears on the OSD of AVC
(flashes in red in the lower right screen).
If the panel temperature is 60?C or more for 25 seconds or
more in a row, error standby is activated.
(MONITOR MAX TEMP on page 23 of process A: Change of
temperature failure AD value): Thermistor
Program data broken
Flashes 8 times
Internal Flash ROM data is not correct.
[Restore] Write Monitor Micon software.
Error type Notification LED operation (1 cycle) Pins are microprocessor pins unless otherwise specified.
PS_ON
DET_10V failure
Flashes once
DET_10V (pin 57). UR10V or A9V is not applied.
If error is detected during operation, the power is turned on
again by interrupt handling (instantaneous blackout process-
ing).
D_POW
DET_3V3 failure
Flashes twice
DET_D3V3 (pin 59) failure (L). D3.3V is not applied.
If error is detected during operation, error standby is activated
by polling.
D_POW
DET_6V failure
Flashes 3 times
DET_6V (pin 56) failure (L). D5V or A5V is not applied.
If error is detected during operation, error standby is activated
by polling.
250ms 1sec
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
LC-46D82U/LC-52D82U
4 – 21
3) Communication failure details (Power LED flashes 3 times and OPC LED flashe
PANEL_POW
PNL_12V failure
Flashes 5 times
DET_PNL_12V (pin 58) failure (L). Panel power is not
applied.
If error is detected during operation, error standby is activated
by polling.
Main failure
Flashes 7 times
Main microprocessor detection error (FAN error, 1bitAMP
error, etc.)
The details are displayed in "ERROR STANDBY CAUSE" on
page 1 of process A for the main microprocessor.
Error type Notification LED operation (1 cycle) Basically, communication logs are analyzed by a bus
monitor or debug print logs are analyzed.
Initial communication
reception failure
Flashes once
Initial communication from the main CPU is not received.
(After cancelling the reset, request for the monitor model No.
is not received.)
Communication line failure or main CPU start-up failure.
Time-out setting reception failure
Start-up confirmation reception failure
Flashes twice
Time-out setting and start-up mode change cannot be
received from the main CPU. (Start-up communication until
time-out setting and start-up mode change is not received.)
Main CPU start-up failure or monitor microprocessor's recep-
tion failure.
Regular communication failure
Flashes 3 times
Regular communication that is performed at 1 second inter-
vals in the normal operation is interrupted.
Main CPU operation failure or monitor microprocessor's
reception failure.
Error type Notification LED operation (1 cycle) Pins are microprocessor pins unless otherwise specified.
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
LC-46D82U/LC-52D82U
5 – 1
LC46D82U Service Manual
CHAPTER 5. MAJOR IC INFORMATIONS
[1] MAJOR IC INFORMATIONS
1. MAJOR IC INFORMATIONS
1.1. IC501 (MM3151XQ)
This I2C bus-controlled video switch is designed to switch between tow-system color difference (component) signal, one-system S video signal and
three-system composite signal.
The analog video signal from the INPUT-1 or INPUT-2 and INPUT-3 input terminal is fed into this IC for selection. The video output signal from this IC
flows through a low-pass filter into the video signal processing circuit IC3301 (IXB723WJ).
1.2. IC2701 (TPA3100D)
The Class-D type digital audio power amplifier TPA3100D gives maximum continuous output of 15 W/ch.
1.3. IC1401 (VHiAN5832SA-1Y)
The AN5832SA is an I2C bus-controlled, US-standard analog TV sound multiplexing demodulator IC. It has the following functions built in: SIF
demodulation, STEREO demodulation, SAP demodulation, dbx noise reduction, and audio AGC.
1.4. IC1404 (VHiAK4683EQ-1Q)
This IC provides for 2-channel A/D and 4-channel D/A (192-kHz sampling).
The built-in digital audio interfaces DIR (Digital Interface Receiver) and DIT (Digital Interface Transmitter) (192 kHz compatible, 6 inputs/1 output) are
compatible with the AES3, IEC60958, S/PDIF, and EIAJ CP1201 standards. Both the DIR and DIT can handle 192-kHz sampling and 24-bit data. The
DIR is also equipped with 6-channel input selector that detects not just PCM data but also Dolby Digital and other non-PCM data.
1.5. IC1407 (VHiTAS3108D-1Y)
The TAS3108 is a fully programmable digital audio processor that preserves high-quality audio by using a 48-bit data path, 28-bit filter coefficients,
and a single cycle 28 x 48-bit multiplier with a 76-bit accumulator.
It has the following functions buitl in: 5band PEQ, 256tap Finit Impulse Response Filter, TI Virtual surround, TI Bassboost, Tone Control, and Sub-
woofer output.
1.6. IC1507, IC1702 (VHiTMDS341A-1Y)
The TMDS341 single-chip IC is provided with multiple switching function, in which up to 2 HDMI ports can be selected for a single display input termi-
nal.
This 2-port device is also equipped with signal conditioning function and switching function. Each of the ports supports 4-channel TMDS signal, one
hot plug detection, and I2C interface. Each of the 4 TMDS channels, in turn, provides maximum 1.65-Gbps signal transmission rate, fixed 8-dB input
equalization, and enable/disable 3-dB output de-emphasis function.
On this IC, the INPUT-4/5 HDMI port are switched.
1.7. IC1510 (VHiSii9025+-1Q)
The TMDS receiver IC decodes differential serial-transmitted signal to parallel signal. Compatible with the HDCP system, encrypted signals can also
be received.
This IC responds to the INPUT-4, 5, 6, 7 HDMI (High-Definition Multimedia Interface)/DVI selected by IC1507, IC1702.
1.8. IC2002 (RH-iXB986WJQZQ)
The monitor microprocessor is intended to communicate with the main microprocessor and to operate the system. It also controls power of the entire
system.
1.9. IC3301 (RH-iXB925WJQZQ)
This video processor consists of an LSI system-on-chip device. For high-precision data processing, it is equipped with a high-precision 166-MHz, 10-
bit A/D converter.
For processing analog video signals, this IC supports the NTSC-compatible high-performance multi-format 2D/3D digital Y/C separation video
decoder as well as the video format conversion engine. It provides for 10-bit video signal processing.
1.10. IC3501/3502 (RH-iXB822WJQZQ)
These ICs are 128-Mbit GDDR SDRAM (Graphic Double Data Rate Synchronous DRAM), providing a memory for image processing and buffering
OSD data.
LC-46D82U/LC-52D82U
5 – 2
1.11. IC8101 (RH-iXB281WJZZQ)
This LSI with MPEG-2 system decoder performs back-end processing for digital broadcasting. It is equipped with a CPU (processor core: AM33-3),
de scrambler (DES), transport stream de-multiplexer, video decoder (MPEG-2 MP@HL compatible), graphic processor, audio decoder (AC3 compat-
ible), and an NTSC video encoder.
After receiving transport stream from the tuner, the LSI decrypts pay-TV broadcasts with the de scrambler. Then using the de-multiplexer, it separates
and decodes the compressed audio and video data to send the signals. In the visual system, the graphic processor makes it possible to overlap sub-
titles and perform scaling. Digital video signals (Y, Pb and Pr, or 480I/P, 720P and 1081I) and down-converted NTSC signals (Y/C and composite, or
480I) can be sent simultaneously. As for the audio system, decoded AC3 audio can be overlapped with sound effects.
The LSI also contains various interfaces (I2C x 2, UART x 3, an SD Memory Card interface, a Cable CARD interface, etc.) and a GPIO. Using these
interfaces, the CPU controls peripheral circuits of the tuner, SD Memory Cards, Cable CARDs, etc. One of the UARTs is used by the CPU to establish
communications with the monitor microcomputer in the unit, where remote control information or other data is exchanged. Another UART is used for
RS-232C serial communications to connect the unit to a PC.
1.12. IC8301/8302/8303/8304 (RH-iXB765WJQZQ)
These are 256-Mb (4 Mb x 16 I/O x 4 banks) F-die DDR SDRAMs.
1.13. IC8451 (RH-iXC132WJQZQ)
The 64-Mbit page mode flash memory device stores the main CPU program.
1.14. IC8601 (RH-iXB684WJQZQ)
The RH-IXB684WJQZQ comprises a family of advanced QAM and VSB demodulator for the Digital Cable Ready and ATSC environments.
This IC is configurable to operate in either the ITU-J.83B/SCTE DVS-031 compliant 64 QAM or 256 QAM modes used by digital cable systems, or the
ATSC compliant 8VSB mode used in digital terrestrial broadcasting.
For digitally modulated input signals (QAM or 8VSB), the RH-IXB684WJQZQ outputs a parallel or serial MPEG compliant transport stream.
1.15. IC8702 (VHiTC6384AF1EQ)
This is a Standard Memory Interface to SD Memory Controller.
1.16. IC9101 (RH-iXB997WJQZQ)
The high-performance CPLD (Complex Programmable Logic Device) is controlled by the main CPU to send control signals to various mounted
devices.
1.17. IC5801 (RH-iXB857WJZZQ)
This IC improves the moving picture characteristics of LCD TV by converting the frame rate of full HD (1920 x 1080) from 60 fps to 120 fps.
LC-46D82U/LC-52D82U
5 – 3
1.18. IC6341 (RH-iXC029WJQZQ)
Pin No. Pin Name I/O Pin Function device pin
1 GND - Ground A1
2 VCCIO1 - Power Supply 3.3V B1
3 RO6_FI I Red Data Signal Input (ODD) C1
4 Reserved D1
5 GO8_FI I Green Data Signal Input (ODD) E1
6 DATA0 I Data Signal for Configuration F1
7 TMS I Inline Program JTAG DataOut G1
8 CLK1 - Pin for Clock H1
9 CLK3 - Pin for Clock J1
10 BO5_FI I Blue Data Signal Input (ODD) K1
11 BO9_FI I Blue Data Signal Input (ODD) L1
12 GO3_FI I Green Data Signal Input (ODD) M1
13 RO1_FI I Red Data Signal Input (ODD) N1
+:%:,3<
(2)#
11,198,163,69,10, BO9_FI,BO8_FI,BO7_FI,BO6_FI,BO5_FI,
222,122,71,124,73 BO4_FI,BO3_FI,BO2_FI,BO1_FI,BO0_FI
106,238,52,105,187, BE9_FI,BE8_FI,BE7_FI,BE6_FI,BE5_FI,
237,191,220,57,110 BE4_FI,BE3_FI,BE2_FI,BE1_FI,BE0_FI
BO9_FO,BO8_FO,BO7_FO,BO6_FO,BO5_FO, 88,33,174,175,89,
BO4
_
FO,BO3
_
FO,BO2
_
FO,BO1
_
FO,BO0
_
FO 34,207,90,35,23
1
BE9_FO,BE8_FO,BE7_FO,BE6_FO,BE5_FO, 126,77,20,21,79,
BE4 FO
,
BE3 FO
,
BE2 FO
,
BE1 FO
,
BE0 F
O
51,104,186,235,50, GE9
_
FI,GE8
_
FI,GE7
_
FI,GE6
_
FI,GE5
_
FI
,
103,55,108,155,56 GE4
_
FI,GE3
_
FI,GE2
_
FI,GE1
_
FI,GE0
_
FI
,
GE9_FO,GE8_FO,GE7_FO,GE6_FO,GE5_FO, 171,81,24,230,172,
GE4_FO,GE3_FO,GE2_FO,GE1_FO,GE0_FO, 82,25,206,132,83
22,228,80,23,229S
221,5,64,115,158, GO9_FI,GO8_FI,GO7_FI,GO6_FI,GO5_FI,
193,12,164,14,72 GO4_FI,GO3_FI,GO2_FI,GO1_FI,GO0_FI
GO9_FO,GO8_FO,GO7_FO,GO6_FO,GO5_FO, 208,138,91,36,232,
GO4_FO,GO3_FO,GO2_FO,GO1_FO,GO0_FO 92,37,233,210,234
148,49,102,147,48, RE9_FI,RE8_FI,RE7_FI,RE6_FI,RE5_FI,
101,240,241,109,154 RE4_FI,RE3_FI,RE2_FI,RE1_FI,RE0_FI
RE9_FO,RE8_FO,RE7_FO,RE6_FO,RE5_FO, 26,133,84,27,85,
RE4_FO,RE3_FO,RE2_FO,RE1_FO,RE0_FO 28,86,29,134,135
114,157,192,3,62, RO9_FI,RO8_FI,RO7_FI,RO6_FI,RO5_FI,
156,121,70,13,165 RO4
_
FI,RO3
_
FI,RO2
_
FI,RO1
_
FI,RO0
_
F
I
RO9_FO,RO8_FO,RO7_FO,RO6_FO,RO5_FO, 211,212,181,95,40,
RO4_FO,RO3_FO,RO2_FO,RO1_FO,RO0_FO 96,41,144,42,184
ODD/EVEN LATENCY
ADJUST
54 DEIE_FI
67 ICKE_FI
239 IVSE_FI
53 IHSE_FI
125 DEIO_FI
68 ICKO_FI
18 IVSO_FI
75 IHSO_FI
LVDS
MAPPING
SELECTOR
111 LVDS_SEL
I2C
SLAVEADDRESS
CONV
247 IS_SEL
59 SDA_FI
112 SCL_FI
I2C
SLAVE
SEL SEL
227 P_SEL
SCL_FO 19
SDA_FO 76
IVS_FO 43
IHS_FO 98
DEI_FO 145
ICK_FO 146
2,15,17,30,32,45,47,60,117,120,128,
131,139,142,150,153,202,205,216,219 VCC(3.3V)
4,7,8,9,38,39,44,63,65,66,78,93,94,
97,99,107,113,116,123,127,136,137,
143,149,159,160,166,168,169,170,
173,178,180,182,183,188,189,190,
NC 194,196,223,224,225,244,245,248,250
200,214,216,226,236,242,243,249,251 VCC(1.2V)200,214,216,226,236,242,243,249,251 VCC(1.2V)
1,16,31,46,61,74,87,100,118,119,129,130,140,
141,151,152,167,185,199,201,203,204,213,
215,217,218,246,252,253,254,255,256 GND
161 DCLK
177 CONF_DONE
197 nCONFIG
176 nSTATUS
195 nCE
6DATA0
179,209 MSEL0,MSEL1
58 RST
162 SYS_CLK
LC-46D82U/LC-52D82U
5 – 4
14 GO1_FI I Green Data Signal Input (ODD) P1
15 VCCIO1 - Power Supply 3.3V R1
16 GND - Ground T1
17 VCCIO4 - Power Supply 3.3V T2
18 IVSO_FI I Vertical Sync Signal Input (ODD) T3
19 SCL_FO I/O SCL Signal Output for I2C T4
20 BE7_FO O Blue Data Signal Output (EVEN) T5
21 BE6_FO O Blue Data Signal Output (EVEN) T6
22 BE4_FO O Blue Data Signal Output (EVEN) T7
23 BE1_FO O Blue Data Signal Output (EVEN) T8
24 GE7_FO O Green Data Signal Output (EVEN) T9
25 GE3_FO O Green Data Signal Output (EVEN) T10
26 RE9_FO O Red Data Signal Output (EVEN) T11
27 RE6_FO O Red Data Signal Output (EVEN) T12
28 RE4_FO O Red Data Signal Output (EVEN) T13
29 RE2_FO O Red Data Signal Output (EVEN) T14
30 VCCIO4 - Power Supply 3.3V T15
31 GND - Ground T16
32 VCCIO3 - Power Supply 3.3V R16
33 BO8_FO O Blue Data Signal Output (ODD) P16
34 BO4_FO O Blue Data Signal Output (ODD) N16
35 BO1_FO O Blue Data Signal Output (ODD) M16
36 GO6_FO O Green Data Signal Output (ODD) L16
37 GO3_FO O Green Data Signal Output (ODD) K16
38 CLK7 - Pin for Clock J16
39 CLK4 - Pin for Clock H16
40 RO5_FO O Red Data Signal Output (ODD) G16
41 RO3_FO O Red Data Signal Output (ODD) F16
42 RO1_FO O Red Data Signal Output (ODD) E16
43 IVS_FO O Vertical Sync Signal Output D16
44 Reserved C16
45 VCCIO3 - Power Supply 3.3V B16
46 GND - Ground A16
47 VCCIO2 - Power Supply 3.3V A15
48 RE5_FI I Red Data Signal Input (EVEN) A14
49 RE8_FI I Red Data Signal Input (EVEN) A13
50 GE5_FI I Green Data Signal Input (EVEN) A12
51 GE9_FI I Green Data Signal Input (EVEN) A11
52 BE7_FI I Blue Data Signal Input (EVEN) A10
53 IHSE_FI I Horizontal Sync Signal Input (EVEN) A9
54 DEIE_FI I Data Enable Signal Input (EVEN) A8
55 GE3_FI I Green Data Signal Input (EVEN) A7
56 GE0_FI I Green Data Signal Input (EVEN) A6
57 BE1_FI I Blue Data Signal Input (EVEN) A5
58 RST I RESET Signal (RESET at Lo) A4
59 SDA_FI I/O SDA Signal for I2C (Main PWB FPGA) A3
60 VCCIO2 - Power Supply 3.3V A2
61 GND - Ground B2
62 RO5_FI I Red Data Signal Input (ODD) C2
63 Reserved D2
64 GO7_FI I Green Data Signal Input (ODD) E2
65 TCK I Inline Program JTAG TMS F2
66 TDO I Inline Program JTAG Clock G2
67 ICKE_FI I Pixel Clock Input (EVEN) H2
68 ICKO_FI I Pixel Clock Input (ODD) J2
69 BO6_FI I Blue Data Signal Input (ODD) K2
70 RO2_FI I Red Data Signal Input (ODD) L2
71 BO2_FI I Blue Data Signal Input (ODD) M2
72 GO0_FI I Green Data Signal Input (ODD) N2
73 BO0_FI I Blue Data Signal Input (ODD) P2
74 GND - Ground R2
75 IHSO_FI I Horizontal Sync Signal Input (ODD) R3
76 SDA_FO I/O SDA Signal for I2C (FPGA IXB857WJ) R4
77 BE8_FO O Blue Data Signal Output (EVEN) R5
78 Reserved R6
LC-46D82U/LC-52D82U
5 – 5
79 BE5_FO O Blue Data Signal Output (EVEN) R7
80 BE2_FO O Blue Data Signal Output (EVEN) R8
81 GE8_FO O Green Data Signal Output (EVEN) R9
82 GE4_FO O Green Data Signal Output (EVEN) R10
83 GE0_FO O Green Data Signal Output (EVEN) R11
84 RE7_FO O Red Data Signal Output (EVEN) R12
85 RE5_FO O Red Data Signal Output (EVEN) R13
86 RE3_FO O Red Data Signal Output (EVEN) R14
87 GND - Ground R15
88 BO9_FO O Blue Data Signal Output (ODD) P15
89 BO5_FO O Blue Data Signal Output (ODD) N15
90 BO2_FO O Blue Data Signal Output (ODD) M15
91 GO7_FO O Green Data Signal Output (ODD) L15
92 GO4_FO O Green Data Signal Output (ODD) K15
93 CLK6 - Pin for Clock J15
94 CLK5 - Pin for Clock H15
95 RO6_FO O Red Data Signal Output (ODD) G15
96 RO4_FO O Red Data Signal Output (ODD) F15
97 Reserved E15
98 IHS_FO O Horizontal Sync Signal Input D15
99 Reserved C15
100 GND - Ground B15
101 RE4_FI I Red Data Signal Input (EVEN) B14
102 RE7_FI I Red Data Signal Input (EVEN) B13
103 GE4_FI I Green Data Signal Input (EVEN) B12
104 GE8_FI I Green Data Signal Input (EVEN) B11
105 BE6_FI I Blue Data Signal Input (EVEN) B10
106 BE9_FI I Blue Data Signal Input (EVEN) B9
107 Reserved B8
108 GE2_FI I Green Data Signal Input (EVEN) B7
109 RE1_FI I Red Data Signal Input (EVEN) B6
110 BE0_FI I Blue Data Signal Input (EVEN) B5
111 LVDS_SEL I LVDS Mapping Switching Signal(0:National Semiconductor, 1:THine) B4
112 SCL_FI I SCL Signal Input for I2C B3
113 NC - C3
114 RO9_FI I Red Data Signal Input (ODD) D3
115 GO6_FI I Green Data Signal Input (ODD) E3
116 NC - F3
117 VCCIO1 - Power Supply 3.3V G3
118 GND - Ground H3
119 GND - Ground J3
120 VCCIO1 - Power Supply 3.3V K3
121 RO3_FI I Red Data Signal Input (ODD) L3
122 BO3_FI I Blue Data Signal Input (ODD) M3
123 Reserved N3
124 BO1_FI I Blue Data Signal Input (ODD) P3
125 DEIO_FI I Data Enable Signal Output (ODD) P4
126 BE9_FO O Blue Data Signal Output (EVEN) P5
127 Reserved P6
128 VCCIO4 - Power Supply 3.3V P7
129 GND - Ground P8
130 GND - Ground P9
131 VCCIO4 - Power Supply 3.3V P10
132 GE1_FO O Green Data Signal Output (EVEN) P11
133 RE8_FO O Red Data Signal Output (EVEN) P12
134 RE1_FO O Red Data Signal Output (EVEN) P13
135 RE0_FO O Red Data Signal Output (EVEN) P14
136 NC - N14
137 NC - M14
138 GO8_FO O Green Data Signal Output (ODD) L14
139 VCCIO3 - Power Supply 3.3V K14
140 GND - Ground J14
141 GND - Ground H14
142 VCCIO3 - Power Supply 3.3V G14
143 Reserved F14
LC-46D82U/LC-52D82U
5 – 6
144 RO2_FO O Red Data Signal Output (ODD) E14
145 DEI_FO O Data Enable Signal Output D14
146 ICK_FO O Pixel Clock Output C14
147 RE6_FI I Red Data Signal Input (EVEN) C13
148 RE9_FI I Red Data Signal Input (EVEN) C12
149 NC - C11
150 VCCIO2 - Power Supply 3.3V C10
151 GND - Ground C9
152 GND - Ground C8
153 VCCIO2 - Power Supply 3.3V C7
154 RE0_FI I Red Data Signal Input (EVEN) C6
155 GE1_FI I Green Data Signal Input (EVEN) C5
156 RO4_FI I Red Data Signal Input (ODD) C4
157 RO8_FI I Red Data Signal Input (ODD) D4
158 GO5_FI I Green Data Signal Input (ODD) E4
159 NC - F4
160 Reserved G4
161 DCLK I Clock for Configuration H4
162 SYS_CLK I X'tal (33MHz) J4
163 BO7_FI I Blue Data Signal Input (ODD) K4
164 GO2_FI I Green Data Signal Input (ODD) L4
165 RO0_FI I Red Data Signal Input (ODD) M4
166 Reserved N4
167 GND_PLL1 - Ground N5
168 Reserved N6
169 Reserved N7
170 NC - N8
171 GE9_FO O Green Data Signal Output (EVEN) N9
172 GE5_FO O Green Data Signal Output (EVEN) N10
173 NC - N11
174 BO7_FO O Blue Data Signal Output (ODD) N12
175 BO6_FO O Blue Data Signal Output (ODD) N13
176 nSTATUS O Status Signal during Configuration M13
177 CONF_DONE O Configuration End Signal L13
178 Reserved K13
179 MSEL0 I Configuration Mode Switching Signal J13
180 NC - H13
181 RO7_FO O Red Data Signal Output (ODD) G13
182 Reserved F13
183 Reserved E13
184 RO0_FO O Red Data Signal Output (ODD) D13
185 GND_PLL2 - Ground D12
186 GE7_FI I Green Data Signal Input (EVEN) D11
187 BE5_FI I Blue Data Signal Input (EVEN) D10
188 Reserved D9
189 NC - D8
190 Reserved D7
191 BE3_FI I Blue Data Signal Input (EVEN) D6
192 RO7_FI I Red Data Signal Input (ODD) D5
193 GO4_FI I Green Data Signal Input (ODD) E5
194 Reserved F5
195 nCE I CHIP Enable Signal G5
196 TDI I Inline Program JTAG DataIn H5
197 nCONFIG I Configuration Start Signal J5
198 BO8_FI I Blue Data Signal Input (ODD) K5
199 GND_PLL1 - Ground L5
200 VCCA_PLL1 - Power Supply 1.2V M5
201 GNDA_PLL1 - Ground M6
202 VCCIO4 - Power Supply 3.3V M7
203 GND - Ground M8
204 GND - Ground M9
205 VCCIO4 - Power Supply 3.3V M10
206 GE2_FO O Green Data Signal Output (EVEN) M11
207 BO3_FO O Blue Data Signal Output (ODD) M12
208 GO9_FO O Green Data Signal Output (ODD) L12
LC-46D82U/LC-52D82U
5 – 7
209 MSEL1 I Configuration Mode Switching Signal K12
210 GO1_FO O Green Data Signal Output (ODD) J12
211 RO9_FO O Red Data Signal Output (ODD) H12
212 RO8_FO O Red Data Signal Output (ODD) G12
213 GND_PLL2 - Ground F12
214 VCCA_PLL2 - Power Supply 1.2V E12
215 GNDA_PLL2 - Ground E11
216 VCCIO2 - Power Supply 3.3V E10
217 GND - Ground E9
218 GND - Ground E8
219 VCCIO2 - Power Supply 3.3V E7
220 BE2_FI I Blue Data Signal Input (EVEN) E6
221 GO9_FI I Green Data Signal Input (ODD) F6
222 BO4_FI I Blue Data Signal Input (ODD) G6
223 Reserved H6
224 Reserved J6
225 Reserved K6
226 VCCD_PLL1 - Power Supply 1.2V L6
227 P_SEL I Panel Drive System Switching Signal L7
228 BE3_FO O Blue Data Signal Output (EVEN) L8
229 BE0_FO O Blue Data Signal Output (EVEN) L9
230 GE6_FO O Green Data Signal Output (EVEN) L10
231 BO0_FO O Blue Data Signal Output (ODD) L11
232 GO5_FO O Green Data Signal Output (ODD) K11
233 GO2_FO O Green Data Signal Output (ODD) J11
234 GO0_FO O Green Data Signal Output (ODD) H11
235 GE6_FI I Green Data Signal Input (EVEN) G11
236 VCCD_PLL2 - Power Supply 1.2V F11
237 BE4_FI I Blue Data Signal Input (EVEN) F10
238 BE8_FI I Blue Data Signal Input (EVEN) F9
239 IVSE_FI I Vertical Sync Signal Input(EVEN) F8
240 RE3_FI I Red Data Signal Input (EVEN) F7
241 RE2_FI I Red Data Signal Input (EVEN) G7
242 VCCINT - Power Supply 1.2V H7
243 VCCINT - Power Supply 1.2V J7
244 Reserved K7
245 Reserved K8
246 GND - Ground K9
247 IS_SEL I I2C Slave Address Switching Signal K10
248 Reserved J10
249 VCCINT - Power Supply 1.2V H10
250 DA_SEL I General-Purpose Input G10
251 VCCINT - Power Supply 1.2V G9
252 GND - Ground G8
253 GND - Ground H8
254 GND - Ground J8
255 GND - Ground J9
256 GND - Ground H9
LC-46D82U/LC-52D82U
5 – 8
— MEMO —
LC-46D82U/LC-52D82U
6 – 1
LC46D82U Service Manual
CHAPTER 6. OVERALL WIRING DIAGRAM/BLOCK DIAGRAM
[1] OVERALL WIRING DIAGRAM
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
OVERALL WIRING DIAGRAM
㵘
LCD Cont.㵘Unit
䋨107.4mm * 297.4mm䋩CN5
0.5SL NA222
ICx
EAGLE2
IC
x
EAG
L
Main Unit
E028
SD
Card
HDMI 2
Trident
LX
IC3301
ƂMAƃ䇼FC䇽 䇼SA䇽
䇼PD䇽
䇼PH䇽
䇼LB䇽
䇼LV䇽
䇼㪣㪧䇽
䇼䇽
䇼䇽
䇼RA䇽
䇼RA䇽
䇼KM䇽
䇼SP䇽
46"/52" LCD P
a
1920×1080
䇼LA䇽
Terminal Unit
D935
HDMI 3
HDMI 1
0.
5
㩷180 㩷1
㩷1㵘23
113
1
2
1
2
1
2
1
2
LED Unit D909
KEY Unit D910
㩷1㵘23 㩷1㵘23
㩷1㵘23 㩷1㵘23 㩷1㵘23
1
12
1
4
41
1
1
20
113
1
3
12
1
123
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
123
䇼LB䇽
䇼LC䇽
䇼䇽
䇼䇽
9
1
14
Component
Video + L/R
Video + L/R
S-Video
Audio output L/R
AV SW
IC501
AMP
IC2701
䇼䇽 䇼 䇽
SEINE
IC8101
䇼KM䇽
Analog
Digital
Tuner
TU1101
ATI
IC8601
1
5
䇼FA䇽
1413
14
䇼FD䇽
1
6
HDMI
Audio L/R
RF IN
Optical
Out
䇼䇽
INV-1㵘Unit
RUNTKA259WJZZ
52䋨110.5mm * 316.5mm䋩
RUNTKA289WJZZ
46(100.5mm*298mm)
ICx
EAGLE2
㩷180
0.
㩷1
CN7
0.5SL NA222
INV-2㵘Unit
RUNTKA260WJZZ
52䋨110.5mm * 316.5mm䋩
RUNTKA290WJZZ
46(100.5mm*298mm)
䋨䋩
䋨䋩
䇼㪣㪘䇽
䋨䋩
䋨䋩 䋨䋩
1
4
CN3䋨POWER/CTL䋩
(LVDS MAIN - FRC)
䋨䋩
䋨䋩
㵘
䋨䋩
㶎
1
11
CN8䋨CTL/FRC䋩
㵘
䋨䋩
㵘
䋨䋩
㪨㪚㪥㪮㪄㪜㪏㪐㪌㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪝㪉㪐㪎㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪝㪉㪐㪐㪮㪡㪨㪱
㪌㪉㪑㪨㪚㪥㪮㪄㪝㪎㪏㪋㪮㪡㪨㪱
㪋㪍㪑㪨㪚㪥㪮㪄㪝㪎㪏㪌㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪝㪉㪐㪏㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪜㪉㪌㪏㪮㪡㪨㪱
㪌㪉㪑㪨㪚㪥㪮㪄㪝㪉㪇㪇㪮㪡㪨㪱
㪋㪍㪑㪨㪚㪥㪮㪄㪝㪈㪐㪐㪮㪡㪨㪱
㪌㪉㪑㪨㪚㪥㪮㪄㪜㪎㪈㪉㪮㪡㪨㪱
㪋㪍㪑㪨㪚㪥㪮㪄㪜㪎㪈㪊㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪜㪉㪋㪐㪮㪡㪧㪱
㪨㪚㪥㪮㪄㪝㪊㪍㪌㪮㪡㪨㪱
14
䇼RB䇽
㵘㵘㵘
㪌㪉䋺㪨㪚㪥㪮㪄㪝㪊㪇㪌㪮㪡㪨㪱
䌌
Component
Video + L/R
LC-46D82U/LC-52D82U
6 – 2
11 1312 14 15 16 18 1917
POWER㵘UNIT
RDENCA205WJQZ
㵘
䋨䋩
C
N5
L
NA222
ICx
A
GLE2
ICx
EAGLE2
Ƃƃ 䇼䇽 䇼䇽
䇼䇽
䇼䇽
䇼䇽
䇼䇽
䇼㪣㪧䇽
䇼PH䇽
䇼PD䇽
䇼䇽
䇼䇽
䇼䇽
䇼䇽
4
6"/52" LCD Panel
1920×1080
䇼䇽
AC Socket (2pin)
CN4
0.5SL NA222
㩷
80 㩷180
㩷㵘㩷㵘㩷㵘
㩷㵘㩷㵘㩷㵘
12
1
6
1
䇼䇽
䇼䇽
1
2
1
2
1
2
1
2
1
2
1
2
1
3
1
12
123
123
1
2
1
2
1
2
1
2
1
2
1
2
䇼LA䇽
䇼LC䇽
61
1313
䇼FB䇽 䇼 FC䇽
䇼䇽
䇼䇽
䇼䇽
15
䇼FD䇽
㵘
䋨䋩
㩷
80
ICx
EAGLE2
CN6
0.5SL NA222
㩷180
CN7
0
.5SL NA222
㵘
䋨䋩
CN1
䋨LVDS䋩
CN䋨LVDS䋩
䇼㪣㪘䇽
ICx
FRC LSI
1
41
1
11 CN䋨POWER/CTL䋩
CN2
䋨LVDS䋩
1
20 CN䋨POWER/CTL䋩
䋨䋩
(POWER/CTL FRC - CTL)
(CTL MAIN - FRC)
CN䋨LVDS䋩
CN䋨LVDS䋩
(LVDS FRC - CTL)
(LVDS FRC - CTL)
FRC㵘Unit E046
䋨105mm * 190mm䋩
㶎Located on CTL UNIT
41
1
41
1
䋨䋩
INV-3㵘Unit
RUNTKA261WJZZ
52䋨110.5mm * 316.5mm䋩
RUNTKA291WJZZ
46
(
100.5mm*298mm
)
INV-4㵘Unit
RUNTKA262WJZZ
52䋨110.5mm * 316.5mm䋩
RUNTKA292WJZZ
46
(
100.5mm*298mm
)
㪱
㪱
㪇
㪮㪡㪨㪱
㪐
㪮㪡㪨㪱
㪌㪉㪑㪨㪚㪥㪮㪄㪝㪇㪇㪉㪮㪡㪨㪱
㪋㪍㪑㪨㪚㪥㪮㪄㪜㪐㪇㪊㪮㪡㪨㪱
㪌㪉㪑㪨㪚㪥㪮㪄㪝㪇㪇㪊㪮㪡㪨㪱
㪋㪍㪑㪨㪚㪥㪮㪄㪝㪇㪇㪋㪮㪡㪨㪱
㪨㪧㪮㪙㪟㪜㪈㪇㪎㪮㪡㪨㪱
㪨㪧㪮㪙㪟㪜㪈㪇㪎㪮㪡㪨㪱
ILLUMINATION Unit D888
14
䇼RB䇽
1㵘㵘㵘㪋
䌌
LC-46D82U/LC-52D82U
6 – 3
[2] SYSTEM BLOCK DIAGRAM
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
SYSTEM BLOCK DIAGRAM
SLOW˴BUS
LVޤP2601
MAIN
POWER
SC8701
SD-CARD
IC8101
SEINE
Digital AV decode & Main CPU
I2C0
SLOW BUS
TS
YUVout
SPDIF(Digital Audio)
KEY
ޣKMޤ
LCD
PANEL
1920㬍
1080
ޣPGޤ
㧮㧸
㧸㧯㧰
CONT
Thermister
ޣPHޤPOWER ˴
TERMINAL
ޣRAޤ
LED
C2.Y/PB/PR
HDMI_L/R
R/C
OPC
LED
CK,HD,VD
HDMI
US_TS
DTV/I2S
DTV/SPDIF
TS out
SIF
DTV/YCVBS
IC1404
CODEC
AK4683EQ
IN1
IC1407
Sound DSP
TAS3108D
HDMI_SPDIF
IC1508
HDMI RX
SII9025
ATV.L/R
IN6
IN5
OUT1
OUT2
TX
HDMI 2
IC3301
IXB925WJ
Video Processer LX
14.318MHz
Xtal
LVDS OUT
Digital IN-B
CVBS1(M4)
IC3501
DDR
128Mbit
CVBS2(N4)
C(T1)
Y1(U3)
Cb1(AA1)
Cr1(W3)
I2C
+3.3V +1.8V+2.5V
+2.5V
Main Y/V
Main C/Cb
Main Cr
Comp_Cb
Comp_Cr
Comp_Y
Y
C
Y/V
C
+9V_A
RGB 24bit
CK,HD,VD,DE
IC2002
M16C
P2001
Xtal
RF IN
TU1101
Analog/
Digital
Tuner
IC8601
Digital
Demodulator
I2C1
DI
F
AGC/AFT
IC1901
CPLD
+3.3V
OPTICAL
OUT
IC1507
TMDS-SW
TMDS341
CK,HD,VD,DE
I2
C
IC2004
EEPROM
LAޤ
IC2005
DAC
ޣSHޤ
P2602
+3.3V
IC8451
FLASH
64Mb
CVBS
RX_x8
RX_x8
L/R
I2C_0
I2C_1
(400KHz)
+3.3V
+3.3V
+3.3V
IC1401
AN5832SA
AFT
Disclete
LPF
3-5V
Conv
HDMI Audio
INPUT
3
INPUT
2
INPUT
5
INPUT
6
V1.L/R
V3.L/R
IC8801
Audio DAC
AK4363VF
IN2
I2S bus
RX0
IC1502
EEPROM
RESET
CLK_Gen
X' tal
27MHz
33MHz
74.25MHz
14.318MHz
164MHz
DTV_I2S
P9301
HDMI_L/R
IC1104
DAC
M62332FP
+5V
I2C0_5
IC1301
I/O
M62320
+5V
(100KHz)
CVBS3(N3)
TUNER_V
GAIN
SC1101(23PIN)
ޣPDޤ
POWER˴CONT
ޣMAޤ
:SC1102/SC502(23PIN)
UART-A
UART-B
IF to MAIN I/F
IC2701
Audio AMP
TPA3100D
AMP+13V
+5V
IC2001
Reset
IC3502
DDR
128Mbit
㧻㧰
Reset To CPLD
Digital IN-A
DTV YUV 16bit
CK,HD,VD
P9005
4PIN
BUS Connector
+2.5V
+1.67V
IC8305
VTT
IC8454
EEPROM
64kbit
+3.3V
+1.8V
+1.0V
IC8702
SD-card-CTL
TC6384AF1E
IC
88301-4
DDR
2
5
P9101
CPLD
CN9201
䇼FC䇽䋺SC1101/SC501(23PIN䋩
䇼SA䇽䋺SC1301/P2704(23PIN䋩
ޣACޤ
ޣLBޤ
P2603
ޣLBޤ
S3.Y/C
I/O
ޣFDޤ
FAN˴CONT
ޣLCޤ
33MHz
X' tal
28.322MHz
+5V
X' tal
12.288MHz
HDMI 3
X' tal
25.140MHz
74.175MH
54.054MH
54MHz
P3301
I/O
AUDCLK
DACCK
DACCK AUDCLK
(DTV_I2SMCLK)
27MHz
+2.5V
32kHz or
44.1kHz or
48kHz
+3.3V
+5V
L/R.OUT
AOUT_L/R
Disclete
Mute
L_MUTE
Di
sc
l
e
t
e
Mut
e
AMP_MUTE
Standby
fault
IC1103
+5V
N_SRESET
CBOOTS
In2
In3
Sel_1/2/3
IC1501
EEPROM
V2.V
V2.L/R
IF to MAIN I/F
IN3
V1.L/R
V2.L/R
V3.L/R
INPUT
1
RGB 24bit
3
0 6 7 4
5
IC1302
Reset
SII9011 MU
T
HDMI 1 RX_x8
INPUT
4
IC1701
EEPROM
INPUT
6
In1
IC1702
TMDS-SW
TMDS341
In
5
In6
Sel_5/6
In4
+3.3V
䇼SP䇽
P2703
EXT-SP
IC2008
Gate
IC2003
SW
P20
003
PWBREF0/1/4REF0/1/4
IC501
AV SWITCH
MM3151XQ
TV
Main
Out
(OUT1)
Video3
Video1
(V1)
(YC4)
(YPbPr1)
(V2)
+9V_A
Video2
I2C
(YPBPR2)
+5V_A
IN4
DTV_I2SSCLK,DTV_I2SLRCLK,DTV_I2SDATA
OPT_OUT
IC1403
EEPROM
256kbit
P1401
IC1408
Amp
NJM4565V
+9V_A
+5V_A
+5V_A
IC1303
IC1305
D1313
Mute
I2S bus
CVBS/LR
CVBS/LR
Component
S Video
Audio Out
+5V
IF to MAIN I/F
+3.3V
HDMI_SEL5/6
HDMI_SEL1/2/3
HDMISPDIF
RX2
DTVSPDIF
+3.3V
to CPL
D
SDSP_DET
to CPL
D
SDSP_RST
P_MSP_RST
+3.3V
X' tal
12.288MHz
2
ޣKMޤ
to CP
HPL/R
FRC-LSI
㧱㨂
DDR DDR DDR
㧲㧾㧯
unit
PM_REQ
TUNER_INT,CPLD_INT0/1
LAޤ
INVERTER 4
LCޤ
INVERTER 2
INVERTER 3INVERTER 1
IC2601
Bus-SW
FPGA
N_SD_RST
N_SD_INT
SP-R
SP-L
CVBS/LR
Component
C1.Y/PB/PR
V1.V
V3.V (V4)
ޣRAޤ
From TERMINAL
ޣޤ
Illumination
LED
LC-46D82U/LC-52D82U
6 – 4
11 1312 14 15 16 18 1917
RxD,TxD
ޣLVޤP2601
(41pin)
MAIN
POWER
SC8701
SD-CARD
IC8101
SEINE
i
n CPU
80 FFC
KEY
ޣKMޤP2002(4p)
LCD
PANEL
1920㬍
1080
ޣPGޤ
(6p)
㧮㧸
㧸㧯㧰
CONT
+60V
+10V
KEY1,KEY2
Standby
PFC
Main
BU5㨢
AC
10v
D-POW
PS_ON
UR +13v
PNL-POW
PS_ON,PNL-POW
UR10V
BU5V
Von
AC_DET
ޣPHޤPOWERP9701(12PIN)˴
TERMINAL
ޣRAޤP101(13p)
LED
LED OPC
,
LEDR
,
LEDG
,
LEDYOYAKU
R/C
OPC
LED
SD-CARD
IC1404
CODEC
IC1407
Sound DSP
IC1508
HDMI RX
HDMI 2
IC3301
IXB925WJ
Video Processer LX
Xtal
IC3501
DDR
IC2002
M16C
Monitor Micom
UART
P2001
BU+3.3V
FRAME,R/L,U/D,TEMP[3:0],O/S_SET
20MHz
Xtal
Main System
˴A9V
˴A5V
˴D5V
˴D3.3V
˴D2.5V
˴D1.8V
˴VL1.8V
˴D1.67V
˴D1.0V
˴etc
TU1101
Analog/
Digital
Tuner
IC8601
Digital
Demodulator
IC1901
CPLD
BU+3.3V
OPTICAL
OUT
IC1507
TMDS-SW
I2C
EEPROM_SCL/SDA
WKP4
INV_ERR
IC2004
EEPROM
BR24L08F
DET_PNL5V,DET_10V,etc
I/O
STBY_POW
ޣLAޤ
(3pin )
IC2005
DAC
M62334FP
I/O
I/O
ޣSHޤ
P2602
(20pin )
AC_DET
Vbrt
BU+3.3
A/DI/O
I/O
I/O
THERMO
A/D
OPC
OPC
RC
RC
I/O
IC8451
FLASH
+3.3V
IC1401
HDMI Audio
INPUT
3
INPUT
2
INPUT
5
INPUT
6
IC8801
Audio DAC
IC1502
UR13V
BackUp System
˴BU+5V
BU+3.3V
PM_REQ I/O
D_POW
N_SRESET
CBOOTS I/O
I/O
CLK_Gen
X' tal
27MHz
20MHz
P9301
IC1104
DAC
IC1301
I/O
UR6V
㧔PNL 12v㧕
BU+3.3V
ޣPDޤ
POWER˴CONT
P9702(6PIN)
ޣMAޤ
UART
-
B
IF to MAIN I/F
IC2701
TPA3100D
IC2001
Reset
BU+3.3V
IC3502
DDR
㧻㧰㧰
5
ector
IC8305
VTT
IC8454
+2.5V
IC8702
SD-card-CTL
TC6384AF1E
+3.3V
IC8301-4
DDR
256Mb*4
P9101
CN9201
䇼FC䇽
䇼SA䇽
5-Wavelength
46㧦22pin
52㧦24pin
ޣACޤ
(2p)
ޣLBޤ
P2603
(4pin )
ޣLBޤ
(9pin )
ޣFBޤ
(3p)
I2C0
WP
I/O
SHIP_EN,ROMSEL0,PNEL_EN
ޣFDޤ
FAN˴CONT
P9002(5PIN)
FAN-ERR
FAN-VCC1,2
HP_PLUG
HPPLUG
ޣLCޤ
(12pin )
33MHz
HDMI 3
P3301
I/O
+2.5V
I/O
A/D
AFT
ޣFCޤ
(3p)
IC1501
IF to MAIN I/F
INPUT
1
3
0674
5
IC1302
Reset
HDMI 1
INPUT
4
IC1701
INPUT
6
IC1702
TMDS-SW
䇼SP䇽
P2703
IC2008
Gate
7WH126FU
IC2003
SW
TC7W66U
BU+3.3V
I/O
P2003
PSIZ_L/H,AREA1/3,PNL_TYPE
PWBREF0/1/4REF0/1/4
WP
CNT
IC501
AV SWITCH
MM3151XQ
IC1403
EEPROM
P1401
IC1408
Amp
CVBS/LR
CVBS/LR
Component
S Video
Audio Out
IF to MAIN I/F
I/O
CS CPLD
,
SCLK CPLD
,
SDA O CPLD
,
SDA I CPLD
2
ޣKMޤP105 (4p)
to CPLD
RST_H8FLS_CPLD
FLAS_W_CPLD
RS_BUF_CNT
UCOM_DBG_CNV
RxD,TxD
LVDS
Rx
LVDS
Rx
㵘FRC-LSI
㵘㵘㵘㵘R_O-O
O-IN㵘R_E- O
㵘㵘㵘㵘L_O-O
E-IN㵘L_E- O
(528p-BGA)
㵘3.3V
㵘2.5V
㵘1.25V
㧱㨂㧱㧺
DDR
128Mbit
DDR
128Mbit
DDR
128Mbit
11pin41pin FPC
80 FFC80 FFC 80 FFC
㧲㧾㧯
unit
EAGLE2
EAGLE2
EAGLE2
EAGLE2
LVDS
Tx
+12V
ޣLAޤ
(3pin )
INVERTER 4
ޣLCޤ
(12pin )
INVERTER 2
BtoB BtoB
INVERTER 3INVERTER 1
4pin
OFL1/2
STB
REG2
ERR
+12V
DET_PNL_12V
IC2601
Bus-SW
PNL_I2C_EN
FPGA
LVDS
Tx
41pin FPC
4pin
+3.3V
BU+3.3V
+12V
SP-R
SP-L
CVBS/LR
Component
ޣRAޤP502(13p)
From TERMINAL
ޣޤP901(4p)
Illumination
LED
LED_R,OPT+3.3V
OPT+3.3V
LC-46D82U/LC-52D82U
6 – 5
[3] MAIN BLOCK DIAGRAM
123
4567 910
8
J
MAIN BLOCK DIAGRAM
A
B
C
D
E
F
G
H
I
VIDEO1
COMP1
VIDEO2
S-VIDEO2
COMP3
42 SW3
5Y4
80 S2-3
7C4
SDTIA1 29
BICKA 15
SDTOA 16
RX0 2
PDN 25
XT0 22
XT1 21
RIN6 62
LIN6 61
RIN5 60
LIN5 59
RIN2 54
LIN2 53
ROUT1 41
LOUT1 40
ROUT2 37
LOUT2 38
TVDD 18
27 SDOUT1
SDTIA2 30
83:PVSS,19:DVSS
34:HVSS,49:AVSS1,44:AVSS2
25
1,10,12,13,14
29,33,34,35,36,37
SDOUT3
D3.3V
SDSP_RST
SDA1
SCL1
EFP_SDA
EFP_SCL
11 SD IN1
20 SCLKIN
IC1403
EEPROM
9,30,38
3XTALI
4XTALO
32/RESET
15SDA1
17SDA2
16SCL1
4GND 4SDA5SDA
18SCL2
3A2 3
5GND
SCL6SCL
2A1 2WP7WP
1A0 1D3.3V8Vcc
P1401
4
910
BB N.C
TUNER_5V_BB
TUNER_AD_SW
TUN_SCL
TUN_SDA
TUNER_5V_MB
N.C N.C BT GND MB RF-AGC SDA SCL AFL N.C VIDEO B1
SIF
B2 N.C IF_AGC IF(+) IF(-)
1Nr
3ON
2GND
5VOUT
4VIN
IC1101
PQIM505M
5V REG.
IC1102
PQIM505M
5V REG.
1Nr
3ON
2GND
5VOUT
4VIN
A9V
IF_AGC
IF_OUT_P
IF_OUT_N
TU1101
AA007WJQZ
IC1407
SOUND_DSP
X1402
38.844MHz
D3.3V
77 A24
-OE 42
75 B24
PRE 19
74 B23
S2 22
73 B23
Y4 25
71 A22
Z4 26
70 B22
Y3 28
68 A21
Z3 29
67 B21
Y2 31
64 SCL2
Z2 32
63 SDA2
Y1 34
62 HPD2
SCL_SINK 38
Z1 35
SDA_SINK 39
HPD_SINK 40
VCC:7,13,17,27
33,43,50,56
61,69,75,79
VCC:4,10,16,24,30
36,37,47,53,59
65,66,72,78
SC1501
TMDS_INPUT-2
HDMI_CEC_IN
SC1502
TMDS_INPUT-3
HDMI_HPG3
HDMI_HPG5
HDMI_HPG2
HDMI_WP
SC1701
TMDS_INPUT-1
90,108,120,135
IOGND:4,15,25,75
91,106,115,127,138
CGND:21,24,36,73,80
64,68,72
AGND:41,45,49,53,60
AUDPGND:95
TMDSPGND:54
33 R1PWR5V
52 ROX2+
51 ROX2-
48 ROX1+
47 ROX1-
44 ROX0+
43 ROX0-
40 RCXC+
39 RCXC-
32 DSCL0
31 DSDA0
34 R0PWR5Y
QEO-7
144,143,142,141
140,137,136,133
QEO8-15
132,131,130,129
126,125,124,123
QEO16-23
119,118,117,116
113,112,111,110
29 DSDA1
30 DSCL1
58 R1XC-
59 R1XC+
62 R1XO-
63 R1XO+
66 R1X1-
67 R1X1+
70 R1X2-
71
27
28
97
96
121
1
2
3
R1X2+
HDMI_SEL1
HDMI_SW_EMP
HDMI_SEL2
HDMI_SEL3
HDMI_SW_OEB
HDMI_PLG_ENB
HDMI_SEL1
HDMI_INT
HDMI_RST
HDMI_SW_EMP
HDMI_SEL2
HDMI_SEL3
HDMI_WP
HDMI_HPG1
HDMI_HPG2
HDMI_HPG3
HDMI_HPG5
HDMI_PLG_ENA
HDMI_SW_OEA
HDMI_SEL5
HDMI_SW_OEB
HDMI_PLG_ENB
IC1701
24LC2BIN
EFPROM
IC1702
TMDS341
3-TO-1
DVI/HDMI
SWITCH
D1701
HDMI_DDC_5VPOW_IN5
TMDS5_CLKN
TMDS5_CLKP
TMDS5_DON
TMDS5_DOP
TMDS5_D1N
TMDS5_D1P
TMDS5_D2N
TMDS5_D2P
HDMI_DDC_SDA_IN5
HDMI_DDC_SCL_IN5
HDMI_CEC_IN5
Q1704
SW.
Q1706
SW.
Q1707
Q1702
HDMI_SW_OEA
HDMI_SW_EMP
HDMI_SEL5
TMDS0_SE_D2P
TMDS0_SE_D2N
TMDS0_SE_D1P
TMDS0_SE_D1N
TMDS0_SE_DOP
TMDS0_SE_DON
TMDS0_SE_CLKP
TMDS0_SE_CLKN
SCL_SINKO
SDA_SINKO
HPD_SINKO
67
66
61
58
83
76
75
74
70
72
81
71
69
82
73
77
104INT
77MUTEOUT
103SCDT
78SPDIF
102RESET#
IC9101
CPLD
IXB997
WJQZ
IC1510
S119025
HDMI/
HDCP/DVI
COMPLIANT
RECEIVER
PVcc0:37,PVcc1:55
AVcc:38,42,46,50
57,61,65,69
IC Vcc:5,16,26
76,89,109,122,134
XTALVcc:98
REGVcc:99
CVCC18:22,23
35,74,79,42,105
114,128,139
AUDPVcc18:94
D1305
Q1307
MUTE
Q1308
MUTE
D1306
1,14,6,10,15,12
16,17,18,23,13
IC1408
NJM4565V
BUFF.AMP.
16 OUT.L
22 MUTE.R
14 OUT.R
12 V3.L
10 V3.R
8V2.L
6V2.R
4V1.L
2V1.R
46
78 S-2
71 V2
31 PR2
23 PB2
40 SW2
27 CY2
2S-3
3V4
25 PR1
C1.Y
C1.PLUG
C1.PB
C1.PR
S3.C
S3.F
S3.Y
S3.PLUG
S3.V
S3.PLUG
C2.Y
C2.PLUG
C2.PB
C2.PR
V2.V
V2.PLUG
23 PB1
38 SW1
21 CY1
27 SCL
26 SDA
51 LIN1
52 RIN1
23 TX
58 RIN4
57 LIN4
56 RIN3
55 LIN3
24 MCLK2
5RX2
7INT
32 SDTIB
10 LBCKB
11
1:PVDD,20:DVDD,50:AVDD1
33:HVDD,43:AVDD2,3:I2C
BICKB
12
DVP3.3V
D1313
D5V
4
Q1314
D1302
ATV _R
ATV _L
D1302
54
D1308
D1308
D1307
D1304
D1304
48
47
54
50
51
40
52
57
56
49
96
99
95
84
86
84
87
92-88
38
39
33
FLADD23
37
LC-46D82U/LC-52D82U
6 – 6
11 1312 14 15 16 18 1917
28 TE1+
15 TE2-
14 TE2+
7ROM_SEL0
3PE
1
13,20,27,34,41
GND
SHIP_EN
29
AD30 TE1-
AD29 TE1+
AK25 TE2-
AJ25 TE2+
TE1-
IC2002
IXB986WJ
VIDEO
PROCESSOR
AH5 LVDS_SEL
AN10 ROMSEL0
AN12 PNL_EN
AM13
SHIP_EN
IC8101
IXB281WJ
IC2006
TCVHC32T
1
23
12
13
10
9
11
8
LED_YOYAKU LED_YOYAKU35
13:Vcc,77:Vcc
EXE_LED38
BUSY31
Vd6
P1653
RXD29
TXD28
QSTEMP68
RC49
LED_OPC34
LED_R32
LED_G33
OPC73
DET_D3V359
AC_DET16
MUTE_A_ALL55
N_RESET9
N_NMI14
CBOOT5
PM_REQ4
AFT/AGC74
HDMI_SCDT44
N_SRESET3
VSYNC46
PANEL_POW63
DET_PNL5V58
KEY1 69
KEY2 70
POW_SW 17
DET_6V 56
DET_12V 57
W_PROT_M 52
I2C1_SCL 50
I2C1_SDA 51
I2C _GATE 39
STB 42
ERR_PNL 43
R_L 24
U_D 25
FRAME 18
TEMP3 23
TEMP2 22
TEMP1 21
O_S_SET 20
SMPOW 65
D_POW 64
OSC1 10
OSC2 12
11:Vss,75:AVss
LED_YOYAKU
20
X2002
10.000MHz
IC8451
S29GL064
64Mbit
FLASH_RAM
52 SDADD23FLADD23
IC3301
IXB925WJ
VIDEO PROCESSOR
BUSY
CNVss
CE
EPM
A15
(UCOM_CNV_CPU)
LXDM
LXDM
POW D3.3V
XERE
11 DETECT
PNL I2C_EN
13 HP_GND
2 OPT +3.3V
1 BU +3.3V
1.2 OPT +3.3V
3 POWER_LED
4 GND
R901
Q901D901
P502/P901
LED_ILLUMINATION_UNT
VIDEO1
COMP1
VIDEO2
S-VIDEO2
COMP3
42 SW3
5Y4
80 S2-3
7C4
LC-46D82U/LC-52D82U
7 – 1
LC46D82U Service Manual
CHAPTER 7. PRINTED WIRING BOARD
[1] MAIN UNIT PRINTED WIRING BOARD

 
,
#
$
%
&
'
(
)
*
+

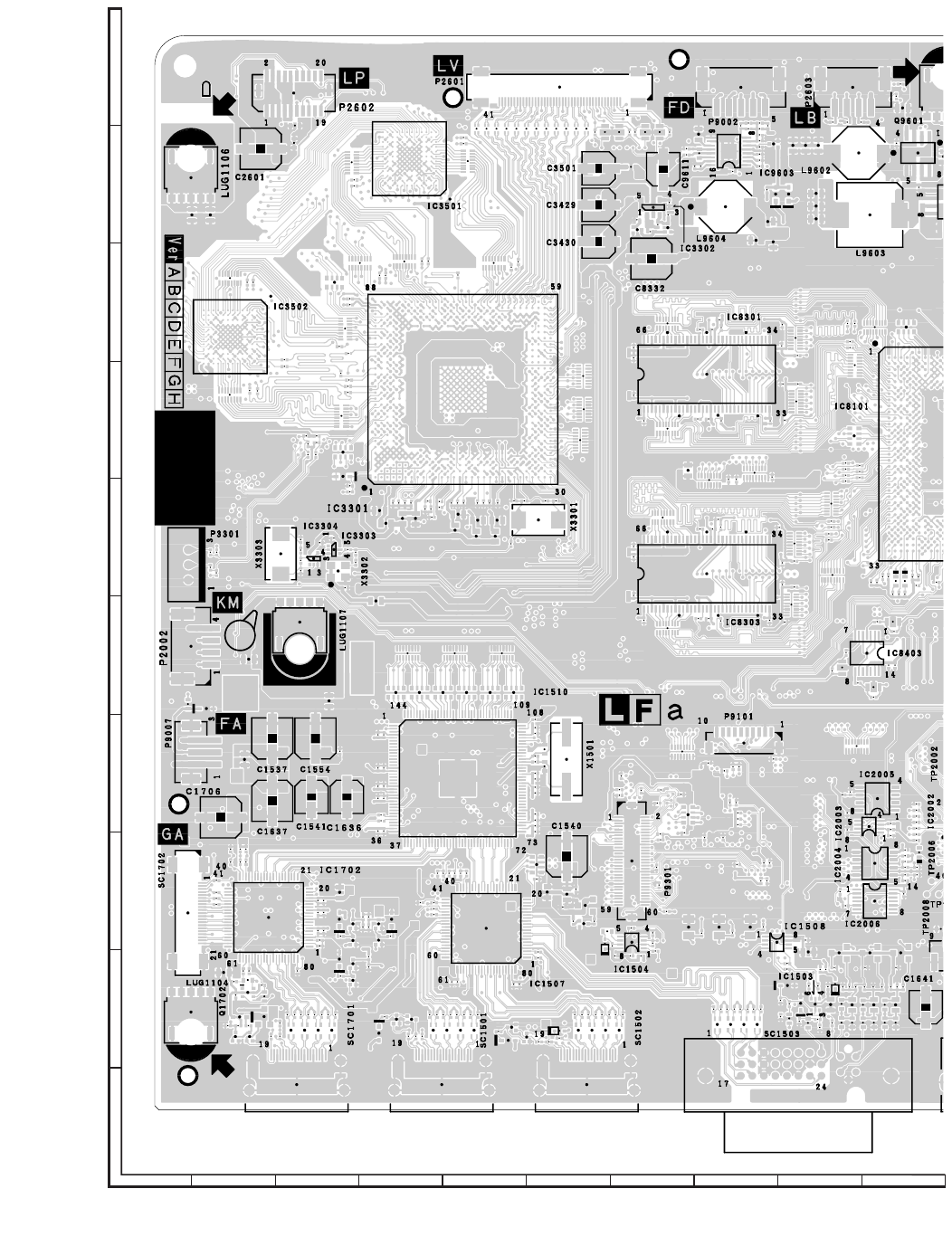

MAIN Unit (SIDE-A)
LC-46D82U/LC-52D82U
7 – 2
      
LC-46D82U/LC-52D82U
7 – 3
SC1702
LUG1104
R1724
R1725
R1705
R1701
C1703
R1721
R1714
R1734
R1719
D1706
Q1706 C1704 R1727
Q1702
R1708
R1717
R1722 R1728
R1723
Q1704
R1715
IC1702
D1701 R1707
R1702
R1736 R1502
VA1701
SC1701
L1701 VA1703 R1737
VA1705
L1702 VA1707
R1703
R1704
VA1702 C1719 C1723C1726
L1703 VA1704 C1718 C1724C1722
VA1706
L1704
R1516
R1551
VA1708 D1501 D1511 C1728
Q1501 Q1502 Q1505 Q1507
R1581 R1557
R1634 R1520 R1633 R1559
R1648
Q1506 Q1508
D1527
R1555
D1514
Q1518
Q1519
R1501
R1611
R1649
R1647
R1604
R1605
R1616
VA1509
L1506
SC1501
VA1513 R1632
VA1517 R1636
L1507 R1607
VA1521 C1543 R1609
VA1510 C1544
L1508 R1614
VA1514 R1608
VA1518
L1509 VA1522
IC1507
R1650
D1528
Q1520
C1550
C1549
Q1521
R1606
R1595
R1601
R1505
R1618
R1651
C1608
R1519
D1526
R1544
FB1515
R1511
VA1511 C1538
Q1522
L1510
SC1502
Q1523
VA1515
VA1519
L1511 R1558
VA1523
C1531
VA1512 D1519
L1512
C1643
VA1516 R1572
VA1520
L1513 VA1524
IC1504
R1560
R1580
P9301
R1645
R1642
R1643 R1644 R9325
R9317
R9303
R1573
R1577
VA1505
L1503 R1574
VA1508
VA1507
L1504 R1578
VA1506
VA1504
L1502 VA1503 R1575
VA1501
L1501 VA1502 R9333
R1579 R9337
R9332
IC1508
R9336
R1525 C1521
R1582
R1592
D1507
FB1505R1528
SC1503
C1577
R1526 D1508
C1559
FB1509 R1571
R1529
IC1503 R1561
C1522 R1613
R1619
C1638
C1524
C1523
R1513
Q1509
D1512
R2053
R2005
FB1507 C1525 R1563
R1568
R1548 C1526 R1562
C1639
FB1508 C1527
Q1510
R1564
IC2006
R1565
R1549 C1528
R1569
FB1506 C1529
C1640
R1566
Q1511
R1550 C1530 R1567
R2062
R2060
R2061
R1570 C2023
C2017
C2018
TP2008
TP2006
C1641
TP2005
FB9011
R2046
R
8
R2047 R8171
R8180
D2003 R8169
TP2002
R8162
R2041
R2038
R2039
C2014
R2052
R2051
C2015
R8147
R8144D8101
R8168
R2063
R2025
C2020
D8102
C8408 R8145
C8404 R8194
R8416
FL8406
C2022
R2064
R2059
R8116
R8191
R8190
R8415
IC2005
IC8403
R8418
IC2004
FL8404
IC2003
R8417
C2021
R9302
C2019 C2025 R8413
FL8405
R2065
R8414
R8346
R8340
R8384
C8357 C8359
C8336
C8321
R9101
R9309
P9101
R9103 R9311
R9110
R9104
R9105
R9315
R9102
R9132 R8371
R9313
R9305
C8319
C9103
IC8303
R8379
R9106
C9102
R9301
R9344
R8328
R9348
R9341
R9343
R9354
C8315
R9352
C8317 C8325
R9326
R9334
R9335
C1540 X1501
C1617 C1620
C1564
C1565
C1590
C1588
C1600
C1604
C1610
C1612
R1610
R1612
C1656
C1655
R1596
R1627
R3344
R1626R1631
IC1510
R3342
R1630R1629
R3343
R1628
C1598 C1560 C1619 C1605 C1622
C1595 C1561 C1618 C1603 C1621
R1521
R1522
FB3309
k2
R3354
C1636
C1552
C3317
X3302
R1119
C1554 IC3304
C1541
C3364 R3373
LUG1107
C1637 C1537
R1731 FB1513
R1118
R1729
k1
R1735
R3319
C1706
R3350
D9004
P9007 P2002
FB9007 P3301
tptp4
R3303
R3313
IC3502
R3565
R3548
R3552
R3568 R3545
R3561
R3567
R3559
X3303
R3308
R3374 C3387
R3302 C3319
C3323
R3310
C3326
R3301
IC3303
C3325
R3501
R3544
D3301
R3306
R3576
R3372
R3560
R3577
R3555
R3575
R3558
R3317
R3312
R3318
R3320
R3540
R3511
R3353
C3339
L3301
R3322
R3323
C3336
R3526
C3333
L3302 C3346
C3357
C3351
C3356
R3530
C3354
C3355 R3573
C3358
C3371
C3373
C3370
C3369
L3304 C3374 R3572
IC3301
C3379
C3385
L3305 C3386
C3390
R3507
C3399
C3396
L3306 C3420
C3409
R3347 R3514
R3346
R3570
X3301
R3352 C3411
R3359 R3340
R3341
C8323 C8303 C8311 C8309
C8301
R8329
R8324
R8325
C8330
R8383
R8378
R8382
IC8301
C8305
R8301
C8313
C8327
C8349
C8335
R8372 R8367 R8368
C8339
C8340
R8318
C8307
C8338
C8358
C8352
C8353
C8345 C8346
R8385
R8389
R8388
R8339 R8335
R8336
R8396
R8355
R8356
R8397
R8347
R8350
R8332
R8317
R8319
R8392
R8351
R8352
R8320
R8341
R8311
R8303 R8342 R8393
R8343 R8179
LUG1105
C9638
Q96
0
C9649
C9650 Q9601
C9651 R9003
R1174
R9008
L9603
R2613
L9602
P2603
R2612R2611
C9620
C9654
C9652
C9621
C9653
C9655
D9612
D9611
C9622 C9605
R9654
Q9607
C9617
R9614
C9602
R9617
C9603
R9612
R9611
R9627
R9623
C9623
C9604
C9601
R9613
P9002
R9621
IC9603
L9604
C9607 C9606 C9608
R9648
R9649
C9613
R2614
C3432
R3378
Q3301 C9611 FL2611
R3375
FL2604
IC3302
C8332
R3376
R2607
Q3302
R3377
R2606
FB3501
FL2603
FL2601
R2604
C3430
C3429
C3501
L2612
L2605
L2610
L2604
P2601
L2609
L2603
L2611
L2608
L2602
L2607
L2601
L2606
R3518
R3522
R3515
IC3501
R3535
R3531
R3538
FB2601
P2602
FB2609
C2601
R1169 k3
R1170 LUG1106

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-1 (Side-A Chip)
LC-46D82U/LC-52D82U
7 – 4
1
0
2
006
R1565
R1549 C1528
R1569
FB1506 C1529
C1640
R1566
Q1511
R1550 C1530 R1567
R2062
R2060
R2061
R1570 C2023
C2017
C2018
TP2008
TP2006
C1641
TP2005
FB9011
L1505
R2057
R1166
P9003
D1313
R2044
C2013
R1343 IC1305 R2048
R2095
C1314 R2096 R2082
TP2004
Q1314
C1313 Q2008
R1344
L1301
TP2003
R2097
C1315
C1316
R2012
TP2001
R2031
R2002
R2033
Q2003
Q2002
J1502
P2001
R2114
R2116
R2118
C1502
FB1502R1504
C1501
FB1501
C1505
R1508
R1515
R1503
C1510
C1507
J1501
R1509
R1514 C1509
C1504
C1503
FB1503
FB1504
TP1102
R1507
R1506
R1510
C1506
R1518 R1512
C1508
C1512
R1517
TP1101
C1511
D9008
P9005
D9007
D9006
tptp3 R8701 C8704
R8711
SC8701
C8706 C8705
C8702 R8707
R8706
IC8701
LUG1101
C8703
C8701
SC1102
R1175
R1176
C1122
R1121
L8605 L8607
C8621C8630
C8620C8629
L8602
L8603
C8615
L8604 L8606
C8609
C8608
L8601
X8601
C8637R8613
C8633
TU1101
C8626
C8625
C8624
C8619
C8617
R8608C8623
R8609
C8618
C8622
C8628
R8606
R8605
C8632
R8632
P2003
C8410
C2001
R8401
R2113
R2111
R2109
R2107
R2105
R2013
R2024
R2023
C2008
C2010
TH2001
R2032
C2030
R2019
C2004
C2005
R8410
FL8101 R8170
X2001
R8184
C2009
R2027
R8163
R2028 C2011
R2037
R2014
R2034
IC2002
X2002
R8161
C2012
R2049 R8156
C2016
R2046
R8174
R2047 R8171
R8180
D2003 R8169
TP2002
R8162
R2041
R2038
R2039
C2014
R2052
R2051
C2015
R8147
R8144D8101
R8168
R2063
R2025
C2020
D8102
C8408 R8145
C8404 R8194
R8416
FL8406
C2022
R2064
R2059
R8116
R8191
R8190
R
8415
C
2005
418
2
004
8
404
0
3
8
343 R8179
IC8101
R8103
R8108 R8102
R9655
R8107
C8128
R8139
C8127
R8138
R8136
C8123
R8133 R8126
R9208 R8125 R8123 R8101
CN9201
R8634
R8635
R8615
R8617
R8620
R8638
R8618
R8616
C8642
C8643
C8645
C8649
C8650
C8652
C8655
X1402
C8657C8658 C1462
FB1401 C1466
C1459
C1460
C1458 R1413
C1465
C8662 R1469 R1472
R1464 R1470
C8663 R1463
C1464
IC1407
C1461
R8625 R1462
C8664 R1461
C8665 C1463
IC8601 R1414
C8666
R1445
C8667
C8668
C8669
C8644
C8646
C8670
C8648
C8651
C8653
C8654
C8656
C8659
C8660
C8661
C8640
R1429
C8613 R1432
C8607
C8614
C8631 C8674 C8610
C1430
R1441
C8611
C8675 C8612
FB8607
FB8604
C8601
FB8601
FB8608
FB8602
C8602
C8638
L8608
C8634
R8614
R8619
C1449
R1448
R1460
C8639 C1447
R1447
R1458
C1444
C1443
R1428
C1474
C1451
C1450
C1441
LUG1108
R1402
R1405
R1408
C1402
R1412
R1120
C1406
C1410
C1109
FB1113
C1124
C1106 C 111 9
SC1101 SC1301
FDC1
R1172
R1171
C1310
C1411 C1421
C1306
LUG1102
C1404
C1408
C1409
R1403
R1406
C1417
C1418
R1427
D1312
R1334 R1333
FB1301
IC1401 R1332
R1330
R1324
R1352
C1309
C1422
Q1304
R1323
R1401 C1420 Q1305 R1336
C1416
C1419
R1407
R1350
R1347
C1423
IC1301
C1401
C1407
C1412
C1414
R1301
R1310
C1301
C1424
D1315
R1322 C1305
D1311
Q1302 IC1302
L1401
R1320
R1321
R1319
R1313
D1310 R1312
P1401
R1316
C1304
C9706
C1302
R1426
FB9702
C9701
C1467
D9606
P9702
R9624
C9618 D9605
FL9701
R9706
L9601
FB9701
D9602
C9705
D9601
R9650
D9603
C9704
FB9705
C9615
C9609
R9615
R9616
P9701
IC9602
C9619
C9614
R9619
R9618
C9703
C9656 D9604 FB9704
C9612
FB9712
Q9605
Q9606
C9702
FB9703
R1173
C9648
LUG1105
C9638
Q9602
C9649
C9650 Q9601
C9651 R9003
R1174
R9008
0
3
      
LC-46D82U/LC-52D82U
7 – 5

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit (Side-B)
LC-46D82U/LC-52D82U
7 – 6
      
LC-46D82U/LC-52D82U
7 – 7
TL1128
TL1129
TL1131
TL1133
TL1135
TL8703
TL1132
TL1130
TL1134
TL1136
R8709
TL8706
TL8709
R8719
R8718
R8717
R8716
R8715
R8714
C8707
TL1102
TL8701
C8711
TL8702
TL1122
R8726
R8725 FB8701
TL1123
TL8704
R8724
R8723
IC8702
C1135
R111 5
TL 111 8
C1134 R8703R8727
TL8708
R8722
C1133
R8728
R1114 R8704
C1108 R8721
R1102
TL1103
TL8710
R8720
TL1105
R8708
R1106CF1101
TL8705
R8713
TL 111 0
C8710
C8709C8708
R8702
TL8707
R8710
TL1106
TL8712
C1118
R8705
TL1108
IC1103
C1120
R1110
TL9050
TL 111 4
R1105
TL9049
R1134
TL 111 5
C1101
R1101
R1111
TL9051
TL8711
R1139
TL9048
TL1107 TL1104 T L1112
TL1539
TL1101
IC8454
TL1543
TL1538
R2126
R2125
TL2023
TL2026
TL2025
R2123
TL2027
R2124
R9006
R9005
R2122
TL1540
TL2006
R2017
R2030
R2016
TL2020
TL2008
TL2019
TL2021
TL2024
TL2007
TL2009
R2131R2132
R2120
TL1541
TL1542
R2112
R2108
R2104
R2102
R2129R2130
R2015
TL2010
TL2030
TL2015
TL2033
TL2029
TL2001
R2128 R2127
TL2011
IC2008
C2026
Q2004
R2115
TL2035
TL2031
TL2016
TL2034
TL2032
TL2028
TL2012
R2134
R2133
R2110
R2106
Q2005
R2117
R2103
R2101
R2045
R2043
TL2014
TL2017
TL2013
R2010
R2008
R2009
R9031
R2094
TL9024
R2093
R2011 R9030
C2032
IC2010
R2050
TL9025
TL1304
R2070 R2036
TL9026
R2029 R2098
TL9027
R2001
TL1305
R2081
R2054
R2055
R2056
TL9028
TL9029
R2006
TL1303
TL9030
R2040
TL9031
R2042
TL9032
R8454 R8453
D1518
R1554
R8455
D1517
R1553
TL1521
TL1507
TL1504
TL1502
D1
5
Q1
5
C
8
R8349
R8
3
R8
3
C84
5
R8467
R8177
R9004
R8197R8181
R9007 R8196
C8452
C8143 R8178
C8144
R9010
R9011
R8141
R8143
C8132
C8154
R8164
TP8107
Q8452
R8167 Q8451
R8165
R8166
R8452
R8451
R8105
R8189
R8469
R8195 R8173
C8140
D8451
R8175
TL8452
C8139 R8155
R8154
R8118
R8157
R8188
C8138
R8149
R8113 R8111
R8151
R8150 C2003
Q2007
R8137
C8137
R2007 R2076
R2035
R8153
C8136
D2004
TL8451
IC2001
R8148
C8133
TL8101
R8160 FB8401
Q2006
Q2001
C8135
R8159
R8158
R2003
FL8102
C2002
FL8403 R8185
C8402
C8406
C8134
C8131
R8404R8408
R9205
C8129
R8407
R8411
FL8401 R9361
R9206
C8142
R8405
IC8401
R9207 FL8402
R9360
R8403R8406
R8419
R8140
R2119
R8402 R2121
IC8402
TL8103
TL8102
R2136
C8403
C8407
TL2022
R2135
TL2018
C8405
R8409
C8409
X8401
C8411
C8412
R2621
C8401
R9202 C2024
R9204
X8402
IC2202
R8412
R9201
R9203
C2211
TL9203
TL9205
R2255
R2236
IC2007
R2004
R2237
TL9202
TL9204
TL9206
R8470
C8460
C8462
IC9001 R8474
C9004
R8475
C8461
TP8606
C9006
Q8601
R8637
R8636
R8633
TL8601
R9015R9013 Q9003
C1105
R9012R9014
IC1102
C8673
TL8608
R8604
C8604
C111 3 R1165
C1104
R8602
C8605
TL8609
TL8610
R8603
C8606
C1103
R1163
IC1101
C8635C8636C8647 R1108
C111 5
C8627C8641 R1136IC1105C1112 R1135
C1131
R1107
C1102C8671
IC1104
C111 6
R1164
FB8605
FB8606
C1107
R8601
R8607
R111 7
Q1105 R1116
C8603
C8616
R1125Q1104
C1136
FB1101
R1109
R1103R1104
R1112
R1127R1122
R1133
Q1103Q1102
C1123
R1160
R1130
C1127R1131
R1129R1132
R1439
R1455
TL1175
TL1174
TL1163
TL1169
TL1172
FB1112
TL1127
TL1162
TL1168
TL1171
TL1138
TL1140
TL1142
TL1144
TL1147
TL1151
TL1156
TL1158
TL1160
TL1173
TL1149
TL1153
TL1155
TL1157
TL1159
TL1161
TL1170
TL1137
TL1139
TL1141
TL1143
TL1145
TL1329
TL1327
TL1325
TL1324
TL1323
TL1301
TL1318
TL1315
Q1309
Q1313
Q1312
Q1307
Q1308
TL1176
TL1332
TL1146
TL1148
TL1150
TL1154
TL1317
TL1319
TL1316
TL1322
TL1321
TL1302
TL1328
TL1326
R1339
R1340
R1341
FB 111 5
R1317
R1318
TL1330
TL1331
TL1152
R1331R1335
Q1311
Q1310
R1337
R1338
R1329R1328
C1111
C1110
C1307 FB 111 4
R1345
R1466
FB8801
C8806
C8807
C1473
R1442C1469
R1420
R1477
R1478
R1479
R1480
R1474
R1430
R1431
R1433
R1435
R1437
R1457
C1472
C1471
R1456
R1465
C8808
C8804
R1443C1470 IC1408
R1450
R1452
R1446
C1434
R8807
R1451
R1440
C1433
C8805R8833
R1449
R1417
C1478
C1405
R1453
C1437
C1435
IC8801
C8803
IC1404
R1475
C1438
R1454 R1476
C1440
C1436
R1415
R8805
R8825
C1439
R8832
R8803
R8804
C8802
R8801
R8802
C8801
IC8602
IC8603
R8639
R1416
R8640
FL8801
R8826
C8676
R8834
FL8802
R1421
C1476
R8827
R1434
C1425
C1428 C1475
R1459
R1481
R1473
C1429
C1426
R1424
X1401
C8672
IC1406 C1445
R1444
R1419
R1418
TP8601
R8630
TP8605
R8629 D8601
TL8602
TL8606
TL8607
R8628
TP8603
R9703
TL8603
TL8604
TL8605
R8624
R8626
R8627
C9710
R8621
R8622
R8623
IC9703
TP8602
R8631 TP8604
C9713
TL9722
TL9201
C9712 FB9706
TL9723
IC9705
C9717
R9714 R8112
R9715
R8186
R8122 D8103
R8146
R8124
R9308
R8903
R8135
R8142
R8129
R8902
R8187
TP8901
TP8102
TP8104
R8134
R8128
TP8103
TP8902
TP8110
R8120
C8141
R8132 R8819
R9701R9702
R8127
R8152
TP8106
C8122
C8120C8124
C8118
IC9701
C8116
R8131
C8114
C9708 C8126
C8102
TL9720
C8110
C8103
C8112
R8130
C8148
FL8105
C8104
C8146
R8182 C8147
R8119
C8105
R9610
R8109
C9647 IC8102
C8101
R9647 R8172
R8104
R8106
R9646
C9645
C8106
C9644
C8145
R8115
C8107
R8183
IC9607
C8108
R8193
R8192
C8109
C8119
R9638
C8130
C8125
C8121
C8153
C8115
C8117
C8 111
C8152
C8113
R8117
R8121
R9639
C9639
R9640
R8176
C9640
R8114
TP8101
R8305
R8110
R8306
R8304
R8307
R8309
R8310
C2606
FL2610
R2623
TL2
6
TL2601
FB2603
TL2622
C9643
R9641
R9645
R9644
R9642
C9642
C9635
R9643
C9641
R9636
R9637
C9634
C9633 Q9603
C9637
C9646
Q9604
IC9606
C9629
R9633
C9631
C9630
R9632
R9634
R9635
R9631
R9630
C9628
R9629
R9628
C9632
TL9603
TL9709
TL9705
C9707
FB9709
TL9702
R9712
TL9716
TL9724
TL9710
R9713
TL9708
FB9710
TL9717TL9711
C9714
FB9711
TL9715
TL9703TL9718TL9712
TL2619
R9705
TL9601
TL9706
D9701
FB9707
TL9713
FL9702
R9707
D9608
D9610
TL9602
TL9701
R9625R9626
R9708
R9704
Q9701
Q9702
C9711
FL9703
TL9719
D9702
D9607
D9609
TL9707
TL9714
FB9708
TL9704
C1457
C1455
TL1407
R1409
C1454
R1410
C1456
C1403
IC1403
R1411
TL1403
R1471
TL1404
R1404
C1453
TL1405
R1305
TL1406
C1308
IC1303
D1304D1303
Q1301
R1303
R1307
R1306
D1305
D1301
R1327
R1308
C1303
D1306
Q1303
D1302
R1315R1314
R1311
R1302 D1307
R1346
R1309
TL1166
D1308
Q1306
R1325
R1304
R1326
R1351
D1314D1309
TL1320
R1342
R1348
R1349
FDC2

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit (Side-B Chip)
LC-46D82U/LC-52D82U
7 – 8
R8453
D1518
R1554
R8455
D1517
R1553
TL1521
TL1507
TL1504
TL1502
D1516
Q1517
C8451
R1552
IC8451
Q1516
TL1503
TL1505
R1646
R1637
TL1506
D1524
TL1501
D1504
TL9319
R9114
R9328
TL9331
TL9317
R9108
TL9315
TL9312
TL1533
TL9349
C9106 R9130
TL9313
TL9311
TL9307
R9323
TL9309
R9319
TP9101
TL1532
R9118
C9108
IC9101
TL9343
C9107
TL1531
TL9355
TL9305
R9356
TL9303
TL9356
TL9304
R9357
TL9308
TL9314
TL9306
TL9351
TL9310
TL9323
TL9316
TL9322
TL9320
TL9330
R9321
R9304
R9330
R9331
R9339
R9351
TL9301
R9346
TL9335
TL9341
TL9324
TL9333
TL9337
TL9338
TL9340
TL9334
TL9336
TL9342
TL9332
TL9339
TL9344
TL9357
TL1514
TL1515
TL9347
TL9348
TL9345
TL9358
TL9353
TL9350
TL9346
TL1516
TL9354
TL9302
C1533
C1534
C1532
R1590
C1535
TL1520
Q1512
R1583
R1584
D1520
FB1512
R1586
R1587
R1588
R1589
R1591
TL1536
FB1520
C1633
R1585
C1583
C1582
C1589
C1591
C1592
C1597
R1603
Q1513
IC1505
D1522
C1616
C1615
C1573
C1571
C1547
C1548
C1570
C1568
TL1517
C1614
C1613
C1545
C1546
C1572
C1574
D1521 R1547
TL1511
Q1504
R1593
R1533
C1569
C1567
C1596
C1599
C1586
C1587
C1646
C1645
R1545
R1594
C1644
R1531
Q1503
TL1523
R1556
R1530
R1546
C1578
C1579
R1527
C1654
C1653
TL1508
C1519
TL1510
C1556
C1651
C1652
C1517 C1551
R1539
R1540
R1535
R1536
C1515
TL1522
TL1512
R1537
R1542
R1543
TL1509
C1649
C1650
D1513 R1538
C1516
C1647
C1648
R1600
R1599
TL1513
C1513
IC1501
D1515
D1505
C1558 D1509
IC1502
C1514
C1555
FB1510
R1532
C1553 D1506
D1510
TL1534
TL1519
FB1511
TL1535
TL1518
R1534
Q1514
C1520
Q1515
C1518
R1726
R1733
TL1710
TL1712
TL1714
TL1716
TL1718
D1503R1523R1541
TL1709
TL1711
TL1713
TL1715
TL1717
L1530
D1525
TL1708
C1714
C1713
D1502
R1524
D1708
D2001
C1731
C1732
C1712
C1711
R1712
TL1702
TL1704
D1705
C1702
R2090
R1710
R1711
R1713
C1710
C1709
R2092
C2031
C1729
C1730
R1739
C1701
TL1719
D1703
TL1707
Q1709
TL1701
IC2009
D1702
C1720
C1721
TL1720
C1708
C1707
C1716
C1717
C1725
C1727
R1732
R1730
IC1701
FB1701
TL1705
C1715
R1706
Q1708
TL1706
D1707
TL1703
R2091
R1709
Q1705
R1738
Q1703
Q1707
Q1701
R1720
R1718
R1716
D1704
TL9033
TL9034
TL9043
FB9010
FB9008FB2001
R1742
TL3302
TL3303
TL3301
Q1711
TL2002
TL2003
TL2004
TL2005
Q1710
D2006D2007 D2005
FB1702
R1741
C2028C2029C2027
C1705
R1740
FB2005 FB2003FB2004
C1536D1523
IC1506
C2231
TL1537
C1539
C1542
R2222
L2201
FB1517FB1516
C2205
Q2207
C2207
C2203
C2204
L2202
C2202
C2206
FB1514
R2215
R2214
R2208
C1642C1585
R2209
Q2208
Q2204
R2204
R2212
C1635
C2229
R2223
C2230
L1514
Q2201
C3344
R1621
FB3302
R2202R2206
TL1528
R2205
R2201
R1620
R1622
TP1501
Q2202 C2234
FB3303C3348
R2210
TL1527
TL1529
R1598
R1597
C1623
C1624
C1575
L2203
L3303
R2224
C3360
Q2209
C1625
C1626
C2209
R2216R2218
C2208
C2210
C1627
C1628
C2233
FL1501
L3307
C3398
R1624
Q2206
R2221
R3332C3394
R2220
FB1521
R2219
C1629
C1630
R1623
C1593
C1602
TL1530
R3333 Q2205
R2207
C1601
C1607
C1611
C1606
C1609
R2211
C1562
C1563
Q2203
C3405
R2203
C1580
C1594
R1602
R2217
R2213
C3433
C3403
C1576
C2232 FB1518
R3334
C1632
C1631
FB1522
C1557
R3335
FB3304
TL1524
FB3305 R3371
TL1525
R1615
R1617
C3408
C3434
C1566
C1634
TL1526
R1635
TL9321
TL9352
TL9328
TL9318
TL9325
C8324C8326C8318
TL9326
C8316
R9115
TL9329
C9105
TL9327
R8331
R8330
R9116
R9131
R8377
R8376
C9101
IC8304
C8320
R8373
C8328
R9111
R8374
C8350
R9113
TL1306
TL9103
R9107
R9112
TL9104
TL9101
C8322 C9104
TL9102
R9109
TL9105
R8314
R8316
C8334
R8338 R8337
R8386
R8348
R8387
C8342
R8357
R8398
C8356
C8351
C8343
R8468
R8349
R8399
R8358
C8453
R8467
R8177
R9004
R8197R8181
R9007 R8196
C8452
C8143 R8178
C8144
R9010
R9011
R8141
R8143
C8132
C8154
R8164
TP8107
Q8452
R8167 Q8451
166
R8452
5
1
5
09
C8119
R9638
C8130
C8125
C8121
C8153
C8115
C8117
C8 111
C8152
C8113
R8117
R8121
R9639
C9639
R9640
R8176
C9640
R8114
TP8101
R8305
R8110
R8306
R8304
R8307
R8309
R8310
R8353
R8394
R8395
R8354
R8344 R8345
C8329
C8347
C8348 C8355
C8341
C8354
R8390
R8391
R8333R8334
C8333R8313
R8315
TL9609
C8308
R8375
C8337
R8370
R8369
C8314
C8344
C8306
IC8302
R8380
R8381
R8327
R8326
IC8305 C8302
C8310C8312C8304
R3339 R3357
R3355
R3345
R3351
R3356
R3364
R3365
R3363
R3358
FB3306
R3368
R3369
R3367
R3362
C3431
C3415
R3361
R3366
C3414R3370
R3360
C3422
C3418
C3416
C3413
R3336
C3412
C3423
C3417
C3421
C3320
FB3307
C3309
C3328
C3301 C3410C3425
C3302
C3404
C3316
C3424
C3407
C3402
C3395
C3397
C3342
C3334
FB3308
C3406 C3392
C3426
C3393
C3419
C3391
C3401
R3571
C3303
C3311
C3389
C3380
R3516 C3388
C3381
C3378
R3509
C3382C3384
C3375 C3377
C3337
C3331
C3376
C3366
C3367
C3365 R3331C3383
C3372
C3368
R3338
R3329C3361
R3523
R3337
C3314
C3304
C3363
R3524
FB3301
C3359 C3353
C3310
C3352
C3349
C3315
C3313
C3362
R3520
R3330
C3347 C3350
R3328
C3329R3528 C3327
C3341
C3343
C3306
C3318
C3324
R3327
C3345
C3307C3340
C3330 C3308 R3326
R3309
C3321C3332C3335
R3533
R3324
TP3304
R3325
C3338
R3348
TP3303
C3322
C3305
C3428
R3529 R3349C3427 C3312
R3537
R3314
R3315
R3316
TP3302
R3574
R3546
R3307
R3542 R3311
R3513
R3554 R3304
R3502
R3305
R3547
R3553
R3321
R3563
R3550
C3525
C3531
C3521
C3535
C3522
C3532
C3526
C3524
C3523
C3534
C3533
C3520
TL3504
tptp1
R3569
C3538
TL3503
R3503 tptp2
R3562R3506 C3536
TP2605
TP2604
TP2603
TL2634
FB2602
TL2637
TL2633
TL2629
TL2630
TL2632
TL2631
TL2638
TL2636
FL2615
TL2635
R2629
R2618
FL2613
TL2648
TL2650
C2605
R2620
R2619
TL2649
C2604
TP2602
C3502
TP2601
C3537
R3505
R3504
R3539
R3532
TP2606
C3516
C3506
C3507
C3503
C3518
TL3502
C3517
TL3501
C3504
C3515
C3508
C3514
C3505
C3513
R3517
FB2604
TL2624
FB2605
TL2625
R2624
FB2606
TL2626
R2625
C3539
FB2607
TL2627
R2626
FB2608
R2627
TL2628
R2615
R2616
TL2639
TL2640
R2622 FL2602
TL2642
TL2603
R2605
TL2643
R2602
TL2602
R2608
TL2641
TL2647
R2628
FL2605
FL2614
TL2644
TL2651
R2601
FL2606
TL2645
FL2612
TL2623
R2609
R2617
R2610
R2603
TL2646
FL2607 C9616
R9023 R9001
R9022
R9021
Q9608
IC9003
D9005
D9001
C9002
C9001 R9019
TL9047
C9610
TL9004
FB9003
FB9009
TL9015
FB9004
D9002
TL9017
R9002
FB9005
TL9045
FB9006 R9651
D9003
TL9046
R9652
R9653
Q9609
C2602 C9627
IC2601
TL9607
TL9608
IC9605
FL2608
C9626
TL2609
FL2609
R9601
TL2610
C2606
FL2610
R2623
TL2621
TL2601
FB2603
TL2622
C9643
R9641
R9645
R9644
R9642
C9642
C9635
R9643
C9641
R9636
R9637
C9634
C9633
      
LC-46D82U/LC-52D82U
7 – 9
[2] TERMINAL UNIT PRINTED WIRING BOARD
TERMINAL Unit (Side-A)
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
LC-46D82U/LC-52D82U
7 – 10
J502
FB517
FB516
FB512
FB514
FB513
FB515
R530
R528
R525
R524
R520
R529
C574
R522
R521
R523
C573
R526
R527
LUG501
C517
C516
C512
C513
C514
C515
C532
R550
D514 D513
D517
C533
R554
D516
R555
C534 C536
D515
C535
C537
R556
R557
R602
R558
D7506 D7505
FB7504 R7517
SC7501
FB7501 R7518 D7503 D7504
FB7502 R7516
R7513
FB7503 R7515 R7512
FB7506
C7507
C7502
IC7501
C7505
C7501
R7510
C7503 C7504
C7506
UNT501
FB534
Q511
R619
C559
R618
C560
R616
P502
FL504
R611
FB531
R617
FB533
FB532
LUG2701
L2703
C2729
C2725
C2726
R2714
R2713
C2731
L2704
C2710
C2714
C2715
C2746
C2712
C2713
C2747
C2716
C2720
C2711
FB2712
C2737
C2741
L2701
D2704
C2738
FB2711
C2734
D2705
C2727 C2728
P2703
FB2710
C2732
C2733
D2706 C2739
C2740
R2723
R2722
C2730
C2742
FB2709
FL502
R613 D2707
R615
R612
FL501
R614
R2720
L501 FL503 IC2702
R600
D2702
R2721
C2743
LF1
R582 R584
R585
Q505
R583
Q506
R581
C553
R586
R576 R578
R579
Q503
R577
Q504
R580
R575
C552
R570 R572
R573
Q501
R569
R571
Q502
R574
C546
C551
C554
FB520
R542
R592
Q509
C557
R591
C524
R543
C575
R590
C525
C538
R559
Q507
R561
R562
C567 C540
R589
D518
R563
Q508
C541
R564 R603
D519 R565
R566
IC501 R604
R609
R608
C543
C545 R607
C544 R601
R567
C542
C523
R568
R537
C530
C529
C527
C526
C564
R541
R540
R539
R610
R538
R536
R605
D512
R549
R548
D511
D510
C521
D509
C528
C569
LUG502
C505
C504
C508
C507
C570
R509
D505
C511
D504
C510
C509
C506
R507
C558
C572
R515
R512
C571
R510
FB505
R508
FB504
R511
R502
R504
R506
D501
R518
R519
R517
R514
R516
R513
FB511
FB510
FB509
FB508
FB507
FB506
J501
J503
FB518
FB519
R535
D508
D506
C518
R534
R533
C519
D507
R532
R531
C522
FB503
C520
D502
FB502
D503
FB501
C503
C501
C502
R503
R501
R505
SC502
C556 R588
C555 R587
R593
R594
SC501
C547
C566
C568
C565
k001
R2724
D2703
P2704
L2702
C2718
LUG2702
C2706
C2745
R2706
C2709
R2704
D2701
R2705
R2703
R2702 C2717
R2701
IC2701
C2704
C2702
C2701
C2703
FB2704
C2708
R2719
C2707
C2705
C2744
TERMINAL Unit (Side-A Chip)
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
LC-46D82U/LC-52D82U
7 – 11
[3] KEY UNIT PRINTED WIRING BOARD

 
,
#
$
%
&
'
(
)
*
+
KEY Unit (Side-A) KEY Unit (Side-A Chip)
LC-46D82U/LC-52D82U
7 – 12

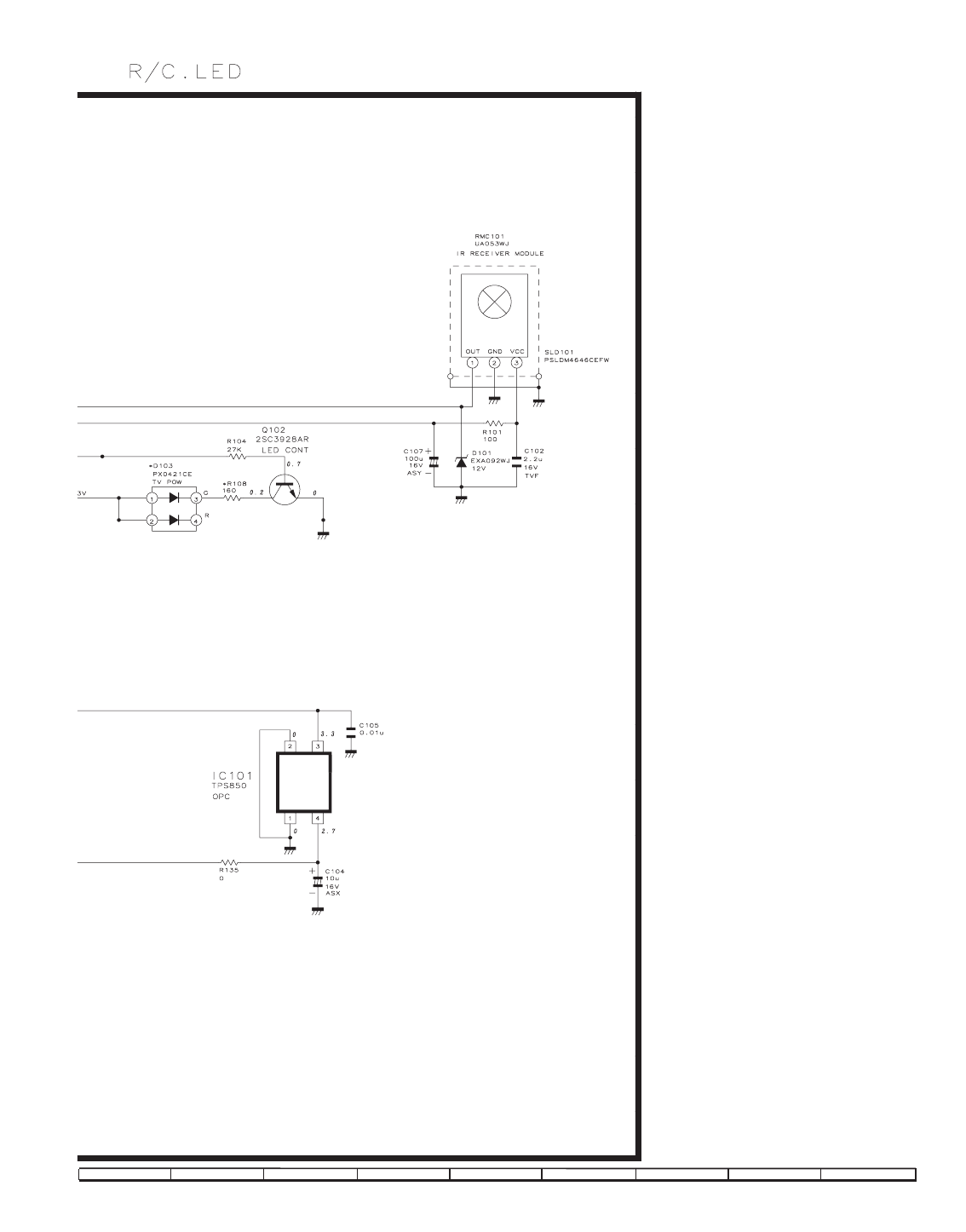

[4] R/C, LED UNIT PRINTED WIRING BOARD
P101
C107
RMC101
SLD101
R132
R101
D101
IC101
C104
C102
R135
C105
R136
R117
Q105
Q104
R138
R102
D103
R110 R105 R137
R108
Q103 R109 Q102
R106 R104 R107
R123
D114
Q106
R121
R126
D113
Q107
R124
R111
R112
D115
R122
R114
R127
R113
C106
J101
R115 3
R/C, LED Unit (Side-A Chip)R/C, LED Unit (Side-A)
123
4567 910
8
J
A
B
C
D
E
F
G
H
I
LC-46D82U/LC-52D82U
7 – 13
[5] FRC Unit

 
,
#
$
%
&
'
(
)
*
+
FRC Unit (Side-A)
LC-46D82U/LC-52D82U
7 – 14
      
LC-46D82U/LC-52D82U
7 – 15
LUG4802
SC6211
R6251
L6211
L6212
L6213
L6220
L6221
L6222
L6214
L6215
L6216
L6217
L6218
L6219
TL6212
R6245
R6243
R6240
C6240
C6239
C6265 C6263 C6261
C6266 C6264 C6262
TL5822
R5826
TL5812
R5823 R5819
C5894
R5820
FB5801 TL5809
IC5801
R5887
R5888
8
R5842
R5841
TL5821
TL5818
R5811
R5803
C6013 C6021
TL6007
R6029 R6031
7
R6119
R6133
R6135
TL6006
R6061
R6062
R6027
R6033
R6040
R6063
3
R6052
R6064
IC6002
TL5820
R6050
R6095
R6048
R6130 FB6005
TL6004
C6096
R6046
C6097
R6044 R6042
R6131
R6132
TL6005
R5802
R6035
R5859
C6132
C6133
R6092
R6036
R5890 C6120
R5865
R5906
C6118
R6037
C6121
C6119
R5869 C6117
R6038
R6085
R6087
C6131
C6116
TL6014
C6130
TL6015
R5880 R6055 R6057
R5881
R6140
R6139
R6101
R6102
R6053
R6059
R6066
R6103
R5898
R5899
R6078
R6104
IC6003
R6076
TL5819
R6108
R6074 R6121
R6136
FB6006
C6099
C6098
R6072
R6070 R6068
TL6012
C6012 C6020
R6138
R6137
TL6013
C6011 C6015
FB6007
C6018
C6237
C6236
C6235
C6233
C6238
C6234
R6224
R6222
R6220
TL6211
L6226
L6227
L6228
L6229
L6230
L6231
L6223
L6224
L6225
L6232
L6233
L6234
R6230
SC6212
C6268
LUG4801

 
,
#
$
%
&
'
(
)
*
+
FRC Unit (Side-A Chip )
LC-46D82U/LC-52D82U
7 – 16
R6007
R6014
R6022
R6122
R6001 R6026 R6024 R6020
TL5827
TL5828 R6003
R6018
IC6001
R6125 R6123
R6126 R6124
R6005
R6016
R6115
C6094
C6095
TL5830
R6114
R6079
FB6004
R6129
TL5829
R6116 R 6117 R6 118 R6364 R6353 R6354 R6355 R6356
R6363
TL6357
R6362
R6361
C6009
TL6021 TL6352
IC6341
TL6353
1
R6382
R6383
TL6022
R6307
R6321
R6331
R6295
R6293
R6289
R6326
R6308
R6332
R6296
R6294
R6290
R6299 R6285 R6300 R6286
TL6354
C6376
R6311
R6284
R6310
IC6281
IC6282
R6283
R6309
C6342
P6341
R6315
R6305R6303R6301R6297R6291R6287 R6306R6304R6302R6298R6292R6288
FB4804
FB4803
SC6281
LUG4804
LUG4803
P4802 P4801
R4831
R4816
R4815
R4814
FB4805
FB4806
FB4802
FB6347
L6341
C4807
L4803
C4806
C6341 R6342
FB6348
X6341
TL6023
R6374
R6341
R6373
C4805
L4802
C4804
R6343R6345R6346
C4818
C4819
TL6361
R6347R6348
Q4803
C4817
TL6362
L4801
R6349
R4826
R6352
R5917
TL6360
TL6356
R5932
R6357 R6358 R6359 R6360 FB5802 FB5803
TL6020
R5931
TL5810
TL5811
R5930
P5802
C5890 C5892 R5916
TL5814
TL5813
C6002 C6001
FB6001
6
FB6008 C6003
TL6001
TL6002
TL6003
R5913
C6014 R5914
R5915
P5801
FB6003
C6019 C6016
C6013 C6021
TL6007
R6029 R6031
7
R6119
R6133
R6135
TL6006
R6061
R6062
R6027
R6033
R6040
0
63
TL4801 TL4803 TL4802
      
LC-46D82U/LC-52D82U
7 – 17

 
,
#
$
%
&
'
(
)
*
+
FRC Unit (Side-B)
LC-46D82U/LC-52D82U
7 – 18
      
LC-46D82U/LC-52D82U
7 – 19
TL6283
TL6285
TL6287
TL6289
TL6291
TL6293
FB4801
R4830
TL6281
TL6282
TL6295
TL6284
TL6286
TL6288
TL6290
TL6292
TL6294
FB6283
TL6350
C6283
TL6341
C6284
TL6342
TL6343
FB6286FB6282FB6281FB6287FB6285FB6284
TL6344
R6336R6335
TL6345
C6374
C6282C6281C6286C6285
R6322R6333
TL6346
C6287
R6328
R6317
R6318
R6319
TL6347
R6323R6334 R6316 C6293
R6312
C6291
TL6348
R6324R6325
R6327
R6329
R6330
R6320
C6292
C6289
C6288
C6298
TL6349
C6297
R6313
C6294 R6281R6282
R6314
C6295
C6296
IC6342
C6290
TL6026
C6372
C6373
FB6342
C6368
R6376
R6375
R6377
C6352
C6351
C6361C6363
C6350
C6349
2
C6354
C6356
C6355
FB6345
FB6346
C6367
C6369
C6007
C6344
C6366
TL5833
TL6025
C6102
R6365
R6366
R6380
C6008
C6017
R6083
C6103
C6010
C6147
TL5834
R6091
R6080
R6010R6011R6012
C6158
C6104
C6106
C6159
C6105
C6107
C6153 C6146
R6009
R6127
R6081C6152 R6128
C6034
C6036
C6037
C6038
R6082
R6006
C6149
R6015
C6151
C6033
C6148C6039
C6150 C6035
C6040 R6097C6100C6108
R6096
C6032
C6031
C6042C6041 R6008C6101C6109
R6013
C6045
C6044
R6004
R6017
C6144C6023
C6030
C6043C6024C6154
C6027
C6022
C6029
C6026
C6145C6155 C6028
TL5832
C6143
C6161
C6157
C6025
C6142
C6113
C6112
C6160
C6111
C6110
C6156
TL5831
R6090
R6093
R6021
R6094
FB6002
R6002R6025R6023R6019
C5870
C5869
X5802
R5929R5933 C5865C5864
X5801
R5912R5911
R5807R5806R5805
R5804
T
C6069 C6169
R5
8
C
6
C605
6
C6057
R605
1
C6047
C6053
C6058 R6098C6126
C6046C6059 R5854R5855
R6047C6127
TL5824
C6055
C6054
C6165
C6167
C6179
C6162
R6028
C6164
C6115
C6114
C6166
C6178
R6030R6032 C6163
R6109
R6110
TL6010
TL6011
TL5817TL5808TL5807
FB5804
TL5806
FB6009
R6144
C6004
C6005
C6006
IC6004
FB6011
C6134
C6135
TL5801
C5889
C5891
FB5816
FB5812
FB5810
FB5811
FB5817
TL5815
TL5802
TL5816
R6368
R6351
R6350
TL5803
R6381
TL5804
TL6024
TL5805
C4822
C4821
C4820
R6367
FB6341
C4813
C4814
C4815
C4816 R4822
C6375
C6343
C6345
C4812
R4821
IC4801
R4820
C6357
R4828R4832
R4819
C6353
R4827
C4823
C4803
C6365
Q4801
C6358
R4805
Q4802
C4802
R4803
C4801
R4802
R4801
C6359
C6360
R4823
R4824
R6378
R6379
C6362
C4810
R4804
R4825
R6344
C6346
C6348
FB6344
FB6343
C6347
C6364
C6370
C6371
IC4802 R6370
TL6027
R6371
R4807
R6372
R4806
D4802
R6369
IC4804
R4809 C4811
R4818
R4817
C4808
D4804
R4808
C4809
C4824
IC4803
IC4805
R4829
R4813
C4825
R4811
D4801
R4810
D4803
R4812
TL4809
TL4811
TL4810
TL4822
TL4818
TL4814
TL4805
TL4804
TL4812
TL4820
TL4816
TL4828
TL4830
TL4832
TL4834
TL4823
TL4819
TL4815
TL4806
TL4813
TL4821
TL4817
TL4826
TL4829
TL4831
TL4833
TL4827
TL4825
TL4824
TL4808
TL4807

 
,
#
$
%
&
'
(
)
*
+
FRC Unit (Side-B Chip)
LC-46D82U/LC-52D82U
7 – 20
X5801
R5912R5911
R5807R5806R5805
R5804
TL5825
R5808
R5919
R5884
R5827
FB5815
R5801
R5918
R5920
R5810
C5871
C5873
C5801
C5809
C5807
C5863
C5861
R5886
C5803 C5804
C5886
R5809
R5885
C5812
C5821
C5806
C5888 C5802
C5862
R5836
C5808 C5805
C5815
C5810
C5887 C5866
R5818
C5817
C5816
C5868
C5826
C5867C5811 C5822FB5809
R5812
R5882
C5829
C5827
C5885 C5813 C5830
C5814
C5824
C5820
C5883
C5823
C5819
C5818 C5828
C5825
C5884
R5813
R5889
C5872
C5844
C5831
C5833
C5882 FB5813
C5832
C5841
C5836
C5839
C5880 R5857
C5843
R5815
R5814
C5845
C5881 C5842 C5875
C5838
C5840
C5878
C5876C5879
R5816
C5874
C5877
C5837
R5817
FB5814
C5848
C5834
C5846
C5851
C5835
C5856
C5853
C5854
C5857
C5850
C5855
C5847
C5852
C5849
R5822
C5860
C5858
C5859
R5821
R5894
R5839
R5893
R5825
R5838 R5892
R5891
TL5826
C5893
R5824
R5849
R5895 FB5806
R5896
R5897 FB5805
R5831R5830R5832R5840R5843R5844R5845R5846R5847R5848 FB5807
FB5808
R5833R5834R5835R5837R5850R5851R5852R5853 R5828R5829
C6260
C6259
R6232
R6233
R6234
C6242
C6241
C6258
IC6212
C6257
R6235
R6236
R6237
R6238
R6244
R6242
R6241
R6239
C6256
C6255
R6246
C6253
C6243
C6254
R6247
R6249
R6250
R6252
C6244 R6248
FB6215
FB6211
TL6223
TL6222
TL6224
C6245C6271C6247C6249C6251
TL6220
TL6221
TL6219
FB6216 C6246C6272C6248C6250C6252
FB6217
C6218C6270C6220C6222C6224
C6217C6269C6219C6221C6223
TL6213
TL6215
TL6217
FB6213
TL6214
TL6216
TL6218
C6216
R6227
R6228
R6229
R6231
C6215
C6226
C6225
R6226
R6225
C6228
R6223
R6221
R6219
R6218
C6227
R6214
R6215
R6216
R6217
IC6211
FB6212C6267
C6230
C6229
C6213
C6214
FB6214 R6213
R6211
R6212
C6211
C6232
C6231
C6212
5
R5928
R5926
R5927
R5925
R5924
R5922
R5923
R5921
TL6017
9
C6197
R6069R6067
R6065
R6142
C6196
4
C6194
C6137
C6136
C6198
C6190
R6071
C6191
C6195
C6199
R6141C6138
TL5823
C6072C6087
TL6016
R6073C6139
C6091
C6088
C6089
C6086
R5871
R5876
C6093
C6092
R5879
C6074
C6073
R6075
C6192
C6090
C6084
R6112
R6113
R5878
R5877
C6085 C6193
C6076
C6075
C6079
C6081
R6077
C6077C6078
R5875
C6082
R6088R6089 R6111C6140
C6070
C6083
C6186 R6034C6141C6188
C6080
C6128
C6071
C6187 C6182
C6189
R5874
R5901
C6183
C6185
C6201
R6054
C6184
C6200
C6129
R5900
R6056R6058
R6060
R6143
R6120
TL6018
R5873
R5903R5902
TL6019
R5872
R5870
R5868
R5867
R5866
R5863
R5864
R5905
TL6008
C6175
R5904
TL6009
C6174
R6043R6041
C6171
R5861
R5883
R6084
R6086
C6170
R6039
R6107
R5862
C6176
C6180
C6122
C6123
C6172
R6045
C6181
C6173
R6099
R6100
R6106C6124
C6177
R5860
C6048C6050C6064 R6105C6125R6134
C6065
C6063
R5858
C6062 R5907
C6049
C6067
R5908
C6051C6068
R6049
C6168
C6066
C6060
R5909
R5910
C6061
C6069 C6169
R5856
C6052
C6056
C6057
R6051
C6047
C6053
C6058 R6098C6126
C6046C6059 R5854R5855
R6047C6127
TL5824
C6055
C6054
C6165
C6167
C6179
C6162
R6028
C6164
C6115
C6114
C6166
C6178
R6030R6032 C6163
R6109
R6110
L
6010
6
011
      
LC-46D82U/LC-52D82U
7 – 21
[6] ILLUMINATION Unit

 
,
#
$
%
&
'
(
)
*
+
ILLUMINATION Unit
ver1
7
4
D901
R 902
Q901 R901
P901
5
3
6
ILLUMINATION Unit (Side-A)
ILLUMINATION Unit (Side-A Chip)
LC-46D82U/LC-52D82U
8 – 1
LC46D82U Service Manual
CHAPTER 8. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIA-
GRAM
1. VOLTAGE MEASUREMENT CONDITION:
1) The voltages at test points are measured on exclusive AC adaptor
and the stable supply voltage of AC 120V. Signals are fed by a
color bar signal generator for servicing purpose and the above volt-
ages are measured with a 20k ohm/V tester.
2. INDICATION OF RESISTOR & CAPACITOR:
RESISTOR
1) The unit of resistance "Ω" is omitted.
(K=kΩ=1000Ω, M=MΩ).
2) All resistors are ± 5%, unless otherwise noted.
(K= ± 10%, F= ± 1%, D= ± 0.5%)
3) All resistors are 1/16W, unless otherwise noted.
CAPACITOR
1) All capacitors are µF, unless otherwise noted.
(P=pF=µµF).
2) All capacitors are 50V, unless otherwise noted.
CAUTION:
This circuit diagram is original one, therefore there may be a slight
difference from yours.
SAFETY NOTES:
1) DISCONNECT THE AC PLUG FROM THE AC OUTLET
BEFORE REPLACING PARTS.
2) SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS
POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS
OPERATING.
IMPORTANT SAFETY NOTICE:
PARTS MARKED WITH " " ( ) ARE IMPORTANT
FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO
REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAIN-
TAINING THE SAFETY AND PERFORMANCE OF THE SET.
AVIS DE SECURITE IMPORTANT:
LES PIECES MARQUEES " " ( ) SONT IMPOR-
TANTES POUR MAINTENIR LA SECURITE DE L'APPAREIL.
NE REMPLACER CES PIEDES QUE PAR DES PIECES DONT LE
NUMERO EST SPECIFIE POUR MAINTENIR LA SECURITE ET
PROTEGER LE BON FONCTIONNEMENT DE L'APPAREIL.
LC-46D82U/LC-52D82U
8 – 2
[2] SCHEMATIC DIAGRAM

 
,
#
$
%
&
'
(
)
*
+

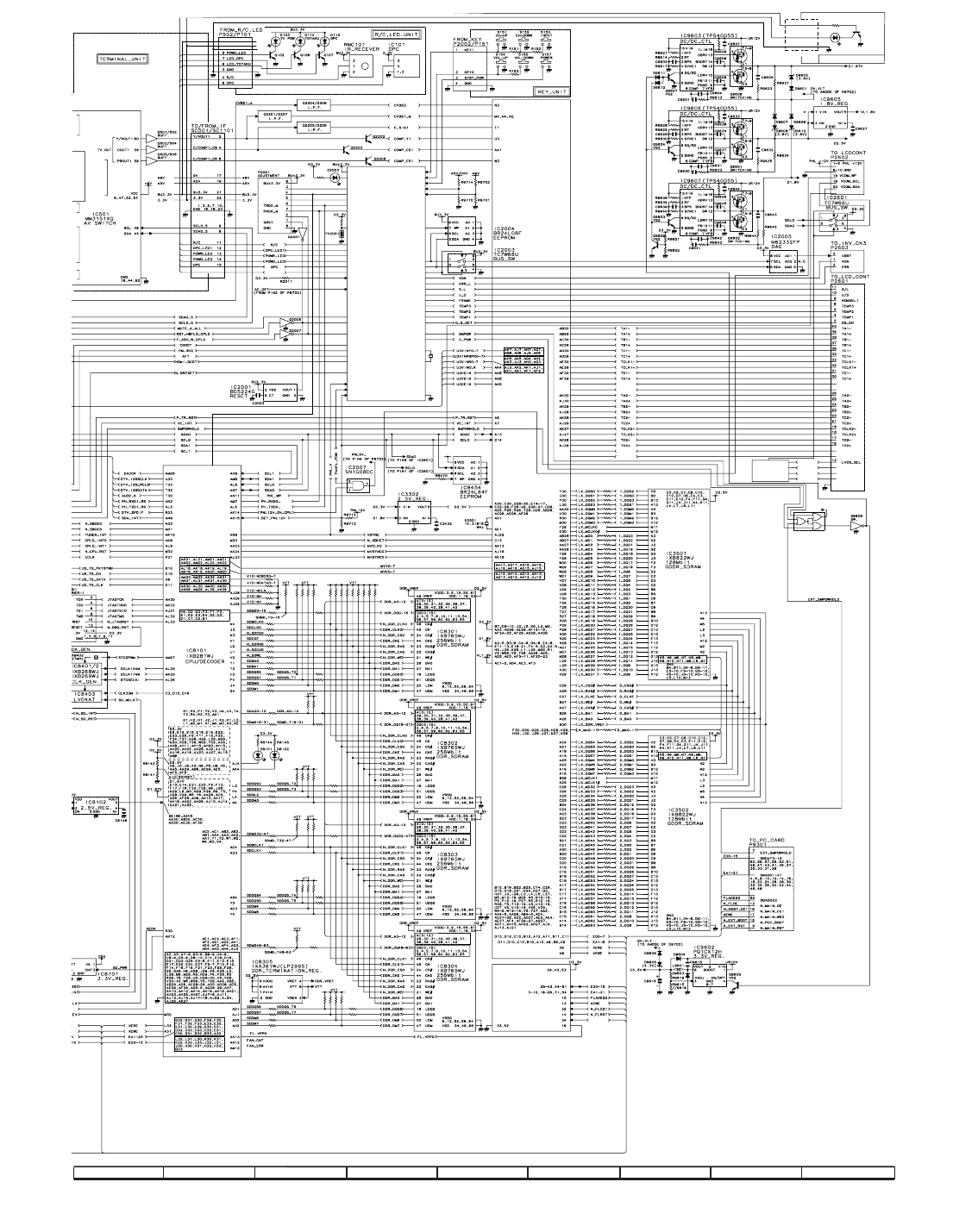

MAIN Unit-1
LC-46D82U/LC-52D82U
8 – 3
      
LC-46D82U/LC-52D82U
8 – 4

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-2
LC-46D82U/LC-52D82U
8 – 5
      
LC-46D82U/LC-52D82U
8 – 6

 
,
#
$
%
&
'
(
)
*
+

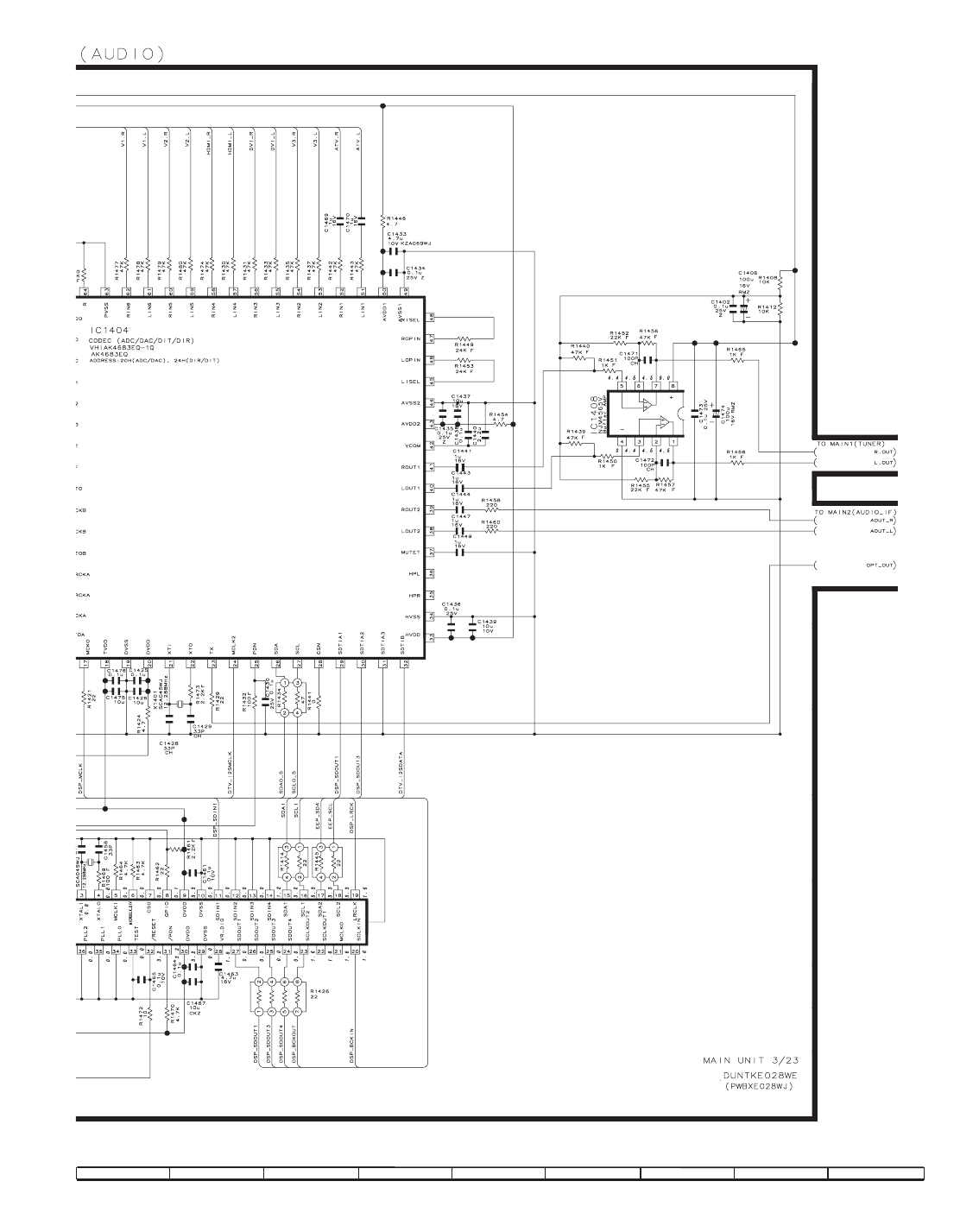

MAIN Unit-3
LC-46D82U/LC-52D82U
8 – 7
      
LC-46D82U/LC-52D82U
8 – 8

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-4
LC-46D82U/LC-52D82U
8 – 9
      
LC-46D82U/LC-52D82U
8 – 10

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-5
LC-46D82U/LC-52D82U
8 – 11
      
LC-46D82U/LC-52D82U
8 – 12

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-6
LC-46D82U/LC-52D82U
8 – 13
      
LC-46D82U/LC-52D82U
8 – 14

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-7
LC-46D82U/LC-52D82U
8 – 15
      
LC-46D82U/LC-52D82U
8 – 16

 
,
#
$
%
&
'
(
)
*
+

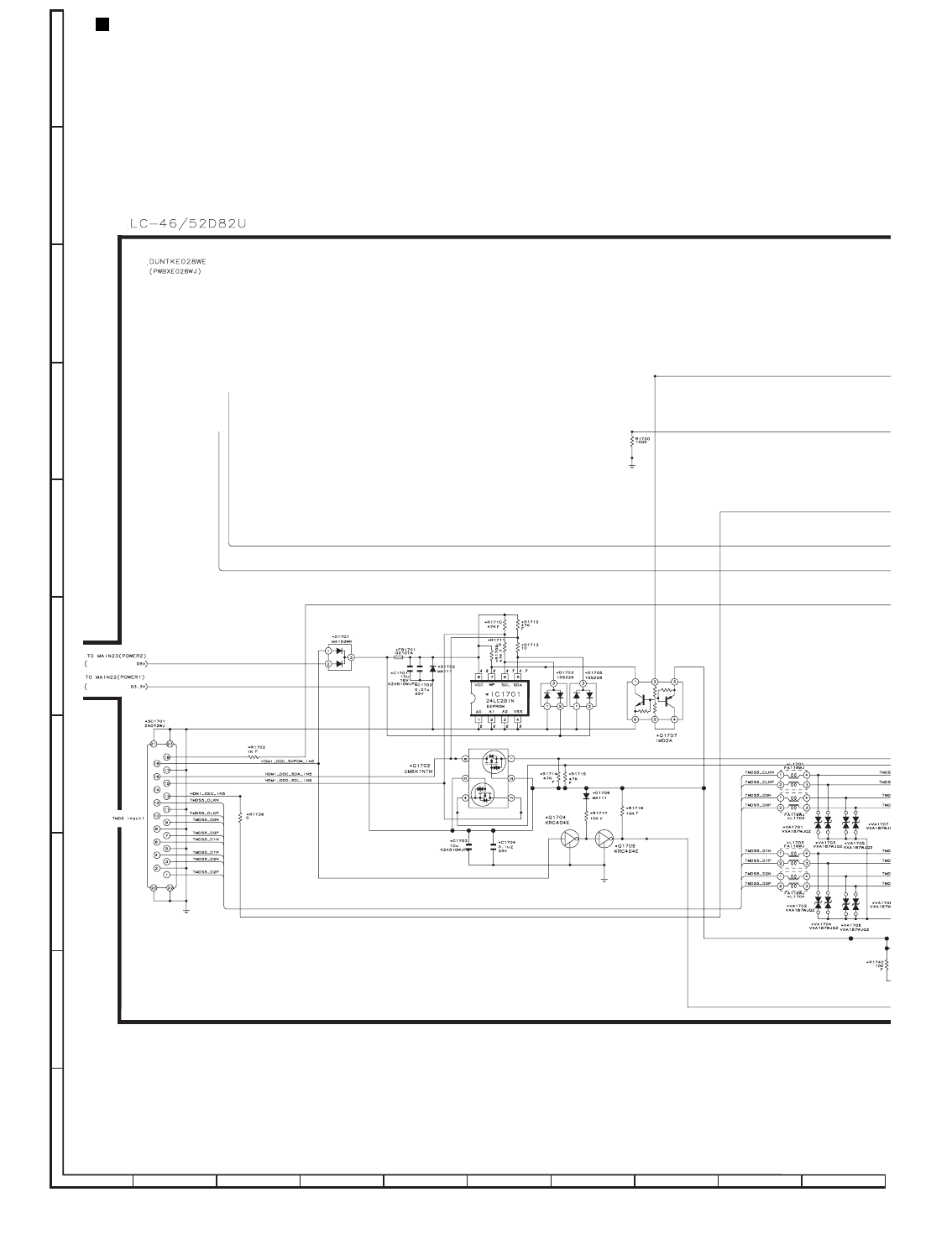

MANI Unit-8
LC-46D82U/LC-52D82U
8 – 17
      
LC-46D82U/LC-52D82U
8 – 18

 
,
#
$
%
&
'
(
)
*
+

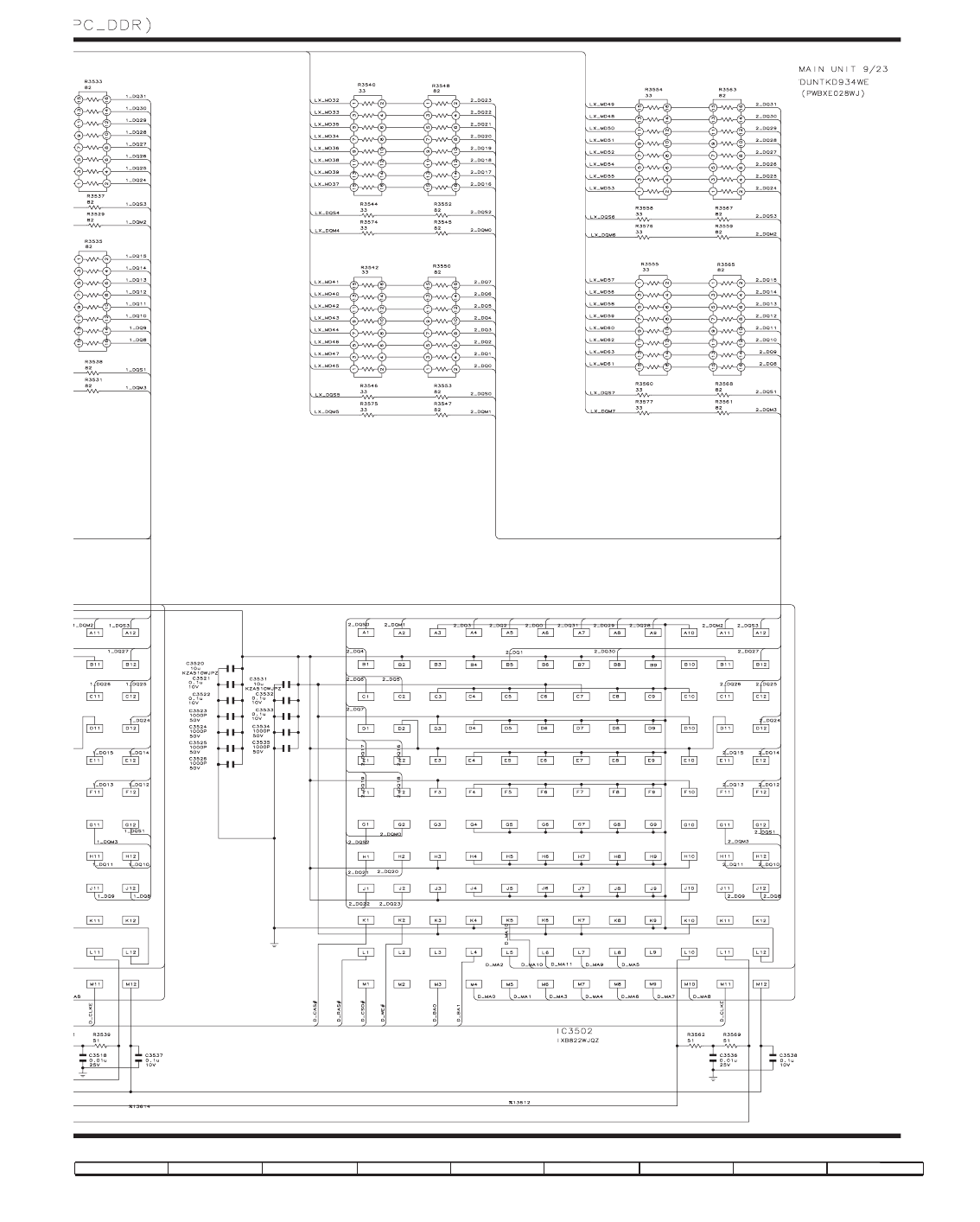

MAIN Unit-9
LC-46D82U/LC-52D82U
8 – 19
      
LC-46D82U/LC-52D82U
8 – 20

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-10
LC-46D82U/LC-52D82U
8 – 21
      
LC-46D82U/LC-52D82U
8 – 22

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-11
LC-46D82U/LC-52D82U
8 – 23
      
LC-46D82U/LC-52D82U
8 – 24

 
,
#
$
%
&
'
(
)
*
+

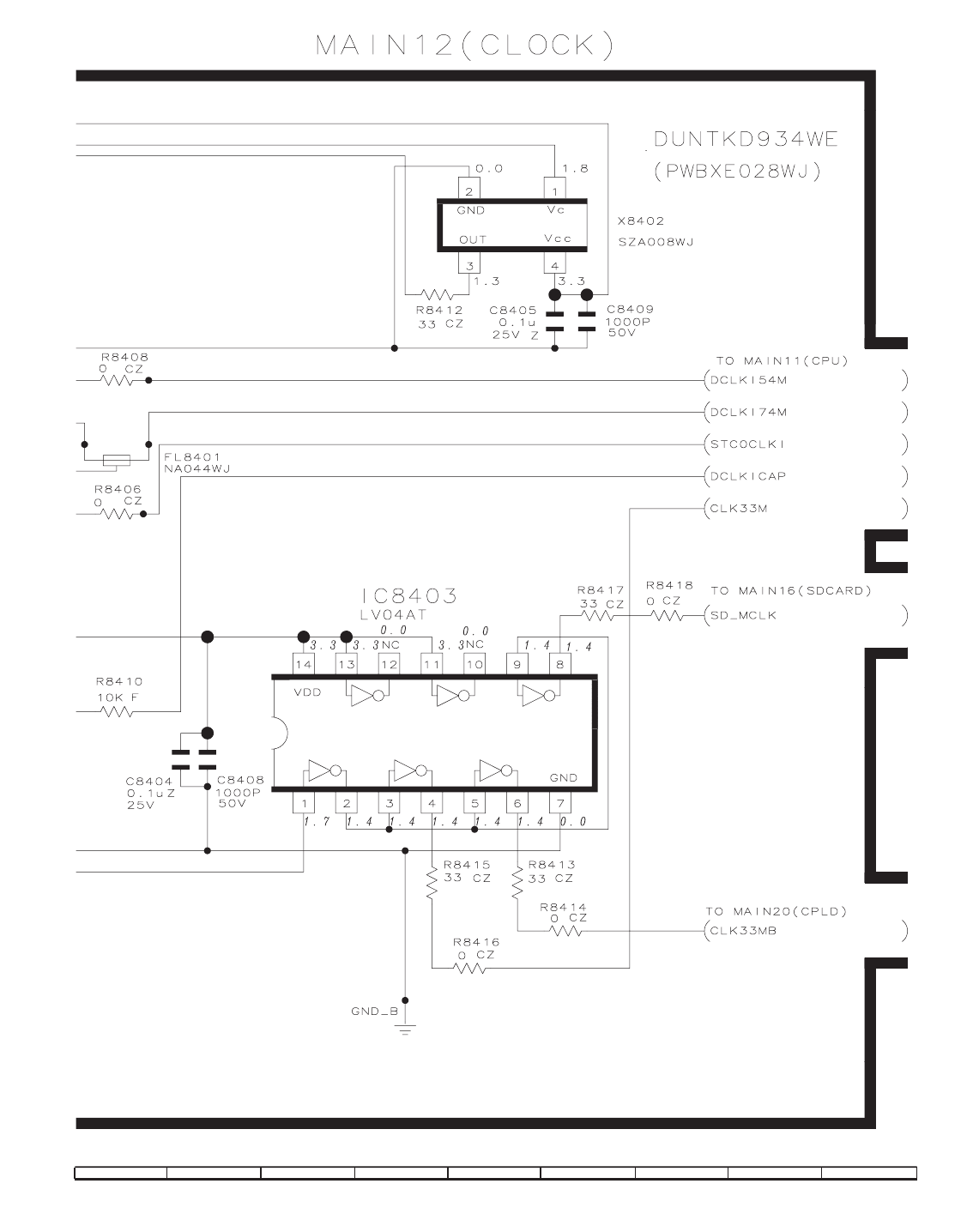

MAIN Unit-12
LC-46D82U/LC-52D82U
8 – 25
      
LC-46D82U/LC-52D82U
8 – 26

 
,
#
$
%
&
'
(
)
*
+

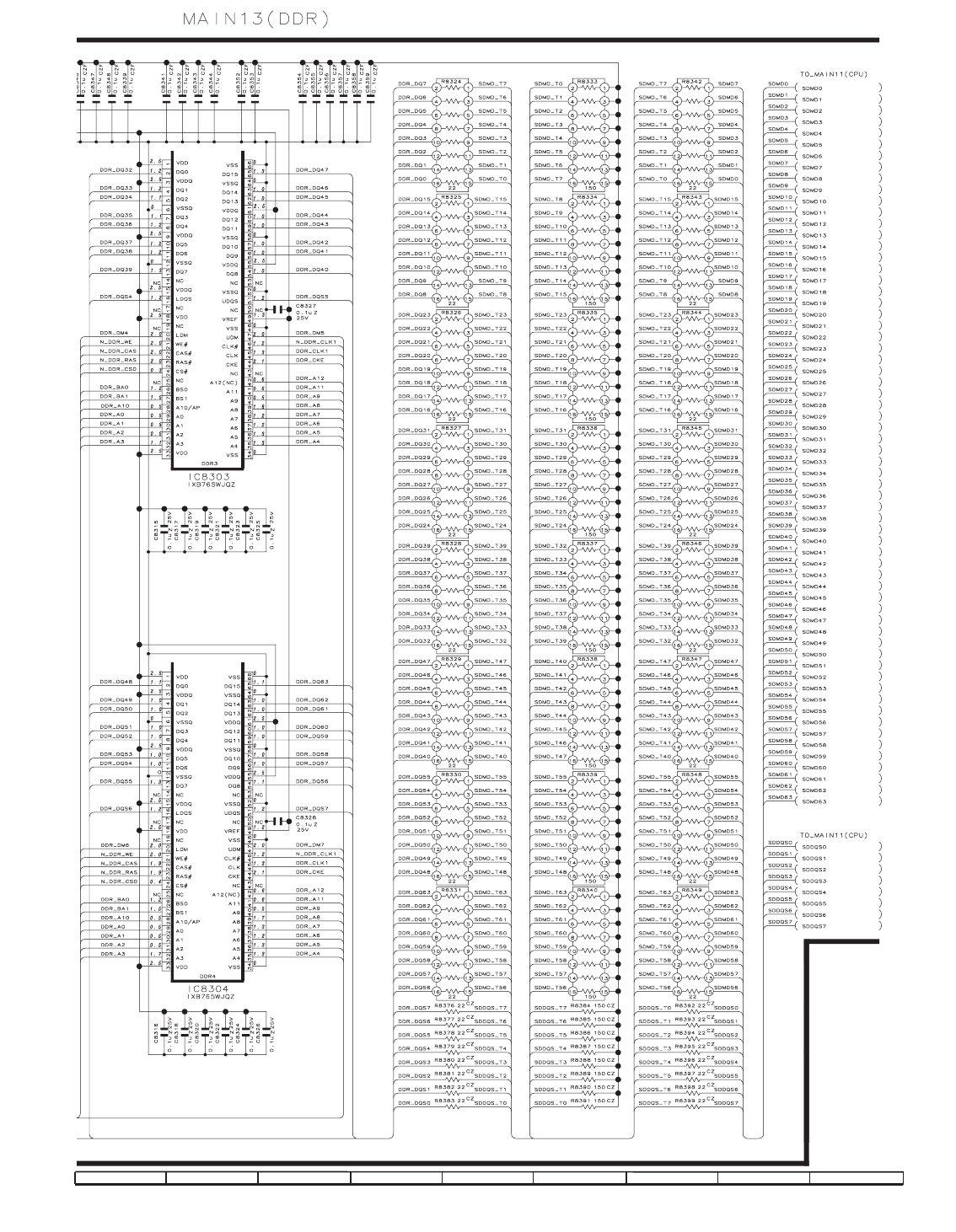

MAIN Unit-13
LC-46D82U/LC-52D82U
8 – 27
      
LC-46D82U/LC-52D82U
8 – 28

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-14
LC-46D82U/LC-52D82U
8 – 29
      
LC-46D82U/LC-52D82U
8 – 30

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-15
LC-46D82U/LC-52D82U
8 – 31
      
LC-46D82U/LC-52D82U
8 – 32

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-16
LC-46D82U/LC-52D82U
8 – 33
      
LC-46D82U/LC-52D82U
8 – 34

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-17
LC-46D82U/LC-52D82U
8 – 35
      
LC-46D82U/LC-52D82U
8 – 36

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-18
LC-46D82U/LC-52D82U
8 – 37
      
LC-46D82U/LC-52D82U
8 – 38

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-19
LC-46D82U/LC-52D82U
8 – 39
      
LC-46D82U/LC-52D82U
8 – 40

 
,
#
$
%
&
'
(
)
*
+

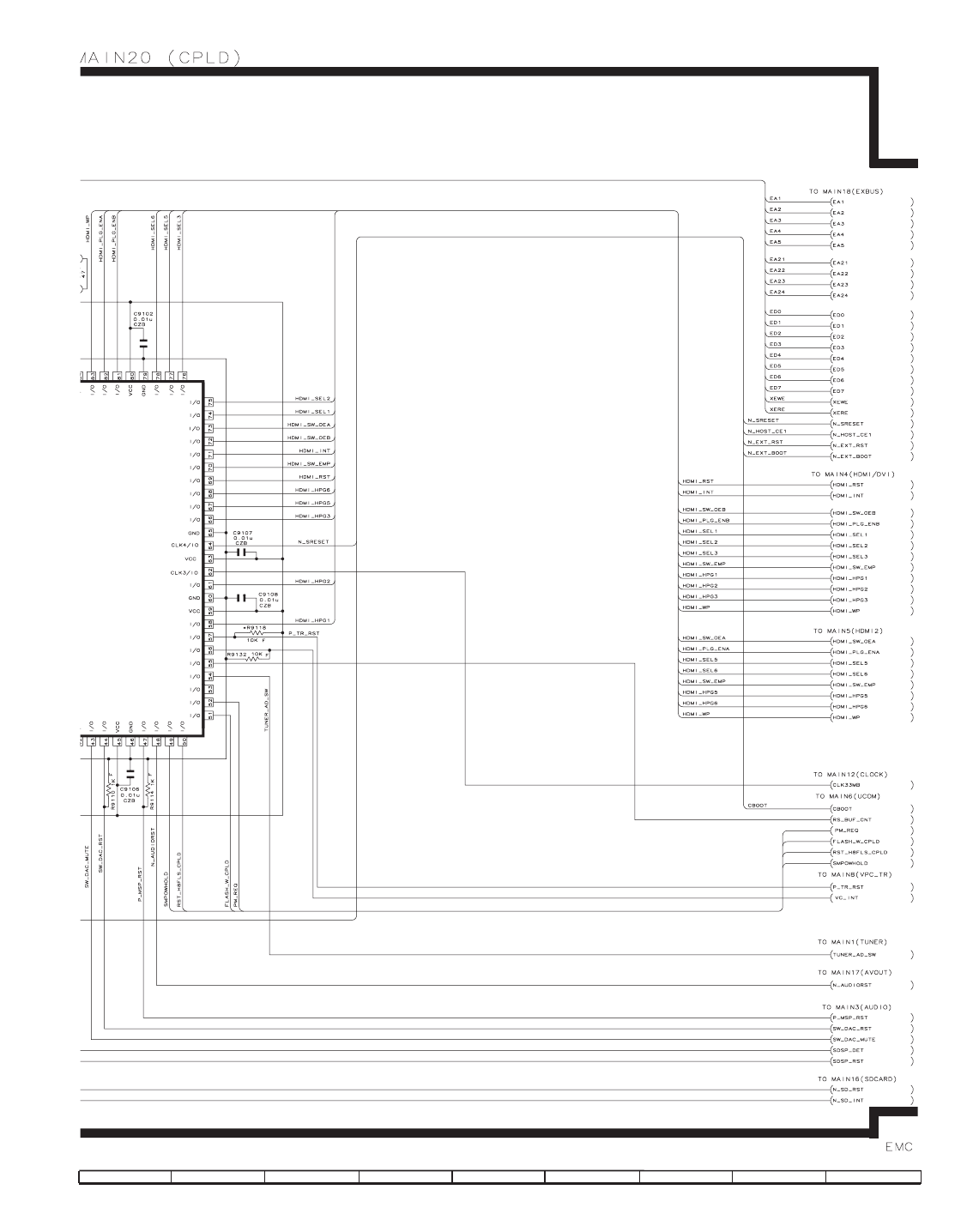

MAIN Unit-20
LC-46D82U/LC-52D82U
8 – 41
      
LC-46D82U/LC-52D82U
8 – 42

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-21
LC-46D82U/LC-52D82U
8 – 43
      
LC-46D82U/LC-52D82U
8 – 44

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-22
LC-46D82U/LC-52D82U
8 – 45
      
LC-46D82U/LC-52D82U
8 – 46

 
,
#
$
%
&
'
(
)
*
+
MAIN Unit-23
LC-46D82U/LC-52D82U
8 – 47
      
LC-46D82U/LC-52D82U
8 – 48

 
,
#
$
%
&
'
(
)
*
+

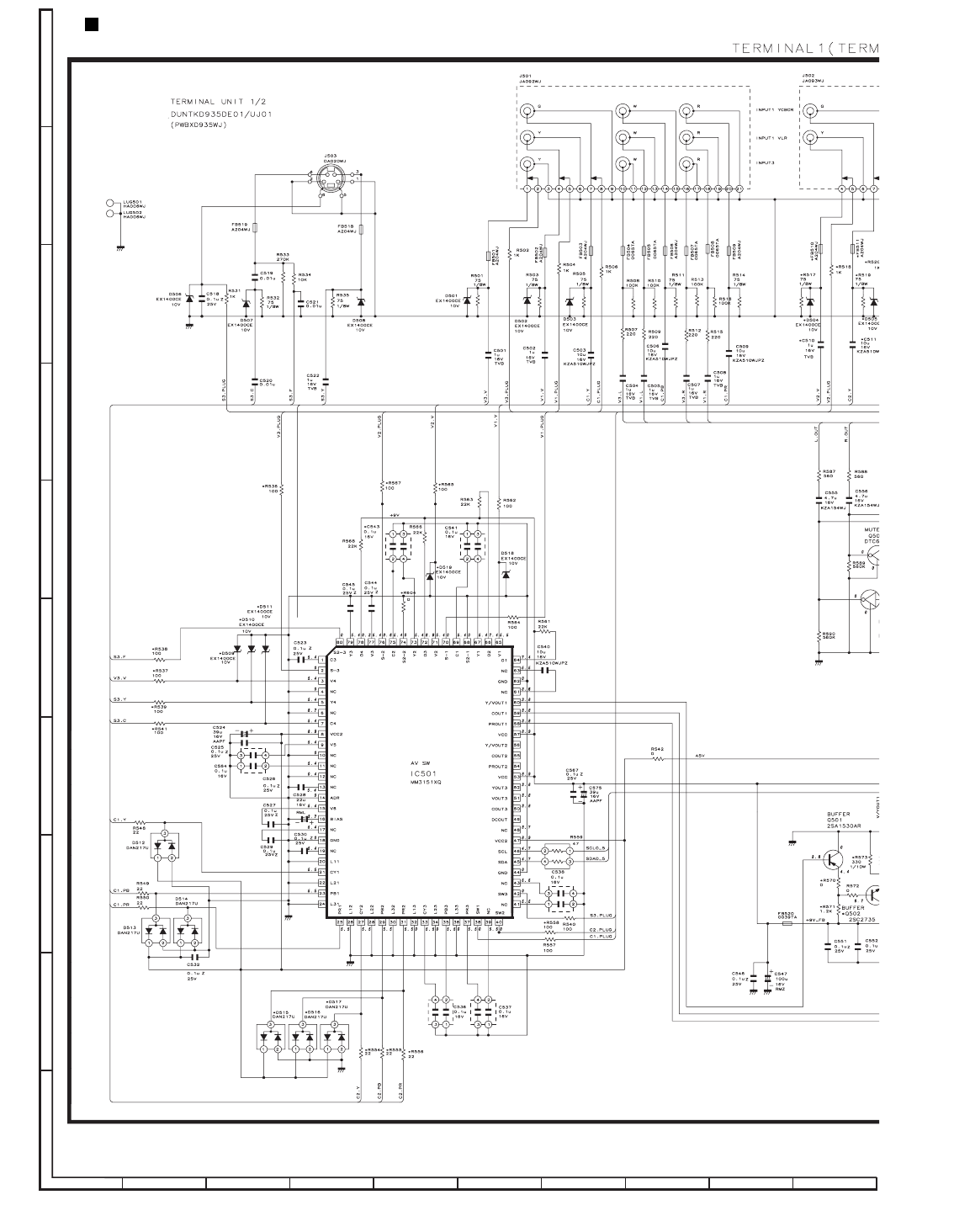

TERMINAL Unit-1
LC-46D82U/LC-52D82U
8 – 49
      
LC-46D82U/LC-52D82U
8 – 50

 
,
#
$
%
&
'
(
)
*
+
TERMINAL Unit-2
LC-46D82U/LC-52D82U
8 – 51
      
LC-46D82U/LC-52D82U
8 – 52

 
,
#
$
%
&
'
(
)
*
+
KEY Unit
LC-46D82U/LC-52D82U
8 – 53
      
LC-46D82U/LC-52D82U
8 – 54

 
,
#
$
%
&
'
(
)
*
+
R/C,LED Unit
LC-46D82U/LC-52D82U
8 – 55
      
LC-46D82U/LC-52D82U
8 – 56

 
,
#
$
%
&
'
(
)
*
+
ILLUMINATION Unit
LC-46D82U/LC-52D82U
8 – 57
      
LC-46D82U/LC-52D82U
8 – 58

 
,
#
$
%
&
'
(
)
*
+
FRC Unit-1
LC-46D82U/LC-52D82U
8 – 59
      
LC-46D82U/LC-52D82U
8 – 60

 
,
#
$
%
&
'
(
)
*
+
FRC Unit-2
LC-46D82U/LC-52D82U
8 – 61
      
LC-46D82U/LC-52D82U
8 – 62

 
,
#
$
%
&
'
(
)
*
+
FRC Unit-3
LC-46D82U/LC-52D82U
8 – 63
      
LC-46D82U/LC-52D82U
8 – 64

 
,
#
$
%
&
'
(
)
*
+
FRC Unit-4
LC-46D82U/LC-52D82U
8 – 65
      
LC-46D82U/LC-52D82U
8 – 66

 
,
#
$
%
&
'
(
)
*
+
FRC Unit-5
LC-46D82U/LC-52D82U
8 – 67
      
LC-46D82U/LC-52D82U
8 – 68

 
,
#
$
%
&
'
(
)
*
+
FRC Unit-6
LC-46D82U/LC-52D82U
8 – 69
      
LC-46D82U/LC-52D82U
8 – 70
— MEMO —
PARTS GUIDE
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and performance of the set.
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
LC-46D82U/LC-52D82U
PartsGuide
[1] PRINTED WIRING BOARD
ASSEMBLIES
(NOT REPLACEMENT ITEM)
[2] LCD PANEL AND TUNER
(NOTE: THE PARTS HERE
SHOWN ARE SUPPLIED AS AN
ASSEMBLY BUT NOT
INDEPENDENTLY.)
[3] DUNTKE028FE03 (MAIN Unit)
[4] DUNTKD935FE10 (TERMINAL Unit)
[5] DUNTKD910FE02 (KEY Unit)
[6] DUNTKD909FE02 (R/C, LED Unit)
[7] DUNTKD888WE01
(ILLUMINATION Unit)
[8] DUNTKE046FE02 (FRC Unit)
[9] CABINET PARTS (LC-46D82U)
[10] CABINET PARTS (LC-52D82U)
[11] SUPPLIED ACCESSORIES
[12] PACKING PARTS
(NOT REPLACEMENT ITEM)
[13] SERVICE JIGS
(USE FOR SERVICING)
CONTENTS
LCD COLOR TELEVISION
LC-52D82U
LC-46D82U
MODELS
LC-46D82U/LC-52D82U
2
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[1] PRINTED WIRING BOARD ASSEMBLIES (NOT REPLACEMENT ITEM)
NDUNTKE028FM03 N R MAIN Unit
NDUNTKD935FM10 BG N X TERMINAL Unit
NDUNTKD910FM02 AG N X KEY Unit
NDUNTKD909FM02 AQ N X R/C, LED Unit
NDUNTKD888FM01 AH N X ILLUMINATION Unit
NDUNTKE046FE02 CC N J FRC Unit
NRDENCA205WJQZ BU X POWER SUPPLY Unit (Unit exchange)
[2] LCD PANEL AND TUNER (NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN ASSEMBLY BUT
NOT INDEPENDENTLY.)
NR1LK460D3LZ2CZ GG N J 46" LCD Panel Module
NR1LK520D3LZ2CZ HC N J 52" LCD Panel Module
TU1101 RTUDAA007WJQZ BB R Tuner
[3] DUNTKE028FE03 (MAIN Unit)
C1101 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1102 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1103 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1104 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1105 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1107 RC-KZA114WJZZY AB R Capacitor 1 25V Ceramic
C1108 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1110 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C1111 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C1112 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1113 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1115 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1116 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1118 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1120 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1122 VCERML1CN476MY AC R Capacitor 47 16V Capacitor(AL)
C1123 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1127 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1133 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1134 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1301 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1303 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1305 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1308 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1309 RC-KZA383WJZZY AC R Capacitor 10 25V Ceramic
C1313 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1314 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1315 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1316 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1401 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C1402 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1403 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1404 VCKYCY1AB334KY AB R Capacitor 0.33 10V Ceramic
C1405 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1406 VCERMZ1CN107MY AD R Capacitor 100 16V Capacitor(AL)
C1407 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C1408 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1409 VCKYCZ1CB223KY AC R Capacitor 0.022 16V Ceramic
C1410 RC-KZA383WJZZY AC R Capacitor 10 25V Ceramic
C1411 RC-KZA508WJQZY AC R Capacitor 3.3 25V Ceramic
C1412 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C1414 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C1416 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1417 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1418 VCKYCZ1CB333KY AA R Capacitor 0.033 16V Ceramic
C1419 VCKYCY1CB224KY AB R Capacitor 0.22 16V Ceramic
C1420 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1421 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C1422 VCKYCY1AB334KY AB R Capacitor 0.33 10V Ceramic
C1423 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1424 VCERML1CN476MY AC R Capacitor 47 16V Capacitor(AL)
C1425 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1426 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1428 VCCCCZ1HH330JY AB R Capacitor 33p 50V Ceramic
C1429 VCCCCZ1HH330JY AB R Capacitor 33p 50V Ceramic
C1430 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1433 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C1434 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1435 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1436 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1437 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1438 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1439 RC-KZA176WJZZY AC R Capacitor 10 10V Ceramic
C1440 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C1441 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1443 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1444 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1447 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1449 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
LC-46D82U/LC-52D82U
3
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C1458 VCCCCZ1HH330JY AB R Capacitor 33p 50V Ceramic
C1459 VCCCCZ1HH270JY AB R Capacitor 27p 50V Ceramic
C1460 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1461 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1462 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1463 RC-KZA154WJZZY AB R Capacitor 4.7 16V Ceramic
C1464 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1465 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C1466 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1467 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1469 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1470 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1471 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C1472 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C1473 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1474 VCERMZ1CN107MY AD R Capacitor 100 16V Capacitor(AL)
C1475 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1476 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1478 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1503 VCKYCZ1HB221KY AA R Capacitor 220p 50V Ceramic
C1504 VCKYCZ1HB221KY AA R Capacitor 220p 50V Ceramic
C1506 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1508 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1511 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1512 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C1513 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1514 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1515 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1516 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1517 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1518 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1519 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1520 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1536 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1537 VCERML1CN476MY AC R Capacitor 47 16V Capacitor(AL)
C1538 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1539 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1541 VCAAPE0JJ107MY AE R Capacitor 100 6.3V Electrolytic
C1542 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1543 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1544 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1545 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1546 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1547 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1548 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1549 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1550 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1551 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1552 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1553 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1554 VCAAPE0JJ227MY AE R Capacitor 220 6.3V Electrolytic
C1555 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1556 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1557 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1558 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1560 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1561 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1562 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1563 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1564 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1565 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1566 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1567 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1568 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1569 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1570 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1571 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1572 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1573 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1574 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1575 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1576 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1578 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1579 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1580 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1582 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1583 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1585 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1586 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1587 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1588 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1589 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1590 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1591 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1592 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
4
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C1593 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1594 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1595 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1596 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1597 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1598 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1599 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1600 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1601 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1602 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1603 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1604 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1605 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1606 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1607 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1608 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1609 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1610 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1611 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1612 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1613 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1614 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1615 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1616 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1617 VCCCCY1HH150JY AA R Capacitor 15p 50V Ceramic
C1618 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1619 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1620 VCCCCY1HH120JY AA R Capacitor 12p 50V Ceramic
C1621 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1622 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1623 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1624 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1625 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1626 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1627 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1628 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1629 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1630 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1631 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1632 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1633 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1634 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1635 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1636 VCAAPE0JJ107MY AE R Capacitor 100 6.3V Electrolytic
C1637 VCAAPE0JJ227MY AE R Capacitor 220 6.3V Electrolytic
C1642 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1644 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1645 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1646 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1647 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1648 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1649 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1650 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1651 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1652 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1653 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1654 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1655 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1656 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1701 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1702 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C1703 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1704 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1705 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1707 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1708 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1709 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1710 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1711 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1712 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1713 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1714 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1715 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1716 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1717 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1718 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1719 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1720 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1721 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1722 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1723 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1724 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1725 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1726 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1727 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
5
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C1728 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C1729 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1730 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C1731 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C1732 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C2001 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C2002 VCKYCZ1HB152KY AB R Capacitor 1500p 50V Ceramic
C2003 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2008 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2010 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2012 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2016 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2019 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2020 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C2023 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2024 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2025 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2026 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2027 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C2028 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C2029 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C2202 VCCCCZ1HH120JY AB R Capacitor 12p 50V Ceramic
C2203 VCCCCZ1HH120JY AB R Capacitor 12p 50V Ceramic
C2204 VCCCCZ1HH3R0CY AA R Capacitor 3p 50V Ceramic
C2205 VCCCCZ1HH3R0CY AA R Capacitor 3p 50V Ceramic
C2206 VCCCCZ1HH270JY AB R Capacitor 27p 50V Ceramic
C2207 VCCCCZ1HH270JY AB R Capacitor 27p 50V Ceramic
C2208 VCCCCZ1HH120JY AB R Capacitor 12p 50V Ceramic
C2209 VCCCCZ1HH3R0CY AA R Capacitor 3p 50V Ceramic
C2210 VCCCCZ1HH270JY AB R Capacitor 27p 50V Ceramic
C2231 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C2233 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C2234 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C2602 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C2606 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3301 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3302 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3303 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3304 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3305 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3306 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3307 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3308 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3309 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3310 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3311 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3312 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3313 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3314 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3315 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3316 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3318 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3320 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3321 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3322 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3324 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3327 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3328 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3329 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3330 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3331 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3332 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3333 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3334 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3335 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3336 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3337 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3338 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3339 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3340 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3341 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3342 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3343 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3344 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3345 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3346 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3347 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3348 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3349 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3350 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3351 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3352 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3353 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3354 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3355 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
6
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C3356 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3357 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3358 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3359 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3360 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3361 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3362 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3363 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3365 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3366 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3367 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3368 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3369 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3370 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3371 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3372 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3373 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3374 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3375 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3376 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3377 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3378 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3379 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3380 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3381 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3382 VCKYCY1CB224KY AB R Capacitor 0.22 16V Ceramic
C3383 VCKYCY1CB224KY AB R Capacitor 0.22 16V Ceramic
C3384 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3385 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3386 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3388 VCKYCY1CB224KY AB R Capacitor 0.22 16V Ceramic
C3389 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3390 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3391 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3392 VCKYCY1CB224KY AB R Capacitor 0.22 16V Ceramic
C3393 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3394 VCKYCY1CB224KY AB R Capacitor 0.22 16V Ceramic
C3395 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3396 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3397 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3398 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3399 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3401 VCKYCY1CB224KY AB R Capacitor 0.22 16V Ceramic
C3402 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3403 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3404 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3405 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3406 VCKYCZ1HB272KY AA R Capacitor 2700p 50V Ceramic
C3407 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3408 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3409 VCCCCZ1HH120JY AB R Capacitor 12p 50V Ceramic
C3410 VCKYCZ1HB272KY AA R Capacitor 2700p 50V Ceramic
C3411 VCCCCZ1HH120JY AB R Capacitor 12p 50V Ceramic
C3412 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3413 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3414 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3415 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3416 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3417 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3418 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3419 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3420 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3421 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3422 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3423 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3424 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3425 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3426 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3427 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3428 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3429 VCAAPE0JJ107MY AE R Capacitor 100 6.3V Electrolytic
C3430 VCAAPE0JJ107MY AE R Capacitor 100 6.3V Electrolytic
C3432 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C3501 VCAAPE0JJ107MY AE R Capacitor 100 6.3V Electrolytic
C3502 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3503 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3504 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3505 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3506 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3507 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3508 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3513 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3514 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3515 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3516 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
7
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C3517 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3518 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C3520 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3521 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3522 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3523 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3524 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3525 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3526 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3531 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C3532 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3533 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3534 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3535 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C3536 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C3537 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C3538 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8101 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8102 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8103 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8104 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8105 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8106 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8107 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8108 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8109 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8110 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8111 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8112 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8113 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8114 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8115 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8116 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8117 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8118 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8119 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8120 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8121 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8122 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8123 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8124 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8125 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8126 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8127 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8128 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8129 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8130 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8131 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8132 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8133 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8134 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8135 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8136 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8137 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8138 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8139 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8140 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8141 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8142 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C8143 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8144 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8145 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C8146 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C8147 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C8148 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C8152 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8153 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8154 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8301 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8302 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8303 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8304 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8305 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8306 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8307 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8308 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8309 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8310 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8311 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8312 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8313 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8314 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8315 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8316 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8317 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
8
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C8318 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8319 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8320 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8321 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8322 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8323 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8324 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8325 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8326 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8327 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8328 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8329 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8330 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8332 VCERML0JN227MY AC R Capacitor 220 6.3V Capacitor(AL)
C8333 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8334 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8335 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8336 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8337 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8338 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8339 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8340 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8341 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8342 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8343 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8344 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8345 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8346 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8347 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8348 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8349 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8350 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8351 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8352 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8353 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8354 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8355 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8356 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8357 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8358 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8359 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8401 RC-KZA030WJZZY AB R Capacitor 2.2 10V Ceramic
C8402 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8403 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8404 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8405 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8406 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C8407 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C8408 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C8409 VCKYCZ1HB102KY AB R Capacitor 1000p 50V Ceramic
C8452 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8453 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8460 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8601 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C8602 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8603 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8606 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8607 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8608 VCCCCZ1HH330JY AB R Capacitor 33p 50V Ceramic
C8609 VCCCCZ1HH330JY AB R Capacitor 33p 50V Ceramic
C8610 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C8611 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8612 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8613 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8614 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8615 VCCCCZ1HH390JY AB R Capacitor 39p 50V Ceramic
C8616 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8617 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8618 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8619 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8620 VCCCCZ1HH560JY AB R Capacitor 56p 50V Ceramic
C8621 VCCCCZ1HH560JY AB R Capacitor 56p 50V Ceramic
C8622 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8623 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8624 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8625 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8626 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8627 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8628 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8629 VCCCCZ1HH220JY AB R Capacitor 22p 50V Ceramic
C8630 VCCCCZ1HH220JY AB R Capacitor 22p 50V Ceramic
C8631 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8632 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8633 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8634 VCCCCZ1HH390JY AB R Capacitor 39p 50V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
9
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C8635 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8636 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8637 VCCCCZ1HH100DY AB R Capacitor 10p 50V Ceramic
C8638 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8639 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8640 VCCCCZ1HH100DY AB R Capacitor 10p 50V Ceramic
C8641 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8642 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8643 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8644 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8645 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8646 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8647 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8648 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8649 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8650 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8651 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8652 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8653 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8654 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8655 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8656 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8657 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8658 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8659 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8660 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8661 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8662 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8663 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8664 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8665 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8666 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8667 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8668 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8669 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8670 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C8671 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8672 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8673 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8674 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C8675 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8676 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C8701 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C8702 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C8703 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C8704 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8705 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8706 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8707 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8708 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8709 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8710 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8711 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8803 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8804 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8805 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C8806 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8807 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C8808 VCKYCZ1AF224ZY AA R Capacitor 0.22 10V Ceramic
C9006 VCKYCZ1EF104ZY AA R Capacitor 0.1 25V Ceramic
C9101 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9102 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9103 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9104 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9105 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9106 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9107 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9108 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9601 VCKYCZ1EB682KY AB R Capacitor 6800p 25V Ceramic
C9602 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C9603 VCKYCZ1HB222KY AB R Capacitor 2200p 50V Ceramic
C9604 VCKYCZ1HB221KY AA R Capacitor 220p 50V Ceramic
C9605 VCKYCZ1HB272KY AA R Capacitor 2700p 50V Ceramic
C9606 VCKYCY1EB104KY AB R Capacitor 0.1 25V Ceramic
C9607 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C9608 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C9609 VCAAPE1CJ396MY AE R Capacitor 39 16V Electrolytic
C9610 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9611 VCAAPE1CJ396MY AE R Capacitor 39 16V Electrolytic
C9612 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9613 VCKYCZ1HB272KY AA R Capacitor 2700p 50V Ceramic
C9614 VCKYCZ1HB221KY AA R Capacitor 220p 50V Ceramic
C9615 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C9616 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9617 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
10
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C9618 VCAAPE0JJ107MY AE R Capacitor 100 6.3V Electrolytic
C9619 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9620 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9621 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9622 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9623 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9626 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C9627 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C9628 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C9629 VCKYCZ1EB682KY AB R Capacitor 6800p 25V Ceramic
C9630 VCKYCZ1EB682KY AB R Capacitor 6800p 25V Ceramic
C9631 VCKYCZ1HB221KY AA R Capacitor 220p 50V Ceramic
C9632 VCKYCZ1HB272KY AA R Capacitor 2700p 50V Ceramic
C9633 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C9634 VCKYCY1EB104KY AB R Capacitor 0.1 25V Ceramic
C9635 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9637 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C9638 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9639 VCKYCZ1AB104KY AB R Capacitor 0.1 10V Ceramic
C9640 VCKYCZ1EB822KY AA R Capacitor 8200p 25V Ceramic
C9641 VCKYCZ1EB682KY AB R Capacitor 6800p 25V Ceramic
C9642 VCKYCZ1HB221KY AA R Capacitor 220p 50V Ceramic
C9643 VCKYCZ1HB272KY AA R Capacitor 2700p 50V Ceramic
C9644 VCCCCZ1HH101JY AB R Capacitor 100p 50V Ceramic
C9645 VCKYCY1EB104KY AB R Capacitor 0.1 25V Ceramic
C9646 VCKYTV1CB105KY AC R Capacitor 1 16V Ceramic
C9647 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9648 VCAAPE1CJ396MY AE R Capacitor 39 16V Electrolytic
C9649 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9650 VCKYCZ1HB222KY AB R Capacitor 2200p 50V Ceramic
C9651 VCKYCZ1HB272KY AA R Capacitor 2700p 50V Ceramic
C9652 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9653 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9654 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9655 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9656 VCKYCZ1EB682KY AB R Capacitor 6800p 25V Ceramic
C9706 VCKYCZ1EB103KY AA R Capacitor 0.01 25V Ceramic
C9707 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9708 RC-KZA154WJZZY AB R Capacitor 4.7 16V Ceramic
C9710 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C9711 VCKYCY1AB105KY AB R Capacitor 1 10V Ceramic
C9712 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
C9713 RC-KZA069WJZZY AB R Capacitor 4.7 10V Ceramic
C9714 RC-KZA114WJZZY AB R Capacitor 1 25V Ceramic
C9717 RC-KZA510WJPZY AB R Capacitor 10 16V Ceramic
D1302 VHDKDS121E+-1Y AB R Diode KDS121E-RTK
D1304 VHDKDS121E+-1Y AB R Diode KDS121E-RTK
D1305 VHDKDS121E+-1Y AB R Diode KDS121E-RTK
D1306 VHDKDS121E+-1Y AB R Diode KDS121E-RTK
D1307 VHDKDS121E+-1Y AB R Diode KDS121E-RTK
D1308 VHDKDS121E+-1Y AB R Diode KDS121E-RTK
D1312 RH-EXA485WJQZY AB R Diode KDZ9.1V-Y-RTK/P
D1313 VHPGPFM513T-1 AH R Photo Diode OPTICAL OUTPUT
D1502 VHDMA152WK/-1Y AB R Diode MA152WK-(TX)
D1503 VHDMA152WK/-1Y AB R Diode MA152WK-(TX)
D1505 VHDMA111+++-1Y AB R Diode MA2J11100L
D1506 VHDMA111+++-1Y AB R Diode MA2J11100L
D1509 VHD1SS226//-1Y AC R Diode 1SS226(T5L,F,T)
D1510 VHD1SS226//-1Y AC R Diode 1SS226(T5L,F,T)
D1511 VHDMA111+++-1Y AB R Diode MA2J11100L
D1513 VHD1SS226//-1Y AC R Diode 1SS226(T5L,F,T)
D1514 VHDMA111+++-1Y AB R Diode MA2J11100L
D1515 VHD1SS226//-1Y AC R Diode 1SS226(T5L,F,T)
D1523 VHDMA111+++-1Y AB R Diode MA2J11100L
D1701 VHDMA152WK/-1Y AB R Diode MA152WK-(TX)
D1702 VHDMA111+++-1Y AB R Diode MA2J11100L
D1703 VHD1SS226//-1Y AC R Diode 1SS226(T5L,F,T)
D1705 VHD1SS226//-1Y AC R Diode 1SS226(T5L,F,T)
D1706 VHDMA111+++-1Y AB R Diode MA2J11100L
D2003 RH-PXA018WJZZY AC R Diode GM1HD55200A
D8101 RH-PXA018WJZZY AC R Diode GM1HD55200A
D8102 RH-PXA018WJZZY AC R Diode GM1HD55200A
D9006 RH-EX1234CEZZY AE R Zener Diode HZU3.6B2TRF, 3.6V
D9007 RH-EX1234CEZZY AE R Zener Diode HZU3.6B2TRF, 3.6V
D9008 RH-EX1234CEZZY AE R Zener Diode HZU3.6B2TRF, 3.6V
D9601 VHDMA111+++-1Y AB R Diode MA2J11100L
D9602 RH-EX1226CEZZY AB R Zener Diode HZU2.4BTRF-E, 2.4V
D9603 VHDD1FH3+++-1Y AD R Diode D1FH3
D9604 VHDDG1M3+++-1Y AC R Diode DG1M3-5063R
D9605 RH-EX0256TAZZY AB R Zener Diode EX0256TA
D9606 VHDMA111+++-1Y AB R Diode MA2J11100L
D9607 VHDMA111+++-1Y AB R Diode MA2J11100L
D9608 RH-EX1226CEZZY AB R Zener Diode HZU2.4BTRF-E, 2.4V
D9609 VHDMA111+++-1Y AB R Diode MA2J11100L
D9610 RH-EX1226CEZZY AB R Zener Diode HZU2.4BTRF-E, 2.4V
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
11
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
D9611 VHDMA111+++-1Y AB R Diode MA2J11100L
D9612 VHDMA111+++-1Y AB R Diode MA2J11100L
D9701 VHDMA111+++-1Y AB R Diode MA2J11100L
D9702 VHDMA111+++-1Y AB R Diode MA2J11100L
FB1112 RBLN-A206WJZZY AA R Balun
FB1113 RBLN-A206WJZZY AA R Balun
FB1114 RBLN-A206WJZZY AA R Balun
FB1115 RBLN-A206WJZZY AA R Balun
FB1301 RBLN-0236TAZZY AA R Balun
FB1401 RBLN-A330WJQZY AA R Balun
FB1503 RBLN-A361WJZZY AA R Balun
FB1504 RBLN-A361WJZZY AA R Balun
FB1510 RBLN-0210TAZZY AB R Balun
FB1511 RBLN-0210TAZZY AB R Balun
FB1513 RBLN-0210TAZZY AB R Balun
FB1514 RBLN-0210TAZZY AB R Balun
FB1515 RBLN-0210TAZZY AB R Balun
FB1516 RBLN-0210TAZZY AB R Balun
FB1517 RBLN-0210TAZZY AB R Balun
FB1518 RBLN-0210TAZZY AB R Balun
FB1520 RBLN-A324WJZZY AA R Balun
FB1521 RBLN-0210TAZZY AB R Balun
FB1522 RBLN-0210TAZZY AB R Balun
FB1701 RBLN-0210TAZZY AB R Balun
FB1702 RBLN-0210TAZZY AB R Balun
FB2001 RBLN-A206WJZZY AA R Balun
FB2003 RBLN-A005WJZZY AA R Balun
FB2004 RBLN-A005WJZZY AA R Balun
FB2005 RBLN-A005WJZZY AA R Balun
FB2602 RBLN-A206WJZZY AA R Balun
FB2603 RBLN-A206WJZZY AA R Balun
FB2604 RBLN-A206WJZZY AA R Balun
FB2605 RBLN-A206WJZZY AA R Balun
FB2606 RBLN-A206WJZZY AA R Balun
FB2607 RBLN-A206WJZZY AA R Balun
FB2608 RBLN-A206WJZZY AA R Balun
FB3301 RBLN-A206WJZZY AA R Balun
FB3302 RBLN-0210TAZZY AB R Balun
FB3303 RBLN-0210TAZZY AB R Balun
FB3304 RBLN-0210TAZZY AB R Balun
FB3305 RBLN-0210TAZZY AB R Balun
FB3306 RBLN-0210TAZZY AB R Balun
FB3307 RBLN-A206WJZZY AA R Balun
FB3308 RBLN-A206WJZZY AA R Balun
FB3501 RBLN-A206WJZZY AA R Balun
FB8401 RBLN-0210TAZZY AB R Balun
FB8601 RBLN-A192WJZZY AA R Balun
FB8602 RBLN-A192WJZZY AA R Balun
FB8604 RBLN-A192WJZZY AA R Balun
FB8605 RBLN-A226WJZZY AA R Balun
FB8606 RBLN-A226WJZZY AA R Balun
FB8607 RBLN-A226WJZZY AA R Balun
FB8608 RBLN-A192WJZZY AA R Balun
FB8701 RBLN-A192WJZZY AA R Balun
FB8801 RBLN-0237TAZZY AB R Balun
FB9701 RBLN-0236TAZZY AA R Balun
FB9702 RBLN-A192WJZZY AA R Balun
FB9703 RBLN-A192WJZZY AA R Balun
FB9705 RBLN-A206WJZZY AA R Balun
FB9706 RBLN-A192WJZZY AA R Balun
FB9707 RBLN-A206WJZZY AA R Balun
FB9708 RBLN-A206WJZZY AA R Balun
FB9709 RBLN-A206WJZZY AA R Balun
FB9710 RBLN-A206WJZZY AA R Balun
FB9711 RBLN-A206WJZZY AA R Balun
FL8401 RFILNA044WJZZY AC R Filter
IC1101 VHIPQ1M505M-1Y AD R IC PQ1M505M2SPQ
IC1102 VHIPQ1M505M-1Y AD R IC PQ1M505M2SPQ
IC1103 VHIBA7655AF-1Y AG R IC BA7655AF-T1
IC1104 VHIM62332FP-1Y AL R IC M62332FPCF5J
IC1301 VHIM62320FP-1Y AH R IC M62320FPDF5J
IC1303 VHIT7SET08U1EY AC R IC TC7SET08FU(5L,JF,T
IC1305 VHIT7SET08U1EY AC R IC TC7SET08FU(5L,JF,T
IC1401 VHIAN5832SA-1Y AQ R IC AN5832SA-E1V
IC1403 RH-IXB991WJQZY AN R IC 24LC256-I/SN-G
IC1404 VHIAK4683EQ-1Q AR R IC AK4683EQ
IC1407 VHITAS3108D-1Y AS R IC TAS3108DCPR
IC1408 VHINJM4565V-1Y AF R IC NJM4565V-TE1
IC1501 RH-IXC037WJQZS J IC EDID HDMI
IC1502 RH-IXC038WJQZS J IC EDID HDMI
IC1506 VHIPQ018ENA-1Y AF R IC PQ018ENA1ZPH
IC1507 VHITMDS341A-1Y AR R IC TMDS341APFCR
IC1510 VHISII9025+-1Q AX R IC SII9025CTU
IC1701 RH-IXC036WJQZS J IC EDID HDMI
IC1702 VHITMDS341A-1Y AR R IC TMDS341APFCR
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
12
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
IC2001 VHIBD5224G+-1Y AD R IC BD5224G-TR
IC2002 RH-IXB986WJN3Q J IC MONITOR MICON
IC2003 VHITC7W66U/-1Y AE R IC TC7W66FU(TE12L,F)
IC2004 VHIBR24L08F-1Y AE R IC BR24L08F-WE2
IC2005 VHIM62332FP-1Y AL R IC M62332FPCF5J
IC2006 VHITCVHC32T-1Y AE R IC TC74VHC32FT(EL)
IC2007 VHIAHC1G08W-1Y AD R IC 74AHC1G08GW/G,125
IC2008 VHI7WH126FU-1Y AE R IC TC7WH126FU(TE12L,F)
IC2601 VHITC7W66U/-1Y AE R IC TC7W66FU(TE12L,F)
IC3301 RH-IXB925WJQZQ BN R IC SVP-LX62(7162S
IC3302 VHIPQ1X251M-1Y AD R IC PQ1X251M2ZPH
IC3501 RH-IXB822WJQZQ AY R IC EM6A9320BI-5MG
IC3502 RH-IXB822WJQZQ AY R IC EM6A9320BI-5MG
IC8101 RH-IXB281WJZZQ BQ R IC TC81240ATBG(O,5)
IC8102 VHIPQ1X251M-1Y AD R IC PQ1X251M2ZPH
IC8301 RH-IXB765WJQZQ AW R IC K4H561638H-UCB3
IC8302 RH-IXB765WJQZQ AW R IC K4H561638H-UCB3
IC8303 RH-IXB765WJQZQ AW R IC K4H561638H-UCB3
IC8304 RH-IXB765WJQZQ AW R IC K4H561638H-UCB3
IC8305 RH-IXA361WJZZY AM R IC LP2995MX/NOPB
IC8401 RH-IXB268WJZZY AK R IC ICS422M-01LFT
IC8402 RH-IXB269WJZZY AK R IC ICS422M-02LFT
IC8403 VHILV04AT++-1Y AD R IC SN74LV04APWR
IC8451 RH-IXC132WJQZQ J IC Program IC
IC8454 VHIBR24L64F-1Y AK R IC BR24L64F-WE2
IC8601 RH-IXB684WJQZQ BE R IC 218T312ZGA21G
IC8602 VHIR1173S10-1Y AF R IC R1173S101B-E2-F
IC8603 VHIPQ1X181M-1Y AD R IC PQ1X181M2ZPH
IC8701 VHIPQ1X331M-1Y AD R IC PQ1X331M2ZPH
IC8702 VHITC6384AF1EQ AW R IC TC6384AFG-0001(JQZ)
IC8801 VHIAK4363VF-1Y AQ R IC AK4363VF
IC9101 RH-IXB997WJQZQ R EPM240T100C5N
IC9602 VHIPQ1CX12H-1Y AK R IC PQ1CX12H2ZPQ
IC9603 VHITPS40055-1Y AN R IC TPS40055PWPR
IC9605 VHIPQ1X181M-1Y AD R IC PQ1X181M2ZPH
IC9606 VHITPS40055-1Y AN R IC TPS40055PWPR
IC9607 VHITPS40055-1Y AN R IC TPS40055PWPR
IC9701 VHIPQ090DNA-1Y AE R IC PQ090DNA1ZPH
IC9703 VHIBH33FB1G-1Y AD R IC BH33FB1WG-TR
IC9705 VHIPQ050DNA-1Y AE R IC PQ050DNA1ZPH
J1501 QJAKFA042WJZZ AD R Jack
L1301 VPCEM100MR70NY AC R Coil Peaking 10µH
L1401 VPCBM470K2R4NY AC R Coil Peaking 47µH
L1506 RCILFA116WJZZY AE R Coil
L1507 RCILFA116WJZZY AE R Coil
L1508 RCILFA116WJZZY AE R Coil
L1509 RCILFA116WJZZY AE R Coil
L1510 RCILFA116WJZZY AE R Coil
L1511 RCILFA116WJZZY AE R Coil
L1512 RCILFA116WJZZY AE R Coil
L1513 RCILFA116WJZZY AE R Coil
L1514 VPCBM4R7MR25NY AC R Coil Peaking 4.7µH
L1530 VPCBM4R7MR25NY AC R Coil Peaking 4.7µH
L1701 RCILFA116WJZZY AE R Coil
L1702 RCILFA116WJZZY AE R Coil
L1703 RCILFA116WJZZY AE R Coil
L1704 RCILFA116WJZZY AE R Coil
L2201 VPD9M220J2R7NY AC R Coil Peaking 22µH
L2202 VPD9M220J2R7NY AC R Coil Peaking 22µH
L2203 VPD9M220J2R7NY AC R Coil Peaking 22µH
L2601 RCILFA154WJZZY AC R Coil
L2602 RCILFA154WJZZY AC R Coil
L2603 RCILFA154WJZZY AC R Coil
L2604 RCILFA154WJZZY AC R Coil
L2605 RCILFA154WJZZY AC R Coil
L2606 RCILFA154WJZZY AC R Coil
L2607 RCILFA154WJZZY AC R Coil
L2608 RCILFA154WJZZY AC R Coil
L2609 RCILFA154WJZZY AC R Coil
L2610 RCILFA154WJZZY AC R Coil
L3301 VPCEM2R2MR23NY AC R Coil Peaking 2.2µH
L3302 VPCEM2R2MR23NY AC R Coil Peaking 2.2µH
L3303 VPCEM2R2MR23NY AC R Coil Peaking 2.2µH
L3304 VPCEM2R2MR23NY AC R Coil Peaking 2.2µH
L3305 VPCEM2R2MR23NY AC R Coil Peaking 2.2µH
L3306 VPCEM2R2MR23NY AC R Coil Peaking 2.2µH
L3307 VPCEM2R2MR23NY AC R Coil Peaking 2.2µH
L8601 VPMKMR39JR57VY AB R Coil Peaking 0.39µH
L8602 VPMKMR39JR57VY AB R Coil Peaking 0.39µH
L8603 VPMKMR33JR50VY AB R Coil Peaking 0.33µH
L8604 VPMKMR68JR84VY AB R Coil Peaking 0.68µH
L8605 VPMKMR68JR84VY AB R Coil Peaking 0.68µH
L8606 VPMKMR22JR37VY AB R Coil Peaking 0.22µH
L8607 VPMKMR22JR37VY AB R Coil Peaking 0.22µH
L8608 VPMKMR33JR50VY AB R Coil Peaking 0.33µH
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
13
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
L9601 RCILPA086WJZZY AE R Coil
L9602 RCILPA084WJZZY AE R Coil
L9603 RCILCA029WJZZY AD R Coil
L9604 RCILPA084WJZZY AE R Coil
LUG1101 QLUGHA006WJZZY AC R Lug
LUG1102 QLUGHA006WJZZY AC R Lug
LUG1104 QLUGHA006WJZZY AC R Lug
LUG1105 QLUGHA006WJZZY AC R Lug
LUG1106 QLUGHA006WJZZY AC R Lug
LUG1107 QLUGHA009WJZZY AC R Lug
LUG1108 QLUGHA009WJZZY AC R Lug
P1401 QPLGN0055CEZZY AD R Plug 5pin
P2001 QPLGN0060CEZZY AE R Plug 10pin
P2002 QPLGNA173WJZZY AD R Plug 4pin (KM)
P2003 QPLGNA412WJZZY AG R Plug 20pin
P2601 QCNCWA663WJQZY R Connector 41pin (LV)
P2602 QPLGNA412WJZZY AG R Plug 20pin
P2603 QPLGNA173WJZZY AD R Plug 4pin (LB)
P9005 QPLGNA160WJZZY AD R Plug 5pin
P9101 QPLGN0060CEZZY AE R Plug 10pin
P9301 QCNCWA562WJQZY AF R Connector 60pin (to PC-CARD)
P9701 QPLGNA181WJZZY AF R Plug 12pin (PH to POWER)
P9702 QPLGNA175WJZZY AE R Plug 6pin (PD to POWER)
Q1102 VS2SC3928AR-1Y AB R Transistor 2SC3928A-T112-1R
Q1103 VS2SC3928AR-1Y AB R Transistor 2SC3928A-T112-1R
Q1301 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1303 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1304 VSRT1N141U/-1Y AB R Transistor RT1N141U-T111-1
Q1305 VSKTC3875SG-1Y AB R Transistor KTC3875SG
Q1306 VS2SA1530AR-1Y AB R Transistor 2SA1530A-T112-1R
Q1307 VSKRC231S++-1Y AB R Transistor KRC231S-RTK/P
Q1308 VSKRC231S++-1Y AB R Transistor KRC231S-RTK/P
Q1314 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1503 VSUM6K1NTN+-1Y AC R Transistor UM6K1N TN
Q1504 VSUM6K1NTN+-1Y AC R Transistor UM6K1N TN
Q1505 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1506 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1507 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1508 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1514 VSIMD2A////-1Y AC R Transistor IMD2AT108
Q1515 VSIMD2A////-1Y AC R Transistor IMD2AT108
Q1522 VSRT1N141U/-1Y AB R Transistor RT1N141U-T111-1
Q1523 VSKTA1535T+-1Y AC R Transistor KTA1535T-RTK/P
Q1702 VSUM6K1NTN+-1Y AC R Transistor UM6K1N TN
Q1704 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1706 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q1707 VSIMD2A////-1Y AC R Transistor IMD2AT108
Q1710 VSRT1N141U/-1Y AB R Transistor RT1N141U-T111-1
Q1711 VSKTA1535T+-1Y AC R Transistor KTA1535T-RTK/P
Q2001 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q2002 VSRT1P141U/-1Y AB R Transistor RT1P141U-T111-1
Q2003 VSRT1N141U/-1Y AB R Transistor RT1N141U-T111-1
Q2006 VSRT1N141U/-1Y AB R Transistor RT1N141U-T111-1
Q2007 VSRT1N141U/-1Y AB R Transistor RT1N141U-T111-1
Q2201 VS2SC3928AR-1Y AB R Transistor 2SC3928A-T112-1R
Q2202 VS2SC2735//-1Y AB R Transistor 2SC2735JC21TL
Q2203 VS2SC2735//-1Y AB R Transistor 2SC2735JC21TL
Q2204 VS2SC3928AR-1Y AB R Transistor 2SC3928A-T112-1R
Q2205 VS2SC3928AR-1Y AB R Transistor 2SC3928A-T112-1R
Q2206 VS2SC2735//-1Y AB R Transistor 2SC2735JC21TL
Q2207 VS2SA1530AR-1Y AB R Transistor 2SA1530A-T112-1R
Q2208 VS2SA1530AR-1Y AB R Transistor 2SA1530A-T112-1R
Q2209 VS2SA1530AR-1Y AB R Transistor 2SA1530A-T112-1R
Q8601 VSUM6K1NTN+-1Y AC R Transistor UM6K1N TN
Q9003 VSUM6K1NTN+-1Y AC R Transistor UM6K1N TN
Q9601 VSSP8K2++++-1Y AE R Transistor SP8K2TB
Q9602 VSSP8K4++++-1Y AF R Transistor SP8K4TB
Q9603 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q9604 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q9605 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q9606 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q9607 VSKRC404E++-1Y AB R Transistor VSKRC404E
Q9608 VSSP8K2++++-1Y AE R Transistor SP8K2TB
Q9609 VS2SC3928AR-1Y AB R Transistor 2SC3928A-T112-1R
Q9701 VSRT1N141U/-1Y AB R Transistor RT1N141U-T111-1
Q9702 VSRT1P141U/-1Y AB R Transistor RT1P141U-T111-1
R1101 VRS-CZ1JF822FY AA R Resistor 8.2k 1/16W Metal Oxide
R1102 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1105 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1106 VRS-CZ1JF331JY AA R Resistor 330 1/16W Metal Oxide
R1107 VRS-CZ1JF332FY AA R Resistor 3.3k 1/16W Metal Oxide
R1108 VRS-CZ1JF822FY AA R Resistor 8.2k 1/16W Metal Oxide
R1110 VRS-CZ1JF683JY AA R Resistor 68k 1/16W Metal Oxide
R1111 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1114 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
14
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R1118 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1119 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1120 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1121 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1122 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1125 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1127 VRS-CZ1JF222FY AA R Resistor 2.2k 1/16W Metal Oxide
R1129 VRS-CZ1JF123FY AA R Resistor 12k 1/16W Metal Oxide
R1130 VRS-CZ1JF392FY AA R Resistor 3.9k 1/16W Metal Oxide
R1131 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1132 VRS-CZ1JF272FY AA R Resistor 2.7k 1/16W Metal Oxide
R1133 VRS-CZ1JF182FY AA R Resistor 1.8k 1/16W Metal Oxide
R1134 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1135 VRS-CZ1JF332FY AA R Resistor 3.3k 1/16W Metal Oxide
R1136 VRS-CJ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1139 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1165 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1169 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1170 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1171 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1172 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1173 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1174 VRS-TV1JD000JY AA R Resistor 0 1/16W Metal Oxide
R1301 VRS-CJ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1302 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1303 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1304 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1305 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1306 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1307 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1308 VRS-CZ1JF222FY AA R Resistor 2.2k 1/16W Metal Oxide
R1309 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1310 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1314 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1315 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1317 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1318 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1323 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1324 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1325 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1327 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1330 VRS-CZ1JF562FY AA R Resistor 5.6k 1/16W Metal Oxide
R1332 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1333 VRS-CZ1JF562FY AA R Resistor 5.6k 1/16W Metal Oxide
R1334 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1336 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1337 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1338 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1342 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1343 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1344 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1346 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1347 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1350 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1351 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1401 VRS-CZ1JF184JY AA R Resistor 180k 1/16W Metal Oxide
R1402 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1403 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1404 VRS-CJ1JF101JY AA R Resistor 100 1/16W Metal Oxide
R1405 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1406 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1407 VRS-CZ1JF332FY AA R Resistor 3.3k 1/16W Metal Oxide
R1408 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1409 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1410 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1411 VRS-CJ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1412 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1413 VRS-CZ1JF3R3JY AA R Resistor 3.3 1/16W Metal Oxide
R1414 VRS-CJ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1415 VRS-CJ1JF473JY AB R Resistor 47k 1/16W Metal Oxide
R1416 VRS-CH1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1417 VRS-CZ1JF4R7JY AA R Resistor 4.7 1/16W Metal Oxide
R1420 VRS-CZ1JF123FY AA R Resistor 12k 1/16W Metal Oxide
R1421 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1424 VRS-CZ1JF4R7JY AA R Resistor 4.7 1/16W Metal Oxide
R1426 VRS-CH1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1427 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1428 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1429 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1430 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1431 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1432 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1433 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1434 VRS-CJ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1435 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
15
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R1437 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1439 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1440 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1441 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1442 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1443 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1445 VRS-CJ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1446 VRS-CZ1JF4R7JY AA R Resistor 4.7 1/16W Metal Oxide
R1449 VRS-CZ1JF243FY AA R Resistor 24k 1/16W Metal Oxide
R1450 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1451 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1452 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1453 VRS-CZ1JF243FY AA R Resistor 24k 1/16W Metal Oxide
R1454 VRS-CZ1JF4R7JY AA R Resistor 4.7 1/16W Metal Oxide
R1455 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1456 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1457 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1458 VRS-CZ1JF221JY AA R Resistor 220 1/16W Metal Oxide
R1460 VRS-CZ1JF221JY AA R Resistor 220 1/16W Metal Oxide
R1461 VRS-CZ1JF222FY AA R Resistor 2.2k 1/16W Metal Oxide
R1462 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1463 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1464 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1465 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1466 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1469 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R1470 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1472 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1473 VRS-CZ1JF222FY AA R Resistor 2.2k 1/16W Metal Oxide
R1474 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1477 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1478 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1479 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1480 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1501 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1502 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1505 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1506 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1507 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1510 VRS-CZ1JF104FY AB R Resistor 100k 1/16W Metal Oxide
R1511 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1512 VRS-CZ1JF104FY AB R Resistor 100k 1/16W Metal Oxide
R1517 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1518 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1521 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1522 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1532 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1534 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1535 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1536 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1537 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1538 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1539 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1540 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1541 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1542 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1543 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1545 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1546 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1547 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1551 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1555 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1556 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1557 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1558 VRS-CZ1JF331JY AA R Resistor 330 1/16W Metal Oxide
R1559 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1573 VRS-TQ2BD561JY AA R Resistor 560 1/8W Metal Oxide
R1574 VRS-TQ2BD561JY AA R Resistor 560 1/8W Metal Oxide
R1575 VRS-TQ2BD561JY AA R Resistor 560 1/8W Metal Oxide
R1577 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1578 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1579 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R1593 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1594 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1596 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1597 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1598 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1599 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1600 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1602 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1603 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R1604 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1605 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1606 RR-SZA031WJZZY AA R Resistor 4.64K
R1607 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
16
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R1608 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1609 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1610 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1611 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1612 VRS-CZ1JF105JY AA R Resistor 1M 1/16W Metal Oxide
R1614 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1615 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1616 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1617 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1618 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R1620 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R1621 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R1622 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R1623 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R1624 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1626 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R1627 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R1628 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R1629 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R1630 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R1631 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R1632 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1634 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1635 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1636 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R1647 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1702 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R1709 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1710 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1711 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1712 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1713 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1714 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1715 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R1717 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1719 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1720 VRS-CZ1JF104FY AB R Resistor 100k 1/16W Metal Oxide
R1722 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1723 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1726 RR-SZA031WJZZY AA R Resistor 4.64K
R1727 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1728 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1729 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1730 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R1731 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R1732 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R1733 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R1734 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R1735 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1736 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R1740 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R1742 VRS-CZ1JF331JY AA R Resistor 330 1/16W Metal Oxide
R2001 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2002 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R2003 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2004 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2005 VRS-CZ1JF272FY AA R Resistor 2.7k 1/16W Metal Oxide
R2006 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R2007 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R2008 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2009 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2010 VRS-CJ1JF333JY AA R Resistor 33k 1/16W Metal Oxide
R2011 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R2012 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2013 VRS-CH1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2014 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2015 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2016 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2017 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2019 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2023 VRS-CZ1JF393FY AA R Resistor 39k 1/16W Metal Oxide
R2024 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2029 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2030 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2031 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2032 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R2033 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2035 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R2036 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2037 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2038 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2039 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2040 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2041 VRS-CZ1JF152JY AA R Resistor 1.5k 1/16W Metal Oxide
R2042 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
17
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R2043 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R2044 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2045 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R2047 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2048 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R2049 VRS-CZ1JF272FY AA R Resistor 2.7k 1/16W Metal Oxide
R2050 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2051 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2052 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2053 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2054 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2055 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2056 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2060 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2061 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2062 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2063 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2064 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2065 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2070 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R2076 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2081 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2082 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R2098 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2101 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2104 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2105 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2107 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2109 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2112 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2113 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2115 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2117 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2120 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2121 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2124 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2126 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2127 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2128 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2130 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2132 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2134 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R2135 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R2201 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2202 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2203 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2204 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2209 VRS-TV1JD102FY AA R Resistor 1k 1/16W Metal Oxide
R2210 VRS-TV1JD331JY AB R Resistor 330 1/16W Metal Oxide
R2211 VRS-TV1JD331JY AB R Resistor 330 1/16W Metal Oxide
R2212 VRS-TV1JD102FY AA R Resistor 1k 1/16W Metal Oxide
R2213 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2214 VRS-CZ1JF911JY AA R Resistor 910 1/16W Metal Oxide
R2215 VRS-CZ1JF911JY AA R Resistor 910 1/16W Metal Oxide
R2216 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R2219 VRS-TV1JD102FY AA R Resistor 1k 1/16W Metal Oxide
R2220 VRS-TV1JD331JY AB R Resistor 330 1/16W Metal Oxide
R2221 VRS-CZ1JF911JY AA R Resistor 910 1/16W Metal Oxide
R2222 VRS-TV1JD102FY AA R Resistor 1k 1/16W Metal Oxide
R2223 VRS-TV1JD102FY AA R Resistor 1k 1/16W Metal Oxide
R2224 VRS-TV1JD102FY AA R Resistor 1k 1/16W Metal Oxide
R2237 VRS-CZ1JF105JY AA R Resistor 1M 1/16W Metal Oxide
R2255 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2601 VRS-CH1JF223JY AA R Resistor 22k 1/16W Metal Oxide
R2602 VRS-CH1JF223JY AA R Resistor 22k 1/16W Metal Oxide
R2603 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R2604 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2605 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2606 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2607 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2608 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2609 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2610 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2611 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2612 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2613 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2614 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2617 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2618 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2619 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2620 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2628 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R2629 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3304 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R3305 VRS-CH1JF100JY AA R Resistor 10 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
18
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R3306 VRS-CH1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3307 VRS-CZ1JF471JY AA R Resistor 470 1/16W Metal Oxide
R3308 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3309 VRS-CZ1JF471JY AA R Resistor 470 1/16W Metal Oxide
R3310 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3311 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R3314 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3315 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3316 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3317 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3318 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3320 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3321 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3322 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3323 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3324 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3325 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3326 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3327 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3328 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3329 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3330 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R3331 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R3332 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R3333 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R3334 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R3335 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R3336 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3339 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R3340 VRK-CD1JJ681JY AB R Resistor 680 1/16W Metal Composition
R3341 VRK-CD1JJ681JY AB R Resistor 680 1/16W Metal Composition
R3342 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R3343 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R3344 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R3345 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R3346 VRS-CZ1JF105JY AA R Resistor 1M 1/16W Metal Oxide
R3348 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R3349 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R3352 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3355 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3356 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3357 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R3358 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R3359 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R3360 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3362 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3363 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3368 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3369 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R3370 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R3378 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3501 VRS-CH1JF680JY AA R Resistor 68 1/16W Metal Oxide
R3502 VRS-CH1JF680JY AA R Resistor 68 1/16W Metal Oxide
R3503 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3504 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3505 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3506 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R3507 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3509 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3511 VRK-CD1JJ680JY AC R Resistor 68 1/16W Metal Composition
R3513 VRS-CH1JF680JY AA R Resistor 68 1/16W Metal Oxide
R3514 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3515 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3516 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3517 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3518 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3520 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3522 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3523 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3524 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3526 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3528 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3529 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3530 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3531 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3532 VRS-CZ1JF510FY AA R Resistor 51 1/16W Metal Oxide
R3533 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3535 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3537 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3538 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3539 VRS-CZ1JF510FY AA R Resistor 51 1/16W Metal Oxide
R3540 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3542 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3544 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3545 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
19
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R3546 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3547 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3548 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3550 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3552 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3553 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3554 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3555 VRK-CD1JJ330JY AC R Resistor 33 1/16W Metal Composition
R3558 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3559 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3560 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3561 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3562 VRS-CZ1JF510FY AA R Resistor 51 1/16W Metal Oxide
R3563 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3565 VRK-CD1JJ820JY AB R Resistor 82 1/16W Metal Composition
R3567 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3568 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R3569 VRS-CZ1JF510FY AA R Resistor 51 1/16W Metal Oxide
R3570 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3571 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3572 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3573 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3574 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3575 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3576 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R3577 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8101 VRK-CD1JJ392JY AC R Resistor 3.9k 1/16W Metal Composition
R8102 VRK-CD1JJ392JY AC R Resistor 3.9k 1/16W Metal Composition
R8103 VRK-CD1JJ392JY AC R Resistor 3.9k 1/16W Metal Composition
R8104 VRS-CZ1JF392FY AA R Resistor 3.9k 1/16W Metal Oxide
R8105 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8106 VRS-CZ1JF392FY AA R Resistor 3.9k 1/16W Metal Oxide
R8107 VRK-CD1JJ392JY AC R Resistor 3.9k 1/16W Metal Composition
R8108 VRK-CD1JJ392JY AC R Resistor 3.9k 1/16W Metal Composition
R8109 VRK-CD1JJ392JY AC R Resistor 3.9k 1/16W Metal Composition
R8110 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8112 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8114 VRS-CZ1JF153FY AA R Resistor 15k 1/16W Metal Oxide
R8115 VRS-CH1JF392JY AA R Resistor 3.9k 1/16W Metal Oxide
R8116 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8117 VRS-CZ1JF153FY AA R Resistor 15k 1/16W Metal Oxide
R8118 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8119 VRS-CZ1JF392FY AA R Resistor 3.9k 1/16W Metal Oxide
R8120 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8121 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8122 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8123 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8124 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8125 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8126 VRS-CH1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8127 VRS-CH1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8128 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8129 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8130 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8131 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8132 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8133 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R8134 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8135 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8136 VRS-CZ1JF301FY AA R Resistor 300 1/16W Metal Oxide
R8137 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R8138 VRS-CZ1JF390FY AA R Resistor 39 1/16W Metal Oxide
R8139 VRS-CZ1JF390FY AA R Resistor 39 1/16W Metal Oxide
R8140 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8141 VRS-CZ1JF182FY AA R Resistor 1.8k 1/16W Metal Oxide
R8142 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8143 VRS-CZ1JF182FY AA R Resistor 1.8k 1/16W Metal Oxide
R8144 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8145 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8146 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R8147 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8148 VRK-CD1JJ680JY AC R Resistor 68 1/16W Metal Composition
R8149 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8150 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8151 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8152 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R8153 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8154 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8155 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8156 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8157 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8158 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8159 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8160 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8161 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
20
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R8162 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8163 VRK-CD1JJ680JY AC R Resistor 68 1/16W Metal Composition
R8164 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8165 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8166 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8167 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8168 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8169 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8170 VRS-CZ1JF820JY AA R Resistor 82 1/16W Metal Oxide
R8171 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8172 VRS-CZ1JF392FY AA R Resistor 3.9k 1/16W Metal Oxide
R8173 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8174 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8175 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8176 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R8177 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8178 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8179 VRS-CH1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R8180 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8181 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8182 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8183 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8184 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8185 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8186 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8187 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8188 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8189 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8190 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8191 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8194 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8196 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8301 VRK-CD1JJ680JY AC R Resistor 68 1/16W Metal Composition
R8303 VRS-CH1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8304 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8305 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8306 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8307 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8309 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8310 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8311 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8313 VRS-CZ1JF680FY AA R Resistor 68 1/16W Metal Oxide
R8314 VRS-CZ1JF680FY AA R Resistor 68 1/16W Metal Oxide
R8315 VRS-CZ1JF680FY AA R Resistor 68 1/16W Metal Oxide
R8316 VRS-CZ1JF680FY AA R Resistor 68 1/16W Metal Oxide
R8317 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8318 VRK-CD1JJ680JY AC R Resistor 68 1/16W Metal Composition
R8319 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8320 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8324 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8325 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8326 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8327 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8328 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8329 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8330 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8331 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8332 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8333 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8334 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8335 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8336 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8337 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8338 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8339 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8340 VRK-CD1JJ151JY AC R Resistor 150 1/16W Metal Composition
R8341 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8342 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8343 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8344 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8345 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8346 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8347 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8348 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8349 VRK-CD1JJ220JY AC R Resistor 22 1/16W Metal Composition
R8350 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8351 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8352 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8353 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8354 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8355 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8356 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8357 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8358 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8367 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
21
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R8368 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8369 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8370 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8371 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8372 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8373 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8374 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8375 VRS-CH1JF680JY AA R Resistor 68 1/16W Metal Oxide
R8376 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8377 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8378 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8379 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8380 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8381 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8382 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8383 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8384 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8385 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8386 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8387 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8388 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8389 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8390 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8391 VRS-CZ1JF151JY AA R Resistor 150 1/16W Metal Oxide
R8392 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8393 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8394 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8395 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8396 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8397 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8398 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8399 VRS-CZ1JF220JY AA R Resistor 22 1/16W Metal Oxide
R8401 VRS-CZ1JF224JY AA R Resistor 220k 1/16W Metal Oxide
R8402 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8403 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8404 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8405 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8406 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8407 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8408 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8410 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8412 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8413 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8414 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8415 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8416 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8417 VRS-CZ1JF330JY AA R Resistor 33 1/16W Metal Oxide
R8418 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8453 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8454 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8467 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8468 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8470 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8474 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8475 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8601 VRS-CZ1JF4R7JY AA R Resistor 4.7 1/16W Metal Oxide
R8603 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8605 VRS-CJ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8606 VRS-CJ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8607 VRS-CZ1JF4R7JY AA R Resistor 4.7 1/16W Metal Oxide
R8608 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8609 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8613 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8614 VRS-CZ1JF391JY AA R Resistor 390 1/16W Metal Oxide
R8616 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8618 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8620 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8621 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8623 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8624 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8625 VRS-CZ1JF511JY AA R Resistor 510 1/16W Metal Oxide
R8626 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8627 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8628 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8629 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8630 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8631 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8632 VRS-CJ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8633 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8634 VRS-CJ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8635 VRS-CJ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8638 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8639 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8640 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8701 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
22
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R8702 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R8703 VRS-CZ1JF563JY AA R Resistor 56k 1/16W Metal Oxide
R8704 VRS-CZ1JF563JY AA R Resistor 56k 1/16W Metal Oxide
R8705 VRS-CH1JF563JY AA R Resistor 56k 1/16W Metal Oxide
R8706 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R8707 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8708 VRS-CH1JF101JY AA R Resistor 100 1/16W Metal Oxide
R8709 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R8710 VRS-CH1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8711 VRS-CH1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8713 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R8714 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8715 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8716 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8717 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8718 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8719 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8720 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8721 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8722 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8723 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8724 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8725 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8726 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8727 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R8728 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R8801 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8802 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R8803 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8804 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R8805 VRS-CZ1JF560JY AA R Resistor 56 1/16W Metal Oxide
R8807 VRS-CZ1JF512JY AA R Resistor 5.1k 1/16W Metal Oxide
R8825 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R8826 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8827 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8832 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R8833 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R9001 VRS-CZ1JF822FY AA R Resistor 8.2k 1/16W Metal Oxide
R9004 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9005 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9006 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9007 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9010 VRS-CZ1JF182FY AA R Resistor 1.8k 1/16W Metal Oxide
R9011 VRS-CZ1JF182FY AA R Resistor 1.8k 1/16W Metal Oxide
R9012 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9013 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9014 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9015 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9101 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R9103 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9105 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R9106 VRS-CH1JF470JY AA R Resistor 47 1/16W Metal Oxide
R9108 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9109 VRS-CH1JF470JY AA R Resistor 47 1/16W Metal Oxide
R9110 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R9111 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R9113 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R9114 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R9115 VRS-CZ1JF470JY AA R Resistor 47 1/16W Metal Oxide
R9116 VRK-CD1JJ470JY AC R Resistor 47 1/16W Metal Composition
R9118 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9130 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9131 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9132 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9205 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9206 VRS-CJ1JF103JY AA R Resistor 10k 1/16W Metal Oxide
R9207 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R9208 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R9301 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R9302 VRK-CD1JJ103JY AC R Resistor 10k 1/16W Metal Composition
R9303 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9304 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9305 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9308 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9309 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9311 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9313 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9315 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9317 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9319 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9321 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9323 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9325 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9326 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9328 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
23
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R9331 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9332 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9334 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9336 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9339 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9341 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9343 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9344 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9346 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9348 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9351 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9352 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9354 VRS-CZ1JF472JY AA R Resistor 4.7k 1/16W Metal Oxide
R9356 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9357 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9360 VRS-CZ1JF221JY AA R Resistor 220 1/16W Metal Oxide
R9361 VRS-CZ1JF221JY AA R Resistor 220 1/16W Metal Oxide
R9610 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9611 VRS-CZ1JF563JY AA R Resistor 56k 1/16W Metal Oxide
R9612 VRS-CZ1JF822FY AA R Resistor 8.2k 1/16W Metal Oxide
R9613 VRS-CZ1JF682FY AA R Resistor 6.8k 1/16W Metal Oxide
R9614 VRS-CZ1JF154JY AA R Resistor 150k 1/16W Metal Oxide
R9615 VRS-CZ1JF104FY AB R Resistor 100k 1/16W Metal Oxide
R9616 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9617 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9619 VRS-CZ1JF153FY AA R Resistor 15k 1/16W Metal Oxide
R9621 VRS-CZ1JF273FY AA R Resistor 27k 1/16W Metal Oxide
R9623 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R9624 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R9625 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R9626 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R9627 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9628 VRS-CZ1JF273FY AA R Resistor 27k 1/16W Metal Oxide
R9629 VRS-CZ1JF154JY AA R Resistor 150k 1/16W Metal Oxide
R9630 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9631 VRS-CZ1JF392FY AA R Resistor 3.9k 1/16W Metal Oxide
R9632 VRS-CZ1JF105JY AA R Resistor 1M 1/16W Metal Oxide
R9633 VRS-CZ1JF682FY AA R Resistor 6.8k 1/16W Metal Oxide
R9634 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9635 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R9636 VRS-CZ1JF682FY AA R Resistor 6.8k 1/16W Metal Oxide
R9637 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R9638 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R9639 VRS-CZ1JF224JY AA R Resistor 220k 1/16W Metal Oxide
R9640 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9641 VRS-CZ1JF682FY AA R Resistor 6.8k 1/16W Metal Oxide
R9642 VRS-CZ1JF823JY AA R Resistor 82k 1/16W Metal Oxide
R9643 VRS-CZ1JF682FY AA R Resistor 6.8k 1/16W Metal Oxide
R9644 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R9645 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9646 VRS-CZ1JF153FY AA R Resistor 15k 1/16W Metal Oxide
R9647 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R9648 VRS-CZ1JF123FY AA R Resistor 12k 1/16W Metal Oxide
R9649 VRS-CZ1JF100JY AA R Resistor 10 1/16W Metal Oxide
R9650 VRS-CZ1JF101FY AA R Resistor 100 1/16W Metal Oxide
R9651 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9652 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9653 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9654 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9655 VRS-TW2ED750JY AA R Resistor 75 1/4W Metal Oxide
R9701 VRS-CZ1JF273FY AA R Resistor 27k 1/16W Metal Oxide
R9702 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R9703 VRS-CZ1JF473FY AA R Resistor 47k 1/16W Metal Oxide
R9704 VRS-CZ1JF223FY AA R Resistor 22k 1/16W Metal Oxide
R9705 VRS-CZ1JF102FY AA R Resistor 1k 1/16W Metal Oxide
R9706 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R9707 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R9708 VRS-CZ1JF000JY AA R Resistor 0 1/16W Metal Oxide
R9712 VRS-CZ1JF273FY AA R Resistor 27k 1/16W Metal Oxide
R9713 VRS-CZ1JF103FY AB R Resistor 10k 1/16W Metal Oxide
R9714 VRS-CZ1JF183FY AA R Resistor 18k 1/16W Metal Oxide
R9715 VRS-CZ1JF333FY AA R Resistor 33k 1/16W Metal Oxide
SC1101 QCNCWA251WJZZY AH R Connector 23pin (FC)
SC1102 QCNCWA251WJZZY AH R Connector 23pin (MA)
SC1301 QCNCWA251WJZZY AH R Connector 23pin (SA)
SC1501 QSOCZA072WJZZQ AH R Sccket 23pin (TMDS Input2)
SC1502 QSOCZA072WJZZQ AH R Sccket 23pin (TMDS Input3)
SC1701 QSOCZA072WJZZQ AH R Sccket 23pin (TMDS Input1)
SC8701 QSOCZA050WJZZY AH R Sccket 12pin (SD Card Socket)
TH2001 VHHM1103J03-1Y AC R Thermistor
VA1509 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1510 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1511 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1512 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1513 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
24
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
VA1514 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1515 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1516 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1517 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1518 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1519 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1520 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1521 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1522 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1523 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1524 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1701 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1702 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1703 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1704 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1705 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1706 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1707 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
VA1708 RH-VXA187WJQZY AB R Varistor EZAEG2A50AX
X1401 RCRSCA045WJZZY AG R Crystal 12.288MHz
X1402 RCRSCA045WJZZY AG R Crystal 12.288MHz
X1501 RCRSCA146WJZZY R Crystal 28.322MHz
X2002 RFILZA023WJQZY AD R Filter
X3301 RCRSC0170TAZZY AG R Crystal 14.31818MHz
X8402 RCRSZA008WJZZY AQ R Crystal
X8601 RCRSCA094WJZZY AG R Crystal
NQCNW-E249WJPZ AH R Connecting Cord (TUNER)
NQCNW-E258WJQZ AG R Connecting Cord (PD)
NQCNW-E895WJQZ AG R Connecting Cord (KM)
[4] DUNTKD935FE10 (TERMINAL Unit)
C501 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C502 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C503 RC-KZA510WJPZY AB X Capacitor 10 16V Ceramic
C504 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C505 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C506 RC-KZA510WJPZY AB X Capacitor 10 16V Ceramic
C507 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C508 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C509 RC-KZA510WJPZY AB X Capacitor 10 16V Ceramic
C510 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C511 RC-KZA510WJPZY AB X Capacitor 10 16V Ceramic
C512 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C513 RC-KZA510WJPZY AB X Capacitor 10 16V Ceramic
C514 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C515 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C516 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C517 RC-KZA510WJPZY AB X Capacitor 10 16V Ceramic
C518 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C519 VCKYCY1HB103KY AA X Capacitor 0.01 50V Ceramic
C520 VCKYCY1HB103KY AA X Capacitor 0.01 50V Ceramic
C521 VCKYCY1HB103KY AA X Capacitor 0.01 50V Ceramic
C522 VCKYTV1CB105KY AC X Capacitor 1 16V Ceramic
C523 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C524 VCAAPF1CJ396MY AF X Capacitor 39 16V Electrolytic
C525 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C526 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C527 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C528 VCERML1CN226MY AC X Capacitor 22 16V Capacitor(AL)
C529 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C530 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C532 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C536 VCKYCH1CB104KY AB X Capacitor 0.1 16V Ceramic
C537 VCKYCH1CB104KY AB X Capacitor 0.1 16V Ceramic
C538 VCKYCH1CB104KY AB X Capacitor 0.1 16V Ceramic
C540 RC-KZA510WJPZY AB X Capacitor 10 16V Ceramic
C541 VCKYCH1CB104KY AB X Capacitor 0.1 16V Ceramic
C543 VCKYCH1CB104KY AB X Capacitor 0.1 16V Ceramic
C544 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C545 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C546 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C547 VCERMZ1CN107MY AD X Capacitor 100 16V Capacitor(AL)
C551 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C552 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C553 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C554 VCAAPF1CJ396MY AF X Capacitor 39 16V Electrolytic
C555 RC-KZA154WJZZY AB X Capacitor 4.7 16V Ceramic
C556 RC-KZA154WJZZY AB X Capacitor 4.7 16V Ceramic
C557 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C564 VCKYCH1CB104KY AB X Capacitor 0.1 16V Ceramic
C567 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C575 VCAAPF1CJ396MY AF X Capacitor 39 16V Electrolytic
C2701 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2702 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2703 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
[3] DUNTKE028FE03 (MAIN Unit)
LC-46D82U/LC-52D82U
25
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C2704 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2705 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2706 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2707 VCKYCY1HF224ZY AA X Capacitor 0.22 50V Ceramic
C2708 VCKYCY1EF104ZY AA X Capacitor 0.1 25V Ceramic
C2709 VCKYCY1HF224ZY AA X Capacitor 0.22 50V Ceramic
C2710 VCKYCY1HF224ZY AA X Capacitor 0.22 50V Ceramic
C2711 VCKYCY1HF224ZY AA X Capacitor 0.22 50V Ceramic
C2712 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2713 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2714 VCERMZ1EN227MY AE X Capacitor 220 25V Capacitor(AL)
C2715 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2716 RC-KZA104WJZZY AA X Capacitor 1 25V Ceramic
C2717 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2718 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2720 VCERMZ1EN227MY AE X Capacitor 220 25V Capacitor(AL)
C2725 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2726 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2727 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2728 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2729 VCKYTV1EB474KY AC X Capacitor 0.47 25V Ceramic
C2730 VCKYTV1EB474KY AC X Capacitor 0.47 25V Ceramic
C2731 RC-KZA516WJQZY AC X Capacitor 0.68 35V Ceramic
C2732 RC-KZA516WJQZY AC X Capacitor 0.68 35V Ceramic
C2733 VCCCCY1HH151JY AA X Capacitor 150p 50V Ceramic
C2734 VCCCCY1HH151JY AA X Capacitor 150p 50V Ceramic
C2737 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2738 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2739 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2740 VCKYCY1HB104KY AA X Capacitor 0.1 50V Ceramic
C2741 VCCCCY1HH151JY AA X Capacitor 150p 50V Ceramic
C2742 VCCCCY1HH151JY AA X Capacitor 150p 50V Ceramic
C2744 VCAAPC1EJ106MY AF X Capacitor 10 25V Electrolytic
C2745 VCKYCY1HB103KY AA X Capacitor 0.01 50V Ceramic
C2746 RC-KZA110WJZZY AD X Capacitor
C2747 RC-KZA110WJZZY AD X Capacitor
D501 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D502 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D503 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D504 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D505 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D506 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D507 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D508 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D509 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D510 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D511 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D512 VHDDAN217U+-1Y AB X Diode DAN217UT106
D513 VHDDAN217U+-1Y AB X Diode DAN217UT106
D514 VHDDAN217U+-1Y AB X Diode DAN217UT106
D515 VHDDAN217U+-1Y AB X Diode DAN217UT106
D516 VHDDAN217U+-1Y AB X Diode DAN217UT106
D517 VHDDAN217U+-1Y AB X Diode DAN217UT106
D518 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D519 RH-EX1400CEZZY AB X Zener Diode UDZSTE-1710B, 10V
D2701 VHDKDS226//-1Y AB X Diode KDS226-RTK/P
FB501 RBLN-A204WJZZY AA X Balun
FB502 RBLN-A204WJZZY AA X Balun
FB503 RBLN-A204WJZZY AA X Balun
FB504 RBLN-0065TAZZY AA X Balun
FB505 RBLN-0065TAZZY AA X Balun
FB506 RBLN-A204WJZZY AA X Balun
FB507 RBLN-0065TAZZY AA X Balun
FB508 RBLN-0065TAZZY AA X Balun
FB509 RBLN-A204WJZZY AA X Balun
FB510 RBLN-A204WJZZY AA X Balun
FB511 RBLN-A204WJZZY AA X Balun
FB512 RBLN-0065TAZZY AA X Balun
FB513 RBLN-0065TAZZY AA X Balun
FB514 RBLN-A204WJZZY AA X Balun
FB515 RBLN-0065TAZZY AA X Balun
FB516 RBLN-0065TAZZY AA X Balun
FB517 RBLN-A204WJZZY AA X Balun
FB518 RBLN-A204WJZZY AA X Balun
FB519 RBLN-A204WJZZY AA X Balun
FB520 RBLN-0039TAZZY AB X Balun
FB531 RBLN-A206WJZZY AA X Balun
FB532 RBLN-A206WJZZY AA X Balun
FB533 RBLN-A206WJZZY AA X Balun
FB534 RBLN-A206WJZZY AA X Balun
FB2709 RBLN-0064TAZZY AB X Balun
FB2710 RBLN-0064TAZZY AB X Balun
FB2711 RBLN-0064TAZZY AB X Balun
FB2712 RBLN-0064TAZZY AB X Balun
IC501 VHIMM3151XQ-1Q AT X IC MM3151XQ
[4] DUNTKD935FE10 (TERMINAL Unit)
LC-46D82U/LC-52D82U
26
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
IC2701 VHITPA3100D-1Y AQ X IC TPA3100D2PHPR
J501 QTANJA092WJZZ AG X Terminal INPUT1
J502 QTANJA093WJZZ AG X Terminal INPUT2
J503 QSOCDA020WJZZ AC X Socket
L2701 RCILPA479WJZZY AE X Coil
L2702 RCILPA479WJZZY AE X Coil
L2703 RCILPA479WJZZY AE X Coil
L2704 RCILPA479WJZZY AE X Coil
LUG501 QLUGHA006WJZZY AC X Lug
LUG502 QLUGHA006WJZZY AC X Lug
LUG2701 QLUGHA006WJZZY AC X Lug
LUG2702 QLUGHA006WJZZY AC X Lug
P502 QPLGNA347WJZZY AD X Plug 13pin
P2703 QPLGNA173WJZZY AD X Plug 4pin (SP)
P2704 QCNCMA250WJZZ AE X Connector 23pin
Q501 VS2SA1530AR-1Y AB X Transistor 2SA1530A-T112-1R
Q502 VS2SC2735//-1Y AB X Transistor 2SC2735JC21TL
Q503 VS2SA1530AR-1Y AB X Transistor 2SA1530A-T112-1R
Q504 VS2SC2735//-1Y AB X Transistor 2SC2735JC21TL
Q505 VS2SA1530AR-1Y AB X Transistor 2SA1530A-T112-1R
Q506 VS2SC2735//-1Y AB X Transistor 2SC2735JC21TL
Q507 VSDTC614TK+-1Y AB X Transistor DTC614TKT146
Q508 VSDTC614TK+-1Y AB X Transistor DTC614TKT146
Q509 VS2SA1530AR-1Y AB X Transistor 2SA1530A-T112-1R
R501 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R502 VRS-CY1JF102JY AA X Resistor 1k 1/16W Metal Oxide
R503 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R504 VRS-CY1JF102JY AA X Resistor 1k 1/16W Metal Oxide
R505 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R506 VRS-CY1JF102JY AA X Resistor 1k 1/16W Metal Oxide
R507 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R508 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R509 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R510 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R511 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R512 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R513 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R514 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R515 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R516 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R517 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R518 VRS-CY1JF102JY AA X Resistor 1k 1/16W Metal Oxide
R519 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R520 VRS-CY1JF102JY AA X Resistor 1k 1/16W Metal Oxide
R521 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R522 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R523 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R524 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R525 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R526 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R527 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R528 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R529 VRS-CY1JF221JY AA X Resistor 220 1/16W Metal Oxide
R530 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R531 VRS-CY1JF102JY AA X Resistor 1k 1/16W Metal Oxide
R532 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R533 VRS-CY1JF274JY AA X Resistor 270k 1/16W Metal Oxide
R534 VRS-CY1JF103JY AA X Resistor 10k 1/16W Metal Oxide
R535 VRS-TQ2BD750JY AA X Resistor 75 1/8W Metal Oxide
R536 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R537 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R538 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R539 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R540 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R541 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R542 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R548 VRS-CY1JF220JY AA X Resistor 22 1/16W Metal Oxide
R549 VRS-CY1JF220JY AA X Resistor 22 1/16W Metal Oxide
R550 VRS-CY1JF220JY AA X Resistor 22 1/16W Metal Oxide
R554 VRS-CY1JF220JY AA X Resistor 22 1/16W Metal Oxide
R555 VRS-CY1JF220JY AA X Resistor 22 1/16W Metal Oxide
R556 VRS-CY1JF220JY AA X Resistor 22 1/16W Metal Oxide
R557 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R558 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R559 VRS-CJ1JF470JY AA X Resistor 47 1/16W Metal Oxide
R561 VRS-CY1JF223JY AA X Resistor 22k 1/16W Metal Oxide
R562 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R563 VRS-CY1JF223JY AA X Resistor 22k 1/16W Metal Oxide
R564 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R565 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R566 VRS-CY1JF223JY AA X Resistor 22k 1/16W Metal Oxide
R567 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R568 VRS-CY1JF223JY AA X Resistor 22k 1/16W Metal Oxide
R570 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R571 VRS-CY1JF122JY AA X Resistor 1.2k 1/16W Metal Oxide
[4] DUNTKD935FE10 (TERMINAL Unit)
LC-46D82U/LC-52D82U
27
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R572 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R573 VRS-TV1JD331JY AB X Resistor 330 1/16W Metal Oxide
R574 VRS-CY1JF390JY AA X Resistor 39 1/16W Metal Oxide
R576 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R577 VRS-CY1JF122JY AA X Resistor 1.2k 1/16W Metal Oxide
R578 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R579 VRS-TV1JD331JY AB X Resistor 330 1/16W Metal Oxide
R580 VRS-CY1JF390JY AA X Resistor 39 1/16W Metal Oxide
R582 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R583 VRS-CY1JF122JY AA X Resistor 1.2k 1/16W Metal Oxide
R584 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R585 VRS-TV1JD331JY AB X Resistor 330 1/16W Metal Oxide
R586 VRS-CY1JF390JY AA X Resistor 39 1/16W Metal Oxide
R587 VRS-CY1JF561JY AA X Resistor 560 1/16W Metal Oxide
R588 VRS-CY1JF561JY AA X Resistor 560 1/16W Metal Oxide
R589 VRS-CY1JF564JY AA X Resistor 560k 1/16W Metal Oxide
R590 VRS-CY1JF564JY AA X Resistor 560k 1/16W Metal Oxide
R591 VRS-CJ1JF102JY AA X Resistor 1k 1/16W Metal Oxide
R592 VRS-CY1JF473JY AA X Resistor 47k 1/16W Metal Oxide
R593 VRS-CY1JF473JY AA X Resistor 47k 1/16W Metal Oxide
R594 VRS-CY1JF332JY AA X Resistor 3.3k 1/16W Metal Oxide
R604 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R611 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R612 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R613 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R614 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R615 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R616 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R617 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R618 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R619 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
R2701 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R2702 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R2705 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R2706 VRS-CY1JF104JY AA X Resistor 100k 1/16W Metal Oxide
R2713 VRS-TQ2EF220JY AA X Resistor 22 1/4W Metal Oxide
R2714 VRS-TQ2EF220JY AA X Resistor 22 1/4W Metal Oxide
R2722 VRS-TQ2EF220JY AA X Resistor 22 1/4W Metal Oxide
R2723 VRS-TQ2EF220JY AA X Resistor 22 1/4W Metal Oxide
R2724 VRS-CY1JF220JY AA X Resistor 22 1/16W Metal Oxide
SC501 QCNCMA250WJZZ AE X Connector 23pin
SC502 QCNCMA250WJZZ AE X Connector 23pin
[5] DUNTKD910FE02 (KEY Unit)
D151 RH-EX0646GEZZY AA X Zener Diode MTZJT-7215B
D152 RH-EX0646GEZZY AA X Zener Diode MTZJT-7215B
D155 RH-EX0646GEZZY AA X Zener Diode MTZJT-7215B
P151 QPLGNA058WJZZ AC X Plug 4pin (KM)
R151 VRD-RA2BE822JY AA X Resistor 8.2k 1/8W Carbon
R152 VRD-RA2BE123JY AA X Resistor 12k 1/8W Carbon
R153 VRD-RA2BE822JY AA X Resistor 8.2k 1/8W Carbon
S151 QSW-K0003AJZZ+ AB X Switch CH-UP
S152 QSW-K0003AJZZ+ AB X Switch CH-DOWN
S153 QSW-K0003AJZZ+ AB X Switch CH-INPUT
S154 QSW-K0003AJZZ+ AB X Switch VOL-UP
S155 QSW-K0003AJZZ+ AB X Switch VOL-DOWN
S157 QSW-K0003AJZZ+ AB X Switch STANDBY
[6] DUNTKD909FE02 (R/C, LED Unit)
C102 VCKYTV1CF225ZY AB X Capacitor 2.2 16V Ceramic
C104 VCEASX1CN106MY AC X Capacitor 10 16V Electrolytic
C105 VCKYCY1HF103ZY AA X Capacitor 0.01 50V Ceramic
C107 VCEASY1CN107MY AC X Capacitor 100 16V Electrolytic
D101 RH-EXA092WJZZY AB X Zener Diode UDZSTE-1712B, 12V
D103 RH-PX0421CEZZY AD X Diode CL-165HR/YG-D-T, YOYAKU
D114 RH-PX0421CEZZY AD X Diode CL-165HR/YG-D-T, YOYAKU
D115 RH-PX0421CEZZY AD X Diode CL-165HR/YG-D-T, YOYAKU
IC101 VHITPS850++-1Y AG X IC TPS850
P101 QPLGNA333WJZZY AD X Plug 13pin (RA)
Q102 VS2SC3928AR-1Y AB X Transistor 2SC3928A-T112-1R
Q106 VS2SC3928AR-1Y AB X Transistor 2SC3928A-T112-1R
Q107 VS2SC3928AR-1Y AB X Transistor 2SC3928A-T112-1R
R101 VRS-CY1JF101JY AA X Resistor 100 1/16W Metal Oxide
R104 VRS-CY1JF273JY AA X Resistor 27k 1/16W Metal Oxide
R108 VRS-CY1JF161JY AA X Resistor 160 1/16W Metal Oxide
R121 VRS-CY1JF821JY AA X Resistor 820 1/16W Metal Oxide
R122 VRS-CY1JF161JY AA X Resistor 160 1/16W Metal Oxide
R123 VRS-CJ1JF103JY AA X Resistor 10k 1/16W Metal Oxide
R124 VRS-CJ1JF103JY AA X Resistor 10k 1/16W Metal Oxide
R135 VRS-CY1JF000JY AA X Resistor 0 1/16W Metal Oxide
RMC101 RRMCUA053WJZZ AE X Remote Receiver
SLD101 PSLDM4646CEFW AD X Shield
[4] DUNTKD935FE10 (TERMINAL Unit)
LC-46D82U/LC-52D82U
28
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[7] DUNTKD888WE01 (ILLUMINATION Unit)
D901 RH-PXA137WJQZY AG X Diode Blue, TV POW
P901 QPLGNA324WJZZY AC X Plug 4pin
Q901 VS2SC3928AR-1Y AB X Transistor 2SC3928A-T112-1R
R901 VRS-CY1JF273JY AA X Resistor 27k 1/16W Metal Oxide
R902 VRS-CY1JF330JY AA X Resistor 33 1/16W Metal Oxide
[8] DUNTKE046FE02 (FRC Unit)
C4801 RC-KZA521WJQZY AA J Capacitor 0.1 16V Ceramic
C4802 VCKYCZ1HB152KY AB J Capacitor 1500p 50V Ceramic
C4803 VCKYCZ1EB822KY AA J Capacitor 8200p 25V Ceramic
C4804 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C4805 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C4806 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C4807 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C4808 VCKYCY1HB153KY AA J Capacitor 0.015 50V Ceramic
C4809 VCKYCY1CB104KY AB J Capacitor 0.1 16V Ceramic
C4810 VCKYCZ1AB105KY AA J Capacitor 1.0 10V Ceramic
C4811 VCKYCZ1AB105KY AA J Capacitor 1.0 10V Ceramic
C4812 VCKYCZ1EB822KY AA J Capacitor 8200p 25V Ceramic
C4813 RC-KZA114WJZZY AB J Capacitor 1 25V Ceramic
C4814 RC-KZA521WJQZY AA J Capacitor 0.1 16V Ceramic
C4815 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C4816 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C4817 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C4818 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C4819 VCKYCZ1HB222KY AB J Capacitor 2200p 50V Ceramic
C4820 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C4821 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C4822 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C4823 VCKYCZ1HB221KY AA J Capacitor 220p 50V Ceramic
C4824 VCKYCY1CB104KY AB J Capacitor 0.1 16V Ceramic
C4825 VCKYCY1AB334KY AB J Capacitor 0.33 10V Ceramic
C4826 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5801 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5802 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5803 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5804 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5805 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5806 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5807 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5808 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5809 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5810 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5811 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5812 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5813 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5814 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5815 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5816 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5817 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5818 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5819 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5820 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5821 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5822 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5823 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5824 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5825 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5826 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5827 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5828 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5829 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5830 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5831 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5832 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5833 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5834 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5835 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5836 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5837 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5838 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5839 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5840 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5841 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5842 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5843 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5844 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5845 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5846 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5847 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5848 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5849 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5850 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5851 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5852 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
LC-46D82U/LC-52D82U
29
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C5853 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5854 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5855 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5856 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5857 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5858 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5859 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5860 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5861 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5862 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5863 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5864 VCCCCY1HH5R0CY AA J Capacitor 5p 50V Ceramic
C5865 VCCCCY1HH5R0CY AA J Capacitor 5p 50V Ceramic
C5866 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5867 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5868 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5871 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5872 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5873 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5874 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5875 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5876 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5877 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5878 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5879 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5880 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5881 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5882 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5883 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5884 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5885 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5886 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C5887 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C5888 VCCCCZ1HH101JY AB J Capacitor 100p 50V Ceramic
C5889 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C5890 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C5891 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C5892 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C5893 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C5894 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C6001 VCKYCZ1AB105KY AA J Capacitor 1.0 10V Ceramic
C6002 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6003 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C6004 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6005 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6006 VCCCCZ1HH102JY AA J Capacitor 1000p 50V Ceramic
C6007 RC-KZA041WJZZY AC J Capacitor 10 10V Ceramic
C6008 VCKYCZ1AB105KY AA J Capacitor 1.0 10V Ceramic
C6009 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C6010 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6011 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6012 VCKYCZ1AB105KY AA J Capacitor 1.0 10V Ceramic
C6013 VCKYCZ1AB105KY AA J Capacitor 1.0 10V Ceramic
C6014 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C6015 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6016 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6017 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6018 VCAAPE1CJ686MY AE J Capacitor 68 16V Electrolytic
C6019 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6020 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6021 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6022 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6023 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6024 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6025 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6026 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6027 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6028 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6029 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6030 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6031 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6032 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6033 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6034 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6035 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6036 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6037 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6038 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6039 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6040 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6041 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6042 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6043 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6044 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6045 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
30
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C6046 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6047 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6048 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6049 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6050 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6051 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6052 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6053 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6054 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6055 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6056 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6057 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6058 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6059 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6060 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6061 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6062 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6063 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6064 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6065 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6066 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6067 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6068 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6069 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6070 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6071 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6072 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6073 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6074 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6075 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6076 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6077 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6078 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6079 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6080 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6081 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6082 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6083 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6084 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6085 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6086 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6087 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6088 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6089 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6090 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6091 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6092 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6093 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6094 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6095 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6096 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6097 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6098 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6099 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6100 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6101 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6102 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6103 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6104 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6105 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6106 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6107 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6108 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6109 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6110 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6111 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6112 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6113 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6114 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6115 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6116 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6117 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6118 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6119 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6120 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6121 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6122 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6123 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6124 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6125 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6126 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6127 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6128 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6129 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6130 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
31
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C6131 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6132 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6133 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6134 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6135 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6136 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6137 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6138 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6139 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6140 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6141 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6142 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6143 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6144 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6145 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6146 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6147 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6148 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6149 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6150 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6151 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6152 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6153 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6154 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6155 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6156 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6157 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6158 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6159 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6160 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6161 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6162 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6163 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6164 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6165 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6166 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6167 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6168 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6169 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6170 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6171 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6172 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6173 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6174 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6175 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6176 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6177 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6178 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6179 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6180 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6181 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6182 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6183 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6184 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6185 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6186 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6187 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6188 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6189 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6190 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6191 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6192 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6193 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6194 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6195 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6196 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6197 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6198 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6199 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6200 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6201 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6211 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6212 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6213 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6214 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6215 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6216 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6217 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6218 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6219 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6220 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6221 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6222 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6223 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6224 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
32
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C6225 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6226 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6227 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6228 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6229 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6230 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6231 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6232 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6233 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6234 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6235 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6236 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6237 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6238 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6239 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6240 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6241 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6242 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6243 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6244 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6245 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6246 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6247 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6248 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6249 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6250 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6251 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6252 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6253 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6254 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6255 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6256 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6257 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6258 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6259 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6260 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6261 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6262 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6263 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6264 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6265 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6266 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6267 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6268 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6269 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6270 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6271 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6272 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6281 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6282 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6283 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6284 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6285 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6286 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6287 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6288 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6289 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6290 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6291 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6292 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6293 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6294 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6295 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6296 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6297 VCKYCY1HB103KY AA J Capacitor 0.01 50V Ceramic
C6298 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6341 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6342 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6343 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6344 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6345 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6346 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6347 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6348 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6349 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6350 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6351 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6352 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6353 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6354 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6355 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6356 VCKYCY1HB102KY AA J Capacitor 1000p 50V Ceramic
C6357 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6358 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6359 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
33
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
C6360 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6361 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6362 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6363 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6364 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6365 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6366 RC-KZA510WJPZY AB J Capacitor 10 16V Ceramic
C6367 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6368 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6369 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6370 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6371 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6372 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6373 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6374 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6375 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
C6376 VCKYCZ1AB104KY AB J Capacitor 0.1 10V Ceramic
D4801 RH-EX1400CEZZY AB J Zener Diode UDZSTE-1710B, 10V
D4802 VHDD1FH3+++-1Y AD J Diode D1FH3
D4803 VHDD1FH3+++-1Y AD J Diode D1FH3
D4804 RH-EX1400CEZZY AB J Zener Diode UDZSTE-1710B, 10V
FB4801 RBLN-0207TAZZY AB J Balun
FB5801 RBLN-0207TAZZY AB J Balun
FB5802 RBLN-0207TAZZY AB J Balun
FB5803 RBLN-0207TAZZY AB J Balun
FB5805 RBLN-0210TAZZY AB J Balun
FB5806 RBLN-0210TAZZY AB J Balun
FB5807 RBLN-0210TAZZY AB J Balun
FB5808 RBLN-0210TAZZY AB J Balun
FB5809 RBLN-0210TAZZY AB J Balun
FB5810 RBLN-0210TAZZY AB J Balun
FB5811 RBLN-0210TAZZY AB J Balun
FB5812 RBLN-0210TAZZY AB J Balun
FB5813 RBLN-0210TAZZY AB J Balun
FB5814 RBLN-0210TAZZY AB J Balun
FB5815 RBLN-0210TAZZY AB J Balun
FB5816 RBLN-0210TAZZY AB J Balun
FB5817 RBLN-0210TAZZY AB J Balun
FB6001 RBLN-0207TAZZY AB J Balun
FB6002 RBLN-0207TAZZY AB J Balun
FB6003 RBLN-0207TAZZY AB J Balun
FB6004 RBLN-0207TAZZY AB J Balun
FB6005 RBLN-0207TAZZY AB J Balun
FB6006 RBLN-0207TAZZY AB J Balun
FB6007 RBLN-0207TAZZY AB J Balun
FB6008 RBLN-0207TAZZY AB J Balun
FB6009 RBLN-0207TAZZY AB J Balun
FB6011 RBLN-0207TAZZY AB J Balun
FB6211 RBLN-0210TAZZY AB J Balun
FB6212 RBLN-0210TAZZY AB J Balun
FB6213 RBLN-0210TAZZY AB J Balun
FB6214 RBLN-0210TAZZY AB J Balun
FB6215 RBLN-0210TAZZY AB J Balun
FB6216 RBLN-0210TAZZY AB J Balun
FB6217 RBLN-0210TAZZY AB J Balun
FB6281 RBLN-0210TAZZY AB J Balun
FB6282 RBLN-0210TAZZY AB J Balun
FB6283 RBLN-0210TAZZY AB J Balun
FB6284 RBLN-0210TAZZY AB J Balun
FB6285 RBLN-0210TAZZY AB J Balun
FB6286 RBLN-0210TAZZY AB J Balun
FB6287 RBLN-0210TAZZY AB J Balun
FB6341 RBLN-0207TAZZY AB J Balun
FB6342 RBLN-0207TAZZY AB J Balun
FB6343 RBLN-0207TAZZY AB J Balun
FB6344 RBLN-0207TAZZY AB J Balun
FB6345 RBLN-0207TAZZY AB J Balun
FB6346 RBLN-0207TAZZY AB J Balun
FB6347 RBLN-0207TAZZY AB J Balun
FB6348 RBLN-0207TAZZY AB J Balun
IC4801 VHITPS40055-1Y AN J IC TPS40055PWPR
IC4802 RH-IXA552WJZZY AH J IC PQ1CY1032ZPH
IC4803 RH-IXA552WJZZY AH J IC PQ1CY1032ZPH
IC4804 VHIPST3629N-1Y AD J IC PST3629NR
IC4805 VHIPST3629N-1Y AD J IC PST3629NR
IC5801 RH-IXB857WJZZQ BP N J IC iXB857WJZ
IC6001 RH-IXB822WJQZQ AY J IC EM6A9320BI-5MG
IC6002 RH-IXB822WJQZQ AY J IC EM6A9320BI-5MG
IC6003 RH-IXB822WJQZQ AY J IC EM6A9320BI-5MG
IC6004 RH-IXA361WJZZY AM J IC LP2995MX/NOPB
IC6211 VHITLVD1023-1Q AS J IC TLVD1023
IC6212 VHITLVD1023-1Q AS J IC TLVD1023
IC6281 VHITLVD104S-1Q AN N J IC TLVD104S
IC6282 VHITLVD104S-1Q AN N J IC TLVD104S
IC6341 RH-IXC029WJQZQ BA J IC iXC029WJ
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
34
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
IC6342 RH-IXC030WJN2Y AQ N J IC IXC030WJ
L4801 RCILCA029WJZZY AD J Coil
L4802 RCILP0295TAZZY J Coil
L4803 RCILP0297TAZZY AD J Coil
L6211 RCILFA071WJZZY AD J Coil
L6212 RCILFA071WJZZY AD J Coil
L6213 RCILFA071WJZZY AD J Coil
L6214 RCILFA071WJZZY AD J Coil
L6215 RCILFA071WJZZY AD J Coil
L6216 RCILFA071WJZZY AD J Coil
L6217 RCILFA071WJZZY AD J Coil
L6218 RCILFA071WJZZY AD J Coil
L6219 RCILFA071WJZZY AD J Coil
L6220 RCILFA071WJZZY AD J Coil
L6221 RCILFA071WJZZY AD J Coil
L6222 RCILFA071WJZZY AD J Coil
L6223 RCILFA071WJZZY AD J Coil
L6224 RCILFA071WJZZY AD J Coil
L6225 RCILFA071WJZZY AD J Coil
L6226 RCILFA071WJZZY AD J Coil
L6227 RCILFA071WJZZY AD J Coil
L6228 RCILFA071WJZZY AD J Coil
L6229 RCILFA071WJZZY AD J Coil
L6230 RCILFA071WJZZY AD J Coil
L6231 RCILFA071WJZZY AD J Coil
L6232 RCILFA071WJZZY AD J Coil
L6233 RCILFA071WJZZY AD J Coil
L6234 RCILFA071WJZZY AD J Coil
L6341 VPCEM220M1R7NY AC J Coil Peaking 22µH
LUG4801 QLUGHA009WJZZY AC J Lug
LUG4802 QLUGHA009WJZZY AC J Lug
LUG4803 QLUGHA009WJZZY AC J Lug
LUG4804 QLUGHA009WJZZY AC J Lug
P4801 QPLGNA412WJZZY AG J Plug 20pin
P4802 QPLGNA345WJZZY AD J Plug 11pin
P5801 QPLGNA324WJZZY AC J Plug 4pin
P5802 QPLGN0057CEZZY AD J Plug 7pin
P6341 QPLGN0060CEZZY AE J Plug 10pin
Q4801 VSRT1N144U/-1Y AB J Transistor RT1N144U-T111-1
Q4802 VS2SC3928AR-1Y AB J Transistor 2SC3928A-T112-1R
Q4803 VSSP8K4++++-1Y AF J Transistor SP8K4TB
Q6341 VSRT1N144U/-1Y AB J Transistor RT1N144U-T111-1
R4801 VRS-CZ1JF473FY AA J Resistor 47k 1/16W Metal Oxide
R4802 VRS-CZ1JF224JY AA J Resistor 220k 1/16W Metal Oxide
R4803 VRS-CZ1JF103FY AB J Resistor 10k 1/16W Metal Oxide
R4804 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R4805 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R4806 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R4807 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R4808 VRS-CY1JF102JY AA J Resistor 1k 1/16W Metal Oxide
R4809 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R4810 VRS-CY1JF332FY AA J Resistor 3.3k 1/16W Metal Oxide
R4811 VRS-CY1JF102FY AA J Resistor 1k 1/16W Metal Oxide
R4812 VRS-CY1JF332FY AA J Resistor 3.3k 1/16W Metal Oxide
R4813 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R4814 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R4815 VRS-CY1JF100JY AA J Resistor 100 1/16W Metal Oxide
R4816 VRS-CY1JF100JY AA J Resistor 100 1/16W Metal Oxide
R4817 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R4818 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R4819 VRS-CZ1JF682FY AA J Resistor 6.8k 1/16W Metal Oxide
R4820 VRS-CZ1JF221JY AA J Resistor 220 1/16W Metal Oxide
R4821 VRS-CZ1JF123FY AA J Resistor 12k 1/16W Metal Oxide
R4822 VRS-CZ1JF822JY AA J Resistor 8.2k 1/16W Metal Oxide
R4823 VRS-CZ1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R4824 VRS-CZ1JF103FY AB J Resistor 10k 1/16W Metal Oxide
R4825 VRS-CZ1JF103FY AB J Resistor 10k 1/16W Metal Oxide
R4826 VRS-CZ1JF3R3JY AA J Resistor 3.3 1/16W Metal Oxide
R4827 VRS-CZ1JF223FY AA J Resistor 22k 1/16W Metal Oxide
R4828 VRS-CZ1JF153FY AA J Resistor 15k 1/16W Metal Oxide
R4829 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R4830 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R4832 VRS-CZ1JF473FY AA J Resistor 47k 1/16W Metal Oxide
R5801 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5802 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5803 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5804 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5805 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5806 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5807 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5808 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5809 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5810 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5811 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5812 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
35
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R5813 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5814 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5815 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5816 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5817 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5818 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5819 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5820 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5821 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5822 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5823 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5824 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5825 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5826 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5827 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5828 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5829 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5830 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5831 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5832 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5833 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5834 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5835 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5836 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R5837 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5838 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5839 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5840 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5841 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5842 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5843 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5844 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5845 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5846 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5847 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5848 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5849 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5850 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5851 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5852 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5853 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5854 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5855 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5856 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5857 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5858 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5859 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5860 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5861 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5862 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5863 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5864 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5865 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5866 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5867 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5868 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5869 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5870 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5871 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5872 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5873 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5874 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5875 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5876 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5877 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5878 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5879 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5880 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5881 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5882 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R5883 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5884 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5885 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5886 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5887 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5888 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5889 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5890 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5891 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5892 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5893 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5894 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5895 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5896 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5897 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
36
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R5898 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5899 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5900 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5901 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5902 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5903 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5904 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R5905 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5906 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5907 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5908 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5909 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5910 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R5911 VRS-CY1JF105FY AA J Resistor 1M 1/16W Metal Oxide
R5912 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R5913 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R5914 VRS-CY1JF470JY AA J Resistor 47 1/16W Metal Oxide
R5915 VRS-CY1JF100JY AA J Resistor 100 1/16W Metal Oxide
R5916 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5917 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5918 VRS-CY1JF472JY AA J Resistor 4.7k 1/16W Metal Oxide
R5919 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5920 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5925 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5926 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5927 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5928 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5930 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5931 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R5932 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6001 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6002 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6003 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6004 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6005 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6006 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6007 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6008 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6009 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6010 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6011 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6012 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6013 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6014 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6015 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6016 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6017 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6018 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6019 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6020 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6021 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6022 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6023 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6024 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6025 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6026 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6027 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6028 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6029 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6030 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6031 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6032 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6033 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6034 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6035 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6036 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6037 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6038 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6039 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6040 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6041 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6042 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6043 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6044 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6045 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6046 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6047 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6048 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6049 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6050 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6051 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6052 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6053 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6054 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6055 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
37
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R6056 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6057 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6058 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6059 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6060 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6061 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6062 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6063 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6064 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6065 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6066 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6067 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6068 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6069 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6070 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6071 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6072 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6073 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6074 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6075 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6076 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6077 VRK-SB1FF680JY AA J Resistor 68 1/32W Metal Composition
R6078 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6079 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6080 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6081 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6082 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6083 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6084 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6085 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6086 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6087 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6088 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6089 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6090 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6091 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6092 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6093 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6094 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6095 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6096 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6097 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6098 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6099 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6100 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6101 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6102 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6103 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6104 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6105 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6106 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6107 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6108 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6109 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6110 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6111 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6112 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6113 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6114 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6115 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6116 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6117 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6118 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6119 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6120 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6121 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6122 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6123 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6124 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6125 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6126 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6127 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6128 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6129 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6130 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6131 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6132 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6133 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6134 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6135 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6136 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6137 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6138 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6139 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6140 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
38
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R6141 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6142 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6143 VRS-CZ1JF680JY AB J Resistor 68 1/16W Metal Oxide
R6144 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6211 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6212 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6213 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6214 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6215 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6216 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6217 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6218 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6220 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6222 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6224 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6225 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6226 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6227 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6228 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6229 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6231 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6232 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6233 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6234 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6235 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6236 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6237 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6238 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6239 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6240 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6243 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6245 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6246 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6247 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6248 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6249 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6250 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6252 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6253 VRS-CY1JF101JY AA J Resistor 100 1/16W Metal Oxide
R6281 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6282 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6283 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6284 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6285 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6286 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6287 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6288 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6289 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6290 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6291 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6292 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6293 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6294 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6295 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6296 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6297 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6298 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6299 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6300 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6301 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6302 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6303 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6304 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6305 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6306 VRS-CZ1JF101FY AA J Resistor 100 1/16W Metal Oxide
R6307 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6308 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6309 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6310 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6311 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6312 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6313 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6314 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6315 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6316 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6317 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6318 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6320 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6321 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6322 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6323 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6325 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6326 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6327 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6331 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
39
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
R6332 VRS-CZ1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6335 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6341 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6342 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6343 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6344 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6345 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6346 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6347 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6348 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6349 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6350 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6351 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6352 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6353 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6354 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6355 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6356 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6357 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6358 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6359 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6360 VRK-SB1FF330JY AA J Resistor 33 1/32W Metal Composition
R6361 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6362 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6363 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6364 VRS-CY1JF330JY AA J Resistor 33 1/16W Metal Oxide
R6366 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6367 VRS-CY1JF000JY AA J Resistor 0 1/16W Metal Oxide
R6373 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6374 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6375 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6376 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6377 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6379 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6380 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6383 VRS-CZ1JF103JY AA J Resistor 10k 1/16W Metal Oxide
R6384 VRS-CY1JF103JY AA J Resistor 10k 1/16W Metal Oxide
SC6211 QCNCWA671WJQZY J Connector 41pin
SC6212 QCNCWA671WJQZY J Connector 41pin
SC6281 QCNCWA671WJQZY J Connector 41pin
X5801 RCRSCA086WJZZY AG J Crystal
X6341 RCRUAA056WJQZY AK J Crystal 33.000MHz
[8] DUNTKE046FE02 (FRC Unit)
LC-46D82U/LC-52D82U
40
[9] CABINET PARTS (LC-46D82U)
3
3-1
3-2
8
64
60
5
55
55
47
23
23
23
23
62
62
62
62
56
56 56
56
27
57
24
12
54
54
48
57
21
21
57
30
30
1
1-1
1-8
1-5
9
60
52
10
1-2
1-4
1-7
1-13
1-14
1-10
1-10 1-11
1-11
1-12
1-3
1-10
1-10
1-6
53
29 7
66
57
6
42
43
57
58
60
13
45
16
17
22
31
57
25
57
38
32
39
57
20 56
56
56
20-3
20-3
20-3
20-3
20-1
20-1
20-2
20-2
19
19
50
51
61
59
18
63
59
61
4-4
2-1
2-3
2-2
2
14
14
15
15
56
56
4-1
4-1
4-2
4-3
4-3
4
56
56
59
11
57
63
49 46
26
26-1
26-3
26-3
26-4 26-2
37
57
35
36
28
1-9
1-9
1-9
1-9
1-9
1-9
44
1-15
1-15
33
34
40
41
47
47
65
67
69
26-2
68
LC-46D82U/LC-52D82U
41
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[9] CABINET PARTS (LC-46D82U)
1CCABAB740WJ01 BX N X Front Cabinet Ass'y
1-1 --N-Front Cabinet
1-2 --N-Front Cover
1-3 --N-Center Dec Cover
1-4 ---Badge, "SHARP"
1-5 --N-LED Dec.
1-6 --N-Center LED Dec
1-7 HDECSA013WJSA AQ N X Shine Trim
1-8 HPNLSA121WJSA BC N X Speaker Net
1-9 ---Mask Himeron, x6
1-10 PSPAZB449WJZZ N X Cover Tape 330*40, x4
1-11 PSPAZB450WJZZ N X Cover Tape 510*40, x2
1-12 TLABZA635WJZZ AC J E-Star Label
1-13 TLABZB419WJSA AE X Label (18P POP)
1-14 TLABZB442WJSA AG N X POP Label
1-15 PSPAZB445WJZZ N Cover Tape, x2
2CCABBB068WJ01 BP N X Rear Cabinet Ass'y
2-1 --N-Rear Cabinet
2-2 LHLDWA012WJKZ AC J WH (RWC-1SL-V)
2-3 LHLDWA131WJKZ AE J Cable Clamp
3CCOVAB914WJ01 AS X Top Cover Ass'y
3-1 --N-Top Cover
3-2 --N-Button, Control
4CDAI-A358WJ02 BQ N X Stand Unit
4-1 ---Support Ass'y, x2
4-2 --N-Stand Base Ass'y
4-3 ---Screw, x6 (for Stand Unit)
4-4 ---Screw, x4 (to Set)
5R1LK460D3LZ2CZ GG N J 46" LCD Panel Module
6DUNTKE028FM03 N R MAIN Unit
7DUNTKD935FM10 BG N X TERMINAL Unit
8DUNTKD910FM02 AG X KEY Unit
9DUNTKD909FM02 AQ X R/C, LED Unit
10 DUNTKD888FM01 AH N X ILLUMINATION Unit
11 RDENCA205WJQZ BU X POWER SUPPLY Unit (Unit exchange)
12 DUNTKE046FE02 CC N J FRC Unit
13 GCOVAA678WJKA AE J SD Cover
14 GCOVAB913WJKA AQ X Stand ST Cover (Front), x2
15 GCOVAC282WJKA AQ N X Stand ST Cover (Rear), x2
16 HINDPB715WJSA AC X Terminal Label
17 HINDPC198WJSA AH N X JACK Indication Plate
18 HINDPC200WJSA AH N X Model Label
19 LANGKA819WJN1 AN X Stand Fixing Angle, x2
20 CANGTA373WJ02 BB X Bridge Angle Ass'y
20-1 --N-Fixing Angle, x2 (Center)
20-2 ---Bridge Angle, x2
20-3 XBBS740P08000 AA J Screw, x8 (for Angle Fix)
21 LANGKA992WJFW BG X FRC PWB Set Angle, x2
22 LANGKB025WJFW AL N X Terminal Angle
23 LANGTA375WJFW AK X Chassis Fixing Angle, x4
24 LANGTA436WJM1 AU X FRC PWB Angle
25 LBSHZA005WJZZ AB J Washer
26 CCHSMA354WJ01 BB N X Tray Chassis Ass'y
26-1 --N-Tray Chassis
26-2 LHLDWA102WJKZ AB J Wire Holder, x2
26-3 LHLDWA120WJKZ AB J Wire Holder, x4
26-4 LHLDWA123WJKZ AB J Wire Holder, x2
27 LHLDWA123WJKZ AB J Wire Holder, x2
28 LHLDWA138WJKZ AC J LV Wire Holder, x3
29 LHLDWA150WJKZ AC J Edge Saddle WH
30 LX-HZA003WJFN AC J Screw, x2 (for Speaker)
31 LX-NZ3047GEZZ AA J Hexiagonal Nut
32 PCLICA004WJKZ AC J Rivet, x2
33 PMLT-A410WJZZ AG X Gasket 13x2x75, x7
34 PMLT-A411WJZZ AE X Gasket 2x2x35
35 PMLT-A414WJZZ AF X Gasket 2x2x5, x2
36 PMLT-A415WJZZ AE X Gasket 1x13x5, x3
37 PMLT-A416WJZZ AE X Gasket 13x1x5
38 PRDARA424WJFW AM X Radiator
39 PSLDMB093WJFW AX N X MAIN Shield
40 PSPAZA700WJKZ AD J Spacer (FRC:IC581 COOL)
41 PSPAZA886WJKZ AC J Spacer (FRC:IC61 COOL)
42 PSPAZA917WJKZ AH J Cooling Sheet, x2
43 PSPAZB192WJKZ AG X Cooling Sheet
44 PZETKA225WJKZ AR N X Barrier Sheet
45 QCNCWA496WJZZ AK X Connector (F-RCA)
46 QCNW-E903WJQZ AN X Connecting Cord (LA)
47 QCNW-F199WJQZ AH X Connecting Cord (SP:MAIN-SP_L/R)
48 QCNW-F297WJQZ AM X Connecting Cord (LP:MAIN-FRC)
49 QCNW-F298WJQZ AL X Connecting Cord (PH)
50 QCNW-F299WJQZ BA X Connecting Cord (LV)
51 QCNW-F365WJQZ AG J Connecting Cord (FL:LCDCON-FRC)
52 QCNW-F713WJQZ AP N X Connecting Cord (RA/RB:MN-IL/LED)
53 QCNW-F785WJQZ AM N X Connecting Cord (LB:INV-MAIN/FRC)
54 QPWBHE107WJQZ AT J FPC, x2 (FRC-LCDCON)
LC-46D82U/LC-52D82U
42
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
55 RSP-ZA201WJZZ AZ X Speaker Box, x2
56 XBBS740P08000 AA J Screw, x28 (for Angle Fix)
57 XBPS730P06WS0 AA J Screw, x45 (for PWB/Angle/Sheet)
58 XBPS830P06000 AA J Screw, x3 (for HDMI)
59 XBPS930P08JS0 AB J Screw, x5 (for Rear Cabinet)
60 XEBS930P10000 AA J Screw, x5 (for VIDEO Jack/KEY PWB)
61 XEBS940P20000 AB J Screw, x13 (for Rear Cabinet)
62 XEBSN40P10000 AB J Screw, x4 (for Panel Angle)
63 DLAB-A744WEV1 N X WS Label
64 RCORF0107CEZZ AM J Core
65 RCORFA023WJZZ AK J Core, x3
66 PMLT-A412WJZZ AF X Spacer
67 PMLT-A413WJZZ AD X Spacer
68 PMLT-A423WJZZ X Spacer, x3
69 PSLDMA840WJZZ AD J Shield, x2
[9] CABINET PARTS (LC-46D82U)
LC-46D82U/LC-52D82U
43
[10] CABINET PARTS (LC-52D82U)
55
55
30
30
5
3
3-1
3-2
8
60
24
57
54
54
21
2
1
5
7
5
47
12
56
56
56
56
62
62
62
43
62
23
23
23
23
27
2
2-1
2-3
2-2
61
59
18
61
59
4-4
19
19
14
15
56
56
56
14
15
56
4
4-1
4-1
4-2
4-3
4-3
59
63
46
52
60
9
1
1-1
1-11
1-10
1-10
1-13
1-12
1-14
1-15
1-10
1-10
1-15
1-11
1-9
1-9
1-9
1-9
1-9 1-9
1-8
1-2
1-7
1-6
1-3
1-4
10
1-5
20 56
56
56
20-1
20-1 20-2
20-2 20-3
20-3
20-3
20-3
58
44
16
13
60
17
22
31
57
57
32
25
37
41
42
57
6
57
7
29
53
11
57
63
48 45
57
36
26
26-1
26-2
26-4
26-3
26-3
36
35
57
38
51
49
39
28
33
34
40
50
LC-46D82U/LC-52D82U
44
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[10] CABINET PARTS (LC-52D82U)
1CCABAB739WJ01 CA N X Front Cabinet Ass'y
1-1 --N-Front Cabinet
1-2 --N-Front Cover
1-3 --N-Center Dec Cover
1-4 ---Badge, "SHARP"
1-5 --N-LED Dec.
1-6 --N-Center LED Dec
1-7 HDECSA012WJSA AQ N X Shine Trim
1-8 HPNLSA120WJSA BC N X Speaker Net
1-9 ---Mask Himeron, x6
1-10 PSPAZB447WJZZ N X Cover Tape 370*40, x4
1-11 PSPAZB448WJZZ N X Cover Tape 575*40, x2
1-12 TLABZA635WJZZ AC J E-Star Label
1-13 TLABZB388WJSA AG N X POP Label
1-14 TLABZB419WJSA AE X Label (18P POP)
1-15 PSPAZB444WJZZ N Cover Tape, x2
2CCABBB069WJ01 BR N X Rear Cabinet Ass'y
2-1 --N-Rear Cabinet
2-2 LHLDWA012WJKZ AC J WH (RWC-1SL-V)
2-3 LHLDWA131WJKZ AE J Cable Clamp
3CCOVAB914WJ01 AS X Top Cover Ass'y
3-1 --N-Top Cover
3-2 --N-Button, Control
4CDAI-A358WJ02 BQ N X Stand Unit
4-1 ---Support Ass'y, x2
4-2 --N-Stand Base Ass'y
4-3 ---Screw, x6 (for Stand Unit)
4-4 ---Screw, x4 (to Set)
5R1LK520D3LZ2CZ HC N J 52" Panel Module
6DUNTKE028FM03 N R MAIN Unit
7DUNTKD935FM10 BG N X Terminal Unit
8DUNTKD910FM02 AG X KEY Unit
9DUNTKD909FM02 AQ X LED Unit
10 DUNTKD888FM01 AH N X Illumination unit
11 RDENCA205WJQZ BU X POWER SUPPLY Unit (Unit exchange)
12 DUNTKE046FE02 CC N J FRC Unit
13 GCOVAA678WJKA AE J SD Cover
14 GCOVAB913WJKA AQ X Stand ST Cover (Front), x2
15 GCOVAC282WJKA AQ N X Stand ST Cover (Rear), x2
16 HINDPB715WJSA AC X Terminal Label
17 HINDPC198WJSA AH N X JACK Indication Plate
18 HINDPC199WJSA AH N X Model Label
19 LANGKA819WJN1 AN X Stand Fixing Angle, x2
20 CANGTA374WJ02 BC X Bridge Angle Ass'y
20-1 --N-Fixing Angle, x2 (Center)
20-2 ---Bridge Angle, x2
20-3 XBBS740P08000 AA J Screw, x8 (for Angle Fix)
21 LANGKA992WJFW BG X FRC PWB Set Angle, x2
22 LANGKB025WJFW AL N X Terminal Angle
23 LANGTA375WJFW AK X Chassis Fixing Angle, x4
24 LANGTA436WJM1 AU X FRC PWB Angle
25 LBSHZA005WJZZ AB J Washer
26 CCHSMA354WJ01 BB N X Tray Chassis Ass'y
26-1 --N-Tray Chassis
26-2 LHLDWA102WJKZ AB J Wire Holder, x2
26-3 LHLDWA120WJKZ AB J Wire Holder, x4
26-4 LHLDWA123WJKZ AB J Wire Holder, x2
27 LHLDWA123WJKZ AB J Wire Holder, x2
28 LHLDWA138WJKZ AC J LV Wire Holder, x5
29 LHLDWA150WJKZ AC J Edge Saddle WH
30 LX-HZA003WJFN AC J Screw, x2 (for Speaker)
31 LX-NZ3047GEZZ AA J Hexiagonal Nut
32 PCLICA004WJKZ AC J Rivet, x2
33 PMLT-A410WJZZ AG X Gasket 13x2x75, x7
34 PMLT-A411WJZZ AE X Gasket 20x20x3
35 PMLT-A412WJZZ AF X Gasket 20x20x35
36 PMLT-A413WJZZ AD X Gasket 13x07x50, x2
37 PRDARA424WJFW AM X Radiator
38 PSLDMB093WJFW AX N X MAIN Shield
39 PSPAZA700WJKZ AD J Spacer (FRC:IC581 COOL)
40 PSPAZA886WJKZ AC J Spacer (FRC:IC61 COOL)
41 PSPAZA917WJKZ AH J Cooling Sheet, x2
42 PSPAZB192WJKZ AG X Cooling Sheet
43 PZETKA223WJKZ AP X Barrier Sheet
44 QCNCWA496WJZZ AK X Connector (F-RCA)
45 QCNW-F002WJQZ AN X Connecting Cord (LA:POW-INV)
46 QCNW-F200WJQZ AK X Connecting Cord (SP:MAIN-SP_L/R)
47 QCNW-F297WJQZ AM X Connecting Cord (LP-LW:MAIN-FRC)
48 QCNW-F298WJQZ AL X Connecting Cord (PH:MAIN-POW/CON)
49 QCNW-F299WJQZ BA X Connecting Cord (LV:MAIN-FRC)
50 QCNW-F305WJQZ AF X Connecting Cord (52-DISTINCTION)
51 QCNW-F365WJQZ AG J Connecting Cord (FL:LCDCON-FRC)
52 QCNW-F712WJQZ AP N X Connecting Cord (RA/RB:MN-IL/LED)
53 QCNW-F784WJQZ AM N X Connecting Cord (LB:INV-MAIN/FRC)
54 QPWBHE107WJQZ AT J FPC, x2 (FRC-LCDCON)
LC-46D82U/LC-52D82U
45
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[11] SUPPLIED ACCESSORIES
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
55 RSP-ZA201WJZZ AZ X Speaker Box, x2
56 XBBS740P08000 AA J Screw, x28 (for Angle Fix)
57 XBPS730P06WS0 AA J Screw, x43 (for PWB/Angle/Sheet)
58 XBPS830P06000 AA J Screw, x3 (for HDMI)
59 XBPS930P08JS0 AB J Screw, x5 (for Rear Cabinet)
60 XEBS930P10000 AA J Screw, x5 (for VIDEO Jack/KEY PWB)
61 XEBS940P20000 AB J Screw, x18 (for Rear Cabinet)
62 XEBSN40P10000 AB J Screw, x4 (for Panel Angle)
63 DLAB-A743WEV1 N X WS Label
[11] SUPPLIED ACCESSORIES
X1 LHLDWA012WJKZ AC J Cable Clamp
X2 LHLDWA083WJ00 AD J Cable Band
X3 LHLDWA131WJKZ AE J Cable Clamp
X4 SSAKAA032WJZZ AB J Polyethylene Bag
!
X5 QACCDA039WJPZ AQ J AC Cord
X6 RRMCGA535WJSA AY X Remote Control Unit
X7 SSAKA0101GJZZ AC X Polyethylene Bag
X8 TCADEA208WJZZ AD X Enquete Card
X9 TGAN-A768WJZZ AD X Extend Warranty Card
X10 TINS-C996WJZZ AR N X Operation Manual
X11 CDAI-A358WJ02 BQ N X Stand Unit
[10] CABINET PARTS (LC-52D82U)
X6 X5 X11X1 X3
X2
X10
X4 X7 X9
X8
LC-46D82U/LC-52D82U
46
[12] PACKING PARTS (NOT REPLACEMENT ITEM)
S2
S4
S6
S6
S1
S5
S8
S9
S6
S3
S6
LC-46D82U/LC-52D82U
47
NO. PARTS CODE PRICE
RANK
NEW
MARK
PART
DELIVERY
DESCRIPTION
[12] PACKING PARTS (NOT REPLACEMENT ITEM)
S1 SPAKCD308WJZZ - N - Packing Case (LC-46D82U)
S1 SPAKCD307WJZZ - N - Packing Case (LC-52D82U)
S2 SPAKCD394WJZZ - N - Bottom Case (LC-46D82U)
S2 SPAKCD087WJZZ - - Bottom Case (LC-52D82U)
S3 SPAKFB148WJZZ - N - Top Pad (LC-46D82U)
S3 SPAKFB149WJZZ - - Top Pad (LC-52D82U)
S4 SPAKPA775WJZZ - - Wrapping Paper (LC-46D82U)
S4 SPAKPA776WJZZ - - Wrapping Paper (LC-52D82U)
S5 SPAKSA033WJZZ - N - Sleeve (LC-52D82U)
S6 SPAKXB404WJZZ - N - Buffer Material (LC-46D82U)
S6 SPAKXB405WJZZ - N - Buffer Material (LC-52D82U)
S8 TLABKA009WJZZ - - No. Label
S9 TLABNB037WJZZ - - Label
[13] SERVICE JIGS (USE FOR SERVICING)
NQCNW-C222WJQZ AW J Extension Cable 80pins FFC L=1000mm, LCD Cont. to LCD Panel Unit, x2
NQCNW-C799WJPZ AG J RCA Cable L=1500mm, Tuner Extension
NQCNW-E134WJQZ BG J 41pins L=400mm, MAIN to FRC Unit (LV)
NQCNW-F676WJQZ N J L=1000mm, LC Cont to FRC Unit (LV), x2
NQCNW-F677WJQZ N J L=1000mm, LC Cont to FRC Unit (FL-CN8)
NQCNW-F135WJQZ AS J L=1000mm, (LV)
NQCNW-F678WJQZ N J L=1200mm, (LB)
NQCNW-F675WJQZ N J L=1000mm, (LP-LF)
LC-46D82U/LC-52D82U
Apr. 2007 Printed in Japan
TQ2122-S SH. DS
SHARP CORPORATION
AV Systems Group
CS Promotion Center
Yaita,Tochigi 329-2193, Japan
COPYRIGHT © 2005 BY SHARP CORPORATION
ALL RIGHTS RESERVED.
No Part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any from or by any means, electronic, mechanical,
photocopying , recording, or otherwise, without
prior written permission of the publisher.
2007

Navigation menu
