TFT-LCD TV

Chassis GTU32HEN

Model LE32M86BDX

LE32M87BDX

Manual

SERVICE

TFT-LCD TV Fashion Feature

- Luxurious Slim Design

- Supreme Picture Quality

- Supreme Sound Quality

- Supreme Convenience Quality

- Convenience for Users

This manual may not, in whole or in part, be copied,

photocopied, reproduced, translated, or converted to

any electronic or machine readable form without prior

written permission of Samsung Electronics Co., Ltd.

LE32M86BDX Service Manual

First edition June 2007.

Printed in Korea.

Trademarks

Samsung is the registered trademark of Samsung

Electronics Co., Ltd.

LE32M86BDX and MacMaster Cable Adapter are

trademarks of Samsung Electronics Co., Ltd.

Macintosh, Power Macintosh are trademarks of Apple

Computer, Inc.

All other trademarks are the property of their respective

owners.

11. Precautions………………………………………………………………………………………………………………………………………11-1

1-1 Safety Precautions ……………………………………………………………………………………………………………………… 1-1

1-2 Servicing Precautions …………………………………………………………………………………………………………………… 1-2

1-3 Static Electricity Precautions …………………………………………………………………………………………………………… 1-2

1-4 Installation Precautions ………………………………………………………………………………………………………………… 1-3

2. Product specifications …………………………………………………………………………………………………………………………22-1

2-1 Fashion Feature…………………………………………………………………………………………………………………………… 2-1

2-2 LE37M86BDX Specifications …………………………………………………………………………………………………………… 2-2

2-3 Spec Comparison ………………………………………………………………………………………………………………………… 2-3

2-4 Option Specification ……………………………………………………………………………………………………………………… 2-4

3. Alignments and Adjustments …………………………………………………………………………………………………………………33-1

3-1 Service Instruction ………………………………………………………………………………………………………………………… 3-1

3-2 How to Access Service Mode …………………………………………………………………………………………………………… 3-2

3-3 Factory Data ……………………………………………………………………………………………………………………………… 3-3

3-4 Service Adjustment ……………………………………………………………………………………………………………………… 3-11

3-5 Software Upgrade ………………………………………………………………………………………………………………………3-14

4. Trouble shooting ………………………………………………………………………………………………………………………………44-1

4-1 First Checklist for Troubleshooting ……………………………………………………………………………………………………… 4-1

4-2 Checkpoints by Error Mode ……………………………………………………………………………………………………………… 4-2

5. Exploded View and Parts List ………………………………………………………………………………………………………………55-1

5-1 LE32M86BDX Exploded View …………………………………………………………………………………………………………… 5-1

5-2 LE32M86BDX Parts list ………………………………………………………………………………………………………………… 5-2

6. Electrical Parts List ……………………………………………………………………………………………………………………………66-1

6-1 LE32M86BDX Parts List …………………………………………………………………………………………………………………6-1

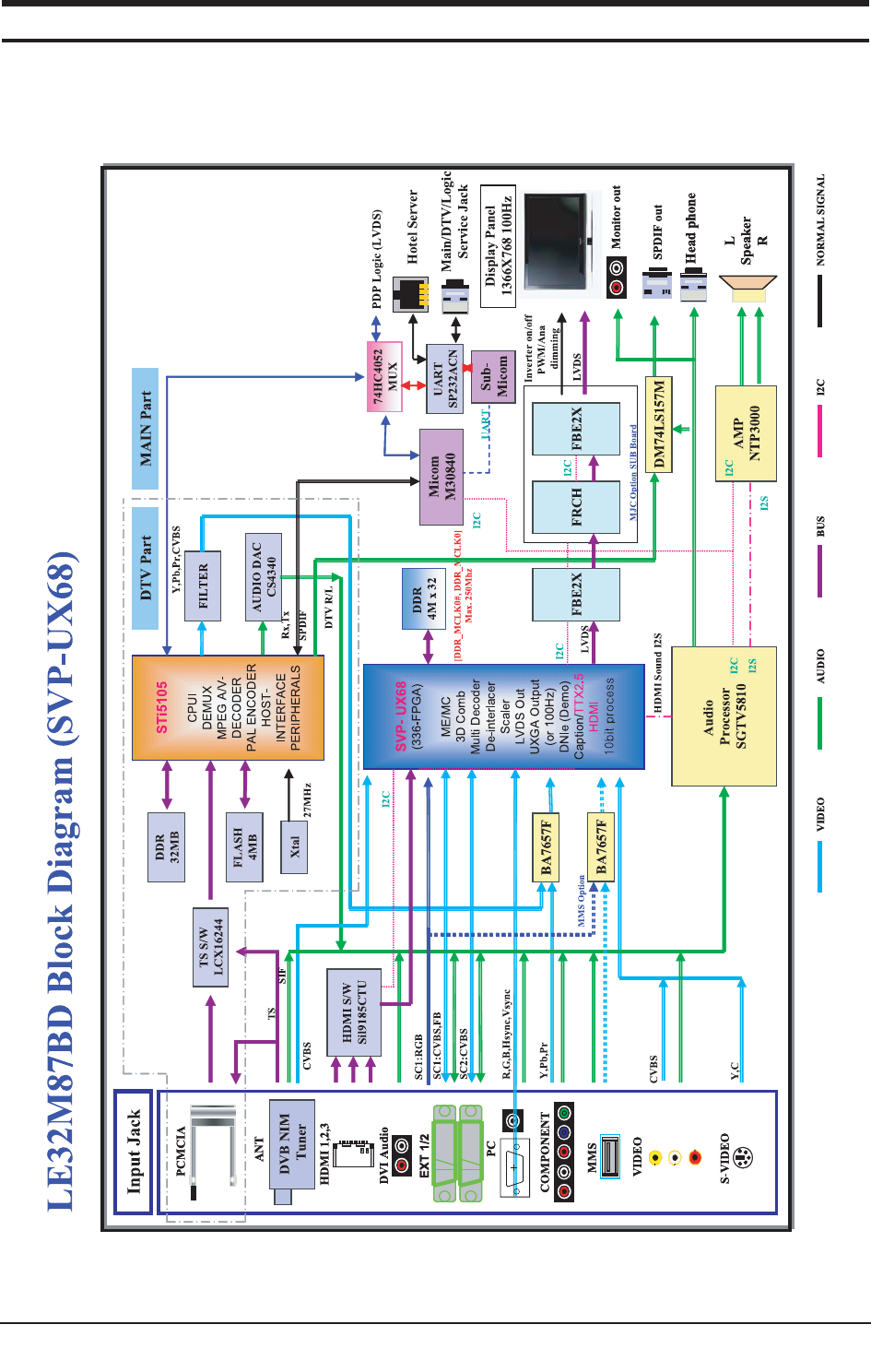

7. Block Diagram …………………………………………………………………………………………………………………………………77-1

8. WWiring Diagram …………………………………………………………………………………………………………………………………88-1

8-1 Wiring Diagram …………………………………………………………………………………………………………………………… 8-1

8-2 Main Board Layout ……………………………………………………………………………………………………………………… 8-2

8-3 Wiring Diagram (SUB BOARD) ………………………………………………………………………………………………………… 5-3

8-4 SUB BOARD FRCH MJC ADD PCB …………………………………………………………………………………………………… 8-4

8-5 PIN characteristic ………………………………………………………………………………………………………………………… 8-5

8-6 Connector Location and PCB outline figure ……………………………………………………………………………………………8-8

8-7 Output Connector …………………………………………………………………………………………………………………………8-9

Contents

99. Schematic Diagrams ……………………………………………………………………………………………………………………………99-1

10. OOperating Instructions and Installation………………………………………………………………………………………………………110-1

10-1 Front …………………………………………………………………………………………………………………………………… 10-1

10-2 Connection Panel ……………………………………………………………………………………………………………………… 10-2

10-3 Remote Control ………………………………………………………………………………………………………………………… 10-5

10-4 Installing the Stand …………………………………………………………………………………………………………………… 10-6

10-5 Installing the Wall Mount Kit ………………………………………………………………………………………………………… 10-6

11. Disassembly and Reassembly ………………………………………………………………………………………………………………111-1

11-1 Disassembly …………………………………………………………………………………………………………………………… 11-1

11-2 Reassembly …………………………………………………………………………………………………………………………… 11-5

12. PCB Diagram …………………………………………………………………………………………………………………………………112-1

12-1 Main PCB Layout ……………………………………………………………………………………………………………………… 12-1

12-2 SMPS Board Diagram ………………………………………………………………………………………………………………… 12-2

12-3 Sub Board Diagram …………………………………………………………………………………………………………………… 12-3

12-4 Sub Board Diagram …………………………………………………………………………………………………………………… 12-4

13. Circuit Descriptions …………………………………………………………………………………………………………………………113-1

13-1 Block description ……………………………………………………………………………………………………………………… 13-1

13-2 Main Block ……………………………………………………………………………………………………………………………… 13-3

13-3 SMPS Board …………………………………………………………………………………………………………………………… 13-4

14. Reference Infomation ……………………………………………………………………………………………………………………… 114-1

14-1 Technical Terms ……………………………………………………………………………………………………………………… 14-1

14-2 Pin Assignments ……………………………………………………………………………………………………………………… 14-4

14-3 Timing Chart …………………………………………………………………………………………………………………………… 14-7

14-4 Panel Description …………………………………………………………………………………………………………………… 14-11

Contents

Samsung Electronics Co.,Ltd.

416, Maetan-3Dong, Yeongtong-Gu, Suwon City,

Gyeonggi-Do, Korea, 443-742

Printed in Korea

P/N : BN82-00191B-00

URL : http://itself.sec.samsung.co.kr/

- This Service Manual is a property of

Samsung Electronics Co., Ltd.

Any unauthorized use of Manual can be

punished under applicable International

and/or domestic law.

3 Alignments and Adjustments

3-1

3 Alignments and Adjustments

3-1 Service Instruction

1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.

Check the basic characteristics such as height, horizontal and vertical sync.

2. Use the specified test equipment or its equivalent.

3. Correct impedance matching is essential.

4. Avoid overload. Excessive signal from a sweep generator might overload the front-end

of the TV. When inserting signal markers, do not allow the marker generator to distort

test result.

5. Connect the TV only to an AC power source with voltage and frequency as specified on

the backcover nameplate.

6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure

that the power cord is disconnected before replacing any parts.

7. To protect aganist shock hazard, use an isolation transform.

3 Alignments and Adjustments

3-2

3-2 How to Access Service Mode

3-2-1 Entering Factory Mode

1. To enter "Service Mode"Press the remote -control keys in this sequence :

- If you do not have Factory remote - control

- If you have Factory remote - control

- The buttons are active in the service mode.

1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left

Arrow Right, Menu, Enter, Number Key(0~9)

2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,

Menu, TV/VIDEO(Enter)

3-2-2 Panel Check

You have to check Panel Maker Because of different adjustments as follows.

First of all, Check the label rating!

1) Label Rating File

- LCD PANEL MARK -

A:ACER(AUO) S : SEC C : CMO * If not printed you could consider S(sec) panel mark.

2) If Panel Mark is "A", Set the factory mode indicating as follows.

* Option Byte

1. Inch Option 32"

2. Panel Vender AUO_EXT_N

3. Panel Type 32"AU 100

Others are same shown below.

Power OFF Power OnMUTE

PICTURE ON DISPLAY FACTORY

MENU MUTE

3 Alignments and Adjustments

3-3

3-3 Factory Data

1. Calibration

2. Option Table(Service)

3. White Balance

4. SVP-UX

5. Option Block

6. SGTV5810/NTP3000

7. YC Delay

8. Option Table

9. I2C Check

10. W/B MOVIE

11. Checksum

12. Reset

13. Spread Spectrum

T-TLP32PEUD-xxxx (Main Micom Ver)

T-BDPMPEUS-xxxx

BORD2_CALLA_TR-xxxx

Month / Day / Year / Hour / Min. / Sec.

1. Calibration

1) AV Calibration

2) COMP Calibration

3) PC Calibration

4) HDMI Calibration

5) DTV Calibration

2. Option Table XXXX XXXX

No Item

Ready

Inch Option

Panel Vender

DDR

Panel Type

Model Option

Anynet +

Light Effect

WM Calib

Auto Power

LNA Menu

TTX On/Off

TTX List

Carrier Mute

High Deviation

VOL.Curve

HDMI Hotplug

HDMI Clock CtrI

HDMI Hotplug Dly

ON/OFF

23"/ 26" / 32"...

AUO/CMO...

ETRON/SAMSUNG

32"AU_100/37"CPT.....

Calla/Lily/Bord Plus/Jasmine

ON/OFF

Flof/List

ON/OFF

Small/Large

1/0

3~50

OFF

32"

AUO_EXT_N

ETRON

32"AU_100

BDP/TLP

OFF

Flof

OFF

Large

Range

3 Alignments and Adjustments

3-4

No Item

Hotel Option

Hotel Mode

Power On Channel

Power On Volume

Max Volume

Local Key Lock

Power On Source

Shop Mode

Color Space

PC Ident

Language

Ch.Table

TTX Group

Nordic

ON/OFF

1~99

1~100

ON/OFF

RF/Ext.1...

ON/OFF

English/German...

SUWON/SESK/SEH/TTSEC

Auto/West Europe...

ON/OFF

OFF

100

OFF

English

SUWON

Auto

Range

3. White Balance

No Item Range

Sub-Briteness

R-offset

G-offset

B-offset

Sub-Contrast

R-Gain

G-Gain

B-Gain

00H~FFH

128

TV/AV/Scart Comp/iDTV PC HDMI

4. SVP-PX

1) ComB Filter

2) Sharpness

Item

Y-Filter

Range

00H~FFH

Item

H2Gain

H4Gain

V2Gain

V4Gain

Sr2Gain

Sr4Gain

Sl2Gain

Sl4Gain

Peakth1

Peakth2

Peskth3

Range

00 ~ 1FH

00H~FFH

05H

04H

0CH

00H

06H

2FH

3FH

05H

0AH

0CH

10H

00H

02H

00H

02H

2FH

3FH

HDMI

0AH

10H

00H

04H

00H

04H

03H

2FH

3FH

05H

0AH

00H

02H

00H

02H

08H

2FH

3FH

iDTV

05H

0AH

00H

02H

00H

02H

04H

2FH

3FH

Comp480i

05H

0AH

0CH

00H

03H

2FH

3FH

Comp480p

05H

0CH

00H

03H

2FH

3FH

Comp720p

04H

02H

0AH

00H

02H

00H

02H

03H

2FH

3FH

Comp1080i

04H

02H

0AH

00H

02H

00H

02H

03H

2FH

3FH

3 Alignments and Adjustments

3-5

3) NR

4) RGB Calibration

5) ADC Calibration

6) Calibration Target

Item

Y_NR_OFF

C_NR_OFF

Y_NR_ON

C_NR_ON

Range

00H~FFH(Y_NR_OFF)

00H~FFH(C_NR_OFF)

00H~FFH(Y_NR_ON)

00H~FFH(C_NR_ON)

00H

No Item Range

R-Offset

G-Offset

B-Offset

R-Gain

G-Gain

B-Gan

00H~FFH

3AH

A6H

40H

92H

32H

A9H

82H

6CH

TV/AV/S_Video Component PC HDMI

No Item Range

AV ADC

COMP ADC

PC ADC

ALL RGB

00H~FFH

10H

01H

DCH

EBH

DCH

EBH

02H

04H

0AH

low high Delta

No Item Range

TCD3 Contrast

TCD3 Brightness

TCD3 CR

TCD3 CB

TCD3 Delay

Analog Y Offset

Analog PB Offset

Analog PR Offset

Analog Y Gain

Analog PB Gain

Analog PR Gain

Black Level

Svp Brightness

00H~FFH

79H

29H

80H

00H

40H

80H

D6H

80H

00H

78H

20H

80H

00H

3DH

80H

B3H

00H

78H

20H

80H

00H

44H

A4H

ACH

A7H

00H

78H

20H

80H

00H

40H

80H

00H

TV/AV/S_Video Component PC HDMI

3 Alignments and Adjustments

3-6

5. Option Block

7) Color Management

1) FRC(Micronas)

2) FRC2X

No Item Range

Skin Direction

Skin Enhance

Green Stretch

Blue Stretch

Reddish/Yellowish

00H~FFH

Reddish

00H

8) Sync Control

No Item Range

HSync Tip End

VSync AGC Min

VSync AGC Max

VSync Clamp mode

VSync Thresh

00H~FFH

00H~3FH

0~3

00H~FFH

Reddish

00H

No Item Range

OUTCON

GAMMA

OCC_MODE

FALLBACK

DBG_MARK

SPR_CBR

BIT_EXPAND

INV_BIT_EXPAND

REPEAT_MODE

DEMO_ON_OFF

MMU_RD_START

ME_RD_START

MC_RD_START

CMZL(0x36E)

BLOL(0x2A7)

LOGO(0x2A7)

1~3

1~7

0/1

00H~FFH

00H~0FH

00H

3 Alignments and Adjustments

3-7

Pattern Select

BS-On

B-Slope Gain

B-Tilt Min

B-Tilt Max

B-Tilt Slope

LFunc-Basis

Hfunc-Basis

Mean-Offset1

Mean Offset2

Mean Slope

Input Offset

Input Gain

ACR Offset

ACR Th1

ARC Th2

Skin Enable

Skin Tu

Skin Tv

M Skin Tu

M Skin TV

Sub Color

M-Au-Sub Color

M-Wi-Sub Color

MW-Skin-Tu

MW-Skin-Tv

0~20

0/1

0~255

0~128

0~255

0/1

0~255

130

128

220

128

110

128

110

128

133

128

120

128

100

200

128

130

165

140

128

120

128

100

200

128

130

165

140

128

3) FBE2

No Item Range

120

128

225

128

130

165

128

150

128

HDMI

120

128

225

128

130

128

143

128

DTV

120

128

225

128

130

128

143

128

DTVRF AV/

S-VIDEO

COMP

(480i/576i)

120

128

155

128

130

150

140

128

135

128

COMP

(480p/576p)

120

128

225

128

130

165

128

140

128

COMP

(720p/1080i/1080p)

3 Alignments and Adjustments

3-8

4) Pdp Logic

No Item Range

Pattern Srlect

Data updata

Data Type

CDC Sw

CDC Strengh Th

BRE Sw

FRC Repeat Mode

FRC CBG Mark On

ERC Bypass

Panel Type

Panel Inch

Panel Version

Logic Sw Version

0~63

ON/OFF

42"EU MRT/42"EU MESH/.......

ON/OFF

0~31

ON/OFF

0~15

ON/OFF

OFF

42"EU MRT

OFF

0H 0H 0H

6. SGTV5810/NTP3000

No Item Range

ID Tone Shift

ID Tone Thresh

Demod Prescaler

Master Volume

PWM Modulation

DRC Threshold

Speaker EQ

1H~FH

00H~FFH

00H~20H

00H~30H

80H~F2H

00H~7FH

ON/OFF

01H

7FH

13H

F1H

06H

7. YC Delay

No Item Range

RF PAL-B/G

RF PAL - D/K

RF PAL - I

RF SECAM - B/G

RF SECAM - D/K

RF SECAM -L/L'

RF NTSC 3.58

RF NTSC 4.43

AV PAL

AV SECAM

AV NTSC 3.58

AV NTSC 4.43

AV PAL60

00H~FFH

77H

86H

40H

CCH

64H

CCH

95H

AAH

77H

3 Alignments and Adjustments

3-9

8. Adjust

9. I2C Check

No Item Range

Video Mute Time

Dynamic Contrast

Dynamic Dimming

Dynamic CE

LNA PLUS

RFDB-1 Level

RFDB-2 Level

RFDB-3 Level

RFDB-4 Level

Magazine LNA

PixelShift Test

Debug

ACR

D-Watchdog

Watchdog

URRT Select

FBE Select

Tuner

Tuner Top Semco

Tuner Top ALPS

D. Gamma

M. Gamma

MJC/PDP FRC

0~255

ON/OFF

0~255

ON/OFF

MAIN / IDTV / PDP Lvds ON / PDP Lvds OFF

FBE2X/FBE2

Auto/ALPS/Semco

1-31

s_1-10 /0_85/off

All On/All_off/MJC OnlyFRC Only

OFF

FBE2X

Auto

s_1

OFF

ALL ON

3 Alignments and Adjustments

3-10

10. W/B MOVIE

WB Movie

Color Mode

Color Tone

Msub Brigh

Msub Contr

W1_RGAIN

W1_BGAIN

W1_R_OFFS

W1_B_OFFS

W2_RGAIN

W2_BGAIN

W2_R_OFFS

W2_B_OFFS

NO_RGAIN

NO_BGAIN

NO_R_OFFS

NO_B_OFFS

C2_RGAIN

C2_BGAIN

C2_R_OFFS

C2_B_OFFS

Movie Contr

Movie Brigh

Movie Color

Movie Sharp

ON/OFF

Movie

0~255

0~100

No Item Range

OFF

Movie

Cool1

128

176

131

138

168

130

131

152

100

129

130

126

168

128

129

100

TV/AV/S_Video

OFF

Dynamic

Cool1

128

161

119

140

143

127

145

139

102

125

133

122

141

129

127

100

Component

OFF

Dynamic

Cool1

128

144

117

127

110

149

124

110

137

123

126

114

123

156

117

116

100

OFF

Dynamic

Cool1

128

161

118

141

142

128

143

141

104

121

133

125

143

128

100

HDMI

OFF

Dynamic

Cool1

128

157

119

138

142

129

143

141

104

126

136

124

142

128

100

Scart1/2

11. Checksum 7A72

12. Reset

13. Spread Spectrun

No Item Range

Spectrum

Delta

Positive

Negative

Speed

Time

FBE Spectrum

ON/OFF

-128 ~ +128

0~99

0~7

0~5

3 Alignments and Adjustments

3-11

3-4 Service Adjustment

3-4-1 White Balance - Calibration

If picture color is wrong, do calibration first.

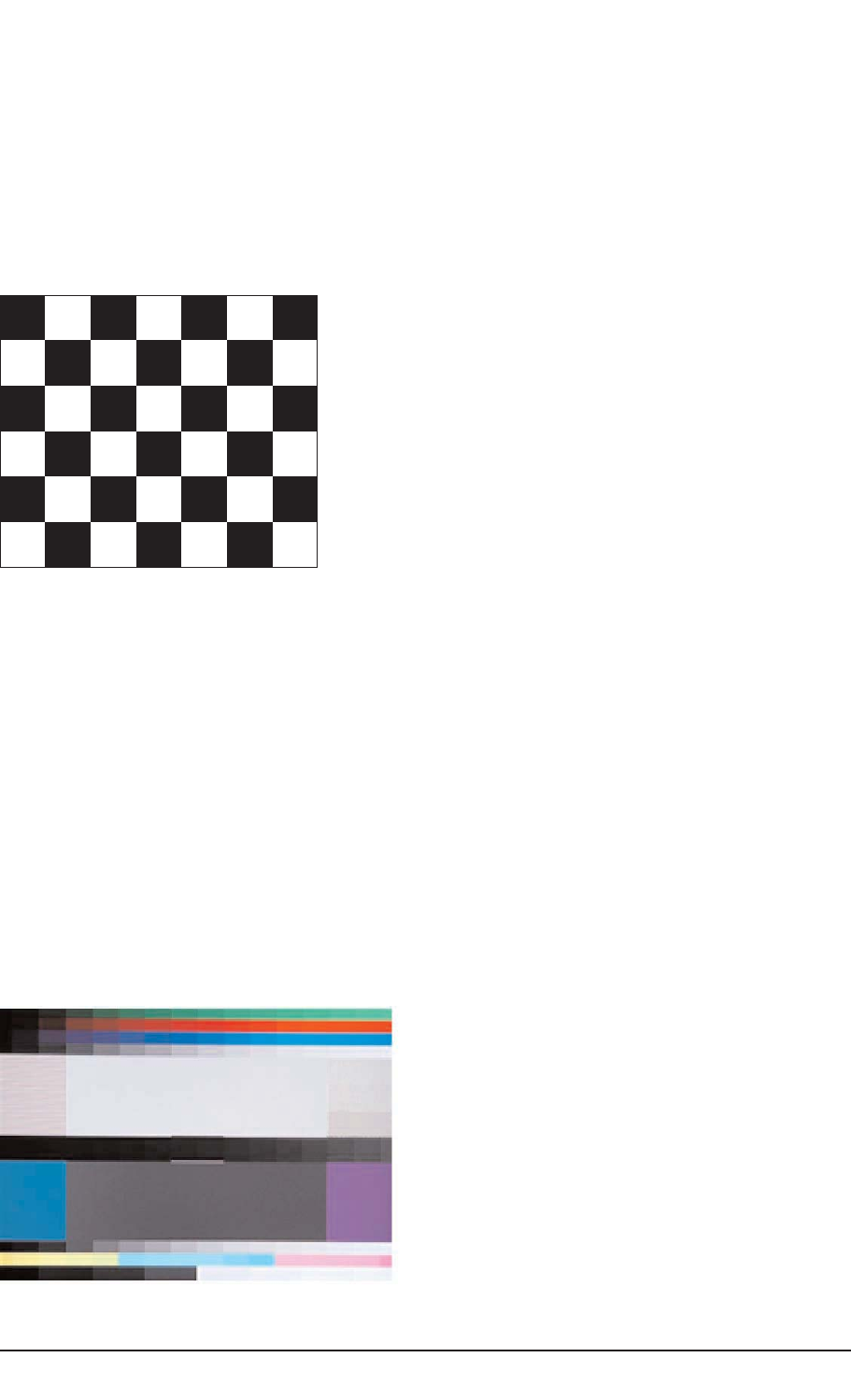

Equipment : CA210, Patten : chess pattern

Execute calibration in Factory Mode

Source AV : PAL composite, Component : 1280*720/60Hz

PC : 1024*768/60Hz

3-4-2 White Balance - Adjustment

If picture color is wrong, check White Balance condition.

Equipment : CA210, Patten : Flat W/B Pattern

Adjust W/B in Factory Mode

Sub brightness and R/G/B Offset controls low light region

Sub contrast and R/G/B Gain controls high light region

Source AV : PAL composite, Component : 1280*720/60Hz

HDMI[DVI] : 1280*720/60Hz

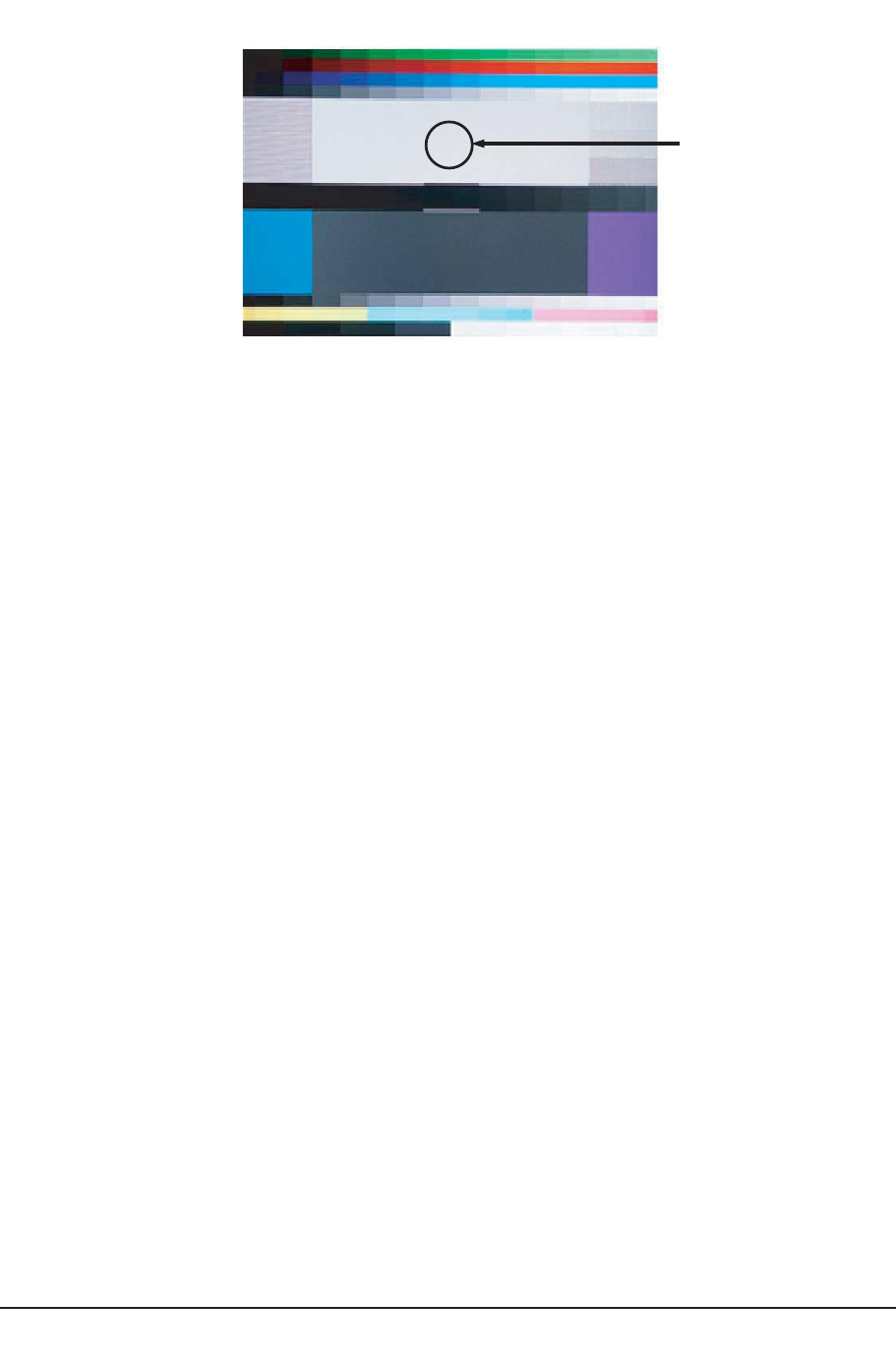

Flat W/B Pattern

[ Test Pattern : MIK K-7256 PAttern #92 ]

*Color temperature

1500K +/-500, -6 ~-20 MPCD

*Color coordinate

H/L : 267/263 +/- 2 35.0 Ft +/- 2.0Ft

L/L : 270/260 +/- 3 1.5 Ft +/- 0.2Ft

( chess patten )

3 Alignments and Adjustments

3-12

3-4-3 Conditions for Measurement

1. On the basis of toshiba ABL pattern : High Light level (57 IRE)

- INPUT SIGNAL GENERATOR : MSPG-925LTH

* Mode NO 2 : 744X484@60 Hz

NO 6 : 1280X720@60 Hz

NO 21 : 1024X768@60 Hz

* Pattern NO 36 : 16 Color Pattern

NO 16 : Toshiba ABL Pattern

2. Optical measuring device : CA210 (FL)

Please use the MSPG-925 LTH generator for model

LE26M51B/LE32M51B/LE40M51B/LE46M51B

3-4-4 Method of Adjustment

1. Adjust the white balance of AV, Component and DVI Modes.

(AV Component)

a) Set the input to the mode in which the adjustment will be made

(RF DTV PC DVI).

* Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16

- DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16

- HDMI Mode: Model #6(1280*720 Mode), Pattern #16

b) Enter factory color control, confirm the data.

c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust sub - Brightness to set the 'Y' value.

- Adjust red offset ('x') and blue offset ('y') to the color coordinates.

* Do not adjust green offset data.

d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust red gain ('x') and blue gain ('y') to the color coordinates.

* Do not adjust the green gain and sub-contrast (Y) data.

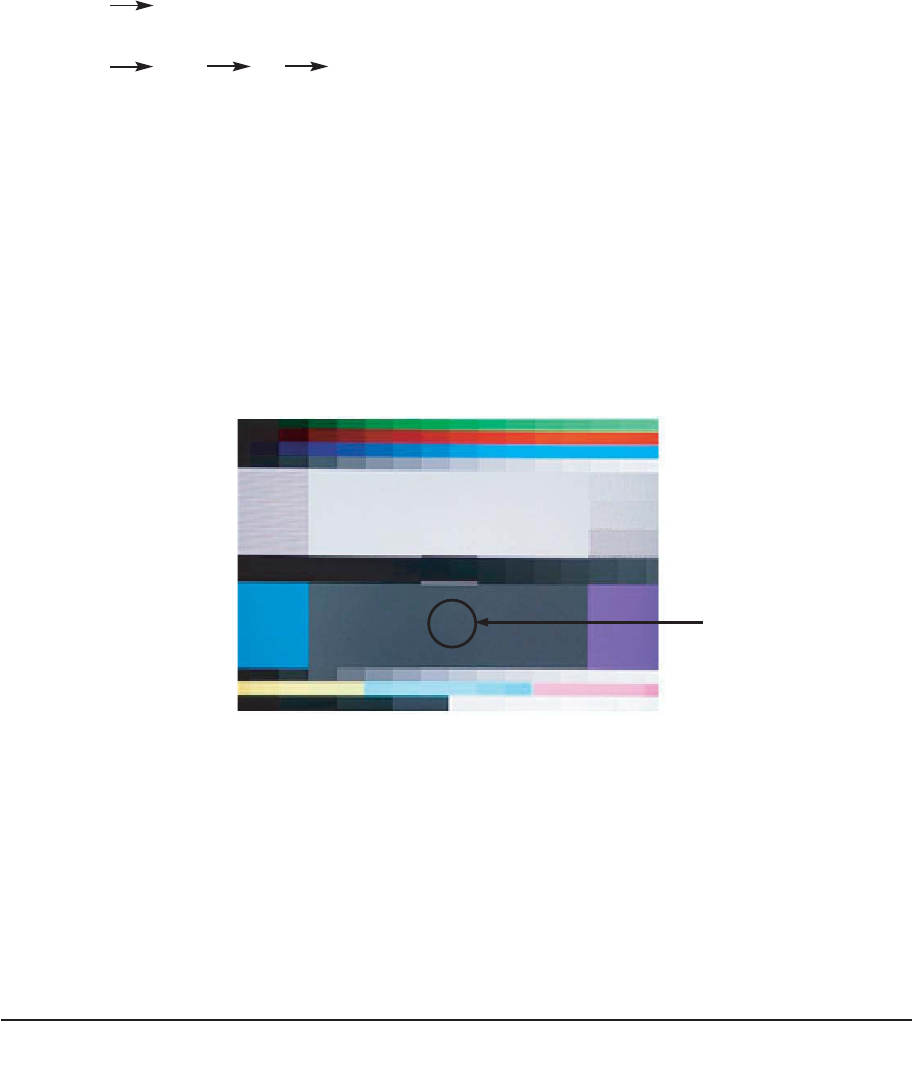

Picture 4-2 Flat W/B Pattern

Low light

Measurement point

3 Alignments and Adjustments

3-13

d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust red gain ('x') and blue gain ('y') to the color coordinates.

* Do not adjust the green gain and sub-contrast (Y) data.

Picture 4-3 Flat W/B Pattern

High light

Measurement point

3 Alignments and Adjustments

3-14

3-5 Software Upgrade

3-5-1 How to Update Flash ROM

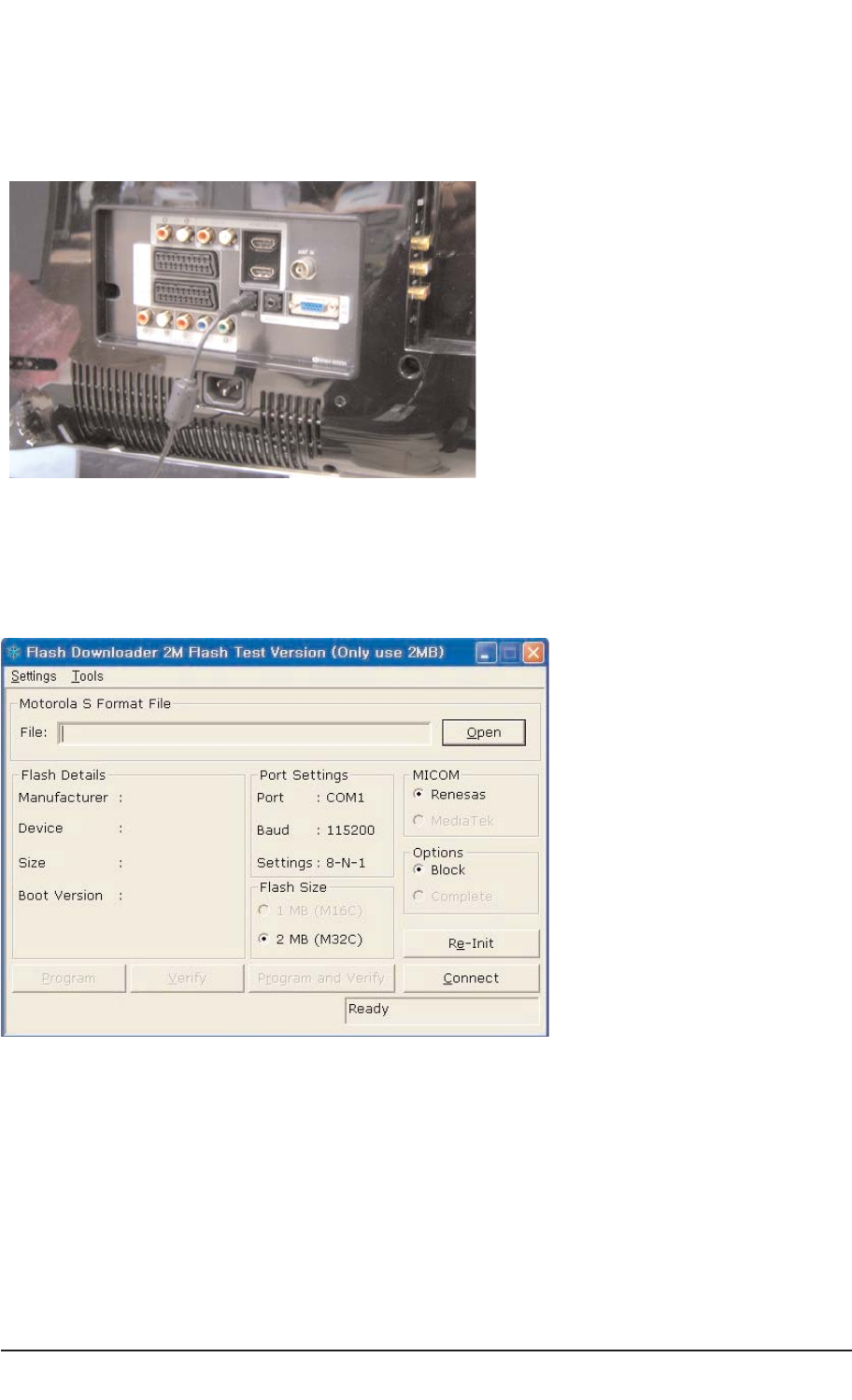

1. Install the Flash Downloader

ConnectSet(Service Jack)and Jig Cable to execute Program Update.

2. Flash Downloader program update

-Before Turning on the set,Click "connect"which is under of OSD Screen!

-Turn on the Set.

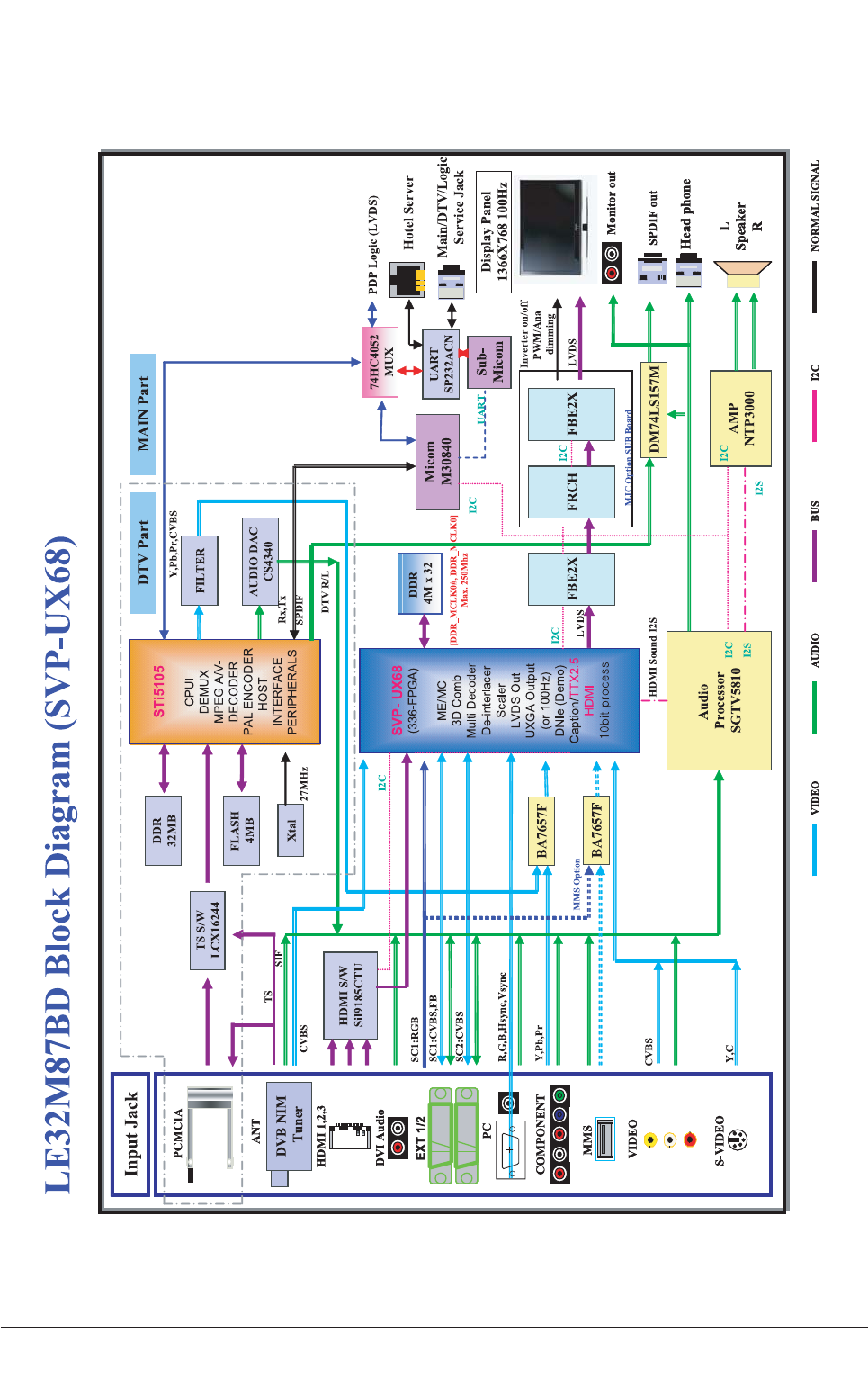

7 Block Diagrams

7-1

7 Block Diagram

- This Document can not be used without Samsung’s authorization

7 Block Diagrams

7-2

Memo

13 Circuit Descriptions

13-1

13 Circuit Descriptions

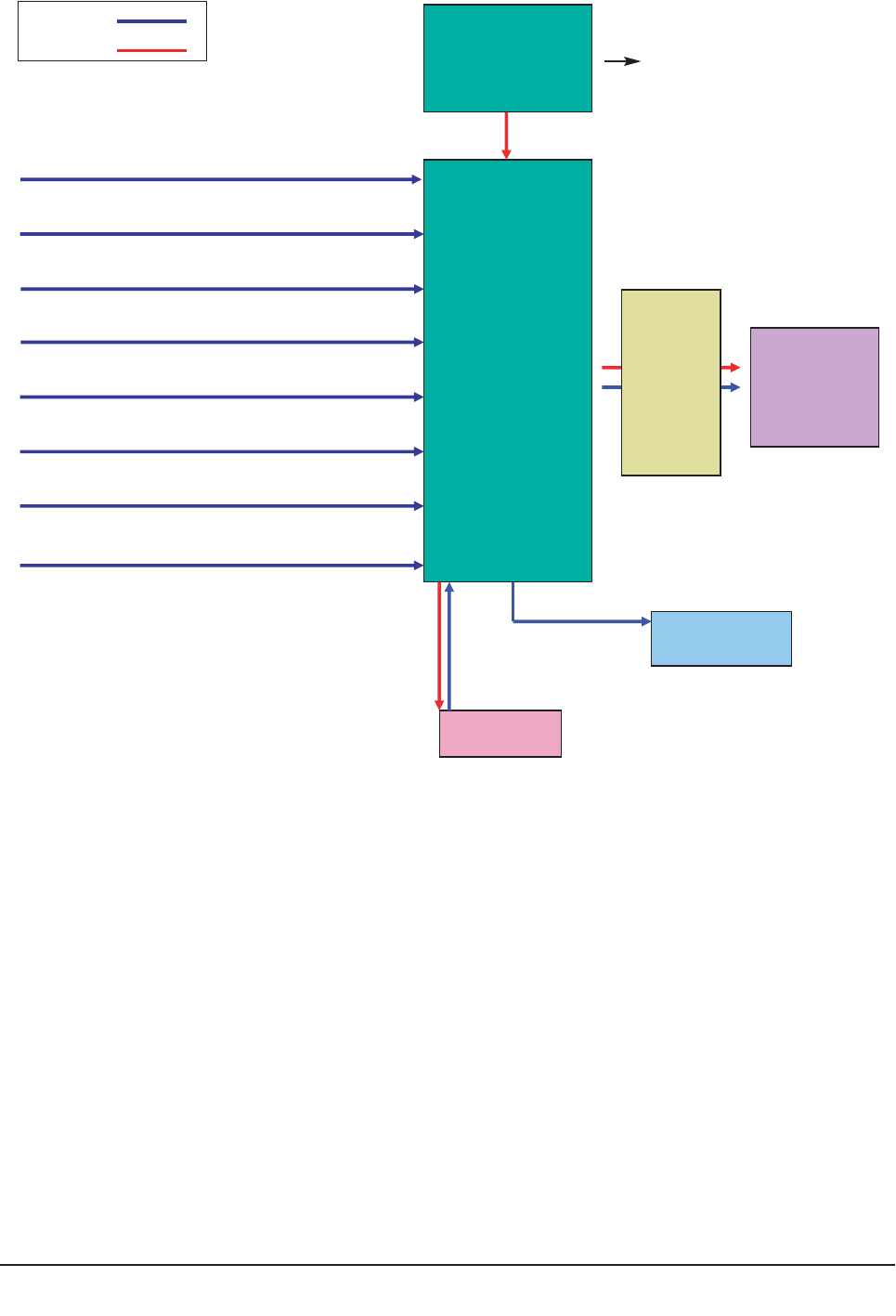

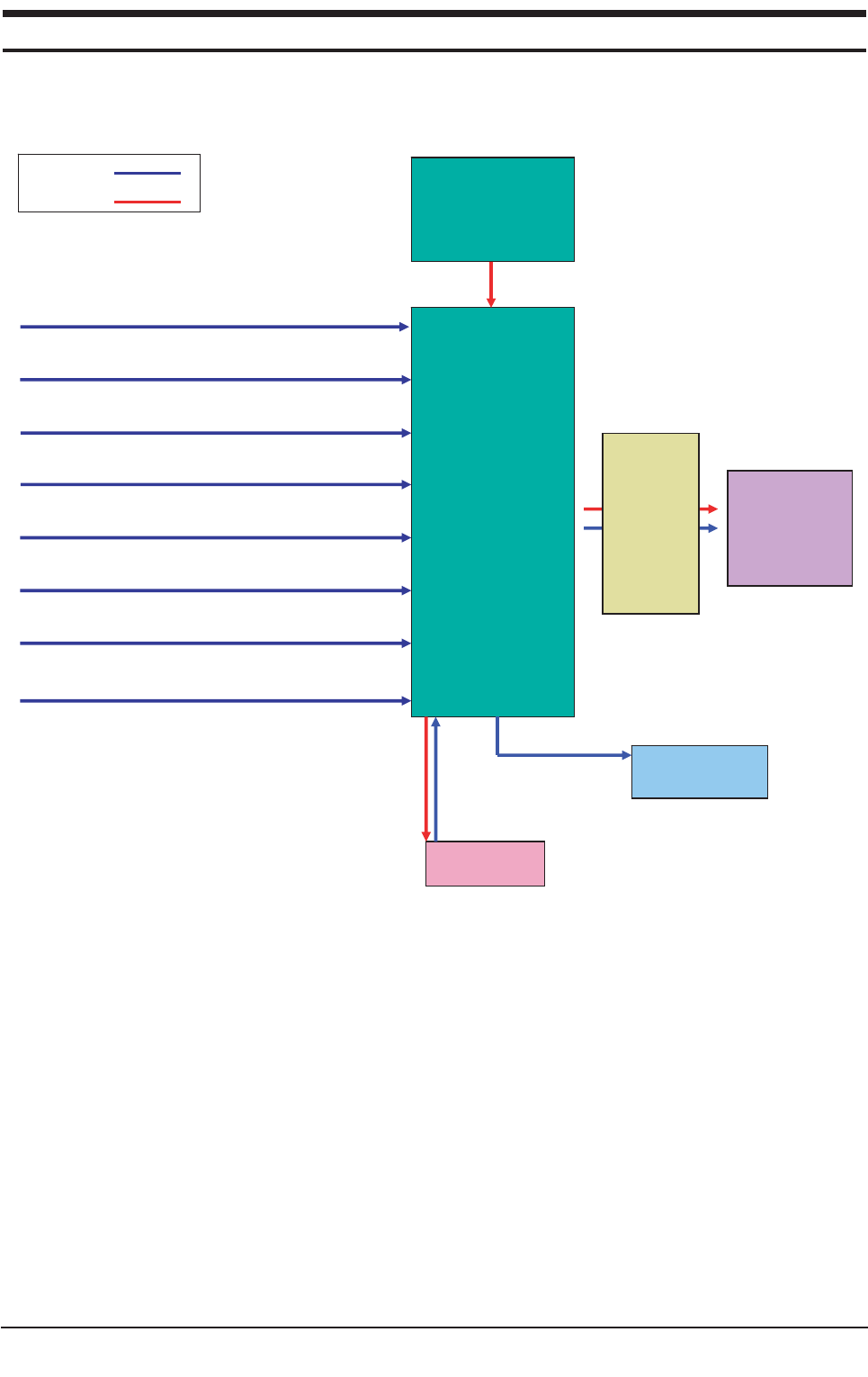

13-1 Block description

RF IN (Air, Cable)

Scart 1,2

A/V

S-Video

Component

HDMI 1, 2

MMS

Main

Board SUB

Board

Panel

T-con

Board

Speaker

IR/LED

Signal

Power

Bordeaux consists of three main blocks

1. Main board : Video signal processing

2. IP board : Power supply & Inverter

3. T-con board : LCD Panel control

IP Board

13 Circuit Descriptions

13-2

Bordeaux consists of three main blocks

1. Main board : Video signal processing

2. SMPS : Power supply

3. T-con board : LCD Panel control

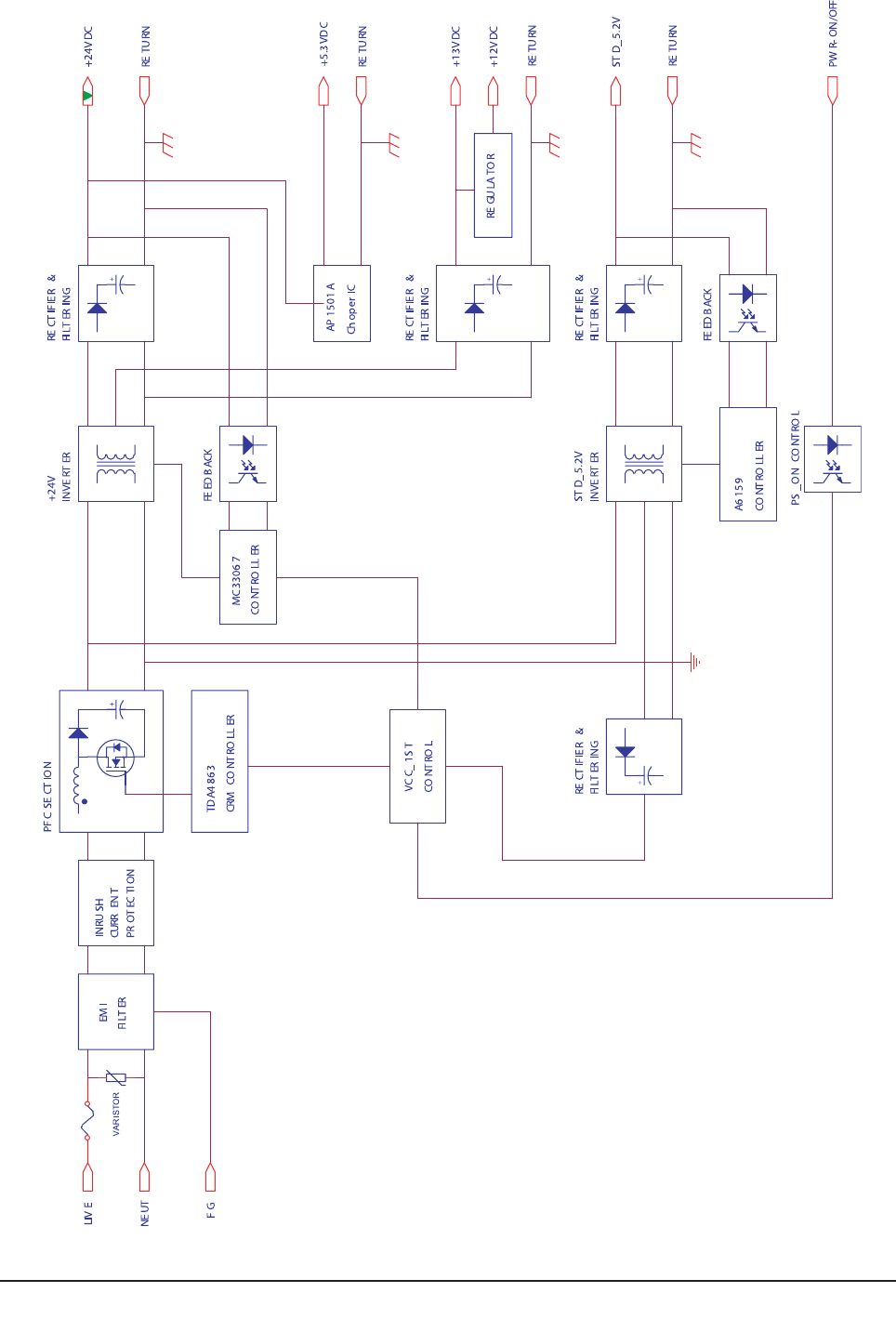

SMPS INVERTER

RF IN

Scart 1,2

A/V

S-Video

Component

HDMI 1, 2

Main

Board Panel

T-con

Board

Speaker

IR/LED

Signal

Power

MMS

SUB

Board

13 Circuit Descriptions

13-3

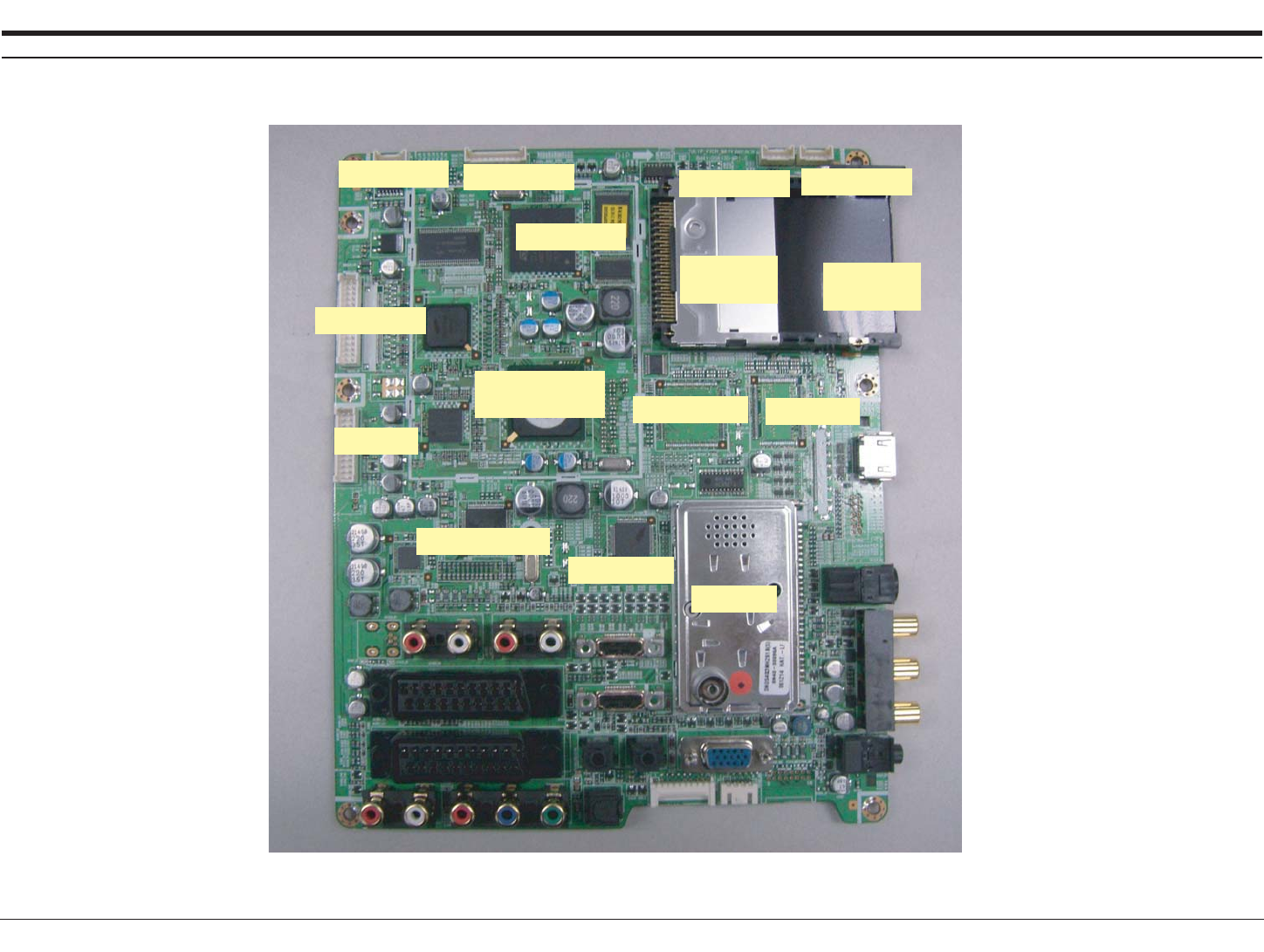

13-2 Main Block

13 Circuit Descriptions

13-4

13-3 SMPS Board

11 Disassembly and Reassembly

11-1

11 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the TFT-LCD

TV.

WARNING : This monitor contains electrostatically sensitive devices. Use caution when

handling these components.

11-1 Disassembly (LE32M87BDX)

Cautions : 1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the

cabinet.

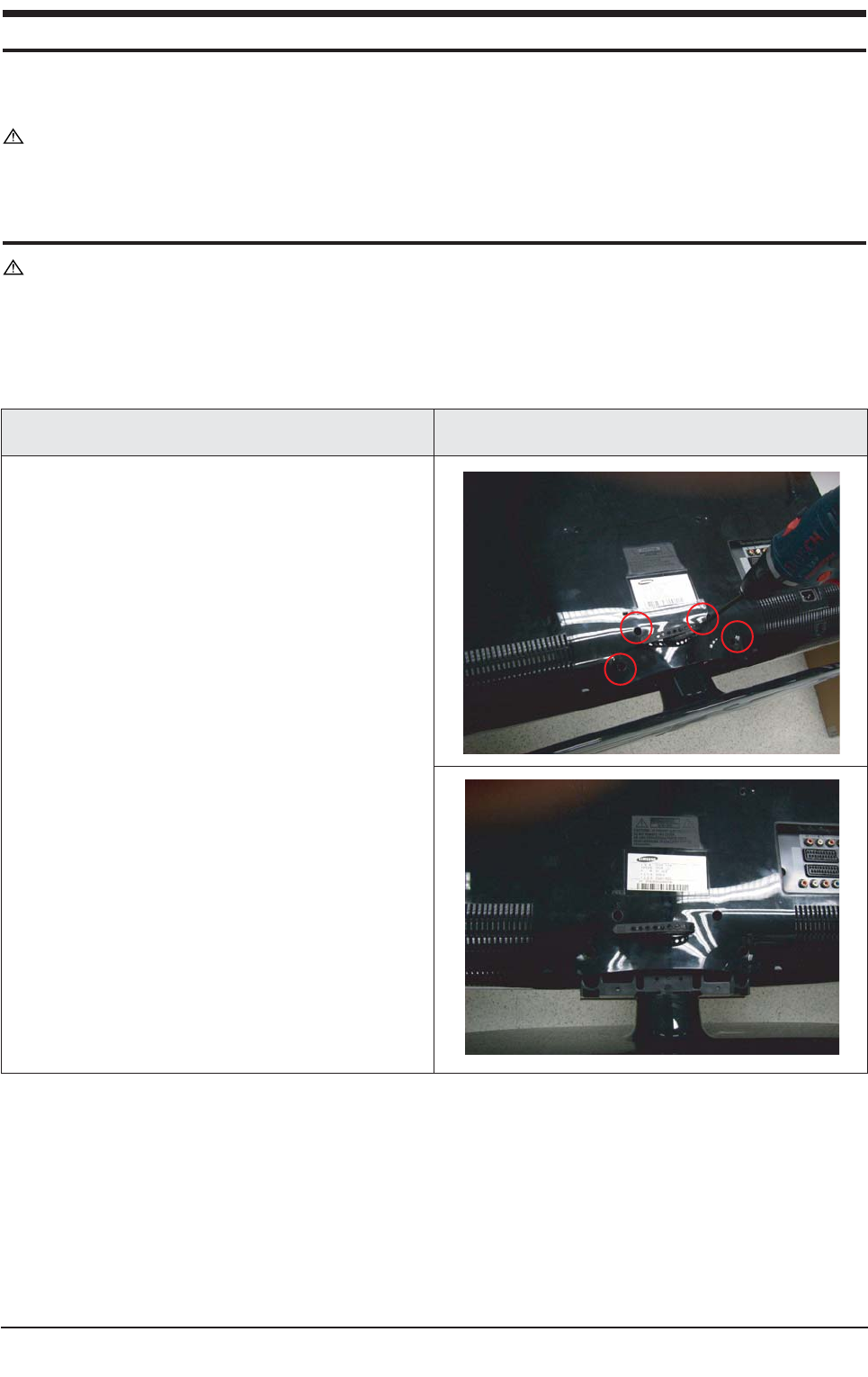

Description Picture Description

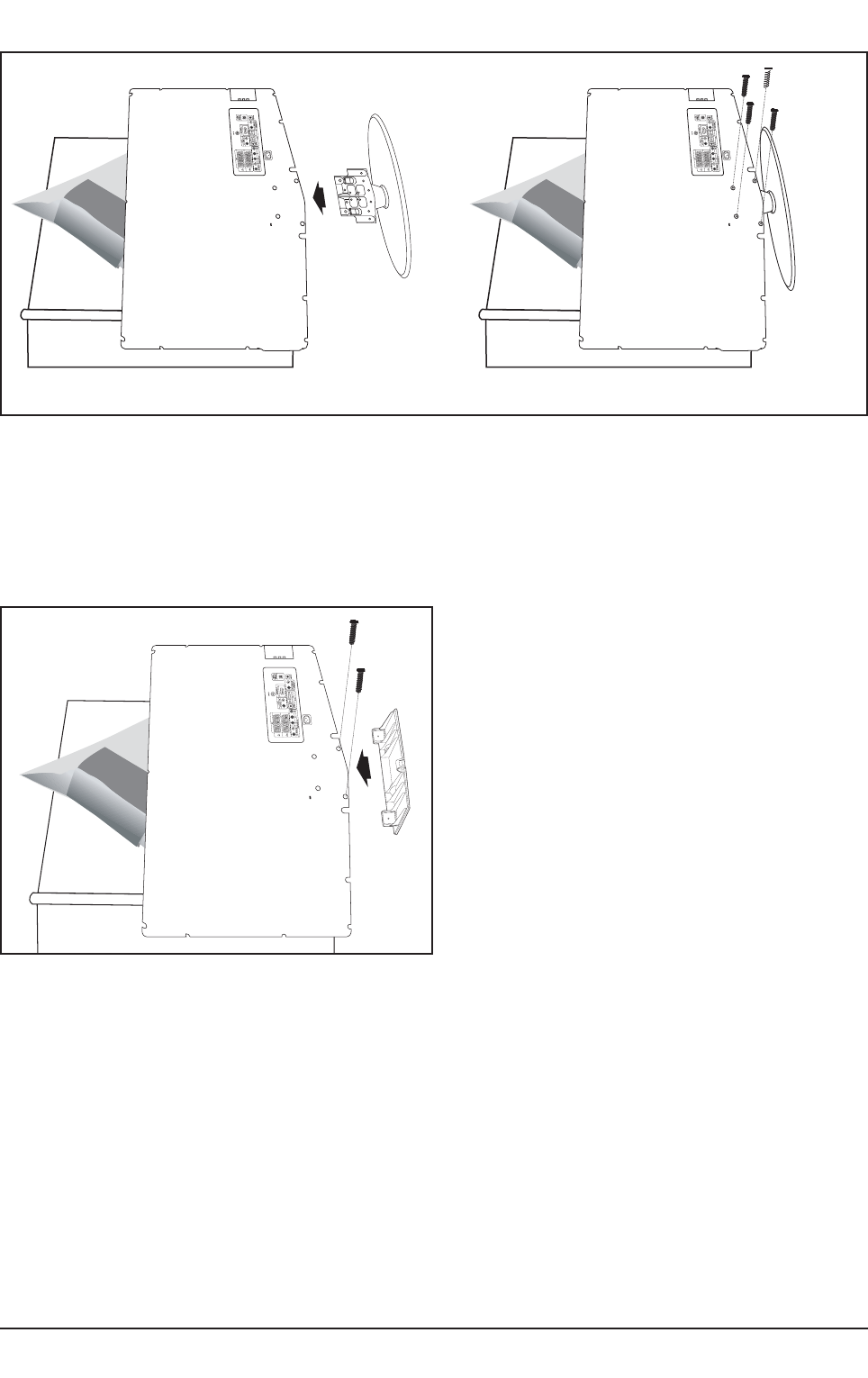

1. Place monitor face down on cushioned table.

Remove screws from the Stand.

Remove stand.

11 Disassembly and Reassembly

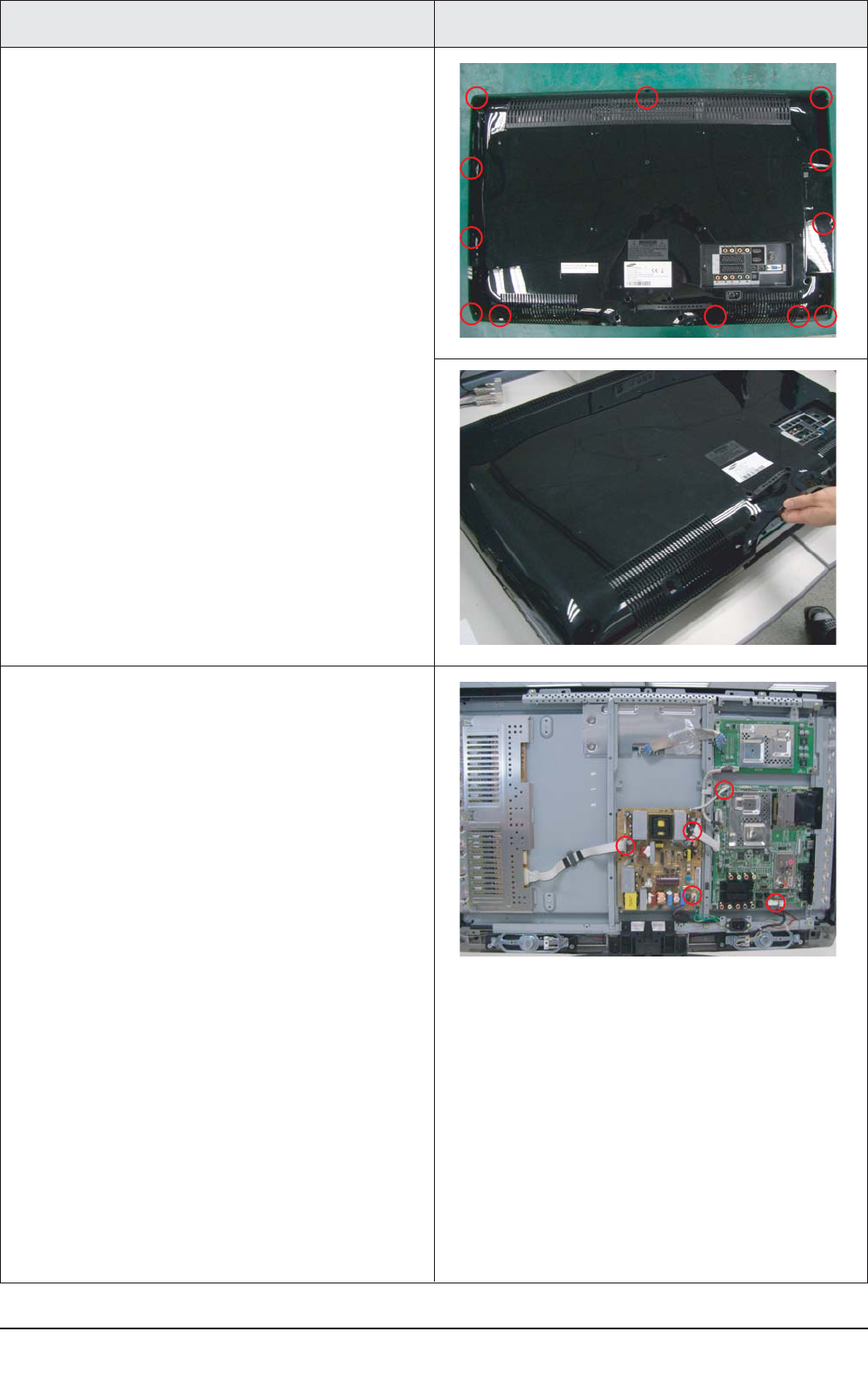

11-2

3. Disconnet cables from the main and power

boards.

Description Picture Description

2. Remove screws from the rear-cover and lift up

the rear-cover.

11 Disassembly and Reassembly

11-3

5. Lift up the speakers.

Remove screws from the BRKT.

Description Picture Description

4. Remove screws from the boards and stand

BRKT.

11 Disassembly and Reassembly

11-4

Description Picture Description

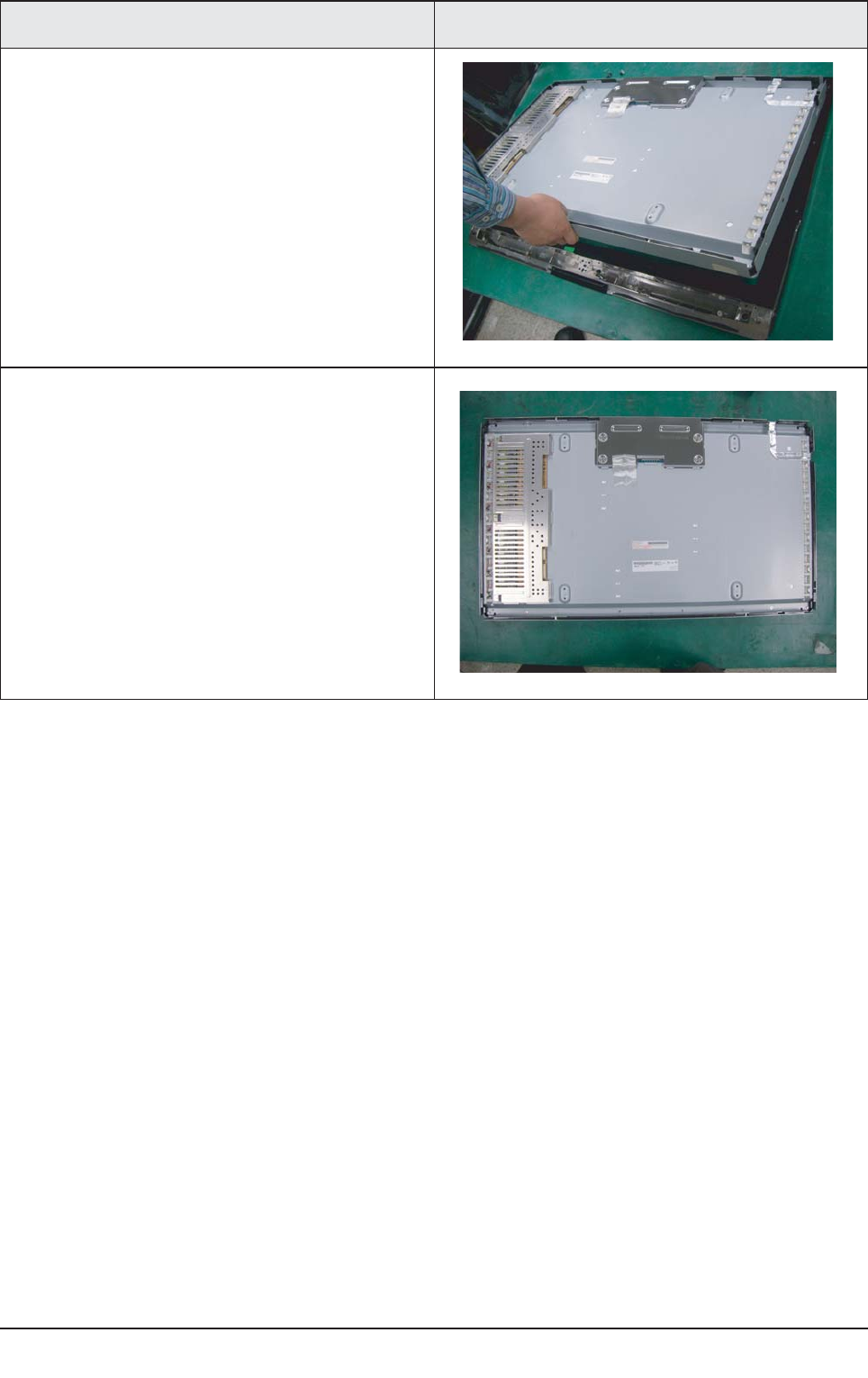

6. Lift up the Panel.

7. Remove Panel Front.

11 Disassembly and Reassembly

11-5

11-2 Reassembly

Reassembly procedures are in the reverse order of disassembly procedures.

11 Disassembly and Reassembly

11-6

Memo

6 Electrical Parts List

6-1

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

LE32M86BDX/XEC LE32M86BD,N30A/32M80-GTU,32,LCD-TV,SPAIN

0.1 M0216 BN90-01149A ASSY STAND;32R81,M81,SWIVEL,-,-,-,- 1 S.N.A

..2 T0524 6902-000241 BAG PE;NITRON/HDPE,T0.5/T0.012,W600,L600 1 S.N.A

..2 M0027 BN96-04662A ASSY STAND P-BASE;-,32R81,M81,SWIVEL,-,A 1 S.A

...3 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 S.A

...3 M0081 6003-001239 SCREW-TAPTITE;FH,+,-,B,M4,L10,ZPC(WHT),S 4 S.A

...3 BN61-02232A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,T 1 S.N.A

...3 BN61-02233A HOLDER-SWIVEL RING;32R71,ACETAL NATUAL,B 1 S.N.A

...3 BN61-02236A BRACKET-HINGE SWIVEL;BORDEAUX 32,SECC,T1 1 S.N.A

...3 BN61-02942A BRACKET-STAND BOTTOM;32,BORDEAUX PLUS,SE 1 S.N.A

...3 T0920 BN61-02943A GUIDE-STAND;32R81,ABS,V0,-,-,-,BK500,- 1 S.N.A

....4 BN61-02967A BRACKET-SUPPORT STAND;32 BORDEAUX PLUS,S 1 S.N.A

....4 T0514 BN61-03046A BRACKET-SUPPORT;32 BORDEAUX PLUS,SECC,2. 1 S.N.A

...3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0.4 S.N.A

...3 T0004 BN63-03102A COVER-STAND BASE;32R81,ABS+PMMA,-,-,-,HB 1 S.N.A

...3 T0132 BN73-00052A RUBBER FOOT;ARES 17,CR Rubber Gray,T1.5 4 S.N.A

0.1 M0001 BN90-01278B ASSY COVER FRONT;32M86,EO(IDTV),ABS+PMMA 1 S.N.A

..2 T0175 BN96-04773A ASSY SPEAKER P;8ohm,4pin,Horn Type,10W,T 1 S.A

..2 T0003 BN96-05318B ASSY COVER P-FRONT;-,32M86,EO(IDTV),-,AB 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 2 S.N.A

...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- 2 S.N.A

...3 T0069 AA60-00091R SPACER-FELT;,FELT,250X10,,,BLK,T0.5,, 2 S.N.A

...3 T0056 BN63-03035C COVER-DECORATION;40M81,ABS,-,-,-,HB,-,IV 1 S.N.A

...3 T0056 BN63-03036C COVER-DECORATION;40M81,ABS,-,-,-,HB,-,IV 1 S.N.A

...3 M0112 BN63-03190A COVER-FRONT;32M81,EO(IDTV),ABS+PMMA,-,-, 1 S.N.A

...3 T0022 BN64-00550A KNOB-CONTROL;40M81,ABS,-,-,-,HB,IV-16,-, 1 S.N.A

...3 M0146 BN96-04884E ASSY BOARD P-POWER & IR;LE37R86BD,CT5000 1 S.A

...3 M0145 BN96-04901A ASSY BOARD P-FUNCTION;LNT3771FD,CT5000-4 1 S.A

...3 BN96-05319B ASSY DECORATION P;32M81,-,ABS HB,IV-16,B 1 S.N.A

....4 T0060 BN61-01655A SPRING ETC;STS-304 SUS,D8,L12,T0.5 1 S.N.A

....4 T0056 BN63-03191B COVER-DECORATION;32M81,ABS,-,-,-,HB,-,IV 1 S.N.A

....4 T0056 BN63-03230A COVER-DECORATION;32M81,ABS+PMMA,-,-,-,HB 1 S.N.A

....4 T0059 BN64-00366A INDICATOR LED;ROME-I,PC,CLEAR,ALL MODEL 1 S.N.A

....4 T0023 BN64-00548A KNOB POWER;TULIP40,PC VIOLET,V0 1 S.N.A

....4 T0054 BN64-00549A KNOB-DECORATION;40M81,ABS,-,-,-,HB,IV-16 1 S.N.A

....4 BN61-03261C BOSS-TAPE;Tulip,ACRYL,T1.1,W24mm,GRAY,TA 0.7 S.N.A

....4 BN61-03261A BOSS-TAPE;Tulip,ACRYL,T1.1,W12mm,GRAY,TA 0.048 S.N.A

...3 M0081 6003-000275 SCREW-TAPTITE;BH,+,-,B,M3,L10,ZPC(BLK),S 2 S.N.A

...3 CCM1 BN63-02183C COVER-SHEET;Rhcm,PE Vinyl,T0.05,200mm,20 3.145 S.N.A

0.1 M0002 BN90-01279A ASSY COVER REAR;32M81,EO(IDTV),ABS+PMMA, 1 S.N.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 2 S.A

..2 T0081 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 13 S.A

..2 M0013 BN96-05320A ASSY COVER P-REAR;-,32M81,EO(IDTV),-,ABS 1 S.A

...3 M0081 6003-001188 SCREW-TAPTITE;BH,+,-,B,M4,L10,ZPC(WHT),S 4 S.N.A

...3 CCM1 BN63-02183F COVER-SHEET;Rhcm,PE Vinyl,T0.05,900mm,20 0.7 S.N.A

...3 M0006 BN63-03192A COVER-REAR;32M81,EO(IDTV),ABS+PMMA,-,-,- 1 S.N.A

...3 T0071 BN64-00555B INLAY-TERMINAL;07,COMMON,EO(IDTV),PS SHE 1 S.N.A

...3 T0064 BN65-00002A CLAMPER CORE;BORDEAUX,PP,V0,BLK 1 S.N.A

...3 T0101 BN61-03348A BRACKET-WALL;LCD TV 32",SECC T1.6 4 S.N.A

0.1 BN91-01180Q ASSY LCD-AMLCD;LE32M87BDX/* 1 S.N.A

..2 M0215 BN07-00463A LCD-PANEL;T315XW02 VF,8bit,32inch,16.7M, 1 S.A

6 Electrical Parts List

You can search for updated part codes through ITSELF web site.

URL : http://itself.sec.samsung.co.kr/

6-1 LE32M86BDX Parts List

6 Electrical Parts List

6-2

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

0.1 M0017 BN91-01554C ASSY CHASSIS;LE32M87BDX/*AUO VE 1 S.N.A

..2 M0014 BN94-01303G ASSY PCB MAIN-AUO VE;LE32M87BDX/* 1 S.A

...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.25 S.N.A

...3 JA1410_NSI 3701-001388 CONNECTOR-HDMI;20P,Phosphor Bronze,ANGLE 1 S.A

...3 JA1406_OP 3701-001400 CONNECTOR-DSUB;15P,3R,FEMALE,STRAIGHT,Ni 1 S.A

...3 CN906 3707-001081 CONNECTOR-OPTICAL;STRAIGHT,SPDIF 1 S.A

...3 JA3201_OP 3709-001477 CONNECTOR-CARD SLOT;68P,1.27mm,ANGLE,AU, 1 S.A

...3 CN330 3711-000058 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5MM,AN 1 S.A

...3 CN906 3711-004182 CONNECTOR-HEADER;BOX,10P,1R,2MM,STRAIGHT 1 S.A

...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A

...3 CN330 3711-004531 HEADER-BOARD TO CABLE;BOX,10P,1R,2mm,ANG 1 S.A

...3 CN330 3711-005606 HEADER-BOARD TO CABLE;BOX,30P,2R,2mm,STR 1 S.A

...3 CN330 3711-005842 HEADER-BOARD TO CABLE;BOX,24P,2R,2MM,STR 1 S.A

...3 JA330 3722-000143 JACK-PHONE;1P(VER),AG,BLK,ANGLE 1 S.A

...3 JA1601_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A

...3 JA1608_EU 3722-000498 JACK-SCART;21P,-,SN,BLK,NO 1 S.A

...3 JA330 3722-001061 JACK-PHONE;1P,3.6PI,AG,BLK,N 1 S.A

...3 JA332 3722-001163 JACK-VHS;4P,AU,BLK,ANGLE 1 S.A

...3 JA333 3722-002360 JACK-PIN;3P,AU,GRN/BLU/RED,STRAIGHT 1 S.A

...3 JA333 3722-002362 JACK-PIN;2P,Sn,WHT/RED,STRAIGHT 1 S.A

...3 JA333 3722-002543 JACK-PIN;3P,Sn,RED/WHT/YEL,ANGLE 1 S.A

...3 CIS3 BN40-00096A TUNER;DNOS403MH261B(S),PAL Hyper,181CH, 1 S.A

...3 T0603 BN63-02494A SHIELD-PCB MAIN;MOSEL 40",SPTE,T0.3,EURO 1 S.N.A

...3 T0603 BN63-03197A SHIELD-PCB MAIN;TULIP PAL,SPTE,T0.5 1 S.N.A

...3 M0131 BN63-03550A GASKET;BORDEAUX PLUS,Conductive Fabric,1 1 S.N.A

...3 CCMM1 BN73-00024D SILICON/RUBBER;BORDEAUX,SILICON,28x28XT6 1 S.N.A

...3 CCMM1 BN73-00151A SILICON/RUBBER;GP1500 380MIL,20X20X9.5T 1 S.N.A

...3 T0174 BN97-01593G ASSY SMD;LE32M87BDX/*,AUO VE 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45##,96.5Sn/ 4.57 S.N.A

....4 D1107 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1204 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1208 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1209 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1210 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1211 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1212 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1213 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1214 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1218 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1219 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1640 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1641 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D2201_LUX 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D1101 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1403 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1404 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1407 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1410 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1411 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1412 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1424 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1425 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1426 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1434 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1435 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1436 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1450_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

6 Electrical Parts List

6-3

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D1451_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1472 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1473 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1474 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1475 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1476 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1477 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1478 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1479 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1482 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1483 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1484 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1485 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1486 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1487 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1488 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1489 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1492_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1493_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1494_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1495_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1496_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1497_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1498_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1499_NSID 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1603_OP 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1621_OP 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1624_OP 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1643 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1644 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1645 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1646_PAD 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1647 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1648_LAMP 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1649 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1650 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1653 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1808 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 S.A

....4 D1456 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1457 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1458_HDMI 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1507 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1508 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1509 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1651 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1652 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D1654 0401-001099 DIODE-SWITCHING;1N4148WS,75V,150mA,SOD-3 1 S.A

....4 D0254 0402-001019 DIODE-SCHOTTKY;MBRS340,40V,3000mA,DO-214 1 S.A

....4 D1104 0403-000614 DIODE-ZENER;RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

....4 D1215 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1217 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1429 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1430 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1431 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1432 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1433 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1452 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1453 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1454_NSID 0403-000620 DIODE-ZENER;RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

....4 D1500 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D1501 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

6 Electrical Parts List

6-4

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 D1502_NSID 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D1503 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D1504 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D1505 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D1506 0403-001016 DIODE-ZENER;RLZ6.2B,5.96-6.27V,500mW,LL- 1 S.A

....4 D1402 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1428 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1449_NSID 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1804 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1810 0403-001052 DIODE-ZENER;RD8.2MB,7.7-8.7V,200mW,SOT-2 1 S.A

....4 D1608 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D1636 0403-001169 DIODE-ZENER;RLZ16C,15.96-16.51V,500MW,LL 1 S.A

....4 D1105 0403-001425 DIODE-ZENER;BZX84C33,31-35V,350mW,SOT-23 1 S.A

....4 D1405 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1406 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1408 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1409 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1422 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1423 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1446 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1447 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1601_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1602_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1604_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1605 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1606_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1607 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1615 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1616_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1617_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1618_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1619 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1620_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1622_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1623_OP 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1630 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1631 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1632 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1633 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1634_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1635_EU 0406-001172 DIODE-TVS;CDS3C30GTH,48V,SMD 1 S.A

....4 D1201 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D1801 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D1802 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 D1803_NSID 0407-000123 DIODE-ARRAY;DAN202K,80V,100mA,CA2-3,SOT- 1 S.A

....4 Q3003 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A

....4 Q3004 0501-000434 TR-SMALL SIGNAL;KTC3875S-GR,NPN,150mW,SO 1 S.A

....4 Q1102_LCD 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1104 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1203 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1204 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1205 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1206 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1207 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1208 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1209 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1210 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1211 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1601_UX 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1602 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1603 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1604_RED 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

6 Electrical Parts List

6-5

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 Q1801 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1805 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1821 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1823 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q2202_LCD 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3201 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q3202 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 1 S.A

....4 Q1201 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q1202 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q3001 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q3002 0501-000669 TR-SMALL SIGNAL;KTA1505Y,PNP,150mW,SOT-2 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 IC104 0801-002095 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,TSSOP 1 S.A

....4 IC104 0801-002172 IC-CMOS LOGIC;74LCX16244,BUFFER/LINE DRI 1 S.A

....4 IC104 0801-002378 IC-CMOS LOGIC;74VHC04,HEX INVERTER,SOP,1 1 S.A

....4 IC104 0801-002617 IC-CMOS LOGIC;7S08,2-INPUT AND GATE,SOT- 1 S.A

....4 IC104 0801-002633 IC-CMOS LOGIC;NC7WBD3125,2BIT BUS SWITCH 1 S.A

....4 IC520 0903-001485 IC-MICROCONTROLLER;44P,12x12mm,24MHz,TR, 1 S.N.A

....4 IC1802 0903-001488 IC-MICROCOMPUTER;M308A0SGP,LQFP,100P,14x 1 S.A

....4 IC1805 1001-000164 IC-ANALOG MULTIPLEX;74HC4052,CMOS,SOP,16 1 S.A

....4 IC106 1001-001082 IC-VIDEO SWITCH;BA7657F,-,SOP,24P,300MIL 1 S.A

....4 IC106 1001-001440 IC-VIDEO SWITCH;SiI9185CTU,QFP,80P,3.3V, 1 S.A

....4 IC107 1002-001482 IC-D/A CONVERTER;WM8521H9GED/R,16bit,SOI 1 S.A

....4 IC110 1006-001076 IC-DRIVER/RECEIVER;MAX232ECWE+T,SOP,16P, 1 S.A

....4 IC112 1103-000129 IC-EEPROM;24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

....4 IC112 1103-001385 IC-EEPROM;24C256,256Kbit,32Kx8,SOP,8P,5x 1 S.A

....4 IC113 1105-001712 IC-DRAM;HYB25D256163CE,DDR,256Mbit,16Mx1 1 S.A

....4 IC113 1105-001791 IC-DRAM;EM6A9320BI,DDR,128Mbit,4Mx32,FBG 1 S.A

....4 IC115 1107-001415 IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS 1 S.N.A

....4 IC115 1107-001453 IC-FLASH MEMORY;-,16Mbit,2Mx8/1Mx16,TSOP 1 S.N.A

....4 DU410 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 S.A

....4 T0124 1201-002430 IC-POWER AMP;NTP-3000,QFN,56P,8x8mm,DUAL 1 S.A

....4 IC012 1203-001519 IC-POSI.ADJUST REG.;LM317,SOT223,3P,274 1 S.A

....4 T0087 1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,-,PLA 1 S.A

....4 T0087 1203-002842 IC-POSI.FIXED REG.;AP1117D-33A,TO-252,3P 1 S.A

....4 T0087 1203-002855 IC-POSI.FIXED REG.;MC33269DTRK-5.0,DPRK, 1 S.A

....4 T0087 1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 S.A

....4 T0087 1203-002974 IC-POSI.FIXED REG.;AP1117D-25A,TO-252,3P 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 T0087 1203-003696 IC-POSI.FIXED REG.;NCP1117DT18T5G,DPAK,3 1 S.A

....4 IC1809 1203-004363 IC-VOL. DETECTOR;RT9818C-29PV,SOT-23,3P, 1 S.A

6 Electrical Parts List

6-6

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 IC1204 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 IC1303 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 IC3001 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 S.A

....4 IC1113 1203-004379 IC-DC/DC CONVERTER;AP1530SA,SOP,8P,5x3.9 1 S.A

....4 IC3101 1204-002697 IC-DECODER;STI5105,PBGA,324P,23x23mm,PLA 1 S.A

....4 IC118 1204-002718 IC-VIDEO PROCESS;SVP-UX68,BGA,336P,27x27 1 S.A

....4 IC1202 1204-002719 IC-AUDIO PROCESSOR;SGTV5810,LQFP,100P,14 1 S.A

....4 IC118 1204-002729 IC-VIDEO PROCESS;S4LF119X01,PBGA,208P,17 1 S.A

....4 D1471 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 D1481 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 D1491_NSID 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 D1612 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 D1613 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 D1614 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 D1809 1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 S.A

....4 R1527 2007-000042 R-CHIP;499ohm,1%,1/10W,TP,1608 1 S.A

....4 R2139 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2226 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2227 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1903 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1904 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1905 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1906 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1907 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1908 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1909 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1910 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1941 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1944 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1993_LCD 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1111 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2206 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1117 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1118 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1130_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1266 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1333_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1334_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1335_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1336_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1337_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1338_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1339_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1340_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1418 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1456 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1464 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1501_HDMI 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1502 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1507_HDMI 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1519 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1524 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1525 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1526_NSID 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1542 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1543 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1550 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1553 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1554 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1555 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1556 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1557 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-7

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R1558 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1559 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1574 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1575 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1576 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1578 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1581_NSID 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1584 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1585 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1586_HDMI 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1587_HDMI 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1621_EU 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1655 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1708_NMMS 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1709_NMMS 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1710_NMMS 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1805 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1827 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1828 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1830 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1831 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1834 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1837 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1838 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1839 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1840 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1844 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1879 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1895 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1927 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1932 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1934 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1935 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1936 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1937 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1957 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1975 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1976 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2001_TEST 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2002_TEST 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2003_TEST 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2004 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2007 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2011 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2014_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2015_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2032_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2033_UX 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2053 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2065 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2066 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2067 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2068 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2202 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2205 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2207 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2241 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2255_LCD 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2257_LCD 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2260_LCD 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2279_LCD 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2291_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-8

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R2303_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2304_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2364_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2366_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2379_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2380_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3013 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3018 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3023 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3030 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3102 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3103 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3107 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3122 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3123 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3124 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3125 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3126 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3127 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3128 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3129 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3130 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3133 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3203 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3223 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3224 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3225 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3226 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3228 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3229 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3244 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3247 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3248 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3249 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3251 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3252 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3257 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3258 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3260 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3262 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3264 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3265 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3269 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3270 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3271 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3272 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3273 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3274 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3275 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R1413 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1414 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1451 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1462 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1468 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1469 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1498_OP 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1499_OP 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1700_LAMP 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1701_LAMP 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2063 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2149 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2228 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-9

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R2229 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2230 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2231 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2236 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2281_OP 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R1205 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1206 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1405 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1406 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1450 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1452 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1460 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1461 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1493_NSID 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1494_NSID 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1864 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1960 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1961 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2222 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R2223 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 S.A

....4 R1203 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1217 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1218 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1219 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1220 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1222 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1225 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1226 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1228 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1229 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1230 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1231 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1232 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1233 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1234 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1235 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1236 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1237 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1238 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1239 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1240 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1241 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1243 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1244 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1254 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1264 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1270 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1273 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1344 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1416 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1419 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1459 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1470 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1488 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1489 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1500_HDMI 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1547 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1603_OP 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1617 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1622_EU 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1631_OP 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1634 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-10

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R1639_OP 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1666 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1668_EU 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1674_UX 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1808 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1809 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1810 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1811 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1835 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1836 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1843 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1855 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1856 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1858 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1861 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1862 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1868 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1870 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1874 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1875 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1877 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1878 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1949 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1952 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R1955 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2005 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2006 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2030 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2203 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2243_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2285_LCD 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2292_LCD 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2381_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2382_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2383_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2384_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2385_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2386_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2387_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2388_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2389_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2390_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2391_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2392_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3008 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3204 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3205 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3206 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3207 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3230 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3233 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3235 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3238 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3253 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3254 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3255 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3259 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3261 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3263 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3266 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3267 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R3016 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-11

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3017 2007-000075 R-CHIP;220ohm,5%,1/10W,TP,1608 1 S.A

....4 R1101 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1267 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1268 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1582 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1583 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1604_EU 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1607_EU 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1654 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1659 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1891 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R3250 2007-000076 R-CHIP;330ohm,5%,1/10W,TP,1608 1 S.A

....4 R1347 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1403 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1404 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1407 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1412 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1442 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1444 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1605 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1613 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1628_OP 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1629_OP 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1657 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1661 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1672_UX 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1688 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1691 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2052 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2246_LCD 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R2287_LCD 2007-000077 R-CHIP;470ohm,5%,1/10W,TP,1608 1 S.A

....4 R1265 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1408 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1463 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1495_NSID 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1640_OP 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1641_OP 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1675_UX 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1698_PAD 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1702_LAMP 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1823 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1829 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1833 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1845 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1846 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1915_LCD 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1929 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1939 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1951 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2008 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2061 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2252_LCD 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2284_LCD 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2293_LCD 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3010 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3132 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3134 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3135 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3136 2007-000078 R-CHIP;1Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1816 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1820 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1821 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-12

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R1866 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1867 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2288_LCD 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2289_LCD 2007-000082 R-CHIP;3.3Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1109_LCD 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1248 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1250 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1256 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1257 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1348 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1411 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1467 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1497_HDMI 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1520 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1521 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1523 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1552 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1560 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1561 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1673_UX 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1697_RED 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1802 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1803 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1807 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1818 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1819 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1822_1M 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1824 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1825 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1865 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1885 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1886 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1887 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1888 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1892 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1893 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1902 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1912 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1913 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1917 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1918 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1923 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1925 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1930 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1959 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1974 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1989 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1991 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1992 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1994_PAD 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1995 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1997 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1998 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1999 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2254_LCD 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2286_LCD 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2294_LUX 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2371_FBE 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2372_FBE 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2373_FBE 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2374_HD 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3001 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-13

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3002 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3007 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3009 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3029 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3231 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3234 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3243 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3246 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3268 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1114 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1121 2007-000086 R-CHIP;5.6Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1627 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1669 2007-000087 R-CHIP;6.8Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1119 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1204 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1207 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1208 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1209 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1212 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1401 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1402 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1409 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1445 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1446 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1453 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1454 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1457 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1465 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1466 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1490_HDMI 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1491_HDMI 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1496_HDMI 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1522 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1801 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1813 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1814 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1815 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1876 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1880 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1881 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1882 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1883 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1889 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1896 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1931_2M 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1938_2M 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1972 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1996 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2013 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2150 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2151 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2152 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2290_FBE 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3011_TEST 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3012_TEST 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3019 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3020 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3120 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3121 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3131 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3201 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-14

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3202 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3208 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3215 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3216 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3217 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3218 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3219 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3220 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3221 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3222 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1126 2007-000092 R-CHIP;15Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1104 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1201 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1202 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1221 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1223 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1224 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1227 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1242 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1245 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1687 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1690 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1812 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2235 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3028 2007-000094 R-CHIP;22Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1540 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1541 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1614_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1615_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1684_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1685_EU 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3004 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R3006 2007-000097 R-CHIP;47Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1103 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1120_12V 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1699_LAMP 2007-000102 R-CHIP;100Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1990 2007-000107 R-CHIP;470Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1271 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R1272 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2017_UX 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2019_UX 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2020_UX 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2025 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2209 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2210 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2211 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2214 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2215 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2216 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2217 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2218 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2219 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2220 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R2221 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3101 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3104 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3105 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3106 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3108 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3110 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3111 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3112 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-15

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R3113 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3114 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3115 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3119 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3138 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3139 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3140 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3141 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3227 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3241 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3242 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R3245 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 1 S.A

....4 R1350 2007-000119 R-CHIP;560ohm,5%,1/10W,TP,1608 1 S.A

....4 R1940 2007-000120 R-CHIP;680ohm,5%,1/10W,TP,1608 1 S.A

....4 R1108_LCD 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1349 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1694_RED 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1695_RED 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1696_RED 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1942 2007-000124 R-CHIP;2.2Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1973 2007-000129 R-CHIP;27Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2208 2007-000133 R-CHIP;330Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1124 2007-000208 R-CHIP;1.1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1113 2007-000219 R-CHIP;1.2Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1420 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1421 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1423 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1424 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1428 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1429 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1430 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1431 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1432 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1433 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1434 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1435 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1436 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1437 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1438 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1439 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1472 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1473 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1474 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1475 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1476 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1477 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1478 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1479 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1480 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1481 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1482 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1483 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1484 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1485 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1486 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1487 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1504_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1506_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1508_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1509_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1510_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1511_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-16

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R1512_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1513_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1514_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1515_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1516_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1518_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1538_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1539_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1544_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1546_HDMI 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1577 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1579 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1580_NSID 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1841 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1842 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1847 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1848_1M2M 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1849_1M2M 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1857 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1859 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1860 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1863 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1869 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1871 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1872 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1873 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1953_2M 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 S.A

....4 R1637_OP 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.A

....4 R1638_OP 2007-000312 R-CHIP;10ohm,5%,1/4W,TP,3216 1 S.A

....4 R1112 2007-000402 R-CHIP;150ohm,5%,1/10W,TP,1608 1 S.A

....4 R1616 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1665 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1686 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R1689 2007-000458 R-CHIP;18Kohm,5%,1/10W,TP,1608 1 S.A

....4 R2021 2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 1 S.A

....4 R3109 2007-000539 R-CHIP;200ohm,5%,1/10W,TP,1608 1 S.A

....4 C1125 2007-000608 R-CHIP;240ohm,5%,1/10W,TP,1608 1 S.A

....4 C1857_WX 2007-000608 R-CHIP;240ohm,5%,1/10W,TP,1608 1 S.A

....4 R1123 2007-000640 R-CHIP;270ohm,1%,1/10W,TP,1608 1 S.A

....4 R2318_FBE 2007-000669 R-CHIP;2Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1258 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 S.A

....4 R3014 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R3015 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R3021 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R3022 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R3024 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R3025 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R3026 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R3027 2007-000763 R-CHIP;330ohm,1%,1/10W,TP,1608 1 S.A

....4 R1269 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1246 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1247 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1249 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1251 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1252 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1253 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1259 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1260 2007-000882 R-CHIP;4.7ohm,5%,1/10W,TP,1608 1 S.A

....4 R1410 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1415 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1422 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1601_OP 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

6 Electrical Parts List

6-17

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R1602_OP 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1618 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1619 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1620 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1633_OP 2007-000950 R-CHIP;47ohm,5%,1/4W,TP,3216 1 S.A

....4 R1125 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1115 2007-000979 R-CHIP;5.6Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2233 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R2237 2007-001014 R-CHIP;51OHM,5%,1/10W,TP,1608 1 S.A

....4 R3142_LUX 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

....4 R3143_LUX 2007-001044 R-CHIP;56ohm,5%,1/10W,TP,1608 1 S.A

....4 R1131 2007-001135 R-CHIP;68ohm,5%,1/4W,TP,3216 1 S.A

....4 R1132 2007-001135 R-CHIP;68ohm,5%,1/4W,TP,3216 1 S.A

....4 R3116 2007-001139 R-CHIP;7.5Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1425 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1426 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1427 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1611_OP 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1612_OP 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1624 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1625 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1626 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1635_OP 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1636 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1670_EU 2007-001164 R-CHIP;75ohm,1%,1/10W,TP,1608 1 S.A

....4 R1440 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1441 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1443 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1447 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1448 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1449 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1455 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1458 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1623_DE 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1632_EU 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R1667_EU 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2055 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2056 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R2212 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3003_TEST 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3005_TEST 2007-001167 R-CHIP;75ohm,5%,1/10W,TP,1608 1 S.A

....4 R3117 2007-008467 R-CHIP;2.26Kohm,1%,1/10W,TP,1608 1 S.A

....4 RA2201 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA2202 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA2203 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA2204 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA2205 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA2206 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA2207 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA2208 2011-000002 R-NET;22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1804 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1805 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1807 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1808 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1809 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1811 2011-000651 R-NET;10ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1814 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3105 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3107 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3110 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3112 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3114 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

6 Electrical Parts List

6-18

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 RA3115 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3205 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3206 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3207 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3208 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3209 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA3210 2011-000881 R-NET;33ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1. 1 S.A

....4 RA1401_NSI 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA1402_NSI 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA1403_NSI 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2008_FBE 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2009_FBE 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2010_FBE 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2011_FBE 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2012_FBE 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2013_FBE 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2209_FBE 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2212 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2213 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2214 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2216 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2217 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA2218 2011-001001 R-NET;0ohm,5%,1/16W,L,CHIP,8P,TP,3.2x1.6 1 S.A

....4 RA3001_TES 2011-001011 R-NET;10Kohm,5%,1/16W,L,CHIP,8P,TP,3.2x1 1 S.A

....4 RA1802 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1803 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1806 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1810 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1812 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1813 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1815 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1816 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1818 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1820 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1821 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1822 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA1823 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3201 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 RA3202 2011-001093 R-NET;100OHM,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

....4 C1106 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1111 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1118 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1120 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1122 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1129 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1143 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1144 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1151 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1168 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1170 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1178 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1214 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1216 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1217 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1218 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1219 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1220 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1221 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1231 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1232 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1256 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1281 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

6 Electrical Parts List

6-19

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1282 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1295 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1296 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1298 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1300 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1303 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1319 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1339 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1402 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1414 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1416 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1423_NSID 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1427 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1428 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1429 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1430 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1445 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1446 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1448 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1449 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1450 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1451 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1452 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1453 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1454 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1645 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1648 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1819 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1820 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C1851 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2074 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2077_UX 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2078_UX 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2079_UX 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2085 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2086 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2087 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2088 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2091 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2092 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2093 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2095 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2096 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2097 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2098 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2100 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2101 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2121 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2224 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2272_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2273_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2274_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2281_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2282_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2283_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2302_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2304_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2305_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2316_FBE 2203-000189 C-CER,CHIP;100nF,+80-20%,25V,Y5V,1608 1 S.A

....4 C2227 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,2012 1 S.A

....4 C2228 2203-000204 C-CER,CHIP;100nF,10%,25V,X7R,2012 1 S.A

....4 C2217 2203-000206 C-CER,CHIP;100nF,10%,50V,X7R,2012 1 S.A

6 Electrical Parts List

6-20

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1293 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1309 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1408 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1409 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1417 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1418 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1419 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1420 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1601_OP 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1605 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1607 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1608_OP 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1611_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1620 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1622 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1623_EU 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C3026 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,1608 1 S.A

....4 C1101 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1116 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1121 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1130 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1138 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1148 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1155 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1164 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1173 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1174 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1647 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1652 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1653 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1654_PAD 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1655 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1656_LAMP 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1853 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2027 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2032 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2033 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2034 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2035 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2043 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2044 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2045 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2105 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2106 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2107 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2108 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2109 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2110 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2111 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2112 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2113 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2114 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2115 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2116 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2117 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2118 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2119 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2120 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2206 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2207 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2208 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2209 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

6 Electrical Parts List

6-21

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C2210 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2221 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2231 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2268_LCD 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2275_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2276_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2277_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2284_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2285_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2286_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2293_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2294_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2295_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2296_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2297_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2312_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2313_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2314_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2315_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C2317_FBE 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C3010 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C3011 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C3162_LUX 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,1608 1 S.A

....4 C1855 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C1856 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,1608 1 S.A

....4 C1112 2203-000405 C-CER,CHIP;0.18nF,5%,50V,C0G,1608 1 S.A

....4 C1205 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G,1608 1 S.A

....4 C1206 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G,1608 1 S.A

....4 C2080 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G,1608 1 S.A

....4 C2082 2203-000426 C-CER,CHIP;0.018nF,5%,50V,C0G,1608 1 S.A

....4 C1215 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1230 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1272 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1273 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1274 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1277 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1279 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1283 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1291 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1292 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1294 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1299 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1308 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1310 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1311 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1816 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1818 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1823 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1843 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C2219 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C2257_LCD 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C2288_FBE 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C2289_FBE 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C2299_FBE 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C2300_FBE 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C2301_FBE 2203-000440 C-CER,CHIP;1nF,10%,50V,X7R,1608 1 S.A

....4 C1105 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 1 S.A

....4 C2019 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C2030 2203-000531 C-CER,CHIP;2.7nF,10%,50V,X7R,1608 1 S.A

....4 C1824 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C1825 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C3223 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

6 Electrical Parts List

6-22

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C3224 2203-000626 C-CER,CHIP;0.022nF,5%,50V,C0G,1608 1 S.A

....4 C3005 2203-000659 C-CER,CHIP;0.27nF,5%,50V,C0G,1608 1 S.A

....4 C3019 2203-000659 C-CER,CHIP;0.27nF,5%,50V,C0G,1608 1 S.A

....4 C3023 2203-000659 C-CER,CHIP;0.27nF,5%,50V,C0G,1608 1 S.A

....4 C3030 2203-000659 C-CER,CHIP;0.27nF,5%,50V,C0G,1608 1 S.A

....4 C1134 2203-000715 C-CER,CHIP;3.3nF,10%,50V,X7R,1608 1 S.A

....4 C1403 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1404 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1411 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1412 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1457 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1458 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1603_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1604_EU 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1606_EU 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1609_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1610_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1613_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1614_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1615_OP 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1619 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C1621 2203-000783 C-CER,CHIP;0.33nF,5%,50V,C0G,1608 1 S.A

....4 C3004 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C3014 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C3022 2203-000815 C-CER,CHIP;0.033nF,5%,50V,C0G,1608 1 S.A

....4 C1107 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1233 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1234 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1235 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1236 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1257 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1258 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1259 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1260 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1261 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1262 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1263 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1264 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1265 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1266 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1267 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1268 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C2203 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C2204 2203-000888 C-CER,CHIP;4.7nF,10%,50V,X7R,1608 1 S.A

....4 C1278 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1302 2203-000925 C-CER,CHIP;470nF,+80-20%,50V,Y5V,2012 1 S.A

....4 C1136 2203-000972 C-CER,CHIP;47nF,10%,16V,X7R,1608 1 S.A

....4 C1317_DE 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C1318_DE 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C1612 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C1624_EU 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C1651 2203-000998 C-CER,CHIP;0.047nF,5%,50V,C0G,1608 1 S.A

....4 C2319_FBE 2203-001034 C-CER,CHIP;5.6nF,10%,50V,X7R,1608 1 S.A

....4 C2320_FBE 2203-001052 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1608 1 S.A

....4 C1203 2203-001222 C-CER,CHIP;0.82nF,10%,50V,X7R,1608 1 S.A

....4 C1226 2203-001222 C-CER,CHIP;0.82nF,10%,50V,X7R,1608 1 S.A

....4 C1227 2203-001222 C-CER,CHIP;0.82nF,10%,50V,X7R,1608 1 S.A

....4 C1202 2203-001402 C-CER,CHIP;220nF,+80-20%,16V,Y5V,TP,1608 1 S.A

....4 C1139 2203-001607 C-CER,CHIP;0.22nF,5%,50V,NP0,1608 1 S.A

....4 C3001 2203-001630 C-CER,CHIP;330nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C3002 2203-001630 C-CER,CHIP;330nF,+80-20%,16V,Y5V,1608 1 S.A

....4 C1630_UX 2203-001656 C-CER,CHIP;0.47nF,5%,50V,NP0,1608 1 S.A

6 Electrical Parts List

6-23

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1284 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 C1285 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 C1290 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 C1316 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,1608 1 S.A

....4 C1109 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1119 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1128 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1145 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1147 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1153 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1154 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1157 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1159 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1161_LCD 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1162 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1183 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1425 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1625 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1628_UX 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1631_UX 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1633_UX 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1635_UX 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1637_UX 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1638_UX 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1640_UX 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1650_RED 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1826 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1827 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1829 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1830 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1831 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1836 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1837 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1838 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1847 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1849 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1854 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2201 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2202 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2214 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2215 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2216 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2218 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2253_LCD 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C2265_LCD 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3013 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3016 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3017 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3101 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3102 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3103 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3104 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3105 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3106 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3107 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3108 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3109 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3110 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3111 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3112 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3113 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3114 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-24

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C3115 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3116 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3117 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3118 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3119 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3120 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3121 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3122 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3123 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3124 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3125 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3126 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3127 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3128 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3129 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3130 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3131 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3132 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3133 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3134 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3135 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3136 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3137 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3138 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3139 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3140 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3141 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3142 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3143 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3144 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3145 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3146 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3147 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3148 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3149 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3150 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3151 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3152 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3153 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3154 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3155 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3156 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3157 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3158 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3159 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3160 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3161 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3201 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3202 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3203 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3204 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3205 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3206 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3207 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3208 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3209 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3210 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3211 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3213 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3214 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3218 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3219 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

6 Electrical Parts List

6-25

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C3220 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3221 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C3222 2203-005005 C-CER,CHIP;100nF,10%,16V,X7R,1608 1 S.A

....4 C1132 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1146 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1201 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1286 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1288 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1289 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1312 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1852 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2003 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2004 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2006 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2008 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2011 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2014 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2016 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2017 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2020 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2022 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2023 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2024 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2031 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2039 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2040 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2041 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2042 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2052 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2055 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2056 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2059 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2060 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2061 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2062 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2070 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2071 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2072 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2073 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2075 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2076 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2255_LCD 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C2256_LCD 2203-005065 C-CER,CHIP;1000nF,+80-20%,10V,Y5V,1608 1 S.A

....4 C1210 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1276 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1280 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1297 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1305 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1321 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1322 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1323 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1324 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,1608 1 S.A

....4 C1102 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,-,2012 1 S.A

....4 C2213 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,-,2012 1 S.A

....4 C2235 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,-,2012 1 S.A

....4 C2266_LCD 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,-,2012 1 S.A

....4 C3012 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,-,2012 1 S.A

....4 C3027 2203-005809 C-CER,CHIP;1000nF,10%,16V,X7R,-,2012 1 S.A

....4 C1222 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1223 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1224 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1225 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

6 Electrical Parts List

6-26

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1237 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1238 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1239 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1240 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1241 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1242 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1243 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1244 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1245 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1247 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1249 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1250 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C3217 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 S.A

....4 C1103 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1114 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1124 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1152 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1156 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1160_LCD 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1166_LCD 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1208 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1211 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1212 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1213 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1228 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1229 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1246 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1248 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1251 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1252 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1253 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1254 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1255 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1271 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1301 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1304 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1401 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1413 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1415 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1422_NSID 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1424 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1426 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1431 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1432 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1433 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1434 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1435 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1447 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1455 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1456 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1459 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1460 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1461 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1626 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1632_UX 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1634_UX 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1636_UX 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1639_UX 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1641_UX 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1642_UX 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1646 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1821 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

6 Electrical Parts List

6-27

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 C1822 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1828 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1839 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1840 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1846 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C1850 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2089 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2090 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2205 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2220 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2232 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2270 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2271 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2280_FBE 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2287_FBE 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2298_FBE 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3007 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3008 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3015 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C3018 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,2012 1 S.A

....4 C2222 2402-000179 C-AL,SMD;47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

....4 C1123 2402-001086 C-AL,SMD;100UF,20%,16V,WT,TP,6.6X6.6X5.3 1 S.A

....4 C1117 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1127 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1131 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1140 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1150 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1158 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1204 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1269 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1270 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C2211 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C2212 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C2267_LCD 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C3212 2402-001128 C-AL,SMD;100##F,20%,16V,-,TP,6.3X5.7mm 1 S.A

....4 C1627_UX 2402-001129 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1149 2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1179 2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1649 2402-001155 C-AL,SMD;47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

....4 C1137 2402-001183 C-AL,SMD;22UF,20%,16V,WT,TP,5.3X5.3X6MM 1 S.A

....4 C1209 2402-001226 C-AL,SMD;4.7UF,20%,35V,HR,TP,4.3X4.3X5.8 1 S.A

....4 C1104 2402-001238 C-AL,SMD;1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

....4 C1110 2402-001263 C-AL,SMD;1000uF,20%,10V,WT,SMD,10x10 1 S.A

....4 C1165 2402-001263 C-AL,SMD;1000uF,20%,10V,WT,SMD,10x10 1 S.A

....4 C1167 2402-001263 C-AL,SMD;1000uF,20%,10V,WT,SMD,10x10 1 S.A

....4 C1177 2402-001263 C-AL,SMD;1000uF,20%,10V,WT,SMD,10x10 1 S.A

....4 C1275 2402-001273 C-AL,SMD;220uF,20%,35V,WT,REEL,10X10mm 1 S.A

....4 C1287 2402-001273 C-AL,SMD;220uF,20%,35V,WT,REEL,10X10mm 1 S.A

....4 C1108 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 C1115 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 C1126 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 C1141 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 C2046 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 C2099 2409-001051 C-ORGANIC;82UF,20%,6.3V,WT,TP,6.3*5.9MM, 1 S.A

....4 T0052 2703-000125 INDUCTOR-SMD;10uH,10%,2012 1 S.A

....4 T0052 2703-000274 INDUCTOR-SMD;2.2uH,10%,2012 1 S.A

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

6 Electrical Parts List

6-28

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0052 2703-000398 INDUCTOR-SMD;10uH,10%,3225 1 S.A

....4 T0052 2703-000417 INDUCTOR-SMD;220uH,5%,3225 1 S.A

....4 T0052 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608 1 S.A

....4 T0052 2703-001426 INDUCTOR-SMD;680uH,20%,7070 1 S.A

....4 T0052 2703-001778 INDUCTOR-SMD;3.3uH,20%,3225 1 S.A

....4 T0052 2703-002722 INDUCTOR-SMD;22uH,20%,12x12mm 1 S.A

....4 L1201 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 L1202 2704-000018 INDUCTOR-SMD-ARRAY;15uH,2000mA,2,0.124oh 1 S.N.A

....4 X1802 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X2001 2801-003326 CRYSTAL-SMD;24MHZ,30PPM,28-ABX,20PF,50OH 1 S.A

....4 X1201 2801-003804 CRYSTAL-SMD;24.576MHz,30ppm,28-AAN,20pF, 1 S.A

....4 X1801 2801-003923 CRYSTAL-SMD;10MHz,30ppm,28-AAN,20pF,60oh 1 S.A

....4 X3201 2801-003954 CRYSTAL-SMD;27MHz,30ppm,28-AAN,16pF,50oh 1 S.A

....4 F103 2901-001114 FILTER-EMI SMD;25VDC,2.0ADC,-,100nF,3.2x 1 S.A

....4 T0568 3301-000314 BEAD-SMD;120ohm,1.6x0.8x0.8mm,-,-,- 1 S.N.A

....4 T0568 3301-001145 BEAD-SMD;60ohm,4516,TP,70ohm/45MHz,82ohm 1 S.N.A

....4 T0568 3301-001148 BEAD-SMD;60ohm,1608,TP,-,- 1 S.N.A

....4 T0568 3301-001163 BEAD-SMD;80ohm,2012,TP,-,192ohm/867MHz 1 S.N.A

....4 T0568 3301-001176 BEAD-SMD;80ohm,2012,TP,-,- 1 S.N.A

....4 T0568 3301-001236 BEAD-SMD;60ohm,1608,-,-,- 1 S.N.A

....4 T0568 3301-001324 BEAD-SMD;15ohm,2012,600mA,TP,,,0.1ohm 1 S.A

6 Electrical Parts List

6-29

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 T0568 3301-001393 BEAD-SMD;60ohm,3216,1500mA,TP,41ohm/40MH 1 S.N.A

....4 T0568 3301-001404 BEAD-SMD;30ohm,2012,TP,15.9OHM/30MHz 1 S.A

....4 T0568 3301-001428 BEAD-SMD;2000ohm,2x1.25x0.85mm,200mA,TP, 1 S.N.A

....4 T0568 3301-001569 BEAD-SMD;600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

....4 JA1404 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 JA1407 3701-001367 CONNECTOR-HDMI;19P,2R,FEMALE,SMD,AU 1 S.A

....4 T0077 BN41-00899A PCB MAIN;TULIP32,FR-4,4,1.6T,192x240,1 1 S.N.A

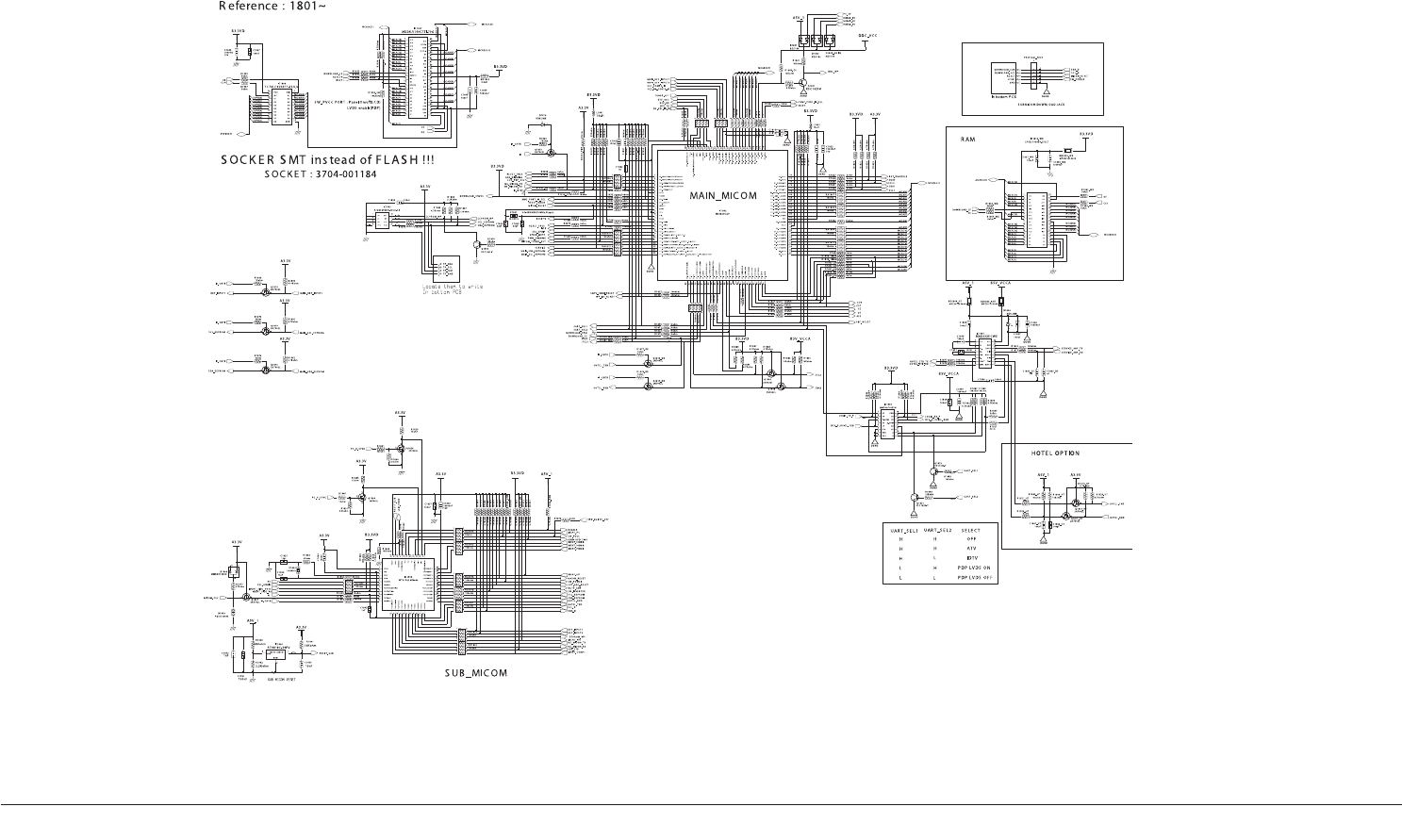

....4 M0018 BN97-01388A ASSY MICOM;T-BDXPDEU00-1009,N30A,2007.06 1 S.N.A

.....5 IC115 1107-001415 IC-FLASH MEMORY;29W320D,4Mx8/2Mx16Bit,TS 1 S.N.A

....4 M0018 BN97-01388C ASSY MICOM;T-BDPMPEUS-1004,N30A,T-CALMPE 1 S.N.A

.....5 IC520 0903-001485 IC-MICROCONTROLLER;44P,12x12mm,24MHz,TR, 1 S.N.A

....4 M0018 BN97-01590D ASSY MICOM;T-TLP32PEUMD-2010,N30A,2007.8 1 S.N.A

.....5 IC115 1107-001453 IC-FLASH MEMORY;-,16Mbit,2Mx8/1Mx16,TSOP 1 S.N.A

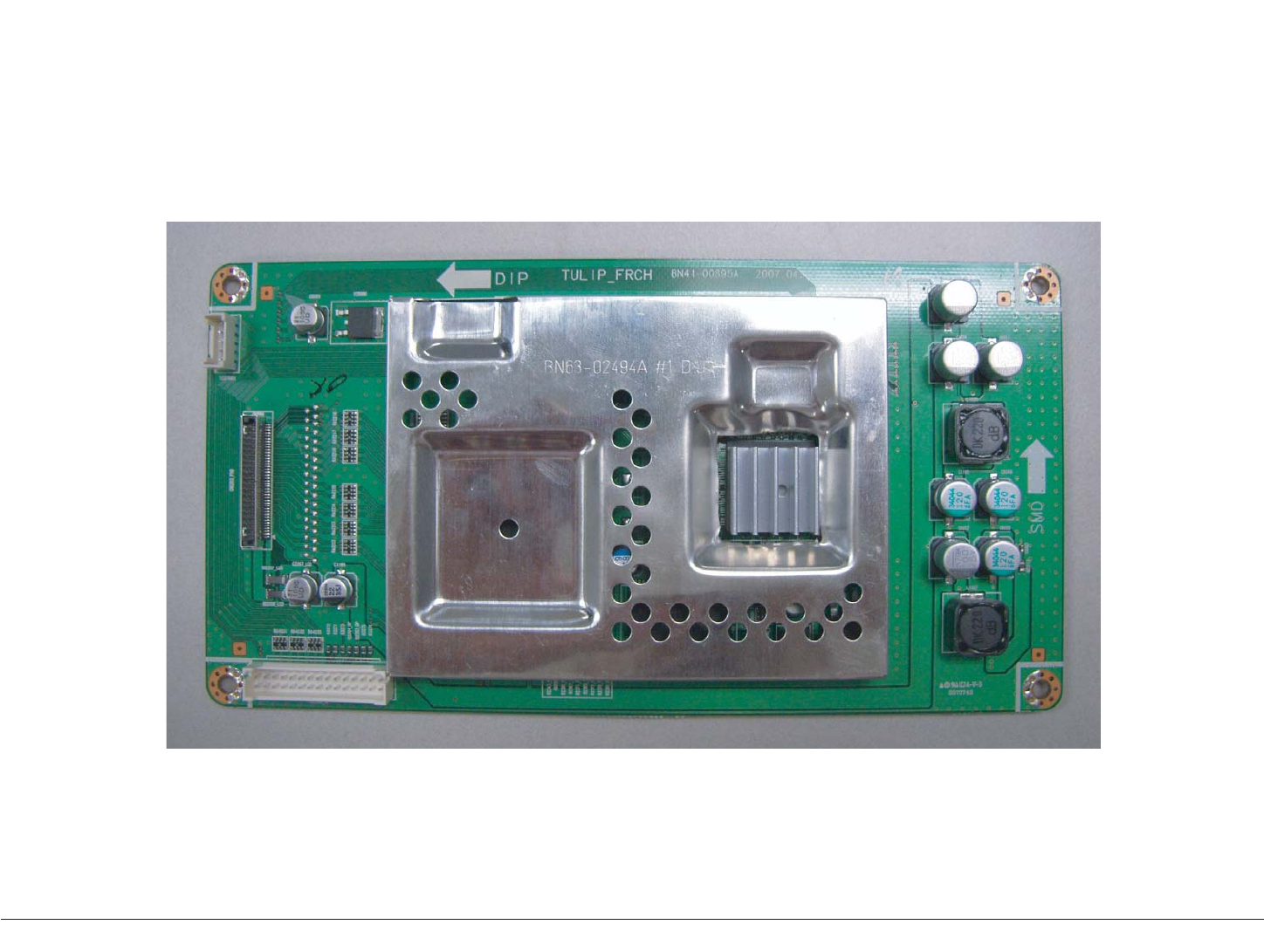

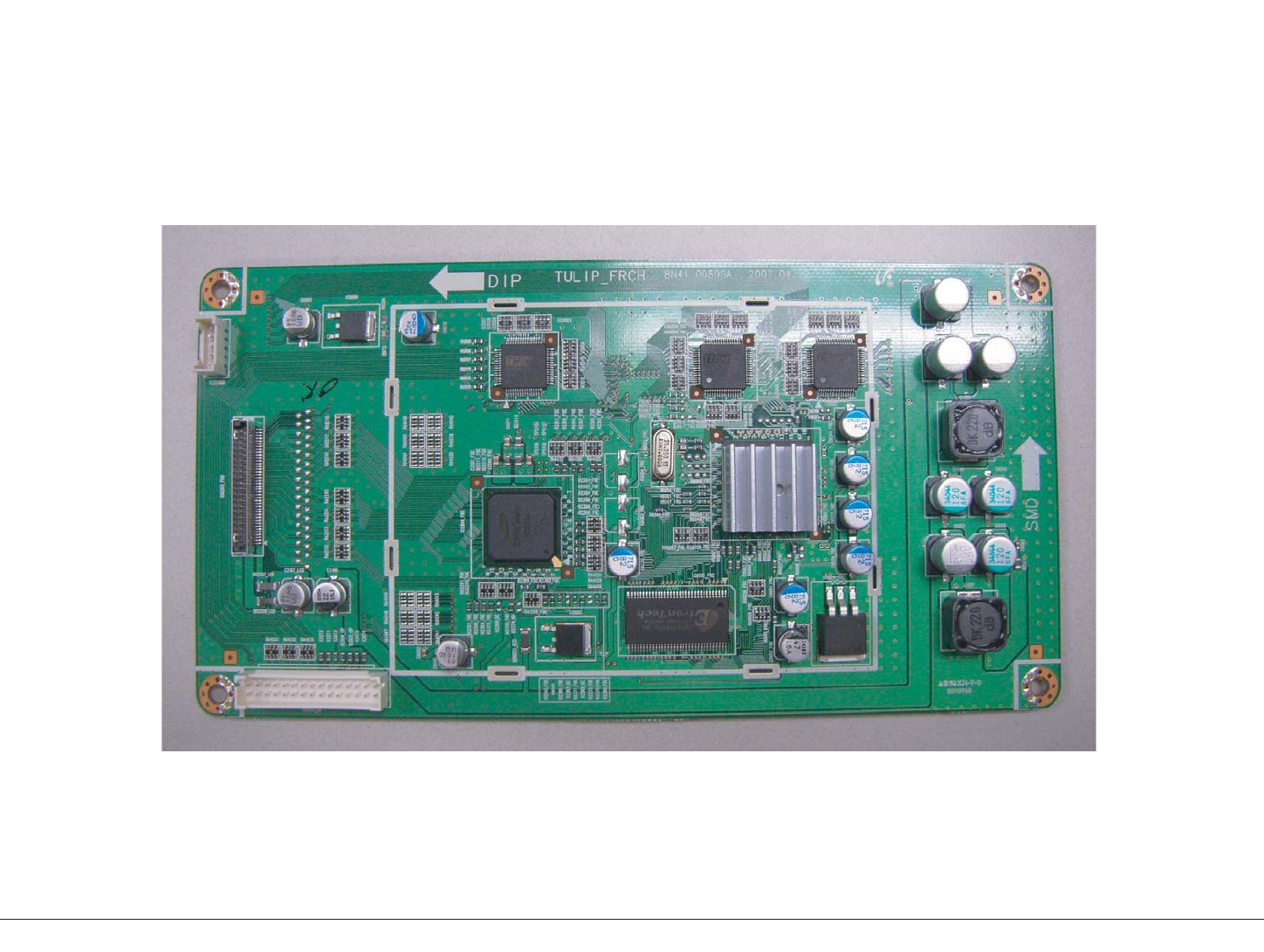

..2 T0146 BN94-01382B ASSY PCB MISC-SUB;LE32M87BDX/* 1 S.A

...3 T0245 0202-001492 SOLDER-WIRE FLUX;HSE-02 LFM48 SR-34 S,-, 0.025 S.N.A

...3 CN330 3711-004484 HEADER-BOARD TO CABLE;BOX,5P,1R,2mm,STRA 1 S.A

...3 CN330 3711-005606 HEADER-BOARD TO CABLE;BOX,30P,2R,2mm,STR 1 S.A

...3 T0603 BN63-02494B SHIELD-PCB MAIN;TULIP 32",SPTE,T0.3,PAL 1 S.N.A

...3 T0603 BN63-03197A SHIELD-PCB MAIN;TULIP PAL,SPTE,T0.5 1 S.N.A

...3 M0131 BN63-03550A GASKET;BORDEAUX PLUS,Conductive Fabric,1 1 S.N.A

...3 M0131 BN63-03819A GASKET;LE32M87BDX,Conductive Fabric,0.1, 1 S.N.A

...3 T0174 BN97-01683B ASSY SMD;LE32M87BDX/* 1 S.N.A

....4 SUB05 0202-001477 SOLDER-CREAM;LST309-M,-,D20~45##,96.5Sn/ 1.567 S.N.A

....4 D2201_LUX 0401-000133 DIODE-SWITCHING;RLS4148,75V,150mA,LL-34, 1 S.A

....4 D0254 0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 1 S.A

....4 Q1017 0501-002080 TR-SMALL SIGNAL;2SC2412K,NPN,200mW,SC-59 1 S.A

....4 Q409 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 1 S.A

....4 Q409 0505-001170 FET-SILICON;SI9933ADY-T1,P,-20V,3.4A,0.0 1 S.A

....4 T0087 1203-001419 IC-POSI.FIXED REG.;4931,TO-252,3P,6.6x10 1 S.A

....4 T0087 1203-002591 IC-POSI.FIXED REG.;MIC39300-2.5BU,TO-263 1 S.A

....4 IC012 1203-002995 IC-POSI.ADJUST REG.;AP1117D-A,TO-252,3P, 1 S.A

....4 IC012 1203-003000 IC-POSI.ADJUST REG.;MIC49150WR,S-PAK,5P, 1 S.A

....4 IC012 1203-003038 IC-POSI.ADJUST REG.;LP2995,SO,8P,4.9x3.9 1 S.A

....4 T0170 1203-003059 IC-SWITCH VOL. REG.;MP1583,SOIC,8P,4.9x3 1 S.A

....4 IC118 1204-002695 IC-VIDEO PROCESS;FRC9449H A6,LBGA,260P,1 1 S.N.A

....4 IC118 1204-002729 IC-VIDEO PROCESS;S4LF119X01,PBGA,208P,17 1 S.A

....4 IC120 1205-002382 IC-TRANSMITTER;THC63LVD103,TQFP,64P,10x1 1 S.A

....4 IC6003 1205-002417 IC-RECEIVER;THC63LVD104A,TQFP,64P,10x10m 1 S.A

....4 R6194_FRC 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-30

Level Loc. No. Code No. Description & Specification Q'ty SA/SNA

....4 R6088 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6094 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6089 2007-000050 R-CHIP;7.15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1128 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 S.A

....4 R1130 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R6086 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 1 S.A

....4 R2291_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2303_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2304_OP 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2310_FFL 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2361_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2362_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2363_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2364_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2365_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2366_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2379_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R2380_FBE 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3271 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3272 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3273 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3274 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R3275 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6004 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6013_FRC 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6014_FRC 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 S.A

....4 R6008_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6009_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6010_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6011_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6012_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6016_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6046_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6047_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6048_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6049_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6050_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6051_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6052_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6053_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6054_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6055_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6056_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6057_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6058_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6059_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6060_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6061_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6062_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6063_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6064_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6065_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6066_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6067_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6077_FRC 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R6100 2007-000071 R-CHIP;22ohm,5%,1/10W,TP,1608 1 S.A

....4 R2243_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2381_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2382_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2383_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2384_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

....4 R2385_FBE 2007-000074 R-CHIP;100ohm,5%,1/10W,TP,1608 1 S.A

6 Electrical Parts List

6-31
