SERVICE MANUAL

2007/8

INTEGRATED DIGITAL TERRESTRIAL LCD TELEVISION

YA55120078SERVICE MANUAL

LT-47DV8BG/P,

LT-47DV8BJ/P

TABLE OF CONTENTS

1 PRECAUTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2 SPECIFIC SERVICE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

3 DISASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

4 ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16

5 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21

BASIC CHASSIS

FL5

1-2 (No.YA551)

SPECIFICATION

Design & specifications are subject to change without notice.

Items Contents

LT-47DV8BG/P LT-47DV8BJ/P

Dimensions ( W × H × D ) 112.1 cm × 77.4 cm × 29.6 cm [Included stand]

112.1 cm × 72.7 cm × 13.0 cm [TV only]

Mass 34.0kg [Included stand]

30.0 kg [TV only]

Power Input AC220V - AC240 V, 50 Hz

Power Consumption 281 W (Standby: 0.5 W)

TV RF System Analog CCIR (B/G, I, D/K, L) CCIR (I)

Digital DVB-T

Colour System PAL, SECAM, NTSC 3.58/4.43 [EXT only] PAL, NTSC 3.58/4.43 [EXT only]

Stereo System NICAM (B/G, I, D/K, L), A2 (B/G, D/K) NICAM (I)

Receiving

Frequency

Analog VHF: 47MHz - 470MHz

UHF: 470 MHz - 862 MHz

CATV: 116MHz - 172MHz / 220MHz - 469MHz

UHF: 470 MHz - 862 MHz

Digital UHF:174 MHz - 230 MHz

UHF:470 MHz - 862 MHz

UHF:470 MHz - 854 MHz

Intermediate

Frequency

VIF 38.9MHz (B/G, I, D/K, L) 38.9MHz (I)

SIF 33.4MHz (5.5MHz:B/G)

32.9MHz (6.0MHz:I)

32.4MHz (6.5MHz:D/K)

32.9MHz (6.0MHz:I)

Colour Sub

Carrier Frequency

PAL 4.43MHz

SECAM 4.40625MHz / 4.25MHz ---

NTSC 3.58MHz / 4.43MHz

Teletext System Analog

FLOF (Fastext level 2.5) / TOP / WST(World Standard system)

FLOF (Fastext level 2.5) / WST(World Standard system)

Digital EBU TEXT MHEG 5 UK profile

LCD panel 47V-inch wide aspect (16 : 9)

Screen Size Diagonal: 118.0cm (H: 104.0 cm × V: 59.3 cm)

Display Pixels Horizontal: 1920 dots × Vertical: 1080 dots (W-UXGA)

Audio Power Output 10 W + 10 W

Speaker 4.5 cm × 16.0 cm, oval type × 2 (Oblique Cone)

Aerial terminal (VHF/UHF) 75 Ω unbalanced, coaxial

EXT-1 / EXT-2 (Input / Output) 21-pin Euro connector (SCART socket ) × 2

EXT-3 (Input) S-Video Mini-DIN 4 pin × 1

Y: 1 V (p-p), Positive (Negative sync provided), 75 Ω

C: 0.286 V (p-p) (Burst signal), 75 Ω

Video 1 V (p-p), Positive (Negative sync provided), 75 Ω, RCA pin jack × 1

Audio 500 mV (rms), High impedance, RCA pin jack × 2

EXT-4 (Input) Component Video

750p / 1125i

625p / 525p / 625i / 525i

RCA pin jack × 3

Y: 1 V (p-p) (Sync signal: ±0.35V(p-p), 3-value sync.), 75Ω / Pb/Pr: ±0.35V(p-p), 75 Ω

Y: 1 V (p-p), Positive (Negative sync.), 75 Ω / Cb/Cr: 0.7V(p-p), 75 Ω

Audio 500 mV(rms) (-4dBs), high impedance, RCA pin jack × 2

Digital input

[DIGITAL-IN 1/2/3]

Video / Audio HDMI 2-row 19pin connector × 3

(Digital-input terminal is not compatible with picture signals of personal computer)

PC (RGB) Input D-sub 3-row 15pin × 1

R/G/B : 0.7V (p-p), 75Ω

HD / VD : 1V (p-p) to 5V (p-p), high impedance

< Available signal >

VGA : 640 pixels × 480 pixels (Horizontal : 31.5kHz / Vertical : 60Hz)

XGA : 1024 pixels × 768 pixels (Horizontal : 48.4kHz / Vertical : 60Hz)

Audio Output 500 mV (rms), Low impedance, RCA pin jack × 2

Digital Audio Optical Output Digital SPDIF × 1

Headphone 3.5 mm stereo mini jack × 1

Remote Control Unit RM-C1911 (AA/R6 dry cell battery × 2)

(No.YA551)1-3

SECTION 1

PRECAUTION

1.1 SAFETY PRECAUTIONS [EXCEPT FOR UK]

(1) The design of this product contains special hardware,

many circuits and components specially for safety

purposes. For continued protection, no changes should be

made to the original design unless authorized in writing by

the manufacturer. Replacement parts must be identical to

those used in the original circuits. Service should be

performed by qualified personnel only.

(2) Alterations of the design or circuitry of the products should

not be made. Any design alterations or additions will void

the manufacturer's warranty and will further relieve the

manufacturer of responsibility for personal injury or

property damage resulting therefrom.

(3) Many electrical and mechanical parts in the products have

special safety-related characteristics. These

characteristics are often not evident from visual inspection

nor can the protection afforded by them necessarily be

obtained by using replacement components rated for

higher voltage, wattage, etc. Replacement parts which

have these special safety characteristics are identified in

the parts list of Service manual. Electrical components

having such features are identified by shading on the

schematics and by ( ) on the parts list in Service

manual. The use of a substitute replacement which does

not have the same safety characteristics as the

recommended replacement part shown in the parts list of

Service manual may cause shock, fire, or other hazards.

(4) Don't short between the LIVE side ground and

ISOLATED (NEUTRAL) side ground or EARTH side

ground when repairing.

Some model's power circuit is partly different in the GND.

The difference of the GND is shown by the LIVE : ( ) side

GND, the ISOLATED (NEUTRAL) : ( ) side GND and

EARTH : ( ) side GND.

Don't short between the LIVE side GND and ISOLATED

(NEUTRAL) side GND or EARTH side GND and never

measure the LIVE side GND and ISOLATED (NEUTRAL)

side GND or EARTH side GND at the same time with a

measuring apparatus (oscilloscope etc.). If above note will

not be kept, a fuse or any parts will be broken.

(5) When service is required, observe the original lead dress.

Extra precaution should be given to assure correct lead

dress in the high voltage circuit area. Where a short circuit

has occurred, those components that indicate evidence of

overheating should be replaced. Always use the

manufacturer's replacement components.

(6) Isolation Check (Safety for Electrical Shock Hazard)

After re-assembling the product, always perform an

isolation check on the exposed metal parts of the cabinet

(antenna terminals, video/audio input and output terminals,

Control knobs, metal cabinet, screw heads, earphone jack,

control shafts, etc.) to be sure the product is safe to operate

without danger of electrical shock.

a) Dielectric Strength Test

The isolation between the AC primary circuit and all metal

parts exposed to the user, particularly any exposed metal

part having a return path to the chassis should withstand a

voltage of 3000V AC (r.m.s.) for a period of one second. (.

. . . Withstand a voltage of 1100V AC (r.m.s.) to an

appliance rated up to 120V, and 3000V AC (r.m.s.) to an

appliance rated 200V or more, for a period of one second.)

This method of test requires a test equipment not generally

found in the service trade.

b) Leakage Current Check

Plug the AC line cord directly into the AC outlet (do not use

a line isolation transformer during this check.). Using a

"Leakage Current Tester", measure the leakage current

from each exposed metal part of the cabinet, particularly

any exposed metal part having a return path to the chassis,

to a known good earth ground (water pipe, etc.). Any

leakage current must not exceed 0.5mA AC (r.m.s.).

However, in tropical area, this must not exceed 0.2mA AC

(r.m.s.).

Alternate Check Method

Plug the AC line cord directly into the AC outlet (do not

use a line isolation transformer during this check.). Use

an AC voltmeter having 1000Ω per volt or more

sensitivity in the following manner. Connect a 1500Ω

10W resistor paralleled by a 0.15µF AC-type capacitor

between an exposed metal part and a known good earth

ground (water pipe, etc.). Measure the AC voltage

across the resistor with the AC voltmeter. Move the

resistor connection to each exposed metal part,

particularly any exposed metal part having a return path

to the chassis, and measure the AC voltage across the

resistor. Now, reverse the plug in the AC outlet and

repeat each measurement. Any voltage measured must

not exceed 0.75V AC (r.m.s.). This corresponds to

0.5mA AC (r.m.s.).

However, in tropical area, this must not exceed 0.3V AC

(r.m.s.). This corresponds to 0.2mA AC (r.m.s.).

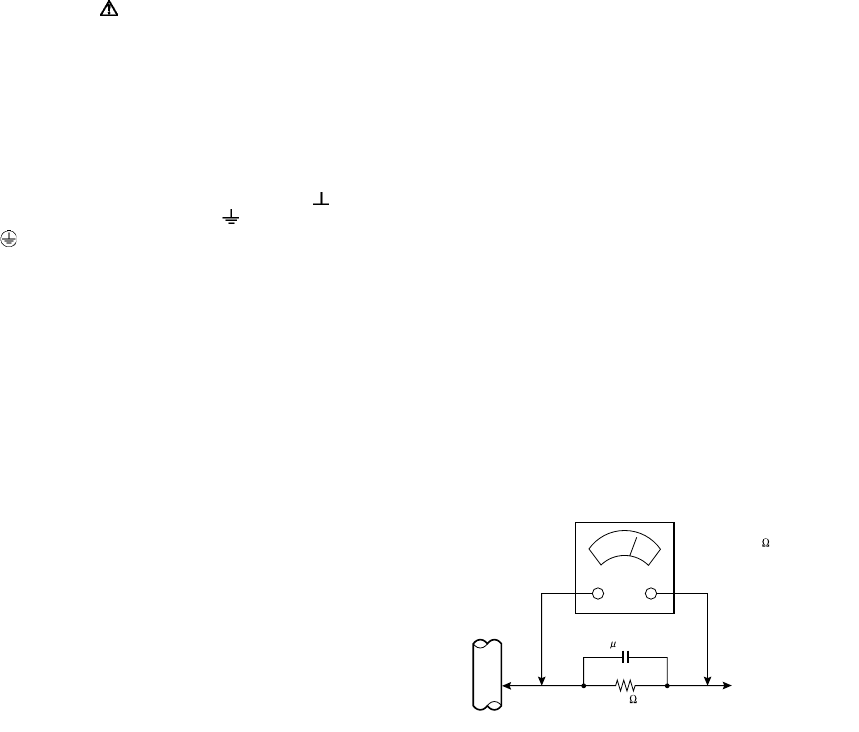

AC VOLTMETER

(HAVING 1000 /V,

OR MORE SENSITIVITY)

PLACE THIS PROBE

ON EACH EXPOSED

METAL PART

1500 10W

0.15 F AC-TYPE

GOOD EARTH GROUND

1-4 (No.YA551)

1.2 SAFETY PRECAUTIONS [FOR UK]

(1) The design of this product contains special hardware and many circuits and components specially for safety purposes. For

continued protection, no changes should be made to the original design unless authorized in writing by the manufacturer.

Replacement parts must be identical to those used in the original circuits. Service should be performed by qualified personnel

only.

(2) Alterations of the design or circuitry of the product should not be made. Any design alterations or additions will void the

manufacturer's warranty and will further relieve the manufacturer of responsibility for personal injury or property damage

resulting therefrom.

(3) Many electrical and mechanical parts in the product have special safety-related characteristics. These characteristics are often

not evident from visual inspection nor can the protection afforded by them necessary be obtained by using replacement

components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are

identified in the Parts List of Service Manual. Electrical components having such features are identified by shading on the

schematics and by ( ) on the Parts List in the Service Manual. The use of a substitute replacement which does not have the

same safety characteristics as the recommended replacement part shown in the Parts List of Service Manual may cause shock,

fire, or other hazards.

(4) The leads in the products are routed and dressed with ties, clamps, tubing’s, barriers and the like to be separated from live parts,

high temperature parts, moving parts and / or sharp edges for the prevention of electric shock and fire hazard. When service is

required, the original lead routing and dress should be observed, and it should be confirmed that they have been returned to

normal, after re-assembling.

WARNING

(1) The equipment has been designed and manufactured to meet international safety standards.

(2) It is the legal responsibility of the repairer to ensure that these safety standards are maintained.

(3) Repairs must be made in accordance with the relevant safety standards.

(4) It is essential that safety critical components are replaced by approved parts.

(5) If mains voltage selector is provided, check setting for local voltage.

(No.YA551)1-5

1.3 INSTALLATION

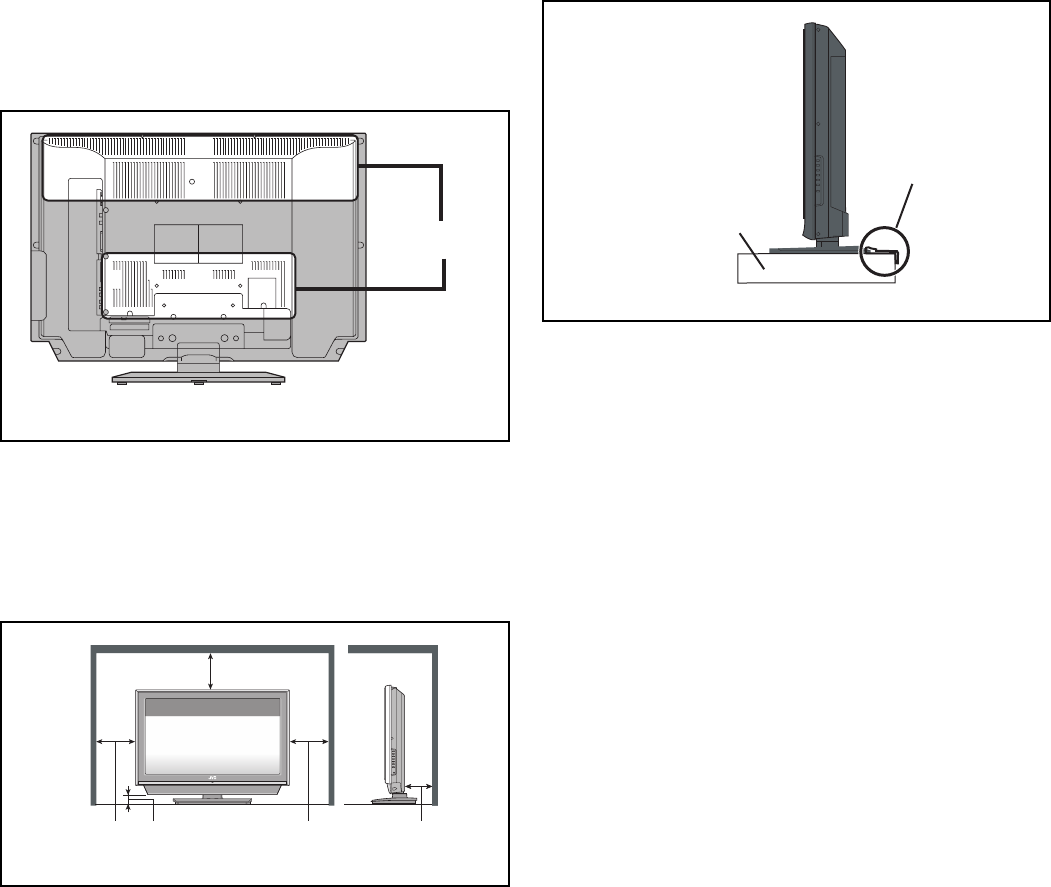

1.3.1 HEAT DISSIPATION

If the heat dissipation vent behind this unit is blocked, cooling

efficiency may deteriorate and temperature inside the unit will

rise. The temperature sensor that protects the unit will be

activated when internal temperature exceeds the pre-determined

level and power will be turned off automatically.Therefore,

please make sure pay attention not to block the heat dissipation

vent as well as the ventilation outlet behind the unit and ensure

that there is room for ventilation around it.

1.3.2 INSTALLATION REQUIREMENTS

Ensure that the minimal distance is maintained, as specified

below, between the unit with and the surrounding walls, as well

as the floor etc.Install the unit on stable flooring or stands.Take

precautionary measures to prevent the unit from tipping in order

to protect against accidents and earthquakes.

1.3.3 INSTALLATION REQUIREMENTS

To ensure safety in an emergency such as an earthquake, and

to prevent accidents, ensure that measures are taken to prevent

the TV dropping or falling over.

1.3.4 NOTES ON HANDLING

When taking the unit out of a packing case, do not grasp the

upper part of the unit. If you take the unit out while grasping the

upper part, the LCD PANEL may be damaged because of a

pressure. Instead of grasping the upper part, put your hands on

the lower backside or sides of the unit.

1.4 HANDLING LCD PANEL

1.4.1 PRECAUTIONS FOR TRANSPORTATION

When transporting the unit, pressure exerted on the internal LCD

panel due to improper handling (such as tossing and dropping)

may cause damages even when the unit is carefully packed. To

prevent accidents from occurring during transportation, pay

careful attention before delivery, such as through explaining the

handling instructions to transporters.

Ensure that the following requirements are met during

transportation, as the LCD panel of this unit is made of glass and

therefore fragile:

(1) USE A SPECIAL PACKING CASE FOR THE LCD PANEL

When transporting the LCD panel of the unit, use a special

packing case (packing materials). A special packing case

is used when a LCD panel is supplied as a service spare

part.

(2) ATTACH PROTECTION SHEET TO THE FRONT

Since the front (display part) of the panel is vulnerable,

attach the protection sheet to the front of the LCD panel

before transportation. Protection sheet is used when a LCD

panel is supplied as a service spare part.

(3) AVOID VIBRATIONS AND IMPACTS

The unit may be broken if it is toppled sideways even when

properly packed. Continuous vibration may shift the gap of

the panel, and the unit may not be able to display images

properly. Ensure that the unit is carried by at least 2

persons and pay careful attention not to exert any vibration

or impact on it.

(4) DO NOT PLACE EQUIPMENT HORIZONTALLY

Ensure that it is placed upright and not horizontally during

transportation and storage as the LCD panel is very

vulnerable to lateral impacts and may break. During

transportation, ensure that the unit is loaded along the

traveling direction of the vehicle, and avoid stacking them

on one another. For storage, ensure that they are stacked

in 2 layers or less even when placed upright.

Ventilation hole

*Diagram differs from actual appearance.

200 mm

150 mm 50 mm 150 mm 50 mm

It fixes in a band.

TV STAND

*Diagram differs from actual appearance.

1-6 (No.YA551)

1.4.2 OPTICAL FILTER (ON THE FRONT OF THE LCD PANEL)

(1) Avoid placing the unit under direct sunlight over a

prolonged period of time. This may cause the optical filter

to deteriorate in quality and COLOUR.

(2) Clean the filter surface by wiping it softly and lightly with a

soft and lightly fuzz cloth (such as outing flannel).

(3) Do not use solvents such as benzene or thinner to wipe the

filter surface. This may cause the filter to deteriorate in

quality or the coating on the surface to come off. When

cleaning the filter, usually use the neutral detergent diluted

with water. When cleaning the dirty filter, use water-diluted

ethanol.

(4) Since the filter surface is fragile, do not scratch or hit it with

hard materials. Be careful enough not to touch the front

surface, especially when taking the unit out of the packing

case or during transportation.

1.4.3 PRECAUTIONS FOR REPLACEMENT OF EXTERIOR

PARTS

Take note of the following when replacing exterior parts (REAR

COVER, FRONT PANEL, etc.):

(1) Do not exert pressure on the front of the LCD panel (filter

surface). It may cause irregular COLOUR.

(2) Pay careful attention not to scratch or stain the front of the

LCD panel (filter surface) with hands.

(3) When replacing exterior parts, the front (LCD panel) should

be placed facing downward. Place a mat, etc. underneath

to avoid causing scratches to the front (filter surface).

1.4.4 HOW TO CHECK THE OPERATING TIME

This model has a function to count and record the LCD panel

operating time. The operating time can be checked in the

following procedure.

• Maximum count time = 131070 hours

(1) Press the [INFORMATION] key and [MUTING] key simul-

taneously, then enter the SERVICE MODE.

(2) When the Main Menu is displayed, press [2] key to enter

the self check mode.

(3) The operating time of the LCD panel is displayed in 5-digit

decimal number.(Refer to the below figure)

1.4.5 HOW TO RESET THE OPERATING TIME

(1) Press the [MENU] key simultaneously, then enter the

USER MENU.

(2) Select the "Features" from the USER MENU.

(3) Select the Blue back from the Features.

(4) Set the Blue back to Off.

(5) Press the [INFORMATION] key and [MUTING] key

simultaneously, then enter the SERVICE MODE.

(6) When the Main Menu is displayed, press [2] key to enter

the self check mode.

(7) When the self check screen(page-1) is displayed, press

[ZOOM] key.

(8) "RESET : OK" is displayed under the operating time.

(9) Press the [TV] key to reset the operating time.

NOTE:

When the LCD PANEL UNIT is replaced, be sure to reset the

operating time following the above method.

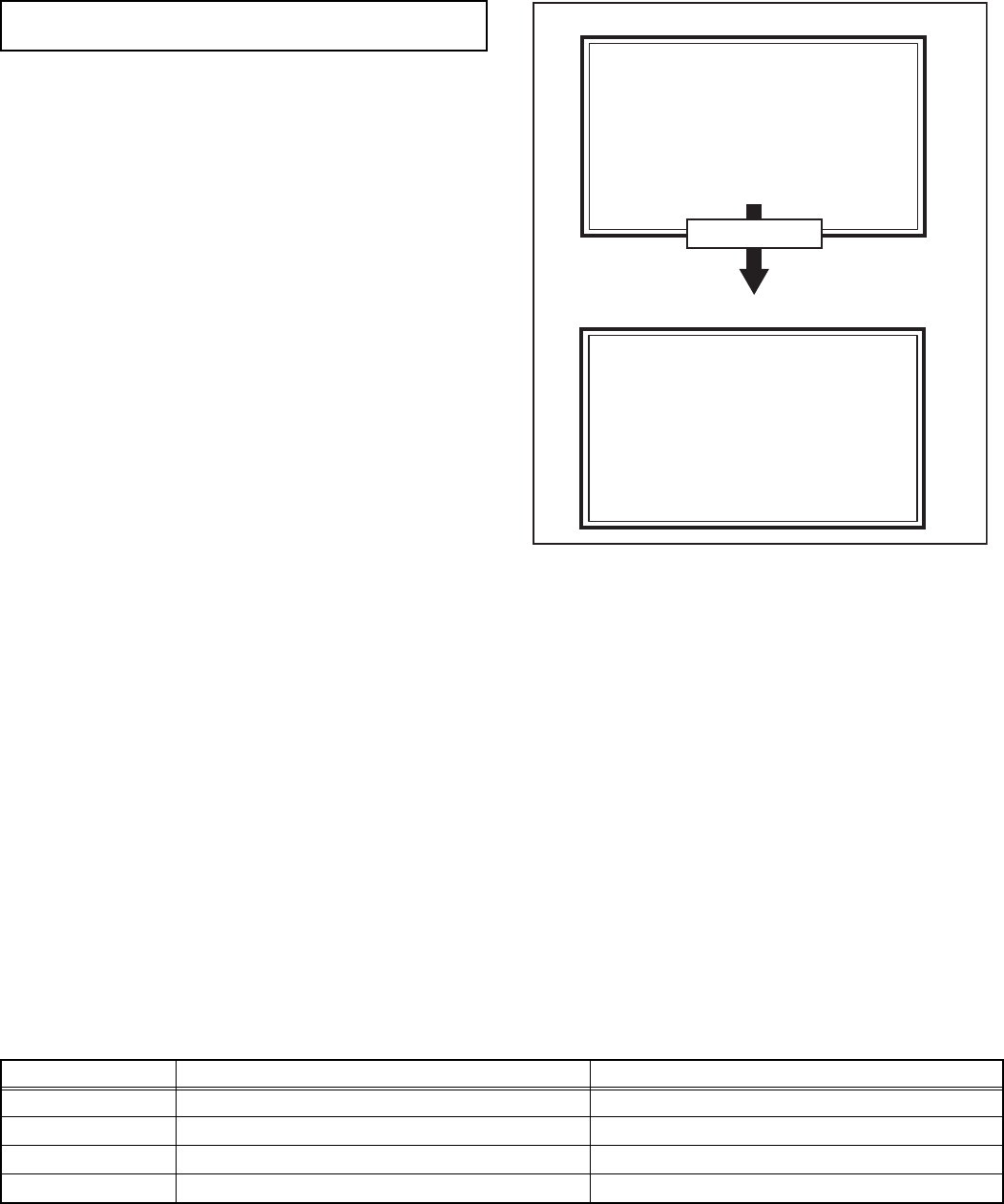

SELF CHECK MODE SCREEN (Page 1)

SERVICE MENU

1. ADJUST

2. SELF CHECK

3. I2C STOP

LOB 0 FAN 0

AUD 0

ANA 9 DIG 9

HOUR 131070 MAX 0

RESET : OK 1

The operating time is displayed

MAX is displayed when the maximum

count time is exceeded

Switch the display/ non-display

with the [ZOOM] key.

Press [2] key

SERVICE MODE SCREEN

*When the power is turned off with the remote control unit or the power

button of the main unit, the count restarts from the turn off time.

*When the power is turned off by disconnecting the power cord from the

AC outlet, the recorded time count less than 2 hours is not counted.

*When the operating time exceeds the maximum count time, "MAX" is

displayed to the right of the counted time, and the following count is

discontinued.

(No.YA551)1-7

SECTION 2

SPECIFIC SERVICE INSTRUCTIONS

2.1 SYSTEM SETTING

(1) Press the [INFORMATION] key and [MUTING] key

simultaneously, then enter the SERVICE MODE.

(2) When the Main Menu is displayed, press [2] key to enter

the self check mode.

(3) Turn off the power by pressing the [POWER] key on the

remote control unit.

2.2 FEATURES

Full HD

Full HD models deliver superbly detailed image reproduction

of more than 2 megapixels (1920 x 1080), which represents

double the resolution offered by WXGA panels.

100Hz Clear Motion Drive

This function is able to display twice as many frames as a

conventional LCD display.

DIGITAL TUNER

This TV can receive both DVB-T (Digital terrestrial broadcasting)

and Analogue terrestrial broadcasting.

D.I.S.T. (Digital Image Scaling Technology)

This system uses line interpolation to double the number of

scanning lines and achieve high resolution, flicker-free picture.

Colour Management

This function ensures dull colours are compensated to

produce natural hues.

Picture Management

This function makes it easier to see the dark areas when a

picture has many dark areas, and makes it easier to see the

bright areas when a picture has many bright areas.

Smart Picture

This function detects the APL (Average Picture Level) and

adjusts the contrast suitable for what you are watching.

DIGITAL VNR

This function cuts down the amount of noise in the original

picture.

MPEG Noise Reduction

This function effects the block noise removal and mosquito NR

simultaneously.

MaxxAudio

MaxxAudio improves sound performance with four sound

features (MaxxBass, MaxxTreble, MaxxStereo and

MaxxVolume).

2.3 MAIN DIFFERENCE LIST

Be sure to carry out the following operation at the end of

the procedure. SERVICE MODE SCREEN

SELF CHECK MODE SCREEN (Page 1)

SERVICE MENU

1. ADJUST

2. SELF CHECK

3. I2C STOP

LOB 0 FAN 0

AUD 0

ANA 9 DIG 9

HOUR 131070 MAX 0

RESET : OK 1

Press [2] key

Item LT-47DV8BG/P LT-47DV8BJ/P

Teletext (Digital) EBU TEXT MHEG 5 UK profile

Teletext (Analog)

FLOF (Fastext level 2.5) / TOP / WST(World Standard system)

FLOF (Fastext level 2.5) / WST(World Standard system)

STEREO SYSTEM NICAM (B/G, I, D/K, L), A2 (B/G, D/K) NICAM (I)

TV RF System CCIR (B/G, I, D/K, L) CCIR (I)

1-8 (No.YA551)

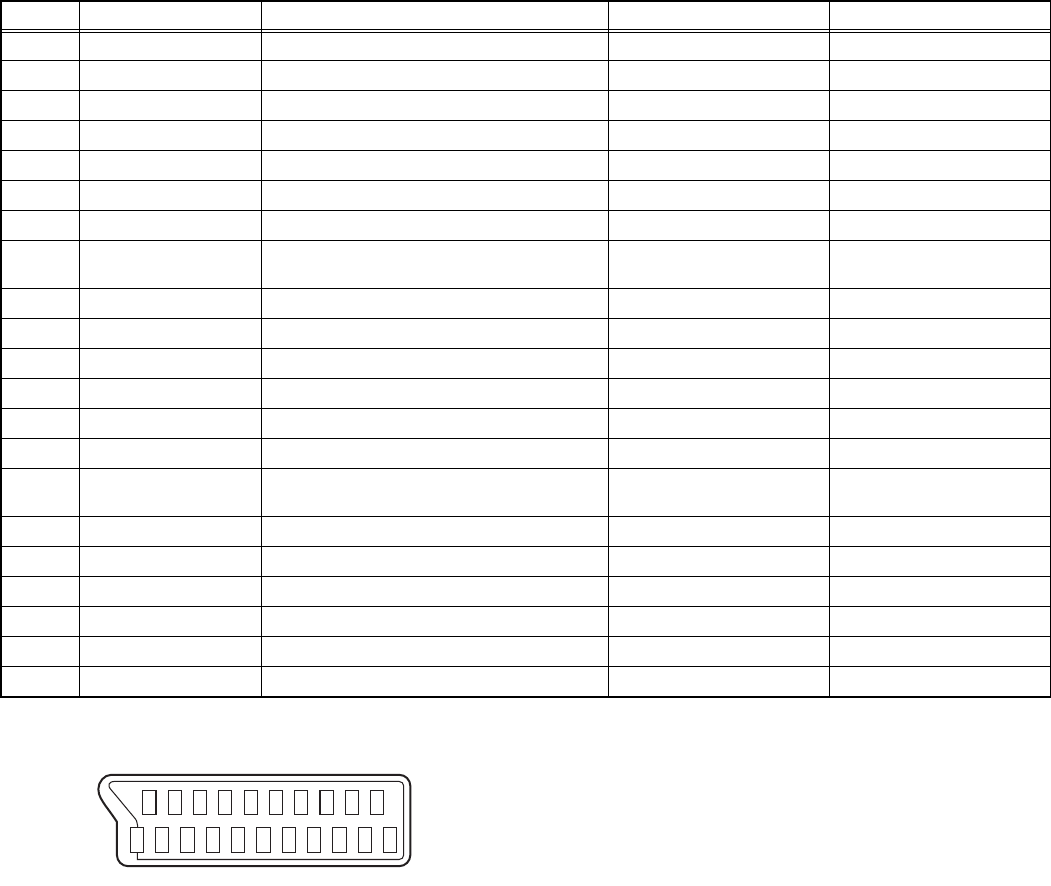

2.4 21-PIN EURO CONNECTOR (SCART) : EXT-1 / EXT-2

(P-P= Peak to Peak, B-W= Blanking to white peak)

Pin No. Signal designation Matching value EXT-1 EXT-2

1 AUDIO R output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)

2 AUDIO R input 500mV(rms) (Nominal), High impedance Used (R1) Used (R2)

3 AUDIO L output 500mV(rms) (Nominal), Low impedance Used (TV OUT) Used (LINE OUT)

4 AUDIO GND Used Used

5 GND (B) Used Used

6 AUDIO L input 500mV(rms) (Nominal), High impedance Used (L1) Used (L2)

7 B input 700mV(B-W), 75ΩUsed Used

8 FUNCTION SW

(SLOW SW)

Low : 0V-3V

High : 8V-12V, High impedance

Used Used

9 GND (G) Used Used

10 SCL / T-V LINK Not used Used (SCL2 / TV-LINK)

11 G input 700mV(B-W), 75ΩUsed Used

12 SDA Not used Used (SDA2)

13 GND (R) Used Used

14 GND (YS) Used Not used

15 R / C input R : 700mV(B-W), 75Ω

C : 300mV(P-P), 75ΩUsed (C1/R) Used (C2/R)

16 Ys input (FAST SW) Low : 0V-0.4V, High : 1V-3V, 75ΩUsed Used

17 GND (VIDEO output) Used Used

18 GND (VIDEO input) Used Used

19 VIDEO output 1V(P-P) (Negative sync), 75ΩUsed (TV OUT) Used (LINE OUT)

20 VIDEO / Y input 1V(P-P) (Negative sync), 75ΩUsed (Y1/V) Used (Y2/V)

21 COMMON GND Used Used

20 18 16 14 12 10 8 6 4 2

21 19 17 15 13 11 9 7 5 3 1

[Pin assignment]

(No.YA551)1-9

2.5 TECHNICAL INFORMATION

2.5.1 LCD PANEL

This unit uses the flat type panel LCD (Liquid Crystal Display) panel that occupies as little space as possible, instead of the

conventional CRT (Cathode Ray Tube), as a display unit.

Since the unit has the two polarizing filter that are at right angles to each other, the unit adopts "normally black" mode, where light

does not pass through the polarizing filter and the screen is black when no voltage is applied to the liquid crystals.

2.5.1.1 SPECIFICATIONS

The following table shows the specifications of this unit.

2.5.1.2 PIXEL FAULT

There are three pixel faults - bright fault , dark fault and flicker fault - that are respectively defined as follows.

 BRIGHT FAULT

In this pixel fault, a cell that should not light originally is lighting on and off.

For checking this pixel fault, input ALL BLACK SCREEN and find out the cell that is lighting on and off.

 DARK FAULT

In this pixel fault, a cell that should light originally is not lighting or lighting with the brightness twice as brighter as originally lighting.

For checking this pixel fault, input 100% of each R/G/B colour and find out the cell that is not lighting.

 FLICKER FAULT

In the pixel fault, a cell that should light originally or not light originally is flashing on and off.

For checking this pixel fault, input ALL BLACK SCREEN signal or 100% of each RGB colour and find out the cell that is flashing on

and off.

Item Specifications

Maximum dimensions ( W × H × D ) 109.6 cm × 64.0 cm × 5.1 cm

Weight 16.5 kg

Effective screen size Diagonal: 1193 mm (H: 1040 mm × V: 593 mm)

Aspect ratio 16 : 9

Drive device / system a-Si-TFT active matrix system

Resolution Horizontally 1920 × Vertically 1080 × RGB <W-UXGA> 6220800 dots in total

Pixel pitch (pixel size) Horizontally: 0.5415 mm, Vertically: 0.5415 mm

Displayed colour 16777216 colours 256 colours for R G and B

Brightness 500cd/m2

Contrast ratio 1000 : 1

Response time less than 10 ms

View angle (Horizontally) 178°

View angle (Vertically) 178°

Surface polarizer Anti-Glare type Low reflective coat

Colour filter Vertical stripe

Backlight Cold cathode fluorescent lamp × 23

Power supply voltage in LCD 12 V

Power supply voltage in inverter 24 V

Panel interface system LVDS (Low Voltage Differential Signaling)

1-10 (No.YA551)

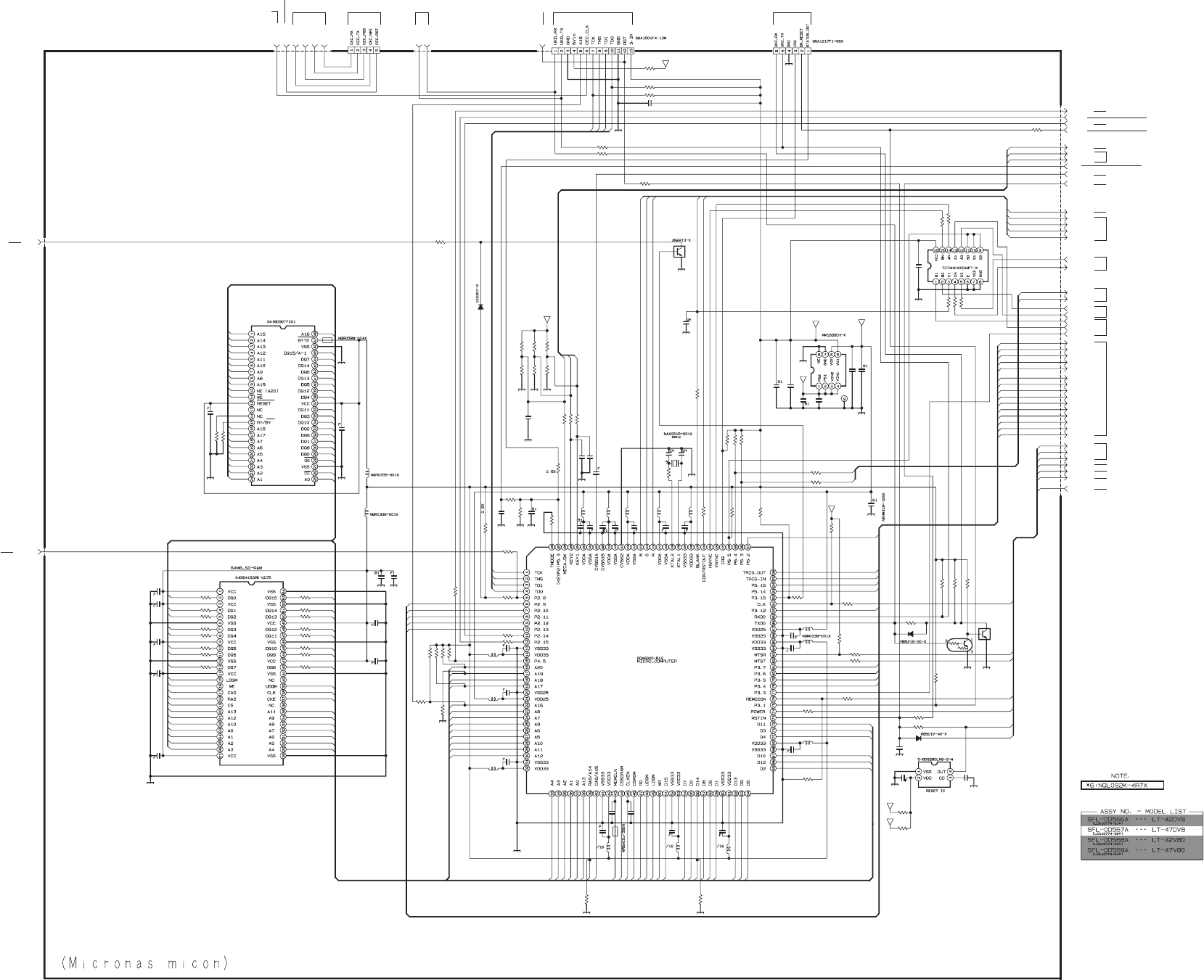

2.5.2 MAIN CPU PIN FUNCTION [IC7301 : DIGITAL PWB]

Pin Pin name I/O Function Pin Pin name I/O Function

1 TCK O Test purpose 65 D2 I/O Program ROM data for main CPU

2 TMS I Test purpose 66 D12 I/O Program ROM data for main CPU

3 TDI I Test purpose 67 D10 I/O Program ROM data for main CPU

4 TDO O Test purpose 68 VSS33 - GND

5 P2.8 I Input for HDMI CEC 69 VDD33 I 3.3V

6 P2.9 O Blue for OSD 70 D4 I/O Program ROM data for main CPU

7 P2.10 O Blue for OSD 71 D3 I/O Program ROM data for main CPU

8 P2.11 O Blue for OSD 72 D11 I/O Program ROM data for main CPU

9 P2.12 O Blue for OSD 73 RSTIN I Reset

10 P2.13 O Blue for OSD 74 POWER O Sleep state release for chassis CPU [Release : L]

11 P2.14 I TV-LINK data 75 P3.1 O Reset for digital tuner unit

12 P2.15 O Request for chassis CPU communication 76 REMOCON I Remote control

13 VSS33 - GND 77 P3.3 I Clock for OSD

14 VDD33 I 3.3V 78 P3.4 O Red for OSD

15 P4.5 O TV-LINK data 79 P3.5 O Red for OSD

16 A20 O Program ROM address for main CPU 80 P3.6 O Red for OSD

17 A19 O Program ROM address for main CPU 81 P3.7 O Red for OSD

18 A18 O Program ROM address for main CPU 82 MTST I/O Data transmission for chassis CPU communication

19 A17 O Program ROM address for main CPU 83 MTSR I/O Data receive for chassis CPU communication

20 VSS25 - GND 84 VSS33 - GND

21 VDD25 I 2.5V 85 VDD33 I 3.3V

22 A16 O Program ROM address for main CPU 86 VSS25 - GND

23 A8 O Program ROM address for main CPU 87 VDD25 I 2.5V

24 A7 O Program ROM address for main CPU 88 TXD0 I/O Data transmission for digital tuner unit

25 A9 O Program ROM address for main CPU 89 RXD0 I/O Data receive for digital tuner unit

26 A6 O Program ROM address for main CPU 90 P3.12 O Red for OSD

27 A5 O Program ROM address for main CPU 91 CLK O Clock for chassis CPU communication

28 A10 O Program ROM address for main CPU 92 P3.15 O Output for HDMI CEC

29 A11 O Program ROM address for main CPU 93 P5.14 O Green for OSD

30 A12 O Program ROM address for main CPU 94 P5.15 O Green for OSD

31 VSS33 - GND 95 TRIG_IN O Green for OSD

32 VDD33 I 3.3V 96 TRIG_OUT O Green for OSD

33 A4 O Program ROM address for main CPU 97 P6.2 O Green for OSD

34 A3 O Program ROM address for main CPU 98 P6.3 I/O I2C bus clock (for main memory)

35 A2 O Program ROM address for main CPU 99 P6.4 I/O I2C bus Data (for main memory)

36 A1 O Program ROM address for main CPU 100 P6.5 O Sync signal select for OSD / Teletext

37 A0 O Program ROM address for main CPU 101 IRQ O Interrupt request for digital tuner unit

38 A13 O Program ROM address for main CPU 102 VSYNC I Vertical sync

39 ARAS/A14 O Program ROM address for main CPU 103 HSYNC I Horizontal sync

40 CAS/A15 O Program ROM address for main CPU 104

COR/RSTOUT

O Not used

41 VSS33 - GND 105 BLANK O Ys for OSD / Teletext

42 VDD33 I 3.3V 106 VDD33 I 3.3V

43 MEMCLK O Clock for memory 107 VSS33 - GND

44 CSSDRAM O Chip select for memory 108 XTAL1 I 6MHz for system clock

45 CLKEN O Clock enable for memory 109 XTAL2 O 6MHz for system clock

46 CSROM O Chip select for memory 110 VSSA - GND

47 RD O Read for memory 111 VDDA I 2.5V

48 UDQM O Control buffer of memory 112 R O R for Teletext

49 LDQM O Control buffer of memory 113 G O G for Teletext

50 WR O Write for memory 114 B O B for Teletext

51 D15 I/O Program ROM data for main CPU 115 VSSA - GND

52 VSS33 - GND 116 VDDA I 2.5V

53 VDD33 I 3.3V 117 CVBS2 I Not used

54 D7 I/O Program ROM data for main CPU 118 VSSA - GND

55 D0 I/O Program ROM data for main CPU 119 VDDA I 2.5V

56 D14 I/O Program ROM data for main CPU 120 CVBS1B I Not used

57 D8 I/O Program ROM data for main CPU 121 CVBS1A I Video for Teletext

58 D6 I/O Program ROM data for main CPU 122 VSSA - GND

59 D1 I/O Program ROM data for main CPU 123 VDDA I 2.5V

60 VSS33 - GND 124 KEY1 I Key scan data 1 [ON : H]

61 VDD33 I 3.3V 125 KEY2 I Key scan data 2 [ON : H]

62 D13 I/O Program ROM data for main CPU 126 MECA_SW I Main power ON / OFF control [ON : L]

63 D9 I/O Program ROM data for main CPU 127

(KEYP2)P5.3

I Error detection for digital tuner unit

64 D5 I/O Program ROM data for main CPU 128 TMODE I Test purpose

(No.YA551)1-11

SECTION 3

DISASSEMBLY

3.1 DISASSEMBLY PROCEDURE

•Be sure to perform the SYSTEM SETTING, at the end of the procedure.

• Make sure that the power cord is disconnected from the outlet.

• Pay special attention not to break or damage the parts.

• Make sure that there is no bent or stain on the connectors before inserting, and firmly insert the connectors.

REFERENCE:

When removing each board, remove the connector if necessary. The operation is easier if you write down the connection points

(connector numbers) of the connector. For connection of each board, refer to the "WIRING DIAGRAM" of the Standard Circuit

Diagram.

3.1.1 REMOVING THE REAR COVER (Fig.3-1)

(1) Remove the 1 screw [A].

(2) Remove the POWER CORD COVER.

(3) Remove the POWER CORD.

(4) Remove the 1 screw [B], 9 screws [C], 5 screws [D] and 6

screws [E].

(5) Remove the REAR COVER.

3.1.2 REMOVING THE ANALOG PWB (Fig.3-1)

• Remove the REAR COVER.

(1) Remove the 1 screw [F].

(2) Remove the TUNER BASE.

(3) Remove the 2 hooks [a], 3 screws [G] and 3 screws [H].

(4) Remove the TERMINAL BASE.

(5) Remove the 3 screws [J].

(6) Remove the BACK BRACKET.

(7) Remove the 6 screws [K] and 2 screws [L].

(8) Remove the ANALOG PWB.

3.1.3 REMOVING THE DC-DC PWB (Fig.3-1)

• Remove the REAR COVER.

• Remove the BACK BRACKET.

(1) Remove the 4 screws [M].

(2) Remove the DC-DC PWB.

3.1.4 REMOVING THE POWER PWB (Fig.3-1)

• Remove the REAR COVER.

(1) Remove the 3 screws [N].

(2) Remove the BACK BRACKET.

(3) Remove the 11 screws [P].

(4) Remove the POWER PWB.

3.1.5 REMOVING THE SW PWB (Fig.3-1)

• Remove the REAR COVER.

(1) Remove the 1 screw [Q].

(2) Remove the KNOB BASE.

(3) Remove the 2 screws [R].

(4) Remove the SW PWB.

3.1.6 REMOVING THE DIGITAL TUNER UNIT (Fig.3-1)

• Remove the REAR COVER.

(1) Remove the 9 hooks [b].

(2) Remove the SHIELD COVER.

(3) Remove the 2 screws [S], 3 screws [T] and 2 screws [U].

(4) Remove the SHIELD TERMINAL.

(5) Remove the 4 screws [V].

(6) Remove the DIGITAL TUNER UNIT.

3.1.7 REMOVING THE DIGITAL PWB (Fig.3-1)

• Remove the REAR COVER.

• Remove the SHIELD COVER.

• Remove the SHIELD TERMINAL.

• Remove the DIGITAL TUNER UNIT.

(1) Remove the 7 screws [W].

(2) Remove the DIGITAL PWB BRACKET.

(3) Remove the 2 screws [X].

(4) Remove the DIGITAL PWB.

CAUTION :

Make sure to perform the "SYSTEM SETTING", when

DIGITAL PWB is replaced.

3.1.8 REMOVING THE SPEAKER (Fig.3-1)

• Remove the REAR COVER.

(1) Remove the 3 screws [Y].

(2) Remove the SPEKAER.

(3) Follow the same steps when removing the other hand

SPEAKER.

3.1.9 REMOVING THE STAND ASS'Y (Fig.3-1)

(1) Remove the 1 screw [B] and 4 screws [Z].

(2) Remove the STAND ASS'Y.

3.1.10 REMOVING THE LED PWB (Fig.3-1)

• Remove the REAR COVER.

• Remove the STAND ASS'Y.

(1) Remove the 5 screws [AA] and 2 screws [AB].

(2) Remove the STAND BASE SUPPORT.

(3) Remove the 2 hooks [c].

(4) Remove the LED PWB.

3.1.11 REMOVING THE ILLUMI LENS (Fig.3-1)

• Remove the REAR COVER.

• Remove the STAND ASS'Y.

• Remove the STAND BASE SUPPORT.

• Remove the LED PWB.

(1) Remove the 2 screws [AC].

(2) Remove the ILLUMI LENS.

3.1.12 REMOVING THE LCD PANEL UNIT (Fig.3-1)

• Remove the REAR COVER.

• Remove the STAND ASS'Y.

• Remove the STAND BASE SUPPROT.

• Remove the SPEKAER.

(1) Remove the 6 screws [AD] and 4 screws [AE].

(2) Remove the MAIN BASE.

(3) Remove the 2 screws [AF].

(4) Remove the SIDE BRACKET.

(5) Remove the 2 screws [AG].

(6) Remove the TOP FRAME in the direction of the arrow.

(7) Remove the LCD PANEL UNIT from the FRONT PANEL.

1-12 (No.YA551)

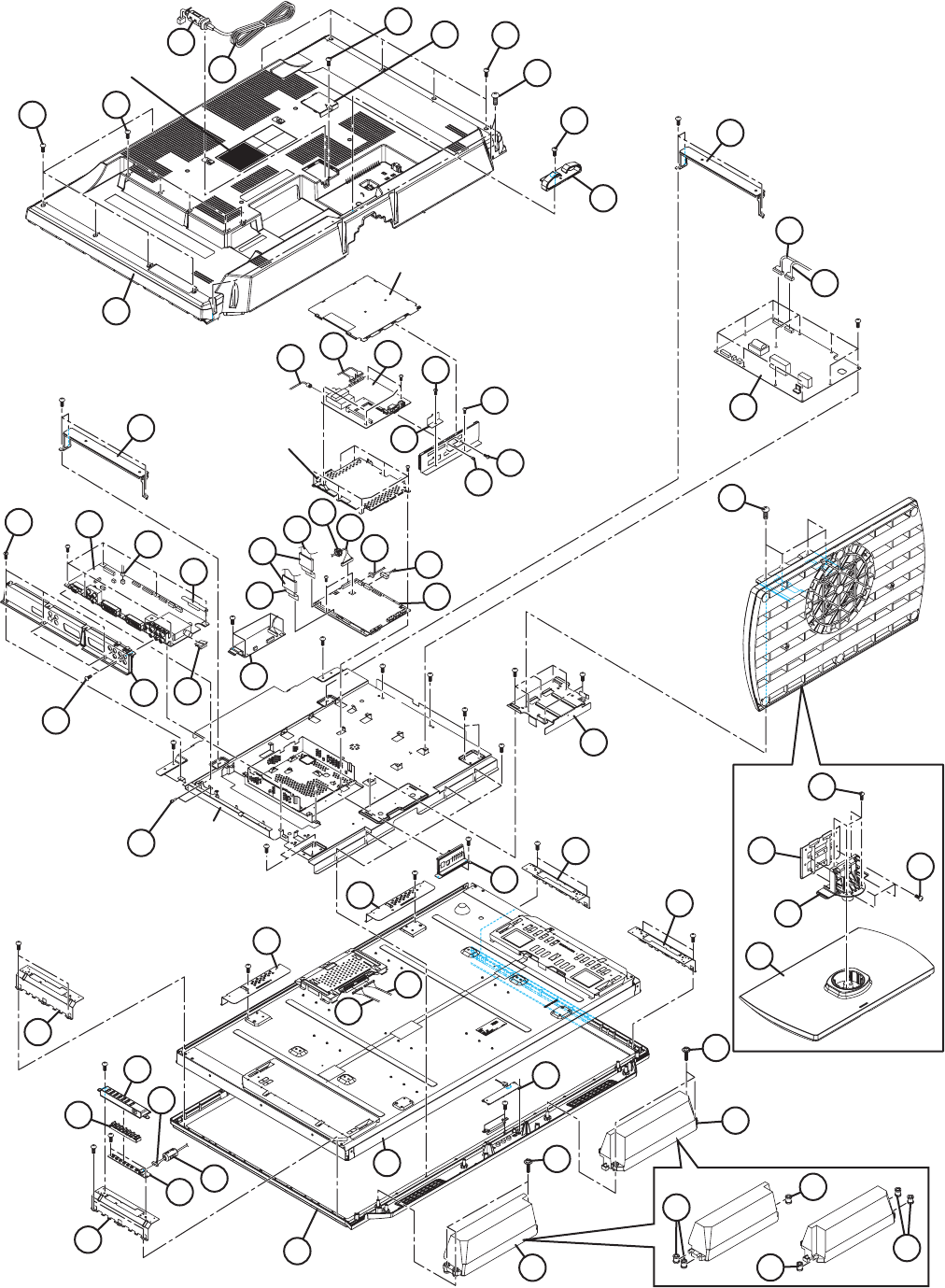

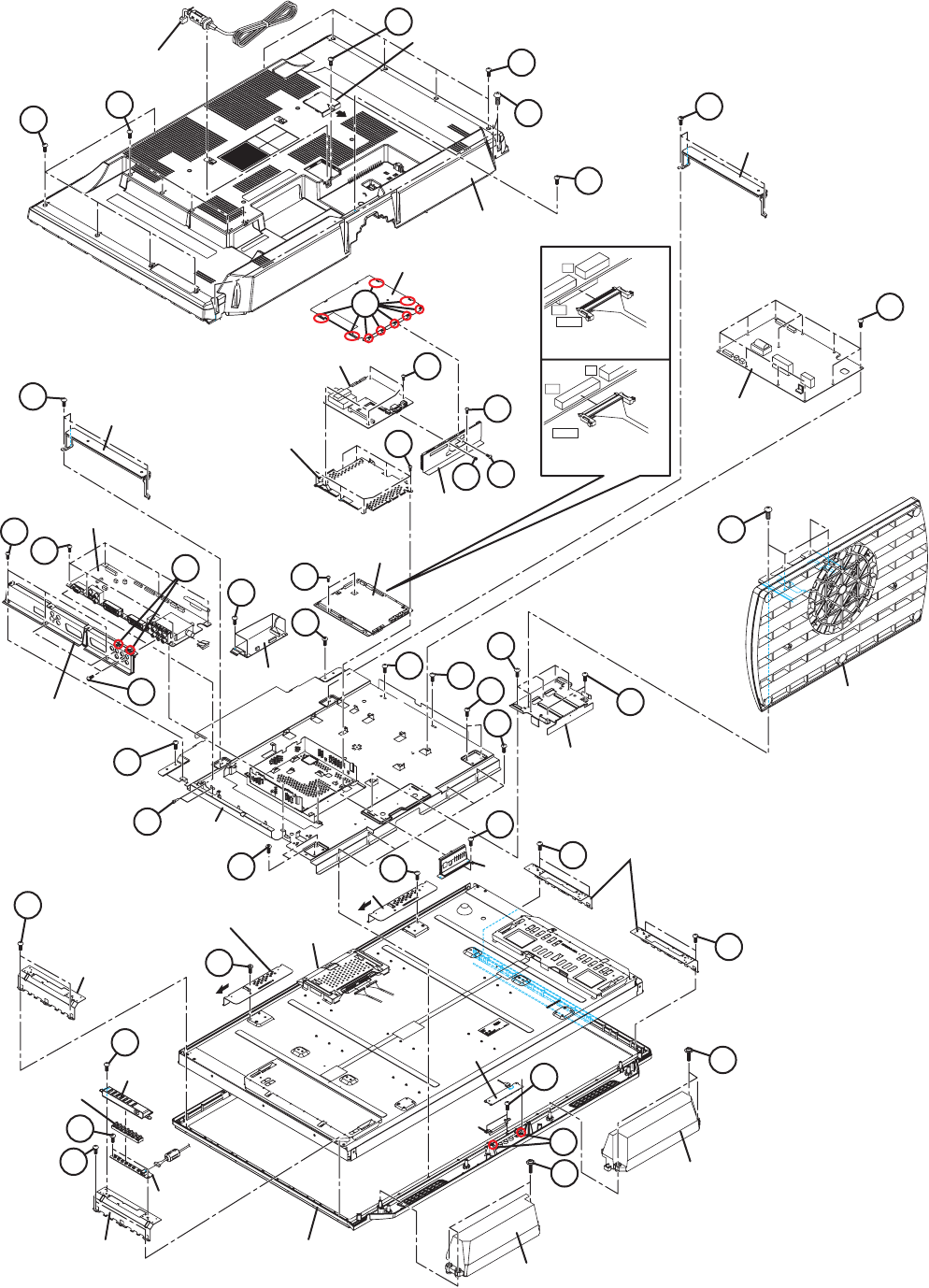

Fig.3-1

MAIN BASE

DIGITAL PWB

BRACKET

SHIELD COVER

41 PIN

51 PIN

LV1

LV2

REAR COVER

STAND ASS'Y

POWER CORD

POWER CORD COVER

ANALOG PWB

DC-DC PWB

POWER PWB

TERMINAL

BASE

DIGITAL TUNER UNIT

SHIELD

TERMINAL

DIGITAL PWB

TUNER

BASE

SPEAKER

LED PWB

LCD PANEL UNIT

SW PWB

FRONT PANEL

CONTROL

KNOB

CONTROL

BASE

STAND BASE

SUPPORT

SIDE BRACKET

TOP BRACKET

TOP

BRACKET

ILLUMI

LENS

The terminal of a connector is

turned below and connects.

The terminal of a connector is

turned up and connects.

BACK BRACKET

(No.YA551)1-13

3.2 MEMORY IC REPLACEMENT

• This model uses the memory IC.

• This memory IC stores data for proper operation of the video and drive circuits.

• When replacing, be sure to use an IC containing this (initial value) data.

3.2.1 MEMORY IC TABLE

3.2.2 MEMORY IC REPLACEMENT PROCEDURE

1. Power off

Switch off the power and disconnect the power plug from the AC outlet.

2. Replace the memory IC

Be sure to use the memory IC written with the initial setting values.

3. Power on

Connect the power plug to the AC outlet and switch on the power.

4. Receiving channel setting

Refer to the OPERATING INSTRUCTIONS and set the receive channels (Channels Preset) as described.

5. User setting

Check the user setting items according to the given in page later. Where these do not agree, refer to the OPERATING

INSTRUCTIONS and set the items as described.

6. SERVICE MODE setting

Verify what to set in the SERVICE MODE, and set whatever is necessary (Fig.3-2). Refer to the SERVICE ADJUSTMENT for setting.

3.2.3 SERVICE MODE SETTING

SERVICE MODE SCREEN

Fig.3-2

SETTING ITEM

3.2.4 SETTINGS OF FACTORY SHIPMENT

3.2.4.1 BUTTON OPERATION

3.2.4.2 REMOTE CONTROL DIRECT OPERATION

Symbol Number of pins Mounting PWB Main content of data

IC7201 48-pin DIGITAL PWB Program (Video process) of IC6001(System CPU) is memorized.

IC7602 8-pin DIGITAL PWB Setting value of IC7301(MAIN CPU) is memorized.

Setting items Settings Item No.

Video system setting Adjust S001 - S009

(Not used) Fixed T001 - T003

(Not used) Fixed M001 - M224

(Not used) Fixed F001 - F002

(Not used) Fixed D001

(Not used) Fixed Z001

MAIN MENU SCREEN

ADJUSTMENT MODE SCREEN

SERVICE MENU

1. ADJUST

2. SELF CHECK

3. I2C STOP

S001 R DRIVE 137

PAL50 FULL STD H

Setting item Setting position

POWER Off

CHANNEL PR1

VOLUME 10

TV/AV TV

Setting item Setting position

CHANNEL PR1

VOLUME 10

ZOOM Auto

SUB PICTURE EXT-1

SUB POWER Off

1-14 (No.YA551)

3.2.4.3 REMOTE CONTROL MENU OPERATION

(1) PICTURE

(2) SOUND

(3) FEATURES

(4) SET UP

(5) DTV

[For UK]

[For other country]

*It differs according to the language that the user selected.

[For All country]

Setting item Setting position

Picture Mode Bright

Colour Temp. Cool

Features

Super Digipure Auto

Movie Theatre Auto

Colour Management On

Picture Management On

Smart Picture On

MPEG Noise Reduction Off

Colour System Main Depends PR

Sub Auto

4:3 Auto Aspect Panoramic

1080i Auto Setting Full

Setting item Setting position

Stereo / I•ii Stereo Sound

MaxxAudio Low

Balance Centre

Voice Enhancer Off

Setting item Setting position

Sleep Timer Off

Child Lock Off (ID:0000)

Appearance Type A

Blue Back On

Favorite Setting Blank

Illumination Bright

Power Lamp On

Eco Mode Off

Setting item Setting position

Auto Program Tv Channel Automatically Set

Edit/manual -

Language English

Decoder (Ext-2) Off

Component Auto Select Off

HDMI HDMI CEC: On

Size: Auto

Audio: Auto

Attenuator Off

PC Position Centre

Auto Demonstration Off

Ext Setting

S-IN Blank

ID Blank

Dubbing Ext-1 → Ext-2

Setting item Setting position

Configuration

Audio Language English

Subtitle Language English

Favourite Mode Off

Menu Lock Disable

Setting item Setting position

Configuration

Country --- *

Menu Language --- *

Audio Language --- *

Subtitle Language --- *

Teletext Language --- *

EPG Language --- *

Enter PIN Code 0000

Favourite Mode Off

Maturity Rating Off

Setting item Setting position

Setup

Digital Audio Output PCM

Banner Duration 2sec

Receiver Upgrade Auto

Common Interface ---

Antenna Power Off

(No.YA551)1-15

3.3 REPLACEMENT OF CHIP COMPONENT

3.3.1 CAUTIONS

(1) Avoid heating for more than 3 seconds.

(2) Do not rub the electrodes and the resist parts of the pattern.

(3) When removing a chip part, melt the solder adequately.

(4) Do not reuse a chip part after removing it.

3.3.2 SOLDERING IRON

(1) Use a high insulation soldering iron with a thin pointed end of it.

(2) A 30w soldering iron is recommended for easily removing parts.

3.3.3 REPLACEMENT STEPS

1. How to remove Chip parts

[Resistors, capacitors, etc.]

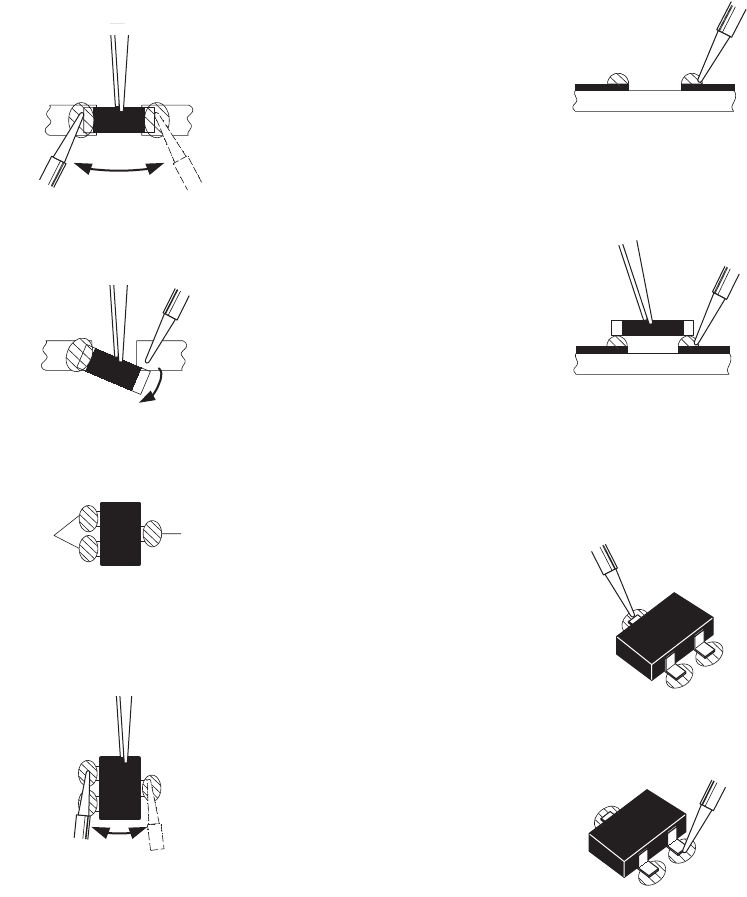

(1) As shown in the figure, push the part with tweezers and

alternately melt the solder at each end.

(2) Shift with the tweezers and remove the chip part.

[Transistors, diodes, variable resistors, etc.]

(1) Apply extra solder to each lead.

(2) As shown in the figure, push the part with tweezers and

alternately melt the solder at each lead. Shift and remove

the chip part.

NOTE :

After removing the part, remove remaining solder from the

pattern.

2. How to install Chip parts

[Resistors, capacitors, etc.]

(1) Apply solder to the pattern as indicated in the figure.

(2) Grasp the chip part with tweezers and place it on the

solder. Then heat and melt the solder at both ends of the

chip part.

[Transistors, diodes, variable resistors, etc.]

(1) Apply solder to the pattern as indicated in the figure.

(2) Grasp the chip part with tweezers and place it on the

solder.

(3) First solder lead A as indicated in the figure.

(4) Then solder leads B and C.

SOLDER SOLDER

1-16 (No.YA551)

SECTION 4

ADJUSTMENT

4.1 ADJUSTMENT PREPARATION

(1) There are 2 ways of adjusting this TV : One is with the

REMOTE CONTROL UNIT and the other is the

conventional method using adjustment parts and

components.

(2) The adjustment using the REMOTE CONTROL UNIT is

made on the basis of the initial setting values. The

setting values which adjust the screen to the optimum

condition can be different from the initial setting

values.

(3) Make sure that connection is correctly made AC to AC

power source.

(4) Turn on the power of the TV and measuring instruments for

warming up for at least 30 minutes before starting

adjustments.

(5) If the receive or input signal is not specified, use the most

appropriate signal for adjustment.

(6) Never touch the parts (such as variable resistors,

transformers and condensers) not shown in the adjustment

items of this service adjustment.

4.2 PRESET SETTING BEFORE ADJUSTMENTS

Unless otherwise specified in the adjustment items, preset the

following functions with the REMOTE CONTROL UNIT.

4.3 MEASURING INSTRUMENT AND FIXTURES

• Signal generator (Pattern generator) [PAL]

• Remote control unit

4.4 ADJUSTMENT ITEMS

 VIDEO CIRCUIT

• WHITE BALANCE (HIGH LIGHT) adjustment

4.5 BASIC OPERATION OF SERVICE MODE

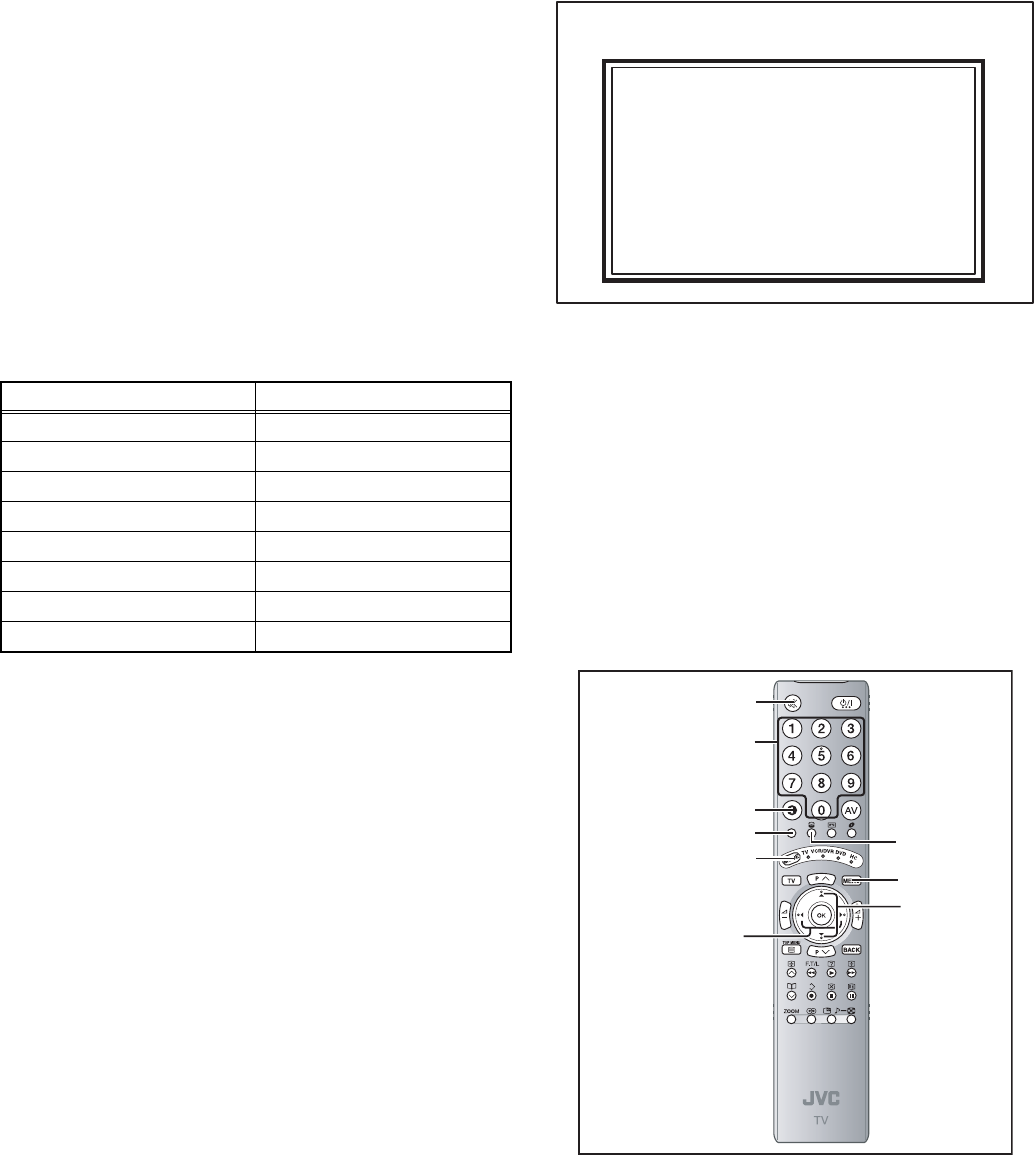

4.5.1 HOW TO ENTER THE SERVICE MODE

(1) Press [INFORMATION] key and [MUTING] key on the

remote control unit simultaneously to enter the SERVICE

MODE SCREEN.

(2) In the SERVICE MENU, press the [1] key to display

ADJUSTMENT MODE SCREEN.

NOTE:

• Before enter the SERVICE MODE, press the [MODE] key to

confirm that "TV" position is indicated. If it is in a wrong

position, the SERVICE MODE operation cannot be

performed.

• When a number key other than the [1] key is pressed in the

SERVICE MODE SCREEN, the other relevant screen may

be displayed.

This is not used in the adjustment procedure. Press the

[MENU] key to return to the SERVICE MODE SCREEN.

4.5.2 HOW TO EXIT THE SERVICE MODE

Press the [MENU] key to exit the Service mode.

4.5.3 SERVICE MODE SELECT KEY LOCATION

Setting item Settings position

Picture Mode Standard

Picture Adjustments Centre

Colour Temp. Normal

Super Digipure Auto

Movie Theatre Auto

Colour Management On

Picture Management On

Zoom Full

SERVICE MENU

1. ADJUST

2. SELF CHECK

3. I2C STOP

SERVICE MENU SCREEN

[Nunber] key

[FUNCTION

/] key

[MUTING] key

[MODE] key

[INFORMATION] key

[Red] key

[MENU] key

[Green] key

[Function/] key

(No.YA551)1-17

4.5.4 ADJUSTMENT MODE

This mode is used to adjust the VIDEO CIRCUIT and the MTS CIRCUIT.

4.5.4.1 HOW TO ENTER THE ADJUSTMENT MODE

When the SERVICE MENU SCREEN of SERVICE MODE is displayed, press [1] key to enter the ADJUSTMENT MODE.

4.5.5 DESCRIPTION OF STATUS DISPLAY

(1) SIGNAL SYSTEM

The signal displayed on the screen is displayed.

(2) ZOOM MODE

State of the SCREEN SIZE or MULTI PICTURE is displayed.

SINGLE SCREEN

MULTI SCREEN

(3) PICTURE MODE

(4) COLOUR TEMP.

(5) SETTING ITEM NAME

Setting item name are displayed. For the setting item names

to be displayed, refer to "INITIAL SETTING VALUES IN THE

SERVICE MODE".

(6) SETTING ITEM NO.

Setting item numbers are displayed. The setting item numbers

to be displayed are listed below.

(7) SETTING VALUE (DATA)

The SETTING VALUE is displayed.

4.5.6 CHANGE AND MEMORY OF SETTING VALUE

SELECTION OF SETTING ITEM

• [FUNCTION /] key.

For scrolling up / down the setting items.

CHANGE OF SETTING VALUE (DATA)

•[FUNCTION /] key.

For scrolling up / down the setting values.

MEMORY OF SETTING VALUE (DATA)

Changed setting value is memorized by pressing [MUTING]

key.

PAL50 : PAL50Hz (Composite / S-video)

PAL60 : PAL60Hz (Composite / S-video)

SECAM : SECAM

NTSC3 : NTSC3.58

NTSC4 : NTSC4.43

525I : 525i (Component)

525P : 525p

625I : 625i (Component)

625P : 625p

1125I5 : 1125i 50Hz

1125I6 : 1125i 60Hz

RGB5 : RGB 525i

RGB6 : RGB 625i

PCVGA : PC (VGA)

PCXGA : PC (XGA)

D625I : DVB-T 625i

H525I : HDMI 525i

H525P : HDMI 525p

H625I : HDMI 625i

H625P : HDMI 625p

H750P : HDMI 750p

H125I5 : HDMI 1125i 50Hz

H125I6 : HDMI 1125i 60Hz

--- : OTHER

FULL : FULL

JUST : FULL NATIVE

PANO : PANORAMIC

1609 : 16:9 ZOOM

1609S : 16:9 ZOOM SUBTITLE

1409 : 14:9 ZOOM

REGU : REGULAR

M2 : 2-pictures multi

M12 : 12-pictures multi

ADJUSTMENT MODE

SIGNAL SYSTEM

ZOOM MODE

PICTURE MODE

SETTING VALUE (DATA)

SETTING ITEM No.

SETTING ITEM

COLOUR TEMP.

S001 R DRIVE 137

PAL50 FULL STD H

SOFT : SOFT

STD : STANDARD

BRI : BRIGHT

H : COOL

M : NORMAL

L: WARM

Item No. Setting item

S001 - S009 Video system setting

T001 - T003 (NOT USED)

M001 - M224 (NOT USED)

F001 - F002 (NOT USED)

D001 (NOT USED)

Z001 (NOT USED)

S001...S009 ↔ T001...T003 ↔ M001...M224 ↔

F001...F002 ↔ D001 ↔ Z001↔return to S001

1-18 (No.YA551)

4.6 INITIAL SETTING VALUES IN THE SERVICE MODE

• Perform fine-tuning based on the "initial values" using the remote control when in the Service mode.

• The "initial values" serve only as an indication rough standard and therefore the values with which optimal display can be achieved

may be different from the default values. But, don't change the values that are not written in "ADJUSTMENT PROCEDURE". They

are fixed values.

4.6.1 VIDEO SYSTEM SETTING

4.6.2 NOT USED ITEM (All values are Fixed values)

Item No. Item Variable range Setting value

S001 R DRIVE 0 - 255 137

S002 G DRIVE 0 - 255 137

S003 B DRIVE 0 - 255 137

S004 RESERV 0 - 255 ---

S005 2D YC 0 - 255 0

S006 RESERV 0 - 255 ---

S007 RESERV 0 - 255 ---

S008 RESERV 0 - 255 ---

S009 RESERV 0 - 255 ---

Item No. Item Variable range Setting value

T001 RESERV 0 - 15 ---

T002 RESERV 0 - 63 ---

T003 RESERV 0 - 63 ---

M001 1E00 00 - FF ---

M002 1E01 00 - FF ---

M003 1E02 00 - FF ---

M004 1E03 00 - FF ---

M005 1E04 00 - FF ---

M006 1E05 00 - FF ---

M007 1E06 00 - FF ---

M008 1E07 00 - FF ---

M009 1E08 00 - FF ---

M010 1E09 00 - FF ---

M011 1E0A 00 - FF ---

M012 1E0B 00 - FF ---

M013 1E0C 00 - FF ---

M014 1E0D 00 - FF ---

M015 1E0E 00 - FF ---

M016 1E0F 00 - FF ---

M017 1E10 00 - FF ---

M018 1E11 00 - FF ---

M019 1E12 00 - FF ---

M020 1E13 00 - FF ---

M021 1E14 00 - FF ---

M022 1E15 00 - FF ---

M023 1E16 00 - FF ---

M024 1E17 00 - FF ---

M025 1E18 00 - FF ---

M026 1E19 00 - FF ---

M027 1E1A 00 - FF ---

M028 1E1B 00 - FF ---

M029 1E1C 00 - FF ---

M030 1E1D 00 - FF ---

M031 1E1E 00 - FF ---

M032 1E1F 00 - FF ---

M033 1E20 00 - FF ---

M034 1E21 00 - FF ---

M035 1E22 00 - FF ---

M036 1E23 00 - FF ---

M037 1E24 00 - FF ---

M038 1E25 00 - FF ---

M039 1E26 00 - FF ---

M040 1E27 00 - FF ---

M041 1E28 00 - FF ---

M042 1E29 00 - FF ---

M043 1E2A 00 - FF ---

M044 1E2B 00 - FF ---

M045 1E2C 00 - FF ---

M046 1E2D 00 - FF ---

M047 1E2E 00 - FF ---

M048 1E2F 00 - FF ---

M049 1E30 00 - FF ---

M050 1E31 00 - FF ---

M051 1E32 00 - FF ---

M052 1E33 00 - FF ---

M053 1E34 00 - FF ---

M054 1E35 00 - FF ---

M055 1E36 00 - FF ---

M056 1E37 00 - FF ---

M057 1E38 00 - FF ---

M058 1E39 00 - FF ---

M059 1E3A 00 - FF ---

M060 1E3B 00 - FF ---

M061 1E3C 00 - FF ---

M062 1E3D 00 - FF ---

M063 1E3E 00 - FF ---

M064 1E3F 00 - FF ---

M065 1E40 00 - FF ---

M066 1E41 00 - FF ---

M067 1E42 00 - FF ---

M068 1E43 00 - FF ---

M069 1E44 00 - FF ---

M070 1E45 00 - FF ---

M071 1E46 00 - FF ---

M072 1E47 00 - FF ---

M073 1E48 00 - FF ---

M074 1E49 00 - FF ---

M075 1E4A 00 - FF ---

M076 1E4B 00 - FF ---

Item No. Item Variable range Setting value

(No.YA551)1-19

M077 1E4C 00 - FF ---

M078 1E4D 00 - FF ---

M079 1E4E 00 - FF ---

M080 1E4F 00 - FF ---

M081 1E50 00 - FF ---

M082 1E51 00 - FF ---

M083 1E52 00 - FF ---

M084 1E53 00 - FF ---

M085 1E54 00 - FF ---

M086 1E55 00 - FF ---

M087 1E56 00 - FF ---

M088 1E57 00 - FF ---

M089 1E58 00 - FF ---

M090 1E59 00 - FF ---

M091 1E5A 00 - FF ---

M092 1E5B 00 - FF ---

M093 1E5C 00 - FF ---

M094 1E5D 00 - FF ---

M095 1E5E 00 - FF ---

M096 1E5F 00 - FF ---

M097 1E60 00 - FF ---

M098 1E61 00 - FF ---

M099 1E62 00 - FF ---

M100 1E63 00 - FF ---

M101 1E64 00 - FF ---

M102 1E65 00 - FF ---

M103 1E66 00 - FF ---

M104 1E67 00 - FF ---

M105 1E68 00 - FF ---

M106 1E69 00 - FF ---

M107 1E6A 00 - FF ---

M108 1E6B 00 - FF ---

M109 1E6C 00 - FF ---

M110 1E6D 00 - FF ---

M111 1E6E 00 - FF ---

M112 1E6F 00 - FF ---

M113 1E70 00 - FF ---

M114 1E71 00 - FF ---

M115 1E72 00 - FF ---

M116 1E73 00 - FF ---

M117 1E74 00 - FF ---

M118 1E75 00 - FF ---

M119 1E76 00 - FF ---

M120 1E77 00 - FF ---

M121 1E78 00 - FF ---

M122 1E79 00 - FF ---

M123 1E7A 00 - FF ---

M124 1E7B 00 - FF ---

M125 1E7C 00 - FF ---

M126 1E7D 00 - FF ---

Item No. Item Variable range Setting value

M127 1E7E 00 - FF ---

M128 1E7F 00 - FF ---

M129 1E80 00 - FF ---

M130 1E81 00 - FF ---

M131 1E82 00 - FF ---

M132 1E83 00 - FF ---

M133 1E84 00 - FF ---

M134 1E85 00 - FF ---

M135 1E86 00 - FF ---

M136 1E87 00 - FF ---

M137 1E88 00 - FF ---

M138 1E89 00 - FF ---

M139 1E8A 00 - FF ---

M140 1E8B 00 - FF ---

M141 1E8C 00 - FF ---

M142 1E8D 00 - FF ---

M143 1E8E 00 - FF ---

M144 1E8F 00 - FF ---

M145 1E90 00 - FF ---

M146 1E91 00 - FF ---

M147 1E92 00 - FF ---

M148 1E93 00 - FF ---

M149 1E94 00 - FF ---

M150 1E95 00 - FF ---

M151 1E96 00 - FF ---

M152 1E97 00 - FF ---

M153 1E98 00 - FF ---

M154 1E99 00 - FF ---

M155 1E9A 00 - FF ---

M156 1E9B 00 - FF ---

M157 1E9C 00 - FF ---

M158 1E9D 00 - FF ---

M159 1E9E 00 - FF ---

M160 1E9F 00 - FF ---

M161 1EA0 00 - FF ---

M162 1EA1 00 - FF ---

M163 1EA2 00 - FF ---

M164 1EA3 00 - FF ---

M165 1EA4 00 - FF ---

M166 1EA5 00 - FF ---

M167 1EA6 00 - FF ---

M168 1EA7 00 - FF ---

M169 1EA8 00 - FF ---

M170 1EA9 00 - FF ---

M171 1EAA 00 - FF ---

M172 1EAB 00 - FF ---

M173 1EAC 00 - FF ---

M174 1EAD 00 - FF ---

M175 1EAE 00 - FF ---

M176 1EAF 00 - FF ---

Item No. Item Variable range Setting value

1-20 (No.YA551)

4.7 ADJUSTMENT PROCEDURE

4.7.1 VIDEO CIRCUIT

M177 1EB0 00 - FF ---

M178 1EB1 00 - FF ---

M179 1EB2 00 - FF ---

M180 1EB3 00 - FF ---

M181 1EB4 00 - FF ---

M182 1EB5 00 - FF ---

M183 1EB6 00 - FF ---

M184 1EB7 00 - FF ---

M185 1EB8 00 - FF ---

M186 1EB9 00 - FF ---

M187 1EBA 00 - FF ---

M188 1EBB 00 - FF ---

M189 1EBC 00 - FF ---

M190 1EBD 00 - FF ---

M191 1EBE 00 - FF ---

M192 1EBF 00 - FF ---

M193 1EC0 00 - FF ---

M194 1EC1 00 - FF ---

M195 1EC2 00 - FF ---

M196 1EC3 00 - FF ---

M197 1EC4 00 - FF ---

M198 1EC5 00 - FF ---

M199 1EC6 00 - FF ---

M200 1EC7 00 - FF ---

M201 1EC8 00 - FF ---

M202 1EC9 00 - FF ---

M203 1ECA 00 - FF ---

Item No. Item Variable range Setting value

M204 1ECB 00 - FF ---

M205 1ECC 00 - FF ---

M206 1ECD 00 - FF ---

M207 1ECE 00 - FF ---

M208 1ECF 00 - FF ---

M209 1ED0 00 - FF ---

M210 1ED1 00 - FF ---

M211 1ED2 00 - FF ---

M212 1ED3 00 - FF ---

M213 1ED4 00 - FF ---

M214 1ED5 00 - FF ---

M215 1ED6 00 - FF ---

M216 1ED7 00 - FF ---

M217 1ED8 00 - FF ---

M218 1ED9 00 - FF ---

M219 1EDA 00 - FF ---

M220 1EDB 00 - FF ---

M221 1EDC 00 - FF ---

M222 1EDD 00 - FF ---

M223 1EDE 00 - FF ---

M224 1EDF 00 - FF ---

F001 DD 0 - 1 ---

F002 RAM REF 0 - 1 ---

D001 RESERV 0 - 255 ---

Z001 RESERV 0 - 255 ---

Item No. Item Variable range Setting value

Item Measuring

instrument Test point Adjustment part Description

WHITE

BALANCE

(HIGHLIGHT)

Remote

control unit

Signal

generator

[1.ADJUST]

S001: R DRIVE (Red drive)

S002: G DRIVE (Green drive)

S003: B DRIVE (Blue drive)

(1) Receive a PAL 75% all white signal.

(2) Set PICTURE MODE to "STANDARD".

(3) Set ZOOM to "FULL".

(4) Set COLOUR TEMP. to "NORMAL".

(5) Select "1.ADJUST" from the SERVICE MODE.

(6) Adjust to Keep one of <S001> (Red drive),

<S002> (Green drive) or <S003> (Blue drive)

unchanged, then lower the other two so that the

all-white screen is equally white throughout.

NOTE:

Set one or more of <S001>, <S002>, and

<S003> to "137".

(7) Check that white balance is properly tracked

from low light to high light. If the white balance

tracking is deviated, adjust to correct it.

(8) Press the [MUTING] key to memorize the set

value.

(No.YA551)1-21

SECTION 5

TROUBLESHOOTING

5.1 SELF CHECK FEATURE

5.1.1 OUTLINE

This unit comes with the "Self check" feature, which checks the

operational state of the circuit and displays/saves it during

failure.Diagnosis is performed when power is turned on, and

information input to the main microcomputer is monitored at all

time.Diagnosis is displayed in 2 ways via screen display and LED

flashes. Failure detection is based on input state of I2C bus and

the various control lines connected to the main microcomputer.

5.1.2 HOW TO ENTER THE SELF CHECK MODE

Before enter the SELF CHECK MODE, press the [MODE] key to

confirm that "TV" position is indicated. If it is in a wrong position,

the SELF CHECK MODE operation cannot be performed.

(1) Press the [INFORMATION] key and [MUTING] key

simultaneously, then enter the SERVICE MODE.

(2) Press the [2] key SELF CHECK MODE.

(3) Press the [RED] key to enter Page 2 of the SELF CHECK

MODE.

*Use the [GREEN] key to toggle between Page 1 and Page 2.

NOTE:

When a number key other than the [2] key is pressed in the

SERVICE MODE screen, the other relevant screen may be

displayed.

This is not used in the SELF CHECK MODE. Press the

[MENU] key to return to the MAIN MENU SCREEN.

5.1.3 HOW TO EXIT THE SELF CHECK MODE

To Save Failure History:

Turn off the power by unplugging the AC power cord plug when

in the Self check display mode.

To Clear (Reset) Failure History:

Turn off the power by pressing the [POWER] key on the remote

control unit when in the Self check display mode.

5.1.4 FAILURE HISTORY

Failure history can be counted up to 9 times for each item. When

the number exceeds 9, display will remain as 9. Failure history

will be stored in the memory unless it has been deleted.

5.1.5 POINTS TO NOTE WHEN USING THE SELF CHECK

FEATURE

In addition to circuit failures (abnormal operation), the following

cases may also be diagnosed as "Abnormal" and counted.

(1) Temporary defective transmissions across circuits due to

pulse interruptions.

(2) Misalignment in the on/off timing of power for I2C bus (Vcc)

when turning on/off the main power.

Therefore, turn on the main power, and then wait for about 3

seconds before starting Self check.

If recurrences are expected, ensure to clear (reset) the failure

history and record the new diagnosis results.

Fig.5-1

SERVICE MENU SCREEN

SELF CHECK MODE SCREEN (Page 1)

SELF CHECK MODE SCREEN (Page 2)

Item

Failure

history

SERVICE MENU

1. ADJUST

2. SELF CHECK

3. I2C STOP

TMP 0 L 1 0

L 2 0 DDT 0

FAN 0 L C 0

IRS 0

LOB 0 FAN 0

AUD 0

ANA 9 DIG 9

HOUR 131070 MAX 00

Not used

Item

Failure

history

Press [Red] key

Press [2] key

Press [Green] key

1-22 (No.YA551)

5.1.6 DETAILS

Self check is performed for the following items: (---- is not used items)

5.1.7 METHOD OF DISPLAY WHEN A RASTER IS NOT OUTPUT

In the state where a raster is not output by breakdown of the set, an error is displayed by blink of the POWER LED.

If error is detected, the power is turned off.

Shortly after a power is turned off, POWER LED will be blinked.

Power cannot be turned on until the power cord takes out and inserts, after a power is turned off.

Detection item Display Detection content Diagnosis

signal (line) Detection timing

Low bias line short

protection

LOB Confirm the operation of the low bias (5V / 12V /

16V) protection circuit.

Q9401, Q9601, Q9703 [DC-DC PWB]

LB_PRO Detection starts 3 seconds after

the power is turned on. If error

continues between 200 ms the

power is turned off.

---- FAN ---- ---- ----

---- AUD ---- ---- ----

Devices on the ANALOG

PWB

ANA Confirmation of reply of ACK signal which uses

I2C communication.

IC101, IC102, IC601, IC3501, TU3001

[ANALOG PWB]

SDA Detection starts 3 seconds after

the power is turned on. If it checks

whenever I2C communication is

performed and no reply of ACK

signal an error will be counted.

Devices on the DIGITAL

PWB

DIG Confirmation of reply of ACK signal which uses

I2C communication.

IC5001 [DIGITAL PWB]

SDA Detection starts 3 seconds after

the power is turned on. If it checks

whenever I2C communication is

performed and no reply of ACK

signal an error will be counted.

Detection item Display Detection content Diagnosis

signal (line) Detection timing

---- TMP ---- ---- ----

---- L1 ---- ---- ----

---- L2 ---- ---- ----

---- DDT ---- ---- ----

---- FAN ---- ---- ----

---- LC ---- ---- ----

---- IRS ---- ---- ----

Type of error POWER LED flash cycle

Low bias line short protection POWER LED turnig on and off at 1 second intervals.

(No.YA551)

VPT

Printed in Japan

Victor company of Japan, Limited

Display category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan

INTEGRATED DIGITAL TERRESTRIAL LCD TELEVISION

LT-47DV8BG/P,

LT-47DV8BJ/P

BASIC CHASSIS

FL5

CD-ROM No.SML200708

2007/8

SCHEMATIC DIAGRAMS

(No.YA551)2-1

5.NOTE FOR REPAIRING SERVICE

This model's power circuit is partly different in the GND. The

difference of the GND is shown by the LIVE : ( ) side GND and the

ISOLATED(NEUTRAL) : ( ) side GND. Therefore, care must be

taken for the following points.

(1)Do not touch the LIVE side GND or the LIVE side GND and the

ISOLATED(NEUTRAL) side GND simultaneously. if the above

caution is not respected, an electric shock may be caused.

Therefore, make sure that the power cord is surely removed from

the receptacle when, for example, the chassis is pulled out.

(2)Do not short between the LIVE side GND and ISOLATED(NEUTRAL)

side GND or never measure with a measuring apparatus measure

with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND

and ISOLATED(NEUTRAL) side GND at the same time.

If the above precaution is not respected, a fuse or any parts will be broken.

Since the circuit diagram is a standard one, the circuit and

circuit constants may be subject to change for improvement

without any notice.

NOTE

Due improvement in performance, some part numbers show

in the circuit diagram may not agree with those indicated in

the part list.

When ordering parts, please use the numbers that appear

in the Parts List.

STANDARD CIRCUIT DIAGRAM

NOTE ON USING CIRCUIT DIAGRAMS

(7)Ground symbol

: LIVE side ground

: ISOLATED(NEUTRAL) side ground

: EARTH ground

: DIGITAL ground

(6)Connecting method

: Connector : Wrapping or soldering

: Receptacle

(5)Test point

: Test point : Only test point display

Respective voltage values are indicated

: B1

: 9V : 5V

: B2 (12V)

(4)Power Supply

Type

MM : Metalized mylar capacitor

PP : Polypropylene capacitor

MPP : Metalized polypropylene capacitor

MF : Metalized film capacitor

TF : Thin film capacitor

BP : Bipolar electrolytic capacitor

TAN : Tantalum capacitor

(3)Coils

No unit

Others

: [µH]

: As specified

No indication : Ceramic capacitor

(2)Capacitors

Capacitance value

1 or higher : [pF]

less than 1 : [µF]

Withstand voltage

No indication : DC50[V]

Others : DC withstand voltage [V]

AC indicated : AC withstand voltage [V]

Electrolytic Capacitors

47/50[Example]: Capacitance value [µF]/withstand voltage[V]

Composition resistor 1/2 [W] is specified as 1/2S or Comp.

Type

No indication : Carbon resistor

OMR : Oxide metal film resistor

MFR : Metal film resistor

MPR : Metal plate resistor

UNFR : Uninflammable resistor

FR : Fusible resistor

4.INDICATIONS ON THE CIRCUIT DIAGRAM

(1)Resistors

Resistance value

No unit : [Ω]

K: [kΩ]

Rated allowable power

No indication : 1/16 [W]

Others : As specified

: [MΩ]

3.INDICATION OF PARTS SYMBOL [EXAMPLE]

In the PW board : R1209 R209

1.SAFETY

The components identified by the symbol and shading are

critical for safety. For continued safety replace safety ciritical

components only with manufactures recommended parts.

Since the voltage values of signal circuit vary to some extent

according to adjustments, use them as reference values.

2.SPECIFIED VOLTAGE AND WAVEFORM VALUES

The voltage and waveform values have been measured under the

following conditions.

(1)Input signal : Colour bar signal

(2)Setting positions of

each knob/button and

variable resistor

(3)Internal resistance of tester : DC 20kΩ/V

(4)Oscilloscope sweeping time : H 20µs / div

: V 5ms / div

: Othters Sweeping time is

specified

(5)Voltage values : All DC voltage values

: Original setting position

when shipped

LT-42DV8BG/P, LT-42DV8BJ/P

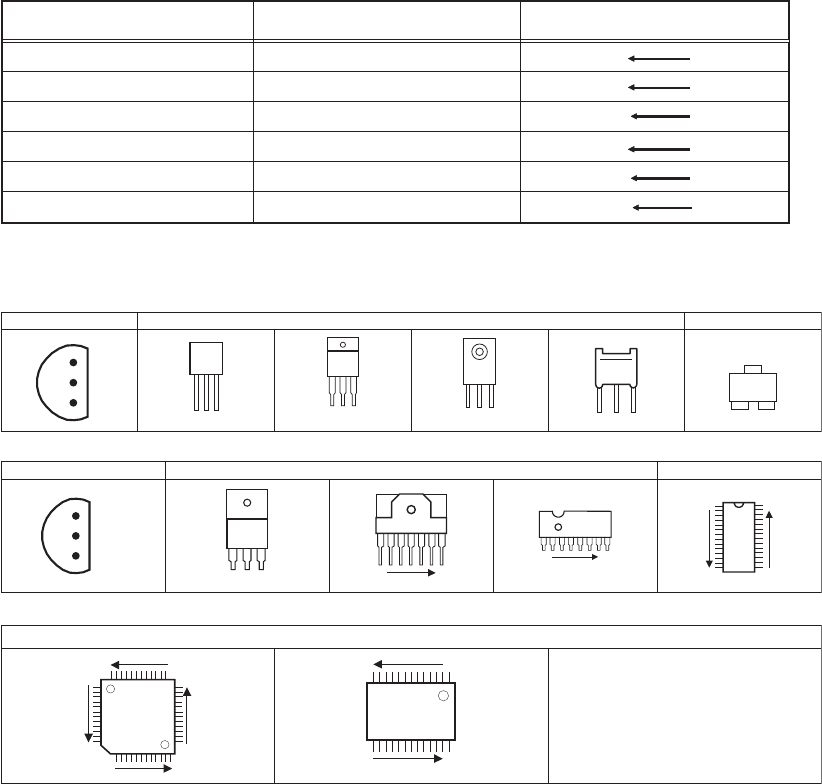

SEMICONDUCTOR SHAPES

CONTENTS

SEMICONDUCTOR SHAPES ......................................................................2-2

WIRING DIAGRAM ........................................................................................2-3

BLOCK DIAGRAM ........................................................................................2-5

CIRCUIT DIAGRAMS ....................................................................................2-7

ANALOG PWB CIRCUIT DIAGRAM ........................................................................................................... 2-7

DIGITAL PWB CIRCUIT DIAGRAM .......................................................................................................... 2-19

POWER PWB CIRCUIT DIAGRAM .......................................................................................................... 2-43

LED PWB CIRCUIT DIAGRAM ................................................................................................................. 2-49

SW PWB CIRCUIT DIAGRAM ................................................................................................................. 2-51

DC-DC PWB CIRCUIT DIAGRAM ............................................................................................................. 2-53

PATTERN DIAGRAMS .............................................................................. 2-55

ANALOG PWB PATTERN ........................................................................................................................ 2-55

DIGITAL PWB PATTERN ......................................................................................................................... 2-57

POWER PWB PATTERN .......................................................................................................................... 2-61

LED PWB PATTERN ................................................................................................................................ 2-63

SW PWB PATTERN ................................................................................................................................. 2-63

DC-DC PWB PATTERN ............................................................................................................................ 2-64

VOLTAGE CHARTS .................................................................................. 2-65

WAVEFORMS ............................................................................................ 2-67

USING P.W. BOARD

BOTTOM VIEW FRONT VIEW TOP VIEW

1 N

OUT

IN OUTE

1 N

TOP VIEW

CHIP IC

TRANSISTOR

BOTTOM VIEW FRONT VIEW TOP VIEW

CHIP TR

ECB

(G)

(S)

(D)

ECB

P.W.B ASS’Y name

ANALOG P.W. BOARD

SW P.W. BOARD

LED P.W. BOARD

POWER P.W. BOARD

DC-DC P.W. BOARD

DIGITAL P.W. BOARD

SFN-1251A-U2

SFN-7216A-U2

SFN-8722A-U2

SFN-9081A-U2

SFN-9189A-U2

LCA10774-02B(SFL-0D567A)

LT-47DV8BG/P LT-47DV8BJ/P

2-2(No.YA551)

2-4(No.YA551)(No.YA551)2-3

91 101

110

15 1

41 21

501401

CN00R

CN00U

CN0SR

CN001

CN002

CN0SL

CN100U

F9001

250V/6.3A

CN00W

CN00P

CN00F

CN00A

CN0PW

114

15 1

115

CN00A

CN0DC

123

CN00H

123

CN00H

CN10F

ANALOG

TUNER

115

CN0DC

CN001W

150140

CN001

CN002

CN100R

151

41 1

CN0LV2

CN0LV1

INVERTER PWB

(SLAVE SIDE)

INVERTER PWB

(MASTER SIDE)

CN00Q

110

131

CN0UV

CN0ID

PL302

101

CN0UD

PL301PL103

16113110

TOP

DIGITAL TUNER MODULE PWB

LED PWB

DC-DC PWB

TOP

TOP TOP

TOP

DIGITAL PWB

ANALOG PWB

SW PWB

POWER PWB

POWER CORD

SPEAKER (R) SPEAKER (L)

LCD PANEL UNIT

CONTROL PWB

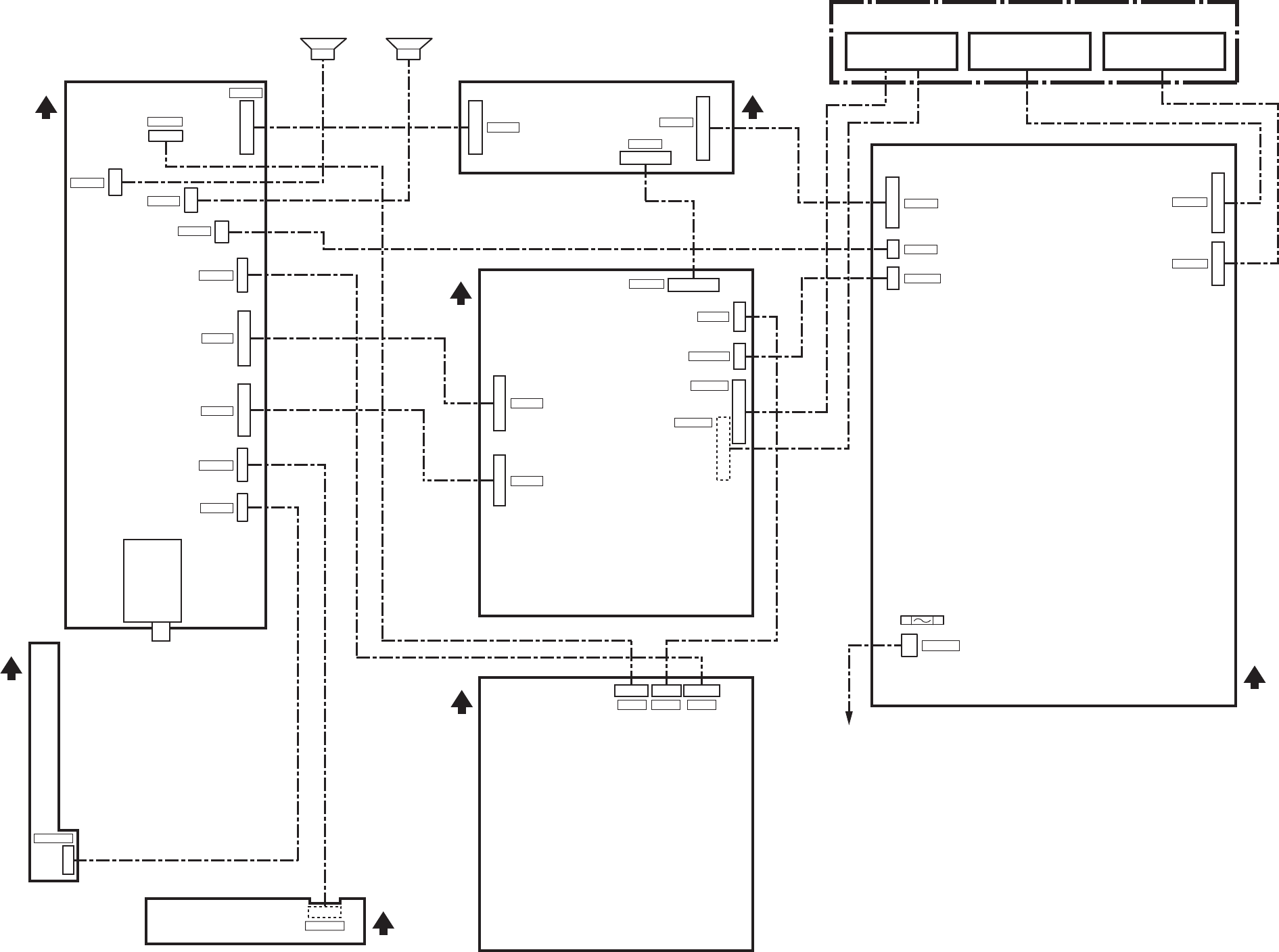

WIRING DIAGRAM

(No.YA551)2-5 2-6(No.YA551)

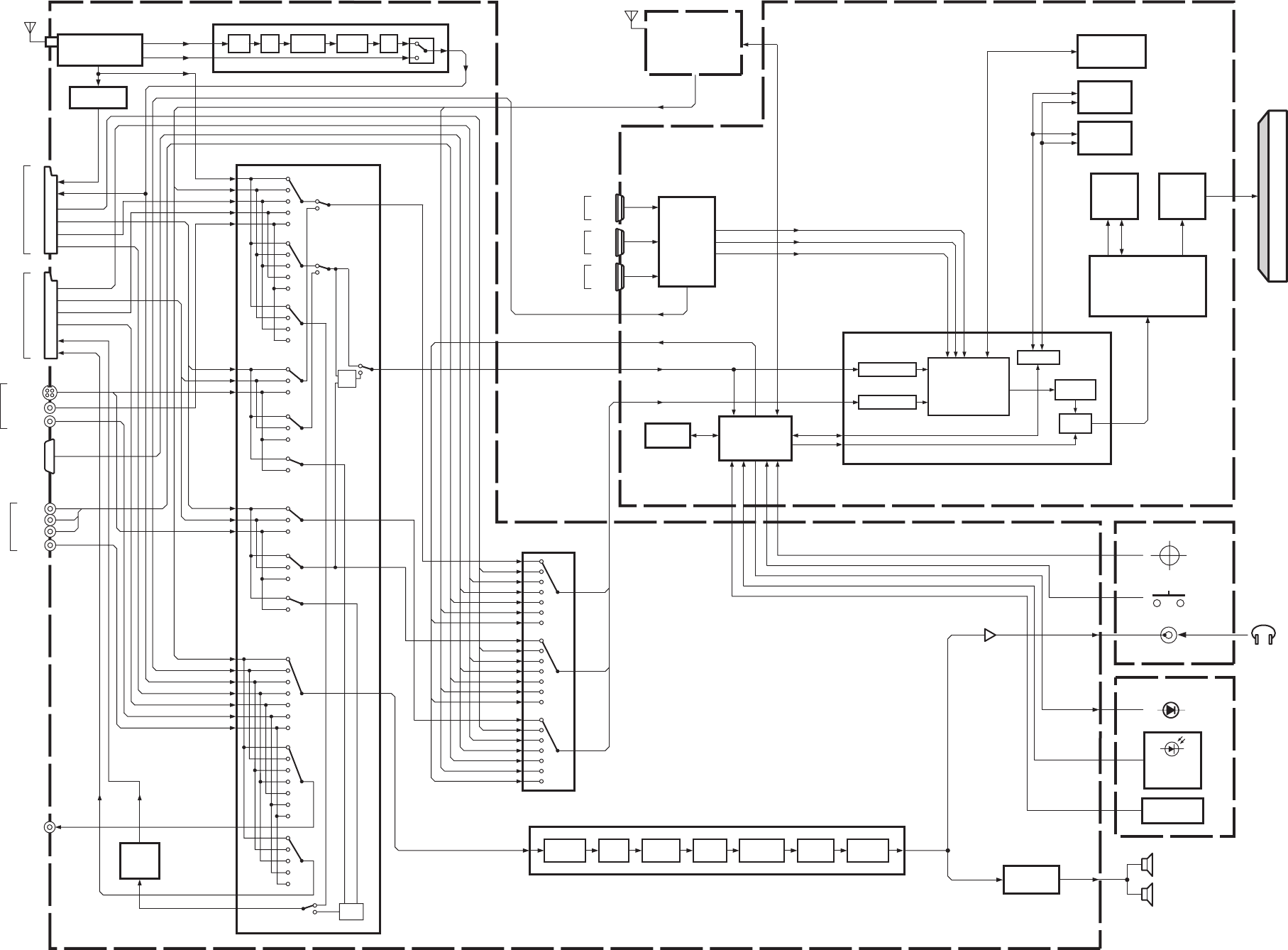

DEC_Y

V1_VIN

V2_VIN

V3_VIN

V1_YIN

V1_CIN

V2_CIN

V3_CIN

DTU_LIN/RIN

DIN_L/R

TV_L/R

V1_LIN/RIN

V2_LIN/RIN

V3_LIN/RIN

V4_LIN/RIN

V2_YIN

V3_YIN

MON_L/R

FIX_L/R

IC6001

D8701

S7707

J7001

IC751

IC8752

IC8751

EE_CDS

POWER_LED

REMOCON

HP_L/R

MECA_SW

KEY_1/2

IC6001 IC5001

IC6101

IC7201

IC7203

ADRS

SD_DQ1-32

A0-21

D0-15

A0-21

D0-15

TU3001

UHF/VHF TUNER

IC102

Y_OUT

BY_OUT

RY_OUT

SUB_C

MAIN_C

IC101

MAIN_VY

SUB_VY

Y/C

MIX

IC601

AMP_L/R

S7701㨪S7706

E.E. SENSOR

DTU_Y/Cb/Cr

DTU_VIN

DTU_LIN/RIN

HDMI

RECEIVE

DV1_R0-7

DV1_Y0-7

DV1_B0-7

SUB_VY

YM_IN

BYM_IN

RYM_IN

HDMI

DIN_DL/DR

IC7301

IC7602

MI_TX

MI_RX

MI_CLK

OSDR1-5

OSDG1-5

OSDB1-5

IC5002

IC5003

FRAME INTERPOLATE/

LCD CONTROL/

BACK-LIGHT CONTROL

SUB_C

V4_Cb

V4_Cr

V4_Y

DTU_Cb

DTU_Cr

DTU_Y

PC_B

PC_R

PC_G

MAIN_C

MAIN_VY

MAIN_L/R

DBU00-09

DGY00-09

DRV00-09

ANALOG PWB

DIGITAL PWB

SW PWB

LED PWB

POWER

IR RECEIVE

HEADPHONE

CONTROL

SWITCH

POWER

SPEAKER (R)

SPEAKER (L)

LCD PANEL

DIGITAL

TUNER

MODULE

VIDEO/AUDIO SELECT

VIDEO SELECT

PROGRAM

MEMORY

PROGRAM

MEMORY

FRAME

MEMORY

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

MAIN CPU

MEMORY

AUDIO OUT

HEADPHONE

AMP

AUDIO CONTROL

YC SEPARATE/

CHROMA DEMOD./

FORMAT CONVERT/

NOISE REDUCT

RGB

PROCESS

OSD

MIX

SUB CPU

A-D CONVERT

A-D

CONVERT

D-A

CONVERT

VOLUME

BASS

BOOST

TREBLE

BOOST

STEREO

BOOST EQUALIZE

L/R

EXT-3

AUDIO OUT L/R

PC INPUT

S-VIDEO

Pb/Cb

Pr/Cr

EXT-1

EXT-4

EXT-2

L/R

FRAME

MEMORY

IC5503

IC6503

LVDS

DRIVE

EXT-5

EXT-6

HDMI

EXT-7

UKD_TX

UKD_RX

MAIN_CCD

TEXT_R/G/B

TEXT_G

TEXT_B

TEXT_R

MON_VOUT

DTU_VIN

MON_V

MON_L/R

MON_V

Y1/C1

L1/R1

Y4/CB4/CR4

R1/G1/B1

R2/G2/B2

Y2/C2

L2/R2

L3/R3

L4/R4

PC_R/G/B

Y3/C3

TV_MAIN

MON_TV

TV_L/R

D-A

A-D

AGC DEMOD.

IC3501

MULTI SOUND PROCESS

MATRIX

TV_L/R

TV_SIF

TV_MONO

IC105

VIDEO AMP

IC104

VIDEO

AMP

Y/C

MIX

DBO 0-9

DGO 0-9

DRO 0-9

DBE 0-9

DGE 0-9

DRE 0-9

BLOCK DIAGRAM

2-8(No.YA551)(No.YA551)2-7

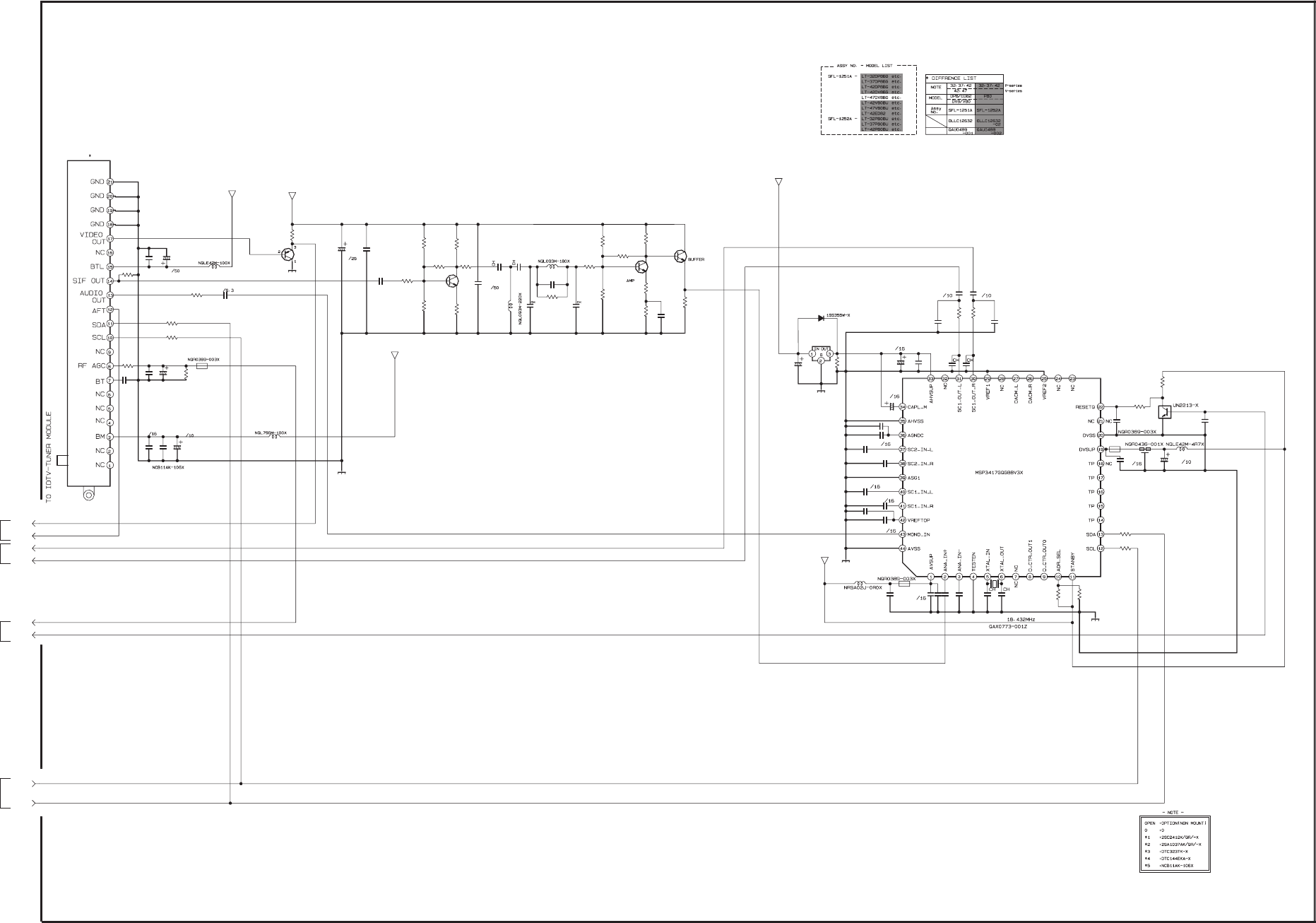

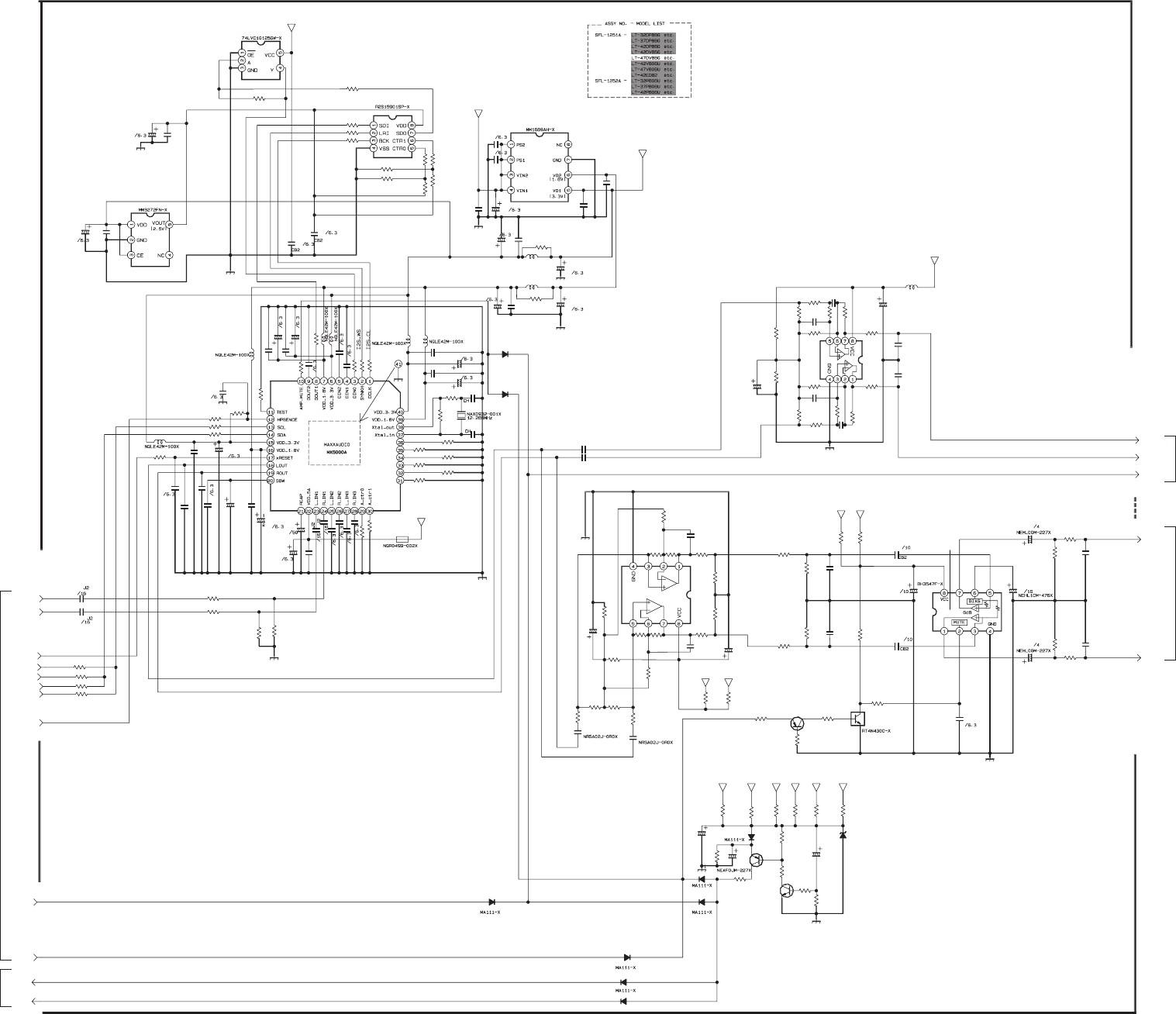

ANALOG PWB ASS'Y(1/6)

SFL-1251A-U2

c10520001b_0702_2/6_0.0

R3021

R3022

TU3001

R3013

SDA3A5

SCL3A5

R3004 C3006

C3015

R3023

L3001

MSP_RSTO

C3505

R3001

C3005

C3011

C3004

K3001

Q3001

R3006

C3019

C3018

TU3001

C3010

R3017

R3005

Q3004

C3008 L3002

TV_MAIN

C3501

C3536

C3007

C3002

R3015

IC3504

C3530

C3544 C3546

R3024

R3016

R3014

R3003

R3517

C3016

C3518

Q3503

L3004

C3014

R3018

R3019

C3017

C3012 C3013

C3009

R3008

C3001

R3009

R3010 R3012

R3002

R3011

Q3003

C3003

Q3005

R3020

TV_L

TV_R

AFT1

AGC1

R3025

D3501

C3545

K3501

C3533

C3532

C3535

C3534

C3523

C3524

K3502

IC3501

X3501

C3502

C3537

C3531

C3529

C3525 C3526

R3516

C3517

C3515

LC3501 L3504

C3516

R3515

R3514

L3503

R3510

C3528

L3003

R3546

R3547

C3547

C3513

C3512

C3503

R3509

C3514

OPEN

OPEN 1k

100

OPEN

.01

OPEN

PNP

.01

150

NPN

.1/50

100

2.2k

OPEN

180

100

10k

18p

2200p

47p

270

.01

820p 47p

2.2k

1k 330

100

680

NPN

OPEN

NPN

100K

OPEN

.001.001

10 .01

100

.01

.1 100

100

OPEN

.01

OPEN

BS_A5V

GND

SDA3A5

SCL3A5

AFT1

GND

32V

AGC1

BS_A9V

TV_MAIN

TV_L

TV_R

GND

BS_A5V

MSP_RSTO

BS_A9V

GND

SHEET 2

SHEET 2,3

SHEET 2,3,6

UHF/VHF TUNER

MULTI SOUND PROCESS

CIRCUIT DIAGRAMS

NALOG PWB CIRCUIT DIAGRAM (1/6) [TU/MSP BLOCK] SHEET 1

(No.YA551)2-9 2-10(No.YA551)

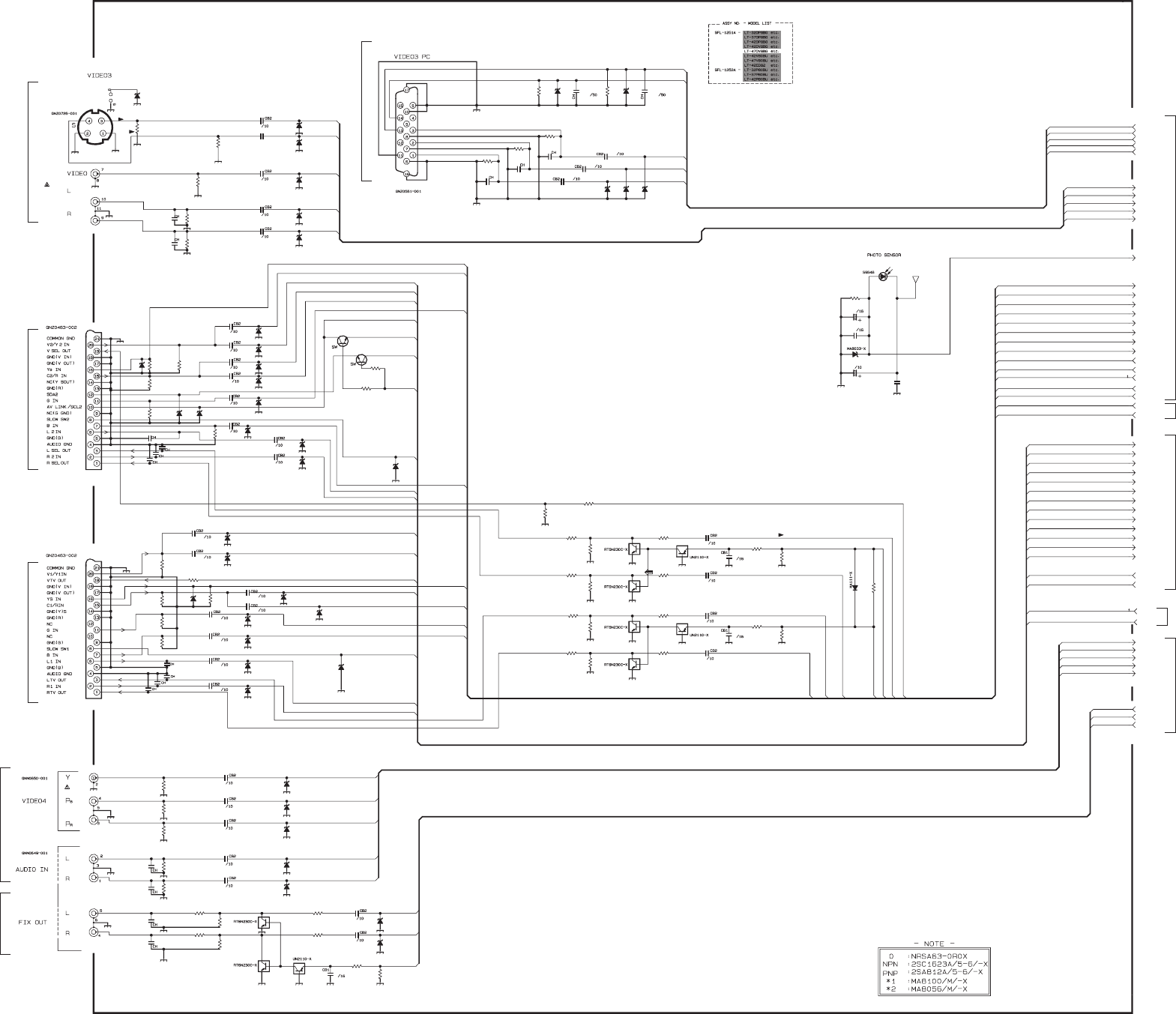

ANALOG PWB ASS'Y(2/6)

SFL-1251A-U2

c10520001b_0702_1/6_0.0

V2_YS

R277

C211

SCL3A5

SDA3A5

V4_LIN

CN002

V2_G_Y

V2_B_Cb

V2_SL

V2_R_Cr

V1_SL

R230

V4_RIN

AMP_MUTE

CARD_CK

CN00U

V2_LIN

V1_G_Y

CARD_DA

CN0UV

R228

D283

R279

R274

R275

C261

C264

R241

K106

R183

R243

CN00R

SDA3A

SCL3A

R251

K107

R255

K108

FIX_R

K103

R259

FIX_L

V1_B_Cb

TV_LINK

R236

IC104

C148

C213

R224

CNCV2

C150

C151

C212

R206

Q107

Q106

D284

CNCV1

V3_CIN

HP_L

C149

R260

V1_YIN

R276 R261

D290

V3_YIN

HP_MUTE

K105

HP_R

HP_DET

Q110

C194

R262

R264

R207

R266

R263

R265

R267

Q111

Q112

R278

C195

PC_R

Q109

C196

D105

PC_G

PC_B

PC_HS

PC_VS

C290

R290

R205

IC541

R538

R535

C533

IC105

C152

C154

C155

C153

D503

K104

K102

K101

A_MUTE

R269

M_MUTE

R221

CN0UV

Q114

R268

R269

R270

R271

R584

R585

Q115

R203

R204

R222

M_PACK

C194

C195

C196

Q108

R223

R225

C166

C197

C198

R270

R268

V1_LIN

V3_VIN

V3_LIN

V3_RIN

R197

DIN_PHOTO

V2_RIN

V2_VIN

V1_R_Cr

V1_RIN

V1_YS

V1_VIN

V1_CIN

MON_R

MON_L

MON_V

MON_TV

C207

C199

C208

CN001

C200

C201

C202

C118

C207

C208

C209

C210

R584

R585

R586

R587

V4_R_Cr

V4_B_Cb

V4_G_Y

V2_YIN

V2_CIN

R271

C125

C124

C121

R163

R162

R161

IC101

IC102

R164

C119

R165

C120

R166

C126

R167

C132

R181

C143

C142

C133

C141

R189

C138

R184

R188

C173

C171

C170

C169

C172

R242

R250

R254

C176 C174

C175

R238

R239

R245

R246

R247

R248

R252

R256

C189

C168

C167

C186

C187

C177

C123

C122

C117

D101 D102

R169 R168

C131

C130

R237

C134

MAIN_L

MAIN_R

C139

C263C262

C184

R231 C185

Q113

R232

L101

R229

R288

R289

R293

R294

TV_R

TV_L

TV_MAIN

R305

MAIN_POW

R306

R201

M_MUTE

A_MUTE

R171

AGC1

MAXX_RST

R308

C161

R307

AC_IN

POW_GOOD

R170

C127

MSP_RSTO

R202

R208

C106

C216

C217

C218

C219

C220

R209

R210

R211

R212

R213

R310

R311

R312

1080P_SW

B1_POW

R215

R309

R274

AFT1

C116

R140

R141

R143

R144

R300

R146

R147

R303

R304

R302

R301

R148

R149

C107

R151

C108

R152

R153

R154

R155

R150

R157

R145

R156

R158

R159

R160

R235

R234

R142

C128

C129

R233

C156

C157

C158

R216

R217

R218

C183

C182

C181

C178

D103

D104

R219

R220

C180

C179

L104

L103

L102C282

C283

C284

C285

C286

C287

R190

R191

R192

C291

C292

C293

OPEN

330

OPEN

0.1

82k

15k

330

2.2

OPEN

100

2.2

5.6k

OPEN

100

02.7k

OPEN

PNP2

100

5.6k

100

330

PNP2

OPEN

100

0.1

100

OPEN

10k

OPEN

10/10

2.2/16

0.1

OPEN

0.1

OPEN

220k

0.1

0.01

220k

10k

68p

0.01

0.022

330

22k

0.01 330p

OPEN

0.1

OPEN

0.1

OPEN OPEN

100 100

0.1

0.10.1

150p

33 82p

NPN

470

OPEN

100

5.6K

.01

5.6K

OPEN

5.6K

OPEN

4.7

OPEN

6.8k

OPEN

6.8k

0.1

6.8K

6.8k

OPEN

33K

33k

OPEN

10k

0.1

0.01

OPEN

100

0.1

OPEN

DTU_Cb

DTU_LIN

BS_A5V

A_MUTE

DTU_Cr

V4_RIN

V4_LIN

PC_R

V2_YIN

V2_R_Cr

V2_LIN

V1_G_Y

DTU_Y

V2_SL

V2_B_Cb

GND

MON_R

MON_L

MON_V

M_PACK

MON_TV

V2_RIN

V4_G_Y

V4_B_Cb

V4_R_Cr

V2_CIN

V3_RIN

V3_YIN

V2_G_Y

V2_YS

V2_VIN

AMP_MUTE

V3_YIN

CARD_DA

V3_CIN

V1_SL

DBS__LED2

V1_B_Cb

V1_R_Cr

V1_RIN

V1_YS

V3_CIN

V1_VIN

V1_LIN

V1_CIN

V3_VIN

GND

V1_YIN

DTU_RIN

CARD_CK

DTU_Y

V1_SL

DTU_Cb

SDA3A

MECA_SW

V2_SL

BS_A5V

BS_A9V

GND

V1_YS

BS_A3.3V

DTU_Cr

PC_R

KEY2

KEY1

HP_MUTE

PC_B

PC_G

V2_YS

V3_LIN

V2_R_Cr

V2_B_Cb

BS_A9V

V2_G_Y

PC_HS

M_MUTE

FIX_R

FIX_L

V3_VIN

TV_LINK

PC_B

GND

PC_VS

PC_G

GND

DTU_YIN

GND

DTU_CIN

GND

STB3.3V

STB_5V

BS_A5V

STB3.3V

BS_A5V

REC_LED

GND

DIN_R

GND

DIN_L

DIMMER

FIX_R

GND

FIX_L

SCL3A

DIN_PHOTO

BS_A5V

GND GND

BS_A5V

GND

M_PACK

POW_LED

REMOCON

DBS__LED1

STB_5V

EE_CDS1

GND

BS_A5V

GND

BS_A5V

GND

DTU_VIN

GND

BS_A5V

GND

BS_A9V

GND

CARD_RIN

DIN_R

CARD_LIN

GND

MAIN_VY

MAIN_C

SUB_C

BS_A5V

GND

MON_L

MON_R

BS_A5V

GND

DTU_CIN

MON_VOUT

BS_A5V

GND

DTU2_RIN

DTU2_LIN

BS_A5V

GND

BS_A5V

BS_A9V

BS_A5V

GND

B1_POW

TV_MAIN

CARD_LIN

AMP_MUTE

B1_POW

V4_R_Cr

TV_MAIN

DTU_VIN

DEC_Y

HP_MUTE

V1_VINDIMMER

V1_YIN

DEC_Y

A-MUTE

MON_VOUT

CARD_RIN

REMOCON

AUDIO_R

MON_TV

CARD_Cr

CARD_VD

CARD_HD

TV_R

TV_L

CARD_Cb

AUDIO_R

CARD_Y

MAIN_VY

CARD_Cr

REC_LED

EE_CDS1

SCL3A

CARD_HD

DTU2_RIN

CARD_VD

MON_V

V1_YS

POW_LED

TEXT_R

MECA_SW

KEY2

TEXT_G

CARD_Cb

CARD_Y

TEXT_B

V3_LIN

V3_RIN

A-MUTE

POW_GOOD

SDA3A

1080P_SW

CARD_DA

TV_LINK

AC_IN

V1_CIN

MAIN_POW

MSP_RSTO

MAIN_POW

V2_VIN

AC_IN

POW_GOOD

MSP_RSTO

TEXT_R

KEY1

DBS__LED1

DBS__LED2

V2_YS

MAXX_RST

V2_YIN

V2_CIN

TV_MAIN

V4_B_Cb

V4_G_Y

PC_HS

PC_VS

SUB_C

MAIN_C

DIN_PHOTO

DTU_RIN

TV_L

TV_R

DTU2_LIN

DTU_LIN

DIN_L

V1_LIN

V1_RIN

V2_LIN

V2_RIN

V4_LIN

V4_RIN

TEXT_B

TEXT_G

V1_G_Y

V1_B_Cb

V1_R_Cr

CARD_CK

SHEET 1 SHEET 1,3

SHEET 1

SHEET 5

SHEET 1,3,6

SHEET 5

SHEET 3

SHEET 5

SHEET 3,5

SHEET 6

OPEN OPEN

DIGITAL PWB(1/12)

CN001

(SHEET 7)

LED PWB

CN100U

(SHEET 22)

SW PWB

CN100R

(SHEET 23)

DIGITAL PWB(3/12)

CN002

SHEET 9

DIGITAL TUNER

MODULE PWB

VIDEO/AUDIO SELECT VIDEO SELECT

VIDEO AMPVIDEO AMP

NALOG PWB CIRCUIT DIAGRAM (2/6) [AV SW BLOCK] SHEET 2

2-12(No.YA551)(No.YA551)2-11

ANALOG PWB ASS'Y(3/6)

SFL-1251A-U2

c10520001b_0702_5/6_0.0

C426

C427

C424

C425

C415

C416

Q435

D413

J403

D403

R491

MON_TV

D404

D405

D406

D407

D440

D441

C406

C405

C404

C403

D408

C420

C421

C422

C491

C492

C493

R421

R422

R423

D491

D423

D425

C410

D445

D424

J406

Q434

C445

C444

D444

D442

C440

C412

C413

C442

R410

R413

R414

C443

R412

C409

D411

R411

C411

D414

D412

D416

D415

D443

D422

D421

C419

C418

R419

R420

C402

C401

J410 C463

C462

C461 C464

D402

D401

V2_RIN

V2_CIN

V2_R_Cr

V2_SL

TV_LINK

Q438

C465

C466

SDA3A5

SCL3A5

V1_YS

TV_L

D463

V1_G_Y

V1_B_Cb

V1_CIN

V2_YS

V2_YIN

C433

V2_G_Y

V2_B_Cb

TV_R

D431

D432

D467

D468

MON_V

MON_L

C431

C432

A_MUTE

MON_R

V4_LIN

V4_RIN

R438

R441

Q437

M_MUTE

Q431

Q432

R440

R443

R439

R444

J405

R464

Q433

R442

R437

R467

R461

V3_YIN

V3_CIN

C494

V4_G_Y

V4_B_Cb

V4_R_Cr

D462D461

C456

D469

M_PACK

DIN_PHOTO

V3_RIN

V3_LIN

V3_VIN

R475 D465 D466

FIX_L

FIX_R

M_MUTE

V1_YIN

V1_VIN

V1_R_Cr

V1_LIN

V1_RIN

V1_SL

V2_VIN

V2_LIN

R476

D492

PC_HS

PC_R

PC_G

PC_B

C469

PC_VS

C468

D428

D427

R406

C455

C457

C451

Q444

Q445

R426

R427

C450

C449

R451

C448

R452

R453

R454

C428

C430

C429

C417

R404

R403

R402 D409 R405

R401

R450

J401

J402

D447 D446

C407

C441

C408

C446

C447

R488

R489

R487

R483

R484

R482Q439

R485

R486

C452

C453

C454

R457

R459

R455

R460

R446

R447

R445

Q436

R448

R458

R456

R462

D470

OPEN

1500p

2.2

0.1

100

.01

2.2

2.2 *2

2.2

220k

2.2

220k

2.2

100p

2.2

4.7

82K

220

680

39k

680

220

1000p

*2*2

1K *2 *21K100p 100p

2.2

AV_GND

1500p

NPN

10K

1500p

75 *1 75

*1 *1

2.2

82K

220

3.3K

680

39k

680

220

2.2

82K

2.2k

220

3.3K

680

39k

680

220

OPEN

FIX_L

GND

V1_R_Cr

V4_G_Y

GND

V1_G_Y

MON_TV

GND

V1_B_Cb

V2_YS

GND

V3_YIN

V3_VIN

GND

V3_LIN

GND

V4_B_Cb

V3_RIN

V4_R_Cr

BS_A5V

GND

V3_CIN

GND

V4_LIN

GND

V4_RIN

GND

FIX_R

GND

V2_YIN

V2_CIN

GND

V2_R_Cr

GND

V2_LIN

GND

V1_CIN

GND

V1_YS

FIX_L

GND

TV_LINK

V1_VIN

GND

M_MUTE

GND

V1_YIN

GND

V2_B_Cb

V1_LIN

FIX_R

GND GND

V1_RIN

V2_RIN

GND

V2_VIN

V2_G_Y

GND

SCL3A5

V1_SL

SDA3A5

V2_SL

GND

PC_R

GND

PC_VS

GND

M_MUTE

PC_B

PC_G

M_PACK

GND

GND GND

GND

PC_HS

GND

MON_R

MON_L

TV_R

MON_V

TV_L

A_MUTE

M_MUTE

SHEET 1,2

SHEET 2

SHEET 1,2,6

EXT 3

EXT 2

PC INPUT

EXT 1

EXT 4

AUDIO OUT L/R

NALOG PWB CIRCUIT DIAGRAM (3/6) SHEET 3

(No.YA551)2-13 2-14(No.YA551)

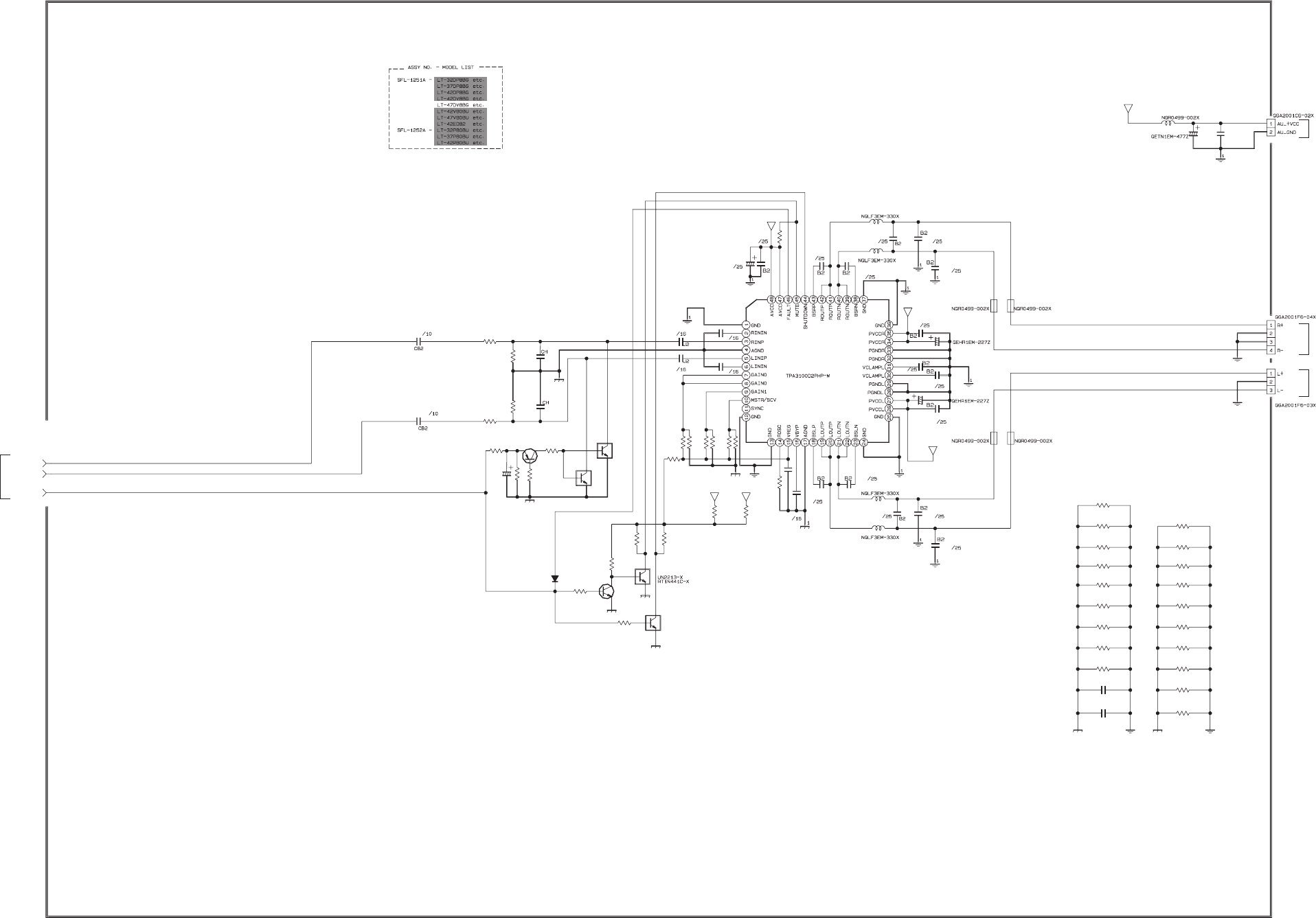

ANALOG PWB ASS'Y(4/6)

SFL-1251A-U2

c10520001b_0702_6/6_0.0

C6651

C6661

R6127 R6128

R6140

C6662

C6663

Q6107

CN10F

R6141

R6142

R6143

R6144

R6145

R6146

R6147

R6148

R6158

R6157

R6151

R6152

R6153

R6154

R6155

R6156

R6149

R6150

IC6001

C6111

C6110

C6124

C6125

L6104

L6103

L6101

L6102

CN0SR

C6112

C6123

C6113

R6124

C6114

Q6102

Q6103

C6122

C6121

Q6105

C6109

R6117

C6127

C6119

C6117

C6115

C6116

Q6104

C6104

C6106 C6107

C6105

C6120

C6118

R6112

R6111

R6106

R6107

R6108

R6109

C6102

C6103

R6110

K6102 K6101

K6103

CN0SL

K6104

R6121

Q6106

R6119

R6118

R6116

R6120

D6104

C6126

R6126

C6128

C6602 C6601

K6601

AMP_L

AMP_R

AMP-MUTE

R6125

R6133

C6108

R6134

R6135

R6115

R6114

R6113

4.7

0 OPEN

OPEN

.22

0.22

.33

.22

22k

.22

OPEN

.22

100K

OPEN

4.7 1

4.7

OPEN

5.6k

33K

OPEN

12k

22k

OPEN

2.7k

OPEN

0.1

OPEN

.01

100K

OPEN

100K

OPEN

100K

GND AU_GND

STB_5V 5V

GND

AU_GND

GND

AU_GND

GND AU_GND

GND

AU_GND

GND

AU_VCC

AU_GND

AU_VCC

AU_GND

GND

AU_GND

GND

AU_GND

GND

AU_GND

AU_VCC

SHEET 5

POWER PWB(2/3)

CN00F

(SHEET 20)

SPEAKER(R)

SPEAKER(L)

AUDIO OUT

NALOG PWB CIRCUIT DIAGRAM (4/6) SHEET 4

2-16(No.YA551)(No.YA551)2-15

ANALOG PWB ASS'Y(5/6)

SFL-1251A-U2

c10520001b_0702_3/6_0.0

R619

C635

C647

R774

C775

C752

HP_DET

IC602

IC605

C650

C651

C648

C649

C646

L603

C645

C644

L602

R766

R763

R658

C672

IC601

R608

R607

R606

R605

D605

D606

C757

C756

AMP_MUTE

HP_MUTE

D604

M_MUTE

IC606

R636

R637

R638

C659

R634

C660

D610

R635

R632

R633

C657

A_MUTE

C776

C686

C685

C658

L604

R644

R630

R631

R784 R785

R787

R786

R615

C656

R673

C663

R672

R642

D611

R643

C661

C662

C655

D609

R664

R667

R665

R668

C637

R666

R669

C636

C621

C654

C653

D608

R663

C665

C652

C634

R660

R661

L607

C664

C627

C628

C668

K601

L605

L606

C667

C666

C619

R617

R616

L601

X601

R609

C603

C604

C602

C601

C629C630

C626

R618

C622

R777

R778

R775

R776

C773

C772

R779

R780

R771

R781

IC752

R782

R772

R783

R770

R773 C774

C771

AMP_L

R757

AMP_R

Q751

R758

AMP-MUTE

R759

Q752

R760

R761

HP_R

HP_L

R626

R628

R629

IC604

MAXX_RST

IC603

R622

R623

R620

R621

C638

C639

R625

R624

R627

IC751

R655 R656

SCL3A

SDA3A

R604

R603

R602

R601

CARD_DA

CARD_CK

R662

Q601

D607

C670

R650

R651

R652

Q602

R654

R653

C671

C755

C761

C753

R762

R764

R765

C759

C754

R768

R769

C760

C751

C758

R767

R756

R755

D602

MAIN_L

MAIN_R

D603

R657

C640

C642

L609

L608

R640

R641

R639

C620

R614 C641

R670

R671

R659

R610

R611

R612

C615

C616

C614

C617

C618

C613

C623

C625

C624

C633

C632

C631

R613

C643

OPEN

.01

OPEN

4.7

.01

100

OPEN

.01

OPEN

10K

4.7

OPEN

4.7

OPEN

2.2K

OPEN

OPEN OPEN

OPEN

.01

OPEN

10K

.01

10K

100

OPEN

10K

100

100 0

0.01

100

100 100K

12p

.01

10K

OPEN

4.7k

PNP

100k

47k

100

4.7K

OPEN

4.7k 100

OPEN OPEN

OPEN

15k

PNP

56k

100k

OPEN

NPN

OPEN

220

100

220

OPEN

0.1

OPEN

100

OPEN

.01

OPEN

.01

10K

4.7

0.001

10K

.01

GND

BS_A5V

GND

BS_A3.3V

16V

GND

BS_A3.3V

VCC5V

STB_5V

BS_A5V

5V24V BS_A9V

GND

BS_A5VBS_A9V

BS_A9V

GND

POW_GOOD

GND

3.3V

BS_A5V

GND

SHEET 2

SHEET 2,3

SHEET 4

SHEET 2

AUDIO CONTROL

HEADPHONE

AMP

NALOG PWB CIRCUIT DIAGRAM (5/6) SHEET 5

(No.YA551)2-17 2-18(No.YA551)

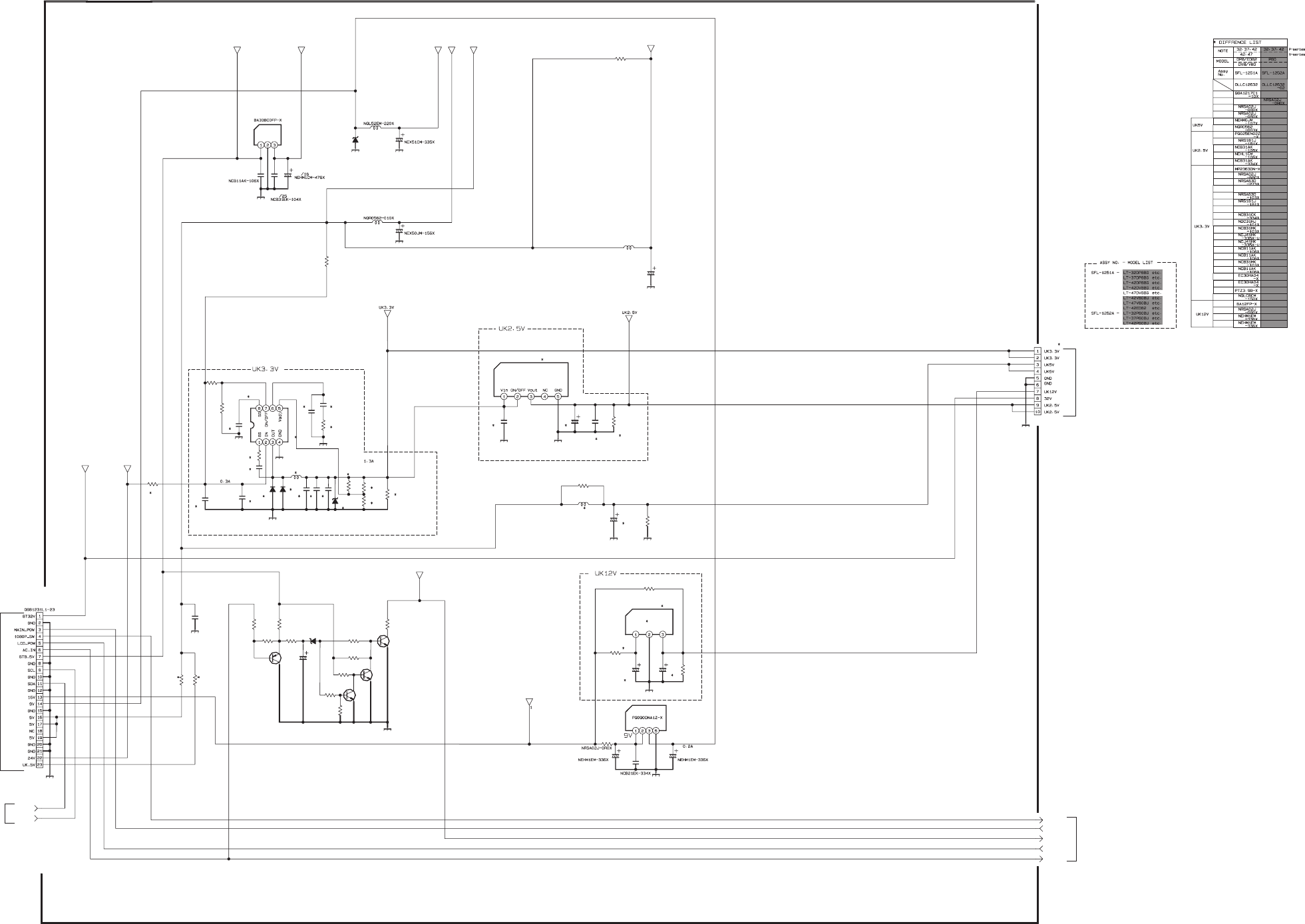

ANALOG PWB ASS'Y(6/6)

SFL-1251A-U2

c10520001b_0702_4/6_0.0

L902

B1_POW

IC902

AC_IN

C904

C906

IC981

C981 C982

1080P_SW

CN00H

Q932

L901

C969 R965

C967

D961

D962

C961

C953

C952

C968

C964

C966

C962 C963

R961

R962

L906

C920

R912

R964

R963

R966

L961

C905

POW_GOOD

MAIN_POW

C913

D963

IC951

C951

R905

C965

R951

L903

C914

R903

D903

C901 R904

R984

R981

R983

R982

R968

R967

R951

SCL3A5

SDA3A5

CN0UD

R901

R902

R906

IC951

C951

C952

C953

R906

IC971

IC961

C971

IC961

C973

C972

C907

R961

R962

R963

R964

R965

R966

C962

R937Q931

R935R934R932

R933R931

D931

C931 Q933

Q934

R938

R936

R939

R940

C963

CN0UD

C964

C965

C966

C967

C968

C969

D961

D962

D963

L961

IC981

R981

C981

C982

C961

C901

L901

R902

R901

0.1

OPEN

820K

3.3K

OPENOPEN

OPENOPENOPEN

OPENOPEN

OPEN

OPEN OPEN

OPEN

GND

POW_GOOD

GND

STB_5V

32V

STB3.3V BS_A9VBS_A5V

GND

24V

GND

VCC5V

GND

16V

GND

GNDGND

GND

SHEET 1,2,3

SHEET 2

DC-DC PWB

CN00H

(SHEET 24)

DIGITAL TUNER

MODULE PWB

NALOG PWB CIRCUIT DIAGRAM (6/6) [POWER BLOCK] SHEET 6

2-20(No.YA551)(No.YA551)2-19

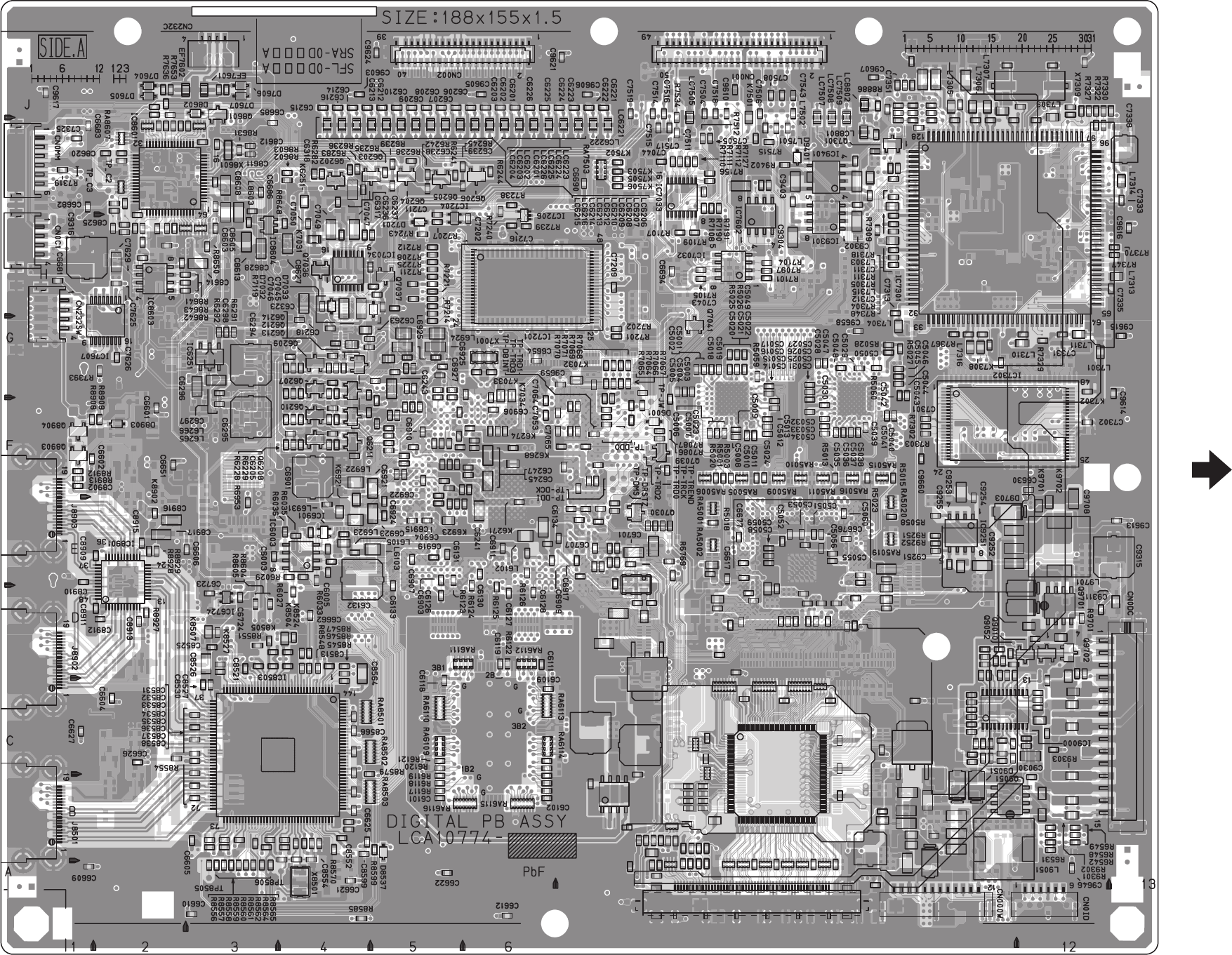

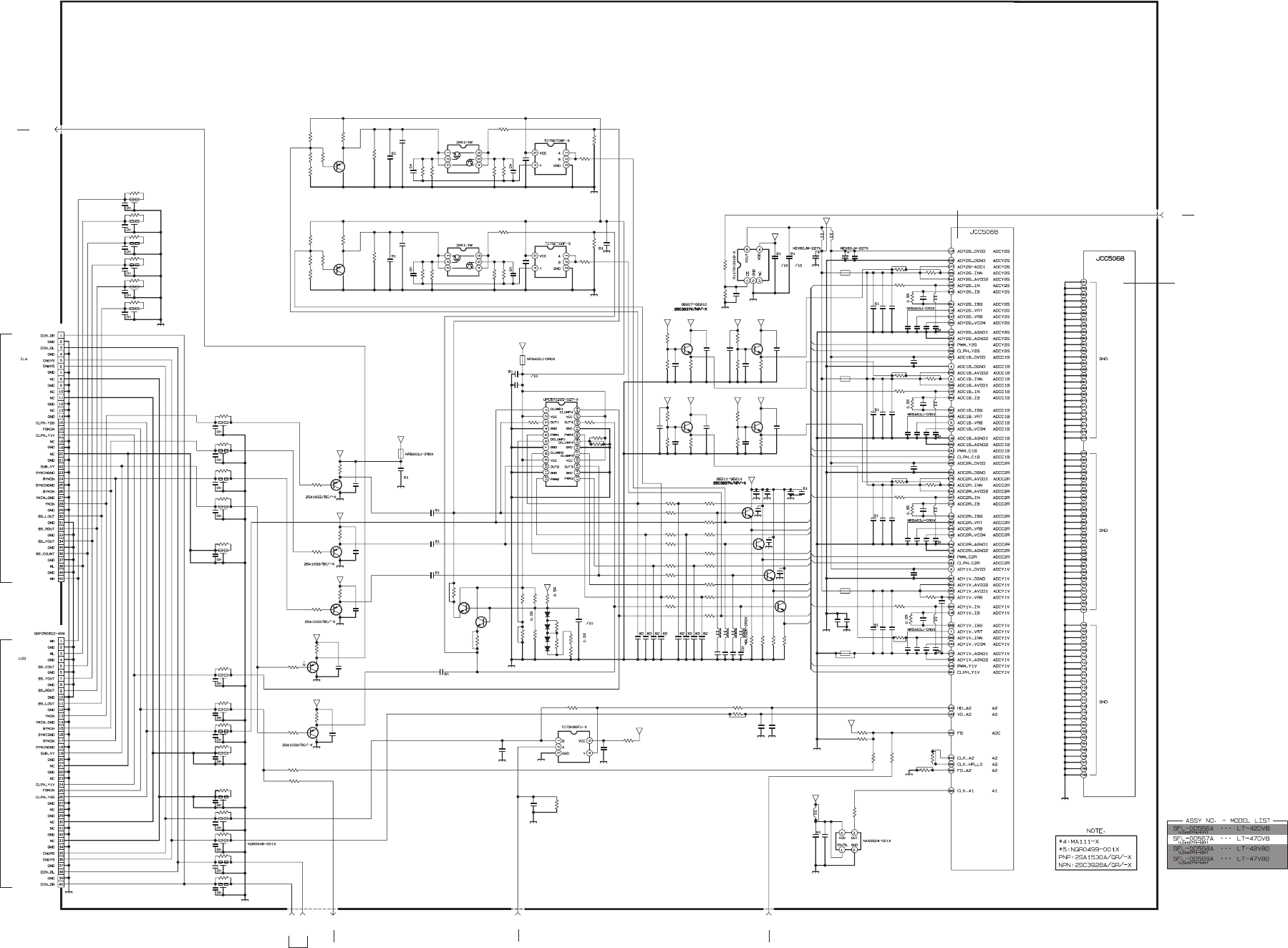

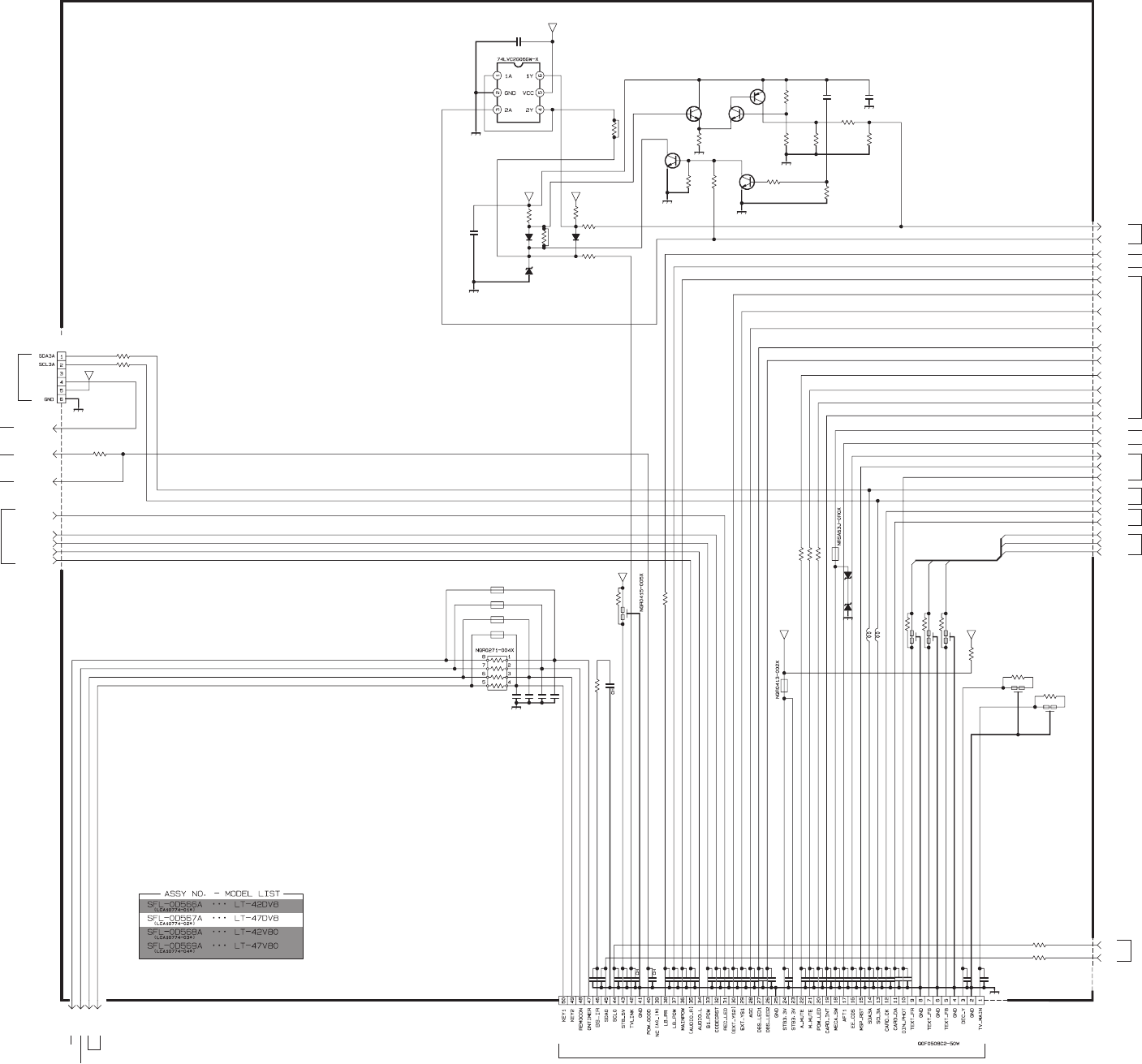

DIGITAL PWB ASS'Y(1/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_9/14_0.0

SDA3A

SCL3A

POW_LED

CN001

M_MUTE

R7545

A_MUTE

C7502

CN7501

MECA_SW

B1_POW

AFT1

Q7511

MSP_RST

REC_LED

DINPHOT

AGC

EXT_YS1

EXT_YS2

MAIN_POW

LB_POW

EE_CDS1

PFC_RST

TEXT_FR

TEXT_FG

TEXT_FB

Q7514

Q7513

Q7515

IC7502

C7513

CARD_INT

TVLINKOUT

R7501

R7502

Q7512

DBS_LED1

DBS_LED2

CODECRST

AUDIO_L

AUDIO_R

CARD_CK

CARD_DA

D7509

D7508

R7532

R7530

R7529

TVLINKIN

TEST0

R7546

R7552 R7553

R7512

R7547

LC8801

LC8802

R8886

R8885

SCLM

SDAM

R7533

R7548 R7550

R7539

RA7503

R7551

R7541

R7540

POW_GOOD

R7544

K7506

K7505

K7503

K7502

D7514

R7555R7554

R7549

C7520 C7521

POW_GOOD2

R7534

C7522

C7523

R7556

C7524

C7525

C7526

C7527

C7528

K7501

C7511

C7529

C7530

C7531

C7532

C7533

C7534

C7535

C7536

C7537

C7540

C7539

C7508

C7541

C7542

C7543

C7544

C7545

C7546

C7548

C7547

LC7509

LC7508

LC7507

LC7505

C7507

C7506

C7505

C7504

R7523

R7524

R7525

R7521

C7510

L7501

L7502

C7518

K7504

C7514

C7515

C7516

C7517

C7519

D7513D7512

R7515

R7514

R7513

KEY1

KEY2

REMOCON

DIMMER

OPEN

1/10

OPEN

0.1/16

OPEN

27k 1k

10k

OPEN

OPEN OPEN

OPEN

220

OPEN OPEN

OPEN

OPENOPEN

OPEN

OPEN OPEN

OPEN

0.01

OPEN

0.01

OPEN

0.01

OPEN

0.01

OPEN

0.01

OPEN

OPENOPEN

100

GND

VCC3D

TEXT_FR

STB3.3V

GND

STB3.3V

GND

STB_5V

STB3.3V

GND

TEST0

STB3.3VA

TEXT_FG

GND

TEXT_FB

GND

SDA3A_2

SCL3A_2

BS_IR_1

EXT_YS1

EXT_YS2

AGC

MECA_SW

SDA3A_1

SCL3A_1

A_MUTE

M_MUTE

GND

POW_LED

TEXT_FR

TEXT_FG

TEXT_FB

SHEET 13,14,15,16

SHEET 15

SHEET 10

SHEET 14,16

SHEET 14 SHEET 16

ANALOG PWB(2/6)

CN001

SHEET 2

SHEET 8,11,16

SHEET 16

SHEET 14

SHEET 16

SHEET 14,16

SHEET 14

SHEET 9,14,15

SHEET 10,16

SHEET 8,14,18

SHEET 14

DIGITAL PWB CIRCUIT DIAGRAM (1/12) SHEET 7

OPEN

SHEET 14

(No.YA551)2-21 2-22(No.YA551)

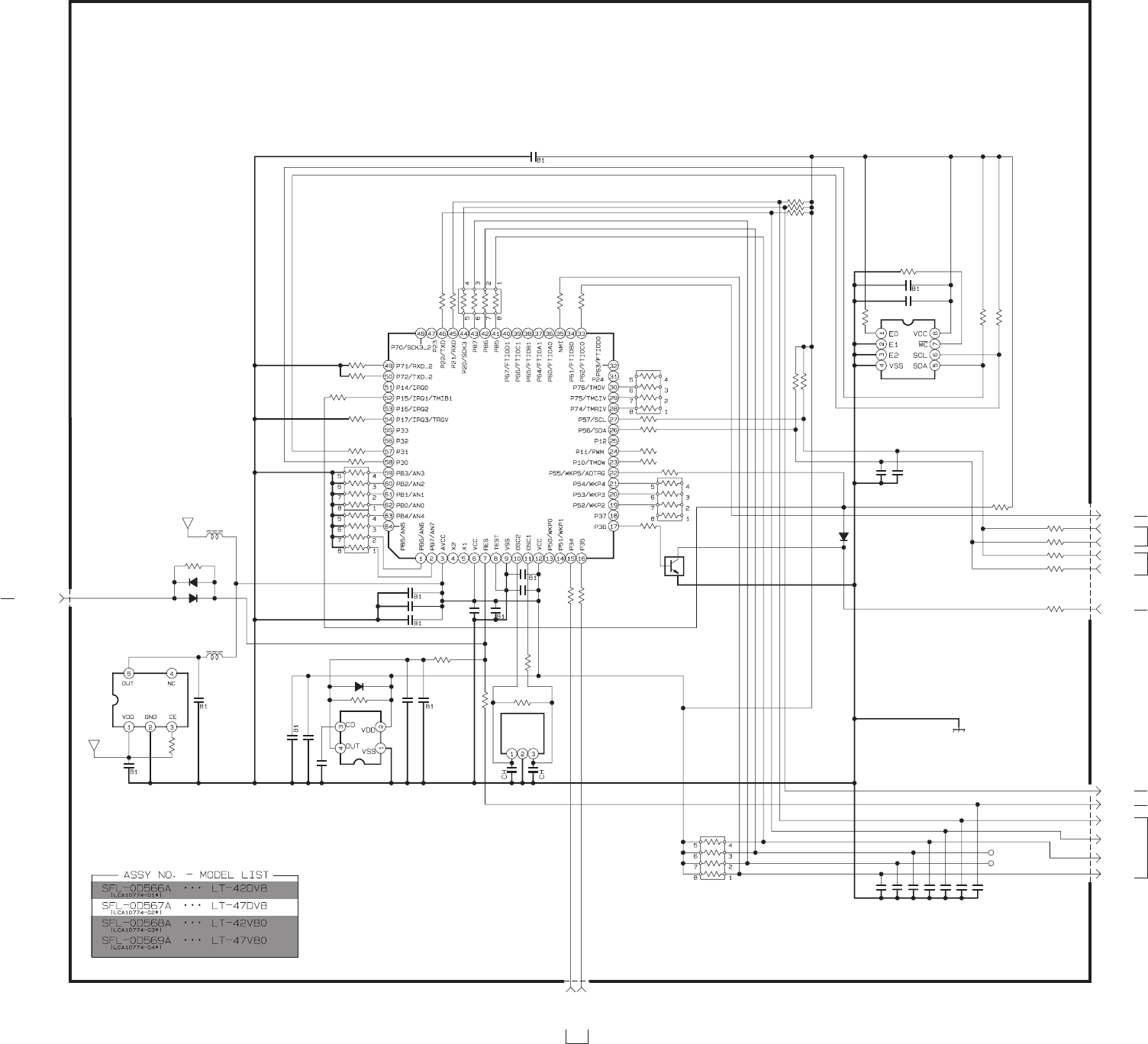

DIGITAL PWB ASS'Y(2/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_10/14_0.0

SCLM

SDAM

CEC_INT

SCL3A

SDA3A

CECIN

L8603

MI_RESET

R8602

R8603

R8604

R8605

R8606

IC8603

C8605

IC8602

R8614

R8615

RA8601

R8622

R8623

RA8602

C8610

C8607

R8639

C8630

C8604

R8638

RA8605

RA8606

C8615

RA8603

D8604

R8628

R8619

IC8601

D8602

R8636

R8617

R8632

RA8607

R8633

TP_C3

Q8601

TP_C2

C8613

R8647

C8616

C8617

R8625

R8634

R8635

D8601

C8611 C8612

C8603

CEC_NMI

CEC_P85

CEC_TX

CEC_RX

CEC_RST

D8603

IC8604 R8624

C8608

C8609

R8637

C8614

R8630

R8631

R8629

L8602

C8627

R8641

C8628

R8648

R8644

CEC_CLK

R8661

R8662

C8620

C8621

C8622

C8623

C8624

C8625

C8629

R8643

R8642

R8645

R8640

C8626

X8601

C8602

C8601

C8606

R8626

R8627

R8649

HDMI_3V1

EQ_3V

R8650

R8651

OPEN OPEN

OPEN

OPEN OPEN

OPEN

OPEN OPEN

OPEN

SCL3A

SDA3A

STB3.3MI

CECIN

CEC_LINE15

GND

CEC_RST

CEC_NMI

CEC_P85

CEC_LINE5

CEC_LINE8

CEC_LINE4

STB_5V

CEC_TX

CEC_RX

CEC_CLK

CEC_LINE7

CEC_LINE6

SHEET 16

DIGITAL INPUT BLOCK

SHEET 16

SHEET 7,14,18

SHEET 8,11,16

SHEET 16

SHEET 8,16

SHEET 16,DIGITAL INPUT BLOCK

SHEET 16

DIGITAL PWB CIRCUIT DIAGRAM (2/12) SHEET 8

2-24(No.YA551)(No.YA551)2-23

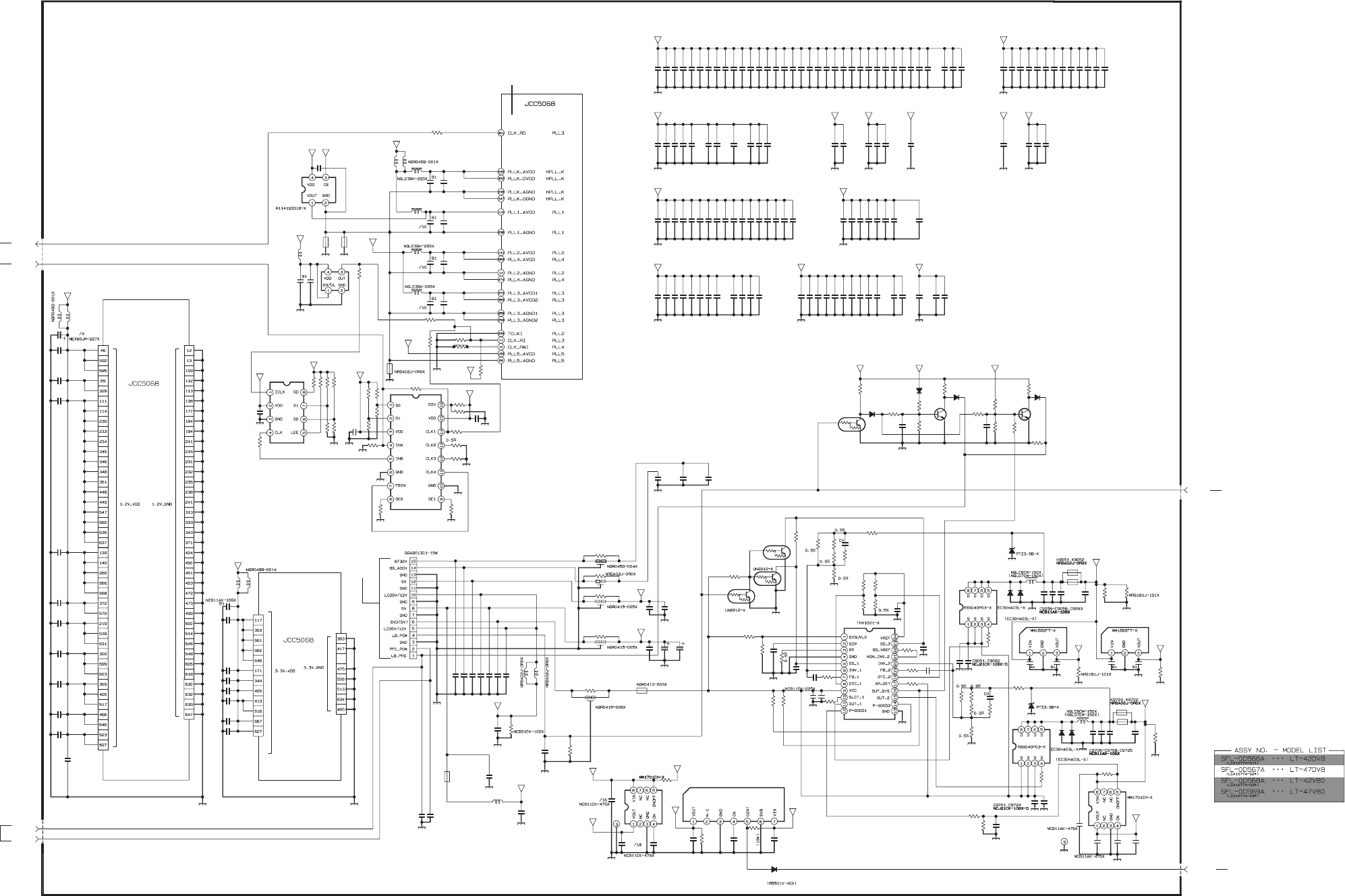

DIGITAL PWB ASS'Y(3/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_1/14_0.0

IC6303

C6250

C6254

C6253

C6252

R6219

R6212

C6315

K6251

R6345C6314

C6317

C6323

R6339

C6318

C6319

C6322

C6217 C6218

C6295

Q6202

R6282

CN012

CN002

R6275

R6274

L6266

R6276

R6342

C6292 X6250

L6254

C6313

C6296 C6297

L6265

C6294

R6279

R6283

Q6211

R6343

R6338

IC6301

LC6201

C6201

R6201

LC6202C6202

R6202

LC6203C6203

R6203

LC6204C6204

R6204

R6206

LC6206C6206

R6318

MAIN_CCD

R6207

LC6207C6207

R6208

LC6208C6208

R6213

R6210

LC6210C6210

LC6209C6209

R6209

LC6212C6212

Q6212

Q6213

C6255

Q6214

K6250

C6251

R6266

R6262

R6258

R6254

R6272

R6273

R6259

R6252

R6264

R6260

R6256

R6253

R6265

R6261

R6257

R6255

R6267

R6263

IC6001

R6217

R6317

C6274

LC6216C6216

LC6215C6215

R6216

C6275

C6279

C6280

C6281

C6285

C6286

C6289 C6290

C6291

C6268

C6269

C6273

IC6250

R6215

LC6214C6214

LC6213C6213

R6214

C6302

R6223

LC6223C6223

R6224

LC6224C6224

R6225

LC6225C6225

R6226

R6292

R6291

C6298

LB_POW

K6268

R6278

K6274

K6272

K6271

LC6226

C6226

R6221

LC6221C6221

R6222

LC6222C6222

IC6001

R6293

R6290

IC6001

R6301

R6300

IC6001

R6303

R6302

IC6001

R6304

C6301

R6305

IC6302

Q6301

R6307

R6331

C6307

Q6303

R6320

R6321

R6324

R6323

R6319 C6308

Q6304

R6327

R6330

R6309

R6322

R6308

R6311

R6310

R6306 C6303

Q6302

R6314

R6333R6332

D6301

R6284

R6285

C6235 C6234

R6230

R6231

C6230

C6231

R6233

R6232

C6232

C6233

Q6250

Q6251

C6249

Q6203

Q6204

Q6205

Q6206

R6244

R6211

R6241

R6238

R6235

R6218

R6236

R6239

R6242

R6245

C6239

C6238

C6237

C6236

L6257

L6258

L6259

L6260

IC6001IC6001IC6001

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

FBout

FBin

C6320

C6306

C6321

C6293

C6247

C6242

625IP

R6315

C9625

R6313

R6286

R6287

L6250

L6251

L6252

L6253

C6264

C6265

C6266

C6267

C6257

C6261

C6258

C6259

C6256

C6262

C6263

C6260

R6288

R6250

R6251

C6282 C6276

R6341

R6269

C6277

C6278

D6303

R6270

C6283

C6284

C6288

R6271

C6287

C6270

R6268

C6271

C6272

D6304

R6340

R6289

DIN_DL

DIN_DR

C6311

C6246

C6241C6245

C6248

C6243

C6244

IC6251

C9626

Q6208

R6234

R6229

R6228

C6205

C6220

C6240

Q6207

R6227

R6220 R6205

C6211

C6219

Q6210

R6277

R6247

R6316

R6328

R6326

R6329

R6325

C6310

C6309

C6312

R6312

C6305

C6304

R6336

R6337R6335

D6302 R6248

R6249

R6246

C6299

C6300

Q6209

R6243

R6240

R6237

C6228

C6227

C6229

1/16

OPEN

OPENOPEN

10/10

OPEN

0.1/16

0.1/16 0.1/16

PNP

330

OPEN

0.1/16

10 10

OPEN

100

OPEN

OPENOPEN

OPEN

OPENOPEN

OPEN

1/16

0.1/16

220

150

OPEN

4.7k

10k

4.7k

0.1/16

OPEN

0.1/16

OPEN

0.1/16

0.1/16 OPEN

0.1/16

OPEN

0.1/16

OPEN

OPENOPEN

OPEN

OPENOPEN

OPEN

OPENOPEN

OPEN

47k

47K

OPEN

OPENOPEN

OPEN

OPENOPEN

OPEN

OPENOPEN

OPEN

0.1/16

OPEN

PNP

OPEN

PNP

OPEN

2.2k

OPEN 0.1/16 0

OPEN

2.2k

OPEN 0.1/16 0

OPENOPEN

OPEN

OPEN OPEN

22p

NPN

100

OPEN

100

OPEN

330

0.1/16

10/10

1/10

OPEN

390

OPEN

12p

OPEN

2.2/10

OPEN

2.2/10

390

OPEN

0.1/16 0.1/16

2.4k

0.1/16

2.4k

0.1/16

2.4k

OPEN

0.1/16

2.4k

0.1/16

12k

0.1/16

1/10

10/1010/10

1/10

10/10

1/10

OPEN

390

6.8k

3.3k

0.1/16

390

6.8k 3.3k

0.1/16

390

6.8k

4.7k

OPEN

4.7k

OPEN

10/10

4.7k

OPEN

10k

*4 OPEN

OPEN

3.3k

0.1/16

6.8k

3.3k

0.1/16

BS_5V2

BS_ROUT_1

GND

YMIN_4

ADC2R_IN

BS_5V

ADY1V_IN

BYMIN_4

ADY2G_IN

ADC1B_IN

BS_5V

SUB_VY_6

YMIN_6

RYMIN_6

BYMIN_6

GND

LB_POW

BS_5V

GND

PWM_C1B

ADA3V_003

GND

PWM_Y1V

GND

SUB_VY_4

ADA3V

GND

RYMIN_4

ASIG_A033

CLPH_Y1V

BS_5V2

VCC3D

VCC3D_001

MR_1

BS_YOUT_1

PWM_Y1V

GND

BS_LOUT_1

GND

ML_1

BS_COUT_1

VCC3D

GND

CLPH_C2R

YMIN

27M_CLK_A1

27M_CLK_A1_0

VCC3D

GND

ADY2G_IN

BYMIN

GND

PWM_C2R

GND

CLPH_C1B

PWM_C1B

CLPH_Y2G

PWM_Y2G

GND

BS_5V

BS_5V_010

GND

ADC1B_IN

GND

RYMIN

ADY1V_IN

GND

SUB_VY_2

GND

SUB_VY

GND

ADC2R_IN

GND

ADA3V_004

PWM_Y2G

CLPH_Y2G

GND

ADC2R_INN

CLPH_C1B

GND

PWM_C2R

CLPH_C2R

CLPH_Y1V

GND

ADA3V_001

ADY2G_INN

ADA3V

GND

BS_5V

RYMIN_5

YMIN_5

GND

ADC1B_INN

YMIN_1

BYMIN_1

RYMIN_1

BS_5V2

BYMIN_5

BS_5V

GND

BS_5V2

ADA3V

BS_5V

ADA3V

GND

ADY1V_INN

BS_5VADA3V

DIN_DL_1

DIN_DR_1

GND

DIN_DR

DIN_DL

FBout

SHEET 7,14,15

ANALOG PWB(2/6)

CN002

SHEET 2

OPEN

DIGITAL INPUT

BLOCK

SHEET 14 SHEET 16SHEET 16

SHEET 11

DIGITAL PWB CIRCUIT DIAGRAM (3/12) SHEET 9

(No.YA551)2-25 2-26(No.YA551)

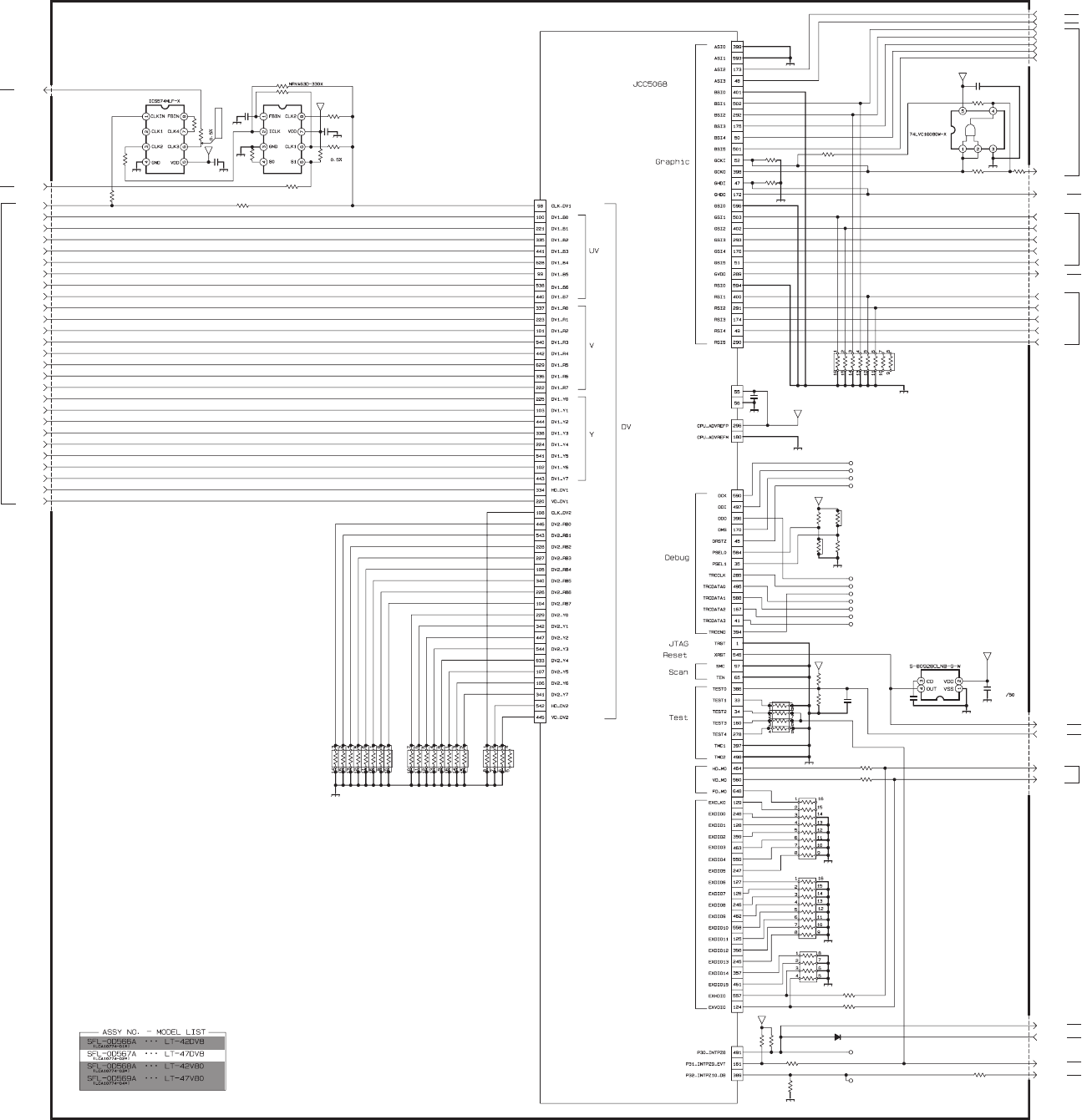

DIGITAL PWB ASS'Y(4/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_2/14_0.0

RA6014

RA6013

IC6001

MI_OSDYM

MI_OSDYS

IC6004

OSDB1

OSDB2

OSDB3

OSDB4

OSDB5

DD_OSDHS

DD_OSDVS

OSDG1

OSDG2

OSDG3

OSDG4

OSDG5

DV1_B1

OSDR1

OSDR2

OSDR3

OSDR4

OSDR5

R6005

R6006

TP-DCK

TP-DDI

TP-DDO

TP-DMS

TP-DRSTZ

R6001

DV1_B2

UDL_RESET

TP-TRCK

TP-TRD0

TP-TRD1

TP-TRD2

TP-TRD3

TP-TREND

R6002

R6003 R6004

R6082

DV1_B3

D6001

MECA_SW

C6723

C6724

IC6724

VCC3D

TP-JW

1080P_ON

TP-DBINT

R6009

R6007

R6011

R6012

R6013

R6083

RA6011

DD_OSDCK

DIN_EQSW

R6027

RA6002

R6026

C6004

R6029

DV1_B4

TEST0

C6001

R6022

R6021

TEXT_HD

TEXT_VD

R6023

DV1_B5

DV1_B6

DV1_B7

DV1_R0

DV1_R1

DV1_R2

DV1_R3

DV1_R4

DV1_R5

DV1_R6

DV1_R7

DV1_Y1

DV1_Y0

DV1_Y2

DV1_Y3

DV1_Y7

VD_DV1

HD_DV1

DV1_Y6

DV1_Y5

DV1_Y4

CLK_DV1

DV1_B0

RA6012

IC6002

C6002

R6078

R6077

R6079

CLK_DV1R

R6028

C6003

R6033

1080P_ON

IC6003

C6005

R6036

R6035

R6037

R6080

R6025

R6024

C7068

R6031

R6032

RA6007

RA6008

RA6009

R6034

OPEN

OPEN OPEN

OPEN

0.0022

0.01

OPEN

0.1/16

OPEN

0.1/16

OPEN

0.1/16

OPEN

0.1/16

OPEN

GND

VCC3D

GND

CLK_DV1_2

DV1_B0

DV1_B1

DV1_B2

DV1_B3

DV1_B4

DV1_B5

TEST0

VCC3D

STB3.3V

DV1_B6

DV1_R3

DV1_B7

DV1_R0

GND

DV1_R1

GND

DV1_R2

STB3.3V

DV1_R4

GND

VCC3D

GND

DV1_R5

DV1_R6

DV1_R7

DV1_Y0

DV1_Y1

DV1_Y2

DV1_Y3

DV1_Y4

DV1_Y5

DV1_Y6

DV1_Y7

GND

CLK_DV1_3

CLK_DV1_6

OSDCK1

DD_OSDCK

GND

GND CLK_DV1_7

VCC3D

GND

VCC3D

GND

HD_DV1

VD_DV1

CLK_DV1R_5

SHEET 15

SHEET 10

DIGITAL INPUT BLOCK

SHEET 16

SHEET 11,16

SHEET 16,18

SHEET 16

SHEET 18

SHEET 7

SHEET 16

SHEET 11

SHEET 10

DIGITAL INPUT BLOCK

SHEET 7,16

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

EXTERNAL

PORT

MONITOR

POWER FAILURE

DETECTOR

DIGITAL PWB CIRCUIT DIAGRAM (4/12) SHEET 10

2-28(No.YA551)(No.YA551)2-27

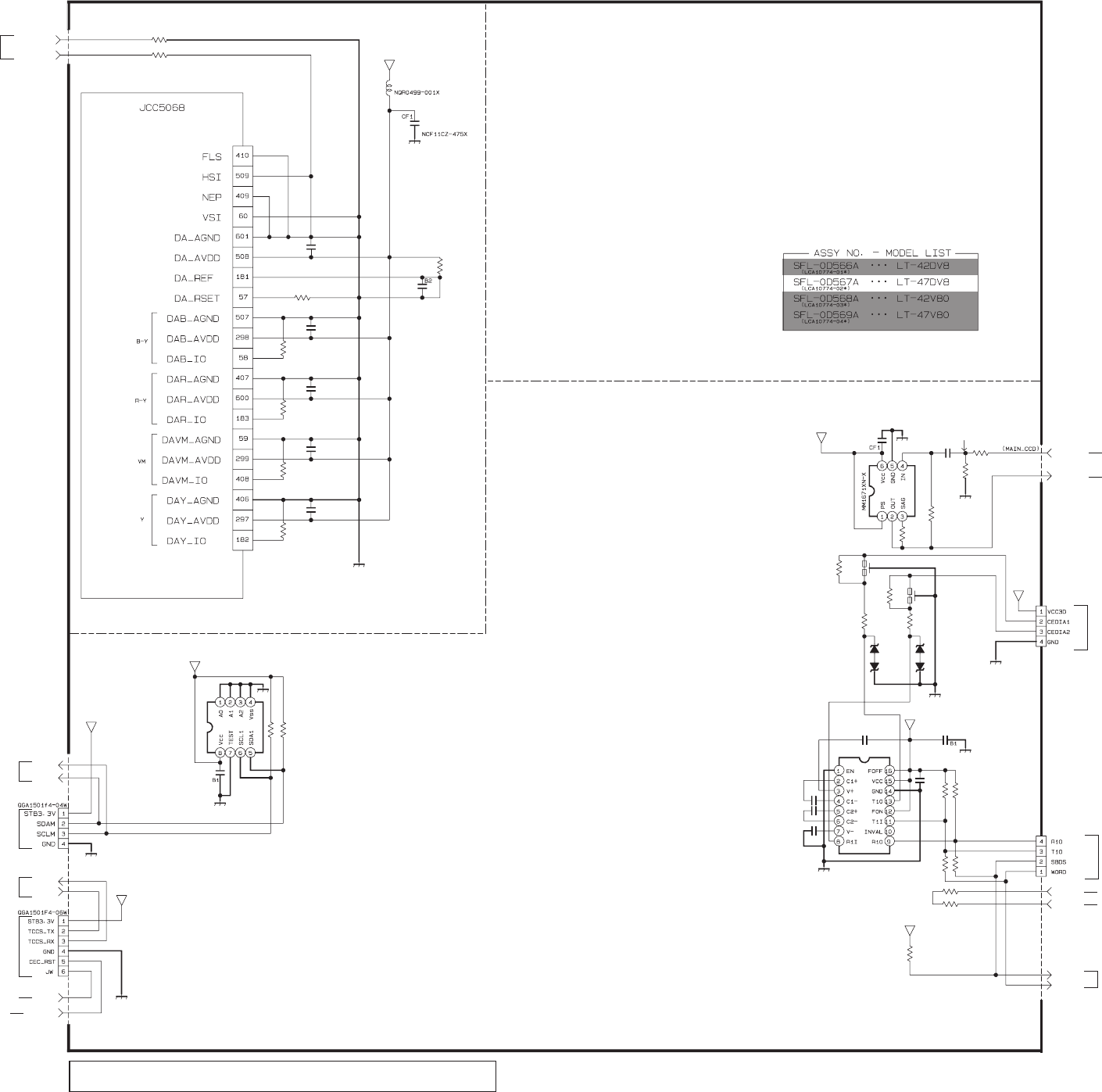

DIGITAL PWB ASS'Y(5/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_13/14_0.0

R7680

IC6001

R6702

R6703

R6704

R6705

R6706

R6701

C6705

C6708

C6709

C6710

C6711

C6707

L6701

DD_OSDHS

CN232C

DD_OSDVS

R6714

R6715

EF7601

EF7602

R7636R7637

D7606

CN232SW

C7626

SCLM

SDAM

CEC_RST

MEMORY

IC7602

C7601

CN0C1

CN0MM

TCCS_TX

TCCS_RX

C7620

MAINCCD2

MAIN_CCD

R7634

R7635

R7648

C7632

C7622

C7623

IC7607

R7640R7639

C7625

C7624

R7641R7642

D7604

CPURST2

CPURST

R7645

R7646

R7649

C7629

R7653

R7652

D7605D7607

SBD5

WORD

C6701

R7602

R7601

IC7606

OPEN

OPENOPEN

OPEN

0.1/16

1/16

4.7/16 390

1.2k

OPEN

0.22/10

OPEN

OPENOPEN

OPEN

OPENOPEN

OPEN

OPENOPEN

4.7/16

10k

STB3.3MI

VCC3D

GND

SBD5

GND

STB3.3V

SCLM

BS_5V

MAIN_CCD_2 MAIN_CCD

WORD

GND

STB3.3MI

GND

STB3.3V

MAIN_CCD_1

GND

CEC_RST

STB3.3V

GND

NOTE : Refer to the part list for the part number of IC7602.

SHEET 10,16

SHEET 7,8,16

SHEET 14

SHEET 10

SHEET 8,16

OPEN

SHEET 9

SHEET 16

OPEN

SHEET 16

SHEET 13,16

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

DIGITAL PWB CIRCUIT DIAGRAM (5/12) SHEET 11

(No.YA551)2-29 2-30(No.YA551)

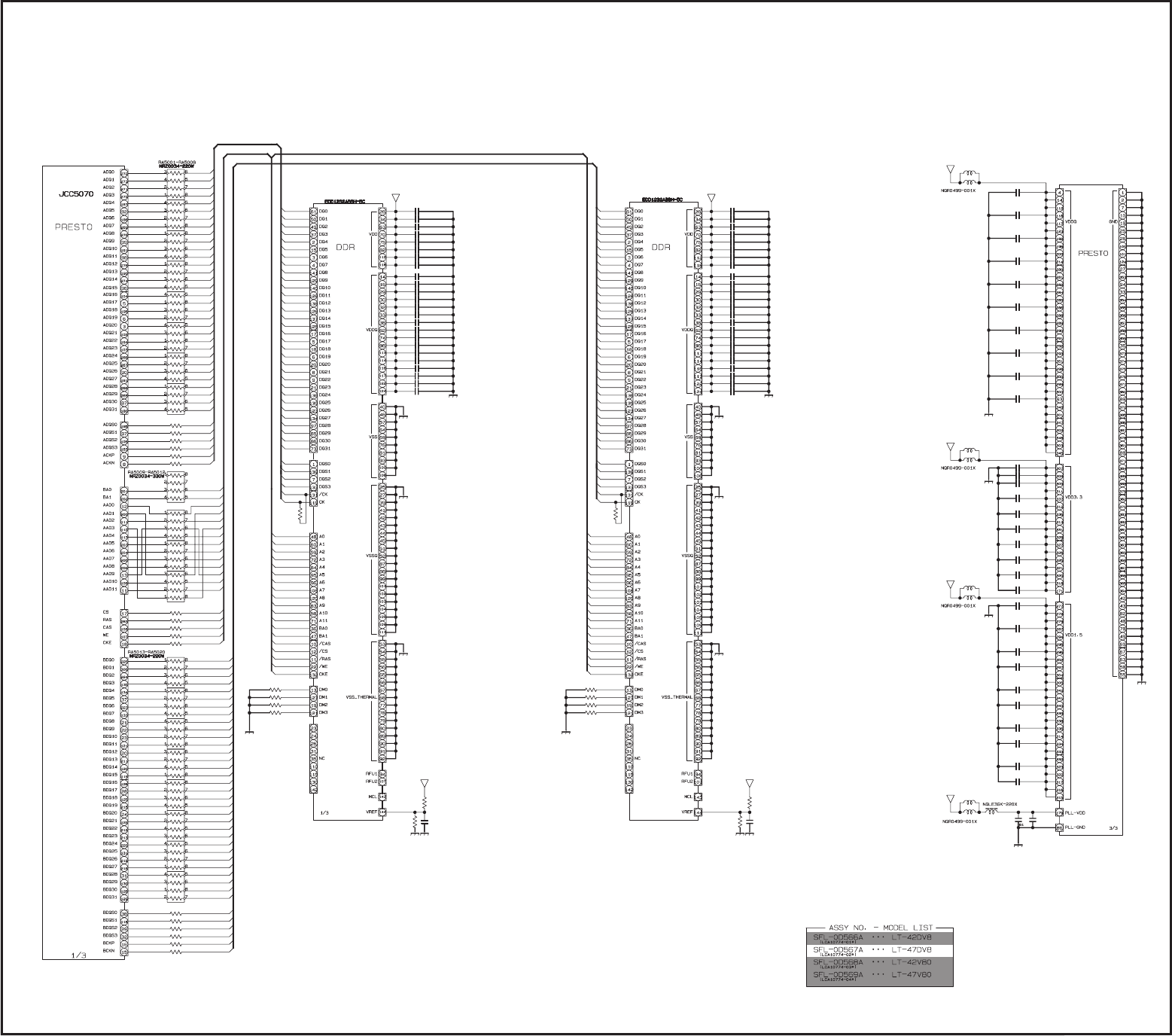

DIGITAL PWB ASS'Y(6/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_3/14_0.0

RA6105

RA6106RA6109

RA6107RA6108

RA6110

RA6111

RA6102

RA6101

RA6112

RA6113

RA6103 RA6104

RA6114

RA6115

C6126 C6129

RA6116

C6127 C6131C6128

R6127

L6105

R6128

IC6102

C6122

C6123

C6124

C6125

R6121

C6106

C6110

C6114

IC6101

FRAME MEMORY

IC6103

C6103

C6104

C6105

C6107C6113

C6115

C6116

C6102

C6112

C6101

C6109C6111

R6129

L6104

C6130

C6133

C6118

C6117

C6108

L6102

R6111

C6134

C6135

IC6102

C6132

R6110

R6120

R6119

R6118

R6117

R6109

R6108

R6107

R6106

R6112 R6101

R6113

R6114

R6115

R6116

R6102

R6103

R6104

R6105

R6143

R6142

C6139

L6115

C6121

C6120

R6123

R6124

R6125

R6126

L6103

R6130

C6138

C6136

C6119

R6122

IC6001

2.2 O PENOPEN OPEN2.2

1.5

OPEN

100

0.1

100

0.1/16

OPEN

0.1/16

OPEN

0.47

OPEN

0.470.47

OPEN

0.47

OPEN

0.1

2.2

0.1/160.1/16

OPEN

2.2

0.15

0.47

2.2

OPEN

0.1/16

47 22

OPEN

0.1/16

0.47

OPEN

0.47

SD_DQ30

SD_DQ31

VCC2.5D

VCC1.2D VCC_PLL5

SD_RAS

SD_CAS

SD_WE

SD_CKE

CLK_SDNO

CLK_SDPO

SD_DQ29

VCC3D

SD_DQ28

SD_DQ22_M

SD_DQ21_M

SD_DQ20_M

SD_DQ26_M

SD_DQ27_M

SD_DQ24_M

SD_DQ25_M

SD_DQ23_M

SD_DQ31_MSD_DQ1_M

SD_DQ11_M

SD_DQ30_M

SD_DQM0_M

SD_DQ2_M

SD_DQ29_MSD_DQ0_M

SD_DQ5

SD_DQ28_M

SD_DQ10_M

SD_DQ3_M

SD_DQM3_M

SD_DQ5_M

SD_DQ6

SD_DQM1_M

SD_DQ6_M

SD_DQ4_M

SD_DQ7_M

SD_DQ9_M

SD_DQ8_M

GND

CLK_SDPO_M

VTT0034

SD_DQ7

SD_DQ4

GND

CLK_SDNO_M

SD_DQ9

SD_DQ8

SD_DQM2_M

SD_CKE_M

SD_DQ10

SD_DQ11

SD_WE_M

SD_DQ2

SD_DQ1

SD_DQ3

SD_DQ0

SD_CAS_M

SD_RAS_M

SD_DQM0

SD_DQ27

SD_DQ26

SD_DQ25

SD_DQ24

SD_DQ20

SD_DQ23

SD_DQ22

SD_DQ21

SD_DQM1

SD_DQM3

SD_DQM2

SD_DQ17

SD_ADRS8

SD_DQS0

SD_ADRS11_M

SD_ADRS0

SD_ADRS1

SD_ADRS10

SD_DQ0

SD_ADRS2

SD_ADRS3

SD_ADRS6

SD_ADRS4

SD_ADRS5

SD_ADRS7

SD_ADRS8

SD_ADRS9

SD_DQ1

SD_DQ10

SD_DQ11

SD_GDQS

SD_CAS

SD_DQS1

SD_DQ12

SD_DQ13

SD_RAS

SD_DQS2

SD_DQ14

SD_DQ15

SD_DQS3

SD_DQ16

SD_DQ17

SD_BA0

SD_BA1

SD_DQM0

SD_DQ18

SD_DQ19

SD_DQ2

SD_DQ20

SD_DQ21

SD_DQ22

SD_DQ24

SD_DQ23

SD_DQ25

SD_DQ26

SD_DQ27

SD_WE

SD_DQ28

SD_DQ29

SD_DQ3

SD_DQ30

SD_DQ31

SD_DQ4

SD_DQ5

SD_DQ6

SD_DQ7

SD_DQ8

SD_DQ9

SD_BA1

SD_BA0

SD_DQM1

SD_DQM2

SD_DQM3

CLK_SDI

CLK_SDPO

CLK_SDNO

SD_CKE

SD_GDQS

SD_ADRS9_M

SD_ADRS4_M

SD_DQ12 SD_DQ12_M

SD_ADRS11

SD_DQ19_MSD_DQ19 SD_BA1_M

SD_BA0_M

SD_ADRS8_M

CLK_SDI_0

SD_ADRS11

SD_ADRS5_M

SD_ADRS6_M

SD_ADRS7_M

SD_ADRS0_M

SD_ADRS1_M

SD_ADRS2_M

SD_ADRS3_M

SD_ADRS10_M

SD_DQ17_M

SD_DQ18_MSD_DQ18

SD_GDQS_M

SD_DQ15_MSD_DQ15

SD_DQ14_MSD_DQ14

SD_DQ13_MSD_DQ13

SD_DQ16_MSD_DQ16 SD_ADRS0

SD_ADRS1

SD_ADRS2

SD_ADRS3

SD_ADRS10

SD_ADRS9

SD_ADRS4

SD_ADRS5

SD_ADRS6

SD_ADRS7

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

DIGITAL PWB CIRCUIT DIAGRAM (6/12) SHEET 12

2-32(No.YA551)(No.YA551)2-31

DIGITAL PWB ASS'Y(7/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_4/14_0.0

IC7201

39VF80A7IEKLJ10

PROGRAM MEMORY

R7226

R7214

IC7203

CPURST

RA7204

RA7205

RA7202

RA7203

R7227

C7203

C7204

C7206

C7207

C7208

C7205

R7223

R7224

R7244

C7211

R7203

R7212

R7211

R7208

R7221

C7209

R7201 R7202

D7201

POW_GOOD

R7207

C7202

IC7204

RA7201

R7225

IC6001

R7228

C7215

K7202

K7211

IC7206

C7216

R7240

R7239

R7238

R7243

R7215

R7216

R7217

OPEN

47K

OPEN

0.1/16

47K

1000p

47K

OPEN

0.1/16

47k 47K

OPEN

0.1

OPEN

47K

OPEN

33p

OPEN

47k

47K

D15

D14

D13

D12

D11

D10

A15

A14

A13

A12

A11

A10

A17

A16

STB3.3V

D15

D14

D13

D12

D11

D10

A10

STB3.3V

GND

STB3.3V

GND

D15

D14

D13

D12

D11

D10

A10

A11

A12

A13

A14

A15

A16

GND

A17

D15

D14

D13

D12

D11

D10

STB3.3V

GND

STB3.3V

A17

STB3.3V

A16

BUSCLK

GND

A15

A14

A13

A12

A11

A10

STB3.3V

GND

STB3.3V

SHEET 11,16

SHEET 7,14,15,16

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

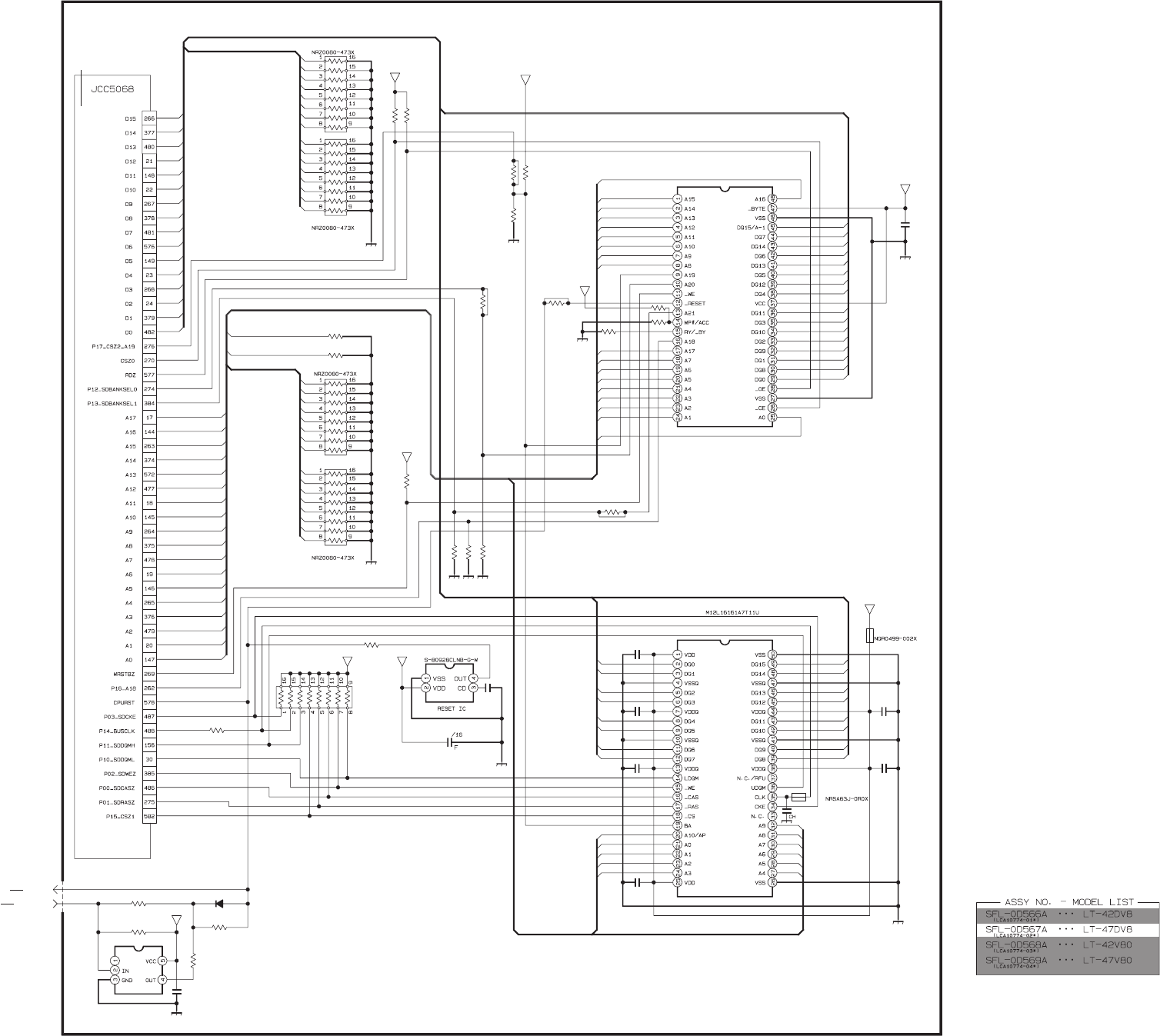

DIGITAL PWB CIRCUIT DIAGRAM (7/12) SHEET 13

(No.YA551)2-33 2-34(No.YA551)

DIGITAL PWB ASS'Y(8/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_5/14_0.0

AUDIO_L

AUDIO_R

R7121

IC7034

D7033

C7047

C7046

R7134

R7120

R7122

C7050

K7031

R7114

R7115

R7116

R7117

R7118

MAIN_POW

R7123

LB_POW

B1_POW

R7124

R7125

Q7035

R7126

C7041

C7042

X7001

IC6001

R7103

DIN_HOTP2

R7081

R7044

R7043

IC6001

C7051

C7052

C7053

C7054

C7055

C7056

C7057

C7058

C7059

C7060

C7061

C7062

C7063

C7064

C7065

C7066

C7067

R7128

R7038

R7132

K7034

K7032

K7033

DIN_DEEN

R7033

PFC_POW

PDP_TX

625IP

R7131

R7135

DIN_HOTP3

ANA_DIM_0

PFC_RST

Q7039

R7137

PPOW_CNT

Q7032 Q7033 Q7034

C7075

POW_GOOD

DIN_HOTP1

Q7041

R7031

R7032

R7034

R7035

R7045

R7046

R7047

R7052

R7075

R7056

R7057

R7058

R7055

R7061

M_MUTE

A_MUTE

BS_RST

MI_REQ

MSP_RST

CODECRST

LB_PRO

R7156

DINPHOT

EXT_YS2

EXT_YS1

AGC

AFT1

EE_CDS1

WAKE

DIN_INT

C7031C7030

R7039

R7040

C7039 R7060

R7059

C7034

R7157

C7033

R7041

R7042

K7030

REMOCON

SCL3A

R7086

R7068

R7087

R7088

R7089

SDA3A

CARD_CK

CARD_DA

R7069

R7070

R7071

PWM_DIM

R7072

R7188

C7032

R7073

R7090

R7091

PDP_RX

CARD_INT

POW_LED

REC_LED

DIMMER

R7092

R7093

R7094

R7095

R7096

R7097

R7098

R7099

R7084

R7085 TCCS_RX

TCCS_TX

R7195

R7100

R7101

MI_RX

MI_CK

MI_TX

IC7032

74HC4094PW-X

IC7033

C7043

R7104 R7105

LCDFRAME

DIN_RWSW

R7037

BL_ON

R7110

R7111

R7112

R7106

R7107

R7108

R7109 R7127

C7044

C7045

IC7036

DIN_RST

R7174

C7074

IC7036

R7177

R7178

R7179

R7176

R7175

C7073

Q7037

Q7036

C7076

IC7038

R7189

R7190

R7191

DBS_LED1

DBS_LED2

R7196

R7197

R7199

D7032

C7049

C7048

R7119

R7184

R7185

R7067

R7066

R7065

R7064

R7171

R7172

R7183

R7186

OPEN

47k

OPEN

47K

47k

0.1/16

OPEN

47k

OPEN

150

OPEN

3.3k

OPEN

47k

OPEN

0.010.01

47k

OPEN

.001 150k

0.33/10

OPEN

0.1/16

47k

100k

OPEN

100

OPEN

220

OPEN

OPEN OPEN

OPEN

0.1/16

OPEN

47k

OPEN

0.1/16

OPEN

OPEN5.6k

5.6k

10K

OPEN

AUDIO_L_0

GND

A_MCLK_2

BS_5V

A_LRCLK_2

BS_5V_001

A_BCLK_2

A_DATA_2

A_MCLK_1

A_LRCLK_1

A_BCLK_1

A_MCLK_I2

A_DATA_1

GND

STB3.3V

VCC3D

CLK_7001_3

STB3.3V

CLK_7001_1

GND

STB1.2V

GND

STB3.3V

GND

STB1.2V

AUDIO_R_0

STB3.3V

GND

VCC3D

STB3.3V

GND

STB3.3V

GNDGNDGND

GNDGND

P63_SCK1

STB3.3V

GND

GNDGND GND

GND

P70_SCK2

STB3.3V

GND

DBS_LED2

DBS_LED1

GND

STB3.3V

CARD_CK_0

CARD_DA_0

GND

STB3.3V

DIGITAL INPUT BLOCK

SHEET 7

SHEET 18

SHEET 7,8,18

SHEET 7

SHEET 16

SHEET 7,13,15,16

SHEET 15

SHEET 16

SHEET 7,16

SHEET 16

SHEET 11

SHEET 18

SHEET 16

SHEET 7

SHEET 9

SHEET 18

SHEET 7,16

SHEET 7,9,15

SHEET 7

SHEET 15

SHEET 18

DIGITAL INPT BLOCK

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

3 LINE

CEREAL

POWER

SUPPLY

DIGITAL PWB CIRCUIT DIAGRAM (8/12) SHEET 14

2-36(No.YA551)(No.YA551)2-35

DIGITAL PWB ASS'Y(9/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_8/14_0.0

L6901

L6902

L6922

C6921 C6922

C6902

C6052

C6903

C6904

C6905

C6906

C6907

C6908

C6909

C6910

C6911

C6913

C6914

C6915

C6916

C6917

C6918

C6919

C6901

R6923

IC6001

R9717

L6923

L6924

L6925

C6923

C6925

C6927

C6924

C6926

C6928

C9302

LB_PRO

C9303

R9716

IC6001

R9715

R9714

LC9301

C9304

R9305

R9052

R9303

R9302

R9301

LC9302

R6922

LC9303

PFC_POW

IC9301

LC9305

R9053

R6924

R9054

LV_CK

R9055

IC6001

L6921

R9309

R9071

K9052

K9702

IC9401

IC6901

R9401

C9301

R9306

LC9307

R9307

K6921

C9401 C9403

C6656

R9252 C9251

R9070

K6922 K6923

IC9000

R9060

C9040

R9080

Q9052

Q9702

R9030

C9050

D9703

R9062

R9063

R9059

R9713

R9051

R9711 C9711

R9311

R9253

C9104

R9709

K9010 R9090

IC6904

CLK_DV1R

R6944

R6945

R6946

R6947

R6948

R6949

R6942

R6930

R6943

C6935

C6934

R6953

IC6903

R9706

C6933

R6931

C9105

IC9102

R6941

D9051

C9103 C9101

Q9701

Q9051

R6952

R9701

D9052

L9051

C9056

C9057

D9701

D9702

R9020

Q9010

R9010

L9701

LB_POW

C6912

C9706

C9707

R9056

R9057

R9058

C9059

C9061

R9061

D9053

C9701

IC9101

R9707

C9253 C9255

C9252

IC9251

R9251

R9708

C9709

R9040

C9254

K9051

K9701

C9058

C9030 C9020

C9708

R9712

R9050

C9702

R9710

C9052

IC9251

C9063

C9724

C9725

Q9501

R9501

R9502

R9504

D9501

D9502

R9503

C9501

Q9502

R9505 D9503

R9506 R9507

R9508

R9509

Q9503

R9510

D9504

C9502

CN0DC

C6929

C9309

C9310

C9311

C9315

C9306 C9307 C9308

C9305

C9313 C9314

C9316

D9401

POW_GOOD2

L9204

K6052 C9209

L6912

L6931

R6926

C6930

L6926

X6901

C6631

C9661

C6601

C9662

C6658

C9658

C6602

C6603

C6632

C6633

C6604

C6660

C6605

C9323

C9317

C9318

C9319

C9320

C9321

C9322

C9402

C9663

C9619

C9620

C9621

C9624

C9664

C9667 C9670

C9671

C9672

C9673

R9511

C9674

IC9301

C9675

R6954

R6937

R6939

R6938

R6940

R6933

R6935

R6936

R6932

R6934

C9676

C9677

C9678

C9679

C9680

C9681

C9682

C6676

C9051

C6677

C6678

C6634

C6635

C6606

C6607

C6608

C6609

C6610

C6611

C9062

C6612

C6613

C6614

C6615

C6616

C6617

C6618

C6619

C6620

C6621

C6622

C6623

C6624

C6625

C6626

C6627

C6628

C6629

C6630

C6651

C6652

C6653

C6654

C6655

C6657

C9659

C6662

C6663

C6666

C6667

C6668

C6671

C9660

C6681C9611

C9641

L9307

L9306

C6682C9612

C9642

C6683C9613

C9643

C6684C9614

C9644

C6685C9615

C9645

C6686C9616

C6687C9617

C6688C9618

C6689

C6696

C6690

C6697

C6691

C6692

C6693

C9606

C6694

C9607

C6695

C9610

C9646

C9647

C9601

C9602

C9603

C9604

C9605

C9648

C9649

C9650

C9657

C6636

R9402

L6911

C6931

OPEN

10/10 0.1/16

0.1/16

OPEN

0.1/16

100

OPEN

3.3k

OPEN

0.1/16

4.7 0.01

1.8k

4.7

OPEN

OPEN OPEN

0.1/16

OPEN 0.1/16

47k

4.7k

0.01

15k

OPEN

0.1/16

10k

47k

22k 6800p/50

OPEN

100k

2.2/16

100k

OPEN

4.7/16

OPEN

2.2/16 4.7/16

OPEN

100k

22k

10/10

OPEN

56k

33k

680p/50

1000p

15k

10k

4.7/10 0.01

4.7/10

100

47k

390p

10k

0.1/16

0.1/25

10k

100k

OPEN

2.2k

0.01

OPEN

OPEN OPEN

OPEN

1/10

OPEN

OPEN OPEN OPEN

OPEN

OPEN OPEN

OPEN

OPEN OPEN

OPEN

0.1/16

OPEN

0.1/16

0.1/16 0.1/16

0.1/16

OPEN

0.1/16

OPEN

0.1/16

0.1/160.1/16

0.1/16

0.1/160.1/16

0.1/16

0.1/160.1/16

0.1/16

0.1/160.1/16

0.1/16

0.1/160.1/16

0.1/16

0.1/160.1/16

0.1/16

OPEN

VCC1.2D

GND GND

VCC3D

GND

POW_GOOD2

VCC_PLL5

STB_5V

BS_9V

VCC1.2D

CLK_DV1R_4

PFC_POW

STB1.2V

BSD_5V

VCC1.2D

GND

LCD3V

GND

STB3.3VA STB_5V

GND

VCC3D

STB3.3V

GND

BS_5V

GND

VCC3D

GND

STB2.5MI

GND

VCC1.5DV

GND

VCC3D

GND

STB3.3MI

GND

BS_5V

VCC3D

GND

LB_PRO

LV_CK0

VCC3D

GND

BS_5V

GND

VCC3D

GND

GNDGND

CLK_DV1R

VCC3D VCC3D

GND

GND GND

GND

CLK_DV1R_2

CLK_DV1R_3

GND

VCC3D

GND

VCC3D

GND

VCC2.5D2

GND

VCC3D

LCD5V/12V

VCC1.2D

GND

VCC2.5D

GND

STB_5V

VCC2.5D2

GND

VCC2.5D

VCC1.5D

GND

STB3.3V

GND

BS_5V

GND

LCD5V/12V

GND

VCC1.2D

GND

VCC1.5D

VCC1.2D_2

SHEET 7,9,15

SHEET 7

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

DIGITAL PWB CIRCUIT DIAGRAM (9/12) SHEET 15

SHEET 18

SHEET 10

SHEET 14

DC-DC PWB

CN0DC

SHEET 24

(No.YA551)2-37 2-38(No.YA551)

DIGITAL PWB ASS'Y

(10/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_14/14_0.0

IC7303

C7310

C7309

MI_OSDYM

D7303

TEXT_HD

C7315

IC7304

C7344

BS_RST

R7343

C7343

R7342

R7341

R7325

L7315

CN0ID

R7398

Q7303

Q7302

TEXT_VD

CPURST

R7337

R7338

R7356

MI_CK

MI_RX

TEXT_FR

TEXT_FG

MI_OSDYS

R7348

TEXT_FB

DD_OSDVS

DD_OSDCK

OSDR1

OSDR2

OSDR3

OSDR4

OSDR5

MI_TX

R7332

C7326

OSDG1

OSDG2

R7324

C7327

OSDG4

X7309

REMOCON

OSDG5

OSDG3

IC7302

OSDB1

K7302

C7305

C7306

C7308

OSDB2

OSDB3

OSDB4

OSDB5

R7333

WAKE

R7335

SCLM

MAINCCD2

C7350

R7396

C7307

SDAM

KEY2

KEY1

MECA_SW

CECIN

R7393

R7355

L7301

TVLINKOUT

MI_REQ

CN0C3

IC7305

R7321

C7311

C7312

C7313

R7319

C7324 C7330 C7331

C7335

C7334

C7333

R7320

C7325

R7317

R7318

R7310

C7302

R7340

R7334

R7313

L7304

L7303

L7314

L7313

L7312

R7309

R7329

L7302

TVLINKIN

C7304

DD_OSDHS

C7301

IC7301

MAIN CPU

C7303

C7357

C7354

R7392R7377

R7391

R7390

R7389

R7388

R7387

R7386

R7378

R7379

R7380

R7381

R7382

R7383

R7385R7384

C7351

R7361

AFT1

C7349

R7358

C7348

IC7306

R7359

R7360

R7357

CPURST2

Q7301

R7365

R7366

FBout

FBin

R7367

D7301

POW_GOOD

R7368

R7369

R7347

C7353

IC7305

R7370

CN0MI

R7372

R7371

R7373

CEC_INT

R7375

R7374

C7314

R7303

R7302

R7328

C7318

C7340

C7345

C7346

C7342

C7338

L7316

C7341

CEC_RST

CEC_RX

R7351

R7350

R7349

R7354

R7327

R7353

R7352

CEC_TX

CEC_P85

R7397

D7302

CEC_NMI

R7322

CEC_CLK

R7330

MI_RESET

C7319

C7321

C7328

C7329

R7314

R7315

R7316

L7309

L7308

L7306

L7305

C7320

L7307

L7311

L7310

K7308

R7312

R7311

R7305

R7304

C7323

C7322

C7355

C7356

C7352

R7362

R7363

R7364

R7323

R7339

R7346

SBD5

WORD

0.1/16

2.2/6.3

100

10/10

100

OPEN

100

OPEN

100

27p

100

33p

0.1/16

100

0.1/16

100

0.1/16

OPEN

0.1/16

10k

0.1 0.1 0.1

0.1/16

10k

0.01

100

0.1/16

100

10k

4.7k

OPEN

0.1/16

10/10

0.1/16

OPEN

3333

OPEN

1000p

470

0.1/16

OPEN

220

10k

47k

6800p/25

OPEN

10/10

4.7k

10/10

0.01

2.2/6.3

10/10

2.2/6.3

10/10

10k

27k

10k

27k

OPEN

10k

0.1/16

100

0.1/16

4.7k

OPEN

0.1/16

OPEN

15k

27k

10k

4.7k

2.2k

GND

MI_OSDYM

MI_OSDYS

MI_D11

MI_D3

MI_D4

MI_D10

MI_D12

MI_D2

MI_A12

MI_A11

MI_A10

MI_A5

MI_A6

MI_A9

MI_A7

MI_A8

STB2.5MI

GND

STB3.3MI

CEC_INT

GND

SDAM

GND

GNDGND

STB_5V

GND

REMOCON

OSDB1

OSDB2

OSDB3

OSDB4

OSDB5

OSDG4

OSDG3

OSDG2

OSDG1

GND

OSDR5

OSDR4

OSDR3

OSDR2

OSDR1

OSDG5

STB3.3MI

MI_D0

CPURST2

GND

MI_D1

MI_D2

MI_D3

MI_D4

MI_D5

MI_D6

MI_D7

LDQM

MI_A15

MI_A14

CSSDRAM

MI_A13

MI_A12

MI_A10

MI_A0

MI_A1

MI_A2

MI_A3

MI_D15

MI_D14

MI_D13

MI_D12

MI_D11

MI_D10

MI_D9

MI_D8

UDQM

CK100

CPURST2

STB3.3V

MI_CK

TEXT_FB

CKE

TEXT_FG

MI_A11

MI_A9

MI_A8

MI_A7

TEXT_FR

GND

WAKE

GND

MECA_SW

KEY1

KEY2

SDAM

SCLM

OSDR1

OSDR2

OSDR3

OSDR4

OSDR5

OSDG1

OSDG2

OSDG3

OSDG4

OSDG5

OSDB1

OSDB2

OSDB3

OSDB4

OSDB5

MI_RX

MI_TX

REMOCON

WAKE

GND

MI_A6

MI_A19

MI_A18

MI_A17

FBout

FBin

GND

POW_GOOD

MI_RX

MI_TX

MI_CK

STB3.3MI

TCK

TMS

TDI

TDO

SCLM

GND

GNDGND

MI_A4

MI_A5

MI_A15

MI_A14

STB_5V

MI_A13

MI_A12

MI_A11

MI_A10

MI_A9

MI_A8

MI_A19

MI_A20

MI_A18

MI_A17

GND

MI_A7

MI_A6

MI_A5

MI_A4

MI_A3

MI_A2

MI_A1 MI_A0

CSROM

MI_D0

MI_D8

MI_D1

MI_D9

MI_D2

MI_D10

MI_D3

MI_D11

MI_D4

MI_D12

GND

MI_D5

MI_D13

MI_D6

MI_D14

MI_D7

MI_D15

MI_A16

BS_RST

QAM_TXD

GND

QAM_RXD

GND

STB3.3V

GND GND

GND

MI_A16

MI_A20

MI_A4

MI_A3

MI_A2

MI_A1

MI_A0

MI_A13

MI_A14

MI_A15

CSSDRAM

CKE

CSROM

CK100_0

MI_OSDYS

UDQM

MI_OSDYM

WORD

MI_D5

CK100

TEXT_FR

TEXT_FG

TEXT_FB

CLK_7309_2

LDQM

MI_D15

MI_D7

MI_D0

MI_D8

MI_D6

MI_D1

MI_D13

MI_D9

CLK_7309_1

KEY1

MI_D14

TCK

TMS

CLK_7309_3

SBD5

TDI

TDO

KEY2

MECA_SW

CEC_RX

CEC_TX

CEC_P85

CEC_NMI

SHEET 7,14,15

SHEET 11

SHEET 14

SHEET 7,14

SHEET 8,DIGITAL INPUT BLOCK

SHEET 8

SHEET 8,10

SHEET 8 SHEET 8

SHEET 11

OPEN OPEN

DIGITAL TUNER

MODULE PWB

SHEET 7

SHEET 11

SHEET 11,13

SHEET 10,18

SHEET 7,10

SHEET 14

SHEET 7,14

SHEET 7

SHEET 9

SHEET 7,8,11

SHEET 7

SHEET 14

SHEET 10

SHEET 10,11

SHEET 10

DIGITAL PWB CIRCUIT DIAGRAM (10/12) SHEET 16

2-40(No.YA551)(No.YA551)2-39

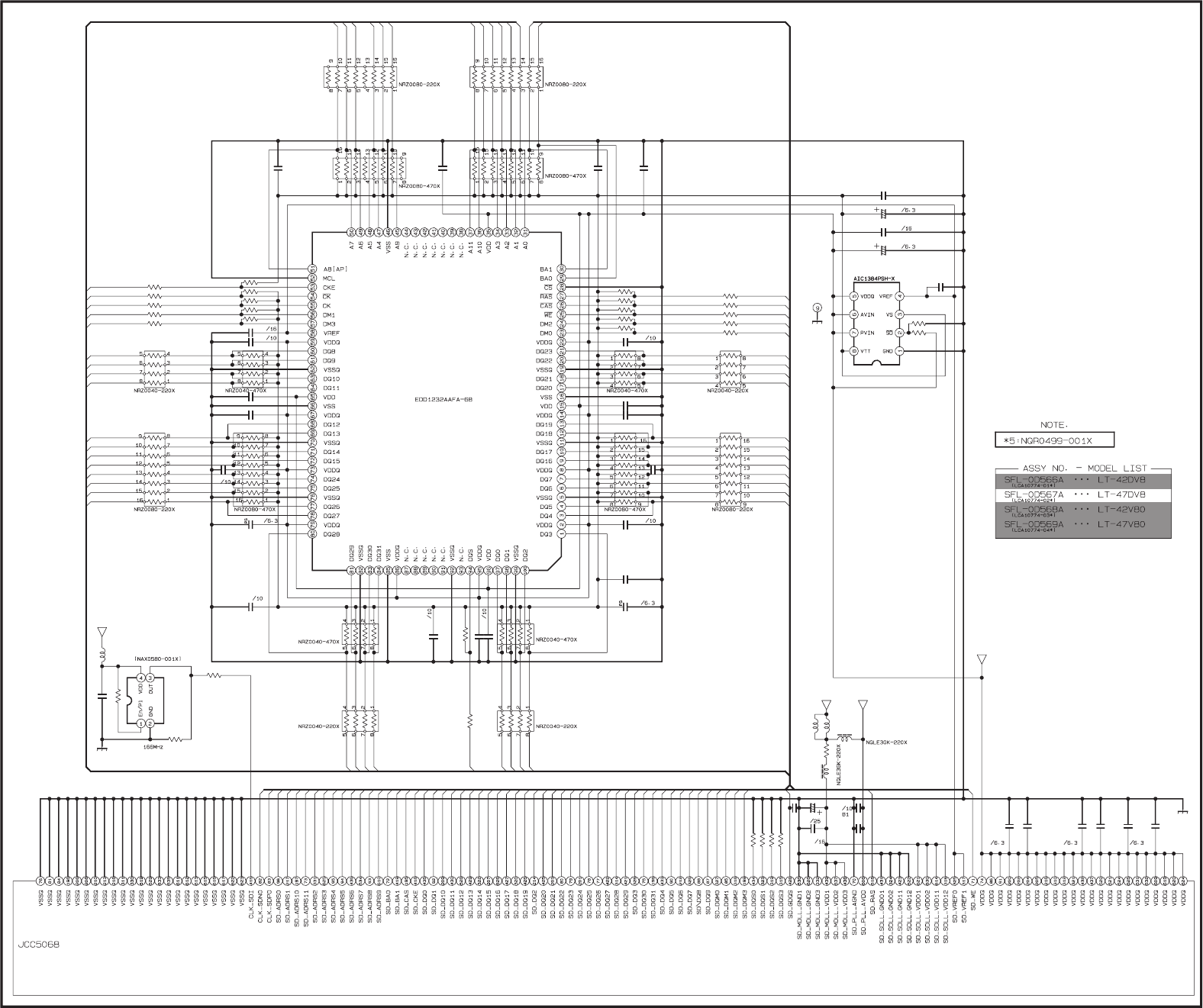

DIGITAL PWB ASS'Y(11/12)

LCA10774-02B(SFL-0D567A)

c10507001a_0702_7/14_0.0

IC5003

RA5001

IC5001

R5059 R5060

R5018

IC5002

FRAME

MEMORY

FRAME

MEMORY

RA5002

R5025

R5026 C5049

C5001

C5002

C5003

C5004

C5005

C5006

C5007

R5019

R5020

R5021

R5022

R5023

R5024

R5058

C5008

C5025

C5026

C5027

C5028

C5029

C5030

C5031

C5032

C5033

C5034

C5035

C5036

C5037

C5038

C5039

C5040

C5041

C5042

C5043

C5044

C5045

C5046

C5047

C5048

C5052

C5053

C5054

C5055

C5056

C5057

C5058

C5059

C5060

C5061

C5063

C5064

C5065

C5066

C5067

C5068

C5069

C5070

C5062

C5071

R5027

R5028 C5050

C5076

C5072

IC5001

C5075

C5074

C5073

C5077

C5078

C5079

C5080

RA5003

RA5004

RA5005

RA5006

RA5007

RA5008

RA5019

RA5010

RA5011

RA5012

RA5009

RA5020

RA5018

RA5017

RA5016

RA5015

R5012

R5001

C5009

C5082C5081

R5002

L5001

R5003

R5004

R5005

L5002

L5003

L5004

L5005

L5006

R5006

L5009

L5007

L5008

R5007

C5051

C5010

C5011

C5012

C5013

C5014

C5015

C5016

C5017

C5018

C5019

C5020

C5021

C5022

C5023

C5024

R5008

R5009

R5010

R5011

R5013

R5014

R5015

R5016

R5017

RA5014

RA5013

100 100

10k

10k OPEN

0.1/16

10k

10k OPEN

0.1/16

0.1/1610/10

OPEN

0.1/16

ADQ31

ADQ30

ADQ29

ADQ28

ADQ27

ADQ0

ADQ1

ADQ2

ADQ3

ADQ4

ADQ5

ADQ6

ADQ7

ADQ8

ADQ9

ADQ10

ADQ11

ADQ12

ADQ13

ADQ14

ADQ15

ADQ16

ADQ17

ADQ18

ADQ19

ADQ20

ADQ21

ADQ22

ADQ23

ADQ24

ADQ25

ADQ26

ADQ27

ADQ28

ADQ29

ADQ30

ADQ31

ADQS0

BDQ0

BDQ1

BDQ2

BDQ3

BDQ4

BDQ5

BDQ6

BDQ7

BDQ8

BDQ9

BDQ10

BDQ11

BDQ12

BDQ13

BDQ14

BDQ15

BDQ16

BDQ17

BDQ18

BDQ19

BDQ20

BDQ21

BDQ22

BDQ23

BDQ24

BDQ25

BDQ26

BDQ27

BDQ28

BDQ29

BDQ30

BDQ31

ADQS1

ADQS2

ADQS3

ADQ26

ADQ25

ADQ24

ADQ23

ADQ22

ADQ21

ADQ20

ADQ19

ADQ18

ADQ17

ADQ16

ADQ15

ADQ14

ADQ13

ADQ12

ADQ11

ADQ10

ADQ9

ADQ8

ADQ7

ADQ6

ADQ5

ADQ4

ADQ3

ADQ2

ADQ1

ADQ0

ADQS0

ADQS1

ADQS2

ADQS3

ACKP

ACKN

BA0

BA1

AAD0

AAD1

AAD2

AAD3

AAD4

AAD5

AAD6

AAD7

AAD8

AAD9

AAD10

AAD11

RAS

CAS

PCKE

BCKN

BCKP

BDQS3

BDQS2

BDQS1

BDQS0

BDQ31

BDQ30

BDQ29

BDQ28

BDQ27

BDQ26

BDQ25

BDQ24

BDQ23

BDQ22

BDQ21

BDQ20

BDQ19

BDQ18

BDQ17

BDQ16

BDQ15

BDQ14

BDQ13

BDQ12

BDQ11

BDQ10

BDQ9

BDQ8

BDQ7

BDQ6

BDQ5

BDQ4

BDQ3

BDQ2

BDQ1

BDQ0

ACKN

ACKP

BDQS0

BDQS1

BDQS2

BDQS3

BCKN

BCKP

AAD0

AAD1

AAD2

AAD3

AAD4

AAD5

AAD6

AAD7

AAD8

AAD9

AAD10

AAD11

BA0

BA1

CAS

RAS

PCKE

BDM0

BDM1

BDM2

AAD0

AAD1

AAD2

AAD3

AAD4

AAD5

AAD6

AAD7

AAD8

AAD9

AAD10

AAD11

BA0

BA1

CAS

RAS

PCKE

BDM3

ADM0

ADM1

ADM2

ADM3

GND

GND GND

VCC2.5D

VCC2.5D2

GND

VCC3D

GND

VCC1.5D

GND

VCC2.5D2

GND GND

GND

VCC1.5D

GND

VCC2.5D2

GND GND

DIGITAL PWB CIRCUIT DIAGRAM (11/12) SHEET 17

(No.YA551)2-41 2-42(No.YA551)

DIGITAL PWB ASS'Y(12/12)

LCA10774-02B(SFL-0D567A)

c1050700a_0702_6/14_0.0

R5037

R5029

R5030

R5031

R5032

R6786

R5036

X5001

L5010

RA5027

CN0LV2

RA5028

RA5030

RA5032

RA5029

RA5031

RA5033

RA5034

RA5035

RA5036

RA5037

RA5038

L5514

L5515

L5516

R5057

R5054

CN0LV2

R6785

C6579

Q6507

R6795

R6794

C6578

PPOW_CNT

R6796

R6797

R6798 R6799

R6752

Q6503

C7040

R7077

R7076

R7078

Q7030

CN0LV1

CN001W

Q6505

R6787

Q6506

R6788

R6789

R6791

R6792

R6793

C6593

CN0LV1CN0LV1CN0LV1

IC6503

LVDS DRIVE

IC5503

R5061

R6768

R6766

R6765R6767

IC6509

R6779

C6588

R6776 R6777

IC6510

C6589

C6591

R6781

R6782

IC5001

FRAME

INTERPOLATE/

LCD CONTROL/

BACK-LIGHT CONTROL

RA6542

L6516

RA6544

RA6546

RA6541

C6520

RA6543

L6501

LC6501

R6561

CN000W

RA6503

RA6545

RA6506

R6571

R6562

LV_CK

RA6505

RA6504

RA6501

C6505

C6504

C6503

C6507

C6506

C6513

C6514

R6554

RA5503

L6511

L5512

L6512

MI_OSDYS

RA5506

RA5505

C6515

RA5504

RA5501 Q6502

R6548

R6549

L6513

L6514

L6515

L5511

L5513

RA6533

R6536

R6537

L6502

C6531 C6532

R6534R6533R6532

Q6501

R6539

R6538

R6541 R6531

LC6501LC6501LC6501

RA6531

IC6001

C5505

C5504

C5503

C5507

C5506

R6558

R6547

LCDFRAME

PDP_TX

PDP_RX

C6571

SDA3A

SCL3A

R6572

R6573

R6544

R6542

RA6532

D6501

R6593

R6594 C6572

D6502

C5513

C5514

R6598

L6531

R6599

C5515

R5035

R5034

R5033

C5086

L5013

L5014

C5083

C5084

R6763

R6762

C6580

R6751

C6581

C6583

C6582

ANA_DIM_0

R6770 R6769

R6790

C6592

C6584

C6585

R6771R5571

R6761

R6764

R6772

C6586

R6773

R6774

D6504

R6775

C6587

R6778

R6780

C6590

R6783

R6784

RA6502

R6506 R6505

R6508

RA5502

R6568

R5506

R5505

R5508

R5568

R6501

R6502

R6553

R6552

R6551

R6507

C6510

C6509

C6501

C6502

C6511

R6512

R6514

R6555

R6513

R6511

R6556

R6557

R5501

R5502

R5507

C5510

C5509

R6535

C6533

PWM_DIM

BL_ON

C5501

C5502

C5511

R6545

R6546

R6543

R5512

R5514

R5513

R5511

UDL_RESET

OPEN

OPEN O PEN

OPEN

10/10

OPEN

3.9k

3.3k

OPEN

0.1/16

OPEN

0OPEN

OPEN

0.1/16

0 OPEN

2.2/6.3

OPEN

0.1/16

OPEN

0.1/16

OPEN

OPEN NPN

47k

OPEN

0.1/16 0.1/16

001k

NPN

47k

10k

OPEN OPEN

OPEN

0.1/16

OPEN

RA0

OPEN

47k

15k 1/16

0.1/16

OPEN

82k

0.1/16

10K

OPEN

0.1/16

OPEN

OPEN OPEN

0.1/16

OPEN

3.3k

1/16

OPEN

2.2/6.3

OPEN

RA0

OPEN 1k

RA0

OPEN

100

OPEN

0.1/16

OPEN

100

OPEN

0.1/16

OPEN

0.1/16

OPEN

VCC1.5DV

LCD3V

VCC3D

GND

520M_BTD1-2

GND

520M_BTCLK2+1

520M_BTCLK2-1

520M_BTC2+1

520M_BTC2-1

520M_BTB2+1

520M_BTB2-1

520M_BTA2+1

520M_BTA2-1

520M_BTE1+1

520M_BTE1-1

520M_BTD1+1

520M_BTD1-1

520M_BTCLK1+1

520M_BTCLK1-1

520M_BTC1+1

520M_BTC1-1

520M_BTB1+1

520M_BTB1-1

520M_BTA1+1

520M_BTA1-1

520M_BTA1-2

520M_BTA1+2

520M_BTD1+2

520M_BTE1-2

520M_BTB2-2

520M_BTE1+2

520M_BTC1-2

520M_BTB1+2

520M_BTC1+2

520M_BTC2-2

520M_BTC2+2

520M_BTCLK1+2

520M_BTCLK2-2

520M_BTCLK2+2

520M_BTCLK1-2

520M_BTA2-2

520M_BTA2+2

520M_BTB2+2

520M_BTD2-1

520M_BTD2+1

520M_BTE2-1

520M_BTE2+1

520M_BTB1-2

520M_BTD2-2

520M_BTD2+2

520M_BTE2-2

520M_BTE2+2

GND

520M_ATE2+1

520M_ATD2-1

LCD5V/12V

LCD3V

520M_ATD2+1

520M_ATE2-1

520M_ATCLK2+1

520M_ATCLK2-1

520M_ATC2+1

520M_ATC2-1

520M_ATB2+1

520M_ATB2-1

520M_ATA2+1

520M_ATA2-1

520M_ATE1+1

520M_ATE1-1

520M_ATD1+1

520M_ATD1-1

520M_ATCLK1+1

520M_ATCLK1-1

520M_ATC1+1

520M_ATC1-1

520M_ATB1+1

520M_ATB1-1

520M_ATA1+1

520M_ATA1-1

DBO6

DBO7

DBO8

DBO9

GND

VCC3.3LV

VCC3D

LCD5V/12V

DBE6

DBE9

DBE8

DBE7

GND

LCD5V/12V

BS_5V VCC3D

GND

BS_5V

VCC3D

LCD3V

GND

LCD5V/12VVCC3D

GND

150M_LVB7_1

GND

520M_ATA1-2

150M_DDB00

150M_DDB01

DBO0

DBO1

DBO2

DBO3

DBO4

DBO5

DBO6

DBO7

DBO8

DBO9

DGO0

DGO1

GND

150M_LVB0

150M_LVB5

150M_LVB1

150M_LVB4

DGO2

DGO3

520M_ATA1+2

VCC3D

150M_LVB2

150M_LVB3

150M_LVB6

DGO4

DGO5

DGO6

150M_LVB7

DGO7

DGO8

DGO9

DRO0

DRO1

DRO2

DRO3

DRO4

150M_DDG00

150M_DDG01

DRO5

DRO6

150M_LVG0

GND

150M_LVG1

150M_LVG2

150M_LVG3

150M_LVG4

GND

VCC3.3LV

150M_LVG5

150M_LVG6

150M_LVG7

150M_DDR00

150M_DDR01

GND

520M_ATB1-2

520M_ATB1+2

520M_ATC1-2

520M_ATC1+2

DRO7

DRO8

520M_ATCLK1-2

520M_ATCLK1+2

520M_ATD1-2

520M_ATD1+2

520M_ATE1-2

520M_ATE1+2

520M_ATB2-2

150M_LVR0

150M_LVR1

520M_ATB2+2

520M_ATA2-2

150M_LVR2

150M_LVR3

520M_ATA2+2

520M_ATC2-2

520M_ATC2+2

520M_ATCLK2-2

520M_ATCLK2+2

150M_LVR4

150M_LVR5

150M_LVR6

150M_LVR7

GND

LCD5V/12V

GND

150M_LVB6_1

LCD3V

150M_LVB5_1

150M_LVB4_1

150M_LVB3_1

150M_LVB2_1

150M_LVB1_1

150M_LVB0_1

150M_DDBO1_1

150M_DDBO0_1

150M_LVR7_1

150M_LVR6_1

150M_LVR5_1

150M_LVR4_1

150M_LVR3_1

150M_LVR2_1

150M_LVR1_1

150M_LVR0_1

150M_DDRO1_1

150M_DDRO0_1

150M_DDGO0_1

150M_DDGO1_1

150M_LVG0_1

150M_LVG1_1

150M_LVG2_1

150M_LVG3_1

150M_LVG4_1

150M_LVG5_1

150M_LVG6_1

150M_LVG7_1

520M_ATD2-2

520M_ATD2+2

GND

520M_ATE2-2

520M_ATE2+2

VCC3.3LV

GND

LCD5V/12V

GND

VCC3D

GND

DBE0

DBE1

DBE2

DBE3

DBE4

DBE5

DBE6

DBE7

DBE8

DBE9

DGE0

DGE1

DGE2

DGE3

DGE4

DGE5

DGE6

DGE7

DGE8

DGE9

DRE0

DRE1

DRE2

DRE3

DRE4

DRE5

DRE6

DRE7

DRE8

DRE9

DRO9

GND

VCC2.5D

GND

VCC1.5D VCC1.5DV

DRO0

DRO1

DRO2

DRO3

DRO4

DRO5

DRO6

DRO7

DRO8

DRO9

DGO0

DGO1

DGO2

DGO3

DGO4

DGO5

DGO6

DGO7

DGO8

DGO9

DBO0

DBO1

DBO2

DBO3

DBO4

DBO5DBE5

DBE4

DBE3

DBE2

DBE1

DBE0

DGE9

DGE8

DGE7

DGE6

DGE5

DGE4

DGE3

DGE2

DGE1

DGE0

DRE9

DRE8

DRE7

DRE6

DRE5

DRE4

DRE3

DRE2

DRE1

DRE0

POWER PWB(2/3)

CN00W

SHEET 20

OPEN

LCD PANEL UNIT

(CONTROL PWB)

LCD PANEL UNIT

(CONTROL PWB)

SHEET 14

SHEET 7,8,14,DIGITAL INPUT BLOCK

SHEET 14

SHEET 10

SHEET 14

SHEET 10,16

SHEET 15

SHEET 14

YC SEPARATE/

CHROMA DEMODURATE/

FORMAT CONVERT/

NOISE REDUCT/

RGB PROCESS/

OSD COMPOSITION/

SUB CPU

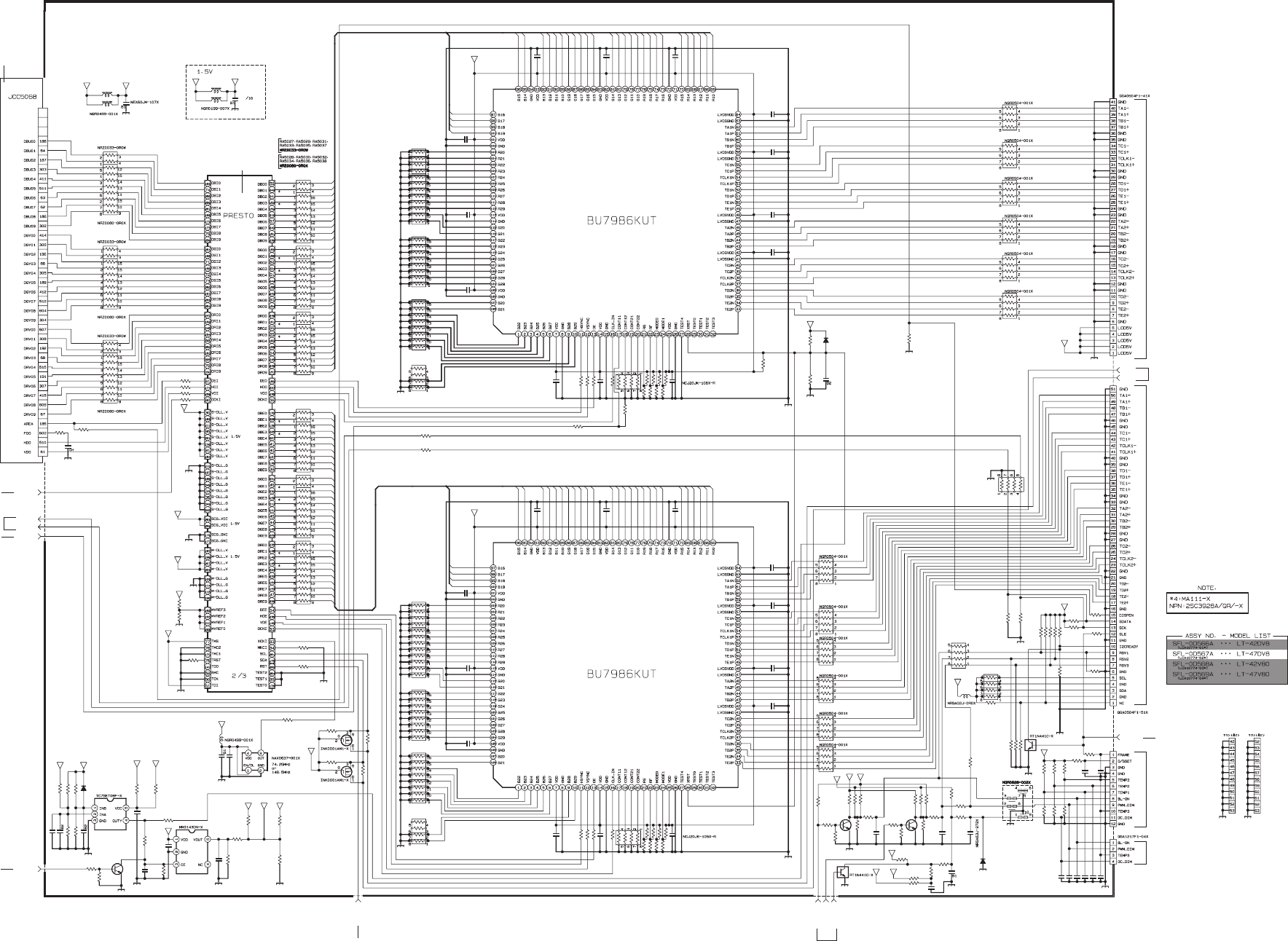

DIGITAL PWB CIRCUIT DIAGRAM (12/12) SHEET 18

2-44(No.YA551)(No.YA551)2-43

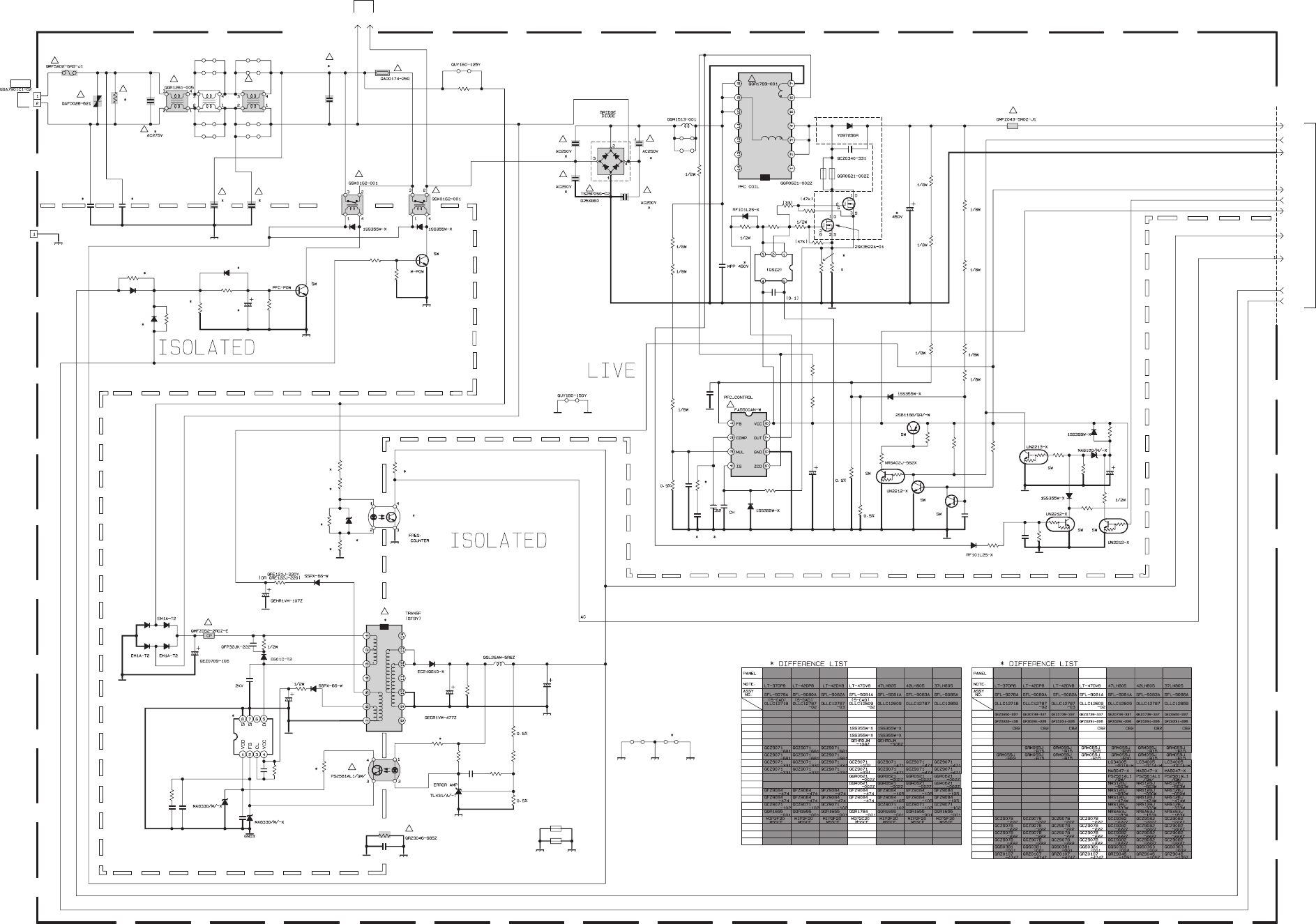

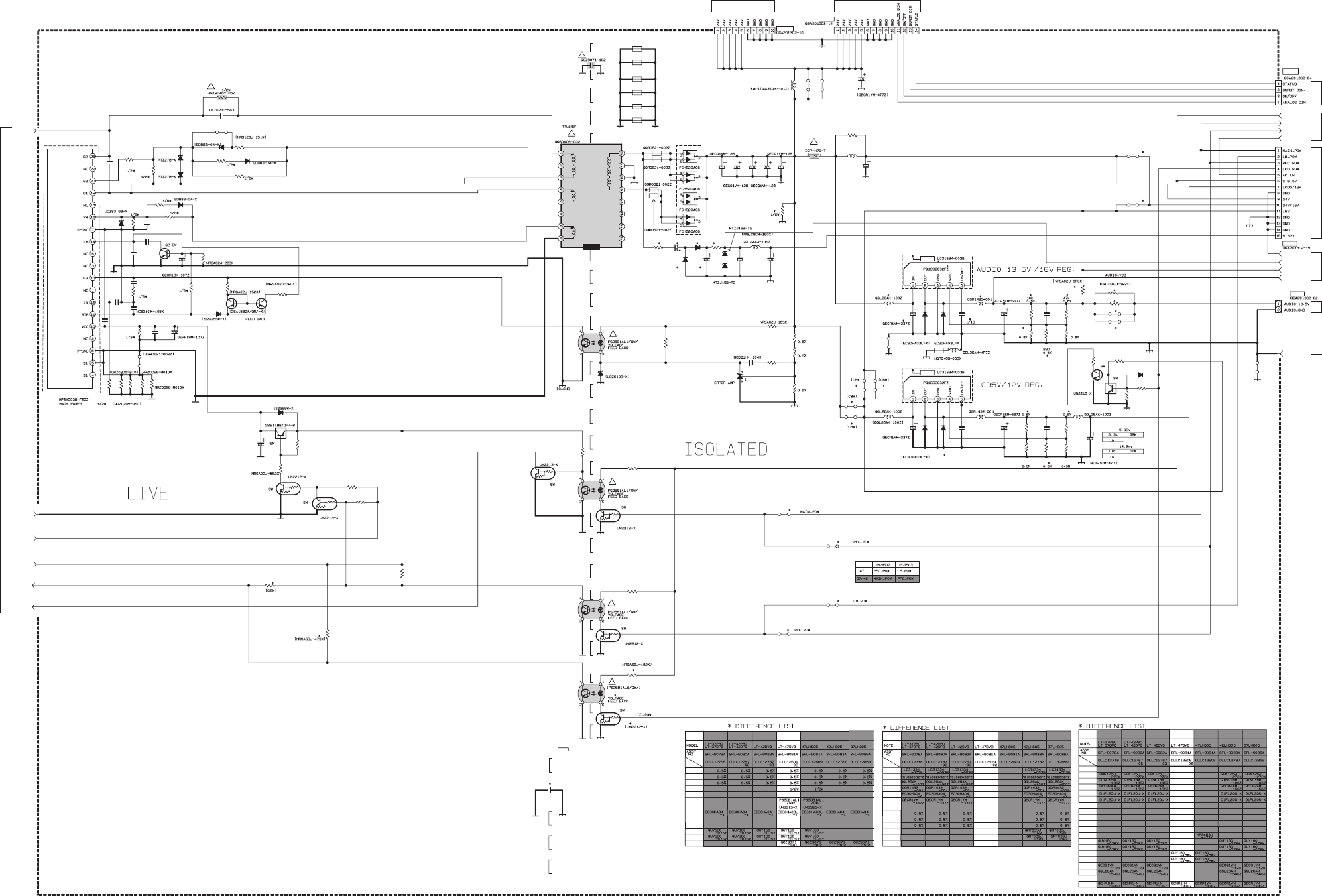

POWER PWB ASS'Y(1/3)

SFL-9081A-U2

c10535001b_0727_1/3_0.0

IC9502

C9219

C9214

MAIN_POW

Q9502

R9530

R9515

AC_IN

Y9005

Q9510

D9504

Y9251

D9003

D9218

R9005

Y9006

R9507

R9519

R9505

IC9201

C9209

L9502

SW18V

TH9001

R9526

R9221

R9540

R9209

R9541

Y9007

Y9008

IC9201

CP9201

Q9002

D9503

D9215

K9502

R9208

R9529

R9210

C9502

Q9507

R9520

Y9052

D9502

R9216

Q9506

18V

PC9301

PFC_CTR

C9212

R9211

R9301

C9011

Q9503

C9509

PON

R9302

C9211

R9303

L9201

R9304

T9201

D9204

R9206

C9206

C9207

R9207

K9503

Y9002

Y9001

Y9003

Y9004

C9504

Q9504 R9524

R9525

R9523

R9522 R9528

R9527

D9508

D9505

D9506

D9507

C9510

C9511

Q9505

R9004

PFC_POW

D9301

PC9202

R9208

C9208

R9350

R9205

D9002

C9501

R9003

R9002

Q9001

RY9001

D9203

C9205

R9532

D9206

R9215

R9213

R9542

R9212C9210

D9205

R9214

R9001

C9209

R9210

R9543

LF9003

C9503

C9221

C9220

R9220

CN0E1

C9506

D9005

L9501

C9512

D9216

H9001

C9204

Q9511

D9004

D9006

D9301

R9006

R9007 C9012

C9540

R9008

PC9301

R9302

C9010

R9010

R9001

R9301

R9304

Y9501

Y9502

R9350

Y9009

C9006

C9007

C9008

C9010

STB_5V

C9009

R9303

R9501

R9533

R9502

Q9508

R9534

T9201

D9213 D9214

D9212

Y9051 Y9052

R9006

R9007

C9011

D9211

R9532

C9512

D9005

D9006

C9012

RY9002

D9001

R9503

R9504 R9501

R9502

R9512

R9511

C9009

C9002

C9008

C9006

C9503

C9007

D9501

Q9501

R9517

R9516

R9518

R9510

R9506

R9508

R9514

C9506

C9505

C9507

C9508

K9202

R9509

K9201

K9202

C9002

C9501

R9513

C9001

375V

GND1

R9521

CP9501

C9004C9003

F9001

VA9001

C9001

CN0PW LF9001LF9002 LF9003

C9003

C9004

AC1

AC2

100/35

OPEN

NPN

220k

BW7.5

OPEN

47k

BW7.5

22k

470k

330k

OPEN

CBW

OPEN

BW7.5

NPN

47k

100

68k

OPEN

330/10

3.3k

NPN

0.01

470/35

100

1/50

0.1

390K

OPEN

0.0022

820k

47k

15k 220k

47k

0.1

100/50

2.2k

0.1

0.0022

OPEN

220k

47k

2.2k

NPN

10k

OPEN

47k

0.1

470

OPEN

47k

0.1

OPEN

47k

15k

0.1

OPEN

270

10/450

OPENOPEN

OPEN

.47/25

OPEN

OPENOPEN

OPEN

3.3k

15k 15k

270

OPEN

270

OPEN

15k

270

15k

OPEN

15k

OPENOPEN

OPEN

270 270

OPENOPENOPEN

5.6K

OPEN OPEN

47K

OPEN

CBW

OPEN

CBW OPEN

OPEN 2.2K

CBW

2.2K

OPEN

OPENOPEN

OPEN

CBW

OPEN

OPEN OPEN OPEN

OPEN

47k

0.1

470k

OPEN

820k

2200p

OPEN

330k

390k

OPEN

100

9.1k

220k

18k

0.01

.001

47/35

BW BW

220k

CBW

BW BW

OPEN

820k

OPEN

47k

0.1

100k

OPEN

OPEN *

GND2A

GND1

GND3

GND3 GND1

GND2A GND2B GND2

GND3

GND2CGND2B

GND2A

GND3

GND2B

GND2C

GND1

GND2A

GND2BGND3

GND3

GND2C

GND1

POWER

CORD

SHEET 20

SHEET 21

POWER PWB CIRCUIT DIAGRAM (1/3) SHEET 19

(No.YA551)2-45 2-46(No.YA551)

POWER PWB ASS'Y(2/3)

SFL-9081A-U2

c10535001b_0727_2/3_0.0

T9501

Y9754

CN00P

D9601

375V

L9602

R9756

C9603

CN00A

C9602

PC9503

C9605

R9757

CN00Q

C9604

C9592

R9558

Q9702

D9556

C9560

R9560

R9556

R9578

K9551

PC9502

Q9602

C9611

R9551

L9601

PC9501

C9601

Y9601

R9621

Y9602

R9652

R9606

C9612

R9569

D9561

D9604

D9554

D9553

IC9751

R9568

Q9555

Q9556

Q9557

D9555

R9563

Q9552

Q9553

R9572

Q9551

C9564

Y9751

R9573

R9575

C9561

R9564

R9562

R9753

R9559

C9558

R9574

C9559

D9602

R9557

C9551

L9751

C9557

Y9752

R9625

L9753

IC9701

C9554

R9565

R9577

R9567

SW18V

R9566

D9603

18V

D9552

R9555

Y9551

C9751

R9707

R9706

R9703

MAIN_POW

STB_5V

PFC_POW

L9701

R9579

PC9504

AC_IN

C9651

C9701

Q9604

R9641

C9703L9702

R9651

D9701 D9702

C9702

R9701

R9702 R9705

C9555

R9553

R9704

Q9558

C9704

D9651

D9652

GND1

H9701

C9652

D9654

C9653

L9651

K9602

C9654

Q9603

R9631

R9580

PON

AUDIO_GND

PFC_CTR

R9576

AUDIO+13.5V

16V

C9753

GND2

BT32V

R9554

D9703

R9701

C9653

C9705

L9703

C9562

R9561

R9704

D9551

R9703

R9607

R9609

R9608

K9605

D9611

L9752

R9605

Y9621

CN00F

Q9701

R9708 R9709

R9758

Y9622

R9603

R9604

R9641

D9751 D9752

C9752

R9751

R9752

Y9663

C9553

C9556

D9557

IC9501

R9755

R9754

C9754

K9751

C9552

R9552

H9751

K9606

K9601

IC9601

TL431/A/-T

Y9662

C9592

Y9664

K9604

K9603

CP9601

PC9504

Q9604

Y9661

Y9756

R9579

R9580

Y9632

D9702

Y9661

Y9662

Y9663

Y9664

Y9754

Y9755

Y9631

Y9753

Y9751

Y9752

Y9755

C9610

R9603

H9751

IC9751

L9751

C9591

L9752

D9752

C9751

C9752

R9751

R9753

R9754

R9756

K9607

K9608

K9609

K9610

D9653

R9757

R9758

Y9621

Y9622

Y9631

Y9632

CN00W

R9651

R9652

C9651

C9652

D9651

D9652

C9610

R9625

L9602

OPEN

1200/35

10k

0.047

18k

100k

150

OPEN

1200/35

BW2

1.8k

BW2

27k

0.1/50

0.1

OPEN

47k

NPN

OPEN

5.6k

OPEN

0.1

68k

OPEN

820

22k

68k

0.001

0.1

0.0018

820

100k

OPEN

330/35

680/25

OPEN

OPEN OPEN

330p

22k

OPEN

100/50

1.8k

100k

680/25

10k

OPEN

10k3.3k

68k

100/50

10k

OPEN

68k

6.8k

3.9k

100k

OPEN

10k

OPEN

39k

NPN

330 100k

OPEN

OPEN OPEN 2.2k

10k

1.8k

OPEN

10k

OPEN

820p

100/16

OPEN

47k

OPEN

1/16

10k

820

220k

10k

68k

2.2k

1.8k

10k

68k

OPEN

OPENOPEN OPEN

OPENOPEN

10k

OPEN CBW

OPEN

CBW

OPEN

68k

CBW

OPEN

47k

OPEN

CBW

OPEN

BW15

OPEN

BW15

OPEN

BW15

CBW

OPEN

OPENOPEN OPEN OPEN

OPEN CBWCBW CBW OPEN

OPEN

1/16

10k

820

47k

OPEN

OPEN OPEN

OPEN

1/16

10k

820

47k

OPEN

OPEN BWBW BW OPEN

OPEN

BW OPENOPEN OPEN B W

OPEN

CBW CBW

OPEN

BW15

OPEN

1/16

10k

820

220k

CBW

OPEN

OPEN CBW

CBW

OPEN

OPEN OPEN

CBW

OPEN CBW CBW

OPEN OPEN

CBW

OPEN

CBW

OPEN

CBW

1/16

10k

820

47k

OPEN

10k

68k

OPEN

BW15

IC_GND

GND24

GND1

GND2

GND24

GND2

GND24

Vcc_GND

GND24

GND2

GND1

GND2

GND1

GND2

GND24

GND1 GND2

GND2

GND2 AUDIO_GND

GND1 GND2

SHEET 19

DIGITAL PWB

(12/12)

CN001W

SHEET 18

ANALOG PWB

(4/6)

CN10F

SHEET 4

DC-DC PWB

CN00A

SHEET 24

SHEET 19

SHEET 21

INVERTER PWB

(SLAVE SIDE)

INVERTER PWB

(MASTER SIDE)

POWER PWB CIRCUIT DIAGRAM (2/3) SHEET 20

2-48(No.YA551)(No.YA551)2-47

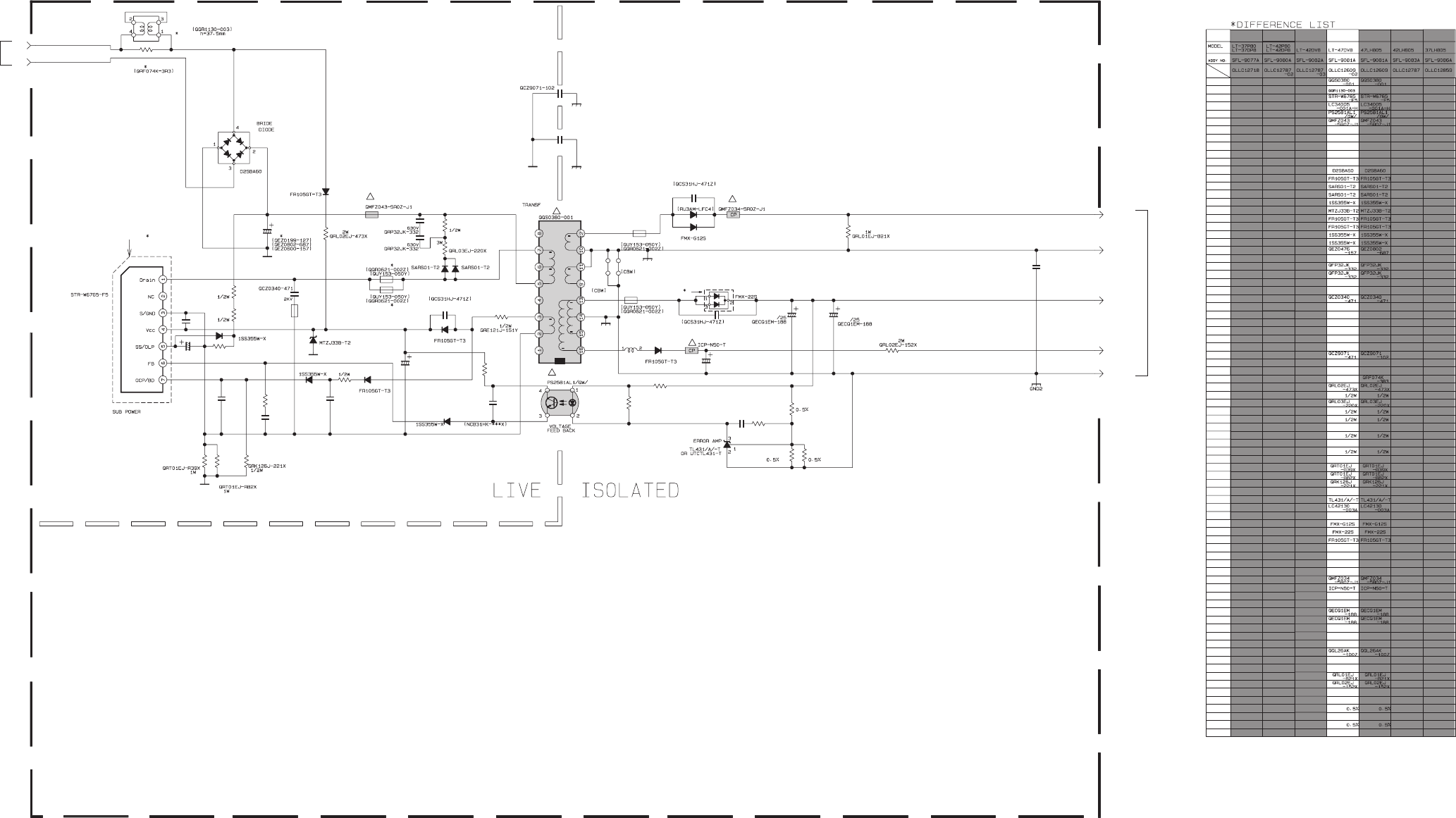

POWER PWB ASS'Y(3/3)

SFL-9081A-U2

c10535001b_0727_3/3_0.0

T9801

D9810

IC9801

D9801

K9901

D9904

C9801

CP9801

C9906

AUDIO+13.5V

D9802

R9814

R9811

C9807

H9801

C9809

C9903

R9809

D9806

C9805

C9813

C9904

K9801

D9901

PC9801

AC1

R9805

R9806

R9807

R9801

D9805

AUDIO_GND

L9801

C9816

C9910

C9905

C9806

C9902

R9905

C9817

R9907

R9906

C9909

K9802

D9809

D9803

K9902

R9808

L9903

CP9901

CP9902

16V

BT32V

C9812

R9810

R9802

GND2

R9804

C9804 R9901

R9902

H9901

Y9901

D9903

K9803

C9804

R9803

C9810

C9811

C9814

C9808

R9904

R9812

D9807

R9813

D9804

D9808

R9903

R9908

IC9901

AC2

T9801

L9801

IC9801

H9801

PC9801

CP9801

K9801

K9802

K9803

D9801

D9802

D9803

D9804

D9805

D9806

D9807

D9808

D9809

D9810

C9801

C9805

C9806

C9807

C9808

C9809

C9810

C9811

C9812

C9813

C9814

C9816

C9817

R9801

R9802

R9803

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9811

R9812

R9813

R9814

IC9901

H9901

D9902

D9903

D9904

K9901

K9902

CP9901

CP9902

C9902

C9903

C9904

C9905

C9906

L9903

C9909

C9910

R9901

R9902

R9903

R9904

R9905

R9906

R9907

R9908

D9902

Y9902

220

3.3/50

22/50

1800

3.3k

0.0033

1800

OPEN

220k

47k

2200p

OPEN

0.1

OPEN

18k

OPEN

3.3k

12k

150

820p

47k

0.0033 820

1.5k

OPEN

560K

OPEN

470p

OPEN

470p

0.1

3.3/50

0.39

0.82

22/50

OPEN

820p

OPEN OPEN OPEN

0.1

OPEN

470p

OPEN

560k

220k

47k

150

3.3k

OPEN

10/100

0.1

2200p

18k

12k

3.3k

OPEN

0.1

3.3/50

22/50

OPEN

820p

0.1

470p

OPEN

560k

220k

47k

150

3.3k

OPEN

10/100

0.1

2200p

18k

12k

3.3k

OPEN

AUDIO_GND

GND2B

GND5

GND2

GND5

SHEET 20

POWER PWB CIRCUIT DIAGRAM (3/3) SHEET 21

SHEET 19

(No.YA551)2-49 2-50(No.YA551)

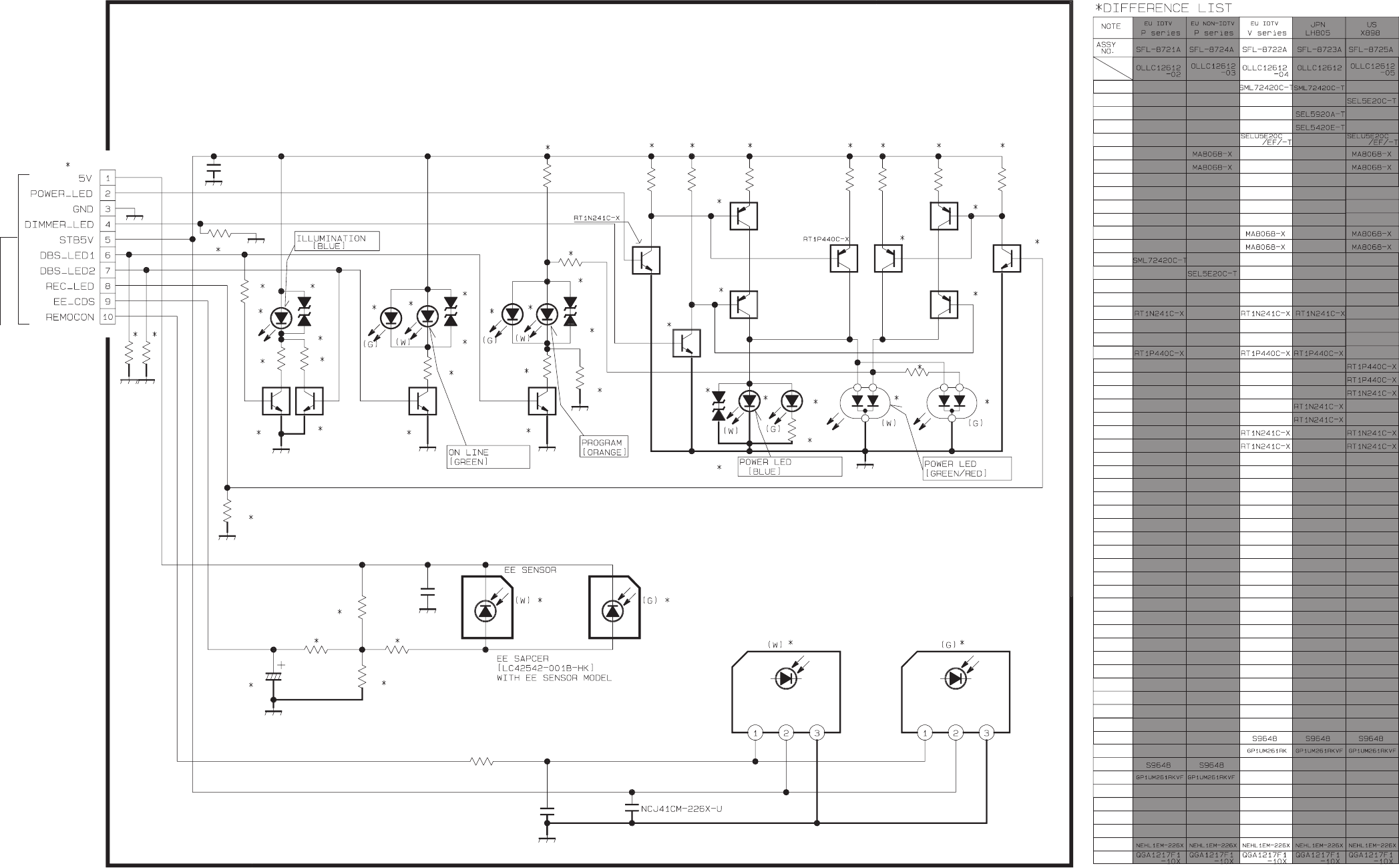

LED PWB ASS'Y

SFL-8722A-U2

c30229001b_0727_1/1_0.0

R8716

D8705 D8704

Q8704

Q8702

D8702

Q8706

D8701

D8702

D8703

D8705

D8706

D8707

R8724

Q8710

D8701

D8712

R8723

Q8711

R8722

Q8708

Q8704

Q8713

Q8708

Q8709

Q8701

R8751

R8720

Q8712

R8712 R8711

Q8705

Q8707

R8711

Q8707

Q8703

R8717

R8751

Q8706

R8721

R8753

R8714 R8713R8715

CN100U

D8704

R8754R8752

IC8751

C8751

R8701

C8753

R8722

R8712

R8755

R8719

R8713

Q8713

R8725

R8718

R8752

IC8751

R8753

R8754

C8751

R8715

R8716

Q8710

Q8711

Q8712

R8714

R8717

R8718

R8724

R8723

R8721

R8720

R8719

R8729

R8726

D8703

D8712

D8713

D8707

D8706

D8708

D8710

D8711

D8708

D8709

D8710

D8713

Q8701

D8711

Q8702

Q8703

D8709

R8725

R8729

R8728

R8727

R8726

CN100U

D8771

D8772

D8773

D8774

IC8752

IC8771

IC8772

C8754

C8755

D8774 D8773

D8772 D8771

IC8771

IC8772IC8752 IR RECEIVE

C8752

R8702

R8701

R8702

R8727

R8728

OPEN

10K

OPEN

680

OPEN

10K

OPEN

680

OPEN

270K

100

68K

33K

OPEN

330

OPEN

10K

OPEN

220K

100

47K

18K

OPEN

10K

OPEN

330

OPEN

10K

OPEN

330

OPEN

220K

OPEN

100

47K

18K

OPEN

10K

OPEN

680

OPEN

10K

OPEN

680

OPEN

120

390

OPEN

270K

100

68K

33K

OPEN

470

10K

OPEN

120

390

OPEN

270K

100

68K

33K

OPEN

STB5 V

GND

ANALOG PWB(2/6)

CN00U

SHEET 2

LED PWB CIRCUIT DIAGRAM SHEET 22

2-52(No.YA551)(No.YA551)2-51

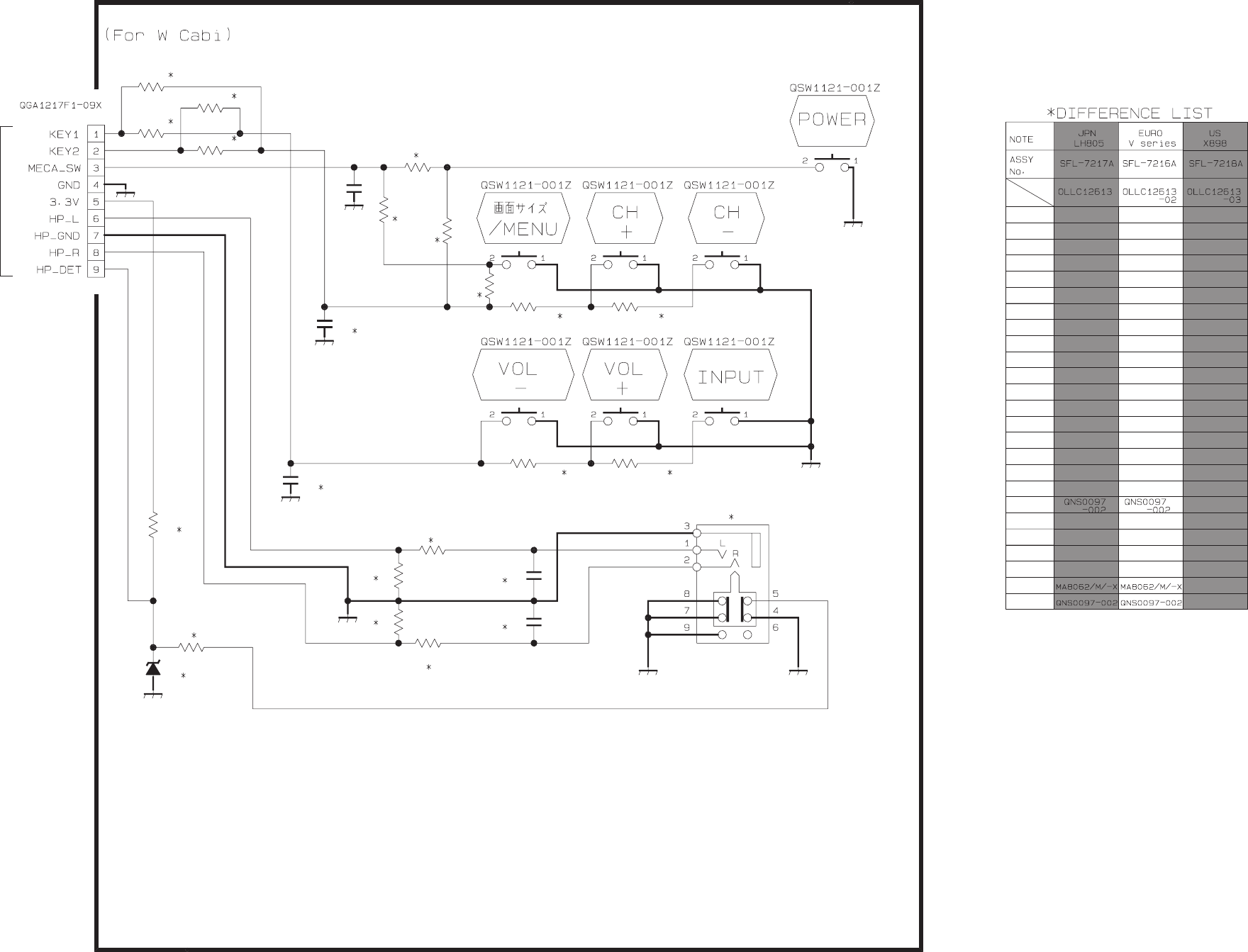

SW PWB ASS'Y

SFL-7216A-U2

c30228001b_0727_1/1_0.0

CN100R

R7013

R7014

R7015

R7703

S7704

S7703 S7702

S7705

S7701

R7701 R7702

R7704

S7706

S7707

R7011

R7012

C7702

C7703

C7011

C7012

R7016

D7011

R7709

R7712

R7710

R7711

R7705

R7706

R7707

R7708

J7001

R7011

C7703

C7702

C7701

R7705

R7706

R7707

R7708

R7709

R7710

R7711

R7712

R7012

R7013

R7014

J7001

R7015

R7016

R7701

R7702

R7703

R7704

D7011

J7001

C7011

C7012

0.01

OPEN

10K

100

10K

100

5.6K

15K

5.6K

0.01

15K

OPEN

4.7K

8.2K

4.7K

8.2K

OPEN

5.6K

15K

5.6K

15K

OPEN

0.1

OPEN

GND

3.3V

GND

GNDGND

GND

ANALOG PWB(2/6)

CN00R

SHEET 2

SW PWB CIRCUIT DIAGRAM SHEET 23

(No.YA551)2-53 2-54(No.YA551)

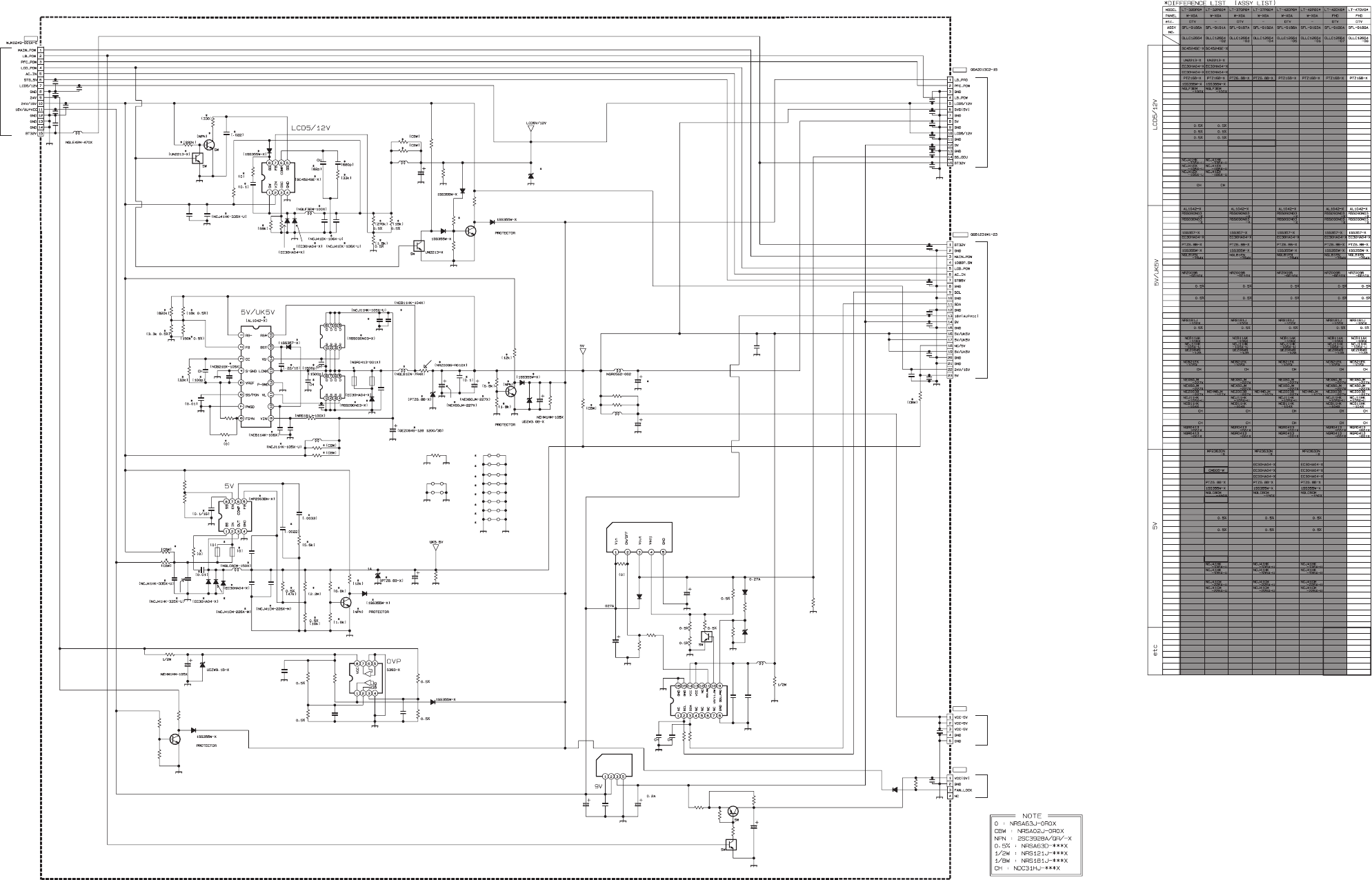

DC-DC PWB ASS'Y

SFL-9189A-U2

c1053800a_0619_1/1_0.0

IC9701

L9902

D9703

R9409

C9702

L9702

R9704

C9707

C9701

D9702

R9706

R9708 R9707

R9709

C9706

C9705

C9704

R9710

R9711

Q9703

R9611

D9702

D9705

C9711

R9713

R9712

D9704

C9714

C9703

C9709

Q9602

R9603

D9608

IC9601

R9717

R9601

R9723

K9702

C9608

R9616

R9604

C9609

R9611

R9612

Q9601

R9613

CN00K

CN00Y

D9606

C9604

D9601

C9611

C9612

C9602

C9606

L9602

R9609

D9604

C9603

D9602

L9601

R9608

R9610

C9601

R9407

Q9401

C9602

C9721

CN00A

C9612

R9408

D9403

D9605

R9912

R9614

C9710

Q9701

Q9702

R9951 Q9951

IC9951

C9951 C9953C9952

C9903

D9901

IC9901

C9905

R9909

C9906

CN00H

IC9902

R9903

R9911

R9910

D9904

R9907R9905

R9906

D9903

C9902

Q9901

R9904

R9908

C9901

L9703

R9902

R9913

R9914

C9904

C9712

C9987

CN0DC

Q9952

R9813

D9805

R9954

R9952

C9954

D9951

D9701

L9704

C9713

R9607

R9606

K9701

R9716

R9721

R9702

R9701

C9708

R9617

R9719

R9616

R9615

C9609

C9606

R9720

IC9401

R9402

R9404 R9406

R9403

R9405

C9404

C9401

D9402

D9401

R9401

C9402

C9403

C9806

R9812

C9807

C9810

R9803

IC9801

D9803

D9802

C9808

C9809

L9802

D9801

D9706

IC9701

R9953

C9804

R9618

R9801

R9806

R9808

C9803

R9809

R9810

Q9801

C9715

R9811

R9802

D9804

C9802

C9723

R9719

C9724

R9602

Q9604

R9751

Q9603

R9807

C9805

Q9701

Q9702

Q9703

D9701

D9703

D9704

L9702

R9701

R9702

R9704

R9706

R9707

R9708

R9709

R9710

R9711

R9712

R9720

C9701

C9702

C9703

C9704

C9705

C9706

C9707

C9709

C9710

C9712

C9714

IC9801

Q9801

D9802

D9803

D9804

L9802

R9801

R9802

R9803

R9806

R9807

R9808

R9809

R9810

Q9603

Q9604

K9701

C9801

R9811

C9802

C9803

C9805

C9806

C9807

C9808

C9809

R9813

K9801

R9804

R9805

C9801

L9701

D9801

R9604

R9610

D9601

D9602

D9604

IC9601

D9608

L9601

R9601

R9602

R9603

R9606

R9608

R9609

C9608

R9615

C9603

C9604

R9751

R9723

L9901

K9702

C9725

C9983

C9981

C9982

C9984

C9988

C9994

C9989

C9990

C9991

C9993

C9985

C9986

C9995

C9992

R9955

C9452

C9453

C9454

C9451

C9455

C9456

C9721

C9724

C9722

C9723

R9750

C9998

K9802

C9715

Y9901

Y9902

Y9903

K9801

K9802

Y9904

Y9905

D9805

Y9906

Y9951

R9814 R9814

Y9952

Y9907

Y9908

Y9901

Y9902

Y9903

Y9904

Y9905

Y9906

Y9907

Y9908

8.2k

2.2k6.8k

1/50

22k

OPEN

6.8k

OPEN

1.2k

NPN

12k

OPEN

330

220k

OPEN

68k

OPEN

NPN

270k

18k

33k

1.5k

CBW

12k

OPEN

1500p OPEN

15k

OPEN OPEN

OPEN

OPEN OPENOPEN

OPEN

OPENOPEN

OPEN

0.1

OPEN

1500p

0.1

82p

OPEN

6.8k

OPEN

4.7k

OPEN

4.7k 4.7k

6.8k

27k

0.1/25

1/50

3.3k

0.1/25

OPEN

NPN

OPEN

680p

0.022

0.1

82p

1500pOPEN 1500p

OPEN

CBW

OPEN

CBW

33k

OPEN

680p

0.022

OPEN

0.1 OPEN 0.1 OPEN 0 .1OPEN 0.1

OPEN

1500p

18k

820k

3.3k

6.8k

1.8k

12k

150k

0.01

100p

0.22/10

OPEN

NPN

CBW

OPEN

33k

18k

820k

3.3k

6.8k

1.8k

12k

OPEN

150k

0.01

100p

0.22/10

OPEN OPEN

NPN

CBW

33k

18k

820k

3.3k

6.8k

1.8k

12k

OPEN

150k

0.01

100p

0.22/10

6.8k

OPEN OPEN

OPEN

NPN

OPEN

1500p OPEN 1 500pOPEN 1500p

OPEN

NPN

CBW

33k

18k

820k

3.3k

6.8k

1.8k

12k

OPEN

150k

0.01

100p

0.22/10

OPEN

00OPEN

330

220k

OPEN

68k

OPEN

270k

18k

33k

1.5k

CBW

OPEN

OPENOPEN

2.2k

OPEN

NPN

OPEN

5.6k

47k

2.2M

10k

6.8k

1.8k

NPN

OPEN

12k

0.01

.0022

.0033

0.1/16

CBW

OPEN

CBW

OPEN

CBW

OPEN OPEN OPEN OPEN

CBW

OPEN

NPN

CBW

OPEN

5.6k

47k

2.2M

10k

6.8k

1.8k

OPEN

12k

0.01

.0022

.0033

0.1/16

CBW

OPEN

6.8k

OPEN

NPN

CBW

5.6k

47k

2.2M

10k

6.8k

1.8k

OPEN

12k

0.01

.0022

.0033

0.1/16

OPEN

CBW

OPEN

OPEN OPEN O PEN

OPEN

0.1

OPEN

0.1

OPEN

0.1

OPEN

0.1

OPEN

0.1

OPEN

CBW

0.1

OPEN OPEN O PEN

OPEN

OPEN OPEN OPEN

OPEN OPEN OPEN OPENOPEN

OPEN

OPEN OPEN OPEN OPEN

OPEN

CBW OPEN O PEN

OPEN

OPEN 0 0

OPEN

OPEN 0 0

OPEN

6.8k

1500p

OPEN

0.1

OPEN

NPN

CBW

33k

18k

820k

3.3k

6.8k

1.8k

12k

150k

0.01

100p

0.22/10

OPEN

1500p

OPEN

OPEN 0 0

OPEN

OPEN 0 0

OPEN

GND

GND GND

GND

GND GND

GND

GND GND

POWER PWB(2/3)

CN00A

SHEET 20

DIGITAL PWB (9/12)

CN0DC

SHEET 15

ANALOG PWB (6/6)

CN00H

SHEET 6

OPEN

DC-DC PWB CIRCUIT DIAGRAM SHEET 24

2-56(No.YA551)(No.YA551)2-55

TU3001

C106

C108

C118

C119

C120

C121

C124

C125

C126

C127

C128

C129

C130

C132

C133

C138

C139

C141

C148

C149

C150

C151

C152

C153

C154

C155

C166

C172

C175

C179

C184

C185

C189

C194

C195

C196

C199

C200

C201

C207

C208

C209

C210

C212

C213

C261

C262

C263

C264

C282

C283

C284

C285

C286

C287

C291

C292

C293

C401

C402C403

C404

C405

C406C407

C408

C409

C410

C411

C412

C413 C415

C416

C417

C428 C429

C430

C440

C441

C442

C443

C444

C445C446C447

C448C449C450C451

C452

C453

C454

C455

C456

C457

C461

C462

C463

C464

C465

C466

C468

C469

C491

C492

C493

C494

C533

C603

C604

C613

C614C615

C616

C617

C618

C619

C620

C621

C622

C623

C624

C625

C626

C627

C628

C629

C631

C634

C635

C636

C637

C638

C639

C640

C642

C644

C645

C646

C647

C648

C649

C650

C651

C652

C653

C654

C655

C656

C659

C660

C661

C662

C663

C665

C666 C667

C668

C670

C671

C672

C753

C754

C755

C761

C771

C774

C901

C904

C905

C906 C913

C914

C920

C931

C951

C952

C953

IC606

C961

C962

C963

C964

C965

C966

C967

C968

C969

C971

C973

C981

C982

C3002

C3005

C3008

C3009

C3501

C3502

C3505

C3516

C3525

C3526

C3528

C3529

C6102

C6103

C6104

C6105

C6106

C6107

C6108

C6109

C6111

C6112

C6113

C6114

C6115

C6116

C6117

C6118

C6119

C6120

C6121

C6122

C6123

C6124

C6126

C6127

C6128

C6602

C6651

C6661

C6662

C6663

L608

UV H

10F

CN001

CN002

CV1

CV2

D101

D102

D103

D104

D105

D283

D284

D401

D402D403

D404

D405D406

D407

D408

D409

D411

D412

D413

D414

D415

D416

D427

D428 D440

D441

D442

D443

D444

D445

D446

D447

D461

D462

D463

D465

D466

D467D468

D469

D491

D492

D503

D602

D603

D604

D605

D606

D607

D608

D609

D610

D611

D903

D931

D961

D962

D963

D6104

IC101

IC102

IC104

IC105

IC541

IC601

IC602

IC603

IC604

IC605

IC902

IC951

IC961

IC971

IC981

IC6001

J401 J402

J403

J405

J406

J410

K101

K102

K103

K104

K105

K106

K107

K108

K601

K3001

K3501

K6101

K6102

K6103

K6104

K6601

L101

L102 L103 L104

L602

L603

L604

L605

L606

L901

L902

L903

L906

L961

L3001

L3002

L3503

L6101

L6102

L6103

L6104

Q106

Q107

Q108

Q109

Q110

Q111

Q112

Q113

Q434

Q435

Q436

Q437

Q438

Q439

Q444 Q445

Q601

Q602

Q931

Q932

Q933

Q934

Q6102

Q6103

Q6104

Q6105

Q6106

Q6107

R140

R141

R143

R144

R146

R147

R148

R149

R151

R152

R153

R154

R155

R156

R158

R159

R160

R161

R162

R163

R164

R165

R166

R167

R168

R169

R181

R184

R188

R189

R201

R202

R206

R207

R211

R212

R213

R216

R217

R218

R219

R220

R223

R224

R225

R229

R230

R231

R232

R233

R234

R235

R236

R237

R238

R239

R241

R242

R243

R245

R246

R247

R248

R250

R251

R252

R254

R255

R256

R259

R260

R261

R262

R263

R264

R265

R266

R267

R274

R275

R276

R278

R279

R288 R289 R293

R300

R301

R302

R305

R306

R308

R310

R311

R401R402R403

R404

R405 R406

R410

R411

R412

R413

R414

R426R427

R445

R446 R447

R448

R450

R451R452

R453

R454

R455

R456

R457 R458

R459 R460

R462

R475

R476

R482

R483

R484

R485

R486

R487

R488

R489

R491

R535 R538

R586

R587

R601

R602R603

R604

R605

R606

R607

R608

R609

R610

R611

R612

R613

R614

R615

R616

R617

R618

R619

R620

R621

R622

R623

R624

R625

R626

R627

R628

R629

R634

R635

R638

R639

R640

R641

R642

R643

R650

R651

R652

R653

R654

R655

R656

R657

R658

R659

R660

R661

R662

R664

R665 R666

R667 R668

R669R670

R671

R672

R673

R901

R902

R903R904

R912

R961

R962

R963

R964

R965

R966

R967

R968

R6106

R6107

R6108

R6109

R6110

R6111

R6112

R6113

R6114

R6115

R6116

R6117

R6118

R6119

R6120

R6121

R6124

R6125

R6126

R6127

R6128

R6133

R6134

R6135

R6140

X601

X3501

D470

L609

R644

C685

C686

C290

C907

D290

Q114

Q115

R203

R204 R205R221

R222

R290

R905

R906

R6141

R6142

R6143

R6144

R6145

R6146

R6147

R6148

R6149

CL001

CL002

TU3001

C107

C116

C117

C122

C123

C131

C134

C142

C143

C156

C157

C158

C161

C167

C168

C169

C170

C171

C173

C174

C176

C177

C178

C180

C181

C182

C183

C186

C187

C197

C198

C202

C211

C216

C217

C218

C219

C220

C418

C419

C420

C421

C422

C424

C425

C426

C427

C431

C432

C433

C601

C602

C630

C632

C633

C641

C643

C657

C658

C664

C751

C752

C756

C757

C758

C759

C760

C772

C773

C775

C776

C972

C3001

C3003

C3004

C3006

C3007

C3010

C3011

C3012

C3013

C3014

C3015

C3016

C3017

C3019

C3503

C3512

C3513

C3514

C3515

C3517

C3518

C3523

C3524

C3530

C3531

C3532

C3533

C3534

C3535

C3536

C3537

C3544

C3545

C3546

C3547

C6110

C6116

C6119

C6125

C6601

C6602

10F

R215

D421

D422

D423

D424

D425

D431

D432

D492

D3501

IC751

IC752

IC3501

IC3504

J401

J402

J403

J405

J406

J410

K3502

L601

L607

L3003

L3004

L3504

LC3501

Q431

Q432

Q433

Q751

Q752

Q3001

Q3003

Q3004

Q3005

Q3503

R142

R145

R150

R157

R170

R171

R183

R190

R191

R192

R197

R208

R209

R210

R228

R268

R269

R270

R271

R277

R294

R303

R304

R307

R312

R419

R420

R421

R422

R423

R437

R438

R439

R440

R441

R442

R443

R444

R461

R464

R467

R584

R585

R630

R631

R632

R633

R636

R637

R663

R755

R756

R757

R758

R759

R760

R761

R762

R763

R764

R765

R766

R767

R768

R769

R770

R771

R772

R773

R774

R775

R776

R777

R778

R779

R780

R781

R782

R783

R931

R932

R933

R934

R935

R936

R937

R938

R939

R940

R951

R981

R982

R983

R984

R3001

R3002

R3003

R3004

R3005

R3008

R3009

R3010

R3011

R3012

R3013

R3014

R3015

R3016

R3017

R3018

R3019

R3020

R3021

R3022

R3023

R3024

R3025

R3509

R3510

R3514

R3515

R3516

R3517

R3546

R3547

X3501

R309

#PC01020

#PC01021

#PC01022

#PC01023

R3006

R6150

R6151

R6152

R6153

R6154

R6155

R6156

R6157

R6158

CL001

CL002

C3018

R784

R785

R786

R787

TOP

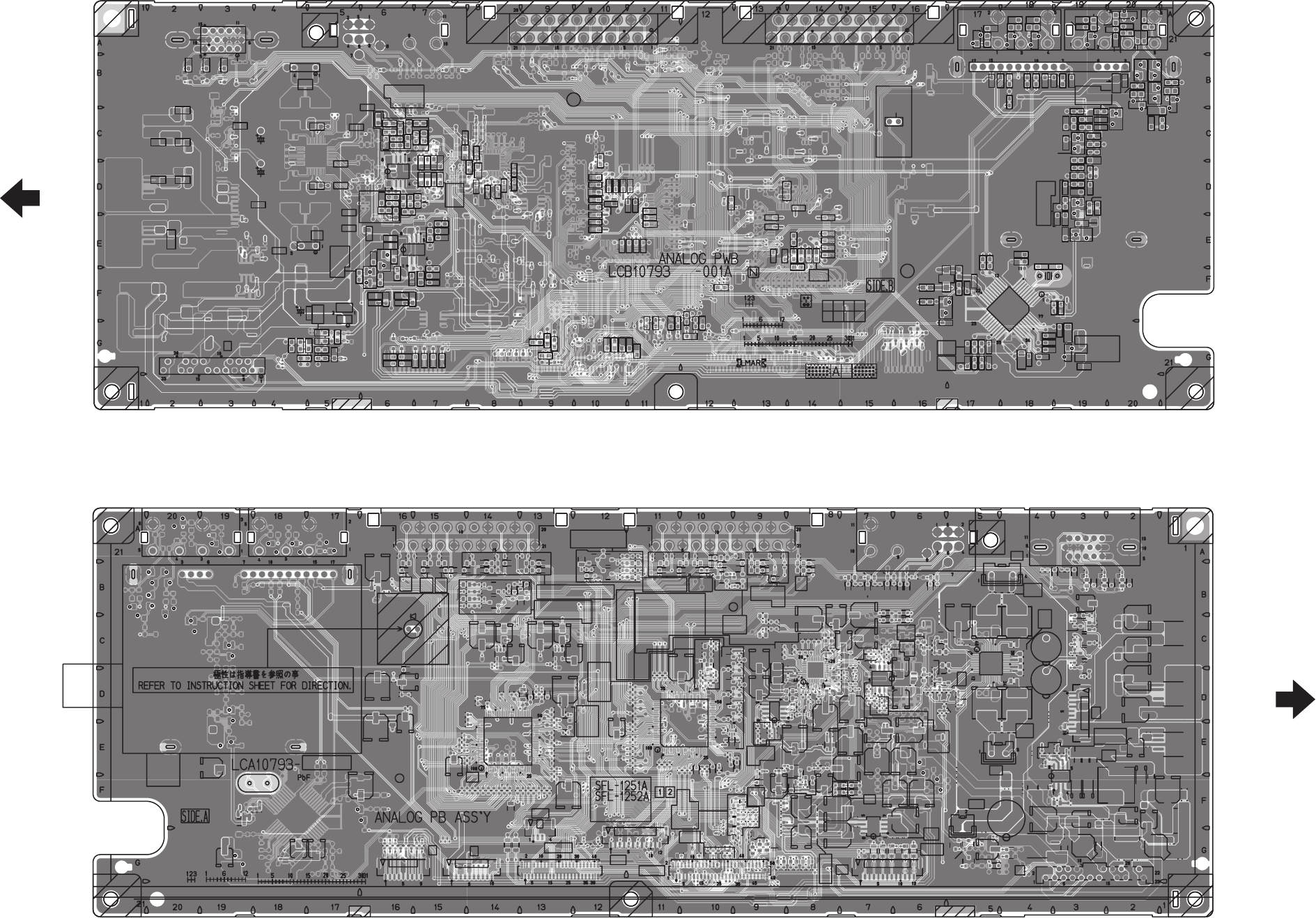

PATTERN DIAGRAMS

NALOG PWB PATTERN [SOLDER SIDE]

NALOG PWB PATTERN [PARTS SIDE]

(No.YA551)2-57 2-58(No.YA551)

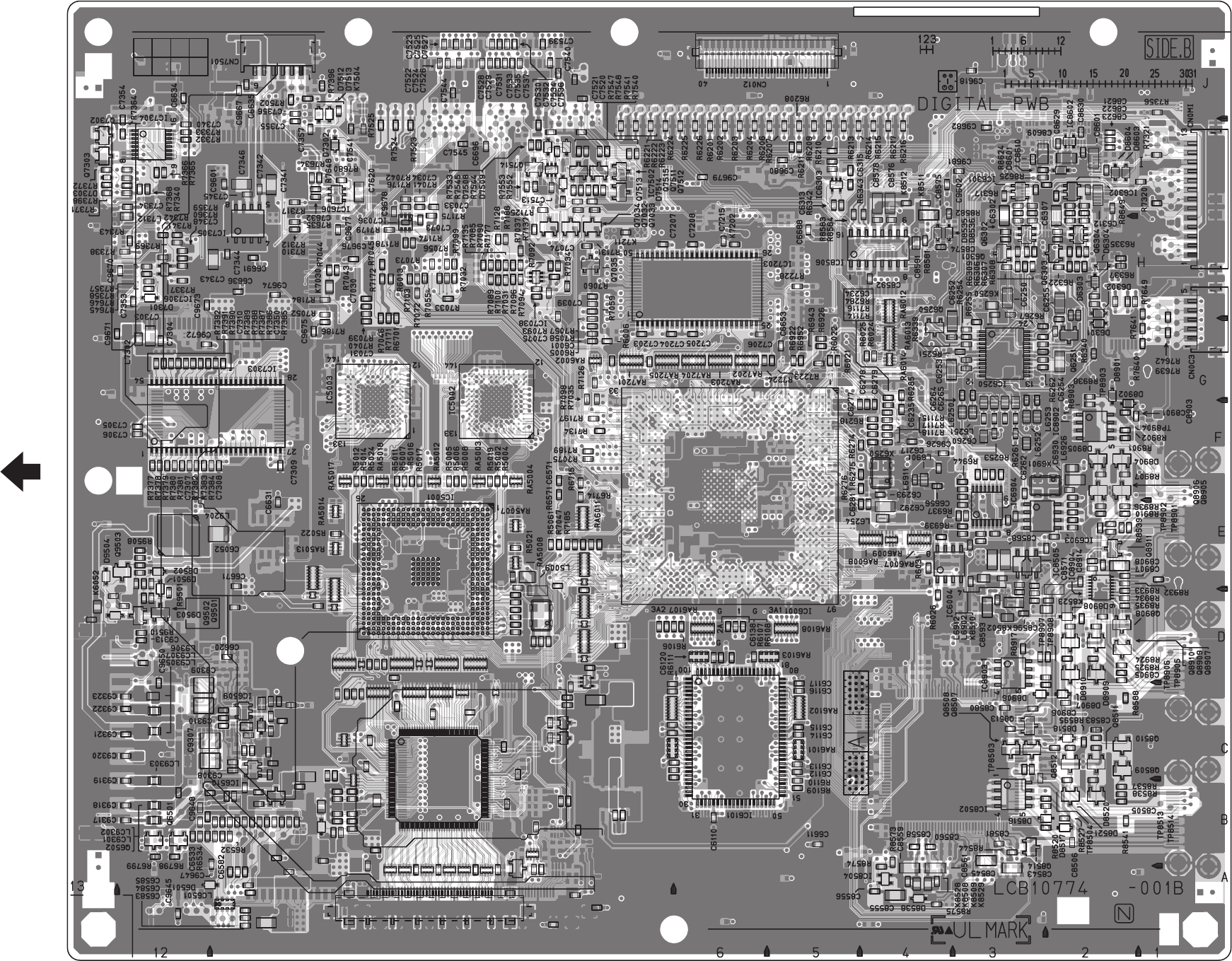

C6001

C6052

C6103

C6104

C6105

C6106

C6107

C6112

C6113

C6114

C6115

C6116

C6117

C6251

C6292

C6293

C6314

C6513

C8908

C7030

C7031

C7033

C7034

C7039

C7203 C7204 C7205 C7206

C7207 C7208

C7305

C7306

C7334

C7340

C7345

C7346

C7348

C7349

C7502

C6578

C6579

C8505

C8543

C8545

C8555

C8556

C8558

C8559

C8560

C8561

C8569

C8570

C8571

C8572

C8573

C8574

C8575

C8577C8579

R6790

CN012

CN7501

D7508 D7509

D8901

C6583

C6584

C6585

C6587

C6588

C6590

C6591

C6608

C6611

C6613

D8520D8521

C6616

C6620

C6636

D8535 D8536

IC6101

100

IC6250

IC7304

IC7502

C6628

IC8502

IC8505

K6250

K8502

K8503

L6254

L6511

L6512L6513L6514L6515L6516

L6902

L7312

LC9301

LC9302

LC9303

LC9305

LC9307

Q6501Q6502

Q7032 Q7033Q7034

Q7035

C6624

Q8507Q8508

Q8509

Q8510

Q8511Q8512

C6666

R6005 R6006

R6101

R6102

R6109

R6110

R6250

R6251

R6254

R6255

R6258

R6259

R6262

R6263

R6267

R6272

R6273

R6278

R6279

R6505R6506

R6507R6508

C6667

R6511R6512

R6513R6514

R6561

C6668

C6671

R6924

R7033

R7039

R7040

R7041

R7042

R7052

R7057

R7058

R7059

R7060

R7075

R7093

R7114

R7115

R7116

R7117

R7118

R7123 R7124R7125

R7131

R7310

R7312

R7317 R7320

R7321

R7332

R7333

R7337

R7338

R7339

R7341R7342

R7346

R7356

R7357

R7358

R7359

R7360

R7501

R7530

R7532

C7632

R7635

R7645

R7646

R6776

R8503

R8910

R8520

R8522

R8526

R8527

R8528 R8529

R8530

R8533R8534

R8537

R8538

R8540

R8542

R8543

R8544

R8574

R8575

RA6002

RA6007RA6008 RA6009

RA6103RA6104

RA6107 RA6108

RA6503RA6504RA6505RA6506

RA6532

RA7201 RA7202RA7203RA7204RA7205

D7514

L9306

R6341

D6303

R8645

C7355

C7356

C8901

C6656

D9501

D9504

Q9501

Q9503

R9505

R9506

R9507

R9508

R9509

R9510

C8905

C8906

Q6250

Q6251

R6248

R7175

R7176

R7179

C6234

C9317

R6284

C6002

C6217

C7075

C8580

C8581

C9305

C9307

C9308

C9309

C9310

C9313

C9314

R6077

R7184

R7186

CN0LV1

C7076

D7512 D7513

R6218

R6219

R7228

R7369

R7189

K7202

C9209

L9204

R6080

D6502 R6598

K8510

K8523

K7211

R7371

R7372 Q7511

Q7514

Q7515

R7374

R7375

R7551

C8907

R6926

X6901

L6926

C6930

C6931

C9626

C6303

C6304 C6305

C6308

C6309 C6310

C8606

C8621

C8622

C8623

IC8602

R6309

R6311

R6312

R6313 R6315

R6316

R6322

R6324

R6325

R6326 R6328

R6329

R6332 R6333

R6335

R6336

R6337

R6338

R6339

R7197

R6923

R8624

R8625

C8626

D8603D8604

C6934

C6935

IC6903

R6032

R6954

R6931

R6932

R6933

R6934

R6935

R6936

R6939

R6940 R6941

R6943

R6944

R6945

R7134

R6345

C8583

R6034

R5021

R5022

R5029

R5030

R5031

R5032

R5035

R5036

R5037

R6775

C9604

C5081

C6607

RA5027RA5029

RA5031

RA5037

L5009

RA5003 RA5004RA5012RA5017 RA5018

RA5028 RA5030 RA5032RA5038

IC5002

108

109

144

IC5003

108

109

144

IC6303

IP0C1-1

IP0C1-2

IP0C1-3

IP0C1-4

IP0C3-5

IP0ID-1IP0ID-2IP0ID-3IP0ID-4IP0ID-5

IP0MM-1

IP0MM-2

IP0MM-3

IP0MM-4

IP0MM-5

IP0MM-6

IP0MT-1

IP0MT-2

IP0MT-3

IP0MT-11

IP000W-1IP000W-2

IP000W-3

IP000W-4

IP000W-5IP000W-6IP000W-7

IP000W-8IP000W-9IP000W-11

IP000W-12

IP001-1

IP001-2

IP001-3

IP001-4

IP001-5

IP001-6

IP001-7

IP001-8IP001-9

IP001-10

IP001-11

IP001-13 IP001-14

IP001-15

IP001-16

IP001-17

IP001-18

IP001-19

IP001-20

IP001-21

IP001-22

IP001-23

IP001-24

IP001-25IP001-26

IP001-27

IP001-28

IP001-29

IP001-30

IP001-31

IP001-32

IP001-33

IP001-34IP001-35IP001-36

IP001-37

IP001-38

IP001-39

IP001-40

IP001-41IP001-42

IP001-43

IP001-44

IP001-45

IP001-46

IP001-47

IP001-48

IP001-49

IP001-50

IP002-1

IP002-2

IP002-3

IP002-4

IP002-5IP002-6

IP002-7

IP002-8

IP002-9 IP002-10IP002-11

IP002-12

IP002-13

IP002-14

IP002-15IP002-16IP002-17

IP002-18IP002-19

IP002-20

IP002-21

IP002-22

IP002-23

IP002-24

IP002-25

IP002-26

IP002-27

IP002-28

IP002-29

IP002-30

IP002-31

IP002-32

IP002-33

IP002-34

IP002-35

IP002-36

IP002-37

IP002-38

IP002-39

IP002-40

IP232SW-1

IP232SW-2

IP232SW-3

IP232SW-4

IP7501-1IP7501-2IP7501-4

IP7501-5

IP7501-6

IPADA3V

IPDC-1

IPDC-2IPDC-4

IPDC-8

IPDC-12

IPDC-14

IPDC-15

IPDC-GND

R9511

C6691

C9618

C9642

C9644

C9657

C9661

D6504

D7302

D8904D8905

D8909D8910

IC6503

128

IC8902

IC8903

IC8904

IP0ID-6

K8511K8512

LC6501

Q8905Q8906

Q8907

Q8908

Q8909Q8910

R5571

R6777

R6780

R6782

R7680

R8901

R8902

R8903

R8906 R8907

R8911

R8915

R8916

R8918 R8919

R8920

R8922R8923

R8924

R8925

R8930

R8931

R8932

R8933

R8934

R8935

R8936R8937

R8938

IP7601-1IP7601-2IP7601-3IP7601-4

C9663

C9664

C9672

C9674

C9676

C9679

C9680

C9681

C9682

C8594 C8595

C8596

IP000W-10

R7398

R9054

R9055

Q6507

R6795

C9318

C9319

C9320

C9321

C9322

C9323

R6798R6799

C7545

C7546

R5002

R7649

C6108

C6110

C6120

C6121

C6138

C6250

C6252

C6253

C6254 C6255

C6256

C6257

C6258

C6259

C6260

C6262

C6264

C6265

C6266

C6267

C6277

C6278

C6279

C6281

C6501

C6502

C6504

C6505

C6506

C6507

C6315

C6509

C6510

C6511

C6514

C6515

C6531

C6532

C6533

C6912

C7303

C7304

C7307

C7308

C7309

C7310

C7341

C7342

C7343

C7344

R6593

C7350

C7513

C7620

C7622

C7623

C7624

C8504

C8506

C6503

C6580

C8568

C8576

C8578

R5004

CN0MI

R6791

C6592

C6586

C6589

D8516

D8517

D8518

C6614

C6634

C6635

IC7203

12.5

13.5

37.5

38.5

IC7303

13.5

14.5

40.5

41.5

IC7305

4.5

5.5

IC7306

IC7606

IC8504

IC8506

K6052

K7030

C6631

K8508

K8509

C6652

C6653

L6250

L6251

L6252

L6253

L6901

L7302

Q8513

Q8514

R6013

R6021

R6022

R6103

R6104

R6105

R6106

R6107

R6108

R6111

R6142

R6143

R6201

R6202

R6203

R6204

R6206

R6207

R6208

R6209

R6210

R6213

R6214

R6215

R6216

R6217

R6221

R6222

R6223

R6224

R6225

R6226

R6252R6253

R6256

R6260R6261

R6264

R6266

R6270

R6274R6275R6276

R6501

R6502

R6532

R6533

R6534

R6541

R6546

R6547

R6551

R6552

R6553

R6554

R6555

R6556

R6557

R6558

R6562

R6568

R6571

R6572

R6573

R6701

R6702

R6703

R6704

R6705 R6714 R6715

R6922

R7031

R7032

R7034

R7035

R7043

R7044

R7045

R7046

R7047

R7055

R7056

R7061

R7072 R7073

R7081

R7084

R7085

R7088

R7089

R7090

R7091

R7092

R7094

R7095

R7096

R7098

R7099

R7100

R7103

R7126

R7128

R7171

R7172

R7223

R7224

R7340

R7343

R7502

R7521

R7523

R7524

R7525

R7529

R7533

R6594

R7634

R7639

R7640 R7641

R7642

C6688

R8524

R8525

R8539

R8541

R8573

C6696

R8580

R8581

R8582

R8583

R8584

IC6004

R6031

RA6011

RA6012RA6013RA6014

RA6101 RA6102

RA6105

RA6106

RA6501

RA6502

C9601

RA6541 RA6542RA6543 RA6544RA6545 RA6546

C8591

X6250

C8592

D8538

C7353

R6340

D6304

CN0C3

C6313

C7354

C7357

C8903

C8904

C6571

R7648

C9501

C9502

D9502

D9503

Q9502

R7540

R7541

R9501

R9502

R9503R9504

C6249

C7073

IC7036

R6249

R7174

R7177

R7178

C6235 R6285

C7074

C9306

R6079

R7185

R7544

IC6002

D7301

IC7038

K7504

R6211

R6212

R7364

R7365

R7366

R7368

R7188

C7215

D6501

C6572

K8529

K8522

L6912

L6911

K8528

IC6001

182.25

183.25

364.5

365.5

546.75

547.75

729

C7520

C7521

Q7512Q7513

R7545

R7546

R7547

R7548

R7549

R7550

R7552

R7553

R7554

R7555

R8606

C8914

R7037

R6024

R6025

C6302

C6306

C6307

C6311

C6312

C8601

C8602

C8609

C8610

C6581

C6582

D6301 D6302

D8601

IC6301

IC6302

Q6301

Q6302

Q6303

Q6304

R6306

R6307

R6308

R6310

R6314

R6317

R6318

R6319

R6320

R6321

R6323

R6327

R6330

R6331

R7199

R8647

C8630

R8649

C8629

C6004

C6933

IC6904

R6026

R6930

R6937

R6938

R6942

R6946

R6947

R6948

R6949

R6952

R7135

C9602

R6773

C8582

R5005

R5006

R5007

R5008

R5011

R5012

R5014

R5016

R5017

R5019

R5024

R5501

R5502

R5568

C5082

C5083

C5084

RA5033

RA5035

L5010

X5001

RA5007RA5008

RA5013 RA5014

RA5034

RA5036

IC5001

97.25

98.25

194.5

195.5

291.75

292.75

389

IP0C3-1IP0C3-2IP0C3-3IP0C3-4

IP0MT-4

IP0MT-5

IP0MT-6

IP0MT-7IP0MT-8IP0MT-9IP0MT-10 IP0MT-12IP0MT-13

IPDC-6 IPDC-510

Q6503

R6342

R6343

R6751

R6752

R7244

R7377

R7378

R7379

R7380

R7381

R7382

R7383

R7384

R7385

R7386

R7387

R7388

R7389

R7390

R7391

R7392

C9645

C9647

C9648

C9650

D8902

D8906

D8907

D8908

IC6509

IC6510

K8901

Q8911

R5061

R6771

R6772R6774

R6778

R6779

R6781

R6783

R6784

R7132

R7396

R8588

R8595

R8917

R8921

R8939

C9667

C9670

C9671

C9673

C9675

C9677

C9678

R6785

C7522

C7523

C7524

C7525

C7526

C7527

C7528

C7529 C7530

C7531 C7532

C7533 C7534

C7535 C7536

C7537

C7539

C7540

C8593

D7303

Q6505Q6506

Q7302Q7303

R6786R6787

R6788

R6789 R7137

R6794

R6796

R6797

C7541

C7542

C7544

C7547

C7548

DIGITAL PWB PATTERN [SOLDER SIDE]

TOP

2-60(No.YA551)(No.YA551)2-59

CN0LV2

C6101 C6102

C6109

C6122

C6123

C6132

C6135

C6136

C6201C6202C6203C6204C6206C6207C6208C6209C6210C6212C6213C6214C6215 C6216 C6221C6222C6223C6224C6225C6226

C6246

C6248

C6261

C6263

C6269

C6275

C6282

C6286

C6287

C6288

C6297

C6701

C6723

C6904

C6906

C6913

C6915 C6916

C6918

C6919

C6925

C6926

C6927

C6928

C7032

C7041C7042

C7043

C7044

C7059 C7060

C7061

C7068

C7211

C7301

C7302

C7311

C7312

C7313

C7319 C7320 C7321

C7323C7324

C7325

C7326 C7327

C7328 C7329

C7330 C7331

C7601

C7625

C8509C8512

C8513C8517C8518C8519

C5503

C8523

C8524

C8525

C8916

C8531

C8532

C8533

C8534

C8535

C8536

C8537

C8538

C8539

C8540

C8541

C8542

C8544

C8546

C8547 C8548

C8549

C8552

C8553 C8554

C9101

C9103

C9303

CN000W

CN002 CN001

R7195

D7032

D7033

D9401

C6609

C6610 C6612

C6615

C6619

C6626

IC6251

IC7032

IC7201

IC7301

128

IC7302

IC9101

IC9301

4.5

5.5

IC9401

C6658

K6274

K6272

K6268

K7031

K7032

K7302

C6632

C6633

L6102

L6103

L6105

L6266

K6271

L6501

L6502

L5511L5512L5513

L6701

L6922

L6923

L6924L6925

L7303

L7308

L7309

L7310

L7311

L7313

L7315

C6654

Q6202

C6630

C6663

R6002

R6004

R6011

R6012

R6112

R6113

R6114

R6115

R6116R6117

R6118

R6119

R6120

R6121

R6127

R6128

R6130

R6257

R6265

R6268

R6269 R6271

R6761

R6531

R6538

R6539

R6542

R6548

R6549

C6622

R7038

R7086

R7087

R7097

R7101

R7104

R7105

R7107 R7109

R7156

R7157

R7201

R7202

R7203

R7207

R7208

R7211

R7212

R7214R7215

R7216

R7217

R7221

R7225

R7226

R7227

R7302

R7303

R7304

R7305

R7311

R7313

R7314

R7315

R7316

R7318

R7319

R7324 R7325

R7328

R7329

R7347

R7348

R7349

R7350

R7351

R7352

R7353

R7354

C6681

C6684

C6685

C6689

C6621

R8545

R8546

R8547

R8551

C6693

R8554

R8567

R8571

R8572

R8579

R9301

R9302

R9303

R9305

R9307

RA6111 RA6112

RA6115RA6116

RA6531

RA6533

X7309

L9307

K6922

K6923

C9020

C9030

C9050

C9052

C8902

C9061

C9104

C9251

C9252

X7001

K9052

C6139

R6232

R6233

C6230

C8599

C6218

Q6203 Q6204

Q6205

Q6206

Q7036

Q7037

R6078

R6238

R6769

R7183

K7502

K7503

K7505

K7506

Q7301

R7367

R8585

D8537

L6257

L6259

R9402

R7370

L6931

L6115

L6531

R7238

R7239

C7216

R6599

C6219

C6220

C6227 C6229

C6240

C6300

C6301

Q6207

Q6208

Q6209

Q6210

R6290

R6293

R6302

R6303

R7373

C8910

R8602

R8603

C8912

C8917

R7243

R7515

L6265

C8611

C8612

C8614

C8616

C8617

C8620

C8624

IC8601

IC8603

C9056

Q8601

R8615

C9057

R8627

R8628

R8629

R8637

R8638

R8639

R8640

R8641

R8642

R8643

RA8601 RA8602

C9063

RA8605 RA8606

L8603

IC6003

R6029

C6603

R6035

R6037

R5018

R5028

R5033 R5034

R5506

R5505

R5508

R5507

C9603

R5512

R5511

R5514

R5513

R5054

C9605

R5058

C5008

C5009

C5012

C5013

C5014

C5015

C5016

C5017

C5024

C5025

C5026

C5027

C5029

C5030

C5031

C5032

C5033

C5034

C5044

C5045

C5046

C5048

C5050

C5054

C5055

C5057

C5058

C5059

C5065

C5066

C5067

C5068

C5072

C5074

C5075

C5076

C5077

C5086

C5513C5514

C5515

C6660

C9606

L5003

L5004

L5005

L5006

L5007

L5008

L5013

L5014

L5514L5515L5516

RA5005RA5006 RA5009 RA5010 RA5011 RA5015RA5016

RA5503RA5504RA5505RA5506

C9255

C9659

C9709

D9051D9052

D9053

IC9102

K9010

K9051

L9051

Q9010

Q9051

Q9052

R5060

R9010

R9020

R9050

R9051

R9056

R9057

R9058

R9060

R9062

R9063

R9090

R9251

R9252

R9707

R9708

R9709

R9710

R9712

R9714

R9716

C9613

C9615

C9643

C9649

C6697

C9658

C9701

C9706

C9707

C9724

C9725

CN0ID

CN232C

IC5503

128

Q8903

Q8904

R6082

R6083

R8662

R8912

R8913

C9607

C6676

C6678

C6319

C6322

CN001W

Q7041

R9052

R9053

C9619

C9620

R5001

R5003

C6111

C6118

C6119

C6124C6125

C6126

C6127

C6128

C6129

C6130

C6131

C6133

C6134

C6241

C6242

C6243

C6244

C6245 C6247

C6268

C6270

C6271

C6272

C6273

C6274

C6276

C6280

C6283

C6284

C6285 C6289

C6290

C6291

C6294C6295

C6296

C6298

C6601

C6705 C6707

C6708

C6709

C6710 C6711

C6724

C6901

C6902

C6903

C6905

C6907

C6908

C6909

C6910

C6911

C6914

C6917

C6921

C6922

C6923

C6924

C7040

C7045

C7046

C7047

C7048

C7049

C7050

C7051

C7052

C7053

C7054

C7055 C7056

C7057 C7058

C7062

C7063

C7064

C7065

C7066

C7067

C7202

C7209

C7314

C7315

C7318

C7322

C7333

C7335

C7338

C7504

C7505

C7506

C7507

C7508

C7510

C7511

C7626

C6602

C8514

C8516

C8521

C8526

C8527

C8530

C8550

C8551

C8557 C8562 C8563

C8564

C8565 C8566 C8567

C9301

C9302

C9304

C9401 C9402

C9403

CN0C1

C6520

CN0MM

CN232SW

D6001

D7201

C6617

C6618

C6623

C6625

EF7601

EF7602

C6205

IC6102

4.5

5.5

IC6103

C6627

IC6724

R7196

IC7033

IC7034

IC7204

IC7602

IC7607

IC8503

36.25

37.25

72.5

73.5

108.75

109.75

145

C6629

J8501

K6921

K7033

K7034

K7308

K7501

K8504

K8507

C6651

L6104

L6921

L7301

L7304

L7305

L7306

L7307

L7314

L7316

L7501

L7502

LC6201

LC6202

LC6203

LC6204

LC6206

LC6207

LC6208

LC6209

LC6210

LC6212

LC6213

LC6214

LC6215

LC6216

LC6221

LC6222

LC6223

LC6224

LC6225

LC6226

LC7505

LC7507

LC7508

LC7509

Q6211 Q6212Q6213

Q6214

Q7030

C6655 C6657

C6662

R6001

R6003

R6007R6009

R6023

R6122

R6123

R6124

R6125

R6126

R6129

R6282

R6283

R6286 R6287R6288

R6289

R6291

R6292

R6535

R6536

R6537

R6543

R6544

R6545

C6593

R6792

R6706

C6604

R7064

R7065

R7066

R7067 R7068

R7069

R7070

R7071

R7076

R7077

R7078

R7106R7108

R7110

R7111

R7112

R7119

R7120

R7121

R7122

R7127

R7309

R7322

R7323

R7327

R7330

R7334

R7335

R7355

R7534

R7539

R7601

R7602

R7636

R7637

R6762

C6682 C6683

C6686

C6687

R8908

R8909

C6690

R6763

C6692

R8548

R8549

R8550

C6694

C6605

R8556

R8557

R8558

R8559

R8560

R8561

R8562 R8563

R8564

R8565

R8566

R8568

R6765

R8570

C6695

R9306

R9309

R9401

R6953

C6005

RA6109 RA6110

RA6113

RA6114

RA8501

RA8502RA8503

C9614

R6033

C9040

C9059

C9105

RA7503

R6793

C7351

C7352

R6230

R6231

R7361

R7362

R8885 R8886

C6231

C6232

C6233

LC8801 LC8802

R8599

C6929

C7629

IC6901

C6236

C6237

C6238

C6239

C9311

D7604D7605

D7606D7607

CN0DC

R6235

R6236

R6239

R6241

R6242

R6244

R6245

R6770

R7652

R7653

C7514

C7515

C7516

C7517

C7518

C7519

C9315

C9316

R7363

L6258

L6260

R7190

R7191

K8527

K8524

R7240

IC7206

C6211 C6228C6299

R6205

R6220

R6227

R6228

R6229

R6234

R6237

R6240

R6243

R6246

R6247

R6277

R6300

R6301

R6304

R6305

C8909

R8604

R8605

C8911

C8913 C8915

C9051

R7512

R7513

R7514

C9625

C8603

C8604

C8605

C8607

C8608

C8613

C8615

C8625

D8602

L8602

R8614

R8617

R8619

C9058

C9062

R8622

R8623

R8626

R8630

R8631

R8632

R8633

R8634

R8635

R8636

R8644

RA8603 RA8607

X8601

IC8604

R8648

C8627

C8628

C9253

C6003

R6027

R6028

R8650

R8651

R6036

R5009

R5010

R5013

R5015

R5020

R5023

R5025

R5026

R5027

R5057 C5001

C5002

C5003

C5004

C5005

C5006

C5007

C5010

C5011

C5018

C5019

C5020

C5021

C5022

C5023

C5028

C5035

C5036

C5037

C5038

C5039

C5040

C5041

C5042

C5043

C5047

C5049

C5051

C5052

C5053

C5056

C5060

C5061

C5062

C5063

C5064

C5069

C5070

C5071

C5073

C5078

C5079

C5080

C5511C5510

C5509

C5501

C5502

C6606

C5507

C5506

C5505

C5504

L5001

L5002

RA5001RA5002

RA5019 RA5020

RA5501

RA5502

C9254

C9702

C9611

C9612

C9711

D9701D9702

D9703

IC9000

IC9251

4.5

5.5

K9701

L9701

Q9701

Q9702

R5059

R9030

R9040

R9059

R9061

R9070

R9080

R9253

R9311

R9701

R9706

R9711

R9713

R9715

R9717

C9616

C9617

C9641

C9646

C9660

C9662

C9708

D8903

IC8901

J8902 J8903

K8505

K8902

Q7039

R6764

R6766

R6767

R6768

R7393

R7556

R8661

R8927 R8928

R8929

X8501

C9621

C9624

C9610

C6677

C6317

C6318

C6320 C6321

C6323 K6251

R7397

R9071

K9702

C7543

DIGITAL PWB PATTERN [PARTS SIDE]

TOP

(No.YA551)2-61 2-62(No.YA551)

C9001

C9002

C9003

C9004

W9506

C9006

C9007

C9008

C9009

C9010

C9011

C9204

C9205

C9206

C9207 C9208

C9209

C9210

C9211

C9212

C9214

C9219

C9220

C9221

C9501

C9502

C9504

C9505

C9506

C9507

C9508

C9509 C9510

C9511

C9512

C9552

C9553

C9554

C9555

C9556

C9557

C9558

C9559

C9560

C9561

C9562

C9564

C9591

C9592

C9601C9602C9603

C9604

C9605

C9610

C9611

C9612

C9651

C9652

C9653

C9654

C9701

C9702

C9703

C9704

C9751

C9752

C9753

C9754

W9216

W9707

C9805

C9806

C9807

C9808

C9809

C9810

C9811

C9812

C9813

C9814

C9816

C9817

C9902

C9903

C9904

C9905

C9906

C9909

C9910

CP9901

CP9902

D9001

D9002

D9003

D9203

D9204

D9205

D9206

D9215

D9216

D9218

D9301

D9501

D9502

D9503

D9504

D9505

D9506

D9507

D9508

D9551

D9552

D9553

D9554

D9555

D9556

D9557

D9561

D9601

D9602

D9603

D9604

D9611

D9651

D9652

D9653

D9701

D9702

D9703

D9751

D9752

D9801

D9802

D9803

D9804

D98

D9806

D9807

D9808

D9809

D9810

D9901 D9902

D9903

D9904

H9001

H9701

H9751

H9901

IC9201

IC9502

IC9601

IC9701

IC9751

IC9901

K9502

K9503

K9601

K9602

K9603

K9604

K9605

K9606

K9751

K9801

K9802

K9803

K9901 K9902

L9903

L9201

L9601

L9602

L9651

L9701

L9751

L9753

PC9202

PC9301

PC9501

PC9502

PC9503

PC9504

PC9801

Q9001

Q9002

Q9502

Q9503

Q9504

Q9505

Q9506

Q9507

Q9508

Q9551

Q9552

Q9553

Q9555

Q9556

Q9557

Q9558

Q9602

Q9603

Q9604

R9001

R9002

R9003

R9004

R9005

R9205

R9206

R9207

R9208

R9209

R9210

R9211

R9212 R9213

R9214

R9215

R9216

R9220

R9221

R9301

R9302

R9303

R9304

R9350

R9501

R9502

R9503

R9504

R9505

R9506

R9507

R9508

R9509

R9510

R9511

R9512

R9513

R9514

R9515

R9516

R9517

R9518

R9519

R9520

R9521

R9522

R9523

R9524

R9525

R9526

R9527

R9528

R9529

R9530

R9532

R9533

R9534

R9551

R9552

R9553

R9554

R9555

R9556

R9557

R9558

R9559

R9560

R9561

R9562

R9563

R9564

R9565

R9568

R9569

R9572R9573

R9574

R9575

R9576

R9577

R9578

R9579

R9580

R9603

R9604

R9605

R9606 R9607

R9608

R9609

R9621

R9625

R9631

R9641

R9651

R9652

R9701

R9702

R9703

R9704

R9705

R9706

R9707

R9751

R9752

R9753

R9754

R9755

R9756

R9757

R9802

R9803

R9804

R9805

R9806

R9807

R9808

R9809

R9810

R9811

R9812

R9813

R9814

R9901

R9902

R9903

R9904

R9905

R9906

R9907

R9908

RY9001

RY9002

T9201

VA9001

Y9001

Y9002

Y9003

Y9004

Y9005

Y9006

Y9007

Y9008

Y9551

K9551

Y9601

Y9602

Y9751

Y9752

Y9901

C9801

T9801

R9566

R9567

CP9501

CP9801

H9501

H9801

IC9801

L9501

L9801

LF9001

LF9002

LF9003

R9801

C9551

L9502

L9702

L9752

H9502

H9601

IC9501

T9501

TH9001

Q9501

D9211

D9212

D9213

D9214

C9503

F9001

W9604

Y9009

W9808

W9603

W9710

W9409

W9801

W9608

W9611

W9607

R9010

W9504

W9212

W9719

Y9501

W9809

W9221

W9701

W9223

W9222

W9219

W9313

W9618

W9623

W9619

W9624

Y9502

W9702

W9704

W9805

W9804

W9613

W9211

W9703

W9716

W9602

W9601

W9621

Y9753

W9405

C9804

W9612

W9311

W9620

W9307

W9308

W9309

W9310

W9614

W9501

W9301

W9705

W9606

W9215

W9306

W9803

W9303

Q9510

W9609

W9202

W9302

W9615

W9213

W9214

W9406

W9404

W9407

W9208

W9401

W9209

W9207

W9402

W9503

W9708

W9709

W9711

W9403

W9706

W9220

W9714

W9312

W9217

W9410

D9654

W9218

W9201

W9224

W9802

W9305

W9203

R9758

R9708

R9709

Q9701

Q9702

W9625

W9610

W9210

W9605

W9720

Y9251

W9713

Y9621

Y9622

Y9631

Y9632

Y9661

Y9662

Y9663

Y9664

Y9902

W9415

W9416

W9412

Y9051

Y9052

CP9601

C9012

C9540

C9705

D9004

D9005 D9006

L9703

Q9511

R9006

R9007 R9008

R9540

R9541

R9542 R9543

Y9754

W9206

W9408

W9622

Y9755

W9712

W9616

W9414

W9413

W9617

K9607

K9608

K9609

K9610

W9717

W9718

W9626

K9201

Y9756

K9202

TOP

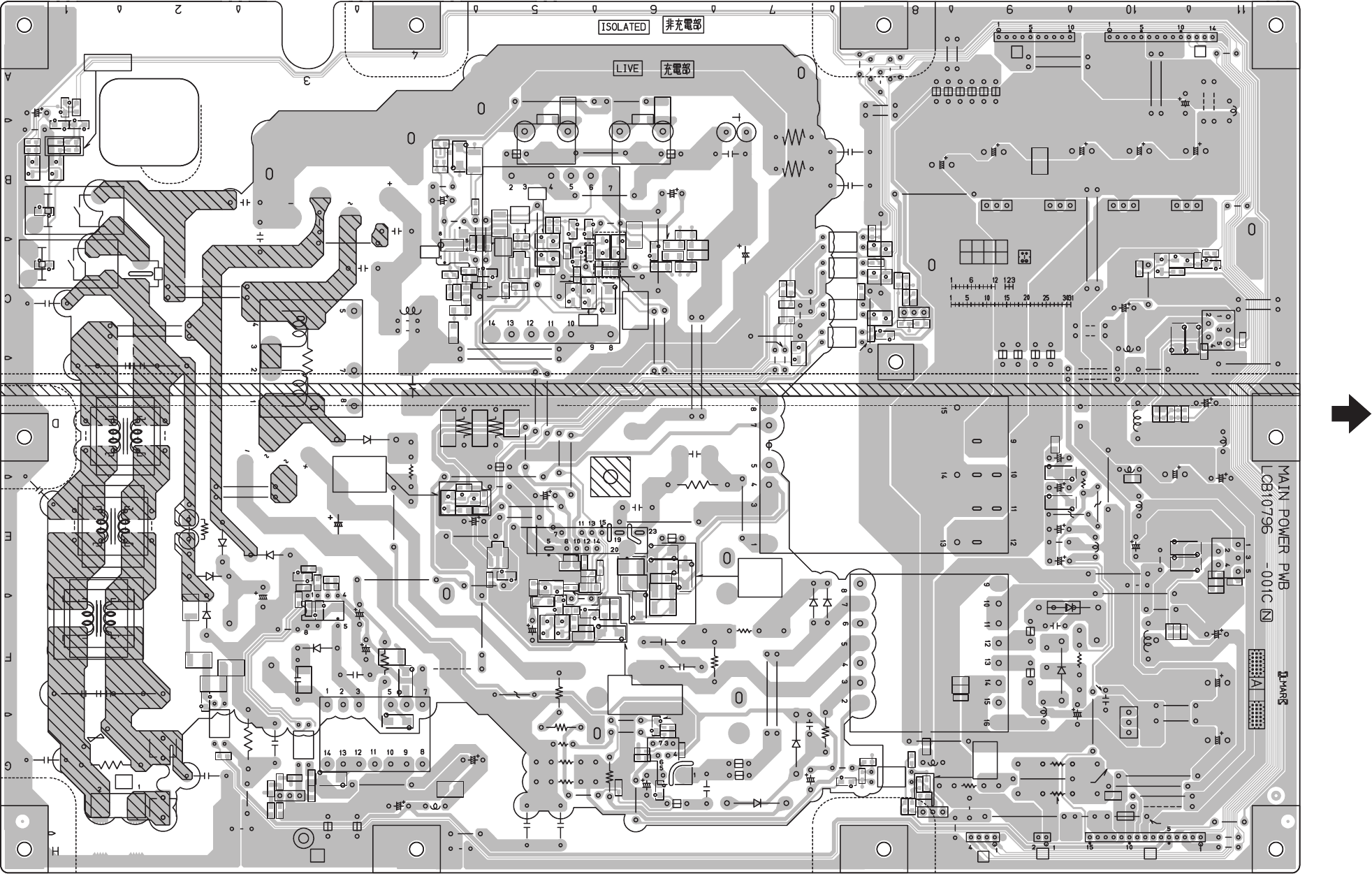

POWER PWB PATTERN

2-64(No.YA551)(No.YA551)2-63

CN100R

J7001

S7701

S7702

S7703

S7704

S7705

S7706

S7707

C7011

C7012

C7701

C7702

C7703

D7011

J7001

R7011

R7012

R7013

R70

R7014

R7015

R70

R7016

R7701

R7702

R77

R7703

R7704

R7705

R7706

R7707

R7708

R7709

R7710

R7711

R7712

S7701

S7702

S7703

S7704

S7705

S7706

S7707

TOP

C9401

C9402

C9403

C9404

C9601

C9602

C9603

C9604

C9606

C9611

C9612

C9701

C9702

C9703

C9704

C9705

C9706

C9707

C9708

C9709

C9710

C9711

C9712

C9713

R9721

L9901

C9801

C9802

C9803

C9804

C9805

C9806

C9807

C9808

C9809

C9810

C9901

C9902

C9951

C9952

C9953

C9954

CN0DC

CN00A

CN00H

CN00K

CN00Y

D9401

D9402

D9403

D9601

D9602

D9604

D9605

D9606

C9714

D9608

D9701

D9702

D9703

D9704

D9705

D9801

D9802

D9803

D9804

D9901

D9903

D9904

D9951

IC9401

IC9601

IC9701

IC9801

IC9901

IC9951

K9701

K9702

L9601

L9602

L9701

L9702

L9703

L9704

L9802

Q9401

Q9601

Q9602

Q9701

Q9702

Q9703

Q9801

Q9901

Q9951

Q9952

R9401

R9402

R9403

R9404

R9405

R9406

R9408

R9409

R9601

R9602

R9603

R9606

R9607

R9608

R9609

R9611

R9612

R9613

R9614

R9615

R9616

R9617

R9618

R9701

R9702

D9706

R9704

R9723

R9706

R9707

R9708

R9709

R9710

R9711

R9713

D9805

R9716

R9717

R9719

R9720

R9801

R9802

R9803

R9805

R9806

R9807

R9808

R9809

R9810

R9812

R9813

R9902

R9903

R9904

R9905

R9906

R9907

R9908

R9909

R9910

R9912

R9951

R9952

R9953

R99

R9954

#PC00185 #PC00186

#PC00187 #PC00188

Q9603

Q9604

L9902

Y9952

Y9951

C9721

C9723

C9724

R9750

K9801K9802

Y9904

Y9903

Y9907

Y9908

R9814

C9608

C9609

C9703

C9803

C9903

C9904

C9905

C9906

IC9902

C9725

R9407

R9604

C9715

R9610

R9617

R9712

R9802

R9804

R9811

R9911

R9913

R9914

#PC00193

#PC00194

R9751

C9451

C9452

C9453

C9454

C9981C9982C9983C9984

C9985

C9986

C9987

C9988

C9989

C9990

C9991

C9992

C9993

C9994 C9995

R9955

C9455

C9456

C9722

C9998

Y9905

Y9906

Y9901

Y9902

C8751

C8752

C8753

C8754

C8755

CN100U

D8701

D8702

D8703

D8704

D8705

D8706

D8707

D8708

D8709

D8710

D8711

D8712

D8713

D8771

D8772

D8773

D8774

IC8751

IC8752

771

IC8

IC8771

IC8772

Q8701

Q8702

Q8703

Q8704

Q8706

Q8708

Q8709

Q8711

R8711

R8712

R8713

R8715

R8716

R8717

R8721

R8726

R8727

R8728

R8729

R8751

R8752 R8753

R8754

R8755

#PC00065

#PC00066

#PC00067

#PC00068

#PC00112

D8701

D8702

D8703 D8704

D8705

D8771

D8772

D8773

D8774

IC8751

IC8752

IC8771

IC8772

Q8705

Q8707

Q8710

Q8712

Q8713

R8714

R8718

R8719

R8720

R8722

R8723

R8724

R8725

R8701

R8702

LED PWB PATTERN [SOLDERSIDE]

LED PWB PATTERN [PARTS SIDE]

DC-DC PWB PATTERN [SOLDERSIDE]

DC-DC PWB PATTERN [PARTS SIDE]

SW PWB PATTERN [SOLDERSIDE]

SW PWB PATTERN [PARTS SIDE]

(No.YA551)2-65 2-66(No.YA551)

[P.2-7 - P.2-8]

MODE DC (V)

PIN NO.

IC3501

1 4.9

2 1.5

3 1.4

4 0

5 2.4

6 2.1

7 NC

8 NC

9 NC

10 2.4

11 5

12 4.9

13 4.9

14 NC

15 NC

16 NC

17 NC

18 NC

19 4.9

20 0

21 NC

22 4.8

23 NC

24 NC

25 0

26 NC

27 NC

28 NC

29 0

30 3.2

31 3.2

32 NC

33 8.1

34 6.5

35 0

36 3.6

37 0

38 0

39 0

40 3.7

41 3.6

42 2.5

43 3.6

44 0

Q3001

E 2.7

C 0

B 2

Q3003

E 2.1

C 4.6

B 2.7

Q3004

E 2

C 7.9

B 2.7

Q3005

E 7.2

C 8.9

B 7.9

Q3503

E 0

C 4.9

B 0

TU3001

1 NC

2 NC

3 4.9

4 NC

5 NC

6 0

7 2.8

8 3.5

9 NC

10 4.9

11 4.9

12 2.2

13 2.3

14 2

15 32.3

16 NC

17 2

18 0

19 0

20 0

21 0

<DC-DC PWB>

MODE DC (V)

PIN NO.

IC9401

1 0.1

2 4.4

3 3.5

4 0

5 0

6 0

7 NC

8 9

IC9701

1 5.1

2 0.7

3 3.3

4 0

5 3.2

6 2.7

7 0

8 0

9 15.8

10 4.9

11 3.1

12 0

13 5.1

14 6.9

15 10.1

16 5.1

Q9401

E 0

C 0

B 0.6

Q9601

E 0

C 0

B 0.6

Q9602

E 0

C 0

B 3.2

Q9701

1 5.1

2 5.1

3 5.1

4 6.9

5 15.7

6 15.7

7 15.7

8 15.7

Q9702

1 0

2 0

3 0

4 3.1

5 5.1

6 5.1

7 5.1

8 5.1

Q9703

E 0

C 0

B 0.5

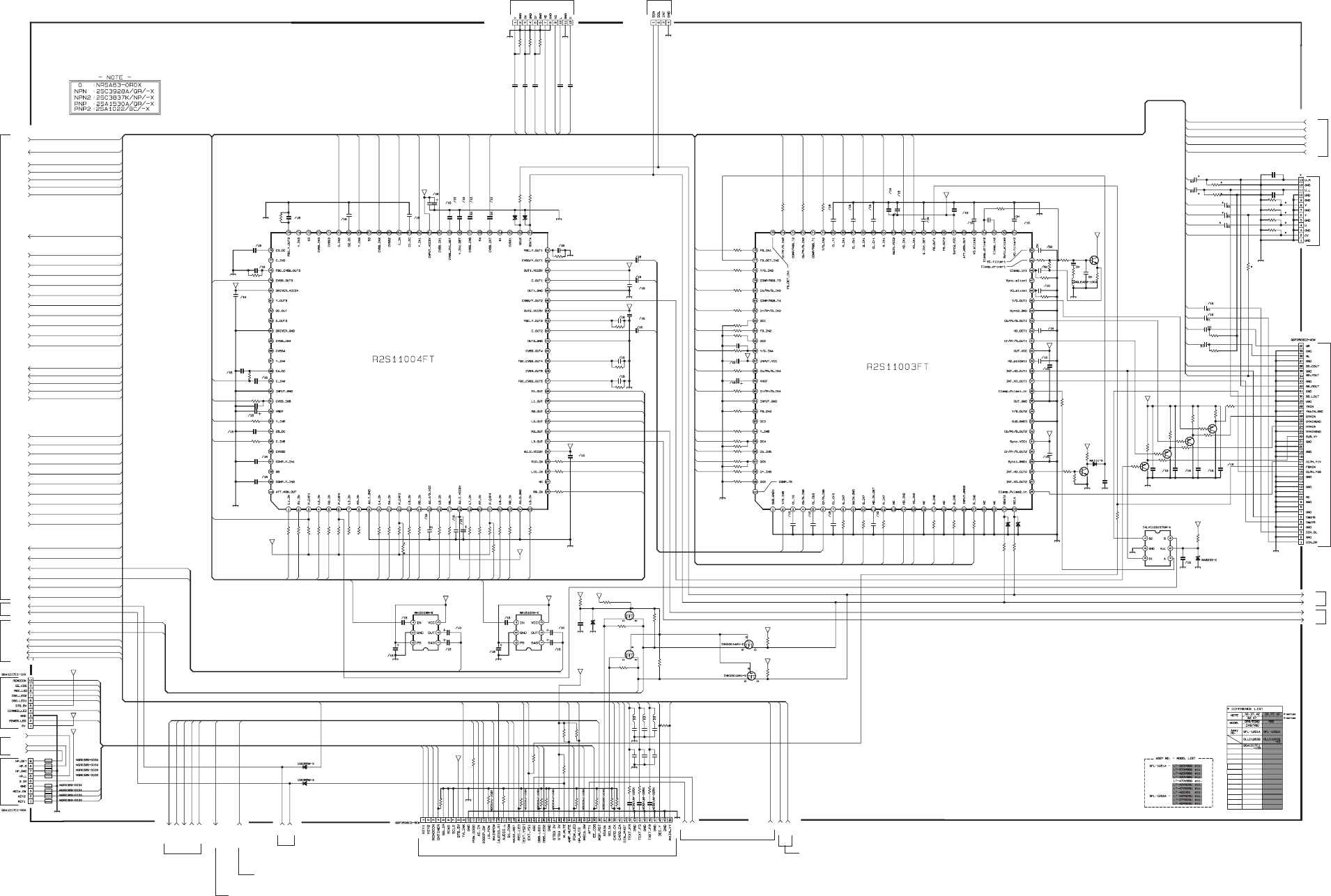

[P.2-9 - P.2-10]

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC101

1 4.5

2 4.5

3 0

4 4.5

5 4.5

6 0

7 4.5

8 4.5

9 0

10 4.5

11 4.5

12 0

13 4.5

14 4.5

15 4.5

16 NC

17 NC

18 9

19 NC

20 NC

21 0

22 4.5

23 4.5

24 0

25 4.5

26 4.5

27 NC

28 NC

29 NC

30 9

31 4.5

32 4.5

33 4.5

34 4.5

35 4.5

36 4.5

37 1.4

38 NC

39 1.4

40 NC

41 0

42 2.1

43 1.6

44 5

45 1.9

46 0

47 2

48 5

49 1.9

50 1.6

51 4.9

52 4.9

53 NC

54 NC

55 NC

56 NC

57 2.5

58 2.1

59 2.1

60 2.5

61 5

62 2.5

63 0.2

64 2.1

65 NC

66 2.5

67 NC

68 2.5

69 0.2

70 2.1

71 NC

72 NC

73 NC

74 NC

75 0

76 0

77 NC

78 1.4

79 2.8

80 5

81 NC

82 NC

83 NC

84 0

85 NC

86 NC

87 NC

88 2.2

89 2.1

90 0

91 2.5

92 2.8

93 2.5

94 0.2

95 2.1

96 NC

97 2.5

98 NC

99 2.5

100 NC

IC102

1 0

2 2.5

3 2.4

4 2.5

5 2.4

6 2.5

7 2.4

8 NC

9 0

10 NC

11 2.2

12 NC

13 NC

14 NC

15 NC

16 0

17 2.4

18 0

19 2.4

20 0

21 2.4

22 0

23 0

24 4.9

25 4.5

26 0

27 NC

28 NC

29 0

30 NC

31 5

32 NC

33 0

34 NC

35 0

36 3.4

37 4.1

38 3.4

39 1.7

40 5

41 1.8

42 2.9

43 1.8

44 0

45 1.3

46 2.8

47 NC

48 2.5

49 3.2

50 5

51 4.9

52 NC

53 1.9

54 3

55 2.4

56 NC

57 5

58 NC

59 0.6

60 2.2

61 0

62 0

63 5

64 2.5

65 2.5

66 2.5

67 2.5

68 2.5

69 2.5

70 2.4

71 NC

72 2.4

73 NC

74 2.4

75 NC

76 0.6

77 0.2

78 2.4

79 NC

80 2.4

81 NC

82 2.4

83 0

84 0.6

85 0

86 2.4

87 5

88 2.4

89 2.8

90 2.4

91 0

92 0

93 NC

94 NC

95 0

96 NC

97 0

98 NC

99 0

100 NC

IC104

1 2.1

2 0

3 9

4 0

5 0

6 9

IC105

1 2.1

2 0

3 9

4 2.2

5 0

6 9

IC541

1 0

2 0

3 3.1

4 3.1

5 2.9

6 0.1

Q106

S 3.2

D 4.9

G 3.3

Q107

S 3.2

D 4.8

G 3.3

Q109

E 2.6

C 0

B 1.9

Q110

E 2.2

C 0

B 1.4

Q111

E 2.2

C 0

B 1.4

Q112

E 1.7

C 0

B 1

Q113

E 0

C 5

B 2.9

[P.2-11 - P.2-12]

[P.2-13 - P.2-14]

[P.2-15 - P.2-16]

[P.2-17 - P.2-18]

[P.2-19 - P.2-20]

[P.2-23 - P.2-24]

[P.2-25 - P.2-26]

[P.2-27 - P.2-28]

[P.2-29 - P.2-30]

[P.2-31 - P.2-32]

[P.2-33 - P.2-34]

[P.2-35 - P.2-36]

[P.2-37 - P.2-38]

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

Q431

E 0

C 0

B -0.8

Q432

E 0

C 0

B -0.8

Q433

E 0

C -0.7

B 0

Q434

E 0

C 0

B -0.7

Q435

E 0

C 0

B -0.7

Q436

E 0

C -0.8

B 0

Q437

E 0

C 0

B -0.7

Q438

E 0

C 0

B -0.7

Q439

E 0

C -0.7

B 0

Q444

E 2

C 4.9

B 0

Q445

E 4.4

C 2.9

B 0

MODE DC (V)

PIN NO.

IC6001

1 0

2 1.8

3 1.8

4 0

5 1.8

6 1.8

7 2.8

8 2.7

9 2.7

10 2.7

11 1.8

12 0

13 0

14 2.3

15 4

16 1.3

17 0

18 18

19 8.9

20 8.9

21 8.9

22 8.9

23 18

24 0

25 0

26 18

27 18

28 0

29 0

30 10.2

31 10.1

32 0

33 0

34 18

35 18

36 0

37 0

38 18

39 8.9

40 8.9

41 8.9

42 8.9

43 18

44 5

45 0

46 0

47 18

48 18

Q6105

E 0

C 0

B 2.5

Q6106

E 0

C 2.5

B 0.1

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC602

1 3.2

2 0

3 3.2

4 NC

5 2.4

IC603

1 1

2 1.6

3 1.6

4 0

5 2.1

6 0.2

7 0

8 2.4

IC604

1 0

2 0.5

3 0

4 0.6

5 3.2

IC605

1 5

2 5

3 5

4 5

5 3.2

6 1.7

7 0

8 NC

IC751

1 2

2 0

3 2

4 0

5 2

6 2

7 2

8 5

Q601

E 4.5

C -1.6

B 4.9

Q602

E 0

C 0

B -1.6

Q751

E 0

C 0.8

B 0

Q752

E 0

C 0

B 0.8

MODE DC (V)

PIN NO.

IC902

1 5

2 0

3 3.3

IC951

1 3.2

2 3.2

3 2.4

4 NC

5 0

IC961

1 1.8

2 5

3 3.2

4 0

5 0.8

6 1

7 NC

8 0.8

IC971

1 15.8

2 15.8

3 8.9

4 NC

5 0

IC981

1 15.8

2 0

3 12

MODE DC (V)

PIN NO.

IC7502

1 0.2

2 0

3 0

4 0.2

5 3.1

6 3.2

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC6250

1 0

2 5.4

3 1.6

4 0

5 0

6 0

7 0

8 0

9 5.3

10 0.7

11 0

12 3.5

13 0

14 0

15 0

16 5.3

17 0

18 0

19 0

20 2.2

21 0

22 0

23 5.3

24 5.3

IC6251

1 1.6

2 0

3 NC

4 5

5 3.3

IC6301

1 0.1

2 0.1

3 0

4 0.1

5 5

IC6302

1 0.1

2 0.1

3 0

4 0.1

5 5

IC6303

1 3.1

2 0

3 0

4 3.2

5 3.2

Q6202

E 3.3

C 0

B 2.6

Q6203

E 0.5

C 0

B 0.5

Q6204

E 2.9

C 0

B 2.2

Q6205

E 2.9

C 0

B 2.2

Q6206

E 3.3

C 0

B 2.6

Q6207

E 1.3

C 5

B 2

Q6208

E 1.3

C 5

B 2.1

Q6209

E 1.4

C 5

B 2.1

Q6210

E 1.3

C 5

B 2.1

Q6211

E 0.8

C 5

B 1.5

Q6212

E 0

C 5

B 0.7

Q6213

E 0

C 5

B 0.7

Q6214

E 1.5

C 5

B 2.2

Q6250

E 1.5

C 5

B 2

Q6251

E 2.2

C 5

B 2

Q6301

E 3.8

C 0

B 3.2

Q6302

1 3.8

2 0.1

3 3.8

4 3.6

5 0.1

6 3.6

Q6303

E 1.9

C 0

B 1.3

Q6304

1 1.9

2 0.1

3 1.9

4 1.9

5 0.1

6 1.9

MODE DC (V)

PIN NO.

IC6002

1 1.5

2 1.5

3 0

4 1.8

5 3.2

IC6004

1 0

2 NC

3 0

4 0

5 3.2

6 0

7 0

8 0

IC6724

1 0

2 3.3

3 0

4 3.3

MODE DC (V)

PIN NO.

IC7602

1 0

2 0

3 0

4 0

5 3.2

6 3.2

7 0

8 3.2

IC7606

1 5

2 0

3 0

4 0

5 0

6 5

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC6101

1 1.2

2 2.4

3 1.2

4 1.2

5 0

6 1.2

7 1.2

8 2.4

9 1.2

10 1.2

11 0

12 1.2

13 1.2

14 2.4

15 2.4

16 0

17 1.2

18 1.2

19 0

20 1.2

21 1.2

22 1.2

23 0.6

24 0.6

25 1.7

26 1.7

27 1.8

28 0

29 0.7

30 0.7

31 0.6

32 0.6

33 0.7

34 0.7

35 2.4

36 0.6

37 0.7

38 NC

39 NC

40 NC

41 NC

42 NC

43 NC

44 NC

45 0.6

46 0

47 0.7

48 0.7

49 0.7

50 0.7

51 0.6

52 0

53 1.8

54 1.3

55 1.3

56 0.6

57 0.6

58 1.2

59 2.4

60 1.2

61 1.2

62 0

63 1.2

64 1.2

65 2.5

66 0

67 2.4

68 1.2

69 1.2

70 0

71 1.2

72 1.2

73 2.4

74 1.2

75 1.2

76 0

77 1.2

78 1.2

79 2.4

80 1.2

81 1.2

82 0

83 1.2

84 1.2

85 0

86 2.4

87 NC

88 NC

89 NC

90 NC

91 NC

92 0

93 NC

94 1.2

95 2.4

96 2.5

97 1.2

98 1.2

99 0

100 1.2

IC6102

1 0

2 2.6

3 1.3

4 1.3

5 2.6

6 2.6

7 2.6

8 1.3

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC7201

1 0.1

2 0.2

3 0.2

4 0.2

5 0.2

6 0.1

7 0.3

8 0.2

9 0

10 0

11 3.2

12 3.3

13 0

14 0

15 0

16 0

17 0.1

18 0.2

19 0.2

20 0.2

21 0.2

22 0.2

23 0.2

24 0.2

25 0.2

26 3.3

27 0

28 3.3

29 0.2

30 0.2

31 0.2

32 0.2

33 0.2

34 0.2

35 0.2

36 0.2

37 3.3

38 0.1

39 0.2

40 0.2

41 0.1

42 0.2

43 0.2

44 0.2

45 0.1

46 0

47 3.3

48 0.2

IC7203

1 3.2

2 0.3

3 0.3

4 0

5 0.4

6 0.3

7 3.3

8 0.2

9 0.4

10 0

11 0.3

12 0.3

13 3.2

14 2.7

15 3.2

16 3

17 3.2

18 2.6

19 0

20 0.1

21 0.3

22 0.3

23 0.3

24 0.3

25 3.2

26 0

27 0.3

28 0.3

29 0.3

30 0.3

31 0.4

32 0.4

33 NC

34 3.2

35 3

36 2.7

37 NC

38 3.2

39 0.4

40 0.4

41 0

42 0.4

43 0.2

44 3.3

45 0.3

46 0.2

47 0

48 0.3

49 0.2

50 0

IC7204

1 0

2 3.3

3 0

4 3.3

MODE DC (V)

PIN NO.

IC7033

1 0

2 3.2

3 3.2

4 3.2

5 3.2

6 3.2

7 3.2

8 0

9 0

10 NC

11 NC

12 3.2

13 3.2

14 3.3

15 0

16 3.2

IC7036

1 3.3

2 0

3 0.1

4 0

5 3.3

6 0

Q7032

E 3.3

C 3.3

B 0

Q7033

E 3.3

C 3.2

B 0

Q7034

E 3.3

C 3.2

B 0

Q7035

E 3.3

C 3.2

B 0

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC6901

1 3

2 0

3 3.2

4 5

IC9000

1 0

2 0

3 1.1

4 0

5 2.8

6 1.1

7 0.9

8 0.9

9 5

10 0.2

11 1.6

12 1.6

13 0

14 4.6

15 3

16 0

17 0

18 0.9

19 0

20 1.1

21 1.1

22 0

23 2.8

24 1.1

IC9101

1 3.2

2 0

3 2.4

IC9102

1 3.2

2 0

3 2.5

IC9251

1 1.2

2 NC

3 0

4 0.2

5 1.6

6 NC

7 NC

8 1.8

IC9301

1 1.2

2 NC

3 0

4 0.3

5 3.2

6 NC

7 NC

8 3.2

Q9010

E 0

C 0

B 3.2

Q9051

1 5

2 5

3 5

4 1.6

5 3.2

6 3.2

7 3.2

8 3.2

Q9052

E 0

C 2.8

B 0

Q9701

1 5

2 5

3 5

4 3

5 1.8

6 1.8

7 1.8

8 1.8

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC7301

1 3.3

2 0.3

3 0.3

4 3.3

5 3.3

6 0

7 0

8 0

9 0

10 0

11 0.5

12 3.3

13 0

14 3.3

15 0

16 0

17 0

18 0

19 0

20 0

21 2.4

22 0

23 0

24 2.6

25 0

26 0.6

27 2.5

28 0

29 0

30 1.1

31 0

32 3.2

33 0.5

34 0.5

35 1.6

36 1.1

37 0

38 1

39 3

40 2.8

41 0

42 3.2

43 2.1

44 2.8

45 3.2

46 3.2

47 3.2

48 0

49 0

50 3.2

51 1.7

52 0

53 3.2

54 1.3

55 0.4

56 2.2

57 0.4

58 1.6

59 1.4

60 0

61 3.2

62 0.7

63 0

64 0

65 0

66 0

67 0

68 0

69 3.2

70 0

71 0

72 0

73 3.2

74 3.2

75 NC

76 3

77 1.5

78 0

79 0

80 0

81 0

82 3.2

83 3.2

84 0

85 3.2

86 0

87 2.4

88 3.2

89 3.2

90 0

91 3.2

92 0.1

93 0

94 0

95 0

96 0

97 0

98 3.2

99 3.2

100 0

101 NC

102 3.2

103 3.2

104 0

105 0

106 3.2

107 0

108 0.5

109 0.4

110 0

111 2.4

112 0.3

113 0.3

114 0.3

115 0

116 2.4

117 0

118 0

119 2.4

120 0

121 0.7

122 0

123 2.4

124 2.3

125 2.4

126 2.8

127 NC

128 0

IC7302

1 3

2 2.4

3 0

4 2.5

5 0

6 0

7 0

8 0

9 0

10 0

11 3.2

12 3.2

13 NC

14 0

15 0

16 0

17 0

18 1.3

19 0

20 1.3

21 1.3

22 1.3

23 1.3

24 0

25 0

26 3.2

27 0

28 3.2

29 0

30 0

31 0

32 0

33 0

34 0

35 0

36 0

37 3.2

38 0

39 0

40 0

41 0

42 0

43 3.2

44 0

45 3.2

46 0

47 0

48 0

IC7303

1 0

2 0

3 3.2

4 0

5 0

6 0

7 0

8 0

9 0

10 0

11 0

12 0

13 0

14 3.2

15 0

16 3.2

17 3

18 2.4

19 3

20 2.5

21 2.5

22 0

23 0

24 0

25 1.3

26 0

27 3.2

28 0

29 1.3

30 1.3

31 1.3

32 1.3

33 0

34 0

35 0

36 NC

37 3.2

38 3.5

39 0

40 NC

41 0

42 0

43 3.2

44 0

45 0

46 0

47 0

48 0

49 3.2

50 0

51 3.2

52 0

53 3.2

54 0

IC7304

1 0

2 3.2

3 0

4 0.2

5 0.2

6 0

7 0

8 0

9 0

10 0

11 0

12 3.2

13 0

14 3.2

15 3.2

16 3.2

IC7305

1 4.8

2 4.8

3 4.8

4 4.8

5 3.2

6 2.4

7 0

8 0

IC7306

1 0

2 3.2

3 0

4 3.2

Q7301

E 0

C 3.4

B 0.1

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC5503

1 0

2 0

3 0

4 0

5 0

6 0

7 3.3

8 0

9 0

10 0

11 0.1

12 0.1

13 2.9

14 3.3

15 0

16 1.1

17 0

18 0

19 0

20 0

21 0

22 3.3

23 0

24 3.3

25 3.3

26 0

27 0

28 2.9

29 NC

30 NC

31 NC

32 NC

33 1.1

34 1.2

35 1.1

36 1.2

37 1.2

38 1.1

39 1.1

40 1.2

41 0

42 3.3

43 1.1

44 1.2

45 1.1

46 1.2

47 0

48 3.3

49 1.1

50 1.2

51 1.1

52 1.2

53 1.2

54 1.1

55 1.1

56 1.2

57 0

58 3.3

59 1.1

60 1.2

61 1.1

62 1.2

63 0

64 3.3

65 0.8

66 0.8

67 1

68 0.5

69 0.4

70 0.7

71 3.3

72 0

73 0.8

74 1.1

75 0.1

76 1.4

77 0.9

78 1.2

79 0.7

80 0.6

81 1.3

82 3.3

83 0

84 0

85 0

86 0

87 0

88 0

89 0

90 0

91 0

92 0

93 3.3

94 0

95 0.5

96 0.8

97 1.3

98 0.4

99 0.9

100 1.4

101 3.3

102 0

103 0

104 0

105 0

106 0

107 0

108 0

109 0

110 0

111 0

112 0

113 3.3

114 0

115 0

116 0

117 0

118 0

119 0

120 0

121 0

122 0

123 0

124 0

125 3.3

126 0

127 0

128 0

IC6509

1 2.8

2 3.2

3 0

4 4.3

5 5

IC6510

1 5

2 0

3 4.3

4 NC

5 3.3

Q6501

E 0

C 3.2

B 0

Q6502

E 0

C 1.6

B 0

Q6505

S 3.2

D 3.2

G 3.2

Q6506

S 3.1

D 3.1

G 3.2

Q7030

E 0

C 3.2

B 0

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

MODE DC (V)

PIN NO.

IC8751

1 4.9

2 2.1

IC8752

1 2.8

2 4.8

3 0

Q8701

E 0

C 4.8

B 0

Q8704

E 4.8

C 0.3

B 4.8

Q8705

E 3

C 2

B 0

Q8709

E 0

C 0

B 3

Q8712

E 0

C 3.5

B 0

Q8713

E 0

C 3.5

B 0

[P.2-41 - P.2-42]

[P.2-43 - P.2-44]

[P.2-45 - P.2-46]

MODE DC (V)

PIN NO.

IC9501

4 NC

5 0

7 0

8 0

10 18.1

11 4.7

12 0

13 2.5

14 0.9

15 0.5

19 241

20 241

23 379

IC9701

1 15.8

2 12.1

3 0

4 1.1

5 3.6

Q9551

E 0

C 0

B 0.5

Q9555

E 17.4

C 17.4

B 16.7

Q9556

E 0

C 0

B 4.4

Q9557

E 0

C 4.4

B 0.1

Q9558

E 0

C 4.4

B 0.1

Q9602

E 0

C 0.1

B 3.2

Q9603

E 0

C 0.1

B 0.1

Q9604

E 0

C 0

B 3.2

Q9701

E 0

C 3.5

B 0

Q9702

E 0

C 0

B 3.2

PC9501

1 13.5

2 12.4

3 0

4 2.5

PC9502

1 1.1

2 0.1

3 0

4 0.1

PC9503

1 1.1

2 0.1

3 0

4 0.1

PC9504

1 1.1

2 0.1

3 0

4 0.1

[P.2-53 - P.2-54]

[P.2-49 - P.2-50]

MODE DC (V)

PIN NO.

IC9801

1 383

2 NC

3 0

4 15.3

5 0.1

6 1.2

7 0.6

PC9801

1 7.1

2 6

3 1.7

4 13

[P.2-47 - P.2-48]

MODE DC (V)

PIN NO.

IC9201

1 5.8

2 0.8

3 2.3

4 16.1

5 316

6 NC

7 0

8 0

IC9502

1 2.4

2 2.2

3 1.4

4 0

5 4.4

6 0

7 4.6

8 18.2

Q9001

E 0

C 0.1

B 0.7

Q9002

E 0

C 0.1

B 0.7

Q9501

S 0

D 210

G 3.1

Q9502

E 0

C 4.4

B 0

Q9503

E 0

C 0

B 0.6

Q9504

E 0

C 4.4

B 0.4

Q9505

E 0

C 0

B 6

Q9506

E 0

C 10.4

B 0.1

Q9507

E 18.2

C 18.2

B 17.6

Q9508

E 0

C 0

B 4.4

PC9202

1 5

2 4

3 0.8

4 5.1

VOLTAGE CHARTS

(No.YA551)2-67

TU3001-17

1.2 Vp-p

(H)

IC101-45

0.8 Vp-p

(H)

IC101-49

0.8 Vp-p

(H)

IC101-57

1.3 Vp-p

(H)

ANALOG PWB(2/6)

ANALOG PWB(1/6)

IC101-79

1.3 Vp-p

(H)

DIGITAL PWB(10/12)

IC102-2

0.8 Vp-p

(H)

IC102-37

3.2 Vp-p

(V)

IC102-38

3.0 Vp-p

(H)

IC102-41

0.6 Vp-p

(H)

IC102-43

0.6 Vp-p

(H)

IC102-45

0.9 Vp-p

(H)

IC7301-109

1.5Vp-p

(1µs)

IC7301-102

3.2 Vp-p

(V)

IC7301-103

3.2 Vp-p

(H)

WAVEFORMS

(No.YA551)

Display category 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama-city, Kanagawa-prefecture, 221-8528, Japan

Victor Company of Japan, Limited

VPT

Printed in Japan

(No.YA551)3-1

PARTS LIST

CAUTION

JThe parts identified by the  symbol are important for the safety . Whenever replacing these parts, be sure to use specified ones to secure the

safety.

JThe parts not indicated in this Parts List and those which are filled with lines --- in the Parts No. columns will not be supplied.

JP.W. BOARD Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be supplied.

ABBREVIATIONS OF RESISTORS, CAPACITORS AND TOLERANCES

RESISTORS CAPACITORS

CR Carbon Resistor C CAP. Ceramic Capacitor

FR Fusible Resistor E CAP. Electrolytic Capacitor

PR Plate Resistor M CAP. Mylar Capacitor

VR Variable Resistor CH CAP. Chip Capacitor

HV R High Voltage Resistor HV CAP. High Voltage Capacitor

MF R Metal Film Resistor MF CAP. Metalized Film Capacitor

MG R Metal Glazed Resistor MM CAP. Metalized Mylar Capacitor

MP R Metal Plate Resistor MP CAP. Metalized Polystyrol Capacitor

OM R Metal Oxide Film Resistor PP CAP. Polypropylene Capacitor

CMF R Coating Metal Film Resistor PS CAP. Polystyrol Capacitor

UNF R Non-Flammable Resistor TF CAP. Thin Film Capacitor

CH V R Chip Variable Resistor MPP CAP. Metalized Polypropylene Capacitor

CH MG R Chip Metal Glazed Resistor TAN. CAP. Tantalum Capacitor

COMP. R Composition Resistor CH C CAP. Chip Ceramic Capacitor

LPTC R Linear Positive Temperature Coefficient Resistor BP E CAP. Bi-Polar Electrolytic Capacitor

CH AL E CAP. Chip Aluminum Electrolytic Capacitor

CH AL BP CAP. Chip Aluminum Bi-Polar Capacitor

CH TAN. E CAP. Chip Tantalum Electrolytic Capacitor

CH AL BP E CAP. Chip Tantalum Bi-Polar Electrolytic Capacitor

RESISTORS

FG J KMNRHZ P

±1% ±2% ±5% ±10% ±20% ±30% +30%

-10%

+50%

-10%

+80%

-20%

+100%

-0%

3-2(No.YA551)

CONTENTS

USING P.W. BOARD & REMOTE CONTROL UNIT ................................................................................................... 3-3

EXPLODED VIEW PARTS LIST ................................................................................................................................. 3-4

EXPLODED VIEW ....................................................................................................................................................... 3-5

PRINTED WIRING BOARD PARTS LIST ................................................................................................................... 3-6

ANALOG P.W. BOARD ASS'Y (SFL-1251A-U2) ............................................................................................... 3-6

SW P.W. BOARD ASS'Y (SFL-7216A-U2) ...................................................................................................... 3-10

LED P.W. BOARD ASS'Y (SFL-8722A-U2) ..................................................................................................... 3-10

POWER P.W. BOARD ASS'Y (SFL-9081A-U2) .............................................................................................. 3-10

DC-DC P.W. BOARD ASS'Y (SFL-9189A-U2) ................................................................................................ 3-12

DIGITAL P.W. BOARD ASS'Y(LCA10774-02B)(SFL-0D567A) ....................................................................... 3-12

REMOTE CONTROL UNIT PARTS LIST (RM-C1911S-1C) ..................................................................................... 3-20

PACKING ................................................................................................................................................................... 3-20

PACKING PARTS LIST ............................................................................................................................................. 3-20

(No.YA551)3-3

USING P.W. BOARD & REMOTE CONTROL UNIT

P.W.B ASS'Y name

P.W.B ASS'Y No.

LT-47DV8BG/P LT-47DV8BJ/P

ANALOG P.W.B SFL-1251A-U2 ←

SW P.W.B SFL-7216A-U2 ←

LED P.W.B SFL-8722A-U2 ←

POWER P.W.B SFL-9081A-U2 ←

DC-DC P.W.B SFL-9189A-U2 ←

DIGITAL P.W.B LCA10774-02B(SFL-0D567A) ←

REMOTE CONTROL UNIT RM-C1911S-1C ←

3-4(No.YA551)

EXPLODED VIEW PARTS LIST

Ref.No. Part No. Part Name Description Local

1 LC42446-002A SCREW (x10)

2 QYSBSF3010MA TAP SCREW M3 x 10mm(x5)

3 QYSBSFG4016MA TAP SCREW M4 x 16mm(x6)

4 QYSBSFG4016MA TAP SCREW M4 x 16mm

5 LC34049-001A-U POWER CORD COVER

6 QYSBSFG4016MA TAP SCREW M4 x 16mm

7 LC33936-001A-HK CORD CLAMP

 8 LC13257-002A-HK REAR COVER

9 QQR0491-001 FERRITE CORE

 10 QMPK450-170-JC POWER CORD(EU) 1.7m BLACK LT-47DV8BGP

 10 QMPN370-170-JC POWER CORD(EK) 1.7m BLACK LT-47DV8BJP

11 LC33981-001D-HK BACK BRACKET (x2)

12 WJJ0844-001B-E WIRE POWER CN00P-LCD PANEL UNIT

13 WJJ0845-001A-E WIRE POWER CN00Q-LCD PANEL UNIT

14 WJX0050-001A-E E-COAXIAL ASSY

15 WJZ0284-001A-E WIRE ANALOG-DIGITAL TUNER UNIT

16 LC42984-001A SCREW (x2)

 17 LC42340-001C-HK SERVICE COVER

 18 QAU0500-1279552 DIGITAL TUNER UNIT (SERVICE) LT-47DV8BGP

 18 QAU0500-2298472 DIGITAL TUNER UNIT (SERVICE) LT-47DV8BJP

19 QYSPSP3004ZA SCREW M3 x 4mm(x3)

20 QNB0036-001 CONNECTOR ACCESSORY (x2)

21 QQR0942-001 CORE FILTER

22 WJJ0842-001A-E WIRE DIGITAL CN0DC-DC-DC CN0DC

23 QJJ064-061011-E WIRE DIGITAL CN0ID-DIGITAL TUNER UNIT

24 WJJ0846-002A-E WIRE DIGITAL CN001W-POWER CN00W

25 QUQR05-5009AB-E WIRE DIGITAL CN001-ANALOG CN001

26 QUQR05-4009AB-E WIRE DIGITAL CN002-ANALOG CN002

27 LC42574-001A EARTH CLIP

28 LC34140-001A WIRE SPACER

 29 LC13226-001B-U TERMINAL BASE

30 QYSBSF3010MA TAP SCREW M3 x 10mm(x3)

31 LC22409-001C-HK STAND BASE SUPPORT

32 QYSPSPD4016ZA SCREW M4 x 16mm(x4)

33 QYSPSPD5014MA SCREW M5 x 14mm(x4)

34 LC42887-001A-C SUPPORT PLATE

35 LC42890-001A SUPPORT BASE

36 QYSPSPD5014MA SCREW M5 x 14mm(x4)

37 LC42877-003A STAND BASE UNIT LT-47DV8BGP

37 LC42877-005B STAND BASE UNIT LT-47DV8BJP

38 LC22504-001B-HK SIDE BKT (x4)

39 LC22471-001B-HK TOP FRAME (x2) LT-47DV8BGP

39 LC22471-001D-HK TOP FRAME (x2) LT-47DV8BJP

 40 LC12507-005B-0K TERMINAL BASE

41 LC22423-001A-HK KNOB BASE

 42 LC33980-001A-HK CONTROL KNOB

43 WJZ0282-001A-E WIRE SW/LED-ANALOG

44 QQR0490-001 NOISE FILTER

45 WJW0074-002A-E DIGITAL(LVDS)CABLE DIGITAL CN0LV2- LCD PANEL UNIT

46 WJW0073-002A-E DIGITAL(LVDS)CABLE DIGITAL CN0LV1- LCD PANEL UNIT

 47 QLD0507-001-JUK LCD PANEL UNIT

 48 LC13228-002A-HK FRONT PANEL

49 LC41458-002A TAPPING SCREW (x6)

50 LC42777-005A-C SPEAKER(L) Inc.SPEAKER BOX

51 LC42777-002A-C SPEAKER(R) Inc.SPEAKER BOX

52 LC40226-005A-H SPACER (x6)

53 WJJ0843-001A-E WIRE ANALOG CN10F-POWER CN00F

54 QQR1623-002 FERRITE CORE (x2)

55 QNB0036-001 CONNECTOR ACCESSORY (x2)

56 LC42446-002A SCREW (x3)

201 SFL-9081A-U2 POWER PWB

202 LCA10774-02B DIGITAL PWB

203 SFL-9189A-U2 DC-DC PWB

204 SFL-1251A-U2 ANALOG PWB

205 SFL-7216A-U2 SW PWB

206 SFL-8722A-U2 LED PWB

(No.YA551)3-5

EXPLODED VIEW

MAIN BASE

DIGITAL PWB

BRACKET

SHIELD COVER

39 38

205

206

203

<LEFT>

<RIGHT>

RATING LABEL

8



29 27

204

201

14 15

202



3-6(No.YA551)

PRINTED WIRING BOARD PARTS LIST

ANALOG P.W. BOARD ASS'Y (SFL-1251A-U2)



Ref No. Part No. Part Name Description Local

IC101 R2S11004FT IC

IC102 R2S11003FT IC

IC104 MM1510XN-X IC

IC105 MM1510XN-X IC

IC541 74LVC1G3157GW-X IC

IC601 MX5000A IC

IC602 MM3272FN-X IC

IC603 R2S15901SP-X IC

IC604 74LVC1G125GW-X IC

IC605 MM1689AH-X IC

IC751 BH3547F-X IC

IC902 BA33BC0FP-X IC

IC951 PQ025EN02Z-X IC

IC961 MP2363DN-X IC

IC971 PQ090DNA1Z-X IC

IC981 BA12FP-X IC

IC3501 MSP3417GQGB8V3X IC

IC6001 TPA3100D2PHP-W IC

Q106 INK0001AM1-X MOS FET

Q107 INK0001AM1-X MOS FET

Q109 2SA1022/BC/-X TRANSISTOR

Q110 2SA1022/BC/-X TRANSISTOR

Q111 2SA1022/BC/-X TRANSISTOR

Q112 2SA1022/BC/-X TRANSISTOR

Q113 2SC1623A/5-6/-X SI TRANSISTOR

Q431 RT6N230C-X DIGI TRANSISTOR

Q432 RT6N230C-X DIGI TRANSISTOR

Q433 UN2110-X DIGI TRANSISTOR

Q434 RT6N230C-X DIGI TRANSISTOR

Q435 RT6N230C-X DIGI TRANSISTOR

Q436 UN2110-X DIGI TRANSISTOR

Q437 RT6N230C-X DIGI TRANSISTOR

Q438 RT6N230C-X DIGI TRANSISTOR

Q439 UN2110-X DIGI TRANSISTOR

Q444 2SC1623A/5-6/-X SI TRANSISTOR

Q445 2SC1623A/5-6/-X SI TRANSISTOR

Q601 2SA812A/5-6/-X SI TRANSISTOR

Q602 2SC1623A/5-6/-X SI TRANSISTOR

Q751 2SA812A/5-6/-X SI TRANSISTOR

Q752 UN2226-X DIGI TRANSISTOR

Q3001 2SA812A/5-6/-X SI TRANSISTOR

Q3003 2SC1623A/5-6/-X SI TRANSISTOR

Q3004 2SC1623A/5-6/-X SI TRANSISTOR

Q3005 2SC1623A/5-6/-X SI TRANSISTOR

Q3503 RT1N441C-X TRANSISTOR

Q6105 RT1N241C-X DIGI TRANSISTOR

Q6106 2SC1623A/5-6/-X SI TRANSISTOR

D105 1SS355W-X DIODE

D283 1SS355W-X DIODE

D284 1SS355W-X DIODE

D401 UDZW10B-X Z DIODE

D402 UDZW10B-X Z DIODE

D403 UDZW5.6B-X Z DIODE

D404 UDZW5.6B-X Z DIODE

D405 UDZW5.6B-X Z DIODE

D406 UDZW10B-X Z DIODE

D407 UDZW10B-X Z DIODE

D408 UDZW10B-X Z DIODE

D409 UDZW10B-X Z DIODE

D411 UDZW10B-X Z DIODE

D412 UDZW10B-X Z DIODE

D413 UDZW10B-X Z DIODE

D414 UDZW10B-X Z DIODE

D415 UDZW10B-X Z DIODE

D416 UDZW10B-X Z DIODE

D421 UDZW10B-X Z DIODE

D422 UDZW10B-X Z DIODE

D423 UDZW5.6B-X Z DIODE

D424 UDZW5.6B-X Z DIODE

D425 UDZW5.6B-X Z DIODE

D427 UDZW10B-X Z DIODE

D428 UDZW10B-X Z DIODE

D431 UDZW10B-X Z DIODE

D432 UDZW10B-X Z DIODE

D440 UDZW10B-X Z DIODE

D441 UDZW10B-X Z DIODE

D442 UDZW10B-X Z DIODE

D443 UDZW5.6B-X Z DIODE

D444 UDZW5.6B-X Z DIODE

D445 UDZW5.6B-X Z DIODE

D446 UDZW10B-X Z DIODE

D447 UDZW10B-X Z DIODE

D461 UDZW5.6B-X Z DIODE

D462 UDZW5.6B-X Z DIODE

D463 UDZW5.6B-X Z DIODE

D465 UDZW5.6B-X Z DIODE

D466 UDZW5.6B-X Z DIODE

D467 UDZW10B-X Z DIODE

D468 UDZW10B-X Z DIODE

D469 UDZW10B-X Z DIODE

D470 1SS355W-X DIODE

D491 UDZW3.3B-X Z DIODE

D492 S9648 PHOTO CONDUCTOR

D503 UDZW3.3B-X Z DIODE

D602 1SS355W-X DIODE

D603 1SS355W-X DIODE

D604 1SS355W-X DIODE

D605 1SS355W-X DIODE

D606 1SS355W-X DIODE

D607 1SS355W-X DIODE

D961 EC30HA04-X SB DIODE

D962 EC30HA04-X SB DIODE

D963 PTZ3.9B-X Z DIODE

D3501 1SS355W-X DIODE

D6104 1SS355W-X DIODE

C106 NCB11CK-475X C CAPACITOR 4.7uF 16V K

C107 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C108 NEHL1CM-476X E CAPACITOR 47uF 16V M

C116 NCB11AK-106X C CAPACITOR 10uF 10V K

C117 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C118 NCB31CK-105X C CAPACITOR 1uF 16V K

C119 NCB31CK-105X C CAPACITOR 1uF 16V K

C120 NCB31CK-105X C CAPACITOR 1uF 16V K

C121 NCB31CK-105X C CAPACITOR 1uF 16V K

C122 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C123 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C124 NCB31CK-105X C CAPACITOR 1uF 16V K

C125 NCB31CK-105X C CAPACITOR 1uF 16V K

C126 NCB31CK-105X C CAPACITOR 1uF 16V K

C127 NCB11AK-106X C CAPACITOR 10uF 10V K

C128 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C129 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C130 NEHL1CM-476X E CAPACITOR 47uF 16V M

C131 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C132 NCB31CK-105X C CAPACITOR 1uF 16V K

C133 NCB31CK-105X C CAPACITOR 1uF 16V K

C134 NCB31CK-105X C CAPACITOR 1uF 16V K

C138 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C139 NCB31CK-105X C CAPACITOR 1uF 16V K

C141 NEHL1CM-106X E CAPACITOR 10uF 16V M

C142 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C143 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C148 NCB31CK-105X C CAPACITOR 1uF 16V K

C149 NEHL1CM-106X E CAPACITOR 10uF 16V M

C150 NEHL1AM-107X E CAPACITOR 100uF 10V M

C151 NEHL1CM-106X E CAPACITOR 10uF 16V M

C152 NCB31CK-105X C CAPACITOR 1uF 16V K

C153 NEHL1CM-106X E CAPACITOR 10uF 16V M

C154 NEHL1AM-107X E CAPACITOR 100uF 10V M

C155 NEHL1CM-106X E CAPACITOR 10uF 16V M

C156 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C157 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C158 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C161 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C167 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C168 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C169 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C170 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C171 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C172 NCB31HK-223X C CAPACITOR 0.022uF 50V K

C173 NDC31HJ-680X C CAPACITOR 68pF 50V J

C174 NDC31HJ-331X C CAPACITOR 330pF 50V J

C176 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C177 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C178 NCB31CK-105X C CAPACITOR 1uF 16V K

C179 NEHL1CM-476X E CAPACITOR 47uF 16V M

C180 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C181 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C182 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C183 NCB31CK-103X C CAPACITOR 0.01uF 16V K

C184 NDC31HJ-151X C CAPACITOR 150pF 50V J

C185 NDC31HJ-820X C CAPACITOR 82pF 50V J

C187 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C189 NEHL1CM-106X E CAPACITOR 10uF 16V M

C194 NCB11AK-106X C CAPACITOR 10uF 10V K

C195 NCB11AK-106X C CAPACITOR 10uF 10V K

C196 NCB11AK-106X C CAPACITOR 10uF 10V K

C199 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C200 NCB31CK-104X C CAPACITOR 0.1uF 16V K



Ref No. Part No. Part Name Description Local

(No.YA551)3-7

C201 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C202 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C207 NCB11CK-225X C CAPACITOR 2.2uF 16V K

C208 NCB11CK-225X C CAPACITOR 2.2uF 16V K

C212 NCB11CK-225X C CAPACITOR 2.2uF 16V K

C213 NCB11CK-225X C CAPACITOR 2.2uF 16V K

C261 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C262 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C263 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C264 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C291 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C292 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C293 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C401 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C402 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C403 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C404 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C405 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C406 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C407 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C408 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C409 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C410 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C411 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C412 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C413 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C415 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C416 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C417 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C418 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C419 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C420 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C421 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C422 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C428 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C429 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C430 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C431 NCB21AK-475X C CAPACITOR 4.7uF 10V K

C432 NCB21AK-475X C CAPACITOR 4.7uF 10V K

C433 NCB11CK-105X C CAPACITOR 1uF 16V K

C440 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C441 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C442 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C443 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C444 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C445 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C446 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C447 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C448 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C449 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C450 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C451 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C452 NCB11CK-105X C CAPACITOR 1uF 16V K

C453 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C454 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C455 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C456 NCB11CK-105X C CAPACITOR 1uF 16V K

C457 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C461 NDC31HJ-101X C CAPACITOR 100pF 50V J

C462 NDC31HJ-101X C CAPACITOR 100pF 50V J

C463 NDC31HJ-101X C CAPACITOR 100pF 50V J

C464 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C465 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C466 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C468 NDC31HJ-101X C CAPACITOR 100pF 50V J

C469 NDC31HJ-101X C CAPACITOR 100pF 50V J

C491 NEHL1CM-106X E CAPACITOR 10uF 16V M

C492 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C493 NEHL1AM-107X E CAPACITOR 100uF 10V M

C494 NCB31HK-102X C CAPACITOR 1000pF 50V K

C533 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C601 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C602 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C603 NDC31HJ-120X C CAPACITOR 12pF 50V J

C604 NDC31HJ-120X C CAPACITOR 12pF 50V J

C613 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C614 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C615 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C616 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C617 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K

C618 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K

C619 NEHL1HM-106X E CAPACITOR 10uF 50V M

C620 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C621 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C623 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C624 NCB31HK-102X C CAPACITOR 1000pF 50V K

C625 NCB31HK-102X C CAPACITOR 1000pF 50V K

C626 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C627 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

C628 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J



Ref No. Part No. Part Name Description Local

C629 NEHL0JM-476X E CAPACITOR 47uF 6.3V M

C630 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C631 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C632 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C633 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C634 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C635 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C636 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C637 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C638 NCB20JK-106X C CAPACITOR 10uF 6.3V K

C639 NCB20JK-106X C CAPACITOR 10uF 6.3V K

C640 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C641 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C642 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C643 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C644 NEHL0JM-476X E CAPACITOR 47uF 6.3V M

C645 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C646 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C647 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C648 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C649 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C650 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C651 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C652 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C653 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C654 NEHL0JM-476X E CAPACITOR 47uF 6.3V M

C655 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C659 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

C660 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

C664 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C665 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C666 NEHL0JM-476X E CAPACITOR 47uF 6.3V M

C667 NEHL0JM-476X E CAPACITOR 47uF 6.3V M

C668 NEHL0JM-476X E CAPACITOR 47uF 6.3V M

C670 NEAF0JM-227X E CAPACITOR 220uF 6.3V M

C685 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K

C686 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K

C752 NCB21AK-475X C CAPACITOR 4.7uF 10V K

C753 NEHL0GM-227X E CAPACITOR 220uF 4V M

C754 NEHL1CM-476X E CAPACITOR 47uF 16V M

C755 NEHL0GM-227X E CAPACITOR 220uF 4V M

C756 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C757 NCB21AK-475X C CAPACITOR 4.7uF 10V K

C759 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C760 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C761 NEHL1AM-107X E CAPACITOR 100uF 10V M

C772 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

C773 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

C901 NEHM0JM-107X E CAPACITOR 100uF 6.3V M

C904 NCB11AK-106X C CAPACITOR 10uF 10V K

C905 NEHM1CM-476X E CAPACITOR 47uF 16V M

C906 NCB31EK-104X C CAPACITOR 0.1uF 25V K

C913 NEX51CM-335X E CAPACITOR 3.3uF 16V M

C914 NEX50JM-156X E CAPACITOR 15uF 6.3V M

C951 NCB31AK-105X C CAPACITOR 1uF 10V K

C952 NEHL1CM-106X E CAPACITOR 10uF 16V M

C953 NCB31AK-334X C CAPACITOR 0.33uF 10V K

C961 NCB31CK-334X C CAPACITOR 0.33uF 16V K

C962 NDC31HJ-101X C CAPACITOR 100pF 50V J

C963 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C964 NCJ41HK-335X-U C CAPACITOR 3.3uF 50V K

C965 NCJ41HK-335X-U C CAPACITOR 3.3uF 50V K

C966 NCB11AK-106X C CAPACITOR 10uF 10V K

C967 NCB11AK-106X C CAPACITOR 10uF 10V K

C968 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C969 NCB11AK-106X C CAPACITOR 10uF 10V K

C971 NEHM1EM-336X E CAPACITOR 33uF 25V M

C972 NCB21EK-334X C CAPACITOR 0.33uF 25V K

C973 NEHM1EM-336X E CAPACITOR 33uF 25V M

C981 NEHM1EM-336X E CAPACITOR 33uF 25V M

C982 NEHM1EM-336X E CAPACITOR 33uF 25V M

C3001 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C3002 NEHL1AM-107X E CAPACITOR 100uF 10V M

C3006 NCB30JK-105X C CAPACITOR 1uF 6.3V K

C3007 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C3008 NEHL1HM-106X E CAPACITOR 10uF 50V M

C3009 NEHL1EM-106X E CAPACITOR 10uF 25V M

C3010 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C3011 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C3012 NDC31HJ-821X C CAPACITOR 820pF 50V J

C3013 NDC31HJ-470X C CAPACITOR 47pF 50V J

C3014 NDC31HJ-470X C CAPACITOR 47pF 50V J

C3016 NDC31HJ-180X C CAPACITOR 18pF 50V J

C3017 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C3018 NCB11AK-106X C CAPACITOR 10uF 10V K

C3019 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C3501 NCB11AK-106X C CAPACITOR 10uF 10V K

C3502 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C3503 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C3512 NCB31HK-103X C CAPACITOR 0.01uF 50V K



Ref No. Part No. Part Name Description Local

3-8(No.YA551)

C3513 NDC31HJ-2R0X C CAPACITOR 2pF 50V J

C3514 NDC31HJ-2R0X C CAPACITOR 2pF 50V J

C3515 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C3516 NEHL1AM-107X E CAPACITOR 100uF 10V M

C3517 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C3518 NCB31HK-222X C CAPACITOR 2200pF 50V K

C3523 NDC31HJ-102X C CAPACITOR 1000pF 50V J

C3524 NDC31HJ-102X C CAPACITOR 1000pF 50V J

C3525 NEHL1CM-106X E CAPACITOR 10uF 16V M

C3526 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C3529 NEHL1CM-106X E CAPACITOR 10uF 16V M

C3530 NCB11AK-106X C CAPACITOR 10uF 10V K

C3531 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C3534 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C3535 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C3536 NCB11AK-106X C CAPACITOR 10uF 10V K

C3537 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C3544 NCB31AK-105X C CAPACITOR 1uF 10V K

C3546 NCB31AK-105X C CAPACITOR 1uF 10V K

C6104 NCB31CK-105X C CAPACITOR 1uF 16V K

C6105 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K

C6106 NCJ21CK-475X-R C CAPACITOR 4.7uF 16V K

C6107 NCB31CK-105X C CAPACITOR 1uF 16V K

C6108 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C6109 NCB31CK-105X C CAPACITOR 1uF 16V K

C6110 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6111 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6112 NCB21EK-334X C CAPACITOR 0.33uF 25V K

C6113 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6114 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6115 NCB21EK-105X C CAPACITOR 1uF 25V K

C6116 QEHR1EM-227Z E CAPACITOR 220uF 25V M

C6117 NCB21EK-105X C CAPACITOR 1uF 25V K

C6118 NCB21EK-105X C CAPACITOR 1uF 25V K

C6119 QEHR1EM-227Z E CAPACITOR 220uF 25V M

C6120 NCB21EK-105X C CAPACITOR 1uF 25V K

C6121 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6122 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6123 NCB21EK-334X C CAPACITOR 0.33uF 25V K

C6124 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6125 NCB21EK-224X C CAPACITOR 0.22uF 25V K

C6126 NCB21EK-105X C CAPACITOR 1uF 25V K

C6127 NEHL1EM-226X E CAPACITOR 22uF 25V M

C6601 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C6602 QETN1EM-477Z E CAPACITOR 470uF 25V M

C6651 NCB21AK-475X C CAPACITOR 4.7uF 10V K

C6661 NCB21AK-475X C CAPACITOR 4.7uF 10V K

R140 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R141 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R142 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R143 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R144 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R145 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R148 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R149 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R150 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R151 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R152 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R153 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R154 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R157 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R158 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R159 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R160 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R161 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R164 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R165 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R166 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R167 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R168 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R169 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R171 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R181 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R183 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R184 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R188 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R189 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R190 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R191 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R192 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R197 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R202 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R203 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R204 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R206 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R207 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R216 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R217 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R218 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J



Ref No. Part No. Part Name Description Local

R219 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R220 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R222 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R228 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R231 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R232 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R233 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R234 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R235 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R236 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R237 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R238 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R239 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R241 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R242 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R243 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R245 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R246 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R247 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R248 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R250 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R251 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R252 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R254 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R255 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R256 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R259 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R260 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R261 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J

R262 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R263 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R264 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R265 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R266 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R267 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R268 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R269 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R270 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R271 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R274 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R275 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R276 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R277 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R278 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R288 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R289 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R293 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R294 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R300 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R301 NDC31HJ-102X C CAPACITOR 1000pF 50V J

R302 NDC31HJ-102X C CAPACITOR 1000pF 50V J

R303 NDC31HJ-102X C CAPACITOR 1000pF 50V J

R304 NCB31HK-104X C CAPACITOR 0.1uF 50V K

R307 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R308 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R309 NDC31HJ-102X C CAPACITOR 1000pF 50V J

R311 NDC31HJ-102X C CAPACITOR 1000pF 50V J

R312 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R401 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R402 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R403 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R404 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R405 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R406 NRSA63J-680X MG RESISTOR 68

Ω

1/16W J

R410 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R411 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R412 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R413 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R414 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R419 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R420 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R421 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R422 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R423 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R426 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R427 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R437 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R438 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R439 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R440 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R441 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R442 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R443 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R444 NRSA63J-393X MG RESISTOR 39k

Ω

1/16W J

R445 NRSA63J-393X MG RESISTOR 39k

Ω

1/16W J

R446 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R447 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R448 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R450 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R451 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J



Ref No. Part No. Part Name Description Local

(No.YA551)3-9

R452 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R453 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R454 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R455 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R456 NRSA63J-680X MG RESISTOR 68

Ω

1/16W J

R457 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R458 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R459 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R460 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R461 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R464 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R467 NRSA63J-750X MG RESISTOR 75

Ω

1/16W J

R475 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R476 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R482 NRSA63J-393X MG RESISTOR 39k

Ω

1/16W J

R483 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R484 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R485 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R486 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R487 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R488 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R489 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R491 NRSA63J-105X MG RESISTOR 1M

Ω

1/16W J

R535 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R538 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R584 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R585 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R601 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R602 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R605 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R606 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R607 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R608 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R609 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R610 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R611 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R612 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R613 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R615 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R616 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R617 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R618 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R620 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R621 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R622 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R623 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R624 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R626 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R627 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R628 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R634 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R635 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R640 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R641 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R642 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R643 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R644 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R650 NRSA63J-563X MG RESISTOR 56k

Ω

1/16W J

R651 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R657 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R659 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R660 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R661 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R662 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R663 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R664 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R665 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R666 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R667 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R668 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R669 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R670 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R671 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R755 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R756 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R757 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R758 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R759 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R760 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R761 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R763 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R764 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R765 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R768 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R769 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R770 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R777 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R778 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R779 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R780 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J



Ref No. Part No. Part Name Description Local

R783 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R786 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R787 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R902 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R906 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R951 NRS181J-181X MG RESISTOR 180

Ω

1/8W J

R961 NRSA02J-680X MG RESISTOR 68

Ω

1/10W J

R962 NRSA63D-273X MG RESISTOR 27k

Ω

1/16W D

R963 NRSA63J-824X MG RESISTOR 820k

Ω

1/16W J

R964 NRSA63D-103X MG RESISTOR 10k

Ω

1/16W D

R965 NRS181J-181X MG RESISTOR 180

Ω

1/8W J

R966 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R981 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R982 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R3002 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R3003 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R3004 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R3005 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R3006 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R3008 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R3009 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R3010 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R3011 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R3012 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R3013 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R3014 NRSA63J-181X MG RESISTOR 180

Ω

1/16W J

R3015 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R3016 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R3017 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R3018 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R3019 NRSA63J-271X MG RESISTOR 270

Ω

1/16W J

R3020 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R3025 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R3514 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R3515 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R3516 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R3517 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R3546 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R3547 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6106 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R6107 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R6108 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R6109 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R6113 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R6115 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R6117 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R6118 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R6119 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

R6120 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J

R6124 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R6127 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6134 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R6141 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6142 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6143 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

L101 NQLE42M-100X COIL 10uH M

L601 NQLE42M-100X COIL 10uH M

L605 NQLE42M-100X COIL 10uH M

L606 NQLE42M-100X COIL 10uH M

L607 NQLE42M-100X COIL 10uH M

L608 NQLE42M-100X COIL 10uH M

L609 NQLE42M-100X COIL 10uH M

L901 NQR0562-003X CHOKE COIL

L902 NQL52EM-220X COIL 22uH M

L903 NQR0562-010X CHOKE COIL

L961 NQLC8CM-150X COIL 15uH M

L3001 NQL79GM-100X COIL 10uH M

L3002 NQLE42M-100X COIL 10uH M

L3003 NQL093M-220X COIL 22uH M

L3004 NQL093M-180X COIL 18uH M

L3503 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

L3504 NQLE42M-4R7X COIL 4.7uH M

L6101 NQLF3EM-330X COIL 33uH M

L6102 NQLF3EM-330X COIL 33uH M

L6103 NQLF3EM-330X COIL 33uH M

L6104 NQLF3EM-330X COIL 33uH M

CN001 QGF0508C2-50W CONNECTOR FFC/FPC (1-50)

CN002 QGF0508C2-40W CONNECTOR FFC/FPC (1-40)

CN00H QGB1231L1-23 CONNECTOR B-B (1-23)

J401 QNZ0463-002 21P CONNECTOR EXT-1

J402 QNZ0463-002 21P CONNECTOR EXT-2

J403 QNZ0726-001 AV JACK EXT-3

J405 QNN0649-001 PIN JACK AUDIO IN/OUT

J406 QNN0650-001 PIN JACK EXT-4

J410 QNZ0592-001 D CONNECTOR PC IN

K101 NQR0389-003X FERRITE BEADS

K102 NQR0389-003X FERRITE BEADS

K103 NQR0389-003X FERRITE BEADS



Ref No. Part No. Part Name Description Local

3-10(No.YA551)

SW P.W. BOARD ASS'Y (SFL-7216A-U2)

LED P.W. BOARD ASS'Y (SFL-8722A-U2)

POWER P.W. BOARD ASS'Y (SFL-9081A-U2)

K104 NQR0389-003X FERRITE BEADS

K105 NQR0389-003X FERRITE BEADS

K106 NQR0389-003X FERRITE BEADS

K107 NQR0389-003X FERRITE BEADS

K108 NQR0389-003X FERRITE BEADS

K601 NQR0499-002X FERRITE BEADS

K3001 NQR0389-003X FERRITE BEADS

K3501 NQR0389-003X FERRITE BEADS

K3502 NQR0389-003X FERRITE BEADS

K6101 NQR0499-002X FERRITE BEADS

K6102 NQR0499-002X FERRITE BEADS

K6103 NQR0499-002X FERRITE BEADS

K6104 NQR0499-002X FERRITE BEADS

K6601 NQR0499-002X FERRITE BEADS

LC3501 NQR0436-001X EMI FILTER

OT1 LC42056-001A SHADE SPACER

TU3001 QAU0489-001 TUNER

X601 NAX0932-001X CRYSTAL 12.288MHz

X3501 QAX0773-001Z CRYSTAL 18.432000MHz



Ref No. Part No. Part Name Description Local

D7011 UDZW6.2B-X Z DIODE

C7011 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7012 NCB31CK-104X C CAPACITOR 0.1uF 16V K

R7011 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R7012 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R7013 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7014 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7015 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7016 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7701 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7702 NRSA63J-822X MG RESISTOR 8.2k

Ω

1/16W J

R7703 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7704 NRSA63J-822X MG RESISTOR 8.2k

Ω

1/16W J

R7707 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7708 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7710 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7711 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

J7001 QNS0097-002 3.5 JACK HEADPHONE

S7701 QSW1121-001Z PUSH SW I.M CH-

S7702 QSW1121-001Z PUSH SW I.M CH+

S7703 QSW1121-001Z PUSH SW I.M MENU

S7704 QSW1121-001Z PUSH SW I.M INPUT

S7705 QSW1121-001Z PUSH SW I.M VOL+

S7706 QSW1121-001Z PUSH SW I.M VOL-

S7707 QSW1121-001Z PUSH SW I.M POWER



Ref No. Part No. Part Name Description Local

IC8751 S9648 PHOTO CONDUCTOR

IC8752 GP1UM261RK IR DETECT UNIT

Q8701 RT1N241C-X DIGI TRANSISTOR

Q8704 RT1P440C-X DIGI TRANSISTOR

Q8705 RT1P440C-X DIGI TRANSISTOR

Q8709 RT1N241C-X DIGI TRANSISTOR

Q8712 RT1N241C-X DIGI TRANSISTOR

Q8713 RT1N241C-X DIGI TRANSISTOR

D8701 SML72420C-T LED POWER

D8705 SELU5E20C/EF/-T LED ILLUMINATION

D8712 UDZW6.8B-X Z DIODE

D8713 UDZW6.8B-X Z DIODE

C8751 NEHL1EM-226X E CAPACITOR 22uF 25V M

C8752 NCJ41CM-226X-U C CAPACITOR 22uF 16V M

R8711 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R8713 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R8714 NRSA63J-681X MG RESISTOR 680

Ω

1/16W J

R8717 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R8722 NRSA63J-121X MG RESISTOR 120

Ω

1/16W J

R8723 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J

R8724 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R8751 NRSA63J-274X MG RESISTOR 270k

Ω

1/16W J

R8752 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J



Ref No. Part No. Part Name Description Local

R8753 NRSA63J-683X MG RESISTOR 68k

Ω

1/16W J

R8754 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R8755 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J



Ref No. Part No. Part Name Description Local

IC9201 MIP2C20MSSCF IC

IC9501 MP2A5038-F233 IC



IC9502 FA5500AN-W IC

IC9601 TL431/A/-T IC

IC9701 PQ1CG2032FZ IC

IC9801 STR-W6765-F5 IC

IC9901 TL431/A/-T IC

Q9001 2SC3928A/QR/-X TRANSISTOR

Q9002 2SC3928A/QR/-X TRANSISTOR

Q9501 2SK3522A-01 POWER MOS FET

Q9502 2SC3928A/QR/-X TRANSISTOR

Q9503 2SC3928A/QR/-X TRANSISTOR

Q9504 UN2213-X DIGI TRANSISTOR

Q9505 UN2212-X DIGI TRANSISTOR

Q9506 UN2212-X DIGI TRANSISTOR

Q9507 2SB1188/QR/-W TRANSISTOR

Q9508 UN2212-X DIGI TRANSISTOR

Q9551 2SC3928A/QR/-X TRANSISTOR

Q9555 2SB1188/QR/-W TRANSISTOR

Q9556 UN2212-X DIGI TRANSISTOR

Q9557 UN2213-X DIGI TRANSISTOR

Q9558 UN2213-X DIGI TRANSISTOR

Q9602 UN2212-X DIGI TRANSISTOR

Q9603 UN2212-X DIGI TRANSISTOR

Q9604 UN2212-X DIGI TRANSISTOR

Q9701 2SC3928A/QR/-X TRANSISTOR

Q9702 UN2213-X DIGI TRANSISTOR



D9001 TS25P05G-C2 BRIDGE DIODE

D9002 1SS355W-X DIODE

D9003 1SS355W-X DIODE

D9005 1SS355W-X DIODE

D9006 1SS355W-X DIODE

D9203 EG01C-T2 SI DIODE

D9204 SSPX-66-W SI DIODE

D9205 TL431/A/-T IC

D9206 EC21QS10-X SB DIODE

D9212 EM1A-T2 SI DIODE

D9213 EM1A-T2 SI DIODE

D9214 EM1A-T2 SI DIODE

D9215 MA8330/M/-X Z DIODE

D9216 MA8330/M/-X Z DIODE

D9218 SSPX-66-W SI DIODE

D9501 YG972S6R SI DIODE

D9502 RF101L2S-X SI DIODE

D9503 1SS355W-X DIODE

D9504 1SS355W-X DIODE

D9505 RF101L2S-X SI DIODE

D9506 1SS355W-X DIODE

D9507 MA8100/M/-X Z DIODE

D9508 1SS355W-X DIODE

D9552 SD883-04-X SB DIODE

D9553 PTZ27B-X Z DIODE

D9554 PTZ27B-X Z DIODE

D9555 SD883-04-X SB DIODE

D9556 UDZS3.9B-X Z DIODE

D9561 1SS355W-X DIODE

D9601 FCHS20A08 SB DIODE

D9602 FCHS20A08 SB DIODE

D9603 FCHS20A08 SB DIODE

D9604 FCHS20A08 SB DIODE

D9653 MTZJ16B-T2 Z DIODE

D9654 MTZJ16B-T2 Z DIODE

D9702 EC30HA03L-X SB DIODE

D9801 D2SBA60 BRIDGE DIODE

D9802 FR105GT-T3 SI DIODE

D9803 SARS01-T2 FR DIODE

D9804 SARS01-T2 FR DIODE

D9805 1SS355W-X DIODE

D9806 MTZJ33B-T2 Z DIODE

D9807 FR105GT-T3 SI DIODE

D9808 FR105GT-T3 SI DIODE

D9809 1SS355W-X DIODE

D9810 1SS355W-X DIODE

D9902 FMX-G12S SI DIODE

D9903 FMX-22S SI DIODE

D9904 FR105GT-T3 SI DIODE



Ref No. Part No. Part Name Description Local

(No.YA551)3-11



C9001 QFZ9084-474 MPP CAPACITOR 0.47uF



C9002 QFZ9084-474 MPP CAPACITOR 0.47uF



C9003 QCZ9071-102 C CAPACITOR 1000pF AC400V M



C9004 QCZ9071-331 C CAPACITOR 330pF AC400V K



C9006 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C9007 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C9008 QCZ9078-222 C CAPACITOR 2200pF AC250V M



C9009 QCZ9078-222 C CAPACITOR 2200pF AC250V M

C9012 QEHR0JM-108Z E CAPACITOR 1000uF 6.3V M

C9204 QEZ0709-106 E CAPACITOR 10uF 450V M

C9205 QFP32JK-222 PP CAPACITOR 2200pF 630V K

C9206 QEHR1HM-105Z E CAPACITOR 1uF 50V M

C9207 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9208 NCB31HK-222X C CAPACITOR 2200pF 50V K

C9210 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9211 QECR1VM-477Z E CAPACITOR 470uF 35V M

C9212 QEHR1AM-337Z E CAPACITOR 330uF 10V M

C9219 QEHR1VM-107Z E CAPACITOR 100uF 35V M

C9501 QEZ0739-337 E CAPACITOR 330uF

C9502 QCZ0340-331 C CAPACITOR 330pF 2kV K

C9503 QFZ0231-225 MM CAPACITOR 2.2uF

C9504 NCB31HK-222X C CAPACITOR 2200pF 50V K

C9505 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9506 NCB21HK-104X C CAPACITOR 0.1uF 50V K

C9507 NDC31HJ-102X C CAPACITOR 1000pF 50V J

C9508 QEHR1VM-476Z E CAPACITOR 47uF 35V M

C9509 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9510 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9511 QEHR1HM-107Z E CAPACITOR 100uF 50V M

C9512 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9551 QFZ0230-563 MPP CAPACITOR 0.056uF

C9553 NCB31HK-821X C CAPACITOR 820pF 50V K

C9554 NCB31HK-182X C CAPACITOR 1800pF 50V K

C9555 NCB31HK-331X C CAPACITOR 330pF 50V K

C9556 QEHR1CM-107Z E CAPACITOR 100uF 16V M

C9557 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9558 NCB31CK-105X C CAPACITOR 1uF 16V K

C9559 NCB31HK-102X C CAPACITOR 1000pF 50V K

C9560 NCB31HK-473X C CAPACITOR 0.047uF 50V K

C9561 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9562 QEHR1HM-107Z E CAPACITOR 100uF 50V M



C9591 QCZ9071-102 C CAPACITOR 1000pF AC400V M

C9592 QCZ9071-681 C CAPACITOR 680pF AC400V M

C9601 QECQ1VM-128 E CAPACITOR 1200uF 35V M

C9602 QECQ1VM-128 E CAPACITOR 1200uF 35V M

C9604 QECQ1VM-128 E CAPACITOR 1200uF 35V M

C9605 QECQ1VM-128 E CAPACITOR 1200uF 35V M

C9612 NCB21HK-104X C CAPACITOR 0.1uF 50V K

C9653 QEHR1HM-336Z E CAPACITOR 33uF 50V M

C9654 QEHR1HM-107Z E CAPACITOR 100uF 50V M

C9701 QECR1VM-337Z E CAPACITOR 330uF 35V M

C9703 QECR1EM-687Z E CAPACITOR 680uF 25V M

C9705 QEHR1CM-477Z E CAPACITOR 470uF 16V M

C9753 QECR1EM-687Z E CAPACITOR 680uF 25V M

C9801 QEZ0476-157 E CAPACITOR 150uF

C9804 QFP32JK-332 PP CAPACITOR 3300pF 630V K

C9805 QFP32JK-332 PP CAPACITOR 3300pF 630V K

C9806 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9807 QEHR1HM-335Z E CAPACITOR 3.3uF 50V M

C9808 QCZ0340-471 C CAPACITOR 470pF 2kV K

C9809 QEHR1HM-226Z E CAPACITOR 22uF 50V M

C9812 NCB31HK-821X C CAPACITOR 820pF 50V K

C9813 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9814 NCB31HK-471X C CAPACITOR 470pF 50V K

C9816 QCZ9071-102 C CAPACITOR 1000pF AC400V M

C9903 QECQ1EM-188 E CAPACITOR 1800uF 25V M

C9904 QECQ1EM-188 E CAPACITOR 1800uF 25V M

C9906 QEHR2AM-106Z E CAPACITOR 10uF 100V M

C9909 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9910 NCB31HK-222X C CAPACITOR 2200pF 50V K



R9001 QRZ0107-474Z C RESISTOR 470k

Ω

1/2W K

R9002 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R9003 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9004 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R9005 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9007 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R9205 NRS12BJ-224W MG RESISTOR 220k

Ω

1/2W J

R9206 NRS12BJ-101W MG RESISTOR 100

Ω

1/2W J

R9207 NRSA63J-394X MG RESISTOR 390k

Ω

1/16W J

R9208 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J



R9209 QRZ9046-685Z C RESISTOR 6.8M

Ω

1/2W K

R9210 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R9211 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R9212 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R9213 NRSA63D-103X MG RESISTOR 10k

Ω

1/16W D

R9214 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R9215 NRSA63D-103X MG RESISTOR 10k

Ω

1/16W D

R9221 QRE121J-220Y C RESISTOR 22

Ω

1/2W J

R9501 QRM059J-R15 MP RESISTOR 0.15

Ω

5W J



Ref No. Part No. Part Name Description Local

R9502 QRM059J-R15 MP RESISTOR 0.15

Ω

5W J

R9503 NRS181J-474X MG RESISTOR 470k

Ω

1/8W J

R9504 NRS181J-474X MG RESISTOR 470k

Ω

1/8W J

R9505 NRS181J-334X MG RESISTOR 330k

Ω

1/8W J

R9506 NRSA63D-912X MG RESISTOR 9.1k

Ω

1/16W D

R9507 NRS12BJ-223W MG RESISTOR 22k

Ω

1/2W J

R9508 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R9509 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R9510 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R9511 NRS181J-824X MG RESISTOR 820k

Ω

1/8W J

R9512 NRS181J-824X MG RESISTOR 820k

Ω

1/8W J

R9513 NRS181J-824X MG RESISTOR 820k

Ω

1/8W J

R9514 NRSA63D-183X MG RESISTOR 18k

Ω

1/16W D

R9515 NRSA63D-224X MG RESISTOR 220k

Ω

1/16W D

R9516 NRS181J-334X MG RESISTOR 330k

Ω

1/8W J

R9517 NRS181J-334X MG RESISTOR 330k

Ω

1/8W J

R9518 NRS181J-394X MG RESISTOR 390k

Ω

1/8W J

R9519 NRS181J-474X MG RESISTOR 470k

Ω

1/8W J

R9520 NRSA63J-683X MG RESISTOR 68k

Ω

1/16W J

R9521 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9522 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R9523 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9524 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9525 NRSA63J-824X MG RESISTOR 820k

Ω

1/16W J

R9526 NRS12BJ-102W MG RESISTOR 1k

Ω

1/2W J

R9527 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9528 NRSA63J-224X MG RESISTOR 220k

Ω

1/16W J

R9529 NRS12BJ-101W MG RESISTOR 100

Ω

1/2W J

R9530 NRS12BJ-220W MG RESISTOR 22

Ω

1/2W J

R9532 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9533 NRSA02J-562X MG RESISTOR 5.6k

Ω

1/10W J

R9534 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9540 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J



R9551 QRZ9046-105Z C RESISTOR 1M

Ω

1/2W K

R9552 NRS12BJ-470W MG RESISTOR 47

Ω

1/2W J

R9553 NRS181J-223X MG RESISTOR 22k

Ω

1/8W J

R9555 NRS12BJ-220W MG RESISTOR 22

Ω

1/2W J

R9556 NRS181J-104X MG RESISTOR 100k

Ω

1/8W J

R9557 NRS181J-102X MG RESISTOR 1k

Ω

1/8W J

R9558 NRS181J-103X MG RESISTOR 10k

Ω

1/8W J

R9559 NRSA02J-223X MG RESISTOR 22k

Ω

1/10W J

R9560 NRS181J-183X MG RESISTOR 18k

Ω

1/8W J

R9561 NRS181J-103X MG RESISTOR 10k

Ω

1/8W J

R9564 NRS181J-683X MG RESISTOR 68k

Ω

1/8W J

R9565 NRS12BJ-821W MG RESISTOR 820

Ω

1/2W J

R9568 NRZ0096-R010X MP RESISTOR 0.01

Ω

R9569 NRZ0096-R010X MP RESISTOR 0.01

Ω

R9572 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9573 NRSA02J-562X MG RESISTOR 5.6k

Ω

1/10W J

R9574 NRSA63J-683X MG RESISTOR 68k

Ω

1/16W J

R9576 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9577 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9578 NRS12BJ-151W MG RESISTOR 150

Ω

1/2W J

R9580 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9603 NRS12BJ-222W MG RESISTOR 2.2k

Ω

1/2W J

R9604 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R9605 NRSA02J-103X MG RESISTOR 10k

Ω

1/10W J

R9606 NRSA63D-273X MG RESISTOR 27k

Ω

1/16W D

R9607 NRSA63D-682X MG RESISTOR 6.8k

Ω

1/16W D

R9608 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9609 NRSA63D-392X MG RESISTOR 3.9k

Ω

1/16W D

R9621 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

R9625 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R9631 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

R9641 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

R9701 NRSA63D-103X MG RESISTOR 10k

Ω

1/16W D

R9703 NRSA63D-102X MG RESISTOR 1k

Ω

1/16W D

R9704 NRSA63D-683X MG RESISTOR 68k

Ω

1/16W D

R9706 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9708 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R9709 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9802 QRL02EJ-473X OMF RESISTOR 47k

Ω

2W J

R9803 QRE121J-564Y C RESISTOR 560k

Ω

1/2W J

R9804 QRL03EJ-220X OMF RESISTOR 22

Ω

3W J

R9805 QRE121J-224Y C RESISTOR 220k

Ω

1/2W J

R9806 QRE121J-224Y C RESISTOR 220k

Ω

1/2W J

R9807 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9808 QRE121J-151Y C RESISTOR 150

Ω

1/2W J

R9809 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R9810 QRE121J-102Y C RESISTOR 1k

Ω

1/2W J

R9811 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R9812 QRT01EJ-R39X MF RESISTOR 0.39

Ω

1W J

R9813 QRT01EJ-R82X MF RESISTOR 0.82

Ω

1W J

R9814 QRK126J-221X UNF C RESISTOR 220

Ω

1/2W J

R9901 QRL01EJ-821X OMF RESISTOR 820

Ω

1W J

R9902 QRL02EJ-152X OMF RESISTOR 1.5k

Ω

2W J

R9903 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R9904 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R9905 NRSA63D-183X MG RESISTOR 18k

Ω

1/16W D

R9906 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J



Ref No. Part No. Part Name Description Local

3-12(No.YA551)

DC-DC P.W. BOARD ASS'Y (SFL-9189A-U2)

DIGITAL P.W. BOARD ASS'Y

(LCA10774-02B)(SFL-0D567A)

R9907 NRSA63D-332X MG RESISTOR 3.3k

Ω

1/16W D

L9201 QQL26AM-5R6Z CHOKE COIL 5.6uH M



L9501 QQR1789-001 CHOKE COIL

L9502 QQR1513-001 CHOKE COIL

L9651 QQL244J-101Z PEAKING COIL 100uH J

L9701 QQL26AK-100Z COIL 10uH K

L9702 QQR1432-001 CHOKE COIL

L9703 QQL26AK-100Z COIL 10uH K

L9753 QQL26AM-4R7Z CHOKE COIL 4.7uH M

L9801 QQR1130-003 CHOKE COIL

L9903 QQL26AK-100Z COIL 10uH K



T9201 QQS0381-001 SW TRANSF



T9501 QQS0406-002 SW TRANSF



T9801 QQS0380-001 SW TRANSF



CP9201 QMFZ052-2R0Z-E FUSE 2A



CP9501 QMFZ043-5R0Z-J1 FUSE 5A AC250V



CP9601 ICP-N70-T IC PROTECTOR 2.5A



CP9801 QMFZ043-5R0Z-J1 FUSE 5A AC250V



CP9901 QMFZ034-5R0Z-J1 FUSE 5A 125V



CP9902 ICP-N50-T IC PROTECTOR 2.0A



F9001 QMF5AD2-6R3-J1 FUSE 6.3A AC250V

K9201 QQR0621-002Z FERRITE BEADS

K9202 QQR0621-002Z FERRITE BEADS

K9502 QQR0621-002Z FERRITE BEADS

K9503 QQR0621-002Z FERRITE BEADS

K9607 QQR0621-002Z FERRITE BEADS

K9608 QQR0621-002Z FERRITE BEADS

K9609 QQR0621-002Z FERRITE BEADS

K9610 QQR0621-002Z FERRITE BEADS

K9751 NQR0499-002X FERRITE BEADS



LF9002 QQR1281-005 LINE FILTER



LF9003 QQR1784-001 LINE FILTER



PC9202 PS2581AL1/QW/ PHOTO COUPLER



PC9501 PS2581AL1/QW/ PHOTO COUPLER



PC9502 PS2581AL1/QW/ PHOTO COUPLER



PC9503 PS2581AL1/QW/ PHOTO COUPLER



PC9504 PS2581AL1/QW/ PHOTO COUPLER



PC9801 PS2581AL1/QW/ PHOTO COUPLER



RY9001 QSK0162-001 RELAY



RY9002 QSK0162-001 RELAY



TH9001 QAD0174-250 P THERMISTOR 25

Ω



VA9001 QAF0028-621 ZNR 620V



Ref No. Part No. Part Name Description Local

IC9401 S393-X IC

IC9701 AL1042-X IC

Q9401 2SC3928A/QR/-X TRANSISTOR

Q9601 2SC3928A/QR/-X TRANSISTOR

Q9602 UN2213-X DIGI TRANSISTOR

Q9701 RSS090N03-X POWER MOS FET

Q9702 RSS090N03-X POWER MOS FET

Q9703 2SC3928A/QR/-X TRANSISTOR

D9401 UDZW9.1B-X Z DIODE

D9402 1SS355W-X DIODE

D9403 1SS355W-X DIODE

D9604 PTZ16B-X Z DIODE

D9605 1SS355W-X DIODE

D9606 1SS355W-X DIODE

D9701 1SS357-X SB DIODE

D9702 EC30HA04-X SB DIODE

D9703 PTZ6.8B-X Z DIODE

D9704 1SS355W-X DIODE

D9705 UDZW3.0B-X Z DIODE

D9706 1SS355W-X DIODE

C9401 NEHM1HM-105X E CAPACITOR 1uF 50V M

C9402 NCB31EK-104X C CAPACITOR 0.1uF 25V K

C9403 NCB31EK-104X C CAPACITOR 0.1uF 25V K

C9404 NCB31EK-104X C CAPACITOR 0.1uF 25V K

C9451 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9452 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9453 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9454 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9455 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9456 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9701 NCB11AK-106X C CAPACITOR 10uF 10V K

C9702 NCJ11HK-105X-U C CAPACITOR 1uF 50V K

C9703 QEZ0849-128 E CAPACITOR 1200uF

C9704 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9705 NCB21EK-105X C CAPACITOR 1uF 25V K



Ref No. Part No. Part Name Description Local

C9706 NDC31HJ-101X C CAPACITOR 100pF 50V J

C9707 NCB31AK-224X C CAPACITOR 0.22uF 10V K

C9709 NEX60JM-227X E CAPACITOR 220uF 6.3V M

C9710 NEX60JM-227X E CAPACITOR 220uF 6.3V M

C9711 NEHM1HM-105X E CAPACITOR 1uF 50V M

C9712 NEZ0038-227X E CAPACITOR 220uF

C9714 NCJ11HK-105X-U C CAPACITOR 1uF 50V K

C9715 NCB11HK-104X C CAPACITOR 0.1uF 50V K

C9721 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C9723 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9724 NDC31HJ-152X C CAPACITOR 1500pF 50V J

C9981 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9982 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9983 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9984 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9985 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9986 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9987 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9988 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9989 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9991 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9992 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9993 NCB31HK-104X C CAPACITOR 0.1uF 50V K

C9998 NCB31HK-104X C CAPACITOR 0.1uF 50V K

R9401 NRS12BJ-332W MG RESISTOR 3.3k

Ω

1/2W J

R9402 NRSA63D-472X MG RESISTOR 4.7k

Ω

1/16W D

R9403 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R9404 NRSA63D-472X MG RESISTOR 4.7k

Ω

1/16W D

R9405 NRSA63D-273X MG RESISTOR 27k

Ω

1/16W D

R9406 NRSA63D-472X MG RESISTOR 4.7k

Ω

1/16W D

R9407 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R9408 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

R9409 NRSA63J-822X MG RESISTOR 8.2k

Ω

1/16W J

R9611 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R9612 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R9613 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

R9614 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R9701 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R9702 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R9704 NRZ0096-R010X MP RESISTOR 0.01

Ω

R9706 NRSA63J-333X MG RESISTOR 33k

Ω

1/16W J

R9707 NRSA63D-183X MG RESISTOR 18k

Ω

1/16W D

R9708 NRSA63J-824X MG RESISTOR 820k

Ω

1/16W J

R9709 NRSA63D-332X MG RESISTOR 3.3k

Ω

1/16W D

R9710 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R9711 NRSA63J-182X MG RESISTOR 1.8k

Ω

1/16W J

R9712 NRSA63J-123X MG RESISTOR 12k

Ω

1/16W J

R9713 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R9719 NRS181J-100X MG RESISTOR 10

Ω

1/8W J

R9720 NRSA63D-154X MG RESISTOR 150k

Ω

1/16W D

R9723 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9750 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

L9702 NQLB1EN-7R4X COIL 7.4uH N

L9703 NQR0562-002X CHOKE COIL

L9902 NQLE42M-470X COIL 47uH M

CN00A WJK0249-001A-E E-SI C WIRE C-B

CN00H QGB1231M1-23 CONNECTOR B-B (1-23)

K9701 NQR0413-001X FERRITE BEADS

K9702 NQR0413-001X FERRITE BEADS



Ref No. Part No. Part Name Description Local

IC5001 JCC5070 IC

IC5002 EDD1232ABBH-5C IC

IC5003 EDD1232ABBH-5C IC

IC5503 BU7986KUT IC

IC6001 JCC5068 IC

IC6002 74LVC1G08GW-X IC

IC6004 ICS574MLF-X IC

IC6101 EDD1232AAFA-6B IC

IC6102 AIC1384PSH-X IC

IC6250 UPC5702GS-027-X IC

IC6251 R1170H331B-X IC

IC6301 TC7SET08F-X IC

IC6302 TC7SET08F-X IC

IC6303 TC7SH86FU-X IC(DIGITAL)

IC6503 BU7986KUT IC

IC6509 TC7SET08F-X IC

IC6510 MM3143DN-X IC

IC6724 S-80928CLNB-G-W IC

IC6901 R1141Q331B-X IC



Ref No. Part No. Part Name Description Local

(No.YA551)3-13

IC7033 74HC4094PW-X IC

IC7036 ADC081S021CIS-X IC

IC7201 39VF80A7IEKLJ10 IC(MICRO C ROM)

IC7203 M12L16161A7T11U IC

IC7204 S-80928CLNB-G-W IC

IC7301 SDA6000-B12 IC

IC7302 SA16D90TFI01 IC(MICRO C ROM)

IC7303 K4S641632K-UC75 IC

IC7304 TC74HC4053AFT-X IC(DIGITAL)

IC7305 MM1689CH-X IC

IC7306 S-80928CLNB-G-W IC

IC7502 74LVC2G06GW-X IC

IC7602 ATF32-47DV8BGP IC (SERVICE)

IC7606 MM1671XN-X IC

IC9000 THV1021-X IC

IC9101 MM1662FT-X IC

IC9102 MM1662FT-X IC

IC9251 MM1701CH-X IC

IC9301 MM1701CH-X IC

Q6202 2SA1530A/QR/-X TRANSISTOR

Q6203 RT1A3906-X TRANSISTOR

Q6204 RT1A3906-X TRANSISTOR

Q6205 RT1A3906-X TRANSISTOR

Q6206 RT1A3906-X TRANSISTOR

Q6207 2SC5477-X TRANSISTOR

Q6208 2SC5477-X TRANSISTOR

Q6209 2SC5477-X TRANSISTOR

Q6210 2SC5477-X TRANSISTOR

Q6211 2SC5477-X TRANSISTOR

Q6212 2SC5477-X TRANSISTOR

Q6213 2SC5477-X TRANSISTOR

Q6214 2SC5477-X TRANSISTOR

Q6250 2SC3928A/QR/-X TRANSISTOR

Q6251 2SC3928A/QR/-X TRANSISTOR

Q6301 2SA1530A/QR/-X TRANSISTOR

Q6302 HN1C01F/Y/-X PAIR TRANSISTOR

Q6303 2SA1530A/QR/-X TRANSISTOR

Q6304 HN1C01F/Y/-X PAIR TRANSISTOR

Q6501 2SC3928A/QR/-X TRANSISTOR

Q6502 2SC3928A/QR/-X TRANSISTOR

Q6503 RT1N441C-X TRANSISTOR

Q6505 INK0001AM1-X MOS FET

Q6506 INK0001AM1-X MOS FET

Q7030 RT1N441C-X TRANSISTOR

Q7032 RT1P441C-X DIGI TRANSISTOR

Q7033 RT1P441C-X DIGI TRANSISTOR

Q7034 RT1P441C-X DIGI TRANSISTOR

Q7035 RT1P441C-X DIGI TRANSISTOR

Q7041 RT1N441C-X TRANSISTOR

Q7301 UN2213-X DIGI TRANSISTOR

Q9010 UN2212-X DIGI TRANSISTOR

Q9051 RSS040P03-X MOS FET

Q9052 UN2212-X DIGI TRANSISTOR

Q9701 RSS040P03-X MOS FET

D6301 MA111-X SI DIODE

D6302 MA111-X SI DIODE

D6502 MA111-X SI DIODE

D6504 MA111-X SI DIODE

D7301 RB501V-40-X SB DIODE

D7302 1SS357-X SB DIODE

D7303 RB521S-30-X SB DIODE

D9051 EC30HA03L-X SB DIODE

D9053 PTZ3.9B-X Z DIODE

D9701 EC30HA03L-X SB DIODE

D9703 PTZ3.9B-X Z DIODE

C5001 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5002 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5003 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5004 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5005 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5006 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5007 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5008 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5009 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5010 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5011 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5012 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5013 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5014 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5015 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5016 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5017 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5018 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5019 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5020 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5021 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5022 NCB31CK-104X C CAPACITOR 0.1uF 16V K



Ref No. Part No. Part Name Description Local

C5023 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5024 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5025 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5026 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5027 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5028 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5029 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5030 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5031 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5032 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5033 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5034 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5035 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5036 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5037 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5038 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5039 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5040 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5041 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5042 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5043 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5044 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5045 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5046 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5047 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5048 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5051 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5052 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5053 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5054 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5055 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5056 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5057 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5058 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5059 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5060 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5061 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5062 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5063 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5064 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5065 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5066 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5067 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5068 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5069 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5070 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5071 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5072 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5073 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5074 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5075 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5076 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5077 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5078 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5079 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5080 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5081 NCB11AK-106X C CAPACITOR 10uF 10V K

C5082 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5084 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5086 NCB11AK-106X C CAPACITOR 10uF 10V K

C5501 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5502 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5503 NCJ20JK-106X-R C CAPACITOR 10uF 6.3V K

C5504 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5505 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5506 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5507 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5509 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5510 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5511 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5513 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5514 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C5515 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6002 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6003 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6004 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6101 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C6103 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C6107 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C6109 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6111 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6112 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6113 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C6114 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6116 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C6117 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C6118 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C6119 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C6121 NCB31AK-474X C CAPACITOR 0.47uF 10V K

C6122 NEHL0JM-107X E CAPACITOR 100uF 6.3V M



Ref No. Part No. Part Name Description Local

3-14(No.YA551)

C6123 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6124 NEHL0JM-107X E CAPACITOR 100uF 6.3V M

C6125 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6126 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C6128 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C6130 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C6132 NEHL1EM-226X E CAPACITOR 22uF 25V M

C6133 NCB31CK-154X C CAPACITOR 0.15uF 16V K

C6134 NCB11AK-106X C CAPACITOR 10uF 10V K

C6135 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6139 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6205 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6211 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6217 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6218 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6219 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6220 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6227 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6228 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6229 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6236 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6237 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6238 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6239 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6240 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6241 NCB11AK-106X C CAPACITOR 10uF 10V K

C6242 NCB31AK-105X C CAPACITOR 1uF 10V K

C6243 NCB11AK-106X C CAPACITOR 10uF 10V K

C6244 NCB31AK-105X C CAPACITOR 1uF 10V K

C6245 NCB11AK-106X C CAPACITOR 10uF 10V K

C6246 NCB31AK-105X C CAPACITOR 1uF 10V K

C6247 NCB11AK-106X C CAPACITOR 10uF 10V K

C6248 NCB31AK-105X C CAPACITOR 1uF 10V K

C6249 NCB31AK-105X C CAPACITOR 1uF 10V K

C6250 NCB11AK-106X C CAPACITOR 10uF 10V K

C6251 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6252 NCB11CK-105X C CAPACITOR 1uF 16V K

C6253 NCB11CK-105X C CAPACITOR 1uF 16V K

C6254 NCB11CK-105X C CAPACITOR 1uF 16V K

C6255 NCB11CK-105X C CAPACITOR 1uF 16V K

C6260 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C6261 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C6262 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C6263 NCB21AK-225X C CAPACITOR 2.2uF 10V K

C6267 NDC31HJ-120X C CAPACITOR 12pF 50V J

C6268 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6270 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6271 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6272 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6273 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6274 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6276 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6277 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6278 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6279 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6280 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6282 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6283 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6284 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6285 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6286 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6288 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6289 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6291 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6293 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6294 NEX60JM-227X E CAPACITOR 220uF 6.3V M

C6295 NEX60JM-227X E CAPACITOR 220uF 6.3V M

C6296 NCB11AK-106X C CAPACITOR 10uF 10V K

C6297 NCB11AK-106X C CAPACITOR 10uF 10V K

C6299 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6300 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6301 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6303 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6306 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6308 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6311 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6312 NCB11AK-106X C CAPACITOR 10uF 10V K

C6313 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6317 NCB11AK-106X C CAPACITOR 10uF 10V K

C6318 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6319 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6320 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6321 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6322 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6323 NCB11AK-106X C CAPACITOR 10uF 10V K

C6501 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6502 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6503 NCJ20JK-106X-R C CAPACITOR 10uF 6.3V K

C6504 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6505 NCB31CK-104X C CAPACITOR 0.1uF 16V K



Ref No. Part No. Part Name Description Local

C6506 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6507 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6509 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6510 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6511 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6513 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6514 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6515 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6520 NEX60JM-107X E CAPACITOR 100uF 6.3V M

C6531 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6532 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6533 NRSA63J-272X MG RESISTOR 2.7k

Ω

1/16W J

C6572 NCB21CK-105X C CAPACITOR 1uF 16V K

C6587 NCB21CK-105X C CAPACITOR 1uF 16V K

C6588 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6589 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C6590 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C6592 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6593 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6601 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6602 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6603 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6604 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6605 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6606 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6607 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6608 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6609 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6610 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6611 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6612 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6613 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6614 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6615 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6616 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6617 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6618 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6619 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6620 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6621 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6622 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6623 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6624 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6625 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6626 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6627 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6628 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6629 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6630 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6631 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6632 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6633 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6634 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6635 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6636 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6651 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6652 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6653 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6654 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6655 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6656 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6657 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6658 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6660 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6662 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6663 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6666 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6667 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6668 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6671 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6676 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6677 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6678 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6681 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6682 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6683 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6684 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6685 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6686 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6687 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6688 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6689 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6690 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6691 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6692 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6693 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6694 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6695 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6696 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6697 NCB31CK-104X C CAPACITOR 0.1uF 16V K



Ref No. Part No. Part Name Description Local

(No.YA551)3-15

C6701 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z

C6723 NCB31HK-222X C CAPACITOR 2200pF 50V K

C6724 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C6901 NEX60JM-227X E CAPACITOR 220uF 6.3V M

C6902 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6903 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6904 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6905 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6906 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6907 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6908 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6909 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6910 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6911 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6912 NCB11AK-106X C CAPACITOR 10uF 10V K

C6913 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6914 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6915 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6916 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6917 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6918 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6919 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6921 NCB11AK-106X C CAPACITOR 10uF 10V K

C6922 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6923 NCB11AK-106X C CAPACITOR 10uF 10V K

C6924 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6925 NCB11AK-106X C CAPACITOR 10uF 10V K

C6926 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6927 NCB11AK-106X C CAPACITOR 10uF 10V K

C6928 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C6929 NCB31AK-105X C CAPACITOR 1uF 10V K

C7030 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7031 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7033 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7034 NCB31AK-334X C CAPACITOR 0.33uF 10V K

C7039 NCB31HK-102X C CAPACITOR 1000pF 50V K

C7040 NCB11AK-106X C CAPACITOR 10uF 10V K

C7044 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7051 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7052 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7053 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7054 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7055 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7056 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7057 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7058 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7059 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7060 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7061 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7062 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7063 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7064 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7065 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7066 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7067 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7068 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7073 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7202 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7203 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7204 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7205 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7206 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7207 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7208 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7209 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7211 NCB31HK-102X C CAPACITOR 1000pF 50V K

C7215 NDC31HJ-330X C CAPACITOR 33pF 50V J

C7301 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7302 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7303 NCB11AK-106X C CAPACITOR 10uF 10V K

C7304 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7305 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7306 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7307 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7308 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7309 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7310 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7311 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7312 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7313 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7314 NCB11AK-106X C CAPACITOR 10uF 10V K

C7315 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7318 NCB11AK-106X C CAPACITOR 10uF 10V K

C7319 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7320 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7321 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7324 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7325 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7326 NDC31HJ-270X C CAPACITOR 27pF 50V J

C7327 NDC31HJ-330X C CAPACITOR 33pF 50V J



Ref No. Part No. Part Name Description Local

C7328 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7329 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7330 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7331 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7333 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7334 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7335 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7338 NEHM1CM-106X E CAPACITOR 10uF 16V M

C7340 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7341 NCB11AK-106X C CAPACITOR 10uF 10V K

C7342 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C7343 NCB11AK-106X C CAPACITOR 10uF 10V K

C7344 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C7345 NCB30JK-225X C CAPACITOR 2.2uF 6.3V K

C7346 NCB11AK-106X C CAPACITOR 10uF 10V K

C7348 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7349 NCB31HK-102X C CAPACITOR 1000pF 50V K

C7350 NCF31CZ-104X C CAPACITOR 0.1uF 16V Z

C7353 NCB31EK-682X C CAPACITOR 6800pF 25V K

C7355 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7356 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7357 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7502 NCB31AK-105X C CAPACITOR 1uF 10V K

C7506 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7507 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7508 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7510 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7513 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7514 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7515 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7517 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C7601 NCB11CK-105X C CAPACITOR 1uF 16V K

C7620 NCF11CZ-475X C CAPACITOR 4.7uF 16V Z

C7626 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C7632 NCB31AK-224X C CAPACITOR 0.22uF 10V K

C9020 NCB31EK-104X C CAPACITOR 0.1uF 25V K

C9030 NCB11EK-225X C CAPACITOR 2.2uF 25V K

C9040 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9050 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9051 NCJ21CK-106X-D C CAPACITOR 10uF 16V K

C9052 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9056 NCB11AK-106X C CAPACITOR 10uF 10V K

C9057 NCB11AK-106X C CAPACITOR 10uF 10V K

C9058 NCB11AK-106X C CAPACITOR 10uF 10V K

C9059 NDC31HJ-681X C CAPACITOR 680pF 50V J

C9061 NCB31HK-102X C CAPACITOR 1000pF 50V K

C9062 NCJ21CK-106X-D C CAPACITOR 10uF 16V K

C9063 NCB11AK-106X C CAPACITOR 10uF 10V K

C9101 NCB11CK-475X C CAPACITOR 4.7uF 16V K

C9103 NCB11CK-225X C CAPACITOR 2.2uF 16V K

C9104 NCB11CK-225X C CAPACITOR 2.2uF 16V K

C9105 NCB11CK-475X C CAPACITOR 4.7uF 16V K

C9251 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9252 NCB11AK-475X C CAPACITOR 4.7uF 10V K

C9253 NCB11AK-475X C CAPACITOR 4.7uF 10V K

C9254 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9255 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9302 NCB11CK-475X C CAPACITOR 4.7uF 16V K

C9303 NCB31HK-103X C CAPACITOR 0.01uF 50V K

C9304 NCB11CK-475X C CAPACITOR 4.7uF 16V K

C9601 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9602 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9603 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9604 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9605 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9606 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9607 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9610 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9611 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9612 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9613 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9614 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9615 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9616 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9617 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9618 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9619 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9620 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9621 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9624 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9641 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9642 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9643 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9644 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9645 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9646 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9647 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9648 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9649 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9650 NCB31CK-104X C CAPACITOR 0.1uF 16V K



Ref No. Part No. Part Name Description Local

3-16(No.YA551)

C9657 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9658 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9659 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9660 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9661 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9662 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9663 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9664 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9667 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9670 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9671 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9672 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9673 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9674 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9675 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9676 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9677 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9678 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9679 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9680 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9681 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9682 NCB31CK-104X C CAPACITOR 0.1uF 16V K

C9701 NCJ21CK-106X-D C CAPACITOR 10uF 16V K

C9706 NCB11AK-106X C CAPACITOR 10uF 10V K

C9707 NCB11AK-106X C CAPACITOR 10uF 10V K

C9708 NCB11AK-106X C CAPACITOR 10uF 10V K

C9709 NDC31HJ-391X C CAPACITOR 390pF 50V J

C9711 NCB31HK-682X C CAPACITOR 6800pF 50V K

C9724 NCJ21CK-106X-D C CAPACITOR 10uF 16V K

C9725 NCB11AK-106X C CAPACITOR 10uF 10V K

R5001 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5002 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5003 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5004 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5005 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5006 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5007 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5008 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5009 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5010 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5011 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5012 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5013 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5014 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5015 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5016 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5017 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R5018 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5019 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5020 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5021 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5022 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5023 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5024 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5025 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R5026 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R5027 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R5028 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R5029 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5030 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5031 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5032 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5033 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R5034 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R5035 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5036 NRSA63J-560X MG RESISTOR 56

Ω

1/16W J

R5037 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5058 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5059 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R5060 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R5061 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5501 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R5502 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R5505 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R5508 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5511 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R5514 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5568 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R5571 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6006 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6009 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6024 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6025 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6026 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6028 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6031 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6032 NRSA63D-470X MG RESISTOR 47

Ω

1/16W D

R6033 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6034 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J



Ref No. Part No. Part Name Description Local

R6080 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R6082 NRVA63D-330X CMF RESISTOR 33

Ω

1/16W D

R6083 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6101 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6102 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6103 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6104 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6105 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6106 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6107 NRSA63J-100X MG RESISTOR 10

Ω

1/16W J

R6108 NRSA63J-100X MG RESISTOR 10

Ω

1/16W J

R6109 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6110 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6111 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6112 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6113 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6114 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6115 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6116 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6117 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6118 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6119 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6120 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6121 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6122 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R6127 NRSA63J-1R5X MG RESISTOR 1.5

Ω

1/16W J

R6128 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6129 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6142 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6201 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6202 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6203 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6204 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6205 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R6207 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6208 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6209 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6212 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6214 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6216 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6217 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6219 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6220 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R6227 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J

R6228 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R6229 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R6230 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6231 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6232 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6233 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6234 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J

R6235 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R6236 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R6237 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R6238 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R6239 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R6240 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R6241 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R6242 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R6243 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6244 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R6245 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R6246 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R6247 NRSA63J-682X MG RESISTOR 6.8k

Ω

1/16W J

R6252 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6253 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R6254 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R6255 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6256 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6257 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R6258 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R6259 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6260 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6261 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R6262 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R6263 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6264 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6265 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R6266 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R6267 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6268 NRSA63D-242X MG RESISTOR 2.4k

Ω

1/16W D

R6269 NRSA63D-242X MG RESISTOR 2.4k

Ω

1/16W D

R6270 NRSA63D-242X MG RESISTOR 2.4k

Ω

1/16W D

R6271 NRSA63D-242X MG RESISTOR 2.4k

Ω

1/16W D

R6274 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R6277 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J

R6282 NRSA63J-331X MG RESISTOR 330

Ω

1/16W J

R6283 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R6284 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6286 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J



Ref No. Part No. Part Name Description Local

(No.YA551)3-17

R6287 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J

R6288 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J

R6289 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6291 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R6292 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R6309 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6310 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R6312 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6314 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6316 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6317 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6322 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6323 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R6325 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6327 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6329 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R6330 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6335 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6337 NRSA63D-103X MG RESISTOR 10k

Ω

1/16W D

R6340 NRSA63D-123X MG RESISTOR 12k

Ω

1/16W D

R6341 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6342 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6501 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R6502 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R6505 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6508 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6511 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6514 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6532 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6533 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6534 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6536 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6538 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R6539 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R6548 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R6549 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R6568 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6593 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R6594 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R6599 NRSA63J-823X MG RESISTOR 82k

Ω

1/16W J

R6751 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6761 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6765 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6768 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6771 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6774 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R6775 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6776 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6778 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6781 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6783 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6789 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6790 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R6793 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6924 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R6943 NRSA63J-150X MG RESISTOR 15

Ω

1/16W J

R6946 NRSA63D-220X MG RESISTOR 22

Ω

1/16W D

R6953 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7032 NRSA63J-151X MG RESISTOR 150

Ω

1/16W J

R7039 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7041 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7042 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R7043 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7044 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7045 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R7046 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R7052 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7059 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7060 NRSA63J-154X MG RESISTOR 150k

Ω

1/16W J

R7064 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7065 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7066 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R7067 NRSA63J-562X MG RESISTOR 5.6k

Ω

1/16W J

R7070 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7071 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7072 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7076 NRSA63J-392X MG RESISTOR 3.9k

Ω

1/16W J

R7078 NRSA63J-332X MG RESISTOR 3.3k

Ω

1/16W J

R7081 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7084 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R7085 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R7088 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7089 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7092 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7093 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7094 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7107 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7109 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7112 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7125 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J



Ref No. Part No. Part Name Description Local

R7127 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7134 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7135 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7174 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7186 NCB31HK-103X C CAPACITOR 0.01uF 50V K

R7190 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7191 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7201 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7202 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7203 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7207 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7215 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7216 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7217 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7223 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7224 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7225 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7238 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7243 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7244 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7302 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7303 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7304 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7305 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7309 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7310 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7311 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7312 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7313 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7314 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7315 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7316 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7317 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7318 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7319 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7320 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7321 NRSA63J-820X MG RESISTOR 82

Ω

1/16W J

R7322 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7323 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7324 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7325 NRSA63J-220X MG RESISTOR 22

Ω

1/16W J

R7327 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7328 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7330 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7332 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7333 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7334 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7335 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7337 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7339 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R7340 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7341 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7342 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7343 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7346 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R7347 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R7348 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7349 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7350 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7351 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7352 NRSA63J-273X MG RESISTOR 27k

Ω

1/16W J

R7353 NRSA63J-273X MG RESISTOR 27k

Ω

1/16W J

R7354 NRSA63J-273X MG RESISTOR 27k

Ω

1/16W J

R7355 NRSA63J-470X MG RESISTOR 47

Ω

1/16W J

R7356 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7358 NRSA63J-471X MG RESISTOR 470

Ω

1/16W J

R7359 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7362 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R7363 NRSA63D-273X MG RESISTOR 27k

Ω

1/16W D

R7364 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7365 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7366 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7367 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R7368 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7369 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7371 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7372 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7374 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R7375 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7377 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7378 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7379 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7380 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7381 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7382 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7383 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7384 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7385 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7386 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7387 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J



Ref No. Part No. Part Name Description Local

3-18(No.YA551)

R7388 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7389 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7390 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7391 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7392 NRSA63J-330X MG RESISTOR 33

Ω

1/16W J

R7393 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7396 NRSA63D-101X MG RESISTOR 100

Ω

1/16W D

R7512 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7513 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7514 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R7515 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R7523 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7524 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7525 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R7529 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7530 NRSA63J-102X MG RESISTOR 1k

Ω

1/16W J

R7532 NRSA63J-273X MG RESISTOR 27k

Ω

1/16W J

R7533 NRSA63J-221X MG RESISTOR 220

Ω

1/16W J

R7601 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7602 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R7634 NRSA63J-391X MG RESISTOR 390

Ω

1/16W J

R7635 NRSA63J-122X MG RESISTOR 1.2k

Ω

1/16W J

R7680 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9010 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R9020 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9030 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9040 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R9050 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9051 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9053 NRS181J-151X MG RESISTOR 150

Ω

1/8W J

R9054 NRS181J-101X MG RESISTOR 100

Ω

1/8W J

R9057 NRSA63D-563X MG RESISTOR 56k

Ω

1/16W D

R9058 NRSA63D-333X MG RESISTOR 33k

Ω

1/16W D

R9059 NRSA63J-202X MG RESISTOR 2k

Ω

1/16W J

R9060 NRSA63J-472X MG RESISTOR 4.7k

Ω

1/16W J

R9061 NRSA63J-153X MG RESISTOR 15k

Ω

1/16W J

R9062 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R9063 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9070 NRSA63J-473X MG RESISTOR 47k

Ω

1/16W J

R9080 NRSA63D-153X MG RESISTOR 15k

Ω

1/16W D

R9090 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9251 NRSA63J-101X MG RESISTOR 100

Ω

1/16W J

R9253 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9302 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

R9306 NCB21EK-102X C CAPACITOR 1000pF 25V K

R9701 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9707 NRSA63D-103X MG RESISTOR 10k

Ω

1/16W D

R9708 NRSA63D-473X MG RESISTOR 47k

Ω

1/16W D

R9709 NRSA63J-104X MG RESISTOR 100k

Ω

1/16W J

R9710 NRSA63J-222X MG RESISTOR 2.2k

Ω

1/16W J

R9711 NRSA63J-223X MG RESISTOR 22k

Ω

1/16W J

R9712 NRSA63J-103X MG RESISTOR 10k

Ω

1/16W J

R9713 NRSA63D-473X MG RESISTOR 47k

Ω

1/16W D

R9714 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9715 NRSA63D-182X MG RESISTOR 1.8k

Ω

1/16W D

R9716 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

R9717 NRSA63D-332X MG RESISTOR 3.3k

Ω

1/16W D

RA5001 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5002 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5003 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5004 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5005 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5006 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5007 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5008 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5009 NRZ0034-330W NET RESISTOR 33

Ω

1/32W J x4

RA5010 NRZ0034-330W NET RESISTOR 33

Ω

1/32W J x4

RA5011 NRZ0034-330W NET RESISTOR 33

Ω

1/32W J x4

RA5012 NRZ0034-330W NET RESISTOR 33

Ω

1/32W J x4

RA5013 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5014 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5015 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5016 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5017 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5018 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5019 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5020 NRZ0034-220W NET RESISTOR 22

Ω

1/32W J x4

RA5027 NRZ0033-0R0W NET RESISTOR 0

Ω

RA5028 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA5029 NRZ0033-0R0W NET RESISTOR 0

Ω

RA5030 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA5031 NRZ0033-0R0W NET RESISTOR 0

Ω

RA5032 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA5033 NRZ0033-0R0W NET RESISTOR 0

Ω

RA5034 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA5035 NRZ0033-0R0W NET RESISTOR 0

Ω

RA5036 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA5037 NRZ0033-0R0W NET RESISTOR 0

Ω

RA5038 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA5502 NRZ0034-0R0W NET RESISTOR 0

Ω

1/32W J x4



Ref No. Part No. Part Name Description Local

RA6101 NRZ0040-220X NET RESISTOR 22

Ω

1/16W J x4

RA6102 NRZ0080-220X NET RESISTOR 22

Ω

1/16W J

RA6103 NRZ0040-220X NET RESISTOR 22

Ω

1/16W J x4

RA6104 NRZ0040-220X NET RESISTOR 22

Ω

1/16W J x4

RA6105 NRZ0080-220X NET RESISTOR 22

Ω

1/16W J

RA6106 NRZ0040-220X NET RESISTOR 22

Ω

1/16W J x4

RA6107 NRZ0080-220X NET RESISTOR 22

Ω

1/16W J

RA6108 NRZ0080-220X NET RESISTOR 22

Ω

1/16W J

RA6109 NRZ0040-470X NET RESISTOR 47

Ω

1/16W J x4

RA6110 NRZ0080-470X NET RESISTOR 47

Ω

1/16W J

RA6111 NRZ0040-470X NET RESISTOR 47

Ω

1/16W J x4

RA6112 NRZ0040-470X NET RESISTOR 47

Ω

1/16W J x4

RA6113 NRZ0080-470X NET RESISTOR 47

Ω

1/16W J

RA6114 NRZ0040-470X NET RESISTOR 47

Ω

1/16W J x4

RA6115 NRZ0080-470X NET RESISTOR 47

Ω

1/16W J

RA6116 NRZ0080-470X NET RESISTOR 47

Ω

1/16W J

RA6502 NRZ0034-0R0W NET RESISTOR 0

Ω

1/32W J x4

RA6532 NRZ0034-0R0W NET RESISTOR 0

Ω

1/32W J x4

RA6541 NRZ0033-0R0W NET RESISTOR 0

Ω

RA6542 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA6543 NRZ0033-0R0W NET RESISTOR 0

Ω

RA6544 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA6545 NRZ0033-0R0W NET RESISTOR 0

Ω

RA6546 NRZ0080-0R0X NET RESISTOR 0

Ω

1/16W J

RA7202 NRZ0080-473X NET RESISTOR 47k

Ω

RA7203 NRZ0080-473X NET RESISTOR 47k

Ω

RA7204 NRZ0080-473X NET RESISTOR 47k

Ω

RA7205 NRZ0080-473X NET RESISTOR 47k

Ω

RA7503 NQR0271-004X EMI FILTER

L5002 NQR0499-001X FERRITE BEADS

L5004 NQR0499-001X FERRITE BEADS

L5006 NQR0499-001X FERRITE BEADS

L5008 NQR0499-001X FERRITE BEADS

L5009 NQLE3GK-220X COIL 22uH K

L5010 NQR0499-001X FERRITE BEADS

L5014 NQR0199-007X FERRITE BEADS

L5511 NQR0504-001X EMI FILTER

L5512 NQR0504-001X EMI FILTER

L5513 NQR0504-001X EMI FILTER

L5514 NQR0504-001X EMI FILTER

L5515 NQR0504-001X EMI FILTER

L5516 NQR0504-001X EMI FILTER

L6102 NQLE3GK-220X COIL 22uH K

L6103 NQLE3GK-220X COIL 22uH K

L6115 NQR0499-001X FERRITE BEADS

L6253 NQL092K-2R2X P COIL 2.2uH K

L6265 NQR0499-001X FERRITE BEADS

L6266 NQR0499-001X FERRITE BEADS

L6502 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

L6511 NQR0504-001X EMI FILTER

L6512 NQR0504-001X EMI FILTER

L6513 NQR0504-001X EMI FILTER

L6514 NQR0504-001X EMI FILTER

L6515 NQR0504-001X EMI FILTER

L6516 NQR0504-001X EMI FILTER

L6531 NQR0499-001X FERRITE BEADS

L6701 NQR0499-001X FERRITE BEADS

L6911 NQR0499-001X FERRITE BEADS

L6912 NQR0499-001X FERRITE BEADS

L6922 NQLE3GK-220X COIL 22uH K

L6924 NQLE3GK-220X COIL 22uH K

L6925 NQLE3GK-220X COIL 22uH K

L6931 NQR0499-001X FERRITE BEADS

L7301 NQR0339-001X FERRITE BEADS

L7302 NQR0339-001X FERRITE BEADS

L7303 NQL092K-4R7X P COIL 4.7uH K

L7304 NQL092K-4R7X P COIL 4.7uH K

L7305 NQL092K-4R7X P COIL 4.7uH K

L7306 NQL092K-4R7X P COIL 4.7uH K

L7307 NQL092K-4R7X P COIL 4.7uH K

L7308 NQL092K-4R7X P COIL 4.7uH K

L7309 NQL092K-4R7X P COIL 4.7uH K

L7310 NQL092K-4R7X P COIL 4.7uH K

L7311 NQL092K-4R7X P COIL 4.7uH K

L7312 NQL092K-4R7X P COIL 4.7uH K

L7313 NQL092K-4R7X P COIL 4.7uH K

L7314 NQR0339-001X FERRITE BEADS

L7315 NQL092K-4R7X P COIL 4.7uH K

L7316 NQL092K-4R7X P COIL 4.7uH K

L7501 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

L7502 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

L9051 NQLC8CM-150X COIL 15uH M

L9306 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

L9307 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

L9701 NQLC8CM-150X COIL 15uH M

CN001 QGF0508C2-50W CONNECTOR FFC/FPC (1-50)

CN002 QGF0508C2-40W CONNECTOR FFC/FPC (1-40)

J8501 NNZ0179-001 HDMI CONNECTOR DIGITAL IN



Ref No. Part No. Part Name Description Local

(No.YA551)3-19

J8902 NNZ0179-001 HDMI CONNECTOR DIGITAL IN

J8903 NNZ0179-001 HDMI CONNECTOR DIGITAL IN

K6250 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K6251 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K6271 NQR0499-001X FERRITE BEADS

K6272 NQR0499-001X FERRITE BEADS

K6274 NQR0499-001X FERRITE BEADS

K6921 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K7030 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K7031 NQR0450-008X EMI FILTER 2200pF 50V M

K7202 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K7211 NQR0499-002X FERRITE BEADS

K7302 NQR0599-004X FERRITE BEADS

K7308 NRSA02J-390X MG RESISTOR 39

Ω

1/10W J

K7501 NQR0413-002X FERRITE BEADS

K7504 NRSA63J-0R0X MG RESISTOR 0

Ω

1/16W J

K9010 NQR0413-003X FERRITE BEADS

K9051 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K9052 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K9701 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

K9702 NRSA02J-0R0X MG RESISTOR 0

Ω

1/10W J

LC6214 NQR0646-001X EMI FILTER

LC6501 NQR0628-002X EMI FILTER

LC7505 NQR0415-005X EMI FILTER 0.1uF 25V M

LC9301 NQR0450-004X EMI FILTER 100pF 50V M

LC9303 NQR0415-005X EMI FILTER 0.1uF 25V M

LC9305 NQR0415-005X EMI FILTER 0.1uF 25V M

LC9307 NQR0415-006X EMI FILTER

X5001 NAX0958-001X CXO 74.1758MHz

X6250 NAX0824-001X CXO 27.000000MHz

X7001 NAX0669-001X C RESONATOR 6.000MHz

X7309 NAX0938-001X CRYSTAL 6.000MHz



Ref No. Part No. Part Name Description Local

3-20(No.YA551)

REMOTE CONTROL UNIT PARTS LIST (RM-C1911S-1C)

PACKING

PACKING PARTS LIST

Ref.No. Part No. Part Name Description Local

10032-0023000 BATTERY COVER

Ref.No. Part No. Part Name Description Local

1 GA10290-011A-U PACKING CASE

2 GA10296-085A-U EURO LABEL LT-47DV8BGP

2 GA10296-086A-U EURO LABEL LT-47DV8BJP

3 GA10299-001A-U CUSHION ASSY 4pacs in 1set

4 GA10026-003A-U FORM BAG

5 ------------ BATTERY AAA/R03(x2)

6 RM-C1911S-1C REMOTE CONTROL UNIT

7 GA30007-001A-U DOCUMENT BAGS

8 ------------ WARRANTY CARD BT-54032-1E

 9 LCT2318-001A-U INST BOOK English/German/French/Spanish LT-47DV8BGP

 9 LCT2300-001A-U INST BOOK English LT-47DV8BJP

 10 GA30011-001A-U REGISTRATION CARD LT-47DV8BJP

 11 LCT2289-001A-U DTV INST BOOK English LT-47DV8BJP

12 LC34227-001A CLEANING CLOTH

FRONT



Ya551 LT47DV8

Navigation menu

Versions of this User Manual:

Views

Navigation
